Washer Extractor Parts Manual UW60P3 F232166

User Manual: UW60P3

Open the PDF directly: View PDF .
Page Count: 76

Cover
Model Identification
Table of Contents
Parts Index

Parts

www.alliancelaundry.com

Washer-Extractor

Pocket Hardmount

Refer to Page 3 for Model Numbers

PHM1411C_F232166

Models UW60P2 and UW60P3

Model UW60B2

Part No. F232166R16

August 2017

F232166 1

means without the expressed written consent of the publisher.

Table of Contents

Title Page

Parts Ordering Information........................................................................................................................................ 2

Serial Plate Location ................................................................................................................................................. 2

Model Identification ................................................................................................................................................... 3

Pocket Hardmount Washer-Extractor Product Overview .......................................................................................... 4

Decals ....................................................................................................................................................................... 6

Control Module - Model UW60B2 (Drawing 1 of 3)................................................................................................... 8

Control Module - Model UW60B2 (Drawing 2 of 3)................................................................................................. 10

Control Module - Model UW60B2 (Drawing 3 of 3)................................................................................................. 12

Control Module - Models UW60P2 and UW60P3 (Drawing 1 of 4)......................................................................... 14

Control Module - Models UW60P2 and UW60P3 (Drawing 2 of 4)......................................................................... 16

Control Module - Models UW60P2 and UW60P3 (Drawing 3 of 4)......................................................................... 18

Control Module - Models UW60P2 and UW60P3 (Drawing 4 of 4)......................................................................... 20

Balance Switch, Temperature Probe and Rotation Sensor .................................................................................... 22

Supply Dispenser.................................................................................................................................................... 24

Water Supply Valve and Hoses to Supply Dispenser ............................................................................................. 26

Spray Plumbing - Design 5 UW60P2 and UW60P3 Models................................................................................... 28

Spray Plumbing - Design 7 and 8 UW60P2 and UW60P3 Models ......................................................................... 30

Fill Plumbing - Design 5 UW60P2 and UW60P3 Models Through 2/29/02 ............................................................ 32

Fill Plumbing - Design 5 UW60P2 and UW60P3 Models Starting 3/1/02 (Drawing 1 of 2)..................................... 34

Fill Plumbing - Design 5 UW60P2 and UW60P3 Models Starting 3/1/02 (Drawing 2 of 2)..................................... 36

Fill Hoses and U-Bolt - Design 5 UW60P2 and UW60P3 Models Starting 3/1/02 .................................................. 38

Fill Plumbing - Design 7 and 8 UW60P2 and UW60P3 Models.............................................................................. 40

Fill Plumbing - Model UW60B2 ............................................................................................................................... 42

Drain System, Overflow and Vent Pipes ................................................................................................................. 44

Basket, Shell and Frame......................................................................................................................................... 46

Door and Spray Tube.............................................................................................................................................. 48

Door Lock................................................................................................................................................................ 50

Front, Side and Rear Panels................................................................................................................................... 52

Motor and Pulley - Models UW60B2 and UW60P2................................................................................................. 54

Motor and Pulley - Model UW60P3......................................................................................................................... 56

Electric Heat Option ................................................................................................................................................ 58

Steam Heat Option and Transformers .................................................................................................................... 60

Security Fasteners .................................................................................................................................................. 62

Special Tools .......................................................................................................................................................... 64

Parts Index .............................................................................................................................................................. 67

2F232166

Parts Ordering Information

If literature or replacement parts are required, con-

tact the source from whom the machine was pur-

chased or contact Alliance Laundry Systems at

(920) 748-3950 for the name and address of the

nearest authorized parts distributor.

For technical assistance, call the number listed

below:

(920) 748-3121 Ripon, Wisconsin

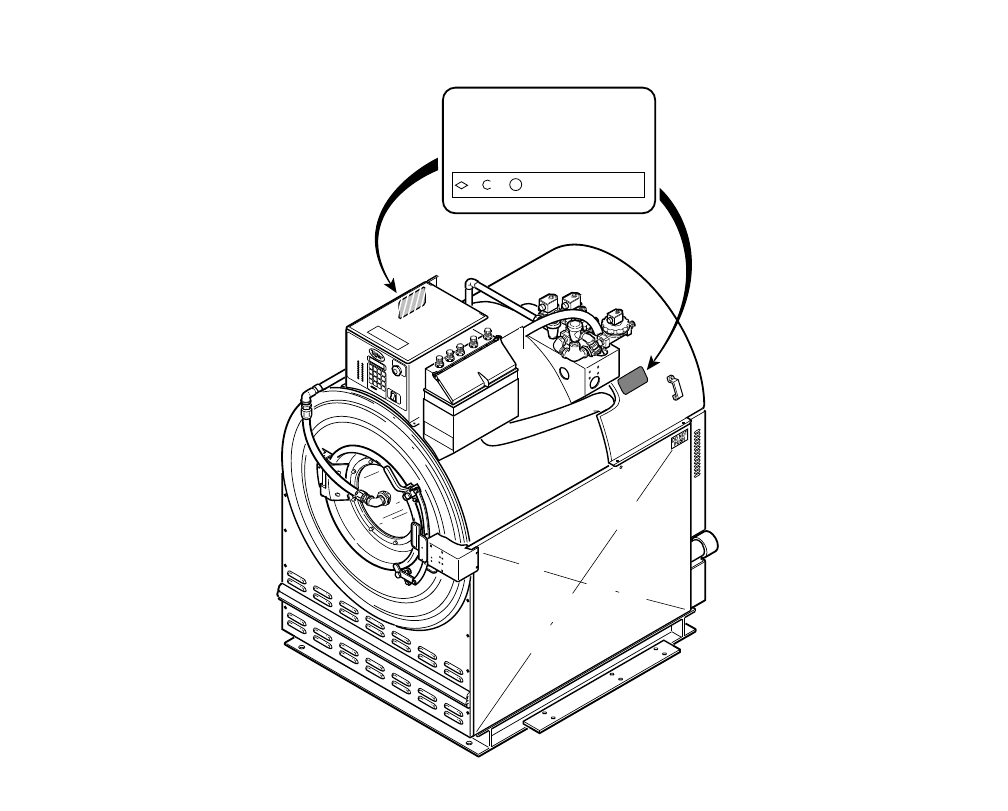

Serial Plate Location

When calling or writing about your product, be

sure to mention model and serial numbers. Model

and serial numbers are located on serial plate(s)

as shown.

PHM2382P_F232166

Model No.

Serial No.

Voltage Amps

Required Circuit Breaker Amps.

Hz Wire Phase

Max. Load KG Max. Speed RPMLB

Elec. Heating

Product No. Date Code

KW Steam Press PSI BAR

F232166 3

Model Identification

Information in this manual is applicable to these washer-extractor models:

UW60B2

UW60P2

UW60P3

NOTE: Models with 5, 7 or 8 in the 9th position in the model number (e.g. UW60P2OU50001).

4F232166

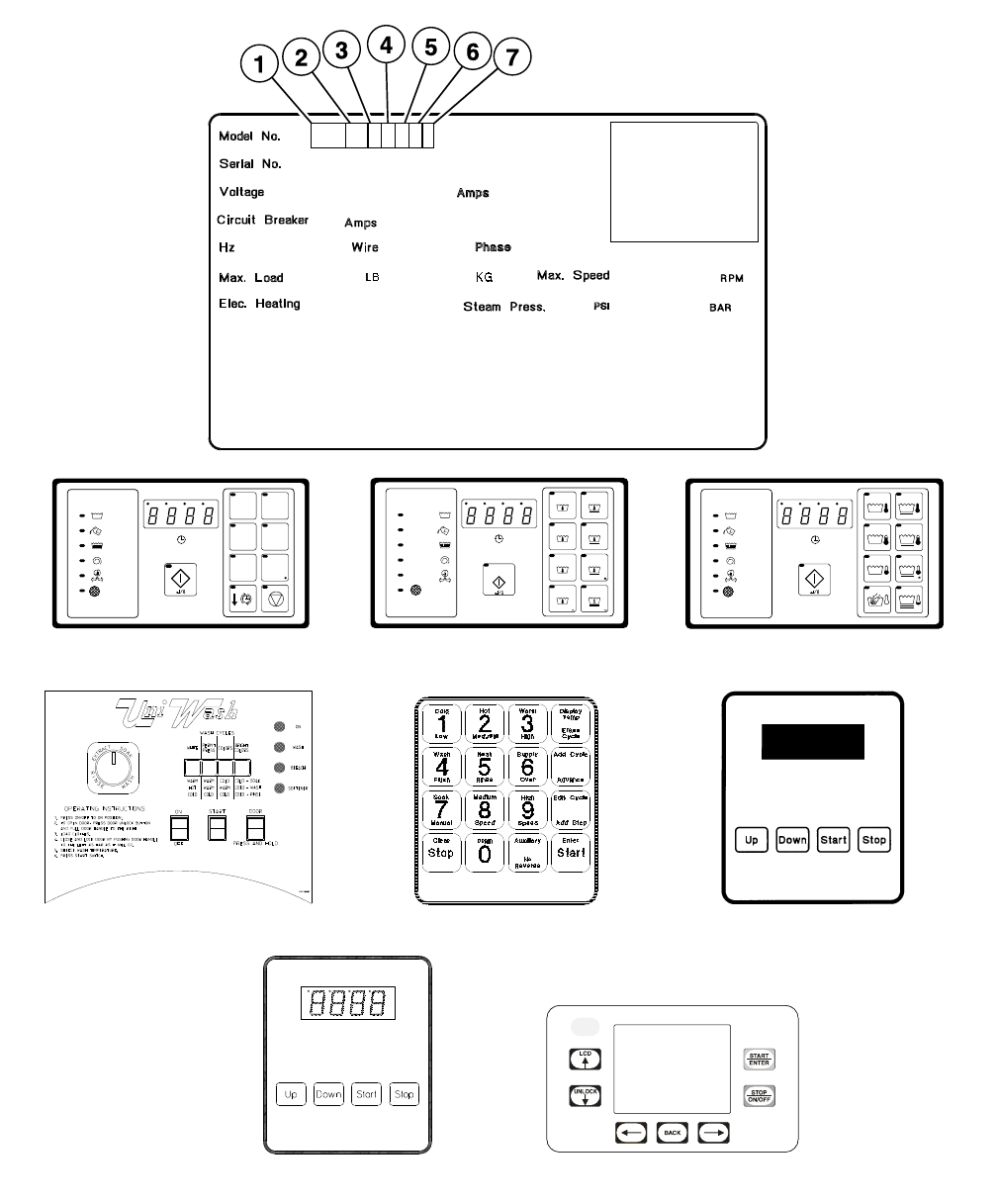

Pocket Hardmount Washer-Extractor Product Overview

A-Control

NORMAL

LIGHT SOIL

UNIFORMS

HEAVY SOIL

STAINED

DELICATE

HOT

HOT HOT

HOT

WARM

COLD

START

PERM PRESS

VISA

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

B-Control (Domestic)

60C 60C

40C 40C

95C 95C

30C

B-Control (International)

Mechanical Timer S-Computer

V-Computer UniLinc Control

WE-6 Control

PHM2979P_F232166

UW60AVXU80001

00000000000

200 – 240

50 – 60 2/3 S 3

60 27 594

N/A N/A 0.0

ETL Listed

Conforms To ANSI/UL Std. 1206, 3rd Ed

Certified To CAN/CSA Std. C22.2 No.53-1968

Drawings:

F232166 5

Pocket Hardmount Washer-Extractor Product Overview

REF PART NO. DESCRIPTION COMMENTS

1-Product Family UW

2- Capacity (Pounds) 35

100

125

150

3- Control A (A-Control)

B (B-Control)

M (Mechanical Timer)

P (WE-6 Control)

S (S-Computer)

V (V-Computer)

T (UniLinc Control)

4- Speed 2 (2-Speed)

3 (3-Speed)

4 (4-Speed)

V (Variable-Speed)

5- Voltage F (440-480/60/3/3)

N (440-480/50-60/3/3)

O (208-240/60/3/3)

P (380-415/60-60/3/3)

Q (200-208/220-240/50/60/3ph)

R (380-415/440-480/50/60/3ph)

X (200-220/220-240/50/60/1-3)

Y (208-240/60/1/2)

6- OEM U (Standard Specs)

7- Design Series 1-8

6F232166

Decals

PHM2894P_F232166

CONDUCTORS ONLY

COPPER

P/N 231146

F232166 7

Decals

REF PART NO. DESCRIPTION COMMENTS

1D505281 Disconnect Power Warning Label

2F230301 This Machine Must Be Protected Decal

3F231146 Conductor Decal

4F231345-4 External Supply Caution Decal

5F231380 Hot Surface Warning Decal

6F231368 Cold Water Valve Decal

7F231367 Hot Water Valve Decal

8F230302 Do Not Push Decal

9F231436 Supply Dispenser Hazard Caution Decal

10 F230501 Before Power Is Connected Tag

11 F230652 Clockwise Spin Rotation Decal

12 F200085000 Hot Surface Warning Decal

13 F231065 Personal Injury Warning Decal

8F232166

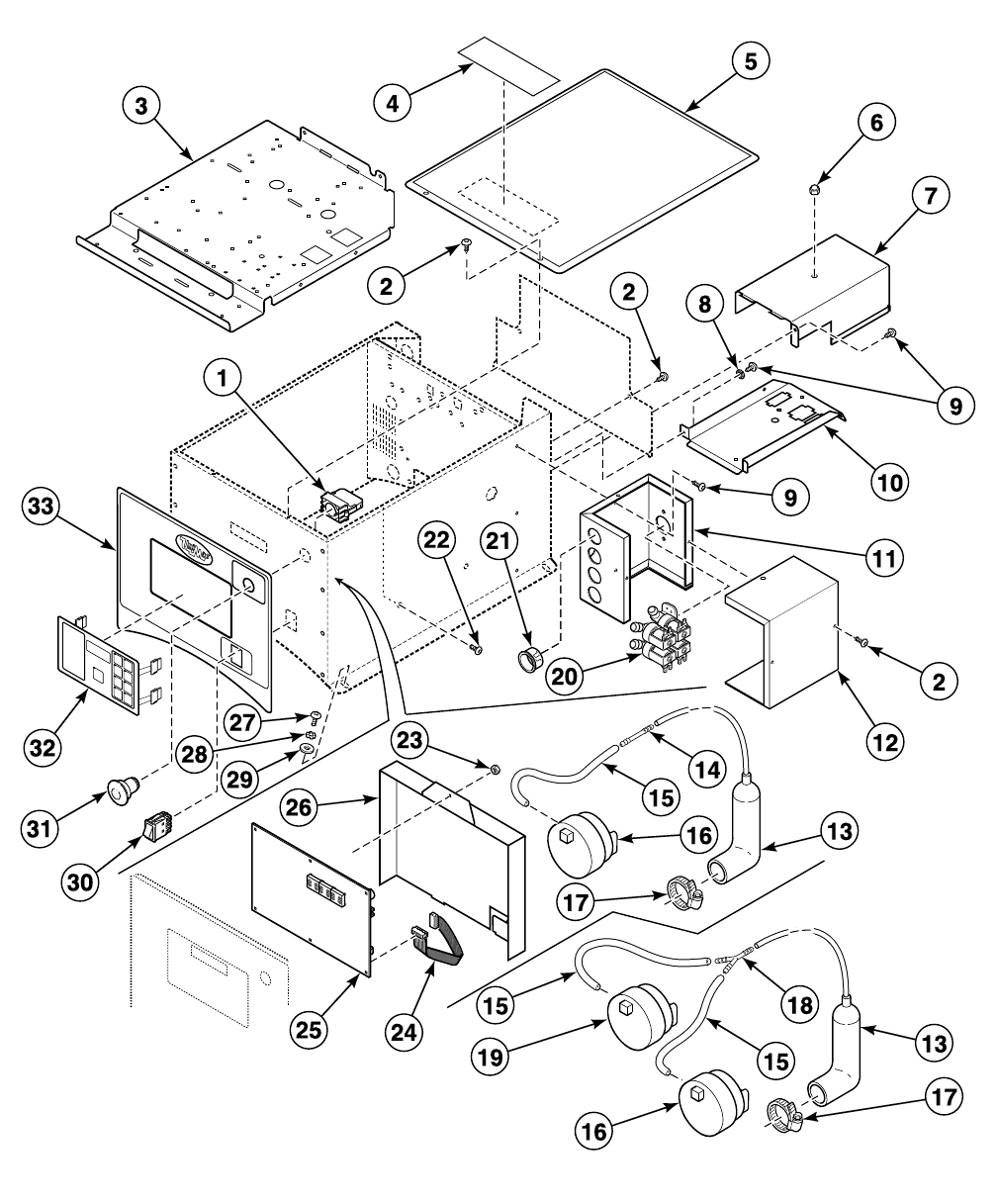

Control Module - Model UW60B2 (Drawing 1 of 3)

PHM2433P_F232166

Models With

Electric Heat

Standard

Models

F232166 9

Control Module - Model UW60B2 (Drawing 1 of 3)

REF PART NO. DESCRIPTION COMMENTS

1F340445 Contact Block Switch 800E-series; Includes F200299500 Contact Block

Switch

1F200299500 Contact Block Switch 800E-series

1F200233700P Emergency Stop Button Kit Used to convert from 800E-series to 800F-series;

Includes F200233401 Contact Block Switch and

F200233500 Emergency Stop Pushbutton

1F200233401 Contact Block Switch 800F-series; Models starting 10/1/07; Includes

F8069501 Contact Switch and F8538101 Contact Base

1F8069501 Contact Switch Models starting 10/1/07

1F8538101 Contact Base Models starting 10/1/07

1F0636339-00P E-Stop Harness

270240301 Screw

3N/A Control Mounting Panel Assembly

4D505281 Disconnect Power Warning Label

5F635456 Control Module Cover

6F431026 Nut

7F635476 Cable Tray Cover

8F431113 Washer

9F430917 Screw

10 N/A Cable Tray Assembly

11 F635468 External Supply Box

12 F635365 External Supply Box Cover

13 F020014200 Air Trap Hose

14 F422500 Connector

15 F422404P Tubing

16 F0340347-10P Water Level Switch

17 F200215 Hose Clamp No. 28

18 F422806 Tee

19 F8223001P Water Pressure Switch 1 level

20 F381723P 4-Way Valve

20 G582P3 Diaphragm and Guide Kit

21 F140938 Snap Bushing

22 F430928 Screw

23 F431000 Nut

24 F140247 Ribbon Cable 26 pin; 8 inch

25 F0370455-20P Computer

26 F0636887-00 Control Cover

27 F8136401 Screw

28 F431108 Washer

29 F431123 Washer

30 F340412 Momentary Switch Models through 5/26/04

30 F200120100 Momentary Switch Models starting 5/27/04

31 N/A Emergency Stop Pushbutton 800E-series; Order F200233700P Emergency Stop

Button Kit

31 F200233500 Emergency Stop Pushbutton 800F-series; Models starting 10/1/07

32 F0231582-01P Keypad

33 F0231565-00 Control Module Decal

N/A = Part no longer available

10 F232166

Control Module - Model UW60B2 (Drawing 2 of 3)

PHM2128P_F232166

F232166 11

Control Module - Model UW60B2 (Drawing 2 of 3)

REF PART NO. DESCRIPTION COMMENTS

NA F200295900 Main Harness

1F431702 Screw

2F0170427-00 Output Board Cover

3F431806 Nut

4F037044860-2 Output CCA

5F140247 Ribbon Cable 26 pin; 8 inch

6F350110 Fuse 1 Amp; Slo blo

6F350109 Fuse 1/2 Amp; Fast blo

6F350108 Fuse 1/8 Amp; Slo blo

7F330177P Contactor

8F330186P Interlock Contactor

9F602595-5 DIN Contactor Mounting Rail

10 F430903 Screw

11 F350217 Circuit Breaker C and F-voltage

12 F330230 Flange Relay 220 Volt

13 F430928 Screw

14 F180501 Standoff

12 F232166

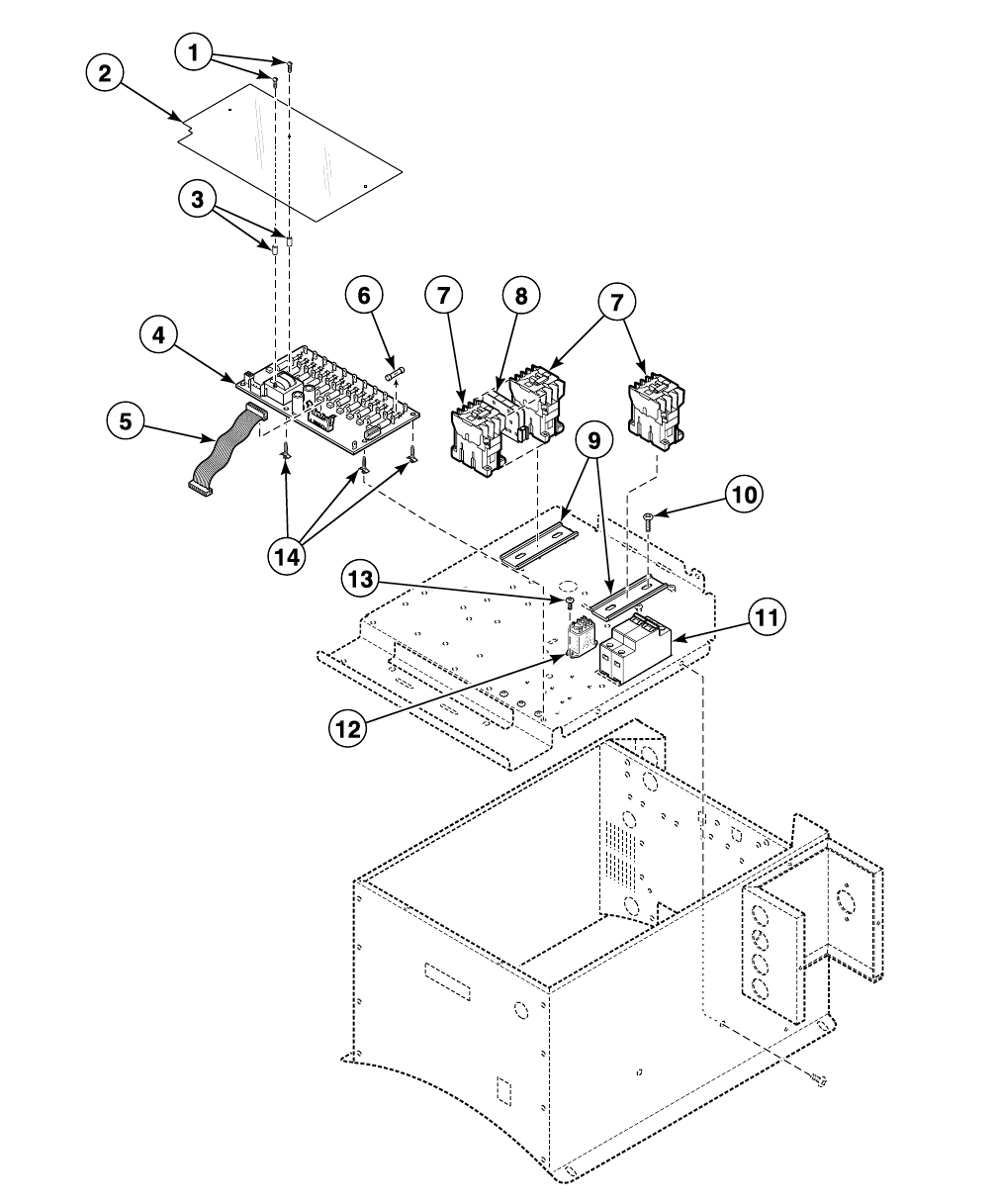

Control Module - Model UW60B2 (Drawing 3 of 3)

PHM1934P_F232166

F232166 13

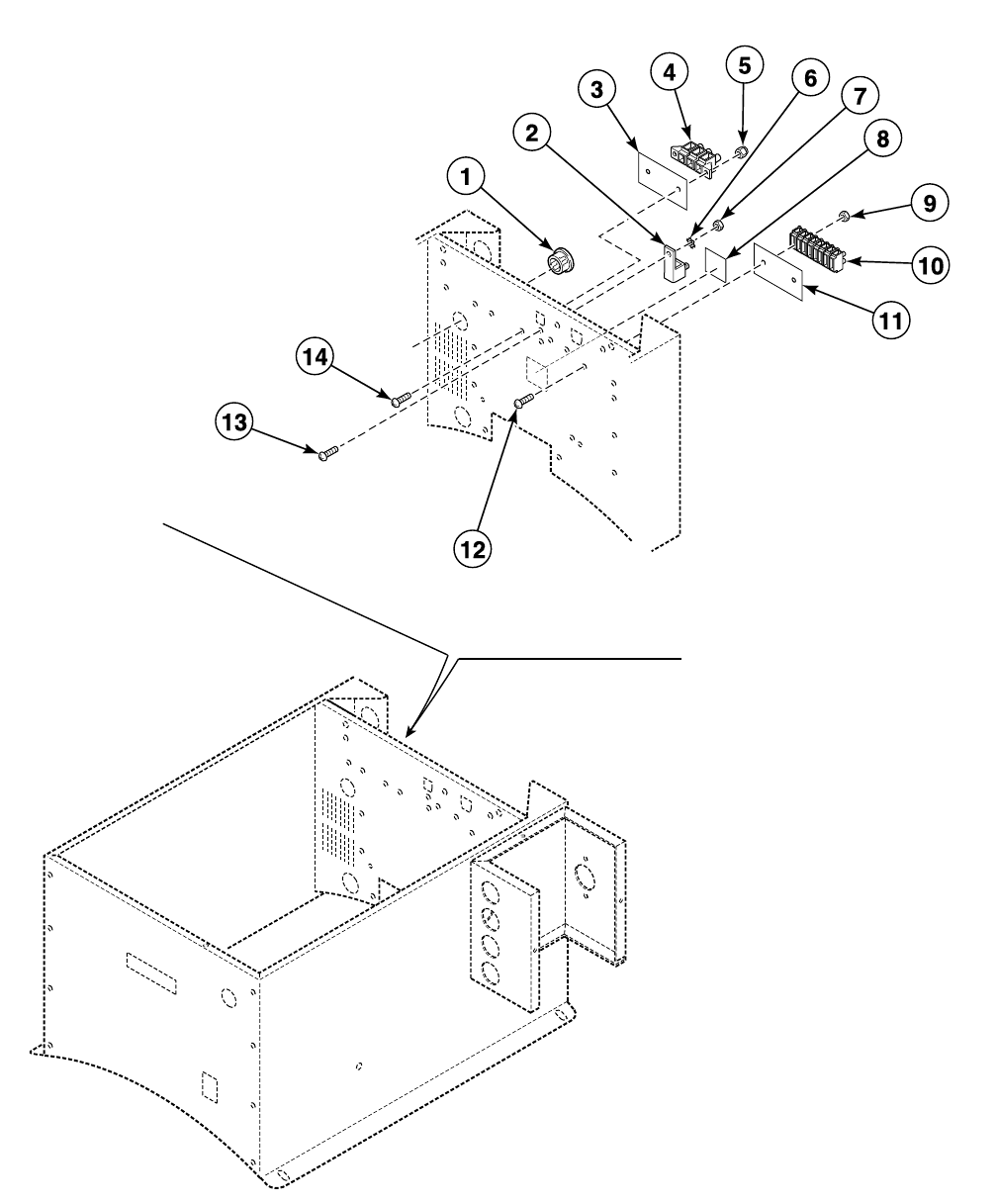

Control Module - Model UW60B2 (Drawing 3 of 3)

REF PART NO. DESCRIPTION COMMENTS

1F140909 Insulator Bushing

2F140734 Ground Terminal Lug

3F231437 Input Power Decal

4F140794-1 Input Power Block

5F430231 Nut

6F431106 Washer

7F431000 Nut

8F230630 Ground Decal

9F430231 Nut

10 F140776 Terminal Block

11 F230764-11 External Supply Connection Decal O-voltage

11 F230764-12 External Supply Connection Decal F-voltage

12 F430910 Screw

13 F430995 Screw

14 F430920 Screw

14 F232166

Control Module - Models UW60P2 and UW60P3 (Drawing 1 of 4)

PHM2343P_F232166

F232166 15

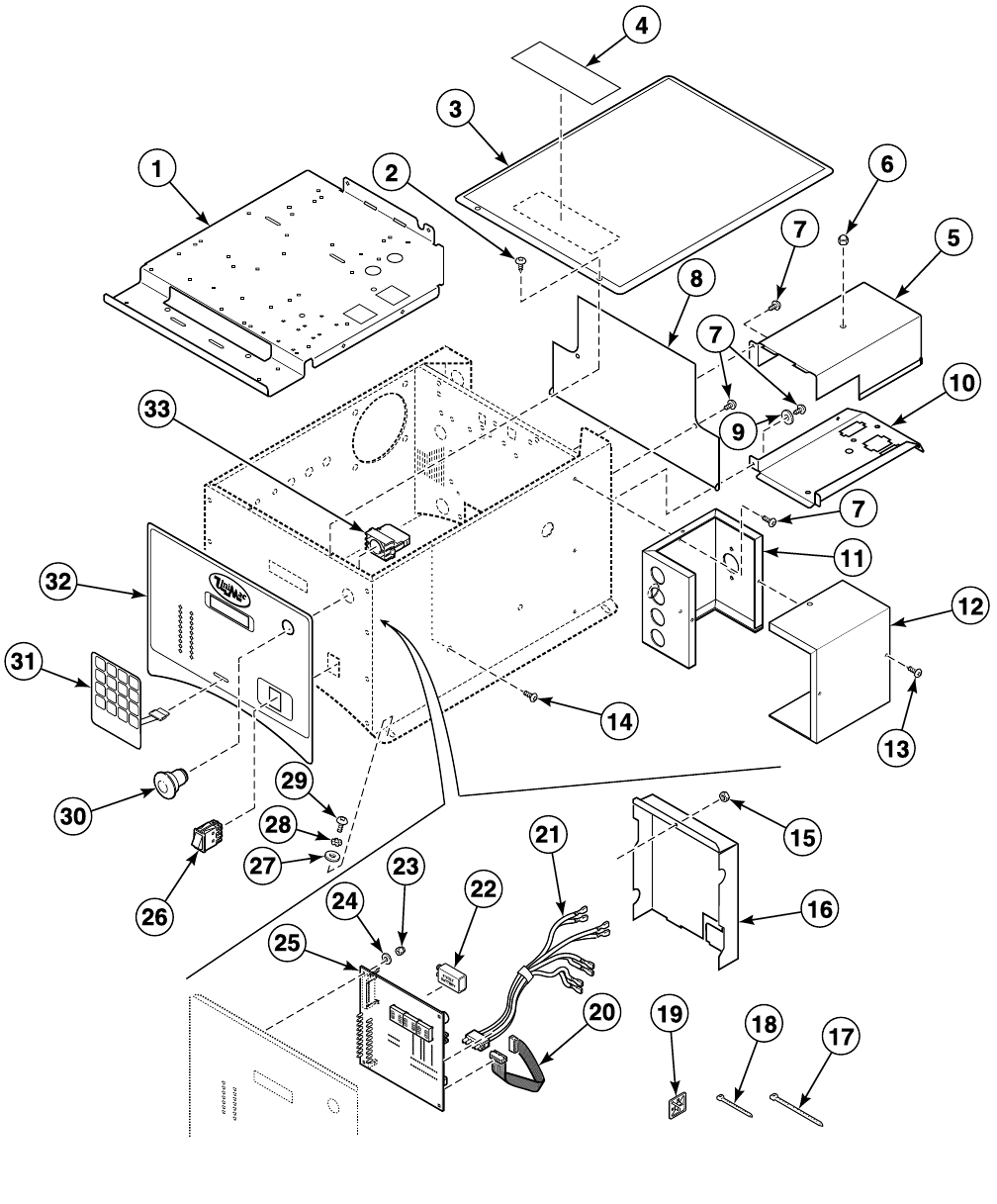

Control Module - Models UW60P2 and UW60P3 (Drawing 1 of 4)

REF PART NO. DESCRIPTION COMMENTS

NA F0635734-01 Main Harness

1N/A Control Mounting Panel Assembly

270240301 Screw

3F635456 Control Module Cover

4D505281 Disconnect Power Warning Label

5F635478 Cable Tray Cover

6F431026 Nut

7F430917 Screw

8F635448 Electrical Access Panel Design 5 models

8F0637549-00 Electrical Access Panel Design 7 and 8 models

9F431113 Washer

10 N/A Cable Tray Assembly

11 F635468 External Supply Box

12 F633435 External Supply Box Cover

13 F430174 Screw

14 F430928 Screw

15 F431000 Nut

16 F606826 Computer Cover

17 F140606 Cable Tie 15 inch

18 F140605 Cable Tie 6 inch

19 F140602 Tie Wrap Mounting Clamp

20 F140219P Ribbon Cable 26-pin; 15 inch; Connects computer to output cca

21 F0141930-00 Computer Input Harness

22 F191101 Battery 9 Volt; Backup

23 F430231 Nut

24 F431125 Washer

25 F370534-00P WE-6 Computer

26 F340412 Momentary Switch Models through 5/26/04

26 F200120100 Momentary Switch Models starting 5/27/04

27 F431123 Washer

28 F431108 Washer

29 F8136401 Screw

30 N/A Emergency Stop Pushbutton 800E-series; Order F200233700P Emergency Stop

Button Kit

30 F200233500 Emergency Stop Pushbutton 800F-series; Models starting 10/1/07

31 F230724P Keypad Decal

32 F231562 Control Module Decal

33 F340445 Contact Block Switch 800E-series; Includes F200299500 Contact Block

Switch

33 F200299500 Contact Block Switch 800E-series

33 F200233700P Emergency Stop Button Kit Used to convert from 800E-series to 800F-series;

Includes F200233401 Contact Block Switch and

F200233500 Emergency Stop Pushbutton

33 F200233401 Contact Block Switch 800F-series; Models starting 10/1/07; Includes

F8069501 Contact Switch and F8538101 Contact Base

33 F8069501 Contact Switch Models starting 10/1/07

33 F8538101 Contact Base Models starting 10/1/07

N/A = Part no longer available

16 F232166

Control Module - Models UW60P2 and UW60P3 (Drawing 2 of 4)

PHM2650P_F232166

F232166 17

Control Module - Models UW60P2 and UW60P3 (Drawing 2 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F180506 Standoff

2F140219P Ribbon Cable 26-pin; 15 inch; Connects computer to output cca

3F8321901P Output CCA

4F330177P Contactor

5F330186P Interlock Contactor

6F350110 Fuse 1 Amp; Slo blo

6F350109 Fuse 1/2 Amp; Fast blo

6F350108 Fuse 1/8 Amp; Slo blo

7F602595-5 DIN Contactor Mounting Rail

8F430928 Screw

9F330230 Flange Relay 220 Volt

10 F430903 Screw

11 F8303001P Circuit Breaker F-voltage

12 F430231 Nut

13 F430910 Screw

14 F220900 Filter Retainer Guard

15 F300206 Buzzer 220 Volt

18 F232166

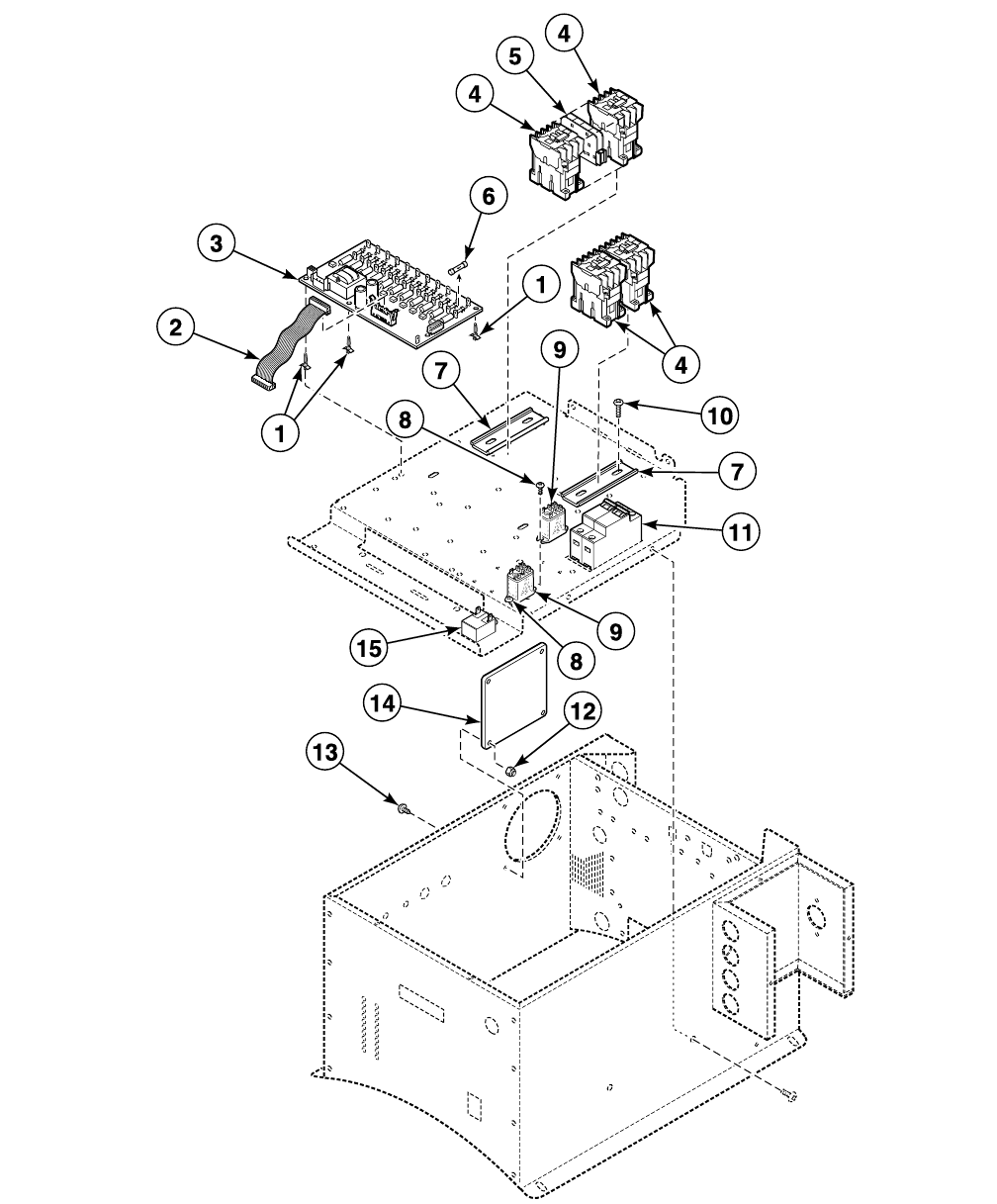

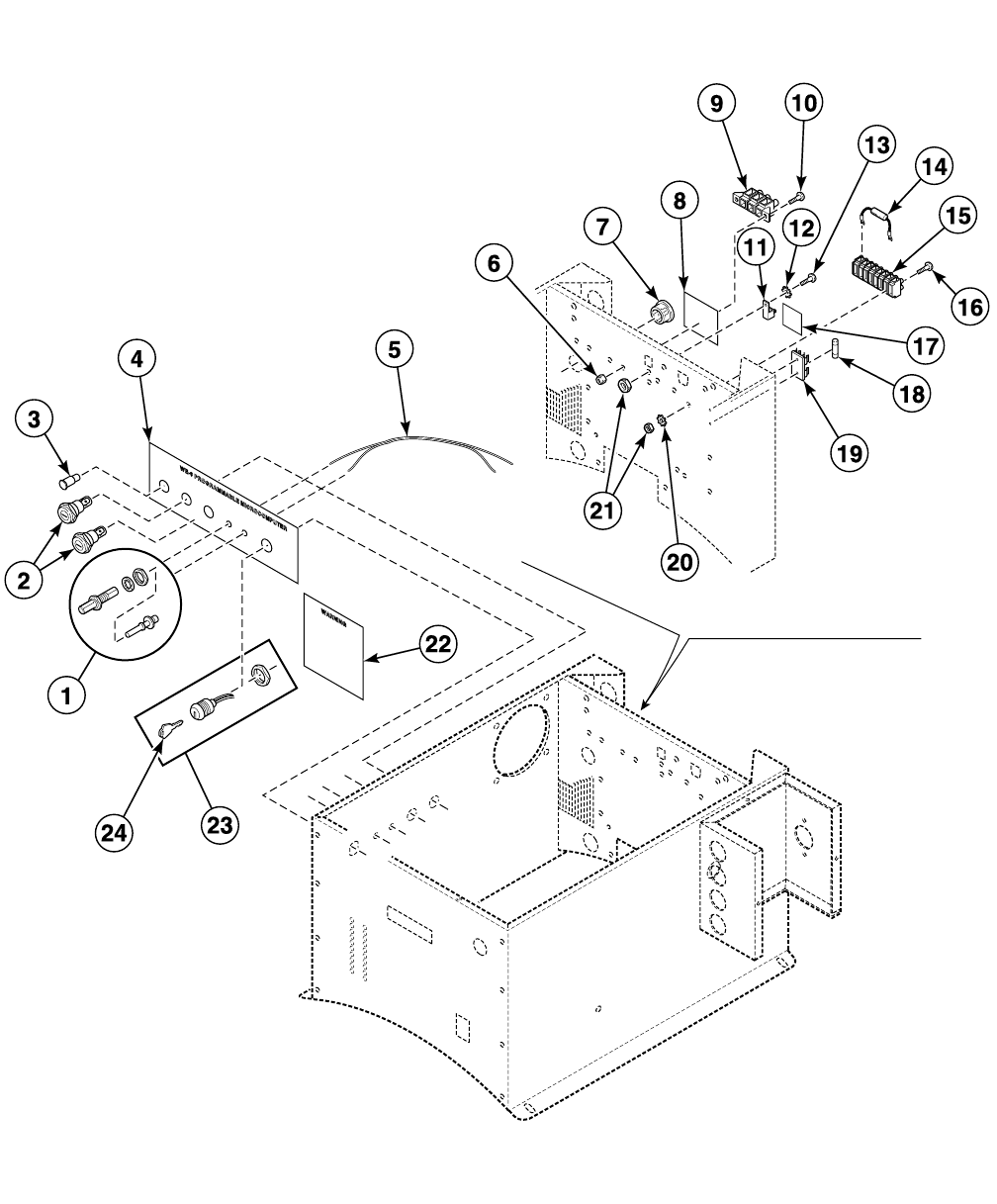

Control Module - Models UW60P2 and UW60P3 (Drawing 3 of 4)

PHM2548P_F232166

F232166 19

Control Module - Models UW60P2 and UW60P3 (Drawing 3 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F140575P Connector Gray

1F140576P Connector Blue

2F350218 Circuit Breaker 1 Amp; Models through 5/11/03

2F0350313-00P Fuse Holder Models starting 5/12/03

2F350142 Fuse 2 Amp; Slo blo; Models starting 5/12/03

3F350404 Signal Light Red; 220 Volt

4F231581 Switch Mode Decal Models through 5/11/03

4F0231632-01 Switch Mode Decal Models starting 5/12/03

5F604713 Cable Assembly

6F431022 Nut

7F140909 Insulator Bushing

8F0231636-00 Input Block Decal

9F140794-1 Input Power Block

10 F430938 Screw

11 F140734 Ground Terminal Lug

12 F431106 Washer

13 F430903 Screw

14 F370116 Resistor 12k, 5w

15 F140776 Terminal Block 8 place

16 F430910 Screw

17 F230630 Ground Decal

18 F350115 Fuse 3 Amp; Fast blo

19 F0350312-10 Fuse Holder

20 F431108 Washer

21 F431000 Nut

22 F231065 Personal Injury Warning Decal

23 F340800P Keymode Run/Program Switch Includes item 24

24 F370709 Program Key A153

20 F232166

Control Module - Models UW60P2 and UW60P3 (Drawing 4 of 4)

PHM2061P_F232166

F232166 21

Control Module - Models UW60P2 and UW60P3 (Drawing 4 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F0340347-10P Water Level Switch

2F422404P Tubing

3F422500 Connector

4F020014200 Air Trap Hose

5F200215 Hose Clamp No. 28

6F381723P 4-Way Valve 220 Volt

6G582P3 Diaphragm and Guide Kit 220 Volt

7F140938 Snap Bushing

22 F232166

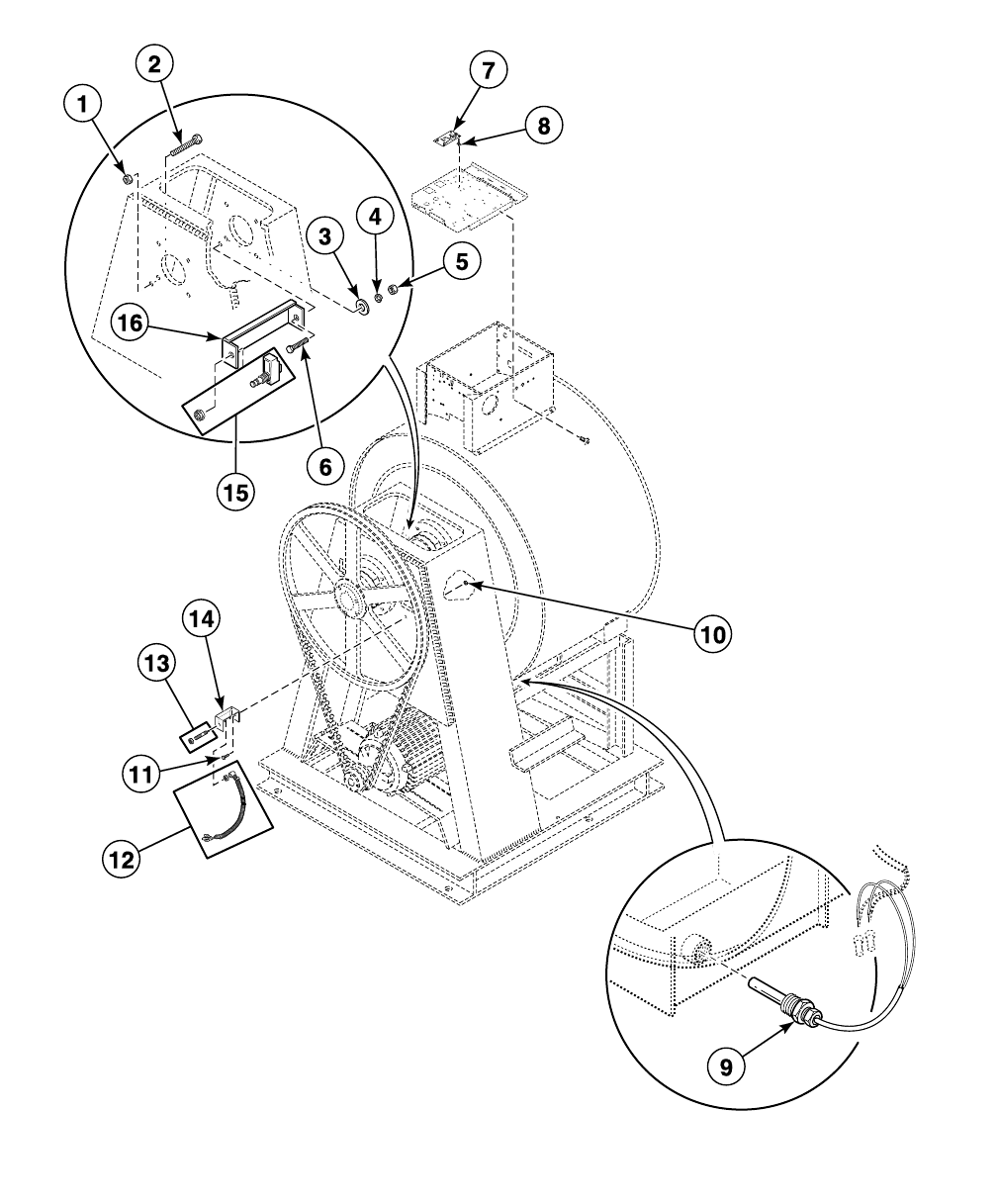

Balance Switch, Temperature Probe and Rotation Sensor

PHM2499P_F232166

F232166 23

Balance Switch, Temperature Probe and Rotation Sensor

REF PART NO. DESCRIPTION COMMENTS

1H88412101 Nut Models UW60P2 and UW60P3; Models through 10/14/07

144087301 Nut Models UW60P2 and UW60P3; Models starting 10/15/07

2F0430539-00 Bolt Models UW60P2 and UW60P3; Models through 10/14/07

2F8111101 Screw Models UW60P2 and UW60P3; Models starting 10/15/07

3M400081 Washer Models UW60P2 and UW60P3

4M400014 Washer Models UW60P2 and UW60P3

520274 Nut Models UW60P2 and UW60P3; Models through 10/14/07

544087301 Nut Models UW60P2 and UW60P3; Models starting 10/15/07

6800461 Screw Models UW60P2 and UW60P3; Models through 10/14/07

6F8122701 Screw Models UW60P2 and UW60P3; Models starting 10/15/07

7F200101300P Rotation Sensor PCB Models UW60P2 and UW60P3

8F180501 Standoff Models UW60P2 and UW60P3

9F370606P Temperature Probe

10 F430218 Nut Models UW60P2 and UW60P3

11 F430927 Screw Models UW60P2 and UW60P3

12 F8066401 Rotation Sensor Harness Models UW60P2 and UW60P3

13 F200126200P Rotation Sensor Assembly Models UW60P2 and UW60P3

13 F079900800 Rotation Sensor Retrofit Kit Includes items 7, 8, 10-12 and 14; Models UW60P2 and

UW60P3

14 F200122502 Rotation Sensor Bracket Models UW60P2 and UW60P3

15 F340900 Interlock Switch Models UW60P2 and UW60P3

16 F601750 Balance Switch Bracket Models UW60P2 and UW60P3; Models through 10/14/07

16 F8124301 Balance Switch Bracket Models UW60P2 and UW60P3; Models starting 10/15/07

24 F232166

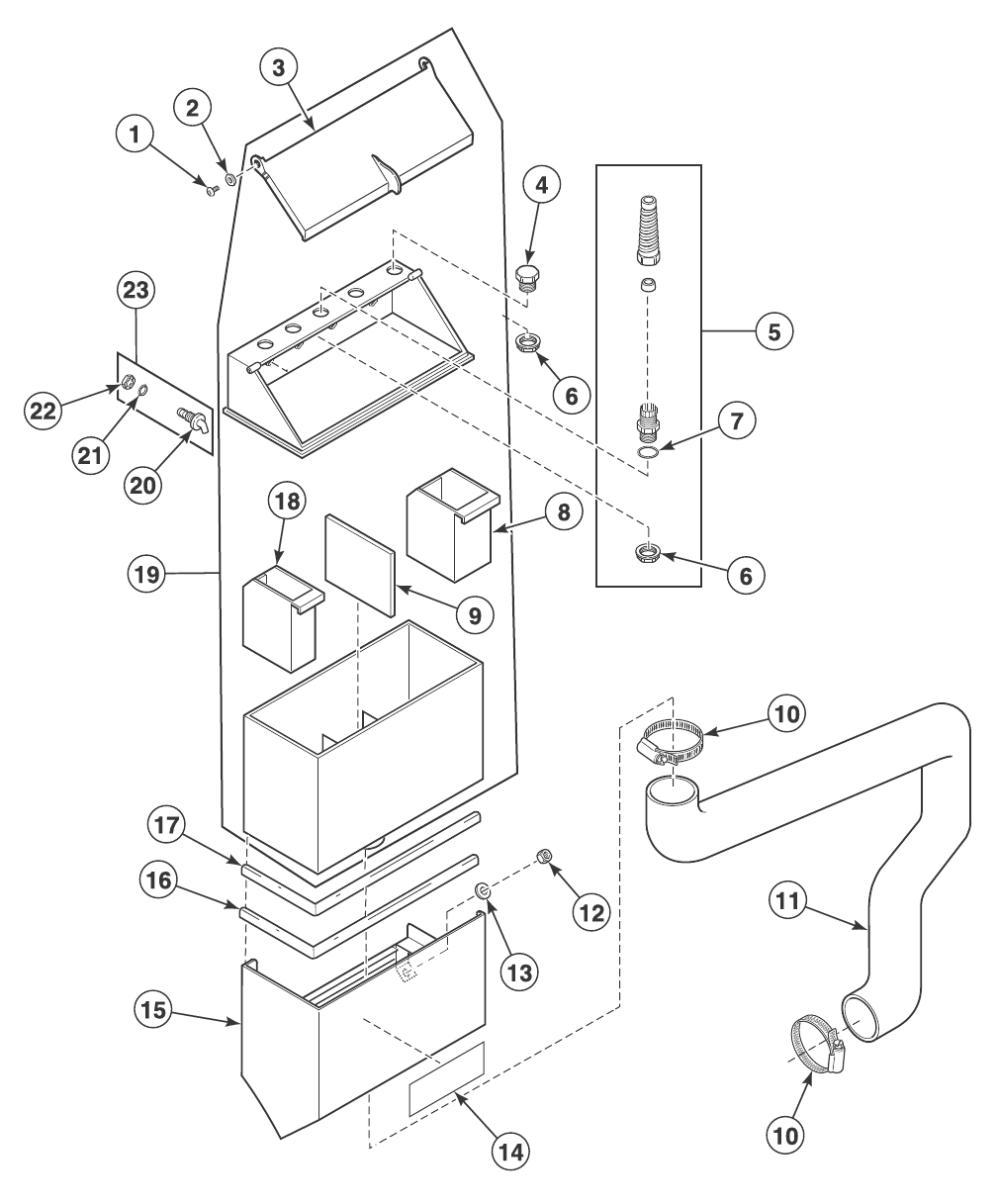

Supply Dispenser

PHM3237P_F232166

F232166 25

Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1F430917 Screw

2F8195301 Washer

3F0150514-00 Dispenser Lid

4F190304 Plug Cap

5F749802 Strain Relief Adapter Kit Includes items 6 and 7

6F140340P Strain Relief Connector

7F170215 O-Ring

8F150386 Chemical Supply Cup 32 ounce; 2 used

9F0150525-00 Supply Dispenser Spacer

10 F200213 Hose Clamp No. 40

11 F150469 Chemical Supply Hose

12 F431042 Nut

13 F431147 Washer

14 F231436 Supply Dispenser Hazard Caution Decal

15 F8024301 Soap Dispenser Shroud Weldment

16 F170158P Gasket

17 F170400RP Trim

18 F150385 Chemical Supply Cup 20 ounce; 3 used

19 F0150512-00P Dispenser Assembly Includes items 3, 8, 9 and 18

20 F8322001 Injection Nozzle

21 F170208 O-Ring

22 802292 Nut

23 F730168 Injection Nozzle Kit Includes items 20-22

26 F232166

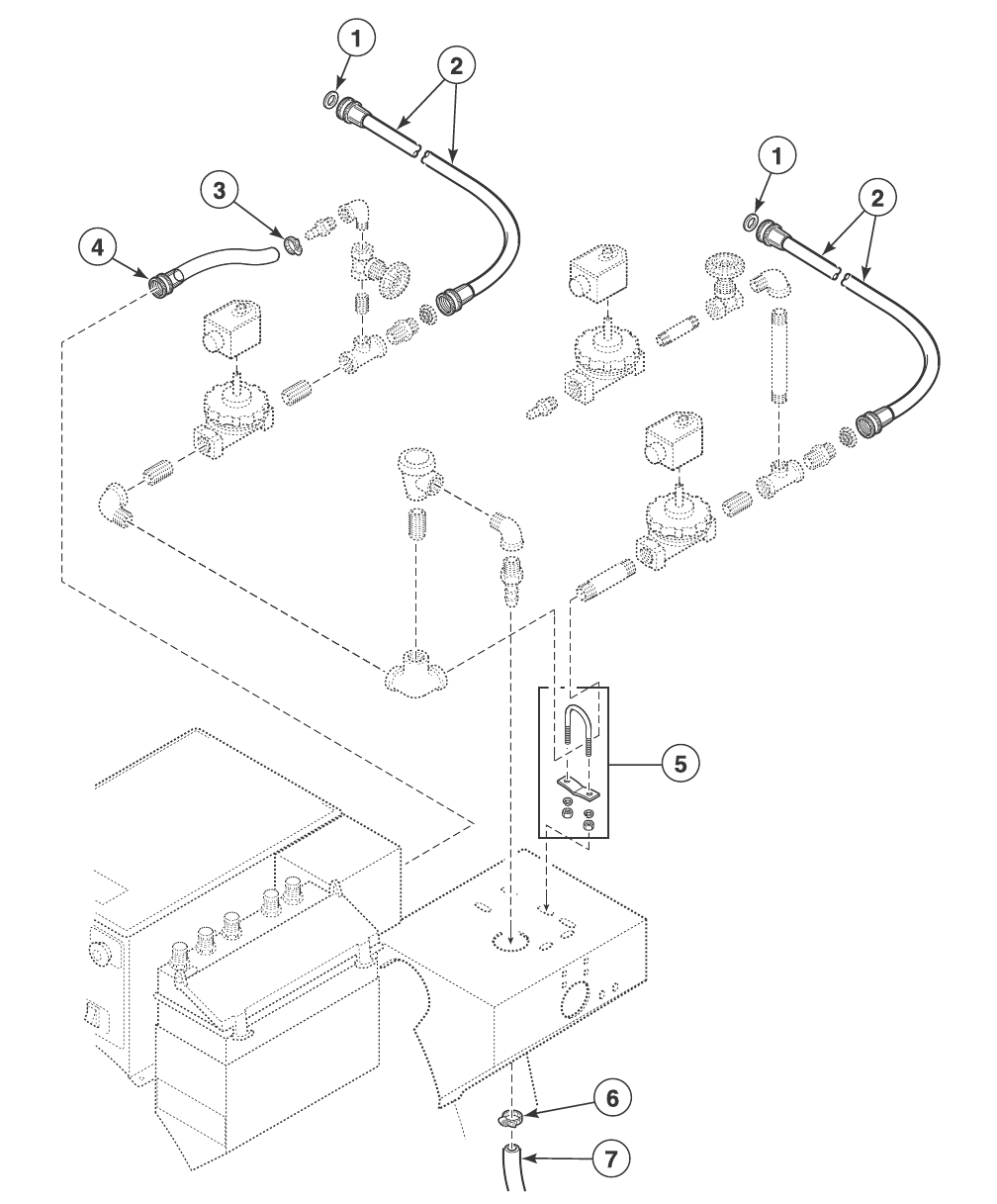

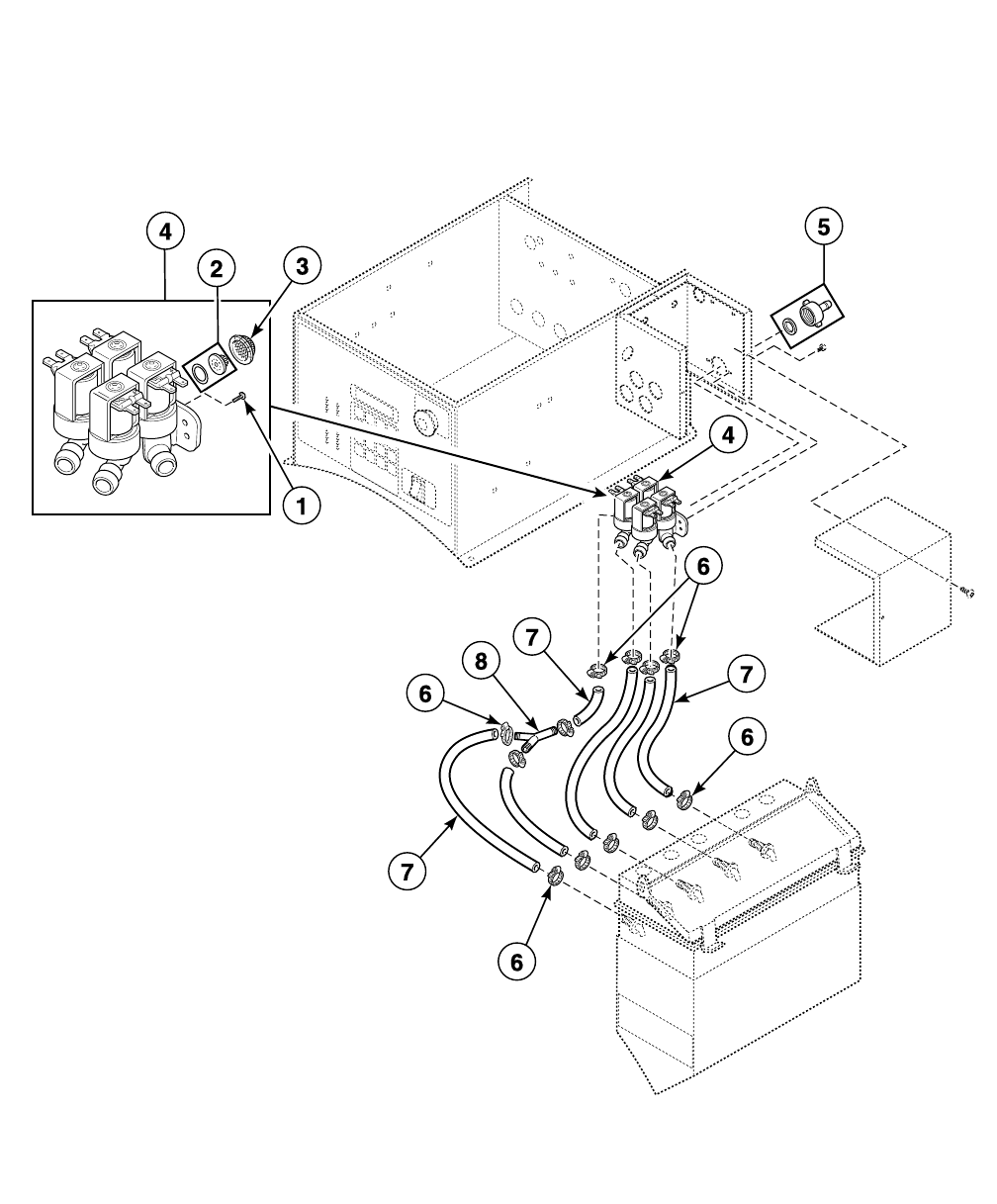

Water Supply Valve and Hoses to Supply Dispenser

PHM2618P_F232166

F232166 27

Water Supply Valve and Hoses to Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1F430948 Screw

2N/A Flow Restrictor

3F270200 Strainer

4F381724P 4-Way Valve 120 Volt

4F381723P 4-Way Valve 220 Volt

4G582P3 Diaphragm and Guide Kit

5F200302 Hose Connector

636801 Hose Clamp No. 6

7F200110P Water Hose

8F422816 Y Connector

N/A = Part no longer available

28 F232166

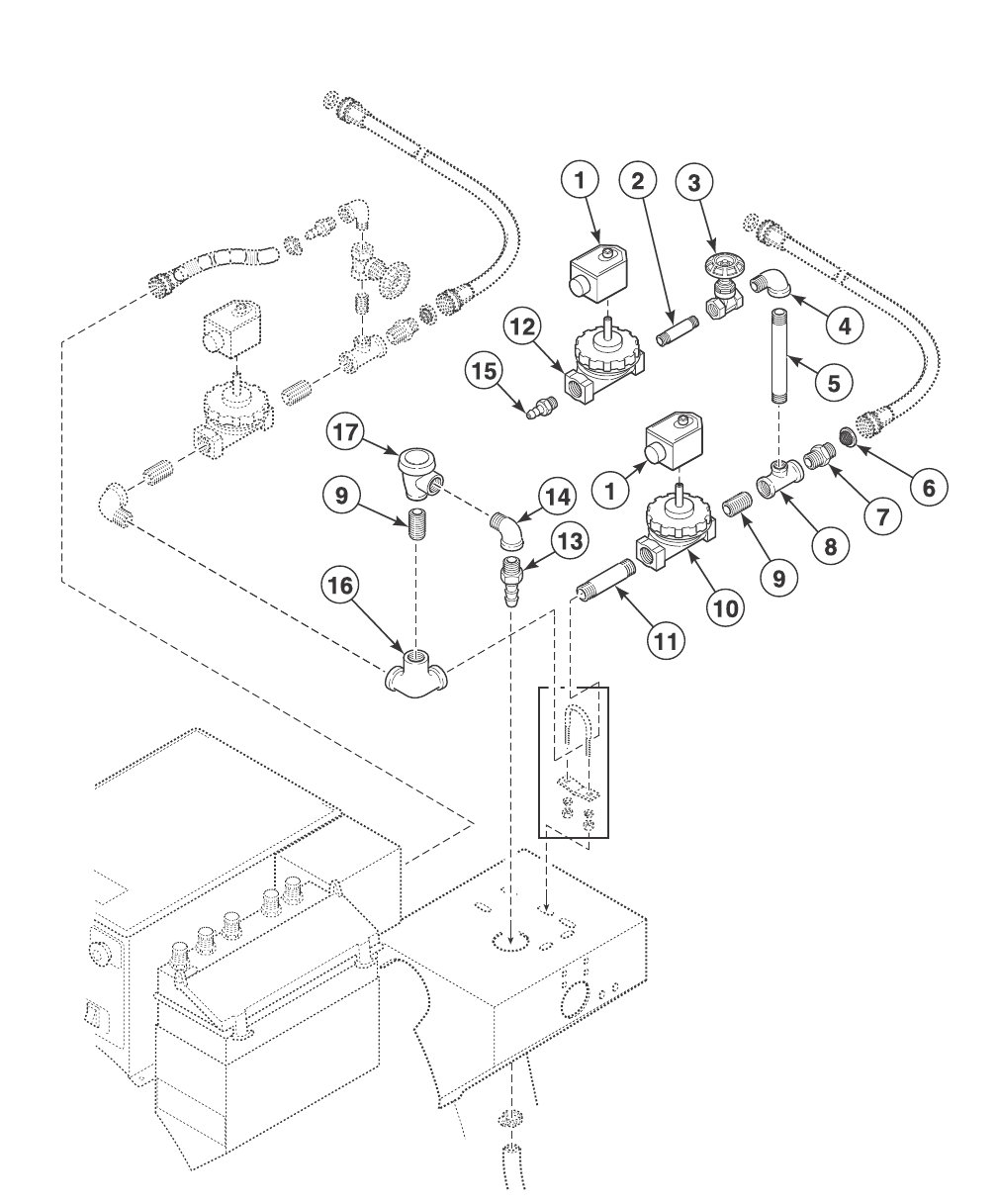

Spray Plumbing - Design 5 UW60P2 and UW60P3 Models

PHM1930P_F232166

F232166 29

Spray Plumbing - Design 5 UW60P2 and UW60P3 Models

REF PART NO. DESCRIPTION COMMENTS

NA F8382301 DIN Valve Adapter Kit Use with F8322803 Valve

NA F8456201 Valve Transition Kit Use with F8322803 Valve

1F633150-1 Spray Plumbing Assembly 220 Volt; Standard thread; Includes items 2-10, 15 and

1F6331 50-5 Spray Plumbing Assembly 220 Volt; Metric thread; Includes items 2-10, 15 and 16

2F420502 Street Elbow

3F420105 Nipple

4F422106 Tube Connector

5F380800P Vacuum Breaker Valve 3/4 inch; F380965 Repair Kit

5F0637547-00 Vacuum Breaker Replacement Kit Includes F830800P Vacuum Breaker Valve,

F0170221-00 O-Ring, F8380808-00 Vacuum Breaker

Cap, F0380809-00 Containment Device and F430938

Screw

6F420401 Tee

7F420101 Nipple

8F381703P Valve 220 Volt; With DIN; 1/2 inch; F380993 Valve Repair Kit;

Parker

8F8322803P Valve 220 Volt; Replaces F381703P Valve; Includes F8514601

Coil

8F141901P DIN Harness Assembly

9F380987P DIN Coil 220 Volt

9F8514601 Coil 220 Volt; Use with F8322803 Valve

10 F421908 Hose Adapter Standard thread

10 F421949 Nipple Metric thread

11 803615 Washer

12 20290 Washer

13 F200164 Water Hose Standard thread

13 F200166 Water Hose Metric thread

14 F200401P U-Bolt Clamp Includes hardware

15 F420103 Nipple

16 F420500 Street Elbow

30 F232166

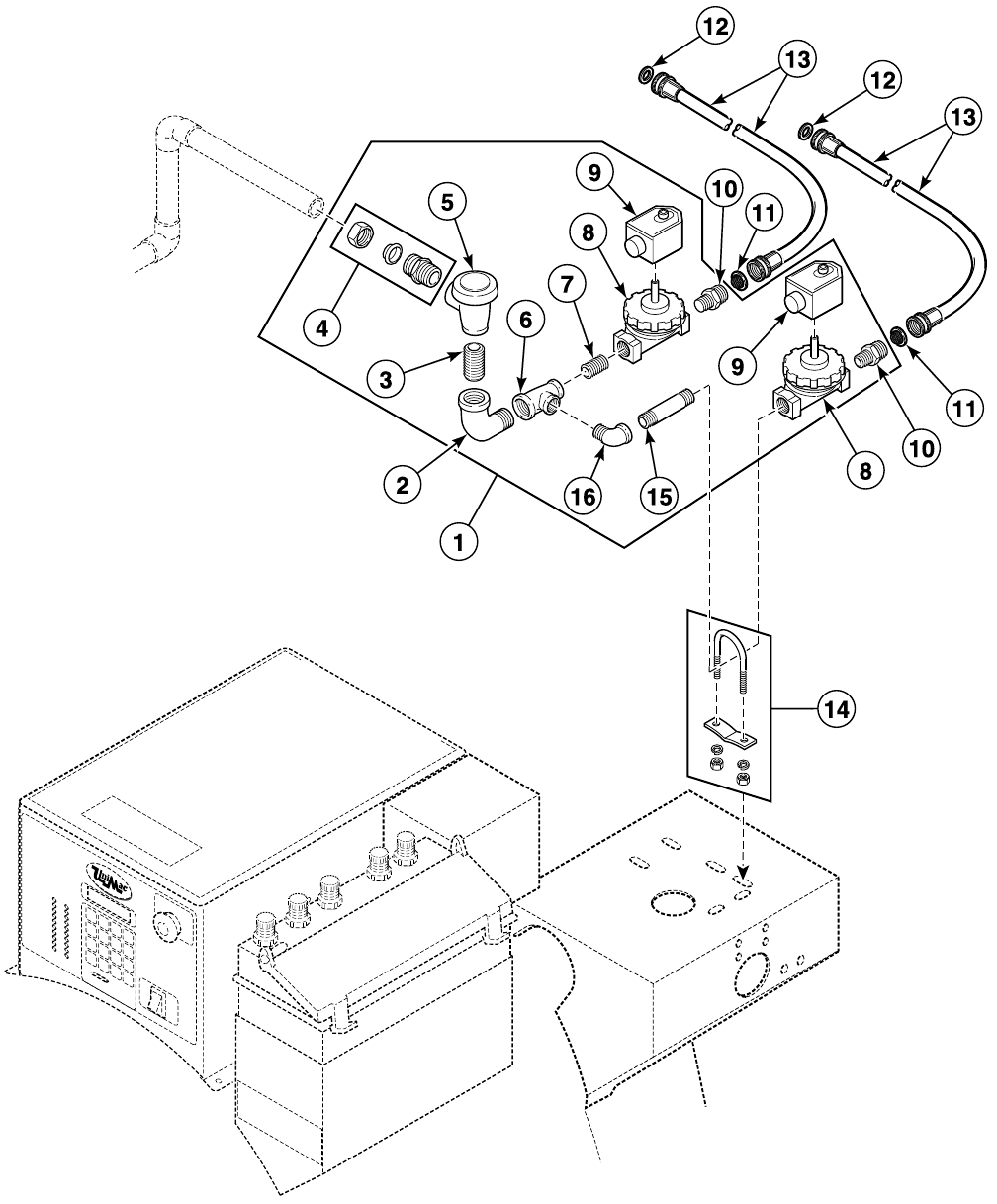

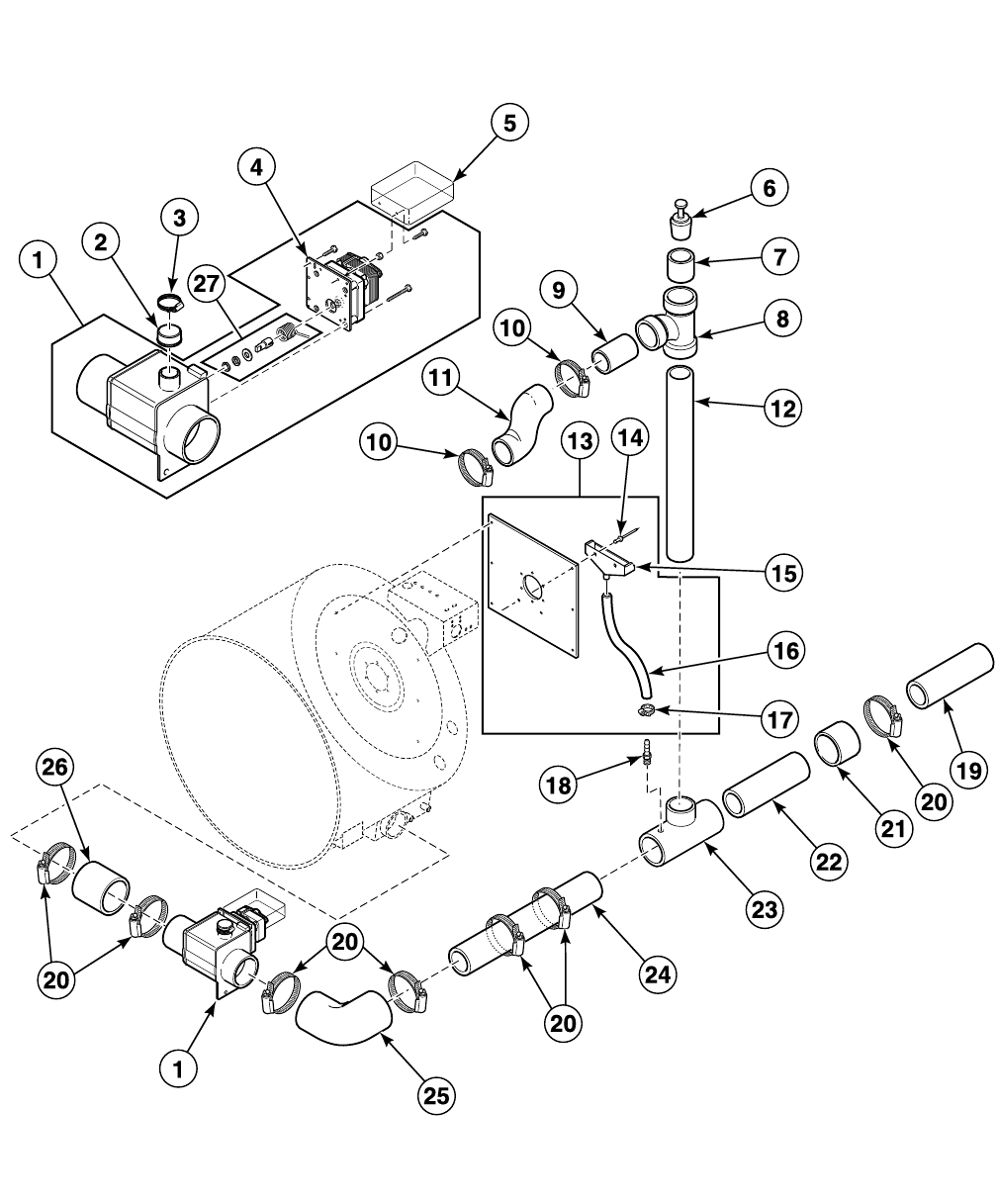

Spray Plumbing - Design 7 and 8 UW60P2 and UW60P3 Models

PHM2062P_F232166

F232166 31

Spray Plumbing - Design 7 and 8 UW60P2 and UW60P3 Models

REF PART NO. DESCRIPTION COMMENTS

NA F8382301 DIN Valve Adapter Kit Use with F8322803 Valve

NA F8456201 Valve Transition Kit Use with F8322803 Valve

1F0637633-01 Spray Plumbing Assembly 220 Volt; Standard thread; Includes items 2-5, 11-16, 20

and 21

1F0637633-03 Spray Plumbing Assembly 220 Volt; Metric thread; Includes items 2-5, 11-16, 20

and 21

2F0422918-00 Elbow

3F420105 Nipple

4F422106 Tube Connector

5F063754701P Vacuum Breaker Valve 3/4 inch; Includes item 10; F380965 Repair Kit

6F0170221-00 O-Ring

7F0380809-00 Containment Device

8F0380808-00 Vacuum Breaker Cap

9F430938 Screw

10 F0798922-00 Vacuum Breaker Kit Includes items 6-9 and installation instructions

11 F420101 Nipple

12 F420400 Tee

13 F381703P Valve 220 Volt; 1/2 inch; F380993 Valve Repair Kit; Parker

13 F8322803P Valve 220 Volt; Replaces F381703P Valve; Includes

F8514601 Coil

13 F141901P DIN Harness Assembly

14 F380987P DIN Coil 220 Volt

14 F8514601 Coil 220 Volt; Use with F8322803 Valve

15 F421908 Hose Adapter Standard thread

15 F421949 Nipple Metric thread

16 803615 Washer

17 20290 Washer

18 F200164 Water Hose Standard thread

18 F200166 Water Hose Metric thread

19 F200401P U-Bolt Clamp Includes hardware

20 F420103 Nipple

21 F420500 Street Elbow

32 F232166

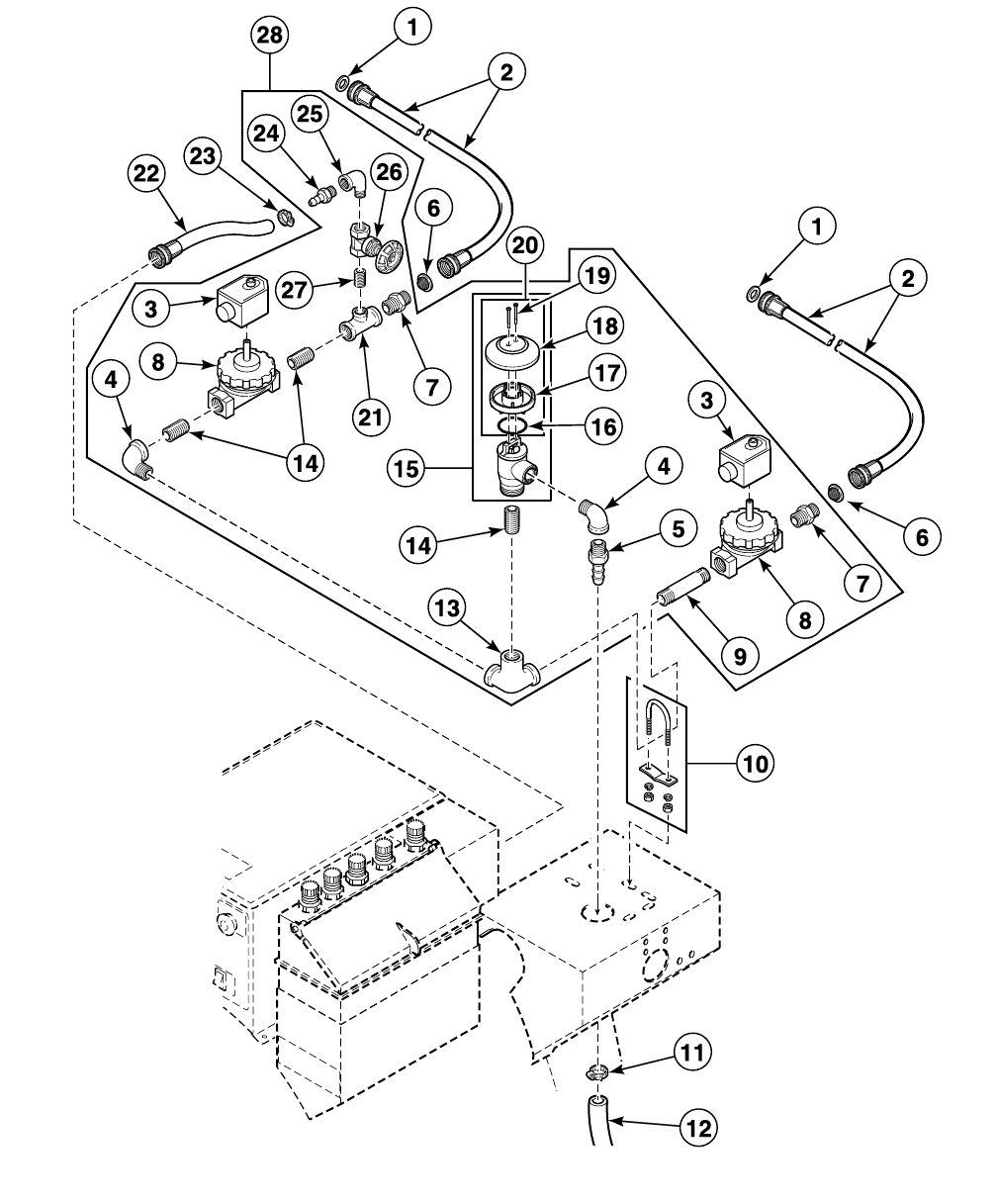

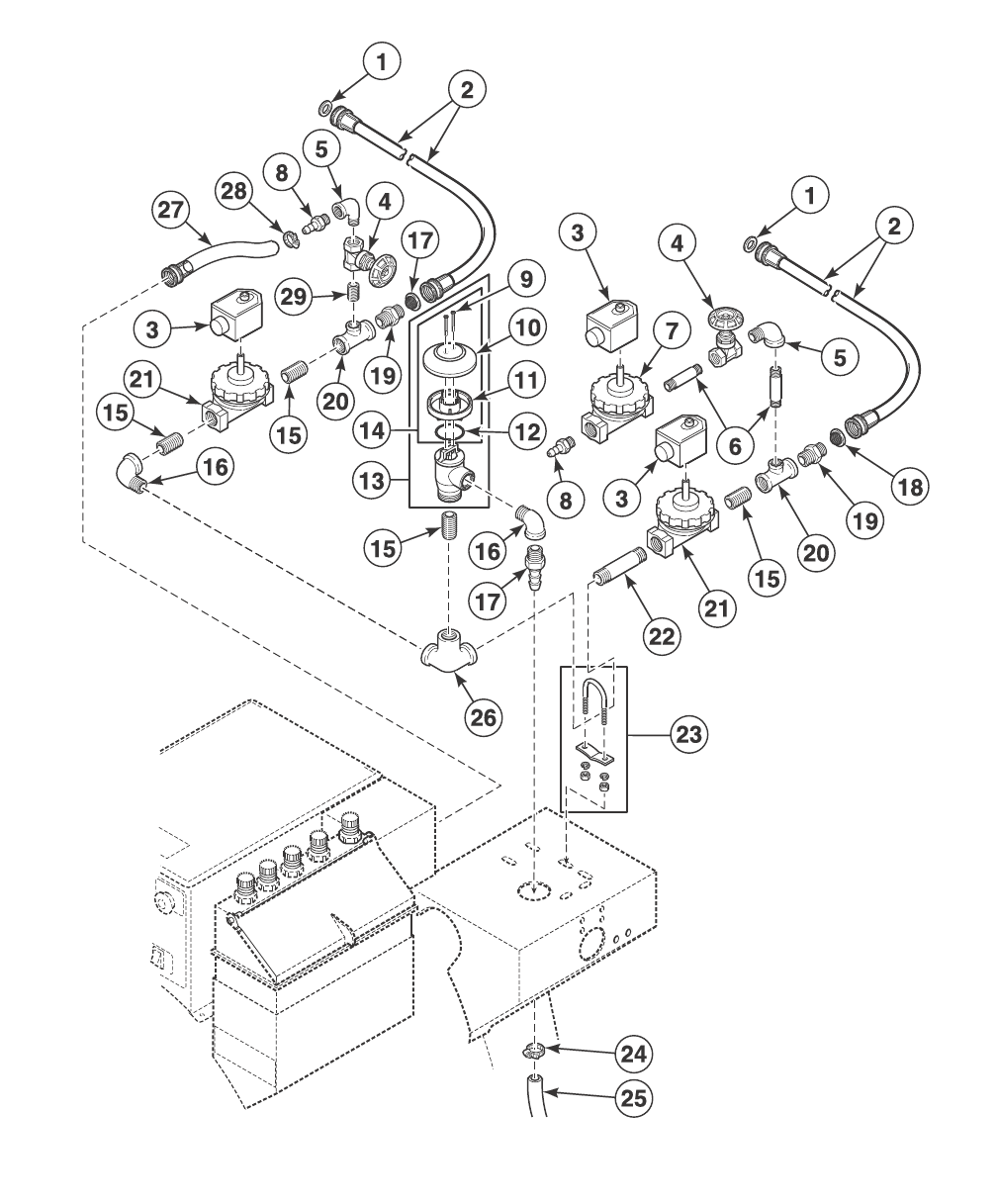

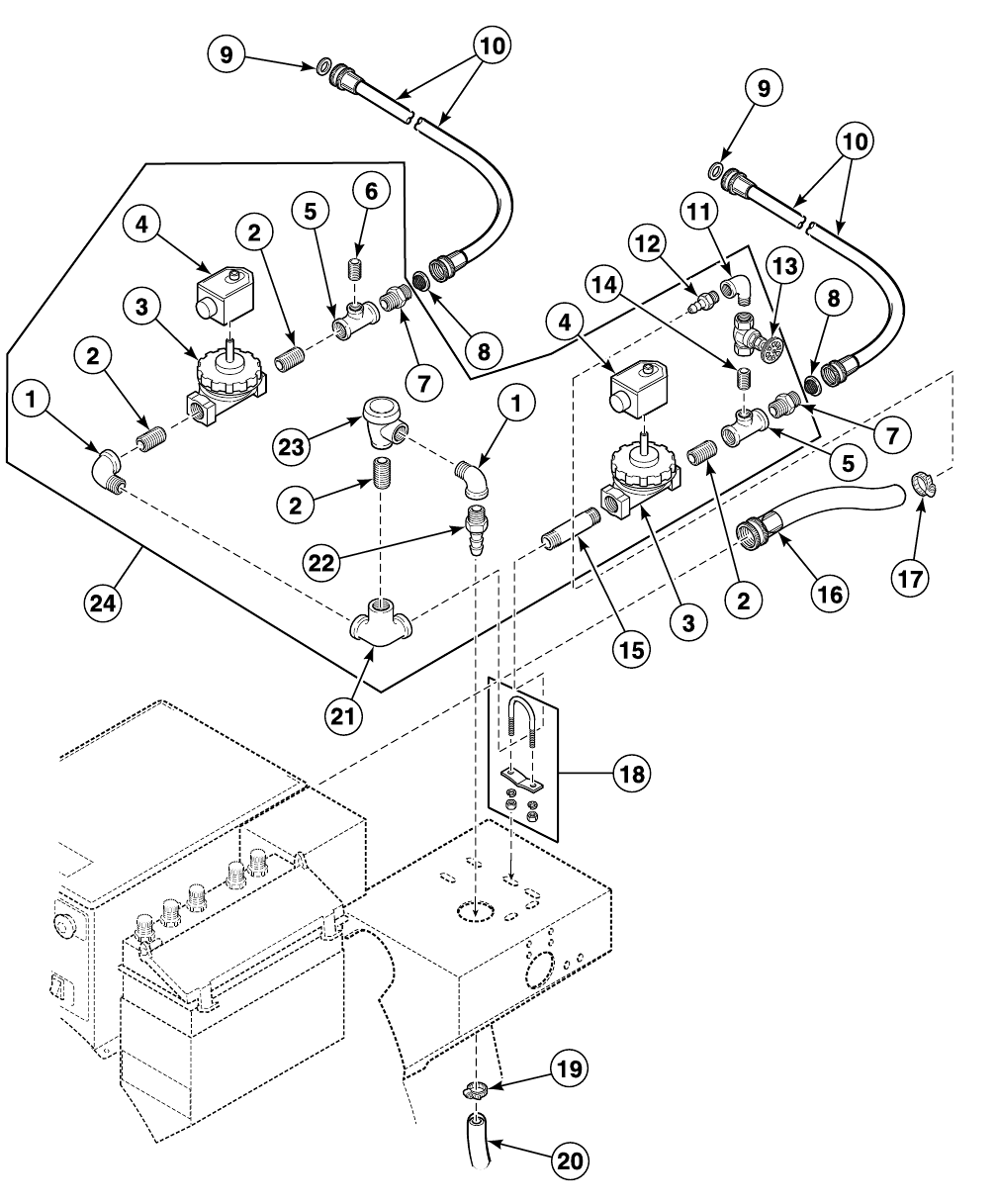

Fill Plumbing - Design 5 UW60P2 and UW60P3

Models Through 2/29/02

PHM1931P_F232166

F232166 33

Fill Plumbing - Design 5 UW60P2 and UW60P3

Models Through 2/29/02

REF PART NO. DESCRIPTION COMMENTS

NA F8382301 DIN Valve Adapter Kit Use with F8322905 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

1F420502 Street Elbow

2F420105 Nipple

3F381701P Valve 220 Volt; With DIN; 3/4 inch; F380991 Valve Repair Kit; Parker

3F8322905 Valve 220 Volt; Replaces F381701P Valve; Includes F8514601 Coil; For

models that have been upgraded with F8521801 DIN Valve Kit

3F8521801 DIN Valve Kit 220 Volt; Replaces F381701P Valve; Includes F8322905 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

3F141901P DIN Harness Assembly

4F380987P DIN Coil 220 Volt

4F8514601 Coil 220 Volt; Use with F8322905 Valve

5F420400 Tee

6F420408 Plug

7F421909 Hose Adapter Standard thread

7F8265701 Adapter Metric thread

8803615 Washer

920290 Washer

10 F200164 Water Hose Standard thread

10 F200166 Water Hose Metric thread

11 F420500 Street Elbow

12 F421951 Hose Barb

13 F380500 Gate Valve

14 F420101 Nipple

15 F420103 Nipple

16 F200509 Water Hose

17 F200206 Hose Clamp No. 4

18 F200401P U-Bolt Clamp

19 F200222 Hose Clamp No. 12

20 F200104P Hose

21 F420509 Elbow

22 F421964 Hose Barb

23 F380800P Vacuum Breaker Valve 3/4 inch; F380965 Repair Kit

23 F0637547-00 Vacuum Breaker

Replacement Kit

Includes F830800P Vacuum Breaker Valve, F0170221-00 O-Ring,

F8380808-00 Vacuum Breaker Cap, F0380809-00 Containment

Device and F430938 Screw

24 F633146-1 Fill Plumbing Assembly Standard thread; Includes items 1-7, 11-15 and 21-23

24 F633419-1 Fill Plumbing Assembly Standard thread; Starch; Includes items 1-7, 11-15 and 21-23

24 F633146-3 Fill Plumbing Assembly 220 Volt; Brass option; Includes items 1-7, 11-15 and 21-23

24 F633146-5 Fill Plumbing Assembly Metric thread; Includes items 1-7, 11-15 and 21-23

24 F633146-6 Fill Plumbing Assembly 120 Volt; Metric thread and brass option; Includes items 1-7, 11-15

and 21-23

24 F633146-7 Fill Plumbing Assembly 220 Volt; Metric thread and brass option; Includes items 1-7, 11-15

and 21-23

24 F633419-5 Fill Plumbing Assembly Metric thread; Starch; Includes items 1-7, 11-15 and 21-23

34 F232166

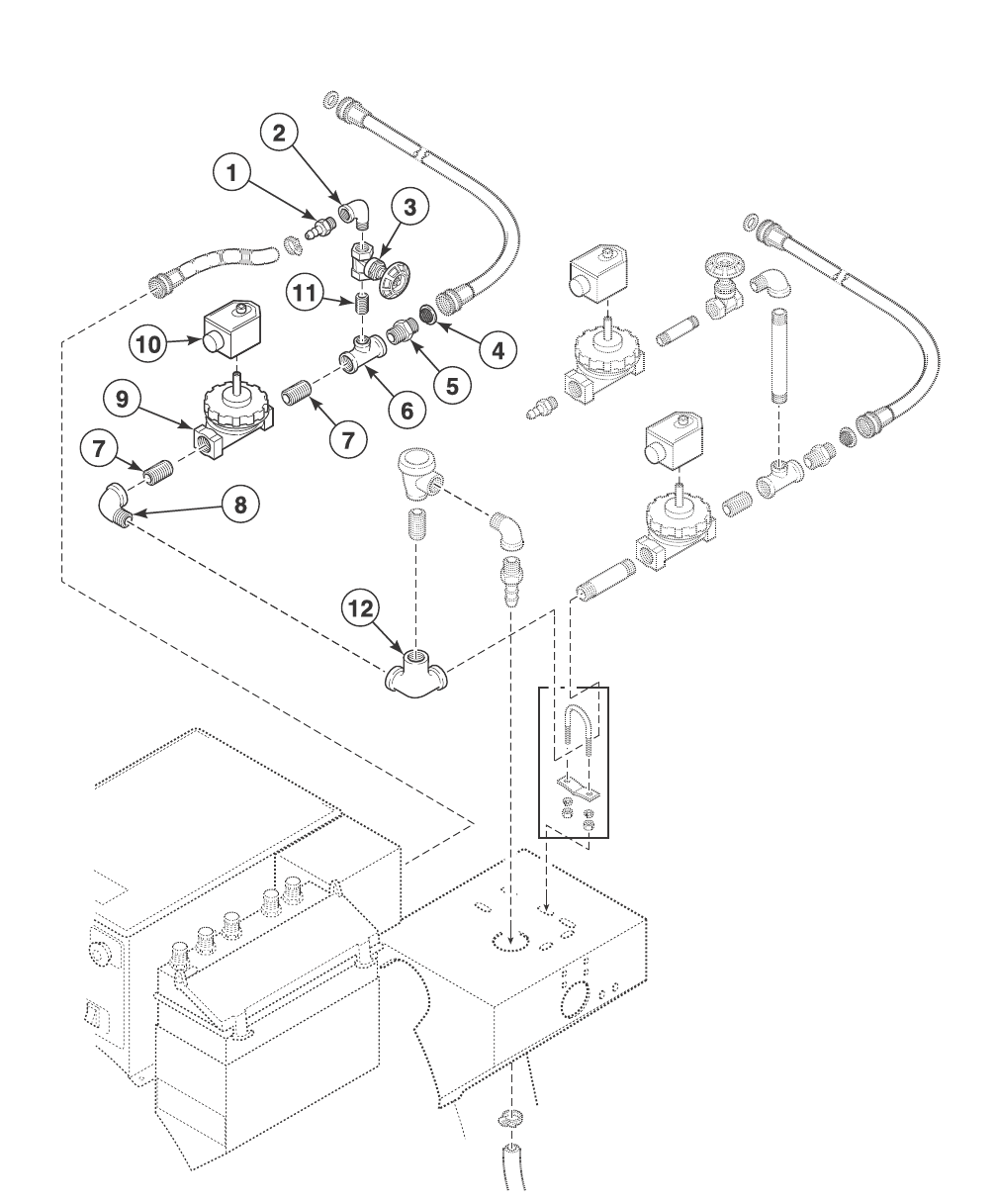

Fill Plumbing - Design 5 UW60P2 and UW60P3

Models Starting 3/1/02 (Drawing 1 of 2)

PHM1775P_F232166

F232166 35

Fill Plumbing - Design 5 UW60P2 and UW60P3

Models Starting 3/1/02 (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

NA F633146-1 Fill Plumbing Assembly 220 Volt; Standard thread; Includes items 1, 2, 3, 5-9, 11,

12, F421951 Hose Barb, F420408 Plug, F063754701

Vacuum Breaker and F420107 Nipple

NA F633146-3 Fill Plumbing Assembly 220 Volt; Brass option; Includes items 1, 2, 3, 5-9, 11, 12,

F421951 Hose Barb, F420408 Plug, F063754701

Vacuum Breaker and F420107 Nipple

NA F633146-5 Fill Plumbing Assembly 220 Volt; Metric thread; Includes items 1, 2, 3, 5-9, 11,

12, F421951 Hose Barb, F420408 Plug, F063754701

Vacuum Breaker and F420107 Nipple

NA F633146-6 Fill Plumbing Assembly 120 Volt; Metric thread and brass option; Includes items

1, 2, 3, 5-9, 11, 12, F421951 Hose Barb, F420408 Plug,

F063754701 Vacuum Breaker and F420107 Nipple

NA F633146-7 Fill Plumbing Assembly 220 Volt; Metric thread and brass option; Includes items

1, 2, 3, 5-9, 11, 12, F421951 Hose Barb, F420408 Plug,

F063754701 Vacuum Breaker and F420107 Nipple

NA F8382301 DIN Valve Adapter Kit Use with F8322803 and F8322905 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

1F421964 Hose Barb 2 for starch

2F420500 Street Elbow 2 for starch

3F380500 Gate Valve 2 for starch

4803615 Washer

5F421909 Hose Adapter Standard thread

5F8265701 Adapter Metric thread

6F420402 Tee 2 for starch

7F420105 Nipple 4 for starch

8F420502 Street Elbow

9F381701P Valve 220 Volt; 3/4 inch

9F8322905 Valve 220 Volt; Replaces F381701P Valve; Includes F8514601

Coil; For models that have been upgraded with

F8521801 DIN Valve Kit

9F8521801 DIN Valve Kit 220 Volt; Replaces F381701P Valve; Includes F8322905

Valve, F8382301 DIN Valve Adapter Kit and F8514601

Coil

9F141901P DIN Harness Assembly

9F380991P Water Valve Repair Kit 3/4 inch

10 F380987P DIN Coil 220 Volt; 3 for starch

10 F8514601 Coil 220 Volt; Use with F8322803 and F8322905 Valve

11 F420101 Nipple

12 F420509 Elbow

36 F232166

Fill Plumbing - Design 5 UW60P2 and UW60P3

Models Starting 3/1/02 (Drawing 2 of 2)

PHM1775PA_F232166

F232166 37

Fill Plumbing - Design 5 UW60P2 and UW60P3

Models Starting 3/1/02 (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

NA F633419-1 Fill Plumbing Assembly 220 Volt; Standard thread; Starch; Includes items 2-5,

7-17 and F063754701 Vacuum Breaker

NA F633419-5 Fill Plumbing Assembly 220 Volt; Metric thread; Starch; Includes items 2-5, 7-17,

and F063754701 Vacuum Breaker

NA F8456201 Valve Transition Kit Use with F8322803 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322803 and F8322905 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

1F380987P DIN Coil 220 Volt; 3 for starch

1F8514601 Coil 220 Volt; Use with F8322803 and F8322905 Valve

2F420103 Nipple Starch

3F380500 Gate Valve 2 for starch

4F420500 Street Elbow 2 for starch

5F820104 Nipple Starch

6803615 Washer

7F421909 Hose Adapter Standard thread

7F8265701 Adapter Metric thread

8F420402 Tee 2 for starch

9F420105 Nipple 4 for starch

10 F381701P Valve 220 Volt; 3/4 inch

10 F8322905 Valve 220 Volt; Replaces F381701P Valve; Includes F8514601

Coil; For models that have been upgraded with

F8521801 DIN Valve Kit

10 F8521801 DIN Valve Kit 220 Volt; Replaces F381701P Valve; Includes F8322905

Valve, F8382301 DIN Valve Adapter Kit and F8514601

Coil

10 F141901P DIN Harness Assembly

10 F380991P Water Valve Repair Kit 3/4 inch

11 F420107 Nipple

12 F381703P Valve 220 Volt; Starch; 1/2 inch; Parker

12 F8322803P Valve 220 Volt; Replaces F381703P Valve; Includes F8514601

Coil

12 F141901P DIN Harness Assembly

12 F380993P Valve Repair Kit Starch; 1/2 inch

13 F421951 Hose Barb

14 F420502 Street Elbow

15 F421964 Hose Barb 2 for starch

16 F420509 Elbow

17 F380800P Vacuum Breaker Valve 3/4 inch

17 F380965P Repair Kit 3/4 inch

17 F0637547-00 Vacuum Breaker Replacement Kit Includes F830800P Vacuum Breaker Valve,

F0170221-00 O-Ring, F8380808-00 Vacuum Breaker

Cap, F0380809-00 Containment Device and F430938

Screw

38 F232166

Fill Hoses and U-Bolt - Design 5 UW60P2 and UW60P3

Models Starting 3/1/02

PHM1775PB_F232166

F232166 39

Fill Hoses and U-Bolt - Design 5 UW60P2 and UW60P3

Models Starting 3/1/02

REF PART NO. DESCRIPTION COMMENTS

120290 Washer

2F200164 Water Hose Standard thread

2F200166 Water Hose Metric thread

3F200206 Hose Clamp No. 4

4F200509 Water Hose

5F200401P U-Bolt Clamp

6F200222 Hose Clamp No. 12

7F200104P Hose

40 F232166

Fill Plumbing - Design 7 and 8 UW60P2 and UW60P3 Models

PHM2069P_F232166

F232166 41

Fill Plumbing - Design 7 and 8 UW60P2 and UW60P3 Models

REF PART NO. DESCRIPTION COMMENTS

NA F0637637-01 Fill Plumbing Assembly 220 Volt; Standard thread; Includes items 3, 8-17, 19-22 and

26-29

NA N/A Fill Plumbing Assembly 220 Volt; Metric thread; Includes items 3, 8-17, 19-22 and 26-29

NA N/A Fill Plumbing Assembly 220 Volt; Standard thread; Starch; Includes items 3-17, 19-22 and

26-29

NA N/A Fill Plumbing Assembly 220 Volt; Metric thread; Starch; Includes items 3-17, 19-22 and

26-29

NA F8514601 Coil 220 Volt; Use with F8322803 and F8322905 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322803 and F8322905 Valve

NA F8456201 Valve Transition Kit Use with F8322803 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

120290 Washer

2F200164 Water Hose Standard thread

2F200166 Water Hose Metric thread

3F380987P DIN Coil 220 Volt; 3 for starch

4F380500 Gate Valve Starch

5F420500 Street Elbow Starch

6F420103 Nipple Starch

7F381703P Valve 220 Volt; Starch; 1/2 inch; Parker

7F8322803P Valve 220 Volt; Replaces F381703P Valve; Includes F8514601 Coil

7F141901P DIN Harness Assembly

7F380990P Valve Repair Kit Starch; 1/2 inch

8F421964 Hose Barb 2 for starch

9F430938 Screw

10 F0380808-00 Vacuum Breaker Cap

11 F0380809-00 Containment Device

12 F0170221-00 O-Ring

13 F063754701P Vacuum Breaker Valve 3/4 inch; Includes items 10-13; F380965 Repair Kit

14 F0798922-00 Vacuum Breaker Kit Includes items 10-13 and installation instructions

15 F420105 Nipple

16 F420502 Street Elbow

17 F421951 Hose Barb

18 803615 Washer

19 F421909 Hose Adapter Standard thread

19 F8265701 Adapter Metric thread

20 F420402 Tee

21 F381701P Valve 220 Volt; 3/4 inch; Parker

21 F8322905 Valve 220 Volt; Replaces F381701P Valve; Includes F8514601 Coil; For

models that have been upgraded with F8521801 DIN Valve Kit

21 F8521801 DIN Valve Kit 220 Volt; Replaces F381701P Valve; Includes F8322905 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

21 F141901P DIN Harness Assembly

21 F380988 Valve Repair Kit 3/4 inch

22 F420107 Nipple

23 F200401P U-Bolt Clamp

24 F200222 Hose Clamp No. 12

25 F200104P Hose

26 F420509 Elbow

27 F200509 Water Hose

28 F200206 Hose Clamp No. 4

29 F420101 Nipple

N/A = Part no longer available

42 F232166

Fill Plumbing - Model UW60B2

PHM2045P_F232166

F232166 43

Fill Plumbing - Model UW60B2

REF PART NO. DESCRIPTION COMMENTS

NA F8382301 DIN Valve Adapter Kit Use with F8322905 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

120290 Washer

2F200164 Water Hose Standard thread

2F200166 Water Hose Metric thread

3F380987P DIN Coil 220 Volt; F141901P DIN Harness

4F420502 Street Elbow

5F421951 Hose Barb

6803615 Washer

7F421909 Hose Adapter Standard thread

7F8265701 Adapter Metric thread

8F381701P Valve 220 Volt; 3/4 inch; Parker

8F8322905 Valve 220 Volt; Replaces F381701P Valve; Includes F8514601

Coil; For models that have been upgraded with

F8521801 DIN Valve Kit

8F8521801 DIN Valve Kit 220 Volt; Replaces F381701P Valve; Includes F8322905

Valve, F8382301 DIN Valve Adapter Kit and F8514601

Coil

8F380991P Water Valve Repair Kit 3/4 inch

9F420107 Nipple

10 F200401P U-Bolt Clamp

11 F200222 Hose Clamp No. 12

12 F200104P Hose

13 F420509 Elbow

14 F420105 Nipple

15 F063754701P Vacuum Breaker Valve 3/4 inch; Includes item 20; F380965 Repair Kit

16 F0170221-00 O-Ring

17 F0380809-00 Containment Device

18 F0380808-00 Vacuum Breaker Cap

19 F430938 Screw

20 F0798922-00 Vacuum Breaker Kit Includes items 16-19

21 F420402 Tee

22 F200509 Water Hose

23 F200206 Hose Clamp No. 4

24 F421964 Hose Barb

25 F420500 Street Elbow

26 F380500 Gate Valve

27 F420101 Nipple

28 F0637637-01 Fill Plumbing Assembly 220 Volt; Standard thread; Includes items 3-5, 7-9,

13-19, 21 and 24-27

28 N/A Fill Plumbing Assembly 220 Volt; Metric thread; Includes items 3-5, 7-9, 13-19,

21 and 24-27

3 ? F8514601 Coil 220 Volt; Use with F8322905 Valve

N/A = Part no longer available

44 F232166

Drain System, Overflow and Vent Pipes

PHM2630P_F232166

F232166 45

Drain System, Overflow and Vent Pipes

REF PART NO. DESCRIPTION COMMENTS

1F200166402 Drain Valve Kit Includes item 5

2F150352 Overflow Plug Model UW60B2

3F200215 Hose Clamp Model UW60B2; No. 28

4F380933P Drain Valve Motor Model UW60B2; 220 Volt

5F200133600 Drain Valve Cover

6F380117 Vacuum Breaker

7F422508 Adapter

8F422801 Tee

9F0602364-10 Pipe

10 F200213 Hose Clamp No. 40

11 F150309 Soap Dispenser Hose

12 F0602364-25 Pipe

13 F8084201 Shell Reinforcement Plate Assembly Includes item 15

14 F431210 Pop Rivet

15 F150389 Scupper

16 F200107P Water Hose

17 36801 Hose Clamp No. 6

18 F421929 Hose Barb

19 F200165100 Drain Hose

20 F200201 Hose Clamp No. 56

21 F422602 Reducer Bushing

22 F0602365-01 Pipe

23 F422803 Tee

24 F0602365-22 Pipe

25 F150438 Drain Hose Rear

26 F150442 Drain Hose Front

27 F380918 Main Drive Kit

46 F232166

Basket, Shell and Frame

PHM2926P_F232166

F232166 47

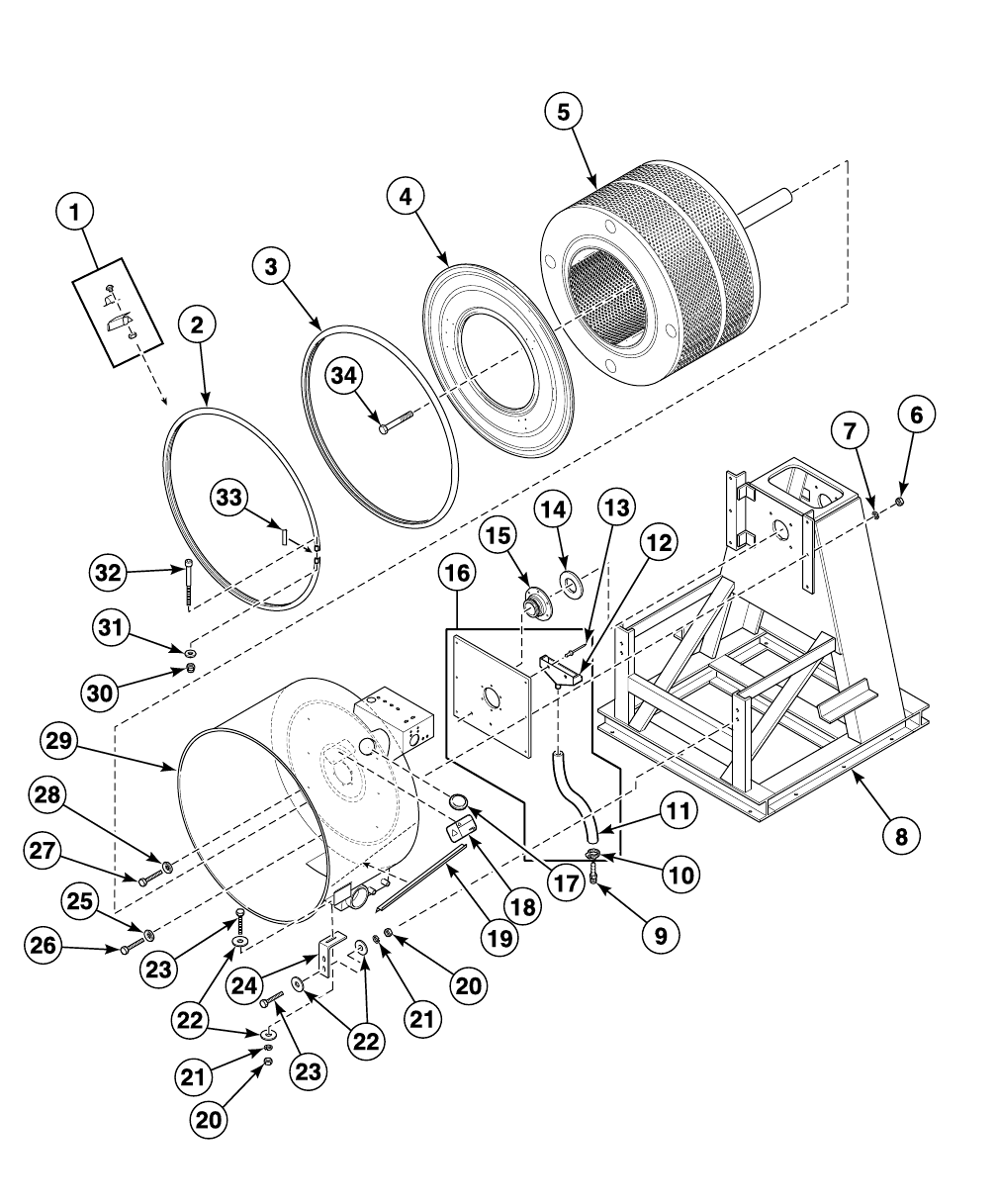

Basket, Shell and Frame

REF PART NO. DESCRIPTION COMMENTS

1F602901P Spray Rinse Bracket Assembly Models UW60P2 and UW60P3

2F603344P Shell Band Assembly

3F170120RP Shell Band Gasket

4F609200P Shell Front Weldment

4F200119900P Shell Front Assembly Includes item 4, top latch bracket casting, lower door

latch bracket casting, door butt, bushing, door latch

shim, door butt shim and door bumper moulding

5F632015 Basket Assembly

670142 Nut

7M400013 Washer

8F633378 Frame Assembly Models UW60B2 and UW60P2

8F633378-2 Frame Assembly Models UW60B2 and UW60P2; Close mount

8F633376 Frame Assembly Model UW60P3

8F633376-2 Frame Assembly Model UW60P3; Close mount

9F421929 Hose Barb

10 36801 Hose Clamp No. 6

11 F200107P Water Hose

12 F150389 Scupper

13 F431210 Pop Rivet

14 F100203 Slinger

15 F8162101 Face Seal Standard

15 F798819-00 Seal Kit Standard; Includes items 3, 14, 27, 28 and 30-32,

sealant and installation instructions

15 F8162201 Face Seal Viton

16 F8084201 Shell Reinforcement Plate Assembly Includes items 10-13

17 F0200237-00 Plug

18 F0230112-00 Plug Removal Warning Decal

19 F150364 Drip Rail Attach with silicone

20 F430205 Nut

21 M400014 Washer

22 M400081 Washer

23 800461 Screw

24 F601806 Shell Mounting Bracket

25 F431116 Washer

26 F430924 Screw

27 F430935 Screw

28 F431112 Washer

29 F0634436-02 Shell Weldment Standard

29 F0634436-03 Shell Weldment Standard with starch

29 F0633208-05 Shell Weldment Electric heat

29 N/A Shell Weldment Electric heat with starch

30 F430215 Nut

31 F430317 Washer

32 F430518 Screw

32 F791001 Shell Band Fastener Kit Includes items 30 and 31

33 F601216 Shell Gasket Shield

34 N/A Screw

N/A = Part no longer available

48 F232166

Door and Spray Tube

PHM2943P_F232166

F232166 49

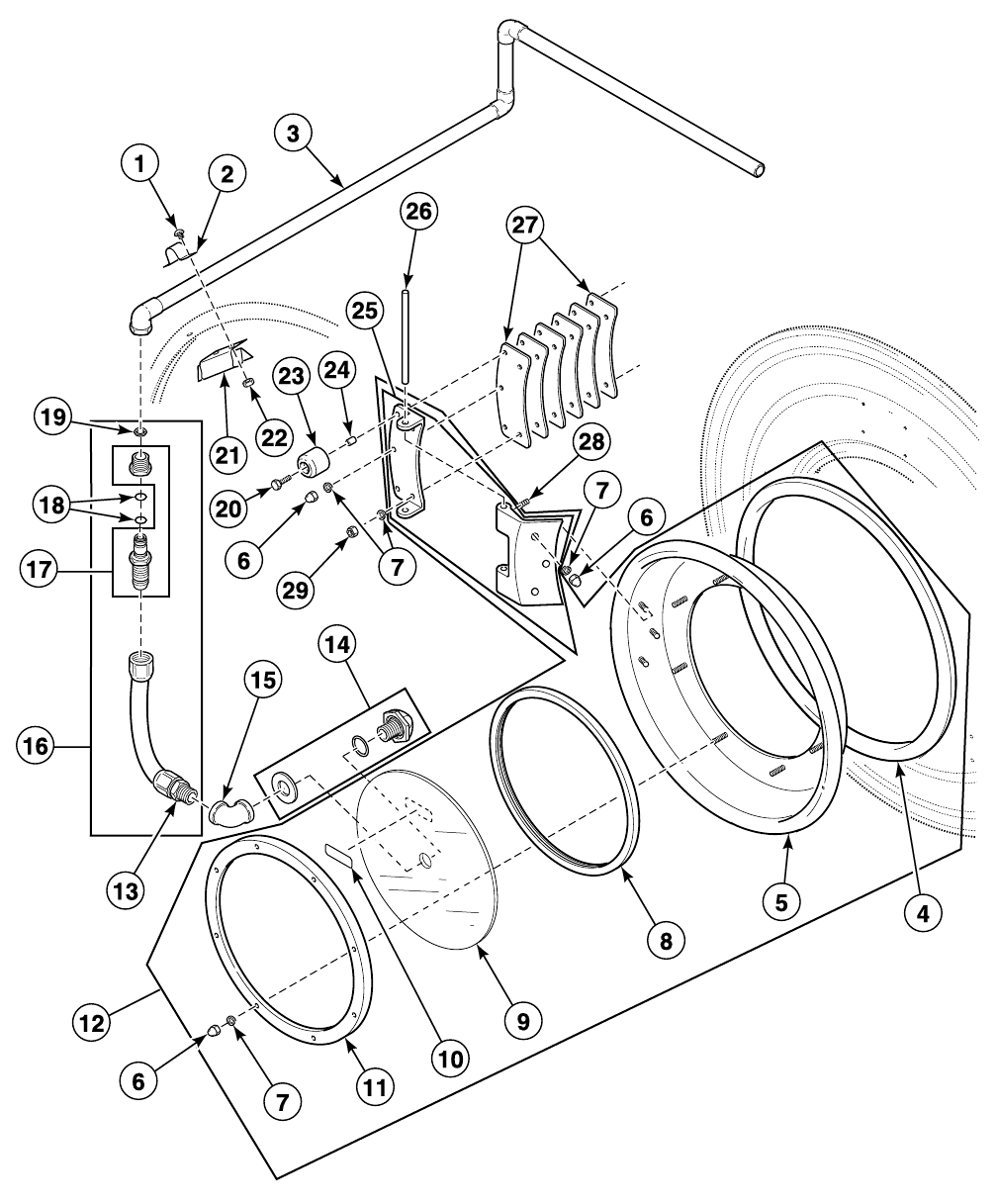

Door and Spray Tube

REF PART NO. DESCRIPTION COMMENTS

1F430917 Screw Models UW60P2 and UW60P3

2F602880 Spray Rinse Strap Models UW60P2 and UW60P3

3F603696-9 Spray Rinse Tube Assembly Models UW60P2 and UW60P3

4F170145 Door Gasket Black

4F017014501 Door Gasket Gray

5F730307 Door Kit Includes studs

6F431026 Nut

7F431100 Washer

8F170117 Door Glass Gasket

9F290201P Glass Model UW60B2; Without hole

9F290200P Door Glass Kit Models UW60P2 and UW60P3; With hole

10 F230607 Rotation Decal

11 F601239 Door Glass Retainer

12 F940P3 Door Kit Model UW60B2; Inlcudes items 4-11, 25, 28, F230303

Push Decal, F410102 Clear Sealant, F340703

Magnetic Position Magnet, F430231 Nut, F430916

Screw, F431108 Washer, F431125 Washer, F431217

Rivet and F609427 Push Handle Weldment

12 F730539 Door Kit Models UW60P2 and UW60P3; Includes items 4-11,

25, 28, magnet, door push handle and door push brace

13 F422109 No-Swivel Coupling Models UW60P2 and UW60P3

14 F730077 Spray Rinse Nozzle Kit Models UW60P2 and UW60P3

15 F422319 Elbow Models UW60P2 and UW60P3

16 F730026 Spray Rinse Hose Assembly Includes items 13 and 17; Models UW60P2 and

UW60P3

17 F422108 Swivel Coupling Models UW60P2 and UW60P3

18 F170200 O-Ring Models UW60P2 and UW60P3

19 F310206 Ring Retainer Models UW60P2 and UW60P3

20 F430103 Screw

21 F602901P Spray Rinse Bracket Assembly Models UW60P2 and UW60P3

22 F431022 Nut Models UW60P2 and UW60P3

23 F150366 Door Bumper Moulding

24 F430416 Door Bumper Bushing

25 F200030600P Door Hinge Strap Kit

26 F601815 Door Hinge Pin

27 F0610695-00 Door Butt Shim

28 F430502 Screw

29 20274 Nut

50 F232166

Door Lock

PHM2157P_F232166

F232166 51

Door Lock

REF PART NO. DESCRIPTION COMMENTS

1F430168 Screw

2F150203 Door Handle Casting

3F150201P Top Latch Bracket Casting

4F602058 Door Latch Bracket Shim

5F431100 Washer

6F431026 Nut

7F431002 Nut

8F150204 Lower Door Latch Casting

9F150202 Lower Door Latch Bracket Casting

10 F430215 Nut

11 F431142 Washer

12 F605525 Door Box Mounting Plate Assembly

13 F230303 Push Decal

14 F609427 Handle Weldment

14 F746201-1 Push Handle Kit Includes items 15-17 and 21

15 F609822 Handle Spacer Use as needed

16 F8390801 Magnet

17 F430231 Nut

18 F430232 Nut

19 F200321200 Magnetic Switch Assembly

20 F430917 Screw

21 F430909 Screw

22 F431210 Pop Rivet

23 F601055 Interlock Switch Spacer

24 F340900 Interlock Switch

25 F330217P RC Network Filter

26 F430956 Screw

27 F300129P Door Lock Solenoid 220 Volt

28 F609728 Solenoid Spacer

29 F606630 Door Box

29 F603666P Door Box Assembly Includes items 17, 19-20, 27 and 30

30 F430995 Screw

31 F430996 Screw

32 F430927 Screw

33 F431118 Washer

34 F601639 Extension Arm Tab

35 F430916 Screw

36 F746803 Extension Arm Kit Includes items 7, 17, 32-35 and 37

37 F431108 Washer

52 F232166

Front, Side and Rear Panels

PHM2489P_F232166

F232166 53

Front, Side and Rear Panels

REF PART NO. DESCRIPTION COMMENTS

1F430956 Screw

2F170400 Trim Order 2 feet

3F170400RP Trim

4F635610 Cage Wrap Weldment

5F605324 Hose Strap

6F0431807-00 Nut Plastic insert

7F180511 Cap Plug

8F430264 Nut Tinnerman

970240301 Screw

10 F200188300 Belt Inspection Port Cover

11 F200187900P Rear Panel

12 F230302 Do Not Push Decal

13 F432234 Screw

14 F601982 Side Panel Bracket

15 F430215 Nut

16 F430317 Washer

17 F635648P Side Panel Reversible

18 F430415 Pin

19 F430211 Nut

20 F431100 Washer

21 F430921 Screw

22 F150397 Extrusion Insert Order 3 feet

23 F150408 Rub Rail

24 F635649P Front Panel

25 F170110 Sponge

26 F606667 Side Panel Cover

54 F232166

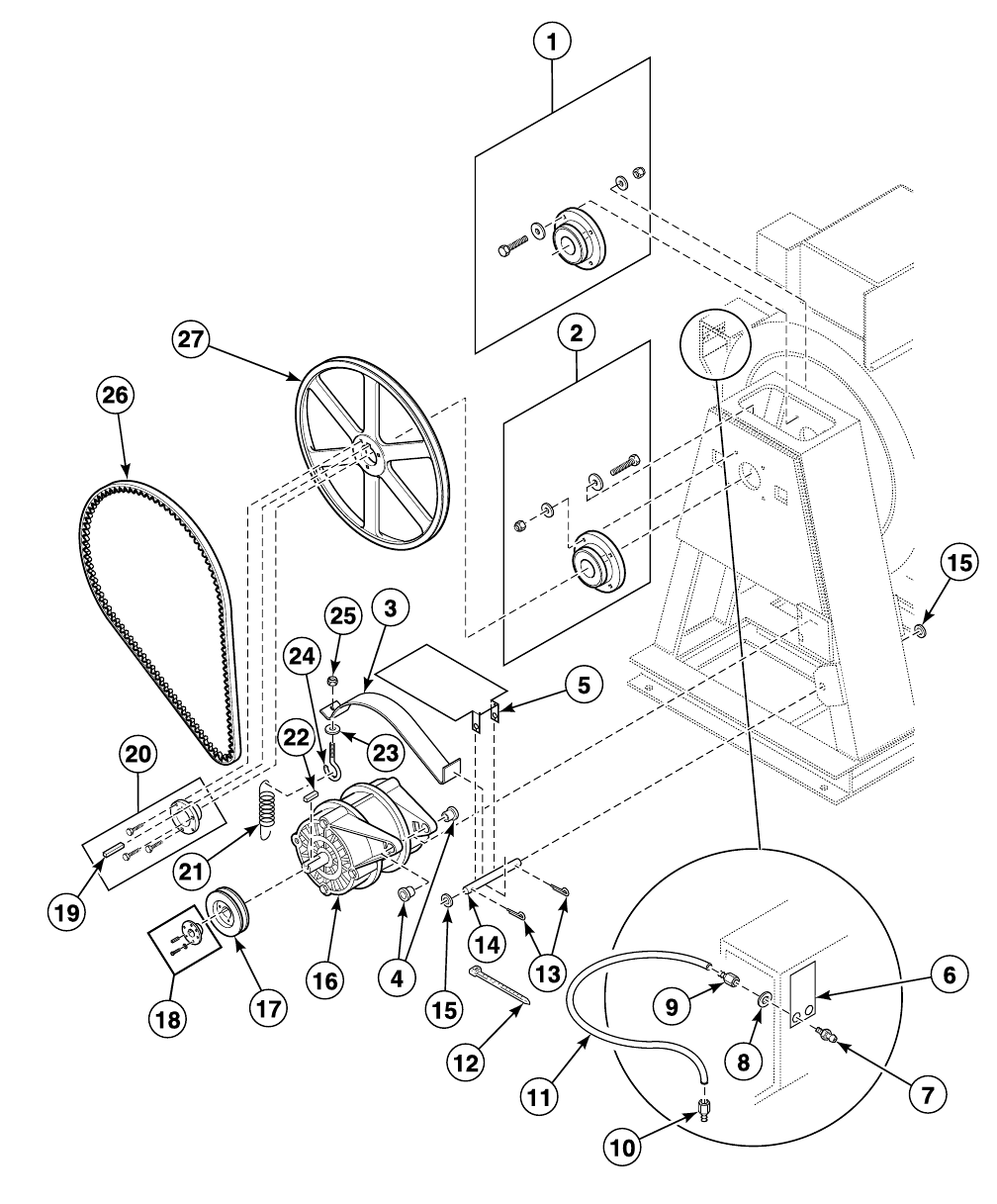

Motor and Pulley - Models UW60B2 and UW60P2

PHM2511P_F232166

F232166 55

Motor and Pulley - Models UW60B2 and UW60P2

REF PART NO. DESCRIPTION COMMENTS

1F798824-00 Front Bearing Kit Includes seal and hardware

2F745010 Rear Bearing Kit Includes hardware

3F602166 Motor Adjustment Strap

4F200186100 Motor Support Bushing 2 required; Used with F220303P Motor

5F200280700 Motor Drip Shield

6F231563 Grease Instruction Decal Lubrication

7F190701 Grease Fitting

8F430332 Washer

9F422114 Air Coupling

10 J1408004 Connector

11 C000628P Tubing

12 F140605 Cable Tie 6 inch

13 F430401 Cotter Pin

14 F730076 Motor Support Rod Kit Includes items 13 and 15

15 901690 Washer

16 F8330501P Motor 208 or 240 Volt/3 Phase

16 F8597805P Motor Replaces F8330501P Motor; 208 or 240 Volt/3 Phase

16 F8353801P Motor 380 or 415 Volt/50 Hertz/3 Phase; 440 or 480 Volt/60

Hertz/3 Phase; Includes item 4

17 F280146P Pulley BK34H

18 F280214 Motor Bushing H-78

19 F430801 Key

20 F280409P Bushing 2-7/16; Includes item 19

21 F310127 Spring

22 F430802 Key

23 F430153 Bolt

24 M400080 Washer

25 F430233 Nut

26 F280309 Belt BX100

27 F280410 Pulley 1B255K

56 F232166

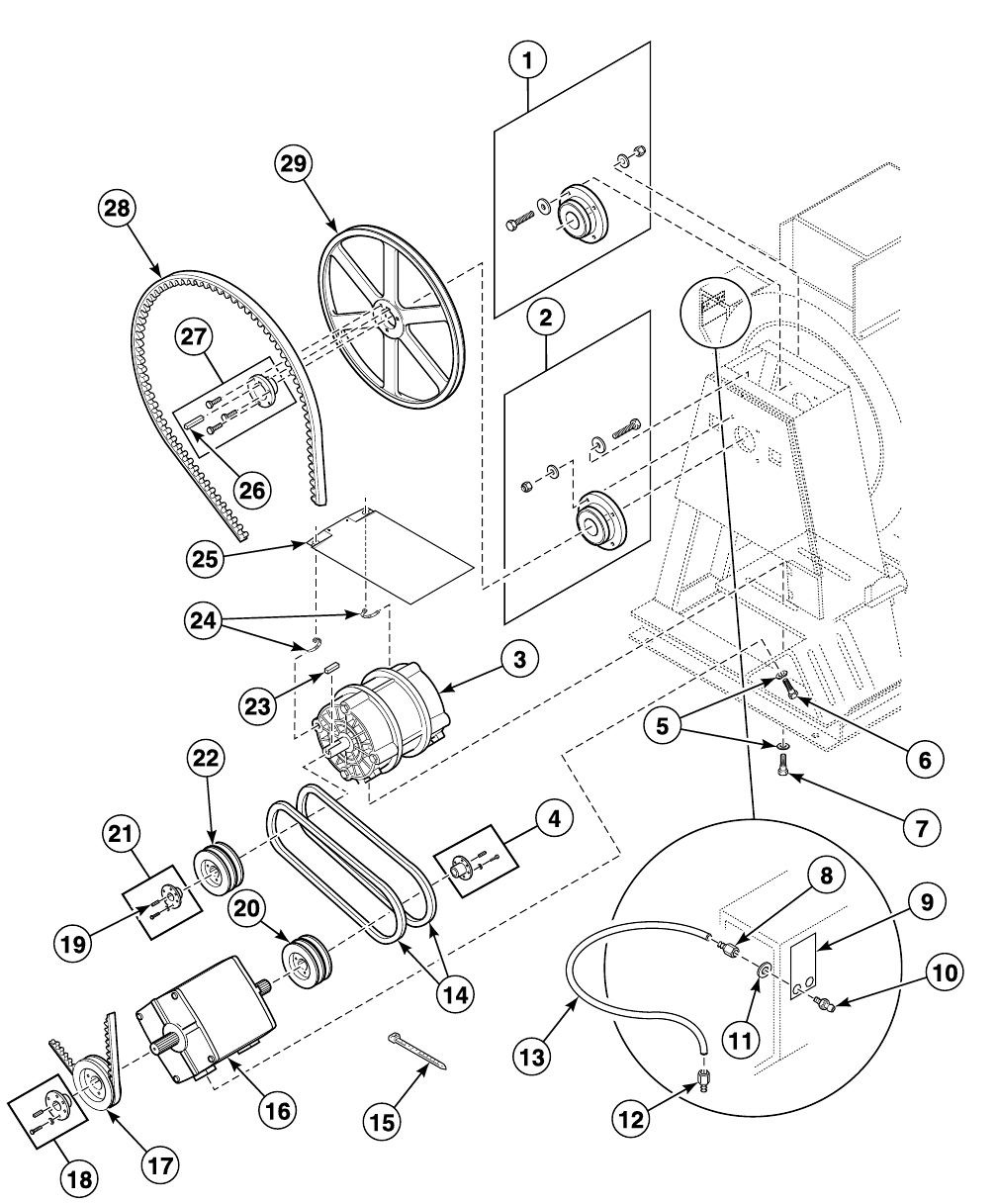

Motor and Pulley - Model UW60P3

PHM2944P_F232166

F232166 57

Motor and Pulley - Model UW60P3

REF PART NO. DESCRIPTION COMMENTS

1F798824-00 Front Bearing Kit Includes seal and hardware

2F745010 Rear Bearing Kit Includes hardware

3F8354601P Motor 208 or 240 Volt; Wash

3F8598101P Motor Replaces F8354601P Motor; 208 or 240 Volt; Wash

3F220425P Motor 380, 415, 440 or 480 Volt; Wash

4F280297 Pulley Bushing SH; 1-1/8; Extract; Inside

5M400014 Washer

6F430116 Screw

7800461 Screw

8F422114 Air Coupling

9F231563 Grease Instruction Decal Lubrication

10 F190701 Grease Fitting

11 F430332 Washer

12 J1408004 Connector

13 C000628P Tubing

14 F280351 Belt 60 Hertz; 3V355; 2 required

14 F280349 Belt 50 Hertz; 3V375; 2 required

15 F140605 Cable Tie 6 inch

16 F220413P Motor 208 or 240 Volt; Extract

16 F220427P Motor 380 or 415 Volt/50 Hertz; 440 or 480 Volt/60 Hertz; Extract

17 F280132P Pulley BK45H; Extract; Outside; 60 Hertz applications only

18 F280211P Motor Pulley Bushing H-1-1/8; Extract; Outside; Includes hardware and key

19 F430802 Key

20 F280408 Pulley 2GR3V6SH; Extract; Inside; 2 groove; 6 inch OD

21 F280298P Pulley Bushing JA 7/8; Includes item 19 and hardware; Wash

22 F280299 Pulley 2G3V28JA; Wash; 2 groove; 2.8 inch OD

23 F430803 Key

24 F140605 Cable Tie

25 F200216900 Motor Drip Shield

26 F430801 Key

27 F280409P Bushing 2-7/16; Includes item 26 and hardware

28 F280309 Belt BX100

29 F280410 Pulley 1B255K

58 F232166

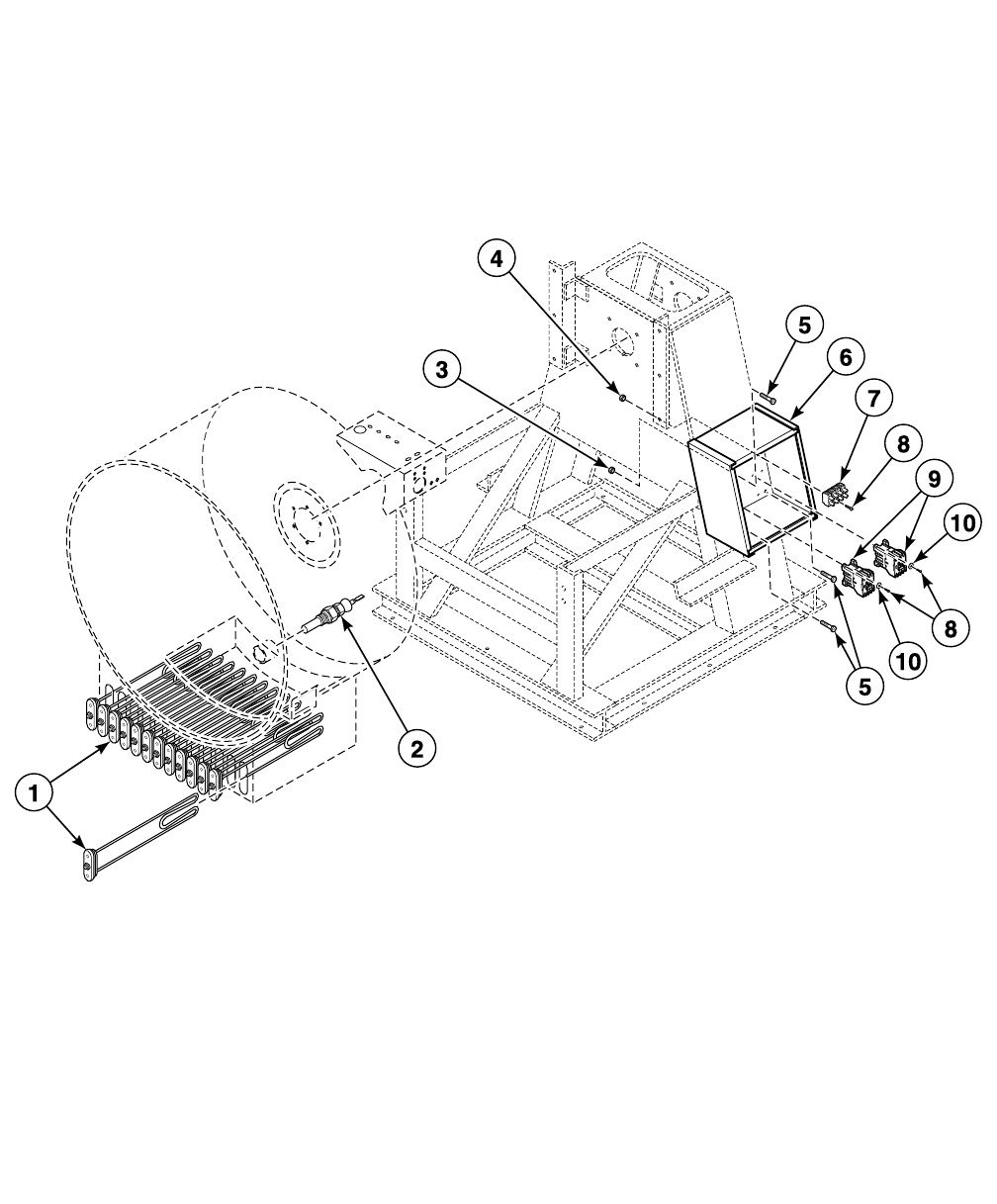

Electric Heat Option

PHM2074P_F232166

F232166 59

Electric Heat Option

REF PART NO. DESCRIPTION COMMENTS

1F360203P Heating Element 6 required

2F370606P Temperature Probe

3F430215 Nut

4F430231 Nut

5F430938 Screw

6F140413 Box

7M413865 Terminal Block O and Q-voltage

7F140747 Input Power Block F, N and P-voltage

8F430910 Screw

9F330188P Contactor 220 Volt

10 F430311 Washer

60 F232166

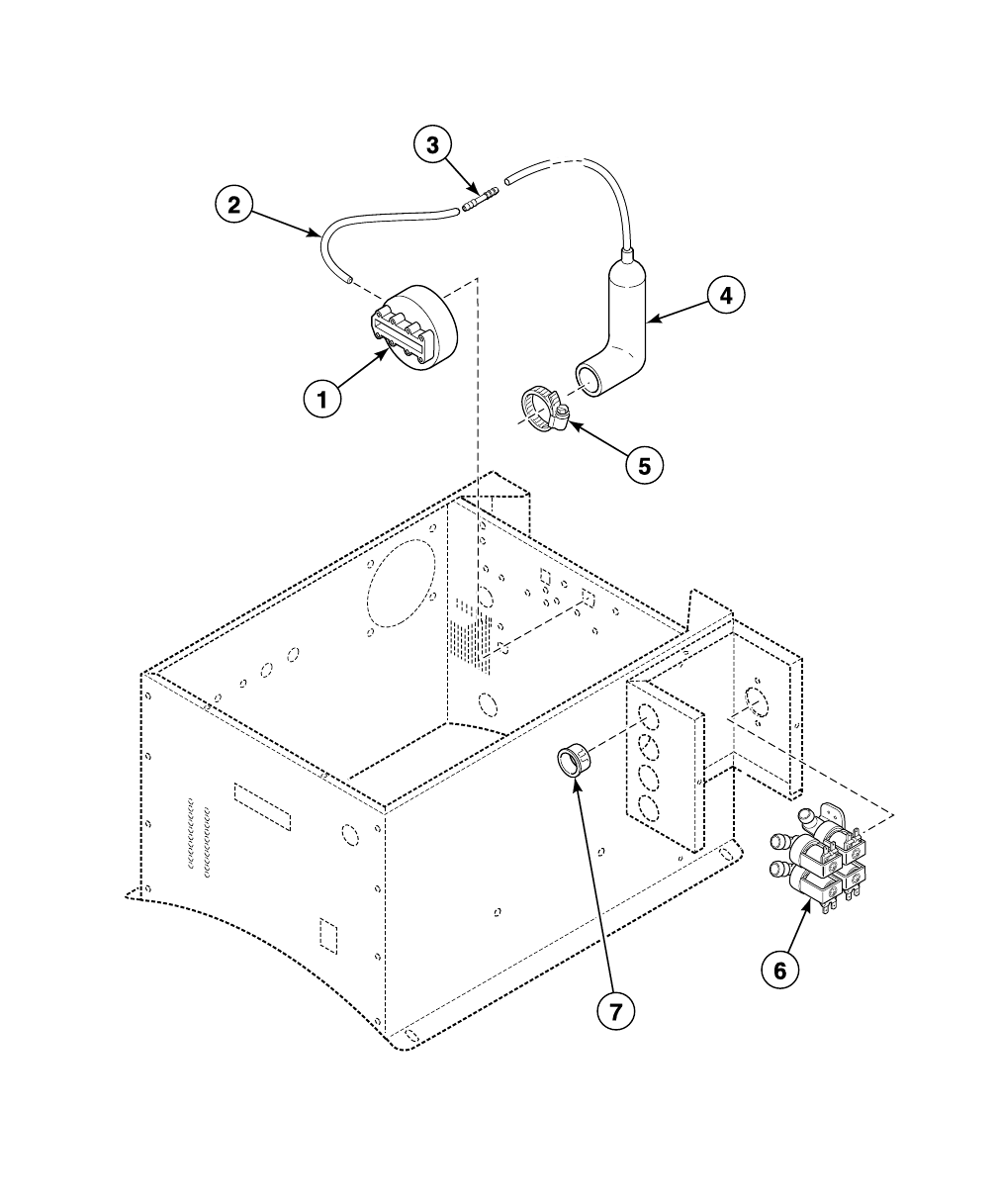

Steam Heat Option and Transformers

PHM2075P_F232166

F232166 61

Steam Heat Option and Transformers

REF PART NO. DESCRIPTION COMMENTS

NA F410300 Pipe Insulation

NA F8382301 DIN Valve Adapter Kit Use with F8322801 Valve

NA F8379501 Valve Kit Use with F8322801 Valve

1F200202600 Plug

2F603131 Steam Injector Tube Assembly

3F421703 Street Elbow

4F200517 Steam Hose

5F420708 Nipple

6F420409 Plug

7H86070034 Street Elbow

8F380787P Steam Valve 1/2 inch; 220 Volt; F380984 Steam Valve Repair Kit;

Parker

8F8322801 Valve 220 Volt; Replaces F380787P Steam Valve; Includes

F8514601 Coil; For models that have been upgraded

with F8521801 DIN Valve Kit

8F8521801 DIN Valve Kit 220 Volt; Replaces F380787P Steam Valve; Includes

F8322801 Valve, F8382301 DIN Vavle Adapter Kit and

F8514601 Coil

9F380987P DIN Coil 220 Volt

9F8514601 Coil 220 Volt; Use with F8322801 Valve

10 F140425 Control Transformer Cover

11 F360156P Transformer F-voltage

12 F430935 Screw

13 N/A Nipple

14 70079601 Elbow

15 F420710 Nipple

16 F200401P U-Bolt Clamp Includes washers and nuts

17 F270307 Steam Filter

18 F635634 Steam Bracket Weldment

19 F635653P Steam Plumbing Assembly 220 Volt; Includes items 2-9, 13-15, 17 and pipe

insulation

N/A = Part no longer available

62 F232166

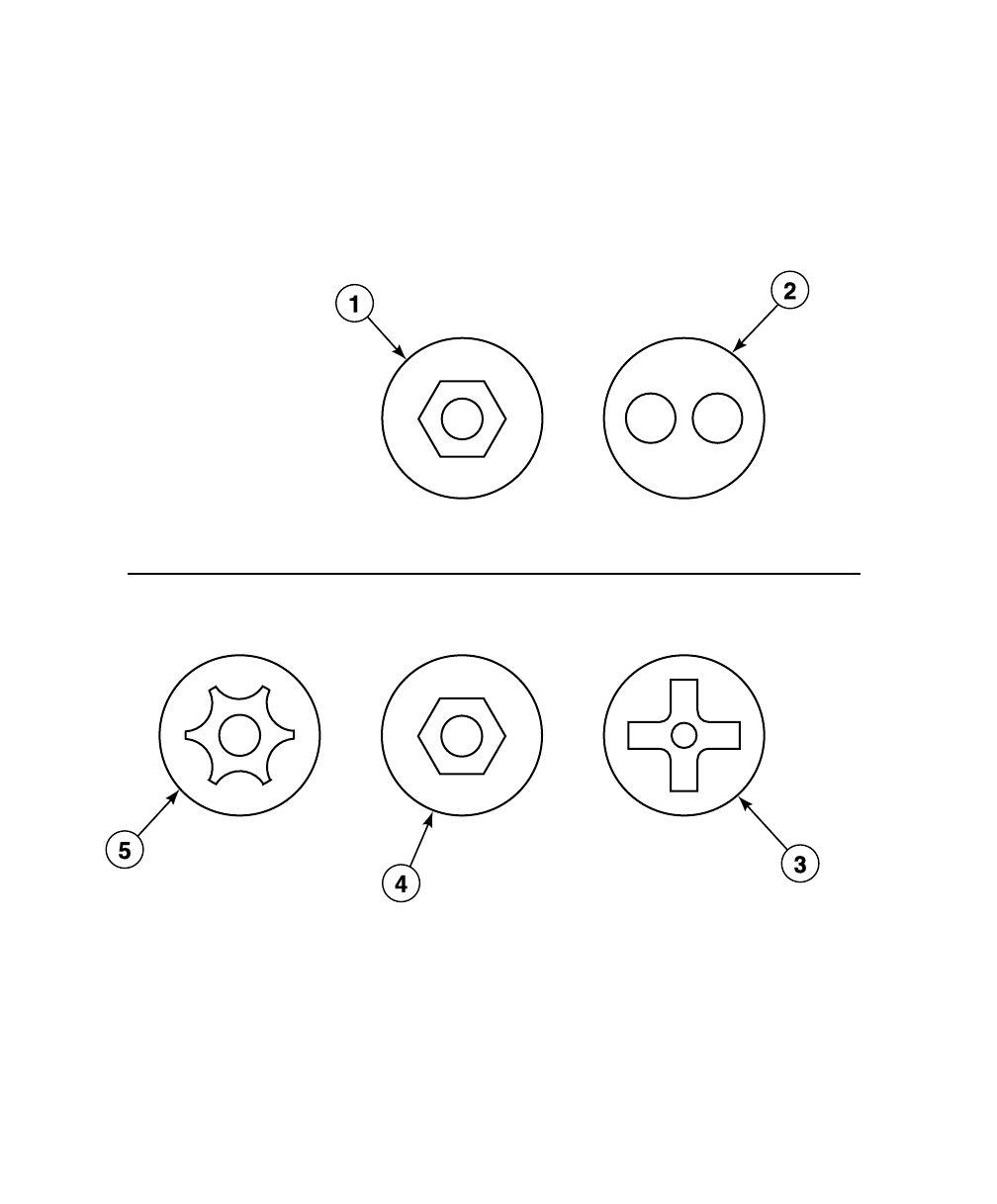

Security Fasteners

PHM2181P_F232166

Option One

Option Two

F232166 63

Security Fasteners

REF PART NO. DESCRIPTION COMMENTS

1F0430275-00 Screw No. 8; 32 x 1/2 inch; Used in place of F430956 Screw;

Typical location is the side panels and module cover

1F430960 Screw No. 10; 32 x 3/8 inch; Used in place of F430904 Screw;

Typical location is the module to the shell

1F704906 Hex Bit

2F0430273-00 Screw 1/4 inch; 20 x 2-1/2 inch; Used in place of F430996

Screw; Typical location is the door box to the bracket

2F0430272-00 Screw 1/4 inch; 20 x 1-1/2 inch; Used in place of F430921

Screw; Typical location is the side panel to the bracket

2F0430274-00 Screw 1/4 inch; 20 x 1/2 inch; Used in place of F430925 Screw;

Typical location is the drive box or the cover

2F704907 Spanner Bit

3F432260 Screw 1/4 inch; 20 x 2-1/2 inch; Used in place of F430996

Screw; Typical location is the door box to the bracket

3N/A Phillips Bit

4N/A Screw 1/4 inch; 20 x 1/2 inch; Used in place of F430925 Screw;

Typical location is the drive box or cover

4N/A Hex Bit

5F432259 Screw No. 8; 32 x 1/2 inch; Used in place of F430956 Screw;

Typical location is the side panels and module cover

5281P4 Torx Bit

N/A = Part no longer available

64 F232166

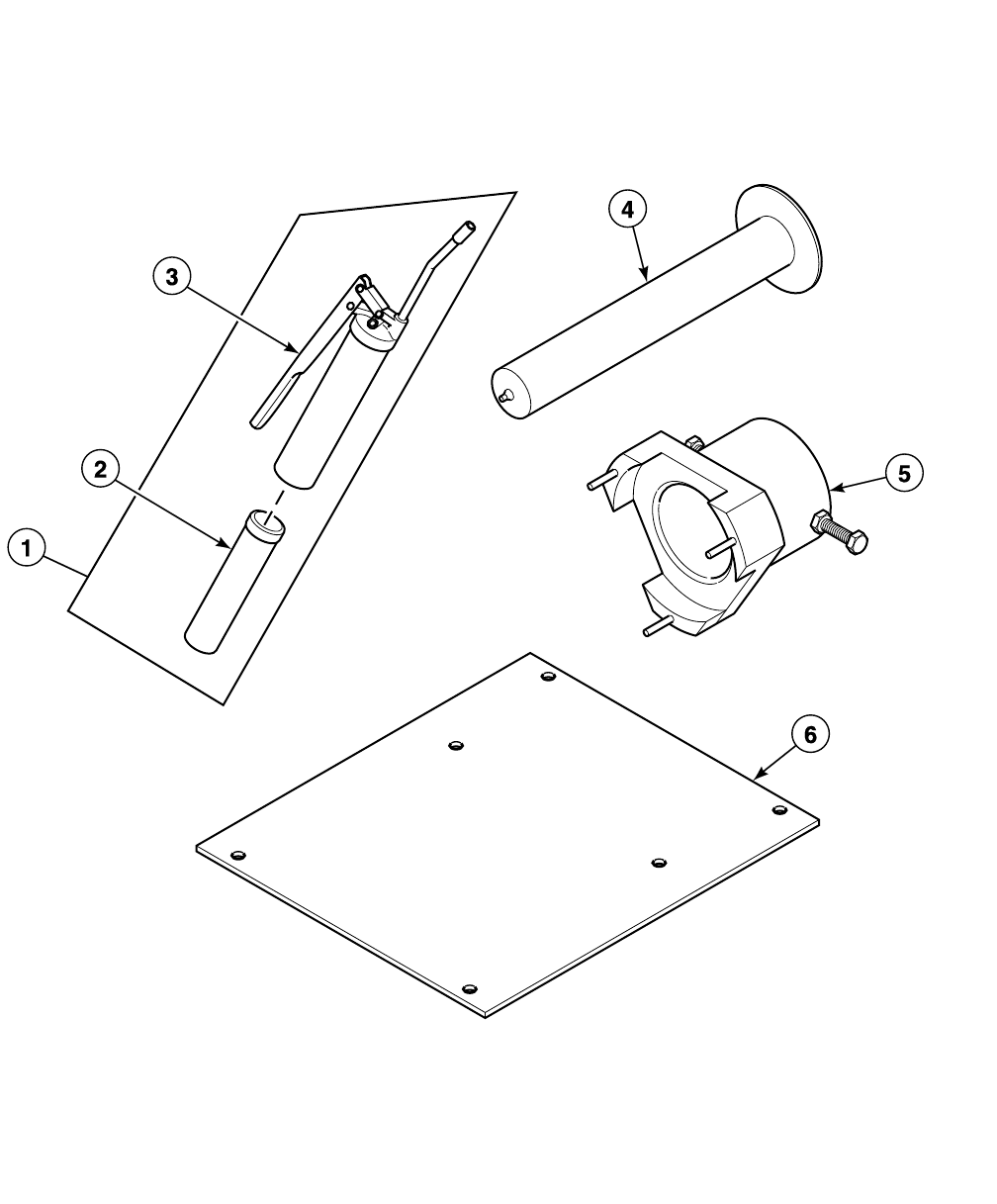

Special Tools

PHM2981P_F232166

F232166 65

Special Tools

REF PART NO. DESCRIPTION COMMENTS

NA F730055-1 Mounting Bolt Kit

NA 1113P Concrete Hardware Kit

1F798700 Grease Gun Kit Includes items 2 and 3

2F210206P Bearing Grease

3F210207P Grease Gun

4F633426 Alignment Shaft Assembly

5F0100312-00 Shaft Seal Alignment Fixture

6F602941 Rebar Frame Template

Notes

66 F232166

F232166 67

N/A items do not appear in index.

Parts Index

Adapter

F422508.................................................................. 45

F8265701........................................ 33, 35, 37, 41, 43

Air Coupling

F422114 ............................................................ 55, 57

Air Trap Hose

F020014200........................................................ 9, 21

Alignment Shaft Assembly

F633426.................................................................. 65

Balance Switch Bracket

F601750.................................................................. 23

F8124301................................................................ 23

Basket Assembly

F632015.................................................................. 47

Battery

F191101 .................................................................. 15

Bearing Grease

F210206P ............................................................... 65

Before Power Is Connected Tag

F230501.................................................................... 7

Belt

F280309............................................................ 55, 57

F280349.................................................................. 57

F280351.................................................................. 57

Belt Inspection Port Cover

F200188300............................................................ 53

Bolt

F0430539-00........................................................... 23

F430153.................................................................. 55

Box

F140413.................................................................. 59

Bushing

F280409P ......................................................... 55, 57

Buzzer

F300206.................................................................. 17

Cable Assembly

F604713.................................................................. 19

Cable Tie

F140605...................................................... 15, 55, 57

F140606.................................................................. 15

Cable Tray Cover

F635476.................................................................... 9

F635478.................................................................. 15

Cage Wrap Weldment

F635610.................................................................. 53

Cap Plug

F180511 .................................................................. 53

Chemical Supply Cup

F150385.................................................................. 25

F150386.................................................................. 25

Chemical Supply Hose

F150469 ..................................................................25

Circuit Breaker

F350217 ..................................................................11

F350218 ..................................................................19

F8303001P..............................................................17

Clockwise Spin Rotation Decal

F230652 ....................................................................7

Coil

F8514601 ......................29, 31, 33, 35, 37, 41, 43, 61

Cold Water Valve Decal

F231368 ....................................................................7

Computer

F0370455-20P...........................................................9

Computer Cover

F606826 ..................................................................15

Computer Input Harness

F0141930-00 ...........................................................15

Concrete Hardware Kit

1113P.......................................................................65

Conductor Decal

F231146.....................................................................7

Connector

F140575P................................................................19

F140576P................................................................19

F422500 ..............................................................9, 21

J1408004...........................................................55, 57

Contact Base

F8538101 ............................................................9, 15

Contact Block Switch

F200233401 ........................................................9, 15

F200299500 ........................................................9, 15

F340445 ..............................................................9, 15

Contact Switch

F8069501 ............................................................9, 15

Contactor

F330177P..........................................................11, 17

F330188P................................................................59

Containment Device

F0380809-00 ...............................................31, 41, 43

Control Cover

F0636887-00 .............................................................9

Control Module Cover

F635456 ..............................................................9, 15

Control Module Decal

F0231565-00 .............................................................9

F231562 ..................................................................15

Control Transformer Cover

F140425 ..................................................................61

Cotter Pin

F430401 ..................................................................55

Diaphragm and Guide Kit

G582P3 .........................................................9, 21, 27

DIN Coil

F380987P......................29, 31, 33, 35, 37, 41, 43, 61

DIN Contactor Mounting Rail

F602595-5 .........................................................11, 17

68 F232166

N/A items do not appear in index.

DIN Harness Assembly

F141901P ................................. 29, 31, 33, 35, 37, 41

DIN Valve Adapter Kit

F8382301...................... 29, 31, 33, 35, 37, 41, 43, 61

DIN Valve Kit

F8521801.................................. 33, 35, 37, 41, 43, 61

Disconnect Power Warning Label

D505281 ......................................................... 7, 9, 15

Dispenser Assembly

F0150512-00P ........................................................ 25

Dispenser Lid

F0150514-00........................................................... 25

Do Not Push Decal

F230302.............................................................. 7, 53

Door Box

F606630.................................................................. 51

Door Box Assembly

F603666P ............................................................... 51

Door Box Mounting Plate Assembly

F605525.................................................................. 51

Door Bumper Bushing

F430416.................................................................. 49

Door Bumper Moulding

F150366.................................................................. 49

Door Butt Shim

F0610695-00........................................................... 49

Door Gasket

F017014501............................................................ 49

F170145.................................................................. 49

Door Glass Gasket

F170117 .................................................................. 49

Door Glass Kit

F290200P ............................................................... 49

Door Glass Retainer

F601239.................................................................. 49

Door Handle Casting

F150203.................................................................. 51

Door Hinge Pin

F601815.................................................................. 49

Door Hinge Strap Kit

F200030600P ......................................................... 49

Door Kit

F730307.................................................................. 49

F730539.................................................................. 49

F940P3 ................................................................... 49

Door Latch Bracket Shim

F602058.................................................................. 51

Door Lock Solenoid

F300129P ............................................................... 51

Drain Hose

F150438.................................................................. 45

F150442.................................................................. 45

F200165100............................................................ 45

Drain Valve Cover

F200133600............................................................ 45

Drain Valve Kit

F200166402............................................................ 45

Drain Valve Motor

F380933P ............................................................... 45

Drip Rail

F150364.................................................................. 47

Elbow

F0422918-00 ...........................................................31

F420509 ..........................................33, 35, 37, 41, 43

F422319 ..................................................................49

70079601 ................................................................61

Electrical Access Panel

F0637549-00 ...........................................................15

F635448 ..................................................................15

Emergency Stop Button Kit

F200233700P......................................................9, 15

Emergency Stop Pushbutton

F200233500 ........................................................9, 15

E-Stop Harness

F0636339-00P...........................................................9

Extension Arm Kit

F746803 ..................................................................51

Extension Arm Tab

F601639 ..................................................................51

External Supply Box

F635468 ..............................................................9, 15

External Supply Box Cover

F633435 ..................................................................15

F635365 ....................................................................9

External Supply Caution Decal

F231345-4 .................................................................7

External Supply Connection Decal

F230764-11 .............................................................13

F230764-12 .............................................................13

Extrusion Insert

F150397 ..................................................................53

Face Seal

F8162101 ................................................................47

F8162201 ................................................................47

Fill Plumbing Assembly

F0637637-01 .....................................................41, 43

F633146-1 .........................................................33, 35

F633146-3 .........................................................33, 35

F633146-5 .........................................................33, 35

F633146-6 .........................................................33, 35

F633146-7 .........................................................33, 35

F633419-1 .........................................................33, 37

F633419-5 .........................................................33, 37

Filter Retainer Guard

F220900 ..................................................................17

Flange Relay

F330230 ............................................................11, 17

Frame Assembly

F633376 ..................................................................47

F633376-2 ...............................................................47

F633378 ..................................................................47

F633378-2 ...............................................................47

Front Bearing Kit

F798824-00 .......................................................55, 57

Front Panel

F635649P................................................................53

Fuse

F350108 ............................................................11, 17

F350109 ............................................................11, 17

F232166 69

N/A items do not appear in index.

F350110 ............................................................ 11, 17

F350115 .................................................................. 19

F350142.................................................................. 19

Fuse Holder

F0350312-10........................................................... 19

F0350313-00P ........................................................ 19

Gasket

F170158P ............................................................... 25

Gate Valve

F380500.......................................... 33, 35, 37, 41, 43

Glass

F290201P ............................................................... 49

Grease Fitting

F190701............................................................ 55, 57

Grease Gun

F210207P ............................................................... 65

Grease Gun Kit

F798700.................................................................. 65

Grease Instruction Decal

F231563............................................................ 55, 57

Ground Decal

F230630............................................................ 13, 19

Ground Terminal Lug

F140734............................................................ 13, 19

Handle Spacer

F609822.................................................................. 51

Handle Weldment

F609427.................................................................. 51

Heating Element

F360203P ............................................................... 59

Hex Bit

F704906.................................................................. 63

Hose

F200104P ............................................. 33, 39, 41, 43

Hose Adapter

F421908............................................................ 29, 31

F421909.......................................... 33, 35, 37, 41, 43

Hose Barb

F421929............................................................ 45, 47

F421951................................................ 33, 37, 41, 43

F421964.......................................... 33, 35, 37, 41, 43

Hose Clamp

F200201.................................................................. 45

F200206................................................ 33, 39, 41, 43

F200213............................................................ 25, 45

F200215........................................................ 9, 21, 45

F200222................................................ 33, 39, 41, 43

36801 .......................................................... 27, 45, 47

Hose Connector

F200302.................................................................. 27

Hose Strap

F605324.................................................................. 53

Hot Surface Warning Decal

F200085000.............................................................. 7

F231380.................................................................... 7

Hot Water Valve Decal

F231367 ....................................................................7

Injection Nozzle

F8322001 ................................................................25

Injection Nozzle Kit

F730168 ..................................................................25

Input Block Decal

F0231636-00 ...........................................................19

Input Power Block

F140747 ..................................................................59

F140794-1 .........................................................13, 19

Input Power Decal

F231437 ..................................................................13

Insulator Bushing

F140909 ............................................................13, 19

Interlock Contactor

F330186P..........................................................11, 17

Interlock Switch

F340900 ............................................................23, 51

Interlock Switch Spacer

F601055 ..................................................................51

Key

F430801 ............................................................55, 57

F430802 ............................................................55, 57

F430803 ..................................................................57

Keymode Run/Program Switch

F340800P................................................................19

Keypad

F0231582-01P...........................................................9

Keypad Decal

F230724P................................................................15

Lower Door Latch Bracket Casting

F150202 ..................................................................51

Lower Door Latch Casting

F150204 ..................................................................51

Magnet

F8390801 ................................................................51

Magnetic Switch Assembly

F200321200 ............................................................51

Main Drive Kit

F380918 ..................................................................45

Main Harness

F0635734-01 ...........................................................15

F200295900 ............................................................11

Momentary Switch

F200120100 ........................................................9, 15

F340412 ..............................................................9, 15

70 F232166

N/A items do not appear in index.

Motor

F220413P ............................................................... 57

F220425P ............................................................... 57

F220427P ............................................................... 57

F8330501P ............................................................. 55

F8353801P ............................................................. 55

F8354601P ............................................................. 57

F8597805P ............................................................. 55

F8598101P ............................................................. 57

Motor Adjustment Strap

F602166.................................................................. 55

Motor Bushing

F280214.................................................................. 55

Motor Drip Shield

F200216900............................................................ 57

F200280700............................................................ 55

Motor Pulley Bushing

F280211P................................................................ 57

Motor Support Bushing

F200186100............................................................ 55

Motor Support Rod Kit

F730076.................................................................. 55

Mounting Bolt Kit

F730055-1............................................................... 65

Nipple

F420101.................................... 29, 31, 33, 35, 41, 43

F420103.......................................... 29, 31, 33, 37, 41

F420105.............................. 29, 31, 33, 35, 37, 41, 43

F420107...................................................... 37, 41, 43

F420708.................................................................. 61

F420710.................................................................. 61

F421949............................................................ 29, 31

F820104.................................................................. 37

No-Swivel Coupling

F422109.................................................................. 49

Nut

F0431807-00........................................................... 53

F430205.................................................................. 47

F430211 .................................................................. 53

F430215................................................ 47, 51, 53, 59

F430218.................................................................. 23

F430231.......................................... 13, 15, 17, 51, 59

F430232.................................................................. 51

F430233.................................................................. 55

F430264.................................................................. 53

F431000.................................................. 9, 13, 15, 19

F431002.................................................................. 51

F431022............................................................ 19, 49

F431026.................................................. 9, 15, 49, 51

F431042.................................................................. 25

F431806.................................................................. 11

H88412101 ............................................................. 23

20274 ................................................................ 23, 49

44087301 ................................................................ 23

70142 ...................................................................... 47

802292 .................................................................... 25

O-Ring

F0170221-00............................................... 31, 41, 43

F170200 ..................................................................49

F170208 ..................................................................25

F170215 ..................................................................25

Output Board Cover

F0170427-00 ...........................................................11

Output CCA

F037044860-2 .........................................................11

F8321901P..............................................................17

Overflow Plug

F150352 ..................................................................45

Personal Injury Warning Decal

F231065 ..............................................................7, 19

F430415 ..................................................................53

Pipe

F0602364-10 ...........................................................45

F0602364-25 ...........................................................45

F0602365-01 ...........................................................45

F0602365-22 ...........................................................45

Pipe Insulation

F410300 ..................................................................61

Plug

F0200237-00 ...........................................................47

F200202600 ............................................................61

F420408 ..................................................................33

F420409 ..................................................................61

Plug Cap

F190304 ..................................................................25

Plug Removal Warning Decal

F0230112-00 ...........................................................47

Pop Rivet

F431210 ......................................................45, 47, 51

Program Key

F370709 ..................................................................19

Pulley

F280132P................................................................57

F280146P................................................................55

F280299 ..................................................................57

F280408 ..................................................................57

F280410 ............................................................55, 57

Pulley Bushing

F280297 ..................................................................57

F280298P................................................................57

Push Decal

F230303 ..................................................................51

Push Handle Kit

F746201-1 ...............................................................51

RC Network Filter

F330217P................................................................51

Rear Bearing Kit

F745010 ............................................................55, 57

Rear Panel

F200187900P..........................................................53

Rebar Frame Template

F602941 ..................................................................65

F232166 71

N/A items do not appear in index.

Reducer Bushing

F422602.................................................................. 45

Repair Kit

F380965P ............................................................... 37

Resistor

F370116 .................................................................. 19

Ribbon Cable

F140219P ......................................................... 15, 17

F140247.............................................................. 9, 11

Ring Retainer

F310206.................................................................. 49

Rotation Decal

F230607.................................................................. 49

Rotation Sensor Assembly

F200126200P ......................................................... 23

Rotation Sensor Bracket

F200122502............................................................ 23

Rotation Sensor Harness

F8066401................................................................ 23

Rotation Sensor PCB

F200101300P ......................................................... 23

Rotation Sensor Retrofit Kit

F079900800............................................................ 23

Rub Rail

F150408.................................................................. 53

Screw

F0430272-00........................................................... 63

F0430273-00........................................................... 63

F0430274-00........................................................... 63

F0430275-00........................................................... 63

F430103.................................................................. 49

F430116 .................................................................. 57

F430168.................................................................. 51

F430174.................................................................. 15

F430502.................................................................. 49

F430518.................................................................. 47

F430903...................................................... 11, 17, 19

F430909.................................................................. 51

F430910................................................ 13, 17, 19, 59

F430916.................................................................. 51

F430917............................................ 9, 15, 25, 49, 51

F430920.................................................................. 13

F430921.................................................................. 53

F430924.................................................................. 47

F430927............................................................ 23, 51

F430928.................................................. 9, 11, 15, 17

F430935............................................................ 47, 61

F430938.......................................... 19, 31, 41, 43, 59

F430948.................................................................. 27

F430956............................................................ 51, 53

F430960.................................................................. 63

F430995............................................................ 13, 51

F430996.................................................................. 51

F431702.................................................................. 11

F432234.................................................................. 53

F432259.................................................................. 63

F432260.................................................................. 63

F8111101................................................................. 23

F8122701................................................................ 23

F8136401............................................................ 9, 15

70240301 ...................................................... 9, 15, 53

800461 ........................................................ 23, 47, 57

Scupper

F150389 ............................................................45, 47

Seal Kit

F798819-00 .............................................................47

Shaft Seal Alignment Fixture

F0100312-00 ...........................................................65

Shell Band Assembly

F603344P................................................................47

Shell Band Fastener Kit

F791001 ..................................................................47

Shell Band Gasket

F170120RP .............................................................47

Shell Front Assembly

F200119900P ..........................................................47

Shell Front Weldment

F609200P................................................................47

Shell Gasket Shield

F601216 ..................................................................47

Shell Mounting Bracket

F601806 ..................................................................47

Shell Reinforcement Plate Assembly

F8084201 ..........................................................45, 47

Shell Weldment

F0633208-05 ...........................................................47

F0634436-02 ...........................................................47

F0634436-03 ...........................................................47

Side Panel

F635648P................................................................53

Side Panel Bracket

F601982 ..................................................................53

Side Panel Cover

F606667 ..................................................................53

Signal Light

F350404 ..................................................................19

Slinger

F100203 ..................................................................47

Snap Bushing

F140938 ..............................................................9, 21

Soap Dispenser Hose

F150309 ..................................................................45

Soap Dispenser Shroud Weldment

F8024301 ................................................................25

Solenoid Spacer

F609728 ..................................................................51

Spanner Bit

F704907 ..................................................................63

Sponge

F170110...................................................................53

Spray Plumbing Assembly

F0637633-01 ...........................................................31

F0637633-03 ...........................................................31

F633150-1 ...............................................................29

F633150-5 ...............................................................29

Spray Rinse Bracket Assembly

F602901P..........................................................47, 49

Spray Rinse Hose Assembly

F730026 ..................................................................49

Spray Rinse Nozzle Kit

F730077 ..................................................................49

Spray Rinse Strap

F602880 ..................................................................49

Spray Rinse Tube Assembly

F603696-9 ...............................................................49

72 F232166

N/A items do not appear in index.

Spring

F310127.................................................................. 55

Standoff

F180501............................................................ 11, 23

F180506.................................................................. 17

Steam Bracket Weldment

F635634.................................................................. 61

Steam Filter

F270307.................................................................. 61

Steam Hose

F200517.................................................................. 61

Steam Injector Tube Assembly

F603131.................................................................. 61

Steam Plumbing Assembly

F635653P ............................................................... 61

Steam Valve

F380787P ............................................................... 61

Strain Relief Adapter Kit

F749802.................................................................. 25

Strain Relief Connector

F140340P ............................................................... 25

Strainer

F270200.................................................................. 27

Street Elbow

F420500.............................. 29, 31, 33, 35, 37, 41, 43

F420502.................................... 29, 33, 35, 37, 41, 43

F421703.................................................................. 61

H86070034 ............................................................. 61

Supply Dispenser Hazard Caution Decal

F231436.............................................................. 7, 25

Supply Dispenser Spacer

F0150525-00........................................................... 25

Switch Mode Decal

F0231632-01........................................................... 19

F231581.................................................................. 19

Swivel Coupling

F422108.................................................................. 49

Te e

F420400............................................................ 31, 33

F420401.................................................................. 29

F420402................................................ 35, 37, 41, 43

F422801.................................................................. 45

F422803.................................................................. 45

F422806.................................................................... 9

Temperature Probe

F370606P ......................................................... 23, 59

Terminal Block

F140776............................................................ 13, 19

M413865 ................................................................. 59

This Machine Must Be Protected Decal

F230301.................................................................... 7

Tie Wrap Mounting Clamp

F140602.................................................................. 15

Top Latch Bracket Casting

F150201P ............................................................... 51

To r x Bi t

281P4...................................................................... 63

Transformer

F360156P ............................................................... 61

Trim

F170400 ..................................................................53

F170400RP .......................................................25, 53

Tube Connector

F422106 ............................................................29, 31

Tubing

C000628P .........................................................55, 57

F422404P............................................................9, 21

U-Bolt Clamp

F200401P............................29, 31, 33, 39, 41, 43, 61

Vacuum Breaker

F380117...................................................................45

Vacuum Breaker Cap

F0380808-00 ...............................................31, 41, 43

Vacuum Breaker Kit

F0798922-00 ...............................................31, 41, 43

Vacuum Breaker Replacement Kit

F0637547-00 ...............................................29, 33, 37

Vacuum Breaker Valve

F063754701P..............................................31, 41, 43

F380800P....................................................29, 33, 37

Valve

F381701P........................................33, 35, 37, 41, 43

F381703P..............................................29, 31, 37, 41

F8322801 ................................................................61

F8322803P............................................29, 31, 37, 41

F8322905 ........................................33, 35, 37, 41, 43

Valve Kit

F8379501 ................................................................61

Valve Rebuild Kit

F8379502 ........................................33, 35, 37, 41, 43

Valve Repair Kit

F380988 ..................................................................41

F380990P................................................................41

F380993P................................................................37

Valve Transition Kit

F8456201 ..............................................29, 31, 37, 41

Valve, 4-Way

F381723P......................................................9, 21, 27

F381724P................................................................27

Washer

F430311...................................................................59

F430317 ............................................................47, 53

F430332 ............................................................55, 57

F431100.......................................................49, 51, 53

F431106.............................................................13, 19

F431108...................................................9, 15, 19, 51

F431112...................................................................47

F431113...............................................................9, 15

F431116...................................................................47

F431118...................................................................51

F431123...............................................................9, 15

F431125...................................................................15

F232166 73

N/A items do not appear in index.

F431142 .................................................................. 51

F431147 .................................................................. 25

F8195301................................................................ 25

M400013 ................................................................. 47

M400014 ..................................................... 23, 47, 57

M400080 ................................................................. 55

M400081 ........................................................... 23, 47

20290 ........................................ 29, 31, 33, 39, 41, 43

803615 ................................ 29, 31, 33, 35, 37, 41, 43

901690 .................................................................... 55

Water Hose

F200107P ......................................................... 45, 47

F200110P................................................................ 27

F200164.................................... 29, 31, 33, 39, 41, 43

F200166.................................... 29, 31, 33, 39, 41, 43

F200509................................................ 33, 39, 41, 43

Water Level Switch

F0340347-10P .................................................... 9, 21

Water Pressure Switch

F8223001P ............................................................... 9

Water Valve Repair Kit

F380991P ................................................... 35, 37, 43

WE-6 Computer

F370534-00P .......................................................... 15

Y Connector

F422816.................................................................. 27

Notes

74 F232166

Washer Extractor Parts Manual UW60P3 F232166

Navigation menu

Versions of this User Manual:

Views

Navigation
