Washer Extractor Parts Manual 160 F232167

User Manual: 160

Open the PDF directly: View PDF .
Page Count: 102 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Cover
Model Identification
Table of Contents
Parts Index

Parts

www.alliancelaundry.com

Washer-Extractor

Pocket Hardmount

Refer to Page 5 for Model Numbers

PHM1410C_F232167

UW60PV

UW60AV and UW60VV

WARNING

MACHINE MAY BE HOT

AND CAUSE BURNS

ATTEMPT NO ENTRY UNTIL

BASKET HAS STOPPED

SERIOUS INJURY MAY RESULT

Part No. F232167R21

August 2017

F232167 1

means without the expressed written consent of the publisher.

Table of Contents

Title Page

Parts Ordering Information........................................................................................................................................ 3

Serial Plate Location ................................................................................................................................................. 3

Model Identification ................................................................................................................................................... 5

Pocket Hardmount Washer-Extractor Product Overview .......................................................................................... 6

Product Info - Ordering AC Drives for Models UW60PVQ ........................................................................................ 8

Product Info - Ordering AC Drives for Models UW60PVN or UW60PVP.................................................................. 9

Product Info - Ordering AC Drives for Models UW60PVT....................................................................................... 10

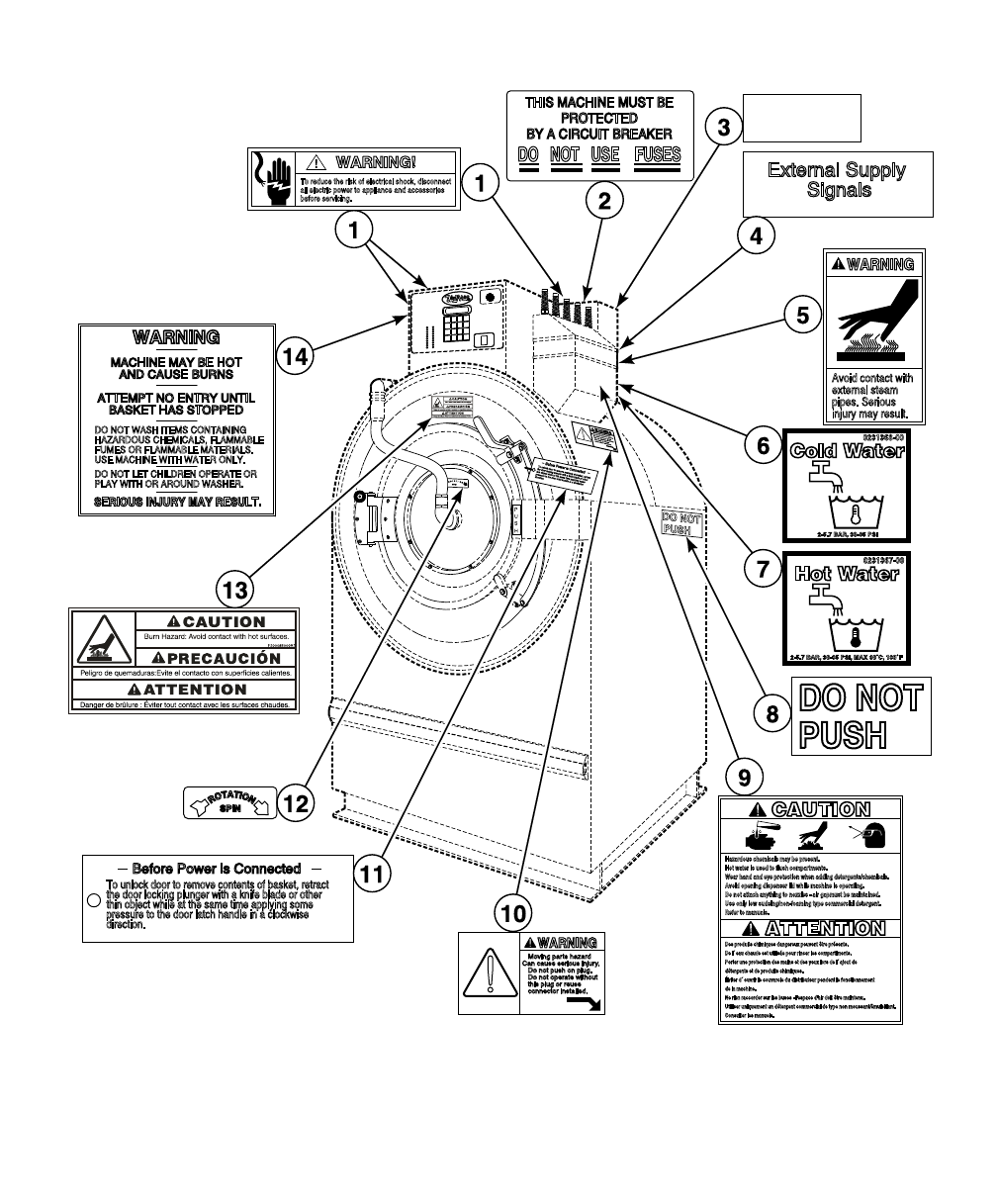

Decals ..................................................................................................................................................................... 12

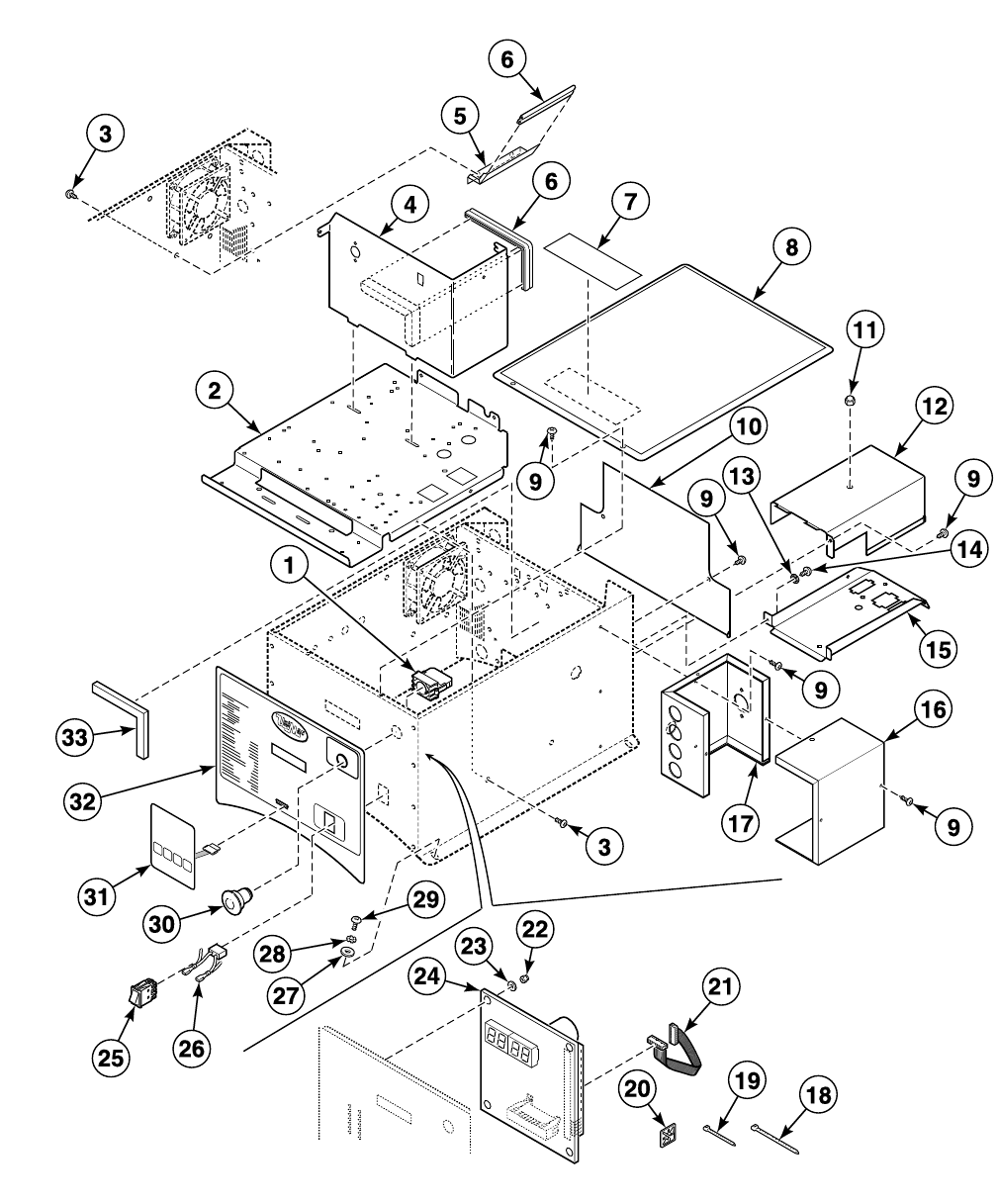

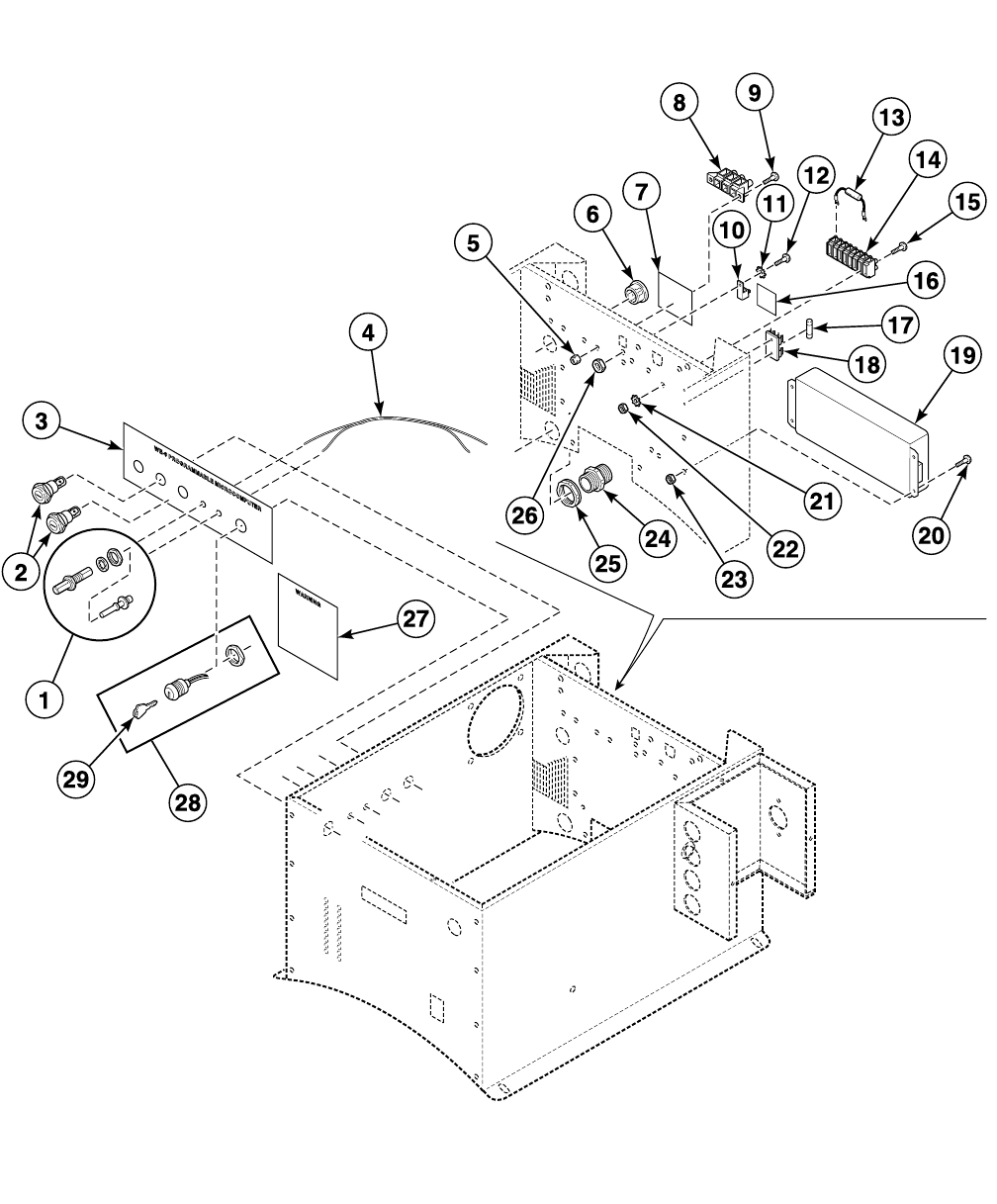

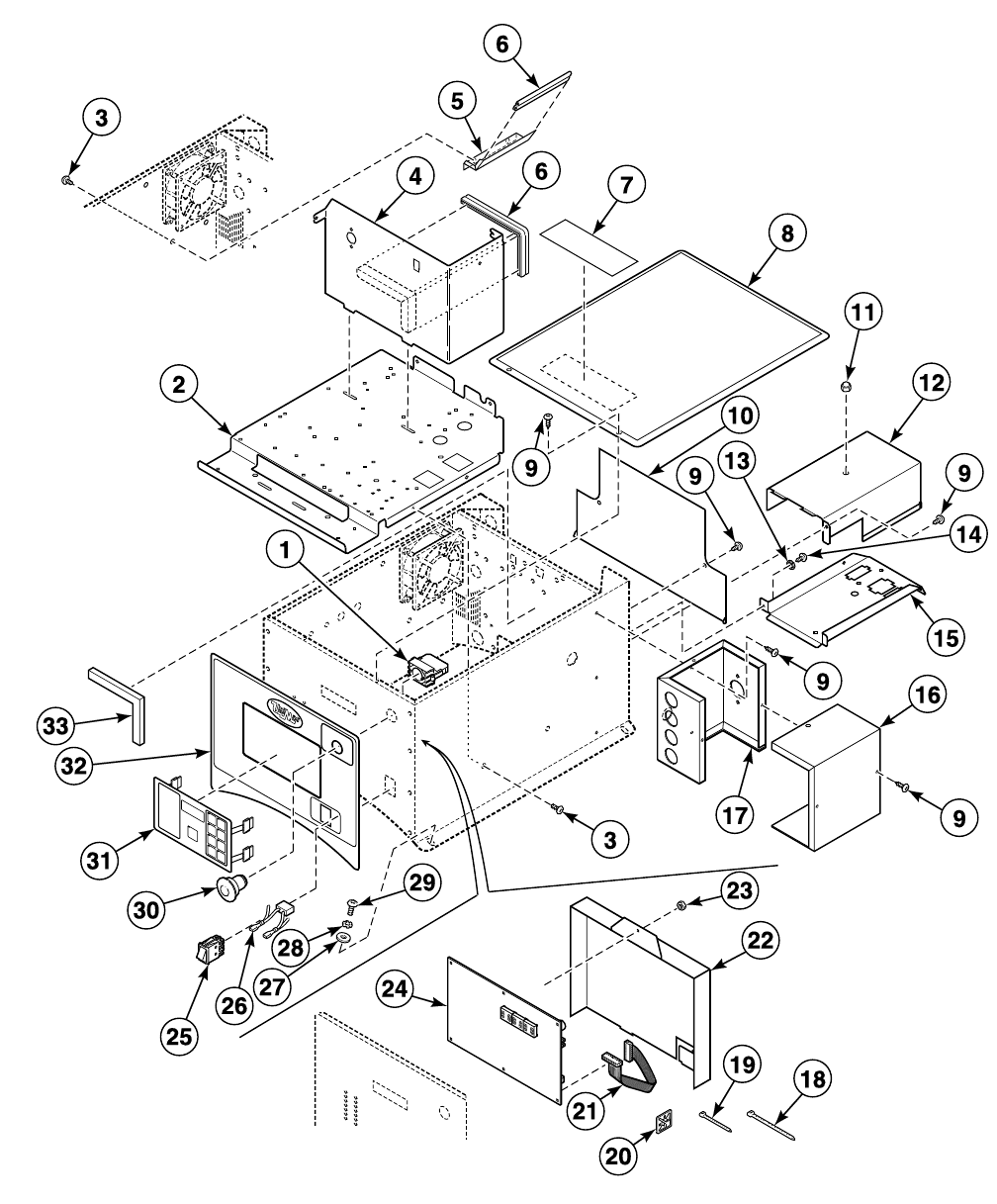

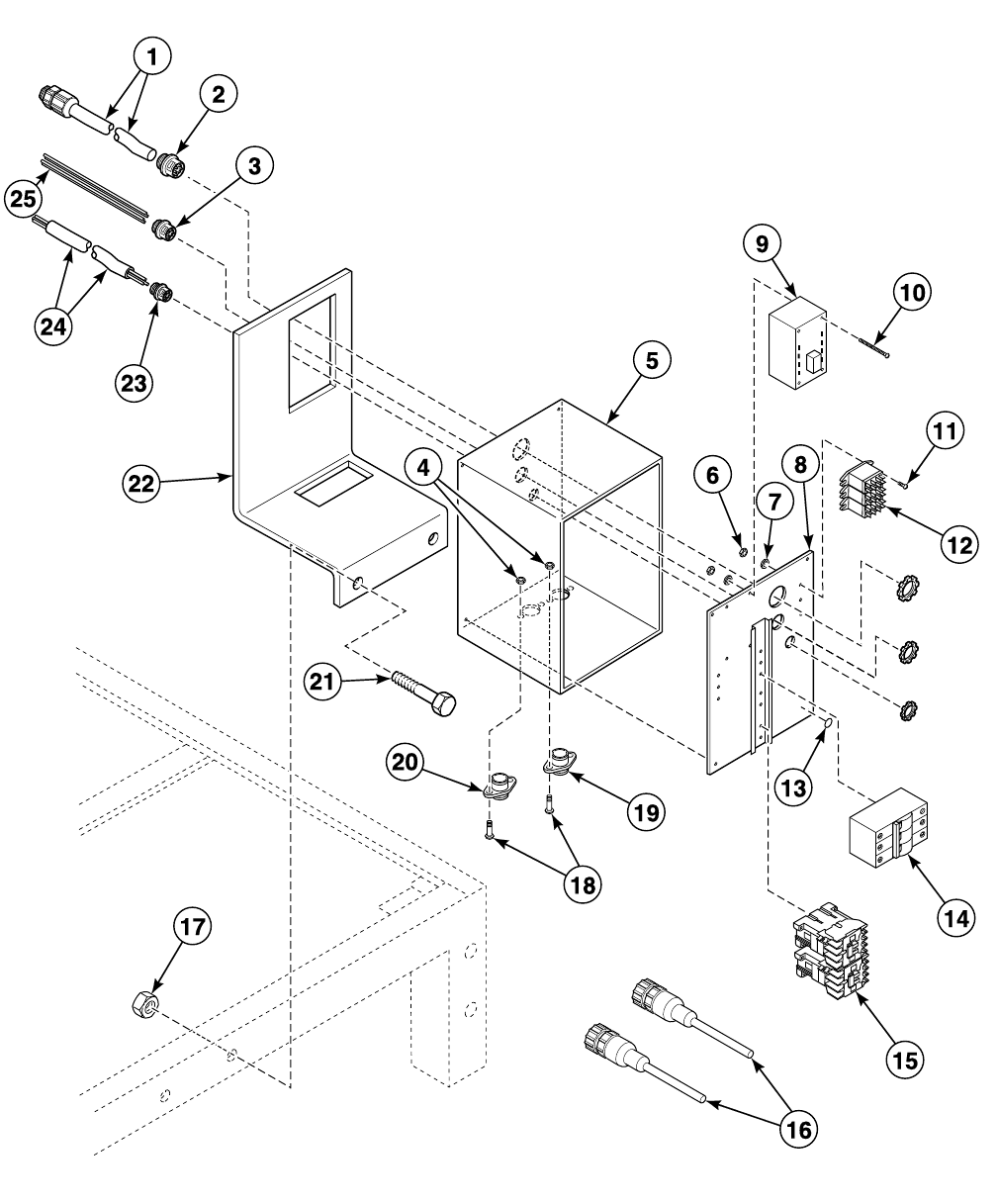

Control Module - Model UW60PV (Drawing 1 of 4) ................................................................................................ 14

Control Module - Model UW60VV (Drawing 1 of 4) ................................................................................................ 16

Control Module - Model UW60AV (Drawing 1 of 4) ................................................................................................ 18

Control Module - Model UW60PV (Drawing 2 of 4) ................................................................................................ 20

Control Module - Models UW60AV and UW60VV (Drawing 2 of 4)........................................................................ 22

Control Module (Drawing 3 of 4) ............................................................................................................................. 24

Control Module (Drawing 4 of 4) ............................................................................................................................. 26

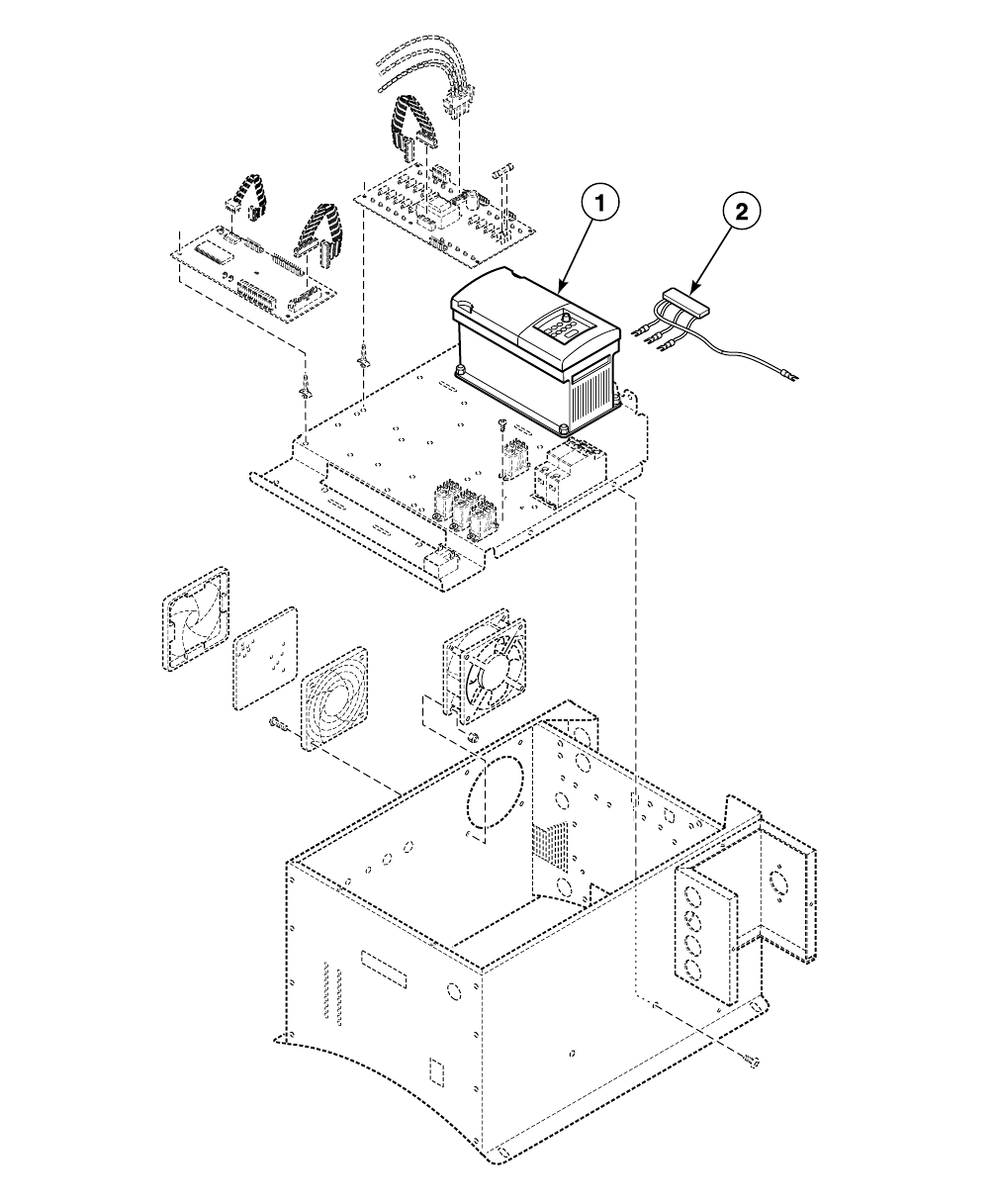

AC Drive - Model UW60PV (Drawing 1 of 2) .......................................................................................................... 28

AC Drive - Model UW60PV (Drawing 2 of 2) .......................................................................................................... 30

AC Drive PowerFlex 40 Drive Kits .......................................................................................................................... 32

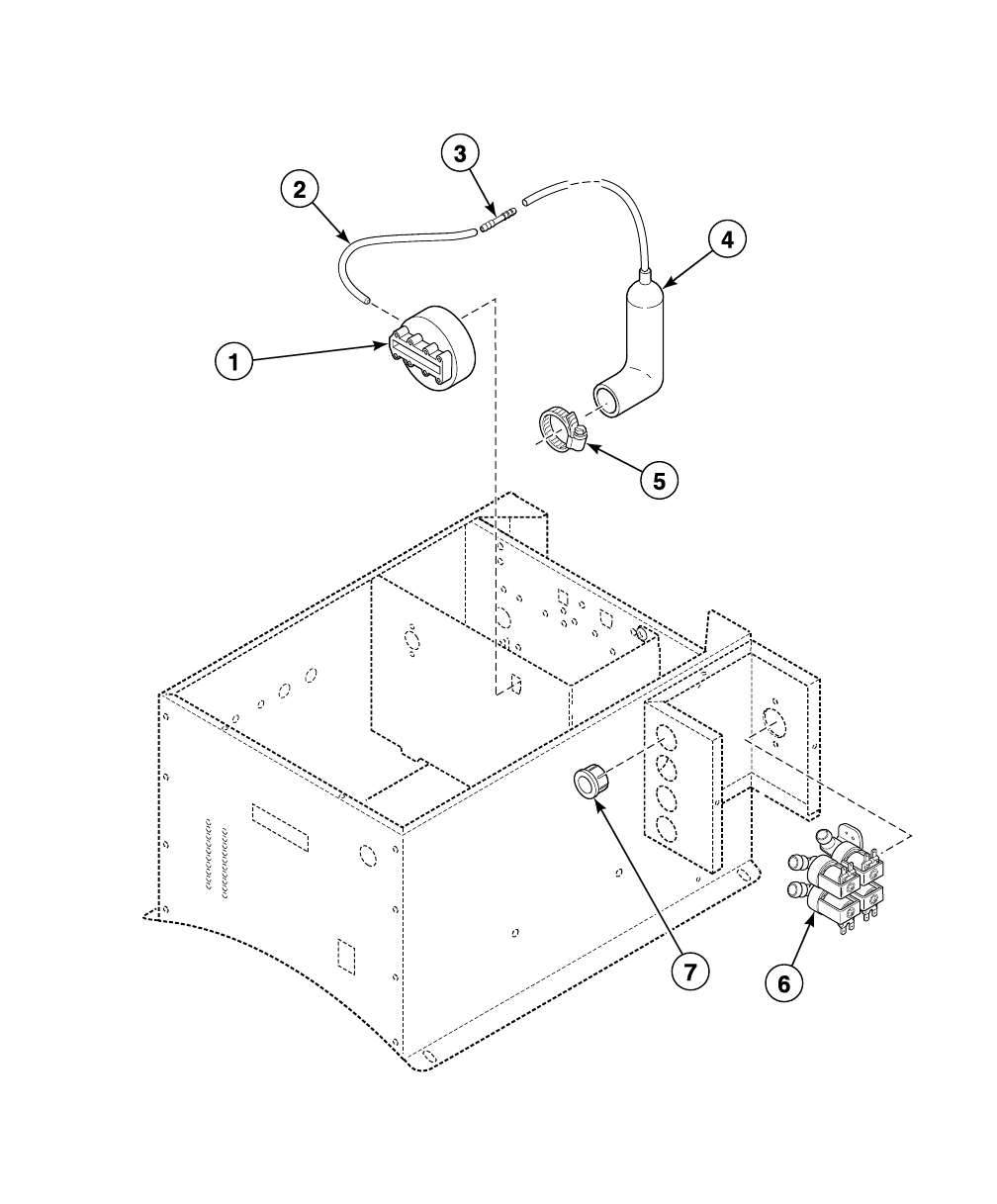

Balance Switch, Temperature Probe and Rotation Sensor .................................................................................... 34

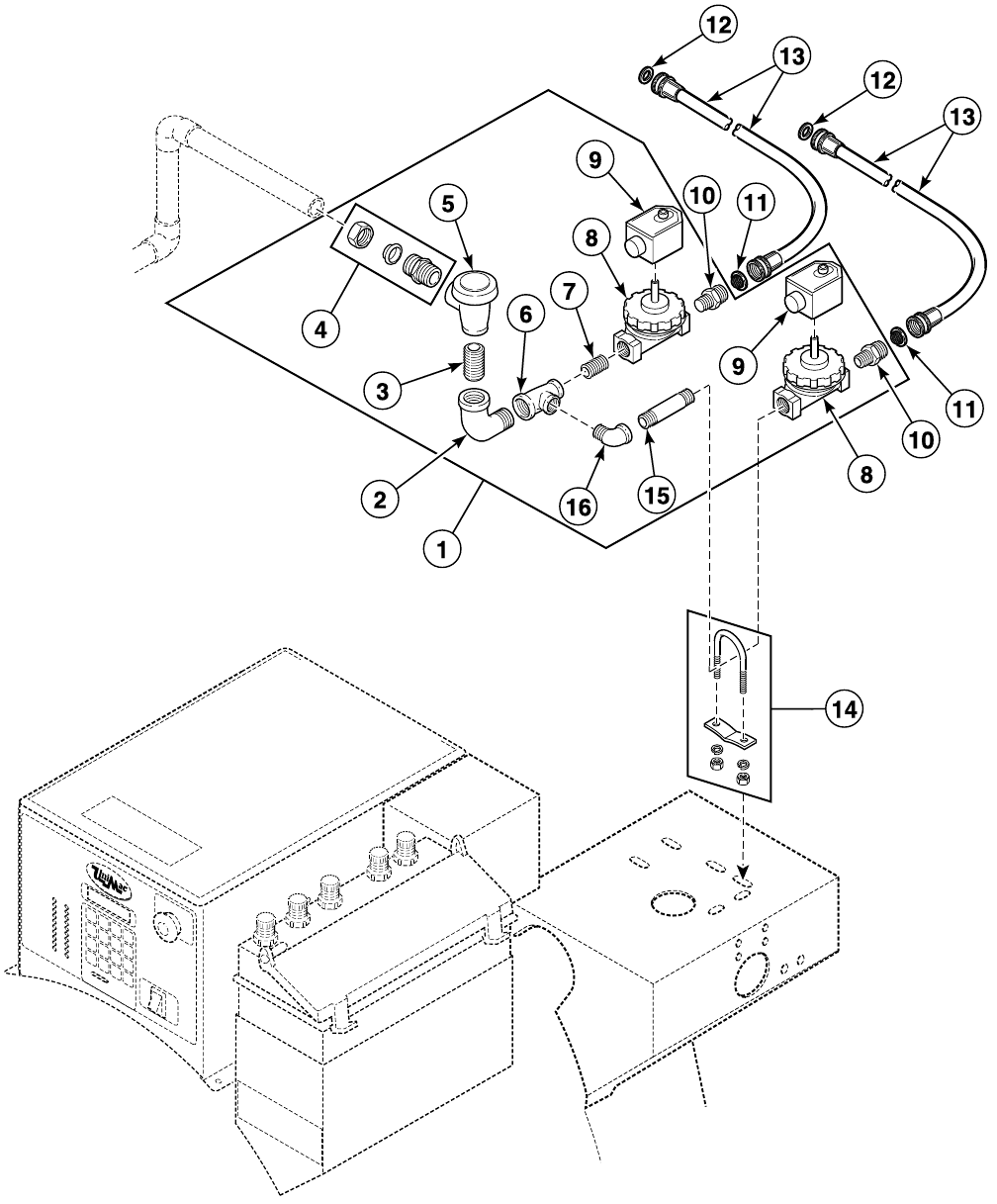

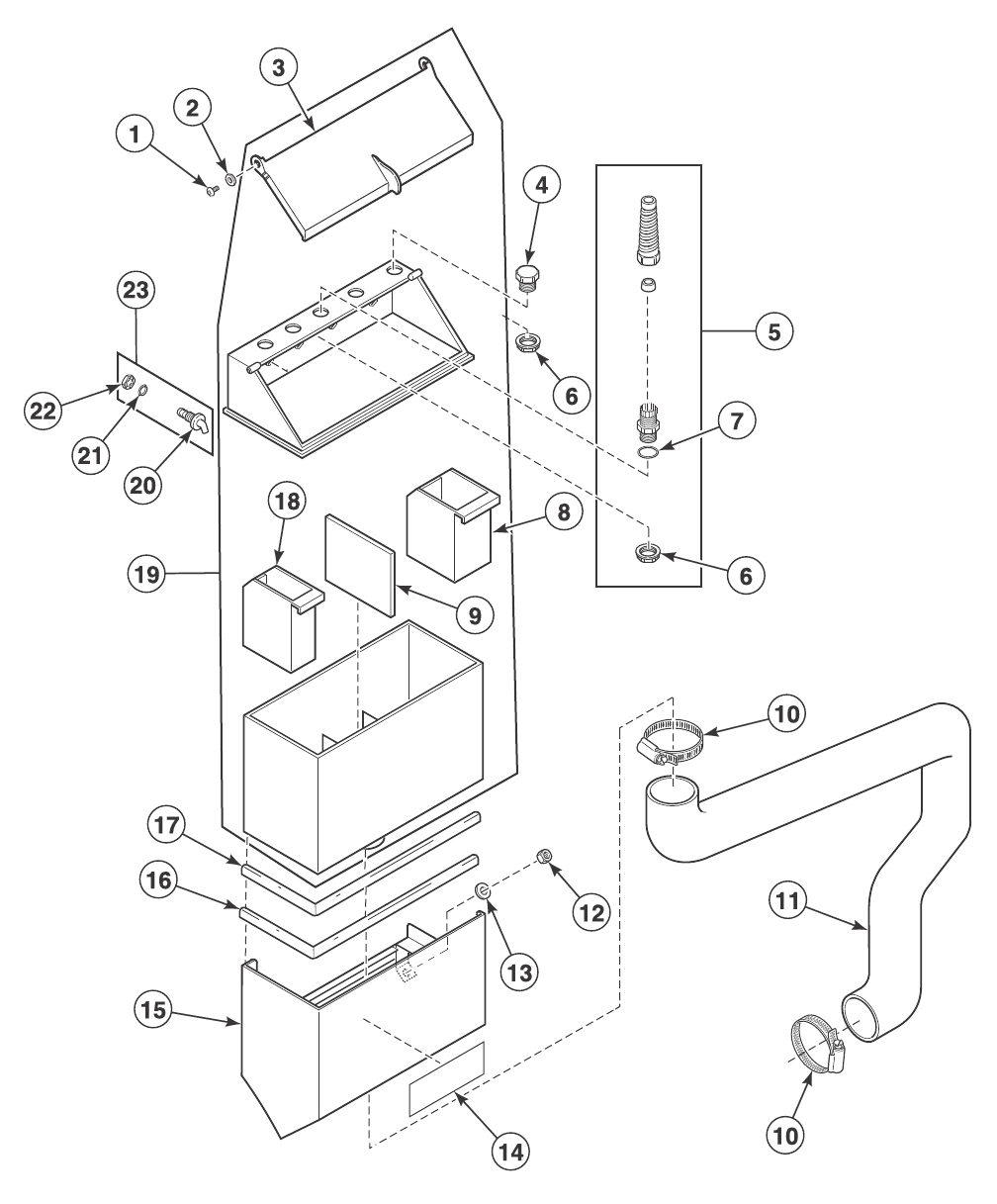

Supply Dispenser.................................................................................................................................................... 36

Hoses to Supply Dispenser..................................................................................................................................... 38

Spray Plumbing - Design 5 and 6 UW60PV Models ............................................................................................... 40

Spray Plumbing - Design 7 and 8 UW60PV Models ............................................................................................... 42

Fill Plumbing - Design 5 and 6 UW60PV Models Through 2/29/02 ........................................................................ 44

Fill Plumbing - Design 5 and 6 UW60PV Models Starting 3/1/02 ........................................................................... 46

Fill Plumbing - Design 7 and 8 UW60PV Models.................................................................................................... 48

Fill Plumbing - Models UW60AV and UW60VV ...................................................................................................... 50

Drain System, Overflow and Vent Pipes ................................................................................................................. 52

Basket, Shell and Frame (Drawing 1 of 2) .............................................................................................................. 54

Basket, Shell and Frame (Drawing 2 of 2) .............................................................................................................. 56

Door and Spray Tube.............................................................................................................................................. 58

Door Lock................................................................................................................................................................ 60

Front, Side and Rear Panels................................................................................................................................... 62

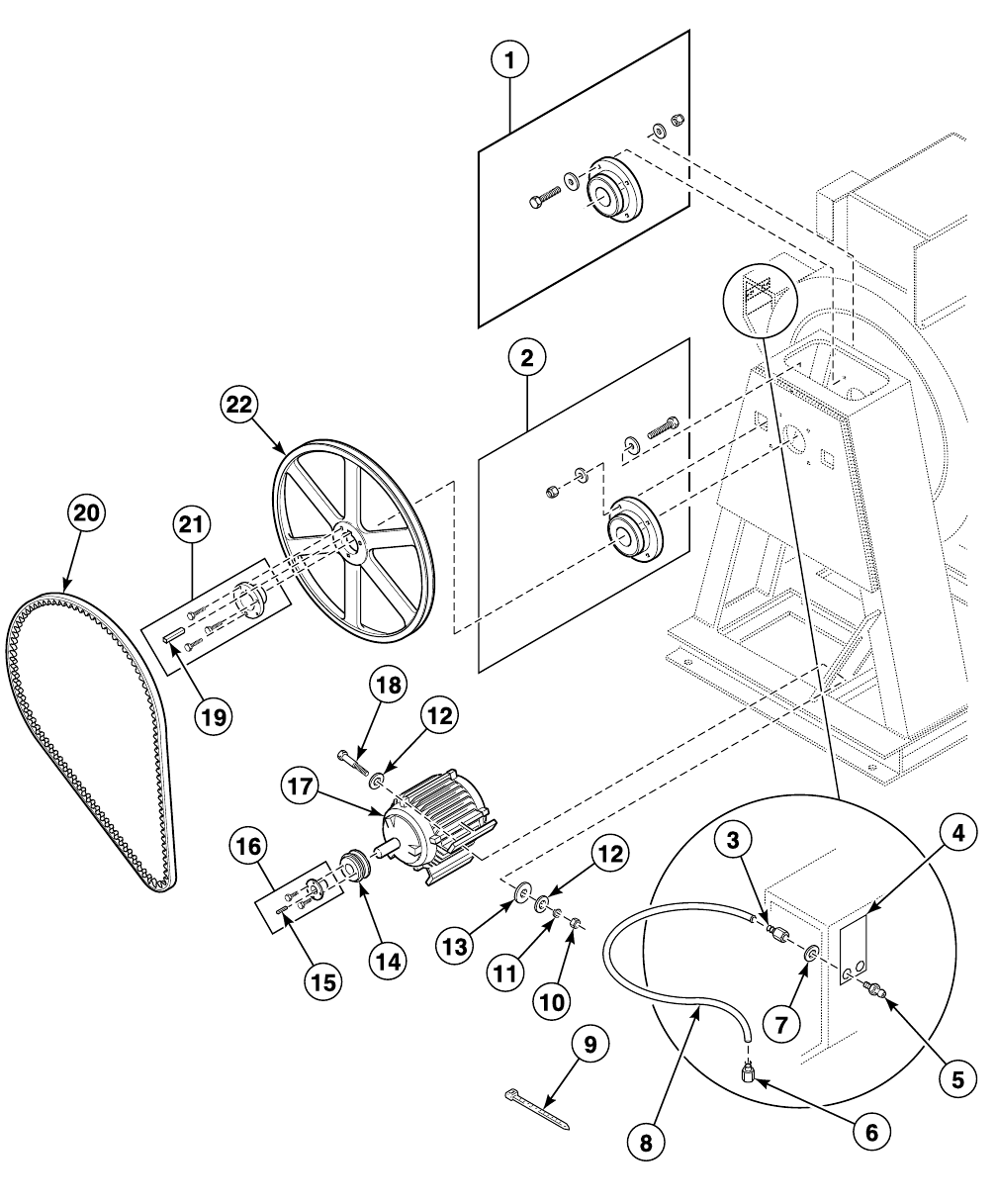

Motor and Pulley - Model UW60PV ........................................................................................................................ 64

Motor and Pulley - Models UW60AV and UW60VV................................................................................................ 66

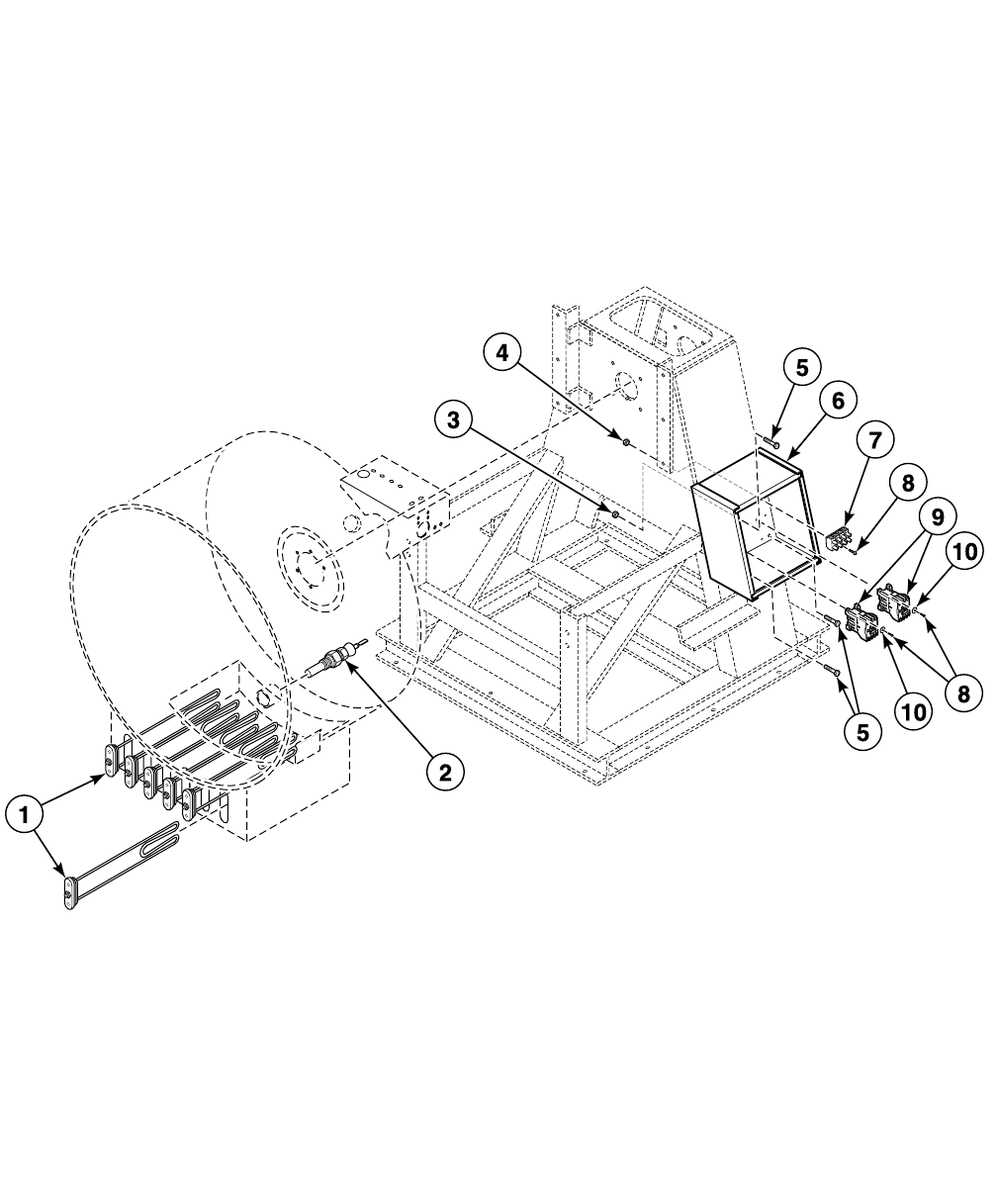

Electric Heat Option ................................................................................................................................................ 68

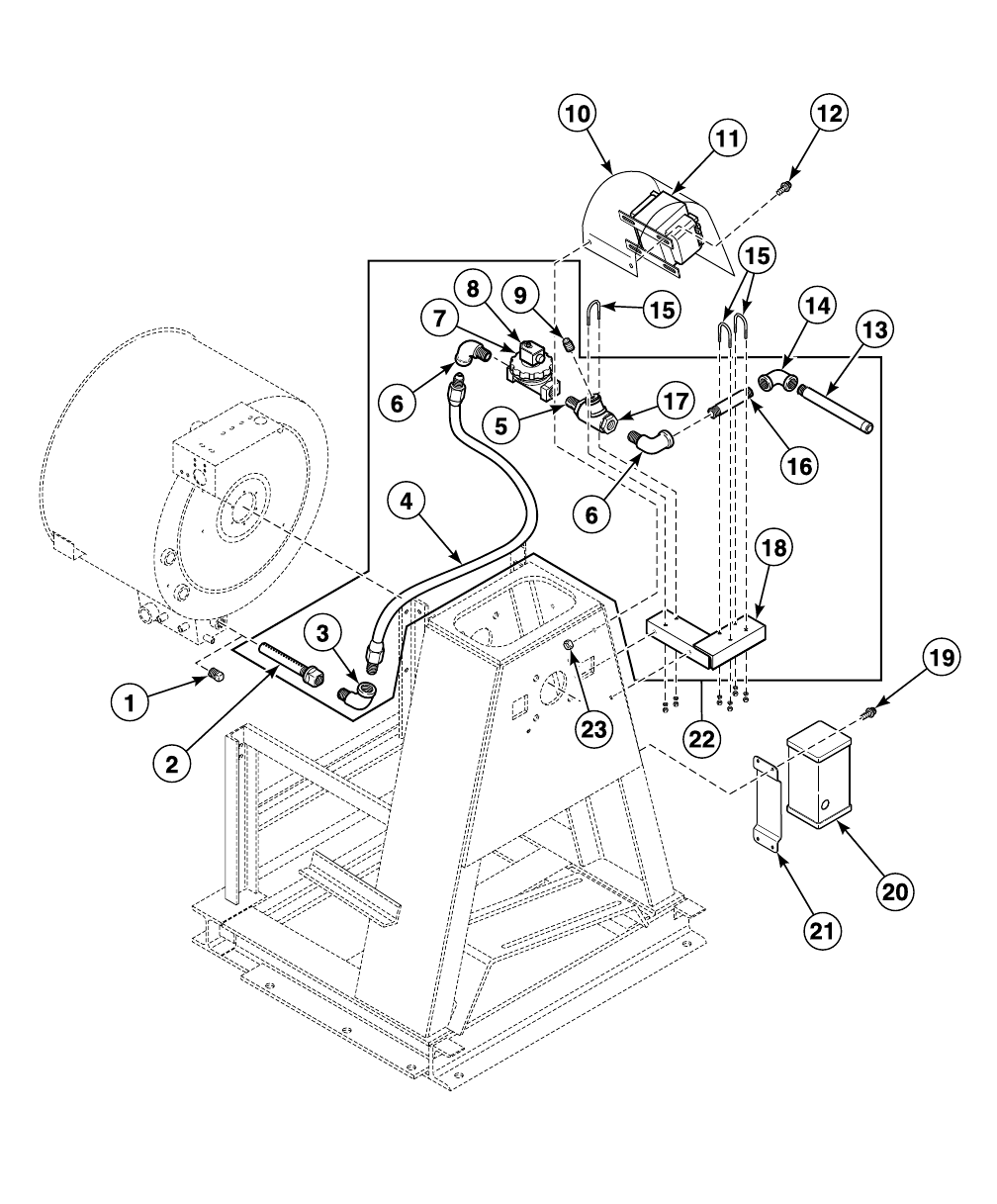

Steam Heat Option and Transformers .................................................................................................................... 70

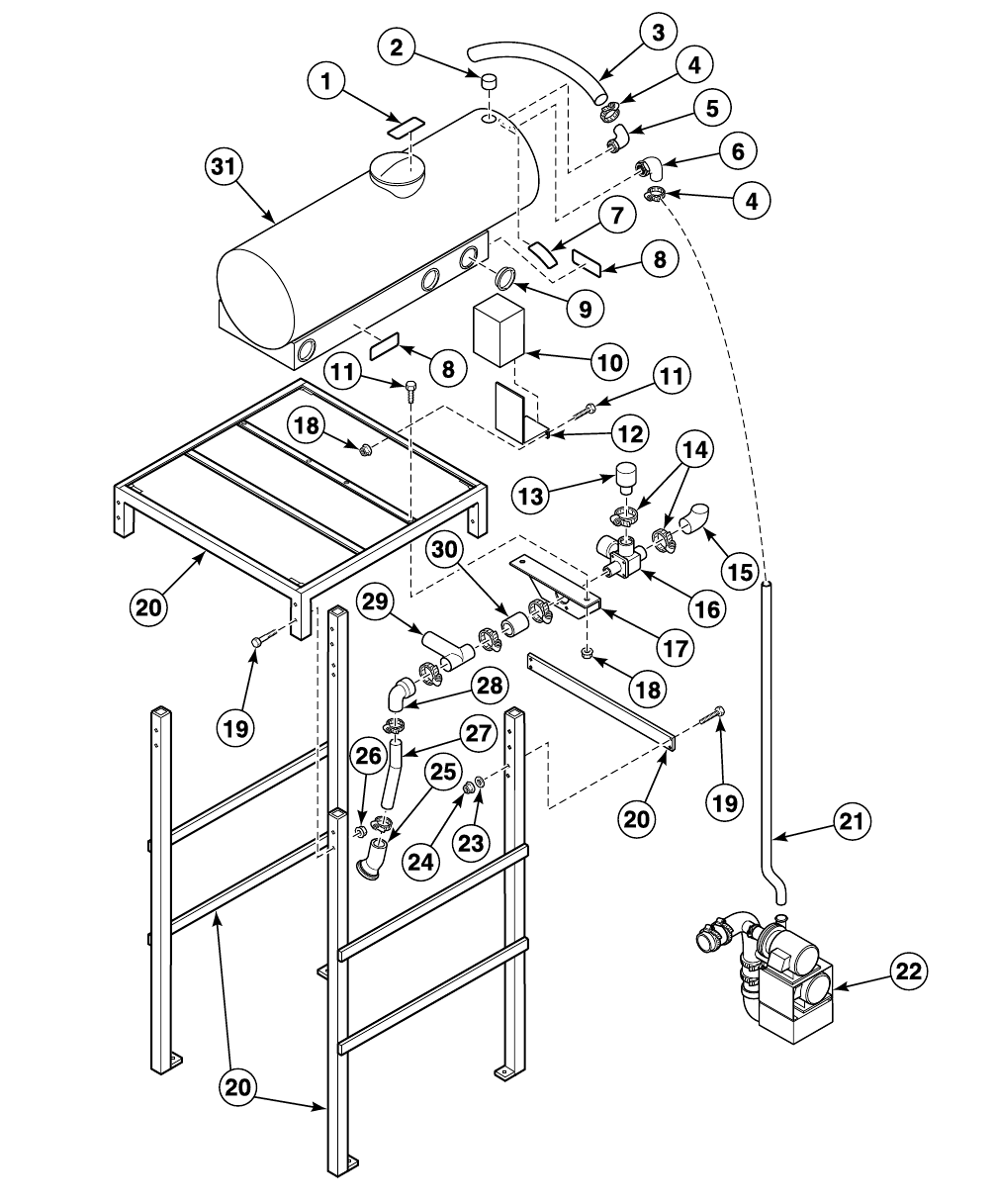

Water-Saving System Main View - Design 5 and 6 UW60PV Models ....................................................................72

Water-Saving System Main View - Design 7 and 8 UW60PV Models ....................................................................74

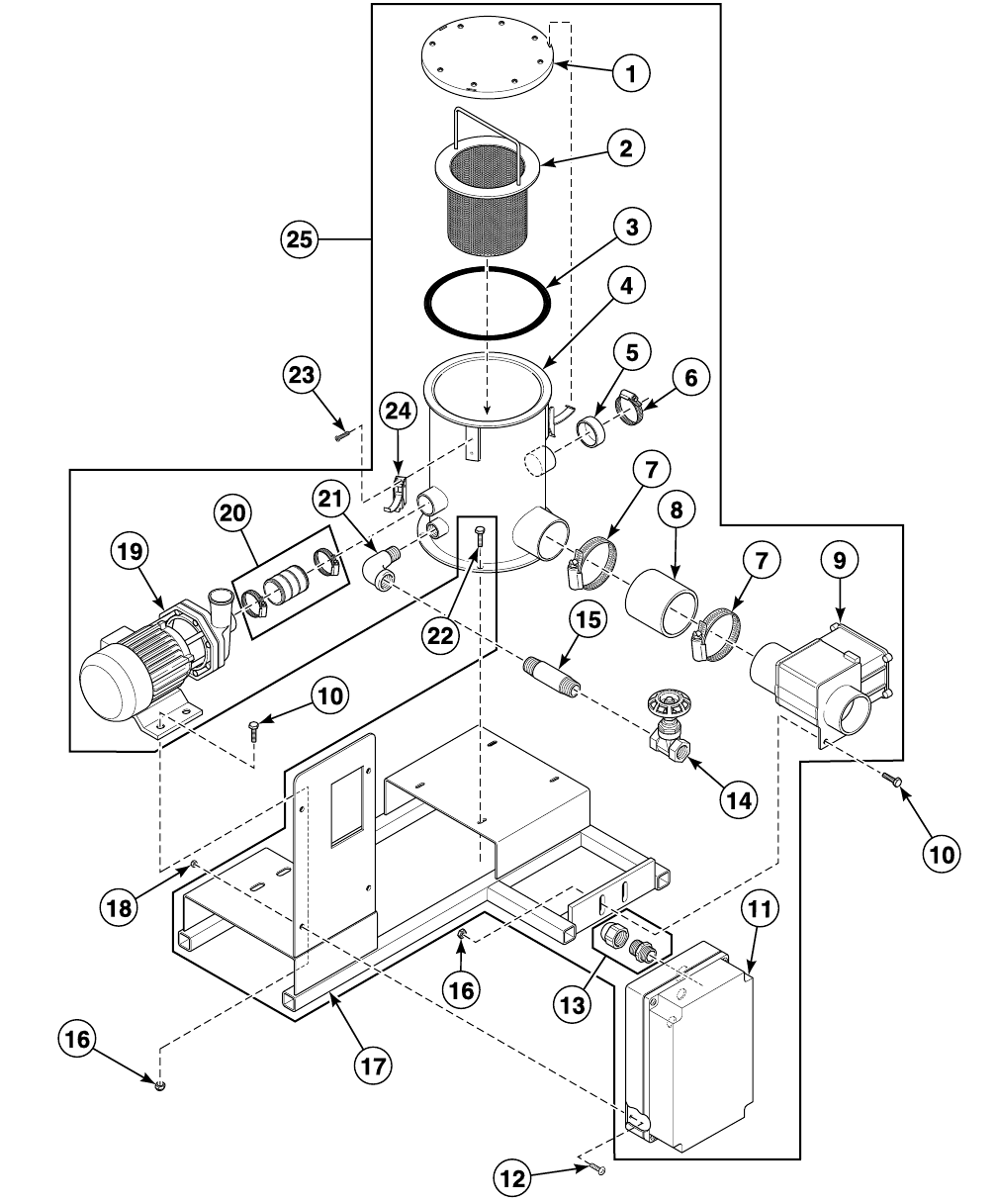

Water-Saving System Pump Sub-Assembly - Model UW60PV .............................................................................. 76

Water-Saving System Control Module Sub-Assembly - Model UW60PV ............................................................... 78

2F232167

Auxiliary Water Reuse Inlet - Model UW60PV ........................................................................................................ 80

Wet-Clean Assembly Main View - Model UW60PV ................................................................................................ 82

Wet-Clean Assembly Control Module - Model UW60PV ........................................................................................ 84

Security Fasteners .................................................................................................................................................. 86

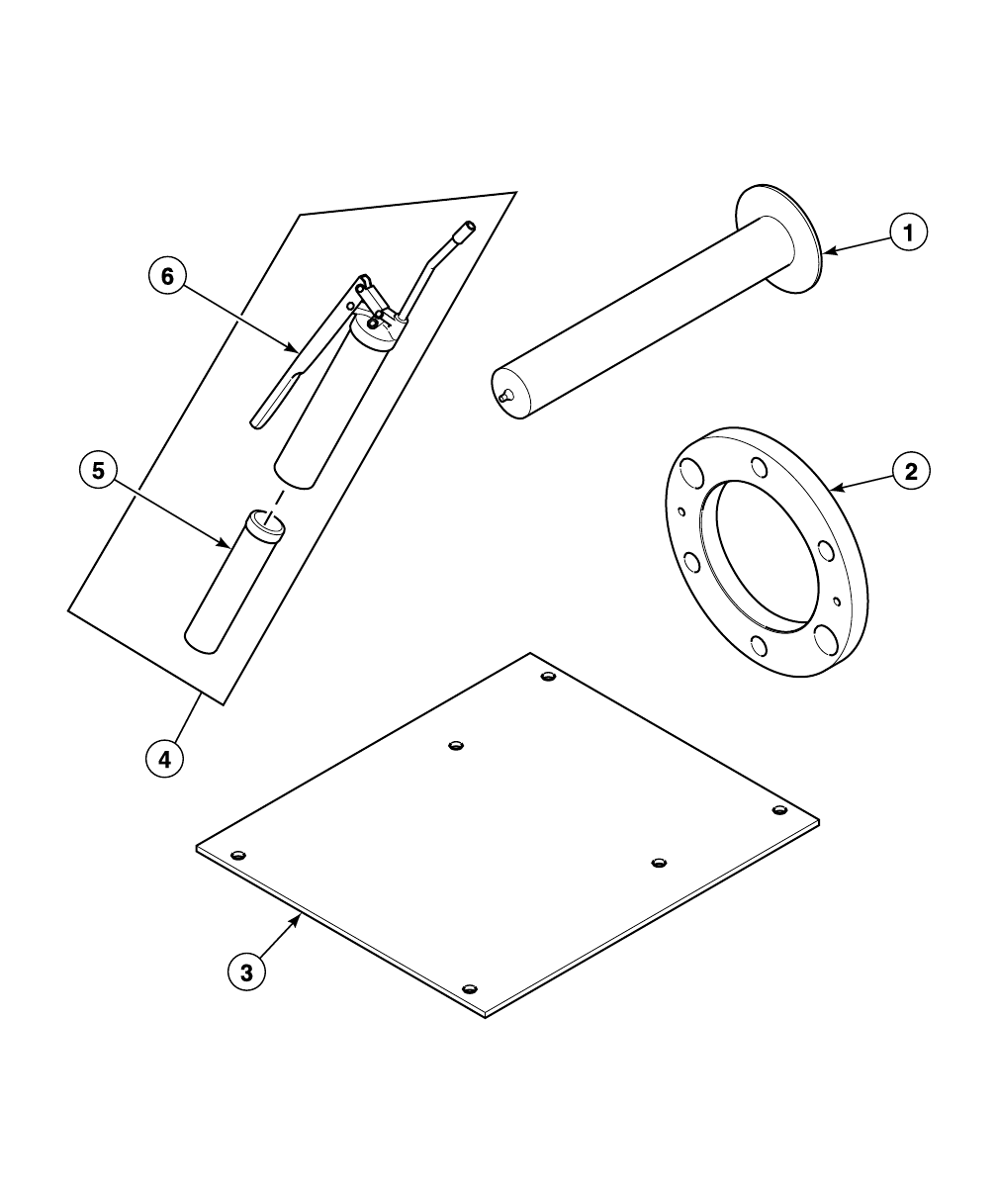

Special Tools .......................................................................................................................................................... 88

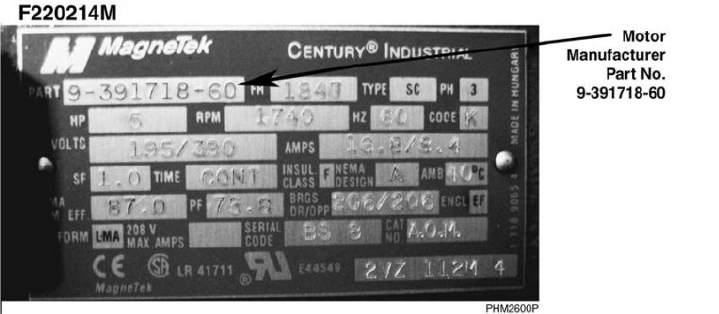

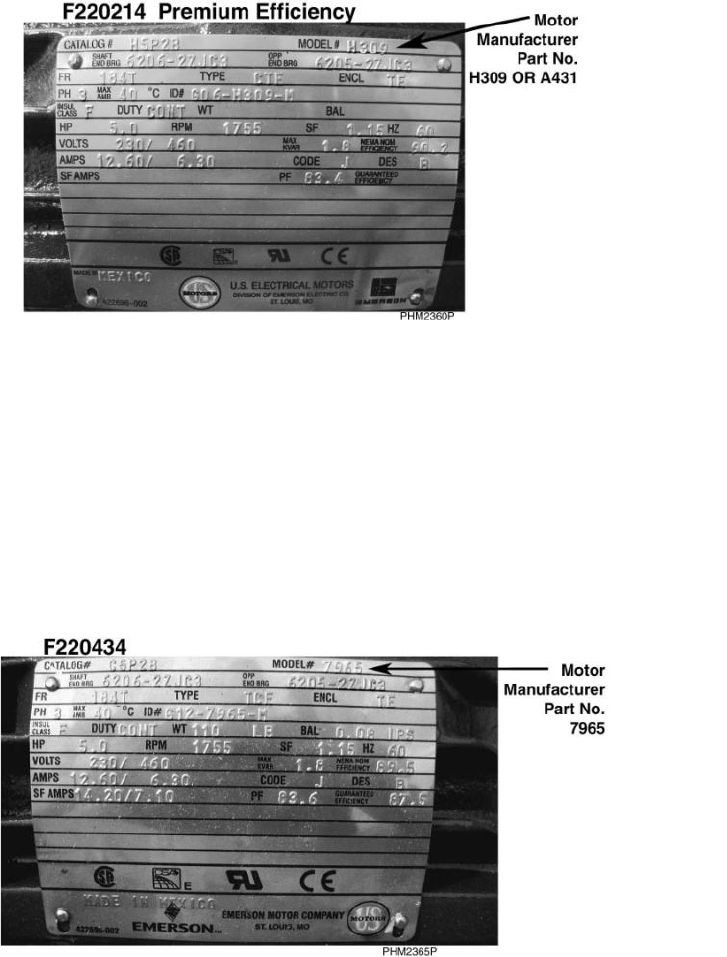

Motor Manufacturer Part Number Location on the Motor’s Serial Plate.................................................................. 90

Parts Index .............................................................................................................................................................. 93

F232167 3

Parts Ordering Information

If literature or replacement parts are required, con-

tact the source from whom the machine was pur-

chased or contact Alliance Laundry Systems at

(920) 748-3950 for the name and address of the

nearest authorized parts distributor.

For technical assistance, call the number listed

below:

(920) 748-3121 Ripon, Wisconsin

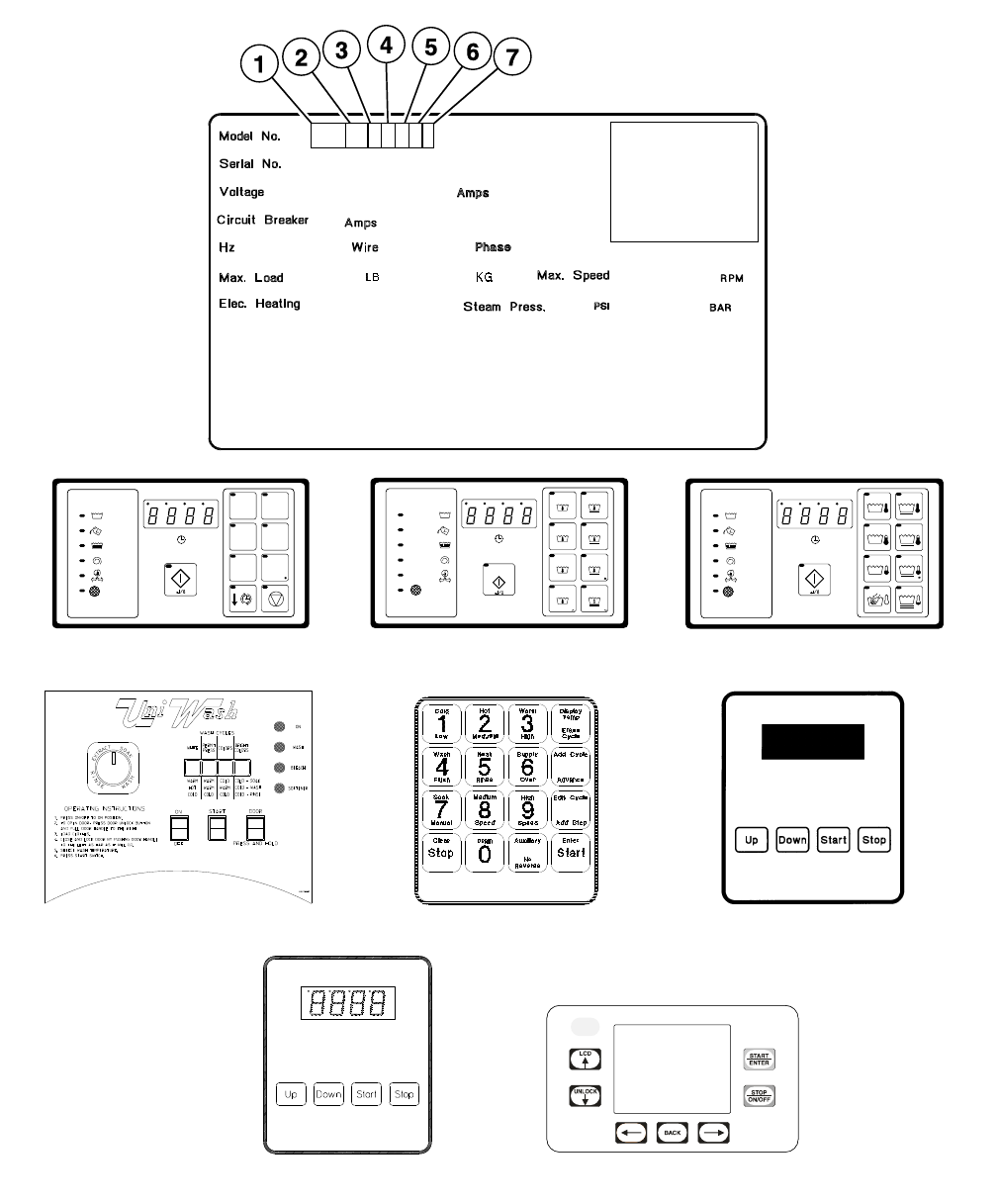

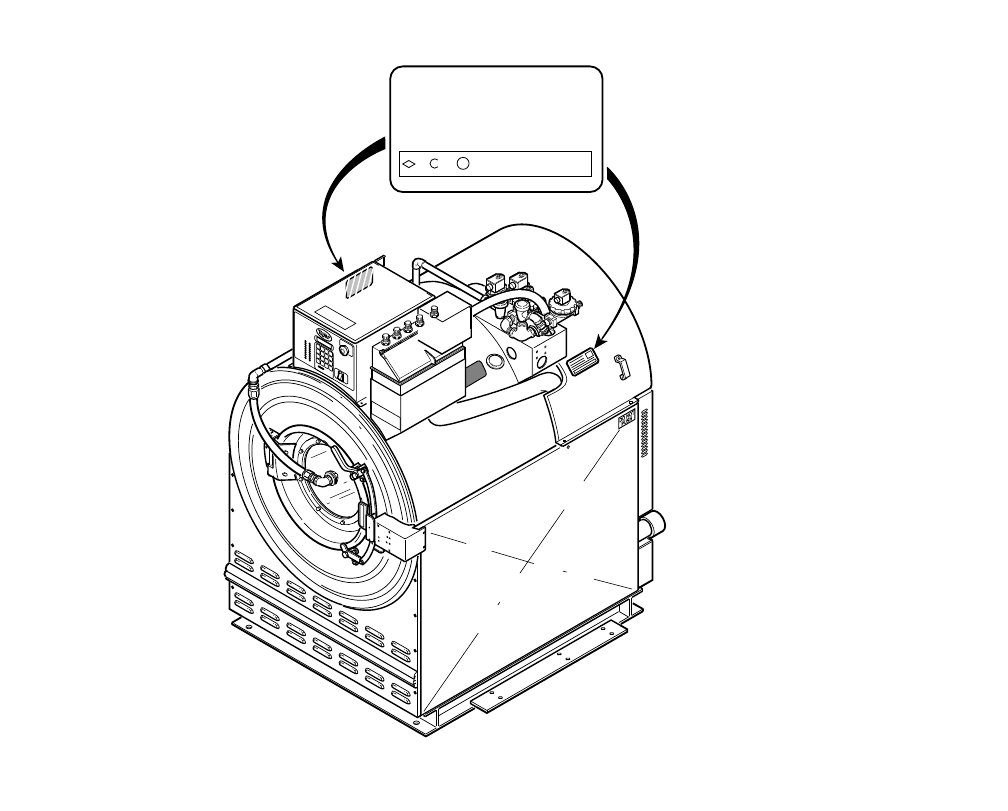

Serial Plate Location

When calling or writing about your product, be

sure to mention model and serial numbers. Model

and serial numbers are located on serial plate(s)

as shown.

PHM2462P_F232167

Model No.

Serial No.

Voltage Amps

Required Circuit Breaker Amps.

Hz Wire Phase

Max. Load KG Max. Speed RPMLB

Elec. Heating

Product No. Date Code

KW Steam Press PSI BAR

Notes

4F232167

F232167 5

Model Identification

Information in this manual is applicable to these washer-extractor models:

UW60AV

UW60PV

UW60VV

NOTE: This manual applies to models with either 5, 6, 7 or 8 in the 9th position in the model number (e.g. UW60PVQU50001).

6F232167

Pocket Hardmount Washer-Extractor Product Overview

A-Control

NORMAL

LIGHT SOIL

UNIFORMS

HEAVY SOIL

STAINED

DELICATE

HOT

HOT HOT

HOT

WARM

COLD

START

PERM PRESS

VISA

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

B-Control (Domestic)

60C 60C

40C 40C

95C 95C

30C

B-Control (International)

Mechanical Timer S-Computer

V-Computer UniLinc Control

WE-6 Control

PHM2979P_F232167

UW60AVXU80001

00000000000

200 – 240

50 – 60 2/3 S 3

60 27 594

N/A N/A 0.0

ETL Listed

Conforms To ANSI/UL Std. 1206, 3rd Ed

Certified To CAN/CSA Std. C22.2 No.53-1968

Drawings:

F232167 7

Pocket Hardmount Washer-Extractor Product Overview

REF PART NO. DESCRIPTION COMMENTS

1-Product Family UW

2- Capacity (Pounds) 35

100

125

150

3- Control A (A-Control)

B (B-Control)

M (Mechanical Timer)

P (WE-6 Control)

S (S-Computer)

V (V-Computer)

T (UniLinc Control)

4- Speed 2 (2-Speed)

3 (3-Speed)

4 (4-Speed)

V (Variable-Speed)

5- Voltage F (440-480/60/3/3)

N (440-480/50-60/3/3)

O (208-240/60/3/3)

P (380-415/60-60/3/3)

Q (200-208/220-240/50/60/3ph)

R (380-415/440-480/50/60/3ph)

X (200-220/220-240/50/60/1-3)

Y (208-240/60/1/2)

6- OEM U (Standard Specs)

7- Design Series 1-8

8F232167

Product Info - Ordering AC Drives for Models UW60PVQ

MOTOR

(MANUFACTURE

R PART NO.)** DRIVE KIT (PART NO.) APPLICATION

F220236

(F-391994-61)

160-Series AC Drive Kit (F0370853-792) Used with machines that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079892911, F079893110, F079892911 or F079893110

1305 to 160-series AC drive retrofit kit; Requires a 3.2-inch

motor pulley. NOTE: If the washer-extractor was updated

from the 1305-series drive to the 160-series drive using

F079893110 1305 to 160-series AC Drive Retrofit Kit,

also order F330284 EMI Filter

F220236

(F-391994-61)

160-Series AC Drive Kit (N/A) Used with design 5 machines; Requires a 3.4-inch motor

pulley; Replaces AC drive F370853

F220236

(F-391994-61)

160-Series AC Drive Kit (N/A) Used with design 6, 7 or 8 machines; Replaces AC drive

F370853

F220214U

(G68094)

160-Series AC Drive Kit (N/A) Used with machines that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079893800 or F079894600 1305 to 160-series AC drive

retrofit kit; Requires a 3.2-inch motor pulley

F220214 (H309) 160-Series AC Drive Kit (N/A) Used with machines that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079894000 or F079894800 1305 to 160-series AC drive

retrofit kit; Requires a 3.2-inch motor pulley

F220214 (A431) 160-Series AC Drive Kit (N/A) Used with machines that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079894200 or F079895000 1305 to 160-series AC drive

retrofit kit; Requires a 3.2-inch motor pulley

F220434 (7695) 160-Series AC Drive Kit (N/A) Used with machines that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079894400 or F079895200 1305 to 160-series AC drive

retrofit kit; Requires a 3.2-inch motor pulley

F220214M

(9-391718-60)

160-Series AC Drive Kit (N/A) Used with design 5 machines; Requires a 3.2-inch motor

pulley

F220214U

(G68094)

Mitsubishi to PowerFlex 40 Drive Kit

(F8171607)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103604

F220214M

(9-391718-60)

Mitsubishi to PowerFlex 40 Drive Kit

(F8171608)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103607

F220236

(F-391994-61)

Mitsubishi to PowerFlex 40 Drive Kit

(F8171609)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103607

F220214U

(G68094)

1305-Series to PowerFlex 40 AC Drive

Kit (F8171601)

Used with machines with a 1305-series AC drive; Includes

AC Drive F8103604

F220214M

(9-391718-60)

1305-Series to PowerFlex 40 AC Drive

Kit (F8171606)

Used with machines with a 1305-series AC drive; Includes

AC Drive F8103607

F220236

(F-391994-61)

1305-Series to PowerFlex 40 AC Drive

Kit (F8171610)

Used with machines with a 1305-series AC drive; Includes

AC Drive F8103608

** NOTE: Refer to Motor Manufacturer’s Part Number on the Motor’s Serial Plate for help with determining your motor’s part number.

N/A = Part no longer available

F232167 9

Product Info - Ordering AC Drives for Models

UW60PVN or UW60PVP

MOTOR

(MANUFACTURER

PART NO.)** DRIVE KIT (PART NO.) APPLICATION

F220236 (F-391994-61) 160-Series AC Drive Kit (N/A) Used with machines that have previously been

updated from the 1305-series drive to the 160-series

drive using either F079893010, F079893210,

F079893010 or F079893210 1305 to 160-series AC

drive retrofit kit; Requires a 3.2-inch motor pulley.

NOTE: If the washer-extractor was updated from

the 1305-series drive to the 160-series drive using

F079893210 1305 to 160-series AC Drive Retrofit

Kit, also order F330283 EMI Filter

F220236 (F-391994-61) 160-Series AC Drive Kit (N/A) Used with design 5 machines; Requires a 3.4-inch

motor pulley; Replaces AC drive F370844

F220236 (F-391994-61) 160-Series AC Drive Kit (N/A) Used with design 6, 7 or 8 machines; Replaces AC

drive F370844

F220214U (G68094) 160-Series AC Drive Kit (N/A) Used with machines that have previously been

updated from the 1305-series drive to the 160-series

drive using either F079893900 or F079894700 1305 to

160-series AC drive retrofit kit; Requires a 3.2-inch

motor pulley

F220214 (H309) 160-Series AC Drive Kit (N/A) Used with machines that have previously been

updated from the 1305-series drive to the 160-series

drive using either F079894100 or F079894900 1305 to

160-series AC drive retrofit kit; Requires a 3.2-inch

motor pulley

F220214 (A431) 160-Series AC Drive Kit (N/A) Used with machines that have previously been

updated from the 1305-series drive to the 160-series

drive using either F079894300 or F079895100 1305 to

160-series AC drive retrofit kit; Requires a 3.2-inch

motor pulley

F220434 (7695) 160-Series AC Drive Kit (N/A) Used with machines that have previously been

updated from the 1305-series drive to the 160-series

drive using either F079894300 or F079895100 1305 to

160-series AC drive retrofit kit; Requires a 3.2-inch

motor pulley

F220214M

(9-391718-60)

160-Series AC Drive Kit (N/A) Used with design 5 machines; Requires a 3.4-inch

motor pulley

F220214U (G68094) Mitsubishi to PowerFlex 40 Drive Kit

(F8171706)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103704

F220214M

(9-391718-60)

Mitsubishi to PowerFlex 40 Drive Kit

(F8171710)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103705

F220236 (F-391994-61) Mitsubishi to PowerFlex 40 Drive Kit

(F8171707)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103706

F220214U (G68094) 1305-Series to PowerFlex 40 AC Drive

Kit (F8171708)

Used with machines with a 1305-series AC drive;

Includes AC Drive F8103704

F220214M

(9-391718-60)

1305-Series to PowerFlex 40 AC Drive

Kit (F8171711)

Used with machines with a 1305-series AC drive;

Includes AC Drive F8103705

F220236 (F-391994-61) 1305-Series to PowerFlex 40 AC Drive

Kit (F8171709)

Used with machines with a 1305-series AC drive;

Includes AC Drive F8103706

** NOTE: Refer to Motor Manufacturer’s Part Number on the Motor’s Serial Plate for help with determining your motor’s part number.

N/A = Part no longer available

10 F232167

Product Info - Ordering AC Drives for Models UW60PVT

MOTOR

(MANUFACTURER

PART NO.)** DRIVE KIT (PART NO.) APPLICATION

F220214M

(9-391718-60)

160-Series AC Drive Kit (N/A) Used with design 5 machines; Replaced by F8171608

Mitsubishi to Power Flex 40 Drive Kit

F220214M

(9-391718-60)

160-Series AC Drive Kit (N/A) Used with design 6, 7 or 8 machines

F220236 (F-391994-61) 160-Series AC Drive Kit (F391994-61) Used with design 5 machines; Replaces AC drive

F370853

F220236 (F-391994-61) 160-Series AC Drive Kit (N/A) Used with design 6, 7 or 8 machines; Replaces AC

drive F370853

F220214U (G68094) Mitsubishi to PowerFlex 40 Drive Kit

(F8171607)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103604

F220214M

(9-391718-60)

Mitsubishi to PowerFlex 40 Drive Kit

(F8171608)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103607

F220236 (F-391994-61) Mitsubishi to PowerFlex 40 Drive Kit

(F8171609)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103607

F220214U (G68094) 1305-Series to PowerFlex 40 AC Drive

Kit (F8171601)

Used with machines with a 1305-series AC drive;

Includes AC Drive F8103604

F220214M

(9-391718-60)

1305-Series to PowerFlex 40 AC Drive

Kit (F8171606)

Used with machines with a 1305-series AC drive;

Includes AC Drive F8103607

F220236 (F-391994-61) 1305-Series to PowerFlex 40 AC Drive

Kit (F8171610)

Used with machines with a Mitsubishi A-series drive;

Includes AC Drive F8103608

** NOTE: Refer to Motor Manufacturer’s Part Number on the Motor’s Serial Plate for help with determining your motor’s part number.

N/A = Part no longer available

F232167 11

Notes

12 F232167

Decals

123

456

789

STOP

START

COLD

LOW

HOT

MED./FILL

WARM

HIGH

WASH

FLUSH

HEAT

RINSE

SUPPLY

OVER

SOAK

MANUAL

MEDIUM

SPEED

HIGH

SPEED

CLEAR DRAIN

AUXILIARYENTER

____

EDIT

CYCLE

ADD

STEP

ADD

CYCLE

ADVANCE

DISPLAY

TEMP

ERASE

CYCLE

REVERSE

Door Unlock

Press and Hold

Emergency Stop

PHM2896P_F232167

CONDUCTORS ONLY

COPPER

P/N 231146

F232167 13

Decals

REF PART NO. DESCRIPTION COMMENTS

1D505281 Disconnect Power Warning Label

2F230301 This Machine Must Be Protected Decal

3F231146 Conductor Decal

4F231345-4 External Supply Caution Decal

5F231380 Hot Surface Warning Decal

6F231368 Cold Water Valve Decal

7F231367 Hot Water Valve Decal

8F230302 Do Not Push Decal

9F231436 Supply Dispenser Hazard Caution Decal

10 F0230112-00 Plug Removal Warning Decal Model UW60PV

11 F230501 Before Power Is Connected Tag

12 F230652 Clockwise Spin Rotation Decal

13 F200085000 Hot Surface Warning Decal

14 F231065 Personal Injury Warning Decal

14 F232167

Control Module - Model UW60PV (Drawing 1 of 4)

PHM2344P_F232167

F232167 15

Control Module - Model UW60PV (Drawing 1 of 4)

REF PART NO. DESCRIPTION COMMENTS

1N/A Control Mounting Panel Assembly

2F430928 Screw

3F0637753-00 AC Drive Partition Assembly

4F0637748-00 Air Flow Ramp Assembly

5F170404 Trim Order 1 foot

6D505281 Disconnect Power Warning Label

7F635456 Control Module Cover

870240301 Screw

9F635448 Electrical Access Panel Design 5 and 6

9F0637549-00 Electrical Access Panel Design 7 and 8

10 F8549401 Nut

11 F635476 Cable Tray Cover

12 F431113 Washer

13 F430917 Screw

14 F635615-2 Cable Tray Assembly

15 F635468 External Supply Box

16 F635365 External Supply Box Cover

17 F431000 Nut

18 F606826 Computer Cover

19 F140606 Cable Tie 15 inch

20 F140605 Cable Tie 6 inch

21 F140602 Tie Wrap Mounting Clamp

22 F140218P Ribbon Cable 16 conductor; 12 inch; From interface cca to computer; J8

plug

23 F140248P Ribbon Cable 16 conductor; 15 inch; From computer to interface cca; J1

plug; DIP socket

24 F191101 Battery 9 Volt; Backup

25 F140219P Ribbon Cable 26 conductor; 15 inch; From computer to output cca

26 F430231 Nut

27 F431125 Washer

28 F037062441P WE-6 Computer

29 F340412 Momentary Switch Models through 5/26/04

29 F200120100 Momentary Switch Models starting 5/27/04

30 F431123 Washer

31 F431108 Washer

32 F8136401 Screw

33 N/A Emergency Stop Pushbutton 800E-series; Models through 9/30/07; Order

F200233700P Emergency Stop Button Kit

33 F200233700P Emergency Stop Button Kit Used to convert from 800E-series to 800F-series;

Includes F200233500 Emergency Stop Pushbutton and

F200233401 Contact Block Switch

33 F200233500 Emergency Stop Pushbutton 800F-series; Models starting 10/1/07

34 F230724P Keypad Decal

35 F231562 Control Module Decal

36 N/A Seal Order 1 foot; N, P and Q-voltage

36 F170151 Seal Order 1 foot; T and X-voltage

37 F340445 Contact Block Switch 800E-series; Models through 9/30/07; Includes mounting

base

37 F200299500 Contact Block Switch 800E-series; Models through 9/30/07; Does not include

mounting base

37 F8069501 Contact Switch 800F-series; Models starting 10/1/07

37 F8538101 Contact Base 800F-series; Models starting 10/1/07

N/A = Part no longer available

16 F232167

Control Module - Model UW60VV (Drawing 1 of 4)

PHM2441P_F232167

F232167 17

Control Module - Model UW60VV (Drawing 1 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F340445 Contact Block Switch 800E-series; Models through 9/30/07; Includes

mounting base

1F200299500 Contact Block Switch 800E-series; Models through 9/30/07; Does not include

mounting base

1F8069501 Contact Switch 800F-series; Models starting 10/1/07

1F8538101 Contact Base 800F-series; Models starting 10/1/07

2N/A Control Mounting Panel Assembly

3F430928 Screw

4F635366 AC Drive Partition

5F0637748-00 Air Flow Ramp Assembly

6F170404 Trim Order 1 foot

7D505281 Disconnect Power Warning Label

8F634558 Control Module Cover

970240301 Screw

10 F0637549-00 Electrical Access Panel

11 F8549401 Nut

12 F635476 Cable Tray Cover

13 F431113 Washer

14 F430917 Screw

15 F635615-2 Cable Tray Assembly

16 F635365 External Supply Box Cover

17 F635468 External Supply Box

18 F140606 Cable Tie 15 inch

19 F140605 Cable Tie 6 inch

20 F140602 Tie Wrap Mounting Clamp

21 F140219P Ribbon Cable 26 conductor; 15 inch; Connects the microcomputer to

the output board cca

22 F430231 Nut

23 F431125 Washer

24 F0370313-09P Microcomputer

25 F340412 Momentary Switch Models through 5/26/04

25 F200120100 Momentary Switch Models starting 5/27/04

26 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

27 F431123 Washer

28 F431108 Washer

29 F8136401 Screw

30 N/A Emergency Stop Pushbutton 800E-series; Models through 9/30/07; Order

F200233700P Emergency Stop Button Kit

30 F200233700P Emergency Stop Button Kit Used to convert from 800E-series to 800F-series;

Includes F200233500 Emergency Stop Pushbutton and

F200233401 Contact Block Switch

30 F200233500 Emergency Stop Pushbutton 800F-series; Models starting 10/1/07

31 F370576P Keypad

32 F231417 Control Module Decal

33 N/A Seal Order 1 foot

N/A = Part no longer available

18 F232167

Control Module - Model UW60AV (Drawing 1 of 4)

PHM2519P_F232167

F232167 19

Control Module - Model UW60AV (Drawing 1 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F340445 Contact Block Switch 800E-series; Models through 9/30/07; Includes

mounting base

1F200299500 Contact Block Switch 800E-series; Models through 9/30/07; Does not include

mounting base

1F8069501 Contact Switch 800F-series; Models starting 10/1/07

1F8538101 Contact Base 800F-series; Models starting 10/1/07

2N/A Control Mounting Panel Assembly

3F430928 Screw

4F635366 AC Drive Partition

5F0637748-00 Air Flow Ramp Assembly

6F170404 Trim Order 1 foot

7D505281 Disconnect Power Warning Label

8F634558 Control Module Cover

970240301 Screw

10 F0637549-00 Electrical Access Panel

11 F8549401 Nut

12 F635476 Cable Tray Cover

13 F431113 Washer

14 F430917 Screw

15 F635615-2 Cable Tray Assembly

16 F635365 External Supply Box Cover

17 F635468 External Supply Box

18 F140606 Cable Tie 15 inch

19 F140605 Cable Tie 6 inch

20 F140602 Tie Wrap Mounting Clamp

21 F140219P Ribbon Cable 26 conductor; 15 inch; Connects the microcomputer to

the output board cca

22 F0636887-00 Control Cover

23 F430231 Nut

24 F037047530P Computer

25 F200120100 Momentary Switch

26 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

27 F431123 Washer

28 F431108 Washer

29 F8136401 Screw

30 N/A Emergency Stop Pushbutton 800E-series; Models through 9/30/07; Order

F200233700P Emergency Stop Button Kit

30 F200233700P Emergency Stop Button Kit Used to convert from 800E-series to 800F-series;

Includes F200233500 Emergency Stop Pushbutton and

F200233401 Contact Block Switch

30 F200233500 Emergency Stop Pushbutton 800F-series; Models starting 10/1/07

31 F023158231P Keypad

32 F0231565-00 Control Module Decal

33 N/A Seal Order 1 foot

N/A = Part no longer available

20 F232167

Control Module - Model UW60PV (Drawing 2 of 4)

PHM2380P_F232167

F232167 21

Control Module - Model UW60PV (Drawing 2 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F0370446-21P WE-6 Interface CCA Kit 2 relay style

2F140218P Ribbon Cable 16 conductor; 12 inch; From interface cca to computer;

J8 plug

3F140248P Ribbon Cable 16 conductor; 15 inch; From interface cca to computer;

J1 plug; DIP socket

4F8321901P Output CCA

5F784003P Jumper Kit

6F140219P Ribbon Cable 26 conductor; 15 inch; From computer to output cca

7F350108 Fuse 1/8 Amp; Slo blo

7F350109 Fuse 1/2 Amp; Fast blo

7F350110 Fuse 1 Amp; Slo blo

8F0430165-00 Screw

9F330230 Flange Relay 220 Volt

10 F8303001P Circuit Breaker N and P-voltage

11 F300206 Buzzer 220 Volt

12 F110105 Muffin Fan 220 Volt; 4 inch

13 F430231 Nut

14 F220900 Filter Retainer Guard Includes item 16

15 F430910 Screw

16 F200318900P Filter

17 F180506 Standoff

22 F232167

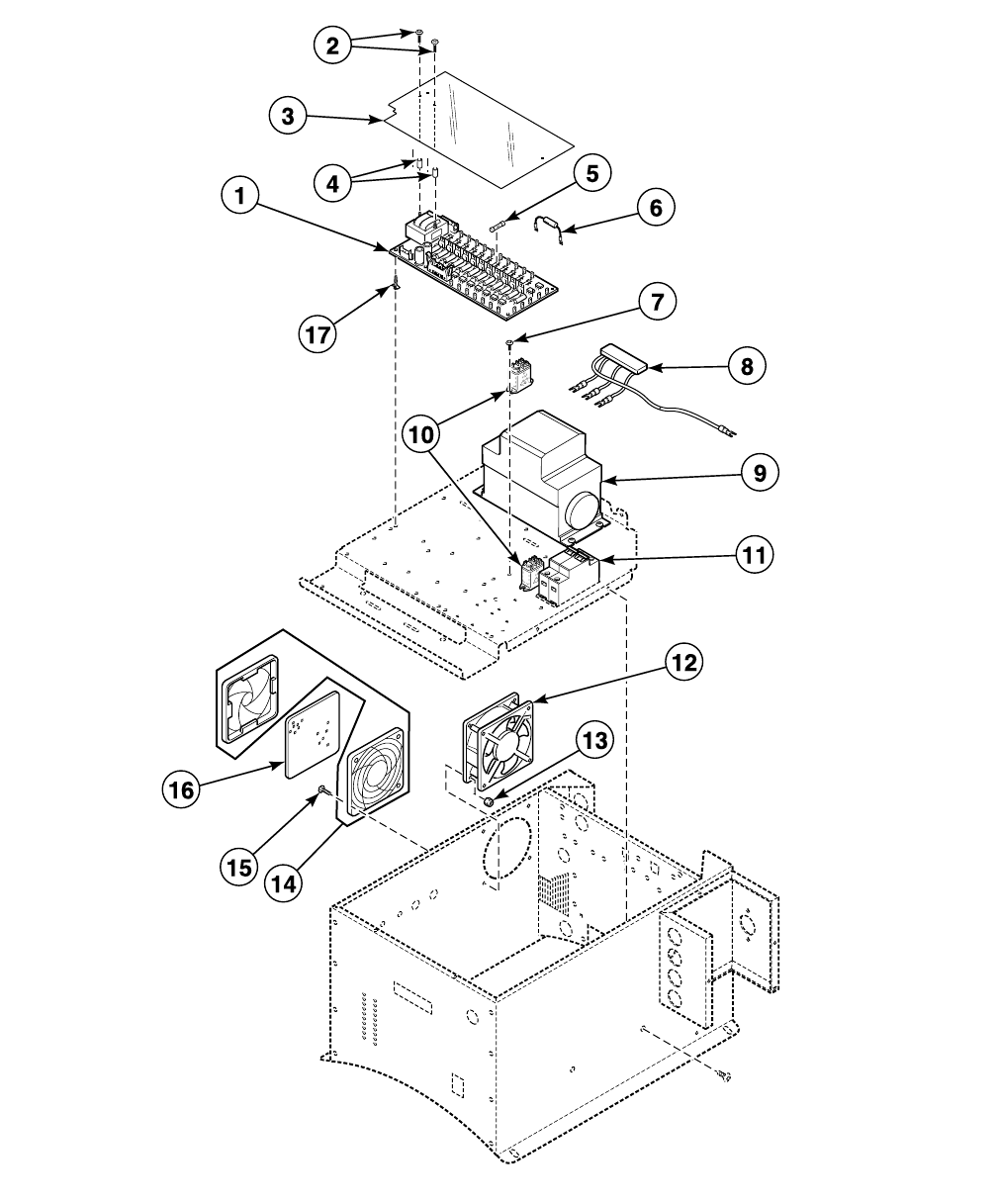

Control Module - Models UW60AV and UW60VV (Drawing 2 of 4)

PHM2680P_F232167

F232167 23

Control Module - Models UW60AV and UW60VV (Drawing 2 of 4)

REF PART NO. DESCRIPTION COMMENTS

NA F0360160-00P Line Reactor Kit Use with F370843 Inverter Drive

NA F0360167-00P Line Reactor Kit Use with F370844 Inverter Drive

NA F200296000P Computer and Door Lock Harness Use with F037044860-2 Output CCA

1F370447-6P Output Board CCA Model UW60VV

1F037044860-2 Output CCA Model UW60AV

2F431702 Screw Model UW60AV

3F0170427-00 Output Board Cover Model UW60AV

4F431806 Nut Model UW60AV

5F350108 Fuse 1/8 Amp; Slo blo

5F350109 Fuse 1/2 Amp; Fast blo

5F350110 Fuse 1 Amp; Slo blo

5F350142 Fuse 2 Amp; Slo blo

6F370116 Resistor

7F0430165-00 Screw

8F200320900 AC Drive Radio Filter Assembly

9F370843 Inverter Drive X-voltage

9F370844 Inverter Drive N-voltage

10 F330230 Flange Relay 220 Volt

11 F8303001P Circuit Breaker N-voltage

12 F110105 Muffin Fan 220 Volt; 4 inch

13 F430231 Nut

14 F220900 Filter Retainer Guard

15 F430910 Screw

16 F200318900P Filter

17 F180506 Standoff

24 F232167

Control Module (Drawing 3 of 4)

PHM2543P_F232167

F232167 25

Control Module (Drawing 3 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F140575P Connector Model UW60PV; Gray

1F140576P Connector Model UW60PV; Blue

2F350218 Circuit Breaker 1 Amp; Model UW60PV through 5/11/03

2F350210 Circuit Breaker 2 Amp; Model UW60PV through 5/11/03

2F0350313-00P Fuse Holder Model UW60PV starting 5/12/03; Model UW60VV

2F350142 Fuse 2 Amp; Slo blo; Model UW60PV starting 5/12/03; Model

UW60VV

3F231564 Switch Mode Decal Model UW60PV through 5/11/03

3F0231632-00 Switch Mode Decal Model UW60PV starting 5/12/03

3F0231629-00 Fuse Decal Model UW60VV

4F604713 Cable Assembly Model UW60PV

5F431022 Nut

6F140909 Insulator Bushing

7F0231636-00 Input Block Decal

8F140794-1 Input Power Block

9F430938 Screw

10 F140734 Ground Terminal Lug

11 F431106 Washer

12 F430903 Screw

13 F370116 Resistor Model UW60PV

14 F140782 Terminal Block 11 place

15 F430995 Screw

16 F230630 Ground Decal

17 F350115 Fuse 3 Amp; Fast blo

18 F0350312-10 Fuse Holder

19 F330280P EMI Filter 400 Volt/3 Phase; CE models

19 F330284 EMI Filter 200 Volt/3 Phase; CE models

19 F8080001P AC Drive Resistor Assembly 200 Volt; Optional

19 F8079901P AC Drive Resistor Assembly 400 Volt; Optional

20 F430909 Screw

21 F431108 Washer

22 F431006 Nut

23 F431013 Nut

24 N/A Connector CE models; PG21

24 F180486 Cap Plug Used in place of items 25 and 26 on non-CE models

25 F430265 Nut CE models

26 F431000 Nut

27 F231065 Personal Injury Warning Decal Model UW60PV

28 F200174600P Keymode Assembly Includes item 29; Model UW60PV; N and P-voltage

models starting 10/7/04 and through 1/14/05

28 F340800P Keymode Run/Program Switch Includes item 29; Model UW60PV; N and P-voltage

models through 10/6/04 and starting 1/15/05; All other

voltage models

29 F370709 Program Key Model UW60PV; Key Code A153

N/A = Part no longer available

26 F232167

Control Module (Drawing 4 of 4)

PHM2079P_F232167

F232167 27

Control Module (Drawing 4 of 4)

REF PART NO. DESCRIPTION COMMENTS

1F0340347-10P Water Level Switch

2F422404P Tubing

3F422500 Connector

4F020014200 Air Trap Hose

5F200215 Hose Clamp No. 28

6F381723P 4-Way Valve 220 Volt

6G582P3 Diaphragm and Guide Kit

7F140938 Snap Bushing

28 F232167

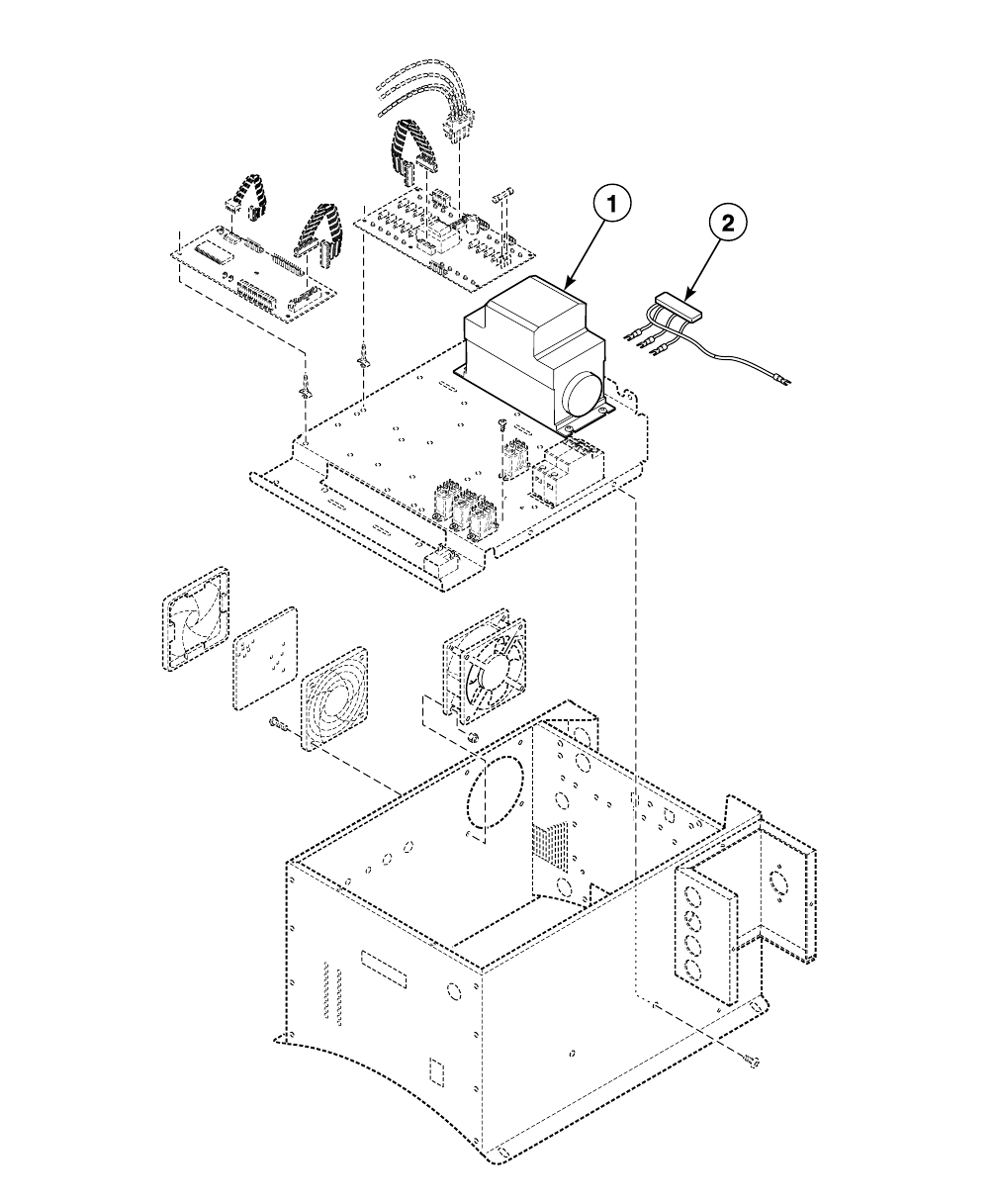

AC Drive - Model UW60PV (Drawing 1 of 2)

PHM2627P_F232167

F232167 29

AC Drive - Model UW60PV (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1F0370853-792 160-Series AC Drive Kit Q-voltage models that have previously been updated

from the 1305-series drive using either F079892911,

F079893110, F079892911 or F079893110 1305 to

160-Series AC Drive Retrofit Kit; Used with F220236

Motor (Motor manufacturer Part No. F-391994-61) and

a 3.2-inch motor pulley; NOTE: If the

washer-extractor was updated from the

1305-series drive to the 160-series drive using

F079893110 1305 to 160-Series AC Drive Retrofit

Kit, also order F330284 EMI Filter

1F0370853-801 160-Series AC Drive Kit Q-voltage models that have previously been updated

from the 1305-series drive using either F079893800 or

F079894600 1305 to 160-Series AC Drive Retrofit Kit;

Used with F220214U Motor (Motor manufacturer Part

No. G68094) and a 3.2-inch motor pulley

1N/A 160-Series AC Drive Kit Q-voltage models that have previously been updated

from the 1305-series drive to the 160-series drive

using either F079894000 or F079894800 1305 to

160-Series AC Drive Retrofit Kit; Used with F220214

Motor (Premium Efficiency; Motor manufacturer Part

No. H309) and a 3.2-inch motor pulley

1N/A 160-Series AC Drive Kit Q-voltage models that have previously been updated

from the 1305-series drive to the 160-series drive

using either F079894200 or F079895000 1305 to

160-Series AC Drive Retrofit Kit; Used with F220214

Motor (Premium Efficiency; Motor manufacturer Part

No. A431) and a 3.2-inch motor pulley

1N/A 160-Series AC Drive Kit Q-voltage models that have previously been updated

from the 1305-series drive to the 160-series drive

using either F079894400 or F079895200 1305 to

160-Series AC Drive Retrofit Kit; Used with F220434

Motor (Motor manufacturer Part No. 7695) and a

3.2-inch motor pulley

1F0370853-791 160-Series AC Drive Kit Q-voltage design 5 models; Replaces F370843

Inverter Drive; Used with F220236 Motor (Motor

manufacturer Part No. F-391994-61) and a 3.4-inch

motor pulley

1F0370853-793 160-Series AC Drive Kit Q-voltage design 5 models; Used with F220214M

Motor (Motor manufacturer Part No. 9-391718-60);

Includes a 3.2-inch motor pulley

1N/A 160-Series AC Drive Kit Unprogrammed drive

2F200320900 AC Drive Radio Filter Assembly

NOTE: Refer to the Motor Manufacturer Part Number Location on the Motor’s Serial Plate section for motor manufacturer part

number location information.

N/A = Part no longer available

30 F232167

AC Drive - Model UW60PV (Drawing 2 of 2)

PHM2627P_F232167

F232167 31

AC Drive - Model UW60PV (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1F0370854-792 160-Series AC Drive Kit N and P-voltage models that have previously been updated from

the 1305-series drive using either F079893010, F079893210,

F079893010 or F079893210 1305 to 160-Series AC Drive Retrofit

Kit; Used with F220236 Motor (Motor manufacturer Part No.

F-391994-61) and a 3.2-inch motor pulley; NOTE: If the

washer-extractor was updated from the 1305-series drive to

the 160-series drive using F079893210 1305 to 160-Series AC

Drive Retrofit Kit, also order F330283 EMI Filter

1F0370854-801 160-Series AC Drive Kit N and P-voltage models that have previously been updated from

the 1305-series drive using either F079893900 or F079894700

1305 to 160-Series AC Drive Retrofit Kit; Used with F220214U

Motor (Motor manufacturer Part No. G68094) and a 3.2-inch motor

pulley

1N/A 160-Series AC Drive Kit N and P-voltage models that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079894100 or F079894900 1305 to 160-Series AC Drive Retrofit

Kit; Used with F220214 Motor (Premium Efficiency; Motor

manufacturer Part No. H309) and a 3.2-inch motor pulley

1N/A 160-Series AC Drive Kit N and P-voltage models that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079894300 or F079895100 1305 to 160-Series AC Drive Retrofit

Kit; Used with F220214 Motor (Premium Efficiency; Motor

manufacturer Part No. A431) and a 3.2-inch motor pulley

1N/A 160-Series AC Drive Kit N and P-voltage models that have previously been updated from

the 1305-series drive to the 160-series drive using either

F079894500 or F079895300 1305 to 160-Series AC Drive Retrofit

Kit; Used with F220434 Motor (Motor manufacturer Part No. 7695)

and a 3.2-inch motor pulley

1N/A 160-Series AC Drive Kit N and P-voltage design 6, 7 or 8 models; Replaces F370844

Inverter Drive; Used with F220236 Motor (Motor manufacturer Part

No. F-391994-61); Order F8171704 160 to PowerFlex 40 Drive Kit

1F0370854-791 160-Series AC Drive Kit N and P-voltage design 5 models; Replaces F370844 Inverter

Drive; Used with F220236 Motor (Motor manufacturer Part No.

F-391994-61) and a 3.4-inch motor pulley

1F0370854-794 160-Series AC Drive Kit N and P-voltage design 5 models; Used with F220214M Motor

(Motor manufacturer Part No. 9-391718-60) and a 3.4-inch motor

pulley

1N/A 160-Series AC Drive Kit T-voltage design 6, 7 or 8 models; Used with F220214M Motor

(Motor manufacturer Part No. 9-391718-60); OrderF8171605 160

to PowerFlex 40 Drive Kit

1N/A 160-Series AC Drive Kit Q, T and X-voltage design 6, 7 or 8 models; Replaces F370853

Inverter Drive; Used with F220236 Motor (Motor manufacturer Part

No. F-391994-61); Order F8171604 160 to PowerFlex 40 Drive Kit

1F0370853-781 160-Series AC Drive Kit T-voltage design 5 models; Replaces F370853 Inverter Drive; Used

with F220236 Motor (Motor manufacturer Part No. F-391994-61)

1N/A 160-Series AC Drive Kit T-voltage design 5 models; Replaces F370853 Inverter Drive; Used

with F220214M Motor (Motor manufacturer Part No. 9-391718-60);

Replaced by F8171608 Mitsubishi to PowerFlex 40 Drive Kit

1N/A 160-Series AC Drive Kit Unprogrammed drive; 200 Volt application

1F0370854-STK 160-Series AC Drive Kit Unprogrammed drive; 400 Volt application

2F200320900 AC Drive Radio Filter

Assembly

NOTE: Refer to the Motor Manufacturer Part Number Location on the Motor’s Serial Plate for motor manufacturer part number

location information.

N/A = Part no longer available

32 F232167

AC Drive PowerFlex 40 Drive Kits

PHM2950P_F232167

F232167 33

AC Drive PowerFlex 40 Drive Kits

REF PART NO. DESCRIPTION COMMENTS

1F8171617 Mitsubishi to PowerFlex 40

Drive Kit

Model UW60PV; Q and T-voltage models with Mitsubishi A-series

drive and Motor F220214U; Includes AC Drive F8103604

1F8171618 Mitsubishi to PowerFlex 40

Drive Kit

Model UW60PV; Q and T-voltage models with Mitsubishi A-series

drive and Motor F220214M; Includes AC Drive F8103607

1F8171619 Mitsubishi to PowerFlex 40

Drive Kit

Model UW60PV; Q and T-voltage models with Mitsubishi A-series

drive and Motor F220236; Includes AC Drive F8103607

1F8171715 Mitsubishi to PowerFlex 40

Drive Kit

Model UW60PV; N and P-voltage models with Mitsubishi A-series

drive and Motor F220214U; Includes AC Drive F8103704

1F8171716 Mitsubishi to PowerFlex 40

Drive Kit

Model UW60PV; N and P-voltage models with Mitsubishi A-series

drive and Motor F220236; Includes AC Drive F8103706

1F8171719 Mitsubishi to PowerFlex 40

Drive Kit

Model UW60PV; N and P-voltage models with Mitsubishi A-series

drive and Motor F220214M; Includes AC Drive F8103705

1F8171611 1305 to PowerFlex 40 Drive Kit Model UW60PV; Q and T-voltage models with Allen-Bradley

1305-series drive and Motor F220214U; Includes AC Drive

F8103604

1F8171616 1305 to PowerFlex 40 Drive Kit Model UW60PV; Q and T-voltage models with Allen-Bradley

1305-series drive and Motor F220214M; Includes AC Drive

F8103607

1F8171620 1305 to PowerFlex 40 Drive Kit Model UW60PV; Q and T-voltage models with Allen-Bradley

1305-series drive and Motor F220236; Includes AC Drive

F8103608

1F8171717 1305 to PowerFlex 40 Drive Kit Model UW60PV; N and P-voltage models with Allen-Bradley

1305-series drive and Motor F220214U; Includes AC Drive

F8103704

1F8171718 1305 to PowerFlex 40 Drive Kit Model UW60PV; N and P-voltage models with Allen-Bradley

1305-series drive and Motor F220236; Includes AC Drive

F8103706

1F8171720 1305 to PowerFlex 40 Drive Kit Model UW60PV; N and P-voltage models with Allen-Bradley

1305-series drive and Motor F220214M; Includes AC Drive

F8103705

1F8171612 160 to PowerFlex 40 Drive Kit Model UW60PV; Q and T-voltage design 5 models with

Allen-Bradley 160-series drive and Motor F220214M; Includes AC

Drive F8103607

1F8171613 160 to PowerFlex 40 Drive Kit Model UW60PV; Q and T-voltage design 5 models with

Allen-Bradley 160-series drive and Motor F220236; Includes AC

Drive F8103608

1F8171615 160 to PowerFlex 40 Drive Kit Model UW60PV; Q, T and X-voltage design 6-8 models with

Allen-Bradley 160-series drive and Motor F220214M; Includes AC

Drive F8103621

1F8171614 160 to PowerFlex 40 Drive Kit Model UW60PV; Q, T and X-voltage design 6-8 models with

Allen-Bradley 160-series drive and Motor F220236; Includes AC

Drive F8103622

1F8171712 160 to PowerFlex 40 Drive Kit Model UW60PV; P and N-voltage design 5 models with

Allen-Bradley 160-series drive and Motor F220214M; Includes AC

Drive F8103705

1F8171713 160 to PowerFlex 40 Drive Kit Model UW60PV; P and N-voltage design 5 models with

Allen-Bradley 160-series drive and Motor F220236; Includes AC

Drive F8103706

1F8171714 160 to PowerFlex 40 Drive Kit Model UW60PV; P and N-voltage design 6-8 models with

Allen-Bradley 160-series drive and Motor F220236; Includes AC

Drive F8103717

1F8255202 160 to PowerFlex 40 Drive Kit Models UW60AV and UW60VV; X-voltage designs 7 and 8 models

with Allen-Bradley 160-series drive; Includes AC Drive F8169615

1F8255302 160 to PowerFlex 40 Drive Kit Models UW60AV and UW60VV; P and N-voltage designs 7 and 8

models with Allen-Bradley 160-series drive; Includes AC Drive

F8169616

2F200320900 AC Drive Radio Filter Assembly

NOTE: Refer to the Motor Manufacturer Part Number Location on the Motor’s Serial Plate for motor manufacturer part number

location information.

34 F232167

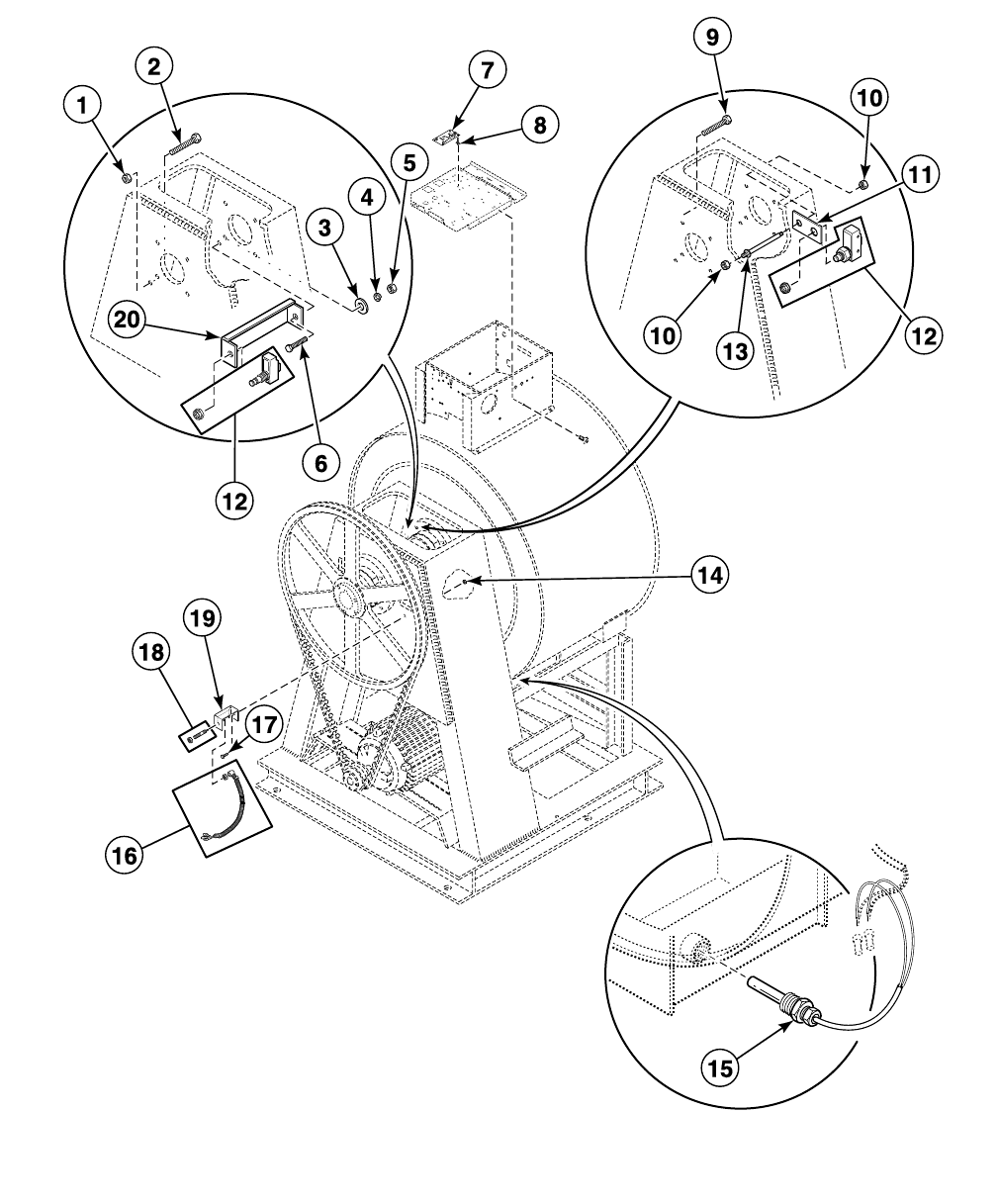

Balance Switch, Temperature Probe and Rotation Sensor

PHM2964P_F232167

F232167 35

Balance Switch, Temperature Probe and Rotation Sensor

REF PART NO. DESCRIPTION COMMENTS

1H88412101 Nut Models through 10/7/07

2F430124 Screw Models through 10/7/07

3M400081 Washer

4M400014 Washer

520274 Nut Models through 10/7/07

6800461 Screw Models through 10/7/07

7F200101300P Rotation Sensor PCB Model UW60PV

8F180501 Standoff Model UW60PV

9F8122701 Screw Models starting 10/8/07

10 44087301 Nut Models starting 10/8/07

11 F8124301 Balance Switch Bracket Models starting 10/8/07

11 F340921 Switch CE models

12 F340900 Interlock Switch

12 F340924 Switch Extension CE models; Use with F340921 Switch

13 F8111101 Screw Models starting 10/8/07

14 F430218 Nut Model UW60PV

15 F370606P Temperature Probe

16 F8066401 Rotation Sensor Harness Model UW60PV

17 F430927 Screw Model UW60PV

18 F200126200P Rotation Sensor Assembly Model UW60PV

18 F079900800 Rotation Sensor Retrofit Kit Model UW60PV; Includes items 7, 8, 14, 16, 17 and 19

19 F200122502 Rotation Sensor Bracket Model UW60PV

20 F601750 Balance Switch Bracket Models through 10/7/07

36 F232167

Supply Dispenser

PHM3237P_F232167

F232167 37

Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1F430917 Screw

2F8195301 Washer

3F0150514-00 Dispenser Lid

4F190304 Plug Cap

5F749802 Strain Relief Adapter Kit Includes items 6 and 7

6F140340P Strain Relief Connector Includes F0431160-00 Nut

7F170215 O-Ring

8F150386 Chemical Supply Cup 32 ounce; 2 required

9F0150525-00 Supply Dispenser Spacer

10 F200213 Hose Clamp No. 40

11 F150469 Chemical Supply Hose

12 F431042 Nut Loctite 262 required

13 F431147 Washer

14 F231436 Supply Dispenser Hazard Caution Decal

15 F8024301 Soap Dispenser Shroud Weldment

16 F170158P Gasket

17 F170400RP Trim

18 F150385 Chemical Supply Cup 20 ounce; 3 required

19 F0150512-00P Dispenser Assembly Includes items 3, 8, 9 and 18

20 F8322001 Injection Nozzle

21 F170208 O-Ring

22 802292 Nut

23 F730168 Injection Nozzle Kit Includes items 20-22

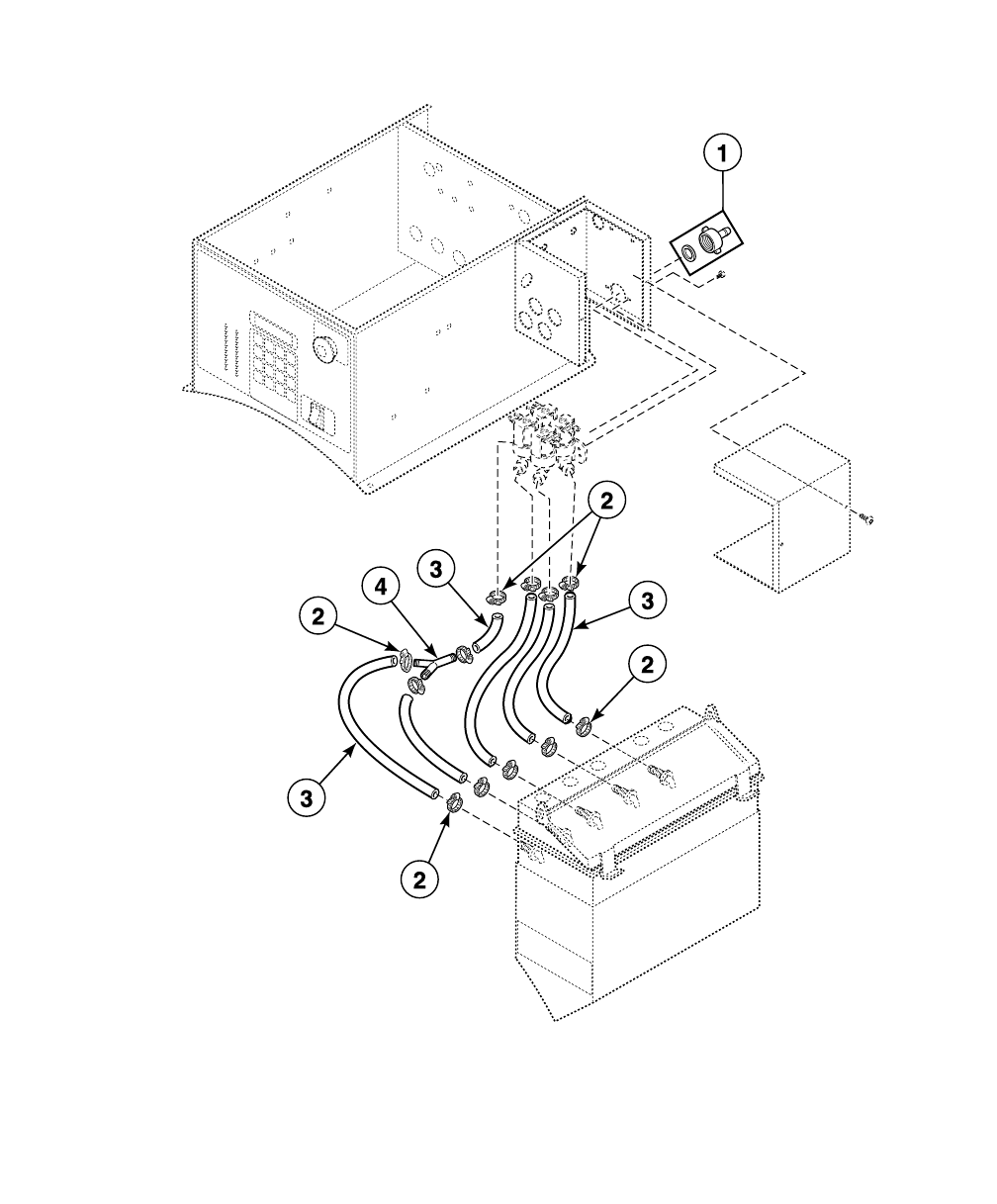

38 F232167

Hoses to Supply Dispenser

PHM3146P_F232167

F232167 39

Hoses to Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1F200302 Hose Connector

236801 Hose Clamp No. 6

3F200110P Water Hose

4F422816 Y Connector

40 F232167

Spray Plumbing - Design 5 and 6 UW60PV Models

PHM1930P_F232167

F232167 41

Spray Plumbing - Design 5 and 6 UW60PV Models

REF PART NO. DESCRIPTION COMMENTS

NA F8514601P Coil Use with F8322803 Valve

NA F8456201P Valve Transition Kit Use with F8322803 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322803 Valve

1F633150-1 Spray Plumbing Assembly 220 Volt; Standard thread; Includes items 2-10, 15 and 16

1F633150-5 Spray Plumbing Assembly 220 Volt; Metric thread; Includes items 2-10, 15 and 16

2F420502 Street Elbow

3F420105 Nipple

4F422106 Tube Connector

5F063754701P Vacuum Breaker Valve 3/4 inch; F380965P Repair Kit

6F420401 Tee

7F420101 Nipple

8F8322803P Valve Replaces F381703P Valve; Includes F8322803 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

9F300126P Solenoid 220 Volt; F141901 DIN Harness

10 F421908 Hose Adapter Standard thread

10 F421949 Nipple Metric thread

11 803615 Washer Filter

12 20290 Washer

13 F200164 Water Hose Standard thread

13 F200166 Water Hose Metric thread

14 F200401P U-Bolt Clamp

15 F420103 Nipple

16 F420500 Street Elbow

42 F232167

Spray Plumbing - Design 7 and 8 UW60PV Models

PHM2062P_F232167

F232167 43

Spray Plumbing - Design 7 and 8 UW60PV Models

REF PART NO. DESCRIPTION COMMENTS

NA F8514601P Coil Use with F8322803 Valve

NA F8456201P Valve Transition Kit Use with F8322803 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322803 Valve

NA F8379501P Valve Kit Use with F8521501 DIN Valve Kit

NA F8456202P Valve Transition Kit Use with F8521801 DIN Valve Kit

1F0637633-01 Spray Plumbing Assembly 220 Volt; Includes items 2-5, 11-15, 20 and 21

1F0637633-03 Spray Plumbing Assembly 220 Volt; Metric thread; Includes items 2-5, 11-15, 20

and 21

2F0422918-00 Elbow

3F420105 Nipple

4F422106 Tube Connector

5F063754701P Vacuum Breaker Valve 3/4 inch; Includes items 6-9; F380965P Repair Kit

6F0170221-00 O-Ring

7F0380809-00 Containment Device

8F0380808-00 Vacuum Breaker Cap

9F430938 Screw

10 F0798922-00 Vacuum Breaker Kit Includes items 6-9 and installation instructions

11 F420101 Nipple

12 F420400 Tee

13 F8322803P Valve Replaces F381703P Valve; Includes F8322803 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

14 F300126P Solenoid 220 Volt; F141901 DIN Harness

15 F421908 Hose Adapter Standard thread

15 F421949 Nipple Metric thread

16 803615 Washer Filter

17 20290 Washer

18 F200164 Water Hose Standard thread

18 F200166 Water Hose Metric thread

19 F200401P U-Bolt Clamp

20 F420103 Nipple

21 F420500 Street Elbow

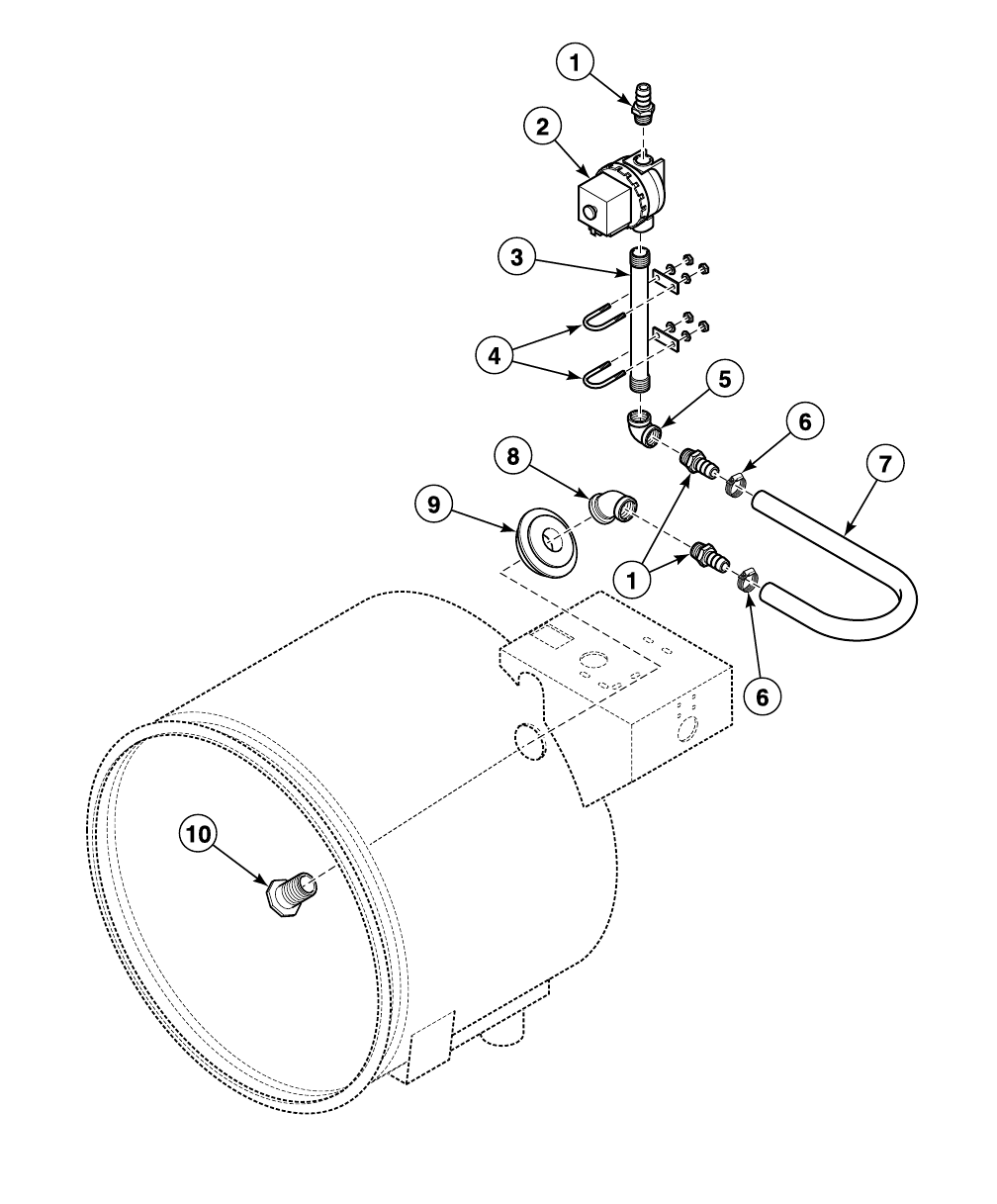

44 F232167

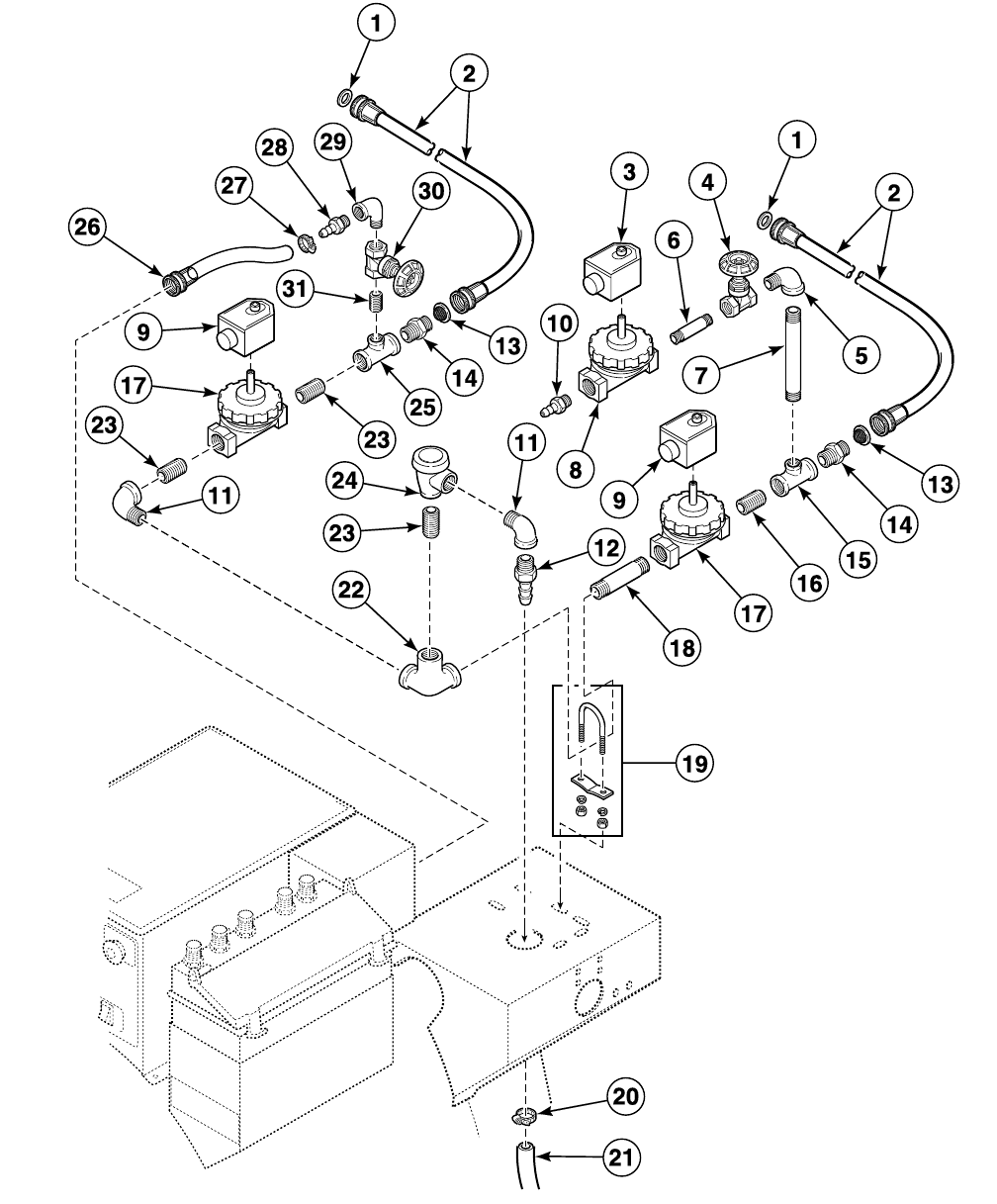

Fill Plumbing - Design 5 and 6 UW60PV Models Through 2/29/02

PHM1931P_F232167

F232167 45

Fill Plumbing - Design 5 and 6 UW60PV Models Through 2/29/02

REF PART NO. DESCRIPTION COMMENTS

NA F633146-1 Fill Plumbing Assembly Standard thread; Includes items 3-7, 11-15 and 21-23

NA F633419-1 Fill Plumbing Assembly Standard thread; Starch; Includes items 3-7, 11-15 and

21-23

NA F633146-5 Fill Plumbing Assembly Metric thread; Includes items 3-7, 11-15 and 21-23

NA F633419-5 Fill Plumbing Assembly Metric thread; Starch; Includes items 3-7, 11-15 and

21-23

NA F8514601P Coil Use with F8322905 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322905 Valve

1F420502 Street Elbow

2F420105 Nipple

3F8322905P Valve Replaces F381701P Valve; Includes F8514601 Coil; For

models that have been upgraded with F8521801 DIN

Valve Kit

3F8521801 DIN Valve Kit Replaces F381701P Valve; Includes F8322905 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

4F300126P Solenoid 220 Volt; F141901 DIN Harness

5F420402 Tee

6F420408 Plug

7F421909 Hose Adapter Standard thread

7F8265701 Adapter Metric thread

8803615 Washer Filter

920290 Washer

10 F200164 Water Hose Standard thread

10 F200166 Water Hose Metric thread

11 F420500 Street Elbow

12 F421951 Hose Barb

13 F380500 Gate Valve 1/2 inch

14 F420101 Nipple

15 F420107 Nipple

16 F200509 Water Hose

17 F200206 Hose Clamp No. 4

18 F200401P U-Bolt Clamp

19 F200222 Hose Clamp No. 12

20 F200104P Hose

21 F420509 Elbow

22 F421964 Hose Barb

23 F063754701P Vacuum Breaker Valve 3/4 inch; Vacuum breaker; F380965P Repair Kit

46 F232167

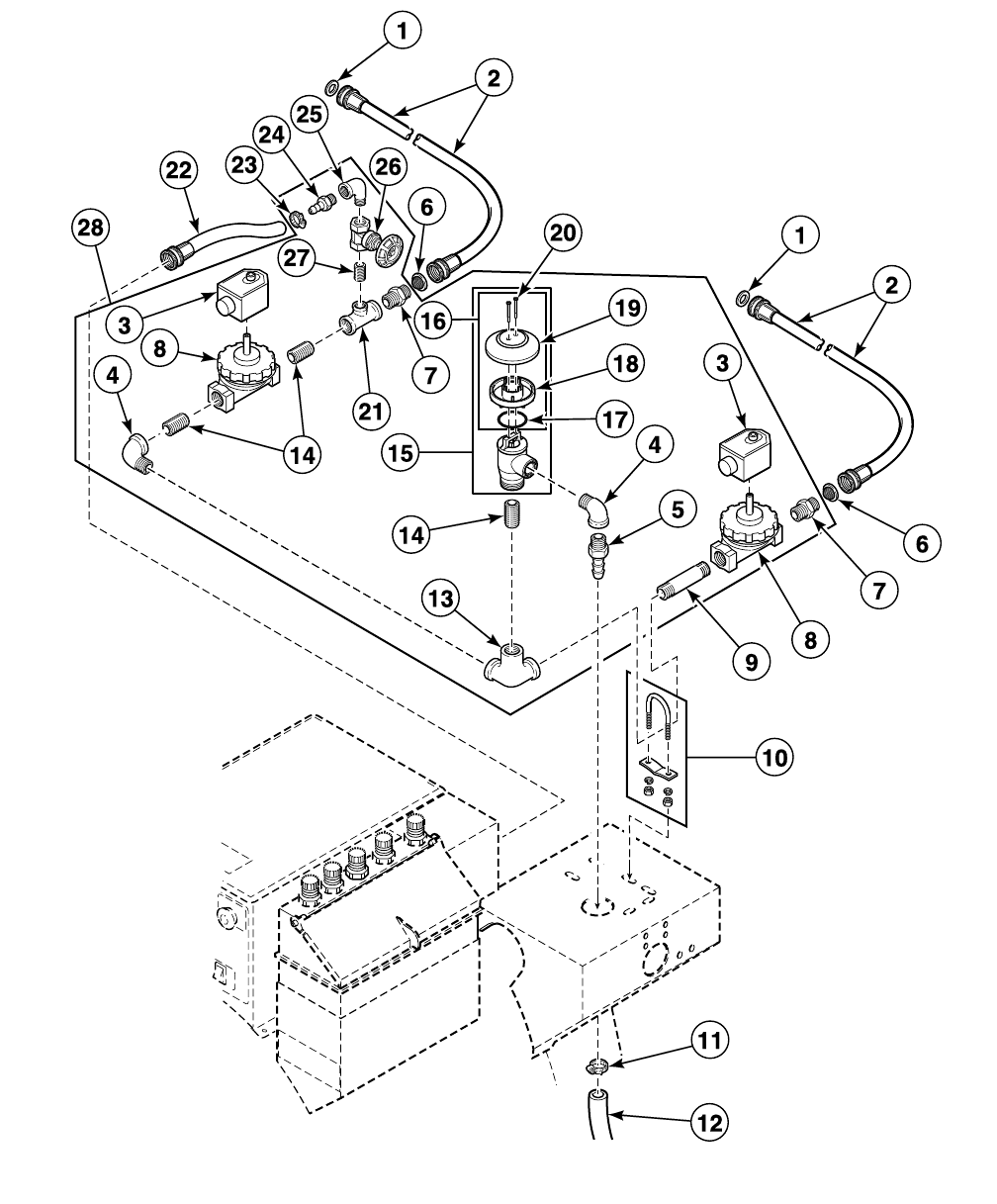

Fill Plumbing - Design 5 and 6 UW60PV Models Starting 3/1/02

PHM1775P_F232167

F232167 47

Fill Plumbing - Design 5 and 6 UW60PV Models Starting 3/1/02

REF PART NO. DESCRIPTION COMMENTS

NA F633146-1 Fill Plumbing Assembly 220 Volt; Standard thread; Includes items 9, 11, 12, 14, 17,

18, 22-25 and 28-31

NA F633146-5 Fill Plumbing Assembly 220 Volt; Metric thread; Includes items 9, 11, 12, 14, 17, 18,

22-25 and 28-31

NA F633419-1 Fill Plumbing Assembly 220 Volt; Standard thread; Starch; Includes items 3-12, 14-18,

22-25 and 28-31

NA F633419-5 Fill Plumbing Assembly 220 Volt; Metric thread; Starch; Includes items 3-12, 14-18,

22-25 and 28-31

NA F8514601P Coil Use with F8322803 Valve or F8322905 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322803 Valve or F8322905 Valve

NA F8456201P Valve Transition Kit Use with F8322803 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

NA F380993P Valve Repair Kit Use with F381703P Valve; Starch models; 1/2 inch

NA 372P4 Valve Head Tool Use with F381703P Valve

NA F380991P Water Valve Repair Kit Use with F381701P Valve; 3/4 inch

NA 371P4 Valve Head Tool Use with F381701P Valve

120290 Washer

2F200164 Water Hose Standard thread

2F200166 Water Hose Metric thread

3F300126P Solenoid 220 Volt; Starch models; F141901 DIN Harness

4F380500 Gate Valve Starch models

5F420500 Street Elbow Starch models

6F420103 Nipple Starch models

7N/A Nipple Starch models

8F8322803P Valve Replaces F381703P Steam Valve; Includes F8322803 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

9F300126P Solenoid 220 Volt; F141901 DIN Harness

10 F421964 Hose Barb Starch models

11 F420502 Street Elbow

12 F421951 Hose Barb

13 803615 Washer Filter

14 F421909 Hose Adapter Standard thread

14 F8265701 Adapter Metric thread

15 F420402 Tee Starch models

16 F420105 Nipple Starch models

17 F8322905P Valve Replaces F381701P Valve; Includes F8514601 Coil; For

models that have been upgraded with F8521801 DIN Valve

Kit

17 F8521801 DIN Valve Kit Replaces F381701P Valve; Includes F8322905 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

18 F420107 Nipple

19 F200401P U-Bolt Clamp

20 F200222 Hose Clamp No. 12

21 F200104P Hose

22 F420509 Elbow

23 F420105 Nipple

24 F063754701P Vacuum Breaker Valve 3/4 inch

24 F380965P Repair Kit 3/4 inch

25 F420402 Tee

26 F200509 Water Hose

27 F200206 Hose Clamp No. 4

28 F421964 Hose Barb

29 F420500 Street Elbow

30 F380500 Gate Valve

31 F420101 Nipple

N/A = Part no longer available

48 F232167

Fill Plumbing - Design 7 and 8 UW60PV Models

PHM2381P_F232167

F232167 49

Fill Plumbing - Design 7 and 8 UW60PV Models

REF PART NO. DESCRIPTION COMMENTS

NA F0637637-01 Fill Plumbing Assembly 220 Volt; Standard thread; Includes items 4, 10, 11, 13-17,

21, 22, 31 and 32

NA N/A Fill Plumbing Assembly 220 Volt; Metric thread; Includes items 4, 10, 11, 13-17, 21,

22, 31 and 32

NA N/A Fill Plumbing Assembly 220 Volt; Standard thread; Starch; Includes items 4-7, 9-11,

13-17, 21, 22, 31 and 32

NA N/A Fill Plumbing Assembly 220 Volt; Metric thread; Starch; Includes items 4-7, 9-11,

13-17, 21, 22, 31 and 32

NA F8514601P Coil Use with F8322803 Valve or F8322905 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322803 Valve or F8322905 Valve

NA F8456201P Valve Transition Kit Use with F8322803 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

NA F380993P Valve Repair Kit Use with F381703P Valve; Starch models; 1/2 inch

NA 372P4 Valve Head Tool Use with F381703P Valve

NA F380991P Water Valve Repair Kit Use with F381701P Valve; 3/4 inch

NA 371P4 Valve Head Tool Use with F381701P Valve

120290 Washer

2F200164 Water Hose Standard thread

2F200166 Water Hose Metric thread

3F300126P Solenoid 220 Volt; Starch models; F141901 DIN Harness

4F380500 Gate Valve

5F420500 Street Elbow Starch models

6F420103 Nipple Starch models

7F8322803P Valve Replaces F381703P Valve; Includes F8322803 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

8F300126P Solenoid 220 Volt; F141901 DIN Harness

9F421964 Hose Barb Starch models

10 F420502 Street Elbow

11 F421951 Hose Barb

12 803615 Washer Filter

13 F421909 Hose Adapter Standard thread

13 F8265701 Adapter Metric thread

14 F420402 Tee

15 F420105 Nipple

16 F8322905P Valve Replaces F381701P Valve; Includes F8514601 Coil; For

models that have been upgraded with F8521801 DIN Valve

Kit

16 F8521801 DIN Valve Kit Replaces F381701P Valve; Includes F8322905 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

17 F420107 Nipple

18 F200401P U-Bolt Clamp

19 F200222 Hose Clamp No. 12

20 F200104P Hose

21 F420509 Elbow

22 F063754701P Vacuum Breaker Valve 3/4 inch; Includes item 27; F380965P Repair Kit

23 F0170221-00 O-Ring

24 F0380809-00 Containment Device

25 F0380808-00 Vacuum Breaker Cap

26 F430938 Screw

27 F0798922-00 Vacuum Breaker Kit Includes items 23-26 and installation instructions

28 F200509 Water Hose

29 F200206 Hose Clamp No. 4

30 F421964 Hose Barb

31 F420500 Street Elbow

32 F420101 Nipple

N/A = Part no longer available

50 F232167

Fill Plumbing - Models UW60AV and UW60VV

PHM2045P_F232167

F232167 51

Fill Plumbing - Models UW60AV and UW60VV

REF PART NO. DESCRIPTION COMMENTS

NA F8514601P Coil Use with F8322905 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322905 Valve

NA F380991P Water Valve Repair Kit Use with F381701P Valve; 3/4 inch

NA 371P4 Valve Head Tool Use with F381701P Valve

120290 Washer

2F200164 Water Hose Standard thread

2F200166 Water Hose Metric thread

3F300126P Solenoid 220 Volt

4F420502 Street Elbow

5F421951 Hose Barb

6803615 Washer Filter

7F421909 Hose Adapter Standard thread

7F8265701 Adapter Metric thread

8F8322905P Valve Replaces F381701P Valve; Includes F8514601 Coil;

For models that have been upgraded with F8521801

DIN Valve Kit

8F8521801 DIN Valve Kit Replaces F381701P Valve; Includes F8322905 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

9F420107 Nipple

10 F200401P U-Bolt Clamp

11 F200222 Hose Clamp No. 12

12 F200104P Hose

13 F420509 Elbow

14 F420105 Nipple

15 F063754701P Vacuum Breaker Valve 3/4 inch; Includes item 16; F380965P Repair Kit

16 F0798922-00 Vacuum Breaker Kit Includes items 17-20

17 F0170221-00 O-Ring

18 F0380809-00 Containment Device

19 F0380808-00 Vacuum Breaker Cap

20 F430938 Screw

21 F420402 Tee

22 F200509 Water Hose

23 F200206 Hose Clamp No. 4

24 F421964 Hose Barb

25 F420500 Street Elbow

26 F380500 Gate Valve

27 F420101 Nipple

28 F0637637-01 Fill Plumbing Assembly 220 Volt; Standard thread; Includes items 3-5, 7-9,

13-21 and 23-27

28 N/A Fill Plumbing Assembly 220 Volt; Metric thread; Includes items 3-5, 7-9, 13-21

and 23-27

N/A = Part no longer available

52 F232167

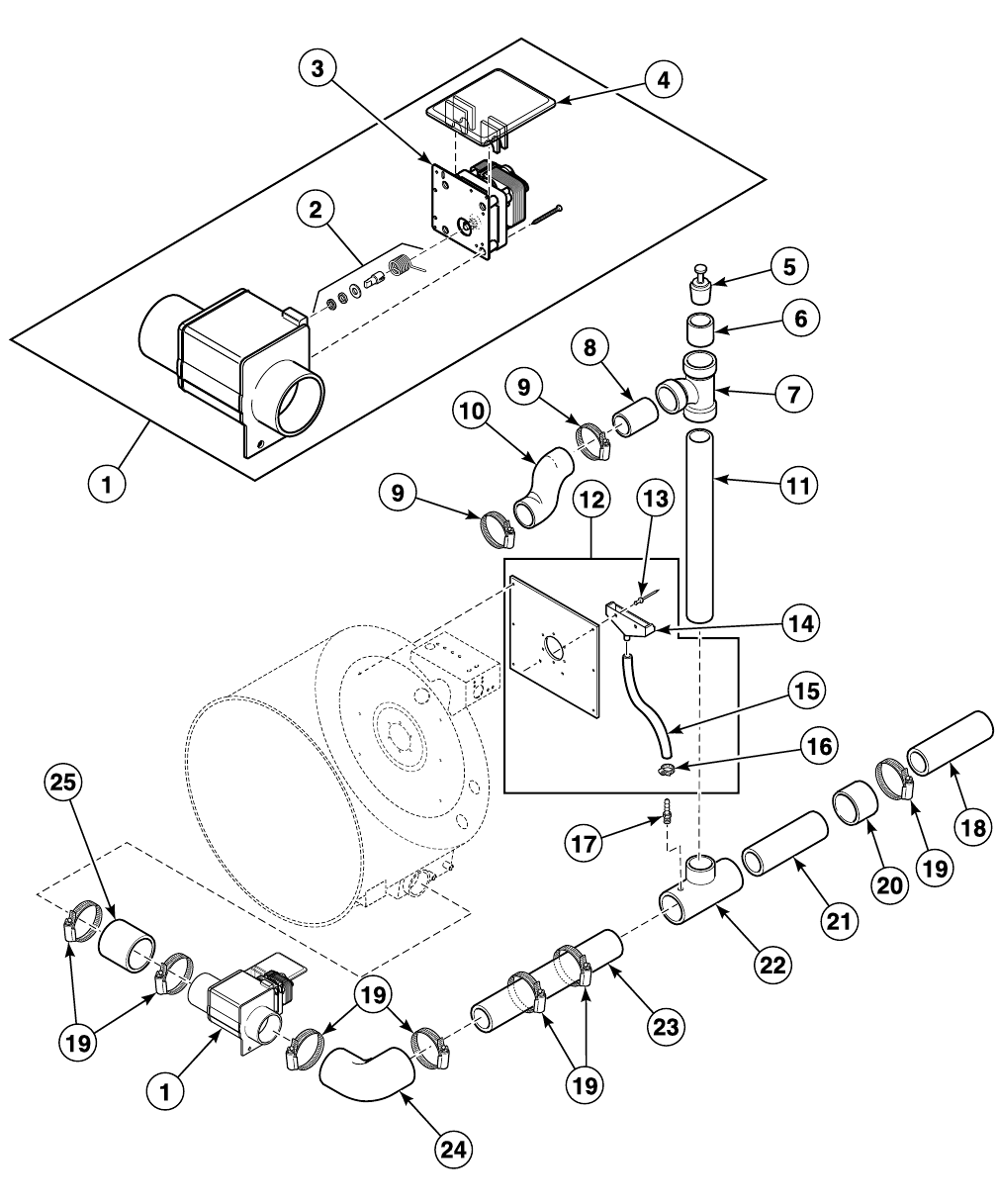

Drain System, Overflow and Vent Pipes

PHM3202P_F232167

F232167 53

Drain System, Overflow and Vent Pipes

REF PART NO. DESCRIPTION COMMENTS

1F200166402 Drain Valve Kit 220 Volt; Includes items 2 and 3

2F380918 Main Drive Kit

3F380933P Drain Valve Motor

4F200133600 Drain Valve Cover

5F380117 Vacuum Breaker

6F422508 Adapter

7F422801 Tee

8N/A Pipe

9F200213 Hose Clamp No. 40

10 F150309 Soap Dispenser Hose

11 F0602364-25 Pipe

12 F8084201 Shell Reinforcement Plate Assembly Includes items 13-16

13 F431210 Pop Rivet

14 F150389 Scupper

15 F200107P Water Hose

16 36801 Hose Clamp No. 6

17 F421929 Hose Barb

18 F200165100 Drain Hose

19 F200201 Hose Clamp No. 56

20 F422602 Reducer Bushing

21 F0602365-01 Pipe

22 F422803 Tee

23 F0602365-22 Pipe

24 F150438 Drain Hose Rear

25 F150442 Drain Hose Front

N/A = Part no longer available

54 F232167

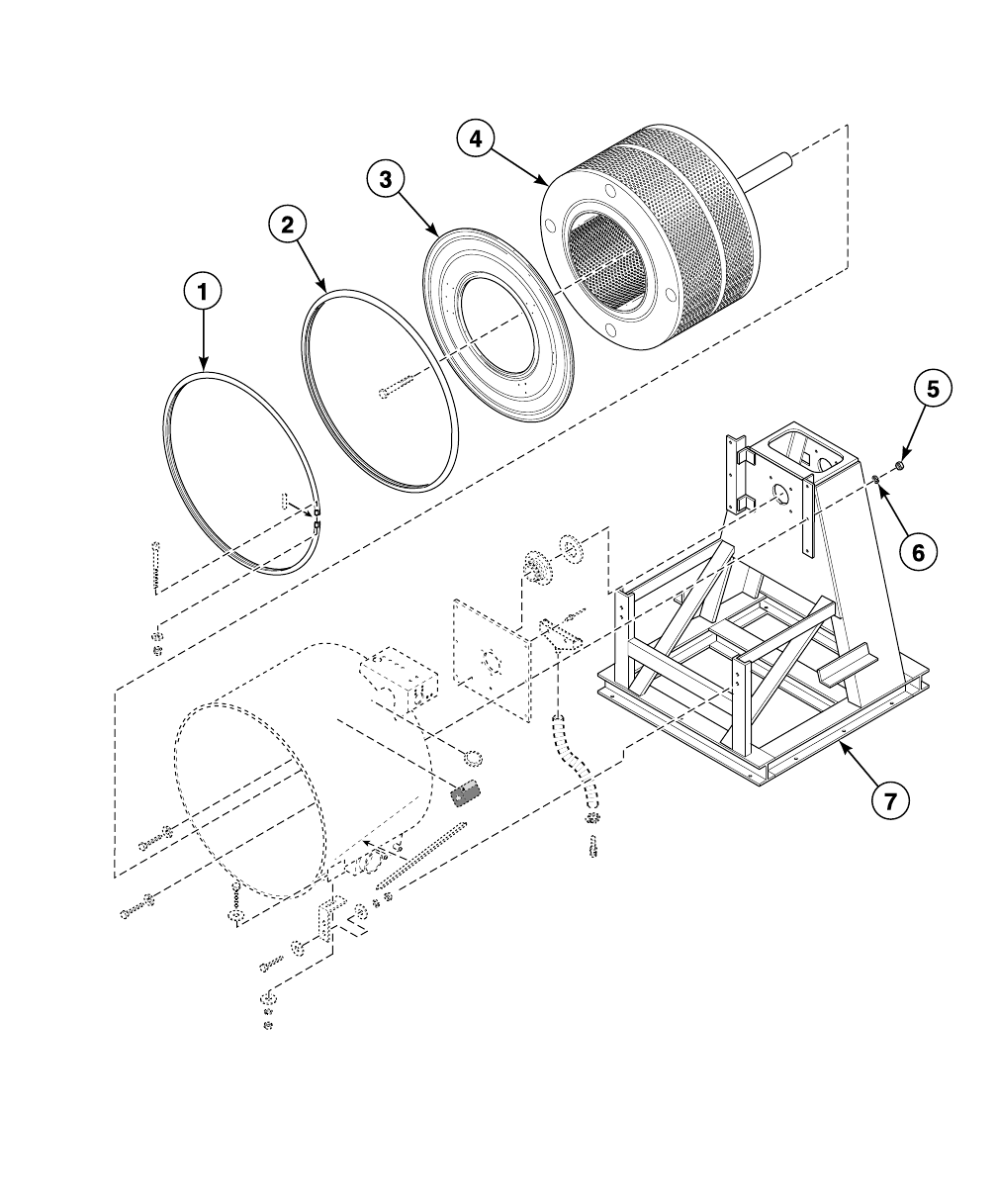

Basket, Shell and Frame (Drawing 1 of 2)

PHM3211P_F232167

F232167 55

Basket, Shell and Frame (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1F603344P Shell Band Assembly

2F170120RP Shell Band Gasket

3F8135801P Shell Front Weldment

3F200119900P Shell Front Assembly Includes top latch bracket casting, lower door latch bracket

casting, door butt, door butt shim, door latch shim, door bumper

bushing and door bumper moulding

4F632015 Basket Assembly

570142 Nut

6M400013 Washer

7N/A Frame Assembly Model UW60PV

7F633378 Frame Assembly Models UW60AV and UW60VV; Standard

7F633378-2 Frame Assembly Models UW60AV and UW60VV; Close mount

N/A = Part no longer available

56 F232167

Basket, Shell and Frame (Drawing 2 of 2)

PHM3211PA_F232167

F232167 57

Basket, Shell and Frame (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1F601216 Shell Gasket Shield

2N/A Screw

3F8084201 Shell Reinforcement Plate

Assembly

Includes items 6-9

4F8162101 Face Seal Standard

4F8162201 Face Seal Viton

4F798819-00 Seal Kit Includes items 20-22, 24-26, F170120RP Shell Band Gasket,

F410102 Clear Sealant and F431210 Pop Rivet

5F100203 Slinger

6F431210 Pop Rivet

7F150389 Scupper

8F200107P Water Hose

936801 Hose Clamp No. 6

10 F421929 Hose Barb

11 F0200237-00 Plug Model UW60PV; Design 7 and 8

12 F0230112-00 Plug Removal Warning Decal Model UW60PV; Design 7 and 8

13 F150364 Drip Rail Attach with silicone

14 20274 Nut

15 M400014 Washer

16 M400081 Washer

17 800461 Screw

18 F601806 Shell Mounting Bracket

19 F431116 Washer

20 F430924 Screw

21 F430935 Screw

22 F431112 Washer

23 F634436 Shell Weldment Model UW60PV; Standard; Order items 11 and 12 when

retrofitting onto a design 5 or design 6 model

23 F0634436-01 Shell Weldment Model UW60PV; Standard with starch; Order items 11 and 12

when retrofitting onto a design 5 or 6 model

23 F0633208-01 Shell Weldment Model UW60PV; Electric heat; Order items 11 and 12 when

retrofitting onto a design 5 or 6 model

23 N/A Shell Weldment Model UW60PV; Electric heat with starch; Order items 11 and 12

when retrofitting onto a design 5 or 6 model

23 F634438 Shell Assembly Models UW60AV and UW60VV; Standard

23 F0633208-05 Shell Weldment Models UW60AV and UW60VV; Electric heat

24 F430215 Nut

25 F430317 Washer

26 F430500 Screw

27 F791001 Shell Band Fastener Kit Includes items 24-26

N/A = Part no longer available

58 F232167

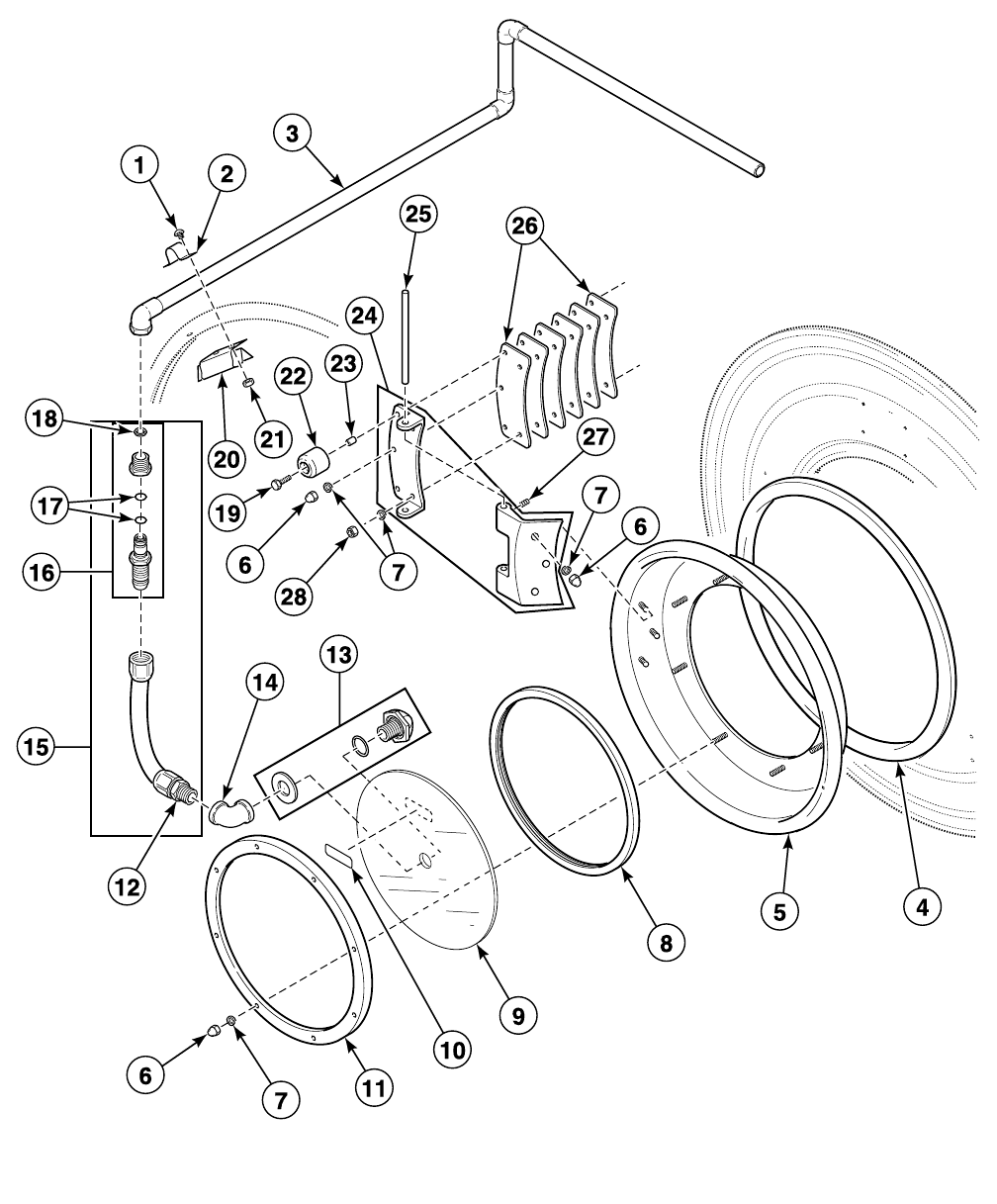

Door and Spray Tube

PHM2897P_F232167

F232167 59

Door and Spray Tube

REF PART NO. DESCRIPTION COMMENTS

1F430917 Screw Model UW60PV

2F602880 Spray Rinse Strap Model UW60PV

3F603696-9 Spray Rinse Tube Assembly Model UW60PV

4F170145 Door Gasket Black

4F017014501 Door Gasket Gray

5F730307 Door Kit Includes studs

5F730539 Door Kit Models UW60AV and UW60VV; Includes items 2, 4,

6-9, 11, 27 and F200119700 Door Assembly

6F8549401 Nut

7F431100 Washer

8F170117 Door Glass Gasket

9F290200P Door Glass Kit Model UW60PV; With hole

9F290201P Glass Models UW60AV and UW60VV; Without hole

10 F230652 Clockwise Spin Rotation Decal

11 F601239 Door Glass Retainer

12 F422109 No-Swivel Coupling Model UW60PV

13 F730077 Spray Rinse Nozzle Kit Model UW60PV

14 F422319 Elbow Model UW60PV

15 F730026 Spray Rinse Hose Assembly Model UW60PV; Includes items 12 and 16-18

16 F422108 Swivel Coupling Model UW60PV

17 F170200 O-Ring Model UW60PV

18 F310206 Ring Retainer Model UW60PV

19 F430103 Screw

20 F602901P Spray Rinse Bracket Assembly Model UW60PV; Includes items 1 and 21

21 F431022 Nut Model UW60PV

22 F150366 Door Bumper Moulding

23 F430416 Door Bumper Bushing

24 F200030600P Door Hinge Strap Kit

25 F601815 Door Hinge Pin

26 F0610695-00 Door Butt Shim

27 F430502 Screw

28 20274 Nut

60 F232167

Door Lock

PHM2164P_F232167

F232167 61

Door Lock

REF PART NO. DESCRIPTION COMMENTS

1F430168 Screw

2F150203 Door Handle Casting

3F150201P Top Latch Bracket Casting

4F602058 Door Latch Bracket Shim

5F431100 Washer

6F8549401 Nut

7F431002 Nut

8F150204 Lower Door Latch Casting

9F150202 Lower Door Latch Bracket Casting

10 F430215 Nut

11 F431142 Washer

12 F605525 Door Box Mounting Plate Assembly

13 F230303 Push Decal

14 F609427 Handle Weldment

14 F746201-1 Push Handle Kit Includes items 13, 15-17 and 21

15 F609822 Handle Spacer Optional

16 F8390801 Magnet

17 F430231 Nut

18 F430231 Nut

19 F200321200 Magnetic Switch Assembly

20 F430917 Screw

21 F430909 Screw

22 F431210 Pop Rivet

23 F601055 Interlock Switch Spacer

24 F340900 Interlock Switch

24 F340906 Microswitch CE models; Includes rubber boot

25 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

26 F430956 Screw

27 F300129P Door Lock Solenoid 220 Volt

28 F609728 Solenoid Spacer

29 F606630 Door Box

29 F603666P Door Box Assembly Includes items 18-20, 27 and 30

30 F430995 Screw

31 F430996 Screw

32 F430927 Screw

33 F431118 Washer

34 F601639 Extension Arm Tab

35 F430916 Screw

36 F746803 Extension Arm Kit Includes items 7, 17, 32-35 and 37

37 F431108 Washer

62 F232167

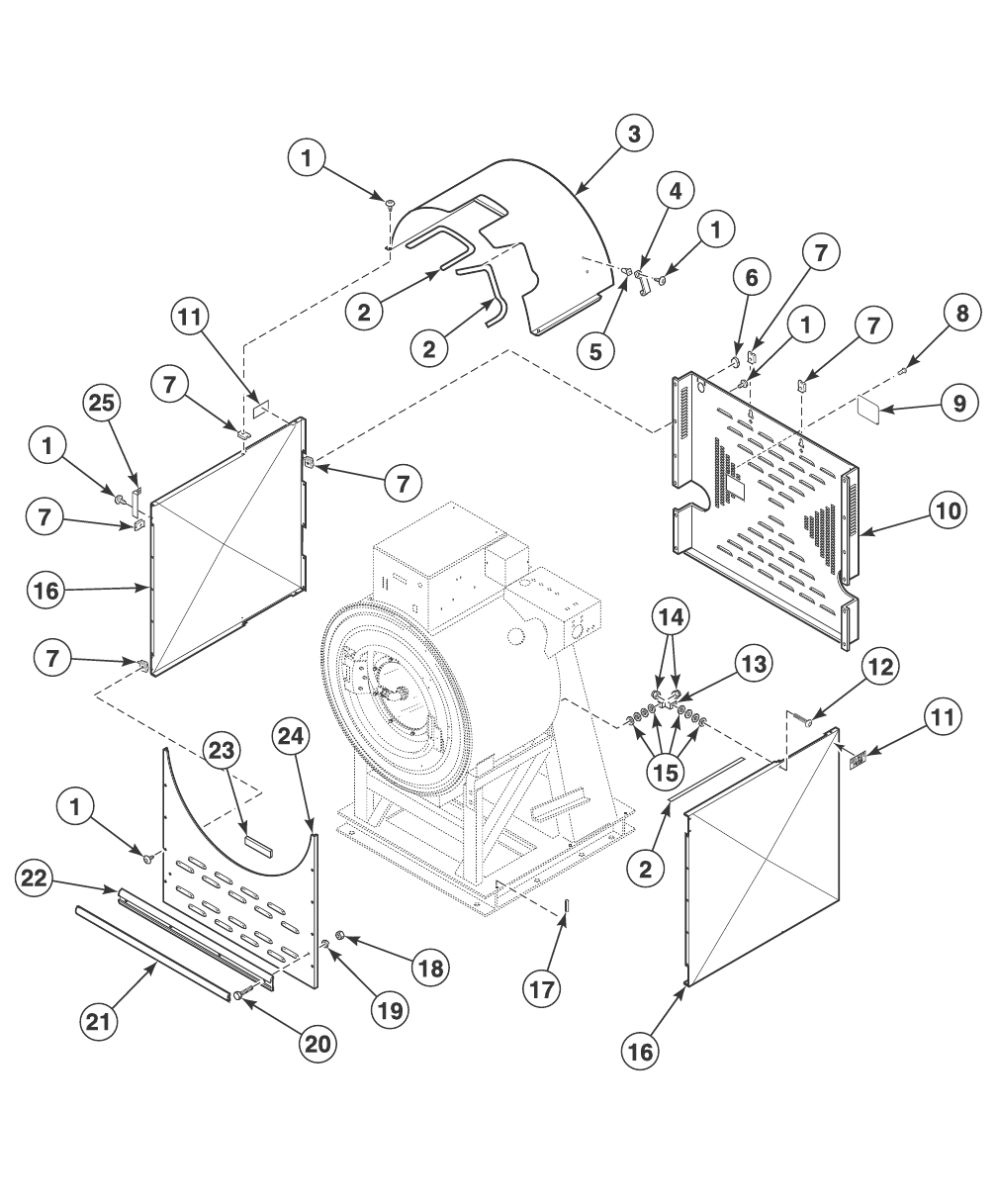

Front, Side and Rear Panels

PHM2502P_F232167

F232167 63

Front, Side and Rear Panels

REF PART NO. DESCRIPTION COMMENTS

1F430956 Screw

2F170400RP Trim Order 2 feet

3F635610 Cage Wrap Weldment Includes items 1, 4 and 5

4F605324 Hose Strap

5F0431807-00 Nut Plastic insert

6F180511 Cap Plug

7F430264 Nut Tinnerman

870240301 Screw

9F200188300 Belt Inspection Port Cover

10 F200187900P Rear Panel

11 F230302 Do Not Push Decal

12 F432234 Screw

13 F601982 Side Panel Bracket

14 F430215 Nut

15 F430317 Washer

16 F635648P Side Panel Reversible

17 F430415 Pin

18 F430211 Nut

19 F431100 Washer

20 F430921 Screw

21 F150397 Extrusion Insert Order 3 feet

22 F150408 Rub Rail

23 F170110 Sponge

24 F635649P Front Panel

25 F606667 Side Panel Cover

64 F232167

Motor and Pulley - Model UW60PV

PHM2086P_F232167

F232167 65

Motor and Pulley - Model UW60PV

REF PART NO. DESCRIPTION COMMENTS

NA F140225 Cable

1F798824-00 Front Bearing Kit Includes F010029701 Face Seal, F100203 Slinger,

F170120R Shell Band Gasket, F170125 Shell Band

Seal, F200001600 Shell Band Gasket, F410102 Clear

Sealant, F430137 Screw, F430210 Nut, F430211 Nut,

F430317 Washer, F430325 Washer, F430500 Screw,

F430935 Screw, F431005 Nut, F431100 Washer,

F431112 Washer, F431210 Pop Rivet and F704853 Key

1F100150P Bearing

2F745010 Rear Bearing Kit Includes F430136 Screw, F704854 Key, F430200 Nut

and F430327 Washer

2F100150P Bearing

3F422114 Air Coupling

4F231563 Grease Instruction Decal

5F190701 Grease Fitting

6J1408004 Connector

7F430332 Washer

8C000628P Tubing

9F140605 Cable Tie

10 20274 Nut

11 M400014 Washer

12 M400081 Washer

13 F430300 Washer

14 F280146P Pulley Pulley manufacturer part no. BK34H; 3.4 inch OD; 1

groove

14 F280182P Pulley Pulley manufacturer part no. BK32H; 3.2 inch OD

15 F430802 Key

16 F280211P Motor Pulley Bushing 1-1/8 inch; Includes item 15

17 F220236P Motor Replaces motors F220214U and F220214M; AC drive

parameters must be compatible with the motor and motor

pulley. Please request the AC drive parameter

illustration for parameter verification when ordering a

motor.

17 F220897P Motor Bearing

18 F430993 Screw

19 F430803 Key

20 F280353 Belt BX96

21 F280409P Bushing 2-7/16 inch; Includes item 19

22 F280410 Pulley IB255K

66 F232167

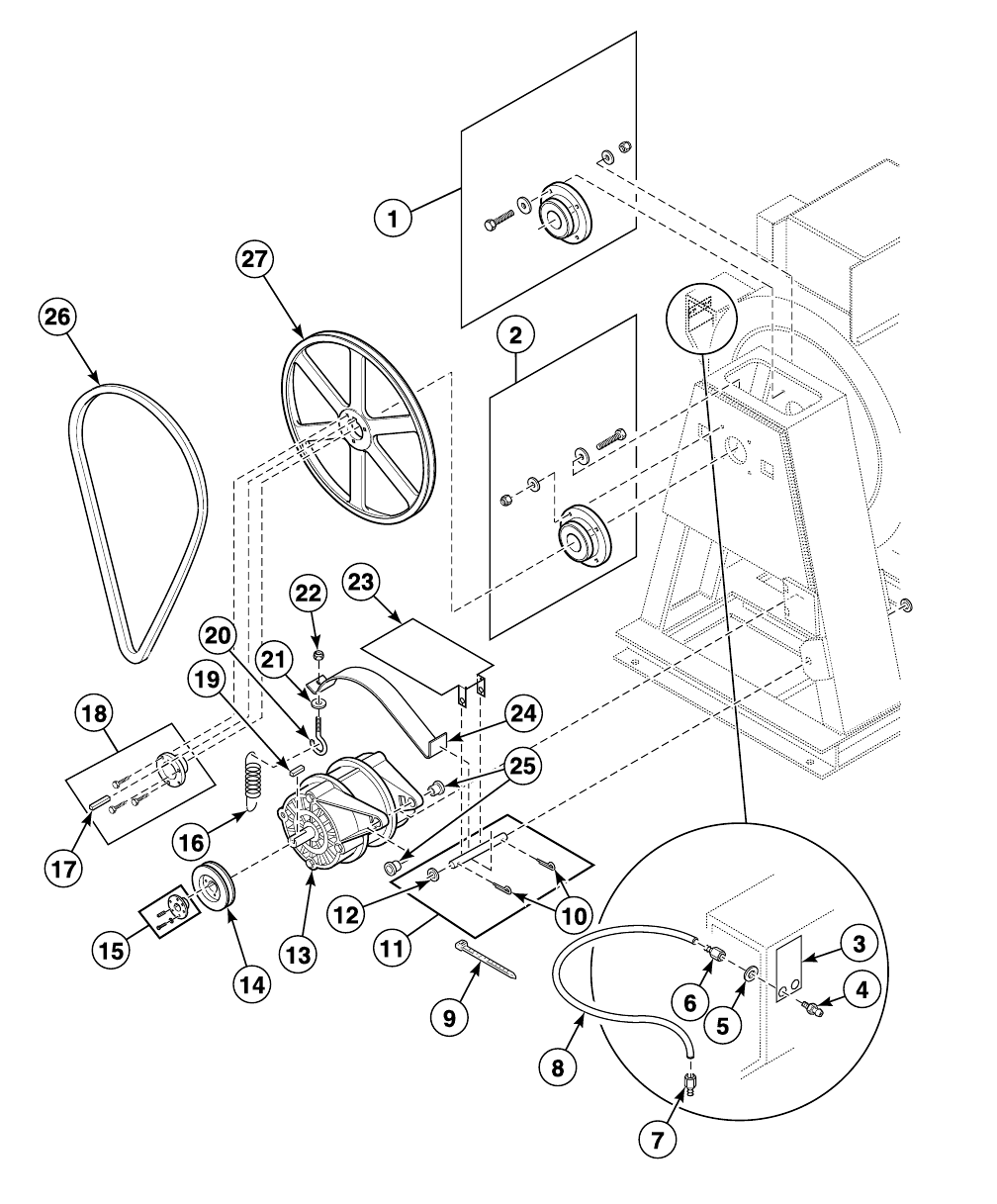

Motor and Pulley - Models UW60AV and UW60VV

PHM2510P_F232167

F232167 67

Motor and Pulley - Models UW60AV and UW60VV

REF PART NO. DESCRIPTION COMMENTS

1F798824-00 Front Bearing Kit Includes F170120 Shell Band Gasket, F410102 Clear

Sealant, F170125 Shell Band Seal, F010029701 Face

Seal, F100150 Bearing, F100203 Slinger, F430137

Screw, F430201 Nut, F430211 Nut, F430317 Washer,

F430325 Washer, F430500 Screw, F430935 Screw,

F431005 Nut, F431100 Washer, F431112 Washer,

F431210 Pop Rivet and F704853 Key

2F745010 Rear Bearing Kit Includes hardware

3F231563 Grease Instruction Decal

4F190701 Grease Fitting

5F430332 Washer

6F422114 Air Coupling

7J1408004 Connector

8C000628P Tubing

9F140605 Cable Tie 6 inch

10 F430401 Cotter Pin

11 F730076 Motor Support Rod Kit Includes items 10 and 12

12 F430325 Washer

13 F8329201P Motor Conversion Kit 208-240 Volt or 440-480 Volt/3 Phase; Includes item 25

14 F0280384-00 Motor Pulley Poly-V

15 F280209 Motor Pulley Bushing G 7/8; Includes screws, washers and key

16 F310127 Spring

17 F430801 Key

18 F280409P Bushing 2-7/16; Maska

19 F430802 Key

20 F0430720-00 Bolt

21 M400080 Washer

22 F430233 Nut

23 F200216900 Motor Drip Shield

24 F602166 Motor Adjustment Strap

25 F200186100 Motor Support Bushing Nylon

26 F0280381-00P Belt Poly-V; 10 groove; 980J10-KR150

27 F0280288-01 Basket Pulley Poly-V; Flat; 2 7/16 hub; 24 inch

68 F232167

Electric Heat Option

PHM2087P_F232167

F232167 69

Electric Heat Option

REF PART NO. DESCRIPTION COMMENTS

1F360203P Heating Element 6 required

2F370606P Temperature Probe

3F430215 Nut

4F430231 Nut

5F430938 Screw

6F140413 Box

7F140747 Input Power Block N and P-voltage

7M413865 Terminal Block Q-voltage

8F430107 Screw

9F330188P Contactor 220 Volt

10 F430311 Washer

70 F232167

Steam Heat Option and Transformers

PHM2816P_F232167

F232167 71

Steam Heat Option and Transformers

REF PART NO. DESCRIPTION COMMENTS

NA F410300 Pipe Insulation

NA F8514601P Coil Use with F8322801P Valve

NA F8379501P Valve Kit Use with F8322801P Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322801P Valve

1F200202600 Plug

2F8368201 Steam Injector Tube Assembly

3F421703 Street Elbow

4F200517 Steam Hose

5F420708 Nipple

6H86070034 Street Elbow

7F8322801P Valve Replaces F380787P Steam Valve; Includes F8514601

Coil; For models that have been upgraded with

F8521601 DIN Valve Kit

7F8521501 DIN Valve Kit Replaces F380787P Steam Valve; Includes F8322801P

Valve, F8382301 DIN Valve Adapter Kit and F8514601

Coil

8F300126P Solenoid 220 Volt

9F420409 Plug

10 F140425 Control Transformer Cover

11 F360156P Transformer N and P-voltage

12 F430935 Screw

13 N/A Nipple

14 70079601 Elbow

15 F200401P U-Bolt Clamp Includes washers and nuts

16 F420710 Nipple

17 F270307 Steam Filter 1/2 inch

18 F635634 Steam Bracket Weldment

19 F430104 Screw

20 F200031000 Transformer Buckboost; N-voltage; 2 per machine

21 N/A Transformer Adapter Plate N-voltage

22 F635653P Steam Plumbing Assembly 220 Volt; Includes items 2-9, 13, 14, 16-18 and F410300

Pipe Insulation

23 F430215 Nut

N/A = Part no longer available

72 F232167

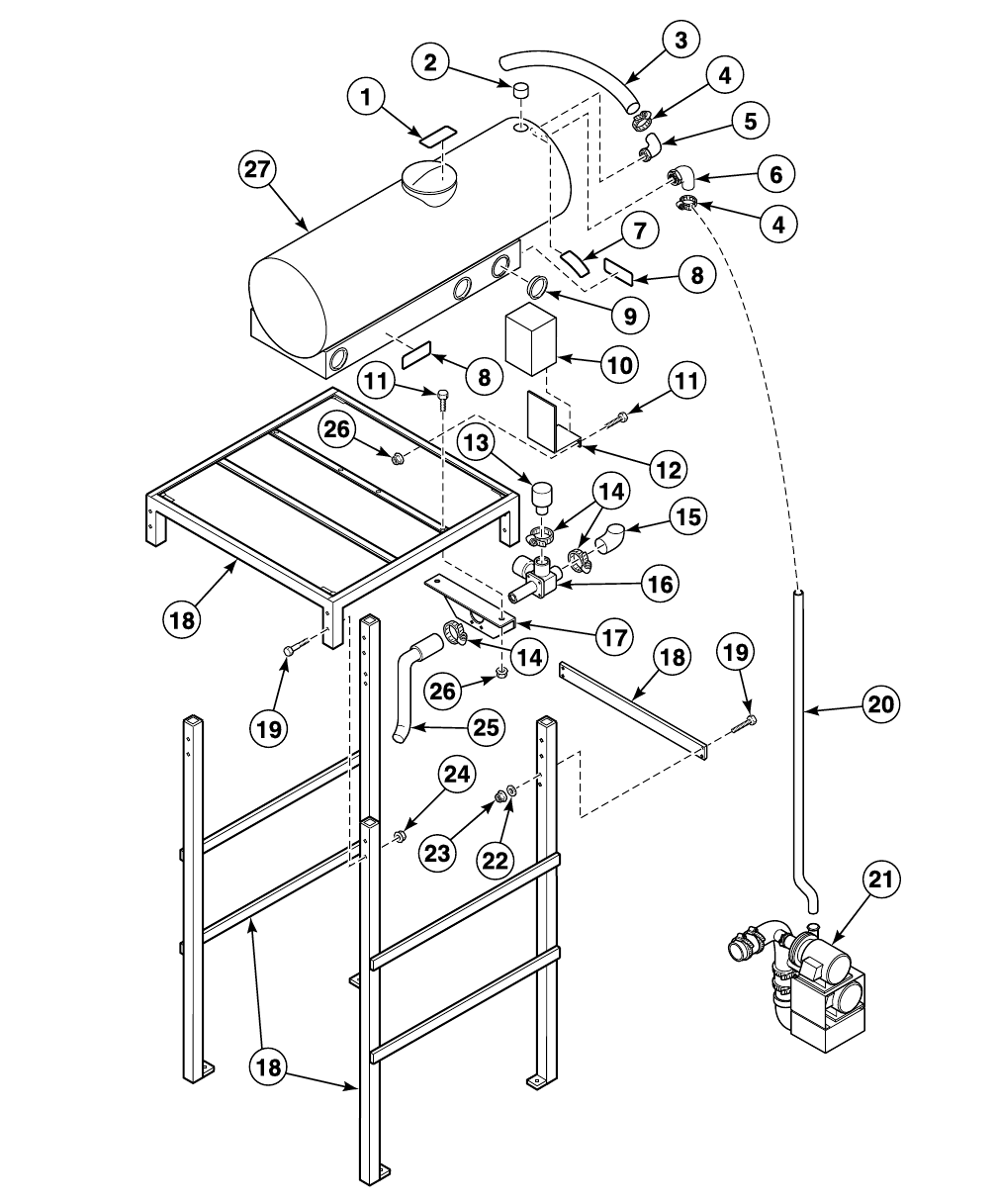

Water-Saving System Main View - Design 5 and 6 UW60PV Models

PHM2325P_F232167

F232167 73

Water-Saving System Main View - Design 5 and 6 UW60PV Models

REF PART NO. DESCRIPTION COMMENTS

1F231420 Top Cover Caution Decal

2F380117 Vacuum Breaker

3F150484 Reuse Overflow Hose

4F200215 Hose Clamp No. 28

5N/A Elbow

6N/A Elbow

7F231419 Do Not Obstruct Decal

8F231418 Do Not Climb Caution Decal

9N/A Cap Plug

10 N/A Control Module Sub-Assembly 120 Volt

10 N/A Control Module Sub-Assembly 220 Volt

11 M400056 Screw

12 F634191 Reuse Control Enclosure Mounting Bracket

13 F422520 Reuse Drain Reducer

14 F200213 Hose Clamp No. 40

15 F422914 Reuse Drain Elbow

16 F380635P Reuse Drain Valve

17 F634172 Drain Valve Bracket

18 F634413 Reuse Frame Assembly

19 F430996 Screw

20 F200505 Reuse Inlet Hose

21 F634674 Pump Sub-Assembly

22 F431100 Washer

23 F8549401 Nut

24 F430239 Nut

25 F0637929-01 Tank Drain Sub-Assembly

26 F430233 Nut

27 F191008 Reuse Tank

N/A = Part no longer available

74 F232167

Water-Saving System Main View - Design 7 and 8 UW60PV Models

PHM2458P_F232167

F232167 75

Water-Saving System Main View - Design 7 and 8 UW60PV Models

REF PART NO. DESCRIPTION COMMENTS

1F231420 Top Cover Caution Decal

2F380117 Vacuum Breaker

3F150484 Reuse Overflow Hose

4F200215 Hose Clamp No. 28

5N/A Elbow

6N/A Elbow

7F231419 Do Not Obstruct Decal

8F231418 Do Not Climb Caution Decal

9N/A Cap Plug

10 N/A Control Module Sub-Assembly 120 Volt

10 N/A Control Module Sub-Assembly 220 Volt

11 M400056 Screw

12 F634191 Reuse Control Enclosure Mounting Bracket

13 F422520 Reuse Drain Reducer

14 F200213 Hose Clamp No. 40

15 F422914 Reuse Drain Elbow

16 F380635P Reuse Drain Valve

17 F634172 Drain Valve Bracket

18 F430233 Nut

19 F430996 Screw

20 F634413 Reuse Frame Assembly

21 F200505 Reuse Inlet Hose

22 F634674 Pump Sub-Assembly

23 F431100 Washer

24 F8549401 Nut

25 F0637735-01 Water Reuse Hose

26 F430239 Nut

27 F0637736-00 Reuse Hose Adapter Weldment

28 F0150486-01 Reuse Drain Hose

29 F0634404-01 Water Reuse Tee Weldment

30 F0200505-02 Reuse Inlet Hose

31 F191008 Reuse Tank

N/A = Part no longer available

76 F232167

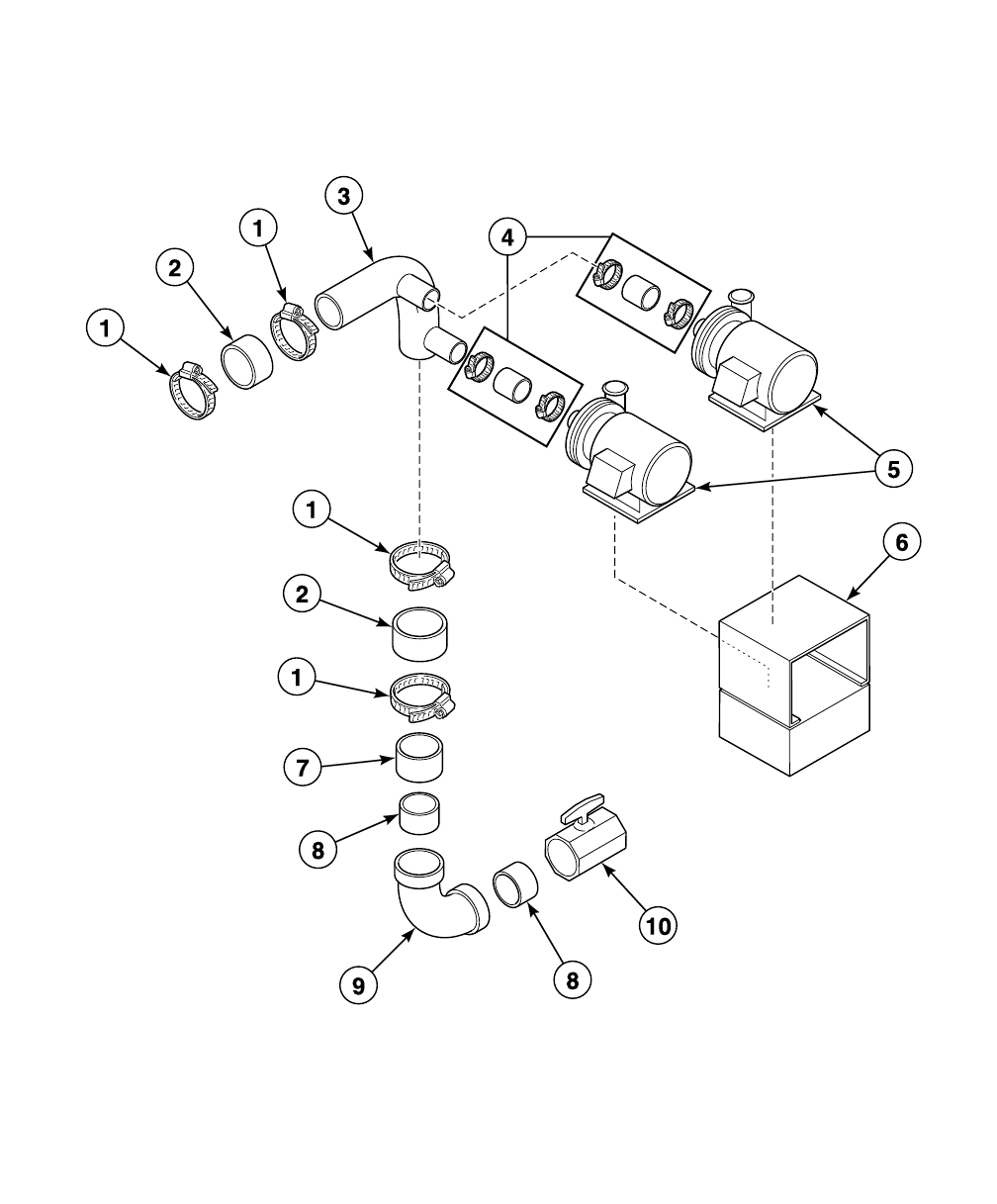

Water-Saving System Pump Sub-Assembly - Model UW60PV

PHM789B_F232167

F232167 77

Water-Saving System Pump Sub-Assembly - Model UW60PV

REF PART NO. DESCRIPTION COMMENTS

1F200201 Hose Clamp No. 56

2F150442 Drain Hose

3F250707 Reuse Pump Manifold

4F422515 Tube Connector

5F270102P Pump

6F634267 Reuse Pump Platform Assembly

7F150308 Overflow Hose

8F0602364-04 Pipe

9F422900 Elbow

10 F380634 Ball Valve

78 F232167

Water-Saving System Control Module Sub-Assembly -

Model UW60PV

PHM2698P_F232167

F232167 79

Water-Saving System Control Module Sub-Assembly -

Model UW60PV

REF PART NO. DESCRIPTION COMMENTS

1N/A Reuse Control Cable Assembly

2F140331 Strain Relief Connector Includes nut

3F140328 Strain Relief Connector Includes nut

4F430231 Nut

5F140432 Box

6F431022 Nut

7F431113 Washer

8F634278 Control Panel Sub-Assembly

9F370438P Relay CCA

10 F430910 Screw

11 F430916 Screw

12 F0330289-00 Flange Mount Relay 9 vdc

13 F230739 Ground Decal

14 F350207P Circuit Breaker

15 F330177P Contactor

16 F140254 Reuse Pump Motor Cable Assembly B

16 F140255 Reuse Pump Motor Cable Assembly A

17 F430233 Nut

18 F430928 Screw

19 N/A Pump A Harness Assembly

20 F141876 Pump B Harness Assembly

21 M400056 Screw

22 F634191 Reuse Control Enclosure Mounting Bracket

23 F140330 Strain Relief Connector Includes nut

24 F140245 Cable

25 45257 14 Gauge Wire Order 15 feet; Gray

25 N/A 14 Gauge Wire Order 5 feet; Green/yellow

N/A = Part no longer available

80 F232167

Auxiliary Water Reuse Inlet - Model UW60PV

PHM2339P_F232167

F232167 81

Auxiliary Water Reuse Inlet - Model UW60PV

REF PART NO. DESCRIPTION COMMENTS

NA F200099900 Auxiliary Water Reuse Inlet Includes all items on this page

NA F200096900 Extra Inlet Assembly Includes items 1, 5, 9 and 10

NA F8514601P Coil Use with F8322905 Valve

NA F8379502 Valve Rebuild Kit Use with F8322905 Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322905 Valve

1F421951 Hose Barb

2F8322905P Valve Replaces F381701P Steam Valve; Includes F8514601

Coil; For models that have been upgraded with

F8521801 DIN Valve Kit

2F8521801 DIN Valve Kit Replaces F381701P Steam Valve; Includes F8322905

Valve, F8382301 DIN Valve Adapter Kit and F8514601

Coil

3F0421970-00 Nipple

4F200401P U-Bolt Clamp

5F422314 Elbow

6F200222 Hose Clamp No. 12

7F200104P Hose

8F422314 Elbow

9F200098900 Wet-Clean Inlet Grommet

10 F200096800 Inlet Compression Weldment

82 F232167

Wet-Clean Assembly Main View - Model UW60PV

PHM2817P_F232167

F232167 83

Wet-Clean Assembly Main View - Model UW60PV

REF PART NO. DESCRIPTION COMMENTS

1F630300 Cover Assembly

2F630298 Filter Basket Weldment

3F170218 Canister Cover O-Ring

4F632355 Drain Canister Weldment

5F150352 Overflow Plug

6F200215 Hose Clamp No. 28

7N/A Hose Clamp No. 48

8F150442 Drain Hose

9F380636 Ball Valve

10 F430939 Screw

11 F635664 Control Module Sub-Assembly

12 F430932 Screw

13 F140329 Strain Relief Connector PG13

14 F380500 Gate Valve

15 F421915 Nipple

16 F431024 Nut

17 F632693-2 Canister Stand Weldment

18 F430232 Nut

19 F270102P Pump

20 F422515 Tube Connector

21 F422304 Street Elbow

22 F430923 Screw

23 F430903 Screw

24 F432201 Draw Latch

25 N/A Wet-Clean Canister Stand Assembly Includes items 1-9, 11, 13-15, 17, 19-21 and 24

N/A = Part no longer available

84 F232167

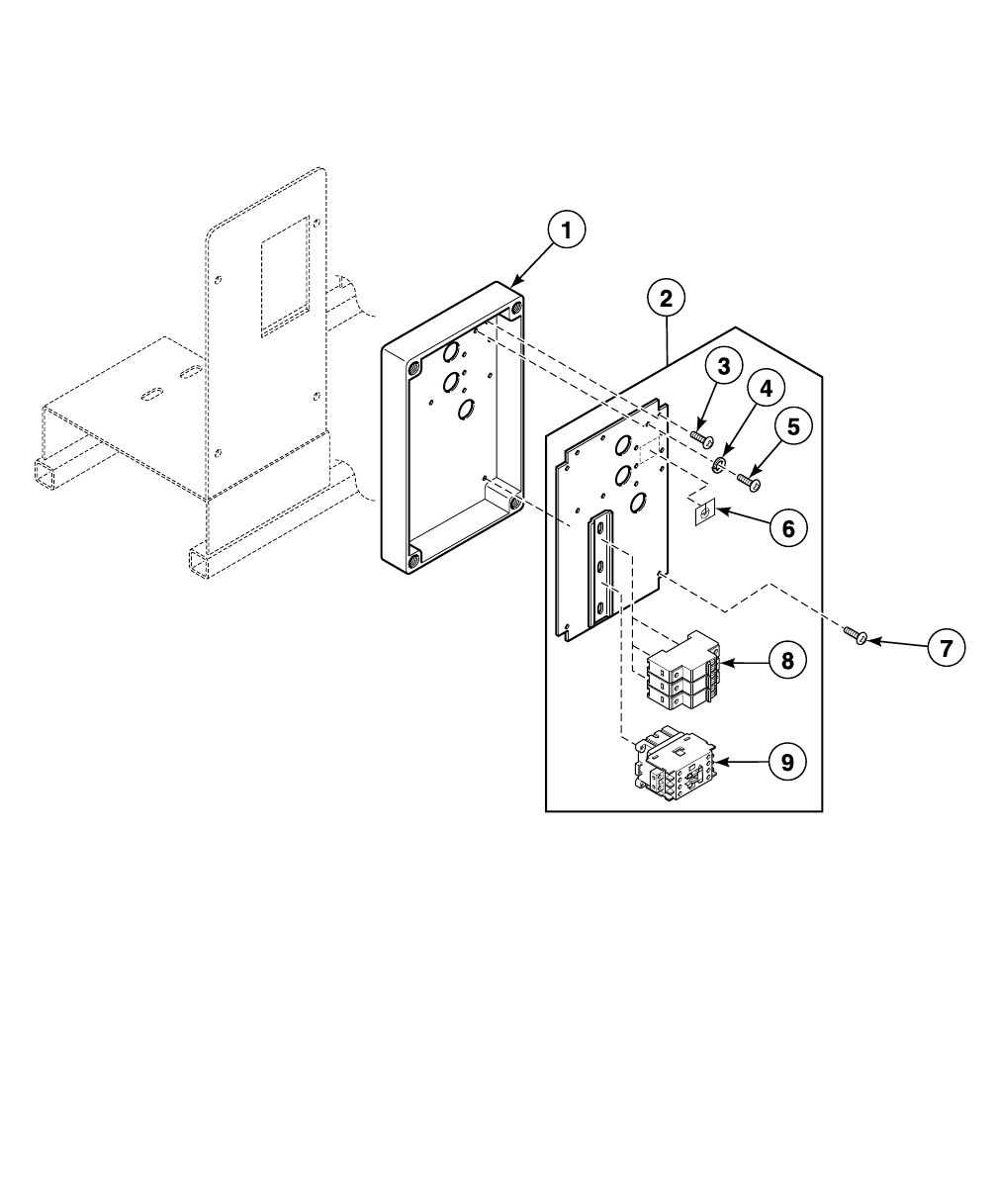

Wet-Clean Assembly Control Module - Model UW60PV

PHM2818P_F232167

F232167 85

Wet-Clean Assembly Control Module - Model UW60PV

REF PART NO. DESCRIPTION COMMENTS

1F140432 Box Includes items 3 and 7

2F634278 Control Panel Sub-Assembly Includes items 4-6, 8 and 9

3N/A Screw

4N/A Washer

5F430928 Screw

6F230739 Ground Decal

7N/A Screw

8F350207P Circuit Breaker

9F330177P Contactor

N/A = Part no longer available

86 F232167

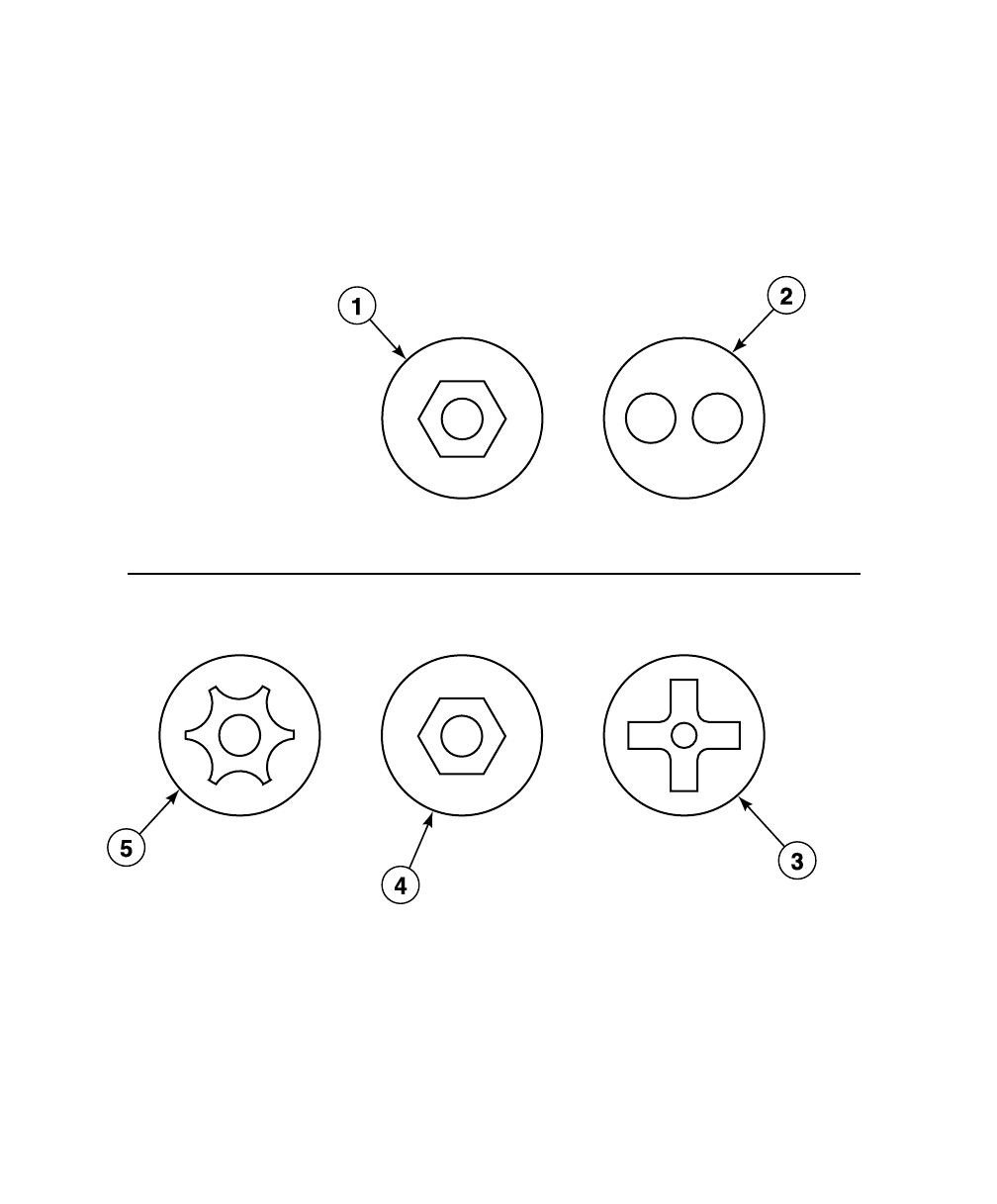

Security Fasteners

PHM2181P_F232167

Option One

Option Two

F232167 87

Security Fasteners

REF PART NO. DESCRIPTION COMMENTS

1F0430275-00 Screw No. 8; 32 x 1/2 inch; Used in place of F430956 Screw;

Typical location is the side panels and module cover

1F430960 Screw No. 10; 32 x 3/8 inch; Used in place of F430904 Screw;

Typical location is the module to the shell

1F704906 Hex Bit

2F0430273-00 Screw 1/4 inch; 20 x 2-1/2 inch; Used in place of F430996

Screw; Typical location is the door box to the bracket

2F0430272-00 Screw 1/4 inch; 20 x 1-1/2 inch; Used in place of F430921

Screw; Typical location is the side panel to the bracket

2F0430274-00 Screw 1/4 inch; 20 x 1/2 inch; Used in place of F430925 Screw;

Typical location is the drive box or the cover

2F704907 Spanner Bit

3F432260 Screw 1/4 inch; 20 x 2-1/2 inch; Used in place of F430996

Screw; Typical location is the door box to the bracket

3N/A Phillips Bit

4N/A Screw 1/4 inch; 20 x 1/2 inch; Used in place of F430925 Screw;

Typical location is the drive box or cover

4N/A Hex Bit

5F432259 Screw No. 8; 32 x 1/2 inch; Used in place of F430956 Screw;

Typical location is the side panels and module cover

5281P4 Torx Bit

N/A = Part no longer available

88 F232167

Special Tools

PHM3145P_F232167

F232167 89

Special Tools

REF PART NO. DESCRIPTION COMMENTS

NA F370851P HIM Drive Used with Allen-Bradley 160-series A and B inverter

drives

NA F798751 HIM Drive Used with Allen-Bradley 160-series A, B and C inverter

drives

NA F730055-1 Mounting Bolt Kit

NA 1113P Concrete Hardware Kit

1F633426 Alignment Shaft Assembly

2F0100312-00 Shaft Seal Alignment Fixture

3F602941 Rebar Frame Template

4F798700 Grease Gun Kit Includes items 5 and 6

5F210206P Bearing Grease

6F210207P Grease Gun

90 F232167

Motor Manufacturer Part Number Location

on the Motor’s Serial Plate

F232167 91

Motor Manufacturer Part Number Location

on the Motor’s Serial Plate

92 F232167

Motor Manufacturer Part Number Location

on the Motor’s Serial Plate

F232167 93

N/A items do not appear in index.

Parts Index

AC Drive Kit, 160-Series

F0370853-781......................................................... 31

F0370853-791......................................................... 29

F0370853-792......................................................... 29

F0370853-793......................................................... 29

F0370853-801......................................................... 29

F0370854-STK........................................................ 31

F0370854-791......................................................... 31

F0370854-792......................................................... 31

F0370854-794......................................................... 31

F0370854-801......................................................... 31

AC Drive Partition

F635366............................................................ 17, 19

AC Drive Partition Assembly

F0637753-00........................................................... 15

AC Drive Radio Filter Assembly

F200320900.......................................... 23, 29, 31, 33

AC Drive Resistor Assembly

F8079901P ............................................................. 25

F8080001P ............................................................. 25

Adapter

F422508.................................................................. 53

F8265701.............................................. 45, 47, 49, 51

Air Coupling

F422114 ............................................................ 65, 67

Air Flow Ramp Assembly

F0637748-00............................................... 15, 17, 19

Air Trap Hose

F020014200............................................................ 27

Alignment Shaft Assembly

F633426.................................................................. 89

Auxiliary Water Reuse Inlet

F200099900............................................................ 81

Balance Switch Bracket

F601750.................................................................. 35

F8124301................................................................ 35

Ball Valve

F380634.................................................................. 77

F380636.................................................................. 83

Basket Assembly

F632015.................................................................. 55

Basket Pulley

F0280288-01........................................................... 67

Battery

F191101 .................................................................. 15

Bearing

F100150P ............................................................... 65

Bearing Grease

F210206P ............................................................... 89

Before Power Is Connected Tag

F230501.................................................................. 13

Belt

F0280381-00P ........................................................ 67

F280353.................................................................. 65

Belt Inspection Port Cover

F200188300 ............................................................63

Bolt

F0430720-00 ...........................................................67

Box

F140413 ..................................................................69

F140432 ............................................................79, 85

Bushing

F280409P..........................................................65, 67

Buzzer

F300206 ..................................................................21

Cable

F140225 ..................................................................65

F140245 ..................................................................79

Cable Assembly

F604713 ..................................................................25

Cable Tie

F140605 ..........................................15, 17, 19, 65, 67

F140606 ......................................................15, 17, 19

Cable Tray Assembly

F635615-2 ...................................................15, 17, 19

Cable Tray Cover

F635476 ......................................................15, 17, 19

Cage Wrap Weldment

F635610 ..................................................................63

Canister Cover O-Ring

F170218 ..................................................................83

Canister Stand Weldment

F632693-2 ...............................................................83

Cap Plug

F180486 ..................................................................25

F180511...................................................................63

Chemical Supply Cup

F150385 ..................................................................37

F150386 ..................................................................37

Chemical Supply Hose

F150469 ..................................................................37

Circuit Breaker

F350207P..........................................................79, 85

F350210 ..................................................................25

F350218 ..................................................................25

F8303001P........................................................21, 23

Clockwise Spin Rotation Decal

F230652 ............................................................13, 59

Coil

F8514601P....................41, 43, 45, 47, 49, 51, 71, 81

Cold Water Valve Decal

F231368 ..................................................................13

Computer

F037047530P..........................................................19

Computer and Door Lock Harness

F200296000P..........................................................23

Computer Cover

F606826 ..................................................................15

Concrete Hardware Kit

1113P.......................................................................89

94 F232167

N/A items do not appear in index.

Conductor Decal

F231146 .................................................................. 13

Connector

F140575P ............................................................... 25

F140576P ............................................................... 25

F422500.................................................................. 27

J1408004 .......................................................... 65, 67

Contact Base

F8538101.................................................... 15, 17, 19

Contact Block Switch

F200299500................................................ 15, 17, 19

F340445...................................................... 15, 17, 19

Contact Switch

F8069501.................................................... 15, 17, 19

Contactor

F330177P ......................................................... 79, 85

F330188P ............................................................... 69

Containment Device

F0380809-00............................................... 43, 49, 51

Control Cover

F0636887-00........................................................... 19

Control Module Cover

F634558............................................................ 17, 19

F635456.................................................................. 15

Control Module Decal

F0231565-00........................................................... 19

F231417.................................................................. 17

F231562.................................................................. 15

Control Module Sub-Assembly

F635664.................................................................. 83

Control Panel Sub-Assembly

F634278............................................................ 79, 85

Control Transformer Cover

F140425.................................................................. 71

Cotter Pin

F430401.................................................................. 67

Cover Assembly

F630300.................................................................. 83

Diaphragm and Guide Kit

G582P3................................................................... 27

DIN Valve Adapter Kit

F8382301...................... 41, 43, 45, 47, 49, 51, 71, 81

DIN Valve Kit

F8521501................................................................ 71

F8521801........................................ 45, 47, 49, 51, 81

Disconnect Power Warning Label

D505281 ............................................... 13, 15, 17, 19

Dispenser Assembly

F0150512-00P ........................................................ 37

Dispenser Lid

F0150514-00........................................................... 37

Do Not Climb Caution Decal

F231418............................................................ 73, 75

Do Not Obstruct Decal

F231419............................................................ 73, 75

Do Not Push Decal

F230302............................................................ 13, 63

Door Box

F606630.................................................................. 61

Door Box Assembly

F603666P................................................................61

Door Box Mounting Plate Assembly

F605525 ..................................................................61

Door Bumper Bushing

F430416 ..................................................................59

Door Bumper Moulding

F150366 ..................................................................59

Door Butt Shim

F0610695-00 ...........................................................59

Door Gasket

F017014501 ............................................................59

F170145 ..................................................................59

Door Glass Gasket

F170117...................................................................59

Door Glass Kit

F290200P................................................................59

Door Glass Retainer

F601239 ..................................................................59

Door Handle Casting

F150203 ..................................................................61

Door Hinge Pin

F601815 ..................................................................59

Door Hinge Strap Kit

F200030600P..........................................................59

Door Kit

F730307 ..................................................................59

F730539 ..................................................................59

Door Latch Bracket Shim

F602058 ..................................................................61

Door Lock Solenoid

F300129P................................................................61

Drain Canister Weldment

F632355 ..................................................................83

Drain Hose

F150438 ..................................................................53

F150442 ......................................................53, 77, 83

F200165100 ............................................................53

Drain Valve Bracket

F634172 ............................................................73, 75

Drain Valve Cover

F200133600 ............................................................53

Drain Valve Kit

F200166402 ............................................................53

Drain Valve Motor

F380933P................................................................53

Draw Latch

F432201 ..................................................................83

Drip Rail

F150364 ..................................................................57

Drive Kit, 1305 to PowerFlex 40

F8171611.................................................................33

F8171616 ................................................................33

F8171620 ................................................................33

F8171717 ................................................................33

F8171718 ................................................................33

F8171720 ................................................................33

Drive Kit, 160 to PowerFlex 40

F8171612 ................................................................33

F8171613 ................................................................33

F8171614 ................................................................33

F8171615 ................................................................33

F8171712 ................................................................33

F8171713 ................................................................33

F232167 95

N/A items do not appear in index.

F8171714................................................................ 33

F8255202................................................................ 33

F8255302................................................................ 33

Elbow

F0422918-00........................................................... 43

F420509................................................ 45, 47, 49, 51

F422314.................................................................. 81

F422319.................................................................. 59

F422900.................................................................. 77

70079601 ................................................................ 71

Electrical Access Panel

F0637549-00............................................... 15, 17, 19

F635448.................................................................. 15

Emergency Stop Button Kit

F200233700P ............................................. 15, 17, 19

Emergency Stop Pushbutton

F200233500................................................ 15, 17, 19

EMI Filter

F330280P ............................................................... 25

F330284.................................................................. 25

Extension Arm Kit

F746803.................................................................. 61

Extension Arm Tab

F601639.................................................................. 61

External Supply Box

F635468...................................................... 15, 17, 19

External Supply Box Cover

F635365...................................................... 15, 17, 19

External Supply Caution Decal

F231345-4............................................................... 13

Extra Inlet Assembly

F200096900............................................................ 81

Extrusion Insert

F150397.................................................................. 63

Face Seal

F8162101................................................................ 57

F8162201................................................................ 57

Fill Plumbing Assembly

F0637637-01..................................................... 49, 51

F633146-1......................................................... 45, 47

F633146-5......................................................... 45, 47

F633419-1......................................................... 45, 47

F633419-5......................................................... 45, 47

Filter

F200318900P ................................................... 21, 23

Filter Basket Weldment

F630298.................................................................. 83

Filter Retainer Guard

F220900............................................................ 21, 23

Flange Mount Relay

F0330289-00........................................................... 79

Flange Relay

F330230............................................................ 21, 23

Frame Assembly

F633378.................................................................. 55

F633378-2............................................................... 55

Front Bearing Kit

F798824-00 .......................................................65, 67

Front Panel

F635649P................................................................63

Fuse

F350108 ............................................................21, 23

F350109 ............................................................21, 23

F350110.............................................................21, 23

F350115...................................................................25

F350142 ............................................................23, 25

Fuse Decal

F0231629-00 ...........................................................25

Fuse Holder

F0350312-10 ...........................................................25

F0350313-00P.........................................................25

Gasket

F170158P................................................................37

Gate Valve

F380500 ..........................................45, 47, 49, 51, 83

Glass

F290201P................................................................59

Grease Fitting

F190701 ............................................................65, 67

Grease Gun

F210207P................................................................89

Grease Gun Kit

F798700 ..................................................................89

Grease Instruction Decal

F231563 ............................................................65, 67

Ground Decal

F230630 ..................................................................25

F230739 ............................................................79, 85

Ground Terminal Lug

F140734 ..................................................................25

Handle Spacer

F609822 ..................................................................61

Handle Weldment

F609427 ..................................................................61

Heating Element

F360203P................................................................69

Hex Bit

F704906 ..................................................................87

HIM Drive

F370851P................................................................89

F798751 ..................................................................89

Hose

F200104P........................................45, 47, 49, 51, 81

Hose Adapter

F421908 ............................................................41, 43

F421909 ................................................45, 47, 49, 51

Hose Barb

F421929 ............................................................53, 57

F421951 ..........................................45, 47, 49, 51, 81

F421964 ................................................45, 47, 49, 51

Hose Clamp

F200201 ............................................................53, 77

96 F232167

N/A items do not appear in index.

F200206................................................ 45, 47, 49, 51

F200213................................................ 37, 53, 73, 75

F200215................................................ 27, 73, 75, 83

F200222.......................................... 45, 47, 49, 51, 81

36801 .......................................................... 39, 53, 57

Hose Connector

F200302.................................................................. 39

Hose Strap

F605324.................................................................. 63

Hot Surface Warning Decal

F200085000............................................................ 13

F231380.................................................................. 13

Hot Water Valve Decal

F231367.................................................................. 13

Injection Nozzle

F8322001................................................................ 37

Injection Nozzle Kit

F730168.................................................................. 37

Inlet Compression Weldment

F200096800............................................................ 81

Input Block Decal

F0231636-00........................................................... 25

Input Power Block

F140747.................................................................. 69

F140794-1............................................................... 25

Insulator Bushing

F140909.................................................................. 25

Interlock Switch

F340900............................................................ 35, 61

Interlock Switch Spacer

F601055.................................................................. 61

Inverter Drive

F370843.................................................................. 23

F370844.................................................................. 23

Jumper Kit

F784003P ............................................................... 21

Key

F430801.................................................................. 67

F430802............................................................ 65, 67

F430803.................................................................. 65

Keymode Assembly

F200174600P ......................................................... 25

Keymode Run/Program Switch

F340800P ............................................................... 25

Keypad

F023158231P ......................................................... 19

F370576P ............................................................... 17

Keypad Decal

F230724P ............................................................... 15

Line Reactor Kit

F0360160-00P.........................................................23

F0360167-00P.........................................................23

Lower Door Latch Bracket Casting

F150202 ..................................................................61

Lower Door Latch Casting

F150204 ..................................................................61

Magnet

F8390801 ................................................................61

Magnetic Switch Assembly

F200321200 ............................................................61

Main Drive Kit

F380918 ..................................................................53

Microcomputer

F0370313-09P.........................................................17

Microswitch

F340906 ..................................................................61

Mitsubishi to PowerFlex 40 Drive Kit

F8171617 ................................................................33

F8171618 ................................................................33

F8171619 ................................................................33

F8171715 ................................................................33

F8171716 ................................................................33

F8171719 ................................................................33

Momentary Switch

F200120100 ................................................15, 17, 19

F340412 ............................................................15, 17

Motor

F220236P................................................................65

Motor Adjustment Strap

F602166 ..................................................................67

Motor Bearing

F220897P................................................................65

Motor Conversion Kit

F8329201P..............................................................67

Motor Drip Shield

F200216900 ............................................................67

Motor Pulley

F0280384-00 ...........................................................67

Motor Pulley Bushing

F280209 ..................................................................67

F280211P ................................................................65

Motor Support Bushing

F200186100 ............................................................67

Motor Support Rod Kit

F730076 ..................................................................67

Mounting Bolt Kit

F730055-1 ...............................................................89

Muffin Fan

F110105.............................................................21, 23

Nipple

F0421970-00 ...........................................................81

F420101 ....................................41, 43, 45, 47, 49, 51

F232167 97

N/A items do not appear in index.

F420103................................................ 41, 43, 47, 49

F420105.................................... 41, 43, 45, 47, 49, 51

F420107................................................ 45, 47, 49, 51

F420708.................................................................. 71

F420710.................................................................. 71

F421915.................................................................. 83

F421949............................................................ 41, 43

No-Swivel Coupling

F422109.................................................................. 59

Nut

F0431807-00........................................................... 63

F430211 .................................................................. 63

F430215.......................................... 57, 61, 63, 69, 71

F430218.................................................................. 35

F430231........................ 15, 17, 19, 21, 23, 61, 69, 79

F430232.................................................................. 83

F430233................................................ 67, 73, 75, 79

F430239............................................................ 73, 75

F430264.................................................................. 63

F430265.................................................................. 25

F431000............................................................ 15, 25

F431002.................................................................. 61

F431006.................................................................. 25

F431013.................................................................. 25

F431022...................................................... 25, 59, 79

F431024.................................................................. 83

F431042.................................................................. 37

F431806.................................................................. 23

F8549401............................ 15, 17, 19, 59, 61, 73, 75

H88412101 ............................................................. 35

20274 .................................................... 35, 57, 59, 65

44087301 ................................................................ 35

70142 ...................................................................... 55

802292 .................................................................... 37

O-Ring

F0170221-00............................................... 43, 49, 51

F170200.................................................................. 59

F170208.................................................................. 37

F170215.................................................................. 37

Output Board CCA

F370447-6P ............................................................ 23

Output Board Cover

F0170427-00........................................................... 23

Output CCA

F037044860-2......................................................... 23

F8321901P ............................................................. 21

Overflow Hose

F150308.................................................................. 77

Overflow Plug

F150352.................................................................. 83

Personal Injury Warning Decal

F231065............................................................ 13, 25

F430415.................................................................. 63

Pipe

F0602364-04........................................................... 77

F0602364-25........................................................... 53

F0602365-01........................................................... 53

F0602365-22 ...........................................................53

Pipe Insulation

F410300 ..................................................................71

Plug

F0200237-00 ...........................................................57

F200202600 ............................................................71

F420408 ..................................................................45

F420409 ..................................................................71

Plug Cap

F190304 ..................................................................37

Plug Removal Warning Decal

F0230112-00 .....................................................13, 57

Pop Rivet

F431210 ......................................................53, 57, 61

Program Key

F370709 ..................................................................25

Pulley

F280146P................................................................65

F280182P................................................................65

F280410 ..................................................................65

Pump

F270102P..........................................................77, 83

Pump B Harness Assembly

F141876 ..................................................................79

Pump Sub-Assembly

F634674 ............................................................73, 75

Push Decal

F230303 ..................................................................61

Push Handle Kit

F746201-1 ...............................................................61

RC Network Filter

F330217P....................................................17, 19, 61

Rear Bearing Kit

F745010 ............................................................65, 67

Rear Panel

F200187900P..........................................................63

Rebar Frame Template

F602941 ..................................................................89

Reducer Bushing

F422602 ..................................................................53

Relay CCA

F370438P................................................................79

Repair Kit

F380965P................................................................47

Resistor

F370116.............................................................23, 25

Reuse Control Enclosure Mounting Bracket

F634191 ......................................................73, 75, 79

Reuse Drain Elbow

F422914 ............................................................73, 75

Reuse Drain Hose

F0150486-01 ...........................................................75

Reuse Drain Reducer

F422520 ............................................................73, 75

Reuse Drain Valve

F380635P..........................................................73, 75

Reuse Frame Assembly

F634413 ............................................................73, 75

98 F232167

N/A items do not appear in index.

Reuse Hose Adapter Weldment

F0637736-00........................................................... 75

Reuse Inlet Hose

F0200505-02........................................................... 75

F200505............................................................ 73, 75

Reuse Overflow Hose

F150484............................................................ 73, 75

Reuse Pump Manifold

F250707.................................................................. 77

Reuse Pump Motor Cable Assembly

F140254.................................................................. 79

F140255.................................................................. 79

Reuse Pump Platform Assembly

F634267.................................................................. 77

Reuse Tank

F191008............................................................ 73, 75

Ribbon Cable

F140218P ......................................................... 15, 21

F140219P ............................................. 15, 17, 19, 21

F140248P ......................................................... 15, 21

Ring Retainer

F310206.................................................................. 59

Rotation Sensor Assembly

F200126200P ......................................................... 35

Rotation Sensor Bracket

F200122502............................................................ 35

Rotation Sensor Harness

F8066401................................................................ 35

Rotation Sensor PCB

F200101300P ......................................................... 35

Rotation Sensor Retrofit Kit

F079900800............................................................ 35

Rub Rail

F150408.................................................................. 63

Screw

F0430165-00..................................................... 21, 23

F0430272-00........................................................... 87

F0430273-00........................................................... 87

F0430274-00........................................................... 87

F0430275-00........................................................... 87

F430103.................................................................. 59

F430104.................................................................. 71

F430107.................................................................. 69

F430124.................................................................. 35

F430168.................................................................. 61

F430500.................................................................. 57

F430502.................................................................. 59

F430903............................................................ 25, 83

F430909............................................................ 25, 61

F430910...................................................... 21, 23, 79

F430916............................................................ 61, 79

F430917.................................... 15, 17, 19, 37, 59, 61

F430921.................................................................. 63

F430923.................................................................. 83

F430924.................................................................. 57

F430927............................................................ 35, 61

F430928.......................................... 15, 17, 19, 79, 85

F430932.................................................................. 83

F430935............................................................ 57, 71

F430938.......................................... 25, 43, 49, 51, 69

F430939.................................................................. 83

F430956............................................................ 61, 63

F430960 ..................................................................87

F430993 ..................................................................65

F430995 ............................................................25, 61

F430996 ......................................................61, 73, 75

F431702 ..................................................................23

F432234 ..................................................................63

F432259 ..................................................................87

F432260 ..................................................................87

F8111101 .................................................................35

F8122701 ................................................................35

F8136401 ....................................................15, 17, 19

M400056 .....................................................73, 75, 79

70240301 ..............................................15, 17, 19, 63

800461 ..............................................................35, 57

Scupper

F150389 ............................................................53, 57

Seal

F170151 ..................................................................15

Seal Kit

F798819-00 .............................................................57

Shaft Seal Alignment Fixture

F0100312-00 ...........................................................89

Shell Assembly

F634438 ..................................................................57

Shell Band Assembly

F603344P................................................................55

Shell Band Fastener Kit

F791001 ..................................................................57

Shell Band Gasket

F170120RP .............................................................55

Shell Front Assembly

F200119900P ..........................................................55

Shell Front Weldment

F8135801P..............................................................55

Shell Gasket Shield

F601216 ..................................................................57

Shell Mounting Bracket

F601806 ..................................................................57

Shell Reinforcement Plate Assembly

F8084201 ..........................................................53, 57

Shell Weldment

F0633208-01 ...........................................................57

F0633208-05 ...........................................................57

F0634436-01 ...........................................................57

F634436 ..................................................................57

Side Panel

F635648P................................................................63

Side Panel Bracket

F601982 ..................................................................63

Side Panel Cover

F606667 ..................................................................63

Slinger

F100203 ..................................................................57

Snap Bushing

F140938 ..................................................................27

Soap Dispenser Hose

F150309 ..................................................................53

Soap Dispenser Shroud Weldment

F8024301 ................................................................37

Solenoid

F300126P............................41, 43, 45, 47, 49, 51, 71

Solenoid Spacer

F609728 ..................................................................61

F232167 99

N/A items do not appear in index.

Spanner Bit

F704907.................................................................. 87

Sponge

F170110 .................................................................. 63

Spray Plumbing Assembly

F0637633-01........................................................... 43

F0637633-03........................................................... 43

F633150-1............................................................... 41

F633150-5............................................................... 41

Spray Rinse Bracket Assembly

F602901P ............................................................... 59

Spray Rinse Hose Assembly

F730026.................................................................. 59

Spray Rinse Nozzle Kit

F730077.................................................................. 59

Spray Rinse Strap

F602880.................................................................. 59

Spray Rinse Tube Assembly

F603696-9............................................................... 59

Spring

F310127.................................................................. 67

Standoff

F180501.................................................................. 35

F180506............................................................ 21, 23

Steam Bracket Weldment

F635634.................................................................. 71

Steam Filter

F270307.................................................................. 71

Steam Hose

F200517.................................................................. 71

Steam Injector Tube Assembly

F8368201................................................................ 71

Steam Plumbing Assembly

F635653P ............................................................... 71

Strain Relief Adapter Kit

F749802.................................................................. 37

Strain Relief Connector

F140328.................................................................. 79

F140329.................................................................. 83

F140330.................................................................. 79

F140331.................................................................. 79

F140340P ............................................................... 37

Street Elbow

F420500.................................... 41, 43, 45, 47, 49, 51

F420502.......................................... 41, 45, 47, 49, 51

F421703.................................................................. 71

F422304.................................................................. 83

H86070034 ............................................................. 71

Supply Dispenser Hazard Caution Decal

F231436............................................................ 13, 37

Supply Dispenser Spacer

F0150525-00........................................................... 37

Switch

F340921.................................................................. 35

Switch Extension

F340924.................................................................. 35

Switch Mode Decal

F0231632-00........................................................... 25

F231564.................................................................. 25

Swivel Coupling

F422108.................................................................. 59

Tank Drain Sub-Assembly

F0637929-01 ...........................................................73

Te e

F420400 ..................................................................43

F420401 ..................................................................41

F420402 ................................................45, 47, 49, 51

F422801 ..................................................................53

F422803 ..................................................................53

Temperature Probe

F370606P..........................................................35, 69

Te r m i n a l B l o c k

F140782 ..................................................................25

M413865 .................................................................69

This Machine Must Be Protected Decal

F230301 ..................................................................13

Tie Wrap Mounting Clamp

F140602 ......................................................15, 17, 19

Top Cover Caution Decal

F231420 ............................................................73, 75

Top Latch Bracket Casting

F150201P................................................................61

To r x B i t

281P4 ......................................................................87

Transformer

F200031000 ............................................................71

F360156P................................................................71

Trim

F170400RP .......................................................37, 63

F170404 ......................................................15, 17, 19

Tube Connector

F422106 ............................................................41, 43

F422515 ............................................................77, 83

Tubing

C000628P .........................................................65, 67

F422404P................................................................27

U-Bolt Clamp

F200401P......................41, 43, 45, 47, 49, 51, 71, 81

Vacuum Breaker

F380117.......................................................53, 73, 75

Vacuum Breaker Cap

F0380808-00 ...............................................43, 49, 51

Vacuum Breaker Kit

F0798922-00 ...............................................43, 49, 51

Vacuum Breaker Valve

F063754701P............................41, 43, 45, 47, 49, 51

Valve

F8322801P..............................................................71

F8322803P............................................41, 43, 47, 49

F8322905P......................................45, 47, 49, 51, 81

Valve Head Tool

371P4 ..........................................................47, 49, 51

372P4 ................................................................47, 49

100 F232167

N/A items do not appear in index.

Valve Kit

F8379501P ....................................................... 43, 71

Valve Rebuild Kit

F8379502........................................ 45, 47, 49, 51, 81

Valve Repair Kit

F380993P ......................................................... 47, 49

Valve Transition Kit

F8456201P ........................................... 41, 43, 47, 49

F8456202P ............................................................. 43

Valve, 4-Way

F381723P ............................................................... 27

Washer

F430300.................................................................. 65

F430311 .................................................................. 69

F430317............................................................ 57, 63

F430325.................................................................. 67

F430332............................................................ 65, 67

F431100 .......................................... 59, 61, 63, 73, 75

F431106 .................................................................. 25

F431108 .......................................... 15, 17, 19, 25, 61

F431112 .................................................................. 57

F431113 ................................................ 15, 17, 19, 79

F431116 .................................................................. 57

F431118 .................................................................. 61

F431123 ...................................................... 15, 17, 19

F431125 ............................................................ 15, 17

F431142 .................................................................. 61

F431147 .................................................................. 37

F8195301................................................................ 37

M400013 ................................................................. 55

M400014 ..................................................... 35, 57, 65

M400080 ................................................................. 67

M400081 ..................................................... 35, 57, 65

20290 ........................................ 41, 43, 45, 47, 49, 51

803615 ...................................... 41, 43, 45, 47, 49, 51

Water Hose

F200107P ......................................................... 53, 57

F200110P................................................................ 39

F200164.................................... 41, 43, 45, 47, 49, 51

F200166.................................... 41, 43, 45, 47, 49, 51

F200509................................................ 45, 47, 49, 51

Water Level Switch

F0340347-10P ........................................................ 27

Water Reuse Hose

F0637735-01........................................................... 75

Water Reuse Tee Weldment

F0634404-01........................................................... 75

Water Valve Repair Kit

F380991P ................................................... 47, 49, 51

Wet-Clean Inlet Grommet

F200098900............................................................ 81

WE-6 Computer

F037062441P ......................................................... 15

WE-6 Interface CCA Kit

F0370446-21P ........................................................ 21

Wire, 14 Gauge

45257 ...................................................................... 79

Y Connector

F422816 ..................................................................39

Washer Extractor Parts Manual 160 F232167

Navigation menu

Versions of this User Manual:

Views

Navigation
