F83T2.0_0527 F83T
User Manual:
Open the PDF directly: View PDF
.
Page Count: 91
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
191Tuesday, May 26, 2009
ASUSTeK Computer INC
Block Diagram
1.0
F83T
Ice_wang
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
191Tuesday, May 26, 2009
ASUSTeK Computer INC
Block Diagram
1.0
F83T
Ice_wang
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
191Tuesday, May 26, 2009
ASUSTeK Computer INC
Block Diagram
1.0
F83T
Ice_wang
SATA HDD
FAN + SENSOR
LVDS
USB 2.0 X4
SATA ODD
CRT
PCIE
X4
SATA USB
USB CCD
BT Module
MINICARD
NEWCARD
EC ITE8512 SPI ROM
TPM 1.2
LPC
Codec ALC663
MDC Header
PCI-E
RTL8111C
Card Reader
AU6371
Page 40
4 in 1 Card
Reader
Page 40
Page 45
Page 61
Page 44
Page 30
Page 35
Page 36
Page 30 ~ 31
Page 10 ~ 18
Page 20 ~ 28
Page 51
Page 51
Page 52
Page 45
Page 46
Page 53
Page 33 ~ 34
Page 43
Page 29
Page 50
BLOCK DIAGRAM
HT LINK
800MHZ
DDR2
667
AMD CPU
Conesus
SO-DIMM X 2
Dual Channel DDR2
AMD
RS780MN
Debug Conn.
Page 3 ~ 6 Page 7 ~ 9
HDMI
Page 48
Page 62
HP/MIC/LINE IN
Page 30
AZALIA
Amp
Page 30
KB/TOUCH PAD
Page 30
LED
Page 30
AMD
SB710
FAN + SENSOR
Discharge
Page 50
18W
PCI-E X16(8)
M92
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
291Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Power sequence
2.05
F83T
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
291Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Power sequence
2.05
F83T
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
291Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Power sequence
2.05
F83T
<OrgAddr1>
+1.8V
+5VA
11
18
EC
CLK GEN
SUS_PWRGD
Power On
6
+1.8VS
LDT_RST#
18
3
(South Bridge)
+3V LDT_PG
+3VSUS
AC_BAT_SYS
+12VS
+5VS
PM_PWRBTN#
+CPU_VDD0
9
+3VS
PWR_SW#
5
VSUS_ON
+1.2VSUS
+5V
17
CPU_LDT_STOP#
PM_RSMRST#
CPU_VRON
SB710
+0.9V
12
AMD Conesus CPU
+3VA
SLP_S3#
8
+1.5VS
SLP_S5#
A_RST#
2
4
7
SWITCH
+2.5_CPU_VDDA
(North Bridge)
+3VA_EC
+12V
RS780MN
10
1
PM_PWROK_EC
EC
SUSC_EC#
SUSB_EC#
A_RST#
13
+1.1V_NB
+1.2V_CPU_NB_SB
+CPU_VDDNB
+VCC_NB
VRM_PWRGD
16
Reset IC
EC_RST#
AC mode: VSUS_ON assert after EC_RST#
BAT Mode: VSUS_ON assert after Press button
ALL_SYSTEM_PWRGD
8'
9'
PWR_GOOD
POWERGOOD
NB_PWRGD
14
LDTSTOP_L
19
VDDxxx
+3VS POWER-UP
10
SUS_PWRGD
+CPU_VDD1
NB_PWRGD
KBRST# 15 KBRST#
LDTSTOP#LDT_STP#
CPU_PWRGD
PWROK
CPU_LDT_RST#
RESET_L
RC_IN#
SYSRESET#A_RST#
PM_SUSC#
PM_SUSB#
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

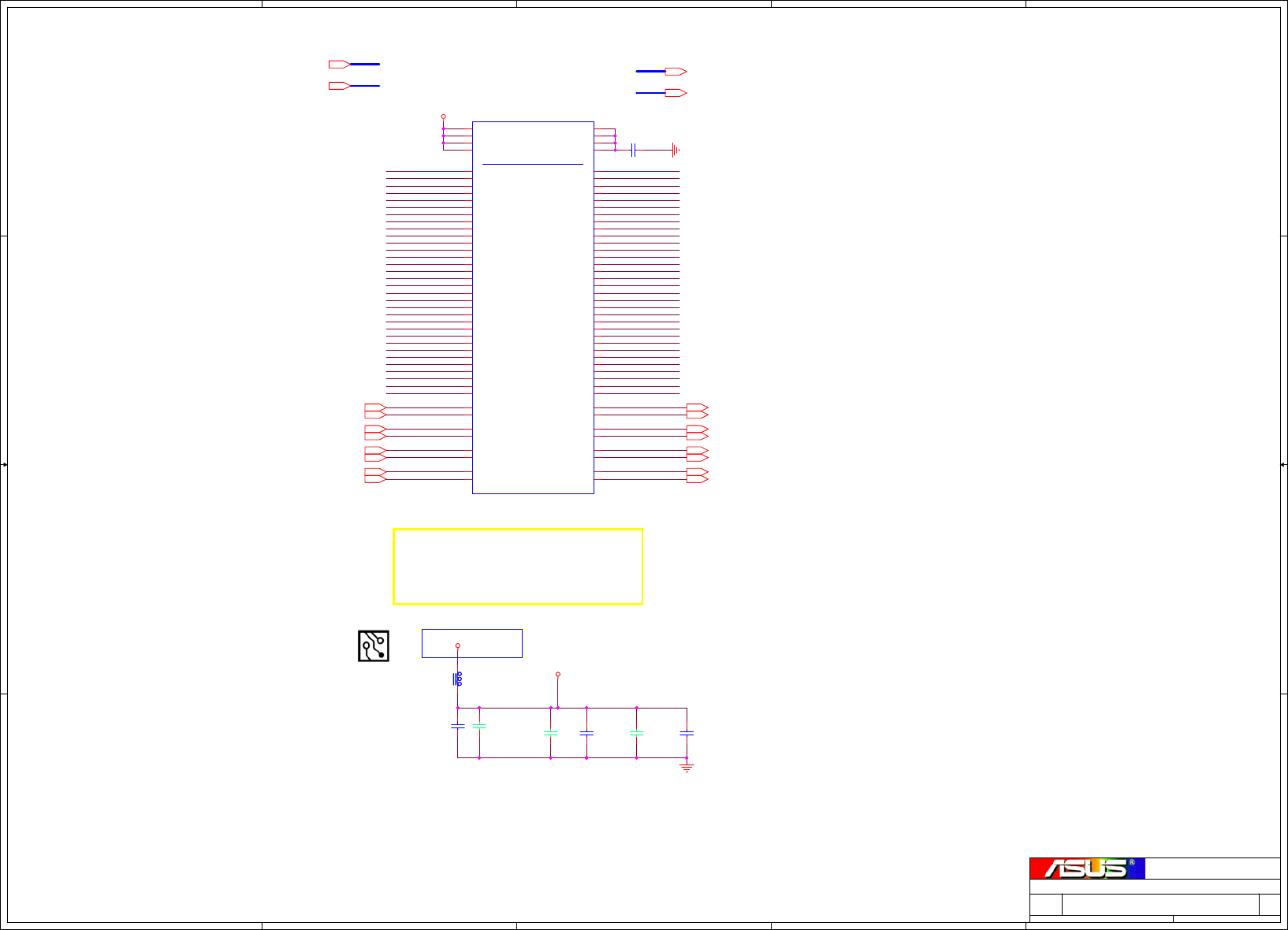

HT_CPU_TXD#0
HT_CPU_TXD0
HT_CPU_TXD#12
HT_CPU_TXD14
HT_CPU_TXD15
HT_CPU_TXD#14
HT_CPU_TXD#13
HT_CPU_TXD13
HT_CPU_TXD#15
HT_CPU_TXD2
HT_CPU_TXD3
HT_CPU_TXD#2
HT_CPU_TXD#1
HT_CPU_TXD1
HT_CPU_TXD#3
HT_CPU_TXD5
HT_CPU_TXD6
HT_CPU_TXD#5
HT_CPU_TXD#4
HT_CPU_TXD4
HT_CPU_TXD#6
HT_CPU_TXD8
HT_CPU_TXD9
HT_CPU_TXD#8
HT_CPU_TXD#7
HT_CPU_TXD7
HT_CPU_TXD#9
HT_CPU_TXD11
HT_CPU_TXD12
HT_CPU_TXD#11
HT_CPU_TXD#10
HT_CPU_TXD10
HT_CPU_RXD5
HT_CPU_RXD#5
HT_CPU_RXD6
HT_CPU_RXD#6
HT_CPU_RXD7
HT_CPU_RXD#7
HT_CPU_RXD8
HT_CPU_RXD#8
HT_CPU_RXD9
HT_CPU_RXD#9
HT_CPU_RXD10
HT_CPU_RXD#10
HT_CPU_RXD11
HT_CPU_RXD#11
HT_CPU_RXD12
HT_CPU_RXD#12
HT_CPU_RXD#0
HT_CPU_RXD0
HT_CPU_RXD1
HT_CPU_RXD13
HT_CPU_RXD#13
HT_CPU_RXD14
HT_CPU_RXD#14
HT_CPU_RXD#1
HT_CPU_RXD15
HT_CPU_RXD2
HT_CPU_RXD#2
HT_CPU_RXD#15
HT_CPU_RXD3
HT_CPU_RXD#3
HT_CPU_RXD4
HT_CPU_RXD#4
HT_CPU_TX_CLK#0
HT_CPU_TX_CLK1
HT_CPU_TX_CLK#1
HT_CPU_TX_CLK0
HT_CPU_TX_CTL0
HT_CPU_TX_CTL#0
HT_CPU_TX_CTL1
HT_CPU_TX_CTL#1
HT_CPU_RX_CLK1
HT_CPU_RX_CLK#0
HT_CPU_RX_CLK#1
HT_CPU_RX_CLK0
HT_CPU_RX_CTL0
HT_CPU_RX_CTL#0
HT_CPU_RX_CTL#1
HT_CPU_RX_CTL1
HT_CPU_RXD#[0..15][10]
HT_CPU_RXD[0..15][10] HT_CPU_TXD[0..15] [10]
HT_CPU_TXD#[0..15] [10]
HT_CPU_TX_CLK#1 [10]
HT_CPU_TX_CLK#0 [10]
HT_CPU_TX_CLK0 [10]
HT_CPU_TX_CLK1 [10]
HT_CPU_TX_CTL#0 [10]
HT_CPU_TX_CTL0 [10]
HT_CPU_TX_CTL#1 [10]
HT_CPU_TX_CTL1 [10]
HT_CPU_RX_CLK#0[10] HT_CPU_RX_CLK0[10]
HT_CPU_RX_CLK#1[10] HT_CPU_RX_CLK1[10]
HT_CPU_RX_CTL#0[10] HT_CPU_RX_CTL0[10]
HT_CPU_RX_CTL1[10] HT_CPU_RX_CTL#1[10]
CPU_VLDT
GND
CPU_VLDT
GND
+1.2V_CPU_NB_SB
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
391Friday, May 29, 2009
ASUSTeK.Computer.INC

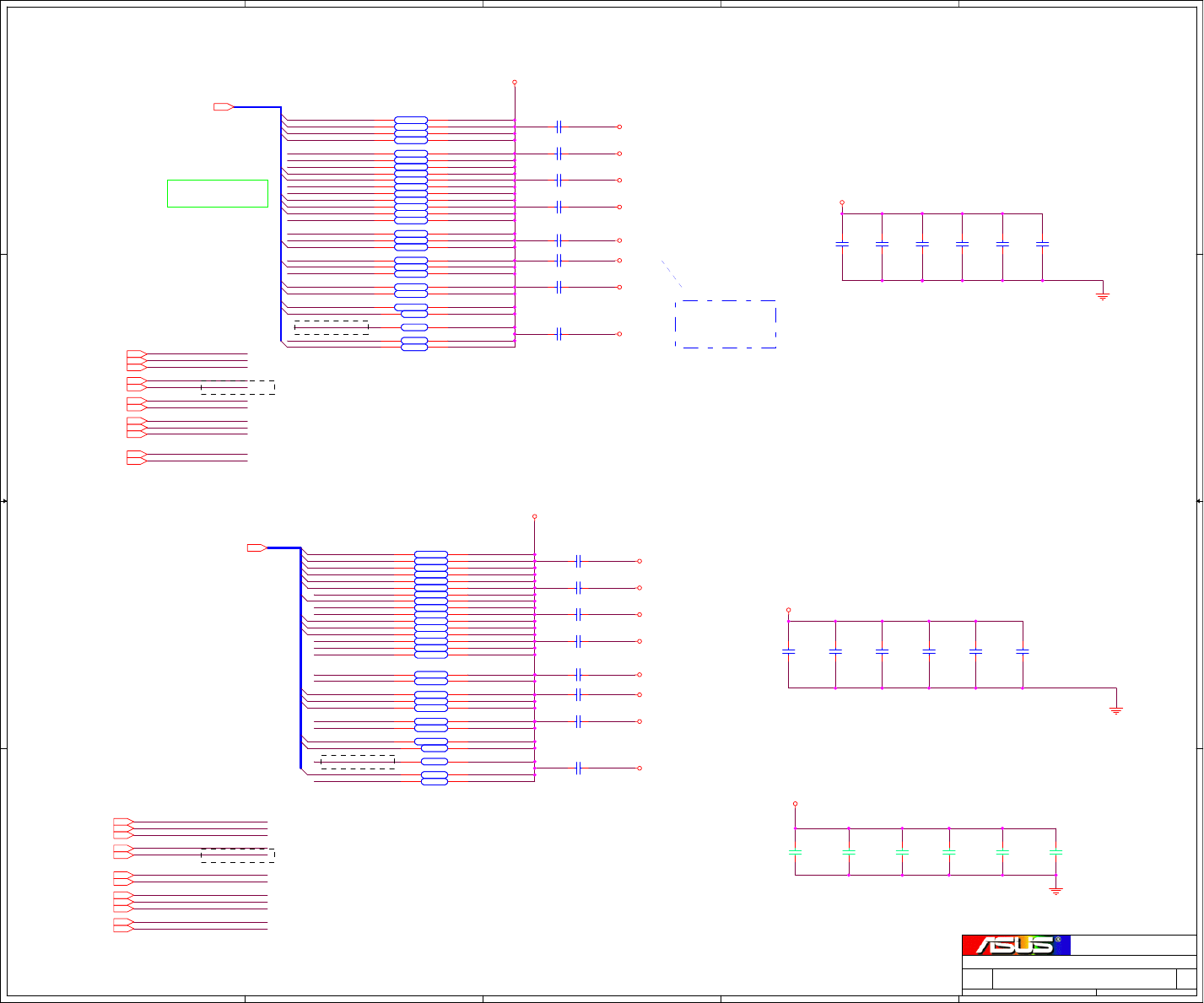

Conesus HT I/F
2.05
F83T
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
391Friday, May 29, 2009
ASUSTeK.Computer.INC
Conesus HT I/F
2.05
F83T
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
391Friday, May 29, 2009
ASUSTeK.Computer.INC
Conesus HT I/F
2.05
F83T
<OrgAddr1>
DESIGN NOTE:
VLDT must be routed as a pour or a trace at least 200 mils wide.
VLDT may be routed from the source to either ALx balls or Fx balls.
Choose whichever makes routing simpler.
These six capacitors must be placed very near the selected balls.
The "other" set of balls must be decoupled with a 4.7uF cap.
Change L0301 to Irat=1A 090407
VLDT_B1
AL4
VLDT_B2
AL3
VLDT_B3
AL2
VLDT_B4
AL1
VLDT_A1 F4
VLDT_A2 F3
VLDT_A3 F2
VLDT_A4 F1
L0_CADIN_H[15]
Y6
L0_CADIN_L[15]
Y5
L0_CADIN_H[14]
W7
L0_CADIN_L[14]
W6
L0_CADIN_H[13]
U6
L0_CADIN_L[13]
U5
L0_CADIN_H[12]
R7
L0_CADIN_L[12]
R6
L0_CADIN_H[11]
M8
L0_CADIN_L[11]
M7
L0_CADIN_H[10]
L6
L0_CADIN_L[10]
L5
L0_CADIN_H[9]
J6
L0_CADIN_L[9]
J5
L0_CADIN_H[8]
H4
L0_CADIN_L[8]
H3
L0_CADIN_H[7]
T3
L0_CADIN_L[7]
T4
L0_CADIN_H[6]
T2
L0_CADIN_L[6]
T1
L0_CADIN_H[5]
P3
L0_CADIN_L[5]
P4
L0_CADIN_H[4]
P2
L0_CADIN_L[4]
P1
L0_CADIN_H[3]
M2
L0_CADIN_L[3]
M1
L0_CADIN_H[2]
K3
L0_CADIN_L[2]
K4
L0_CADIN_H[1]
K2
L0_CADIN_L[1]
K1
L0_CADIN_H[0]
H2
L0_CADIN_L[0]
H1
L0_CADOUT_H[15] Y9
L0_CADOUT_L[15] Y8
L0_CADOUT_H[14] AB6
L0_CADOUT_L[14] AB5
L0_CADOUT_H[13] AC7
L0_CADOUT_L[13] AC6
L0_CADOUT_H[12] AE6
L0_CADOUT_L[12] AE5
L0_CADOUT_H[11] AE9
L0_CADOUT_L[11] AE8
L0_CADOUT_H[10] AH3
L0_CADOUT_L[10] AH4
L0_CADOUT_H[9] AK3
L0_CADOUT_L[9] AK4
L0_CADOUT_H[8] AK1
L0_CADOUT_L[8] AK2
L0_CADOUT_H[7] Y1
L0_CADOUT_L[7] Y2
L0_CADOUT_H[6] Y4
L0_CADOUT_L[6] Y3
L0_CADOUT_H[5] AB1
L0_CADOUT_L[5] AB2
L0_CADOUT_H[4] AB4
L0_CADOUT_L[4] AB3
L0_CADOUT_H[3] AD4
L0_CADOUT_L[3] AD3
L0_CADOUT_H[2] AF1
L0_CADOUT_L[2] AF2
L0_CADOUT_H[1] AF4
L0_CADOUT_L[1] AF3
L0_CADOUT_H[0] AH1
L0_CADOUT_L[0] AH2
L0_CLKIN_H[1]
P6
L0_CLKIN_L[1]
P5
L0_CLKIN_H[0]
M3
L0_CLKIN_L[0]
M4
L0_CTLIN_H[0]
V2
L0_CTLIN_L[0]
V1 L0_CTLOUT_H[0] V4
L0_CTLOUT_L[0] V3
L0_CLKOUT_H[0] AD1
L0_CLKOUT_L[0] AD2
L0_CLKOUT_H[1] AF6
L0_CLKOUT_L[1] AF5
L0_CTLIN_H[1]
P8
L0_CTLIN_L[1]
P9 L0_CTLOUT_H[1] AB8
L0_CTLOUT_L[1] AB9
U0301A
AMGMV40OAX4DX
U0301A
AMGMV40OAX4DX
1 2
C0302 4.7uF/6.3V
C0302 4.7uF/6.3V
12
C0306
0.22UF/6.3V
C0306
0.22UF/6.3V
21
L0301
30Ohm/100Mhz
Irat=1A
L0301
30Ohm/100Mhz
Irat=1A
12
C0308
180PF/50V
MLCC 180PF/50V (0402) NPO 5%
C0308
180PF/50V
MLCC 180PF/50V (0402) NPO 5%
12
C0303
4.7uF/6.3V
C0303
4.7uF/6.3V
12
C0304
4.7uF/6.3V
C0304
4.7uF/6.3V
12
C0305
0.22UF/6.3V
@
C0305
0.22UF/6.3V
@
12
C0307
180PF/50V
MLCC 180PF/50V (0402) NPO 5%
@
C0307
180PF/50V
MLCC 180PF/50V (0402) NPO 5%
@

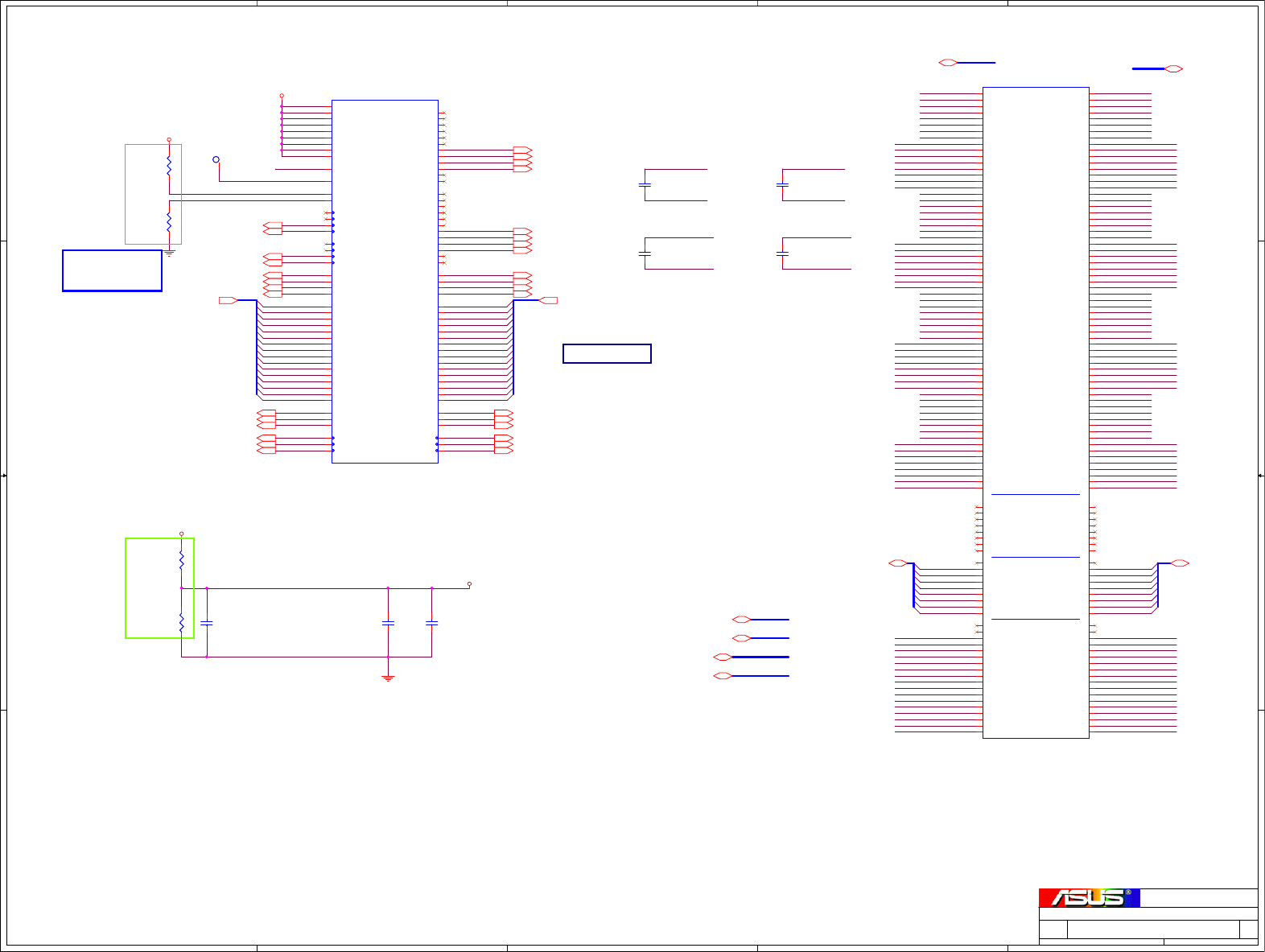

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

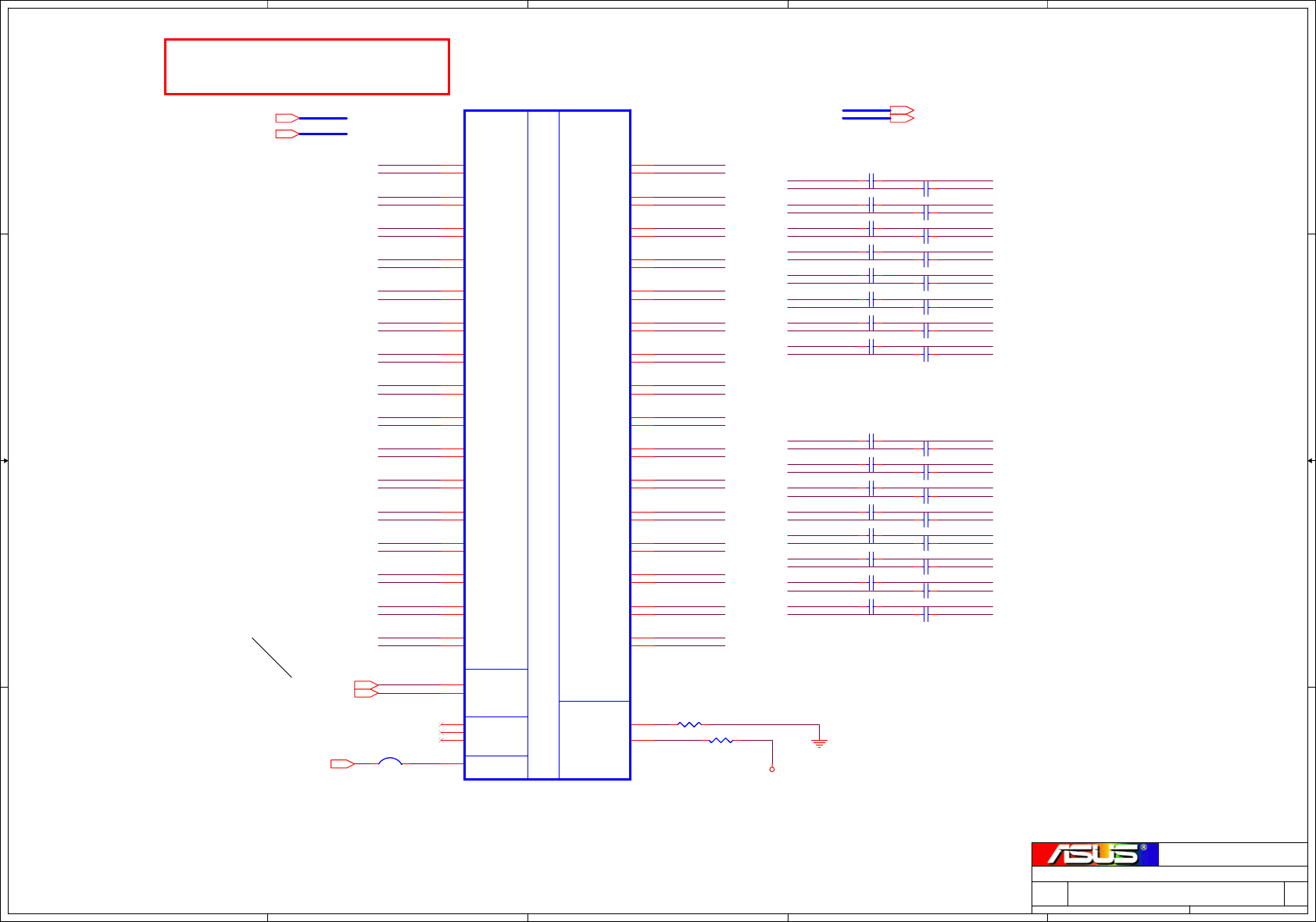

CPU_M_VREF
CPU_VTT_SUS_SENSE
M_ZP
M_ZN
MEM_MA_ADD13
MEM_MA_ADD14
MEM_MA_ADD3
MEM_MA_ADD12
MEM_MA_ADD10
MEM_MA_ADD1
MEM_MA_ADD11
MEM_MA_ADD2
MEM_MA_ADD8
MEM_MA_ADD9
MEM_MA_ADD6
MEM_MA_ADD7
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD0
MEM_MA_ADD15
MEM_MA0_CLK1_P
MEM_MA0_CLK1_N
MEM_MA0_CLK2_P
MEM_MA0_CLK2_N
MEM_MB0_CLK1_P
MEM_MB0_CLK1_N
MEM_MB0_CLK2_P
MEM_MB0_CLK2_N
MEM_MB_ADD1
MEM_MB_ADD12
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD14
MEM_MB_ADD8
MEM_MB_ADD5
MEM_MB_ADD9
MEM_MB_ADD7
MEM_MB_ADD11
MEM_MB_ADD13
MEM_MB_ADD10
MEM_MB_ADD4
MEM_MB_ADD6
MEM_MB_ADD15
MEM_MB_ADD0
MEM_MA_DATA49
MEM_MA_DATA50
MEM_MA_DATA47
MEM_MA_DATA48
MEM_MA_DATA46
MEM_MA_DATA55
MEM_MA_DATA56
MEM_MA_DATA51
MEM_MA_DATA53
MEM_MA_DATA54
MEM_MA_DATA52
MEM_MA_DATA27
MEM_MA_DATA28
MEM_MA_DATA25
MEM_MA_DATA26
MEM_MA_DATA24
MEM_MA_DATA33
MEM_MA_DATA34
MEM_MA_DATA29
MEM_MA_DATA31
MEM_MA_DATA32
MEM_MA_DATA30
MEM_MA_DATA5
MEM_MA_DATA6
MEM_MA_DATA63
MEM_MA_DATA1
MEM_MA_DATA38
MEM_MA_DATA39
MEM_MA_DATA36
MEM_MA_DATA37
MEM_MA_DATA35
MEM_MA_DATA44
MEM_MA_DATA45
MEM_MA_DATA40
MEM_MA_DATA42
MEM_MA_DATA43
MEM_MA_DATA41
MEM_MA_DATA16
MEM_MA_DATA17
MEM_MA_DATA14
MEM_MA_DATA15
MEM_MA_DATA13
MEM_MA_DATA22
MEM_MA_DATA23
MEM_MA_DATA18
MEM_MA_DATA20
MEM_MA_DATA21
MEM_MA_DATA19
MEM_MA_DATA3
MEM_MA_DATA4
MEM_MA_DATA61
MEM_MA_DATA62
MEM_MA_DATA57
MEM_MA_DATA59
MEM_MA_DATA60
MEM_MA_DATA58
MEM_MA_DATA2
MEM_MA_DATA0
MEM_MA_DATA11
MEM_MA_DATA12
MEM_MA_DATA7
MEM_MA_DATA9
MEM_MA_DATA10
MEM_MA_DATA8
MEM_MB_DATA5
MEM_MB_DATA6
MEM_MB_DATA1
MEM_MB_DATA3
MEM_MB_DATA4
MEM_MB_DATA2
MEM_MB_DATA0
MEM_MB_DATA7
MEM_MB_DATA14
MEM_MB_DATA15
MEM_MB_DATA13
MEM_MB_DATA11
MEM_MB_DATA12
MEM_MB_DATA9
MEM_MB_DATA10
MEM_MB_DATA8
MEM_MB_DATA16
MEM_MB_DATA17
MEM_MB_DATA22
MEM_MB_DATA23
MEM_MB_DATA18
MEM_MB_DATA20
MEM_MB_DATA21
MEM_MB_DATA19
MEM_MB_DATA27
MEM_MB_DATA28
MEM_MB_DATA25
MEM_MB_DATA26
MEM_MB_DATA24
MEM_MB_DATA29
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA33
MEM_MB_DATA34
MEM_MB_DATA32
MEM_MB_DATA38
MEM_MB_DATA36
MEM_MB_DATA39
MEM_MB_DATA37
MEM_MB_DATA35
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA44
MEM_MB_DATA45
MEM_MB_DATA40
MEM_MB_DATA42
MEM_MB_DATA43
MEM_MB_DATA41
MEM_MB_DATA49
MEM_MB_DATA50
MEM_MB_DATA48
MEM_MB_DATA51
MEM_MB_DATA55
MEM_MB_DATA53
MEM_MB_DATA54
MEM_MB_DATA52
MEM_MB_DATA56
MEM_MB_DATA63
MEM_MB_DATA61
MEM_MB_DATA62
MEM_MB_DATA57
MEM_MB_DATA59
MEM_MB_DATA60
MEM_MB_DATA58
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0
MEM_MA_DM7
MEM_MA_DQS0
MEM_MA_DQS#0
MEM_MA_DQS#7
MEM_MA_DQS3
MEM_MA_DQS#3
MEM_MA_DQS7
MEM_MA_DQS6
MEM_MA_DQS#6
MEM_MA_DQS2
MEM_MA_DQS#2
MEM_MA_DQS5
MEM_MA_DQS#5
MEM_MA_DQS1
MEM_MA_DQS#1
MEM_MA_DQS4
MEM_MA_DQS#4
MEM_MB_DQS0
MEM_MB_DQS#0
MEM_MB_DQS#7
MEM_MB_DQS3
MEM_MB_DQS#3
MEM_MB_DQS7
MEM_MB_DQS6
MEM_MB_DQS#6
MEM_MB_DQS2
MEM_MB_DQS#2
MEM_MB_DQS5
MEM_MB_DQS#5
MEM_MB_DQS1
MEM_MB_DQS#1
MEM_MB_DQS4
MEM_MB_DQS#4
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0
MEM_MB_DM7
MEM_MB0_CLK1_P
MEM_MB0_CLK1_N
MEM_MB0_CLK2_P
MEM_MB0_CLK2_N
MEM_MA0_CLK2_N
MEM_MA0_CLK1_P
MEM_MA0_CLK1_N
MEM_MA0_CLK2_P
MEM_MA_DQS#[0..7][7]
MEM_MA_DQS[0..7][7]
MEM_MB_DQS#[0..7][8]
MEM_MB_DQS[0..7][8]
MEM_MA0_CS#1[7,9] MEM_MA0_CS#0[7,9]
MEM_MB0_CS#1[8,9] MEM_MB0_CS#0[8,9]
MEM_MA_CKE1[7,9] MEM_MA_CKE0[7,9]
MEM_MB_CKE1[8,9] MEM_MB_CKE0[8,9]
MEM_MA_ADD[0..15][7,9]
MEM_MA_BANK2[7,9] MEM_MA_BANK1[7,9] MEM_MA_BANK0[7,9]
MEM_MA_RAS#[7,9] MEM_MA_CAS#[7,9] MEM_MA_WE#[7,9]
MEM_MA0_CLK1_P [7]
MEM_MA0_CLK1_N [7]
MEM_MA0_CLK2_P [7]
MEM_MA0_CLK2_N [7]
MEM_MB0_CLK1_P [8]
MEM_MB0_CLK1_N [8]
MEM_MB0_CLK2_P [8]
MEM_MB0_CLK2_N [8]
MEM_MB0_ODT0 [8,9]
MEM_MA0_ODT0 [7,9]
MEM_MB_ADD[0..15] [8,9]
MEM_MB_BANK0 [8,9]
MEM_MB_BANK1 [8,9]
MEM_MB_BANK2 [8,9]
MEM_MB_RAS# [8,9]
MEM_MB_CAS# [8,9]
MEM_MB_WE# [8,9]
MEM_MA_DM[0..7] [7]MEM_MB_DM[0..7][8]
MEM_MA_DATA[0..63] [7]
MEM_MB_DATA[0..63][8]
MEM_MB0_ODT1 [8,9]
MEM_MA0_ODT1 [7,9]
+1.8V
CPU_M_VREF
GND
+0.9V
+1.8V
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
491Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus DDR2 MEM I/F
2.05
F83T
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
491Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus DDR2 MEM I/F
2.05
F83T
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
491Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus DDR2 MEM I/F
2.05
F83T
<OrgAddr1>
sensing point for
op-amp feedback
routed near CPU PLACE CLOSE TO CPU
Mount R0405 , Un -Mount U0401 , C0401 ,
R0406, R0408, R0409 for cost down
LAYOUT NOTE: Keep
trace to resistors less
than 1.5" from CPU pin.
congo
平臺省掉了一個
ODT
是否要預留另一組
place close to RROCESSOR within 1.5 inch
R0403 & R0404 change to 15ohm 1%
change from 15ohm to 1Kohm
1 2
R0403
1KOhm
R0403
1KOhm
12
C0407 1.5PF/50V MLCC/+/-0.1PFC0407 1.5PF/50V MLCC/+/-0.1PF
12
C0404
1000PF/16V
@
C0404
1000PF/16V
@
1
T0409
TPC28T
T0409
TPC28T
12
C0410 1.5PF/50V MLCC/+/-0.1PFC0410 1.5PF/50V MLCC/+/-0.1PF
12
C0402
1000PF/16V
@
C0402
1000PF/16V
@
1 2
R0441
39.2Ohm
R0441
39.2Ohm
MB_CHECK[7]
K33
MB_CHECK[6]
K31
MB_CHECK[5]
G32
MB_CHECK[4]
F32
MB_CHECK[3]
L33
MB_CHECK[2]
K32
MB_CHECK[1]
H31
MB_CHECK[0]
G33
MB_DM[8]
H33
MB_DM[7]
AN15
MB_DM[6]
AN20
MB_DM[5]
AK26
MB_DM[4]
AN31
MB_DM[3]
C33
MB_DM[2]
C28
MB_DM[1]
A20
MB_DM[0]
D14
MA_DM[8] H30
MA_DM[7] AL12
MA_DM[6] AK16
MA_DM[5] AK22
MA_DM[4] AJ27
MA_DM[3] E27
MA_DM[2] E23
MA_DM[1] H19
MA_DM[0] G14
MA_CHECK[7] K30
MA_CHECK[6] J29
MA_CHECK[5] G29
MA_CHECK[4] F29
MA_CHECK[3] L28
MA_CHECK[2] L29
MA_CHECK[1] H29
MA_CHECK[0] H27
MA_DATA[0] F11
MA_DATA[1] E11
MA_DATA[2] E14
MA_DATA[3] E15
MA_DATA[4] H12
MA_DATA[5] G12
MA_DATA[6] H14
MA_DATA[7] H15
MA_DATA[8] E17
MA_DATA[9] D16
MA_DATA[10] F22
MA_DATA[11] D20
MA_DATA[12] F15
MA_DATA[13] G15
MA_DATA[14] G20
MA_DATA[15] G22
MA_DATA[16] G23
MA_DATA[17] D22
MA_DATA[18] G26
MA_DATA[19] F26
MA_DATA[20] E22
MA_DATA[21] H22
MA_DATA[22] D24
MA_DATA[23] H25
MA_DATA[24] H26
MA_DATA[25] F27
MA_DATA[26] E29
MA_DATA[27] F30
MA_DATA[28] E26
MA_DATA[29] D26
MA_DATA[30] G28
MA_DATA[31] D28
MA_DATA[32] AJ28
MA_DATA[33] AJ26
MA_DATA[34] AG25
MA_DATA[35] AJ25
MA_DATA[36] AK30
MA_DATA[37] AH27
MA_DATA[38] AF25
MA_DATA[39] AF23
MA_DATA[40] AG23
MA_DATA[41] AJ23
MA_DATA[42] AF20
MA_DATA[43] AF19
MA_DATA[44] AK24
MA_DATA[45] AF22
MA_DATA[46] AJ20
MA_DATA[47] AG20
MA_DATA[48] AG19
MA_DATA[49] AF17
MA_DATA[50] AG14
MA_DATA[51] AF14
MA_DATA[52] AK20
MA_DATA[53] AH19
MA_DATA[54] AF15
MA_DATA[55] AK14
MA_DATA[56] AH12
MA_DATA[57] AG12
MA_DATA[58] AF12
MA_DATA[59] AF11
MA_DATA[60] AJ14
MA_DATA[61] AJ12
MA_DATA[62] AH11
MA_DATA[63] AG11
MA_DQS_L[0] F12
MA_DQS_L[1] H17
MA_DQS_L[2] F25
MA_DQS_L[3] F28
MA_DQS_L[4] AH26
MA_DQS_L[5] AG22
MA_DQS_L[6] AH15
MA_DQS_L[7] AK12
MA_DQS_H[0] E12
MA_DQS_H[1] G17
MA_DQS_H[2] E25
MA_DQS_H[3] E28
MA_DQS_H[4] AG26
MA_DQS_H[5] AH22
MA_DQS_H[6] AG15
MA_DQS_H[7] AJ11
MA_DQS_L[8] J26
MA_DQS_H[8] J27
MB_DATA[0]
A14 MB_DATA[1]
C14 MB_DATA[2]
A17 MB_DATA[3]
B18 MB_DATA[4]
A13 MB_DATA[5]
B14 MB_DATA[6]
A16 MB_DATA[7]
C16 MB_DATA[8]
A19 MB_DATA[9]
C20 MB_DATA[10]
C24 MB_DATA[11]
A25 MB_DATA[12]
A18 MB_DATA[13]
C18 MB_DATA[14]
B24 MB_DATA[15]
A24 MB_DATA[16]
C26 MB_DATA[17]
A27 MB_DATA[18]
A30 MB_DATA[19]
B30 MB_DATA[20]
A26 MB_DATA[21]
B26 MB_DATA[22]
A29 MB_DATA[23]
C30 MB_DATA[24]
B32 MB_DATA[25]
C32 MB_DATA[26]
F31 MB_DATA[27]
F33 MB_DATA[28]
A31 MB_DATA[29]
B31 MB_DATA[30]
D31 MB_DATA[31]
E33 MB_DATA[32]
AM32 MB_DATA[33]
AM31 MB_DATA[34]
AN29 MB_DATA[35]
AK28 MB_DATA[36]
AL33 MB_DATA[37]
AL32 MB_DATA[38]
AL30 MB_DATA[39]
AM29
MB_DATA[41]
AN27 MB_DATA[42]
AN25 MB_DATA[43]
AL24
MB_DATA[45]
AN28 MB_DATA[46]
AL26 MB_DATA[47]
AM25 MB_DATA[48]
AN23 MB_DATA[49]
AL22 MB_DATA[50]
AN18 MB_DATA[51]
AM18 MB_DATA[52]
AN24 MB_DATA[53]
AM24 MB_DATA[54]
AN19 MB_DATA[55]
AL18 MB_DATA[56]
AN16 MB_DATA[57]
AM16 MB_DATA[58]
AM12 MB_DATA[59]
AN12 MB_DATA[60]
AN17 MB_DATA[61]
AL16 MB_DATA[62]
AL14 MB_DATA[63]
AN13
MB_DQS_L[0]
A15
MB_DQS_L[1]
B20
MB_DQS_L[2]
A28
MB_DQS_L[3]
D32
MB_DQS_L[4]
AM30
MB_DQS_L[5]
AM26
MB_DQS_L[6]
AM20
MB_DQS_L[7]
AN14
MB_DQS_L[8]
H32
MB_DQS_H[0]
B16
MB_DQS_H[1]
A21
MB_DQS_H[2]
B28
MB_DQS_H[3]
D33
MB_DQS_H[4]
AN30
MB_DQS_H[5]
AN26
MB_DQS_H[6]
AL20
MB_DQS_H[7]
AM14
MB_DQS_H[8]
J33
MB_DATA[40]
AM28
MB_DATA[44]
AL28
U0301C
AMGMV40OAX4DX
U0301C
AMGMV40OAX4DX
1 2
R0440
39.2Ohm
R0440
39.2Ohm
12
C0408 1.5PF/50V MLCC/+/-0.1PFC0408 1.5PF/50V MLCC/+/-0.1PF
12
C0403
0.1UF/16V
C0403
0.1UF/16V
VTT1
A12
VTT2
B12
VTT3
C12
VTT4
D12
VTT6
AN10
VTT7
AL10
VTT8
AM10
M_VREF
A11
M_ZN
AG9
M_ZP
AH9
RSVD1
AH29
RSVD2
AE29
MA0_CS_L[1]
AH30
MA0_CS_L[0]
AF29
MB_CKE[1]
N33
MB_CKE[0]
P32
MA_CKE[1]
M30
MA_CKE[0]
M28
MA_ADD[13]
AG28
MA_ADD[12]
P28
MA_ADD[11]
T30
MA_ADD[10]
AC28
MA_ADD[9]
P27
MA_ADD[8]
R26
MA_ADD[7]
R27
MA_ADD[6]
U28
MA_ADD[5]
V30
MA_ADD[4]
U27
MA_ADD[3]
Y30
MA_ADD[2]
AB29
MA_ADD[1]
W29
MA_ADD[0]
AC26
MA_BANK[1]
AC29
MA_BANK[0]
AE28
MA_RAS_L
AC27
MA_CAS_L
AF30
MA_WE_L
AE27
MB_RAS_L AF32
MB_CAS_L AH32
MB_WE_L AG33
MB_BANK[1] AD33
MB_BANK[0] AE33
MB_ADD[13] AJ33
MB_ADD[12] T32
MB_ADD[11] T31
MB_ADD[10] AD32
MB_ADD[9] T33
MB_ADD[8] V32
MB_ADD[7] U33
MB_ADD[6] V33
MB_ADD[5] V31
MB_ADD[4] W33
MB_ADD[3] Y31
MB_ADD[2] Y33
MB_ADD[1] Y32
MB_ADD[0] AC33
RSVD5 AH17
RSVD6 AG17
RSVD7 E20
RSVD8 E19
RSVD9 AB27
RSVD10 AB26
MA0_CLK_H[2] AK18
MA0_CLK_L[2] AJ17
MA0_CLK_H[1] D18
MA0_CLK_L[1] F19
MA0_CLK_H[0] Y28
MA0_CLK_L[0] Y27
RSVD11 AN21
RSVD12 AM21
RSVD13 A22
RSVD14 A23
RSVD15 AB33
RSVD16 AB32
MB0_CLK_H[2] AN22
MB0_CLK_L[2] AM22
MB0_CLK_H[1] C22
MB0_CLK_L[1] B22
MB0_CLK_H[0] AA32
MB0_CLK_L[0] AA33
RSVD3
AK33
RSVD4
AF33
MB0_CS_L[1]
AJ32
MB0_CS_L[0]
AF31
MA0_ODT[0] AG29
RSVD18 AF27
MA_BANK[2]
R29
MA_ADD[15]
P30
MA_ADD[14]
M29
MB0_ODT[0] AH33
RSVD17 AH31
MB_BANK[2] R33
MB_ADD[14] P31
MB_ADD[15] P33
VTT5
AK10
VTT_SENSE
B10
VTT9
B11
U0301B
AMGMV40OAX4DX
U0301B
AMGMV40OAX4DX
1 2
R0404
1KOhm
R0404
1KOhm
12
C0409 1.5PF/50V MLCC/+/-0.1PFC0409 1.5PF/50V MLCC/+/-0.1PF
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VDDA
VDDA CPU_PROCHOT#
CPU_THRMTRIP#
CPU_VID3
CPU_VID2
CPU_VID5
CPU_VID0
CPU_VID4
PSI_L
CPU_DBREQ#
CPU_RESET
CPU_DBREQ#
CPU_DBREQ#
LDT_STOP#
CPU_PWRGD
CPU_LDT_RST#
CPU_PWRGD
LDT_STOP#
CPU_RESETCPU_LDT_RST#
CPU_LDT_RST#
CPU_PWRGD
CPU_DBRDY
CPU_DBRDY
CPU_TCK
CPU_TCK
CPU_TMS
CPU_TMS
CPU_TDI
CPU_TDI
CPU_TRST#
CPU_TRST#
CPU_TDO
CPU_TDO
CPU_HTREF1
CPU_HTREF0
CPU_SID
CPU_SIC
CPU_SIC
CPU_SID
CPU_SIC
CPU_VDD_FB_H
CPU_VDD_FB_L
CPU_VDDIO_SUS_FB_H
CPU_VDDIO_SUS_FB_L
CPU_CLK_L_C
CPU_CLK_H_C
SRC_CPU_HT_CLKN
SRC_CPU_HT_CLKP
SRC_CPU_HT_CLKP
SRC_CPU_HT_CLKN
CPU_TEST17
CPU_TEST16
CPU_TEST14
CPU_TEST15
CPU_TEST12
CPU_TEST29_L_FBCLKOUT_N
CPU_TEST29_H_FBCLKOUT_P
CPU_TEST25_L
CPU_TEST25_H
CPU_TEST19
CPU_TEST18
CPU_TEST19
CPU_TEST18
CPU_TEST25_H
CPU_TEST25_L
CPU_TEST24
CPU_TEST20
CPU_TEST23
CPU_TEST22
CPU_TEST21
CPU_TEST21
CPU_TEST22
CPU_TEST20
CPU_TEST24
CPU_TEST26
CPU_TEST26
CPU_TEST28_H
CPU_TEST28_L
CPU_THRMTRIP# FORCE_OFF#
CPU_PWRGD
CPU_PROCHOT#
CPU_LDT_RST#
CPU_VID1
CPU_LDT_RST#
CPU_PROCHOT# [20]
CPU_VID3 [81]
CPU_VID2 [81]
CPU_PWRGD[20]
CPU_LDT_STOP#[12,20]
CPU_LDT_RST#[20]
SRC_CPU_HT_CLKP[29] SRC_CPU_HT_CLKN[29]
CPU_THRM_DC[50] CPU_THRM_DA[50]
THRO_CPU [30]
BUF_PLT_RST#[20,30,33,40,43,53,71]
FORCE_OFF# [30,86,87]
PWRLIMIT#[30,89]
CPU_SIC[50] CPU_SID[50]
+2.5V_CPU_VDDA
GND
+1.8V
+1.8V
GND
+1.8V
+1.8V
+1.8VS
+1.8V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
+3VS
GND
CPU_VLDT
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
591Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus CNT/DBG/THERM
2.05
F83
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
591Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus CNT/DBG/THERM
2.05
F83
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
591Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus CNT/DBG/THERM
2.05
F83
<OrgAddr1>
mount cap C0503
（
AMD
要求）
power LDO
部分輸出是否可以省掉一個
10uf cap
VID5 is optional
If PWROK,RESET_L,LDTSTOP_L are driven by open-drain driver,
a 300 ohm pull up to VDDIO.
071204
HDT
From EC.
THRNTRIP
PROCHOT
EC to CPU/PWR
for warm reset
PSI_L is a Power Status Indicator signal.
Debug 預留 090405
Change 300 ohm to 4R8P 090405
NOTICE
NOTICE r0541
12
C0505
0.22UF/6.3V
C0505
0.22UF/6.3V
1
T0513 TPC28TT0513 TPC28T
1 2
R0515
10KOhm
@
R0515
10KOhm
@
1 2
R0562 510OhmR0562 510Ohm
G
S
D3
2
1
Q0507 2N7002
G
S
D3
2
1
Q0507 2N7002
7 8
R0530D
300OHM R0530D
300OHM
12
D0501 RB751V-40
@
D0501 RB751V-40
@
1
T0527T0527
12
C0503
100UF/6.3V
@
C0503
100UF/6.3V
@
1 2
R0530A
300OHM R0530A
300OHM
1
T512 TPC28TT512 TPC28T
1 2
R0560 510OhmR0560 510Ohm
1 2
R0559 1KOhmR0559 1KOhm
1
T0531T0531
7 8
R0528D
300OHM R0528D
300OHM
1
T511 TPC28TT511 TPC28T
12
C0506
3300PF/50V
C0506
3300PF/50V
1
T0514 TPC28TT0514 TPC28T
1
122
JP0501
SGL_JUMP
@JP0501
SGL_JUMP
@
1
T0528T0528
1 2
R0512
169Ohm 1%
R0512
169Ohm 1%
1
T0523T0523
12
R0525
300Ohm
R0525
300Ohm
1 2
R0514 44.2Ohm
1%
R0514 44.2Ohm
1%
BC
E
1
2
3
Q0505
PMBS3904
BC
E
1
2
3
Q0505
PMBS3904
3 4
R0530B
300OHM R0530B
300OHM
12
R0503
300Ohm
R0503
300Ohm
1
T0518T0518
1
T0519T0519
1
T0526T0526
12
R0501
300Ohm
R0501
300Ohm
1
T0529T0529
1
T513 TPC28TT513 TPC28T
1
T0524T0524
3 4
R0528B
300OHM R0528B
300OHM
1 2
R0517 0Ohm
/x
R0517 0Ohm
/x
1 2
R0563
4.7KOhm
@
R0563
4.7KOhm
@
1
T0511 TPC28TT0511 TPC28T
1
T510 TPC28TT510 TPC28T
1
T0512 TPC28TT0512 TPC28T
G
S
D3
2
1
Q0504
2N7002
G
S
D3
2
1
Q0504
2N7002
1
T0509 TPC28TT0509 TPC28T
12
R0541
10KOhm
R0541
10KOhm
1
T0510 TPC28TT0510 TPC28T
1
T0530T0530
21
L0501
30Ohm/100Mhz
Irat=1AL0501
30Ohm/100Mhz
Irat=1A
1 2
R0513 44.2Ohm
1%
R0513 44.2Ohm
1%
NC
1
DBREQ_L1
3
DBRDY1
5
DBREQ_L2
7
DBRDY2
9
DBREQ_L3
11
DBRDY3
13
DBREQ_L4
15
DBRDY4
17
DBREQ_L5
19
DBRDY5
21
DBREQ_L6
23
GND1 2
GND2 4
GND3 6
GND4 8
GND5 10
GND6 12
GND7 14
GND8 16
DBRDY7 18
DBREQ_L7 20
DBRDY6 22
GND9 24
GND10 26
J0500
ASP_68200_07_K25
/X
J0500
ASP_68200_07_K25
/X
12
C0501
3900PF/50V
MLCC/+/-10%
C0501
3900PF/50V
MLCC/+/-10%
1 2
R0528A
300OHM R0528A
300OHM
12
R0524
300Ohm
R0524
300Ohm
1 2
R0506 1KOhmR0506 1KOhm
1
T0525T0525
1 2
R0561 80.6OHMR0561 80.6OHM
1 2
C0507 0.1UF/16VC0507 0.1UF/16V
1
T0520T0520
5 6
R0530C
300OHM R0530C
300OHM
12
C0504
4.7UF/6.3V
C0504
4.7UF/6.3V
12
R0523
300Ohm
R0523
300Ohm
1 2
R0599
261OHM
@
R0599
261OHM
@
12
R0502
300Ohm
R0502
300Ohm
1 2
R0516 0Ohm
/x
R0516 0Ohm
/x
1
T0515 TPC28TT0515 TPC28T
BC
E
1
2
3
Q0506
PMBS3904
@
BC
E
1
2
3
Q0506
PMBS3904
@
VDDA1
A8
VDDA2
B8
RESET_L
AK6
PWROK
AM2
LDTSTOP_L
AM6
HTREF1
V10
HTREF0
V9
VDDIO_FB_H
AM9
VDDIO_FB_L
AK9
CLKIN_H
A6
CLKIN_L
A7
DBRDY
AH8
TMS
AN8
TCK
AK8
TRST_L
AL8
TDI
AM8
TDO AN7
DBREQ_L AN9
VID[4] C2
VID[3] C1
VID[2] D2
VID[1] D1
VID[0] D3
THERMTRIP_L AJ6
CPU_PRESENT_L AM3
SIC
AN4
SID
AN5
VDD_FB_H
E2
VDD_FB_L
E1
VID[5] B2
PROCHOT_L AN6
PSI_L E4
TEST3
AJ5
TEST2
AJ7
THERMDA
AM5 THERMDC
AL6 TEST6
AH7 TEST7
C6
TEST8 B5
TEST10 D7
TEST26 AM4
TEST27 AJ8
TEST28_L H11
TEST28_H G11
TEST20 AM7
TEST21 F9
TEST22 AN11
TEST23 AG8
TEST24 AH6
TEST12
AN3 TEST14
H7 TEST15
D9 TEST16
C8 TEST17
J8 TEST9
H8 TEST13
AJ9 TEST18
B6 TEST19
A5 TEST25_L
B9 TEST25_H
A9 TEST29_H E9
TEST29_L D10
RSVD19
M31
RSVD20
L32
RSVD21
M33
RSVD22
M32
RSVD23
W27
RSVD24
W26
RSVD25
AJ29
RSVD26
P26
RSVD27
M26
RSVD28
AJ30
RSVD29 L27
RSVD30 B25
RSVD31 G6
RSVD32 A10
RSVD33 B7
RSVD34 E8
RSVD35 G5
VSS G7
RSVD36 AB31
RSVD37 AB30
RSVD39 AD31
RSVD38 AK31
RSVD40 AD30
RSVD41 AK32
U0301D
AMGMV40OAX4DX
U0301D
AMGMV40OAX4DX
5 6
R0528C
300OHM R0528C
300OHM
12
C0502
3900PF/50V
MLCC/+/-10%
C0502
3900PF/50V
MLCC/+/-10%
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

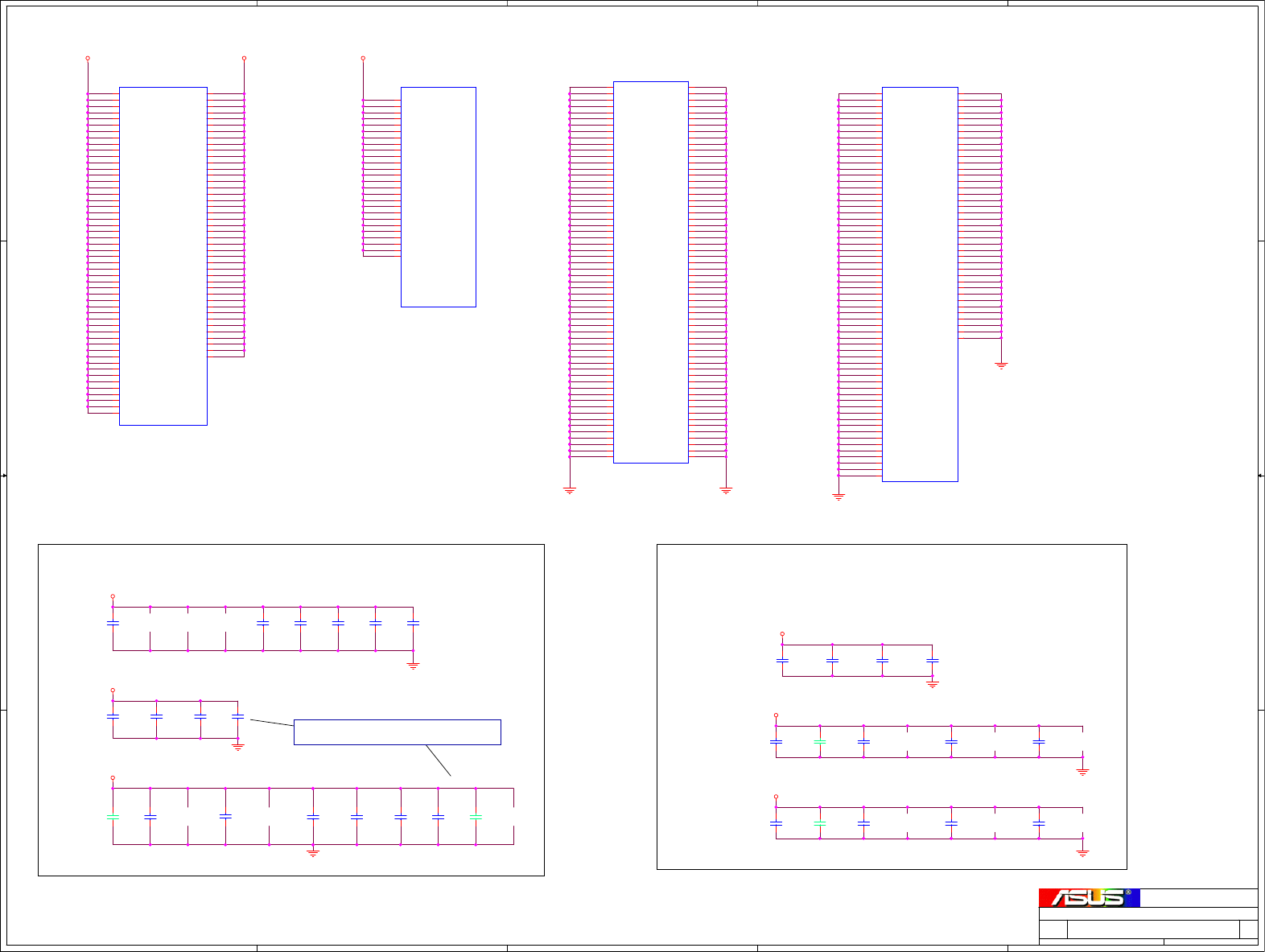

+VCORE +VCORE +1.8V
GND GND GND
GND
+VCORE
GND
GND
+VCORE
+1.8V
GND
+1.8V
+0.9V
GND
+0.9V
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
691Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus Power
2.05
F83
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
691Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus Power
2.05
F83
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
691Tuesday, May 26, 2009
ASUSTeK.Computer.INC
Conesus Power
2.05
F83
<OrgAddr1>
Bottom side decoupling
180pF
的電容最好用
NPO
的（
AMD
建議）
LAYOUT NOTE: Decoupling between CPU and DIMMs,
Place close to CPU as possible
Remove C0602, C0603, C0604 090406
NOTICE 1,8v cap placement
090410
12
C0631
0.22UF/6.3V
C0631
0.22UF/6.3V
12
C0611
0.22UF/6.3V
C0611
0.22UF/6.3V
12
C0606
22UF/6.3V
C0606
22UF/6.3V
12
C0628
0.22UF/6.3V
C0628
0.22UF/6.3V
12
C0638
4.7uF/6.3V
@
C0638
4.7uF/6.3V
@
12
C0610
0.22UF/6.3V
C0610
0.22UF/6.3V
12
C0609
22UF/6.3V
C0609
22UF/6.3V
12
C0612
0.01UF/16V
C0612
0.01UF/16V
12
C0626
4.7uF/6.3V
C0626
4.7uF/6.3V
12
C0643
180PF/50V
C0643
180PF/50V
12
C0636
180PF/50V
C0636
180PF/50V
12
C0637
4.7uF/6.3V
C0637
4.7uF/6.3V
12
C0621
0.01UF/16V
C0621
0.01UF/16V
12
C0619
0.22UF/6.3V
C0619
0.22UF/6.3V
12
C0614
22UF/6.3V
@
C0614
22UF/6.3V
@
VDDIO26
AA30 VDDIO25
AB28 VDDIO24
AE32 VDDIO23
AC30 VDDIO22
AC32 VDDIO21
AE26 VDDIO20
AE30 VDDIO19
AF28 VDDIO18
AG30 VDDIO17
AG32 VDDIO16
M27 VDDIO15
Y26 VDDIO14
U26 VDDIO13
N32
VDDIO10
U32 VDDIO9
N30
VDDIO4
P29 VDDIO3
R28
VDDIO12
R30 VDDIO11
R32
VDDIO2
U29
VDDIO8
U30 VDDIO7
W28 VDDIO6
W30 VDDIO5
W32
VDDIO1
Y29
U0301F
AMGMV40OAX4DX
U0301F
AMGMV40OAX4DX
12
C0641
1000PF/16V
C0641
1000PF/16V
12
C0630
4.7uF/6.3V
@
C0630
4.7uF/6.3V
@
12
C0615
22UF/6.3V
C0615
22UF/6.3V
12
C0607
22UF/6.3V
C0607
22UF/6.3V
12
C0620
0.22UF/6.3V
C0620
0.22UF/6.3V
12
C0623
180PF/50V
@
C0623
180PF/50V
@
VSS165
M11
VSS166
M13
VSS167
M21
VSS168
M22
VSS169
M23
VSS170
M24
VSS175
N12
VSS176
N22
VSS177
N23
VSS180
P14
VSS181
P16
VSS182
P19
VSS187 R15
VSS188 R18
VSS189 R20
VSS191 T14
VSS192 T16
VSS193 T19
VSS194 T24
VSS195 T25
VSS196 V15
VSS197 V18
VSS198 V20
VSS208 W14
VSS209 W16
VSS210 W19
VSS213 Y15
VSS214 Y18
VSS215 Y20
VSS216 Y24
VSS217 Y25
VSS161
L26 VSS160
L25 VSS159
L24 VSS158
L23 VSS157
L22 VSS156
L21 VSS155
L12 VSS154
L10
VSS149
K9 VSS148
K24 VSS147
K22
VSS145
K16 VSS144
K13 VSS143
K11
VSS141
J30 VSS140
J28 VSS139
J25 VSS138
J24 VSS137
J22 VSS136
J16 VSS135
J13 VSS134
J11
VSS124
G30 VSS123
G27 VSS122
G25
VSS125
H5
VSS126
H6
VSS127
H20
VSS128
H23
VSS129
H28
VSS130
J1
VSS131
J2
VSS132
J4
VSS133
J7
VSS142
J32
VSS150
L1
VSS151
L2
VSS152
L4
VSS153
L8
VSS162
L30
VSS163
M6
VSS164
M9
VSS171
N1
VSS172
N2
VSS173
N4
VSS174
N10
VSS178
P7
VSS179
P10
VSS183 R1
VSS184 R2
VSS185 R4
VSS186 R8
VSS190 T9
VSS199 U1
VSS200 U2
VSS201 U4
VSS202 U7
VSS203 U8
VSS204 W1
VSS205 W2
VSS206 W4
VSS207 W8
VSS211 Y7
VSS212 Y10
VSS121
G19
VSS218 F17
VSS219 AB7
VSS220 AG5
VSS221 B23
VSS222 B1
VSS146
A2
U0301H
AMGMV40OAX4DX
U0301H
AMGMV40OAX4DX
VDD1
A3
VDD2
A4
VDD3
B3
VDD4
B4
VDD5
C3
VDD6
C4
VDD7
D4
VDD8
D5
VDD9
D6
VDD10
E5
VDD11
E6
VDD12
E7
VDD15
F7
VDD16
F8
VDD17
G8
VDD18
G9
VDD19
H9
VDD20
J9
VDD21
J10
VDD57 AB11
VDD54 AA12
VDD58 AB13
VDD61 AC12
VDD65 AD11
VDD28
K10
VDD38
L11
VDD39
L13
VDD41
M10
VDD42
M12
VDD45
N11
VDD48
P15
VDD49
P18
VDD50
P20
VDD94 R14
VDD93 R16
VDD92 R19
VDD91 T10
VDD90 T15
VDD89 T18
VDD88 T20
VDD87 V14
VDD86 V16
VDD85 V19
VDD83 W15
VDD82 W18
VDD81 W20
VDD78 Y19
VDD79 Y16
VDD80 Y14
VDD13
F5
VDD14
F6
VDD55 AA24
VDD56 AA25
VDD62 AC24
VDD63 AC25
VDD66 AD12
VDD67 AD14
VDD68 AD18
VDD69 AD21
VDD70 AD25
VDD71 AE12
VDD72 AE14
VDD73 AE18
VDD74 AE21
VDD75 AE23
VDD22
J12
VDD23
J14
VDD24
J18
VDD33
K21
VDD34
K23
VDD35
K25
VDD43
M25
VDD46
N24
VDD47
N25
VDD51
P24
VDD52
P25
VDD77 V24
VDD76 V25
VDD26
J21
VDD27
J23
VDD29
K12
VDD30
K14
VDD31
K18
VDD25
J20
VDD32
K20
VDD64 AD9
VDD53 AA10
VDD60 AC10
VDD59 AC5
VDD36
L7
VDD37
L9
VDD40
M5
VDD44
N9 VDD95 R5
VDD84 W5
U0301E
AMGMV40OAX4DX
U0301E
AMGMV40OAX4DX
12
C0601
22UF/6.3V
C0601
22UF/6.3V
12
C0627
0.22UF/6.3V
C0627
0.22UF/6.3V
12
C0605
22UF/6.3V
C0605
22UF/6.3V
12
C0633
1000PF/16V
C0633
1000PF/16V
12
C0625
4.7uF/6.3V
C0625
4.7uF/6.3V
1 2
C0617
4.7uF/6.3V
C0617
4.7uF/6.3V
12
C0613
180PF/50V
C0613
180PF/50V
12
C0622
180PF/50V
C0622
180PF/50V
12
C0629
4.7uF/6.3V
C0629
4.7uF/6.3V
VSS1
A32
VSS6
AA11
VSS7
AA22
VSS8
AA23
VSS10
AB12
VSS11
AB21
VSS12
AB22
VSS13
AB23
VSS14
AB24
VSS15
AB25
VSS16
AC11
VSS22
AC13
VSS23
AC21
VSS24
AC22
VSS25
AC23
VSS27
AD13
VSS28
AD16
VSS29
AD20
VSS30
AD22
VSS31
AD23
VSS32
AD24
VSS38
AE11
VSS39
AE13
VSS40
AE16
VSS41
AE20
VSS42
AE22
VSS43
AE24
VSS44
AE25
VSS48
AF26
VSS54
AG27
VSS56
AH14
VSS57
AH20
VSS58
AH23
VSS59
AH25
VSS60
AH28
VSS117 AJ15
VSS116 AJ19
VSS115 AJ22
VSS112 AK11
VSS111 AK13
VSS110 AK15
VSS109 AK17
VSS108 AK19
VSS107 AK21
VSS106 AK23
VSS105 AK25
VSS104 AK27
VSS103 AK29
VSS113 AK7
VSS100 AM11
VSS98 AM15
VSS96 AM19
VSS94 AM27
VSS93 AM33
VSS91 AN32
VSS89 B13
VSS87 B17
VSS85 B21
VSS83 B29
VSS82 B33
VSS81 C31
VSS79 D11
VSS78 D13
VSS77 D15
VSS76 D17
VSS75 D19
VSS74 D21
VSS73 D23
VSS72 D25
VSS71 D27
VSS70 D29
VSS69 D30
VSS68 E30
VSS67 E32
VSS65 F20
VSS64 F23
VSS95 AM23
VSS9
AB10
VSS84 B27
VSS88 B15
VSS86 B19
VSS80 D8
VSS114 AK5
VSS55
AH5
VSS120 AJ1
VSS119 AJ2
VSS118 AJ4
VSS2
AA1
VSS3
AA2
VSS4
AA4
VSS5
AA9
VSS17
AC1
VSS18
AC2
VSS19
AC4
VSS20
AC8
VSS21
AC9
VSS26
AD10
VSS33
AE1
VSS34
AE2
VSS35
AE4
VSS36
AE7
VSS37
AE10
VSS45
AF7
VSS46
AF8
VSS47
AF9
VSS49
AG1
VSS50
AG2
VSS51
AG4
VSS52
AG6
VSS53
AG7
VSS102 AL31
VSS99 AM13
VSS101 AM1
VSS97 AM17
VSS66 F14
VSS63 G1
VSS62 G2
VSS61 G4
VSS92 AN2
VSS90 C10
U0301G
AMGMV40OAX4DX
U0301G
AMGMV40OAX4DX
12
C0639
0.22UF/6.3V
C0639
0.22UF/6.3V
12
C0608
22UF/6.3V
C0608
22UF/6.3V

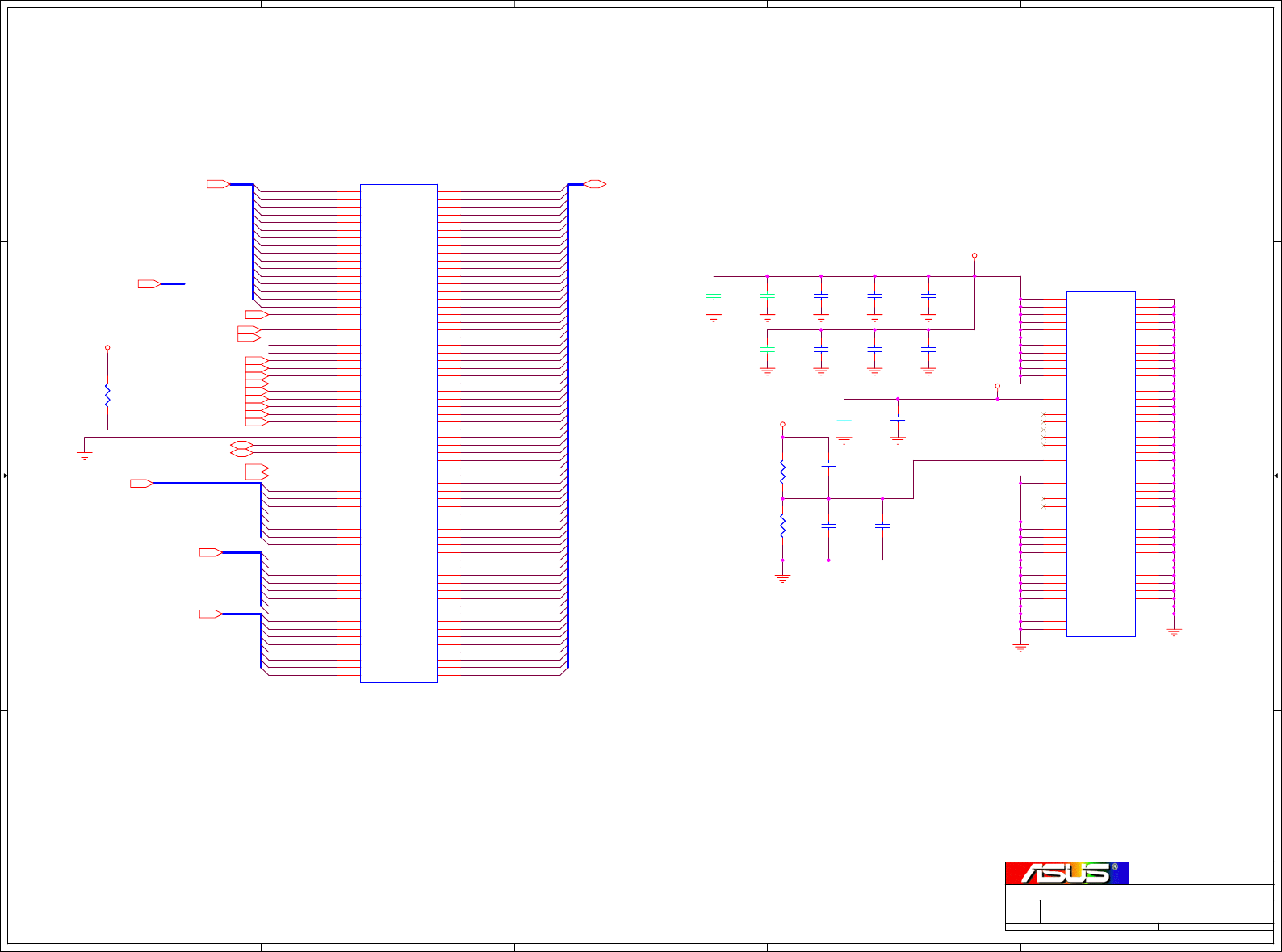

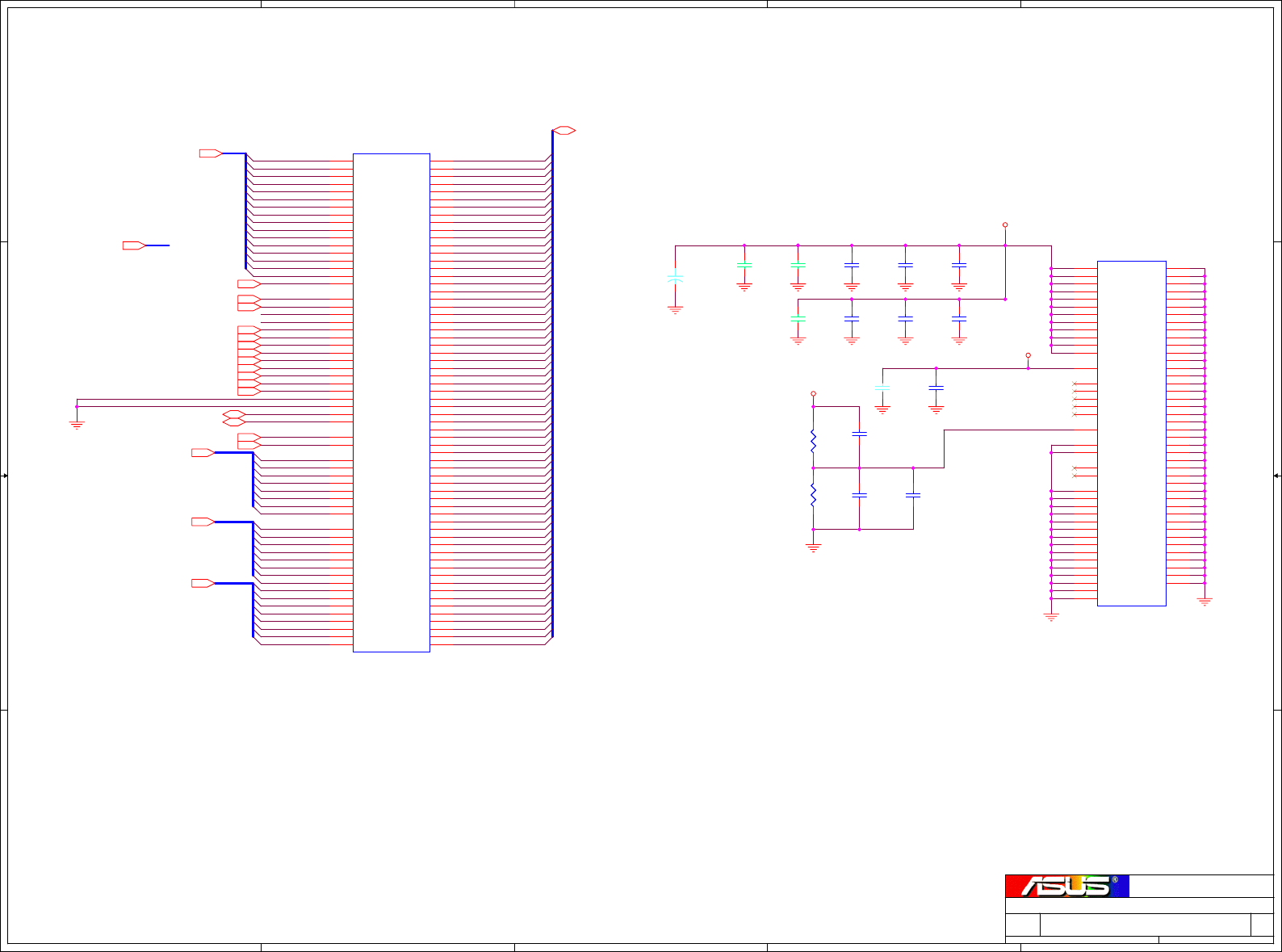

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MEM_MA_DATA59
MEM_MA_DM1
MEM_MA_DM5
MEM_MA_DM6
MEM_MA_DQS0
MEM_MA_DQS1
MEM_MA_DQS2
MEM_MA_DQS3
MEM_MA_DQS4
MEM_MA_DQS5
MEM_MA_DQS6
MEM_MA_DQS7
MEM_MA_DQS#0
MEM_MA_DQS#1
MEM_MA_DQS#2
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM4
MEM_MA_DM7
MEM_MA_DM0
MEM_MA_DQS#3
MEM_MA_DQS#4
MEM_MA_DQS#5
MEM_MA_DQS#6
MEM_MA_DQS#7
MEM_MA_DATA0
MEM_MA_DATA63
MEM_MA_DATA2
MEM_MA_DATA5
MEM_MA_DATA6
MEM_MA_DATA62
MEM_MA_DATA36
MEM_MA_DATA42
MEM_MA_DATA45
MEM_MA_DATA43
MEM_MA_DATA46
MEM_MA_DATA41
MEM_MA_DATA44
MEM_MA_DATA53
MEM_MA_DATA35
MEM_MA_DATA33
MEM_MA_DATA40
MEM_MA_DATA47
MEM_MA0_CS#0
MEM_MA0_CS#1
MEM_MA_DATA10
MEM_MA_DATA20
MEM_MA_DATA21
MEM_MA_DATA16
MEM_MA_DATA19
MEM_MA_DATA17
MEM_MA_DATA23
MEM_MA_DATA25
MEM_MA_DATA13
MEM_MA_DATA15
MEM_MA_DATA22
MEM_MA_DATA18
MEM_MA_DATA1
MEM_MA_DATA55
MEM_MA_DATA52
MEM_MA_DATA58
MEM_MA_DATA57
MEM_MA_DATA50
MEM_MA_DATA60
MEM_MA_DATA56
MEM_MA_DATA61
MEM_MA_DATA49
MEM_MA_DATA51
MEM_MA_DATA48
MEM_MA_DATA54
MEM_MA_ADD5
MEM_MA_ADD6
MEM_MA_ADD7
MEM_MA_ADD8
MEM_MA_ADD9
MEM_MA_ADD11
MEM_MA_ADD12
MEM_MA_ADD13
MEM_MA_ADD14
MEM_MA_ADD15
MEM_MA_ADD0
MEM_MA_ADD10
MEM_MA_ADD1
MEM_MA_ADD2
MEM_MA_ADD3
MEM_MA_ADD4 MEM_MA_DATA3
MEM_MA_DATA4
MEM_MA_DATA9
MEM_MA_DATA11
MEM_MA_DATA7
MEM_MA_DATA8
MEM_MA_DATA14
MEM_MA_DATA12
MEM_MA_DATA30
MEM_MA_DATA28
MEM_MA_DATA34
MEM_MA_DATA32
MEM_MA_DATA31
MEM_MA_DATA39
MEM_MA_DATA37
MEM_MA_DATA38
MEM_MA_DATA29
MEM_MA_DATA27
MEM_MA_DATA26
MEM_MA_DATA24
M_VREF_DIMM0
MEM_MA_BANK2[4,9]
MEM_MA0_ODT0[4,9]
MEM_MA_DM[0..7][4]
MEM_MA_DQS[0..7][4]
MEM_MA_DQS#[0..7][4]
MEM_MA_BANK0[4,9]
MEM_MA0_CLK1_P[4]
MEM_MA0_CLK2_P[4] MEM_MA0_CLK1_N[4]
MEM_MA0_CLK2_N[4]
MEM_MA_BANK1[4,9]
MEM_MA_CKE0[4,9]
MEM_MA_WE#[4,9] MEM_MA_RAS#[4,9]
MEM_MA_CKE1[4,9] MEM_MA_CAS#[4,9]
MEM_MA_DATA[0..63] [4]
SMBCLK_DRAM[8,21,29,44]SMBDATA_DRAM[8,21,29,44]
MEM_MA_ADD[0..15][4,9]
MEM_MA0_CS#[0..1][4,9]
MEM_MA0_ODT1[4,9]
+1.8V
+3VS
+1.8V
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
791Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2 SO-DIMM0
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
791Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2 SO-DIMM0
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
791Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2 SO-DIMM0
2.05
F5Z
<Variant Name>
P/N:12G025122006
12G025122006
VDD1
112
VDD2
111
VDD3
117
VDD4
96
VDD5
95
VDD6
118
VDD7
81
VDD8
82
VDD9
87
VDD10
103
VDD11
88
VDD12
104
VDDSPD
199
NC1
83
NC2
120
NC3
50
NC4
69
NCTEST
163
VREF
1
GND0
201
GND1
202
VSS1
47
VSS2
133
VSS3
183
VSS4
77
VSS5
12
VSS6
48
VSS7
184
VSS8
78
VSS9
71
VSS10
72
VSS11
121
VSS12
122
VSS13
196
VSS14
193
VSS15
8
VSS16 18
VSS17 24
VSS18 41
VSS19 53
VSS20 42
VSS21 54
VSS22 59
VSS23 65
VSS24 60
VSS25 66
VSS26 127
VSS27 139
VSS28 128
VSS29 145
VSS30 165
VSS31 171
VSS32 172
VSS33 177
VSS34 187
VSS35 178
VSS36 190
VSS37 9
VSS38 21
VSS39 33
VSS40 155
VSS41 34
VSS42 132
VSS43 144
VSS44 156
VSS45 168
VSS46 2
VSS47 3
VSS48 15
VSS49 27
VSS50 39
VSS51 149
VSS52 161
VSS53 28
VSS54 40
VSS55 138
VSS56 150
VSS57 162
NP_NC1
203
NP_NC2
204
J0701B
DDR_DIMM_200P
J0701B
DDR_DIMM_200P
12
C0710
0.1UF/16V
@
C0710
0.1UF/16V
@
12
C0702
2.2UF/10V
@
C0702
2.2UF/10V
@
12
+
CE0701
470UF/2.5V
@
+
CE0701
470UF/2.5V
@
A0
102
A1
101
A2
100
A3
99
A4
98
A5
97
A6
94
A7
92
A8
93
A9
91
A10/AP
105
A11
90
A12
89
A13
116
A14
86
A15
84
BA0
107
BA1
106
S0#
110
S1#
115
CK0
30
CK0#
32
CK1
164
CK1#
166
CKE0
79
CKE1
80
CAS#
113
RAS#
108
WE#
109
SA0
198
SA1
200
SCL
197
SDA
195
ODT0
114
ODT1
119
DM0
10
DM1
26
DM2
52
DM3
67
DM4
130
DM5
147
DM6
170
DM7
185
DQS0
13
DQS1
31
DQS2
51
DQS3
70
DQS4
131
DQS5
148
DQS6
169
DQS7
188
DQS#0
11
DQS#1
29
DQS#2
49
DQS#3
68
DQS#4
129
DQS#5
146
DQS#6
167
DQS#7
186
DQ0 5
DQ1 7
DQ2 17
DQ3 19
DQ4 4
DQ5 6
DQ6 14
DQ7 16
DQ8 23
DQ9 25
DQ10 35
DQ11 37
DQ12 20
DQ13 22
DQ14 36
DQ15 38
DQ16 43
DQ17 45
DQ18 55
DQ19 57
DQ20 44
DQ21 46
DQ22 56
DQ23 58
DQ24 61
DQ25 63
DQ26 73
DQ27 75
DQ28 62
DQ29 64
DQ30 74
DQ31 76
DQ32 123
DQ33 125
DQ34 135
DQ35 137
DQ36 124
DQ37 126
DQ38 134
DQ39 136
DQ40 141
DQ41 143
DQ42 151
DQ43 153
DQ44 140
DQ45 142
DQ46 152
DQ47 154
DQ48 157
DQ49 159
DQ50 173
DQ51 175
DQ52 158
DQ53 160
DQ54 174
DQ55 176
DQ56 179
DQ57 181
DQ58 189
DQ59 191
DQ60 180
DQ61 182
DQ62 192
A16_BA2
85
DQ63 194
J0701A
DDR_DIMM_200P
J0701A
DDR_DIMM_200P
12
C0713
0.1UF/16V
C0713
0.1UF/16V
12
C0706
0.1UF/16V
@
C0706
0.1UF/16V
@
12
C0707
0.1UF/16V
C0707
0.1UF/16V
12
C0708
0.1UF/16V
C0708
0.1UF/16V
1 2
R0701
1KOhm
1%
R0701
1KOhm
1%
12
C0701
2.2UF/10V
@
C0701
2.2UF/10V
@
12
C0704
2.2UF/10V
C0704
2.2UF/10V
12
C0709
0.1UF/16V
C0709
0.1UF/16V
12
C0711
0.1UF/16V
C0711
0.1UF/16V
12
C0703
2.2UF/10V
C0703
2.2UF/10V
12
C0714
1000PF/16V
@
C0714
1000PF/16V
@
1 2
R0702
1KOhm
1%
R0702
1KOhm
1%
12
C0712
2.2UF/6.3V@C0712
2.2UF/6.3V@
12
C0705
2.2UF/10V
C0705
2.2UF/10V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MEM_MB_DATA47
MEM_MB_DATA61
MEM_MB_DATA56
MEM_MB_DATA62
MEM_MB_DATA44
MEM_MB_DATA58
MEM_MB_DATA63
MEM_MB_DATA59
MEM_MB_DATA43
MEM_MB_DATA42
MEM_MB_DATA57
MEM_MB_DATA54
MEM_MB_DATA60
MEM_MB_DATA40
MEM_MB_DATA8
MEM_MB_DATA1
MEM_MB_ADD4
MEM_MB_ADD14
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD5
MEM_MB_ADD3
MEM_MB0_CS#1
MEM_MB_ADD6
MEM_MB_ADD12
MEM_MB_ADD13
MEM_MB_ADD0
MEM_MB_ADD11
MEM_MB_ADD2
MEM_MB_ADD10
MEM_MB_ADD15
MEM_MB_ADD9
MEM_MB0_CS#0
MEM_MB_ADD1
MEM_MB_DM0
MEM_MB_DM1
MEM_MB_DM2
MEM_MB_DM3
MEM_MB_DM4
MEM_MB_DM5
MEM_MB_DM6
MEM_MB_DM7
MEM_MB_DQS0
MEM_MB_DQS1
MEM_MB_DQS2
MEM_MB_DQS3
MEM_MB_DQS4
MEM_MB_DQS5
MEM_MB_DQS6
MEM_MB_DQS7
MEM_MB_DQS#0
MEM_MB_DQS#1
MEM_MB_DQS#2
MEM_MB_DQS#3
MEM_MB_DQS#4
MEM_MB_DQS#5
MEM_MB_DQS#6
MEM_MB_DQS#7
MEM_MB_DATA32
MEM_MB_DATA18
MEM_MB_DATA46
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA19
MEM_MB_DATA37
MEM_MB_DATA41
MEM_MB_DATA28
MEM_MB_DATA38
MEM_MB_DATA45
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA27
MEM_MB_DATA24
MEM_MB_DATA36
MEM_MB_DATA25
MEM_MB_DATA26
MEM_MB_DATA39
MEM_MB_DATA35
MEM_MB_DATA29
M_VREF_DIMM1
MEM_MB_DATA23
MEM_MB_DATA11
MEM_MB_DATA17
MEM_MB_DATA2
MEM_MB_DATA20
MEM_MB_DATA21
MEM_MB_DATA7
MEM_MB_DATA13
MEM_MB_DATA16
MEM_MB_DATA12
MEM_MB_DATA6
MEM_MB_DATA4
MEM_MB_DATA5
MEM_MB_DATA10
MEM_MB_DATA9
MEM_MB_DATA14
MEM_MB_DATA22
MEM_MB_DATA0
MEM_MB_DATA15
MEM_MB_DATA3
MEM_MB_DATA50
MEM_MB_DATA52
MEM_MB_DATA53
MEM_MB_DATA51
MEM_MB_DATA55
MEM_MB_DATA49
MEM_MB_DATA48
SMBCLK_DRAM[7,21,29,44]SMBDATA_DRAM[7,21,29,44]
MEM_MB0_ODT0[4,9]
MEM_MB_BANK2[4,9]
MEM_MB_ADD[0..15][4,9]
MEM_MB_BANK0[4,9] MEM_MB_BANK1[4,9]
MEM_MB_DQS[0..7][4]
MEM_MB_DQS#[0..7][4]
MEM_MB_DM[0..7][4]
MEM_MB_CKE0[4,9] MEM_MB_CKE1[4,9]
MEM_MB0_CLK2_P[4]
MEM_MB0_CLK1_P[4] MEM_MB0_CLK1_N[4]
MEM_MB_CAS#[4,9] MEM_MB_RAS#[4,9]
MEM_MB0_CLK2_N[4]
MEM_MB_WE#[4,9]
MEM_MB_DATA[0..63] [4]
MEM_MB0_CS#[0..1][4,9]
MEM_MB0_ODT1[4,9]
GND
+1.8V
+3VS
+3VS
+1.8V
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
891Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2 SO-DIMM1
2.05
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
891Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2 SO-DIMM1
2.05
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
891Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2 SO-DIMM1
2.05
F83T
PN:12G025C22003
REV.
12
C0811
0.1UF/16V
C0811
0.1UF/16V
12
C0804
2.2UF/10V
C0804
2.2UF/10V
12
C0806
0.1UF/16V
C0806
0.1UF/16V
12
C0814
1000PF/16V
@
C0814
1000PF/16V
@
12
C0809
0.1UF/16V
@
C0809
0.1UF/16V
@
VDD1
112
VDD2
111
VDD3
117
VDD4
96
VDD5
95
VDD6
118
VDD7
81
VDD8
82
VDD9
87
VDD10
103
VDD11
88
VDD12
104
VDDSPD
199
NC1
83
NC2
120
NC3
50
NC4
69
NCTEST
163
VREF
1
GND0
201
GND1
202
VSS1
47
VSS2
133
VSS3
183
VSS4
77
VSS5
12
VSS6
48
VSS7
184
VSS8
78
VSS9
71
VSS10
72
VSS11
121
VSS12
122
VSS13
196
VSS14
193
VSS15
8
VSS16 18
VSS17 24
VSS18 41
VSS19 53
VSS20 42
VSS21 54
VSS22 59
VSS23 65
VSS24 60
VSS25 66
VSS26 127
VSS27 139
VSS28 128
VSS29 145
VSS30 165
VSS31 171
VSS32 172
VSS33 177
VSS34 187
VSS35 178
VSS36 190
VSS37 9
VSS38 21
VSS39 33
VSS40 155
VSS41 34
VSS42 132
VSS43 144
VSS44 156
VSS45 168
VSS46 2
VSS47 3
VSS48 15
VSS49 27
VSS50 39
VSS51 149
VSS52 161
VSS53 28
VSS54 40
VSS55 138
VSS56 150
VSS57 162
NP_NC1
203
NP_NC2
204
CON0801B
DDR2_DIMM_200P
CON0801B
DDR2_DIMM_200P
12
C0805
2.2UF/10V
C0805
2.2UF/10V
12
C0807
2.2UF/10V
@C0807
2.2UF/10V
@
A0
102
A1
101
A2
100
A3
99
A4
98
A5
97
A6
94
A7
92
A8
93
A9
91
A10/AP
105
A11
90
A12
89
A13
116
A14
86
A15
84
BA0
107
BA1
106
S0#
110
S1#
115
CK0
30
CK0#
32
CK1
164
CK1#
166
CKE0
79
CKE1
80
CAS#
113
RAS#
108
WE#
109
SA0
198
SA1
200
SCL
197
SDA
195
ODT0
114
ODT1
119
DM0
10
DM1
26
DM2
52
DM3
67
DM4
130
DM5
147
DM6
170
DM7
185
DQS0
13
DQS1
31
DQS2
51
DQS3
70
DQS4
131
DQS5
148
DQS6
169
DQS7
188
DQS#0
11
DQS#1
29
DQS#2
49
DQS#3
68
DQS#4
129
DQS#5
146
DQS#6
167
DQS#7
186
DQ0 5
DQ1 7
DQ2 17
DQ3 19
DQ4 4
DQ5 6
DQ6 14
DQ7 16
DQ8 23
DQ9 25
DQ10 35
DQ11 37
DQ12 20
DQ13 22
DQ14 36
DQ15 38
DQ16 43
DQ17 45
DQ18 55
DQ19 57
DQ20 44
DQ21 46
DQ22 56
DQ23 58
DQ24 61
DQ25 63
DQ26 73
DQ27 75
DQ28 62
DQ29 64
DQ30 74
DQ31 76
DQ32 123
DQ33 125
DQ34 135
DQ35 137
DQ36 124
DQ37 126
DQ38 134
DQ39 136
DQ40 141
DQ41 143
DQ42 151
DQ43 153
DQ44 140
DQ45 142
DQ46 152
DQ47 154
DQ48 157
DQ49 159
DQ50 173
DQ51 175
DQ52 158
DQ53 160
DQ54 174
DQ55 176
DQ56 179
DQ57 181
DQ58 189
DQ59 191
DQ60 180
DQ61 182
DQ62 192
A16_BA2
85
DQ63 194
CON0801A
DDR2_DIMM_200P
CON0801A
DDR2_DIMM_200P
1 2
R0801
1KOhm
1%
R0801
1KOhm
1%
12
C0810
0.1UF/16V
@
C0810
0.1UF/16V
@
12
C0812
0.1UF/16V
C0812
0.1UF/16V
12
C0801
2.2UF/10V
@
C0801
2.2UF/10V
@
12
R0802
4.7KOhm
R0802
4.7KOhm
12
C0813
0.1UF/16V
C0813
0.1UF/16V
12
C0802
2.2UF/10V
@
C0802
2.2UF/10V
@
12
C0808
0.1UF/16V
@
C0808
0.1UF/16V
@
1 2
R0803
1KOhm
1%
R0803
1KOhm
1%
12
C0803
2.2UF/10V
C0803
2.2UF/10V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MEM_MB_RAS#
MEM_MB_ADD1
MEM_MB_ADD2
MEM_MB0_CS#0
MEM_MB_CKE1
MEM_MB_ADD15
MEM_MB_BANK2
MEM_MB_CKE0
MEM_MB_ADD8
MEM_MB_CAS#
MEM_MB0_CS#1
MEM_MB_ADD6
MEM_MB_ADD3
MEM_MB_BANK0
MEM_MB_WE#
MEM_MB_ADD9
MEM_MB_ADD4
MEM_MB_ADD5
MEM_MB_BANK1
MEM_MA_ADD3
MEM_MA_ADD5
MEM_MA0_CS#1
MEM_MA_CAS#
MEM_MA_WE#
MEM_MA_ADD12
MEM_MA_ADD9
MEM_MA_ADD7
MEM_MA_BANK2
MEM_MA_CKE0
MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_CKE1
MEM_MA_RAS#
MEM_MA_BANK1
MEM_MA_ADD4
MEM_MA0_ODT0
MEM_MA_ADD13
MEM_MA0_CS#0
MEM_MA_ADD2
MEM_MA_ADD6
MEM_MA_ADD8
MEM_MA_BANK0
MEM_MA_ADD10
MEM_MA_ADD1
MEM_MA0_CS#1
MEM_MA_CAS#
MEM_MA_WE#
MEM_MA_CKE0
MEM_MA_CKE1
MEM_MA_RAS#
MEM_MA0_CS#0
MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0
MEM_MA0_ODT0
MEM_MB0_ODT0
MEM_MB_RAS#
MEM_MB0_CS#0
MEM_MB_CKE1
MEM_MB_CAS#
MEM_MB0_CS#1
MEM_MB_WE#
MEM_MB_CKE0
MEM_MB_BANK0
MEM_MB_BANK1
MEM_MB_BANK2
MEM_MB_ADD7
MEM_MB_ADD12
MEM_MB_ADD0
MEM_MB_ADD14
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD13
MEM_MB0_ODT0
MEM_MA_ADD0
MEM_MA_ADD11
MEM_MA0_ODT1
MEM_MA0_ODT1
MEM_MB0_ODT1
MEM_MB0_ODT1
MEM_MA_ADD[0..15][4,7]
MEM_MA_BANK0[4,7]
MEM_MA0_CS#1[4,7]
MEM_MA_CAS#[4,7] MEM_MA_WE#[4,7]
MEM_MA_CKE0[4,7]
MEM_MA_RAS#[4,7]
MEM_MA0_CS#0[4,7]
MEM_MA_CKE1[4,7]
MEM_MA_BANK1[4,7] MEM_MA_BANK2[4,7]
MEM_MA0_ODT0[4,7]
MEM_MB_ADD[0..15][4,8]
MEM_MB_CKE1[4,8]
MEM_MB0_ODT0[4,8]
MEM_MB0_CS#1[4,8] MEM_MB0_CS#0[4,8]
MEM_MB_WE#[4,8] MEM_MB_CAS#[4,8] MEM_MB_RAS#[4,8]
MEM_MB_CKE0[4,8]
MEM_MB_BANK0[4,8] MEM_MB_BANK1[4,8] MEM_MB_BANK2[4,8]
MEM_MA0_ODT1[4,7]
MEM_MB0_ODT1[4,8]
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+0.9V
+0.9V
+0.9V
GND
GND
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+0.9V
GND
+1.8V
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
991Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2_TERMINATIONS
2.05
F5Z
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
991Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2_TERMINATIONS
2.05
F5Z
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
991Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DDR2_TERMINATIONS
2.05
F5Z
PLACE CLOSE TO SOCKET( PER EMI/EMC)
change to 8R16P 090405
071207
071211
change to 8R16P 090405
071219
Del Bank2 to Bus
是否用排容？
090330
Remove1.8V C0926,C0928 0.1uF 090405
Remove1.8V C0910,C0911 0.1uF 090405
add MA0_ODT1
睿
MB0_ODT1
090417
add MA0_ODT1
睿
MB0_ODT1
090417
12
C0921
0.1UF/16V
C0921
0.1UF/16V
1 2
C0916 0.1UF/16VC0916 0.1UF/16V
12
C0908
0.1UF/16V
C0908
0.1UF/16V
1 2
C0919 0.1UF/16VC0919 0.1UF/16V
1 16 RN0905A47OHM RN0905A47OHM 1 2
C0914 0.1UF/16VC0914 0.1UF/16V
8 9 RN0914H47OHM RN0914H47OHM
8 9 RN0905H47OHM RN0905H47OHM
12
C0904
0.1UF/16V
C0904
0.1UF/16V
1 16 RN0903A47OHM RN0903A47OHM
5 6 RN0909C
47Ohm RN0909C
47Ohm
1 2
C0901 0.1UF/16VC0901 0.1UF/16V
1 16 RN0914A47OHM RN0914A47OHM
1 16 RN0912A47OHM RN0912A47OHM
12
C0925
0.1UF/16V
C0925
0.1UF/16V
3 14 RN0903C47OHM RN0903C47OHM
4 13 RN0905D47OHM RN0905D47OHM
12
C0907
0.1UF/16V
C0907
0.1UF/16V
1 2
C0913 0.1UF/16VC0913 0.1UF/16V
7 10 RN0910G47OHM RN0910G47OHM
1 2
C0902 0.1UF/16VC0902 0.1UF/16V
12
C0924
0.1UF/16V
C0924
0.1UF/16V
1 2
C0927 0.1UF/16VC0927 0.1UF/16V
8 9 RN0910H47OHM RN0910H47OHM
3 14 RN0905C47OHM RN0905C47OHM
3 14 RN0910C47OHM RN0910C47OHM
1 16 RN0910A47OHM RN0910A47OHM
1 2
C0931 0.1UF/16VC0931 0.1UF/16V
12
C0934
0.1UF/16V
@
C0934
0.1UF/16V
@
5 12 RN0914E47OHM RN0914E47OHM
5 6 RN0916C
47Ohm RN0916C
47Ohm
2 15 RN0914B47OHM RN0914B47OHM
4 13 RN0914D47OHM RN0914D47OHM
4 13 RN0903D47OHM RN0903D47OHM
2 15 RN0905B47OHM RN0905B47OHM
2 15 RN0903B47OHM RN0903B47OHM
2 15 RN0912B47OHM RN0912B47OHM
1 2
C0903 0.1UF/16VC0903 0.1UF/16V
1 2
C0930 0.1UF/16VC0930 0.1UF/16V
12
C0938
0.1UF/16V
@
C0938
0.1UF/16V
@
5 12 RN0912E47OHM RN0912E47OHM
1 2
C0929 0.1UF/16VC0929 0.1UF/16V
2 15 RN0901B47OHM RN0901B47OHM
8 9 RN0912H47OHM RN0912H47OHM
12
C0936
0.1UF/16V
@
C0936
0.1UF/16V
@
6 11 RN0910F47OHM RN0910F47OHM
12
C0933
0.1UF/16V
@
C0933
0.1UF/16V
@
8 9 RN0903H47OHM RN0903H47OHM
7 8 RN0909D
47Ohm RN0909D
47Ohm
6 11 RN0905F47OHM RN0905F47OHM
7 10 RN0905G47OHM RN0905G47OHM
7 10 RN0912G47OHM RN0912G47OHM
7 10 RN0914G47OHM RN0914G47OHM
2 15 RN0910B47OHM RN0910B47OHM
12
C0922
0.1UF/16V
C0922
0.1UF/16V
7 10 RN0901G47OHM RN0901G47OHM
12
C0905
0.1UF/16V
C0905
0.1UF/16V
12
C0920
0.1UF/16V
C0920
0.1UF/16V
12
C0923
0.1UF/16V
C0923
0.1UF/16V
1 2
C0917 0.1UF/16VC0917 0.1UF/16V
6 11 RN0901F47OHM RN0901F47OHM
1 2 RN0916A
47Ohm RN0916A
47Ohm
1 16 RN0901A47OHM RN0901A47OHM
3 4 RN0909B
47Ohm RN0909B
47Ohm
1 2
C0918 0.1UF/16VC0918 0.1UF/16V
1 2
C0915 0.1UF/16VC0915 0.1UF/16V
3 4 RN0916B
47Ohm RN0916B
47Ohm
5 12 RN0903E47OHM RN0903E47OHM
5 12 RN0905E47OHM RN0905E47OHM
7 8 RN0916D
47Ohm RN0916D
47Ohm
4 13 RN0901D47OHM RN0901D47OHM
5 12 RN0901E47OHM RN0901E47OHM
1 2
C0932 0.1UF/16VC0932 0.1UF/16V
4 13 RN0912D47OHM RN0912D47OHM
1 2 RN0909A
47Ohm RN0909A
47Ohm
3 14 RN0914C47OHM RN0914C47OHM
6 11 RN0903F47OHM RN0903F47OHM
8 9 RN0901H47OHM RN0901H47OHM
7 10 RN0903G47OHM RN0903G47OHM
12
C0909
0.1UF/16V
C0909
0.1UF/16V
12
C0906
0.1UF/16V
C0906
0.1UF/16V
3 14 RN0901C47OHM RN0901C47OHM
6 11 RN0912F47OHM RN0912F47OHM
5 12 RN0910E47OHM RN0910E47OHM
3 14 RN0912C47OHM RN0912C47OHM
12
C0937
0.1UF/16V
@
C0937
0.1UF/16V
@
4 13 RN0910D47OHM RN0910D47OHM
1 2
C0912 0.1UF/16VC0912 0.1UF/16V
12
C0935
0.1UF/16V
@
C0935
0.1UF/16V
@
6 11 RN0914F47OHM RN0914F47OHM

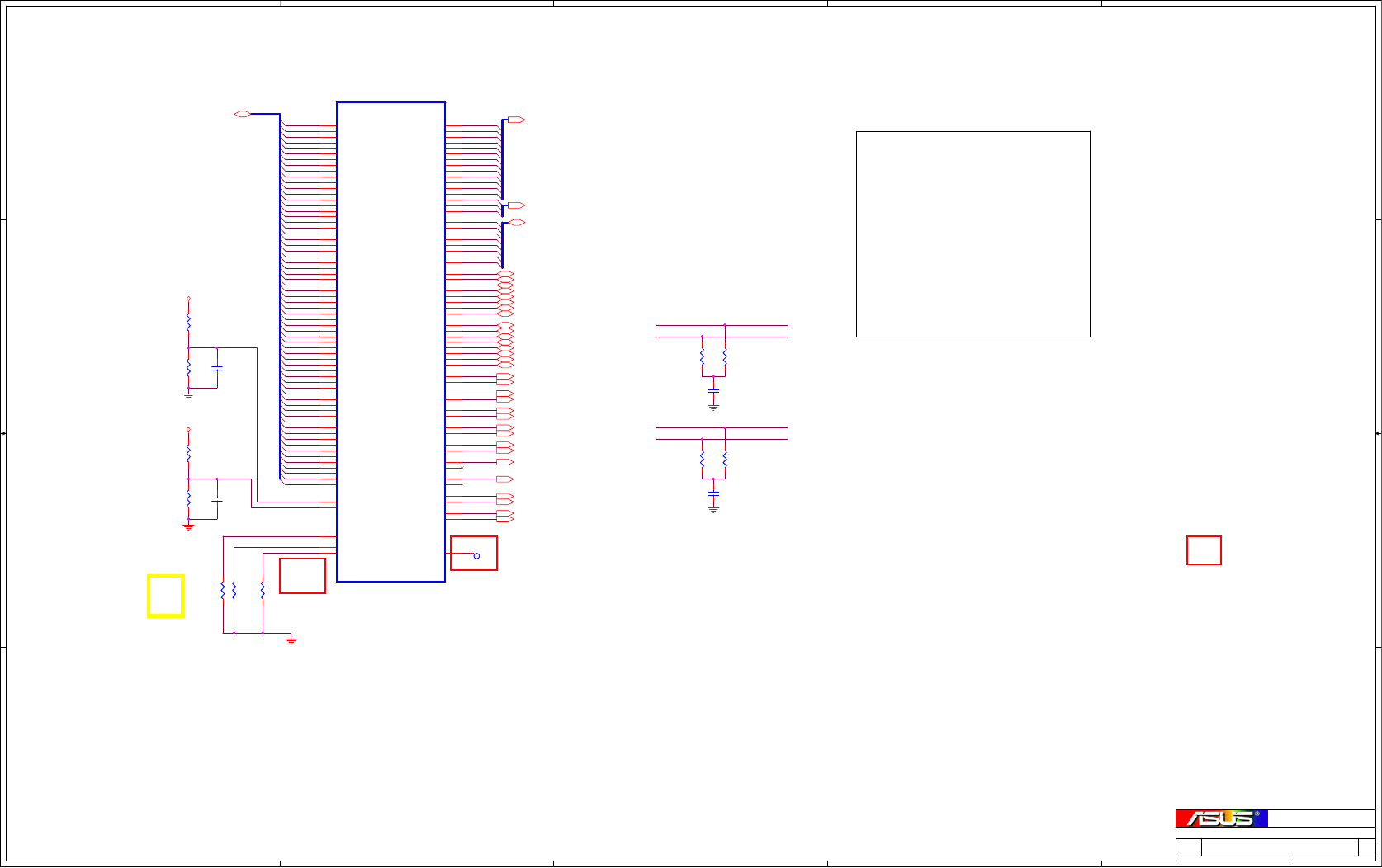

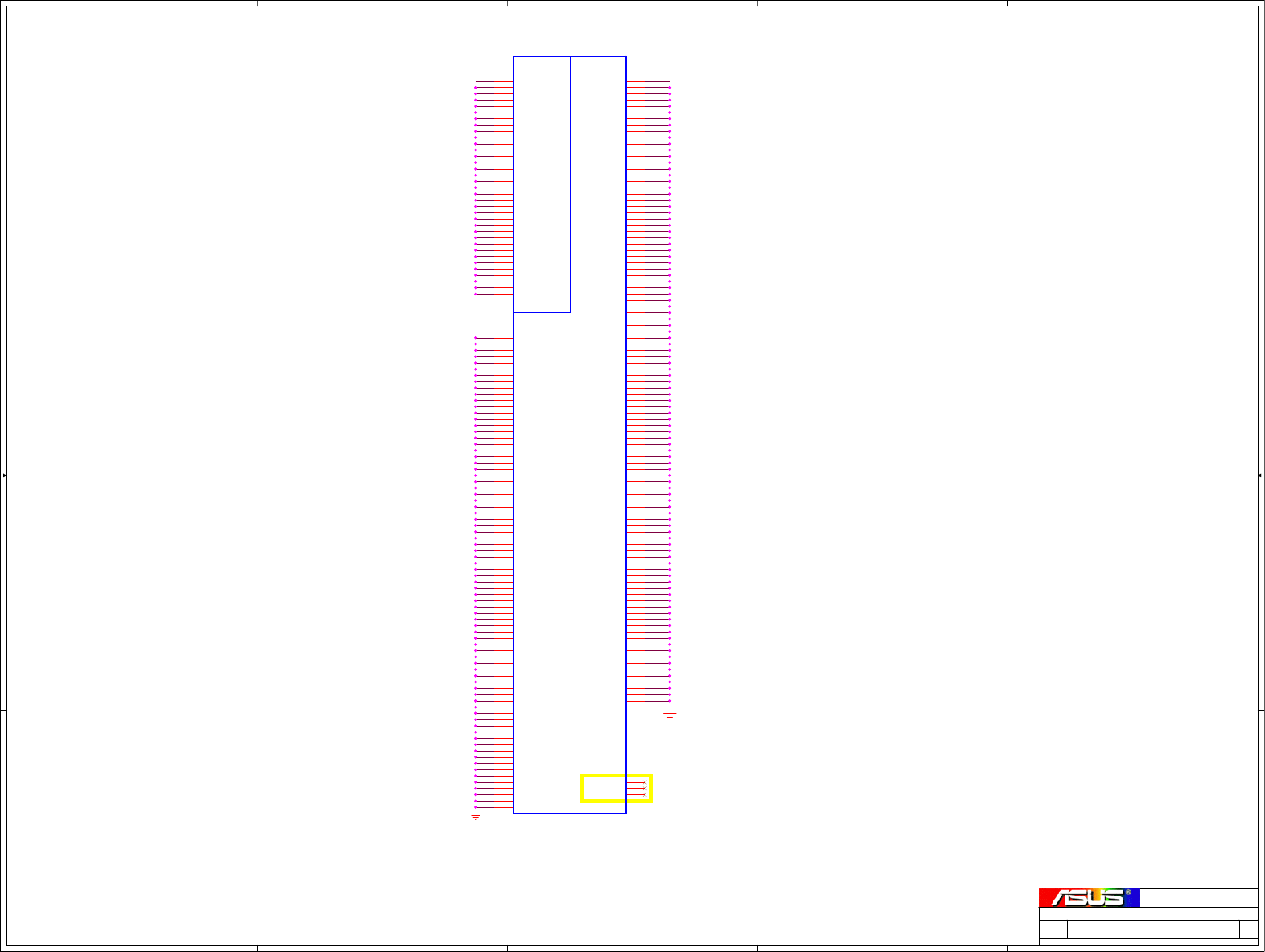

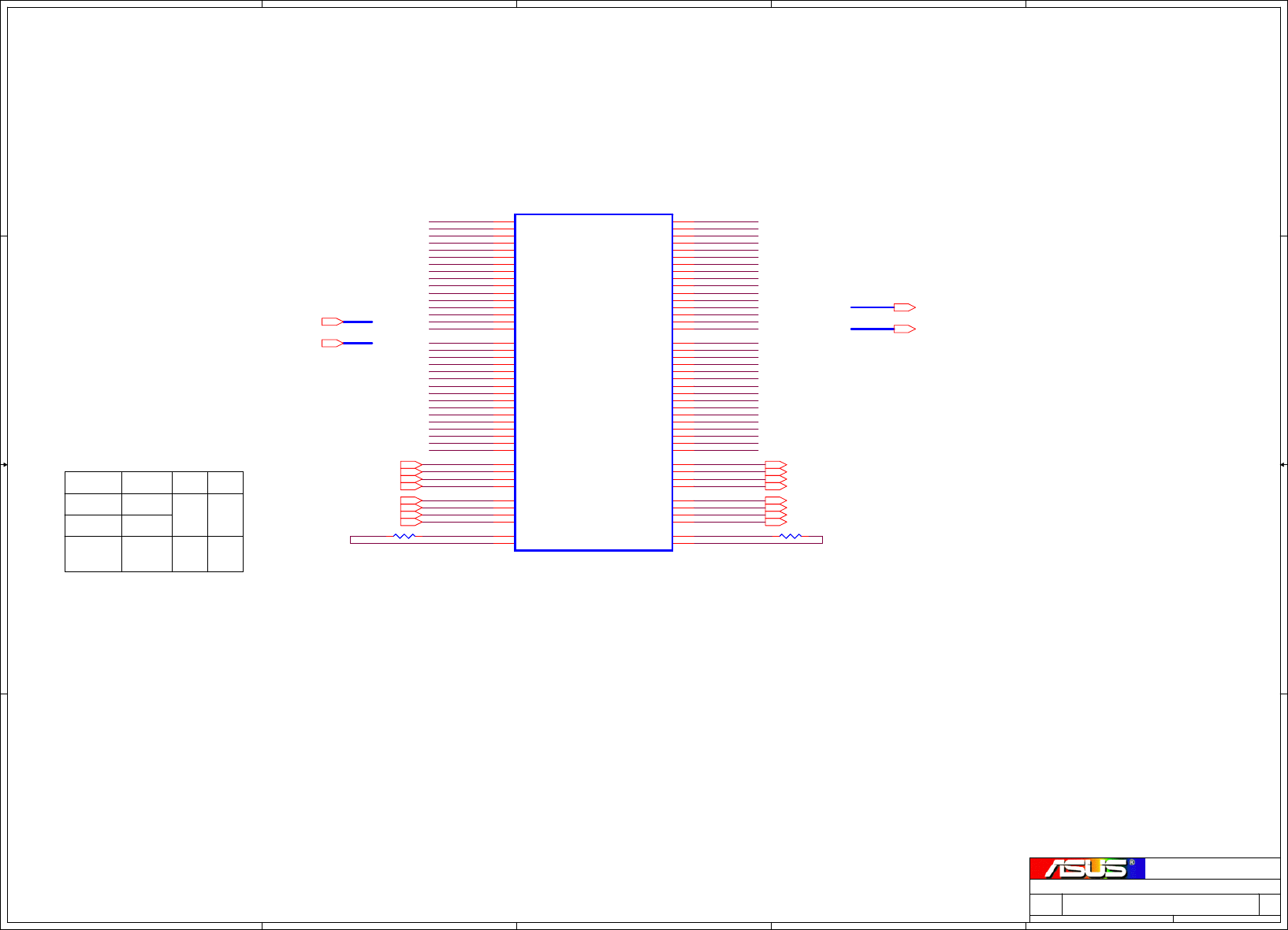

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HT_TXCALP
HT_TXCALN
HT_CPU_TX_CLK1
HT_CPU_TX_CLK#0
HT_CPU_TX_CLK#1
HT_CPU_TX_CLK0
HT_RXCALN
HT_RXCALP
HT_CPU_TXD#0
HT_CPU_TXD0
HT_CPU_TXD#12
HT_CPU_TXD14
HT_CPU_TXD15
HT_CPU_TXD#14
HT_CPU_TXD#13
HT_CPU_TXD13
HT_CPU_TXD#15
HT_CPU_TXD2
HT_CPU_TXD3
HT_CPU_TXD#2
HT_CPU_TXD#1
HT_CPU_TXD1
HT_CPU_TXD#3
HT_CPU_TXD5
HT_CPU_TXD6
HT_CPU_TXD#5
HT_CPU_TXD#4
HT_CPU_TXD4
HT_CPU_TXD#6
HT_CPU_TXD8
HT_CPU_TXD9
HT_CPU_TXD#8
HT_CPU_TXD#7
HT_CPU_TXD7
HT_CPU_TXD#9
HT_CPU_TXD11
HT_CPU_TXD12
HT_CPU_TXD#11
HT_CPU_TXD#10
HT_CPU_TXD10
HT_CPU_RXD5
HT_CPU_RXD#5
HT_CPU_RXD6
HT_CPU_RXD#6
HT_CPU_RXD7
HT_CPU_RXD#7
HT_CPU_RXD#0
HT_CPU_RXD0
HT_CPU_RXD1
HT_CPU_RXD#1
HT_CPU_RXD2
HT_CPU_RXD#2
HT_CPU_RXD3
HT_CPU_RXD#3
HT_CPU_RXD4
HT_CPU_RXD#4
HT_CPU_RXD8
HT_CPU_RXD#8
HT_CPU_RXD9
HT_CPU_RXD#9
HT_CPU_RXD10
HT_CPU_RXD#10
HT_CPU_RXD11
HT_CPU_RXD#11
HT_CPU_RXD12
HT_CPU_RXD#12
HT_CPU_RXD13
HT_CPU_RXD#13
HT_CPU_RXD14
HT_CPU_RXD#14
HT_CPU_RXD15
HT_CPU_RXD#15
HT_CPU_RX_CLK1
HT_CPU_RX_CLK#0
HT_CPU_RX_CLK#1
HT_CPU_RX_CLK0
HT_CPU_TX_CTL1
HT_CPU_TX_CTL#1
HT_CPU_TX_CTL0
HT_CPU_TX_CTL#0
HT_CPU_RX_CTL#1
HT_CPU_RX_CTL1
HT_CPU_RX_CTL0
HT_CPU_RX_CTL#0
HT_CPU_TXD#[0..15][3]
HT_CPU_RXD[0..15] [3]
HT_CPU_TXD[0..15][3] HT_CPU_RXD#[0..15] [3]
HT_CPU_TX_CLK0[3] HT_CPU_TX_CLK#0[3] HT_CPU_TX_CLK1[3] HT_CPU_TX_CLK#1[3]
HT_CPU_RX_CLK0 [3]
HT_CPU_RX_CLK#0 [3]
HT_CPU_RX_CLK1 [3]
HT_CPU_RX_CLK#1 [3]
HT_CPU_TX_CTL0[3] HT_CPU_TX_CTL#0[3] HT_CPU_TX_CTL1[3] HT_CPU_TX_CTL#1[3]
HT_CPU_RX_CTL0 [3]
HT_CPU_RX_CTL#0 [3]
HT_CPU_RX_CTL1 [3]
HT_CPU_RX_CTL#1 [3]
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
10 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-HT LINK I/F
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
10 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-HT LINK I/F
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
10 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-HT LINK I/F
2.05
F5Z
<OrgAddr1>
071119 071119
change R1001 value change R1003 value
Signal RS740 RX780 RS780
HT_RXCALP
HT_RXCALN
HT_TXCALP
HT_TXCALN
49.9R (GND)
49.9R (VDDHT)
1.21K 301R
100R 301R1.21K
R1.11 080319
Change the NB Part number to RS780 (A13)
HT_RXCAD15P
U19
HT_RXCAD15N
U18
HT_RXCAD14P
U20
HT_RXCAD14N
U21
HT_RXCAD13P
V21
HT_RXCAD13N
V20
HT_RXCAD12P
W21
HT_RXCAD12N
W20
HT_RXCAD11P
Y22
HT_RXCAD11N
Y23
HT_RXCAD10P
AA24
HT_RXCAD10N
AA25
HT_RXCAD9P
AB25
HT_RXCAD9N
AB24
HT_RXCAD8P
AC24
HT_RXCAD8N
AC25
HT_RXCAD7P
N24
HT_RXCAD7N
N25
HT_RXCAD6P
P25
HT_RXCAD6N
P24
HT_RXCAD5P
P22
HT_RXCAD5N
P23
HT_RXCAD4P
T25
HT_RXCAD4N
T24
HT_RXCAD3P
U24
HT_RXCAD3N
U25
HT_RXCAD2P
V25
HT_RXCAD2N
V24
HT_RXCAD1P
V22
HT_RXCAD1N
V23
HT_RXCAD0P
Y25
HT_RXCAD0N
Y24
HT_RXCLK1P
AB23
HT_RXCLK1N
AA22
HT_RXCLK0P
T22
HT_RXCLK0N
T23
HT_RXCTL0P
M22
HT_RXCTL0N
M23
HT_RXCTL1P
R21
HT_RXCTL1N
R20
HT_RXCALP
C23
HT_RXCALN
A24
HT_TXCAD15P P18
HT_TXCAD15N M18
HT_TXCAD14P M21
HT_TXCAD14N P21
HT_TXCAD13P M19
HT_TXCAD13N L18
HT_TXCAD12P L19
HT_TXCAD12N J19
HT_TXCAD11P J18
HT_TXCAD11N K17
HT_TXCAD10P J20
HT_TXCAD10N J21
HT_TXCAD9P G20
HT_TXCAD9N H21
HT_TXCAD8P F21
HT_TXCAD8N G21
HT_TXCAD7P K23
HT_TXCAD7N K22
HT_TXCAD6P K24
HT_TXCAD6N K25
HT_TXCAD5P J25
HT_TXCAD5N J24
HT_TXCAD4P H23
HT_TXCAD4N H22
HT_TXCAD3P F23
HT_TXCAD3N F22
HT_TXCAD2P F24
HT_TXCAD2N F25
HT_TXCAD1P E24
HT_TXCAD1N E25
HT_TXCAD0P D24
HT_TXCAD0N D25
HT_TXCLK1P L21
HT_TXCLK1N L20
HT_TXCLK0P H24
HT_TXCLK0N H25
HT_TXCTL0P M24
HT_TXCTL0N M25
HT_TXCTL1P P19
HT_TXCTL1N R18
HT_TXCALP B24
HT_TXCALN B25
PART 1 OF 6
HYPER TRANSPORT CPU I/F
U1001A
RS780MN
PART 1 OF 6
HYPER TRANSPORT CPU I/F
U1001A
RS780MN
1 2
R1003 301OhmR1003 301Ohm
1 2
R1001 301OhmR1001 301Ohm
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

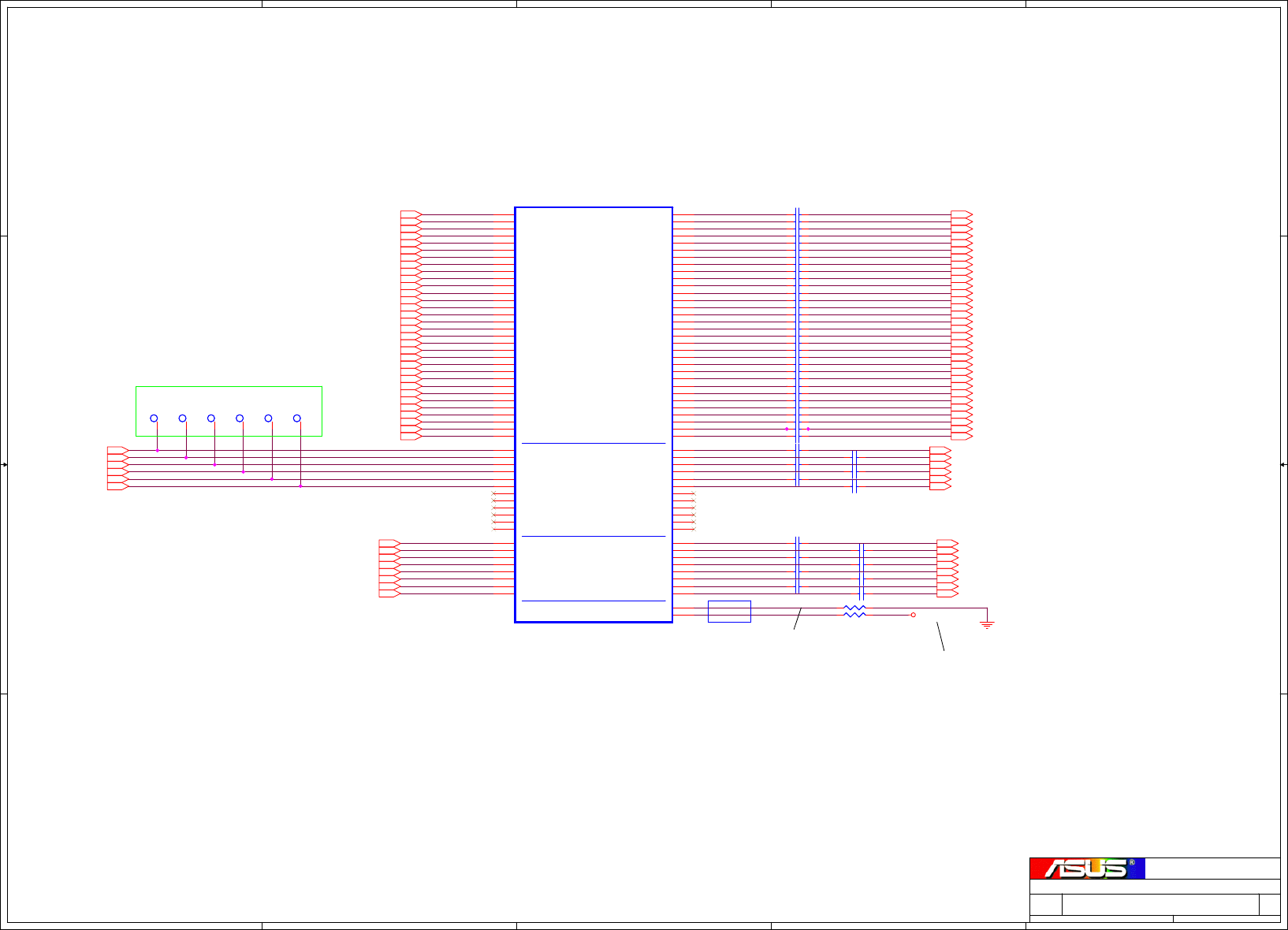

PCE_CALRP
GPP_TX1P_C
GPP_TX1N_C
PCE_CALRN
GPP_TX2P_C
GPP_TX2N_C
GPP_TX0P_C
GPP_TX0N_C
A_TX0P_CA_TX0P_C
A_TX0N_CA_TX0N_C
A_TX3P_C
A_TX1P_CA_TX1P_C
A_TX1N_CA_TX1N_C
A_TX3N_C
A_TX2N_C
A_TX2P_C
PCIENB_TXP0
PCIENB_TXN0
PCIENB_TXP1
PCIENB_TXN1
PCIENB_TXP3
PCIENB_TXN3
PCIENB_TXP2
PCIENB_TXN2
PCIENB_TXP5
PCIENB_TXN5
PCIENB_TXP4
PCIENB_TXN4
PCIENB_TXP7
PCIENB_TXN7
PCIENB_TXP6
PCIENB_TXN6
PCIENB_TXN13
PCIENB_TXN12
PCIENB_TXN15
PCIENB_TXN14
PCIENB_TXN9
PCIENB_TXN8
PCIENB_TXN11
PCIENB_TXN10
PCIENB_TXP8
PCIENB_TXP9
PCIENB_TXP10
PCIENB_TXP11
PCIENB_TXP12
PCIENB_TXP13
PCIENB_TXP14
PCIENB_TXP15
PCIE_SB_NB_RX0P[20] PCIE_SB_NB_RX0N[20] PCIE_SB_NB_RX1P[20] PCIE_SB_NB_RX1N[20] PCIE_SB_NB_RX2P[20] PCIE_SB_NB_RX2N[20] PCIE_SB_NB_RX3P[20] PCIE_SB_NB_RX3N[20]
PCIE_NB_SB_TX0P [20]
PCIE_NB_SB_TX0N [20]
PCIE_NB_SB_TX1P [20]
PCIE_NB_SB_TX1N [20]
PCIE_NB_SB_TX2P [20]
PCIE_NB_SB_TX2N [20]
PCIE_NB_SB_TX3P [20]
PCIE_NB_SB_TX3N [20]
PCIE_TXP2_NEWCARD [43]
PCIE_TXN2_NEWCARD [43]
PCIE_TXP0_MINICARD [53]
PCIE_TXN0_MINICARD [53]PCIE_RXN0_MINICARD[53] PCIE_RXP0_MINICARD[53]
PCIE_RXN2_NEWCARD[43] PCIE_RXP2_NEWCARD[43] PCIE_RXN1_LAN[33] PCIE_TXP1_LAN [33]
PCIE_TXN1_LAN [33]
PCIE_RXP1_LAN[33]
PCIEG_RXP0 [71]
PCIEG_RXN0 [71]
PCIEG_RXP1 [71]
PCIEG_RXN1 [71]
PCIEG_RXP2 [71]
PCIEG_RXN2 [71]
PCIEG_RXP3 [71]
PCIEG_RXN3 [71]
PCIEG_RXP6 [71]
PCIEG_RXN6 [71]
PCIEG_RXP7 [71]
PCIEG_RXN7 [71]
PCIEG_RXP4 [71]
PCIEG_RXN4 [71]
PCIEG_RXP5 [71]
PCIEG_RXN5 [71]
PCIEG_RXP10 [71]
PCIEG_RXN10 [71]
PCIEG_RXP11 [71]
PCIEG_RXN11 [71]
PCIEG_RXP8 [71]
PCIEG_RXP14 [71]
PCIEG_RXN14 [71]
PCIEG_RXP15 [71]
PCIEG_RXN15 [71]
PCIEG_RXP12 [71]
PCIEG_RXN12 [71]
PCIEG_RXP13 [71]
PCIEG_RXN13 [71]
PCIEG_RXN8 [71]
PCIEG_RXP9 [71]
PCIEG_RXN9 [71]
PCIENB_RXP0[71] PCIENB_RXN0[71] PCIENB_RXP1[71] PCIENB_RXN1[71]
PCIENB_RXP3[71] PCIENB_RXN3[71]
PCIENB_RXP2[71] PCIENB_RXN2[71]
PCIENB_RXP5[71] PCIENB_RXN5[71]
PCIENB_RXP7[71] PCIENB_RXN7[71]
PCIENB_RXP6[71] PCIENB_RXN6[71]
PCIENB_RXP4[71] PCIENB_RXN4[71]
PCIENB_RXP9[71] PCIENB_RXN9[71]
PCIENB_RXP11[71] PCIENB_RXN11[71]
PCIENB_RXP10[71] PCIENB_RXN10[71]
PCIENB_RXP13[71] PCIENB_RXN13[71]
PCIENB_RXP15[71] PCIENB_RXN15[71]
PCIENB_RXP14[71] PCIENB_RXN14[71]
PCIENB_RXP12[71] PCIENB_RXN12[71]
PCIENB_RXP8[71] PCIENB_RXN8[71]
+1.1V_NB
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
11 91Friday, May 29, 2009
ASUSTeK.Computer.INC
RS780M-PCIE LINK I/F
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
11 91Friday, May 29, 2009
ASUSTeK.Computer.INC
RS780M-PCIE LINK I/F
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
11 91Friday, May 29, 2009
ASUSTeK.Computer.INC
RS780M-PCIE LINK I/F
2.05
F5Z
<OrgAddr1>
071129
Add net name 071212
change P/N
071219
Add Test Point
080201
Change to +1.1V_NB
form NB_VDD_MUX
R1.1
R1.11 080319
Change the NB Part number to RS780 (A13)
12
C1113 0.1UF/10VC1113 0.1UF/10V
12
C1125 0.1UF/10V
/GPU
C1125 0.1UF/10V
/GPU
12
C1136 0.1UF/10V
/GPU
C1136 0.1UF/10V
/GPU
12
C1144 0.1UF/10V
/GPU
C1144 0.1UF/10V
/GPU
12
C1124 0.1UF/10V
/GPU
C1124 0.1UF/10V
/GPU
1
T1103
TPC28T
T1103
TPC28T
12
C1115 0.1UF/10V
/GPU
C1115 0.1UF/10V
/GPU
12
C1116 0.1UF/10V
/GPU
C1116 0.1UF/10V
/GPU
12
C1110 0.1UF/10VC1110 0.1UF/10V
12
C1135 0.1UF/10V
/GPU
C1135 0.1UF/10V
/GPU
12
C1117 0.1UF/10V
/GPU
C1117 0.1UF/10V
/GPU
12
C1111 0.1UF/10VC1111 0.1UF/10V
12
C1134 0.1UF/10V
/GPU
C1134 0.1UF/10V
/GPU
12
C1123 0.1UF/10V
/GPU
C1123 0.1UF/10V
/GPU
1
T1102
TPC28T
T1102
TPC28T
12
C1129 0.1UF/10V
/GPU
C1129 0.1UF/10V
/GPU
12
C1105 0.1UF/10VC1105 0.1UF/10V
12
C1133 0.1UF/10V
/GPU
C1133 0.1UF/10V
/GPU
1
T1104
TPC28T
T1104
TPC28T
12
C1141 0.1UF/10V
/GPU
C1141 0.1UF/10V
/GPU
1 2 R11022KOHM R11022KOHM
12
C1128 0.1UF/10V
/GPU
C1128 0.1UF/10V
/GPU
12
C1126 0.1UF/10V
/GPU
C1126 0.1UF/10V
/GPU
12
C1118 0.1UF/10V
/GPU
C1118 0.1UF/10V
/GPU
12
C1102 0.1UF/10VC1102 0.1UF/10V
12
C1107 0.1UF/10VC1107 0.1UF/10V
12
C1132 0.1UF/10V
/GPU
C1132 0.1UF/10V
/GPU
12
C1122 0.1UF/10V
/GPU
C1122 0.1UF/10V
/GPU
12
C1106 0.1UF/10VC1106 0.1UF/10V
12
C1146 0.1UF/10V
/GPU
C1146 0.1UF/10V
/GPU
12
C1120 0.1UF/10V
/GPU
C1120 0.1UF/10V
/GPU
12
C1101 0.1UF/10VC1101 0.1UF/10V
12
C1103 0.1UF/10VC1103 0.1UF/10V
12
C1127 0.1UF/10V
/GPU
C1127 0.1UF/10V
/GPU
1
T1106
TPC28T
T1106
TPC28T
1
T1101
TPC28T
T1101
TPC28T
12
C1119 0.1UF/10V
/GPU
C1119 0.1UF/10V
/GPU
12
C1112 0.1UF/10VC1112 0.1UF/10V
12
C1131 0.1UF/10V
/GPU
C1131 0.1UF/10V
/GPU
1 2 R11011.27KOhm R11011.27KOhm
12
C1140 0.1UF/10V
/GPU
C1140 0.1UF/10V
/GPU
SB_TX3P AD5
SB_TX3N AE5
GPP_TX2P AA2
GPP_TX2N AA1
GPP_TX3P Y1
GPP_TX3N Y2
SB_RX3P
W5
SB_RX3N
Y5
GPP_RX2P
AD1
GPP_RX2N
AD2
GPP_RX3P
V5
GPP_RX3N
W6
SB_TX0P AD7
SB_TX0N AE7
SB_TX1P AE6
SB_TX1N AD6
SB_RX0P
AA8
SB_RX0N
Y8
SB_RX1P
AA7
SB_RX1N
Y7
PCE_CALRP AC8
PCE_CALRN AB8
SB_TX2N AC6
SB_RX2P
AA5
SB_RX2N
AA6 SB_TX2P AB6
GPP_RX0P
AE3
GPP_RX0N
AD4
GPP_RX1P
AE2
GPP_RX1N
AD3
GPP_TX0P AC1
GPP_TX0N AC2
GPP_TX1P AB4
GPP_TX1N AB3
GFX_RX0P
D4
GFX_RX0N
C4
GFX_RX1P
A3
GFX_RX1N
B3
GFX_RX2P
C2
GFX_RX2N
C1
GFX_RX3P
E5
GFX_RX3N
F5
GFX_RX4P
G5
GFX_RX4N
G6
GFX_RX5P
H5
GFX_RX5N
H6
GFX_RX6P
J6
GFX_RX6N
J5
GFX_RX7P
J7
GFX_RX7N
J8
GFX_RX8P
L5
GFX_RX8N
L6
GFX_RX9P
M8
GFX_RX9N
L8
GFX_RX10P
P7
GFX_RX10N
M7
GFX_RX11P
P5
GFX_RX11N
M5
GFX_RX12P
R8
GFX_RX12N
P8
GFX_RX13P
R6
GFX_RX13N
R5
GFX_RX14P
P4
GFX_RX14N
P3
GFX_RX15P
T4
GFX_RX15N
T3
GFX_TX0P A5
GFX_TX0N B5
GFX_TX1P A4
GFX_TX1N B4
GFX_TX2P C3
GFX_TX2N B2
GFX_TX3P D1
GFX_TX3N D2
GFX_TX4P E2
GFX_TX4N E1
GFX_TX5P F4
GFX_TX5N F3
GFX_TX6P F1
GFX_TX6N F2
GFX_TX7P H4
GFX_TX7N H3
GFX_TX8P H1
GFX_TX8N H2
GFX_TX9P J2
GFX_TX9N J1
GFX_TX10P K4
GFX_TX10N K3
GFX_TX11P K1
GFX_TX11N K2
GFX_TX12P M4
GFX_TX12N M3
GFX_TX13P M1
GFX_TX13N M2
GFX_TX14P N2
GFX_TX14N N1
GFX_TX15P P1
GFX_TX15N P2
GPP_TX4P Y4
GPP_TX4N Y3
GPP_TX5P V1
GPP_TX5N V2
GPP_RX4P
U5
GPP_RX4N
U6
GPP_RX5P
U8
GPP_RX5N
U7
PART 2 OF 6
PCIE I/F GFX
PCIE I/F GPP
PCIE I/F SB
U1001B
RS780MN
PART 2 OF 6
PCIE I/F GFX
PCIE I/F GPP
PCIE I/F SB
U1001B
RS780MN
12
C1142 0.1UF/10V
/GPU
C1142 0.1UF/10V
/GPU
12
C1121 0.1UF/10V
/GPU
C1121 0.1UF/10V
/GPU
12
C1138 0.1UF/10V
/GPU
C1138 0.1UF/10V
/GPU
12
C1145 0.1UF/10V
/GPU
C1145 0.1UF/10V
/GPU
12
C1139 0.1UF/10V
/GPU
C1139 0.1UF/10V
/GPU
12
C1104 0.1UF/10VC1104 0.1UF/10V
12
C1130 0.1UF/10V
/GPU
C1130 0.1UF/10V
/GPU
1
T1105
TPC28T
T1105
TPC28T
12
C1114 0.1UF/10VC1114 0.1UF/10V
12
C1137 0.1UF/10V
/GPU
C1137 0.1UF/10V
/GPU
12
C1143 0.1UF/10V
/GPU
C1143 0.1UF/10V
/GPU
12
C1109 0.1UF/10VC1109 0.1UF/10V
12
C1108 0.1UF/10VC1108 0.1UF/10V

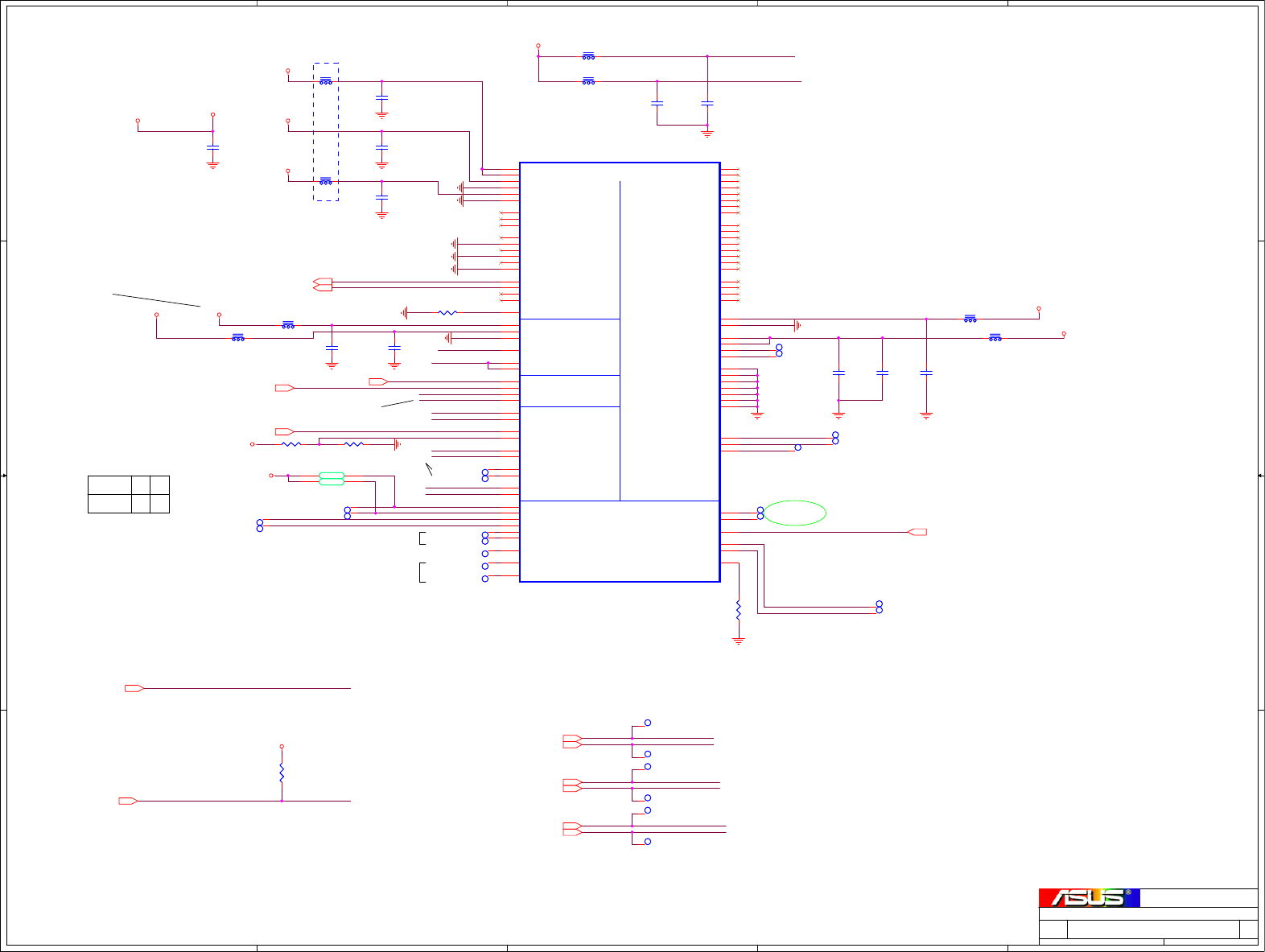

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VDDA18HTPLL
NB_LDT_STOP#
AVDD
AVDDQ_L
AVDDDI
PLLVDD VDDLTP18_PLL_L
VDDA18PCIEPLL
PLLVDD18
SRC_NB_GFX_REFCLKP
VDDA18PCIEPLL
VDDA18HTPLL
SRC_NB_GFX_REFCLKN
NB_PWRGD
NB_LDT_STOP#
SRC_NB_HT_CLKP
SRC_NB_HT_CLKN
ALLOW_LDTSTOP
VDDLTP18_L
SRC_NB_GFX_REFCLKP
SRC_NB_GFX_REFCLKN
NB_REFCLKN
SRC_NB_PCIE_RCLKP
SRC_NB_PCIE_RCLKN
NB_THRMDA
NB_THRMDC
SRC_NB_HT_CLKP
SRC_NB_HT_CLKN
SRC_NB_PCIE_RCLKP
SRC_NB_PCIE_RCLKN
NB_REFCLKP
CRT_NB_HSYNC[13] CRT_NB_VSYNC[13]
NB_RST#[20]
NB_OSC[29]
CPU_LDT_STOP#[5,20]
SRC_NB_GFX_REFCLKP[29] SRC_NB_GFX_REFCLKN[29]
SRC_NB_HT_CLKP[29] SRC_NB_HT_CLKN[29]
SRC_NB_PCIE_RCLKP[29] SRC_NB_PCIE_RCLKN[29]
NB_PWRGD[21]
SUS_STAT# [21]
ALLOW_LDTSTOP[20]
+3VS
+1.8VS
+1.8V_PLL
GND
GND
GND
GND
GND
+1.8VS +1.8V_PLL
GND
GND
GND
GND
GND
GND
+1.1V_NB
GND
+1.8V_PLL
GND
GND
+1.8V_PLL
+1.1V_NB GND
GND
GND
+1.8V_PLL
GND
GND
+1.8VS
GND
+1.8VS
+3VS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
12 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-SYS I/F
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
12 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-SYS I/F
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
12 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-SYS I/F
2.05
F5Z
<OrgAddr1>
STRP_DATA 01
VCC_NB 1.0V 1.1V
?? for external graphic
071115
071116
090316
change backlight control by M92
071204
071207
DEL serial R
071218
for measurement near U1001
have via for measurement
071219
For Layout impdance setting
080201
Change to +1.1V_NB
form NB_VDD_MUX
R1.1
R1.11
R1.11 080319
Change the NB Part number to RS780 (A13)
R2.0
080325
Remove Q1201A and R1219
Change NB_ALLOW_LDTSTOP to ALLOW_LDTSTOP
R2.0080401
Change NB_ALLOW_LDTSTOP to ALLOW_LDTSTOP
R2.0080401
080828 080828
x7R
080828 080828
080828
090407
080828
080828
R1.11
080310
remove D1201 circuit
090410
Notice RN1215 remove?
090411
notice L1201 L1204 change SL?
090411
21
L1207 220Ohm/100MhzL1207 220Ohm/100Mhz
21
L1206 220Ohm/100MhzL1206 220Ohm/100Mhz
12
C1204
22UF/6.3V
C1204
22UF/6.3V
1 2
R1228
300Ohm
R1228
300Ohm
12
C1206
2.2UF/10V
C1206
2.2UF/10V
1
T1212 TPC28TT1212 TPC28T
21
L1201 220Ohm/100MhzL1201 220Ohm/100Mhz
1
T1211 TPC28TT1211 TPC28T
1 2
RN1215A
4.7KOHM
@
RN1215A
4.7KOHM
@
21
L1208 220Ohm/100MhzL1208 220Ohm/100Mhz
1
T1203 TPC28TT1203 TPC28T
21
L1203 220Ohm/100MhzL1203 220Ohm/100Mhz
1
T1224 TPC28TT1224 TPC28T
21
L1204 220Ohm/100MhzL1204 220Ohm/100Mhz
1
T1214 TPC28TT1214 TPC28T
1
T1202 TPC28TT1202 TPC28T
1
T1220 TPC28TT1220 TPC28T
1 2
R1209 4.7KOhmR1209 4.7KOhm
1
T1221 TPC28TT1221 TPC28T
12
C1201
2.2UF/10V
C1201
2.2UF/10V
1
T1204 TPC28TT1204 TPC28T
3 4
RN1215B
4.7KOHM
@
RN1215B
4.7KOHM
@
1
T1222 TPC28TT1222 TPC28T
21
L1205 220Ohm/100MhzL1205 220Ohm/100Mhz
21
L1202 220Ohm/100MhzL1202 220Ohm/100Mhz
1
T1201 TPC28TT1201 TPC28T
1
T1205 TPC28TT1205 TPC28T
1
T1215 TPC28TT1215 TPC28T
1
T1207 TPC28TT1207 TPC28T
12
C1202
2.2UF/10V
C1202
2.2UF/10V
1
T1223 TPC28TT1223 TPC28T
1
T1226 TPC28TT1226 TPC28T
1 2
R1206 715OhmR1206 715Ohm
1
T1218 TPC28TT1218 TPC28T
12
C1207
2.2UF/10V
C1207
2.2UF/10V
12
C1209
2.2UF/10V
C1209
2.2UF/10V
12
C1203
2.2UF/10V
C1203
2.2UF/10V
1
T1208 TPC28TT1208 TPC28T
1 2
R1218
1.8KOHM5%
R1218
1.8KOHM5%
1
T1206 TPC28TT1206 TPC28T
1
T1213 TPC28TT1213 TPC28T
1
T1219 TPC28TT1219 TPC28T
12
C1211
0.1UF/10V
C1211
0.1UF/10V
12
C1205
0.1UF/10V
C1205
0.1UF/10V
VDDA18HTPLL
H17
SYSRESET#
D8
POWERGOOD
A10
LDTSTOP#
C10
ALLOW_LDTSTOP
C12
REFCLK_P
E11
PLLVDD
A12
HPD D10
DDC_CLK0/AUX0P
A8 DDC_DATA0/AUX0N
B8
THERMALDIODE_P AE8
THERMALDIODE_N AD8
I2C_CLK
B9
STRP_DATA
B10
GFX_REFCLKP
T2
GFX_REFCLKN
T1
GPP_REFCLKP
U1
GPP_REFCLKN
U2
PLLVDD18
D14
PLLVSS
B12
TXOUT_L0P A22
TXOUT_L0N B22
TXOUT_L1P A21
TXOUT_L1N B21
TXOUT_L2P B20
TXOUT_L2N A20
TXOUT_L3P A19
TXOUT_U0P B18
TXOUT_L3N B19
TXOUT_U0N A18
TXOUT_U1P A17
TXOUT_U1N B17
TXOUT_U2P D20
TXOUT_U2N D21
TXOUT_U3P D18
TXOUT_U3N D19
TXCLK_LP B16
TXCLK_LN A16
TXCLK_UP D16
TXCLK_UN D17
VDDLTP18 A13
VSSLTP18 B13
C
E17
Y
F17
COMP
F15
RED
G18
TMDS_HPD D9
I2C_DATA
A9
TESTMODE D13
HT_REFCLKN
C24 HT_REFCLKP
C25
SUS_STAT# D12
GREEN
E18
BLUE
E19
DAC_VSYNC
B11 DAC_HSYNC
A11
DAC_RSET
G14
AVDD1
F12
AVDD2
E12
RED#
G17
GREEN#
F18
AVDDDI
F14
AVSSDI
G15
AVDDQ
H15
AVSSQ
H14
VDDLT18_2 B15
VDDLT33_1 A14
VDDLT33_2 B14
VSSLT1 C14
VSSLT2 D15
VDDLT18_1 A15
VSSLT3 C16
VSSLT4 C18
VSSLT5 C20
LVDS_DIGON E9
LVDS_BLON F7
LVDS_ENA_BL G12
VSSLT6 E20
VDDA18PCIEPLL1
D7
VDDA18PCIEPLL2
E7
BLUE#
F19
AUX_CAL
C8
GPPSB_REFCLKP
V4
GPPSB_REFCLKN
V3
DDC_DATA1/AUX1N
A7 DDC_CLK1/AUX1P
B7
DAC_SCL
F8 DAC_SDA
E8
REFCLK_N
F11
VSSLT7 C22
RESERVED
G11
PART 3 OF 6
PM
CLOCKs PLL PWR
MIS.
CRT/TVOUT
LVTM
U1001C
RS780MN
PART 3 OF 6
PM
CLOCKs PLL PWR
MIS.
CRT/TVOUT
LVTM
U1001C
RS780MN
1
T1216 TPC28TT1216 TPC28T
1
T1209 TPC28TT1209 TPC28T
1
T1217 TPC28TT1217 TPC28T
1
T1210 TPC28TT1210 TPC28T
12
C1208
2.2UF/10V
C1208
2.2UF/10V
1 2
R1208 4.7KOhmR1208 4.7KOhm
1
T1225 TPC28TT1225 TPC28T
12
C1212
4.7UF/6.3V
C1212
4.7UF/6.3V

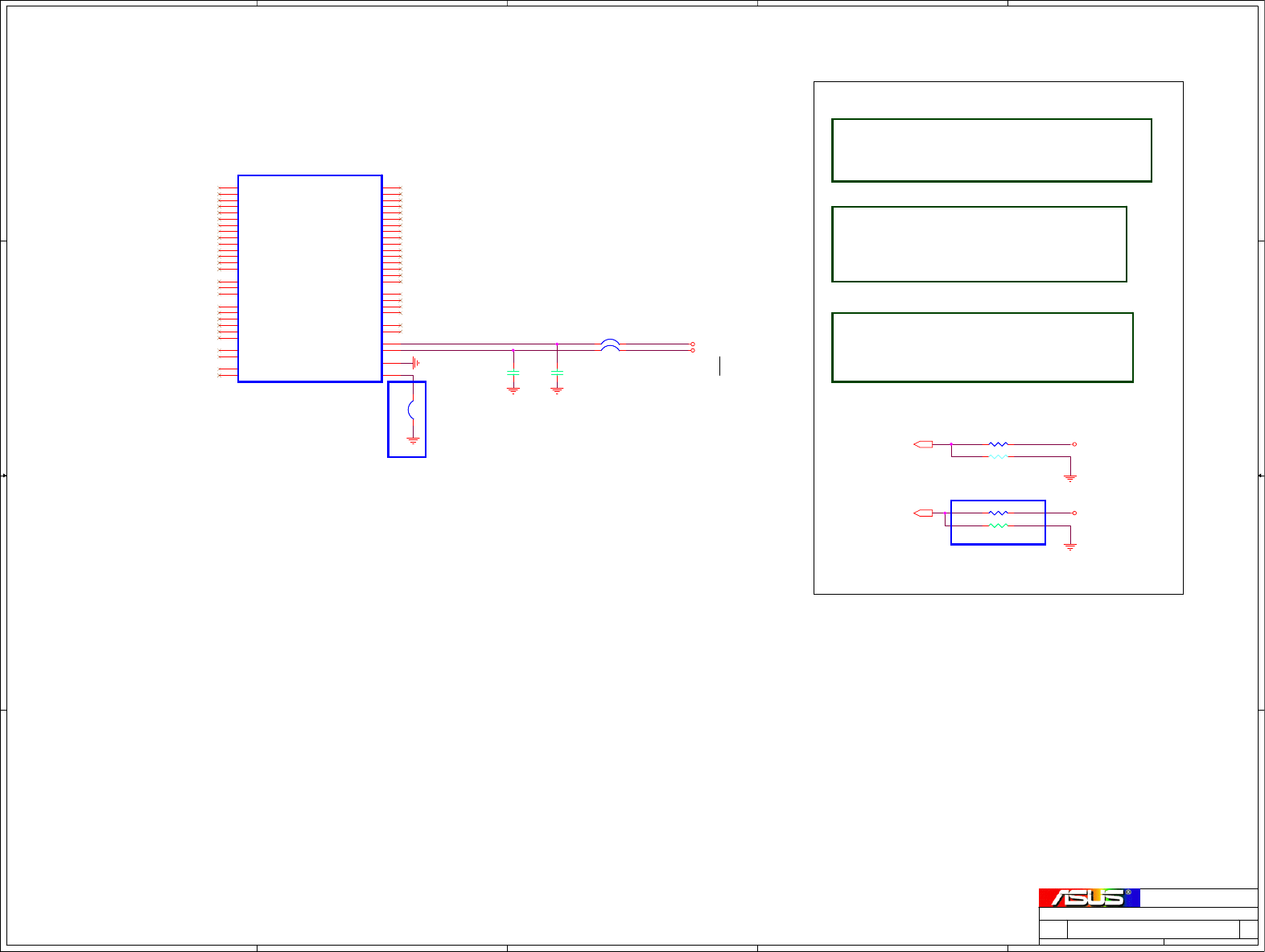

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+1.8V_PLL_L
NB_VDD_MUX_L
CRT_NB_VSYNC[12]
CRT_NB_HSYNC[12]
+3VS
GND
+3VS
GND
GND
GND GND
+1.8V_PLL
+1.1V_NB
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
13 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-SPMEM/STRAP
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
13 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-SPMEM/STRAP
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
13 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-SPMEM/STRAP
2.05
F5Z
<OrgAddr1>
RS740/RS780: Enables Side port memory
RS780:HSYNC#
Selects if Memory SIDE PORT is available or not
1 = Memory Side port Not available
0 = Memory Side port available
Register Readback of strap: NB_CLKCFG:CLK_TOP_SPARE_D[1]
Enables the Test Debug Bus using PCIE bus:
1 : Disable ( Can still be enabled using nbcfg register access )
0 : Enable
RS780: configurable thru register setting only
STRAP_DEBUG_BUS_PCIE_ENABLE
Selects Loading of STRAPS from EPROM
1 : Bypass the loading of EEPROM straps and use Hardware Default Values
0 : I2C Master can load strap values from EEPROM if connected, or use
default values if not connected
RS780:SUS_STAT
DFT_GPIO1: LOAD_EEPROM_STRAPS
080118
Disable Side Port Memory
080118
Disable Side Port Memory
R1.1
R1.1
080201
Change to +1.1V_NB
form NB_VDD_MUX
R1.1
R1.11 080319
Change the NB Part number to RS780 (A13)
080828 080828
L1301ㄛL1302 傖SL蹋璃ㄛC1307ㄛC1308蕼隱
090407
1 2
R13053KOHM R13053KOHM
2 1
0603
SL1307
0603
SL1307
1 2
R1306
3KOHM @
R1306
3KOHM @
21
0603
L1301
0603
L1301
12
C1307
2.2UF/10V
@
C1307
2.2UF/10V
@
MEM_A0
AB12
MEM_A1
AE16
MEM_A2
V11
MEM_A3
AE15
MEM_A4
AA12
MEM_A5
AB16
MEM_A6
AB14
MEM_A7
AD14
MEM_A8
AD13
MEM_A9
AD15
MEM_A10
AC16
MEM_A11
AE13
MEM_A12
AC14
MEM_A13
Y14
MEM_BA0
AD16
MEM_BA1
AE17
MEM_BA2
AD17
MEM_RAS#
W12
MEM_CAS#
Y12
MEM_WE#
AD18
MEM_CS#
AB13
MEM_CKE
AB18
MEM_ODT
V14
MEM_CKP
V15
MEM_CKN
W14
MEM_DM0 W17
MEM_DM1 AE19
MEM_DQS0P Y17
MEM_DQS0N W18
MEM_DQS1P AD20
MEM_DQS1N AE21
MEM_DQ0 AA18
MEM_DQ1 AA20
MEM_DQ2 AA19
MEM_DQ3 Y19
MEM_DQ4 V17
MEM_DQ5 AA17
MEM_DQ6 AA15
MEM_DQ7 Y15
MEM_DQ8 AC20
MEM_DQ9 AD19
MEM_DQ10 AE22
MEM_DQ11 AC18
MEM_DQ12 AB20
MEM_DQ13 AD22
MEM_DQ14 AC22
MEM_DQ15 AD21
MEM_COMPP
AE12
MEM_COMPN
AD12 MEM_VREF AE18
IOPLLVDD18 AE23
IOPLLVSS AD23
IOPLLVDD AE24
SBD_MEM/DVO_I/F
PAR 4 OF 6
U1001D
RS780MN
SBD_MEM/DVO_I/F
PAR 4 OF 6
U1001D
RS780MN
21
0603
L1302
0603
L1302
1 2
R13023KOHM R13023KOHM
12
C1308
2.2UF/10V
@
C1308
2.2UF/10V
@
1 2
R13033KOHM @R13033KOHM @
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

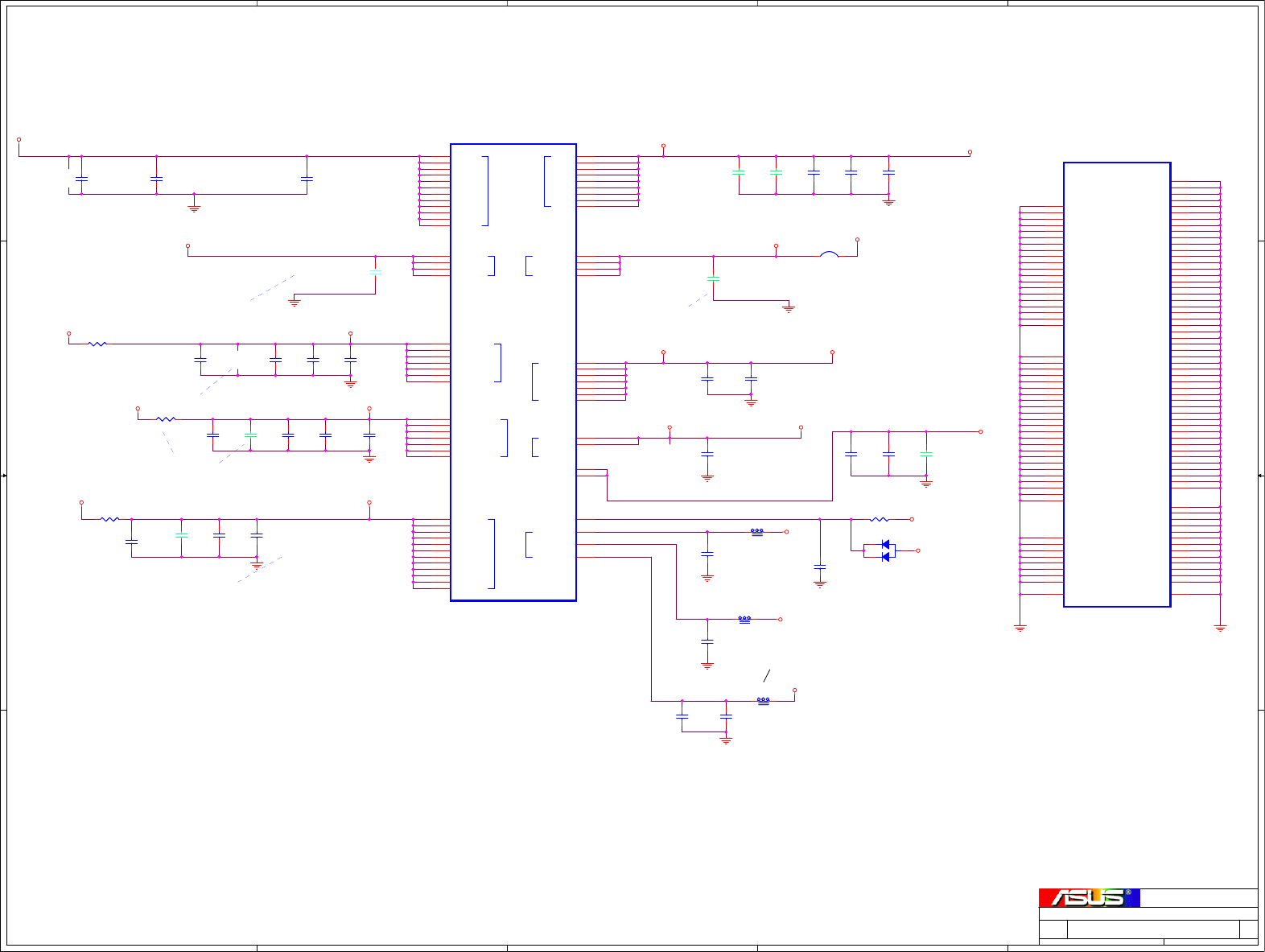

VDD18_R
VDD_PCIE
VDDC
VDDA18PCIE
VDDHTTX
NB_VDD_MUX_VDDHT
VDDHTRX
VDD18_MEM_R
VDD33_R
VDD_MEM_L
GND
+1.1V_NB
GND
GND
GND
+1.2V_CPU_NB_SB
GND
+1.8VS
GND
+1.8VS
GND
GND
+3VS
GND
GND
+1.1V_NB
+VCC_NB
+1.8VS
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
14 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-POWER
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
14 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-POWER
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
14 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
RS780M-POWER
2.05
F5Z
<OrgAddr1>
1.2V(RS740)/1.1V(RX780;RS780)
600 mA
071130
delete R
Disable Side Port Memory
Change to +1.1V_NB
form NB_VDD_MUX
Change to 0805 from 1206
R1.1080201
R1.11 080319
Change the NB Part number to RS780 (A13)
R1.11 080319
Change the NB Part number to RS780 (A13)
X7R
X7R
X7R
X7R
080828
090316
change R to SL
090404 cost
remove C1419,C1420 0.1uF
090404 cost
remove C1442 0.1uF
090404 cost
remove C1429 4.7uF
12
C1406
0.1UF/10V
C1406
0.1UF/10V
12
C1416
0.1UF/10V
C1416
0.1UF/10V
12
C1408
1UF/6.3V
C1408
1UF/6.3V
12
C1427
10UF/6.3V
C1427
10UF/6.3V
12
C1428
4.7UF/6.3V
C1428
4.7UF/6.3V
12
C1425
0.1UF/10V
C1425
0.1UF/10V
12
C1403
0.1UF/10V
C1403
0.1UF/10V
12
C1432
0.1UF/10V
C1432
0.1UF/10V
2 1
0603
SL1408
0603
SL1408
12
C1404
0.1UF/10V
@
C1404
0.1UF/10V
@
12
C1414
4.7UF/6.3V
C1414
4.7UF/6.3V
21
L1404
220Ohm/100Mhz
L1404
220Ohm/100Mhz
12
C1423
0.1UF/10V
C1423
0.1UF/10V
12
C1422
0.1UF/10V
C1422
0.1UF/10V
12
C1411
0.1UF/10V
C1411
0.1UF/10V
12
C1426
10UF/6.3V
@
C1426
10UF/6.3V
@
12
C1431
0.1UF/10V
C1431
0.1UF/10V
12
C1405
0.1UF/10V
C1405
0.1UF/10V
12
C1447
1UF/6.3V
C1447
1UF/6.3V
12
C1441
0.1UF/10V
C1441
0.1UF/10V
12
C1421
0.1UF/10V
@
C1421
0.1UF/10V
@
12
C1409
4.7UF/6.3V
C1409
4.7UF/6.3V
12
C1407
1UF/6.3V
C1407
1UF/6.3V
12
C1401
4.7UF/6.3V
C1401
4.7UF/6.3V
12
C1412
0.1UF/10V
C1412
0.1UF/10V
21
L1403
220Ohm/100Mhz
L1403
220Ohm/100Mhz
12
C1410
4.7UF/6.3V
C1410
4.7UF/6.3V
12
C1415
0.1UF/10V
C1415
0.1UF/10V
VDDHT1
J17
VDDHT2
K16
VDDHT3
L16
VDDHT4
M16
VDDHT5
P16
VDDHT6
R16
VDDHT7
T16
VDDHTTX1
AE25
VDDHTTX2
AD24
VDDHTTX3
AC23
VDDHTTX4
AB22
VDDHTTX5
AA21
VDDHTTX6
Y20
VDDHTTX7
W19
VDDHTTX8
V18
VDDHTRX1
H18
VDDHTRX2
G19
VDDHTRX3
F20
VDDHTRX4
E21
VDDHTRX5
D22
VDD18_1
F9
VDD18_2
G9
VDD18_MEM1
AE11
VDD18_MEM2
AD11
VDDA18PCIE1
J10
VDDA18PCIE2
P10
VDDA18PCIE3
K10
VDDA18PCIE10
Y9
VDDA18PCIE11
AA9
VDDA18PCIE12
AB9
VDDA18PCIE13
AD9
VDDA18PCIE14
AE9
VDDA18PCIE6
W9
VDDA18PCIE7
H9
VDDPCIE1 A6
VDDPCIE2 B6
VDDPCIE3 C6
VDDPCIE4 D6
VDDPCIE5 E6
VDDPCIE6 F6
VDDPCIE7 G7
VDDPCIE8 H8
VDDPCIE9 J9
VDDA18PCIE4
M10
VDDA18PCIE5
L10
VDDC1 K12
VDDC2 J14
VDDC3 U16
VDDPCIE11 M9
VDDC4 J11
VDDC5 K15
VDDPCIE10 K9
VDDC6 M12
VDDC7 L14
VDDC8 L11
VDDC9 M13
VDDC10 M15
VDDC11 N12
VDDC12 N14
VDDC13 P11
VDDC14 P13
VDDC15 P14
VDDC16 R12
VDDC17 R15
VDDC18 T11
VDDC19 T15
VDDC20 U12
VDDC21 T14
VDD33_1 H11
VDD33_2 H12
VDD_MEM1 AE10
VDD_MEM2 AA11
VDD_MEM3 Y11
VDD_MEM4 AD10
VDD_MEM6 AC10
VDD_MEM5 AB10
VDDA18PCIE8
T10
VDDC22 J16
VDDPCIE12 L9
VDDA18PCIE9
R10
VDDPCIE13 P9
VDDPCIE14 R9
VDDPCIE15 T9
VDDPCIE16 V9
VDDPCIE17 U9
VDDA18PCIE15
U10
VDDHTRX6
B23
VDDHTRX7
A23
VDDHTTX9
U17
VDDHTTX10
T17
VDDHTTX11
R17
VDDHTTX12
P17
VDDHTTX13
M17
PART 5/6
POWER
U1001E
RS780MN
PART 5/6
POWER
U1001E
RS780MN
12
C1439
1UF/6.3V
C1439
1UF/6.3V
12
C1424
0.1UF/10V
C1424
0.1UF/10V
12
C1413
0.1UF/10V
@
C1413
0.1UF/10V
@
VSSAHT1
A25
VSSAHT2
D23
VSSAHT3
E22
VSSAHT4
G22
VSSAHT5
G24
VSSAHT6
G25
VSSAHT7
H19
VSSAHT8
J22
VSSAHT9
L17
VSSAHT10
L22
VSSAHT11
L24
VSSAHT12
L25
VSSAHT13
M20
VSSAHT14
N22
VSSAHT15
P20
VSSAHT16
R19
VSSAHT17
R22
VSSAHT18
R24
VSSAHT19
R25
VSSAHT21
U22
VSSAHT22
V19
VSSAHT23
W22
VSSAHT24
W24
VSSAHT25
W25
VSSAHT26
Y21
VSSAHT27
AD25
VSS33 D11
VSS32 G8
VSS31 E14
VSS30 E15
VSS28 J12
VSS27 K14
VSS26 M11
VSS25 L15
VSS1
L12
VSS2
M14
VSS3
N13
VSS4
P12
VSS5
P15
VSS6
R11
VSS7
R14
VSS8
T12
VSS9
U14
VSS10
U11
VSS11
U15
VSS12
V12
VSS13
W11
VSS14
W15
VSS15
AC12
VSS16
AA14
VSS17
Y18
VSS18
AB11
VSS19
AB15
VSS20
AB17
VSS21
AB19
VSS22
AE20
VSSAPCIE1 A2
VSSAPCIE2 B1
VSSAPCIE3 D3
VSSAPCIE4 D5
VSSAPCIE5 E4
VSSAPCIE6 G1
VSSAPCIE7 G2
VSSAPCIE8 G4
VSSAPCIE9 H7
VSSAPCIE10 J4
VSSAPCIE11 R7
VSSAPCIE12 L1
VSSAPCIE13 L2
VSSAPCIE14 L4
VSSAPCIE15 L7
VSS24
K11
VSSAPCIE16 M6
VSSAPCIE17 N4
VSSAPCIE18 P6
VSSAPCIE19 R1
VSSAPCIE20 R2
VSSAPCIE21 R4
VSSAPCIE22 V7
VSSAPCIE23 U4
VSSAPCIE24 V8
VSSAPCIE25 V6
VSSAPCIE26 W1
VSSAPCIE27 W2
VSSAPCIE28 W4
VSSAPCIE29 W7
VSSAPCIE30 W8
VSSAPCIE31 Y6
VSSAPCIE32 AA4
VSSAPCIE33 AB5
VSSAPCIE34 AB1
VSSAPCIE35 AB7
VSSAPCIE36 AC3
VSSAPCIE37 AC4
VSSAPCIE38 AE1
VSSAPCIE39 AE4
VSSAPCIE40 AB2
VSS34 AE14
VSSAHT20
H20
VSS23
AB21
VSS29 J15
PART 6/6
GROUND
U1001F
RS780MN
PART 6/6
GROUND
U1001F
RS780MN
12
C1402
0.1UF/10V
C1402
0.1UF/10V
12
C1433
0.1UF/10V
@
C1433
0.1UF/10V
@
12
C1430
0.1UF/10V
C1430
0.1UF/10V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
15 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
15 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
15 91
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
16 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
16 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
16 91
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
17 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
17 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
17 91
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
18 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
18 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
18 91
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
19 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
19 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
19 91

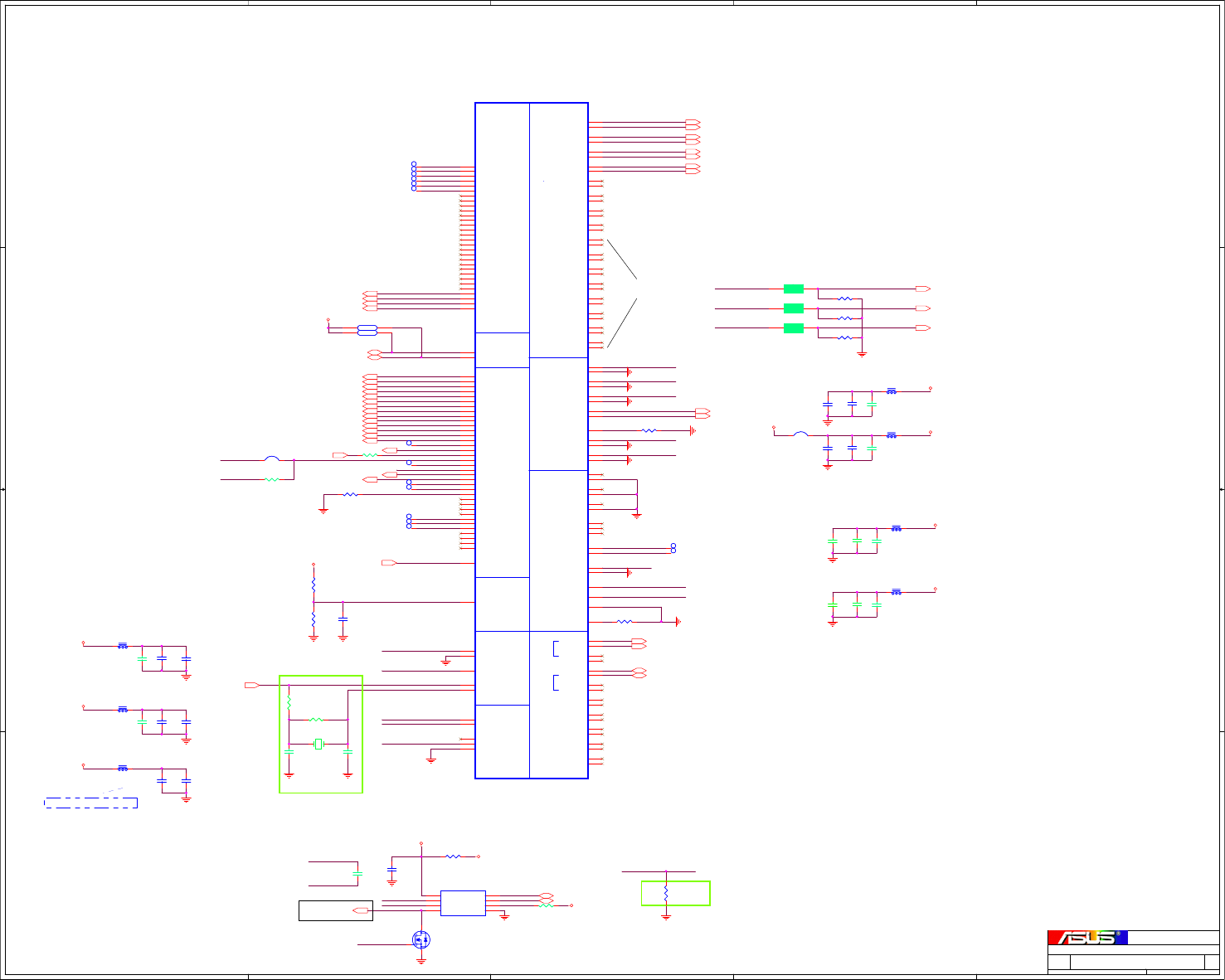

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

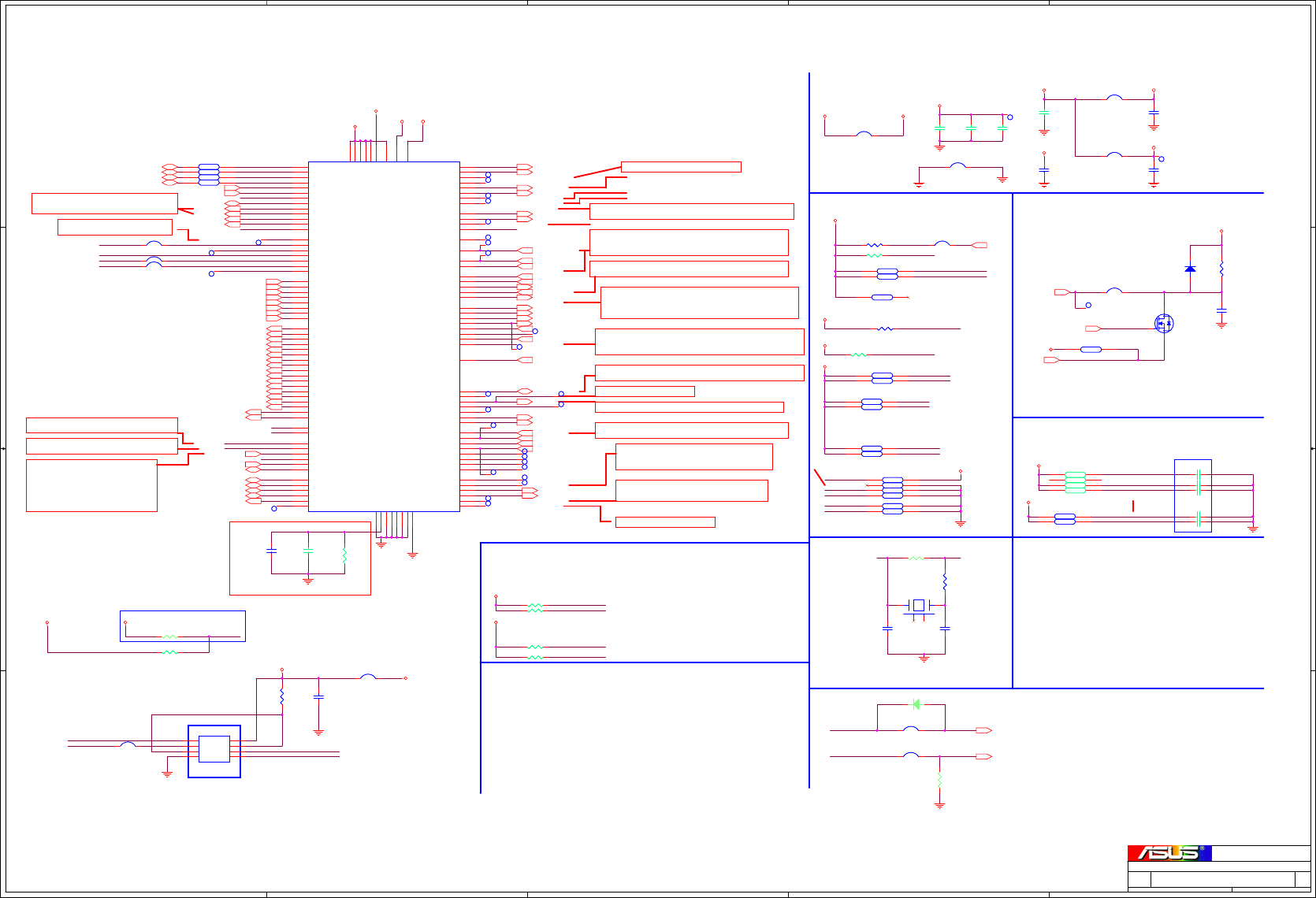

GPIO68
32K_XIN
32K_XOUT
PCI_CLK0
LPC_CLK0
LPC_CLK1_R
PCI_CLK1
GPIO36
GPIO71
GPIO70
INTRUDER_ALERT#
PCIE_CALRP
PCIE_PVDD_L
GPIO72
VBAT
GPIO33
GPIO73
GPIO34
A_RX3N_C
A_RX2N_C
A_RX3P_C
A_RX2P_C
A_RX1P_C
A_RX1N_C
A_RX0N_C
A_RX0P_C
PCIE_CALRN
GPIO65
GPIO35
CBE1#_VIA
DELSEL#_VIA
SERR#_VIA
CLK_DBGPCI2_R
CLK_DBGPCI1_R
PCI_CLK4_R
PCI_CLK5_R
A_RST#
A_RST#
32K_XIN
32K_XOUT
CLK_KBCPCI
PCIE_SB_NB_RX0P[11] PCIE_SB_NB_RX0N[11] PCIE_SB_NB_RX1P[11] PCIE_SB_NB_RX1N[11]
PCIE_SB_NB_RX2N[11] PCIE_SB_NB_RX3P[11] PCIE_SB_NB_RX3N[11]
PCIE_SB_NB_RX2P[11]
PCIE_NB_SB_TX0P[11] PCIE_NB_SB_TX0N[11] PCIE_NB_SB_TX1P[11] PCIE_NB_SB_TX1N[11] PCIE_NB_SB_TX2P[11] PCIE_NB_SB_TX2N[11] PCIE_NB_SB_TX3P[11] PCIE_NB_SB_TX3N[11]
SRC_SB_PCIE_RCLKP[29] SRC_SB_PCIE_RCLKN[29]
CPU_PROCHOT#[5] CPU_PWRGD[5]
CPU_LDT_STOP#[5,12] CPU_LDT_RST#[5]
PM_CLKRUN# [30]
LPC_AD2 [30,44]
LPC_AD1 [30,44]
LPC_AD3 [30,44]
LPC_AD0 [30,44]
INT_SERIRQ [30]
RTC_CLK [24]
CLK_DBGPCI2 [24,44]
BUF_PLT_RST# [5,30,33,40,43,53,71]
NB_RST# [12]
CLK_DBGPCI1 [24,44]
LPC_CLK0 [24]
LPC_FRAME# [30,44]
CLK_KBCPCI [24,30]
ALLOW_LDTSTOP[12]
PCI_CLK4 [24]
PCI_CLK5 [24]
SB_OSC[29]
GND
+1.2V_CPU_NB_SB
GND GND
+VCC_RTC
GND
+RTCBAT
+3VA
GND
+3VSUS
PCIE_VDDR
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
20 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_CPU/PCIE/LPC/CLK
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
20 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_CPU/PCIE/LPC/CLK
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
20 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_CPU/PCIE/LPC/CLK
2.05
F5Z
<OrgAddr1>
1%
CHANGE
1%
STRAP
internal Pull Up 8.2K
STRAP 071119
071120
add net name
071121
071127
071127
071127
071127
071127
internal Pull Up 15K
071204
AMD review
071204
AMD review
071206
AMD review
071206
AMD review
071207
AMD
review
071212
change P/N
071218
for measurement
near U2001
del R2007,R2011
080218
Reserved Via
090403
Correct to R1.1
080130 R1.1
Change TPM CLK
080130 R1.1 Change TPM CLK
Del T2017~T2033 for
GND Via improvement
080212
R1.1
Del T2052~T2074 for
GND Via improvement
080212
R1.1
080218 R1.1
Add Test Point
R1.1
Add Test Point
R1.11
080310
Change the P/N of BAT2001 from
12G201100203 to 12G201100208
R1.11 080319
Change the SB Part number to SB700 (A12)
R2.0 080327
Add test point for factory
ICT test
R2.0 080327
Add test point for factory
ICT test
R2.02 080519
Un-Mount D2001 and Mount R2035.
080526
Change R2035 P/N form 10G212000004030 to 10G212000004070 for ECN requirement
080828
標注
Add net SB_OSC
090326
H=1.3 mm
change ctystal (SB710) 07G010413277
090331
做BOM時要更換成SB710的料號:02G050003001
090406
change C2015,C2016 to 22pF 090407
EMI
090414
1
T2009TPC28T T2009TPC28T
1 2
C2015
22PF/50V
C2015
22PF/50V
1
T2016TPC28T T2016TPC28T
1 2
R2031 33OhmR2031 33Ohm
12
C2002 0.1UF/10VC2002 0.1UF/10V
1
T2084 TPC28TT2084 TPC28T
1
T2086TPC28T T2086TPC28T
1
T2018TPC28T T2018TPC28T
1
T2036TPC28T T2036TPC28T
1
T2007TPC28T T2007TPC28T
1
T2024TPC28T T2024TPC28T
21
L2001
220Ohm/100Mhz
L2001
220Ohm/100Mhz
1
T2037TPC28T T2037TPC28T
1 2
R2005 562OhmR2005 562Ohm
1
T2082TPC28T T2082TPC28T
12
R2027
10MOhm
@
R2027
10MOhm
@
1
T2089 TPC28TT2089 TPC28T
1
T2048TPC28T T2048TPC28T
1
T2035 TPC28TT2035 TPC28T
1 2
R2006 22OhmR2006 22Ohm
1
T2085TPC28T T2085TPC28T
12
3
4
BAT2001
BATT_HOLDER_2P
BAT2001
BATT_HOLDER_2P
1
T2042TPC28T T2042TPC28T
12
C2008 0.1UF/10VC2008 0.1UF/10V
1
2
3 4
5
NC
A
GND Y
VCC
U2002
74LVC1G17GW
@
NC
A
GND Y
VCC
U2002
74LVC1G17GW
@
1
T2080TPC28T T2080TPC28T
1
T2006TPC28T T2006TPC28T
A_RST#
N2
PCIE_RX2P
R20
PCIE_RX2N
R21
PCIE_RX3P
R18
PCIE_TX3N
T22 PCIE_TX3P
T23 PCIE_TX2N
U24 PCIE_TX2P
U25
PCIE_RX1P
U19
PCIE_RX1N
V19
PCIE_RX0P
U22
PCIE_RX0N
U21
PCIE_TX1N
V25 PCIE_TX1P
V24 PCIE_TX0N
V22 PCIE_TX0P
V23
PCIE_RCLKP/NB_LNK_CLKP
N25
PCIE_RCLKN/NB_LNK_CLKN
N24
PCIE_CALRP
T25
PCIE_CALRN
T24
PCIE_PVDD
P24
GPP_CLK1N
L19
X1
A3
X2
B3
VBAT B2
GPP_CLK0N
J18
GPP_CLK2P
M19
ALLOW_LDTSTP
F23
CPU_HT_CLKN
M18
GPP_CLK2N
M20
SLT_GFX_CLKP
M23
CPU_HT_CLKP
P17
LDT_RST#
G24
PCICLK0 P4
PCICLK1 P3
PCICLK2 P1
PCICLK3 P2
PCIRST# N1
CBE0# W2
CBE1# U7
CBE2# AA7
CBE3# Y1
FRAME# AA6
DEVSEL# W5
IRDY# AA5
TRDY# Y5
PAR U6
STOP# W6
PERR# W4
REQ0# AC3
REQ1# AD4
REQ2# AB7
REQ3#/GPIO70 AE6
GNT0# AD2
GNT1# AE4
GNT2# AD5
GNT3#/GPIO72 AC6
SERR# V7
CLKRUN# AD6
LAD0 H24
LAD1 H23
LAD2 J25
LAD3 J24
LFRAME# H25
LDRQ0# H22
SERIRQ V15
PCICLK4 T4
LPCCLK0 G22
LPCCLK1 E22
AD0 U2
AD1 P7
AD2 V4
AD3 T1
AD4 V3
AD5 U1
AD6 V1
AD7 V2
AD8 T2
AD9 W1
AD10 T9
AD12 R7
AD13 R5
AD14 U8
AD15 U5
AD16 Y7
AD17 W8
AD18 V9
AD19 Y8
AD20 AA8
AD21 Y4
AD22 Y3
AD23 Y2
AD24 AA2
AD25 AB4
AD26 AA1
AD27 AB3
AD28 AB2
AD29 AC1
AD30 AC2
AD31 AD1
AD11 R6
REQ4#/GPIO71 AB6
GNT4#/GPIO73 AE5
LDRQ1#/GNT5#/GPIO68 AB8
GPP_CLK1P
L20
RTCCLK C3
PCIE_RX3N
R17
INTE#/GPIO33 AD3
INTF#/GPIO34 AC4
INTG#/GPIO35 AE2
INTH#/GPIO36 AE3
LOCK# V5
PCIE_PVSS
P25
PCICLK5/GPIO41 T3
BMREQ#/REQ5#/GPIO65 AD7
NB_HT_CLKP
M24
LDT_PG
F22
LDT_STP#
G25
GPP_CLK3N
P22
INTRUDER_ALERT# C2
NB_DISP_CLKP
K23
25M_48M_66M_OSC
L18
GPP_CLK0P
J19
NB_HT_CLKN
M25
SLT_GFX_CLKN
M22
GPP_CLK3P
N22
25M_X1
J21
25M_X2
J20
NB_DISP_CLKN
K22
PROCHOT#
F24
PCI EXPRESS INTERFACE
Part 1 of 5
SB700
PCI INTERFACE
LPC
RTC
CPU
RTC XTAL
PCI CLKS
CLOCK GENERATOR
U2001A
SB700
PCI EXPRESS INTERFACE
Part 1 of 5
SB700
PCI INTERFACE
LPC
RTC
CPU
RTC XTAL
PCI CLKS
CLOCK GENERATOR
U2001A
SB700
1
T2003TPC28T T2003TPC28T
1
T2041TPC28T T2041TPC28T
1 2
R2008 22OhmR2008 22Ohm
1
2
3
D2001
RB715F
@
D2001
RB715F
@
1
T2050TPC28T T2050TPC28T
12
C2003 0.1UF/10VC2003 0.1UF/10V
1 2
R2004 2.05KOHMR2004 2.05KOHM
21
0402
SL2020
0402
SL2020
1
T2075TPC28T T2075TPC28T
1
T2008TPC28T T2008TPC28T
1 2
R2033 33OhmR2033 33Ohm
1
T2078TPC28T T2078TPC28T
1
T2081TPC28T T2081TPC28T
1 2
R2037
1KOhm
@
R2037
1KOhm
@
1
T2005TPC28T T2005TPC28T
1
T2040TPC28T T2040TPC28T
1
T2044TPC28T T2044TPC28T
1
T2087 TPC28TT2087 TPC28T
1
T2038TPC28T T2038TPC28T
12
C2010 0.1UF/10VC2010 0.1UF/10V
1 2
R2026 510OhmR2026 510Ohm
12
C2007 0.1UF/10VC2007 0.1UF/10V
12
C2004 0.1UF/10VC2004 0.1UF/10V
1 2
R2035 0OhmR2035 0Ohm
12
C2009 0.1UF/10VC2009 0.1UF/10V
1
T2012TPC28T T2012TPC28T
1
T2083TPC28T T2083TPC28T
1
T2076TPC28T T2076TPC28T
14
2
3
X2001
32.768Khz
X2001
32.768Khz
1
T2045TPC28T T2045TPC28T
1
T2004TPC28T T2004TPC28T
1
T2017TPC28T T2017TPC28T
12
C2014
1UF/6.3V
C2014
1UF/6.3V
1
T2020
TPC28T
T2020
TPC28T
1
T2049TPC28T T2049TPC28T
1
T2015TPC28T T2015TPC28T
12
C2060
10PF/50V
@
C2060
10PF/50V
@
1 2
R2028 0OhmR2028 0Ohm
1
T2021
TPC28T
T2021
TPC28T
1
T2011TPC28T T2011TPC28T
1 2
R2025 22OhmR2025 22Ohm
1
T2039TPC28T T2039TPC28T
1
T2023
TPC28T
T2023
TPC28T
1
T2051TPC28T T2051TPC28T
1 2
R2032
8.2KOhm
R2032
8.2KOhm
1
T2022
TPC28T
T2022
TPC28T
12
C2001 0.1UF/10VC2001 0.1UF/10V
1
122
JRST1
SGL_JUMP
JRST1
SGL_JUMP
1
T2088 TPC28TT2088 TPC28T
1
T2014TPC28T T2014TPC28T
1
T2019
TPC28T
T2019
TPC28T
1
T2043TPC28T T2043TPC28T
1
T2079TPC28T T2079TPC28T
1
T2034 TPC28TT2034 TPC28T
1
T2010TPC28T T2010TPC28T
1
T2013TPC28T T2013TPC28T
12
C2013
0.1UF/10V
C2013
0.1UF/10V
1
T2077TPC28T T2077TPC28T
1
T2046TPC28T T2046TPC28T
1 2
C2016
22PF/50V
C2016
22PF/50V
1
T2002TPC28T T2002TPC28T
12
C2005
2.2UF/10V
C2005
2.2UF/10V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DDR3_RST#_Via
ACZ_SYNC_AUD
SYS_REST#
USBCLK_48_SB
ACZ_SDOUT_AUD
PCB_ID1
PCB_ID2
SPI_CS2#
NB_PWRGD_R
ACZ_SDOUT
ACZ_SYNC
USB_RCOMP
PCB_ID1
ACZ_BCLK
ACZ_SDOUT
SB_SPKR_R
ACZ_SYNC
GPIO8
ACZ_RST#_AUD
GPIO10
SUS_STAT#
GPIO40
GPIO6
GPIO0
GPM8#_VIA
ACZ_RST#
SMBCLK_DRAM
SMBDATA_DRAM
PCB_ID0
PCB_ID2
SB_THRMTRIP#
GPIO39
GPIO66
ACZ_BCLK_AUD
TEST1
TEST2
TEST0
SUS_STAT#
TEST2
TEST1
TEST0
ACZ_RST#
ACZ_BCLK
ACZ_SDIN0_AUD
PM_RSMRST#_EC
SMBCLK_SYS
SMBDATA_SYS
ACZ_BCLK_AUD
USB_PN6 [45]
USB_PP6 [45]
USB_PP4 [43]
USB_PN4 [43]
USB_PP2 [52]
USB_PN2 [52]
USB_PP0 [52]
USB_OC0#[52]
USB_PN0 [52]
USB_OC4_NEWCARD#[43]
EXT_SMI#[30]
PM_SUSB#[30] PM_SUSC#[30]
PM_PWRBTN#[30]
PM_PWROK_EC[30]
A20GATE[30] RC_IN#[30]
PCIE_WAKE#[33,43,53]
PM_RSMRST#_EC[30]
SB_SPKR[36]
SMBCLK_DRAM[7,8,29,44]SMBDATA_DRAM[7,8,29,44]
USB_OC1#[52]
ACZ_RST#_AUD [36,37]
ACZ_BCLK_AUD [36]
ACZ_SYNC_AUD [36]
ACZ_SDOUT_AUD [36]
ACZ_SDIN0_AUD[36]
USBCLK_48 [29]
USB_PP12 [61]
USB_PN12 [61]
PCB_ID0[22]
CPPE_DET#[43,44]
ACZ_RST#[24]
USB_PP10 [40]
USB_PN10 [40]
EXT_SCI#[30]
SMBCLK_SYS [53]
SMBDATA_SYS [53]
NB_PWRGD[12]
SMBDATA_NEWCARD[7,8,29,44] SMBCLK_NEWCARD[7,8,29,44]
USB_PP13 [61]
USB_PN13 [61]
SUS_STAT#[12]
SB_GP16 [24]
SB_GP17 [24]
USB_PP1 [52]
USB_PN1 [52]
+3VS
+3VSUS
GND
GND
+1.8VS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
21 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_GPIO/USB/HD/ACPI
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
21 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_GPIO/USB/HD/ACPI
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
21 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_GPIO/USB/HD/ACPI
2.05
F5Z
<OrgAddr1>
for strap
SB700A11 EC enable Strap Workaround
PUT AT SB700 SIDE
USB 10 -> CARDREADER
USB 6 -> CAMERA
USB 12 -> BT Module
USB 4 -> NEW CARD
USB [3:0] ->USB PORT
for strap
need to modify topology??
SB700A11
( I / PU )
S0 power
071113
071114
071114
071119
071119
071120
res. value 10k -> 4.7k to
get LOW level < Vih(1.8V)
internal P/U 8.2k
071122
071127
071127
071127
Add net name
071129
071203
AMD review
071204 AMD review
071204
090404 cost
AMD review
071204
AMD review
FOR MINICARD/NEWCARD
071204 AMD review
071204
071207
RS780 POWERGOOD
is 1.8VS rail
080215
change 4.7K P/N from
10G212472004040 to
10G212472004010
080118 Reserve Via
080218 R1.1
R2.0
Del T2115 and T2116 for GND Via
improvement (GPIO44 and 46)
080212 R1.1
R1.1
Add Test Point
R1.11 080319
Change the SB Part number to SB700 (A12)
R2.0 080401
Add R2108 and R2113 for SMBCLK_NEWCARD and SMBDATA_NEWCARD.
080402
Mount R2117 and un-monent
R2118 for PCB ID
R2.01 080411
Change P/N to
10G212472004010
Change 33ohm to 4R8P 090405
Fingerprint
Bluetooth
AU6433
CCD
NewCard
USB CONN
EMI
090415
5 6
RN2112C
2.2KOHM RN2112C
2.2KOHM
1
T2117 TPC28TT2117 TPC28T
12
R2133 10KOhm@R2133 10KOhm@
1
T2104 TPC28TT2104 TPC28T
1
T2108 TPC28TT2108 TPC28T
1
T2124
TPC28T
T2124
TPC28T
12
R2134 10KOhm
@R2134 10KOhm
@
3 4
RN2112B
2.2KOHM RN2112B
2.2KOHM
1 2
R2104 11.8KOhm
r0603_h24
R2104 11.8KOhm
r0603_h24
1
T2101 TPC28TT2101 TPC28T
7 8
RN2112D
2.2KOHM RN2112D
2.2KOHM
1 2
R2118
4.7KOhm
@
R2118
4.7KOhm
@
1
T2116 TPC28TT2116 TPC28T
12
R2110 4.7KOhm
@
R2110 4.7KOhm
@
3 4
R2123B
33OHM R2123B
33OHM
1
T2119 TPC28TT2119 TPC28T
1 2
R2123A
33OHM R2123A
33OHM
1
T2123 TPC28TT2123 TPC28T
USBCLK/14M_25M_48M_OSC C8
USB_RCOMP G8
USB_OC6#/IR_TX1/GEVENT6#
B9
USB_HSD5P C12
USB_HSD5N D12
USB_HSD4P B12
USB_HSD4N A12
USB_HSD3P G12
USB_HSD3N G14
USB_HSD2P H14
USB_HSD2N H15
USB_HSD1P A13
USB_HSD1N B13
USB_HSD0P B14
USB_HSD0N A14
USB_OC4#/IR_RX0/GPM4#
A8
USB_OC3#/IR_RX1/GPM3#
A9
USB_OC1#/GPM1#
F8 USB_OC2#/GPM2#
E5
USB_HSD7P G11
USB_HSD7N H12
USB_HSD6P E12
USB_HSD6N E14
USB_OC0#/GPM0#
E4
DDR3_RST#/GEVENT7#
G5
SATA_IS0#/GPIO10
AE18
AZ_SDIN3/GPIO46
M3
PCI_PME#/GEVENT4#
E1
RI#/EXTEVNT0#
E2
SLP_S3#
F5
SLP_S5#
G1
PWR_BTN#
H2
PWR_GOOD
H1
SUS_STAT#
K3
TEST1
H4
TEST0
H3
GA20IN/GEVENT0#
Y15
KBRST#/GEVENT1#
W15
SMBALERT#/THRMTRIP#/GEVENT2#
J6
LPC_PME#/GEVENT3#
K4
LPC_SMI#/EXTEVNT1#
K24
S3_STATE/GEVENT5#
F1
SYS_RESET#/GPM7#
J2
WAKE#/GEVENT8#
H6
RSMRST#
D3
CLK_REQ3#/SATA_IS1#/GPIO6
AD18
NB_PWRGD
W14
SMARTVOLT1/SATA_IS2#/GPIO4
AA19
SMARTVOLT2/SHUTDOWN#/GPIO5
Y19
SPKR/GPIO2
W21
SCL0/GPOC0#
AA18
SDA0/GPOC1#
W18
DDC1_SCL/GPIO9
AA20
DDC1_SDA/GPIO8
Y18
AZ_BITCLK
M1
AZ_SDOUT
M2
AZ_SYNC
L6
AZ_RST#
M4
USB_HSD9P A11
USB_HSD9N B11
USB_HSD8P C10
USB_HSD8N D10
LLB#/GPIO66
C1
AZ_DOCK_RST#/GPM8#
L5
SLP_S2/GPM9#
H7
USB_OC5#/IR_TX0/GPM5#
B8
BLINK/GPM6#
F2
SCL1/GPOC2#
K1
SDA1/GPOC3#
K2
TEST2
H5
CLK_REQ0#/SATA_IS3#/GPIO0
W17
AZ_SDIN2/GPIO44
L8 AZ_SDIN1/GPIO43
J8 AZ_SDIN0/GPIO42
J7
CLK_REQ1#/SATA_IS4#/FANOUT3
V17
CLK_REQ2#/SATA_IS5#/FANIN3
W20
USB_FSD13P E6
USB_FSD13N E7
USB_FSD12P F7
USB_FSD12N E8
USB_HSD11P H11
USB_HSD11N J10
USB_HSD10P E11
USB_HSD10N F11
IMC_GPIO9 B18
IMC_PWM0/IMC_GPIO10 F21
SCL2/IMC_GPIO11 D21
SDA2/IMC_GPIO12 F19
SCL3_LV/IMC_GPIO13 E20
SDA3_LV/IMC_GPIO14 E21
IMC_PWM1/IMC_GPIO15 E19
IMC_PWM2/IMC_GPO16 D19
IMC_PWM3/IMC_GPO17 E18
IMC_GPIO18 G20
IMC_GPIO19 G21
IMC_GPIO20 D25
IMC_GPIO21 D24
IMC_GPIO22 C25
IMC_GPIO23 C24
IMC_GPIO24 B25
IMC_GPIO25 C23
IMC_GPIO0
H19
IMC_GPIO1
H20
SPI_CS2#/IMC_GPIO2
H21
IDE_RST#/F_RST#/IMC_GPO3
F25
IMC_GPIO4
D22
IMC_GPIO5
E24
IMC_GPIO6
E25
IMC_GPIO7
D23
IMC_GPIO8 A18
IMC_GPIO26 B24
IMC_GPIO27 B23
IMC_GPIO28 A23
IMC_GPIO29 C22
IMC_GPIO30 A22
IMC_GPIO31 B22
IMC_GPIO32 B21
IMC_GPIO33 A21
IMC_GPIO34 D20
IMC_GPIO35 C20
IMC_GPIO36 A20
IMC_GPIO37 B20
IMC_GPIO38 B19
IMC_GPIO39 A19
IMC_GPIO40 D18
IMC_GPIO41 C18
USB 2.0
Part 4 of 5
SB700
ACPI / WAKE UP EVENTS
GPIO
HD AUDIO
USB OC
USB 1.1
USB MISC
INTEGRATED uC
INTEGRATED uC
/GPIO40
/GPIO39
U2001D
SB700
USB 2.0
Part 4 of 5
SB700
ACPI / WAKE UP EVENTS
GPIO
HD AUDIO
USB OC
USB 1.1
USB MISC
INTEGRATED uC
INTEGRATED uC
/GPIO40
/GPIO39
U2001D
SB700
1
T2113 TPC28TT2113 TPC28T
1
T2106 TPC28TT2106 TPC28T
1
T2121 TPC28TT2121 TPC28T
1
T2109 TPC28TT2109 TPC28T
1 2
R2132 2.2kOHM@R2132 2.2kOHM@
1 2
R2117
4.7KOhm
R2117
4.7KOhm
1 2
R2120 2.2kOHM@R2120 2.2kOHM@
1
T2111 TPC28TT2111 TPC28T
1
T2102 TPC28TT2102 TPC28T
1 2
RN2112A
2.2KOHM RN2112A
2.2KOHM
1 2
R2119
4.7KOhm
R2119
4.7KOhm
7 8
R2123D
33OHM R2123D
33OHM
1
T2103 TPC28TT2103 TPC28T
1
T2107 TPC28TT2107 TPC28T
12
R2109 4.7KOhmR2109 4.7KOhm
1 2
C2148
22PF/50V
/EMI
C2148
22PF/50V
/EMI
1
T2112 TPC28TT2112 TPC28T
1
T2114 TPC28TT2114 TPC28T
1
T2118 TPC28TT2118 TPC28T
5 6
R2123C
33OHM R2123C
33OHM
1
T2110 TPC28TT2110 TPC28T
1
T2105 TPC28TT2105 TPC28T
1
T2115 TPC28TT2115 TPC28T
1
T2120 TPC28TT2120 TPC28T
1 2
R2137
300Ohm
R2137
300Ohm
1 2
R2121 2.2kOHM@R2121 2.2kOHM@
1
T2122
TPC28T
T2122
TPC28T
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GPIO59
GPIO60
GPIO12
BTLED_ON
GPIO57
SATA_CAL
GPIO61
GPIO62
GPIO63
GPIO64
GPIO52
GPIO48
GPIO53
SATA_X1
SATA_X2
AVDD_HWM
GPIO14
GPIO11
SATA_TXP0_R
GPIO57
GPIO49
GPIO54
WLAN_LED_ON
SATA_TXN0_R
GPIO50
TEMP_COMM
GPIO58
GPIO51_VIA
SATA_TXP1_R
SATA_TXN1_R
GPIO31
GPIO32
TEMP_COMM
GPIO54
SATA_LED#[56]
WLAN_LED_ON [56]
BT_ON [61]
SATA_TXP0[51]
SATA_RXP0[51] SATA_RXN0[51]
SATA_TXN0[51]
PCB_ID0 [21]
WLAN_ON [53]
BTLED_ON [56]
SATA_TXP1[51]
SATA_RXP1[51] SATA_RXN1[51]
SATA_TXN1[51]
GND
GND
+1.2V_CPU_NB_SB PLLVDD_SATA
+3VS XTLVDD_SATA
PLLVDD_SATA
XTLVDD_SATA
GND
GND
+3VSUS
GND
GND
+3VSUS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
22 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_PATA/SATA
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
22 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_PATA/SATA
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
22 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_PATA/SATA
2.05
F5Z
<OrgAddr1>
Place SATA_CAL
RES very close
to ball of SB700
1%
GND trace at
least 10mil
wide
for SATA HDD
for SATA ODD
M51/X71 NO USE
071114
071119
090404 cost
071119
HWM not Implemented:
Decoupling caps not used.
071119
071119
change P/N
071120
071121
add net name
modify net name
add TP
change
071127
071203
071204
080218
Add Test Point
R1.1
R1.11 080319
Change the SB Part number to SB700 (A12)
R2.0 080331
Change the R2208, R2209 to
C2218 and C2219.
Change the R2210, R2211 to
C2220 and C2221.
090403
REMOVE C2216
090403
GPIO54,GPIO57 可設成output low，
R2204 & R2207可以Costdown 090405
Notice GPIO 54
090410
remove tp
090416
12
R2204 10KOhm
@
R2204 10KOhm
@
1
T2222 TPC28TT2222 TPC28T
12
C2210
27PF/50V
C2210
27PF/50V
1
T2219 TPC28TT2219 TPC28T
1
T2218 TPC28TT2218 TPC28T
1 2
C2221 3900PF/50VC2221 3900PF/50V
1
T2235 TPC28TT2235 TPC28T
1
T2228 TPC28TT2228 TPC28T
1
T2223 TPC28TT2223 TPC28T
1 2
R2201 1KOhm
1%
R2201 1KOhm
1%
12
R2205
10MOhm
R2205
10MOhm
1
T2229 TPC28TT2229 TPC28T
1
T2232 TPC28TT2232 TPC28T
1
T2234 TPC28TT2234 TPC28T
1
T2220 TPC28TT2220 TPC28T
1
T2233 TPC28TT2233 TPC28T
1
T2236 TPC28TT2236 TPC28T
1 2
C2218 0.01UF/16VC2218 0.01UF/16V
12
R2202 10KOhmR2202 10KOhm
12
C2217
0.1UF/10V
C2217
0.1UF/10V
12
C2214
0.1UF/16V
@C2214
0.1UF/16V
@
12
R2203 10KOhmR2203 10KOhm
12
C2209
27PF/50V
C2209
27PF/50V
1 2
C2220 3900PF/50VC2220 3900PF/50V
12
C2222
1UF/6.3V
C2222
1UF/6.3V
1
T2231 TPC28TT2231 TPC28T
21
0603
R2206
0603
R2206
1
T2221 TPC28TT2221 TPC28T
1 2
C2219 0.01UF/16VC2219 0.01UF/16V
1
T2227 TPC28TT2227 TPC28T
1
T2230 TPC28TT2230 TPC28T
12
R2207
10KOhm
@
R2207
10KOhm
@
1
T2226 TPC28TT2226 TPC28T
1
T2217 TPC28TT2217 TPC28T
21
L2202
220Ohm/100Mhz
L2202
220Ohm/100Mhz
IDE_IORDY AA24
IDE_IRQ AA25
IDE_A0 Y22
IDE_A1 AB23
IDE_A2 Y23
IDE_DACK# AB24
IDE_DRQ AD25
IDE_IOR# AC25
IDE_IOW# AC24
IDE_CS1# Y25
IDE_CS3# Y24
IDE_D0/GPIO15 AD24
IDE_D1/GPIO16 AD23
IDE_D2/GPIO17 AE22
IDE_D3/GPIO18 AC22
IDE_D4/GPIO19 AD21
IDE_D5/GPIO20 AE20
IDE_D6/GPIO21 AB20
IDE_D7/GPIO22 AD19
IDE_D8/GPIO23 AE19
IDE_D9/GPIO24 AC20
IDE_D10/GPIO25 AD20
IDE_D11/GPIO26 AE21
IDE_D12/GPIO27 AB22
IDE_D13/GPIO28 AD22
IDE_D14/GPIO29 AE23
IDE_D15/GPIO30 AC23
XTLVDD_SATA
W12
PLLVDD_SATA
AA11
SATA_TX2P
AB12
SATA_TX2N
AC12
SATA_RX2P
AD12 SATA_RX2N
AE12
SATA_TX3P
AD13
SATA_TX3N
AE13
SATA_RX3P
AC14 SATA_RX3N
AB14
SATA_TX0P
AD9
SATA_TX0N
AE9
SATA_RX0N
AB10
SATA_RX0P
AC10
SATA_TX1P
AE10
SATA_TX1N
AD10
SATA_RX1N
AD11
SATA_RX1P
AE11
SATA_CAL
V12
SATA_X1
Y12
SATA_X2
AA12
SATA_ACT#/GPIO67
W11
SPI_DI/GPIO12 G6
SPI_DO/GPIO11 D2
SPI_CLK/GPIO47 D1
SPI_HOLD#/GPIO31 F4
SPI_CS1#/GPIO32 F3
FANOUT1/GPIO48 M5
FANOUT2/GPIO49 M7
FANIN0/GPIO50 P5
FANIN1/GPIO51 P8
FANIN2/GPIO52 R8
LAN_RST#/GPIO13 U15
ROM_RST#/GPIO14 J1
VIN0/GPIO53 A4
VIN1/GPIO54 B4
VIN2/GPIO55 C4
VIN3/GPIO56 D4
VIN4/GPIO57 D5
VIN5/GPIO58 D6
VIN6/GPIO59 A7
VIN7/GPIO60 B7
TEMPIN0/GPIO61 B6
TEMPIN1/GPIO62 A6
TEMPIN2/GPIO63 A5
TEMPIN3/TALERT#/GPIO64 B5
FANOUT0/GPIO3 M8
AVDD F6
AVSS G7
TEMP_COMM C6
SATA_TX4P
AE14
SATA_TX4N
AD14
SATA_RX4N
AD15
SATA_RX4P
AE15
SATA_TX5P
AB16
SATA_TX5N
AC16
SATA_RX5N
AE16
SATA_RX5P
AD16
ATA 66/100/133
Part 2 of 5
SB700
SATA PWR SERIAL ATA
SPI ROM
HW MONITOR
U2001B
SB700
ATA 66/100/133
Part 2 of 5
SB700
SATA PWR SERIAL ATA
SPI ROM
HW MONITOR
U2001B
SB700
12
C2213
0.1UF/10V
@
C2213
0.1UF/10V
@
1
T2224 TPC28TT2224 TPC28T
21
L2203
220Ohm/100Mhz
L2203
220Ohm/100Mhz
12
X2201
25Mhz
12
X2201
25Mhz

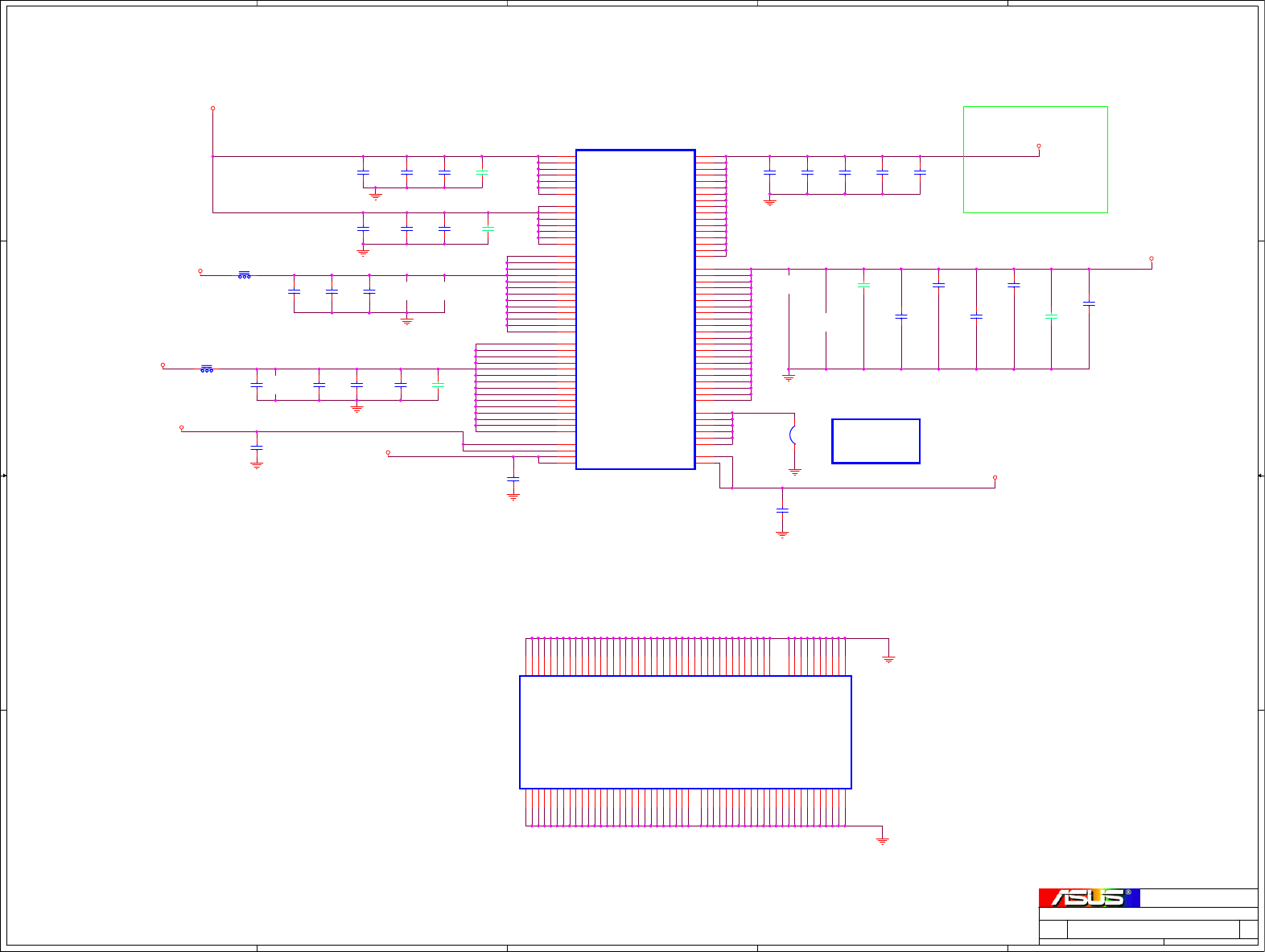

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

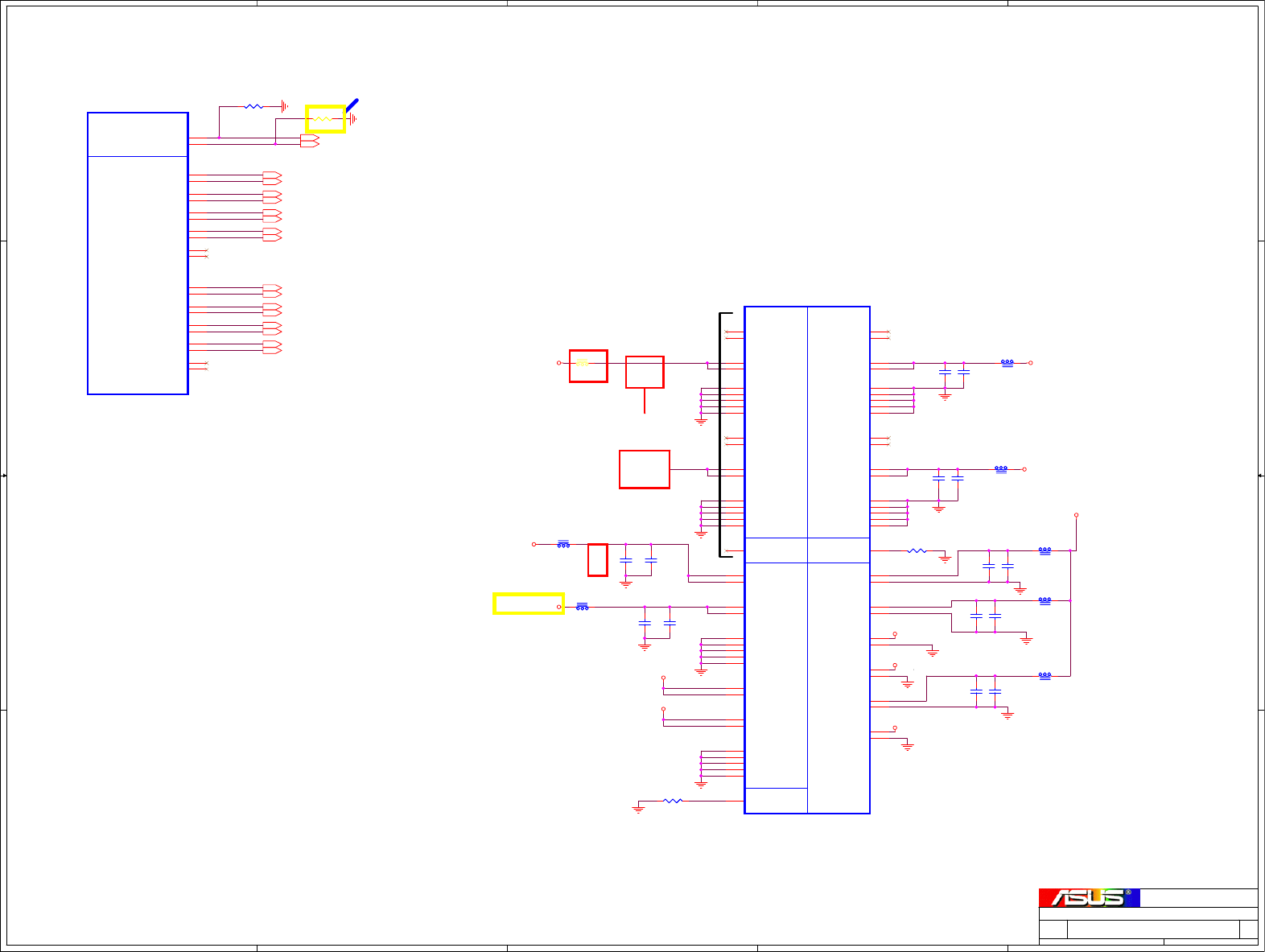

V5_VREF
+3VS VDDQ_R
VDD33_18_R
+1.2V_USB_PHY_R
AVDDCK_1.2V
+3.3V_AVDDC
AVDDCK_3.3V
+3VS
GND
GND
+1.2V_CPU_NB_SB
GND
AVDD_SATA
+3VSUS
GND
AVDD_USB
GND
VDD_R +1.2V_CPU_NB_SB
+3VSUS+3.3VALW_R
GND
+1.2VSUS+1.2VALW_R
GND GND
+5VS
+3VS
GND
GND
GND GND
+3VS
+1.2V_CPU_NB_SB
+1.2V_CKVDD
GND
+3VSUS
GND
+1.2V_CPU_NB_SB
+3VS
GND
+1.2VSUS
+1.2V_CPU_NB_SB PCIE_VDDR
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
23 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_POWER
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
23 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_POWER
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
23 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_POWER
2.05
F5Z
<OrgAddr1>
IDE and Flash Interface Not
Implemented: Tied to +3.3V_S0.
090403 cost
AMD review
071204
071214
move L and C
R1.11 080319
Change the SB Part number to SB700 (A12) R1.11 080319
Change the SB Part number to SB700 (A12)
X7R
0990403
080828
080828
080828
090403 cost
remove bead & cap
090403
change C2311 to 10uF
090403
0990403
0990403 cost
090403 cost
090403 cost
090403 cost
090403 cost
090403 cost
12
C2348
1UF/6.3V
@
C2348
1UF/6.3V
@
12
C2354
10UF/6.3V
@
C2354
10UF/6.3V
@
12
C2326
0.1UF/10V
C2326
0.1UF/10V
12
C2341
1UF/6.3V
C2341
1UF/6.3V
12
C2355
0.1UF/10V
C2355
0.1UF/10V
12
C2313
0.1UF/10V
C2313
0.1UF/10V
12
C2301
0.1UF/10V
C2301
0.1UF/10V
12
R2306 1KOhmR2306 1KOhm
12
C2351
2.2UF/10V
C2351
2.2UF/10V
12
C2330
0.1UF/10V
@
C2330
0.1UF/10V
@
12
C2356
2.2UF/10V
C2356
2.2UF/10V
12
C2345
1UF/10V
C2345
1UF/10V
VSS_4 D7
VSS_2 A25
VSS_21 M13
VSS_10 K16
VSS_11 L4
VSS_1 A2
VSS_17 L16
VSS_8 K9
VSS_9 K11
VSS_46 AB1
VSS_13 L10
VSS_14 L11
VSS_15 L12
VSS_16 L14
VSS_18 M6
VSS_19 M10
VSS_20 M11
VSS_22 M15
VSS_23 N4
VSS_26 P6
VSS_27 P9
VSS_28 P10
VSS_29 P11
VSS_32 R1
VSS_33 R2
VSS_34 R4
VSS_36 R10
VSS_37 R12
VSS_3 B1
VSS_35 R9
VSS_30 P13
AVSS_SATA_15
AB13
AVSS_SATA_18
AC8
AVSS_SATA_5
V11
AVSS_SATA_11
Y17
AVSS_SATA_19
AD8
VSS_31 P15
VSS_24 N12
AVSS_SATA_14
AB11
AVSS_SATA_2
U10
AVSS_SATA_3
U11
AVSS_SATA_1
T10
AVSS_SATA_17
AB17
AVSS_SATA_4
U12
AVSS_SATA_12
AA9
AVSS_SATA_6
V14
AVSS_SATA_10
Y14
AVSS_SATA_7
W9
AVSS_SATA_8
Y9
AVSS_SATA_16
AB15
AVSS_SATA_20
AE8
AVSS_SATA_13
AB9
AVSS_USB_5
D9
AVSS_USB_8
D14
AVSS_USB_4
D8 AVSS_USB_3
C14
AVSS_USB_6
D11
AVSS_USB_7
D13
AVSS_USB_2
B15
AVSS_USB_21
K10
AVSS_USB_10
E15
AVSS_USB_20
J15
AVSS_USB_22
K12
AVSS_USB_11
F12
AVSS_USB_12
F14
AVSS_USB_23
K14
AVSS_USB_16
J9 AVSS_USB_15
H17
AVSS_USB_19
J14
AVSS_USB_14
H9
AVSS_USB_1
A15
AVSS_USB_24
K15
VSS_12 L7
AVSS_USB_17
J11
AVSS_USB_18
J12
VSS_7 H8
VSS_25 N14
VSS_6 G19
AVSS_USB_13
G9
AVSS_USB_9
D15
AVSSCK L17
PCIE_CK_VSS_3
J22
PCIE_CK_VSS_14 U20
PCIE_CK_VSS_13 U18
PCIE_CK_VSS_12 T17
PCIE_CK_VSS_18 W19
PCIE_CK_VSS_6
M17
PCIE_CK_VSS_11 R19
PCIE_CK_VSS_8
P16 PCIE_CK_VSS_7
M21
PCIE_CK_VSS_17 V21
PCIE_CK_VSS_16 V20
PCIE_CK_VSS_15 V18
VSS_50 AE24
PCIE_CK_VSS_21 W25
PCIE_CK_VSS_19 W22
PCIE_CK_VSS_20 W24
AVSSC
F9
PCIE_CK_VSS_2
J17 PCIE_CK_VSS_1
H18
PCIE_CK_VSS_4
K25
VSS_5 F20
PCIE_CK_VSS_5
M16
PCIE_CK_VSS_9 P23
PCIE_CK_VSS_10 R16
VSS_49 AE1
VSS_44 V6
VSS_45 Y21
VSS_42 U4
VSS_48 AB25
VSS_47 AB19
VSS_41 T14
VSS_43 U14
VSS_38 R14
VSS_39 T11
VSS_40 T12
AVSS_SATA_9
Y11
SB700
GROUND
Part 5 of 5
SB700
U2001E
SB700
GROUND
Part 5 of 5
SB700
U2001E
12
C2353
0.1UF/10V
C2353
0.1UF/10V
1 2
L2302
0Ohm
L2302
0Ohm
12
C2338
10UF/6.3V
C2338
10UF/6.3V
2 1
L2307
220Ohm/100Mhz
L2307
220Ohm/100Mhz
12
C2332
1UF/6.3V
@
C2332
1UF/6.3V
@
12
C2328
1UF/6.3V
@
C2328
1UF/6.3V
@
12
C2312
0.1UF/10V
C2312
0.1UF/10V
12
C2357
2.2UF/10V
C2357
2.2UF/10V
12
C2339
10UF/6.3V
@
C2339
10UF/6.3V
@
12
C2335
0.1UF/10V
C2335
0.1UF/10V
1 2
L2303
0Ohm
L2303
0Ohm
12
C2318
4.7UF/6.3V
C2318
4.7UF/6.3V
12
C2334
0.1UF/10V
C2334
0.1UF/10V
12
C2322
2.2UF/10V
C2322
2.2UF/10V
VDDQ_2
M9
VDDQ_6
U17
VDDQ_3
T15
VDDQ_11
AB5
VDDQ_1
L9
VDDQ_4
U9
VDDQ_5
U16
VDDQ_12
AB21
VDDQ_10
AA4
VDDQ_7
V8
VDDQ_8
W7
VDDQ_9
Y6
S5_3.3V_1 A17
S5_3.3V_2 A24
S5_3.3V_3 B17
S5_3.3V_4 J4
S5_3.3V_5 J5
S5_1.2V_2 G4
S5_1.2V_1 G2
USB_PHY_1.2V_1 A10
USB_PHY_1.2V_2 B10
V5_VREF AE7
AVDDCK_3.3V J16
AVDDCK_1.2V K17
AVDDC E9
AVDDTX_0
A16
AVDDTX_1
B16
AVDDTX_2
C16
AVDDTX_3
D16
AVDDTX_5
E17 AVDDTX_4
D17
AVDDRX_2
F18
AVDDRX_0
F15
AVDDRX_5
G18 AVDDRX_4
G17
PCIE_VDDR_4
P21 PCIE_VDDR_3
P20
PCIE_VDDR_7
R25
PCIE_VDDR_2
P19
PCIE_VDDR_5
R22
PCIE_VDDR_1
P18
PCIE_VDDR_6
R24
AVDD_SATA_1
AA14
AVDD_SATA_4
AB18
AVDD_SATA_2
AA15
AVDD_SATA_3
AA17
AVDD_SATA_5
AC18
AVDD_SATA_6
AD17
AVDD_SATA_7
AE17
VDD_1 L15
VDD_2 M12
VDD_3 M14
VDD_4 N13
VDD_5 P12
VDD_6 P14
VDD_7 R11
VDD_9 T16
VDD_8 R15
AVDDRX_1
F17
AVDDRX_3
G15
VDD33_18_2
AA21
VDD33_18_4
AE25 VDD33_18_3
AA22
VDD33_18_1
Y20
CKVDD_1.2V_2 L22
CKVDD_1.2V_1 L21
CKVDD_1.2V_4 L25
CKVDD_1.2V_3 L24
S5_3.3V_7 L2
S5_3.3V_6 L1
Part 3 of 5
SB700
POWER
PCI/GPIO I/O
CORE S0
3.3V_S5 I/OCORE S5
A-LINK I/O
SATA I/O
USB I/O
PLL CLKGEN I/O
IDE/FLSH I/O
U2001C
SB700
Part 3 of 5
SB700
POWER
PCI/GPIO I/O
CORE S0
3.3V_S5 I/OCORE S5
A-LINK I/O
SATA I/O
USB I/O
PLL CLKGEN I/O
IDE/FLSH I/O
U2001C
SB700
12
C2319
1UF/6.3V
C2319
1UF/6.3V
21
0603
L2305
0603
L2305
2 1
L2306
220Ohm/100Mhz
L2306
220Ohm/100Mhz
12
C2324
0.1UF/10V
C2324
0.1UF/10V
12
C2310
1UF/6.3V
@
C2310
1UF/6.3V
@
12
C2303
1UF/6.3V
C2303
1UF/6.3V
2 1
L2304
220Ohm/100Mhz
L2304
220Ohm/100Mhz
1 2
L2301
0Ohm
L2301
0Ohm
12
C2321
2.2UF/10V
C2321
2.2UF/10V
12
C2340
1UF/6.3V
C2340
1UF/6.3V
12
C2325
0.1UF/10V
C2325
0.1UF/10V
12
C2331
22UF/6.3V
C2331
22UF/6.3V
12
C2311
10UF/6.3V
C2311
10UF/6.3V
12
C2352
0.1UF/10V
C2352
0.1UF/10V
12
C2333
1UF/6.3V
C2333
1UF/6.3V
1
23
D2301
BAT54AW
SCHOTTKY BAT54AW-L SOT-323
D2301
BAT54AW
SCHOTTKY BAT54AW-L SOT-323
12
C2337
1UF/6.3V
C2337
1UF/6.3V

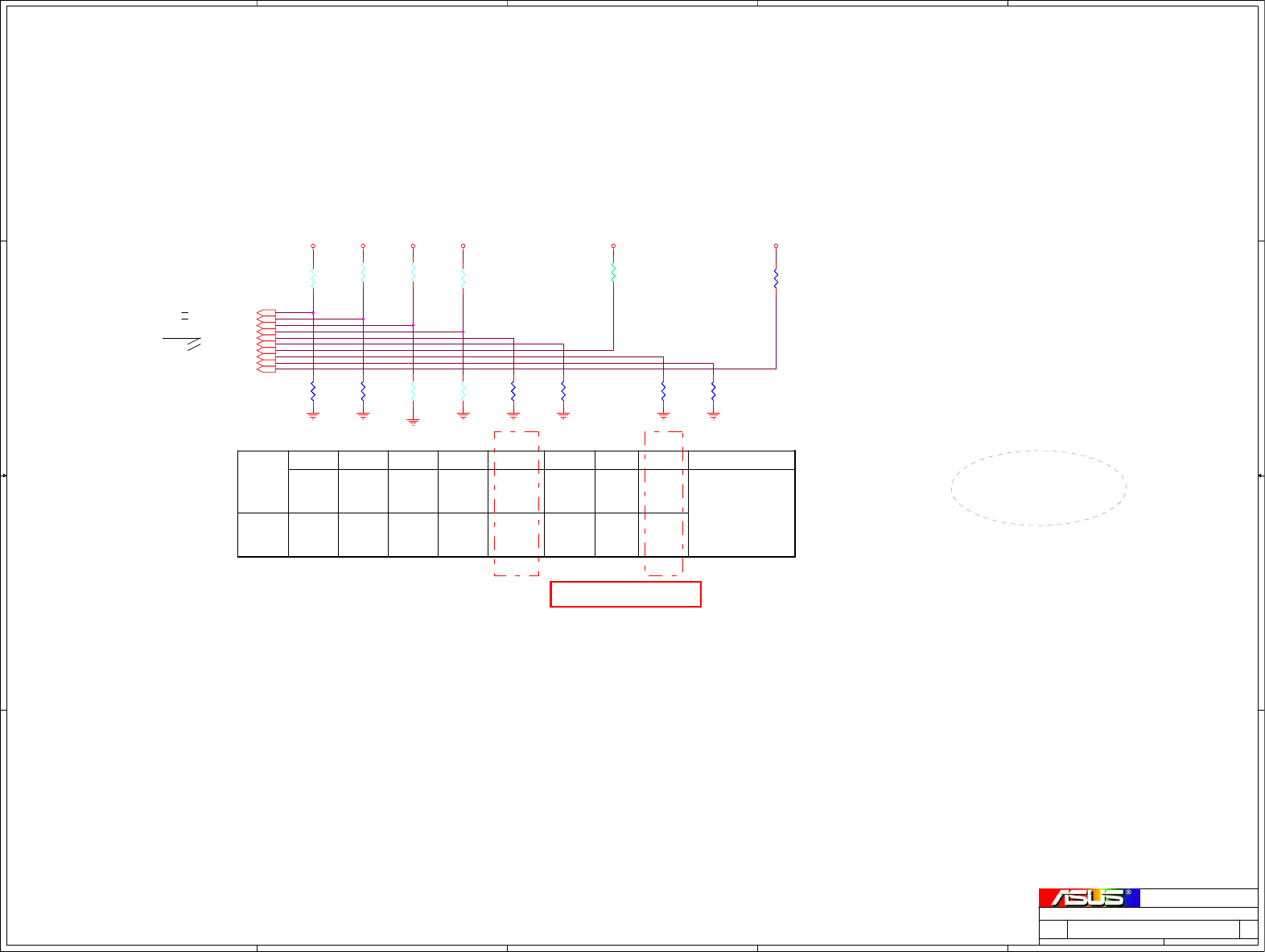

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

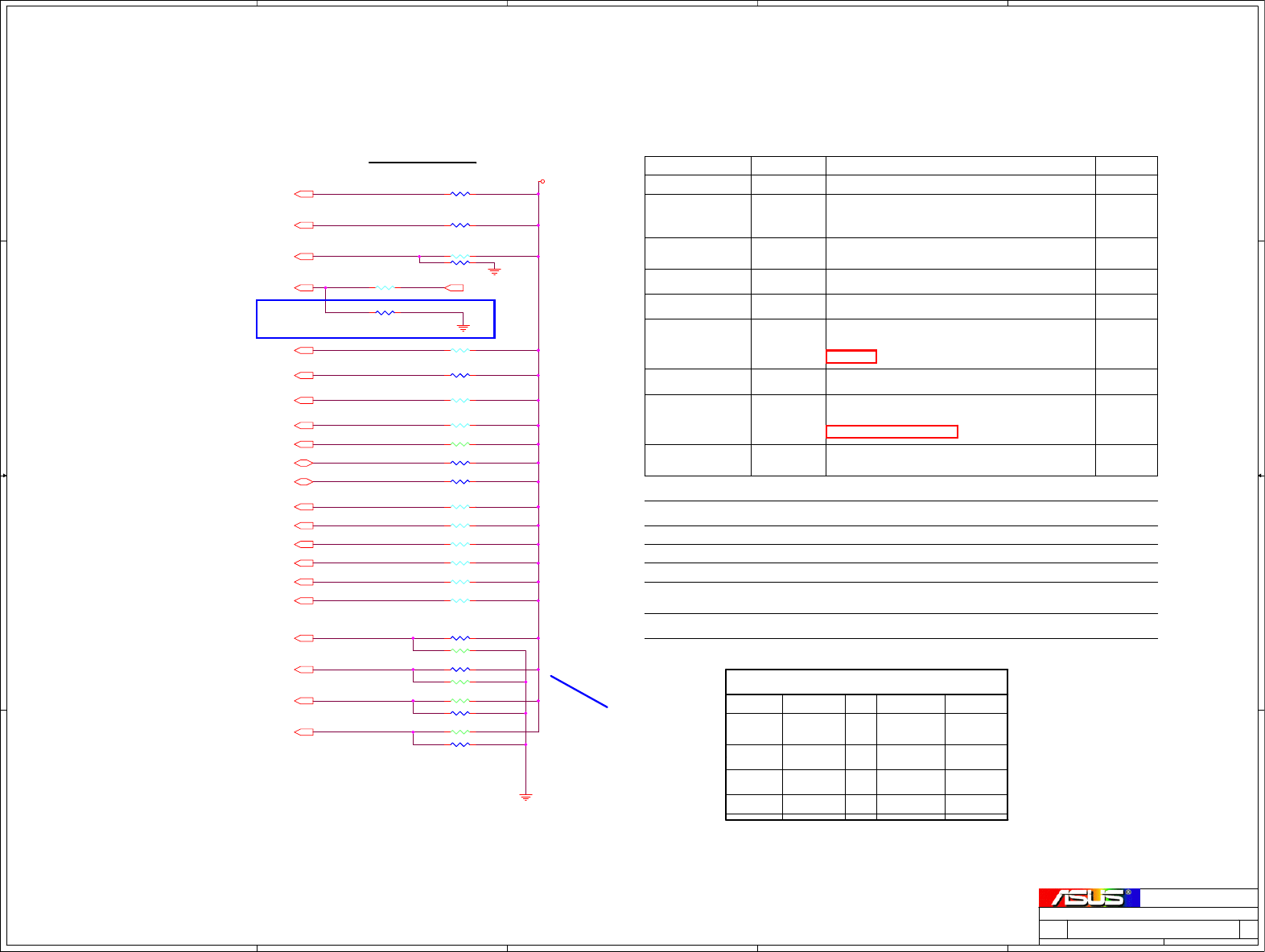

CLK_DBGPCI2[20,44]
LPC_CLK0[20]
CLK_DBGPCI1[20,44]
RTC_CLK[20] CLK_KBCPCI[20,30]
ACZ_RST#[21] SB_GP17[21] SB_GP16[21]
PCI_CLK5[20] PCI_CLK4[20]
+3VS +3VS +3VS +3VSUS +3VSUS
GND GND GND GND GND GND GND
GND
+3VS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
24 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_STRAP
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
24 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_STRAP
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
24 91Tuesday, May 26, 2009
ASUSTeK.Computer.INC
SB700_STRAP
2.05
F5Z
<OrgAddr1>
For SB700 A12 and later version
LPC_CLK0
ENABLE PCI
MEM BOOT
EXT. RTC
(PD on X1,
apply
32KHz to
RTC_CLK)
DEFAULT
GP17
NOTE: SB700 HAS INTERNAL 15K PULL UP RESISTOR FOR RTC_CLK
DISABLE PCI
MEM BOOT
PULL
LOW
PULL
HIGH
REQUIRED STRAPS
INTERNAL
RTC
DEFAULT
RTC_CLK
LPC_CLK1
CLKGEN
ENABLED
DEFAULT
CLKGEN
DISABLED
ACZ_RST#
EC
ENABLED
EC
DISABLED
DEFAULT
GP16PCI_CLK2
BOOTFAIL
TIMER
ENABLED
DEFAULT
BOOTFAIL
TIMER
DISABLED
PCI_CLK3
RESERVED
DEFAULT
IGNORE
DEBUG
STRAPS
USE
DEBUG
STRAPS
PCI_CLK4 PCI_CLK5
RESERVED
L,H = LPC ROM (Default)
H,H = Reserved
(PCI_CLK2)
H,L = SPI ROM
L,L = FWH ROM
EXT
(PCI_CLK3)
071121
(LPC_CLK0)
(LPC_CLK1)
071204
AMD review
080130 R1.1
080204 R1.1
Change the Text Comment
Remove R2405, R2406,R2416
R2408, R2418, R2420, R2418 090405
Remove EEPROM 090405
1 2
R2415
10KOhm
R2415
10KOhm
1 2
R2402
10KOhm
@
R2402
10KOhm
@
1 2
R2403
10KOhm
@
R2403
10KOhm
@
1 2
R2411
10KOhm
R2411
10KOhm
1 2
R2419
2.2kOHM
R2419
2.2kOHM
1 2
R2413
10KOhm
@
R2413
10KOhm
@
1 2
R2414
10KOhm
R2414
10KOhm
1 2
R2404
10KOhm
@
R2404
10KOhm
@
1 2
R2410
10KOhm
R2410
10KOhm
1 2
R2409
2.2kOHM
R2409
2.2kOHM
1 2
R2412
10KOhm
@
R2412
10KOhm
@
1 2
R2407
10KOhm
@
R2407
10KOhm
@
1 2
R2417
10KOhm
R2417
10KOhm
1 2
R2401
10KOhm
@
R2401
10KOhm
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
25 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
25 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
25 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
26 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
26 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
26 91
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
27 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
27 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
27 91
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
28 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
28 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
28 91

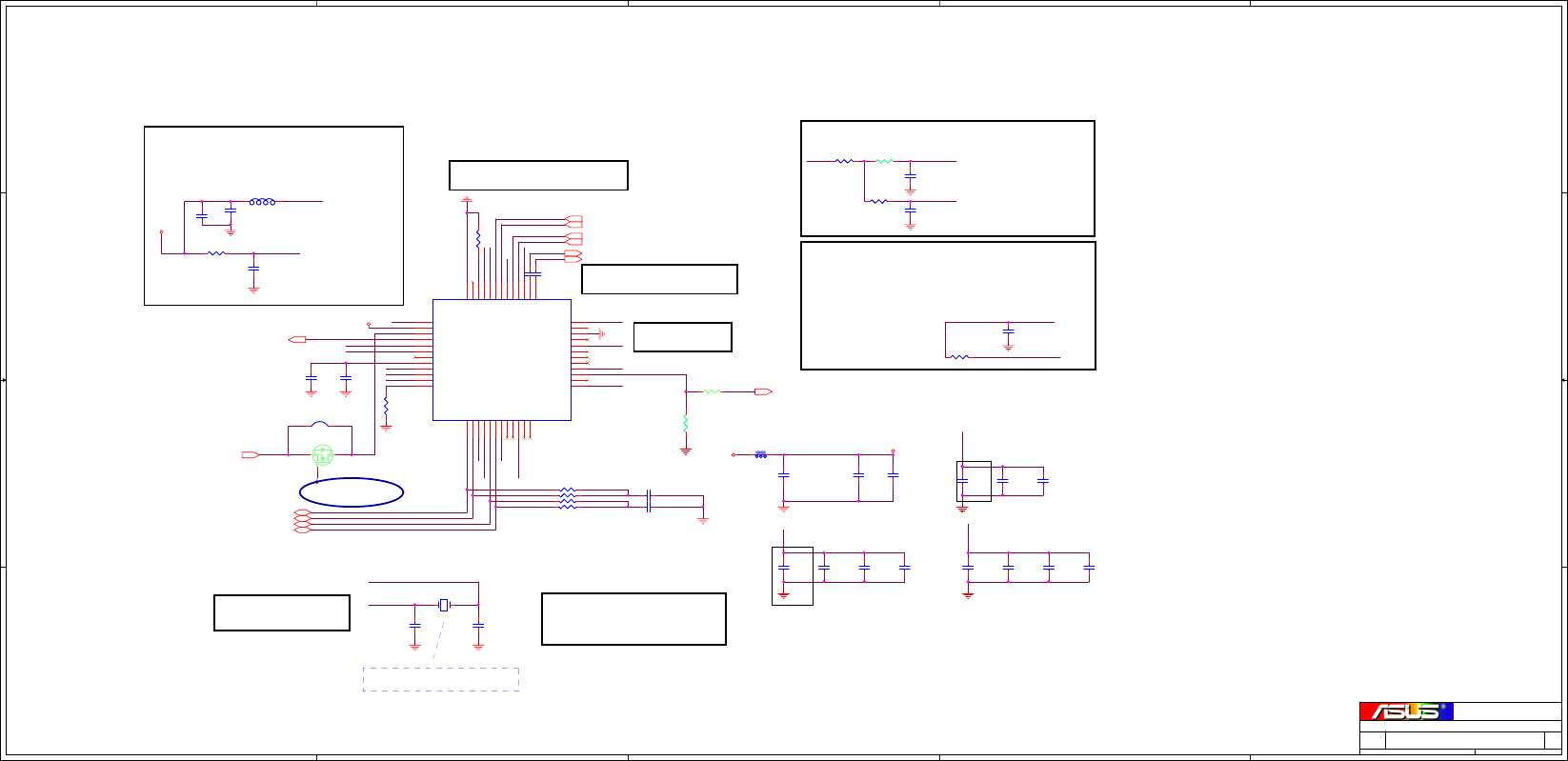

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

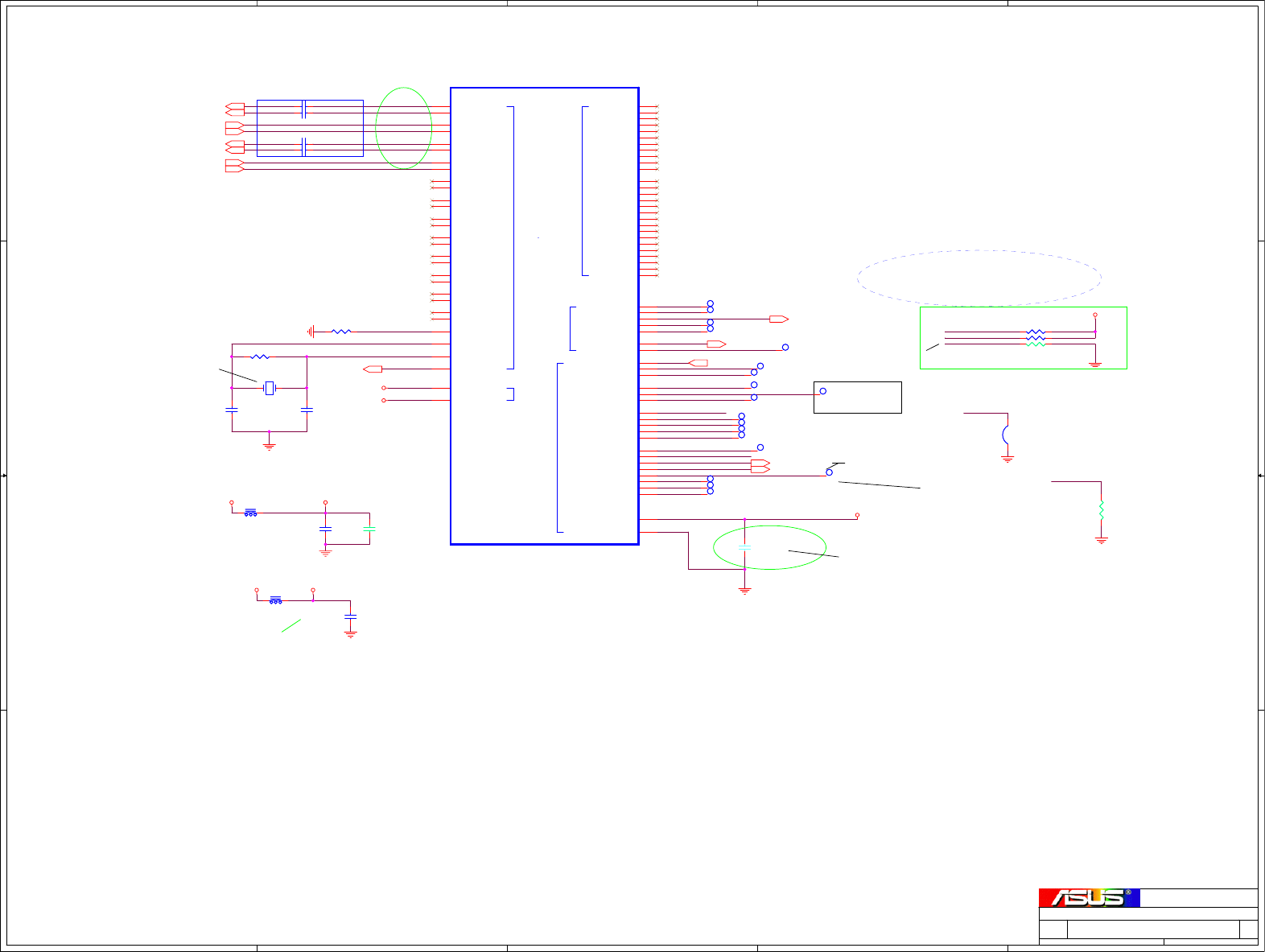

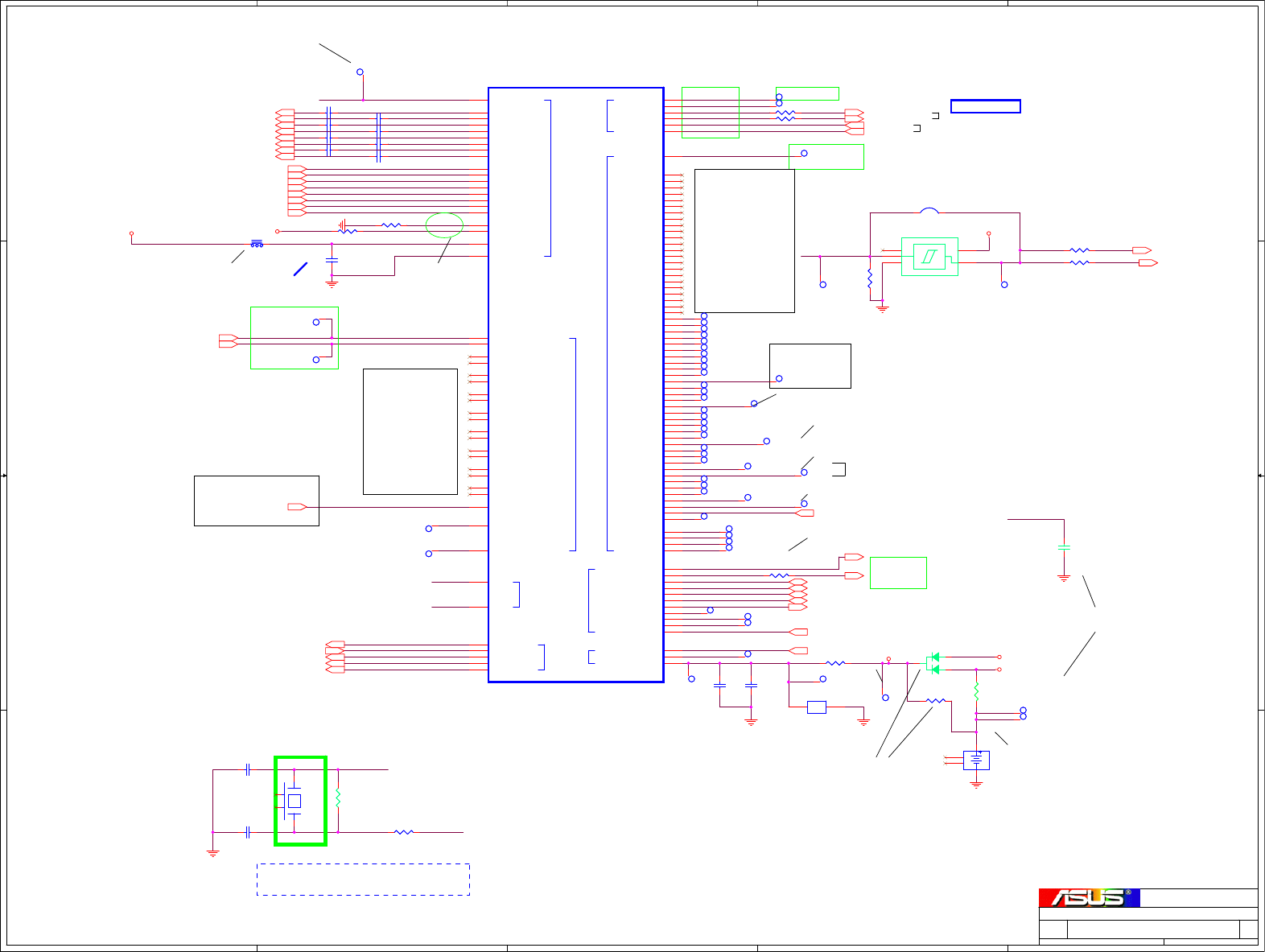

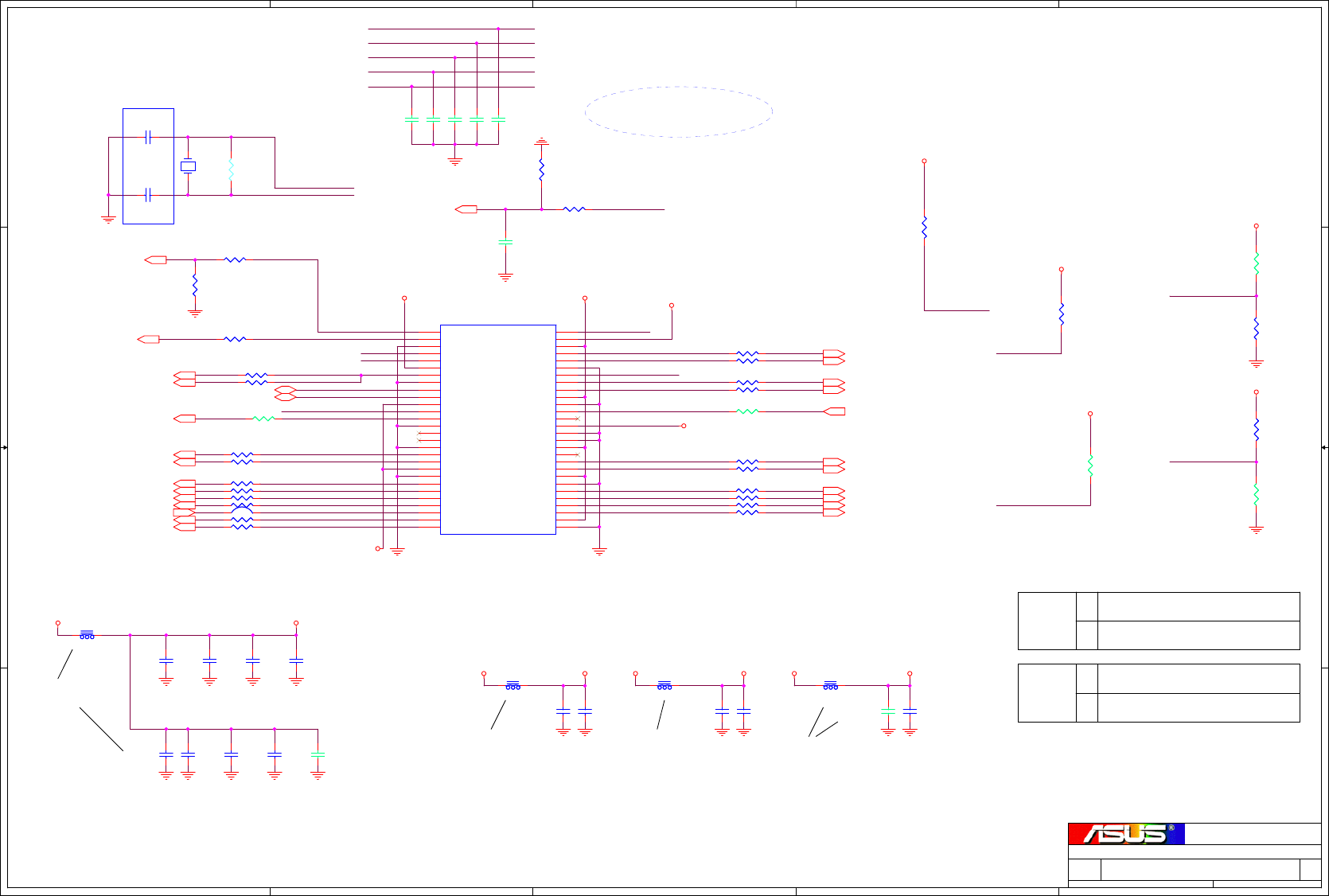

PD#
SEL_HTT66 SEL_27
SRC_SB_PCIE_RCLKN_GEN
USBCLK_48_R PD#
CLK_PCIE_LAN#_GEN
CLK_PCIE_LAN_GEN
SRC_NB_HT_CLKP_GEN
SRC_NB_HT_CLKN_GEN
ATI27M_NSC_R
CLK_PCIE_NEWCARD#_GEN
CLK_PCIE_NEWCARD_GEN
ATI27M_SSC_R
SRC_CPU_HT_CLKP_GEN
SRC_CPU_HT_CLKN_GEN
NB_OSC_GEN
CLK_PCIE_MINICARD#_GEN
CLK_PCIE_MINICARD_GEN SRC_NB_PCIE_RCLKP_GEN
SRC_NB_PCIE_RCLKN_GEN
SEL_HTT66
SRC_NB_GFX_REFCLKP_GEN
SRC_NB_GFX_REFCLKN_GEN
XTAL1_CLK
XTAL2_CLK
XTAL1_CLK
XTAL2_CLK
SEL_27
CLK_PCIE_PEG_GEN
SRC_SB_PCIE_RCLKP_GEN
CLK_PCIE_PEG#_GEN
CLK_USB48_CB_R
CLK_REQ_LAN
CLK_NEWCARD_REQ#
ATI27M_NSC_R
USBCLK_48
CLK_USB48_CB
NB_OSC
SB_OSC
ATI27M_SSC
CLK_PCIE_PEG#[71] CLK_PCIE_PEG[71]
CLK_REQ_LAN[33]
NB_OSC[12]
CLK_PCIE_LAN#[33] CLK_PCIE_LAN[33]
SRC_NB_HT_CLKP [12]
SRC_NB_HT_CLKN [12]
CLK_PCIE_NEWCARD#[43] CLK_PCIE_NEWCARD[43]
SRC_CPU_HT_CLKP [5]
SRC_CPU_HT_CLKN [5]
SRC_SB_PCIE_RCLKN [20]
CLK_PCIE_MINICARD#[53] CLK_PCIE_MINICARD[53]
SMBCLK_DRAM[7,8,21,44] SMBDATA_DRAM[7,8,21,44]
SRC_NB_PCIE_RCLKP [12]
SRC_NB_PCIE_RCLKN [12]
SRC_NB_GFX_REFCLKP [12]
SRC_NB_GFX_REFCLKN [12]
ATI27M_SSC[72]
SB_OSC[20]
SRC_SB_PCIE_RCLKP [20]
USBCLK_48[21] CLK_USB48_CB[40]
CLK_NEWCARD_REQ# [44]
ATI27M_NSC[72]
VDDUSB_CLK
+3.3VS_CLK
GND GND
VDDUSB_CLK
GND
GND
VDDA_CLK+3VS +3VS
GND GND
VDDREF_CLK+3VS
+3.3VS_CLK
VDDREF_CLK
GND GND
GND
+3.3VS_CLK
+3.3VS_CLK+3VS
GND GNDGND GND
GNDGND GND
GND GND
VDDA_CLK
GND
+3.3VS_CLK
GND
GND
+3.3VS_CLK
+3.3VS_CLK
+3.3VS_CLK
GND
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
29 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
RTM880T-797-VB-GRT
2.05
F83T
xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
29 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
RTM880T-797-VB-GRT
2.05
F83T
xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
29 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
RTM880T-797-VB-GRT
2.05
F83T
xinghua_chen
<Variant Name>
080828080828
50mA
AMD review
071203
AMD review
071203
071207
IDT recommend
080828
071207
50mA
080828
NB
NB-HT
080828 080828 080828
AMD review
071203
080828 080828 080828 080828 080828
500mA+50mA
080828
CPU
100 MHz differential HTT clock
66MHz 3.3V single ended HTT clock
SEL_HTT66
0
1
GPU
LAN
100 MHz differential spreading SRC clock
27MHz non-spreading singled clock on pin12
27MHz spread clock on pin13.
SEL_27
0
1
WLAN
New Card
AMD review
071203
AMD review
071203
071120
NB-14.318Mhz
VDDSATA
和
VDDA
分開供電
, VDDSATA
可以吃
+3.3vs_clk 090401
USB
部分是否可以先上
33Ohm
Add C2980~C2985 for EMI
090408
12
C2906
0.1UF/16V
C2906
0.1UF/16V
12
R2907
4.7KOhm
N/A R2907
4.7KOhm
N/A
12
C2913
22UF/6.3V
C2913
22UF/6.3V
1 2 0OhmR2915 0OhmR2915
12
C2912
0.1UF/16V
C2912
0.1UF/16V
1 2
R2955
150Ohm
1%
R2955
150Ohm
1%
1 2
R2996
121Ohm
1%
R2996
121Ohm
1%
21
0402
SL2901
0402
SL2901
12
R2903
10KOhm
R2903
10KOhm
12
C2915
0.1UF/16V
C2915
0.1UF/16V
1 2 0OhmR2931 0OhmR2931
1 2
R2933 22OhmR2933 22Ohm
1 2 0OhmR2911 0OhmR2911
12
C2983
10PF
@
C2983
10PF
@
12
C2916
0.1UF/16V
C2916
0.1UF/16V
12
R2904
10KOhm
@
R2904
10KOhm
@
1 2
R4533
75Ohm
R4533
75Ohm
12
C2909
0.1UF/16V
C2909
0.1UF/16V
1 2 0OhmR2921 0OhmR2921
12
C2980
10PF
@
C2980
10PF
@
1 2 0OhmR2920 0OhmR2920
12
R2906
4.7KOhm
@R2906
4.7KOhm
@
1 2 0OhmR2929
@
0OhmR2929
@
1 2
R2908 22OhmR2908 22Ohm
12
10MOhm
@
R2901
10MOhm
@
R2901
1 2 0OhmR2932 0OhmR2932 1 2 0OhmR2924 0OhmR2924
12
C2914
0.1UF/16V
C2914
0.1UF/16V
21
L2902
600Ohm/100Mhz
L2902
600Ohm/100Mhz
1 2
R4534 150OhmR4534 150Ohm
1 2 0OhmR2910 0OhmR2910
12
C2904
0.1UF/16V
C2904
0.1UF/16V
12
C2985
10PF
@
C2985
10PF
@
12
C2902
33PF/50V
C2902
33PF/50V
1 2 0OhmR2909 0OhmR2909
12
C2917
0.1UF/16V
@
C2917
0.1UF/16V
@
1 2 0OhmR2919 0OhmR2919
12
C2910
0.1UF/16V
C2910
0.1UF/16V
12
C2981
10PF
@
C2981
10PF
@
1 2 0OhmR2923 0OhmR2923
12
C2901
33PF/50V
C2901
33PF/50V
12
C2908
0.1UF/16V
C2908
0.1UF/16V
1 2 0OhmR2918 0OhmR2918
12
C2907
22UF/6.3V
@
C2907
22UF/6.3V
@
12
C2911
0.1UF/16V
C2911
0.1UF/16V
1 2
R2938 33OhmR2938 33Ohm REF1
1
**SEL_HTT66/REF0
2
GNDREF
3
X1
4
X2
5
VDD48
6
48Mz_1
7
GND48
8
SMBCLK
9
SMBDAT
10
VDDDOT
11
SRC7C/27M_NS
12
SRC7T/27M_SS
13
GNDDOT
14
SRC4C
15
SRC4T
16
GNDSRC1
17
SRC2C
18
SRC2T
19
VDDSRC
20
GNDSRC2
21
SRC1C
22
SRC1T
23
SRC0C
24
SRC0T
25
**CLKREQ0#
26
ATIG2C
27
ATIG2T
28 GNDATIG 29
VDDATIG 30
ATIG1C 31
ATIG1T 32
SB_SRC1C 33
SB_SRC1T 34
GNDSB_SRC 35
VDDSB_SRC 36
SB_SRC0C 37
SB_SRC0T 38
**CLKREQ4# 39
VDDSATA 40
GNDSATA 41
GNDA 42
VDDA 43
**CLKREQ2# 44
**CLKREQ1# 45
GNDCPU 46
VDDCPU 47
CPUK8_0C 48
CPUK8_0T 49
*PD# 50
GNDHTT 51
HTT0C/66M 52
HTT0T/66M 53
VDDHTT 54
VDDREF 55
**SEL_27/REF2 56
U2901
RTM880T-797-VB-GRT
U2901
RTM880T-797-VB-GRT
1 2 0OhmR2913 0OhmR2913
21
L2901
600Ohm/100Mhz
L2901
600Ohm/100Mhz
12
R2928
8.2KOhm
@
R2928
8.2KOhm
@
12
R2925
8.2KOhm
R2925
8.2KOhm
12
C2905
2.2UF/10V
C2905
2.2UF/10V
21
L2903
600Ohm/100Mhz
L2903
600Ohm/100Mhz
12
14.318Mhz
X2901
12
14.318Mhz
X2901
21
L2904
600Ohm/100Mhz
L2904
600Ohm/100Mhz
12
C2984
10PF
@
C2984
10PF
@
1 2 0OhmR2914 0OhmR2914
1 2
R2927 33Ohm
@
R2927 33Ohm
@
1 2 0OhmR2916 0OhmR2916
1 2 0OhmR2912 0OhmR2912
12
C2903
2.2UF/10V
C2903
2.2UF/10V
1 2 0OhmR2917 0OhmR2917
12
C2982
10PF
@
C2982
10PF
@
1 2 0OhmR2922 0OhmR2922
12
R2902
10KOhm
R2902
10KOhm
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SMB1_DAT
TP_DAT
TP_CLK
SMB1_CLK
RC_IN#
EXP_GATE#
SI
MARATHON#
PM_SUSC#
PM_SUSB#
VGA_ALERT#
INT_SERIRQ
BUF_PLT_RST#
EC_RST# PM_RSMRST#
SUSC_EC#
EC_RST#
SO SO_ROM SCK
SCE#
A20GATE
SO
SCE#_EC
PM_PWROK
SCE#
DISTP#
INTERNET# / WLAN#
EC_XOUT
SCK_EC
SI_EC
EC_XIN
SCK
SI
PM_PWRBTN#
SUSB_EC#
EXT_SCI#
EXT_SMI#
EC_XOUTEC_XIN
BLUETOOTH# / EMAIL#
BAT1_CNT2#
BAT1_IN_OC#
BAT2_IN_OC#
EXP_GATE#
ROM_WP#_HD#
SMB0_DAT
PM_CLKRUN#
BLUETOOTH# / EMAIL#
INTERNET# / WLAN#
BAT2_CNT2#
DISTP#
SMB0_CLK
PM_RSMRST#
PM_PWROK
SD_CD#_ECSD_CD#_EC
PWRLIMIT#
BAT2_IN_OC#
A20GATE[21]
BAT1_IN_OC#
KSI4[31]
KSO10[31]
CHG_LED# [56]
PWR_LED# [56]
KSO9[31]
BATSEL_0 [80]
PM_CLKRUN# [20]
PWRLIMIT# [5,89]
LID_SW# [31]
VSUS_ON [43,86,87]
KSO13[31]
CPU_VRON [81,83,86]
SUSB_EC# [43,45,57,83,86,88,90]
SUSC_EC# [57,82,86,87]
KSO1[31]
KSO3[31]
KSO0[31]
FAN0_TACH [50]
KSI7[31]
EXT_SCI#[21]
KSO11[31]
KSI2[31] KSI3[31]
KSO4[31]
KSO8[31]
PWR_SW# [31]
KSI0[31]
KSO12[31]
KSI1[31]
KSO7[31]
KSO5[31]
KSI6[31]
KSO15[31]
INT_SERIRQ[20]
KSO6[31]
EXT_SMI#[21]
KSI5[31]
KSO2[31]
KSO14[31]
FAN0_PWM [50]
LCD_BACKOFF# [45]
LCD_BL_PWM [45]
PM_PWRBTN#[21]
ISET_EC [80]
AC_IN_OC# [80]
VRM_PWRGD [81,86]
SUS_PWRGD [85,86]
ALL_SYSTEM_PWRGD [86]
CAP_LED# [56]
NUM_LED# [56]
SMB1_CLK[50,72]
MARATHON#[56]
TP_CLK[31]
SMB1_DAT[50,72] THRO_CPU[5]
SMB0_CLK[60] SMB0_DAT[60]
OP_SD#[37]
TP_DAT[31]
RF_SW# [53,61]
LPC_AD0[20,44]
LPC_AD2[20,44] LPC_AD3[20,44]
LPC_AD1[20,44]
BUF_PLT_RST#[5,20,33,40,43,53,71]
VSET_EC [80]
BATSEL_1 [80]
FORCE_OFF#[5,86,87]
CHG_EN [80]
VGA_ALERT# [72]
RC_IN#[21]
TS1# [60]
OS#_OC[50]
PM_RSMRST#_EC [21]
PM_SUSC# [21]
PM_SUSB# [21]
PM_PWROK_EC [21]
LPC_FRAME#[20,44]
CLK_KBCPCI[20,24]
SD_CD#_EC [40]
+3VA_EC +3VACC
GND
+3VPLL
EC_AGND
GND
+3VS
+3VA_EC
+3VS
+3VSUS
+3VS
+3VS
EC_AGND
GND
+3VPLL
GND
+3VA_EC
+3VA_EC
+3VS
GND
GND
+3VACC
GND
+3VS
+3VA_EC
+3VSUS
+3VS
+3VA_EC
GND
+3VA_EC
GND GND
+3VA +3VA_EC
GND
+3VA_SPI
+3VA_EC
GND
EC_AGND
GND
GND
+3VS +3V
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
EC_IT8512 (1/2)
2.05
F5Z
<OrgAddr1>
30 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
EC_IT8512 (1/2)
2.05
F5Z
<OrgAddr1>
30 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
EC_IT8512 (1/2)
2.05
F5Z
<OrgAddr1>
30 91
Fix for "Auto Power on" and "Data time error" Issue in
Intel Platform
Depend on SB required or not.
It's used for NVidia Graphic IC thermal protection
(internal thermal sensor)
For FW201 GPH2 is CTX1. For FW202 GPH2 is CHG_EN
ORIGINAL NAME : INSTANT_ON# (I) (GPE7) (10K ohm PU +3VA)
2nd : CAP_ACK# (I)
Backup PU or PD resistor
EC set those pins as OD type. Please
check SB spec. wether it need 10K ohm
pull-up resistor to +3VSUS or not.
If the schematic below has existed on pp.20~28 (SB_), please remove the circuit here.
Note:
Please check PM_PWROK that there are 10k
ohm series resistor and pull-down on
p.p.20~28 (SB_)
To SB
If you use the IT8512JX (IT8502JX) and
later version, please mount C3021 and
un-mount R3052.Otherwise, please mount
R3052 and un-mount C3021.
(8Mb)
2nd : WLAN# (I) (GPF1) (10K ohm PU +3VS)
1st : INTERNET# (I) (GPF1) (10K ohm PU +3VS)
Batt1
Thermal sensor
ORIGINAL NAME : MARATHON#
2nd :SPLENDID# (I) (GPB2) (10K ohm PU +3VS)
Please check FAN0_TACH that there is 4.7k ohm pull-up
resistor to +3VS on p.p. 50 (Thermal Sensor & FAN)
2nd : TP_LED (O) (GPA4)
Please check there are de-bounce cap near
the switch, then un-mount the cap here.
2nd : KB_LED_PWM (O) (GPA6)
EC set this pin as OD type. Please check SB spec. wether
it need 10K ohm pull-up resistor to +3VS or not.
2nd : TP_LED_PWM (O) (GPA7)
If there is PWR4GEAR# button without
optional EXP_GATE# function, please
pull high it to +3VS. If there is
the button combined the PWR4GEAR#
and EXP_GATE# function, please pull
high it to +3VA
2nd : SD_CD_EC# (OD) (GPD7)
3rd : FAN1_TACH (Alt) (GPD7) (4.7K ohm PU +3VS)
2nd : CRX1 (Alt) (GPH1)
Cload can be fine tune , and EC need X'tal to within typical +/- 100 ppm
ORIGINAL NAME :RFON_SW#
2nd: FAN1_PWM (Alt) (GPA2)
Note: If the PU or PD circuits have existed on the other page, please remove the PU or PD circuit here.
Please check RF_SW# that there is 10k ohm pull-up
resistor to +3VA on p.p. 61 (BT & Side Switch)
2nd :WLAN_RST# (O) (GPJ5)
1st : BLUETOOTH# (I) (GPF0)(10K ohm PU +3VS)
2nd : EMAIL# (I) (GPF0) (10K ohm PU +3VS)
If there is PWR4GEAR# button without optional EXP_GATE# function,
please pull high it to +3VS.
IP
2nd : TP_LED (O) (GPJ4)
For FW201 GPB0 is VOL_SEL. For FW202 GPB0 is BATSEL_0
and VOL_SEL is change to GPG0
3rd : DRAM_THROTTLE# (O) (GPJ4)
For FW201 VOL_SEL is on GPB0 ,
For FW202 VOL_SEL is on GPG0.
Note:
Cload place close to EC
For Instant Key
For PU / PD
Close to EC
For EC Hardware Strap
For EC Reset
For IT8512 Power
Note:
EXT_SMI#, EXT_SCI#, PU power plane depend on ICH8 GPIO.
For X'tal
Note:
close to the WRST# (IT8512E pin14)
Note: Default Int. Pull-Low
Note: It can be programmable by EC fireware.
Note: It can be programmable by EC fireware
from Reset SW
PP Enable
I/O Base Address
Share Memory
Note:
ORIGINAL NAME : COLOREN# (I) (GPE7) (10K ohm PU +3VS)
080130 R1.1
SD_CD#_EC : OD
Add 2nd source
07G010N23276
090331
change to 0 Ohm 090406
Notice EC FW 202
090410
1
T3001 TPC28TT3001 TPC28T
12
C3006
10UF/10V
@C3006
10UF/10V
@
21
0603
SL3004
0603
SL3004
GPG0
106
GPG6
104
FMISO
103
FMOSI
102
FSCE#
101
GPG2
100
GA20/GPB5
126
KBRST#/GPB6
4
WRST#
14
SERIRQ
5
PWM0/GPA0 24
PWM1/GPA1 25
PWM2/GPA2 28
PWM3/GPA3 29
PWM4/GPA4 30
PWM5/GPA5 31
LAD0
10
LAD1
9
LAD2
8
LAD3
7
LPCCLK
13
LFRAME#
6
LPCRST#/WUI4/GPD2
22
ECSMI#/GPD4
15
ECSCI#/GPD3
23
FSCK
105
KSI0/STB#
58
KSI1/AFD#
59
KSI2/INIT#
60
KSI3/SLIN#
61
KSI4
62
KSI5
63
KSI6
64
KSI7
65
KSO0/PD0
36
KSO1/PD1
37
KSO2/PD2
38
KSO3/PD3
39
KSO4/PD4
40
KSO5/PD5
41
KSO6/PD6
42
KSO7/PD7
43
KSO8/ACK#
44
KSO9/BUSY
45
KSO10/PE
46
KSO11/ERR#
51
KSO12/SLCT
52
KSO13
53
KSO14
54
KSO15
55
CK32K
128
CK32KE
2
PS2CLK0/GPF0
85
PS2DAT0/GPF1
86
SMCLK0/GPB3
110
SMDAT0/GPB4
111
SMCLK1/GPC1
115
SMDAT1/GPC2
116
L80LLAT/WU17/GPE7 20
GPG1/ID7 107
L80HLAT/GPE0 19
VSS1
1
VCORE
12
VSS3
27
VSS4
49
VSS5
91
VSS6
113
VSS7
122
AVSS
75
VSTBY1 26
VSTBY2 50
VSTBY3 92
VSTBY4 114
VSTBY5 121
VSTBY 127
VBAT 3
VCC 11
AVCC 74
PWM6/GPA6 32
PWM7/GPA7 34
RXD/GPB0 108
TXD/GPB1 109
CTX0/GPB2 123
RING#/PWRFAIL#/LPCRST#/GPB7 112
CRX0/GPC0 119
KSO16/GPC3
56
TMRI0/WUI2/GPC4 120
KSO17/GPC5
57
TMRI1/WUI3/GPC6 124
PWUREQ#/GPC7 16
RI1#/WUI0/GPD0 18
RI2#/WUI1/GPD1 21
GINT/GPD5 33
TACH0/GPD6 47
TACH1/GPD7 48
EGAD/GPE1 82
EGCS#/GPE2 83
EGCLK/GPE3 84
PWRSW/GPE4 125
WUI5/GPE5 35
LPCPD#/WUI6/GPE6 17
CLKRUN#/WUI16/GPH0/ID0 93
CRX1/WUI17/GPH1/ID1 94
CTX1/WUI18/GPH2/ID2 95
WUI19/GPH3/ID3 96
GPH4/ID4 97
GPH5/ID5 98
GPH6/ID6 99
ADC0/GPI0 66
ADC1/GPI1 67
ADC2/GPI2 68
ADC3/GPI3 69
ADC4/GPI4 70
ADC5/GPI5 71
ADC6/GPI6 72
ADC7/GPI7 73
DAC4/GPJ4 80
DAC5/GPJ5 81
DAC0/GPJ0 76
DAC1/GPJ1 77
DAC2/GPJ2 78
DAC3/GPJ3 79
PS2CLK1/GPF2
87
PS2DAT1/GPF3
88
PS2CLK2/WUI20/GPF4
89
PS2DAT2/WUI21/GPF5
90
SMCLK2/WUI22/GPF6
117
SMDAT2/WUI23/GPF7
118
LPC
FLASH ROM
KBMX
GPIO
SMBusPS/2
U3004
IT8512E-L
LPC
FLASH ROM
KBMX
GPIO
SMBusPS/2
U3004
IT8512E-L
12
C3004
0.1UF/16V
@
C3004
0.1UF/16V
@
12
R3046
10MOhm
@
R3046
10MOhm
@
1 2
R3051 10KOhm@R3051 10KOhm@
1
T3060T3060
1 2
C3008 0.1UF/16V@C3008 0.1UF/16V@
12
C3007
0.1UF/16V
C3007
0.1UF/16V
1
T3054T3054
7 8
RNX3001D
0Ohm RNX3001D
0Ohm
5 6
RN3002C 10KOhmRN3002C 10KOhm
12
D3003
1SS355
@
D3003
1SS355
@
21
0402
SL3015
0402
SL3015
1
T3062T3062
1 2
R3045
100KOhm
R3045
100KOhm
21
0402
SL3016
0402
SL3016
21
0402
SL3059
0402
SL3059
1 2
R3055 10KOhm@R3055 10KOhm@
1 2
C3015 0.1UF/16V@C3015 0.1UF/16V@
21
0603
SL3001
0603
SL3001
1 2
C3016
15PF/50V
C3016
15PF/50V
7 8
RN3021D 4.7KOHM
RN3021D 4.7KOHM
1
T3010TPC28T T3010TPC28T
1 2
R3052
0Ohm
@
R3052
0Ohm
@
1 2
RN3020A
10KOhm
@
RN3020A
10KOhm
@
12
C3003
10UF/10V
@C3003
10UF/10V
@
3 4
RN3022B
100KOhm RN3022B
100KOhm
1
T3050T3050
21
0603
SL3007
0603
SL3007
5 6
RN3020C
10KOhm
@
RN3020C
10KOhm
@
1
T3014TPC28T T3014TPC28T
1 2
R3033 10KOhm
@
R3033 10KOhm
@
21
0402
SL3053
0402
SL3053
1
T3011TPC28T T3011TPC28T
1
T3061T3061
1
T3008 TPC28TT3008 TPC28T
1
T3003 TPC28TT3003 TPC28T
21
0603
SL3003
0603
SL3003
12
C3005
0.1UF/16V
@
C3005
0.1UF/16V
@
1
T3004 TPC28TT3004 TPC28T
12
C3001
0.1UF/16V
C3001
0.1UF/16V
3 4
RN3009B
10KOhm RN3009B
10KOhm
1
T3056T3056
1 2
C3012 0.1UF/16V@C3012 0.1UF/16V@
1
T3051T3051
2 1
0603
SL3008
0603
SL3008
1 2
D3001
1SS355
D3001
1SS355
1 2
R3043
4.7KOhm
R3043
4.7KOhm
1
T3002 TPC28TT3002 TPC28T
1 2
RN3009A
10KOhm RN3009A
10KOhm
1 2
R3056 10KOhm@R3056 10KOhm@
12
R3023
100KOhm
R3023
100KOhm
1
T3013 TPC28TT3013 TPC28T
1 2
R3036 10KOhm
@
R3036 10KOhm
@
1
T3009 TPC28TT3009 TPC28T
1
T3055T3055
1 2
C3018 0.1UF/16V@C3018 0.1UF/16V@
1 2
RN3002A 10KOhm
RN3002A 10KOhm
1 2
RN3022A
100KOhm RN3022A
100KOhm
1
T3005 TPC28TT3005 TPC28T
7 8
RN3022D
100KOhm RN3022D
100KOhm
12
C3022
1UF/10V
@
C3022
1UF/10V
@
1 2
R3053 10KOhmR3053 10KOhm
5 6
RN3022C
100KOhm RN3022C
100KOhm
1 2
RNX3001A
0Ohm RNX3001A
0Ohm
1 2
RN3021A 4.7KOHM
RN3021A 4.7KOHM
12
C3019
0.1UF/16V
C3019
0.1UF/16V
1 2
RN3001A
4.7KOHM RN3001A
4.7KOHM
1 2
C3014 0.1UF/16V@C3014 0.1UF/16V@
1
T3057T3057
3 4
RN3021B 4.7KOHM
RN3021B 4.7KOHM
1
T3012TPC28T T3012TPC28T
12
C3010
4.7UF/6.3V
C3010
4.7UF/6.3V
2 1
0603
SL3005
0603
SL3005
5 6
RNX3001C
0Ohm RNX3001C
0Ohm
1
T3006 TPC28TT3006 TPC28T
1 2
R3002 100KOhm
@
R3002 100KOhm
@
1 2
R3064 10KOhm@R3064 10KOhm@
5 6
RN3021C 4.7KOHM
RN3021C 4.7KOHM
1 2
R3063 10KOhm@R3063 10KOhm@
12
C3002
0.1UF/16V
C3002
0.1UF/16V
21
0402
SL3017
0402
SL3017
CE#
1
SO
2
WP#
3
VSS
4SI 5
SCK 6
HOLD# 7
VDD 8
U3003
SST25VF080B
U3003
SST25VF080B
1
T3020 TPC28TT3020 TPC28T
GS
D
3
2
1
Q3001
2N7002
GS
D
3
2
1
Q3001
2N7002
21
0603
SL3002
0603
SL3002
3 4
RN3001B
4.7KOHM RN3001B
4.7KOHM
1 2
R3001 100KOhm
R3001 100KOhm
1 2
R3059
10KOhm
@
R3059
10KOhm
@
7 8
RN3020D
10KOhm
@
RN3020D
10KOhm
@
1 4
2
3
X3001 32.768Khz
+/-20ppm/12.5PF
X3001 32.768Khz
+/-20ppm/12.5PF
3 4
RNX3001B
0Ohm RNX3001B
0Ohm
1
T3019 TPC28TT3019 TPC28T
5 6
RN3001C
4.7KOHM RN3001C
4.7KOHM
1
T3018 TPC28TT3018 TPC28T
7 8
RN3002D 10KOhm
RN3002D 10KOhm
12
C3021
0.1UF/16V
C3021
0.1UF/16V
7 8
RN3001D
4.7KOHM RN3001D
4.7KOHM
21
0402
SL3014
0402
SL3014
3 4
RN3002B 10KOhm
RN3002B 10KOhm
1
T3017 TPC28TT3017 TPC28T
3 4
RN3020B
10KOhm
@
RN3020B
10KOhm
@
1 2
C3017
15PF/50V
C3017
15PF/50V
1
T3058T3058
1
T3016 TPC28TT3016 TPC28T
1
T3015 TPC28TT3015 TPC28T
1
T3007 TPC28TT3007 TPC28T
1
T3059T3059

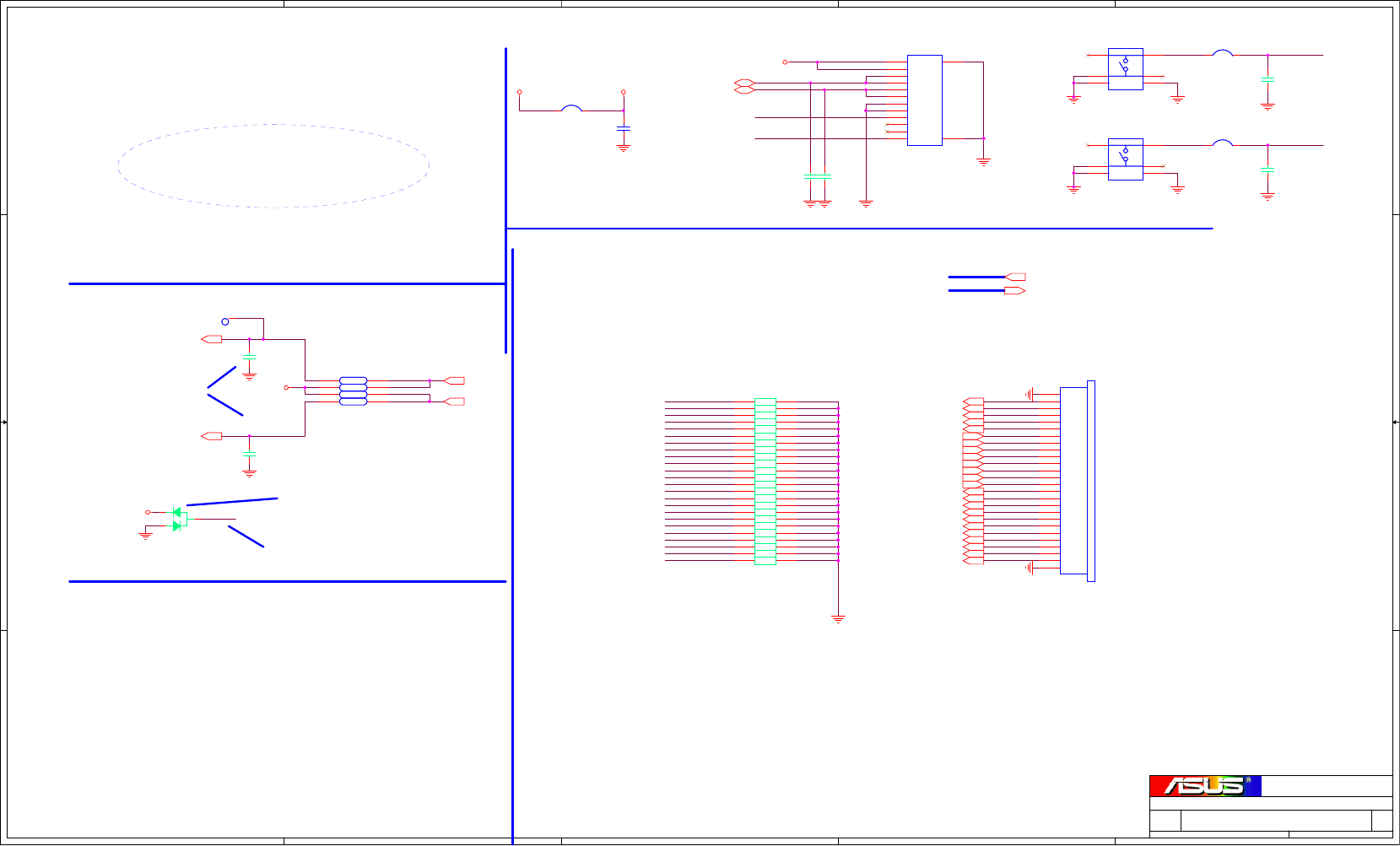

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LID_SW#
PWR_SW#
LID_SW# KSI1
KSO4
KSI0
KSO6
KSO1
KSI5
KSO2
KSI6
KSO3
KSO12
KSO7
KSO11
KSO13
KSO9
KSO10
KSO5
KSI3
KSO14
KSI2
KSO8
KSI7
KSI4
KSO15
KSO0
KSI5
KSO14
KSO9
KSO3
KSO1
KSO13
KSI1
KSI7
KSI6
KSI4
KSI2
KSO11
KSO6
KSO7
KSO0
KSO15
KSI0
KSI3
KSO12
KSO10
KSO8
KSO4
KSO2
KSO5
LEFT
RIGHT
LEFT
RIGHT
KSO[15:0] [30]
KSI[7:0] [30]
LIDSW# [45]
PWRSW# [56]
PWR_SW#[30]
LID_SW#[30] KSI5[30] KSI1[30] KSI7[30] KSI6[30] KSI4[30] KSI2[30] KSI0[30] KSI3[30]
KSO9[30] KSO3[30] KSO1[30] KSO13[30]
KSO10[30] KSO11[30] KSO6[30] KSO8[30]
KSO12[30]
KSO2[30] KSO5[30] KSO7[30] KSO0[30]
KSO4[30]
KSO15[30]
KSO14[30]
TP_DAT[30] TP_CLK[30]
GND
+3VA_EC
GND
GND
+3VA_EC
GND
+5VS +5VS_TP
GND
GND
GND
+5VS_TP
GND GNDGND
GND
GNDGND GND
GNDGND GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
EC_IT8512 (2/2)
2.05
F5Z
<OrgAddr1>
31 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
EC_IT8512 (2/2)
2.05
F5Z
<OrgAddr1>
31 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Tuesday, May 26, 2009
ASUSTeK COMPUTER INC. NB1
EC_IT8512 (2/2)
2.05
F5Z
<OrgAddr1>
31 91
For Switch
PWR
SWITCH
LID
SWITCH
Please check there are
de-bounce cap near the
switch, then un-mount the
cap here.
For Battery
Note: If there is the same circuit on pp.60 (DC & BAT IN), please delete
the circuit here
For Thermal Control Method
Keyboard Connector
Touchpad Connector
Please Design based on your project.
Please follow the ASUS Keyboard Matrix Spec
Please check there is ESD Protector near the
connector, then un-mount D3105 here.
D3105 is moved to the position after
the series resistor.
Note: Please follow the Thermal-Trip circuit on pp.3~6 (CPU_)
Schematic below is noly the example in the previos
project. It will be different between the different
connector used in the Project.
P/N:12G183301208
P/N:12G091031041
P/N:12G091031041
壓縮排容的個數
090401
Remove D3101 part circuit
090409 Notice switch P/N
090410
7 8
RN3101D
10KOhm RN3101D
10KOhm
5 6
CN3132C
33PF/50V @CN3132C
33PF/50V @
3 4
CN3134B
33PF/50V @CN3134B
33PF/50V @
7 8
CN3132D
33PF/50V @CN3132D
33PF/50V @
7 8
CN3133D
33PF/50V @CN3133D
33PF/50V @
1 2
3 4
5 6
SW3106
TP_SWITCH_4P
SW3106
TP_SWITCH_4P
5 6
CN3135C
33PF/50V @CN3135C
33PF/50V @
12
C3109
100PF
@
c0402
C3109
100PF
@
c0402
5 6
CN3133C
33PF/50V @CN3133C
33PF/50V @
12
C3108
100PF
@
c0402
C3108
100PF
@
c0402
3 4
CN3130B
33PF/50V @CN3130B
33PF/50V @
1 2
3 4
5 6
SW3105
TP_SWITCH_4P
SW3105
TP_SWITCH_4P
5 6
CN3131C
33PF/50V @CN3131C
33PF/50V @
3 4
CN3132B
33PF/50V @CN3132B
33PF/50V @
3 4
CN3131B
33PF/50V @CN3131B
33PF/50V @
12
C3106
0.01UF/25V
@C3106
0.01UF/25V
@
12
C3111
100PF
@
c0402
C3111
100PF
@
c0402
7 8
CN3135D
33PF/50V @CN3135D
33PF/50V @
1
T3101T3101
7 8
CN3130D
33PF/50V @CN3130D
33PF/50V @
SIDE1
25
SIDE2
26
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
J3103
FPC_CON_24P
J3103
FPC_CON_24P
12
C3102
0.1UF/16V
C3102
0.1UF/16V
1 2
CN3133A
33PF/50V @CN3133A
33PF/50V @
12
C3107
0.01UF/25V
@C3107
0.01UF/25V
@
21
0402
SL3106
0402
SL3106
1 2
CN3134A
33PF/50V @CN3134A
33PF/50V @
3 4
RN3101B
10KOhm RN3101B
10KOhm
1 2
CN3131A
33PF/50V @CN3131A
33PF/50V @
5 6
RN3101C
10KOhm RN3101C
10KOhm
3 4
CN3133B
33PF/50V @CN3133B
33PF/50V @
5 6
CN3130C
33PF/50V @CN3130C
33PF/50V @
21
0603
SL3101
0603
SL3101
1 2
CN3130A
33PF/50V @CN3130A
33PF/50V @
12
C3110
100PF
@
c0402
C3110
100PF
@
c0402
21
0402
SL3105
0402
SL3105
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12 SIDE1 13
SIDE2 14
J3102
FPC_CON_12P
J3102
FPC_CON_12P
1 2
CN3135A
33PF/50V @CN3135A
33PF/50V @
3 4
CN3135B
33PF/50V @CN3135B
33PF/50V @
1
23
D3105
BAV99
@
D3105
BAV99
@
1 2
RN3101A
10KOhm RN3101A
10KOhm
5 6
CN3134C
33PF/50V @CN3134C
33PF/50V @
7 8
CN3134D
33PF/50V @CN3134D
33PF/50V @
7 8
CN3131D
33PF/50V @CN3131D
33PF/50V @
1 2
CN3132A
33PF/50V @CN3132A
33PF/50V @
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
32 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
32 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
32 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Remove all RST SCH and Change SW to other page
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
AVDD_VCO1
AVDDL
DVDDL
Pin 5
Pin 1
DVDDL
VDD_+2.5V
DVDDL
CLK_REQ
VDD_+2.5V
AVDDL
AVDDL AVDDL
Pin 6
DVDDL
Pin 5
VDD_+2.5V
X1_LAN
X2_LAN
AVDD_VCO2
AVDDL
AVDDL
AVDD_VCO2
X2_LAN
X1_LAN
Pin 6
RXP
AVDD_VCO1
RXN
AVDDL
DVDDL
VDD_+2.5VRBIAS
VDD_+2.5V
Pin 1
L_TRDN0[34]
L_TRDN1[34]
L_TRDP0[34]
L_TRDP1[34]
BUF_PLT_RST#[5,20,30,40,43,53,71]
PCIE_RXP1_LAN [11]
PCIE_RXN1_LAN [11]
PCIE_TXP1_LAN [11]
PCIE_TXN1_LAN [11]
CLK_PCIE_LAN [29]
CLK_PCIE_LAN# [29]
PCIE_WAKE#[21,43,53]
CLK_REQ_LAN [29]
+3VS
+AVDD_CEN
+3VSUS +3V_LAN
+3V_LAN
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
33 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
LAN-RTL8111C
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
33 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
LAN-RTL8111C
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
33 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
LAN-RTL8111C
2.05
F5Z
Richard_Lu
<Variant Name>
AR8114:Remove C3328
C3308 close to pin45/46
AR8132:C3319=0.1uF
AR8114:C3319=1uF
C3301 C3303 C3304 close to pin2
For AR8132: Remove R3305,R3306,C3324,C3325,C3326,Q3301
For AR8114: Remove C3327 R3308
AR8114:Remove R3313
AR8132:Remove R3314
AR8132:Remove R3301,C3318
AR8114:Remove L3302,C3317,R3302
Q3301 close to Pin8
AR8114:Remove R3310
AR8132/25MHz: Remove C3328
AR8132/48MHz: Remove C3329 C3330 X3301
AR8114:Remove R3315
PCIE Tx,Rx
方向是以南橋為觀點
LAN pin Tx,Rx
是以
LAN
為觀點
AR8132 with overclock: Remove R3315
AR8132/25MHz:Remove R3310 C3333
AR8132/48MHz:Remove C3333
Ground pad
要打散熱孔
AR8132:Remove L3303
With overclock:Remove R3303
Not overclock:Remove R3304
C3318 close to Pin 1
For AR8132 : Remove R3309
C3305 close to pin15
AR8132: C3321=0.1uF, Remove C3322
AR8132: L3304=0ohm
0314
+3V change to +3VS
P/N:09G02X473Z05
Pin 1 pin 6 1.7V
change X3301 source 07G010Q12500
12
C3313
0.1UF/16V
C3313
0.1UF/16V
12
C3317
10UF/6.3V
C3317
10UF/6.3V
12
C3308
0.1UF/16V
C3308
0.1UF/16V
12
C3327
0.1UF/16V
C3327
0.1UF/16V
21
L3301
80Ohm/100Mhz
L3301
80Ohm/100Mhz
LX
1
VDD3V_2
2
PERSTn
3
WAKEn
4
VDD3V_1
5
VDD17
6
SEL_25MHz
7
VDD11_REG
8
XTLO
9
XTLI
10
AVDD_REG
11
RBIAS
12
TRXP0
13
TRXN0
14
VDDHO
15
AVDDL_1
16
TRXP1
17
TRXN1
18
AVDDH_1
19
NC1
20
NC2
21
AVDDL_2
22
NC3
23
NC4
24
AVDDH_2 25
NC5 26
CLKREQn 27
DVDDL_1 28
TWSI_CLK 29
TWSI_DATA 30
SMCLK 31
DVDDL_2 32
SMDATA 33
TESTMODE 34
NC6 35
AVDDL_3 36
TX_N 37
TX_P 38
AVDDL_4 39
REFCLKN 40
REFCLKP 41
AVDDL 42
RX_P 43
RX_N 44
DVDD_REG_2 45
DVDD_REG_1 46
LED_ACTn 47
LED_10_100n 48
GND 49
U3301
AR8132_AL1E
U3301
AR8132_AL1E
12
X3301
25Mhz
12
X3301
25Mhz
1 2
R3306 0Ohm
@
R3306 0Ohm
@
12
C3331
0.1UF/16V
C3331
0.1UF/16V
12
C3312
0.1UF/16V
C3312
0.1UF/16V
21
L3333
4.7UH
L3333
4.7UH
1 2
C3336 0.1UF/16VC3336 0.1UF/16V
21
0402
SL3312
0402
SL3312
12
C3305
1UF/10V
C3305
1UF/10V
1 2
R3307
0Ohm
@
R3307
0Ohm
@
12
R3316 49.9OhmR3316 49.9Ohm
1 2
R3304
0Ohm
/X
R3304
0Ohm
/X
12
C3306
0.1UF/16V
C3306
0.1UF/16V
12
C3307
0.1UF/16V
C3307
0.1UF/16V
12
C3323
0.1UF/16V
C3323
0.1UF/16V
12
C3321
0.1UF/16V
C3321
0.1UF/16V
12
C3311
0.1UF/16V
C3311
0.1UF/16V
1 2
R3305
0Ohm
R3305
0Ohm
12
C3334
0.1UF/16V
C3334
0.1UF/16V
12
C3316
0.1UF/16V
C3316
0.1UF/16V
12
C3309
0.1UF/16V
C3309
0.1UF/16V
12
C3310
0.1UF/16V
C3310
0.1UF/16V
1 2
R3302 0OhmR3302 0Ohm
12
R3312 49.9OhmR3312 49.9Ohm
12
R3314 49.9OhmR3314 49.9Ohm
1 2
C3337 0.1UF/16VC3337 0.1UF/16V
12
C3314
0.1UF/16V
C3314
0.1UF/16V
1 2
R3311
2.37KOHM
R3311
2.37KOHM
12
C3329
27PF/50V
C3329
27PF/50V
12
C3332
1UF/10V
C3332
1UF/10V
12
C3301
10UF/6.3V
C3301
10UF/6.3V
12
R3313 49.9OhmR3313 49.9Ohm
1 2
R3315
5.1KOHM
R3315
5.1KOHM
12
C3330
27PF/50V
C3330
27PF/50V
1 2
R3303
0Ohm
R3303
0Ohm
12
C3319
0.1UF/16V
C3319
0.1UF/16V
12
C3304
0.1UF/16V
C3304
0.1UF/16V
12
C3335
0.1UF/16V
C3335
0.1UF/16V
1 2
R3308
0Ohm
R3308
0Ohm
G
S
D3
2
1
Q3302
2N7002
@
G
S
D3
2
1
Q3302
2N7002
@
12
C3315
0.1UF/16V
C3315
0.1UF/16V
12
C3303
1UF/10V
C3303
1UF/10V

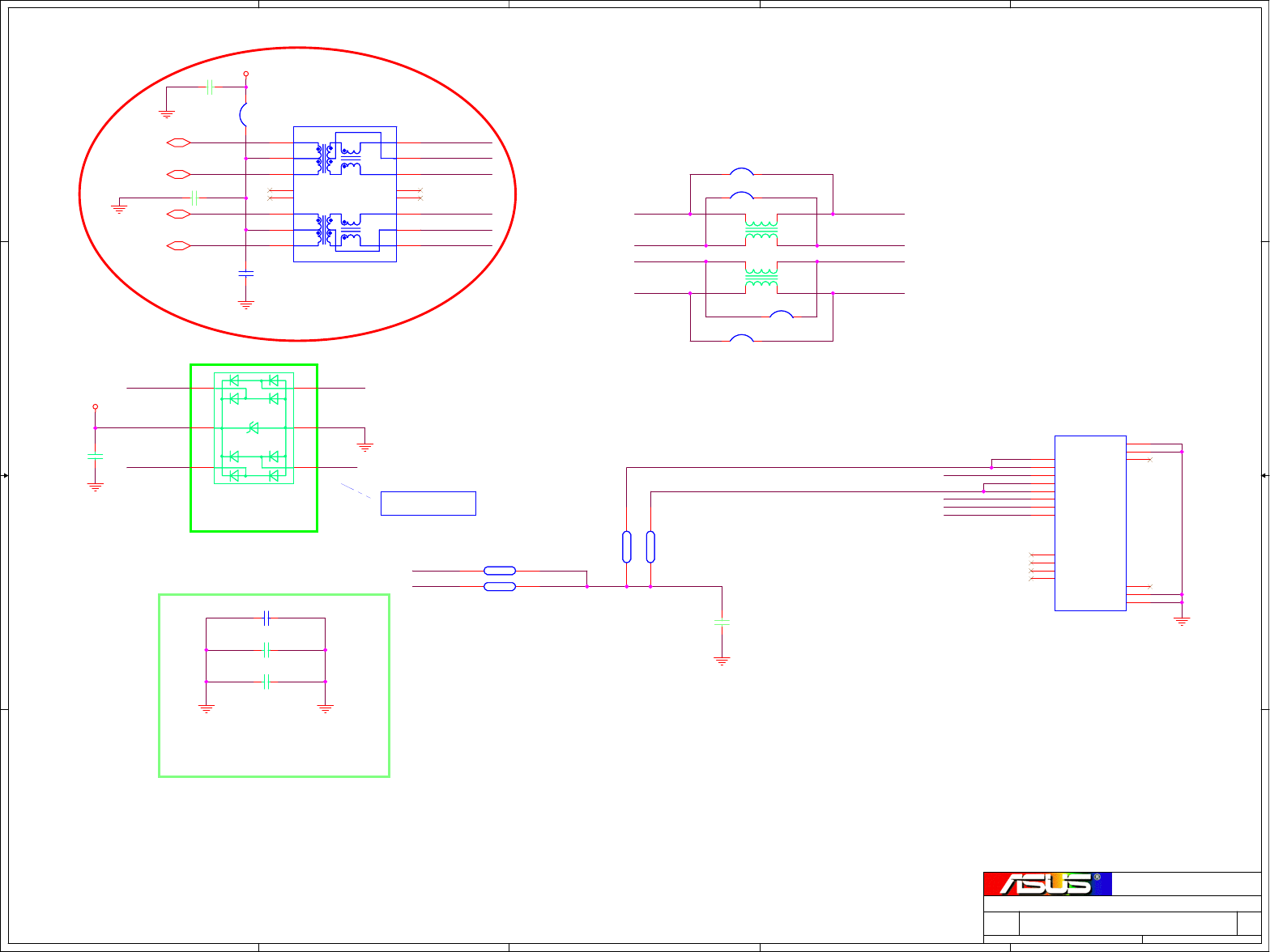

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LAN_TDNL_TDN
L_RDP LAN_RXN
L_RDP LAN_RDP
L_TDN
LAN_TXP
RXCT
LAN_RXP
TXCT
LAN_RXN
LAN_TXN
RXCT
L_RDN
LAN_TDP
LAN_TDN
LAN_RDN
LAN_RDP
L_TDP
LAN_TXN
LAN_TDP
LAN_TXP
LAN_RDN
LAN_RXP
L_RDN
TXCT
L_TDP
L_TRDN0[33]
L_TRDN1[33]
L_TRDP0[33]
L_TRDP1[33]
GND LAN_GND
GND
GND
+AVDD_CEN
GND
+3VSUS
GND
GND
LAN_GND
LAN_GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
34 91Monday, June 01, 2009
ASUSTeK COMPUTER INC
LAN-RJ45
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
34 91Monday, June 01, 2009
ASUSTeK COMPUTER INC
LAN-RJ45
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
34 91Monday, June 01, 2009
ASUSTeK COMPUTER INC
LAN-RJ45
2.05
F5Z
Richard_Lu
<Variant Name>
R0.3
Item 2
Cost down
Place near chassis GND
For RJ-45/RJ-11
P/N:12G142111124
ADD PORT
09G051050400
change to 09G0510010F9
0090414
07G028075010
Remove RJ11
090331
Notice
090410
Notice
090410
swap
090414
EMI
090414
12
C3410
0.1UF/16V @C3410
0.1UF/16V @
1
2
34
5
6
VI/O
GND
VI/OVI/O
VBUS
VI/O
D3401
IP4223-CZ6
@
VI/O
GND
VI/OVI/O
VBUS
VI/O
D3401
IP4223-CZ6
@
12
C3409
0.1UF/16V @C3409
0.1UF/16V @
21
0402
R3413
0402
R3413
21
0402
R3411
0402
R3411
14
23
L3401
90Ohm/100Mhz
@
L3401
90Ohm/100Mhz
@
1 2
C3411 0.1UF/10V
X7R
@
C3411 0.1UF/10V
X7R
@
56
RN3403C
75Ohm
RN3403C
75Ohm
7 8
RN3403D
75Ohm
RN3403D
75Ohm
1 2
C3408 1000PF/3KV
@
C3408 1000PF/3KV
@
21
0402
R3412
0402
R3412
TRLM3
8
TRLP3
7
RXN
6
TRLM2
5
TRLP2
4
RXP
3
TXN
2
TXP
1
RING2
13
TIP1
10
RING1
12
TIP2
11
P_GROUND1 15
P_GROUND2 16
NP_NC2 18
NP_NC1 17
GND1 19
GND2 20
J3401
MODULAR_JACK_12P
J3401
MODULAR_JACK_12P
12
C3402
0.1UF/16V
c0402
@
C3402
0.1UF/16V
c0402
@
1 2
C3407 0.1UF/10V
X7R
C3407 0.1UF/10V
X7R
1
3
2 15
16
14
8
6
7 10
11
9
4
5 12
13
NC2
NC4
NC3
NC1
TX
RX
U3401
HSC-1603-R
NC2
NC4
NC3
NC1
TX
RX
U3401
HSC-1603-R
12
C3404
1000PF/2KV
c1206_h75
@
C3404
1000PF/2KV
c1206_h75
@
14
23
L3402
90Ohm/100Mhz
@
L3402
90Ohm/100Mhz
@
12
C3401
0.1UF/16V
c0402
C3401
0.1UF/16V
c0402
12
RN3403A
75Ohm
RN3403A
75Ohm
21
0402
R3410
0402
R3410
21
0402
SL3401
0402
SL3401
3 4
RN3403B
75Ohm
RN3403B
75Ohm
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
35 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
LAN-MDC
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
35 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
LAN-MDC
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
35 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
LAN-MDC
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

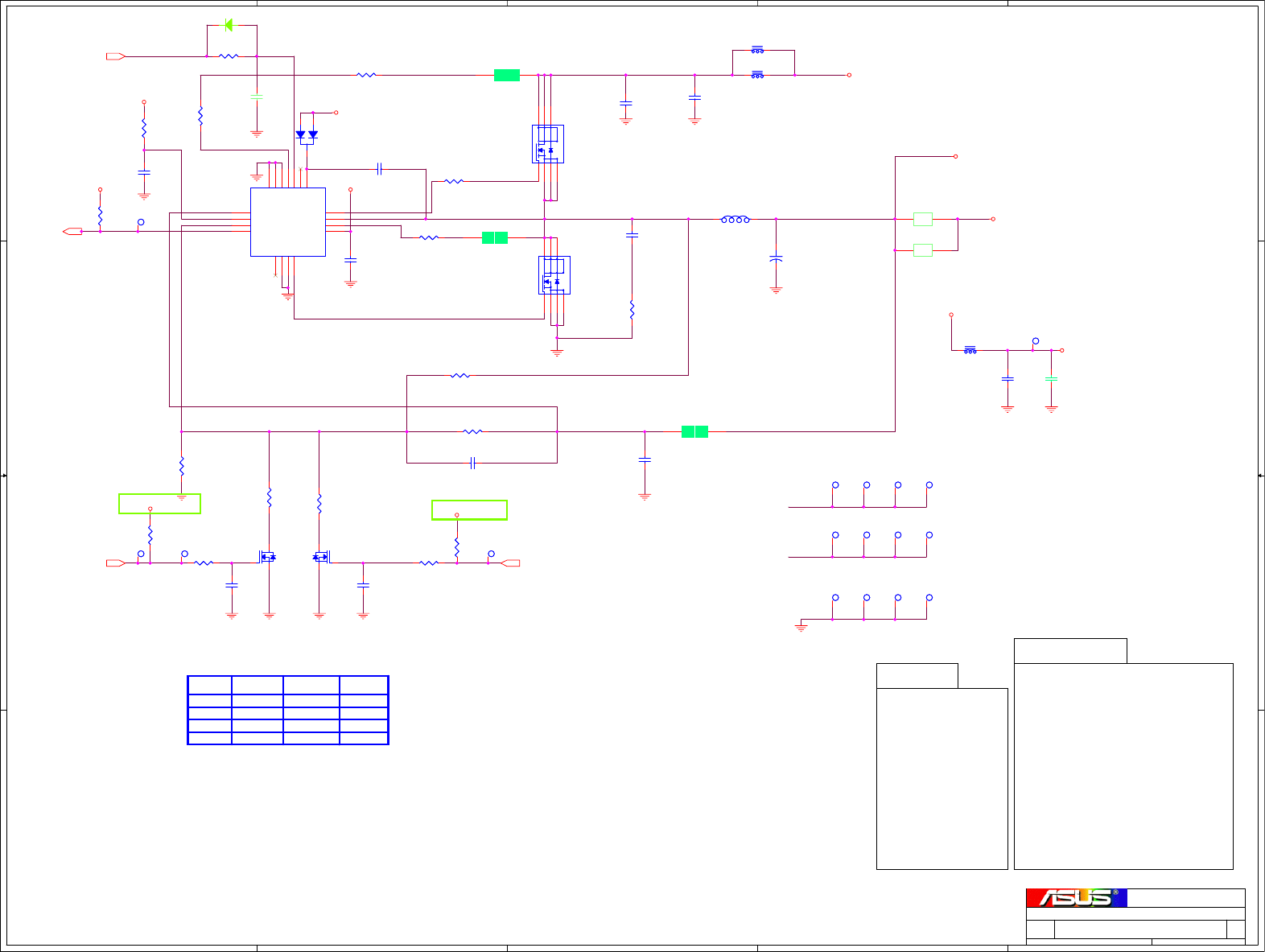

VREF_CODEC
MIC1_EXT_L
MIC1_EXT_R
AC_HP_L
AC_HP_R
MIC2_INT_L
MIC2_INT_R
MIC_IN_AC_E
MIC2_INT_R
MIC2_INT_L
DVDD_IO
SENSE_A
AC_HP_L
AC_HP_R
DVDD_IO
ACZSDIN0
PC_BEEP
H_SPKR+
H_SPKR-
H_SPKL+
H_SPKL-
ACZ_BCLK_AUD
SB_SPKR PC_BEEP_C PC_BEEP
SENSE_A MIC1_EXT_L
MIC1_EXT_R
AUD_PWR_FB
MIC_IN_AC_I
SB_SPKR[21]
ACZ_BCLK_AUD[21]
ACZ_RST#_AUD[21,37] ACZ_SYNC_AUD[21]
ACZ_SDOUT_AUD[21]
ACZ_SDIN0_AUD[21] MIC2_VREFOUT [38]
MIC1_VREFOUT_L [38]
H_SPKL+ [37]
H_SPKL- [37]
H_SPKR- [37]
H_SPKR+ [37]
DLY_OP_SD#[37]
MIC1_JD [38]
LINE2_JD [37]
AC_HP_L [37]
AC_HP_R [37]
MIC_IN_AC_I [38]
MIC_IN_AC_E [38]
GND
GND_AUDIO
GND
GND
+5VS_AUDIO
+5VS_AUDIO
GND_AUDIO
+3VS
GND_AUDIO
GND
GND
GND
GND
+5VS +5VS_AMP
GND
GND_AUDIO
GND_AUDIO
GND_AUDIO
GND_AUDIO
+5VS_AMP
GND
+3VS
GND
+5VS_AUDIO
GND GND_AUDIOGND GND_AUDIO
+3VS
+5VS
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
36 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
CODEC-ALC662
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
36 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
CODEC-ALC662
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
36 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
CODEC-ALC662
2.05
F5Z
Richard_Lu
<Variant Name>
DETECTION
TO EXTERNAL MIC
TO HP
TO INTERNAL MIC
FOR NORMAL FUNCTION .
AUDIO POWER
EXT MIC DETECT.
FOR HP DETECT.
Digital
Internal pull high 4.7K
TO SPK AMP
PC BEEP
FROM ICH
THERMAL PAD
For EMI
R0.05
R0.08
GMT G923 (P/N:06G007342012)
MAX8863 (P/N:06G007008013)
Vout=1.25*(1+(100K/34.8K))=4.84V
Vdrop about 150mV@100mA
C3631 change to 2.2 uF/10v
090326
Notice
090410
Notice
090410
EMI
090414
EMI
090414
12
C3621
0.1UF/16V
C3621
0.1UF/16V
12
C3614
2.2UF/10V
C3614
2.2UF/10V
12
C3636
22PF/50V
/EMI
C3636
22PF/50V
/EMI
12
C3629 2.2UF/10VC3629 2.2UF/10V
1 2
R3614
34.8KOhm
1%
R3614
34.8KOhm
1%
T3621T3621
1 2
R3621
33Ohm
R3621
33Ohm
1 2
C3644 2.2UF/10VC3644 2.2UF/10V
12
C3631 2.2UF/10VC3631 2.2UF/10V
T2503T2503
12
C3623
10UF/10V
C3623
10UF/10V
21
0402
SL3653
0402
SL3653
1 2
C3639
0.1UF/16V
@
C3639
0.1UF/16V
@
DVDD
1
GPIO0/DMIC_DATA
2
GPIO1/DMIC_CLK
3
PD#
4
SDATA_OUT
5
BCLK
6
DVSS
7
SDATA_IN
8
DVDD_IO
9
SYNC
10
RESET#
11
PCBEEP
12
SenseA
13
LINE2_L
14
LINE2_R
15
MIC2_L
16
MIC2_R
17
SenseB
18
JDREF
19
MONO_OUT
20
MIC1_L
21
MIC1_R
22
LINE1_L
23
LINE1_R
24
CBP 36
CBN 35
CPVEE 34
HPOUT_R 33
HPOUT_L 32
CPVREF 31
MIC1_VREFO_R 30
MIC2_VREFO 29
MIC1_VREFO_L 28
VREF 27
AVSS1 26
AVDD1 25
SPDIFO 48
EAPD/SPDIFO2 47
PVDD2 46
SPK_OUT_R+ 45
SPK_OUT_R- 44
PVSS2 43
PVSS1 42
SPK_OUT_L- 41
SPK_OUT_L+ 40
PVDD1 39
AVDD2 38
AVSS2 37
GND 49
U3601A
ALC269Q-GR
U3601A
ALC269Q-GR
21
0603
SL3621
0603
SL3621
12
C3626
0.1UF/16V
C3626
0.1UF/16V
12
C3615
1UF/10V
C3615
1UF/10V
1 2
C3637
0.1UF/16V
@
C3637
0.1UF/16V
@
12
C3624
10UF/10V
C3624
10UF/10V
1
122
SL3623
SGL_JUMP @
SL3623
SGL_JUMP @
1 2
R3642
4.7KOhm
R3642
4.7KOhm
1 2
C3638
0.1UF/16V
@
C3638
0.1UF/16V
@
1 2
R3613
100KOhm
1%
R3613
100KOhm
1%
12
C3641 1UF/10VC3641 1UF/10V
1 2
C3630 2.2UF/10V
@
C3630 2.2UF/10V
@
12
C3642 1UF/10VC3642 1UF/10V
21
L3621
120Ohm/100Mhz
L3621
120Ohm/100Mhz
21
0402
SL3611
0402
SL3611
T2504T2504
1 2
SL3624
0Ohm
SL3624
0Ohm
12
C3633
10UF/10V
C3633
10UF/10V
12
C3620
10UF/10V
C3620
10UF/10V
12
C3632
0.1UF/16V
C3632
0.1UF/16V
T3622T3622
12
C3625
0.1UF/16V
C3625
0.1UF/16V
1 2
C3643 2.2UF/10VC3643 2.2UF/10V
1 2
R3641
47KOhm
R3641
47KOhm
21
0402
SL3654
0402
SL3654
1 2
C3646
0.1UF/16V
C3646
0.1UF/16V
GND1
50
GND2
51
GND3
52
GND4
53
GND5
54
GND6
55
GND7
56
GND8
57
GND9
58
U3601B
ALC269Q-GR
U3601B
ALC269Q-GR
1 2
R3624
20KOhm
1%
R3624
20KOhm
1%
21
0402
SL3652
0402
SL3652
12
C3634
10UF/10V
@
C3634
10UF/10V
@
1 2
C3628 2.2UF/10VC3628 2.2UF/10V
1 2
C3622
1UF/10V
C3622
1UF/10V
21
0402
SL3651
0402
SL3651
T2502T2502
1 2
R3631 20KOhm
1%
R3631 20KOhm
1%
12
C3635
0.1UF/16V
@
C3635
0.1UF/16V
@
12
C3627
10UF/10V
C3627
10UF/10V
1 2
R3632 39KOHM
1%
R3632 39KOHM
1%
SHDN#
1
GND
2
IN
3OUT 4
SET 5
U3611
G923-470T1UF
U3611
G923-470T1UF
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

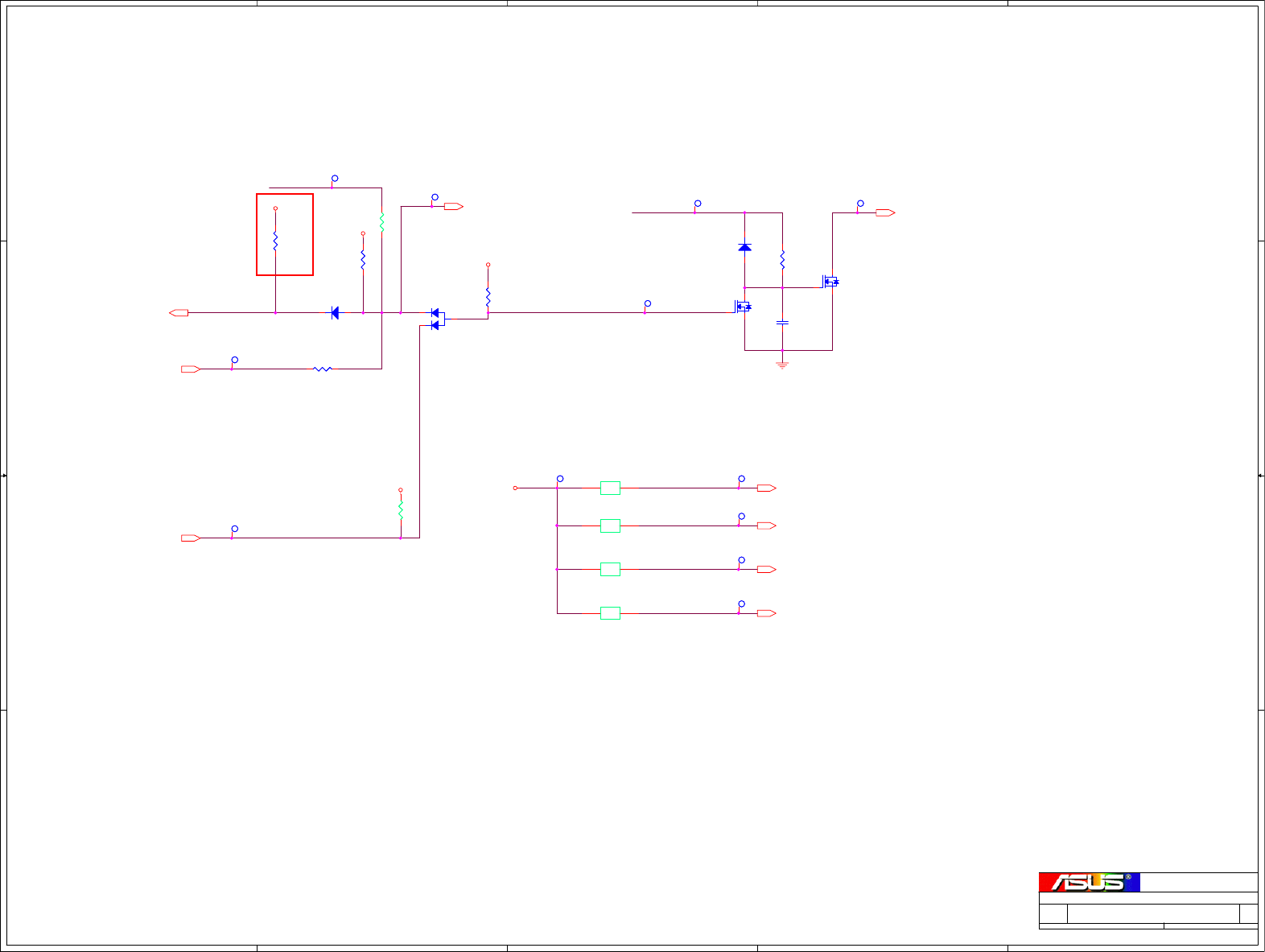

AC_HP_L_CON
H_SPKR+
H_SPKR-
H_SPKR+_CON
H_SPKL+
H_SPKL-
AC_HP_R_CON
AC_HP_L_0
AC_HP_R_0
DLY_OP_SD# H_SPKL+_CON
H_SPKL-_CON
H_SPKR-_CON
LINE2_JD_D
AC_HP_R[36]
AC_HP_L[36]
OP_SD#[30] DLY_OP_SD# [36]
H_SPKR+[36]
H_SPKR-[36]
H_SPKL-[36]
H_SPKL+[36]ACZ_RST#_AUD[21,36]
LINE2_JD[36]
GND_AUDIO
GND_JACK
GND
GND_AUDIO
GND
GND_JACK
+5VS_AMP
GND_JACK
GND
GND_JACK GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
37 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
AMP-GMT1431
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
37 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
AMP-GMT1431
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
37 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
AMP-GMT1431
2.05
F5Z
Richard_Lu
<Variant Name>
FOR EMI
FROM EC
FOR EMI BEAD
NEXT TO CONN
MUTE CONTROL
JACK_IN# or LINE2_JD depend on JACK's
structure.
Suppose the fisrt pin should be contacted
to GND while HP is plugged in.
FOR EMI BEAD
HP- JACK
Normal Close
NO SPDIF function
12G171000047
EMI
090414
12
C3702
100PF/50V
@
C3702
100PF/50V
@
12
C3713
1000PF/16V
@
C3713
1000PF/16V
@
12
D3721
331K
@
D3721
331K
@
12
C3710
1000PF/16V
@
C3710
1000PF/16V
@
12
C5313
1000PF/50V
@
C5313
1000PF/50V
@
21
0603
SL3705
0603
SL3705
1 2
R5315
100KOhm
r0402
R5315
100KOhm
r0402
12
C3712
1000PF/16V
@
C3712
1000PF/16V
@
21
0603
SL3703
0603
SL3703
1 2
C3722
0.1UF/16V
@
C3722
0.1UF/16V
@
12
C3709
1000PF/16V
@
C3709
1000PF/16V
@
1
23
D3701
BAT54AW
D3701
BAT54AW
1 2
R3724
68Ohm
R3724
68Ohm
21
0603
SL3702
0603
SL3702
1 2
R3725
68Ohm
R3725
68Ohm
1
12
23
34
4
NC1 5
NC2 6
J3701
WtoB_CON_4P
J3701
WtoB_CON_4P
21
0603
SL3706
0603
SL3706
1 2
C3721
0.1UF/16V
@
C3721
0.1UF/16V
@
21
0603
SL3704
0603
SL3704
12
D3722
331K
@
D3722
331K
@
21
0603
SL3701
0603
SL3701
1
4
3
6
2
5
7
8
NP_NC1
NP_NC2
J3702
PHONE_JACK_6P
NP_NC1
NP_NC2
J3702
PHONE_JACK_6P
1 2
C3720
0.1UF/16V
@
C3720
0.1UF/16V
@
12
C3711
1UF/10V
@
C3711
1UF/10V
@
2
61
Q3838A
UM6K1N
Q3838A
UM6K1N
12
C3714
1UF/10V
@
C3714
1UF/10V
@
12
C3701
100PF/50V
@
C3701
100PF/50V
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

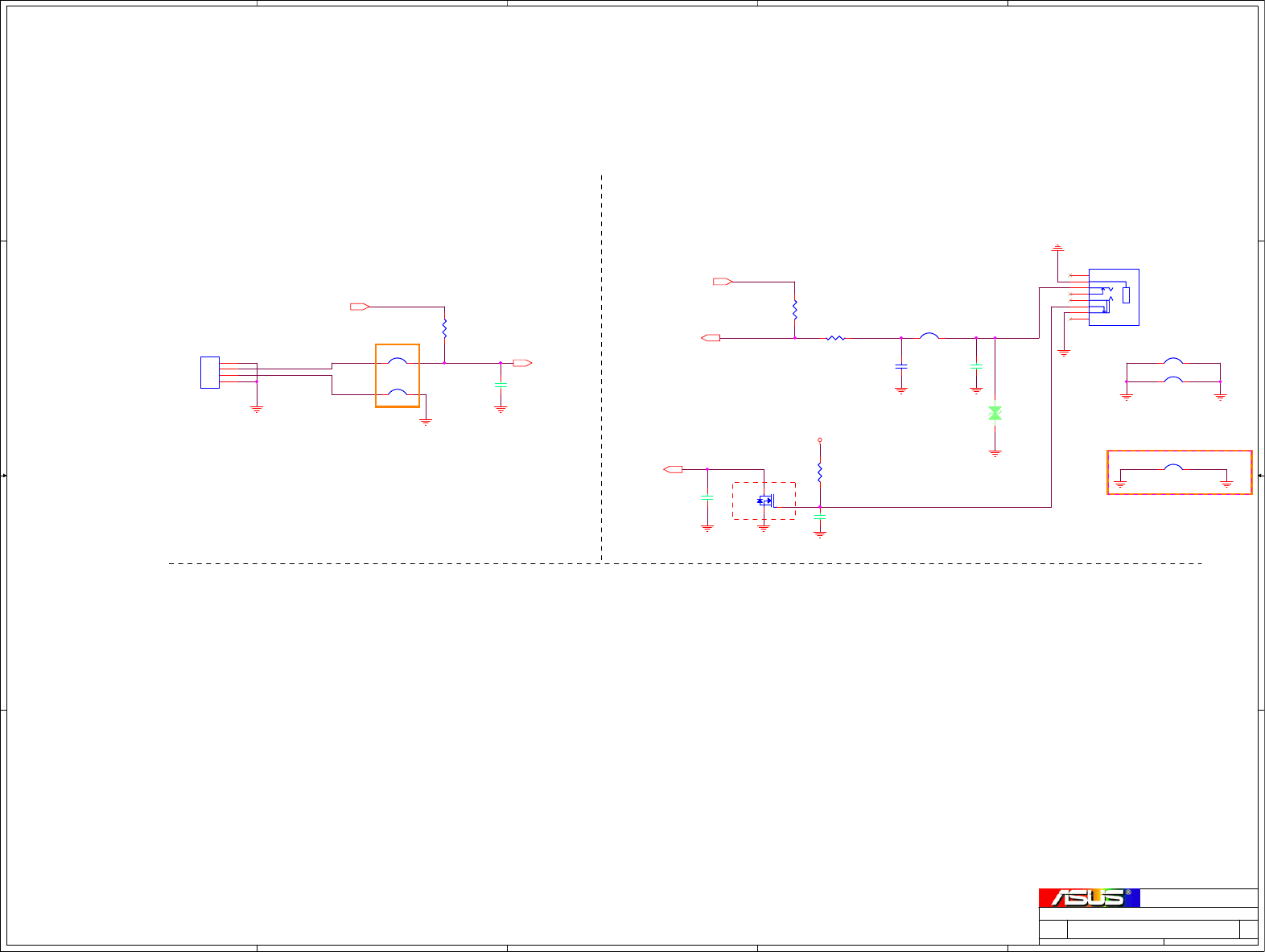

INT_MIC_P MIC_IN_AC_I
MIC_IN_AC_E_CON
INT_MIC_N
MIC_IN_ACMIC_IN_AC_E
MIC_IN_AC_E[36]
MIC1_VREFOUT_L[36]
MIC2_VREFOUT[36]
MIC_IN_AC_I [36]
MIC1_JD[36]
GND_JACK
GND_JACKGND
GND_AUDIO
GND_JACK
GND_JACK
GND_AUDIO
GND_JACK GND_AUDIOGND_JACK
GND_JACK
GND GND
+5VS_AUDIO
GND_JACK
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
38 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
MIC-IN Jack
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
38 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
MIC-IN Jack
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
38 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
MIC-IN Jack
2.05
F5Z
Richard_Lu
<Variant Name>
INTERNAL MICROPHONE EXTERNAL MICROPHONE
EMI BEAD
FROM INTERNAL MICROPHONE CONNECTOR
EMI Request
Microphone In Jack
EMI BEAD
12G140001067
12G17100002D
Notice
090410
5
34
Q3838B
UM6K1N
Q3838B
UM6K1N
SIDE1 3
SIDE2 4
11
22
J5401
WtoB_CON_2P
J5401
WtoB_CON_2P
12
C3813
100PF/50V
@
C3813
100PF/50V
@
1 2
R5403
100KOhm
r0402
R5403
100KOhm
r0402
21
0603
SL3801
0603
SL3801
12
R3811
4.7KOhm
R3811
4.7KOhm
12
C3811
10PF/50V
C3811
10PF/50V
12
R3803
4.7KOhm
R3803
4.7KOhm
12
C3814
100PF/50V
@
C3814
100PF/50V
@
21
0603
SL3804
0603
SL3804
21
0603
SL3802
0603
SL3802
1 2
R3813
1KOhm
R3813
1KOhm
21
0603
SL3805
0603
SL3805
12
C5408
100PF
c0402
/EMI
C5408
100PF
c0402
/EMI
12
C5404
10PF/50V
@
C5404
10PF/50V
@
1
4
3
6
2
5
7
8
NP_NC1
NP_NC2
J3801
PHONE_JACK_6P
NP_NC1
NP_NC2
J3801
PHONE_JACK_6P
21
0603
SL3803
0603
SL3803
21
0603
SL3806
0603
SL3806
12
D3801
EGA10603V05A1
@
D3801
EGA10603V05A1
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

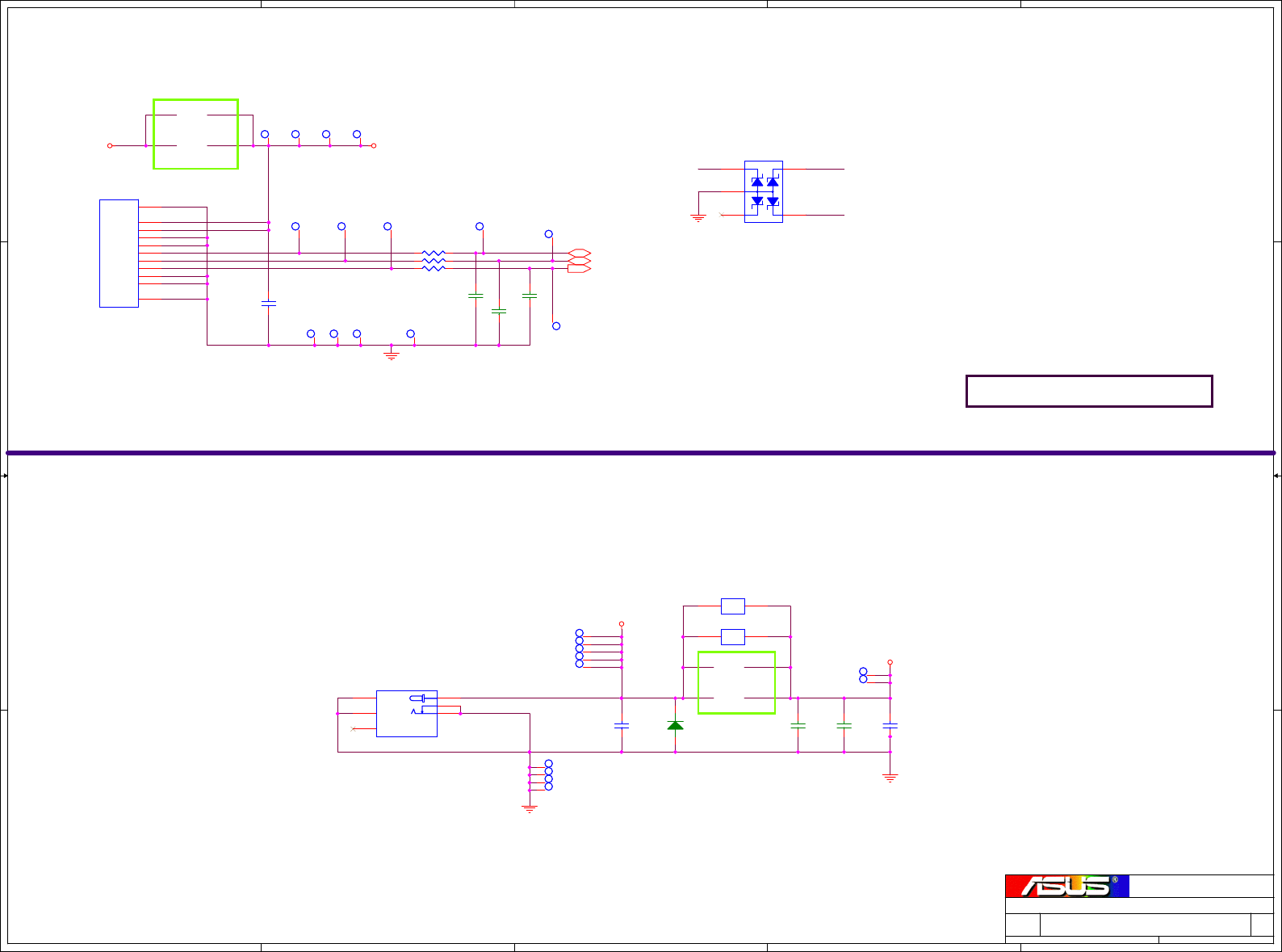

Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
39 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
39 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
39 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

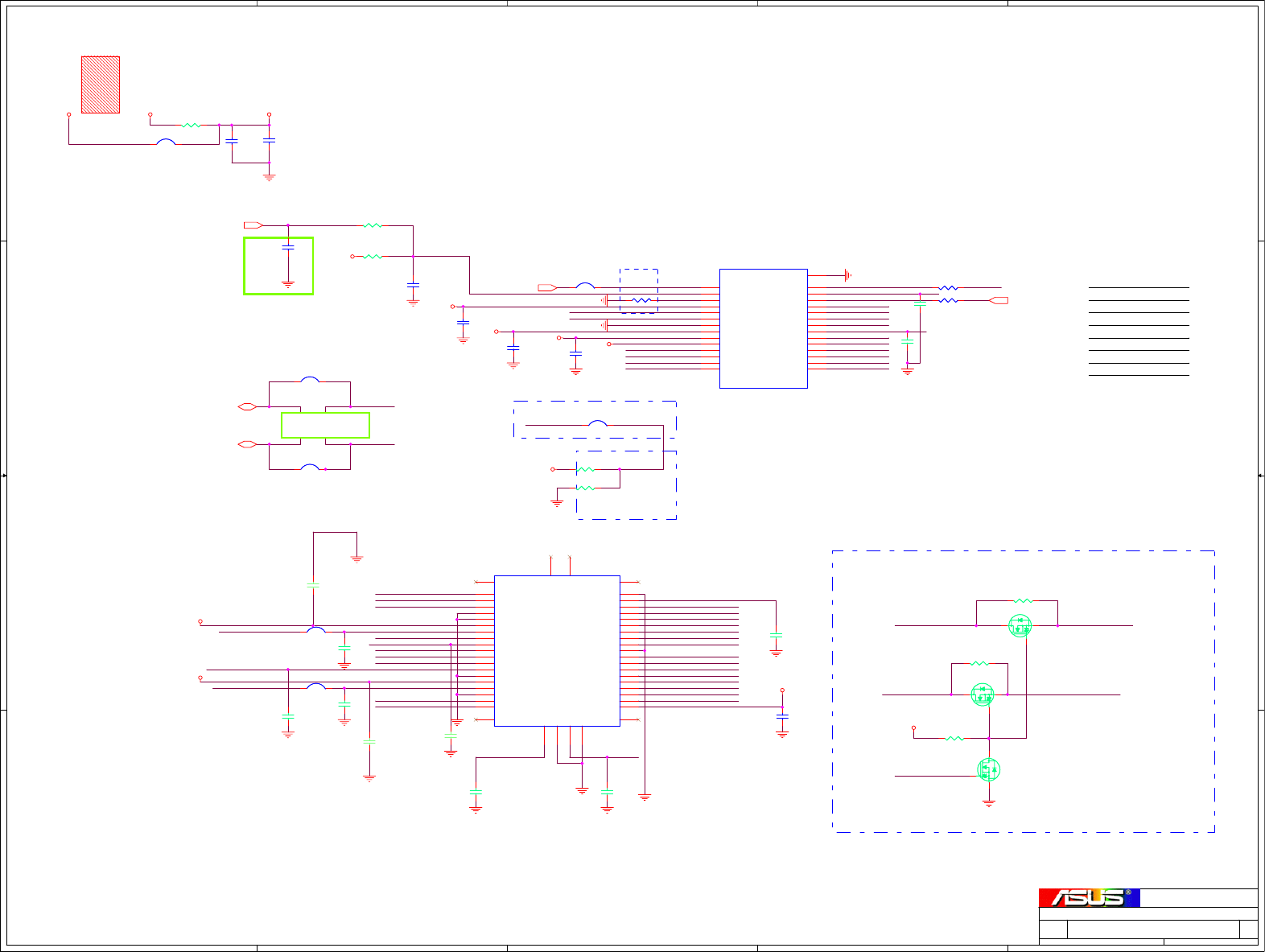

CR_REXT
CTRL4/XDRE/MSINS
CTRL5/XDCD#
CTRL6/XDCE#
CTRL1/SDWP/XDCLE/MSCLK
CTRL3/SDCD#/XDWE#
CR_DATA1
CR_DATA0
CR_DATA7
CR_DATA6
CTRL0/SDCLK/XDALE/MSBS
CR_DATA5
CTRL2/SDCMD/XDR/B
CR_DATA4
CR_DATA3
CR_DATA2
CTRL7/XDWP#
CTRL2/SDCMD/XDR/B
CR_DATA4
CR_DATA2
CR_DATA3
CTRL0/SDCLK/XDALE/MSBS SD_CLK
CTRL3/SDCD#/XDWE#
CTRL7/XDWP#
CTRL1/SDWP/XDCLE/MSCLK
CTRL6/XDCE#
CTRL0/SDCLK/XDALE/MSBS
CR_DATA7
CR_DATA5
CR_DATA6
CTRL4/XDRE/MSINS
CR_DATA1
CR_DATA0
CTRL3/SDCD#/XDWE#
MS_CLKCTRL1/SDWP/XDCLE/MSCLK
CR_DATA0
CTRL2/SDCMD/XDR/B
CR_DATA3
SD_DATA2_CON
CTRL1/SDWP/XDCLE/MSCLK
SD_DATA1_CON
CR_DATA1
CR_DATA0
CR_DATA2
CR_DATA3
CTRL4/XDRE/MSINS
CTRL5/XDCD#
USB_PP10_DP
USB_PN10_DM
USB_PN10_DM
XDCIS/GLF_SDDAT2
CTRL0/SDCLK/XDALE/MSBS
USB_PP10_DP
CR_DATA1
SD_DATA2_CON
SD_DATA1_CON
CTRL3/SDCD#/XDWE#
CR_DATA2
XDCIS/GLF_SDDAT2
SD_DATA2_CON
SD_DATA1_CON
USB_PN10[21]
USB_PP10[21]
CLK_USB48_CB[29]
SD_CD#_EC [30]
BUF_PLT_RST#[5,20,30,33,43,53,71]
+3VS +3V_CR
+3V_CR
+3V_CR
+1.8V_CR
+3V_CARD +3V_CR
GND
+3V_CARD
+3V_CARD
GND
GND
GND
GND GND
GND
GND
+3V_CARD
+3V
GND
+12V
GND
+3V_CR
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
40 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
CB_AU-6371_JEL
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
40 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
CB_AU-6371_JEL
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
40 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
CB_AU-6371_JEL
2.05
F5Z
Richard_Lu
<Variant Name>
Close to chip
Pin2 has internal pu 75K to +3V.
Add +3vs 081228
CTRL1/SDWP/XDCLE/MSCLK
CTRL2/SDCMD/XDR/B
CTRL3/SDCD#/XDWE#
CTRL4/XDRE/MSINS
CTRL5/XDCD#
CTRL6/XDCE#
CTRL7/XDWP#
CTRL0/SDCLK/XDALE/MSBS
AU6433-GLF:02G630001530
AU6433-GEF:02G630001521.
現在要求使用
AU6433-GLF:02G630001530
，
做
bom
以及線路要注意
P/N:12G340003814 Fix MS Duo Adaptor short issue.
(SD_DAT1,SD_DAT2,XD_GND short,XD_CD# may be possible short)
IC side CON side
For AU6433-GLF: No stuff All
For AU6433-GEF: Stuff Q4004,Q4005,Q4007,R4066.
For AU6433 GLF : Stuff R4019(SL4008),
Remove R4012,R4013
1:For check
0:For no check (Default)
Remove Chock 2009/05/25
12
R4005
330Ohm
1% R4005
330Ohm
1%
12
C4026
0.47UF/16V
C4026
0.47UF/16V
12
C4017
1UF/10V@
C4017
1UF/10V@
12
C4013
1UF/10V@
C4013
1UF/10V@
1 2
C4002
0.1UF/16V
C4002
0.1UF/16V
12
C4018
10PF/50V
@C4018
10PF/50V
@
12
C4008
2.2UF/6.3V
C4008
2.2UF/6.3V
12
C4006
10PF/50V
@C4006
10PF/50V
@
R4016
0Ohm
@
R4016
0Ohm
@
12
C4011
10PF/50V@C4011
10PF/50V@
R40060Ohm R40060Ohm
12
R4066
100KOhm
@
R4066
100KOhm
@
G
D S
GS
D
3
2
1
Q4005
2N7002K_T1_E3
@
GS
D
3
2
1
Q4005
2N7002K_T1_E3
@
12
C4009
10PF/50V
@C4009
10PF/50V
@
12
C4016
1UF/10V@
C4016
1UF/10V@
R40070Ohm R40070Ohm
R40130Ohm
@
R40130Ohm
@
21
0402
SL4003
0402
SL4003
12
C4015
1UF/10V
@
C4015
1UF/10V
@
21
0402
SL4004
0402
SL4004
12
C4012
10PF/50V@C4012
10PF/50V@
G
DS
GS
D
3
2
1
Q4007
2N7002K_T1_E3
@
GS
D
3
2
1
Q4007
2N7002K_T1_E3
@
12
C4020
0.1UF/10V
@
C4020
0.1UF/10V
@
12
C4021
0.1UF/10V
@
C4021
0.1UF/10V
@
21
0402
SL4008
0402
SL4008
12
C4007
0.1UF/16V
C4007
0.1UF/16V
CTRL4
11
XDCDN
12
XDCEN
13
SDDATA2
14
CTRL3 26
EXT48IN
1
DATA1 25
DATA3 17
CTRL2 19
CTRL0 21
DATA5 20
DATA7 23
DATA0 24
DATA6 22
XDWPN 15
DATA2 16
DATA4 18
CTRL1 27
CHIPRESETN
2
REXT
3
VD33P
4
DP
5
DM
6
VS33P
7
VDDU
8
CF_V33
9
V33
10
SDDATA1 28
GND 29
U4001
AU6433D53-GLF-GR
U4001
AU6433D53-GLF-GR
21
0402
SL4001
0402
SL4001
R40030Ohm
@
R40030Ohm
@
12
R4018 0Ohm
@
R4018 0Ohm
@
21
0402
SL4006
0402
SL4006
R40120Ohm
@R40120Ohm
@
12
C4010
2.2UF/6.3V
C4010
2.2UF/6.3V
NP_NC1
2
NP_NC2
1
DAT2
S9
CD/DAT3
S1
CMD
S2
VSS1
S3
VSS2
M10
VCC1
M9
SCLK
M8
Reserved1
M7
INS
M6
Reserved2
M5
SDIO
M4
VCC2
M3
BS
M2
VSS3
M1
VDD
S4
CLK
S5
VSS4
S6
DAT0
S7
DAT1
S8
GND1 X1
CD X0
R/-B X2
-RE X3
-CE X4
CLE X5
ALE X6
-WE X7
-WP X8
GND2 X9
D0 X10
D1 X11
D2 X12
D3 X13
D4 X14
D5 X15
D6 X16
D7 X17
VCC3 X18
CD_SW
3
COMMON
4
WP_SW
5
GND3
6
dummy4 7
dummy3 8
dummy2 9
dummy1 10
J4001
CARD_READER_46P
J4001
CARD_READER_46P
12
C4019
0.1UF/16V
C4019
0.1UF/16V
R40170Ohm
@R40170Ohm
@
12
C4001
2.2UF/6.3V
C4001
2.2UF/6.3V
21
0402
SL4007
0402
SL4007
21
0402
SL4002
0402
SL4002
12
C4014
2.2UF/6.3V
C4014
2.2UF/6.3V
G
D S
GS
D
3
2
1
Q4004
2N7002K_T1_E3
@
GS
D
3
2
1
Q4004
2N7002K_T1_E3
@
R40010Ohm
@
R40010Ohm
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

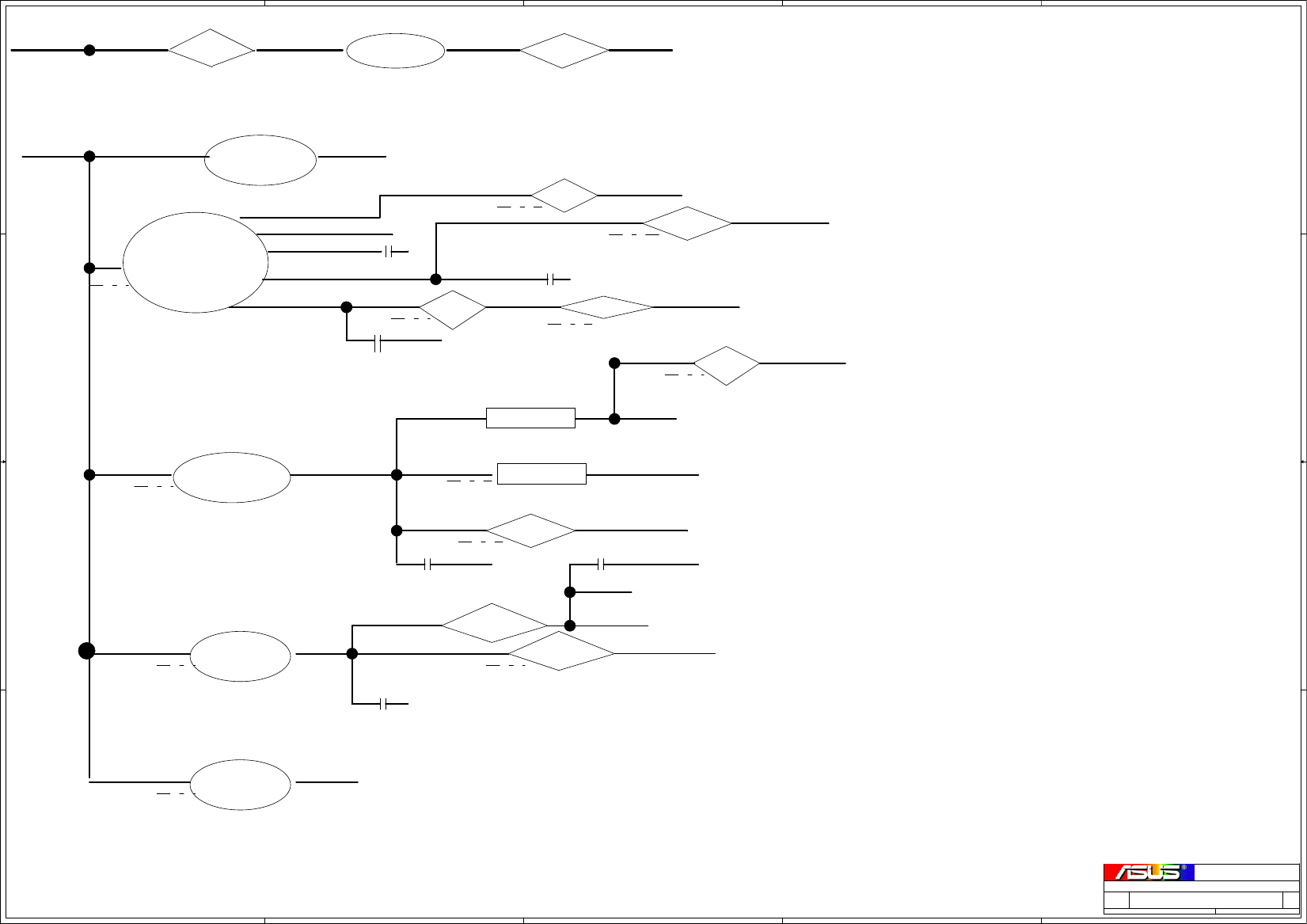

Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
41 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
41 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
41 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>

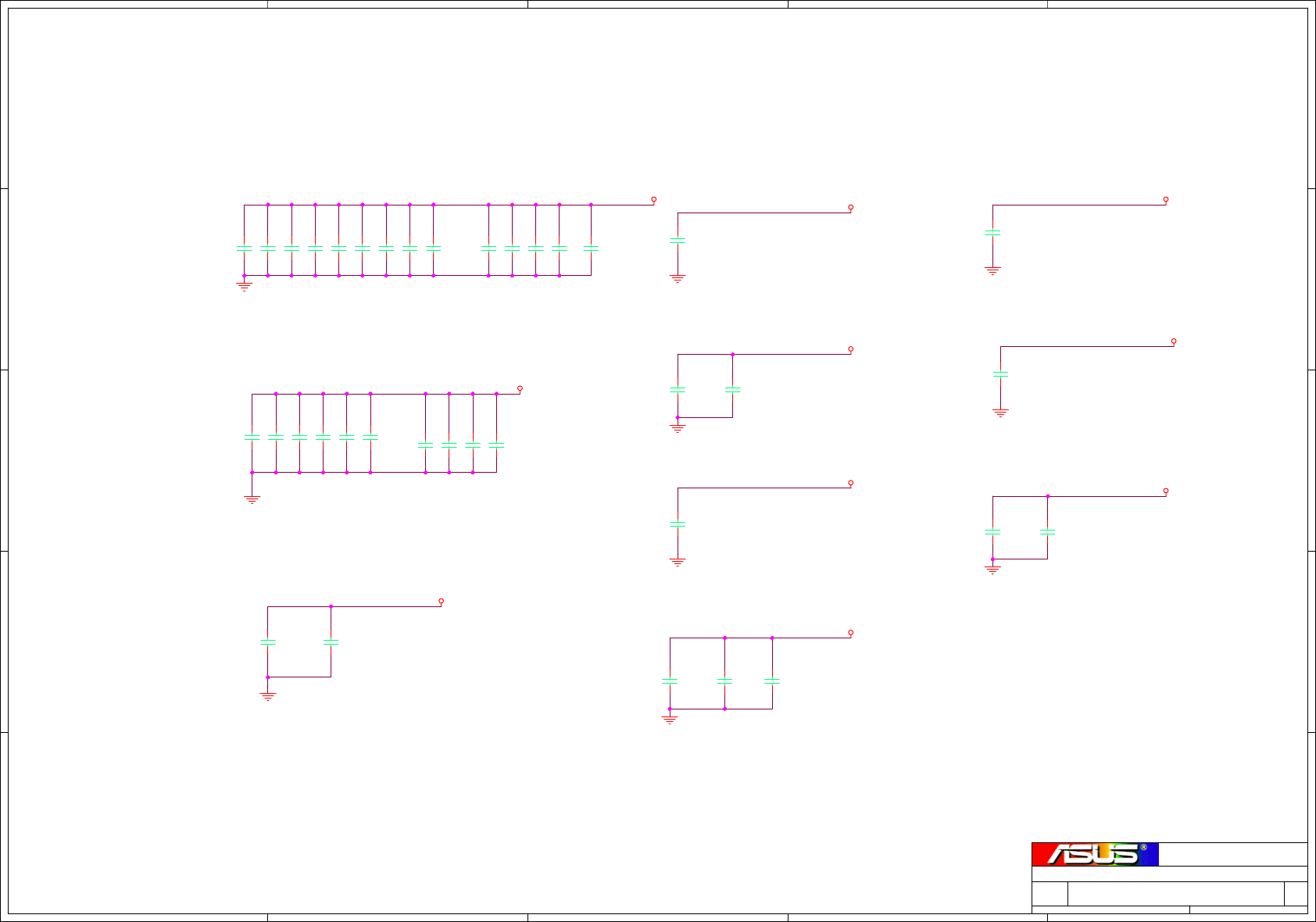

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

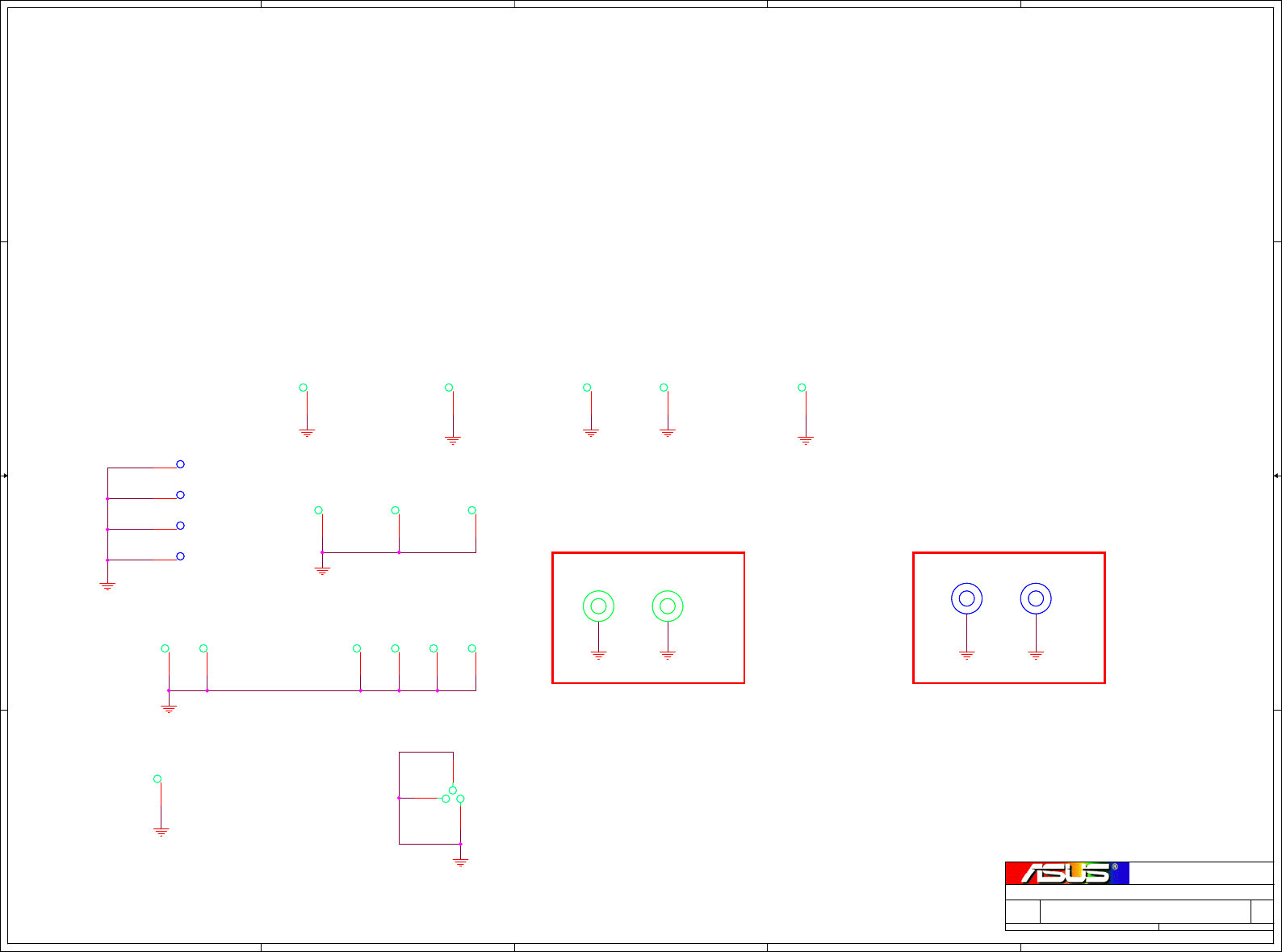

Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
42 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
42 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
42 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PCIE_WAKE#_C
CPPE_DET#_C
PERST#_SW
CLKREQ#_C
CPUSB#
REFCLK_EN
CPPE_DET#
PSW_PERST#
PSW_SHDN#
USB_P4+
USB_P4-
CPUSB#
USB_P4+
USB_P4-
PCIE_RXN2_NEWCARD_L
PCIE_RXP2_NEWCARD_L
PCIE_TXP2_NEWCARD_L
PCIE_TXN2_NEWCARD_L
PCIE_WAKE#[21,33,53]
SUSB_EC#[30,45,57,83,86,88,90] USB_OC4_NEWCARD# [21]
VSUS_ON[30,86,87]
BUF_PLT_RST#[5,20,30,33,40,53,71]
CPPE_DET# [21,44]
CPPE_DET#_NEWCARD[44]
LPC_FRAME#_DBCARD[44]
PCIE_WAKE#_NEWCARD[44]
CLKREQ#_NEWCARD[44]
PERST#_SW[44]
PERST#[44]
PCIE_WAKE#_IC [44]
USB_PN4[21]
USB_PP4[21]
SMB_DATA_NEWCARD[44] SMB_CLK_NEWCARD[44]
PCIE_RXN2_NEWCARD[11]
CLK_PCIE_NEWCARD[29]
PCIE_TXP2_NEWCARD[11] PCIE_TXN2_NEWCARD[11]
CLK_PCIE_NEWCARD#[29]
PCIE_RXP2_NEWCARD[11]
+3VS_PE
+1.5VS_PE
+3VSUS_PE
+3VS_PE
GND
GND
+1.5VS_PE
GND
GND
+3VSUS +3VSUS_PE
GND
GND
+1.5VS
GND
+3VS
GND
GNDGND
+3VSUS_PE
GND
+3VSUS
+3VSUS_PE
+1.5VS_PE
+3VS_PE
+3VS
+1.5VS
GND GND
GNDGND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
43 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
NEWCARD
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
43 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
NEWCARD
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
43 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
NEWCARD
2.05
F5Z
Richard_Lu
<Variant Name>
!! ExpressCard Standard 1.0:
Change Pin7 from RESERVED to SMBCLK
Change Pin8 from SMBCLK to SMBDATA
Change Pin9 from SMBDATA to +1.5V
NewCard
Header
3.0V~3.6V
Ave= 200mA
Max= 275
mA
3.0V~3.6V
Ave= 1000mA
Max= 1300 mA
1.35V~1.65V
Ave= 500 mA
Max= 650 mA
From SB
To SB
PN:12G161300261
080216
Add Resistor
R1.1
Un-mount U4302 (Since it is not SMT component)
R2.0 080402
P/N:12G21C20001D
add RN4301,
預留
L4301,
090331
換料
RemoveNew Card REFCLK_EN control part
090331
Remove U4302.
090406
12
D4303
RSB6.8S
@
D4303
RSB6.8S
@
12
C4304
0.1UF/16V
C4304
0.1UF/16V
1.5VIN_1
14
AUXOUT 15
3.3VIN_2
4
3.3VOUT_2 5
GND1
7
PERST#
8
STBY#
1
3.3VIN_1
2
RCLKEN 18
1.5VOUT_2 13
3.3VOUT_1 3
SYSRST#
6
CPPE# 10
AUXIN
17
NC 16
1.5VIN_2
12
OC# 19
SHDN#
20 1.5VOUT_1 11
CPUSB# 9
GND2
21
U4301
R5538D001
U4301
R5538D001
12
C4309
10UF/10V
C4309
10UF/10V
1
T4301 TPC28TT4301 TPC28T
12
C4305
1UF/10V
@
C4305
1UF/10V
@
1 4
2 3
L4301
90Ohm/100Mhz
@
L4301
90Ohm/100Mhz
@
GND4
26 PETp0
25 PETn0
24 GND3
23 PERp0
22 PERn0
21 GND2
20 REFCLK+
19 REFCLK-
18 CPPE#
17 CLKREQ#
16 +3.3V_2
15 +3.3V_1
14 PERST#
13 +3.3VAUX
12 WAKE#
11 +1.5V_2
10 +1.5V_1
9SMBDATA
8SMBCLK
7RESERVED2
6RESERVED1
5CPUSB#
4USB_D+
3USB_D-
2GND1
1
NP_NC1 27
NP_NC2 28
GND5 29
GND6 30
CON4301
EXPRESS_CARD_26P
CON4301
EXPRESS_CARD_26P
3 4
RN4305B
0Ohm
RN4305B
0Ohm
12
C4302
0.1UF/16V
C4302
0.1UF/16V
1 2
RN4305A
0Ohm
RN4305A
0Ohm
1 2
RN4308A
0Ohm
RN4308A
0Ohm
12
D4302
RSB6.8S
@
D4302
RSB6.8S
@
3 4
RN4308B
0Ohm
RN4308B
0Ohm
G
S
D3
2
1
Q4301
SI2302ADS
@
G
S
D3
2
1
Q4301
SI2302ADS
@
12
C4301
0.1UF/16V
C4301
0.1UF/16V
12
C4306
0.1UF/16V
C4306
0.1UF/16V
1 2
R4301 0Ohm
@
R4301 0Ohm
@
21
0402
SL4301
0402
SL4301
12
C4307
10UF/10V
C4307
10UF/10V
12
C4303
10UF/10V
@
C4303
10UF/10V
@
21
0402
SL4302
0402
SL4302
P_GND1
1
P_GND2
2
U4302
CARD_EJECTOR_2P
@
U4302
CARD_EJECTOR_2P
@
1 2
R4303 0Ohm@R4303 0Ohm@
12
C4310
0.1UF/16V
C4310
0.1UF/16V
12
C4308
0.1UF/16V
C4308
0.1UF/16V
12
R4302 1KOhmR4302 1KOhm
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

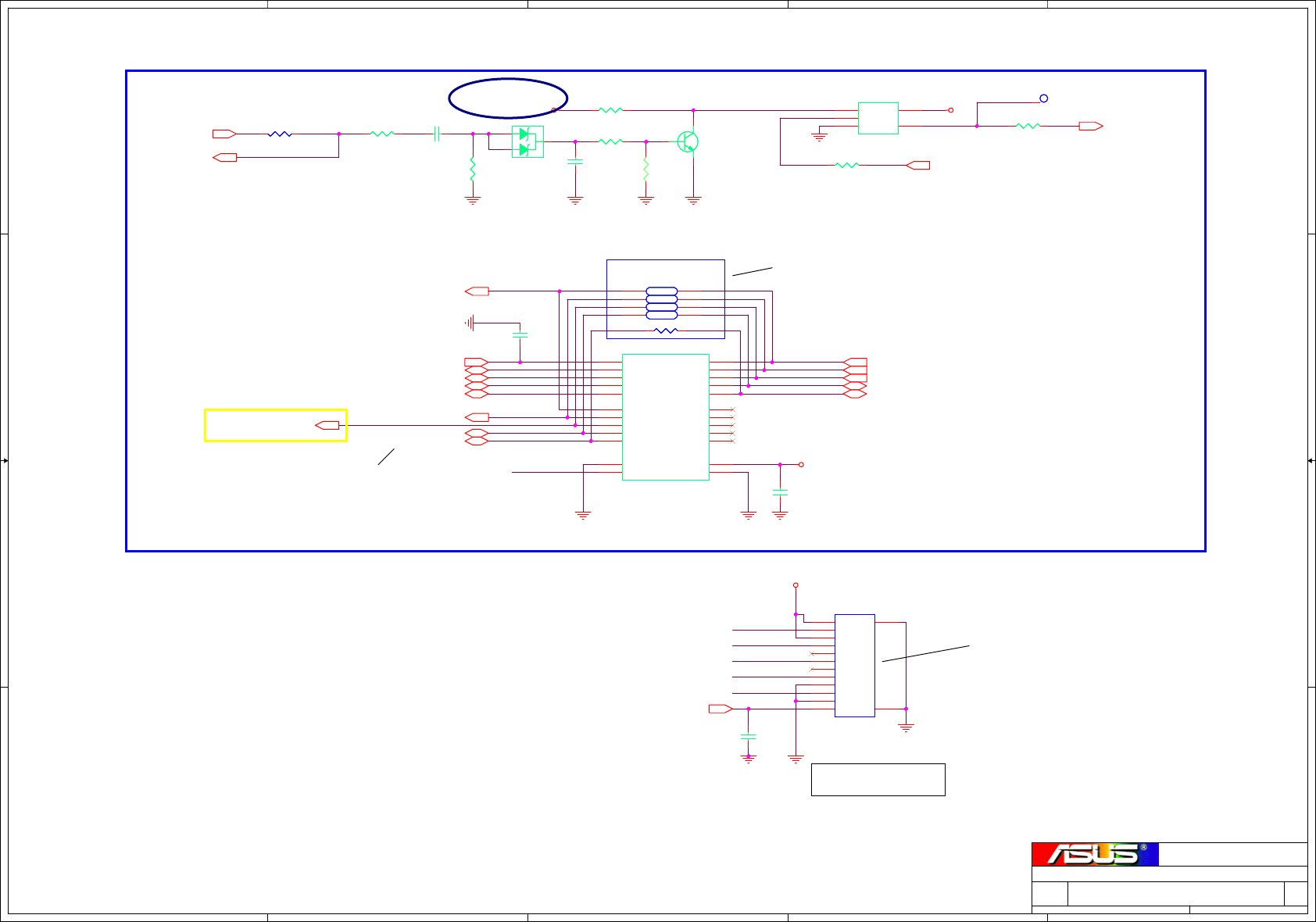

LPC_AD3
LPC_FRAME#
LPC_AD1
LPC_AD2
LPC_AD0
PERST#
CPPE_DET#
PE_DEBUGEN#
PCIE_WAKE#_C
SMB_CLK_C
CLKREQ#_C
SMB_DAT_C
PE_DEBUGEN#
CPPE_DET#_C
CLK_DBGPCI1[20,24]
CLK_DBGPCI2[20,24]
LPC_AD1[20,30]
LPC_AD3[20,30] LPC_AD0[20,30]
LPC_AD2[20,30]
CLK_NEWCARD_REQ#[29]
LPC_FRAME# [20,30]
SMBCLK_NEWCARD[7,8,21,29] SMBDATA_NEWCARD[7,8,21,29]
PCIE_WAKE#_IC[43]
PERST#_SW[43]
CPPE_DET#_NEWCARD [43]
CLKREQ#_NEWCARD [43]
PCIE_WAKE#_NEWCARD [43]
LPC_FRAME#_DBCARD [43]
SMB_CLK_NEWCARD [43]
SMB_DATA_NEWCARD [43]
CPPE_DET#[21,43]
PERST#[43]
+3VS
GND GND
GND
+3V+3VS
+5V
GND
GND
GND
GND GND
GND
GND
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
44 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DEBUG
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
44 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DEBUG
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
44 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DEBUG
2.05
F5Z
Richard_Lu
<Variant Name>
Bottom
Contact
For PCMCIA Debug Card
If support NewCard Debug Card,
Pls don't mount all components.
PN:12G183301208
If don't support NewCard Debug Card,Pls do
(a) DNI all components of block A
(b) Mount Block C (RN4402,R4403)
Block C
Block A
080401R2.0
Change Net name from SMBCLK_SYS to SMBCLK_NEWCARD ;
SMBDATA_SYS to SMBDATA_NEWCARD ;
Remove all /DEBUG components in block A and
mount block C for cost down.
R2.02 080519
080526
Change R4403 P/N form 10G212000004010 to 10G212000004070 for ECN
requirement
R2.04
Un-mount J4401 for cost down
R2.05
Change RN4401 from 100ohm to 100pF capacitance.
The capacitance with modification of RNX3001 is
used to fix the LAD and SERIRQ signals coupling
issue. However, the LPC debug board EEROM
over-write function is not support now.
0314
+3V change to +3VS
Notice
090410
EMI
090414
1 2
R4404
10KOhm
/DEBUG
R4404
10KOhm
/DEBUG
1
12
23
34
45
56
67
78
89
910
10 11
11 12
12 SIDE1 13
SIDE2 14
J4401
FPC_CON_12P
J4401
FPC_CON_12P
BC
E
1
2
3
Q4401
PMBS3904
/DEBUG
BC
E
1
2
3
Q4401
PMBS3904
/DEBUG
12
R4407 0Ohm
/DEBUG
R4407 0Ohm
/DEBUG
12
C4403
0.1UF/10V
/DEBUG
C4403
0.1UF/10V
/DEBUG
OE#
1
A
2
GND
3Y4
VCC 5
U4402
74LVC1G125GV
/DEBUG
U4402
74LVC1G125GV
/DEBUG
12
R4409 1KOhmR4409 1KOhm
3 4
RN4402B
0Ohm RN4402B
0Ohm
1 2
R4406 0Ohm
/DEBUG
R4406 0Ohm
/DEBUG
1 2
R4402
47KOHM
@
R4402
47KOHM
@
12
C4404
0.1UF/10V
/DEBUG
C4404
0.1UF/10V
/DEBUG
5 6
RN4402C
0Ohm RN4402C
0Ohm
7 8
RN4402D
0Ohm RN4402D
0Ohm
1 2
R4405 100KOhm
/DEBUG
R4405 100KOhm
/DEBUG
1
T4401TPC26T T4401TPC26T
12
C4405
10PF/50V
@
C4405
10PF/50V
@
12
C4401
10PF/50V
@
C4401
10PF/50V
@
1 2
R4408
0Ohm
/DEBUG
R4408
0Ohm
/DEBUG
A0
3
A1
7
A2
11
A3
17
A4
21
B0
4
B1
8
B2
14
B3
18
B4
22
BE#
1
BX
13
C0 2
C1 6
C2 10
C3 16
C4 20
D0 5
D1 9
D2 15
D3 19
D4 23
VCC 24
GND 12
U4401
SN74CBT3383PWR
/DEBUG
U4401
SN74CBT3383PWR
/DEBUG
1 2
R4410
47KOHM
/DEBUG
R4410
47KOHM
/DEBUG
1 2
RN4402A
0Ohm RN4402A
0Ohm
12
R4411 0OhmR4411 0Ohm
12
C4402
2200PF/50V
/DEBUG
C4402
2200PF/50V
/DEBUG
1
23
D4401
BAT54C
/DEBUG
D4401
BAT54C
/DEBUG
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

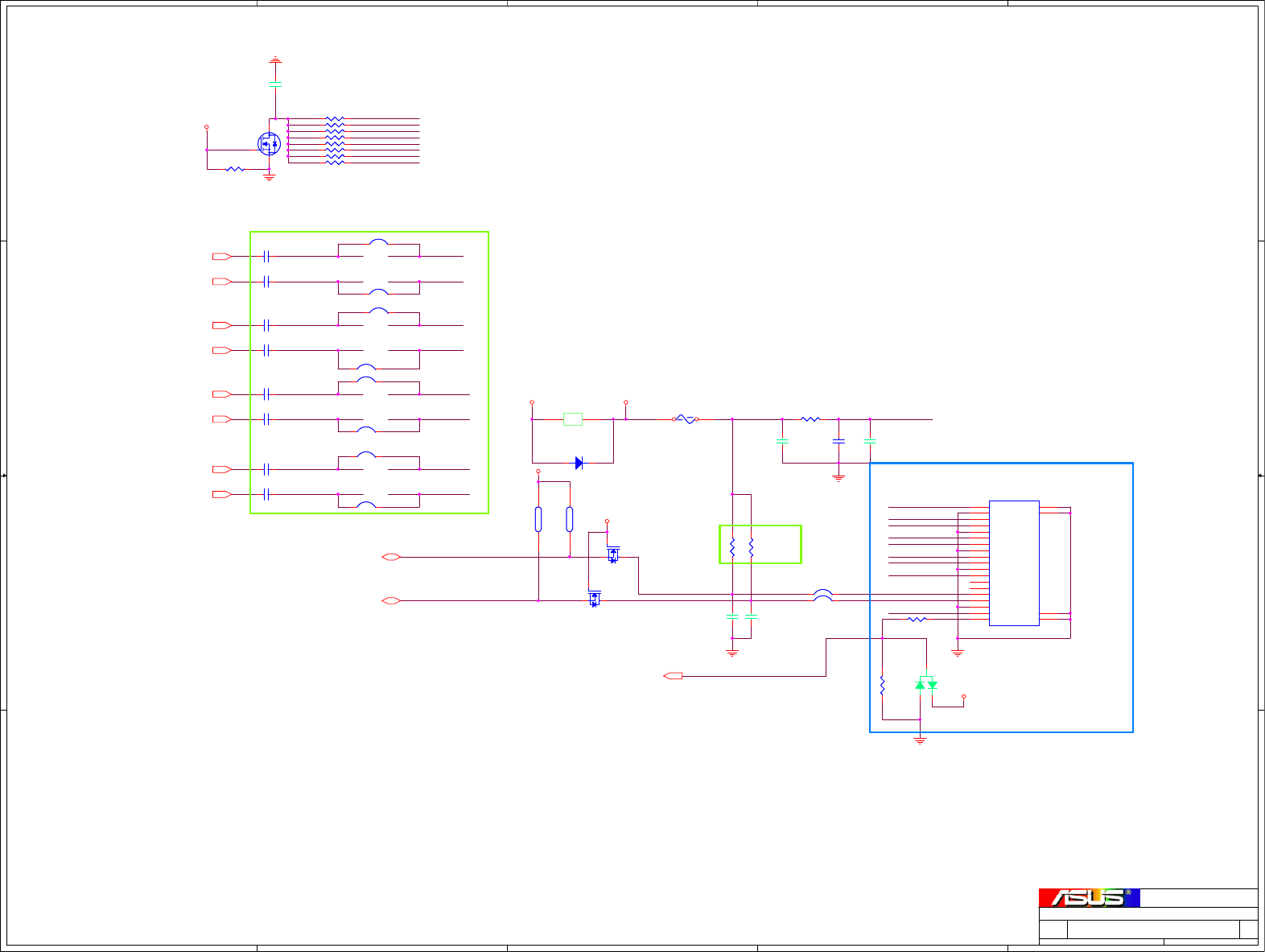

LVDS_VDD_EN
+3VSLCD
LVDS_L0N_CON
LVDS_L2P_CON
LVDS_LCLKN_CON
LVDS_L0P_CON
LVDS_L1N_CON
+VIN_INV
EDID_DAT
BL_EN_CON
+VIN_INV
LVDS_L2N_CON
LVDS_U2N_CON
LVDS_U2P_CON
LVDS_UCLKN_CON LVDS_UCLKP_CON
LVDS_U0N_CON
LVDS_L1P_CON
BL_PWM_CON
LVDS_U0P_CON
USB_P6+
LVDS_U1P_CONLVDS_U1N_CON
LVDS_LCLKP_CON
USB_P6-
EDID_CLK
+VIN_INV
LID#
LVDS_BACK_EN
BL_EN_CONBL_EN USB_P6-
USB_P6+
LID_EC#
LVDS_L0N
LVDS_L2N
LVDS_L2P
LVDS_L1N
LVDS_L1P
LVDS_L0P
LVDS_U1N
LVDS_U1P
LVDS_U0N
LVDS_U0P
LVDS_LCLKN
LVDS_LCLKP
EDID_CLK
EDID_DAT
LVDS_UCLKN
LVDS_UCLKP
LVDS_U2N
LVDS_U2P
LVDS_VDD_EN
LVDS_BACK_EN
LVDS_VDD_EN
+3VSLCD
LVDS_L0N_CONLVDS_L0N
LVDS_L0P LVDS_L0P_CON
LVDS_L1N LVDS_L1N_CON
LVDS_L1P LVDS_L1P_CON
LVDS_L2N LVDS_L2N_CON
LVDS_L2P LVDS_L2P_CON
LVDS_LCLKN LVDS_LCLKN_CON
LVDS_LCLKP LVDS_LCLKP_CON
LVDS_U0N LVDS_U0N_CON
LVDS_U0P LVDS_U0P_CON
LVDS_U1N LVDS_U1N_CON
LVDS_U1P LVDS_U1P_CON
LVDS_U2N LVDS_U2N_CON
LVDS_U2P LVDS_U2P_CON
LVDS_UCLKP_CON
LVDS_UCLKN LVDS_UCLKN_CON
LVDS_UCLKP
LCD_BL_PWM [30]
LCD_BACKOFF#[30]
SUSB_EC#[30,43,57,83,86,88,90]
LIDSW#[31]
USB_PP6[21]
USB_PN6[21]
LVDS_G_L0N [77]
LVDS_G_L0P [77]
LVDS_G_L1N [77]
LVDS_G_L1P [77]
LVDS_G_L2N [77]
LVDS_G_LCLKP [77]
LVDS_G_L2P [77]
LVDS_G_LCLKN [77]
LVDS_G_U0N [77]
LVDS_G_U1P [77]
LVDS_G_U0P [77]
LVDS_G-U1N [77]
LVDS_G_U2N [77]
LVDS_G_UCLKP [77]
LVDS_G_U2P [77]
LVDS_G_UCLKN [77]
EDID_G_DAT [72]
EDID_G_CLK [72]
LVDS_G_VDD_EN [77]
LVDS_G_BACK_EN [72,78]
L_G_BKLT_CTRL [77]
USB_P6- [52]
USB_P6+ [52]
+12VS+3VSUS
+3VS_LCD
+3VS
+3VS
GND GND
GND
GND GND GND GND
+3VS_LCD
GND GND
GND
+3VS
GND
GND
GND
+3VS_LCD
AC_BAT_SYS
GND
+3VS
+3VA
GND
GND
GND GND
+5V+5V_USB_6
GND GND
GND
GND
+3VS
+3VSUS
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
45 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
LVDS & INVERTER
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
45 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
LVDS & INVERTER
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
45 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
LVDS & INVERTER
2.05
F5Z
Richard_Lu
<Variant Name>
LCD Backlight Control
LCD Power
0314
+3V change to +3VSUS
Cable Requirement:
Impedence: 100 ohm +/- 10%
Length Mismatch <= 10 mils
Twisted Pair(Not Ribbon)
Maximum Length <= 16"
LCD LVDS/Inverter/CCD conn.
P/N:12G171010407
Item 12 : Change PINs definition
To EC Lid Switch
From EC brightness control
When AC in,plug cable
varify hi Voltage?
M92-M2
LCD Backlight Control change
090331
Change R4528 to SL
Notice
090410
change SL
090411
layoutguide notic those SL colay with chock
090411
notic
090411
EMI
090414
EMI
090414
change partreference 0517
Remove Bead 2005/05/25
Remove Bead 2005/05/25
12
C4511
0.1UF/16V
c0402
@
C4511
0.1UF/16V
c0402
@
1 2
C4523 100PF/50V
@
C4523 100PF/50V
@
21
0402
R4541
0402
R4541
1 2
R4546
200KOhm
R4546
200KOhm
21
0402
R4544
0402
R4544
1
23
D
S
G
1
2
3
Q4506
AP2307GN
D
S
G
1
2
3
Q4506
AP2307GN
12
C4526
100PF/50V
@
C4526
100PF/50V
@
12
C4507
0.1UF
C4507
0.1UF
21
0402
R4543
0402
R4543
12
C4525
0.1UF/10V
@
C4525
0.1UF/10V
@
12
C4512
0.1UF/16V
c0402
@
C4512
0.1UF/16V
c0402
@
21
0402
R4548
0402
R4548
12
C4506
0.1UF/16V
C4506
0.1UF/16V
1
23
D4507
BAT54AW
D4507
BAT54AW
21
L4501
80Ohm/100Mhz
L4501
80Ohm/100Mhz
12
C4505
0.1UF/16V
@
C4505
0.1UF/16V
@
12
C4527
100PF/50V
@
C4527
100PF/50V
@
21
0402
R4528
0402
R4528
21
0402
R4532
0402
R4532
21
L4509
80Ohm/100Mhz
L4509
80Ohm/100Mhz
5
34
Q4502B
UM6K1N
@
Q4502B
UM6K1N
@
1 2
R4527
49.9KOhm
1%@
R4527
49.9KOhm
1%@
21
0402
R4538
0402
R4538
12
C4524
100PF/50V
@
C4524
100PF/50V
@
1 2
R4545
80.6KOhm
R4545
80.6KOhm
12
C4503
10UF/10V
@
C4503
10UF/10V
@
1 2
C4517
0.1UF/16V
C4517
0.1UF/16V
21
0402
R4550
0402
R4550
1 2
R4505
10KOhm
r0402
R4505
10KOhm
r0402
12
C4504
1UF/10V
@
C4504
1UF/10V
@
21
0402
R4537
0402
R4537
21
0402
R4539
0402
R4539
21
L4512 120Ohm/100Mhz
L4512 120Ohm/100Mhz
21
L4514
120Ohm/100Mhz@L4514
120Ohm/100Mhz@
2
61
Q4502A
UM6K1N
@
Q4502A
UM6K1N
@
21
0402
R4540
0402
R4540
21
0402
R4531
0402
R4531
1 2
C4545
0.1UF/16V
C4545
0.1UF/16V
21
0402
R4547
0402
R4547
21
0402
R4542
0402
R4542
2 1
L4515
120Ohm/100Mhz
L4515
120Ohm/100Mhz
1 2
D4502
1SS355
@
D4502
1SS355
@
21
0402
R4549
0402
R4549
1
2
35
6
4
S
D
G
Q4501
SI3456BDV
@
S
D
G
Q4501
SI3456BDV
@
12
C4510
0.1UF/16V
c0402
C4510
0.1UF/16V
c0402
GS
D
3
2
1
Q4508
H2N7002
GS
D
3
2
1
Q4508
H2N7002
21
0402
R4529
0402
R4529
1
23
D4503
BAT54AW
D4503
BAT54AW
12
C4502
0.1UF/16V
C4502
0.1UF/16V
12
D4501
1N4148W
@
D4501
1N4148W
@
21
L4545
120Ohm/100Mhz
L4545
120Ohm/100Mhz
1
T4501 TPC28TT4501 TPC28T
Vdd
1
GND 2
OUTPUT
3
U4501
AH180-WG-7
U4501
AH180-WG-7
21
0402
R4535
0402
R4535
1 2
R4502 100Ohm
@
R4502 100Ohm
@
21
0402
R4536
0402
R4536
12
R4504
33Ohm
@
R4504
33Ohm
@
12
R4501
100KOhm
@
R4501
100KOhm
@
GS
D
3
2
1
Q4507
SI2302ADS
@
GS
D
3
2
1
Q4507
SI2302ADS
@
11
33
55
77
99
11 11
13 13
15 15
17 17
19 19
21 21
23 23
25 25
27 27
29 29
31 31
33 33
35 35
37 37
39 39
2
24
46
68
810
10 12
12 14
14 16
16 18
18 20
20 22
22 24
24 26
26 28
28 30
30 32
32 34
34 36
36 38
38 40
40 SIDE1 41
SIDE2
42
J4501
WTOB_CON_40P
J4501
WTOB_CON_40P
1 2
R4511
10KOhm
R4511
10KOhm
12
R4503
100KOhm
@
R4503
100KOhm
@
21
0402
R4530
0402
R4530
21
L4513
120Ohm/100Mhz
L4513
120Ohm/100Mhz
12
C4501
0.1UF/25V
@
C4501
0.1UF/25V
@
12
C4519
1UF/25V
C4519
1UF/25V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HSYNC_CON
VSYNC_CON
DDC_CLK_CON
VSYNC_CON
DDC_DAT_CON
CRT_DDC_CLK
CRT_DDC_DATA
CRT_G_CON
CRT_R_CON
CRT_BLUE CRT_B_CON
CRT_GREEN
HSYNC_CON
CRT_RED CRT_RED_JUMP
CRT_GREEN_JUMP
CRT_BLUE_JUMP
CRT_R_CON
HSYNC_CON
VSYNC_CON
CRT_G_CON
DDC_DAT_CON
DDC_CLK_CON
CRT_B_CON
CRT_RED
CRT_GREEN
CRT_BLUE
CRT_DDC_CLK
CRT_DDC_DATA
CRT_HSYNC
CRT_VSYNC
CRT_B_CON
CRT_R_CON
CRT_G_CON
CRT_HSYNC
CRT_VSYNC
CRT_G_RED [72]
CRT_G_GREEN [72]
CRT_G_BLUE [72]
CRT_G_DDC_CLK [72]
CRT_G_DDC_DATA [72]
CRT_G_HSYNC [72,78]
CRT_G_VSYNC [72,78]
+5VS
+5VS
+5VS_HDMI_CRT
+3VS +3VS
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GNDGND
+3VS
GND
GND
GND
GND
+3VS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
46 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
CRT
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
46 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
CRT
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
46 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
CRT
2.0
F83T
Xinghua_chen
<Variant Name>
PN: 12G10110915K
PLACE ESD Diodes near
VGA port
071113071204 Add Jump 071212
071212
071212
change topology as M51VA
R1.11
080310
Change value
to 140 ohm
R2.0 080402
Mount C4609 (5p/50V)
THE COST
F5Z
上面沒有此二極管
D4606,
在此先預留
.
090331
remove R4610 ,R4611 27 Ohm.
mount SL4610, SL4611 090331
remove R4608 ,R4609 33 Ohm.
mount SL4608, SL4609 090331
Notice change P/N
090410
Cost down
12
C4610
100PF/50V
C4610
100PF/50V
1 2
R4613
0Ohm
R4613
0Ohm
1
2
34
5
6
VI/O
GND
VI/OVI/O
VBUS
VI/O
D4603
IP4223-CZ6
@
VI/O
GND
VI/OVI/O
VBUS
VI/O
D4603
IP4223-CZ6
@
12
C4602
10PF/50V
c0402
C4602
10PF/50V
c0402
12
C4603
5PF/50V
@
C4603
5PF/50V
@
12
C4609
5PF/50V
@
C4609
5PF/50V
@
1 2
RN4604A
4.7KOHM
RN4604A
4.7KOHM
12
C4608
10PF/50V
c0402
C4608
10PF/50V
c0402
12
C4605
10PF/50V
c0402
C4605
10PF/50V
c0402
12
R4607
4.7KOhm
@
R4607
4.7KOhm
@
18
1
3
5
19
6
8
10
14
12
16
17
11
7
2
13
9
4
15
P_GND1
P_GND2
NP_NC1
NP_NC2
J4601
D_SUB_15P
P_GND1
P_GND2
NP_NC1
NP_NC2
J4601
D_SUB_15P
OE#
1
A
2
GND
3Y4
VCC 5
U4601
74LVC1G125GV
U4601
74LVC1G125GV
12
R4602
150Ohm
r0402
R4602
150Ohm
r0402
21
0402
SL4612
0402
SL4612
21
0402
SL4613
0402
SL4613
21
L4605 75Ohm/100MhzL4605 75Ohm/100Mhz
12
C4613
10PF/50V
C4613
10PF/50V
2
61
Q4601A
UM6K1N
@
Q4601A
UM6K1N
@
1 2
JP4601
SHORT_PIN
JP4601
SHORT_PIN
12
C4611
100PF/50V
C4611
100PF/50V
12
C4607
24PF/50V
c0402
C4607
24PF/50V
c0402
12
C4604
24PF/50V
c0402
C4604
24PF/50V
c0402
OE#
1
A
2
GND
3Y4
VCC 5
U4602
74LVC1G125GV
U4602
74LVC1G125GV
21
0402
SL4609
0402
SL4609
1
23
D4601
BAV99
D4601
BAV99
1 2
R4614
0Ohm
R4614
0Ohm
12
0Ohm
SL4610
0Ohm
SL4610
12
R4601
150Ohm
r0402
R4601
150Ohm
r0402
1 2
JP4602
SHORT_PIN
JP4602
SHORT_PIN
12
R4603
150Ohm
r0402
R4603
150Ohm
r0402
21
L4603 75Ohm/100MhzL4603 75Ohm/100Mhz
3 4
RN4604B
4.7KOHM
RN4604B
4.7KOHM
12
C4601
24PF/50V
c0402
C4601
24PF/50V
c0402
21
L4601 75Ohm/100MhzL4601 75Ohm/100Mhz
12
R4615
0Ohm
R4615
0Ohm
1 2
R4612
0Ohm
R4612
0Ohm
12
C4612
10PF/50V
C4612
10PF/50V
12
C4606
5PF/50V
@
C4606
5PF/50V
@
12
R4606
4.7KOhm
@
R4606
4.7KOhm
@
1
23
D4602
BAV99
D4602
BAV99
21
0402
SL4608
0402
SL4608
12
0Ohm
SL4611
0Ohm
SL4611
12
C4614
0.1UF/16V
c0402
@
C4614
0.1UF/16V
c0402
@
5
34
Q4601B
UM6K1N
@
Q4601B
UM6K1N
@
1 2
JP4603
SHORT_PIN
JP4603
SHORT_PIN
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+5VSHDMI
TMDS_TX2N_C
TMDS_TXCN_C
TMDS_TXCP_C
TMDS_TX2N_C
TMDS_TX2P_C
TMDS_TX1N_C
TMDS_TX1P_C
TMDS_TX0N_C
TMDS_TX0P_C
TMDS_TXCN_C
TMDS_TXCP_C
DDC Clock
TMDS_TX2P_C
+5VS_HDMI
HDMI_TX0N
HDMI_TX0P
HDMI_TXCN
HDMI_TXCP
HDMI_TX2N
HDMI_TX2P
HDMI_TX1N
HDMI_TX1P
DDC_DATA_HDMI
+5VSHDMI
DDC Data
HDMI_TX0P
HDMI_TX0N
HDMI_TXCP
HDMI_TXCN
HDMI_TX2P
HDMI_TX2N
HDMI_TX1P
HDMI_TX1N
TMDS_TX1N_C
TMDS_TX1P_C
DDC_CLK_HDMI
TMDS_TX0N_C
TMDS_TX0P_C
HDMI_HOTPLUG
TMDS_G_TX0N[72]
TMDS_G_TX0P[72]
TMDS_G_TX1N[72]
TMDS_G_TX1P[72]
TMDS_G_TX2N[72]
TMDS_G_TX2P[72]
HDMI_G_HP[72]
TMDS_G_TXCN[72]
TMDS_G_TXCP[72]
HDMI_G_DDC_CLK[72]
HDMI_G_DDC_DATA[72]
GND
+5VS
GND
GND
GND
+5VS
GND
+3VS
+3VS
+5VS +5VS_HDMI_CRT
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
47 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
HDMI
2.05
F5Z
Kuten Hsu
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
47 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
HDMI
2.05
F5Z
Kuten Hsu
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
47 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
HDMI
2.05
F5Z
Kuten Hsu
HDMI CON.
Close to CONNECTOR
2. HDMI_DDC_CLK,HDMI_DDC_DATA: +3V tolerant
Note:
Close to CONNECTOR
1. R1930,R1931,R1932: For EMI.(defult=0 ohm)
做
bom
時
要注意
D4701
一定要上
不建議換成排阻.
090406
change HDMI con P/N:12G24110193T
090409
Notice
090410
Notice
090410
Notice
090410
swap
090414
EMI
090414
change from 1.8Kohm to 2.2Kohm
0520
Remove Bead
21
0402
R4731
0402
R4731
21
0402
R4736
0402
R4736
21
0402
R4735
0402
R4735
GS
D
3
2
1
Q4766
2N7002
GS
D
3
2
1
Q4766
2N7002
12
C4706
10PF
@
C4706
10PF
@
1 2
R4769 499OhmR4769 499Ohm
12
R4725
100KOhm
r0402
R4725
100KOhm
r0402
C4714 0.1U
/GPU
C4714 0.1U
/GPU
C4716
0.1U
@
C4716
0.1U
@
1
23
D4704
BAV99
@
D4704
BAV99
@
12
R4726
2.2kOHM
R4726
2.2kOHM
12
R4727
2.2kOHM
R4727
2.2kOHM
C4711 0.1U
/GPU
C4711 0.1U
/GPU
1 2
R4768 499OhmR4768 499Ohm
C4712 0.1U
/GPU
C4712 0.1U
/GPU
C4713 0.1U
/GPU
C4713 0.1U
/GPU
1 2
R4765 100KOhmR4765 100KOhm
1 2
R4771 499OhmR4771 499Ohm
21
0402
R4737
0402
R4737
C4709 0.1U
/GPU
C4709 0.1U
/GPU
21
0402
R4739
0402
R4739
2
61
Q4701A
UM6K1N
Q4701A
UM6K1N
C4715 0.1U
/GPU
C4715 0.1U
/GPU
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
P_GND1 20
P_GND2 21
P_GND3 22
P_GND4 23
J4702
HDMI_CON_19P
J4702
HDMI_CON_19P
1 2
R4732 0OhmR4732 0Ohm
12
C4705
470PF/50V
c0402
@
C4705
470PF/50V
c0402
@
5
34
Q4701B
UM6K1N
Q4701B
UM6K1N
1 2
D4701 SS0520D4701 SS0520
C4703
0.1U
@
C4703
0.1U
@
21
0402
R4734
0402
R4734
1 2
R4773 499OhmR4773 499Ohm
1 2
R4770 499OhmR4770 499Ohm
1 2
F4701
0.2A/30V
F4701
0.2A/30V
1 2
RN4729A
4.7KOHM
RN4729A
4.7KOHM
C4708 0.1U
/GPU
C4708 0.1U
/GPU
21
0402
R4740
0402
R4740
1 2
R4767 499OhmR4767 499Ohm
21
0402
R4733
0402
R4733
21
0402
R4738
0402
R4738
C4710 0.1U
/GPU
C4710 0.1U
/GPU
1 2
R4766 499OhmR4766 499Ohm
C4704
0.1U
C4704
0.1U
1 2
R4724
20KOhm
R4724
20KOhm
1
122
SL4725
SGL_JUMP @
SL4725
SGL_JUMP @
12
C4707
10PF
@
C4707
10PF
@
21
0402
R4730
0402
R4730
1 2
R4772 499OhmR4772 499Ohm
3 4
RN4729B
4.7KOHM
RN4729B
4.7KOHM
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
48 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
48 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
48 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
49 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
49 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
49 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
OS#_OC
CPU_THRM_DC
SMB1_CLK
CPU_THRM_DC
CPU_THRM_DA
CPU_THRM_DA
SMB1_DAT
FANSP
THRM_AL#
SMB1_DAT
SMB1_CLK
CPU_THRM_DC [5]
CPU_THRM_DA [5]
FAN0_PWM[30]
FAN0_TACH[30]
SMB1_CLK[30,72] SMB1_DAT[30,72]
OS#_OC [30]
CPU_SIC [5]
CPU_SID [5]
+3VS_THM +3VS
+3VS
+5VS
+5VS
GND GND
GND
GNDGND GND
GNDGNDGND
+1.8V GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
50 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
THER SENSOR & FAN
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
50 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
THER SENSOR & FAN
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
50 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
THER SENSOR & FAN
2.05
F5Z
Richard_Lu
<Variant Name>
Route H_THERMDA and H_THERMDC
on the same layer
Max: 1mA
------------------OTHER SIGNALS
15 mils
===============GND
10 mils
=========H_THERMDA(10 mils)
10 mils
=========H_THERMDC(10 mils)
10 mils
=========GND
15 mils
---------------------OTHER SIGNALS
Avoid FSB,Power
DC FAN Control
Thermal Sensor
CPU
PN:12G17000004B
To EC
4 Pin fan
071113
071115
Pull up +3VS
071211
STI for BIOS
request
Pull up +1.8V
Pull up +3VS
PN:06G023107010
080216
Un-mount
R1.1
change R5014, R5015 to SL5014, SL5015
090331
change R5001 to SL
090406
Add R5014 for thermal sensor read
wrong temp issue. 090406
mount 209/05/25
2
6 1
Q5001A
UM6K1N
@
Q5001A
UM6K1N
@
1 2
R5013 0Ohm
@
R5013 0Ohm
@
1 2
D5002
1N4148W
@
D5002
1N4148W
@
12
C5009
0.1UF/10V
C5009
0.1UF/10V
1
T5001T5001
1 2
R5014
0Ohm
R5014
0Ohm
12
R5012
4.7KOhm
R5012
4.7KOhm
21
0402
SL5015
0402
SL5015
12
C5001
100PF/50V
@
C5001
100PF/50V
@
12
C5012
100PF/50V
@
C5012
100PF/50V
@
4
4
3
3
2
2
1
1SIDE1 5
SIDE2 6
CON5001
WtoB_CON_4P
CON5001
WtoB_CON_4P
12
C5004
0.1UF/10V
C5004
0.1UF/10V
12
C5008
10UF/10V
C5008
10UF/10V
12
C5011
100PF/50V
C5011
100PF/50V
1
23
D5001
BAT54C
@
D5001
BAT54C
@
VCC 1
DXP 2
DXN 3
THERM# 4
SMBCLK
8
SMBDATA
7
ALERT#
6
GND
5
U5001
G786P11U
U5001
G786P11U
1 2
R5001 0OhmR5001 0Ohm
12
C5003
100PF/50V
@
C5003
100PF/50V
@
1 2
R5016 0Ohm
@
R5016 0Ohm
@
21
0402
SL5014
0402
SL5014
12
C5002
2200PF/50V
C5002
2200PF/50V
5
3 4
Q5001B
UM6K1N
@
Q5001B
UM6K1N
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SATA_ODD_TXP1
SATA_ODD_TXN1
SATA_ODD_RXP1
SATA_ODD_RXN1
SATA_HDD_TXP0
SATA_HDD_RXP0
SATA_HDD_RXN0
SATA_HDD_TXN0
SATA_RXP1[22] SATA_RXN1[22]
SATA_TXP1[22] SATA_TXN1[22]
SATA_RXP0[22]
SATA_RXN0[22]
SATA_TXP0[22] SATA_TXN0[22]
+5VS
GND
GND
GNDGND
+5VS
GND
+3VS
GND GND
GND GNDGND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
51 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
HDD & CD-ROM
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
51 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
HDD & CD-ROM
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
51 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
HDD & CD-ROM
2.05
F5Z
Richard_Lu
<Variant Name>
SATA HDD
ODD
P/N:12G15100013J
SATA HDD CON
Differential
Pair
Differential
Pair
P/N:12G15200022G
MLCC 4700PF/25V (0402)X7R 10%
11G232147212360 Design IP
MLCC 0.1UF/10V (0402) X7R 10%
11G232110416360
比較一下價格
S1
S1
S2
S2
S3
S3
S4
S4
S5
S5
S6
S6
S7
S7
P1
P1
P2
P2
P3
P3
P4
P4
P5
P5
P6
P6
P_GND2 4
P_GND1 3
NP_NC2 2
NP_NC1 1
J5102
SATA_CON_13P
J5102
SATA_CON_13P
12
C5106 0.01UF/50VC5106 0.01UF/50V
21
0402
SL5101
0402
SL5101
1
T5102
TPC26T
T5102
TPC26T
12
C5103
10UF/10V
C5103
10UF/10V
1
T5103
TPC26T T5103
TPC26T
12
C5102
10UF/10V
C5102
10UF/10V
12
C5111
0.1UF/10V
@
C5111
0.1UF/10V
@
12
C5110
0.1UF/10V
@
C5110
0.1UF/10V
@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
NP_NC2 24
NP_NC1 23
NP_NC4 26
NP_NC3 25
J5101
SATA_CON_22P
J5101
SATA_CON_22P
12
C5123
10UF/10V
@C5123
10UF/10V
@
21
0402
SL5102
0402
SL5102
12
C5108 3900PF/25V
C5108 3900PF/25V
12
C5122
10UF/10V
@C5122
10UF/10V
@
12
C5109 3900PF/25V
C5109 3900PF/25V
12
C5107 0.01UF/50VC5107 0.01UF/50V
21
0402
SL5104
0402
SL5104
21
0402
SL5103
0402
SL5103
12
C5105
0.1UF/10V
@
C5105
0.1UF/10V
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USB_LP1+
USB_OC1#
USB_OC0#
USB_LP1-
USB_LP2+
USB_LP2-
USB_LP0-
USB_LP0+
USB_LP1+USB_LP1- USB_LP1-
USB_LP1+
USB_LP2-
USB_LP2+
USB_LP0-
USB_LP0+
USB_LP2- USB_LP2+
USB_P6-
USB_LP0-
USB_P6+
USB_LP0+
USB_PN1[21]
USB_PP1[21]
USB_OC0# [21]
USB_PN2[21]
USB_PP2[21]
USB_OC1# [21]
USB_PP0[21]
USB_PN0[21]
USB_P6- [45]USB_P6+[45]
+5V_USB_0
+5V_USB_3
+5V_USB
GND
GND
GND
GND
+5V_USB
GND+5V_USB_3
GND GND
GND
+5V
+12V
GND
+5V_USB
GNDGND
GNDGND
GND
GND GND
GNDGND
+5V_USB_0 GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
52 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
USB CONN
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
52 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
USB CONN
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
52 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
USB CONN
2.05
F5Z
Richard_Lu
<Variant Name>
Change all MOS with ESD part
071119 change common
choke and R P/N
071214071214
swap swap
071214
old:usb_1x4p_4hold_sun_lf3
new:nb_usb_1x4p_4hold_su_lf2
080125 R1.1
Change the USB Varisitor from
EGA10603V05A1 to AZC099-04S
080215 R1.1
SWAP
080213 R1.1
Change D5201 , D5204 , D5206 , D5208 footprint
080218 R1.1
Change PN From
07G014075600 to
07G014075310
R2.0 080327
Add test point for
factory ICT test
P/N:12G131050044
07G028075010
為建議用料
已經更換
. 090331
P/N:12G130011045
預留USB OC function 090406
090415
SWAP
090417
Remove Bead 2005/05/25
1
1
2
2
3
3
4
4P_GND1 5
P_GND2 6
P_GND3 7
P_GND4 8
J5203
USB_CON_1X4P
J5203
USB_CON_1X4P
21
0402
SL5201
0402
SL5201
1 2
R5225
100KOhm
@
R5225
100KOhm
@
12
C5226
10UF/10V
@
C5226
10UF/10V
@
1 2
F5204
0.75A/13.2V
F5204
0.75A/13.2V
1 2
R5215
4.7KOhm
@
R5215
4.7KOhm
@
1 2
R5210
8.2KOhm
@
R5210
8.2KOhm
@
12
C5225
0.1UF/25V
C5225
0.1UF/25V
21
0402
SL5208
0402
SL5208
12
C5254
22UF/6.3V
C5254
22UF/6.3V
12
+
CE5250
100UF/10V
@
+
CE5250
100UF/10V
@
12
C5204
0.1UF/16V
c0402
C5204
0.1UF/16V
c0402
1
T5201
TPC26T
T5201
TPC26T
12
C5201
0.1UF/16V
c0402
C5201
0.1UF/16V
c0402
21
0603
SL5202
0603
SL5202
1
2
34
5
6
VI/O
GND
VI/OVI/O
VBUS
VI/O
D5202
IP4223-CZ6
@
VI/O
GND
VI/OVI/O
VBUS
VI/O
D5202
IP4223-CZ6
@
1
2
34
5
6
VI/O
GND
VI/OVI/O
VBUS
VI/O
D5201
IP4223-CZ6
@
VI/O
GND
VI/OVI/O
VBUS
VI/O
D5201
IP4223-CZ6
@
1
2
3
4
5
6
7
8
VCC
DATA0-
DATA0+
GND
SIDE_G1
SIDE_G3
SIDE_G2
SIDE_G4
J5202
USB_CON_1X4P
VCC
DATA0-
DATA0+
GND
SIDE_G1
SIDE_G3
SIDE_G2
SIDE_G4
J5202
USB_CON_1X4P
12
C5253
22UF/6.3V
C5253
22UF/6.3V
21
0402
SL5206
0402
SL5206
1
122
PJP5201
2MM_OPEN_5MIL
PJP5201
2MM_OPEN_5MIL
21
0603
SL5203
0603
SL5203
1 2
R5209
4.7KOhm
@
R5209
4.7KOhm
@
1 2
R5216
8.2KOhm
@
R5216
8.2KOhm
@
12
C5202
0.1UF/16V
c0402
C5202
0.1UF/16V
c0402
1
2
35
6
4
SD
G
Q5205
SI3456BDV
@
SD
G
Q5205
SI3456BDV
@
1
T5202
TPC26T
T5202
TPC26T
21
0402
SL5207
0402
SL5207
12
+
CE5251
100UF/10V
+
CE5251
100UF/10V
1 2
F5201
1.5A/6V
F5201
1.5A/6V
1
2
3
4
5
6
7
8
VCC
DATA0-
DATA0+
GND
SIDE_G1
SIDE_G3
SIDE_G2
SIDE_G4
J5201
USB_CON_1X4P
VCC
DATA0-
DATA0+
GND
SIDE_G1
SIDE_G3
SIDE_G2
SIDE_G4
J5201
USB_CON_1X4P
21
0402
SL5205
0402
SL5205
21
0402
SL5204
0402
SL5204
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
WLAN_ON#
WLAN_ON#
+3VAUX_GOLAN
WAKE#
MINI_CLK_REQ#
PCIE_RXN0_MINICARD_L
PCIE_RXP0_MINICARD_L
PCIE_TXN0_MINICARD_L
PCIE_TXP0_MINICARD_L
RF_SW#[30,61]
WLAN_ON [22]
BT_CHDAT[61] BT_CHCLK[61]
PCIE_WAKE#[21,33,43]
CLK_PCIE_MINICARD#[29] CLK_PCIE_MINICARD[29]
PCIE_RXN0_MINICARD[11] PCIE_RXP0_MINICARD[11]
PCIE_TXP0_MINICARD[11] PCIE_TXN0_MINICARD[11] SMBCLK_SYS [21]
SMBDATA_SYS [21]
BUF_PLT_RST# [5,20,30,33,40,43,71]
GND
GND
+3VAUX_GOLAN
GND
+3VAUX_GOLAN
GND
+3VAUX
GND GND
+3VS
+3VSUS
+1.5VS
GND GND GND
+3VS
GND GND GND
GNDGND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
53 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
MINICARD
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
53 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
MINICARD
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
53 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
MINICARD
2.0
F83T
Xinghua_chen
<Variant Name>
close to Connector
WLAN
P/N : 12G03000052B RF_SW# state H L
Off OnWLAN state
21
0402
SL5308
0402
SL5308
21
0402
SL5309
0402
SL5309
12
C5309
10UF/6.3V
@
C5309
10UF/6.3V
@
1 2
D5301 RB751V-40D5301 RB751V-40
21
0402
SL5306
0402
SL5306
21
0402
SL5307
0402
SL5307
1 2
R5303 0Ohm@R5303 0Ohm@
12
C5305
0.1UF/10V
@
C5305
0.1UF/10V
@
1
T5301TPC28T T5301TPC28T
12
C5308
0.1UF/10V
C5308
0.1UF/10V
12
C5306
0.1UF/10V
@
C5306
0.1UF/10V
@
H5301
A40M20-64AS
H5301
A40M20-64AS
21
0402
SL5301
0402
SL5301
12
C5307
10UF/6.3V
@
C5307
10UF/6.3V
@
WAKE#
1
BT_DATA
3
BT_CHCLK
5
CLKREQ#
7
GND1
9
REFCLK-
11
REFCLK+
13
GND2
15
Reserved1
17
Reserved2
19
GND3
21
PERn0
23
PERp0
25
GND4
27
GND5
29
PETn0
31
PETp0
33
GND6
35
Reserved3
37
Reserved4
39
Reserved5
41
Reserved6
43
Reserved7
45
Reserved8
47
Reserved9
49
Reserved10
51
3.3V_1 2
GND7 4
1.5V_1 6
Reserved11 8
Reserved12 10
Reserved13 12
Reserved14 14
Reserved15 16
GND8 18
W_DISABLE# 20
PERST# 22
3.3Vaux 24
GND9 26
1.5V_2 28
Reserved16 30
Reserved17 32
GND10 34
Reserved18 36
Reserved19 38
GND11 40
NC1 42
LED_WLAN# 44
NC2 46
1.5V_3 48
GND12 50
3.3V_2 52
GND13
53
GND14
54 NP_NC2 56
NP_NC1 55
J5301
MINI_PCI_LATCH_52P
J5301
MINI_PCI_LATCH_52P
21
0402
SL5304
0402
SL5304
12
C5304
10UF/6.3V
C5304
10UF/6.3V
21
0402
SL5303
0402
SL5303
1 2
SL5310 0OhmSL5310 0Ohm
21
0402
SL5305
0402
SL5305
12
C5302
0.1UF/10V
@
C5302
0.1UF/10V
@
12
C5303
0.1UF/10V
C5303
0.1UF/10V
H5302
A40M20-64AS
H5302
A40M20-64AS
21
0402
SL5302
0402
SL5302
G
S
D3
2
1
Q5304
H2N7002
@
G
S
D3
2
1
Q5304
H2N7002
@
GS
D
3
2
1
Q5302
H2N7002
@
GS
D
3
2
1
Q5302
H2N7002
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
54 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
54 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
54 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
5 5
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
55 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
55 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
55 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SATA_LED#
NUM_LED#
BT_LED#WLAN_LED#
CAP_LED#CHG_LED#
PWR_SWITCH# MARATHON#
PWR_LED#
SATA_LED#SATA_LED#
WLAN_LED# BT_LED#
WLAN_LED_ON[22]SATA_LED#[22] BTLED_ON[22]
PWR_LED# [30] CHG_LED# [30] NUM_LED# [30] CAP_LED# [30]
PWRSW# [31] MARATHON# [30]
+3VS
+3VS
+3VSUS
+3VS
+3VS
+3VS
+3VSUS
GNDGND
GND
GND GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
56 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
LED/PWR SWICH
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
56 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
LED/PWR SWICH
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
56 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
LED/PWR SWICH
2.0
F83T
Xinghua_chen
<Variant Name>
WireLess LED
SATA/IDE LED
Num Lock Cap LockFor POWER LED
BT LED
BATTERY LED
From SB GPIO
LED
Power SW.
F5Z SWITCH CIRCUIT
Change all LED for 5mA
Move SW from P32 to P56
Change all MOS with ESD part
071120
071122
071122
071122
071122
071122
071127
071127
delete D5601
R2.0 080327
Add test point for
factory ICT test
P/N:12G09103305N P/N:12G09103305N
MARATHON#
090407
Remove R5656
090411
1 2
R5608
100Ohm
R5608
100Ohm
1 2
R5615
0Ohm
R5615
0Ohm
1
T5604
TPC26T
T5604
TPC26T
1 2
R5602
200Ohm
R5602
200Ohm
12
C5658
0.1UF/10V
@
C5658
0.1UF/10V
@
1 2
C5657
0.1UF/10V
C5657
0.1UF/10V
1
T5601
TPC26T
T5601
TPC26T
1 2
+
LED5612
BLUE
+
LED5612
BLUE
1
1
2
2
33
55
44
SW5602
TACT_SWITCH_5P
SW5602
TACT_SWITCH_5P
1
1
2
2
33
55
44
SW5601
TACT_SWITCH_5P
SW5601
TACT_SWITCH_5P
1 2
R5612
100Ohm
R5612
100Ohm
1 2
+
LED5601
BLUE
+
LED5601
BLUE
1 2
R5611
100Ohm
R5611
100Ohm
1 2
+
LED5608
BLUE
+
LED5608
BLUE
1 2
R5616
0Ohm
R5616
0Ohm
5
34
Q5601B
UM6K1N
@
Q5601B
UM6K1N
@
1 2
R5610
100Ohm
R5610
100Ohm
1 2
+
LED5605
BLUE
+
LED5605
BLUE
1 2
+
LED5611
BLUE
+
LED5611
BLUE
12
C5656
0.1UF/10V
C5656
0.1UF/10V
T3801T3801
1 2
R5605
100Ohm
R5605
100Ohm
2
61
Q5601A
UM6K1N
@
Q5601A
UM6K1N
@
1 2
+
LED5606
BLUE
+
LED5606
BLUE
1 2
R5606
100Ohm
R5606
100Ohm
1 2
R5601
100Ohm
R5601
100Ohm
1 2
+
LED5610
BLUE
+
LED5610
BLUE
1 2
+
LED5602
AMBER
+
LED5602
AMBER
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SUSC_EC#[30,82,86,87]
SUSB_EC#[30,43,45,83,86,88,90]
+12V +5V +1.8V
+3VS+12VS +5VS +2.5V_CPU_VDDA +1.8VS +1.5VS
GNDGND GND GND
GND GND
GND GND GND
+0.9V
GND
+1.2V_CPU_NB_SB +1.1V_NB
GND GND
+VCORE
GND
+VCC_NB
GND
+3VA
GND
GND
+3VA
+0.9VS
GND
+VGA_VCORE
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
57 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
DISCHARGE CKT
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
57 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
DISCHARGE CKT
2.0
F83T
Xinghua_chen
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
57 91Wednesday, May 27, 2009
ASUSTeK COMPUTER INC
DISCHARGE CKT
2.0
F83T
Xinghua_chen
<Variant Name>
Change all MOS with ESD part
Change net name
Change net name
Change net name
071120
071120
12
R5707
330Ohm
@
R5707
330Ohm
@
12
R5703
330Ohm
@
R5703
330Ohm
@
GS
D
3
2
1
Q5721
H2N7002
GS
D
3
2
1
Q5721
H2N7002
GS
D
3
2
1
Q5712
H2N7002
GS
D
3
2
1
Q5712
H2N7002
GS
D
3
2
1
Q5717
H2N7002
GS
D
3
2
1
Q5717
H2N7002
GS
D
3
2
1
Q5715
H2N7002
GS
D
3
2
1
Q5715
H2N7002
12
R5712
330Ohm
@
R5712
330Ohm
@
12
R5718
330Ohm
@
R5718
330Ohm
@
12
R5715
330Ohm
@
R5715
330Ohm
@
12
R5702
330Ohm
@
R5702
330Ohm
@
12
R5714
330Ohm
@
R5714
330Ohm
@
12
R5708
330Ohm
@
R5708
330Ohm
@
GS
D
3
2
1
Q5711
H2N7002
GS
D
3
2
1
Q5711
H2N7002
GS
D
3
2
1
Q5716
H2N7002
GS
D
3
2
1
Q5716
H2N7002
GS
D
3
2
1
Q5703
H2N7002
GS
D
3
2
1
Q5703
H2N7002
GS
D
3
2
1
Q5714
H2N7002
GS
D
3
2
1
Q5714
H2N7002
GS
D
3
2
1
Q5713
H2N7002
GS
D
3
2
1
Q5713
H2N7002
GS
D
3
2
1
Q5708
H2N7002
GS
D
3
2
1
Q5708
H2N7002
GS
D
3
2
1
Q5705
H2N7002
GS
D
3
2
1
Q5705
H2N7002
12
R5701
100KOhm
@
R5701
100KOhm
@
5
34
Q5701B
UM6K1N
Q5701B
UM6K1N
12
R5713
330Ohm
@
R5713
330Ohm
@
12
R5706
330Ohm
@
R5706
330Ohm
@
2
61
Q5701A
UM6K1N
Q5701A
UM6K1N
12
R5709
330Ohm
@
R5709
330Ohm
@
GS
D
3
2
1
Q5720
H2N7002
GS
D
3
2
1
Q5720
H2N7002
12
R5705
330Ohm
@
R5705
330Ohm
@
12
R5716
330Ohm
@
R5716
330Ohm
@
12
R5711
330Ohm
@
R5711
330Ohm
@
12
R5717
330Ohm
@
R5717
330Ohm
@
GS
D
3
2
1
Q5709
H2N7002
GS
D
3
2
1
Q5709
H2N7002
12
R5719
100KOhm
@
R5719
100KOhm
@
GS
D
3
2
1
Q5710
H2N7002
GS
D
3
2
1
Q5710
H2N7002
GS
D
3
2
1
Q5706
H2N7002
GS
D
3
2
1
Q5706
H2N7002
12
R5710
330Ohm
@
R5710
330Ohm
@
GS
D
3
2
1
Q5707
H2N7002
GS
D
3
2
1
Q5707
H2N7002
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
58 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
58 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
58 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
59 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
59 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
59 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SMB0_DAT
SMB0_CLK
TS1#
TS1# [30]
SMB0_DAT [30]
SMB0_CLK [30]
+AC_IN
BAT BAT_CON
GND
GND
GND
A/D_DOCK_IN
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
60 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DC_Jack & BAT Con
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
60 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DC_Jack & BAT Con
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
60 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
DC_Jack & BAT Con
2.05
F5Z
Richard_Lu
<Variant Name>
Adaptor IN
DC JACK-IN
BATTERY
Add for AC Adapter protect
071120
cahnge PL->L,PT->T,PC->C
071203
change footprint
12G14530103V
P/N:12G200010901
Removen JP
Remove bead 2009/05/25
Remove bead 2009/05/25
1
T6027TPC26T T6027TPC26T
1
T6005
TPC28T
T6005
TPC28T
1
T6010
TPC28T
T6010
TPC28T
1
T6014
TPC28T
T6014
TPC28T
1
T6012
TPC28T
T6012
TPC28T
12
C6006
0.1UF/50V
C6006
0.1UF/50V
12
C6009
1UF/25V
@
C6009
1UF/25V
@
12
C6012
33PF/50V
DC_
C6012
33PF/50V
DC_
1
122
JP6001
3MM_OPEN_5MIL
JP6001
3MM_OPEN_5MIL
12
C6010
0.1UF/25V
C6010
0.1UF/25V
1
T6004
TPC28T
T6004
TPC28T
11
22
33
NP_NC
6
P_GND1
4
P_GND2
5
J6001
DC_PWR_JACK_3P
J6001
DC_PWR_JACK_3P
12
C6001
0.1UF/25V
C6001
0.1UF/25V
1
T6018 TPC28TT6018 TPC28T
1
T6011
TPC28T
T6011
TPC28T
12
C6013
33PF/50V
DC_
C6013
33PF/50V
DC_
1
T6021 TPC28TT6021 TPC28T
1 2
R6005 330OhmR6005 330Ohm
1 2
D6001
SS0540
@
D6001
SS0540
@
1
T6024
TPC28T
T6024
TPC28T
1
T6026TPC26T T6026TPC26T
1
T6007
TPC28T
T6007
TPC28T
1
T6006
TPC28T
T6006
TPC28T
1
122
JP6002
3MM_OPEN_5MIL
JP6002
3MM_OPEN_5MIL
1
T6019 TPC28TT6019 TPC28T
1
T6016 TPC28TT6016 TPC28T
1
T6022TPC26T T6022TPC26T
1
T6015
TPC28T
T6015
TPC28T
1 2
R6003 330OhmR6003 330Ohm
12
C6011
33PF/50V
DC_
C6011
33PF/50V
DC_
1
T6003
TPC28T
T6003
TPC28T
12
C6008
10UF/25V
@
C6008
10UF/25V
@
1
T6017 TPC28TT6017 TPC28T
1
T6025TPC26T T6025TPC26T
11
22
33
44
55
66
77
88
99
NP_NC1 10
NP_NC2 11
J6002
BATT_CON_9P
J6002
BATT_CON_9P
1
T6009
TPC28T
T6009
TPC28T
1
T6023 TPC28TT6023 TPC28T
1
3 4
5
2
D6005
DF5A6.8FU
D6005
DF5A6.8FU
1
T6008
TPC28T
T6008
TPC28T
1
T6013
TPC28T
T6013
TPC28T
1 2
R6004 330OhmR6004 330Ohm
1
T6020 TPC28TT6020 TPC28T
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USBPP12
USBPN12
RF_SW#
BT_ON/OFF#
USBPP12
USBPN12
BT_ON/OFF#
USBP13+
USBP13+
USBP13-
USBP13-
RF_SW#[30,53]
USB_PN12[21]
USB_PP12[21]
BT_ON [22]
BT_CHDAT[53]
BT_CHCLK[53]
USB_PN13[21]
USB_PP13[21]
+3VA
GND
+3V
GND GND
GND
GND
GND
GND
+3VS
GND GND
GND
GND
+3V_FP
GND
GND
+3V_FP
+3VS
+3V
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
61 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
BT & Slide SW
2.05
F83T
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
61 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
BT & Slide SW
2.05
F83T
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
61 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
BT & Slide SW
2.05
F83T
<Variant Name>
For Side SW
For Bluetooth
SN:12G090070063
Modify to RFON_SW#
071113
Modify to +3VA
Modify to RFON_SW#
071120 change common
choke and R P/N
071214
RN swap
P/N:12G170010083
max. 60mA
Cost down
Co-layout for EMI
Fingerprint Conn.
P/N:12G182400604
SB GPIO S5_3
,
防漏電
optional
，先上測試功能
RF_SW# state H L
Off OnBT state
swap
090414
090415
swap
090521
1
2
3
4
6
5
7
8
GND1
GND2
J6102
FPC_CON_6P
GND1
GND2
J6102
FPC_CON_6P
12
R6105
10KOhm
R6105
10KOhm
12
C6103
0.1UF/16V
C6103
0.1UF/16V
GS
D
3
2
1
Q6101
H2N7002
@
GS
D
3
2
1
Q6101
H2N7002
@
1
23
D6104
BAV99
@
D6104
BAV99
@
21
0402
SL6103
0402
SL6103
12
C6101
0.1UF/10V
C6101
0.1UF/10V
21
0402
SL6104
0402
SL6104
12
R6101
10KOhm
R6101
10KOhm
12
C6109
0.1UF/16V
C6109
0.1UF/16V
1 2
R6161 0Ohm@R6161 0Ohm@
21
0402
SL6102
0402
SL6102
1 4
2 3
L6103
90Ohm/100Mhz
09G092090107
@
L6103
90Ohm/100Mhz
09G092090107
@
1
23
D6105
BAV99
@
D6105
BAV99
@
1 2
R6102 330OhmR6102 330Ohm
21
0402
SL6105
0402
SL6105
1
3
5 2
4
6
COM
COM
SW6109
SLIDE_SWITCH_6P
COM
COM
SW6109
SLIDE_SWITCH_6P
1 2
R6162
0Ohm
R6162
0Ohm
21
0603
SL6101
0603
SL6101
1 2
D6101 RB751V-40D6101 RB751V-40
1 2
C6104
10UF/10V
@
C6104
10UF/10V
@
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1SIDE1 9
SIDE2 10
J6101
WTOB_CON_8P
J6101
WTOB_CON_8P
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
62 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
62 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
62 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
63 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
63 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
63 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
64 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
TUN
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
64 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
TUN
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
64 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
TUN
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GND
GND GND
GND
GND
GND
GND
GND GND GND GND GND
GND GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
65 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
Screw Hole
2.05
F5Z
<OrgAddr1>
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
65 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
Screw Hole
2.05
F5Z
<OrgAddr1>
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
65 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
Screw Hole
2.05
F5Z
<OrgAddr1>
<Variant Name>
FOR CPU
change to P/N:13GN9980M090-1 for high limit
090406
Add the Screw hole for thermal Module
FOR SB700 Thermal Module
A
C
G
KE J I
H
B090406
Add the Nut for GPU thermal Module
1
H6523
CT268B158D138
H6523
CT268B158D138
1
H6517
CT268B158D138
H6517
CT268B158D138
1
H6510
CT276RBI126D106
@
H6510
CT276RBI126D106
@
1
H6506
C276D106
@
H6506
C276D106
@
1
H6519
CT268B158D138
H6519
CT268B158D138
1
H6520
C177I138D118
@
H6520
C177I138D118
@
1
H6508
C276D106
@
H6508
C276D106
@
1
H6529
RT374X335B276D106
@
H6529
RT374X335B276D106
@
1
H6531
CT276RB453X472D106
@
H6531
CT276RB453X472D106
@
H6566
M6A-4G
@
H6566
M6A-4G
@
1
H6502
C276D106
@
H6502
C276D106
@
1
H4627
RT315CB276D106
@
H4627
RT315CB276D106
@
H6568
U5F-M-EXPREE
H6568
U5F-M-EXPREE
1
H4626
RT315CB276D106
@
H4626
RT315CB276D106
@
1
H6522
CT276B315D197
@
H6522
CT276B315D197
@
1
H6507
C276D106
@
H6507
C276D106
@
1
H6509
C276D106
@
H6509
C276D106
@
1
H6521
CT268B158D138
H6521
CT268B158D138
H6569
U5F-M-EXPREE
H6569
U5F-M-EXPREE
1
2
3
H6565
3DRILL_2D106&D118
@
H6565
3DRILL_2D106&D118
@
1
H6505
CT276B315D197
@
H6505
CT276B315D197
@
1
H4628
RT315CB276D106
@
H4628
RT315CB276D106
@
H6567
M6A-4G
@
H6567
M6A-4G
@
1
H6501
C276D106
@
H6501
C276D106
@
A
A
B
B
C
C
D
D
E
E
E E
D D
C C
B B
A A
GND
AC_BAT_SYS
GND
+3VAUX_GOLAN
+1.8VO
GND
+5VS
GND
+3.3VALW_R
GND
+0.9V
GND
+1.8V
GND
+5V
GND
+1.8VS
GND
+1.2VSUSO
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
66 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
EMI
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
66 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
EMI
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
66 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
EMI
2.05
F5Z
Richard_Lu
<Variant Name>
EMI
090414
EMI
090414
EMI
090414
12
C6626
0.1UF/16V
c0402
@
C6626
0.1UF/16V
c0402
@
12
C6624
0.1UF/16V
c0402
@
C6624
0.1UF/16V
c0402
@
12
C6622
0.1UF/16V
c0402
@
C6622
0.1UF/16V
c0402
@
12
C6607
0.1UF/16V
c0402
@
C6607
0.1UF/16V
c0402
@
12
C6614
0.1UF/16V
c0402
@
C6614
0.1UF/16V
c0402
@
12
C6601
0.1UF/16V
c0402
@
C6601
0.1UF/16V
c0402
@
12
C6612
0.1UF/16V
c0402
@
C6612
0.1UF/16V
c0402
@
12
C6618
0.1UF/16V
c0402
@
C6618
0.1UF/16V
c0402
@
12
C6602
0.1UF/16V
c0402
@
C6602
0.1UF/16V
c0402
@
12
C6631
0.1UF/16V
c0402
@
C6631
0.1UF/16V
c0402
@
12
C6615
0.1UF/16V
c0402
@
C6615
0.1UF/16V
c0402
@
12
C6604
0.1UF/16V
c0402
@
C6604
0.1UF/16V
c0402
@
12
C6635
0.1UF/16V
c0402
@
C6635
0.1UF/16V
c0402
@
12
C6603
0.1UF/16V
c0402
@
C6603
0.1UF/16V
c0402
@
12
C6617
0.1UF/16V
c0402
@
C6617
0.1UF/16V
c0402
@
12
C6634
0.1UF/16V
c0402
@
C6634
0.1UF/16V
c0402
@
12
C6630
0.1UF/16V
c0402
@
C6630
0.1UF/16V
c0402
@
12
C6620
0.1UF/16V
c0402
@
C6620
0.1UF/16V
c0402
@
12
C6619
0.1UF/16V
c0402
@
C6619
0.1UF/16V
c0402
@
12
C6628
0.1UF/16V
c0402
@
C6628
0.1UF/16V
c0402
@
12
C6627
0.1UF/16V
c0402
@
C6627
0.1UF/16V
c0402
@
12
C6616
0.1UF/16V
c0402
@
C6616
0.1UF/16V
c0402
@
12
C6632
0.1UF/16V
c0402
@
C6632
0.1UF/16V
c0402
@
12
C6609
0.1UF/16V
c0402
@
C6609
0.1UF/16V
c0402
@
12
C6605
0.1UF/16V
c0402
@
C6605
0.1UF/16V
c0402
@
12
C6629
0.1UF/16V
c0402
@
C6629
0.1UF/16V
c0402
@
12
C6637
0.1UF/16V
c0402
@
C6637
0.1UF/16V
c0402
@
12
C6623
0.1UF/16V
c0402
@
C6623
0.1UF/16V
c0402
@
12
C6611
0.1UF/16V
c0402
@
C6611
0.1UF/16V
c0402
@
12
C6625
0.1UF/16V
c0402
@
C6625
0.1UF/16V
c0402
@
12
C6606
0.1UF/16V
c0402
@
C6606
0.1UF/16V
c0402
@
12
C6608
0.1UF/16V
c0402
@
C6608
0.1UF/16V
c0402
@
12
C6621
0.1UF/16V
c0402
@
C6621
0.1UF/16V
c0402
@
12
C6633
0.1UF/16V
c0402
@
C6633
0.1UF/16V
c0402
@
12
C6613
0.1UF/16V
c0402
@
C6613
0.1UF/16V
c0402
@
12
C6636
0.1UF/16V
c0402
@
C6636
0.1UF/16V
c0402
@
12
C6610
0.1UF/16V
c0402
@
C6610
0.1UF/16V
c0402
@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
67 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
67 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
B
67 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
68 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
68 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
68 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
Richard_Lu
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Friday, May 29, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
69 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Friday, May 29, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
69 91
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
Friday, May 29, 2009
ASUSTeK COMPUTER INC. NB1
2.05
F5Z
<OrgAddr1>
69 91
HISTORY
1,Vram data swap. 090327
2,
修改
VGA_CORE
電壓，
Boot
電壓為
1.2V. 090327
3, Page72 add a resister which connect between
XTALIN and XTALOUT when a 27MHz crystal is used. 090329
4, SWAP VRAM data Group4 and Group5 090330
5,Audio AVDD
預留
+3VS 090330
6, Add RN4301,
預留
L4301. 090331
7,remove R4610 ,R4611 27 Ohm.(EMI), remove R4608 ,R4609 33 Ohm.
mount SL4608, SL4609 ,mount SL4610, SL4611 090331
8,LCD Backlight Control change 090331
9,Remove RJ11 090331
11,SB710
的晶振換成
F80
系列的
32.768KHz
的晶振
.
網卡的
25MHz
的晶振換成料號為
07G010Q12500. 090331
12, U4301 pin 18 REFCLKEN NC, remove part 090331
13,Change the ClkGen to RTM880T-797 090331
14, AU6433-GLF mount R4007 090331
15,CLK_REQ_LAN is OD ,add R2003 pull high. 090401
17,change power cap PCE8701 & PCE8702 090401
18,change the Screw Hole,Add the Nut for GPU thermal Module 090406
19,Modify the NB & SB power cap 090406
20,Swap the cap pack in page31 090406
21,changeR4726,R4727 from 1.8Kohm to 2.2Kohm 090520
22.Add buffer U4601,U4602 090520
24.Change R4511 to 10Kohm,R7870 to 2.2Kohm 090520
25.Add R2037 for safety 090520
28.Remove L6003,L6004,L6005,L6006 090525
29. Add 10uF cap C7549 090525
30.Remove L4001, L4502, L4506, L4508, L4511, L4503, L4507, L4510, L4504,
L4505, L6104, L5201, L5202, L5204, L4704, L4705, L4706, L4707 090525
31.Mount R5014, R7207 090525
32.
預留
X7201, C7220, C7219, R7214, R7257 090525
33.Remove NUT for SB 090525
34.Change X2201 P/N:07G010Q12500 090525
35.Change R0403, R0404 from 15ohm to 1Kohm 090525
36. Add C4019 for EMI 090525
37. Change SL4610,SL4610 to 0ohm 090526
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
70 91Tuesday, May 26, 2009
<OrgName>
<Title>
<RevCode>
<Doc>
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
70 91Tuesday, May 26, 2009
<OrgName>
<Title>
<RevCode>
<Doc>
<OrgAddr1>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
70 91Tuesday, May 26, 2009
<OrgName>
<Title>
<RevCode>
<Doc>
<OrgAddr1>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PCIEG_RXN7 PCIEG_TXN7
PCIEG_TXN0
PCIEG_TXN2
PCIEG_TXP2
PCIENB_RXP4
PCIENB_RXN4
PCIEG_TXN6
PCIEG_TXP6
PCIEG_TXN2
PCIEG_RXN1
PCIEG_RXN2
PCIEG_RXN4
PCIEG_TXP6PCIEG_RXP6
PCIEG_TXN0
PCIEG_TXP0
PCIEG_TXP1
PCIEG_TXN3
PCIEG_TXP3
PCIENB_RXP1
PCIENB_RXN1
PCIENB_RXP5
PCIENB_RXN5
PCIEG_TXN7
PCIEG_TXP7
PCIEG_TXP3
PCIEG_TXN4
PCIEG_RXP3
PCIEG_RXP5
PCIEG_RXN6 PCIEG_TXN6
PCIENB_RXP2
PCIENB_RXN2
PCIEG_TXN1
PCIEG_TXN4
PCIEG_TXP4
PCIENB_RXP6
PCIENB_RXN6
PCIEG_RXN0
PCIEG_RXP0
PCIEG_TXN3
PCIEG_RXP2
PCIEG_RXN3
PCIEG_TXP5
PCIEG_RXP7 PCIEG_TXP7
PCIENB_RXP0
PCIENB_RXN0
PCIEG_TXP0
PCIEG_TXN1
PCIEG_TXP1
PCIENB_RXP3
PCIENB_RXN3
PCIEG_TXP2
PCIEG_TXN5
PCIEG_TXP5
PCIENB_RXP7
PCIENB_RXN7
PCIEG_RXP1
PCIEG_TXP4PCIEG_RXP4
PCIEG_TXN5PCIEG_RXN5
PCIEG_TXP8
PCIEG_TXN8
PCIEG_TXP9
PCIEG_TXN9
PCIEG_TXP10
PCIEG_TXN10
PCIEG_TXP11
PCIEG_TXN11
PCIEG_TXP14
PCIEG_TXN14
PCIEG_TXP15
PCIEG_TXN15
PCIEG_TXP12
PCIEG_TXN12
PCIEG_TXP13
PCIEG_TXN13
PCIEG_RXP10
PCIEG_RXN10
PCIEG_RXP11
PCIEG_RXN11
PCIEG_RXP8
PCIEG_RXP14
PCIEG_RXN14
PCIEG_RXP15
PCIEG_RXN15
PCIEG_RXP12
PCIEG_RXN12
PCIEG_RXP13
PCIEG_RXN13
PCIEG_RXN8
PCIEG_RXP9
PCIEG_RXN9
PCIEG_TXN10
PCIEG_TXP10
PCIENB_RXP12
PCIENB_RXN12
PCIEG_TXN14
PCIEG_TXP14
PCIEG_TXN8
PCIEG_TXP8
PCIEG_TXN11
PCIEG_TXP11
PCIENB_RXP9
PCIENB_RXN9
PCIENB_RXP13
PCIENB_RXN13
PCIEG_TXN15
PCIEG_TXP15
PCIENB_RXP10
PCIENB_RXN10
PCIEG_TXN12
PCIEG_TXP12
PCIENB_RXP14
PCIENB_RXN14
PCIENB_RXP8
PCIENB_RXN8
PCIEG_TXN9
PCIEG_TXP9
PCIENB_RXP11
PCIENB_RXN11
PCIEG_TXN13
PCIEG_TXP13
PCIENB_RXP15
PCIENB_RXN15
CLK_PCIE_PEG#[29] CLK_PCIE_PEG[29]
PCIENB_RXP[0..15] [11]
PCIENB_RXN[0..15] [11]
PCIEG_RXN[0..15][11]
PCIEG_RXP[0..15][11]
BUF_PLT_RST#[5,20,30,33,40,43,53]
+1.1VS_VGA
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
71 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92-M2--PCIE (1)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
71 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92-M2--PCIE (1)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
71 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92-M2--PCIE (1)
2.05
F5Z
<Variant Name>
Y5V TO X7R(M92)
100Mhz 300ppm
notice the net name.RX&TX
12
R7102
2KOhm 1%
R7102
2KOhm 1%
21
0402
SL7101
0402
SL7101
1 2
C7121 0.1UF/10VC7121 0.1UF/10V
NC1
AJ21
NC2
AK21
NC_PWRGOOD
AH16 PCIE_CALRN Y29
PCIE_CALRP Y30
PCIE_REFCLKN
AA36 PCIE_REFCLKP
AB35
PCIE_RX0N
Y37 PCIE_RX0P
AA38
PCIE_RX10N
K37 PCIE_RX10P
L38
PCIE_RX11N
J36 PCIE_RX11P
K35
PCIE_RX12N
H37 PCIE_RX12P
J38
PCIE_RX13N
G36 PCIE_RX13P
H35
PCIE_RX14N
F37 PCIE_RX14P
G38
PCIE_RX15N
E37 PCIE_RX15P
F35
PCIE_RX1N
W36 PCIE_RX1P
Y35
PCIE_RX2N
V37 PCIE_RX2P
W38
PCIE_RX3N
U36 PCIE_RX3P
V35
PCIE_RX4N
T37 PCIE_RX4P
U38
PCIE_RX5N
R36 PCIE_RX5P
T35
PCIE_RX6N
P37 PCIE_RX6P
R38
PCIE_RX7N
N36 PCIE_RX7P
P35
PCIE_RX8N
M37 PCIE_RX8P
N38
PCIE_RX9N
L36 PCIE_RX9P
M35
PERSTB
AA30
PCIE_TX0N Y32
PCIE_TX0P Y33
PCIE_TX10N L32
PCIE_TX10P L33
PCIE_TX11N L29
PCIE_TX11P L30
PCIE_TX12N K32
PCIE_TX12P K33
PCIE_TX13N J32
PCIE_TX13P J33
PCIE_TX14N K29
PCIE_TX14P K30
PCIE_TX15N H32
PCIE_TX15P H33
PCIE_TX1N W32
PCIE_TX1P W33
PCIE_TX2N U32
PCIE_TX2P U33
PCIE_TX3N U29
PCIE_TX3P U30
PCIE_TX4N T32
PCIE_TX4P T33
PCIE_TX5N T29
PCIE_TX5P T30
PCIE_TX6N P32
PCIE_TX6P P33
PCIE_TX7N P29
PCIE_TX7P P30
PCIE_TX8N N32
PCIE_TX8P N33
PCIE_TX9N N29
PCIE_TX9P N30
PCI EXPRESS INTERFACE
CLOCK
CALIBRATION
U7101A
M92-M2
PCI EXPRESS INTERFACE
CLOCK
CALIBRATION
U7101A
M92-M2
1 2
C7118 0.1UF/10VC7118 0.1UF/10V
1 2
C7108 0.1UF/10VC7108 0.1UF/10V
1 2
C7120 0.1UF/10VC7120 0.1UF/10V
1 2
C7128 0.1UF/10VC7128 0.1UF/10V
1 2
C7131 0.1UF/10VC7131 0.1UF/10V
1 2
C7111 0.1UF/10VC7111 0.1UF/10V
1 2
C7122 0.1UF/10VC7122 0.1UF/10V
1 2
C7103 0.1UF/10VC7103 0.1UF/10V
1 2
C7114 0.1UF/10VC7114 0.1UF/10V
1 2
C7101 0.1UF/10VC7101 0.1UF/10V
1 2
C7104 0.1UF/10VC7104 0.1UF/10V
1 2
C7125 0.1UF/10VC7125 0.1UF/10V
1 2
C7113 0.1UF/10VC7113 0.1UF/10V
1 2
C7116 0.1UF/10VC7116 0.1UF/10V
1 2
C7107 0.1UF/10VC7107 0.1UF/10V
1 2
C7105 0.1UF/10VC7105 0.1UF/10V
1 2
C7112 0.1UF/10VC7112 0.1UF/10V
1 2
C7123 0.1UF/10VC7123 0.1UF/10V
1 2
C7126 0.1UF/10VC7126 0.1UF/10V
1 2
C7127 0.1UF/10VC7127 0.1UF/10V
1 2
C7130 0.1UF/10VC7130 0.1UF/10V
1 2
C7115 0.1UF/10VC7115 0.1UF/10V
1 2
C7117 0.1UF/10VC7117 0.1UF/10V
1 2
C7132 0.1UF/10VC7132 0.1UF/10V
1 2
C7102 0.1UF/10VC7102 0.1UF/10V
1 2
C7109 0.1UF/10VC7109 0.1UF/10V
1 2
C7110 0.1UF/10VC7110 0.1UF/10V
1 2
C7129 0.1UF/10VC7129 0.1UF/10V
1 2
C7124 0.1UF/10VC7124 0.1UF/10V
1 2
C7119 0.1UF/10VC7119 0.1UF/10V
1 2
C7106 0.1UF/10VC7106 0.1UF/10V
1 2
R7101
1.27KOhm
1%R7101
1.27KOhm
1%
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ATI_GPIO12
ATI_GPIO2
ATI_GPIO3
ATI_GPIO8
ATI_GPIO11
ATI_GPIO9
ATI_GPIO10
ATI_GPIO5
ATI_GPIO0
ATI_GPIO1
ATI_GPIO6
ATI_GPIO4
ATI_GPIO7
ATI_GPIO13
ATI27M
GPU_CTF
ATI_GPIO21
VGA_VREFG
+DPLL_PVDD +DPLL_PVDD
+DPLL_VDDC
+DPLL_VDDC
VGA_THERM_DA
VGA_THERM_DC
+TSVDD
+TSVDD
VGA_THERM#
VGA_THERM_DC
VGA_THERM_DA
VGA_THERM_DC
VGA_THERM_DA
+1.8VS_A2VDDQ +1.8VS_A2VDDQ
+3VS_A2VDD
+3VS_A2VDD
+1.8VS_VDD2DI
H2SYNC
V2SYNC
CRT_M92_RED_S
CRT_M92_GREEN_S
CRT_M92_BLUE_S
DAC_RSET
+1.8VS_AVDD
+1.8VS_VDD1DI
+1.8VS_VDD1DI
+1.8VS_AVDD
CRT_M92_BLUE_S
CRT_M92_RED_S
CRT_M92_GREEN_S
GPU_CTF
VGA_ALERT#
VGA_THERM#
MEMTYPE_0
MEMTYPE_1
MEMTYPE_2
MEMTYPE_3
VGA_THERM_DC
EDID_G_DAT[45] EDID_G_CLK[45]
HDMI_G_HP[47]
PWRCNTL_0[90]
PWRCNTL_1[90]
SMB1_DAT [30,50]
SMB1_CLK [30,50]
VGA_ALERT#[30]
HDMI_G_DDC_CLK [47]
HDMI_G_DDC_DATA [47]
CRT_G_DDC_CLK [46]
CRT_G_DDC_DATA [46]
CRT_G_HSYNC [46,78]
CRT_G_VSYNC [46,78]
TMDS_G_TXCN [47]
TMDS_G_TX2P [47]
TMDS_G_TX0P [47]
TMDS_G_TX1P [47]
TMDS_G_TX2N [47]
TMDS_G_TX0N [47]
TMDS_G_TX1N [47]
TMDS_G_TXCP [47]
CRT_G_RED [46]
CRT_G_GREEN [46]
CRT_G_BLUE [46]
ATI_GPIO0[78] ATI_GPIO1[78] ATI_GPIO2[78] ATI_GPIO3[78] ATI_GPIO4[78] ATI_GPIO5[78] ATI_GPIO6[78] LVDS_G_BACK_EN[45,78] ATI_GPIO8[78] ATI_GPIO9[78] ATI_GPIO10[78] ATI_GPIO11[78] ATI_GPIO12[78] ATI_GPIO13[78]
ATI_GPIO21[78]
ATI27M_SSC[29]
ATI27M_NSC[29]
MEMTYPE_0[78] MEMTYPE_1[78] MEMTYPE_2[78] MEMTYPE_3[78]
+3VS
GND
GND GND
+1.8VS
+1.8VS
GND
GND
+1.1VS_VGA
GND
+1.8VS
GND
GND
+3VS_VGA_DELAY
+3VS_VGA_DELAY
GND
GND
+3VSG_VGTM
GND
+1.8VS
GND
+3VS_VGA_DELAY
GND
GND
GND
GND
GND
GND
GND
GND
GND
+1.8VS
GND +1.8VS
GND
+1.8VS_VDD2DI
GND
GND
GND
GND GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
72 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
M92-M2--MAIN (2)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
72 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
M92-M2--MAIN (2)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
72 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
M92-M2--MAIN (2)
2.05
F5Z
<Variant Name>
40mA/120mA
100mA/300mA
20mA
not enable
OD
Slave Address:9A
VGA_ALERT#--->EC--->GPU
DDCCLK_AUX5P/DDCCLK_AUX5N
是否要
pull up
，待定
1mA
65mA
strap
NC M92_M2
40mA
70mA
Shunt R 180ohm for M7X
55 ohm
37.5 ohm
Remove C7209 10uF R7206 Change to SL7206 090402
預留晶振
2009/05/25
mount R7207 2005/05/25
1
T7221T7221
SCLK 8
SDA 7
ALERT# 6
VCC
1
OVERT#
4
DXP
2
DXN
3
GND 5
U7201 G781-1
U7201 G781-1
12
R7257
1MOHM
@
R7257
1MOHM
@
1 2
JP4102 SHORT_PIN@JP4102 SHORT_PIN@
1 2
R7210 499Ohm1%
R7210 499Ohm1%
1 2
R7208 4.7KOhm
@
R7208 4.7KOhm
@
12
C7247
0.1UF/10V
C7247
0.1UF/10V
12
C7243
10uF/10V
@
C7243
10uF/10V
@
1 2
C7244
1UF/6.3V
C7244
1UF/6.3V
12
C7219
18PF/50V
@
C7219
18PF/50V
@
12
C7220
18PF/50V
@
C7220
18PF/50V
@
1
T7206T7206
21
L7205
120Ohm/100Mhz
L7205
120Ohm/100Mhz
12
R7212150Ohm 1%
/GPU
R7212150Ohm 1%
/GPU
1
T7222T7222
1
T7210T7210
12
C7203
10uF/10V
@
C7203
10uF/10V
@
12
C7217
0.1UF/10V
@
C7217
0.1UF/10V
@
12
R7209
715Ohm 1%
R7209
715Ohm 1%
GS
D
3
2
1
Q7204
H2N7002
GS
D
3
2
1
Q7204
H2N7002
1 2
R7206 0Ohm r0402R7206 0Ohm r0402
21
L7202
120Ohm/100Mhz
L7202
120Ohm/100Mhz
1 2
R7272 0Ohm @r0402R7272 0Ohm @r0402
3 4
RN7201B
4.7KOHM RN7201B
4.7KOHM
1 2
C7204
1UF/6.3V
C7204
1UF/6.3V
12
C7245
0.1UF/10V
C7245
0.1UF/10V
1
T7218T7218
1
T7219T7219
12
R7213150Ohm 1%
/GPU
R7213150Ohm 1%
/GPU
1 2
R7273 0Ohm @r0402R7273 0Ohm @r0402
C7212
1000P
@C7212
1000P
@
12
C7214
0.1UF/10V
@
C7214
0.1UF/10V
@
1
T7213T7213
1 2
R7214
0Ohm
@
R7214
0Ohm
@
1 2
R7207
0Ohm
r0402
R7207
0Ohm
r0402
21
L7206
120Ohm/100Mhz
L7206
120Ohm/100Mhz
1
T7223T7223
1
T7220T7220
1
T7201T7201
12
R7211150Ohm 1%
/GPU
R7211150Ohm 1%
/GPU
12
C7211
0.1UF/10V
C7211
0.1UF/10V
12
C7205
0.1UF/10V
C7205
0.1UF/10V
1
T7211T7211
1 2
C7207
1UF/6.3V
C7207
1UF/6.3V
21
L7203
120Ohm/100Mhz
L7203
120Ohm/100Mhz
21
L7201
120Ohm/100Mhz
L7201
120Ohm/100Mhz
1 2
C7218
1UF/6.3V
@
C7218
1UF/6.3V
@
12
C7206
10uF/10V
@
C7206
10uF/10V
@
12
X7201
27Mhz
@
12
X7201
27Mhz
@
12
R7204
249Ohm
r04021%
R7204
249Ohm
r04021%
DMINUS
AG29
DPLL_PVDD
AM32
DPLL_PVSS
AN32
DPLL_VDDC
AN31
DPLUS
AF29
DVPCLK
AR1
DVPCNTL_0
AP8
DVPCNTL_1
AW8
DVPCNTL_2
AR3
DVPCNTL_MVP_0
AR8
DVPCNTL_MVP_1
AU8
DVPDATA_0
AU1
DVPDATA_1
AU3
DVPDATA_10
AV7
DVPDATA_11
AN7
DVPDATA_12
AV9
DVPDATA_13
AT9
DVPDATA_14
AR10
DVPDATA_15
AW10
DVPDATA_16
AU10
DVPDATA_17
AP10
DVPDATA_18
AV11
DVPDATA_19
AT11
DVPDATA_2
AW3
DVPDATA_20
AR12
DVPDATA_21
AW12
DVPDATA_22
AU12
DVPDATA_23
AP12
DVPDATA_3
AP6
DVPDATA_4
AW5
DVPDATA_5
AU5
DVPDATA_6
AR6
DVPDATA_7
AW6
DVPDATA_8
AU6
DVPDATA_9
AT7
GENERICA
AJ19
GENERICB
AK19
GENERICC
AJ20
GENERICD
AK20
GENERICE_HPD4
AJ24
NC_GENERICF
AH26
NC_GENERICG
AH24
GPIO_0
AH20
GPIO_1
AH18
GPIO_10_ROMSCK
AJ16
GPIO_11
AK16
GPIO_12
AL16
GPIO_13
AM16
GPIO_14_HPD2
AM14
GPIO_15_PWRCNTL_0
AM13
GPIO_16_SSIN
AK14
GPIO_17_THERMAL_INT
AG30
GPIO_18_HPD3
AN14
GPIO_19_CTF
AM17
GPIO_2
AN16
GPIO_20_PWRCNTL_1
AL13
GPIO_21_BB_EN
AJ14
GPIO_22_ROMCSB
AK13
GPIO_23_CLKREQB
AN13
GPIO_3_SMBDATA
AH23
GPIO_4_SMBCLK
AJ23
GPIO_5_AC_BATT
AH17
GPIO_6
AJ17
GPIO_7_BLON
AK17
GPIO_8_ROMSO
AJ13
GPIO_9_ROMSI
AH15
H2SYNC AD29
HPD1
AK24
HSYNC AC36
JTAG_TCK
AK23 JTAG_TDI
AN23
JTAG_TDO
AM24 JTAG_TMS
AL24
JTAG_TRSTB
AM23
NC_DDCDATA_AUX7N AK29
NC_DDCCLK_AUX7P AK30
TS_FDO
AK32
TSVDD
AJ32
TSVSS
AJ33
VREFG
AH13
VSS1DI AC34
VSS2DI AG32
XTALIN
AV33
XTALOUT
AU34
A2VDD AG33
A2VDDQ AD33
A2VSSQ AF33
AUX1N AL27
AUX1P AM27
AUX2N AM20
AUX2P AN20
AVDD AD34
AVSSQ AE34
BAF37
B2 AF30
B2B AF31
BB AE38
CAC32
COMP AF32
DDC1CLK AM26
DDC1DATA AN26
DDC2CLK AM19
DDC2DATA AL19
DDC6CLK AJ30
DDC6DATA AJ31
NC_DDCDATA_AUX3N AM30
NC_DDCCLK_AUX3P AL30
NC_DDCDATA_AUX4N AM29
NC_DDCCLK_AUX4P AL29
DDCDATA_AUX5N AM21
DDCCLK_AUX5P AN21
GAE36
G2 AD30
G2B AD31
GB AD35
RAD39
R2 AC30
R2B AC31
R2SET AA29
RB AD37
RSET AB34
SCL
AK26
SDA
AJ26
TX0M_DPA2N AR24
NC_TX0M_DPC2N AR14
TX0P_DPA2P AT25
NC_TX0P_DPC2P AT15
TX1M_DPA1N AV25
NC_TX1M_DPC1N AV15
TX1P_DPA1P AU26
NC_TX1P_DPC1P AU16
TX2M_DPA0N AR26
NC_TX2M_DPC0N AR16
TX2P_DPA0P AT27
NC_TX2P_DPC0P AT17
TX3M_DPB2N AU30
NC_TX3M_DPD2N AR20
TX3P_DPB2P AV31
NC_TX3P_DPD2P AT21
TX4M_DPB1N AT31
NC_TX4M_DPD1N AV21
TX4P_DPB1P AR32
NC_TX4P_DPD1P AU22
TX5M_DPB0N AU32
NC_TX5M_DPD0N AR22
TX5P_DPB0P AT33
NC_TX5P_DPD0P AT23
TXCAM_DPA3N AV23
TXCAP_DPA3P AU24
TXCBM_DPB3N AT29
TXCBP_DPB3P AR30
NC_TXCCM_DPC3N AV13
NC_TXCCP_DPC3P AU14
NC_TXCDM_DPD3N AT19
NC_TXCDP_DPD3P AU20
V2SYNC AC29
VDD1DI AC33
VDD2DI AG31
VSYNC AC38
YAD32
DPA
DPB
DPC
DPD
MUTI GFX
I2C
GENERAL PURPOSE I/O
DAC1
DAC2
DDC/AUX
THERMAL
PLL/CLOCK
M92-M2
U7101B
DPA
DPB
DPC
DPD
MUTI GFX
I2C
GENERAL PURPOSE I/O
DAC1
DAC2
DDC/AUX
THERMAL
PLL/CLOCK
M92-M2
U7101B
1 2
JP4103 SHORT_PIN@JP4103 SHORT_PIN@
21
0603
SL7201
0603
SL7201
21
L7207
120Ohm/100Mhz
L7207
120Ohm/100Mhz
1 2
R7203
1KOhm
R7203
1KOhm
12
C7216
10uF/10V
@C7216
10uF/10V
@
12
C7242
10uF/10V
@
C7242
10uF/10V
@
12
R7205
499Ohm
r04021%
R7205
499Ohm
r04021%
1 2
JP4101 SHORT_PIN@JP4101 SHORT_PIN@
21
L7204
120Ohm/100Mhz
L7204
120Ohm/100Mhz
1 2
C7215
1UF/6.3V
@
C7215
1UF/6.3V
@
21
0402
SL7272
0402
SL7272
1 2
C7210
1UF/6.3V
C7210
1UF/6.3V
1
T7202T7202
1 2
RN7201A
4.7KOHM RN7201A
4.7KOHM
12
C7213
0.1UF/10V
C7213
0.1UF/10V
1
T7204T7204
12
C7208
0.1UF/10V
C7208
0.1UF/10V
1
T7205T7205
12
C7201
0.1UF/16V
c0402
C7201
0.1UF/16V
c0402
12
C7241
10uF/10V
@C7241
10uF/10V
@
1 2
C7246
1UF/6.3V
C7246
1UF/6.3V
1
T7203T7203
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VREFB3
DQS_B5
DQS_B5#
DQM#_B4
CSB0_0#
DQS_B4
DQS_B4#
B_BA2
ODTB1
B_MA0
CSB1_0#
B_MA4 B_MA11
B_MA12
CKEB1
B_BA1
ODTB0
WEB#0
CASB#0
CKEB0
RASB#0
B_MA7
B_MD43
B_MD46
B_MD45
B_MD40
B_MD47
B_MD42
B_MA5
B_MA8 B_BA0
B_MD41
B_MD44
B_MA2
B_MA3
B_MA9
B_MA1
B_MA10
CASB#1
B_MA6
WEB#1
RASB#1
CSB0_0#
CSB0_0#
DQS_B6#
DQS_B6
B_BA0
DQS_B3
B_BA2 B_BA2
RASB#0
B_MA1
B_MA0
RASB#0
B_MA6
B_MD1
B_MA2
B_MA5
B_MD21
B_MA1
ODTB0
B_MD11
B_BA1
B_MD14
DQS_B0
DQM#_B7
B_MA6
WEB#0
B_MA10
CLKB0
B_MD27
B_MA4
B_MA0
B_MA4
CASB#0
B_MD60
B_MA12
DQS_B2#
VREFB3
ODTB1
B_MA4
B_BA0
B_MD26
DQM#_B0
B_MA2
B_MA9
B_BA2
B_MD29
B_MD61
VREFB4
B_MD30
B_MA3
VDDLB3
B_MD25
B_MD23 B_MD3
CLKB0#
B_MA10
CLKB1#
DQS_B0#
B_MA6
B_MA6
B_MD13
B_MA1
B_MA5
B_MA4
B_BA1
B_MD17
B_BA1
WEB#1
B_MD7
ODTB1
B_MD8
B_MA0
B_MA9
B_MA12
B_MA2
CLKB0
B_MA7
B_MD9
B_BA0
WEB#0
CKEB0
VDDLB4
B_MA7
CLKB1
B_MA8
DQM#_B5
B_MD56
CASB#1
B_MA11
VREFB4
B_MD59
B_MD62
B_BA0
CASB#0
DQS_B1
DQS_B3#
DQM#_B2
VREFB3
B_MD57
CLKB0#
B_MA11 B_MA10
CLKB1#
WEB#1
ODTB0
DQM#_B1
CLKB1
CASB#1
CKEB1
RASB#1
DQS_B1#
DQM#_B3
B_MA12
B_MA5
B_MD24
B_BA1
B_MD16
VDDLB3
B_MA7
B_MD6
B_MA1
B_MA10
B_MA3
B_MA8
B_MA3
CKEB0
B_MA2
B_MD2
CKEB1
B_MD10
B_MD63
B_MA3
B_MA12
B_MD19
B_MA8
B_MA5
B_MD12
B_MA11
B_MD0
B_BA2
VDDLB4
B_MA7
B_MD22
RASB#1
B_MA9
B_MA11
B_MD31
B_MD18
B_MA9
B_MD15
B_MA0
B_MD58
B_MD20 B_MD4
B_MA8
B_MD5
B_MD28
DQS_B2
DQS_B7
DQS_B7#
B_MD49
B_MD48
B_MD53
B_MD55
B_MD51
B_MD50
B_MD54
B_MD52
CSB1_0#
B_MD34
B_MD38
B_MD39
B_MD32
B_MD36
B_MD35
B_MD33
B_MD37
DQM#_B6
VREFB4
CSB1_0#
WEB#0 [74]
ODTB1 [74]
CASB#0 [74]
CSB0_0# [74]
WEB#1 [74]
CLKB0 [74]
B_MA[0:12] [74]
DQS_B1 [74]
DQS_B7 [74]
DQS_B5# [74]
DQS_B2 [74]
DQS_B0# [74]
DQS_B6# [74]
DQS_B3 [74]
DQS_B1# [74]
DQS_B7# [74]
DQS_B4 [74]
DQS_B2# [74]
DQS_B5 [74]
DQS_B3# [74]
DQS_B0 [74]
DQS_B6 [74]
DQS_B4# [74]
B_MD[0:63] [74]
CASB#1 [74]
CLKB0# [74]
CLKB1 [74]
CLKB1# [74]
CKEB0 [74]
DQM#_B[0:7] [74]
CSB1_0# [74]
RASB#0 [74]
CKEB1 [74]
ODTB0 [74]
RASB#1 [74]
B_BA[0:2] [74]
+1.8VS
GND
GND
GND
+1.8VS
GND
GND
GND
+0.9VS
GND
GND
+1.8VS
+1.8VS
+1.8VS
GND
GND
GND
+1.8VS
+1.8VS
+1.8VS
+1.8VS
GND
GND
GND
GNDGND
+1.8VS
GND
+1.8VS
+1.8VS
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
73 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92-M2--Mem Ctrl (3)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
73 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92-M2--Mem Ctrl (3)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
73 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92-M2--Mem Ctrl (3)
2.05
F5Z
<Variant Name>
0904 Address signal group add 8*0.1uF
VREFA1=0.5*VDDQ
0904control signal group add 8*0.1uF
according to M92 databook
Close to memory
VREFA1=0.5*VDDQ VREFA2=0.5*VDDQ
Close to memory
VREFA2=0.5*VDDQ
PR1125
PR1125
0401 swap over
swap
090408
12
0Ohm
R7318
0Ohm
R7318
5 12
RN7339E
@
RN7339E
@
VDD1 A1
NC2 A2
VSS1 A3
VDDQ6 A9
DQ14
B1
VSSQ7 B2
UDM B3
VSSQ8 B8
DQ15
B9
VDDQ7 C1
DQ9
C2
VDDQ8 C3
VDDQ9 C7
DQ8
C8
VDDQ10 C9
DQ12
D1
VSSQ9 D2
DQ11
D3 DQ10
D7
VSSQ10 D8
DQ13
D9
VDD2 E1
NC3 E2
VSS5 E3
VSSQ1 E7
VDDQ1 E9
DQ6
F1
VSSQ2 F2
LDM F3
LDQS
F7
VSSQ3 F8
DQ7
F9
VDDQ2 G1
DQ1
G2
VDDQ3 G3
VDDQ4 G7
DQ0
G8
VDDQ5 G9
DQ4
H1
VSSQ4 H2
DQ3
H3 DQ2
H7 VSSQ5 H8
DQ5
H9
VDDL J1
VREF J2
VSS2 J3
VSSDL J7
CK
J8
VDD3 J9
CKE
K2
WE#
K3
RAS#
K7
CK#
K8
ODT K9
BA2
L1
BA0
L2
BA1
L3
CAS#
L7
CS#
L8
A10/AP
M2
A1
M3
A2
M7
A0
M8
VDD4 M9
VSS3 N1
A3
N2
A5
N3
A6
N7
A4
N8
A7
P2
A9
P3
A11
P7
A8
P8
VSS4 P9
VDD5 R1
A12
R2
NC4 R3
NC5 R7
NC1
R8
UDQS
B7
UDQS#
A8
VSSQ6 A7
LDQS#
E8
U7301
HYB18T1G161C2F-20
U7301
HYB18T1G161C2F-20
VDD1 A1
NC2 A2
VSS1 A3
VDDQ6 A9
DQ14
B1
VSSQ7 B2
UDM B3
VSSQ8 B8
DQ15
B9
VDDQ7 C1
DQ9
C2
VDDQ8 C3
VDDQ9 C7
DQ8
C8
VDDQ10 C9
DQ12
D1
VSSQ9 D2
DQ11
D3 DQ10
D7
VSSQ10 D8
DQ13
D9
VDD2 E1
NC3 E2
VSS5 E3
VSSQ1 E7
VDDQ1 E9
DQ6
F1
VSSQ2 F2
LDM F3
LDQS
F7
VSSQ3 F8
DQ7
F9
VDDQ2 G1
DQ1
G2
VDDQ3 G3
VDDQ4 G7
DQ0
G8
VDDQ5 G9
DQ4
H1
VSSQ4 H2
DQ3
H3 DQ2
H7 VSSQ5 H8
DQ5
H9
VDDL J1
VREF J2
VSS2 J3
VSSDL J7
CK
J8
VDD3 J9
CKE
K2
WE#
K3
RAS#
K7
CK#
K8
ODT K9
BA2
L1
BA0
L2
BA1
L3
CAS#
L7
CS#
L8
A10/AP
M2
A1
M3
A2
M7
A0
M8
VDD4 M9
VSS3 N1
A3
N2
A5
N3
A6
N7
A4
N8
A7
P2
A9
P3
A11
P7
A8
P8
VSS4 P9
VDD5 R1
A12
R2
NC4 R3
NC5 R7
NC1
R8
UDQS
B7
UDQS#
A8
VSSQ6 A7
LDQS#
E8
U7303
HYB18T1G161C2F-20
U7303
HYB18T1G161C2F-20
12
C7341
0.1UF/16V
@
C7341
0.1UF/16V
@
12
C7391
0.1UF/16V
@
C7391
0.1UF/16V
@
1 2
R7378
100Ohm
@
R7378
100Ohm
@
1 2
R7343
4.99KOhm
R7343
4.99KOhm
7 10
RN7348G
@
RN7348G
@
12
C7389
0.1UF/16V
@
C7389
0.1UF/16V
@
1 2
R7385
100Ohm
@
R7385
100Ohm
@
12
C7402
1UF/6.3V
C7402
1UF/6.3V
6 11
RN7331F
@
RN7331F
@
12
C7342
0.1UF/16V
C7342
0.1UF/16V
12
C7400
22UF/6.3V
@
C7400
22UF/6.3V
@
12
C7320
0.1UF/16V
C7320
0.1UF/16V
NC_DQA_0
C37
NC_DQA_1
C35
NC_DQA_10
C30
NC_DQA_11
A30
NC_DQA_12
F28
NC_DQA_13
C28
NC_DQA_14
A28
NC_DQA_15
E28
NC_DQA_16
D27
NC_DQA_17
F26
NC_DQA_18
C26
NC_DQA_19
A26
NC_DQA_2
A35
NC_DQA_20
F24
NC_DQA_21
C24
NC_DQA_22
A24
NC_DQA_23
E24
NC_DQA_24
C22
NC_DQA_25
A22
NC_DQA_26
F22
NC_DQA_27
D21
NC_DQA_28
A20
NC_DQA_29
F20
NC_DQA_3
E34
NC_DQA_30
D19
NC_DQA_31
E18
NC_DQA_32
C18
NC_DQA_33
A18
NC_DQA_34
F18
NC_DQA_35
D17
NC_DQA_36
A16
NC_DQA_37
F16
NC_DQA_38
D15
NC_DQA_39
E14
NC_DQA_4
G32
NC_DQA_40
F14
NC_DQA_41
D13
NC_DQA_42
F12
NC_DQA_43
A12
NC_DQA_44
D11
NC_DQA_45
F10
NC_DQA_46
A10
NC_DQA_47
C10
NC_DQA_48
G13
NC_DQA_49
H13
NC_DQA_5
D33
NC_DQA_50
J13
NC_DQA_51
H11
NC_DQA_52
G10
NC_DQA_53
G8
NC_DQA_54
K9
NC_DQA_55
K10
NC_DQA_56
G9
NC_DQA_57
A8
NC_DQA_58
C8
NC_DQA_59
E8
NC_DQA_6
F32
NC_DQA_60
A6
NC_DQA_61
C6
NC_DQA_62
E6
NC_DQA_63
A5
NC_DQA_7
E32
NC_DQA_8
D31
NC_DQA_9
F30
MEM_CALRP1
M12
NC_MVREFDA
L18
NC_MVREFSA
L20
NC_MEM_CALRN0
L27
NC_MEM_CALRN1
N12
NC_MEM_CALRN2
AG12
NC_MEM_CALRP0
M27
NC_MEM_CALRP2
AH12
NC_CASA0B K20
NC_CASA1B K17
NC_CKEA0 K21
NC_CKEA1 J20
NC_CLKA0 H27
NC_CLKA0B G27
NC_CLKA1 J14
NC_CLKA1B H14
NC_CSA0B_0 K24
NC_CSA0B_1 K27
NC_CSA1B_0 M13
NC_CSA1B_1 K16
NC_DQMA_0 A32
NC_DQMA_1 C32
NC_DQMA_2 D23
NC_DQMA_3 E22
NC_DQMA_4 C14
NC_DQMA_5 A14
NC_DQMA_6 E10
NC_DQMA_7 D9
NC_MAA_0 G24
NC_MAA_1 J23
NC_MAA_10 L13
NC_MAA_11 G16
NC_MAA_12 J16
NC_MAA_BA2 H16
NC_MAA_BA0 J17
NC_MAA_BA1 H17
NC_MAA_2 H24
NC_MAA_3 J24
NC_MAA_4 H26
NC_MAA_5 J26
NC_MAA_6 H21
NC_MAA_7 G21
NC_MAA_8 H19
NC_MAA_9 H20
NC_ODTA0 J21
NC_ODTA1 G19
NC_RASA0B K23
NC_RASA1B K19
NC_RDQSA_0 C34
NC_RDQSA_1 D29
NC_RDQSA_2 D25
NC_RDQSA_3 E20
NC_RDQSA_4 E16
NC_RDQSA_5 E12
NC_RDQSA_6 J10
NC_RDQSA_7 D7
RSVD1 AF28
RSVD6 T8
RSVD7 W8
RSVD2 AG28
RSVD3 AL31
RSVD4 H23
RSVD5 J19
NC_WDQSA_0 A34
NC_WDQSA_1 E30
NC_WDQSA_2 E26
NC_WDQSA_3 C20
NC_WDQSA_4 C16
NC_WDQSA_5 C12
NC_WDQSA_6 J11
NC_WDQSA_7 F8
NC_WEA0B K26
NC_WEA1B L15
MEMORY INTERFACE A
U7101C
M92-M2
MEMORY INTERFACE A
U7101C
M92-M2
12
C7337
0.01UF/50V
C7337
0.01UF/50V
12
C7386
1UF/6.3V
C7386
1UF/6.3V
8 9
RN7347H
56Ohm
@
RN7347H
56Ohm
@
1 2
R7377
56Ohm
@
R7377
56Ohm
@
1 16
RN7339A
@
RN7339A
@
4 13
RN7331D
@@@
RN7331D
@@@
12
C7360
0.1UF/16V
@
C7360
0.1UF/16V
@
12
C7372
0.1UF/16V
C7372
0.1UF/16V
1 2
R7383
100Ohm
@
R7383
100Ohm
@
12
C7301
1UF/6.3V
C7301
1UF/6.3V
12
C7321
0.01UF/50V
C7321
0.01UF/50V
12
C7344
0.01UF/50V
C7344
0.01UF/50V
12
C7339
0.1UF/16V
@
C7339
0.1UF/16V
@
12
C7397
0.1UF/16V
C7397
0.1UF/16V
5 12
RN7347E
@
RN7347E
@
12
C7323
0.1UF/16V
@
C7323
0.1UF/16V
@
12
C7355
0.1UF/16V
C7355
0.1UF/16V
12
C7305
1UF/6.3V
@
C7305
1UF/6.3V
@
8 9
RN7331H
56Ohm
@
RN7331H
56Ohm
@
2 15
RN7331B
@
RN7331B
@
6 11
RN7339F
@
RN7339F
@
12
C7343
0.1UF/16V
C7343
0.1UF/16V
12
C7322
0.1UF/16V
@
C7322
0.1UF/16V
@
1 2
R7379
100Ohm
@
R7379
100Ohm
@
7 10
RN7347G
@
RN7347G
@
1 2
R7341
4.99KOhm
R7341
4.99KOhm
12
C7333
0.01UF/50V
@
C7333
0.01UF/50V
@
1 16
RN7348A
@
RN7348A
@
1 2
R7340
4.99KOhm
R7340
4.99KOhm
12
C7352
0.1UF/16V
@
C7352
0.1UF/16V
@
4 13
RN7347D
@
RN7347D
@
12
C7331
0.1UF/16V
@
C7331
0.1UF/16V
@
12
C7353
0.1UF/16V
C7353
0.1UF/16V
12
C7356
0.1UF/16V
@
C7356
0.1UF/16V
@
7 10
RN7339G
@
RN7339G
@
12
C7349
0.01UF/50V
@
C7349
0.01UF/50V
@
12
C7340
0.1UF/16V
C7340
0.1UF/16V
12
C7365
0.1UF/16V
@
C7365
0.1UF/16V
@
2 15
RN7348B
@
RN7348B
@
12
C7357
0.1UF/16V
@
C7357
0.1UF/16V
@
12
C7312
0.01UF/50V
@
C7312
0.01UF/50V
@
1 16
RN7347A
@
RN7347A
@
3 14
RN7331C
@
RN7331C
@
12
C7379
0.1UF/16V
C7379
0.1UF/16V
1 2
R7342
4.99KOhm
R7342
4.99KOhm
12
C7328
1UF/6.3V
C7328
1UF/6.3V
5 12
RN7348E
@
RN7348E
@
5 12
RN7331E
@
RN7331E
@
8 9
RN7348H
@
RN7348H
@
8 9
RN7339H
56Ohm
@
RN7339H
56Ohm
@
12
C7348
22UF/6.3V
@
C7348
22UF/6.3V
@
12
C7346
0.1UF/16V
C7346
0.1UF/16V
12
C7393
0.1UF/16V
C7393
0.1UF/16V
12
C7345
22UF/6.3V
@
C7345
22UF/6.3V
@
6 11
RN7347F
@
RN7347F
@
2 15
RN7347B
@
RN7347B
@
3 14
RN7339C
@
RN7339C
@
12
C7363
0.1UF/16V
@
C7363
0.1UF/16V
@
6 11
RN7348F
@
RN7348F
@
12
C7364
0.1UF/16V
@
C7364
0.1UF/16V
@
3 14
RN7347C
@
RN7347C
@
12
C7380
0.1UF/16V
@
C7380
0.1UF/16V
@
12
C7358
0.1UF/16V
@
C7358
0.1UF/16V
@
12
C7302
0.1UF/16V
@
C7302
0.1UF/16V
@
12
C7362
0.01UF/50V
C7362
0.01UF/50V
12
C7369
0.1UF/16V
@
C7369
0.1UF/16V
@
3 14
RN7348C
@
RN7348C
@
12
C7390
0.1UF/16V
@
C7390
0.1UF/16V
@
12
R7363
240OHM
1%
R7363
240OHM
1%
VDD1 A1
NC2 A2
VSS1 A3
VDDQ6 A9
DQ14
B1
VSSQ7 B2
UDM B3
VSSQ8 B8
DQ15
B9
VDDQ7 C1
DQ9
C2
VDDQ8 C3
VDDQ9 C7
DQ8
C8
VDDQ10 C9
DQ12
D1
VSSQ9 D2
DQ11
D3 DQ10
D7
VSSQ10 D8
DQ13
D9
VDD2 E1
NC3 E2
VSS5 E3
VSSQ1 E7
VDDQ1 E9
DQ6
F1
VSSQ2 F2
LDM F3
LDQS
F7
VSSQ3 F8
DQ7
F9
VDDQ2 G1
DQ1
G2
VDDQ3 G3
VDDQ4 G7
DQ0
G8
VDDQ5 G9
DQ4
H1
VSSQ4 H2
DQ3
H3 DQ2
H7 VSSQ5 H8
DQ5
H9
VDDL J1
VREF J2
VSS2 J3
VSSDL J7
CK
J8
VDD3 J9
CKE
K2
WE#
K3
RAS#
K7
CK#
K8
ODT K9
BA2
L1
BA0
L2
BA1
L3
CAS#
L7
CS#
L8
A10/AP
M2
A1
M3
A2
M7
A0
M8
VDD4 M9
VSS3 N1
A3
N2
A5
N3
A6
N7
A4
N8
A7
P2
A9
P3
A11
P7
A8
P8
VSS4 P9
VDD5 R1
A12
R2
NC4 R3
NC5 R7
NC1
R8
UDQS
B7
UDQS#
A8
VSSQ6 A7
LDQS#
E8
U7304
HYB18T1G161C2F-20
U7304
HYB18T1G161C2F-20
12
C7383
0.1UF/16V
C7383
0.1UF/16V
12
C7359
0.1UF/16V
@
C7359
0.1UF/16V
@
12
C7396
22UF/6.3V
@
C7396
22UF/6.3V
@
2 15
RN7339B
@
RN7339B
@
12
C7376
1UF/6.3V
C7376
1UF/6.3V
12
C7399
0.1UF/16V
@
C7399
0.1UF/16V
@
12
C7350
0.1UF/16V
@
C7350
0.1UF/16V
@
1 16
RN7331A
@
RN7331A
@
4 13
RN7348D
@
RN7348D
@
12
C7392
0.1UF/16V
C7392
0.1UF/16V
4 13
RN7339D
@@@
RN7339D
@@@
12
C7319
0.01UF/50V
C7319
0.01UF/50V
12
0Ohm
R7319
0Ohm
R7319
7 10
RN7331G
@
RN7331G
@
VDD1 A1
NC2 A2
VSS1 A3
VDDQ6 A9
DQ14
B1
VSSQ7 B2
UDM B3
VSSQ8 B8
DQ15
B9
VDDQ7 C1
DQ9
C2
VDDQ8 C3
VDDQ9 C7
DQ8
C8
VDDQ10 C9
DQ12
D1
VSSQ9 D2
DQ11
D3 DQ10
D7
VSSQ10 D8
DQ13
D9
VDD2 E1
NC3 E2
VSS5 E3
VSSQ1 E7
VDDQ1 E9
DQ6
F1
VSSQ2 F2
LDM F3
LDQS
F7
VSSQ3 F8
DQ7
F9
VDDQ2 G1
DQ1
G2
VDDQ3 G3
VDDQ4 G7
DQ0
G8
VDDQ5 G9
DQ4
H1
VSSQ4 H2
DQ3
H3 DQ2
H7 VSSQ5 H8
DQ5
H9
VDDL J1
VREF J2
VSS2 J3
VSSDL J7
CK
J8
VDD3 J9
CKE
K2
WE#
K3
RAS#
K7
CK#
K8
ODT K9
BA2
L1
BA0
L2
BA1
L3
CAS#
L7
CS#
L8
A10/AP
M2
A1
M3
A2
M7
A0
M8
VDD4 M9
VSS3 N1
A3
N2
A5
N3
A6
N7
A4
N8
A7
P2
A9
P3
A11
P7
A8
P8
VSS4 P9
VDD5 R1
A12
R2
NC4 R3
NC5 R7
NC1
R8
UDQS
B7
UDQS#
A8
VSSQ6 A7
LDQS#
E8
U7302
HYB18T1G161C2F-20
U7302
HYB18T1G161C2F-20
12
C7347
0.1UF/16V
C7347
0.1UF/16V
12
C7361
0.1UF/16V
@
C7361
0.1UF/16V
@
1 2
R7372
56Ohm
@
R7372
56Ohm
@
12
C7351
0.1UF/16V
C7351
0.1UF/16V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
B_MD19
B_BA2
B_MD20
CASB#1
CLKB1
B_MD0
B_MD10
CKEB1
B_MD22
DQS_B4#
DQS_B5
B_MD11
DQM#_B7
B_MD50
B_MD17
WEB#1
B_MD1
RASB#0
B_MD52
CASB#0
B_MD8
CLKB0#
B_MD39
B_MD40
B_MD49
B_MD56
ODTB1
B_MD3
B_MA0
B_MD16
B_MD46
B_MD29
B_MD41
B_MD61
B_MD43
B_MA5
B_MD4
B_MA7
B_BA1
B_MA8
B_MD59
RASB#1B_MD54
B_MD27
B_MD7
B_MD32
B_MD31
DQM#_B1
B_MD36
B_MD63
DQS_B3
DQM#_B0
B_MD25
B_MA6
B_MD13
B_MA1
B_MD35
B_MD47
B_MD33
B_MD2
B_MD45
B_MD37
B_MA2
DQS_B7
B_MD57
CLKB1#
B_MD24
DQM#_B5
DQM#_B2
B_MD48
B_MD38
B_MD18
B_MD44
DQS_B0
CLKB1
B_MD30
B_MD53
B_MD9
CLKB1#
B_BA0B_MD14
DQS_B7#
DQS_B1#
DQS_B4
B_MD60
DQM#_B3
DQM#_B6
B_MA11
B_MA10
B_MA3
B_MD28
DQS_B2#
B_MD42
B_MD55
DQS_B1
B_MD34
B_MA12
B_MD26
B_MD51
DQS_B3#
CLKB0
B_MD58
DQS_B6#
B_MA4
B_MD5
DQS_B0#
CKEB0
DQM#_B4
DQS_B5#
B_MD6
ODTB0
B_MD21
DQS_B6
B_MD15
B_MD62
DQS_B2
B_MD23
B_MD12
B_MA9
CLKB0
CLKB0#
WEB#0
CSB0_0#
CSB1_0#
DQS_B1 [73]
CLKB0 [73]
B_MD[0:63][73]
CKEB0 [73]
CKEB1 [73]
DQS_B7 [73]
DQS_B5# [73]
DQS_B2 [73]
WEB#0 [73]
WEB#1 [73]
DQS_B0# [73]
B_BA[0:2] [73]
DQS_B6# [73]
CLKB0# [73]
DQS_B3 [73]
ODTB0 [73]
DQS_B1# [73]
DQM#_B[0:7] [73]
B_MA[0:12] [73]
DQS_B7# [73]
DQS_B4 [73]
CLKB1 [73]
DQS_B2# [73]
DQS_B5 [73]
ODTB1 [73]
RASB#0 [73]
RASB#1 [73]
CLKB1# [73]
DQS_B3# [73]
DQS_B0 [73]
DQS_B6 [73]
CASB#0 [73]
CASB#1 [73]
DQS_B4# [73]
CSB0_0# [73]
CSB1_0# [73]
GND
GND
+1.8VS
+1.8VS
GND
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
74 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92S2-MEM VRAM(4)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
74 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92S2-MEM VRAM(4)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
Custom
74 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92S2-MEM VRAM(4)
2.05
F5Z
<Variant Name>
use 1K
Delete VT 83 84 Follow M86
Del 4 Vram
090323
12
R7486
56Ohm
R7486
56Ohm
1 2
R7484
100Ohm
R7484
100Ohm
1 2
R7448
1KOhm
R7448
1KOhm
1 2
R7477
100Ohm
R7477
100Ohm
12
C7440
0.1UF/16V
C7440
0.1UF/16V
12
C7456
0.1UF/16V
C7456
0.1UF/16V
12
C7405
470PF/50V
C7405
470PF/50V
12
C7406
470PF/50V
C7406
470PF/50V
1 2
R7464
4.7KOhm
R7464
4.7KOhm
1 2
R7466
4.7KOhm
R7466
4.7KOhm
1 2
R7476
100Ohm
R7476
100Ohm
12
R7487
56Ohm
R7487
56Ohm
12
R7473
56Ohm
R7473
56Ohm
1
VT85VT85
DQB_0
C5
DQB_1
C3
DQB_10
J4
DQB_11
K6
DQB_12
K5
DQB_13
L4
DQB_14
M6
DQB_15
M1
DQB_16
M3
DQB_17
M5
DQB_18
N4
DQB_19
P6
DQB_2
E3
DQB_20
P5
DQB_21
R4
DQB_22
T6
DQB_23
T1
DQB_24
U4
DQB_25
V6
DQB_26
V1
DQB_27
V3
DQB_28
Y6
DQB_29
Y1
DQB_3
E1
DQB_30
Y3
DQB_31
Y5
DQB_32
AA4
DQB_33
AB6
DQB_34
AB1
DQB_35
AB3
DQB_36
AD6
DQB_37
AD1
DQB_38
AD3
DQB_39
AD5
DQB_4
F1
DQB_40
AF1
DQB_41
AF3
DQB_42
AF6
DQB_43
AG4
DQB_44
AH5
DQB_45
AH6
DQB_46
AJ4
DQB_47
AK3
DQB_48
AF8
DQB_49
AF9
DQB_5
F3
DQB_50
AG8
DQB_51
AG7
DQB_52
AK9
DQB_53
AL7
DQB_54
AM8
DQB_55
AM7
DQB_56
AK1
DQB_57
AL4
DQB_58
AM6
DQB_59
AM1
DQB_6
F5
DQB_60
AN4
DQB_61
AP3
DQB_62
AP1
DQB_63
AP5
DQB_7
G4
DQB_8
H5
DQB_9
H6
MVREFDB
Y12
MVREFSB
AA12
TESTEN
AD28
CASB0B W10
CASB1B AA10
CKEB0 U10
CKEB1 AA11
CLKB0 L9
CLKB0B L8
CLKB1 AD8
CLKB1B AD7
CLKTESTA
AK10
CLKTESTB
AL10
CSB0B_0 P10
CSB0B_1 L10
CSB1B_0 AD10
CSB1B_1 AC10
DQMB_0 H3
DQMB_1 H1
DQMB_2 T3
DQMB_3 T5
DQMB_4 AE4
DQMB_5 AF5
DQMB_6 AK6
DQMB_7 AK5
DRAM_RST AH11
MAB_0 P8
MAB_1 T9
MAB_10 AC8
MAB_11 AC9
MAB_12 AA7
MAB_BA2 AA8
MAB_BA0 Y8
MAB_BA1 AA9
MAB_2 P9
MAB_3 N7
MAB_4 N8
MAB_5 N9
MAB_6 U9
MAB_7 U8
MAB_8 Y9
MAB_9 W9
ODTB0 T7
ODTB1 W7
RASB0B T10
RASB1B Y10
RDQSB_0 F6
RDQSB_1 K3
RDQSB_2 P3
RDQSB_3 V5
RDQSB_4 AB5
RDQSB_5 AH1
RDQSB_6 AJ9
RDQSB_7 AM5
WDQSB_0 G7
WDQSB_1 K1
WDQSB_2 P1
WDQSB_3 W4
WDQSB_4 AC4
WDQSB_5 AH3
WDQSB_6 AJ8
WDQSB_7 AM3
WEB0B N10
WEB1B AB11
MEMORY INTERFACE B
U7101D
M92-M2
MEMORY INTERFACE B
U7101D
M92-M2
1 2
R7482
100Ohm
R7482
100Ohm
12
R7474
56Ohm
R7474
56Ohm
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VDDR4_VDDR5
VDDRHB
PCIE_VDDR_VGA
PCIE_VDDC_VGA
+VGA_VCORE_PWRGD[78,90]
+VGA_VCORE
+1.8VS
GND
+VGA_VCORE
+1.1VS_VGA
GND
GND
GND
GND
+1.8VS
GND
+1.8VS +1.8VS
+1.8VS
+1.8VS
+3VS_VGA_DELAY
+VGA_VCORE
+3VS
GND
GND
GND
GND
GND
GND
GND
+1.2VS_+1.1VS_VGA +1.1VS_VGA
GND
GND
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
75 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
M92S2-PWR (5)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
75 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
M92S2-PWR (5)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
75 91Friday, May 29, 2009
ASUSTeK COMPUTER INC
M92S2-PWR (5)
2.05
F5Z
<Variant Name>
+1.8V
(2A)
VD3 should be
placed to close
VR276
(500mA)
M92/M96 SPV10=VDDC
Same as M86/MPVDD
Install PCIE_VDDC to +1.1V for M86/M92/M96
PR1125
(14.2A) M82 spec.
(20A) M86 spec.
(110mA)
VDDR1+VDDRHA/HB(M86/2.2A M82/1.3A)
Install VDD_CT to +1.8V for M86/M92/M96
Not sure
Install PCIE_VDDR to +1.8V for M86/M92/M96
del EC2, VR362
(340mA)
Follow M86
Update later
(50mA)
Update later
(35mA)
M86 VDDC[44:1], M92/M96 VDDC[74:1]
(40mA)
M86 VDDR1[29:1], M92/M96 VDDR1[34:1]
For M66 and M76
VDDR4 or VDDR5 can be +3.3V or +1.8V for EXT TMDS on DV port
For M76/M86
VDDR4 and VDDR5 must be +1.8V if multi GPU on DV port
shouldn't
del VR273
(120mA)
max:1.4A
add 10uF cap
2009/05/25
21
L7510
120Ohm/100Mhz
Irat=400mA
@
L7510
120Ohm/100Mhz
Irat=400mA
@
12
C7506
0.01UF/50V
C7506
0.01UF/50V
12
C7514
1UF/6.3V
c0402
C7514
1UF/6.3V
c0402
12
C7568
1UF/6.3V
C7568
1UF/6.3V
12
C7578
1000PF/50V
@
C7578
1000PF/50V
@
12
C7511
1UF/6.3V
c0402
C7511
1UF/6.3V
c0402
12
C7540
1UF/6.3V
c0402
C7540
1UF/6.3V
c0402
12
C7502
10uF/10V @
C7502
10uF/10V @
12
C7517
1UF/6.3V
c0402
C7517
1UF/6.3V
c0402
12
C7513
1UF/6.3V
c0402
C7513
1UF/6.3V
c0402
12
C7525
10UF/6.3V
C7525
10UF/6.3V
12
C7575
0.01UF/50V
C7575
0.01UF/50V
12
C7556
0.01UF/50V
C7556
0.01UF/50V
12
D7503
1SS355 @
D7503
1SS355 @
12
C7519
1000PF/50V
@
C7519
1000PF/50V
@
12
C7542
0.1UF/16V
c0402
C7542
0.1UF/16V
c0402
21
L7515
120Ohm/100Mhz
Irat=400mA
L7515
120Ohm/100Mhz
Irat=400mA
12
C7510
1UF/6.3V
c0402
C7510
1UF/6.3V
c0402
12
C7523
1UF/6.3V
c0402
C7523
1UF/6.3V
c0402
12
C7509
10UF/6.3V
C7509
10UF/6.3V
PCIE_PVDD
AB37
NC_MPV18_1
H7
NC_MPV18_2
H8
NC_SPV18
AM10
PCIE_VDDC1 G30
PCIE_VDDC10 R28
PCIE_VDDC11 T28
PCIE_VDDC12 U28
PCIE_VDDC2 G31
PCIE_VDDC3 H29
PCIE_VDDC4 H30
PCIE_VDDC5 J29
PCIE_VDDC6 J30
PCIE_VDDC7 L28
PCIE_VDDC8 M28
PCIE_VDDC9 N28
PCIE_VDDR1 AA31
PCIE_VDDR2 AA32
PCIE_VDDR3 AA33
PCIE_VDDR4 AA34
PCIE_VDDR5 V28
PCIE_VDDR6 W29
PCIE_VDDR7 W30
PCIE_VDDR8 Y31
SPV10
AN9
SPVSS
AN10
VDDR1_1
AC7
VDDR1_10
G17
VDDR1_11
G20
VDDR1_12
G23
VDDR1_13
G26
VDDR1_14
G29
VDDR1_15
H10
VDDR1_16
J7
VDDR1_17
J9
VDDR1_18
K11
VDDR1_19
K13
VDDR1_2
AD11
VDDR1_20
K8
VDDR1_21
L12
VDDR1_22
L16
VDDR1_23
L21
VDDR1_24
L23
VDDR1_25
L26
VDDR1_26
L7
VDDR1_27
M11
VDDR1_28
N11
VDDR1_29
P7
VDDR1_3
AF7
VDDR1_30
R11
VDDR1_31
U11
VDDR1_32
U7
VDDR1_33
Y11
VDDR1_34
Y7
VDDR1_4
AG10
VDDR1_5
AJ7
VDDR1_6
AK8
VDDR1_7
AL9
VDDR1_8
G11
VDDR1_9
G14
VDDR3_1
AF23
VDDR3_2
AF24
VDDR3_3
AG23
VDDR3_4
AG24
VDDR5_1
AF13
VDDR5_2
AF15
VDDR5_3
AG13
VDDR5_4
AG15
VDDR4_1
AD12
VDDR4_2
AF11
VDDR4_3
AF12
VDDR4_4
AG11
NC_VDDRHA
M20
VDDRHB
V12
NC_VSSRHA
M21
VSSRHB
U12
VDD_CT1
AF26
VDD_CT2
AF27
VDD_CT3
AG26
VDD_CT4
AG27
VDDC1 AA15
VDDC10 AB21
VDDC11 AB23
VDDC12 AB26
VDDC13 AB28
VDDC14 AC12
VDDC15 AC15
VDDC16 AC17
VDDC17 AC20
VDDC18 AC22
VDDC19 AC24
VDDC2 AA17
VDDC20 AC27
VDDC21 AD13
VDDC22 AD16
VDDC23 AD18
VDDC24 AD21
VDDC25 AD23
VDDC26 AD26
VDDC27 AF17
VDDC28 AF20
VDDC29 AF22
VDDC3 AA20
VDDC30 AG16
VDDC31 AG18
VDDC32 AG21
VDDC33 AH22
VDDC34 M16
VDDC35 M18
VDDC36 M23
VDDC37 M26
VDDC38 N15
VDDC39 N17
VDDC4 AA22
VDDC40 N20
VDDC41 N22
VDDC42 N24
VDDC43 N27
VDDC44 R13
VDDC45 R16
VDDC46 R18
VDDC47 R21
VDDC48 R23
VDDC49 R26
VDDC5 AA24
VDDC50 T15
VDDC51 T17
VDDC52 T20
VDDC53 T22
VDDC54 T24
VDDC55 T27
VDDC56 U16
VDDC57 U18
VDDC58 U21
VDDC59 U23
VDDC6 AA27
VDDC60 U26
VDDC61 V15
VDDC62 V17
VDDC63 V20
VDDC64 V22
VDDC65 V24
VDDC66 V27
VDDC67 Y16
VDDC68 Y18
VDDC69 Y21
VDDC7 AB13
VDDC70 Y23
VDDC71 Y26
VDDC72 Y28
VDDC8 AB16
VDDC9 AB18
VDDCI1 M15
VDDCI2 N13
VDDCI3 R12
VDDCI4 T12
BBP1
AA13
BBP2
Y13 VDDC73 AH27
VDDC74 AH28
POWER
PLL
PCIE
CORE
MEM I/O
MEM CLK
I/O
BACK BIAS
LEVEL
TRANSLATION
ISOLATED
CORE I/O
M92-M2
U7101E
POWER
PLL
PCIE
CORE
MEM I/O
MEM CLK
I/O
BACK BIAS
LEVEL
TRANSLATION
ISOLATED
CORE I/O
M92-M2
U7101E
12
C7544
1UF/6.3V
c0402
C7544
1UF/6.3V
c0402
1 2
R7576
0Ohm
R7576
0Ohm
12
0Ohm
L7514
0Ohm
L7514
12
C7562
0.01UF/50V
C7562
0.01UF/50V
12
C7584
0.01UF/50V
C7584
0.01UF/50V
12
C7573
0.01UF/50V
C7573
0.01UF/50V
12
C7599
1UF/6.3V
C7599
1UF/6.3V
12
C7526
1UF/6.3V
c0402
C7526
1UF/6.3V
c0402
12
C7515
1UF/6.3V
C7515
1UF/6.3V
12
C7531
10UF/6.3V
C7531
10UF/6.3V
12
C7527
10uF/10V
C7527
10uF/10V
12
C7547
1UF/6.3V
C7547
1UF/6.3V
12
C7524
1UF/6.3V
c0402
C7524
1UF/6.3V
c0402
12
C7557
0.01UF/50V
C7557
0.01UF/50V
21
L7543
120Ohm/100Mhz
Irat=400mA
L7543
120Ohm/100Mhz
Irat=400mA
12
C7532
1UF/6.3V
c0402
C7532
1UF/6.3V
c0402
12
C7567
0.01UF/50V
C7567
0.01UF/50V
12
C7545
1UF/6.3V @
C7545
1UF/6.3V @
1
23
D
S
G1
2
3
Q7501
SI2301BDS_T1_E3
D
S
G1
2
3
Q7501
SI2301BDS_T1_E3
12
C7549
10uF/10V
@
C7549
10uF/10V
@
12
C7576
0.01UF/50V
C7576
0.01UF/50V
12
C7569
1UF/6.3V
C7569
1UF/6.3V
21
L7505
120Ohm/100Mhz
Irat=400mA
L7505
120Ohm/100Mhz
Irat=400mA
12
C7533
0.1UF/16V
C7533
0.1UF/16V
12
C7577
0.01UF/50V
C7577
0.01UF/50V
12
C7508
10UF/6.3V
C7508
10UF/6.3V
12
C7598
0.01UF/50V @
C7598
0.01UF/50V @
12
C7518
1UF/6.3V
c0402
C7518
1UF/6.3V
c0402
21
L7509
120Ohm/100Mhz
Irat=400mA
L7509
120Ohm/100Mhz
Irat=400mA
12
C7541
0.1UF/16V
c0402
C7541
0.1UF/16V
c0402
12
R7575
100KOhm
R7575
100KOhm
12
C7535
0.1UF/16V
C7535
0.1UF/16V
1 2
R7531
0Ohm @
R7531
0Ohm @
12
C7538
1UF/6.3V
c0402
C7538
1UF/6.3V
c0402
12
C7546
0.01UF/50V
C7546
0.01UF/50V
21
L7542
120Ohm/100Mhz
Irat=400mA
L7542
120Ohm/100Mhz
Irat=400mA
12
C7565
0.1UF/16V
@
C7565
0.1UF/16V
@
12
C7530
1UF/6.3V
c0402
C7530
1UF/6.3V
c0402
12
C7539
0.1UF/16V
c0402
C7539
0.1UF/16V
c0402
12
C7543
0.1UF/16V
c0402
C7543
0.1UF/16V
c0402
GS
D
3
2
1
Q7515
2N7002
GS
D
3
2
1
Q7515
2N7002
12
C7512
1UF/6.3V
c0402
C7512
1UF/6.3V
c0402
12
C7521
0.01UF/50V
C7521
0.01UF/50V
12
C7559
0.01UF/50V
C7559
0.01UF/50V
1 2
R7573
0Ohm
R7573
0Ohm
12
C7520
10UF/6.3V
C7520
10UF/6.3V
12
C7529
1UF/6.3V
C7529
1UF/6.3V
12
C7534
0.1UF/16V
C7534
0.1UF/16V
21
L7512
120Ohm/100Mhz
Irat=2A
L7512
120Ohm/100Mhz
Irat=2A
12
C7566
0.01UF/50V
C7566
0.01UF/50V
12
C7537
10UF/6.3V
C7537
10UF/6.3V
12
C7503
1UF/6.3V
C7503
1UF/6.3V
12
C7536
10UF/6.3V
C7536
10UF/6.3V
12
C7571
1UF/6.3V
C7571
1UF/6.3V
21
L7516
120Ohm/100Mhz
Irat=400mA
L7516
120Ohm/100Mhz
Irat=400mA
12
C7505
10UF/6.3V
C7505
10UF/6.3V
12
C7528
1UF/6.3V
c0402
C7528
1UF/6.3V
c0402
12
C7579
0.01UF/50V
C7579
0.01UF/50V
12
C7548
10uF/10V
C7548
10uF/10V
21
0402
SL7501
0402
SL7501
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GND
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
76 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
76 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
76 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
<Variant Name>
PCIE_VSS1
AB39
PCIE_VSS10
J31
PCIE_VSS11
J34
PCIE_VSS12
K31
PCIE_VSS13
K34
PCIE_VSS14
K39
PCIE_VSS15
L31
PCIE_VSS16
L34
PCIE_VSS17
M34
PCIE_VSS18
M39
PCIE_VSS19
N31
PCIE_VSS2
E39
PCIE_VSS20
N34
PCIE_VSS21
P31
PCIE_VSS22
P34
PCIE_VSS23
P39
PCIE_VSS24
R34
PCIE_VSS25
T31
PCIE_VSS26
T34
PCIE_VSS27
T39
PCIE_VSS28
U31
PCIE_VSS29
U34
PCIE_VSS3
F34
PCIE_VSS30
V34
PCIE_VSS31
V39
PCIE_VSS32
W31
PCIE_VSS33
W34
PCIE_VSS34
Y34
PCIE_VSS35
Y39
PCIE_VSS4
F39
PCIE_VSS5
G33
PCIE_VSS6
G34
PCIE_VSS7
H31
PCIE_VSS8
H34
PCIE_VSS9
H39
VSS_MECH1 A39
VSS_MECH2 AW1
VSS_MECH3 AW39
GND77 A3
GND86 AA6
GND176 F13
GND1
F15
GND2
F17
GND3
F19
GND4
F21
GND5
F23
GND6
F25
GND7
F27
GND8
F29
GND9
F31
GND87 AB12
GND10
F33
GND11
F7
GND12
F9
GND13
G2
GND14
G6
GND15
H9
GND16
J2
GND17
J27
GND18
J6
GND19
J8
GND88 AB15
GND20
K14
GND21
K7
GND22
L11
GND23
L17
GND24
L2
GND25
L22
GND26
L24
GND27
L6
GND28
M17
GND29
M22
GND89 AB17
GND30
M24
GND31
N16
GND32
N18
GND33
N2
GND34
N21
GND35
N23
GND36
N26
GND37
N6
GND38
R15
GND39
R17
GND90 AB20
GND40
R2
GND41
R20
GND42
R22
GND43
R24
GND44
R27
GND45
R6
GND46
T11
GND47
T13
GND48
T16
GND49
T18
GND91 AB22
GND50
T21
GND51
T23
GND52
T26
GND53
U15
GND54
U17
GND55
U2
GND56
U20
GND57
U22
GND58
U24
GND59
U27
GND92 AB24
GND60
U6
GND61
V11
GND62
V16
GND63
V18
GND64
V21
GND65
V23
GND66
V26
GND67
W2
GND68
W6
GND69
Y15
GND93 AB27
GND70
Y17
GND71
Y20
GND72
Y22
GND73
Y24
GND74
Y27
GND94 AC11
GND95 AC13
GND78 A37
GND96 AC16
GND97 AC18
GND98 AC2
GND99 AC21
GND100 AC23
GND101 AC26
GND102 AC28
GND103 AC6
GND104 AD15
GND105 AD17
GND79 AA16
GND106 AD20
GND107 AD22
GND108 AD24
GND109 AD27
GND110 AD9
GND111 AE2
GND112 AE6
GND113 AF10
GND114 AF16
GND115 AF18
GND80 AA18
GND116 AF21
GND117 AG17
GND118 AG2
GND119 AG20
GND120 AG22
GND121 AG6
GND122 AG9
GND123 AH21
GND124 AH29
GND125 AJ10
GND81 AA2
GND126 AJ11
GND127 AJ2
GND128 AJ28
GND129 AJ6
GND130 AK11
GND131 AK31
GND132 AK7
GND133 AL11
GND134 AL14
GND135 AL17
GND82 AA21
GND136 AL2
GND137 AL20
GND138 AL21
GND139 AL23
GND140 AL26
GND141 AL32
GND142 AL6
GND143 AL8
GND144 AM11
GND145 AM31
GND83 AA23
GND146 AM9
GND147 AN11
GND148 AN2
GND149 AN30
GND150 AN6
GND151 AN8
GND152 AP11
GND153 AP7
GND154 AP9
GND155 AR5
GND84 AA26
GND156 AW34
GND157 B11
GND158 B13
GND159 B15
GND160 B17
GND161 B19
GND162 B21
GND163 B23
GND164 B25
GND165 B27
GND85 AA28
GND166 B29
GND167 B31
GND168 B33
GND169 B7
GND170 B9
GND171 C1
GND172 C39
GND173 E35
GND174 E5
GND175 F11
GND75
U13
GND76
V13
GND
U7101F
M92-M2
GND
U7101F
M92-M2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DPB_PVDD
DPE_PVDD
DPC_VDD10
DPE_VDD18
DPE_VDD10
DPA_VDD10DPC_VDD10
DPB_VDD10
DPE_PVSS
DPA_PVDD
LVDS_G_U0N [45]
LVDS_G_UCLKP [45]
L_G_BKLT_CTRL [45]
LVDS_G_VDD_EN [45]
LVDS_G_U1P [45]
LVDS_G-U1N [45]
LVDS_G_UCLKN [45]
LVDS_G_U0P [45]
LVDS_G_U2P [45]
LVDS_G_U2N [45]
LVDS_G_L1N [45]
LVDS_G_L2N [45]
LVDS_G_L0P [45]
LVDS_G_L1P [45]
LVDS_G_L2P [45]
LVDS_G_L0N [45]
LVDS_G_LCLKP [45]
LVDS_G_LCLKN [45]
GND
GND
+1.8VS
GND
GND
GND
DPB_PVDD
+1.1VS_VGA
GND
DPA_PVDD
GND
GND
+1.1VS_VGA
GND
DPE_VDD18
GND
GND
GND
GND
GND
+1.1VS_VGA
+1.1VS_VGA
GND
GND
+1.8VS
DPE_VDD10
GND
DPE_PVDD
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
77 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92S2-LVDS (6)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
77 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92S2-LVDS (6)
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
77 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
M92S2-LVDS (6)
2.05
F5Z
<Variant Name>
refer to M86
pull down on Main board
Install DPE_VDD10 to +1.1V for M92/M96
M92 has no DP C/D
(20mA)
(20mA)
(1.8V@20mA DPE_PVDD)
(170mA)
PR1125
(200mA)
Delete 100nF
different Voltage with M86
No DP C/D , can delete filter capacitor
(200mA)
VC113,VC114 Place those
close to ASIC
M92 has no DP C/D
Install DPE_VDD18 to +1.8V for M92/M96
0908
(200mA)
2 1
L7735
120Ohm/100Mhz
Irat=400mA
L7735
120Ohm/100Mhz
Irat=400mA
12
R7717
10KOhm @
R7717
10KOhm @
12
C7775
10uF/10V
C7775
10uF/10V
1 2
R7759
150Ohm
1%
R7759
150Ohm
1%
21
L7734
120Ohm/100Mhz
Irat=400mA
L7734
120Ohm/100Mhz
Irat=400mA
12
C7777
10uF/10V
C7777
10uF/10V
1 2
C7799
1UF/6.3V
C7799
1UF/6.3V
1 2
C7786
10uF/10V
C7786
10uF/10V
1 2
C7787
1UF/6.3V
C7787
1UF/6.3V
12
R7755
150Ohm 1%
R7755
150Ohm 1%
2 1
L7740
120Ohm/100Mhz
Irat=400mA
L7740
120Ohm/100Mhz
Irat=400mA
1 2
C7701
10uF/10V
C7701
10uF/10V
1 2
C7714
1UF/6.3V
C7714
1UF/6.3V
21
L7736
120Ohm/100Mhz
Irat=400mA @
L7736
120Ohm/100Mhz
Irat=400mA @
2 1
L7738
120Ohm/100Mhz
Irat=400mA
L7738
120Ohm/100Mhz
Irat=400mA
1 2
C7784
10uF/10V
C7784
10uF/10V
1 2
C7785
1UF/6.3V
C7785
1UF/6.3V
1 2
C7713
10uF/10V
C7713
10uF/10V
12
R7762
10KOhm
R7762
10KOhm
12
C7778
1UF/6.3V
C7778
1UF/6.3V
21
L7732
120Ohm/100Mhz
Irat=400mA
L7732
120Ohm/100Mhz
Irat=400mA
2 1
L7741
120Ohm/100Mhz
Irat=400mA
L7741
120Ohm/100Mhz
Irat=400mA
1 2
C7702
1UF/6.3V
C7702
1UF/6.3V
12
C7776
1UF/6.3V
C7776
1UF/6.3V
2 1
L7739
120Ohm/100Mhz
Irat=400mA
L7739
120Ohm/100Mhz
Irat=400mA
DPA_PVDD AU28
DPA_PVSS AV27
DPA_VDD10_1 AP31
DPA_VDD10_2 AP32
NC_DPA_VDD18_1 AN24
NC_DPA_VDD18_2 AP24
DPA_VSSR1 AN27
DPA_VSSR2 AP27
DPA_VSSR3 AP28
DPA_VSSR4 AW24
DPA_VSSR5 AW26
DPAB_CALR AW28
DPB_PVDD AV29
DPB_PVSS AR28
DPB_VDD10_1 AN33
DPB_VDD10_2 AP33
NC_DPB_VDD18_1 AP25
NC_DPB_VDD18_2 AP26
DPB_VSSR1 AN29
DPB_VSSR2 AP29
DPB_VSSR3 AP30
DPB_VSSR4 AW30
DPB_VSSR5 AW32
NC_DPC_PVDD AU18
NC_DPC_PVSS AV17
NC_DPC_VDD10_1
AP13
NC_DPC_VDD10_2
AT13
NC_DPC_VDD18_1
AP20
NC_DPC_VDD18_2
AP21
NC_DPC_VSSR1
AN17
NC_DPC_VSSR2
AP16
NC_DPC_VSSR3
AP17
NC_DPC_VSSR4
AW14
NC_DPC_VSSR5
AW16
NC_DPCD_CALR
AW18
NC_DPD_PVDD AV19
NC_DPD_PVSS AR18
NC_DPD_VDD10_1
AP14
NC_DPD_VDD10_2
AP15
NC_DPD_VDD18_1
AP22
NC_DPD_VDD18_2
AP23
NC_DPD_VSSR1
AN19
NC_DPD_VSSR2
AP18
NC_DPD_VSSR3
AP19
NC_DPD_VSSR4
AW20
NC_DPD_VSSR5
AW22
DPE_PVDD AM37
DPE_PVSS AN38
DPE_VDD10_1
AL33
DPE_VDD10_2
AM33
DPE_VDD18_1
AH34
DPE_VDD18_2
AJ34
DPE_VSSR1
AN34
DPE_VSSR2
AP39
DPE_VSSR3
AR39
DPE_VSSR4
AU37
DPE_VSSR5
AW35
DPEF_CALR
AM39
NC_DPF_PVDD AL38
NC_DPF_PVSS AM35
DPF_VDD10_1
AK33
DPF_VDD10_2
AK34
DPF_VDD18_1
AF34
DPF_VDD18_2
AG34
DPF_VSSR1
AF39
DPF_VSSR2
AH39
DPF_VSSR3
AK39
DPF_VSSR4
AL34
DPF_VSSR5
AM34
DP PLL POWER
DP A/B POWERDP C/D POWER
DP E/F POWER
U7101H
M92-M2
DP PLL POWER
DP A/B POWERDP C/D POWER
DP E/F POWER
U7101H
M92-M2
1 2
C7703
10uF/10V
C7703
10uF/10V
DIGON AJ27
TXCLK_LN_DPE3N AR34
TXCLK_LP_DPE3P AP34
TXCLK_UN_DPF3N AL36
TXCLK_UP_DPF3P AK35
TXOUT_L0N_DPE2N AU35
TXOUT_L0P_DPE2P AW37
TXOUT_L1N_DPE1N AU39
TXOUT_L1P_DPE1P AR37
TXOUT_L2N_DPE0N AR35
TXOUT_L2P_DPE0P AP35
TXOUT_L3N AP37
TXOUT_L3P AN36
TXOUT_U0N_DPF2N AK37
TXOUT_U0P_DPF2P AJ38
TXOUT_U1N_DPF1N AJ36
TXOUT_U1P_DPF1P AH35
TXOUT_U2N_DPF0N AH37
TXOUT_U2P_DPF0P AG38
TXOUT_U3N AG36
TXOUT_U3P AF35
VARY_BL AK27
LVTMDP
LVDS CONTROL
U7101G
M92-M2
LVTMDP
LVDS CONTROL
U7101G
M92-M2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MEMTYPE_1
ATI_GPIO2
ATI_GPIO11
ATI_GPIO12
ATI_GPIO13
ATI_GPIO10
ATI_GPIO7
ATI_GPIO1
ATI_GPIO3
ATI_GPIO0
ATI_GPIO4
ATI_GPIO5
ATI_GPIO6
ATI_GPIO8
ATI_GPIO9
MEMTYPE_2
MEMTYPE_3
MEMTYPE_0
CRT_G_HSYNC[46,72]
CRT_G_VSYNC[46,72]
ATI_GPIO0[72]
ATI_GPIO1[72]
ATI_GPIO2[72]
ATI_GPIO11[72]
ATI_GPIO12[72]
ATI_GPIO13[72]
ATI_GPIO10[72]
+VGA_VCORE_PWRGD [75,90]LVDS_G_BACK_EN[45,72]
ATI_GPIO3[72]
ATI_GPIO4[72]
ATI_GPIO5[72]
ATI_GPIO6[72]
ATI_GPIO8[72]
ATI_GPIO9[72]
MEMTYPE_2[72]
MEMTYPE_3[72]
ATI_GPIO21[72]
MEMTYPE_1[72]
MEMTYPE_0[72]
GND
GND
+3VS_VGA_DELAY
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
78 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
78 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
78 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
*
2.05
F5Z
<Variant Name>
DVPDATA_1
VIP_3
VIP_DEVICE
VHAD_0
0
(internal pull-down)
VIP_DEVICE_STRAP_EN is set 0 =>not used VIP Host interface
VIP_DEVICE_STRAP_EN is set 1 =>used VIP Host interface
OK
PEG_CRT_HSYNC_VGA
PEG_CRT_VSYNC_VGA
AUD[1:0]:
00: No audio function;
01: Audio for DisplayPort and HDMI if adapter is detected;
10: Audio for DisplayPort only;
11: Audio for both DisplayPort and HDMI.
AUD[1]
AUD[0] (internal pull-down)
0
(internal pull-down)
GPIO22_ROMCSBBIOS_ROM_EN 0
DVPDATA_0
Enable external BIOS ROM device
0-Disable external BIOS ROM device
1-Enable external BIOS ROM device
(internal pull-down)Reserved
0: Tx de-emphasis disabled for mobile mode
PIN
This setting can only be used if the PCIE bus design meets
the "Low Loss interconnect" requirements.
(internal pull-down)
(internal pull-down)
OK
H2SYNC
GPIO_21_BB_EN
GENERICC
0
GPIO0
ASIC DEFAULT
1: full Tx output swing
TX_PWRS_ENB
M92 Straps
ATI internal use only . THIS PAD HAS AN INTERNAL PULL-DOWN AND
MUST BE 0 V AT RESET.
TX_DEEMPH_EN
0
GPIO1
DESCRIPTIONSTRAPS
Transmitter De-emphasis Enable
1: Tx de-emphasis enabled
0
1 = Advertises the PCI-E device as 5.0 GT/s capable at power-on
0 = Advertises the PCI-E device as 2.5 GT/s capable at power-on
BIF_GEN2_EN_A
Tansmitter Power Savings Enable
0
0: 50% Tx output swing for mobile mode
GPIO2
DEBUG_ I2C_ENABLE GPIO6
(internal pull-down)
(internal pull-down)
0
DEBUG ACCESS
ATI internal use only . Other logic must not affect this signal during RESET
Reconnended to 0
GPIO4 Debug_access strap
3.3V ---ON
0V------OFF
0
AUDIO_EN
Enable 64-bit BARs
Most commonly this strap is left at the default (32-bit BARs)
(internal pull-down)
0
OK
256MB
VIP_DEVICE_STRAP_EN V2SYNC
0 - Ignore VIP device straps (DVPDATA_20)
1 - Use VIP device straps (DVPDATA_20)
(internal pull-down)
0
64BAR_EN_A
VIP_5
Enable HD Audio function in the PCI configuration space
0 - Disable HD Audio
1 - Enable HD Audio
0
(internal pull-down)
VGA_DIS GPIO9
0 - VGA Controller capacity enabled
1 - The device will not be recognized as the system's VGA controller
(internal pull-down)
0
OK
0000
(internal pull-down)
If BIOS_ROM_EN=1,then Config[2:0]defines the ROM type.
If BIOS_ROM_EN=0,then Config[2:0]deifnes the primary memoru apeture size.
128MB---x000 32MB---Not Support 2GB---Not Support
256MB---x001 512MB--Not Support 4GB---Not Support
64MB----x010 1GB-----Not Support
GPIO(13:11)ROMIDCFG(2:0)
OK
MXM and add-in boards
OK
OK
Disable Message Signaled Interrupt is both a ROM
strap and a pin strap. The pin strap is only applicable if a BIOS ROM is not present
MSI_DIS
VIP_1
0
(internal pull-down)
OK
OK
DVPDATA_2
DVPDATA_3
0010-DDR2 Qimonda(64MX16) 512MB
Mount: VR27, VR40, VR22, VR353
Unmount: VR31, VR41, VR21, VR352
0100-DDR2 Samsung(64MX16) 512MB
Mount: VR27, VR41, VR21, VR353
Unmount: VR31, VR40, VR22, VR352
0011-DDR2 Qimonda(64MX16) 1G
Mount: VR31, VR40, VR22, VR353
Unmount: VR27, VR41, VR21, VR352
0101-DDR2 Samsung(64MX16) 1G
Mount: VR31, VR41, VR21, VR353
Unmount: VR27, VR40, VR22, VR352
TBD
M92-M2
B channel dual-link
B channel
B channel dual-link
B channel
B channel dual-link
M92-M2
M92-M2
B channel
B channel dual-link
B channel
B channel dual-link
B channel dual-link
M92-M2 only support B channel
1101
1110
Channel Size
B channel
B channel dual-link
B channel
4
6
5
2
0
3
1
7
8
11
9
10
12
15
13
14
DDR2 Memory Type
Micron
32M*16 (256MB)
32M*16 (512MB)
Samsung
32M*16 (256M)
Hynix
0100
0110
Vendor
0101
0010
Memory ID Board Straps
0000
DVPDATA(23,22,21,20) ID
0011
Qimonda 0001
0111
32M*16 (512M)
64M*16 (512M)
64M*16 (1G)
64M*16 (512MB)
64M*16 (1G)
1000
1011
1001
1010
1100
64M*16 (1G)
1111
32M*16 (256M)
32M*16 (512M)
64M*16 (512M)
64M*16 (1G)
OPTION STRAPS
NO USE BL control
NOT USE: SMBDATA
NOT USE: SMBCLK
NOT_USE: POWER PLAY FUNCTION: Reserve for AC_BAT
NOT USE: POWER PLAY FUNCTION
NOT USE: RESERVE
TX_PWRS_ENB
TX_DEEMPH_EN
BIF_GEN2_EN_A
VGA_DIS
NOT USE: RESERVE
1 2
R7894 10KOhmR7894 10KOhm
1 2
R7870
2.2kOHM R7870
2.2kOHM
1 2
R7801 10KOhm @R7801 10KOhm @
1 2
R7832 10KOhm @R7832 10KOhm @
1 2
R7849 10KOhm @R7849 10KOhm @
1 2
R7846 10KOhm @R7846 10KOhm @
1 2
R7836 10KOhmR7836 10KOhm
1 2
R7844 10KOhmR7844 10KOhm
1 2
R7878 10KOhm @R7878 10KOhm @
1 2
R7840 10KOhmR7840 10KOhm
1 2
R7827 10KOhm @R7827 10KOhm @
1 2
R7893 10KOhmR7893 10KOhm
1 2
R7857 10KOhm @R7857 10KOhm @
1 2
R7835 10KOhm @R7835 10KOhm @
1 2
R7831 10KOhmR7831 10KOhm
1 2
R7865 10KOhm @R7865 10KOhm @
1 2
R7834 10KOhm @R7834 10KOhm @
1 2
R7861 10KOhmR7861 10KOhm
1 2
R7854 10KOhm @R7854 10KOhm @
1 2
R7822 10KOhmR7822 10KOhm
1 2
R7853 10KOhmR7853 10KOhm
1 2
R7858 10KOhm @R7858 10KOhm @
1 2
R7860 10KOhm @R7860 10KOhm @
1 2
R7843
10KOhm @
R7843
10KOhm @
1 2
R7821 10KOhm @R7821 10KOhm @
1 2
R7855 10KOhm @R7855 10KOhm @
1 2
R7856 10KOhm @R7856 10KOhm @
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
79 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_ FLOW
1.0
F83T
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
79 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_ FLOW
1.0
F83T
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
79 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_ FLOW
1.0
F83T
<Variant Name>
+3VS
(0.54/0.38A)
+2.5V_CPU_VDDA
SUSC_EC#
VSUS_ON
VSUS_ON
+5VS
(2.46/1.36A)
(6.08A/4.73)
AC_BAT_SYS
RT8205
(EC)
SWITCH
BATSEL_0;BATSEL_1;
ISET_EC;VSET_EC;CHG_EN AC_IN_OC#
+0.9V
POWER CHARGER
+3VAO
+3VSUSO
+5VA
UP6111
AC_BAT_SYS
(0.748/0.417A)
AC_BAT_SYS
+1.2VSUSO
(4.2A/1.6A)
(Controllor)
(SWITCH)
(7.5A/3A)
AP4835AP4835*2 MB39A132A/D_DOCK_IN (SWITCH)
(0.05/0.03A)
(12.2A/4.76A)
(0.8A/0.43A)
+1.8VS
(SWITCH)
(1.06/0.8A)
+1.5VS
(0.1A)
5VSUS:SI7326+RJK0355
(SWITCH)
BAT
SI7326
SWITCH +1.2V_CPU_NB_SB (2.4A/1.75A)
CPU_VRON
UP6111
+VCORE
(15A)
SI7326
SI7326 UP7714
SUSB_EC#
+12VS
(0.102A)
UMC4N
+12V
(0.1A)
+3VSUS
RJK0355*1+RJK0349*2
RJK0355+RJK0355
RJK0355+RJK0355
+1.8VO
UP7706
+3VA
3VSUS:SI7326+SI7326
+5VO
SUSB_EC#
SUSB_EC#
SUSC_EC#
+5V
SI7326
+1.8V
+1.2VSUS
SUSB_EC#
SUSB_EC#
CPU_VRON_PWR
UP6111
RJK0355
SWITCH
CPU_VRON_PWR
+VCC_NB
+1.1V_NB
(5.4A/3.44A)
(5A/3A)
UP7711
UP6111
SUSB_EC#
(12A/10A)
VGA_CORE
RJK0355+RJK0355
SUSB_EC#
(SWITCH)
2N7002 +0.9VS
+1.1V_VGA
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
P_CHG_LG_20
P_CHG_CTL2_10
P_CHG_BST_20
P_CHG_INE3-_10
P_CHG_AIRS+_10
P_CHG_COMPCI_10
P_CHG_ADJ1_10 P_CHG_ADJCV_10
P_CHG_ACIN_10
P_CHG_LG_20
P_CHG_CIRS-_10
P_CHG_CIRS+_10
P_CHG_AIRS-_10
P_CHG_CIRS-_10
P_CHG_COMPCV_10
P_CHG_ADJCI_10
P_CHG_VBTT_10
P_CHG_PHASE_SHAPE
P_CHG_VBTT_10
P_CHG_CS_10
P_CHG_VBTT_10
P_CHG_IN_SHAPE
P_CHG_HG_20
P_CHG_RT_10
P_CHG_PHASE_20
P_CHG_CIRS+_10
P_AC_APR_UC_10
P_CHG_INE3-_10
P_CHG_COMP1_10
P_CHG_VL_20
P_CHG_PHASE_20
P_CHG_HG_20
P_CHG_CTL1_10
CHG_CELLS
CHG_CELLS P_CHG_SRC_60
Vmid
P_AC_APR_UC_10
Vmid
AC_OK
AC_OK
CHG_EN [30]
VSET_EC [30]
AC_IN_OC# [30]
ISET_EC [30]
BATSEL_1 [30]BATSEL_0[30]
P_CHG_OUTC1_10[89]
GND
GND
BAT_CON
GND
GND
GND
GND
GND
GND
+3VAO
BAT
GND
CHG_VCC
GND
CHG_VCC
CHG_VCC
CHG_VCC
GND
BAT
MB39A132_VREF
GND
AC_BAT_SYS
BAT
GND
AC_BAT_SYS
A/D_DOCK_IN
MB39A132_VREF GNDGND
GND
GND
GND
GND
GND
GND
GND
GND
GND
A/D_DOCK_IN
GND
MB39A132_VREF
GND
GND
+3VAO
GND
MB39A132_VREF
GNDGND
Vmid
Vmid
GND
GND
A/D_DOCK_IN
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
80 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_Charger
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
80 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_Charger
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
80 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_Charger
1.0
<Variant Name>
F83T
CHG_EN = 0, Charger Disable
CHG_EN = 1, Charger Enable
Ilimit_current = (Vadj1-0.075) / (25*Rs)
=(1.646-0.075)/25*0.2=3.14A
Battery IN DETECT
ACIN
CHG_ACOK# = 0, Adaptor Mode
CHG_ACOK# = 1, Battetry Mode
0 2S
CELLS
0
11 2S
BATSEL_0
1
0
3S
BATSEL_1
0
4S
1
1. Frequency:
Controller
2. OCP:
3. Soft start time:
Isat=4.4A
Idc=3.8A
DCR=35mohm
I in = Vo*Io/( 0.75 * Vin) =2.21A
4. MOSFET Spec:
Iripple=1.18A
Power stage
2. Ripple Current(3S2P):
1. I/P Current(3S2P):
3. Inductor Spec:
1. Adapter Threshold: 17.41V
2. AP4835 ID=-9.2A
17.41=(PR9213+PR9216)/PR9216*1.25
4. Input limit:
3. MB39A132_VREF= 5.0V
5. Charging Voltageㄩ
VSET_EC 2S 3S 4S
2.9894 8.399 12.598 16.797
1.3071 1492 1P
2500 2P
6. Charging currentㄩ
ISET_EC
2.1094
65W:
90W: PR9214=270K--Ilimit_current=4.35A
fosc(KHz) = 17000 / RT (KOhm)
fosc(KHz) = 17000/33K=515KHz
Ioc=0.2/Rs = 10A
ts(s) = 0.26* CS(uF)=0.26*0.1 =26ms
4. Inrush current(3S):
Iinrush = C*V/t=9.7mA
Idc= 6.5A/5.0A
Rdcon=22/30mohm
Vgsth=0.8~1.8V
3P39963.3
ICHG Ps
EC Code: 202
12
PC8004
0.1UF/25V
PC8004
0.1UF/25V
1 2
PR8013
15KOhm
PR8013
15KOhm
12
PJP8005
SHORT_PIN
/X
PJP8005
SHORT_PIN
/X
1
23
PD8003
BAT54CW
PD8003
BAT54CW
12
PR8016
1Ohm
PR8016
1Ohm
1 2
PR8031
10KOhm 0.1%
PR8031
10KOhm 0.1%
1
PT8014
TPC28T
PT8014
TPC28T
GS
D
3
2
1
PQ8007
2N7002
GS
D
3
2
1
PQ8007
2N7002
1
2
354
DS
G
8
7
6
5
PQ8006
SI7326DN_T1_E3
DS
G
8
7
6
5
PQ8006
SI7326DN_T1_E3
1
PT8012
TPC28T
PT8012
TPC28T
12
PR8023
33KOhm
1%
PR8023
33KOhm
1%
1
PT8008
TPC28T
PT8008
TPC28T
12
PC8001
1000PF/50V
PC8001
1000PF/50V
12
PC8020
820PF/50V
PC8020
820PF/50V
1
122
PJP8003
3MM_OPEN_5MIL
/X
PJP8003
3MM_OPEN_5MIL
/X
3 4
PRN8002B
100KOhm
PRN8002B
100KOhm
B
C
E
1
2
3
PQ8005
PMBS3906
B
C
E
1
2
3
PQ8005
PMBS3906
1
PT8015
TPC28T
PT8015
TPC28T
1 2
PJP8001
SHORT_PIN
/X
PJP8001
SHORT_PIN
/X
1
2
35
6
7
8
4
S D
G
PQ8002
EMB20P03G
S D
G
PQ8002
EMB20P03G
12
PC8019
120PF/50V
PC8019
120PF/50V
12
PC8021 120PF/50V /XPC8021 120PF/50V /X
1 2
PR8021
13.7KOhm
0.1%
PR8021
13.7KOhm
0.1%
12
PC8006
0.1UF/25V
PC8006
0.1UF/25V
1
PT8010
TPC28T
PT8010
TPC28T
12
PC8012
10UF/25V
c1206_h75
PC8012
10UF/25V
c1206_h75
1 2
PC8014
1UF/25V
PC8014
1UF/25V
12
PC8013
0.1UF/25V
PC8013
0.1UF/25V
1 2
PR8033
0Ohm
PR8033
0Ohm
1 2
PRN8001A
100KOhm
PRN8001A
100KOhm
1
2
354
DS
G
8
7
6
5
PQ8008
SI7326DN_T1_E3
DS
G
8
7
6
5
PQ8008
SI7326DN_T1_E3
1 2
PR8010
15KOhm
PR8010
15KOhm
1 2
PR8012
20mOhm
PR8012
20mOhm
2
61
PQ8011A
UM6K1N
PQ8011A
UM6K1N
1
23
PD8002
BAT54CW
PD8002
BAT54CW
12
PR8015
300KOhm 1%
PR8015
300KOhm 1%
1 2
PR8024
10KOhm
0.1% PR8024
10KOhm
0.1%
1
23
PD8001
BAT54CW
/X
PD8001
BAT54CW
/X
12
PR8027
22KOhm 1%
PR8027
22KOhm 1%
1 2
PR8003
10KOhm
PR8003
10KOhm
1
2
35
6
7
8
4
S D
G
PQ8003
EMB20P03G
S D
G
PQ8003
EMB20P03G
1 2
PR8034
0Ohm
PR8034
0Ohm
5
34
PQ8011B
UM6K1N
PQ8011B
UM6K1N
1
PT8017
TPC28T
PT8017
TPC28T
1
PT8016
TPC28T
PT8016
TPC28T
1
PT8009
TPC28T
PT8009
TPC28T
1
PT8001
TPC28T
PT8001
TPC28T
VCC
1
-INC1
2
+INC1
3
ACIN
4
ACOK
5
-INE3
6
ADJ1
7
COMP1
8
-INE1
9
OUTC1
10
OUTC2
11
+INC2
12
-INC2
13
ADJ2
14
COMP2
15
COMP3
16
BATT 17
ADJ3 18
CS 19
RT 20
VREF 21
GND1 22
CTL1 23
VIN 24
CELLS 25
PGND 26
OUT2 27
VB 28
LX 29
OUT1 30
CB 31
CTL2 32
GND2 33
PU8001A
MB39A132
PU8001A
MB39A132
12
PR8004
10KOhm
PR8004
10KOhm
12
PR8017
330KOHM
1%
PR8017
330KOHM
1%
21
PL8001
70Ohm/100Mhz
PL8001
70Ohm/100Mhz
12
PC8002
0.022UF/16V
PC8002
0.022UF/16V
12
PC8011
1000PF/50V
PC8011
1000PF/50V
1 2
PRN8002A
100KOhm
PRN8002A
100KOhm
1
PT8006
TPC28T
PT8006
TPC28T
1
PT8011
TPC28T
PT8011
TPC28T
1 2
PR8028
10KOhm
1%
PR8028
10KOhm
1%
5 6
PRN8001C
100KOhm
PRN8001C
100KOhm
1 2
PJP8007
SHORT_PIN
/X
PJP8007
SHORT_PIN
/X
1 2
PR8008
100KOhm
PR8008
100KOhm
12
PR8009
22KOhm
PR8009
22KOhm
1 2
PR8007
100KOhm
PR8007
100KOhm
12
PC8024
2200PF/50V
PC8024
2200PF/50V
12
PC8007
0.01UF/25V
PC8007
0.01UF/25V
12
PR8022
162kOHM
1%
PR8022
162kOHM
1%
12
PC8022
10NF/25V
PC8022
10NF/25V
12
PC8018
0.1UF/25V
PC8018
0.1UF/25V
12
PC8023
0.47UF/16V
PC8023
0.47UF/16V
1
PT8013
TPC28T
PT8013
TPC28T
1
2
35
6
7
8
4
S D
G
PQ8001
EMB20P03G
S D
G
PQ8001
EMB20P03G
GND3
34
GND4
35
GND5
36
GND6
37
PU8001B
MB39A132
PU8001B
MB39A132
3 4
PRN8001B
100KOhm
PRN8001B
100KOhm
7 8
PRN8001D
100KOhm
PRN8001D
100KOhm
21
PL8003
10UH
PL8003
10UH
12
PR8029
10KOhm 1%
PR8029
10KOhm 1%
G
S
D3
2
1
PQ8009
2N7002
G
S
D3
2
1
PQ8009
2N7002
7 8
PRN8002D
100KOhm
PRN8002D
100KOhm
1 2
PR8005
1MOHM
PR8005
1MOHM
1
PT8005
TPC28T
PT8005
TPC28T
1 2
PR8030
10KOhm
1%
PR8030
10KOhm
1%
12
PC8017
0.1UF/25V
PC8017
0.1UF/25V
12
PR8001
1Ohm
PR8001
1Ohm
G
S
D3
2
1
PQ8004
2N7002
G
S
D3
2
1
PQ8004
2N7002
2
61
PQ8010A
UM6K1N
PQ8010A
UM6K1N
1 2
PR8020
20KOhm
0.1%
PR8020
20KOhm
0.1%
1
PT8002
TPC28T
PT8002
TPC28T
1 2
PJP8008
SHORT_PIN
/X
PJP8008
SHORT_PIN
/X
1 2
PR8032
16.9KOhm
1%
PR8032
16.9KOhm
1%
5 6
PRN8002C
100KOhm
PRN8002C
100KOhm
1
122
PJP8004
3MM_OPEN_5MIL
/X
PJP8004
3MM_OPEN_5MIL
/X
12
PC8010
10UF/25V
c1206_h75
PC8010
10UF/25V
c1206_h75
12
PR8026
1KOhm 1%
PR8026
1KOhm 1%
5
34
PQ8010B
UM6K1N
PQ8010B
UM6K1N
12
PR8014
100KOhm
PR8014
100KOhm
12
PC8008
0.01UF/25V
PC8008
0.01UF/25V
1
PT8007
TPC28T
PT8007
TPC28T
12
PC8009
1UF/25V
PC8009
1UF/25V
12
PC8026
0.1UF/25V
PC8026
0.1UF/25V
12
PC8003
2200PF/50V
PC8003
2200PF/50V
1
PT8003
TPC28T
PT8003
TPC28T
1 2
PR8002
20mOhm
PR8002
20mOhm
1 2
PJP8006
SHORT_PIN
/X
PJP8006
SHORT_PIN
/X
21
PL8002
70Ohm/100Mhz
PL8002
70Ohm/100Mhz
12
PR8019
23.2KOhm 1%
PR8019
23.2KOhm 1%
1
PT8004
TPC28T
PT8004
TPC28T
12
PC8005
10UF/25V
c1206_h75
PC8005
10UF/25V
c1206_h75
1 2
PC8016
1UF/25V
PC8016
1UF/25V
12
PR8025
1KOhm 1%
PR8025
1KOhm 1%
12
PC8015
0.1UF/25V
PC8015
0.1UF/25V
1 2
PR8006
0Ohm
/X
PR8006
0Ohm
/X
1 2
PJP8002
SHORT_PIN
/X
PJP8002
SHORT_PIN
/X
1 2
PR8011
100KOhm
PR8011
100KOhm
1 2
PR8018
0Ohm
PR8018
0Ohm
12
PC8025
0.01UF/25V
/X
PC8025
0.01UF/25V
/X
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
P_VCORE_BST_20
P_VCORE_EN#_10mil
P_VCORE_IN_Shape
P_VCORE_OCR_10
P_VCORE_EN_10mil
P_VCORE_SRC_60
P_VCORE_TON_10
P_VCORE_LG_20
P_VCORE_EN_10mil
P_VCORE_UG_20
P_VCORE_VOUT_10
P_VCORE_HG_20
P_VCORE_PHASE_20 P_VCORE_PHASE_Shape
P_VCORE_FB_10
P_VCORE_IN_Shape
CPU_VRON[30,83,86]
VRM_PWRGD[30,86]
CPU_VID3 [5]
CPU_VID2 [5]
GND
GND
GND
GND
+5VS
GND
GND
GND
GND
GND
GND
+5VS
+3VS
+VCORE
AC_BAT_SYS
GND
GND
GND
AC_BAT_SYS
+5VS
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
81 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_VCORE
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
81 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_VCORE
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
81 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_VCORE
1.0
<Variant Name>
F83T
Voltage
0
0.95V
1.1V
VID3
0
S3/S5
0
VID2 Status
1
1
0
1
S5
+Vcore / 15A
0.8V
S0
1
1.15V
Isat=40A
Idc=25A
DCR=1.6mohm
Soft-Star duration is 1.35ms
I in = Vo*Io/( 0.75 * Vin) =1.16A
2. Frequency:
Ton=3.85p*Rt(on)/Vin-05=0.3us
Frequency=Vout/(Vin*Ton)
=500KHZ
Iripple=3.5A
Power stage
2. Ripple Current:
L-side MOSFET:
Rds(on)max=7.6mOhm
(Vgs=4.5V)
Icont=35A (T=25)
Ipeak=140A (Pause<10us)
5.Inrush Current:
C total =470UF
I inrush=0.38A
SetPR8105=12K
Iocp=Rocp*20/Rds(on)=12*20/7.6=31.6A
Controller
1. Voltage & Current:
1. I/P Current:
VCORE: 15A
3. OCP:
Ipeak=15A
ESR=9mohm
V=122mV
4. Inductor Spec:
4. Soft start time:
3. Dynamic:
5. MOSFET Spec:
1.24V
1.096V
0.95V
0.805V
21
PL8102
70Ohm/100Mhz
PL8102
70Ohm/100Mhz
12
PJP8102
SHORT_PIN
/X
PJP8102
SHORT_PIN
/X
GND2
18
GND3
19
GND4
20
GND5
21
PU8101B
UP6111AQDD
PU8101B
UP6111AQDD
12
PC8101
0.1UF/25V
c0603
PC8101
0.1UF/25V
c0603
12
PJP8103
SHORT_PIN
/X
PJP8103
SHORT_PIN
/X
1
2
3
PD8101
BAT54CW
PD8101
BAT54CW
12
PC8108 820PF/50VPC8108 820PF/50V
1 2
PC8109
0.1UF/25V
PC8109
0.1UF/25V
12
PR8105
6.2KOhm
PR8105
6.2KOhm
2
61
PQ8104A
UM6K1N
PQ8104A
UM6K1N
1
PT8102
TPC28T
PT8102
TPC28T
12
PJP8101
SHORT_PIN
/XPJP8101
SHORT_PIN
/X
1
PT8101
TPC28T
PT8101
TPC28T
1
2
354 6
7
DS
G
8
7
6
5
PQ8103
RJK0353DPA-00-J0
DS
G
8
7
6
5
PQ8103
RJK0353DPA-00-J0
1 2
PR8109
28.7KOhm
r0603
PR8109
28.7KOhm
r0603
1
2
354 6
7
DS
G
8
7
6
5
PQ8102
RJK0353DPA-00-J0
DS
G
8
7
6
5
PQ8102
RJK0353DPA-00-J0
12
+
PCE8102
220UF/2V
/X
+
PCE8102
220UF/2V
/X
12
PC8103
10UF/25V
c1206_h75
PC8103
10UF/25V
c1206_h75
12
PR8114
0Ohm
/X
PR8114
0Ohm
/X
12
PC8102
10UF/25V
c1206_h75
PC8102
10UF/25V
c1206_h75
1 2
PR8108 174KOhmPR8108 174KOhm
12
PR8113
100KOhm
PR8113
100KOhm
21
PL8103
0.56UH
Irat=25A
PL8103
0.56UH
Irat=25A
1
PT1
TPC26T
PT1
TPC26T
5
34
PQ8104B
UM6K1N
PQ8104B
UM6K1N
12
PC8110
4700PF/25V
PC8110
4700PF/25V
21
PL8101
70Ohm/100Mhz
PL8101
70Ohm/100Mhz
12
PC8106
1UF/6.3V
PC8106
1UF/6.3V
1 2
PR8111
22KOhm
PR8111
22KOhm
1 2
PR8104
0Ohm
PR8104
0Ohm
12
PR8103
10KOhm
PR8103
10KOhm
12
PC8107
1UF/6.3V
PC8107
1UF/6.3V
12
PR8106
1Ohm
PR8106
1Ohm
12
+
PCE8101
470uF/2V
+
PCE8101
470uF/2V
1
PT8103
TPC28T
PT8103
TPC28T
12
PR8107
12.7KOHM
PR8107
12.7KOHM
1
2
3
4
5
GS
D
PQ8101
PH9030AL
GS
D
PQ8101
PH9030AL
1 2
PR8102
510KOhm
PR8102
510KOhm
1 2
PR8110
40.2KOhm
PR8110
40.2KOhm
1 2
PR8101
0Ohm
PR8101
0Ohm
1 2
PR8112
80.6KOhm
PR8112
80.6KOhm
VOUT
1
VCC
2
FB
3
POK
4
NC1
5
AGND
6
PGND
7
LGATE
8
PVCC 9
IMAX 10
PHASE 11
UGATE 12
BOOT 13
NC2 14
EN_PSM 15
TON 16
GND1 17
PU8101A
UP6111AQDD
PU8101A
UP6111AQDD
12
PC8104
1000PF/50V
PC8104
1000PF/50V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
P_+1.8V_SUR_60
P_+1.8V_UG_20
+1.8VO +1.8V
0.9VO_REF_15
P_+1.8V_HG_20
P_+1.8V_VDD_20
P_+1.8V_VOUT_10
P_+1.8V_FB_10
P_+1.8V_LG_20
P_+1.8V_TON_10
P_+1.8V_PHASE_20
P_+1.8V_EN_10
P_+1.8V_OC_10
P_+1.8V_IN_SHAPE
SUSC_EC#[30,57,86,87]
+1.8V_PWRGD[86]
AC_BAT_SYS
+5VO
+5VO
+1.8V
+5VO
+1.8VO
GND
GND
GND
GND
GND
+5V
GND
+1.8VO
GND
+1.8VO
+0.9V
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
82 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_+1.8V&+0.9V
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
82 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_+1.8V&+0.9V
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
82 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_+1.8V&+0.9V
1.0
<Variant Name>
(12.2A/4.76A)
0602
25mil 25mil
VTT_DDR / 0.5A
Controller
3. OCP:
Soft-Star duration is 1.35ms
Iripple=2.342A
3. Ripple Voltage:
2. Ripple Current:
+1.8V:+1.8V&8A
Ipeak=(vin-vo)*D/(L*Fsw)=3.25A
ESR=18mohm
V=58.5mV
Ton=3.85p*Rt(on)/Vin-05=0.3us
Frequency=Vout/(Vin*Ton)
=500KHZ
4. Soft start time: H-side and L-side MOSFET:
Rds(on)=16.5mOhm (Vgs=4.5V)
Icont=30A (T=25)
Ipeak=120A (Pause<10us)
Power stage
I in = Vo*Io/( 0.8 * Vin) =0.947A
4. Inductor Spec:
C total =100uF
I
inrush=0.133A
5.Inrush Current:
1. Voltage & Current:
Isat=22A
Idc=11A
DCR=9mohm
2. Frequency:
Set PR7343=18kohm
Iocp=Rocp*20/Rds(on)
=20*18/16.5=21.8A
1. I/P Current:
5. MOSFET Spec:
1
PT8220
TPC28T
PT8220
TPC28T
12
PC8215
1UF/6.3V
PC8215
1UF/6.3V
12
PJP8201
SHORT_PIN
/x
PJP8201
SHORT_PIN
/x
1 2
PR8202
4.7Ohm
PR8202
4.7Ohm
VIN
1
GND1
2
REFIN
3
VOUT
4NC1 5
VCNTL 6
NC2 7
NC3 8
GND2 9
PU8203A
UP7711U8
PU8203A
UP7711U8
12
PC8209
1000PF/50V
PC8209
1000PF/50V
1
2
354 6
7
D
S
G
8
7
6
5
PQ8201
RJK0355DPA-00-J0
D
S
G
8
7
6
5
PQ8201
RJK0355DPA-00-J0
12
PC8213
0.1UF/25V
c0603
PC8213
0.1UF/25V
c0603
12
PC8202
10UF/25V
PC8202
10UF/25V
1
2
354 6
7
D
S
G
8
7
6
5
PQ8202
RJK0355DPA-00-J0
D
S
G
8
7
6
5
PQ8202
RJK0355DPA-00-J0
1
PT8224
TPC28T
PT8224
TPC28T
1
PT8230
TPC28T
PT8230
TPC28T
1 2
PC8220
0.1UF/25V
PC8220
0.1UF/25V
21
PL8204
70Ohm/100Mhz
Irat=3A
PL8204
70Ohm/100Mhz
Irat=3A
1
PT8250
TPC26T
PT8250
TPC26T
1 2
PR8205
18KOhm
PR8205
18KOhm
1
PT8229
TPC28T
PT8229
TPC28T
12
PR8204
0Ohm
PR8204
0Ohm
1
PT8223
TPC28T
PT8223
TPC28T
12
PC8221
10UF/25V
/x
PC8221
10UF/25V
/x
1
PT8221
TPC28T
PT8221
TPC28T
12
PJP8203
SHORT_PIN
/x
PJP8203
SHORT_PIN
/x
12
PC8218
10UF/6.3V
c0805
PC8218
10UF/6.3V
c0805
21
PL8201
70Ohm/100Mhz
Irat=3A PL8201
70Ohm/100Mhz
Irat=3A
12
PJP8205
SHORT_PIN
/x
PJP8205
SHORT_PIN
/x
1 2
PR8213
10KOhm
PR8213
10KOhm
1
122
PJP8202
3MM_OPEN_5MIL/X
PJP8202
3MM_OPEN_5MIL/X
1
PT8227
TPC28T
PT8227
TPC28T
1 2
PR8201
0Ohm
PR8201
0Ohm
1
2
3
PD8202
BAT54CW
PD8202
BAT54CW
21
PL8203
1UH
PL8203
1UH
12
PC8207
1UF/6.3V
PC8207
1UF/6.3V
GND3
10
GND4
11
GND5
12
GND6
13
PU8203B
UP7711U8
PU8203B
UP7711U8
1 2
PC8210
820PF/50V
PC8210
820PF/50V
12
PC8214
0.1UF/25V
c0603
PC8214
0.1UF/25V
c0603
VOUT
1
VCC
2
FB
3
POK
4
NC1
5
AGND
6
PGND
7
LGATE
8
PVCC 9
IMAX 10
PHASE 11
UGATE 12
BOOT 13
NC2 14
EN_PSM 15
TON 16
GND1 17
GND2 18
GND3 19
PU8201
UP6111AQDD
PU8201
UP6111AQDD
12
PR8223
10KOhm
PR8223
10KOhm
12
PC8206
1UF/6.3V
PC8206
1UF/6.3V
12
+
PCE8202
100UF/2.5V
+
PCE8202
100UF/2.5V
1
PT8226
TPC28T
PT8226
TPC28T
21
PL8202
70Ohm/100Mhz
Irat=3A
PL8202
70Ohm/100Mhz
Irat=3A
1
PT8219
TPC28T
PT8219
TPC28T
12
PR8224
10KOhm
PR8224
10KOhm
1
122
PJP8204
3MM_OPEN_5MIL/X
PJP8204
3MM_OPEN_5MIL/X
12
PR8206
1Ohm
PR8206
1Ohm
12
PR8225
0Ohm
PR8225
0Ohm
1 2
PR8211
14.7KOhm
PR8211
14.7KOhm
12
PC8201
0.047UF/25V
/X
PC8201
0.047UF/25V
/X
12
PR8209
402KOhm
PR8209
402KOhm
1
PT8222
TPC28T
PT8222
TPC28T
12
PD8201
1N4148WS
/X
PD8201
1N4148WS
/X
12
PC8204
0.1UF/25V
c0603
PC8204
0.1UF/25V
c0603
12
PC8217
10UF/6.3V
c0805
PC8217
10UF/6.3V
c0805
12
PR8203
510KOhm
1%
PR8203
510KOhm
1%
1
PT8202
TPC28T
PT8202
TPC28T
1
PT8225
TPC28T
PT8225
TPC28T
1
PT8228
TPC28T
PT8228
TPC28T
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
P_+3VS_SWGATE_20
P_+1.8VS_SWGATE_20
P_+5VS_SWGATE_20
P_+VCC_NB_SWGATE_20
SUSB_EC#[30,43,45,57,86,88,90]
CPU_VRON[30,81,86]
+1.8VS
+1.8VO
+12V
+3VSUSO
+5VO
+3VS
+12VS
+3VSUSO +3V
+1.2VSUSO
+1.2V_CPU_NB_SB
+12VS
+5VO
+1.1V_NB
+VCC_NB
+1.2VSUSO
+5VS
+0.9V
+0.9VS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
83 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_LOAD SWITCH OTHER
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
83 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_LOAD SWITCH OTHER
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
83 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_LOAD SWITCH OTHER
1.0
<Variant Name>
15mil
15mil
10mil
15mil
1
PT8308
TPC28T
PT8308
TPC28T
12
PC8312
10UF/6.3V
c0805
PC8312
10UF/6.3V
c0805
1
PT8306
TPC28T
PT8306
TPC28T
1
PT8309
TPC28T
PT8309
TPC28T
2
61
PQ8350A
UM6K1N
PQ8350A
UM6K1N
12
PC8307
0.01UF/25V
MLCC/+/-10%
c0603
PC8307
0.01UF/25V
MLCC/+/-10%
c0603
12
PR8352
10KOhm
PR8352
10KOhm
1
PT8302
TPC28T
PT8302
TPC28T
12
PC8321
0.01UF/25V
/X
PC8321
0.01UF/25V
/X
12
PR8310
100KOhm
1%
PR8310
100KOhm
1%
1
122
PJP8303
3MM_OPEN_5MIL/X
PJP8303
3MM_OPEN_5MIL/X
12
PC8303
MLCC/+/-10%
0.01UF/25V
c0603
PC8303
MLCC/+/-10%
0.01UF/25V
c0603
1
2
3
5 4
DS
G
8
7
6
5
PQ8306
SI7326DN_T1_E3
DS
G
8
7
6
5
PQ8306
SI7326DN_T1_E3
1
2
3
5 4
6
7
DS
G
8
7
6
5
PQ8310
RJK0355DPA-00-J0
DS
G
8
7
6
5
PQ8310
RJK0355DPA-00-J0
1
2
3
5 4
DS
G
8
7
6
5
PQ8301
SI7326DN_T1_E3
DS
G
8
7
6
5
PQ8301
SI7326DN_T1_E3
1 2
PR8320
0Ohm
r0603_h24
PR8320
0Ohm
r0603_h24
12
PC8351
0.1UF/25V
MLCC/+/-10%
c0603 N/A
PC8351
0.1UF/25V
MLCC/+/-10%
c0603 N/A
1
PT8314
TPC28T
PT8314
TPC28T
1
PT8322
TPC28T
PT8322
TPC28T
1
PT8310
TPC28T
PT8310
TPC28T
1
PT8305
TPC28T
PT8305
TPC28T
1
122
PJP8301
3MM_OPEN_5MIL/X
PJP8301
3MM_OPEN_5MIL/X
12
PR8307
100KOhm
/X
PR8307
100KOhm
/X
1
PT8311
TPC28T
PT8311
TPC28T
12
PC8353
0.1UF/25V
MLCC/+/-10%
c0603
PC8353
0.1UF/25V
MLCC/+/-10%
c0603
12
PC8310
4.7uF/6.3V
PC8310
4.7uF/6.3V
1
PT8301
TPC28T
PT8301
TPC28T
5
34
PQ8350B
UM6K1N
PQ8350B
UM6K1N
12
PR8306
100KOhm
PR8306
100KOhm
12
PC8311
0.01UF/25V
PC8311
0.01UF/25V
1
PT8303
TPC28T
PT8303
TPC28T
12
PC8313
10UF/6.3V
c0805
/X
PC8313
10UF/6.3V
c0805
/X
12
PC8302
4.7uF/6.3V
PC8302
4.7uF/6.3V
1
PT8304
TPC28T
PT8304
TPC28T
1
2
3
5 4
DS
G
8
7
6
5
PQ8304
SI7326DN_T1_E3
DS
G
8
7
6
5
PQ8304
SI7326DN_T1_E3
1
PT8312
TPC28T
PT8312
TPC28T
21
PL8301
70Ohm/100Mhz
Irat=3A PL8301
70Ohm/100Mhz
Irat=3A
BB
EE
CC
12 3
46
47K
47K
47K
10K
PQ8308
UMC4N
BB
EE
CC
12 3
46
47K
47K
47K
10K
PQ8308
UMC4N
1
PT8315
TPC28T
PT8315
TPC28T
1
2
3
5 4
DS
G
8
7
6
5
PQ8302
SI7326DN_T1_E3
DS
G
8
7
6
5
PQ8302
SI7326DN_T1_E3
12
PC8314
10UF/6.3V
c0805
PC8314
10UF/6.3V
c0805
12
PC8315
10UF/6.3V
c0805
/X
PC8315
10UF/6.3V
c0805
/X
1
122
PJP8305
3MM_OPEN_5MIL/X
PJP8305
3MM_OPEN_5MIL/X
12
PC8301
4.7uF/6.3V
PC8301
4.7uF/6.3V
12
PR8304
100KOhm
PR8304
100KOhm
12
PR8353
150KOHM
PR8353
150KOHM
21
PL8302
70Ohm/100Mhz
Irat=3A
PL8302
70Ohm/100Mhz
Irat=3A
12
PC8320
0.1UF/25V
c0603
PC8320
0.1UF/25V
c0603
12
PC8352
0.1UF/25V
c0603
PC8352
0.1UF/25V
c0603
1 2
PR8302
200KOhm
PR8302
200KOhm
1
2
3
5 4
DS
G
8
7
6
5
PQ8323
SI7326DN_T1_E3
/X
DS
G
8
7
6
5
PQ8323
SI7326DN_T1_E3
/X
1
PT8307
TPC28T
/X PT8307
TPC28T
/X
12
PR8351
100KOhm
1%
PR8351
100KOhm
1%
1
122
PJP8307
3MM_OPEN_5MIL/X
PJP8307
3MM_OPEN_5MIL/X
12
PC8306
4.7uF/6.3V
PC8306
4.7uF/6.3V
1
PT8313
TPC28T
PT8313
TPC28T
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
84 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
84 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
84 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
1.0
<Variant Name>
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
P_+1.2VSUS_EN_10
P_+1.2VSUS_VDD_20
P_+1.2VSUS_TON_10
P_+1.2VSUS_VOUT_10
P_+1.2VSUS_SUR_60
P_+1.2VSUS_FB_10
P_+1.2VSUS_LG_20
P_+1.2VSUS_HG_20
+1.2VSUSO +1.2VSUS
P_+1.2VSUS_UG_20
P_+1.2VSUS_OC_10
P_+1.2VSUS_PHASE_20
P_+1.2VSUS_IN_shape
ENBL[87]
SUS_PWRGD[30,86]
+5VA
+5VA AC_BAT_SYS
+1.2VSUS
+5VA
+1.2VSUSO
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
85 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_1.2VSUS
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
85 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_1.2VSUS
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
85 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_1.2VSUS
1.0
<Variant Name>
0602
0604
(6.08A/4.73A)
2. Frequency:
1. I/P Current:
4. Soft start time: 5. MOSFET Spec:
1. Voltage & Current:
I in = Vo*Io/( 0.8 * Vin) =0.915A
5.Inrush Current:
Ton=3.85p*Rt(on)*Vo/Vin-05
Frequency=Vout/(Vin*Ton)
=500KHZ 4. Inductor Spec:
Soft-Star duration is 1.35ms H-side and L-side MOSFET:
Rds(on)=16.5mOhm (Vgs=4.5V)
Icont=30A (T=25)
Ipeak=120A (Pause<10us)
Controller
3. Ripple Voltage:
Ipeak=(Vin-Vo)*D/(L*Fsw)=2.24A
ESR=18mohm
V=40.32mV
2. Ripple Current:
Set PR7343=18Kohm
Iocp=Rocp*20/Rds(on)=21.9A
3. OCP:
Power stage
Isat=22A
Idc=11A
DCR=9mohm
+1.2VSUS:1.16V&12A
Iripple=2.915A
C total =100uF
I inrush=0.133A
VOUT
1
VCC
2
FB
3
POK
4
NC1
5
AGND
6
PGND
7
LGATE
8
PVCC 9
IMAX 10
PHASE 11
UGATE 12
BOOT 13
NC2 14
EN_PSM 15
TON 16
GND1 17
GND2 18
GND3 19
PU8501
UP6111AQDD
PU8501
UP6111AQDD
12
PC8505
1UF/6.3V
PC8505
1UF/6.3V
1
PT8516
TPC28T
PT8516
TPC28T
12
PC8503
10UF/25V
c1206_h75
PC8503
10UF/25V
c1206_h75
1 2
PC8510
820PF/50V
PC8510
820PF/50V
12
PC8501
0.47UF/16V
/x
PC8501
0.47UF/16V
/x
12
+
PCE8502
100UF/2.5V
+
PCE8502
100UF/2.5V
12
PJP8503
SHORT_PIN
/X
PJP8503
SHORT_PIN
/X
1
2
354 6
7
DS
G
8
7
6
5
PQ8502
RJK0355DPA-00-J0
DS
G
8
7
6
5
PQ8502
RJK0355DPA-00-J0
1 2
PR8503
4.7Ohm
PR8503
4.7Ohm
1 2
PR8506
18KOhm
PR8506
18KOhm
12
PJP8505
SHORT_PIN
/X
PJP8505
SHORT_PIN
/X
1 2
PR8501
0Ohm
PR8501
0Ohm
12
PR8507
402KOhm
PR8507
402KOhm
1
PT8510
TPC28T
PT8510
TPC28T
1 2
PR8508
5.49KOhm
PR8508
5.49KOhm
1
PT8508
TPC28T
PT8508
TPC28T
12
PC8507
1UF/6.3V
PC8507
1UF/6.3V
1 2
PC8504
0.1UF/25V
c0603
PC8504
0.1UF/25V
c0603
12
PJP8501
SHORT_PIN
/X
PJP8501
SHORT_PIN
/X
12
PR8502
510KOhm
1%
PR8502
510KOhm
1%
1
PT8511
TPC28T
PT8511
TPC28T
21
PL8502
70Ohm/100Mhz
PL8502
70Ohm/100Mhz
1 2
PC8520
0.1UF/25V
PC8520
0.1UF/25V
1
122
PJP8502
2MM_OPEN_5MIL
/X
PJP8502
2MM_OPEN_5MIL
/X
1 2
PR8516
1Ohm
r1206_h26
PR8516
1Ohm
r1206_h26
1
PT8514
TPC28T
PT8514
TPC28T
1
2
354 6
7
DS
G
8
7
6
5
PQ8501
RJK0355DPA-00-J0
DS
G
8
7
6
5
PQ8501
RJK0355DPA-00-J0
21
PL8503
1UH
PL8503
1UH
12
PC8502
10UF/25V
c1206_h75
PC8502
10UF/25V
c1206_h75
1
PT8507
TPC28T
PT8507
TPC28T
1 2
PR8520
0Ohm
r0603_h24
PR8520
0Ohm
r0603_h24
1
PT8513
TPC28T
PT8513
TPC28T
12
PR8509
10KOhm
PR8509
10KOhm
21
PL8501
70Ohm/100Mhz
PL8501
70Ohm/100Mhz
1
PT8519
TPC28T
PT8519
TPC28T
1
2
3
PD8502
BAT54CW
PD8502
BAT54CW
1 2
PR8504
0Ohm
r0603_h24
PR8504
0Ohm
r0603_h24
1
PT8509
TPC28T
PT8509
TPC28T
1
PT8518
TPC28T
PT8518
TPC28T
12
PD8501
1N4148WS
/X
PD8501
1N4148WS
/X
1
PT8512
TPC28T
PT8512
TPC28T
12
PC8513
1000PF/50V
PC8513
1000PF/50V
1
PT8515
TPC28T
PT8515
TPC28T
1
PT8517
TPC28T
PT8517
TPC28T
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SUSB_EC#
SUSB_EC#
SUS_PWRGD[30,85]
+1.8V_PWRGD[82]
VRM_PWRGD[30,81]
SUSB_EC# [30,43,45,57,83,88,90]
SUSC_EC# [30,57,82,87]
VSUS_ON [30,43,87]
CPU_VRON [30,81,83]
FORCE_OFF# [5,30,87]
ALL_SYSTEM_PWRGD [30]
+3VAO
+3VS
+3VSUSO
+3VS
+3VS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
86 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_GOOD_DETECTER
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
86 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_GOOD_DETECTER
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
86 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_GOOD_DETECTER
1.0
<Variant Name>
F83T
POWER GOOD DETECTER
0602
0613
12
PR8603
560KOhm
PR8603
560KOhm
5
34
PQ8601B
UM6K1N
PQ8601B
UM6K1N
1
23
PD8603
BAT54AW
PD8603
BAT54AW
1 2
PR8617
100KOhm
PR8617
100KOhm
1
PT8604
TPC28T
PT8604
TPC28T
12
PD8601
1N4148WS
PD8601
1N4148WS
1 2
PR8606
100KOhm
PR8606
100KOhm
1
PT8602
TPC28T
PT8602
TPC28T
1 2
PR8601
100KOhm
PR8601
100KOhm
1
122
PJP8601
SGL_JUMP/X
PJP8601
SGL_JUMP/X
1
PT8605
TPC28T
PT8605
TPC28T
1
122
PJP8603
SGL_JUMP
/X
PJP8603
SGL_JUMP
/X
2
61
PQ8601A
UM6K1N
PQ8601A
UM6K1N
1 2
PD8602
1N4148WS
PD8602
1N4148WS
1
122
PJP8604
SGL_JUMP/X
PJP8604
SGL_JUMP/X
1
PT8611
TPC28T
PT8611
TPC28T
1
PT8612
TPC28T
PT8612
TPC28T
12
PR8602
100KOhm
1%
/X
PR8602
100KOhm
1%
/X
1
PT8608
TPC28T
PT8608
TPC28T
1
PT8610
TPC28T
PT8610
TPC28T
1 2
PR8608
0Ohm
PR8608
0Ohm
1
PT8603
TPC28T
PT8603
TPC28T
1
PT8609
TPC28T
PT8609
TPC28T
1
PT8601
TPC28T
PT8601
TPC28T
12
PC8601
4.7uF/6.3V
MLCC/+/-10%
PC8601
4.7uF/6.3V
MLCC/+/-10%
12
PR8615
100KOhm
1%
/x
PR8615
100KOhm
1%
/x
1
PT8606
TPC28T
PT8606
TPC28T
1
PT8607
TPC28T
PT8607
TPC28T
1
122
PJP8602
SGL_JUMP/X
PJP8602
SGL_JUMP/X
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
P_+5V_PHASE_SHAPE
P_+3VSUS_PHASE_SHAPE
ENBL
VSUS_ON
+5V
+5VO
+3VSUSO
+3VSUS
P_+5V_UG_20
P_+3VSUS&+5V_IN_SHAPE
P_+3VSUS&+5V_IN_SHAPE
P_+3VSUS_UG_20
P_+3VSUS_+5V_REF_10
P_+3VSUS_FB_10
ENBL
P_+3VSUS_BOOT_20
P_+3VSUS_PHASE_20
P_+3VSUS_+5V_EN_10
P_+5V_VO_30
P_+3VSUS_LG_20 P_+5V_LG_20
P_+3VSUS_HG_20
P_+3VSUS_VO_40
P_+5V_BOOT_20
P_+5V_FB_10
P_+5V_PHASE_20
P_+5V_HG_20
P_SUS_SECFB_10
P_+5V_LG_20
P_+3VSUS_+5V_TON_10
P_+3VSUS_SUR_60 P_+5V_SUR_60
P_+5V_ENTRIP_10
P_+3VSUS_ENTRIP_10
SUSC_EC#
P_+5V_ENTRIP_10
FORCE_OFF#[5,30,86]
VSUS_ON[30,43,86]
ENBL [85]
SUSC_EC#[30,57,82,86]
+5V
+3VSUS
AC_BAT_SYS
+3VSUSO
+3VAO +3VA
+5VA
+12V
+5VO
AC_BAT_SYS
+5VO
+3VAO
+5VA
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
87 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_+5V&+3VSUS&+12VSUS
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
87 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_+5V&+3VSUS&+12VSUS
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A2
87 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_+5V&+3VSUS&+12VSUS
1.0
<Variant Name>
OCP=7A OCP=12A
0731
(3.54A/1.28A)
(5.95A/1.42A)
+5V:5.2V&3.58A
2. Frequency:
F=375KHZF=300KHZ
+3.VSUS
Controller
1.Voltage&Current:
+3VSUS:3.3V&3A
4. Soft start time:
2.Frequency:
C total = 88 uF
I inrush= 0.26 A
3.OCP:3. OCP:
Set PR8700=200KOhm
Iocp=Rocp/Rds(on)*1000000=7.1A
The Soft Star duration is 2ms 4.Inrush Current:
Set PR8701=200 Kohm
Iocp=Rocp/Rds(on)*1000000=12.1A
Ctotal=66uF
Iinrush=0.2475A
+5V:
5.Inrush Current:
1. Voltage & Current:
5.MOSFET Spec:
2. Ripple Current:
H-side MOSFET: RJK0355
Rds(ON)=28mohm (Vgs=4.5 V)
I cont = 9.6 A (T =25 )℃
I peak = 40 A (Pause =10 us)
L-side MOSFET: AP4800GM
Rds(on)=16.5mOhm (Vgs=4.5V)
Icont=30A (T=25)
Ipeak=120A (Pause<10us)
Irip=2.268A
1.I/P Current:
1. I/P Current:
Irip=2.656A
+5V:
3.Dymamic:
Isat=6A
Idc=5A
DCR=13mohm
3. Dynamic:
+3VSUS:
Ipeak=1.429A
ESR/3=16.7mohm
V=23.9mV
Iin=Vo*Io/(0.8*Vin)=0.65A
4.Inductor Spec:
2.Ripple Current:
Isat=6A
Idc=5A
DCR=13mohm
Power stage
Iin=Vo*Io/(0.8*Vin)=1A
Ipeak=1.96A
ESR/4=12.5mohm
V=24.5mV
4. Inductor Spec:
21
PL8701
70Ohm/100Mhz
Irat=3A PL8701
70Ohm/100Mhz
Irat=3A
21
PL8702
70Ohm/100Mhz
Irat=3A
PL8702
70Ohm/100Mhz
Irat=3A
12
PR8704
0Ohm
/XPR8704
0Ohm
/X
1
PT8704
TPC28T
PT8704
TPC28T
12
PD8791
RB751V-40
PD8791
RB751V-40
12
PJP8704
SHORT_PIN
/X
PJP8704
SHORT_PIN
/X
1
PT8723
TPC28T
PT8723
TPC28T
5
34
PQ8706B
UM6K1N
PQ8706B
UM6K1N
12
PC8717
10UF/6.3V
PC8717
10UF/6.3V
12
PC8702
10UF/25V
PC8702
10UF/25V
1
23
PD8702
BAT54SW
PD8702
BAT54SW
12
PR8720
200KOhm
PR8720
200KOhm
1
PT8705
TPC28T
PT8705
TPC28T
1
2
354
D
S
G
8
7
6
5
PQ8702
SI7326DN_T1_E3
D
S
G
8
7
6
5
PQ8702
SI7326DN_T1_E3
VIN
16
UGATE1 21
BOOT1 22
GND1
15
VO2
7
FB2 5
TONSEL 4
SKIPSEL
14 EN
13
LGATE2
12 PHASE2
11
REF 3
FB1 2
ENTRIP1 1
PGOOD 23
VREG5
17
SECFB
18
LGATE1 19
PHASE1 20
ENTRIP2 6
VREG3
8
BOOT2
9
UGATE2
10
VO1 24
GND2 25
PU8701A
RT8205CGQW
PU8701A
RT8205CGQW
1 2
PR8716
100KOhm
PR8716
100KOhm
1
PT8710
TPC28T
PT8710
TPC28T
12
PC8710
0.1UF/25V
PC8710
0.1UF/25V
1
PT8721
TPC28T
PT8721
TPC28T
1
122
PJP8701
1MM_OPEN_5MIL
/X
PJP8701
1MM_OPEN_5MIL
/X
1
2
354
D
S
G
8
7
6
5
PQ8701
SI7326DN_T1_E3
D
S
G
8
7
6
5
PQ8701
SI7326DN_T1_E3
12
PR8708
0Ohm
PR8708
0Ohm
12
PR8707
7.15KOHM
PR8707
7.15KOHM
1 2
PC8707
4700PF/25V
PC8707
4700PF/25V
1
PT8727
TPC28T
PT8727
TPC28T
12
PC8709
10UF/6.3V
PC8709
10UF/6.3V
12
+
PCE8701
150UF/4V
+
PCE8701
150UF/4V
12
PR8713
0Ohm
PR8713
0Ohm
1
PT8728
TPC28T
PT8728
TPC28T
1
PT8713
TPC28T
PT8713
TPC28T
12
PJP8703
SHORT_PIN
/X
PJP8703
SHORT_PIN
/X
12
PR8722
39KOhm
PR8722
39KOhm
1
PT8724
TPC28T
PT8724
TPC28T
1
PT8715
TPC28T
PT8715
TPC28T
12
PC8715
0.1UF/25V
PC8715
0.1UF/25V
21
PL8703
3.8UH
PL8703
3.8UH
12
PR8703
200KOhm
PR8703
200KOhm
12
PJP8705
SHORT_PIN
/X
PJP8705
SHORT_PIN
/X
1
PT8725
TPC28T
PT8725
TPC28T
1
PT8701
TPC28T
PT8701
TPC28T
1
PT8726
TPC28T
PT8726
TPC28T
12
PC8706
0.1UF/25V
PC8706
0.1UF/25V
1
PT8708
TPC28T
PT8708
TPC28T
1
PT8729
TPC28T
PT8729
TPC28T
12
PJP8707
SHORT_PIN
/X
PJP8707
SHORT_PIN
/X
1
PT8732
TPC28T
PT8732
TPC28T
12
PR8702
0Ohm
PR8702
0Ohm
1
PT8718
TPC28T
PT8718
TPC28T
12
PR8715
1Ohm
PR8715
1Ohm
1
PT8720
TPC28T
PT8720
TPC28T
GND3
26
GND4
27
GND5
28
GND6
29
PU8701B
RT8205CGQW
PU8701B
RT8205CGQW
1
23
PD8703
BAT54SW
PD8703
BAT54SW
1
PT8711
TPC28T
PT8711
TPC28T
12
PR8705
10KOhm
PR8705
10KOhm
12
PC8721
47PF/50V
PC8721
47PF/50V
1 2
PR8721
1KOhm
PR8721
1KOhm
1
2
3
PD8705
BAT54CW
PD8705
BAT54CW
1 2
PR8724
100KOhm
PR8724
100KOhm
12
+
PCE8702
100UF/6.3V
+
PCE8702
100UF/6.3V
21
PL8704
3.8UH
PL8704
3.8UH
12
PJP8708
SHORT_PIN
/X
PJP8708
SHORT_PIN
/X
12
PR8711
62KOhm
PR8711
62KOhm
12
PR8712
60.4KOhm
PR8712
60.4KOhm
12
PC8718
0.1UF/25V
PC8718
0.1UF/25V
1
2
354
D
S
G
8
7
6
5
PQ8704
SI7326DN_T1_E3
D
S
G
8
7
6
5
PQ8704
SI7326DN_T1_E3
12
PC8720
1UF/25V
PC8720
1UF/25V
1
PT8709
TPC28T
PT8709
TPC28T
1
PT8731
TPC28T
PT8731
TPC28T
1
PT8717
TPC28T
PT8717
TPC28T
2
61
PQ8706A
UM6K1N
PQ8706A
UM6K1N
12
PC8711
0.1UF/25V
PC8711
0.1UF/25V
1
PT8702
TPC28T
PT8702
TPC28T
1
PT8722
TPC28T
PT8722
TPC28T
1
PT8730
TPC28T
PT8730
TPC28T
12
PC8714
1000PF/50V
PC8714
1000PF/50V
1
PT8714
TPC28T
PT8714
TPC28T
12
PC8713
1000PF/50V
PC8713
1000PF/50V
12
PC8703
0.22UF/25V
PC8703
0.22UF/25V
12
PR8701
200KOhm
PR8701
200KOhm
1
122
PJP8706
3MM_OPEN_5MIL
/X
PJP8706
3MM_OPEN_5MIL
/X
1
PT8712
TPC28T
PT8712
TPC28T
12
PJP8702
SHORT_PIN
/X
PJP8702
SHORT_PIN
/X
1
PT8707
TPC28T
PT8707
TPC28T
1
PT8719
TPC28T
PT8719
TPC28T
12
PR8709
0Ohm
/X
PR8709
0Ohm
/X
1 2
PR8706
21.5KOhm
PR8706
21.5KOhm
12
PR8714
1Ohm
PR8714
1Ohm
1 2
PC8716
0.22UF/25V
PC8716
0.22UF/25V
12
PC8712
0.1UF/25V
PC8712
0.1UF/25V
1
PT8706
TPC28T
PT8706
TPC28T
12
PD8790
RB751V-40
PD8790
RB751V-40
12
PR8710
10KOhm
PR8710
10KOhm
1
PT8703
TPC28T
PT8703
TPC28T
12
PC8708
4700PF/25V
PC8708
4700PF/25V
1 2
PR8723
100KOhm
PR8723
100KOhm
1
PT8716
TPC28T
PT8716
TPC28T
1
122
PJP8709
3MM_OPEN_5MIL
/X
PJP8709
3MM_OPEN_5MIL
/X
1 2
PC8719
0.22UF/25V
PC8719
0.22UF/25V
12
PC8705
10UF/25V
PC8705
10UF/25V
1
2
354 6
7
D
S
G
8
7
6
5
PQ8703
RJK0355DPA-00-J0
D
S
G
8
7
6
5
PQ8703
RJK0355DPA-00-J0
12
PC8722
1000PF/50V
MLCC/+/-10%
/X
PC8722
1000PF/50V
MLCC/+/-10%
/X
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+2.5V_CPU_VDDA
P_+1.5VS_FB_10
P_+1.5VS_VCNTL_10
P_2.5VS_FBJP_10
P_+2.5VSO_S
P_2.5VS_EN_10 P_2.5VS_FB_10
SUSB_EC#[30,43,45,57,83,86,90]
GND
GND GND
+1.8VO
GND
GND
+1.5VS
GND
+5VS
GNDGNDGND
GND
+3VS
+2.5V_CPU_VDDA
GND
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
88 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_+2.5V&+1.5VS&+1.1V_NB
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
88 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_+2.5V&+1.5VS&+1.1V_NB
1.0
<Variant Name>
F83T
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
88 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_+2.5V&+1.5VS&+1.1V_NB
1.0
<Variant Name>
F83T
+2.5VS / 100mA
1. Dropout Voltage:
2. Current Limit:
T ss = 400us
C total =10uF
I inrush =
0.063A
I cont =
300mA
5. EN Voltage:
Rthjc = 250 /W℃
Pd = 0.4W
6. Supply Voltage:
2.5V @ 0.1A
V = 0.21V ( Io =0.3A )△
7. Inrush current:
V rising = 2V
V falling =
0.8V
3. Continue Current:
Vcc =3V
I limit =320mA
4. Power Dissipation:
12
PC8819
10UF/6.3V
c0805
PC8819
10UF/6.3V
c0805
12
PR8818
10Ohm
PR8818
10Ohm
12
PC8822
10UF/6.3V
PC8822
10UF/6.3V
1
PT8810
TPC28T
PT8810
TPC28T
12
PC8809
1UF/6.3V
PC8809
1UF/6.3V
1 2
PC8898
0.22UF/25V
/X
PC8898
0.22UF/25V
/X
1 2
PR8817
10KOhm
PR8817
10KOhm
21
PL8802
70Ohm/100Mhz
Irat=3A
PL8802
70Ohm/100Mhz
Irat=3A
1
PT8814
TPC28T
PT8814
TPC28T
1
PT8813
TPC28T
PT8813
TPC28T
1 2
PR8816
8.66KOhm
PR8816
8.66KOhm
1 2
PC8899
0.22UF/25V
/X
PC8899
0.22UF/25V
/X
1 2
PR8898
0Ohm
r0603_h24
PR8898
0Ohm
r0603_h24
EN
1
GND
2
VIN
3VOUT 4
NC/SS/FB 5
PU8802
UP7714BMA5-00
PU8802
UP7714BMA5-00
12
PC8820
0.1UF/25V
PC8820
0.1UF/25V
1
PT8805
TPC28T
PT8805
TPC28T
12
PJP35
SHORT_PIN
/XPJP35
SHORT_PIN
/X
12
1000PF/50V
PC8816
1000PF/50V
PC8816
1
PT8804
TPC28T
PT8804
TPC28T
12
PD8810
1N4148WS
/X
PD8810
1N4148WS
/X
1
PT8807
TPC28T
PT8807
TPC28T
1
PT8808
TPC28T
PT8808
TPC28T
1
PT8803
TPC28T
PT8803
TPC28T
POK
1
EN
2
VIN
3
CNTL
4REFIN 5
VOUT 6
FB 7
GND1 8
GND2 9
PU8804A
UP7706U8
PU8804A
UP7706U8
1 2
PR8807
22KOhm
PR8807
22KOhm
12
PR8810
10KOhm
PR8810
10KOhm
1
PT8809
TPC28T
PT8809
TPC28T
GND3
10
GND4 11
GND5 12
GND6
13
PU8804B
UP7706U8
PU8804B
UP7706U8
12
PC8811
10UF/6.3V
PC8811
10UF/6.3V
12
PD8811
1N4148WS
/X
PD8811
1N4148WS
/X
1 2
PR8899
0Ohm
r0603_h24
PR8899
0Ohm
r0603_h24
1
PT8806
TPC28T
PT8806
TPC28T
21
PL8801
70Ohm/100Mhz
Irat=3A
PL8801
70Ohm/100Mhz
Irat=3A
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+2.5VREF
PWRLIMIT# [5,30]
P_CHG_OUTC1_10[80]
+3VSUSO
+5VS+2.5VREF
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A3
89 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_Charger
2.1G
F83T
Limy_li
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A3
89 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_Charger
2.1G
F83T
Limy_li
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A3
89 91Tuesday, May 26, 2009
ASUSTek Computer INC.
Power_Charger
2.1G
F83T
Limy_li
<Variant Name>
POWER LIMIT CIRCUIT
1.3139V
(Iin*Rs+0.003)*25=1.3139 Iin=3.303A
1 2
PD8901
1N4148WS
PD8901
1N4148WS
1 2
PR8907
68KOhm
PR8907
68KOhm
12
PC8905
0.1UF/25V
PC8905
0.1UF/25V
1 2
PR8901
30KOHM
PR8901
30KOHM
1
3 2
PU8902
APL431LBAC
PU8902
APL431LBAC
1
PT8901
TPC28T
PT8901
TPC28T
12
PC8907
22UF/6.3V
PC8907
22UF/6.3V
1
34
52
+
-
V+
V-
PU8901
LMV321IDBVR
+
-
V+
V-
PU8901
LMV321IDBVR
GS
D
3
2
1
PQ8901
2N7002
GS
D
3
2
1
PQ8901
2N7002
12
PC8901
0.1UF/25V
PC8901
0.1UF/25V
12
PC8902
0.1UF/25V
PC8902
0.1UF/25V
12
PC8904
0.1UF/25V
PC8904
0.1UF/25V
12
PC8903
4700PF/50V
c0402
PC8903
4700PF/50V
c0402
1 2
PR8903
10KOhm
r0603_h24
PR8903
10KOhm
r0603_h24
1 2
PR8902
1KOhm
PR8902
1KOhm
12
PR8906
100KOhm
PR8906
100KOhm
1 2
PR8908
10KOhm
r0402_h16
PR8908
10KOhm
r0402_h16
12
PR8905
10KOhm
PR8905
10KOhm
12
PR8904
270KOhm
PR8904
270KOhm
12
PC8906
0.1UF/25V
PC8906
0.1UF/25V
1
PT8902
TPC28T
PT8902
TPC28T
12
PC8908
22UF/6.3V
PC8908
22UF/6.3V
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+VGA_VCOREO
+VGA_VCORE
P_+VGA_VCORE_UG_20
P_+VGA_VCORE_IN_shape
P_+VGA_VCORE_SUR_60
P_+VGA_VCORE_TON_10
P_+VGA_VCORE_FB_10 P_+VGA_VCORE_PHASE_20
P_+VGA_VCORE_HG_20
P_+VGA_VCORE_VDD_20
P_+VGA_VCORE_EN_10
P_+VGA_VCORE_BOOT_20
P_+VGA_VCORE_OC_10
P_+VGA_VCORE_LG_20
P_+VGA_VCORE_VOUT_10
SUSB_EC#[30,43,45,57,83,86,88]
PWRCNTL_0[72] PWRCNTL_1 [72]
+VGA_VCORE_PWRGD
5
,78]
+5VO
+VGA_VCOREO
+5VO
AC_BAT_SYS
+5VO
+VGA_VCORE
+1.1VS_VGA
+VCC_NB
+3VS_VGA_DELAY
+3VS_VGA_DELAY
+3VS
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
90 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_+VGA_VCORE
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
90 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_+VGA_VCORE
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
C
90 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_+VGA_VCORE
1.0
<Variant Name>
Normal
-5%
+10%
+5%1.106
1.043
PWRCNTL_1
0602
(20A)
1
1
VGA_VCORE
0
0
11
0
PWRCNTL_0
0604
0
0.95V~1.2V
0.964
1.185
1. I/P Current:
Power stage
Iripple=3.74A
Ton=3.85p*Rt(on)/Vin-05=0.3us
Frequency=Vout/(Vin*Ton)
=500KHZ
1. Voltage & Current:
2. Frequency:
Controller
5. MOSFET Spec:
I in = Vo*Io/( 0.75 * Vin) =0.85A
Isat=25A
Idc=15.5A
DCR=5.5mohm
Soft-Star duration is 1.35ms
Set PR8506=21.5kohm
Iocp=Rocp*20/Rds(on)=26A
3. Dynamic:
C total =220uF
I
inrush=0.163A
4. Soft start time:
5.Inrush Current:
4. Inductor Spec:
Ipeak=6.1A
ESR/2=4.5mohm
V=27.5mohm
3. OCP:
H-side and L-side MOSFET:
Rds(on)=16.5mOhm (Vgs=4.5V)
Icont=30A (T=25)
Ipeak=120A (Pause<10us)
+1.2VSUS: 16A
2. Ripple Current:
12
PC9013
0.1UF/25V
PC9013
0.1UF/25V
1
PT9005
TPC28T
PT9005
TPC28T
12
PR9009
402KOhm
PR9009
402KOhm
1 2
PR9016
10KOhm
PR9016
10KOhm
12
PC9007
1000PF/50V
PC9007
1000PF/50V
1 2
PJP9005
SHORT_PIN
/X
PJP9005
SHORT_PIN
/X
1
PT9014
TPC28T
PT9014
TPC28T
VOUT
1
VCC
2
FB
3
POK
4
NC1
5
AGND
6
PGND
7
LGATE
8
PVCC 9
IMAX 10
PHASE 11
UGATE 12
BOOT 13
NC2 14
EN_PSM 15
TON 16
GND1 17
GND2 18
GND3 19
PU9001
UP6111AQDD
PU9001
UP6111AQDD
1
PT9015
TPC28T
PT9015
TPC28T
1 2
PR9017
10KOhm
PR9017
10KOhm
12
PC9003
10UF/25V
c1206_h75
PC9003
10UF/25V
c1206_h75
1 2
PC9001
0.1UF/16V
c0603
/X
PC9001
0.1UF/16V
c0603
/X
1 2
PR9008
1Ohm
r1206_h26
PR9008
1Ohm
r1206_h26
1
PT9013
TPC28T
PT9013
TPC28T
1
2
3
PD9002
BAT54CW
PD9002
BAT54CW
1
PT9001
TPC28T
PT9001
TPC28T
12
PC9011
820PF/50V
MLCC/+/-10%
PC9011
820PF/50V
MLCC/+/-10%
1 2
PR9001
0Ohm
PR9001
0Ohm
12
PR9012
15KOhm
1%
PR9012
15KOhm
1%
1 2
PR9115
10KOhm
PR9115
10KOhm
21
PL9003
70Ohm/100Mhz
PL9003
70Ohm/100Mhz
12
PR9013
27KOhm
1%
PR9013
27KOhm
1%
1 2
PR9015
10KOhm
PR9015
10KOhm
1 2
PJP9003
SHORT_PIN
/X
PJP9003
SHORT_PIN
/X
1
PT9006
TPC28T
PT9006
TPC28T
1
2
354 6
7
DS
G
8
7
6
5
PQ9001
RJK0355DPA-00-J0
DS
G
8
7
6
5
PQ9001
RJK0355DPA-00-J0
1
PT9008
TPC28T
PT9008
TPC28T
12
PR9011
10KOhm
1%
PR9011
10KOhm
1%
12
PC9009
10UF/6.3V
PC9009
10UF/6.3V
1
PT9011
TPC28T
PT9011
TPC28T
12
PC9008
1UF/6.3V
PC9008
1UF/6.3V
1
PT9003
TPC28T
PT9003
TPC28T
21
PL9005
70Ohm/100Mhz
PL9005
70Ohm/100Mhz
12
PC9014
0.1UF/25V
PC9014
0.1UF/25V
1
2
354 6
7
DS
G
8
7
6
5
PQ9002
RJK0355DPA-00-J0
DS
G
8
7
6
5
PQ9002
RJK0355DPA-00-J0
1
PT9009
TPC28T
PT9009
TPC28T
1 2
PR9114
10KOhm
PR9114
10KOhm
1 2
PR9002
0Ohm
PR9002
0Ohm
1
PT9012
TPC28T
PT9012
TPC28T
12
+
PCE9001
220UF/2V
+
PCE9001
220UF/2V
1 2
PR9005
0Ohm
r0603_h24
PR9005
0Ohm
r0603_h24
12
PC9010
10UF/6.3V
/X
PC9010
10UF/6.3V
/X
1
PT9010
TPC28T
PT9010
TPC28T
1
PT9004
TPC28T
PT9004
TPC28T
1
122
PJP9002
3MM_OPEN_5MIL /X
PJP9002
3MM_OPEN_5MIL /X
2
61
PQ9003A
UM6K1N
PQ9003A
UM6K1N
12
PR9004
510KOhm
1%
PR9004
510KOhm
1%
1
PT9017
TPC28T
PT9017
TPC28T
12
PD9001
1N4148WS
/X
PD9001
1N4148WS
/X
1 2
PC9005
0.1UF/25V
c0603
PC9005
0.1UF/25V
c0603
1
122
PJP9004
3MM_OPEN_5MIL /X
PJP9004
3MM_OPEN_5MIL /X
1 2
PJP9001
SHORT_PIN
/X
PJP9001
SHORT_PIN
/X
12
PC9002
10UF/25V
c1206_h75
PC9002
10UF/25V
c1206_h75
21
PL9002
70Ohm/100Mhz
PL9002
70Ohm/100Mhz
12
PC9004
1UF/6.3V
PC9004
1UF/6.3V
1 2
PR9010
2.87KOhm
PR9010
2.87KOhm
21
PL9001
0.68UH
PL9001
0.68UH
1
PT9016
TPC28T
PT9016
TPC28T
1 2
PR9003
4.7Ohm
PR9003
4.7Ohm
1 2
PR9007
21.5KOhm
PR9007
21.5KOhm
1
PT9002
TPC28T
PT9002
TPC28T
1 2
PC9012
0.1UF/25V
PC9012
0.1UF/25V
1
PT9007
TPC28T
PT9007
TPC28T
5
34
PQ9003B
UM6K1N
PQ9003B
UM6K1N
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
91 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_History
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
91 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_History
1.0
<Variant Name>
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
A
91 91Tuesday, May 26, 2009
ASUSTeK COMPUTER INC
Power_History
1.0
<Variant Name>
Date:05/19/09
1.Del PQ8012&PR8035&PC8027 in 80_Powe_charge
Date:05/21/09
1.Chagne VCORE H-S MOS PQ8101 to PH9030AL
