USER MANUAL
2.5-10x40 Riescope with Green Laser
www.re-eld.com
Fireeld delivers high quality and durability to every intense moment. Fireeld products
consist of riescopes, ashlights, laser sights, reex sights, bore sights, AK and Quad
rail mounts, magazines, binoculars and other shooting accessories. Designed for heart
pounding, fast paced hunting, personal defense, or Xtreme shooting sports - Fireeld is the
key to victory.
Fireeld technology is designed to serve the next generation of shooters. Transform fear
to power, panic to excitement and chaos to glory with Fireeld. Prepare for victory with
the latest Fireeld products. Fireeld-Victory Justies Everything!
Shoot with condence from anywhere, at anytime, anyway! The Fireeld Riescope with Green Laser is
equipped with a red and green illuminated Mil Dot reticle that is used for range estimation to help nd the
distance between the shooter and the target. Precision multicoated optics are the distinguishing feature of the
Fireeld Tactical Riescope line and offers the clearest view in both bright and low light situations.
Featuring a built in 5mW green laser, the Fireeld Riescope, is used for target acquisition in rapid changing
environments, so it hits the target every time with precision accuracy. Starting with a low 2.5 magnication
for extra wide eld of view for scanning, the Fireeld Riescope with Green Laser has the ability to make
an accurate shot against a quick moving target with a laser for faster action when shooting from the hip. A
respectable zoom from 2.5-10x allows the shooter to make an accurate shot at a long distance and keep a tight
grouping.
The Fireeld Riescope with Green Laser also includes 100-500 yard .223 bullet drop compensation, which
adjusts the elevation of the reticle ensuring that the shooter can achieve zero by moving the compensation
turret to the correct yardage.
Waterproof and fog proof, the nitrogen lled Fireeld Riescope with Green Laser features windage and
elevation adjustment caps for a sleek, streamlined look to the scope. The Fireeld Riescope with Green Laser
features a lightweight and shockproof frame, for maximum portability and durability, so every adrenaline-lled
moment is intensied. Fireeld-Victory Justies Everything!
FIREFIELD 2.5-10x40 Riescope w/Green Laser
DIAGRAM
1
Reticle type Mil-dot
Reticle color red/green
Magnication 12.5-10x
Objective lens diameter 40mm
Exit pupil diameter 13.3-4.4mm
Eye relief 69-50mm
Field of view (ft @100yd) 34.86-11.53
Diopter adjustment 3 to -3
MOA adjustment (one click) 1/4”
Battery type (reticle/laser) CR2032/ 2x CR2
Battery life 80-150hr (reticle)
6.5hr (laser)
Lens coating Green multi-coated
Waterproof IPX4
Shockproof yes
Features:
• Mil-dot reticle
• Red/green illumination
• Built-in 5mW green laser
• 2.5-10x magnication
• IPX4 waterproof
• 100yd to 500yd .223 bulllet drop
compensation
Technical Specications:
Dimensions 215x88x80mm
Weight 20.5oz
2
DIAGRAM
1) Objective Lens
2) Windage / Elevation Adjustments
3) Magnication Adjustment
4) Diopter Adjustment
5) Reticle Illumination
6) Laser battery cap
7) Green Laser
8) Weaver Mount
1
3
4
8
6
Dimensions 215x88x80mm
Weight 20.5oz 7
2
5
3
INSTALLATION
During riescope installation it is important to strictly follow gun safety rules. The Fireeld 2.5-10x40 Riescope
with Green Laser comes with a built in weaver mount base. In order to install:
1) Loosen the mounting screws on the weaver mount (8) with a at head screw driver.
2) Mount the scope on the rie’s weaver base assuring the riescope is mounted evenly and the mounting bolt
is located in the groove of the weaver base.
3) Tighten the mounting screws on the weaver mount with a at head screw driver. Do not over tighten. Check
that the riescope is mounted evenly and securely on the rie.
4) Finalize the installation procedure by checking that the scope is mounted with proper eye relief.
Warning: Having the riescope mounted too close to the rear can injure the shooter during ring. Ensure the riescope is
properly mounted before ring to prevent injury.
4
BORESIGHTING THE RIFLESCOPE
Boresighting and test ring should be performed safely on a ring range. Laser boresights are a quick and
accurate method to sight in riescopes. Below is listed the traditional method of boresighting.
1) When mounting the riescope on a bolt action rie, remove the bolt; or when mounting to a semi automatic
rie, disassemble the rie until there is a straight line of sight through the bore.
2) Use a target at least 20 yards to 50 yards away when sighting in the riescope. Look through the bore of the
weapon and locate the bullseye of the target.
3) Sight in the target through the bore and then make windage and elevation adjustments (see “Operating
Windage and Elevation Adjustments” for instructions) to the riescope until the reticle is centered on the
bullseye.
To verify the riescope is accurately sighted in, always re a three-shot test group at 100 yards.
4) If you are still not centered, make the necessary amount of adjustments to move the reticle to the center
of the target.
5) Again re a three-shot test group, and use the center of the group to determine nal adjustments.
DIOPTER ADJUSTMENT
The diopter is the measurement of the eye’s curvature. Fireeld 2.5-10x40 Riescope with Green Laser has a
diopter adjustment (4) that helps attain a clear sharp reticle. If the reticle does not appear clear, crisp, or sharp,
rotate the diopter adjustment ring until the reticle becomes clear and sharp. The adjustment should stay the
same unless the riescope’s operator changes.
5
OPERATING WINDAGE AND ELEVATION ADJUSTMENTS
In order to make windage and elevation adjustments (2), remove the adjustment covers. The windage and
elevation adjustments are 1/4 MOA, meaning that 1click moves the point of impact 1/4 inch at 100 yards.
Adjustments can be both felt and heard allowing the shooter to make adjustments without looking at the dials.
MAGNIFICATION ADJUSTMENT
The Fireeld 2.5-10x40 Riescope with Green Laser comes
equipped with variable magnication options. By rotating the
magnication ring (3) to the desired setting, shooters can
nd a magnication that is appropriate for their shooting
scenario. Note: Do not loosen the screw located on the
magnication ring, doing so will cause problems with the
variable magnifcation function.
6
OPERATING THE ILLUMINATED RETICLE
The Fireeld 2.5-10x40 Riescope with Green Laser features an illuminated reticle.
Illuminating the reticle improves visual distinction between the target and the reticle
in low / poor lighting conditions. The reticle can be used in the following states: black
(off), red or green. Red and green illumination consists of ve levels of brightness. In
order to illuminate the reticle:

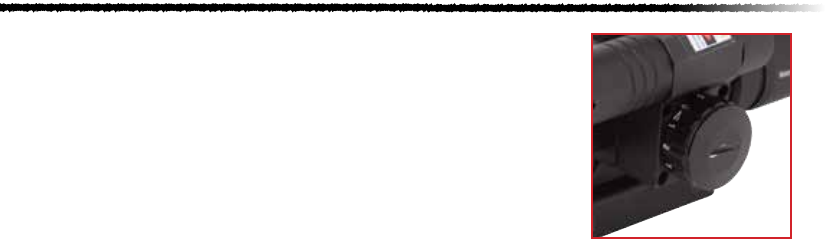

1) Rotate the reticle illumination adjustment (5) located on the left side of the riflescope
2) Turn the adjustment dial to the desired brightness level until the reticle
stands out against the target.
Note: Settings 1-3 are intended for use in low lighting conditions. Settings 4 and 5 are
intended for use in bright conditions.
OPERATING THE SIDE-MOUNTED LASER
The built-in 5mW green laser (7) is used for target acquisition in close range, rapidly changing environments. The
laser has built-in windage and elevation adjustments that allow the laser to be accurately sighted in with your rie.
To operate the laser:
1) Located the green laser on/off switch (6) and push the button located on the back of the switch to turn the laser on.
2) Push the button again to turn the laser off.
Warning: Never point the laser designator directly at, or into someone’s eye. This may cause damage to the eye,
or blindness. Avoid looking directly into the laser. Avoid shining the laser into mirrors or other reective surfaces.
7
REPLACING THE BATTERY
ILLUMINATED RETICLE
If the reticle appears dim or fails to illuminate, the battery needs to be replaced. The Fireeld 2.5-10x40
Riescope with Green Laser uses a CR2032 to illuminate its reticle. 3 volt CR2032 batteries can be purchased
at stores where batteries are sold or online. In order to replace the battery:
1) Remove the battery cap located on the reticle illumination adjustment (5) with a at head screw driver.
Rotate the cap counterclockwise until it is removed. It might be necessary to hold the illumination adjustment
in place to prevent it from rotating.
2) Remove the old battery and insert a new battery with positive (+) side up.
4) Replace the battery cap. Use a at head screw driver, rotate the cap clockwise until it is attached. It might be
necessary to hold the illumination adjustment in place to prevent it from rotating.
5) Check that the reticle illumination is now functioning properly.
5mW Green LASER
If the laser appears dim or fails to operate, the battery needs to be replaced. The Riescope with Green Laser
uses a CR2 battery. This battery can be purchased in stores where batteries are sold or online. In order to
replace the battery:
1) Grip the laser on/off switch (6) and rotate the on/off switch counterclockwise until it is removed.
2) Remove the old batteries and insert a new battery with positive (+) side up on both batteries.
3) Replace the on/ off switch and rotate clockwise until it is attached. Check to make sure laser is functioning.
8
MAINTENANCE
Proper maintenance of the riescope is recommended to ensure longevity. It is recommended that when the
riescope becomes dirty that it is wiped down with a dry or slightly damp cloth. Blow dirt and debris off all
optics and then clean lenses with a lens cleaning cloth. No further maintenance is required.
WARNING
Never allow children to use or handle this product. The Fireeld riescopes are nitrogen purged and o-ring
sealed unless otherwise noted. DO NOT disassemble the riescope for any reason as this will void the warranty
and could be hazardous. Any internal work should be handled by the manufacturer. Any tampering with the
purge screw will void the warranty. CAUTION: Use of controls or adjustments or performance of procedures
other than those specied herein may result in hazardous radiation exposure.
TROUBLESHOOTING
Never ship back a riescope without getting proper authorization beforehand. Doing so could result in losing the
riescope due to a multitude of reasons. If problems occur with your riescope:
1) Check the rearm’s mount and verify that it is securely attached to the rie. If there is any shifting, retighten the
mounting system.
2) When test ring a rie, check the point of impact relative to windage and elevation adjustments.
3) Be sure to use factory-loaded ammunition of the same bullet type, weight, and preferably lot number when
sighting.
FIREFIELD WARRANTY
Please visit www.re-eld.com for warranty details and information.
To view this manual in other languages visit www.re-eld.com
Product distributed by Sellmark
2201 Heritage Parkway
Manseld, TX 76063
LASER RADIATION:
Max Output: 5mW
Wavelength: 625-660nm
Do not stare into beam or view
directly with optical instruments
LASER RADIATION
AVOID EXPOSURE TO BEAM
CLASS 3R LASER PRODUCT
532nm
