THERMAL VISION
FOR PROFESSIONAL
MARINERS
CONTENTS
4 Thermal Imaging Basics
6 Commercial and First Responder Applications
8 Ocean Scout Handhelds
10 LS-Series Tactical Thermal Night Vision
12 BHM-Series Bi-Ocular Thermal Handhelds
14 MD-Series Fixed-Mount Thermal Imagers
16 M100/M200
18 M-Series with Gyro-Stabilization
20 M400 Multi-Sensor Camera System
22 M400XR Multi-Sensor Camera System
24 M500 Long Range Multi-Sensor Camera System

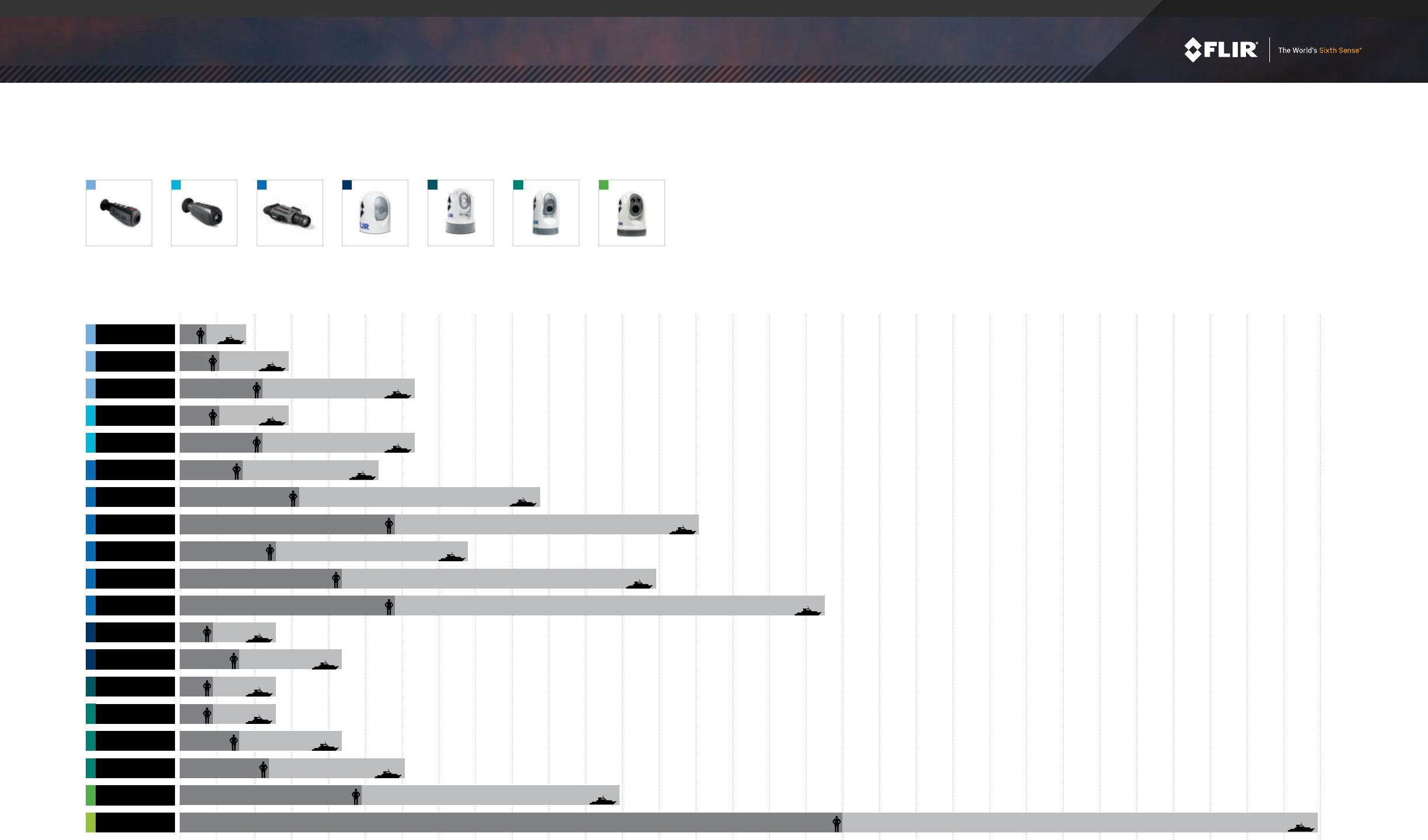

26 Product Range Comparison Chart
28 Image Resolutions
32 Specications
Whether you’re a commercial pro or first responder, FLIR maritime thermal imaging
systems turn night into day, keeping you safe, secure and underway with confidence.
WHY THERMAL IS BETTER
Thermal imaging cameras detect and display images based on tiny differences in heat,
not light. No matter how much light is available—from pitch black to moonlight to
severe midday glare–FLIR detectors capture the thermal energy emitted or reflected
by everything, even ice. FLIR cameras then convert changes in temperature into crisp
infrared video images, allowing you to see at night and navigate in total darkness.
NIGHTTIME ON THE WATER MADE SAFER– WITH FLIR
FROM THE SMALLEST PATROL BOATS TO
THE LARGEST OCEAN-GOING VESSELS,
FLIR MARITIME OFFERS CUTTING-EDGE
SOLUTIONS THAT ARE RUGGED, RELIABLE,
AND SIMPLE TO USE.
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
2 3
THERMAL IMAGING
BASICS
SAFETY AND SECURITY
Thermal imaging works night and day, in total
darkness or bright sunlight, through smoke, dust, and
even light fog to keep your passengers and crew safe
from hazards and threats.
ENHANCED AWARENESS
See natural and man-made hazards, such as
oating debris, rocks, ice, land, bridge abutments, and
other vessels.
SEARCH AND RESCUE
Thermal night vision helps you nd a person in the
water faster than any other night vision technology.
EASY TO USE
FLIR cameras and thermal video are incredibly
intuitive and easy to understand. Quite simply, what
you see is what you get.
VISION IN TOTAL DARKNESS
Daylight cameras, image intensied night vision (I2), and the human eye all create images from reected visible light. Traditional night vision scopes
and goggles all take in small amounts of visible light and magnify it. However, traditional imagers have the same limitations as the human eye: if
there isn’t enough light available, they don’t work well. Plus, during daylight and twilight hours, they aren’t useful either because there is too much
light for them to work effectively.
FLIR thermal cameras work both day and night, regardless of light. They’re totally immune to the effects of darkness, glare, or even direct sunlight.
RESOLUTION, DETAIL, AND RANGE
FLIR offers a range of thermal imaging cameras with varying levels of image resolution. Much like a digital camera, FLIR cameras with higher pixel
counts offer more detail, clarity, and range than models with less resolution. FLIR also offers models with advanced optics for extreme
long-range performance.
YOUR VISION
LOWER RESOLUTION IMAGERS PROVIDE GOOD, BASIC
TARGET DETECTION
HIGHER RESOLUTION THERMAL IMAGERS OFFER INCREASED
LEVELS OF DETAIL AND LONG-RANGE PERFORMANCE
TRADITIONAL GEN3 IMAGE INTENSIFIED
NIGHT VISION FLIR THERMAL IMAGE
FLIR MARINE THERMAL VISION | INTRODUCTION
4 5

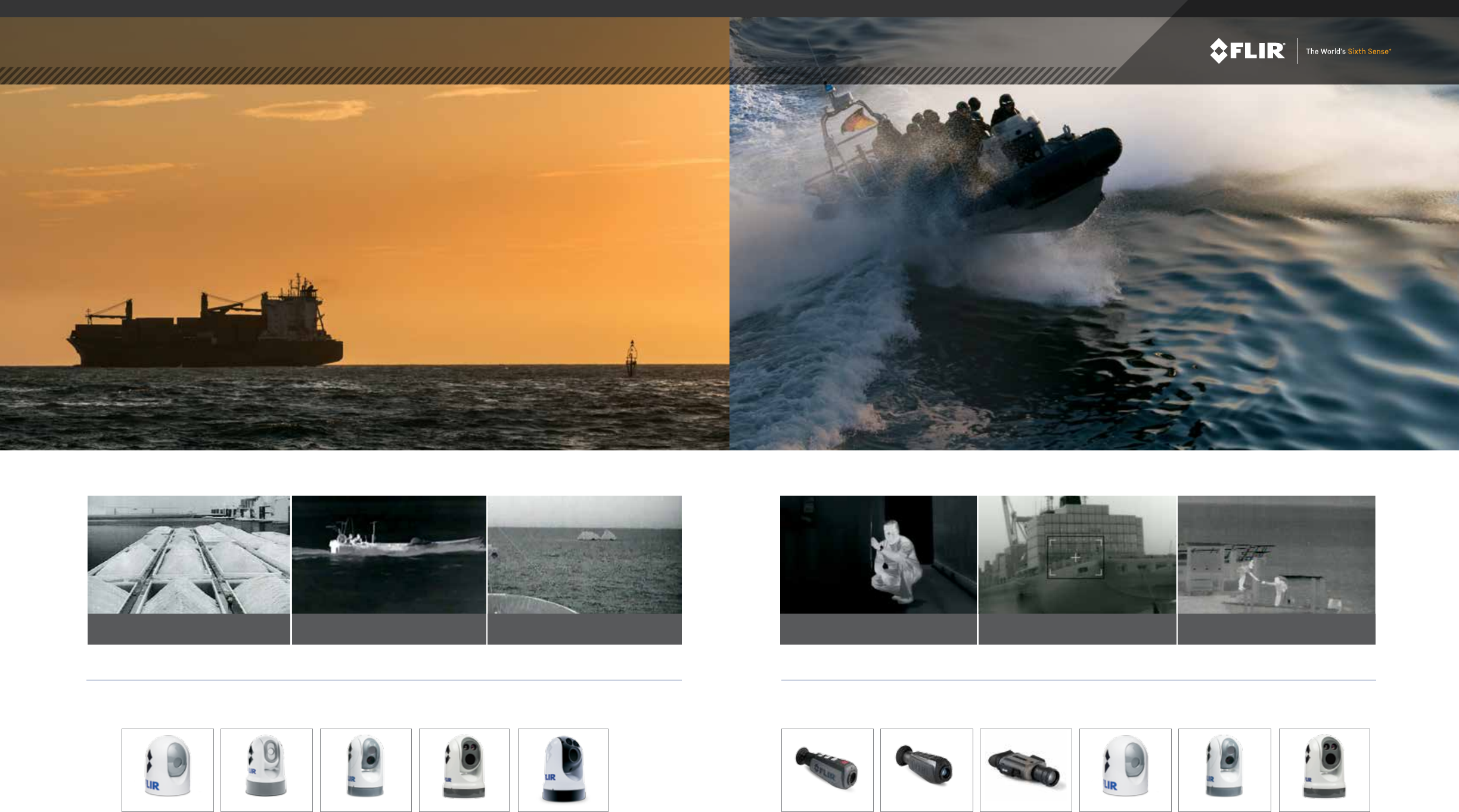

MONITOR CREW ON DECK TRACK POTENTIALLY
THREATENING VESSELS LOCATE ICEBERGS
RECOMMENDED COMMERCIAL SYSTEMS:
SEE SUSPECTS IN THE DARK GAIN SITUATIONAL AWARENESS WHEN
APPROACHING VESSELS OBSERVE LATE NIGHT ACTIVITY ON SHORE
Ocean Scout BHM-Series LS-Series MD Series M-Series M400
RECOMMENDED FIRST RESPONDER SYSTEMS:
M-SeriesM100/200MD Series M400 M500
FLIR FOR COMMERCIAL MARINERS
FLIR FOR FIRST RESPONDERS
THE SEA CAN BE A DANGEROUS PLACE, ESPECIALLY AT NIGHT
But professional mariners can’t call it a day when the weather turns foul. FLIR thermal imagers offer an “early
warning system” against common hazards so mariners can sail with condence, whatever the conditions. FLIR
maritime thermal imagers display the invisible heat energy from a myriad of potential hazards, including oating
debris, shipping lane trafc, vessels riding at anchor, and small boats. FLIR imagers can also reveal man-made
structures, such as buoys, bridge abutments, docks and piers. They can even spot icebergs and surfacing whales.
THERMAL VISION: THE 24/7 TACTICAL ADVANTAGE
First responders gain critical tactical awareness using FLIR thermal cameras, day or night, in good weather and bad.
With FLIR thermal vision you can observe suspicious activity in total darkness, quickly locate people in the water,
and avoid obstacles while going full throttle in response to emergencies. From border patrols to port security, search
and rescue to drug interdiction, FLIR thermal imaging cameras can greatly enhance critical mission success.
6 7
Commercial & First Responder Applications
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
*Actual range may vary depending on camera set-up, environmental conditions, and user experience.

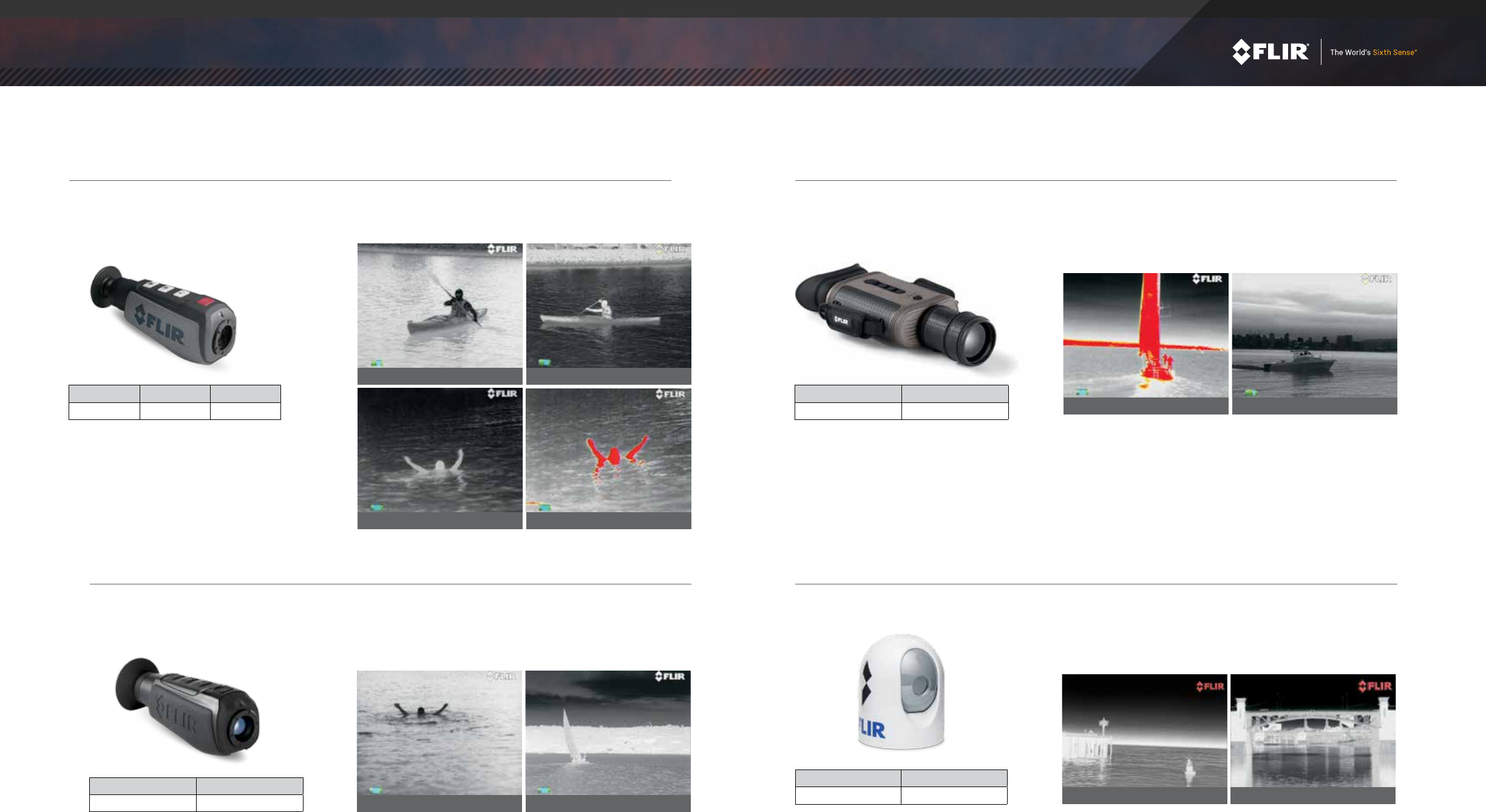

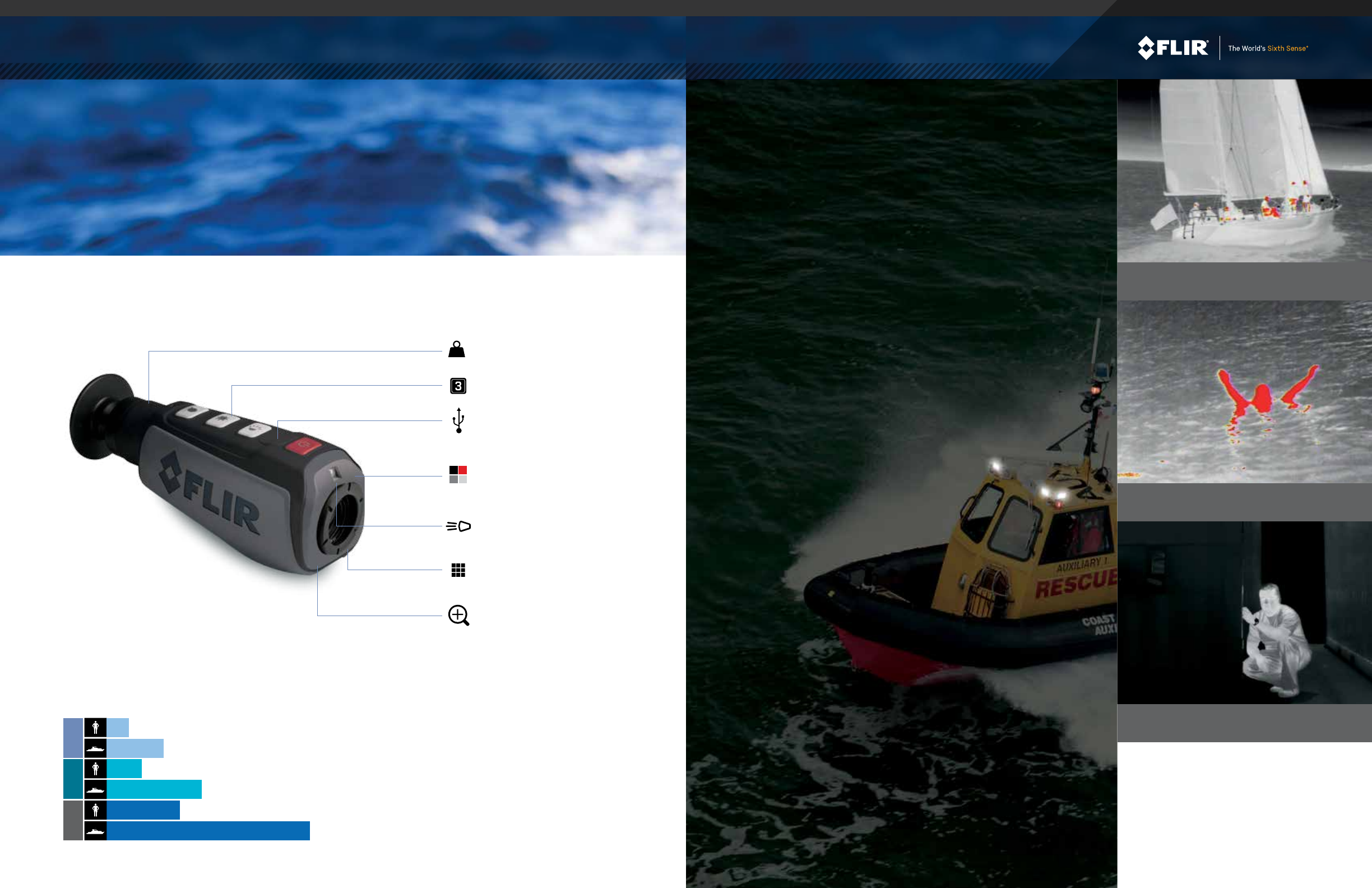

OCEAN SCOUT HANDHELD
PORTABLE THERMAL NIGHT VISION
Ocean Scout is a rugged, compact thermal night vision camera that reveals other vessels, landmarks, buoys, and oating
debris day or night. Equipped with a high-resolution LCD display and FLIR’s industry-leading sensor technology, Ocean Scout
puts enhanced situational awareness in your hand at a moment’s notice.
Compact, lightweight
Easy-to-use 3-button design
White Hot, Black Hot and InstAlert™
detection palettes
Available in 240 x 180, 336 x 256, and 640 x 512
(9 Hz) resolutions
Convenient LED spotlight for use when the
camera is powered off
OS 320
OS 640 OS 240
DETECTION RANGES*
~3,705 ft / 1.14 km
~1,150 ft / 350 m
~0.48 nm / 0.90km
~1,800 ft / 550 m
~0.84 nm / 1.5 km
~1.73 nm / 3.2 km
Analog video output sends camera display to
an external monitor or recorder (320 & 640)
2x E-Zoom available on 320, 2x and 4x on 640
ENHANCED AWARENESS
• See marine trafc and navigational aids at night.
• Quickly scan your surroundings for other vessels.
• Easily recognize buoys in river channels or open water.
• Detect key landmarks like islands or docks.
STEER CLEAR
• Navigate with condence day or night.
• Avoid obstacles, such as exposed rocks, oating logs, ice, and other debris.
• Be aware of kayakers, personal watercraft, and small boats without lights.
• Detect marine mammals on the surface of the water.
STAY SAFE
• A lifesaving tool for a “man overboard” emergency.
• Locate the body heat of anyone in the water.
• Quickly recognize people and pets overboard.
• InstAlert™ mode highlights the hottest objects in red.
For technical specications, turn to page 32
IDENTIFY OTHER VESSELS
FIND PEOPLE OVERBOARD FASTER
WITH INSTALERT™
SEARCH FOR EVIDENCE OR PURSUE A SUSPECT
IN TOTAL DARKNESS
8 9
FLIROcean Scout ™
LS-XLS-XR
~3,705 ft / 1.14 km
~1,800 ft / 550 m
~0.84 nm / 1.5 km
~1.73 nm / 3.2 km

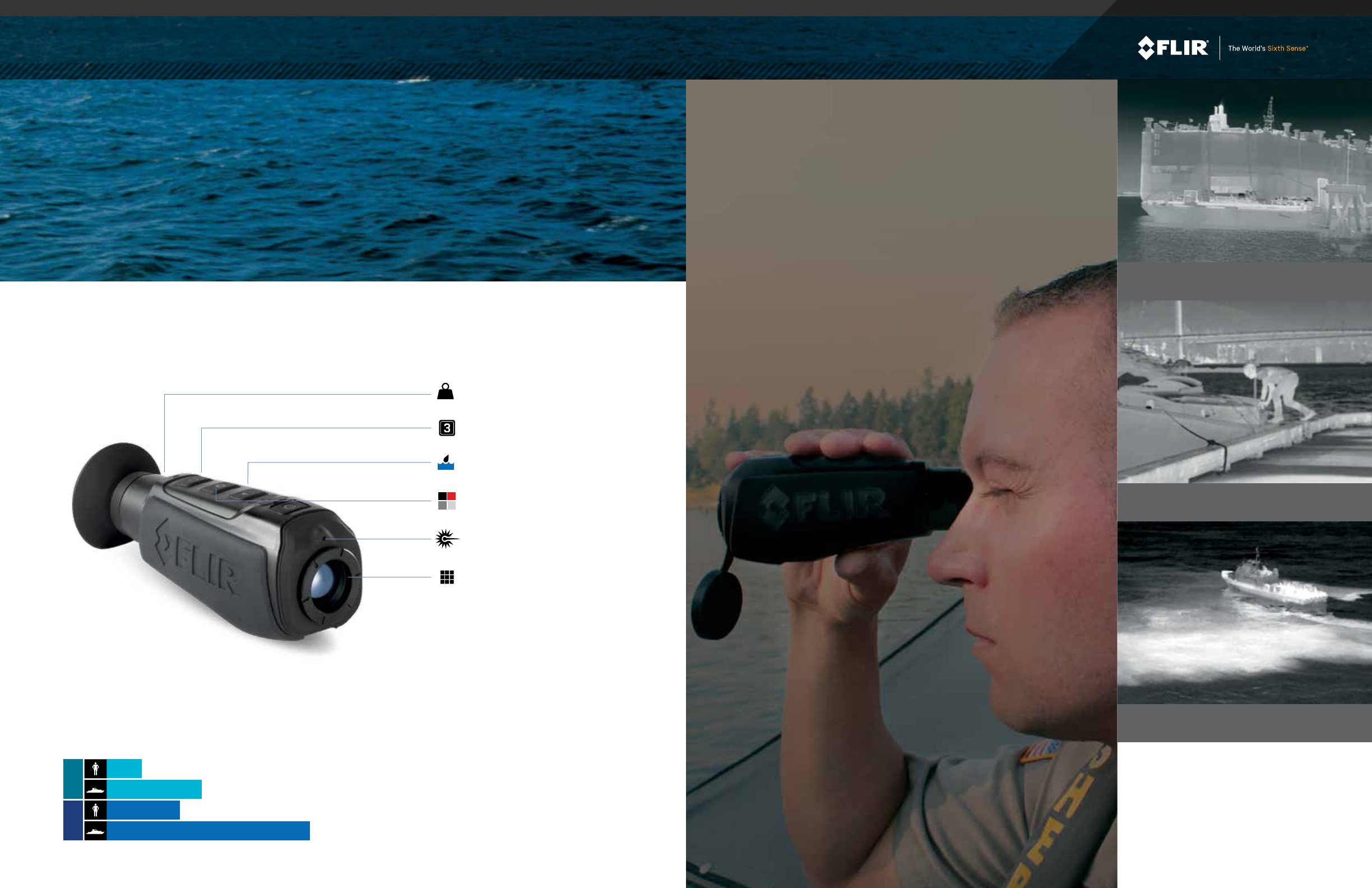

LS-SERIES TACTICAL THERMAL NIGHT VISION
THEY CAN RUN BUT THEY CAN’T HIDE
FLIR’s LS-X and LS-XR handheld thermal night vision monoculars are built specically for those who serve and protect. As
a proven force-multiplier, the LS-Series helps maritime rst responders see clearly at night while conducting search and
rescue missions, patrolling ports and harbors, assisting disabled boaters, and even responding to HAZMAT emergencies.
The new LS-X and the LS-XR feature enhanced resolution displays, extended zoom capabilities, a tactical marking laser,
and video output.
IMPROVED AWARENESS
• Enhanced high-resolution LCD display
• Video output capability
• Up to 8× magnication
SIMPLE OPERATION
• Starts up in seconds
• Multiple InstAlert™ levels call attention to hot objects
• Intuitive menu navigation
• Red marking laser for highlighting targets of interest or
hidden suspects
PORTABLE AND RUGGED
• Fits in packs, pockets or included Molle bag
• Rubberized armor protection from accidental drops
• Waterproof, all-weather construction
For technical specications, turn to page 32
MONITOR PORT ACTIVITIES
INVESTIGATE SUSPICIOUS BEHAVIOR
FIND OIL SLICKS AND OTHER TOXIC SPILLS
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
Compact and lightweight
Easy-to-use 3-button design
White Hot, Black Hot and InstAlert™
detection palettes
Available in 336 x 256 or 640 x 512 resolutions (30Hz)
Use the integrated marking laser to highlight targets
of interest not visible to other ofcers
IP67 Submersible (to (3.2ft / 1m)
DETECTION RANGES
10 11
FLIRLS-Series ™
BHM-XBHM-XR BHM-X
Bi-Ocular for extended viewing comfort
Ergonomic, easy-to-use controls
320 x 240 or 640 x 480 thermal resolution (9 or 30Hz options)
IP67 Submersible (to 3.2 ft/1 m)
Still image and video capture, up to 4× E-Zoom
Interchangeable lenses from 35 to 100 mm (sold separately)
35 mm
~2,887 ft / 880m
65 mm
~0.89nm/1.65 km
100 mm
~1.30 nm / 2.4 km
35 mm
~1.46 nm / 2.7 km
65 mm
~2.65 nm / 4.9 km
100 mm
~3.83 nm / 7.1 km
35 mm
~2.1 nm / 3.9 km
65 mm
~3.5 nm / 6.5km
100mm
~4.75 nm / 8.8 km
35 mm
~0.70 nm /1.3 km
65 mm
~1.18 nm / 2.2 km
100 mm
~1.59 nm / 2.95 km
DETECTION RANGES

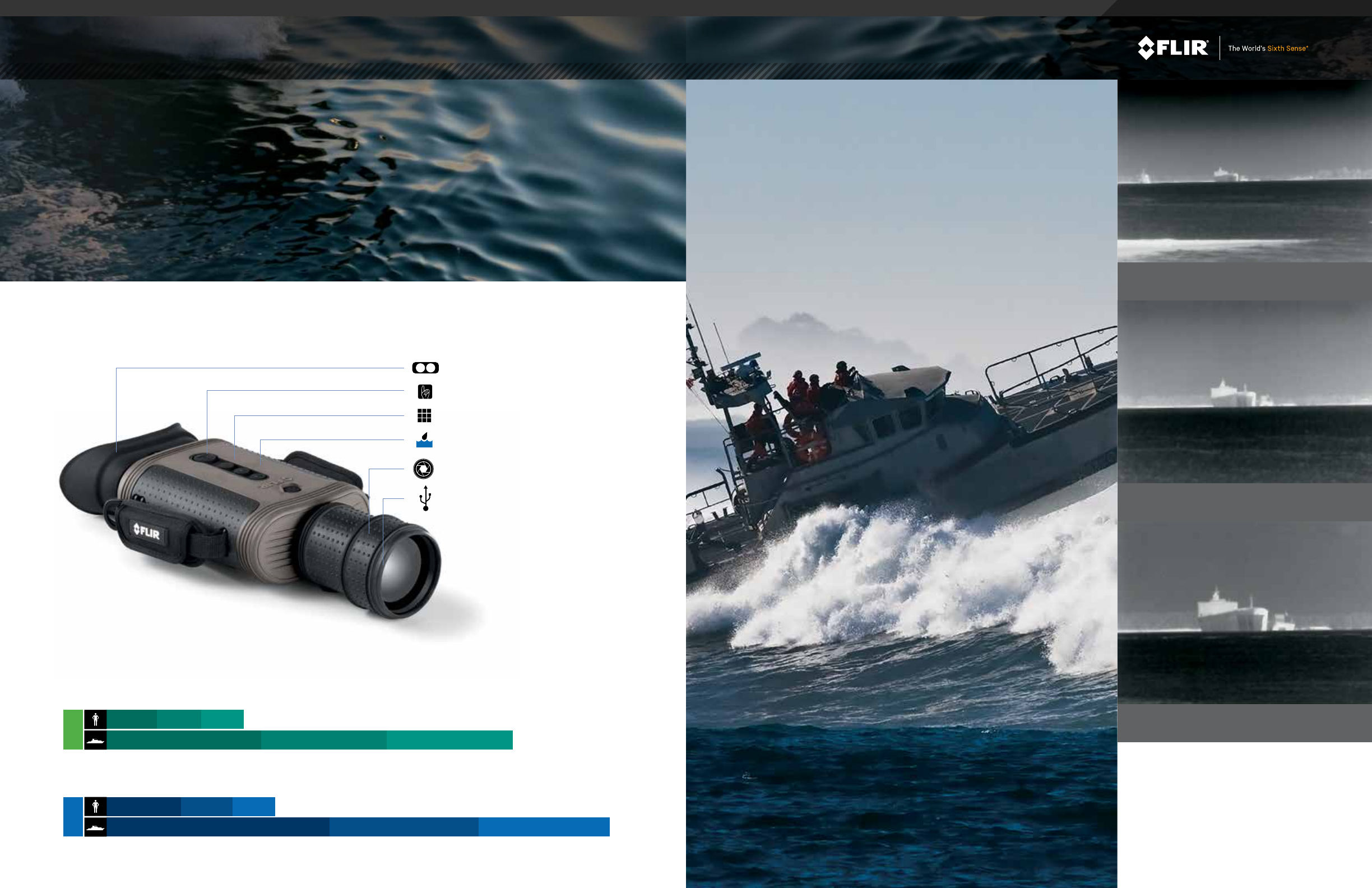

BHM-SERIES BI-OCULAR THERMAL HANDHELDS
SUPERIOR HANDHELD THERMAL VISION
BHM-Series cameras are the most powerful handheld thermal night vision camera for search and rescue operations
on the water. With interchangeable 35, 65, and 100 mm lenses, the BHM-Series handhelds can detect a small vessel at
a distance of more than ve nautical miles (up to 8.8 km). The bi-ocular design lets you use both eyes, and features a
full-coverage eyepiece, interocular adjustment, and ergonomic comfort—a must for extended use. The BHM-Series also
captures still images and video using an onboard SD card.
SIMPLE OPERATION
• Intuitive menu options
• Fast power & battery swap
• Multiple InstAlert™ levels call attention to hot objects
• Record stills and NTSC / PAL video to SD card
LONG RANGE DETECTION
• Up to 640 x 480 thermal resolution
• Interchangeable 35/65/100 mm lenses
• Detect small vessels up to distance of 5.5 miles (8.8 km)
PORTABLE AND RUGGED
• IP-67, submersible
• Camera body withstands 1 m drop
• Ergonomic comfort
For technical specications, turn to page 32
BHM-X WITH 35 MM LENS
BHM-X WITH 65 MM LENS
BHM-X WITH 100 MM LENS
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
12 13
FLIRBHM-Series ™
MD-324MD-625

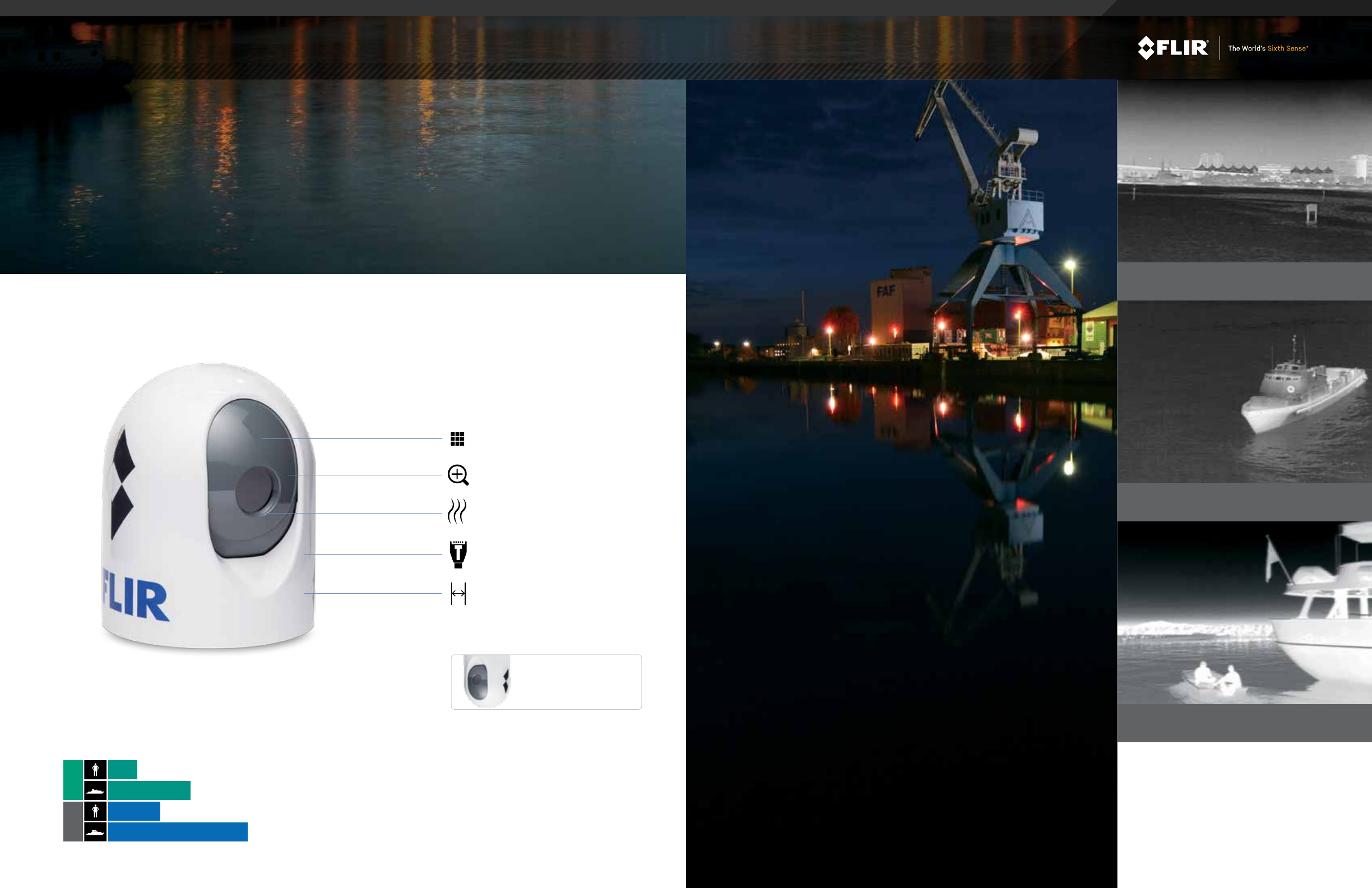

MD-SERIES FIXED MOUNT THERMAL VISION CAMERAS
COMPACT, EFFECTIVE AND SIMPLE THERMAL VISION
This affordable, xed-mount thermal night vision system helps you steer around obstacles, avoid collisions, and nd
people in the water, day or night. The MD camera body is simple to mount and easy to integrate into existing electronics.
320 x 240 or 640 x 480 resolutions produces clear,
detailed images
2x and 4x e-Zoom for extended
range performance
Slim prole (7" high and only 1.36 kg/3 lbs) for an
unobtrusive mount
Ethernet-enabled for simple integration into your
current electronics
~ 1,500 ft / 457 m
~ 0.67 nm / 1.3 km
~ 2,700 ft / 823 m
~1.2 nm / 2.2 km
DETECTION RANGES
MD Series can be installed ball
down or ball up
HIGH RESOLUTION THERMAL VISION
• Available in 320 x 240 / 640 x 480 resolutions
• 2× E-Zoom standard; 4x E-Zoom (MD-625)
• Detects small vessels up to 1.2 nm away
COMPACT, UNOBTRUSIVE MOUNTING
• Only 7” high and weighs 1.36 kg (3 lbs).
• All-weather, waterproof enclosure
• Ball-up or ball-down mounting options
INTEGRATES WITH EXISTING ELECTRONICS
• Ethernet-enabled, connects to most popular MFDs
• Optional control using iOS device via onboard Wi-Fi network
• Analog video output for easy connection to onboard monitors,
recorders, or DVR systems.
For technical specications, turn to page 33
EASILY SEE NAVIGATION AIDS MASKED BY
BRIGHT URBAN BACKGROUND LIGHTING
SPOT CROSSING TRAFFIC, OBSTACLES
AND HAZARDS
DETECT SMALL CRAFT, KAYAKERS
AND OTHER UNLIT VESSELS
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
Automatic window heaters keep optics free of ice
14 15
FLIRMD-Series ™

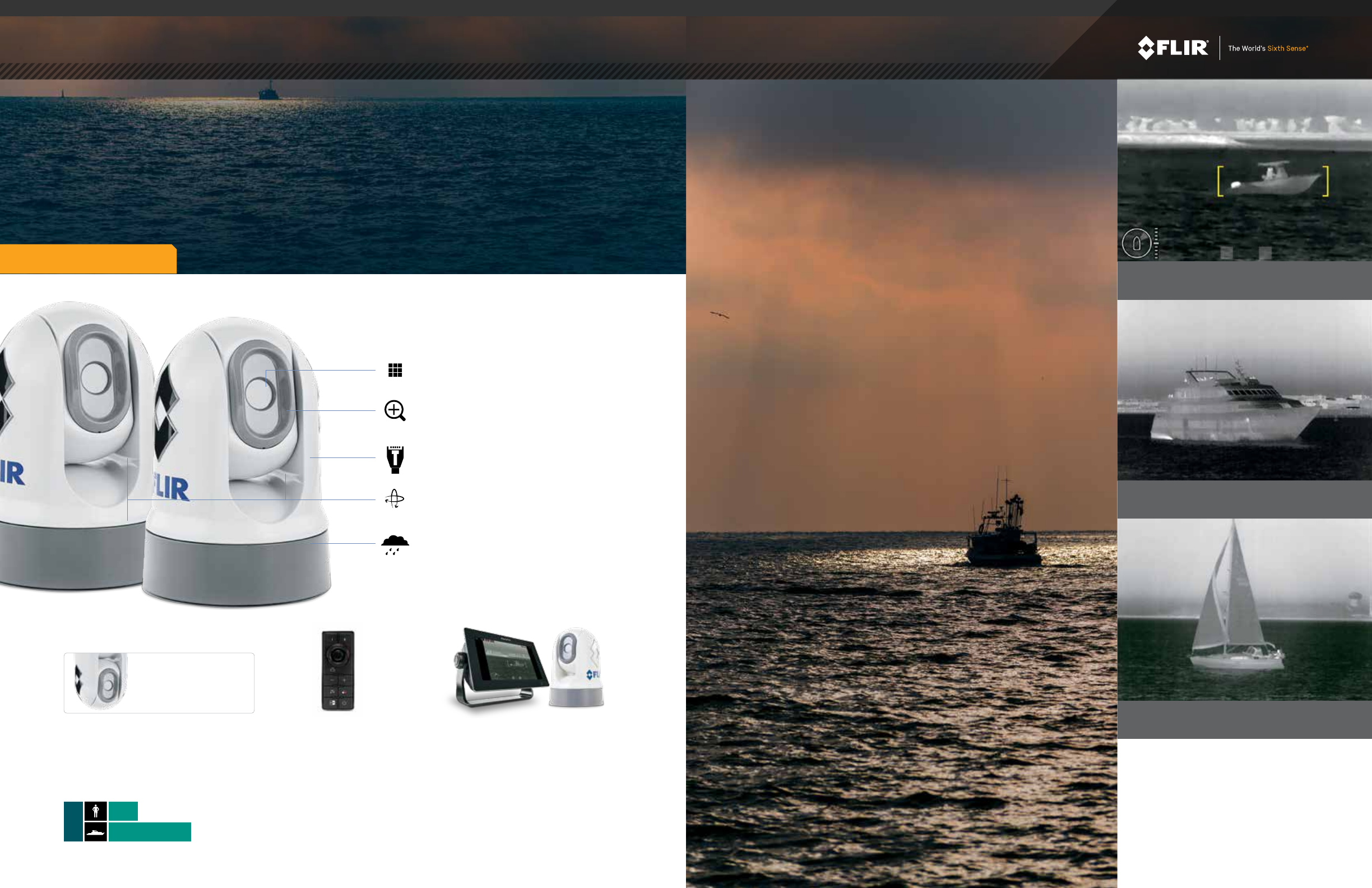

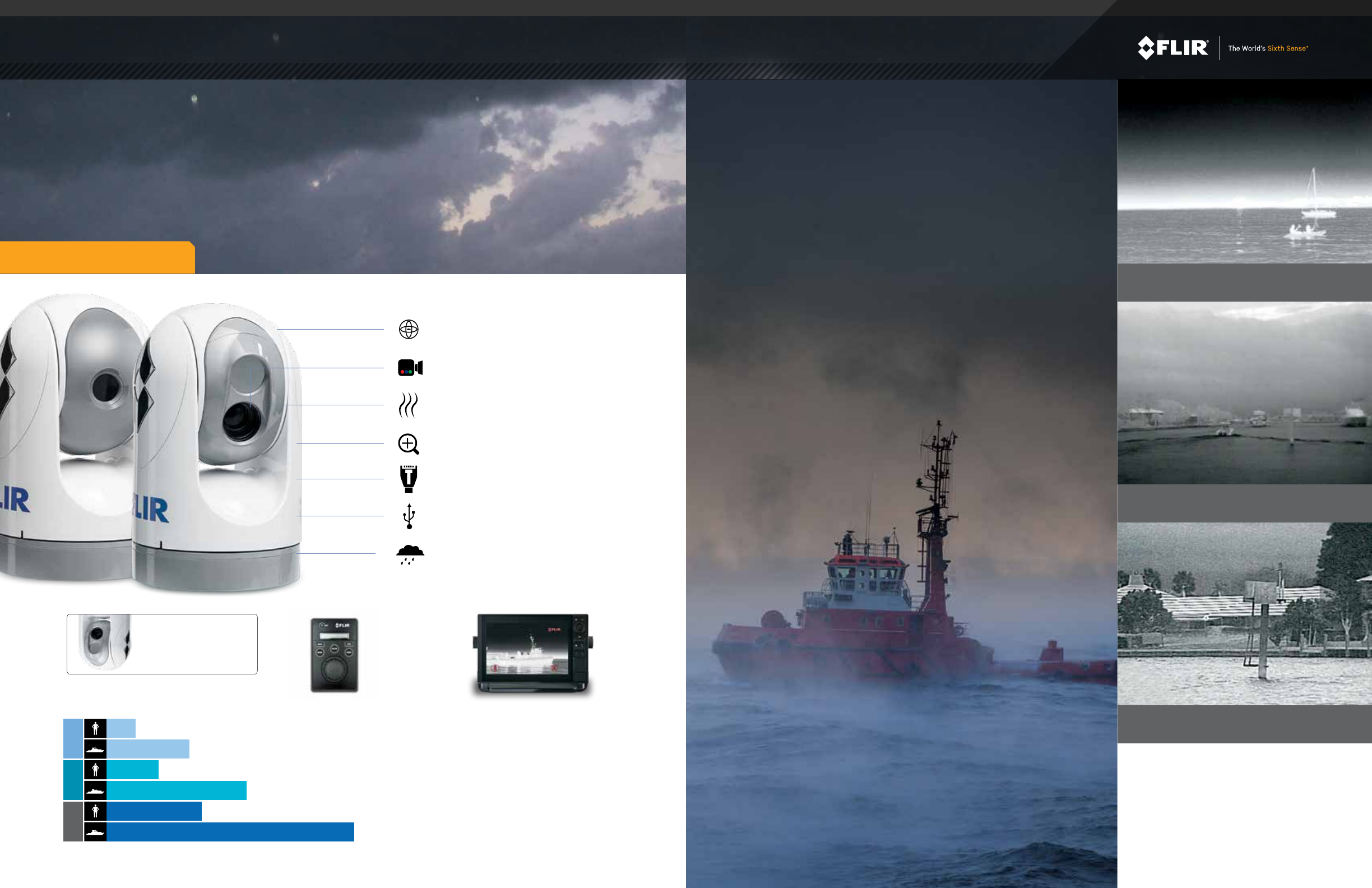

M132 AND M232 THERMAL VISION CAMERAS
DETECTION RANGES
THE POWER OF THERMAL VISION
• See bridges, docks, buoys, and debris in the water for improved
navigation and safety
• Thermal vision helps you see other vessels, avoid collisions, and
verify radar returns
• Helps boaters nd people in the water faster than with spotlights
and radar alone
MORE THERMAL CAPABILITY FOR LESS
• Full 320x240 resolution for optimal image detail
• The M200 is equipped with a pan/tilt housing for horizon-to-
horizon viewing
• 2X digital zoom for longer range performance
EASY INSTALLATION ON ANY VESSEL
• IP video for easier integration on multiple MFDs
• Smaller size and lighter weight make mounting easy
• M100’s tilt option lets you position the camera for optimum
visibility, whether you’re running fast or slow
For technical specications, turn to page 33
AVAILABLE CLEARCRUISE IR ANALYTICS ALERT YOU TO
HAZARDS AND OBSTACLES ON THE WATER**
GENUINE FLIR THERMAL TECHNOLOGY FOR CRISP,
CLEAR IMAGERY
4X CONTINUOUS DIGITAL ZOOM FOR ENHANCED
VIEWING OF DISTANT OBJECTS
M100-200
~ 1,500 ft / 457 m
~ 0.67 nm / 1.3 km
320x240 resolution for clear, detailed images (9Hz)
4x e-Zoom for extended range performance
Tilt only or full pan/tilt options
Ethernet-enabled for simple integration with your other electronics
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
ENHANCED AWARENESS WITH FLIR AND RAYMARINE
Combine the M132 or M232 with a Raymarine Axiom MFD and
take advantage of ClearCruise™ intelligent thermal analytics.
ClearCruise™ provides audible and visual alerts when “non-water”
objects such as boats, obstacles, or navigation markers are
identied in the scene.
Rugged, waterproof gimbal enclosure with automatic window
heaters for ice management.
Optional compact
JCU-3 controller
NAVIGATING AT NIGHT JUST GOT EASIER

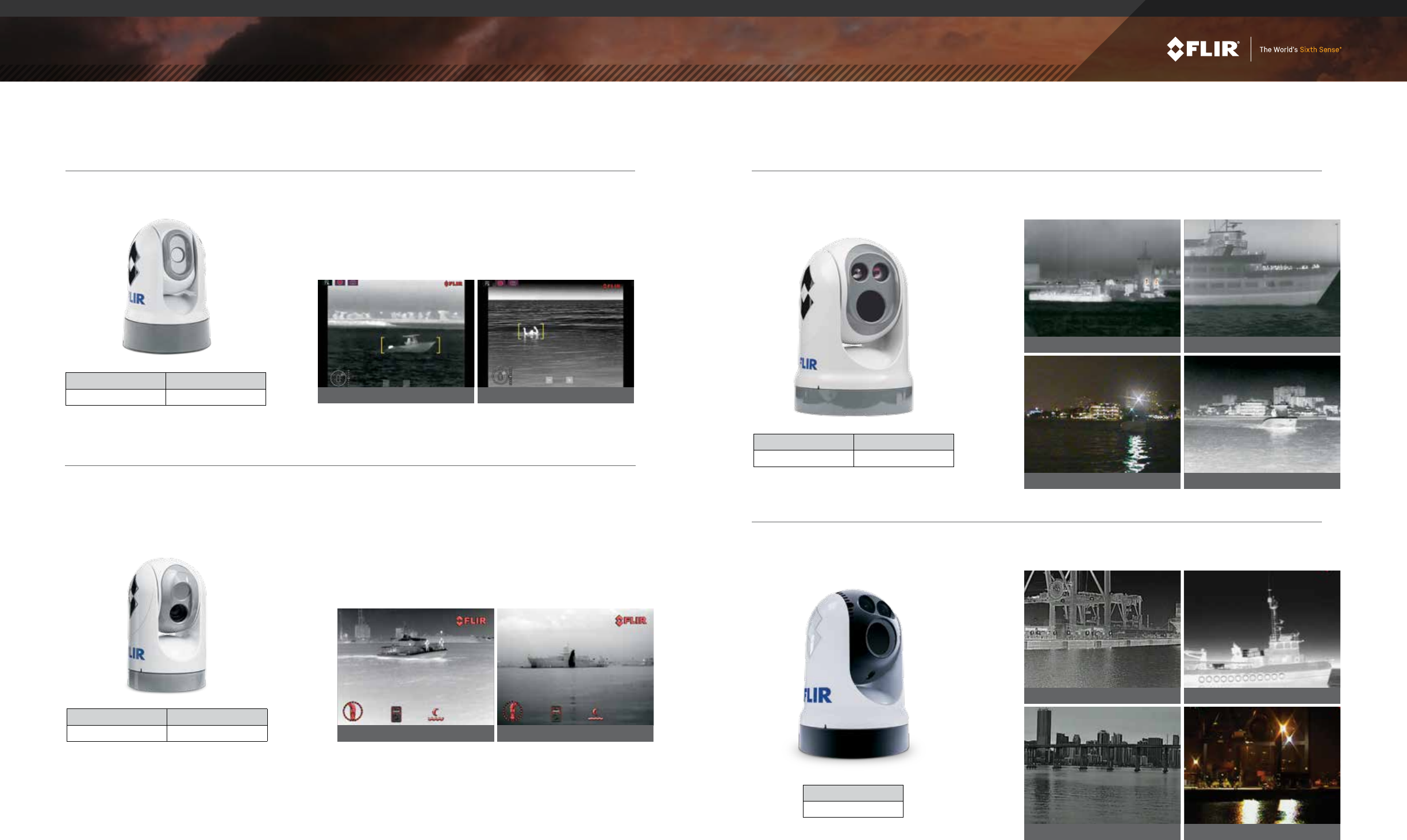

The M100 and M200 Series thermal night vision cameras from FLIR take affordability and easy integration to a whole
new level. Packing 320x240 thermal resolution, video over IP, and 4x digital zoom into the smallest, lightest pan/tilt
housing on the market, the M100 and M200 are the perfect additions to any vessel. Installation is plug-and-play easy with
Raymarine’s family of LightHouse powered multifunction displays.
M100/200 Series can be
installed ball down or ball up
16 17
FLIRM100/200 Series ™
NEW FOR 2017
M-SERIES NEXT GENERATION MARINE THERMAL VISION CAMERAS
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
Joystick controller
included
HIGH PERFORMANCE THERMAL VISION- NOW EVEN BETTER
The next generation M-Series takes everything that has made M-Series the most popular line of marine
thermal night vision cameras in the world and makes it even better. Updated with improved thermal imaging
cores and optics for next-level performance, a better daylight/lowlight camera option, and gyro-stabilization
as a standard feature across the entire line, M-Series has made the best even better.
Compatible with multifunction navigation displays from
Raymarine, Garmin, Furuno and Simrad or display on any
onboard screen or monitor with an analog video input.
M-625M-617 M-324
~2,700 ft / 823 m
~1.2 nm / 2.2 km
~0.80 nm / 1.5 km
~2.1 nm / 3.9 km
~1,500 ft / 457 m
~0.67 nm / 1.3 km
DETECTION RANGES
M-Series thermal cameras can
be installed ball down or ball up
ENHANCED AWARENESS IN ALL CONDITIONS
• Improved rough weather performance using active gyro stabilization
• Dual Payload models combine a thermal camera with 36x zoom low-light
color camera for enhanced awareness in all conditions
• Latest generation FLIR thermal core technology detects other hazards—
day or night—through darkness, glare, dust and light fog
EASY TO INTEGRATE
• Integrates seamlessly with existing electronics including select
multifunction displays from Raymarine®, Furuno, Garmin, and Simrad
• Slew-to-Cue and ARPA radar target tracking from compatible radar, AIS
and chart systems
• Simple joystick control of pan, tilt and zoom and composite video output
for easy connection to MFDs and monitors
WEATHERPROOF, CONTROLLABLE PAN & TILT SYSTEM
• Engineered especially for harsh marine environments
• Color symbology on-screen gives instant access to system status,
position, and conguration
• 360° Continuous Pan, +/-90° Tilt with joystick control
For technical specications, turn to page 34
SEE RIVER TRAFFIC WITHOUT BEING
BLINDED BY SUN GLARE
MANEUVER BETWEEN DOCKS AT NIGHT
REMAIN AWARE OF CHANNEL LANDMARKS
2× and 4× E-Zoom functions
Active gyro-stabilization automatically keeps the image
steady in rough seas
High resolution color camera system with 36x Optical Zoom
and low-light mode
Standard analog video signal displays on any monitor with an
auxiliary video input
Automatic window heaters keep optics free of ice
Ethernet control link for easy networking to FLIR joysticks or
multifunction displays
Rugged, waterproof gimbal enclosure with automatic window
heaters for ice management.
18 19
FLIRM-Series ™
NEW FOR 2017
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only

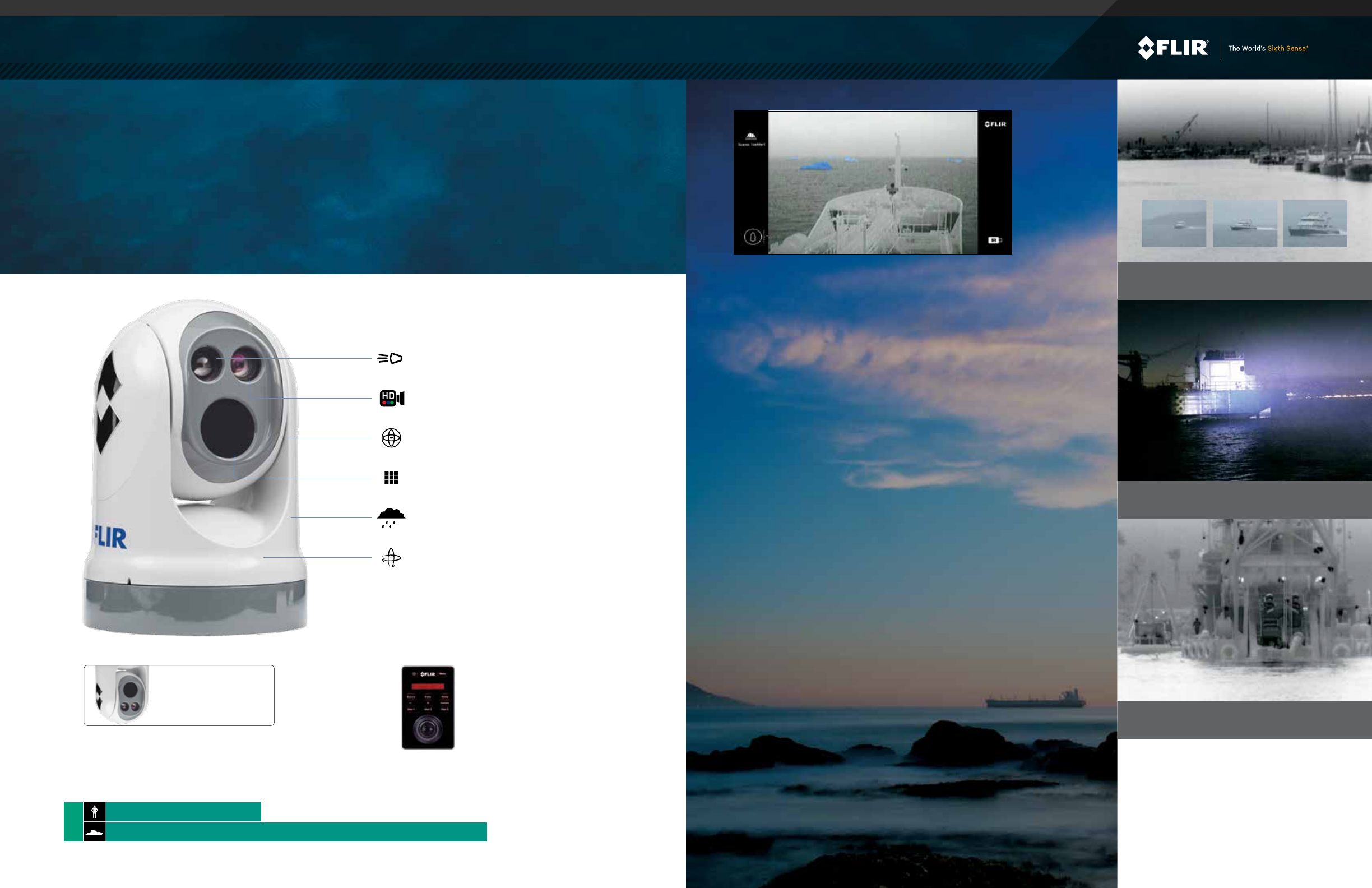

M400 MULTI-SENSOR CAMERA SYSTEM
M400 Series thermal cameras
can be installed ball down or
ball up
JOYSTICK CONTROL
The joystick is the primary
control for the M400. It is
used to wake the system or
put it in standby, operate the
pan and tilt movement, zoom
the camera, control cameras
modes and features, and
congure system settings by
means of OSD menus.
High intensity LED spot-beam can highlight targets
of interest, while preserving the night vision of
on-deck personnel
HD Color low-light camera with 30x optical zoom
Gyro stabilized to ensure steady viewing in heavy
sea conditions
High resolution 640 x 480 thermal sensor, optical zoom
18° to 6° horizontal eld of view (9 or 30Hz)
360° pan and +/-90° tilt capability
Rugged, waterproof gimbal enclosure with automatic
window heaters for ice management.
M400
~ 1.3 nm / 2.45 km
~ 3.2 nm / 6.0 km
DETECTION RANGES
SHORT AND LONG-RANGE DETECTION
• Recognize marine trafc and key landmarks at night
• Continuous variable zoom allows you to easily identify vessels or
navigation aids in the distance
• Quickly recognize nearby buoys in channels or open water
• Detect key landmarks, such as islands or docks
THERMAL AND VISIBLE-LIGHT PAYLOADS
• Combination thermal detection and visible identication
• Up to 3× optical thermal zoom for 18° to 6° HFOV
• HD Color 30× Zoom provides 64° to 2.3° HFOV
• Illuminate and identify nearby targets with powerful LED beam
ENHANCED TARGET IDENTIFICATION
• InstAlert™ mode depicts the hottest object in shades of red and
orange for easy identication
• IceAlert™ – helps identify oating ice by depicting the coolest
objects in shades of blue and green
• Radar integration lets the M400 follow specic radar targets
For technical specications, turn to page 35
6° TO 18° THERMAL
HORIZONTAL FIELD OF VIEW
A TIGHT BEAM LED SPOTLIGHT AUGMENTS
TARGET IDENTIFICATION
CONTINUOUS OPTICAL ZOOM AND
GYRO-STABILIZATION FOR SUPERIOR
LONG-RANGE PERFORMANCE
ADVANCED LONG RANGE THERMAL VISION

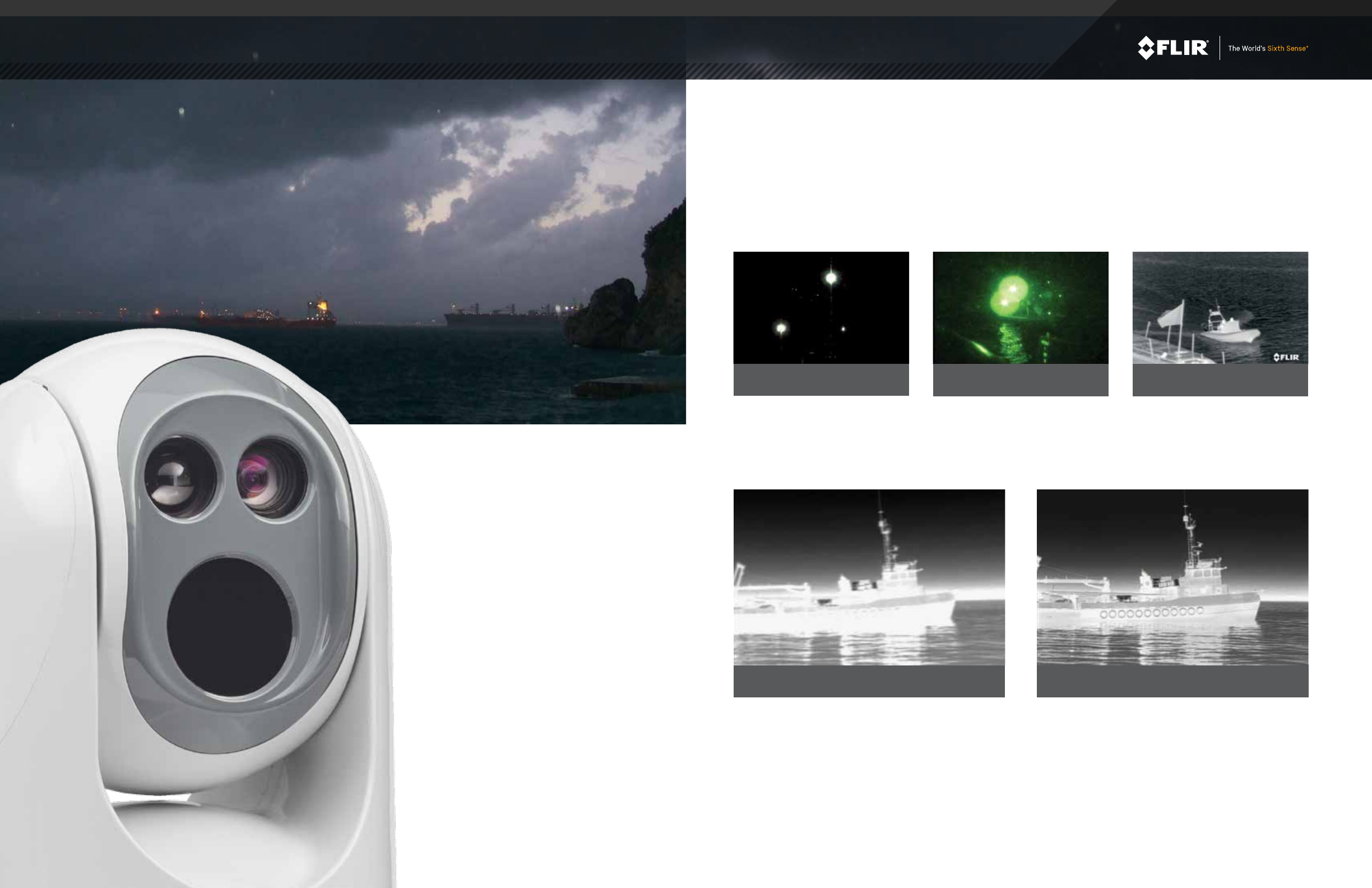

The M400’s advanced 640 x 480 sensor delivers crisp thermal video images in total darkness and lowlight conditions. An
integrated HD Color visible camera and tight-beam LED spotlight augments target identication for added safety. M400
has a continuous optical thermal zoom lens (up to 4×) that allows operators to see other vessels and targets at longer
ranges. Active gyro-stabilization ensures a steady image, plus radar tracking keeps potentially dangerous targets in
view at all times.
ICEALERT™ MODE
In IceAlert™ mode the coldest temperatures in the image are
highlighted in Blue-Green shades, while warmer temperatures are all
in shades of gray. Especially useful for locating ice in the dark.
20 21
FLIRM400 ™

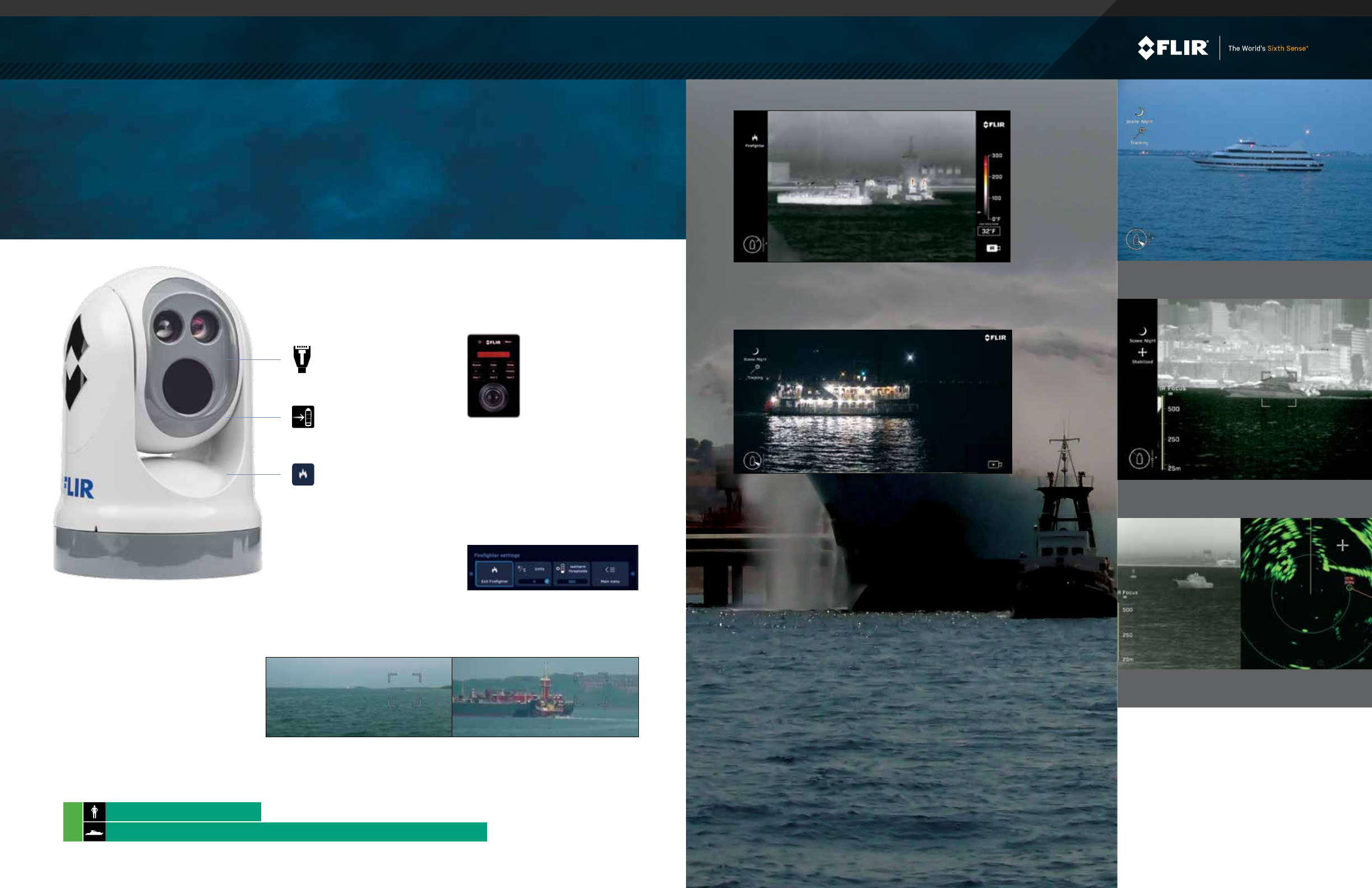

M400XR MULTI-SENSOR CAMERA SYSTEM
ADVANCED THERMAL VISION FOR FIRST RESPONDERS
The M400XR incorporates all the features of the M400 but adds integrated video tracking – lock on and automatically
follow objects as long as they’re in view of camera – and a reghting mode.
JOYSTICK CONTROL
The joystick is the primary
control for the M400. It is
used to wake the system or
put it in standby, operate the
pan and tilt movement, zoom
the camera, control cameras
modes and features, and
congure system settings by
means of OSD menus.
ENHANCED USER INTERFACE
The M400’s enhanced user interface simplies
camera operation and conguration.
ENHANCED VISUAL NAVIGATION
The M400’s thermal and visual cameras with optical
zoom provide exceptional long range performance, giving
captains the ability to visually conrm distant targets with
greater clarity.
Typical screen showing on-screen menu bar
FIREFIGHTING MODE
The M400XR’s reghting mode provides enhanced awareness
with a target temperature meter and isotherm displays.
STABILIZED VIDEO OF VESSEL IN THE HARBOR
USING ZOOM
SMALL CRUISE SHIP AT DUSK VIEWED WITH THE
LOW-LIGHT VIDEO CAMERA. TRACKING MODE
ENGAGED TO FOLLOW THE SHIP
VIDEO TARGET TRACKING
The M400XR’s intelligent video tracking automaticlly changes
the camera’s view to track a moving vessel or stay locked on a
stationary target. This feature allows captains to keep the camera
locked on to an emergency scene or a potential supect
THE M400XR CAN TRACK AND KEEP ARPA RADAR
TARGETS IN VIEW WITH COMPATIBLE MFDS AND
RADAR SYSTEMS
For technical specications, turn to page 35
Video tracking: follow
objects in the camera’s view
IP Video, HD-SDI, and Analog
video outputs. Raymarine
MFD integration
Fireghting mode optimizes
the color palette to see hot
spots and take temperature
measurements on scene
M400XR
~ 1.3 nm / 2.45 km
~ 3.2 nm / 6.0 km
DETECTION RANGES
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
22 23
FLIRM400XR ™
M500 ULTRA HIGH PERFORMANCE MULTI-SENSOR CAMERA SYSTEM
PREMIUM LONG RANGE THERMAL VISION
The FLIR M500 cooled thermal night vision camera is our most technologically advanced M-Series camera ever. Designed
around a cryogenically cooled Mid Wave Infrared (MWIR) thermal sensor, it excels at both short and ultra-long range target
detection and identication. The M500 includes a cooled midwave, high resolution 640 x 512 pixel thermal camera with a 1X to
14X continuous optical zoom and a eld of view between 28° and 2°. It also comes with an integrated HD color visible
camera system and a spot-beam LED target illumination system. Built on a ruggedized marine gimbal system, the M500 is a pan
and tilt camera with standard gyro stabilization, video tracking and radar integration.
NEGOTIATE TIGHT WATERWAYS IN TOTAL
DARKNESS WITH CONFIDENCE.
THE COOLED THERMAL CORE OF THE M500
PROVIDES HIGH CONTRAST THERMAL IMAGES.
SUPERIOR SHORT- AND LONG-RANGE VISION
• Cooled thermal core technology and continuous optical zoom enables
early detection of vessels or navigation aids in the distance
• Active gyro stabilization delivers a steady image in rough seas,
simplifying target identication and enhancing situational awareness
• Superior FLIR thermal technology allows captain to quickly recognize
nearby buoys and detect key landmarks, such as islands or docks
ENHANCED TARGET AWARENESS
• Video target tracking automatically keeps the M500 locked onto a
moving or stationary target
• Radar integration allows the M500 to automatically track selected
radar targets
• Fireghting mode provides enhanced awareness for rst responders
with a target temperature meter and isotherm displays
ENHANCED CLARITY:
• High performance thermal and visible camera payloads for detection
and visible identication
• A 14× optical thermal zoom and a eld of view between 2° and 28°
enables long range target detection
• Easily identify long range targets with a HD color visible camera with
30× zoom and 64° to 2.3° HFOV
• The M500’s integrated spotlight Illuminates nearby targets with
powerful LED beam
For technical specications, turn to page 35
IDENTIFY LONG RANGE TARGET BOTH DAY AND
NIGHT WITH THE M500 HIGH PERFORMANCE
VISIBLE ZOOM CAMERA.
www.flir.com
Specications subject to change without prior notice. Images for reference purposes only
High intensity LED spot-beam can highlight targets
of interest, while preserving the night vision of
on-deck personnel
HD Color lowlight camera with 30x optical zoom
Gyro stabilized to ensure steady viewing in heavy
sea conditions
Cooled MWIR Thermal imager with 640 x 512
resolution and 14xOptical Zoom
360° pan and +/-90° tilt capability
Rugged, waterproof gimbal enclosure with automatic
window heaters for ice management.
Video tracking: follow
objects in the camera’s view
Fireghting mode optimizes the color palette to see hot
spots and take temperature measurements on scene
M500
~ 4.9 nm / 9.0 km
~ 8.3 nm / 15.4 km
DETECTION RANGES
NEW FOR 2017
24 25
FLIRM500 ™
M400
M-617CS
M-625
M-324
MD-625
M100/200
MD-324
BHM-XR (100mm)
BHM-XR (65mm)
BHM-XR (35mm)
BHM-X (100mm)
BHM-X (65mm)
BHM-X (35mm)
LS-XR
LS-X
OCEAN SCOUT 640
OCEAN SCOUT 320
OCEAN SCOUT 240
M500
Ocean Scout LS-Series BHM-Series MD-Series M100/200 M-Series M400
0
0.26 nm
500m
0.52 nm
1.0 km
0.80 nm
1.5 km
1.08 nm
2.0 km
1.35 nm
2.5 km
1.62 nm
3.0 km
2.16 nm
4.0 km
2.43 nm
4.5 km
2.7 nm
5.0 km
2.97 nm
5.5 km
3.24nm
6.0km
3.5 nm
6.5 km
3.8 nm
7.0 km
1.89 nm
3.5 km
4.05nm
7.5k m
4.32 nm
8.0 km
4.59 nm
8.5 km
4.86 nm
9.0 km
5.13 nm
9.5 km
5.4 nm
10.0 km
5.7 nm
10.5 km
5.94 nm
11.0 km
6.21 nm
11.5 km
6.48 nm
12.0 km
6.75 nm
12.5 km
7.02 nm
13.0 km
7.2 9 nm
13.5 km
7.56 nm
14.0 km
7.8 3 nm
14.5 km
8.01 nm
15.0 km
8.4 nm
15.5 km
RANGE COMPARISON CHART
FLIR MARINE THERMAL VISION | RANGE COMPARISON CHART AND IMAGE RESOLUTION
The following chart compares the man-overboard and small vessel detection distances for the FLIR range of thermal cameras.
Specications subject to change without prior notice. Images for reference purposes only. Specications subject to change without prior notice. Images for reference purposes only.
26 27
BRIDGEJETTY & BUOY – WHITE HOT MODE
SMALL POWERBOAT – BLACK HOT MODESAILBOAT AND CREW – INSTALERT™
Images for illustrative purposes only
IMAGE RESOLUTION AND SAMPLE IMAGES
OCEAN SCOUT – HANDHELD
The FLIR Ocean Scout puts advanced thermal imaging in the palm of your hand. With thermal vision, you can peer into darkness and see objects and
your surroundings as clear as day, keeping you safer, and making your time on the water more relaxing. Resolutions range from 280 x 180 to 640 x 512
pixels, depending upon the model.
MAN OVERBOARD – INSTALERT™MAN OVERBOARD – WHITE HOT MODE
MAN IN CANOE – WHITE HOT MODEMAN IN CANOE – BLACK HOT MODE
OS-240 OS-320 OS-640
240 x 180 pxl 336 x 256 pxl 640 x 512 pxl
Images for illustrative purposes only
LS SERIES – HANDHELD
This powerful, yet simple imager gives Law Enforcement an unfair advantage whether searching for evidence or pursuing a suspect, all in the palm of
your hand. The newest additions to this eld-proven line, LS-X and the LS-XR, feature enhanced resolution displays, extended zoom capabilities, and
video output.
LS-X SERIES LS-XR SERIES
336 x 256 pxl 640 x 512 pxl SAILBOAT & COASTLINE – WHITE HOT MODEMAN OVERBOARD – BLACK HOT MODE
With powerful interchangeable lenses, BHM-Series cameras are the most powerful handheld, battery-powered, thermal night vision cameras available,
making them the right choice for use on vessels of any size, and giving you the edge in all of your nighttime travels. There are two models to choose from:
BHM-X (320 x 240 pixels) and the BHM-XR (640 x 480 pixels).
BHM-SERIES – HANDHELD
BHM-X SERIES BHM-XR SERIES
320 x 240 pxl 640 x 512 pxl
These xed-mount thermal night vision cameras help with steering around obstacles, collision avoidance and nding people in the water at night. There
are two models to choose from: MD-324 (320 x 240 pixels) and the MD-625 (640 x 480 pixels).
MD-SERIES – COMPACT THERMAL NIGHT VISION CAMERAS
MD-324 MD-625
320 x 240 pxl 640 x 480 pxl
28 29
M132 M232
320 x 240 pxl 320 x 240 pxl VIDEO ANALYTICS: MAN OVERBOARDVIDEO ANALYTICS: BOAT
Get the clear vision you need to navigate around obstacles, avoid collisions, and nd people in the water at night. M232 provides full pan/tilt for horizon-
to-horizon vision, while the M132 allows for tilt position to compensate for changes in deck angle.
M100/M200 SERIES MARINE THERMAL VISION CAMERAS
Images for illustrative purposes only
The M-Series creates thermal images with tremendous detail for such an affordable night vision system. You will see more—and see farther—even
in the dead of night. An optional lowlight TV camera provides enhanced navigational abilities during twilight hours. And M-Series cameras also feature
detailed, color on-screen symbology for instant access to system status, position, and conguration. Resolution (320 x 240 or 640 x 480 pixels) is
model dependent.
M-SERIES: NEXT GENERATION MULTI-SENSOR THERMAL NIGHT VISION
M-324 M-625
320 x 240 pxl 640 x 480 pxl FREIGHTER – BLACK HOT MODEVESSEL & CREW – WHITE HOT MODE
The FLIR M400’s advanced 640x480 sensor delivers crisp thermal video images in total darkness and low-light conditions. An integrated HD color visible
camera and narrow-beam LED spotlight augment target identication for added safety.
The FLIR M500’s advanced 640x512 sensor delivers crisp thermal video images in total darkness and low-light conditions. An integrated HD color visible
camera augments target identication for added safety.
M400 & M400XR: ADVANCED MULTI-SENSOR THERMAL NIGHT VISION
M500: HIGH-PERFORMANCE MARINE MULTI-SENSOR CAMERA SYSTEM
FERRY AND PASSENGERS
HIGH CONTRAST IMAGES
FIREFIGHTING MODE
PORT SECURITY AT NIGHT
SMALL BOAT – THERMAL IMAGE
LOW LIGHT VISIBLE CAMERA
SMALL BOAT – VISIBLE CAMERA
BRIDGE AND WATERWAYS
M400 M400-XR
640 x 480 pxl 640 x 480 pxl
M500
640 x 512 pxl
Images for illustrative purposes only
FLIR MARINE THERMAL VISION | IMAGE RESOLUTION
IMAGE RESOLUTION AND SAMPLE IMAGES
30 31
BHM-SERIES BHM-X+ BHM-XR+
GENERAL
Detector Resolution 320 x 240 640 x 480
Refresh Rate 9 Hz or 30 Hz
Field of View:
35 mm lens
65 mm lens
100 mm lens
13° x 10°
7° x 5°
5° x 3°
18° x 13°
10° x 8°
6° x 4°
Zoom 2× E-Zoom 2× and 4× E-Zoom
Color Palettes White Hot / Black Hot / InstAlert™; Selectable
Battery 4 AA Batteries, NiMH Li-Ion or Alkaline
Video Output NTSC or PAL composite via supplied cable
Waterproong IP-67 Submersible to 1 Meter
Weight:
with 35 mm lens
with 65 mm lens
with 100 mm lens
0.84 lbs (0.38 kg)
3.05 lbs (1.38 kg)
3.06 lbs (1.39 kg)
RANGE PERFORMANCE
Person in the Water (6 x 1.6 ft
/ 1.8 x 0.5 m):
35 mm lens
65 mm lens
100 mm lens
2,887 ft (880 m)
0.89 nm (1.65 km)
1.30 nm (2.4 km)
0.70 nm (1.3 km)
1.18 nm (2.2 km)
1.59 nm (2.95 km)
Small Vessel (13 x 5.0 ft / 4.0
x 1.5 m):
35 mm lens
65 mm lens
100 mm lens
1.46 nm ( 2.7 km)
2.65 nm (4.9 km)
3.83 nm (7.1 km)
2.1 nm (3.9 km)
3.5 nm (6.5 km)
4.75 nm (8.8 km)
M100/M200
GENERAL
Detector Type 320 x 240 VOx Microbolometer
Video Refresh Rate 9 Hz
Field of View 24° x 18°
Focal Length 19 mm
E-Zoom 4x
Image Processing FLIR Proprietary Digital Detail Enhancement
SYSTEM SPECIFICATIONS
Pan/Tilt Range M100 – Tilt: +110°, -90°
M200 – Pan: 360° (continuous), Tilt: +110°, -90°
Video Output H264 IP Video stream
Power Requirements 12 or 24 VDC
Power Consumption 15 W (typical)
18 W (max)
ENVIRONMENTAL
Operating Temperature Range -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range -30°F to +158°F (-30°C to +70°C)
Relative Humidity 95% max
Automatic Window Defrost Standard at Power-Up
Water Ingress IPX 6 (heavy seas, powerful jets of water)
Shock 15 g vertical, 9 g horizontal
Vibration IEC 60945; MIL-STD-810E
Salt Mist IEC 60945
Wind 100 mph (161 kph)
EMI IEC 60945
PHYSICAL
Weight 6.0 lb (2.7 kg) w/o top-down riser
6.6 lb (3.0 kg) w/ top-down riser
Size 6.34” (dia. @ base) x 9.03” (ht.)
161.1 (dia.) x 229.3 (ht.) mm
RANGE PERFORMANCE
Person in the Water ~1,500 ft (457 m)
Small Vessel ~0.67 nm (1.3 km)
MD-SERIES MD-324 MD-625
MAIN THERMAL CAMERA
Detector Type 320 × 240 VOx Microbolometer 640 × 480 VOx Microbolometer
Video Refresh Rate <9 Hz or 30 Hz (NTSC and PAL) <9 Hz or 30 Hz (NTSC and PAL)
Field of View 24° × 18° (NTSC) 25° × 20° (NTSC)
Focal Length 19 mm 25 mm
Focus Fixed 12ft (3.6m) to innity Fixed 12ft (3.6m) to innity
Optical Zoom N/A N/A
E-Zoom 2× 2×, 4×
Image Processing FLIR Proprietary Digital Detail Enhancement FLIR Proprietary Digital Detail Enhancement
SYSTEM SPECIFICATIONS
Video Tracking No No
Fireghter Mode No No
Pan/Tilt Adjustment Range Pan: ±30° per key, Tilt: +34°, -27°
(Locked in at Installation)
Pan: ±30° per key, Tilt: +34°, -27°
(Locked in at Installation)
Analog Video Output NTSC or PAL, 30 Hz or <9 Hz NTSC or PAL, 30 Hz or <9 Hz
Analog Video Connector Types F-type BNC with BNC-to-RCA adapter included
for video out
F-type BNC with BNC-to-RCA adapter included
for video out
Network Video Output No No
HD-SDI Lossless Video Output No No
Power Requirements 12-24 V DC via included PoE injector 12-24 V DC via included PoE injector
Power Consumption 4.8 W nominal; 12.5 W max 4.8 W nominal; 12.5 W max
ENVIRONMENTAL
Operating Temperature Range -13°F to +131°F (-25°C to +55°C) -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range -40°F to +185°F (-40°C to +85°C) -40°F to +185°F (-40°C to +85°C)
Automatic Window Defrost Standard at Power-Up Standard at Power-Up
Sand/Dust Ingress Mil-Std-810E Mil-Std-810E
Water Ingress IPX 6 (heavy seas, powerful jets of water) IPX 6 (heavy seas, powerful jets of water)
Shock 15 g vertical, 9 g horizontal 15 g vertical, 9 g horizontal
Vibration IEC 60945; MIL-STD-810E IEC 60945; MIL-STD-810E
Lightning Protection Standard Standard
Salt Mist IEC60945 IEC60945
Wind 100 knot (115.2 mph) 100 knot (115.2 mph)
EMI IEC 60945 IEC 60945
PHYSICAL
Weight ~ 3 lbs (1.36 kg) ~ 3 lbs (1.36 kg)
Size 6" (152.4 mm) dia. × 7" (177.8 mm) ht. 6" (152.4 mm) dia. × 7" (177.8 mm) ht.
RANGE PERFORMANCE
Person in the Water 1,500 ft (457 m) 2,700 ft (823 m)
Small Vessel 4,200 ft (1280 m) 1.2 nm (2.2 km)
Specications subject to change without prior notice. Images for reference purposes only.Specications subject to change without prior notice. Images for reference purposes only.
OCEAN SCOUT 240 OCEAN SCOUT 320 OCEAN SCOUT 640
GENERAL
Detector Resolution 240 x 180 336 x 256 640 x 512
Refresh Rate 9 Hz
Field of View 24° x 18° 17º x 13º 18º x 14º
Zoom NA 2x E-Zoom 2x, 4x, and E-Zoom
Color Palettes White Hot / Black Hot / InstAlert™
Battery Internal Lithium Ion rechargeable (5-hour typical life)
Waterproong IP-67 Submersible to 1 Meter
Weight 0.75lb (0.34 kg)
RANGE PERFORMANCE
Man 1,150 ft (350 m) 1,800 ft (550 m) 3,705ft (1.14 km)
Vehicle/vessel 0.48 nm (0.90 km) 0.84 nm (1.5 km) 1.73 nm (3.2 km)
OCEAN SCOUT SPECIFICATIONS
LS-SERIES SPECIFICATIONS
6.70" / 170.1 mm
2.44"
61.97 mm
6.70" / 170.1 mm
2.44"
61.97 mm

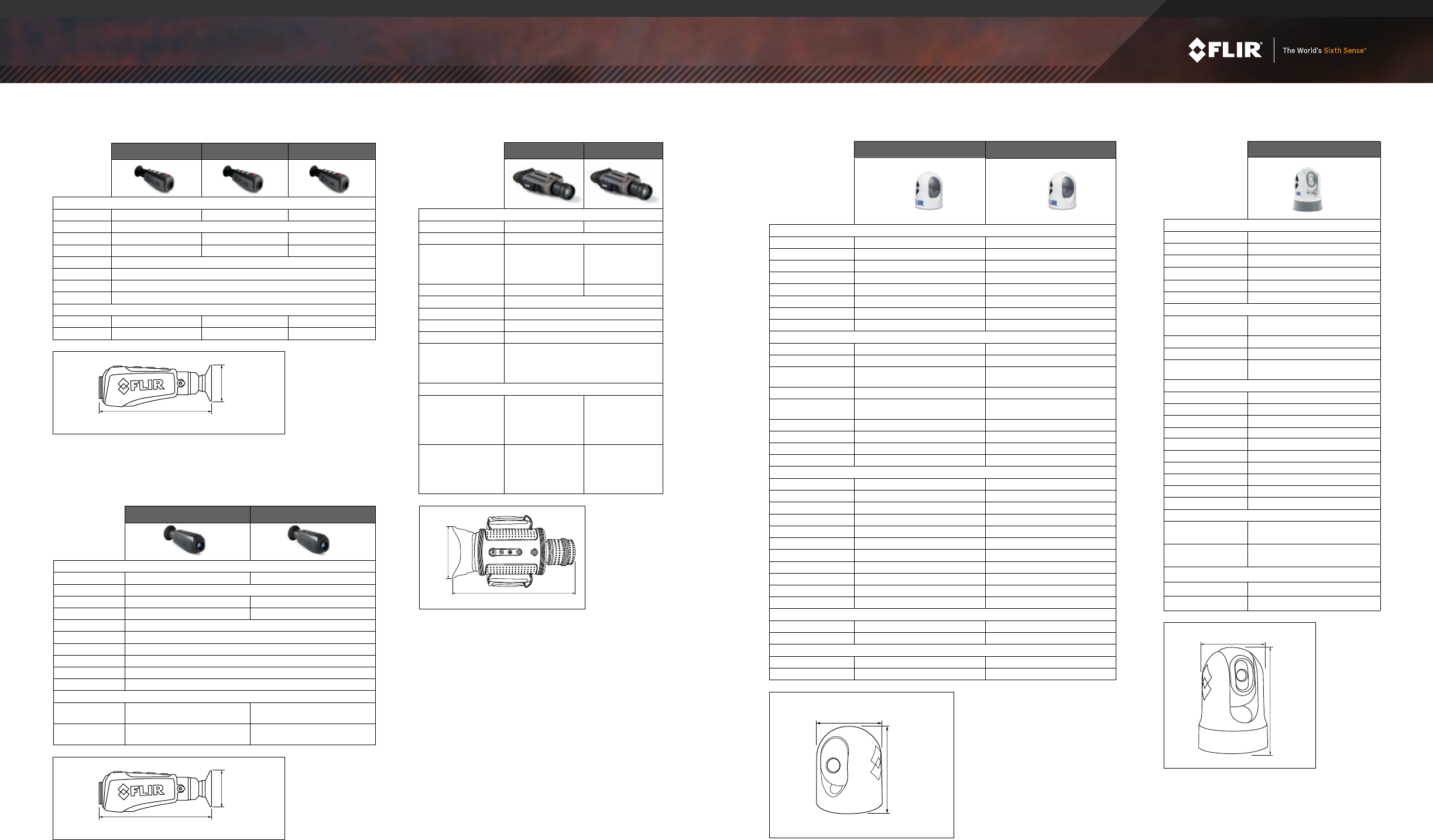

FLIR MARINE THERMAL VISION | SPECIFICATIONS
MD-SERIES SPECIFICATIONS
7. 0 "
177.8 mm
6.0" / 152.4 mm
11.2”
284.4 mm
7. 0 " / 177.8 mm
M100/200 SPECIFICATIONS
LS-SERIES LS-X LS-XR
GENERAL
Detector Resolution 336 x 256 640 x 512
Refresh Rate 9 Hz or 30 Hz
Field of View 17° x 13° 18° x 14°
Zoom 2x and 4x E-Zoom 2x,4x, and 8x E-Zoom
Color Palettes White Hot / Black Hot / InstAlert™
Battery Internal Lithium Ion rechargeable, (5-hour typical life)
Laser Pointer Red Laser Pointer
Video Output NTSC or PAL composite via supplied cable
Waterproong IP-67 Submersible to 1 meter
Weight 0.75lb (0.34 kg)
RANGE PERFORMANCE
Person in the Water (6 x
1.6 ft / 1.8 x 0.5 m) 1,870 ft (570 m) 0.62 nm (1.14 km)
Small Vessel (13 x 5.0 ft
/ 4.0 x 1.5 m) 0.84 nm (1.55 km) 1.62 nm (3 km)
BHM-SERIES SPECIFICATIONS
11.5" / 292.1 mm
6.5"
165.1 mm
32 33

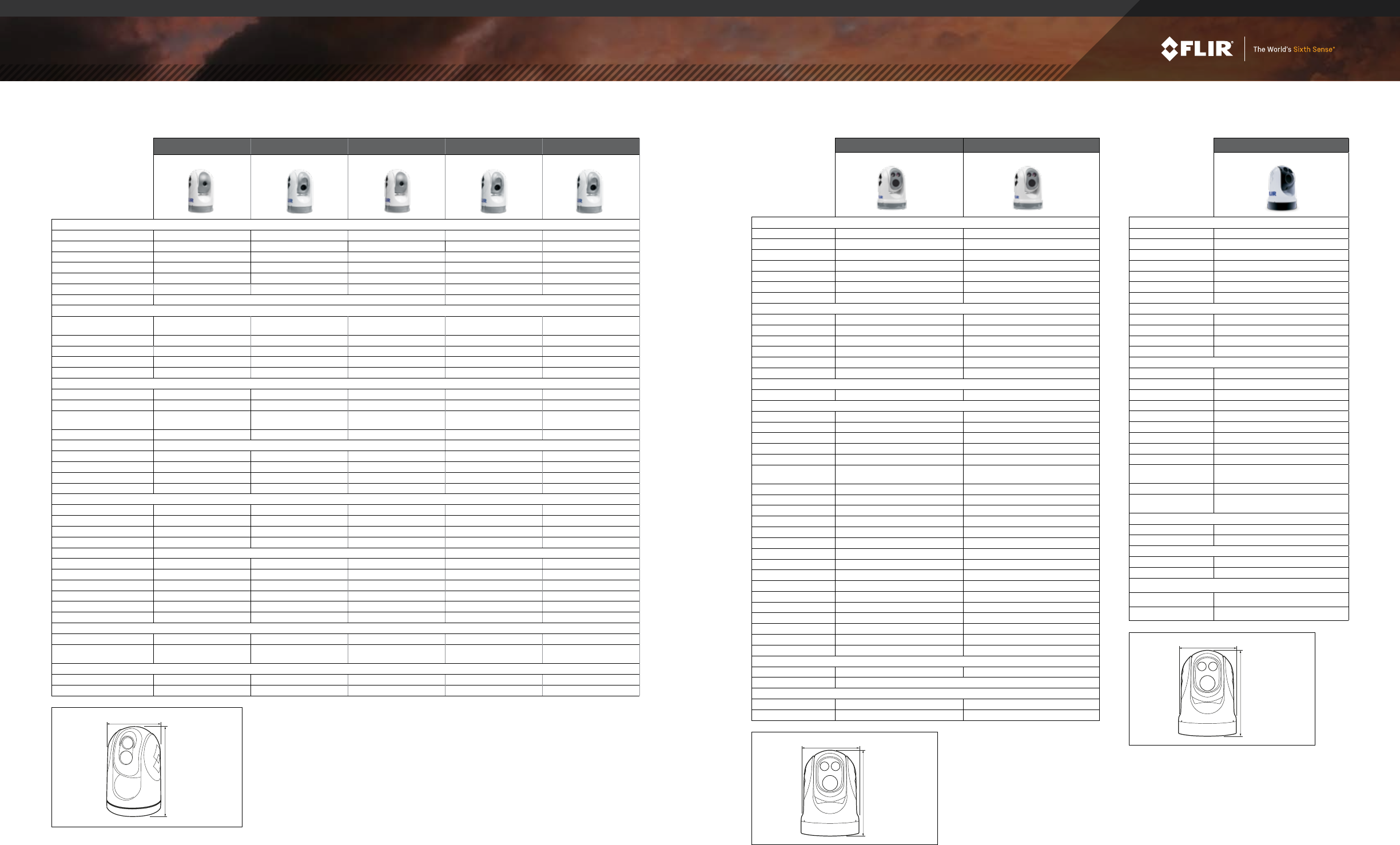

M500
THERMAL CAMERA
Detector Type Cooled MWIR InSb 640x512 Focal Plane Array
Video Refresh Rate 25 Hz (PAL) / 30 Hz (NTSC)
Field of View Limits Optical 28° x 21° WFOV to 2° x 1.5° NFOV
Optical Zoom 1x to 14x (continuous)
E-Zoom 4x
NETD <30 mK
Spectral Response 3-5 μm
COLOR CAMERA
Visible Sensor 1/2.8” CMOS
Resolution 1920 x 1080
Field of View Limits Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
E- Zoom 12x
SYSTEM SPECIFICATIONS
Pan/Tilt Range
Video Interface Analog video, HD-SDI
Video over Ethernet 2 channels of streaming MPEG-4, H.264, or M-JPEG
NMEA0183 TCP/IP, RS-422, NMEA 0183, Pelco D
Communications TCP/IP, RS-422, Pelco D
Video Formats NTSC or PAL NTSC or PAL, 720p30, 1080p30
Power Requirements 12 VDC to 24 VDC (-10%+30% per IEC 60945)
Power Consumption 250 W (max w/heaters)
Output Modes Black hot, white hot, false color palettes
Contrast Enhancement AGC or manual, histogram equalization, local
contrast enhancement algorithms available
Sharpness Enhancement Automatic, adjustable Digital Detail Enhancement
Overlays Integrated graphics overlays to indicate azimuth,
AGC, active camera and menu control
ENVIRONMENTAL
Operating temp -25°C to +55°C
Storage temp -50°C to +80°C
PHYSICAL
Weight 45 lb (20.4 kg)
Size 10.75” (273 mm) dia. x 15.65” (397.5 mm) ht
RANGE PERFORMANCE
Person in the Water ~4.9 nm (9.0 km)
Small Vessel ~8.3 nm (15.4 km)
M-324S M-324CS M-625S M-625CS M-617CS
MAIN THERMAL CAMERA
Detector Type 336 x 256 VOx Microbolometer 336 x 256 VOx Microbolometer 640 x 512 VOx Microbolometer 640 x 512 VOx Microbolometer 640 x 512 VOx Microbolometer
Video Refresh Rate < 9 Hz or 30 Hz (NTSC) < 9 Hz or 30 Hz (NTSC) < 9 Hz or 30 Hz (NTSC) < 9 Hz or 30 Hz (NTSC) < 9 Hz or 30 Hz (NTSC)
Field of View 24° × 18° 24° × 18° 25° × 20° 25° × 20° 17° × 14°
Focal Length 13 mm 13 mm 25 mm 25 mm 35 mm
Focus Fixed 14 ft (4.4 m) to innity Fixed 14 ft (4.4 m) to innity Fixed 69 ft (21 m) to innity Fixed 69 ft (21 m) to innity Fixed 69 ft (21 m) to innity
Continuous E-Zoom 4× 4× 4× 4× 4×
Image Processing FLIR Proprietary Digital Detail Enhancement FLIR Proprietary Digital Detail Enhancement
MAIN VISIBLE CAMERA
Detector Type N/A 1/2” Interline Transfer
Lowlight CCD N/A 1/2” Interline Transfer
Lowlight CCD
1/2” Interline Transfer
Lowlight CCD
Lines of Resolution N/A 530 N/A 530 530
Minimum Illumination N/A 1.4 Lux N/A 1.4 Lux 1.4 Lux
Optical Zoom N/A 36× N/A 36× 36×
E-Zoom N/A 12× N/A 12× 12×
SYSTEM SPECIFICATIONS
Video Tracking No No No No No
Fireghter Mode No No No No No
Pan/Tilt Adjustment Range 360° Continuous Pan,
+/-90° Tilt
360° Continuous Pan,
+/-90° Tilt
360° Continuous Pan,
+/-90° Tilt
360° Continuous Pan,
+/-90° Tilt
360° Continuous Pan,
+/-90° Tilt
Analog Video Output NTSC, 30Hz or <9Hz NTSC, 30Hz or <9Hz NTSC, 30 Hz or <9 Hz NTSC, 30 Hz or <9 Hz NTSC, 30 Hz or <9 Hz
Analog Video Connector Types F-type BNC with BNC-to-RCA adapter included for video out F-type BNC with BNC-to-RCA adapter included for video out
Network Video Output No No No No No
HD-SDI Lossless Video Output No No No No No
Power Requirements 12-24 V DC 12-24 V DC 12-24 V DC 12-24 V DC 12-24 V DC
Power Consumption 25 W nominal; 50 W max 25 W nominal; 50 W max 25 W nominal; 50 W max 25 W nominal; 50 W max 25 W nominal; 50 W max
ENVIRONMENTAL
Operating Temperature Range -13°F to +131°F (-25°C to +55°C) -13°F to +131°F (-25°C to +55°C) -13°F to +131°F (-25°C to +55°C) -13°F to +131°F (-25°C to +55°C) -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range -40°F to +185°F (-40°C to +85°C) -40°F to +185°F (-40°C to +85°C) -40°F to +185°F (-40°C to +85°C) -40°F to +185°F (-40°C to +85°C) -40°F to +185°F (-40°C to +85°C)
Automatic Window Defrost Standard at Power-Up Standard at Power-Up Standard at Power-Up Standard at Power-Up Standard at Power-Up
Sand/Dust Ingress Mil-Std-810E Mil-Std-810E Mil-Std-810E Mil-Std-810E Mil-Std-810E
Water Ingress IPX 6 (heavy seas, powerful jets of water) IPX 6 (heavy seas, powerful jets of water)
Shock 15 g vertical, 9 g horizontal 15 g vertical, 9 g horizontal 15 g vertical, 9 g horizontal 15 g vertical, 9 g horizontal 15 g vertical, 9 g horizontal
Vibration IEC 60945; MIL-STD-810E IEC 60945; MIL-STD-810E IEC 60945; MIL-STD-810E IEC 60945; MIL-STD-810E IEC 60945; MIL-STD-810E
Lightning Protection Standard Standard Standard Standard Standard
Salt Mist IEC60945 IEC60945 IEC60945 IEC60945 IEC60945
Wind 100 knot (115.2 mph) 100 knot (115.2 mph) 100 knot (115.2 mph) 100 knot (115.2 mph) 100 knot (115.2 mph)
EMI IEC 60945 IEC 60945 IEC 60945 IEC 60945 IEC 60945
PHYSICAL
Weight ~ 9 lbs (4 kg) ~ 9 lbs (4 kg) ~ 9 lbs (4 kg) ~ 9 lbs (4 kg) ~ 9 lbs (4 kg)
Size 7" (177.8 mm) dia. × 11.2"
(284.4 mm) ht.
7" (177.8 mm) dia. × 11.2"
(284.4 mm) ht.
7" (177.8 mm) dia. × 11.2"
(284.4 mm) ht.
7" (177.8 mm) dia. × 11.2"
(284.4 mm) ht.
7" (177.8 mm) dia. × 11.2"
(284.4 mm) ht.
RANGE PERFORMANCE
Person in the Water 1,500 ft (457 m) 1,500 ft (457 m) 2,700 ft (823 m) 2,700 ft (823 m) 4,900 ft (1,494 m)
Small Vessel 4,200 ft (1,280 m) 4,200 ft (1,280 m) 1.2 nm (2.2 km) 1.2 nm (2.2 km) 2.1 nm (3.9 km)
11.2”
284.4 mm
7. 0 " / 177.8 mm
M-SERIES NEXT GENERATION SPECIFICATIONS
Specications subject to change without prior notice. Images for reference purposes only.Specications subject to change without prior notice. Images for reference purposes only.
FLIR MARINE THERMAL VISION | SPECIFICATIONS
M400 SPECIFICATIONS M500 SPECIFICATIONS
15.65"
397.6 mm
10.75" / 273 mm
15.65"
397.6 mm
10.75" / 273 mm
M400 M400XR
MAIN THERMAL CAMERA
Detector Type 640 × 480 VOx Microbolometer 640 × 480 VOx Microbolometer
Video Refresh Rate <9 Hz or 30 Hz (NTSC and PAL) <9 Hz or 30 Hz (NTSC and PAL)
Field of View 18° to 6° HFOV / 1.5° HFOV with E-Zoom 18° to 6° HFOV / 1.5° HFOV with E-Zoom
Focal Length 35 mm (Wide) to 105 mm (Narrow) 35 mm (Wide) to 105 mm (Narrow)
Optical Zoom 1× to 4× 1× to 4×
E-Zoom 1× to 4× 1× to 4×
Image Processing FLIR Proprietary Digital Detail Enhancement FLIR Proprietary Digital Detail Enhancement
MAIN VISIBLE CAMERA
Detector Type Long-range color daylight and low-light viewing Long-range color daylight and low-light viewing
Lines of Resolution High Denition up to 1080/30p High Denition up to 1080/30p
Minimum Illumination >0.5 lux at 50 IRE / .05 lux in ICR Mode (B/W) >0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W)
Zoom 30× Optical Zoom 30× Optical Zoom
Focal Length 129 mm to 4.3 mm 129 mm to 4.3 mm
Field of View 64° to 2.3° Optical HFOV / 0.2 NFOV E-Zoom 64° to 2.3° Optical HFOV / 0.2 NFOV E-Zoom
SPOTLIGHT SPECIFICATIONS
Type, Lumens, Beamº LED, 580 Lumens, 5º Divergence Angle LED, 580 Lumens, 5º Divergence Angle
SYSTEM SPECIFICATIONS
Video Tracking No Yes
Radar Target Tracking Yes Yes
Fireghter Mode No Yes
Pan/Tilt Adjustment Range 360° Continuous Pan, +/-90° Tilt 360° Continuous Pan, +/-90° Tilt
Analog Video Output NTSC or PAL, 30 Hz or <9 Hz NTSC or PAL, 30 Hz or <9 Hz
Analog Video Connector Types F-type BNC with BNC-to-RCA adapter included
for video out
F-type BNC with BNC-to-RCA adapter included for
video out
Network Video Output Dual, Independent H.264 Network Video Streams Dual, Independent H.264 Network Video Streams
HD-SDI Lossless Video Output Yes Yes
Power Requirements 24V DC 24V DC
Power Consumption <50 W nominal; 130 W peak, 270 W 2/heaters <50 W nominal; 130 W peak, 270 W 2/heaters
ENVIRONMENTAL
Operating Temperature Range -13°F to +131°F (-25°C to +55°C) -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range -56° F to + 176°F (-50°C to +80°C) -56° F to + 176°F (-50°C to +80°C)
Automatic Window Defrost Standard at Power-Up Standard at Power-Up
Sand/Dust Ingress Mil-Std-810E Mil-Std-810E
Water Ingress IPX 6 (heavy seas, powerful jets of water) IPX 6 (heavy seas, powerful jets of water)
Shock 15 g vertical, 9 g horizontal 15 g vertical, 9 g horizontal
Vibration IEC 60945; MIL-STD-810E IEC 60945; MIL-STD-810E
Lightning Protection Standard Standard
Salt Mist IEC60945 IEC60945
Wind 100 knot (115.2 mph) 100 knot (115.2 mph)
EMI IEC 60945 IEC 60945
PHYSICAL
Weight 28 lbs (12.7 kg) 28 lbs (12.7 kg)
Size 10.75” (273.1 mm) x 15.65” (397.6 mm) – 18.05” (458.7mm) high with top down riser
RANGE PERFORMANCE
Person in the Water 1.3 nm (2.45 km) 1.3 nm (2.45 km)
Small Vessel 3.2 nm (6.0 km) 3.2 nm (6.0 km)
34 35
WARRANTY
FLIR's service commitment of outstanding warranty and technical support now offers you even
more; by registering your system with FLIR at www.ir.com/productreg, the 2-Year Standard Limited
Warranty is upgraded and replaced by the 3-Year Extended Limited Warranty for FREE.
For complete details on FLIR's industry-leading warranty please visit
www.ir.com/maritime.
FLIR SYSTEMS INC.
27700 SW PARKWAY AVE
WILSONVILLE, OR 97070
USA
(503)-498-3547
US EXPORT REGULATIONS
Equipment described herein is subject to US export regulations and may
require a license prior to export. Diversion contrary to US law is prohibited.
Imagery for illustration purposes only. Specications are subject to change
without notice. ©2017 FLIR Systems, Inc. All rights reserved
EQUIPMENT DESCRIBED HEREIN MAY REQUIRE US GOVERNMENT AUTHORIZATION FOR EXPORT PURPOSES.
DIVERSION CONTRARY TO US L AW IS PROHIBITED.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
©2017 FLIR SYSTEMS, INC. ALL RIGHTS RESERVED. IMAGERY USED FOR ILLUSTRATION PURPOSES ONLY.
FLIR MARITIME US INC.
9 TOWNSEND WEST
NASHUA, NH 03063
USA
(603) 324-7900
FLIR BELGIUM BVBA
LUXEMBURGSTRAAT 2, 2321
MEER
BELGIUM
+32 (0)3 287 87 10
17-0755 (05/17)
