Ultra8500TM
Ultra8500
APPLICATIONS
COUNTER DRUG
HOMELAND SECURITY
PATROL
SURVEILLANCE
RECONNAISSANCE
SEARCH AND RESCUE
FEATURES
450 mm of optical IR zoom
High resolution, digital
video processing
Combination color and
low-light CCD camera
Continuous or 3-step matched
zoom on all sensors
Auto tracker
Laser pointer
Simplified hand controller
Color on-screen graphics
Plug and play commonality
Proven reliability
It’s all FLIR inside
BENEFITS
Provides greater range than other compact sensors in the same
class, allowing aircraft to fly higher and see more
Optimizes thermal image contrast automatically based on scene
dynamics, resulting in longer detection ranges
High resolution color imagery reveals details such as registration
numbers and other color contrasts. Low-light mode provides hi-res
capability during dawn or dusk operation
Maintain sight of the target or scene 100% of the time, even
while zooming in or out
Ability to track either a target or scene enables hands-free system
operation that maximizes mission effectiveness and reduces
operator fatigue
Increase mission effectiveness by directing ground forces or other
assets equipped with night vision devices
Ergonomic and NVIS-compatible control options are intuitive and rugged
Intuitive interface increases operator effectiveness and
situational awareness
Leverages the world’s largest STC’d install base, reducing cost
and expediting aircraft integration/minimizing aircraft down time
Designed under the FLIR Systems “commercially developed
—military qualified” (CDMQ) model, Ultra series systems are
engineered to endure
FLIR controls the entire supply chain for the critical technology inside
Ultra class gimbals, ensuring fast service and long-term support

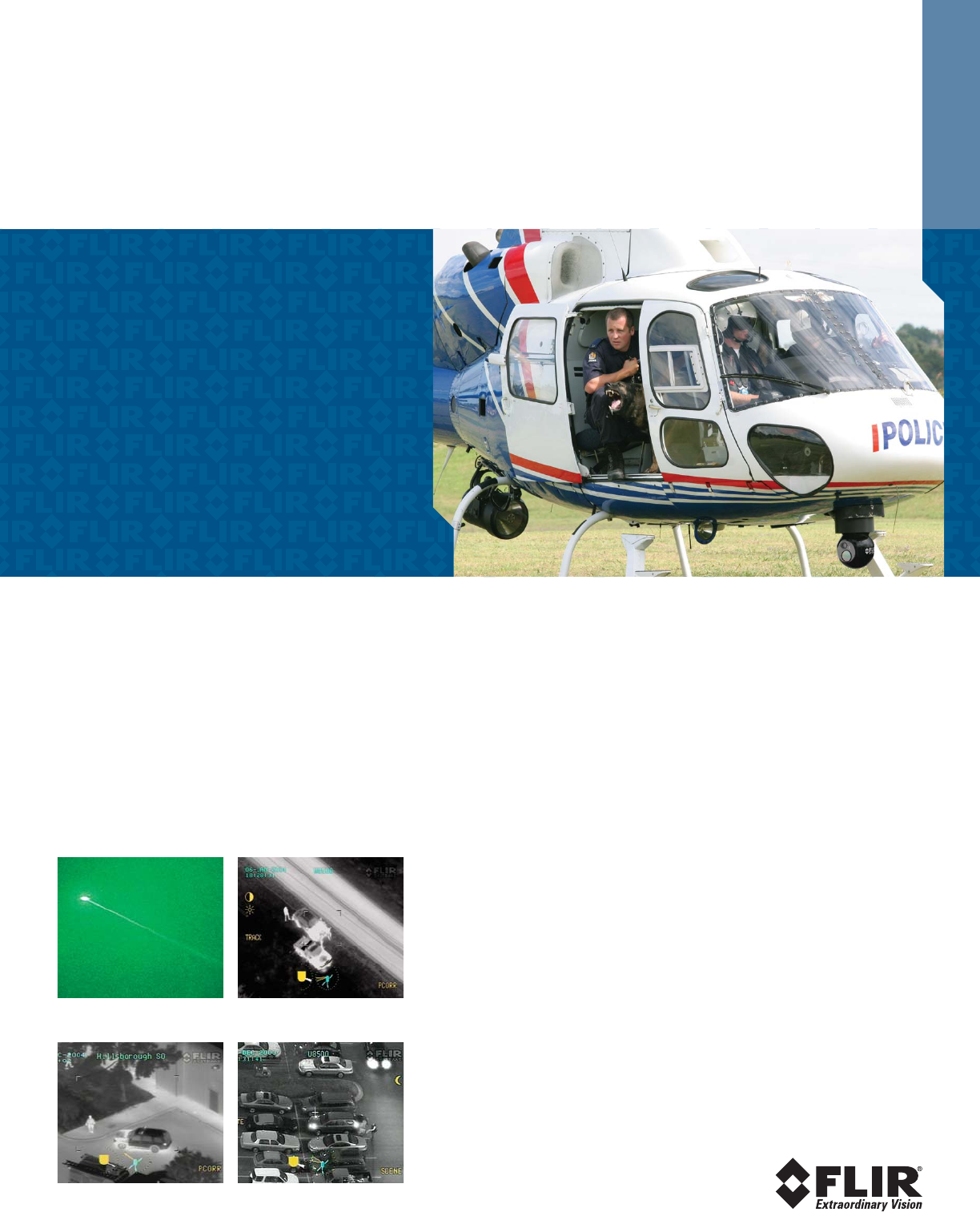

Sophisticated thermal imager allows day/
night surveillance & tracking.
Low-light TV camera provides clear visible-
light imagery in near total darkness.
Laser pointer used for covert target
discrimination.
On-screen symbology designed for easy
readability.
COMPACT LONG RANGE AIRBORNE
MULTI-SENSOR SYSTEM
CORPORATE HEADQUARTERS
FLIR Systems, Inc.
27700 SW Parkway Ave.
Wilsonville, OR 97070
PH: +1 800.727.3547
BOSTON
FLIR Systems, Inc.
25 Esquire Road
North Billerica, MA 01862
PH: +1 800.464.6372
HUNTSVILLE
FLIR Systems, Inc.
Huntsville, AL USA
PH: +1 256.325.3547
PITTSBURGH
FLIR Systems, Inc.
Freeport, PA USA
PH: +1.724.295.2880
WASHINGTON, D.C.
FLIR Systems, Inc.
2800 Crystal Drive, Suite 330
Arlington, VA 22202 USA
PH: +1 703.416.6666
EUROPE
FLIR Systems Ltd.
West Malling, Kent
United Kingdom
PH: +44.1732.220011
CANADA
FLIR Systems Ltd.
Burlington, ON
Canada
PH: +1 800.613.0507
SWEDEN
FLIR Systems AB
Täby, Sweden
PH: +46.8.753.2500
MIDDLE EAST
FLIR Systems Middle East, FZCO
Dubai Airport Free Zone
PH: +9714.299.6898
www.flir.com/GS

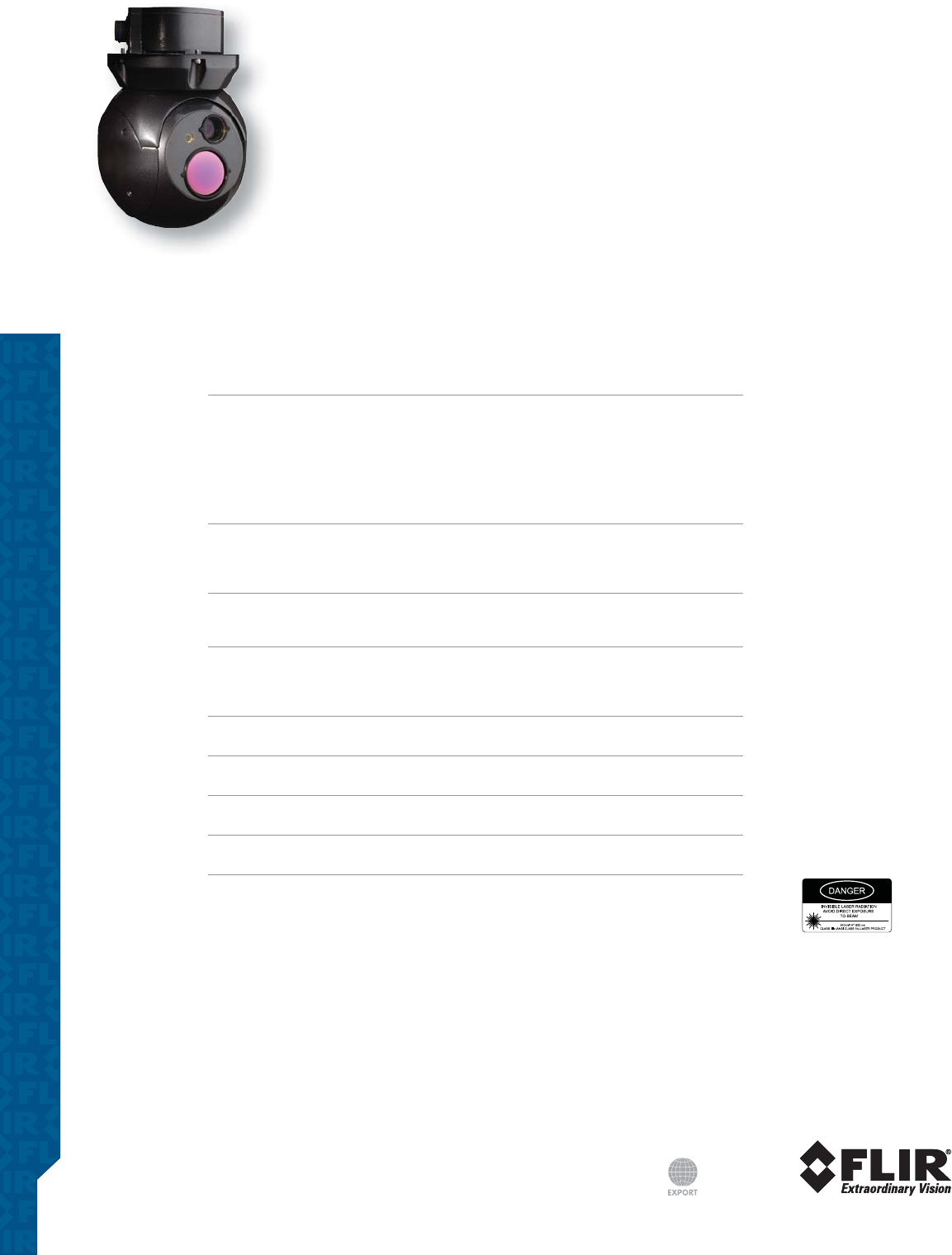

Ultra8500TM
OVERVIEW
System type Gyro-stabilized multi-sensor
Gimbal size 9 dia x 13.5 h in. (22.9 dia x 34.3 h cm)
Gimbal weight (with maximized payload) 29 lbs (13 kg)
THERMAL IMAGING PERFORMANCE
Sensor type 320x240 InSb Focal Plane Array
Wavelength 3-5 μm
FOVs
Wide Continuous zoom or preset 21.7° x 16.9°
Medium Continuous zoom or preset to 8° x 6°
Narrow Continuous zoom or preset 2.2° x 1.65°
Super narrow With 1.8x Extender employed 1.2° x 0.9°
DAYLIGHT IMAGING PERFORMANCE
Sensor type Daylight/low light high sensitivity CCD
Zoom settings Matched to IR
Automatic features Contrast, brightness
LASER POINTER OPTION
Type NVG compatible - target pointing
Classification Class 3b
GIMBAL SPECIFICATIONS
Az range of travel 360° continuous
El range of travel 360° continuous
Slew rate up to 65° /sec
ELECTRONICS CONTROL UNIT
Dimensions 10.6 x 9.9 x 5.9 in. (27 x 25 x 15 cm)
OUTPUTS
Analog or digital video, RS-170, NTSC, PAL
POWER
Power requirements 19V DC to 32V DC max surge 15 amps
INCLUDED ACCESSORIES IN STANDARD PACKAGE
Stabilized Gimbal Assembly, Electronics Control Unit, simplified hand control unit, standard cable kit
OPTIONS
Autotracker, nav interfaces, quick disconnect mounts, Nightsun interface, flat panel displays, moving
map interfaces, Laser Illuminator, Laptop Control Unit, 1.8X IR extender
Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is
prohibited. ©2010 FLIR Systems, Inc. Specifications are subject to change. Check website: www.flir.com 06012010
