Introduction
This manual provides technical information necessary
for servicing the FT-2000 HF/50 MHz Transceiver.
Servicing this equipment requires expertise in handling
surface-mount chip components. Attempts by non-qual-
ified persons to service this equipment may result in per-
manent damage not covered by the warranty, and may
be illegal in some countries.

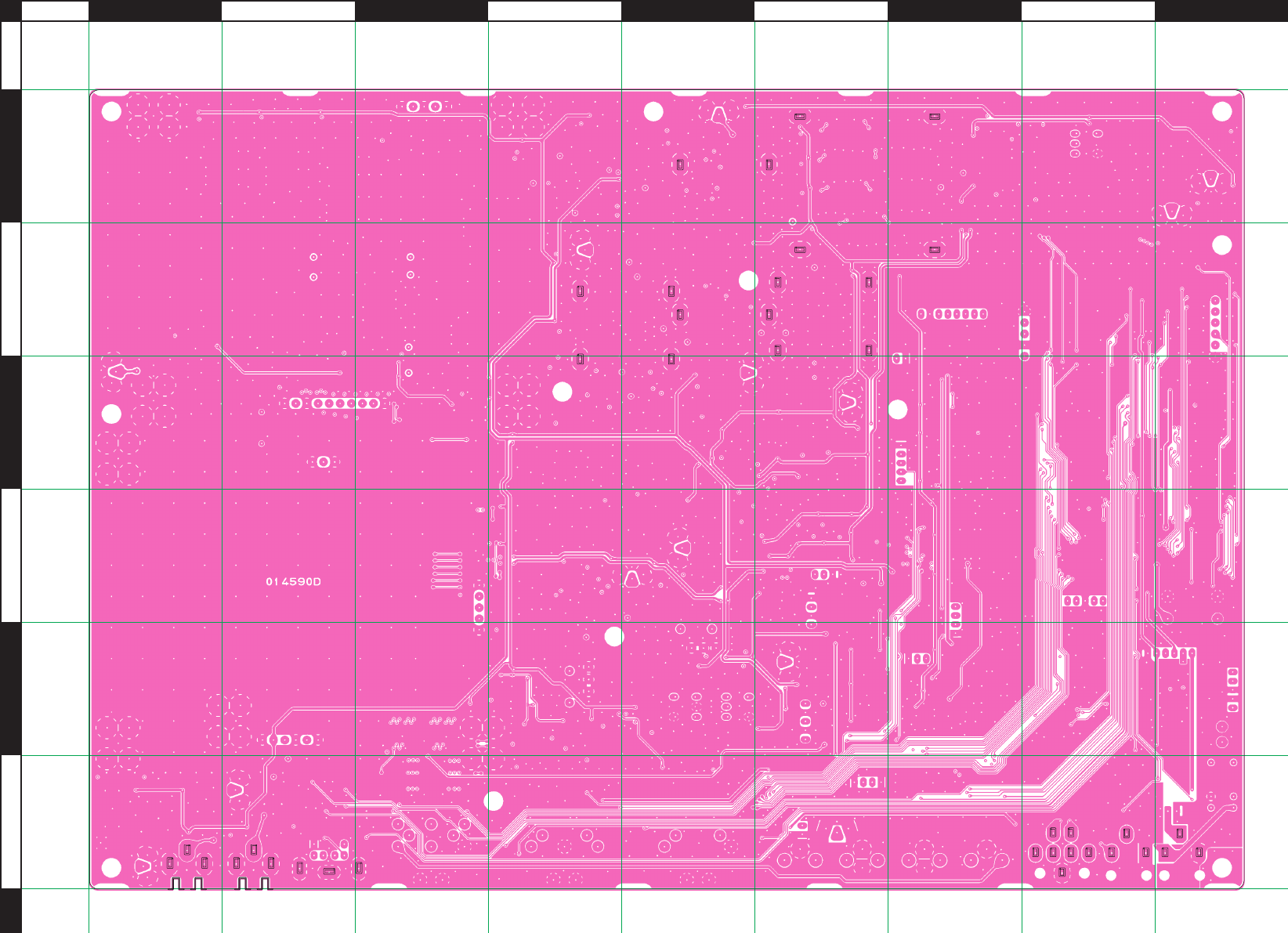

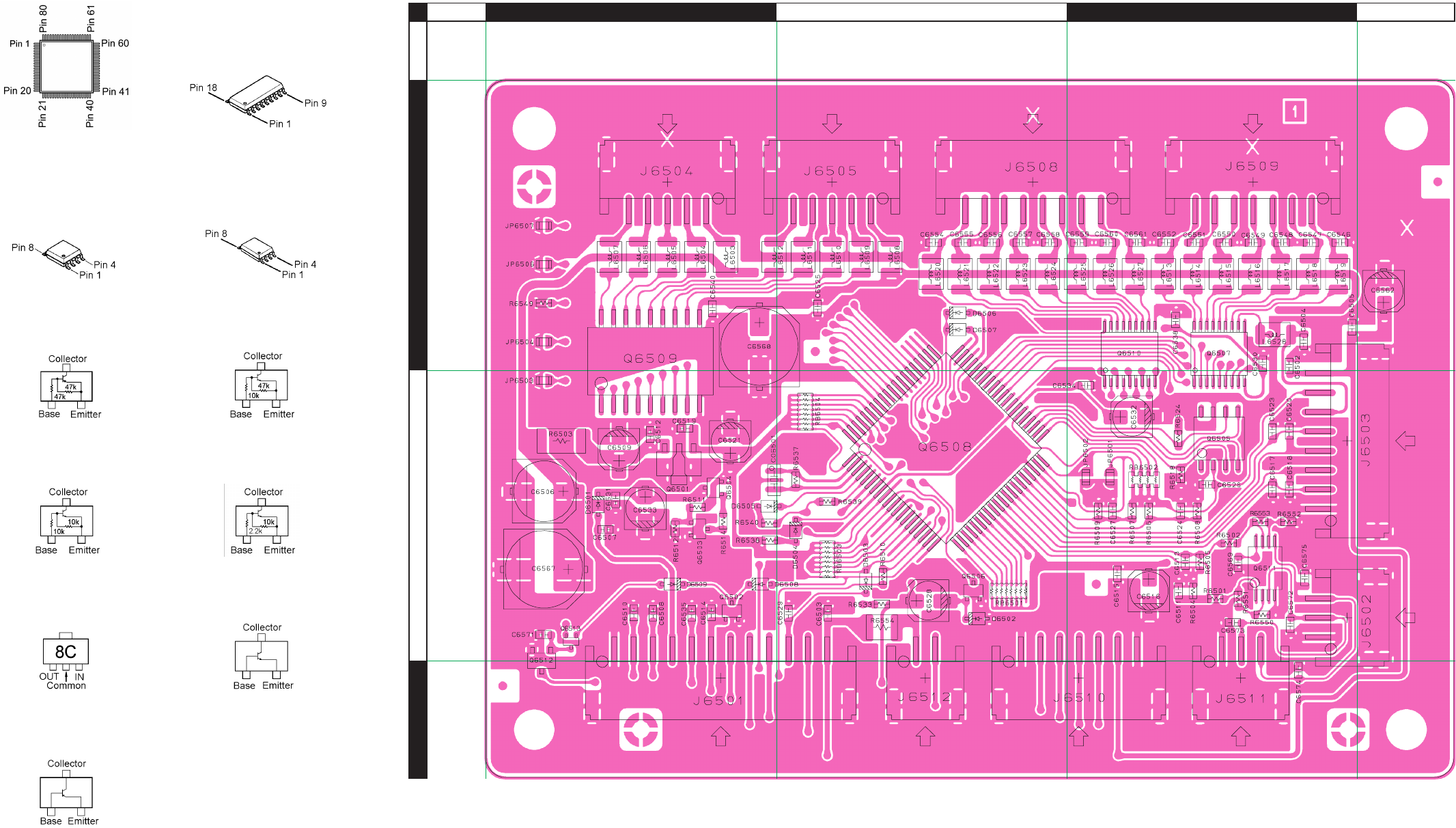

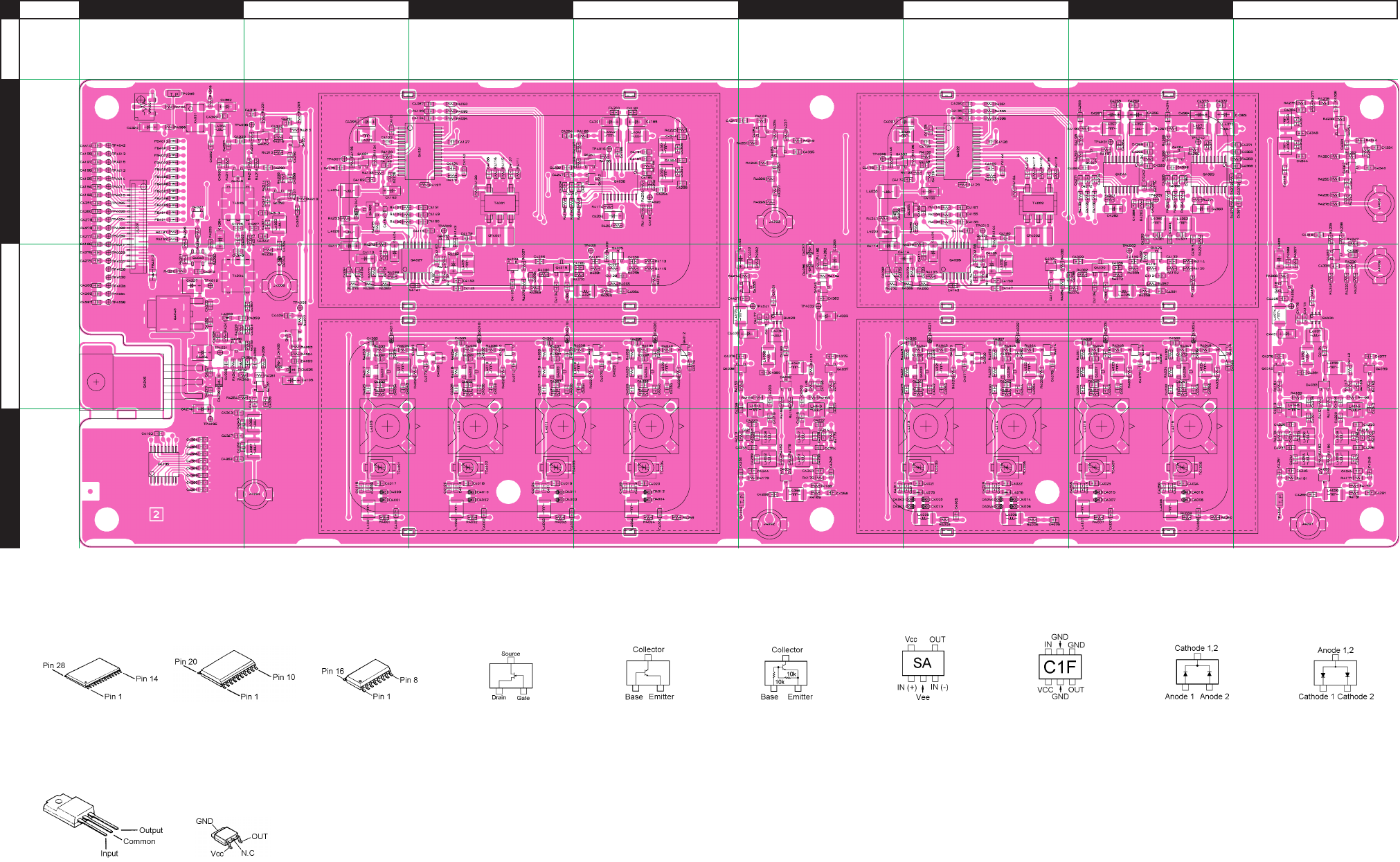

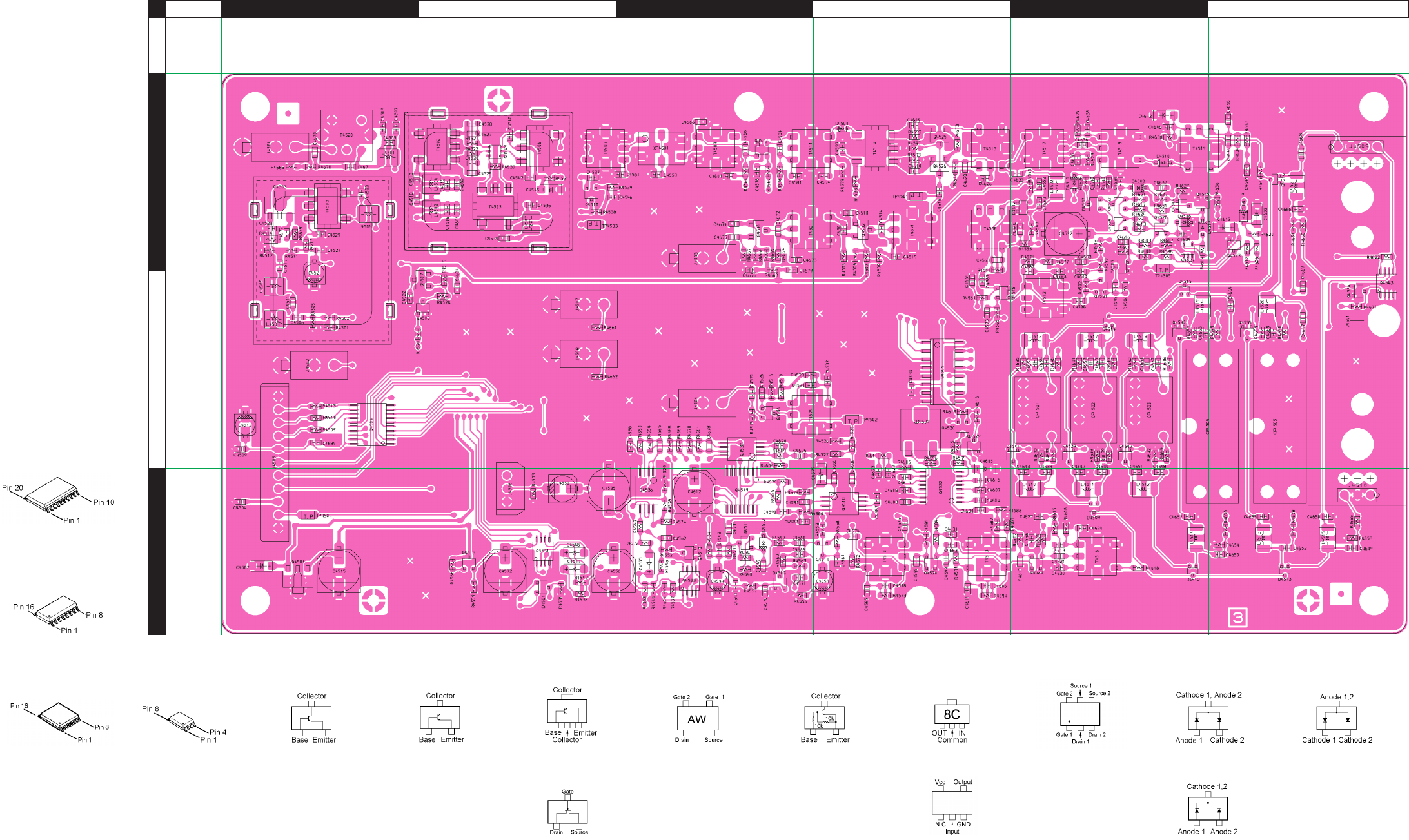

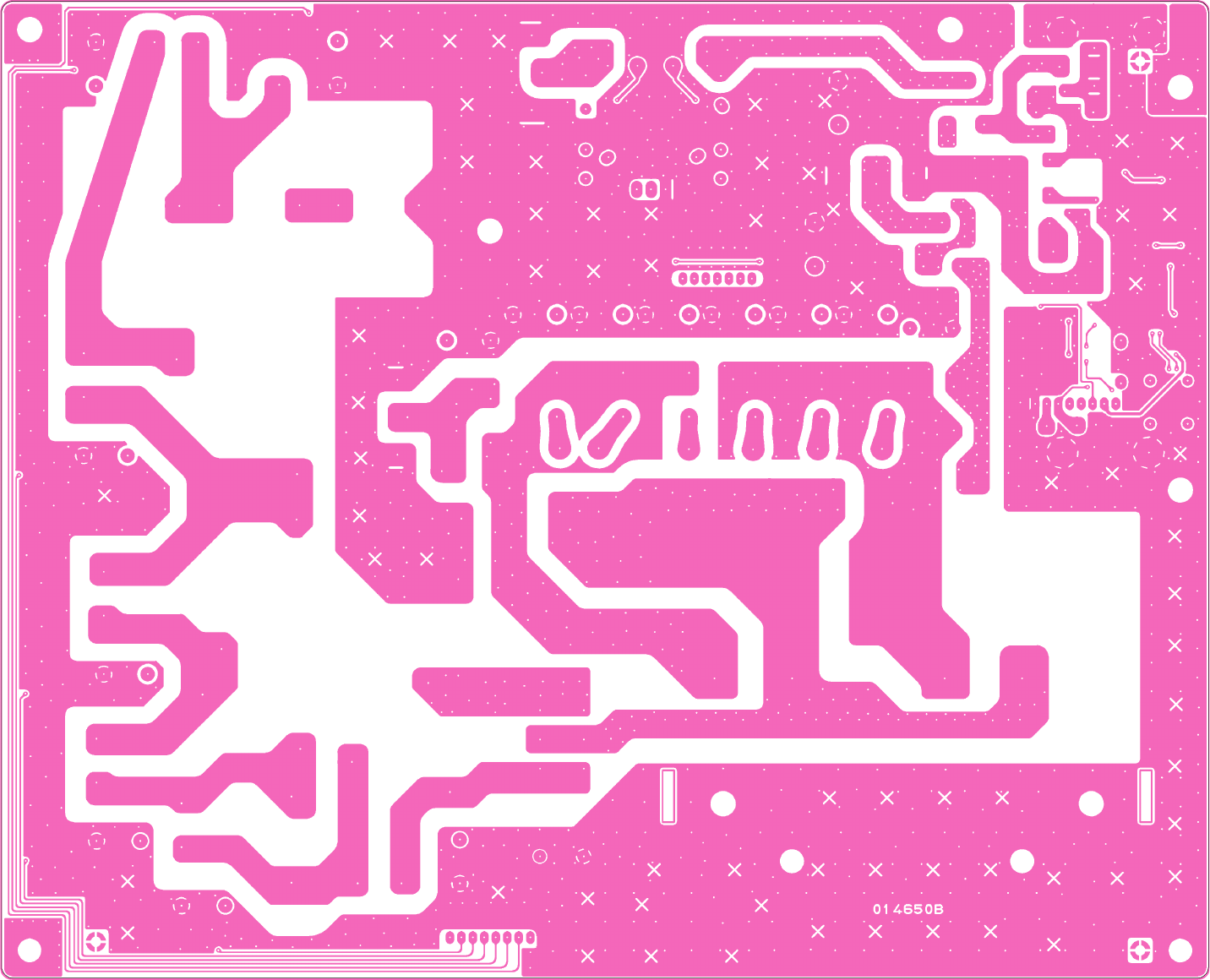

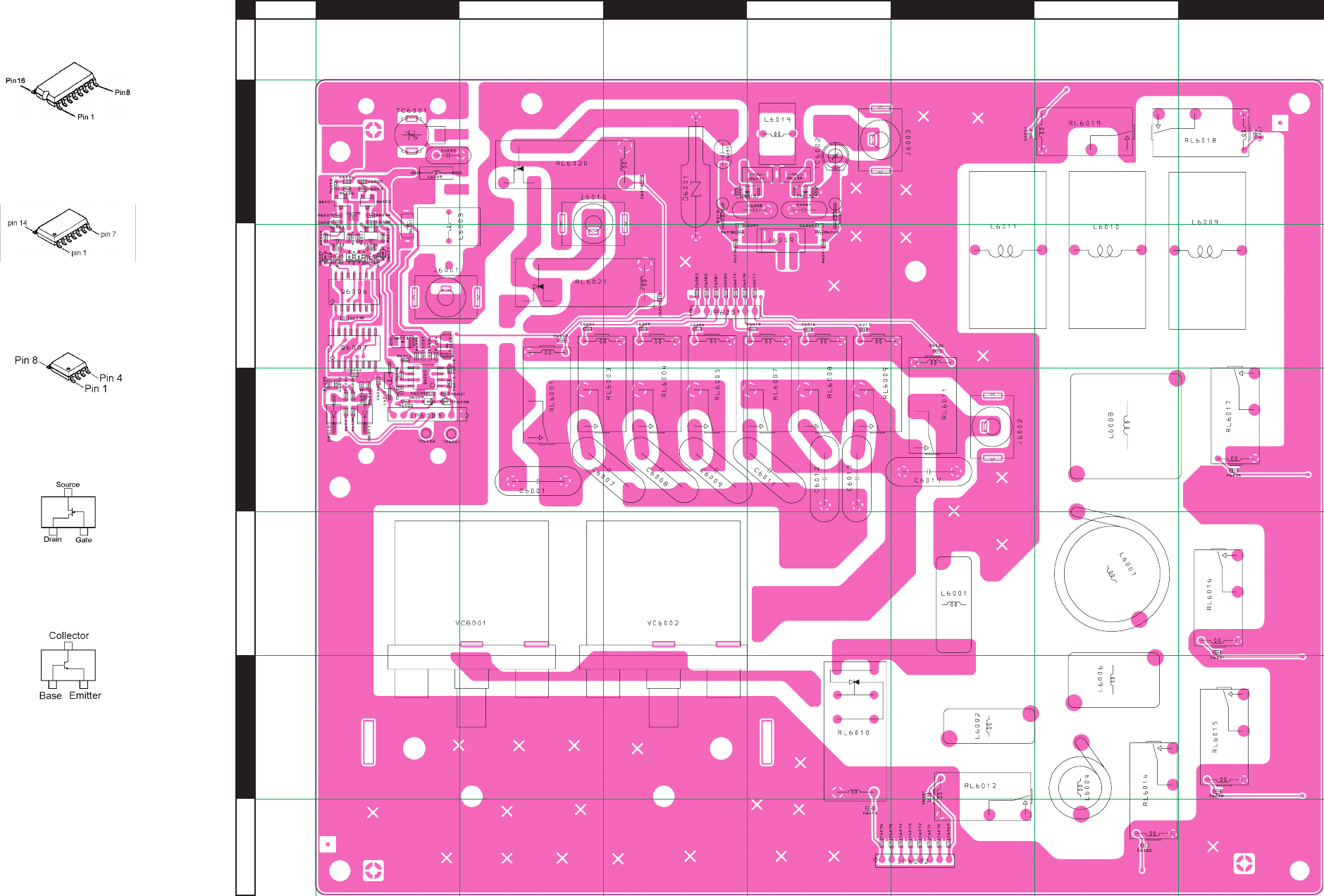

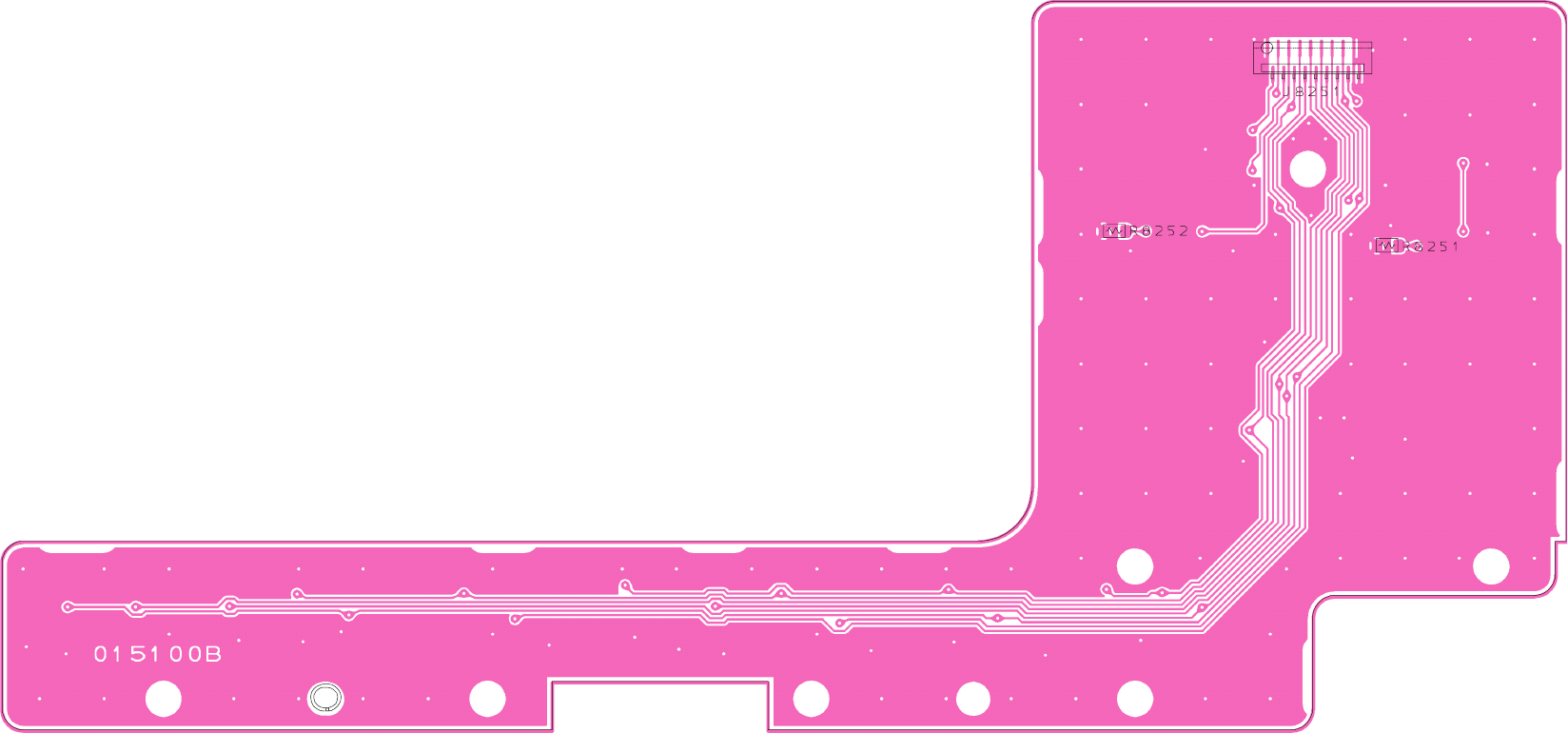

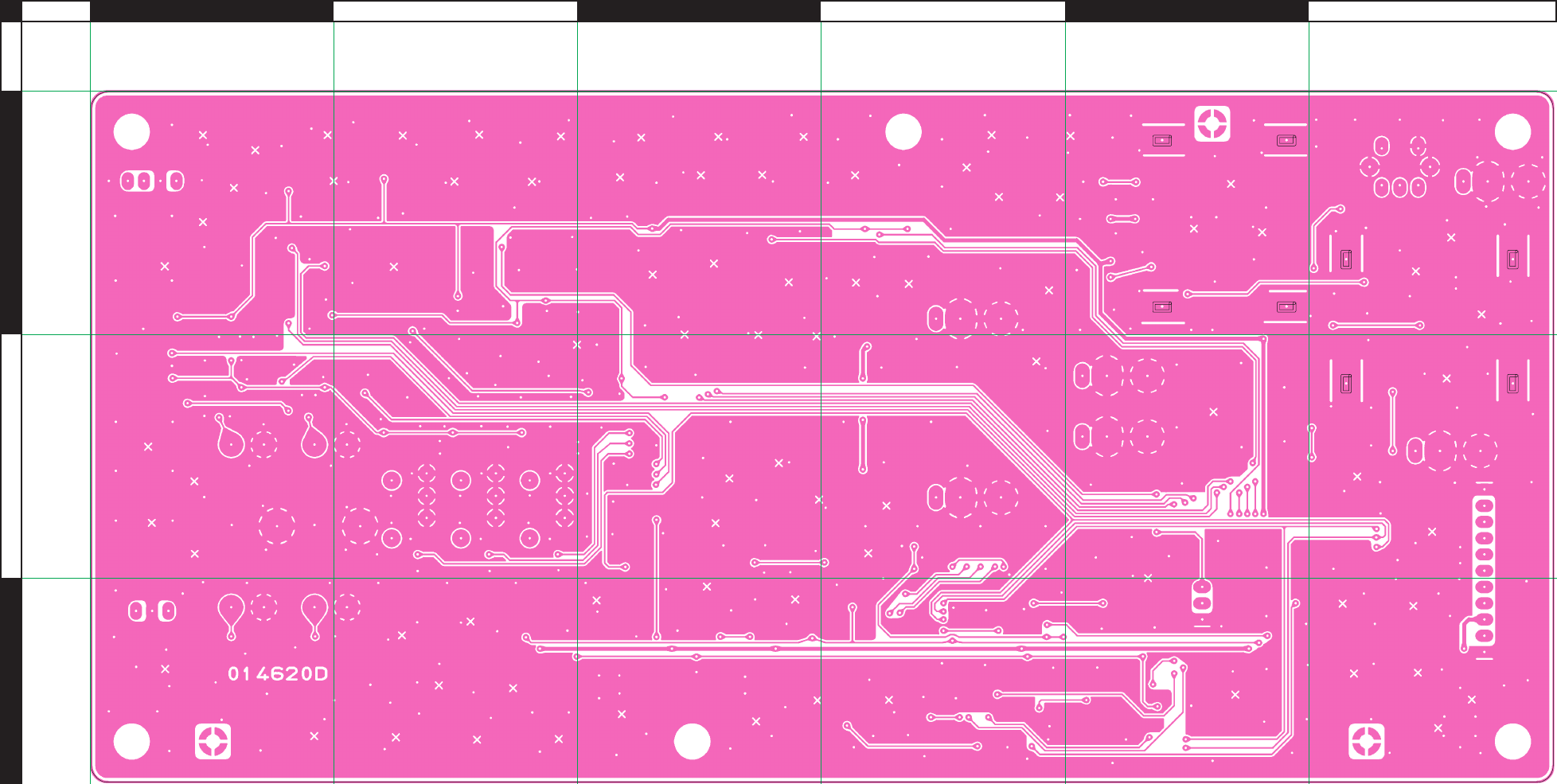

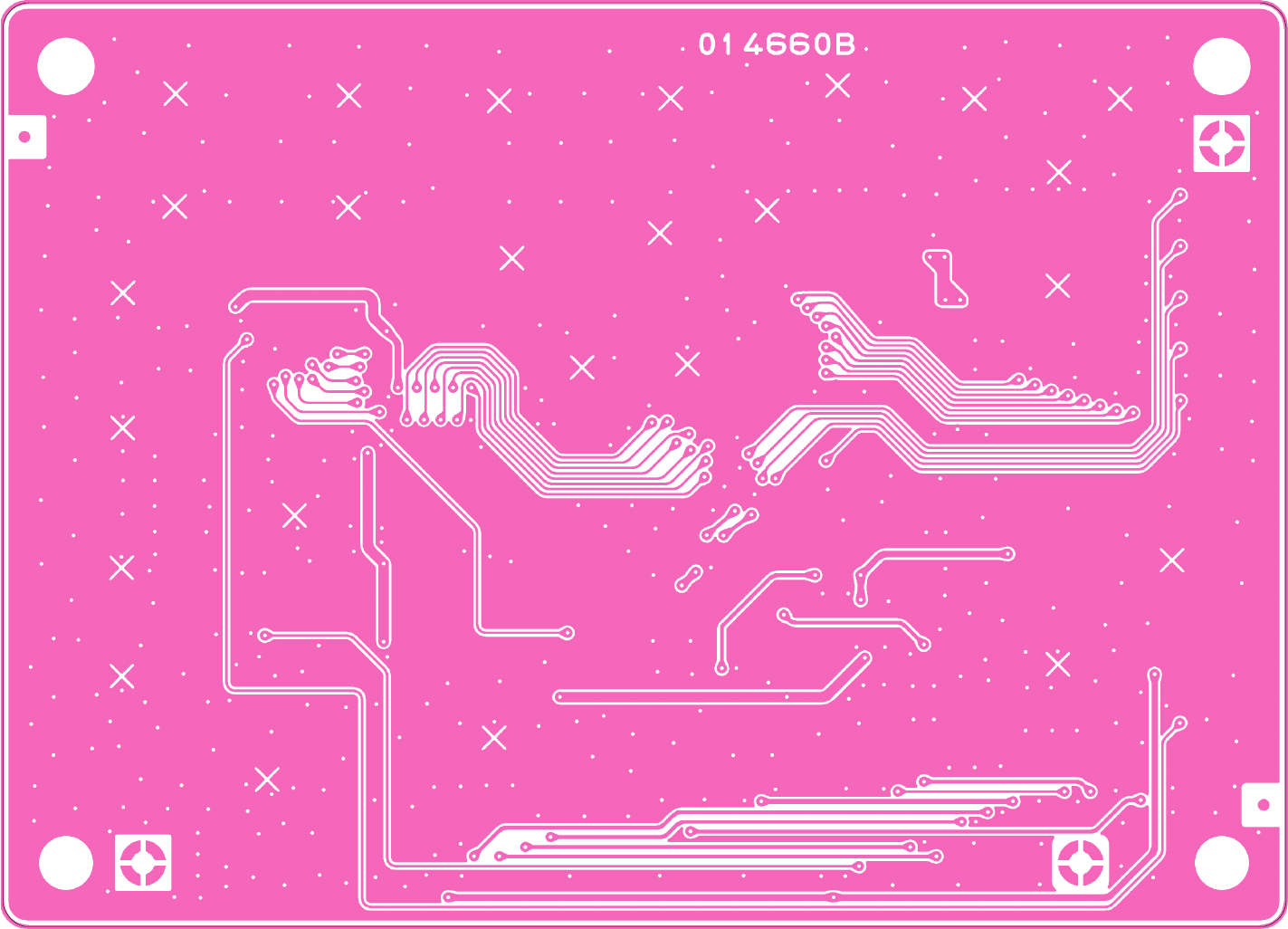

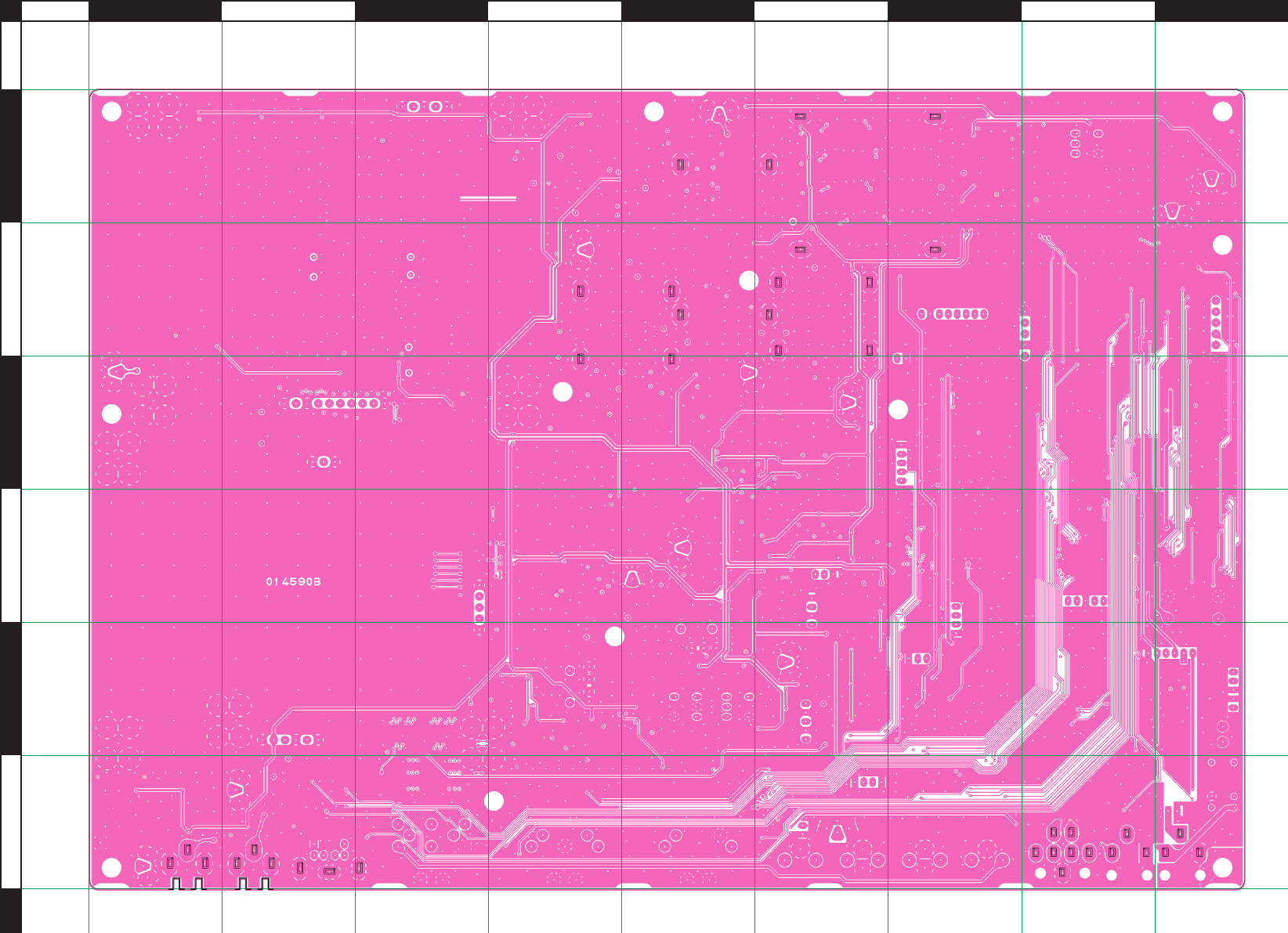

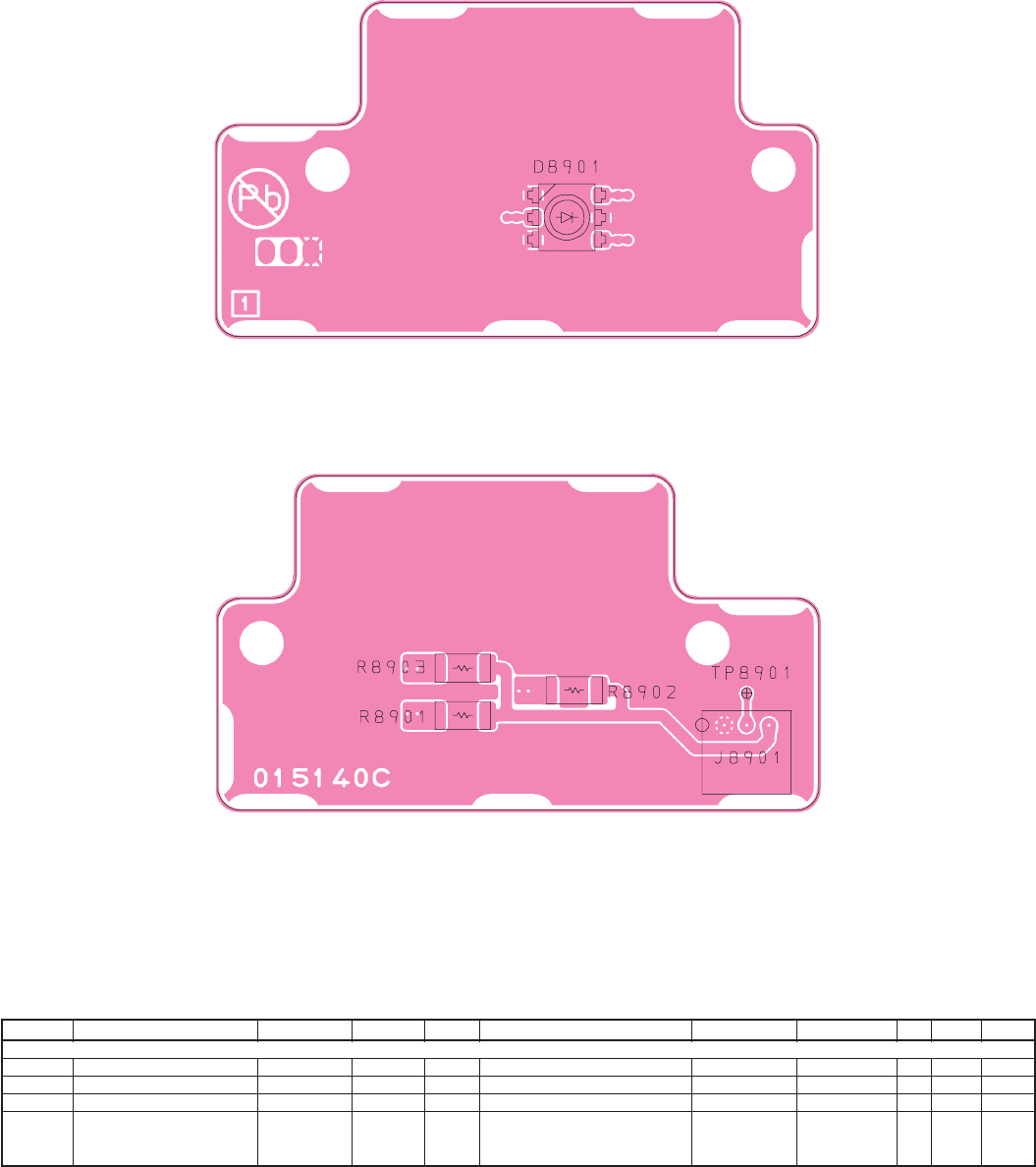

Two PCB layout diagrams are provided for each double-
sided circuit board in the Transceiver. Each side of is re-
ferred to by the type of the majority of components in-
stalled on that side (“leaded” or “chip-only”). In most
cases one side has only chip components, and the other
has either a mixture of both chip and leaded components
(trimmers, coils, electrolytic capacitors, ICs, etc.), or lead-
ed components only.
While we believe the technical information in this man-
ual to be correct, VERTEX STANDARD assumes no lia-
bility for damage that may occur as a result of typograph-
ical or other errors that may be present. Your coopera-
tion in pointing out any inconsistencies in the technical
information would be appreciated.
©2006 VERTEX STANDARD CO., LTD. EH025H90A
Technical Supplement
HF/50 MHz TRANSCEIVER
FT-2000
Contents
Specifications
Exploded View & Miscellaneous Parts
Block Diagram

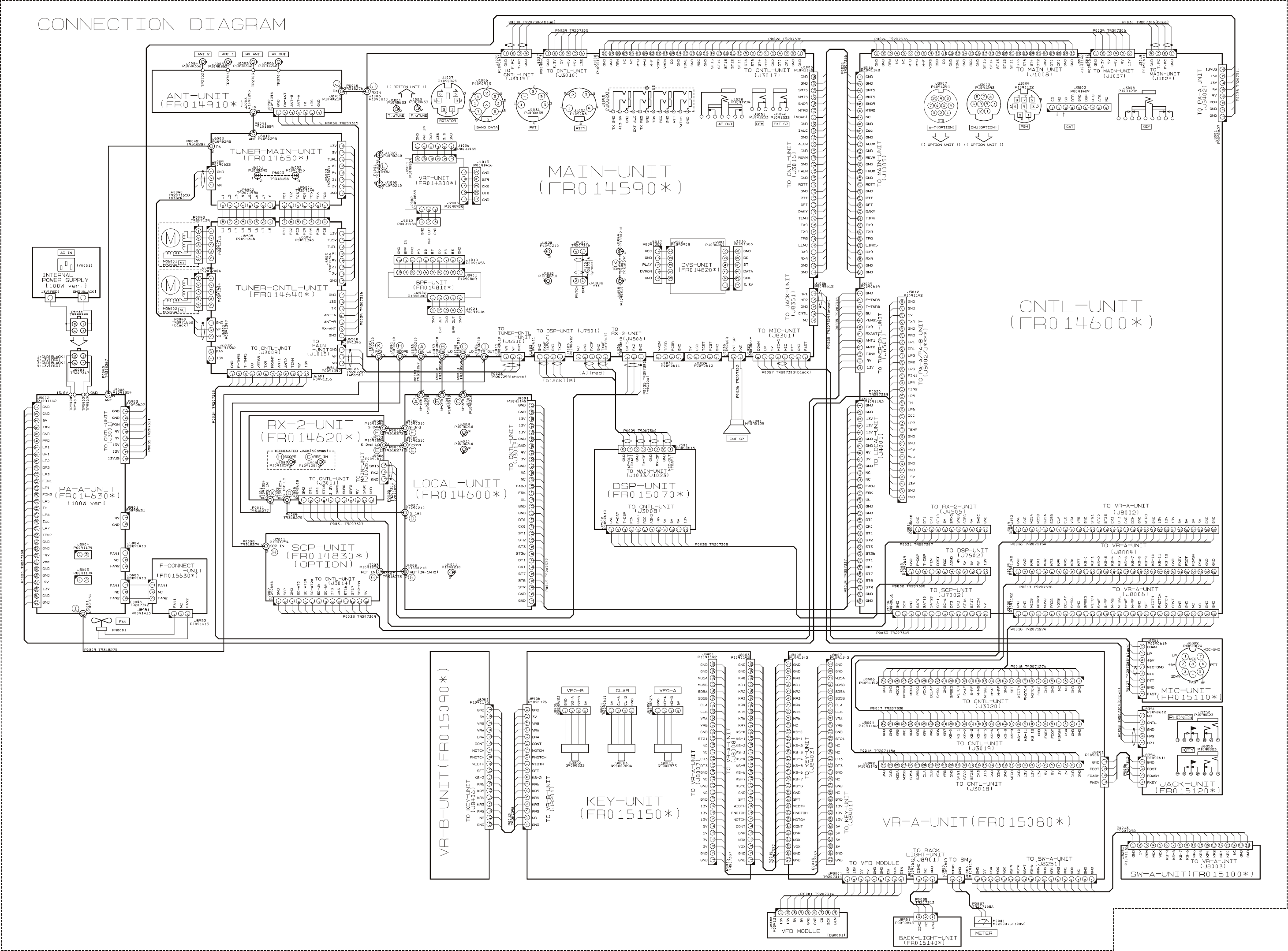

Connection Diagram

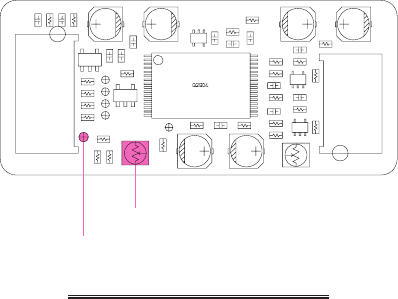

Alignment

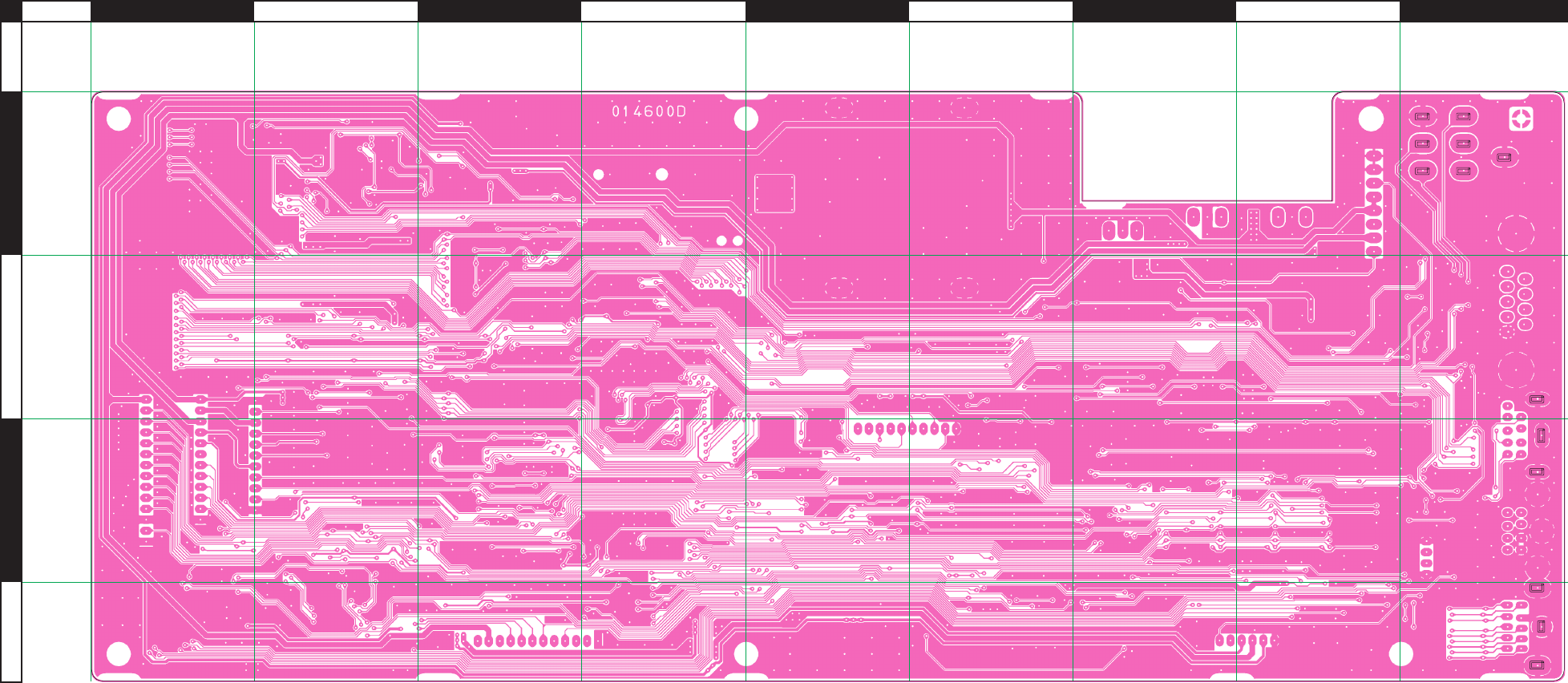

Board Unit (Schematics, Layouts & Parts)

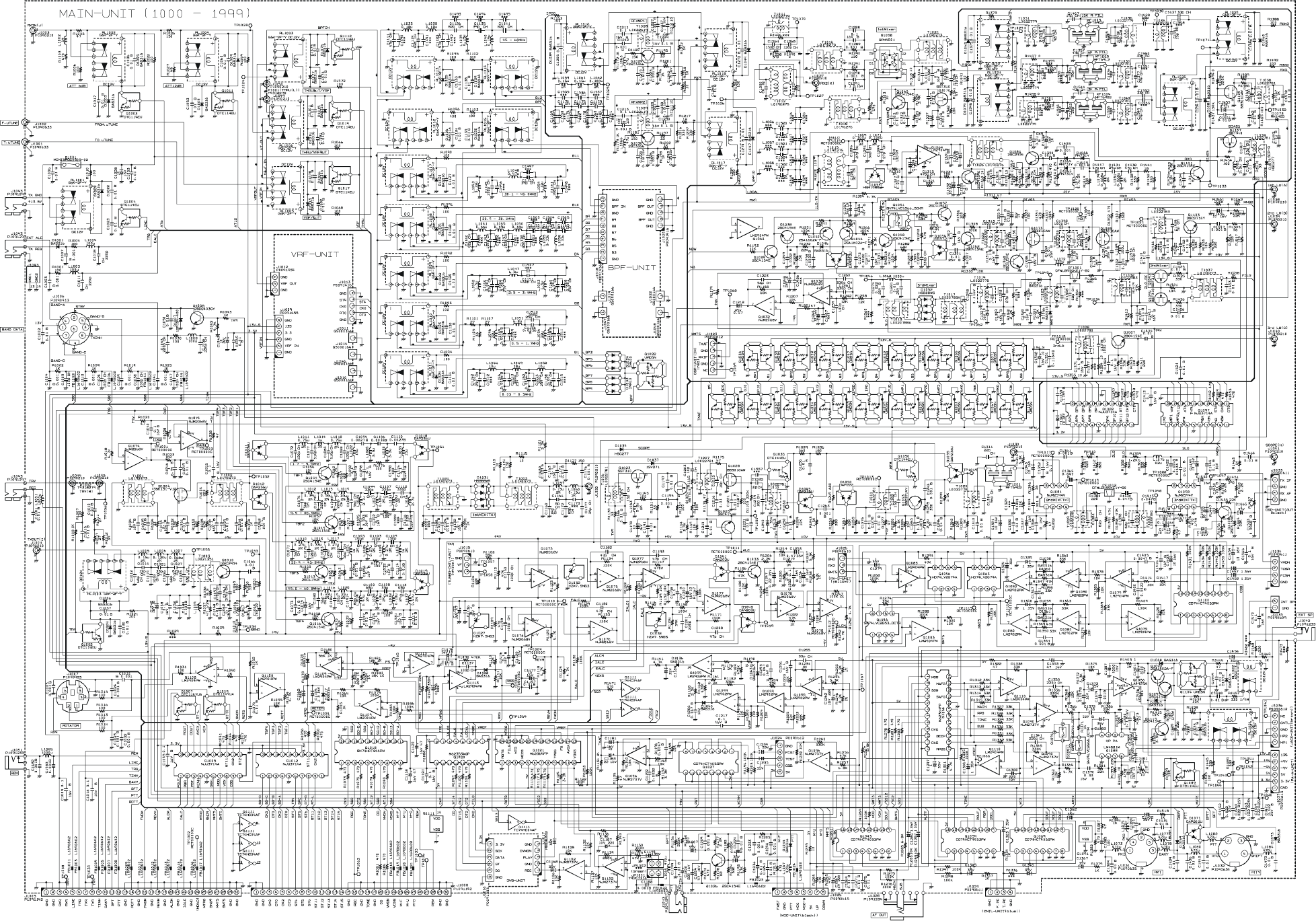

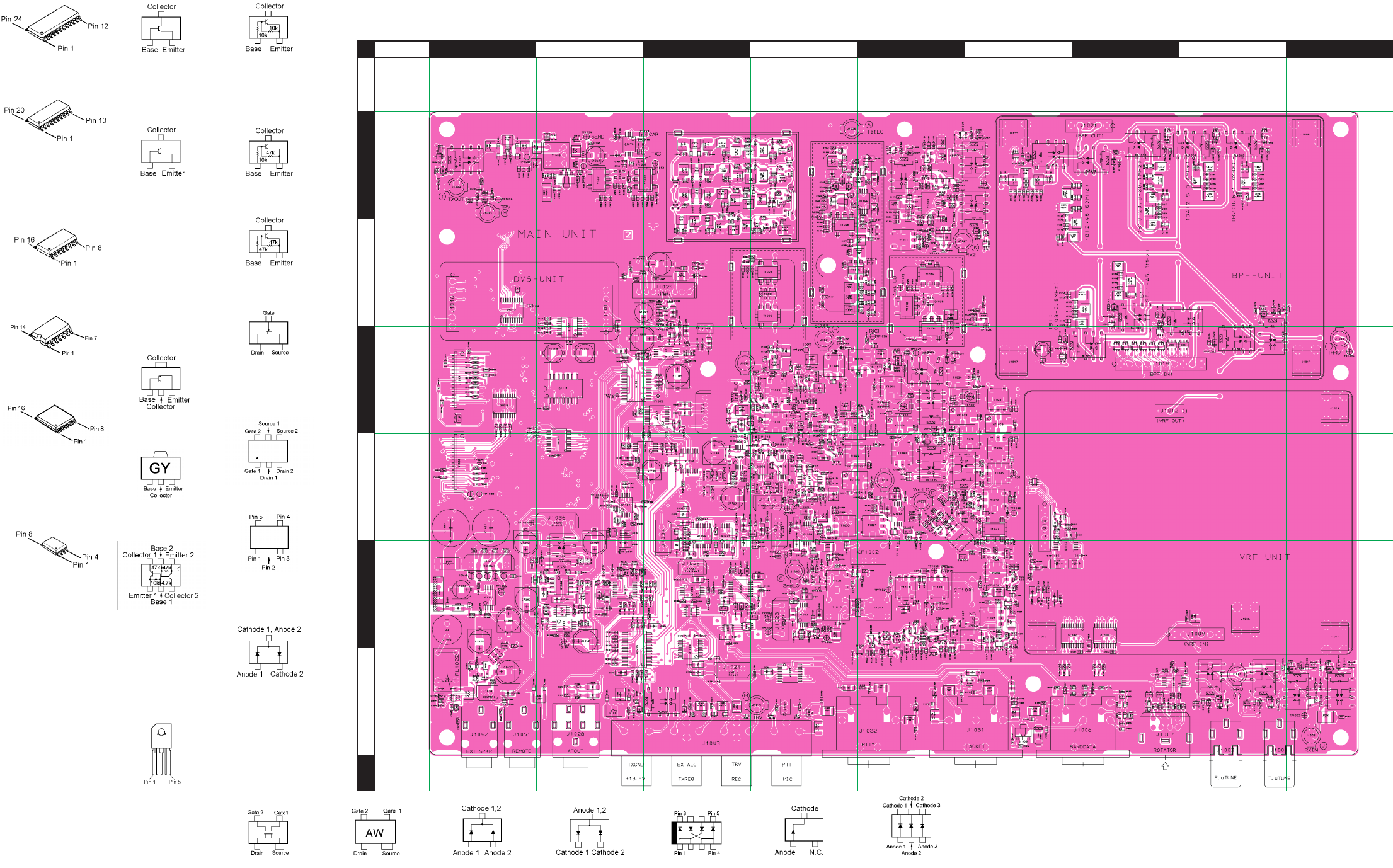

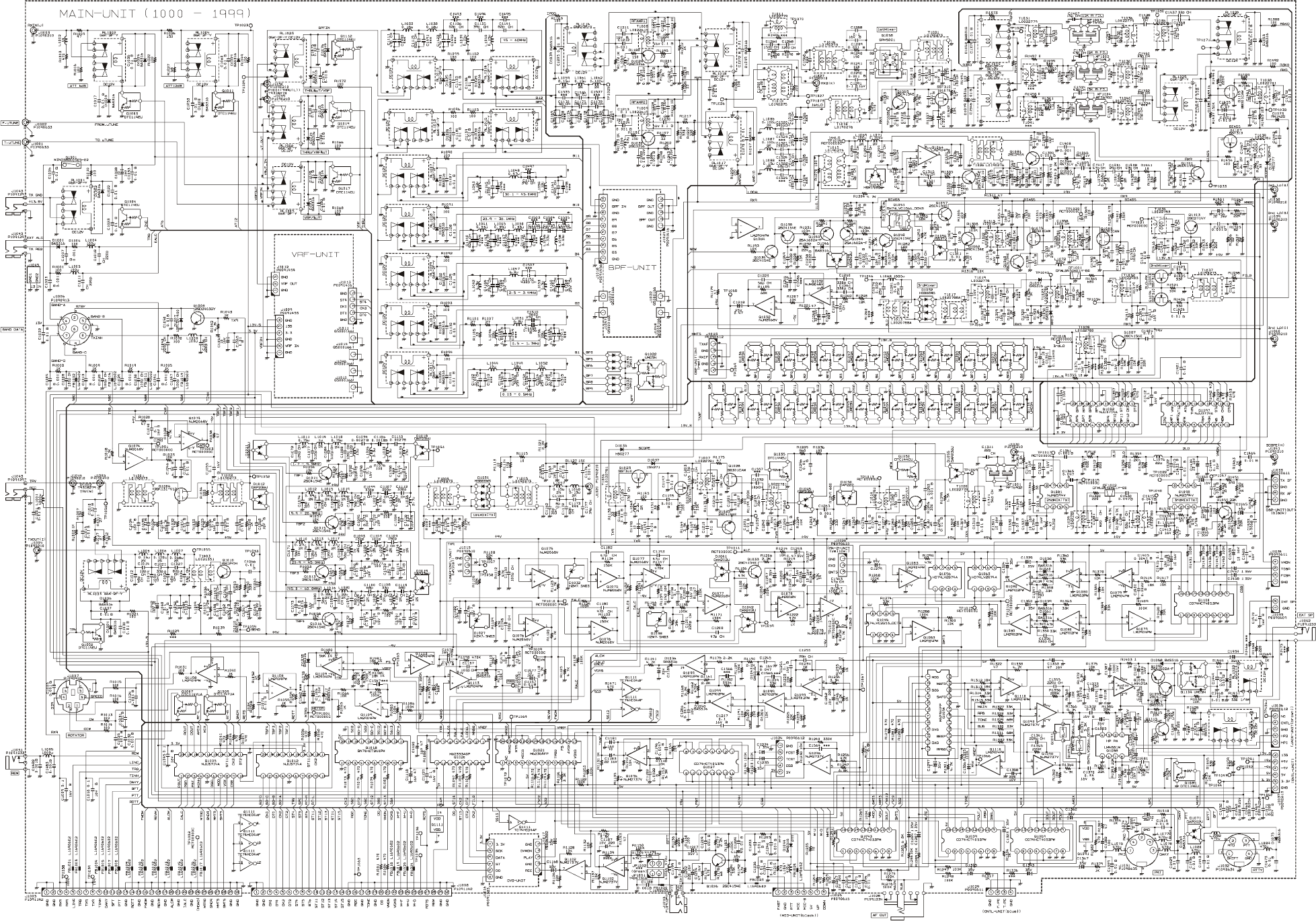

MAIN Unit
VRF Unit
BPF Unit
ANT Unit
DVS Unit

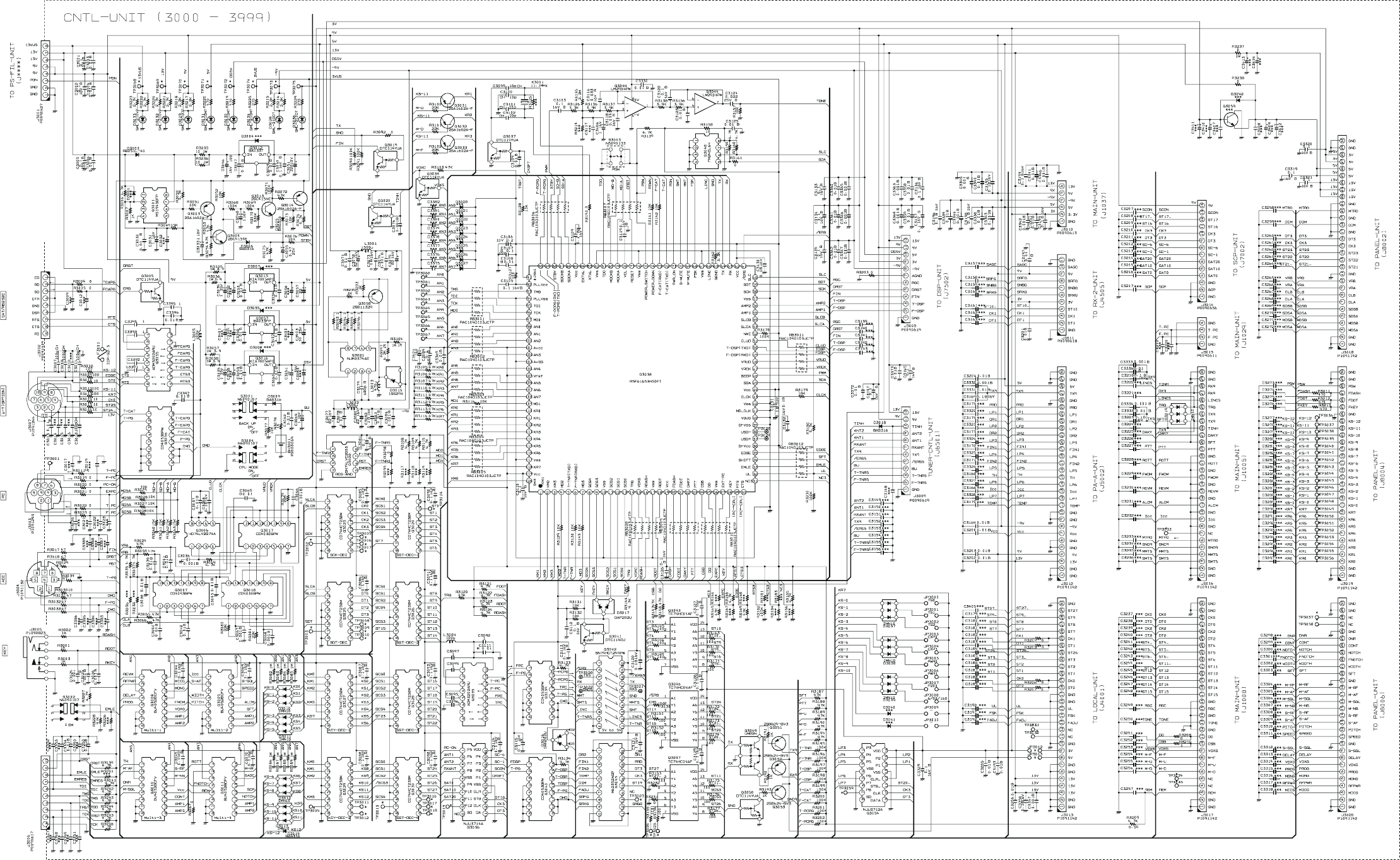

CNTL Unit

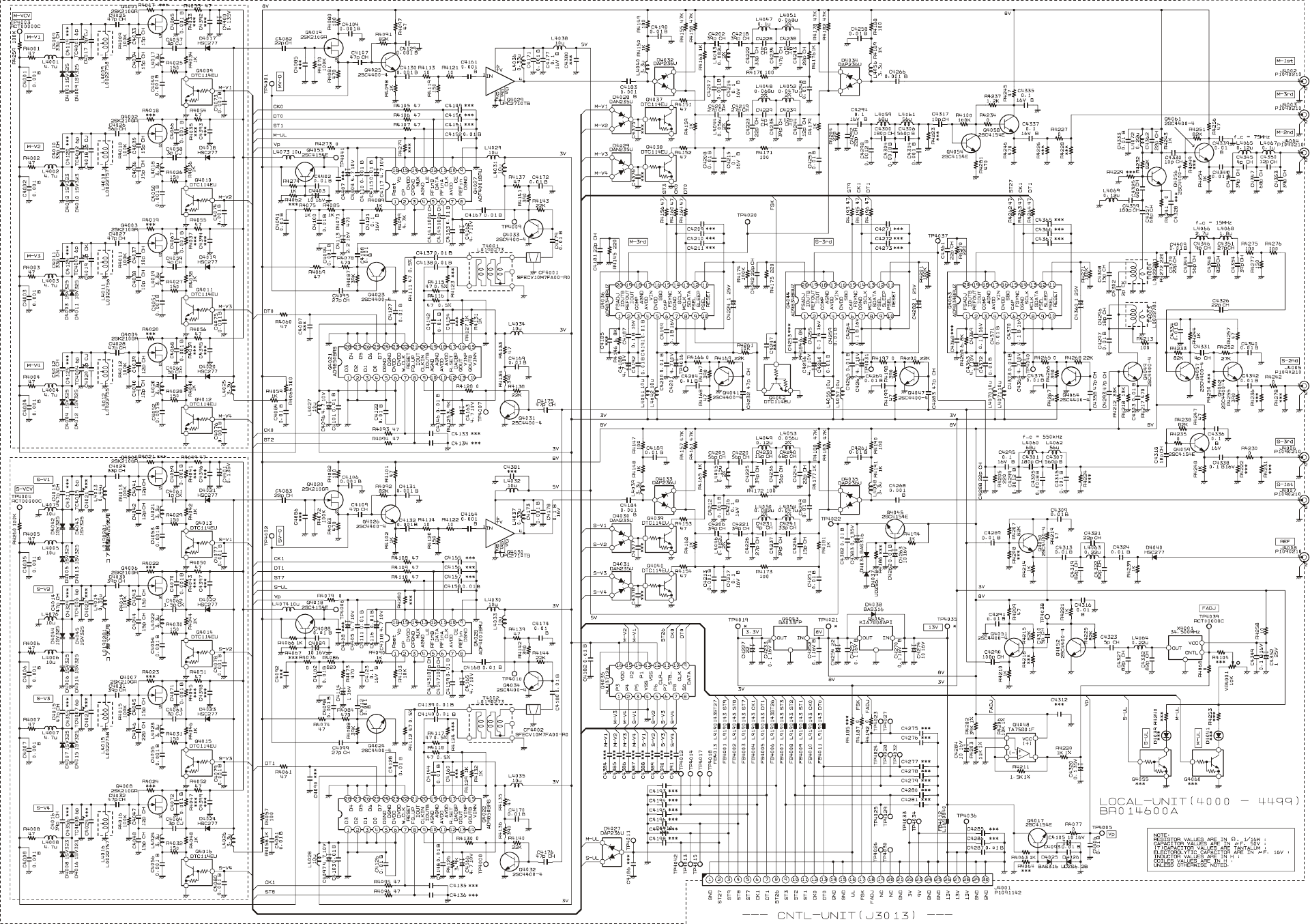

LOCAL Unit
RX-2 Unit
PA-A Unit
TUNER-MAIN Unit

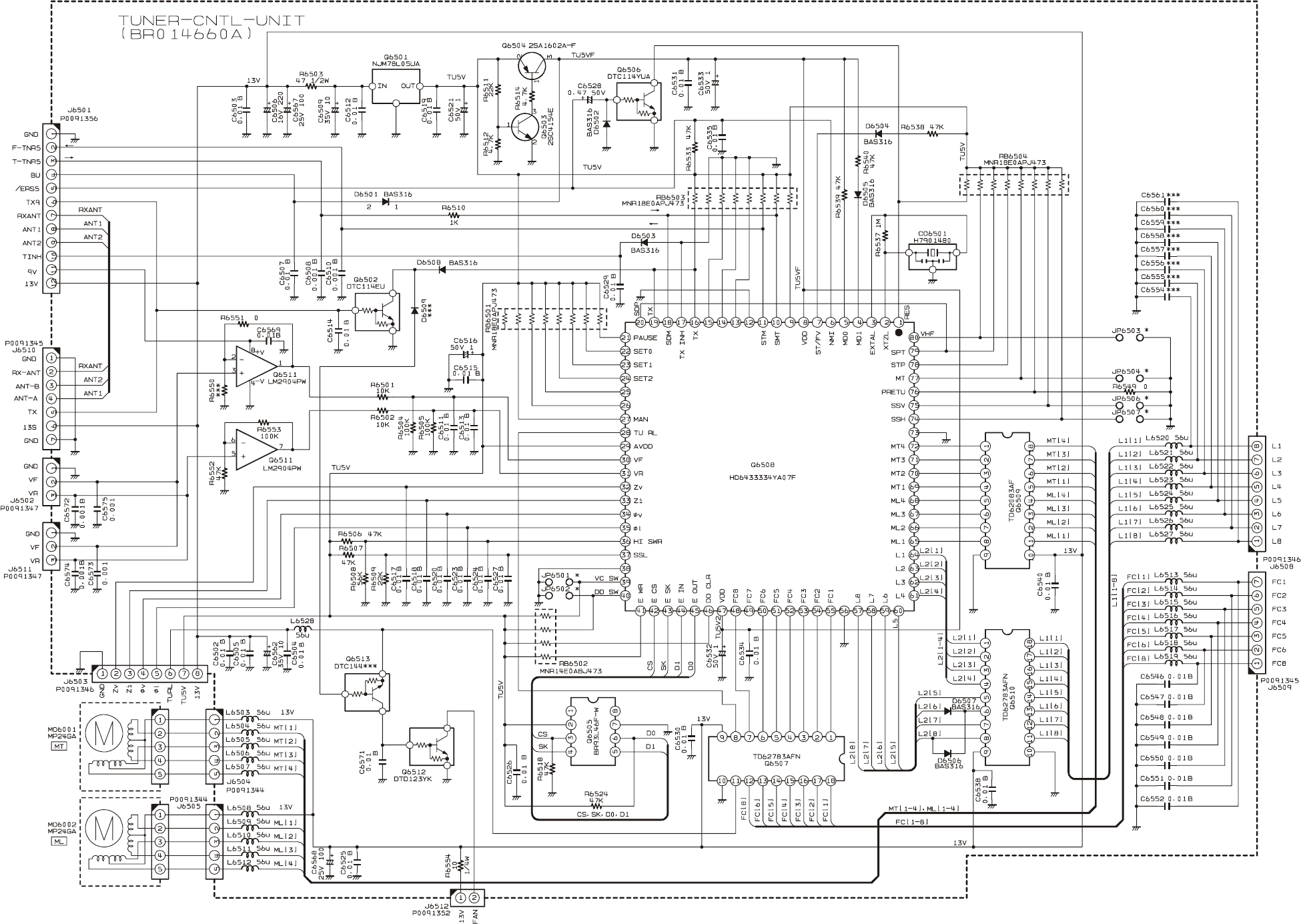

TUNER-CNTL Unit
DSP Unit
VR-A Unit

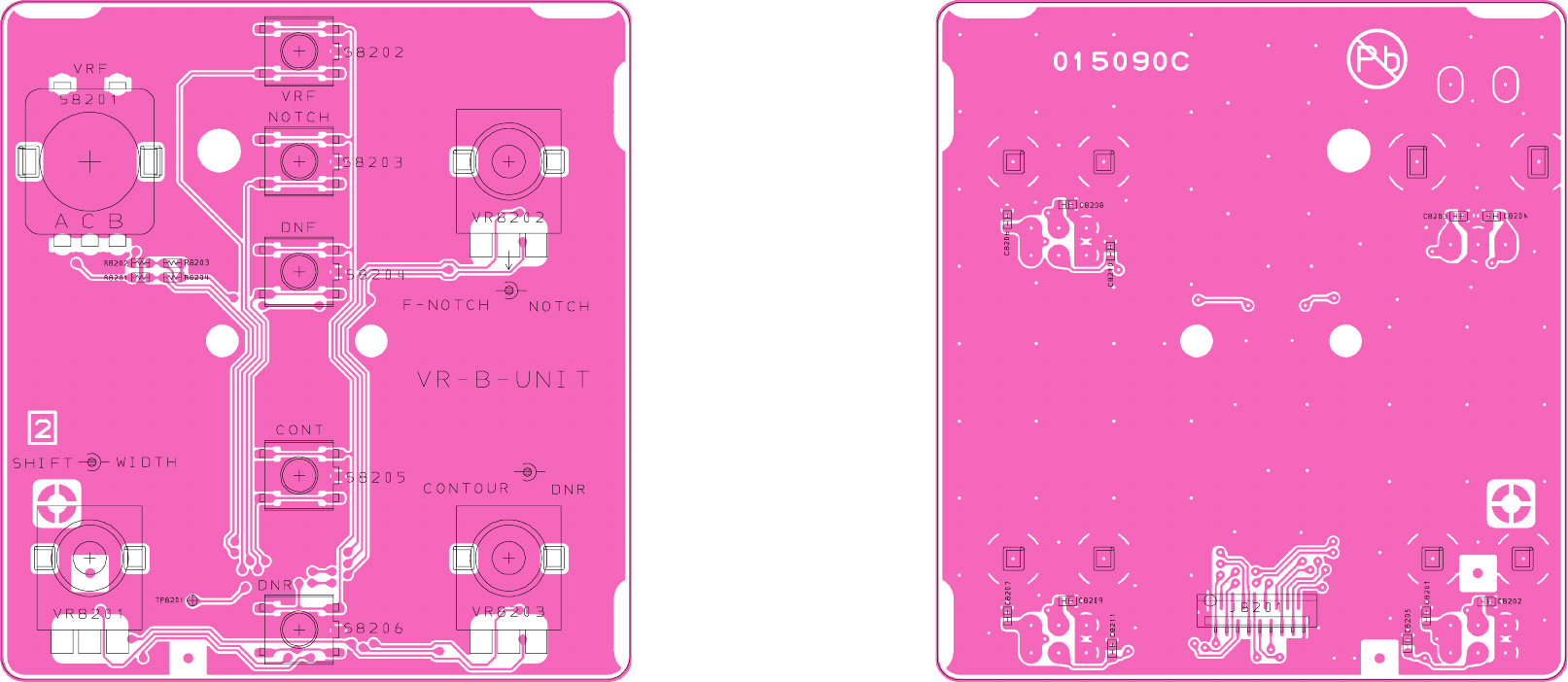

VR-B Unit

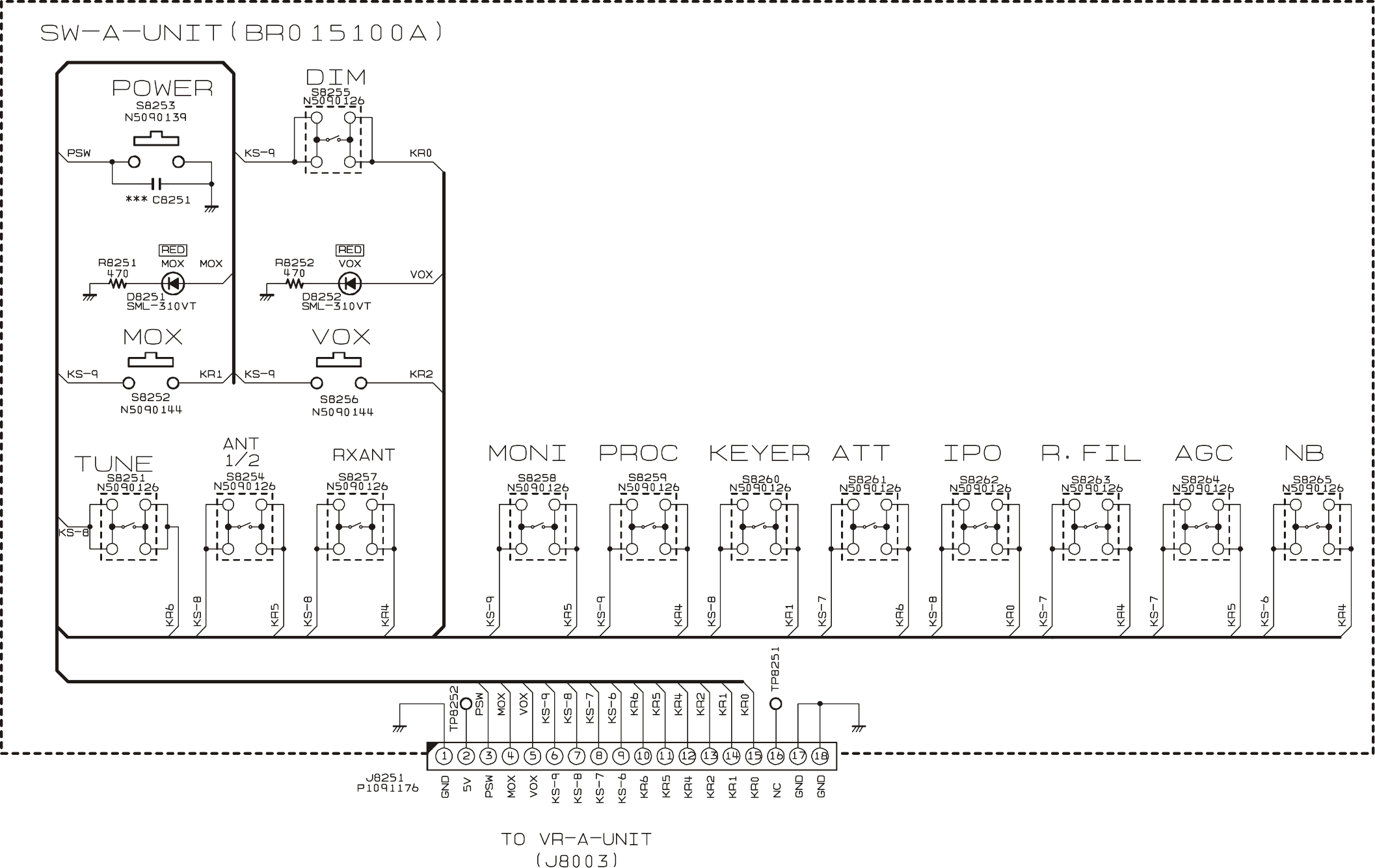

SW-A Unit
MIC Unit
JACK Unit
KEY Unit
BACK-LIGHT Unit
F-CONNECT Unit
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VERTEX STANDARD (AUSTRALIA) PTY., LTD.
Normanby Business Park, Unit 14/45 Normanby Road
Notting Hill 3168, Victoria, Australia
Specifications
General
Rx Frequency Range: 30 kHz - 60 MHz (operating)
160 - 6 m (specified performance, Amateur bands only)
Tx Frequency Ranges: 160 - 6 m (Amateur bands only)
Frequency Stability: ±0.5 ppm (after 1 minute @+77 °F [+25 °C])
±1.0 ppm (after 1 minute @+14 °F ~ +122 °F [–10 °C ~ +50 °C])
Operating Temperature Range: 14 °F ~ +122 °F (–10 °C ~ +50 °C)
Emission Modes: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM),
F1B (RTTY), F1D (PACKET), F2D (PACKET)
Frequency Steps: 1/10 Hz (SSB,CW, & AM), 100 Hz (FM)
Antenna Impedance: 50 Ohms, unbalanced
16.7 - 150 Ohms, unbalanced (Tuner ON, 160 - 10 m Amateur bands)
25 - 100 Ohms, unbalanced (Tuner ON, 6 m Amateur band)
Power Consumption: Rx (no signal) 70 VA
(@117 VAC) Rx (signal present) 80 VA
Tx (100 W) 450 VA
Supply Voltage: AC: 90 VAC - 132 VAC or 180 VAC- 264 VAC
DC: DC 13.8 V ± 10%
Dimensions (WxHxD): 16.1” x 5.3” x 13.8” (410 x 135 x 350 mm)
Weight (approx.): 32 lbs (14.5 kg)
Transmitter
Power Output: 5 - 100 watts (2 - 25 watts AM carrier)
Modulation Types: J3E (SSB): Balanced,
A3E (AM): Low-Level (Early Stage),
F3E (FM): Variable Reactance
Maximum FM Deviation: ±5.0 kHz/±2.5 kHz
Harmonic Radiation: Better than –60 dB (160 - 10m Amateur bands)
Better than –70 dB (6m Amateur band)
SSB Carrier Suppression: At least 60 dB below peak output
Undesired Sideband Suppression: At least 60 dB below peak output
Audio Response (SSB): Not more than –6 dB from 300 to 2700 Hz
3rd-order IMD: –31 dB @14 MHz 100 watts PEP
Microphone Impedance: 600 Ohms (200 to 10 kOhms)
SPECIFICATIONS-1
Receiver
Circuit Type: Main (VFO-A); Triple-conversion superheterodyne
Sub (VFO-B); Double-conversion superheterodyne
Intermediate Frequencies: Main (VFO-A); 69.450 MHz/450 kHz/30 kHz (24 kHz for AM/FM),
Sub (VFO-B); 40.455 MHz/455 kHz
Sensitivity (RF AMP 2 “ON”): SSB (2.4 kHz, 10 dB S+N/N)
6 μV (0.1 - 1.8 MHz)
0.2 μV (1.8 - 30 MHz)
0.125 μV (50 - 54 MHz)
AM (6 kHz, 10 dB S+N/N, 30 % modulation @400 Hz)
3.2 μV (0.1 - 1.8 MHz)
2 μV (1.8 - 30 MHz)
1 μV (50 - 54 MHz)
FM (BW: 15 kHz, 12 dB SINAD)
0.5 μV (28 - 30 MHz)
0.35 μV (50 - 54 MHz)
There is no specification in frequency ranges not listed.
Squelch Sensitivity: SSB/CW/AM
(RF AMP 2 “ON”) 2 μV (0.1 - 30 MHz)
2 μV (50 - 54 MHz)
FM
1 μV (28 - 30 MHz)
1 μV (50 - 54 MHz)
There is no specification in frequency ranges not listed.
Selectivity (–6/–60 dB): Main (VFO-A)
Mode –6 dB –60 dB
CW/RTTY/PKT 0.5 kHz or better 750 Hz or less
SSB 2.4 kHz or better 3.6 kHz or less
AM 6 kHz or better 15 kHz or less
FM 15 kHz or better 25 kHz or less
(WIDTH: Center, VRF: OFF)
Sub (VFO-B)
Mode –6 dB –60 dB
CW/RTTY/PKT 1.1 kHz or better 3.0 kHz or less
SSB 2.2 kHz or better 4.5 kHz or less
AM 6 kHz or better 25 kHz or less
FM 12 kHz or better 30 kHz or less
Image Rejection: 70 dB or better (160 - 10m Amateur bands)
60 dB or better (6m Amateur band)
Maximum Audio Output: 2.5 W into 4 Ohms with 10% THD
Audio Output Impedance: 4 to 8 Ohms (4 Ohms: nominal)
Conducted Radiation: Less than 4000 μμW
Specifications are subject to change, in the interest of technical improvement, without notice or obligation, and
are guaranteed only within the amateur bands.
Specifications
SPECIFICATIONS-2
Specifications
Note
SPECIFICATIONS-3

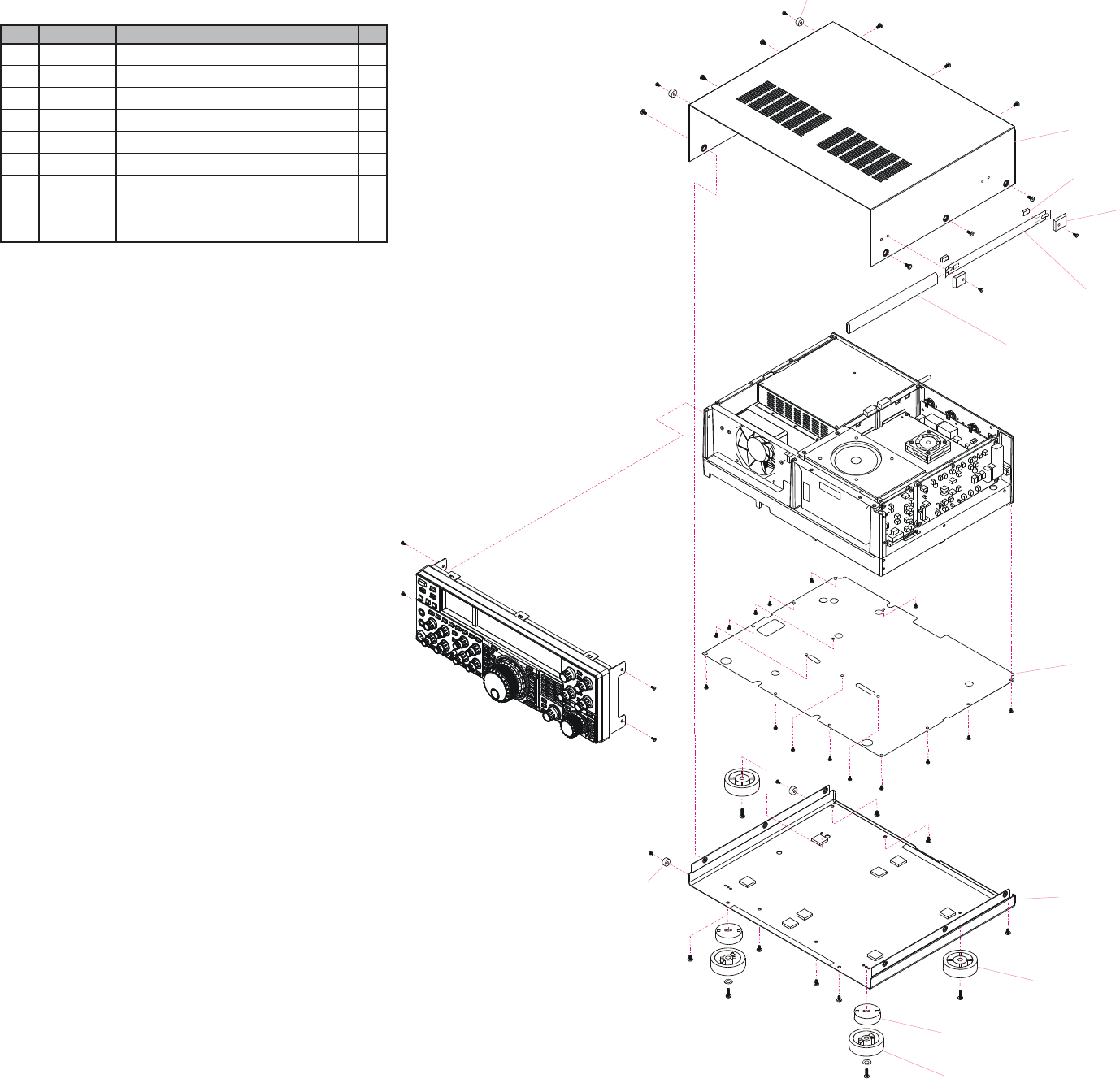

Exploded View-1
Exploded View
Case ASSY
CP8644001
TOP CASE ASSY
R4115020A (X2 pcs)
HANDLE END
R3084747
HANDLE (CE)
R3084746
HANDLE
R0115070A
HANDLE SHAFT
S4000047 (X2 pcs)
CASE LEG
RA0831500
SHIELD CASE COVER
CS1895001
BOTTOM CASE ASSY
RA0719500 (X2 pcs)
LEG
RA072470A (X2 pcs)
LEG
RA072460A (X2 pcs)
LEG
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U31408007 OVAL HEAD SCREW M4X8B 9
U24305007 BIND HEAD TAPTITE-B M3X5B 4
U31410020 OVAL HEAD SCREW M4X10SUS 2
U31306007 OVAL HEAD SCREW M3X6B 7
U24425007 BIND HEAD TAPTITE-B M4X25B 2
U70005002 PLAIN WASHER FW5NI 2
U24410007 BIND HEAD TAPTITE-B M4X10B 2
U24306002 BIND HEAD TAPTITE-B M3X6NI 15
U34308001 FLAT HEAD TAPTITE-B M3X8 4
S4000047 (X2 pcs)
CASE LEG
RA0734000 (X2 pcs)
PORON SHEET

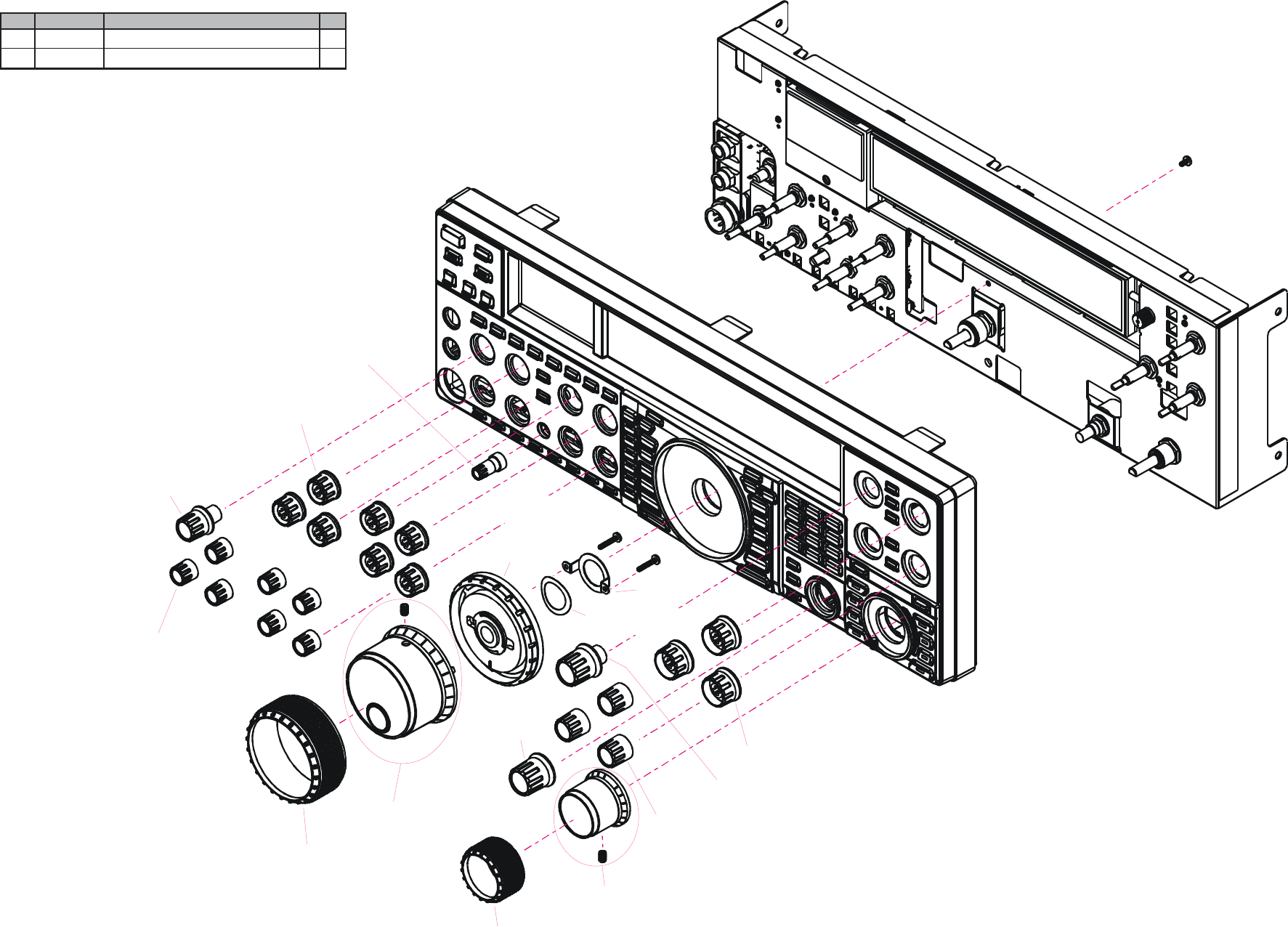

Exploded View-2
Exploded View
Panel ASSY (1/2)
RA0828600
ROTARY KNOB
RA0828700
ROTARY KNOB
RA0828300
VOLUME KNOB
RA0828400 (X3 pcs)
VOLUME KNOB
RA0828500 (X3 pcs)
VOLUME KNOB
RA0828800
KNOB MAIN ASSY
RA0829000
RUBBER RING
RA0833200
KNOB SKIRT
RA0828200 (X7 pcs)
VOLUME KNOB
RA0828000
ROTARY KNOB
RA0828100 (X7 pcs)
VOLUME KNOB
RA085250A
HOLDER
RA082910A
SUB KNOB ASSY
RA0829300
RUBBER RING (SUB)
U9900211
WAVE WASHER
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24205001 BIND HEAD TAPTITE-B M2.6X5 1
U24214001 BIND HEAD TAPTITE-B M2.6X14 2

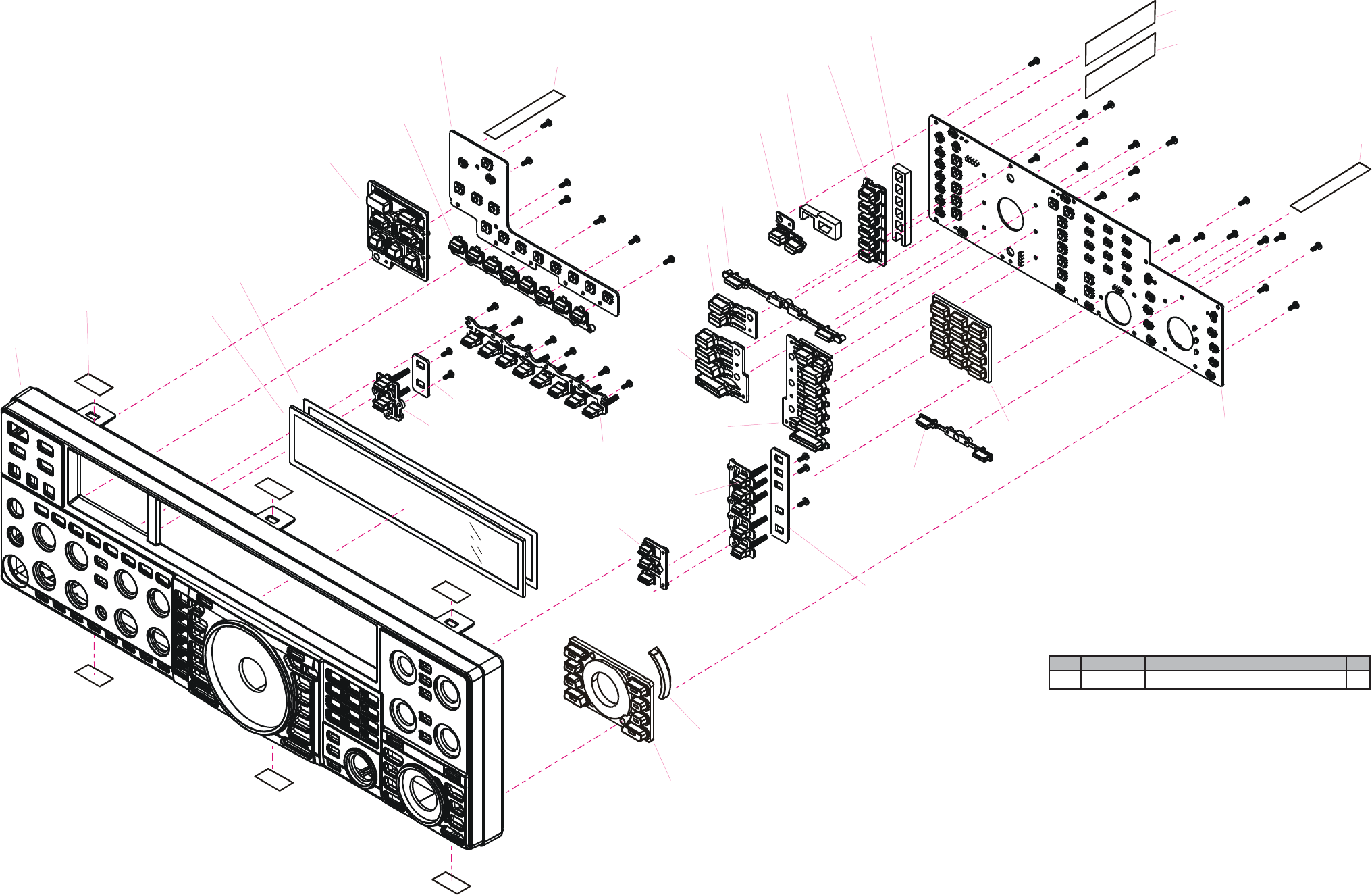

Exploded View-3
Exploded View
Panel ASSY (2/2)
RA082640A
FRONT PANEL
RA0829400
WINDOW
RA085260A
SPONGE RUBBER
RA088190A
SPONGE RUBBER
RA084380A
KNOB ASSY
RA0826900
PUSH KNOB (FUNC)
RA082670A
PUSH KNOB (NB)
RA0826800
PUSH KNOB (BKIN)
RA082700A
PUSH KNOB
RA0827100
PUSH KNOB
RA0843700
KNOB ASSY
RA0832100
PUSH KNOB
RA0843600
KNOB ASSY
RA0827400
PUSH KNOB RA0827500
PUSH KNOB
RA0827600
PUSH KNOB
RA0827700
PUSH KNOB
RA0827800
PUSH KNOB
RA0836300
LIGHT GUIDE
RA085700A
SPONGE RUBBER
RA085690A
SPONGE RUBBER
SW-A Unit
KEY Unit
RA082790A
PUSH KNOB
RA088200A
SPONGE RUBBER
RA088190A
SPONGE RUBBER
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24106001 BIND HEAD TAPTITE-BM2X6 38
T9207298
WIRE ASSY
T9207337
WIRE ASSY
T9207337
WIRE ASSY
T9207298
WIRE ASSY
R7155600 (X6 pcs)
HIMERON TAPE

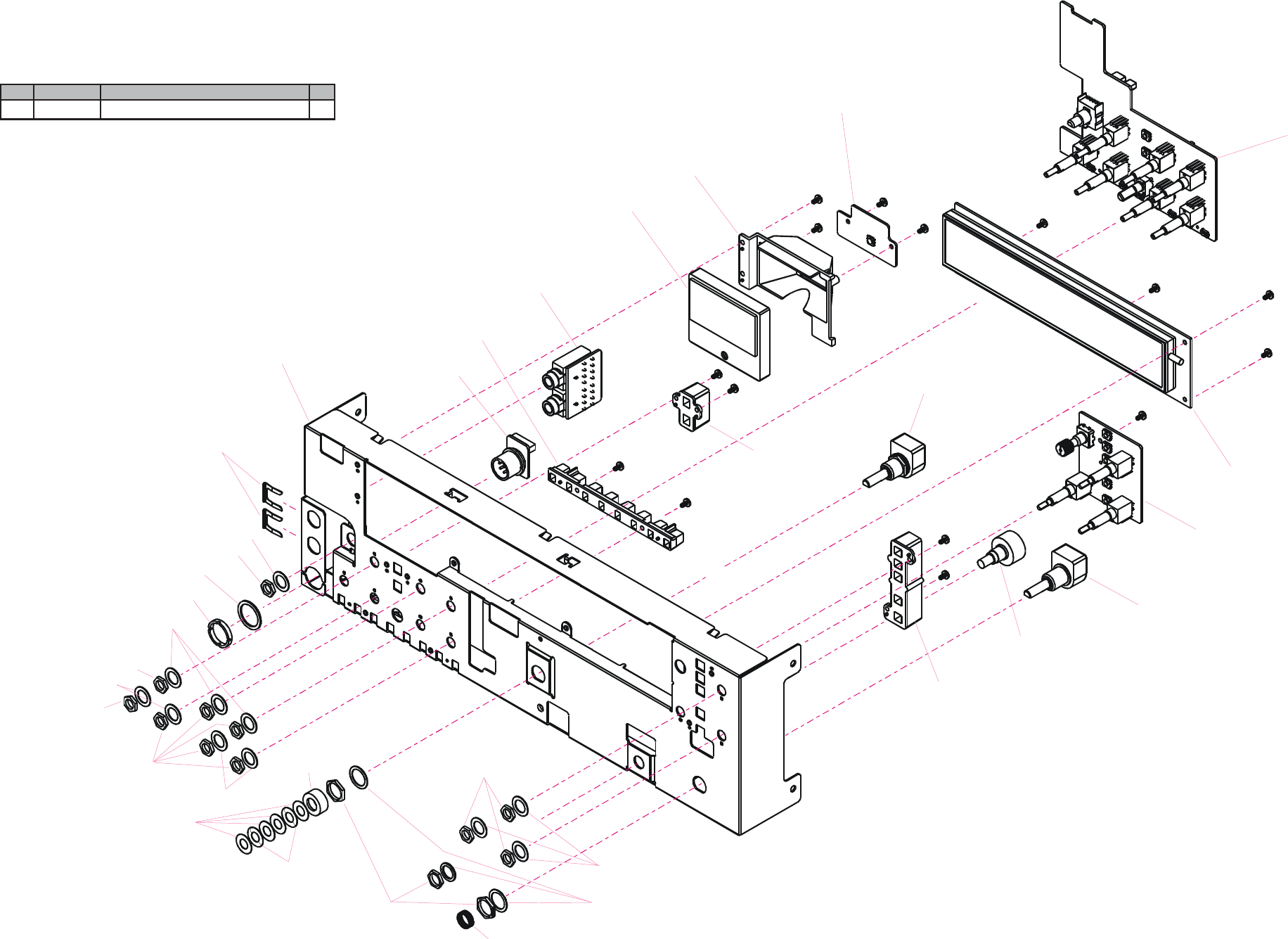

Exploded View-4
Exploded View
Panel Frame ASSY
RA082960B
PANEL FRAME
RA0829500
REFLECTOR
RA083690A
KNOB GUIDE
RA0837000
KNOB GUIDE (VRF)
RA0837100
KNOB GUIDE
(BKIN)
R0134990A
COIL SPRING
Q7000570
VFD MODULE
M0290075A
METER
MIC Unit
JACK Unit
BACK-LIGHT Unit
VR-A Unit
VR-B Unit
Q9000709A
ROTARY ENCODER
Q9000833
ROTARY ENCODER
Q9000833
ROTARY ENCODER
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24205001 BIND HEAD TAPTITE-B M2.6X5 15
U9900192
WAVE WASHER
RA0744600
SLEEVE
This washer are attached to VR.
This nut are attached to VR.
This washer are attached to ROTARY ENCODER.
This nut are attached to ROTARY ENCODER.
This nut are attached to VR.
This washer are attached to VR.
This nut are attached to VR.
This washer are attached to VR.
This nut are attached to VR.
This washer are attached to VR.
This metal fittings are attached to CONNECTOR.
This washer are attached to CONNECTOR.
This nut are attached to CONNECTOR.
This nut are attached to SWITCH.
This washer are attached to SWITCH.
RA0729400
WASHER
Exploded View-5
Exploded View
CHASSIS ASSY (1/4)
RA082970A
CHASSIS
TUNER-MAIN Unit
TUNER-CNTL Unit
PA-A Unit
ANT Unit
RX-2 Unit
SP ASSY
PS ASSY
DSP ASSY
P1091246
CONNECTOR
P1090984 (X3 pcs)
CONNECTOR
Non-designated parts are available only as part of a designated
assembly.
SCP Unit (Option)
REF. VXSTD P/N Description Qty.
U24306002 BIND HEAD TAPTITE-B M3X6NI 42
U34308001 FLAT HEAD TAPTITE-B M3X8 4
U03308002 SEMS SCREW ASM3X8NI 20
U44308002 PAN HEAD TAPTITE-B M3X8NI 8
U03306002 SEMS SCREW ASM3X6NI 4
U52415002 HEX HEAD BOLT M4X15NI 1
U70005002 PLAIN WASHER FW5NI 2
U72005002 TOOTHED LOCK WASHER OW5NI 1
S5000274 (X6 pcs)
SPACER
T9207339
WIRE ASSY

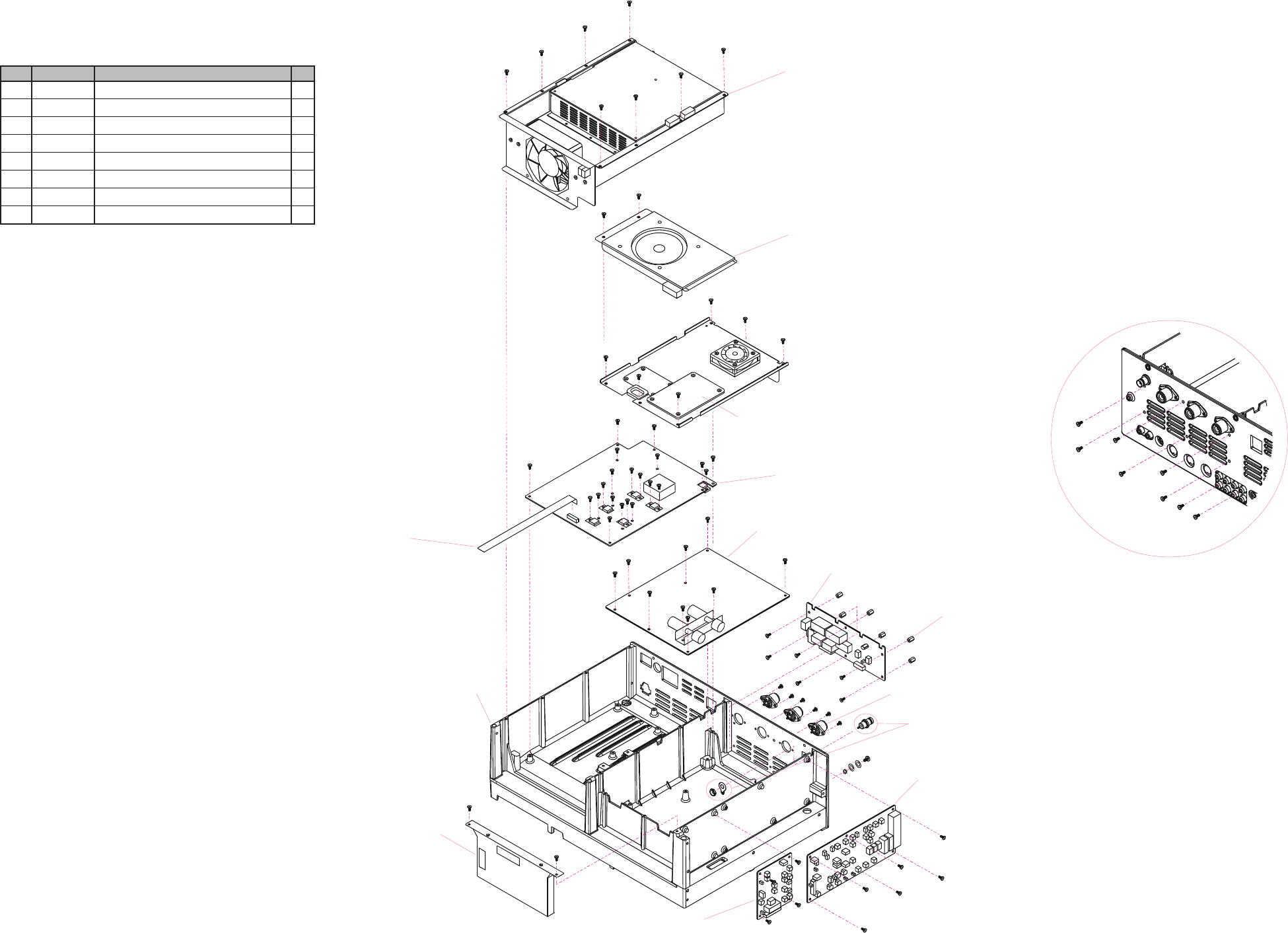

Exploded View-6
Exploded View
DSP UNIT
Q7000572
POWER SUPPLY
Q7000573 (CE)
POWER SUPPLY
CHASSIS ASSY (2/4)
PS ASSY DSP ASSY
RA0831300
SHIELD CASE COVER
RA0831200
SHIELD CASE
RA0868800
MOTOR HOLDER
RA083110A
SHIELD CASE COVER
RA0878100 (CE)
SHIELD CASE COVER
F-CONNECT Unit
M2090046
FAN
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24306002 BIND HEAD TAPTITE-B M3X6NI 12
U04330007 SEMS SCREW HSM3X30B 4
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24206002 BIND HEAD TAPTITE-B M2.6X6NI 4
U03306002 SEMS SCREW ASM3X6NI 4
RA0532400 (X2 pcs)
GASKET
R0120250 (X2 pcs)
LEAF SPRING
Exploded View-7
Exploded View
TUNER-CNTL Unit
CHASSIS ASSY (3/4)
SP ASSY TUNER ASSY
RA0859600
SPONGE RUBBER
RA0853400
SP HOLDER
S5000223 (X4 pcs)
SPACER
RA0831000
SHIELD CASE COVER
RA083160A
SHIELD CASE COVER
M2090045
FAN
M4090125
SPEAKER
RA0887100
BLIND SHEET
RA086350A (X2 pcs)
SPONGE RUBBER
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U04325002 SEMS SCREW HSM3X25NI 4
U03306002 SEMS SCREW ASM3X6NI 4
U24306002 BIND HEAD TAPTITE-B M3X6NI 4
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U30310002 FLAT HEAD SCREW M3X10NI 4
U66300002 FLANGE NUT N3NI 4
S6000280
EDGE HOLDER
RA0794800
GASKET
Exploded View-8
Exploded View
CHASSIS ASSY (4/4)
RA082970A
CHASSIS
MAIN Unit
VRF Unit
BPF Unit
DVS Unit
LOCAL Unit
CNTL Unit
RA083090A (X2 pcs)
SHIELD CASE COVER
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24306002 BIND HEAD TAPTITE-B M3X6NI 2
U03306002 SEMS SCREW ASM3X6NI 4
T9207336
WIRE ASSY
T9207336
WIRE ASSY
T9207337
WIRE ASSY
T9207115A
WIRE ASSY
T9207127A
WIRE ASSY
T9207338
WIRE ASSY
BLOCK DIAGRAM-1
Block Diagram
CONNECTION DIAGRAM-1
Connection Diagram
ALIGNMENT-1
Alignment
Introduction and Precautions
The following procedures cover adjustments that are
not normally required once the transceiver has left
the factory. However, If a problem occurs during
normal operation due to component failure; realign-
ment may be required after the faulty components
have been replaced.
We recommend that authorized Vertex Standard
Technicians, who are experienced with the circuitry
and fully equipped to repair and align our products,
perform repairs. If a fault is suspected, contact the
selling dealer for instructions regarding repair. Au-
thorized Vertex Standard Technicians have the lat-
est information to align all circuits and make com-
plete performance checks to ensure compliance with
factory specifications after repairs.
Those who do undertake any of the following align-
ments are cautioned and proceed at their own risk.
Problems caused by unauthorized attempts at re-
alignment are not covered by the warranty policy.
Vertex Standard must reserve the right to change
circuits and alignment procedures in the interest of
improved performance, without notifying owners.
Under no circumstances should any alignment be
attempted unless the normal functions and opera-
tion of the transceiver are clearly understood, the
cause of the malfunction has been clearly identified
and all faulty components replaced. The need for
realignment should be determined to be absolutely
necessary.
The following test equipment (and a thorough fa-
miliarity with its correct use) is necessary for correct
realignment. Most steps do not require all of the
equipment listed. The interactions of some adjust-
ments may require that more complex adjustments
be performed in a sequence. Do not attempt to per-
form only a single step unless it is clearly isolated
electrically from all other steps. Have all test equip-
ment ready before beginning, and follow all of the
steps in a section in the order they are presented.
Required Test Equipment
RF Signal Generator
AF Signal Generator
Spectrum Analyzer good to at least 1 GHz.
Frequency Counter
SINAD Meter
RF Millivoltmeter
Digital DC Voltmeter (high-Z, 1 M-Ohm/V)
DC Voltmeter
DC Ammeter (20 A)
Ohmmeter
DMU-2000 Data Management Unit
50-Ohm Dummy Load (100 watts)
100-Ohm Dummy Load (100 watts)
150-Ohm Dummy Load (100 watts)
In-Line Wattmeter (100 watts, 50-Ohm)
Linear Detector
RF Coupler
4-Ohm AF Dummy Load (3 watts)
Alignment Preparation & Precautions
A 50-ohm RF Dummy load and in-line wattmeter
must be connected to the “ANT 1” jack in all proce-
dures that call for transmission, except where speci-
fied otherwise. Correct alignment is not possible with
an antenna.
After completing one step, read the following step
to determine whether the same test equipment will
be required. If not, remove the unneeded test equip-
ment before proceeding. (except the dummy load
and wattmeter).
Correct alignment requires that the ambient temper-
ature be maintained constant between 68 °F ~ 86 °F
(20 °C ~ 30 °C). When the transceiver is brought into
the shop from a hot or cold enviroment, it should be
allowed time to come to room temperature before
alignment. Also, the test equipment must be thor-
oughly warmed up before beginning.
Whenever possible, alignments should be made with
oscillator shields and circuit boards firmly affixed in
place. Also, the test equipment must be thoroughly
warmed up before beginning.
Note: Signal levels in dB referred to in this proce-
dure are based on 0 dBμ = 0.5 μV (closed cir-
cuit).
ALIGNMENT-2
Alignment
Analog Meter Adjustment
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “A01 FSC.”
Rotate the [SUB(VFO-B)] knob so that the Main
S-meter deflects to full scale.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
SHIFT/WIDTH Knob
Zero (Center) Adjustment
Set the SHIFT/WIDTH knobs to the 12-o’clock
position.
Set the operating mode to “USB.”
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “A02 SFt.”
Rotate the [SUB(VFO-B)] knob so that the IF
SHIFT frequency is set to “±0.00” on the external
display. The center point (±0.00) is broad (17
points). Therefore, set the [SUB(VFO-B)] knob to
the center of this broad range.
Rotate the Main Tuning Dial knob to select the
alignment parameter “A03 udt.”
Rotate the [SUB(VFO-B)] knob so that the IF
bandwidth is set to “2.4 kHz” on the external dis-
play. The IF bandwidth (2.4 kHz) is broad (24
points). Therefore, set the [SUB(VFO-B)] knob to
the center of this broad range.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
VDD Meter Adjustment
Connect the DC voltmeter to pin 6 of J5402 on
the PA-A Unit.
Switch the external display to “SWR Monitor”
page.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “A04 vdd.”
Press the [ENT] key, then rotate the [SUB(VFO-
B)] knob so that the VDD meter (Main S-meter)
reading is the same as that on the DC voltmeter.
Rotate the [VRF] knob so that the VDD meter (on
the external display) reading is same as that on
the DC voltmeter.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
ALIGNMENT-3
Alignment
2nd Local Oscillator (Main) Adjustment
Disconnect the coaxial cable from J4004 on the
LOCAL Unit, then connect the Frequency counter
to J4004.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “A15 FrE.”
Rotate the [SUB(VFO-B)] knob so that the Fre-
quency counter reading is “69.000 MHz.”
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
Disconnect the Frequency counter from J4004,
then connect the RF millivoltmeter to J4004.
Adjust T4003 and T4004 on the LOCAL Unit for
maximum deflection on the RF millivoltmeter
(more than –5 dBm).
Disconnect the RF millivoltmeter from J4004, then
re-connect the coaxial cable to J4004.
PLL (Main) Adjustment
Connect the Digital DC voltmeter (high-Z) to
TP4003 on the LOCAL Unit.
Disconnect the coaxial cable from J4002 on the
LOCAL Unit, then connect the RF millivoltmeter
to J4002.
Referring to the table below, adjust the listed com-
ponents for the required voltage, or confirm that
the correct voltage is present on each frequency
listed.
Disconnect the RF millivoltmeter from J4002, then
re-connect the coaxial cable to J4002.
PLL (Sub) Adjustment
Connect the Digital DC voltmeter (high-Z) to
TP4004 on the LOCAL Unit.
Disconnect the coaxial cable from J4007 on the
LOCAL Unit, then connect the RF millivoltmeter
to J4007.
Referring to the table below, adjust the listed com-
ponents for the required voltage, or confirm that
the correct voltage is present on each frequency
listed.
Disconnect the RF millivoltmeter from J4007, then
re-connect the coaxial cable to J4007.
VFO-A FREQUENCY
11.495 MHz
0.03 MHz
25.495 MHz
11.500 MHz
41.495 MHz
25.500 MHz
60.000 MHz
41.500 MHz
ADJUST / CONFIRM
Adjust TC4001
Confirm
Adjust TC4002
Confirm
Adjust TC4003
Confirm
Adjust TC4004
Confirm
DC VOLTMETER
5.0 V ±0.1 V
At least 0.8 V
5.0 V ±0.1 V
At least 0.8 V
5.0 V ±0.1 V
At least 0.8 V
5.0 V ±0.1 V
At least 0.8 V
RF MILLIVOLTMETER
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
VFO-B FREQUENCY
11.495 MHz
0.03 MHz
25.495 MHz
11.500 MHz
41.495 MHz
25.500 MHz
60.000 MHz
41.500 MHz
ADJUST / CONFIRM
Adjust TC4005
Confirm
Adjust TC4006
Confirm
Adjust TC4007
Confirm
Adjust TC4008
Confirm
DC VOLTMETER
5.0 V ±0.1 V
At least 0.8 V
5.0 V ±0.1 V
At least 0.8 V
5.0 V ±0.1 V
At least 0.8 V
5.0 V ±0.1 V
At least 0.8 V
RF MILLIVOLTMETER
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm
At least +3 dBm

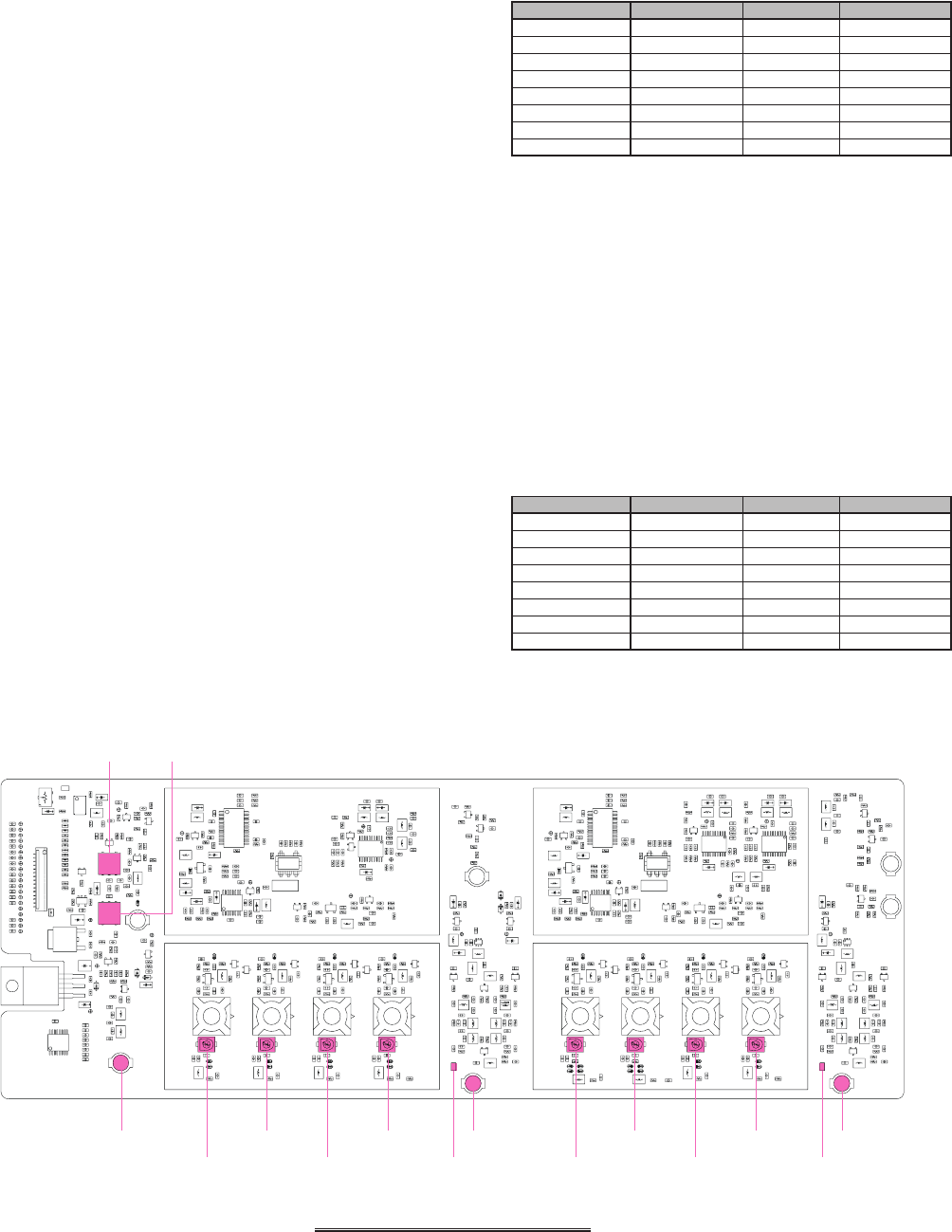

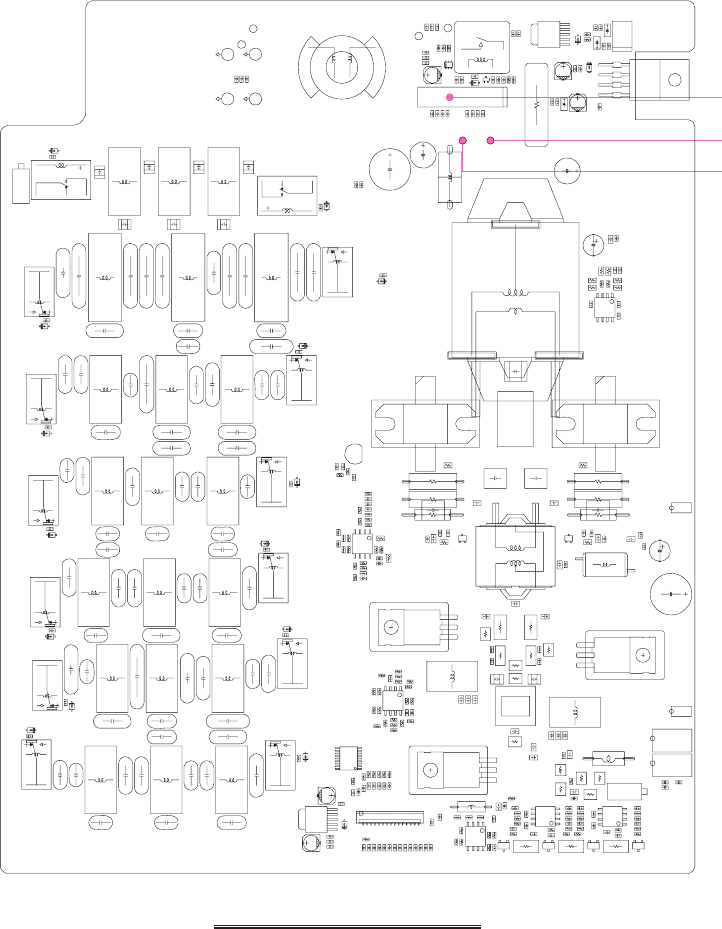

LOCAL UNIT ALIGNMENT POINTS
TC4005
TC4006
TC4007
TC4008 J4007
TP4004TC4001
TC4002
TC4003
TC4004 J4002
TP4003
J4004
T4003 T4004
ALIGNMENT-4
Alignment
Main Receiver Adjustment
1st Local Oscillator Adjustment
Set the following controls as indicated:
[IPO] button: AMP1
[ATT] button: OFF
[VRF] button: THRU
[R.FLT] button: AUTO
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[MODE] button: CW
Connect the RF millivoltmeter to TP1073 on the
MAIN Unit.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Select the appropriate “Alignment Parameter”
using the Main Tuning Dial knob per the chart
below, and adjust the [SUB(VFO-B)] knob for the
corresponding RF millivoltmeter reading at each
frequency.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
2nd/3rd Local Level Adjustment
Connect the RF millivoltmeter to TP1021 on the
MAIN Unit.
Adjust T1034 on the MAIN Unit for maximum
deflection on the RF millivoltmeter (more than
+10 dBm).
Connect the RF millivoltmeter to TP1018 on the
MAIN Unit.
Adjust T1028 on the MAIN Unit for maximum
deflection on the RF millivoltmeter (more than
+3 dBm).
IF Transformer Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: 15 kHz
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode.
Connect the AF millivoltmeter and 4 Ohm
dummy load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 0 dBμ at the
14.200 MHz.
Adjust T1031, T1036, T1035, T1038, T1032, T1023,
and T1019 on the MAIN Unit in succession sev-
eral times for maximum deflection on the AF
millivoltmeter.
If the Main S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Main S-meter does not deflect.
MCF Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode.
Connect the AC millivoltmeter, SINAD meter,
and 4 Ohm dummy load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 0 dBμ at the
14.200 MHz.
Set the Roofing filter bandwidth to “3 kHz” by
pressing the [R.FLT] button.
Adjust TC1002 and T1040 on the MAIN Unit in
succession several times for maximum deflection
on the AC millivoltmeter.
If the Main S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Main S-meter does not deflect.
Set the Roofing filter bandwidth to “6 kHz” by
pressing the [R.FLT] button.
ALIGNMENT PARAMETER
A08 L18
A09 L35
A10 L7
A11 L14
A12 L21
A13 L28
A14 L50
VFO-A FREQUENCY
1.850 MHz
3.570 MHz
7.100 MHz
14.200 MHz
21.200 MHz
28.700 MHz
51.500 MHz
RF MILLIVOLTMETER
0.96 Vrms (+0 Vrms/–0.04 Vrms)
0.96 Vrms (+0 Vrms/–0.04 Vrms)
0.96 Vrms (+0 Vrms/–0.04 Vrms)
0.84 Vrms (+0 Vrms/–0.04 Vrms)
0.84 Vrms (+0 Vrms/–0.04 Vrms)
0.84 Vrms (+0 Vrms/–0.04 Vrms)
0.5 Vrms (±0.05 Vrms)
ALIGNMENT-5
Alignment
Adjust TC1001 and T1030 on the MAIN Unit in
succession several times for maximum deflection
on the AC millivoltmeter.
If the Main S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Main S-meter does not deflect.
Set the Main Band (VFO-A) frequency to 50.000
MHz in the FM mode, and set the IPO to “AMP2”
by pressing the [IPO] button.
Set the Roofing filter bandwidth to “15 kHz” by
pressing the [R.FLT] button, and set the IPO to
“AMP2” by pressing the [IPO] button.
Set the RF Signal Generator output to 0 dBμ at
the 50.000 MHz.
Adjust T1031 and T1036 on the MAIN Unit in
succession several times for maximum deflection
on the SINAD meter.
If the Main S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Main S-meter does not deflect.
IF Trap Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: AUTO
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
Set the Main Band (VFO-A) frequency to 50.000
MHz in the CW mode.
Connect the AC millivoltmeter and 4 Ohm
dummy load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 60 dBμ at the
69.450 MHz.
Adjust T1011 on the MAIN Unit for minimum
deflection on the AC millivoltmeter.
If the Main S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Main S-meter does not deflect.
T1031

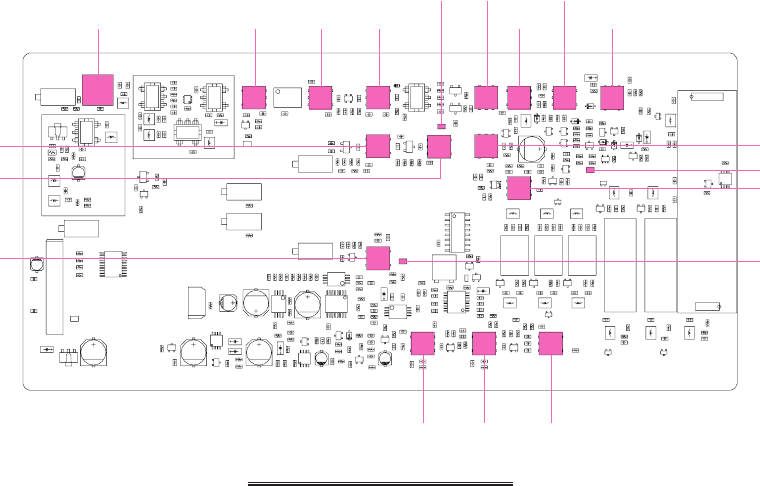

MAIN UNIT (RECEIVER SECTION) ALIGNMENT POINTS
T1036
T1035
T1038
T1034
T1032
T1025
T1011
TP1073
T1022
TP1020
TC1002
T1040
TP1008
TP1021
T1028
T1019
TP1018
T1030
TC1001
T1023
Pin 3 of J1015
ALIGNMENT-6
Alignment
Noise Blanker Circuit Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: AUTO
[AGC] button: AUTO
[NB] button: ON (for short-duration pulse noise)
[NB] knob: Fully clockwise
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode.
Connect the DC voltmeter to TP1020 on the
MAIN Unit.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 30 dBμ at the
14.200 MHz.
Adjust T1025 and T1022 on the MAIN Unit for
minimum deflection on the DC voltmeter.
Turn the NB to “OFF” by pressing the [NB] but-
ton.
Scope Circuit Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: AUTO
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode.
Disconnect the coaxial cable from J1041 on the
MAIN Unit, then connect the RF millivoltmeter
to J1041.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 90 dBμ at the
14.200 MHz.
Adjust T1039 on the MAIN Unit for maximum
deflection on the RF millivoltmeter.
Disconnect the RF millivoltmeter from J1041, then
re-connect the coaxial cable to J1041.
RF AGC Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: 6 kHz
[AGC] button: AUTO
[PITCH] knob: 800 Hz
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
[MODE] button: CW
Connect the RF Signal Generator to the “ANT 1”
jack, and connect the Digital DC voltmeter (high-
Z) to TP1008 on the MAIN Unit.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Select the appropriate “Alignment Parameter”
using the Main Tuning Dial knob per the chart
below, then set the RF Signal Generator output
to each frequency & level, and adjust the
[SUB(VFO-B)] knob for the corresponding DC
voltmeter reading at each frequency.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
RF SIGNAL GENERATOR
1.900 MHz, 96 dBμ
3.750 MHz, 96 dBμ
7.150 MHz, 96 dBμ
10.125 MHz, 96 dBμ
14.175 MHz, 96 dBμ
18.117 MHz, 96 dBμ
21.255 MHz, 96 dBμ
24.940 MHz, 96 dBμ
28.850 MHz, 96 dBμ
52.000 MHz, 96 dBμ
ALIGNMENT PARAMETER
B01 rGc
B02 rGc
B03 rGc
B04 rGc
B05 rGc
B06 rGc
B07 rGc
B08 rGc
B09 rGc
B10 rGc
VFO-A FREQUENCY
1.900 MHz
3.750 MHz
7.150 MHz
10.125 MHz
14.175 MHz
18.117 MHz
21.255 MHz
24.940 MHz
28.850 MHz
52.000 MHz
DC VOLTMETER
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
1.5 V (–0V/+0.05V)
ALIGNMENT-7
Alignment
IF Gain Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: 6 kHz
[AGC] button: AUTO
[PITCH] knob: 700 Hz
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
[MODE] button: CW
Connect the AC millivoltmeter and 4 Ohm
dummy load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 36 dBμ at the
1.900 MHz.
Set the Main Band (VFO-A) frequency to 1.900
MHz in the CW mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Adjust the Main [AF GAIN] knob so that the AC
millivoltmeter reading is “0 dB.”
Select the appropriate “Alignment Parameter”
using the Main Tuning Dial knob per the chart
below, then set the RF Signal Generator output
to each frequency & level, and adjust the
[SUB(VFO-B)] knob for the corresponding AC
millivoltmeter reading at each frequency.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
S-meter Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: 6 kHz
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
Connect the RF Signal Generator to the “ANT 1”
jack, then set the frequency to 14.200 MHz.
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Select the appropriate “Alignment Parameter”
using the Main Tuning Dial knob per the chart
below, then set the RF Signal Generator output
to each level, and adjust the [SUB(VFO-B)] knob
for the corresponding Main S-meter defection,
then press the [ENT] key to save the new setting
at each frequency.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
RF SIGNAL GENERATOR
1.900 MHz, 96 dBμ
3.750 MHz, 96 dBμ
7.150 MHz, 96 dBμ
10.125 MHz, 96 dBμ
14.175 MHz, 96 dBμ
18.117 MHz, 96 dBμ
21.255 MHz, 96 dBμ
24.940 MHz, 96 dBμ
28.850 MHz, 96 dBμ
52.000 MHz, 96 dBμ
ALIGNMENT PARAMETER
b11 iGn
b12 iGn
b13 iGn
b14 iGn
b15 iGn
b16 iGn
b17 iGn
b18 iGn
b19 iGn
b20 iGn
VFO-A FREQUENCY
1.900 MHz
3.750 MHz
7.150 MHz
10.125 MHz
14.175 MHz
18.117 MHz
21.255 MHz
24.940 MHz
28.850 MHz
52.000 MHz
AC MILLIVOLTMETER
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
MAIN S-METER
S-1
S-5
S-7
S-9
S-9+10dB
S-9+20dB
S-9+30dB
S-9+40dB
S-9+50dB
S-9+60dB
ALIGNMENT PARAMETER
B21 S-1
B22 S-5
B23 S-7
B24 S-9
B25 S10
B26 S20
B27 S30
B28 S40
B29 S50
B30 S60
RF SIGNAL GENERATOR
12 dBμ
24 dBμ
30 dBμ
36 dBμ
46 dBμ
56 dBμ
66 dBμ
76 dBμ
86 dBμ
96 dBμ
ALIGNMENT-8
Alignment
FM Gain Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[R.FLT] button: 15 kHz
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[VRF] button: THRU
Set the RF Signal Generator to 12 dBμ at the
28.8500 MHz with ±3.5 kHz deviation FM modu-
lation of a 1 kHz audio signal.
Set the Main Band (VFO-A) frequency to 28.850
MHz in the FM-W mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “b32 FnG.”
Rotate the [SUB(VFO-B)] knob so that the Main
S-meter reading is “S-3.”
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
Set the RF Signal Generator to 12 dBμ at the 52.000
MHz with ±3.5 kHz deviation FM modulation of
a 1 kHz audio signal.
Set the Main Band (VFO-A) frequency to 52.000
MHz in the FM-W mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode again.
Rotate the Main Tuning Dial knob to select the
alignment parameter “b33 FnG.”
Rotate the [SUB(VFO-B)] knob so that the Main
S-meter reading is “S-3.”
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
DVS Unit Adjustment
Connect the Ohmmeter lead between TP2905 and
ground on the DVS Unit.
Adjust VR2901 on the DVS Unit for 40 k-Ohms
(±200 Ohms) on the Ohmmeter.
Sub Receiver Adjustment
2nd/3rd Local Level Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Connect the RF millivoltmeter to TP4501 on the
RX-2 Unit.
Adjust T4521 and T4501 on the RX-2 Unit for
maximum deflection on the RF millivoltmeter
(more than + 8 dBm).
Connect the RF millivoltmeter to TP4502 on the
RX-2 Unit.
Adjust T4504 on the RX-2 Unit for maximum
deflection on the RF millivoltmeter (more than +
6 dBm).
IF Transformer Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Set the Sub Band (VFO-B) frequency to 14.200
MHz in the CW mode.
Connect the AC millivoltmeter and 4 Ohm
dummy load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 0 dBμ at the
14.200 MHz.
DVS UNIT ALIGNMENT POINTS
VR2901
TP2905
ALIGNMENT-9
Alignment
Adjust T4507, T4509, T4511, T4515, T4517, T4518,
T4519, T4516, T4513 and T4510 on the RX-2 Unit
in succession several times for maximum deflec-
tion on the AF millivoltmeter.
If the Sub S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Sub S-meter does not deflect.
MCF Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP2
[ATT] button: OFF
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Set the Sub Band (VFO-B) frequency to 52.000
MHz in the FM-W mode.
Connect the SINAD mater and 4 Ohm dummy
load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 0 dBμ at the
52.000 MHz with ±3.5 kHz deviation FM modu-
lation of a 1 kHz audio signal.
Adjust T4507 and T4509 on the RX-2 Unit in suc-
cession several times for maximum deflection on
the SINAD meter.
If the Sub S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Sub S-meter does not deflect.
IF Trap Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: AUTO
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Set the Sub Band (VFO-B) frequency to 50.000
MHz in the CW mode.
Connect the AC millivoltmeter and 4 Ohm
dummy load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 60 dBμ at the
40.455 MHz.
Adjust T4520 on the RX-2 Unit for minimum de-
flection on the AC millivoltmeter.
If the Sub S-meter deflects while adjusting, re-
duce the RF Signal Generator output so that the
Sub S-meter does not deflect.

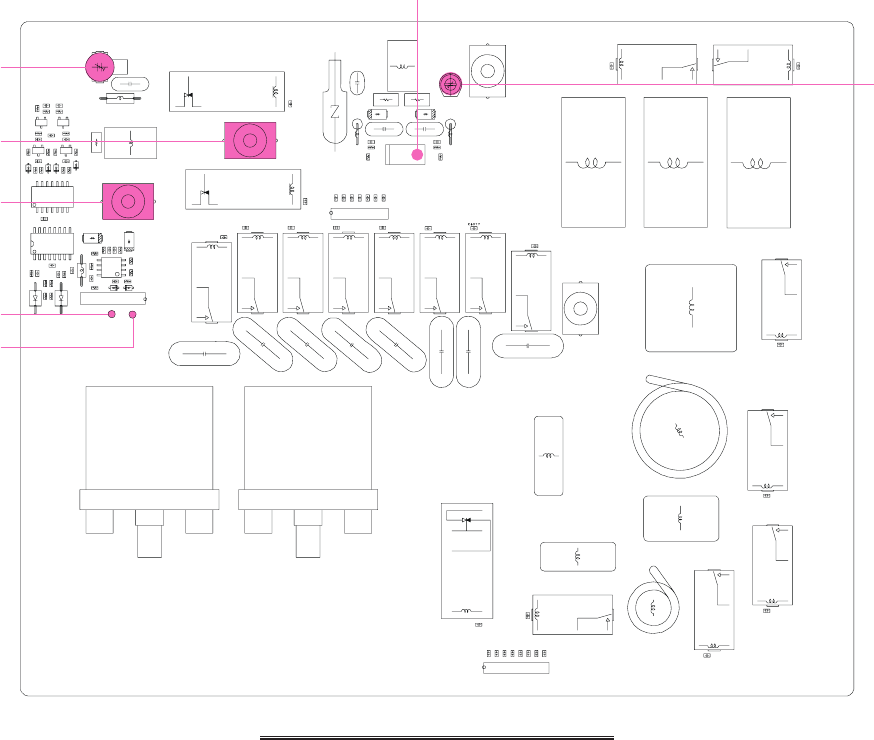

RX-2 UNIT ALIGNMENT POINTS
T4510 T4516
T4519
T4513
T4504
T4518
T4517
T4515
T4511T4509T4507T4520
TP4505
T4508
T4512
TP4502
T4521
TP4501
T4501
ALIGNMENT-10
Alignment
SUB S-METER
One dot
S-1
S-5
S-7
S-9
S-9+10dB
S-9+20dB
S-9+30dB
S-9+40dB
S-9+50dB
S-9+60dB
ALIGNMENT PARAMETER
C11 S-0
C12 S-1
C13 S-5
C14 S-7
C15 S-9
C16 S10
C17 S20
C18 S30
C19 S40
C20 S50
C21 S60
RF SIGNAL GENERATOR
9 dBμ
12 dBμ
24 dBμ
30 dBμ
36 dBμ
46 dBμ
56 dBμ
66 dBμ
76 dBμ
86 dBμ
96 dBμ
Noise Blanker Circuit Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: “Sub band (VFO-B)”AUTO
[NB] button: “Sub band (VFO-B)” ON
(for short-duration pulse noise)
[NB] knob: Fully clockwise
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Set the Sub Band (VFO-B) frequency to 14.200
MHz in the CW mode.
Connect the DC voltmeter to TP4505 on the RX-2
Unit.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 30 dBμ at the
14.200 MHz.
Adjust T4508 and T4512 on the RX-2 Unit for
minimum deflection on the DC voltmeter.
Turn the Sub band´s (VFO-B) NB to “OFF” by
pressing the [B] button followed by the [NB] but-
ton.
IF Gain Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: “Sub band (VFO-B)”AUTO
[PITCH] knob: 700 Hz
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Connect the AC millivoltmeter and 4 Ohm
dummy load to the EXT SP jack.
Connect the RF Signal Generator to the “ANT 1”
jack, then set the output level to 36 dBμ at the
1.900 MHz.
Set the Sub Band (VFO-B) frequency to 1.900 MHz
in the CW mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Adjust the Sub [AF GAIN] knob so that the AC
millivoltmeter reading is “0 dB.”
Select the appropriate “Alignment Parameter”
using the Main Tuning Dial knob per the chart
below, then set the RF Signal Generator output
to each listed level, and adjust the [SUB(VFO-B)]
knob for the corresponding AC millivoltmeter
reading at each frequency.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
S-meter Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: “Sub band (VFO-B)”AUTO
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Connect the RF Signal Generator to the “ANT 1”
jack, then set the frequency to 14.200 MHz.
Set the Sub Band (VFO-B) frequency to 14.200
MHz in the CW mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Select the appropriate “Alignment Parameter”
using the Main Tuning Dial knob per the chart
below, then set the RF Signal Generator output
to each listed level, and adjust the [SUB(VFO-B)]
knob until the corresponding Sub S-meter indi-
cator just lights (i.e. Adjust to the lowest value of
each "S" unit range), then press the [ENT] key to
save the new setting at each frequency.
RF SIGNAL GENERATOR
1.900 MHz, 9 dBμ
3.750 MHz, 9 dBμ
7.150 MHz, 9 dBμ
10.125 MHz, 9 dBμ
14.175 MHz, 9 dBμ
18.117 MHz, 9 dBμ
21.255 MHz, 9 dBμ
24.940 MHz, 9 dBμ
28.850 MHz, 9 dBμ
52.000 MHz, 9 dBμ
ALIGNMENT PARAMETER
C01 iGn
C02 iGn
C03 iGn
C04 iGn
C05 iGn
C06 iGn
C07 iGn
C08 iGn
C09 iGn
C10 iGn
VFO-B FREQUENCY
1.900 MHz
3.750 MHz
7.150 MHz
10.125 MHz
14.175 MHz
18.117 MHz
21.255 MHz
24.940 MHz
28.850 MHz
52.000 MHz
AC MILLIVOLTMETER
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
–1.5 dB (±0.5 dB)
ALIGNMENT-11
Alignment
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
RX Carrier Point Adjustment
Set the following controls as indicated:
[ANT 1/2] button: ANT 1
[IPO] button: AMP1
[ATT] button: OFF
[AGC] button: “Sub band (VFO-B)”AUTO
[RF GAIN] knob: Fully clockwise
[SUB RX] button: ON
Connect the RF Signal Generator to the “ANT 1”
jack, then set the frequency to 14.200 MHz.
Connect the AC millivoltmeter, Frequency
Counter, and 4 Ohm dummy load to the EXT SP
jack.
Set the Sub Band (VFO-B) frequency to 14.200
MHz in the CW mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “C22 L-C.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “1 kHz,” then adjust
the Sub [AF GAIN] knob so that the AC
millivoltmeter reading is “0 dB.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “300 Hz.”
Rotate the [SUB(VFO-B)] knob so that the AC
millivoltmeter reading is “–6 dB (±0.2 dB).”
Set the RF Generator frequency so that the Fre-
quency counter reading is “2.6 kHz.”
Confirm that the AC millivoltmeter reading is
better than “–6 dB.”
Rotate the Main Tuning Dial knob to select the
alignment parameter “C23 U-C.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “1 kHz,” then adjust
the Sub [AF GAIN] knob so that the AC
millivoltmeter reading is “0 dB.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “300 Hz.”
Rotate the [SUB(VFO-B)] knob so that the AC
millivoltmeter reading is “–6 dB (±0.2 dB).”
Set the RF Generator frequency so that the Fre-
quency counter reading is “2.6 kHz.”
Confirm that the AC millivoltmeter reading is
better than “–6 dB.”
Rotate the Main Tuning Dial knob to select the
alignment parameter “C24 LnC.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “1 kHz,” then adjust
the Sub [AF GAIN] knob so that the AC
millivoltmeter reading is “0 dB.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “600 Hz.”
Rotate the [SUB(VFO-B)] knob so that the AF
millivoltmeter reading is “–6 dB (±0.2 dB).”
Rotate the Main Tuning Dial knob to select the
alignment parameter “C25 UnC.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “1 kHz,” then adjust
the Sub [AF GAIN] knob so that the AC
millivoltmeter reading is “0 dB.”
Set the RF Generator frequency so that the Fre-
quency counter reading is “600 Hz.”
Rotate the [SUB(VFO-B)] knob so that the AC
millivoltmeter reading is “–6 dB (±0.2 dB).”
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
ALIGNMENT-12
Alignment
Transmitter Adjustment
TX IFT Adjustment
Disconnect the coaxial cable from J1004 on the
MAIN Unit, then connect the RF millivoltmeter
to J1004.
Set the Main Band (VFO-A) frequency to 14.200
MHz in the FM mode, then rotate the [RF PWR]
knob to the fully clockwise position.
Press the PTT button, adjust T1033, T1029, T1020,
T1014, T1010, and T1007 for maximum deflection
on the RF millivoltmeter.
Release the PTT button.
Disconnect the RF millivoltmeter from J1004, then
re-connect the coaxial cable to J1004.
TX MCF Adjustment
Disconnect the coaxial cables from J1004, J1038,
and J1039 on the MAIN Unit.
Set the Main Band (VFO-A) frequency to 28.850
MHz in the USB mode, then rotate the [RF PWR]
knob to the fully clockwise position.
Connect the Tracking Generator to J1039 and con-
nect the Spectrum Analyzer to J1020.
Set up the Spectrum Analyzer as shown below:
Center Frequency: 69.450 MHz
Span: 50 kHz
Press the PTT button. Adjust T1020 on the MAIN
Unit to obtain maximum amplitude with mini-
mum ripple.
Disconnect the Tracking Generator from J1039
and the Spectrum Analyzer from J1020.
Connect the coaxial cables back to J1004, J1038,
and J1039.

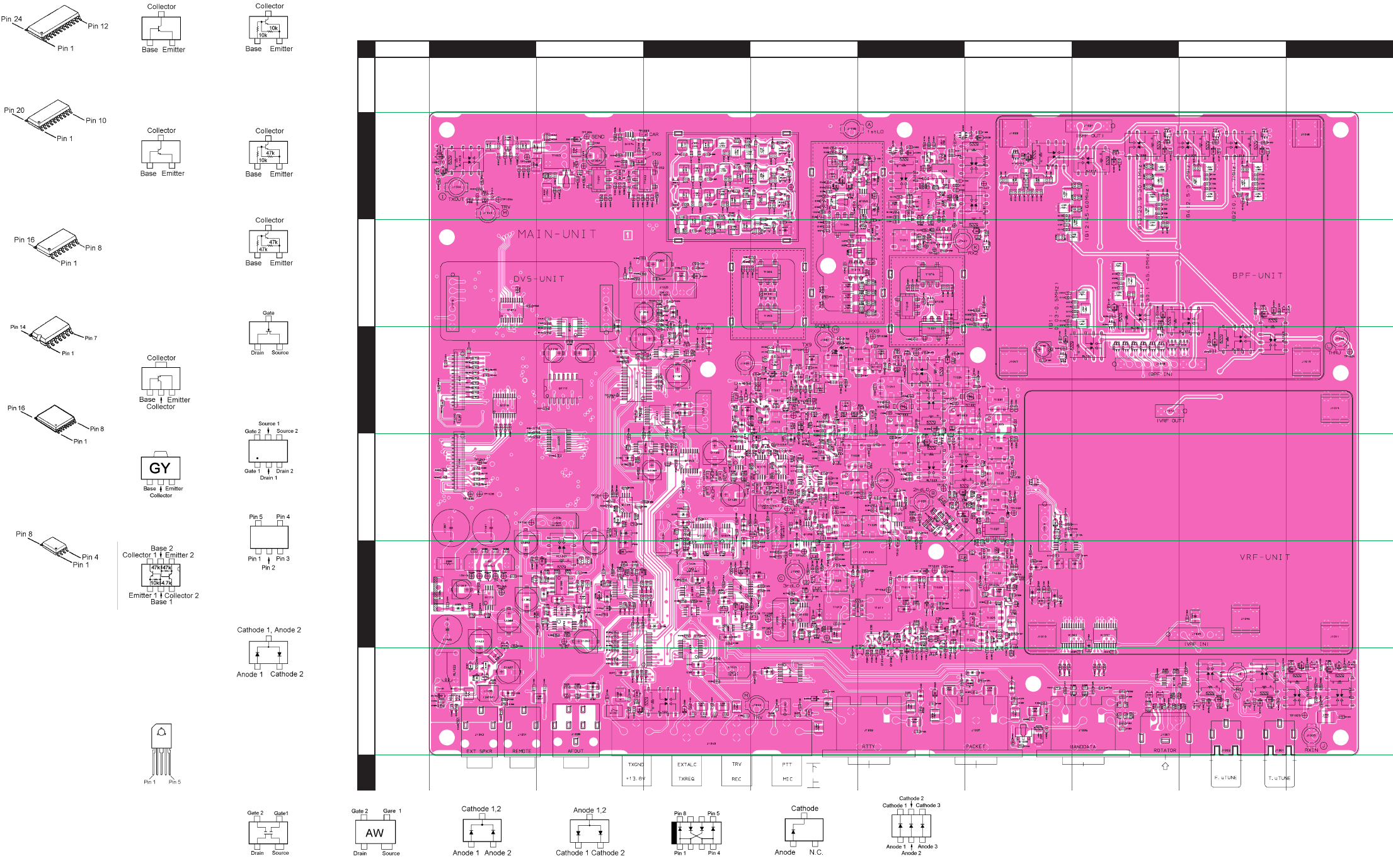

MAIN UNIT (TRANSMITTER SECTION) ALIGNMENT POINTS
J1004
J1020
T1007
T1010
T1033
J1038
J1041
J1039
T1014
T1020
T1029
T1006
ALIGNMENT-13
Alignment
TX Scope Circuit Adjustment
Disconnect the coaxial cable from J1041 on the
MAIN Unit, then connect the RF millivoltmeter
to J1041.
Disconnect the coaxial cable from J1004 on the
MAIN Unit.
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode, then rotate the [RF PWR]
knob to the fully clockwise position.
Press the PTT button, then adjust T1006 for maxi-
mum deflection on the RF millivoltmeter.
Release the PTT button.
Disconnect the RF millivoltmeter from J1041, then
re-connect the coaxial cable to J1041.
Re-connect the coaxial cable to J1004.
PA-A UNIT ALIGNMENT POINTS
TP5032
TP5031
J5004
J5003
J5001
J5006
PA-A Unit Adjustment
Preparation
Disconnect the coaxial cables from J5001 and
J5006 on the PA-A Unit, then terminate J5001 and
J5006 into a 50-Ohm resistors.
Disconnect the jumper plugs from J5003 and
J5004 on the PA-A Unit, and remove the jumper
wire that is connected between TP5031 and T5032
on the PA-A Unit.
Pre-Drive Stage Idling Current Adjustment
Connect the DC ammeter to J5003 on the PA-A
Unit.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
ALIGNMENT-14
Alignment
Rotate the Main Tuning Dial knob to select the
alignment parameter “d01 Pdb.”
Press the PTT button, then adjust the [SUB(VFO-
B)] knob so that the DC ammeter reading is “100
mA (±5 mA).”
Release the PTT button.
Drive Stage Idling Current Adjustment
Release the PTT button.
Connect the DC ammeter to J5004 on the PA-A
Unit.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d02 db1.”
Press the PTT button, then adjust the [SUB(VFO-
B)] knob so that the DC ammeter reading is “500
mA (±50 mA).”
Release the PTT button.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d03 db2.”
Press the PTT button, then adjust the [SUB(VFO-
B)] knob so that the DC ammeter reading is “500
mA (±50 mA).”
Release the PTT button.
Final Stage Idling Current Adjustment
Connect the DC ammeter between TP5031 and
TP5032 on the PA-A Unit.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d04 Fb1.”
Press the PTT button, then adjust the [SUB(VFO-
B)] knob so that the DC ammeter reading is “1 A
(±50 mA).”
Release the PTT button.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d05 Fb2.”
Press the PTT button, then adjust the [SUB(VFO-
B)] knob so that the DC ammeter reading is “1 A
(±50 mA).”
Release the PTT button.
Termination
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
Disconnect the 50-Ohm resistors from J5001 and
J5006, then connect the coaxial cables to J5001 and
J5006.
Re-connect the jumper plugs to J5003 and J5004,
and re-connect the jumper wire between TP5031
and TP5032.
ALIGNMENT-15
Alignment
Antenna Tuner Adjustment
CM Coupler Balance Adjustment
Disconnect the coaxial cable from J6010 on the
TUNER-MAIN Unit, then connect the 50-Ohm
Dummy Load to J6010.
Connect the Digital DC voltmeter (high-Z) to pin
3 of J6009 on the TUNER-MAIN Unit.
Turn off the [TUNE] switch, then set the Main
band (VFO-A) frequency to 24.900 MHz in the
FM mode.
Press the PTT switch, then rotate the [RF PWR]
knob for 50 Watts on the Wattmeter.
Adjust TC6002 on the TUNER-MAIN Unit for
minimum deflection on the DC voltmeter (less
than 0.1 V).
Release the PTT switch, then disconnect the 50-
Ohm Dummy Load from J6010 and re-connect
the coaxial cable to J6010.
φφ
φφ
φ, Z-Null Adjustment
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” jack.
Turn off the [TUNE] switch, then set the Main
Band (VFO-A) frequency to 24.900 MHz in the
FM mode.
Press the PTT switch, then rotate the [RF PWR]
knob for 50 Watts on the Wattmeter.
Release the PTT switch, then disconnect the co-
axial cable from J6001 on the TUNER-MAIN Unit,
and re-connect the 50-Ohm Dummy Load to
J6001.
Connect the Digital DC voltmeter (high-Z) be-
tween TP6001 and TP6002 on the TUNER-MAIN
Unit, then turn on the [TUNE] switch.
Press the PTT switch, then adjust TC6001 on the
TUNER-MAIN Unit for 0 V (±0.08 V) on the DC
voltmeter.
Release the PTT switch, then disconnect the 50-
Ohm Dummy Load from J6001 and re-connect
the coaxial cable to J6001.
TUNER-MAIN UNIT ALIGNMENT POINTS
TC6001
TP6002
TP6001
TC6002
J6001
J6010
Pin 3 of J6009
ALIGNMENT-16
Alignment
Transmitter Section Alignment Mode
Preparation
Referring to table below, tune the Main Band
(VFO-A) to each frequency listed.
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” jack.
Connect the Audio Generator to
pin 8 of the MIC jack (pin 7:
GND), then set the output level
to 0.5 mV @1 kHz.
ALC Adjustment
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d08 iAL” for the 1.8 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 115 W (+5W/–
0W) on the Wattmeter.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d09 iAL” for the 3.5 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 115 W (+5W/–
0W) on the Wattmeter.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d10 iAL”for the 7 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 115 W (+5W/–
0W) on the Wattmeter.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d11 iAL”for the 10 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 115 W (+5W/–
0W) on the Wattmeter.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d12 iAL”for the 14 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 115 W (+5W/–
0W) on the Wattmeter.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d13 iAL”for the 18 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 115 W (+5W/–
0W) on the Wattmeter.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d14 iAL”for the 21 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
MIC IN MIC GND
BAND
1.8 MHz Band
3.5 MHz Band
7 MHz Band
10 MHz Band
14 MHz Band
18 MHz Band
21 MHz Band
24.5 MHz Band
28 MHz Band
50 MHz Band
MODE
USB
USB
USB
USB
USB
USB
USB
USB
USB
USB
VFO-A FREQUENCY
1.820 MHz
3.570 MHz
7.050 MHz
10.100 MHz
14.200 MHz
18.100 MHz
21.200 MHz
24.900 MHz
29.690 MHz
53.900 MHzÚ
Ú UK: 51.900 MHz, EU: 50.390 MHz, FRA: 51.190 MHz
ALIGNMENT-17
Alignment
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 115 W (+5W/–
0W) on the Wattmeter.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d15 iAL”for the 24 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 100 W (+5W/–
0W) on the Wattmeter, then rotate the [SUB(VFO-
B)] knob so that the VFO-B frequency indication
“10” increase.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d16 iAL”for the 28 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 100 W (+5W/–
0W) on the Wattmeter, then rotate the [SUB(VFO-
B)] knob so that the VFO-B frequency indication
“10” increase.
Release the PTT switch.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d17 iAL”for the 50 MHz
amateur band´s ALC Adjustment, then rotate the
[SUB(VFO-B)] knob so that the VFO-B frequency
display shows “0020.”
Rotate the [MIC] knob to the fully counter-clock-
wise position.
Press the PTT switch, then gently rotate the [MIC]
knob to the fully clockwise position.
Rotate the [SUB(VFO-B)] knob for 100 W (+5W/–
0W) on the Wattmeter, then rotate the [SUB(VFO-
B)] knob so that the VFO-B frequency indication
“10” increase.
Release the PTT switch.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
Power Adjustment
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” jack.
Rotate the [RF PWR] knob to fully clockwise.
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d22AP2h.”
Rotate the [SUB(VFO-B)] knob so that the VFO-B
frequency display shows “0.”
Press the PTT switch, then rotate the [SUB(VFO-
B)] knob for 100 W (+5 W/–0 W) on the Wattme-
ter, and confirm the the Sub S-meter is deflect.
Release the PTT switch.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
ALC Meter Adjustment
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” jack.
Connect the Audio Generator to
pin 8 of the MIC jack (pin 7:
GND), then set the output level
to +0 mV @1 kHz.
Set the Main Band (VFO-A) frequency to 14.200
MHz in the USB mode.
Rotate the [MIC] knob to the 12 o’clock position,
and rotate the [RF PWR] knob to the fully clock-
wise position.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d50 ALC.”
Press the PTT switch, then adjust the Audio Gen-
erator output level to the position where the ALC
meter just starts to deflect.
Release the PTT switch, then increase the Audio
Generator output level for “9 dB.”
Press the [ENT] key, while pressing and holding
in the PTT switch, then rotate the [SUB(VFO-B)]
knob for maximum deflection on the ALC meter
zone (S9+10dB).
MIC IN MIC GND
ALIGNMENT-18
Alignment
Release the PTT switch, then press and hold in
the [MENU] button for 2 seconds to save the new
setting and exit from the alignment mode.
TX Output Power/PO Meter/TXG Adjustment
Referring to table below, tune the transceiver to
each frequency listed.
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” jack.
Set the Main Band (VFO-A) frequency to 1.820
MHz in the CW mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Dial knob to select the alignment
parameter “d18AP2h.”
Rotate the [SUB(VFO-B)] knob so that the VFO-B
frequency display shows “0.”
Rotate the [VRF] knob for 100 W on the PO meter.
Press the PTT switch, then rotate the [SUB(VFO-
B)] knob for 100 W on the Wattmeter.
Rotate the [CLAR] knob so that the Sub S-meter
deflects to “S-9.”
Release the PTT switch.
Perform the same procedures for the Alignment
Menus “d18bP1h” through “d27EP10,” per the
chart at the right.
AM-TXG Adjustment
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” jack.
Rotate the [RF PWR] knob to fully clockwise.
Set the Main Band (VFO-A) frequency to 14.200
MHz in the AM mode.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d29 tCA.”
Rotate the [SUB(VFO-B)] knob so that the VFO-B
frequency display shows “0.”
Press the PTT switch without microphone input,
then rotate the [SUB(VFO-B)] knob for 35 W (±5
W) on the Wattmeter.
Release the PTT switch.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
ALIGNMENT MENU
d18bP1h
d18bP1h
d18cP50
d18dP20
d18EP10
d19AP2h
d19bP1h
d19cP50
d19dP20
d20EP10
d20AP2h
d20bP1h
d20cP50
d20dP20
d20EP10
d21AP2h
d21bP1h
d21cP50
d21dP20
d21EP10
d22AP2h
d22bP1h
d22cP50
d22dP20
d22EP10
d23AP2h
d23bP1h
d23cP50
d23dP20
d23EP10
d24AP2h
d24bP1h
d24cP50
d24dP20
d24EP10
d25AP2h
d25bP1h
d25cP50
d25dP20
d25EP10
d26AP2h
d26bP1h
d26cP50
d26dP20
d26EP10
d27AP2h
d27bP1h
d27cP50
d27dP20
d27EP10
VFO-B FREQ. DISPLAY
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
PO METER
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
WATTMETER
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
100 W
50 W
20 W
10 W
5 W
SUB S-METER
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
S-9
1.9 MHZ3.5 MHZ7 MHZ10 MHZ14 MHZ18 MHZ21 MHZ24 MHZ
28 MHZ50 MHZ
BAND
1.8 MHz Band
3.5 MHz Band
7 MHz Band
10 MHz Band
14 MHz Band
18 MHz Band
21 MHz Band
24.5 MHz Band
28 MHz Band
50 MHz Band
MODE
CW
CW
CW
CW
CW
CW
CW
CW
CW
CW
VFO-A FREQUENCY
1.820 MHz
3.570 MHz
7.050 MHz
10.100 MHz
14.200 MHz
18.100 MHz
21.200 MHz
24.900 MHz
28.700 MHz
52.000 MHzÚ
Ú UK: 51.000 MHz, EU: 50.250 MHz, FRA: 50.700 MHz
ALIGNMENT-19
Alignment
REV-ALC Adjustment
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d40 rAC.”
Rotate the [SUB(VFO-B)] knob so that the VFO-B
frequency display shows “060.”
Perform the same procedures for the Alignment
Menus “d40 rAC” through “d49 rAC.”
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
FM MAX Deviation Adjustment
Connect the Dummy Load, Wattmeter, and De-
viation Meter to the “ANT 1” Jack.
Set the Main Band (VFO-A) frequency to 28.700
MHz in the FM mode.
Connect the Audio Generator to
pin 8 of the MIC jack (pin 7:
GND), then set the output level
to 10 mV @1 kHz.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d51 F45.”
Press the PTT switch, then rotate the [SUB(VFO-
B)] knob for 4.5 kHz (±0.2 kHz) on the Deviation
Meter.
Release the PTT switch.
Set the Main Band (VFO-A) operating mode to
the FM-N mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d52 F23.”
Press the PTT switch, then rotate the [SUB(VFO-
B)] knob for 2.25 kHz (±0.15 kHz) on the Devia-
tion Meter.
Release the PTT switch.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
COMP Meter Adjustment
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d57 C10,” then rotate the
[SUB(VFO-B)] knob for “10 dB” on the COMP
meter.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d58 C20,” then rotate the
[SUB(VFO-B)] knob for “20 dB” on the COMP
meter.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d59 C30,” then rotate the
[SUB(VFO-B)] knob so that the COMP meter de-
flects to full scale.
Press and hold in the [MNU] key for 2 seconds
to exit from the alignment mode.
SWR Meter Adjustment
Switch the external display to “SWR Monitor”
page.
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” Jack, then set the [METER]
switch to the “SWR” position.
Disconnect the 3-pin plug from J1015 on the
MAIN Unit, then apply a 4.2 V DC voltage to pin
2 of J1015, and 2.1 V DC to pin 3 of J1015.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d53cS30.”
Press the PTT switch, then rotate the [VRF] knob
so that the SWR meter (on the external display)
reading is “3.0.” The SWR meter reading (3.0) is
broad (few points). Therefore, set the [VRF] knob
to the center of this broad range.
Rotate the [SUB(VFO-B)] knob so that the SWR
meter (on the front panel) reading is “3.0.”
Release the PTT switch.
Perform the same procedures for the Alignment
Menus “d54cS30” and “d55cS30.”
Apply a 4.2 V DC voltage to pin 2 of J1015, and
1.4 V DC to pin 3 of J1015.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d53bS20.”
Press the PTT switch, then rotate the [SUB(VFO-
B)] knob so that the SWR meter (on the front
panel) reading is “2.0.”
Release the PTT switch.
MIC IN MIC GND
ALIGNMENT-20
Alignment
Perform the same procedures for the Alignment
Menus “d54bS20” and “d55bS20.”
Apply a 4.2 V DC voltage to pin 2 of J1015, and
0.84 V DC to pin 3 of J1015.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d53AS15.”
Press the PTT switch, then rotate the [SUB(VFO-
B)] knob so that the SWR meter (on the front
panel) reading is “1.5.”
Release the PTT switch.
Perform the same procedures for the Alignment
Menus “d54AS15” and “d55AS15.”
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
ID Meter Adjustment
Connect the 50-Ohm Dummy Load and Wattme-
ter to the “ANT 1” Jack, then set the METER
switch to the “ID” position.
Remove the jumper wire from TP5031 and
TP5032 on the PA-A Unit, then connect the DC
ammeter (20-A range) between TP5031 (+) and
TP5032 (–).
Set the Main Band (VFO-A) frequency to 14.200
MHz in the CW mode, then set the [RF PWR]
knob fully clockwise position.
Press and hold in the [1(1.8)], [2(3.5)], and [3(7)]
keys, while turning the radio on, to enter the
alignment mode.
Rotate the Main Tuning Dial knob to select the
alignment parameter “d56 Idd.”
Press the PTT switch, then rotate the [SUB(VFO-
B)] knob so that the ID meter reading is same as
that on the DC ammeter.
Press the [ENT] key, then release the PTT switch.
Press and hold in the [MENU] button for 2 sec-
onds to save the new setting and exit from the
alignment mode.
Disconnect the DC ammeter, then re-connect the
jumper wire between TP5031 and TP5032.
ALIGNMENT-21
Alignment
PA-A UNIT ALIGNMENT POINTS
Pin 6 of J5402
TP5031
TP5032
ALIGNMENT-22
Alignment
Note
MAIN-1
Circuit Diagram
MAIN Unit (Lot. 1)
MAIN-2
Note
MAIN Unit (Lot. 1)
MAIN-3
Parts Layout (Side A)
ABCDEFGHI
1
2
3
4
2SA1602A (MF)
(Q1040, 1044, 1092)
2SB624 (BV3)
(Q4507)
2SC2714 (QY)
(Q1053, 1103)
2SC3356 (R24)
(Q1029, 1030)
2SC4154 (E)
(Q1013, 1014, 1015,
1016, 1025, 1026,
1033, 1034, 1038,
1048, 1057, 1062,
1065, 1068, 1072,
1087, 1095, 1101,
1106, 1115)
2SC2945 (QK)
(Q1010, 1103)
2SD2403GY (GY)
(Q1008)
3SK131 (V12)
(Q1006)
BB301CAW (AW)
(Q1028, 1073, 1085,
1105)
CD74HCT4053PWR
(Q1027, 1043, 1059,
1069, 1100)
LA2902PWR
(Q1080, 1099)
5
6
7
DTC114EUA (24)
(Q1002, 1003,
1004, 1011, 1017,
1019, 1089, 1112)
DTC114YUA (64)
(Q1007, 1009)
DTC144EUA (26)
(Q1035, 1050)
HD74LV2G74A (QK)
(Q1056, 1063)
LM2904PWR
(Q1064, 1079, 1083,
1108, 1109, 1110,
1113)
LM4881MX
(Q1088)
NJM2068V
(Q1032, 1074, 1075,
1076, 1077, 1078)
NJM2594V
(Q1081, 1098)
NJM2737V
(Q1090, 1096, 1102)
SN74LVC2G53DCTR
(Q1046)
SN74LVC2G66DCTR
(Q1091)
M62353AGP
(Q1020)
M62364FP
(Q1021, 1054)
NJU3714A
(Q1005, 1012,
1082, 1097)
SN74HCT244PWR
(Q1018)
SPM5001
(Q1058)
SST310 (Z0)
(Q1023, 1024, 1070,
1093, 1094, 1107)
TC74HC04AF
(Q1111)
UMD5N
(Q1022, 1031, 1036,
1037, 1039, 1041,
1042, 1045, 1047,
1049, 1052, 1055,
1060, 1061, 1066,
1067, 1071, 1104,
1114) 1SS226 (C3)
(D1081)
1SS372 (N9)
(D1054)
HSM198S (C6)
(D1053)
DAN202U (N)
(D1041, 1042, 1048,)
DAP236U (X)
(D1011, 1012, 1018,
1019, 1045, 1055)
HSB88WSTR
(D1031, 1052)
HZM7.5NB3
(D1027, 1032, 1038)
IMN10
(D1033, 1034)
SN74LVC1G66DCKR
(Q1051)
LA4425A
(Q1086)
MAIN Unit (Lot. 1)
MAIN-4
Parts Layout (Side A)
abcdefghi
1
2
3
4
5
6
7
MAIN Unit (Lot. 1)
MAIN-5
MAIN Unit (Lot. 2~5)
Circuit Diagram
MAIN-6
MAIN Unit (Lot. 2~5)
Note
MAIN-7
MAIN Unit (Lot. 2~5)
Parts Layout (Side A)
ABCDEFGHI
1
2
3
4
2SA1602A (MF)
(Q1040, 1044, 1092)
2SB624 (BV3)
(Q4507)
2SC2714 (QY)
(Q1053, 1103)
2SC3356 (R24)
(Q1029, 1030)
2SC4154 (E)
(Q1013, 1014, 1015,
1016, 1025, 1026,
1033, 1034, 1038,
1048, 1057, 1062,
1065, 1068, 1072,
1087, 1095, 1101,
1106, 1115)
2SC2945 (QK)
(Q1010, 1103)
2SD2403GY (GY)
(Q1008)
3SK131 (V12)
(Q1006)
BB301CAW (AW)
(Q1028, 1073, 1085,
1105)
CD74HCT4053PWR
(Q1027, 1043, 1059,
1069, 1100)
LA2902PWR
(Q1080, 1099)
5
6
7
DTC114EUA (24)
(Q1002, 1003,
1004, 1011, 1017,
1019, 1089, 1112)
DTC114YUA (64)
(Q1007, 1009)
DTC144EUA (26)
(Q1035, 1050)
HD74LV2G74A (QK)
(Q1056, 1063)
LM2904PWR
(Q1064, 1079, 1083,
1108, 1109, 1110,
1113)
LM4881MX
(Q1088)
NJM2068V
(Q1032, 1074, 1075,
1076, 1077, 1078)
NJM2594V
(Q1081, 1098)
NJM2737V
(Q1090, 1096, 1102)
SN74LVC2G53DCTR
(Q1046)
SN74LVC2G66DCTR
(Q1091)
M62353AGP
(Q1020)
M62364FP
(Q1021, 1054)
NJU3714A
(Q1005, 1012,
1082, 1097)
SN74HCT244PWR
(Q1018)
SPM5001
(Q1058)
SST310 (Z0)
(Q1023, 1024, 1070,
1093, 1094, 1107)
TC74HC04AF
(Q1111)
UMD5N
(Q1022, 1031, 1036,
1037, 1039, 1041,
1042, 1045, 1047,
1049, 1052, 1055,
1060, 1061, 1066,
1067, 1071, 1104,
1114) 1SS226 (C3)
(D1081)
1SS372 (N9)
(D1054)
HSM198S (C6)
(D1053)
DAN202U (N)
(D1041, 1042, 1048,)
DAP236U (X)
(D1011, 1012, 1018,
1019, 1045, 1055)
HSB88WSTR
(D1031, 1052)
HZM7.5NB3
(D1027, 1032, 1038)
IMN10
(D1033, 1034)
SN74LVC1G66DCKR
(Q1051)
LA4425A
(Q1086)
MAIN-8
MAIN Unit (Lot. 2~5)
Parts Layout (Side A)
abcdefghi
1
2
3
4
5
6
7
MAIN-9
MAIN Unit (Lot. 6~)
Circuit Diagram
MAIN-10
MAIN Unit (Lot. 6~)
Note
MAIN-11
MAIN Unit (Lot. 6~)
Parts Layout (Side A)
ABCDEFGHI
1
2
3
4
2SA1602A (MF)
(Q1040, 1044, 1092)
2SB624 (BV3)
(Q4507)
2SC2714 (QY)
(Q1053, 1103)
2SC3356 (R24)
(Q1029, 1030)
2SC4154 (E)
(Q1013, 1014, 1015,
1016, 1025, 1026,
1033, 1034, 1038,
1048, 1057, 1062,
1065, 1068, 1072,
1087, 1095, 1101,
1106, 1115)
2SC2945 (QK)
(Q1010, 1103)
2SD2403GY (GY)
(Q1008)
3SK131 (V12)
(Q1006)
BB301CAW (AW)
(Q1028, 1073, 1085,
1105)
CD74HCT4053PWR
(Q1027, 1043, 1059,
1069, 1100)
LA2902PWR
(Q1080, 1099)
5
6
7
DTC114EUA (24)
(Q1002, 1003,
1004, 1011, 1017,
1019, 1089, 1112)
DTC114YUA (64)
(Q1007, 1009)
DTC144EUA (26)
(Q1035, 1050)
HD74LV2G74A (QK)
(Q1056, 1063)
LM2904PWR
(Q1064, 1079, 1083,
1108, 1109, 1110,
1113)
LM4881MX
(Q1088)
NJM2068V
(Q1032, 1074, 1075,
1076, 1077, 1078)
NJM2594V
(Q1081, 1098)
NJM2737V
(Q1090, 1096, 1102)
SN74LVC2G53DCTR
(Q1046)
SN74LVC2G66DCTR
(Q1091)
M62353AGP
(Q1020)
M62364FP
(Q1021, 1054)
NJU3714A
(Q1005, 1012,
1082, 1097)
SN74HCT244PWR
(Q1018)
SPM5001
(Q1058)
SST310 (Z0)
(Q1023, 1024, 1070,
1093, 1094, 1107)
TC74HC04AF
(Q1111)
UMD5N
(Q1022, 1031, 1036,
1037, 1039, 1041,
1042, 1045, 1047,
1049, 1052, 1055,
1060, 1061, 1066,
1067, 1071, 1104,
1114) 1SS226 (C3)
(D1081)
1SS372 (N9)
(D1054)
HSM198S (C6)
(D1053)
DAN202U (N)
(D1041, 1042, 1048,)
DAP236U (X)
(D1011, 1012, 1018,
1019, 1045, 1055)
HSB88WSTR
(D1031, 1052)
HZM7.5NB3
(D1027, 1032, 1038)
IMN10
(D1033, 1034)
SN74LVC1G66DCKR
(Q1051)
LA4425A
(Q1086)
MAIN-12
MAIN Unit (Lot. 6~)
Parts Layout (Side A)
abcdefghi
1
2
3
4
5
6
7
MAIN-13
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
PCB with Components CB3483001
Printed Circuit Board FR014590B 1
FR014590C 2-
FR014590D 6-
C 1001 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C6
C 1002 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G6
C 1003 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C6
C 1004 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1005 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1006 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B6
C 1007 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C6
C 1008 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G6
C 1009 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A3
C 1010 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 1011 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A C6
C 1012 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A1
C 1013 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1014 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A A1
C 1015 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 1016 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A3
C 1017 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I6
C 1018 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A C6
C 1019 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A1
C 1020 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G6
C 1021 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A A1
C 1022 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B6
C 1023 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B6
C 1024 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1025 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1026 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A1
C 1027 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A A1
C 1028 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A B6
C 1029 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1030 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 1031 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1032 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1033 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B6
C 1034 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 1035 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A A1
C 1036 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I6
C 1037 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 1038 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G6
C 1039 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 1040 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 1041 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G6
C 1042 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A B1
C 1043 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A F6
C 1044 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 1045 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B4
C 1046 CHIP CAP. 1uF 6.3V B GRM188B10J105KA01D K22084801 1- A B1
C 1047 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G6
C 1048 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 1049 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 1050 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F6
C 1051 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 1052 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 1053 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I6
C 1054 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A F6
C 1055 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 1056 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 1057 CHIP CAP. 270pF 50V CH GRM1882C1H271JA01D K22174251 1- A B1
C 1058 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 1059 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 1060 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I6
C 1061 CHIP CAP. 270pF 50V CH GRM1882C1H271JA01D K22174251 1- A B1
C 1062 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 1063 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A H5
C 1064 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 1065 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H5
C 1066 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 1067 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 1068 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 1069 AL.ELECTRO.CAP. 22uF 16V EEE1CA220SR K48120024 1- A B1
MAIN-14
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
C 1070 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G6
C 1071 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A C1
C 1072 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A C1
C 1073 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 1074 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A C1
C 1075 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A D2
C 1076 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A C1
C 1077 CHIP CAP. 510pF 50V CH GRM1882C1H511JA01D K22174257 1- A C1
C 1078 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H6
C 1079 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A C1
C 1080 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A C2
C 1081 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H6
C 1082 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H6
C 1083 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A C1
C 1084 CHIP CAP. 510pF 50V CH GRM1882C1H511JA01D K22174257 1- A C1
C 1085 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A C1
C 1086 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C2
C 1087 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A C1
C 1088 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A C1
C 1089 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A C1
C 1090 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 1091 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A C2
C 1092 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 1093 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A C1
C 1094 CHIP CAP. 0.0027uF 50V B GRM188B11H272KA01D K22174829 1- A C1
C 1095 CHIP CAP. 0.033uF 16V R GRM188R11C333KA01D K22124801 1- A C1
C 1096 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 1097 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 1098 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 1099 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A C1
C 1100 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A C1
C 1101 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H6
C 1102 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 1103 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C1
C 1104 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 1105 CHIP TA.CAP. 1.5uF 16V TESVA1C155M1-8R K78120020 1- A B4
C 1106 CHIP CAP. 0.0018uF 50V B GRM188B11H182KA01D K22174828 1- A C1
C 1107 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A C1
C 1108 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A C2
C 1109 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A D1
C 1110 CHIP CAP. 0.0027uF 50V B GRM188B11H272KA01D K22174829 1- A D1
C 1111 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A F2
C 1112 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D1
C 1113 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A C1
C 1114 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 1115 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 1116 CHIP CAP. 0.033uF 16V R GRM188R11C333KA01D K22124801 1- A D1
C 1117 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 1118 AL.ELECTRO.CAP. 47uF 16V EEE1CA470WR K48120025 1- A B3
C 1119 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A F2
C 1120 AL.ELECTRO.CAP. 47uF 16V EEE1CA470WR K48120025 1- A B3
C 1121 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 1122 AL.ELECTRO.CAP. 47uF 16V EEE1CA470SP K48120005 1- A C4
C 1123 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A F1
C 1124 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 1125 AL.ELECTRO.CAP. 47uF 16V EEE1CA470SP K48120005 1- A C4
C 1126 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A G1
C 1127 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 1128 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 1129 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 1130 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 1131 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 1132 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 1133 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H3
C 1134 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 1135 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A G1
C 1136 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4
C 1137 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F4
C 1138 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 1139 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 1140 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A G2
C 1141 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A G1
C 1142 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A F2
MAIN-15
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
C 1143 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A G1
C 1144 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A H1
C 1145 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A G2
C 1146 CHIP CAP. 0.0056uF 50V B GRM188B11H562KA01D K22174818 1- A G2
C 1147 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A G1
C 1148 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D4
C 1149 CHIP CAP. 0.0018uF 50V B GRM188B11H182KA01D K22174812 1- A H1
C 1150 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D4
C 1151 CHIP CAP. 430pF 50V CH GRM1882C1H431JA01D K22174256 1- A H1
C 1152 CHIP CAP. 0.0056uF 50V B GRM188B11H562KA01D K22174818 1- A G2
C 1153 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A G2
C 1154 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A G1
C 1155 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A G1
C 1156 CHIP CAP. 0.0056uF 50V B GRM188B11H562KA01D K22174818 1- A H1
C 1157 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 1158 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A F2
C 1159 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A G1
C 1160 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A H1
C 1161 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A G2
C 1162 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A D3
C 1163 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 1164 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A D3
C 1165 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A G1
C 1166 CHIP CAP. 0.0018uF 50V B GRM188B11H182KA01D K22174812 1- A H1
C 1167 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B3
C 1168 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B3
C 1169 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A F1
C 1170 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A F1
C 1171 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1172 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A D3
C 1174 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A F1
C 1175 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A F1
C 1176 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 1177 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A D3
C 1178 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A F1
C 1179 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A F1
C 1180 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D4
C 1181 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A B4
C 1182 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D4
C 1183 AL.ELECTRO.CAP. 22uF 16V EEE1CA220SR K48120024 1- A C4
C 1184 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A F1
C 1185 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A D3
C 1186 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1187 AL.ELECTRO.CAP. 220uF 10V RV3-10V221MF80-R K48100002 1- A C3
C 1188 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D6
C 1189 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B5
C 1190 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A D3
C 1191 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1192 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A C4
C 1193 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D4
C 1194 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C3
C 1195 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 1196 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174833 1- A C4
C 1197 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1198 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D4
C 1199 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D6
C 1200 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A D4
C 1201 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A D4
C 1202 AL.ELECTRO.CAP. 220uF 16V MVA16VC220MF80 K48120021 1- A B3
C 1203 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A D3
C 1204 AL.ELECTRO.CAP. 47uF 16V EEE1CA470WR K48120025 1- A C2
C 1205 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A F1
C 1206 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A B5
C 1207 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C3
C 1208 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D4
C 1209 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 1210 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1211 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1212 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E1
C 1213 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1214 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E1
C 1215 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A D3
C 1216 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
MAIN-16
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
C 1217 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B5
C 1218 CHIP CAP. 0.022uF 50V B GRM40B223M50PT K22170821 1- A D5
C 1219 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1220 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1221 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 1222 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C2
C 1223 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A D5
C 1224 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 1225 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E1
C 1226 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 1227 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E1
C 1228 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 1229 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1230 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1231 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1232 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A D3
C 1233 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 1234 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C3
C 1235 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C3
C 1236 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 1237 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1238 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 1239 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A D3
C 1240 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A D4
C 1241 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 1242 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1243 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 1244 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D5
C 1245 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A B5
C 1246 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 1247 CHIP TA.CAP. 0.22uF 35V TESVA1V224M1-8R K78160027 1- A D3
C 1248 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D5
C 1249 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A E6
C 1250 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D4
C 1251 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C5
C 1252 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 1253 CHIP TA.CAP. 0.47uF 35V TEMSVA1V474M-8R K78160029 1- A C3
C 1254 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A C3
C 1255 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A C5
C 1256 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1257 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A E5
C 1258 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A E6
C 1259 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D5
C 1260 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D5
C 1261 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D5
C 1262 AL.ELECTRO.CAP. 220uF 10V RV3-10V221MF80-R K48100002 1- A B5
C 1263 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 1264 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A E2
C 1265 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 1266 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E5
C 1267 AL.ELECTRO.CAP. 220uF 10V RV3-10V221MF80-R K48100002 1- A C2
C 1268 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A E2
C 1269 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 1270 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A F2
C 1271 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 1272 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A E1
C 1273 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A E6
C 1274 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D5
C 1275 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 1276 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 1277 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E6
C 1278 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1279 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C5
C 1280 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A E2
C 1281 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A D5
C 1282 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A D3
C 1283 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A D2
C 1284 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B6
C 1286 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A D2
C 1287 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B6
C 1288 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 1289 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 1290 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
MAIN-17
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
C 1291 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 1292 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A E6
C 1294 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A D2
C 1295 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A E5
C 1296 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D4
C 1297 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B6
C 1298 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E5
C 1299 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A D2
C 1300 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E2
C 1301 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A E6
C 1302 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E5
C 1303 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A F2
C 1304 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A E1
C 1305 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C6
C 1306 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C5
C 1307 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 1308 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A E5
C 1309 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E5
C 1310 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 1311 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A D4
C 1312 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1-5 A F2
C 1313 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E5
C 1314 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A E4
C 1315 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A E1
C 1316 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E3
C 1317 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A E3
C 1318 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E3
C 1319 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F6
C 1320 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E5
C 1321 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D4
C 1322 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 1323 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C6
C 1324 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C5
C 1325 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F5
C 1326 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A E6
C 1327 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A E5
C 1328 CHIP TA.CAP. 10uF 10V TEMSVB21A106M-8R K78100017 1- A E2
C 1329 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A E4
C 1330 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D4
C 1331 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 1332 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1-5 A E1
C 1333 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A F5
C 1334 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E3
C 1335 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 1336 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A E1
C 1337 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A E4
C 1338 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F5
C 1339 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C5
C 1340 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A D5
C 1341 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B5
C 1342 AL.ELECTRO.CAP. 10uF 16V RV4-16V100MD46-RR2 K48120018 1- A F3
C 1343 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A E4
C 1344 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E4
C 1345 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A D6
C 1346 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E4
C 1347 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A C5
C 1348 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A E5
C 1350 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F6
C 1351 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 1352 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E4
C 1353 AL.ELECTRO.CAP. 47uF 16V EEE1CA470WR K48120025 1- A A5
C 1354 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D5
C 1355 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B5
C 1357 CHIP CAP. 43pF 50V CH GRM1882C1H430JZ01D K22174226 1- A E3
C 1358 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F5
C 1359 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G6
C 1360 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A G5
C 1361 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E4
C 1362 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A F6
C 1363 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A D2
C 1365 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A E4
C 1366 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F5
C 1367 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A F6
MAIN-18
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
C 1368 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A F5
C 1369 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A A5
C 1370 CHIP CAP. 0.33uF 16V B GRM40B334K16PT K22120807 1- A B5
C 1371 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D5
C 1372 CHIP CAP. 0.33uF 16V B GRM40B334K16PT K22120807 1- A A5
C 1373 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A5
C 1374 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D1
C 1375 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 1377 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A E4
C 1378 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A D5
C 1379 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A5
C 1380 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F5
C 1381 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A E4
C 1382 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A A5
C 1383 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B5
C 1384 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 1385 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D5
C 1386 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 1387 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A A4
C 1388 AL.ELECTRO.CAP. 220uF 10V RV3-10V221MF80-R K48100002 1- A A5
C 1389 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F6
C 1390 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D1
C 1391 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- A F5
C 1392 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F5
C 1393 AL.ELECTRO.CAP. 220uF 10V RV3-10V221MF80-R K48100002 1- A A5
C 1394 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A F5
C 1395 AL.ELECTRO.CAP. 220uF 10V RV3-10V221MF80-R K48100002 1- A B5
C 1396 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A B5
C 1397 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 1398 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A D4
C 1399 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F6
C 1400 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A C5
C 1401 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A A4
C 1402 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A D6
C 1403 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A F3
C 1404 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D5
C 1405 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174817 1- A C5
C 1406 AL.ELECTRO.CAP. 470uF 16V RE3-16V471MG3# K40129066 1- A A5
C 1407 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A F3
C 1408 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D1
C 1409 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D1
C 1410 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 1411 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F5
C 1412 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G6
C 1413 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D4
C 1414 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E6
C 1415 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A D4
C 1416 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4
C 1417 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D1
C 1418 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 1419 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D4
C 1420 AL.ELECTRO.CAP. 220uF 16V MVA16VC220MF80 K48120021 1- A A5
C 1421 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E5
C 1422 CHIP CAP. 0.0015uF 50V B GRM188B11H152KA01D K22174827 1- A D5
C 1423 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A C4
C 1424 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A E4
C 1425 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 1426 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 1428 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A F4
C 1429 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E6
C 1430 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A F4
C 1431 CHIP CAP. 24pF 50V CH GRM1882C1H240JZ01D K22174220 1- A D1
C 1432 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 1433 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D5
C 1434 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 1435 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B5
C 1436 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E6
C 1438 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D1
C 1439 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D4
C 1440 CHIP TA.CAP. 1uF 16V TEMSVA21C105M-8R K78120024 1- A D5
C 1441 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A F4
C 1442 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F4
C 1443 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D6
MAIN-19
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
C 1444 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D4
C 1445 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A C5
C 1446 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C4
C 1447 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E4
C 1448 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A6
C 1449 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A6
C 1450 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D5
C 1451 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A F4
C 1452 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A A5
C 1453 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F4
C 1454 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A6
C 1455 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 1- A E4
C 1456 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A F5
C 1457 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C4
C 1458 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A C5
C 1459 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A C5
C 1460 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A A5
C 1461 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A F4
C 1462 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A F4
C 1463 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A A5
C 1464 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1465 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A D4
C 1466 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4
C 1467 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A E3
C 1468 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A E3
C 1469 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A A5
C 1470 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A6
C 1471 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A A5
C 1472 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A F4
C 1473 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E6
C 1474 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H2
C 1475 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H2
C 1476 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4
C 1477 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A F5
C 1478 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A G5
C 1479 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G5
C 1480 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B5
C 1481 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B5
C 1482 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B6
C 1483 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A6
C 1484 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A A1
C 1485 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A D2
C 1488 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A D2
C 1489 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A D3
C 1506 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A H1
C 1508 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A H1
C 1510 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A H1
C 1513 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A G2
C 1514 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A G2
C 1516 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A E2
C 1517 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A E2
C 1518 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A E2
C 1519 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E2
C 1520 CHIP CAP. 390pF 50V CH GRM1882C1H391JA01D K22174255 1- A E2
C 1521 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A E2
C 1522 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A E2
C 1530 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A D5
C 1531 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2
C 1532 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 1533 CHIP CAP. 0.0068uF 50V B GRM188B11H682KA01D K22174819 1- A D4
C 1534 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F5
C 1536 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A F1
C 1543 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A F3
C 1544 CHIP CAP. 43pF 50V CH GRM1882C1H430JZ01D K22174226 1- A E4
C 1545 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A F4
C 1546 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 1547 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 1548 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A F4
C 1549 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A E4
C 1551 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A E4
C 1553 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A E4
C 1563 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A C4
C 1568 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1 A E2
MAIN-20
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
C 1568 CHIP CAP. 82pF 50V CH GRM1552C1H820JD01D K22178234 2-5 A E2
C 1569 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1-
C 1570 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1-
C 1571 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1-
C 1572 CERAMIC CAP. 0.001uF 50V B UP050B102K-A-B K28179001 1-
C 1572 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 6-
C 1573 AL.ELECTRO.CAP. 100uF 16V RC2-16V101MF1#-T58 K46120007 1-
C 1573 CHIP TA.CAP. 100uF 10V TEMSVD1A107M12R K78100031 6-
C 1574 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 6-
C 1576 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 6-
C 1577 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 6-
C 1578 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 3-
C 1579 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 3-
CF1001 CERAMIC FILTER CFWLB450KE1Y-B0 H3900568 1- A F5
CF1002 CERAMIC FILTER CFWLB450KE1Y-B0 H3900568 1- A E5
D 1001 DIODE BAS316 G2070716 1- A C6
D 1002 DIODE BAS316 G2070716 1- A B6
D 1003 DIODE BAS316 G2070716 1- A I6
D 1004 DIODE BAS316 G2070716 1- A A1
D 1005 DIODE BAS316 G2070716 1- A I6
D 1006 DIODE BAS316 G2070716 1- A A1
D 1007 DIODE 1SR154-400 TE25 G2070684 1- A F6
D 1008 DIODE BAS316 G2070716 1- A I6
D 1009 DIODE BAS316 G2070716 1- A I6
D 1010 DIODE BAS316 G2070716 1- A B1
D 1011 DIODE DAP236U T106 G2070592 1- A C1
D 1012 DIODE DAP236U T106 G2070592 1- A C1
D 1013 DIODE BAS316 G2070716 1- A H6
D 1014 DIODE BAS316 G2070716 1- A H6
D 1015 DIODE BAS316 G2070716 1- A H6
D 1016 DIODE BAS316 G2070716 1- A H6
D 1017 DIODE BAS316 G2070716 1- A B5
D 1018 DIODE DAP236U T106 G2070592 1- A D1
D 1019 DIODE DAP236U T106 G2070592 1- A D1
D 1020 DIODE BAS316 G2070716 1- A G2
D 1021 DIODE BAS316 G2070716 1- A G1
D 1022 DIODE BAS316 G2070716 1- A H1
D 1023 DIODE BAS316 G2070716 1- A H1
D 1024 DIODE BAS316 G2070716 1- A F3
D 1025 DIODE BAS316 G2070716 1- A H3
D 1026 DIODE BAS316 G2070716 1- A G2
D 1027 DIODE HZM7.5NB3-TL-E G2070786 1- A D4
D 1028 DIODE BAS316 G2070716 1- A F4
D 1029 DIODE BAS316 G2070716 1- A F1
D 1030 DIODE BAS316 G2070716 1- A G1
D 1031 DIODE HSB88WSTR G2070290 1- A D2
D 1032 DIODE HZM7.5NB3-TL-E G2070786 1- A D4
D 1033 DIODE IMN10 T108 G2070078 1- A G3
D 1034 DIODE IMN10 T108 G2070078 1- A H3
D 1035 DIODE HSC277TRF-E G2070584 1- A D3
D 1036 DIODE BAS316 G2070716 1- A B5
D 1037 DIODE 1SV271(TPH3.F) G2070476 1- A D3
D 1038 DIODE HZM7.5NB3-TL-E G2070786 1- A D4
D 1039 DIODE BAS316 G2070716 1- A F1
D 1040 DIODE BAS316 G2070716 1- A B5
D 1041 DIODE DAN202U T106 G2070162 1- A D4
D 1042 DIODE DAN202U T106 G2070162 1- A D4
D 1043 DIODE BAS316 G2070716 1- A B5
D 1044 DIODE BAS316 G2070716 1- A C2
D 1045 DIODE DAP236U T106 G2070592 1- A D3
D 1046 DIODE BAS316 G2070716 1- A E6
D 1047 DIODE BAS316 G2070716 1- A F2
D 1048 DIODE DAN202U T106 G2070162 1- A E6
D 1049 DIODE BAS316 G2070716 1- A E1
D 1051 DIODE BAS316 G2070716 1- A E6
D 1052 DIODE HSB88WSTR G2070290 1- A D5
D 1053 DIODE HSM198S-TR G2070570 1- A E2
D 1054 DIODE 1SS372(TE85R.F) G2070632 1- A E6
D 1055 DIODE DAP236U T106 G2070592 1- A D4
D 1056 DIODE BAS316 G2070716 1- A E5
D 1057 DIODE BAS316 G2070716 1- A E5
D 1058 DIODE BAS316 G2070716 1- A C5
D 1059 DIODE BAS316 G2070716 1- A C5
MAIN-21
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
D 1060 DIODE BAS316 G2070716 1- A C5
D 1061 DIODE BAS316 G2070716 1- A C5
D 1062 DIODE BAS316 G2070716 1- A E3
D 1063 DIODE BAS316 G2070716 1- A E4
D 1064 DIODE RN731V TE-17 G2070898 1- A D1
D 1065 DIODE RN731V TE-17 G2070898 1- A D1
D 1066 DIODE RN731V TE-17 G2070898 1- A D1
D 1067 DIODE BAS316 G2070716 1- A A6
D 1068 DIODE BAS316 G2070716 1- A A6
D 1069 DIODE BAS316 G2070716 1- A E6
D 1070 DIODE BAS316 G2070716 1- A B5
D 1071 DIODE DAP202U T106 G2070160 1- A D6
D 1072 DIODE BAS316 G2070716 1- A A6
D 1073 DIODE RN142S TE61 G2070994 1- A F4
D 1074 DIODE HSC277TRF-E G2070584 1- A D3
D 1075 DIODE BAS316 G2070716 1- A E6
D 1076 DIODE BAS316 G2070716 1- A H2
D 1077 DIODE BAS316 G2070716 1- A H2
D 1078 DIODE RB751S-40TE61 G2070850 1- A B4
D 1079 DIODE BAS316 G2070716 1- A E3
D 1080 DIODE BAS316 G2070716 1- A E4
D 1081 DIODE 1SS226(TE85R.F) G2070003 1-
D 1082 SURGE ABSORBER TVSF0603 Q9000847 3-
FB1001 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1002 CHIP COI BLM18BD182SN1D L1690602 1- A G6
FB1003 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1004 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1005 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1006 CHIP COI BLM18BD182SN1D L1690602 1- A G6
FB1007 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1008 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1009 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1010 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1011 CHIP COI BLM18BD182SN1D L1690602 1- A F6
FB1012 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1013 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1014 CHIP COI BLM18BD182SN1D L1690602 1- A G6
FB1015 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1016 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1017 CHIP COI BLM18BD182SN1D L1690602 1- A A3
FB1018 CHIP COI BLM18BD182SN1D L1690602 1- A A4
FB1019 CHIP COI BLM18BD182SN1D L1690602 1- A A4
FB1020 CHIP COI BLM18BD182SN1D L1690602 1- A A4
FB1021 CHIP COI BLM18BD182SN1D L1690602 1- A A4
FB1022 CHIP COI BLM18BD182SN1D L1690602 1- A D6
FB1023 CHIP COI BLM18BD182SN1D L1690602 1- A C2
FB1024 CHIP COI BLM18BD182SN1D L1690602 1- A C2
J 1001 CONNECTOR JPJ2545-01-510 P1090633 1- A H7
J 1002 CONNECTOR JPJ2545-01-510 P1090633 1- A H7
J 1003 CONNECTOR TMP-J01X-V6 P1090210 1- A I6
J 1004 CONNECTOR TMP-J01X-V6 P1090210 1- A A1
J 1005 CONNECTOR 30FLT-SM1-TB P1091142 1- A A3
J 1006 CONNECTOR TCS5073-1941577 P1090913 1- A G7
J 1007 CONNECTOR M500630434S-F R41-0599K P1090925 1- A G7
J 1008 CONNECTOR 30FLT-SM1-TB P1091142 1- A A4
J 1009 CONNECTOR IMSA6065B-06-Z075-PT1 P0091455 1- A G5
J 1010 TERMINAL P07 Q5000166 1- A F6
J 1011 TERMINAL P07 Q5000166 1- A I6
J 1012 CONNECTOR IMSA6065B-03-Z075-PT1 P0091454 1- A G3
J 1013 CONNECTOR IMSA6065B-05-Z075-PT1 P0091416 1- A F4
J 1014 TERMINAL P07 Q5000166 1- A I3
J 1015 CONNECTOR SB20-03WS P0090610 1- A D4
J 1016 CONNECTOR IMSA-6065B-06-Z049-PT1 P0091383 1- A A2
J 1017 CONNECTOR IMSA-6065B-05-Z049-PT1 P0091382 1- A B3
J 1018 CONNECTOR IMSA6065B-10-Z075-PT1 P0091456 1- A G3
J 1019 TERMINAL P07 Q5000166 1- A I3
J 1020 CONNECTOR TMP-J01X-V6 P1090210 1- A C3
J 1021 CONNECTOR IMSA6065B-05-Z075-PT1 P0091416 1- A G1
J 1022 TERMINAL P07 Q5000166 1- A F1
J 1023 CONNECTOR SB20-05WS P0090612 1- A D5
J 1024 CONNECTOR SB20-05WS P0090612 1- A C3
J 1025 CONNECTOR SB20-08WS P0090615 1- A C2
J 1026 CONNECTOR SB20-03WS P0090610 1- A C5
MAIN-22
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
J 1027 CONNECTOR TMP-J01X-V6 P1090210 1- A E2
J 1028 CONNECTOR YKB21-5144 P1091234 1- A B7
J 1029 CONNECTOR SB20-04WS P0090611 1- A C6
J 1030 CONNECTOR TMP-J01X-V6 P1090210 1- A E4
J 1031 CONNECTOR TCS4650-0141577 P1090635 1- A F7
J 1032 CONNECTOR TCS4640-01-4151 P1090634 1- A E7
J 1033 CONNECTOR SB20-04WS P0090611 1- A D5
J 1034 CONNECTOR SB20-04WS P0090611 1- A C5
J 1035 CONNECTOR SB20-02WS P0090609 1- A A6
J 1036 CONNECTOR SB20-05WS P0090612 1- A B4
J 1037 CONNECTOR SB20-06WS P0090613 1- A A5
J 1038 CONNECTOR TMP-J01X-V6 P1090210 1- A D1
J 1039 CONNECTOR TMP-J01X-V6 P1090210 1- A E4
J 1040 CONNECTOR TMP-J01X-V6 P1090210 1- A D5
J 1041 CONNECTOR TMP-J01X-V6 P1090210 1- A D3
J 1042 CONNECTOR YKB21-5296N P1091233 1- A A7
J 1043 CONNECTOR LPR6520-3502F P1091297 1- A C7
J 1044 CONNECTOR TMP-J01X-V6 P1090210 1- A D6
J 1045 CONNECTOR TMP-J01X-V6 P1090210 1- A A1
J 1046 TERMINAL P07 Q5000166 1- A H5
J 1047 TERMINAL P07 Q5000166 1- A F3
J 1048 TERMINAL P07 Q5000166 1- A I1
J 1049 CONNECTOR TMP-J01X-V6 P1090210 1- A H6
J 1050 CONNECTOR TMP-J01X-V6 P1090210 1- A I3
J 1051 CONNECTOR YKB21-5296N P1091233 1- A A7
JP1001 WIRE ASSY AH025H 160MM T9207316 1- A D6
JP1003 WIRE ASSY GRN 20 2/2 T50502000 1
JP1004 WIRE ASSY GRN 20 2/2 T50502000 1
JP1005 WIRE ASSY GRN 20 2/2 T50502000 1
JP1006 WIRE ASSY GRN 230 2/2 T50523000 1
JP1007 WIRE ASSY GRN 20 2/2 T50502000 1
JP1008 WIRE ASSY GRN 30 2/2 T50503000 1
JP1009 WIRE ASSY GRN 30 2/2 T50503000 1
JP1010 WIRE ASSY GRN 120 2/2 T50512000 2-5
L 1001 M.RFC 1000uH LLM3225-102J L1691157 1- A C6
L 1002 CHIP COIL 1mH LQH43MN102K03L L1690108 1- A I6
L 1003 M.RFC 100uH LLM3225-101J L1691145 1- A C6
L 1004 M.RFC 100uH LLM3225-101J L1691145 1- A C6
L 1005 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A A1
L 1006 CHIP COIL 0.12uH 2% C2520C-R12G L1691295 1- A A1
L 1007 CHIP COIL 0.068uH 2% C2520C-68NG L1691292 1- A A1
L 1008 M.RFC 100uH LLM3225-101J L1691145 1- A F6
L 1009 M.RFC 10uH LLM3225-100J L1691133 1- A B1
L 1010 CHIP COIL 0.27uH 2% C2520C-R27G L1691299 1- A C1
L 1011 CHIP COIL 0.75uH 2% C2520C-R75G L1691306 1- A C1
L 1012 CHIP COIL 0.39uH 2% C2520C-R39G L1691301 1- A C1
L 1013 CHIP COIL 0.33uH 2% C2520C-R33G L1691300 1- A C1
L 1014 CHIP COIL 1uH 2% C2520C-1R0G L1691309 1- A C1
L 1015 CHIP COIL 0.56uH 2% C2520C-R56G L1691303 1- A C1
L 1016 CHIP COIL 0.22uH 2% C2520C-R22G L1691298 1- A C2
L 1017 CHIP COIL 0.27uH 2% C2520C-R27G L1691299 1- A C1
L 1018 CHIP COIL 0.75uH 2% C2520C-R75G L1691306 1- A C1
L 1019 CHIP COIL 0.39uH 2% C2520C-R39G L1691301 1- A C1
L 1020 CHIP COIL 0.22uH 2% C2520C-R22G L1691298 1- A C2
L 1021 CHIP COIL 1uH 2% C2520C-1R0G L1691309 1- A C1
L 1022 M.RFC 15uH LLM3225-150J L1691135 1- A C1
L 1023 M.RFC 2.7uH LLM3225-2R7J L1691126 1- A C1
L 1024 CHIP COIL 0.47uH 2% C2520C-R47G L1691302 1- A C2
L 1025 CHIP COIL 0.27uH 2% C2520C-R27G L1691299 1- A C1
L 1026 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A C1
L 1027 CHIP COIL 0.68uH 2% C2520C-R68G L1691305 1- A C1
L 1028 CHIP COIL 0.18uH 2% C2520C-R18G L1691297 1- A C2
L 1029 CHIP COIL 0.27uH 2% C2520C-R27G L1691299 1- A C1
L 1030 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A C1
L 1031 CHIP COIL 0.68uH 2% C2520C-R68G L1691305 1- A C1
L 1032 CHIP COIL 0.18uH 2% C2520C-R18G L1691297 1- A C2
L 1033 M.RFC 0.18uH LLM3225-R18J L1691112 1- A G2
L 1034 CHIP COIL 1uH 2% C2520C-1R0G L1691309 1- A D1
L 1035 M.RFC 15uH LLM3225-150J L1691135 1- A D1
L 1036 M.RFC 2.7uH LLM3225-2R7J L1691126 1- A D1
L 1037 CHIP COIL 0.47uH 2% C2520C-R47G L1691302 1- A C2
L 1038 M.RFC 0.18uH LLM3225-R18J L1691112 1- A G2
L 1039 M.RFC 0.15uH LLM3225-R15J L1691111 1- A F1
MAIN-23
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
L 1040 M.RFC 0.15uH LLM3225-R15J L1691111 1- A F1
L 1041 M.RFC 0.33uH LLM3225-R33J L1691115 1- A G2
L 1042 M.RFC 1.5uH LLM3225-1R5J L1691123 1- A H1
L 1043 M.RFC 0.12uH LLM3225-R12J L1691110 1- A G2
L 1044 M.RFC 10uH LLM3225-100J L1691133 1- A G2
L 1045 M.RFC 0.39uH LLM3225-R39J L1691116 1- A G1
L 1046 M.RFC 22uH LLM3225-220J L1691137 1- A H1
L 1047 M.RFC 6.8uH LLM3225-6R8J L1691131 1- A H1
L 1048 M.RFC 0.47uH LLM3225-R47J L1691117 1- A G2
L 1049 M.RFC 18uH LLM3225-180J L1691136 1- A G2
L 1050 M.RFC 0.33uH LLM3225-R33J L1691115 1- A G1
L 1051 M.RFC 6.8uH LLM3225-6R8J L1691131 1- A H1
L 1052 M.RFC 10uH LLM3225-100J L1691133 1- A G2
L 1053 M.RFC 1.5uH LLM3225-1R5J L1691123 1- A H1
L 1054 M.RFC 0.12uH LLM3225-R12J L1691110 1- A G2
L 1055 M.RFC 0.33uH LLM3225-R33J L1691115 1- A G1
L 1056 M.RFC 22uH LLM3225-220J L1691137 1- A H1
L 1057 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A D3
L 1058 M.RFC 0.33uH LLM3225-R33J L1691115 1- A G1
L 1059 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A F1
L 1060 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A D3
L 1061 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A F1
L 1062 CHIP COIL 0.1uH 2% C2520C-R10G L1691294 1- A F1
L 1063 CHIP COIL 2.2uH 2% C2520C-2R2G L1691313 1- A D3
L 1064 M.RFC 470uH LLM3225-471J L1691153 1- A D6
L 1065 M.RFC 47uH LLM3225-470J L1691141 1- A E1
L 1066 M.RFC 47uH LLM3225-470J L1691141 1- A E1
L 1067 M.RFC 470uH LLM3225-471J L1691153 1- A C2
L 1068 M.RFC 1000uH LLM3225-102J L1691157 1- A D5
L 1069 CHIP COIL 0.1uH 2% C2520C-R10G L1691294 1- A E2
L 1071 CHIP COIL 0.1uH 2% C2520C-R10G L1691294 1- A E2
L 1072 M.RFC 330uH LLM3225-331J L1691151 1- A F5
L 1073 M.RFC 470uH LLM3225-471J L1691153 1- A F6
L 1074 M.RFC 470uH LLM3225-471J L1691153 1- A F6
L 1075 CHIP COIL 4.7uH 2% C2520C-4R7G L1691317 1- A E1
L 1076 M.RFC 82uH LLM3225-820J L1691144 1- A D5
L 1077 M.RFC 470uH LLM3225-471J L1691153 1- A E6
L 1078 M.RFC 470uH LLM3225-471J L1691153 1- A E6
L 1079 CHIP COIL 0.068uH 2% C2520C-68NG L1691292 1- A D1
L 1080 M.RFC 470uH LLM3225-471J L1691153 1- A E6
L 1081 CHIP COIL 0.068uH 2% C2520C-68NG L1691292 1- A D1
L 1082 M.RFC 470uH LLM3225-471J L1691153 1- A D6
L 1083 CHIP COIL 2.2uH 2% C2520C-2R2G L1691313 1- A E3
L 1084 M.RFC 470uH LLM3225-471J L1691153 1- A E6
L 1085 M.RFC 1000uH LLM3225-102J L1691157 1- A B6
L 1086 CHIP COIL 0.1uH 2% C2520C-R10G L1691294 1- A D2
L 1087 CHIP COIL 0.1uH 2% C2520C-R10G L1691294 1- A D2
L 1088 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A D2
L 1089 M.RFC 100uH LLM3225-101J L1691145 1- A F5
L 1090 M.RFC 0.68uH LK1608 R68K-T L1690416 1-
L 1091 M.RFC 0.18uH LK1608 R18K-T L1690392 3-
L 1092 M.RFC 0.18uH LK1608 R18K-T L1690392 6-
L 1093 M.RFC 0.18uH LK1608 R18K-T L1690392 6-
P 1001 WIRE ASSY GRA(L) 170 TMP/TMP T9318278 1-
P 1001 WIRE ASSY GRA(L) 170 TMP/TMP T9318278A 3-
P 1002 WIRE ASSY GRA(M) 270 TMP/TMP T9318279 1-
P 1002 WIRE ASSY GRA(M) 270 TMP/TMP T9318279A 3-
Q 1001 POLY SWITCH MINISMDC0505-02 G9090143 1- A B6
Q 1002 TRANSISTOR DTC114EUA T106 G3070084 1- A A1
Q 1003 TRANSISTOR DTC114EUA T106 G3070084 1- A I6
Q 1004 TRANSISTOR DTC114EUA T106 G3070084 1- A B6
Q 1005 IC NJU3714A(TAPE) G1094291 1- A B4
Q 1006 FET 3SK131-T2B V12 G4801317B 1- A B1
Q 1007 TRANSISTOR DTC114YUA T106 G3070298 1- A G6
Q 1008 TRANSISTOR 2SD2403GY-T1 G3424038Y 1- A F6
Q 1009 TRANSISTOR DTC114YUA T106 G3070298 1- A G6
Q 1010 TRANSISTOR 2SC2954-T2 G3329547 1- A B1
Q 1011 TRANSISTOR DTC114EUA T106 G3070084 1- A I6
Q 1012 IC NJU3714A(TAPE) G1094291 1- A A2
Q 1013 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D1
Q 1014 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D1
Q 1015 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D1
Q 1016 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D2
MAIN-24
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
Q 1017 TRANSISTOR DTC114EUA T106 G3070084 1- A H6
Q 1018 IC SN74HCT244PWR G1094091 1- A A3
Q 1019 TRANSISTOR DTC114EUA T106 G3070084 1- A H6
Q 1020 IC M62353AGP G1094272 1- A B3
Q 1021 IC M62364FP 600D G1093033 1- A B3
Q 1022 TRANSISTOR UMD5N TR G3070343 1- A G3
Q 1023 FET SST310-T1 G4070009 1- A D3
Q 1024 FET SST310-T1 G4070009 1- A D3
Q 1025 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D3
Q 1026 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C2
Q 1027 IC CD74HCT4053PWR G1094273 1- A C3
Q 1028 IC BB301CAW-TL G1093186 1- A D3
Q 1029 TRANSISTOR 2SC3356-T2B R24 G3333567D 1- A E1
Q 1030 TRANSISTOR 2SC3356-T2B R24 G3333567D 1- A E1
Q 1031 TRANSISTOR UMD5N TR G3070343 1- A G3
Q 1032 IC NJM2068V-TE1 G1094112 1- A D5
Q 1033 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C4
Q 1034 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E6
Q 1035 TRANSISTOR DTC144EUA T106 G3070041 1- A D4
Q 1036 TRANSISTOR UMD5N TR G3070343 1- A F3
Q 1037 TRANSISTOR UMD5N TR G3070343 1- A G1
Q 1038 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E5
Q 1039 TRANSISTOR UMD5N TR G3070343 1- A H1
Q 1040 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A E5
Q 1041 TRANSISTOR UMD5N TR G3070343 1- A G2
Q 1042 TRANSISTOR UMD5N TR G3070343 1- A G3
Q 1043 IC CD74HCT4053PWR G1094273 1- A C4
Q 1044 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A E5
Q 1045 TRANSISTOR UMD5N TR G3070343 1- A F1
Q 1046 IC SN74LVC2G53DCTR G1094048 1- A C5
Q 1047 TRANSISTOR UMD5N TR G3070343 1- A H1
Q 1048 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E5
Q 1049 TRANSISTOR UMD5N TR G3070343 1- A E1
Q 1050 TRANSISTOR DTC144EUA T106 G3070041 1- A D4
Q 1051 IC SN74LVC1G66DCKR G1094046 1- A E5
Q 1052 TRANSISTOR UMD5N TR G3070343 1- A G3
Q 1053 TRANSISTOR 2SC2714Y(TE85R.F) G3327147Y 1- A D3
Q 1054 IC M62364FP 600D G1093033 1- A B6
Q 1055 TRANSISTOR UMD5N TR G3070343 1- A E1
Q 1056 IC HD74LV2G74A(TAPE) G1093788 1- A C5
Q 1057 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E5
Q 1058 IC SPM5001-TL-E G1093686 1- A E2
Q 1059 IC CD74HCT4053PWR G1094273 1- A C6
Q 1060 TRANSISTOR UMD5N TR G3070343 1- A G3
Q 1061 TRANSISTOR UMD5N TR G3070343 1- A F2
Q 1062 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E5
Q 1063 IC HD74LV2G74A(TAPE) G1093788 1- A C5
Q 1064 IC LM2904PWR G1094010 1- A E1
Q 1065 TRANSISTOR 2SC4154-T11-1E G3341548E 1 A F2
Q 1066 TRANSISTOR UMD5N TR G3070343 1- A G3
Q 1067 TRANSISTOR UMD5N TR G3070343 1- A F4
Q 1068 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A F5
Q 1069 IC CD74HCT4053PWR G1094273 1- A D6
Q 1070 FET SST310-T1 G4070009 1- A E3
Q 1071 TRANSISTOR UMD5N TR G3070343 1- A G3
Q 1072 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E1
Q 1073 IC BB301CAW-TL G1093186 1- A F5
Q 1074 IC NJM2068V-TE1 G1094112 1- A B1
Q 1075 IC NJM2068V-TE1 G1094112 1- A D4
Q 1076 IC NJM2068V-TE1 G1094112 1- A D4
Q 1077 IC NJM2068V-TE1 G1094112 1- A D4
Q 1078 IC NJM2068V-TE1 G1094112 1- A C4
Q 1079 IC LM2904PWR G1094010 1- A C4
Q 1080 IC LM2902PWR G1094009 1- A C5
Q 1081 IC NJM2594V-TE1 G1093750 1- A E4
Q 1082 IC NJU3714A(TAPE) G1094291 1- A G5
Q 1083 IC LM2904PWR G1094010 1- A C5
Q 1084 TRANSISTOR 2SC2954-T2 G3329547 1- A D1
Q 1085 IC BB301CAW-TL G1093186 1- A F5
Q 1086 IC LA4425A G1092241 1- A A5
Q 1087 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D5
Q 1088 IC LM4881MX G1093712 1- A B5
Q 1089 TRANSISTOR DTC114EUA T106 G3070084 1- A F6
MAIN-25
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
Q 1090 IC NJM2737V(TAPE) G1094292 1- A B5
Q 1091 IC SN74LVC2G66DCTR G1094049 1- A B5
Q 1092 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A A6
Q 1093 FET SST310-T1 G4070009 1- A F5
Q 1094 FET SST310-T1 G4070009 1- A F5
Q 1095 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A A6
Q 1096 IC NJM2737V(TAPE) G1094292 1- A C4
Q 1097 IC NJU3714A(TAPE) G1094291 1- A G5
Q 1098 IC NJM2594V-TE1 G1093750 1- A D4
Q 1099 IC LM2902PWR G1094009 1- A B5
Q 1100 IC CD74HCT4053PWR G1094273 1- A C4
Q 1101 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A F5
Q 1102 IC NJM2737V(TAPE) G1094292 1- A C3
Q 1103 TRANSISTOR 2SC2714Y(TE85R.F) G3327147Y 1- A E4
Q 1104 TRANSISTOR UMD5N TR G3070343 1- A A6
Q 1105 IC BB301CAW-TL G1093186 1- A E4
Q 1106 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D4
Q 1107 FET SST310-T1 G4070009 1- A E3
Q 1108 IC LM2904PWR G1094010 1- A G6
Q 1109 IC LM2904PWR G1094010 1- A B4
Q 1110 IC LM2904PWR G1094010 1- A A5
Q 1111 IC TC74HC04AF(EL.F) G1093499 1- A B3
Q 1112 TRANSISTOR DTC114EUA T106 G3070084 1- A H2
Q 1113 IC LM2904PWR G1094010 1- A F5
Q 1114 TRANSISTOR UMD5N TR G3070343 1- A E4
Q 1115 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A A5
R 1001 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C6
R 1002 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G6
R 1003 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A I6
R 1004 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C6
R 1005 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A I6
R 1006 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A I6
R 1007 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A1
R 1008 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 1009 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G6
R 1010 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B6
R 1011 CHIP RES. 27 1/16W 5% RMC1/16 270JATP J24185270 1- A A1
R 1012 CHIP RES. 39 1/16W 5% RMC1/16 390JATP J24185390 1- A A1
R 1013 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 2- A G6
R 1014 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 2- A G6
R 1015 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H6
R 1016 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 2- A G6
R 1017 CHIP RES. 27 1/16W 5% RMC1/16 270JATP J24185270 1- A A1
R 1018 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B1
R 1019 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F6
R 1020 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
R 1021 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A1
R 1022 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A I6
R 1023 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B1
R 1024 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A B1
R 1025 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G6
R 1026 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A I6
R 1027 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 1- A I6
R 1028 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B1
R 1030 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F6
R 1031 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G6
R 1032 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A B1
R 1033 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B1
R 1034 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A B1
R 1035 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B1
R 1036 CHIP RES. 8.2 1/16W 5% RMC1/16 8R2JATP J24185829 1- A B1
R 1037 CHIP RES. 47 1/2W 5% RMC1/2 470JCTP J24275470 1- A B1
R 1038 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
R 1039 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1
R 1040 CARBON FILM RES. 1k 1/6W 5% RD16PJ102 1K J01225102 1 A H6
R 1040 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 2- A H6
R 1041 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B4
R 1042 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F6
R 1043 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F6
R 1044 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 1045 CHIP RES. 680 1/16W 5% RMC1/16 681JATP J24185681 1- A B1
R 1046 CHIP RES. 100 1/4W 5% RMC1/4 101JATP J24245101 1- A B1
R 1047 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
MAIN-26
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
R 1048 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C1
R 1049 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H6
R 1050 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A B1
R 1051 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 1052 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G6
R 1053 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 1054 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 1055 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G6
R 1056 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A2
R 1057 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 1058 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 1059 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A G6
R 1060 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A2
R 1061 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D1
R 1062 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D1
R 1063 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D1
R 1064 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B4
R 1065 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B4
R 1066 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H6
R 1067 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D1
R 1068 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H6
R 1069 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D1
R 1070 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D2
R 1071 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D1
R 1072 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D2
R 1073 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A3
R 1074 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A3
R 1075 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B4
R 1076 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 1077 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 1078 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B4
R 1079 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A3
R 1080 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 1081 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A4
R 1082 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 1083 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A3
R 1084 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A4
R 1085 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A B4
R 1086 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C4
R 1088 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B3
R 1089 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A F4
R 1090 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G2
R 1091 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G1
R 1092 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H1
R 1093 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H1
R 1094 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F3
R 1095 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H3
R 1096 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G2
R 1097 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B2
R 1098 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A F4
R 1099 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
R 1100 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 1101 CHIP RES. 27 1/16W 5% RMC1/16 270JATP J24185270 1- A H1
R 1102 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F1
R 1103 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G1
R 1104 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 1105 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A H1
R 1106 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D4
R 1107 CHIP RES. 27 1/16W 5% RMC1/16 270JATP J24185270 1- A H1
R 1108 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D4
R 1109 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4
R 1110 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A F4
R 1111 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F4
R 1112 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4
R 1113 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D2
R 1114 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A D2
R 1115 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D2
R 1116 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C3
R 1117 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C3
R 1118 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D4
R 1119 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C3
R 1120 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D4
R 1121 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C3
MAIN-27
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
R 1122 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B3
R 1123 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D4
R 1124 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3
R 1125 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D4
R 1126 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 1127 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A D3
R 1128 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 1129 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D4
R 1130 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D4
R 1131 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B4
R 1132 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 1133 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A D4
R 1134 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- A D4
R 1135 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B4
R 1136 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B3
R 1137 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 1138 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A D3
R 1139 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A C3
R 1140 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C4
R 1141 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B5
R 1142 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4
R 1143 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C3
R 1144 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D4
R 1145 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D3
R 1146 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D4
R 1147 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A D4
R 1148 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C4
R 1149 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C3
R 1150 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3
R 1151 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A D3
R 1152 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D4
R 1153 CHIP RES. 3.3M 1/16W 5% RMC1/16 335JATP J24185335 1- A C4
R 1154 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A D4
R 1155 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C4
R 1156 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A C3
R 1157 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D3
R 1158 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D4
R 1159 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4
R 1160 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 1161 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B5
R 1162 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A B5
R 1163 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F1
R 1164 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A D3
R 1165 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D3
R 1166 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 1167 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D4
R 1168 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B5
R 1169 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 1170 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C3
R 1171 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A D4
R 1172 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 1173 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 1174 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D3
R 1175 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D3
R 1176 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B5
R 1177 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C3
R 1178 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 1- A C2
R 1179 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D5
R 1180 CHIP RES. 150 1/10W 5% RMC1/10T 151J J24205151 1- A E1
R 1181 CHIP RES. 150 1/10W 5% RMC1/10T 151J J24205151 1- A E1
R 1182 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- A B5
R 1183 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 1184 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C2
R 1185 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A D5
R 1186 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4
R 1187 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 1188 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D4
R 1189 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A B5
R 1190 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B5
R 1191 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 1192 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 1193 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D6
R 1194 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3
MAIN-28
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
R 1195 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A E1
R 1196 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 1197 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A E1
R 1198 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 1199 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 1200 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 1201 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 1202 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 1203 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3
R 1204 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 1205 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 1206 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C4
R 1207 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D5
R 1208 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1209 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B5
R 1210 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E1
R 1211 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E1
R 1212 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 1213 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A D3
R 1214 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 1215 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C2
R 1216 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A E1
R 1217 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A E1
R 1218 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E1
R 1219 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A C3
R 1220 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C3
R 1221 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D5
R 1222 CHIP RES. 47k 1/16W 1% RMC1/16 473FTP J24183473 1- A C4
R 1223 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C5
R 1224 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D4
R 1225 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 1226 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E1
R 1227 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A E1
R 1228 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A E6
R 1229 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A D4
R 1230 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B4
R 1231 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E5
R 1232 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E5
R 1233 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A B5
R 1234 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B5
R 1235 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B2
R 1236 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A D3
R 1237 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A C3
R 1238 CHIP RES. 47k 1/16W 1% RMC1/16 473FTP J24183473 1- A C4
R 1239 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- A C4
R 1240 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- A B4
R 1241 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E5
R 1242 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A D5
R 1243 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A D3
R 1244 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B2
R 1245 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B2
R 1246 CHIP RES. 2.2k 1/16W 1% RMC1/16 222FTP J24183222 1- A B5
R 1247 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- A C4
R 1248 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A D5
R 1249 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A D3
R 1250 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D3
R 1251 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C4
R 1252 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4
R 1253 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B3
R 1254 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1-5 A C5
R 1255 CHIP RES. 2.2k 1/16W 1% RMC1/16 222FTP J24183222 1- A B5
R 1256 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A B4
R 1257 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C4
R 1258 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A E2
R 1259 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F2
R 1262 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C4
R 1263 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E1
R 1264 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E5
R 1265 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E3
R 1266 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E5
R 1267 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C4
R 1268 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1269 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3
MAIN-29
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
R 1270 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E2
R 1271 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A E5
R 1272 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E2
R 1273 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E5
R 1274 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C5
R 1275 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B6
R 1275 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 6- A B6
R 1276 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B6
R 1276 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 6- A B6
R 1277 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D3
R 1278 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C6
R 1279 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E6
R 1280 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D4
R 1281 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B6
R 1282 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A E5
R 1283 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B6
R 1284 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 1285 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C4
R 1286 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B6
R 1287 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A E6
R 1288 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1289 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B6
R 1290 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1 A E2
R 1290 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 2- A E2
R 1291 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1 A E2
R 1291 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 2- A E2
R 1292 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A E5
R 1293 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E5
R 1294 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C5
R 1295 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D3
R 1296 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 1297 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1298 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1299 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A D4
R 1300 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C5
R 1301 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B6
R 1302 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D4
R 1303 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A F2
R 1304 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E1
R 1305 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1306 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E5
R 1307 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E6
R 1308 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E5
R 1309 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A E4
R 1310 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 1311 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A E5
R 1312 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A B6
R 1313 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A B6
R 1314 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B5
R 1315 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B5
R 1316 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F6
R 1317 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C6
R 1318 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1 A E3
R 1318 CHIP RES. 4.7 1/16W 5% RMC1/16 4R7JATP J24185479 2- A E3
R 1320 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E5
R 1322 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A5
R 1323 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C5
R 1324 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1-5 A F2
R 1325 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1-5 A F2
R 1326 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E5
R 1327 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B6
R 1328 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B5
R 1329 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A B5
R 1330 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B5
R 1331 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A B5
R 1332 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B5
R 1333 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F5
R 1334 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C6
R 1335 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 1337 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 1338 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A5
R 1339 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A E6
R 1340 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E5
MAIN-30
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
R 1341 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A E3
R 1342 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E3
R 1343 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A E4
R 1345 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A B5
R 1347 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C5
R 1348 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D5
R 1349 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C5
R 1350 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C5
R 1351 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F5
R 1352 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A E4
R 1353 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D1
R 1355 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E5
R 1356 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A B5
R 1357 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A F5
R 1358 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A D5
R 1359 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- A D5
R 1360 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D5
R 1362 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 1363 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C5
R 1364 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B5
R 1365 CHIP RES. 680 1/16W 5% RMC1/16 681JATP J24185681 1- A F5
R 1366 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B5
R 1367 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A D5
R 1368 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 1369 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F5
R 1370 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D2
R 1371 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B5
R 1372 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A A5
R 1373 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 1374 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C5
R 1375 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A5
R 1376 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A F5
R 1378 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D5
R 1379 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F6
R 1380 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E4
R 1381 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B5
R 1382 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B5
R 1383 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A D1
R 1384 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D5
R 1385 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C5
R 1386 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B5
R 1387 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B5
R 1388 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F4
R 1389 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C5
R 1390 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D1
R 1391 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E4
R 1392 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F5
R 1393 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B5
R 1394 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F6
R 1395 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D1
R 1396 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D5
R 1397 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F6
R 1398 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4
R 1399 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B5
R 1400 CHIP RES. 10 1/4W 5% RMC1/4 100JATP J24245100 1- A B5
R 1401 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A F5
R 1402 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F6
R 1403 CHIP RES. 1 1W 5% RMC1 1R0JTE J24305010 1- A A5
R 1404 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A D1
R 1405 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D5
R 1407 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A E5
R 1408 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F6
R 1409 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1410 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E4
R 1411 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A D5
R 1412 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A E5
R 1413 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A F5
R 1414 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A C4
R 1415 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A6
R 1417 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A C4
R 1418 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E6
R 1419 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D1
R 1420 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C4
MAIN-31
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
R 1421 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F5
R 1422 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E4
R 1423 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A F5
R 1424 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A F5
R 1425 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F5
R 1426 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F5
R 1427 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D4
R 1428 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A5
R 1429 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E6
R 1430 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A6
R 1431 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1432 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A E4
R 1433 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E4
R 1434 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1435 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D6
R 1436 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1437 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A E4
R 1438 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A D1
R 1439 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E4
R 1439 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 3- A E4
R 1439 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 5- A E4
R 1441 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A D1
R 1442 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A G6
R 1443 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1444 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A6
R 1445 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- A B5
R 1446 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A E4
R 1447 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D5
R 1448 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A F5
R 1449 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A G6
R 1450 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1451 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D5
R 1452 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A D1
R 1453 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A G6
R 1454 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 1455 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D5
R 1456 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C4
R 1457 CHIP RES. 330 1/4W 5% RMC1/4 331JATP J24245331 1- A A6
R 1458 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F4
R 1459 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- A B5
R 1461 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A F5
R 1462 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F5
R 1463 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D3
R 1464 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D4
R 1465 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F4
R 1467 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F4
R 1468 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A A6
R 1469 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A6
R 1470 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A E3
R 1471 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 1472 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H2
R 1473 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B5
R 1474 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B5
R 1476 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- A D4
R 1477 CHIP RES. 39 1/16W 5% RMC1/16 390JATP J24185390 1- A D4
R 1479 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A F5
R 1480 CHIP RES. 56k 1/16W 1% RMC1/16 563FTP J24183563 1- A B4
R 1481 CHIP RES. 18k 1/16W 1% RMC1/16 183FTP J24183183 1- A B4
R 1482 CHIP RES. 56k 1/16W 1% RMC1/16 563FTP J24183563 1- A B4
R 1484 CHIP RES. 18k 1/16W 1% RMC1/16 183FTP J24183183 1- A B4
R 1485 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A D1
R 1486 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F4
R 1487 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D4
R 1490 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2
R 1491 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 1492 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E4
R 1493 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-2 A E3
R 1494 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E4
R 1495 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- A F4
R 1497 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-5 A E3
R 1498 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-5 A E3
R 1503 CHIP RES. 100 1/4W 5% RMC1/4 101JATP J24245101 1- A A6
R 1504 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A A5
MAIN-32
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
R 1505 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A E4
R 1505 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 3- A E4
R 1505 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 5- A E4
R 1506 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A E4
R 1506 CHIP RES. 120 1/16W 5% RMC1/16 121JATP J24185121 3- A E4
R 1506 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 5- A E4
R 1507 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A E4
R 1507 CHIP RES. 120 1/16W 5% RMC1/16 121JATP J24185121 3- A E4
R 1507 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 5- A E4
R 1508 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G6
R 1509 CARBON FILM RES. 1k 1/6W 5% RD16TPJ102 1K J07225102 1-
R 1509 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 6-
R 1510 CHIP RES. 1.2k 1/10W 5% RMC1/10T 122J J24205122 1-
R 1510 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 6-
R 1511 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 6-
R 1514 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 6-
RL1001 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A C6
RL1002 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A I6
RL1003 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A1
RL1004 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A I6
RL1005 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A H6
RL1006 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A H6
RL1007 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A G2
RL1008 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A G1
RL1009 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A H1
RL1010 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A H1
RL1011 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A G3
RL1012 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A H2
RL1013 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A H3
RL1014 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A F1
RL1015 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A G1
RL1016 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A F1
RL1017 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A F1
RL1018 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A E1
RL1019 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A E3
RL1020 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A E4
RL1021 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B5
RL1022 RELAY DC12V AG4013 DC12V M1190090 1- A A6
RL1023 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A H3
RL1024 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A E3
RL1024 RELAY DC12V G6K-2F-RF-TR03 DC12V M1190196 6- A E3
RL1025 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A E4
T 1001 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A B1
T 1002 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A C1
T 1003 COIL 07WIDE 4-1 2001F FR6 L0021351 1- A B1
T 1004 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A D2
T 1005 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A D2
T 1006 COIL 05RF 74.62M 010812302 L0022781 1- A D3
T 1007 COIL 05RF 74.62M 010812302 L0022781 1- A D3
T 1008 COIL WIDE-TRANS. 3-318707 L0022619 1- A E1
T 1009 COIL WIDE-TRANS. 3-318707 L0022619 1- A E1
T 1010 COIL 05RF 74.62M 010812302 L0022781 1- A D3
T 1011 COIL 05RF 100M 010812300A L0022779 1- A E2
T 1012 BALUN TRANSFOMERS #617DS-1710 L0190275 1- A E2
T 1013 COIL 07WIDE 4-1 2D3 TR6X3 L0020788A 1- A D5
T 1014 COIL 05RF 74.62M 010812302 L0022781 1- A D3
T 1015 BALUN TRANSFOMERS #617DS-1710 L0190275 1- A D2
T 1016 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A E2
T 1017 COIL 07WIDE 4-1 2D3 TR6X3 L0020788A 1- A E5
T 1018 BALUN TRANSFOMERS #458PT-1586 L0190276 1- A E2
T 1019 COIL 05RF 455kHz 455K 030812470 L0022778 1- A E5
T 1020 COIL 05RF 100M 010812300A L0022779 1- A D4
T 1021 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A E3
T 1022 COIL 05RF 455kHz 455K 030812471 L0022780 1- A F5
T 1023 COIL 05RF 455kHz 455K 030812471 L0022780 1- A E5
T 1025 COIL 05RF 455kHz 455K 030812471 L0022780 1- A F5
T 1026 BALUN TRANSFOMERS #458PT-1586 L0190276 1- A D2
T 1028 COIL 05RF 455kHz 455K 030812471 L0022780 1- A D5
T 1029 COIL 05RF 455kHz 455K 030812471 L0022780 1- A E4
T 1030 COIL 05RF 74.62M 010812302 L0022781 1- A F4
T 1031 COIL 05RF 100M 010812300A L0022779 1- A F3
T 1032 COIL 05RF 455kHz 455K 060812596 L0022983 1- A F5
T 1033 COIL 05RF 455kHz 455K 030812471 L0022780 1- A D4
MAIN-33
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
T 1034 COIL 05RF 50M 010812304 L0022783 1- A E4
T 1035 COIL 05RF 74.62M 010812302 L0022781 1- A F4
T 1036 COIL 05RF 100M 010812300A L0022779 1- A F4
T 1037 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A F4
T 1038 COIL 05RF 74.62M 010812302 L0022781 1- A F4
T 1039 COIL 05RF 74.62M 010812302 L0022781 1- A E3
T 1040 COIL 05RF 74.62M 010812302 L0022781 1- A E4
TC1001 TRIMMER CAP. 20pF TZB4R200AA10R00 K91000217 1- A F3
TC1002 TRIMMER CAP. 20pF TZB4R200AA10R00 K91000217 1- A E3
TP1001 CHECK TERMINAL RCT00000C Q5000103 1- A B1
TP1002 CHECK TERMINAL RCT00000C Q5000103 1- A A3
TP1003 CHECK TERMINAL RCT00000C Q5000103 1- A B1
TP1004 CHECK TERMINAL RCT00000C Q5000103 1- A B4
TP1008 CHECK TERMINAL RCT00000C Q5000103 1- A E4
TP1009 CHECK TERMINAL RCT00000C Q5000103 1- A C4
TP1010 CHECK TERMINAL RCT00000C Q5000103 1- A C4
TP1011 CHECK TERMINAL RCT00000C Q5000103 1- A C3
TP1012 CHECK TERMINAL RCT00000C Q5000103 1- A C4
TP1013 CHECK TERMINAL RCT00000C Q5000103 1- A E3
TP1014 CHECK TERMINAL RCT00000C Q5000103 1- A E2
TP1015 CHECK TERMINAL RCT00000C Q5000103 1- A C5
TP1016 CHECK TERMINAL RCT00000C Q5000103 1- A D5
TP1017 CHECK TERMINAL RCT00000C Q5000103 1- A E4
TP1018 CHECK TERMINAL RCT00000C Q5000103 1- A D5
TP1019 CHECK TERMINAL RCT00000C Q5000103 1- A E5
TP1020 CHECK TERMINAL RCT00000C Q5000103 1- A F5
TP1021 CHECK TERMINAL RCT00000C Q5000103 1- A E5
TP1022 CHECK TERMINAL RCT00000C Q5000103 1- A D5
XF1001 XTAL FILTER MFT69Q2 69.450MHZ H1102404 1- A D4
XF1002 XTAL FILTER MFT69L2 69.450MHZ H1102402 1- A E3
XF1003 XTAL FILTER MFT69Q2 69.450MHZ H1102404 1- A F3
XF1004 XTAL FILTER MFT69G2 69.450MHZ H1102407 1- A E3
SHIELD CASE (21X25) RA0830300 1-
SHIELD CASE COVER (21X25) RA0830400 1-
SHIELD CASE (20X51) RA0830700 1-
SHIELD CASE COVER (20X51) RA0830800 1-
SHIELD CASE RA0659300 1-
SHIELD CASE RA0766800 2-5
MAIN-34
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
MAIN Unit
VRF-1
VRF Unit
Circuit Diagram
VRF-2
VRF Unit
Parts Layout
Side A Side B
ABC
1
2
3
NJU3714A
(Q2003)
SST310 (Z0)
(Q2001)
UMD5N
(Q2002, 2004, 2005,
2006, 2007, 2008,
2009, 2010, 2011,
2012, 2013, 2014)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VRF Unit
VRF-3
PCB with Components CB3549001
Printed Circuit Board AH025H000 FR0148000 1-
C 2001 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 2002 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A2
C 2003 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 2004 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 2005 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B2
C 2005 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 6- A B2
C 2006 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 2007 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2008 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A B2
C 2009 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A2
C 2010 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 2011 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A A2
C 2011 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 4- A A2
C 2011 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 6- A A2
C 2012 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2013 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A C3
C 2015 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 2016 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A C1
C 2017 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 2018 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B1
C 2018 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 4- A B1
C 2018 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 6- A B1
C 2019 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A1
C 2020 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A2
C 2021 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2022 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A1
C 2023 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 2024 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2025 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A1
C 2026 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 2027 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 2028 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2029 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A B1
C 2030 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A2
C 2031 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2033 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 2034 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 2035 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 2036 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A A1
C 2038 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 2040 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 2041 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A2
C 2042 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 2043 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 2044 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A B2
C 2045 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A A3
C 2046 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A A3
C 2047 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B2
C 2048 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 2049 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2050 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 2051 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A2
C 2052 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A A3
C 2053 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A B3
C 2054 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A A3
C 2055 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A3
C 2056 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2057 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 2058 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A2
C 2059 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A A3
C 2060 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A3
C 2061 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A B2
C 2062 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 2063 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 2064 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 2065 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A B2
C 2066 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A B3
C 2067 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A A3
C 2067 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 4- A A3
C 2067 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 6- A A3
C 2068 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A3
VRF-4
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VRF Unit
C 2069 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B2
C 2070 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A A3
C 2071 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 2072 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 2073 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 2074 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A B3
C 2075 CHIP CAP. 0.047uF 50V F GRM40F473Z50PT K22171008 1- A A3
C 2076 AL.ELECTRO.CAP. 47uF 16V EEE1CA470SP K48120005 1- A A1
D 2001 DIODE BAS316 G2070716 1- A A2
D 2002 DIODE BAS316 G2070716 1- A C3
D 2003 DIODE BAS316 G2070716 1- A A2
D 2004 DIODE BAS316 G2070716 1- A A1
D 2005 DIODE BAS316 G2070716 1- A C1
D 2006 DIODE BAS316 G2070716 1- A A1
D 2007 DIODE BAS316 G2070716 1- A A2
D 2008 DIODE BAS316 G2070716 1- A B1
D 2009 DIODE BAS316 G2070716 1- A A2
D 2010 DIODE BAS316 G2070716 1- A B3
D 2011 DIODE BAS316 G2070716 1- A A2
D 2012 DIODE BAS316 G2070716 1- A A3
D 2013 DIODE BAS316 G2070716 1- A B3
D 2014 DIODE BAS316 G2070716 1- A A3
D 2015 DIODE BAS316 G2070716 1- A B3
D 2016 DIODE BAS316 G2070716 1- A A3
FB2001 CHIP COI BLM18BD182SN1D L1690602 1- A B3
FB2002 CHIP COI BLM18BD182SN1D L1690602 1- A B3
FB2003 CHIP COI BLM18BD182SN1D L1690602 1- A B3
J 2001 CONNECTOR IMSA-9133S-06D P1090867 1- A C2
J 2002 CONNECTOR IMSA-9133S-03D P1090865 1- A A2
J 2003 CONNECTOR IMSA-9133S-05D P1090908 1- A B3
L 2001 TOROIDAL COIL 7.65uH 7.65U T80-2 L0022848A 1- A B2
L 2002 TOROIDAL COIL 1uH 1.000U T37-6 AMIDON L0021571 1- A B1
L 2003 TOROIDAL COIL 0.42uH 0.420U T37-6 AMIDON L0021575B 1- A B1
L 2004 TOROIDAL COIL 0.185uH 0.185U T37-10 L0022981 1- A A1
L 2005 CHIP COIL 0.18uH 2% C2520C-R18G L1691297 1- A A2
L 2006 CHIP COIL 0.22uH 2% C2520C-R22G L1691298 1- A A2
L 2007 CHIP COIL 1mH LQH43MN102K03L L1690108 1- A A2
L 2008 CHIP COIL 0.18uH 2% C2520C-R18G L1691297 1- A A2
Q 2001 FET SST310-T1 G4070009 1- A A2
Q 2002 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2003 IC NJU3714A(TAPE) G1094291 1- A B3
Q 2004 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2005 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2006 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2007 TRANSISTOR UMD5N TR G3070343 1- A C3
Q 2008 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2009 TRANSISTOR UMD5N TR G3070343 1- A C3
Q 2010 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2011 TRANSISTOR UMD5N TR G3070343 1- A C3
Q 2012 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2013 TRANSISTOR UMD5N TR G3070343 1- A B3
Q 2014 TRANSISTOR UMD5N TR G3070343 1- A B3
R 2001 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 2002 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 2003 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 2004 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 2005 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A1
R 2006 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 2007 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A A2
R 2008 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A2
R 2009 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 2010 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A2
R 2011 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 2013 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A1
R 2014 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A2
R 2015 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 2016 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 2017 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 2018 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 2019 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A2
R 2020 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A3
R 2021 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 2022 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A3
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VRF Unit
VRF-5
R 2023 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 2024 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A3
RL2001 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A C2
RL2002 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A2
RL2003 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A2
RL2004 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A1
RL2005 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B1
RL2006 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B1
RL2007 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B2
RL2008 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B1
RL2009 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A3
RL2010 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B3
RL2011 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A3
RL2012 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A3
RL2013 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B3
RL2014 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A3
RL2015 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B3
RL2016 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A3
SHIELD CASE COVER (74X92) RA0830900 1
SHIELD CASE COVER (74X92) RA083090A 2-
VRF-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VRF Unit
Note:
BPF-1
BPF Unit
Circuit Diagram
BPF-2
BPF Unit
Parts Layout
Side A Side B
ABC
1
2
3
abc
1
2
3
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
BPF Unit
BPF-3
PCB with Components CB3550001
Printed Circuit Board AH025H000 FR0148100 1-
C 2401 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 2402 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 2403 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 2404 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 2405 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 2406 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 2407 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 2408 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 2409 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 2410 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 2411 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 2412 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 2413 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A B2
C 2414 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A B2
C 2415 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B3
C 2416 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A B1
C 2417 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B1
C 2418 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A B3
C 2419 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B2
C 2420 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B2
C 2421 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A B3
C 2422 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A B1
C 2423 CHIP CAP. 820pF 25V CH GRM1882C1E821JA01D K22144202 1- A B1
C 2424 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- A B3
C 2425 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B2
C 2426 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B2
C 2427 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A B3
C 2428 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A B1
C 2429 CHIP CAP. 820pF 25V CH GRM1882C1E821JA01D K22144202 1- A B1
C 2430 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- A B3
C 2431 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A B2
C 2432 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A B2
C 2433 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B3
C 2434 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A B2
C 2435 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B1
C 2436 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A B3
C 2437 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B2
C 2438 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A B2
C 2439 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A B3
C 2440 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- A B1
C 2441 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A B1
C 2442 CHIP CAP. 0.001uF 50V CH GRM40CH102J50PT K22170288 1- A B3
C 2443 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- A B3
C 2444 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A A2
C 2445 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A A2
C 2446 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A A3
C 2447 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A A1
C 2448 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- A A1
C 2449 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- A A3
C 2450 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A A2
C 2451 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A A2
C 2452 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A A3
C 2453 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- A A1
C 2454 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A A1
C 2455 CHIP CAP. 0.001uF 50V CH GRM40CH102J50PT K22170288 1- A A3
C 2456 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- A A3
C 2457 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2458 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2459 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 2460 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 2461 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 2462 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 2463 CHIP CAP. 270pF 50V CH GRM2162C1H271JA01D K22170245 1- A A3
C 2464 CHIP CAP. 270pF 50V CH GRM2162C1H271JA01D K22170245 1- A B3
C 2465 CHIP CAP. 270pF 50V CH GRM2162C1H271JA01D K22170245 1- A B3
C 2466 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A B1
C 2467 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A A1
C 2468 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A B2
C 2469 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A B2
C 2470 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A A2
D 2401 DIODE BAS316 G2070716 1- A B2
BPF-4
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
BPF Unit
D 2402 DIODE BAS316 G2070716 1- A B2
D 2403 DIODE BAS316 G2070716 1- A C2
D 2404 DIODE BAS316 G2070716 1- A B1
D 2405 DIODE BAS316 G2070716 1- A B1
D 2406 DIODE BAS316 G2070716 1- A B3
D 2407 DIODE BAS316 G2070716 1- A A2
D 2408 DIODE BAS316 G2070716 1- A A2
D 2409 DIODE BAS316 G2070716 1- A A3
D 2410 DIODE BAS316 G2070716 1- A A2
D 2411 DIODE BAS316 G2070716 1- A A1
D 2412 DIODE BAS316 G2070716 1- A A3
J 2401 CONNECTOR IMSA-9133S-10D P1090869 1- A C2
J 2402 CONNECTOR IMSA-9133S-05D P1090908 1- A A3
L 2401 M.RFC 0.47uH LAV35VBR47M L1790215 1- A B2
L 2402 M.RFC 0.56uH LAV35VBR56M L1790216 1- A B2
L 2403 M.RFC 1uH LAV35VB1R0K L1790219 1- A B3
L 2404 M.RFC 1.2uH LAV35VB1R2K L1790220 1- A B1
L 2405 M.RFC 1.8uH LAV35VB1R8K L1790222 1- A B1
L 2406 M.RFC 3.3uH LAV35VB3R3K L1790225 1- A B3
L 2407 M.RFC 0.68uH LAV35VBR68M L1790217 1- A B2
L 2408 M.RFC 1uH LAV35VB1R0K L1790219 1- A B2
L 2409 M.RFC 1.5uH LAV35VB1R5K L1790221 1- A B3
L 2410 M.RFC 1.8uH LAV35VB1R8K L1790222 1- A B1
L 2411 M.RFC 2.7uH LAV35VB2R7K L1790224 1- A B1
L 2412 M.RFC 5.6uH LAV35VB5R6K L1790228 1- A B3
L 2413 M.RFC 0.47uH LAV35VBR47M L1790215 1- A B2
L 2414 M.RFC 0.56uH LAV35VBR56M L1790216 1- A B2
L 2415 M.RFC 1uH LAV35VB1R0K L1790219 1- A B3
L 2416 M.RFC 1.2uH LAV35VB1R2K L1790220 1- A B1
L 2417 M.RFC 1.8uH LAV35VB1R8K L1790222 1- A B1
L 2418 M.RFC 3.3uH LAV35VB3R3K L1790225 1- A B3
L 2419 M.RFC 2.2uH LAV35VB2R2K L1790223 1- A B2
L 2420 M.RFC 2.7uH LAV35VB2R7K L1790224 1- A B2
L 2421 M.RFC 3.9uH LAV35VB3R9K L1790226 1- A B3
L 2422 M.RFC 5.6uH LAV35VB5R6K L1790228 1- A B1
L 2423 M.RFC 6.8uH LAV35VB6R8K L1790229 1- A B1
L 2424 M.RFC 15uH LAV35VB150K L1790233 1- A B3
L 2425 M.RFC 0.47uH LAV35VBR47M L1790215 1- A A2
L 2426 M.RFC 0.68uH LAV35VBR68M L1790217 1- A A2
L 2427 M.RFC 1uH LAV35VB1R0K L1790219 1- A B3
L 2428 M.RFC 1.2uH LAV35VB1R2K L1790220 1- A A1
L 2429 M.RFC 1.8uH LAV35VB1R8K L1790222 1- A B1
L 2430 M.RFC 3.9uH LAV35VB3R9K L1790226 1- A B3
L 2431 M.RFC 0.47uH LAV35VBR47M L1790215 1- A A2
L 2432 M.RFC 0.68uH LAV35VBR68M L1790217 1- A A2
L 2433 M.RFC 1uH LAV35VB1R0K L1790219 1- A B3
L 2434 M.RFC 1.2uH LAV35VB1R2K L1790220 1- A A1
L 2435 M.RFC 1.8uH LAV35VB1R8K L1790222 1- A A1
L 2436 M.RFC 3.9uH LAV35VB3R9K L1790226 1- A A3
L 2437 M.RFC 2.2uH LAV35VB2R2K L1790223 1- A A2
L 2438 M.RFC 2.7uH LAV35VB2R7K L1790224 1- A A2
L 2439 M.RFC 3.9uH LAV35VB3R9K L1790226 1- A A3
L 2440 M.RFC 5.6uH LAV35VB5R6K L1790228 1- A A1
L 2441 M.RFC 6.8uH LAV35VB6R8K L1790229 1- A A1
L 2442 M.RFC 15uH LAV35VB150K L1790233 1- A A3
R 2401 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2
R 2402 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2
R 2403 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 2404 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 2405 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 2406 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 2407 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A2
R 2408 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A2
R 2409 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A3
R 2410 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A1
R 2411 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A1
R 2412 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A3
RL2401 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B2
RL2402 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B2
RL2403 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A C3
RL2404 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A B1
RL2405 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A C1
RL2406 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A C3
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
BPF Unit
BPF-5
RL2407 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A2
RL2408 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A2
RL2409 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A3
RL2410 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A1
RL2411 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A1
RL2412 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A A3
Z 2401 SHIELD CASE COVER (74X92) RA0830900 1
SHIELD CASE COVER (74X92) RA083090A 2-
BPF-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
BPF Unit
Note:
ANT-1
ANT Unit
Circuit Diagram
ANT-2
ANT Unit
Note
ANT-3
ANT Unit
Parts Layout (Side A)
ABCDEF
1
2
2SA1213Y
(Q2708)
2SC3444 (DE)
(Q2707)
2SC4154 (E)
(Q2704, 2705)
UMD5N
(Q2701, 2702,
2703, 2706)
DTC114EUA (24)
(Q2709)
1SS372 (N9)
(D2705)
ANT-4
ANT Unit
abcdef
1
2
Parts Layout (Side B)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
ANT Unit
ANT-5
PCB with Components CB3569001
Printed Circuit Board AH025H000 FR014910B 1-
C 2702 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 2703 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2704 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E2
C 2705 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A E2
C 2706 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 2707 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A E2
C 2708 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 2709 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 2710 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 2711 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 2712 CHIP CAP. 0.001uF 500V W5R CF316W5R102K500AT K22271802 1- A B1
C 2713 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A B1
C 2714 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A B1
C 2715 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A D2
C 2716 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 2717 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A C2
C 2718 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 2719 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 2720 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A B2
C 2721 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 2722 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2723 CHIP CAP. 0.001uF 500V W5R CF316W5R102K500AT K22271802 1- A B1
C 2724 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A B2
C 2725 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A B2
C 2726 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 2727 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 2728 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2729 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2730 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A C2
C 2731 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2732 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2733 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2734 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
D 2701 DIODE BAS316 G2070716 1- A C1
D 2702 DIODE BAS316 G2070716 1- A A1
D 2703 DIODE BAS316 G2070716 1- A D2
D 2704 SURGE ABSORBER DSP201M-S00B Q9000375 1- A E1
D 2705 DIODE 1SS372(TE85R.F) G2070632 1- A E2
D 2706 DIODE BAS316 G2070716 1- A D1
D 2707 DIODE BAS316 G2070716 1- A E2
D 2708 DIODE U15J G2090572 1- A B2
D 2709 DIODE BAS316 G2070716 1- A A2
J 2701 CONNECTOR TMP-S01X-C1 P1091254 1- A E1
J 2702 CONNECTOR B7B-PH-K-S P0090401 1- A D2
J 2703 CONNECTOR S-Q3063#01 P1090295 1- A A2
L 2701 TOROIDAL COIL 252uH 252.0U D12A TR16 L0022881A 1- A B2
L 2702 TOROIDAL COIL 252uH 252.0U D12A TR16 L0022881A 1- A B2
Q 2701 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2702 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2703 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2704 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E2
Q 2705 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E2
Q 2706 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2707 TRANSISTOR 2SC3444-T11-1E G3334448E 1- A C2
Q 2708 TRANSISTOR 2SA1213Y(TE12R.CF) G3112137Y 1- A C2
Q 2709 TRANSISTOR DTC114EUA T106 G3070084 1- A C2
R 2701 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 2702 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A1
R 2703 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D2
R 2704 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E1
R 2705 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E2
R 2706 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D1
R 2707 CHIP RES. 22 1/16W 5% RMC1/16 220JATP J24185220 1- A E2
R 2708 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E2
R 2709 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E2
R 2710 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C2
R 2711 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 2712 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 2713 METAL FILM RES. 56 5W 5% ERG-5SJ560 J22379015 1- A C2
R 2714 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 2715 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A A2
ANT-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
ANT Unit
R 2716 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C2
RL2701 RELAY DC12V FTR-H1CA012V DC12V M1190148 1- A C1
RL2702 RELAY DC12V FTR-H1CA012V DC12V M1190148 1- A B1
RL2703 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A D2
RL2704 RELAY DC12V LAB1-001 DC12V M1190194 1- A D1
RL2705 RELAY DC12V G6K-2F-Y-TR DC12V M1190183 1- A E2
RL2706 RELAY DC12V LAB1-001 DC12V M1190194 1-7 A A2
DVS-1
DVS Unit
Circuit Diagram
Side B
Parts Layout
Side A
LMV321IDCKR
(Q2905, 2906)
ML2500BTA
(Q2904)
PST596HNR (6C)
(Q2902)
TC7S04FU (E5)
(Q2902)
DVS-2
DVS Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PCB with Components CB3551001
Printed Circuit Board AH010H000 FR0093400 1-
C 2901 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A
C 2903 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A
C 2904 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A
C 2907 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A
C 2908 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A
C 2909 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A
C 2910 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A
C 2911 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A
C 2912 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A
C 2913 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A
C 2914 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A
C 2915 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A
C 2916 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A
C 2917 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A
C 2918 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A
C 2919 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A
J 2901 CONNECTOR IMSA-9133S-06D P1090867 1- A
J 2902 CONNECTOR IMSA-9133S-05D P1090908 1- A
Q 2902 IC PST596HNR G1092574 1- A
Q 2903 IC TC7S04FU(TE85R.F) G1091530 1- A
Q 2904 IC ML2500BTA G1093715 1- A
Q 2905 IC LMV321IDCKR G1093969 1- A
Q 2906 IC LMV321IDCKR G1093969 1- A
R 2901 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A
R 2902 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A
R 2903 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A
R 2904 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A
R 2906 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
R 2908 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A
R 2909 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A
R 2910 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A
R 2911 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A
R 2912 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A
R 2913 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A
R 2914 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A
R 2916 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A
R 2917 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A
R 2918 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 2919 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A
R 2920 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 2921 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A
R 2923 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 2924 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A
R 2925 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A
VR2901 POT. 10k RH03A3A14X 10K J51807103 1- A
CNTL-1
Circuit Diagram
CNTL Unit (Lot. 1)
CNTL-2
Note
CNTL Unit (Lot. 1)
CNTL-3
Parts Layout (Side A)
ABCDEF
1
2
ADM3202ARU
(Q3035, 3055)
GHI
3
4
BU4052BCFV
(Q3008, 3009, 3010,
3011)
CD4053BPWR
(Q3039, 3040, 3053)
NJU3712A
(Q3054)
CD4030BPWR
(Q3017, 3018)
CD4093BPWR
(Q3007)
FM24CL64
(Q3048)
M51945BFP
(Q3001)
NJM2374AE
(Q3021)
SN74LVC2G08DCTR
(Q3022)
HD74LV2G74A
(Q3006)
LM2904PWR
(Q3044)
KIA7805API
(Q3015, 3016)
BA033T
(Q3012)
CD74HCT238M96
(Q3023, 3024, 3025,
3026, 3027, 3028,
3029, 3030)
M62352AGP
(Q3045)
NJU3714A
(Q3036)
SN74HCT244PWR
(Q3042)
R5F61653N50FTV
(Q3038)
1SS294 (A9)
(D3015)
DAP202U (P)
(D3017)
DAN202U (N)
(D3016)
IMN10 (N10)
(D3010, 3011, 3012,
3013, 3019, 3037,
3038, 3039)
2SA1602A (MF)
(Q3003, 3014, 3031,
3032, 3033)
2SB624 (BV3)
(Q3051, 3052, 3053)
2SB1132 (BA)
(Q3058)
2SC4154 (E)
(Q3004, 3013)
BA033CC0FP
(Q3057)
DTC114EUA (24)
(Q3041)
DTC114YUA (64)
(Q3005, 3019, 3020,
3034, 3037, 3050)
TC74HC04AF
(Q3043, 3046, 3047)
UMG2N (G2)
(Q3049)
CNTL Unit (Lot. 1)
CNTL-4
Parts Layout (Side B)
abcdefghi
1
2
3
4
CNTL Unit (Lot. 1)
CNTL-5
CNTL Unit (Lot. 2~)
Circuit Diagram
CNTL-6
CNTL Unit (Lot. 2~)
Note
CNTL-7
CNTL Unit (Lot. 2~)
Parts Layout (Side A)
ABCDEF
1
2
ADM3202ARU
(Q3035, 3055)
GHI
3
4
BU4052BCFV
(Q3008, 3009, 3010,
3011)
CD4053BPWR
(Q3039, 3040, 3053)
NJU3712A
(Q3054)
CD4030BPWR
(Q3017, 3018)
CD4093BPWR
(Q3007)
FM24CL64
(Q3048)
M51945BFP
(Q3001)
NJM2374AE
(Q3021)
SN74LVC2G08DCTR
(Q3022)
HD74LV2G74A
(Q3006)
LM2904PWR
(Q3044)
KIA7805API
(Q3015, 3016)
BA033T
(Q3012)
CD74HCT238M96
(Q3023, 3024, 3025,
3026, 3027, 3028,
3029, 3030)
M62352AGP
(Q3045)
NJU3714A
(Q3036)
SN74HCT244PWR
(Q3042)
R5F61653N50FTV
(Q3038)
1SS294 (A9)
(D3015)
DAP202U (P)
(D3017)
DAN202U (N)
(D3016)
IMN10 (N10)
(D3010, 3011, 3012,
3013, 3019, 3037,
3038, 3039)
2SA1602A (MF)
(Q3003, 3014, 3031,
3032, 3033)
2SB624 (BV3)
(Q3051, 3052, 3053)
2SB1132 (BA)
(Q3058)
2SC4154 (E)
(Q3004, 3013)
BA033CC0FP
(Q3057)
DTC114EUA (24)
(Q3041)
DTC114YUA (64)
(Q3005, 3019, 3020,
3034, 3037, 3050)
TC74HC04AF
(Q3043, 3046, 3047)
UMG2N (G2)
(Q3049)
CNTL-8
CNTL Unit (Lot. 2~)
Parts Layout (Side B)
abcdefghi
1
2
3
4
CNTL-9
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
PCB with Components CS1893001
CS1893002
CS1893003
CS1893004
CS1893005
CS1893006
CS1893007
CS1893008
CS1893009
Printed Circuit Board FR014600C 1
FR014600D 2-
BH3001 BATT.HOLDER 20H-1T P2000069 1- A F1
BT3001 LITHIUM BATT. 3V CR2032 Q9000564 1-
C 3001 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 3002 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 3003 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 3004 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 3005 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 3006 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 3007 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A4
C 3008 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A4
C 3011 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A4
C 3013 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A4
C 3018 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A4
C 3024 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 3025 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 3026 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 3030 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 3031 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A C2
C 3033 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A C2
C 3034 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B2
C 3035 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B2
C 3036 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A G1
C 3037 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 3038 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 3039 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 3040 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 3041 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 3042 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 3043 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 3044 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G2
C 3045 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H2
C 3046 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A C2
C 3047 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 3048 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A C2
C 3049 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 3050 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 3051 AL.ELECTRO.CAP. 220uF 10V EEE1AA221XP K48100007 1- A C2
C 3053 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 3054 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 3055 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 1- A D2
C 3057 CHIP TA.CAP. 22uF TPSB226M016Y0600 K78120075 1- A B2
C 3059 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 3060 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 3061 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A C2
C 3062 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 3064 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A F2
C 3065 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 3066 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A H1
C 3067 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A H1
C 3068 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A H1
C 3069 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H2
C 3070 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H2
C 3071 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 3072 AL.ELECTRO.CAP. 82uF 16V PXA16VC82MH70 K48120022 1- A D1
C 3073 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 3074 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D1
C 3075 AL.ELECTRO.CAP. 82uF 16V PXA16VC82MH70 K48120022 1- A D1
C 3076 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 3077 AL.ELECTRO.CAP. 82uF 16V PXA16VC82MH70 K48120022 1- A E1
C 3078 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 3079 CHIP CAP. 680pF 50V B GRM188B11H681KA01D K22174807 1- A E1
C 3080 AL.ELECTRO.CAP. 82uF 16V PXA16VC82MH70 K48120022 1- A E1
CNTL-10
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
C 3081 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 3082 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 3083 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 3084 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E1
C 3085 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 3086 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 3087 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G2
C 3088 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G2
C 3089 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 3090 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 3091 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 3092 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A2
C 3093 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 3094 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A2
C 3095 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A2
C 3096 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A2
C 3097 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A2
C 3098 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 3099 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F2
C 3100 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F2
C 3101 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F2
C 3102 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F2
C 3103 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 3103 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- A E3
C 3104 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 3105 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 3106 CHIP TA.CAP. 2.2uF 10V TESVA1A225M1-8R K78100021 1- A F2
C 3107 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 3108 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 3109 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 3110 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 3111 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 3112 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 3113 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A3
C 3114 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G4
C 3115 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G3
C 3116 CHIP CAP. 0.033uF 16V R GRM188R11C333KA01D K22124801 1- A E3
C 3118 CHIP CAP. 0.033uF 16V R GRM188R11C333KA01D K22124801 1- A E4
C 3119 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G2
C 3120 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G3
C 3121 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H3
C 3122 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 3123 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D4
C 3124 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D4
C 3125 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 3126 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 3127 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 3128 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 3129 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 3130 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G3
C 3131 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G3
C 3132 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 3133 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I3
C 3134 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I3
C 3135 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I3
C 3136 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3137 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3145 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G4
C 3147 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G4
C 3164 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H4
C 3169 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H3
C 3193 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I3
C 3194 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4
C 3195 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4
C 3196 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C4
C 3197 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I2
C 3198 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B4
C 3199 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B4
C 3200 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H4
C 3201 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I3
C 3202 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H4
C 3203 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H4
C 3204 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H3
CNTL-11
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
C 3205 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I3
C 3206 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I4
C 3218 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D4
C 3223 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D4
C 3229 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 3- A D4
C 3298 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3299 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3300 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3301 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3302 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3303 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3304 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3305 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3306 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3307 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3308 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3309 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3310 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3311 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3312 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3313 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3314 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3315 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3316 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3317 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3318 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I2
C 3319 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I1
C 3320 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I1
C 3321 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I1
C 3329 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I4
C 3330 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 3331 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H3
C 3332 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H3
C 3333 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D4
C 3334 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D4
C 3335 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D4
C 3336 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D4
C 3337 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B4
C 3338 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B4
C 3339 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B4
C 3340 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C4
C 3341 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C4
C 3342 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B4
C 3343 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B4
C 3344 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C4
C 3345 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C4
C 3346 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C4
C 3354 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 3355 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 3356 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I4
C 3357 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A I4
C 3358 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I2
C 3359 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I2
C 3360 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I3
C 3361 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I3
C 3362 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I3
C 3363 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I2
C 3364 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I3
C 3365 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I3
C 3366 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I3
C 3367 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I3
C 3368 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G1
C 3369 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 3372 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G4
C 3373 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G4
C 3391 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A2
C 3392 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A1
C 3393 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A1
C 3394 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A1
C 3395 CHIP CAP. 1uF GRM21BB11C105KA01L K22120809 1- A A1
C 3396 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 3397 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 3398 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
CNTL-12
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
C 3402 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E4
C 3403 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A E3
C 3404 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A F2
C 3406 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A E4
C 3415 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 3-
D 3003 DIODE RB051L-40TE25 G2070718 1- A B2
D 3005 DIODE BAS316 G2070716 1- A D2
D 3006 DIODE BAS316 G2070716 1- A C2
D 3009 DIODE BAS316 G2070716 1- A F1
D 3010 DIODE IMN10 T108 G2070078 1- A G2
D 3011 DIODE IMN10 T108 G2070078 1- A G2
D 3012 DIODE IMN10 T108 G2070078 1- A G2
D 3013 DIODE IMN10 T108 G2070078 1- A G1
D 3014 DIODE BAS316 G2070716 1- A G1
D 3015 DIODE 1SS294(TE85R.F) G2070058 1- A E1
D 3016 DIODE DAN202U T106 G2070162 1- A A3
D 3017 DIODE DAP202U T106 G2070160 1- A F2
D 3018 DIODE BAS316 G2070716 1- A G4
D 3019 DIODE IMN10 T108 G2070078 1- A D3
D 3033 LED SML-210VTT86 G2070768 2- A D2
D 3037 DIODE IMN10 T108 G2070078 1- A G2
D 3038 DIODE IMN10 T108 G2070078 1- A G2
D 3039 DIODE IMN10 T108 G2070078 1- A G2
F 3001 PROTECTOR ICP-S2.3TN G9090144 1- A A4
FB3001 FERRITE BEADS BK1608HS601-T L9190083 4-
J 3001 CONNECTOR SC25-08WS P0090627 1- A B1
J 3002 CONNECTOR XM2C-0942-232L P0091409 1- A A2
J 3003 CONNECTOR M50-08-30-434S R41-0599M P1091132 1- A A3
J 3004 CONNECTOR TCS7709 P1091293 1- A A3
J 3005 CONNECTOR HLJ2305-0130609 P1090823 1- A A1
J 3007 CONNECTOR TCS7705-5120177 P1091244 1- A A4
J 3008 CONNECTOR SB20-12WS P0090619 1- A I3
J 3009 CONNECTOR SB20-12WS P0090619 1- A F4
J 3010 CONNECTOR SB20-06WS P0090613 1- A B4
J 3011 CONNECTOR SB20-11WS P0090618 1- A I3
J 3012 CONNECTOR 30FLT-SM1-TB P1091142 1- A H4
J 3013 CONNECTOR 30FLT-SM1-TB P1091142 1- A I4
J 3014 CONNECTOR SB20-14WS P0090656 1- A I3
J 3015 CONNECTOR SB20-04WS P0090611 1- A A3
J 3016 CONNECTOR 30FLT-SM1-TB P1091142 1- A D4
J 3017 CONNECTOR 30FLT-SM1-TB P1091142 1- A C4
J 3018 CONNECTOR 30FLT-SM1-TB P1091142 1- A H1
J 3019 CONNECTOR 30FLT-SM1-TB P1091142 1- A I1
J 3020 CONNECTOR 30FLT-SM1-TB P1091142 1- A I2
JP3000 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 EUROPE 4- A H2
JP3001 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 AUSTRALIA 4- A H2
JP3001 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 EUROPE 4- A H2
JP3001 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 EXPORT 4- A H2
JP3001 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000
UNITED KINGDOM
4- A H2
JP3002 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 AUSTRALIA 4- A H2
JP3002 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 EXPORT 4- A H2
JP3002 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 FRANCE 4- A H2
JP3005 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- A H2
JP3006 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- A H2
JP3007 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 4- A H1
JP3100 WIRE ASSY GRN 145 2/2 T50514500 1
JP3101 WIRE ASSY GRN 60 2/2 T50506000 1-2
L 3001 CHIP COIL 1500uH A814AY-152K=P3 L1691320 1- A D1
L 3002 CHIP COIL 1500uH A814AY-152K=P3 L1691320 1- A E1
L 3003 M.RFC 470uH CDRH105RNP-471NC-VS L1691359 1- A E1
L 3004 M.RFC 100uH FLC32T-101J L1690227 1- A A2
L 3005 M.RFC 100uH FLC32T-101J L1690227 1- A A1
Q 3001 IC M51945BFP-600C G1091990 1- A C2
Q 3003 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A C2
Q 3004 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C2
Q 3005 TRANSISTOR DTC114YUA T106 G3070298 1- A G3
Q 3006 IC HD74LV2G74A(TAPE) G1093788 1- A G1
Q 3007 IC CD4093BPWR G1094093 1- A G1
Q 3008 IC BU4052BCFV-E2 G1094196 1- A G2
Q 3009 IC BU4052BCFV-E2 G1094196 1- A H2
Q 3010 IC BU4052BCFV-E2 G1094196 1- A H2
Q 3011 IC BU4052BCFV-E2 G1094196 1- A H2
Q 3012 IC BA033T G1093776 1- A C1
CNTL-13
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
Q 3013 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C2
Q 3014 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A C2
Q 3015 IC KIA7805API G1093163 1- A B1
Q 3016 IC KIA7805API G1093163 1- A C1
Q 3017 IC CD4030BPWR G1094092 1- A H1
Q 3018 IC CD4030BPWR G1094092 1- A H1
Q 3019 TRANSISTOR DTC114YUA T106 G3070298 1- A G3
Q 3020 TRANSISTOR DTC114YUA T106 G3070298 1- A D3
Q 3021 IC NJM2374AE-TE1 G1093808 1- A D1
Q 3022 IC SN74LVC2G08DCTR G1094341 1- A F2
Q 3023 IC CD74HCT238M96 G1093850 1- A E3
Q 3024 IC CD74HCT238M96 G1093850 1- A B3
Q 3025 IC CD74HCT238M96 G1093850 1- A E3
Q 3026 IC CD74HCT238M96 G1093850 1- A B3
Q 3027 IC CD74HCT238M96 G1093850 1- A G2
Q 3028 IC CD74HCT238M96 G1093850 1- A B3
Q 3029 IC CD74HCT238M96 G1093850 1- A G1
Q 3030 IC CD74HCT238M96 G1093850 1- A C3
Q 3031 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A E3
Q 3032 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A E3
Q 3033 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A E2
Q 3034 TRANSISTOR DTC114YUA T106 G3070298 1- A B3
Q 3035 IC ADM3202ARU G1094022 1- A A2
Q 3036 IC NJU3714A(TAPE) G1094291 1- A G3
Q 3037 TRANSISTOR DTC114YUA T106 G3070298 1- A F2
Q 3038 IC R5F61653N50FTV Ú1- A F3
Q 3039 IC CD4053BPWR G1093864 1- A A3
Q 3040 IC CD4053BPWR G1093864 1- A G3
Q 3041 TRANSISTOR DTC114EUA T106 G3070084 1- A F2
Q 3042 IC SN74HCT244PWR G1094091 1- A G3
Q 3043 IC TC74HC04AF(EL.F) G1093499 1- A B3
Q 3044 IC LM2904PWR G1094010 1- A D4
Q 3045 IC M62352AGP G1094271 1- A H3
Q 3046 IC TC74HC04AF(EL.F) G1093499 1- A C3
Q 3047 IC TC74HC04AF(EL.F) G1093499 1- A C3
Q 3048 IC FM24CL64 G1094270 1- A G2
Q 3049 TRANSISTOR UMG2N TR G3070088 1- A D2
Q 3050 TRANSISTOR DTC114YUA T106 G3070298 1- A D3
Q 3051 TRANSISTOR 2SB624-T2B BV3 G3206247C 1- A D2
Q 3052 TRANSISTOR 2SB624-T2B BV3 G3206247C 1- A D2
Q 3053 TRANSISTOR 2SB624-T2B BV3 G3206247C 1- A D3
Q 3054 IC NJU3712A(TAPE) G1094290 1- A H4
Q 3055 IC ADM3202ARU G1094022 1- A A1
Q 3056 IC CD4053BPWR G1093864 1- A A2
Q 3057 IC BA033CC0FP-E2 G1094077 1- A E4
Q 3058 TRANSISTOR 2SB1132 T100 R G3211327R 1- A E1
R 3001 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 3002 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 3003 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 3004 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2
R 3005 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2
R 3006 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 3007 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 3008 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A4
R 3009 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A4
R 3010 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A4
R 3011 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 3012 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A4
R 3013 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A4
R 3014 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A4
R 3015 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A4
R 3016 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A4
R 3017 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A3
R 3018 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A3
R 3019 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 3020 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 3021 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 3022 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 3023 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 3024 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A H1
R 3025 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H1
R 3026 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H1
R 3027 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H1
Ú: Please contact Vertex Standard
CNTL-14
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
R 3028 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H1
R 3029 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A3
R 3030 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A3
R 3031 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A3
R 3032 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A3
R 3033 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A3
R 3034 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A A3
R 3035 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A H1
R 3037 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A H1
R 3039 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F2
R 3041 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 3042 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 3043 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 3044 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 3045 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 3046 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 3049 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A C2
R 3050 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 3051 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 3052 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 3053 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3054 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3055 CHIP RES. 3.9 1W 5% RMC1 3R9JTE J24305399 1- A B1
R 3056 CHIP RES. 3.9 1W 5% RMC1 3R9JTE J24305399 1- A B1
R 3057 CHIP RES. 3.9 1W 5% RMC1 3R9JTE J24305399 1- A B1
R 3058 CHIP RES. 3.9 1W 5% RMC1 3R9JTE J24305399 1- A B1
R 3059 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A H1
R 3060 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A H1
R 3061 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A H1
R 3062 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A H1
R 3063 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A H1
R 3064 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A H1
R 3065 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A G1
R 3066 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A G1
R 3067 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A H2
R 3068 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 3069 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 3070 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- A C2
R 3071 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 3072 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3073 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 3074 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 3075 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3076 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 3077 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F1
R 3078 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F1
R 3079 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A H1
R 3080 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A H1
R 3081 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A H1
R 3082 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F2
R 3083 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F2
R 3084 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F3
R 3085 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F3
R 3086 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F2
R 3087 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F2
R 3088 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F2
R 3089 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A F3
R 3090 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 3091 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 3092 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G3
R 3093 CHIP RES. 1 1/10W 5% RMC1/10T 1R0J J24205010 1- A D1
R 3094 CHIP RES. 1 1/10W 5% RMC1/10T 1R0J J24205010 1- A D1
R 3095 CHIP RES. 1 1/10W 5% RMC1/10T 1R0J J24205010 1- A D1
R 3096 CHIP RES. 1 1/10W 5% RMC1/10T 1R0J J24205010 1- A D1
R 3097 CHIP RES. 6.2k 1/16W 1% RMC1/16 622FTP J24183622 1- A D1
R 3098 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-3 A G4
R 3100 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E3
R 3101 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E3
R 3102 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E2
R 3103 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B3
R 3104 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A E1
R 3105 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3106 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
CNTL-15
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
R 3107 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3108 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 3109 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 3110 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3111 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3112 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3113 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3114 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3115 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F2
R 3116 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3
R 3120 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3121 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F4
R 3122 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F4
R 3123 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 3124 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 3126 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A E3
R 3127 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F2
R 3128 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F2
R 3129 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3
R 3130 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3
R 3131 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F2
R 3132 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F2
R 3133 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A3
R 3134 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A3
R 3135 CHIP RES. 2.2M 1/16W 5% RMC1/16 225JATP J24185225 1-3 A E3
R 3136 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A E3
R 3137 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A E3
R 3138 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A D3
R 3139 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G2
R 3140 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F2
R 3141 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G3
R 3142 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G3
R 3143 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3
R 3144 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F4
R 3145 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 3146 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 3147 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F4
R 3148 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F4
R 3149 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 3150 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3151 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3152 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3153 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3154 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3155 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3156 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A D4
R 3157 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D4
R 3158 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A G2
R 3159 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G2
R 3160 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G2
R 3161 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G2
R 3162 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A G3
R 3163 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 3165 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F3
R 3166 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 3169 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F4
R 3170 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B3
R 3171 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2
R 3172 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C2
R 3173 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C2
R 3174 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C2
R 3175 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C2
R 3176 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3177 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 3178 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 3179 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3
R 3180 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F4
R 3182 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F3
R 3185 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 3188 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F4
R 3189 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E3
R 3190 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E3
R 3191 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
CNTL-16
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
CNTL Unit
R 3192 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
R 3193 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D3
R 3194 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2
R 3195 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F3
R 3196 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F3
R 3197 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 3198 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 3199 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 3200 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 3201 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F3
R 3202 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F2
R 3203 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A I3
R 3204 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A I3
R 3205 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A I3
R 3206 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A I3
R 3207 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A I3
R 3208 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C4
R 3209 CHIP RES. 4.7k 1/10W 0.5% RR1220P-472-D-T5 J24209187 1- A C3
R 3210 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C4
R 3211 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A I1
R 3212 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A I1
R 3213 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A I1
R 3215 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E2
R 3216 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E2
R 3217 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A D2
R 3218 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A D2
R 3219 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D2
R 3220 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 3221 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A D2
R 3222 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A D2
R 3223 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A D2
R 3224 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A D2
R 3225 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A E2
R 3226 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2
R 3227 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 3228 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2
R 3229 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A E2
R 3230 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F4
R 3231 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 3232 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 3233 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D1
R 3234 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D1
R 3235 CHIP RES. 10 1W 5% RMC1 100JTE J24305100 1- A B2
R 3236 CHIP RES. 10 1W 5% RMC1 100JTE J24305100 1- A B2
R 3237 CHIP RES. 0 1W 5% RMC1 JPATE J24305000 1- A H1
R 3238 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G1
R 3239 CARBON FILM RES. 47k 1/6W 5% RD16PJ473 47K J01225473 1-
R 3239 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 3-
R 3240 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 3-
R 3242 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 3-
R 3243 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 3-
R 3244 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1-7
RB3001 BLOCK RES. RAC104D103JCTP J42900024 1- A F2
RB3002 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3002 BLOCK RES. RAC104D332JCTH J42900041 8- A F3
RB3003 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3003 BLOCK RES. RAC104D332JCTH J42900041 8- A F3
RB3004 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3005 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3006 BLOCK RES. RAC104D103JCTP J42900024 1- A F2
RB3007 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3008 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3009 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3010 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
RB3011 BLOCK RES. RAC104D103JCTP J42900024 1- A G3
RB3012 BLOCK RES. RAC104D103JCTP J42900024 1- A F3
S 3001 SLIDE SWITCH SSSS820201 N6090107 1- A F1
S 3003 TACT SWITCH SKRPABE010 N5090133 1-2 A G2
S 3004 SLIDE SWITCH SSSS820201 N6090107 1- A C2
X 3001 XTAL SMD-49 11.1MHz 11.10MHZ H0103321 1- A F2
LOCAL-1
LOCAL Unit
Circuit Diagram
LOCAL-2
LOCAL Unit
Note
LOCAL-3
LOCAL Unit
Parts Layout (Side A)
ABCDEFGH
1
2
3
2SC4154 (E)
(Q4017, 4018, 4045,
4054, 4058, 4059)
2SC4400 (RT4)
(Q4023, 4024, 4025,
4026, 4031, 4032,
4033, 4034, 4041,
4047, 4049, 4050,
4051, 4052, 4056,
4057, 4061, 4062,
4064)
2SK210-GR (YG)
(Q4001, 4002, 4003,
4004, 4005, 4006,
4007, 4008, 4019,
4020)
AD9834BRUZ
(Q4036, 4044, 4063)
AD9850BRSZ
(Q4021, 4022)
ADF4001BRUZ
(Q4027, 4028)
NJU3712A
(Q4035)
BA033CC0FP
(Q4043)
DTC114EUA (24)
(Q4009, 4010, 4011,
4012, 4013, 4014,
4015, 4016, 4037,
4038, 4039, 4040,
4042)
KIA7808API
(Q4046)
TA75S01F (SA)
(Q4048)
UPC2710TB (C1F)
(Q4029, 4030)
DAN235U (M)
(D4028, 4029, 4030,
4031)
DAP236U (X)
(D4027, 4032, 4033,
4034, 4035)
LOCAL-4
LOCAL Unit
abcdefgh
1
2
3
Parts Layout (Side B)
LOCAL-5
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
PCB with Components CB3485001
Printed Circuit Board AH025H000 FR014610C 1-
C 4001 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3
C 4002 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4003 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4004 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 4005 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F3
C 4006 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F3
C 4007 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G3
C 4008 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G3
C 4009 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A B3
C 4010 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A C3
C 4010 CHIP CAP. 30pF 50V CH GRM1882C1H300JZ01D K22174222 3 A C3
C 4010 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 4- A C3
C 4011 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A C3
C 4011 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 4- A C3
C 4012 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A D3
C 4012 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 4- A D3
C 4013 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A F3
C 4014 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A F3
C 4015 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A G3
C 4016 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A G3
C 4017 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A B3
C 4018 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A C3
C 4019 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A C3
C 4020 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A D3
C 4025 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A B2
C 4026 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A C2
C 4027 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A C2
C 4028 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D2
C 4029 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A F2
C 4029 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 4- A F2
C 4030 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A F2
C 4031 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A G2
C 4031 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 3- A G2
C 4032 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A G2
C 4033 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A B2
C 4033 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 4- A B2
C 4034 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A B2
C 4034 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 4- A B2
C 4035 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A C2
C 4035 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 3- A C2
C 4036 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A C2
C 4036 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 3- A C2
C 4037 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C2
C 4038 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C2
C 4038 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 4- A C2
C 4039 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A D2
C 4040 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A D2
C 4040 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 4- A D2
C 4041 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F2
C 4041 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 4- A F2
C 4042 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A F2
C 4042 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 4- A F2
C 4043 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A F2
C 4043 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 3- A F2
C 4044 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A F2
C 4044 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 3- A F2
C 4045 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A G2
C 4045 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 3- A G2
C 4046 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A G2
C 4046 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 3- A G2
C 4047 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A G2
C 4047 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 3- A G2
C 4048 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A G2
C 4048 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 3- A G2
C 4049 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B2
C 4050 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4051 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 4052 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 4053 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 4054 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 4055 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
LOCAL-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
C 4056 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4057 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A B2
C 4058 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A C2
C 4058 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 3 A C2
C 4058 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 4- A C2
C 4059 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A C2
C 4060 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A D2
C 4061 CHIP CAP. 1.5pF 50V CK GRM1884C1H1R5CZ01D K22174258 1- A F2
C 4061 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 4- A F2
C 4062 CHIP CAP. 1.5pF 50V CK GRM1884C1H1R5CZ01D K22174258 1- A F2
C 4062 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 3- A F2
C 4063 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A G2
C 4063 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 3- A G2
C 4064 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A G2
C 4064 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 3- A G2
C 4065 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B2
C 4066 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4067 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4068 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 4069 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 4070 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 4071 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4072 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4073 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4074 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4075 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 4076 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 4077 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 4078 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 4079 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4080 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4081 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 4082 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A C2
C 4083 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A G2
C 4084 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 4088 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H2
C 4089 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A H2
C 4093 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 4094 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4095 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A C2
C 4096 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A B1
C 4097 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A F1
C 4098 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4099 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A G2
C 4101 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4103 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4104 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4105 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A B2
C 4106 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4107 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D2
C 4108 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 4109 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A G2
C 4110 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B2
C 4111 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 4112 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 4113 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A B2
C 4114 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A F2
C 4115 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4116 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4117 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A B2
C 4118 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A E2
C 4120 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 4- A C3
C 4121 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 4122 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4123 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 4124 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 4- A C3
C 4125 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 4- A D3
C 4126 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4127 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4128 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4129 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 4130 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 4131 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
LOCAL-7
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
C 4132 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 4137 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4138 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4139 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4140 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4141 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C2
C 4142 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4143 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F2
C 4144 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4145 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C2
C 4146 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4147 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F2
C 4148 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4152 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4153 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 4158 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4159 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 4161 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 4162 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A C2
C 4163 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A B1
C 4164 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H2
C 4165 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A F2
C 4166 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A F1
C 4167 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 4168 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 4169 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4170 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4171 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 4172 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 4173 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H2
C 4174 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 4175 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A B1
C 4176 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A E1
C 4177 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 4178 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H2
C 4179 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4180 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4181 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A D1
C 4182 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 4183 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 4184 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H2
C 4187 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 4188 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A D1
C 4189 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H2
C 4190 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4191 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4192 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4199 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 4200 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4201 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A D1
C 4202 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A E2
C 4203 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A E2
C 4204 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4205 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A H2
C 4206 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A H2
C 4207 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 4208 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4212 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H2
C 4213 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H2
C 4214 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4215 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4216 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H3
C 4217 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H3
C 4218 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A E3
C 4219 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A E3
C 4220 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A H3
C 4221 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A H3
C 4222 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A E3
C 4223 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E3
C 4224 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A D1
C 4225 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A H3
C 4226 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A H3
C 4227 CHIP TA.CAP. 22uF TPSB226M016Y0600 K78120075 1- A A2
LOCAL-8
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
C 4228 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A E3
C 4229 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A E3
C 4230 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A H3
C 4231 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 1- A H3
C 4232 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A C1
C 4233 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 4234 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A E3
C 4235 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A E3
C 4236 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A H3
C 4237 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A H3
C 4238 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A E3
C 4239 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A E3
C 4240 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A H3
C 4241 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A H3
C 4242 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A G1
C 4243 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E3
C 4244 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A E3
C 4245 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A H3
C 4246 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A H3
C 4248 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 4249 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H3
C 4250 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 4250 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 4- A E3
C 4251 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H3
C 4252 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 4254 CHIP TA.CAP. 22uF TPSB226M016Y0600 K78120075 1- A A2
C 4255 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G1
C 4256 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A G1
C 4257 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 4258 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 4259 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 4260 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 4261 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H3
C 4262 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4263 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A E2
C 4264 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G1
C 4265 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 4266 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E3
C 4267 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A G1
C 4268 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A H3
C 4269 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 4270 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 4274 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A A2
C 4282 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A G1
C 4283 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A G1
C 4284 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A A1
C 4287 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 4288 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A G1
C 4289 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4290 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B1
C 4291 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4292 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A D1
C 4293 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A B1
C 4294 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 4295 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G1
C 4296 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A A1
C 4297 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4298 CHIP CAP. 0.0012uF 50V B GRM188B11H122KA01D K22174826 1- A D1
C 4299 CHIP CAP. 0.0012uF 50V B GRM188B11H122KA01D K22174826 1- A G1
C 4300 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A D1
C 4301 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A G1
C 4302 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A A1
C 4303 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 4304 CHIP CAP. 0.0018uF 50V B GRM188B11H182KA01D K22174828 1- A D1
C 4305 CHIP CAP. 0.0018uF 50V B GRM188B11H182KA01D K22174828 1- A G1
C 4306 CHIP CAP. 560pF 50V B GRM188B11H561KA01D K22174806 1- A D1
C 4307 CHIP CAP. 560pF 50V B GRM188B11H561KA01D K22174806 1- A G1
C 4308 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A A2
C 4309 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4310 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A B1
C 4313 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4314 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D1
C 4315 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G1
LOCAL-9
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
C 4316 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4317 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E1
C 4318 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A H1
C 4319 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A B1
C 4320 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A A1
C 4321 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B1
C 4322 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A B1
C 4323 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A A1
C 4324 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 4325 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A B2
C 4326 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A H1
C 4327 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A A1
C 4330 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B2
C 4331 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A H1
C 4332 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A A1
C 4333 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 4334 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 4335 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 4336 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H2
C 4337 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 4338 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H2
C 4339 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 4340 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 4341 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 4342 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 4343 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A A3
C 4344 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A H1
C 4345 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A A3
C 4346 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 1- A H1
C 4347 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A3
C 4348 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A H1
C 4349 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 4350 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A A3
C 4351 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A H1
C 4352 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A A1
C 4353 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A A3
C 4354 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A H1
C 4357 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A B2
C 4358 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A G1
C 4359 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A A2
C 4360 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A G1
C 4361 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A H1
C 4362 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B2
C 4363 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A G1
C 4364 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A G1
C 4369 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H1
C 4370 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G1
C 4371 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 4372 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 4373 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 4374 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 4379 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A H1
C 4382 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4383 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A E2
C 4400 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A E2
C 4401 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A H2
C 4402 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4403 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A E2
C 4404 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A B2
C 4405 CHIP TA.CAP. 4.7uF 10V TEMSVA1A475M-8R K78100022 1- A F2
C 4406 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 4409 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 4411 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 4-
C 4412 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 4-
CF4001 CERAMIC FILTER SFECV10M7FA00-R0-TC H3900537 1- A C1
CF4002 CERAMIC FILTER SFECV10M7FA00-R0-TC H3900537 1- A F1
D 4001 DIODE 1SV325(TPH3.F) G2070848 1- A B3
D 4002 DIODE 1SV323(TPH3.F) G2071006 1- A C3
D 4003 DIODE 1SV325(TPH3.F) G2070848 1- A C3
D 4004 DIODE 1SV325(TPH3.F) G2070848 1- A D3
D 4005 DIODE 1SV325(TPH3.F) G2070848 1- A F3
D 4006 DIODE 1SV325(TPH3.F) G2070848 1- A F3
D 4007 DIODE 1SV325(TPH3.F) G2070848 1- A G3
LOCAL-10
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
D 4008 DIODE 1SV323(TPH3.F) G2071006 1- A G3
D 4009 DIODE 1SV325(TPH3.F) G2070848 1- A B3
D 4010 DIODE 1SV323(TPH3.F) G2071006 1- A C3
D 4011 DIODE 1SV325(TPH3.F) G2070848 1- A C3
D 4012 DIODE 1SV325(TPH3.F) G2070848 1- A D3
D 4013 DIODE 1SV325(TPH3.F) G2070848 1- A F3
D 4014 DIODE 1SV325(TPH3.F) G2070848 1- A F3
D 4015 DIODE 1SV325(TPH3.F) G2070848 1- A G3
D 4016 DIODE 1SV323(TPH3.F) G2071006 1- A G3
D 4017 DIODE HSC277TRF-E G2070584 1- A B2
D 4018 DIODE HSC277TRF-E G2070584 1- A C2
D 4019 DIODE HSC277TRF-E G2070584 1- A C2
D 4020 DIODE HSC277TRF-E G2070584 1- A D2
D 4021 DIODE HSC277TRF-E G2070584 1- A F2
D 4022 DIODE HSC277TRF-E G2070584 1- A F2
D 4023 DIODE HSC277TRF-E G2070584 1- A G2
D 4024 DIODE HSC277TRF-E G2070584 1- A G2
D 4025 DIODE BAS316 G2070716 1- A B2
D 4026 DIODE UDZS TE-17 6.2B G2070912 1- A B2
D 4027 DIODE DAP236U T106 G2070592 1-1 A A1
D 4027 DIODE DAP236U T106 G2070592 3- A A1
D 4028 DIODE DAN235U TL G2070176 1- A C2
D 4029 DIODE DAN235U TL G2070176 1- A D2
D 4030 DIODE DAN235U TL G2070176 1- A F2
D 4031 DIODE DAN235U TL G2070176 1- A G2
D 4032 DIODE DAP236U T106 G2070592 1- A E2
D 4033 DIODE DAP236U T106 G2070592 1- A H2
D 4034 DIODE DAP236U T106 G2070592 1- A E3
D 4035 DIODE DAP236U T106 G2070592 1- A H3
D 4036 DIODE BAS316 G2070716 1- A E2
D 4037 DIODE UDZS TE-17 5.1B G2070908 1- A E2
D 4038 DIODE BAS316 G2070716 1- A A2
D 4040 DIODE HSC277TRF-E G2070584 1- A B2
D 4042 DIODE 1SV325(TPH3.F) G2070848 1- A F3
D 4043 DIODE 1SV325(TPH3.F) G2070848 1- A F3
D 4044 DIODE 1SV325(TPH3.F) G2070848 1- A F3
D 4045 DIODE 1SV325(TPH3.F) G2070848 1- A F3
FB4001 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4002 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4003 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4004 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4005 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4006 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4007 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4008 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4009 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
FB4010 FERRITE BEADS BLM18BD601SN1D L9190143 1-2 A A1
FB4011 FERRITE BEADS BLM18BD601SN1D L9190143 1-2 A A1
FB4012 CHIP COIL BLM21PG300SN1D L1690840 1- A A2
FB4013 FERRITE BEADS BLM18BD601SN1D L9190143 1- A A1
J 4001 CONNECTOR 30FLT-SM1-TB P1091142 1- A A1
J 4002 CONNECTOR TMP-J01X-V6 P1090210 1- A E3
J 4003 CONNECTOR TMP-J01X-V6 P1090210 1- A E1
J 4004 CONNECTOR TMP-J01X-V6 P1090210 1- A B3
J 4005 CONNECTOR TMP-J01X-V6 P1090210 1- A H1
J 4006 CONNECTOR TMP-J01X-V6 P1090210 1- A H2
J 4007 CONNECTOR TMP-J01X-V6 P1090210 1- A H3
J 4008 CONNECTOR TMP-J01X-V6 P1090210 1- A B2
L 4001 M.RFC 4.7uH LLM3225-4R7J L1691129 1- A B3
L 4002 M.RFC 4.7uH LLM3225-4R7J L1691129 1- A C3
L 4003 M.RFC 4.7uH LLM3225-4R7J L1691129 1- A C3
L 4004 M.RFC 4.7uH LLM3225-4R7J L1691129 1- A D3
L 4005 M.RFC 10uH LLM3225-100J L1691133 1- A F3
L 4006 M.RFC 10uH LLM3225-100J L1691133 1- A F3
L 4007 M.RFC 4.7uH LLM3225-4R7J L1691129 1- A G3
L 4008 M.RFC 4.7uH LLM3225-4R7J L1691129 1- A G3
L 4009 COIL MC120 #222957 L0022758 1- A B3
L 4010 COIL MC120 #222956 L0022757 1- A C3
L 4011 COIL MC120 #222955 L0022756 1- A C3
L 4012 COIL MC120 #222954 L0022755 1- A D3
L 4013 COIL 0.44uH MC120 #E526HN-100309 L0190282 1- A F3
L 4013 COIL MC120 #PE526HN-100525 L0190284 3- A F3
L 4014 COIL 0.35uH MC120 #E526HN-100308 L0190281 1- A F3
LOCAL-11
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
L 4014 COIL MC120 #PE526NN-100524 L0190283 3- A F3
L 4015 COIL MC120 #222957 L0022758 1- A G3
L 4016 COIL MC120 #222956 L0022757 1- A G3
L 4017 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A B2
L 4018 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A C2
L 4019 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A D2
L 4020 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A D2
L 4021 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A F2
L 4022 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A F2
L 4023 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A G2
L 4024 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A G2
L 4025 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A D2
L 4026 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A G2
L 4027 M.RFC 10uH LLM3225-100J L1691133 1- A B1
L 4028 M.RFC 10uH LLM3225-100J L1691133 1- A F1
L 4029 M.RFC 10uH LLM3225-100J L1691133 1- A B1
L 4030 M.RFC 10uH LLM3225-100J L1691133 1- A E1
L 4031 M.RFC 10uH LLM3225-100J L1691133 1- A C2
L 4032 M.RFC 10uH LLM3225-100J L1691133 1- A H2
L 4033 M.RFC 10uH LLM3225-100J L1691133 1- A F2
L 4034 M.RFC 10uH LLM3225-100J L1691133 1- A B1
L 4035 M.RFC 10uH LLM3225-100J L1691133 1- A E1
L 4036 M.RFC 0.33uH LLM3225-R33J L1691115 1- A E2
L 4037 M.RFC 0.33uH LLM3225-R33J L1691115 1- A H2
L 4038 M.RFC 10uH LLM3225-100J L1691133 1- A E2
L 4039 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A H2
L 4040 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A E2
L 4041 M.RFC 10uH LLM3225-100J L1691133 1- A D1
L 4042 M.RFC 10uH LLM3225-100J L1691133 1- A D1
L 4043 CHIP COIL 0.082uH 2% C2520C-82NG L1691293 1- A E3
L 4044 CHIP COIL 0.056uH 2% C2520C-56NG L1691291 1- A E3
L 4045 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A H3
L 4046 CHIP COIL 0.082uH 2% C2520C-82NG L1691293 1- A H3
L 4047 CHIP COIL 0.1uH C2520C-R10J L1690544 1- A E3
L 4048 CHIP COIL 0.068uH 2% C2520C-68NG L1691292 1- A E3
L 4049 CHIP COIL 0.12uH C2520C-R12J L1690545 1- A H3
L 4050 CHIP COIL 0.082uH 2% C2520C-82NG L1691293 1- A H3
L 4051 CHIP COIL 0.068uH 2% C2520C-68NG L1691292 1- A E3
L 4052 CHIP COIL 0.047uH 2% C2520C-47NG L1691290 1- A E3
L 4053 CHIP COIL 0.056uH 2% C2520C-56NG L1691291 1- A H3
L 4054 CHIP COIL 0.047uH 2% C2520C-47NG L1691290 1- A H3
L 4055 M.RFC 10uH LLM3225-100J L1691133 1- A G1
L 4056 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A E3
L 4057 M.RFC 10uH LLM3225-100J L1691133 1- A G1
L 4058 M.RFC 3.3uH LLM3225-3R3J L1691127 1- A H3
L 4059 M.RFC 68uH LLM3225-680J L1691143 1- A D1
L 4060 M.RFC 68uH LLM3225-680J L1691143 1- A G1
L 4061 M.RFC 56uH LLM3225-560J L1691142 1- A D1
L 4062 M.RFC 56uH LLM3225-560J L1691142 1- A G1
L 4063 M.RFC 0.22uH LLM3225-R22J L1691113 1- A B1
L 4064 M.RFC 0.22uH LLM3225-R22J L1691113 1- A A1
L 4065 M.RFC 0.12uH LLM3225-R12J L1691110 1- A B3
L 4066 M.RFC 2.7uH LLM3225-2R7J L1691126 1- A H1
L 4067 M.RFC 0.1uH LLM3225-R10J L1691109 1- A B3
L 4068 M.RFC 1.8uH LLM3225-1R8J L1691124 1- A H1
L 4069 M.RFC 0.12uH HK1608 R12J-T L1690937 1- A A2
L 4070 M.RFC 10uH LLM3225-100J L1691133 1- A G1
L 4071 M.RFC 10uH LLM3225-100J L1691133 1- A G1
L 4072 M.RFC 0.22uH HK1608 R22J-T L1690940 1- A A2
L 4073 M.RFC 10uH LLM3225-100J L1691133 1- A E2
L 4074 M.RFC 10uH LLM3225-100J L1691133 1- A H2
L 4075 M.RFC 10uH LK1608 100K-T L1690689 1- A F3
L 4076 M.RFC 10uH LK1608 100K-T L1690689 1- A F3
L 4077 M.RFC 0.1uH 2% C1608CB-R10G L1691045 4-
Q 4001 FET 2SK210-GR(TE85R.F) G3802107G 1- A B2
Q 4002 FET 2SK210-GR(TE85R.F) G3802107G 1- A C2
Q 4003 FET 2SK210-GR(TE85R.F) G3802107G 1- A C2
Q 4004 FET 2SK210-GR(TE85R.F) G3802107G 1- A D2
Q 4005 FET 2SK210-GR(TE85R.F) G3802107G 1- A F2
Q 4006 FET 2SK210-GR(TE85R.F) G3802107G 1- A F2
Q 4007 FET 2SK210-GR(TE85R.F) G3802107G 1- A G2
Q 4008 FET 2SK210-GR(TE85R.F) G3802107G 1- A G2
Q 4009 TRANSISTOR DTC114EUA T106 G3070084 1- A C2
LOCAL-12
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
Q 4010 TRANSISTOR DTC114EUA T106 G3070084 1- A C2
Q 4011 TRANSISTOR DTC114EUA T106 G3070084 1- A D2
Q 4012 TRANSISTOR DTC114EUA T106 G3070084 1- A D2
Q 4013 TRANSISTOR DTC114EUA T106 G3070084 1- A F2
Q 4014 TRANSISTOR DTC114EUA T106 G3070084 1- A F2
Q 4015 TRANSISTOR DTC114EUA T106 G3070084 1- A G2
Q 4016 TRANSISTOR DTC114EUA T106 G3070084 1- A G2
Q 4017 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A B2
Q 4018 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A H2
Q 4019 FET 2SK210-GR(TE85R.F) G3802107G 1- A C2
Q 4020 FET 2SK210-GR(TE85R.F) G3802107G 1- A G2
Q 4021 IC AD9850BRSZ-REEL G1092567 1- A C1
Q 4022 IC AD9850BRSZ-REEL G1092567 1- A F1
Q 4023 TRANSISTOR 2SC4400-4-TL G3344008D 1- A C2
Q 4024 TRANSISTOR 2SC4400-4-TL G3344008D 1- A F2
Q 4025 TRANSISTOR 2SC4400-4-TL G3344008D 1- A D2
Q 4026 TRANSISTOR 2SC4400-4-TL G3344008D 1- A G2
Q 4027 IC ADF4001BRUZ-REEL7 G1093977 1- A C2
Q 4028 IC ADF4001BRUZ-REEL7 G1093977 1- A F2
Q 4029 IC UPC2710TB-E3 G1093932 1- A E2
Q 4030 IC UPC2710TB-E3 G1093932 1- A H2
Q 4031 TRANSISTOR 2SC4400-4-TL G3344008D 1- A B1
Q 4032 TRANSISTOR 2SC4400-4-TL G3344008D 1- A E1
Q 4033 TRANSISTOR 2SC4400-4-TL G3344008D 1- A C1
Q 4034 TRANSISTOR 2SC4400-4-TL G3344008D 1- A F1
Q 4035 IC NJU3712A(TAPE) G1094290 1- A A3
Q 4036 IC AD9834BRUZ-REEL7 G1094297 1- A D1
Q 4037 TRANSISTOR DTC114EUA T106 G3070084 1- A E2
Q 4038 TRANSISTOR DTC114EUA T106 G3070084 1- A E2
Q 4039 TRANSISTOR DTC114EUA T106 G3070084 1- A H2
Q 4040 TRANSISTOR DTC114EUA T106 G3070084 1- A H2
Q 4041 TRANSISTOR 2SC4400-4-TL G3344008D 1- A D1
Q 4042 TRANSISTOR DTC114EUA T106 G3070084 1- A D1
Q 4043 IC BA033CC0FP-E2 G1094077 1- A A2
Q 4044 IC AD9834BRUZ-REEL7 G1094297 1- A G1
Q 4045 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E2
Q 4046 IC KIA7808API G1093164 1- A A2
Q 4047 TRANSISTOR 2SC4400-4-TL G3344008D 1- A G1
Q 4048 IC TA75S01F(TE85R.F) G1091593 1- A A2
Q 4049 TRANSISTOR 2SC4400-4-TL G3344008D 1- A A1
Q 4050 TRANSISTOR 2SC4400-4-TL G3344008D 1- A B1
Q 4051 TRANSISTOR 2SC4400-4-TL G3344008D 1- A B1
Q 4052 TRANSISTOR 2SC4400-4-TL G3344008D 1- A B1
Q 4053 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E2
Q 4054 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E1
Q 4056 TRANSISTOR 2SC4400-4-TL G3344008D 1- A A2
Q 4057 TRANSISTOR 2SC4400-4-TL G3344008D 1- A H1
Q 4058 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E1
Q 4059 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A H2
Q 4061 TRANSISTOR 2SC4400-4-TL G3344008D 1- A B2
Q 4062 TRANSISTOR 2SC4400-4-TL G3344008D 1- A H1
Q 4063 IC AD9834BRUZ-REEL7 G1094297 1- A G1
Q 4064 TRANSISTOR 2SC4400-4-TL G3344008D 1- A G1
R 4001 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B3
R 4002 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C3
R 4003 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C3
R 4004 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D3
R 4005 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F3
R 4006 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F3
R 4007 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G3
R 4008 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G3
R 4009 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B2
R 4010 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 4011 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 4012 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D2
R 4013 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F2
R 4014 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F2
R 4015 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G2
R 4016 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G2
R 4025 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A C2
R 4025 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 4- A C2
R 4026 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A C2
R 4026 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 3- A C2
LOCAL-13
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
R 4027 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A D2
R 4027 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 4- A D2
R 4028 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A D2
R 4028 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 4- A D2
R 4029 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F2
R 4030 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A F2
R 4030 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 3- A F2
R 4031 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A G2
R 4031 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 3- A G2
R 4032 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A G2
R 4032 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 3- A G2
R 4034 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4036 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 4038 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
R 4040 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
R 4042 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F2
R 4044 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F2
R 4046 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G2
R 4048 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G2
R 4049 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F2
R 4050 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F2
R 4051 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G2
R 4052 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G2
R 4053 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B2
R 4054 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C2
R 4055 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C2
R 4056 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D2
R 4057 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G2
R 4058 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G2
R 4059 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
R 4060 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C1
R 4061 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F1
R 4063 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4065 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D2
R 4066 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H2
R 4068 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1
R 4069 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C2
R 4070 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D2
R 4071 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B2
R 4072 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G2
R 4073 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F2
R 4074 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G2
R 4075 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 4076 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2
R 4077 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 4078 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A C2
R 4079 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F1
R 4080 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C2
R 4081 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D2
R 4081 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 4- A D2
R 4082 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G2
R 4083 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A G2
R 4084 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F2
R 4085 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B2
R 4086 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F2
R 4087 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A C2
R 4088 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A F2
R 4089 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A B2
R 4090 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A F2
R 4091 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A D2
R 4092 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A G2
R 4093 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C1
R 4094 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C1
R 4095 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F1
R 4096 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F1
R 4097 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D2
R 4098 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D2
R 4099 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 4100 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E1
R 4101 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G2
R 4102 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G2
R 4103 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F2
R 4105 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
LOCAL-14
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
R 4106 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
R 4107 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
R 4108 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F1
R 4109 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F1
R 4110 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F1
R 4111 CHIP RES. 47 1/16W 0.5% RGC1/16C470DTP J24189396 1- A C1
R 4112 CHIP RES. 47 1/16W 0.5% RGC1/16C470DTP J24189396 1- A F1
R 4113 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D2
R 4114 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A G2
R 4115 CHIP RES. 47 1/16W 0.5% RGC1/16C470DTP J24189396 1- A C1
R 4116 CHIP RES. 47 1/16W 0.5% RGC1/16C470DTP J24189396 1- A C1
R 4117 CHIP RES. 47 1/16W 0.5% RGC1/16C470DTP J24189396 1- A F1
R 4118 CHIP RES. 47 1/16W 0.5% RGC1/16C470DTP J24189396 1- A F1
R 4119 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1-3 A D2
R 4120 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A G2
R 4121 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D2
R 4122 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A G2
R 4125 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A B1
R 4126 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A F1
R 4127 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C1
R 4128 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1
R 4129 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F1
R 4130 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F1
R 4131 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C1
R 4132 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F1
R 4133 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
R 4134 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A B1
R 4135 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F1
R 4136 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A F1
R 4137 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C2
R 4138 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B1
R 4139 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F2
R 4140 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E1
R 4141 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A C2
R 4142 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A F2
R 4143 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C1
R 4144 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A F1
R 4145 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A D1
R 4146 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A D1
R 4147 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H2
R 4148 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H2
R 4149 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E2
R 4150 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 4151 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A E2
R 4152 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A E2
R 4153 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A H2
R 4154 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A H2
R 4155 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2
R 4156 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C1
R 4157 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A H2
R 4158 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E2
R 4159 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 4160 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C1
R 4161 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A H2
R 4162 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H2
R 4163 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 4164 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D1
R 4165 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H2
R 4166 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D1
R 4167 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A D1
R 4168 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A D1
R 4169 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D1
R 4170 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 4171 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 4171 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 4- A E3
R 4172 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H3
R 4173 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H3
R 4174 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 4175 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A G1
R 4176 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E3
R 4177 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H3
R 4178 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E3
R 4179 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1-3 A E3
LOCAL-15
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
R 4180 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A H3
R 4181 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H3
R 4182 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E3
R 4183 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A H3
R 4184 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A G1
R 4187 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1
R 4188 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 4189 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E3
R 4190 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H3
R 4191 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H3
R 4192 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1
R 4193 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4194 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 4195 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4196 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4197 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G1
R 4198 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A G1
R 4199 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4200 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A G1
R 4201 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G1
R 4202 CHIP RES. 39k 1/16W 1% RMC1/16 393FTP J24183393 1- A A2
R 4203 CHIP RES. 11k 1/16W 1% RMC1/16 113FTP J24183113 1- A A1
R 4204 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A D1
R 4205 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A G1
R 4206 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- A A1
R 4207 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A B1
R 4209 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
R 4210 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B1
R 4211 CHIP RES. 1.5k 1/16W 1% RMC1/16 152FTP J24183152 1- A A2
R 4212 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B1
R 4213 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A B1
R 4214 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B1
R 4215 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A B1
R 4217 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A1
R 4218 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B1
R 4219 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B1
R 4220 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 4221 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B1
R 4225 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A B1
R 4227 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E1
R 4230 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A H2
R 4232 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A B2
R 4233 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A H1
R 4234 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E1
R 4235 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A H1
R 4237 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- A E1
R 4238 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A H1
R 4239 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4241 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2
R 4242 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A H1
R 4243 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 4244 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H1
R 4245 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A E1
R 4246 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E1
R 4247 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A H1
R 4248 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H2
R 4251 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A B2
R 4252 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A H1
R 4254 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 4255 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A H1
R 4256 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B2
R 4257 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A H1
R 4258 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A1
R 4259 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 4260 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 4261 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 4262 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4263 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4264 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4265 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G1
R 4266 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 1- A G1
R 4267 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A G1
R 4268 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A G1
LOCAL-16
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
LOCAL Unit
R 4269 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A H1
R 4270 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A G1
R 4271 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G1
R 4272 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A G1
R 4273 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1
R 4274 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 4275 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H1
R 4276 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A H1
R 4277 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A H1
R 4281 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E1
R 4282 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 3-
R 4283 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 3-
T 4001 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A C1
T 4002 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A F1
T 4003 COIL 05RF 74.62M 010812302 L0022781 1- A A1
T 4004 COIL 05RF 74.62M 010812302 L0022781 1- A A2
TC4001 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A B3
TC4002 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A C3
TC4003 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A C3
TC4004 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A D3
TC4005 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A F3
TC4006 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A F3
TC4007 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A G3
TC4008 TRIMMER CAP. 6pF ECR-JA006A11X K91000251 1- A G3
TP4003 CHECK TERMINAL RCT00000C Q5000103 1- A E3
TP4004 CHECK TERMINAL RCT00000C Q5000103 1- A H3
TP4039 CHECK TERMINAL RCT00000C Q5000103 1- A A1
X 4001 TCXO 34.5MHz TTS14VSB-A11 34.500MHZ H9500970 1- A A1
SHIELD CASE (39X73) RA0830100 1-
SHIELD CASE COVER (39X73) RA0830200 1-
RX 2-1
Circuit Diagram
RX-2 Unit (Lot. 1~4)
RX 2-2
Note
RX-2 Unit (Lot. 1~4)
RX 2-3
Parts Layout (Side A)
1
2
3
ABCDEF
2SA1602A (MF)
(Q4530, 4532, 4538)
2SB624 (BV3)
(Q4507)
2SC2714 (QY)
(Q4502, 4546)
2SC4154 (E)
(Q4506, 4508, 4510,
4511, 4513, 4514,
4515, 4521, 4523,
4528, 4544, 4545)
2SC2954 (QK)
(Q4503)
BB301CAW (AW)
(Q4512, 4516, 4517,
4520, 4524)
CD74HCT238M96
(Q4505)
CD74HCT4056PWR
(Q4519)
TA31136FNG
(Q4522)
DTC114EUA (24)
(Q4529, 4534, 4535,
4539, 4540, 4541,
4542)
LM2904PWR
(Q4536, 4537)
NJM2594V
(Q4518)
SN74LVC2G66DCTR
(Q4531, 4533)
TC4W53FU
(Q4543)
NJM78L05UA (8C)
(Q4501)
NJU3714A
(Q4504)
SN74LVC1G66DCKR
(Q4527)
SPM5001
(Q4509)
SST310 (Z0)
(Q4525, 4526)
1SS372 (N9)
(D4503, 4505)
DAN202U (N)
(D4501, 4507)
DAP222 (P)
(D4509, 4512, 4513,
4514, 4515, 4516)
RX-2 Unit (Lot. 1~4)
RX 2-4
Parts Layout (Side B)
1
2
3
abcdef
RX-2 Unit (Lot. 1~4)
RX 2-5
RX-2 Unit (Lot. 5~)
Circuit Diagram
RX 2-6
RX-2 Unit (Lot. 5~)
Note
RX 2-7
RX-2 Unit (Lot. 5~)
Parts Layout (Side A)
1
2
3
ABCDEF
2SA1602A (MF)
(Q4530, 4532, 4538)
2SB624 (BV3)
(Q4507)
2SC2714 (QY)
(Q4502, 4546)
2SC4154 (E)
(Q4506, 4508, 4510,
4511, 4513, 4514,
4515, 4521, 4523,
4528, 4544, 4545)
2SC2954 (QK)
(Q4503)
BB301CAW (AW)
(Q4512, 4516, 4517,
4520, 4524)
CD74HCT238M96
(Q4505)
CD74HCT4056PWR
(Q4519)
TA31136FNG
(Q4522)
DTC114EUA (24)
(Q4529, 4534, 4535,
4539, 4540, 4541,
4542)
LM2904PWR
(Q4536, 4537)
NJM2594V
(Q4518)
SN74LVC2G66DCTR
(Q4531, 4533)
TC4W53FU
(Q4543)
NJM78L05UA (8C)
(Q4501)
NJU3714A
(Q4504)
SN74LVC1G66DCKR
(Q4527)
SPM5001
(Q4509)
SST310 (Z0)
(Q4525, 4526)
1SS372 (N9)
(D4503, 4505)
DAN202U (N)
(D4501, 4507)
DAP222 (P)
(D4509, 4512, 4513,
4514, 4515, 4516)
RX 2-8
RX-2 Unit (Lot. 5~)
Parts Layout (Side B)
1
2
3
abcdef
RX 2-9
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
PCB with Components CB3486001
Printed Circuit Board AH025H000 FR014620C 1-
FR014620D 5-
C 4501 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A D1
C 4502 CHIP TA.CAP. 0.22uF 35V TESVA1V224M1-8R K78160027 1- A A3
C 4503 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A1
C 4504 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 4505 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A A1
C 4506 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A2
C 4507 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A A1
C 4508 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A B1
C 4509 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 4510 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4511 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A A2
C 4512 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A A2
C 4513 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A1
C 4514 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A D1
C 4515 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A A3
C 4516 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B1
C 4517 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A1
C 4518 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A A1
C 4519 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4520 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 4521 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A A2
C 4522 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 4524 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 4525 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 4526 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 4527 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B1
C 4528 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 4529 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 4530 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B1
C 4531 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A C2
C 4532 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2
C 4533 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A A1
C 4534 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A B1
C 4535 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A B3
C 4536 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A B1
C 4537 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4538 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2
C 4539 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 4540 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1-2 A B1
C 4541 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 4542 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1-2 A B1
C 4543 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 4544 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A C3
C 4545 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B1
C 4546 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 4547 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 1- A B3
C 4548 CHIP TA.CAP. 2.2uF 16V TEMSVA1C225M-8R K78120015 1- A B3
C 4549 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A C3
C 4550 AL.ELECTRO.CAP. 1uF 50V EEE1HA010SR K48170027 1- A B3
C 4551 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A C1
C 4552 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 4553 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C1
C 4554 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2
C 4555 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A C3
C 4556 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A B3
C 4558 CHIP CAP. 0.0015uF 50V B GRM188B11H152KA01D K22174827 1- A C2
C 4559 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A D3
C 4560 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 4561 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4562 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 4563 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A D1
C 4564 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 4565 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A C2
C 4566 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A C1
C 4567 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D2
C 4568 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A C1
C 4569 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 4570 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A C3
C 4571 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 4572 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A B3
RX 2-10
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
C 4573 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 4574 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D3
C 4575 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 4576 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4578 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A D3
C 4579 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D3
C 4580 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 4581 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4582 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A E2
C 4583 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 4584 CHIP CAP. 51pF 50V CH GRM1882C1H510JZ01D K22174228 1- A C1
C 4585 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4586 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4587 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4588 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E2
C 4589 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 4590 CHIP CAP. 0.33uF 10V B GRM188B11A334KA61D K22104802 1- A C3
C 4591 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 4592 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A E1
C 4593 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 4594 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4595 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 4596 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4597 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4598 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4599 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D3
C 4600 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 4601 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4602 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 4603 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 4604 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 4605 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D3
C 4606 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A D3
C 4607 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4608 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 4609 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D1
C 4610 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D1
C 4611 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4612 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A C3
C 4613 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A F1
C 4614 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A D3
C 4615 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4616 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A E1
C 4617 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 4618 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 4619 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A E3
C 4620 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 4622 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 4623 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4624 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A E3
C 4625 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 4626 CHIP CAP. 0.01uF 16V B ECUV1C103KBV K22129510 1- A D1
C 4627 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4628 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 4629 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 4630 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4631 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 4632 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F1
C 4633 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E1
C 4634 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A E1
C 4635 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A E1
C 4636 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A E1
C 4637 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A E1
C 4638 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A E1
C 4639 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 4640 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 4641 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F1
C 4642 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E1
C 4643 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4644 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 4645 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F1
C 4646 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 4647 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
RX 2-11
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
C 4648 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 4649 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 4650 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 4651 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4652 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 4653 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 4654 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4655 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 4656 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F1
C 4657 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 4658 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 4659 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 4660 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4661 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 4662 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 4663 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 4664 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 4665 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 4666 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F1
C 4667 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 4668 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 4669 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 4670 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A A1
C 4671 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A A1
C 4672 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A C1
C 4673 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4674 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4675 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C1
C 4676 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 4679 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C1
C 4680 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E1
C 4681 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A B1
C 4682 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A B1
C 4686 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 3-
C 4687 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 3-
CD4501 CERAMIC DISC ECDA455C24 H7901470 1- A D2
CF4501 CERAMIC FILTER ALFYM455E=K H3900543 1- A E2
CF4502 CERAMIC FILTER ALFYM455G=K H3900545 1- A E2
CF4503 CERAMIC FILTER ALFYM455H=K H3900542 1- A E2
CF4504 CERAMIC FILTER CFJ455K14 H3900386 1- A F3
CF4505 CERAMIC FILTER CFJ455K8 H3900553 1- A F3
D 4501 DIODE DAN202U T106 G2070162 1- A B3
D 4502 DIODE BAS316 G2070716 1- A C3
D 4503 DIODE 1SS372(TE85R.F) G2070632 1- A C3
D 4504 DIODE RN142S TE61 G2070994 1- A D1
D 4505 DIODE 1SS372(TE85R.F) G2070632 1- A E1
D 4506 DIODE BAS316 G2070716 1- A E1
D 4507 DIODE DAN202U T106 G2070162 1- A E1
D 4508 DIODE BAS316 G2070716 1- A E1
D 4509 DIODE DAP222-TL G2070432 1- A E3
D 4510 DIODE BAS316 G2070716 1- A E1
D 4512 DIODE DAP222-TL G2070432 1- A E3
D 4513 DIODE DAP222-TL G2070432 1- A F3
D 4514 DIODE DAP222-TL G2070432 1- A E2
D 4515 DIODE DAP222-TL G2070432 1- A E2
D 4516 DIODE DAP222-TL G2070432 1- A F1
D 4517 DIODE BAS316 G2070716 1- A E1
D 4518 DIODE BAS316 G2070716 1- A F1
J 4501 CONNECTOR TMP-S01X-C1 P1091254 1- A A1
J 4502 CONNECTOR TMP-S01X-C1 P1091254 1- A A2
J 4503 CONNECTOR TMP-S01X-C1 P1091254 1- A C1
J 4504 CONNECTOR TMP-S01X-C1 P1091254 1- A C2
J 4505 CONNECTOR SB20-11WS P0090618 1- A A2
J 4506 CONNECTOR SB20-03WS P0090610 1- A B3
J 4507 CONNECTOR TMP-S01X-C1 P1091254 1- A B2
J 4508 CONNECTOR TMP-S01X-C1 P1091254 1- A B2
J 4509 CONNECTOR 9210B-1-03Z172-T P0091282 1-
J 4510 CONNECTOR 9210B-1-04Z172-T P0091283 1-
L 4501 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A A1
L 4502 CHIP COIL 0.12uH 2% C2520C-R12G L1691295 1- A B1
L 4503 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A A2
L 4504 CHIP COIL 0.082uH 2% C2520C-82NG L1691293 1- A B1
L 4505 CHIP COIL 0.15uH 2% C2520C-R15G L1691296 1- A A2
RX 2-12
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
L 4506 CHIP COIL 0.1uH 2% C2520C-R10G L1691294 1- A A1
L 4507 CHIP COIL 0.1uH 2% C2520C-R10G L1691294 1- A B1
L 4510 M.RFC 1000uH LLM3225-102J L1691157 1- A E3
L 4511 M.RFC 1000uH LLM3225-102J L1691157 1- A E3
L 4512 M.RFC 1000uH LLM3225-102J L1691157 1- A E3
L 4513 M.RFC 1000uH LLM3225-102J L1691157 1- A F3
L 4514 M.RFC 1000uH LLM3225-102J L1691157 1- A E3
L 4515 M.RFC 1000uH LLM3225-102J L1691157 1- A F3
L 4516 M.RFC 1000uH LLM3225-102J L1691157 1- A E2
L 4517 M.RFC 1000uH LLM3225-102J L1691157 1- A E2
L 4518 M.RFC 1000uH LLM3225-102J L1691157 1- A E2
L 4519 M.RFC 1000uH LLM3225-102J L1691157 1- A E2
L 4520 M.RFC 1000uH LLM3225-102J L1691157 1- A F2
L 4521 M.RFC 1000uH LLM3225-102J L1691157 1- A F1
L 4522 M.RFC 100uH LLM3225-101J L1691145 1- A E1
Q 4501 IC NJM78L05UA-TE1 G1091325 1- A A3
Q 4502 TRANSISTOR 2SC2714Y(TE85R.F) G3327147Y 1- A D1
Q 4503 TRANSISTOR 2SC2954-T2 G3329547 1- A A1
Q 4504 IC NJU3714A(TAPE) G1094291 1- A A2
Q 4505 IC CD74HCT238M96 G1093850 1- A D2
Q 4506 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C2
Q 4507 TRANSISTOR 2SB624-T2B BV3 G3206247C 1- A B2
Q 4508 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A B2
Q 4509 IC SPM5001-TL-E G1093686 1- A B1
Q 4510 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A B1
Q 4511 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C3
Q 4512 IC BB301CAW-TL G1093186 1- A E1
Q 4513 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C3
Q 4514 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A D3
Q 4515 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A B3
Q 4516 IC BB301CAW-TL G1093186 1- A D2
Q 4517 IC BB301CAW-TL G1093186 1- A C1
Q 4518 IC NJM2594V-TE1 G1093750 1- A D3
Q 4519 IC CD74HCT4053PWR G1094273 1- A C3
Q 4520 IC BB301CAW-TL G1093186 1- A D3
Q 4521 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E2
Q 4522 IC TA31136FNG(EL) G1091605 1- A D3
Q 4523 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A F1
Q 4524 IC BB301CAW-TL G1093186 1- A E3
Q 4525 FET SST310-T1 G4070009 1- A D1
Q 4526 FET SST310-T1 G4070009 1- A D1
Q 4527 IC SN74LVC1G66DCKR G1094046 1- A E1
Q 4528 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E1
Q 4529 TRANSISTOR DTC114EUA T106 G3070084 1- A D2
Q 4530 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A D2
Q 4531 IC SN74LVC2G66DCTR G1094049 1- A B3
Q 4532 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A E1
Q 4533 IC SN74LVC2G66DCTR G1094049 1- A C3
Q 4534 TRANSISTOR DTC114EUA T106 G3070084 1- A F2
Q 4535 TRANSISTOR DTC114EUA T106 G3070084 1- A F2
Q 4536 IC LM2904PWR G1094010 1- A C3
Q 4537 IC LM2904PWR G1094010 1- A C2
Q 4538 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A E1
Q 4539 TRANSISTOR DTC114EUA T106 G3070084 1- A E2
Q 4540 TRANSISTOR DTC114EUA T106 G3070084 1- A E2
Q 4541 TRANSISTOR DTC114EUA T106 G3070084 1- A E2
Q 4542 TRANSISTOR DTC114EUA T106 G3070084 1- A E2
Q 4543 IC TC4W53FU(TE12L_F) G1091675 1- A F2
Q 4544 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E1
Q 4545 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E1
Q 4546 TRANSISTOR 2SC2714Y(TE85R.F) G3327147Y 1- A C1
R 4501 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 1- A A2
R 4501 CHIP RES. 82 1/16W 5% RMC1/16 820JATP J24185820 4- A A2
R 4502 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A A2
R 4502 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 4- A A2
R 4503 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B3
R 4504 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D1
R 4505 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 1- A A2
R 4505 CHIP RES. 82 1/16W 5% RMC1/16 820JATP J24185820 4- A A2
R 4506 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D1
R 4507 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 4508 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A D1
R 4509 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A2
RX 2-13
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
R 4510 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A2
R 4511 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A1
R 4512 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A1
R 4513 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A A2
R 4514 CHIP RES. 47 1/10W 5% RMC1/10T 470J J24205470 1- A A1
R 4515 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A C2
R 4516 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 4517 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A A1
R 4518 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C2
R 4519 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 4520 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A2
R 4521 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A B1
R 4522 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A B1
R 4523 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A C2
R 4524 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 4525 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A D2
R 4526 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A D2
R 4527 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A D2
R 4528 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A C3
R 4529 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C3
R 4530 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B1
R 4531 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B1
R 4532 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C3
R 4533 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C3
R 4534 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 4535 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A B3
R 4536 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B3
R 4538 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A B1
R 4539 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B1
R 4540 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C3
R 4541 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A C3
R 4542 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B3
R 4543 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A E1
R 4544 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C3
R 4545 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E1
R 4546 CHIP RES. 2.2M 1/16W 5% RMC1/16 225JATP J24185225 1- A C3
R 4547 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C3
R 4548 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A E1
R 4549 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3
R 4550 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C2
R 4551 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A D1
R 4552 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C3
R 4553 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D3
R 4554 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C2
R 4555 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E1
R 4556 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C3
R 4557 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C3
R 4558 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 4559 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B3
R 4560 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A D2
R 4561 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A C2
R 4562 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C3
R 4563 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A C3
R 4564 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 4565 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D2
R 4566 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A B3
R 4567 CHIP RES. 2.2M 1/16W 5% RMC1/16 225JATP J24185225 1- A C1
R 4568 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C2
R 4569 CHIP RES. 1.2M 1/16W 5% RMC1/16 125JATP J24185125 1- A C2
R 4570 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A C2
R 4571 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A E1
R 4572 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D3
R 4574 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C3
R 4575 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3
R 4576 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 4577 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E1
R 4578 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C3
R 4579 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 4580 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C3
R 4581 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A D3
R 4582 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E2
R 4583 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A D1
R 4583 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 4- A D1
RX 2-14
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
R 4584 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 4585 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C3
R 4586 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E2
R 4587 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D3
R 4590 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E1
R 4591 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D3
R 4592 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A D1
R 4593 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A D1
R 4594 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D3
R 4595 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D2
R 4596 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- A D2
R 4597 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D1
R 4598 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A E1
R 4599 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A D2
R 4600 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E1
R 4601 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A E1
R 4602 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3
R 4603 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A E1
R 4604 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E3
R 4605 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D2
R 4606 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A C2
R 4607 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E1
R 4609 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C2
R 4610 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A D1
R 4611 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4612 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A F1
R 4613 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A E1
R 4614 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A E1
R 4615 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E3
R 4616 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D2
R 4617 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E1
R 4618 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E3
R 4619 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 4620 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A F1
R 4621 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E1
R 4622 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A F1
R 4624 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E1
R 4626 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F1
R 4627 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A E1
R 4628 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 4629 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A E1
R 4630 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E1
R 4631 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E1
R 4632 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 4633 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 4634 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A F1
R 4635 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 4636 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F1
R 4638 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 4639 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 4640 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E1
R 4641 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 4642 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 4643 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F1
R 4644 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 4645 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F1
R 4646 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E2
R 4647 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E2
R 4648 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E2
R 4649 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F2
R 4650 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F2
R 4651 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F1
R 4652 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 4653 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 4654 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F3
R 4655 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F3
R 4656 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F3
R 4657 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E2
R 4658 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F3
R 4659 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F2
R 4660 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A F1
R 4661 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A B2
R 4662 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A B2
RX 2-15
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
R 4663 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A A1
R 4664 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C1
R 4665 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C1
R 4666 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A C1
R 4667 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 4668 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C1
R 4670 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1
R 4671 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F2
R 4672 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 4673 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 4- A D1
R 4674 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-
T 4501 COIL 05RF 74.62M 010812302 L0022781 1- A D1
T 4502 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A B1
T 4503 BALUN TRANSFOMERS #458PT-1586 L0190276 1- A A1
T 4504 COIL 05RF 455kHz 455K 030812471 L0022780 1- A C2
T 4505 BALUN TRANSFOMERS #458PT-1586 L0190276 1- A B1
T 4506 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A B1
T 4507 COIL 05RF 50M 010812304 L0022783 1- A B1
T 4508 COIL 05RF 455kHz 455K 030812471 L0022780 1- A D1
T 4509 COIL 05RF 50M 010812304 L0022783 1- A C1
T 4510 COIL 05RF 455kHz 455K 030812470 L0022778 1- A D3
T 4511 COIL 05RF 74.62M 010812302 L0022781 1- A C1
T 4512 COIL 05RF 455kHz 455K 030812471 L0022780 1- A E2
T 4513 COIL 05RF 455kHz 455K 030812471 L0022780 1- A D3
T 4514 BALUN TRANSFOMERS #458PT-1565 L0190273 1- A D1
T 4515 COIL 05RF 455kHz 455K 060812596 L0022983 1- A D1
T 4516 COIL 05RF 455kHz 455K 030812471 L0022780 1- A E3
T 4517 COIL 05RF 455kHz 455K 030812470 L0022778 1- A E1
T 4518 COIL 05RF 455kHz 455K 030812471 L0022780 1- A E1
T 4519 COIL 05RF 455kHz 455K 030812471 L0022780 1- A E1
T 4520 COIL 07RF 160MHz 160M R12-K905X L0022053 1- A A1
T 4521 COIL 05RF 74.62M 010812302 L0022781 1- A C1
TP4501 CHECK TERMINAL RCT00000C Q5000103 1- A D1
TP4502 CHECK TERMINAL RCT00000C Q5000103 1- A D2
TP4503 CHECK TERMINAL RCT00000C Q5000103 1- A B1
TP4504 CHECK TERMINAL RCT00000C Q5000103 1- A A3
TP4505 CHECK TERMINAL RCT00000C Q5000103 1- A E1
XF4501 XTAL FILTER MFT40R2 40.455MHz 15kHz H1102386 1- A C1
SHIELD CASE (21X25) RA0830300 1-
SHIELD CASE COVER (21X25) RA0830400 1-
RX 2-16
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
RX-2 Unit
Note:
PA-A Unit
PA A-1
Circuit Diagram
PA A-2
PA-A Unit
Note
PA-A Unit
PA A-3
ABCDE
1
2
3
D
4
5
6
7
8
Parts Layout (Side A)
DAN202U (N)
(D5018, 5019)
DTC123JE (E42)
(Q5402)
DTD123YK (F62)
(Q5014, 5015, 5016,
5017)
LM19CIZ
(Q5003)
M5218AFP
(Q5013)
M5223AFP 600C
(Q5002, 5004, 5008,
5011, 5012)
PQ09TZ1U
(Q5005)
RD06HHF
(Q5001)
TD62783AFN
(Q5018)
UMD5N
(Q5401)
RD16HHF1
(Q5006, 5007)
PQ09RF21
(Q5404)
RD100HHF1
(Q5009, 5010)
PA A-4
PA-A Unit
Parts Layout (Side B)
PA-A-5
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PA-A Unit
PCB with Components CS1892001
Printed Circuit Board AH025H000 FR0146300 1-
C 5002 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F11
C 5012 CHIP CAP. 0.001uF 50V B GRM40B102K50PT K22170825 1- A H10
C 5013 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H11
C 5014 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A G10
C 5015 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A G11
C 5016 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G11
C 5018 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F11
C 5027 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A E6
C 5031 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5032 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A E11
C 5035 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A G9
C 5036 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A G9
C 5037 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A G10
C 5038 CHIP CAP. 0.001uF 50V B GRM40B102K50PT K22170825 1- A H10
C 5039 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F9
C 5040 CHIP CAP. 0.01uF 50V B GRM40B103K50PT K22170826 1- A H10
C 5041 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F9
C 5042 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E6
C 5043 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E7
C 5044 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5045 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A E11
C 5046 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A D11
C 5047 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5048 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E11
C 5049 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G9
C 5050 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A G8
C 5051 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A G10
C 5052 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A F9
C 5053 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G9
C 5054 CHIP CAP. 0.01uF 50V B GRM40B103K50PT K22170826 1- A F9
C 5055 CHIP CAP. 0.001uF 50V B GRM40B102K50PT K22170825 1- A F9
C 5056 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A G8
C 5057 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A I8
C 5059 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E7
C 5060 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5062 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H4
C 5067 CHIP CAP. 150pF 200V CH GRM21B2C2D151JV01L K22230230 1- A G8
C 5069 AL.ELECTRO.CAP. 10uF 50V RE2-50V100ME3#-T2 K46170021 1- A I7
C 5070 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H8
C 5072 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A I7
C 5074 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E7
C 5075 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E8
C 5076 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E8
C 5079 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A G7
C 5082 CERAMIC CAP. 0.0068uF 200V SL GRM55R1X2D682JV01L K22236101 1- A G7
C 5083 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A G7
C 5084 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A F7
C 5086 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A H7
C 5087 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A H7
C 5089 CERAMIC CAP. 0.0068uF 200V SL GRM55R1X2D682JV01L K22236101 1- A G7
C 5090 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A F7
C 5091 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H4
C 5092 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
C 5093 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
C 5094 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A G11
C 5095 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5096 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5097 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5098 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5099 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I11
C 5100 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I11
C 5104 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A E3
C 5105 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 5106 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 5107 AL.ELECTRO.CAP. 100uF 25V RE2-25V101MH3# K40149028 1- A H3
C 5108 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H4
C 5109 AL.ELECTRO.CAP. 100uF 25V RE2-25V101MH3# K40149028 1- A F2
C 5110 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H4
C 5111 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H4
C 5112 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
C 5113 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
PA-A-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PA-A Unit
C 5114 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5115 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H11
C 5116 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5117 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A I10
C 5120 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E4
C 5121 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A D8
C 5122 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A H4
C 5123 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A D5
C 5124 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A D7
C 5125 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A D10
C 5126 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A D7
C 5127 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E3
C 5129 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A I10
C 5130 CERAMIC CAP. 330pF 500V SL RT-HM11SKSL331J K26270063 1- A D5
C 5131 CERAMIC CAP. 560pF 500V SL HM15SJSL561J K00279025 1- A D4
C 5132 CERAMIC CAP. 470pF 500V SL HM13SJSL471J K00279024 1- A D9
C 5133 CERAMIC CAP. 560pF 500V SL HM15SJSL561J K00279025 1- A D4
C 5134 CERAMIC CAP. 330pF 500V SL RT-HM11SKSL331J K26270063 1- A D9
C 5135 CERAMIC CAP. 150pF 500V SL RT-HM74SKSL151J K26270059 1- A D5
C 5136 CERAMIC CAP. 330pF 500V SL RT-HM11SKSL331J K26270063 1- A C10
C 5137 CERAMIC CAP. 82pF 500V CH RT-HM95SKCH820J K26270162 1- A C10
C 5138 CERAMIC CAP. 0.001uF 500V SL HM17SJSL102J K00279028 1- A C4
C 5139 CERAMIC CAP. 470pF 500V SL HM13SJSL471J K00279024 1- A C9
C 5140 CERAMIC CAP. 390pF 500V SL RT-HM11SKSL391J K26270064 1- A C4
C 5141 CERAMIC CAP. 120pF 500V SL RT-HM74SKSL121J K26270058 1- A D5
C 5142 CERAMIC CAP. 120pF 500V SL RT-HM74SKSL121J K26270058 1- A D5
C 5143 CERAMIC CAP. 220pF 500V SL RT-HM95SKSL221J K26270061 1- A D6
C 5144 CERAMIC CAP. 68pF 500V CH RT-HM95SKCH680J K26270161 1- A D6
C 5146 CERAMIC CAP. 330pF 500V SL RT-HM11SKSL331J K26270063 1- A C5
C 5147 CERAMIC CAP. 120pF 500V CH RT-HM11SKCH121J K26270164 1- A D8
C 5150 CERAMIC CAP. 100pF 500V CH RT-HM11SKCH101J K26270163 1- A D10
C 5151 CERAMIC CAP. 150pF 500V SL RT-HM74SKSL151J K26270059 1- A C9
C 5153 CERAMIC CAP. 47pF 500V CH RT-HM74SKCH470J K26270159 1- A D11
C 5154 CERAMIC CAP. 150pF 500V SL RT-HM74SKSL151J K26270059 1- A C8
C 5155 CERAMIC CAP. 120pF 500V SL RT-HM74SKSL121J K26270058 1- A C10
C 5157 CERAMIC CAP. 22pF 500V CH RT-HM60SKCH220J K26270155 1- A D7
C 5158 CERAMIC CAP. 33pF 500V CH RT-HM74SKCH330J K26270157 1- A C7
C 5159 CERAMIC CAP. 27pF 500V CH RT-HM60SKCH270J K26270156 1- A C7
C 5160 FILM CAP. 3pF 500V UC232H0030D-T K33279027 1- A C3
C 5162 CERAMIC CAP. 39pF 500V CH RT-HM74SKCH390J K26270158 1- A C7
C 5162 CERAMIC CAP. 10pF 500V CH RT-HM60SKCH100D K26270151 3- A C7
C 5163 FILM CAP. 18pF 500V UC232H0180J-T K33279029 1- A D3
C 5165 FILM CAP. 82pF 500V UC232H0820J-T K33279033 1- A C3
C 5166 CERAMIC CAP. 150pF 500V SL RT-HM74SKSL151J K26270059 1- A C5
C 5168 CERAMIC CAP. 0.001uF 500V SL HM17SJSL102J K00279028 1- A D4
C 5169 CERAMIC CAP. 390pF 500V SL RT-HM11SKSL391J K26270064 1- A C9
C 5170 CERAMIC CAP. 100pF 500V SL RT-HM60SKSL101J K26270057 1- A C5
C 5171 CERAMIC CAP. 150pF 500V SL RT-HM74SKSL151J K26270059 1- A C10
C 5172 CERAMIC CAP. 47pF 500V CH RT-HM74SKCH470J K26270159 1- A C10
C 5173 CERAMIC CAP. 0.001uF 500V SL HM17SJSL102J K00279028 1- A B4
C 5174 CERAMIC CAP. 0.001uF 500V SL HM17SJSL102J K00279028 1- A B9
C 5175 CERAMIC CAP. 820pF 500V SL HM17SJSL821J K00279027 1- A C4
C 5176 CERAMIC CAP. 820pF 500V SL HM17SJSL821J K00279027 1- A B4
C 5178 CERAMIC CAP. 82pF 500V CH RT-HM95SKCH820J K26270162 1- A B5
C 5180 CERAMIC CAP. 68pF 500V CH RT-HM95SKCH680J K26270161 1- A B10
C 5181 CERAMIC CAP. 0.001uF 500V SL HM17SJSL102J K00279028 1- A A4
C 5182 CERAMIC CAP. 470pF 500V SL HM13SJSL471J K00279024 1- A A9
C 5183 CERAMIC CAP. 270pF 500V SL RT-HM95SKSL271J K26270062 1- A C5
C 5184 CERAMIC CAP. 82pF 500V CH RT-HM95SKCH820J K26270162 1- A C6
C 5185 CERAMIC CAP. 56pF 500V CH RT-HM95SKCH560J K26270160 1- A C6
C 5187 CERAMIC CAP. 680pF 500V SL HM15SJSL681J K00279026 1- A B5
C 5188 CERAMIC CAP. 22pF 500V CH RT-HM60SKCH220J K26270155 1- A B5
C 5190 CERAMIC CAP. 47pF 500V CH RT-HM74SKCH470J K26270159 1- A B6
C 5192 CERAMIC CAP. 220pF 500V SL RT-HM95SKSL221J K26270061 1- A B5
C 5193 CERAMIC CAP. 150pF 500V SL RT-HM74SKSL151J K26270059 1- A C8
C 5194 CERAMIC CAP. 120pF 500V SL RT-HM74SKSL121J K26270058 1- A C10
C 5195 CERAMIC CAP. 68pF 500V CH RT-HM95SKCH680J K26270161 1- A C9
C 5197 CERAMIC CAP. 27pF 500V CH RT-HM60SKCH270J K26270156 1- A C11
C 5198 CERAMIC CAP. 82pF 500V CH RT-HM95SKCH820J K26270162 1- A B8
C 5199 CERAMIC CAP. 82pF 500V CH RT-HM95SKCH820J K26270162 1- A B10
C 5200 CERAMIC CAP. 270pF 500V SL RT-HM95SKSL271J K26270062 1- A B8
C 5201 CERAMIC CAP. 180pF 500V SL RT-HM95SKSL181J K26270060 1- A B10
C 5202 CERAMIC CAP. 22pF 500V CH RT-HM60SKCH220J K26270155 1- A B9
PA-A-7
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PA-A Unit
C 5204 CERAMIC CAP. 9pF 500V CH RT-HM60SKCH090D K26270150 1- A B11
C 5206 CERAMIC CAP. 100pF 500V SL RT-HM60SKSL101J K26270057 1- A A10
C 5207 CERAMIC CAP. 120pF 500V SL RT-HM74SKSL121J K26270058 1- A C7
C 5209 CERAMIC CAP. 27pF 500V CH RT-HM60SKCH270J K26270156 1- A C7
C 5210 FILM CAP. 7pF 500V UC232H0070D-T K33279046 1- A C3
C 5212 CERAMIC CAP. 180pF 500V SL RT-HM95SKSL181J K26270060 1- A B7
C 5214 CERAMIC CAP. 4pF 500V CH RT-HM60SKCH040C K26270145 1- A B7
C 5215 CERAMIC CAP. 7pF 500V CH RT-HM60SKCH070D K26270148 1- A B7
C 5216 FILM CAP. 18pF 500V UC232H0180J-T K33279029 1- A B3
C 5218 CERAMIC CAP. 82pF 500V CH RT-HM95SKCH820J K26270162 1- A B6
C 5220 FILM CAP. 82pF 500V UC232H0820J-T K33279033 1- A B3
C 5223 CERAMIC CAP. 470pF 500V SL HM13SJSL471J K00279024 1- A A4
C 5224 CERAMIC CAP. 100pF 500V SL RT-HM60SKSL101J K26270057 1- A B9
C 5225 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A A5
C 5226 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A A9
C 5227 CERAMIC CAP. 180pF 500V SL RT-HM95SKSL181J K26270060 1- A A5
C 5228 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A A6
C 5229 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A A8
C 5230 CERAMIC CAP. 180pF 500V SL RT-HM95SKSL181J K26270060 1- A A8
C 5231 CERAMIC CAP. 47pF 500V CH RT-HM74SKCH470J K26270159 1- A A10
C 5232 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A A10
C 5234 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A A7
C 5235 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A A2
C 5236 FILM CAP. 39pF 500V UC232H0390J-T K33279038 1- A B3
C 5237 FILM CAP. 560pF 500V UC552H5600J-T K33279041 1- A G5
C 5248 CERAMIC CAP. 10pF 500V CH RT-HM60SKCH100D K26270151 1- A A6
C 5249 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1-
C 5250 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1-
C 5251 FILM CAP. 82pF 500V UC232H0820J-T K33279033 3-
C 5252 FILM CAP. 82pF 500V UC232H0820J-T K33279033 3-
C 5401 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 5402 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A D1
C 5403 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A F1
C 5404 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F1
C 5411 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 5412 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 5413 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F2
C 5415 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 5416 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 5417 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A G2
C 5418 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 5419 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A F1
C 5421 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A H1
C 5422 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H1
C 5423 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A H1
C 5424 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H2
C 5425 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A H2
C 5426 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 5427 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A H2
C 5428 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- A H2
C 5429 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F1
C 5430 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 5431 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F1
C 5432 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 5433 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 5436 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 5437 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G1
C 5438 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 5448 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
D 5001 DIODE BAS316 G2070716 1- A E11
D 5018 DIODE DAN202U T106 G2070162 1- A H7
D 5019 DIODE DAN202U T106 G2070162 1- A F7
D 5401 DIODE RSX101VA-30TR G2070984 1- A H1
D 5403 DIODE BAS316 G2070716 1- A F2
D 5404 DIODE BAS316 G2070716 2-
D 5405 DIODE BAS316 G2070716 2-
J 5001 CONNECTOR TMP-S01X-C1 P1091254 1- A H10
J 5002 CONNECTOR 30FLT-SM1-TB P1091142 1- A E11
J 5003 CONNECTOR IMSA-9202B-1-02-T P0091174 1- A I9
J 5004 CONNECTOR IMSA-9202B-1-02-T P0091174 1- A I7
J 5005 CONNECTOR B03B-XH-A P0091413 1- A I10
J 5006 CONNECTOR TMP-S01X-C1 P1091254 1- A A3
J 5009 CONNECTOR B03B-XH-A P0091413 1- A I10
PA-A-8
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PA-A Unit
J 5402 CONNECTOR SC25-08WS P0090627 1- A G2
L 5001 CHIP COIL 2.2uH C2520C-2R2K L1690731 1- A H10
L 5002 M.RFC 33uH LAL03TA330K L1790101 1- A F11
L 5003 M.RFC 2.2uH LAL04NA2R2M L1190319 1- A H10
L 5004 TOROIDAL COIL 41uH 41.00U 3A FR9.5°5 L0021432 1- A H9
L 5005 TOROIDAL COIL 41uH 41.00U 3A FR9.5°5 L0021432 1- A F9
L 5006 RFC WITH BEADS FB-43-5111 L1020015 1- A H8
L 5008 RFC WITH BEADS 3A RI5.8X6.4-2 L1020728 1- A F2
L 5011 TOROIDAL COIL 3.85uH 3.85U T68-2 L0022963 1- A D4
L 5012 TOROIDAL COIL 1.21uH 1.21U T50-2 L0022965 1- A D9
L 5013 TOROIDAL COIL 0.85uH 0.85U T50-6 L0022968 1- A D5
L 5014 TOROIDAL COIL 0.42uH 0.42U T50-6 L0022971 1- A C8
L 5015 TOROIDAL COIL 0.4uH 0.40U T50-6 L0022974 1- A D10
L 5016 TOROIDAL COIL 0.25uH 0.25U T50-6 L0022976 1- A C7
L 5017 TOROIDAL COIL 0.21uH 0.21U T50-10 L0022979 1- A C3
L 5018 TOROIDAL COIL 5.1uH 5.10U T68-2 L0022964 1- A C4
L 5019 TOROIDAL COIL 5.1uH 5.10U T68-2 L0022964 1- A B4
L 5020 TOROIDAL COIL 1.85uH 1.85U T50-2 L0022966 1- A C9
L 5021 TOROIDAL COIL 2uH 2.00U T50-2 L0022967 1- A B9
L 5022 TOROIDAL COIL 1.31uH 1.31U T50-6 L0022969 1- A C5
L 5023 TOROIDAL COIL 0.63uH 0.63U T50-6 L0022972 1- A C8
L 5024 TOROIDAL COIL 1.39uH 1.39U T50-6 L0022970 1- A B5
L 5025 TOROIDAL COIL 0.7uH 0.70U T50-6 L0022973 1- A B8
L 5026 TOROIDAL COIL 0.5uH 0.50U T50-6 L0022975 1- A C10
L 5027 TOROIDAL COIL 0.5uH 0.50U T50-6 L0022975 1- A B10
L 5028 TOROIDAL COIL 0.34uH 0.34U T50-6 L0022977 1- A C7
L 5029 TOROIDAL COIL 0.21uH 0.21U T50-10 L0022979 1- A C3
L 5030 TOROIDAL COIL 0.34uH 0.34U T50-6 L0022977 1- A B7
L 5031 TOROIDAL COIL 0.18uH 0.18U T50-10 L0022978 1- A B3
L 5032 TOROIDAL COIL 6uH U 6H3 10X5X5 L0022039 1- A G6
P 5001 CONNECTOR IMSA-9206H-T P1090988 1-
P 5002 CONNECTOR IMSA-9206H-T P1090988 1-
P 5003 TERMINAL B4 AG M3 Q6000114 1-
Q 5001 FET RD06HHF1-01 G3090145 1- A F10
Q 5002 IC M5223AFP 600C G1092955 1- A F11
Q 5003 IC LM19CIZ G1094150 1- A E6
Q 5004 IC M5223AFP 600C G1092955 1- A E9
Q 5005 IC PQ09TZ1U G1092599 1- A E11
Q 5006 FET RD16HHF1 G3090148 1- A E8
Q 5007 FET RD16HHF1 G3090148 1- A I9
Q 5008 IC M5223AFP 600C G1092955 1- A E7
Q 5009 FET RD100HHF1 G3090151 1- A F6
Q 5010 FET RD100HHF1 G3090151 1- A H6
Q 5011 IC M5223AFP 600C G1092955 1- A H11
Q 5012 IC M5223AFP 600C G1092955 1- A G11
Q 5013 IC M5218AFP-600C G1091607 1- A H4
Q 5014 TRANSISTOR DTD123YK T146 G3070157 1- A G11
Q 5015 TRANSISTOR DTD123YK T146 G3070157 1- A G11
Q 5016 TRANSISTOR DTD123YK T146 G3070157 1- A H11
Q 5017 TRANSISTOR DTD123YK T146 G3070157 1- A I11
Q 5018 IC TD62783AFN(EL) G1092700 1- A E10
Q 5401 TRANSISTOR UMD5N TR G3070343 1- A F1
Q 5402 TRANSISTOR DTC123JE TL G3070323 1- A G1
Q 5404 IC PQ09RF21J00H G1094351 1- A I2
R 5001 CHIP RES. 18 1/4W 5% RMC1/4 180JATP J24245180 1- A H11
R 5002 CHIP RES. 330 1/4W 5% RMC1/4 331JATP J24245331 1- A H10
R 5003 CHIP RES. 680 1/4W 5% RMC1/4 681JATP J24245681 1- A H10
R 5004 CHIP RES. 330 1/4W 5% RMC1/4 331JATP J24245331 1- A H10
R 5005 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A G11
R 5006 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A H10
R 5007 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F11
R 5009 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F11
R 5010 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A G11
R 5011 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G11
R 5012 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F11
R 5013 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G11
R 5014 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G11
R 5015 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E11
R 5017 CHIP RES. 470 1/4W 5% RMC1/4 471JATP J24245471 1- A G9
R 5018 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A E9
R 5019 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E9
R 5020 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F9
R 5021 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F9
PA-A-9
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PA-A Unit
R 5022 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F11
R 5023 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E9
R 5025 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E10
R 5026 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E9
R 5028 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E10
R 5029 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A E9
R 5030 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F9
R 5031 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E9
R 5032 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E10
R 5033 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F9
R 5034 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E10
R 5035 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E6
R 5036 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A E6
R 5038 CHIP RES. 47 1/2W 5% RK73K2HTE47-OHMJ J24279013 1- A G9
R 5039 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G9
R 5040 CHIP RES. 470 1W 5% RMC1 471JTE J24305471 1- A G8
R 5041 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A G8
R 5042 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F9
R 5043 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F10
R 5044 CHIP RES. 47 1/2W 5% RK73K2HTE47-OHMJ J24279013 1- A G9
R 5045 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G9
R 5046 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A G9
R 5047 CHIP RES. 470 1W 5% RMC1 471JTE J24305471 1- A G8
R 5048 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F9
R 5049 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F10
R 5050 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E7
R 5051 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A E7
R 5052 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E7
R 5054 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E7
R 5056 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E7
R 5057 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E7
R 5058 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E7
R 5059 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E7
R 5060 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E7
R 5061 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E7
R 5062 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E8
R 5063 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E8
R 5064 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E7
R 5065 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E8
R 5066 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E8
R 5067 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E8
R 5068 METAL FILM RES. 3.3 2W 5% ERX-2SJ3R3P 3.3 J22339003 1- A F7
R 5069 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 1- A F6
R 5070 METAL FILM RES. 18 2W 5% ERG-2SJ180P 18 J22339004 1- A F7
R 5071 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A F7
R 5072 METAL FILM RES. 3.3 2W 5% ERX-2SJ3R3P 3.3 J22339003 1- A H7
R 5073 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A H7
R 5074 METAL FILM RES. 22 1W 5% ERG-1SJ220 22 J22305220 1- A H7
R 5075 METAL FILM RES. 22 1W 5% ERG-1SJ220 22 J22305220 1- A F7
R 5076 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 1- A H6
R 5077 METAL FILM RES. 18 2W 5% ERG-2SJ180P 18 J22339004 1- A H7
R 5078 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A E7
R 5079 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A E8
R 5080 SHUNT RES. 0.016 5% R016 J32009018 1- A G1
R 5081 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G11
R 5082 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A G11
R 5083 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G11
R 5084 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G11
R 5085 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H11
R 5086 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A G11
R 5087 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H11
R 5088 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- A H11
R 5089 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A H11
R 5090 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H11
R 5091 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H11
R 5092 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H11
R 5093 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H11
R 5094 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A G11
R 5095 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A H11
R 5096 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A I11
R 5097 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A I11
R 5098 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A I11
R 5099 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A I11
PA-A-10
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PA-A Unit
R 5100 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A H11
R 5101 CHIP RES. 6.8k 1/10W 0.1% RR1220P-682-B J24209094 1- A H4
R 5102 CHIP RES. 6.8k 1/10W 0.1% RR1220P-682-B J24209094 1- A H4
R 5103 CHIP RES. 5.6k 1/10W 0.1% RR1220P-562-B J24209092 1- A H4
R 5104 CHIP RES. 5.6k 1/10W 0.1% RR1220P-562-B J24209092 1- A H4
R 5105 CHIP RES. 5.6k 1/16W 0.1% RN731JTTD5601B25 J24189409 1- A H4
R 5106 CHIP RES. 5.6k 1/16W 0.1% RN731JTTD5601B25 J24189409 1- A H4
R 5107 CHIP RES. 140k 1/10W 1% RMC1/10 1403FTP J24209015 1- A H4
R 5108 CHIP RES. 140k 1/10W 1% RMC1/10 1403FTP J24209015 1- A H4
R 5109 CHIP RES. 15 1W 5% RMC1 150JTE J24305150 1- A G11
R 5110 CHIP RES. 15 1W 5% RMC1 150JTE J24305150 1- A H11
R 5111 CHIP RES. 15 1W 5% RMC1 150JTE J24305150 1- A H11
R 5112 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- A E7
R 5113 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E10
R 5114 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E10
R 5115 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E10
R 5116 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E10
R 5117 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E10
R 5118 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E10
R 5119 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E10
R 5120 CARBON FILM RES. 18k 1/6W 5% RD16TPJ183 18K J07225183 1
R 5120 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 2-
R 5121 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1-
R 5403 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G2
R 5404 CARBON FILM RES. 3.9k 1/6W 5% RD16TPJ392 3.9K J07225392 1
RL5001 RELAY DC12V G5V-1 DC12V M1190120 1- A E4
RL5002 RELAY DC12V G5V-1 DC12V M1190120 1- A D9
RL5003 RELAY DC12V G5V-1 DC12V M1190120 1- A D5
RL5004 RELAY DC12V G5V-1 DC12V M1190120 1- A D8
RL5005 RELAY DC12V G5V-1 DC12V M1190120 1- A D10
RL5006 RELAY DC12V G5V-1 DC12V M1190120 1- A D6
RL5007 RELAY DC12V AG201344 DC12V M1190124 1- A D3
RL5008 RELAY DC12V G5V-1 DC12V M1190120 1- A A4
RL5009 RELAY DC12V G5V-1 DC12V M1190120 1- A A9
RL5010 RELAY DC12V G5V-1 DC12V M1190120 1- A A6
RL5011 RELAY DC12V G5V-1 DC12V M1190120 1- A A8
RL5012 RELAY DC12V G5V-1 DC12V M1190120 1- A A10
RL5013 RELAY DC12V G5V-1 DC12V M1190120 1- A A7
RL5014 RELAY DC12V AG201344 DC12V M1190124 1- A B3
RL5401 RELAY DC12V ACP331 DC12V M1190175 1- A F1
T 5001 COIL 10WIDE #223153 L0022857 1- A G9
T 5002 COIL PWR-WIDE D12A RIB10 L0022980 1- A G7
T 5002 COIL PWR-WIDE D12A RIB10 L0022980A 3- A G7
T 5005 COIL PWR-WIDE D12A RIB16 L0022399A 1- A G3
T 5401 TOROIDAL COIL D12A RI16X8X8(H007) L0022745 1- A E1
TP5031 TERMINAL TP-H MK-10160 Q5000037 1- A F2
TP5032 TERMINAL TP-H MK-10160 Q5000037 1- A G2
SHIELD CASE R0131670A 1-
SHIELD CASE COVER R0131680 1-
LEAF SPRING R0120250 1-
TUNER MAIN-1
TUNER-MAIN Unit
Circuit Diagram
TUNER MAIN-2
TUNER-MAIN Unit
Note
TUNER MAIN-3
TUNER-MAIN Unit
ABCDE
1
2
3
F
4
5
6
G
2SC2620QBTR (QB)
(Q6003, 6004)
2SK210GR (YG)
(Q6001, 6002)
NJM2904M-TE2
(Q6005)
TC74AC08
(Q6006)
TC74AC112F
(Q6007)
Parts Layout (Side A)
TUNER MAIN-4
TUNER-MAIN Unit
Parts Layout (Side B)
TUNER MAIN-5
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
TUNER-MAIN Unit
PCB with Components CB3489001
Printed Circuit Board AH025H000 FR014650B 1-
C 6001 MICA CAP. 47pF 2.5KV DM30E470J25-0 K30349017 1- A B3
C 6002 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 6004 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 6005 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6006 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6007 MICA CAP. 400pF 3KV DML4 401J30 K30355401 1- A B3
C 6008 MICA CAP. 200pF 3KV DML4 201J30 K30355201 1- A C3
C 6009 MICA CAP. 100pF 3KV DML4 101J30 K30355101 1- A C3
C 6011 MICA CAP. 400pF 3KV DML4 401J30 K30355401 1- A D3
C 6012 MICA CAP. 200pF 3KV DML4 201J30 K30355201 1- A D3
C 6013 MICA CAP. 100pF 3KV DML4 101J30 K30355101 1- A D3
C 6014 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D6
C 6015 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 6016 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 6017 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 6018 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6019 MICA CAP. 47pF 2.5KV DM30E470J25-0 K30349017 1- A E3
C 6020 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 6021 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E5
C 6022 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F6
C 6023 CERAMIC CAP. 220pF 500V SL RT-HM95SKSL221J K26270061 1- A A1
C 6024 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 6025 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 6026 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6027 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6028 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G5
C 6029 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 6030 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 6031 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G4
C 6032 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 6033 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6034 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6035 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 6036 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G3
C 6037 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G1
C 6038 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6039 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 6040 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 6041 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 6042 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 6043 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 6044 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 6045 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6057 CERAMIC CAP. 10pF 500V CH RT-HM60SKCH100D K26270151 1- A C1
C 6058 CERAMIC CAP. 220pF 500V SL RT-HM95SKSL221J K26270061 1- A D1
C 6059 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A C2
C 6060 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A D2
C 6061 CERAMIC CAP. 220pF 500V SL RT-HM95SKSL221J K26270061 1- A D1
C 6069 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A E6
C 6070 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A E6
C 6071 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A E6
C 6072 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A E6
C 6073 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A E6
C 6074 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A E6
C 6075 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A E6
C 6076 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A D6
C 6077 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A D2
C 6078 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
C 6079 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
C 6080 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
C 6081 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
C 6082 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
C 6083 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
D 6001 SURGE ABSORBER DSA-301LA Q9000371 1- A C1
D 6002 DIODE SB11-04HP-TR G2070866 1- A A2
D 6003 DIODE SB11-04HP-TR G2070866 1- A A2
D 6004 DIODE BAS316 G2070716 1- A A2
D 6005 DIODE BAS316 G2070716 1- A A2
D 6006 DIODE BAS316 G2070716 1- A A2
D 6007 DIODE BAS316 G2070716 1- A A2
D 6008 DIODE BAS316 G2070716 1- A A3
TUNER MAIN-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
TUNER-MAIN Unit
D 6009 DIODE BAS316 G2070716 1- A A3
D 6010 DIODE 1SS106 G2090244 1- A A3
D 6011 DIODE 1SS106 G2090244 1- A A3
D 6018 DIODE SB11-04HP-TR G2070866 1- A D1
D 6019 DIODE SB11-04HP-TR G2070866 1- A D1
J 6001 CONNECTOR S-Q3063#01 P1090295 1- A A2
J 6002 CONNECTOR S-Q3063#01 P1090295 1- A E3
J 6003 CONNECTOR S-Q3063#01 P1090295 1- A D1
J 6009 CONNECTOR SC25-03WS P0090622 1- A D2
J 6010 CONNECTOR S-Q3063#01 P1090295 1- A B2
JP6001 WIRE ASSY AH010H T9207144 1- A C2
JP6002 WIRE ASSY AH010H T9207145A 1- A D6
JP6003 WIRE ASSY AH010H T9207146B 1- A B3
L 6001 COIL A1 2.5T11D2.0UEW R L0022471 1- A E4
L 6002 COIL A1 2.5T15D2.0PVF R L0021949 1- A E5
L 6003 TOROIDAL COIL 2001F FR9.5 L0022453 1- A A1
L 6004 COIL F1 4.5T9.0D2.0PVF R L0022852 1- A F5
L 6005 M.RFC 1mH LAL03TA102K L1790119 1- A A1
L 6006 COIL A1 4.5T15D2.0PVF R L0021950 1- A F5
L 6007 COIL F1 6.5T20D2.0PVF R L0022851 1- A F4
L 6008 COIL A1 9.5T19D2.0PVF R L0021952 1- A F3
L 6009 TOROIDAL COIL 2.55uH 2.55U T106-2 L0022680 1- A G2
L 6010 TOROIDAL COIL 2.55uH 2.55U T106-2 L0022680 1- A F2
L 6011 TOROIDAL COIL 2.55uH 2.55U T106-2 L0022680 1- A F2
L 6012 M.RFC 22uH LAP02TA220K L1790062 1- A A2
L 6018 M.RFC 1mH LAL03NA102K L1190189 1- A C2
L 6019 TOROIDAL COIL 110uH 110U RI9.3-4.8-5 L0021859 1- A D1
L 6020 M.RFC 1mH LAL03NA102K L1190189 1- A D2
MO6001 STEPPING MOTOR MP24GA(250-OHM) M2190023 1-
MO6002 STEPPING MOTOR MP24GA(250-OHM) M2190023 1-
P 6003 WIRE ASSY GRA 130 PINL/PINL T9318156 1-
Q 6001 FET 2SK210-GR(TE85R.F) G3802107G 1- A A1
Q 6002 FET 2SK210-GR(TE85R.F) G3802107G 1- A A1
Q 6003 TRANSISTOR 2SC2620QBTR G3326207B 1- A A2
Q 6004 TRANSISTOR 2SC2620QBTR G3326207B 1- A A2
Q 6005 IC NJM2904M-TE2 G1093091 1- A A3
Q 6006 IC TC74AC08F TP2 G1091283 1- A A2
Q 6007 IC TC74AC112F(EL) G1093667 1- A A2
R 6001 CHIP RES. 22 1/2W 5% RMC1/2 220JCTP J24275220 1- A A2
R 6002 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A A1
R 6003 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A1
R 6004 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A2
R 6005 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A2
R 6006 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A1
R 6007 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A A1
R 6008 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A A1
R 6009 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A A2
R 6010 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A A2
R 6011 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A A2
R 6012 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A A2
R 6013 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A3
R 6014 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A2
R 6015 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A A3
R 6016 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A A3
R 6017 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A2
R 6018 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A A2
R 6019 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A2
R 6020 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A A2
R 6021 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 6022 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 6023 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A A3
R 6024 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A A3
R 6025 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A3
R 6026 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A3
R 6027 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 6028 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 6036 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
R 6037 CHIP RES. 47 1W 5% RMC1 470JTE J24305470 1- A D1
R 6038 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 6039 CHIP RES. 47 1W 5% RMC1 470JTE J24305470 1- A D1
R 6040 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 6041 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2
RL6001 RELAY DC12V AJQ8341 DC12V M1190115 1- A B2
TUNER MAIN-7
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
TUNER-MAIN Unit
RL6003 RELAY DC12V AJQ8341 DC12V M1190115 1- A C2
RL6004 RELAY DC12V AJQ8341 DC12V M1190115 1- A C2
RL6005 RELAY DC12V AJQ8341 DC12V M1190115 1- A C2
RL6007 RELAY DC12V AJQ8341 DC12V M1190115 1- A D2
RL6008 RELAY DC12V AJQ8341 DC12V M1190115 1- A D2
RL6009 RELAY DC12V AJQ8341 DC12V M1190115 1- A E2
RL6010 RELAY DC12V G2R-1-E DC12V M1190141 1- A D5
RL6011 RELAY DC12V AJQ8341 DC12V M1190115 1- A E2
RL6012 RELAY DC12V AJQ8341 DC12V M1190115 1- A E5
RL6014 RELAY DC12V AJQ8341 DC12V M1190115 1- A F6
RL6015 RELAY DC12V AJQ8341 DC12V M1190115 1- A G5
RL6016 RELAY DC12V AJQ8341 DC12V M1190115 1- A G4
RL6017 RELAY DC12V AJQ8341 DC12V M1190115 1- A G3
RL6018 RELAY DC12V AJQ8341 DC12V M1190115 1- A G1
RL6019 RELAY DC12V AJQ8341 DC12V M1190115 1- A F1
RL6020 RELAY DC12V JS-12-K DC12V M1190154 1- A B1
RL6021 RELAY DC12V JS-12-K DC12V M1190154 1- A B2
TC6001 TRIMMER CAP. 10pF CVB10-41 10PF K91000247 1- A A1
TC6002 TRIMMER CAP. 20pF ECV1ZW20X53T 20PF K91000029 1- A D1
TP6001 TERMINAL TP-K IPS-1136 Q5000050 1- A A3
TP6002 TERMINAL TP-K IPS-1136 Q5000050 1- A A3
VC6001 VARIABLE CAP. 125pF KV-125-05A K90000052 1- A B5
VC6002 VARIABLE CAP. 125pF KV-125-05A K90000052 1- A C5
MOTOR HOLDER ASSY RA0005700 1-
UNIVERSAL JOINT SM-1116-7 S1000009 1-
SPACER 3X3 S5000198 1-
SHIELD CASE RA0701300 1-
TUNER MAIN-8
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
TUNER-MAIN Unit
Note:
TUNER CNTL-1
TUNER-CNTL Unit
Circuit Diagram
TUNER CNTL-2
TUNER-CNTL Unit
Note
TUNER CNTL-3
TUNER-CNTL Unit
Parts Layout (Side A)
ABCD
1
2
3
2SA1602A (MF)
(Q6504)
2SC4154E (E)
(Q6503)
BR93L46F
(Q6505)
DTA144EE (16)
(Q6513)
DTC114EU (24)
(Q6502)
DTC114YUA (64)
(Q6506)
DTD123YK (F62)
(Q6512)
HD6433334YA07F
(Q6508)
LM2904PWR
(Q6511)
NJM78L05UA (8C)
(Q6501)
TD62083AF
(Q6509)
TD62783AFN
(Q6507, 6510)
TUNER CNTL-4
TUNER-CNTL Unit
Parts Layout (Side B)
TUNER-CNTL-5
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
TUNER-CNTL Unit
PCB with Components CB3490001
Printed Circuit Board AH025H000 FR014660B 1-
C 6502 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6503 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 6504 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6505 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6506 AL.ELECTRO.CAP. 220uF 16V MVA16VC220MF80 K48120021 1- A A2
C 6507 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6508 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 6509 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A A2
C 6510 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 6511 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6512 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6513 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6514 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6515 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6516 AL.ELECTRO.CAP. 1uF 50V EEE1HA010SR K48170027 1- A C2
C 6517 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6518 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6519 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6520 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6521 AL.ELECTRO.CAP. 1uF 50V EEE1HA010SR K48170027 1- A A2
C 6523 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6524 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6525 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1
C 6526 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6527 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6528 AL.ELECTRO.CAP. 0.47uF 50V EEE1HAR47SR K48170023 1- A B2
C 6529 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 6530 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6531 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6532 AL.ELECTRO.CAP. 1uF 50V EEE1HA010SR K48170027 1- A C2
C 6533 AL.ELECTRO.CAP. 1uF 50V EEE1HA010SR K48170027 1- A A2
C 6534 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6535 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6538 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6540 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 6546 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6547 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6548 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6549 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6550 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6551 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6552 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 6562 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A D1
C 6567 AL.ELECTRO.CAP. 100uF 25V EEE1EA101UP K48140018 1- A A2
C 6568 AL.ELECTRO.CAP. 100uF 25V EEE1EA101UP K48140018 1- A A1
C 6569 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 6571 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 6572 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
C 6573 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
C 6574 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C3
C 6575 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A C2
CO6501 CERAMIC OSC CSTCE16M0V53-R0 H7901480 1- A A2
D 6501 DIODE BAS316 G2070716 1- A A2
D 6502 DIODE BAS316 G2070716 1- A B2
D 6503 DIODE BAS316 G2070716 1- A B2
D 6504 DIODE BAS316 G2070716 1- A B2
D 6505 DIODE BAS316 G2070716 1- A A2
D 6506 DIODE BAS316 G2070716 1- A B1
D 6507 DIODE BAS316 G2070716 1- A B1
D 6508 DIODE BAS316 G2070716 1- A A2
D 6509 DIODE BAS316 G2070716 1- A A2
J 6501 CONNECTOR S12B-PH-SM3-TB P0091356 1- A A3
J 6502 CONNECTOR S3B-PH-SM3-TB P0091347 1- A C2
J 6503 CONNECTOR S8B-PH-SM3-TB P0091346 1- A C2
J 6504 CONNECTOR S5B-PH-SM3-TB P0091344 1- A A1
J 6505 CONNECTOR S5B-PH-SM3-TB P0091344 1- A B1
J 6508 CONNECTOR S8B-PH-SM3-TB P0091346 1- A B1
J 6509 CONNECTOR S7B-PH-SM3-TB P0091345 1- A C1
J 6510 CONNECTOR S7B-PH-SM3-TB P0091345 1- A C3
J 6511 CONNECTOR S3B-PH-SM3-TB P0091347 1- A C3
J 6512 CONNECTOR S2B-PH-SM3-TB P0091352 1- A B3
TUNER-CNTL-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
TUNER-CNTL Unit
L 6503 M.RFC 56uH LLM3225-560J L1691142 1- A A1
L 6504 M.RFC 56uH LLM3225-560J L1691142 1- A A1
L 6505 M.RFC 56uH LLM3225-560J L1691142 1- A A1
L 6506 M.RFC 56uH LLM3225-560J L1691142 1- A A1
L 6507 M.RFC 56uH LLM3225-560J L1691142 1- A A1
L 6508 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6509 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6510 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6511 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6512 M.RFC 56uH LLM3225-560J L1691142 1- A A1
L 6513 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6514 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6515 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6516 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6517 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6518 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6519 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6520 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6521 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6522 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6523 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6524 M.RFC 56uH LLM3225-560J L1691142 1- A B1
L 6525 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6526 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6527 M.RFC 56uH LLM3225-560J L1691142 1- A C1
L 6528 M.RFC 56uH LLM3225-560J L1691142 1- A C1
Q 6501 IC NJM78L05UA-TE1 G1091325 1- A A2
Q 6502 TRANSISTOR DTC114EUA T106 G3070084 1- A A2
Q 6503 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A A2
Q 6504 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- A A2
Q 6505 IC BR93L46F-WE2 G1093884 1- A C2
Q 6506 TRANSISTOR DTC114YUA T106 G3070298 1- A B2
Q 6507 IC TD62783AFN(EL) G1092700 1- A C1
Q 6508 IC HD6433334YA07F G1092665 1- A B2
Q 6509 IC TD62083AF(EL) G1094247 1- A A1
Q 6510 IC TD62783AFN(EL) G1092700 1- A C1
Q 6511 IC LM2904PWR G1094010 1- A C2
Q 6512 TRANSISTOR DTD123YK T146 G3070157 1- A A2
Q 6513 TRANSISTOR DTA144EE TL G3070074 1- A A2
R 6501 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 6502 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 6503 CHIP RES. 47 1/2W 5% RMC1/2 470JCTP J24275470 1- A A2
R 6504 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 6505 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 6506 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 6507 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 6508 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- A C2
R 6509 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A C2
R 6510 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B2
R 6511 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A A2
R 6512 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A2
R 6514 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A A2
R 6518 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 6524 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 6533 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B2
R 6537 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A B2
R 6538 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A2
R 6539 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B2
R 6540 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A2
R 6549 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A1
R 6551 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
R 6552 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 6553 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 6554 CHIP RES. 33 1/4W 5% RMC1/4 330JATP J24245330 1- A B2
RB6501 BLOCK RES. MNR18E0APJ473 J42900034 1- A B2
RB6502 BLOCK RES. MNR14E0ABJ473 J42900031 1- A C2
RB6503 BLOCK RES. MNR18E0APJ473 J42900034 1- A B2
RB6504 BLOCK RES. MNR18E0APJ473 J42900034 1- A B2
DSP-1
DSP Unit
Circuit Diagram
DSP-2
DSP Unit
Note
DSP-3
DSP Unit
Parts Layout (Side A)
ABCDE
1
2
3
AD5541JR
(Q7504)
CS4272
(Q7503)
EPM3064ATC100
(Q7505)
NJM2068V
(Q7509, 7510, 7511,
7512, 7513, 7514)
NJM75L05UA (8C)
(Q7501)
SN74LVC244PWR
(Q7502)
SN74LVC245PWR
(Q7502)
ST16C550CQ48-F
(Q7506)
TMS320C6713BZDP
(Q7519)
TPS3808G01
(Q7518)
TPS3808G33
(Q7517)
TPS3808G50
(Q7516)
TPS3808G33
(Q7517)
TPS62040DGQ
(Q7507)
TPS62046DGQ
(Q7508)
M29LV400TC
(Q7521)
IS42S16800B
(Q7520)
DSP-4
DSP Unit
Parts Layout (Side B)
abcde
1
2
3
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
DSP Unit
DSP-5
PCB with Components CS1894001
Printed Circuit Board AH025H000 FR015070B 1-
C 7501 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1
C 7502 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A A1
C 7503 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A A2
C 7504 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A A3
C 7505 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1
C 7506 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 7507 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7508 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1
C 7509 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7510 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A A2
C 7511 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 7512 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A3
C 7513 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7514 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A1
C 7515 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7516 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7517 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c1
C 7518 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 7519 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 7520 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 7521 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 7522 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c1
C 7523 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A A2
C 7524 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A A2
C 7525 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A A3
C 7526 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A A3
C 7527 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A B2
C 7528 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A A2
C 7529 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A A2
C 7530 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 7531 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 7532 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 7533 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 7534 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7535 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 7536 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7537 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A3
C 7538 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A A2
C 7539 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A A3
C 7540 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A A2
C 7541 CHIP CAP. 0.01uF 50V B GRM188B11H103JA01D K22174824 1- A A3
C 7542 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7543 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 7544 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 7545 CHIP TA.CAP. 0.47uF 35V TEMSVA1V474M-8R K78160029 1- A B1
C 7546 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 7547 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B3
C 7548 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 7549 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A A1
C 7550 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A B1
C 7551 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7552 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A3
C 7553 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B2
C 7554 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A A1
C 7555 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A A1
C 7556 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A B1
C 7557 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 7558 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3
C 7559 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A2
C 7560 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174815 1- A A1
C 7561 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A A2
C 7562 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 7563 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 7564 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 7565 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 7566 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1
C 7567 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 7568 AL.ELECTRO.CAP. 47uF 16V EEE1CA470SP K48120005 1- A B2
C 7569 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A B2
C 7570 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 7571 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
DSP-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
DSP Unit
C 7572 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 7573 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B2
C 7574 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D1
C 7575 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 7576 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A B2
C 7577 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d2
C 7578 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 7579 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- B d2
C 7580 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A C1
C 7581 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 7582 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D1
C 7583 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d2
C 7584 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 7585 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- B d2
C 7586 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 7587 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 7588 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 7589 CHIP TA.CAP. 22uF 10V TEMSVB21A226M-8R K78100029 1- A B1
C 7590 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 7591 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 7592 CHIP TA.CAP. 22uF 10V TEMSVB21A226M-8R K78100029 1- A C1
C 7594 CHIP TA.CAP. 22uF 10V TEMSVB21A226M-8R K78100029 1- A B2
C 7595 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A C2
C 7596 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A C2
C 7597 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 7598 CHIP TA.CAP. 22uF 10V TEMSVB21A226M-8R K78100029 1- A C2
C 7599 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 7600 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 7601 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2
C 7602 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 7603 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A D1
C 7604 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A C1
C 7605 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3
C 7606 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b3
C 7607 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7608 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b3
C 7609 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b3
C 7610 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 7611 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7612 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7613 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B b2
C 7614 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c2
C 7615 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 7616 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
C 7617 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 7618 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 7619 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 7620 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b3
C 7621 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7622 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
C 7623 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B a1
C 7624 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B a3
C 7625 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7626 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 7627 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7628 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B b2
C 7629 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
C 7630 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 7631 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c3
C 7632 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 7633 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c2
C 7634 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
C 7635 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 7636 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E3
C 7637 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c3
C 7638 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 7639 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7640 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c2
C 7641 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c2
C 7642 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b3
C 7643 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 7644 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
C 7645 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
DSP Unit
DSP-7
C 7646 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 7647 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 7648 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 7649 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c2
C 7650 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c2
C 7651 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2
C 7652 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
D 7501 LED SML-310VTT86JK G2071032 1- A C3
D 7502 LED SML-310VTT86JK G2071032 1- A C3
FB7501 CHIP COI BLM18BD182SN1D L1690602 1- A C1
FB7502 CHIP COI BLM18BD182SN1D L1690602 1- A C1
FB7503 CHIP COI BLM18BD182SN1D L1690602 1- A C1
FB7504 CHIP COI BLM18BD182SN1D L1690602 1- A C1
FB7505 FERRITE BEADS BK2125HS101-T L9190087 1- A B1
J 7501 CONNECTOR SB20-08WS P0090615 1- A A2
J 7502 CONNECTOR SB20-12WS P0090619 1- A C1
J 7503 CONNECTOR IMSA-9202B-1-02-T P0091174 1- A E1
J 7504 CONNECTOR A1-14PA-2.54DSA(71) P0091448 1- A C2
J 7505 CONNECTOR A1-10PA-2.54DSA(71) P0091447 1- A E1
J 7506 CONNECTOR A1-34PA-2.54DSA(71) P0091449 1- A E3
L 7501 M.RFC 470uH CDRH105RNP-471NC-VS L1691359 1- A A1
L 7502 M.RFC 470uH CDRH105RNP-471NC-VS L1691359 1- A B1
L 7503 CHIP COIL 6.2uH CDRH5D28NP-6R2 L1691444 1- A C2
L 7504 CHIP COIL 6.2uH CDRH5D28NP-6R2 L1691444 1- A B2
Q 7501 IC NJM78L05UA-TE1 G1091325 1- A B1
Q 7502 IC SN74LVC244APWR G1094336 1- A C1
Q 7503 IC CS4272-CZZ G1094319 1- A B2
Q 7504 IC AD5541JR G1094335 1- A B2
Q 7505 IC EPM3064ATC100-7N G1094320 1- A D1
Q 7506 IC ST16C550CQ48-F G1094323 1- A D1
Q 7507 IC TPS62040DGQ G1094328 1- A C1
Q 7508 IC TPS62046DGQ G1094329 1- A B1
Q 7509 IC NJM2068V-TE1 G1094112 1- A A1
Q 7510 IC NJM2068V-TE1 G1094112 1- A A2
Q 7511 IC NJM2068V-TE1 G1094112 1- A A2
Q 7512 IC NJM2068V-TE1 G1094112 1- A A2
Q 7513 IC NJM2068V-TE1 G1094112 1- A A3
Q 7514 IC NJM2068V-TE1 G1094112 1- A B2
Q 7515 IC SN74LVC245APWR G1094337 1- A C1
Q 7516 IC TPS3808G50 G1094327 1- A C1
Q 7517 IC TPS3808G33 G1094326 1- A B2
Q 7518 IC TPS3808G01 G1094325 1- A C1
Q 7519 IC TMS320C6713BZDP-225 G1094324 1- A C2
Q 7520 IC IS42S16800B-7TL G1094321 1- A E3
Q 7521 IC M29LV400TC-90PFTN G1094318 1- A E2
R 7501 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C1
R 7502 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 7503 CHIP RES. 47k 1/16W 1% RMC1/16 473FTP J24183473 1- A A1
R 7504 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A1
R 7505 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7506 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7507 CHIP RES. 47k 1/16W 1% RMC1/16 473FTP J24183473 1- A A2
R 7508 CHIP RES. 47k 1/16W 1% RMC1/16 473FTP J24183473 1- A A3
R 7509 CHIP RES. 100 1/16W 1% RMC1/16 101FTP J24183101 1- A A2
R 7510 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A3
R 7511 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 7512 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 7513 CHIP RES. 1.5k 1/16W 1% RMC1/16 152FTP J24183152 1- A B1
R 7514 CHIP RES. 15k 1/16W 1% RMC1/16 153FTP J24183153 1- A A2
R 7515 CHIP RES. 15k 1/16W 1% RMC1/16 153FTP J24183153 1- A A2
R 7516 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 7517 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1
R 7518 CHIP RES. 7.5k 1/16W 1% RMC1/16 752FTP J24183752 1- A B1
R 7519 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7520 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7521 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- A A2
R 7522 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- A A2
R 7523 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1
R 7524 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 7525 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A3
R 7526 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A3
R 7527 CHIP RES. 5.6k 1/16W 1% RMC1/16 562FTP J24183562 1- A A1
R 7528 CHIP RES. 5.6k 1/16W 1% RMC1/16 562FTP J24183562 1- A A2
DSP-8
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
DSP Unit
R 7529 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7530 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7531 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A3
R 7532 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A3
R 7533 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7534 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7535 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A1
R 7536 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7537 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A3
R 7538 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A3
R 7539 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7540 CHIP RES. 2.2k 1/16W 1% RMC1/16 222FTP J24183222 1- A A1
R 7541 CHIP RES. 2.2k 1/16W 1% RMC1/16 222FTP J24183222 1- A A2
R 7542 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7543 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A3
R 7544 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7545 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7546 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A1
R 7547 CHIP RES. 4.7k 1/16W 1% RMC1/16 472FTP J24183472 1- A A2
R 7548 CHIP RES. 470 1/16W 1% RMC1/16 471FTP J24183471 1- A A2
R 7549 CHIP RES. 470 1/16W 1% RMC1/16 471FTP J24183471 1- A A2
R 7550 CHIP RES. 470 1/16W 1% RMC1/16 471FTP J24183471 1- A A3
R 7551 CHIP RES. 470 1/16W 1% RMC1/16 471FTP J24183471 1- A A3
R 7552 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A1
R 7553 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A1
R 7554 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7555 CHIP RES. 1k 1/16W 1% RMC1/16 102FTP J24183102 1- A A2
R 7556 CHIP RES. 1.5k 1/16W 1% RMC1/16 152FTP J24183152 1- A A2
R 7557 CHIP RES. 1.5k 1/16W 1% RMC1/16 152FTP J24183152 1- A A2
R 7558 CHIP RES. 1.5k 1/16W 1% RMC1/16 152FTP J24183152 1- A A3
R 7559 CHIP RES. 1.5k 1/16W 1% RMC1/16 152FTP J24183152 1- A A2
R 7560 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B2
R 7563 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 7564 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 7565 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C1
R 7566 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 7568 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C1
R 7570 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 7571 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 7572 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 7573 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A D1
R 7574 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A D1
R 7576 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 7578 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 7579 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 7580 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A D1
R 7581 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 7583 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C1
R 7584 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C1
R 7585 CHIP RES. 47k 1/16W 1% RMC1/16 473FTP J24183473 1- A C1
R 7586 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A C2
R 7587 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- A C2
R 7588 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A C2
R 7589 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 7591 CHIP RES. 180k 1/16W 5% RMC1/16 184JATP J24185184 1- A C2
R 7592 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C1
R 7593 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 7596 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 7597 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 7598 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 7599 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 7602 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 7604 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B a2
R 7605 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 7606 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7607 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7608 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7609 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7610 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7611 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E1
R 7612 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7614 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7616 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E3
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
DSP Unit
DSP-9
R 7618 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7619 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7620 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7621 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E2
R 7622 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E1
R 7623 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D3
R 7624 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D3
R 7625 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C3
R 7626 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A C3
R 7627 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A C3
R 7628 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 7630 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2
R 7631 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D3
R 7632 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 7633 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 7634 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2
R 7636 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A C3
R 7637 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A D1
S 7501 TACT SWITCH SKQYPAE010 N5090144 1- A C1
X 7501 XTAL OSC 25MHz TPS18XC 25.000MHZ H9501020 1- A C3
X 7502 XTAL OSC 18.432MHz TPS18XC 18.432MHZ H9501010 1- A D1
SEMS SCREW ASM3X6NI U03306002 1-
BIND HEAD TAPTITE-B M2.6X6NI U24206002 1-
DSP-10
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
DSP Unit
Note:
VR A-1
VR-A Unit
Circuit Diagram
VR A-2
VR-A Unit
Note
VR A-3
VR-A Unit
Parts Layout (Side A)
BA05 (Q)
(Q8007)
A
1
2
3
BCDE
4
VR A-4
VR-A Unit
Parts Layout (Side B)
a
1
2
3
bcde
4
2SB1182
(Q8002)
2SC4154E (E)
(Q8003)
2SJ387STL
(Q8006)
DTC114EU (24)
(Q8005)
SN74HCT244PWR
(Q8001)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VR-A Unit
VR-A-5
PCB with Components CB3629001
Printed Circuit Board AH025H000 FR0150800 1-
C 8001 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A A4
C 8002 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A A4
C 8003 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A A4
C 8004 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1
C 8005 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A4
C 8006 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A4
C 8007 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A4
C 8011 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A4
C 8012 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A4
C 8013 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A4
C 8015 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A A4
C 8016 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A A4
C 8017 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A A4
C 8018 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B e2
C 8019 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B e2
C 8020 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 1- A A4
C 8021 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 1- A A4
C 8022 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 1- A A4
C 8025 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B e2
C 8057 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e4
C 8058 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c2
C 8080 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c2
C 8081 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c2
C 8084 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e4
C 8085 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B e4
C 8090 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 1- B d1
C 8091 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 1- B d1
C 8092 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B d1
C 8093 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B d1
C 8094 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1
C 8095 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1
C 8096 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d1
C 8097 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d1
C 8098 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B d1
C 8099 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B d1
C 8100 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B a4
C 8101 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B a4
C 8102 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B b4
C 8103 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B d2
C 8104 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d2
C 8105 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B e1
C 8106 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e1
C 8107 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e1
C 8108 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 8109 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 8110 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- A A1
C 8111 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B e1
C 8112 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e1
C 8113 CHIP CAP. 1uF 6.3V B GRM188B10J105KA01D K22084801 1- B d1
C 8114 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A A1
C 8115 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A B1
C 8116 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- A A1
C 8118 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 8119 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 8121 CHIP TA.CAP. 22uF TPSB226M016Y0600 K78120075 1- A A1
D 8001 DIODE BAS316 G2070716 1- B d3
D 8002 DIODE BAS316 G2070716 1- B d3
D 8003 DIODE BAS316 G2070716 1- B d3
D 8004 DIODE BAS316 G2070716 1- B d3
D 8005 DIODE BAS316 G2070716 1- B d3
J 8001 CONNECTOR SB20-04WS P0090611 1- B e2
J 8002 CONNECTOR 30FLT-SM1-TB P1091142 1- B d4
J 8003 CONNECTOR 18FLT-SM1-TB P1091176 1- B e1
J 8004 CONNECTOR 30FLT-SM1-TB P1091142 1- B d2
J 8005 CONNECTOR SB20-02WS P0090609 1- B c2
J 8006 CONNECTOR 30FLT-SM1-TB P1091142 1- B d3
J 8007 CONNECTOR 30FLT-SM1-TB P1091142 1- B a4
J 8008 CONNECTOR 30FLT-SM1-TB P1091142 1- B a3
J 8009 CONNECTOR SB20-03WS P0090610 1- B d2
JP8001 WIRE ASSY AH025H 300MM T9207314 1- B d1
JP8001 WIRE ASSY AH025H 180MM T9207314A 3- B d1
VR-A-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VR-A Unit
Q 8001 IC SN74HCT244PWR G1094091 1- B e4
Q 8002 TRANSISTOR 2SB1182-TLQ G3070063 1- B e1
Q 8003 TRANSISTOR 2SC4154-T11-1E G3341548E 1- B e1
Q 8005 TRANSISTOR DTC114EUA T106 G3070084 1- B d1
Q 8006 FET 2SJ387STL G3703878 1- B d1
Q 8007 IC BA05FP-E2 G1093209 1- A A1
R 8001 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 8002 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 8003 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 8004 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8005 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8006 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8007 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8008 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d4
R 8009 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 8010 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 8011 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 8016 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- B e1
R 8017 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B e1
R 8018 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- B e1
R 8021 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e1
R 8022 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d1
R 8023 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d1
R 8025 CHIP RES. 3.3 1W 5% RMC1 3R3JTE J24305339 1- B d2
R 8026 CHIP RES. 12 1W 5% RMC1 120JTE J24305120 1- A A1
S 8001 ROTARY SWITCH SRBV160800 N0190187 1- A B3
S 8002 TACT SWITCH SKQYPAE010 N5090144 1- A A4
S 8003 TACT SWITCH SKQYPAE010 N5090144 1- A B4
S 8004 TACT SWITCH SKQYPAE010 N5090144 1- A B4
S 8005 TACT SWITCH SKHUPDE010 N5090126 1- A C3
S 8006 TACT SWITCH SKHUPDE010 N5090126 1- A C3
S 8007 TACT SWITCH SKQYPAE010 N5090144 1- A C4
S 8008 TACT SWITCH SKQYPAE010 N5090144 1- A C4
S 8009 TACT SWITCH SKQYPAE010 N5090144 1- A D4
S 8010 TACT SWITCH SKQYPAE010 N5090144 1- A D4
S 8011 TACT SWITCH SKQYPAE010 N5090144 1- A E4
VR8001 POT.
RH96D190 30F B103 RY8151
J62800149 1- A B4
VR8002 POT.
RH96D190 30F B103 RY8151
J62800149 1- A B3
VR8003 POT.
RH96D190 30F B103 RY8151
J62800149 1- A B4
VR8005 POT.
RH96D190 30F B103 RY8151
J62800149 1- A D3
VR8006 POT.
RH96D190 30F B103 RY8151
J62800149 1- A D4
VR8007 POT.
RH96D190 30F B103 RY8151
J62800149 1- A E3
VR8008 POT.
RH96D190 30F B103 RY8151
J62800149 1- A E4
VR8009 POT. RK09K1130AH1 10KB J60800291 1- A C4
VR B-1
VR-B Unit
Circuit Diagram
VR B-2
VR-B Unit
Parts Layout
Side A Side B
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VR-B Unit
VR B-3
PCB with Components CB3630001
Printed Circuit Board AH025H000 FR0150900 1-
C 8202 CHIP CAP. 0.01uF 25V B GRM39B103K25PT K22144803 1- B
C 8203 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174833 1- B
C 8204 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174833 1- B
J 8201 CONNECTOR 18FLT-SM1-TB P1091176 1- B
R 8201 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
R 8202 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
R 8203 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A
R 8204 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A
S 8201 ROTARY ENCODER EC11G15204 Q9000850 1- A
S 8202 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8203 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8204 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8205 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8206 TACT SWITCH SKHUPDE010 N5090126 1- A
VR8201 POT.
RH96D236 30F B103 RY8150
J62800150 1- A
VR8202 POT.
RH96D190 30F B103 RY8151
J62800149 1- A
VR8203 POT.
RH96D190 30F B103 RY8151
J62800149 1- A
VR B-4
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
VR-B Unit
Note:
SW A-1
SW-A Unit
Circuit Diagram
SW A-2
SW-A Unit
Note
SW A-3
SW-A Unit
Parts Layout (Side A)
SW A-4
SW-A Unit
Parts Layout (Side B)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
SW-A Unit
SW A-5
PCB with Components CB3631001
Printed Circuit Board AH025H000 FR0151000 1-
D 8251 LED SML-310VTT86JK G2071032 1- A
D 8252 LED SML-310VTT86JK G2071032 1- A
J 8251 CONNECTOR 18FLT-SM1-TB P1091176 1- B
R 8251 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B
R 8251 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 4- B
R 8252 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B
R 8252 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 4- B
S 8251 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8252 TACT SWITCH SKQYPAE010 N5090144 1- A
S 8253 TACT SWITCH SKPMAPE010 N5090139 1- A
S 8254 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8255 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8256 TACT SWITCH SKQYPAE010 N5090144 1- A
S 8257 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8258 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8259 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8260 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8261 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8262 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8263 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8264 TACT SWITCH SKHUPDE010 N5090126 1- A
S 8265 TACT SWITCH SKHUPDE010 N5090126 1- A
SW A-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
SW-A Unit
Note:
MIC-1
MIC Unit
Circuit Diagram
MIC-2
MIC Unit
Parts Layout
Side B
Side A
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PCB with Components CB3632001
Printed Circuit Board AH025H000 FR0151100 1-
C 8301 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B
C 8302 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B
C 8305 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B
C 8306 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B
C 8307 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B
C 8309 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B
J 8301 CONNECTOR SB20-08WS P0090615 1- B
J 8302 CONNECTOR FM214-8SMPT-NI P0091074 1- A
JACK-1
JACK Unit
Circuit Diagram
JACK-2
JACK Unit
Parts Layout
Side A
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PCB with Components CB3633001
PB8351 Printed Circuit Board AH025H000 FR015120B 1-
J 8351 CONNECTOR SB20-05WS P0090612 1- A
J 8352 CONNECTOR HLJ2305-0130609 P1090823 1- A
J 8353 CONNECTOR HLJ2305-0130609 P1090823 1- A
J 8354 CONNECTOR SB20-04WS P0090611 1- A
SideB
KEY-1
KEY Unit
Circuit Diagram
KEY-2
KEY Unit
Note
KEY-3
KEY Unit
Parts Layout (Side A)
ABCDEFGHI
1
2
3
KEY-4
KEY Unit
abcdefghi
1
2
3
Parts Layout (Side B)
UMD5N
(Q8404, 8405, 8406,
8407, 8408, 8409)
NJU3714A
(Q8401, 8402, 8403)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
KEY Unit
KEY-5
PCB with Components CB3653001
Printed Circuit Board AH025H000 FR0151500 1-
C 8401 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B i2
C 8402 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B h2
C 8403 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B i2
C 8404 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B h2
C 8405 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B i2
C 8406 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B h2
C 8407 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B i2
C 8408 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- B h2
C 8409 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 1- B i2
C 8410 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 1- B h2
C 8429 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B h1
C 8432 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B h1
C 8448 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B c2
C 8453 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c2
C 8464 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B h2
C 8466 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B h2
C 8482 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 8485 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B b2
C 8494 CHIP TA.CAP. 10uF 16V TEESVA1C106M8R K78120077 1- B f3
C 8497 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B f3
C 8505 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 8506 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c2
C 8515 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- B h2
C 8516 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- B c3
C 8517 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- B c2
D 8401 LED SML-310VTT86JK G2071032 1- A A1
D 8402 LED SML-310VTT86JK G2071032 1- A A1
D 8403 LED SML-310VTT86JK G2071032 1- A A2
D 8404 LED SML-310VTT86JK G2071032 1- A A2
D 8405 LED SML-310VTT86JK G2071032 1- A A2
D 8406 LED SML-310VTT86JK G2071032 1- A A3
D 8407 LED SML-310VTT86JK G2071032 1- A A1
D 8408 LED SML-310DTT86KL G2071024 1- A A2
D 8409 LED SML-310DTT86KL G2071024 1- A A3
D 8410 LED SML-310VTT86JK G2071032 1- A A3
D 8411 LED SML-310DTT86KL G2071024 1- A A1
D 8412 LED SML-310FTT86KL G2071026 1- A A1
D 8413 LED SML-310VTT86JK G2071032 1- A D1
D 8414 LED SML-310VTT86JK G2071032 1- A G2
D 8415 LED SML-310VTT86JK G2071032 1- A G2
D 8416 LED SML-310VTT86JK G2071032 1- A G3
D 8417 LED SML-310VTT86JK G2071032 1- A G3
D 8418 LED SML-310FTT86KL G2071026 1- A G1
D 8419 LED SML-310DTT86KL G2071024 1- A I2
D 8420 LED SML-310DTT86KL G2071024 1- A I2
D 8421 LED SML-310DTT86KL G2071024 1- A I3
D 8422 LED SML-310DTT86KL G2071024 1- A I3
D 8423 LED SML-310VTT86JK G2071032 1- A I1
D 8424 LED CL-270TD-C-TS G2070930 1- A H2
D 8425 LED CL-270TD-C-TS G2070930 1- A H2
D 8426 LED CL-270TD-C-TS G2070930 1- A H3
D 8427 LED SML-310FTT86KL G2071026 1- A B1
D 8428 LED SML-310FTT86KL G2071026 1- A G1
D 8429 LED SML-310VTT86JK G2071032 1- A A1
D 8430 LED SML-310DTT86KL G2071024 1- A A1
D 8431 LED SML-310VTT86JK G2071032 1- A D1
D 8432 LED SML-310VTT86JK G2071032 1- A I1
J 8401 CONNECTOR 30FLT-SM1-TB P1091142 1- B i2
J 8402 CONNECTOR SC25-04WS P0090623 1- B h1
J 8403 CONNECTOR 30FLT-SM1-TB P1091142 1- B i1
J 8404 CONNECTOR SB20-04WS P0090611 1- B c2
J 8405 CONNECTOR SC25-04WS P0090623 1- B f3
J 8406 CONNECTOR 18FLT-SM1-TB P1091176 1- B b1
Q 8401 IC NJU3714A(TAPE) G1094291 1- B g2
Q 8402 IC NJU3714A(TAPE) G1094291 1- B b3
Q 8403 IC NJU3714A(TAPE) G1094291 1- B b2
Q 8404 TRANSISTOR UMD5N TR G3070343 1- B h1
Q 8405 TRANSISTOR UMD5N TR G3070343 1- B b1
Q 8406 TRANSISTOR UMD5N TR G3070343 1- B i1
Q 8407 TRANSISTOR UMD5N TR G3070343 1- B h1
Q 8408 TRANSISTOR UMD5N TR G3070343 1- B f1
KEY-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
KEY Unit
Q 8409 TRANSISTOR UMD5N TR G3070343 1- B a1
R 8401 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B h1
R 8402 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B i2
R 8403 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B i2
R 8404 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B h2
R 8405 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B i2
R 8406 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B i3
R 8407 CHIP RES. 820 1/10W 5% RMC1/10T 821J J24205821 1- B i1
R 8408 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B h2
R 8409 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B i3
R 8410 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B h3
R 8411 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B h1
R 8412 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B h1
R 8413 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B g1
R 8414 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B g1
R 8415 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B e1
R 8416 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 8417 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- B c2
R 8418 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 8419 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- B d2
R 8423 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B h2
R 8424 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B h2
R 8425 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B h2
R 8426 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B c2
R 8427 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B c2
R 8428 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B c3
R 8429 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B c3
R 8430 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B b1
R 8431 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 8432 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 8433 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B a2
R 8434 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B a2
R 8435 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B a3
R 8436 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B a3
R 8437 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B a2
R 8438 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 1- B a2
R 8439 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 1- B a2
R 8440 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 1- B a3
R 8441 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B h2
R 8442 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B b3
R 8443 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c2
R 8444 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B h1
R 8445 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B b1
R 8446 CHIP RES. 820 1/10W 5% RMC1/10T 821J J24205821 1- B i1
R 8447 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B h1
R 8448 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B e1
R 8449 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- B a2
S 8401 TACT SWITCH SKQYPAE010 N5090144 1- A A1
S 8402 TACT SWITCH SKQYPAE010 N5090144 1- A A2
S 8403 TACT SWITCH SKQYPAE010 N5090144 1- A A2
S 8404 TACT SWITCH SKQYPAE010 N5090144 1- A A2
S 8405 TACT SWITCH SKQYPAE010 N5090144 1- A A2
S 8406 TACT SWITCH SKQYPAE010 N5090144 1- A A3
S 8407 TACT SWITCH SKQYPAE010 N5090144 1- A A1
S 8408 TACT SWITCH SKQYPAE010 N5090144 1- A A1
S 8409 TACT SWITCH SKQYPAE010 N5090144 1- A A3
S 8410 TACT SWITCH SKHUPDE010 N5090126 1- A A1
S 8411 TACT SWITCH SKHUPDE010 N5090126 1- A A2
S 8412 TACT SWITCH SKHUPDE010 N5090126 1- A A2
S 8413 TACT SWITCH SKHUPDE010 N5090126 1- A A2
S 8414 TACT SWITCH SKHUPDE010 N5090126 1- A A3
S 8415 TACT SWITCH SKQYPAE010 N5090144 1- A A1
S 8416 TACT SWITCH SKQYPAE010 N5090144 1- A D1
S 8417 TACT SWITCH SKHUPDE010 N5090126 1- A D1
S 8418 TACT SWITCH SKQYPAE010 N5090144 1- A D3
S 8419 TACT SWITCH SKHUPDE010 N5090126 1- A D1
S 8420 TACT SWITCH SKHUPDE010 N5090126 1- A D2
S 8421 TACT SWITCH SKHUPDE010 N5090126 1- A D2
S 8422 TACT SWITCH SKHUPDE010 N5090126 1- A D2
S 8423 TACT SWITCH SKHUPDE010 N5090126 1- A D3
S 8424 TACT SWITCH SKHUPDE010 N5090126 1- A E1
S 8425 TACT SWITCH SKQYPAE010 N5090144 1- A E1
S 8425 TACT SWITCH SKQYPBE010 N5090155 4- A E1
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
KEY Unit
KEY-7
S 8426 TACT SWITCH SKQYPAE010 N5090144 1- A E1
S 8426 TACT SWITCH SKQYPBE010 N5090155 4- A E1
S 8427 TACT SWITCH SKQYPAE010 N5090144 1- A E1
S 8427 TACT SWITCH SKQYPBE010 N5090155 4- A E1
S 8428 TACT SWITCH SKQYPAE010 N5090144 1- A E2
S 8428 TACT SWITCH SKQYPBE010 N5090155 4- A E2
S 8429 TACT SWITCH SKQYPAE010 N5090144 1- A E3
S 8430 TACT SWITCH SKHUPDE010 N5090126 1- A E2
S 8431 TACT SWITCH SKHUPDE010 N5090126 1- A E3
S 8432 TACT SWITCH SKQYPAE010 N5090144 1- A F1
S 8432 TACT SWITCH SKQYPBE010 N5090155 4- A F1
S 8433 TACT SWITCH SKQYPAE010 N5090144 1- A F1
S 8433 TACT SWITCH SKQYPBE010 N5090155 4- A F1
S 8434 TACT SWITCH SKQYPAE010 N5090144 1- A F1
S 8434 TACT SWITCH SKQYPBE010 N5090155 4- A F1
S 8435 TACT SWITCH SKQYPAE010 N5090144 1- A F2
S 8435 TACT SWITCH SKQYPBE010 N5090155 4- A F2
S 8436 TACT SWITCH SKQYPAE010 N5090144 1- A F1
S 8436 TACT SWITCH SKQYPBE010 N5090155 4- A F1
S 8437 TACT SWITCH SKQYPAE010 N5090144 1- A F1
S 8437 TACT SWITCH SKQYPBE010 N5090155 4- A F1
S 8438 TACT SWITCH SKQYPAE010 N5090144 1- A F1
S 8438 TACT SWITCH SKQYPBE010 N5090155 4- A F1
S 8439 TACT SWITCH SKQYPAE010 N5090144 1- A F2
S 8439 TACT SWITCH SKQYPBE010 N5090155 4- A F2
S 8440 TACT SWITCH SKQYPAE010 N5090144 1- A G2
S 8441 TACT SWITCH SKQYPAE010 N5090144 1- A G2
S 8442 TACT SWITCH SKQYPAE010 N5090144 1- A G3
S 8443 TACT SWITCH SKQYPAE010 N5090144 1- A G3
S 8444 TACT SWITCH SKQYPAE010 N5090144 1- A G1
S 8445 TACT SWITCH SKQYPAE010 N5090144 1- A I1
S 8446 TACT SWITCH SKQYPAE010 N5090144 1- A I2
S 8447 TACT SWITCH SKQYPAE010 N5090144 1- A I2
S 8448 TACT SWITCH SKQYPAE010 N5090144 1- A I3
S 8449 TACT SWITCH SKQYPAE010 N5090144 1- A I3
KEY-8
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
KEY Unit
Note:
BACK-LIGHT-1
BACK-LIGHT Unit
Circuit Diagram
BACK-LIGHT-2
BACK-LIGHT Unit
Parts Layout
Side B
Side A
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PCB with Components CB3635001
Printed Circuit Board AH025H000 FR0151400 1-
D 8901 LED GM5BW01300A G2071130 1- A
J 8901 CONNECTOR SB20-03WL P0090843 1- B
R 8901 CHIP RES. 2.2k 1/2W 5% RMC1/2 222JCTP J24275222 1- B
R 8902 CHIP RES. 2.2k 1/2W 5% RMC1/2 222JCTP J24275222 1- B
R 8903 CHIP RES. 2.2k 1/2W 5% RMC1/2 222JCTP J24275222 1- B
F-CONNECT-1
F-CONNECT Unit
Circuit Diagram
Parts Layout
Side BSide A
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PCB with Components CB3753001
PB8951 Printed Circuit Board AH025H000 FR0151300 1-
J 8951 CONNECTOR B03B-XH-A P0091413 1- A
J 8952 CONNECTOR B03B-XH-A P0091413 1- A
F-CONNECT-2
F-CONNECT Unit
Note
Copyright 2006
VERTEX STANDARD CO., LTD.
All rights reserved
No portion of this manual
may be reproduced without
the permission of
VERTEX STANDARD CO., LTD.
