Service Manual FW C785/22/34 FWC785

User Manual: FWC785

Open the PDF directly: View PDF PDF.
Page Count: 94

GB
CLASS 1
LASER PRODUCT
COMPACT
DIGITAL AUDIO
Service Manual
Service
Service
Service
Service
Service
FW-C785/22/34
TABLE OF CONTENTS
Page
Location of pc boards & Version variations ................1-2
Technical Specifications .............................................1-3
Measurement setup ....................................................1-4
Service Aids, Safety Instruction, etc...........................1-5

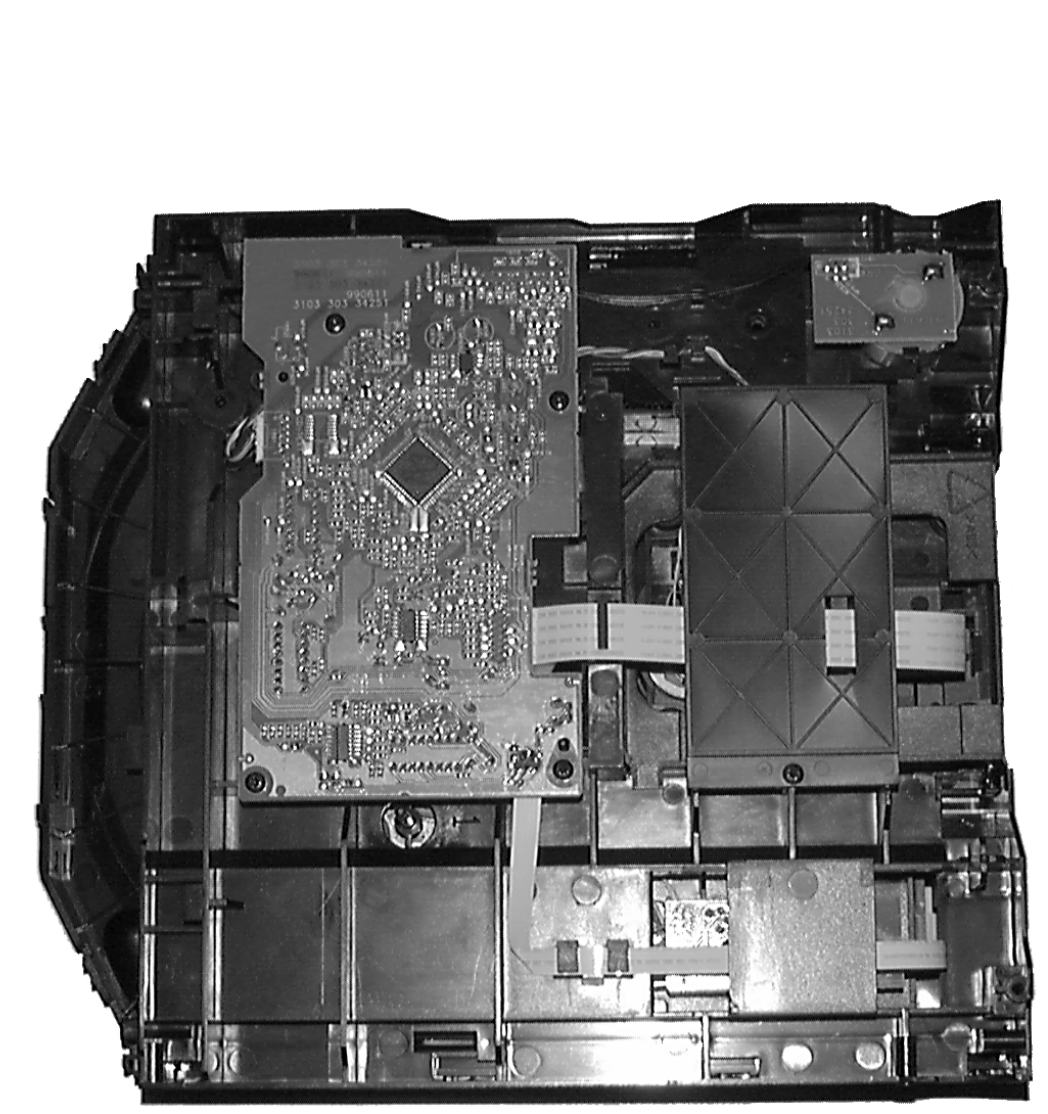

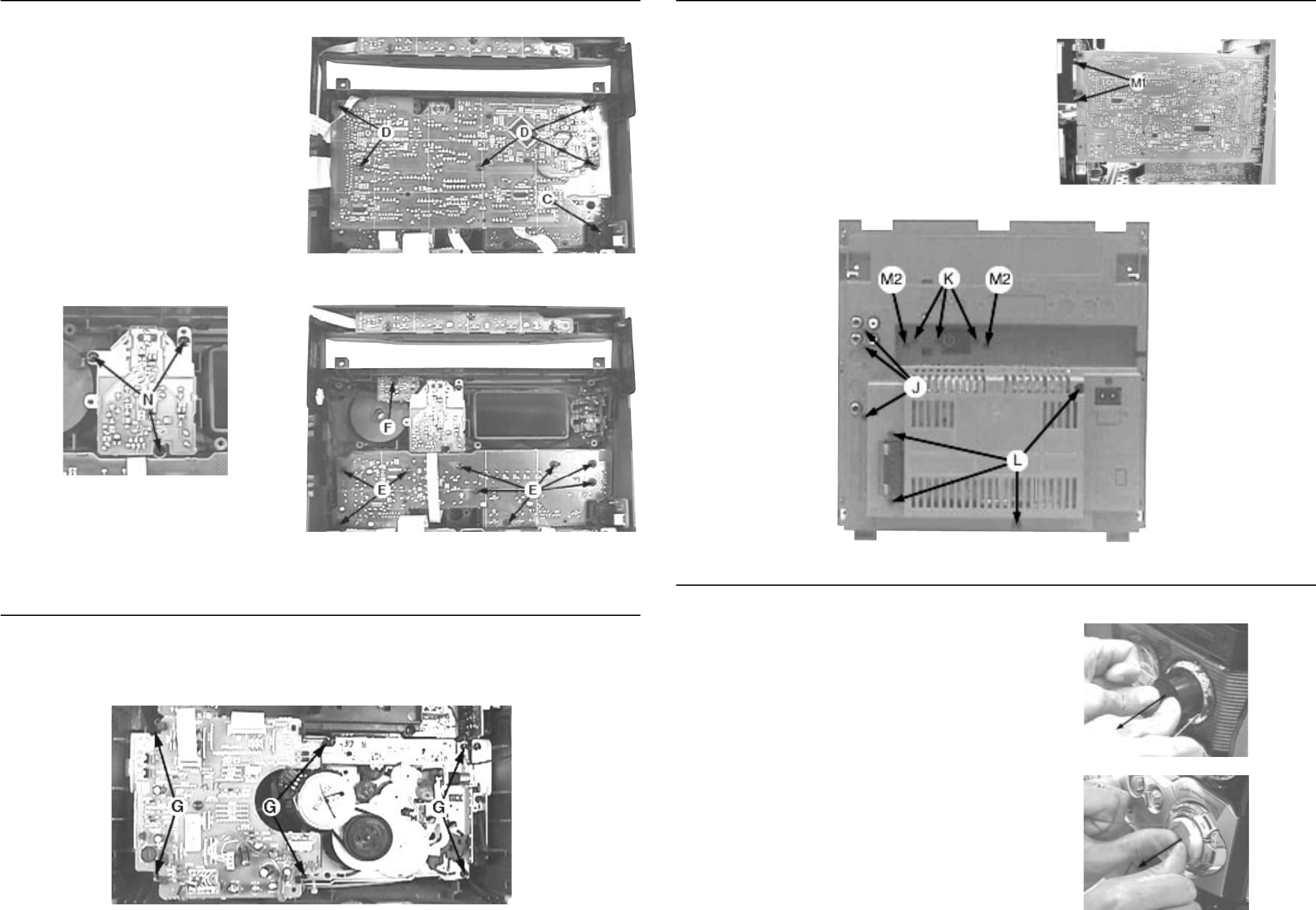

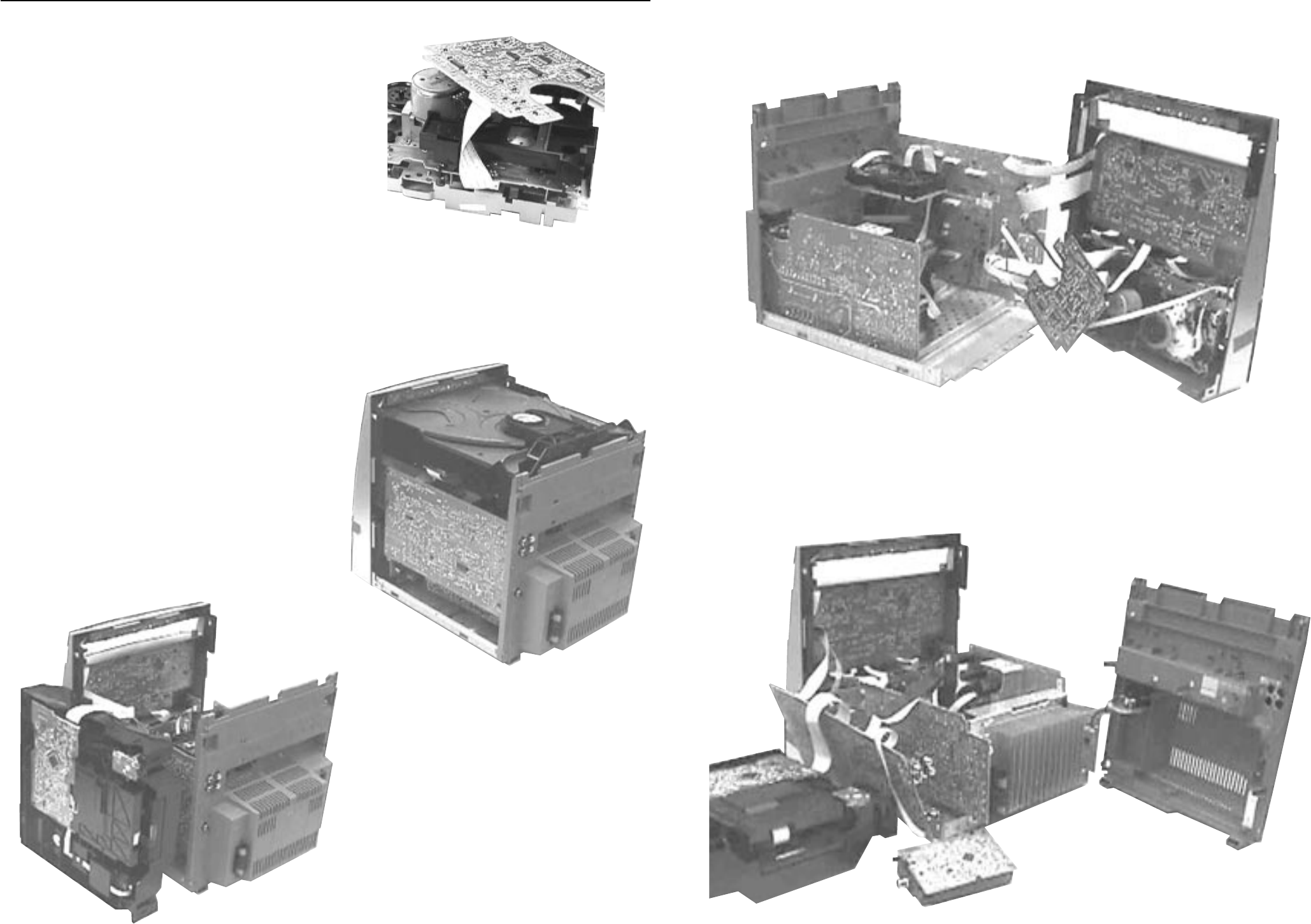

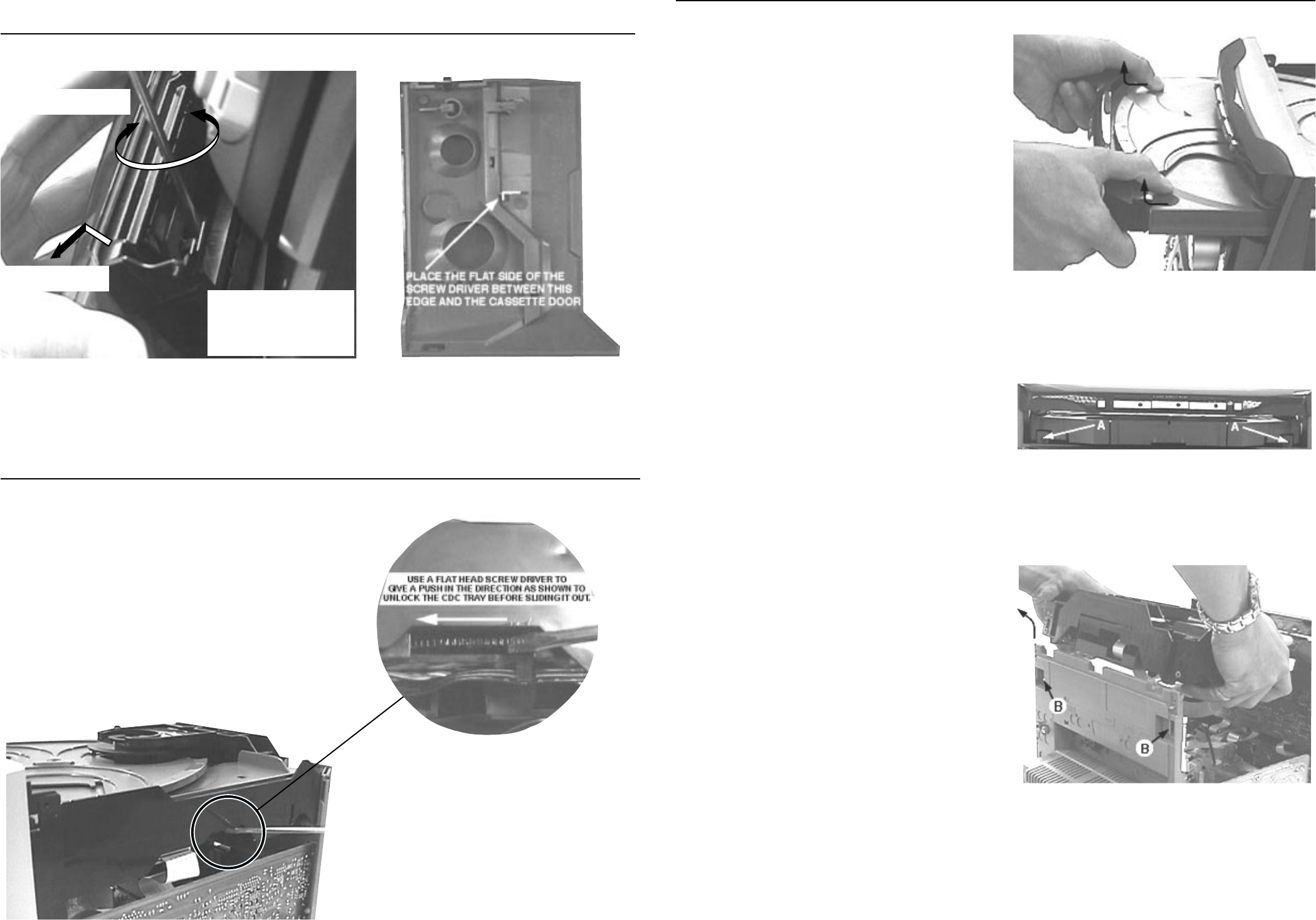

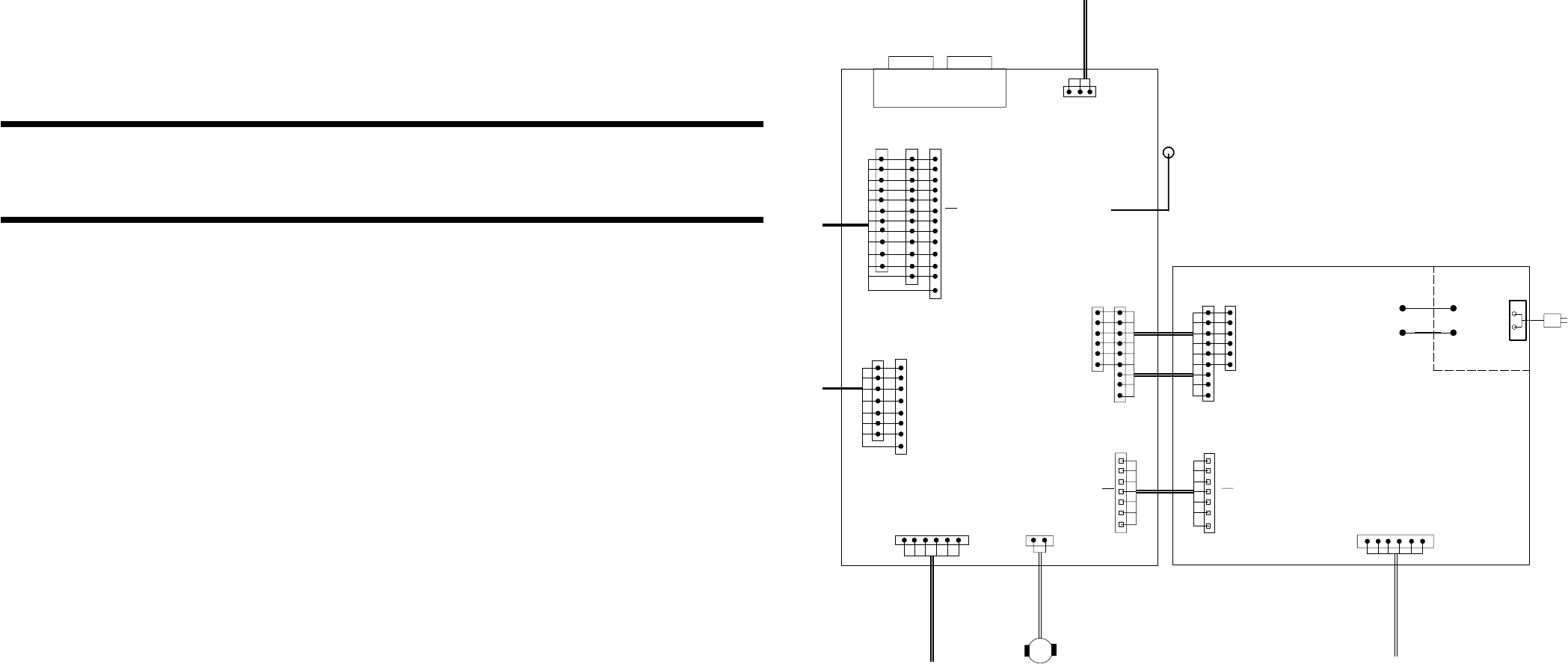

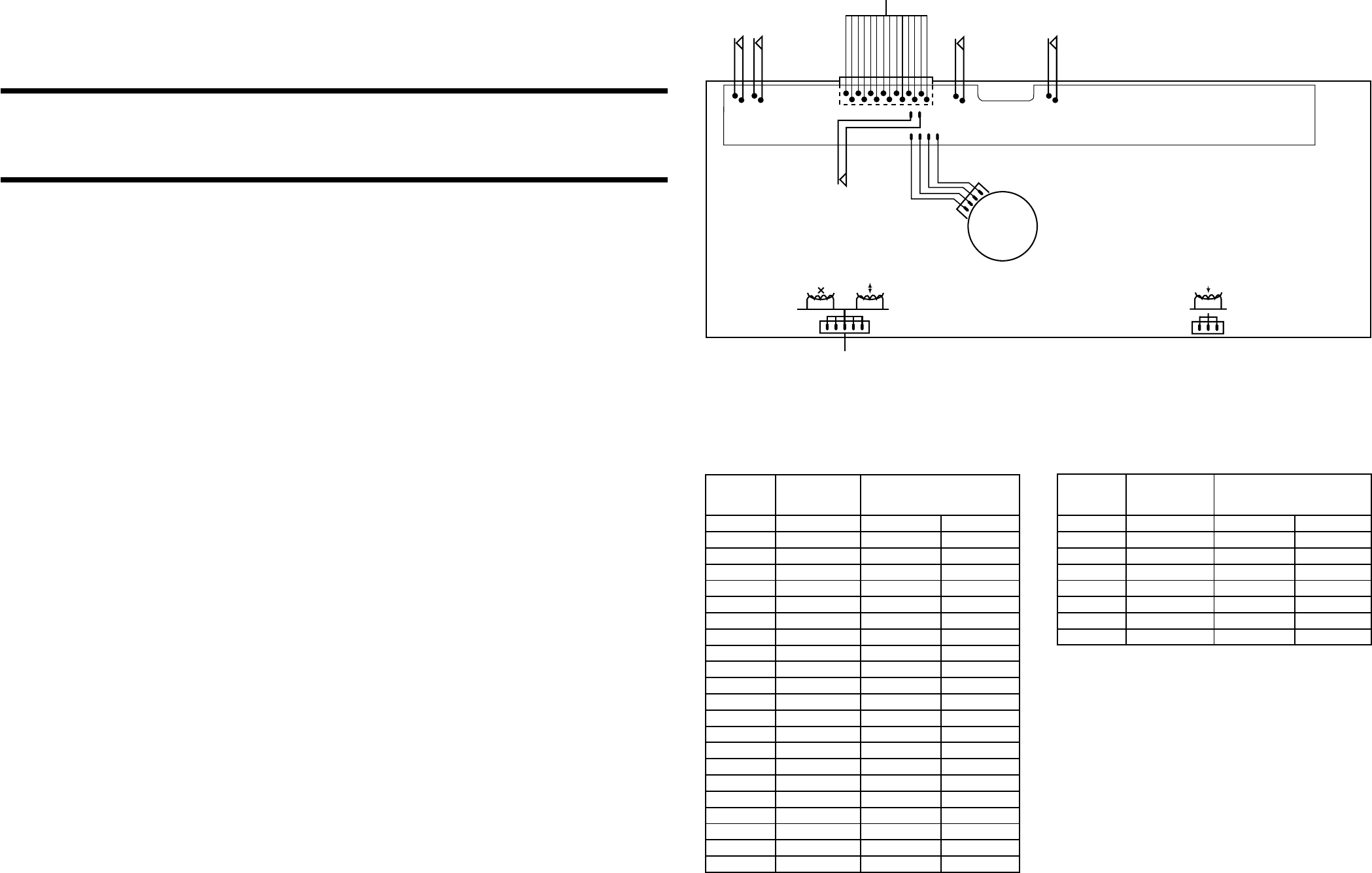

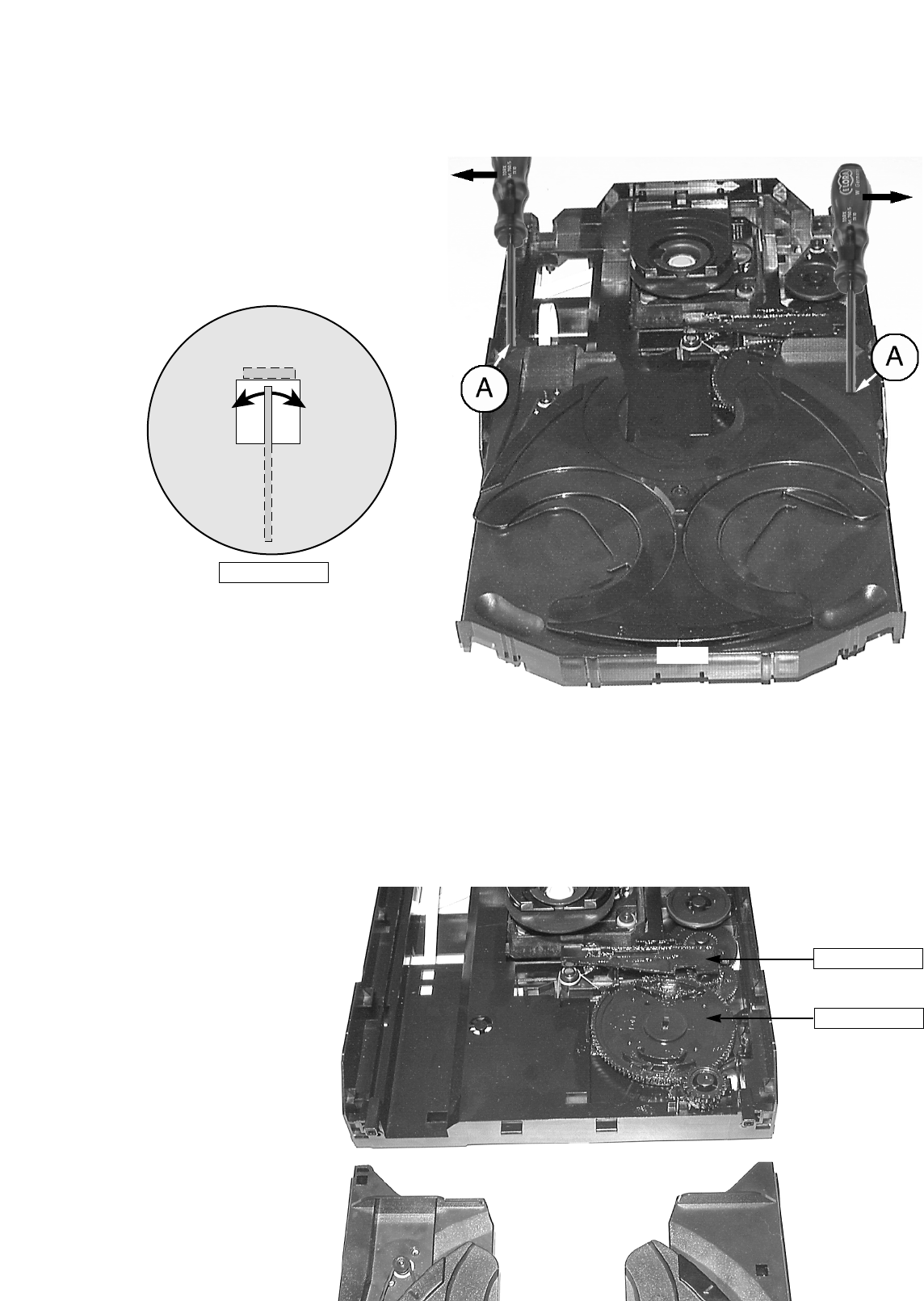

Disassembly Instructions & Service positions .............. 2

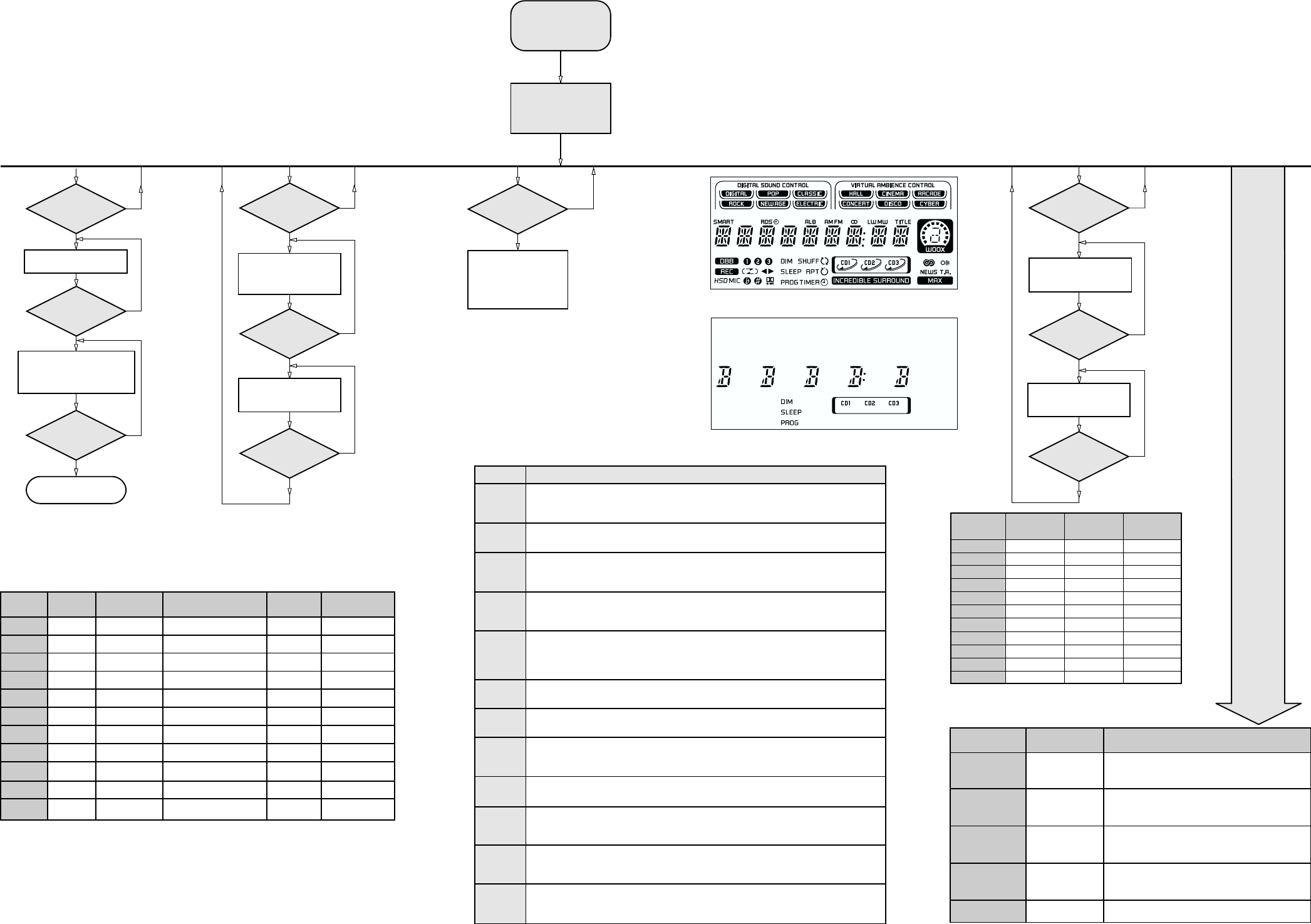

Service Test Programs .................................................. 3

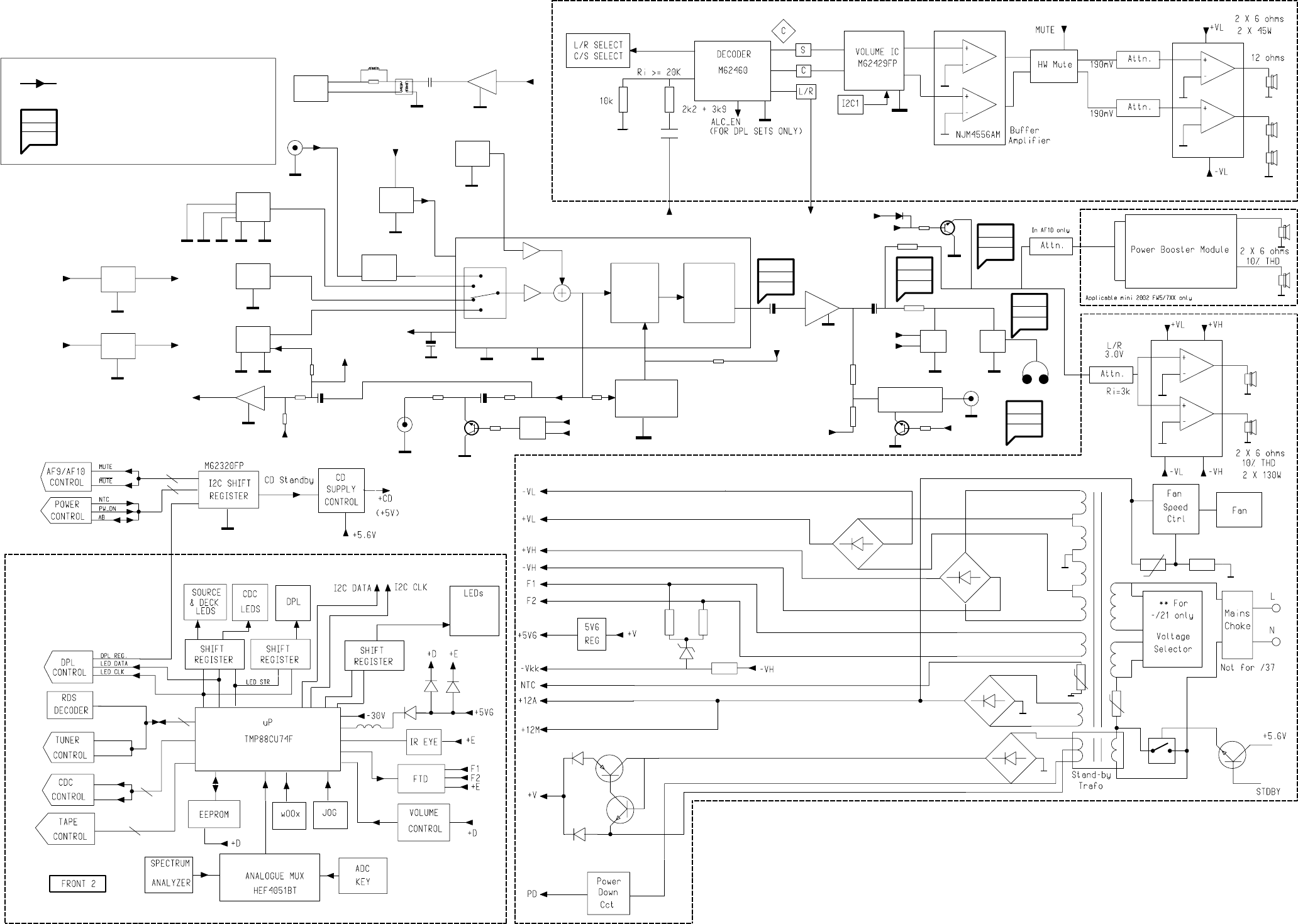

Set Block diagram ......................................................4-1

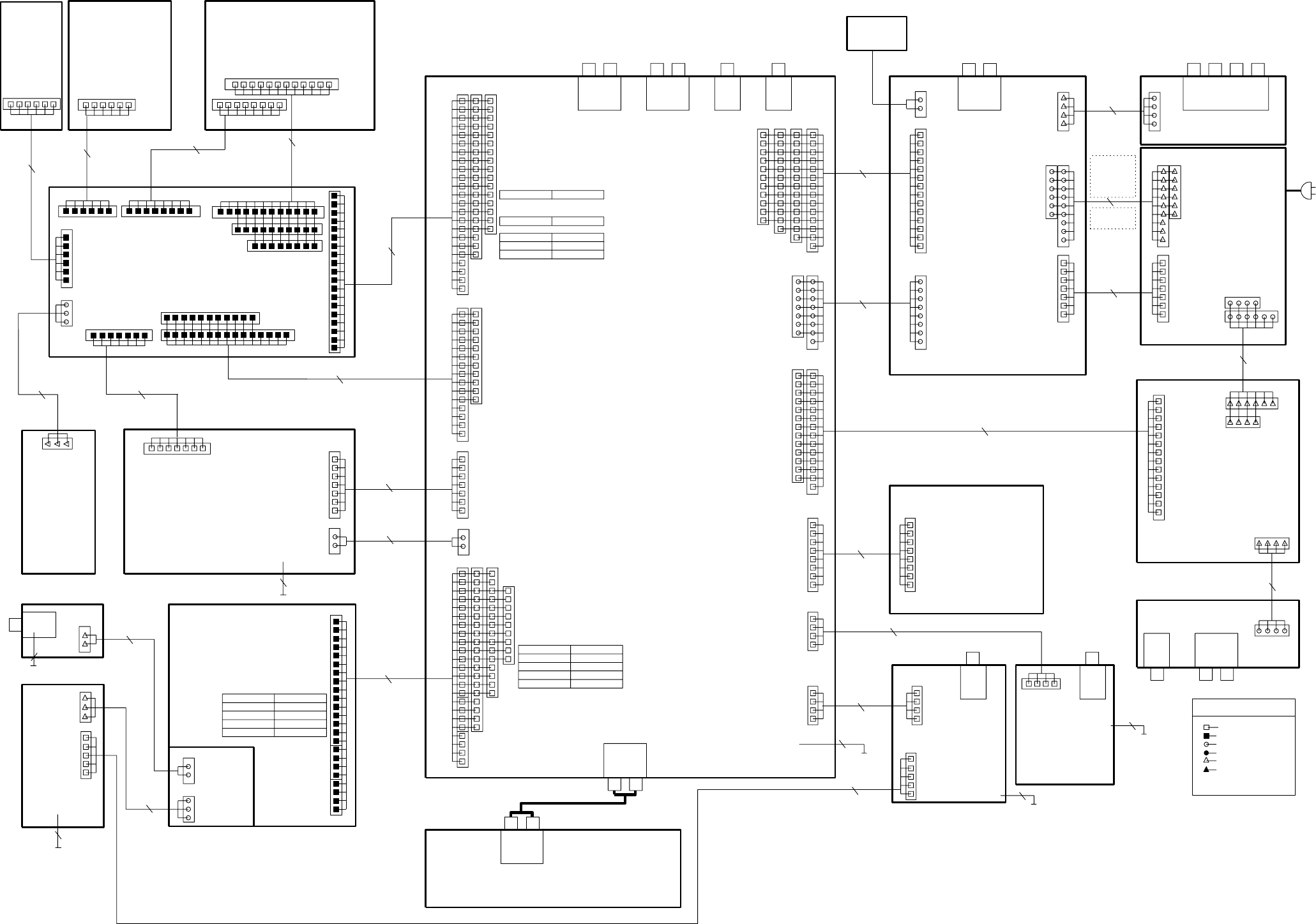

Set Wiring diagram .....................................................4-2

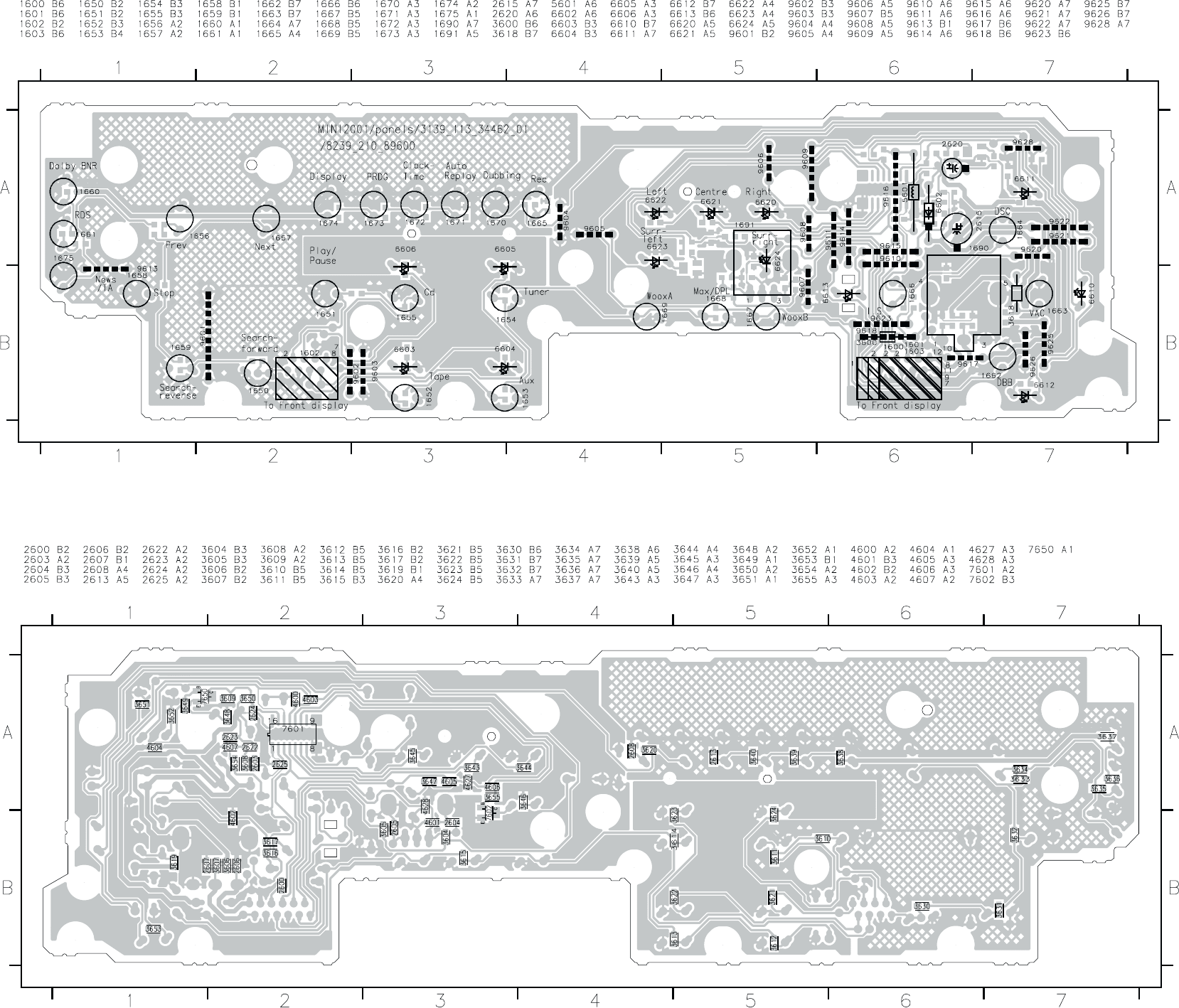

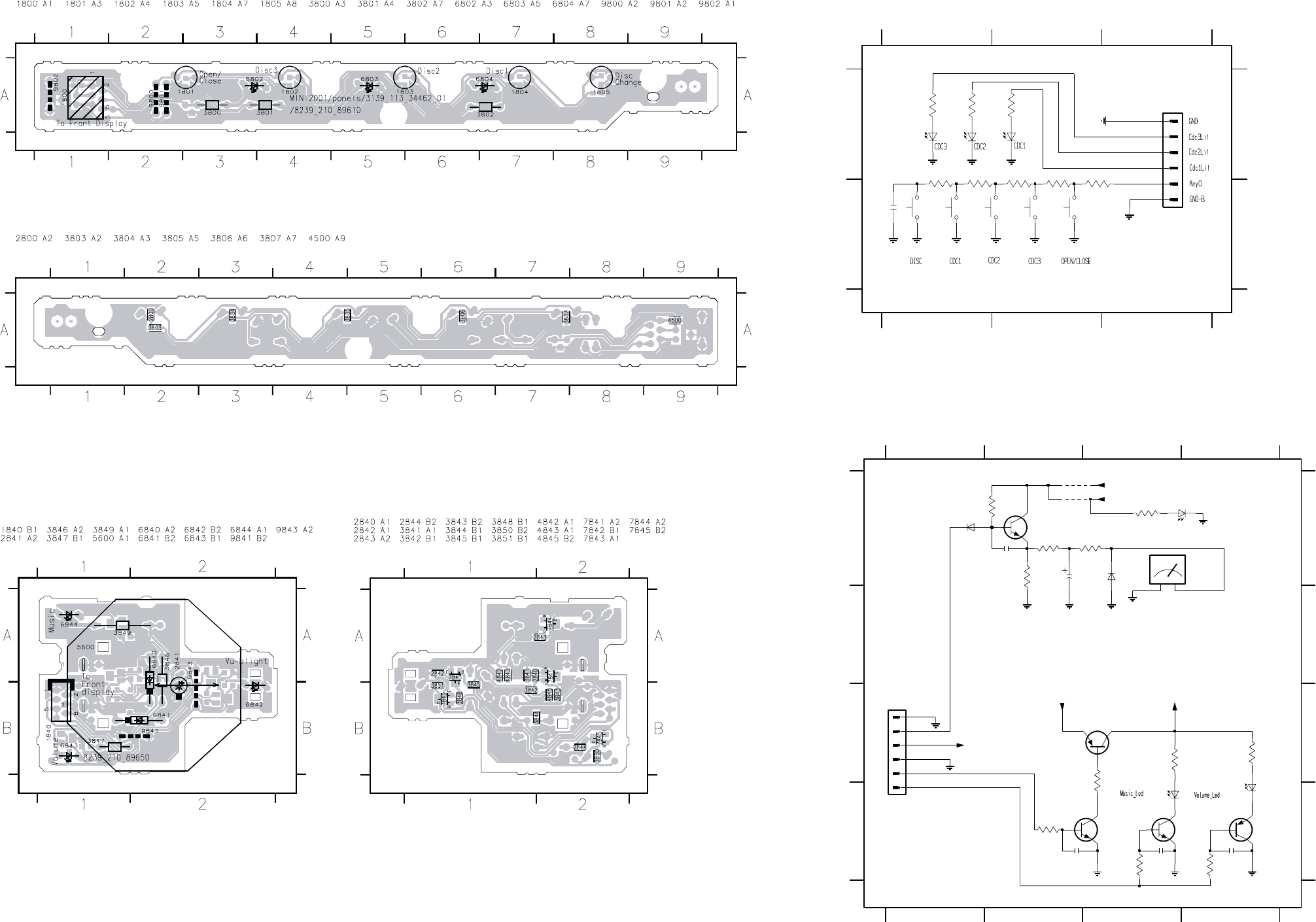

Front Control Board ....................................................... 5

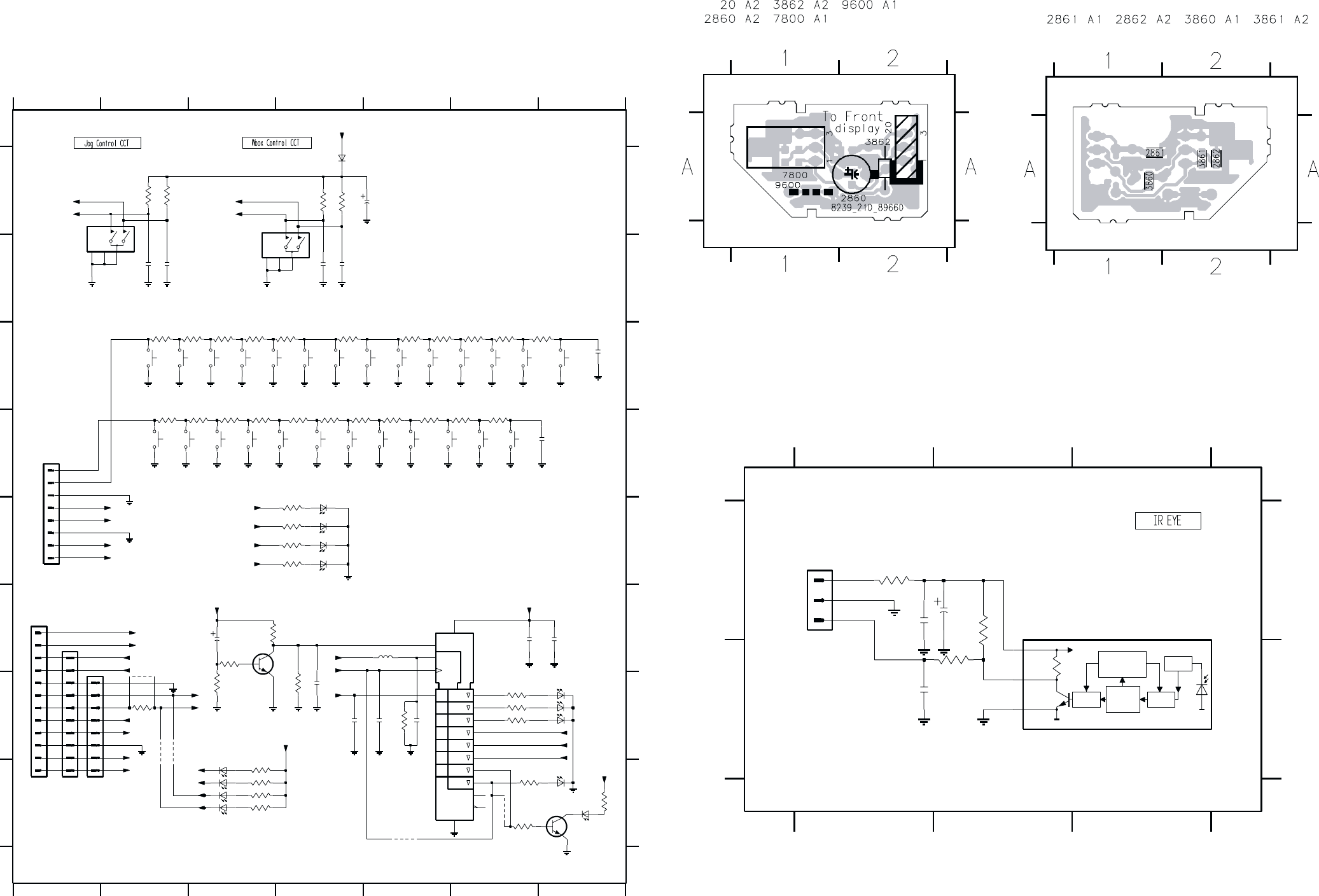

Front Display Board ....................................................... 6

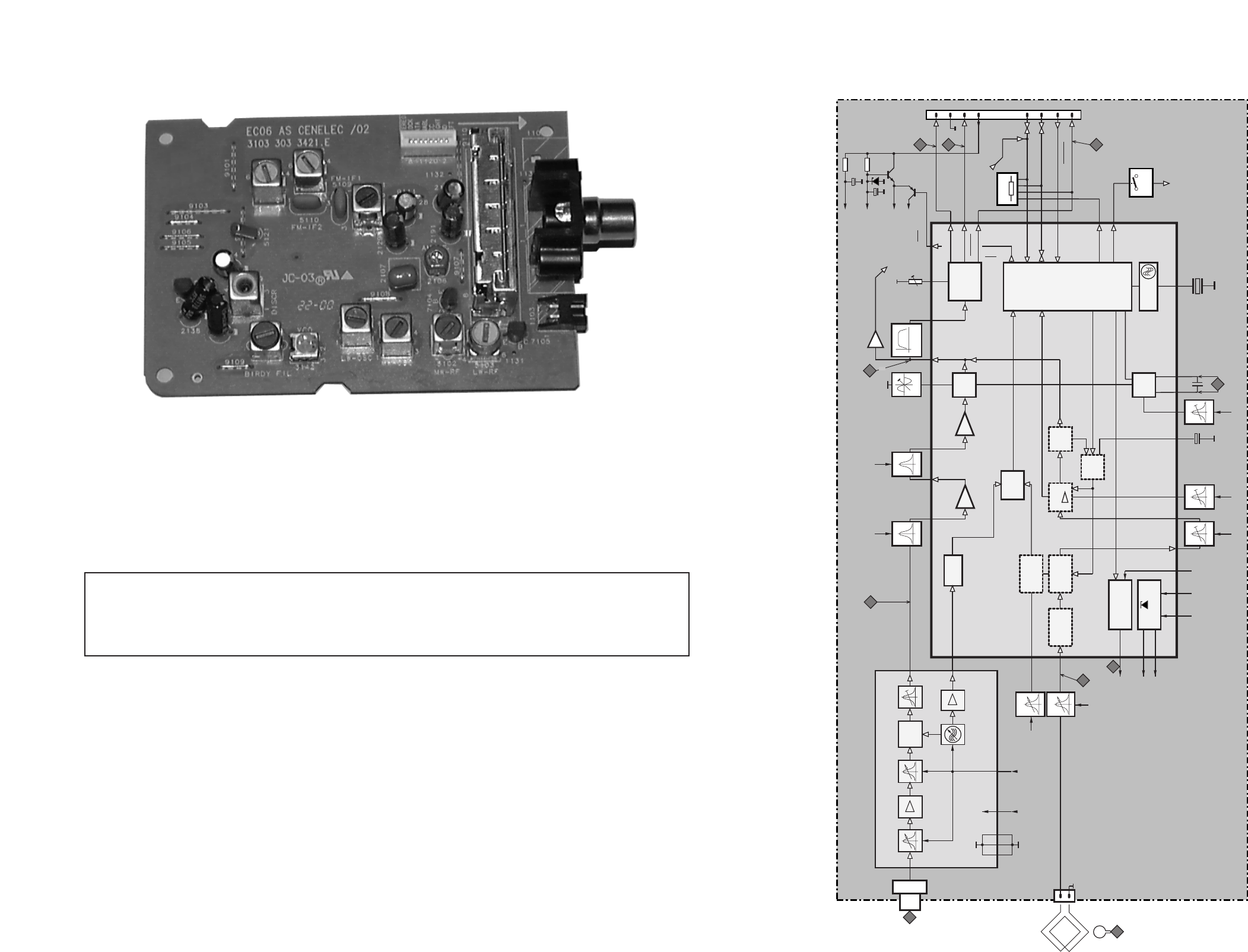

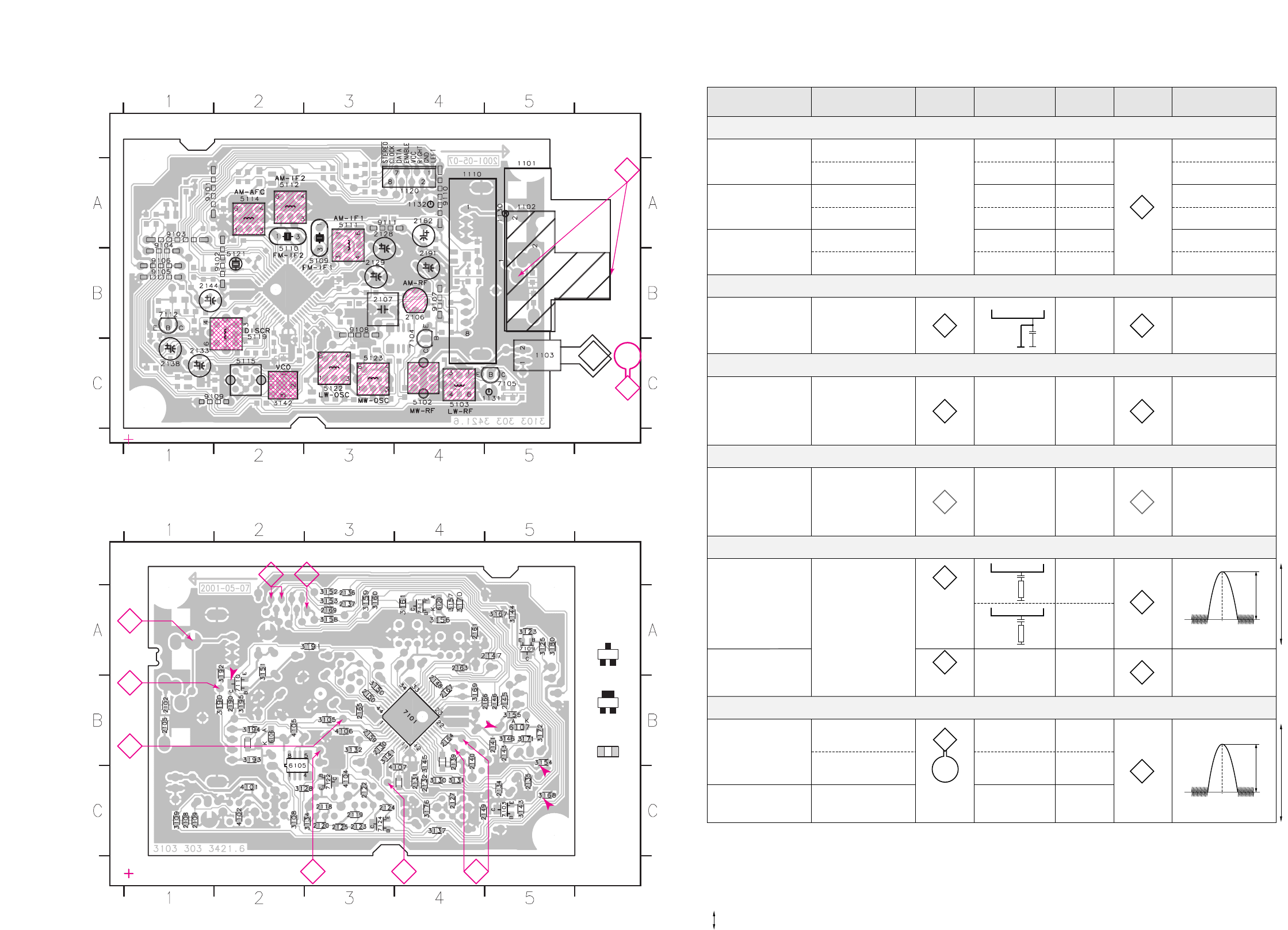

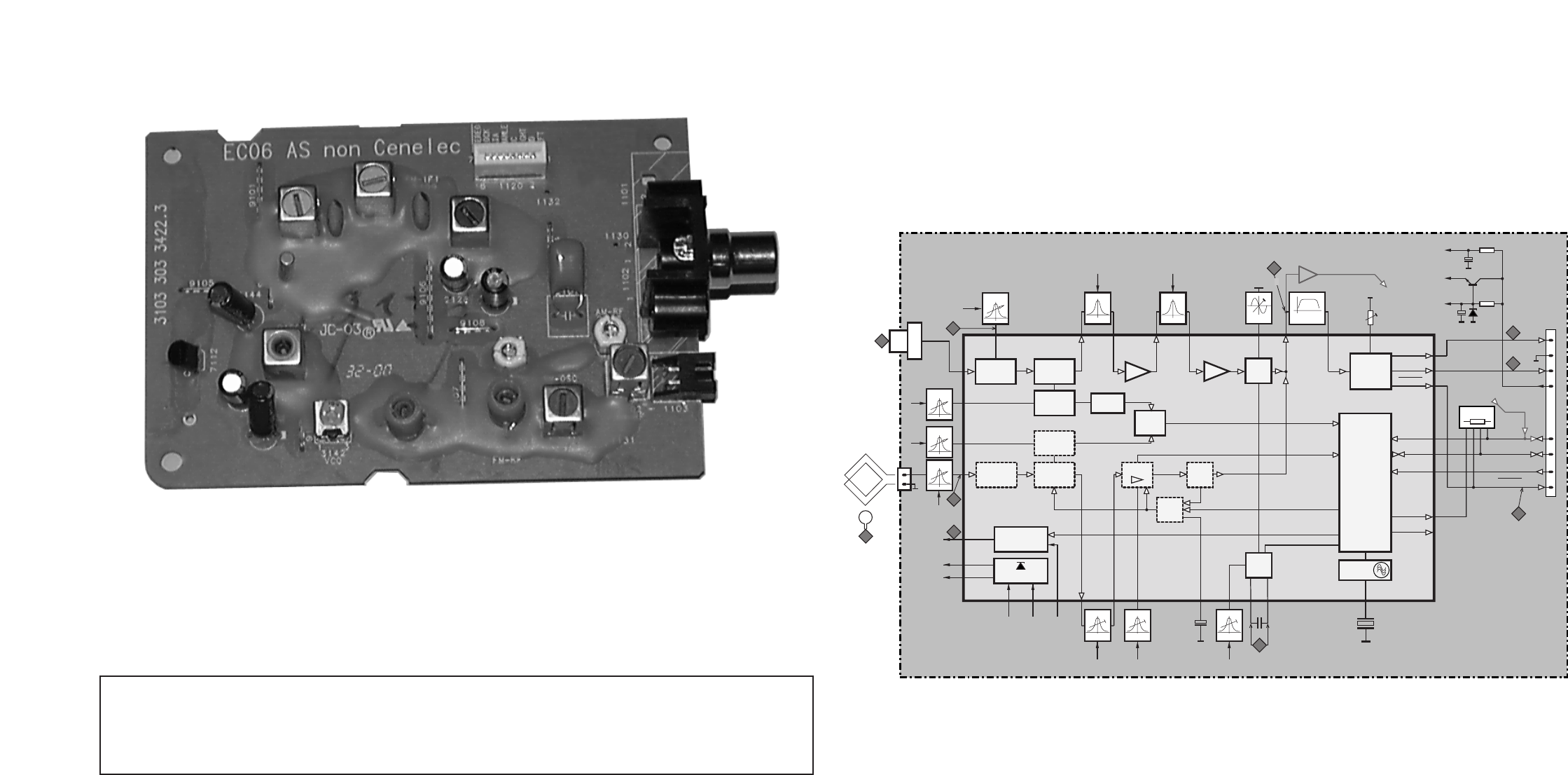

ECO6 Tuner Board : Systems Non-Cenelec .............. 7A
ECO6 Tuner Board : Systems Cenelec...................... 7B

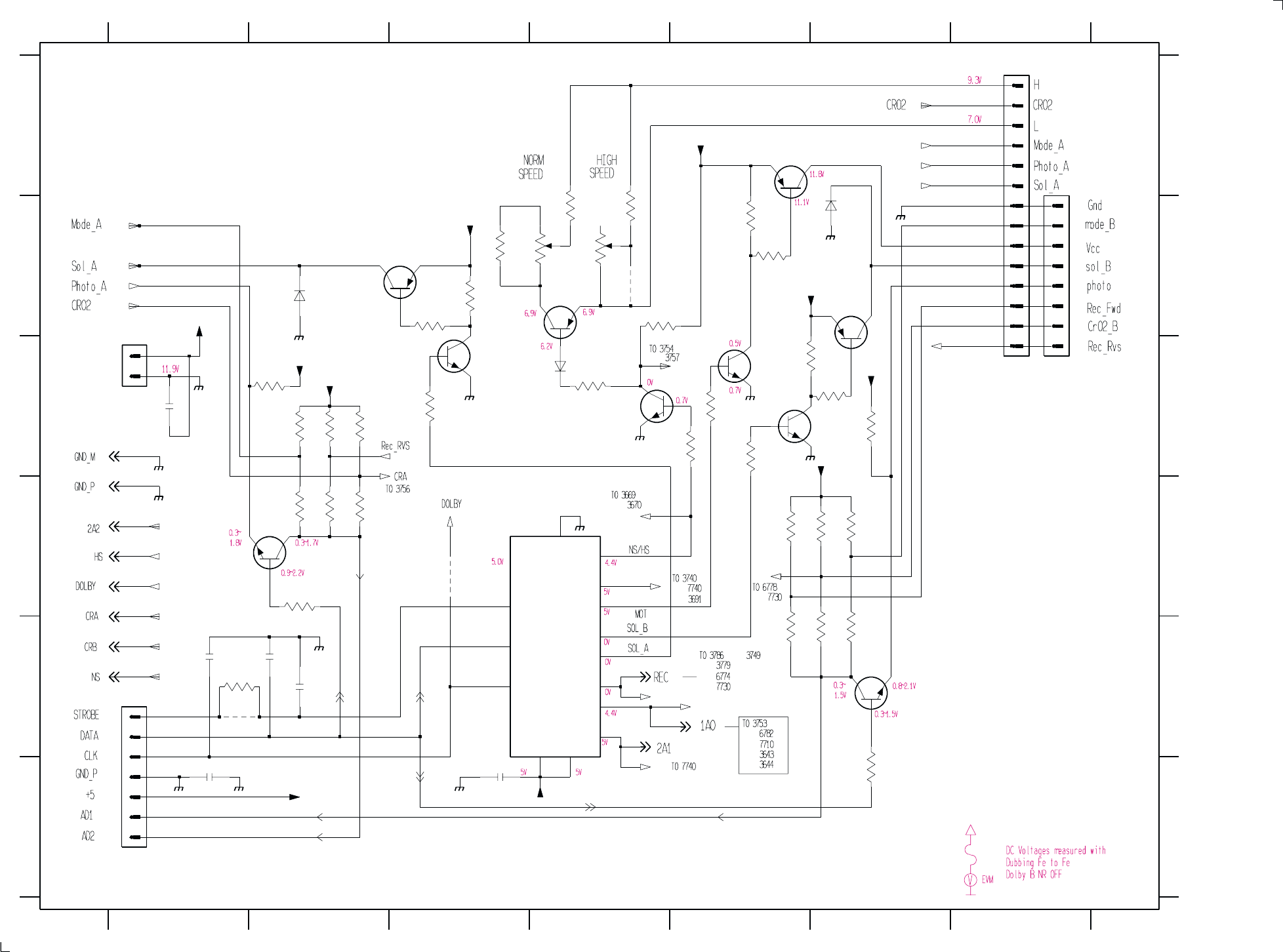

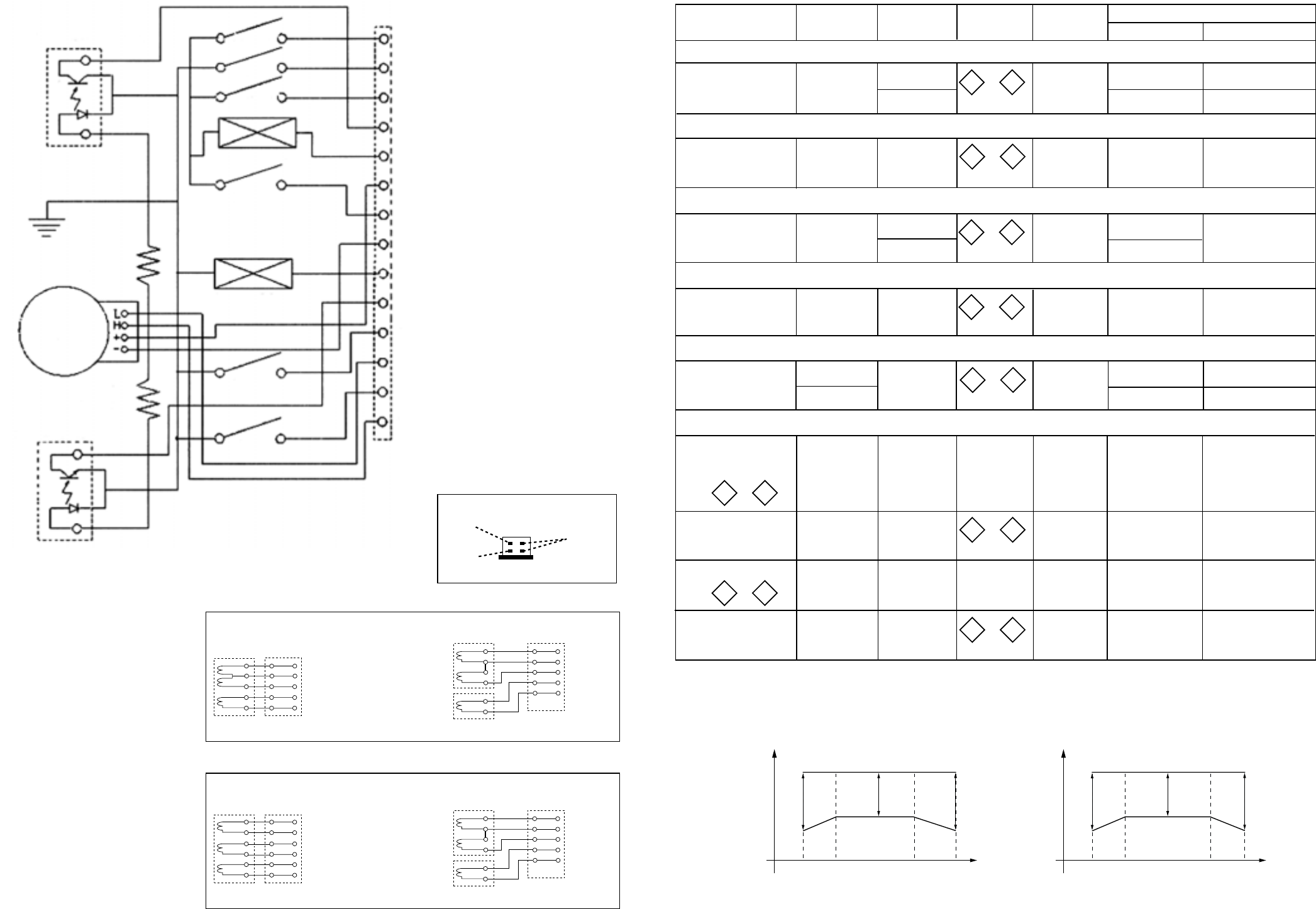

ETF7 ND Tape Module .................................................. 9
ETF7 DB Tape Module ............................................... 9A

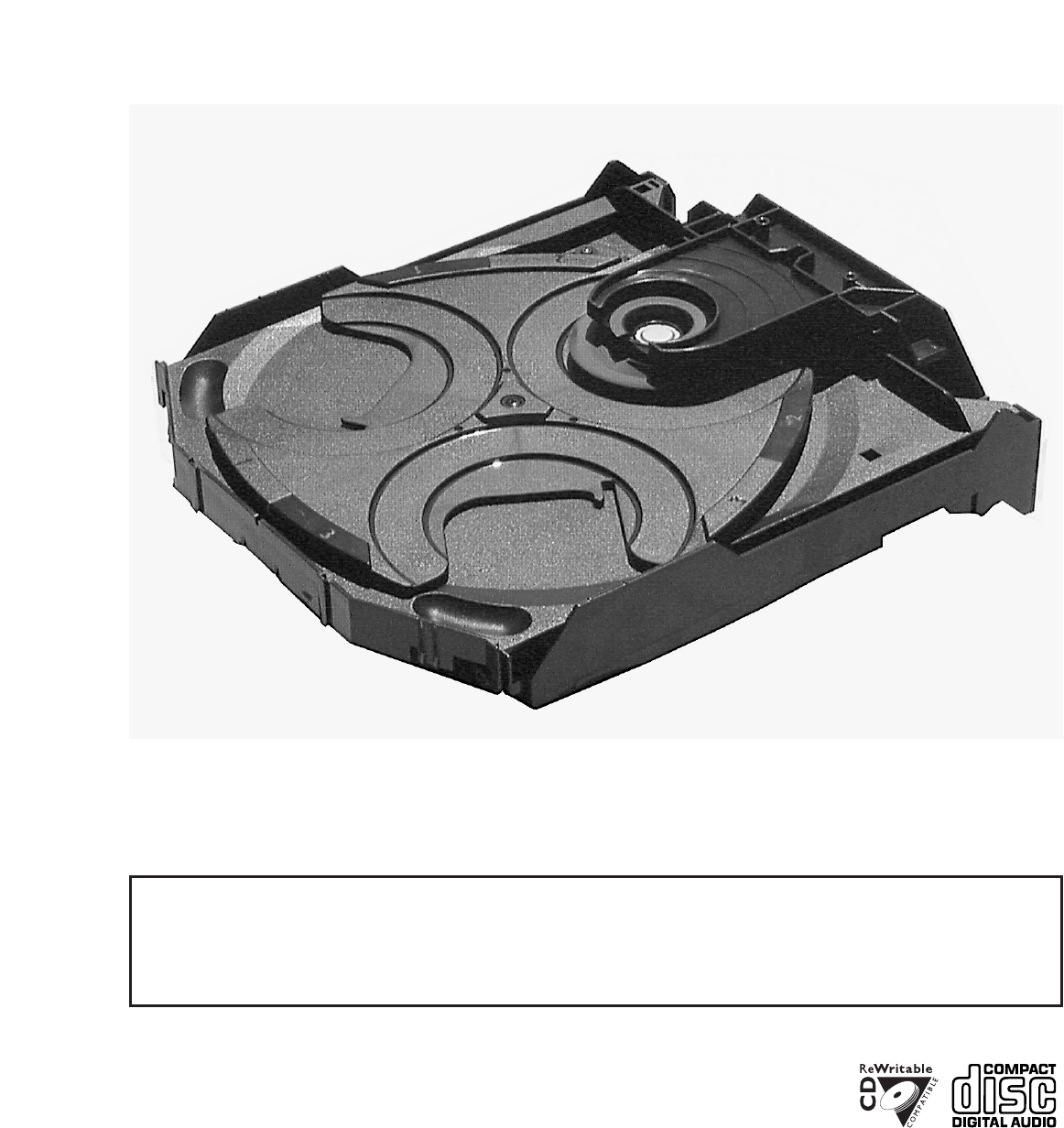

3CDC-LLC-DA11 Module ............................................ 10

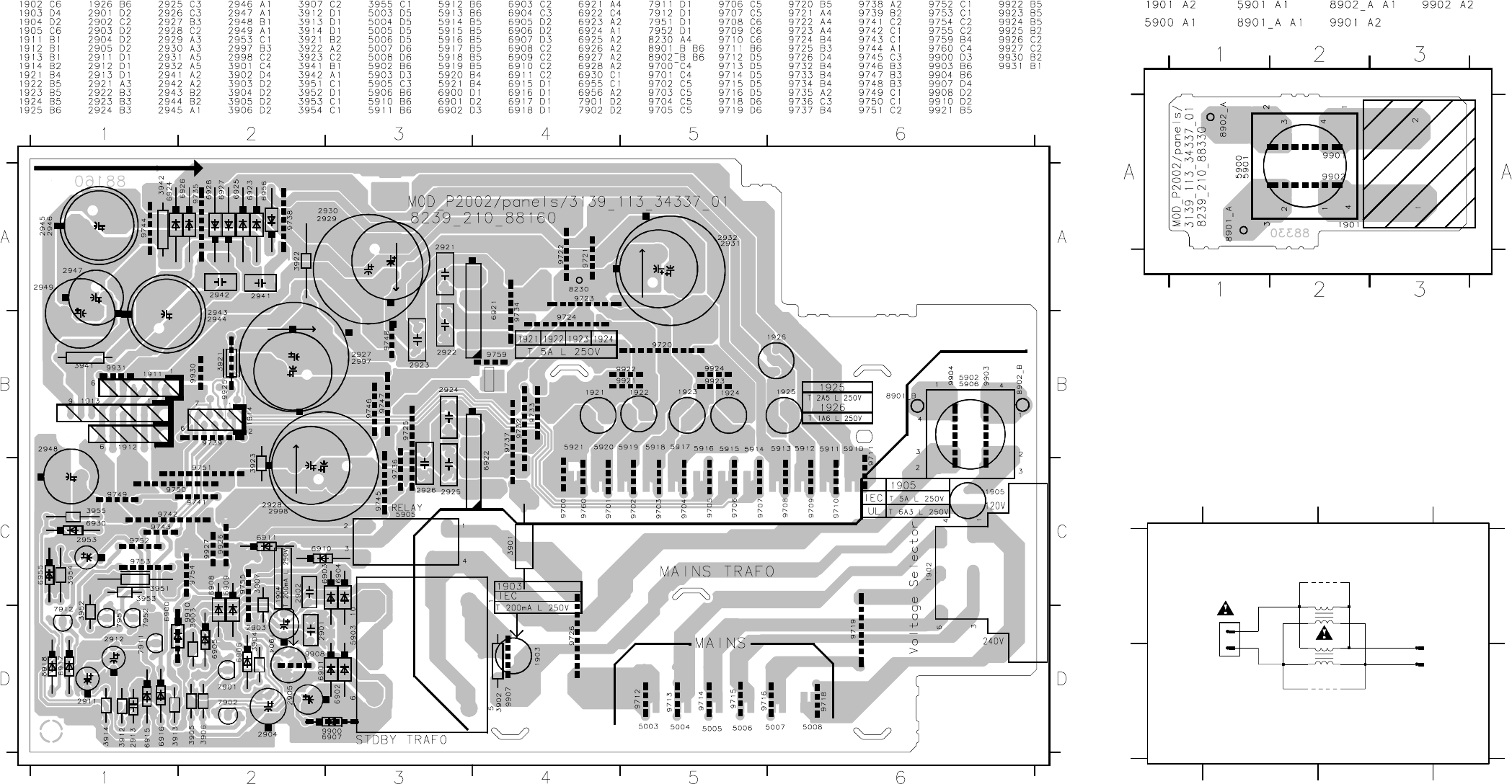

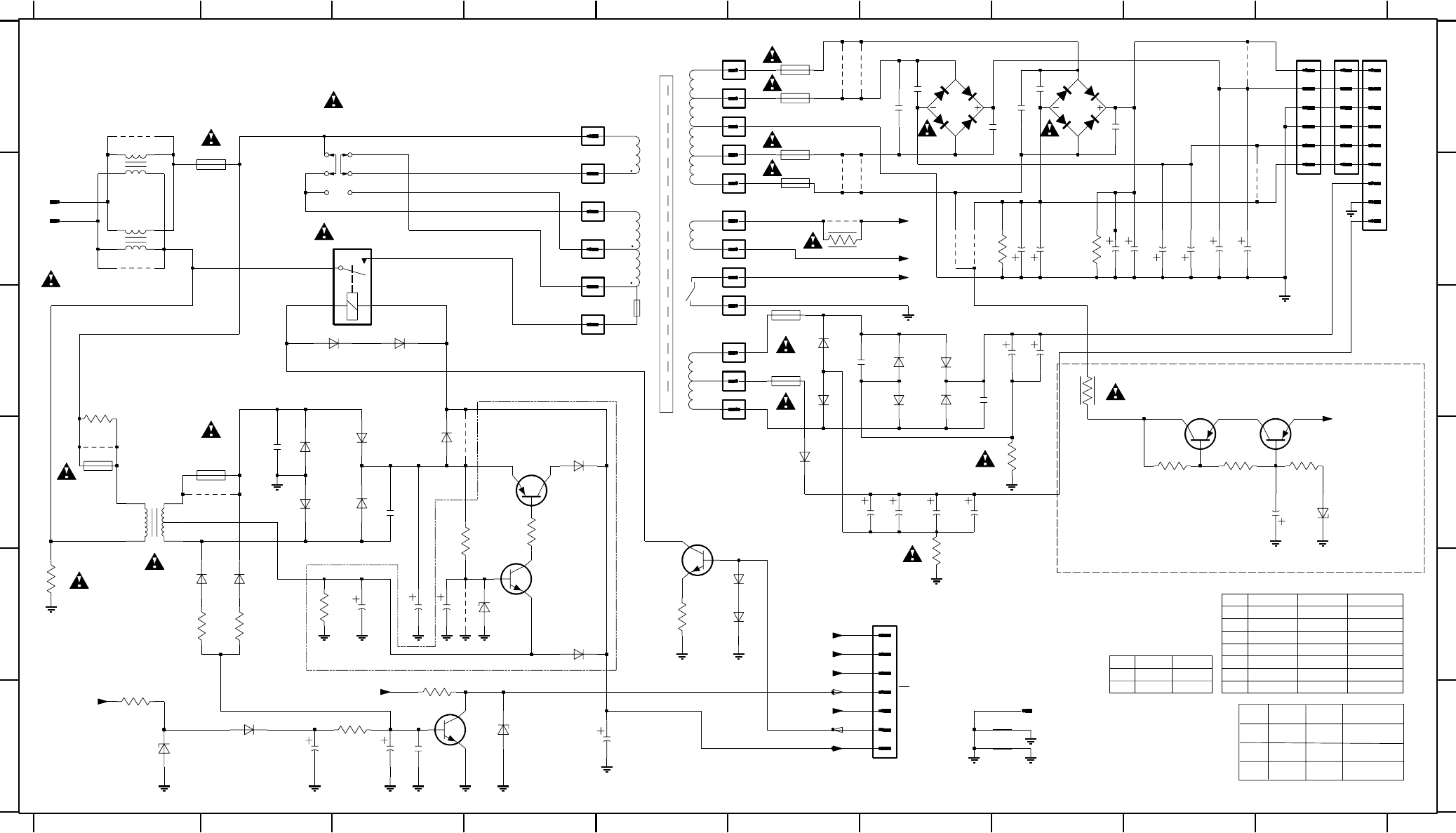

MMPWR 100W Module ............................................... 11

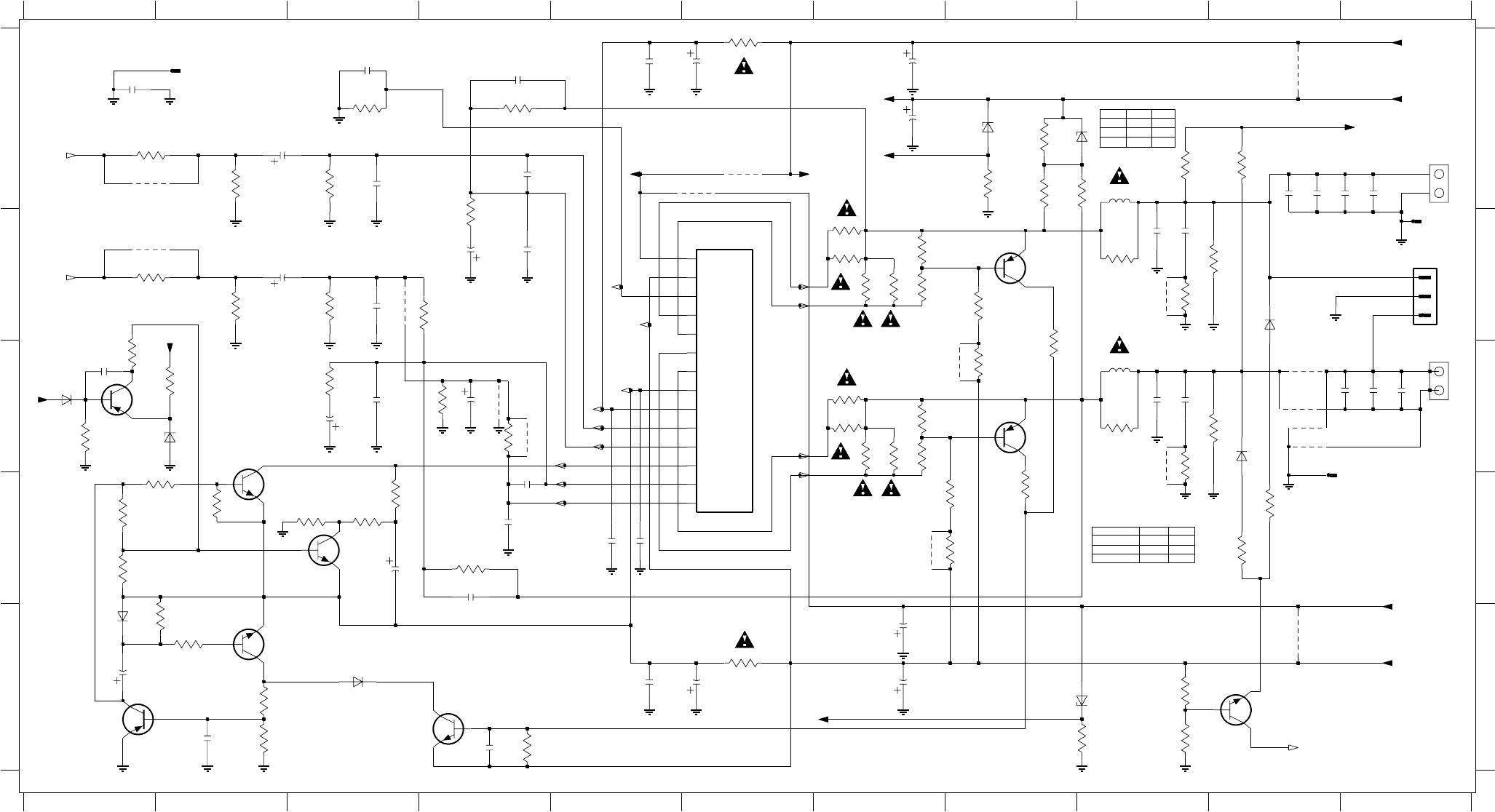

AF9 Board .................................................................... 12

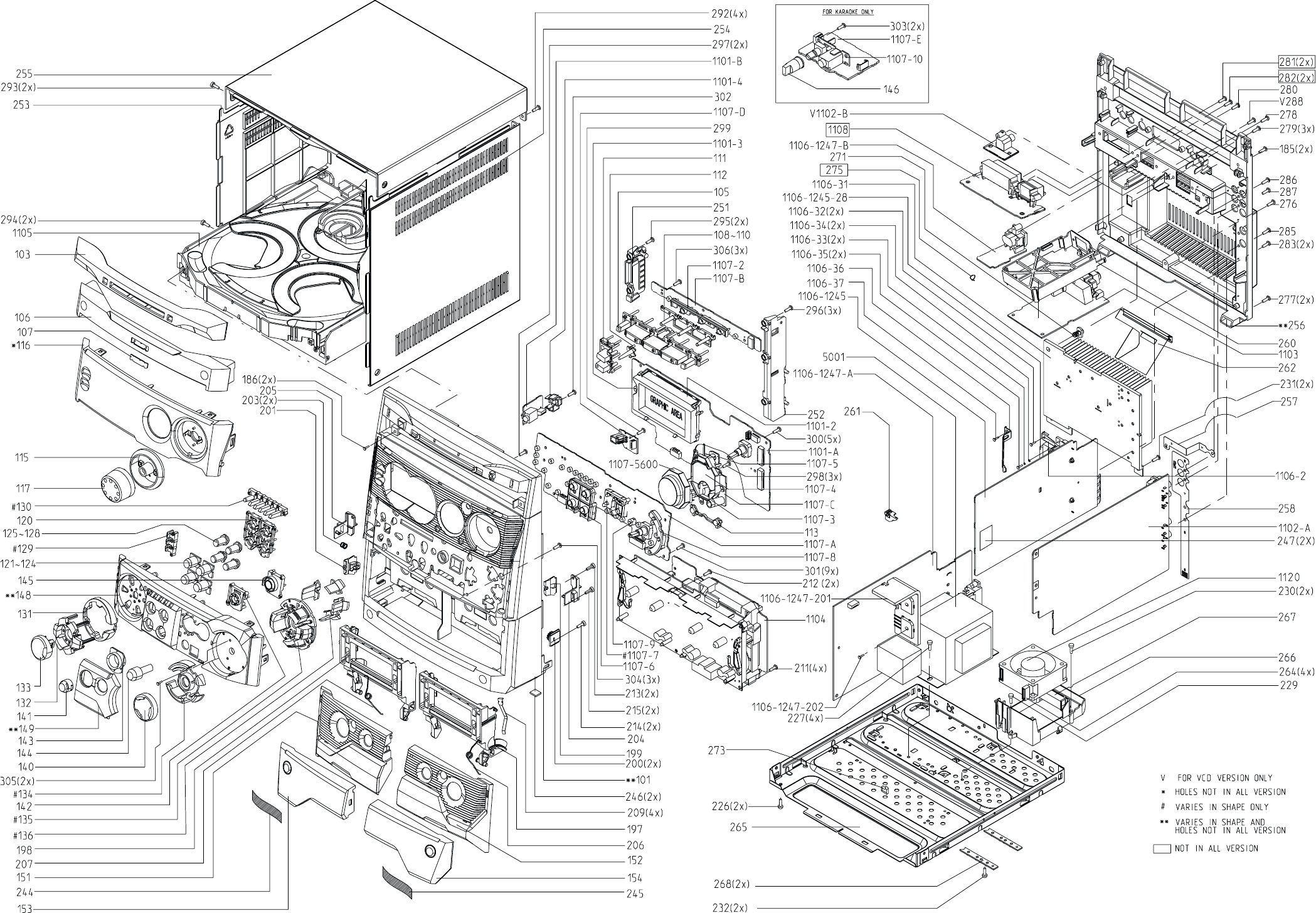

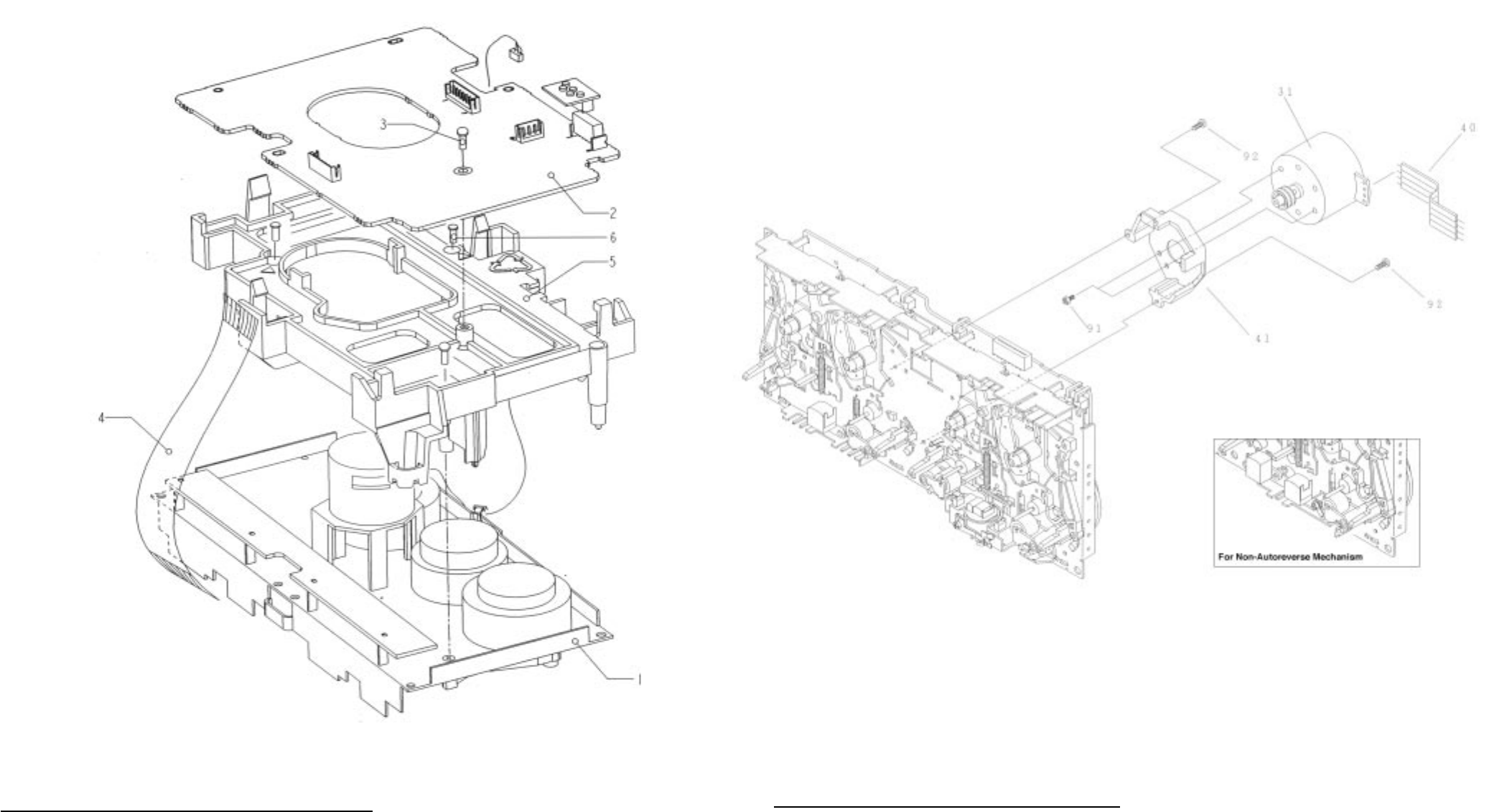

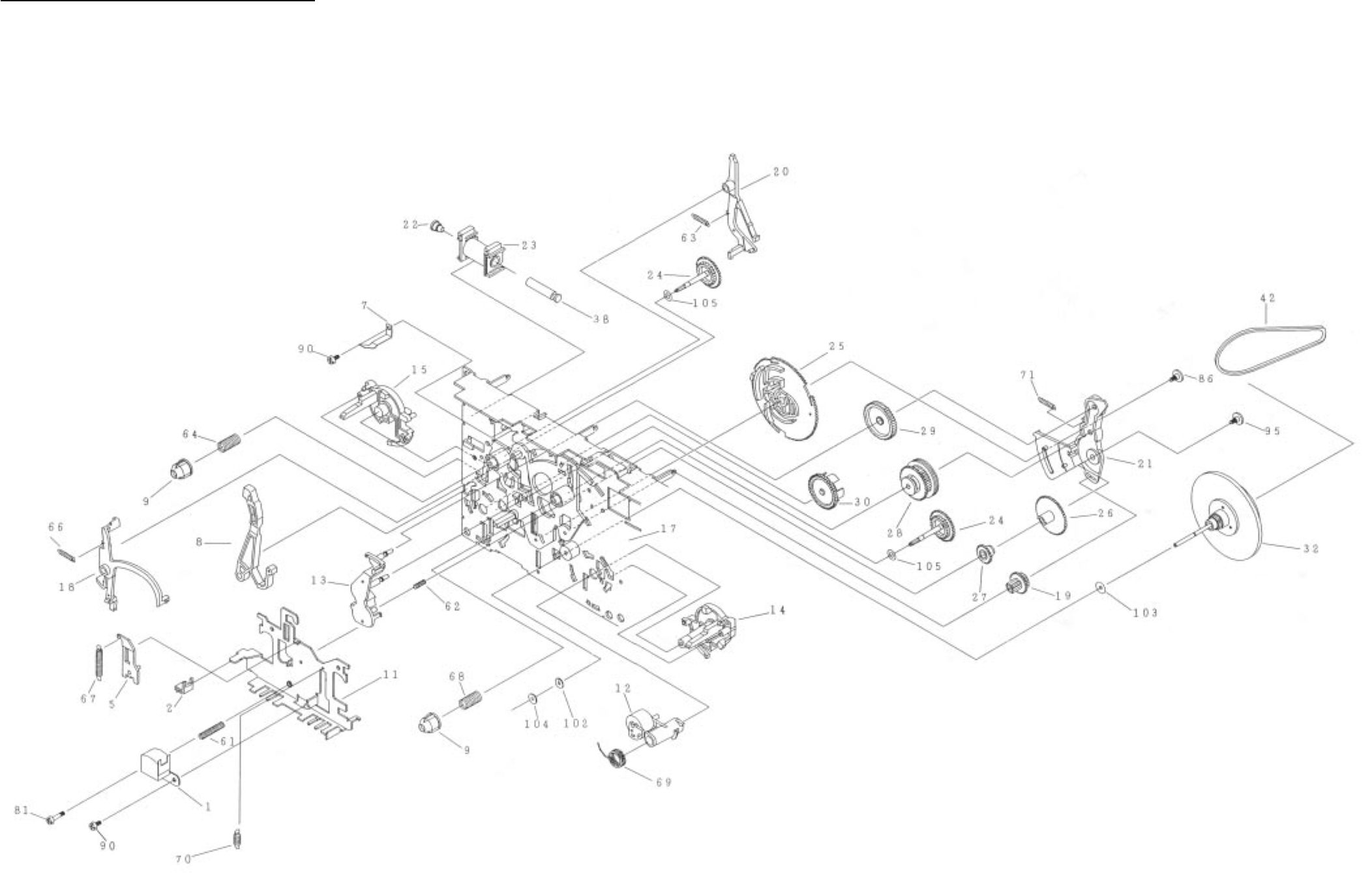

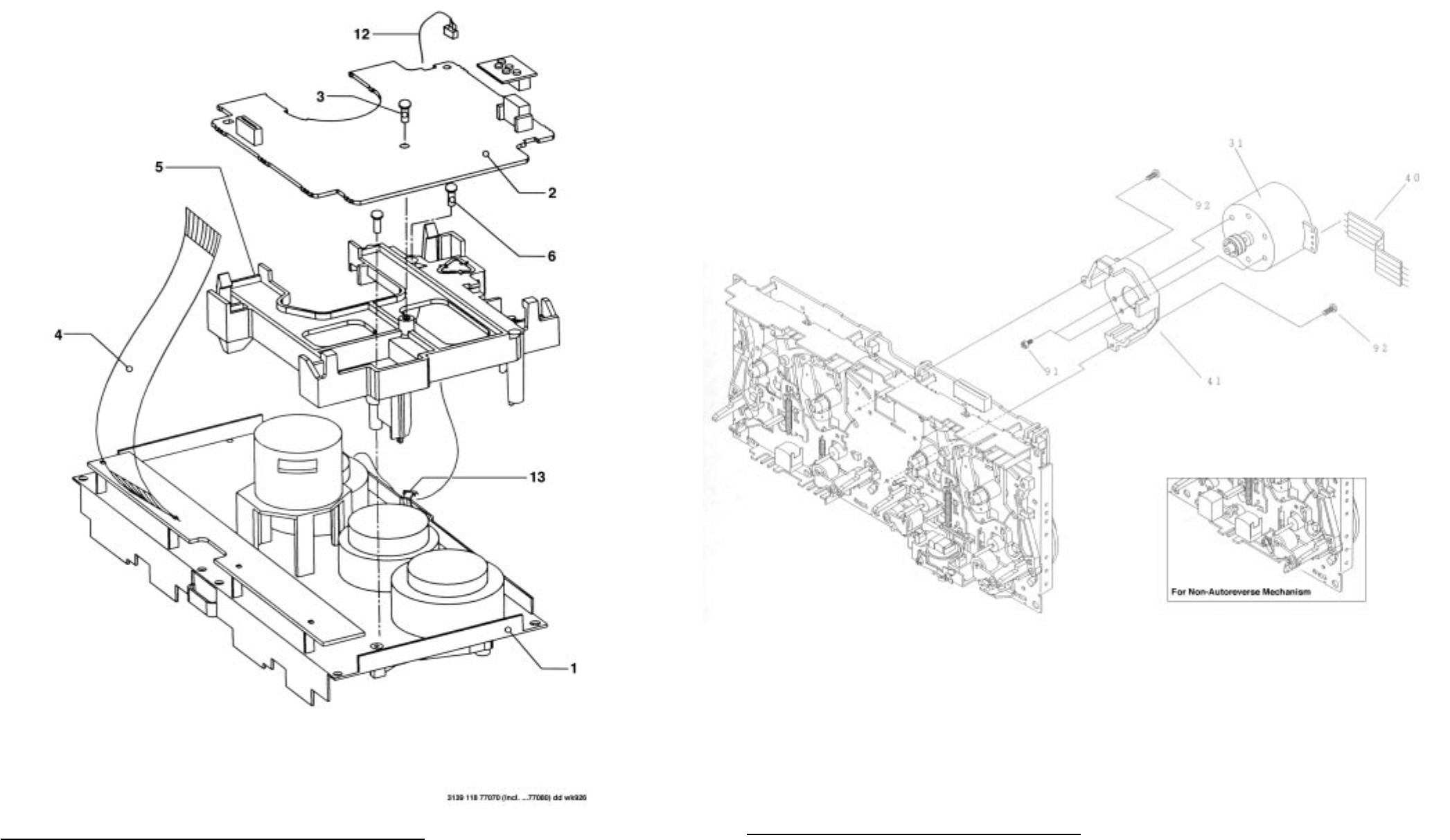

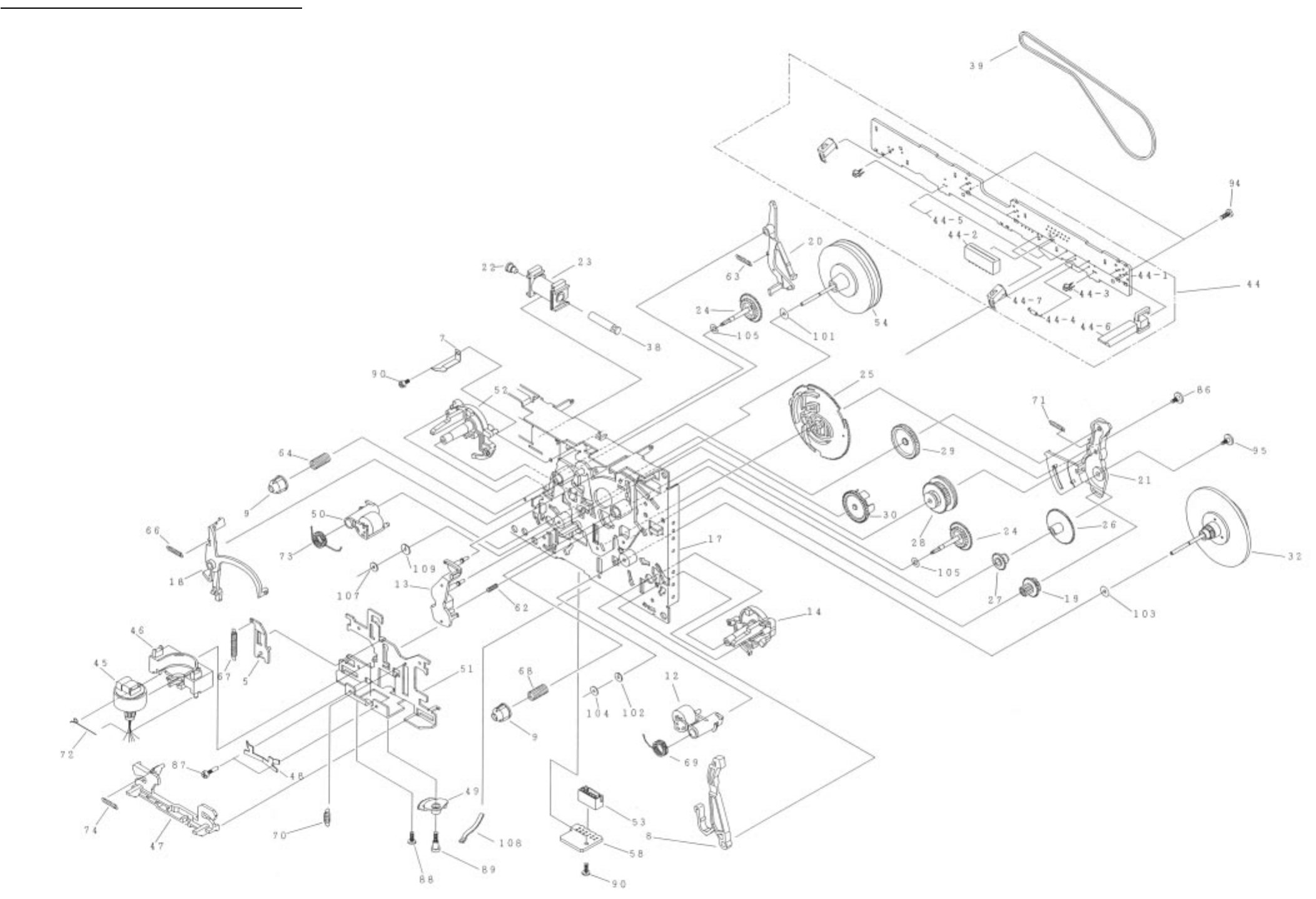

Set Mechanical Exploded view & parts list ................. 13
© Copyright 2002 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by BB 0202 Service Audio Printed in The Netherlands Subject to modification
Mini System
3139 785 30017
Version 1.0
HEADPHONE
BOARD
ETF7
BOARD
MAINS
BOARD
L/R AMP. & SUPPLY
BOARD
MAINS SOCKET
BOARD
TUNER
BOARD
KEY-CDC BOARD
FRONT
DISPLAY
BOARD
IR-EYE
BOARD
VU
METER
BOARD
FRONT CONTROL
BOARD
AF9
BOARD
CD
BOARD
1-2

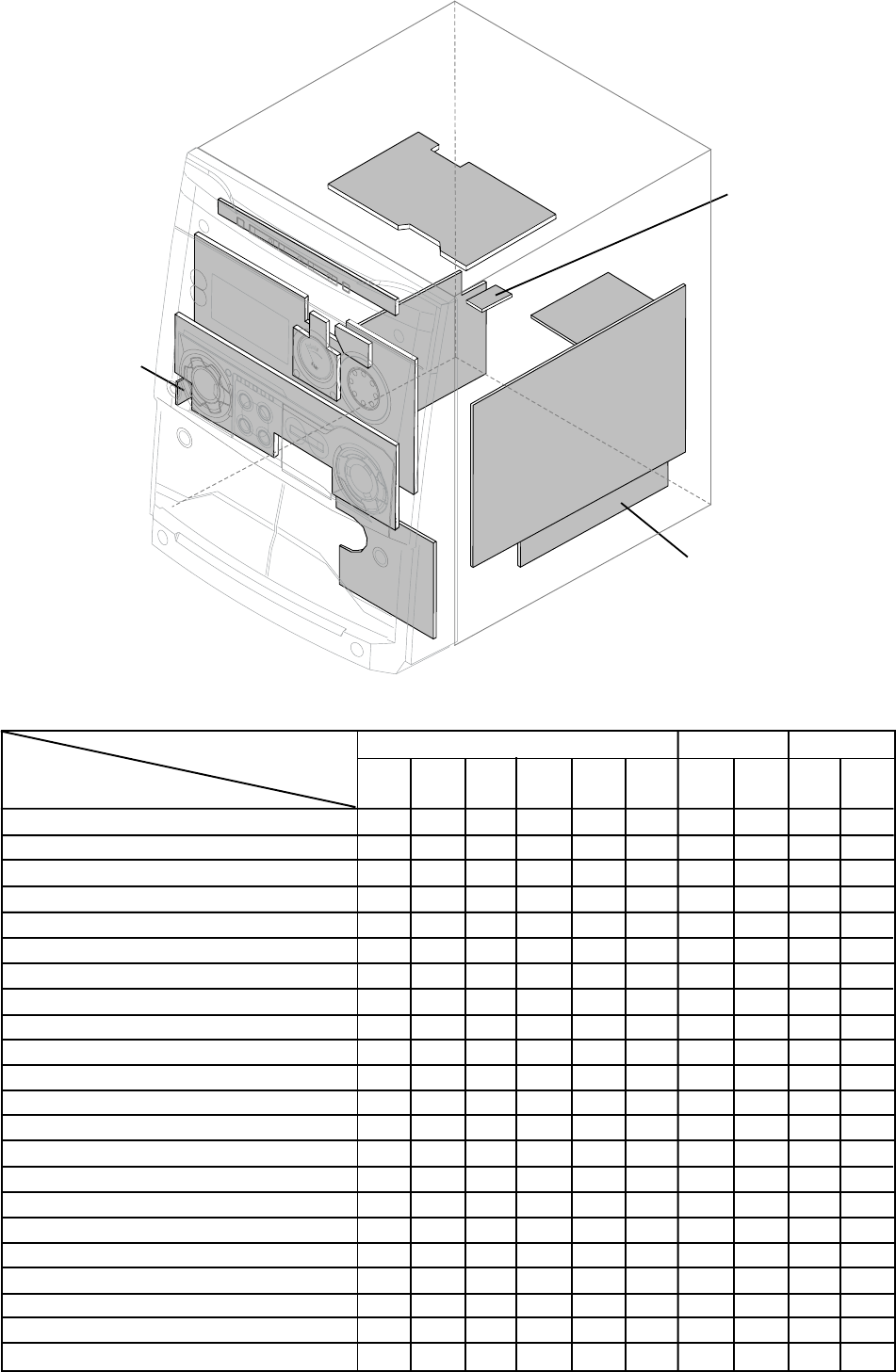

LOCATION OF PRINTED CIRCUIT BOARDS
/22 /34
Aux in /CDR in x x
Line Out x x
Surround Out
Subwoofer Out
Digital Out x x
Matrix Surround
CD Text
Dolby B x
RDS x x
News x x
Dolby Pro Logic (DPL)
Incredible Surround x x
Karaoke Features
Voltage Selector
ECO Power Standby (Clock Display Off) x x
ECO6 Tuner Board - Systems Non-Cenelec x
ECO6 Tuner Board - Systems Cenelec x
Center/Surround Channel
ETF7 ND Tape Module - Chapter 9 x
ETF7 DB Tape Module - Chapter 9A x
VERSION VARIATIONS:
Type /Versions: FW-C785
Features &
Board in used:
1-3
SPECIFICATIONS
GENERAL:
Mains voltage : 110-127V/220-240V Switchable for /21/21M
120V for /37
220V for /33
220-230V for /22/34
230-240V for /30
Mains frequency : 50/60Hz
Power consumption : < 1W at ECO Power Standby
: 25W at Standby (DEMO mode off)
: 175W at Active
Clock accuracy : < 4 seconds per day
Dimension centre unit : 265 x 310 x 390mm
TUNER:
FM
Tuning range : 87.5-108MHz
65.81-74MHz for /34 1)
Grid : 50kHz (& 30kHz for /34)
100kHz for /37
IF frequency : 10.7MHz ± 25kHz
Aerial input : 75Ω coaxial
300Ω click fit for /37
Sensitivity at 26dB S/N : < 7µV
Selectivity at 600kHz bandwidth : > 25dB
Image rejection : > 25dB
Distortion at RF=1mV, dev. 75kHz : < 3%
-3dB Limiting point : < 8µV
Crosstalk at RF=1mV, dev. 40kHz : > 18dB
MW
Tuning range : 531-1602kHz
530-1700kHz for /21/21M/37
Grid : 9kHz
10kHz for /21/21M/37
IF frequency : 450kHz ± 1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : < 4.0mV/M
Selectivity at 18kHz bandwidth : > 18dB
IF rejection : > 45dB
Image rejection : > 28dB
Distortion at RF=50mV, m=80% : < 5%
LW
Tuning range : 153-279kHz /22
Grid : 3kHz
IF frequency : 450kHz ± 1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : [< 6.0mV/M]
Selectivity at 18kHz bandwidth : [> 24dB]
IF rejection : [> 45dB]
Image rejection : [> 30dB]
Distortion at RF=50mV, m=80% : [< 5%]
AMPLIFIER:
Output power (6Ω, 1kHz, 10% THD)
L & R : 2 x 120W RMS
Frequency response within -3dB : 50Hz-20kHz
Incredible Surround : ON/OFF
WOOX : Level 1, 2, 3 & OFF
Digital Sound Control (DSC) : Digital, Rock, Pop,
Newage, Classic, Electric
Virtual Ambience Control (VAC) : Hall, Concert, Cinema,
Disco, Arcade, Cyber
Input sensitivity
Aux in : 500mV ± 3dB at 1kHz
CDR in : 1V ± 3dB at 1kHz
Output sensitivity
Line out (Left/Right) : 450mV ± 2dB at 22kΩ
Digital out : IEC 958, 44.1kHz
Headphone output at 32Ω: 700mV ± 1dB
CASSETTE RECORDER:
Number of track : 2 x 2 stereo
Tape speed : 4.76 cm/sec ± 2%
Wow and flutter : < 0.4% DIN
Fast-wind/Rewind time C60 : 130 sec
Bias system : 78kHz ± 10kHz
Rec/Pb frequency response within 8dB: 80Hz - 10kHz
Signal to Noise Ratio (Type I) : > 48dBA
COMPACT DISC:
Measurement done at output conn. of the CDC module.
Frequency response : < ±1.5dB for 20Hz-20kHz
Output Voltage (in Vrms) : 500mV ± 1dB unloaded
Signal to Noise Ratio (A-weighted) : > 80dBA
Distortion at 1kHz : < 0.02%
Channel Unbalance : < ±1dB
Channel Separation (1kHz) : >60dB
De-emphasis : 0 or 15/50 mS (Switched by subcode
on the disc)
[....] Values indicated are for "ECO6 Cenelec Board" only.
1) Default setting is OFF, to switch on please refer page 3-4.
1-4
LF Generator
e.g. PM5110
Recorder
Use Universal Test Cassette CrO2 SBC419 4822 397 30069
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
or Universal Test Cassette Fe SBC420 4822 397 30071
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
CD
Use Audio Signal Disc
(replaces test disc 3)
SBC429 4822 397 30184
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
S/N and distortion meter
e.g. Sound Technology ST1700B
Frame aerial
e.g. 7122 707 89001
Tuner AM (MW,LW)
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).
RF Generator
e.g. PM5326
Ri=50Ω
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
RF Generator
e.g. PM5326
S/N and distortion meter
e.g. Sound Technology ST1700B
Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).
Ri=50Ω
Tuner FM

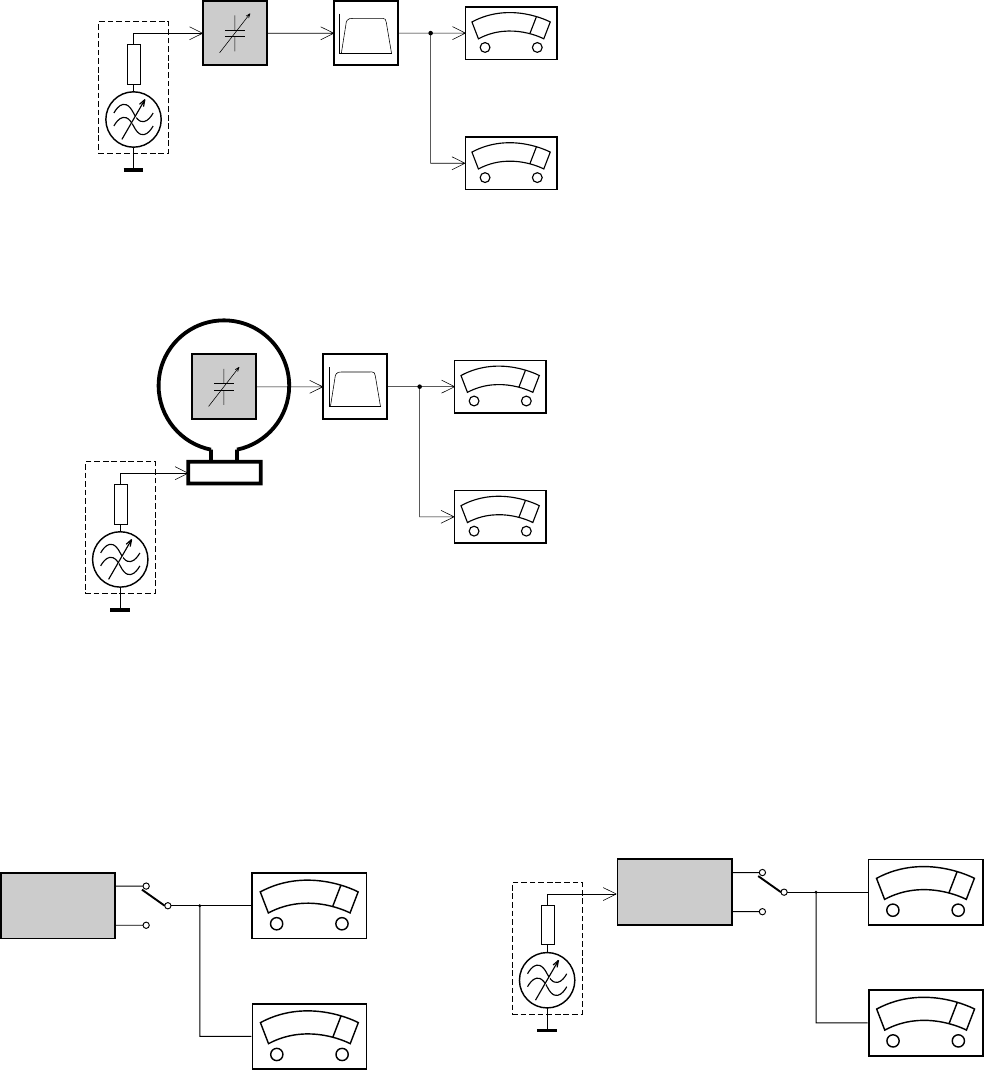

MEASUREMENT SETUP
SERVICE AIDS
Service Tools:
Universal Torx driver holder .................................. 4822 395 91019
Torx bit T10 150mm ............................................. 4822 395 50456
Torx driver set T6 - T20 ......................................... 4822 395 50145
Torx driver T10 extended ...................................... 4822 395 50423
Cassette:
SBC419 Test cassette CrO2 ................................. 4822 397 30069
SBC420 Test cassette Fe ..................................... 4822 397 30071
MTT150 Dolby level 200nWb/M ............................ 4822 397 30271
Compact Disc:
SBC426/426A Test disc 5 + 5A ............................ 4822 397 30096
SBC442 Audio Burn-in Test disc 1kHz ................. 4822 397 30155
SBC429 Audio Signals disc .................................. 4822 397 30184
Dolby Pro-logic Test Disc ...................................... 4822 395 10216
ESD Equipment:
Anti-static table mat - large 1200x650x1.25mm ... 4822 466 10953
Anti-static table mat - small 600x650x1.25mm ..... 4822 466 10958
Anti-static wristband .............................................. 4822 395 10223
Connector box (1MΩ) ............................................ 4822 320 11307
Extension cable
(to connect wristband to conn. box) .................. 4822 320 11305
Connecting cable
(to connect table mat to conn. box) .................. 4822 320 11306
Earth cable (to connect product to mat or box) .... 4822 320 11308
Complete kit ESD3
(combining all above products) ......................... 4822 320 10671
Wristband tester .................................................... 4822 344 13999
1-5

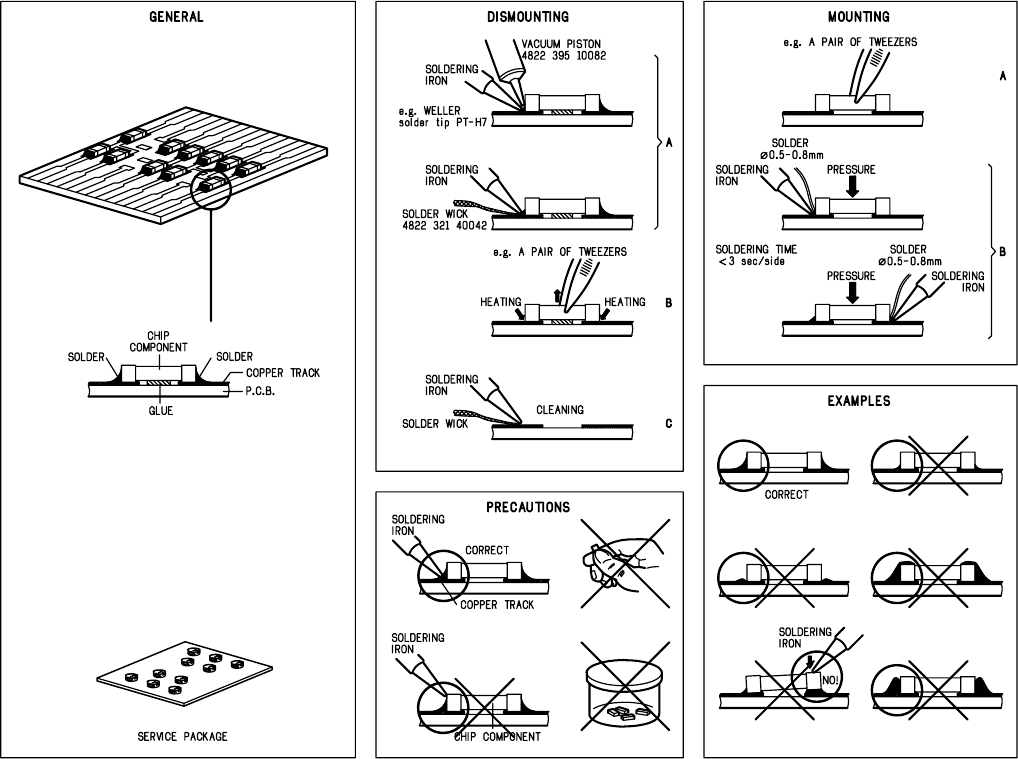

HANDLING CHIP COMPONENTS
GB
WARNING
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.
F
ATTENTION
Tous les IC et beaucoup d’autres
semi-conducteurs sont sensibles aux
décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est
prise à leur manipulation.
Lors de réparations, s’assurer de bien être relié
au même potentiel que la masse de l’appareil et
enfiler le bracelet serti d’une résistance de
sécurité.
Veiller à ce que les composants ainsi que les
outils que l’on utilise soient également à ce
potentiel.
ESD
D
WARNUNG
Alle ICs und viele andere Halbleiter sind
empfindlich gegenüber elektrostatischen
Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie, dass Sie im Reparaturfall über
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerätes.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.
NL
WAARSCHUWING
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
I
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevità potrebbe essere fortemente
ridatta in caso di non osservazione della più
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.
“Pour votre sécurité, ces documents
doivent être utilisés par des spécia-
listes agréés, seuls habilités à réparer
votre appareil en panne”.
GB
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used.
NL
Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde, worden toegepast.
F
Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden.
I
Le norme di sicurezza esigono che l’apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.
"After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to
earth ground to assure no shock hazard exist. The leakage current
must not exceed 0.5mA."
CLASS 1
LASER PRODUCT
3122 110 03420
GB
Warning !
Invisible laser radiation when open.
Avoid direct exposure to beam.
S
Varning !
Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.
SF
Varoitus !
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen!
DK Advarse !
Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsaettelse for stråling.
1-6
3. Lift up and out
1. Place screw driver
(flat side) between
the cassette cover
& cassette door
2. Twist screw driver
DISMANTLING INSTRUCTIONS
Dismantling of the Cassette Cover
1) Loosen 4 screws to remove the Cover Top (pos 255) of the
set.
2) Loosen 3 screws to remove the Panel Left (pos 253) and
3 screws to remove the Panel Right (pos 254) of the set.
3) Slide out the CDC Tray as shown in the diagram below with
the help of a flat head screw driver.
Cassette Cover
Remove Cassette Cover
Dismantling of the CDC Module and Front Panel Assembly
Remove CDC Module
4) Remove the Cover Tray CDC (pos 106) as indicated.
Front View CDC
Remove Cover Tray CDC
Dismantling of the CDC Module and Front Panel Assembly
Sliding out the CDC Tray
5) Loosen 2 screws A and 2 screws B to remove the CDC
Module (pos 1105) as indicated.
6) Remove 2 screws (pos 226) at the bottom to separate the
Front Panel Assembly from the Plate Bottom (pos 265).
2-1 2-1
2-2 2-2
Dismantling of the ETF Tape Module
1) Remove 6 screws G as indicated to loosen the ETF Tape
Module (pos 1104).
Dismantling of the Rear PortionDismantling of the Front Display Board and Front Control Board
1) Remove 1 screw C as indicated to loosen the Headphone
Board (pos 1101-B).
2) Remove 5 screws D as indicated to loosen the Front
Display Board (pos 1101-A).
3) Remove 9 screws E as indicated to loosen the Front
Control Board (pos 1107-A).
4) Remove 1 screw F as indicated to loosen the IR-Eye
Board (pos 1107-D).
5) Remove 3 screws N as indicated to loosen the VU Meter
Board (pos 1107-C).
1) The Knob Volume Gloss Black (pos 117) can be remove
by inserting a strong string into the slot and pull it out in
the direction as indicated. See picture 1.
2) The Knob Jog Rotary (pos 140) can be remove by
inserting a strong string into the slot and pull it out in the
direction as indicated. See picture 2.
Picture 1
Picture 2
Repair Hints
1) Remove 3 screws J and uncatch M1 as indicated to
loosen the AF Board (pos 1102-A).
2) Remove 3 screws K and uncatch M2 as indicated to
loosen the Tuner Board (pos 1103).
3) Remove 4 screws L as indicated to loosen the Panel
Rear (pos 256).
Remove AF Board
Remove VU Meter Board
Remove Front Display Board and Headphone Board
Remove Front Control Board and IR-Eye Board
2-3 2-3
Service position D
Service position A
Service position C
Repair Hints
3) During repair it is possible to disconnect the Tuner board
and CDC Module completely unless the fault is sus-
pected to be in that area. This will not affect the
performance of the rest of the set.

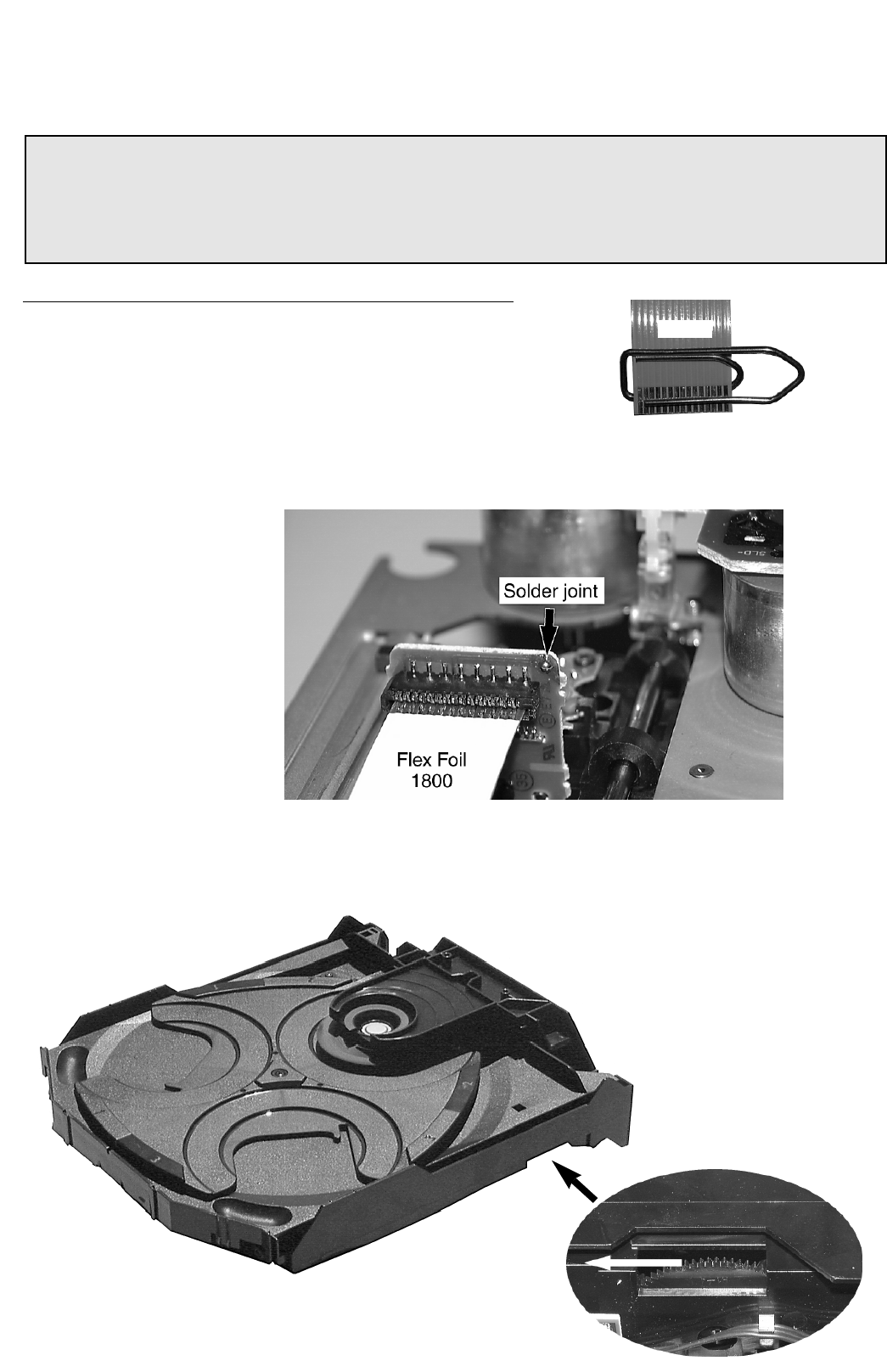

4) Due to the short flex cable wires in the ETF Module, the
pc board should be disconnected and reconnected on
the reverse side of the tape mechanism to keep it
electrically connected during repair. See picture 3.
Note: The flex cables are very fragile, care should be taken
not to damage them during repair. After repair, be
very sure that the flex cables are inserted properly
into the flex sockets before encasing, otherwise faults
may occurs.
Picture 3
Service position B
Table 2
Error code
E1000
E1001
E1002
E1003
E1005
E1006
E1007
E1008
E1020
E1070
E1071
E1079
Error Description
Focus Error
Triggered when the focus could not be found within a certain time when starting up the CD
or when the focus is lost for a certain time during play.
Radial Error
Triggered when the radial servo is off-track for a certain time during play.
Sledge In Error
The sledge did not reach its inner position (inner-switch is still close) before approximately
6 Sec. have passed by. Inner-switch or sledge motor problem.
Sledge Out Error
The sledge did not come out of its inner position (inner-switch is still open) before approximately
250 mSec. have passed by. Inner-switch or sledge motor problem.
Jump-offtrack error
Triggered in normal play when the jump destination could not be found within a certain time.
When this error occurred, software will try to recover by initiating the jump command again.
If it is recoverable, the disc will continue to play.
Subcode Error
Triggered when a new subcode was missing for a certain time during play.
PLL Error
The Phase Lock Loop could not lock within a certain time.
Turntable Motor Error
Generated when the CD could not reached 75% of speed during startup within a certain time.
Discmotor problem.
Focus Search Error
The focus point has not been found within a certain time.
The carousel switch is not open within certain time. This can happen when either the switch is
defective and closed all the time, or when the carousel is blocked when located exactly at a
disc position.
The carousel position switch did not close within a certain time. This can happen when the
switch is defective and never closes electrically, or when the carousel is blocked in between
two disc positions. The time-out is approximately 5 Sec.
The drawer could not enter the inside position is opening again. This can be caused because
the drawer is blocked by something and cannot go fully inside, or the drawer switch is defective
and does not close.
STANDBY-ON
Button pressed?
Y
N
Set is in Service PLAY Mode.
The Service Play Mode is intended to
detect and identify the failures in the CD Mode.
In this mode the electronics will still function
even when an error is detected so that
repair activities can be carried out.
SERVICE
PLAY MODE
In case of failures, error
codes according to Table 2
will be displayed.
Various
other Tests
Activated with ACTION
TEST
QEEPROM FORMAT
TEST Load default data. Display shows "NEW" for 1 second.
Caution!
All presets from the customer will be lost!!
Disconnect
mains cord
LEAVE SERVICE
TESTPROGRAM
R
9 to Exit
EEPROM TEST A test pattern will be sent to the EEPROM.
"PASS" is displayed if the uProcessor read back the
test pattern correctly, otherwise "FAIL" will be displayed.
Rotary Volume Knob
or
Jog Shuttle Knob
ROTARY
ENCODER TEST Display shows value for 2 seconds.
Values increases or decreases in steps of 1 until 0 (Min.)
or 40 (Max.) is reached.
DSC
DEMO TOGGLE Pressing this button will toggle between DEMO ON and
DEMO OFF. The DEMO status will scroll once across
the Display.
O
Button pressed?
Y
Y
Y
N
N
N
O
Button pressed?
9
Button pressed?
Display shows
12M
Output at (Front Display Board)
pin 19 of uP = 2,929.6875Hz
Display shows
32K
Output at (Front Display Board)
pin 19 of uP = 2048Hz
QUARTZ
TEST
TUNER
Button pressed?
Disconnect
Mains cord ?
Y
N
N
Y
Display Tuner Version
"ccc"
Service frequencies are
copied to the RAM (see Table 1)
Tuner works normally except:
PROGRAM button
Service Mode left
TUNER
TEST
TUNER
Button pressed?
N
PRESET
1
2
3
4
5
6
7
8
9
10
11
Europe
"EUR"
87.5MHz
108MHz
531kHz
1602kHz
558kHz
1494kHz
153kHz
279kHz
198kHz
98MHz
87.5MHz
East Eur.
"EAS"
87.5MHz
108MHz
531kHz
1602kHz
558kHz
1494kHz
87.5MHz
87.5MHz
87.5MHz
87.5MHz
98MHz
USA
"USA"
87.5MHz
108MHz
530kHz
1700kHz
560kHz
1500kHz
98MHz
87.5MHz
87.5MHz
87.5MHz
87.5MHz
Oversea
"OSE"
87.5MHz
108MHz
531/530kHz*
1602/1700kHz*
558/560kHz*
1494/1500kHz*
87.5/98MHz*
87.5MHz
87.5MHz
87.5MHz
98/87.5MHz*
Table 1
East Eur. Extended-band
"EAS"
65.81MHz
108MHz
74MHz
87.5MHz
531kHz
1602kHz
558kHz
1494kHz
98MHz
70.01MHz
65.81MHz
Note: * Depending on the selected grid frequency (9 or 10kHz)
By holding the TUNER and R buttons depressed while switching on the Mains supply, one
of the undermentioned features will be activated:
- the tuning grid frequency is toggled between 9kHz and 10kHz for the Oversea (/21) version.
- the extended FM1 (65.81MHz - 74MHz) is toggled on and off for East Eur. (/34) version.
Y
N
Y
N
Y
N
2
Button pressed?
2
Button pressed?
9
Button pressed?
DISPLAY
TEST
Display shows Figure 1 and
switch all LEDs on (except ECO
POWER & **VU Volume LEDs),
and full VU deflection.
Display shows Figure 2
and switch alternate LEDs on
(see Table 3),
and partial VU deflection.
Figure 1
Figure 2
LEDs
DISC 1
DISC 3
TAPE
TUNER
CENTRE
SURROUND LEFT
STEREO RIGHT
VAC
DBB
VU BACK LIGHT
**VU VOLUME
** Only applicable for set with VU Volume LED.
FW-C500 , FW-C550
FW-C555
On
On
On
On
On
On
On
On
FW-C700 , FW-C720
FW-C780 , FW-C785
FW-C788 , FW-C798
On
On
On
On
On
On
On
FW-P750
On
On
On
On
On
On
On
On
On
On
On
Table 3
To start service test program
hold ™ & Aux
depressed while
plugging in the mains cord
Display shows the
ROM version
"S-Vyy"
(Main menu)
S refers to Service Mode
V refers to Version
yy refers to Software version number of the uProcessor
(counting up from 01 to 99)
SERVICE TEST PROGRAM
Mini2001/Mini2002 FW-C5xx/7xx Service Test Program (dd wk0151)
3-1 3-1
From other
CDC
Mute1
A
AD
REG.
CCT
CCT
CCT
LOW_PW_SPLY
Proc.
Mute
SSL
A
VREF
-VKK
A
A
Mute_SW_FR
From other
Chan.
Chan.
A
250mV
500mV
76dBA
16dB
1.90V
67dBA
3dB
A
A
A
Mute_SW
2.1V
AUX 500mV
CDR 1V
75 ohm
Vpp 0.5V
-9V
+5V
A
REG. +5V6
A
775mV
Signal
S/N AT 500mW
HEADROOM (1% THD) WRT TO LEVEL AT MAX VOL
500mV
SSL
SA_OUT
DPL
DPL
D
Mute_SW_FR
H/P Amp
2.50V
85dBA
3dB
-Vkk
M
D
REG.
+12V_A
-CMOS
125mV
26mV
125mV
-CMOS
SUBWOOFER
CCT A
A
A
MIC
A
AUX
Line Out
LEVELS AT MAX VOL
COAX1 (FROM CDC)
DIG
D
FIS or
D
+9V1
A
-8.5 dB
A
IS
Interface
Audio
Mute
(Blue Strip)
(wOOx)
(BassTreble)
NOTE :
MAIN SIGNAL PATH
MEASUREMENTS ARE IN AUX MODE :
XX mV
YY dBA
ZZ dB
OUT
SIS Filter
TAPE
650mV
78dBA
3.2dB
1.25V
86dBA
3.5dBA
A
A
M
Attn
Mute2
-Vkk
TUNER
S/W OUT H/P
A
A
DIG
DIG
CON
DIG
A
H/P
DPL/
Block_Diagram (3139 119 33780) dd wk0138
4-1 4-1
SET BLOCK DIAGRAM
+11V_A
Power Booster Module
Bit1
#1300
#1301
*1204
1705
CTR
1
1601
TU_STEREO
TU_CLK
TP_SH_DATA
TP_SH_STR
GND_D
A1
or
1203 1205
( For C5xx & P750 )
or
( For C5xx & C7xx only )
( For P750 only )
AF10 for Mini 2002 Power Booster Model only
1603 1
1507 PROVISIONP
1702
GND_M
+11V_M
GND_A
+11V_A
+D2
F1
VCD_ON
23
Power Booster Out
1550
Power Booster In
5
1
L_PWR_S
F1
F2
CVBS
F2
DSA_ACK
1
SURR
Aux Led
1501
AMP_RIGHT
TU_DATA
GND__D
NTC
PWR_DN
-VKK
DPL_STR
+11V_A
1
B1
1
HR 06p/340/06p OE
MOTOR
Version only )
1201
8906
GND_D
13
1407
FFC AD 14p 220
( 1106 )
16
1525
MIC_DET
LOW_PWR_SPLY
VU Meter
FFC AD 12p 120 (For C7xx High pwr only)
+5V6
VUmeter
1
11
MATRIX SURR
1803
FFC BD 19p 180
or
or
( Only for FW-C720 )
( For C780/33 & VCD
1204 1202
GND_D
F1
1
ETF7
AF9
SILD
TP_REC_RIGHT
COAX1
COAX2
GND_D_VCD
DSA_STR
SHR_DATA
FFC AD 5p 180
NTC
( For VCD only )
*HR 08p/220/08p HR
( For C5xx & C7xx )
( For VCD only )
CONTROL/KEYS
GND_D_VCD
DISPLAY/u-P
FRONT
+11V
1404 1402
Bit0
SW_INFO
1
DPL_RIGHT
DSA_DATA
DSA_ACK
1
1
112
JOG A
5GND_D
1
14
1
uP_CLK
1
SILD
HP_DET
FFC AD 06p 140
1502
ECO6
TU_DATA
TU_ENAB
FRONT
uP_CLK
1
GND-B
Tape Led
FFC BD 04p 400
1
1506
1531
+11V_A
( For C7xx only )
TP_REC_RIGHT
GND_A_TP
1
EH SIDE ENTRY
EH TOP ENTRY
GND_D
+5V6
CVBS
Cdc3Lit
wOOx A
Key_Con
GND_D
SRDT
FFC AD 10p 120 (For C 5xx, 7xx Low pwr)
( For C 5xx & 7xx )
FFC AD 12p 220
PWR_DN
*FFC AD 13p 220
CD_Right
1503
TP_RIGHT
-CMOS
GND_D_CD
CDC KEYS
FFC TOP ENTRY
LEGEND
FFC AD 08p 120
GND_C
GND_S
1202
CD_SH_CLK
SS_LEFT
FFC AD 19p 180
IR Receiver
1408
HR 3p/100/3p OE
HR 06p/400/06p HR
4
4
DSA_ACK
GND_AA
AMP_LEFT
DPL_DATA
SW_INFO
+11V_M
HR 09p/340/09p OE
and
8909
9
GND_A
CD_SH_CLK
CD_SH_STR
CD_Left
CD_PORE
F2
CD Led
GND_D
+5V6_CON
GND
+5V6
-Vkk
FFC AD 12p 120 (For P750 only)
15211522 1523
TP_SH_CLK
MIC_DET
( 1106 )
( 1103 )
1
1403 1401 1405
DIGITAL OUT
AUX IN
L_PWR_CTRL
+11V_M
GND_M
1
Cdc1Lit
uP_CLK
GND_D_CDTEXT
F1
F2
( For P750 only )
+5V_CD
GND_A
1603
1520
1542 1541
4
1
12
1405
DPL_DATA
+5V6_Con
FFC BD 04p 180
IS Led / LedShData
FFC AD 11p 220
CD_SH_STR
1305
HR 04p/280/04p OE
*1200
HR 04p/340/04p HR
1509
HR 2P/280/2P
DQSY
A2
+D
GND
+D2
DQSY
GND_D
DQSY
3CDC-LC / 3CDC-L2C
MPEG01B
For 100 W version
SICL
HR 02p/180/02p HR
1503
FFC BD 15p 180
1801
Key2
I2CCLOCK
RC5
JOG B
1
+11V_A
Max / wOOx / LedShClk
CD_PORE
1401
20
1402
FFC AD 11p 180
or
FFC AD 15p 180
1406
FFC AD 07p 180
1702
LINE OUT
COAX
(CVBS)
1
C/S AMP
AMP_CS_DC
AMP_CS_DC
Key1
8
GND_M
MIC
7
7
8
4
TP_ADC1
7
1
+D
CLIPPING
GND_D
GND_D_CD
+11V_M
DBB / LedShStr
GND_D
VAC Led
DSC Led
wOOx B
GND-B
DSA_STR
SHR_DATA
DSA_DATA
NTC
DPL_DATA
GND_D_DPL
L_PWR_CTRL
1
GND_A
GND_D_CDTEXT
11
CD_SH_DATA
1701
SICL
1
8
PWR_DN
GND_D
GND_B
A2
DPL_CLK
GND_D
1
GND_A
SUBWOOFER
CD_Left
GND_D_CD
CD_Right
+5V_CD
DSA_STR
SHR_DATA
DSA_DATA
GND_D
B2
GND_D_COAX
SHIELD
GND_D_I2C
I2C_DATA
1
DPL
AMP_ON
19
15 +11V_A
11
SICL
CD_SH_DATA
SILD
GND_D_VCD
LS
GND
+11V_A
DPL_STR
DPL_VOL_CLK
HP_RIGHT
DPL_VOL_CLK
TU_STEREO GND_M
GND_A_CD
GND_D
8
GND_M
+11V_M
SW_INFO
+11V_A
1
CD-CHANGER
DVD_ON
14
SRDT
TP_ADC2
+FAN
TAPE DD
CLIPPING
LOW_PWR_CTRL
SA_IN
CD_SH_CLK
15
LOW_PWR_CTRL
+11V_M
TP_REC_LEFT
DPL_RIGHT
B2
12511250
1259/60/61 (11p/12p/13p )
SPARE
VCD OUT
TUNER
TU_STEREO
+5V6
TU_DATA
TU_ENAB
A1
B1
GND_D
19
23
DVD_ON
5V_VCD
TU_LEFT
GND_A_TU
1
NTC
MIC_DET
+11V_A
MIC
FFC AD 07p 220
TU_RIGHT
CD_SH_DATA
MAINS BOARD
L/R+SUP/POWER-BOARD
DPL_CLK
GND_D
SS_RIGHT
1201
GND_D_CDTEXT
*1205
23
DIPMATE
( 1101 )
TU_CLK
TU_CLK
TU_ENAB
GND_A_TU
DPL_LEFT
SS_LEFT
GND_A
PWR_DN
COAX1
1206
TP_SH_DATA
TP_SH_STR
1
AMP_CS_DC
AMP_ON
1407
1405
1411
CD_SH_STR
1600 (12p)
GND_D
B1
FRONT
FRONT
TP_ADC1
1321
GND_A
GND_A_CD
COAX2
HP_DET H/P
TP_LEFT
FRONT
FRONT
HEADPHONE
MIC-AMP.
TU_LEFT
GND_A_TU
TU_RIGHT
MIC
1
HP_DET
-CMOS
SS_RIGHT
GND_A_TP
SHIELD
GND_D_COAX
SRDT
14
TP_REC_LEFT
DPL_CLK
+KARA
VCD_IN1
AGND
VCD_IN2
MIC_DET
GND_D
VCD_IN2
MIC_DET
1
1330
1203
FFC AD 07p 340
( 1107 )
FFC SIDE ENTRY
( 1107 )
( 1107 )
( 1101 )
( 1102 )
( 1102 )
1691 1801
TP_SH_CLK
FAN
1700
11
1
GND_D
AMP_ON
TP_LEFT
A1
1406
GND_D
1
( 1107 ) ( 1104 )
1706
HP_LEFT
VCD GND ISOLATOR
1120
1300
1701
HP_LEFT
1504
1914
1
1508
HR 3P/280/3P
1701 1700
AF9/AF10
TP_ADC2
+F
TP_RIGHT
ECHO I/P
1
MIC_DET
MPEG GND
ECHO I/P
1
A2
B2
1
A2
B2
1911
MIC_DET
+KARA
VCD_IN1
AGND
L_PWR_CTRL
FFC AD 08p 220
1501
( 1108 )
*1306 (13p)
*1310 (8p)
+5V6
( 1107 )
1
LS SL/SR
1
1800
1840 1602
1912
AMP_RIGHT
1603 (10p)
1403
1
19p
OUT
1402 1404
1412
B1
GND_D
20
1913
1902
SMF 1P/090/1P STO-8
1901
SMF 1P/180/1P SRA
STO-5 1P/280/1P STO-8
1510
Cdc2Lit
5V_VCD
1703
1805
+F
1602
LS SL/SRLS C
NTC
LOW_PWR_SPLY
10
1404
1
MPEG GND
1850
1304
HR 04p/280/04p OE
1314
P
-VKK
AMP_MUTE
Tuner Led
1
SMF 1P/180/1P STO-8
GND_A
F2
1-VKK
CLIP
HR 07p/220/07p HR
( 1108 )
1315
( 1106 )
*1308
1809
CBLE STO-8 1P/280/1P OE
+11V_A
1
*1302
*1304 *1209
*1203
*1201
* For POWER 2001 Module (30-70W Version) Only.
# For VCD Only.
Note : Some values may varies, see respective parts list for correct value.
*1307
1601 (8p) 1
GND_A
HP_RIGHT
1409
1400
GND_M
DPL_LEFT
GND_A
GND_D_CD AMP_CS_DC
-VKK
PWR_DN
1
GND
1403
FFC AD 06p 180
F1
L_PWR_S
1408
A1
VCD_ON/CDR_ON
GND
48
1252
1262/3 (7p/8p)
( 1105 )
(1109)
1851
DPL_VOL_CLK
GND_D_CD
14
AMP_LEFT
GND_AA
For Mini 2002 FW-C798, FW-V795 Only
1504
STO-5 1P/280/1P STO-8
1903
Wiring_Diagram (3139 119 33780) dd wk0138
4-2
SET WIRING DIAGRAM
4-2
FRONT CONTROL BOARD
TABLE OF CONTENTS
Front Control Board - Component & Chip layout ............5-2
Front Control Board - Circuit diagram .............................5-3
IR-Eye Part - Layout & Circuit diagram ........................... 5-3
Key-CDC Part - Layout & Circuit diagram....................... 5-4
VU Meter Part - Layout & Circuit diagram....................... 5-4
Karaoke Part - Layout & Circuit diagram ........................ 5-5
Electrical parts list............................................................ 5-5
5-1 5-1
REMARKS :

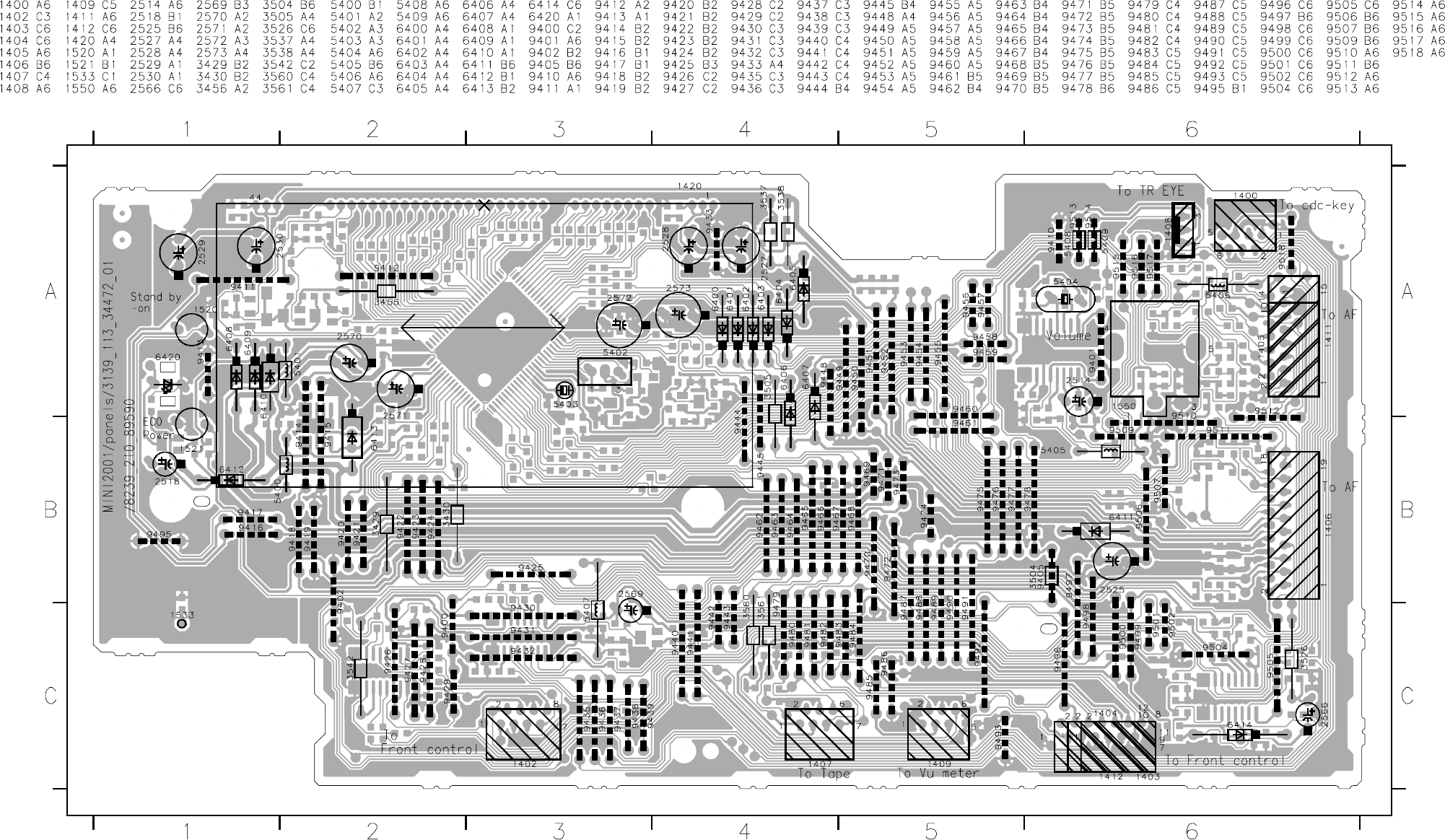

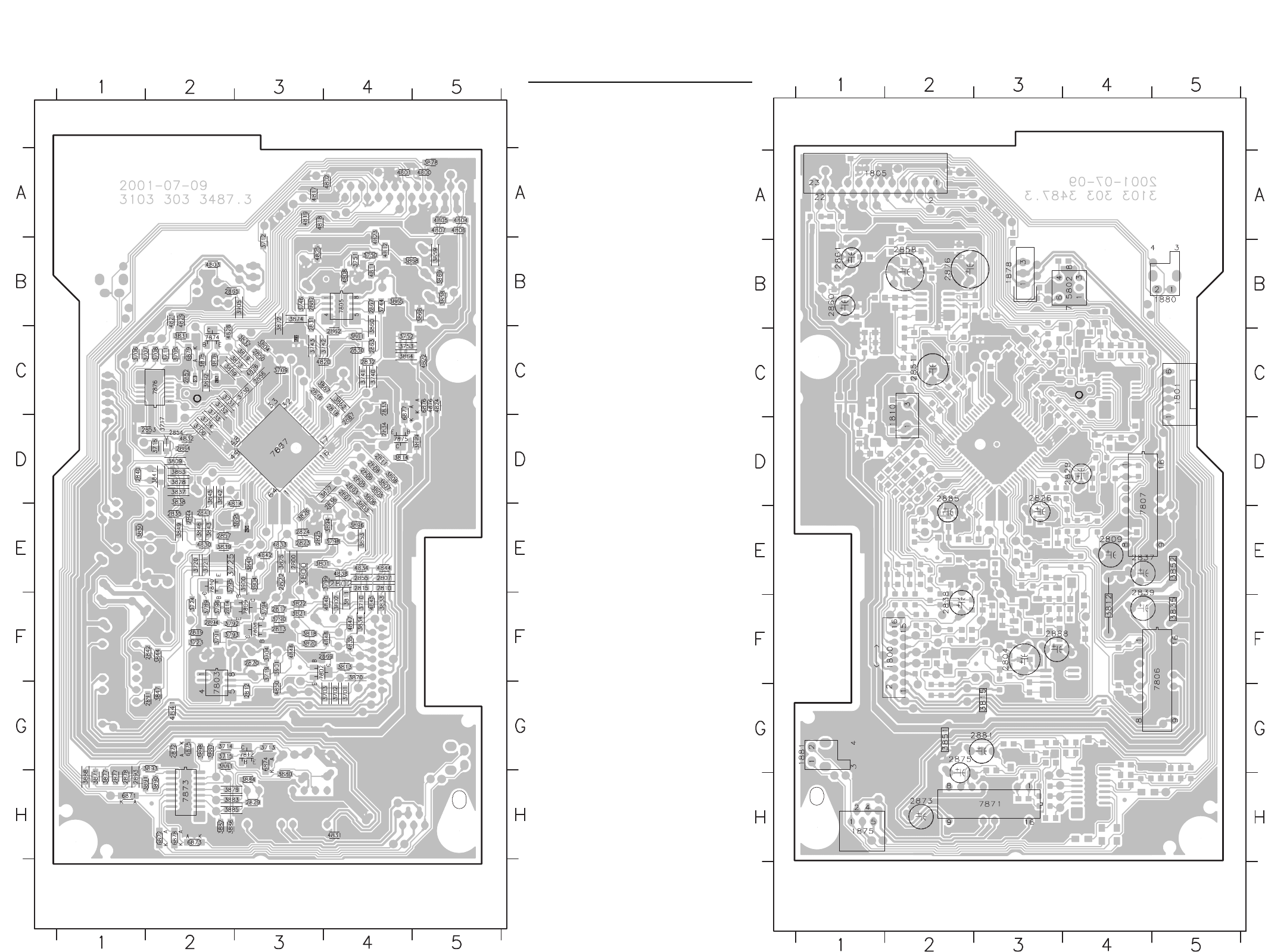

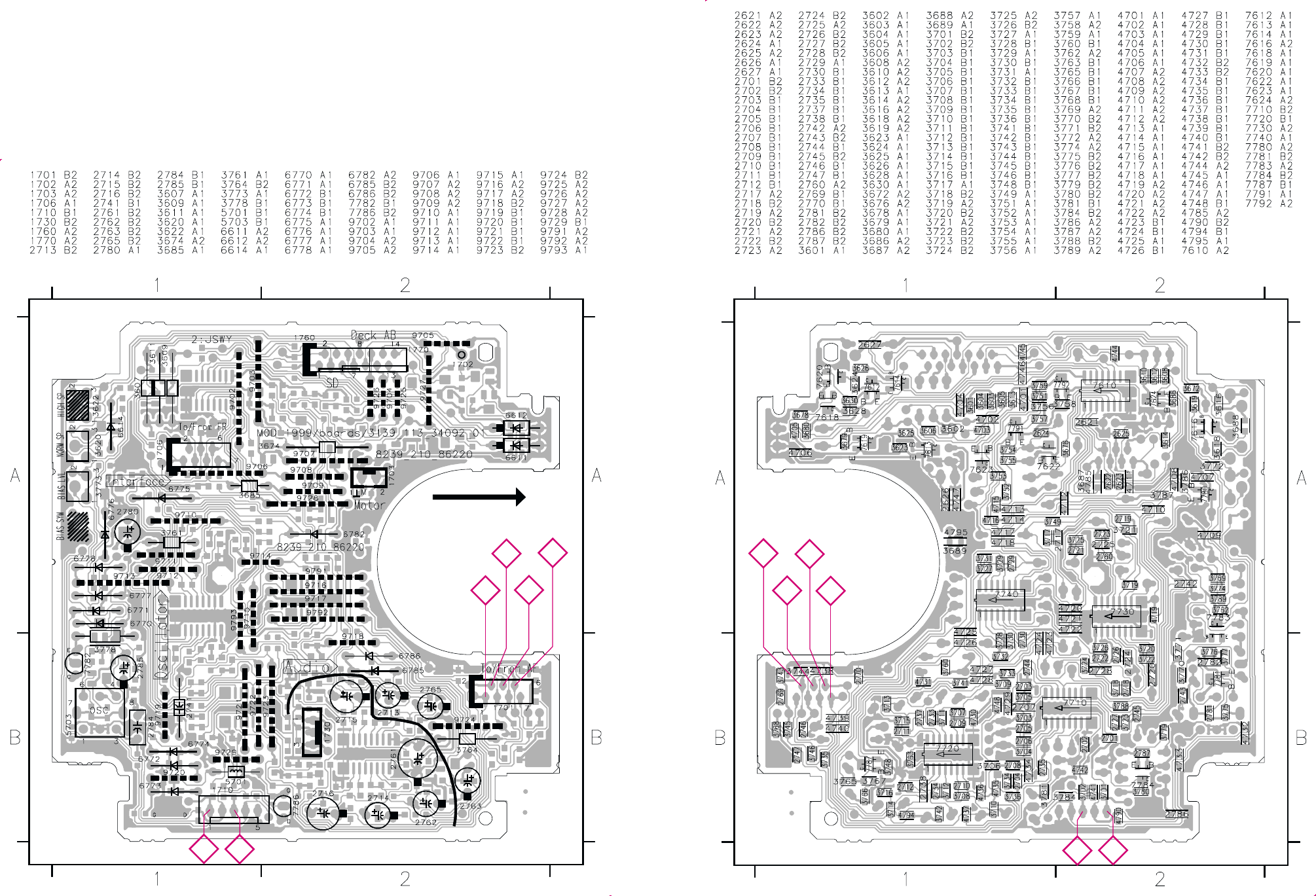

FRONT CONTROL BOARD - COMPONENT LAYOUT
FRONT CONTROL BOARD - CHIP LAYOUT
5-2 5-2
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116
5-3

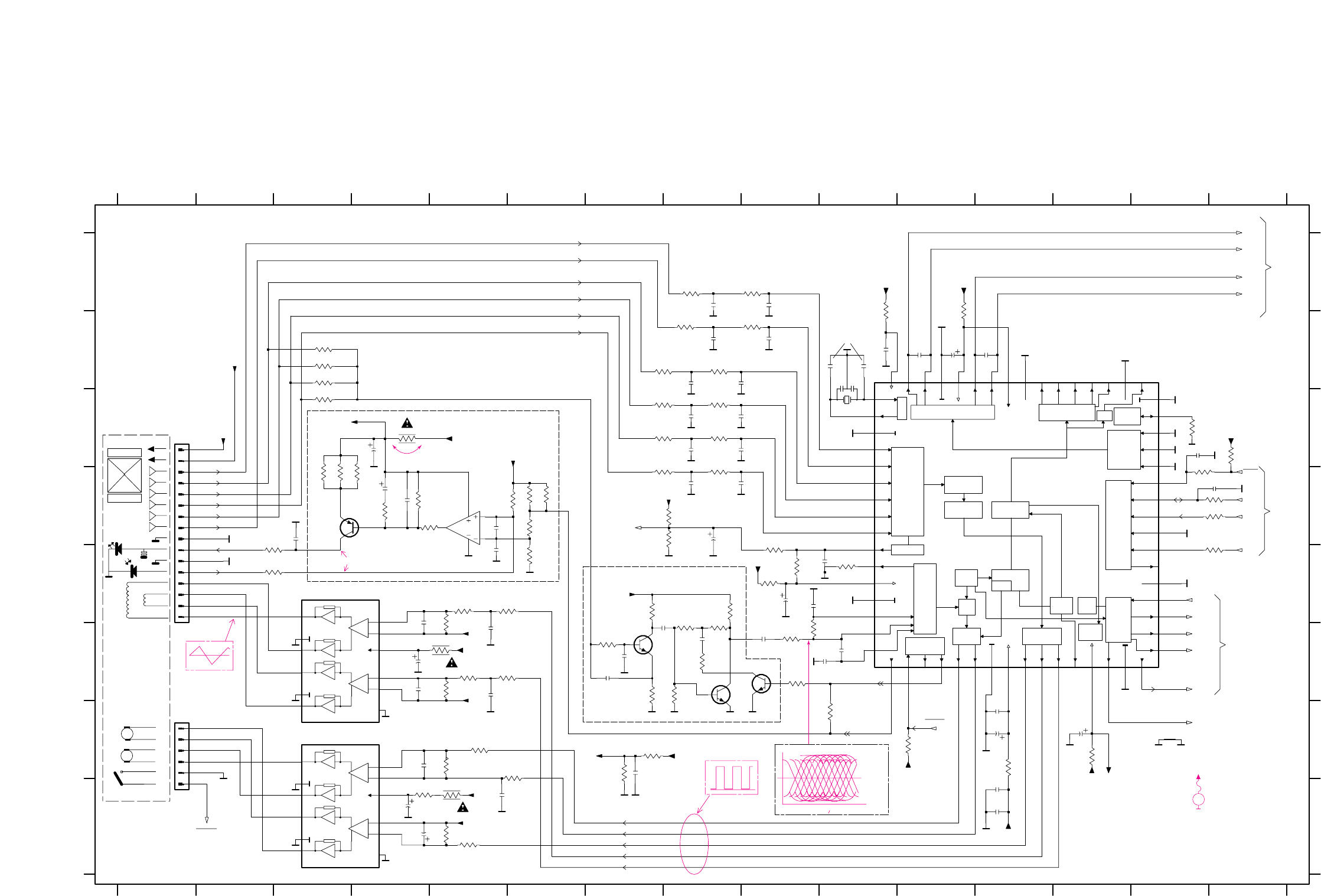

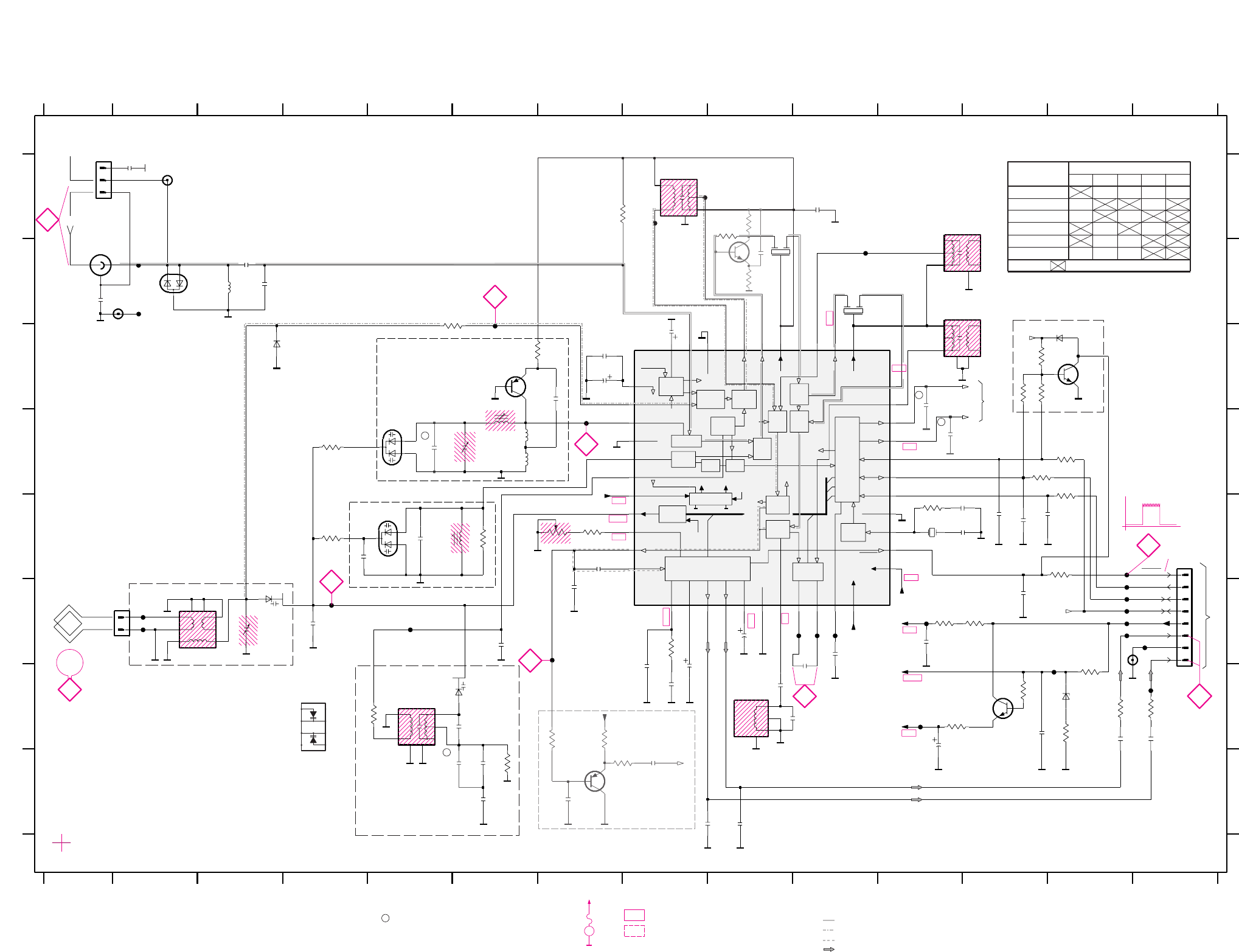

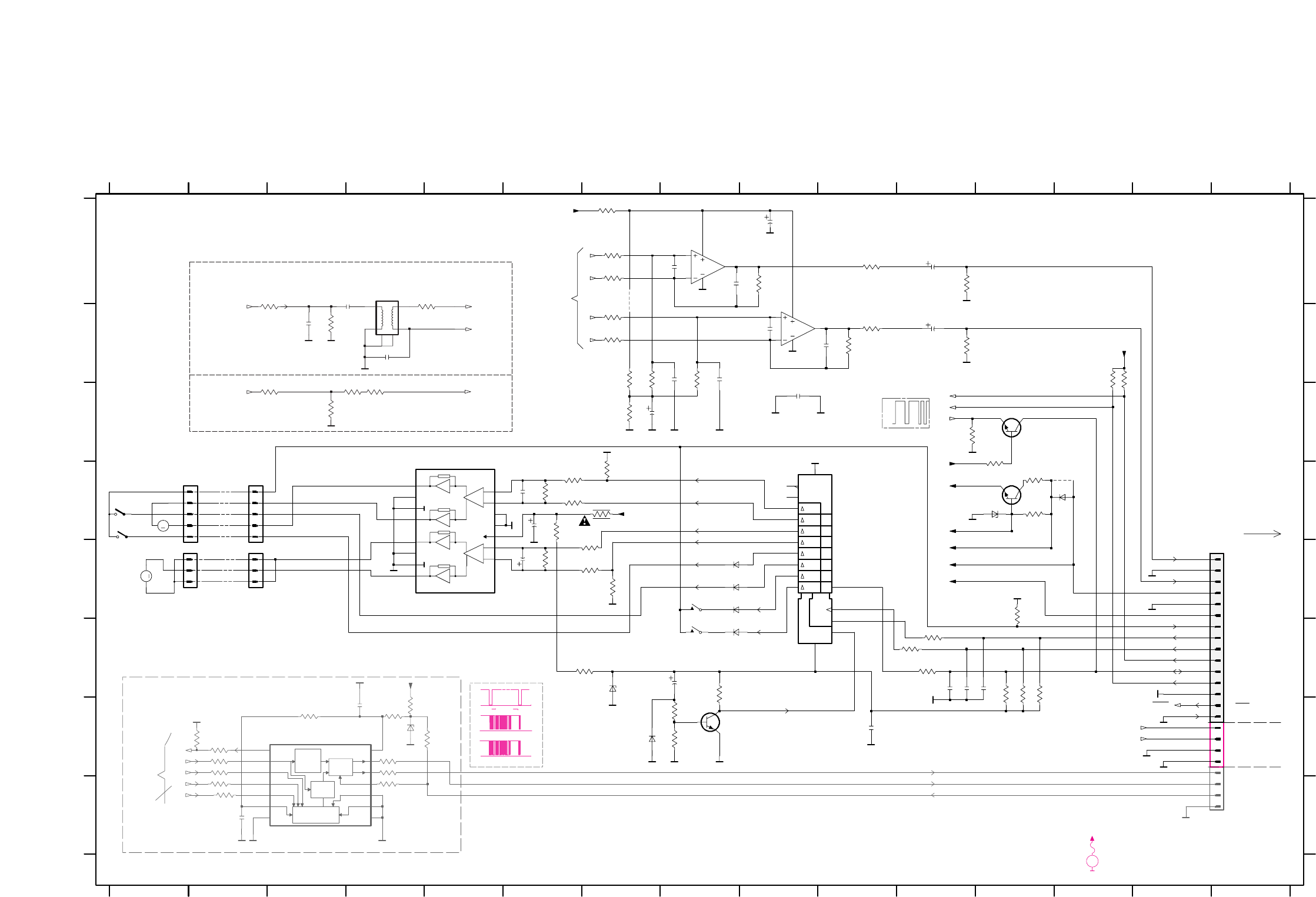

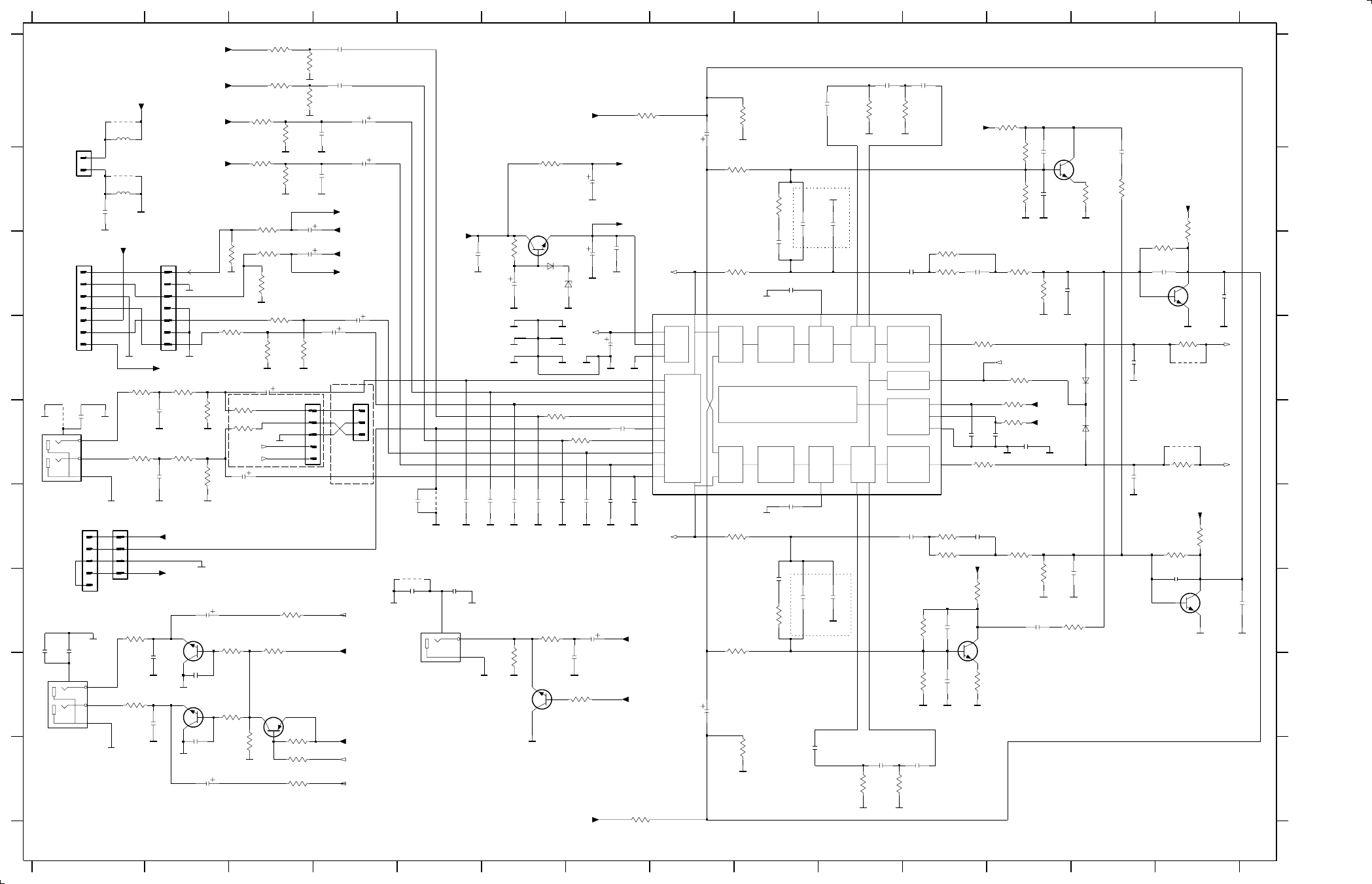

FRONT CONTROL BOARD - CIRCUIT DIAGRAM
5-3

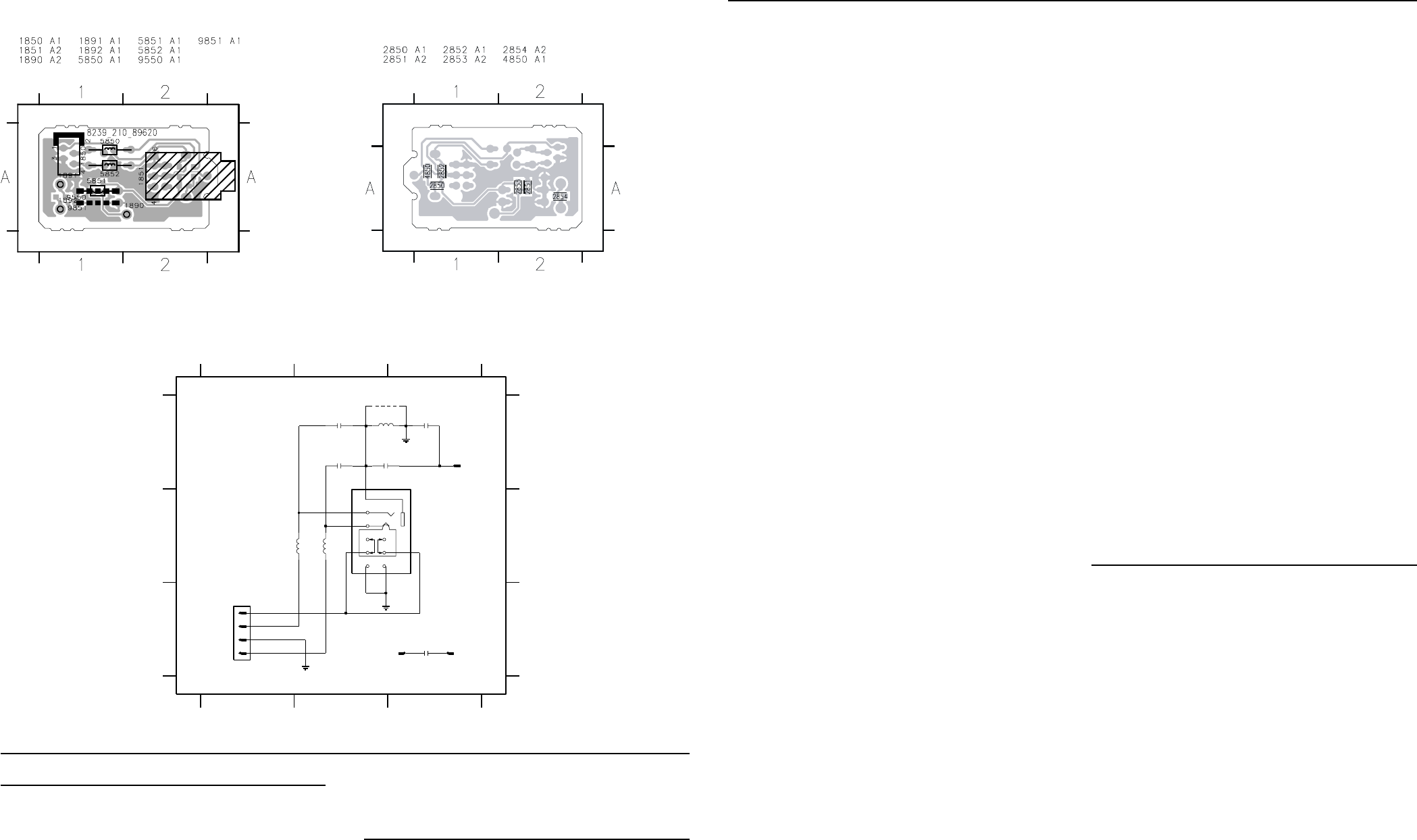

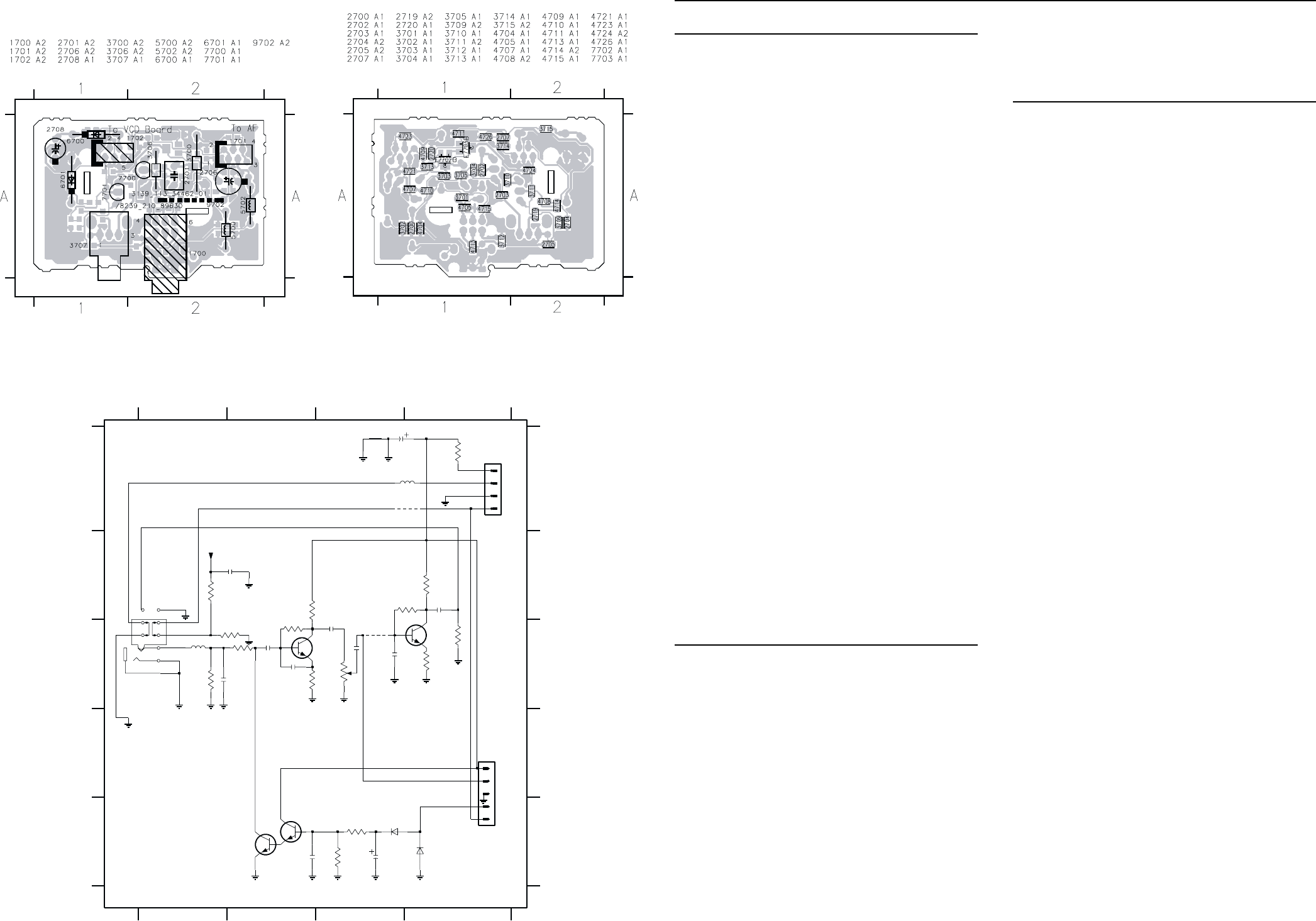

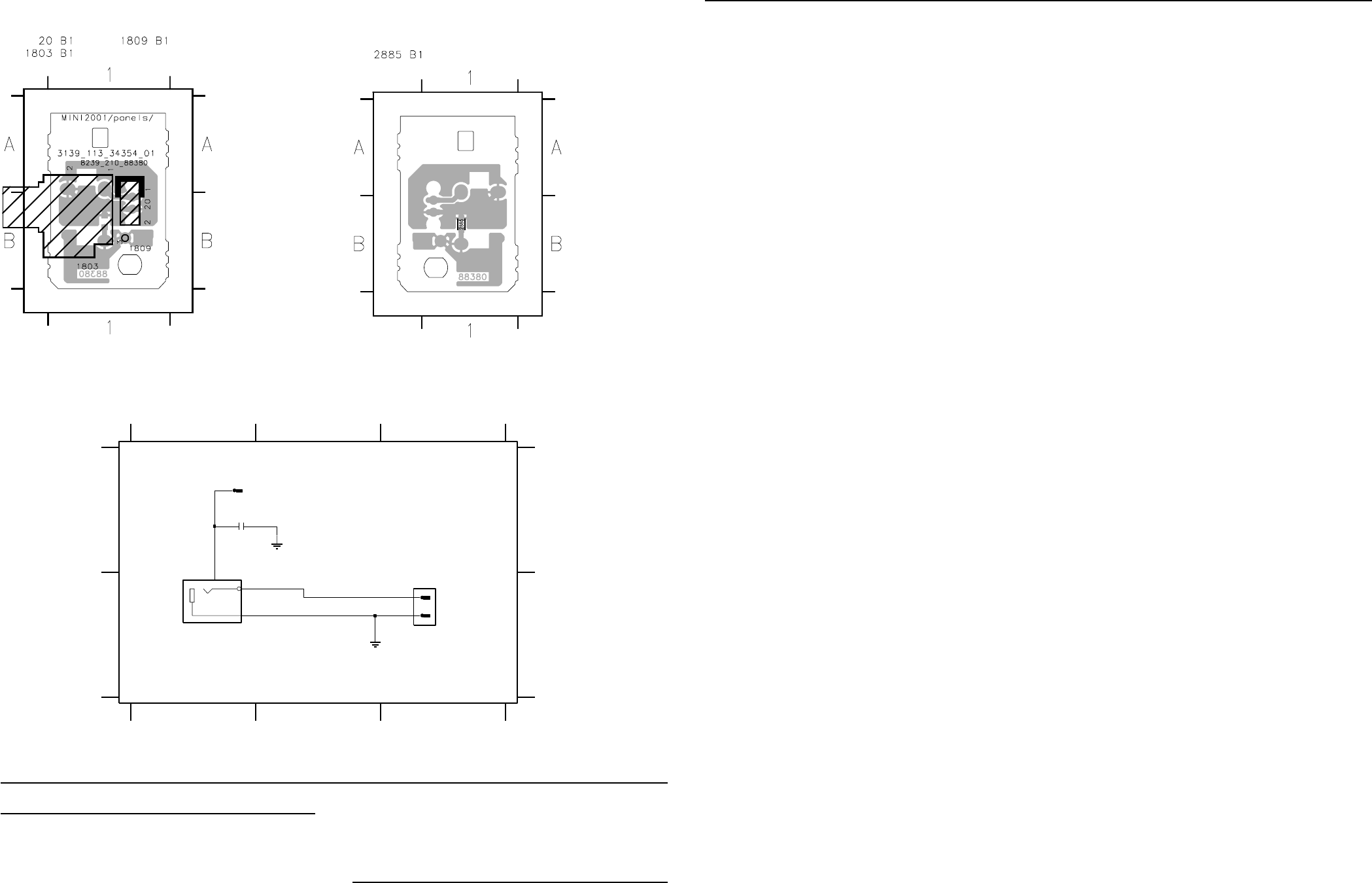

IR-EYE BOARD - CIRCUIT DIAGRAM
IR-EYE BOARD - COMPONENT LAYOUT IR-EYE BOARD - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
STB
D1
EN1
SRG8
Gnd
Dubbing
Max/DPL
DISPLAY
NEXT
PROG
D
E
F
G
H
1600 F1
1601 H2
1602 D1
1603 H1
PLAY
Tape
WOOX_A
RDS
Dpl_surr_C
1234567
1234567
A
B
C
D
E
F
G
H
A
B
C
NEWS
REC
Dolby NR
TAPE
CD
Dpl_left
CLK
AUX
1650 D2
1651 C2
1652 C3
1653 C3
1654 C3
1655 C2
1656 D3
1657 D3
1658 D3
1659 D2
1660 D5
1661 D4
1662 C5
1663 C6
1664 C6
1665 C7
1666 C5
1667 C4
1668 C4
1669 C4
1670 C6
1671 D6
1672 D6
S_back
PREV
S_fwd
CD
TUNER
Aux
1673 D5
1674 D5
1675 D4
1690 B1
1691 A3
2600 G5
2603 G5
2604 B4
2605 B4
2606 B2
2607 B2
2608 C7
2613 D6
2615 A4
2620 F3
2622 F6
2623 F7
2624 G4
2625 G4
3600 G2
3604 A4
3605 A4
3606 A2
DSC
WOOX_B
Dpl_surr_R
Dpl_right
STOP
IS
VAC
3607 A2
3608 G5
3609 G4
3610 C2
3611 C3
3612 C3
3613 C3
3614 C4
3615 C4
3616 C5
3617 C5
3618 C6
3619 C6
3620 C7
3621 E4
3622 E4
3623 E4
3624 E4
3630 D2
3631 D3
3632 D3
3633 D3
3634 D4
Tuner
AUTO REV
DBB
3635 D4
3636 D4
3637 D5
3638 D5
3639 D6
3640 D6
3643 G6
3644 G6
3645 G6
3646 H7
3647 H6
3648 G3
3649 F3
3650 F3
3651 H3
3652 H3
3653 H3
3654 H3
3655 H6
4600 G2
4605 H5
4606 H6
5601 F5
6602 A4
6603 E4
6604 E4
Dpl_surr_L
Green-Led
Max_Led(Amber)
Green-Led
6605 E4
6606 E4
6610 H3
6611 H3
6612 H3
6613 H3
6620 G7
6621 G7
6622 G7
6623 H7
6624 H7
7601 F5
7602 H7
7650 F3
9610 G2
9618 G2
Gnd
1653
1K
3655
GND-B
1666
GND-B
2613
2605
10n
EC12 1
1691
4K7
Gnd Gnd
GND-B
1664
GND-B
Gnd
3618
GND-B
220R
3631
GND-B
2
3
MT1
4
MT2
5
GND-B
6605
4606
1656
GND-B
GND-B
6606
2604
1663
150R
3630
GND-B
GND-B
3610 3612
270R
3644
GND-B
1658
1670
180R
9610
560R
3634
4600
270R3653
1601
FE-ST-VK-N
1
2
3
4
5
6
7
8
3648
10K
2620
10u
GND-B
10K
3604
Gnd
Gnd
390R
3613
220p
2624
1667
3643 180R
120R
3621
3614
120R
3622
560R
220p
2603
6620
1K8
3617
Gnd
1657
2622
1651
100n
6612
GND-B
4K7
3619
100p
220p
2625
Gnd
1N4148
6602
6603
2607
10n
120R
3624
1675
3635
1K2
3636
6623
820R
1671
1672
GND-B
1661
6621
1668
220R3652
1669
2608
100p
6622
Gnd
Gnd
6610
GND-B
1654
390R
3633
GND-B
9
10
1
16
8
10K
3620
74HC4094D
7601
3
2
15
4
5
6
7
14
13
12
11
10K
3606
10n
3605
10K
3647
180R
1655
3640
Gnd
2K7
6604
3654 120R
Gnd
1
2
3
4
5
6
7
8
6613
1602
FE-ST-VK-N
4605
1K2
3616
GND-B
Gnd
Gnd
GND-B
3623
120R
Gnd
10n
GND-B
3646180R
2606
150R
GND-B
220R3651 Gnd
1673
GND-B
1
10
11
12
2
3
4
5
6
7
8
9
7
8
9
FE-ST-VK-N
1600
1603
FE-ST-VK-N
1
10
2
3
4
5
6
GND-B GND-B
GND-B
4K7
3639
3615
820R
Gnd
2K7
3638
3
2
MT1
4
MT2
5
6624
Gnd
10K
3609
Gnd
2600
220p
9618
10K
3608
470R
# 3600
7650
1665
BC847B
1K8
1690
EC16
1
GND-B
Gnd
3637
1652
1659
3632
270R
4K7
3650
BC847B
7602
1662
2u2
5601
Gnd
1660
GND-B GND-B
1674
100n
2615
47u
10K
3607
180R3645
2623
1650
Gnd
220R
3611
10K
3649
6611
GND-B
+5V6
IS_ShData
Max_Woox_LedShClk
IS_ShData
JOG_A
VacJOG_B
DSC
DBB_Led
+5V6
IS_Led
DSC
Max_Woox_LedShClk
Vac
+5V6
DBB_ShStr
DSC
DBB_Led
TunerAux
CD
Tape
+5V6
Woox_A
Woox_B
DBB_ShStr
+5V6
Vac
Key2
Key1
TapeCD
Aux
Tuner
JOG_B
+5V6
Woox_A
Woox_B
JOG_A
3139 118 54530...for 89600...3446 pt2 dd wk0116
# : Provision
Note : Some values may varies, see respective
parts list for correct value.
DEM BAND
PASS
CTRL
CIRCUIT
AGC
INP
PIN
123
123
A
B
A
B
20 A1 2860 A2 2861 B1 2862 A1 3860 A1 3861 A2 3862 B2 7800 A2
2860
47u
Gnd
Gnd
7800
TSOP2236
GND3
OUT1
VS2
Gnd
Gnd
20
DIPMATE
1
2
3
47n2n2
2861
3860
100R
2862
3861
1K
3862
Gnd
10K
3139 118 54530...for 89660...3446 pt2 dd wk0116
Note : Some values may varies, see respective parts list for correct value.
KEY-CDC BOARD - CIRCUIT DIAGRAMKEY-CDC BOARD - COMPONENT LAYOUT
KEY-CDC BOARD - CHIP LAYOUT
5-4 5-4
VU METER BOARD - CIRCUIT DIAGRAM
VU METER BOARD - COMPONENT LAYOUT VU METER BOARD - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
23
A
B
A
B
1800 A3
1801 B2
1802 B2
1803 B2
1804 B1
1805 B1
2800 B1
3800 A1
3801 A1
3802 A2
3803 A1
3804 A1
3805 A2
3806 A2
3807 A2
6802 A1
6803 A1
6804 A2
6804
GND-B
123
1
3801
220R
6803
6802
3802
220R
3800
220R
1803
270R
3805
GND-B GND-B GND-B GND-B
1
2
3
4
5
6
GND-B GND-B
FE-ST-VK-N
1800
1804
1805
390R
3804
560R
3803
150R
3807
100p
2800
1801
220R
GND
1802
3806
3139 118 54530...for 89610...3446 pt2 dd wk0116
Note : Some values may varies, see respective parts list for correct value.
Vu-meter
1234
1234
A
B
C
D
A
B
C
D
1840 C1
2840 A2
2841 A2
2842 D2
2843 D3
2844 D4
3841 A2
3842 A2
3843 A2
3844 A3
3845 D2
3846 D3
3847 D4
To Front
Vu-backlight
3848 C3
3849 C3
3850 C4
3851 A3
4842 A2
4843 A2
5600 A4
6840 A1
6841 A3
6842 A4
6843 D4
6844 D3
7841 A2
7842 C3
7843 D3
7844 D3
7845 D4
3841
47K
180R
3851
4K7
3846
1K2
BC857B
7842
7843
BC847B
Gnd
3845
470R
3848
6843
390R
3850
BC847B
7844
Gnd
3847
220R
6844 3849
150R
Gnd
5600
12
Gnd
6842
LB3333
7845
BC857B
FE-BT-VK-N
1840
1
2
3
4
5
6
4843
100p
2844
# 4842
100p
2842 2843
100p
2840
100p
3844
8K2
1N4148
6841
1K
2841
1u
3842
100K
3843
Gnd
BC847B
7841
6840
1N4148
Bit0
Bit1
+5V6
VUMeter
+Vu
+5V6
+5V6
+Vu
3139 118 54530...for 89650...3446 pt2 dd wk0116
# : Provision
Note : Some values may varies, see respective parts list for correct value.
5-5 5-5
ELECTRICAL PARTS LIST - FRONT CONTROL BOARD
MISCELLANEOUS
KARAOKE BOARD - CIRCUIT DIAGRAM
KARAOKE BOARD - COMPONENT LAYOUT KARAOKE BOARD - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
SIMPLE KARAOKE
123 4
123 4
A
B
C
D
E
A
B
C
D
E
1700 C1
1701 A4
1702 D4
2700 C1
2701 C2
2702 C2
2703 C3
2704 C3
2705 B4
2706 A3
2707 E2
2708 E3
2719 C3
(FOR /21 VERSION ONLY)
2720 B2
3700 B1
3701 C2
3702 C1
3703 C2
3704 C2
3705 B2
3706 C2
3707 C3
3709 B4
3710 C4
3711 B4
3712 C4
3713 A4
3714 E3
3715 E3
4708 C3
5700 C1
5702 A4
6700 E3
6701 E4
7700 C2
7701 C4
7702 E2
7703 E2
9702 A4
FOR VIDEO CD ONLY
1M
3704
3703
10K
agnd
agnd
mic_gnd
BC550C
7701
mic_gnd
9702
2u2
5702
mic_gnd
agnd
2708
10u
3712
3700
1K5
agnd
470n
2703
100K
agnd
33R
3706
BC847B
7703
7702
BC847B
2K7
3705
agnd
2706
100u
2701
100n
680p
2704
mic_gnd
4708
agnd
3713
470R
agnd
BC550C
7700
agnd
agnd
1702
FE-BT-VK-N
1
2
3
4
5
3711
680R
agnd
5700
10K
3702
2705
1u
150K
3715
agnd
470n
2719
9
8
7
1
2
3
4
5
6
1M
3714
TC38
1700
FE-BT-VK-N
1701
1
2
3
4
6700
1N4148
agnd
20K
3707
2
13
agnd
1M
3709
agnd
agnd
2700
4n7
100n
# 2720
330R
3710
2702
1n
6701
1N4148
2707
100n
mic_gnd
330R
# 3701
VCD_IN1
agnd
MIC_DET
MIC_DET
agnd
MIC
+12A
VCD_IN2
+Kara
+12A
3139 118 54530...for 89630...3446 pt2 dd wk0140
Note : Some values may varies, see respective parts list for correct value.
# : Provision
22u
1600 4822 267 51453 Flex Connector 12P
1602 4822 265 11535 Flex Connector 8P
1650 4822 276 13775 Tact Switch
1651 4822 276 13775 Tact Switch
1652 4822 276 13775 Tact Switch
1653 4822 276 13775 Tact Switch
1654 4822 276 13775 Tact Switch
1655 4822 276 13775 Tact Switch
1656 4822 276 13775 Tact Switch
1657 4822 276 13775 Tact Switch
1658 4822 276 13775 Tact Switch
1659 4822 276 13775 Tact Switch
1660 4822 276 13775 Tact Switch /34
1661 4822 276 13775 Tact Switch
1663 4822 276 13775 Tact Switch
1664 4822 276 13775 Tact Switch
1665 4822 276 13775 Tact Switch
1666 4822 276 13775 Tact Switch
1669 4822 276 13775 Tact Switch
1670 4822 276 13775 Tact Switch
1671 4822 276 13775 Tact Switch
1672 4822 276 13775 Tact Switch
1673 4822 276 13775 Tact Switch
1674 4822 276 13775 Tact Switch
1675 4822 276 13775 Tact Switch
1690 2422 129 16385 Rotary Encoder 12P
1691 2422 129 16386 Rotary Encoder 12P
1800 4822 265 11207 Flex Connector 6P
1801 4822 276 13775 Tact Switch
1802 4822 276 13775 Tact Switch
1803 4822 276 13775 Tact Switch
1804 4822 276 13775 Tact Switch
1805 4822 276 13775 Tact Switch
1840 4822 267 10731 Flex Connector 6P
CAPACITORS
2604 5322 126 11583 10nF 10% 50V
2605 5322 126 11583 10nF 10% 50V
2606 5322 126 11583 10nF 10% 50V
2607 5322 126 11583 10nF 10% 50V
2608 4822 122 31765 100pF 2% 63V
2613 4822 122 31765 100pF 2% 63V
2615 4822 124 12233 47uF 20% 25V
2622 4822 126 14305 100nF 10% 16V
2623 4822 126 14305 100nF 10% 16V
2800 4822 122 31765 100pF 2% 63V
2840 4822 122 31765 100pF 2% 63V
2841 4822 124 22651 1uF 20% 50V
2842 4822 122 31765 100pF 2% 63V
2843 4822 122 31765 100pF 2% 63V
2844 4822 122 31765 100pF 2% 63V
2860 4822 124 81286 47uF 20% 16V
2861 4822 126 14238 2,2nF 50V
2862 3198 017 34730 47nF 16V
RESISTORS
3604 4822 051 30103 10k 5% 0,062W
3605 4822 051 30103 10k 5% 0,062W
3606 4822 051 30103 10k 5% 0,062W
3607 4822 051 30103 10k 5% 0,062W
3610 4822 051 30151 150R 5% 0,062W
3611 4822 051 30221 220R 5% 0,062W
3612 4822 051 30271 270R 5% 0,062W
3613 4822 051 30391 390R 5% 0,062W
3614 4822 051 30561 560R 5% 0,062W
3615 4822 117 12968 820R 5% 0,62W
3616 4822 117 11817 1k2 1% 1/16W
3617 4822 117 12903 1k8 1% 0,063W
3618 4822 116 52263 2k7 5% 0,5W
3619 4822 051 30472 4k7 5% 0,062W
3620 4822 051 30103 10k 5% 0,062W
3621 4822 051 30121 120R 5% 0,062W
3622 4822 051 30121 120R 5% 0,062W
3623 4822 051 30121 120R 5% 0,062W
3624 4822 051 30121 120R 5% 0,062W
3630 4822 051 30151 150R 5% 0,062W
3631 4822 051 30221 220R 5% 0,062W
3632 4822 051 30271 270R 5% 0,062W
3633 4822 051 30391 390R 5% 0,062W
3634 4822 051 30561 560R 5% 0,062W
3635 4822 117 12968 820R 5% 0,62W
3636 4822 117 11817 1k2 1% 1/16W
3637 4822 117 12903 1k8 1% 0,063W
3638 4822 051 30272 2k7 5% 0,062W
3639 4822 051 30472 4k7 5% 0,062W
3640 4822 051 30103 10k 5% 0,062W
3646 4822 051 30181 180R 5% 0,062W
3651 4822 051 30221 220R 5% 0,062W
3652 4822 051 30221 220R 5% 0,062W
3653 4822 051 30271 270R 5% 0,062W
3654 4822 051 30121 120R 5% 0,062W
3655 4822 051 30102 1k 5% 0,062W
3800 4822 116 83872 220R 5% 0,5W
3801 4822 116 83872 220R 5% 0,5W
3802 4822 116 83872 220R 5% 0,5W
3803 4822 051 30561 560R 5% 0,062W
3804 4822 051 30391 390R 5% 0,062W
3805 4822 051 30271 270R 5% 0,062W
3806 4822 051 30221 220R 5% 0,062W
3807 4822 051 30151 150R 5% 0,062W
3841 4822 117 12925 47k 1% 0,063W
3842 4822 117 13632 100k 1% 0,62W
3843 4822 051 30102 1k 5% 0,062W
3844 4822 117 12902 8k2 1% 0,063W
5-6 5-6
ELECTRICAL PARTS LIST - FRONT CONTROL BOARD
RESISTORS
3845 4822 117 11817 1k2 1% 1/16W
3846 4822 116 52283 4k7 5% 0,5W
3847 4822 116 83872 220R 5% 0,5W
3848 4822 051 30471 470R 5% 0,062W
3849 4822 116 83868 150R 5% 0,5W
3850 4822 051 30391 390R 5% 0,062W
3851 4822 051 30181 180R 5% 0,062W
3860 4822 051 30101 100R 5% 0,062W
3861 4822 051 30103 10k 5% 0,062W
3862 4822 050 11002 1k 1% 0,4W
4500 4822 051 30008 0R Jumper 0603
4600 4822 051 30008 0R Jumper 0603
4601 4822 051 30008 0R Jumper 0603
4602 4822 051 30008 0R Jumper 0603
4603 4822 051 30008 0R Jumper 0603
4604 4822 051 30008 0R Jumper 0603
4605 4822 051 30008 0R Jumper 0603
4606 4822 051 30008 0R Jumper 0603
4607 4822 051 30008 0R Jumper 0603
4627 4822 051 30008 0R Jumper 0603
4628 4822 051 30008 0R Jumper 0603
4843 4822 051 30008 0R Jumper 0603
4845 4822 051 30008 0R Jumper 0603
COILS & FILTERS
5600 3139 110 53000 METER VU P-47SI-W WHITE
DIODES
6602 4822 130 30621 1N4148
6603 4822 130 10791 LTL-1CHGE
6604 4822 130 10791 LTL-1CHGE
6605 4822 130 10791 LTL-1CHGE
6606 4822 130 10791 LTL-1CHGE
6610 4822 130 10791 LTL-1CHGE
6611 4822 130 10791 LTL-1CHGE
6613 4822 130 10791 LTL-1CHGE
6623 9322 153 37676 LB3333RT-E7898
6802 4822 130 10791 LTL-1CHGE
6803 4822 130 10791 LTL-1CHGE
6804 4822 130 10791 LTL-1CHGE
6840 4822 130 30621 1N4148
6841 4822 130 30621 1N4148
6842 9322 153 37676 LB3333RT-E7898
6843 4822 130 82978 LTL-1CHPE
6844 4822 130 11589 LTL-1CHAE
TRANSISTORS & INTEGRATED CIRCUITS
7602 4822 130 60511 BC847B
7800 9322 155 22667 IR Receiver TSOP2236ZC1
7841 4822 130 60511 BC847B
7842 4822 130 60373 BC857B
7843 4822 130 60511 BC847B
7844 4822 130 60511 BC847B
7845 4822 130 60373 BC857B
Note : Only the parts mentioned in this list are normal
service spare parts.
FRONT DISPLAY BOARD
TABLE OF CONTENTS
FTD pin connection ......................................................... 6-1
Front Display Board - Chip layout ................................... 6-2
Front Display Board - Component layout ........................ 6-3
Front Display Board - Circuit diagram ............................. 6-4
Headphone Part - Layout & Circuit diagram ................... 6-5
Electrical parts list............................................................ 6-5
6-1 6-1
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
2G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
1G
S1
S2
S3
S4
3G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
4G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
5G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
6G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
7G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
8G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
col
Dp
9G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
10G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
12G
S1
S2
S3
S4
-
-
13G
-
11G
S1
B1
B2
B3
B4
B5
B6
a,g,m,d
b
c
e
FTD DISPLAY PIN CONNECTIONS
(CLASSIC)
(POP)
(DIGITAL)
(ELECTRIC)
(NEWAGE)
(ROCK)
(ARCADE)
(CINEMA)
(HALL)
(CYBER)
(DISCO)
(CONCERT)
col
Dp
(12G)
(1G)
(1G)
(1G)
(1G)
(2G-10G) (11G)
B6
B5
B2
S1 S2
S4
S2 S4
S1 S3
S3
B4
B3
B1
S1
a
e
h j
k
bf
d
r
gm
p n ce
a
gm
d
b
c
11G
1G
12G13G
2G 3G 4G 5G 6G 7G 8G 9G 10G
FRONT DISPLAY BOARD - CHIP LAYOUT
6-2 6-2
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3447 pt2 dd wk0119
FRONT DISPLAY BOARD - COMPONENT LAYOUT
6-3 6-3
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3447 pt2 dd wk0119
FRONT DISPLAY BOARD - CIRCUIT DIAGRAM
6-4 6-4
VDD
VSS
A2
CONVERSION
LEVEL
LOGIC
DECODER
1-of-8
A0
A1
BIT
QUALITY
DIVIDER
AND
OSCILLATOR
FILTER
RECONSTRUCTION
(8th ORDER)
BANDPASS
ANTI-
ALIASING
FILTER
CLOCKED
COMPARATOR
REFERENCE
VOLTAGE CLOCK
REGENERATION
AND SYNC
COSTAS LOOP
VARIABLE AND
FIXED DIVIDER
57 Khz
GENERATOR
DIFFERENTIAL
DECODER
BIPHASE
SYMBOL
DECODER
TEST LOGIC AND OUTPUT
SELECTOR SWITCH
VP1
V16
VDD
sink o.drain
V25
V26
V27
V28
-RESET
TEST
XTOUT
XTIN
-STOP
-INT0
-INT1
drain
P6-P9 source open drain
source open
drain 80k p.d. 80k pull
down
P04
P05
P06
P07
80k pull down
80k pull down80k pull down
V4
V5
V6
V7
V8
V9
V10
V11
V12
V13
V14
V15
CPU
VFT driver circuit (automatic display)
8-Bit A/D
Converter
8-Bit Input/Output
(tri-state) P0
V17
V18
V19
V20
V21
V22
V29
V30
V31
V32
V33
V34
V35
V36
VKK
-SCK1
SI1
SO1
P03
PD
VSS
VAREF
VASS
XOUT
XIN
P5
TC2
-DV0
-SCKO
AIN0
AIN1
AIN2
AIN3
AIN4
P1
(tri state)
8-Bit Input/Output
P4
sink o.
3-B. I/O P3
AIN5
AIN6
AIN7
AIN10
AIN11
AIN12
AIN13
V0
V1
V2
V3
TC4
Counter
Program
ROMRAM
8-Bit h. break. v.
(tri-state)
8-Bit Input/Output
SCA
SCL
INT4
INT2
TC1
V23
V24
output port with latch output port with latchout w. latch P8
out. port w. latch P9
8-Bit h. breakdown v.
8-Bit high breakdown voltage 8-Bit high breakdown v.
5-Bit h. breakd. v.
out w. latch
( tristate )
8-Bit I/O P2
P7 P6
4-Bit In/Output
(tri-state)
STB
D1
EN1
SRG8
STB
D1
EN1
SRG8
F
G
H
I
J
K
1400 D1
1402 I18
1403 J20
1404 I20
1405 F20
1406 C20
1407 A20
1408 F1
1409 G1
1411 F20
1412 K20
1420 A10
1520 G7
1521 J9
1533 J16
1550 J16
*
VOL RE
1 2 3 4 5 6 7 8 9 10111213141516171819 20
12
*
3456789101112
*
13 14 15 16 17 18 19 20
A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
*
2500 A3
2501 B4
2502 A4
2503 B5
2504 A6
2505 B6
2506 A7
2507 B7
2508 F8
2509 H17
2510 D5
2511 I1
2512 I1
2513 I1
2514 J1
2515 H3
2516 H4
2517 H5
2518 J8
2519 J10
2520 I10
2521 J10
2522 J10
2523 J12
2524 J12
2525 J12
2526 J13
2527 J14
2528 I14
2529 K14
2530 J14
2531 H14
2533 J15
2534 J17
2535 J17
2536 G15
2537 G15
2538 F16
2539 F16
2541 D14
2542 C15
2543 B16
2544 B17
2545 B19
2546 B19
2547 B19
2548 B19
2549 C19
2550 C19
2551 D19
2552 D19
2553 E19
2554 E19
2555 E19
2556 E19
2557 E19
2558 G18
2559 G19
2560 G19
2561 G19
2562 F19
2563 G20
2564 H7
2565 G4
2566 H7
2567 H9
2568 G10
*
2569 E16
2570 C13
2571 C14
2572 F9
2573 F9
2574 G11
2575 G11
2576 G11
2577 H10
2578 C13
2579 B9
2580 B9
2581 B13
2582 B13
2583 A18
2584 A18
2585 G7
2586 G7
2587 I10
2588 C19
2589 I13
3400 F9
3401 F10
3402 F10
3403 F10
3404 F10
*
3406 H16
3407 I14
3408 I14
3409 G10
3410 J14
3411 J14
3413 F9
3414 F11
3415 F11
3416 F12
3417 F12
3418 F12
3419 F12
3420 F12
3421 F12
3422 F12
3423 F13
3424 F13
3425 F13
3428 E13
3429 E13
3430 E13
3431 E13
*
3432 E13
3433 D13
3434 D13
3435 D13
3436 D13
3437 D13
3438 F18
3439 F18
3444 C13
3445 C12
3446 C12
3447 C12
3448 C12
3449 C12
3450 C12
3451 C11
3452 C11
3453 C11
3454 C11
*
3455 C11
3456 C11
3457 C11
3458 C10
3459 C10
3460 C10
3461 C10
3462 C10
3463 C10
3464 C10
3465 C9
3466 D9
3467 D9
3468 D9
3469 D9
3470 D9
3471 D9
3472 D9
3473 E9
3474 E9
3475 E9
3476 E9
3477 E9
3479 E9
3480 F9
3485 J7
3490 D20
3491 E20
3492 E20
3500 B4
3501 B5
3502 B6
3503 B7
3504 E8
3505 E8
3511 D7
3512 E7
3515 H3
3516 H3
3517 I5
3518 J5
3519 J5
3520 J5
3521 H7
3522 H7
3523 H8
3526 H7
3527 I8
3528 I9
3529 I11
3530 J11
3531 H13
3532 H14
3533 H13
3534 H13
3535 I14
3536 J14
3537 I14
*
3538 J14
3539 I15
3540 I17
3541 I17
3542 G16
3543 H16
3544 H16
3545 H16
3546 H16
3547 G16
3548 G16
3549 G16
3550 E16
3551 E16
3552 E16
3553 D15
3554 D14
3555 D16
3556 D16
3557 C16
3558 C16
3559 C16
*
3560 A18
3561 A18
3562 A19
3563 F18
3564 C19
3565 C20
3570 I14
3571 J14
3572 B20
3573 E5
3574 F8
3575 G6
3576 F18
3577 F19
3578 F19
3579 F19
3580 F20
3581 G20
3582 G20
3583 G19
3584 G20
3585 H19
3586 H18
3587 H19
3588 I19
3589 I10
3590 J10
3591 J10
3592 E7
3593 E7
3594 E7
3595 D7
3596 D7
3597 F18
3598 F5
3599 G4
4401 D18
4430 K20
5400 G13
5401 C14
5402 F11
5403 F11
5404 H3
5405 H4
5406 G19
5407 F15
5408 E1
5409 F1
6400 E8
6401 E8
6402 E8
6403 E8
6404 E8
6405 I16
6406 I10
6407 F1
6408 I12
6409 C14
6410 B14
6411 I12
6412 I8
6413 C14
6414 H8
6415 F10
6420 J8
7400 C9
7401 H1
7402 D5
7403 B15
7404 F15
7405 H12
7406 G11
7407 J10
7408 B5
7409 B7
7410 B6
7411 J8
7412 B4
7413 E15
9400 K19
9405 E8
9513 F1
9514 F1
*
*
*
*
1
2
3
4
5
6
7
8
3491 470R
3585
330K
2533
100n
2560
3579
9513
1N41486402
4
Y7
Z
3
220R3558
3565
3574
10K
2564
1n
2520
10n
12
3
1550
EC16
256310n
10K
1K
3400
470R
2K7
5400
2u2
220n
2545
100n
2543
7409
BC847B
47K
3485
10K
3578
470R
3461
2567
220n
3532
3425 470R
3580
470R
3437
1N4003
6410
3408
10R
3410 10R
470K
3523
100p
470R
2531
1u
3420
470R
3468 470R
MT1
4
MT2
5
BC847B
7410
680K
3521
6414
1N4148
470R
3428
7404
3429 470R
470R
3599
3409
6405
BZX79-B4V7
47K
100p
2507
47u
2570
2525
47u
47K
3522
470R
@ 3406
82K
3460
470R
470R
3421
560p
2518
4u7
10p2554
120R3547
3473 470R
47p
2516
470R
3459
470R
3430
3562
10K
3502
10R
3536
FE-ST-VK-N
1400
1
220p
100n
35821K
2517
2578
100n
10K
5402
3537
120R
2u2
5405
220K
3515
10p2550
13
14
FE-ST-VK-N
1406
1
10
11
12
1K
470R
2544
100n
2506
100p
1N41486400
2K7
3505
470R
2K2
3516
3595
470R
3415
GND-B
32K768
5403
6403 1N4148
4401
3464
470R
3526
15K
220n
2588
2586
220p
220p
2585
3407 10R
10K
# 3575
82K
3501
1
2
3
4
5
6
7
220p
2547
100p
2583
FE-ST-VK-N
1407
2589
1u
2587 1u
470R3471
6
E_
8
11
10
9
16
7
VEE
13
Y0
14
Y1
15
Y2
12
Y3
1
Y4
5
Y5
Y6
2
HEF4051BT
7402
470R
3444
3556 220R
3531
3431 470R
10K
3504
470R
82p
2515
100p
2502
3577
10K
470R
3422
6407
1N4148
2535
10n
GND-B
10K
3563
220R3543
1K
3584
3581
1K
47u
2571
@ 2509
100p
69
7
70
71
72
73
74
75
76
77
78
79
8
80
9
545556575859
6
6061626364
65
66
67
68
4
40
414243444546474849
5
50515253
25
26
27
28
29
3
30
31
32
33
34
35
36
37
38
39
10 11 12 13 14 15 16 17 18 19
220 21 22 23 24
2537
7400
TMP88CU74YF
1
3480 470R
3465470R
100p
2584
3519
10K
10
1
16
8
470R
3449
74HC4094D
3
2
15
4
5
6
7
14
13
12
11
9
3403 470R
470R
3458
10K
3540
3517
10K
5404
AT-51
# 9405
560p
2513
3553
3570 10R
10K
# 3597
100n
2523
3469 470R
7408
BC847B
470R
3453
3533
1K
15
2
3
4
5
6
7
8
9
1411
FE-ST-VK-N
1
10
11
12
13
14
BC847B
7412
47p
2565
1K
3404 470R
3541
10K
3594
3518
10K
2546
3475 470R
220p
3447
470R
10u
3435 470R
2569
470R
3434
100n
2522
10K
3551
3576
33p
2577
2541
220p
6408
1N4148
100n
2526
3539
22K
3552
10K
2503
100p
100K
3590
3573
10K
470R
3416
BC847B
7413
3432
M24C02
7405
E0
1
E1
2
E2
3
SCL
6
SDA
5
VCC
8
4
VSS
WC_
7
6411
1N4003
470R
3474
3477 470R
33031323334353637424344 7891314171819 220212223242526272829
1420
1101112
@ 3587
120R3545
3
4
5
6
5401
2u2
1409
FE-ST-VK-N
1
2
1K
100n
2539
3592
100p
2501
10K
22K
3583
470R
3463
11
12
2
3
4
5
6
7
8
9
1404
FE-ST-VK-N
1
10
2566
1u
1N4003
6413
3451
470R
2u2
5406
47u
2530
2
3
4
5
6
3424
470R
6406
1N4148
220R3548
3448
470R
3402 470R
3450
470R
47p2551
3500
82K
3466
2512
3561 100R
10p2557
6412
1N4148
1521
7411
BC857B
220R3557
2524
100n
2504
3479 470R
OSCO
1
QUAL
16
RDCL
2
RDDA
8
SCOUT
15
T57
10
TEST
5
VDDA
12
VDDD
3
VREF
6
VSSA VSSD
11
SAA6579T
7401
7
CIN
9
MODE
4
MUX
13
OSCI
14
2552 47p
47u
2572
2575
470R
3446
22p
220R3555
3554
2561
100p
10K
1K
3512
3560 100R
15
16
17
18
19
2
3
4
5
6
7
8
9
3527
820R
2549 10p
470R3476
220R
470R
3401
1K
3589
3529
3586
1K
2528
47u
2K7
470R
3417
470R
3535 10R
3454
2511
3571 10R
3503
82K
47p
470R
3472
3598
10K
1N41486404
6409
1N4148
3546 120R
3456
470R
2536
220p
3549 220R
10p2556
100n2555
2529
47u
# 2508
47n
2u2
2514
3470 470R
2573
47u
3445
470R
470R
3423
3544 120R
3534
1K
2562
1n
@ 3588
1K
1M
3413
2
3
4
5
6
7
8
9
3490
470R
FE-ST-VK-N
1412
1
10
6401 1N4148
2534
10n
2500
100p
@ 9400
100p
2559
3436 470R
10K
3528
3572
2K2
100n
2510
3438
2K2
10n
2521
220p
2542
120R
3538
2K7
3511
3559 220R
220p
2548
10K
3520
FE-ST-VK-N
1403
47u
2527
6420
3596
5409
2u2
3542 220R
10n
2519
BC847B
7407
6
7
8
9
3462
470R
1405
FE-ST-VK-N
1
10
11
2
3
4
5
1533
2558
1408
EH-B
1
2
3
3492
470R
100p
2505
100p
3591
100K
1K
3593
2
15
4
5
6
7
14
13
12
11
9
10
1
16
8
74HC4094D
7403
3
4K7
3550
220p
2582
470R
3452
220p
2580
220p
2581
3411
10R
BC847B
7406
220p
2579
5407
2u2
5408
2u2
2568
2p2
10K
9514
3455
470R
100p
3457
470R
100n
3564 220R
470R
3419
T
2538
2553 47p
470R
3418
@ 4430
3467
22p
2574
3433 470R
470R
FE-ST-VK-N
1402 1
2
3
4
5
6
7
8
6415
BAS316
2576
22p
1K8
3530
1520
3439
2K2
3414
470R
MicDetect
AmNTC
+F
TpADC2
TpADC1
TPShSTR
+D
+C
+L
+D
MicDetect
-Vkk
+C
IS_ShData
F1
F2
-F2 -F1
Bit1
Bit0
VUMeter
RC5
Cdc3
Cdc2
Cdc1
Key0
Vac
SA
LEDShClk
JOG_A
Max_Woox_ShClk
IS_ShData
DBB_ShStr
JOG_B
LEDShClk
LEDShSTR
TPShDATA
TPShCLK
-F1
-Vkk1
-Vkk1
LowPwrCtr
Aux
Tape
Key0
Key2
Key1
CD
Tuner
TU_Enab
MuxEnable
G13’
+F +F +F +F
TuStereo
Key1
Key2
TuRDSClk
P8
-F2
+C+C +C
LEDShData
IoVolClk
+D
G1
G11
G12
-Vkk
G12’
G13
-Vkk
P11
TuRDSData
Options
VOL_A
VOL_B
+C
WooxA
-Vkk
WooxB
+D+D
-Vkk1
RESET
LPSKey
LEDShClk
I2C_CLK
LEDShData
RESET
Clipping
I2C_DATA
IoVolClk
HP_DET
Tuner
Aux
+L
PWRDWN
Tape
+D
Tu_Data
Tu_Clk
Bit0
Bit1
CD
PWRDWN
LEDShDATA
LEDShCLK
Tu_Enab
Tu_RDS_Out
LEDShEn
LEDShSTR
HP_DET
LowPwrCtr
+C
Max_Woox_ShClk
-Vkk
F1
F2
DBB_ShStr
IS_ShData
DSC
P10
I2C_DATA
Cdc3 I2C_CLK
Vac
G3
G2
G1
P1
P2
P3
P4
P5
P6
P7
P9
G13
G12
G11
G10
G9
G8
G7
G6
G5
G4
-Vkk-Vkk
G11’
G1’
AmNTC
+L
Cdc1
Cdc2
FW-C700/37
*
8K2
470R
180RFW-C500/37
FW-C780/21/22/30/37
FW-C550/37
FW-C780/34
FW-P750/37
3K9FW-P750/22/34
FW-C780/33
FW-C720/21
820R
1K2
FW-C700/22
Model (Mini 2001)
1K8
820R
FW-C700/34
Option_R Ohms (3530)
12K
FW-C788/33 12K
5K6
2K7
3139 118 54300...for 89590...3447 pt2 dd wk0138
# : Provision
: For RDS only
@ : For DPL only
Note : Some values may varies, see respective parts list for correct value.
FW-C785/22
5K6
470RFW-C555/21/37
FW-C788/21/21M
5K6FW-C788/30/37
FW-V520/21M
27KFW-V780/21M
FW-C700/21
5K6
5K6
FW-C785/34
Model (Mini 2002)
8K2
820R
FW-C798/21/37
Option_R Ohms (3530)
5K6
3407 , 3408 , 3410 , 3411
3479 , 3480 , 3422
Items
Items
3535 , 3536 , 3570 , 3571
VCD
4R7
For 30-70W Set
Non-VCD
10R
100R 470R
Others
0.3V "ON"
"ON"
+5V6
0
+5V
"ON"0.7V
+5V6_Con
+5V6_Con
+5V6
+5V
+5V6_Con
+5V6
+5V
+5V6
+5V6 +5V6
+5V6
+5V6
+5V6
+12V_D
+5V6
+5V6
+5V6
+5V6_Con
5V
6
6
6-5
ELECTRICAL PARTS LIST - FRONT DISPLAY BOARD
MISCELLANEOUS
6-5
ELECTRICAL PARTS LIST - FRONT DISPLAY BOARD
HEADPHONE BOARD - CIRCUIT DIAGRAM
HEADPHONE BOARD - COMPONENT
LAYOUT
HEADPHONE BOARD - CHIP LAYOUT
3139 113 3447 pt2 dd wk0119
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3447 pt2 dd wk0119
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
TO AF9
HP_GND
123
123
A
B
C
A
B
C
1850 C1
1851 B3
1890 A3
1891 C3
1892 C3
2850 A2
2851 A3
2852 A2
2853 A2
2854 C3
5850 B1
5851 A2
5852 B2
9550 A2
1470n
##2854
1
2
3
4
RT-01T
##1892
1
##1891
RT-01T
1890
RT-01T1
FE-BT-VK-N
1850
HP
# 9550
2853
100n
5851
2u2
HP
2850
22n
2852
22n
22n
2851
2u2
5850
9
8
7
1
2
3
4
5
6
5852
2u2
HP_DET
HP_LEFT
HP_RIGHT
HP
TC38
1851
3139 118 54300...for 89620...3447 pt2 dd wk0119
# : Provision
## : Provision for ESD
Note : Some values may varies, see respective parts list for correct value.
1400 4822 265 11207 Flex Connector 6P
1402 4822 265 11535 Flex Connector 8P
1404 4822 267 51453 Flex Connector 12P
1405 2422 025 14541 Flex Connector 11P
1406 4822 265 11545 Flex Connector 19P
1407 4822 267 10956 Flex Connector 7P
1409 4822 265 11207 Flex Connector 6P
1420 3139 110 52540 FTD Display
1520 4822 276 13775 Tact Switch
1521 4822 276 13775 Tact Switch
1550 4822 273 10365 Rotary Encoder 24P
1850 4822 267 10733 Flex Connector 4P
1851 4822 265 11529 Headphone Socket
CAPACITORS
2500 4822 122 31765 100pF 2% 63V
2501 4822 122 31765 100pF 2% 63V
2502 4822 122 31765 100pF 2% 63V
2503 4822 122 31765 100pF 2% 63V
2504 4822 122 31765 100pF 2% 63V
2505 4822 122 31765 100pF 2% 63V
2506 4822 122 31765 100pF 2% 63V
2507 4822 122 31765 100pF 2% 63V
2508 3198 024 44730 47nF 50V
2510 4822 126 14305 100nF 10% 16V
2511 4822 122 33777 47pF 5% 63V
2512 4822 126 14249 560pF 10% 50V
2513 4822 126 14249 560pF 10% 50V
2514 4822 124 22652 2,2uF 20% 50V
2515 4822 126 14226 82pF 5% 50V
2516 4822 122 33777 47pF 5% 63V
2517 4822 126 14305 100nF 10% 16V
2518 4822 124 22726 4,7uF 35V
2519 5322 126 11583 10nF 10% 50V
2520 5322 126 11583 10nF 10% 50V
2521 5322 126 11583 10nF 10% 50V
2522 4822 126 14305 100nF 10% 16V
2523 4822 126 14305 100nF 10% 16V
2524 4822 126 14305 100nF 10% 16V
2525 4822 124 12233 47uF 20% 25V
2526 4822 126 14305 100nF 10% 16V
2527 4822 124 22726 4,7uF 35V
2528 4822 124 22726 4,7uF 35V
2529 4822 124 22726 4,7uF 35V
2530 4822 124 22726 4,7uF 35V
2531 3198 017 41050 1uF 10V
2533 4822 126 14305 100nF 10% 16V
2534 5322 126 11583 10nF 10% 50V
2535 5322 126 11583 10nF 10% 50V
2536 3198 016 36810 680pF 25V
2537 4822 126 13883 220pF 5% 50V
2538 4822 126 14305 100nF 10% 16V
2539 4822 126 14305 100nF 10% 16V
2541 4822 126 13883 220pF 5% 50V
2542 4822 126 13883 220pF 5% 50V
2543 4822 126 14305 100nF 10% 16V
2544 4822 126 14305 100nF 10% 16V
2545 4822 126 13879 220nF +80/-20% 16V
2546 4822 126 13883 220pF 5% 50V
2547 4822 126 13883 220pF 5% 50V
2548 4822 126 13883 220pF 5% 50V
2549 4822 122 33741 10pF 10% 50V
2550 4822 122 33741 10pF 10% 50V
2551 4822 122 33777 47pF 5% 63V
2552 4822 122 33777 47pF 5% 63V
2553 4822 122 33777 47pF 5% 63V
2554 4822 122 33741 10pF 10% 50V
2555 4822 126 14305 100nF 10% 16V
2556 4822 122 33741 10pF 10% 50V
2557 4822 122 33741 10pF 10% 50V
2558 4822 122 31765 100pF 2% 63V
2559 4822 122 31765 100pF 2% 63V
2560 4822 122 31765 100pF 2% 63V
2561 4822 122 31765 100pF 2% 63V
2562 3198 016 31020 1nF 25V
2563 5322 126 11583 10nF 10% 50V
2564 5322 126 11578 1nF 10% 50V
2565 4822 122 33777 47pF 5% 63V
2566 4822 124 22651 1uF 20% 50V
2567 4822 126 13879 220nF +80/-20% 16V
2568 4822 126 14223 2,2pF 50V
2569 4822 124 11947 10uF 20% 16V
2570 4822 124 12052 220uF 20% 6,3V
2571 4822 124 12233 47uF 20% 25V
2572 3198 028 44790 47uF 20% 35V
2573 3198 028 44790 47uF 20% 35V
2574 4822 122 33761 22pF 5% 50V
2575 4822 122 33761 22pF 5% 50V
2576 4822 122 33761 22pF 5% 50V
2577 2222 867 15339 33pF 5% 50V
2578 4822 126 14305 100nF 10% 16V
2579 4822 126 13883 220pF 5% 50V
2580 4822 126 13883 220pF 5% 50V
2581 4822 126 13883 220pF 5% 50V
2582 4822 126 13883 220pF 5% 50V
2583 4822 122 31765 100pF 2% 63V
2584 4822 122 31765 100pF 2% 63V
2585 4822 126 13883 220pF 5% 50V
2586 4822 126 13883 220pF 5% 50V
2587 3198 017 41050 1uF 10V
2588 4822 126 13879 220nF +80/-20% 16V
2589 3198 017 41050 1uF 10V
2850 4822 126 14494 22nF 10% 25V
2851 4822 126 14494 22nF 10% 25V
2852 4822 126 14494 22nF 10% 25V
2853 4822 126 14305 100nF 10% 16V
RESISTORS
3400 4822 051 30471 470R 5% 0,062W
3401 4822 051 30471 470R 5% 0,062W
3402 4822 051 30471 470R 5% 0,062W
3403 4822 051 30471 470R 5% 0,062W
3404 4822 051 30471 470R 5% 0,062W
3407 4822 051 20109 10R 5% 0,1W
3408 4822 051 20109 10R 5% 0,1W
3409 4822 117 12925 47k 1% 0,063W
3410 4822 051 20109 10R 5% 0,1W
3411 4822 051 20109 10R 5% 0,1W
3413 4822 051 30105 1M 5% 0,062W
3414 4822 051 30471 470R 5% 0,062W
3415 4822 051 30471 470R 5% 0,062W
3416 4822 051 30471 470R 5% 0,062W
3417 4822 051 30471 470R 5% 0,062W
3418 4822 051 30471 470R 5% 0,062W
3419 4822 051 30471 470R 5% 0,062W
3420 4822 051 30471 470R 5% 0,062W
3421 4822 051 30471 470R 5% 0,062W
3422 4822 051 30471 470R 5% 0,062W
3423 4822 051 30471 470R 5% 0,062W
3424 4822 051 30471 470R 5% 0,062W
3425 4822 051 30471 470R 5% 0,062W
3428 4822 051 30471 470R 5% 0,062W
RESISTORS
ELECTRICAL PARTS LIST - FRONT DISPLAY BOARD
6-6 6-6
ELECTRICAL PARTS LIST - FRONT DISPLAY BOARD
3429 4822 116 83883 470R 5% 0,5W
3430 4822 116 83883 470R 5% 0,5W
3431 4822 051 30471 470R 5% 0,062W
3432 4822 051 30471 470R 5% 0,062W
3433 4822 051 30471 470R 5% 0,062W
3434 4822 051 30102 1k 5% 0,062W
3435 4822 051 30471 470R 5% 0,062W
3436 4822 051 30471 470R 5% 0,062W
3437 4822 051 30471 470R 5% 0,062W
3438 4822 051 30222 2k2 5% 0,062W
3439 4822 051 30222 2k2 5% 0,062W
3444 4822 051 30471 470R 5% 0,062W
3445 4822 051 30471 470R 5% 0,062W
3446 4822 051 30471 470R 5% 0,062W
3447 4822 051 30471 470R 5% 0,062W
3448 4822 051 30471 470R 5% 0,062W
3449 4822 051 30471 470R 5% 0,062W
3450 4822 051 30471 470R 5% 0,062W
3451 4822 051 30471 470R 5% 0,062W
3452 4822 051 30471 470R 5% 0,062W
3453 4822 051 30471 470R 5% 0,062W
3454 4822 051 30471 470R 5% 0,062W
3455 4822 051 30471 470R 5% 0,062W
3456 4822 116 83883 470R 5% 0,5W
3457 4822 051 30471 470R 5% 0,062W
3458 4822 051 30471 470R 5% 0,062W
3459 4822 051 30471 470R 5% 0,062W
3460 4822 051 30471 470R 5% 0,062W
3461 4822 051 30471 470R 5% 0,062W
3462 4822 051 30471 470R 5% 0,062W
3463 4822 051 30471 470R 5% 0,062W
3464 4822 051 30471 470R 5% 0,062W
3465 4822 051 30471 470R 5% 0,062W
3466 4822 051 30471 470R 5% 0,062W
3467 4822 051 30471 470R 5% 0,062W
3468 4822 051 30471 470R 5% 0,062W
3469 4822 051 30471 470R 5% 0,062W
3470 4822 051 30471 470R 5% 0,062W
3471 4822 051 30471 470R 5% 0,062W
3472 4822 051 30471 470R 5% 0,062W
3473 4822 051 30471 470R 5% 0,062W
3474 4822 051 30221 220R 5% 0,062W
3475 4822 051 30221 220R 5% 0,062W
3476 4822 051 30471 470R 5% 0,062W
3477 4822 051 30471 470R 5% 0,062W
3479 4822 051 30471 470R 5% 0,062W
3480 4822 051 30471 470R 5% 0,062W
3485 4822 117 12925 47k 1% 0,063W
3490 4822 051 30471 470R 5% 0,062W
3491 4822 051 30471 470R 5% 0,062W
3492 4822 051 30471 470R 5% 0,062W
3500 4822 117 12864 82k 5% 0,6W
3501 4822 117 12864 82k 5% 0,6W
3502 4822 117 12864 82k 5% 0,6W
3503 4822 117 12864 82k 5% 0,6W
3504 4822 116 83883 470R 5% 0,5W
3505 4822 116 83883 470R 5% 0,5W
3511 4822 051 30272 2k7 5% 0,062W
3512 4822 051 30102 1k 5% 0,062W
3515 4822 117 12891 220k 1%
3516 4822 051 30222 2k2 5% 0,062W
3517 4822 051 30103 10k 5% 0,062W
3518 4822 051 30103 10k 5% 0,062W
3521 4822 051 30684 680k 5% 0,062W
3522 4822 117 12925 47k 1% 0,063W
3523 4822 051 30474 470k 5% 0,062W
3524 4822 051 30109 10R 5% 0,062W
3526 4822 116 52244 15k 5% 0,5W
3527 4822 117 12968 820R 5% 0,62W
3528 4822 051 30103 10k 5% 0,062W
3529 4822 051 30272 2k7 5% 0,062W
3530 4822 051 30562 5k6 5% 0,063W /22
3530 4822 117 12902 8k2 1% 0,063W /34
3531 4822 051 30103 10k 5% 0,062W
3532 4822 051 30103 10k 5% 0,062W
3533 4822 051 30102 1k 5% 0,062W
3534 4822 051 30102 1k 5% 0,062W
3535 4822 051 20109 10R 5% 0,1W
3536 4822 051 20109 10R 5% 0,1W
3537 4822 116 52206 120R 5% 0,5W
3538 4822 116 52206 120R 5% 0,5W
3539 4822 051 30223 22k 5% 0,062W
3540 4822 051 30103 10k 5% 0,062W
3541 4822 051 30103 10k 5% 0,062W
3542 4822 116 83872 220R 5% 0,5W
3543 4822 051 30221 220R 5% 0,062W
3544 4822 051 30121 120R 5% 0,062W
3545 4822 051 30121 120R 5% 0,062W
3546 4822 051 30121 120R 5% 0,062W
3547 4822 051 30121 120R 5% 0,062W
3548 4822 051 30221 220R 5% 0,062W
3549 4822 051 30221 220R 5% 0,062W
3550 4822 051 30472 4k7 5% 0,062W
3551 4822 051 30103 10k 5% 0,062W
3552 4822 051 30103 10k 5% 0,062W
3553 4822 051 30103 10k 5% 0,062W
3554 4822 051 30103 10k 5% 0,062W
3555 4822 051 30221 220R 5% 0,062W
3556 4822 051 30121 120R 5% 0,062W
3557 4822 051 30271 270R 5% 0,062W
3558 4822 051 30221 220R 5% 0,062W
3559 4822 051 30221 220R 5% 0,062W
3560 4822 116 83883 470R 5% 0,5W
3561 4822 116 83883 470R 5% 0,5W
3562 4822 051 30103 10k 5% 0,062W
3563 4822 051 30103 10k 5% 0,062W
3564 4822 051 30221 220R 5% 0,062W
3565 4822 051 30221 220R 5% 0,062W
3570 4822 051 20109 10R 5% 0,1W
3571 4822 051 20109 10R 5% 0,1W
3572 4822 051 30222 2k2 5% 0,062W
3573 4822 051 30103 10k 5% 0,062W
3574 4822 051 30103 10k 5% 0,062W
3576 4822 051 30103 10k 5% 0,062W
3577 4822 051 30103 10k 5% 0,062W
3578 4822 051 30103 10k 5% 0,062W
3579 4822 051 30103 10k 5% 0,062W
3580 4822 051 30102 1k 5% 0,062W
3581 4822 051 30102 1k 5% 0,062W
3582 4822 051 30102 1k 5% 0,062W
3583 4822 051 30223 22k 5% 0,062W
3584 4822 051 30102 1k 5% 0,062W
3585 4822 051 30334 330k 5% 0,062W
3586 4822 051 30102 1k 5% 0,062W
3589 4822 051 30102 1k 5% 0,062W
3590 4822 117 13632 100k 1% 0,62W
3591 4822 117 13632 100k 1% 0,62W
3592 4822 051 30102 1k 5% 0,062W
3593 4822 051 30102 1k 5% 0,062W
3594 4822 051 30102 1k 5% 0,062W
3595 4822 051 30272 2k7 5% 0,062W
3596 4822 051 30272 2k7 5% 0,062W
3598 4822 051 30103 10k 5% 0,062W
3599 4822 051 30471 470R 5% 0,062W
4402 4822 051 30008 0R Jumper 0603
4403 4822 051 30008 0R Jumper 0603
4404 4822 051 30008 0R Jumper 0603
4410 4822 051 30008 0R Jumper 0603
4411 4822 051 30008 0R Jumper 0603
4412 4822 051 30008 0R Jumper 0603
4413 4822 051 30008 0R Jumper 0603
4414 4822 051 30008 0R Jumper 0603
4415 4822 051 30008 0R Jumper 0603
4416 4822 051 30008 0R Jumper 0603
4418 4822 051 30008 0R Jumper 0603
4419 4822 051 30008 0R Jumper 0603
4420 4822 051 30008 0R Jumper 0603
4422 4822 051 30008 0R Jumper 0603
4423 4822 051 30008 0R Jumper 0603
4424 4822 051 30008 0R Jumper 0603
4425 4822 051 30008 0R Jumper 0603
4426 4822 051 30008 0R Jumper 0603
4427 4822 051 30008 0R Jumper 0603
4428 4822 051 30008 0R Jumper 0603
4429 4822 051 30008 0R Jumper 0603
4431 4822 051 30008 0R Jumper 0603
4434 4822 051 30008 0R Jumper 0603
4435 4822 051 30008 0R Jumper 0603
4850 4822 051 30008 0R Jumper 0603
5400 4822 157 62552 Coil 2,2uH 5%
5401 4822 157 62552 Coil 2,2uH 5%
5402 5322 242 73686 RES CER 12MHz
5403 2422 543 01069 RES XTL 32,768kHz
5404 4822 242 11033 RES XTL 4,332MHz
5405 4822 157 62552 Coil 2,2uH 5%
5406 4822 157 62552 Coil 2,2uH 5%
5407 4822 157 62552 Coil 2,2uH 5%
5408 4822 157 62552 Coil 2,2uH 5%
5409 4822 157 62552 Coil 2,2uH 5%
5850 4822 157 62552 Coil 2,2uH 5%
5851 4822 157 62552 Coil 2,2uH 5%
5852 4822 157 62552 Coil 2,2uH 5%
DIODES
6400 4822 130 30621 1N4148
6401 4822 130 30621 1N4148
6402 4822 130 30621 1N4148
6403 4822 130 30621 1N4148
6404 4822 130 30621 1N4148
6405 4822 130 34174 BZX79-B4V7
6406 4822 130 30621 1N4148
6407 4822 130 30621 1N4148
6408 4822 130 30621 1N4148
6409 4822 130 30621 1N4148
6410 4822 130 31878 1N4003G
6411 4822 130 31878 1N4003G
6412 4822 130 30621 1N4148
6413 4822 130 31878 1N4003G
6414 4822 130 30621 1N4148
6415 4822 130 11397 BAS316
6420 9322 167 73676 LTL-4221NLC-KA
TRANSISTORS & INTEGRATED CIRCUITS
7400 3139 110 53040 TMP88CU74YF - 'C555S53041'
7401 9352 679 67118 SAA6579T/V1/M4
7402 5322 209 11446 HEF4051BT
7403 4822 209 15449 74HC4094D
7404 4822 209 15449 74HC4094D
7405 9322 145 26668 M24C02-WMN6
7406 4822 130 60511 BC847B
7407 4822 130 60511 BC847B
7408 4822 130 60511 BC847B
7409 4822 130 60511 BC847B
7410 4822 130 60511 BC847B
7411 4822 130 60373 BC857B
7412 4822 130 60511 BC847B
7413 4822 130 60511 BC847B
Note : Only the parts mentioned in this list are normal
service spare parts.
COILS & FILTERS
7A-17A-1
1
FM
Osc.
FM
Mixer
AM
Mixer
AM
Osc.
AM IF
IF1 IF2 FM
Det.
AM
Det.
3393733
RADIO IC
TEA 5757H
TUNER BOARD
ECO 6
Systems
1018 11 14
15
24
right right
left
left
stereo
VCO
4140 36 193244 25
Stereo
Decoder
AFC
AFC +
AFC -
4
4
AGC
Pre-
scaler Multi-
plexer
Charge
pump
Stabilizer
CONTROL
Reference
Oscillator
29
28
27
clock
data
enable
P1
P0
31
30
programmable
output ports
VLoop
VLoop
VLoop
VLoop
VLoop
2
6
5
43
C
D
450kHz450kHz450kHz
20
75kHz
VStabAV
StabBV
StabB
VStabA VStabB
10,7 MHz 10,7 MHz
35 9
Vdd Vcc1
723
VStabA
VStabB
38
34
22
Vcc2
8
ECO6 Systems, 140499
LF filter
RDS
(MPX)
RDS
(MPX)
stereo
clock
data
enable
Version
1120
1
8
FM
Frontend
AM
Frontend
AM-FRAME AERIAL
B
1103
1101
(1102)
AFM
MPX
buffer ampl.
5
Discriminator
10,7 MHz
Vdd
Vcc1
Vcc
Vcc2
AM-RF
AM-Osc.
FM-Osc.
FM-RF FM-IF 1 FM-IF 2
AM-IF 1 AM-IF 2
AM-AFC
3
2
BLOCK DIAGRAM
ECO6 Tuner Board
version:
SYSTEMS non-CENELEC
TABLE OF CONTENTS
Blockdiagram ..................................................................7A-1
Schematic Diagram.........................................................7A-2
Component Layout..........................................................7A-3
Adjustment table .............................................................7A-3
Electrical Partslist............................................................7A-4
7A-2 7A-2
ECO6 Sys-non Cenelec, 000911
1101 A1
1102 B1
1103 F2
1120 E14
1130 A2
1131 B2
1132 G13
2101 B3
2102 B1
2103 C7
2104 B3
2105 A2
2106 F3
2107 F4
2119 H6
2120 G6
2124 H6
2125 H6
2126 F7
2127 E7
2128 C8
2129 C7
2130 F11
2131 G8
2132 G8
2133 G8
2134 H8
2135 H9
2136 G14
2137 G13
2138 F9
2139 G9
2140 G9
2141 F10
2143 G12
2144 G11
2145 F12
2146 E12
2147 E12
2148 E12
2149 H7
2150 A10
2152 E4
2153 E5
2154 D5
2155 D5
2159 F6
2161 C11
2163 D11
2164 F10
2165 C7
2166 E11
2167 E11
2169 H8
3101 E4
3102 D4
3103 C6
3104 A7
3105 B6
3132 G5
3134 H6
3141 E7
3142 E7
3143 G7
3144 H7
3145 F8
3146 G13
3152 G14
3153 G13
3154 G13
3155 G11
3156 C12
3157 C12
3158 E13
3159 D13
3160 D12
3161 D13
3167 F12
3168 F11
3169 E11
3170 C12
3172 G12
3176 G7
3181 E6
5102 F2
5109 B9
5110 B10
5111 A8
5112 A11
5114 B11
5119 G9
5121 E11
5123 G5
5130 E5
5131 C6
6103 B2
6105-1 F3
6105-2 G5
6106 C3
6107 G13
6120 C13
6130 E5
6131 D5
7101 C8
7102 C6
7103 H7
7111 C13
7112 G12
T102 B2
T103 B2
T105 F2
T106 F2
T109 B6
T110 F5
T111 F4
T112 F7
T113 A8
T114 B10
T115 A8
T116 F10
T117 G13
T118 G11
T120 F13
T121 F13
T122 F13
T123 E13
T124 G14
T125 F14
T126 F13
T127 F13
T128 D7
T140 F11
T141 F10
T142 F10
1
34
6
87
2
1
34
6
87
2
LEGEND
p ...for provision only
USA ... for USA version only
E-EU ... for East European version only
22n
USA
22n
USA
p
p
p
7
1
2
3
8
6105
6
HN1V02H
54
36
1
2
7
29
25
13
30
31
16
4
42
15
1
7
22
9
23
38 34
2118
37 35
33
43 39
5
3
8
171412
24
11
10
2019
44
32
41 3640
6
2
27
28
26
1
3
4
5
6
87
2
1
34
6
87
2
1
34
6
87
2
p
SCALER
MULTI-
PLEXER
CONTROL
FILTER
AM
IF
AM
DET
FM
DET
VSTABB
DECODER
CHARGE
PUMP
AGC
OSC
AM DET
FM
IF2
RIPPLE
AGC
STABILIZER
AFC
VDD
VSTABA
AM-IF
MONO/
FM
FRONTEND
CONTROL
XTAL
AGC
PRE-
CTRL
AGC
AM
OSC
AGC
VCC2
FM
OSC
AM
MIXER
MIXER
FM
FM
IF1
FRONTEND
AM
STEREO
STEREO
RDS only
DISCRIMINATOR
to/from
FM-OSCILLATOR
PROGR.
MPX
Q-multiplier
MW
OUTPUT PORTS
to 1120
pin 5
ENABLE/MPX
BUFFER
kHz
VERSION DETECTION
VCO
RIGHT
14
12 3
AM FRAME AERIAL
DATA
C
D
E
F
AM-OSCILLATOR
FM 75 OHM
FM-IF2
MW
2345
AM-RF
450kHz
450kHz
AM-IF2
from 2169
78
AM-AFC
LEFT
6 7 8 9 10 11 12 13
456
FM-RF
TUNER BOARD ECO6
/ SYSTEMS NON CENELEC
9 1011121314
A
B
G
H
A
B
1
VCC
STEREO
CLOCK
AMPLIFIER
GND
H
C
D
E
F
G
470n
2132
BAS216
6120
2103
1u
2107
1n
3134
22K
6105-2
HN1V02H
100n
2163
T141
7KL
1K
3144
5102
3157
100K
T109
470R
3153
2130
22n
220R
3105
3142
100K
3167
120R
33p
2149
2K2
3145
1132
C-PAD
T103
T111
2164
470n
T102
2140 15p
2139
2138
2u2
82p
2133
1u
3103
8K2
T120
4p7
2154
3156
1101
USA
YKD21
100K
2161
100n
5119
2119
10p
T142
5123
11p
2106
3172
6106
BAS216
100n
2165
5K6
3154
3155
220R
330R
2124
33K
3176
22n
WRITE-EN
5114
7P
MUTE
P0
P1
PILOT
RF-GND1
RF-GND2
RIGHT
RIPPLE
VCC1
VCC2
VCO
VDD
VSTABA
VSTABB
FM-DEMOD
FM-IF1-IN
FM-IF2
FM-IF2-IN
FM-IN
FM-MIXOUT
FM-OSC
FM-RF
I-TUNE
IF-GND
LEFT
LPF
MPX-IN
AF-OUT
AFC+
AFC-
AGC
AM-AFC
AM-IF1-IN
AM-IF2
AM-MIXOUT
AM-OSC
AM-RF
CLOCK
DATA
DIG-GND
FIELDSTR-IND
5130
T127
T126
220n
2127
5121
DT-381
150K
3169
75K
3102
100K
56K
3141
1131
C-PAD
3132
5112
7P
6107
47R
6131
1SV228
BZX284-C11
1120
FE-BT-VK-N
T118
T140
T117
T112
2131
470n
33K
3101
1SV228
6130
3168
120R
2125
560p
T116
2n2
2148
100n
2141
470R
18p
2120
470R
3158
3152
3159
XH-S
1103
3160
470R
470R
220n
2143
2150
T125
1
2
3
4
5
6
7
8
22R
3146
BF550
7102
5131
11p
2155
O
100K
5110
G
I
1102
not USA
3170
T122
2135
15n
2167
2145
220p
T110
12p
HN1V02H
1n
2166
T105
6105-1
T106
T121
T123
BC547C
7112
3143
2129
100u
C-PAD
1130
22K
220n
2137
T128
3181
1K
330p
2126
2101
47p
BAV99
6103
2104
100p
2153
15p
T124
2152
33n
560p
E-EU
12p
E-EU
2p2
J
33p
2159
220p
2146
2169
2n2
1u
15n
2134
2144
220n
2136
22K
3161
BC857C
BC847C
7111
7103
2147
220p
VCC2
VCC2
VDD
T114
MPX
P1
P0
P1
VDD
MPX
VCC1
VCC1
VCC1
printed
printed
printed
1
2
13
2
1
2
3
1
2
TEA5757H
TEA5759H
J
7101
2128
10u
7111
component mounted
/14 FM-OIRT/MW
/00 /02 FM/MW/LW
6120 3170
/01 FM/MW
VERSION
/00 /02 FM/MW
3156
/17 FM/AM
/06 FM-Japan/AM
3157
VERSION PROGRAMMING COMPONENTS
J ... for Japanese version only
AM-IF1
450kHz
8
5111
1
2
3
4
6
7
T113
T115
FM-IF1
2
G
1
I
3
O
5109
3104
330R
100n
0R
4103
...V MW mode
...V LW mode
voltages measured while
set is tuned to a strong transmitter
...V FM mode stereo
EVM
V
5V
0V
152kHz, 50mVpp
stereo stereomono
9.6V
9.5V
9.5V
10.4V
12V
1V
1.3V
1.4V
stereo 0.2V
mono 4.8V
9.6V
12Vtyp
stereo 0.4V
0.15V
11.1V
7.8V
2V
0.7V
0V
1.2V
7.6V
(10-14V)
0.2V
0V
1.2V
0.1V
D
1.4V
0.7V
4
0V
0V
mono 4.8V
1.4V
9.6V
1.4V
0.2V
0.7V
1.4V
7.9V
7.7V
0V
0V
0V
0V
0.6V
0.8V
0.1V
1.6-8V
1-8V
11.1V
0V
1V
1.4V
1.4V
B
7.6V
5
3
2
A
1.3V
0.7V
7.8V
11.1V
0.8V
0.6V
0.6V
1V
0.7V
1V
1.1V
1.1V
0V
0V
2V
C
1
0.8V
1.2V
1.1V
IF-AMP.
BFS20
7119
J
1K
3113
J
2112
J
100p
330R
3119
J
Signal path
FM
AF - left/right
AM
MPX (Audio Frequency)
2102
100n
2105 USA
100n
7A-37A-3
VARICAP ALIGNMENT
FM RF
FM IF
VCO
AM IF
AM RF
3)
108MHz
87.5MHz
(65.81MHz)
87.5MHz
(65.81MHz)
87.5MHz
(65.81MHz)
279kHz
153kHz
1602kHz
531kHz
5130
check
5122
check
5123
check
8V ±0.2V
4.3V ±0.5V
(1.2V ±0.5V)
8V ±0.2V
1.1V ±0.4V
8V ±0.2V
1.1V ±0.4V
1494kHz
558kHz
560kHz 5102
1500kHz
5103198kHz
1494kHz
558kHz
560kHz
1500kHz
198kHz
2106
5102
2106
3142 152kHz ±1kHz 1)
98MHz
5112
MAX
FM
87.5 - 108MHz
(65.81 - 74, 87.5 - 108MHz)
LW
153 - 279kHz
MW
FM/MW/LW- version, 9kHz grid
531 - 1602kHz
1700kHz
530kHz
5123
check
8V ±0.2V
1.1V ±0.4V
1602kHz
531kHz
5123
check
6.9V ±0.2V
1.1V ±0.4V
108MHz 108MHz 2155
5131
MW
FM/AM-version, 10kHz grid
530 - 1700kHz
FM
MW
LW
98MHz, 1mV
continuous wave
450kHz
connect pin 6 of
IC 7101 (AM Osc.)
with 3.3kΩ to Vcc
Use Service Testprogram. By selecting the TUNER TEST test frequencies will be stored as preset frequencies automatically.
4
1
3
5
5
A
A
5119FM 10.7MHz, 45mV
continuous wave 2D
mod=1kHz
∆f=±22.5kHz
1)
If sensitivity of frequency counter is too low adjust to max. channel separation
(input signal: stereo left 90% + 9%, adjust output on right channel to minimum)
Repeat
ECO6, Sys + PA with frame aerial, 070799
TUNER ADJUSTMENT TABLE ( ECO6 FM/MW- and FM/MW/LW - versions with AM-frame aerial )
∆f=±10kHz
VRF = 0.5mV
C
see
remark 2)
220R
100nF
36
IC 7101
220R
100nF
40
IC 7101
2141
shortcircuit
to block AFC
21
IC 7101
max.
symmetric
fo
AM AFC
MW
C
continuous wave
VRF = 2mV
5111
5114 20 ± 2 mV DC
0 ± 3 mV DC
MW 4)
FM/MW/LW- and FM/MW-version
( 9kHz grid)
531 - 1602kHz
B
∆f = ±30kHz
V
RF
as low as
possible
max.
symmetric
fo
MW
FM/AM-version, 10kHz grid
530 - 1700kHz
3)
For AM RF adjustments the original frame antenna has to be used !
2)
RC network serves for damping the IF-filter while adjusting the other one.
4)
MW has to be aligned before LW.
Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter
FM
87.5 - 108MHz
(65.81 - 74, 87.5 - 108MHz)
FM/MW-version, 9kHz grid
531 - 1602kHz
(as low as
possible)
ECO6 System non Cenelec stage .3, 120900

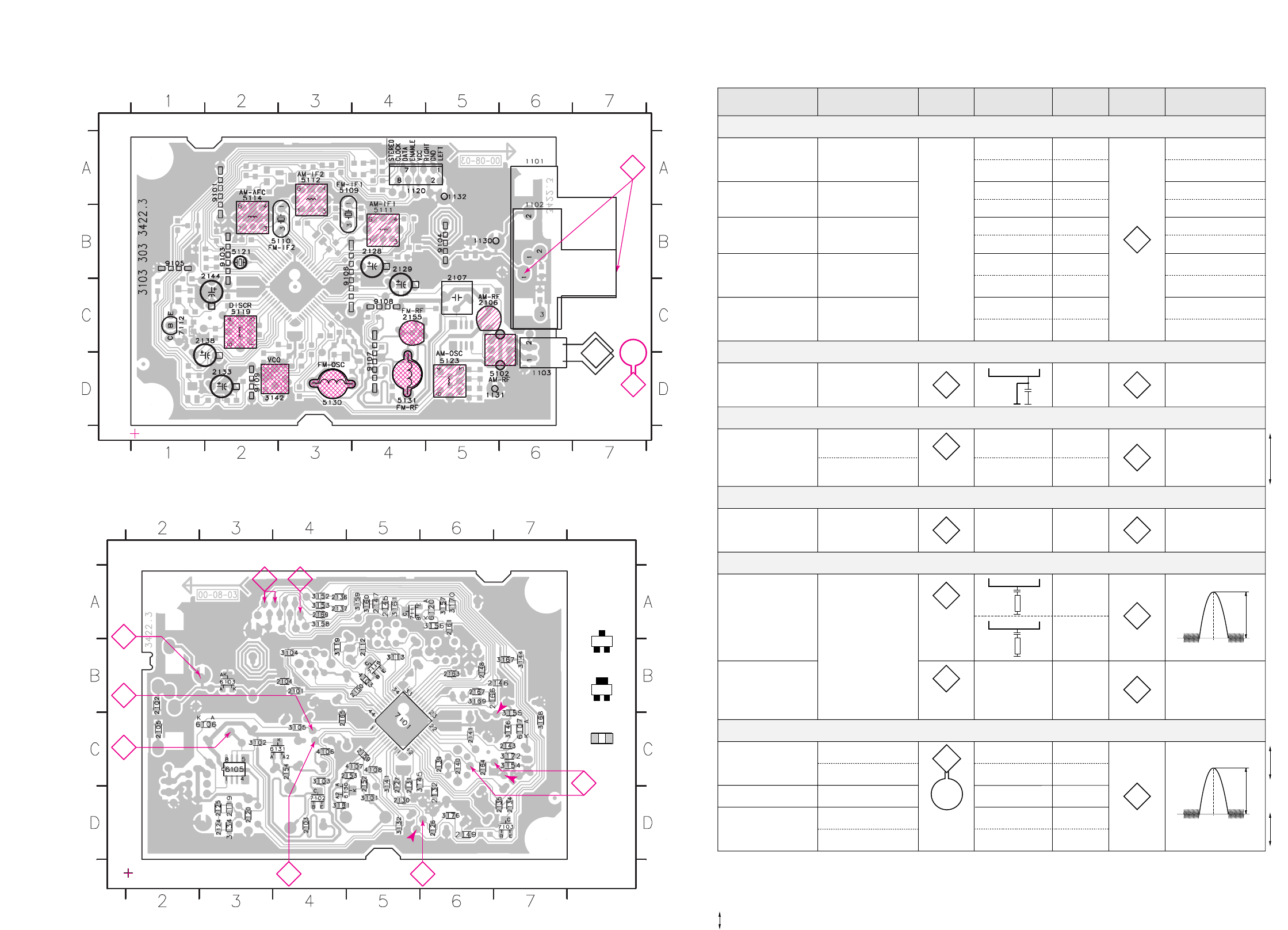

TUNER BOARD ECO6
Systems non Cenelec
/ componentside view
1101 A6
1102 B6
1103 D6
1120 A4
1130 B5
1131 D5
1132 A5
2106 C5
2107 B5
2128 C4
2129 B4
2133 D2
2138 C2
2144 B2
2155 C4
3142 D2
5102 D6
5109 A3
5110 B3
5111 B4
5112 A3
5114 A2
5119 C2
5121 B2
5123 D5
5130 D3
5131 D4
7112 C1
9101 A2
9103 B2
9104 B5
9105 B1
9106 B3
9107 D4
9108 C4
9109 D2
AM FRAME AERIAL
FM 75Ω
B
A
TUNER BOARD ECO6
Systems - non Cenelec
/
copperside view
2101 B4
2102 B1
2103 D4
2104 B4
2105 C1
2112 B5
2119 D3
2120 D3
2124 D3
2125 D3
2126 D6
2127 C5
2130 D5
2131 C5
2132 D6
2134 D7
2135 D7
2136 A4
2137 A4
2139 C6
2140 C6
2141 C6
2143 C7
2145 A5
2146 B7
2147 A5
2148 B6
2149 D6
2150 B5
2152 C5
2153 C5
2154 C4
2159 C5
2161 A6
2163 B6
2164 C6
2165 C4
2166 B6
2167 B6
2169 A4
3101 D5
3102 C3
3103 C4
3104 B4
3105 C4
3113 B5
3119 B5
3132 D5
3134 D3
3141 C5
3143 D6
3144 B7
3145 C5
3146 C7
3152 A4
3153 A4
3154 C7
3155 C7
3156 A6
3157 A6
3158 A4
3159 A5
3160 A5
3161 A5
3167 B7
3168 C7
3169 B6
3170 A6
3172 C7
3176 D6
3181 D4
4103 B5
4106 C4
4107 C5
4108 C5
6103 B3
6105 C3
6106 C3
6107 C7
6120 A6
6130 D4
6131 C4
7101 C5
7102 D4
7103 D7
7111 A5
7119 B5
These assembly drawings show a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist.
ECO6 Systems non CENELEC stage .3, 120900
41..
in schematic diagram)
(not all items shown
SMD jumper
EB
C
A
K
1
2
7
8
4
D
A
C
1
2
5
3
Vdd
Vcc2
Vcc1
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1101 2422 015 19376 SOCKET 2P CLICKFIT USA only
1102 4822 267 10283 SOCKET COAX, IEC 75Ωnot USA
1103 4822 265 31184 JST CONNECTOR 2 POLE
1120 4822 265 11515 FFC SOCKET, 8P
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2101 © 4822 126 13692 47pF 1% 63V
2102 © 4822 126 13838 100nF 10% 50V not USA
2103 © 5322 122 31647 1nF 10% 63V
2104 © 5322 122 32531 100pF 5% 50V
2105 © 4822 126 13838 100nF 10% 50V USA only
2106 2020 800 00191 3-11pF TRIMCAP.,N450
2107 4822 121 51319 1µF 20% 50V
2120 © 4822 126 13689 18pF 1% 63V
2124 © 5322 122 32654 22nF 10% 63V
2125 © 2020 552 96199 560pF 1% 50V
2126 © 5322 122 31863 330pF 5% 50V
2127 © 4822 126 14076 220nF 20% 25V
2128 4822 124 40248 10µF 20% 63V
2129 4822 124 41584 100µF 20% 10V
2130 © 5322 122 32654 22nF 10% 63V
2131 © 4822 126 13482 470nF 20% 16V
2132 © 4822 126 13482 470nF 20% 16V
2133 4822 124 21913 1µF 20% 63V
2134 © 4822 126 13188 15nF 5% 63V not USA
2134 © 5322 122 32654 22nF 10% 63V USA only
2135 © 4822 126 13188 15nF 5% 63V not USA
2135 © 5322 122 32654 22nF 10% 63V USA only
2136 © 4822 126 14076 220nF 20% 25V
2137 © 4822 126 14076 220nF 20% 25V
2138 4822 124 22652 2,2µF 20% 50V
2139 © 4822 126 14236 15pF 5% 50V
2140 © 4822 126 13695 82pF 1% 63V
2141 © 4822 126 13838 100nF 10% 50V
2143 © 4822 126 14076 220nF 20% 25V
2144 4822 124 21913 1µF 20% 63V
2145 © 4822 122 33575 220pF 5% 50V
2146 © 4822 122 33575 220pF 5% 50V
2147 © 4822 122 33575 220pF 5% 50V
2148 © 4822 122 33127 2,2nF 10% 63V
2149 © 5322 122 32659 33pF 5% 50V RDS only
2150 © 4822 126 13838 100nF 10% 50V
2152 © 4822 126 12105 33nF 5% 63V not for East Europe
2152 © 5322 116 80853 560pF 5% 63V for East Europe only
2153 © 4822 126 13486 15pF 2% 63V not for East Europe
2153 © 4822 122 33926 12pF 2% 50V for East Europe only
2155 2020 800 00191 3-11pF TRIMCAP.,N450
2159 © 5322 122 32659 33pF 5% 50V
2164 © 4822 126 13482 470nF 20% 16V
2165 © 4822 126 13838 100nF 10% 50V
2166 © 5322 122 31647 1nF 10% 63V
2167 © 4822 122 33926 12pF 5% 50V
2169 © 4822 122 33127 2,2nF 10% 63V RDS only
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3101 © 4822 051 20333 33kΩ5% 0,1W
3102 © 4822 117 10837 100kΩ1% 0,1W
3103 © 4822 051 20822 8,2kΩ5% 0,1W
3104 © 4822 117 13577 330Ω1% 0,1W
3105 © 4822 117 11503 220Ω5% 0,1W
3132 © 4822 051 20479 47Ω5% 0,1W
3134 © 4822 051 20223 22kΩ5% 0,1W
3141 © 4822 117 11148 56kΩ1% 0,1W
3142 4822 100 12159 TRIMPOT. 100kΩ
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3143 © 4822 051 20223 22kΩ5% 0,1W RDS only
3144 © 4822 051 10102 1kΩ2% 0,25W RDS only
3145© 4822 117 11449 2,2kΩ1% 0,1W
3146 © 4822 051 20229 22Ω5% 0,1W
3152 © 4822 051 20471 470Ω5% 0,1W
3153 © 4822 051 20471 470Ω5% 0,1W
3154 © 4822 117 13577 330Ω1% 0,1W
3155 © 4822 117 11503 220Ω5% 0,1W
3156 © 4822 117 10837 100kΩ1% 0,1W
3157 © 4822 117 10837 100kΩ1% 0,1W
3158 © 4822 051 20471 470Ω5% 0,1W
3159 © 4822 051 20471 470Ω5% 0,1W
3160 © 4822 051 20471 470Ω5% 0,1W
3161 © 4822 051 20223 22kΩ5% 0,1W
3167 © 4822 051 20121 120Ω5% 0,1W
3168 © 4822 051 20121 120Ω5% 0,1W
3169 © 4822 051 20154 150kΩ5% 0,1W
3170 © 4822 117 10837 100kΩ1% 0,1W
3172 © 4822 051 20562 5,6kΩ5% 0,1W
3176 © 4822 051 20333 33kΩ5% 0,1W RDS only
3181 © 4822 051 10102 1kΩ2% 0,25W
4103 © 4822 051 20008 CHIP JUMPER 0805
4106 © 4822 051 20008 CHIP JUMPER 0805
4107 © 4822 051 20008 CHIP JUMPER 0805
4108 © 4822 051 20008 CHIP JUMPER 0805
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
5102 4822 157 71634 RF-COIL MW
5109 4822 242 70665 FM-IF FILTER 10,7MHz
5110 4822 242 70665 FM-IF FILTER 10,7MHz
5111 2422 549 44023 AM-IF FILTER 450kHz
5112 4822 157 70302 AM-IF FILTER 450kHz
5114 4822 157 70302 AM-IF FILTER 450kHz
5119 4822 157 11443 DISCRIMINATOR COIL
5121 4822 242 10261 QUARTZ 75kHz
5123 2422 549 44108 RF-COIL, AM-OSCILLATOR
5130 4822 157 11843 RF COIL 1,5 TURNS
5131 4822 157 11843 RF COIL 1,5 TURNS
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6103 © 5322 130 34337 BAV99
6105 © 4822 130 83075 HN1V02H
6106 © 4822 130 83757 BAS216
6107 © 9340 386 90115 BZX284-C11
6120 © 4822 130 83757 BAS216
6130 © 4822 130 82833 1SV228
6131 © 4822 130 82833 1SV228
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7102 4822 130 42131 BF550
7103 © 5322 130 42756 BC857C RDS only
7111 © 5322 130 42755 BC847C
7112 4822 130 44503 BC547C
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7101 © 9351 740 80557 TEA5757H/V1, RADIO IC
7A-4
Electrical Partslist
ECO6
SYSTEMS NON
-
CENELEC
7A-4
7B-17B-1
1
AM
Mixer
AM
Osc.
AM IF
IF1 IF2 FM
Det.
AM
Det.
37 33
RADIO IC
TEA 5762
TUNER BOARD
ECO 6
Systems Cenelec
1018 11 14
39
15
24
right
AM/FM
right
left
left
stereo
VCO
4140 36 193244 25
Stereo
Decoder
AFC
AFC +
AFC -
4
4
AGC
Pre-
scaler
Multi-
plexer
Charge
pump
Stabilizer
CONTROL
Reference
Oscillator
29
28
27
clock
data
enable
P1
P0
31
30
programmable
output ports
VLoop
VLoop
VLoop
2
6
5 FM Osc.
C
D
450kHz450kHz450kHz
20
75kHz
VStabAV
StabBV
StabB
VStabA VStabB
10,7 MHz 10,7 MHz
35 9
Vdd Vcc1
723
VStabA
VStabB
38
34
22
Vcc2
8
ECO6 Systems Cenelec, 140499
VLoop
+FM
AM-RF
AM-Osc.
FM-IF 1 FM-IF 2
LF filter
MPX
buffer ampl.
RDS
(MPX)
5
RDS
(MPX)
stereo
clock
data
enable
Version
3
1120
AM-IF 1 AM-IF 2
AM-AFC
1
8
AM
Frontend
2
AM-FRAME AERIAL
B
1103
1101
(1102)
AFM
AM/FM
Discriminator
10,7 MHz
Vdd
+FM
Vcc1
Vcc
Vcc2
MW/LW
AM-RF,
AM-Osc.
1
Ant.
Osc.
out
GND
234 6 5
8
7
VCC
Vvaricap
MIXER
FM FRONTEND
IF
out
ECO6 Tuner Board
version:
SYSTEMS CENELEC
TABLE OF CONTENTS
Blockdiagram ..................................................................7B-1
Schematic Diagram.........................................................7B-2
Component Layout..........................................................7B-3
Adjustment table .............................................................7B-3
Electrical Partslist............................................................7B-4

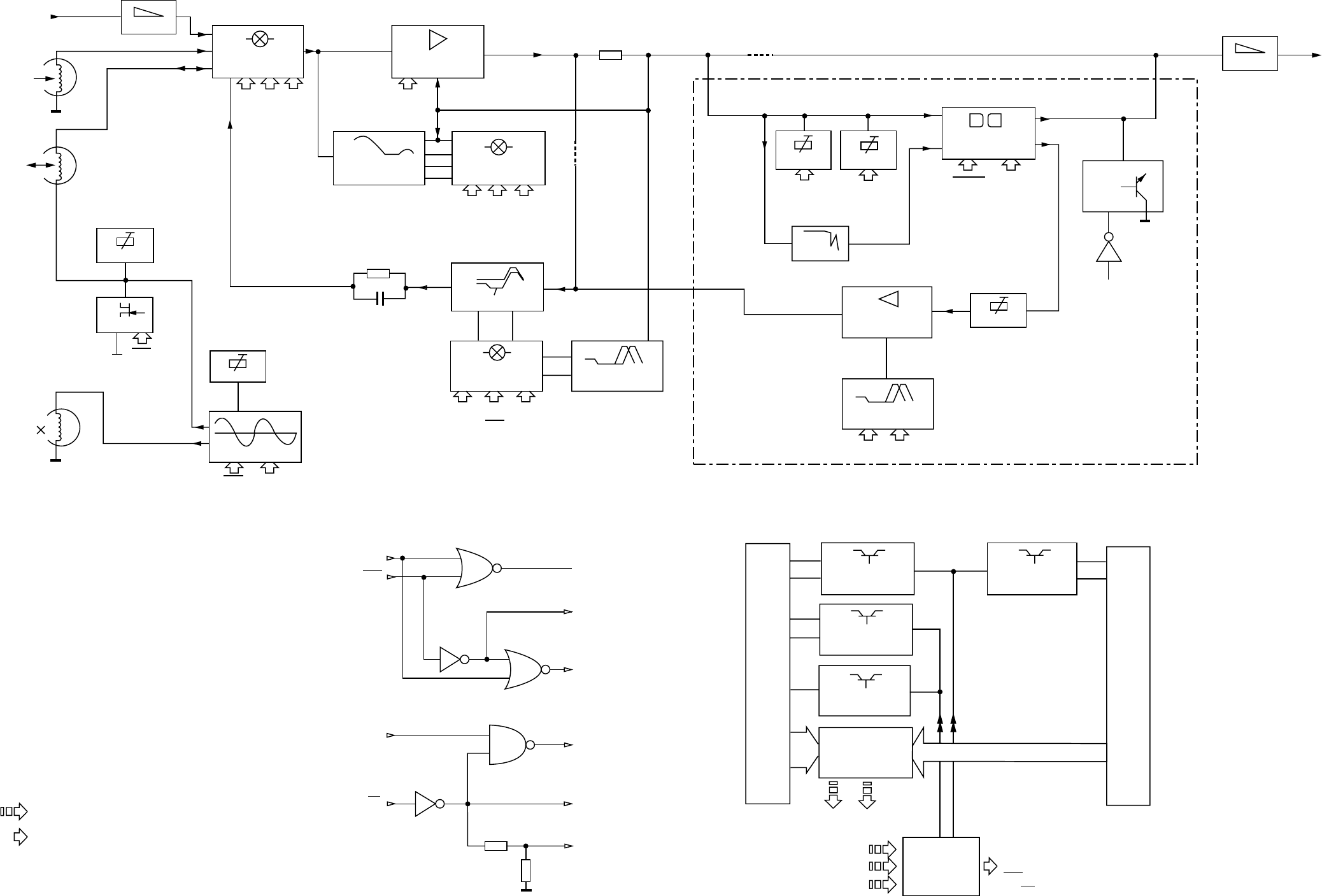

BLOCK DIAGRAM
7B-2 7B-2
MIXER
varicap
FM FRONTEND
GND
PRE-
SCALER
MULTI-
PLEXER
VSTABA
AM-IF
MONO/
XTAL
AGC
CONTROL
OSC
AM DET
AM
OSC
AGC
VCC2
AGC
PUMP
AM
MIXER
DECODER
CHARGE
FM
IF1
FRONTEND
AM
VSTABB
DET
FM
CONTROL
FILTER
AM
IF
AM
DET
STEREO
STEREO
FM
IF2
RIPPLE
AGC
STABILIZER
AFC
VDD
CTRL
AGC
A
B
C
D
E
F
G
H
I
234567891011121314
123456
31576120
MW=HIGH
FM 75 OHM
PROGRAMMABLE
OUTPUT PORTS
FM-IF2
LW
VERSION DETECTION
FM-IF1
7
I
7 8 9 1011121314
A
B
C
D
E
F
G
H
from
kHz
3170
BUFFER AMPLIFIER
VCC
1
1
2

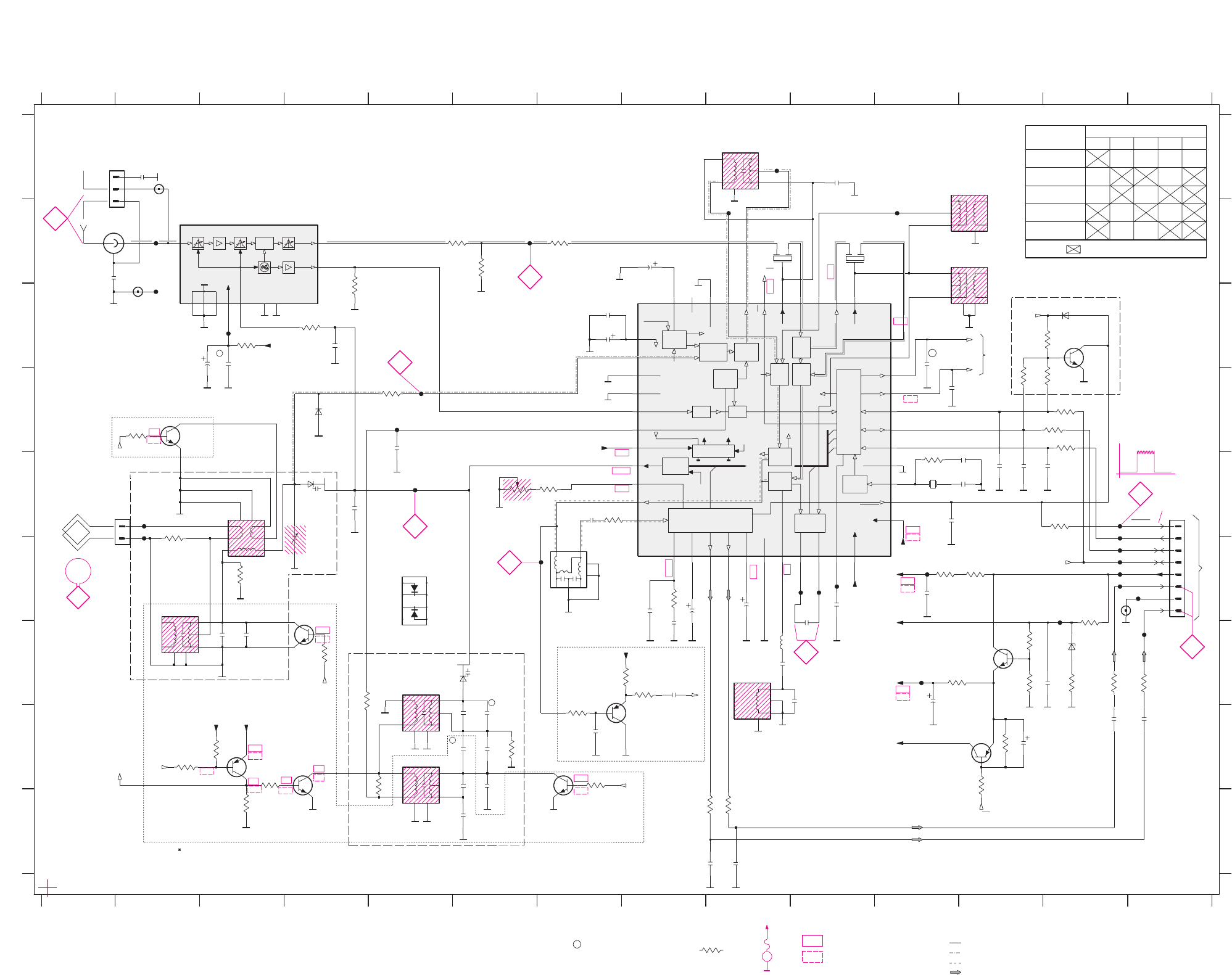

LEGEND
* ... only assembled in FM/AM-version SMD jumper
MW=HIGH
BIRDY FILTER
/00 /02 FM/MW
/00 /02 FM/MW/LW
2169
/ SYSTEMS-CENELEC
STEREO
3
450kHz
AM-IF2
3156
RIGHT
MW
LW only
450kHz
DISCRIMINATOR
AM-AFC
AM-IF1
8
/01 FM/MW
6105
6
LW only
LW =HIGH
VERSION PROGRAMMING COMPONENTS
marked components not for LW version
MW/LW-RF VCO
RDS only
MPX
to/from
GND
from 7101/39
LEFT
/17 FM/AM
to 1120
HN1V02H
VERSION
/14 FM-OIRT/MW
450kHz
LW=HIGH
TUNER BOARD ECO6
pin 5
54
LW ... for LW version only
MW
ENABLE/MPX
LW
component mounted
7111
AM-OSCILLATOR
CLOCK
DATA
AM FRAME AERIAL
p ...for provision only
USA ... for USA version only
2166
1n
T117
4
IF-OUT
7
910
8
OSC.
OUT
V
5
VCC
6
150K
3169
1110 FE450
ANT
1
23
T110
3168
T115
T109
3161
22K
120R
2130
22n
3142
100K
22u
2162
2137
220n
2123
390p
6
78
T106
T121
5103
1
2
3
4
T140
T118
T114
BC337-40
7105
T113
7124
100u
2129
68K
3151
BC847C
220p
2146
HN1V02H
6105-1
12
7
2K2
3128
2190
100n
0R
4102
*
3159
470R
YKD31-
0432
1
2
470R
3160
2149
33p
1102
1103
XH-S
1
2
22
VCC2
9VCO
23
VDD
38
VSTABA
VSTABB
34
29
WRITE-EN
25
470n
2131
IF-GND
14
LEFT
12
LPF
24
11 MPX-IN
13
MUTE
43
NC
30P0
31P1
16
PILOT
4RF-GND1
42
RF-GND2
15
RIGHT
1RIPPLE
7VCC1
40
AM-MIXOUT
6AM-OSC
2AM-RF
39
AM|FM
27
CLOCK
28
DATA
26DIG-GND
21
FIELDSTR-IND
18
FM-DEMOD
3FM-GND
37
FM-IF1-IN
35
FM-IF2
33FM-IF2-IN
5FM-OSC
8I-TUNE
17
TEA5762
7101
10 AF-OUT
20
AFC+
19
AFC-
44
AGC
32AM-AFC
41
AM-IF1-IN
36
AM-IF2
2107
1u
56K
3141
BAS216
6106
22K
3134
7110
BC857B
6
7
8
2u2
2138
1120
FE-BT-VK-N
1
2
3
4
5
1
2
34
6
78
5111
22K
3143
470R
3158
2143
220n
T124
330R
3154
T123
T125
T111
3190
120R 120R
3191
BAS216
6120
1K
3144
100K
3156
2144
1u
47K
3171
3194
2K2
2132
470n
1132
C-PAD
2118
2p2
220R
3105
2161
100n
p
2141
100n
T105
3157
100K
2119
10p
2K2
3145
2120
18p
22p LW
1
2
3
2124
10n
*
YKD21
1101USA
T126
7122
BC847C
2109
10p
T116
2
34
6
78
1u
2133
5114
7P
1
3
6
22K
3137
22R
3146
HN1V02H
6105-2
5
2122
3n3
2159
33p
10u
2128
10K
3150
47R
3132
BC857C
7103
3172
5K6
2167
12p
DT-381
5121
75
T142
2147
220p
T104
BC857B
7109
2K2
3108
4K7
3123
T122
T120
T127
7112
BC547C
2134
22nUSA
22nUSA
C-PAD
1131
T141
2106
11p
20p_LW
0R
4104 *
0R
41xx
2165
100n
1130
C-PAD
10K
3180
2150
100n
BZX284-C11
6107
T102
2127
220n
2169
2n2
100K
3170
1
I3
O
2125
560p
5109
2
G
470R
3152
2108
100p
3125
10K
3153
470R
330R
3193
T103
120R
3167
100R
3195
78
33K
3176
8
5122
1
2
34
6
5123
1
2
34
6
7
5110
G2
I1O3
5115
123
46
7
8
2
34
678
5119
1
2135
100n
2163 LW
7104
BC337-40
2145
220p
150R
3155
220n
2136
6
78
T112
T107
*
5102
7KL
1
2
34
5
3109
4K7
4101
0R
7111
BC847C
1
2
34
6
78
330R
3192
2n2
2148
5112
7P
470n
2164
ECO6 Sys-Cenelec, 010517
2140
82p
VCC1
VCC1
2139
15p
MPX
+FM
P0
P1
VDD
VDD
VCC2
VCC2
VCC1
MPX
P01
P1
P0
P01
P0
VDD VDD
AM/FM
+FM
AM/FM
P0
1101 A2
1102 B1
1103 E2
1110 B2
1120 E14
1130 A2
1131 C2
1132 F13
2102 B1
2105 A2
2106 E3
2107 E4
2108 G3
2109 G3
2118 H6
2119 H6
2120 H6
2122 I6
2123 H6
2124 H6
2125 H6
2127 E7
2128 B8
2129 C7
2130 F11
2131 F8
2132 F8
2133 F8
2134 I8
2135 I9
2136 H14
2137 H13
2138 F9
2139 G9
2140 G9
2141 F10
2143 G12
2144 G11
2145 E11
2146 E12
2147 E12
2148 E12
2149 H7
2150 A10
2159 D5
2161 C11
2162 H12
2163 D11
2164 G10
2165 C7
2166 E11
2167 E11
2169 G8
2180 C4
2190 C3
2191 C3
3105 D5
3108 D2
3109 G4
3123 H3
3125 H2
3128 H3
3130 I9
3131 I9
3132 G4
3134 H6
3135 E7
3137 H7
3141 E7
3142 E6
3143 G7
3144 G8
3145 F8
3146 G13
3150 H12
3151 H12
3152 G14
3153 G13
3154 F13
3155 G12
3156 C12
3157 D12
3158 E13
3159 D13
3160 D13
3161 D13
3167 F12
3168 F11
3169 E11
3170 D12
3171 G12
3172 G12
3176 H7
3180 I3
3190 B6
3191 B7
3192 B6
3193 B4
3194 C4
3195 C3
4101 E2
4102 F3
4104 H5
5102 E3
5103 F2
5109 B9
5110 B10
5111 A9
5112 A11
5114 B11
5115 E7
5118 G9
5119 G9
5121 E11
5122 H5
5123 G5
6105-1 E4
6105-2 G6
6106 D4
6107 G13
6120 C13
7101 C8
7103 H8
7104 D2
7105 F4
7109 H3
7110 H12
7111 C13
7112 G12
7122 H4
7124 H7
T102 B2
T103 B2
T104 B6
T105 E2
T106 E2
T107 C3
T109 D5
T110 D5
T111 E5
T112 F7
T113 A9
T114 B11
T116 F10
T117 F13
T118 G11
T120 F13
T121 F13
T122 E13
T123 E13
T124 G14
T125 F14
T126 F13
T127 F13
T140 F11
T141 F10
T142 F10
p
p
p
2191
100u
2102
100n
2105 USA
100n
5118
1nH
15n
15n
3131
820R
3130
820R
1K
3135
2180
10n
8.3V
7.5V
7.2V
9V
11V
8.2V
0.1V
1.2V
1.6-8V
5
1
A
3
2
D
C
4
...V MW mode
...V LW mode
voltages measured while
set is tuned to a strong transmitter
0.7V
0.7V
1.3V
0.7V
0V
7.4V
0V
7.5V
0.7V
0V
mono 4.8V
0V
0V
stereo 0.4V
7.5V
7.5V
1.4V
1.6-8V
0.1V
0V
0V
2V
0.2V
1.4V
1.4V
0.4V
0.7V
1.4V
1.4V
1.1V
0.7V
1.4V
0.6V
0.6V
0.8V
0.15V
...V FM mode stereo
EVM
V
B
8V
6.7V
8.3V
0.7V
0V
0V
0V
0.1V
0V
11V
2V
1.1V
1.1V
1V
1V
8.2V
7.8V
1.2V
0V
8.9V
12Vtyp
8.2V
mono 4.8V
stereo 0.2V
1.4V
0V
0V
0V
0V
0.1V
0V
0.7V
0.1V
0V
0.2V
(10-14V)
9.6V
12V
8.9V
8.2V
7.5V
8.3V
8.2V
0.8V
1.2V
0.7V
1.3V
1V
8.2V
7.8V
1-8V
0V
5V
0V
152kHz, 50mVpp
stereo stereomono
Signal path
FM
AF - left/right
AM
MPX (Audio Frequency)
7B-37B-3
98MHz
Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter
VARICAP ALIGNMENT
FM - VCO
FM RF (channel separation)
AM IF
AM RF
3)
108MHz
87.5MHz
check
check
8V ±1.2V
1.6V ±0.5V
8V ±0.2V
6.9V ±0.2V
1.1V ±0.4V
152kHz ±1kHz 1)
98MHz 3142
198kHz198kHz 5103
5111
FM
87.5 - 108MHz
(50kHz grid)
1602kHz
531kHz
5123
check
MW
531 - 1602kHz
(9kHz grid)
8V ±0.2V
1.1V ±0.4V
279kHz
153kHz
5122
check
LW
153 - 279kHz
(3kHz grid)
FM
FM
LW
558kHz558kHz
1494kHz
5102
1494kHz 2106
MW
MW
98MHz, 1mV
continuous wave
98MHz, 1mV
90% Left + 9% pilot
mod=1kHz
IF coil
inside
FM
frontend
1110
1
3
5
5
A
FM - IF
0mV ±3mV5119
FM 10.7MHz, 45mV
continuous wave 2D
right channel min.
4A
0mV ±2mV5114 2
C
Repeat
C
5112
1)
If sensitivity of frequency counter is too low adjust to max. channel separation
(input signal: stereo left 90% + 9%, adjust output on right channel to minimum)
2)
RC network serves for damping the IF-filter while adjusting the other one.
3)
For AM RF adjustments the original frame antenna has to be used!
TUNER ADJUSTMENT TABLE
( ECO6 Cenelec FM/MW - and FM/MW/LW - versions with AM-frame aerial )
max.
symmetric
fo
max.
symmetric
fo
ECO6 Sys Cenelec, 190599
B
∆f = ±30kHz
V
RF
as low as
possible
MW has to be aligned before LW.
3-band
2-band
Note: The FM-frontend unit has already been adjusted by the factory
and needs therefore no further adjustments for service purposes.
2141
shortcircuit
to block AFC
21
IC 7101
see
remark 2)
220R
100nF
36
IC 7101
220R
100nF
40
IC 7101
450kHz
connect pin 6 of
IC 7101 (AM Osc.)
with 3.3kΩ to Vcc
AM AFC
MW continuous wave
V
RF
= 2mV
∆f = ±10kHz
V
RF
= 0.5mV
(as low as
possible)
Use Service Testprogram. By selecting the TUNER TEST test frequencies will be stored as preset frequencies automatically.
AM FRAME AERIAL
FM 75Ω
FM FRONTEND
Birdy Filter
ECO6 Sys-Cenelec, layout stage .6, 160501
1101 B5
1102 B5
1103 C5
1110 B4
1120 A4
1130 A5
1131 C5
1132 A4
2106 B4
2107 B3
2128 A3
2129 B3
2133 C1
2138 B1
2144 B1
2162 A4
2191 B4
3142 C2
5102 C4
5103 C4
5109 B3
5110 A2
5111 A3
5112 A2
5114 A2
5115 C2
5119 B2
5121 B2
5122 C3
5123 C3
7104 C4
7105 C5
7112 B1
9101 A2
9102 B2
9103 A1
9104 B1
9105 B1
9106 B1
9107 B4
9108 B3
9109 C2
9110 A4
9111 A3
TUNER BOARD ECO6
Systems - Cenelec
/ componentside view
B
A
These assembly drawings show a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist.
ECO6 Sys-Cenelec, layout stage .6, 160501
41..
in schematic diagram)
(not all items shown
SMD jumper
EB
C
A
K
TUNER BOARD ECO6
Systems - Cenelec
/ copperside view
2102 B1
2105 B1
2108 C1
2109 C1
2118 C3
2119 C3
2120 C3
2122 C3
2123 C3
2124 C3
2125 C3
2127 C4
2130 B3
2131 C4
2132 C4
2134 C5
2135 C5
2136 A3
2137 A3
2139 B4
2140 B4
2141 B5
2143 B5
2145 B5
2146 B5
2147 A5
2148 B4
2149 C4
2150 B3
2159 B3
2161 A4
2163 A4
2164 B4
2165 B3
2166 B5
2167 B4
2169 A3
2180 B2
2190 B2
3105 B3
3108 C2
3109 C1
3123 A5
3125 A5
3128 C2
3130 C4
3131 C4
3132 B3
3134 C3
3135 C4
3137 C4
3141 B3
3143 C5
3144 A5
3145 C4
3146 B5
3150 B3
3151 A2
3152 A3
3153 A3
3154 B5
3155 B5
3156 A4
3157 A4
3158 A3
3159 A3
3160 A3
3161 A4
3167 A5
3168 C5
3169 B4
3170 A4
3171 B5
3172 B5
3176 C4
3180 A5
3190 B2
3191 A3
3192 A2
3193 B2
3194 B2
3195 B2
4101 C2
4102 C2
4104 C3
4105 B2
4106 B3
4107 C4
5118 C4
6105 B2
6106 B2
6107 B5
6120 A4
7101 B4
7103 C5
7109 A5
7110 B2
7111 A4
7122 C3
7124 C3
1
1
8
2
7
8
5118
2180
3135
4
D
A
C
1 25
3
Vdd
Vcc2
Vcc1
+FM
Electrical Partslist
ECO6
SYSTEMS
-
CENELEC
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1101 2422 015 19376 SOCKET CLICKFIT 2P USA only
1102 4822 267 10283 SOCKET COAX, IEC 75Ωnot USA
1103 4822 265 31184 JST CONNECTOR, 2 POLE
1110 2422 542 90071 FM FRONTEND
1120 4822 265 11515 FFC SOCKET, 8P
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2102 © 4822 126 13838 100nF 10% 50V not USA
2105 © 4822 126 13838 100nF 10% 50V USA only
2106 2020 800 00204 TRIMCAP. 4,2 - 20pF, N750 LW only
2106 2020 800 00191 TRIMCAP. 3 - 11pF, N450 FM/AM only
2107 4822 121 51319 1µF 20% 50V
2108 © 5322 122 32531 100pF 5% 50V LW only
2109 © 5322 122 32448 10pF 5% 50V LW only
2120 © 4822 126 13689 18pF 1% 63V FM/AM only
2120 © 5322 122 32658 22pF 5% 50V LW only
2122 © 4822 122 33891 3,3nF 10% 63V LW only
2123 © 2020 552 93494 390pF 1% 50V LW only
2124 © 4822 122 33177 10nF 20% 50V FM/AM only
2125 © 2020 552 96199 560pF 1% 50V
2127 © 4822 126 14076 220nF 20% 25V
2128 4822 124 40248 10µF 20% 63V
2129 4822 124 41584 100µF 20% 10V
2130 © 5322 122 32654 22nF 10% 63V
2131 © 4822 126 13482 470nF 20% 16V
2132 © 4822 126 13482 470nF 20% 16V
2133 4822 124 21913 1µF 20% 63V
2134 © 3198 017 31530 15nF 10% 50V not USA
2134 © 5322 122 32654 22nF 10% 63V USA only
2135 © 3198 017 31530 15nF 10% 50V not USA
2135 © 3198 017 32230 22nF 10% 25V USA only
2136 © 4822 126 14076 220nF 20% 25V
2137 © 4822 126 14076 220nF 20% 25V
2138 4822 124 22652 2,2µF 20% 50V
2139 © 4822 126 14236 15pF 5% 50V
2140 © 4822 126 13695 82pF 1% 63V
2141 © 4822 126 13838 100nF 10% 50V
2143 © 4822 126 14076 220nF 20% 25V
2144 4822 124 21913 1µF 20% 63V
2145 © 4822 122 33575 220pF 5% 50V
2146 © 4822 122 33575 220pF 5% 50V
2147 © 4822 122 33575 220pF 5% 50V
2148 © 4822 122 33127 2,2nF 10% 63V
2149 © 5322 122 32659 33pF 5% 50V RDS only
2150 © 4822 126 13838 100nF 10% 50V
2159 © 5322 122 31151 22µF 20% 50V
2163 © 4822 126 13838 100nF 10% 50V LW only
2164 © 4822 126 13482 470nF 20% 16V
2165 © 4822 126 13838 100nF 10% 50V
2166 © 5322 122 31647 1nF 10% 63V
2167 © 4822 122 33926 12pF 5% 50V
2169 © 4822 122 33127 2,2nF 10% 63V RDS only
2180 © 3198 017 31030 10nF 10% 50V
2190 © 4822 126 13838 100nF 10% 50V
2191 4822 124 40178 100µF 20% 10V
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3105 © 4822 117 11503 220Ω5% 0,1W
3108 © 4822 117 11449 2,2kΩ1% 0,1W LW only
3109 © 4822 051 20472 4,7kΩ5% 0,1W LW only
3123 © 4822 051 20472 4,7kΩ5% 0,1W LW only
3125 © 4822 117 10833 10kΩ1% 0,1W LW only
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3128 © 4822 117 11449 2,2kΩ1% 0,1W LW only
3130 © 3198 021 38210 820Ω5% 0,06W
3131 © 3198 021 38210 820Ω5% 0,06W
3132 © 4822 051 20479 47Ω5% 0,1W
3134 © 4822 051 20223 22kΩ5% 0,1W
3135 © 3198 021 31020 1kΩ5% 0,06W
3137 © 4822 051 20223 22kΩ5% 0,1W LW only
3141 © 4822 117 11148 56kΩ1% 0,1W
3142 4822 100 12159 TRIMPOT. 100kΩ
3143 © 4822 051 20223 22kΩ5% 0,1W RDS only
3144 © 4822 051 10102 1kΩ2% 0,25W RDS only
3145 © 4822 117 11449 2,2kΩ1% 0,1W
3146 © 4822 051 20229 22Ω5% 0,1W
3150 © 4822 117 10833 10kΩ1% 0,1W
3151 © 4822 051 20683 68kΩ5% 0,1W
3152 © 4822 051 20471 470Ω5% 0,1W
3153 © 4822 051 20471 470Ω5% 0,1W
3154 © 4822 117 13577 330Ω1% 0,1W
3155 © 4822 117 10353 150Ω5% 0,1W
3156 © 4822 117 10837 100kΩ1% 0,1W
3157 © 4822 117 10837 100kΩ1% 0,1W
3158 © 4822 051 20471 470Ω5% 0,1W
3159 © 4822 051 20471 470Ω5% 0,1W
3160 © 4822 051 20471 470Ω5% 0,1W
3161 © 4822 051 20223 22kΩ5% 0,1W
3167 © 4822 051 20121 120Ω5% 0,1W
3168 © 4822 051 20121 120Ω5% 0,1W
3169 © 4822 051 20154 150kΩ5% 0,1W
3170 © 4822 117 10837 100kΩ1% 0,1W
3171 © 4822 117 10834 47kΩ1% 0,1W
3172 © 4822 051 20562 5,6kΩ5% 0,1W
3176 © 4822 051 20333 33kΩ5% 0,1W RDS only
3180 © 4822 117 10833 10kΩ1% 0,1W LW only
3190 © 4822 051 20121 120Ω5% 0,1W
3191 © 4822 051 20121 120Ω5% 0,1W
3192 © 4822 117 13577 330Ω1% 0,1W
3193 © 4822 117 13577 330Ω1% 0,1W
3194 © 4822 117 11449 2,2kΩ1% 0,1W
3195 © 4822 051 20101 100Ω5% 0,1W
4101 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
4102 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
4104 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
4105 © 4822 051 20008 CHIP JUMPER 0805
4106 © 4822 051 20008 CHIP JUMPER 0805
4107 © 4822 051 20008 CHIP JUMPER 0805
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
5102 4822 157 71634 RF-COIL MW
5103 2422 549 44107 RF-COIL LW LW only
5109 4822 157 71639 FM-IF FILTER 10,7MHz
5110 4822 242 70665 FM-IF FILTER 10,7MHz
5111 2422 549 44023 AM-IF FILTER 450kHz
5112 4822 157 70302 AM-IF FILTER 450kHz
5114 4822 157 70302 AM-IF FILTER 450kHz
5115 4822 157 71636 ANTI BIRDY FILTER
5118 © 2422 535 95881 100nH
5119 4822 157 11443 DISCRIMINATOR COIL
5121 4822 242 10261 QUARTZ 75kHz
5122 2422 549 44108 RF-COIL, LW-OSCILLATOR LW only
5123 2422 549 44108 RF-COIL, MW-OSCILLATOR
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6105 © 4822 130 83075 HN1V02H
6106 © 4822 130 83757 BAS216
6107 © 9340 386 90115 BZX284-C11
6120 © 4822 130 83757 BAS216
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7103 © 5322 130 42756 BC857C RDS only
7104 9322 003 64676 TBC337-40 LW only
7105 9322 003 64676 TBC337-40 LW only
7109 © 4822 130 60373 BC856B LW only
7110 © 4822 130 60373 BC856B
7111 © 5322 130 42755 BC847C
7112 4822 130 44503 BC547C
7122 © 5322 130 42755 BC847C LW only
7124 © 5322 130 42755 BC847C LW only
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7101 4822 209 90315 TEA5762H/V1, RADIO IC
7B-4 7B-4
ETF7 TAPE MODULE
(Non-Dolby Version)
9-1 9-1
TABLE OF CONTENTS
Tape Module Wiring & variation table ....................... 9-1
Block diagram ............................................................ 9-2
Brief Introduction ....................................................... 9-3
Connector assignment............................................... 9-4
Tape deck electronics & Tape adjustments ............... 9-5
ETF7 Non-Dolby board layouts ................................. 9-6
Analog Circuit diagram .............................................. 9-7
Servo Circuit diagram ................................................ 9-8
Exploded views & parts list........................................ 9-9
Electrical parts list.................................................... 9-13
REC
FWD
CRO2*
REC
REV
MODE
SW
TAPE DECK
MOTOR
TO ETF BOARD
CONNECTOR 1710 (ND) 5P
CONNECTOR 1720 (DB) 6P
TO ETF BOARD
CONNECTOR 1770 (ND) 14P
CONNECTOR 1740 (DB) 14P
TO ETF BOARD
CONNECTOR 1730 (3P)
Tapedeck wiring (Double deck)
+–
H
L
CRO2*
Mechanism B Mechanism A
* Not for Ferro version
Chrome/Ferro Chrome/Ferro Ferro
2624 - - 100nF
2701 , 2702 150pF 270pF 270pF
2703 , 2704 100pF 220pF 220pF
2717 , 2718 10nF 15nF 15nF
2721 , 2722 6,8nF 6,8nF -
2727 , 2728 470pF 1nF 1nF
3616 10k 1k 1k
3618 6k8 - -
3620 10k trimmer - -
3622 - 10k trimmer 10k trimmer
3672 4k7 - -
3676 47k - -
3687 220R 220R -
3688 680R - -
3723 , 3724 15k 18k 18k
3725 , 3726 10R 10R -
3727 , 3728 5k6 6k8 6k8
3729 , 3730 3k3 4k7 4k7
3743 , 3744 1k5 2k2 2k2
3745 , 3746 3k3 5k6 5k6
3754 , 3755 1M 47R 47R
Variations table for Analog Circuit
Autoreverse Non-autoreverse
ND/DD/FR ND/DD/FF
Autoreverse Non-autoreverse
ND/DD/FR ND/DD/FF
Chrome/Ferro Chrome/Ferro Ferro
3769 12k 8k2 8k2
3772 6k8 5k6 5k6
4785 - - 0R jumper
3774 15k 8k2 8k2
6614 1N4148 - -
7616 BC857B - -
7622 BC847B - -
9-2 9-2
BLOCK DIAGRAM
Deck B (Rec/Pb) switches, sensors & motor
4x DECK(S) SW.
STATUS TO
VOLTS CONV.
2x
SOLENOID
SUPPLY CTRL SOLENOID
SUPPLY CTRL
MOTOR VCC
SUPPLY CTRL
NS/HS CTRL
Deck A (Pb) switches, sensors & motor
NOM/HI SPEED
REC EON.
IEC I IEC II
REC EON.
REC EON. SW.
HEF4952BT
RECORD AMP
NJM4560D
OSCILLATOR
REC CRB
Line-In
Playback
Head
Rec/Pb
Head
Erase
Head
BIAS SYM
HD SW.
BIAS ADJ
Erase
Bias
REC
ALCEN
PRE-AMPLIFIER
AN7318S
SOURCE SEL
HEF4952BT
1A0 1A1 1A2
Rec current
ATTEN
ALC
PLAYBACK
EQUALISATION
PB EON. SW.
HEF4952BT
2A0 2A1 2A2
MPX
1A0 1A1
PB A ADJ PB B ADJ
Rec In
PB In
2A2
DOLBY B NR
CXA1101M
REC Out
PB Out
REC ADJ
SHIFT
REGISTER
HEF4094BT
3A0 3A1 3A2
(HS) (REC) (CRB)
DOLBY
NOM/HI SPEED
REC EON.
3A0 NS
2A2
MUTE
For Dolby version only
PB Out
ATTEN
4794 #
9792 #
#
CLK
DATA
STROBE
# For Non-dolby version only
Only 1 channel is presented.
NOTE:
MicroProcessor Control / Communication lines
Direct / Indirect Control lines from Shift Registers
AD1 AD2
1A2
1A1
ALCEN
1A0
REC 7787
7791
7780
7710 7720
7740
7730
7630
7640
1A0
2A1
2A2
REC
NS/HS (NS)
HS
NS/HS
(NS)
3A0
2A0
CRA 7792
7622
7788
7610
9-3 9-3
General
1. Playback Mode
Signal from the playback head Deck A or Deck B is selected and fed through by the Mode Selector IC7710 (HEF4952BT).
The signal is amplified by amplifier IC7720 (AN7323S) before feeding to the IC7740 (HEF4952BT) and out to the AF Board
via connector 1701.
2. Recording Mode
Recording Signal is selected and fed through by the Mode Selector IC7710 (HEF4952BT) which is then amplified by the
amplifier IC7720 (AN7323S). The amplified output signal will pass through IC7730 (HEF4952BT) for record equalization and
back to IC7710 (HEF4952BT) before registered into the Rec/PB Head of Deck B.
3. Dubbing Mode
In Dubbing mode, signal from the playback head Deck A is selected and fed through by the Mode Selector IC7710
(HEF4952BT) which is then equalised for playback mode by the amplifier IC7720 (AN7323S) so that a flat response is
obtained after the pre-amp. The equalised signal will then follow the same path as in the Recording mode.
4. Mode Selector
The Mode Selector IC7710 (HEF4952BT) caters for 4 inputs signal, namely Playback Signal from Deck A, Playback Signal
from Deck B, Recording Signal and Dubbing Signal.
5. Amplifier PB/REC
Amplifier IC7720 (AN7323S) is for the purpose of amplifying the Playback and Recording signal from the Mode Selector.
6. Automatic Level Control (ALC)
ALC circuit consists of resistors (3760, 3765, 3766, 3767), capacitors (2762 , 2763) and control by transistor 7787 (BC847B).
ALC limits the amplifier output to a constant value when input signal becomes too large, thus limiting recording current to
below saturation level, to prevent recording distortion.
7. Muting Circuit (For Non-Dolby version only)
Switch S4 of the IC7740 (HEF4952BT) is for the purpose of muting the output during Recording mode. During Recording
mode, S4 is closed and shorted to the ground.
8. IC7740 (HEF4952BT)
The function of the IC7740 (HEF4952BT) is to change time constant between 120us Ferro (IEC I) and 70us Chrome (IEC
II) during playback mode. It will automatically determined whether the tape type is 120us Ferro (IEC I) or 70us Chrome (IEC
II). This IC will switch to Flat Gain during the Recording mode.
9. IC7730 (HEF4952BT)
The function of the IC7730 (HEF4952BT) is to change gain and time constant according to tape type and recording speed
to boost recording current at higher frequency during recording to compensate for head loss. It will automatically determined
whether the tape type is 120us Ferro (IEC I ) or 70us Chrome (IEC II).
10. Bias Level
Bias Level making use of the Variable resistor (3773) for adjusting the optimal level of the bias current for Ferro or Chrome.
11. Bias Symm (For Dolby B NR version only)
Bias Symm making use of the Variable resistor (3785) to adjust the bias current for the left and the right channel to be equal.
12. PB Switch
Playback Switch which consists of the FETs 7785 (For Dolby B NR version only) & 7786 (J111) is for the purpose of providing
a virtual ground for the Rec/PB Head (Deck B) during Playback mode. During the Playback mode, the FETs are turn on and
shorted pin 2 and 4 of connector 1720 to the ground. During Recording mode, the FETs are turn off to allow the oscillator
signal to be superposition onto the Recording signal for recording.

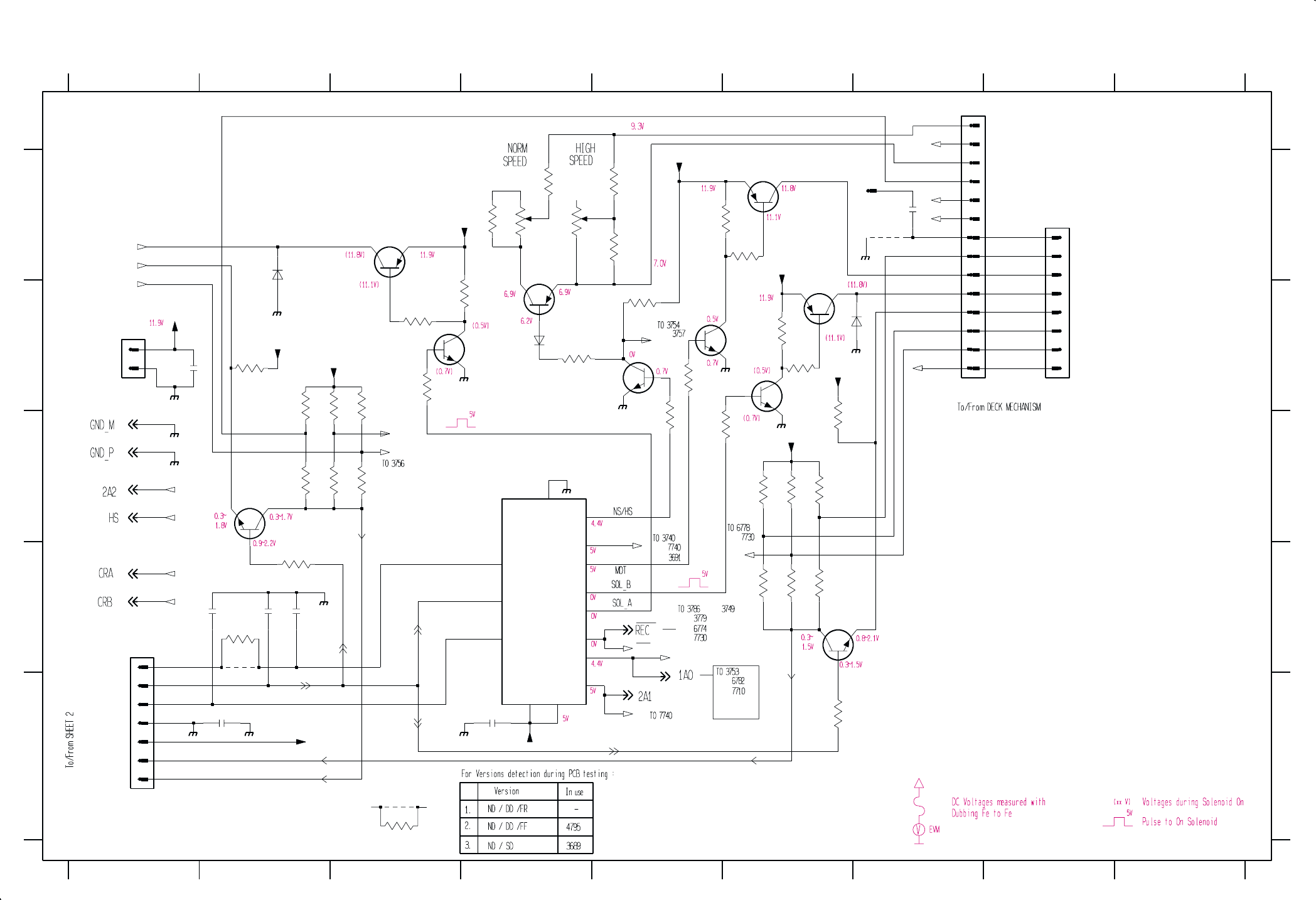

13. Motor Speed (For FR versions only)
During High speed dubbing, a feedback signal from the uP through pin 03 of the IC7610 (HEF4094BT) will trigger the
transistors 7622 (BC847B) and 7616 (BC857B) to cause a change in the voltage level between High and Low, thus changing
the speed of the motor.
14. IC7610 (HEF4094BT)
IC7610 (HEF4094BT) is a Shift Register use for issues the logic for cmos switch ICs (HEF4952BT) via 1A0, 2A1 and 2A2.
It also issues logic to On/Off SOL_A, SOL_B and MOT. Recording speed is controlled via NS/HS.
Dolby Circuit (For sets with Dolby B NR version only)
15. IC7630 (CXA1551M)
IC7630 (CXA1551M) in the Dolby circuit is a Dolby Noise Reduction Type B IC for the Playback and Recording signal. Noise
Reduction ON/OFF are controlled by DOLBY, which is from CLK, direct from uP. After clocking in DATA, CLK is set to HIGH/
LOW for NR OFF/ON.
16. 19kHz Filter
The 19kHz filters 5631 & 5632 (LXD-210) in the Dolby circuit is for the purpose of filtering the 19kHz Pilot Tone (for Tuner
signal only) of the Recording signal.
17. Level Adjust
The Variable resistor 3635, 3636,3641 and 3642 in the Dolby circuit is for adjusting the playback level of the Dolby reference
(400Hz , 200nWb/m). Transistor 7631, 7632 are ON to enable adjustment of 3641, 3642 during Playback Deck A. Transistor
7633, 7634 and 3635, 3636 are active for Playback Deck B.
18. Amplifier IC7640 (NJM4560M)
The Amplifiers 7640A & 7640B (NJM4560M) in the Dolby circuit is for the purpose of amplified the Recording signal.
19. Muting Circuit
The muting circuit which consists of transistors 7788, 7789 and 7790 (BC847B) is for the purpose of muting the output during
Recording mode.
Brief introduction
NOTATIONS & ABBREVIATIONS USED IN THIS
DOCUMENT
CR Chrome (IEC type II)
DB Dolby NR type B
DD Double Deck
DM Double Motor
FE Ferro (IEC type I)
FF Non-Autoreverse
FR Autoreverse Deck B
Gnd x Ground x
HSD High speed dubbing
ND Non Dolby
NR Noise Reduction
NSD Normal speed dubbing
PB Playback
REC Record
S/A Sub-assy
SD Single Deck
SM Single Motor
CONNECTOR 1740 DECK A & B CONTROL INTERFACE
(For Dolby B NR version only)
1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
4 PHOTO B Photo sensor output (tape movement indication)
5 SOL B Solenoid supply for deck B
6 Vcc Deck / Motor supply
7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
9 SOL A Solenoid supply for deck A
10 PHOTO A Photo sensor output (tape movement indication)
11 MODE A Mode switch (head engagement) [open=off: close=engaged]
12 L L pin for motor
13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
14 H H pin for motor
CONNECTOR 1770 DECK A & B CONTROL INTERFACE
(For Non-Dolby version only)
1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
4 PHOTO B Photo sensor output (tape movement indication)
5 SOL B Solenoid supply for deck B
6 Vcc Deck / Motor supply
7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
9 SOL A Solenoid supply for deck A
10 PHOTO A Photo sensor output (tape movement indication)
11 MODE A Mode switch (head engagement) [open=off: close=engaged]
12 L L pin for motor
13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
14 H H pin for motor
CONNECTORS ASSIGNMENTS:
CONNECTOR 1701 INTERCONNECTION TO AF BOARD
1 REC-L Record input left
2 REC-R Record input right
3 GND A AF Ground
4 TAPE-L Playback output left
5 +12V D.C. supply (+12V) for AF electronics
6 TAPE-R Playback output right
7 -CMOS Negative d.c. supply (-9V) for CMOS ICs
CONNECTOR 1703 INTERCONNECTION TO AF BOARD
1 GND M Motor Ground
2 +MOTOR D.C. supply (+12V) for tape deck motor & solenoid
CONNECTOR 1706 INTERCONNECTION TO FRONT BOARD
1 AD2 Deck sensing switches output voltage / Deck A EOT
2 AD1 Deck sensing switches output voltage / Deck B EOT
3 +5V DC supply +5V for ADC network
4 GND P Control & Oscillator Ground
5 CLK HEF4094BT shift register Clock line
6 DATA HEF4094BT shift register Data line
7 STROBE HEF4094BT shift register Strobe line
CONNECTOR 1710 DECK B HEADS CONNECTON
(For Non-Dolby version only)
1 B R/P HD L+ R/P Head left channel positive
2 GND A R/P Head return ground
3 B R/P HD R+ R/P Head right channel positive
4 ERASE HEAD Erase Head
5 GND A Erase Head ground
CONNECTOR 1720 DECK B HEADS CONNECTON
(For Dolby B NR version only)
1 B R/P HD L+ R/P Head left channel positive
2 B R/P HD L- R/P Head left channel negative
3 B R/P HD R+ R/P Head right channel positive
4 B R/P HD R- R/P Head right channel negative
5 ERASE HEAD Erase Head
6 GND A Erase Head ground
CONNECTOR 1730 DECK A HEAD CONNECTIONS
(For Double Deck versions only)
1 A PB HD L+ Pb Head left channel positive
2 GND A Pb Head return ground shield
3 A PB HD R+ Pb Head right channel positive
9-49-4
9-5 9-5
# For Auto-reverse version only
* If high frequencies are not within limits, decrease bias and re-measure.
If distortion is too high, increase bias and re-meaure
^ Not applicable for Ferro version
PLAY mV-meter check limits see fig.1
CHECK PLAYBACK FREQUENCY RESPONSE
TAPE ADJUSTMENT & CHECK TABLE
TEST
CASSETTE
RECORDER
MODE
MEASURE
ON READ ON ADJUST
with
ADJUST MOTOR SPEED
SBC420
3150Hz
PLAY B
PLAY A
frequency
counter
3620
check
NORMAL SPEED
PLAY
PLAY FWD
PLAY REV #
W&F-meter
mV-meter left hand screw
right hand screw
max. output level
& left=right
CHECK WOW & FLUTTER
DECK A & B
ADJUST AZIMUTH
3150Hz +/- 0.5%
3150Hz -0.8/+1.8%
<0.4 % DIN
DECK A & B
to
mV-meter
DECK B
ADJUST BIAS CURRENT
RECORD 56
or
LEFT RIGHT
12
or
LEFT RIGHT
12
or
LEFT RIGHT
12
or
LEFT RIGHT
12
or
LEFT RIGHT
CHECK OVERALL FREQUENCY RESPONSE AND DISTORTION
Inject 3mV signals
100Hz, 250Hz, 1kHz,
10kHz, 12.5kHz
12
or
LEFT RIGHT
Inject 1kHz 8.85mV
34
or
via
34
or
via
12
or
LEFT RIGHT
RECORD B
RECORD B
PLAY B
PLAY B
mV-meter
THD-meter
check
check
limits see fig. 2 *
<3% *
RECORDED
CASSETTE
RECORDED
CASSETTE
995mV
750mV +/- 1.5dB
3773
check
figure. 1
f(Hz)
level(dB)
8dB
6dB
12.5k
4k
250
80
8dB
f(Hz)
level(dB)
8dB
10dB (HSD)
6dB
10k
4k
250
100
8dB
10dB (HSD)
figure. 2
check
SBC419A^ : 4822 397 30069
SBC420 : 4822 397 30071
SBC420
3150Hz
SBC420
10kHz
SBC420
DECK A & B
SBC419A^
SBC420
SBC419A^
or
SBC420
SBC419A^
or
SBC420

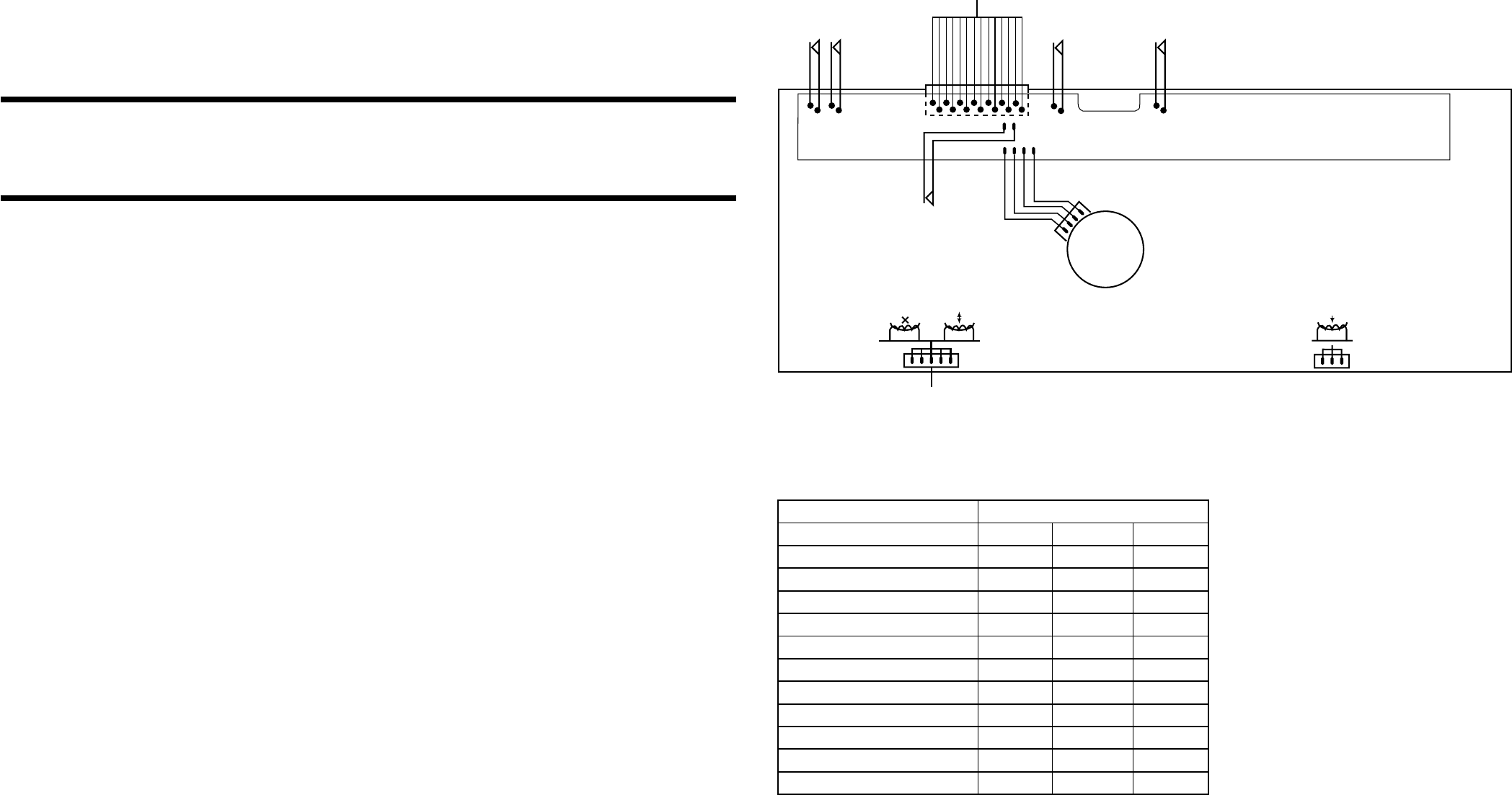

1. B Rec Switch (REV)
Rec-R
CrO2*
CrO2*
Rec-F
Solenoid
B-Mode
A-Mode
Solenoid
Motor
R1 (680R)
R2 (680R)
A Photo Sensor
B Photo Sensor
2. B CrO2 Switch
3. B Rec Switch (FWD)
4. B Photo Out
5. B Solenoid
6. Vcc 12V
7. B Mode Switch
8. Gnd
9. A Solenoid
10. A Photo Out
11. A Mode Switch
12. Motor L
13. A CrO2 Switch
14. Motor H
* No Leaf switch & copper pattern
shorted together for Ferro version
TAPE MECHANISM ELECTRONICS
Rec/Pb
Head
Head wire
connector pcb
1. White
2. Black
3. Red
4. Blue
5. Yellow
Erase
Head
For Normal Head
Rec/Pb
Head
Head wire
connector pcb
1. +L ch (White)
2. - ch (Black)
3. +R ch (Red)
4. E Head (Blue)
5. E Head (Yellow)
For Auto-reverse Head
Mechanism B Head Wires Soldering (Non-Dolby version)
Rec/Pb
Head
Head wire
connector pcb
1. White
2. Black
3. Red
4. Blue
5. Yellow
Erase
Head
For Normal Head
Rec/Pb
Head
Head wire
connector pcb
1. +L ch (White)
2. - L ch (Black)
3. +R ch (Red)
4. - R ch (Blue)
5. E Head (Yellow)
6. E Head (Yellow)
For Auto-reverse Head
Mechanism B Head Wires Soldering (Dolby B NR version)
Pink or
Red
White
Screen
(Gnd)
Play
Head
Mechanism A Head Wires Soldering
9-6 9-6
COMPONENT LAYOUT CHIP LAYOUT
3139 113 3409 pt2 dd wk0042
3
42
1
6
5
3139 113 3409 pt2 dd wk0042
Some location on this board is prepared for both 0603 & 0805 SMDs footprint,
in such locations 0603 SMDs may be substituted.
3
4
2
1
65
9-7 9-7

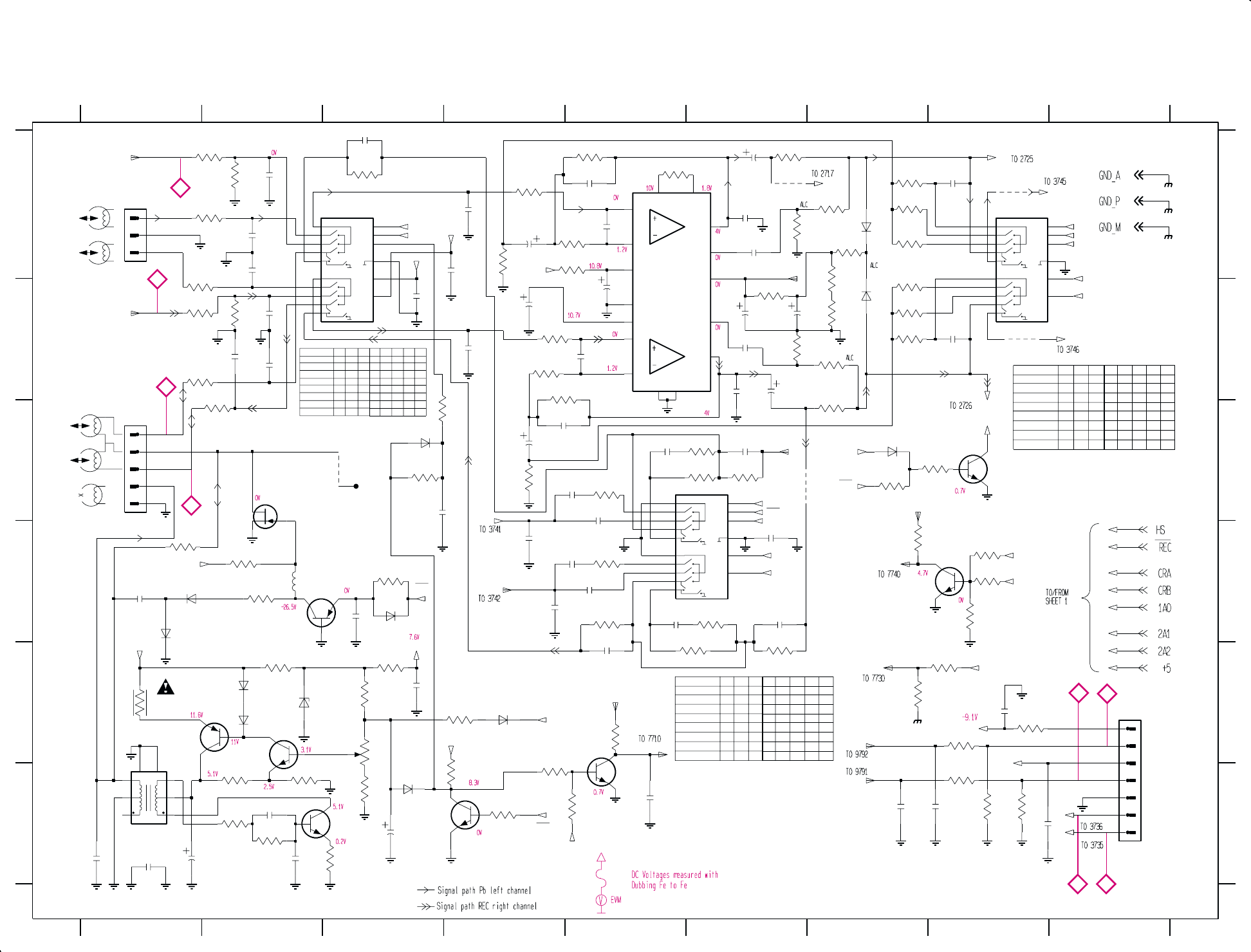

ANALOG CIRCUIT
2
1
3
4
3
4
6
5
0
1
11
1
1
1
CHANNEL
S2
S1
1
1
S3
0
0
S3
REC MUTE
# For Provision Only
#
#
#
1701 F9
1710 C1
1730 A1
2701 B2
2702 B2
2703 A2
2704 B2
2705 A2
2706 A2
PB/REC
Pb deck B
S1
S3
S0
0
S4
1
LEFT CHANNEL
11
1
0
1
123456789
12345
1
1
1
0
STOP
S1
0
--
1
1
0
1
*
*
1
--
1
S1
0
6789
A
B
C
1
1
RIGHT
A0
0
1
0
S2
S3
S0
S1
S0
1
1
S4
S2
1
MODE
D
E
F
A
B
C
D
E
F
S4
EQUALISATION
0
1
HS Chrome
A0 S0
1
0
1
S2
1
SELECTOR
--
--
HS Ferro
2707 A4
2708 B4
2709 A5
2710 B5
2711 A6
2712 B6
2713 A6
2714 B6
2715 A4
S2
REC-L
1
1
0
0
DECK B
1
1
1
DECK A
S0
1
S2
1
1
1
0
2716 C4
2717 C6
2718 D6
2719 C5
2720 D5
2721 C5
2722 D5
2723 C5
2724 D5
2725 D4
2726 D4
2727 A3
0
0
-CMOS
REC MUTE
1
A1A2
AMPLIFIER
1
REC
A2
NS Ferro
+12V
0
1
2728 E5
2729 A8
2730 B8
2733 A5
2734 C4
2735 B3
2737 A6
2738 B6
2741 D6
2742 C3
2743 F1
2744 A4
2745 F5
A0
Pb deck A
1
1
1
1
1
1
CONTROL LOGIC
0
1
0
0
2746 F8
2747 E8
2760 E3
2761 B5
2762 B6
2763 B6
2765 B4
2769 F7
2770 F8
2780 F3
2781 F2
2782 F2
2784 F1
2785 F1
2786 D1
2787 D3
3701 B1
3702 C2
3703 A2
0
HS Chrome
A1
S0
1
0
0
GND_A
TAPE-R
S4
S3
S0
1
1
0
S2
3704 B1
3705 A4
3706 B4
3707 A5
3708 B4
3709 A4
3710 C4
3711 A5
3712 B4
3713 A7
3714 B7
3715 A6
3716 B6
3717 C6
1
Pb Ferro
1
*
*
*
*
*
*
*
*
*
*
*
*
*
3718 E6
3719 C6
3720 E6
3721 C6
3722 D6
3723 A3
3724 D5
3725 C5
3726 D5
3727 A7
3728 B7
3729 A7
3730 B7
3731 A7
3732 B7
3733 A2
TO/FROM AF
ERASE
1
S3
1
S0
S3
1
1
1
0
S1
L
TAPE-L
S1
1
3734 B2
3735 A2
3736 B1
3741 A6
3742 C7
3743 F8
3744 F8
3745 F8
3746 E8
3748 C8
3749 C7
3751 E5
1
1
Not For ND/DD/FR
1
Pb Chrome
STOP
--
3752 F4
3753 F5
3754 E8
3755 E7
3756 D8
3757 D8
3758 D8
3759 D7
3760 A7
3761 E3
3762 E2
3763 A5
3764 A5
3765 B6
3766 B7
3767 A7
3768 E8
3769 E4
3770 F2
3771 F2
3772 F3
REC in
S3
0
1
-- 1
1
S4
1
0
1
A2
NS Chrome
3773 E3
3774 E3
3775 F3
3776 F2
3777 F2
3778 E1
3779 D3
3780 D2
3781 D2
3784 D1
3786 F4
3787 C3
3788 C3
3789 F4
4790 C3
4794 C6
5701 D2
*
REC/PB
* See Variant Table for details
*
*
A1
1
1
*
1
1
*
5703 F1
6770 E2
6771 E2
6772 D1
6773 D1
6774 D3
6775 C3
6776 F3
6777 E2
6778 E4
6782 C7
6785 A7
6786 B7
7710 A3
7720 A5
7730 D6
7740 A8
Dubbing
S4
0
*
REC MUTE
*
--
*
7780 F4
7781 F3
7782 E1
7783 E2
7784 D2
7786 C2
7787 C8
7791 F5
7792 D8
9791 A8
9792 B8
9793 A6
LEVEL
S4
OSCILLATOR
1
1
0
0
S2
PLAY BACK
1
0
S4
1
S0
REC EQUALISATION
11
REC-R
S4
PLAYBACK
0
1
S1
ANALOG CCTRY
1
1
0
S2
S1
S3
AN7323S
0
1
1
BIAS
4n7
2726
7784
BC857B
1M
3787
100n
2746
A0
7
A1
9
A2
10
VDD
HEF4952B
7730
7782
220R
3701
+C
B4
A
3789
47K
A
A
2784
15n
1N4148
6778
7792
BC847B
P
2706
220p
2A0
33n
2719
3736
22K
3760
120R
A
A
1N4148
6776
P
3K3
7786
J111
470p
2727
3K9
3722
2742
1K2
1M
3780
47u
2763
100p
2711
100n
2741
15K
3723
3703
220R
6K8
3769
3730
3770
1K5
100R
3720
12K
+12
A3708
A
2735
100n
4n7
2782
P
3712
150K
3779
330K
M
2738
A
100n
A
330p
2709
1
2
3
4
5
6
7
2720
33n
P
1701
B3
HS
220R
3704
470p
2728
P
3728
5K6
+5
2722
6n8
5K6
3727
1
2
3
BC847B
7781
BC847B
7787
1730
BZX79-F8V2
6777
3751
10K
A
3771
1K2
3746
470p
2707
3764
3K3
A
220R
P
A
6785
1N4148
3745
3K3
3A0
1
2
3
4
5
2u2
5701
1710
REC
B1
4u7
2762
3754
1M
+C
10R
3714
22u
2780
13
VEE
4
VSS
8
16
1
14
3
12
5
11
6
15
2
CRB
3748
2K2
B2
A
A
CRB
3774
15K
3A0
1M
3755
1N4148
6771
100n
2737
470p
2770
A1
9
A2
10
VDD
13
VEE
4
VSS
8
16
1
14
3
12
5
11
6
15
2
HEF4952B
7740
7
A0
220u
2761
6786
1N4148
8K2
3732
A
-C
150p
2702
1N4148
1A1
4K7
3773
3753
100K
6774
A
A
A22n
2743
3759
10K
1A0
470p
2733
REC_R
3788
2760
100n
1K8
3716
A
1M
12K
3719
3752
3724
15K
A
M
100K
22n
3762
820R
A
B4
6775
1N4148
P
A
P
LH
2714
10u
10K
3758
2A1
+12
-C
A
3749
47K
470p
2734
P
A
2708
470p
3713
100p
2704
2745
100n
10R
A
P
10n
2717
CRA
3765
39K
A
100n
2744
3742
2K2
REC_L
+C
2747
100n
A
ALCEN
REC
A
3766
3733
1K2
2769
470p
4M7
HS
8K2
3731
7
MT1
8
MT2
1
2
3
4
5
6
A
B2
A
CLNS-2A833 YEZ
5703
B1
REC
A
3777
150R
+12
2A2
4790
1A0
LH
2781
10n
220R
3702
4M7
3781
3710
10R
9791
2725
4n7
2713
10u
3705
220R
1N4148
B3
6772
220p
2705
3768
10K
A
4794
3709
10R
3725
10R
A
REC
2K2
3718
3786
22K
1A1
-C
3772
6K8
1A0
A
A
A
A
1
14
3
12
5
11
6
15
2
3744
1K5
HEF4952B
7710
7
A0
A1
9
A2
10
13
VDD
VEE
4
VSS
8
16
1K8
2A0
A
+12
3715
REC_R
3784
1K
7783
BC847B
2721
6n8
2K2
3741
A
4M7
3767
330p
2710
3735
22K
2786
100p
2703
100p
+5
P
3734
P
3776
6K8
3757
BC847B
7791
220K
15n
2724
7780
BC847B
3743
1K5
ALCEN
10R
3726
A
A
P
100p
2712
9793
22n
2730
22n
2729
3707
100R
REC_L
47u
2765
3775
4R7
9792
150p
2701
220R
3706
220K
3756
-C
3721
3K9
6782
1N4148
150K
P
2718
10n
15n
2723
3763
+C
A
BC557B
1N4148
6773
P
NC1
9
NC2
6
NF1
11
NF2
4
OUT1
13
OUT2
5
PC1
12
PC2
15
RF
Vcc
16
3729
3K3
7720
3
AIN1
ALCC
2
14
AN2
1
GND
IN1
7
10
IN2
8
3761
10K
2716
470u
6R8
3778
1u
2785
2715
470u
150K
3711
A
6770
1N4148
2K2
-C
2787
33n
3717
P
Note : Some values may varies, see respective parts list for correct value.
*
*
*
*
9-8 9-8

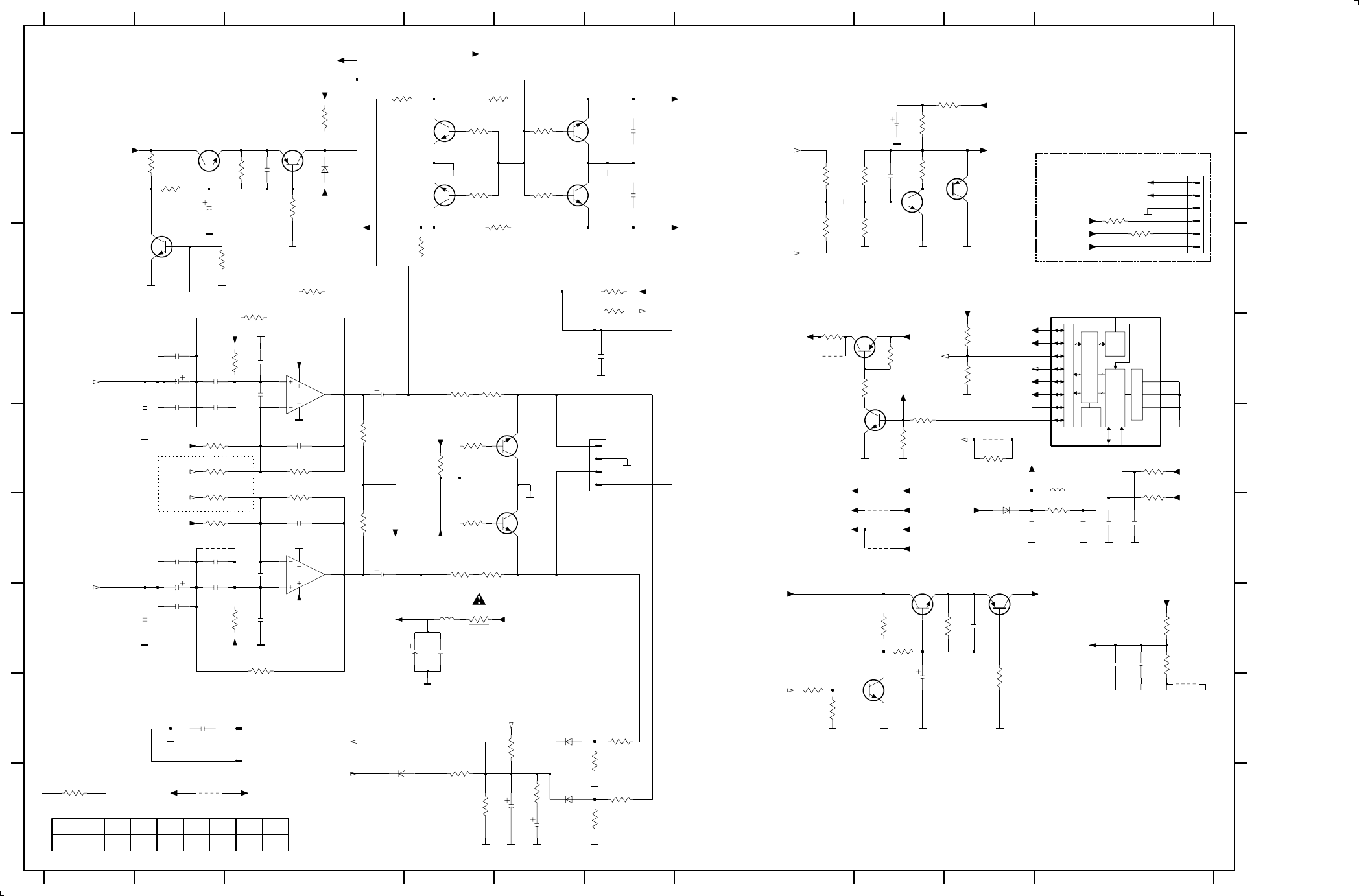

SERVO CONTROL CIRCUIT
L
Gnd
*
B
C
D
E
1702 A7
1703 B1
1706 E1
1760 B8
1770 B7
2621 D2
2622 D2
# For Provision Only
GND_P
*
AD1
DATA
TO/FROM FRONT
123456789
1234
sol_B
STROBE
*
DECK AB
56789
A
B
C
D
E
A
2623 D2
2624 E2
2625 E4
2626 B1
2627 A7
3601 B2
3602 C2
3603 B2
3604 C2
3605 B3
3606 C3
3607 C6
3608 D6
*
*
*
*
*
*
*
CCTRY
Rec_RVS
*
#
#
#
#
*
3609 C6
3610 D6
3611 C6
3612 D6
3613 B2
3614 C6
3616 A5
3618 A4
photo_B
* See Variant Table for details
+5
Rec_RVS
H
3619 A4
3620 A4
3622 A4
3623 B3
3624 B6
3625 B3
3626 B6
3628 A5
3630 A6
3672 B4
Rec_FWD
*
AD2
Rec_RVS
LNot For ND/DD/FR
3674 B5
3676 C5
3678 B5
3679 B3
3680 C5
3685 D2
3686 E6
3687 D2
3688 A5
3689 E3
4785 D2
4795 E3
6611 A2
6612 B6
6614 B4
7610 D4
mode_A
SERVO CONTROL
7612 A6
7613 A3
7614 A6
7616 A4
7618 B6
7619 B4
7620 B6
7622 B5
7623 D2
7624 D6
9705 A7
10K
--
mode_B
Vcc
CrO2_B
10K
47K
3676
7618
BC847B
100n
2626
M
+5
1A0
1703
1
1N4003
6611
100n
2624
100K
3628
3679
47K
120K
3610
PMBT2907
7613
CRB
100K
3685
P
7610
HEF4094BT
M
100K
3686
2A1
3601
2K2
680R
3688
3608
+MOTOR
M
L
CLK
L
1
VDD
16
8
VSS
CP
3
D
2
E0
15
4
O0
5
O1
O2 6
7
O3
14
O4
13
O5
12
O6
11
O7
Os
9
Os’
10
STR
+MOTOR
56K
3612
7619
BC847B
+5
6K8
3618
1702
3604
56K
+5
3623
100K
CRA
3613
27K
3622
BC857B
7616
100n
2627
+MOTOR
+5
9705
+5
4K7
3689
2K2
3607
6
7
8
1n
2621
7
8
9
1760
1
2
3
4
5
1770
1
10
11
12
13
14
2
3
4
5
6
REC
4795
1N4003
6612
47K
3680
M
3678
47K
3674
4K7
100K
+MOTOR
P
2
3602
27K
3624
4785
M
PMBT2907
7614
M
M
BC847B
7623
2625
100n
6
7
M
2A2
1706
1
2
3
4
5
6614
1N4148
M
3606
120K
7622
BC847B
10K
3616
3626
1K
BC847B
7620
3611
2K2
P
1K
3625
PMBT2907
7612
2K2
3603
2K2
3605
27K
3614
+5
7624
BC847B
27K
P
3609
2K2
3687
220R
680R
3619
PM
3672
4K7
2622
470p
3620
HS
470p
2623
PHOTO_A
CR02_A
PHOTO_A
SOL_A
CR02_A
3630
470R
SOL_A
Note : Some values may varies, see respective parts list for
correct value.
*
*
*
9-9 9-9

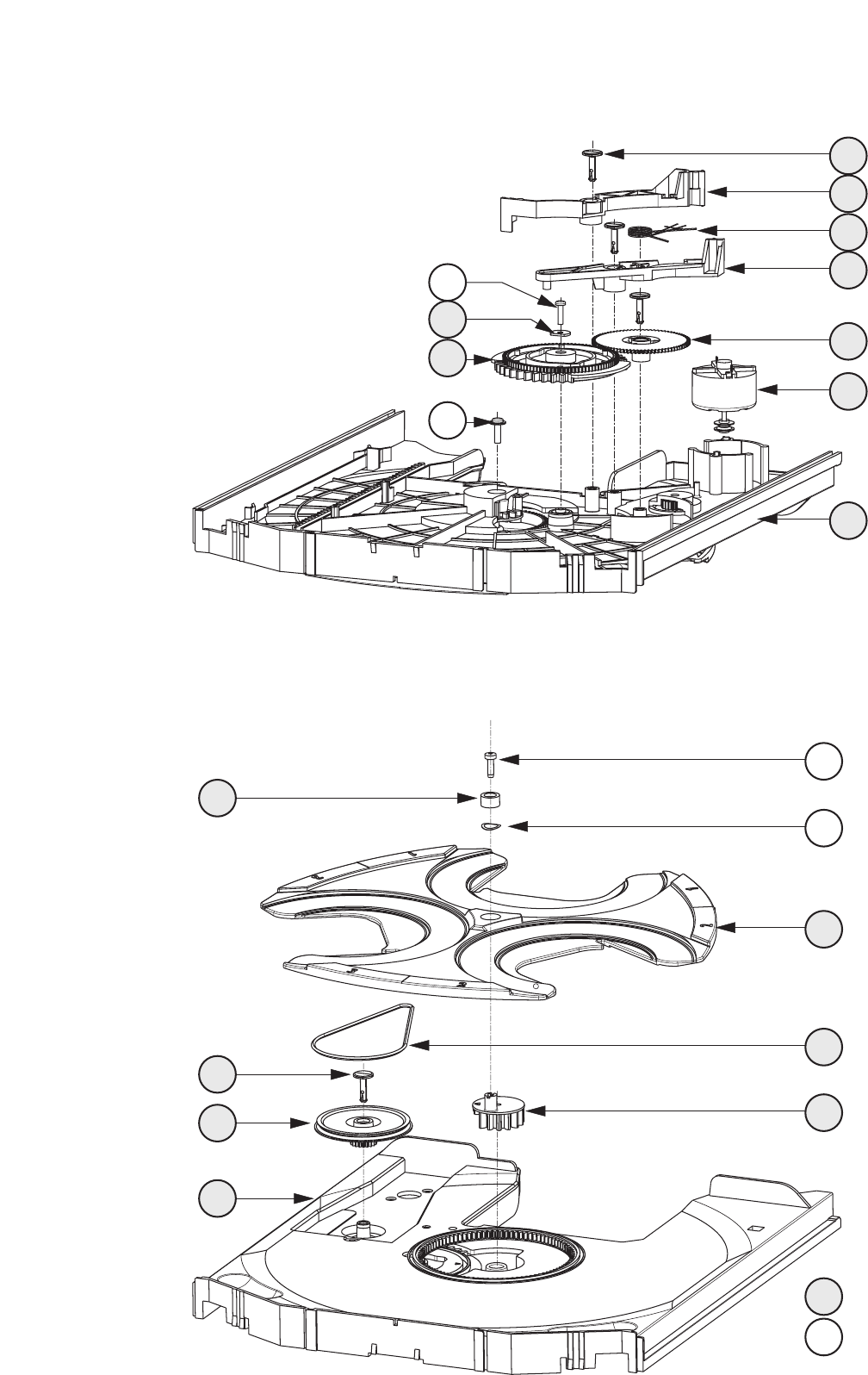

TAPE MECHANISM - MOTOR EXPLODED VIEW
31 4822 361 11055 Motor Assembly
91 - Screw M2,6 x 5
92 - Screw M2 x 5
Note: Only the parts mentioned in this list are normal
service spare parts.
TAPE MODULE EXPLODED VIEW
1 3139 118 77130 Autoreverse Mech. CWE44FR01
1 3139 118 77140 Non-Autoreverse Mech. CWE44FF02 Chrome/Ferro
1 3139 118 77950 Non-Autoreverse Mech. CWE44FF05 Ferro
3 - Screw D3 x 10
6 - Screw M2 x 16
7 3139 110 34080 Flex Cable 14 pin 7,5 cm
Note: Only the parts mentioned in this list are normal service spare parts.
9-10
TAPE MECHANISM A - PLAY
9-10
MECHANICAL PARTS - PLAY MECHANISM
1 9965 000 02313 Play Head (Non-Autoreverse deck)
1 9965 000 02321 Play Head (Autoreverse deck)
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
42 9965 000 02315 Belt AF (Autoreverse deck)
42 9965 000 02718 Belt AF (Non-autoreverse deck)
69 4822 492 11761 Spring
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
9-11 9-11

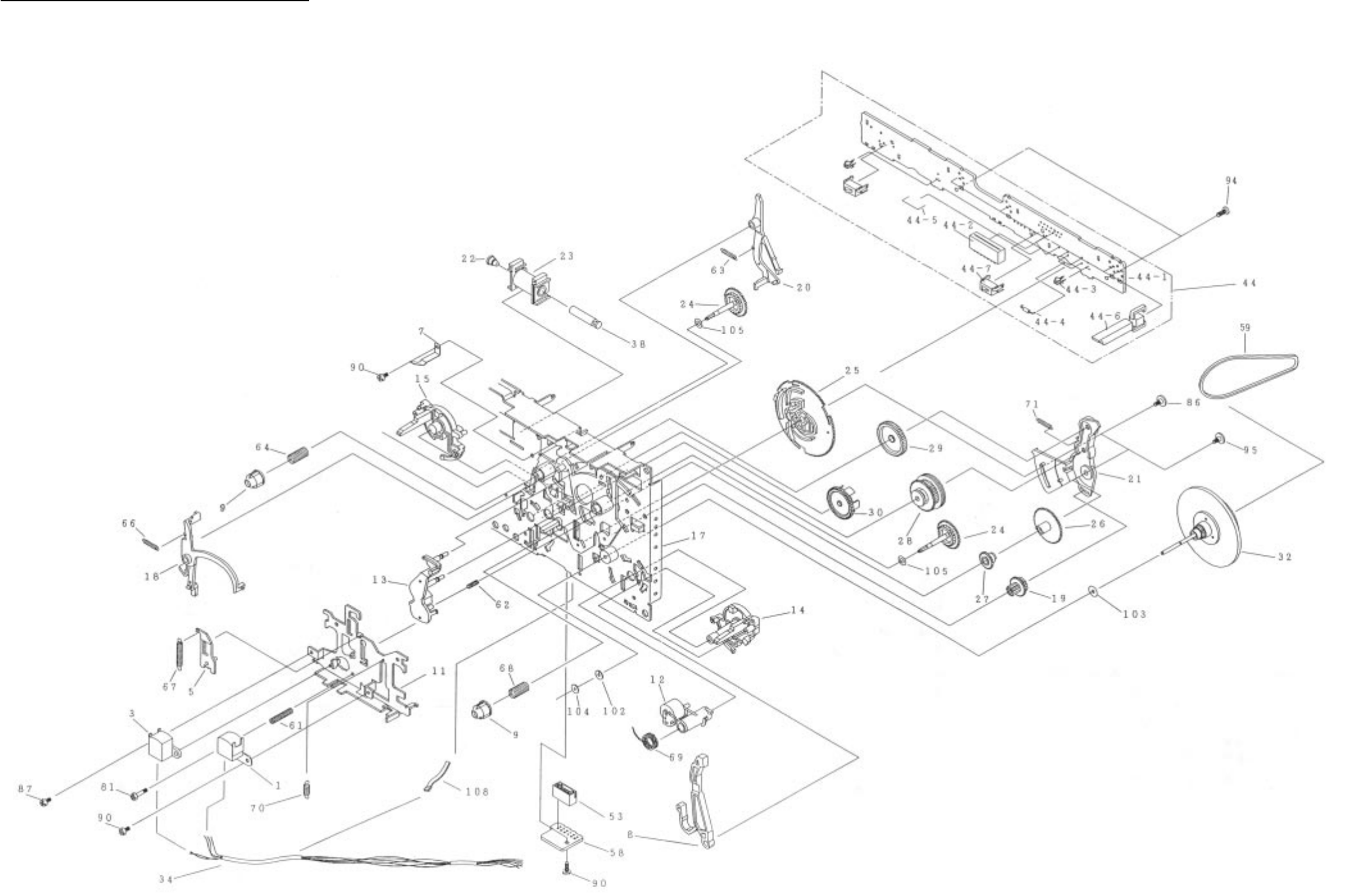

TAPE MECHANISM B - RECORD/PLAYBACK
(Non-Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
1 9965 000 02313 Play Head
3 9965 000 02600 Head, Erase
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
44-2 9965 000 02317 Flex Socket 14 Pin
44-3 9965 000 02320 Photo Interrupter
44-4 4822 050 16801 680R 1% 0,4W
44-6 9965 000 02318 Leaf Switch
44-7 9965 000 02319 Mode Switch
59 9965 000 02719 Belt BF (Large)
69 4822 492 11761 Spring
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
9-12 9-12
TAPE MECHANISM B - RECORD/PLAYBACK
(Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
39 9965 000 02322 Belt AF
44-2 9965 000 02317 Flex Socket 14 Pin
44-3 9965 000 02320 Photo Interrupter
44-4 4822 050 16801 680R 1% 0,4W
44-6 9965 000 02318 Leaf Switch
44-7 9965 000 02319 Mode Switch
45 9965 000 02323 Rec/Pb Head Assembly
50 4822 402 10973 Pinch Arm Assembly L
54 9965 000 02324 Flywheel Assembly L
69 4822 492 11761 Spring
73 4822 492 11762 Spring
101 9965 000 02325 Washer
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
107 9965 000 02326 Washer
109 9965 000 02327 Washer
Note: Only the parts mentioned in the list are
normal service spare parts.
9-13 9-13
ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD
MISCELLANEOUS
1701 482226710953 Flex Socket 7pin Vert.
1706 482226710953 Flex Socket 7pin Vert.
1770 482226751255 Flex Socket 14pin Vert.
CAPACITORS
2621 532212231647 1nF 10% 63V
2622 532212234099 470pF 10% 63V
2623 532212234099 470pF 10% 63V
2624 482212614585 100nF 10% 50V only for Ferro
2625 482212614585 100nF 10% 50V
2701 532212233538 150pF 2% 63V Autoreverse
2701 482212233216 270pF 5% 63V Non-autoreverse
2702 532212233538 150pF 2% 63V Autoreverse
2702 482212233216 270pF 5% 63V Non-autoreverse
2703 532212232531 100pF 5% 50V Autoreverse
2703 482212233575 220pF 5% 63V Non-autoreverse
2704 532212232531 100pF 5% 50V Autoreverse
2704 482212233575 220pF 5% 63V Non-autoreverse
2705 482212233575 220pF 5% 63V
2706 482212233575 220pF 5% 63V
2707 532212234099 470pF 10% 63V
2708 532212234099 470pF 10% 63V
2709 532212231863 330pF 5% 63V
2710 532212231863 330pF 5% 63V
2711 532212232531 100pF 5% 50V
2712 532212232531 100pF 5% 50V
2713 482212440248 10µF 20% 63V
2714 482212440248 10µF 20% 63V
2715 482212480195 470µF 20% 10V
2716 482212480195 470µF 20% 10V
2717 482212233177 10nF 20% 50V Autoreverse
2717 482212613188 15nF 5% 63V Non-autoreverse
2718 482212233177 10nF 20% 50V Autoreverse
2718 482212613188 15nF 5% 63V Non-autoreverse
2719 482212612105 33nF 5% 50V
2720 482212612105 33nF 5% 50V
2721 532212231866 6,8nF 10% 63V not for Ferro
2722 532212231866 6,8nF 10% 63V not for Ferro
2723 482212613188 15nF 5% 63V
2724 482212613188 15nF 5% 63V
2725 532212610223 4,7nF 10% 63V
2726 532212610223 4,7nF 10% 63V
2727 532212234099 470pF 10% 63V Autoreverse
2727 532212231647 1nF 10% 63V Non-autoreverse
2728 532212234099 470pF 10% 63V Autoreverse
2728 532212231647 1nF 10% 63V Non-autoreverse
2729 532212232654 22nF 10% 63V
2730 532212232654 22nF 10% 63V
2733 532212234099 470pF 10% 63V
2734 532212234099 470pF 10% 63V
2735 482212614585 100nF 10% 50V
2737 482212614585 100nF 10% 50V
2738 482212614585 100nF 10% 50V
2741 482212611585 22nF +80/-20% 25V
2742 532212232654 22nF 10% 63V
2743 532212232654 22nF 10% 63V
2744 482212614585 100nF 10% 50V
2760 482212614585 100nF 10% 50V
2761 482212480144 220µF 20% 25V
2762 482212440769 4,7µF 20% 100V
2763 482212440433 47µF 20% 25V
2765 482212440433 47µF 20% 25V
2769 532212234099 470pF 10% 63V
2770 532212234099 470pF 10% 63V
2780 482212481151 22µF 20% 50V
2781 482212233177 10nF 20% 50V
2782 532212610223 4,7nF 10% 63V
2784 482212151305 15nF 10% 50V
2785 482212421913 1µF 20% 63V
2786 532212232531 100pF 5% 50V
2787 482212612105 33nF 5% 50V
RESISTORS
3601 482211711449 2k2 1% 0,1W
3602 482205120273 27k 5% 0,1W
3603 482211711449 2k2 1% 0,1W
3604 482211711148 56k 1% 0,1W
3605 482211711449 2k2 1% 0,1W
3606 482205120124 120k 5% 0,1W
3607 482211652256 2k2 5% 0,5W
3608 482205120273 27k 5% 0,1W
3609 482211652256 2k2 5% 0,5W
3610 482205120124 120k 5% 0,1W
3611 482211652256 2k2 5% 0,5W
3612 482211711148 56k 1% 0,1W
3613 482205120273 27k 5% 0,1W
3614 482205120273 27k 5% 0,1W
3616 482211710833 10k 1% 0,1W Autoreverse
3616 482205110102 1k 2% 0,25W Non-autoreverse
3618 482211711507 6k8 1% 0,1W Autoreverse
3620 482210011141 Trim. 10k 30% Autoreverse
3622 482210011141 Trim. 10k 30% Non-autoreverse
3623 482211710837 100k 1% 0,1W
3624 482211710837 100k 1% 0,1W
3625 482205110102 1k 2% 0,25W
3626 482205110102 1k 2% 0,25W
3628 482211710837 100k 1% 0,1W
3630 482205120471 470R 5% 0,1W
3672 482205120472 4k7 5% 0,1W Autoreverse
3674 482211652283 4k7 5% 0,5W
3676 482211710834 47k 1% 0,1W Autoreverse
3678 482211710834 47k 1% 0,1W
3679 482211710834 47k 1% 0,1W
3680 482211710834 47k 1% 0,1W
3685 482211652234 100k 5% 0,5W
3686 482211710837 100k 1% 0,1W
3687 482211711503 220R 1% 0,1W not for Ferro
3688 482211710361 680R 1% 0,1W Autoreverse
3701 482211711503 220R 1% 0,1W
3702 482211711503 220R 1% 0,1W
3703 482211711503 220R 1% 0,1W
3704 482211711503 220R 1% 0,1W
3705 482211711503 220R 1% 0,1W
3706 482211711503 220R 1% 0,1W
3707 482205120101 100R 5% 0,1W
3708 482205120101 100R 5% 0,1W
3709 482205120109 10R 5% 0,1W
3710 482205120109 10R 5% 0,1W
3711 482205120154 150k 5% 0,1W
3712 482205120154 150k 5% 0,1W
3713 482205120109 10R 5% 0,1W
3714 482205120109 10R 5% 0,1W
3715 482205120182 1k8 5% 0,1W
3716 482205120182 1k8 5% 0,1W
3717 482211711449 2k2 1% 0,1W
3718 482211711449 2k2 1% 0,1W
3719 482211711383 12k 1% 0,1W
3720 482211711383 12k 1% 0,1W
3721 482205120392 3k9 5% 0,1W
3722 482205120392 3k9 5% 0,1W
3723 482211683933 15k 1% 0,1W Autoreverse
3723 482211710965 18k 1% 0,1W Non-autoreverse
3724 482211683933 15k 1% 0,1W Autoreverse
3724 482211710965 18k 1% 0,1W Non-autoreverse
3725 482205120109 10R 5% 0,1W not for Ferro
3726 482205120109 10R 5% 0,1W not for Ferro
3727 482205120562 5k6 5% 0,1W Autoreverse
3727 482211711507 6k8 1% 0,1W Non-autoreverse
3728 482205120562 5k6 5% 0,1W Autoreverse
3728 482211711507 6k8 1% 0,1W Non-autoreverse
3729 482205120332 3k3 5% 0,1W Autoreverse
3729 482205120472 4k7 5% 0,1W Non-autoreverse
3730 482205120332 3k3 5% 0,1W Autoreverse
3730 482205120472 4k7 5% 0,1W Non-autoreverse
3731 482205120822 8k2 5% 0,1W
3732 482205120822 8k2 5% 0,1W
3733 482205120122 1k2 5% 0,1W
3734 482205120122 1k2 5% 0,1W
3735 482205120223 22k 5% 0,1W
3736 482205120223 22k 5% 0,1W
3741 482211711449 2k2 1% 0,1W
3742 482211711449 2k2 1% 0,1W
3743 482211711139 1k5 1% 0,1W Autoreverse
3743 482211711449 2k2 1% 0,1W Non-autoreverse
3744 482211711139 1k5 1% 0,1W Autoreverse
3744 482211711449 2k2 1% 0,1W Non-autoreverse
3745 482205120332 3k3 5% 0,1W Autoreverse
3745 482205120562 5k6 5% 0,1W Non-autoreverse
3746 482205120332 3k3 5% 0,1W Autoreverse
3746 482205120562 5k6 5% 0,1W Non-autoreverse
3748 482211711449 2k2 1% 0,1W
3749 482211710834 47k 1% 0,1W
3751 482211710833 10k 1% 0,1W
3752 482211710837 100k 1% 0,1W
3753 482211710837 100k 1% 0,1W
3754 482205120105 1M 5% 0,1W Autoreverse
3754 482205120479 47R 5% 0,1W Non-autoreverse
3755 482205120105 1M 5% 0,1W Autoreverse
3755 482205120479 47R 5% 0,1W Non-autoreverse
3756 482211713579 220k 1% 0,1W
3757 482211713579 220k 1% 0,1W
3758 482211710833 10k 1% 0,1W
3759 482211710833 10k 1% 0,1W
3760 482205120121 120R 5% 0,1W
3761 482205021003 10k 1% 0,6W
3762 482211711454 820R 1% 0,1W
3763 482205120154 150k 5% 0,1W
3764 482211683872 220R 5% 0,5W
3765 482205120393 39k 5% 0,1W
3766 482205120475 4M7 5% 0,1W
3767 482205120475 4M7 5% 0,1W
3768 482211710833 10k 1% 0,1W
3769 482211711383 12k 1% 0,1W Autoreverse
3769 482205120822 8k2 5% 0,1W Non-autoreverse
3770 482211711139 1k5 1% 0,1W
3771 482205120122 1k2 5% 0,1W
3772 482211711507 6k8 1% 0,1W Autoreverse
3772 482205120562 5k6 5% 0,1W Non-autoreverse
3773 482210012227 Trimmer 4k7 30% 0,1W
3774 482211683933 15k 1% 0,1W Autoreverse
3774 482205120822 8k2 5% 0,1W Non-autoreverse
3775 482205120478 4R7 5% 0,1W
3776 482211711507 6k8 1% 0,1W
3777 482211710353 150R 1% 0,1W
3778 482205210688
!
6R8 5% 0,33W
3779 482205120334 330k 5% 0,1W
3780 482205120105 1M 5% 0,1W
3781 482205120475 4M7 5% 0,1W
3784 482205110102 1k 2% 0,25W
3786 482205120223 22k 5% 0,1W
3787 482205120105 1M 5% 0,1W
3788 482205120105 1M 5% 0,1W
3789 482211710834 47k 1% 0,1W
4701 482205120008 0R Jumper 0805
4702 482205120008 0R Jumper 0805
4703 482205120008 0R Jumper 0805
4704 482205120008 0R Jumper 0805
4705 482205120008 0R Jumper 0805
9-14
ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD
9-14
4706 482205120008 0R Jumper 0805
4707 482205120008 0R Jumper 0805
4708 482205120008 0R Jumper 0805
4709 482205120008 0R Jumper 0805
4710 482205120008 0R Jumper 0805
4711 482205120008 0R Jumper 0805
4712 482205120008 0R Jumper 0805
4713 482205120008 0R Jumper 0805
4714 482205120008 0R Jumper 0805
4715 482205120008 0R Jumper 0805
4716 482205120008 0R Jumper 0805
4717 482205120008 0R Jumper 0805
4718 482205120008 0R Jumper 0805
4719 482205120008 0R Jumper 0805
4720 482205120008 0R Jumper 0805
4721 482205120008 0R Jumper 0805
4722 482205120008 0R Jumper 0805
4723 482205120008 0R Jumper 0805
4724 482205120008 0R Jumper 0805
4725 482205120008 0R Jumper 0805
4726 482205120008 0R Jumper 0805
4727 482205120008 0R Jumper 0805
4728 482205120008 0R Jumper 0805
4729 482205120008 0R Jumper 0805
4730 482205120008 0R Jumper 0805
4731 482205120008 0R Jumper 0805
4732 482205120008 0R Jumper 0805
4733 482205120008 0R Jumper 0805
4734 482205120008 0R Jumper 0805
4735 482205120008 0R Jumper 0805
4736 482205120008 0R Jumper 0805
4737 482205120008 0R Jumper 0805
4738 482205120008 0R Jumper 0805
4739 482205120008 0R Jumper 0805
4740 482205120008 0R Jumper 0805
4741 482205120008 0R Jumper 0805
4742 482205120008 0R Jumper 0805
4744 482205120008 0R Jumper 0805
4745 482205120008 0R Jumper 0805
4746 482205120008 0R Jumper 0805
4748 482205120008 0R Jumper 0805
4785 482205120008 0R Jumper 0805 only for Ferro
4790 482205120008 0R Jumper 0805
4794 482205120008 0R Jumper 0805
4795 482205120008 0R Jumper 0805
COILS & FILTERS
5701 482215711477 Coil 2,2µH 5%
5703 482215620946 Osc Coil 100kHz
DIODES
6611 482213031878 1N4003G
6612 482213031878 1N4003G
6614 482213030621 1N4148 Autoreverse
6770 482213030621 1N4148
6771 482213030621 1N4148
6772 482213030621 1N4148
6773 482213030621 1N4148
6774 482213030621 1N4148
6775 482213030621 1N4148
6776 482213030621 1N4148
6777 482213034382 BZX79-F8V2
6778 482213030621 1N4148
6782 482213030621 1N4148
6785 482213030621 1N4148
6786 482213030621 1N4148
TRANSISTORS & INTEGRATED CIRCUITS
7610 532220911306 HEF4094BT
7612 482213011201 PMBT2907
7613 482213011201 PMBT2907
7614 482213011201 PMBT2907
7616 482213060373 BC857B Autoreverse
7618 482213060511 BC847B
7619 482213060511 BC847B
7620 482213060511 BC847B
7622 482213060511 BC847B Autoreverse
7623 482213060511 BC847B
7624 482213060511 BC847B
7710 482220932919 HEF4952BT
7720 932214000668 AN7323S
7730 482220932919 HEF4952BT
7740 482220932919 HEF4952BT
7780 482213060511 BC847B
7781 482213042804 BC817-25
7782 482213044568 BC557B
7783 482213060511 BC847B
7784 482213060373 BC857B
7786 482213063494 J111
7787 482213060511 BC847B
7791 482213060511 BC847B
7792 482213060511 BC847B
Note: Only the parts mentioned in this list are normal
service spare parts.
RESISTORS
ETF7 TAPE MODULE
(Dolby Version)
9A-1 9A-1
TABLE OF CONTENTS
Tape Module Wiring & variation table .....................9A-1
Block diagram ..........................................................9A-2
Brief Introduction .....................................................9A-3
Connector assignment.............................................9A-4
Tape deck electronics ..............................................9A-5
Tape adjustments ....................................................9A-6
ETF7 Dolby Board Component layout ....................9A-7
ETF7 Dolby Board Chip layout ................................9A-8
Analog Circuit diagram ............................................9A-9
Servo Circuit diagram ............................................9A-10
Dolby Circuit diagram ............................................ 9A-11
Exploded views & parts list....................................9A-12
Electrical parts list..................................................9A-15
REC
FWD
CRO2
REC
REV
MODE
SW
TAPE DECK
MOTOR
TO ETF BOARD
CONNECTOR 1710 (ND) 5P
CONNECTOR 1720 (DB) 6P
TO ETF BOARD
CONNECTOR 1770 (ND) 14P
CONNECTOR 1740 (DB) 14P
TO ETF BOARD
CONNECTOR 1730 (3P)
Tapedeck wiring (Double deck)
+–
H
L
CRO2
Mechanism B Mechanism A
DB = Dolby B NR
DD = Double Deck
FF = Non-Autoreverse
FR = Autoreverse Deck B
ND = Non-Dolby
SD = Single Deck
OPTIONS / VARIANTS TABLE
MODULE ETF7
VARIANT 1 2 3
FEATURES DB/DD/FR ND/DD/FR ND/DD/FF
Deck configuration double double double
Deck type (Tokyo Pigeon) CWE CWE CWE
Autoreverse yes (B) yes (B) no
Auto Replay no no yes (A+B)
Motor configuration single single single
Auto tape type selection yes yes yes
Dolby type B Noise Reduction yes no no
19 kHz pilot suppression yes no no
Normal / High speed dubbing yes yes no
Cue/Review & Fwd/Rewind yes yes yes
9A-2 9A-2
BLOCK DIAGRAM
Deck B (Rec/Pb) switches, sensors & motor
4x DECK(S) SW.
STATUS TO
VOLTS CONV.
2x
SOLENOID
SUPPLY CTRL SOLENOID
SUPPLY CTRL
MOTOR VCC
SUPPLY CTRL
NS/HS CTRL
Deck A (Pb) switches, sensors & motor
NOM/HI SPEED
REC EON.
IEC I IEC II
REC EON.
REC EON. SW.
HEF4952BT
RECORD AMP
NJM4560D
OSCILLATOR
REC CRB
Line-In
Playback
Head
Rec/Pb
Head
Erase
Head
BIAS SYM
HD SW.
BIAS ADJ
Erase
Bias
REC
ALCEN
PRE-AMPLIFIER
AN7318S
SOURCE SEL
HEF4952BT
1A0 1A1 1A2
Rec current
ATTEN
ALC
PLAYBACK
EQUALISATION
PB EON. SW.
HEF4952BT
2A0 2A1 2A2
MPX
1A0 1A1
PB A ADJ PB B ADJ
Rec In
PB In
2A2
DOLBY B NR
CXA1101M
REC Out
PB Out
REC ADJ
SHIFT
REGISTER
HEF4094BT
3A0 3A1 3A2
(HS) (REC) (CRB)
DOLBY
NOM/HI SPEED
REC EON.
3A0 NS
2A2
MUTE
For Dolby version only
PB Out
ATTEN
4794 #
9792 #
#
CLK
DATA
STROBE
# For Non-dolby version only
Only 1 channel is presented.
NOTE:
MicroProcessor Control / Communication lines
Direct / Indirect Control lines from Shift Registers
AD1 AD2
1A2
1A1
ALCEN
1A0
REC 7787
7791
7780
7710 7720
7740
7730
7630
7640
1A0
2A1
2A2
REC
NS/HS (NS)
HS
NS/HS
(NS)
3A0
2A0
CRA 7792
7622
7788
7610
9A-3 9A-3
General
1. Playback Mode
Signal from the playback head Deck A or Deck B is selected and fed through by the Mode Selector IC7710 (HEF4952BT).
The signal is amplified by amplifier IC7720 (AN7323S) before feeding to the IC7740 (HEF4952BT) and out to the AF Board
via connector 1701.
2. Recording Mode
Recording Signal is selected and fed through by the Mode Selector IC7710 (HEF4952BT) which is then amplified by the
amplifier IC7720 (AN7323S). The amplified output signal will pass through IC7730 (HEF4952BT) for record equalization and
back to IC7710 (HEF4952BT) before registered into the Rec/PB Head of Deck B.
3. Dubbing Mode
In Dubbing mode, signal from the playback head Deck A is selected and fed through by the Mode Selector IC7710
(HEF4952BT) which is then equalised for playback mode by the amplifier IC7720 (AN7323S) so that a flat response is
obtained after the pre-amp. The equalised signal will then follow the same path as in the Recording mode.
4. Mode Selector
The Mode Selector IC7710 (HEF4952BT) caters for 4 inputs signal, namely Playback Signal from Deck A, Playback Signal
from Deck B, Recording Signal and Dubbing Signal.
5. Amplifier PB/REC
Amplifier IC7720 (AN7323S) is for the purpose of amplifying the Playback and Recording signal from the Mode Selector.
6. Automatic Level Control (ALC)
ALC circuit consists of resistors (3760, 3765, 3766, 3767), capacitors (2762 , 2763) and control by transistor 7787 (BC847B).
ALC limits the amplifier output to a constant value when input signal becomes too large, thus limiting recording current to
below saturation level, to prevent recording distortion.
7. Muting Circuit (For Non-Dolby version only)
Switch S4 of the IC7740 (HEF4952BT) is for the purpose of muting the output during Recording mode. During Recording
mode, S4 is closed and shorted to the ground.
8. IC7740 (HEF4952BT)
The function of the IC7740 (HEF4952BT) is to change time constant between 120us Ferro (IEC I) and 70us Chrome (IEC
II) during playback mode. It will automatically determined whether the tape type is 120us Ferro (IEC I) or 70us Chrome (IEC
II). This IC will switch to Flat Gain during the Recording mode.
9. IC7730 (HEF4952BT)
The function of the IC7730 (HEF4952BT) is to change gain and time constant according to tape type and recording speed
to boost recording current at higher frequency during recording to compensate for head loss. It will automatically determined
whether the tape type is 120us Ferro (IEC I ) or 70us Chrome (IEC II).
10. Bias Level
Bias Level making use of the Variable resistor (3773) for adjusting the optimal level of the bias current for Ferro or Chrome.
11. Bias Symm (For Dolby B NR version only)
Bias Symm making use of the Variable resistor (3785) to adjust the bias current for the left and the right channel to be equal.
12. PB Switch
Playback Switch which consists of the FETs 7785 (For Dolby B NR version only) & 7786 (J111) is for the purpose of providing
a virtual ground for the Rec/PB Head (Deck B) during Playback mode. During the Playback mode, the FETs are turn on and
shorted pin 2 and 4 of connector 1720 to the ground. During Recording mode, the FETs are turn off to allow the oscillator
signal to be superposition onto the Recording signal for recording.
13. Motor Speed (For FR versions only)
During High speed dubbing, a feedback signal from the uP through pin 03 of the IC7610 (HEF4094BT) will trigger the
transistors 7622 (BC847B) and 7616 (BC857B) to cause a change in the voltage level between High and Low, thus changing
the speed of the motor.
14. IC7610 (HEF4094BT)
IC7610 (HEF4094BT) is a Shift Register use for issues the logic for cmos switch ICs (HEF4952BT) via 1A0, 2A1 and 2A2.
It also issues logic to On/Off SOL_A, SOL_B and MOT. Recording speed is controlled via NS/HS.
Dolby Circuit (For sets with Dolby B NR version only)
15. IC7630 (CXA1551M)
IC7630 (CXA1551M) in the Dolby circuit is a Dolby Noise Reduction Type B IC for the Playback and Recording signal. Noise
Reduction ON/OFF are controlled by DOLBY, which is from CLK, direct from uP. After clocking in DATA, CLK is set to HIGH/
LOW for NR OFF/ON.
16. 19kHz Filter
The 19kHz filters 5631 & 5632 (LXD-210) in the Dolby circuit is for the purpose of filtering the 19kHz Pilot Tone (for Tuner
signal only) of the Recording signal.
17. Level Adjust
The Variable resistor 3635, 3636,3641 and 3642 in the Dolby circuit is for adjusting the playback level of the Dolby reference
(400Hz , 200nWb/m). Transistor 7631, 7632 are ON to enable adjustment of 3641, 3642 during Playback Deck A. Transistor
7633, 7634 and 3635, 3636 are active for Playback Deck B.
18. Amplifier IC7640 (NJM4560M)
The Amplifiers 7640A & 7640B (NJM4560M) in the Dolby circuit is for the purpose of amplified the Recording signal.
19. Muting Circuit
The muting circuit which consists of transistors 7788, 7789 and 7790 (BC847B) is for the purpose of muting the output during
Recording mode.
Brief introduction
NOTATIONS & ABBREVIATIONS USED IN THIS
DOCUMENT
CR Chrome (IEC type II)
DB Dolby NR type B
DD Double Deck
DM Double Motor
FE Ferro (IEC type I)
FF Non-Autoreverse
FR Autoreverse Deck B
Gnd x Ground x
HSD High speed dubbing
ND Non Dolby
NR Noise Reduction
NSD Normal speed dubbing
PB Playback
REC Record
S/A Sub-assy
SD Single Deck
SM Single Motor
CONNECTOR 1740 DECK A & B CONTROL INTERFACE
(For Dolby B NR version only)
1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
4 PHOTO B Photo sensor output (tape movement indication)
5 SOL B Solenoid supply for deck B
6 Vcc Deck / Motor supply
7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
9 SOL A Solenoid supply for deck A
10 PHOTO A Photo sensor output (tape movement indication)
11 MODE A Mode switch (head engagement) [open=off: close=engaged]
12 L L pin for motor
13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
14 H H pin for motor
CONNECTOR 1770 DECK A & B CONTROL INTERFACE
(For Non-Dolby version only)
1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
4 PHOTO B Photo sensor output (tape movement indication)
5 SOL B Solenoid supply for deck B
6 Vcc Deck / Motor supply
7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
9 SOL A Solenoid supply for deck A
10 PHOTO A Photo sensor output (tape movement indication)
11 MODE A Mode switch (head engagement) [open=off: close=engaged]
12 L L pin for motor
13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
14 H H pin for motor
CONNECTORS ASSIGNMENTS:
CONNECTOR 1701 INTERCONNECTION TO AF BOARD
1 REC-L Record input left
2 REC-R Record input right
3 GND A AF Ground
4 TAPE-L Playback output left
5 +12V D.C. supply (+12V) for AF electronics
6 TAPE-R Playback output right
7 -CMOS Negative d.c. supply (-9V) for CMOS ICs
CONNECTOR 1703 INTERCONNECTION TO AF BOARD
1 GND M Motor Ground
2 +MOTOR D.C. supply (+12V) for tape deck motor & solenoid
CONNECTOR 1706 INTERCONNECTION TO FRONT BOARD
1 AD2 Deck sensing switches output voltage / Deck A EOT
2 AD1 Deck sensing switches output voltage / Deck B EOT
3 +5V DC supply +5V for ADC network
4 GND P Control & Oscillator Ground
5 CLK HEF4094BT shift register Clock line
6 DATA HEF4094BT shift register Data line
7 STROBE HEF4094BT shift register Strobe line
CONNECTOR 1710 DECK B HEADS CONNECTON
(For Non-Dolby version only)
1 B R/P HD L+ R/P Head left channel positive
2 GND A R/P Head return ground
3 B R/P HD R+ R/P Head right channel positive
4 ERASE HEAD Erase Head
5 GND A Erase Head ground
CONNECTOR 1720 DECK B HEADS CONNECTON
(For Dolby B NR version only)
1 B R/P HD L+ R/P Head left channel positive
2 B R/P HD L- R/P Head left channel negative
3 B R/P HD R+ R/P Head right channel positive
4 B R/P HD R- R/P Head right channel negative
5 ERASE HEAD Erase Head
6 GND A Erase Head ground
CONNECTOR 1730 DECK A HEAD CONNECTIONS
(For Double Deck versions only)
1 A PB HD L+ Pb Head left channel positive
2 GND A Pb Head return ground shield
3 A PB HD R+ Pb Head right channel positive
9A-49A-4
TAPE MECHANISM ELECTRONICS
1. B Rec Switch (REV)
Rec-R
CrO2
CrO2
Rec-F
Solenoid
B-Mode
A-Mode
Solenoid
Motor
R1 (680R)
R2 (680R)
A Photo Sensor
B Photo Sensor
2. B CrO2 Switch
3. B Rec Switch (FWD)
4. B Photo Out
5. B Solenoid
6. Vcc 12V
7. B Mode Switch
8. Gnd
9. A Solenoid
10. A Photo Out
11. A Mode Switch
12. Motor L
13. A CrO2 Switch
14. Motor H
Rec/Pb
Head
Head wire
connector pcb
1. White
2. Black
3. Red
4. Blue
5. Yellow
Erase
Head
For Normal Head
Rec/Pb
Head
Head wire
connector pcb
1. +L ch (White)
2. - ch (Black)
3. +R ch (Red)
4. E Head (Blue)
5. E Head (Yellow)
For Auto-reverse Head
Mechanism B Head Wires Soldering (Non-Dolby version)
Rec/Pb
Head
Head wire
connector pcb
1. White
2. Black
3. Red
4. Blue
5. Yellow
Erase
Head
For Normal Head
Rec/Pb
Head
Head wire
connector pcb
1. +L ch (White)
2. - L ch (Black)
3. +R ch (Red)
4. - R ch (Blue)
5. E Head (Yellow)
6. E Head (Yellow)
For Auto-reverse Head
Mechanism B Head Wires Soldering (Dolby B NR version)
Pink or
Red
White
Screen
(Gnd)
Play
Head
Mechanism A Head Wires Soldering
9A-5 9A-5
* For Dolby version only
# For Auto-reverse version only
TEST
CASSETTE RECORDER
MODE
MEASURE
ON READ ON ADJUST
with to
ADJUST DOLBY PLAYBACK LEVEL *
DECK A
DECK B
Playback
TCC-130
(4822 397 30269)
200nWb/m
PLAY
LEFT RIGHT
1 or 2
LEFT RIGHT
PLAY
mV-meter
mV-meter Check limits see fig.1
548mV ±0.5dB
3641(L), 3642(R)
3635(L), 3636(R)
SBC420
(4822 397 30071)
CHECK PLAYBACK FREQUENCY RESPONSE
PB. FREQ. RESP.
PLAY FWD
PLAY REV # Check 548mV ±1dB
7 or 8
General
TEST
CASSETTE RECORDER
MODE
MEASURE
ON READ ON ADJUST
with to
ADJUST MOTOR SPEED
SBC420
(4822 397 30071)
3150Hz
DUBBING
PLAY B
PLAY A
1 or 2
LEFT RIGHT
frequency
counter
3622 *
3620
check
HIGH SPEED
NORMAL SPEED
SBC420
(4822 397 30071)
3150Hz
1 or 2
LEFT RIGHT
SBC420
(4822 397 30071)
10kHz
1 or 2
LEFT RIGHT
PLAY
PLAY FWD
PLAY REV #
W&F-meter check only
mV-meter left hand screw
right hand screw
max. output level
& left=right
CHECK WOW & FLUTTER
DECK A & B
ADJUST AZIMUTH
5040Hz ± 0.5%
3150Hz ± 0.5%
3150Hz -0.8/+1.8%
≤0.4 % DIN or
≤0.35 % CCIR *
DECK A & B
f(Hz)
level(dB)
figure. 1
Dolby version
4dB
3dB
12.5k
10k
250 f(Hz)
level(dB)
Non-Dolby version
8dB
6dB
12.5k
4k
250
80
8dB
Recording
TEST
CASSETTE RECORDER
MODE
MEASURE
ON READ ON ADJUST
with to
5 or 6
LEFT RIGHT
mV-meter
3773
RECORDED
CASSETTE 1 or 2
LEFT RIGHT
LEFT RIGHT
PLAY
mV-meter check only limits see fig.2
mV-meter 420mV
CrO 2
CrO
2
RECORD
CrO
2
RECORD
RECORDED
CASSETTE 1 or 2
LEFT RIGHT
PLAY
THD-meter check only ≤3%
CrO
2
RECORD
mV-meter
3655 & 3556
RECORDED
CASSETTE LEFT RIGHT
PLAY
170mV ± 1dB
PRE-ADJUST BIAS AND BIAS-SYMMETRY
DECK B
Inject 3mV signals
100Hz, 250Hz, 1kHz,
10kHz, 12.5kHz
via 3 or 4
CHECK OVERALL FREQUENCY RESPONSE AND DISTORTION
Inject 1kHz 8.85mV
via 3 or 4
Remark: If high frequencies are not within limits, decrease bias and re-measure.
If distortion is too high increase bias and re-measure.
ADJUST DOLBY RECORD LEVEL *
7 or 8
Remark: If measured value is out, re-adjust record level up or down slightly to attain play level.
* For Dolby version only
9 or 10
check
Inject 400Hz 8.85mV
via 3 or 4
3785 *
995mV
left = right
check only 750mV ± 1.5dB
RECORD
FERRO
f(Hz)
level(dB)
figure. 2
Dolby version
5dB
3dB
12.5k
10k
250 f(Hz)
level(dB)
Non-Dolby version
8dB
10dB (HSD)
6dB
10k
4k
250
100
8dB
10dB (HSD)
9A-6 9A-6

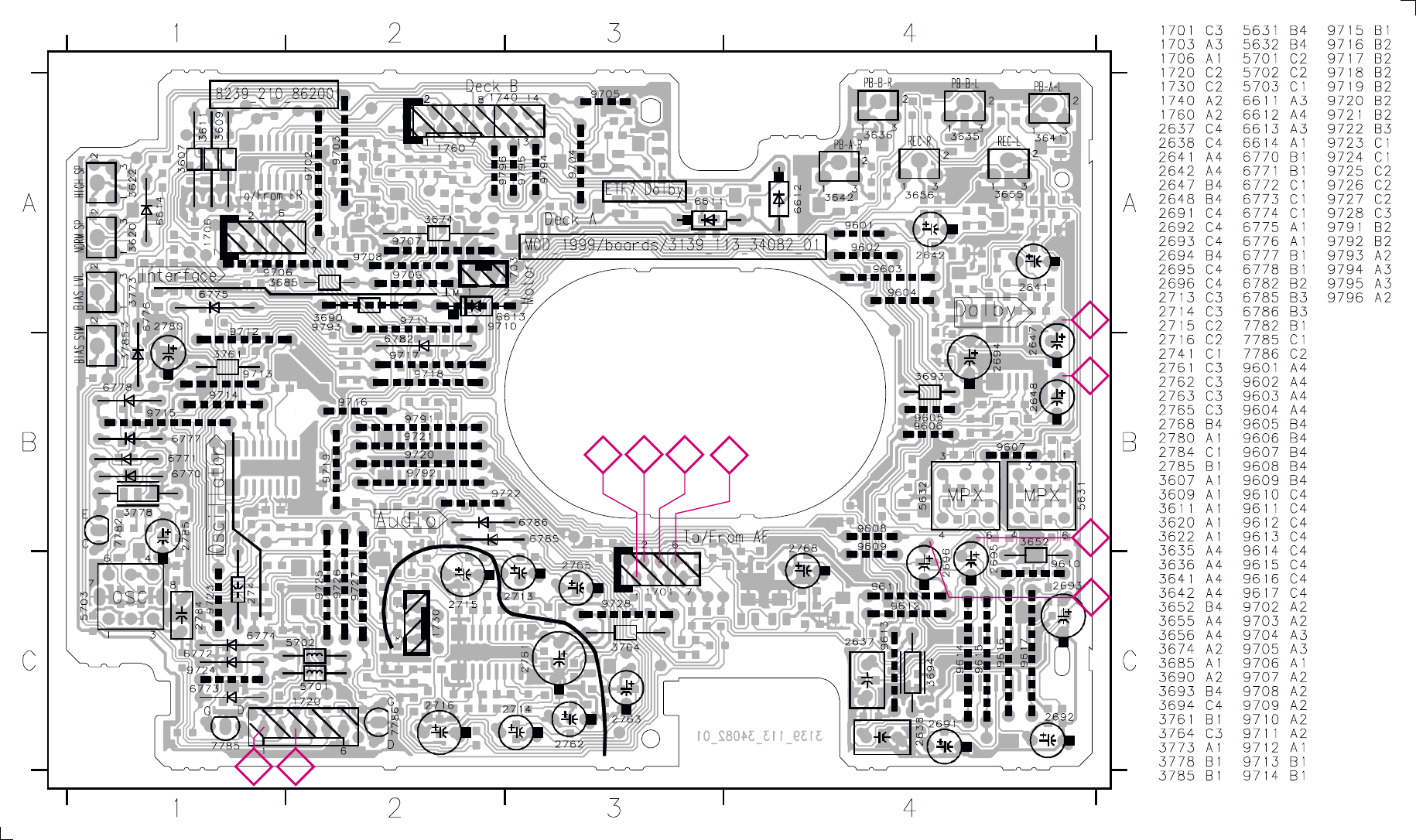

COMPONENT LAYOUT
3139 113 3408 pt2 dd wk0050
10
12
3
7
9
4
56
8
9A-7 9A-7
CHIP LAYOUT
3139 113 3408 pt2 dd wk0050
9A-8 9A-8
9A-9 9A-9

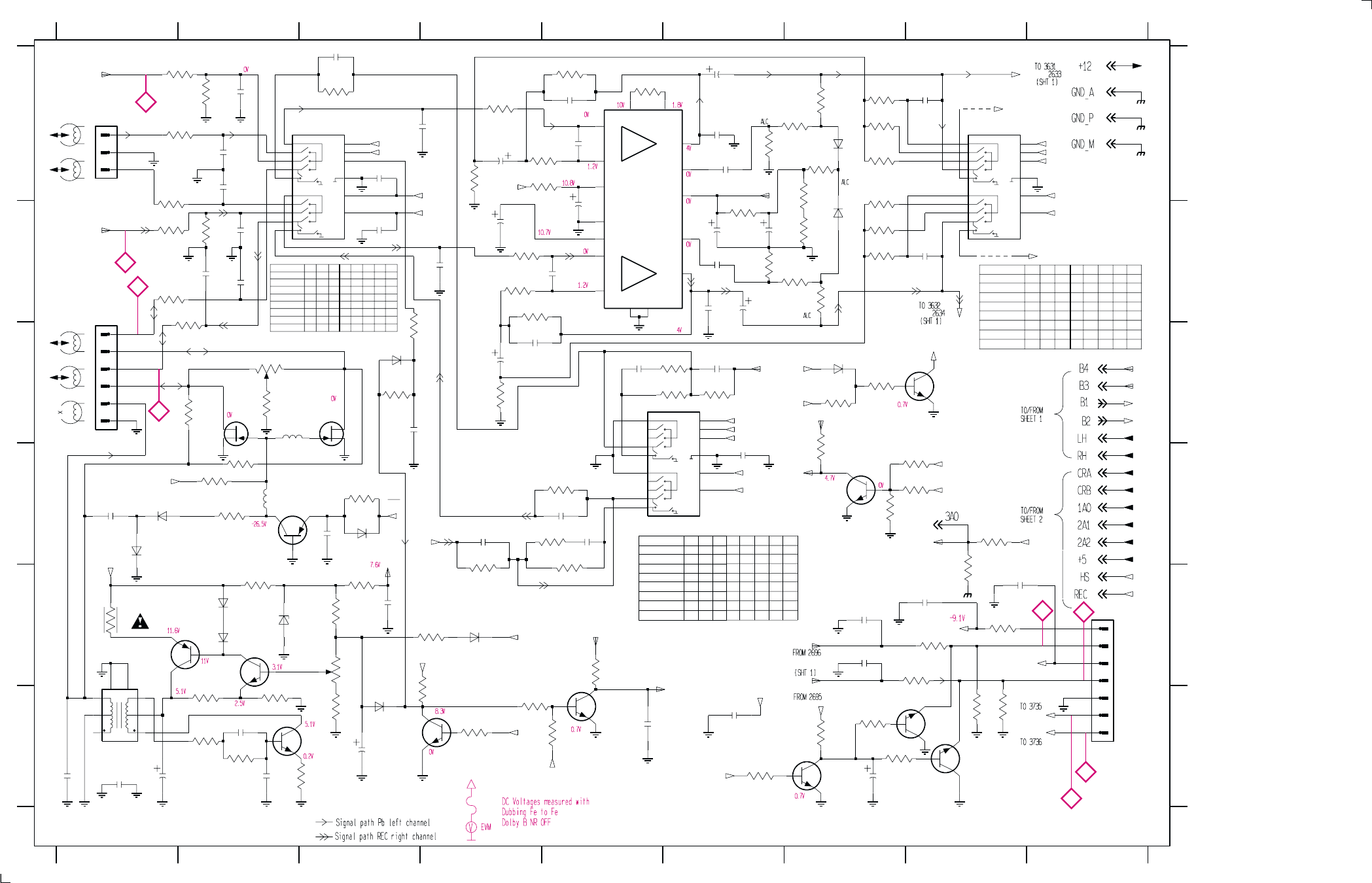

ANALOG CIRCUIT
S4
S2
S1
--
ND
0
A1A2 S4
S2
1
1
HS Chrome
1
D
E
F
A
B
C
D
E
F
1701 F9
--
OSCILLATOR
1
0
S3
11
0
S0
0
123456789
123456789
A
B
C
DECK B
A0
0
0
-CMOS
AMPLIFIER
S0
REC
A2 A1
S4
STOP
A0 S1
REC MUTE
0
CHANNEL
GND_A
REC/PB
S0
S3
1720 C1
1730 A1
2701 B2
2702 B2
2703 A2
2704 B2
2705 A2
2706 A2
1
S0
LEFT CHANNEL
MODE
SELECTOR
S0
1
0
--
1
0
1
1
Pb Ferro
1
S1
1
1
111
1
S4
# For Provision Only
2707 A3
2708 B4
2709 A5
2710 B5
2711 A6
2712 B6
2713 A6
2714 B6
1
1
S4
S1
S0
LEVEL
0
HS Ferro
HS Chrome
TAPE-L
1
1
0
11
S3
BIAS
1
S1
1
S1
0
2715 A4
2716 C4
2717 C6
2718 D4
1
BIAS
1
1
REC in
1
1
S4
S3
S4
2719 C5
2720 D5
2727 A3
2728 D5
2729 A8
2730 B8
2733 A5
2734 C4
2735 A3
2737 A6
2738 B6
2741 D6
2742 C3
2743 F1
2744 B3
2745 F6
1
PLAY BACK
LEVEL
0
0
1
0
DECK A
1
1
2746 F5
2760 E3
2761 B5
2762 B6
2763 B6
2765 B4
2768 F7
2769 E7
2770 E7
2780 F3
2781 F2
2782 F2
2784 F1
2785 F1
2786 D1
2787 D3
2789 E8
1
1
A2 S4
1
1
+12V
Dubbing
0
0
1
BIAS
1
2790 E8
3701 B1
3702 B2
3703 A2
3704 A1
3705 A4
3706 B4
3707 A5
3708 B4
3709 A4
3710 C4
3711 A5
3712 B4
3713 A7
3714 B7
3715 A6
REC-L
1
1
REC-R
1
--
1
1
0
REC MUTE
S3
1
1
0
1
1
A1
1
3716 B6
3717 C6
3718 D4
3719 C6
3720 D5
3721 C6
3722 D5
3723 A3
3724 D5
3727 A7
3728 B7
3729 A7
S3
S2
S0
1
1
RIGHT
1
1
S4
1
0
3730 B7
3731 A7
3732 A7
3733 A2
3734 B2
3735 A2
3736 B1
3737 F7
3738 F7
3739 F7
3740 F6
3741 A7
3742 B7
3743 F8
3744 F8
3745 E8
3746 E8
3748 C7
3749 C7
3751 E5
3752 F4
0
0
1
ANALOG CCTRY
1
S2
--
1
3753 F5
3754 D8
3755 E8
3756 D8
3757 D8
3758 D7
3759 D7
3760 A7
3761 E3
3762 E2
3763 A5
3764 A5
3765 B6
3766 B7
3767 A7
3768 E8
3769 E4
3770 F2
3771 F2
3772 F3
3773 E3
3774 E3
3775 F2
0
1
S0
0
3776 F2
3777 F2
3778 E1
3779 D3
3780 D2
3781 D2
3782 C2
3783 D2
3784 C2
3785 C2
3786 F4
3787 C3
3788 C3
3789 F3
5701 D2
5702 C2
5703 F1
6770 E2
6771 E2
6772 D1
6773 D1
6774 D3
6775 C3
6776 F3
6777 E2
6778 E4
6782 C7
1
1
1
S2
S3
1
6785 A7
6786 B7
7710 A3
7720 A5
7730 D6
7740 A8
7780 F4
7781 F3
7782 E1
7783 E2
7784 D2
7785 C3
7786 C2
7787 C8
7788 F7
7789 F8
7790 F8
7791 F5
7792 D7
9791 A8
9792 B8
1
0
--
STOP
NS Ferro
A0
EQUALISATION
1
S1
0
Pb deck A
0
1
1
1
PB/REC
TAPE-R
0
0
S2
1
0
1
S0
1
S2
S1
1
S3
1
SYMM
+
Pb Chrome
+
--
REC EQUALISATION
PLAYBACK
1
1
0
0
REC MUTE
1
S2
0
PB SWITCH
1
CONTROL LOGIC
ND
_
_
0
1
0
1
1
S1
REC MUTE
NS Chrome
ERASE
1
1
470p
2770
B3
M
+C
2787
33n
J111
____
7785
A
3733
5K6
P
220K
A
B2
A
2715
470u
P
1A0
15K
3769
47u
2765
2714
10u
P
BZX79-C8V2
6777
3754
33K
2A1
P
3760
120R
BC847B
7783
+C
3748
2K2
3736
15K
1N4148
6773
BC557B
7782
+12
REC
___
A
A
+5
2728
3749
47K
RH
1
Pb deck B
S2
S3
0
P
P
120R
3714
3717
3K9
A
# 9791
A
-C
3720
8K2
REC_R
A
2760
100n
100p
2712
4n7
2782
3753
100K
A
A
REC_R
REC
___
A
+12
22u
2780
100n
2737
3742
820R
470p
2734
3709
22R
3724
12K
6775
1N4148
3766
8K2
3732
B3
# 9792
A
4M7
150p
2701
P
1A1
+12
22n
# 2745
A
100n
# 2789
# 2790
100n
470p
2707
A
+5
2A0
680p
2711
A
22n
2729
A
100p
A
A
A
+12
A
A
P
A
4u7
2762
3734
5K6
P
100K
3752
M
A
3786
22K
A
A
1M
3787
3710
22R
2720
15n
REC_L
820R
3741
1730
1
2
3
P
220R
3704
2u2
5701
P
6R8
3778
7787
3776
6K8
BC847B
BC847B
3
4
5
6
7
6786
1N4148
7788
1701
1
2
A
B3
B1
3744
1K
+12
P
1N4148
6776
5702
2u2
REC
___
330p
2710
A
+12
3757
3707
100R
47u
2763
3759
10K
680p
2727
3770
1K5
1u
2785
REC
2A1
BC847B
7791
P
3783
4K7
1A0
6782
A
2708
470p
1N4148
3775
4R7
ALCEN
A
3712
100K
2A2
7792
BC847B
3708
100R
A
7784
BC857B
2718
2n2
A
A
3777
150R
HS
+C
CRB
4M7
3781
3751
10K
1M
3788
1K
3716
A
3728
5K6
3768
10K
4K7
10K
3758
3784
12
5
11
6
15
2
2713
10u
HEF4952B
7730
A0
7
A1
9
A2
10
VDD
13
VEE
4
VSS
8
16
1
14
3
B2
220R
3706
7789
BC847B
LH
3723
2706
330p
220R
3702
12K
3782
15K
6774
1N4148
4K7
3739
3771
1K2
330p
2709
A
1M
3780
1N4148
6771
P
1A0
3A0
B1
ALCEN
2743
100n
2735
100n
1N4148
3K9
3718
10n
6772
100K
3785
2781
100K
3711
5K6
3722
6785
1N4148
BC817-25
7781
A
3715
1K
100p
2704
100n
2744
2786
100p
3765
39K
A
-C
1K
3743
2733
8K2
3719
4K7
3773
470p 5K6
3727
3A0
15n
2784
NF1
11
NF2
4
OUT1
13
OUT2
5
PC1
12
PC2
15
RF
Vcc
16 7720
AN7323S
3
AIN1
2
ALCC
14
AN2
1
GND
IN1
7
10
IN2
8
NC1
9
NC2
6
3729
3K3
8K2
3731
3740
1A0
3K3
+C
47K
7
MT1
8
MT2
1
2
3
4
5
6
3730
HS
-C
CLNS-2A833 YEZ
5703
B4
# 2746
100n
A
22n
2730
1A1
2738
A
CRB
7780
BC847B
100n
3
12
5
11
6
15
2
3761
10K
HEF4952B
7740
7
A0
A1
9
A2
10
VDD
13
VEE
4
VSS
8
16
1
14
A
-C
P
3789
47K
220K
3756
6770
1N4148
+5
A
+12
100p
7786
J111
15
2
1M
# 3755
2703
7
A0
A1
9
A2
10
13
VDD
VEE
4
VSS
8
16
1
14
3
12
5
11
6
22n
2742
HEF4952B
7710
AA
B4
120R
3713
3772
6K8
3K9
3745
1N4148
6778
2A0
1720
1
2
3
4
5
6
2n2
2717
7790
BC847B
3764
A
-C
220R
3721
5K6
220R
330p
2705
3701
CRA
2A2
CRA
3774
12K
REC_L
2761
A
REC
___
B4
220u
2716
470u
3738
3K3
3705
220R
3763
150K
2741
15n
2719
22n RH
3735
15K
3K9
3746
HS
CRB
A
A
P
LH
3737
3K3
2A2
330K
# 2768
1u
3703
220R
3779
A
4M7
3767
3762
820R
150p
2702
470p
2769
A
3
4
5
6
4
3
1
2
9A-10 9A-10
SERVO CONTROL CIRCUIT
D
E
F
A
B
C
D
E
F
1703 C1
1706 F1
1740 C7
1760 C7
2621 E2
2622 E2
2623 E1
2624 F1
CCTRY
1234567
1234567
A
B
C
TO/FROM FRONT
DECK B
2625 F3
2626 C1
3601 C2
3602 D2
3603 C2
3604 D2
3605 C2
3606 D2
3607 D6
3608 E6
3609 D6
3610 E6
3611 D5
3612 E5
3613 C2
3614 C6
SERVO CONTROL
--
3616 B4
3618 B4
3619 B3
3620 B3
3622 B4
3623 B3
3624 C5
3625 B3
3626 C6
3628 B5
# For Provision Only
3630 B5
3672 C4
3674 B4
3676 C5
3678 C5
3679 C3
3680 C5
3685 D2
3686 F6
3687 E1
4781 B4
4783 D3
4785 E1
6611 B2
6612 B6
6614 C4
7610 E4
7612 A5
7613 B2
7614 B6
7616 B4
7618 C5
7619 C3
7620 C6
7622 C4
7623 D1
7624 E6
Rec_RVS
DECK A
------
-----
------
____
HS
2A2
# 2624
100n
3625
1K
1N4148
6614
100K
3624
M
2K2
3601
3609
+5
2A1
2K2
P
+MOTOR
120K
3606
P
DOLBY
CRB
3614
27K
1K
3626
CRB
BC847B
7618
7620
BC847B
NS
27K
3613
HS
3620
P
+MOTOR
2K2
3611
47K
3678
27K
3608
+MOTOR
4K7
3672
8K2
3618
M
+5
M
6612
1N4003
+5
3603
2K2
BC847B
7619
3610
120K
BC847B
7622
1
2
3
4
5
6
7
NS
12
O7 11
9Os
10 Os’
1STR
16
VDD
VSS
8
1706
HEF4094BT
7610
3CP
2D
15
E0
O0 4
O1 5
6
O2
O3 7
O4 14
O5 13
O6
1703
1
2
7623
BC847B
BC847B
7624
56K
3604
470p
2622
P
3607
2K2
4K7
7612
PMBT2907
47K
3679
100K
3685
2
3
4
5
6
7
8
9
3628
100K
1740
FE-BT-VK-N
1
10
11
12
13
14
100K
3623
M
4K7
3674
2621
1n
2623
220p
3676
47K
2
3
4
5
6
7
8
3616
8K2
1760
FE-BT-VK-N
1
6611
1N4003
M
4783
1A0
3680
47K
# 4785
# 4781
3686
100K
# 2626
100n
100n
2625
+5
7616
BC857B
REC
4K7
7613
PMBT2907 3630
470R
+5
3622
M
P
_____
CRA
3605
2K2
3687
220R
M
27K
3602
M
PMBT2907
3612
56K
M
7614
2A2
+MOTOR
# 3619
6K8
+5
M
Sol_A
Mode_A
Photo_A
9A-11 9A-11

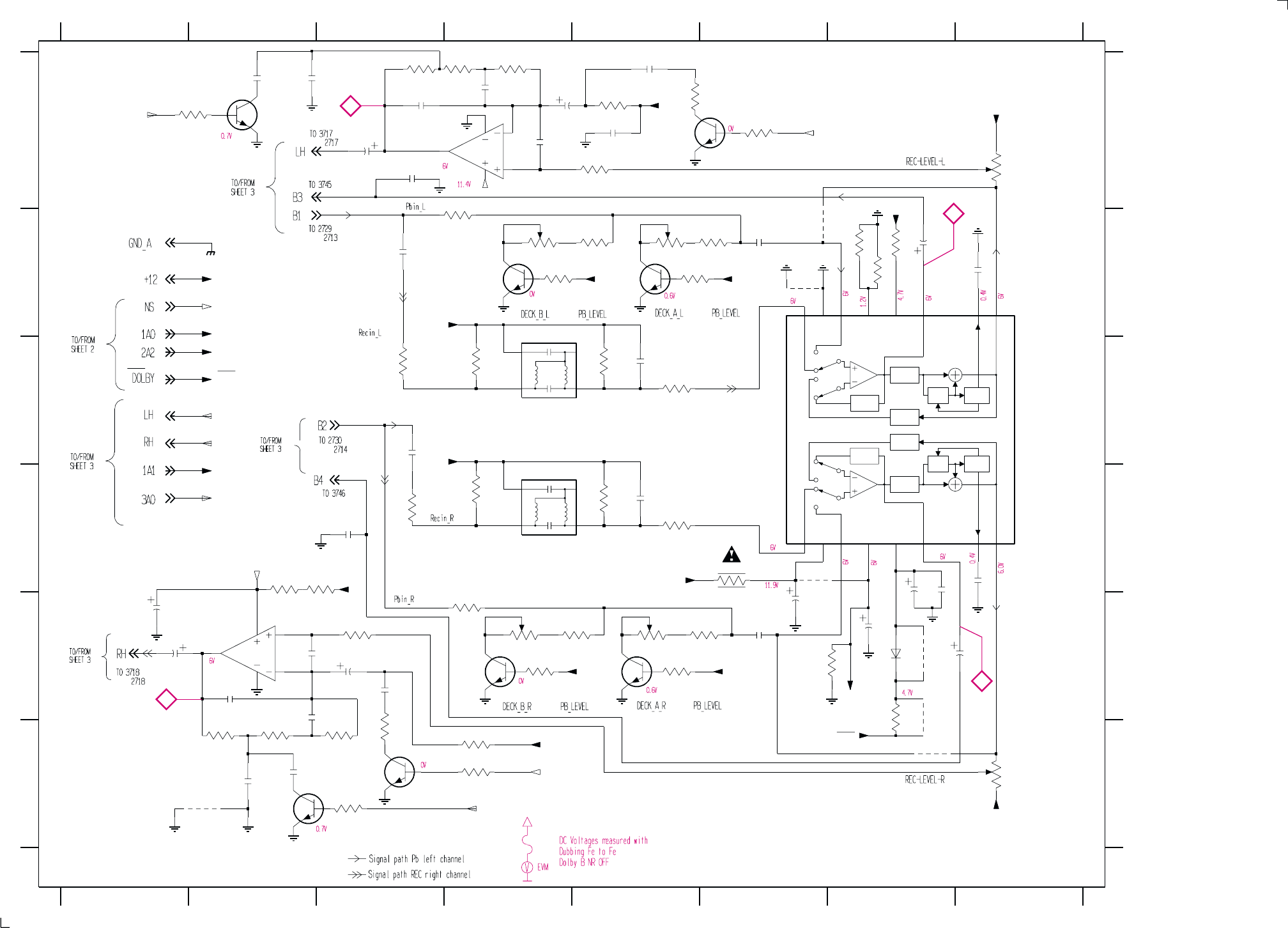

DOLBY CIRCUIT
ATT1
ATT3
ATT2
ATT1
SC DET
ATT3
ATT2 SC DET
D
E
F
A
B
C
D
E
F
2631 B6
2632 E6
2633 B3
2634 C3
2635 C5
2636 D5
2637 B8
2638 D8
Required For Sets With Dolby B NR Only
12345678
12345678
A
B
C
2639 A4
2640 E2
2641 A4
2642 E3
2643 A4
2644 E2
2645 A3
2646 E2
2647 A3
2648 E1
2649 A2
2650 F2
2651 A2
2652 F2
2653 A5
2654 E3
2691 D7
2692 E7
2693 E6
2694 E1
2695 B7
2696 E7
2697 A3
2698 D3
2699 A5
2788 D7
3631 B4
3632 E4
3633 B5
3634 E5
3635 B4
3636 E4
3637 B4
3638 E4
3639 B6
3640 E6
3641 B5
3642 E5
3643 B5
3644 E5
3645 C3
3646 D3
3647 C4
3648 D4
3649 C5
3650 D5
3651 C5
3652 D5
# For Provision Only
3655 A8
3656 F8
3657 A5
3658 E3
3659 A5
3660 F4
3661 A4
3662 F3
3663 A4
3664 F2
3665 A3
3666 F2
3667 A5
3668 F3
3669 A2
3670 F3
3683 A6
3684 F4
3689 B7
3690 E7
DOLBY CCTRY
3691 B7
3692 B7
3693 D3
3694 D6
3695 D2
3696 E6
4691 D6
4693 F7
4694 B6
4695 B6
4696 F2
5631 C4
5632 D4
6613 E7
7630 C6
7631 B5
7632 E5
7633 B4
7634 E4
7635 A2
7636 F2
7637 A5
7638 F3
7640-A E2
7640-B A4
9710 E7
9793 E7
+12
Vref
A
A
3649
5K6
7640-A
NJM4560M 3
2
1
8
4
Vref
# 3690
A
2693
Vref
A
10K
3691
1A1
A
2696
2u2
3634
3K3
100K
3644
3637
100K
BC847B
7636
3645
68K
+12
3642
20K
3636
100p
# 2697
A
20K
2A2
# 4694
2788
1n
# 4693
# 4691
9793
470p
2653
NS
47K
3683
3661
470K
100p
2639
A
3693
68R
7633
BC847B
3666
68K
A
NS
3692
18K
NSW
14
PI1
3
PI2
16
RI1
1
RI2
9
RO1
8
RO2
10
TC1
7
TC2
2
VCC
4
VCT
7630
CXA1551
GND
15 13
IREF
11
LO1
6
LO2
12
MSW
5
+S
7634
BC847B
A
Vref
10R
3668
3A0
A
# 3696
10K
BC847B
7635
A
22p
2645
2640
100p
68R
3695
6613
4696
3633
3K3
BYV10-40
4K7
3655
3684
47K
A
4u7
2648
3651
1K
2634
220n
A
A
A
A
LH
470p
2654
3665
68K
A
3641
20K
4u7
2647
22K
3660
68K
3646
180p
2651
3K3
3648
5K6
3650
# 2699
100p
2A2
2646
22p
A
# 2691
2u2
100K
3638
1A0
4K7
3640
3K3
120p
2650
3670
+12
100K
3643
A
120K
# 3689
100p
# 2698
# 9710
2638
100n
A
BC847B
7632
2631
47n
1A0
DOLBY
A
2632
47n
1K
3652
4K7
3656
2641
4u7
3K3
3647
2642
4u7
1
2
34
6
3659
22K
2644
33n
5631
LXD-210
1A1
A
A
20K
3635
3A0
A
100u
2694
100u
2692
10R
3694
2636
3n3
7640-B
5
6
7
8
4
47K
3632
3K3
3639
NJM4560M
BC847B
7631
Vref
RH
220n
2633
3657
1K
Vref
A
2652
180p
4K7
3669
A
1A0
A
3667
10R
2649
2u2
2695
A
120p
3662
470K
3664
150K
3A0
NS
33n
2643
3n3
2635
3658
1K
100u
7637
BC847B
39K
Vref
3663
47K
3631
150K
100n
2637
BC847B
7638
1A1
+S
1
2
34
6
# 4695
DOLBY
LXD-210
5632
9
10
7
8
9A-12
TAPE MECHANISM A - PLAY
9A-12
MECHANICAL PARTS - PLAY MECHANISM
1 996500002313 Play Head (Non-Autoreverse deck)
1 996500002321 Play Head (Autoreverse deck)
12 482240210972 Pinch Arm Assembly R
23 996500002314 Coil Assembly
32 482252811209 Flywheel Assembly RV
42 996500002315 Belt AF (Autoreverse deck)
42 996500002718 Belt AF (Non-autoreverse deck)
69 482249211761 Spring
102 482253212931 Washer
103 482253212932 Washer
104 482253212933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
9A-13 9A-13
TAPE MECHANISM - MOTOR EXPLODED VIEW
31 996500003006 Motor Assembly
91 - Screw M2,6 x 5
92 - Screw M2 x 5
Note: Only the parts mentioned in this list are normal
service spare parts.
TAPE MODULE EXPLODED VIEW
1 313911877150 Autoreverse Mech. CWE44FR03
3 - Screw D3 x 10
4 313911034080 Flex Cable 14 pin 7,5 cm
6 - Screw M2 x 16
Note: Only the parts mentioned in this list are normal service
spare parts.
9A-14 9A-14
TAPE MECHANISM B - RECORD/PLAYBACK
(Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
12 482240210972 Pinch Arm Assembly R
23 996500002314 Coil Assembly
32 482252811209 Flywheel Assembly RV
39 996500003001 Belt BF
44-2 996500002317 Flex Socket 14 Pin
44-3 996500002320 Photo Interrupter
44-4 482205016801 680R 1% 0,4W
44-6 996500002318 Leaf Switch
44-7 996500002330 Mode Switch
45 996500003002 Rec/Pb Head Assembly
50 482252810975 Pinch Arm Assembly L
54 996500002324 Flywheel Assembly L
69 482249211761 Spring
73 482249211762 Spring
101 996500002325 Washer
102 482253212931 Washer
103 482253212932 Washer
104 482253212933 Washer
107 996500002326 Washer
109 996500002327 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
9A-15 9A-15
ELECTRICAL PARTS LIST - ETF7 DOLBY BOARD ELECTRICAL PARTS LIST - ETF7 DOLBY BOARD
1701 482226710953 Flex Connector 7P
1706 482226710953 Flex Connector 7P
1740 482226751255 Flex Connector 14P
CAPACITORS
2621 532212231647 1nF 10% 63V
2622 532212234099 470pF 10% 63V
2623 482212233575 220pF 5% 63V
2625 482212614585 100nF 10% 50V
2631 482212613751 47nF 10% 63V
2632 482212613751 47nF 10% 63V
2633 482212613473 220nF +80/-20% 50V
2634 482212613473 220nF +80/-20% 50V
2635 482212233891 3,3nF 10% 63V
2636 482212233891 3,3nF 10% 63V
2637 532212142386 100nF 5% 63V
2638 532212142386 100nF 5% 63V
2639 532212232531 100pF 5% 50V
2640 532212232531 100pF 5% 50V
2641 482212440769 4,7µF 20% 100V
2642 482212440769 4,7µF 20% 100V
2643 482212612105 33nF 5% 50V
2644 482212612105 33nF 5% 50V
2645 532212232658 22pF 5% 50V
2646 532212232658 22pF 5% 50V
2647 482212440769 4,7µF 20% 100V
2648 482212440769 4,7µF 20% 100V
2649 532212233861 120pF 10% 50V
2650 532212233861 120pF 10% 50V
2651 482212610326 180pF 5% 63V
2652 482212610326 180pF 5% 63V
2653 532212234099 470pF 10% 63V
2654 532212234099 470pF 10% 63V
2692 482212441584 100µF 20% 10V
2693 482212440207 100µF 20% 25V
2694 482212440207 100µF 20% 25V
2695 482212422652 2,2µF 20% 50V
2696 482212422652 2,2µF 20% 50V
2701 532212233538 150pF 2% 63V
2702 532212233538 150pF 2% 63V
2703 532212232531 100pF 5% 50V
2704 532212232531 100pF 5% 50V
2705 532212231863 330pF 5% 63V
2706 532212231863 330pF 5% 63V
2707 532212234099 470pF 10% 63V
2708 532212234099 470pF 10% 63V
2709 532212231863 330pF 5% 63V
2710 532212231863 330pF 5% 63V
2711 532212232531 100pF 5% 50V
2712 532212232531 100pF 5% 50V
2713 482212440248 10µF 20% 63V
2714 482212440248 10µF 20% 63V
2715 482212480195 470µF 20% 10V
2716 482212480195 470µF 20% 10V
2717 482212233127 2,2nF 10% 63V
2718 482212233127 2,2nF 10% 63V
2719 482212613188 15nF 5% 63V
2720 482212613188 15nF 5% 63V
2727 482212232535 680pF 10% 63V
2728 482212232535 680pF 10% 63V
2729 532212232654 22nF 10% 63V
2730 532212232654 22nF 10% 63V
2733 532212234099 470pF 10% 63V
2734 532212234099 470pF 10% 63V
2735 482212614585 100nF 10% 50V
2737 482212614585 100nF 10% 50V
2738 482212614585 100nF 10% 50V
2741 482212611585 22nF +80/-20% 25V
2742 532212232654 22nF 10% 63V
2743 482212614585 100nF 10% 50V
2744 482212614585 100nF 10% 50V
2760 482212614585 100nF 10% 50V
2761 482212480144 220µF 20% 25V
2762 482212440769 4,7µF 20% 100V
2763 482212440433 47µF 20% 25V
2765 482212440433 47µF 20% 25V
2769 532212234099 470pF 10% 63V
2770 532212234099 470pF 10% 63V
2780 482212481151 22µF 50V
2781 482212233177 10nF 20% 50V
2782 532212610223 4,7nF 10% 63V
2784 482212151305 15nF 10% 50V
2785 482212421913 1µF 20% 63V
2786 532212232531 100pF 5% 50V
2787 482212612105 33nF 5% 50V
2788 532212231647 1nF 10% 63V
RESISTORS
3601 482211711449 2k2 1% 0,1W
3602 482205120273 27k 5% 0,1W
3603 482211711449 2k2 1% 0,1W
3604 482211711148 56k 1% 0,1W
3605 482211711449 2k2 1% 0,1W
3606 482205120124 120k 5% 0,1W
3607 482211652256 2k2 5% 0,5W
3608 482205120273 27k 5% 0,1W
3609 482211652256 2k2 5% 0,5W
3610 482205120124 120k 5% 0,1W
3611 482211652256 2k2 5% 0,5W
3612 482211711148 56k 1% 0,1W
3613 482205120273 27k 5% 0,1W
3614 482205120273 27k 5% 0,1W
3616 482205120822 8k2 5% 0,1W
3618 482205120822 8k2 5% 0,1W
3620 482210012227 4k7 30% 0,1W
3622 482210012227 4k7 30% 0,1W
3623 482211710837 100k 1% 0,1W
3624 482211710837 100k 1% 0,1W
3625 482205110102 1k 2% 0,25W
3626 482205110102 1k 2% 0,25W
3628 482211710837 100k 1% 0,1W
3630 482205120471 470R 5% 0,1W
3631 482211710834 47k 1% 0,1W
3632 482211710834 47k 1% 0,1W
3633 482205120332 3k3 5% 0,1W
3634 482205120332 3k3 5% 0,1W
3635 482210011771 20k 30% 0,1W
3636 482210011771 20k 30% 0,1W
3637 482211710837 100k 1% 0,1W
3638 482211710837 100k 1% 0,1W
3639 482205120332 3k3 5% 0,1W
3640 482205120332 3k3 5% 0,1W
3641 482210011771 20k 30% 0,1W
3642 482210011771 20k 30% 0,1W
3643 482211710837 100k 1% 0,1W
3644 482211710837 100k 1% 0,1W
3645 482205120683 68k 5% 0,1W
3646 482205120683 68k 5% 0,1W
3647 482205120332 3k3 5% 0,1W
3648 482205120332 3k3 5% 0,1W
3649 482205120562 5k6 5% 0,1W
3650 482205120562 5k6 5% 0,1W
3651 482205110102 1k 2% 0,25W
3652 482205011002 1k 1% 0,4W
3655 482210012227 4k7 30% 0,1W
3656 482210012227 4k7 30% 0,1W
3657 482205110102 1k 2% 0,25W
3658 482205110102 1k 2% 0,25W
3659 482205120223 22k 5% 0,1W
3660 482205120223 22k 5% 0,1W
3661 482205120474 470k 5% 0,1W
3662 482205120474 470k 5% 0,1W
3663 482205120154 150k 5% 0,1W
3664 482205120154 150k 5% 0,1W
3665 482205120683 68k 5% 0,1W
3666 482205120683 68k 5% 0,1W
3667 482205120109 10R 5% 0,1W
3668 482205120109 10R 5% 0,1W
3669 482205120472 4k7 5% 0,1W
3670 482205120472 4k7 5% 0,1W
3672 482205120472 4k7 5% 0,1W
3674 482211652283 4k7 5% 0,5W
3676 482211710834 47k 1% 0,1W
3678 482211710834 47k 1% 0,1W
3679 482211710834 47k 1% 0,1W
3680 482211710834 47k 1% 0,1W
3683 482211710834 47k 1% 0,1W
3684 482211710834 47k 1% 0,1W
3685 482211652234 100k 5% 0,5W
3686 482211710837 100k 1% 0,1W
3687 482211711503 220R 1% 0,1W
3691 482211710833 10k 1% 0,1W
3692 482211710965 18k 1% 0,1W
3693 482211652199 68R 5% 0,5W
3694 482205210109
!
10R 5% 0,33W
3695 482211712521 68R 1% 0,1W
3701 482211711503 220R 1% 0,1W
3702 482211711503 220R 1% 0,1W
3703 482211711503 220R 1% 0,1W
3704 482211711503 220R 1% 0,1W
3705 482211711503 220R 1% 0,1W
3706 482211711503 220R 1% 0,1W
3707 482205120101 100R 5% 0,1W
3708 482205120101 100R 5% 0,1W
3709 482205120229 22R 5% 0,1W
3710 482205120229 22R 5% 0,1W
3711 482211710837 100k 1% 0,1W
3712 482211710837 100k 1% 0,1W
3713 482205120121 120R 5% 0,1W
3714 482205120121 120R 5% 0,1W
3715 482205110102 1k 2% 0,25W
3716 482205110102 1k 2% 0,25W
3717 482205120392 3k9 5% 0,1W
3718 482205120392 3k9 5% 0,1W
3719 482205120822 8k2 5% 0,1W
3720 482205120822 8k2 5% 0,1W
3721 482205120562 5k6 5% 0,1W
3722 482205120562 5k6 5% 0,1W
3723 482211711383 12k 1% 0,1W
3724 482211711383 12k 1% 0,1W
3727 482205120562 5k6 5% 0,1W
3728 482205120562 5k6 5% 0,1W
3729 482205120332 3k3 5% 0,1W
3730 482205120332 3k3 5% 0,1W
3731 482205120822 8k2 5% 0,1W
3732 482205120822 8k2 5% 0,1W
3733 482205120562 5k6 5% 0,1W
3734 482205120562 5k6 5% 0,1W
3735 482211683933 15k 1% 0,1W
3736 482211683933 15k 1% 0,1W
3737 482205120332 3k3 5% 0,1W
3738 482205120332 3k3 5% 0,1W
3739 482205120472 4k7 5% 0,1W
3740 482211710834 47k 1% 0,1W
3741 482211711454 820R 1% 0,1W
3742 482211711454 820R 1% 0,1W
3743 482205110102 1k 2% 0,25W
3744 482205110102 1k 2% 0,25W
MISCELLANEOUS
9A-16
ELECTRICAL PARTS LIST - ETF7 DOLBY BOARD
9A-16
RESISTORS
3745 482205120392 3k9 5% 0,1W
3746 482205120392 3k9 5% 0,1W
3748 482211711449 2k2 1% 0,1W
3749 482211710834 47k 1% 0,1W
3751 482211710833 10k 1% 0,1W
3752 482211710837 100k 1% 0,1W
3753 482211710837 100k 1% 0,1W
3754 482205120333 33k 5% 0,1W
3756 482211713579 220k 1% 0,1W
3757 482211713579 220k 1% 0,1W
3758 482211710833 10k 1% 0,1W
3759 482211710833 10k 1% 0,1W
3760 482205120121 120R 5% 0,1W
3761 482205021003 10k 1% 0,6W
3762 482211711454 820R 1% 0,1W
3763 482205120154 150k 5% 0,1W
3764 482211683872 220R 5% 0,5W
3765 482205120393 39k 5% 0,1W
3766 482205120475 4M7 5% 0,1W
3767 482205120475 4M7 5% 0,1W
3768 482211710833 10k 1% 0,1W
3769 482211683933 15k 1% 0,1W
3770 482211711139 1k5 1% 0,1W
3771 482205120122 1k2 5% 0,1W
3772 482211711507 6k8 1% 0,1W
3773 482210012227 4k7 30% 0,1W
3774 482211711383 12k 1% 0,1W
3775 482205120478 4R7 5% 0,1W
3776 482211711507 6k8 1% 0,1W
3777 482211710353 150R 1% 0,1W
3778 482205210688
!
6R8 5% 0,33W
3779 482205120334 330k 5% 0,1W
3780 482205120105 1M 5% 0,1W
3781 482205120475 4M7 5% 0,1W
3782 482211683933 15k 1% 0,1W
3783 482205120472 4k7 5% 0,1W
3784 482205120472 4k7 5% 0,1W
3785 532210011539 100k 30% 0,1W
3786 482205120223 22k 5% 0,1W
3787 482205120105 1M 5% 0,1W
3788 482205120105 1M 5% 0,1W
3789 482211710834 47k 1% 0,1W
4601 482205120008 0R Jumper 0805
4602 482205120008 0R Jumper 0805
4603 482205120008 0R Jumper 0805
4604 482205120008 0R Jumper 0805
4605 482205120008 0R Jumper 0805
4606 482205120008 0R Jumper 0805
4607 482205120008 0R Jumper 0805
4608 482205120008 0R Jumper 0805
4610 482205120008 0R Jumper 0805
4696 482205120008 0R Jumper 0805
4697 482205120008 0R Jumper 0805
4701 482205120008 0R Jumper 0805
4702 482205120008 0R Jumper 0805
4703 482205120008 0R Jumper 0805
4704 482205120008 0R Jumper 0805
4705 482205120008 0R Jumper 0805
4706 482205120008 0R Jumper 0805
4707 482205120008 0R Jumper 0805
4708 482205120008 0R Jumper 0805
4709 482205120008 0R Jumper 0805
4710 482205120008 0R Jumper 0805
4711 482205120008 0R Jumper 0805
4712 482205120008 0R Jumper 0805
4713 482205120008 0R Jumper 0805
4714 482205120008 0R Jumper 0805
4715 482205120008 0R Jumper 0805
4716 482205120008 0R Jumper 0805
4717 482205120008 0R Jumper 0805
4718 482205120008 0R Jumper 0805
4719 482205120008 0R Jumper 0805
4720 482205120008 0R Jumper 0805
4721 482205120008 0R Jumper 0805
4722 482205120008 0R Jumper 0805
4723 482205120008 0R Jumper 0805
4724 482205120008 0R Jumper 0805
4725 482205120008 0R Jumper 0805
4726 482205120008 0R Jumper 0805
4727 482205120008 0R Jumper 0805
4728 482205120008 0R Jumper 0805
4729 482205120008 0R Jumper 0805
4730 482205120008 0R Jumper 0805
4731 482205120008 0R Jumper 0805
4732 482205120008 0R Jumper 0805
4733 482205120008 0R Jumper 0805
4734 482205120008 0R Jumper 0805
4735 482205120008 0R Jumper 0805
4736 482205120008 0R Jumper 0805
4737 482205120008 0R Jumper 0805
4738 482205120008 0R Jumper 0805
4739 482205120008 0R Jumper 0805
4740 482205120008 0R Jumper 0805
4741 482205120008 0R Jumper 0805
4742 482205120008 0R Jumper 0805
4743 482205120008 0R Jumper 0805
4783 482205120008 0R Jumper 0805
4786 482205120008 0R Jumper 0805
4787 482205120008 0R Jumper 0805
4788 482205120008 0R Jumper 0805
COILS & FILTERS
5631 482215711865 Filter MPX 20kHz
5632 482215711865 Filter MPX 20kHz
5701 482215711477 Coil 2,2µH 5%
5702 482215711477 Coil 2,2µH 5%
5703 482215620946 Osc. Coil 100kHz
DIODES
6611 482213031878 1N4003G
6612 482213031878 1N4003G
6613 482213032245 BYV10-40
6614 482213030621 1N4148
6770 482213030621 1N4148
6771 482213030621 1N4148
6772 482213030621 1N4148
6773 482213030621 1N4148
6774 482213030621 1N4148
6775 482213030621 1N4148
6776 482213030621 1N4148
6777 482213034382 BZX79-C8V2
6778 482213030621 1N4148
6782 482213030621 1N4148
6785 482213030621 1N4148
6786 482213030621 1N4148
TRANSISTORS & INTEGRATED CIRCUITS
7610 532220911306 HEF4094BT
7612 482213011201 PMBT2907
7613 482213011201 PMBT2907
7614 482213011201 PMBT2907
7616 482213060373 BC857B
7618 482213060511 BC847B
7619 482213060511 BC847B
7620 482213060511 BC847B
7622 482213060511 BC847B
7623 482213060511 BC847B
7624 482213060511 BC847B
7630 482220917322 CXA1551M
7631 482213060511 BC847B
7632 482213060511 BC847B
7633 482213060511 BC847B
7634 482213060511 BC847B
7635 482213060511 BC847B
7636 482213060511 BC847B
7637 482213060511 BC847B
7638 482213060511 BC847B
7640 482220983357 NJM4560M
7710 482220932919 HEF4952BT
7720 932214000668 AN7323S
7730 482220932919 HEF4952BT
7740 482220932919 HEF4952BT
7780 482213060511 BC847B
7781 482213042804 BC817-25
7782 482213044568 BC557B
7783 482213060511 BC847B
7784 482213060373 BC857B
7785 482213063494 J111
7786 482213063494 J111
7787 482213060511 BC847B
7788 482213060511 BC847B
7789 482213060511 BC847B
7790 482213060511 BC847B
7791 482213060511 BC847B
7792 482213060511 BC847B
Note : Only the parts mentioned in this list are normal
service spare parts.
ELECTRICAL PARTS LIST - ETF7 DOLBY BOARD
10-1
TABLE OF CONTENTS
Service Hints.....................................................................10-2
Blockdiagram ....................................................................10-5
Component Layout Main Board ........................................10-6
Circuit Diagram part1 ........................................................10-7
Component Layout Main Board ........................................10-8
Circuit Diagram part2 ........................................................10-9
Exploded View ..................................................................10-10
Partslist .............................................................................10-12
3CDC-LLC-DA11
(3 Disc Carousel Changer)
Layout stage .3
10-2
The following steps have to be done when replacing the CD mechanism:
1. Disconnect flexfoil cable from the old CD drive
2. Put a paperclip on the flexfoil to short-circuit the contacts (fig.1)
3. Remove the old CD drive
4. Remove paperclip from the flexfoil and connect it to the new drive
5. Position the new CD drive in its studs
6. Remove solder joint from the Laserunit
CHARGED CAPACITORS ON THE SERVO BOARD MAY DAMAGE THE CD DRIVE ELECTRONICS WHEN
CONNECTING A NEW CD MECHANISM. THAT´S WHY, BESIDES THE SAFETY MEASURES LIKE
• SWITCH OFF POWER SUPPLY
• ESD PROTECTION
ADDITIONAL ACTIONS MUST BE TAKEN BY THE REPAIR TECHNICIAN.
fig.1
Attention: The laser diode of this CD drive is protected against ESD by a solder joint which shortcircuits the
laserdiode to ground.
For proper functionality of the CD drive this solder joint must be removed after connection the drive to
the set.
Emergency open
Service hints
In case of a Supply fault, the tray can be opened manually.
1. Remove the top cover of the set to get access to the Changer Module.
2. Turn gearwheel clockwise (as shown in picture below).
CAUTION
10-3
Pos 49 Guiding
Pos 48 Cam
Detail A
Dismantling of Tray
Service hints
1. Open the tray.
2. Release 2x catch as shown in fig. 2 and
Detail A
3. Pull tray out.
fig.2
Assembling of Tray
1. Turn Cam (pos. 48) clockwise to end
position.
2. If necessary - move Guiding (pos. 49) to the
right end position.
3. Insert the Tray.
10-4
Service Position
10-510-5
SDA
VCC
DOBM
A-D
A-C
7871
1876 1875
1877 1878
7873
HEF4094BT
LD ON
HF IN
V1
D1
D2
D3
D4
R1,R2
MOT1
REGISTER
SHIFT
SIGNAL PROCESSOR
CD10
SAA7324 (SAA7325)
TRAY
MOTOR
CAROUSEL
MOTOR
SL
D5
VDD
D3
D2
D0
RA
FO
DIODES
FE
INNER SWITCH
SWITCH INFO
LASER &
MONITOR
DIODE
TURNTABLE
MOTOR
DISC
CD MECHANISM
CAROUSEL
TRAY
MAINBOARD
DATA
SHR_CL
7802
38
42
40
39
5,17,21,52,57
64
V4
61
2
63 51
2
3
STB
1
12
11
16
13
9
12
1,3
2
2
4
1,3
2
4
2
3
5
1
3
1
5
14
13
2
1
7
6
+3,3V
SCL
SILD
RESET
Blockdiagram 3CDC-LLC 2001-09-04
+5V
+4V
+3,3V
+10V
7875
+5V
6877
BLOCK DIAGRAM 3CDC-LLC-DA11
+10V
15
16
5V1
V
t
EN1
CD DRIVE UP/DOWN SWITCH
1881
1880
TRAY SWITCH
1882
CD POS.1 SWITCH
POS. RECOGNITION
6
7
4
5
1882 closed if carousel is in Position 1.
1883
1883 open if carousel is in a valid Play-Position.
CD RW= 3V
CD DA= 0V
EQ-Selection
Closed if the tray is in one endposition.
Open during movement.
Open if the drive is in one endposition.
Closed during movement.
VDD (pin 16)
EN1 (pin 15)
Power on
FOCUS
MOTOR
RADIAL
MOTOR
SLEDGE
MOTOR
MOTOR
TURNTABLE
55
54
56
59
1
16
13
9
12
9
12
13
16
6
7
2
7806
TDA7073A
7807
7808,7809
7803,7802
7810
TDA7073A
TTM+
TTM-
LD
MON
SLEDGEB-
SLEDGEB+
RADB-
RADB+
FOCB-
FOCB+
MOT2
60
1
BA
CD
EBU OUT
DA11
RAB
41
4
SHR_STR
TDA7073A
1805
17
18
19
14
16
13
3
4
11
SHR-DATA
12
8
6
9
Active low pass
Filter
TDA1308
7805
1
2
3
6
5
6
+5V
8
4
+
-
+
-
CD LEFT
CD RIGHT
22
23
18
19
RN
RP
LN
LP
DATA
SHR_CL
SWITCH INFO
COAX1
COAX2
14
RAB
41
RAB
EBU OUT
5802
SICL
SILD
+5V
+10V
Supply
Digital Audio
Changer
Control Logic
Analog Audio
Communication
µP ↔ Signal Processor
10-6 10-6
This assembly drawing shows a summary
of all possible versions.
For components used in a specific version
see schematic diagram respectively partslist.
3CDC-LLC Layout stage .3 2001-07-25
3CDC-LLC Componentside view
This assembly drawing shows a summary
of all possible versions.
For components used in a specific version
see schematic diagram respectively partslist.
3CDC-LlC Layout stage .3 2001-07-25
3CDC-LLC Copperside view
2800 E3
2801 D4
2802 E4
2803 D4
2805 D4
2806 D4
2807 E4
2808 D4
2810 E4
2811 D4
2812 G3
2813 F3
2814 F2
2815 E4
2816 C3
2817 F3
2818 C4
2819 F2
2820 F3
2822 E3
2823 E3
2824 E3
2825 E3
2829 H3
2830 C4
2831 B3
2832 C4
2833 C4
2834 D4
2835 E2
2836 D4
2840 D1
2841 E2
2842 F2
2844 E2
2850 C3
2852 C2
2853 D2
2854 D2
2855 E4
2856 C3
2857 E2
2862 C4
2863 C4
2864 D2
2865 B3
2867 B4
2869 F4
2872 G2
2877 H1
2878 H1
2882 B3
2887 C4
2891 G2
2893 H1
2894 F2
2895 E3
2896 C3
2897 C2
3700 D2
3701 G4
3702 G4
3703 G4
3704 F3
3705 C2
3706 C1
3707 C2
3708 C2
3709 C3
3710 F4
3711 C2
3712 A3
3713 G3
3714 G2
3715 G2
3716 D2
3717 D2
3718 C2
3719 F3
3720 E2
3721 E2
3723 F2
3724 F2
3725 E2
3730 C3
3731 C2
3732 C2
3733 C2
3734 D2
3740 C4
3741 C4
3742 C4
3743 C3
3744 B4
3746 B3
3750 B4
3751 B4
3752 C4
3753 C4
3789 F2
3790 F3
3791 F2
3792 F3
3793 F3
3794 F3
3795 E2
3796 F2
3798 E4
3799 E4
3800 E3
3801 E4
3802 F4
3803 D4
3804 C3
3805 D4
3806 D4
3807 D4
3808 D4
3809 D2
3811 F4
3813 F4
3814 D4
3818 F3
3819 C3
3820 F3
3821 F3
3822 F3
3825 E3
3826 E3
3827 D4
3828 D2
3831 C2
3832 C3
3833 F4
3834 F4
3837 D2
3838 D2
3839 E2
3840 E3
3841 D2
3842 D2
3843 E2
3844 F2
3845 D2
3846 E2
3847 G2
3849 E2
3850 E1
3853 E4
3858 B5
3859 B5
3860 B4
3861 C4
3862 C4
3863 D2
3864 C4
3865 B4
3866 B5
3867 C4
3868 B5
3869 B5
3870 F4
3871 H1
3872 B3
3873 C3
3874 B3
3875 C2
3876 C2
3877 H1
3878 A5
3879 H3
3880 G3
3881 G2
3882 H2
3883 H3
3884 H3
3885 H3
3886 H2
3887 G2
3888 H1
3889 C2
3890 H2
3891 H2
3892 C2
3893 G2
3894 E4
3895 E3
3896 E4
3898 G2
3899 D5
3900 E3
3901 F3
3904 E3
3905 B3
4800 A5
4801 A4
4802 A4
4803 B2
4804 A5
4805 A5
4806 A5
4807 A5
4808 B4
4811 B4
4812 B4
4814 D3
4817 A3
4818 A3
4819 A3
4820 C4
4821 B2
4822 C5
4823 A4
4824 C5
4825 B3
4826 C3
4828 C2
4829 B2
4830 E2
4831 H4
4832 D2
4833 E3
4834 E4
4835 F4
4838 E4
4840 F4
4841 G2
4842 E3
4844 E4
4845 F4
4846 F3
4847 F4
4848 F4
4850 G3
4876 C5
6871 H1
6872 H2
6873 H2
6874 G3
6875 G2
6876 C5
6877 C4
6878 H2
6879 C2
7802 F4
7803 F2
7805 B4
7808 F3
7809 F3
7810 E2
7812 G3
7873 H2
7874 C2
7875 D4
7876 C2
7877 D3
1800 F2
1801 C5
1805 A2
1810 C2
1875 H1
1878 B3
1880 B5
1881 G1
2804 F3
2809 E4
2826 D3
2828 D4
2837 E5
2838 F2
2839 E5
2851 C2
2858 B2
2860 B1
2861 B1
2873 H2
2875 G3
2876 B2
2881 G3
2885 D2
2888 F4
3812 F4
3815 G3
3835 F5
3851 G2
3852 E5
5802 B4
7806 F5
7807 D5
7871 H3
Mapping
Copperside
Componentside
10-710-7
+
-
+
-
VDD
INTERFACE
VERSATILE
DEMOD
EFM
PLL
DIG.
STAGES
OUTPUT
CONTROL
MOTOR
KILL
INTERF.
LOOPBACK
SER. DATA
INTERF.
VERSAT.
INTERFACE
SER. DATA
BITSTREAM DAC
TIMING
INTERFACE
MICROCONTROLLER
PROCESSOR
AUDIO
PROCESSING
PRE-
FUNCTION
CONTROL
SRAM
ADDR
INTERF.
EBU
DET.
PEAK
CORR.
ERROR
PROCESSOR
SUBCODE
END
FRONT
VREF GEN.
ADC
+
-
+
-
VDD
MP847 H2
MP848 E2
MP849 E2
MP850 E2
MP851 E2
MP852 G2
MP853 G2
120K
LDON
+
MP730 C9
TRACK
C
FOCUS
on7876
1V
F
(CD-TEXT IC)
4.7V
MP841 F6
MP842 H6
MP843 G7
MP844 E9
MP845 F4
MP846 H2
3789 F8
3790 F7
3791 E7
3792 F8
+
Servo driver
_
Motor Driver
+
2851 B11
_
7808 F7
7809 G8
7810 F9
7877 D12
MP713 C9
MP715 D9
MP716 B9
MP717 A9
MP729 B9
3842 E6
3843 E5
3844 E5
(uP-interface)
B
to
180K
TRACK
3798 D8
11.3 MHz
CD Drive
control
to 7805 on part 2
3704 D4
3709 C14
3710 B8
3719 D4
3720 D5
3721 D6
3723 E6
3724 D6
3725 D6
2838 D8
2839 F4
3863 = 33R
part 2
2802 C8
B
SLIDE
_
D
A
2801 D8
E
2840 G4
2841 F5
2842 E5
2844 F5
2850 C14
3828 G11
3832 C15
3833 A8
3834 B8
3835 F5
3837 G7
3838 H7
3839 H6
3840 G5
3841 G5
E
R1 (CD10)
from 1801
on
2820 D4
_
C
Laser power
2816 B12
2817 F7
2818 B11
3793 E8
3794 F7
3795 F8
3796 F8
2822 F9
2823 F10
2824 F10
2825 E9
2826 G12
2828 G13
2833 B10
2834 B10
2835 H7
2836 E10
2837 H4
123456
1810 B10
2800 D8
2855 C8
2856 D15
2857 H5
2869 D3
2885 E9
2887 B10
2888 C4
2891 F4
2894 F8
2895 G12
2896 H12
2897 H12
3701 D3
E
+
MON
VREF
D
only for digital out versions
D
E
F
G
H
A
B
2819 E5
D
E
F
G
H
1800 F1
1801 G1
TRACK
SLIDE
D4 (CD10)
7 8 9 101112131415
2345678
INNERSW.
D3 (CD10)
PIN50
DISC
to
dig. out circuitry
#.... for provision only
T+
A
(Quartz used)
DISC DISC
F
1805
for digital out version:
F+
R2 (CD10)
C
10 11 12 13 14 15
A
SLIDE
B
C
/ SAA7325
D1 (CD10)
on
mainboard
GND
3CDC-LLC
_
D
F-
part 1
B
#
+
FOCUS
3702 D3
1
2803 C8
2804 D4
2805 C8
2806 B8
2807 B8
2808 B9
2809 H4
2810 A8
2811 A9
2812 D5
2813 F7
2814 F7
2815 B8
GND
LD
for CD TEXT only
to
sheet 2
7803-B D5
7806 G3
7807 H3
3815 C4
3818 B3
3819 D14
3820 C3
3821 B3
3822 B3
3825 F9
3826 F9
9
3799 D8
3800 D8
3801 D8
3802 C8
3803 C8
3804 C14
3805 B8
3806 C8
3807 B9
3808 A9
3811 C8
3812 H4
3813 E2
_
FOCUS
MP818 C4
MP819 F10
MP820 F8
VCC
3845 F6
3846 F5
3847 F5
3849 H5
3850 H5
3852 H5
3853 E9
3862 A10
3703 D3 3867 A11
3870 E2
3873 D14
3889 D15
3892 E15
3894 E9
3895 G12
3896 E9
3900 F9
3901 D4
3904 G10
7802 D3
7803-A B5
A
MP883 C4
MP884 C5
MP893 F10
part 2
to 7877
120K
D2 (CD10)
MP821 C15
MP827 B10
MP828 G11
MP829 A3
MP831 A4
MP836 D3
MP837 D4
MP838 G6
MP839 G6
3827 E10 MP731 B13
MP743 D2
MP744 C2
MP745 E2
MP800 E2
MP802 B15
MP809 D10
MP812 G2
MP813 B3
MP814 G2
MP815 B3
MP816 A3
MP817 A3
Signal Processor
MP840 E6
T-
HF-Amplifier
DOBM
F
C
#
3863 G13
+
MP858 G8
MP859 E10
MP860 C2
MP872 C15
MP873 H4
MP875 F13
MP876 E2
MP877 E3
MP878 B13
MP879 B11
39K
3721
47n2835
470n
2894
100n2820
2812
33p
2834
33p
GND GND
3704
1R
27p
2856
3800
2826
47u
3802
2K2
3795
10K
3803
33p
2833
2836
47n
1810
TF01
EBUGND
2807
2815
GND
GND
+3.3V
330K
3849
1K
3837
58
VSSD3
35
WCLI
28
WCLK
470R3873
63
V1
34
V2|V3
61
V4
62
V5
5
VDDA1
17
VDDA2
52
VDDD1P
57
VDDD2C
20
VNEG
21
VPOS
7
VRIN
4
VSSA1
14
VSSA2
33
VSSD1
50
VSSD2
RP
48
SBSY
40
SCL
37
SCLI
29
SCLK
39
SDA
36
SDI
24
SELPLL
47
SFSY
42
SILD
56
SL
43
STATUS
46
SUB
25
TEST1
31
TEST2
44
TEST3
IREF
3
ISLICE
32
KILL
64
LDON
18
LN
19
LP
59
MOTO1
60
MOTO2
12
R1
13
R2
54
RA
41
RAB
45
RCK
38
RESETn
22
RN
23
49
CL11|4
26
CL16
16
CRIN
15
CROUT
8
D1
9
D2
10
D3
11
D4
27
DATA
51
DOEM
30
EF
55
FO
2
HFIN
1
HFREF
6
5
6
7
8
4
SAA7324
7877
53
CFLG
4K7
3870
7803-B
LM358D
10K
4
8,11,15
8,11,15
3842
7806 TDA7073A
14
10
2
1
6
7
16
13
9
12
5
3
2822
1n
2819
470R
3889
3834
10K
3832
220n
2809
+3servo
47R
4R7
3835
3701
2804
47u
+3.3V
3789
470R
220p
2805 2806
220p
3846
2816
1n5
47K
3811
3710
1n
BC847B
7810
2841
2840
100n
2825
47R3702
3820
1K3838
2K2
1K
3798
BC847B
7808
2855
2891
1n5
14
15
16
2
3
4
5
6
7
8
9
1800
1
10
11
12
13
2824
47R3703
GND
3844
3806
10K
3K3
2800
2823
10K
+3.3V
3892
470R
2808
220p
3805
7
16
13
9
12
5
3
4
TDA7073A7807
14
10
2
1
6
2814
2802
3862
120R
1
2
3
4
5
6
3840
47u
2888
1801
PH-S
1K
3719
3801
10K
3853
470R
2839
47u
10n
3895
15R
+3servo
2857
3807
10K
10u
2838
2K7
3900
3894
100R
+10V
2801
220p
+3.3V
2850
1n
+3servo
3845
10K
1K
3799
+3.3V
2869
47n
2K2 3821
470R
3819
3863
100R
560R
3790
2828
47u
1n
2844
+3.3V
3796
3K3
1n5
2818
10K3901
3812
2R2
3850
10K
470K
3720
2K2 3818
2813
82p
3826
120R
3867
3724
8K2
2817
560p
2842
1n5
10K
3841
3815
4R7
2811
220p
3808
10K
BC807-40
7802
4u7
+10V
2851
220u
2885
2K2 3822
4K7
3847
3K3
3792
2803
3791
220p
3813
4R7
3833
2K7
3723
100n
2897
100n
2895
100n
2896
3794
3852
2R2
3828
22K
BC847B
7809
27K 3827
47K
3843
+5V
3725
47u
2837
3896
220K
100n
2887
3904
100K
3839
820R
3793
2810
3825
RN
RP
SBSY
SFSY
SL
SUB
Innersw
+5V_HF
+3.3V
+5V_HF
CL11
DOBM
FO
LN
LP
M1M2 RA
RCK
Vref
Innersw
Vref
+5V_HF
VrefCD10
+3.3V
VrefCD10
SILD
SICL
SDA
PORE
Vref
Vref HFIN
3709
1R
56K
56K
56K
56K
180p 180p 180p 180p
1K5
680n
22K
6n8
2n2 1K
47n
820R
47p
39K
39K
180p 100p
Sanyo DA11T3C
3CDC-LLC (Sanyo) part1 2001 09 06
4.9V
10V
1.7V
1.7V
1.7V
1.7V
1.7V
1.7V
1.7V
3.3V
1.7V
3.2V
1.6V
1.6V
1.6V
3.4V
3.2V
4.8V
1.6V
1.6V
4.6V
3V
3V
0V
4.7V
0.8V
10V
0.3V
1.7V
5.1V
1.6V
1.6V
5V
1.6V
3.2V
3.2V
1.6V
1.6V
1.6V
1.7V
5V
0.3V
1.6V
1.7V
1.6V
3.2V
4V
1.8V
1.2V
0.6V
2.4V
2.7V
4.7V
+3.3V
->Laser damaged !
U >400mV
CD_RW : 3V
CD_DA : 0V
0V
3V
800mVpp
EYE-PATTERN
TB = 0.5us/div
during Focus search
ESD sensitive lines!
. . . V DC voltages measured in
PLAY MODE
with following conditions:
"+10V" = 10V
"+5V" = 5V
EVM
V
10-8 10-8
This assembly drawing shows a summary
of all possible versions.
For components used in a specific version
see schematic diagram respectively partslist.
3CDC-LLC Layout stage .3 2001-07-25
3CDC-LLC Componentside view
This assembly drawing shows a summary
of all possible versions.
For components used in a specific version
see schematic diagram respectively partslist.
3CDC-LlC Layout stage .3 2001-07-25
3CDC-LLC Copperside view
2800 E3
2801 D4
2802 E4
2803 D4
2805 D4
2806 D4
2807 E4
2808 D4
2810 E4
2811 D4
2812 G3
2813 F3
2814 F2
2815 E4
2816 C3
2817 F3
2818 C4
2819 F2
2820 F3
2822 E3
2823 E3
2824 E3
2825 E3
2829 H3
2830 C4
2831 B3
2832 C4
2833 C4
2834 D4
2835 E2
2836 D4
2840 D1
2841 E2
2842 F2
2844 E2
2850 C3
2852 C2
2853 D2
2854 D2
2855 E4
2856 C3
2857 E2
2862 C4
2863 C4
2864 D2
2865 B3
2867 B4
2869 F4
2872 G2
2877 H1
2878 H1
2882 B3
2887 C4
2891 G2
2893 H1
2894 F2
2895 E3
2896 C3
2897 C2
3700 D2
3701 G4
3702 G4
3703 G4
3704 F3
3705 C2
3706 C1
3707 C2
3708 C2
3709 C3
3710 F4
3711 C2
3712 A3
3713 G3
3714 G2
3715 G2
3716 D2
3717 D2
3718 C2
3719 F3
3720 E2
3721 E2
3723 F2
3724 F2
3725 E2
3730 C3
3731 C2
3732 C2
3733 C2
3734 D2
3740 C4
3741 C4
3742 C4
3743 C3
3744 B4
3746 B3
3750 B4
3751 B4
3752 C4
3753 C4
3789 F2
3790 F3
3791 F2
3792 F3
3793 F3
3794 F3
3795 E2
3796 F2
3798 E4
3799 E4
3800 E3
3801 E4
3802 F4
3803 D4
3804 C3
3805 D4
3806 D4
3807 D4
3808 D4
3809 D2
3811 F4
3813 F4
3814 D4
3818 F3
3819 C3
3820 F3
3821 F3
3822 F3
3825 E3
3826 E3
3827 D4
3828 D2
3831 C2
3832 C3
3833 F4
3834 F4
3837 D2
3838 D2
3839 E2
3840 E3
3841 D2
3842 D2
3843 E2
3844 F2
3845 D2
3846 E2
3847 G2
3849 E2
3850 E1
3853 E4
3858 B5
3859 B5
3860 B4
3861 C4
3862 C4
3863 D2
3864 C4
3865 B4
3866 B5
3867 C4
3868 B5
3869 B5
3870 F4
3871 H1
3872 B3
3873 C3
3874 B3
3875 C2
3876 C2
3877 H1
3878 A5
3879 H3
3880 G3
3881 G2
3882 H2
3883 H3
3884 H3
3885 H3
3886 H2
3887 G2
3888 H1
3889 C2
3890 H2
3891 H2
3892 C2
3893 G2
3894 E4
3895 E3
3896 E4
3898 G2
3899 D5
3900 E3
3901 F3
3904 E3
3905 B3
4800 A5
4801 A4
4802 A4
4803 B2
4804 A5
4805 A5
4806 A5
4807 A5
4808 B4
4811 B4
4812 B4
4814 D3
4817 A3
4818 A3
4819 A3
4820 C4
4821 B2
4822 C5
4823 A4
4824 C5
4825 B3
4826 C3
4828 C2
4829 B2
4830 E2
4831 H4
4832 D2
4833 E3
4834 E4
4835 F4
4838 E4
4840 F4
4841 G2
4842 E3
4844 E4
4845 F4
4846 F3
4847 F4
4848 F4
4850 G3
4876 C5
6871 H1
6872 H2
6873 H2
6874 G3
6875 G2
6876 C5
6877 C4
6878 H2
6879 C2
7802 F4
7803 F2
7805 B4
7808 F3
7809 F3
7810 E2
7812 G3
7873 H2
7874 C2
7875 D4
7876 C2
7877 D3
1800 F2
1801 C5
1805 A2
1810 C2
1875 H1
1878 B3
1880 B5
1881 G1
2804 F3
2809 E4
2826 D3
2828 D4
2837 E5
2838 F2
2839 E5
2851 C2
2858 B2
2860 B1
2861 B1
2873 H2
2875 G3
2876 B2
2881 G3
2885 D2
2888 F4
3812 F4
3815 G3
3835 F5
3851 G2
3852 E5
5802 B4
7806 F5
7807 D5
7871 H3
Mapping
Copperside
Componentside
10-910-9
+
-
+
-
VDD
STB
D1
EN1
SRG8
M
M
9101112
CAROUSEL-MOTOR
delay circuitry
PORE
C
D
E
F
voltage stab.
D
3
1 2 3 4 5 6 7 8 9 101112131415
12345678
2873 D6
2875 E6
2876 C7
2877 F11
SILD
DRAWER-MOTOR
board
GND
SHR_STR
2
5.6V version only
GNDA
13 14 15
A
B
C
D
E
F
G
H
A
B
3714 F8
3715 G8
3716 B3
3717 B3
1882
mainboard
(19 Pin)
3CDC-LLC
D
D
1883
2852 H2
2853 G4
2854 B3
2858 A9
2860 A11
2861 B11
2862 B8
2863 B8
2864 B3
2865 C4
2867 A8
2872 G10
3750 B7
3751 C7
3752 A6
3753 A6
3V-5V log. Level
DIG. OUT
POS rec
FE-ST-VK-N
LEFT
DIPMATE
1
from digital-out circuitry
SDA
to 7877 on part 1
DOWN
1
2878 F11
2881 F8
2882 B10
2893 F12
3700 H2
3705 G4
3706 G4
3707 G4
3708 H4
3711 G5
3712 B4
3713 G8
3876 C11
3877 F12
3878 E12
3879 D7
3
RF-500TB
RF-500TB
1876
2
changer control
GND
COAX2/EBU
DRIVE UP/
3718 G3
3730 G2
3731 G2
3732 G2
3733 G2
3734 H2
3740 A7
3741 A7
3742 B7
3743 B7
3744 A9
3746 B10 MP724 D8
MP725 D8
MP726 D8
MP740 H14
to/from 7877 on part 1
D
3809 B2
3814 D12
3831 G4
3851 D7
3858 A11
3859 B11
3860 B7
3861 B8
3864 A7
3865 A10
3866 A10
3868 B10
3869 B10
3871 F12
3872 C13
3874 C13
3875 C12
MP811 F14
MP822 E3
MP823 E3
MP824 D4
BASIC VERSION
COAX1/+3V
6871 F8
6872 E8
6873 E8
6874 G7
6875 F7
6876 D13
6877 D12
6878 E8
6879 G4
7805-A B9
7805-B A8
7812 G8
7871 C5
7873 D10
7874 C12
7875 D12
7876 G3
MP721 C8
MP722 E8
MP723 D8
MP886 G3
MP887 H5
MP888 G5
MP889 G5
FROM 7877 ON PART 1
SHR_CL
3.2V
SICL
5V1
MP741 G14
MP742 G14
MP801 E12
MP803 F10
MP804 G14
MP805 F13
MP806 F13
MP807 F14
MP808 F13
MP810 F13
4803 B4
4811 A7
4812 B7
4876 D13
5802 B4
+5V(+5.6V)
DATA
GND
MP825 D4
MP830 A7
MP832 G9
MP833 F14
MP835 F14
MP854 A13
MP856 E14
MP857 B13
MP863 C11
MP865 D11
MP866 E8
MP867 E8
MP868 F8
MP869 C12
MP871 D6
MP874 D12
MP881 G2
MP882 G2
EBU_GND
5
8003
Transformer
1877
#
#
#
3880 E6
3881 E7
3882 D7
3883 D6
3884 D6
3885 D6
3886 E7
3887 D6
3888 F12
3890 F11
3891 F11
3893 F11
3898 F7
3899 D12
3905 C5
4
D
logic
(15 Pin)
0V
G
H
1805 E15
1875 D2
1878 E2
1880 F8
1881 E8
2829 D6
2830 C9
2831 B9
2832 A8
Output enable
+10V
GND
part 2
MP890 B3
MP891 B5
MP892 B5
MP897 E13
MP898 E13
MP899 E14
0V
to combi-
D
TRAY POS
8002
SW_INFO
POS1 rec
RIGHT
EBUGND
2860
10u
2878
220p
3874 10K
3858
47K
1K
3891
BAS216
6876
1880
10K
3878
9
12 5
3
4
8
11
15
7871
TDA7073A
14
10
2
1
6
7
16
13
OUT1-
220R
3898
1
2
3
4
5
GNDA
1875
FE-ST-VK-N
220R
3887
47p
2877
3744
10K
3741
22K
7875
BC847B
3899
100R
3R3
3851
4811
3872 10K
2867
220p
3746
10K
3860
220p
2862
3715
100K
10K
22K
3713
3879
100K
2858
220u
470R
3893
10K
3714
3742
22K
220p
2893
BC847B
7812
8
4
TDA1308T
7805-A
3
2
1
BAS216
6871
1K
3750
13
12
11
9
10
1
16
8
HEF4094BT
7873
3
2
15
4
5
6
7
14
10K
3877
2863
220p
10u
GNDA
3875
10K
2875
6874
BAS216
BZX284-C3V9
6877
33R
3814 4876
3740
22K
BZX284-C
6875
2872
47n
2861
10u
100R
3868
100R
3865
3864
100R
GNDA
22n
2829
3884
270R
3859
47K
3
1878
DIPMATE
1
2
2831
100p
3876
100K
3883 10K
1881
BAS216
6873
GNDA
47K
3880
3K9
3882
3885
10K
GNDA
7874
BC847B
GNDA
3861
10K
10K
3871
BAS216
6872
100K
3881
10K
3888
3886
47K 3751
1K
2873
4u7
2881
47u
3743
22K
2882
220p
TDA1308T
5
6
7
8
4
7805-B
6
7
8
9
17
18
19
2
20
21
22
23
3
4
5
1
10
11
12
13
14
15
6
7
8
9
2
3
4
5
1
10
11
12
13
14
15
16
6
7
8
9
17
18
19
2
3
4
5
1
10
11
12
13
14
15
16
1805
6878
BAS216
GNDA
GNDA
2832
100p
GNDA
GNDA
47n
2830
3890
1K
2876
220u
GNDA
COAX1
+5.6V
+3.3V
+3.3V
+5V
RN
RP
LN
LP
COAX2
+4V
+5.6V
+10V
+3.3V
+10V
SICL
SDA
PORE
SILD
CD-TEXT
GND
DQSY
(23 Pin)
uP_CLK
SRDT
FE-ST-VK-N
PROTECTION
TIMING & SYNC
CHECK
CRC
INTERF
CPU
RAM
2 PORT
32 x 8
only during
11MHz
TOC-reading
DQSY
3.3ms
CD-Text circuitry (optional)
7.35KHz
on
to
SRDT
4V
SCLK
CD-TEXT INFO
part1
7877
2853
22n
470R3734
470R3733
10K3711
33K
3730
470R3708
470R3732
3707 470R
3700 470R
47n
2852
3705
220R
470R3706
3718
4K7
10K3731
8
VDD 14
WFCK4
XMODE6
13DQSY
1EXCK
GND
7
MCK5
2 SBSO
SCLK 11
SCOR3 SRDT 12
9SW1
SW2 10
TEST
7876
LC89170M
6879
BZX284-C3V9
3831
100R
+5.6V
RCK
SUB
SBSY
SFSY
CL11
4.9V
2V
0V
4V
2.3V
2V
4.9V
0V
4V
4.9V
4.1V
5.2V
10V
5.2V
0V
5.2V
5.1V
5.2V
3.3V
4.2V
5V(5.6V)
2.3V
0V
2V
0V
0V
4.9V
0V
2V
5.2V
0V
5.1V
5.1V
5.1V
. . . V DC voltages measured in
PLAY MODE
with following conditions:
"+10V" = 10V
"+5V" = 5V
EVM
V
4.5V
7877
from
on
part1 10R
3809
470R
3809
2864
22p
2854
47n
3716
470R
3716
470R
DOBM
7877
from
on
part1
DOBM
10R
3712
1R
3717
10R
3712
to 1805
to 1805
COAX2
COAX2
COAX1
5802
920927152B
1
2
34
6
78
2865
22n
digital out circuitry - 75
Ω
version (not on all versions)
digital out circuitry (not for 75
Ω
Versions)
3CDC-LC-DA11 Exploded view 2000 09 07
Pos. 51
Pos. 53
Pos. 52
Pos. 47
Pos. 48
Pos. 49
Pos. 43
Pos. 44
Pos. 42
Pos. 57
54
53
47
55
56
31
30
35
32
31
32
33
34
Xspare part
non spare part
Y57
58
52
48
45 5x 4x
4x
46
49
44
43
42
59
41
21
20
51
23
2x
EXPLODED VIEW (3CDC-LC MODULE)
MECHANICAL PARTS
Loader →this page
–––––––––––––––––––––––––––––––––––––––––––––––––––––
20 3103 304 66500 DRAWER
21 3140 114 29070 PRESSURE RING-DA11
23 3140 111 21270 METAL RING-DA11
30 3103 304 66560 SUPPORT
31 4822 529 10386 RUBBER DAMPER CD DRIVE, REAR
32 4822 529 10387 RUBBER DAMPER CD DRIVE, FRONT
33 3103 304 06970 WASHER
35 3103 309 05310 CD DRIVE DA11T3CN
36 3104 119 40010 MOTOR MABUCHI RF-500TB-12560
37 4822 361 10753 CAROUSEL MOTOR
41 3103 304 66480 FRAME
42 3103 304 66540 BRACKET-GUIDING
43 3103 301 06460 SPRING-GUIDING
44 3103 304 06890 GEAR-3
45 3103 304 06980 NAIL FIXATION
46 3103 304 06880 GEAR-2
47 3103 304 66530 BRACKET-LOAD
48 3103 304 06910 CAM
49 3103 304 66510 GUIDING
51 3103 304 06900 GEAR-4
52 3103 304 06870 GEAR-1
53 3103 304 06960 PULLEY-FRAME
54 3103 304 66910 DRIVING-BELT-DRAWER
55 4822 361 10753 TRAY MOTOR
56 4822 502 12548 SCREW M2,6X3,5
57 3103 304 69880 COVER-DA11
59 4822 466 12146 RUBBER MECHANICAL PARTS
Drawer →Chapter 10-11
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
20 3103 304 66500 DRAWER
21 3103 304 66490 CAROUSEL
22 3103 304 06860 PULLEY-DRAWER
23 3103 304 06850 ECCENTRIC GEAR WHEEL
24 3103 304 06980 NAIL FIXATION
25 3103 304 66850 DRIVING BELT CAROUSEL
27 4822 532 12365 BUSH DRAWER (height=5,5mm,d=9,4mm)
27 3103 304 07100 BUSH DRAWER (height=8,5mm,d=16mm)
29 3103 304 66550 BRACKET-DISC
30 3103 304 66520 TUMBLER
31 3103 301 06470 SPRING-DISC
32 3103 304 06920 CONTROL-DISC
34 3103 304 06870 GEAR-1
37 4822 361 10753 CARROUSEL MOTOR
10-10 10-10
10-11
3CDC-LC Drawer assy 1999 09 13
37
20
32
35
33
36 29
31
34
24
30
3x
27
24
22
20
23
25
21
26
28
Drawer top view
Drawer bottom view
Xspare part
non spare part
Y
10-12
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
35 3103 309 05310 CD DRIVE DA11T3CN
37 4822 361 10753 CAROUSEL MOTOR
55 4822 361 10753 TRAY MOTOR
1800 2422 025 17389 FLEX FOIL CONNECTOR 16Pin
1805 4822 265 10979 FLEX FOIL CONNECTOR 15Pin
1805 4822 265 11545 FLEX FOIL CONNECTOR 19Pin
1875 4822 267 10958 FLEX FOIL CONNECTOR 5Pin
1876 2422 025 08332 FLEX FOIL CONNECTOR 5Pin
1880 4822 276 13503 SWITCH, Tray switch
1881 4822 276 13503 SWITCH, Drive UP/DOWN
1882 4822 276 13503 SWITCH, CD Pos.1 recognized
1883 4822 276 13503 SWITCH, valid CD Play position
8002 3103 308 91990 FLEX FOIL CABLE 5P 200mm 1:n
8005 3103 308 92930 FLEX FOIL CABLE 16P 170mm 1:n
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2800 © 4822 126 10326 180pF 5%
2801 © 4822 126 13883 220pF 5% 50V
2802 © 4822 126 10326 180pF 5%
2803 © 4822 126 13883 220pF 5% 50V
2804 4822 124 41751 47µF 20% 16V
2805 © 4822 126 13883 220pF 5% 50V
2806 © 4822 126 13883 220pF 5% 50V
2807 © 4822 126 10326 180pF 5%
2808 © 4822 126 13883 220pF 5% 50V
2809 4822 124 40746 0,22µF 20% 63V
2810 © 5322 122 32531 100pF 5% 50V
2811 © 4822 126 13883 220pF 5% 50V
2812 © 2222 867 15339 33pF 5% 50V
2813 © 4822 126 14226 82pF 50V
2814 © 2238 780 59861 680nF 10% 16V
2815 © 4822 126 10326 180pF 5%
2816 © 4822 126 14247 1,5nF 10% 50V
2817 © 4822 126 14249 560pF 10% 50V
2818 © 4822 126 13344 1,5nF 5% 63V
2819 © 5322 126 11578 1nF 10% 63V
2820 © 4822 126 14305 100nF 10% 16V
2822 © 4822 122 33127 2,2nF 10% 63V
2823 © 4822 122 33777 47pF 5% 63V
2824 © 4822 126 13751 47nF 10% 50V
2825 © 5322 126 11582 6,8nF 10% 63V
2826 4822 124 12362 47µF 20% 4V
2828 4822 124 12362 47µF 20% 4V
2829 © 3198 017 42230 22nF 10% 50V
2830 © 4822 126 13751 47nF 10% 50V
2831 © 4822 122 31765 100pF 5% 50V
2832 © 4822 122 31765 100pF 5% 50V
2835 © 3198 024 44730 47nF 5% 50V
2836 © 3198 024 44730 47nF 5% 50V
2837 4822 124 40433 47µF 20% 25V
2838 4822 124 40248 10µF 20% 63V
2839 4822 124 40433 47µF 20% 25V
2840 © 4822 126 14585 100nF 10% 50V
2841 © 5322 126 10511 1nF 5% 50V
2842 © 4822 126 14247 1,5nF 10% 50V
2844 © 3198 016 31020 1nF 5% 25V
2850 © 5322 126 11578 1nF 10% 63V
2851 4822 124 42383 220µF 20% 4V
2855 © 4822 126 10326 180pF 5%
2856 © 4822 126 13691 27pF 1% 63V
2857 © 5322 126 11583 10nF 10% 63V
2858 4822 124 12245 220µF 20% 16V
2860 4822 124 11947 10µF 20% 16V
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2861 4822 124 11947 10µF 20% 16V
2862 © 4822 126 13883 220pF 5% 50V
2863 © 4822 126 13883 220pF 5% 50V
2865 © 4822 126 14494 22nF 10% 25V
2867 © 4822 126 13883 220pF 5% 50V
2872 © 3198 024 44730 47nF 5% 50V
2873 4822 124 80231 47µF 20% 16V
2875 4822 124 11947 10µF 20% 16V
2876 4822 124 12245 220µF 20% 16V
2877 © 4822 122 33777 47pF 5% 63V
2878 © 4822 126 13883 220pF 5% 50V
2881 4822 124 40769 4,7µF 20% 100V
2882 © 4822 126 13883 220pF 5% 50V
2885 4822 124 40769 4,7µF 20% 100V
2887 © 4822 126 14585 100nF 10% 50V
2888 4822 124 80231 47µF 20% 16V
2891 © 4822 126 14247 1,5nF 10% 50V
2893 © 4822 122 33575 220pF 5% 50V
2894 © 3198 017 44740 470nF 20% 10V
2895 © 4822 126 14305 100nF 10% 16V
2896 © 4822 126 14305 100nF 10% 16V
2897 © 4822 126 14305 100nF 10% 16V
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3701 © 4822 051 20479 47Ω5% 0,1W
3702 © 4822 051 20479 47Ω5% 0,1W
3703 © 4822 051 20479 47Ω5% 0,1W
3704 © 4822 117 12917 1Ω5% 0,06W
3710 © 4822 117 11148 56kΩ1% 0,1W
3712 © 4822 051 30109 10Ω5% 0,06W
3713 © 4822 051 30223 22kΩ5% 0,06W
3714 © 4822 051 30103 10kΩ5% 0,06W
3715 © 4822 117 13632 100kΩ1% 0,06W
3716 © 4822 051 30471 470Ω5% 0,06W
3717 © 4822 117 12917 1Ω5% 0,06W
3719 © 4822 051 30102 1kΩ5% 0,06W
3720 © 4822 051 20474 470kΩ5% 0,1W
3721 © 4822 051 20393 39kΩ5% 0,1W
3723 © 4822 051 30272 2,7kΩ5% 0,06W
3724 © 4822 117 12902 8,2kΩ1% 0,06W
3725 © 4822 051 30184 180kΩ5% 0,06W
3730 © 4822 051 20333 33kΩ5% 0,1W
3740 © 4822 051 20223 22kΩ5% 0,1W
3741 © 4822 051 20223 22kΩ5% 0,1W
3742 © 4822 051 20223 22kΩ5% 0,1W
3743 © 4822 051 20223 22kΩ5% 0,1W
3744 © 4822 051 30103 10kΩ5% 0,06W
3746 © 4822 051 30103 10kΩ5% 0,06W
3750 © 4822 051 30102 1kΩ5% 0,06W
3751 © 4822 051 30102 1kΩ5% 0,06W
3789 © 4822 051 30471 470Ω5% 0,06W
3790 © 4822 051 30561 560Ω5% 0,06W
3791 © 4822 051 30152 1,5kΩ5% 0,06W
3792 © 4822 051 30332 3,3kΩ5% 0,06W
3793 © 4822 117 12968 820Ω5% 0,06W
3794 © 4822 117 12968 820Ω5% 0,06W
3795 © 4822 051 30222 2,2kΩ5% 0,06W
3796 © 4822 051 30332 3,3kΩ5% 0,06W
3798 © 4822 051 30102 1kΩ5% 0,06W
3799 © 4822 051 30102 1kΩ5% 0,06W
3800 © 4822 117 11148 56kΩ1% 0,1W
3801 © 4822 051 30103 10kΩ5% 0,06W
3802 © 4822 117 11148 56kΩ1% 0,1W
ELECTRICAL PARTSLIST 3CDC-LLC-DA11 MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
10-13
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3803 © 4822 117 10833 10kΩ1% 0,1W
3804 © 4822 051 30103 10kΩ5% 0,06W
3805 © 4822 051 30103 10kΩ5% 0,06W
3806 © 4822 051 30103 10kΩ5% 0,06W
3807 © 4822 051 30103 10kΩ5% 0,06W
3808 © 4822 051 30103 10kΩ5% 0,06W
3809 © 4822 051 20471 470Ω5% 0,1W
3811 © 4822 117 11148 56kΩ1% 0,1W
3812 4822 053 10228 2,2Ω5% 1W
3813 © 4822 117 13608 4,7Ω5% 0,06W
3814 © 4822 051 30339 33Ω5% 0,06W
3815 4822 052 10478 4,7Ω5% NFR
3818 © 4822 051 30222 2,2kΩ5% 0,06W
3819 © 4822 051 20471 470Ω5% 0,1W
3820 © 4822 051 30222 2,2kΩ5% 0,06W
3821 © 4822 051 30222 2,2kΩ5% 0,06W
3822 © 4822 051 30222 2,2kΩ5% 0,06W
3825 © 4822 051 10102 1kΩ2% 0,25W
3826 © 4822 051 30223 22kΩ5% 0,06W
3827 © 4822 051 20273 27kΩ5% 0,1W
3828 © 4822 051 20223 22kΩ5% 0,1W
3831 © 4822 051 30101 100Ω5% 0,06W
3832 © 4822 051 30103 10kΩ5% 0,06W
3833 © 4822 051 20393 39kΩ5% 0,1W
3834 © 4822 051 20393 39kΩ5% 0,1W
3835 4822 052 10478 4,7Ω5% NFR
3837 © 4822 051 10102 1kΩ2% 0,25W
3838 © 4822 051 30102 1kΩ5% 0,06W
3839 © 4822 051 20124 120kΩ5% 0,1W
3840 © 4822 051 30124 120kΩ5% 0,06W
3841 © 4822 117 10833 10kΩ1% 0,1W
3842 © 4822 117 10833 10kΩ1% 0,1W
3843 © 4822 117 10834 47kΩ1% 0,1W
3844 © 4822 051 30332 3,3kΩ5% 0,06W
3845 © 4822 117 10833 10kΩ1% 0,1W
3846 © 4822 117 10834 47kΩ1% 0,1W
3847 © 4822 051 30472 4,7kΩ5% 0,06W
3849 © 4822 051 20334 330kΩ5% 0,1W
3850 © 4822 051 30103 10kΩ5% 0,06W
3851 4822 052 10338 3,3ΩNFR25
3852 4822 052 10228 2,2Ω5% 0,33W
3853 © 4822 051 20471 470Ω5% 0,1W
3858 © 4822 117 12925 47kΩ1% 0,06W
3859 © 4822 117 10834 47kΩ1% 0,1W
3860 © 4822 117 10833 10kΩ1% 0,1W
3861 © 4822 051 30103 10kΩ5% 0,06W
3862 © 4822 051 20121 120Ω5% 0,1W
3863 © 4822 117 11373 100Ω1% 0,1W
3864 © 4822 117 11373 100Ω1% 0,1W
3865 © 4822 051 30101 100Ω5% 0,06W
3867 © 4822 051 30121 120Ω5% 0,06W
3868 © 4822 051 30101 100Ω5% 0,06W
3870 © 4822 051 20472 4,7kΩ5% 0,1W
3871 © 4822 051 30103 10kΩ5% 0,06W
3873 © 4822 051 20471 470Ω5% 0,1W
3875 © 4822 051 30103 10kΩ5% 0,06W
3876 © 4822 117 13632 100kΩ1% 0,06W
3877 © 4822 051 30103 10kΩ5% 0,06W
3878 © 4822 051 30103 10kΩ5% 0,06W
3879 © 4822 117 10837 100kΩ1% 0,1W
3880 © 4822 051 30392 3,9kΩ5% 0,06W
3881 © 4822 117 13632 100kΩ1% 0,06W
3882 © 4822 117 12925 47kΩ1% 0,06W
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3883 © 4822 117 10833 10kΩ1% 0,1W
3884 © 4822 051 30271 270Ω5% 0,06W
3885 © 4822 117 10833 10kΩ1% 0,1W
3886 © 4822 117 12925 47kΩ1% 0,06W
3887 © 4822 051 30221 220Ω5% 0,06W
3888 © 4822 117 10833 10kΩ1% 0,1W
3889 © 4822 051 20471 470Ω5% 0,1W
3890 © 4822 051 30102 1kΩ5% 0,06W
3891 © 4822 051 30102 1kΩ5% 0,06W
3892 © 4822 051 20471 470Ω5% 0,1W
3893 © 4822 051 30471 470Ω5% 0,06W
3894 © 4822 051 30101 100Ω5% 0,06W
3895 © 4822 117 12971 15Ω5% 0,06W
3898 © 4822 051 30221 220Ω5% 0,06W
3899 © 4822 051 30101 100Ω5% 0,06W
3900 © 4822 117 12955 2,7kΩ1% 0,1W
3901 © 4822 117 10833 10kΩ1% 0,1W
3904 © 4822 117 13632 100kΩ1% 0,06W
4800 © 4822 051 20008 CHIP JUMPER 0805
4801 © 4822 051 20008 CHIP JUMPER 0805
4802 © 4822 051 20008 CHIP JUMPER 0805
4803 © 4822 051 30008 CHIP JUMPER 0603
4804 © 4822 051 20008 CHIP JUMPER 0805
4805 © 4822 051 30008 CHIP JUMPER 0603
4806 © 4822 051 20008 CHIP JUMPER 0805
4807 © 4822 051 20008 CHIP JUMPER 0805
4808 © 4822 051 20008 CHIP JUMPER 0805
4811 © 4822 051 20008 CHIP JUMPER 0805
4814 © 4822 051 20008 CHIP JUMPER 0805
4817 © 4822 051 20008 CHIP JUMPER 0805
4818 © 4822 051 20008 CHIP JUMPER 0805
4819 © 4822 051 20008 CHIP JUMPER 0805
4820 © 4822 051 20008 CHIP JUMPER 0805
4821 © 4822 051 20008 CHIP JUMPER 0805
4822 © 4822 051 20008 CHIP JUMPER 0805
4823 © 4822 051 20008 CHIP JUMPER 0805
4824 © 4822 051 30008 CHIP JUMPER 0603
4825 © 4822 051 30008 CHIP JUMPER 0603
4826 © 4822 051 20008 CHIP JUMPER 0805
4828 © 4822 051 20008 CHIP JUMPER 0805
4829 © 4822 051 20008 CHIP JUMPER 0805
4830 © 4822 051 20008 CHIP JUMPER 0805
4831 © 4822 051 20008 CHIP JUMPER 0805
4832 © 4822 051 30008 CHIP JUMPER 0603
4833 © 4822 051 20008 CHIP JUMPER 0805
4834 © 4822 051 20008 CHIP JUMPER 0805
4835 © 4822 051 20008 CHIP JUMPER 0805
4838 © 4822 051 30008 CHIP JUMPER 0603
4840 © 4822 051 20008 CHIP JUMPER 0805
4841 © 4822 051 30008 CHIP JUMPER 0603
4842 © 4822 051 20008 CHIP JUMPER 0805
4844 © 4822 051 20008 CHIP JUMPER 0805
4845 © 4822 051 20008 CHIP JUMPER 0805
4846 © 4822 051 20008 CHIP JUMPER 0805
4847 © 4822 051 20008 CHIP JUMPER 0805
4848 © 4822 051 20008 CHIP JUMPER 0805
4850 © 4822 051 20008 CHIP JUMPER 0805
4876 © 4822 051 20008 CHIP JUMPER 0805
ELECTRICAL PARTSLIST 3CDC-LLC-DA11 MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
10-14
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1810 4822 242 73557 CERAMIC RES. 8,46MHz
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6871 © 4822 130 11397 BAS316
6872 © 4822 130 11397 BAS316
6873 © 4822 130 11397 BAS316
6874 © 4822 130 11397 BAS316
6875 © 9340 548 52115 BZX284-C5V1
6877 © 9322 129 34685 BZX284-C3V9
6878 © 4822 130 11397 BAS316
6879 © 9322 129 34685 BZX284-C3V9
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7802 © 5322 130 60123 BC807-40
7808 © 4822 130 60511 BC847B
7809 © 4822 130 60511 BC847B
7810 © 4822 130 60511 BC847B
7812 © 4822 130 60511 BC847B
7874 © 4822 130 60511 BC847B
7875 © 4822 130 60511 BC847B
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7803 © 5322 209 82941 LM358D, Dual Opamp
7805 © 4822 209 33165 TDA1308T/N1
7806 4822 209 32852 TDA7073A/N2
7807 4822 209 32852 TDA7073A/N2
7871 4822 209 32852 TDA7073A/N2
7873 © 5322 209 11306 HEF4094BT, SHIFT REGISTER
7877 © 9352 641 80557 SAA7324H/M2B,“CD10“ SIGN.PROC.
ELECTRICAL PARTSLIST 3CDC-LLC-DA11 MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
MMPWR 100W MODULE
TABLE OF CONTENTS
Wiring diagram................................................................ 11-1
Mains Board - Component layout ................................... 11-2
Mains Socket - Layout and Circuit diagram ................... 11-2
Mains Board - Circuit diagram ........................................ 11-3
L/R Amp. & Supply Board - Component layout .............. 11-4
L/R Amp. & Supply Board - Circuit diagram (Part 1) ..... 11-5
L/R Amp. & Supply Board - Circuit diagram (Part 2) ..... 11-6
Electrical parts list........................................................... 11-7
WIRING DIAGRAM
11-1 11-1
1
13P
EH-B 8P
EH-B 6P
1
1203
DM 6PDM 9P
F2
A1
B1
8901_B
1260
AMP_CS_DC
1
DM 6P
GND_D
5V_VCD
1
12501251
A2
A2
FAN
1
MAINS
A1
B1
GND_D
GND_D
B2
+5V_CDR
>
1250 - 1913
EH-B 2P
GND
or CDR_ON
GND_D
11
GND_D
1300
1259
FFC-BD 11P 12P
NTC
LPC
8901_A
F1
1
8240
heatsink
FFC-BD 7P
EH-B 3P
GND_D
GND_D
B2
+D2
+5V_CDR
+
>
>
>
F1
+11V_A
GND_A
8902_A
GND
1
To CDR
1
1
1263
PD
CLIP
AMP-ON
8902_B
LSTBY
LPS
FFC-BD 7P
To CS_DPL board
+D
GND
+D2
N
+D
EH-B 6P EH-B 9P
1
A1
B1
1
1262
8906
8909
1251 - 1912
1330
F2
1264
GND_M
(For MTRX sets only)
1252
1901
1911
NTC
-Vkk
AF_RIGHT
GND_pa
+5V6
1261
+11V_M
PD
F2
PD
-Vkk
F1
NTC
L/R
1914
+11V_CDR
GND_M
GND_D
GND_D
LS_L+
LS_R+
L/R+SUP
TO MATRIX SURR
SPEAKER CLICKFIT 1321
-Vkk
LPS
L
19121913
LSTBY
LPS
VCD_ON
B2
-
AF_LEFT
TO AF BOARD TO AF BOARD
1
1
EH-B 7P
A2
>
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3433 pt7 dd wk0139
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3433 pt7 dd wk0139
L
N
9902 B2
9901 A2
For /22
For /21
8902_A A2
12
12
A
B
A
B
1901 B1
5900 A2
5901 A2
8901_A B2
9901
1901
1
2
12
43
8902_A
5901
8901_A
3
9902
5900
12
4
3139 118 53730...for 88330...3433 pt7 dd wk0139
Note : Some values may varies, see respective parts list for correct value.
MAINS BOARD - COMPONENT VIEW
11-2 11-2
MAINS SOCKET - COMPONENT VIEW
MAINS SOCKET - CIRCUIT DIAGRAM
6m8/25V
14V
/25V
5912
To C/S_DPL
/10V
FTD bias
5003
3m3/50V
113V
6918 E6
5920
6917 E6
DEMO, 12V OFF
N
2927
3942 E7
3951 C8
3952 D9
3953 D9
3954 D10
3955 F1
5902 B1
5903 D1
5905 B3
5906 A1
6900 D3
6901 D2
6902 D2
6903 D3
6904 D3
6905 E1
6906 E2
6907 E4
6908 D4
6909 E4
6910 C3
6911 C3
6915 F2
6916 F4
-
-
- 3m3/50V
-
-
-
-
-
-
-
-
5913
Mode
3104 210 50950
5915
/16V
5921
5005
not in /21
3953
/50V
2947 D7
3952
H
To L/R + Sup
GND_D
H
5902
5006
470 OHM / 1W for /22
2922 A7
2923 A8
2924 A8
2925 A8
2926 A8
2927 B8
2928 B9
2929 B9
2930 B9
2931 B9
2932 B9
2941 C6
2942 C7
2943 C8
2944 C8
2945 D7
2946 D7
6K8
9926 B7
70W
240V
1u/50V
5007
6K8
5918
9930 A10
9927 B7
/22, /37
LSTB
2422 535 94821
3954
L
ON
120 OHM / 1W for /37
9931 B10
9925 B6
5004 5914
390R
/50V
5906
3m3/50V
others70W
220R
3K3
3K3
5916
GND_D
For /22
2998
100n
Z
/16V
/35V
/25V
127V
H
/21 only
ON
/50V
lpc
OPTIONAL FOR
3941 D8
5919
100W
For /21
2948 F4
2949 D7
2953 D10
2997 B8
2998 B8
3901 E1
3902 D1
3903 E2
3904 E2
3905 D4
3906 D4
3907 E2
3912 F3
3913 F3
3914 E5
3921 B6
3922 B7
3923 B8
5910
15K for /22/37
/50V
OFF
2921 A7
C
D
E
F
1902 A3
1903 D1
1904 D2
1905 B2
1911 A10
1912 A10
1913 A10
1914 E7
1921 A6
1922 A6
1923 A6
1924 B6
1925 C6
1926 C6
2901 D2
2902 D3
2903 E3
2904 E3
2905 E3
2911 F2
2912 F3
2913 F3
/35V 3m3/50V
3m3/50V
T6.3A UL
LPC
L
5917
127V
/25V
2997
2928
float
T5A IEC
/50V
5008
100n
100n
relay
5911
9924 B6
To L/R + Sup
6921 A7
6922 A8
6923 C6
6924 C6
6925 C7
6926 C7
6927 C7
6928 C7
6930 F1
6955 D10
6956 D6
7901 D4
7902 E4
7911 F3
7912 D5
7951 C9
7952 C10
8230 F8
8901_B B1
8902_B B1
9900 E4
9903 A1
9904 B1
9907 D1
9908 D2
9910 D4
9921 A6
9922 A6
9923 B6
ON, 12V ON
/50V
1 2345678910
1 2345678910
A
B
C
D
E
F
A
B
4
5
6
7
2998
9903
5906
2912
2948
2m2
2
5
1
4
3
6
4m7
/25V4m7
2946
2925
47n
1N4148
6915
390R
3954
3942
0R33
2927
6902
10K
gnd_s
gnd_s
2922
2923
47n
2926
1924
2949
1N4003
6908
GND
6930
BZX79-C5V1
1921
T5A
GBU6D
6921
2997
6906
1N4148
4m7
gnd_s
1902
SDKGA
T5A
9907
6925
3922
gnd_s
2911
gnd_s
100u
2928
GND
2930
2931
2932
2929
4m7/50V
3m3/50V
4m7/50V
3m3/50V
135W
3m3/50V
4m7/50V
4m7/50V
-
-
-
-
-
100u
T5A
1923
1N4003
2903
12
43
6901
5902
100K
3912
3951
47R
7911
BC547B
9923
41
32
1905
5905
100n
2913
9910
33K
2901
47n
1911
DIPMATE
1
2
3
4
5
6
BZX79-C8V2
6916
1R
3921
3941
0R33
22u
2953
GND_D
BC327-25
7901
6927
1N5392
BC547B
7902
2902
47n
6923
1N5392
1N4003
6900
100u
2904
8901_B
99229924
6909
1N4003
8902_B
2921
12
43
1N4148
6917
T200mA
1903
1
4
2
3
6m8
2929
4m7
6m8
2931
9921
7951
BC327-40
3902
DIPMATE
1912
2932
5903
98TS-037A-5
10M
3901
gnd_s
T1A6
1926
1N5392
1N5392
6928
gnd_s
gnd_s
3m3
100u
2905
2944
9927
GND
6904
1N4003
33K
3923
6924
1N5392
1922
T5A
1904
T200mA 6K8
3953
9904
6905
1N4148
GBU6D
6922
14
2
3
8230
2941
100n
9908
1
GND
6910
1N4148
3905
4K7
3914
10R
2945
gnd_s
100n
2942
GND_D
6907
BZX79-C8V2
GND_D
47n
2924
9900
3906
2K2
gnd_s
BC327-40
gnd_s
4m7
2943
7952
T2A5
1925
9925
2930
1
2
3
4
5
6
7
8
9
1913
1K
3955
3904
1K
1K
3903
3952
6K8
gnd_s
10K
3907
6955
BZX79-C33
6911
1N4148
6926
1N5392
9931 9930
BC547B
7912
6918
1N4148
1N4003
6903
1N4003
3913
9926
3m3
2947
1N4003
6956
B1
B2
FE-BT-VK-N
1914
1
2
3
PD
LPS
+D2
LPS
A1
A2
+D
F1
LPS
F2
NTC
-VKK
LSTBY
NTC
F2
F1
-Vkk
GND
: PROVISION
*
3139 118 53730...for 88160...3433 pt7 dd wk0202
Note : Some values may varies, see respective parts list for correct value.
**
*** *
*
*
*
*
*
*
*
*
-33V
-38V
-37V
-43V
7.6V
0V
1.2V
0V
8.2V
-33V
11-3 11-3
MAINS BOARD - CIRCUIT DIAGRAM
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3434 pt4 dd wk0139
11-4 11-4
LEFT/RIGHT AMPLIFIER & SUPPLY BOARD - COMPONENT VIEW
t
3402 B5
CDR ONLY
To fan
6250 A4
To AF9
T2.5A FOR CDR
5V_CDR
3403 B5
3281 D7
3282 C7
3283 C7
3284 D7
3285 D7
3286 E7
3287 E7
3288 E8
3289 F8
3290 A3
3292 F4
3295 C7
3300 F5
3301 F5
3302 E5
3303 F5
3304 E6
3305 E6
3306 E6
3400 B4
3401 B5
1261 A9
1263 C9
BDX53BFP
or
Fan Speed Control
To AF9
1262 C9
NON CDR
CDR ONLY
To AF9
5V_CDR
/16V
+11V Reg
CDR only
NTC
NON CDR
+11V_A
/16V
AMP_CS_DC
B
C
D
E
F
1250 A1
1251 A1
1252 F1
1259 A9
1260 A9
/16V
FFC
/25V
FFC
2260 B6
Heatsink thermal NTC
/50V
2258 D3
GND_D
VCD 5V
2257 D3
NON-CDR
2256 D2
2259 D4
To AF9
CDR sets only
/25V
CDR ONLY
1264 E9
1280 B1
1300 F6
1322_A F9
1323_A F9
2250 A3
2251 A3
2252 B3
2253 A4
2254 E1
2255 D1
VCD sets only
To CDR
/50V
/50V
/10V
A
1 23456789
1 23456789
A
B
C
D
E
F
To AF9
2261 B7
2262 C7
2263 C7
2265 F8
2300 F5
3250 A2
3251 A2
3252 A2
3253 A2
3254 A3
3255 B4
3256 B4
3257 A5
3258 D1
3259 D1
3260 D1
3261 D1
3262 D2
3263 E2
3264 D4
3265 F2
3268 E3
3269 E4
3270 E4
3271 F3
3272 F4
3273 A6
3274 B6
3275 A7
3276 A7
3277 B7
7240
STP16NE06
/50V
/16V
CDR ON
+11V_A
/50V
3278 C6
3279 D6
3280 D6
FFC
6251 A4
6252 D2
6253 D3
6254 D4
6256 E4
6257 E4
6258 F4
6259 A7
6260 A7
6261 C6
6262 C6
6263 C7
6264 F7
6265 D6
7240 A5
7241 B5
7250 A2
7251 B2
7252 B3
7253 B3
7254 C1
7255 E1
7256 E2
7257 C4
7259 F4
7260 A6
7261 A6
7262 D6
7263 D7
7264 E7
7265 F8
7300 F5
9250 C1
9251 C1
9252 C4
9253 C4
9960 A3
9962 A4
3260
2K2
3251
BD438
33K
39K
3281
7260
GND
GND
100K
3401
gnd_f
6254
1N4003
100K
3274
OUT
3
7257
L7805
GND
2
IN
1
0R33
3290
8K2
3289
3
4
5
6
100n
2258
BDW94C
7254
3275
7
3288
4K7
2259
100n
100K
3277
3253
470R
3269
BC547B
7251
GND_M
BC547B
7265
1K
3400
7256
BC547B
7263
BC547B
GND
T1A
1280
GND_D
3270
1K
6261
1N4148
BC547B
47K
3279
7250
3262
100R
GND_M
6251
BZX79-B10
3K9
3278
10K
GND
2262
100n
3292
2K7
1K
3295
1323_A
GND
GND
9960
gnd_f
680R
3283
GND
7259
BC337-25
10u
2256
2260
10n
3286
1K
1K
6258
BZX79-B5V6
1262
EH-B
1322_A
GND
BC547B
7262
6265
BZX79-C5V1
3304
GND
3256
120R
GND
9251
470R
9252
3306
3254
3259
180R
3255
470K
3287
47u
2265
GND
gnd_ar
12
13
2
3
4
5
6
7
8
9
6K8
9962
1261
1
10
11
9250
BC547B
7252
BZX79-C15
6250
EH-B
1250
1
2
3
4
5
6
7
8
9
1260
2250
100u
100u
2300
3282
270R
3302
1N4148
6260
GND
BC547B
7255
1300
EH-B
1
2
10K
2261
100u
3285
56K
3257
2K2
GND
7300
BC327-25
3250
47u
2255
6262
1N4148
GND_M GND_M
GND
GND
3263
150R
3n3
2252
6257
1N4148
GND
12
3
7253
EH-B
1264
1
2
5
6
7
8
9253
EH-B
1263
1
2
3
4
3264
10K
3265
1K
1N4148
6263
1N4148
680R
3273
3252
33K
6256
BZX55-B4V7
6252
2K7
3271
6259
BZX79-C6V8
GND_A
1u
2254
3268
3303
1K
15K
3305
270R
1R
270R
2253
47u
GND_M
EH-B
1251
2263
10u
GND_M
GND
47K
3276
1N4148
6264
2K2
GND
2257
10u
7264
BC547B
gnd_al
3272
5K6
3301
22K
3261
100K
GND
3258
3284
47K
100K
3403
GND
GND
3280
8K2
7241
BC547B
GND
GND
100K
3402
470R
3300
FE-BT-VK-N
1252
1
2
3
4
5
6
2251
10u
gnd_f
BC557B
7261
1259
F2
F1
1N4148
6253
B1
+11V_M
+11V_cdr
LPS
+5V6
+11V_M
AF_right
-Vkk
NTC
NTC
LPC
GND_pa
AF_left
AMP_ON
CLIP
PD
5V_VCD
AMP_LR_DC
LPS
+11V_M
+D2
+5V6
PD
+5V
VCD_ON
+11V_cdr
LPS
+5V6
+5V6
LPS
GND_D
GND_D
GND_D
GND_M
GND_A
+5V6
+11V_M
LSTBY
VCD_ON
VCD_ON
-Vkk
F1
F2
SAT
GND
NTC
A2
B2
B1
A1
B1
+D
+5V6
+5V6
GND_M
GND_D
*
: PROVISION
3139 118 53720...for 88130...3434 pt4 dd wk0202
Note : Some values may varies, see respective parts list for correct value.
**
*
*
*
*
*
*
*
0V
13V
0.6V
5.7V
0.6V
0V
0V
4.8V
0.3V
0V
5.7V
5.7V
0.3V
27.5V
11.8V
12.9V
12.5V
0V
0V
12.8V
0.6V
11.7V
11.3V
11.3V
0.6V
0V
0V 5V
5V
4.5V
11-5 11-5
LEFT/RIGHT AMPLIFIER & SUPPLY BOARD - CIRCUIT DIAGRAM (PART 1)
*
*
3348 A8
3350 B7
/63V
3349 E8
68K
820R
*
*
3329 D1
3330 E1
3331 E2
3332 E2
3333 E2
3334 A1
3335 A2
3336 A3
3337 B4
3338 B1
3339 B2
3341 C3
3342 A4
3343 D4
3344 A3
3345 A6
3346 E6
3347 E4
68K
10
/63V
9
A
11
/50V
68K 68K
1234567891011
12345678
2355 E7
/100V
2360 B9
/50V
#
/100V
#
/16V
*
*
*
3356 , 3365
3354 , 3364
2330 A4
2331 B4
2332 B2
2333 B3
2334 C3
2335 D4
2336 D4
2339 D4
2340 A3
2341 A5
2342 A6
2343 E5
2344 E6
2345 E4
2350 A7
2352 A7
2353 E7
9361 C10
70W
9363 C10
9362 C10
68K
7321 C2
7322 D3
7323 E2
7324 E1
7325 E4
7327 B8
7328 C8
7329 E10
7330 B6
8240 A2
9320 A1
9321 B1
9323 A10
9329 E10
9330 B3
9331 C4
9333 C4
9341 A6
9342 B9
9343 C9
9355 C8
9356 D7
9360 C10
3368
6K83370
/100V
2K2
A
/50V
SPKR RIGHT
2329 B4
B
C
D
E
A
B
C
D
E
1321-A C11
1321-B A11
1322_B B11
1323_B D11
1330 B11
2320 C1
2321 E1
2322 E2
2323 D3
2324 A2
2325 A4
2328 A3
+
+
/50V
3369
100W
#
*
*
2361 B9
2362 A11
2363 C9
2364 C9
2365 C11
2366 A10
2367 A10
2368 C11
2369 C11
2370 D5
2371 D5
2372 C3
2375 A10
2390 A1
2391 C4
3320 C1
3321 C1
3322 C2
3323 D1
3324 D2
3325 D3
3326 D3
3327 D2
3328 D3
680R
SPKR LEFT
-
*
*
/100V
/50V
3351 B7
3352 B7
3353 B7
3354 B7
3355 B7
3356 B8
3357 C8
3358 C8
3359 C7
3360 C7
3361 C7
3362 C7
3363 C7
3364 C7
3365 D8
3366 D8
3367 D8
3368 A8
3369 A8
3370 A8
3371 B9
3372 B9
3373 B10
3374 C9
3355 , 3363
To Matrix -Surr
150W
F
B
-
#
3375 C10
3376 C9
3377 E9
3378 E9
3379 D10
3380 D10
3381 A9
3382 A10
3392 B3
3393 C4
3395 C4
3404 B3
5300 A9
5301 C9
6320 C1
6321 C1
6322 E1
6323 E3
6324 E8
6330 B10
6331 C10
6332 A8
6360 A8
7320 C1
47K
560R680R
70W100W
70W, 100W
*
*
9961 A6
GND_AL
2324
/50V
22u
/50V
2u2
1323_B
3355
820R
gnd_s
7329
BC547B
gnd_pa
5301
GND_AR
0R33
3359
6331
3325
33K
7328
BC556B
3373
10K
3404
56K
1m
1321-B
3352
0R33
68K
100K
3323
2n2
2328
2340
gnd_pa
3353
0R33
100p
2325
47p
EH-B
1330
1
2
3
220p
2336
1321-A
2
1
3363
820R
gnd_pa
100K
3321
7325
BC547B
100R
3395
5300
56K
3336
47K
3366
gnd_pa
680R
3354
22p
2375
2322
100n
9333
100n
2366
220n
2365
100n
2361
0R33
3361
gnd_pa
3374
4R7
3344
22R
470p
2335
3n3
2333
3328
1K
3342
56K
3368
2344
22u
3379
GND_AL
100n
2369
1322_B
100n
2368
1K
2367
100n
1N4148
9356
7320
6320
4R7
3372
100p
2339
22u
2334
47R
3346
gnd_pa
6321
BZX79-C3V3
3350
0R33
3332
22K
9363
9329
gnd_pa
9323
2320
10n 9361
3371
4R7
2364
100n
3335
1K
2332
3343
56K
3339
820R
1K
3380
47K
3367
3320
47K
1N4148
6322
10K
3329
9321
3
4
3364
680R
47K
2355
10u
3382
7321
BC547B
BAV21
6323
1N4148
2323
2372
1n5
gnd_pa
7327
BC556B
3356
68K
2u2
2321
47K
3357
7323
BC547B
BC557B
3377
100n
2341
3322
10K
4K7
3392
100R
3K9
3349
10u
2350
2370
100n
3348
3K9
7322
BC547B
2390
4n7
3330
100K
2360
100n
7324
BC556B
9961
56K
9331
3393
2352
10u
22u
2342
100n
2343
3324
3369
68K BZX55-B15
6360
100K
9341
100n
2363
BAV21
6330
3370
2K2
9362
333
2K2
8
47K
3381
9360
3326
220R
gnd_pa
10K
3375
GND_AR
470p
23302331
220p
100n
2371
2345
100n
3358
47K
3345
47R
9330
680R
3337
6332
BZX79-F8V2
9320
220n
2362
3334
3K9
9342
3365
68K
3333
1K
2329
22u
6324
BZX79-F8V2
CH1|IN
11
CH1|NF
7
CH2+RE
6
CH2-RE
14
CH2|IN
13
CH2|NF
9
PRE+
8
PRE-
3
SUB
VCC+
12
VCC-
0R33
3362
STK442-110
7330
12
BIAS
4
CH1+RE
5
CH1-RE
10
3341
680R
47K
3378
2391
4u7
gnd_pa
3327
10K
3351
0R33
100K
3331
9355
8240
0R33
3360
3347
680R
10u
2353
9343
R
4R7
3376
C
SAT
A2
K
P
B1
N
M
L
O
Q
AMP_LR_DC
A1
AMP_ON
B2
AF_left
D
H
E
A1
G
AF_right
I
J
*
**# : For Phase Inverse only
: PROVISION
: For Non Phase Inverse only
3139 118 53720...for 88130...3434 pt4 dd wk0202
Note : Some values may varies, see respective parts list for correct value.
*
*
*
*
*
*
*
*
*
**
*
*
**
**
*
**
*
*
*
*
*
**
*
*
*
*
45V
-43V
0V
0V
3.3V
-44V
5V
-43V
-44.6V
-44.6V
-44.6V
-45V
-44.8V
-44.8V
0V
0V
0V
-44V
-45V
0V
-43V
-42V
-45V
0V
0V
0V
0V
0V
-44.6V
44.6V
0V
0V
-45V
-45V
0V
0V
0V
0V
11-6 11-6
LEFT/RIGHT AMPLIFIER & SUPPLY BOARD - CIRCUIT DIAGRAM (PART 2)
11-7 11-7
ELECTRICAL PARTS LIST - LEFT/RIGHT AMPLIFIER & SUPPLY BOARD
MISCELLANEOUS
ELECTRICAL PARTS LIST - MAINS BOARD
MISCELLANEOUS
1901 4822 265 31015
!
Mains Socket
1905 2422 086 10963
!
Fuse T5A
1914 4822 267 10953 Flex Connector 7P
1921 4822 071 55002
!
Fuse T5A
1924 4822 071 55002
!
Fuse T5A
1925 4822 071 52502
!
Fuse T2,5A
1926 4822 071 51602
!
Fuse T1,6A
CAPACITORS
2901 4822 121 43526 47nF 5% 250V
2902 4822 121 43526 47nF 5% 250V
2904 4822 124 40255 100uF 20% 63V
2912 4822 124 21913 1uF 20% 63V
2924 4822 121 43526 47nF 5% 250V
2925 4822 121 43526 47nF 5% 250V
2926 4822 121 43526 47nF 5% 250V
2927 4822 124 80415 4700uF 20% 50V
2928 4822 124 80415 4700uF 20% 50V
2941 5322 121 42386 100nF 5% 63V
2942 5322 121 42386 100nF 5% 63V
2944 4822 124 42367 3300uF 20% 35V
2945 4822 124 12328 6800uF 25V
2948 4822 123 14025 2200uF 20% 16V
RESISTORS
3902 4822 053 10471 470R 5% 1W
3903 4822 050 11002 1k 1% 0,4W
3904 4822 050 11002 1k 1% 0,4W
3905 4822 116 52244 15k 5% 0,5W
3912 4822 116 52234 100k 5% 0,5W
3913 4822 050 21003 10k 1% 0,6W
3914 4822 116 52176 10R 5% 0,5W
3922 4822 050 23303 33k 1% 0,6W
3923 4822 050 23303 33k 1% 0,6W
3941 4822 117 11342
!
0R33 5% 2W
3942 4822 117 11342
!
0R33 5% 2W
3951 4822 052 10479
!
47R 5% 0,33W
3952 4822 116 83961 6k8 5%
3953 4822 116 83961 6k8 5%
3954 4822 116 83881 390R 5% 0,5W
3955 4822 050 11002 1k 1% 0,4W
COILS & FILTERS
5900 4822 157 11832
!
400uH 3A
5903 3103 308 30610
!
Standby Transformer
5905 4822 280 10382
!
Relay
DIODES
6900 4822 130 31878 1N4003G
6901 4822 130 31878 1N4003G
6902 4822 130 31878 1N4003G
6903 4822 130 31878 1N4003G
6904 4822 130 31878 1N4003G
6905 4822 130 30621 1N4148
6906 4822 130 30621 1N4148
6910 4822 130 30621 1N4148
6911 4822 130 30621 1N4148
6915 4822 130 30621 1N4148
6916 4822 130 34382 BZX79-C8V2
6917 4822 130 30621 1N4148
6918 4822 130 30621 1N4148
6922 4822 130 10944
!
GBU6D
6923 4822 130 31878 1N4003G
6923 5322 130 80686 1N5392
6924 4822 130 31878 1N4003G
6924 5322 130 80686 1N5392
6925 4822 130 31878 1N4003G
6925 5322 130 80686 1N5392
6926 4822 130 31878 1N4003G
6926 5322 130 80686 1N5392
6927 4822 130 31878 1N4003G
6927 5322 130 80686 1N5392
6928 4822 130 31878 1N4003G
6928 5322 130 80686 1N5392
6930 4822 130 34233 BZX79-C5V1
6955 4822 130 34142 BZX79-C33
6956 4822 130 31878 1N4003G
TRANSISTORS & INTEGRATED CIRCUITS
7911 4822 130 40959 BC547B
7912 4822 130 40959 BC547B
7951 4822 130 41327 BC327-40
7952 4822 130 41327 BC327-40
Note : Only the parts mentioned in this list are normal
service spare parts.
0028 3139 114 70800 Holder STK 70/100W
1252 4822 267 10953 Flex Connector 7P
1259 4822 267 11039 Flex Connector 11P
1280 4822 071 51002
!
Fuse T1A
1321 4822 267 31176 L/R Speaker Terminal
CAPACITORS
2250 4822 124 40255 100uF 20% 63V
2251 4822 124 40248 10uF 20% 63V
2252 4822 122 10577 3,3nF 10% 16V
2253 4822 124 40433 47uF 20% 25V
2257 4822 124 40248 10uF 20% 63V
2258 5322 121 42386 100nF 5% 63V
2259 5322 121 42386 100nF 5% 63V
2260 4822 121 51387 10nF 20% 16V
2261 4822 124 41584 100uF 20% 10V
2263 4822 124 40248 10uF 20% 63V
2300 4822 124 40207 100uF 20% 25V
2320 4822 121 43693 10nF 100V
2321 4822 124 22652 2,2uF 20% 50V
2322 5322 121 42386 100nF 5% 63V
2323 4822 124 81144 1000uF 16V
2324 4822 124 22652 2,2uF 20% 50V
2325 4822 122 33195 100pF 10% 50V
2329 4822 124 81151 22uF 50V
2330 4822 122 33519 470pF 10% 50V
2332 4822 124 81151 22uF 50V
2335 4822 122 33519 470pF 10% 50V
2339 4822 122 33195 100pF 10% 50V
2340 4822 126 12726 47pF 5% 50V
2341 5322 121 42386 100nF 5% 63V
2342 4822 124 40764 22uF 100 V
2343 5322 121 42386 100nF 5% 63V
2344 4822 124 40764 22uF 100 V
2345 2020 561 90365 100nF +80/-20% 50V
2350 5322 124 40641 10uF 20% 100V
2355 5322 124 40641 10uF 20% 100V
2360 5322 121 42386 100nF 5% 63V
2362 4822 121 42868 220nF 5% 50V
2363 5322 121 42386 100nF 5% 63V
2365 4822 121 42868 220nF 5% 50V
2370 2020 561 90365 100nF +80/-20% 50V
2371 2020 561 90365 100nF +80/-20% 50V
2372 4822 126 12878 1,5nF 10% 16V
2390 5322 122 32261 4,7nF 10% 100V
2391 4822 124 40769 4,7uF 20% 100V
RESISTORS
3250 4822 116 52256 2k2 5% 0,5W
3251 4822 116 52256 2k2 5% 0,5W
3253 4822 116 83883 470R 5% 0,5W
3255 4822 116 52213 180R 5% 0,5W
3256 4822 116 52206 120R 5% 0,5W
3257 4822 050 21003 10k 1% 0,6W
3264 4822 050 21003 10k 1% 0,6W
3265 4822 050 11002 1k 1% 0,4W
3268 4822 116 52244 15k 5% 0,5W
3269 4822 116 83961 6k8 5%
3270 4822 050 11002 1k 1% 0,4W
3271 4822 116 52263 2k7 5% 0,5W
3272 4822 116 52289 5k6 5% 0,5W
3273 4822 116 52228 680R 5% 0,5W
3274 4822 116 52234 100k 5% 0,5W
3275 4822 050 23303 33k 1% 0,6W
3276 4822 116 83884 47k 5% 0,5W
3277 4822 116 52234 100k 5% 0,5W
3279 4822 116 83884 47k 5% 0,5W
3280 4822 116 52303 8k2 5% 0,5W
3281 4822 116 83882 39k 5% 0,5W
3283 4822 116 52228 680R 5% 0,5W
3284 4822 116 83884 47k 5% 0,5W
3285 4822 116 52291 56k 5% 0,5W
3292 4822 116 52263 2k7 5% 0,5W
3295 4822 050 11002 1k 1% 0,4W
3300 4822 116 83883 470R 5% 0,5W
3301 4822 117 12063 NTC DC 5W 10k 5%
3302 4822 116 83876 270R 5% 0,5W
3303 4822 050 11002 1k 1% 0,4W
3304 4822 052 10108
!
1R 5% 0,33W
3305 4822 116 83876 270R 5% 0,5W
3306 4822 116 83876 270R 5% 0,5W
3320 4822 116 83884 47k 5% 0,5W
3321 4822 116 52234 100k 5% 0,5W
3322 4822 050 21003 10k 1% 0,6W
3324 4822 116 52234 100k 5% 0,5W
3325 4822 050 23303 33k 1% 0,6W
3326 4822 116 83872 220R 5% 0,5W
3327 4822 050 21003 10k 1% 0,6W
3328 4822 050 11002 1k 1% 0,4W
3329 4822 050 21003 10k 1% 0,6W
3330 4822 116 52234 100k 5% 0,5W
3331 4822 116 52234 100k 5% 0,5W
3332 4822 116 52257 22k 5% 0,5W
3333 4822 050 11002 1k 1% 0,4W
3334 4822 116 52276 3k9 5% 0,5W
3335 4822 050 11002 1k 1% 0,4W
3336 4822 116 52291 56k 5% 0,5W
3337 4822 116 52228 680R 5% 0,5W
3338 4822 116 52256 2k2 5% 0,5W
3339 4822 116 52231 820R 5% 0,5W
3342 4822 116 52291 56k 5% 0,5W
3343 4822 116 52291 56k 5% 0,5W
ELECTRICAL PARTS LIST - LEFT/RIGHT AMPLIFIER & SUPPLY BOARD
RESISTORS
11-8 11-8
3344 4822 116 52186 22R 5% 0,5W
3345 3198 012 14790
!
47R 5% 1W
3346 3198 012 14790
!
47R 5% 1W
3347 4822 116 52228 680R 5% 0,5W
3350 2322 194 96001
!
0R33 5%
3351 2322 194 96001
!
0R33 5%
3352 2322 194 96001
!
0R33 5%
3353 2322 194 96001
!
0R33 5%
3354 4822 116 52228 680R 5% 0,5W
3355 4822 116 52231 820R 5% 0,5W
3356 4822 116 52297 68k 5% 0,5W
3358 4822 116 83884 47k 5% 0,5W
3359 2322 194 96001
!
0R33 5%
3360 2322 194 96001
!
0R33 5%
3361 2322 194 96001
!
0R33 5%
3362 2322 194 96001
!
0R33 5%
3363 4822 116 52231 820R 5% 0,5W
3364 4822 116 52228 680R 5% 0,5W
3365 4822 116 52297 68k 5% 0,5W
3367 4822 116 83884 47k 5% 0,5W
3368 4822 116 52297 68k 5% 0,5W
3369 4822 116 52297 68k 5% 0,5W
3370 4822 116 52256 2k2 5% 0,5W
3371 4822 050 24708 4R7 1% 0,6W
3373 4822 050 21003 10k 1% 0,6W
3374 4822 050 24708 4R7 1% 0,6W
3375 4822 050 21003 10k 1% 0,6W
3381 4822 116 83884 47k 5% 0,5W
3382 4822 116 83884 47k 5% 0,5W
3392 4822 116 52175 100R 5% 0,5W
3393 4822 116 52291 56k 5% 0,5W
3395 4822 116 52175 100R 5% 0,5W
COILS & FILTERS
5300 4822 157 70599
!
IND FXD BEAD EMI
5301 4822 157 70599
!
IND FXD BEAD EMI
DIODES
6250 4822 130 34281 BZX79-C15
6251 4822 130 61219 BZX79-B10
6253 4822 130 30621 1N4148
6254 4822 130 31878 1N4003G
6256 4822 130 30621 1N4148
6257 4822 130 30621 1N4148
6258 4822 130 34173 BZX79-B5V6
6259 4822 130 34278 BZX79-C6V8
6260 4822 130 30621 1N4148
6263 4822 130 30621 1N4148
6265 4822 130 34233 BZX79-C5V1
6320 4822 130 30621 1N4148
6321 5322 130 31504 BZX79-C3V3
6322 4822 130 30621 1N4148
6323 4822 130 30621 1N4148
TRANSISTORS & INTEGRATED CIRCUITS
7250 9322 139 23687 BDX53BFP
7251 4822 130 40959 BC547B
7253 4822 130 40959 BC547B
7257 4822 209 31841 L7805CP
7259 4822 130 40981 BC337-25
7260 4822 130 40959 BC547B
7261 4822 130 44568 BC557B
7262 4822 130 40959 BC547B
7263 4822 130 40959 BC547B
7300 4822 130 41246 BC327-25
7320 4822 130 44568 BC557B
7321 4822 130 40959 BC547B
7322 4822 130 40959 BC547B
7323 4822 130 40959 BC547B
7324 4822 130 41691 BC556B
7325 4822 130 40959 BC547B
7327 4822 130 41691 BC556B
7328 4822 130 41691 BC556B
7330 9322 160 21682 STK442-110
Note : Only the parts mentioned in this list are normal
service spare parts.
BRIEF INTRODUCTION OF THE AF9 BOARD
The AF9 Board consists of the following features :
a. TDA7468D IC
TDA7468D IC (7501) which includes functions such as source selection, loudness control, dynamic bass control, treble
control, volume control and muting function. Sound features such as ALC, DBB, DSC and IS are controllable via I2C Bus
from the microprocessor.
The TDA7468D IC caters for 4 input sources namely TUNER, TAPE, CD and AUX. It also has a Mic mix input. In our
application, software will switch the input source to previous source MUTE during STANDBY mode and some other
occasions where noise from other input source is undesirable.
Note that the input to the TDA7468D IC must be ac coupled to prevent 'polp' noise.
Input networks are included to provide appropriate attenuation for various sources.
b. SIMPLE MIC MIXING
The AF9 Board has provisions which can be configured to cater for one of the following:
MM : which caters for Mic mixing with additional Mic amplifier board.
NM : non Mic mixing.
c. DOLBY PRO LOGIC (DPL) INTERFACE
The AF9 Board has provisions which can be configured to cater for DPL.
d. LINE OUT
Line out cinch socket for connection to external amplifier.
e. SUB-WOOFER OUT
Sub-woofer out cinch socket for connection to active sub-woofer speaker.
f. INCREDIBLE SURROUND
Incredible surround effect using transistor circuit to create phase shifting and spatial effect.
g. HEADPHONE AMPLIFIER
Headphone amplifier to drive 32 ohm to 1kohm headphone.
h. CD STANDBY CONTROL
CD Standby Control circuit which switches on the supply to CD servo control IC, digital out buffer IC, HF circuit and the laser
light pen in CD mode only.
i. ATTENUATION NETWORK
Attenuation network is provided at the output of the AF9 Board for interfacing with power board of different output power.
j. CD DIGITAL OUT
CD Digital out cinch socket for connection to external digital audio decoders.
AF9 BOARD
TABLE OF CONTENTS
Brief Introduction of the AF9 Board ............................... 12-1
AF9 Board - Component layout ..................................... 12-2
AF9 Board - Chip layout ................................................ 12-3
AF9 Board - Circuit Diagram (Part 1) ............................ 12-4
AF9 Board - Circuit Diagram (Part 2) ............................ 12-5
AF9 Board - Circuit Diagram (Part 3) ............................ 12-6
Video Out Cinch part - Layout & Circuit diagram .......... 12-7
Electrical parts list.......................................................... 12-7
12-1 12-1
AF9 BOARD - COMPONENT LAYOUT
12-2 12-2
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3435 pt4 dd wk0123
12-3 12-3
AF9 BOARD - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3435 pt4 dd wk0123
12-4 12-4
AF9 BOARD - CIRCUIT DIAGRAM (PART 1)
VOLUME I
RIGHT
SUR.
SOURCE
SUPPLY
POWER
SELECTOR
TREBLE
LEFT
VOLUME II
LOGIC
LEFT
REC
IIC BUS
BASS ALC
BASS
LEFT
VOLUME I
LEFT
SUR.
TREBLE
RIGHT
VOLUME II
RIGHT
BASS
RIGHT
D...for DPL
P...provision
I
1501 E1
1502 E3
1503 F1
1504 H1
1505 E4
1506 A1
1510 F1
1531 C1
1532 C2
1691 H5
2201 B7
2202 C7
2203 D7
2204 C6
2205 C5
2206 C7
2501 E2
2502 E2
2503 D3
2504 E3
2505 F5
2506 F7
2507 E7
2511 A4
2512 B4
2513 A4
2514 B4
2515 F6
2516 F7
10n for S
Game Sound Port
1 234567891011121314
1 234567891011121314
A
B
P
SUBWOOFER
OUT
18K for S
P
P
P
P
10n for S
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
FULL I.S.
SOLID STATE
#
P
2521 A4
2522 A4
2523 F6
2524 F6
2531 D4
2532 C4
2533 F6
2534 F7
2535 B3
2536 C3
2541 A8
2542 H8
2543 C9
2544 G9
2546 F9
2547 B10
2548 G10
2549 C11
2550 F11
2551 C11
2552 F11
2553 B12
2554 G11
2555 B12
2556 H11
2557 B13
2558 G12
2559 C12
P
SIMPLE I.S.
2560 G12
2561 C14
2562 G14
2563 C14
2564 G14
2565 C9
2567 B9
2568 G9
2589 A10
2590 I9
2591 A10
2592 I10
2593 A11
2594 I11
2641 D13
2642 E13
2661 G2
2662 I2
2663 H2
2664 I2
2665 H2
2666 H2
2667 G1
2669 E1
2696 G7
2697 H7
2698 G5
2707 E11
2708 E12
2904 G1
FULL I.S.
#
10K for S
2908 E12
2921 G5
2923 B1
2924 F5
3201 B6
3202 C6
3435 D3
3436 D3
3437 D3
3438 D3
3501 D1
3502 E1
3503 D2
3504 E2
3505 E2
3506 E2
3507 E3
3508 E3
3511 A3
3512 B3
3513 A3
3514 B3
3521 A3
3522 A3
3523 A3
3524 A3
3525 E6
3526 E7
3531 C2
D
3532 C3
3533 B3
3534 C3
3541 A7
3542 I7
3543 A9
3544 I9
3545 B9
3546 G9
3547 C9
3548 F9
3549 B9
3550 G9
3551 C11
3552 F11
3553 C11
3554 F11
3555 C12
3556 F12
3557 C12
3558 G12
3559 C14
3560 F14
3561 B14
3562 F14
3563 A12
3564 G11
3565 B12
3566 G11
3567 B12
3568 H11
P
CDR
3569 B13
3570 H11
3571 B13
3572 G13
3591 A10
3592 I10
3593 A10
3594 I10
3641 D14
3642 E14
3643 D12
3645 D11
3646 E11
3661 G3
3662 I3
3663 G3
3664 H3
3665 G1
3666 H1
3667 G3
3668 I3
3669 I3
3690 H7
3699 G6
3700 H6
3707 E12
3708 E12
3712 I3
4501 F5
4641 D14
D
10K for S
#
only for
S
S
4642 E14
4813 G5
4920 E1
5403 A1
5404 B1
6201 C6
6202 C6
6641 D13
6642 E13
7201 B6
7485 C14
7488 G14
7501 C8
7585 B13
7586 G11
7661 G2
7662 H2
7663 H3
7693 H6
9618 A1
9654 B1
S...for simple I.S.
P
SIMPLE I.S.
GND_D
A_Tp
only for
P
AUX IN
18K for S
P
LINE OUT
PP
# only for
A_Tp
GND_A
GND_A
GND_A
3561
1K
47K
3544
220u
2204
A_Mic
3501
4K7
1n8
2552
A_Aux
3572
A_Tp
A_CD
12K
3504
4920
GND_EMC
FE-BT-VK-N
1502
1
2
3
4
5
A_Tp
470n
2594
GND_A
9654
680K
3565
3K3
3547
470n
2666
470p
8K2
3555
GND_A
A_Aux
220K
3568
3532
1K5
A_HP
470p
2665
2n2
2205
2589
1K
3690
SUB_W
27K
3533
220n
3507
10K
BC817-25
7693
17
14
15
9
20
1
2697
470p
13
28
3
26
4
25
5
24
6
23
8
21
2
7
22
12
TDA7468
7501
16
10
19
11
18
27
GND_A
CD_Left
3699
470R
1510
FE-BT-VK-N
1
2
3
4
5
GND_A
GND_A
YKC21-3418
1501
1
2
4
3
1N4148
6641
MUTE_SW_FR
5K6
3594
3700
3K3
GND_A
2696
22u
3541
1K
GND_A
1n
2641
GND_A
2202
22u
GND_A
3666
470R
GND_A
FE-BT-VK-N
1531
1
2
3
4
5
6
7
820R
3512
5K6
3546
GND_A
GND_EMC
470R
3665
BC847B
7586
GND_A
15K
3506
GND_A
2501
2507
100n
TU_Left
3543
47K
100p
5K6
3554
8K2
A_Aux
DPL_L
100p
2502
GND_A
7585
BC847B
SS_L
8K2
3558
2531
4u7
1K
3435
A_Mic
100n
2698
GND_A
3593
5K6
A_Aux
A_DPL
4u7
2536
2542
0u47
2553
3n3
2206
22n
3505
15K
100p
2524
GND_AGND_A
2555
470p
1n
2514
GND_A
3643
12K
3n3
2548
8K2
3591
BC847B
7485
GND_A
2560
1n
100p
2708
A_CD
1K
3542
MIC_DET
330n
33K
3560
1503
FE-BT-VK-N
1
2
3
4
2592
1691
YKC21-3416
1
3
2
33n
2203
47u
2511
GND_A
2543
GND_A
3712
100K
1u
A_TU
GND_A
6202
BZX55-C9V1
GND_A
GND_A
EH-B
1506
1
2
2503
1u
GND_A
3521
1K
TU_Right
5K6
3549
3502
1u
2504
1n8
2551
4K7
A_TU
330n
2591
2564
470p
A_Aux
1K
3708
470n
2593
A_Aux
4K7
3437
100p
2534
3201
820R
2522
100n
1N4148
+12V_M
A_TU
1K5
3531
6642
3571
8K2
2923
10n
3569
10K
100p
2505
GND_A
7488
BC847B
3550
5K6
GND_A
100p
2516
10K
3508
DPL_R
GND_A
GND_A
A_Tp
A_CD
6201
1N4148
GND_A
GND_A
GND_M
Line_R
A_Tp
220R
3641
100n
2667
GND_A
220R
3646
4641
3645
220R
GND_A
100p
2707
2908
100n
GND_A
2512
1u
GND_A
10K
100n
2521
+12V_A
3513
3K3
3564
2546
4n7
2513
1n
8K2
3557
2506
GND_A
A_Tp
GND_A
GND_A
-CMOS
100p
I2C_Clk
3K3
3548
1K
3562
3522
1K
1n
2567
4813
2550
150R
3202
BC847B
7201
GND_A
2921
100n
GND_EMC
4501
1
2
4
3
-Vkk
1504
YKC21-3418
5K6
3553
100n
2557
A_Tp
470R
3526
3567
220K
4u7
2532
CD_Right
100n
2558
3K3
3514
8K2
3556
Line_L
2547
3n3
2544
33n
220R
3642
0u47
2541
3559
33K
3503
12K
470p
2563
2559
1n
I2C_Data
5K6
3551
GND_A
A_Aux
4n7
2565
+12V_A
680K
3566
GND_A
GND_A
SS_R
+12V_A
220p
2562
2669
A_CD
2904
100n
2u2
5403
100n
5404
2u2
9618
3436
2535
4u7
2662
1u
1K
820R
2K7
3661
3523
4K7
3511
1n
2924
2561
220p
4642
4K7
3524
5K6
3552
3525
470R
2554
10K
3570
2568
470p
2556
3n3
100p
2533
1n
GND_A
1K
3707
3592
8K2
2523
100p
GND_A
3534
27K
1n
2663
A_Aux
7662
BC847B
BC847B
7661
GND_A
GND_A
GND_A
470n
2549
6
7
220n
2590
A_CD
FE-BT-VK-N
1532
1
2
3
4
5
3438
4K7
GND_A
2201
100u
1
2
3
100p
2515
3545
5K6
EH-B
1505
3662
2K7
1n
2642
+5V6
3667
1M
1u
2661
3668
4K7
GND_A
10K
3563
GND_A
GND_A
BC857B
7663
3669
10K
3663
GND_A
GND_A
3664
2K2
2K2
LINE_R
LINE_L
VOL_L
TP_LEFT
2664
1n
TP_REC_LEFT
TP_REC_RIGHT
+12V_A
TP_RIGHT
-CMOS
MIC_DET
GND_A_Tp
VOL_R
Mute2
+IS
+9.1V
SS_L
SS_R
VREF
+IS
LINE_L
LINE_R
+IS
+IS
+IS
ALC_LEVEL
3139 118 53770...88340 for...3435 pt4 dd wk0123
Note : Some values may varies, see respective parts list
for correct value.
4.6V
1V
4.6V
0V
5.6V
5.4V
11.7V
9.8V
9.1V
4.6V
5.9V
0V
0V
1V
12-5 12-5
AF9 BOARD - CIRCUIT DIAGRAM (PART 2)
88
88 8
CHIP SELECT
I2C BUS
TRANSCEIVER
I/O PORT
DATA LATCHES
PWR
RES OUT I/O IN
SHIFT
REG
8
2606
I
1102 H3
1103 H3
1602 B13
1603 E7
2401 F13
2402 F12
2403 F12
2404 F11
2581 D2
2582 G2
2583 D2
2584 F2
2585 D2
2586 F2
2587 D2
2588 F2
2601 E2
2602 G2
2603 D2
2604 F2
2902
12345678910111213
12345678910111213
A
B
1K
3644
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
5K6
3640
2605 D3
2606 G3
2607 D3
2608 F3
5
1602
FE-BT-VK-N
1
2
3
4
2609 E3
2610 F3
2611 D4
2612 F4
2621 B2
5K6
3624
2622 G11
2623 G5
2624 G5
2625 G13
2626 H10
2653 A7
2654 B7
2681 A10
2682 B10
2683 B9
2691 B3
BC847B
7621
2771 I6
2772 I6
2902 H2
2905 G12
2922 D7
3401 E13
3402 E13
3403 F12
3404 D11
3405 D11
3406 E11
3408 E10
3409 D10
3410 D9
3581 D3
3582 G3
3601 D3
3602 G3
3605 E2
3606 F2
3607 E2
3608 F2
3609 E3
3610 F3
3611 D5
3612 F5
3613 E5
3614 F5
3615 D5
3616 F5
3619 C13
3620 B12
3621 H9
3622 H9
3623 G10
3624 G10
3625 G10
3626 H11
aa
3627 G5
3628 G13
3629 G13
3630 E5
3631 D7
3633 B2
3634 B2
3635 C3
3636 B3
3637 C2
3638 B3
3639 A4
3640 C7
3644 I1
3651 A4
3652 C5
3653 A5
3654 B5
3655 A6
3656 C6
3657 A6
3658 B6
3659 E4
3660 F4
3671 I7
3677
10M
3672 H7
3673 I7
3674 H7
3675 I6
3676 H6
3677 I5
3678 I5
100p
2622
MUTE_SW
3683 B9
3684 C9
3686 C10
3687 B10
3688 A10
3689 A11
3692 B10
3694 E10
3711 D10
4403 E11
4404 E10
P
P
HighPower / ALC Enable
For VCD sets only
P
P
P
For CDR sets only
For DVD sets only
FROM / TO VC
P...provision
TAPO
C380/37
3K3 4K7
P
6K8 8K2 15K10K
C500/37 C780/37 C380/21 P750/37
4405 F10
4406 F10
P...provision
P
W
W
W
W
W
W
W
P
PP
P
W
P
P
P
P
4407 H13
4811 E2
4812 F2
FRONT
3644 1K 2K2
5401 E12
5621 G5
6401 F11
6771 I6
6772 I4
6774 B4
6775 H6
7401 D10
7402 E10
7403 C12
7601-A G3
7601-B D3
7603 E6
7604 F6
W
3K9 for W
3K9 for W
W
7621 F10
7622 F11
7623 H10
7635 B3
7636 C2
7651 A7
7652 B7
7653 B5
7654 B5
7681 B11
7682 B10
7803 B2
9401 D9
9402 F10
9599 I2
5401
2u2
GND_D
P
P
P
CDR_On
4405
VCDorCDRon VCD_ON
4404
4406
CDR_On
DPL_ReqDVD_ON I2C_Data
I2C_Clk
DPL_Req
1N4148
6401
CD_PORE1
AmOn
470R
3401
GND_D
1K
4403
GND_D
3406
1K
3404
10K
3405
+5V
100u
2625
D3
7
D4
9
D5
10
D6
11
D7
12
GND
8
SCL
2
SDA
3
SO
1
VDD
13
7403
M62320FP
16
CS0
CS1
15
CS2
14
D0
4
5
D1
D2
6
+5V_VCD 9402
GND_D GND_D
+5V_CD
2401
100p
100p
2402
+5V_CD
470R
3402
9401
3711
5K6
+5V6
2R2
3410 BC327-25
7401
7402
GND_D
5K6
3409
GND_D
VCD_ON
BC847B 2K2
3694
10K
3408
GND_D
+5V
+5V6
100n
2404
100R
3403
1K
3619
GND_D
2403
100n
2624
22n
22u
2612
3627
10R
2623
47u
5621
2u2
MUTE_SW 1K
3658
100p
2654
7652
BC817-25
3657
1K
2653
100p
A_HP
BC817-25
7651
3606
1K
1K
3605
3607
6K8
A_HPA_HP
6
VC_OUT_LEFT
VC_OUT_RIGHT
390R
3688
3654
1K
aa
3651
1K
1K
3653
3655
1K
3656
1K
3631
1K
GND_D
7803
BC847B
+5V
22u
2621
1K
3633
GND_D
GND_D 3635
10K
5K6
3634
BC847B
7636
SUB_W
A_HP
1K
3652
3659
3K33K3
3660
4K7
3625
1603
4M7
3630
NJM4556AM
7601-B
5
6
7
8
4
3
2
1
4
FE-BT-VK-N
2602
1n
3678
470K
27K
3609
A_HP
A_HP
180p
2609
470p
2607
12K
3601
100p
2605
GND_A
22u
2603
2608
470p
1n
2601
150K
3684
GND_A
GND_A
150K
3683
3686
82K
2683
100n
GND_A
3692
330K
7682
BC847B
2682
15p
SA_IN
GND_A
GND_A
-Vkk
3687
1K2
+12V_A
47u
2681
+5V6
3689
150R
1N4148
6772
3K3
3675
GND_A
680K
3676
GND_A GND_A
0u47
2772
2771
0u47
GND_A
GND_D GND_D GND_D
4K7
3626
GND_D
7623
10u
2626
3622
10K
BC847B
1K
3623
10K
3621
7622
BC857B
47K
27K
3674
3671
47K
3672
3615
33R
33R
3616
1N4148
6775
3673
27K
AMP_LEFT
AMP_RIGHT
BC817-25
7604
3614
1K
1K
3613
A_HP
7603
BC817-25
3612
47R
47R
3611
3637
10K
3638
4K7
BC857B
7635
3636
4K7
1N4148
6774
+5V6
2691
100p
aa
MUTE_SW_FR
GND_D
3639
4M7
2611
22u
7601-A
NJM4556AM
3
2
1
8
4
+12V_A
+12V_A
6771
GND_A
2922
100p
GND_D
1N4148
22n
2905
A_HP
7654
BC817-25
VC_OUT_LEFT
VC_OUT_RIGHT
BC817-25
7653
4811
2586
47n
4812
47n
2582
3582
15K
2588
470n
15K
3581
470n
2584
470n
2587
47n
2585
2583
470n
4407
2581
47n
CD_PORE CD_PORE1
4K7
36283629
4K7
A_HP
2604
22u
3610
27K
6K8
3608 2610
180p
100p
A_HP
3602
12K
BC857B
7681
-Vkk
1102
1
GND_EMC
470n
1103
1
1K
3620 A_HP
+12V_A
Mute1
MUTE_SW
9599
HP_DET
HP_in_R
HP_in_L
ALC_Enable
VREF
ALC_LEVEL
SS_L
SS_R
VOL_L
VOL_R
HPREF
B_REF3
B_REF3
HPREF
HPREF
HPREF
HPREF
VC_LEFT
VC_RIGHT
B_REF3
ALC_Enable
Mute1
Mute2
VC_LEFT
VC_RIGHT
P...provision
W...Provision for Woox only
3139 118 53770...88340 for...3435 pt4 dd wk0123
Note : Some values may varies, see respective parts list for correct value.
P
0.6V
5.4V
4.8V
0.2V
0.7V
4.9V
3.2V
3.9V
0.7V
5.9V
5.9V
5.9V
11.6V
5.9V
5.9V
5.9V
5.9V
0.2V
0V
0V 0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
5.4V
0V
0.2V
0.7V
AF9 BOARD - CIRCUIT DIAGRAM (PART 3)
12-6 12-6
P
456789
A
B
C
D
E
F
A
B
C
D
E
F
1100 F6
1201 C1
1202 E1
1203 C1
1204 E1
1205 C1
1206 C1
1401 A9
1402 D9
1403 A9
1404 D9
1405 A9
1520 E6
GND_D
GND_A
9.3V
I2C_CLK
CD_SH_CLK
TU_ENAB
DSA_STB/GND_D
123456789
123
GND_D
P
For VCD version only
SRDT
+12V_M
UP_CLK
1521 A7
1522 A6
1523 D6
1524 A5
1525 B5
1541 D4
1542 D4
1801 A1
2207 D3
2208 F2
2209 E3
2210 F2
2211 F3
2520 E7
2801 B4
2802 C3
2803 B3
2804 B3
2805 B2
2806 B2
2807 B1
2808 B4
2809 B4
2810 A4
2901 F6
2950 E7
FROM/TO
-32V
PORE / DSA_STB
4.9V
3.5V
I2C_DATA
-10V
P
NTC
2951 E7
2952 E7
2953 E7
2954 E6
2955 E1
3205 D2
3412 A8
3801 B4
3802 A4
3803 B3
3804 A3
3805 B2
3806 A1
3807 B4
3808 A3
3809 B2
3820 E3
3821 E2
3822 F3
4801 B4
4802 C4
4903 B8
4904 F7
GND_D
GND_A
+5V6_CON
FROM/TO TUNER
GND_M
GND_D
GND_D
+12V_A
FROM / TO DPL Board
For VCD version only
FRONT
Tu_Gnd
SICL
P
UP_CLK
CD_SH_DATA
4905 C3
4906 A5
4907 C8
4908 C8
4909 A3
4910 A3
4911 A4
4912 B8
4913 B8
4914 B5
4915 C8
4921 B1
5801 B2
5802 A3
6204 F7
6205 D3
4.5V
MIC_DET
DQSY
8.5V
TU_STEREO
GND_D
GND_D
SA_IN
COAX1
FROM/TO 3CDC
CD_LEFT
FROM / TO Power Board
6206 F3
6207 C5
6208 C5
6209 F3
7202 E3
7404 F3
7802 A3
9405 C8
9483 F6
9484 D4
9486 E7
9614 E3
9634 E2
9904 F7
DPL_CLK
P
TU_ENAB
F1
CD_SH_CLK
For Non-VCD version only
DPL_DATA
DPL_VOL_CLK
DQSY
SHIELD
P
SW_INFO
COAX2
COAX
CD_SH_DATA
+5V_CD
OUT F2
SW_INFO
P
-VKK
FRONT
+5V6
SRDT
SILD
+11V_D
P
CD_SH_STR
CLIP
FROM/TO
HP_DET
CD_SH_STR
P
2.9V
GND_D
GND_D
TU_DATA
GND_D
TU_DATA
TU_CLK TU_CLK
FROM / TO Power Board
SILD
POWER_DOWN
For CDR version only
LOW_PWR_CTRL
DIGITAL
TU_STEREO
CD_RIGHT
SICL
GND_D
CD_Left
2210
220n
A_DPL
470p
2953
100n
2807
F2
13
14
2
3
4
5
6
7
8
9
1203
16
17
18
19
2
3
4
5
6
7
8
9
6206
GND_D
DPL_R
3809
HP_DET
Low_Pw_Ctrl
9634
3804
220R
4915
+5V6
AMP_CS_DC
GND_M
A_CD
F2
Pw_Dn
aa
+5V6_Con
1
2
3
4
1520
FE-BT-VK-N
9484
10n
2520
GND_A
GND_EMC
DPL_L
9483
GND_D
11
5Y
10
6A
13
6Y
12
GND
7
VCC
14
+12V_A
2954
47n
75R
3806
4906
D_Text
MIC_DET
GND_D
DSA_STB
470p
2951
4909
GND_D
3801
470R
GND_EMC
1N4003
6208
TU_Left
DVD_ON
14
2
3
4
5
6
7
8
9
2901
100n
A_DPL
-Vkk
9614
GND_D
NTC
220n
2208
9486
GND_A
SS_R
Low_Pw_Ctrl
4912
10
11
2
3
4
5
6
7
8
9
DSA_STB
DPL_Vol_Clk
DPL_Vol_Clk
I2C_Data
DPL_Clk
AMP_RIGHT
+5V6_Con
GND_D
F1
BZX79-B3V3
6204
1n
GND_M
FE-BT-VK-N
1201
4914
GND_D
1
2
3
1525
FE-BT-VK-N
7202
MC78L05
+12V_M
4904
I2C_Clk
CD_Right
D_Text
+12V_M
VCDorCDRon
+5V6
AMP_LEFT
4907
FE-BT-VK-N
1542
1
2955
2K2
3807
DPL_Data
+12V_A
560R
3803
3802
22K
5
6
7
8
5802
2u2
GND_D
4905
9405
470p
2950
2952
100p
47p
2810
3205
5K6
aa
1205
1
10
11
12
13
EH-B
1524
1
2
3
14
15
2
3
4
5
6
7
8
9
1100
1523
FE-BT-VK-N
1
10
11
12
13
4801
DPL_Data
Clipping
100n
2808
Clipping
AmOn
1K
3412
1n
2804
100n
18
19
2
20
23
22
21
3
4
5
6
7
8
9
FE-BT-VK-N
1403 1
10
11
12
13
14
15
16
17
GND_D
FE-BT-VK-N
1541
1
10
11
12
220R
3805
-CMOS
2802
1206
1
1402
1
10
11
2
3
4
5
6
7
8
9
SA_IN
F1
DPL_Clk
FE-BT-VK-N
2801
100n
D_DPL
23
22
21
3
4
5
6
7
8
9
4910
1
10
11
12
13
14
15
16
17
18
19
2
20
GND_D
+12V_A
1521
FE-BT-VK-N
4903
4908
4
6
BZX79-C10
6205
5801
6RG 1
2
3
74LVU04D
7802
1A
1
1Y
2
2A
3
2Y
4
3A
5
3Y
6
4A
9
4Y
8
5A
Pw_Dn
1204
EH-B
1
2
3
4
5
6
7
9904
1
10
11
12
13
14
15
2
3
4
5
6
7
8
9
+5V6
47R
FE-BT-VK-N
1404
DPL_Req
D_DPL
2806
150p
47u
2207
7404
BC817-25
6209
BZX79-C6V8
+12V_M
4
5
6
7
8
4913
1u
2803
1202
EH-B 1
2
3
MIC_DET
NTC
GND_D
+12V_M
GND_D
GND_D
1N4003
AMP_CS_DC
1522
FE-BT-VK-N
1
10
11
12
13
14
15
CD_PORE
+5V_VCD
AmOn
4
5
6
7
8
9
TU_Right
-Vkk
+5V_CD
GND_M
47u
2209
GND_D GND_D
3821
10R
100n
2211
A_TU
6207
1N4003
3822
270R
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
+5V
1405
1
4
5
6
7
8
9
SS_L
4911 1
10
11
12
13
14
15
16
17
18
19
2
3
YKC21-3416
1801
1
3
2
1401
10
11
12
13
2
3
4
5
6
7
8
9
GND_D
2809
100n
GND
IN OUT
3820
10R
CD_PORE
+5V_CD
4921
GND_D
22K
3808
2805
100n
4802
P...provision
3139 118 53770...88340 for...3435 pt4 dd wk0123
Note : Some values may varies, see respective parts list for correct value.
P
12-7 12-7
ELECTRICAL PARTS LIST - AF9 BOARD
VIDEO OUT CINCH BOARD -
COMPONENT LAYOUT
VIDEO OUT CINCH BOARD -
CHIP LAYOUT
VIDEO OUT CINCH PART - CIRCUIT DIAGRAM
123
123
A
B
A
B
20 B3 1803 B1 1809 A1 2885 A1
1
2
10n
2885
YKC21-3564
1803
3
2
1
20 DIPMATE
18091
Note : Some values may varies, see respective parts list for correct value.
3139 118 53770...88380 for...3435 pt4 dd wk0123
3139 113 3435 pt4 dd wk0123
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
and respective parts list.
3139 113 3435 pt4 dd wk0123
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
and respective parts list.
1206 4822 267 11039 Flex Connector 11P
1401 4822 265 11553 Flex Connector 19P
1402 4822 267 11039 Flex Connector 11P
1501 4822 265 20553 Cinch Socket - Aux in
1504 4822 265 20553 Cinch Socket - Line out
1520 4822 265 11515 Flex Connector 8P
1522 4822 265 11553 Flex Connector 19P
1531 4822 267 10953 Flex Connector 7P
1603 4822 267 10733 Flex Connector 4P
1801 4822 267 31729 Cinch Socket - Digital out
CAPACITORS
2201 4822 124 40207 100uF 20% 25V
2202 4822 124 81151 22uF 50V
2203 4822 124 40433 47uF 20% 25V
2204 4822 124 40196 220uF 20% 16V
2205 4822 126 14238 2,2nF 50V
2206 4822 126 14494 22nF 10% 25V
2207 4822 124 40433 47uF 20% 25V
2208 4822 126 13879 220nF +80/-20% 16V
2209 4822 124 41751 47uF 20% 50V
2210 4822 126 13879 220nF +80/-20% 16V
2401 4822 122 31765 100pF 2% 63V
2402 4822 122 31765 100pF 2% 63V
2403 4822 126 14305 100nF 10% 16V
2404 4822 126 14305 100nF 10% 16V
2501 4822 122 31765 100pF 2% 63V
2502 4822 122 31765 100pF 2% 63V
2503 4822 124 22466 1uF 20% 50V
2504 4822 124 22466 1uF 20% 50V
2505 4822 122 31765 100pF 2% 63V
2506 4822 122 31765 100pF 2% 63V
2507 4822 126 14305 100nF 10% 16V
2511 4822 124 22466 1uF 20% 50V
2512 4822 124 22466 1uF 20% 50V
2513 3198 016 31020 1nF 25V
2514 3198 016 31020 1nF 25V
2515 4822 122 31765 100pF 2% 63V
2516 4822 122 31765 100pF 2% 63V
2521 4822 126 14305 100nF 10% 16V
2522 4822 126 14305 100nF 10% 16V
2523 4822 122 31765 100pF 2% 63V
2524 4822 122 31765 100pF 2% 63V
2531 4822 124 40769 4,7uF 20% 100V
2532 4822 124 40769 4,7uF 20% 100V
2533 4822 122 31765 100pF 2% 63V
2534 4822 122 31765 100pF 2% 63V
2535 4822 124 40769 4,7uF 20% 100V
2536 4822 124 40769 4,7uF 20% 100V
2541 4822 124 41407 0,47uF 20% 63V
2542 4822 124 41407 0,47uF 20% 63V
2543 5322 126 11583 10nF 10% 50V
2544 5322 126 11583 10nF 10% 50V
2546 4822 121 43856 4,7nF 5% 250V
2547 5322 126 11579 3,3nF 10% 63V
2548 5322 126 11579 3,3nF 10% 63V
2565 4822 121 43856 4,7nF 5% 250V
2567 3198 016 31020 1nF 25V
2568 3198 016 31020 1nF 25V
2589 4822 121 42408 220nF 5% 63V
2590 4822 121 42408 220nF 5% 63V
2591 5322 121 42661 330nF 5% 63V
2592 5322 121 42661 330nF 5% 63V
2593 4822 121 51252 470nF 5% 63V
2594 4822 121 51252 470nF 5% 63V
2601 3198 016 31020 1nF 25V
2602 3198 016 31020 1nF 25V
2603 4822 124 81151 22uF 50V
2604 4822 124 81151 22uF 50V
2605 4822 122 31765 100pF 2% 63V
2606 4822 122 31765 100pF 2% 63V
2607 4822 126 13881 470pF 5% 50V
2608 4822 126 13881 470pF 5% 50V
2609 4822 126 14508 180pF 5% 50V
2610 4822 126 14508 180pF 5% 50V
2611 4822 124 81151 22uF 50V
2612 4822 124 81151 22uF 50V
2621 4822 124 81151 22uF 50V
2622 4822 122 31765 100pF 2% 63V
2623 4822 124 40433 47uF 20% 25V
2624 3198 017 42230 22nF 50V
2625 4822 124 40207 100uF 20% 25V
2626 4822 124 40248 10uF 20% 63V
2641 3198 016 31020 1nF 25V
2642 3198 016 31020 1nF 25V
2653 4822 122 31765 100pF 2% 63V
2654 4822 122 31765 100pF 2% 63V
2661 4822 124 21913 1uF 20% 63V
2662 4822 124 21913 1uF 20% 63V
2663 3198 016 31020 1nF 25V
2664 3198 016 31020 1nF 25V
2665 4822 126 13881 470pF 5% 50V
2666 4822 126 13881 470pF 5% 50V
2667 4822 126 14305 100nF 10% 16V
2669 4822 126 14305 100nF 10% 16V
2681 4822 124 40433 47uF 20% 25V
2682 4822 122 33752 15pF 5% 50V
2683 4822 126 14305 100nF 10% 16V
2691 4822 122 31765 100pF 2% 63V
2707 4822 122 31765 100pF 2% 63V
2708 4822 122 31765 100pF 2% 63V
2771 4822 124 41407 0,47uF 20% 63V
2801 4822 126 14305 100nF 10% 16V
2802 3198 016 31020 1nF 25V
2803 4822 124 40756 1uF 20% 100V
2804 4822 126 14305 100nF 10% 16V
2805 4822 126 14305 100nF 10% 16V
2806 4822 122 33753 150pF 5% 50V
2807 4822 126 14305 100nF 10% 16V
2808 4822 126 14305 100nF 10% 16V
2809 4822 126 14305 100nF 10% 16V
2810 4822 122 33777 47pF 5% 63V
2901 4822 126 12882 100nF +80/-20% 50V
2902 3198 017 44740 470nF 10V
2905 3198 017 42230 22nF 50V
2908 4822 126 14305 100nF 10% 16V
2950 4822 126 13881 470pF 5% 50V
2951 4822 126 13881 470pF 5% 50V
2952 4822 122 31765 100pF 2% 63V
2953 4822 126 13881 470pF 5% 50V
ELECTRICAL PARTS LIST - AF9 BOARD
MISCELLANEOUS
12-8 12-8
ELECTRICAL PARTS LIST - AF9 BOARD
RESISTORS
ELECTRICAL PARTS LIST - AF9 BOARD
3201 4822 117 12968 820R 5% 0,62W
3202 4822 051 30151 150R 5% 0,062W
3205 4822 116 52289 5k6 5% 0,5W
3401 4822 051 30471 470R 5% 0,062W
3402 4822 051 30471 470R 5% 0,062W
3403 4822 116 52175 100R 5% 0,5W
3405 4822 051 30103 10k 5% 0,062W
3408 4822 051 30103 10k 5% 0,062W
3409 4822 051 30562 5k6 5% 0,063W
3412 4822 050 11002 1k 1% 0,4W
3435 4822 050 11002 1k 1% 0,4W
3436 4822 050 11002 1k 1% 0,4W
3501 4822 051 30472 4k7 5% 0,062W
3502 4822 051 30472 4k7 5% 0,062W
3503 4822 051 30123 12k 5% 0,062W
3504 4822 051 30123 12k 5% 0,062W
3505 4822 051 30153 15k 5% 0,062W
3506 4822 051 30153 15k 5% 0,062W
3511 4822 117 12968 820R 5% 0,62W
3512 4822 117 12968 820R 5% 0,62W
3513 4822 051 30332 3k3 5% 0,062W
3514 4822 051 30332 3k3 5% 0,062W
3521 4822 051 30102 1k 5% 0,062W
3522 4822 051 30102 1k 5% 0,062W
3525 4822 051 30471 470R 5% 0,062W
3526 4822 051 30471 470R 5% 0,062W
3531 4822 051 30152 1k5 5% 0,062W
3532 4822 051 30152 1k5 5% 0,062W
3533 4822 051 30273 27k 5% 0,062W
3534 4822 051 30273 27k 5% 0,062W
3543 4822 117 12925 47k 1% 0,063W
3544 4822 117 12925 47k 1% 0,063W
3545 4822 051 30562 5k6 5% 0,063W
3546 4822 051 30562 5k6 5% 0,063W
3547 4822 051 30103 10k 5% 0,062W
3548 4822 051 30103 10k 5% 0,062W
3549 4822 051 30183 18k 5% 0,062W
3550 4822 051 30183 18k 5% 0,062W
3591 4822 117 12902 8k2 1% 0,063W
3592 4822 117 12902 8k2 1% 0,063W
3593 4822 051 30562 5k6 5% 0,063W
3594 4822 051 30562 5k6 5% 0,063W
3601 4822 116 52238 12k 5% 0,5W
3602 4822 116 52238 12k 5% 0,5W
3607 4822 051 30682 6k8 5% 0,062W
3608 4822 116 83961 6k8 5%
3609 4822 051 30273 27k 5% 0,062W
3610 4822 051 30273 27k 5% 0,062W
3611 4822 051 30479 47R 5% 0,062W
3612 4822 051 30479 47R 5% 0,062W
3613 4822 051 30102 1k 5% 0,062W
3614 4822 051 30102 1k 5% 0,062W
3615 4822 051 30339 33R 5% 0,062W
3616 4822 051 30339 33R 5% 0,062W
3621 4822 051 30103 10k 5% 0,062W
3622 4822 051 30103 10k 5% 0,062W
3623 4822 051 30102 1k 5% 0,062W
3624 4822 051 30562 5k6 5% 0,063W
3625 4822 051 30472 4k7 5% 0,062W
3626 4822 051 30472 4k7 5% 0,062W
3627 4822 052 10109
!
10R 5% 0,33W
3628 4822 116 52283 4k7 5% 0,5W
3629 4822 051 30472 4k7 5% 0,062W
3631 4822 050 11002 1k 1% 0,4W
3633 4822 051 30102 1k 5% 0,062W
3634 4822 051 30562 5k6 5% 0,063W
3635 4822 051 30103 10k 5% 0,062W
3636 4822 051 30472 4k7 5% 0,062W
3637 4822 051 30103 10k 5% 0,062W
3638 4822 051 30472 4k7 5% 0,062W
3640 4822 116 52289 5k6 5% 0,5W
3644 4822 051 30332 3k3 5% 0,062W
3645 4822 051 30221 220R 5% 0,062W
3646 4822 051 30221 220R 5% 0,062W
3651 4822 051 30102 1k 5% 0,062W
3652 4822 051 30102 1k 5% 0,062W
3653 4822 051 30102 1k 5% 0,062W
3654 4822 051 30102 1k 5% 0,062W
3655 4822 051 30102 1k 5% 0,062W
3656 4822 051 30102 1k 5% 0,062W
3657 4822 051 30102 1k 5% 0,062W
3658 4822 051 30102 1k 5% 0,062W
3661 4822 051 30272 2k7 5% 0,062W
3662 4822 051 30272 2k7 5% 0,062W
3663 4822 116 52256 2k2 5% 0,5W
3664 4822 051 30222 2k2 5% 0,062W
3665 4822 051 30471 470R 5% 0,062W
3666 4822 051 30471 470R 5% 0,062W
3668 4822 051 30472 4k7 5% 0,062W
3669 4822 051 30103 10k 5% 0,062W
3683 4822 051 30154 150k 5% 0,062W
3684 4822 051 30154 150k 5% 0,062W
3686 4822 117 12864 82k 5% 0,6W
3687 4822 117 11817 1k2 1% 1/16W
3688 4822 051 30391 390R 5% 0,062W
3689 4822 051 30151 150R 5% 0,062W
3692 4822 051 30334 330k 5% 0,062W
3694 4822 051 30222 2k2 5% 0,062W
3707 4822 051 30102 1k 5% 0,062W
3708 4822 051 30102 1k 5% 0,062W
3711 4822 051 30562 5k6 5% 0,063W
3801 4822 051 30471 470R 5% 0,062W
3802 4822 051 30223 22k 5% 0,062W
3803 4822 051 30561 560R 5% 0,062W
3804 4822 116 83872 220R 5% 0,5W
3805 4822 051 30221 220R 5% 0,062W
3807 4822 051 30222 2k2 5% 0,062W
3808 4822 051 30223 22k 5% 0,062W
3809 4822 051 30479 47R 5% 0,062W
3820 4822 116 52176 10R 5% 0,5W
3821 4822 052 10109
!
10R 5% 0,33W
4100 4822 051 30008 0R Jumper 0603
4101 4822 051 30008 0R Jumper 0603
4104 4822 051 30008 0R Jumper 0603
4108 4822 051 30008 0R Jumper 0603
4110 4822 051 30008 0R Jumper 0603
4111 4822 051 30008 0R Jumper 0603
4112 4822 051 30008 0R Jumper 0603
4113 4822 051 30008 0R Jumper 0603
4114 4822 051 30008 0R Jumper 0603
4115 4822 051 30008 0R Jumper 0603
4116 4822 051 30008 0R Jumper 0603
4119 4822 051 30008 0R Jumper 0603
4122 4822 051 30008 0R Jumper 0603
4124 4822 051 30008 0R Jumper 0603
4125 4822 051 30008 0R Jumper 0603
4126 4822 051 30008 0R Jumper 0603
4127 4822 051 30008 0R Jumper 0603
4128 4822 051 30008 0R Jumper 0603
4130 4822 051 30008 0R Jumper 0603
4132 4822 051 30008 0R Jumper 0603
4133 4822 051 30008 0R Jumper 0603
4134 4822 051 30008 0R Jumper 0603
4135 4822 051 30008 0R Jumper 0603
4137 4822 051 30008 0R Jumper 0603
4138 4822 051 30008 0R Jumper 0603
4139 4822 051 30008 0R Jumper 0603
4141 4822 051 30008 0R Jumper 0603
4142 4822 051 30008 0R Jumper 0603
4143 4822 051 30008 0R Jumper 0603
4144 4822 051 30008 0R Jumper 0603
4145 4822 051 30008 0R Jumper 0603
4146 4822 051 30008 0R Jumper 0603
4147 4822 051 30008 0R Jumper 0603
4148 4822 051 30008 0R Jumper 0603
4150 4822 051 30008 0R Jumper 0603
4151 4822 051 30008 0R Jumper 0603
4152 4822 051 30008 0R Jumper 0603
4153 4822 051 30008 0R Jumper 0603
4403 4822 051 30008 0R Jumper 0603
4501 4822 051 30008 0R Jumper 0603
4641 4822 051 30008 0R Jumper 0603
4642 4822 051 30008 0R Jumper 0603
4811 4822 051 30008 0R Jumper 0603
4812 4822 051 30008 0R Jumper 0603
4903 4822 051 30008 0R Jumper 0603
4904 4822 051 30008 0R Jumper 0603
4908 4822 051 30008 0R Jumper 0603
4913 4822 051 30008 0R Jumper 0603
4921 4822 051 30008 0R Jumper 0603
COILS & FILTERS
5621 4822 157 62552 Coil 2,2uH 5%
5801 2422 536 00019 Transformer 6RG
DIODES
6201 4822 130 30621 1N4148
6202 4822 130 30862 BZX55-C9V1
6205 4822 130 61219 BZX79-C10
6206 4822 130 31878 1N4003G
6207 4822 130 31878 1N4003G
6208 4822 130 31878 1N4003G
6401 4822 130 30621 1N4148
6774 4822 130 30621 1N4148
TRANSISTORS & INTEGRATED CIRCUITS
7201 4822 130 60511 BC847B
7202 4822 209 72042 MC78L05ACP
7401 4822 130 41246 BC327-25
7402 4822 130 60511 BC847B
7403 4822 209 17345 M62320FP
7501 9322 150 74668 TDA7468D
7601 4822 209 31378 NJM4556AM
7603 4822 130 42804 BC817-25
7604 4822 130 42804 BC817-25
7621 4822 130 60511 BC847B
7622 4822 130 60373 BC857B
7623 4822 130 60511 BC847B
7635 4822 130 60373 BC857B
7636 4822 130 60511 BC847B
7651 4822 130 42804 BC817-25
7652 4822 130 42804 BC817-25
7653 4822 130 42804 BC817-25
7654 4822 130 42804 BC817-25
7661 4822 130 60511 BC847B
7662 4822 130 60511 BC847B
7663 4822 130 60373 BC857B
7681 4822 130 60373 BC857B
7682 4822 130 60511 BC847B
7802 4822 209 17235 74LVU04D
7803 4822 130 60511 BC847B
Note : Only the parts mentioned in this list are normal
service spare parts.
Exploded_View_3139 119 33860 dd wk0202
13-1 13-1
SET MECHANICAL EXPLODED VIEW
13-2 13-2
MECHANICAL & ACCESSORIES PARTS LIST - MAIN UNIT SCREW LISTS - MAIN UNIT
185 D3 x 12
186 D3 x 12
211 D3 x 12
212 D3 x 12
213 D3 x 12
214 M3 x 12
215 M3 x 12
226 M3 x 6
227 M3 x 10
229 M3 x 10
230 D3 x 10
231 M3 x 6
232 M3 x 6
276 M3 x 6
277 M3 x 10
278 D3 x 16
279 D3 x 12
280 D3 x 12
283 D3 x 12
285 D3 x 12
286 D3 x 12
287 D3 x 12
292 M3 x 12
293 M3 x 12
294 M3 x 10
295 D3 x 12
296 D3 x 12
297 D2 x 8
298 D3 x 10
299 D3 x 10
300 D3 x 12
301 D3 x 12
302 D3 x 12
304 D3 x 12
305 D2 x 8
306 D3 x 12
0101 3139 118 16980 Cabinet Front /22
0101 3139 118 16990 Cabinet Front /34
0103 3139 118 14320 Window CDC
0105 3139 118 16820 Button Set CDC
0106 3139 118 14340 Cover Tray CDC
0107 4822 454 13408 Badge Philips
0111 3139 118 14350 Button Standby/Eco Power
0115 3139 118 14370 Cover Ring Volume/VU Chrome
0116 3139 118 17030 Window Display
0117 3139 118 16840 Knob Volume Gloss Black
0120 3139 114 72360 Frame Button Set Source Select
0121 3139 118 14390 Button Cap Source-CD
0122 3139 118 14400 Button Cap Source-Tuner
0123 3139 118 14410 Button Cap Source-Tape
0124 3139 118 14420 Button Cap Source-Aux
0125 3139 114 72410 Lightguide Source-CD
0126 3139 114 72420 Lightguide Source-Tuner
0127 3139 114 72430 Lightguide Source-Tape
0128 3139 114 72440 Lightguide Source-Aux
0129 3139 118 14720 Button Set RDS/NEWS /22
0129 3139 118 15320 Button Set RDS/NEWS/Dolby /34
0130 3139 118 14440 Button Prog/Time-Disp
0131 3139 118 16850 Cover Ring Func Control
0132 3139 118 15460 Button Set Func Control
0133 3139 118 14470 Cap Function Control /22
0133 3139 118 15350 Cap Function Control /34
0134 3139 118 14820 Cover Ring DSC/VAC/IS
0135 3139 118 16830 Button DSC/VAC/IS
0140 3139 118 14500 Knob Jog Rotary
0141 3139 118 14780 Button WOOX Plus Chrome
0142 3139 114 72470 Frame Button Set WOOX
0144 3139 118 14790 Knob Rotary WOOX Chrome
0145 3139 114 72500 Guide Rotary WOOX
0148 3139 118 17000 Cover Orn Control /22
0148 3139 118 17010 Cover Orn Control /34
0149 3139 118 16790 Cover Control WOOX
0151 3139 118 16800 Cover Cassette Left
0152 3139 118 16810 Cover Cassette Right /22
0152 3139 118 17020 Cover Cassette Right Dolby /34
0153 3139 114 74910 Lens Cassette Left
0154 3139 114 74920 Lens Cassette Right
0197 3139 114 68630 Door Cassette Right
0198 3139 114 68620 Door Cassette Left
0199 4822 402 10621 Push-Catch
0200 4822 529 10322 Damper Assembly
0201 3139 114 68640 Push Catch Left
0203 4822 492 11344 Spring Compression
0204 4822 402 11246 Bracket Right
0205 4822 402 11245 Bracket Left
0206 3139 111 01380 Spring Torsion Right
0207 3139 111 01390 Spring Torsion Left
0209 4822 492 42787 Spring Cassette
0246 4822 462 40683 Foot Rubber (SQ)
0251 3139 114 72750 Bracket CDC Left
0252 3139 114 72760 Bracket CDC Right
0253 3139 114 73570 Panel Left
0254 3139 114 73580 Panel Right
0255 3139 114 73590 Cover Top
0256 3139 114 72790 Panel Rear /22
0256 3139 114 73100 Panel Rear /34
0271 3139 114 71010 Stopper Heatsink
0350 3139 118 79120 L/R Loudspeaker Box
0351 4822 303 50063 FM Aerial
0356 3139 228 87110 Remote Control
0384 2422 549 45067 Antenna AM Loop
0385 2422 070 98151
!
Mains Cord
0387 3139 115 21200 Instruction For Use /22
0387 3139 115 21210 Instruction For Use /34
1120 4822 361 11161 Fan KD1206PTS3
1202 3139 110 35350 FFC Foil 11P/220/11P AD
1203 3139 110 35010 FFC Foil 07P/340/07P AD
1401 3139 110 34970 FFC Foil 19P/180/19P AD
1402 3139 110 34610 FFC Foil 11P/180/11P AD
1403 3139 110 35130 FFC Foil 06P/180/06P AD
1404 3139 110 34990 FFC Foil 12P/120/12P AD
1405 3139 110 35000 FFC Foil 08P/120/08P AD
1406 4822 320 12752 FFC Foil 07P/180/07P AD
1407 3139 110 34010 FFC Foil 06P/140/06P AD
1501 3139 110 35120 FFC Foil 04P/400/04P BD
1503 3139 110 34800 FFC Foil 19P/180/19P BD
1601 3139 110 35050 FFC Foil 08P/220/08P AD
1702 4822 320 12654 FFC Foil 07P/220/07P AD
5001 3103 308 30690
!
Mains Transformer
Note : Only the parts mentioned in this list are normal
service spare parts.

Navigation menu
