Mini System
TABLE OF CONTENTS
Page
Location of PC Boards................................................1-2
Specifications..............................................................1-3
Measurement Setup ................................................... 1-4
Service Aids, Safety Instruction, etc ................ 1-5 to 1-7
Maintenance & Troubleshooting ................................. 1-8
Connections & Functional Overview ............. 1-9 to 1-11
Disassembly Instructions & Service positions .............. 2
Service Test Programs .................................................. 3
Set Block Diagram ......................................................4-1

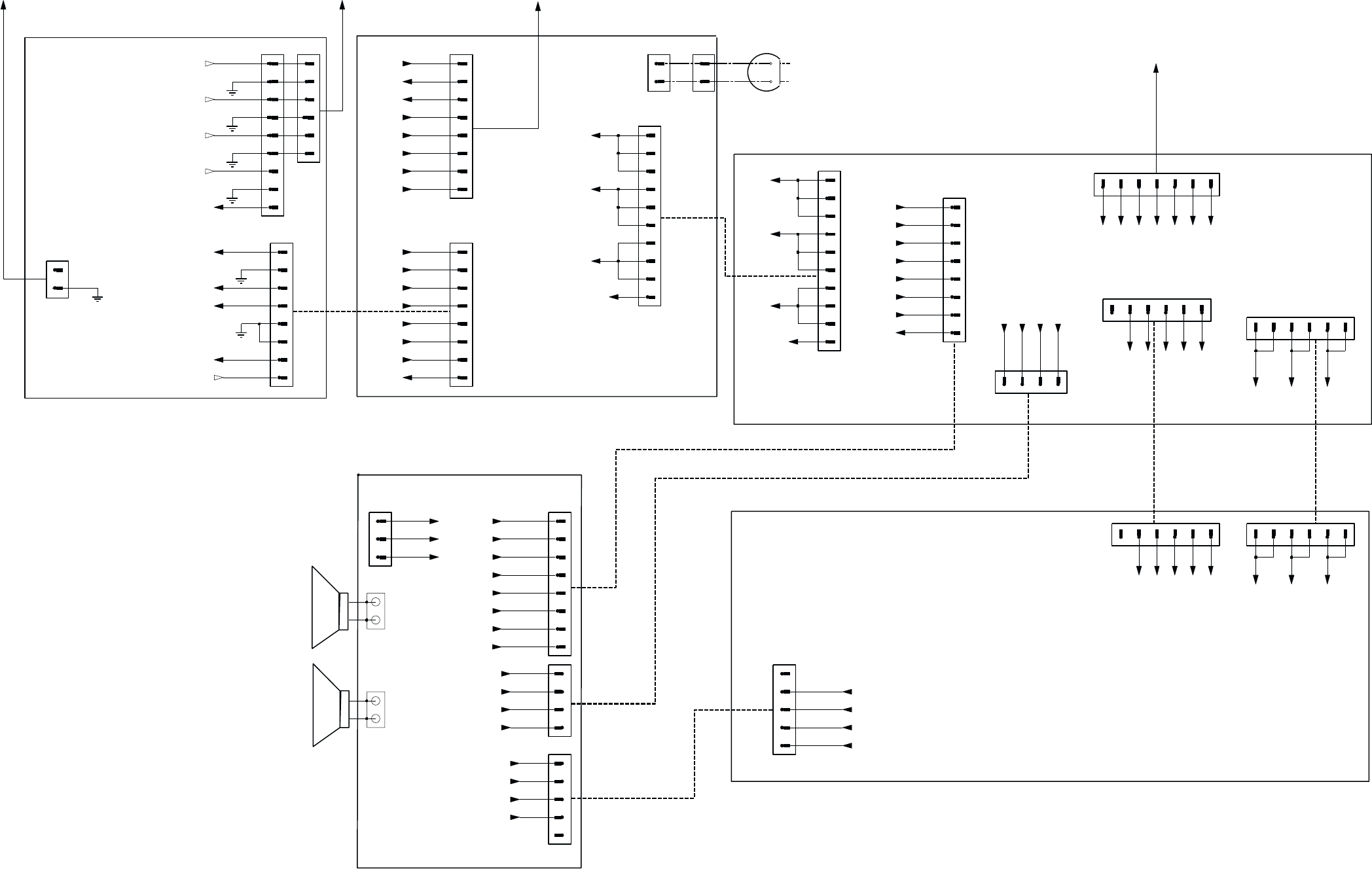

Set Wiring Diagram ....................................................4-2
Front Control Board ....................................................... 5
Front Display Board ....................................................... 6
ECO Tuner Board : Systems Non Cenelec ................ 7A
Systems Cenelec ........................ 7B
PWR303 UCD 100-150W Module ................................. 8
ETF7 Tape Module ........................................................ 9
3CDC-LC-MP3CD2002 Module .................................. 10
AF12 Board .................................................................. 11
Set Mechanical Exploded View & Parts List ............... 12
Revision List ................................................................ 13
Version 1.1
Service Manual
1-2

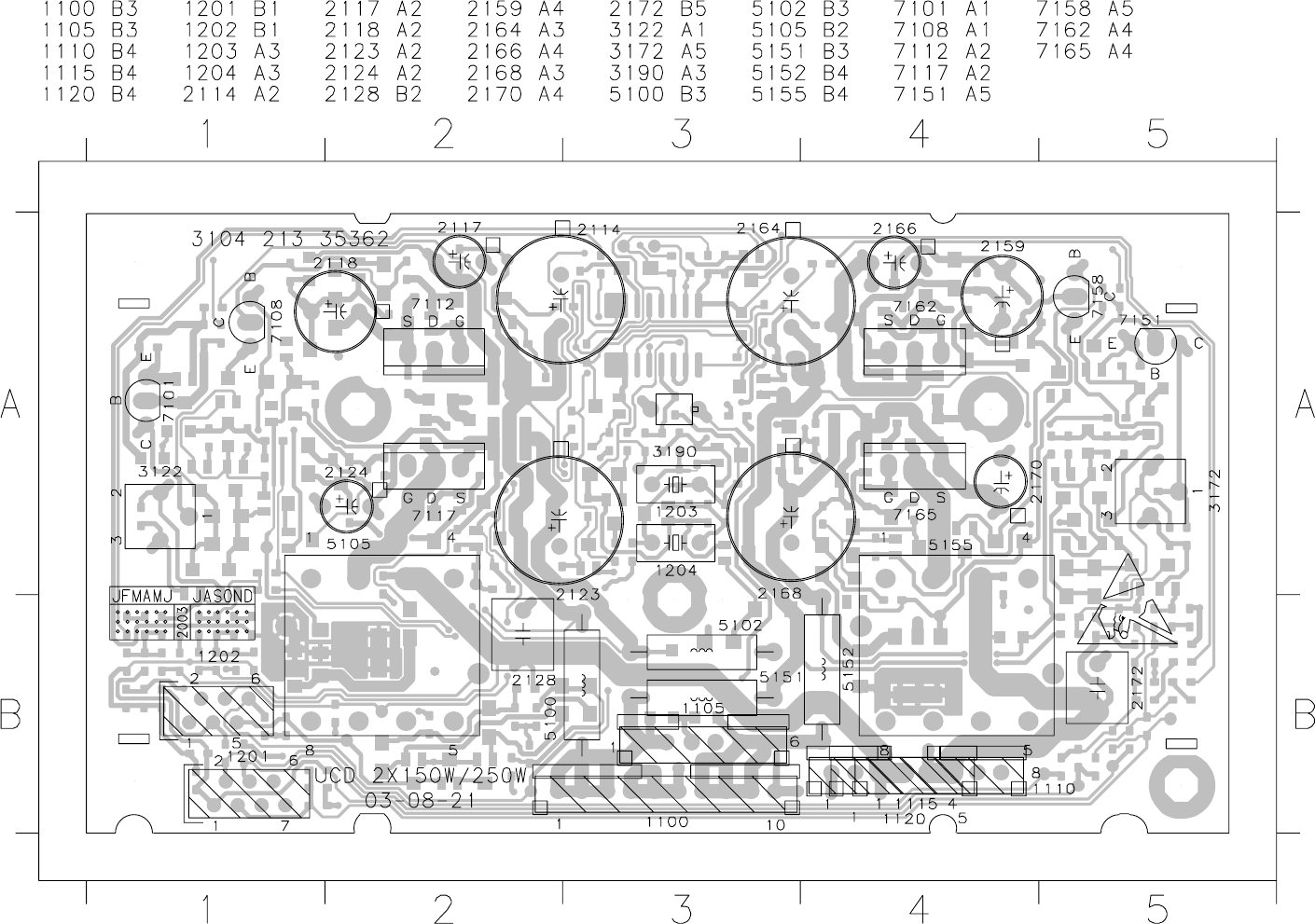

UCD 2x150W SE BOARD
3CDC
MP3
BOARD

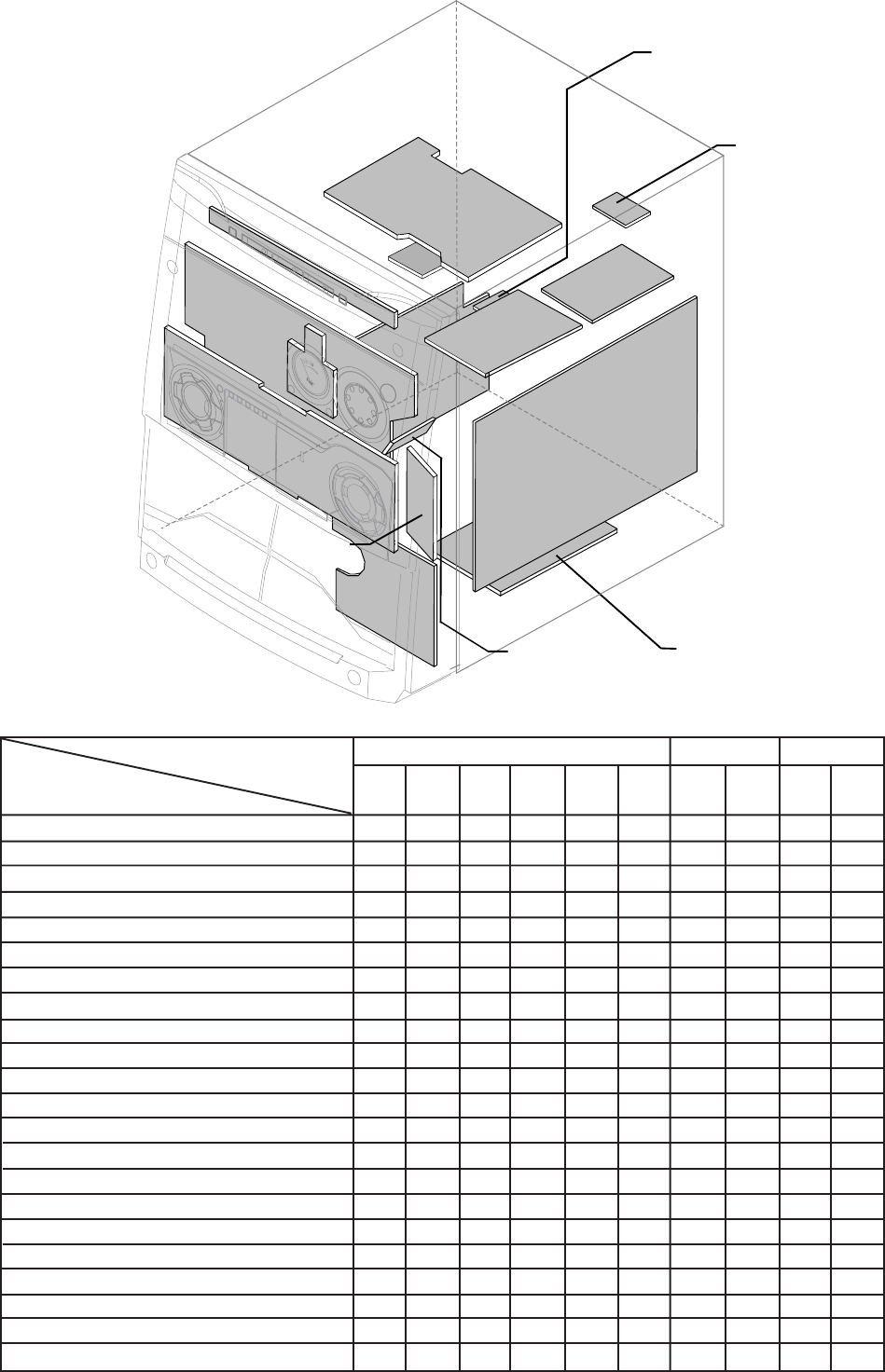

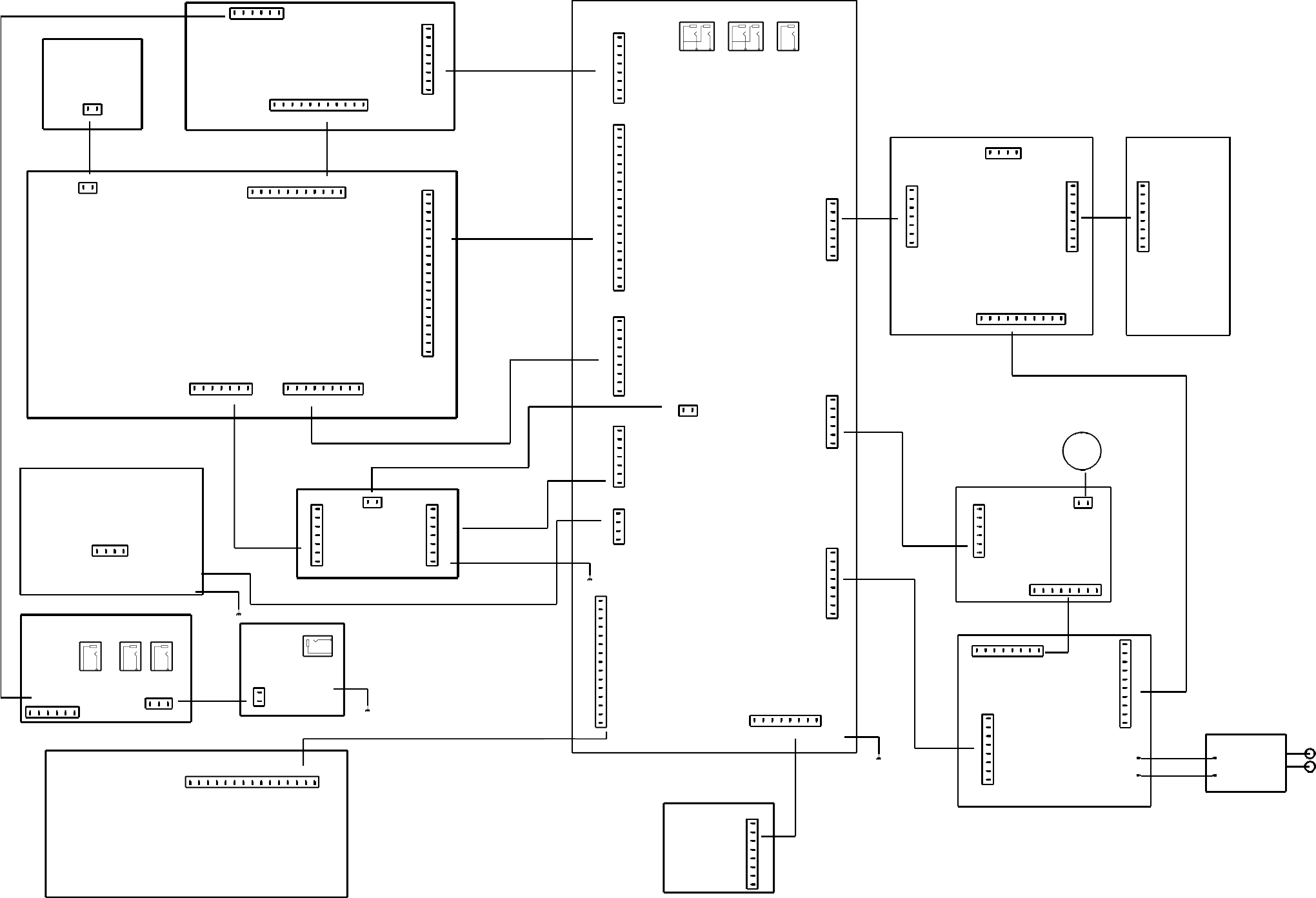

LOCATION OF PRINTED CIRCUIT BOARDS
/22
Aux in /CDR in x
Line Out x
Surround Out
Subwoofer Out
Video Out x
Matrix Surround
CD Text
Dolby B
RDS x
Game Port (Video/Audio L/Audio R) x
Dolby Pro Logic (DPL)
Incredible Surround x
Karaoke Features
Voltage Selector
ECO Power Standby (Clock Display Off) x

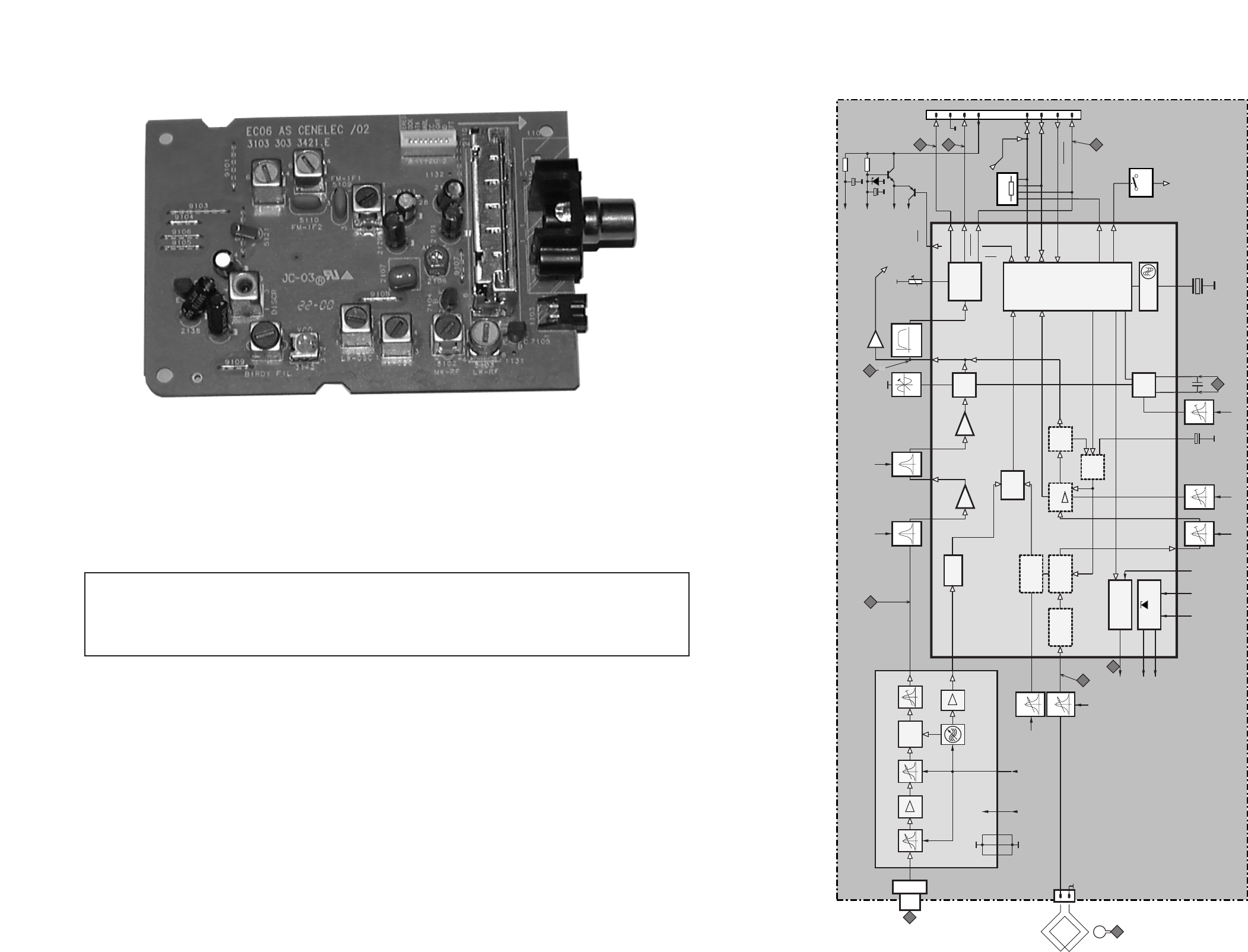

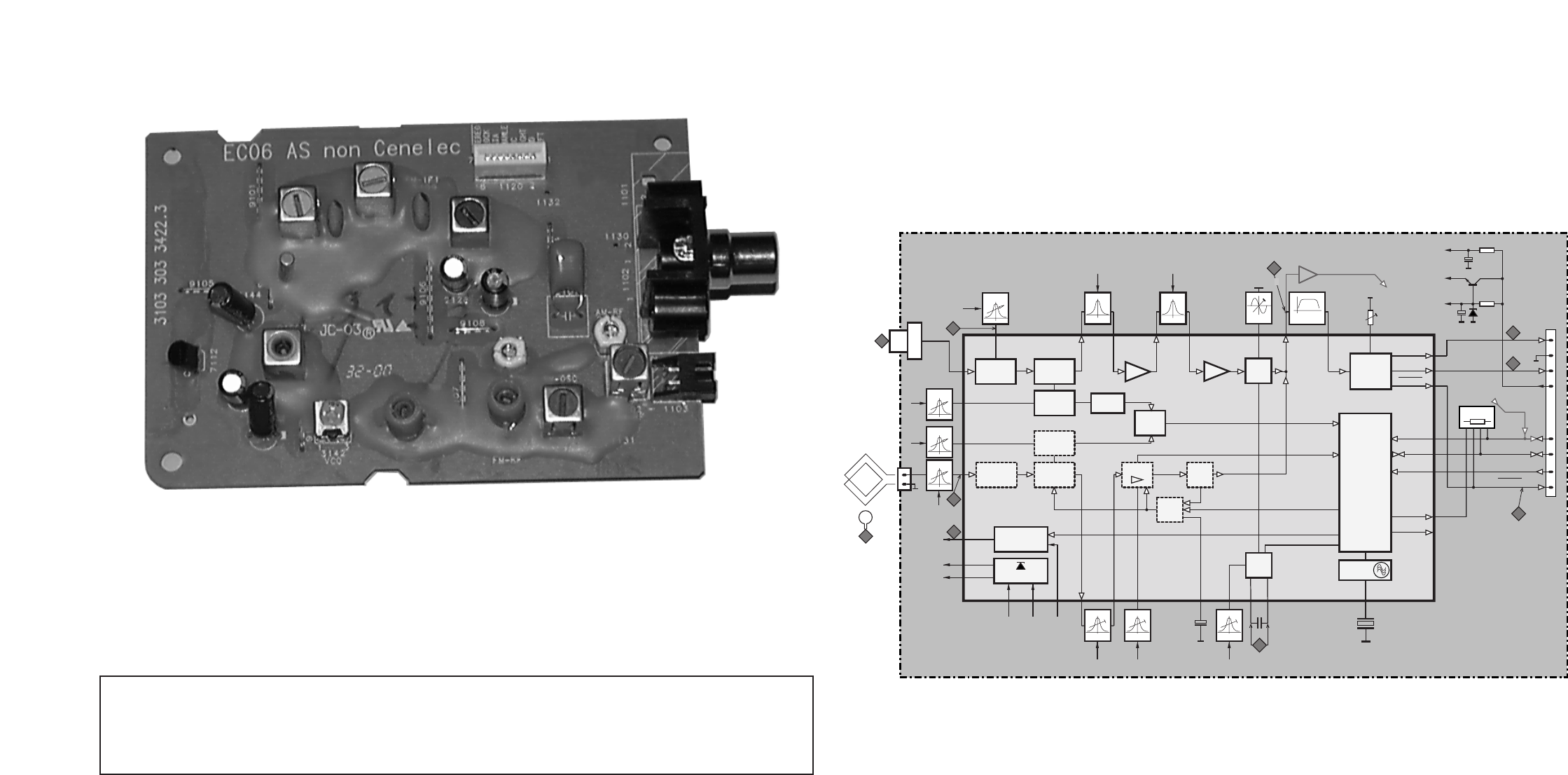

ECO6 Tuner Board - Systems Non-Cenelec
x
ECO6 Tuner Board - Systems Cenelec
Center/Surround Channel
ETF7 ND/DD/FR - Chapter 9 x
ETF7 DB/DD/FR - Chapter 9A
VERSION VARIATIONS:
Type /Versions: FWM70
Features &
Board in used:
ETF7
BOARD
MAINS
BOARD
KEY-CDC BOARD
FRONT
DISPLAY
BOARD
VU
METER
BOARD
FRONT CONTR
O
L
BOARD
MAIN
BOARD
CD
BOARD
HEADPHONE
BOARD
GAME PORT
BOARD
MAINS SOCKET
BOARD
VIDEO OUT
CINCH BOARD
REGULATOR UCD
BOARD
TUNER
BOARD
/07
x
x
x
x
x
x
x
x
1-3
SPECIFICATIONS
GENERAL:
Mains voltage
:230V ± 10% for /22
120V ± 10% for /07
Mains frequency : 50Hz
Power consumption : < 1W at ECO Power Standby
:25W at Standby
:110W at Active
Clock accuracy : < 4 seconds per day
Dimension centre unit : 265W x 322H x 390Dmm
TUNER:
FM
Tuning range : 87.5-108MHz
Grid : 50kHz
IF frequency : 10.7MHz ± 25kHz
Aerial input : 75Ω coaxial
300Ω click fit for /37
Sensitivity at 26dB S/N : < 22 µV
Selectivity at 300kHz bandwidth : > 25dB
Image rejection : > 25dB [>75dB]
Distortion at RF=1mV, dev. 75kHz : < 3%
-3dB Limiting point : < 23.5µV
Crosstalk at RF=1mV, dev. 40kHz : > 18dB
MW
Tuning range : 531-1602kHz
530-1700kHz for /07
Grid : 9kHz
10kHz for /07
IF frequency : 450kHz ± 1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : < 4.0mV/M
Selectivity at 300kHz bandwidth : > 18dB
IF rejection : > 45dB
Image rejection : > 28dB
Distortion at RF=50mV, m=80% : < 5%
AMPLIFIER:
Output power (4Ω, 1kHz, 10% THD)
L & R : 2 x 110W RMS /22
Frequency response within -3dB : 50Hz-20kHz
Incredible Surround : ON/OFF
WOOX : Level 1, 2, 3 & OFF
Digital Sound Control (DSC) : Digital, Rock, Pop,
Newage, Classic, Electric
Virtual Ambience Control (VAC) : Hall, Concert, Cinema,
Disco, Arcade, Cyber
Input sensitivity
Aux in : 640mV ± 2dB at 1kHz
CDR in : 1V ± 3dB at 1kHz
Output sensitivity
Line out (Left/Right) : 550mV ± 2dB at 22kΩ
Headphone output at 32!& 700mV± 2dB
CASSETTE RECORDER:
Number of track : 2 x 2 stereo
Tape speed : 4.76 cm/sec ± 2%
Wow and flutter : < 0.4% DIN
Fast-wind/Rewind time C60 : 130 sec
Bias system : 78kHz ± 10kHz
Rec/Pb frequency response
within 10dB :125Hz - 8kHz
Signal to Noise Ratio (Type I) : > 48dBA
COMPACT DISC:
Measurement done at output conn. of the CDC module.
Frequency response : < ±3dB for 20Hz-20kHz
Output Voltage (in Vrms) : 0.65Vrms ± 1dB unloaded
Signal to Noise Ratio (A-weighted) : > 80dBA
Distortion at 1kHz : < 0.003%
Channel Unbalance : < ±1dB
Channel Separation (1kHz) : >60dB
De-emphasis : 0 or 15/50mS (Switched by
subcode on the disc)
[....] Values indicated are for "ECO6 Cenelec Board" only.
Game Sound : Speed /Punch /Blast /Off
Game Port (at 1kHz) : 310mV ± 2d
(Max. vol.)
MPEG 1 Layer 3 (MP3-CD) : MPEG AUDIO
MP3-CD Bit Rate :
MP3-CD Sampling Frequencies : 32 kHz, 44.1 kHz,
48kHz
Recording Format : ISO 9660
UDF format not
supported
56-256 kbps
Grid : 100kHz for /37
: 2 x 88W FTC /07
1-4
LF Generator
e.g. PM5110
Recorder
Use Universal Test Cassette CrO2 SBC419 4822 397 30069
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
or Universal Test Cassette Fe SBC420 4822 397 30071
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
CD
Use Audio Signal Disc
(replaces test disc 3)
SBC429 4822 397 30184
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
S/N and distortion meter
e.g. Sound Technology ST1700B
Frame aerial
e.g. 7122 707 89001
Tuner AM (MW,LW)
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).
RF Generator
e.g. PM5326
Ri=50Ω
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
RF Generator
e.g. PM5326
S/N and distortion meter
e.g. Sound Technology ST1700B
Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).
Ri=50Ω
Tuner FM
MEASUREMENT SETUP
SERVICE AIDS
Service Tools:
Universal Torx driver holder .................................. 4822 395 91019
Torx bit T10 150mm ............................................. 4822 395 50456
Torx driver set T6 - T20 ......................................... 4822 395 50145
Torx driver T10 extended ...................................... 4822 395 50423
Cassette:
SBC419 Test cassette CrO2 ................................. 4822 397 30069
SBC420 Test cassette Fe ..................................... 4822 397 30071
MTT150 Dolby level 200nWb/M ............................ 4822 397 30271
Compact Disc:
SBC426/426A Test disc 5 + 5A ............................ 4822 397 30096
SBC442 Audio Burn-in Test disc 1kHz ................. 4822 397 30155
SBC429 Audio Signals disc .................................. 4822 397 30184
Dolby Pro-logic Test Disc ...................................... 4822 395 10216
ESD Equipment:
Anti-static table mat - large 1200x650x1.25mm ... 4822 466 10953
Anti-static table mat - small 600x650x1.25mm ..... 4822 466 10958
Anti-static wristband .............................................. 4822 395 10223
Connector box (1MΩ) ............................................ 4822 320 11307
Extension cable
(to connect wristband to conn. box) .................. 4822 320 11305
Connecting cable
(to connect table mat to conn. box) .................. 4822 320 11306
Earth cable (to connect product to mat or box) .... 4822 320 11308
Complete kit ESD3
(combining all above products) ......................... 4822 320 10671
Wristband tester .................................................... 4822 344 13999
1-5

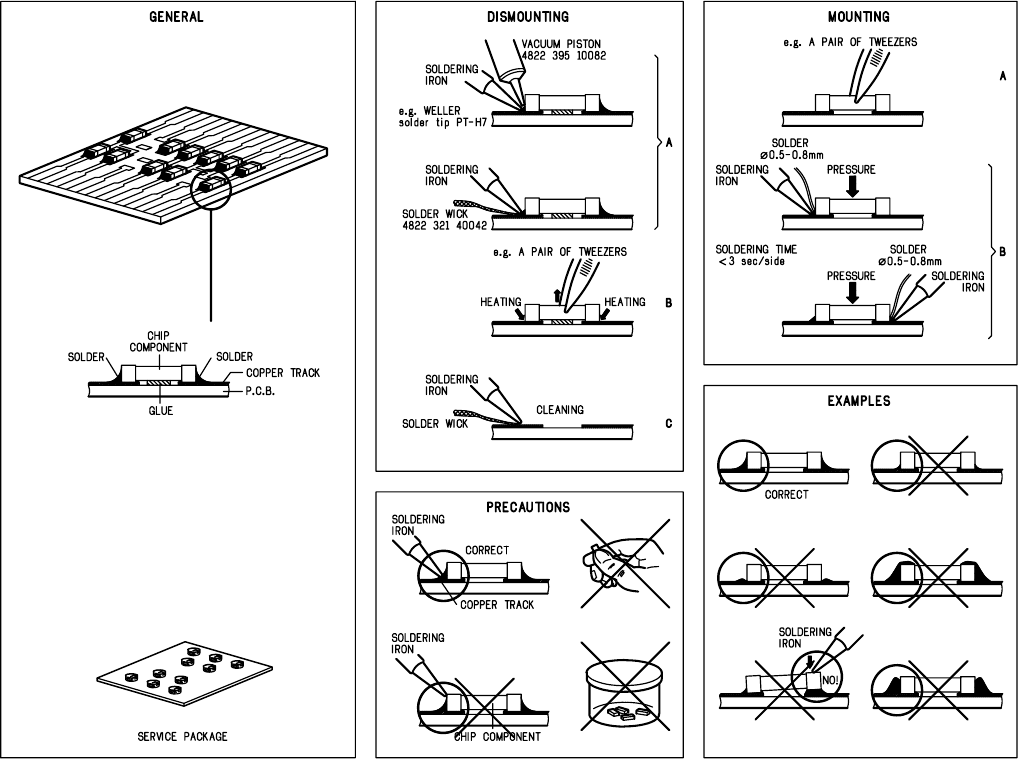

HANDLING CHIP COMPONENTS
1-6
CLASS 1
LASER PRODUCT
GB
Warning !
Invisible laser radiation when open.
Avoid direct exposure to beam.
S
Varning !
Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.
SF
Varoitus !
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen!
DK
Advarse !
Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsaettelse for stråling.
F
"Pour votre sécurité, ces documents doivent être utilisés par
des spécialistes agréés, seuls habilités à réparer votre
appareil en panne".
GB
WARNING
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.
F
ATTENTION
Tous les IC et beaucoup d’autres
semi-conducteurs sont sensibles aux
décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est
prise à leur manipulation.
Lors de réparations, s’assurer de bien être relié
au même potentiel que la masse de l’appareil et
enfiler le bracelet serti d’une résistance de
sécurité.
Veiller à ce que les composants ainsi que les
outils que l’on utilise soient également à ce
potentiel.
ESD
D
WARNUNG
Alle ICs und viele andere Halbleiter sind
empfindlich gegenüber elektrostatischen
Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie, dass Sie im Reparaturfall über
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerätes.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.
NL
WAARSCHUWING
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
I
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevità potrebbe essere fortemente
ridatta in caso di non osservazione della più
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.
GB

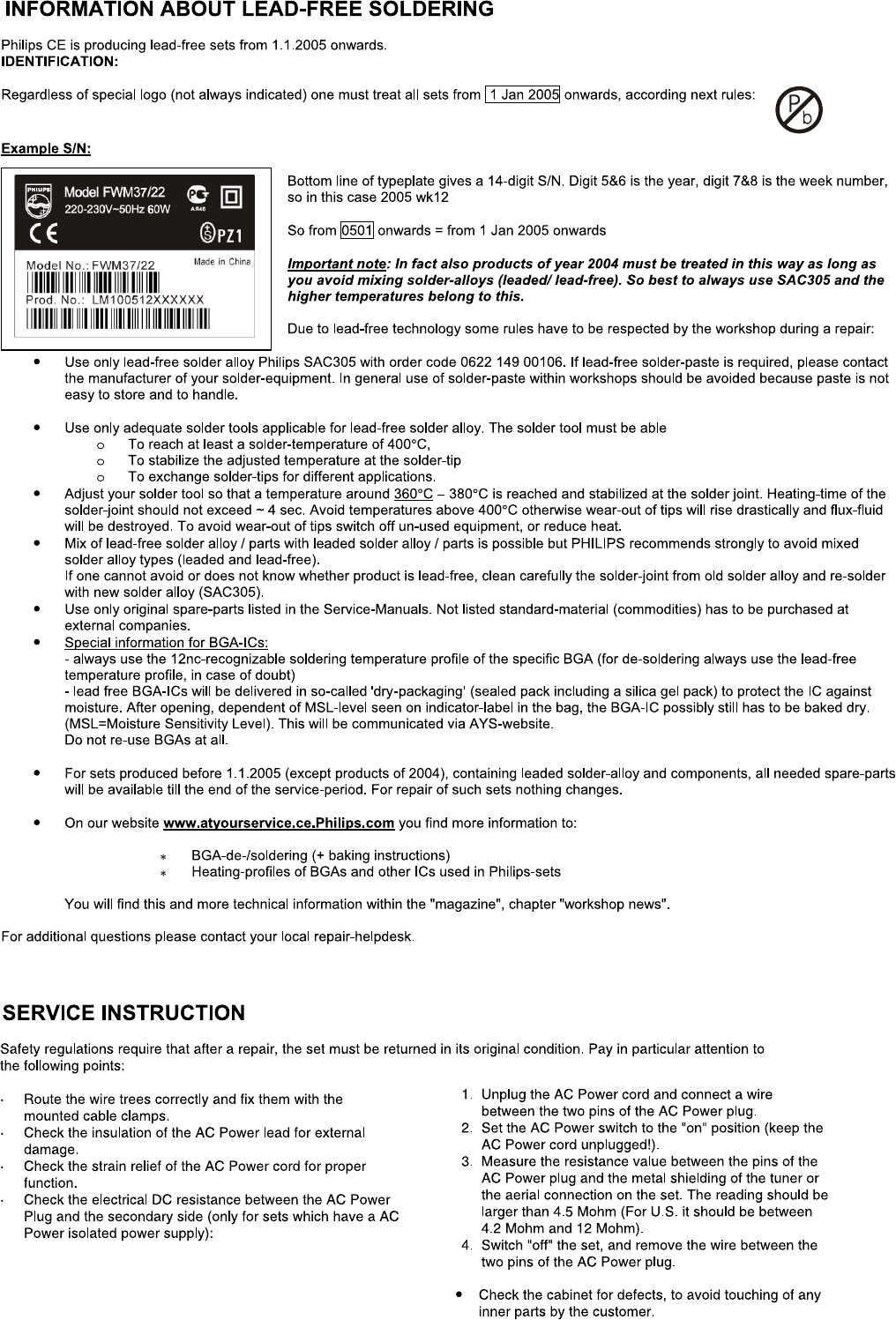

Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used
Safety components are marked by the symbol
!
.
NL
Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde, worden toegepast.
De Veiligheidsonderdelen zijn aangeduid met het symbool
!
F
Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.
Less composants de sécurité sont marqués
!
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden.
Sicherheitsbauteile sind durch das Symbol
!
markiert.
I
Le norme di sicurezza esigono che l’apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.
Componenty di sicurezza sono marcati con
!
GB
After servicing and before returning set to customer perform a leakage
current measurement test from all exposed metal parts to earth ground to
assure no shock hazard exist. The leakage current must not exceed
0.5mA.
1-7
1-8
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Radio reception is poor.
“NO DISC” is displayed or the disc cannot
be played.
The system does not react when buttons are
pressed.
Sound cannot be heard or is of poor quality.
The remote control does not function
properly.
The timer is not working.
The system displays features automatically and
buttons start flashing.
If the signal is too weak, adjust the antenna or connect
an external antenna for better reception.
Increase the distance between the system and your TV
or VCR.
Insert a disc.
Load in the disc with the labeled side facing up.
Replace or clean the disc, see “Care and safety
information”.
Use a finalised CD-R(W) or a correct format disc.
Remove and reconnect the AC power cord and switch
on the system again.
Adjust the volume.
Disconnect the headphones.
Check that the speakers are connected correctly.
Check that the AC power cord is connected properly.
Select the source (CD or TUNER, for example) before
pressing the function button (ÉÅ, S ,T).
Reduce the distance between the remote control and
the system.
Replace the battery.
Point the remote control directly toward the IR sensor.
Set the clock correctly.
Press TIMER ON/OFF to switch on the timer.
Press and hold DEMO STOP on the main unit to switch
off the demonstration mode.
Problem Solution
Troubleshooting
Refer to the FAQ (Frequently Asked Questions) on the supplied CD-ROM or visit our website
“www.audio.philips.com” for latest update on FAQ.
1-9
Connections
Game console
OUT
OUT
3b
MW
3a
Speaker Speaker
Rear pane l
Front panel
Warning!
–Use only the supplied speakers. The
combination of the main unit and
speakers provides the best sound. Using
other speakers can damage the unit and
sound quality will be negatively affected.
–Never make or change connections
with the power switched on.
–Connect the AC power cord to the
power outlet only after you have finished
hooking up everything.
–To avoid overheating of the system, a
safety circuit has been built in. Therefore,
your system may switch to Standby
mode automatically under extreme
conditions. If this happens, let the system
cool down before reusing it (not available for
all versions).
Step 1: Connecting FM/MW
antennas
–Place the MW loop antenna on a shelf or
attach it to a stand or wall.
– Extend the FM antenna and fix its ends to the
wall.
– Adjust the position of the antennas for
optimal reception.
–Position the antennas as far as possible from a
TV, VCR or other radiation source to prevent
unwanted noise.
–For better FM stereo reception, connect the
external FM antenna.
Step 2: Connecting the speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to “R” and left speaker to
“L”, coloured (marked) wire to “+”and black
(unmarked) wire to “-”. Fully insert the
stripped portion of the speaker wire into the
terminal as shown on page 10.
Notes:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.

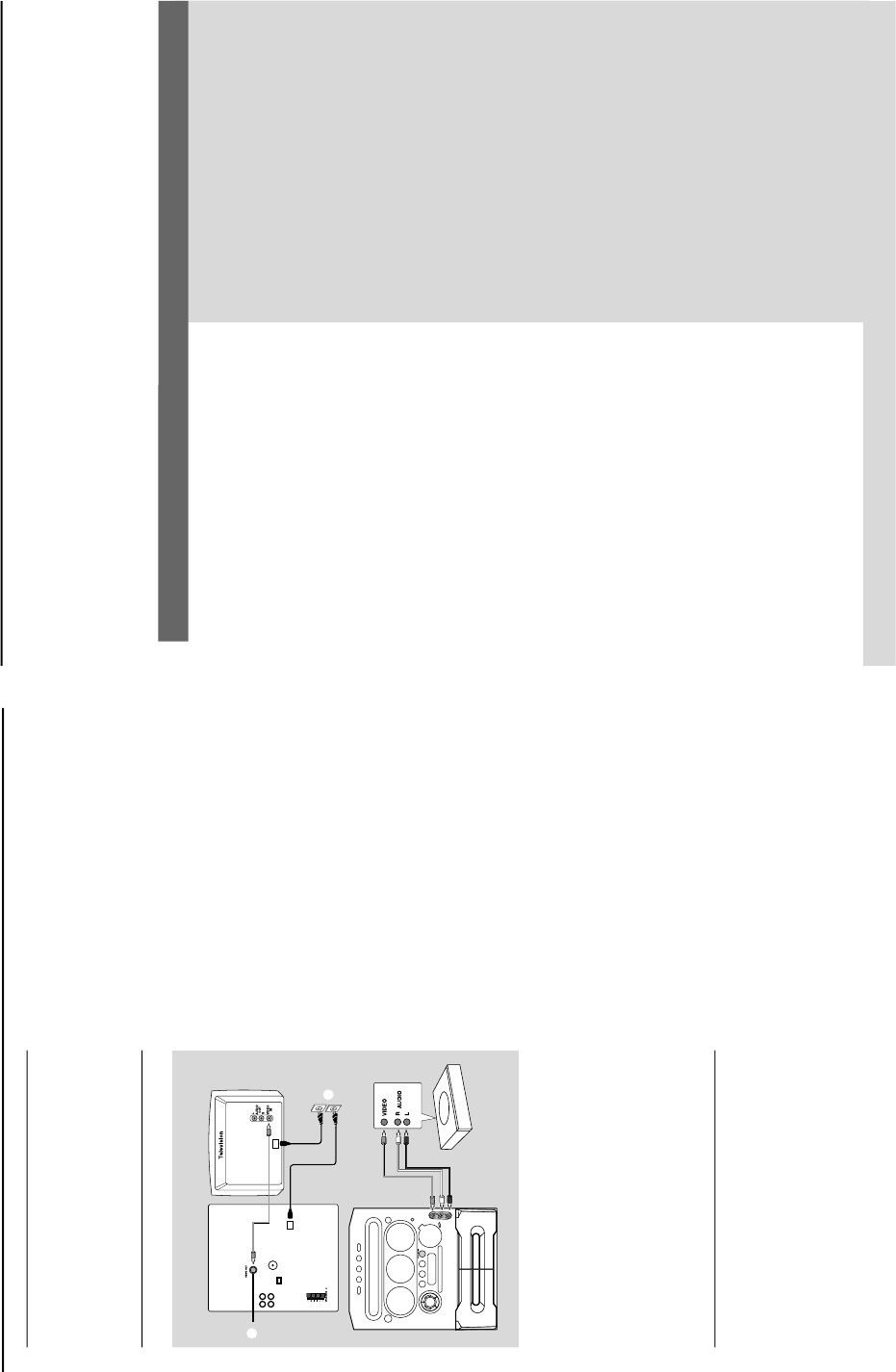

Step 3: Connecting to the game
console
IMPORTANT!
Gameport inputs are for the game
console only.
a.
Use the game console’s video cable (not
supplied) to connect its video output to the
GAMEPORT-VIDEO terminal.
b.
Use the game console’s audio cables (not
supplied) to connect its audio outputs to the
GAMEPORT-AUDIO L. / AUDIO R.
terminals.
c.
Use the video cable (yellow) to connect the
VIDEO OUT terminal to the video input on
the TV for viewing.
Notes:
–On the TV, the Video Input jack is usually yellow
and might be labeled A/V In, CVBS, Composite or
Baseband.
–To avoid magnetic interference, do not position
the front speakers too close to your TV.
Step 4: Connecting the AC
power cord
“AUTO INSTALL - PRESS PLAY”may appear
on the display panel when the AC power cord is
plugged into the power outlet for the first time.
Press ÉÅ on the main unit to store all available
radio stations (page 3 - P3) or press Ç to exit
(refer to “Tuner Operations”).
Connections
1-10

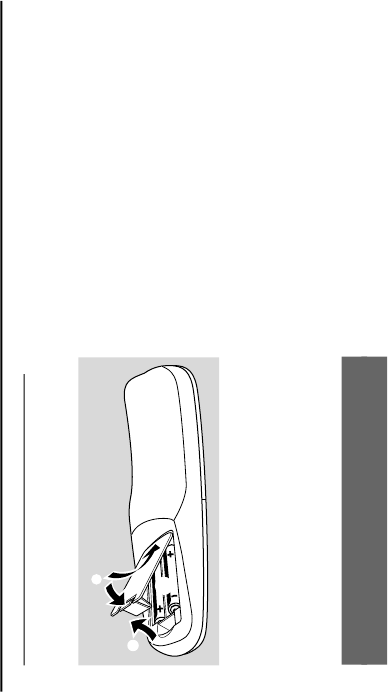

Step 5: Inserting batteries into
the remote control
1
3
2
1
Open the battery compartment cover.
2
Insert two batteries type R06 or AA, following
the indications (+/-) inside the compartment.
3
Close the cover.
Using the remote control to operate the
system
1
Aim the remote control directly at the remote
sensor (iR) on the main unit.
2
Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
3
Then select the desired function (for example
ÉÅ,í,ë).
CAUTION!
– Remove batteries if they are
exhausted or will not be used for a long
time.
–Do not use old and new or different
types of batteries in combination.
–Batteries contain chemical substances,
so they should be disposed of properly.
Connections
1-11
Functional Overview
Main unit and remote control
1
STANDBY ON B / ECO POWER
– Switches to the Eco Power standby mode or
turns on the system.
– *Switches to the standby mode.
2
Display screen
3
CD / TUNER /
TAPE(TAPE1/2) /
AUX•GAME
– Selects the relevant active mode.
–CD: toggles between DISC 1~3.
–TUNER: toggles between FM and MW band.
–AUX•GAME:
toggles between AUX and
GAMEPORT mode.
–TAPE: toggles between
Tape Deck 1 and Tape
Deck 2.
4
PRESET (–) (í)PRESET (+) (ë)
–CD: selects a track or selects a title from MP3
disc.
–TUNER: selects a preset radio station.
–CLOCK: sets the minutes.
5
SEARCH•TUNING•ALBUM 4 / ¢
(1 / ¡)
–CD: *searches backward/forward.
–MP3-CD: select an album
–TUNER: tunes the radio frequency up/down.
–CLOCK: sets the hours.
–TAPE: searches backward /forward.
6
PLAY•PAUSE ÉÅ
–CD: starts/pauses playback.
–TAPE: starts playback.
(only on the main unit)
–TUNER: *enters Plug & Play mode and/or starts
preset radio station installation.
7
STOP 9
– Exits an operation.
–CD: stops playback or clears a programme.
–TUNER: *erases a preset radio station.
(only on the main unit)
–*Tu r ns on/off the demonstration mode.
8
wOOx
– Selects the enhanced or normal wOOx sound
effect.
9
PROGRAM
–CD: starts or confirms tracks programming.
–TUNER: starts *automatic/manual preset
* = Press and hold the button for more than two seconds.
™
£
¡
)
(
*
^
%
$
#
@
1
2
3
4
9
0
!
#
5
8
7
6
&
ª
•
0
8
‹
&
§
6
4
£
9
⁄
º
&
&
3
(
7
5
!
&
25
24
27
32
0
CLOCK•TIMER (CLK/TIMER)
–*Enters clock or timer setting mode.
!
AUTO REPLAY•RDS
– Selects continuous playback in either AUTO
PLAY or ONCE mode only.
–Selects RDS information in the TUNER mode.
@
OPEN 3
– Opens the tape deck
#
TAPE1 / TAPE2
–Tape deck 1 and tape deck 2.
$
DUBBING•NEWS
–Dubs a tape
–*Tu r ns on/off news.
%
RECORD
– Starts recording on tape deck 2
^
VIDEO
–Use a video cable to connect to your game
console’s video output.
AUDIO L. / AUDIO R.
–Use an audio cable to connect to your game
console’s left/right audio output.
&
INCREDIBLE SURROUND
–Creates a super-enhanced stereo effect.
DSC
– Selects different type of preset sound equaliser
settings (NEW AGE, ELECTRIC, DIGITAL, POP,
CLASSIC or ROCK.).
VAC
– Selects different type of ambience-based
equaliser settings (CINEMA, ARCADE,
CONCERT, DISCO, CYBER or HALL).
MIX IT (GAME MIX IT)
–M
ixes the game sound with your favourite music
from one of these music sources (CD, TUNER or
AUX).
GAME SOUND
– Adjusts the game’s output volume level.
–Selects different type of equaliser setting for
Gameport (SPEED, PUNCH or BLAST).
*
n
– Plugs in the headphones jack. The speakers
output will be cancelled.
Functional Overview
* = Press and hold the button for more than two seconds.
(
MASTER VOLUME (VOL + –)
–Adjusts the volume level.
)
iR SENSOR
–Points the remote control towards this sensor.
¡
VU meters
–Indicates signal strength of left/right channel.
™
DISC TRAY
£
OPEN•CLOSE 0 (DISC 1~3)
– Opens/closes the respective disc tray.
DISC 1, 2 and 3
–Selects a disc tray to playback
DISC CHANGE
–Changes discs
Control buttons available on the remote
control only
§
B
–Switches to the Eco Power standby mode.
–*Switches to the standby mode.
REPEA
T
– Repeats a track/disc/all programmed tracks.
•
SHUFFLE
–T
urns on/off the random play mode.
ª
DISPLAY
– Displays the album and title name for MP3 disc.
º
DIM
–Turns on/off the dim mode.
⁄
SLEEP
–Sets the sleep timer function.
TIMER ON/OFF
–Tur
ns on/off the timer function.
‹
MUTE
–Mutes or restores the volume
27
24
32
25
2-1 2-1
Figure 1
Figure 2
Figure 4
Figure 3
Figure 5
Figure 6

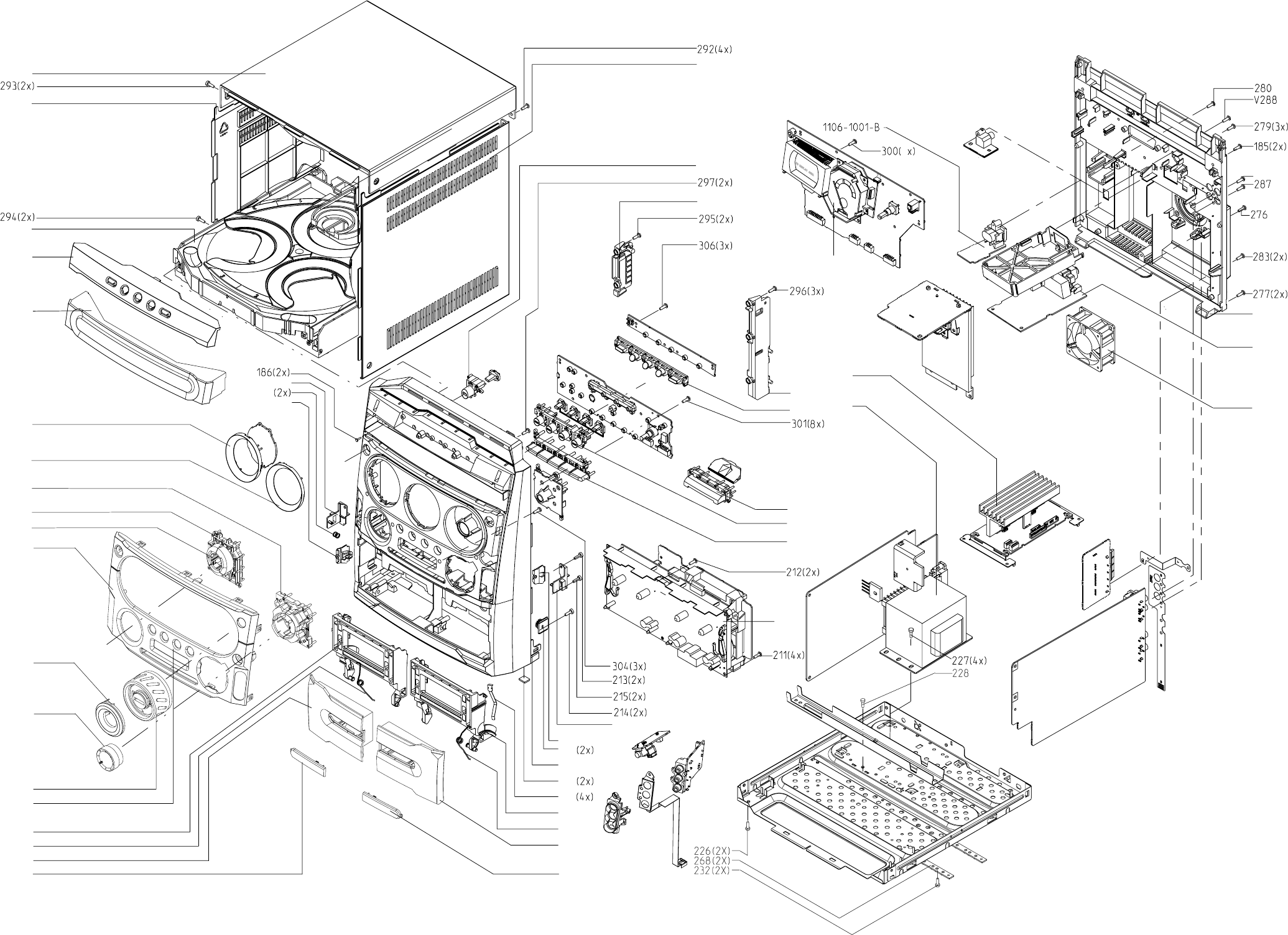

Dismantling of the Front Control Board and Front Display Board
1) The Knob Volume Rotary can be remove by pulling it out
in the direction as shown in Figure 10.
2) The Knob Jog Rotary can be remove by inserting a
strong string into the slot and pull it in the direction as
shown in Figure 11.
3) Loosen 2 nuts (see Figure 12) to remove the Front
Display Board.
4) Loosen 8 screws D (see Figure 13) to remove the Front
Display Board.
5) Loosen 4 screws E (see Figure 13) to remove the CDC
Key Board.
6) Loosen 8 screws F (see Figure 14) to remove the Front
Control Board .
7) Loosen 3 screws G (see Figure 15) to remove the
Headphone Board and Game Port Board.
DISMANTLING INSTRUCTIONS

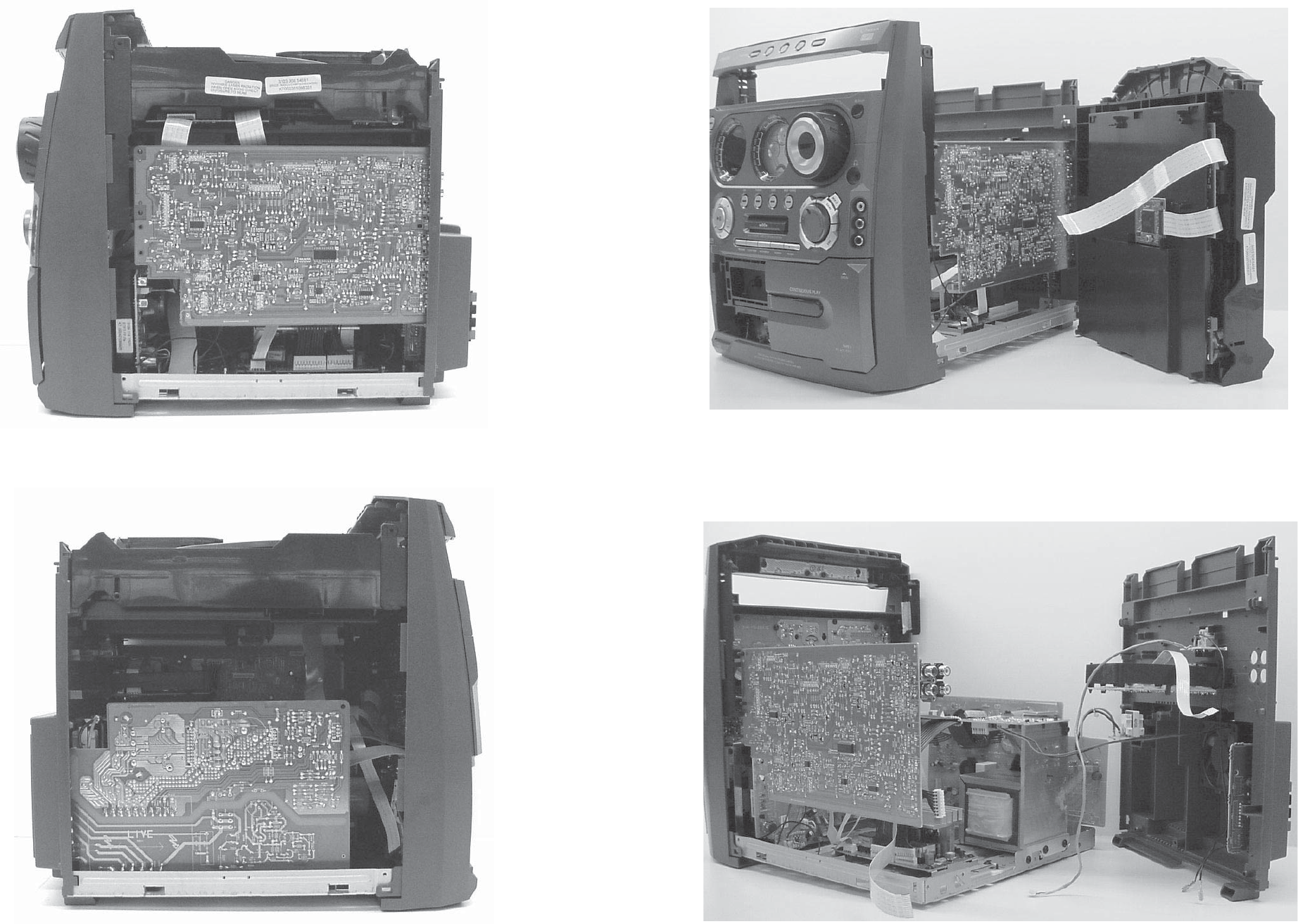

1) Remove 2 screws B as shown in Figure 8 from the bottom
of the Cabinet Front .
Detaching the Front Panel assembly from the Bottom/Rear assembly
2-2 2-2
Figure 7
2) Release the fixation of the AF Board to Bracket CDC Right
by releasing the 2 catches C1 (see Figure 9) and pulling
the AF Board outwards as shown in Figure 8.
3) Uncatch 2 catches C2 (see Figure 9) on the left & right
sides of the Cabinet Front and slides the Front Panel
assembly out towards the front.
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Dismantling of the Game Port Board and Headphone Board
DISMANTLING INSTRUCTIONS
Figure 16
Figure 15
Dismantling of the ETF Tape Module

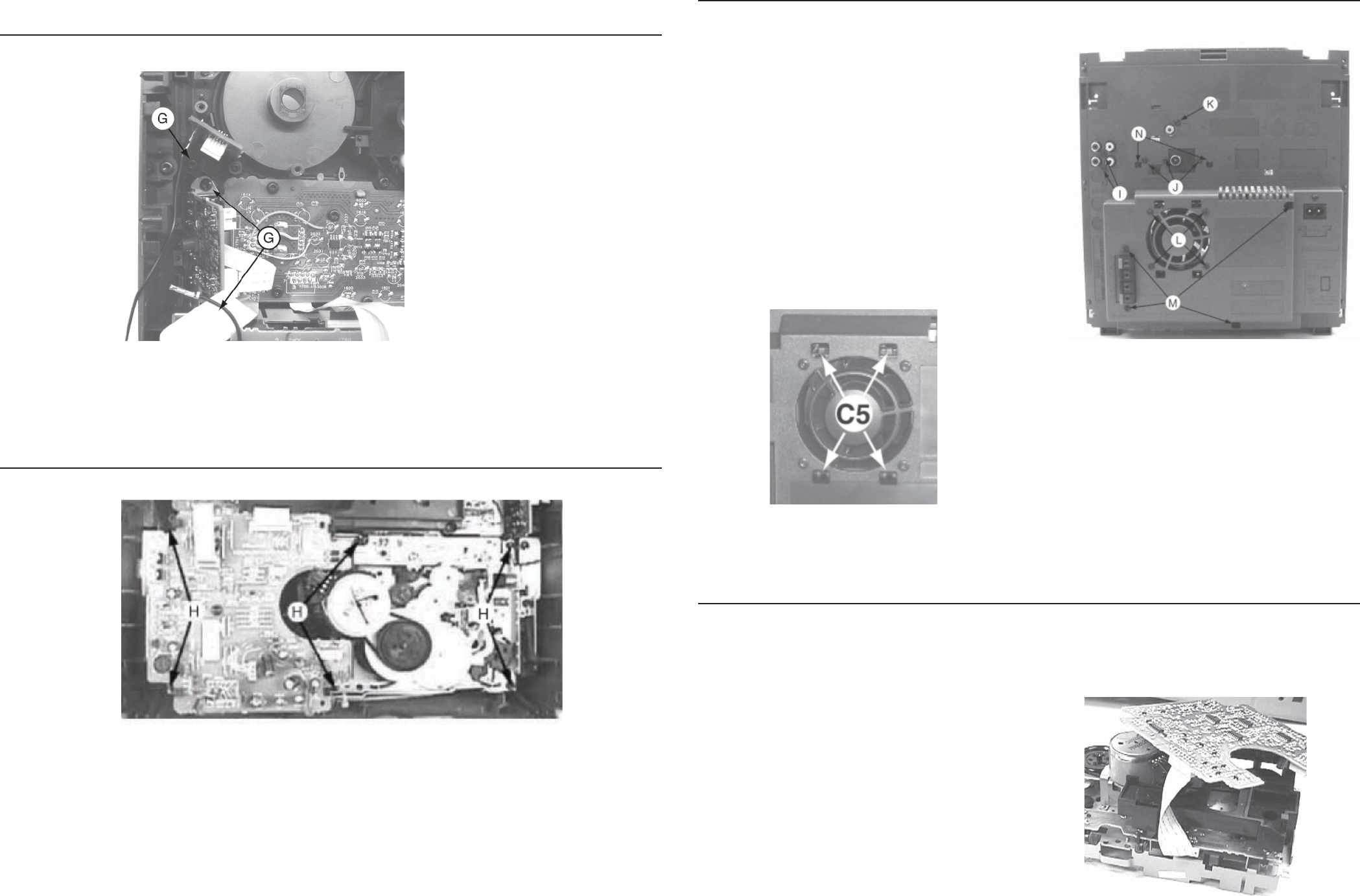

1) Loosen 6 screws H (see Figure 16) to remove the ETF
Tape Module.
Dismantling of Rear Portion
1) Remove 2 screws I (see Figure 17) to loose the AF12
Board.
2) Loosen 3 screws J and uncatch N (see Figure 17) to
remove the Tuner Board.
3) Loosen 1 screws K (see Figure 17) to remove the Video
Board.
4) Loosen 4 screws L (see Figure 17) and uncatch C5 (see
Figure 18) to remove the Fan.
5) Loosen3 screws M (see Figure 17) and uncatch C3 (see
Figure 9) to remove the Panel Rear by sliding it out
towards the rear.
Figure 17
Figure 18
Repair Hint
1) During repair it is possible to disconnect the Tuner
Board and CDC Module completely unless the fault is
suspected to be in that area. This will not affect the
performance of the rest of the set.

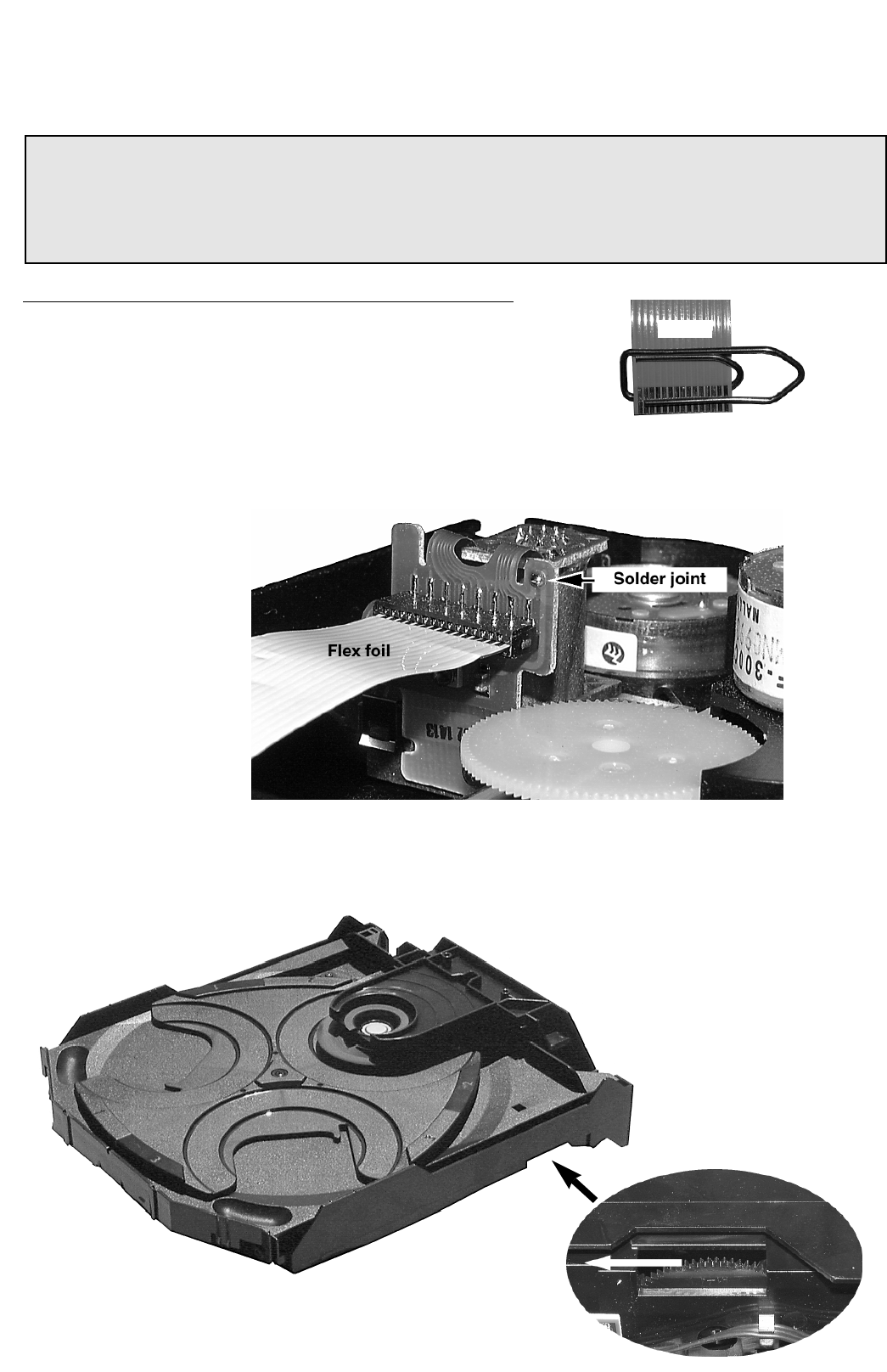

2) Due to the short flex cable wires in the ETF Module, the
PCB should be disconnected and reconnected on the
reverse side of the tape mechanism to keep it
electrically connected during repair. see Figure 19.
Note: The flex cables are very fragile, care should be
taken not to damage them during repair. After repair, be
very sure that the flex cables are inserted properly into
the flex sockets before encasing, otherwise faults may
occurs.
Figure 19
2-32-3
Service position A Service position B
Service position C
2-4 2-4
DISMANTLING INSTRUCTIONS
3-1 3-1
Various
other Tests
Activated with ACTION
TEST
QEEPROM FORMAT
TEST Load default data. Display shows "NEW"
for 1 second.
Caution!
All presets from the customer will be lost!!
Disconnect
mains cord
LEAVE SERVICE
TESTPROGRAM
R
9 to Exit
EEPROM TEST A test pattern will be sent to the EEPROM.
"PASS" is displayed if the uProcessor read
back the test pattern correctly, otherwise
"ERROR" will be displayed.
Rotary
Volume Knob
ROTARY
ENCODER TEST Display shows value for 2 seconds.
Values increases or decreases in steps of 1
until 0 (Min.) or 40 (Max.) is reached.
O
Button pressed?
Y
Y
Y
N
N
N
O
Button pressed?
9
Button pressed?
Display shows
12M
Output at (Front Display Board)
pin 19 of uP = 2,929.6875Hz
Display shows
32K
Output at (Front Display Board)
pin 19 of uP = 2048Hz
QUARTZ
TEST
TUNER
Button pressed?
Disconnect
Mains cord ?
Y
N
N
Y
Display Tuner Version
"ccc"
Service frequencies are
copied to the RAM (see Table 1)
Tuner works normally except:
PROGRAM button
Service Mode left
TUNER
TEST
TUNER
Button pressed?
N
PRESET
1
2
3
4
5
6
7
8
9
10
11
Europe
"EUR"
87.5MHz
108MHz
531kHz
1602kHz
558kHz
1494kHz
153kHz
279kHz
198kHz
98MHz
87.5MHz
East Eur.
"EAS"
87.5MHz
108MHz
531kHz
1602kHz
558kHz
1494kHz
87.5MHz
87.5MHz
87.5MHz
87.5MHz
98MHz
USA
"USA"
87.5MHz
108MHz
530kHz
1700kHz
560kHz
1500kHz
98MHz
87.5MHz
87.5MHz
87.5MHz
87.5MHz
Oversea
"OSE"
87.5MHz
108MHz
531/530kHz*
1602/1700kHz*
558/560kHz*
1494/1500kHz*
87.5MHz
87.5MHz
87.5MHz
87.5MHz
98MHz
Table 1
East Eur. Extended-band
"EAS"
65.81MHz
108MHz
74MHz
87.5MHz
531kHz
1602kHz
558kHz
1494kHz
98MHz
70.01MHz
65.81MHz
Note: * Depending on the selected grid frequency (9 or 10kHz)
By holding the TUNER and R buttons depressed while switching on the Mains supply, one
of the undermentioned features will be activated:
- the tuning grid frequency is toggled between 9kHz and 10kHz for the Oversea (/21) version.
- the extended FM1 (65.81MHz - 74MHz) is toggled on and off for East Eur. (/34) version.
Y
N
Y
N
Y
N
Button pressed?
Button pressed?
9
Button pressed?
DISPLAY
TEST

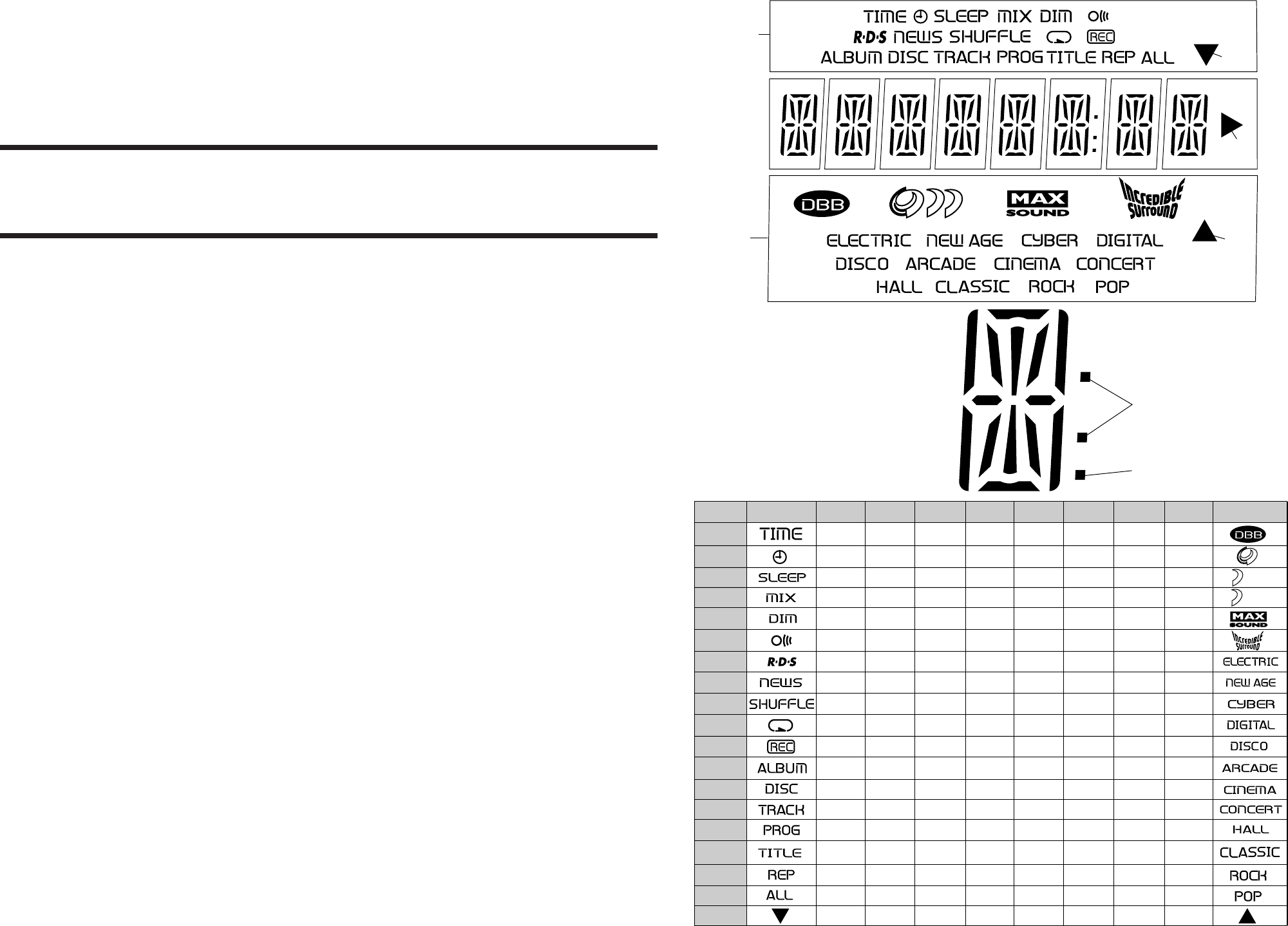

Display shows Figure 1 and
switch all LEDs on (except ECO
POWER & VU Volume LEDs),
and full VU deflection.
Figure 1
Figure 2

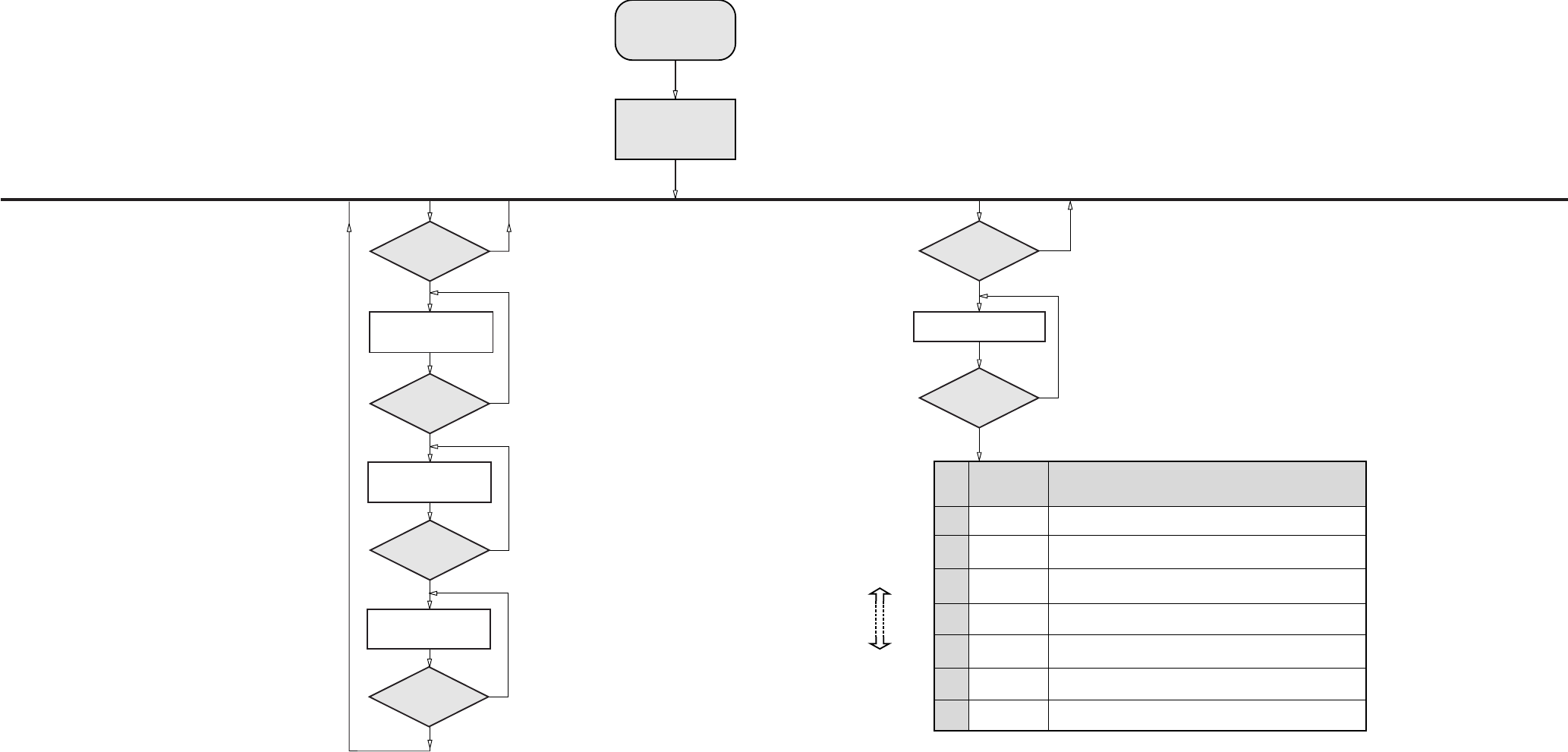

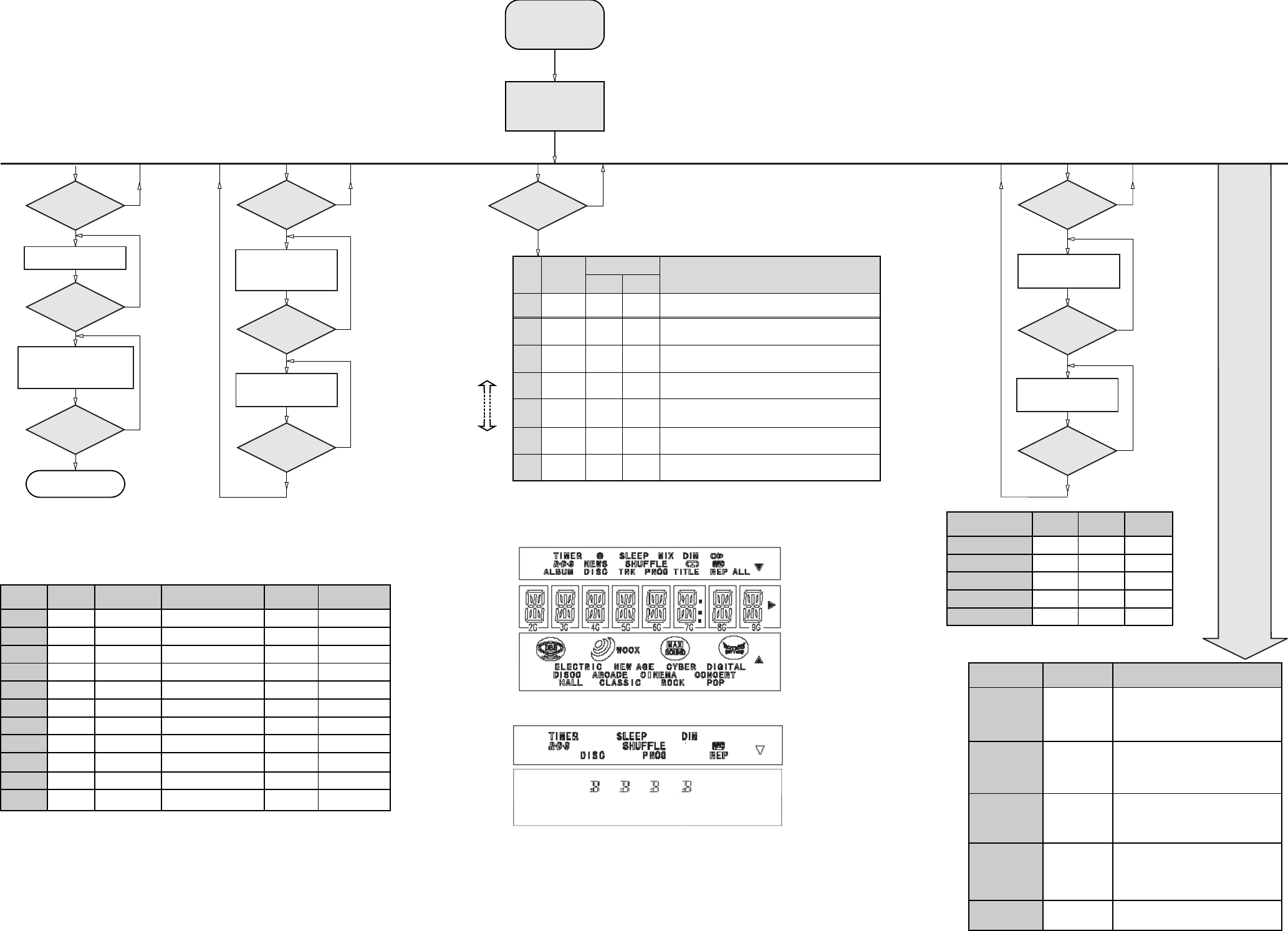

To start service test program
hold
™
& Aux
depressed while
plugging in the mains cord
Display shows the
ROM version
"S-Vyy"
(Main menu)
S refers to Service Mode
V refers to Version
yy refers to Software version number of the µ Processor
(counting up from 01 to 99)
VAC
VAC
LEDs
CD
TUNER
AUX / GAME
^^ MAX (WOOX)
FWM730
ON
OFF
ON
OFF
FWM570
-
OFF
-
-
-
Table 2
TAPE
OFF
Display shows Figure 2
and switch alternate LEDs on
(see Table 2)
To test Standby LED, put the set into ECO mode.
^^ MAX/WOOX 2DEMO
DEMO will toggle on or off.
The message: "DEMO ON" or "DEMO OFF"
will scroll across the display to show the
new status of the set.
^^ MAX - FWM570
,
WOOX - FWM730
CD
Button pressed?
Y
N
3CDC CONTROL &
MP3 CD MODULE
TEST
(For MP3 set only)
STEP
1
**2
**3
**4
**5
**6
DISPLAY MESSAGE
-
-
BUS OK
-
-
FOC OK
5DTC-ER
-
BUS ER
-
-
FOC ER
ACTION
Version of the 5DTC control software (nn = Version Number).
Version of the MPEG software (nn = Version Number).
Communication test between the Main uP and CD Module
CD SLEDGE MOTOR is moved in.
CD SLEDGE MOTOR is moved out.
FOCUS SERVO Test.
Press
9
to exit
OKAY ERROR
5DTC-Vnn
TI-Vnn
TI BUS
TI SLD I
TI SLD O
TI FOC
** Choose
level
by pressing
Q
R
Note : Disc should be available on the tray before entering the Service Test Mode.
SERVICE TEST PROGRAM
3-2 3-2
SERVICE TEST PROGRAM
Y
N
Y
N
N
PLAY
Button pressed?
PLAY
Button pressed?
PLAY
Button pressed?
ADC
TEST
Display shows "ADC1 Value"
for ADC1
(Input Line - IoSA2)
Display shows "ADC2 Value"
for ADC2
(Input Line - IoSA1)
Y
Y
N
9
Button pressed?
ADC Test is used for checking the
ADC inputs to the microprocessor.
The display shows an ADC value
between 0 and 255 for an input
signal between 0 and 5V.
Display shows "ADC3 Value"
for ADC3
(Input Line - IoAmNTC)
GAME PORT
TEST
STEP
1
2
3
4
5
DISPLAY
(SCROLL ONCE)
ACTION
Select CD as background sound source. Press PLAY to play the track.
Select TUNER as background sound source.
Select TA1 as background sound source.
Press PLAY to play the Tape1.
Select AUX as background sound source.
No mixing.
Disconnect mains cord to exit
MIX-CD
MIX-TU
MIX-TA1
MIX-AUX
MIX-OFF
Choose desired
background source
by pressing button
" MIX-IT "
GAME
Button pressed?
Y
N
Display shows "GAME PORT"
MIX-IT
Button pressed?
Y
N
MIX-TA2
6
Select TA1 as background sound source.
Press PLAY to play the Tape 2.
To start service test program
hold
™
& Aux
depressed while
plugging in the mains cord
Display shows the
ROM version
"S-Vyy"
(Main menu)
S refers to Service Mode
V refers to Version
yy refers to Software version number of the µ P rocessor
(counting up from 01 to 99)
4-1 4-1
SERVICE BLOCK DIAGRAM
IS
Interface
Audio
Mute Mute2
-Vkk
CON
A
H/P
DPL/
SIS Filter
TAPE
FIS or
A
(Blue Strip)
(wOOx)
(BassTreble)
H/P
A
A
650mV
78dBA
3.2dB
1.25V
86dBA
3.5dBA
-CMOS
-9V
+5V
A
REG. +5V6
NOTE :
MAIN SIGNAL PATH
MEASUREMENTS ARE IN AUX MODE :
XX mV
YY dBA
ZZ dB
Mute_SW_FR
H/P Amp
2.50V
85dBA
3dB
125mV
26mV
REG.
CCT
CCT
CCT
LOW_PW_SPLY
AA
A
MIC
A
Line Out
LEVELS AT MAX VOL
S/N AT 500mW
HEADROOM (1% THD) WRT TO LEVEL AT MAX VOL
500mV
SSL
-VKK
500mV
76dBA
16dB
1.90V
67dBA
3dB
Mute1
-Vkk
M
D
-CMOS
A
A
Mute_SW
AD
Signal
Proc.
Mute
Class_D
AMP.
10% THD
M730: 2x4
Ω
/2x150W
M570: 2x6
Ω
/2x110W
-8.5 dB
HEF
4052
GAME
PORT
D
250mV
Attn
A
A
+9V1
A
TUNER
D
3CDC REG.
+12V_A
AUX 640mV
A
VREF
DIG
125mV
Game
A
GAME 310mV
A
M
AF12
VU
4-2 4-2
SERVICE WIRING DIAGRAM
LEFT
3140 110 22471 FFC FOIL 09P/280/09P AD
FRONT/CDC KEYS
LEDSHSTR
IS_SHDATA
SPK_GND
GND_D
SILD
PWR_DN
CD_LED
GND_D
EN11
REGULATOR
8222 3139 111 02131
TAPE-R
RIGHT
KEY1
8404 3139 110 34611
FFC FOIL 04P/180/04P BD
FFC FOIL 11p/180/11P AD
+12V_A
HEADPHONE PCB
GND_A
FRONT
3139 110 341318602
FFC FOIL 08P/220/08P AD3139 110 35050
+12V_A
8400
SHR_DATA
DSA_DATA/IIC_RESET
DSA_ACK/IIC_CLK
TU_DATA
HP_LEFT
8501
GND
1102
1100
REF
AMP_RIGHT
REF
AMP_ON
+V
FREQ/MODE SEL
8322
8323
3139 110 35021
GAME_L
+12V_M
TU_ENAB
TU_DATA
NTC
F2
GAME_R
AF12
FRONT
GAME PCB
NTC
TU_STEREO
I2C_DATA
GND_D_I2C
-COMS
F1
1104
8601
8606
GND_A
VU_LEFT
GND_B
8606
8402
F2
-VKK
8323
GND_A
NEUTER
I2C_DATA
VU_RIGHT
AMP_LEFT
REF
AMP_LEFT
ASSEMBLY
CBLE PH 3P/340/3P OE SCR WIRE
8500
3140 110 22451
LINE IN CINCH SOCKET
GND_D
GND_D
LEDSHSTR
FFC FOIL 07P/180/07P AD
3140 110 22481
CD_LED
F2
CD_SH_DATA
SILD
SW_INFO
8828
+5V6
SICL
SPK_GND
GND_D
5V6_ECO
PWR_DN
TU_ENAB
TU_RIGHT
+12V_A
GND_A
GND_D
+5V6_CON
I2CCLOCK
GND_A
-COMS
TAPE-R
FFC FOIL 07P/280/07P BD
3139 110 33941
V_SWITCH
GND_V
+5V6_V
TAPE-L
8402
NTC
8403
TAPE DD ETF7
VIDEO
GND
GND
DSA_ACK/IIC_CLK
+12V
MAINS PCB
CD_SH_CLK
PWR_DN
L_PWR_CTRL
AD2
5V6_ECO
FREQ/MODE SEL
AMP_RIGHT
REF
AMP_ON
ERROR_DET
8503
SPK_GND
SPK_GND
NTC
CD_MP3_MODULE
SPK_GND
+12V
TAPE-L
REC-R
3139 111 02621
GAME_R
GND
GND_D
GND
3139 110 34921 FFC FOIL 08P/280/08P BD
GND_D_CD
SHR_STR STROBE
IS_SHDATA
LEDSHCLK
5V6
F1
8510
SHR_DATA
CLK
8510 3139 111 02641
DSA_DATA/IIC_RESET
HR_RIGHT
OUT_2
+V
3139 110 35881
RIGHT
CWAS SMF 1P/22O/1P STO-8 BK
SICL
GND_D_CD
DSA_STB
F2
F1
8601
8506
-VKK
8221 3139 111 01761 CBLE MIS 10P/280/10P MIS 26OS
+5V6_V
V_SWITCH
TU_LEFT
GAME_L
GND_A
CBLE SIN 1P/120/1P SIN 22 ST BK
GND_A
LEFT
1105
-V
SHR_CL
FFC FOIL 15P/180/15P BD
8500
HP_DET
HR_RIGHT
GND_A
HP_LEFT
LINE OUT CINCH SOCKET
OUT_2
I2CCLOCK
DISPLAY/u-P
GND
DSA_STB/IIC_DATA
+12V_A
8222
3139 110 39801
KEY0
GND_B
GND_A
+5V
GND
TU_LEFT
GND_A
8503
+5V
GND
GND_M
SW_INFO
GND_A_TU
8605
8229
8221
OUT_1
POWER_CTRL
NTC
GND
-V
+12V_A
1101
GND_A_TU
FFC FOIL 19P/280/19P AD
8401
KEY0
GND_D_I2C
8605
-V
+10V
8226
GND_A
HP_DET
AD1
TU_ENAB
TU_DATA
GND_P
8227
+5
+5V6
-Vkk
+12V_M
8501
GND_D
GND
CD_SH_STR
CD_SH_CLK
F1
TU_CLK
+10V
SW_INFO
OUT_1
OUT_2
OUT_2
CWAS 01SMF/01SRA 180 BK 24S
GND_D
+5V6
8604 3139 110 38381 CBLE HR 02P/180/02P HR 26 OS BK
8604
NTC
CBLE MIS 08P/220/08P MIS 26OS
8230
8230
-V
-V
-V
8406
REC-R
TU_STEREO
TU_CLK
CD_SH_STR
DATA
LEFT CHANNEL
RIGHT CHANNEL
+12V_M
GND_M
8322
LINE
TU_CLK
PWR_DN
VU_RIGHT
FFC FOIL 06P/80/06P AD3139 110 35211
CBLE HR 02P/220/02P OE 26OS BK
AD2
+5
AD1
REC-L
EMI REDUCATION
PCB
EN11
ERROR_DET
REC-L
B
TUNER ECO6
A
+V
+V
GND
SHR_CL
GMAE_R
GND
8404
+V
GAME_GND
8229 3139 111 01831
-Vkk
TU_STEREO
3139 110 35531 CBLE SMF 1P/090/1P STO-8 BK
CBLE MIS 06P/220/06P MIS 26OS
8228 3140 110 22501 FFC FOIL 08P/280/08P AD
KEY2
KEY1
GND_D
TU_DATA
TU_ENAB
8506
SPK_GND
SPK_GND
OUT_1
OUT_1
A11
DATA
CLK
GND_P
L_PWR_CTRL
8400
CONTOROL/LKEYS
STROBE
GAME_L
A22
GND_V
CBLE MIS 08P/120/08P MIS 26OS
8226 3139 110 35901 FFC FOIL 07P/220/07P AD
8227 3139 111 03201
1103
POWER_CTRL
8406
8401 3139 111 02491
ASSEMBLY
TU_RIGHT
+12V_A
FAN
UCD MODULE
CBLE SIN 1P/120/1P SIN 22 ST BU
+5V6_CON
GND_D
8403 3139 110 37171
LEDSHCLK
5V6
TU_CLK
V_SWITCH
GAME_L
GAME_GND
GND_A
8602
SW_INFO
SHR_STR
V_SWITCH
SPK_GND
KEY2
+5V6
VU_LEFT
CD_SH_DATA
SPK_ASSEMBLY
+12V_M
CWAS SMF 1P/280/1P STO-8 BK
EH-B 1
2
3
4
5
6
7
8
VIDEO OUT PCB
TU_STEREO
3139 110 33931
SUBWOOFER OUT
GND_A
DSA_STB/IIC_DATA
GND
DSA_STB
GMAE_R
+V
1
2
3
4
5
6
7
8
1XXX
EH-B
1502
1
2
3
4
5
6
1203
FE-ST-VK-N
1
2
3
4
5
6
7
1691
YKC21-3416
?
1701
FE-BT-VK-N
1
2
3
4
5
6
1201
FE-BT-VK-N
7
FE-BT-VK-N
1120
1
2
3
4
5
6
7
8
1
2
1706
FE-BT-VK-N
1
2
3
4
5
6
FE-BT-VK-N
1701
1
2
3
4
5
6
EH-B
1506
PH-B
1723
1
2
3
1701
FE-BT-VK-N
1
2
3
4
5
6
7
PAD
0XXX
FE-BT-VK-N
1405
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
0XXX
PAD
3
2
1
YKC21-3564
1890
3
2
1
FE-BT-VK-N
1407
1
2
3
4
5
6
7
8
1891
YKC21-3564
2
1603
FE-BT-VK-N
1
2
3
4
1120
FE-BT-VK-N
0XXX
PAD
1703
EH-B
1
1204
EH-B
1
2
3
4
5
6
PAD
0XXX
7
8
FE-BT-VK-N
1201
1
2
3
4
5
6
7
5
6
7
8
FE-BT-VK-N
1700
1
2
3
4
5
6
YKC21-3418
1501
EH-B
1XXX
1
2
3
4
5
6
7
8
9
1504
YKC21-3418
EH-B
1
2
FE-BT-VK-N
1402
1
10
11
2
3
4
FE-ST-VK-N
1203
1
2
3
4
5
6
7
8
1730
6
7
8
9
FE-BT-VK-N
1803
1
2
3
4
1
10
11
12
13
14
15
16
17
18
19
2
3
4
5
FE-BT-VK-N
1
2
3
4
5
6
7
8
9
FE-ST-VK-N
1406
12
13
14
15
2
3
4
5
6
7
8
9
1402
1892
YKC21-3564
3
2
1
1805
FE-BT-VK-N
1
10
11
10
11
12
13
14
15
2
3
4
5
6
7
8
9
5
6
7
8
9
FE-BT-VK-N
1805
1
FE-ST-VK-N
1
10
11
12
13
14
15
16
17
18
19
2
3
4
5
6
7
8
9
1XXX
EH-B
1
2
1401
3
2
1
1702
FE-BT-VK-N
1
10
11
2
3
4
YKC21-3564
1803
1
2
EH-B
1XXX
1
2
3
4
DIPMATE
1400
2
3
4
5
6
7
8
9
EH-B
1XXX
1
2
1
2
3
4
5
?
?
?
1XXX
EH-B
1
10
1
2
3
4
5
6
7
8
EH-B
1700
1
10
2
3
4
5
6
7
8
9
1692
FE-BT-VK-N
1551
EH-B
1
2
3
4
5
?
?
?
EH-B
1XXX
FE-BT-VK-N
1701
1
2
3
4
5
6
7
FRONT CONTROL BOARD
TABLE OF CONTENTS
CDC Key part - Layout & Circuit diagram ....................... 5-1
Control part - Component Layout .................................... 5-2
Control part - Chip Layout ............................................... 5-3
Control part - Circuit diagram .......................................... 5-4
Game Port part - Layout & Circuit diagram ..................... 5-5
Electrical parts list............................................................ 5-6
5-1 5-1
1631 A1
1632 A1
12
A
3304 A3 T304 A3
T305 A3
1633 A2
1634 A2 1635 A2
1730 A3 2300 A1
3300 A1 3301 A2
3302 A2 3303 A2
3
T304
123
W10
EH-S
1730
1
2
270R
3302
100p
2300
150R
3304
GND-BGND-B
1635
3303
220R
GND-B
GND-B
1634
390R
3301
T305
560R
3300
GND-BGND-B GND-B
1632
1631
1633
A

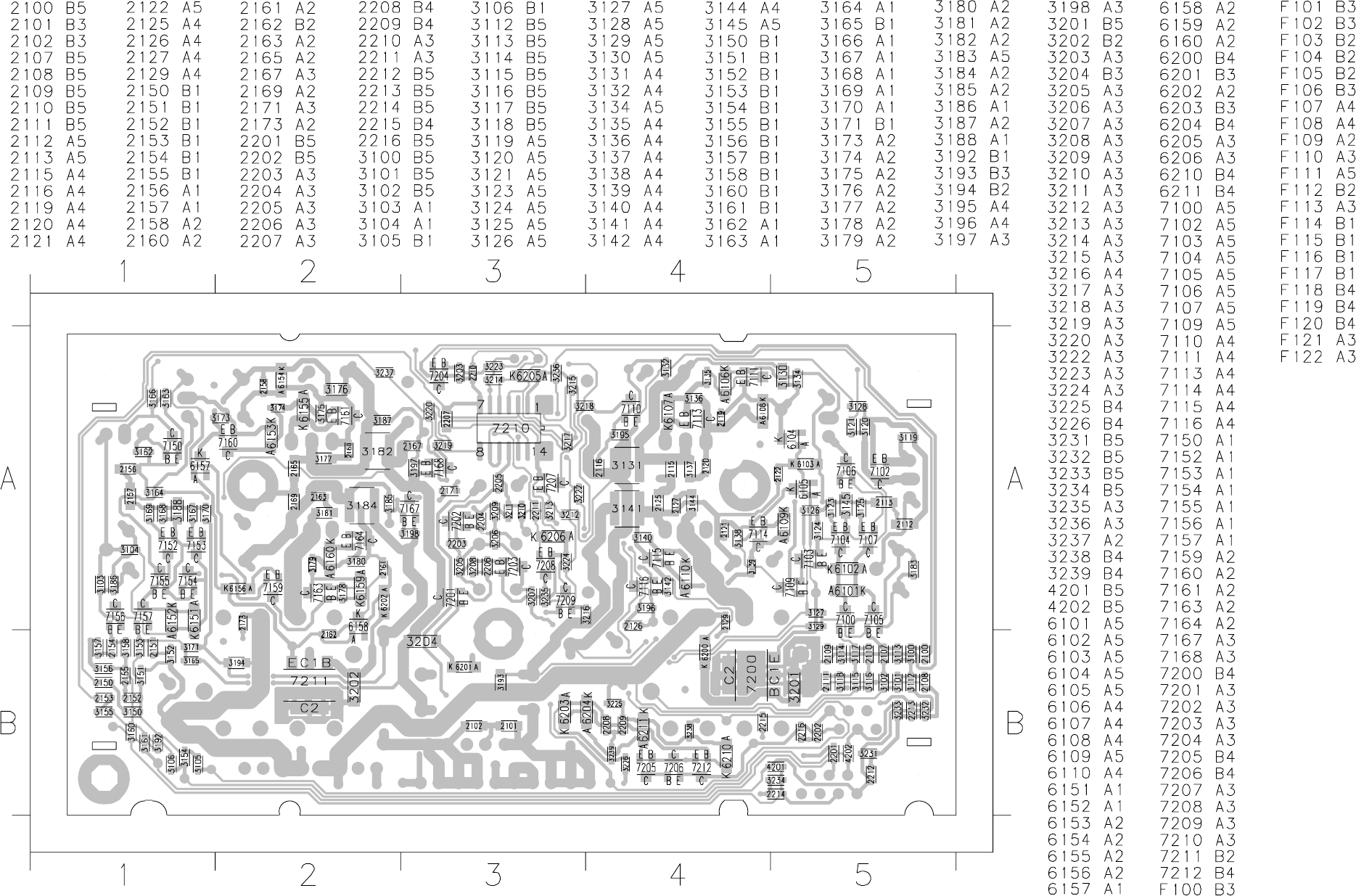

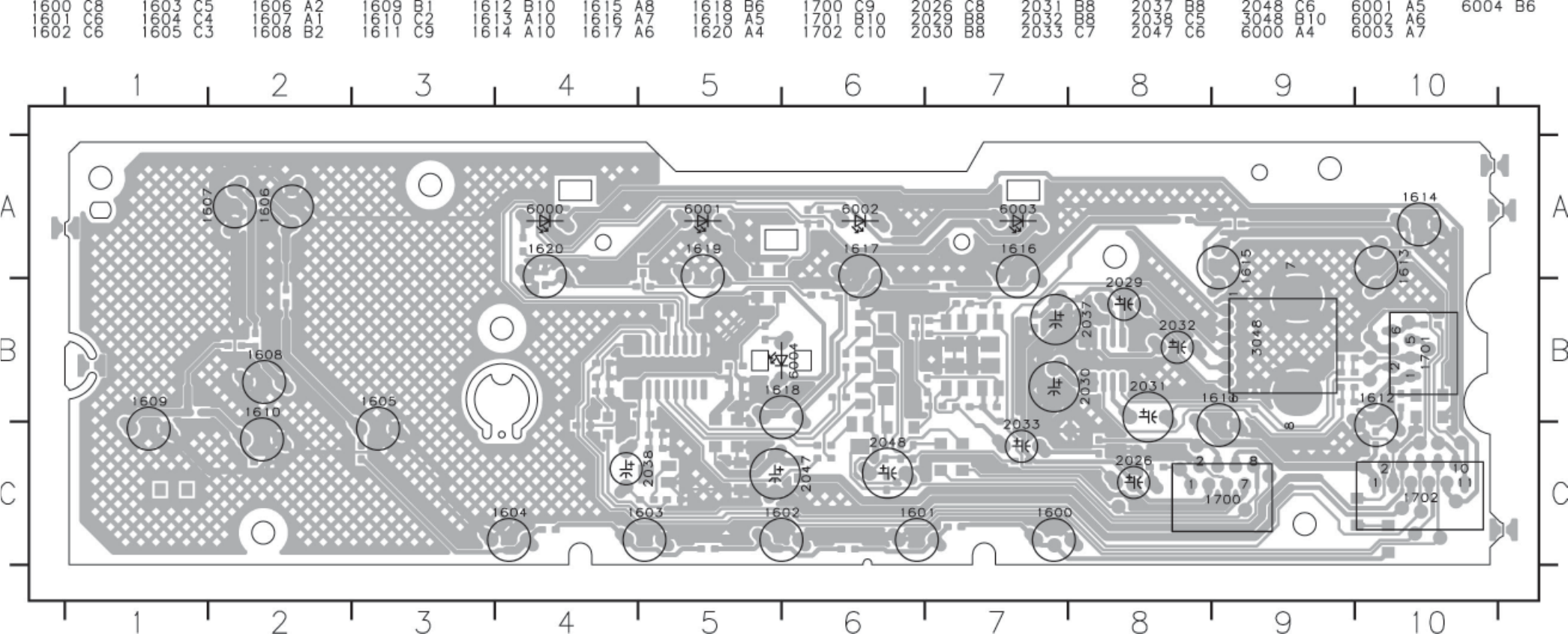

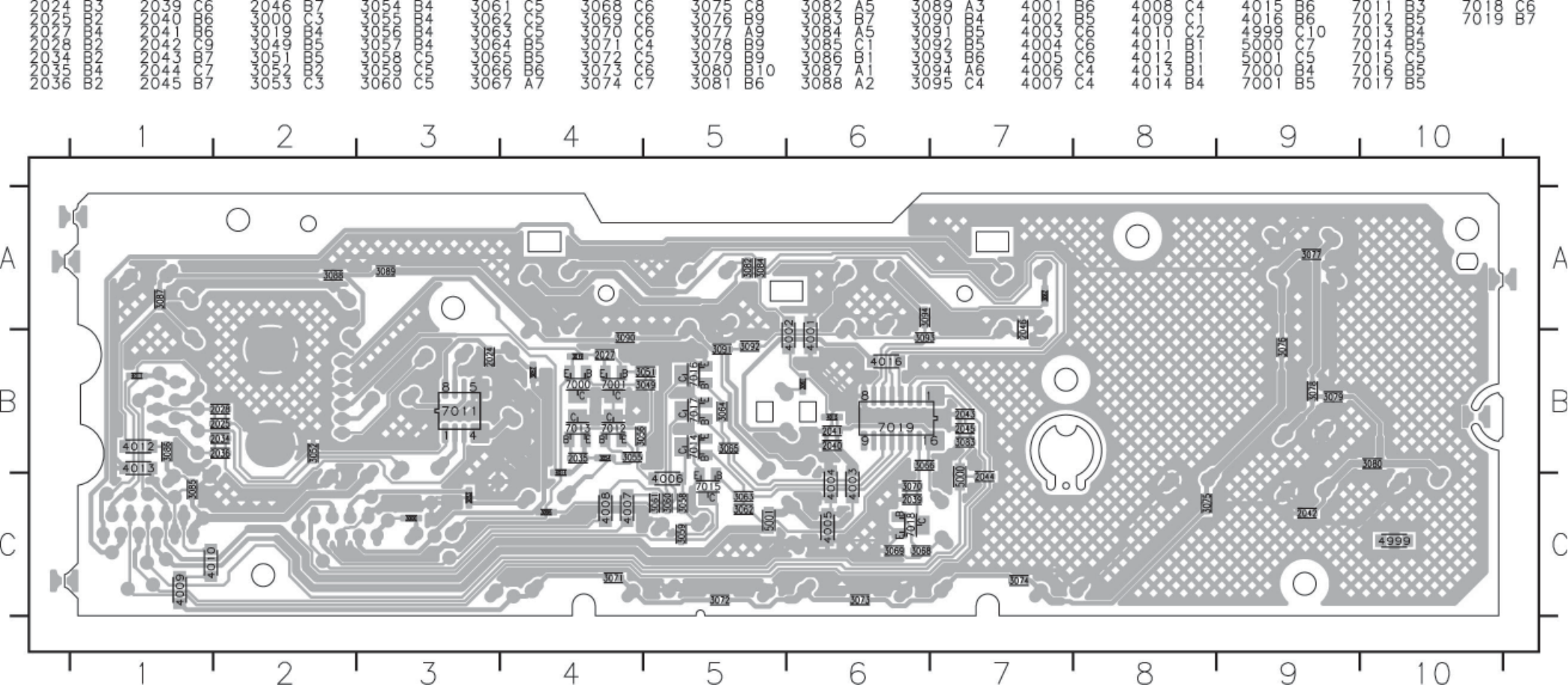

CDC KEY BOARD - COMPONENT LAYOUT
CDC KEY BOARD - CHIP LAYOUT

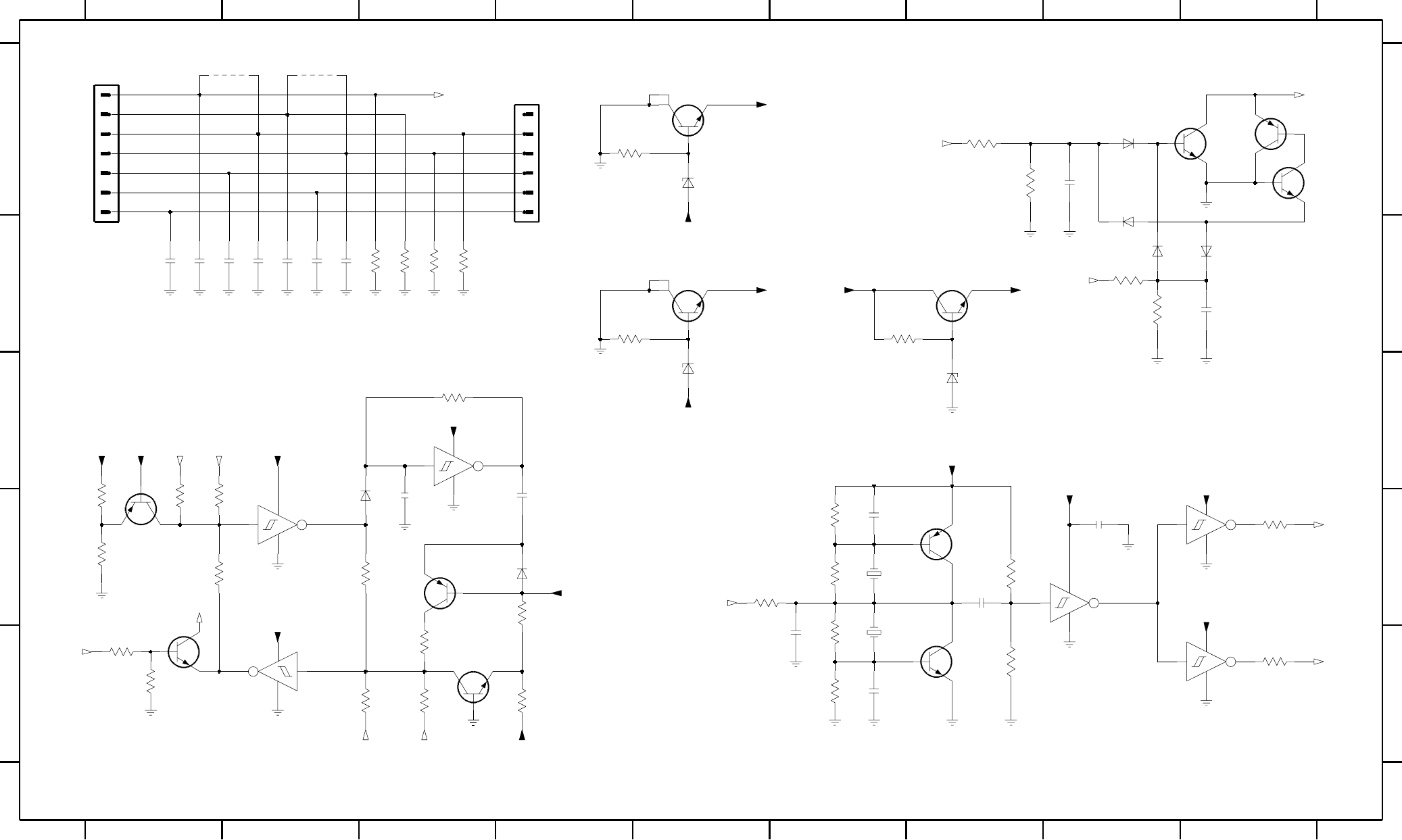

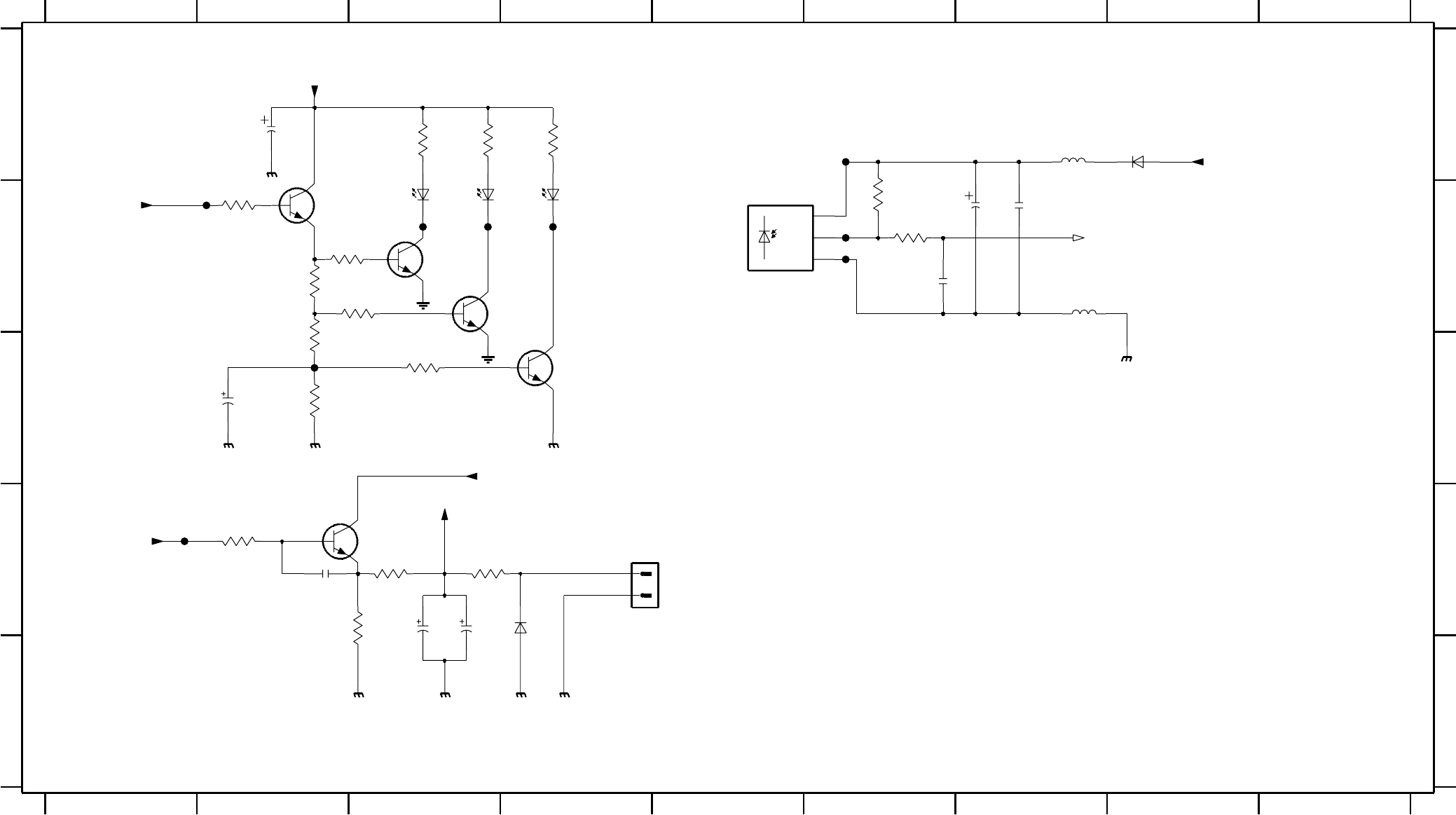

CDC KEY BOARD - CIRCUIT DIAGRAM
5-2 5-2

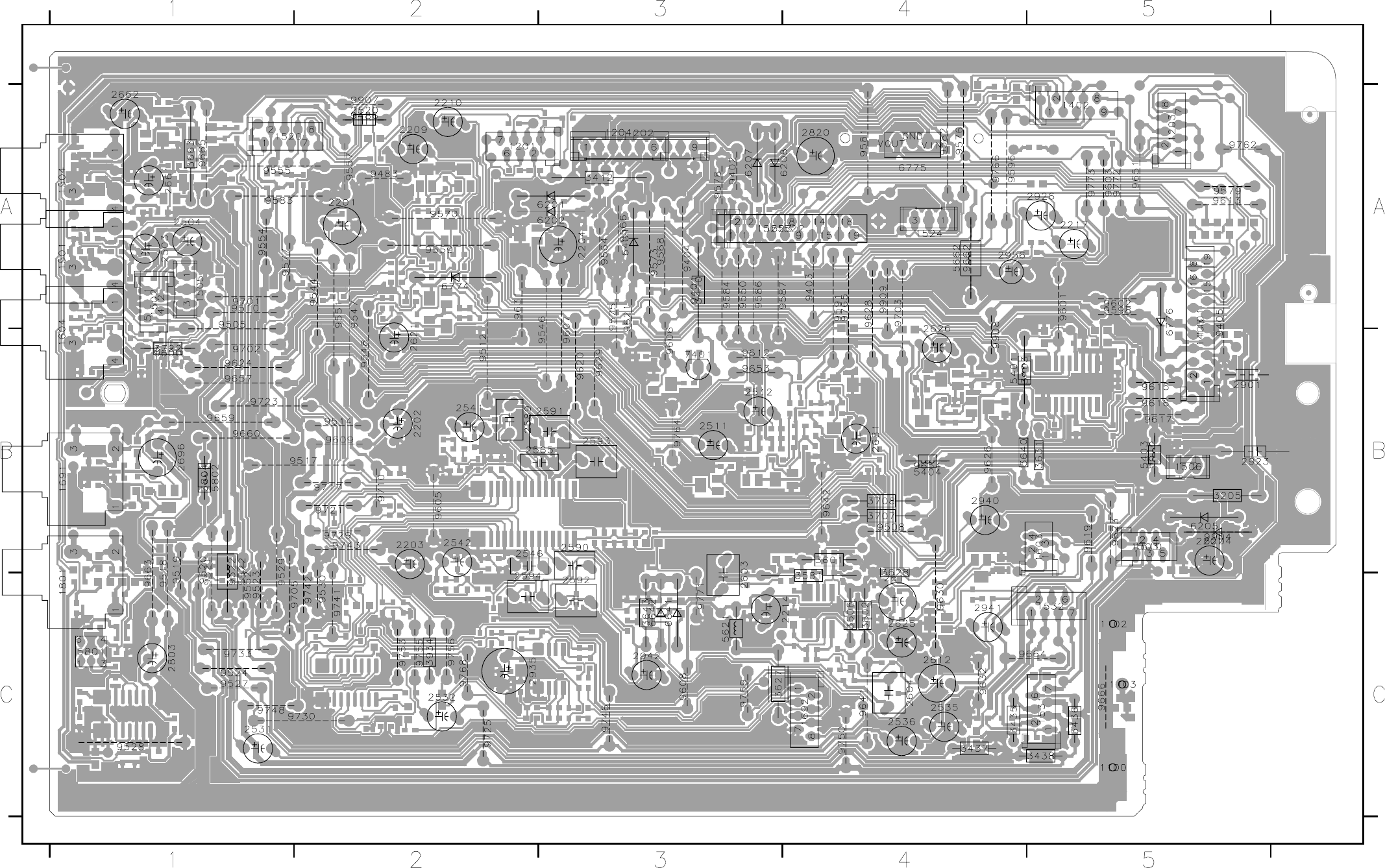

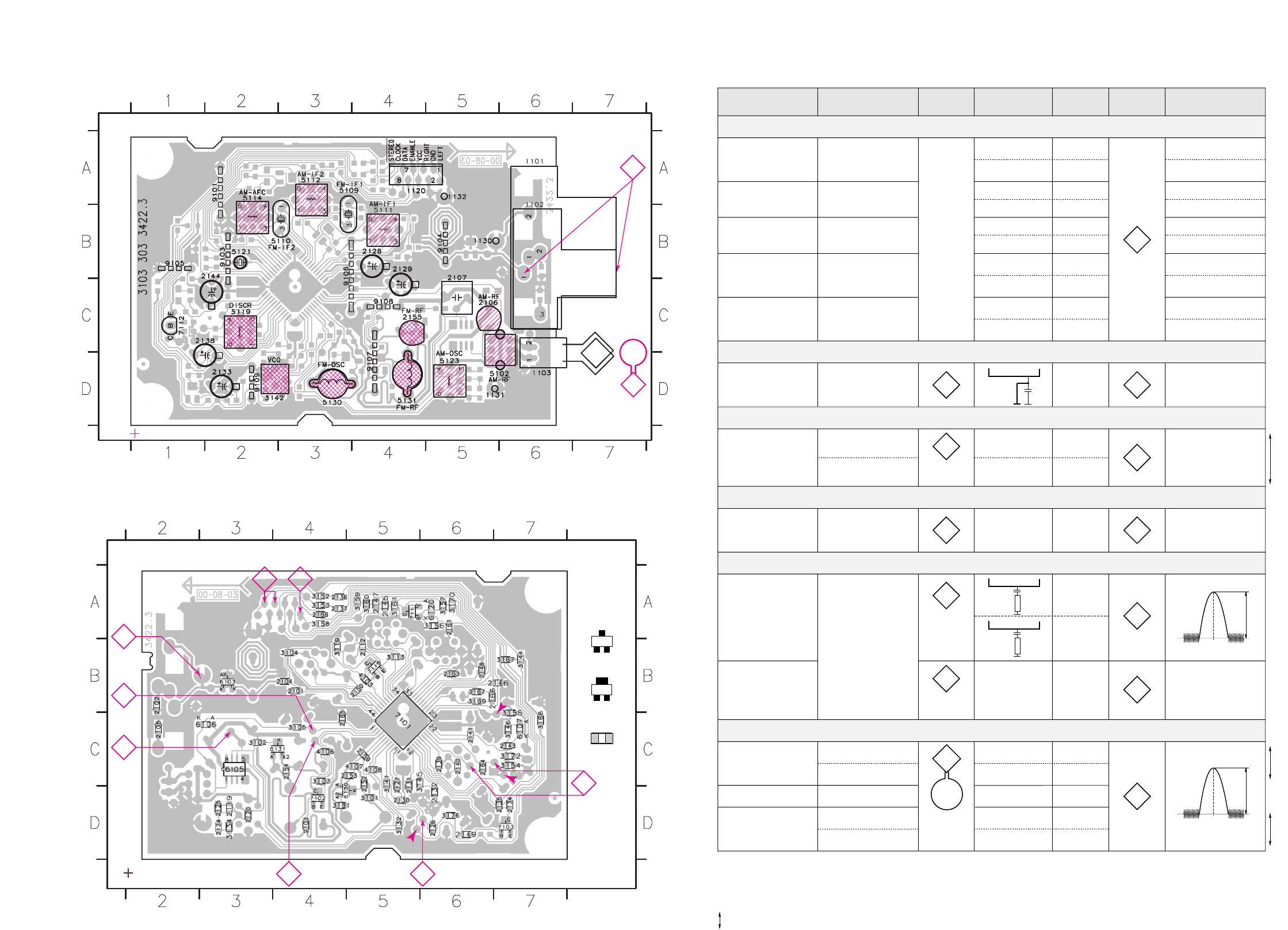

CONTROL BOARD - COMPONENT LAYOUT
5-3 5-3

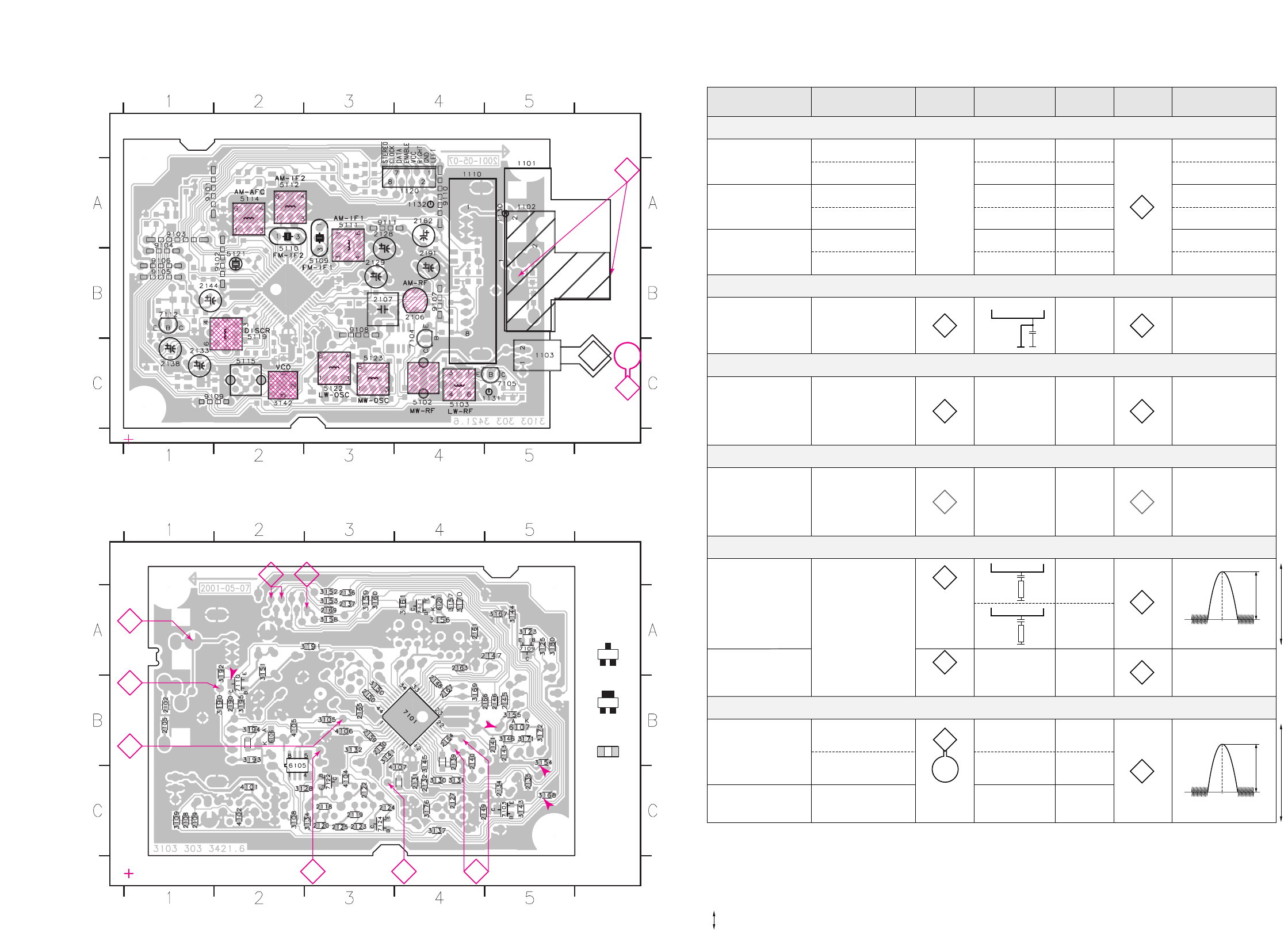

CONTROL BOARD - CHIP LAYOUT
5-4 5-4

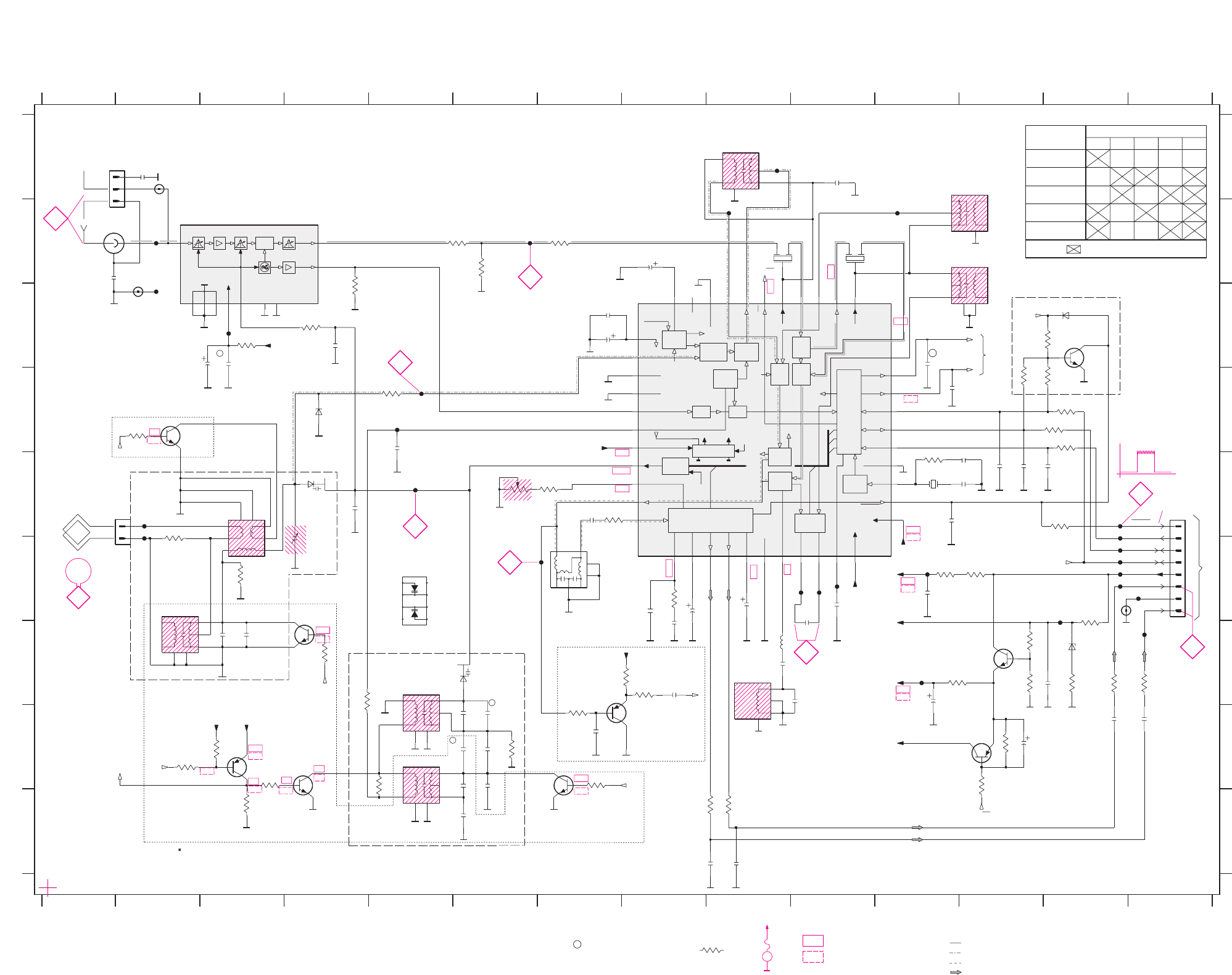

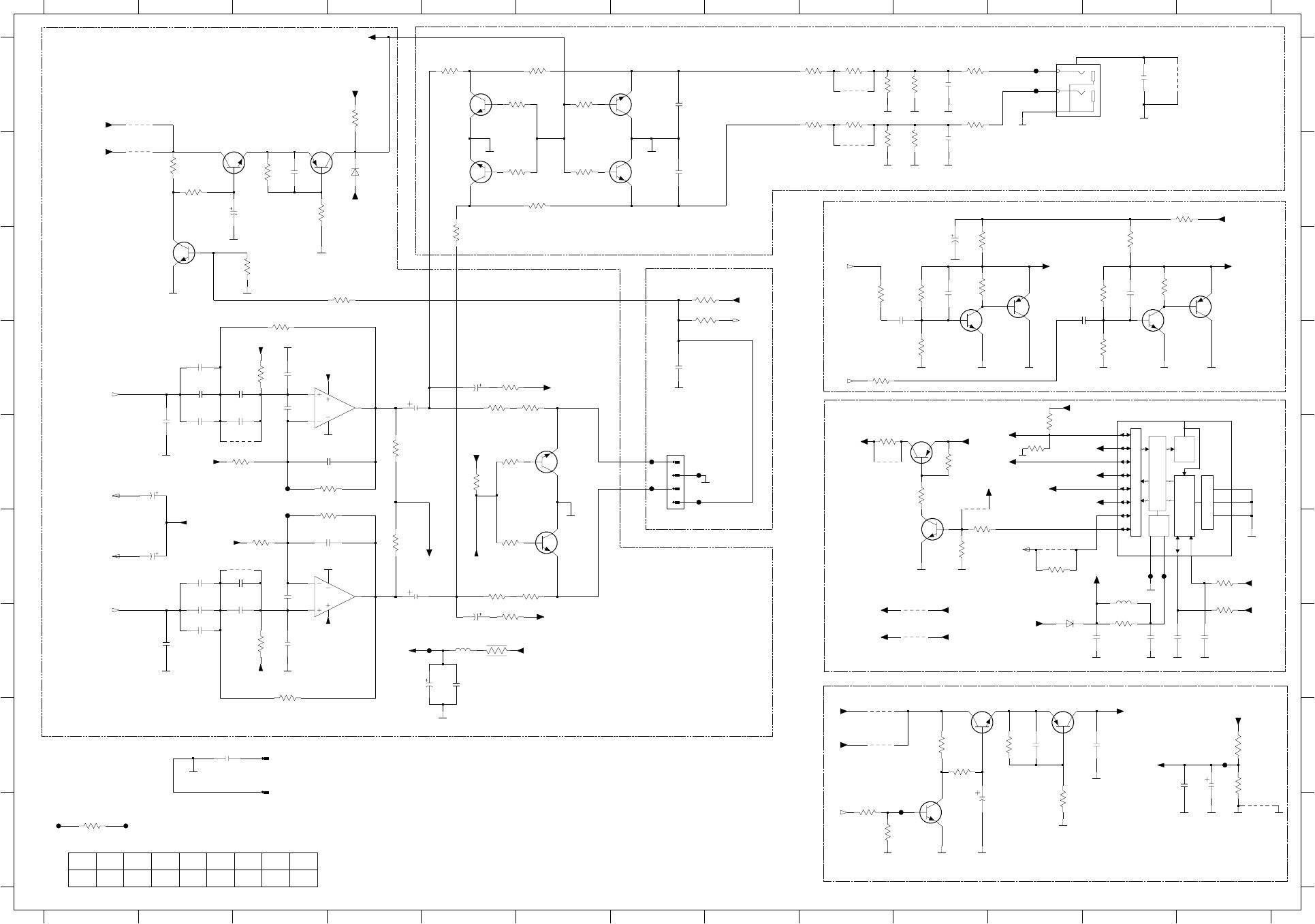

CONTROL BOARD - CIRCUIT DIAGRAM
GND
VCC
STB
D1
EN1
SRG8
I
A
B
C
D
E
F
G
H
I
1600 F2
1601 F2
1602 F3
1603 F3
1604 F4
1605 F4
1612 G2
1613 G3
1614 G3
1615 G4
PROG
DBB/I.S.
CD
S10
12345678
T024 A13
2345
Preset - |<
Play/ Pause
Auto Replay/RDS
67891011
1606 F5
1607 F5
1608 F5
1609 F6
1610 F6
1611 G2
E
F
G
H
Search |<< album
TAPE
CD
Aux
1616 G4
1617 G5
1618 G5
1619 G5
1620 G6
1700 A2
1701 A13
1702 H2
2024 A9
910111213
1
2031 B11
2032 B9
2033 B4
2034 B11
WOOX/MAX
M00 2035 B6
2036 C11
2037 A9
2038 E8
2039 E9
12 13
A
B
C
D
2046 G7
2047 H4
2048 D7
2049 B4
GAME SOUND
2050 C4
3000 A3
3019 A5
3048 A7
3049 B5
3051 B6
3052 B11
3053 B3
3054 B5
3055 C5
3056 C6
3057 A8
3058 D2
3059 D3
2025 A11
2026 A4
2027 A6
2028 A11
2029 B9
2030 B9
Tape
Tuner
DSC
Game_R
3062 D2
3063 D4
3064 D5
3065 D6
3066 E9
3067 E12
3068 E8
3069 E8
3070 E9
3071 F2
3072 F3
3073 F3
2040 F11
2041 F11
2042 F7
2043 G9
2044 G9
2045 G10
REC
Max/Woox
3075 F4
3076 F5
3077 F5
3078 F5
3079 F6
3080 F6
3081 F12
3082 F12
3083 G9
3084 G12
3085 G2
3086 G3
3087 G3
3088 G4
3089 G4
3090 G5
3091 G5
3092 G5
3093 G6
3094 G12
3060 D4
3061 D6
Game_R Game_L
CLK/TIMER
AUX/GAME
Tuner/Band
3096 B4
3097 C4
4020 C10
4021 C10
5000 F9
5001 H4
6000 E12
6001 G12
6002 F12
6003 G12
6004 F12
7000 B5
7001 B6
3074 F4
VAC
Preset + >|
W10
7012 C5
7013 C6
7014 D2
7015 D3
7016 D4
7017 D6
7018 E8
7019 E10
T000 A2
T001 A2
T002 B2
T003 B2
T004 B2
T005 B2
T006 B2
T007 B2
T008 H3
3095 D7
dubbing/news
STOP/CLEAR
T010 H3
T011 H3
T012 H3
T013 H3
T014 I3
T015 I3
T016 I3
T017 I3
T018 I3
T019 B12
T020 B12
T021 B12
T022 B13
7011 A10
D10
MIX-IT
T009 H3
Game_L
47K
T023 A13
Search >>| album
3065
GND_B
Gnd
220R
3081
T009
GND_B
GND_V
270R
6003
3082
1600
GND_A
3091
1K2
GND_B
T017
6004
2029
2u2
Gnd
BC817-25
7013
Gnd
7012
BC817-25
GND_A
1617
3049
1K0
3094
270R
T010
2047
100u 10
2042
100p
T011
GND_A
7015
BC847B
T018
Gnd
820R
3076
2033
4u7
6000
3088
390R
1620
1601
GND_A
BC847B
3054
2K2
7018
GND_A
GND_A
2044
220p
3075
560R
FE-ST-VK-N
1701
1
2
3
4
5
6
FE-ST-VK-N 1702
1
10
11
2
3
4
5
6
7
8
9
1614
GND_B
1608
1610
3068
10K
Gnd
Gnd
1602
GND_B
1612
10K
T001
GND_B
3070
150R
GND_A
GND_B
Gnd
3085
GND_A
2028
220n
3051
1K0
1619
GND_B
GND_B
3069
10K
10u
2038
GND_B
GND_A
T024
1611
2K7
3093
T019
GND_BGND_B
T000
2041
100n
3092
1K8
F-125KGP
3048
41
7
8
32
56
1615
1618
10K
3083
3064
47K
270R
3073
3087
270R
T003
T016
GND_A
GND_B
GND_B GND_B
2026
4u7
220R
2
3
4
5
6
7
8
T015
3072
GND_B
1700
FE-ST-VK-N
1
4K7
3058
1606
220p
2045
GND_B
1607
T006
GND_V
7000
BC847B
7017
T013
GND_A
BC817-25
7001
BC817-25
100p
2046
16V47u
2030
2024
100n
1604
100R
3057
2039
1n0
T004
GND_A
Gnd
1603
100R
3052
12
11
9
10
1
16
8
GND_B
7019
3
2
15
4
5
6
7
14
13
74HC4094D
2048
22u
220R
3086
820p
2027
GND_B
Gnd
3090
820R
4K7
3066
OUTL
7
OUTR
6
SVRR
4
8
T012
7011
TDA8579T
VCC
5
IN-NEG 2
INL-POS 1
INR-POS 3
3095
100R
1K2
3077 3079
2K7
T014
1K0
T021
3055
GND_B
T007
Gnd
1609
150R
3071
T002
390R
3074
T020
T005
2034
220n
1n0
2043
GND_A
6001
3053
1K0
560R
3089
5000 2u2
Gnd
1613
3019
2K2
6002
3060
4K7
3063
47K
GND_B
GND_A
50V 22u
2031
47K
3062
7016
BC847B
3056
1K0
T008
Gnd
1K8
3078
Gnd
GND_B
4K7
3061
T023
GND_B
GND_A
100n
2040
GND_B
22u
2037
GND_A
4K7
3080
1n
2050
GND_A
270R
3084
3067
47R
2049
1n
2036
220n
3000
1K0
1616
4K7
1605
3059
2025
220n
2035
820p
GND_A
T022
4021
4020
GND_A
BC847B
7014
2u2
2032
+12V_A
2u25001
+5V6
+5V6
CD
ShData
KEY1
CD
KEY2
LEDShClk
LEDShStr
V_Switch
+5v6_V
V_Switch
+5v6_V
+12V_A
A1
A11
A2
A22
EN1
EN11
EN2
EN22
+5V6
+5V6
LEDShClk
EN2
KEY1 KEY1
KEY2
LEDShStr
ShData
+5V6
A11
A22
EN11
+12V_A
EN1
EN22
A1
A2
5-5 5-5
GAME PORT BOARD - COMPONENT
LAYOUT GAME PORT BOARD - CHIP LAYOUT GAME PORT BOARD - CIRCUIT DIAGRAM
GND
V+
T205
T209 A3
T210 A3
T211 B3
T212 D4
T213 D4
T207 C1
T208 C4
A
B
C
D
E
1720-1 B4
1720-2 B4
1720-3 A4
1720-4 A4
3
123 4
A
B
C
D
E
2217 A2
2218 A4
2220 A4 3222 C4
3221 C1
3223 C4
3224 D4
3225 D4
4200 C2
4201 B2
4202 C2
5201 E3
5202 B2
5203 A3
5204 B3
5205 B4
5206 C4
7200 C3
T200 A1
T201 A1
T202 A1
T203 A1
T204 A1
T205 A1
T206 B1
2221 B2
2222 B3
12
2223 E3
2224 E3
2226 B4
2227 C3
2228 D1
2229 D4
2230 D3
2231 D2
3208 A2
3209 A3
3210 A2
3211 B3
3216 C1
3217 D1
3218 C3
3219 D3
3220 D31721 A1
1723 C1
1724 C4
1725 A4
2214 A2
2215 A3
2216 A2
4
2221
100p
4201
4202
47u
2227
2223
100u 10
5202
DLP31S
PH-B
1723
1
2
3
3217
T211
5204
150R
5203
5205
12
5206
T207
220n
2226
TC58-349-31
1720-1
WHITE
2
1
1M
3218
GND_v
2214
1M
3219
GND_v
100p
3211
1K2
T204
470p
2222
3209
1K2
T212
2215
470p
T201
T202
T200
3225
150R
8K2
3210
T213
GND_v GND_v
GND_v
T210
3223
150R
8
2
SW1 4
SW2
6
1
VIN1 3
VIN2 5
VIN3
7VOUT
7200
NJM2234M
Φ
3-INPUT
VIDEO SW
RT-01T
1725
1
T209
47u
2229
1721
1
2
3
4
5
6
150R
3224
FE-BT-VK-N
TC58-349-31
1720-3
YELLOW
6
5
100p 2217
4
3
7
TC58-349-31
1720-2
RED
100n
2224
1720-4
TC58-349-31
EARTH
150R
3222
1R
3221
100p
2218
1m0
2231
2220
100p
1
2
GND_v
T208
T206
1724 EH-B
2216100p
GND_v
GND_v
2u2
5201
2230
4200
GND_v
100n
150R
3216
68p
2228
3208
8K2
3220
1M
GND_v
+5v6_v
V_Switch
V_Switch
+5v6_v
T203
+5V6
+5V6
5-6 5-6
ELECTRICAL PARTS - FRONT CONTROL BOARD
1600 482227613775 TACT SW
1601 482227613775 TACT SW
1602 482227613775 TACT SW
1603 482227613775 TACT SW
1604 482227613775 TACT SW
1605 482227613775 TACT SW
1606 482227613775 TACT SW
1607 482227613775 TACT SW
1608 482227613775 TACT SW
1609 482227613775 TACT SW
1610 482227613775 TACT SW
1611 482227613775 TACT SW
1612 482227613775 TACT SW
1613 482227613775 TACT SW
1614 482227613775 TACT SW
1615 482227613775 TACT SW
1616 482227613775 TACT SW
1617 482227613775 TACT SW
1618 482227613775 TACT SW
1619 482227613775 TACT SW
1620 482227613775 TACT SW
1631 482227613775 TACT SW
1632 482227613775 TACT SW
1633 482227613775 TACT SW
1634 482227613775 TACT SW
1635 482227613775 TACT SW
1720 994000001862 SOC CINCH H 3P
3048 994000001861 POTM CAR LIN
6000 994000001863 LED BT-436N-31-F3.5-T20
6001 994000001863 LED BT-436N-31-F3.5-T20
6002 994000001863 LED BT-436N-31-F3.5-T20
6003 994000001863 LED BT-436N-31-F3.5-T20
6004 994000001864 LED BT-502BXK-31-470E-B6-F3.5
7019 482220915449 IC 74HC4094D
Note: Only these parts mentioned in the list are
normal service parts.
FRONT DISPLAY BOARD
TABLE OF CONTENTS
FTD Display Pin Connection ........................................... 6-1
Display part - Component Layout.................................... 6-2
Display part - Chip Layout ............................................... 6-3
Display part - Circuit Diagram ......................................... 6-4
5DTC Key part - Layout & Circuit diagram...................... 6-5
Electrical parts list............................................................ 6-5
6-1 6-1
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P18
2G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
-
1G 3G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
-
4G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
-
5G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
-
6G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
-
7G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
col
Dp
-
-
8G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
-
9G
a
h
j , p
k
b
f
m
g
c
e
r
n
d
-
-
-
-
10G
FTD DISPLAY PIN CONNECTION
( 2G - 9G )
col
Dp
bf h
gm
a
j k
e r p n c
d
1G
10G
3G 5G2G 6G 7G 8G 9G4G
A1
A3
A5
(Left)
(Right)
P17
---- ----
P19 ---- ----
6-2 6-2

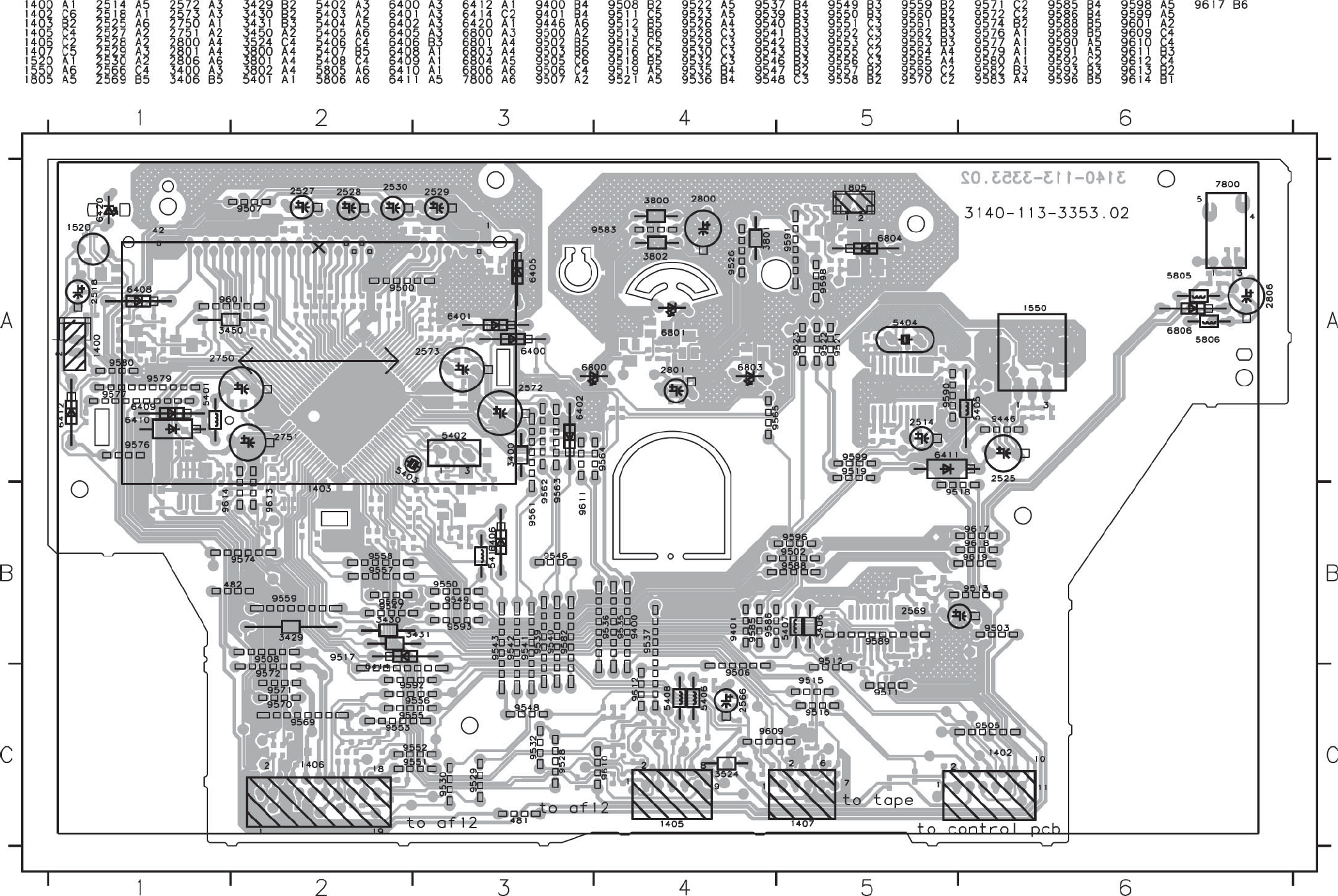

DISPLAY BOARD - COMPONENT LAYOUT
6-3 6-3

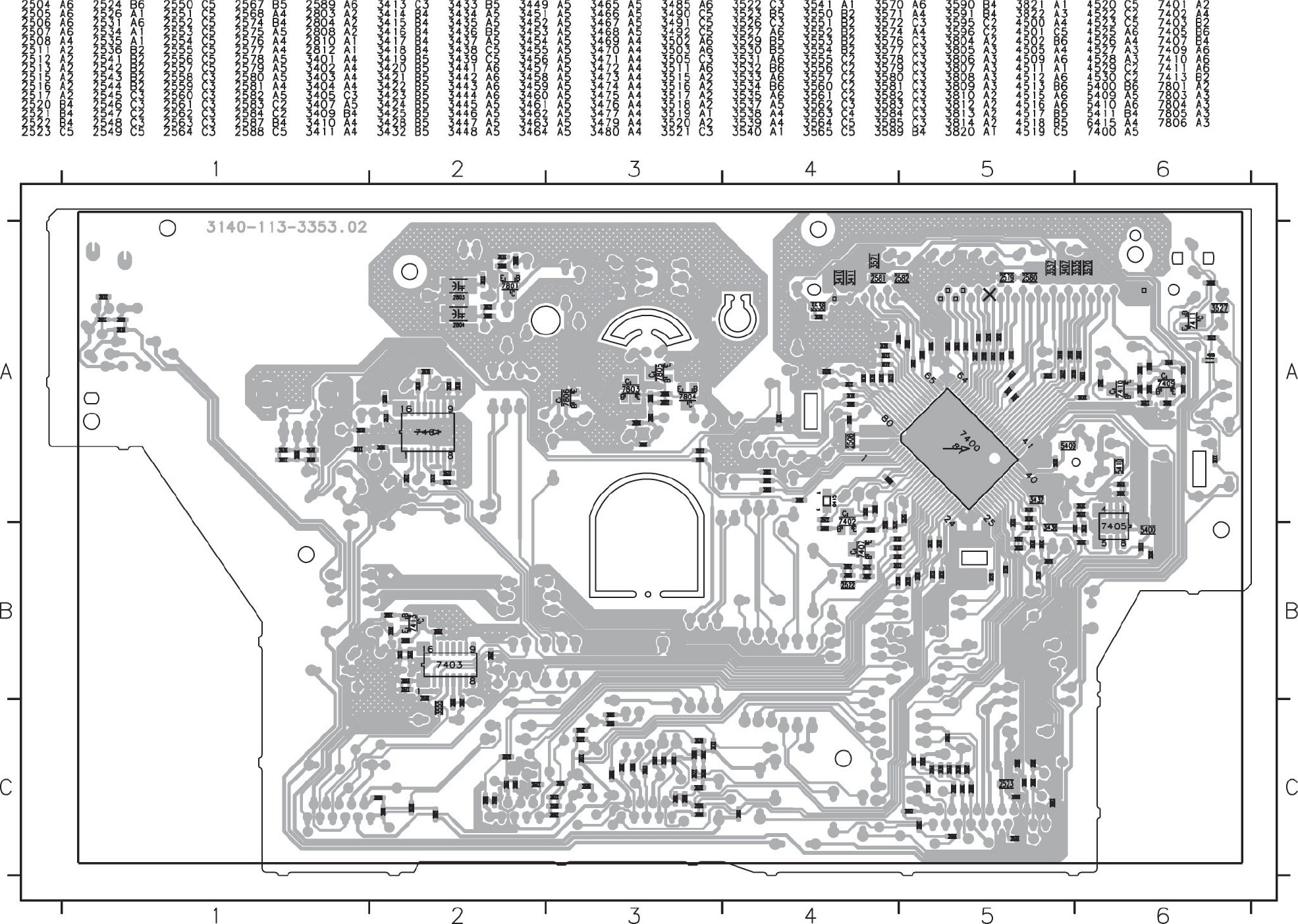

DISPLAY BOARD - CHIP LAYOUT
6-4 6-4

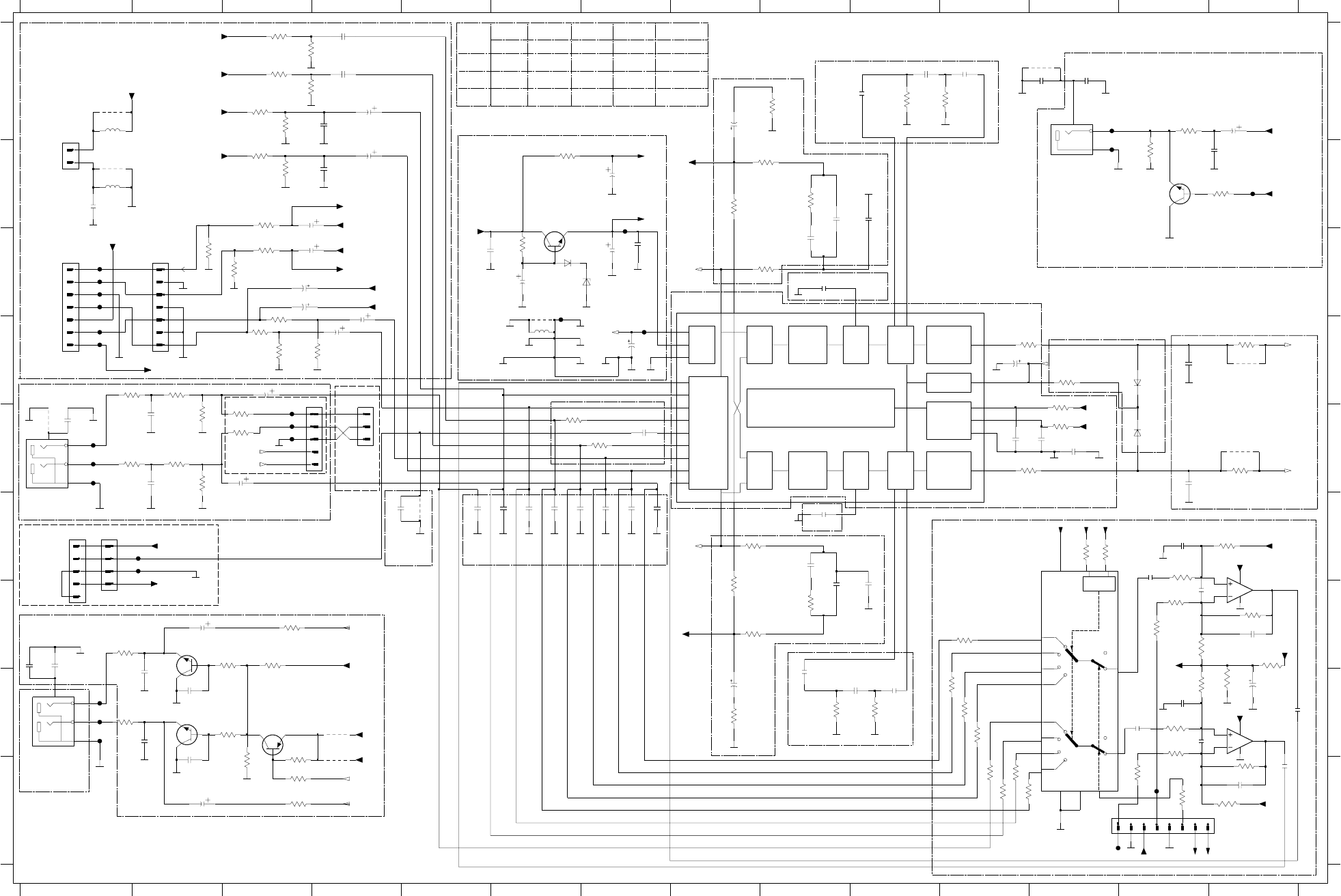

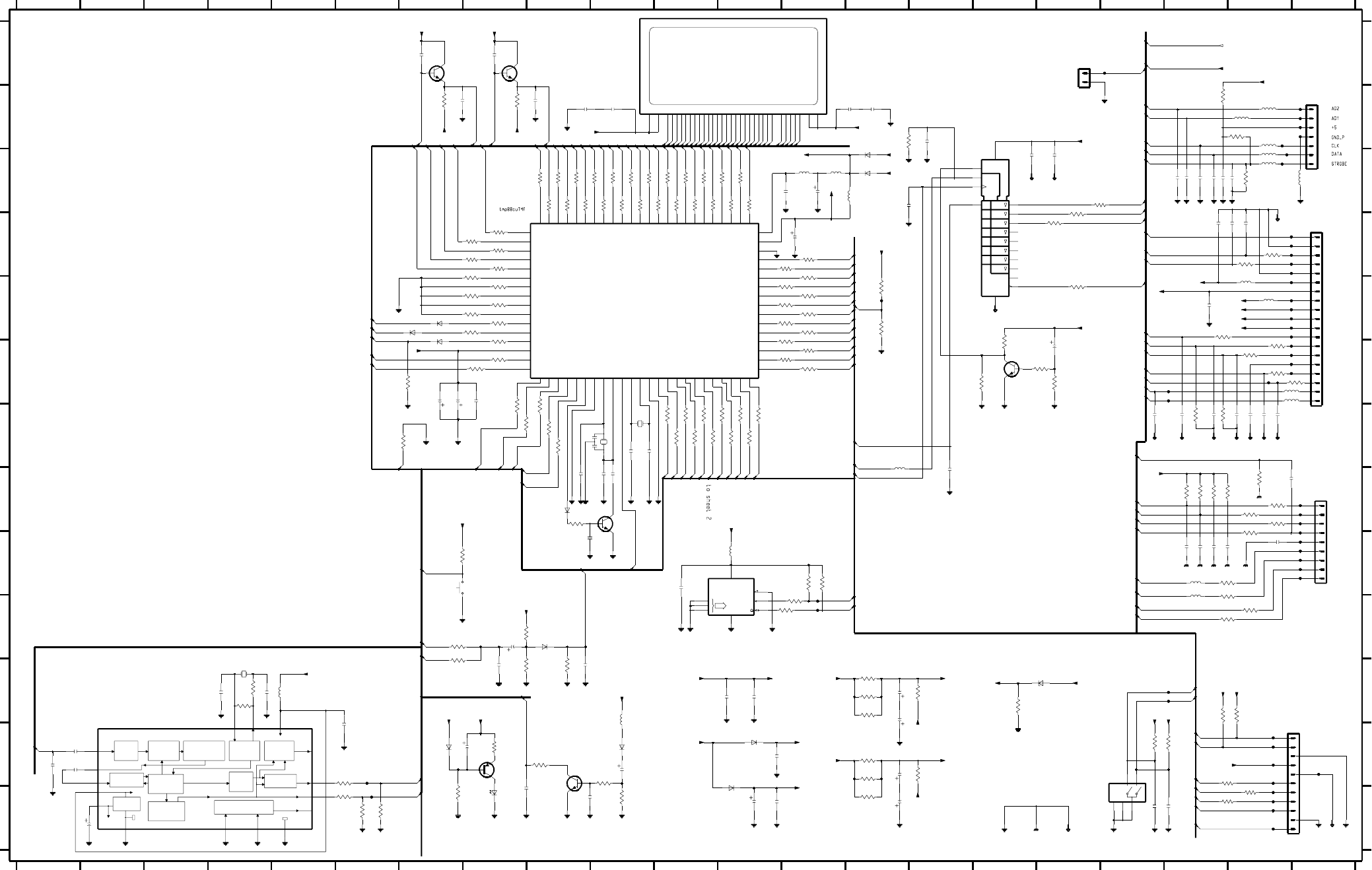

DISPLAY BOARD - CIRCUIT DIAGRAM 1
BIT
QUALITY
DIVIDER
AND
OSCILLATOR
FILTER
RECONSTRUCTION
(8th ORDER)
BANDPASS
ANTI-
ALIASING
FILTER
CLOCKED
COMPARATOR
REFERENCE
VOLTAGE CLOCK
REGENERATION
AND SYNC
COSTAS LOOP
VARIABLE AND
FIXED DIVIDER
57 Khz
GENERATOR
DIFFERENTIAL
DECODER
BIPHASE
SYMBOL
DECODER
TEST LOGIC AND OUTPUT
SELECTOR SWITCH
VP1
STB
D1
EN1
SRG8
SCL
ADR
0
1
2 SDA
WC
F510 J13
F511 E14
F601 K19
F602 K19
F312 H21
F313 H21
F314 H21
F315 I21
F316 I21
F317 I21
F318 I21
F319 I21
F411 L20
F412 L20
F413 L20
F415 L20
F416 M20
F417 M20
F418 M20
F419 M20
F420 L21
F502 J13
F505 A18
F506 L6
F508 M6
F105 B20
F106 C20
F107 C20
F201 D21
F202 D21
F203 D21
F204 D21
F205 D21
F206 E21
F208 E21
F209 E21
F210 E21
F211 E21
F212 E21
F213 F21
F214 F21
F215 F21
F216 F21
F217 F20
F218 F18
F219 F18
F311 H21
6412 L7
6414 J9
6415 H9
6420 M8
7400 C8
7401 K2
7402 H10
7403 C15
7405 I12
7407 L9
7409 A8
7410 A7
7411 L8
7413 F16
F101 B21
F102 B21
F103 B21
F104 B21
5407 G14
5408 I19
5409 C13
5410 C14
5411 K10
5412 F20
5413 G20
5416 E20
5418 E20
5419 C21
5420 C20
5421 C20
5422 B20
5423 B20
5425 B20
6400 E7
6401 E7
6402 E7
6405 K17
6406 L10
6408 L12
6409 C14
6410 C14
6411 L12
3576 H19
3577 H19
3578 H19
3579 H20
3580 H20
3581 H20
3582 H20
3583 H20
3584 I20
3585 J20
3589 L9
3590 M10
3591 M10
3595 K19
3596 K20
3597 F13
3598 F13
3599 J19
3600 E19
3601 F21
3602 L19
3603 M20
3605 M19
5400 I12
5401 C13
5402 G10
5403 G10
5404 K4
5405 K5
5406 I19
3537 K15
3538 L15
3539 K16
3540 L18
3541 L19
3550 F16
3551 F17
3552 F17
3553 B14
3554 F16
3555 C17
3556 C17
3557 D17
3562 B20
3563 H19
3564 D20
3570 K14
3571 L14
3572 C20
3574 F7
3503 B8
3505 J7
3511 I7
3515 K4
3516 K4
3517 L6
3518 M6
3519 M6
3520 M6
3521 J8
3522 K8
3523 K9
3524 B19
3526 J7
3527 L8
3529 E14
3530 E14
3531 I13
3532 I13
3533 J13
3534 J13
3535 K143466 D8
3467 D8
3468 D8
3469 D8
3470 D8
3471 E8
3472 E8
3473 E8
3474 E8
3475 E8
3476 E8
3477 E8
3479 F8
3480 F8
3485 M7
3490 F20
3491 F20
3492 F20
3502 B7
3442 C12
3443 C12
3444 C12
3445 C11
3446 C11
3447 C11
3448 C11
3449 C11
3450 C11
3451 C11
3452 C10
3453 C10
3454 C10
3455 C10
3456 C10
3457 C10
3458 C10
3459 C9
3460 C9
3461 C9
3462 C9
3463 C9
3464 C9
3465 D8
3419 G11
3420 G12
3421 G12
3422 G12
3423 G12
3424 G12
3425 F13
3428 E13
3429 E13
3430 E13
3431 E13
3432 E13
3433 E13
3434 E13
3435 D13
3436 D13
3437 D13
3438 G19
3439 G19
3441 C12
2588 D19
2589 L12
2750 C13
2751 D13
2752 H9
3400 G8
3401 G8
3402 G9
3403 G9
3404 G9
3405 I20
3406 E17
3407 K14
3408 D20
3409 H9
3410 L14
3411 M14
3413 G7
3414 G11
3415 G11
3416 G11
3417 G11
3418 G11
2561 I20
2562 H20
2563 I20
2564 K8
2566 J8
2567 K9
2568 H10
2569 F17
2572 F7
2573 F8
2574 G10
2575 G10
2576 H10
2577 I9
2578 C13
2579 B9
2580 B10
2581 B14
2582 B14
2583 C19
2584 C192528 K14
2529 L14
2530 M14
2531 I11
2533 E19
2534 M18
2535 M19
2536 C14
2541 B15
2542 H15
2543 C16
2544 C17
2545 C19
2546 C19
2547 C19
2548 C20
2549 D20
2550 D20
2551 G19
2552 G19
2553 G20
2554 G20
2555 G20
2556 G20
2557 G18
2558 I19
2559 I19
2560 I19
K
L
M
A
B
C
D
E
F
2516 K4
2517 L6
2518 L7
2520 M8
2521 M9
2522 L10
2523 K12
2524 K12
2525 M12
2526 M12
2527 K14
14 15 16 17 18 19 20 21
A
B
C
D
E
F
G
H
I
J
67891011 12 13 14 15 16 17 18 19 20 21
12345678910111213
2505 B7
2506 A8
2507 B9
2508 F8
2511 L1
2512 L1
2513 L1
2514 M2
2515 K4
12345
G
H
I
J
K
L
M
1400 A17
1402 K21
1403 A12
1405 H21
1406 D21
1407 B21
1520 I7
1550 L18
2504 A7
RDCL
2RDDA
8SCOUT
15T57
10
TEST
5VDDA
VDDD
12
3VREF
6
VSSA
11
VSSD
470R
3431
SAA6579T
7401
7CIN
9
MODE
4MUX
13
OSCI
14
OSCO
1QUAL
16
470R
3419
220n
2533
F104
22K
3539
F102
F103
470R
3425
5423
15R
3577
10K
3411
2556
100p
2559
10p
3402
470R
3452
1K0
100p 2583
2564
1n
15K
3505
DT-38
32K768
5403
3520
10K
1K0
3461
3554
1K0
3469
10K
6420
F413
47u
BC847B
7410
220K
2573
10K
3553
3515
F101
2750
220u
5401
100u
70
71
72
73
74
75
76
77
78
79
8
80
9
56
57
58
59
6
60
61
62
63
64
65
66
67
68
69
7
41
42
43
44
45
46
47
48
49
5
50
51
52
53
54
55
27
28
29
3
30
31
32
33
34
35
36
37
38
39
4
40
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
2552
7400
1
10
11
47p2560
2568
2p2
3576
10K
100p
3523
470K
3456
1K0
220R
3408
3502
82K
470R
3420
10K
3574
6414
3466
1K0
1N4148
1K0
3448
1M
3413
1K0
3467
2516
47p
3417
470R
1K0
3443
470R
3434
4K7
470R
3492
47K
3485
3409
3442
1K0
F313
2562
1n
F311
F312
F219
5406
2u2
10K
3551
1N4148
6400
470R
3477
2525
47u
3521
15R
3570
47p
2511
680K
3540
10K
3472
10K
1K0
3457
7
14
13
12
11
9
10
1
16
8
7403
74HC4094D
3
2
15
4
5
6
F317
1
2
3
4
5
6
7
F316
F419
1407
FE-ST-VK-N
F417
F418
3465
F416
1K0
3591
1u
2566
100K
1u
2589
1N4003
6410
2526
3474
10K
3527
820R
100n
F209
F210
F315
F508
F601
F314
F506
6
7
8
9
F505
1402
FE-ST-VK-N
1
10
11
2
3
4
5
3582
1K
1K0
3446
100p
2561
3517
10K
2578
100n
BC847B
7413
470R
3490
100n
2543
3562
10K
100p
2563
3475
100n
2555
3535
15R
470R
2551
47p
1K0
3441
3503
82K
10K
3534
1K
3415
3518
2u2
5408
470R
100p
2558
10K
3471
5402
7411
BC857B
3401
470R
12M
CST
10u
2569
1K0
3449
100p
2505
330K
3585
5407
2u2
470R
3480
220p
2581
220n
470R
3423
5410
2588
(256x8)
Φ
EEPROM
1
2
3
6
5
8
4
7
3436
7405
M24C02-WMN6
F214
1K0
F213
F203
F204
4u7
2530
2544
100n
3595
2K7
3464
1K0
10n
3583
22K
1N4148
6412
2534
2574 22p
BC847B
7402
3590
100K
3424
470R
4u7
2527
3418
470R
3564
220R
3455
1K0
1K0
3437
22p2576
3571
15R
1520
SKQNAB
2524
100n
470R
3428
220p
3589
1K
10K
2541
3550
4K7
3552
3430
470R
3405
1K
1K
3580
100n
2517
120R
3537
3447
1K0
1
2
220p
2536
3407
1400
DIPMATE
15R
2553
47p
3421
2521
10n
470R
100p
2584
47u
5404
AT-51
3458
2751
1K0
10K
6411
1N4003
470R
3400
3519
1K0
3459
3444
1K0
47n
2508
3432
470R
100p
2507
2u2
2567
220n
5405
2549
10p
470R
3429
7407
BC847B
1K0
3445
3531
3526
15K
2515
82p
10K
3473
470R
3422
3454
1K0
10K
F105
3555
180R
3557
220R
1N4148
3406
1K
100n
2523
6401
470R
3600
3601
470R
F510
F420
F319
F411
1K
F318
3533
2K2
2546
220p
F106
3439
1K
3584
2535
10n
3403
470R
4u7
2518
1K0
3450
6415
BAS316
220R
3603
3602
220R
10K
3541
1K0
3468
10n
2520
5400
3511
2K7
5409
2577
10K
3579
2u2
10n
F412
2514
F206
3581
2K7
3530
2575
22p
1K
10K
3532
47K
1N4148
6402
2504
100p
3522
470R
15R
3410
5411
4u7
3433
2506
100p
2545
220n
220p
2579
F502
5425
3462
1K0
2513
560p
2531
1u
10p
2557
2512
560p
3416
470R
470R
3435
3451
1K0
BC847B
2K7
3596
2542
220p
7409
470R
3491
3516
3414
470R
3453
1K0
2K2
220R
3556
3605
220R
5419
5420
5422
5421
5416
5418
5412
5413
F205
3563
10K
3599
470R
3597
220R
220R
3598
22p
470R
3479
2752
19
2
3
4
5
6
7
8
9
1406
1
10
11
12
13
14
15
16
17
18
2529
4u7
FE-ST-VK-N
6409
1N4148
F216
3476
470R
2580
220p
2548
220p
25
P4
P5
24 23
P6
P7
22 21
P8
P9
20
F212
3
F2a
42 40
F2b
28
P1
19
P10
P11
18 17
P12
P13
16 15
P14
9
P15
P16
87
P17
P18
65
P19
P2
27
P3
26
SPC03.06.11-09
1403
38
10G
1G
2930
2G
3G
3132
4G
5G
3334
6G
7G
3536
8G
9G
37 1
F1a
F1b
2528
4u7
1K0
3463
5K6
3529
2522
0u47
10K
3578
3470
10K
BZX79-B4V7
6405
F215
F217
47u
2572
6408
1N4148
3438
2K2
1405
1
2
3
4
5
6
7
8
9
FE-ST-VK-N
2554
10p
3524
10R
BAS316
6406
F602
3460
F511
1K0
2550
F218
F211
10p
F107
F201
2547
220p
F208
470R
3404
F202
2
C
4
5
3572
2K2
EC12
1550
1
AB
3
2582
220p
F415
LEDSHCLK
3538
120R
+L
+12V_D
+D
TPADC2
TPADC1
LPC
DSA_DATA_uP_FRAME
SHR_DATA
DSA_ACK_uP_CLK
DSA_STB_uP_DATA
TPSHSTR
TPSHDATA
TPSHCLK
AUX
KEY1
KEY2
+D
VOL_A
LEDSHSTR
IS_SHDATA
P8
P9
P10
P11
P12
P13
P14
-F2
KEY0
+5V6
V_SWITCH
G10OUT
G7
-F1
P1
P2
P3
P4
P5
P6
P7
+L
+C
+5V6_CON
RC5
-VKK
AUX
V_SWITCH
TU_ENAB
IS_SHDATA
+5V6
+5V6
LEDSHDATA
G8
G9
G10
TPSHDATA
P15
P16
P17
P18
P19
G9
G8
G6
G5
G4
G3
G2
G1OUT
+F
+D
F1
F2
-VKK1
-VKK1
-F1
-F2
-VKK-VKK1
VU_METER_R
LEDSHCLK
LPC
KEY1
KEY0
AMNTC
LEDSHCLK
LEDSHDATA
+C
KEY0
+C+C
VUMETER VUMETER
RC5
G1
G3
G4
G5
G6
G7
+F+F
-VKK-VKK
+5V6
+D
+D
F2
F1
-VKK
+5V6
+5V6_CON
+C
+5V6
LEDSHSTR
TPADC2
TPADC1
OPTIONS
+C
+5V6 +5V6
+5V6
TU_CLK
TUSTEREO
CDSWINFO
CDSHSTR
CDSHCLK
12C_CLK
12C_DATA
AMNTC
G10OUT
G10
G1OUT
G1
P19
P18
P17
P16
P15
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
G2
VOL_B
RESET
CDSHSTR
RC5
DSA_ACK_uP_CLK
TU_DATA
TU_CLK
VUMETER
TURDSDATA
TURDSCLK
PWRDWN
12C_CLK
CDSWINFO
OPTIONS
SA_IN
KEY2
TUSTEREO
LEDSHSTR
VOL_B
PWRDWN
VU_METER_R
VU_METER_L
TU_RDS_OUT
TU_ENAB
TU_DATA
RESET
TURDSCLK
TURDSDATA
12C_DATA
+5V6_CON
+5V6
SA_IN
+C
VU_METER_L
TU_RDS_OUT
12C_DATA
12C_CLK
PWRDWN
CDSHCLK
TPSHSTR
SHR_DATA
DSA_DATA_uP_FRAME
DSA_STB_uP_DATA
TPSHCLK
VOL_A
6-5 6-5
DISPLAY BOARD - CIRCUIT DIAGRAM 2
7800 A5
7801 D3
C
3456
3822 B3
5805 B7
5806 A7
A
T804 B2
T805 D1
3804 B2 T806 B6
T807 A6
2801 C2
2803 D3
2804 D3
1805 D4 2808 D2
2810 B6
2812 B7
3800 A3
3801 A4
3802 A3
1
3805 B2
3806 B2
3807 C2
2800 A2 6801 B3
6803 B4
6804 D4
6806 A8
789
D
B
C
D
E
A
B
89
12
7803 B2
7804 B3
7805 B3
2806 B7 T800 B4
T801 B4
T802 C2
T803 B3
2345
3813 D3
3814 D3
3820 B6
3821 B6
6800 B3
T805 B6
E
7806 C4
67
3808 C2
3809 C3
3810 D2
3812 D3
T805
7804
BC847B
3809
1K2
25V
10K
3821
2803
4u7
2u2
5806
7806
BC847B
6800
BC847B
7803
2804
4u7 25V
6803
LTL-1214A
T805
470R
3808 3807
470R
2n2
2810
T800
T804
Gnd
BC847B
7801
6806
1N4148
1K
3820
2808
100p
Gnd
BC847B
7805
3805
1K2
T802
3801
330R
Gnd
6801
LTL-1214A
3800
330R
220R
3804
GND 2
4
5
OUT 1
VS 3
T801
7800
TSOP4836ZC1
2u2
3813
8K2
3812
1K
5805
EH-B
1805
1
2
Gnd
3814
100K
3810
4K7
Gnd
1N4148
6804
47u
2806
4u7
2801
35V
4K7
3822
T803
47u
2800
16
47n
2812
Gnd
T807
470R
3806
330R
3802
+5V6
T806
+5V6
VU_CONTROL
VU_CONTROL
+5V6_CON
RC5
VUMeter
6-6 6-6

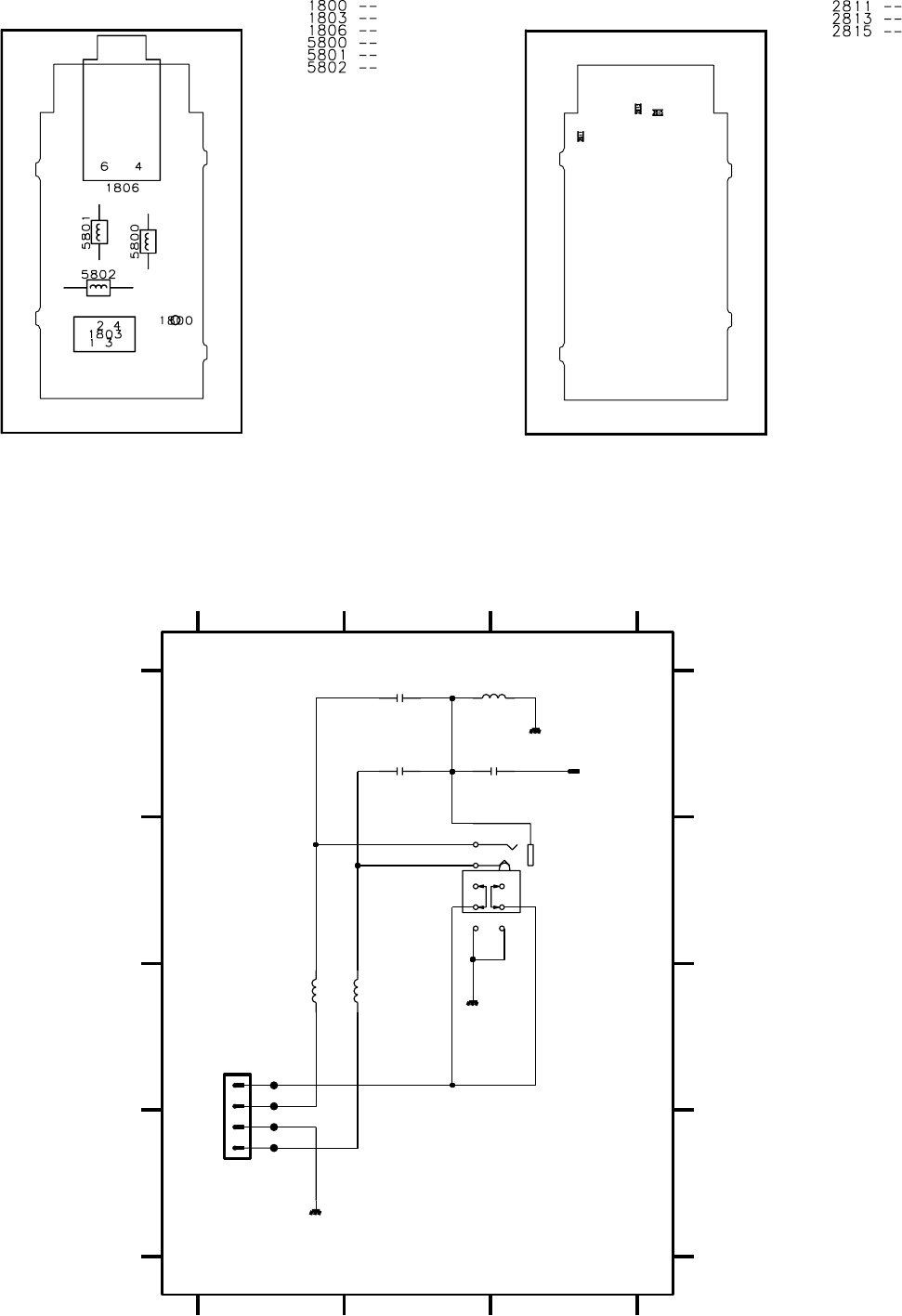

HEADPHONE BOARD - COMPONENT
LAYOUT
HEADPHONE BOARD - CHIP LAYOUT
HEADPHONE BOARD - CIRCUIT DIAGRAM
1803 C1
2813 A21800 A3
2815 A2
5800 C1
D
T813 D1T811 C1
T810 C1 T812 D1
B
A
321
3
5801 C2
5802 A3
21
C
B
D
1806 B3
2811 A3
C
A
T812
T810
T811
RT-01T
1800
1
100n
2811
2813
22n 2u2
5802
6
22n
2815
9
8
7
1
2
3
4
5
5801
2u2
TC38-158-01
1806
FE-BT-VK-N
1803
1
2
3
4
2u2
5800
T813
ELECTRICAL PARTS - FRONT DISPLAY BOARD
1403 994000001853 FTD (MINI 404)
1520 482227613775 TACT SW
1550 994000001854 ROT ENCODER 24P
1806 994000001855 SOC PHONE 1P F3.5
6420 994000001859 LED BT-H202D-31-F3.5-T20
6800 994000001857 LED BT-436YOEK-31-605E-B6
6801 994000001857 LED BT-436YOEK-31-605E-B6
6803 994000001856 LED BT-H202D-30
7400 994000001858 IC TMP88CU7YF-5J06(G)
7401 935268605118 IC SAA6581T
7403 482220915449 IC 74HC4094D
7405 482281650048 IC EEPROM M24C02-WMN6TP
7800 932218597667 IR REC TSOP4836ZC1
Note: Only these parts mentioned in the list are
normal service parts.
7A-17A-1
1
FM
Osc.
FM
Mixer
AM
Mixer
AM
Osc.
AM IF
IF1 IF2 FM
Det.
AM
Det.
3393733
RADIO IC
TEA 5757H
TUNER BOARD
ECO 6
Systems
1018 11 14
15
24
right right
left
left
stereo
VCO
4140 36 193244 25
Stereo
Decoder
AFC
AFC +
AFC -
4
4
AGC
Pre-
scaler Multi-
plexer
Charge
pump
Stabilizer
CONTROL
Reference
Oscillator
29
28
27
clock
data
enable
P1
P0
31
30
programmable
output ports
VLoop
VLoop
VLoop
VLoop
VLoop
2
6
5
43
C
D
450kHz450kHz450kHz
20
75kHz
VStabAV
StabBV
StabB
VStabA VStabB
10,7 MHz 10,7 MHz
35 9
Vdd Vcc1
723
VStabA
VStabB
38
34
22
Vcc2
8
ECO6 Systems, 140499
LF filter
RDS
(MPX)
RDS
(MPX)
stereo
clock
data
enable
Version
1120
1
8
FM
Frontend
AM
Frontend
AM-FRAME AERIAL
B
1103
1101
(1102)
AFM
MPX
buffer ampl.
5
Discriminator
10,7 MHz
Vdd
Vcc1
Vcc
Vcc2
AM-RF
AM-Osc.
FM-Osc.
FM-RF FM-IF 1 FM-IF 2
AM-IF 1 AM-IF 2
AM-AFC
3
2
BLOCK DIAGRAM
ECO6 Tuner Board
version:
SYSTEMS non-CENELEC
TABLE OF CONTENTS
Blockdiagram ..................................................................7A-1
Schematic Diagram.........................................................7A-2
Component Layout..........................................................7A-3
Adjustment table .............................................................7A-3
Electrical Partslist............................................................7A-4
7A-2 7A-2
ECO6 Sys-non Cenelec, 000911
1101 A1
1102 B1
1103 F2
1120 E14
1130 A2
1131 B2
1132 G13
2101 B3
2102 B1
2103 C7
2104 B3
2105 A2
2106 F3
2107 F4
2119 H6
2120 G6
2124 H6
2125 H6
2126 F7
2127 E7
2128 C8
2129 C7
2130 F11
2131 G8
2132 G8
2133 G8
2134 H8
2135 H9
2136 G14
2137 G13
2138 F9
2139 G9
2140 G9
2141 F10
2143 G12
2144 G11
2145 F12
2146 E12
2147 E12
2148 E12
2149 H7
2150 A10
2152 E4
2153 E5
2154 D5
2155 D5
2159 F6
2161 C11
2163 D11
2164 F10
2165 C7
2166 E11
2167 E11
2169 H8
3101 E4
3102 D4
3103 C6
3104 A7
3105 B6
3132 G5
3134 H6
3141 E7
3142 E7
3143 G7
3144 H7
3145 F8
3146 G13
3152 G14
3153 G13
3154 G13
3155 G11
3156 C12
3157 C12
3158 E13
3159 D13
3160 D12
3161 D13
3167 F12
3168 F11
3169 E11
3170 C12
3172 G12
3176 G7
3181 E6
5102 F2
5109 B9
5110 B10
5111 A8
5112 A11
5114 B11
5119 G9
5121 E11
5123 G5
5130 E5
5131 C6
6103 B2
6105-1 F3
6105-2 G5
6106 C3
6107 G13
6120 C13
6130 E5
6131 D5
7101 C8
7102 C6
7103 H7
7111 C13
7112 G12
T102 B2
T103 B2
T105 F2
T106 F2
T109 B6
T110 F5
T111 F4
T112 F7
T113 A8
T114 B10
T115 A8
T116 F10
T117 G13
T118 G11
T120 F13
T121 F13
T122 F13
T123 E13
T124 G14
T125 F14
T126 F13
T127 F13
T128 D7
T140 F11
T141 F10
T142 F10
1
34
6
87
2
1
34
6
87
2
LEGEND
p ...for provision only
USA ... for USA version only
E-EU ... for East European version only
22n
USA
22n
USA
p
p
p
7
1
2
3
8
6105
6
HN1V02H
54
36
1
2
7
29
25
13
30
31
16
4
42
15
1
7
22
9
23
38 34
2118
37 35
33
43 39
5
3
8
171412
24
11
10
2019
44
32
41 3640
6
2
27
28
26
1
3
4
5
6
87
2
1
34
6
87
2
1
34
6
87
2
p
SCALER
MULTI-
PLEXER
CONTROL
FILTER
AM
IF
AM
DET
FM
DET
VSTABB
DECODER
CHARGE
PUMP
AGC
OSC
AM DET
FM
IF2
RIPPLE
AGC
STABILIZER
AFC
VDD
VSTABA
AM-IF
MONO/
FM
FRONTEND
CONTROL
XTAL
AGC
PRE-
CTRL
AGC
AM
OSC
AGC
VCC2
FM
OSC
AM
MIXER
MIXER
FM
FM
IF1
FRONTEND
AM
STEREO
STEREO
RDS only
DISCRIMINATOR
to/from
FM-OSCILLATOR
PROGR.
MPX
Q-multiplier
MW
OUTPUT PORTS
to 1120
pin 5
ENABLE/MPX
BUFFER
kHz
VERSION DETECTION
VCO
RIGHT
14
12 3
AM FRAME AERIAL
DATA
C
D
E
F
AM-OSCILLATOR
FM 75 OHM
FM-IF2
MW
2345
AM-RF
450kHz
450kHz
AM-IF2
from 2169
78
AM-AFC
LEFT
6 7 8 9 10 11 12 13
456
FM-RF
TUNER BOARD ECO6
/ SYSTEMS NON CENELEC
9 1011121314
A
B
G
H
A
B
1
VCC
STEREO
CLOCK
AMPLIFIER
GND
H
C
D
E
F
G
470n
2132
BAS216
6120
2103
1u
2107
1n
3134
22K
6105-2
HN1V02H
100n
2163
T141
7KL
1K
3144
5102
3157
100K
T109
470R
3153
2130
22n
220R
3105
3142
100K
3167
120R
33p
2149
2K2
3145
1132
C-PAD
T103
T111
2164
470n
T102
2140 15p
2139
2138
2u2
82p
2133
1u
3103
8K2
T120
4p7
2154
3156
1101
USA
YKD21
100K
2161
100n
5119
2119
10p
T142
5123
11p
2106
3172
6106
BAS216
100n
2165
5K6
3154
3155
220R
330R
2124
33K
3176
22n
WRITE-EN
5114
7P
MUTE
P0
P1
PILOT
RF-GND1
RF-GND2
RIGHT
RIPPLE
VCC1
VCC2
VCO
VDD
VSTABA
VSTABB
FM-DEMOD
FM-IF1-IN
FM-IF2
FM-IF2-IN
FM-IN
FM-MIXOUT
FM-OSC
FM-RF
I-TUNE
IF-GND
LEFT
LPF
MPX-IN
AF-OUT
AFC+
AFC-
AGC
AM-AFC
AM-IF1-IN
AM-IF2
AM-MIXOUT
AM-OSC
AM-RF
CLOCK
DATA
DIG-GND
FIELDSTR-IND
5130
T127
T126
220n
2127
5121
DT-381
150K
3169
75K
3102
100K
56K
3141
1131
C-PAD
3132
5112
7P
6107
47R
6131
1SV228
BZX284-C11
1120
FE-BT-VK-N
T118
T140
T117
T112
2131
470n
33K
3101
1SV228
6130
3168
120R
2125
560p
T116
2n2
2148
100n
2141
470R
18p
2120
470R
3158
3152
3159
XH-S
1103
3160
470R
470R
220n
2143
2150
T125
1
2
3
4
5
6
7
8
22R
3146
BF550
7102
5131
11p
2155
O
100K
5110
G
I
1102
not USA
3170
T122
2135
15n
2167
2145
220p
T110
12p
HN1V02H
1n
2166
T105
6105-1
T106
T121
T123
BC547C
7112
3143
2129
100u
C-PAD
1130
22K
220n
2137
T128
3181
1K
330p
2126
2101
47p
BAV99
6103
2104
100p
2153
15p
T124
2152
33n
560p
E-EU
12p
E-EU
2p2
J
33p
2159
220p
2146
2169
2n2
1u
15n
2134
2144
220n
2136
22K
3161
BC857C
BC847C
7111
7103
2147
220p
VCC2
VCC2
VDD
T114
MPX
P1
P0
P1
VDD
MPX
VCC1
VCC1
VCC1
printed
printed
printed
1
2
13
2
1
2
3
1
2
TEA5757H
TEA5759H
J
7101
2128
10u
7111
component mounted
/14 FM-OIRT/MW
/00 /02 FM/MW/LW
6120 3170
/01 FM/MW
VERSION
/00 /02 FM/MW
3156
/17 FM/AM
/06 FM-Japan/AM
3157
VERSION PROGRAMMING COMPONENTS
J ... for Japanese version only
AM-IF1
450kHz
8
5111
1
2
3
4
6
7
T113
T115
FM-IF1
2
G
1
I
3
O
5109
3104
330R
100n
0R
4103
...V MW mode
...V LW mode
voltages measured while
set is tuned to a strong transmitter
...V FM mode stereo
EVM
V
5V
0V
152kHz, 50mVpp
stereo stereomono
9.6V
9.5V
9.5V
10.4V
12V
1V
1.3V
1.4V
stereo 0.2V
mono 4.8V
9.6V
12Vtyp
stereo 0.4V
0.15V
11.1V
7.8V
2V
0.7V
0V
1.2V
7.6V
(10-14V)
0.2V
0V
1.2V
0.1V
D
1.4V
0.7V
4
0V
0V
mono 4.8V
1.4V
9.6V
1.4V
0.2V
0.7V
1.4V
7.9V
7.7V
0V
0V
0V
0V
0.6V
0.8V
0.1V
1.6-8V
1-8V
11.1V
0V
1V
1.4V
1.4V
B
7.6V
5
3
2
A
1.3V
0.7V
7.8V
11.1V
0.8V
0.6V
0.6V
1V
0.7V
1V
1.1V
1.1V
0V
0V
2V
C
1
0.8V
1.2V
1.1V
IF-AMP.
BFS20
7119
J
1K
3113
J
2112
J
100p
330R
3119
J
Signal path
FM
AF - left/right
AM
MPX (Audio Frequency)
2102
100n
2105 USA
100n
7A-37A-3
VARICAP ALIGNMENT
FM RF
FM IF
VCO
AM IF
AM RF
3)
108MHz
87.5MHz
(65.81MHz)
87.5MHz
(65.81MHz)
87.5MHz
(65.81MHz)
279kHz
153kHz
1602kHz
531kHz
5130
check
5122
check
5123
check
8V ±0.2V
4.3V ±0.5V
(1.2V ±0.5V)
8V ±0.2V
1.1V ±0.4V
8V ±0.2V
1.1V ±0.4V
1494kHz
558kHz
560kHz 5102
1500kHz
5103198kHz
1494kHz
558kHz
560kHz
1500kHz
198kHz
2106
5102
2106
3142 152kHz ±1kHz 1)
98MHz
5112
MAX
FM
87.5 - 108MHz
(65.81 - 74, 87.5 - 108MHz)
LW
153 - 279kHz
MW
FM/MW/LW- version, 9kHz grid
531 - 1602kHz
1700kHz
530kHz
5123
check
8V ±0.2V
1.1V ±0.4V
1602kHz
531kHz
5123
check
6.9V ±0.2V
1.1V ±0.4V
108MHz 108MHz 2155
5131
MW
FM/AM-version, 10kHz grid
530 - 1700kHz
FM
MW
LW
98MHz, 1mV
continuous wave
450kHz
connect pin 6 of
IC 7101 (AM Osc.)
with 3.3kΩ to Vcc
Use Service Testprogram. By selecting the TUNER TEST test frequencies will be stored as preset frequencies automatically.
4
1
3
5
5
A
A
5119FM 10.7MHz, 45mV
continuous wave 2D
mod=1kHz
∆f=±22.5kHz
1)
If sensitivity of frequency counter is too low adjust to max. channel separation
(input signal: stereo left 90% + 9%, adjust output on right channel to minimum)
Repeat
ECO6, Sys + PA with frame aerial, 070799
TUNER ADJUSTMENT TABLE ( ECO6 FM/MW- and FM/MW/LW - versions with AM-frame aerial )
∆f=±10kHz
VRF = 0.5mV
C
see
remark 2)
220R
100nF
36
IC 7101
220R
100nF
40
IC 7101
2141
shortcircuit
to block AFC
21
IC 7101
max.
symmetric
fo
AM AFC
MW
C
continuous wave
VRF = 2mV
5111
5114 20 ± 2 mV DC
0 ± 3 mV DC
MW 4)
FM/MW/LW- and FM/MW-version
( 9kHz grid)
531 - 1602kHz
B
∆f = ±30kHz
V
RF
as low as
possible
max.
symmetric
fo
MW
FM/AM-version, 10kHz grid
530 - 1700kHz
3)
For AM RF adjustments the original frame antenna has to be used !
2)
RC network serves for damping the IF-filter while adjusting the other one.
4)
MW has to be aligned before LW.
Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter
FM
87.5 - 108MHz
(65.81 - 74, 87.5 - 108MHz)
FM/MW-version, 9kHz grid
531 - 1602kHz
(as low as
possible)
ECO6 System non Cenelec stage .3, 120900
TUNER BOARD ECO6
Systems non Cenelec
/ componentside view
1101 A6
1102 B6
1103 D6
1120 A4
1130 B5
1131 D5
1132 A5
2106 C5
2107 B5
2128 C4
2129 B4
2133 D2
2138 C2
2144 B2
2155 C4
3142 D2
5102 D6
5109 A3
5110 B3
5111 B4
5112 A3
5114 A2
5119 C2
5121 B2
5123 D5
5130 D3
5131 D4
7112 C1
9101 A2
9103 B2
9104 B5
9105 B1
9106 B3
9107 D4
9108 C4
9109 D2
AM FRAME AERIAL
FM 75Ω
B
A
TUNER BOARD ECO6
Systems - non Cenelec
/
copperside view
2101 B4
2102 B1
2103 D4
2104 B4
2105 C1
2112 B5
2119 D3
2120 D3
2124 D3
2125 D3
2126 D6
2127 C5
2130 D5
2131 C5
2132 D6
2134 D7
2135 D7
2136 A4
2137 A4
2139 C6
2140 C6
2141 C6
2143 C7
2145 A5
2146 B7
2147 A5
2148 B6
2149 D6
2150 B5
2152 C5
2153 C5
2154 C4
2159 C5
2161 A6
2163 B6
2164 C6
2165 C4
2166 B6
2167 B6
2169 A4
3101 D5
3102 C3
3103 C4
3104 B4
3105 C4
3113 B5
3119 B5
3132 D5
3134 D3
3141 C5
3143 D6
3144 B7
3145 C5
3146 C7
3152 A4
3153 A4
3154 C7
3155 C7
3156 A6
3157 A6
3158 A4
3159 A5
3160 A5
3161 A5
3167 B7
3168 C7
3169 B6
3170 A6
3172 C7
3176 D6
3181 D4
4103 B5
4106 C4
4107 C5
4108 C5
6103 B3
6105 C3
6106 C3
6107 C7
6120 A6
6130 D4
6131 C4
7101 C5
7102 D4
7103 D7
7111 A5
7119 B5
These assembly drawings show a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist.
ECO6 Systems non CENELEC stage .3, 120900
41..
in schematic diagram)
(not all items shown
SMD jumper
EB
C
A
K
1
2
7
8
4
D
A
C
1
2
5
3
Vdd
Vcc2
Vcc1
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1101 2422 015 19376 SOCKET 2P CLICKFIT USA only
1102 4822 267 10283 SOCKET COAX, IEC 75Ωnot USA
1103 4822 265 31184 JST CONNECTOR 2 POLE
1120 4822 265 11515 FFC SOCKET, 8P
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2101 © 4822 126 13692 47pF 1% 63V
2102 © 4822 126 13838 100nF 10% 50V not USA
2103 © 5322 122 31647 1nF 10% 63V
2104 © 5322 122 32531 100pF 5% 50V
2105 © 4822 126 13838 100nF 10% 50V USA only
2106 2020 800 00191 3-11pF TRIMCAP.,N450
2107 4822 121 51319 1µF 20% 50V
2120 © 4822 126 13689 18pF 1% 63V
2124 © 5322 122 32654 22nF 10% 63V
2125 © 2020 552 96199 560pF 1% 50V
2126 © 5322 122 31863 330pF 5% 50V
2127 © 4822 126 14076 220nF 20% 25V
2128 4822 124 40248 10µF 20% 63V
2129 4822 124 41584 100µF 20% 10V
2130 © 5322 122 32654 22nF 10% 63V
2131 © 4822 126 13482 470nF 20% 16V
2132 © 4822 126 13482 470nF 20% 16V
2133 4822 124 21913 1µF 20% 63V
2134 © 4822 126 13188 15nF 5% 63V not USA
2134 © 5322 122 32654 22nF 10% 63V USA only
2135 © 4822 126 13188 15nF 5% 63V not USA
2135 © 5322 122 32654 22nF 10% 63V USA only
2136 © 4822 126 14076 220nF 20% 25V
2137 © 4822 126 14076 220nF 20% 25V
2138 4822 124 22652 2,2µF 20% 50V
2139 © 4822 126 14236 15pF 5% 50V
2140 © 4822 126 13695 82pF 1% 63V
2141 © 4822 126 13838 100nF 10% 50V
2143 © 4822 126 14076 220nF 20% 25V
2144 4822 124 21913 1µF 20% 63V
2145 © 4822 122 33575 220pF 5% 50V
2146 © 4822 122 33575 220pF 5% 50V
2147 © 4822 122 33575 220pF 5% 50V
2148 © 4822 122 33127 2,2nF 10% 63V
2149 © 5322 122 32659 33pF 5% 50V RDS only
2150 © 4822 126 13838 100nF 10% 50V
2152 © 4822 126 12105 33nF 5% 63V not for East Europe
2152 © 5322 116 80853 560pF 5% 63V for East Europe only
2153 © 4822 126 13486 15pF 2% 63V not for East Europe
2153 © 4822 122 33926 12pF 2% 50V for East Europe only
2155 2020 800 00191 3-11pF TRIMCAP.,N450
2159 © 5322 122 32659 33pF 5% 50V
2164 © 4822 126 13482 470nF 20% 16V
2165 © 4822 126 13838 100nF 10% 50V
2166 © 5322 122 31647 1nF 10% 63V
2167 © 4822 122 33926 12pF 5% 50V
2169 © 4822 122 33127 2,2nF 10% 63V RDS only
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3101 © 4822 051 20333 33kΩ5% 0,1W
3102 © 4822 117 10837 100kΩ1% 0,1W
3103 © 4822 051 20822 8,2kΩ5% 0,1W
3104 © 4822 117 13577 330Ω1% 0,1W
3105 © 4822 117 11503 220Ω5% 0,1W
3132 © 4822 051 20479 47Ω5% 0,1W
3134 © 4822 051 20223 22kΩ5% 0,1W
3141 © 4822 117 11148 56kΩ1% 0,1W
3142 4822 100 12159 TRIMPOT. 100kΩ
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3143 © 4822 051 20223 22kΩ5% 0,1W RDS only
3144 © 4822 051 10102 1kΩ2% 0,25W RDS only
3145© 4822 117 11449 2,2kΩ1% 0,1W
3146 © 4822 051 20229 22Ω5% 0,1W
3152 © 4822 051 20471 470Ω5% 0,1W
3153 © 4822 051 20471 470Ω5% 0,1W
3154 © 4822 117 13577 330Ω1% 0,1W
3155 © 4822 117 11503 220Ω5% 0,1W
3156 © 4822 117 10837 100kΩ1% 0,1W
3157 © 4822 117 10837 100kΩ1% 0,1W
3158 © 4822 051 20471 470Ω5% 0,1W
3159 © 4822 051 20471 470Ω5% 0,1W
3160 © 4822 051 20471 470Ω5% 0,1W
3161 © 4822 051 20223 22kΩ5% 0,1W
3167 © 4822 051 20121 120Ω5% 0,1W
3168 © 4822 051 20121 120Ω5% 0,1W
3169 © 4822 051 20154 150kΩ5% 0,1W
3170 © 4822 117 10837 100kΩ1% 0,1W
3172 © 4822 051 20562 5,6kΩ5% 0,1W
3176 © 4822 051 20333 33kΩ5% 0,1W RDS only
3181 © 4822 051 10102 1kΩ2% 0,25W
4103 © 4822 051 20008 CHIP JUMPER 0805
4106 © 4822 051 20008 CHIP JUMPER 0805
4107 © 4822 051 20008 CHIP JUMPER 0805
4108 © 4822 051 20008 CHIP JUMPER 0805
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
5102 4822 157 71634 RF-COIL MW
5109 4822 242 70665 FM-IF FILTER 10,7MHz
5110 4822 242 70665 FM-IF FILTER 10,7MHz
5111 2422 549 44023 AM-IF FILTER 450kHz
5112 4822 157 70302 AM-IF FILTER 450kHz
5114 4822 157 70302 AM-IF FILTER 450kHz
5119 4822 157 11443 DISCRIMINATOR COIL
5121 4822 242 10261 QUARTZ 75kHz
5123 2422 549 44108 RF-COIL, AM-OSCILLATOR
5130 4822 157 11843 RF COIL 1,5 TURNS
5131 4822 157 11843 RF COIL 1,5 TURNS
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6103 © 5322 130 34337 BAV99
6105 © 4822 130 83075 HN1V02H
6106 © 4822 130 83757 BAS216
6107 © 9340 386 90115 BZX284-C11
6120 © 4822 130 83757 BAS216
6130 © 4822 130 82833 1SV228
6131 © 4822 130 82833 1SV228
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7102 4822 130 42131 BF550
7103 © 5322 130 42756 BC857C RDS only
7111 © 5322 130 42755 BC847C
7112 4822 130 44503 BC547C
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7101 © 9351 740 80557 TEA5757H/V1, RADIO IC
7A-4
Electrical Partslist
ECO6
SYSTEMS NON
-
CENELEC
7A-4
7B-17B-1
1
AM
Mixer
AM
Osc.
AM IF
IF1 IF2 FM
Det.
AM
Det.
37 33
RADIO IC
TEA 5762
TUNER BOARD
ECO 6
Systems Cenelec
1018 11 14
39
15
24
right
AM/FM
right
left
left
stereo
VCO
4140 36 193244 25
Stereo
Decoder
AFC
AFC +
AFC -
4
4
AGC
Pre-
scaler
Multi-
plexer
Charge
pump
Stabilizer
CONTROL
Reference
Oscillator
29
28
27
clock
data
enable
P1
P0
31
30
programmable
output ports
VLoop
VLoop
VLoop
2
6
5 FM Osc.
C
D
450kHz450kHz450kHz
20
75kHz
VStabAV
StabBV
StabB
VStabA VStabB
10,7 MHz 10,7 MHz
35 9
Vdd Vcc1
723
VStabA
VStabB
38
34
22
Vcc2
8
ECO6 Systems Cenelec, 140499
VLoop
+FM
AM-RF
AM-Osc.
FM-IF 1 FM-IF 2
LF filter
MPX
buffer ampl.
RDS
(MPX)
5
RDS
(MPX)
stereo
clock
data
enable
Version
3
1120
AM-IF 1 AM-IF 2
AM-AFC
1
8
AM
Frontend
2
AM-FRAME AERIAL
B
1103
1101
(1102)
AFM
AM/FM
Discriminator
10,7 MHz
Vdd
+FM
Vcc1
Vcc
Vcc2
MW/LW
AM-RF,
AM-Osc.
1
Ant.
Osc.
out
GND
234 6 5
8
7
VCC
Vvaricap
MIXER
FM FRONTEND
IF
out
ECO6 Tuner Board
version:
SYSTEMS CENELEC
TABLE OF CONTENTS
Blockdiagram ..................................................................7B-1
Schematic Diagram.........................................................7B-2
Component Layout..........................................................7B-3
Adjustment table .............................................................7B-3
Electrical Partslist............................................................7B-4
BLOCK DIAGRAM
7B-2 7B-2

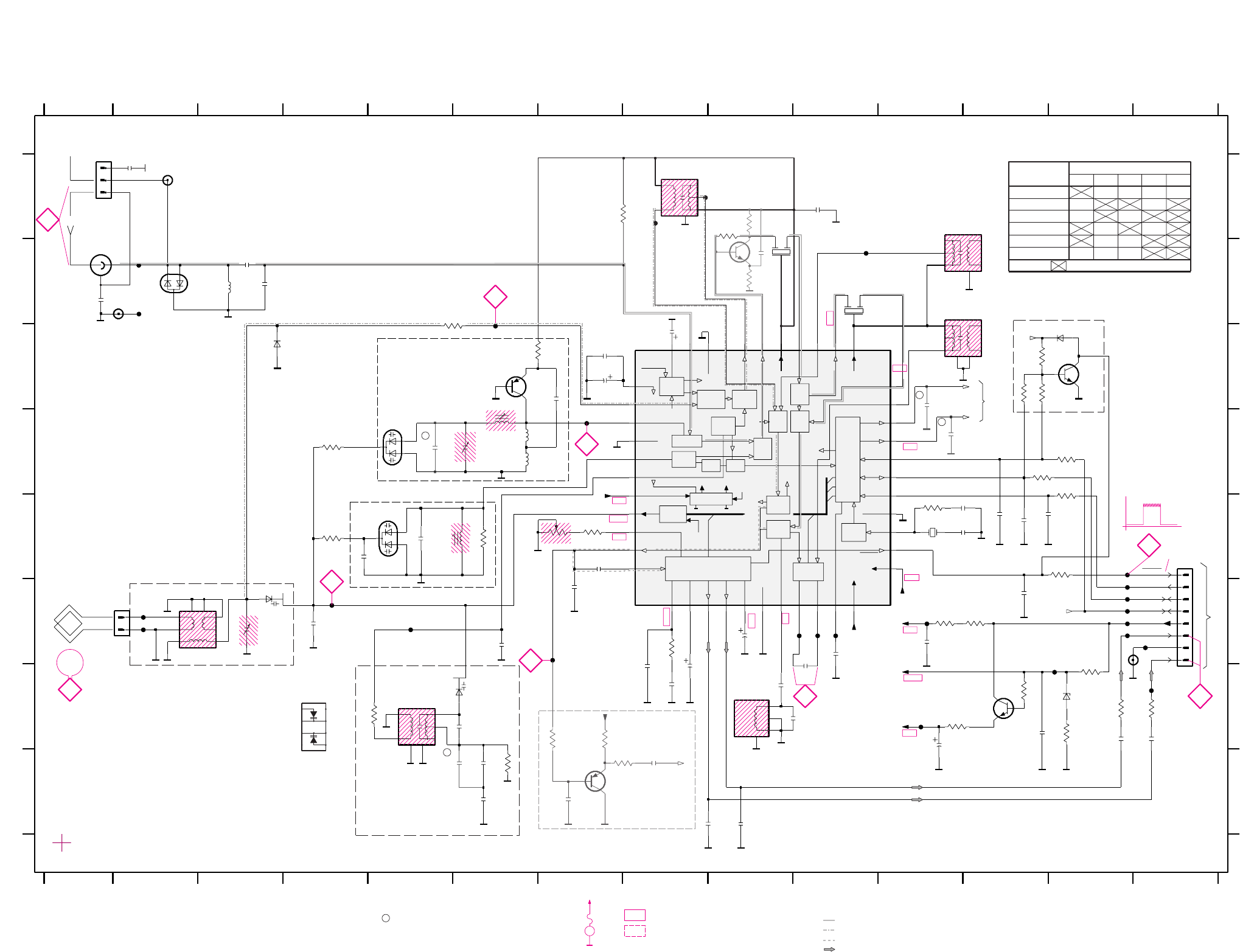

MIXER
varicap
FM FRONTEND
GND
PRE-
SCALER
MULTI-
PLEXER
VSTABA
AM-IF
MONO/
XTAL
AGC
CONTROL
OSC
AM DET
AM
OSC
AGC
VCC2
AGC
PUMP
AM
MIXER
DECODER
CHARGE
FM
IF1
FRONTEND
AM
VSTABB
DET
FM
CONTROL
FILTER
AM
IF
AM
DET
STEREO
STEREO
FM
IF2
RIPPLE
AGC
STABILIZER
AFC
VDD
CTRL
AGC
A
B
C
D
E
F
G
H
I
234567891011121314
123456
31576120
MW=HIGH
FM 75 OHM
PROGRAMMABLE
OUTPUT PORTS
FM-IF2
LW
VERSION DETECTION
FM-IF1
7
I
7 8 9 1011121314
A
B
C
D
E
F
G
H
from
kHz
3170
BUFFER AMPLIFIER
VCC
1
1
2
LEGEND
* ... only assembled in FM/AM-version SMD jumper
MW=HIGH
BIRDY FILTER
/00 /02 FM/MW
/00 /02 FM/MW/LW
2169
/ SYSTEMS-CENELEC
STEREO
3
450kHz
AM-IF2
3156
RIGHT
MW
LW only
450kHz
DISCRIMINATOR
AM-AFC
AM-IF1
8
/01 FM/MW
6105
6
LW only
LW =HIGH
VERSION PROGRAMMING COMPONENTS
marked components not for LW version
MW/LW-RF VCO
RDS only
MPX
to/from
GND
from 7101/39
LEFT
/17 FM/AM
to 1120
HN1V02H
VERSION
/14 FM-OIRT/MW
450kHz
LW=HIGH
TUNER BOARD ECO6
pin 5
54
LW ... for LW version only
MW
ENABLE/MPX
LW
component mounted
7111
AM-OSCILLATOR
CLOCK
DATA
AM FRAME AERIAL
p ...for provision only
USA ... for USA version only
2166
1n
T117
4
IF-OUT
7
910
8
OSC.
OUT
V
5
VCC
6
150K
3169
1110 FE450
ANT
1
23
T110
3168
T115
T109
3161
22K
120R
2130
22n
3142
100K
22u
2162
2137
220n
2123
390p
6
78
T106
T121
5103
1
2
3
4
T140
T118
T114
BC337-40
7105
T113
7124
100u
2129
68K
3151
BC847C
220p
2146
HN1V02H
6105-1
12
7
2K2
3128
2190
100n
0R
4102
*
3159
470R
YKD31-
0432
1
2
470R
3160
2149
33p
1102
1103
XH-S
1
2
22
VCC2
9VCO
23
VDD
38
VSTABA
VSTABB
34
29
WRITE-EN
25
470n
2131
IF-GND
14
LEFT
12
LPF
24
11 MPX-IN
13
MUTE
43
NC
30P0
31P1
16
PILOT
4RF-GND1
42
RF-GND2
15
RIGHT
1RIPPLE
7VCC1
40
AM-MIXOUT
6AM-OSC
2AM-RF
39
AM|FM
27
CLOCK
28
DATA
26DIG-GND
21
FIELDSTR-IND
18
FM-DEMOD
3FM-GND
37
FM-IF1-IN
35
FM-IF2
33FM-IF2-IN
5FM-OSC
8I-TUNE
17
TEA5762
7101
10 AF-OUT
20
AFC+
19
AFC-
44
AGC
32AM-AFC
41
AM-IF1-IN
36
AM-IF2
2107
1u
56K
3141
BAS216
6106
22K
3134
7110
BC857B
6
7
8
2u2
2138
1120
FE-BT-VK-N
1
2
3
4
5
1
2
34
6
78
5111
22K
3143
470R
3158
2143
220n
T124
330R
3154
T123
T125
T111
3190
120R 120R
3191
BAS216
6120
1K
3144
100K
3156
2144
1u
47K
3171
3194
2K2
2132
470n
1132
C-PAD
2118
2p2
220R
3105
2161
100n
p
2141
100n
T105
3157
100K
2119
10p
2K2
3145
2120
18p
22p LW
1
2
3
2124
10n
*
YKD21
1101USA
T126
7122
BC847C
2109
10p
T116
2
34
6
78
1u
2133
5114
7P
1
3
6
22K
3137
22R
3146
HN1V02H
6105-2
5
2122
3n3
2159
33p
10u
2128
10K
3150
47R
3132
BC857C
7103
3172
5K6
2167
12p
DT-381
5121
75
T142
2147
220p
T104
BC857B
7109
2K2
3108
4K7
3123
T122
T120
T127
7112
BC547C
2134
22nUSA
22nUSA
C-PAD
1131
T141
2106
11p
20p_LW
0R
4104 *
0R
41xx
2165
100n
1130
C-PAD
10K
3180
2150
100n
BZX284-C11
6107
T102
2127
220n
2169
2n2
100K
3170
1
I3
O
2125
560p
5109
2
G
470R
3152
2108
100p
3125
10K
3153
470R
330R
3193
T103
120R
3167
100R
3195
78
33K
3176
8
5122
1
2
34
6
5123
1
2
34
6
7
5110
G2
I1O3
5115
123
46
7
8
2
34
678
5119
1
2135
100n
2163 LW
7104
BC337-40
2145
220p
150R
3155
220n
2136
6
78
T112
T107
*
5102
7KL
1
2
34
5
3109
4K7
4101
0R
7111
BC847C
1
2
34
6
78
330R
3192
2n2
2148
5112
7P
470n
2164
ECO6 Sys-Cenelec, 010517
2140
82p
VCC1
VCC1
2139
15p
MPX
+FM
P0
P1
VDD
VDD
VCC2
VCC2
VCC1
MPX
P01
P1
P0
P01
P0
VDD VDD
AM/FM
+FM
AM/FM
P0
1101 A2
1102 B1
1103 E2
1110 B2
1120 E14
1130 A2
1131 C2
1132 F13
2102 B1
2105 A2
2106 E3
2107 E4
2108 G3
2109 G3
2118 H6
2119 H6
2120 H6
2122 I6
2123 H6
2124 H6
2125 H6
2127 E7
2128 B8
2129 C7
2130 F11
2131 F8
2132 F8
2133 F8
2134 I8
2135 I9
2136 H14
2137 H13
2138 F9
2139 G9
2140 G9
2141 F10
2143 G12
2144 G11
2145 E11
2146 E12
2147 E12
2148 E12
2149 H7
2150 A10
2159 D5
2161 C11
2162 H12
2163 D11
2164 G10
2165 C7
2166 E11
2167 E11
2169 G8
2180 C4
2190 C3
2191 C3
3105 D5
3108 D2
3109 G4
3123 H3
3125 H2
3128 H3
3130 I9
3131 I9
3132 G4
3134 H6
3135 E7
3137 H7
3141 E7
3142 E6
3143 G7
3144 G8
3145 F8
3146 G13
3150 H12
3151 H12
3152 G14
3153 G13
3154 F13
3155 G12
3156 C12
3157 D12
3158 E13
3159 D13
3160 D13
3161 D13
3167 F12
3168 F11
3169 E11
3170 D12
3171 G12
3172 G12
3176 H7
3180 I3
3190 B6
3191 B7
3192 B6
3193 B4
3194 C4
3195 C3
4101 E2
4102 F3
4104 H5
5102 E3
5103 F2
5109 B9
5110 B10
5111 A9
5112 A11
5114 B11
5115 E7
5118 G9
5119 G9
5121 E11
5122 H5
5123 G5
6105-1 E4
6105-2 G6
6106 D4
6107 G13
6120 C13
7101 C8
7103 H8
7104 D2
7105 F4
7109 H3
7110 H12
7111 C13
7112 G12
7122 H4
7124 H7
T102 B2
T103 B2
T104 B6
T105 E2
T106 E2
T107 C3
T109 D5
T110 D5
T111 E5
T112 F7
T113 A9
T114 B11
T116 F10
T117 F13
T118 G11
T120 F13
T121 F13
T122 E13
T123 E13
T124 G14
T125 F14
T126 F13
T127 F13
T140 F11
T141 F10
T142 F10
p
p
p
2191
100u
2102
100n
2105 USA
100n
5118
1nH
15n
15n
3131
820R
3130
820R
1K
3135
2180
10n
8.3V
7.5V
7.2V
9V
11V
8.2V
0.1V
1.2V
1.6-8V
5
1
A
3
2
D
C
4
...V MW mode
...V LW mode
voltages measured while
set is tuned to a strong transmitter
0.7V
0.7V
1.3V
0.7V
0V
7.4V
0V
7.5V
0.7V
0V
mono 4.8V
0V
0V
stereo 0.4V
7.5V
7.5V
1.4V
1.6-8V
0.1V
0V
0V
2V
0.2V
1.4V
1.4V
0.4V
0.7V
1.4V
1.4V
1.1V
0.7V
1.4V
0.6V
0.6V
0.8V
0.15V
...V FM mode stereo
EVM
V
B
8V
6.7V
8.3V
0.7V
0V
0V
0V
0.1V
0V
11V
2V
1.1V
1.1V
1V
1V
8.2V
7.8V
1.2V
0V
8.9V
12Vtyp
8.2V
mono 4.8V
stereo 0.2V
1.4V
0V
0V
0V
0V
0.1V
0V
0.7V
0.1V
0V
0.2V
(10-14V)
9.6V
12V
8.9V
8.2V
7.5V
8.3V
8.2V
0.8V
1.2V
0.7V
1.3V
1V
8.2V
7.8V
1-8V
0V
5V
0V
152kHz, 50mVpp
stereo stereomono
Signal path
FM
AF - left/right
AM
MPX (Audio Frequency)
7B-37B-3
98MHz
Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter
VARICAP ALIGNMENT
FM - VCO
FM RF (channel separation)
AM IF
AM RF
3)
108MHz
87.5MHz
check
check
8V ±1.2V
1.6V ±0.5V
8V ±0.2V
6.9V ±0.2V
1.1V ±0.4V
152kHz ±1kHz 1)
98MHz 3142
198kHz198kHz 5103
5111
FM
87.5 - 108MHz
(50kHz grid)
1602kHz
531kHz
5123
check
MW
531 - 1602kHz
(9kHz grid)
8V ±0.2V
1.1V ±0.4V
279kHz
153kHz
5122
check
LW
153 - 279kHz
(3kHz grid)
FM
FM
LW
558kHz558kHz
1494kHz
5102
1494kHz 2106
MW
MW
98MHz, 1mV
continuous wave
98MHz, 1mV
90% Left + 9% pilot
mod=1kHz
IF coil
inside
FM
frontend
1110
1
3
5
5
A
FM - IF
0mV ±3mV5119
FM 10.7MHz, 45mV
continuous wave 2D
right channel min.
4A
0mV ±2mV5114 2
C
Repeat
C
5112
1)
If sensitivity of frequency counter is too low adjust to max. channel separation
(input signal: stereo left 90% + 9%, adjust output on right channel to minimum)
2)
RC network serves for damping the IF-filter while adjusting the other one.
3)
For AM RF adjustments the original frame antenna has to be used!
TUNER ADJUSTMENT TABLE
( ECO6 Cenelec FM/MW - and FM/MW/LW - versions with AM-frame aerial )
max.
symmetric
fo
max.
symmetric
fo
ECO6 Sys Cenelec, 190599
B
∆f = ±30kHz
V
RF
as low as
possible
MW has to be aligned before LW.
3-band
2-band
Note: The FM-frontend unit has already been adjusted by the factory
and needs therefore no further adjustments for service purposes.
2141
shortcircuit
to block AFC
21
IC 7101
see
remark 2)
220R
100nF
36
IC 7101
220R
100nF
40
IC 7101
450kHz
connect pin 6 of
IC 7101 (AM Osc.)
with 3.3kΩ to Vcc
AM AFC
MW continuous wave
V
RF
= 2mV
∆f = ±10kHz
V
RF
= 0.5mV
(as low as
possible)
Use Service Testprogram. By selecting the TUNER TEST test frequencies will be stored as preset frequencies automatically.
AM FRAME AERIAL
FM 75Ω
FM FRONTEND
Birdy Filter
ECO6 Sys-Cenelec, layout stage .6, 160501
1101 B5
1102 B5
1103 C5
1110 B4
1120 A4
1130 A5
1131 C5
1132 A4
2106 B4
2107 B3
2128 A3
2129 B3
2133 C1
2138 B1
2144 B1
2162 A4
2191 B4
3142 C2
5102 C4
5103 C4
5109 B3
5110 A2
5111 A3
5112 A2
5114 A2
5115 C2
5119 B2
5121 B2
5122 C3
5123 C3
7104 C4
7105 C5
7112 B1
9101 A2
9102 B2
9103 A1
9104 B1
9105 B1
9106 B1
9107 B4
9108 B3
9109 C2
9110 A4
9111 A3
TUNER BOARD ECO6
Systems - Cenelec
/ componentside view
B
A
These assembly drawings show a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist.
ECO6 Sys-Cenelec, layout stage .6, 160501
41..
in schematic diagram)
(not all items shown
SMD jumper
EB
C
A
K

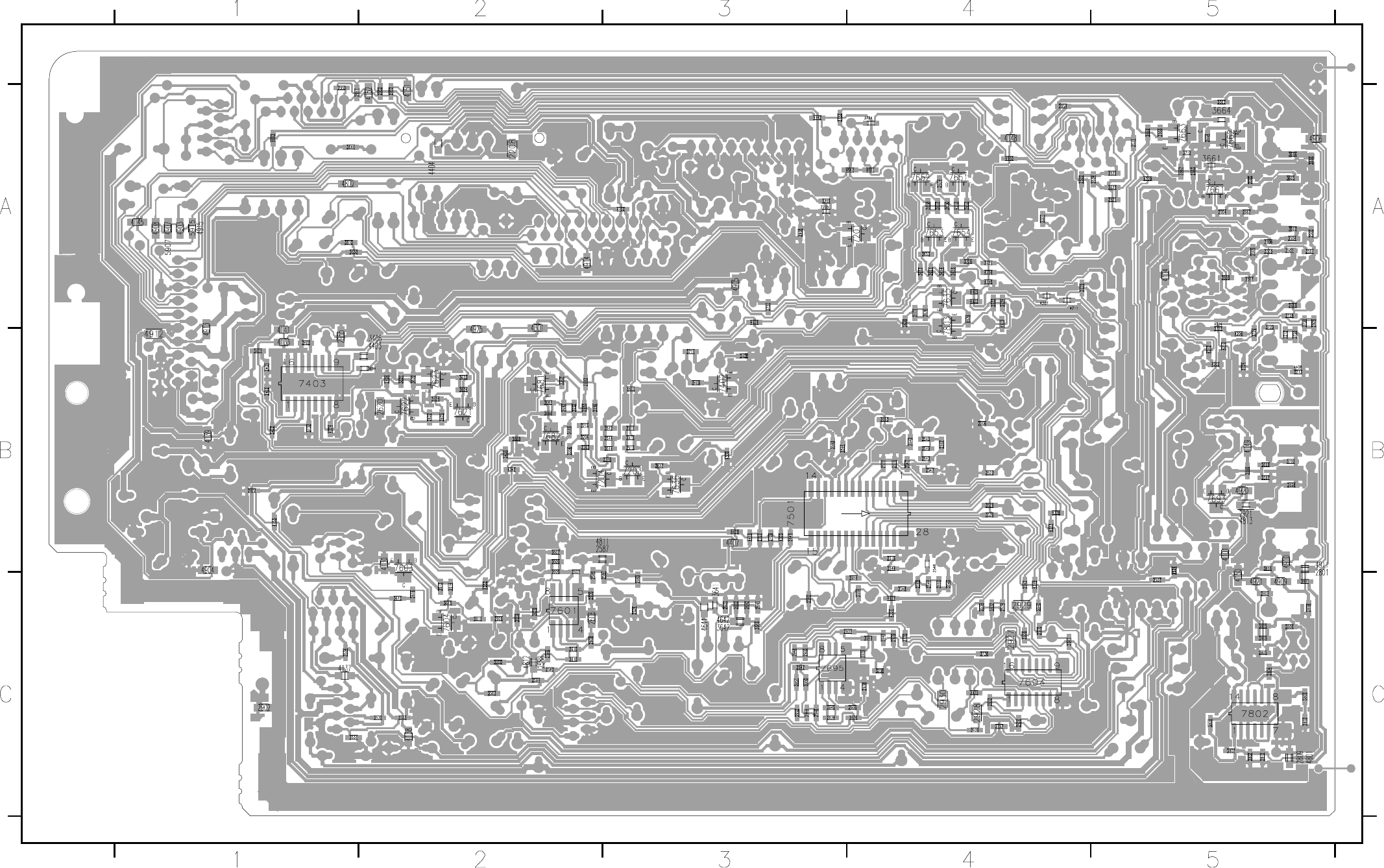

TUNER BOARD ECO6
Systems - Cenelec
/ copperside view
2102 B1
2105 B1
2108 C1
2109 C1
2118 C3
2119 C3
2120 C3
2122 C3
2123 C3
2124 C3
2125 C3
2127 C4
2130 B3
2131 C4
2132 C4
2134 C5
2135 C5
2136 A3
2137 A3
2139 B4
2140 B4
2141 B5
2143 B5
2145 B5
2146 B5
2147 A5
2148 B4
2149 C4
2150 B3
2159 B3
2161 A4
2163 A4
2164 B4
2165 B3
2166 B5
2167 B4
2169 A3
2180 B2
2190 B2
3105 B3
3108 C2
3109 C1
3123 A5
3125 A5
3128 C2
3130 C4
3131 C4
3132 B3
3134 C3
3135 C4
3137 C4
3141 B3
3143 C5
3144 A5
3145 C4
3146 B5
3150 B3
3151 A2
3152 A3
3153 A3
3154 B5
3155 B5
3156 A4
3157 A4
3158 A3
3159 A3
3160 A3
3161 A4
3167 A5
3168 C5
3169 B4
3170 A4
3171 B5
3172 B5
3176 C4
3180 A5
3190 B2
3191 A3
3192 A2
3193 B2
3194 B2
3195 B2
4101 C2
4102 C2
4104 C3
4105 B2
4106 B3
4107 C4
5118 C4
6105 B2
6106 B2
6107 B5
6120 A4
7101 B4
7103 C5
7109 A5
7110 B2
7111 A4
7122 C3
7124 C3
1
1
8
2
7
8
5118
2180
3135
4
D
A
C
1 25
3
Vdd
Vcc2
Vcc1
+FM
Electrical Partslist
ECO6
SYSTEMS
-
CENELEC
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1101 2422 015 19376 SOCKET CLICKFIT 2P USA only
1102 4822 267 10283 SOCKET COAX, IEC 75Ωnot USA
1103 4822 265 31184 JST CONNECTOR, 2 POLE
1110 2422 542 90071 FM FRONTEND
1120 4822 265 11515 FFC SOCKET, 8P
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2102 © 4822 126 13838 100nF 10% 50V not USA
2105 © 4822 126 13838 100nF 10% 50V USA only
2106 2020 800 00204 TRIMCAP. 4,2 - 20pF, N750 LW only
2106 2020 800 00191 TRIMCAP. 3 - 11pF, N450 FM/AM only
2107 4822 121 51319 1µF 20% 50V
2108 © 5322 122 32531 100pF 5% 50V LW only
2109 © 5322 122 32448 10pF 5% 50V LW only
2120 © 4822 126 13689 18pF 1% 63V FM/AM only
2120 © 5322 122 32658 22pF 5% 50V LW only
2122 © 4822 122 33891 3,3nF 10% 63V LW only
2123 © 2020 552 93494 390pF 1% 50V LW only
2124 © 4822 122 33177 10nF 20% 50V FM/AM only
2125 © 2020 552 96199 560pF 1% 50V
2127 © 4822 126 14076 220nF 20% 25V
2128 4822 124 40248 10µF 20% 63V
2129 4822 124 41584 100µF 20% 10V
2130 © 5322 122 32654 22nF 10% 63V
2131 © 4822 126 13482 470nF 20% 16V
2132 © 4822 126 13482 470nF 20% 16V
2133 4822 124 21913 1µF 20% 63V
2134 © 3198 017 31530 15nF 10% 50V not USA
2134 © 5322 122 32654 22nF 10% 63V USA only
2135 © 3198 017 31530 15nF 10% 50V not USA
2135 © 3198 017 32230 22nF 10% 25V USA only
2136 © 4822 126 14076 220nF 20% 25V
2137 © 4822 126 14076 220nF 20% 25V
2138 4822 124 22652 2,2µF 20% 50V
2139 © 4822 126 14236 15pF 5% 50V
2140 © 4822 126 13695 82pF 1% 63V
2141 © 4822 126 13838 100nF 10% 50V
2143 © 4822 126 14076 220nF 20% 25V
2144 4822 124 21913 1µF 20% 63V
2145 © 4822 122 33575 220pF 5% 50V
2146 © 4822 122 33575 220pF 5% 50V
2147 © 4822 122 33575 220pF 5% 50V
2148 © 4822 122 33127 2,2nF 10% 63V
2149 © 5322 122 32659 33pF 5% 50V RDS only
2150 © 4822 126 13838 100nF 10% 50V
2159 © 5322 122 31151 22µF 20% 50V
2163 © 4822 126 13838 100nF 10% 50V LW only
2164 © 4822 126 13482 470nF 20% 16V
2165 © 4822 126 13838 100nF 10% 50V
2166 © 5322 122 31647 1nF 10% 63V
2167 © 4822 122 33926 12pF 5% 50V
2169 © 4822 122 33127 2,2nF 10% 63V RDS only
2180 © 3198 017 31030 10nF 10% 50V
2190 © 4822 126 13838 100nF 10% 50V
2191 4822 124 40178 100µF 20% 10V
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3105 © 4822 117 11503 220Ω5% 0,1W
3108 © 4822 117 11449 2,2kΩ1% 0,1W LW only
3109 © 4822 051 20472 4,7kΩ5% 0,1W LW only
3123 © 4822 051 20472 4,7kΩ5% 0,1W LW only
3125 © 4822 117 10833 10kΩ1% 0,1W LW only
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3128 © 4822 117 11449 2,2kΩ1% 0,1W LW only
3130 © 3198 021 38210 820Ω5% 0,06W
3131 © 3198 021 38210 820Ω5% 0,06W
3132 © 4822 051 20479 47Ω5% 0,1W
3134 © 4822 051 20223 22kΩ5% 0,1W
3135 © 3198 021 31020 1kΩ5% 0,06W
3137 © 4822 051 20223 22kΩ5% 0,1W LW only
3141 © 4822 117 11148 56kΩ1% 0,1W
3142 4822 100 12159 TRIMPOT. 100kΩ
3143 © 4822 051 20223 22kΩ5% 0,1W RDS only
3144 © 4822 051 10102 1kΩ2% 0,25W RDS only
3145 © 4822 117 11449 2,2kΩ1% 0,1W
3146 © 4822 051 20229 22Ω5% 0,1W
3150 © 4822 117 10833 10kΩ1% 0,1W
3151 © 4822 051 20683 68kΩ5% 0,1W
3152 © 4822 051 20471 470Ω5% 0,1W
3153 © 4822 051 20471 470Ω5% 0,1W
3154 © 4822 117 13577 330Ω1% 0,1W
3155 © 4822 117 10353 150Ω5% 0,1W
3156 © 4822 117 10837 100kΩ1% 0,1W
3157 © 4822 117 10837 100kΩ1% 0,1W
3158 © 4822 051 20471 470Ω5% 0,1W
3159 © 4822 051 20471 470Ω5% 0,1W
3160 © 4822 051 20471 470Ω5% 0,1W
3161 © 4822 051 20223 22kΩ5% 0,1W
3167 © 4822 051 20121 120Ω5% 0,1W
3168 © 4822 051 20121 120Ω5% 0,1W
3169 © 4822 051 20154 150kΩ5% 0,1W
3170 © 4822 117 10837 100kΩ1% 0,1W
3171 © 4822 117 10834 47kΩ1% 0,1W
3172 © 4822 051 20562 5,6kΩ5% 0,1W
3176 © 4822 051 20333 33kΩ5% 0,1W RDS only
3180 © 4822 117 10833 10kΩ1% 0,1W LW only
3190 © 4822 051 20121 120Ω5% 0,1W
3191 © 4822 051 20121 120Ω5% 0,1W
3192 © 4822 117 13577 330Ω1% 0,1W
3193 © 4822 117 13577 330Ω1% 0,1W
3194 © 4822 117 11449 2,2kΩ1% 0,1W
3195 © 4822 051 20101 100Ω5% 0,1W
4101 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
4102 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
4104 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
4105 © 4822 051 20008 CHIP JUMPER 0805
4106 © 4822 051 20008 CHIP JUMPER 0805
4107 © 4822 051 20008 CHIP JUMPER 0805
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
5102 4822 157 71634 RF-COIL MW
5103 2422 549 44107 RF-COIL LW LW only
5109 4822 157 71639 FM-IF FILTER 10,7MHz
5110 4822 242 70665 FM-IF FILTER 10,7MHz
5111 2422 549 44023 AM-IF FILTER 450kHz
5112 4822 157 70302 AM-IF FILTER 450kHz
5114 4822 157 70302 AM-IF FILTER 450kHz
5115 4822 157 71636 ANTI BIRDY FILTER
5118 © 2422 535 95881 100nH
5119 4822 157 11443 DISCRIMINATOR COIL
5121 4822 242 10261 QUARTZ 75kHz
5122 2422 549 44108 RF-COIL, LW-OSCILLATOR LW only
5123 2422 549 44108 RF-COIL, MW-OSCILLATOR
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6105 © 4822 130 83075 HN1V02H
6106 © 4822 130 83757 BAS216
6107 © 9340 386 90115 BZX284-C11
6120 © 4822 130 83757 BAS216
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7103 © 5322 130 42756 BC857C RDS only
7104 9322 003 64676 TBC337-40 LW only
7105 9322 003 64676 TBC337-40 LW only
7109 © 4822 130 60373 BC856B LW only
7110 © 4822 130 60373 BC856B
7111 © 5322 130 42755 BC847C
7112 4822 130 44503 BC547C
7122 © 5322 130 42755 BC847C LW only
7124 © 5322 130 42755 BC847C LW only
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7101 4822 209 90315 TEA5762H/V1, RADIO IC
7B-4 7B-4
PWR303
MODULE UCD 100-150W
Mains pt5 / Reg pt3 / Amp pt2 / Spk pt5 - 17 Nov 03
TABLE OF CONTENTS
Mains UCD Board
Mains Socket UCD Board - Component Layout ............. 8-1
Mains Socket UCD Board - Circuit Diagram ................... 8-1
Mains UCD Board - Component Layout.......................... 8-2
Mains UCD Board - Circuit Diagram ............................... 8-3
Regulator UCD Board
Component & Chip Layout .............................................. 8-4
Circuit Diagram ................................................................ 8-5
Amplifier UCD Board (SE)
Component Layout .......................................................... 8-6
Chip Layout...................................................................... 8-7
Circuit Diagram Part 1 ..................................................... 8-8
Circuit Diagram Part 2 ..................................................... 8-9
Speaker UCD Board
Component Layout ........................................................ 8-10
Circuit Diagram .............................................................. 8-10
Variation Table ............................................................... 8-10
Wiring Diagram .............................................................. 8-11
Exploded View ............................................................... 8-12
Electrical parts list.......................................................... 8-13
8-1 8-1

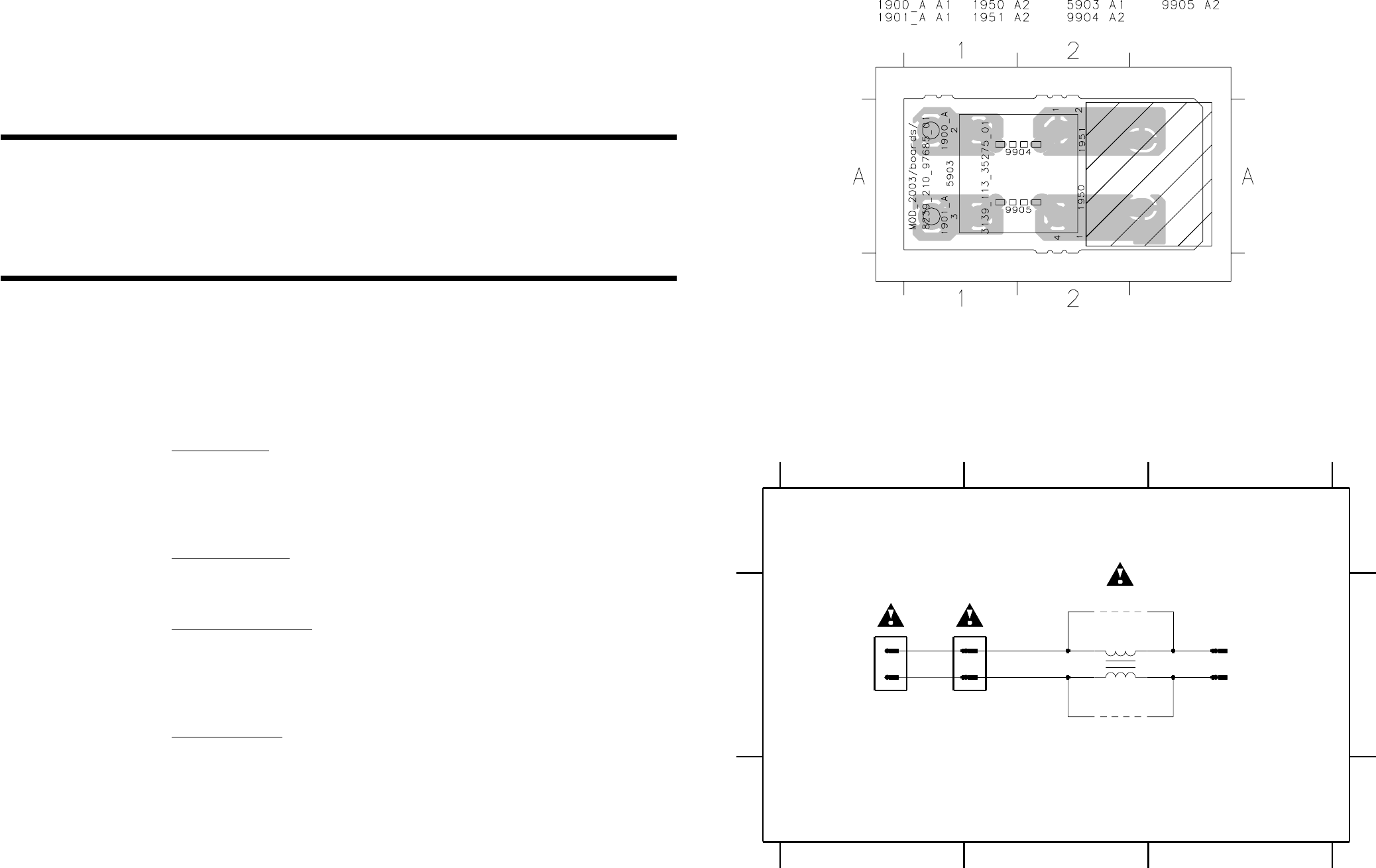

MAINS SOCKET UCD BOARD - COMPONENT LAYOUT
MAINS SOCKET UCD BOARD - CIRCUIT DIAGRAM
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3527 pt5 dd wk0343
123
123
AA
1900_A A3 1901_A A3 1950 A1 1951 A1 5903 A2 9904 A2 9905 A2
1950
1
1901_A
97TS-031A
5903
12
43
# 9904
1951
1
2
# 9905
21900_A
8239_210_97685_01 for...3527 pt5 dd wk0343
MAINS SOCKET UCD
Note : Some values may varies, see respective parts list for correct value.
# : Provision
8-2 8-2
MAINS UCD BOARD - COMPONENT LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3527 pt5 dd wk0343
JUMPER WIRE
8-3 8-3
MAINS UCD BOARD - CIRCUIT DIAGRAM
10
A
B
C
D
E
A
B
C
D
E
0706 A10
1700 D1
1701 D3
1704 A7
1705 A7
1706 A10
1707 A7
1708 B7
1709 B10
1710 A7
12345678910
123456789
1711 A8
1712 A6
1713 A7
1900_B A1
1901_B A1
1902 A2
1903 A4
1904 A2
1905 B3
1907 A4
1909 D4
2700 D9
2701 D9
2702 E9
2703 E10
2704 A8
2705 A7
2706 A9
2707 A8
2708 A9
2709 A7
2710 B9
2711 B9
2712 B9
2713 C9
2714 C8
2715 B7
2716 A9
2717 A9
2900 D4
2902 D4
2905 D5
2906 D5
2907 E6
2908 E3
2909 E3
2913 D8
2916 E8
2917 E8
2918 E9
3700 C2
3701 C2
3702 C2
3703 D2
3704 D2
3705 D9
3706 E9
3707 B7
3708 B7
3709 C8
3710 C8
3711 C9
3712 D8
3900 A2
3901 D6
3902 D7
3903 D7
3904 D5
3906 E6
3909 E7
3912 E3
3915 E5
3916 E6
3917 E8
5901 A6
5904 D8
5929 D4
5930 E5
5931 E4
6701 B1
6702 B2
6703 C2
6704 C2
6705 D2
6706 C2
6707 D10
6708 D10
6709 E9
6710 E9
6711 E10
6712 A8
6713 A8
6714 B7
6715 C9
6716 C8
6717 D8
6718 A8
6719 A8
6720 B8
6721 B8
6722 A8
6723 B7
6900 D4
6901 D5
6902 D6
6905 D5
6906 E5
6912 E6
6913 E5
6916 D8
6917 B7
7700 D1
7701 B8
7702 B9
7900 D6
7901 D7
7902 E5
7903 E7
9901 B3
9902 D4
9903 C10
1N4003
T2A
GND_AMP
2905
3711
1
10
2
3
4
5
6
7
8
9
4M7
2704
100n
6715
BZX79-C33
330R
3903
GND_M
5
6
1706
EH-B
1
10
2
3
4
9902
GND_AMP
3707
47R
T3A15
1904
T5A
2710
5901
AMC-76 UCD
1
2
3
STBY
5904
# 9901
3912
10M
220R
2916
100n
BZX79-C8V2
# 6717
1N4148
6900
1N4003
14
2
3
6901
GND_M
1900_B
1N4148
100u
2703
100n
2707
6917
1N4003
GBJ10D
6712
41
2
3
2701
8
9
1N4148
6708
100n
1
10
11
12
13
14
15
16
17
2
3
4
5
6
3708
4K7
100n
3916
1901_B
2705
100n
2K2
1N5392
6720 1N5392
6719
6723
1N5392
6722
1N5392
100R
3700
PFC5000
1713
1712
PFC5000
PFC5000
1711
1710
PFC5000
3909
330K
100K
3917
1K5
3703
2906
10n
# 2706
6m8
2907
100u
GND_D
6701
1N4148
6902
1N4148
6m8
# 2708
1N4148
6714
3710
1N4148
6709
3K3
3300u
2717
6721
1N5392
3300u
2716
1N4003
6718
1N5392
2712
10m
7702
BC327-40
5931
1m
45
6
1N4003
6906
10n
3704
4K7
3706
330R
1N4003
6905
9903
T6.3A
1705
3702
47K
1704
T6.3A
2
5
1
4
3
6
1903
SDKGA
2700
100n
2714
47n
2
3
4
5
6
7
8
FE-BT-VK-N
1701
1
2917
4n7
5930
100u
6916
1N4148
#6713
GBU4K
BC337-40
7902
1708
T2A
GND_AMP
3705
33K
2702
100u
GND_D
GND_AMP
2913
47n
7
8
9
BZX79-C5V6
6711
6716
6913
T6.3A
1902
6
7
8GND_D
MAINS UCD
EH-B
1700
1
2
3
4
5
7901
BC547B
3902
3900
10M
GND_D
DIPMATE
# 0706
1N4148
6703
6706
1N4148
GND_D
2900
10K
3901
1N4148
6704
47n
T200mA
# 1909
100n
220n
2908
2709
1N4148
6705
6702
1N4148
2909
470n
7700
BC337-25
1907
GND_AMP
3709
3K3
6707
1905
5
4
68
9
7
112
2902
22n
OZ-SS-112L
3701
100R
3906
BC557B
7903
BZX79-C39
6912
470R
2918
2n2
6m8
2711
1m
5929
GND_D
1707
EH-B
# 1709
1
2
4K7
# 3712
6710
1N4148
7701
BC327-40
3915
1M
2713
100u
2715
7900
BC557B
22u
FAN_NTC
+VH
-VH
100K
3904
NTC
F2
F1
SEC_V
SEC_V
LPS
LPC
LPS
GND_M
SEC_2V
SEC_V
FAN_NTC
GND_D
SEC_V
GND_D
NTC
SEC_2V
F1
F2
-VKK
+5V6_ECO
SEC_V
SEC_V
NTC
LPC
PW_DN
PW_DN
-VKK
GND_D
+5V6_ECO
8239_210_96435_01 for...3527 pt5 dd wk0343
Note : Some values may varies, see respective parts list for correct value.
# : Provision
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3524 pt3 dd wk0343
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3524 pt3 dd wk0343
8-4 8-4
REGULATOR UCD BOARD - COMPONENT LAYOUT REGULATOR UCD BOARD - CHIP LAYOUT
B
C
D
E
A
B
C
D
E
0051 B8
1500 E5
1502 C8
1503 C8
OVERVOLTAGE
12345678
12345678
A
DETECTION
1504 E6
1551 B8
2500 B2
2501 C3
2502 C3
2503 D1
2504 E2
2505 E2
2506 E1
2507 C4
2508 C5
2509 C5
2510 C5
2511 E4
2512 E5
2513 A5
3500 B2
3501 B2
3502 C2
3503 C2
3504 D2
3505 D3
3506 D2
3507 D1
3508 D2
3509 E2
3510 B5
3511 C4
3512 C4
3513 D5
3514 D5
3515 D4
3516 D4
3517 E4
3518 A4
3519 A4
3520 A4
3521 A4
3522 A4
3523 A4
3524 A5
3525 E3
3526 E4
6500 E3
6501 D5
6502 A5
6503 A5
6504 A5
7500 B2
7501 D1
7502 D2
7503 E3
7504 B4
7505 D5
7506 A6
GND_D
2506
10u
3522
1K
GND_A
EH-B
# 1500
3513
GND_M
220R
GND_D
150R
3506
2504
100n
100n
2507
6502
GND_D
47u
3524
100K BAS316
100n
2513
3511
1K5
2502
6501
3510
180R
BZX79-C4V7
1
2
3514
5R6
470R
3519
6K8
GND_D
120R
3504
3508
1K
# 3521
100u
2511
100u
2512
7505
BC327-25
2510
47u
5
6
7
8
GND_M
GND_M
3512
47R
DIPMATE
# 0051
1
2
3
4
47K
3505
6500
BZX79-C3V3
3507
3517
47R
470R
3503
3509
470R
47u
2501
GND_D
GND_M
1
A
3I2
O
6504
BAS316
LM317P
7501
6
GND_A
100n
2503
1503
EH-B
1
2
3
4
5
GND_D
1K
3523
9
3515
470R
EH-B
# 1502
1
2
3
4
5
6
7
8
3
4
5
6
7
8
2508
100n
EH-S
1504
1
2
1551
EH-B
1
2
# 3518
6K8
150R
3502
470R
3500
120R
3501
7502
BC847B
3I2
O
BC847B
3525
1K
7503
7504
LM317P
1
A
BAS316
6503
O2
2500
100n
7500
LM317P
A
1
I
3
7506
BC847B
3516
1K
47u
2509
2505
3526
1K
3520
15K
47u
REGULATOR UCD
+5V6
SEC_2V
SEC_V
SEC_V
FAN_NTC
OV_PRO
+12V_M
OV_PRO
+5V6
+12V_M
+5V_VCD
5V_CTRL
+12V_A
SEC_V SEC_2V
+12V_M
FAN_NTC
+5V6
+5V_VCD
+5V_VCD
5V_CTRL
+12V_A
+12V_M
8239_210_96313_01 for...3524 pt3 dd wk0343
Note : Some values may varies, see respective parts list for correct value.
# : Provision
# Provision
t
8-5 8-5

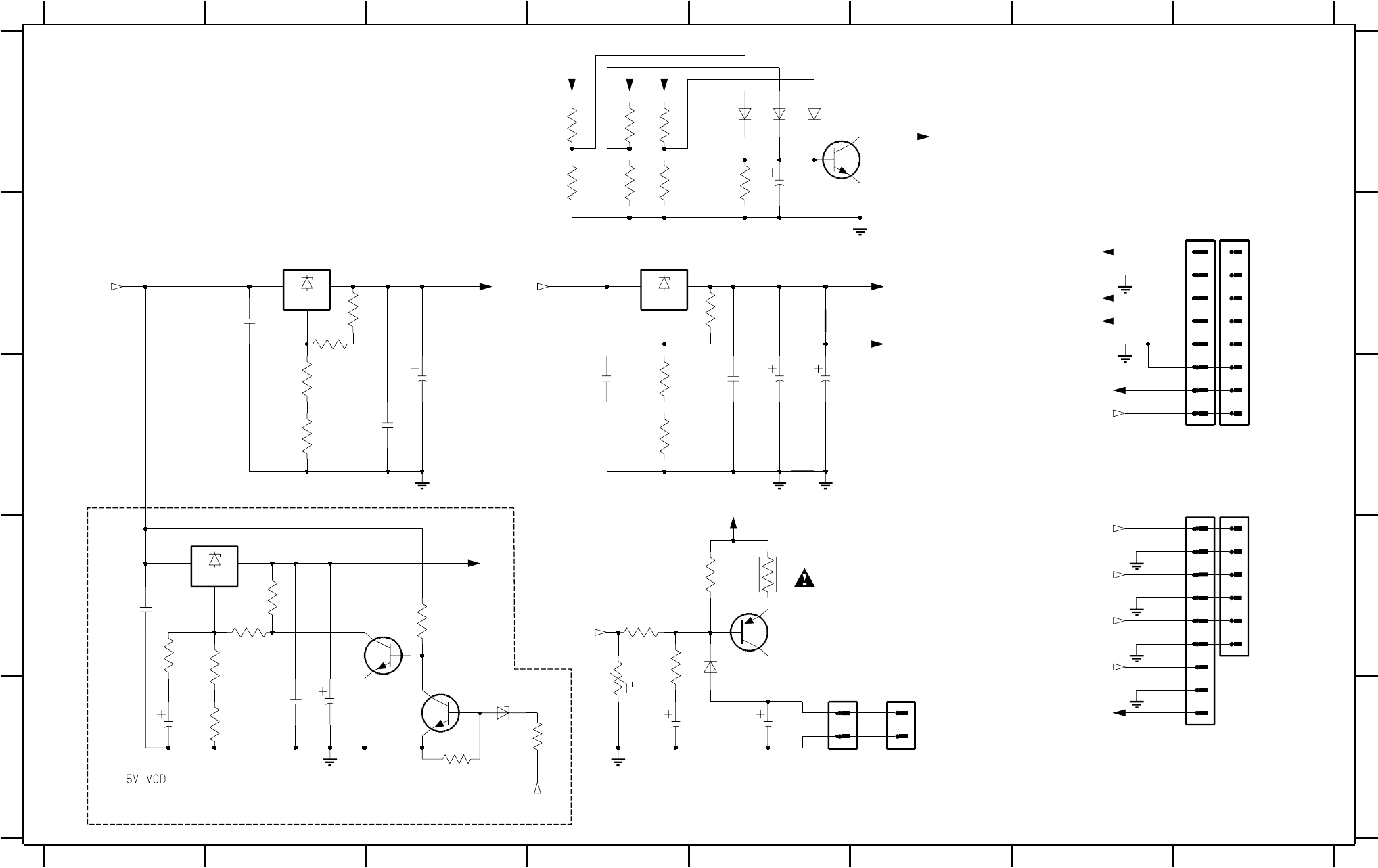

REGULATOR UCD BOARD - CIRCUIT DIAGRAM
8-6 8-6
AMPLIFIER UCD BOARD (SE) - COMPONENT LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3104 213 3536 pt2 dd wk0343
8-7 8-7
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3104 213 3536 pt2 dd wk0343
AMPLIFIER UCD BOARD (SE) - CHIP LAYOUT
8-8 8-8
AMPLIFIER UCD BOARD (SE) - CIRCUIT DIAGRAM PART 1
+T
-T
-T
+T
-T
t
-T
E
F
G
H
I
J
A
B
C
D
E
F
G
H
I
J
1100 C1
1105 F1
1110 D12
1115 D13
1120 D13
2100 B2
2101 E1
2102 E1
123456789101112 13
123456789101112 13
A
B
C
D
2107 B3
2108 B3
2109 C2
2110 C3
2111 C3
2112 A4
2113 E4
2114 A9
2115 A10
2116 A11
2117 A10
2118 C7
2119 C7
2120 B10
2121 D7
2122 C8
2123 E9
2124 E10
2125 D10
2126 E10
2127 D10
2128 C12
2129 C12
2150 G2
2151 G3
2152 G3
2153 H2
2154 H3
2155 H3
2156 F4
2157 J4
2158 H7
2159 G7
2160 G10
2161 I7
2162 H8
2163 H10
2164 F9
2165 F10
2166 F10
2167 F11
2168 J9
2169 I10
2170 J10
2171 J10
2172 H12
2173 H12
3100 B3
3101 B3
3102 B3
3103 G4
3104 G5
3105 G2
3106 H2
3112 B3
3113 B3
3114 C3
3115 C3
3116 C3
3117 C3
3118 C3
3119 A4
3120 A5
3121 B5
3122 C4
3123 E4
3124 E5
3125 E6
3126 E6
3127 E6
3128 A6
3129 A6
3130 A7
3131 A10
3132 A10
3134 B7
3135 B8
3136 C9
3137 B10
3138 D7
3139 D8
3140 D9
3141 E10
3142 D10
3144 C10
3145 E4
3150 G3
3151 G3
3152 G3
3153 G3
3154 G2
3155 H3
3156 H3
3157 H3
3158 H3
3160 H2
3161 H2
3162 F4
3163 F5
3164 F6
3165 F6
3166 G5
3167 J4
3168 J5
3169 J6
3170 J6
3171 J6
3172 H4
3173 G7
3174 G8
3175 G9
3176 F7
3177 F10
3178 I7
3179 H8
3180 I9
3181 H10
3182 F10
3183 C4
3184 J10
3185 I10
3186 H4
3187 F10
3188 J4
3190 D1
3192 G2
3193 D11
3194 J12
3195 A11
3196 E11
3197 F11
3198 J11
5100 A9
5102 E9
5105 C12
5151 F9
5152 J9
5155 G12
6101 D5
6102 D4
6103 C7
6104 C7
6105 C7
6106 B8
6107 B9
6108 C8
6109 D8
6110 D9
6151 I4
6152 H5
6153 G8
6154 G8
6155 G9
6156 H7
6157 H7
6158 H7
6159 I8
6160 H9
7100 C4
7101 B5
7102 A4
7103 D4
7104 D4
7105 C6
7106 D5
7107 D6
7108 B6
7109 D6
7110 A11
7111 B8
7112 B9
7113 B9
7114 C8
7115 D9
7116 D11
7117 C9
7150 F5
7151 F4
7152 I6
7153 I4
7154 I4
7155 I6
7156 H4
7157 H6
7158 G6
7159 I6
7160 G8
7161 G9
7162 F9
7163 H8
7164 I9
7165 H9
7167 I11
7168 F11
12K
3100
BC856BW
7105
2SA1954
7161
2169
100n
100u 16V
47R
3103
33K
16V
3166
47K
100n
2125
680R
3123
10n
2150
100p
2160
3113
680R
6105
BC847CW
7107
50V
1SS370
2117
22u
3185
270R
2115
100n
PDZ-12B
6108
4n7
2167
BC857CW
7163
4n7
2111
2171
4n7
2107
220p
7164
2SA1954
BC856BW
7110
470n
2161
100n
2102
3181
12R
6158
1SS370
BC846BW
7116
3104
47R
7168
BC856BW
7113
2SA1954
10n
2153
10R
3126
BAS316
6160
390R
3178
3122
220R
3132
270R
470n
2122
2K2
# 3160
3116
2K2
BC847CW
7106
1
10
2
3
4
5
6
7
8
9
B10B-EH-A
1100
6154
PDZ-12B
6156
PDZ-3.3B
1105
1
2
3
4
5
6
B6B-EH-A
3170
10R
3183
10R
12R
3144
3117
680R
2SA1954
7115
2K2
# 3192
STP14NF12FP
7162
2152
6102
1PS76SB10
4n7
680n
3124
560R
2128
2SC2240
7108
50V22u
2166
4
3128
10R
1115
1
2
3
1
2
3
4
5
B4B-EH-A
1120
B5B-EH-A
2170
22u50V
3167
680R
22K
220p
2110
3101
1PS76SB10
6101
2113
100n
3M9
3127
680R
3153
27R
3179
7152
BC847CW
6110
BAS316
7151
BC556B
7109
BC847CW
BC847CW
7159
7158
2SC2240
3141
0R047
220R
3119
2118
47K
3163
3171
3M9
100n
2112
2119
470n
2158
1K0
3180
2114
1m0 50V
470n
6152
1PS76SB10
50V1m0
2123
7155
BC847CW
390R
31343138
390R
12R
3137
10R
3164
7112
STP14NF12FP
7111
7160
BC857CW
BC857CW
10R
# 3186
680R
3169
3150
12K
100p
2127
5M6
3165
5152
83R
3129
5M6
3155
12K
5155
27u
BC856BW
7156
3118
2K2
7165
STP14NF12FP
3125
680R
1PS76SB10
6159
680n
2172
2154
220p
4n7
27R
2155
3187
3174
2156
100n
270R
100n
2157
3104 213 3536 pt2 dd wk0343
1PS76SB10
6151
0R047
3184
0R047
3131
1PS76SB10
6106
83R
5102
BC847CW
7154
5100
83R
2101
3190
100n
3130
33K
7100
BC856BW
7167
BC846BW
100n
2165
BC847CW
7153
7104
BC847CW
12K 22K
3114
83R
5151
3115
PDZ-3.3B
6103
7157
BC856BW
STP14NF12FP
7117
7114
BC857CW
3112
2K2
3195
4K7
3175
1K0
2K2
3157
3120
47K
BC857CW
7102
2K2
4n7
2126
3161
2173
8n2
2K2
# 3154
BAS316
6107
2121
470n
3K9
3188
100u
2159
3176
3168
2162
470n
560R
270R
3142
BC556B
7101
6153
1PS76SB10
50V1m0
2164
4K7
3198
0R047
3139
27R
3151
3182
22K
2K2
3152
1SS370
6157
22K
3156
1K0
3136
27R
3135
12R
3177
100p
3162
220R
7103
BC847CW
2120
1m0 50V
3173
390R
2168
220R
# 3172
2163
100p
2109
10n
3121
47K
2116
4n7
3193
47K
47K
3194
1PS76SB10
3140
1K0
6109
6155
BAS316
3102
2K2
3197
4K7
4K7
3196
# 3106
2K2
3105
2K2
680R
3158
2100
10n
2
3
4
5
6
7
8
EH-B
1110
1
1SS370
50V 22u
2124
6104
27u
5105
7150
BC857CW
8n2
2129
3145
3K9
2151
2108
4n7
-VBa
-VBb
220p
R_REF
+VB
-VB
OUTCH1
OUTCH2
-VB1
+VB1
-VB1
+VB2
OUTCH2
OUTCH1
CL2+
OUTCH2
R_REF
RIGHT
OUTCH1
L_REF
+VB
-VB
CLK2
VDR2
CL2-
RIGHT
PDOWN
+VB
-VB
LEFT
CL1+
+VB
-VB
CL1-
CLK1
LEFT
L_REF
PDOWN
VDR1
+VB
-VB
AMPLIFIER UCD (PART 1)
Note : Some values may varies, see respective parts list for correct value.
# : Provision
8-9 8-9
AMPLIFIER UCD BOARD (SE) - CIRCUIT DIAGRAM PART 2
1201 A1
1202 A4
1203 E6
1204 D6
2201 B2
2202 B1
2203 E6
2204 E6
2205 D7
2206 D6
2207 D8
2208 B9
123456789
123456789
A
B
C
D
E
A
B
C
D
E
2209 A8
2210 D3
2211 D4
2212 B1
2213 B2
2214 B2
2215 B1
2216 B2
3201 A4
3202 B4
3203 E1
3204 B6
3205 D6
3206 E6
3207 D5
3208 D6
3209 E6
3210 D7
3211 E7
3212 D1
3213 D1
3214 C3
3215 D3
3216 E4
3217 D1
3218 D1
3219 D1
3220 E3
3222 E3
3223 E1
3224 D4
3225 A7
3226 B8
3231 B3
3232 B3
3233 B3
3234 B3
3235 E3
3236 D9
3237 E9
3238 A7
3239 B8
4201 A2
4202 A2
6200 A5
6201 C7
6202 C5
6203 B8
6204 B9
6205 D2
6206 D4
6210 A8
6211 B8
7200 A5
7201 B7
7202 E7
7203 D7
7204 E1
7205 A9
7206 A9
7207 D1
7208 D3
7209 E3
7210-A D2
7210-B E2
7210-C C3
7210-D E9
7210-E D8
7210-F D9
7211 B5
7212 A8
7212
BC847CW
6
2202
10n
3219
100R
3237
1M
1n0
74HC14D
7210-E
11 10
14
7
270K
3210
1M0
3206
1203
410K
6202
PDZ-10B
BAS316
6206
BAS316
74HC14D
7210-A
12
14
7
6210
10K
3207
1202
FE-BT-VK-NA
1
2
3
4
5
2213
1n0
10K
3213
98
14
7
74HC14D
7210-D
56K
3217
6205
BAS316
10K
3224
74HC14D
7210-B
34 14
7
22K
3202
1M
3225
3235
33K
100K
BC846BW
7204
3223
100K
100K
3220
3226
3236
100R
# 4202# 4201
10K
1n0
2212
10K
3232
# 3233
3201
22K
2210
470n
BC857CW
7203
10K
# 3234
3205
1M0
1M0
3214
2207
100n
BC847CW
7209
375K
1204
3
4
5
6
7
FE-BT-VK-N
1201
1
2
BC857CW
7206
6211
BAS316
7210-C
74HC14D
56
14
7
3238
1M
2215
1n0
BC846BW
7201
1n0
2214
2209
10V1u0
3222
100K
100K
3218
6201
PDZ-5.6B
120p
2203
6204
BAS316
6203
BAS316
2216
1n0
2201
470p
2204
100K
3216
7202
BC847CW
7208
BC857CW
3209
180K 180K
3208
1M
3239
10V1u0
2208
3203
100K
22K
3204
7211
PZT2222A
82K
3212
100K
3215
14
7
3211
270K
7210-F
74HC14D
13 12
7205
BC847CW
2206
470p
PZT2222A
7200
PDZ-10B
6200
BC857CW
7207
10n
2205
2211
100p
L_REF
3231
10K
DC
CLK1
CLK2
PDOWN
ENA
CL1+ CL2+
Vcc
Vcc
RIGHT
R_REF
DC
OUTCH2
Vcc
HOP
Vcc
Vcc
LEFT
ENA
HOP
OUTCH1
+VB1
CL2-
+VB2 Vcc
Vcc
CL1-
Vcc
-VB1
Vcc
Vcc
-VBb
VDR1
-VBa
VDR2
3104 213 3536 pt2 dd wk0343
AMPLIFIER UCD (PART 2)
Note : Some values may varies, see respective parts list for correct value.
# : Provision
SPKR LEFT
SE
NON
+
-
SE VER
MATX / BTL
VER
-
+
-
+
12
-
34
1234
A
B
A
B
+
SPKR RIGHT
-
+
+
+
-
-
+
-
MATX
MATX
BTL
GND
GND
PHASE PHASE
9301
5
2304
47n
47n
2305
1
2
3
4
EH-S
1308 1
2
3
4
1
2
3
4
5
6
7
8
EH-S
1307
1306
EH-S
1305
9303
2302
10n
10n
2303
10n
2301
1300-B
3
4
2300
10n
1300-A
2
1
9307
9300
9306
9305
# 1302
EH-B
1
2
3
9304
9302
8239_210_96355 for...3523 pt5 dd wk0343
1300-A B3
1300-B A3
1302 A1
1305 A4
1306 A2
1307 A2
1308 B2
2300 A4
2301 A4
2302 B4
2303 B4
2304 A3
2305 B3
9300 A3
9301 A3
9302 A3
9303 A3
9304 A3
9305 A3
9306 A3
9307 B3
Note : Some values may varies, see respective parts list
and variation table for correct value.
SPEAKER UCD
# : Provision
This assembly drawing shows a summary of all possible versions. For components
used in a specific version see schematic diagram and respective parts list. 3139 113 3523 pt5 dd wk0343
SPEAKER UCD BOARD
Item No. 100-150W 200-250W
(Non Matrix Version)
1302 - -
1306 X -
1307 , 1308 - X
2304 , 2305 - X
9300 , 9301 - X
9302 , 9303 - X
9304 , 9305 X -
9306 , 9307 X -
X - item in use.
SPEAKER UCD BOARD - COMPONENT LAYOUT SPEAKER UCD BOARD - CIRCUIT DIAGRAM
SPEAKER UCD BOARD - VARIATION TABLE
8-10 8-10
8-11 8-11
GND_A
GND_M
Ch1
Ch2
SPEAKER
REGULATOR MAINS
AFAFFAN
MAINS
RIGHT
LEFT
GND_D
GND_D
GND_M
GND_D
OV_PRO
AMPLIFIER (BTL SLAVE)
AMPLIFIER (SE) /
AMPLIFIER (BTL MASTER)
AF
-
+
+
-
EH-S
1504
1
2
8
3
4
5
1306
EH-S
1
2
3
4
5
6
7
1307
1
2
3
4
EH-S
1308
1
2
1120 EH-B
1
2
3
4
5
EH-S
1551
1
2
3
4
5
6
7
8
EH-B
2
3
4
5
6
FE-BT-VK-NA
1202
1
1110
1
2
3
4
5
6
7
8
EH-B
1105
1
2
3
4
5
6
EH-B
5
6
7
8
9
EH-B
# 1502
1
2
3
4
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1701 FE-BT-VK-N
1700 EH-B
PWR303_Wiring Diagram dd wk0347
6
1
2
3
4
1105
EH-B
1
2
3
4
5
1115 EH-B
FE-BT-VK-NA
1202
1
2
3
4
5
6
1951
1
2
2
3
4
5
6
1
2
1503
EH-B
1
1950
1201
FE-BT-VK-N
1
2
3
4
5
6
7
EH-B
# 1302
1
2
3
2
1
1300-B
3
4
2
3
4
5
6
7
8
9
1300-A
6
7
8
9
1706
EH-B
1
10
EH-B
1100
1
10
2
3
4
5
CHANNEL1
CHANNEL2
CHANNEL2
CHANNEL2GND
CHANNEL2GND
AMP_RIGHT
D_GND
AMP_ON
ERROR_DETECT
FREQ/MODESELECT
-VCC
CHANNEL1
CHANNEL2
GND
CHANNEL1_NEG
CHANNEL1_NEG
CHANNEL1_POS
CHANNEL1_POS
CHANNEL2_POS
CHANNEL2_POS
CHANNEL2_NEG
CHANNEL2_NEG
-VCC
GND_AMP
NTC
+VCC
+12V_A
+12V_M
+5V6
CHANNEL1_NEG
CHANNEL1_NEG
CHANNEL2_POS
CHANNEL2_POS
CHANNEL2_NEG
CHANNEL2_NEG
+5V_VCD
5V_CTRL
SEC_2V
SEC_V
SEC_V
FAN_NTC
+VCC
NTC
GND_AMP
FREQ/MODESELECT
ERROR_DETECT
AMP_ON
RIGHT_REF
AMP_RIGHT
LEFT_REF
AMP_LEFT
AMP_RIGHT
D_GND
AMP_ON
ERROR_DETECT
FREQ/MODESELECT
CHANNEL1GND
CHANNEL1GND
CHANNEL1
GND_M
SEC_V
SEC_V
GND_D
FAN_NTC
GND_D
NTC
+5V6_ECO
GND_D
F1
F2
-VKK
NTC
PW_DN
LPC
SEC_2V
-VCC
GND
+VCC+VCC
GND
-VCC
CHANNEL2_POS
CHANNEL2_POS
CHANNEL2_NEG
CHANNEL2_NEG
CHANNEL1_POS
CHANNEL1_POS
CHANNEL1_NEG
CHANNEL1_NEG
CHANNEL1_POS
CHANNEL1_POS
For 100-150W version only
# Provision
*For 200-250W version only
^
^
*
*
*
*
*
*
*
*
*
*
^
^
WIRING DIAGRAM

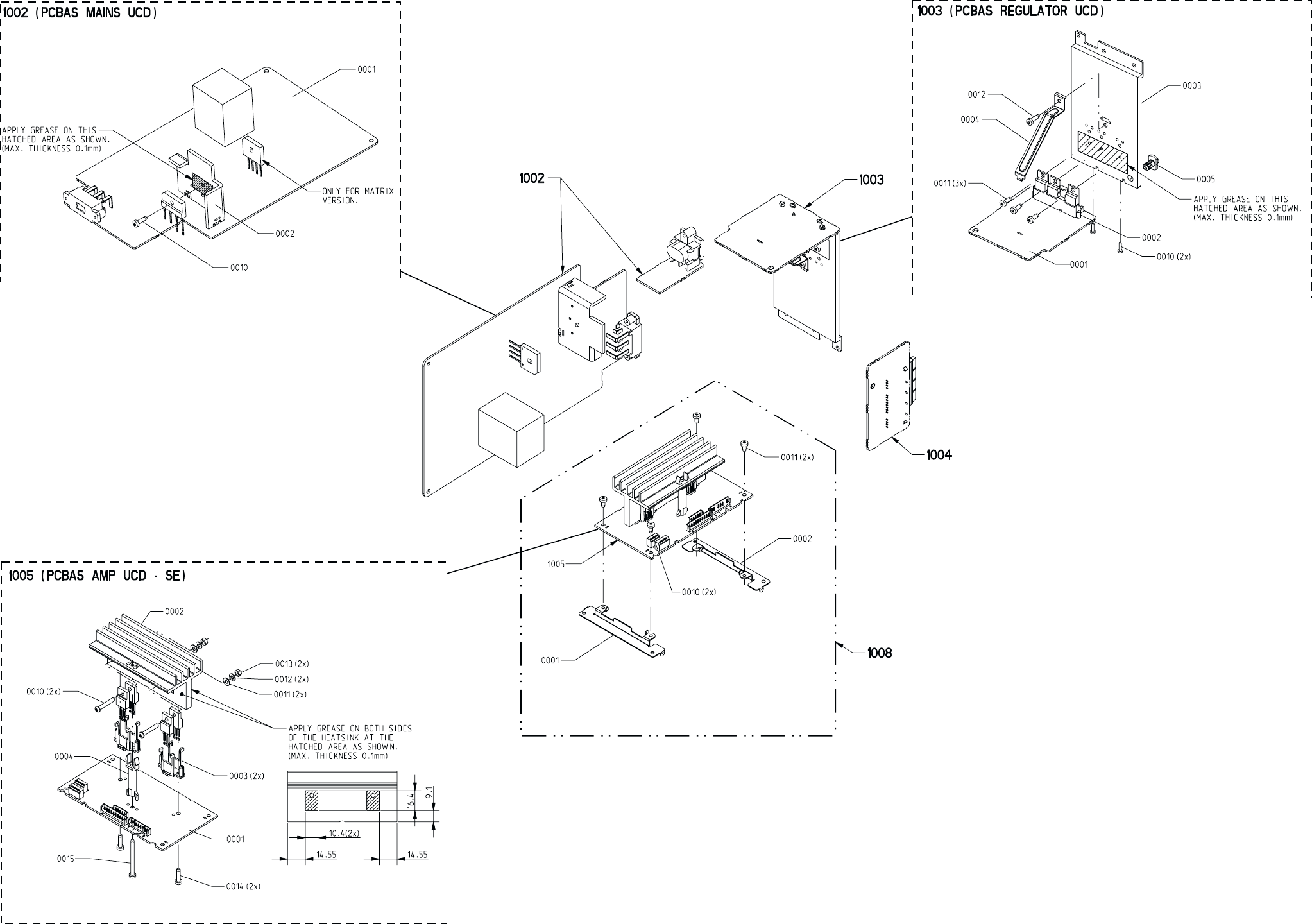

Exploded View PWR303_3139 117 10461_Module UCD 100-150W dd wk0336
( PCBAS SPEAKER UCD )
( ASSY UCD SE )
SCREW LISTS
ASSY UCD SE
0010 M3 x 6
0011 M3 x 6
PCBAS MAINS UCD
0010 D3 x 10
PCBAS REGULATOR UCD
0010 D2 x 8
0011 D2.5 x 8
0012 D3 x 10
PCBAS AMP UCD - SE
0010 M3 x 18
0014 D3 x 12
0015 D3 x 35
EXPLODED VIEW
8-12 8-12
8-13 8-13
ELECTRICAL PARTS - REGULATOR
UCD BOARD
3514 994000001893 RST FUSE NFR25 5R6 PM5
3517 994000001868 NTC DC 0W5 10K PM5
7500 482220981351 IC VOITAGE REGULATOR
7504 482220981351 IC VOITAGE REGULATOR
994000001891 STOPPER HEATSINK
Note: Only these parts mentioned in the list are
normal service parts.
!
ELECTRICAL PARTS - SPEAKER
UCD BOARD
1300 9965 000 16263 SPEAKER TERMINAL 4P
Note: Only these parts mentioned in the list are
normal service parts.
ELECTRICAL PARTS - AMPLIFIER UCD BOARD
3122 994000001867 RTRM CAR LIN 220Ω H
3145 994000001871 PTC TFJPT0805L3901KZ
3172 994000001867 RTRM CAR LIN 220Ω H
3188 994000001871 PTC TFJPT0805L3901KZ
3190 994000001868 NTC 0W5 10K PM5
3195 994000001869 NTC 0W1 4K7 PM5
3196 994000001869 NTC 0W1 4K7 PM5
3197 994000001869 NTC 0W1 4K7 PM5
3198 994000001869 NTC 0W1 4K7 PM5
5105 994000001866 IND FXD SC4684-145 PM1
5155 994000001866 IND FXD SC4684-145 PM1
7112 994000001865 FET POW STP14NF12FP
7117 994000001865 FET POW STP14NF12FP
7162 994000001865 FET POW STP14NF12FP
7165 994000001865 FET POW STP14NF12FP
7210 532220911548 IC 74HC14D
Note: Only these parts mentioned in the list are
normal service parts.
!
!
ELECTRICAL PARTS - MAINS UCD BOARD
1704 994000001873 FUSE T6.3A 250V
1705 994000001873 FUSE T6.3A 250V
1707 994000001885 FUSE RAD T 2A IEC250V
1708 994000001885 FUSE RAD T 2A IEC250V
1902 994000001886 FUSE RAD LT 3A15 250V
1905 994000001032 RELAY 1P 12V 16A
1950 994000001879 MAINS SOCKET 2P 2A5 250V /22
1950 994000002251 CON MAINS 2P 7A 125V /07
2711 994000001881 ELCAP 35V 6800uF PM20
2712 994000002253 ELCAP YK 16V S 10000U /07
2716 994000002254 ELCAP REA 50V S 3300U /07
2717 994000002254 ELCAP REA 50V S 3300U /37
2902 994000001876 CAP MPP 275V 22N PM20
2908 994000001877 CAP MPP 275V 220N PM20 /22
2908 994000002252 CAP MPP 275V S 470N PM20 /07
2918 482212614088 CERSAF NSA 250V 2N2
2920 994000001878 CAP MKP 275V 100N PM20
3700 994000001887 RST FUSE NFR25 100R PM5
3701 994000001887 RST FUSE NFR25 100R PM5
3707 994000001888 RST FUSE NFR25 47R PM5
3902 994000001889 RST MFLM MBB0207 4M7 PM1
3912 994000001882 ST MGL 10M
5903 994000001874 FILTER TR-23-11-14 /22
5903 994000002249 FIL MAINS 650UH 6A 97TS /07
5904 996500016272 ST.BY TRANSFORMER
6712 994000001875 BRIDGE GBJ10D
994000001883 NTC AC 300V DC 385V 0.8W
Note: Only these parts mentioned in the list are
normal service parts.
!
!
!
!
!
!
!
!
!
!
!
ETF7 TAPE MODULE
(Non-Dolby Version)
9-1 9-1
TABLE OF CONTENTS
Tape Module Wiring & variation table ....................... 9-1
Block diagram ............................................................ 9-2
Brief Introduction ....................................................... 9-3
Connector assignment............................................... 9-4
Tape deck electronics & Tape adjustments ............... 9-5
ETF7 Non-Dolby board layouts ................................. 9-6
Analog Circuit diagram .............................................. 9-7
Servo Circuit diagram ................................................ 9-8
Exploded views & parts list........................................ 9-9
Electrical parts list.................................................... 9-13

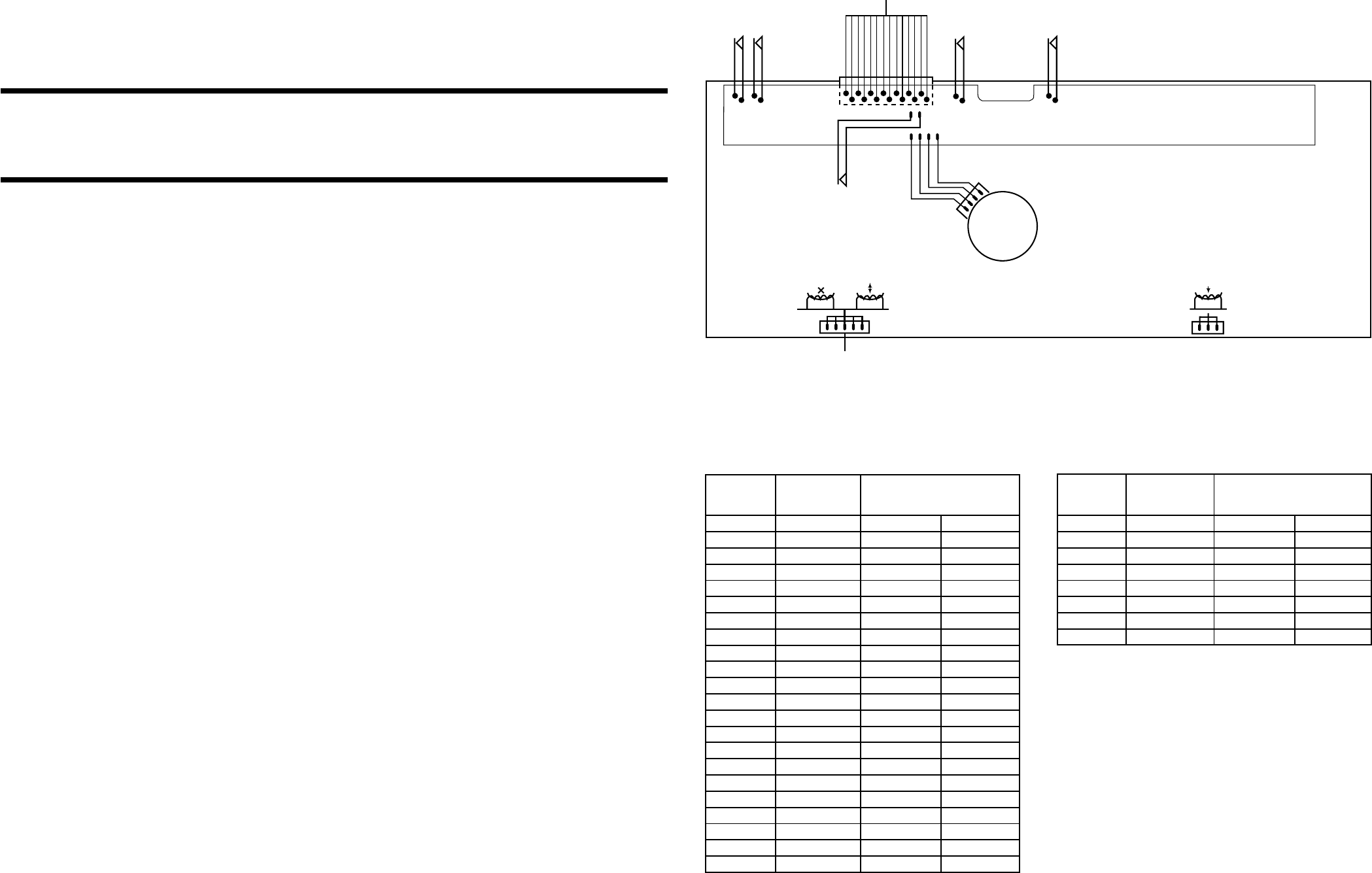

REC
FWD
CRO2*
REC
REV
MODE
SW
TAPE DECK
MOTOR
TO ETF BOARD
CONNECTOR 1710 (ND) 5P
CONNECTOR 1720 (DB) 6P
TO ETF BOARD
CONNECTOR 1770 (ND) 14P
CONNECTOR 1740 (DB) 14P
TO ETF BOARD
CONNECTOR 1730 (3P)
Tapedeck wiring (Double deck)
+–
H
L
CRO2*
Mechanism B Mechanism A
* Not for Ferro version
Chrome/Ferro Chrome/Ferro Ferro
2624 - - 100nF
2701 , 2702 150pF 270pF 270pF
2703 , 2704 100pF 220pF 220pF
2717 , 2718 10nF 15nF 15nF
2721 , 2722 6,8nF 6,8nF -
2727 , 2728 470pF 1nF 1nF
3616 10k 1k 1k
3618 6k8 - -
3620 10k trimmer - -
3622 - 10k trimmer 10k trimmer
3672 4k7 - -
3676 47k - -
3687 220R 220R -
3688 680R - -
3723 , 3724 15k 18k 18k
3725 , 3726 10R 10R -
3727 , 3728 5k6 6k8 6k8
3729 , 3730 3k3 4k7 4k7
3743 , 3744 1k5 2k2 2k2
3745 , 3746 3k3 5k6 5k6
3754 , 3755 1M 47R 47R
Variations table for Analog Circuit
Autoreverse Non-autoreverse
ND/DD/FR ND/DD/FF
Autoreverse Non-autoreverse
ND/DD/FR ND/DD/FF
Chrome/Ferro Chrome/Ferro Ferro
3769 12k 8k2 8k2
3772 6k8 5k6 5k6
4785 - - 0R jumper
3774 15k 8k2 8k2
6614 1N4148 - -
7616 BC857B - -
7622 BC847B - -
9-2 9-2

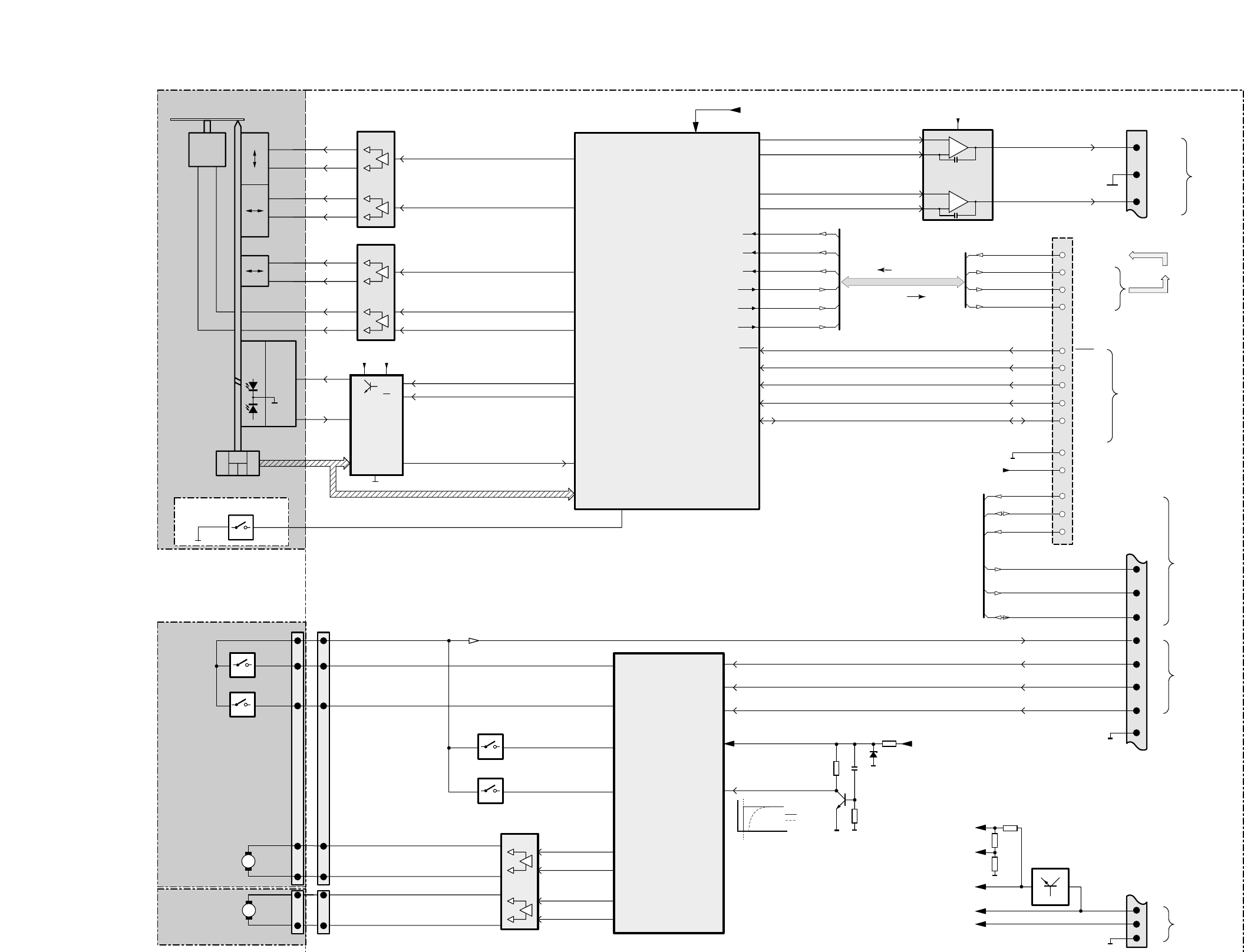

BLOCK DIAGRAM
Deck B (Rec/Pb) switches, sensors & motor
4x DECK(S) SW.
STATUS TO
VOLTS CONV.
2x
SOLENOID
SUPPLY CTRL SOLENOID
SUPPLY CTRL
MOTOR VCC
SUPPLY CTRL
NS/HS CTRL
Deck A (Pb) switches, sensors & motor
NOM/HI SPEED
REC EON.
IEC I IEC II
REC EON.
REC EON. SW.
HEF4952BT
RECORD AMP
NJM4560D
OSCILLATOR
REC CRB
Line-In
Playback
Head
Rec/Pb
Head
Erase
Head
BIAS SYM
HD SW.
BIAS ADJ
Erase
Bias
REC
ALCEN
PRE-AMPLIFIER
AN7318S
SOURCE SEL
HEF4952BT
1A0 1A1 1A2
Rec current
ATTEN
ALC
PLAYBACK
EQUALISATION
PB EON. SW.
HEF4952BT
2A0 2A1 2A2
MPX
1A0 1A1
PB A ADJ PB B ADJ
Rec In
PB In
2A2
DOLBY B NR
CXA1101M
REC Out
PB Out
REC ADJ
SHIFT
REGISTER
HEF4094BT
3A0 3A1 3A2
(HS) (REC) (CRB)
DOLBY
NOM/HI SPEED
REC EON.
3A0 NS
2A2
MUTE
For Dolby version only
PB Out
ATTEN
4794 #
9792 #
#
CLK
DATA
STROBE
# For Non-dolby version only
Only 1 channel is presented.
NOTE:
MicroProcessor Control / Communication lines
Direct / Indirect Control lines from Shift Registers
AD1 AD2
1A2
1A1
ALCEN
1A0
REC 7787
7791
7780
7710 7720
7740
7730
7630
7640
1A0
2A1
2A2
REC
NS/HS (NS)
HS
NS/HS
(NS)
3A0
2A0
CRA 7792
7622
7788
7610
9-3 9-3
General
1. Playback Mode
Signal from the playback head Deck A or Deck B is selected and fed through by the Mode Selector IC7710 (HEF4952BT).
The signal is amplified by amplifier IC7720 (AN7323S) before feeding to the IC7740 (HEF4952BT) and out to the AF Board
via connector 1701.
2. Recording Mode
Recording Signal is selected and fed through by the Mode Selector IC7710 (HEF4952BT) which is then amplified by the
amplifier IC7720 (AN7323S). The amplified output signal will pass through IC7730 (HEF4952BT) for record equalization and
back to IC7710 (HEF4952BT) before registered into the Rec/PB Head of Deck B.
3. Dubbing Mode
In Dubbing mode, signal from the playback head Deck A is selected and fed through by the Mode Selector IC7710
(HEF4952BT) which is then equalised for playback mode by the amplifier IC7720 (AN7323S) so that a flat response is
obtained after the pre-amp. The equalised signal will then follow the same path as in the Recording mode.
4. Mode Selector
The Mode Selector IC7710 (HEF4952BT) caters for 4 inputs signal, namely Playback Signal from Deck A, Playback Signal
from Deck B, Recording Signal and Dubbing Signal.
5. Amplifier PB/REC
Amplifier IC7720 (AN7323S) is for the purpose of amplifying the Playback and Recording signal from the Mode Selector.
6. Automatic Level Control (ALC)
ALC circuit consists of resistors (3760, 3765, 3766, 3767), capacitors (2762 , 2763) and control by transistor 7787 (BC847B).
ALC limits the amplifier output to a constant value when input signal becomes too large, thus limiting recording current to
below saturation level, to prevent recording distortion.
7. Muting Circuit (For Non-Dolby version only)
Switch S4 of the IC7740 (HEF4952BT) is for the purpose of muting the output during Recording mode. During Recording
mode, S4 is closed and shorted to the ground.
8. IC7740 (HEF4952BT)
The function of the IC7740 (HEF4952BT) is to change time constant between 120us Ferro (IEC I) and 70us Chrome (IEC
II) during playback mode. It will automatically determined whether the tape type is 120us Ferro (IEC I) or 70us Chrome (IEC
II). This IC will switch to Flat Gain during the Recording mode.
9. IC7730 (HEF4952BT)
The function of the IC7730 (HEF4952BT) is to change gain and time constant according to tape type and recording speed
to boost recording current at higher frequency during recording to compensate for head loss. It will automatically determined
whether the tape type is 120us Ferro (IEC I ) or 70us Chrome (IEC II).
10. Bias Level
Bias Level making use of the Variable resistor (3773) for adjusting the optimal level of the bias current for Ferro or Chrome.
11. Bias Symm (For Dolby B NR version only)
Bias Symm making use of the Variable resistor (3785) to adjust the bias current for the left and the right channel to be equal.
12. PB Switch
Playback Switch which consists of the FETs 7785 (For Dolby B NR version only) & 7786 (J111) is for the purpose of providing
a virtual ground for the Rec/PB Head (Deck B) during Playback mode. During the Playback mode, the FETs are turn on and
shorted pin 2 and 4 of connector 1720 to the ground. During Recording mode, the FETs are turn off to allow the oscillator
signal to be superposition onto the Recording signal for recording.
13. Motor Speed (For FR versions only)
During High speed dubbing, a feedback signal from the uP through pin 03 of the IC7610 (HEF4094BT) will trigger the
transistors 7622 (BC847B) and 7616 (BC857B) to cause a change in the voltage level between High and Low, thus changing
the speed of the motor.
14. IC7610 (HEF4094BT)
IC7610 (HEF4094BT) is a Shift Register use for issues the logic for cmos switch ICs (HEF4952BT) via 1A0, 2A1 and 2A2.
It also issues logic to On/Off SOL_A, SOL_B and MOT. Recording speed is controlled via NS/HS.
Dolby Circuit (For sets with Dolby B NR version only)
15. IC7630 (CXA1551M)
IC7630 (CXA1551M) in the Dolby circuit is a Dolby Noise Reduction Type B IC for the Playback and Recording signal. Noise
Reduction ON/OFF are controlled by DOLBY, which is from CLK, direct from uP. After clocking in DATA, CLK is set to HIGH/
LOW for NR OFF/ON.
16. 19kHz Filter
The 19kHz filters 5631 & 5632 (LXD-210) in the Dolby circuit is for the purpose of filtering the 19kHz Pilot Tone (for Tuner
signal only) of the Recording signal.
17. Level Adjust
The Variable resistor 3635, 3636,3641 and 3642 in the Dolby circuit is for adjusting the playback level of the Dolby reference
(400Hz , 200nWb/m). Transistor 7631, 7632 are ON to enable adjustment of 3641, 3642 during Playback Deck A. Transistor
7633, 7634 and 3635, 3636 are active for Playback Deck B.
18. Amplifier IC7640 (NJM4560M)
The Amplifiers 7640A & 7640B (NJM4560M) in the Dolby circuit is for the purpose of amplified the Recording signal.
19. Muting Circuit
The muting circuit which consists of transistors 7788, 7789 and 7790 (BC847B) is for the purpose of muting the output during
Recording mode.
Brief introduction
NOTATIONS & ABBREVIATIONS USED IN THIS
DOCUMENT
CR Chrome (IEC type II)
DB Dolby NR type B
DD Double Deck
DM Double Motor
FE Ferro (IEC type I)
FF Non-Autoreverse
FR Autoreverse Deck B
Gnd x Ground x
HSD High speed dubbing
ND Non Dolby
NR Noise Reduction
NSD Normal speed dubbing
PB Playback
REC Record
S/A Sub-assy
SD Single Deck
SM Single Motor
CONNECTOR 1740 DECK A & B CONTROL INTERFACE
(For Dolby B NR version only)
1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
4 PHOTO B Photo sensor output (tape movement indication)
5 SOL B Solenoid supply for deck B
6 Vcc Deck / Motor supply
7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
9 SOL A Solenoid supply for deck A
10 PHOTO A Photo sensor output (tape movement indication)
11 MODE A Mode switch (head engagement) [open=off: close=engaged]
12 L L pin for motor
13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
14 H H pin for motor
CONNECTOR 1770 DECK A & B CONTROL INTERFACE
(For Non-Dolby version only)
1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
4 PHOTO B Photo sensor output (tape movement indication)
5 SOL B Solenoid supply for deck B
6 Vcc Deck / Motor supply
7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
9 SOL A Solenoid supply for deck A
10 PHOTO A Photo sensor output (tape movement indication)
11 MODE A Mode switch (head engagement) [open=off: close=engaged]
12 L L pin for motor
13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
14 H H pin for motor
CONNECTORS ASSIGNMENTS:
CONNECTOR 1701 INTERCONNECTION TO AF BOARD
1 REC-L Record input left
2 REC-R Record input right
3 GND A AF Ground
4 TAPE-L Playback output left
5 +12V D.C. supply (+12V) for AF electronics
6 TAPE-R Playback output right
7 -CMOS Negative d.c. supply (-9V) for CMOS ICs
CONNECTOR 1703 INTERCONNECTION TO AF BOARD
1 GND M Motor Ground
2 +MOTOR D.C. supply (+12V) for tape deck motor & solenoid
CONNECTOR 1706 INTERCONNECTION TO FRONT BOARD
1 AD2 Deck sensing switches output voltage / Deck A EOT
2 AD1 Deck sensing switches output voltage / Deck B EOT
3 +5V DC supply +5V for ADC network
4 GND P Control & Oscillator Ground
5 CLK HEF4094BT shift register Clock line
6 DATA HEF4094BT shift register Data line
7 STROBE HEF4094BT shift register Strobe line
CONNECTOR 1710 DECK B HEADS CONNECTON
(For Non-Dolby version only)
1 B R/P HD L+ R/P Head left channel positive
2 GND A R/P Head return ground
3 B R/P HD R+ R/P Head right channel positive
4 ERASE HEAD Erase Head
5 GND A Erase Head ground
CONNECTOR 1720 DECK B HEADS CONNECTON
(For Dolby B NR version only)
1 B R/P HD L+ R/P Head left channel positive
2 B R/P HD L- R/P Head left channel negative
3 B R/P HD R+ R/P Head right channel positive
4 B R/P HD R- R/P Head right channel negative
5 ERASE HEAD Erase Head
6 GND A Erase Head ground
CONNECTOR 1730 DECK A HEAD CONNECTIONS
(For Double Deck versions only)
1 A PB HD L+ Pb Head left channel positive
2 GND A Pb Head return ground shield
3 A PB HD R+ Pb Head right channel positive
9-49-4
9-5 9-5
# For Auto-reverse version only
* If high frequencies are not within limits, decrease bias and re-measure.
If distortion is too high, increase bias and re-meaure
^ Not applicable for Ferro version
PLAY mV-meter check limits see fig.1
CHECK PLAYBACK FREQUENCY RESPONSE
TAPE ADJUSTMENT & CHECK TABLE
TEST
CASSETTE RECORDER
MODE
MEASURE
ON READ ON ADJUST
with
ADJUST MOTOR SPEED
SBC420
3150Hz
PLAY B
PLAY A
frequency
counter
3620
check
NORMAL SPEED
PLAY
PLAY FWD
PLAY REV #
W&F-meter
mV-meter left hand screw
right hand screw
max. output level
& left=right
CHECK WOW & FLUTTER
DECK A & B
ADJUST AZIMUTH
3150Hz +/- 0.5%
3150Hz -0.8/+1.8%
<0.4 % DIN
DECK A & B
to
mV-meter
DECK B
ADJUST BIAS CURRENT
RECORD 56
or
LEFT RIGHT
12
or
LEFT RIGHT
12
or
LEFT RIGHT
12
or
LEFT RIGHT
12
or
LEFT RIGHT
CHECK OVERALL FREQUENCY RESPONSE AND DISTORTION
Inject 3mV signals
100Hz, 250Hz, 1kHz,
10kHz, 12.5kHz
12
or
LEFT RIGHT
Inject 1kHz 8.85mV
34
or
via
34
or
via
12
or
LEFT RIGHT
RECORD B
RECORD B
PLAY B
PLAY B
mV-meter
THD-meter
check
check
limits see fig. 2 *
<3% *
RECORDED
CASSETTE
RECORDED
CASSETTE
995mV
750mV +/- 1.5dB
3773
check
figure. 1
f(Hz)
level(dB)
8dB
6dB
12.5k
4k
250
80
8dB
f(Hz)
level(dB)
8dB
10dB (HSD)
6dB
10k
4k
250
100
8dB
10dB (HSD)
figure. 2
check
SBC419A^ : 4822 397 30069
SBC420 : 4822 397 30071
SBC420
3150Hz
SBC420
10kHz
SBC420
DECK A & B
SBC419A^
SBC420
SBC419A^
or
SBC420
SBC419A^
or
SBC420
1. B Rec Switch (REV)
Rec-R
CrO2*
CrO2*
Rec-F
Solenoid
B-Mode
A-Mode
Solenoid
Motor
R1 (680R)
R2 (680R)
A Photo Sensor
B Photo Sensor
2. B CrO2 Switch
3. B Rec Switch (FWD)
4. B Photo Out
5. B Solenoid
6. Vcc 12V
7. B Mode Switch
8. Gnd
9. A Solenoid
10. A Photo Out
11. A Mode Switch
12. Motor L
13. A CrO2 Switch
14. Motor H
* No Leaf switch & copper pattern
shorted together for Ferro version
TAPE MECHANISM ELECTRONICS
Rec/Pb
Head
Head wire
connector pcb
1. White
2. Black
3. Red
4. Blue
5. Yellow
Erase
Head
For Normal Head
Rec/Pb
Head
Head wire
connector pcb
1. +L ch (White)
2. - ch (Black)
3. +R ch (Red)
4. E Head (Blue)
5. E Head (Yellow)
For Auto-reverse Head
Mechanism B Head Wires Soldering (Non-Dolby version)
Rec/Pb
Head
Head wire
connector pcb
1. White
2. Black
3. Red
4. Blue
5. Yellow
Erase
Head
For Normal Head
Rec/Pb
Head
Head wire
connector pcb
1. +L ch (White)
2. - L ch (Black)
3. +R ch (Red)
4. - R ch (Blue)
5. E Head (Yellow)
6. E Head (Yellow)
For Auto-reverse Head
Mechanism B Head Wires Soldering (Dolby B NR version)
Pink or
Red
White
Screen
(Gnd)
Play
Head
Mechanism A Head Wires Soldering
9-6 9-6

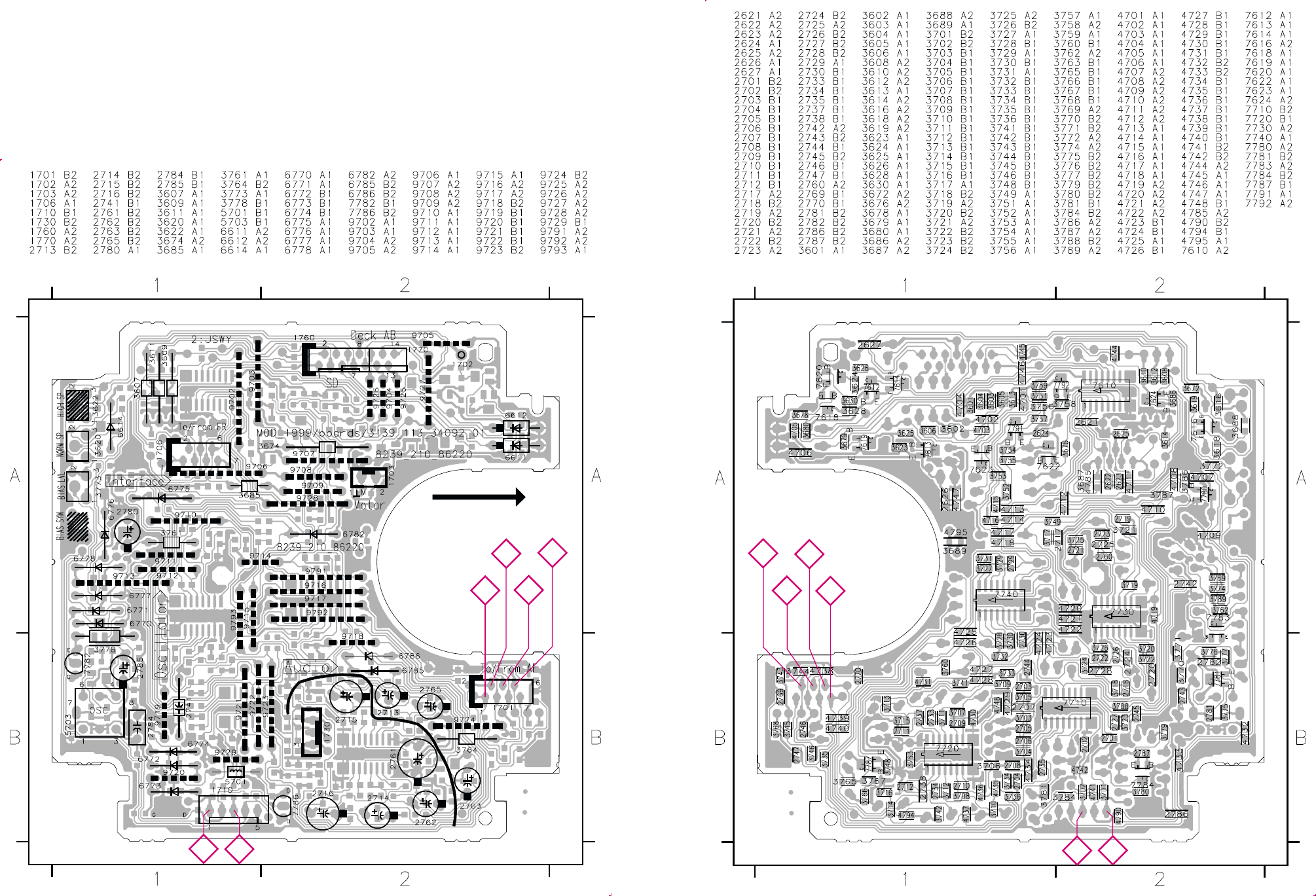

COMPONENT LAYOUT CHIP LAYOUT
3139 113 3409 pt2 dd wk0042
3
42
1
6
5
3139 113 3409 pt2 dd wk0042
Some location on this board is prepared for both 0603 & 0805 SMDs footprint,
in such locations 0603 SMDs may be substituted.
3
4
2
1
65
9-7 9-7
ANALOG CIRCUIT
2
1
3
4
3
4
6
5
0
1
11
1
1
1
CHANNEL
S2
S1
1
1
S3
0
0
S3
REC MUTE
# For Provision Only
#
#
#
1701 F9
1710 C1
1730 A1
2701 B2
2702 B2
2703 A2
2704 B2
2705 A2
2706 A2
PB/REC
Pb deck B
S1
S3
S0
0
S4
1
LEFT CHANNEL
11
1
0
1
123456789
12345
1
1
1
0
STOP
S1
0
--
1
1
0
1
*
*
1
--
1
S1
0
6789
A
B
C
1
1
RIGHT
A0
0
1
0
S2
S3
S0
S1
S0
1
1
S4
S2
1
MODE
D
E
F
A
B
C
D
E
F
S4
EQUALISATION
0
1
HS Chrome
A0 S0
1
0
1
S2
1
SELECTOR
--
--
HS Ferro
2707 A4
2708 B4
2709 A5
2710 B5
2711 A6
2712 B6
2713 A6
2714 B6
2715 A4
S2
REC-L
1
1
0
0
DECK B
1
1
1
DECK A
S0
1
S2
1
1
1
0
2716 C4
2717 C6
2718 D6
2719 C5
2720 D5
2721 C5
2722 D5
2723 C5
2724 D5
2725 D4
2726 D4
2727 A3
0
0
-CMOS
REC MUTE
1
A1A2
AMPLIFIER
1
REC
A2
NS Ferro
+12V
0
1
2728 E5
2729 A8
2730 B8
2733 A5
2734 C4
2735 B3
2737 A6
2738 B6
2741 D6
2742 C3
2743 F1
2744 A4
2745 F5
A0
Pb deck A
1
1
1
1
1
1
CONTROL LOGIC
0
1
0
0
2746 F8
2747 E8
2760 E3
2761 B5
2762 B6
2763 B6
2765 B4
2769 F7
2770 F8
2780 F3
2781 F2
2782 F2
2784 F1
2785 F1
2786 D1
2787 D3
3701 B1
3702 C2
3703 A2
0
HS Chrome
A1
S0
1
0
0
GND_A
TAPE-R
S4
S3
S0
1
1
0
S2
3704 B1
3705 A4
3706 B4
3707 A5
3708 B4
3709 A4
3710 C4
3711 A5
3712 B4
3713 A7
3714 B7
3715 A6
3716 B6
3717 C6
1
Pb Ferro
1
*
*
*
*
*
*
*
*
*
*
*
*
*
3718 E6
3719 C6
3720 E6
3721 C6
3722 D6
3723 A3
3724 D5
3725 C5
3726 D5
3727 A7
3728 B7
3729 A7
3730 B7
3731 A7
3732 B7
3733 A2
TO/FROM AF
ERASE
1
S3
1
S0
S3
1
1
1
0
S1
L
TAPE-L
S1
1
3734 B2
3735 A2
3736 B1
3741 A6
3742 C7
3743 F8
3744 F8
3745 F8
3746 E8
3748 C8
3749 C7
3751 E5
1
1
Not For ND/DD/FR
1
Pb Chrome
STOP
--
3752 F4
3753 F5
3754 E8
3755 E7
3756 D8
3757 D8
3758 D8
3759 D7
3760 A7
3761 E3
3762 E2
3763 A5
3764 A5
3765 B6
3766 B7
3767 A7
3768 E8
3769 E4
3770 F2
3771 F2
3772 F3
REC in
S3
0
1
-- 1
1
S4
1
0
1
A2
NS Chrome
3773 E3
3774 E3
3775 F3
3776 F2
3777 F2
3778 E1
3779 D3
3780 D2
3781 D2
3784 D1
3786 F4
3787 C3
3788 C3
3789 F4
4790 C3
4794 C6
5701 D2
*
REC/PB
* See Variant Table for details
*
*
A1
1
1
*
1
1
*
5703 F1
6770 E2
6771 E2
6772 D1
6773 D1
6774 D3
6775 C3
6776 F3
6777 E2
6778 E4
6782 C7
6785 A7
6786 B7
7710 A3
7720 A5
7730 D6
7740 A8
Dubbing
S4
0
*
REC MUTE
*
--
*
7780 F4
7781 F3
7782 E1
7783 E2
7784 D2
7786 C2
7787 C8
7791 F5
7792 D8
9791 A8
9792 B8
9793 A6
LEVEL
S4
OSCILLATOR
1
1
0
0
S2
PLAY BACK
1
0
S4
1
S0
REC EQUALISATION
11
REC-R
S4
PLAYBACK
0
1
S1
ANALOG CCTRY
1
1
0
S2
S1
S3
AN7323S
0
1
1
BIAS
4n7
2726
7784
BC857B
1M
3787
100n
2746
A0
7
A1
9
A2
10
VDD
HEF4952B
7730
7782
220R
3701
+C
B4
A
3789
47K
A
A
2784
15n
1N4148
6778
7792
BC847B
P
2706
220p
2A0
33n
2719
3736
22K
3760
120R
A
A
1N4148
6776
P
3K3
7786
J111
470p
2727
3K9
3722
2742
1K2
1M
3780
47u
2763
100p
2711
100n
2741
15K
3723
3703
220R
6K8
3769
3730
3770
1K5
100R
3720
12K
+12
A3708
A
2735
100n
4n7
2782
P
3712
150K
3779
330K
M
2738
A
100n
A
330p
2709
1
2
3
4
5
6
7
2720
33n
P
1701
B3
HS
220R
3704
470p
2728
P
3728
5K6
+5
2722
6n8
5K6
3727
1
2
3
BC847B
7781
BC847B
7787
1730
BZX79-F8V2
6777
3751
10K
A
3771
1K2
3746
470p
2707
3764
3K3
A
220R
P
A
6785
1N4148
3745
3K3
3A0
1
2
3
4
5
2u2
5701
1710
REC
B1
4u7
2762
3754
1M
+C
10R
3714
22u
2780
13
VEE
4
VSS
8
16
1
14
3
12
5
11
6
15
2
CRB
3748
2K2
B2
A
A
CRB
3774
15K
3A0
1M
3755
1N4148
6771
100n
2737
470p
2770
A1
9
A2
10
VDD
13
VEE
4
VSS
8
16
1
14
3
12
5
11
6
15
2
HEF4952B
7740
7
A0
220u
2761
6786
1N4148
8K2
3732
A
-C
150p
2702
1N4148
1A1
4K7
3773
3753
100K
6774
A
A
A22n
2743
3759
10K
1A0
470p
2733
REC_R
3788
2760
100n
1K8
3716
A
1M
12K
3719
3752
3724
15K
A
M
100K
22n
3762
820R
A
B4
6775
1N4148
P
A
P
LH
2714
10u
10K
3758
2A1
+12
-C
A
3749
47K
470p
2734
P
A
2708
470p
3713
100p
2704
2745
100n
10R
A
P
10n
2717
CRA
3765
39K
A
100n
2744
3742
2K2
REC_L
+C
2747
100n
A
ALCEN
REC
A
3766
3733
1K2
2769
470p
4M7
HS
8K2
3731
7
MT1
8
MT2
1
2
3
4
5
6
A
B2
A
CLNS-2A833 YEZ
5703
B1
REC
A
3777
150R
+12
2A2
4790
1A0
LH
2781
10n
220R
3702
4M7
3781
3710
10R
9791
2725
4n7
2713
10u
3705
220R
1N4148
B3
6772
220p
2705
3768
10K
A
4794
3709
10R
3725
10R
A
REC
2K2
3718
3786
22K
1A1
-C
3772
6K8
1A0
A
A
A
A
1
14
3
12
5
11
6
15
2
3744
1K5
HEF4952B
7710
7
A0
A1
9
A2
10
13
VDD
VEE
4
VSS
8
16
1K8
2A0
A
+12
3715
REC_R
3784
1K
7783
BC847B
2721
6n8
2K2
3741
A
4M7
3767
330p
2710
3735
22K
2786
100p
2703
100p
+5
P
3734
P
3776
6K8
3757
BC847B
7791
220K
15n
2724
7780
BC847B
3743
1K5
ALCEN
10R
3726
A
A
P
100p
2712
9793
22n
2730
22n
2729
3707
100R
REC_L
47u
2765
3775
4R7
9792
150p
2701
220R
3706
220K
3756
-C
3721
3K9
6782
1N4148
150K
P
2718
10n
15n
2723
3763
+C
A
BC557B
1N4148
6773
P
NC1
9
NC2
6
NF1
11
NF2
4
OUT1
13
OUT2
5
PC1
12
PC2
15
RF
Vcc
16
3729
3K3
7720
3
AIN1
ALCC
2
14
AN2
1
GND
IN1
7
10
IN2
8
3761
10K
2716
470u
6R8
3778
1u
2785
2715
470u
150K
3711
A
6770
1N4148
2K2
-C
2787
33n
3717
P
Note : Some values may varies, see respective parts list for correct value.
*
*
*
*
9-8 9-8

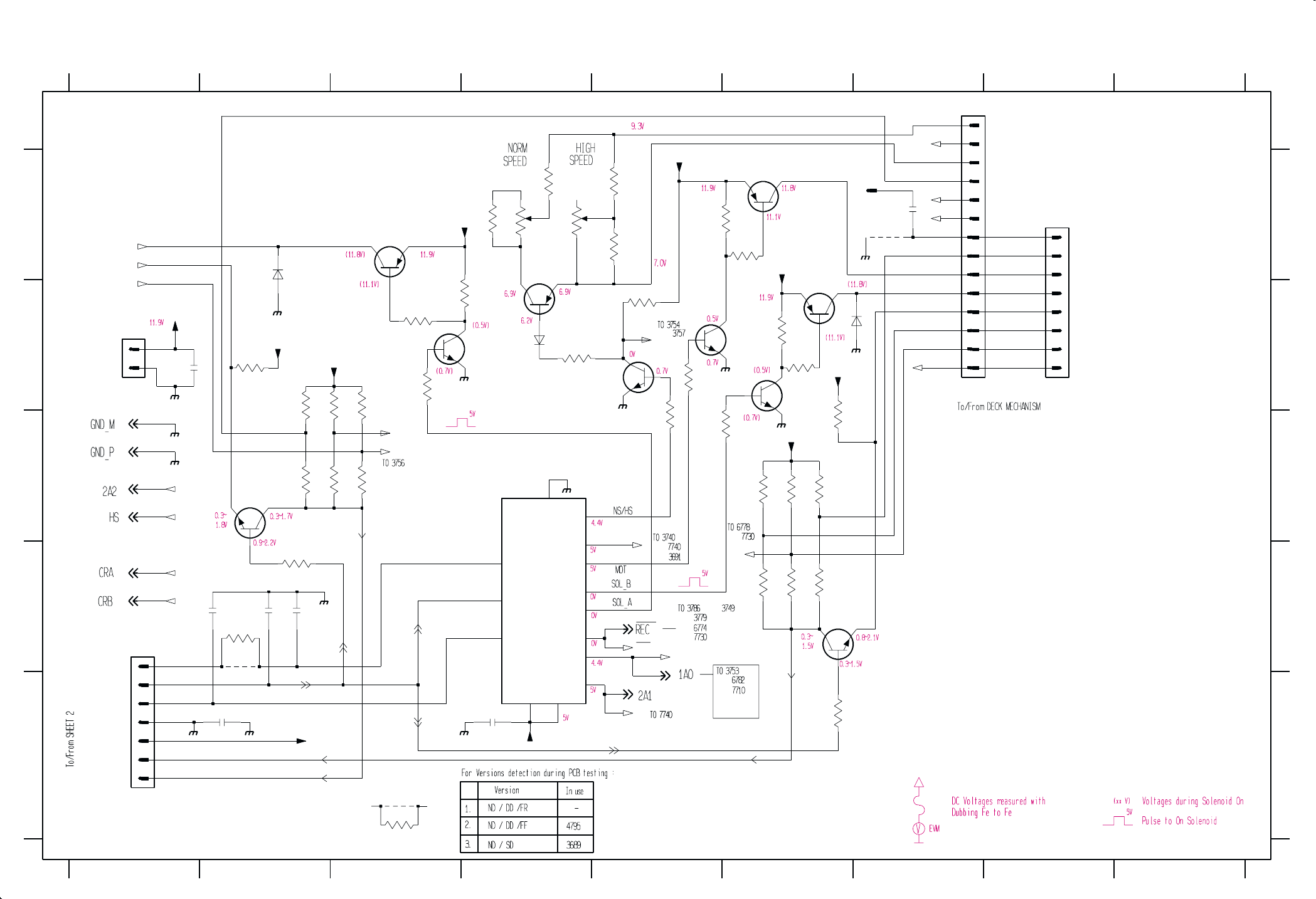

SERVO CONTROL CIRCUIT
L
Gnd
*
B
C
D
E
1702 A7
1703 B1
1706 E1
1760 B8
1770 B7
2621 D2
2622 D2
# For Provision Only
GND_P
*
AD1
DATA
TO/FROM FRONT
123456789
1234
sol_B
STROBE
*
DECK AB
56789
A
B
C
D
E
A
2623 D2
2624 E2
2625 E4
2626 B1
2627 A7
3601 B2
3602 C2
3603 B2
3604 C2
3605 B3
3606 C3
3607 C6
3608 D6
*
*
*
*
*
*
*
CCTRY
Rec_RVS
*
#
#
#
#
*
3609 C6
3610 D6
3611 C6
3612 D6
3613 B2
3614 C6
3616 A5
3618 A4
photo_B
* See Variant Table for details
+5
Rec_RVS
H
3619 A4
3620 A4
3622 A4
3623 B3
3624 B6
3625 B3
3626 B6
3628 A5
3630 A6
3672 B4
Rec_FWD
*
AD2
Rec_RVS
LNot For ND/DD/FR
3674 B5
3676 C5
3678 B5
3679 B3
3680 C5
3685 D2
3686 E6
3687 D2
3688 A5
3689 E3
4785 D2
4795 E3
6611 A2
6612 B6
6614 B4
7610 D4
mode_A
SERVO CONTROL
7612 A6
7613 A3
7614 A6
7616 A4
7618 B6
7619 B4
7620 B6
7622 B5
7623 D2
7624 D6
9705 A7
10K
--
mode_B
Vcc
CrO2_B
10K
47K
3676
7618
BC847B
100n
2626
M
+5
1A0
1703
1
1N4003
6611
100n
2624
100K
3628
3679
47K
120K
3610
PMBT2907
7613
CRB
100K
3685
P
7610
HEF4094BT
M
100K
3686
2A1
3601
2K2
680R
3688
3608
+MOTOR
M
L
CLK
L
1
VDD
16
8
VSS
CP
3
D
2
E0
15
4
O0
5
O1
O2 6
7
O3
14
O4
13
O5
12
O6
11
O7
Os
9
Os’
10
STR
+MOTOR
56K
3612
7619
BC847B
+5
6K8
3618
1702
3604
56K
+5
3623
100K
CRA
3613
27K
3622
BC857B
7616
100n
2627
+MOTOR
+5
9705
+5
4K7
3689
2K2
3607
6
7
8
1n
2621
7
8
9
1760 1
2
3
4
5
1770
1
10
11
12
13
14
2
3
4
5
6
REC
4795
1N4003
6612
47K
3680
M
3678
47K
3674
4K7
100K
+MOTOR
P
2
3602
27K
3624
4785
M
PMBT2907
7614
M
M
BC847B
7623
2625
100n
6
7
M
2A2
1706
1
2
3
4
5
6614
1N4148
M
3606
120K
7622
BC847B
10K
3616
3626
1K
BC847B
7620
3611
2K2
P
1K
3625
PMBT2907
7612
2K2
3603
2K2
3605
27K
3614
+5
7624
BC847B
27K
P
3609
2K2
3687
220R
680R
3619
PM
3672
4K7
2622
470p
3620
HS
470p
2623
PHOTO_A
CR02_A
PHOTO_A
SOL_A
CR02_A
3630
470R
SOL_A
Note : Some values may varies, see respective parts list for
correct value.
*
*
*
9-9 9-9
TAPE MECHANISM - MOTOR EXPLODED VIEW
31 4822 361 11055 Motor Assembly
91 - Screw M2,6 x 5
92 - Screw M2 x 5
Note: Only the parts mentioned in this list are normal
service spare parts.
TAPE MODULE EXPLODED VIEW
1 3139 118 77130 Autoreverse Mech. CWE44FR01
1 3139 118 77140 Non-Autoreverse Mech. CWE44FF02 Chrome/Ferro
1 3139 118 77950 Non-Autoreverse Mech. CWE44FF05 Ferro
3 - Screw D3 x 10
6 - Screw M2 x 16
7 3139 110 34080 Flex Cable 14 pin 7,5 cm
Note: Only the parts mentioned in this list are normal service spare parts.
9-10

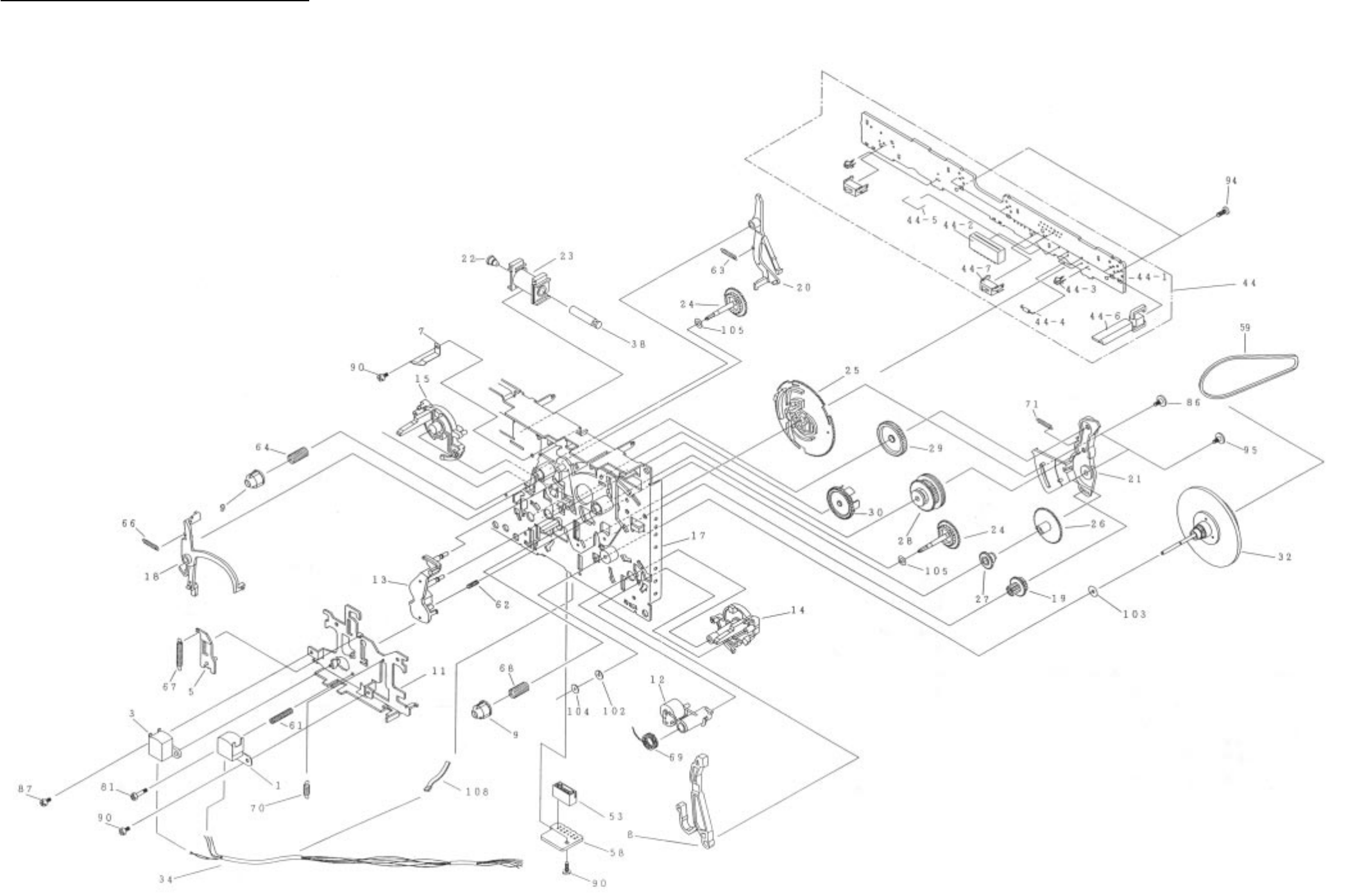

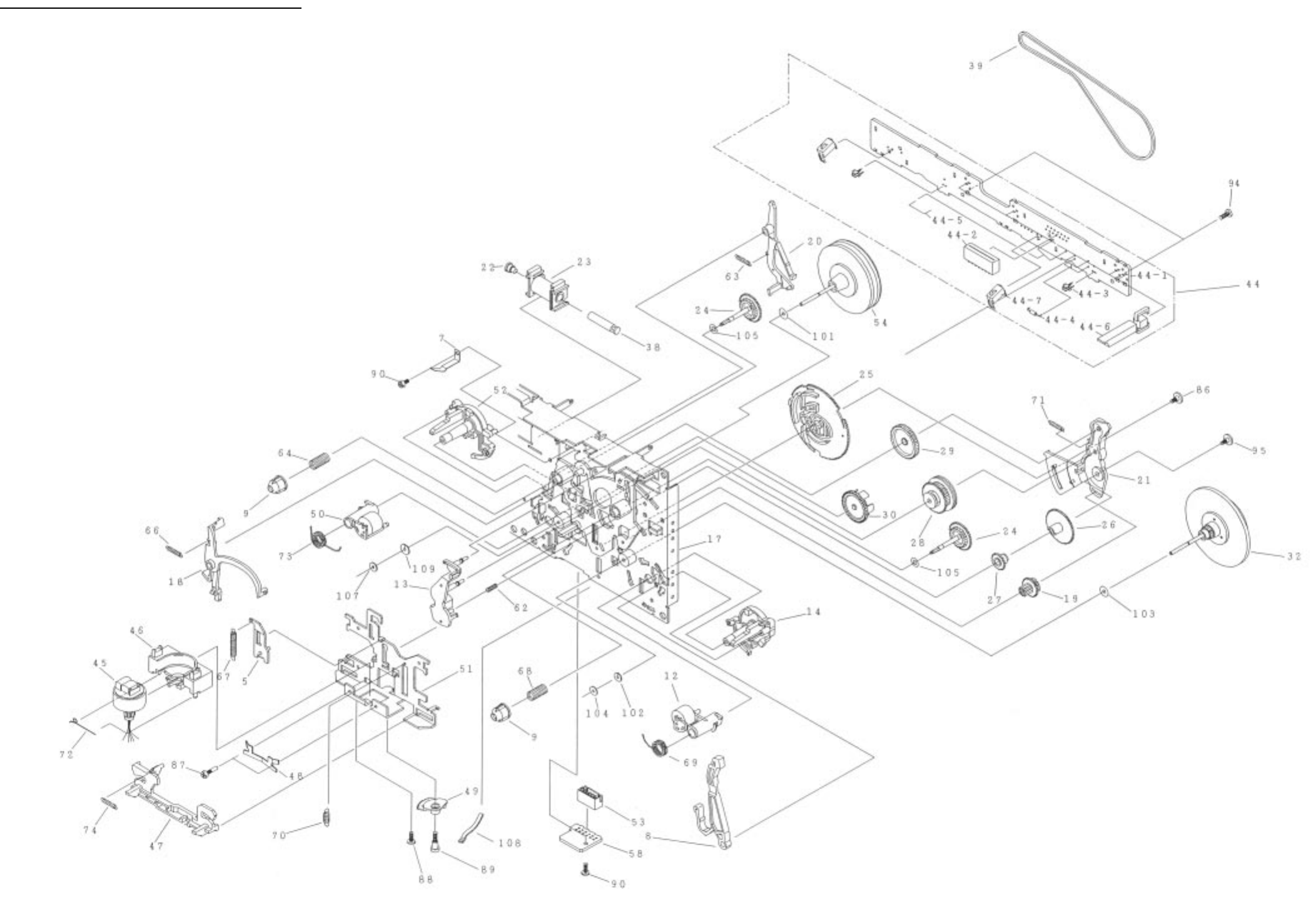

TAPE MECHANISM A - PLAY
9-10
MECHANICAL PARTS - PLAY MECHANISM
1 9965 000 02313 Play Head (Non-Autoreverse deck)
1 9965 000 02321 Play Head (Autoreverse deck)
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
42 9965 000 02315 Belt AF (Autoreverse deck)
42 9965 000 02718 Belt AF (Non-autoreverse deck)
69 4822 492 11761 Spring
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
9-11 9-11
TAPE MECHANISM B - RECORD/PLAYBACK
(Non-Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
1 9965 000 02313 Play Head
3 9965 000 02600 Head, Erase
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
44-2 9965 000 02317 Flex Socket 14 Pin
44-3 9965 000 02320 Photo Interrupter
44-4 4822 050 16801 680R 1% 0,4W
44-6 9965 000 02318 Leaf Switch
44-7 9965 000 02319 Mode Switch
59 9965 000 02719 Belt BF (Large)
69 4822 492 11761 Spring
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
9-12 9-12
TAPE MECHANISM B - RECORD/PLAYBACK
(Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
39 9965 000 02322 Belt AF
44-2 9965 000 02317 Flex Socket 14 Pin
44-3 9965 000 02320 Photo Interrupter
44-4 4822 050 16801 680R 1% 0,4W
44-6 9965 000 02318 Leaf Switch
44-7 9965 000 02319 Mode Switch
45 9965 000 02323 Rec/Pb Head Assembly
50 4822 402 10973 Pinch Arm Assembly L
54 9965 000 02324 Flywheel Assembly L
69 4822 492 11761 Spring
73 4822 492 11762 Spring
101 9965 000 02325 Washer
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
107 9965 000 02326 Washer
109 9965 000 02327 Washer
Note: Only the parts mentioned in the list are
normal service spare parts.
9-13 9-13
ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD
MISCELLANEOUS
1701 482226710953 Flex Socket 7pin Vert.
1706 482226710953 Flex Socket 7pin Vert.
1770 482226751255 Flex Socket 14pin Vert.
CAPACITORS
2621 532212231647 1nF 10% 63V
2622 532212234099 470pF 10% 63V
2623 532212234099 470pF 10% 63V
2624 482212614585 100nF 10% 50V only for Ferro
2625 482212614585 100nF 10% 50V
2701 532212233538 150pF 2% 63V Autoreverse
2701 482212233216 270pF 5% 63V Non-autoreverse
2702 532212233538 150pF 2% 63V Autoreverse
2702 482212233216 270pF 5% 63V Non-autoreverse
2703 532212232531 100pF 5% 50V Autoreverse
2703 482212233575 220pF 5% 63V Non-autoreverse
2704 532212232531 100pF 5% 50V Autoreverse
2704 482212233575 220pF 5% 63V Non-autoreverse
2705 482212233575 220pF 5% 63V
2706 482212233575 220pF 5% 63V
2707 532212234099 470pF 10% 63V
2708 532212234099 470pF 10% 63V
2709 532212231863 330pF 5% 63V
2710 532212231863 330pF 5% 63V
2711 532212232531 100pF 5% 50V
2712 532212232531 100pF 5% 50V
2713 482212440248 10µF 20% 63V
2714 482212440248 10µF 20% 63V
2715 482212480195 470µF 20% 10V
2716 482212480195 470µF 20% 10V
2717 482212233177 10nF 20% 50V Autoreverse
2717 482212613188 15nF 5% 63V Non-autoreverse
2718 482212233177 10nF 20% 50V Autoreverse
2718 482212613188 15nF 5% 63V Non-autoreverse
2719 482212612105 33nF 5% 50V
2720 482212612105 33nF 5% 50V
2721 532212231866 6,8nF 10% 63V not for Ferro
2722 532212231866 6,8nF 10% 63V not for Ferro
2723 482212613188 15nF 5% 63V
2724 482212613188 15nF 5% 63V
2725 532212610223 4,7nF 10% 63V
2726 532212610223 4,7nF 10% 63V
2727 532212234099 470pF 10% 63V Autoreverse
2727 532212231647 1nF 10% 63V Non-autoreverse
2728 532212234099 470pF 10% 63V Autoreverse
2728 532212231647 1nF 10% 63V Non-autoreverse
2729 532212232654 22nF 10% 63V
2730 532212232654 22nF 10% 63V
2733 532212234099 470pF 10% 63V
2734 532212234099 470pF 10% 63V
2735 482212614585 100nF 10% 50V
2737 482212614585 100nF 10% 50V
2738 482212614585 100nF 10% 50V
2741 482212611585 22nF +80/-20% 25V
2742 532212232654 22nF 10% 63V
2743 532212232654 22nF 10% 63V
2744 482212614585 100nF 10% 50V
2760 482212614585 100nF 10% 50V
2761 482212480144 220µF 20% 25V
2762 482212440769 4,7µF 20% 100V
2763 482212440433 47µF 20% 25V
2765 482212440433 47µF 20% 25V
2769 532212234099 470pF 10% 63V
2770 532212234099 470pF 10% 63V
2780 482212481151 22µF 20% 50V
2781 482212233177 10nF 20% 50V
2782 532212610223 4,7nF 10% 63V
2784 482212151305 15nF 10% 50V
2785 482212421913 1µF 20% 63V
2786 532212232531 100pF 5% 50V
2787 482212612105 33nF 5% 50V
RESISTORS
3601 482211711449 2k2 1% 0,1W
3602 482205120273 27k 5% 0,1W
3603 482211711449 2k2 1% 0,1W
3604 482211711148 56k 1% 0,1W
3605 482211711449 2k2 1% 0,1W
3606 482205120124 120k 5% 0,1W
3607 482211652256 2k2 5% 0,5W
3608 482205120273 27k 5% 0,1W
3609 482211652256 2k2 5% 0,5W
3610 482205120124 120k 5% 0,1W
3611 482211652256 2k2 5% 0,5W
3612 482211711148 56k 1% 0,1W
3613 482205120273 27k 5% 0,1W
3614 482205120273 27k 5% 0,1W
3616 482211710833 10k 1% 0,1W Autoreverse
3616 482205110102 1k 2% 0,25W Non-autoreverse
3618 482211711507 6k8 1% 0,1W Autoreverse
3620 482210011141 Trim. 10k 30% Autoreverse
3622 482210011141 Trim. 10k 30% Non-autoreverse
3623 482211710837 100k 1% 0,1W
3624 482211710837 100k 1% 0,1W
3625 482205110102 1k 2% 0,25W
3626 482205110102 1k 2% 0,25W
3628 482211710837 100k 1% 0,1W
3630 482205120471 470R 5% 0,1W
3672 482205120472 4k7 5% 0,1W Autoreverse
3674 482211652283 4k7 5% 0,5W
3676 482211710834 47k 1% 0,1W Autoreverse
3678 482211710834 47k 1% 0,1W
3679 482211710834 47k 1% 0,1W
3680 482211710834 47k 1% 0,1W
3685 482211652234 100k 5% 0,5W
3686 482211710837 100k 1% 0,1W
3687 482211711503 220R 1% 0,1W not for Ferro
3688 482211710361 680R 1% 0,1W Autoreverse
3701 482211711503 220R 1% 0,1W
3702 482211711503 220R 1% 0,1W
3703 482211711503 220R 1% 0,1W
3704 482211711503 220R 1% 0,1W
3705 482211711503 220R 1% 0,1W
3706 482211711503 220R 1% 0,1W
3707 482205120101 100R 5% 0,1W
3708 482205120101 100R 5% 0,1W
3709 482205120109 10R 5% 0,1W
3710 482205120109 10R 5% 0,1W
3711 482205120154 150k 5% 0,1W
3712 482205120154 150k 5% 0,1W
3713 482205120109 10R 5% 0,1W
3714 482205120109 10R 5% 0,1W
3715 482205120182 1k8 5% 0,1W
3716 482205120182 1k8 5% 0,1W
3717 482211711449 2k2 1% 0,1W
3718 482211711449 2k2 1% 0,1W
3719 482211711383 12k 1% 0,1W
3720 482211711383 12k 1% 0,1W
3721 482205120392 3k9 5% 0,1W
3722 482205120392 3k9 5% 0,1W
3723 482211683933 15k 1% 0,1W Autoreverse
3723 482211710965 18k 1% 0,1W Non-autoreverse
3724 482211683933 15k 1% 0,1W Autoreverse
3724 482211710965 18k 1% 0,1W Non-autoreverse
3725 482205120109 10R 5% 0,1W not for Ferro
3726 482205120109 10R 5% 0,1W not for Ferro
3727 482205120562 5k6 5% 0,1W Autoreverse
3727 482211711507 6k8 1% 0,1W Non-autoreverse
3728 482205120562 5k6 5% 0,1W Autoreverse
3728 482211711507 6k8 1% 0,1W Non-autoreverse
3729 482205120332 3k3 5% 0,1W Autoreverse
3729 482205120472 4k7 5% 0,1W Non-autoreverse
3730 482205120332 3k3 5% 0,1W Autoreverse
3730 482205120472 4k7 5% 0,1W Non-autoreverse
3731 482205120822 8k2 5% 0,1W
3732 482205120822 8k2 5% 0,1W
3733 482205120122 1k2 5% 0,1W
3734 482205120122 1k2 5% 0,1W
3735 482205120223 22k 5% 0,1W
3736 482205120223 22k 5% 0,1W
3741 482211711449 2k2 1% 0,1W
3742 482211711449 2k2 1% 0,1W
3743 482211711139 1k5 1% 0,1W Autoreverse
3743 482211711449 2k2 1% 0,1W Non-autoreverse
3744 482211711139 1k5 1% 0,1W Autoreverse
3744 482211711449 2k2 1% 0,1W Non-autoreverse
3745 482205120332 3k3 5% 0,1W Autoreverse
3745 482205120562 5k6 5% 0,1W Non-autoreverse
3746 482205120332 3k3 5% 0,1W Autoreverse
3746 482205120562 5k6 5% 0,1W Non-autoreverse
3748 482211711449 2k2 1% 0,1W
3749 482211710834 47k 1% 0,1W
3751 482211710833 10k 1% 0,1W
3752 482211710837 100k 1% 0,1W
3753 482211710837 100k 1% 0,1W
3754 482205120105 1M 5% 0,1W Autoreverse
3754 482205120479 47R 5% 0,1W Non-autoreverse
3755 482205120105 1M 5% 0,1W Autoreverse
3755 482205120479 47R 5% 0,1W Non-autoreverse
3756 482211713579 220k 1% 0,1W
3757 482211713579 220k 1% 0,1W
3758 482211710833 10k 1% 0,1W
3759 482211710833 10k 1% 0,1W
3760 482205120121 120R 5% 0,1W
3761 482205021003 10k 1% 0,6W
3762 482211711454 820R 1% 0,1W
3763 482205120154 150k 5% 0,1W
3764 482211683872 220R 5% 0,5W
3765 482205120393 39k 5% 0,1W
3766 482205120475 4M7 5% 0,1W
3767 482205120475 4M7 5% 0,1W
3768 482211710833 10k 1% 0,1W
3769 482211711383 12k 1% 0,1W Autoreverse
3769 482205120822 8k2 5% 0,1W Non-autoreverse
3770 482211711139 1k5 1% 0,1W
3771 482205120122 1k2 5% 0,1W
3772 482211711507 6k8 1% 0,1W Autoreverse
3772 482205120562 5k6 5% 0,1W Non-autoreverse
3773 482210012227 Trimmer 4k7 30% 0,1W
3774 482211683933 15k 1% 0,1W Autoreverse
3774 482205120822 8k2 5% 0,1W Non-autoreverse
3775 482205120478 4R7 5% 0,1W
3776 482211711507 6k8 1% 0,1W
3777 482211710353 150R 1% 0,1W
3778 482205210688
!
6R8 5% 0,33W
3779 482205120334 330k 5% 0,1W
3780 482205120105 1M 5% 0,1W
3781 482205120475 4M7 5% 0,1W
3784 482205110102 1k 2% 0,25W
3786 482205120223 22k 5% 0,1W
3787 482205120105 1M 5% 0,1W
3788 482205120105 1M 5% 0,1W
3789 482211710834 47k 1% 0,1W
4701 482205120008 0R Jumper 0805
4702 482205120008 0R Jumper 0805
4703 482205120008 0R Jumper 0805
4704 482205120008 0R Jumper 0805
4705 482205120008 0R Jumper 0805
9-14
ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD
9-14
4706 482205120008 0R Jumper 0805
4707 482205120008 0R Jumper 0805
4708 482205120008 0R Jumper 0805
4709 482205120008 0R Jumper 0805
4710 482205120008 0R Jumper 0805
4711 482205120008 0R Jumper 0805
4712 482205120008 0R Jumper 0805
4713 482205120008 0R Jumper 0805
4714 482205120008 0R Jumper 0805
4715 482205120008 0R Jumper 0805
4716 482205120008 0R Jumper 0805
4717 482205120008 0R Jumper 0805
4718 482205120008 0R Jumper 0805
4719 482205120008 0R Jumper 0805
4720 482205120008 0R Jumper 0805
4721 482205120008 0R Jumper 0805
4722 482205120008 0R Jumper 0805
4723 482205120008 0R Jumper 0805
4724 482205120008 0R Jumper 0805
4725 482205120008 0R Jumper 0805
4726 482205120008 0R Jumper 0805
4727 482205120008 0R Jumper 0805
4728 482205120008 0R Jumper 0805
4729 482205120008 0R Jumper 0805
4730 482205120008 0R Jumper 0805
4731 482205120008 0R Jumper 0805
4732 482205120008 0R Jumper 0805
4733 482205120008 0R Jumper 0805
4734 482205120008 0R Jumper 0805
4735 482205120008 0R Jumper 0805
4736 482205120008 0R Jumper 0805
4737 482205120008 0R Jumper 0805
4738 482205120008 0R Jumper 0805
4739 482205120008 0R Jumper 0805
4740 482205120008 0R Jumper 0805
4741 482205120008 0R Jumper 0805
4742 482205120008 0R Jumper 0805
4744 482205120008 0R Jumper 0805
4745 482205120008 0R Jumper 0805
4746 482205120008 0R Jumper 0805
4748 482205120008 0R Jumper 0805
4785 482205120008 0R Jumper 0805 only for Ferro
4790 482205120008 0R Jumper 0805
4794 482205120008 0R Jumper 0805
4795 482205120008 0R Jumper 0805
COILS & FILTERS
5701 482215711477 Coil 2,2µH 5%
5703 482215620946 Osc Coil 100kHz
DIODES
6611 482213031878 1N4003G
6612 482213031878 1N4003G
6614 482213030621 1N4148 Autoreverse
6770 482213030621 1N4148
6771 482213030621 1N4148
6772 482213030621 1N4148
6773 482213030621 1N4148
6774 482213030621 1N4148
6775 482213030621 1N4148
6776 482213030621 1N4148
6777 482213034382 BZX79-F8V2
6778 482213030621 1N4148
6782 482213030621 1N4148
6785 482213030621 1N4148
6786 482213030621 1N4148
TRANSISTORS & INTEGRATED CIRCUITS
7610 532220911306 HEF4094BT
7612 482213011201 PMBT2907
7613 482213011201 PMBT2907
7614 482213011201 PMBT2907
7616 482213060373 BC857B Autoreverse
7618 482213060511 BC847B
7619 482213060511 BC847B
7620 482213060511 BC847B
7622 482213060511 BC847B Autoreverse
7623 482213060511 BC847B
7624 482213060511 BC847B
7710 482220932919 HEF4952BT
7720 932214000668 AN7323S
7730 482220932919 HEF4952BT
7740 482220932919 HEF4952BT
7780 482213060511 BC847B
7781 482213042804 BC817-25
7782 482213044568 BC557B
7783 482213060511 BC847B
7784 482213060373 BC857B
7786 482213063494 J111
7787 482213060511 BC847B
7791 482213060511 BC847B
7792 482213060511 BC847B
Note: Only the parts mentioned in this list are normal
service spare parts.
RESISTORS
10-1
TABLE OF CONTENTS
Service Hints ...................................................................10-2
Wiring Diagram................................................................10-4
Blockdiagram...................................................................10-5
CD PART
Component Layout Main Board ...................................10-6
Circuit Diagram ............................................................10-7
MP3 PART
Component Layout Main Board ...................................10-8
Circuit Diagram ............................................................10-9
Exploded View...............................................................10-10
Partslist..........................................................................10-12
3CDC-LC-MP3CD2002
(3 Disc Carousel Changer+MP3 Board)
Layout stage .2
10-2
The following steps have to be done when replacing the CD mechanism:
1. Disconnect flexfoil cable from the old CD drive
2. Put a paperclip on the flexfoil to short-circuit the contacts (fig.1)
3. Remove the old CD drive
4. Remove paperclip from the flexfoil and connect it to the new drive
5. Position the new CD drive in its studs
6. Remove solder joint from the Laserunit
CHARGED CAPACITORS ON THE SERVO BOARD MAY DAMAGE THE CD DRIVE ELECTRONICS WHEN
CONNECTING A NEW CD MECHANISM. THAT´S WHY, BESIDES THE SAFETY MEASURES LIKE
• SWITCH OFF POWER SUPPLY
• ESD PROTECTION
ADDITIONAL ACTIONS MUST BE TAKEN BY THE REPAIR TECHNICIAN.
fig.1
Attention: The laser diode of this CD drive is protected against ESD by a solder joint which shortcircuits the
laserdiode to ground.
For proper functionality of the CD drive this solder joint must be removed after connection the drive to
the set.
Emergency open
Service hints
In case of a Supply fault, the tray can be opened manually.
1. Remove the top cover of the set to get access to the Changer Module.
2. Turn gearwheel clockwise (as shown in picture below).
CAUTION
10-3

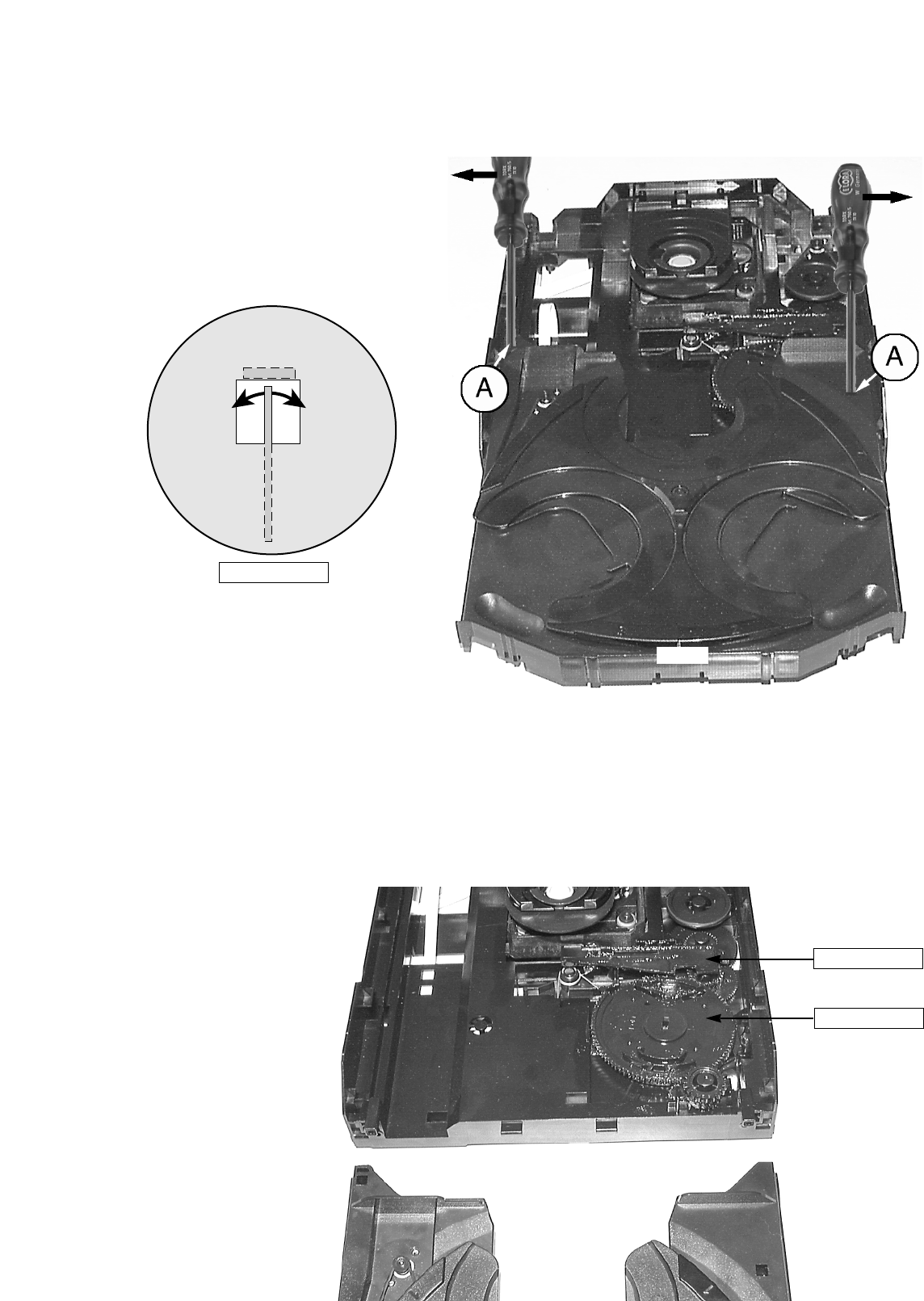

Pos 49 Guiding
Pos 48 Cam
Detail A
Dismantling of Tray
Service hints
1. Open the tray.
2. Release 2x catch as shown in fig. 2 and
Detail A
3. Pull tray out.
fig.2
Assembling of Tray
1. Turn Cam (pos. 48) clockwise to end
position.
2. If necessary - move Guiding (pos. 49) to the
right end position.
3. Insert the Tray.
10-4
Wiring
Disc Motor
Inner switch
Slide Motor
Service Position
10-510-5
VCC
DOBM
D1-D5
D2-D4
7814
1876 1875
1877 1878
7813
TDA7073
HEF4094BT
LD ONLD ON
LD
MON
CD/RW
HF IN
V1
D1
D2
D3
D4
R1,R2
REGISTER
SHIFT
SIGNAL PROCESSOR
CD10
SAA7324 (SAA7325)
TRAY
MOTOR
CAROUSEL
MOTOR
D5
VDD
D3
D2
D0
DIODES
D3D2 D5D1 D4
INNER SWITCH
not on all versions
SWITCH INFO
LASER &
MONITOR
DIODE
TURNTABLE
MOTOR
DISC
CD MECHANISM
CAROUSEL
TRAY
MAINBOARD
DATA
SHR_CL
7801
+3,3V
7802
LASER CONTROL
&
HF AMPLIFIER
TZA1024
(TZA1025)
5,17,21,52,57
64
113
+5V
2
4
5
7
V4
61
2
ISLICE
3
63 51
10
11
6,14
2
3
STB
1
12
11
1,3
2
2
4
1,3
2
4
2
3
5
1
3
1
5
10
9
+3,3V
+5V
+3,3V
+10V
7815
+5V
Vref
+3servo
BLOCK DIAGRAM 3CDC-LC
+10V
15
16
5V1
V
t
EN1
CD DRIVE UP/DOWN SWITCH
1881
1880
TRAY SWITCH
1882
CD POS.1 SWITCH
POS. RECOGNITION
6
7
4
5
1882 closed if carousel is in Position 1.
1883
1883 open if carousel is in a valid Play-Position.
Closed if the tray is in one endposition.
Open during movement.
Open if the drive is in one endposition.
Closed during movement.
VDD (pin 16)
EN1 (pin 15)
Power on
FOCUS
MOTOR
RADIAL
MOTOR
SLEDGE
MOTOR
MOTOR
TURNTABLE
7803
7802
TDA7073A
TDA7073A
TTM +
TTM -
SLEDGE -
SLEDGE +
RAD -
RAD +
FOC -
FOC +
55
54
56
59
60
M1
M2
SL
RA
FO
MP3 Version
1802
5
3
7
4
10
11
12
1805
1805
9
7
SHR-DATA
6
12
13
10
11
9
CD_IIS_DATA
IIS_WCLK
IIS_SCLK
External MP3-Decoder
Communication
Front-µP and MP3 module
RAB
41
RAB
RESET
SDA
SHR_CL
8
SHR_STR
SWITCH INFO
µP_DATA
4
µP_CLK
5
2
µP_FRAME
SICL
10
11
9
µP_CLK
µP_FRAME
µP_DATA
µP_CLK
µP_FRAME
µP_DATA
SILD
+5V
+10V
GND
Supply
Changer
Control Logic
Communication
µP ↔ Signal Processor
VAM2201
WCLI
35
WCLK
28
SCLI
37
SCLK
29
SDI
36
DATA
27
CD_IIS_DATA
AU_IIS_DATA AU_IIS_DATA
IIS_WCLK
IIS_SCLK
AU_IIS_DATA
IIS_WCLK
IIS_SCLK
2,6,8,14,15,19
1
CD_IIS_DATA
IIS_SCLK
IIS_WCLK
1805
13
14
15
Active low pass
Filter
TDA1308
7816
7
15
5
2
3
6
+5V
8
+
-
+
-
CD LEFT
CD RIGHT
22
23
18
19
RN
RP
LN
LP
Analog Audio
DIGITAL AUDIO
MP3 coded
CD-DA coded
SDA
SCL
SILD
RESET
38
42
40
39
1,3
GND
+5V
GND
+5V
Blockdiagram
10-6 10-6

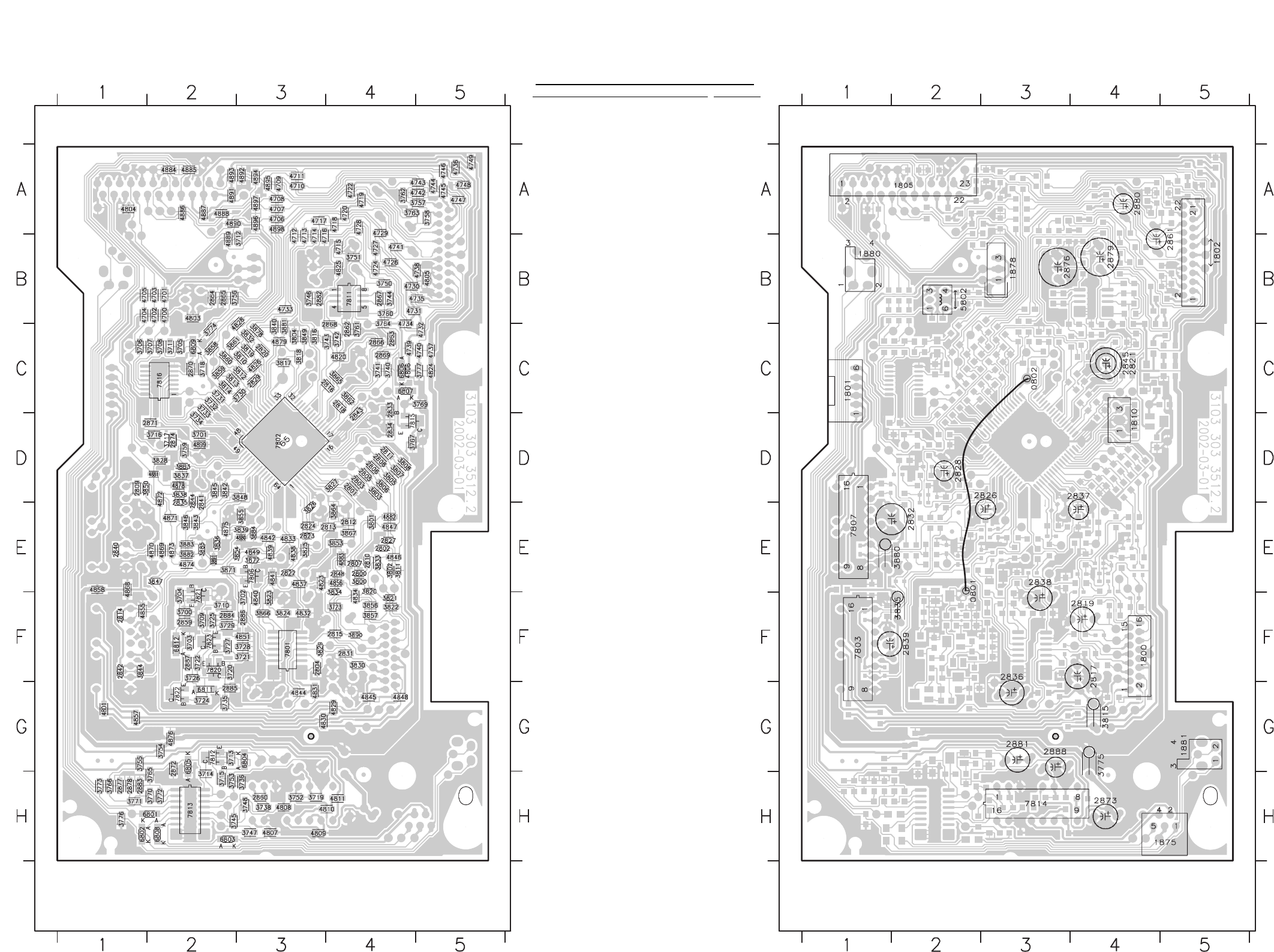

This assembly drawing shows a summary
of all possible versions.
For components used in a specific version
see schematic diagram respectively partslist. 3CDC-LC-MP3CD2002 Layout stage .2 2002-05-27
3CDC-LC-MP3CD2002 Components seen from Copperside
This assembly drawing shows a summary
of all possible versions.
For components used in a specific version
see schematic diagram respectively partslist. 3CDC-LC-MP3CD2002 Layout stage .2 2002-05-27
3CDC-LC-MP3CD2002 Copperside view
2800 E4
2801 D4
2802 E4
2803 D4
2804 F3
2805 D4
2806 D4
2807 E4
2808 D4
2809 D1
2810 E4
2811 D4
2812 E4
2813 E4
2814 F1
2815 F4
2816 C4
2818 C4
2820 C3
2822 E3
2823 E3
2824 E3
2827 E4
2829 C3
2831 F4
2833 C4
2834 D4
2835 D2
2840 E1
2841 D2
2842 F1
2843 D4
2844 D2
2848 E4
2859 F2
2860 H3
2862 C4
2863 C4
2864 B2
2865 B2
2866 C4
2867 B4
2868 C4
2869 C4
2870 C2
2871 D2
2872 G2
2874 D2
2877 H1
2878 H1
2882 B3
2883 H1
2884 F2
2885 G2
2886 F3
2887 F2
3700 F2
3701 D2
3702 F3
3703 F2
3704 F2
3705 C2
3706 C1
3707 C2
3708 C2
3709 F2
3710 F2
3711 C2
3712 B3
3713 G2
3714 H2
3715 H2
3716 D2
3717 D2
3718 C2
3719 H3
3720 F2
3721 F3
3722 F2
3723 F4
3724 G2
3725 F2
3726 F2
3727 F2
3728 F3
3729 F2
3730 C3
3731 C2
3732 C2
3733 C2
3734 D2
3735 G2
3736 H3
3738 H3
3740 C4
3741 C4
3742 C4
3743 C4
3744 B4
3745 H2
3746 B3
3747 H3
3748 H3
3750 B4
3751 B4
3752 H3
3753 H2
3754 G2
3755 G1
3756 B2
3757 A5
3758 A5
3759 D2
3760 B4
3761 C4
3762 A4
3763 A4
3764 C4
3765 H2
3766 H1
3767 D4
3769 C5
3770 H2
3771 H1
3772 H2
3773 H1
3774 C2
3776 H1
3777 C5
3800 E4
3801 E4
3802 E4
3803 D4
3804 C3
3805 D4
3806 D4
3807 D4
3808 D4
3810 C3
3811 E4
3812 C3
3813 C2
3814 C2
3816 C3
3817 C3
3818 C3
3819 C3
3820 E4
3821 F4
3822 F4
3823 F3
3824 F3
3825 E3
3826 E3
3827 D4
3828 D2
3829 F3
3830 F4
3832 C3
3833 E4
3834 E4
3836 E2
3837 D2
3838 D2
3839 E3
3840 C3
3842 D2
3843 E2
3844 F1
3845 D2
3846 E2
3847 E2
3848 D3
3849 C3
3850 D1
3853 E4
3854 E3
3855 E3
3856 F4
3857 F4
3858 C2
3859 C2
3860 C2
3861 C2
3862 C4
3863 D2
3864 E4
3865 C4
3866 F3
3867 E4
3871 E2
3872 E3
3878 C3
3881 C3
3882 E2
3883 E2
3884 E3
3885 E2
3890 F4
3891 E2
4700 B2
4701 B2
4702 B2
4703 B2
4704 B1
4705 B1
4706 A3
4707 A3
4708 A3
4709 A3
4710 A3
4711 A3
4712 B3
4713 B3
4714 B3
4715 B4
4716 B3
4717 A3
4718 A4
4719 A4
4720 A4
4722 A4
4724 B4
4726 B4
4727 B4
4728 A4
4729 A4
4730 B4
4731 B4
4732 C5
4733 B3
4734 C4
4735 B5
4736 A5
4737 C5
4738 B5
4739 C4
4740 C5
4741 B4
4742 A5
4743 A5
4744 A5
4745 A5
4746 A5
4747 A5
4748 A5
4749 A5
4801 G1
4803 B2
4804 A1
4805 B5
4806 C4
4807 H3
4808 H3
4809 H3
4810 H4
4811 H4
4820 C4
4823 E3
4824 C5
4825 B4
4826 C3
4828 C3
4829 G4
4830 G3
4831 G3
4832 F3
4833 E3
4834 F4
4837 E3
4838 E3
4839 E3
4840 F3
4841 E3
4842 E3
4844 G3
4845 G4
4846 E4
4847 E4
4848 G4
4849 E3
4851 F3
4855 F1
4856 E4
4857 G1
4858 E1
4868 E1
4869 E2
4870 E2
4871 E2
4872 D2
4873 E2
4874 E2
4875 E2
4876 G2
4878 D2
4879 C3
4880 E3
4881 D2
4882 E4
4883 E4
4884 A2
4885 A2
4886 A2
4887 A2
4888 A2
4889 B2
4890 A2
4891 A2
4892 A3
4893 A2
4894 A3
4895 A3
4896 A3
4897 A3
4898 A3
4899 D2
6801 H2
6802 H1
6803 H2
6804 G3
6805 G2
6806 C4
6807 C4
6808 H2
6809 C2
6811 G2
6812 F2
7801 F3
7802 D3
7806 E3
7811 B4
7812 G2
7813 H2
7815 D4
7816 C2
7820 F2
7821 F2
7822 G2
7823 F2

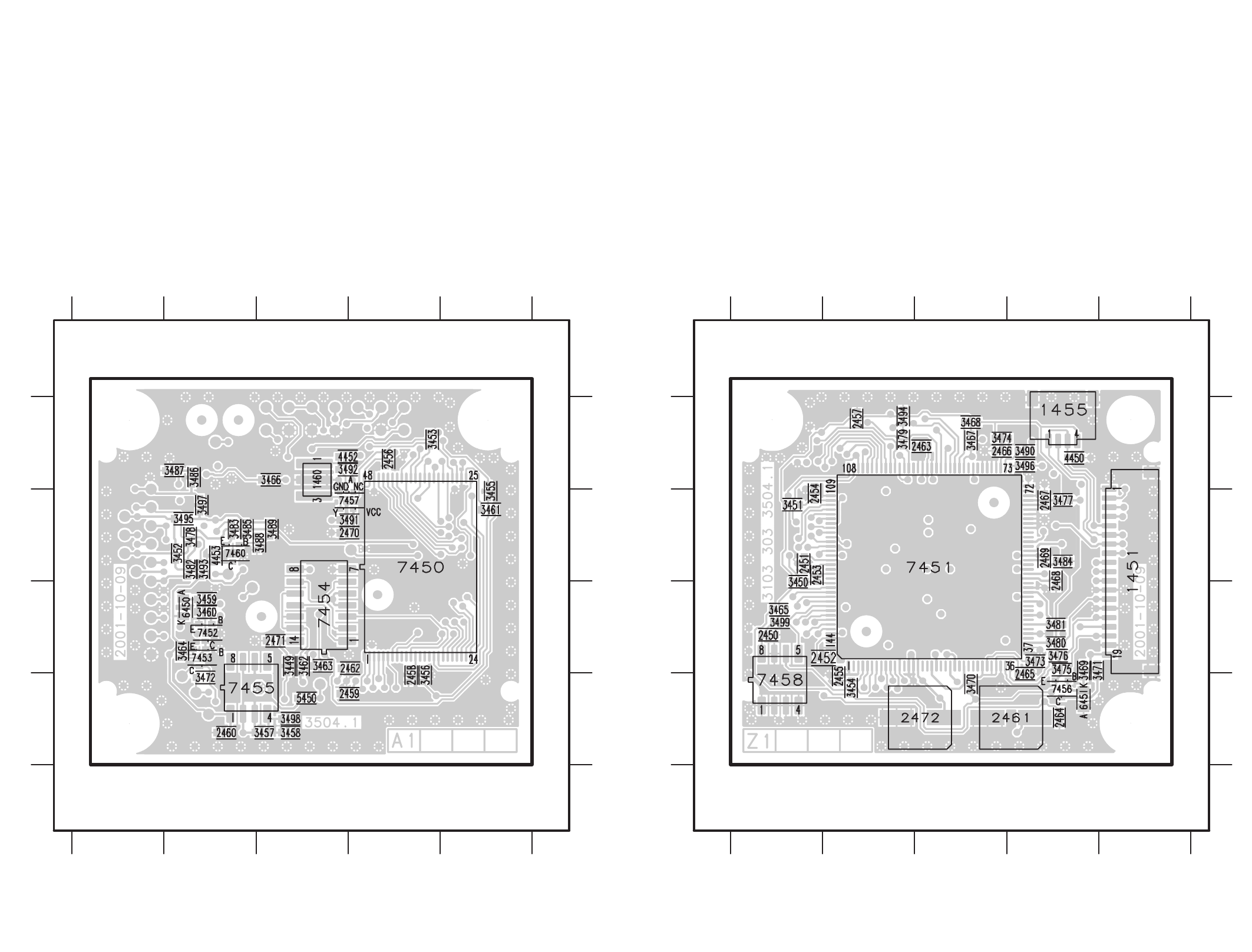

1451 B5
1455 A4
2450 C1
2451 B1
2452 C2
2453 B1
2454 B1
2455 D2
2457 A2
2461 D4
2463 A3
2464 D4
2465 D4
2466 A3
2467 B4
2468 B4
2469 B4
2472 D3
3450 C1
3451 B1
3454 D2
3465 C1
3467 A3
3468 A3
3469 C4
3470 D3
3471 C4
3473 C4
3474 A3
3475 C4
3476 C4
3477 B4
3479 A2
3480 C4
3481 C4
3484 B4
3490 A4
3494 A2
3496 A4
3499 C1
4450 A4
6451 D4
7451 B3
7456 D4
7458 D1
Mapping
Copperside
Componentside
10-710-7
+
-
+
-

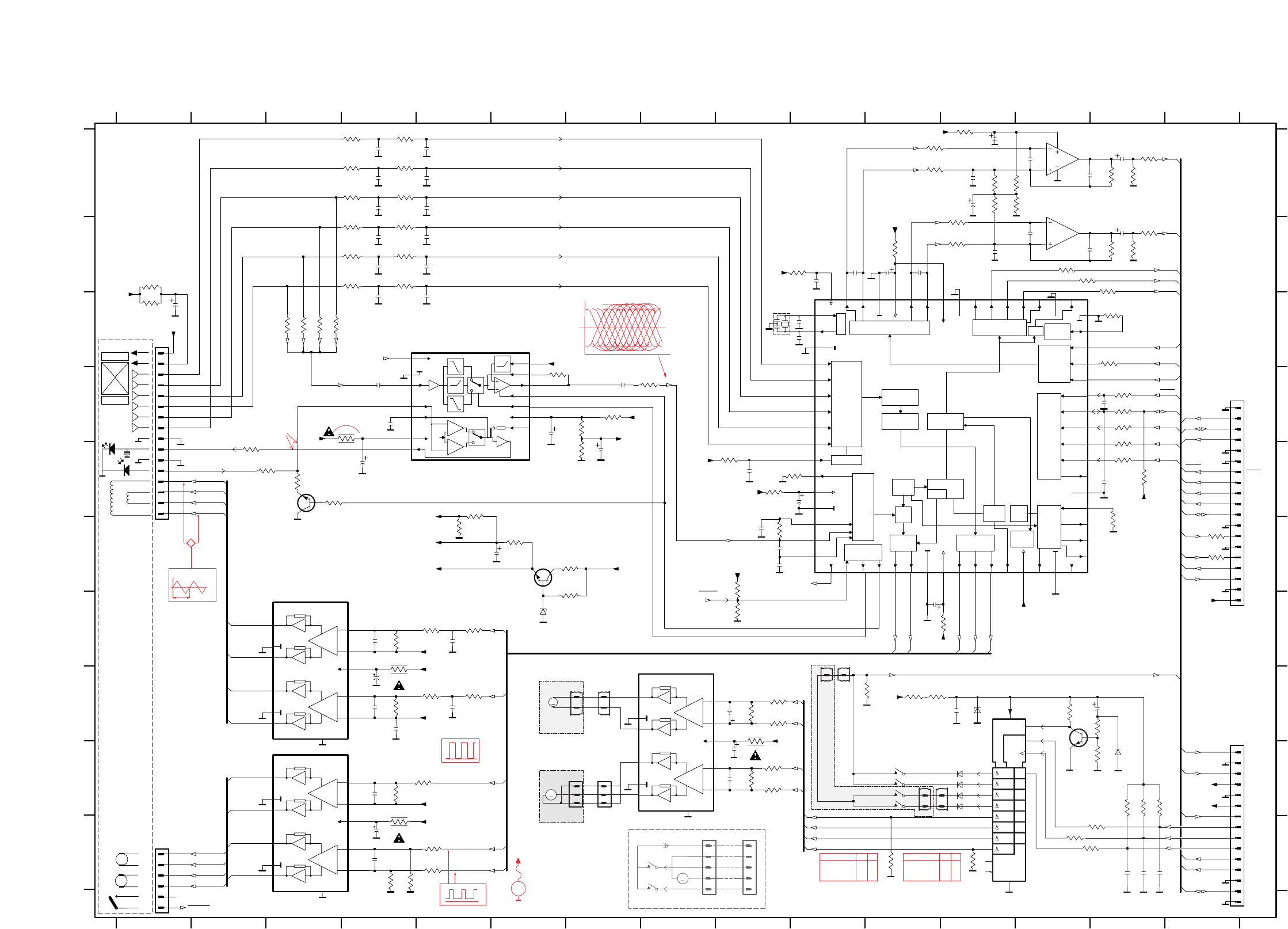

VDD
CAROUSEL
TRAY
+
_
+
_
Motor driver
5
3,4
NC 8,11,15
TDA7073A
14
10
2
1
6
7
16
13
9
12
7814
CAROUSEL
MOTOR
M
1877
8003
RF-500TB
1
2
3
1878
RF-500TB 1876
8002
1875
2
4
4
2
M
TRAY
MOTOR
47u
2873
3K9
3719
3775
3R3
3748
10K
2888
10u
10K
3745
2860
22n
3753
100K
3752
100K
3738
270R
+10V
SER. DATA
LOOPBACK
INTERF.
KILL
TIMING
BITSTREAM DAC SER. DATA
INTERFACE VERSAT.
INTERF.
EBU
INTERF.
CORR.
ERROR
CONTROL
FUNCTION
PRE-
PROCESSING
AUDIO
PROCESSOR
MICROCONTROLLER
INTERFACE
SUBCODE
PROCESSOR
ADDR
SRAM
PEAK
DET.
MOTOR
CONTROL
OUTPUT
STAGES
DIG.
PLL
EFM
DEMOD
VERSATILE
INTERFACE
ADC
VREF GEN.
FRONT
END
V/I
V/I
Vgap
1x
4x
2x
+
-
+
-
VDD
3836
1K8
4K7
3849
C
D
DOBM
R1 (CD10)
_
INNERSW.
E
F
G
H
VCC
1
VREF
mainboard
D3 (CD10)
SLIDE
/ SAA7325
2 3 4 5 6 7 8 9 10 11 12 13 14 15
1234
A
D
5 6 7 8 9 101112131415
SLIDE
B
A
ACCELERATE DISC
A
B
C
D
E
F
G
H
II
JJ
A
B
C
D
+
+
D4 (CD10)
CD Drive
Mitsumi
MCD-1b
MCD-2
Sanyo
DA11T3CN
DISC
LD
C
Signal Processor
TRACK
voltage stab.
GND
D
E
BRAKE DISC
to 7802
DISC
+
_
+
_
F
GND
MON
B
DISC
F
D2 (CD10)
FOCUS
TRACK
C
A
E
F
E
_
SLIDE
B
3CDC-LC
FO
part 1
Motor driver
D1 (CD10)
R2 (CD10)
from 1801
=MITSUMI drive
=SANYO drive
*
* SANYO DA11T3CN
MITSUMI MCD 1b
FOCUS
150p
2800
1n5
2814
6K8
3850
3882
100K
33R
3767
220p
2803
+3.3V
220p
2806
220p
2811
16
2
3
4
5
6
7
8
9
1800
FMN 1
10
11
12
13
14
15
100R
3864
+3.3V
3843
33K
3871
68K
2810
180p
4K7
3844
3891
4K7
4R7
3815
3883
1K
3769
100R
7815
BC847B
27K
2822
2n2
3827
15R
3855
2n2
2842
47n
2835
4u7
2819
3830
22K
27K
3800
35
WCLK
28
34
V4
61
V5
62
VDDA1
5
VDDA2
17
VDDD1P
52
VDDD2C
57
VNEG
20
VPOS
21
VRIN
7
VSSA1
4
VSSA2
14
VSSD1
33
VSSD2
50
VSSD3
58
WCLI
SCL
40
SCLI
37
SCLK
29
SDA
39
SDI
36
SELPLL
24
SFSY
47
SILD
42
56
SL
STATUS
43
SUB
46
TEST1
25
TEST2
31
TEST3
44
V1
63
V2|V3
KILL
32
LDON
LDON
64
LN
18
LP
19
M1
59
M2
60
R1
12
R2
13
RA
54
41
RAB
RCK
45
RESETn
38
RN
22
RP
23
SBSY
48
CL16
26
CRIN
16
CROUT
15
D1
8
D2
9
D3
10
D4
11
DATA
27
51
30
EF
FO
55
HFIN
2
HFREF
1
IREF
6
ISLICE
3
7802
SAA7324
CFLG
53
CL11
49
2832
47u
3880
3R3
22K
3826
+3.3V
33K
1n5
2816
3846
3801
10K
2805
220p
3834
22K
4R7
3829
12
GND
6
LD
1
MON
4
PWRON
7
RFEQO
10
RFFB
9
RGADJ
14
VCC2
13
VCCL
2
7801
CDRW
11
CFIL
3
CMFB
8
DIN
5
EQSEL
2844
270p
1K
3825
3802
27K
100n
2840 2848
150p
3723
27K
3833
22K
2838
10u
7806
BC847B 3872
3866
4K7 3837
1K
3838
1K
3803
10K
2841
270p
470R
3840
2817
4u7
10K
3805
150p
220K
3848
220p
2827
2833
33p
2834
33p
2801
3865
120R
+3.3V
BZX284
C3V9
6807
68R
3856
3828
22K
10K
3808
4u7
2837
220n
2815
470R
3853
+5V
47p
2823
47K
3842
2818
1n5
14
10
2
1
6
7
16
13
9
12
5
5
3,4
NC 8,11,15
TDA7073A
14
10
2
1
6
7
16
13
9
12
2843
100n
7807
+
-
+
-
VDD
FOCUS
TRACK
+
_
+
_
Servo driver
3,4
NC 8,11,15
TDA7073A7803
3839
100K
1810
330p
68R
3857
2807
3807
10K
22n
2824 10n
2813
47K
3845
47n
2812
3847
10K
3806
6K8
220n
2809
6
1801
1
2
3
4
5
2826
2804
4n7
47u
2808
10K
220p
+5V
27K
3811
2802
150p
Vref
InnerSW
120R
3862
+3.3V +5V
+3.3V
Vref
Vref
+10V
SLD+
SLD+
SLD-
DISC-
DISC- DISC+
DISC+
SLD-
RA
SL
M1
M2
2839
47u
3835
3R3
+10V
Vref
IIS_SCLK
IIS_WCLK
InnerSW
+3servo
47u
2828
33R
3863
+3servo HFIN
VrefCD10
AU_IIS_DATA
3814
470R(5x)
3813
3819
27p
2829 1n
2820
3812
3810
RAB
SICL
SILD
SDA
PORE
FOC-
TRACK-
FOC+
TRACK+
FOC+
FOC-
TRACK-
TRACK+
HFIN
to 7801
LDON
1K
3823
1K
3824
100R
3854
4u7
2836
+3.3V
VrefCD10
VrefCD10
VrefCD10
HF-Amplifier
Laser power control
TZA1024/ TZA1025
3821
3K3
3K3
3K3
3820
3890
3K3
3822
SHR_CL
RIGHT_OUT
GNDA
GND
LEFT_OUT
SHR_STR
GND
SW_INFO
GND
SHR_DATA
+10V
+5V(+5.6V)
5
6
7
8
9
2
3
4
1
10
11
12
13
14
15
1805
SICL
SILD
RAB
PORE
SDA
+5V
+10V
3881
220R
3878
220R
IIS_WCLK
IIS_SCLK
+5V
SRG8
EN1
1D
STB
CLK
8
TRAY POS
SHR_STR
SHR_CLK
SHR_DATA
SW_INFO
UP/DOWN
POS1
POS recog.
6802
6801
1880
3
2
4
5
6
7
14
13
12
11
9
10
1881
6803
BAS216(4x)
6808
1882
1883
3776
10K
3771
220p
2883
2877
82p
1K
470R
3772
10K
3773
10K
3766
1K
220p
2878 10K
3765 33K
3730
3770
15
1
16
18751876
3
5
3
1
18751876
15
SW_INFO
Power on
Output enable delay
BC847B
7812
2872
47n
BZX284
C5V1
6805
4u7
2881
BAS216
6804
3715
100K
3755
220R
22K
3713
10K
3714
220R
3754
+10V
TRAY-MOTOR
CAROUSEL-MOTOR
Changer Control Logic
Internal Supply
7813
HEF4094BT
47K
3747
47K
3736
O7
O6
O5
O4
O7
O6
O5
O4
POS1
1882
POS recog.
1883
M
8002
CAROUSEL-MOTOR
2
5
1876
1
RF-500TB
SW_INFO
3
4
5
18751
2
3
4
Connection to
Front / Combi Board
RIGHT
LEFT
SW_INFO
10K
Analog Audio
CD_IIS_DATA
470R
470R
3817
3818
470R
IIS_SCLK
IIS_WCLK
CD_IIS_DATA
3816
220u
2821
NC
µP_FRAME
µP_DATA
µP_CLK
GND
GND
µP_FRAME
SICL
SILD
SDA
SPDIF_GND
AU_IIS_DATA
CD_IIS_DATA
AU_IIS_DATA
PORE
IIS_SCLK
SPDIF_GND
RAB
GND
+5V
µP_CLK
GND
IIS_WCLK
µP_DATA
µP_FRAME
µP_CLK
µP_DATA
µP_FRAME
µP_CLK
µP_DATA
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
2
3
1802
1
10
Connection to
MP3CD2002 Board
3861
+3.3V
2V
2V
2V
2.3V
4.5V
2.3V
2V
3763
22K 22K
3762
1K
3750
3746
10K
6
5
7
8
4
TDA1308T
7811-B
2876
220u
3751
1K
2863
220p
2862
220p
3760
10K
3761
10K
2861
10u
3758
100R
2867
220p
3741
22K
2880
10u
3742
22K TDA1308T
7811-A
2
3
1
3757
100R
2882
220p
3743
22K
2879
220u
3740
22K
2869
100p
2868
100p
100R
3764
3744
10K
+5V
LEFT CHANNEL
RIGHT CHANNEL
Active Low Pass
LEFT
RIGHT
3CDC-LC M355(MP3 Version) 2002-05-23
1800 C1
1801 J1
1802 D15
1805 I15
1810 C9
1875 H10
1875 H7
1875 I12
1876 H10
1876 H7
1876 I11
1877 I7
1878 I7
1880 I11
1881 I11
1882 I11
1883 I11
2800 C4
2801 C5
2802 B4
2803 B5
2804 D4
2805 B5
2806 A5
2807 A4
2808 A5
2809 I4
2810 A4
2811 A5
2812 E9
2813 F9
2814 H4
2815 D4
2816 B11
2817 E4
2818 B10
2819 C1
2820 D14
2821 B11
2822 D7
2823 F9
2824 F9
2826 G11
2827 B4
2828 F6
2829 E14
2832 J4
2833 C10
2834 C10
2835 H4
2836 D6
2837 E10
2838 E7
2839 H4
2840 J4
2841 G5
2842 G4
2843 B10
2844 H5
2848 A4
2860 I9
2861 B14
2862 B12
2863 A12
2867 A13
2868 B13
2869 A13
2872 H12
2873 I9
2876 A12
2877 J14
2878 J14
2879 A12
2880 A14
2881 H14
2882 B13
2883 J14
2888 H9
3713 H14
3714 H13
3715 I14
3719 H9
3723 A4
3730 F14
3736 J11
3738 I9
3740 A11
3741 A11
3742 B12
3743 B12
3744 A14
3745 I9
3746 B14
3747 J12
3748 I9
3750 A12
3751 A12
3752 H9
3753 H9
3754 H11
3755 H11
3757 A14
3758 B14
3760 A12
3761 A12
3762 A14
3763 B14
3764 A12
3765 I14
3766 I14
3767 F7
3769 G7
3770 J14
3771 J13
3772 J14
3773 I14
3775 I9
3776 H11
3800 B4
3801 B4
3802 B4
3803 B4
3805 A4
3806 B4
3807 A4
3808 A4
3810 D14
3811 B4
3812 D14
3813 E14
3814 E14
3815 D4
3816 B13
3817 B13
3818 B14
3819 D14
3820 C3
3821 C3
3822 C3
3823 E7
3824 D7
3825 D8
3826 F9
3827 E10
3828 F9
3829 E2
3830 E2
3832 E14
3833 A4
3834 A4
3835 H4
3836 J4
3837 E5
3838 F5
3839 J5
3840 C14
3842 G5
3843 G5
3844 G4
3845 H5
3846 H5
3847 H4
3848 I5
3849 C14
3850 I4
3853 E9
3854 D7
3855 G12
3856 C1
3857 B1
3861 E14
3862 B10
3863 F6
3864 E9
3865 B11
3866 D6
3871 E3
3872 E3
3878 F15
3880 J4
3881 F15
3882 J5
3883 J4
3890 C3
3891 G9
6801 I12
6802 I12
6803 I12
6804 I14
6805 H12
6807 G6
6808 I12
7801 D5
7802 D12
7803 G3
7806 E3
7807 I3
7811
-A
B13
7811
-B
A13
7812 H13
7813 H13
7814 H8
7815 F6
5V
0.2V
1V
1V
2.1V
0.8V
4.7V
U >400mV
->Laser damaged !
ESD sensitive lines!
0.9V
1.7V
0V
1.5V
for CD_DA : 0V
for CD_RW : 3V
for CD_DA : 0V
for CD_RW : 3V
3.2V
1.5V
1.5V
1.5V
1.5V
1.5V
1.5V
1.5V
1.5V
1.5V
1.5V
1.5V
3V
3V
3.2V
1.5V
3.3V
3.2V
4.2V
3.2V
4.1V
3.3V
3.3V
10V
10V
1.7V
1.7V
1.7V
3.2V
0.8V
1.5V
only if
quartz used
2.8V
2.8V
1.5V
1.5V
3.0V
BACD
Σ (A-D)
3.2V
1.6V
5,1V
5,1V
0V
O7
O6
O5
O4
O3
O2
O1
O0
Carousel stop
Turn left
Turn right
O6
0V
0V
5V
O7
0V
5V
0V
Tray stop
Moving in
Moving out
O4
0V
0V
5V
O5
0V
5V
0V
DC voltages measured in
PLAY MODE
with following conditions:
"+10V" = 10V
"+5V" = 5V
EVM
0V
3V
0V
0V
3V
CH1
CH2
FO, RA, SL
Focus search
Service step 2
2V
+
-
1s
TB = 0.5µs/div
800mVpp
EYE-PATTERN
10-8 10-8
21345
21345
A
B
C
D
A
B
C
D
21345
21345
A
B
C
D
A
B
C
D
1460 A3
2456 A4
2458 D4
2459 D4
2460 D2
2462 C4
2470 B4
2471 C3
3449 C3
3452 B2
3453 A4
3455 B5
3456 D4
3457 D3
3458 D3
3459 C2
3460 C2
3461 B5
3462 C3
3463 C3
3464 C2
3466 A3
3472 D2
3478 B2
3482 B2
3483 B2
3485 B2
3486 A2
3487 A2
3488 B3
3489 B3
3491 B4
3492 A3
3493 B2
3495 B2
3497 B2
3498 D3
4452 A3
4453 B2
5450 D3
6450 C2
7450 B4
7452 C2
7453 C2
7454 C3
7455 D2
7457 B4
7460 B2
1451 B5
1455 A4
2450 C1
2451 B1
2452 C2
2453 B1
2454 B1
2455 D2
2457 A2
2461 D4
2463 A3
2464 D4
2465 D4
2466 A3
2467 B4
2468 B4
2469 B4
2472 D3
3450 C1
3451 B1
3454 D2
3465 C1
3467 A3
3468 A3
3469 C4
3470 D3
3471 C4
3473 C4
3474 A3
3475 C4
3476 C4
3477 B4
3479 A2
3480 C4
3481 C4
3484 B4
3490 A4
3494 A2
3496 A4
3499 C1
4450 A4
6451 D4
7451 B3
7456 D4
7458 D1
Side A Side B
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
respectively partslist. MP3 CD2002 Layout stage .1 2002 04 09
10-910-9
VSS
VSS
NC
NC
NC
Flash
EPROM
GND
#
For ROM version: TMS320VC5406
For Flash version: TMS320VC5416
GND
CD10_SDA
GND
uP_DATA
.... only for ROM version
CD10_RESET
7456 E12
7457 E9
7458 A1
7460 I12
IIS_SCLK
# .... only for FLASH version
EEPROM
ADJ
LM317D
uP_CLK
DSP
GND
3491 D9
3492 F9
3493 H12
3494 H8
3495 H11
3496 H8
3497 I13
3498 D14
3499 A2
4450 C13
4452 F9
4453 I11
5450 B3
6450 E13
6451 E13
7450 A10
7451 D5
7452 F13
7453 F12
7454-A G11
7454-B F11
7454-C F11
7454-D G11
7455 D13CD10_SICL
AU_IIS_DATA
IIS_WCLK
CD_IIS_DATA
WE
OE
3465 A2
3466 H8
3467 F8
3468 F8
3469 E13
3470 F1
3471 E13
3472 H9
3473 G2
3474 G8
3475 G2
3476 H2
3477 H7
3478 B6
3479 H8
3480 H2
3481 H3
3482 H5
3483 H6
3484 H5
3485 I11
3486 I13
3487 I12
3488 I12
3489 I12
3490 H8
SPDIF_GND
provisional
*
*
16.93MHz
+5V
2460 E13
2461 D12
2462 D2
2463 D8
2464 G12
2465 G2
2466 G8
2467 H6
2468 H4
2469 H5
2470 D9
2471 E11
2472 D1
3449 E11
3450 A4
3451 B7
3452 H3
3453 A12
3454 C1
3455 C9
3456 C10
3457 D13
3458 D14
3459 F13
3460 F13
3461 E12
CD10_RAB
CD10_SILD
Voltage stabilisation
3462 E2
3463 F1
3464 F13
1234567891011121314
1234567891011121314
SPDIF_GND
600R
for 5V front uP
SPDIF
2458 C10
2459 D2
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
2451 B5
2452 B2
2453 B4
2454 B7
2455 C2
2456 C12
2457 D9
SPDIF
Text version only
+3.3V
SPDIF_GND
only for FLASH version
uP_FRAME
MP3-CD-2002
2467
1u
1u
2462
2468
1u
2459
1u
3488
100K
3489
10K
10K
3499
7454-B
4
5
7
14
6
TRST
X1 96
X2|CLKIN 97
27 XF
INT3
25 IOSTRB
22 IS
32 MP|MC
26 MSC
24 MSTRB
NMI
63
PS
20
READY
19
RS 98
23 R|W
88
TCK
86
TDI
85
TDO
TMS 89
82
TOUT
87
135
HD7
6
HDS1
127
HDS2
129
HINT
51
30 HOLD
28 HOLDA
80
HPI16
HPIENA 92
HRDY
55
HR|W
18
IACK
61
29 IAQ
INT0
64
INT1
65
INT2
66 67
128
DVSS9
144
EMU0 83
84
EMU1|OFF
HAS
13
HBIL
62
HCNTL0
39
HCNTL1
46
HCS
17
HD0
58 69
HD1
81
HD2
HD3 95
120
HD4
HD5
124
HD6
D9
116
21 DS
DVDD1
4
33 DVDD2
DVDD3
56
75
DVDD4
112
DVDD5
DVDD6
130
DVSS1
14
DVSS2
40
DVSS3
57 72
DVSS4
76
DVSS5
DVSS6 93
DVSS7 106
DVSS8
111
CVSS9
99
D0
D1 100
D10
117
D11
118
D12
119
D13
121
D14
122
D15
123
D2 101
D3 102
D4 103
D5 104
113
D6
D7
114
D8
115
CVDD2
16
CVDD3
52 68
CVDD4
CVDD5 91
CVDD6
125
CVDD7
142
CVSS1
1
CVSS10
126
CVSS2
3
CVSS3
15
34 CVSS4
CVSS5
37
CVSS6
50 70
CVSS7
CVSS8 90
BDX0
59
74
BDX1
BDX2
60
BFSR0
43
36
BFSR1
44
BFSR2
BFSX0
53
73
BFSX1
BFSX2
54
31 BIO
77
CLKMD1
78
CLKMD2
79
CLKMD3
CLKOUT 94
CVDD1
12
A3
134
A4
136
A5
137
A6
138
A7
139
A8
140
A9
141
BCLKR0
41
BCLKR1
38
BCLKR2
42
BCLKX0
48 71
BCLKX1
BCLKX2
49
BDR0
45
35 BDR1
BDR2
47
A1
132
A10
5
A11
7
A12
8
A13
9
A14
10
A15
11
A16 105
A17 107
A18
108
109
A19
A2
133 110
A20
A21
143
A22
2
7451
A0
131
2466
100n 2463
3474
15R 1u
3465
100R
2451
1u
10K
3468
BC847BW
3
4
5
6
7
8
9
7456
1
10
11
12
13
14
15
16
17
18
19
2
6451
BZX284-C3V9
FMN
1451
470R
3479
100R
3475
3476
100R
3471
3469
100R
33R
100R
3480
3481
100R
470R
3466
470R
3482
3498
3483
100R
1M
3492
3K3
2450
4450
100n
100R
3496
6450 BZX284-C3V3
9
10
7
14
8
7454-C
3497
10K
4453
BC847BW
7460
VSS
7
WC_
M24C32
7458
1
E0
2
E1
3
E2
6
SCL
5
SDA
8
VCC
4
2452
1u
5
4
14
11
74HCT1G04
7457
2
3
NC
1
2453
100n
7454-D
12
13
7
4452
10K
3485
180R
3458
3494
10K
1K
3456
10n
2458
2457
1K
3455
10n
2456
100n
3453
10R
15R
3451
1455
FMN
1
2
3
4
3452
100R
15R
3484
100n
2469
10K
3495
10K
3493
100n
2471
100n
2470
3491
47R
3467
10K
3449
100R
3450
15R
2454
2465
100n
100n
100n
2460
220u
2461
7455
1
4
IN
5
8
2
O1
3
O2
O3
6
O4
7
BC847BW
7453
10K
3464
1K
3460
7452
BC847BW
3459
220R
100R
3462
3463
100R
3473
100K
100K
3487
1460
CSTCV
5450
15R
3454
100n
2455
3457
680R
470R
3477
150K
3478
470R
3472
100n
2464
47R3461
220u
2472
3
7454-A
74HC00D
1
2
7
14
3486
1K
3470
15R
42
DQ6
44
DQ7
30
DQ8
32
DQ9
9NC
10
13
14
28
OE
RESET
12
15 RY|BY
VDD 37
27
46
11 WE
A8
8
7A9
BYTE 47
26
CS
DQ0 29
DQ1 31
34
DQ10
36
DQ11
DQ12 39
DQ13 41
DQ14 43
DQ15|A-1 45
DQ2 33
DQ3 35
38
DQ4
40
DQ5
A10
6
5A11
A12
4
3A13
A14
2
1A15 48
A16
17 A17
A18
16
23 A2
A3
22
21 A4
A5
20
19 A6
A7
18
Am29LV800B7450
A0 25
A1
24
100R
3490
nRW
+3.3V
CD_IIS_DATA
+3.3V
uP_FRAME
SPDIF
+3.3V
+3.3V
+5V
+3.3V
+3.3V
+3.3V
AD0
AD16
DD0
DD1
DD10
DD11
DD12
DD13
DD14
DD15
DD2
DD3
DD4
DD5
DD6
DD7
DD8
DD9
+1.5V
+core
SPDIF_GND
nMSTRB
IIS_SCLK
AU_IIS_DATA
+5V
uP_FRAME
SPDIF
CD10_SILD
IIS_WCLK
CD10_SICL
+3.3V
uP_DATA
+3.3V
uP_CLK
+1.5V
IIS_SCLK
AU_IIS_DATA
CD10_SICL
CD10_SDA
CD10_RAB
CD10_SILD
uP_CLK
uP_DATA
nCD10_RESET
AD3
AD4
AD5
AD6
AD7
AD8
AD9
DD0
DD1
DD10
DD11
DD12
DD13
DD14
DD15
DD2
DD3
DD4
DD5
DD6
DD7
DD8
DD9
+3.3V
SPDIF_GND
nCD10_RESET
CD10_RAB
CD10_SDA
nPS
TMS_RESET
AD1
AD10
AD11
AD12
AD13
AD14
AD15
AD17
AD18
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD0
AD1
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD2
+core
+core
+core
CD_IIS_DATA
IIS_WCLK
+core
+core
nPS
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V +3.3V
nRW
nMSTRB
10-10 10-10
3CDC-LC-MP3 Exploded view 2002 05 22
Dust cover
MP3CD2002
Board
Pos. 51
Pos. 53
Pos. 52
Pos. 47
Pos. 48
Pos. 49
Pos. 43
Pos. 44
Pos. 42
Pos. 57
54
53
47
55
56
31
30
60
35
32
31
32
33
34
Xspare part
non spare part
Y
52
48
45 5x 4x
4x
46
49
44
43
42
59
41
21
20
51
2x
2x
23
57
58
EXPLODED VIEW (3CDC-LC MODULE)
MECHANICAL PARTS
Loader
–––––––––––––––––––––––––––––––––––––––––––––––––––––
20 3103 304 66500 DRAWER BLACK
21 3140 114 29070 PRESSURE RING-DA11
23 3140 111 21270 METAL RING-DA11
30 3103 304 66560 SUPPORT
31 4822 529 10386 RUBBER DAMPER CD DRIVE, REAR
32 4822 529 10387 RUBBER DAMPER CD DRIVE, FRONT
33 3103 304 06970 WASHER
35 3103 309 05350 CD DRIVE MCD1B
41 3103 304 66480 FRAME
42 3103 304 66540 BRACKET-GUIDING
43 3103 301 06460 SPRING-GUIDING
44 3103 304 06890 GEAR-3
45 3103 304 06980 NAIL FIXATION
46 3103 304 06880 GEAR-2
47 3103 304 66530 BRACKET-LOAD
48 3103 304 06910 CAM
49 3103 304 66510 GUIDING
51 3103 304 06900 GEAR-4
52 3103 304 06870 GEAR-1
53 3103 304 06960 PULLEY-FRAME
54 3103 304 66910 DRIVING-BELT-DRAWER
55 4822 361 10753 TRAY MOTOR
56 4822 502 12548 SCREW M2,6X3,5
57 3103 304 69880 COVER-DA11
59 4822 466 12146 RUBBER
10-11
3CDC-LC Drawer assy 1999 09 13
37
20
32
35
33
36 29
31
34
24
30
3x
27
24
22
20
23
25
21
26
28
Drawer top view
Drawer bottom view
Xspare part
non spare part
Y
MECHANICAL PARTS
Drawer
–––––––––––––––––––––––––––––––––––––––––––––––––––––
20 3103 304 66500 DRAWER BLACK
21 3103 304 66490 CAROUSEL BLACK
22 3103 304 06860 PULLEY-DRAWER
23 3103 304 06850 ECCENTRIC GEAR WHEEL
24 3103 304 06980 NAIL FIXATION
25 3103 304 66850 DRIVING BELT CAROUSEL
27 4822 532 12365 BUSH DRAWER (height=5,5mm,d=9,4mm)
29 3103 304 66550 BRACKET-DISC
30 3103 304 66520 TUMBLER
31 3103 301 06470 SPRING-DISC
32 3103 304 06920 CONTROL-DISC
34 3103 304 06870 GEAR-1
37 4822 361 10753 CAROUSEL MOTOR
10-12
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
37 4822 361 10753 CAROUSEL MOTOR
55 4822 361 10753 TRAY MOTOR
1800 2422 025 17389 FFC-CONNECTOR 16Pin
1805 4822 265 10979 FFC-CONNECTOR 15Pin
1875 4822 267 10958 FFC-CONNECTOR 5Pin
1876 2422 025 08332 FFC-CONNECTOR 5Pin
1880 4822 276 13503 SWITCH
1881 4822 276 13503 SWITCH
1882 4822 276 13503 SWITCH
1883 4822 276 13503 SWITCH
8001 3103 308 93070 FLEX FOIL CABLE 19P, 170mm BD
8002 3103 308 91990 FLEXFOIL CABLE, 5P, 200mm AD
8005 3103 308 92930 FLEX FOIL CABLE 16P 170mm 1:n
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2800 © 4822 122 33753 150pF 5% 50V
2801 © 4822 126 13883 220pF 5% 50V
2802 © 4822 122 33753 150pF 5% 50V
2803 © 4822 126 13883 220pF 5% 50V
2804 © 4822 126 13193 4,7nF 10% 63V
2805 © 4822 126 13883 220pF 5% 50V
2806 © 4822 126 13883 220pF 5% 50V
2807 © 4822 126 14241 330pF 50V
2808 © 4822 126 13883 220pF 5% 50V
2809 © 4822 126 13879 220nF 20% 16V
2810 © 4822 126 14508 180pF 5% 50V
2811 © 4822 126 13883 220pF 5% 50V
2812 © 3198 024 44730 47nF 5% 50V
2813 © 4822 122 33177 10nF 20% 50V
2814 © 4822 126 14247 1,5nF 10% 50V
2815 © 4822 126 14076 220nF 20% 25V
2816 © 4822 126 13344 1,5nF 5% 63V
2817 4822 124 40769 4,7µF 20% 100V
2818 © 4822 126 13344 1,5nF 5% 63V
2819 4822 124 40769 4,7µF 20% 100V
2820 © 5322 126 11578 1nF 10% 63V
2821 4822 124 42383 220µF 20% 4V
2822 © 4822 126 14238 2,2nF 10% 50V
2823 © 4822 126 11785 47pF 5% 50V
2824 © 5322 122 32654 22nF 10% 63V
2826 4822 124 12362 47µF 20% 4V
2827 © 4822 122 33753 150pF 5% 50V
2828 4822 124 12362 47µF 20% 4V
2829 © 4822 126 11669 27pF 10% 50V
2832 4822 124 40433 47µF 20% 25V
2833 © 2222 867 15339 33pF 5% 50V
2835 © 3198 024 44730 47nF 5% 50V
2836 4822 124 40769 4,7µF 20% 100V
2837 4822 124 22726 4,7µF 20% 35V
2838 4822 124 40248 10µF 20% 63V
2839 4822 124 40433 47µF 20% 25V
2840 © 4822 126 14585 100nF 10% 50V
2841 © 4822 122 33216 270pF 5% 50V
2842 © 4822 126 14238 2,2nF 10% 50V
2843 © 4822 126 14585 100nF 10% 50V
2844 © 4822 122 33216 270pF 5% 50V
2848 © 4822 122 33753 150pF 5% 50V
2860 © 4822 126 14494 22nF 10% 25V
2861 4822 124 11947 10µF 20% 16V
2862 © 4822 126 13883 220pF 5% 50V
2863 © 4822 126 13883 220pF 5% 50V
2865 © 5322 122 32654 22nF 10% 63V
2866 © 4822 126 13751 47nF 10% 50V
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2867 © 4822 126 13883 220pF 5% 50V
2868 © 2020 552 94427 100pF 5% 50V
2869 © 2020 552 94427 100pF 5% 50V
2872 © 3198 024 44730 47nF 5% 50V
2873 4822 124 80231 47µF 20% 16V
2876 4822 124 12245 220µF 20% 16V
2877 © 4822 126 14226 82pF 50V
2878 © 4822 126 13883 220pF 5% 50V
2879 4822 124 12245 220µF 20% 16V
2880 4822 124 11947 10µF 20% 16V
2881 4822 124 40769 4,7µF 20% 100V
2882 © 4822 126 13883 220pF 5% 50V
2888 4822 124 11947 10µF 20% 16V
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3713 © 4822 051 30223 22kΩ5% 0,06W
3714 © 4822 051 30103 10kΩ5% 0,06W
3715 © 4822 117 13632 100kΩ1% 0,06W
3719 © 4822 051 30392 3,9kΩ5% 0,06W
3723 © 4822 051 20273 27kΩ5% 0,1W
3730 © 4822 051 20333 33kΩ5% 0,1W
3736 © 4822 117 12925 47kΩ1% 0,06W
3738 © 4822 051 30271 270Ω5% 0,06W
3740 © 4822 051 20223 22kΩ5% 0,1W
3741 © 4822 051 20223 22kΩ5% 0,1W
3742 © 4822 051 20223 22kΩ5% 0,1W
3743 © 4822 051 20223 22kΩ5% 0,1W
3744 © 4822 051 30103 10kΩ5% 0,06W
3745 © 4822 117 10833 10kΩ1% 0,1W
3746 © 4822 051 30103 10kΩ5% 0,06W
3747 © 4822 117 12925 47kΩ1% 0,06W
3748 © 4822 051 30103 10kΩ5% 0,06W
3750 © 4822 051 30102 1kΩ5% 0,06W
3751 © 4822 051 30102 1kΩ5% 0,06W
3752 © 4822 117 13632 100kΩ1% 0,06W
3753 © 4822 117 13632 100kΩ1% 0,06W
3754 © 4822 051 30221 220Ω5% 0,06W
3755 © 4822 117 11503 220Ω5% 0,1W
3757 © 4822 117 11373 100Ω1% 0,1W
3758 © 4822 051 30101 100Ω5% 0,06W
3760 © 4822 117 10833 10kΩ1% 0,1W
3761 © 4822 051 30103 10kΩ5% 0,06W
3762 © 4822 051 30223 22kΩ5% 0,06W
3763 © 4822 051 30223 22kΩ5% 0,06W
3764 © 4822 117 11373 100Ω1% 0,1W
3765 © 4822 051 30103 10kΩ5% 0,06W
3766 © 4822 117 10833 10kΩ1% 0,1W
3767 © 4822 051 30339 33Ω5% 0,06W
3769 © 4822 051 30101 100Ω5% 0,06W
3770 © 4822 051 30102 1kΩ5% 0,06W
3771 © 4822 051 30102 1kΩ5% 0,06W
3772 © 4822 051 30471 470Ω5% 0,06W
3773 © 4822 117 10833 10kΩ1% 0,1W
3774 © 4822 117 11373 100Ω1% 0,1W
3775 !4822 052 10338 3,3Ω5% NFR25
3776 © 4822 051 30103 10kΩ5% 0,06W
3800 © 4822 051 30273 27kΩ5% 0,06W
3801 © 4822 117 10833 10kΩ1% 0,1W
3802 © 4822 051 30273 27kΩ5% 0,06W
3803 © 4822 117 10833 10kΩ1% 0,1W
3805 © 4822 051 30103 10kΩ5% 0,06W
3806 © 4822 051 30103 10kΩ5% 0,06W
3807 © 4822 051 30103 10kΩ5% 0,06W
3808 © 4822 051 30103 10kΩ5% 0,06W
ELECTRICAL PARTSLIST 3CDC-LC MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
10-13
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3810 © 4822 051 30471 470Ω5% 0,06W
3811 © 4822 051 30273 27kΩ5% 0,06W
3812 © 4822 051 20471 470Ω5% 0,1W
3813 © 4822 051 20471 470Ω5% 0,1W
3814 © 4822 051 20471 470Ω5% 0,1W
3815 !4822 052 10478 4,7Ω5% NFR25
3816 © 4822 051 20471 470Ω5% 0,1W
3817 © 4822 051 30471 470Ω5% 0,06W
3818 © 4822 051 30471 470Ω5% 0,06W
3819 © 4822 051 20471 470Ω5% 0,1W
3820 © 4822 051 30332 3,3kΩ5% 0,06W
3821 © 4822 051 30332 3,3kΩ5% 0,06W
3822 © 4822 051 20332 3,3kΩ5% 0,1W
3823 © 4822 051 30102 1kΩ5% 0,06W
3824 © 4822 051 30102 1kΩ5% 0,06W
3825 © 4822 051 10102 1kΩ2% 0,25W
3826 © 4822 051 30223 22kΩ5% 0,06W
3827 © 4822 051 20273 27kΩ5% 0,1W
3829 © 4822 117 13608 4,7Ω5% 0,06W
3830 © 4822 051 20223 22kΩ5% 0,1W
3833 © 4822 051 30223 22kΩ5% 0,06W
3834 © 4822 051 30223 22kΩ5% 0,06W
3835 !4822 052 10338 3,3Ω5% NFR25
3836 © 4822 117 12903 1,8kΩ1% 0,06W
3837 © 4822 051 10102 1kΩ2% 0,25W
3838 © 4822 051 30102 1kΩ5% 0,06W
3839 © 4822 117 13632 100kΩ1% 0,06W
3840 © 4822 051 20471 470Ω5% 0,1W
3842 © 4822 117 10834 47kΩ1% 0,1W
3843 © 4822 051 20333 33kΩ5% 0,1W
3844 © 4822 051 30472 4,7kΩ5% 0,06W
3845 © 4822 117 10834 47kΩ1% 0,1W
3846 © 4822 051 20333 33kΩ5% 0,1W
3847 © 4822 051 30682 6,8kΩ5% 0,06W
3848 © 3198 021 52240 220kΩ5% 0,1W
3849 © 4822 051 30472 4,7kΩ5% 0,06W
3850 © 4822 051 30682 6,8kΩ5% 0,06W
3853 © 4822 051 20471 470Ω5% 0,1W
3854 © 4822 117 11373 100Ω1% 0,1W
3855 © 4822 117 12971 15Ω5% 0,06W
3856 © 4822 117 12521 68Ω1% 0,1W
3857 © 4822 117 12521 68Ω1% 0,1W
3861 © 4822 051 30103 10kΩ5% 0,06W
3862 © 4822 051 20121 120Ω5% 0,1W
3863 © 4822 051 30339 33Ω5% 0,06W
3864 © 4822 051 30101 100Ω5% 0,06W
3865 © 4822 051 30121 120Ω5% 0,06W
3866 © 4822 051 30103 10kΩ5% 0,06W
3871 © 4822 051 20683 68kΩ5% 0,1W
3872 © 4822 051 30472 4,7kΩ5% 0,06W
3878 © 4822 117 11503 220Ω5% 0,1W
3880 !4822 052 10338 3,3Ω5% NFR25
3881 © 4822 117 11503 220Ω5% 0,1W
3882 © 4822 117 10837 100kΩ1% 0,1W
3883 © 4822 051 10102 1kΩ2% 0,25W
3890 © 4822 051 30332 3,3kΩ5% 0,06W
3891 © 4822 051 30472 4,7kΩ5% 0,06W
4700 © 4822 051 20008 CHIP JUMPER 0805
4701 © 4822 051 20008 CHIP JUMPER 0805
4702 © 4822 051 20008 CHIP JUMPER 0805
4703 © 4822 051 20008 CHIP JUMPER 0805
4704 © 4822 051 20008 CHIP JUMPER 0805
4705 © 4822 051 20008 CHIP JUMPER 0805
4706 © 4822 051 20008 CHIP JUMPER 0805
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
4707 © 4822 051 20008 CHIP JUMPER 0805
4708 © 4822 051 20008 CHIP JUMPER 0805
4709 © 4822 051 20008 CHIP JUMPER 0805
4710 © 4822 051 20008 CHIP JUMPER 0805
4711 © 4822 051 20008 CHIP JUMPER 0805
4712 © 4822 051 20008 CHIP JUMPER 0805
4713 © 4822 051 20008 CHIP JUMPER 0805
4714 © 4822 051 20008 CHIP JUMPER 0805
4715 © 4822 051 20008 CHIP JUMPER 0805
4716 © 4822 051 20008 CHIP JUMPER 0805
4717 © 4822 051 30008 CHIP JUMPER 0603
4718 © 4822 051 20008 CHIP JUMPER 0805
4719 © 4822 051 20008 CHIP JUMPER 0805
4720 © 4822 051 20008 CHIP JUMPER 0805
4722 © 4822 051 20008 CHIP JUMPER 0805
4724 © 4822 051 20008 CHIP JUMPER 0805
4726 © 4822 051 20008 CHIP JUMPER 0805
4727 © 4822 051 20008 CHIP JUMPER 0805
4728 © 4822 051 20008 CHIP JUMPER 0805
4729 © 4822 051 20008 CHIP JUMPER 0805
4730 © 4822 051 20008 CHIP JUMPER 0805
4731 © 4822 051 30008 CHIP JUMPER 0603
4732 © 4822 051 20008 CHIP JUMPER 0805
4733 © 4822 051 30008 CHIP JUMPER 0603
4734 © 4822 051 20008 CHIP JUMPER 0805
4735 © 4822 051 20008 CHIP JUMPER 0805
4736 © 4822 051 30008 CHIP JUMPER 0603
4737 © 4822 051 30008 CHIP JUMPER 0603
4738 © 4822 051 30008 CHIP JUMPER 0603
4739 © 4822 051 30008 CHIP JUMPER 0603
4740 © 4822 051 30008 CHIP JUMPER 0603
4741 © 4822 051 20008 CHIP JUMPER 0805
4742 © 4822 051 20008 CHIP JUMPER 0805
4743 © 4822 051 20008 CHIP JUMPER 0805
4744 © 4822 051 30008 CHIP JUMPER 0603
4745 © 4822 051 20008 CHIP JUMPER 0805
4746 © 4822 051 20008 CHIP JUMPER 0805
4747 © 4822 051 20008 CHIP JUMPER 0805
4748 © 4822 051 20008 CHIP JUMPER 0805
4749 © 4822 051 30008 CHIP JUMPER 0603
4801 © 4822 051 20008 CHIP JUMPER 0805
4804 © 4822 051 20008 CHIP JUMPER 0805
4806 © 4822 051 20008 CHIP JUMPER 0805
4807 © 4822 051 20008 CHIP JUMPER 0805
4808 © 4822 051 20008 CHIP JUMPER 0805
4809 © 4822 051 20008 CHIP JUMPER 0805
4810 © 4822 051 20008 CHIP JUMPER 0805
4811 © 4822 051 20008 CHIP JUMPER 0805
4820 © 4822 051 20008 CHIP JUMPER 0805
4823 © 4822 051 30008 CHIP JUMPER 0603
4824 © 4822 051 30008 CHIP JUMPER 0603
4825 © 4822 051 20008 CHIP JUMPER 0805
4826 © 4822 051 20008 CHIP JUMPER 0805
4828 © 4822 051 30008 CHIP JUMPER 0603
4829 © 4822 051 20008 CHIP JUMPER 0805
4830 © 4822 051 20008 CHIP JUMPER 0805
4831 © 4822 051 20008 CHIP JUMPER 0805
4832 © 4822 051 30008 CHIP JUMPER 0603
4833 © 4822 051 20008 CHIP JUMPER 0805
4834 © 4822 051 20008 CHIP JUMPER 0805
4837 © 4822 051 20008 CHIP JUMPER 0805
4838 © 4822 051 30008 CHIP JUMPER 0603
4839 © 4822 051 20008 CHIP JUMPER 0805
4840 © 4822 051 20008 CHIP JUMPER 0805
ELECTRICAL PARTSLIST 3CDC-LC MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
10-14
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
4841 © 4822 051 20008 CHIP JUMPER 0805
4842 © 4822 051 20008 CHIP JUMPER 0805
4844 © 4822 051 20008 CHIP JUMPER 0805
4845 © 4822 051 20008 CHIP JUMPER 0805
4846 © 4822 051 20008 CHIP JUMPER 0805
4847 © 4822 051 20008 CHIP JUMPER 0805
4848 © 4822 051 20008 CHIP JUMPER 0805
4849 © 4822 051 30008 CHIP JUMPER 0603
4851 © 4822 051 30008 CHIP JUMPER 0603
4855 © 4822 051 20008 CHIP JUMPER 0805
4856 © 4822 051 20008 CHIP JUMPER 0805
4857 © 4822 051 20008 CHIP JUMPER 0805
4858 © 4822 051 20008 CHIP JUMPER 0805
4868 © 4822 051 20008 CHIP JUMPER 0805
4869 © 4822 051 20008 CHIP JUMPER 0805
4870 © 4822 051 20008 CHIP JUMPER 0805
4871 © 4822 051 20008 CHIP JUMPER 0805
4872 © 4822 051 20008 CHIP JUMPER 0805
4873 © 4822 051 20008 CHIP JUMPER 0805
4874 © 4822 051 20008 CHIP JUMPER 0805
4875 © 4822 051 20008 CHIP JUMPER 0805
4876 © 4822 051 20008 CHIP JUMPER 0805
4878 © 4822 051 20008 CHIP JUMPER 0805
4879 © 4822 051 20008 CHIP JUMPER 0805
4880 © 4822 051 20008 CHIP JUMPER 0805
4882 © 4822 051 20008 CHIP JUMPER 0805
4883 © 4822 051 20008 CHIP JUMPER 0805
4884 © 4822 051 20008 CHIP JUMPER 0805
4885 © 4822 051 20008 CHIP JUMPER 0805
4886 © 4822 051 20008 CHIP JUMPER 0805
4887 © 4822 051 30008 CHIP JUMPER 0603
4888 © 4822 051 20008 CHIP JUMPER 0805
4889 © 4822 051 20008 CHIP JUMPER 0805
4890 © 4822 051 20008 CHIP JUMPER 0805
4891 © 4822 051 30008 CHIP JUMPER 0603
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
4892 © 4822 051 20008 CHIP JUMPER 0805
4893 © 4822 051 20008 CHIP JUMPER 0805
4894 © 4822 051 20008 CHIP JUMPER 0805
4895 © 4822 051 20008 CHIP JUMPER 0805
4896 © 4822 051 20008 CHIP JUMPER 0805
4897 © 4822 051 20008 CHIP JUMPER 0805
4898 © 4822 051 20008 CHIP JUMPER 0805
4899 © 4822 051 20008 CHIP JUMPER 0805
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1810 2422 540 98519 RESONATOR 8,467MHz
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6801 © 4822 130 11397 BAS316
6802 © 4822 130 11397 BAS316
6803 © 4822 130 11397 BAS316
6804 © 4822 130 11397 BAS316
6805 © 9340 548 52115 BZX284-C5V1
6807 © 9322 129 34685 BZX284-C3V9
6808 © 4822 130 11397 BAS316
6809 © 9322 129 34685 BZX284-C3V9
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7806 © 5322 130 60159 BC846B
7812 © 5322 130 60159 BC846B
7815 © 5322 130 60159 BC846B
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7801 © 9352 622 36118 TZA1025T/V2 HF-Amplifier
7802 © 9352 641 80557 SAA7324H/M2B,"CD10" SIGN.PROC.
7803 4822 209 32852 TDA7073A/N2
7807 4822 209 32852 TDA7073A/N2
7811 © 4822 209 33165 TDA1308T/N1
7813 © 5322 209 11306 HEF4094BT, SHIFT REGISTER
7814 4822 209 32852 TDA7073A/N2
ELECTRICAL PARTSLIST 3CDC-LC MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
MISCELLANEOUS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3103 308 67020 complete MP3CD2002 Module
1451 2422 025 17303 FLEX FOIL CONNECTOR 19P
CAPACITORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
2450 © 2238 586 59812 100nF 10% 50V
2451 © 3198 017 41050 1µF 20% 10V
2452 © 3198 017 41050 1µF 20% 10V
2453 © 2238 586 59812 100nF 10% 50V
2454 © 2238 586 59812 100nF 10% 50V
2455 © 2238 586 59812 100nF 10% 50V
2456 © 2238 586 59812 100nF 10% 50V
2457 © 5322 126 11583 10nF 10% 63V
2458 © 5322 126 11583 10nF 10% 63V
2459 © 3198 017 41050 1µF 20% 10V
2460 © 2238 586 59812 100nF 10% 50V
2461 © 4822 124 81059 220µF 20% 4V
2462 © 3198 017 41050 1µF 20% 10V
2463 © 3198 017 41050 1µF 20% 10V
2464 © 2238 586 59812 100nF 10% 50V
2465 © 2238 586 59812 100nF 10% 50V
2466 © 2238 586 59812 100nF 10% 50V
2467 © 3198 017 41050 1µF 20% 10V
2468 © 3198 017 41050 1µF 20% 10V
2469 © 2238 586 59812 100nF 10% 50V
2470 © 2238 586 59812 100nF 10% 50V
2471 © 2238 586 59812 100nF 10% 50V
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3449 © 4822 051 30101 100Ω5% 0,06W
3450 © 4822 117 12971 15Ω5% 0,06W
3451 © 4822 117 12971 15Ω5% 0,06W
3452 © 4822 051 30101 100Ω5% 0,06W
3453 © 4822 051 30109 10Ω5% 0,06W
3454 © 4822 117 12971 15Ω5% 0,06W
3455 © 4822 051 30102 1kΩ5% 0,06W
3456 © 4822 051 30102 1kΩ5% 0,06W
3457 © 5322 117 13051 680Ω1% 0,063W
3458 © 5322 117 13061 180Ω1% 0,063W
3459 © 4822 051 30221 220Ω5% 0,06W
3460 © 4822 051 30102 1kΩ5% 0,06W
3461 © 4822 051 30479 47Ω5% 0,06W
3462 © 4822 051 30101 100Ω5% 0,06W
3463 © 4822 051 30101 100Ω5% 0,06W
3464 © 4822 051 30103 10kΩ5% 0,06W
3465 © 4822 051 30101 100Ω5% 0,06W
3466 © 4822 051 30471 470Ω5% 0,06W
3467 © 4822 051 30103 10kΩ5% 0,06W
3468 © 4822 051 30103 10kΩ5% 0,06W
3469 © 4822 051 30101 100Ω5% 0,06W
3470 © 4822 117 12971 15Ω5% 0,06W
3471 © 4822 051 30339 33Ω5% 0,06W
3472 © 4822 051 30154 150kΩ5% 0,06W
3473 © 4822 117 13632 100kΩ1% 0,06W
RESISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3474 © 4822 117 12971 15Ω5% 0,06W
3475 © 4822 051 30101 100Ω5% 0,06W
3476 © 4822 051 30101 100Ω5% 0,06W
3477 © 4822 051 30471 470Ω5% 0,06W
3478 © 4822 051 30471 470Ω5% 0,06W
3479 © 4822 051 30471 470Ω5% 0,06W
3480 © 4822 051 30101 100Ω5% 0,06W
3481 © 4822 051 30101 100Ω5% 0,06W
3482 © 4822 051 30471 470Ω5% 0,06W
3483 © 4822 051 30101 100Ω5% 0,06W
3484 © 4822 117 12971 15Ω5% 0,06W
3486 © 4822 051 30101 100Ω5% 0,06W
3488 © 4822 117 13632 100kΩ1% 0,06W
3489 © 4822 051 30103 10kΩ5% 0,06W
3490 © 4822 051 30101 100Ω5% 0,06W
3491 © 4822 051 30479 47Ω5% 0,06W
3492 © 4822 051 30105 1MΩ5% 0,06W
3493 © 4822 051 30103 10kΩ5% 0,06W
3494 © 4822 051 30103 10kΩ5% 0,06W
3495 © 4822 051 30103 10kΩ5% 0,06W
3497 © 4822 051 30103 10kΩ5% 0,06W
3498 © 4822 051 30332 3,3kΩ5% 0,06W
3499 © 4822 051 30103 10kΩ5% 0,06W
4450 © 4822 051 30008 CHIP JUMPER 0603
COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1460 4822 242 10989 CER.RES. 16,9MHz
5450 © 4822 157 11074 100µH
DIODES
–––––––––––––––––––––––––––––––––––––––––––––––––––––
6450 © 4822 130 11411 BZX284-C3V3
6451 © 4822 130 11366 BZX284-C3V9
7454 4822 130 34174 BZX79-B4V7
TRANSISTORS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7452 © 3198 010 42310 BC847BW
7453 © 3198 010 42310 BC847BW
7456 © 3198 010 42310 BC847BW
7460 © 3198 010 42310 BC847BW
INTEGRATED CIRCUITS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
7450 © not available please order complete MP3 module
7451 © not available please order complete MP3 module
7455 © 4822 209 17108 LM317LD Voltage Regulator
7457 © 9352 456 50115 HC1G04, Inverter
7458 © 9322 130 41668 M24C64, EEPROM
3103 308 67020 complete MP3CD2002 Module
10-15
ELECTRICAL PARTSLIST MP3CD2002 MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
BRIEF INTRODUCTION OF THE AF12 BOARD
The AF12 Board consists of the following features :
a. TDA7468D IC
TDA7468D IC (7501) which includes functions such as source selection, loudness control, dynamic bass control, treble
control, volume control and muting function. Sound features such as ALC, DBB, DSC and IS are controllable via I2C Bus
from the microprocessor.
The TDA7468D IC caters for 4 input sources namely TUNER, PC LINK, CD and AUX. It also has a Mic mix input. In our
application, software will switch the input source to previous source MUTE during STANDBY mode and some other
occasions where noise from other input sources is undesirable.
Note that the input to the TDA7468D IC must be ac coupled to prevent 'polp' noise.
Input networks are included to provide appropriate attenuation for various sources.
b. SIMPLE MIC MIXING
The AF12 Board has provisions which can be configured to cater for one of the following:
MM : which caters for Mic mixing with additional Mic amplifier board.
NM : non Mic mixing.
c. LINE OUT
Line out cinch socket for connection to external amplifier.
d. SUB-WOOFER OUT
Sub-woofer out cinch socket for connection to active sub-woofer speaker.
e. INCREDIBLE SURROUND
Incredible surround effect using transistor circuit to create phase shifting and spatial effect.
f. HEADPHONE AMPLIFIER
Headphone amplifier to drive 32 ohm to 1kohm headphone.
g. CD STANDBY CONTROL
CD Standby Control circuit which switches on the supply to CD servo control IC, digital out buffer IC, HF circuit and the laser
light pen in CD mode only.
h. ATTENUATION NETWORK
Attenuation network is provided at the output of the AF12 Board for interfacing with power board of different output power.
i. CD DIGITAL OUT
CD Digital out cinch socket for connection to external digital audio decoders.
AF12 BOARD
TABLE OF CONTENTS
Brief Introduction of the AF12 Board ............................... 8-1
AF12 Board - Component Layout ................................... 8-2
AF12 Board - Component & Chip Layout (Mapping) ...... 8-3
AF12 Board - Chip Layout ............................................... 8-4
AF12 Board - Circuit Diagram (Part 1) ............................ 8-5
AF12 Board - Circuit Diagram (Part 2) ............................ 8-6
AF12 Board - Circuit Diagram (Part 3) ............................ 8-7
Video Out Cinch part - Layout & Circuit diagram ............ 8-8
Electrical parts list............................................................ 8-8
11-1 11-1
11-2 11-2
AF12 BOARD - COMPONENT LAYOUT
11-3 11-3
AF12 BOARD - CHIP LAYOUT (MAPPING)AF12 BOARD - COMPONENT LAYOUT (MAPPING)
11-4 11-4
AF12 BOARD - CHIP LAYOUT
11-5 11-5
AF12 BOARD - CIRCUIT DIAGRAM (PART 1)
VOLUME I
RIGHT
SUR.
SOURCE
SUPPLY
POWER
SELECTOR
TREBLE
LEFT
VOLUME II
LOGIC
LEFT
REC
IIC BUS
BASS ALC
BASS
LEFT
VOLUME I
LEFT
SUR.
TREBLE
RIGHT
VOLUME II
RIGHT
BASS
RIGHT
L
H
L
H
LOGIC
LSBMSB
LL
LH
HL
HH
LL
LH
HL
HH
13
E11 / E22
1
1504 H1
1505 E4
1506 A1
1510 F1
1531 C1
1532 C2
1502 D3
1503 F1
3456789101112
1
2204 C6
2205 C5
2206 C7
M40
Q10
E
F
G
H
I
A
B
C
D
E
23456789101112
LINE OUT
1501 E1
14
12
2511 A4
2512 B4
2513 A4
2514 B4
2515 F6
2516 F7
2521 A4
2522 A4
2523 F6
2524 F6
13 14
A
B
2501 E2
2502 E2
1691 B12
1692 I14
2201 B7
2202 C7
2203 D7
0
P
C
D
2546 F9
2547 B10
2548 G10
2565 C9
2567 B9
2568 G9
2589 A10
2590 H9
2591 A10
2592 H10
F
G
H
I
USB/PClink
1
Aux
V10
0
M40
4.6V
G30
18K for S
2505 F5
2506 F7
2507 E7
2667 G1
2669 E1
2696 A14
2697 B14
2698 A12
2707 E11
2708 E12
2904 G1
2908 E12
2921 A12
2531 D4
2532 D4
2533 F6
2534 F7
S30
2503 D3
2504 E3
G20
AUX IN
0X
2535 B3
2536 C3
2541 A8
2542 H8
2543 C9
2544 F9
2934 G14
2935 H14
2936 G13
2937 H13
2938 F13
2939 H13
2940 C3
2941 C3
2942 D11
3201 B6
2593 A11
2594 H10
2641 D13
2642 E13
1
E11 / E22
only for
0V
1
00
2661 G2
2662 I2
2663 H2
2664 H2
2665 H2
2666 H2
1V
3437 D3
3438 D4
3501 D1
3502 E1
3503 D2
3504 E2
3505 E2
3506 E2
3507 E3
2923 B1
2924 F5
2927 H13
2928 F13
0
1
U30
P
Game Sound Port
0
5.4V
SOLID STATE
M40
CD
2929 I14
2930 H14
2933 I14
3514 B3
3521 A3
3522 A3
3523 A3
3524 A3
3525 E6
3526 E7
3531 C2
3532 C3
3533 B3
3202 C6
3208 H14
3435 D3
3436 C3
GE20
U20
P
1V
P...provision
3546 G8
3547 C9
3548 F8
3549 B9
3550 G9
3591 A10
3592 H9
3593 A11
3594 H10
3508 E3
3511 A3
3512 B3
3513 A3
E11 / E22
SIMPLE I.S.
10K for S
#
OUT
9.8V
5.6V
1
3646 E11
3661 G3
3662 I3
3663 G3
3664 H3
3665 G1
3666 H1
3667 G3
3668 H3
3669 I3
3534 C3
3543 A9
3544 H8
3545 B9
M10
#
10n for S
0
0
1
# only for
3708 E12
3712 I3
3735 F12
3736 F12
3737 I13
3932 G11
3933 H13
3934 H11
3935 H11
3641 D14
3642 E14
3643 D12
3645 D11
18K for S
S
0
0
0
G_Normal
SIMPLE I.S.
9.1V
W...Provision for Woox only
Q10
3943 H13
3944 G13
3945 G14
3946 G13
3947 H13
3948 I14
3949 I14
3950 G14
3951 I13
3952 G13
3690 B14
3699 A13
3700 B13
3707 D12
E11 / E22
Game_P
10K for S
M10
Tuner
P
P
P
6201 C6
6202 C6
6641 D13
6642 E13
7201 B6
7501 C8
7661 G2
7662 H2
7663 H3
7693 B13
3936 F13
3937 H11
3938 I11
3939 F13
X
G30
1
5.9V
0
G30
3940 I11
3941 I11
3942 I11
T001 C1
T002 C1
T003 C1
T004 C1
T005 D1
T006 D1
T007 E1
T008 E1
T009 E1
T010 F2
3953 B8
3954 G8
4501 F5
4641 D14
U20
10n for S
1
P
0
4642 E14
4813 A12
4920 E1
4922 I4
4925 H4
5403 A1
5404 B1
5522 D6
4.6V
M40
P
P
S
SUBWOOFER
T015 A12
T016 B12
7694 G12
7695-1 F14
7695-2 H14
9522 D6
0
1
only for
1
P
0V
P
T021 C6
T022 D7
T023 B14
T024 I13
T025 I12
9618 A1
9654 B1
T011 F2
T012 H1
T013 H1
T014 H1
CDR
G_MIX
11.7V
G30
0V
4.6V
S...for simple I.S.
U10
P
#
T017 E3
T018 E3
T019 E3
T020 B7
E11 / E22
G35
A / B
G20
D...for DPL
GND_A
3645
220R
3699
330R
SS_L
100n
2669
GND_A
A_Mic
USB_LEFT
A_Tp
2667
100p
2938
100n
2939
100p
220R
3646
27K
3533
2201
100u
GND_A
A_Tp
T021
A_Aux
2591
470n
3593
5K6
470n
2594
1
470R
3954
25
5
24
6
23
8
21
2
7
22
12
17
14
15
9
20
TDA7468
7501
16
10
19
11
18
27
13
28
3
26
4
1K0
3708
2664
1n0
T011
1
2
3
4
5
6
7
3545
5K6
6642
1N4148
FE-BT-VK-N
1531
GND_A
GND_A
68R
3939
GND_A
3941
10K
A_TU
220n
2589
GND_A
12K
3524
4641
GND_A
GND_A
4405
12K
3504
5K6
3546
GND_A 50V
470n
2942
100p
2533
3438
4K7
Line_L
SUB_W
10K
3932
5404
2u2
3712
100K
2933
100p
GND_A
5522
1K5
3531
4u7
2532
3505
3K9
3940
12K
T022
3953
470R
T017
3668
4K7
A_Aux
15K
3544
5K6
3933
1
2
3
1n0
2924
EH-B
1505
BC847B
7661
+5V6_Mute
4922
1
2
3
4
GND_A
1503
FE-BT-VK-N
10K
3947
3700
3K3
VGref
VGref
-Vkk
3523
12K
T
5K6
3594
3945
MUTE_SW_FR
GND_A
27K
2206
22n
GND_A
2937
68p 68p
2936
100p
2524
3K9
3506
3507
10K
470n
2541
A_CD
T023
470p
GND_A
T007
2697
T003
3521
1K0
T015
7662
BC847B
470R
3436
3944
10K
TU_Left
3n3
2548
12K
3935
3K9
3950
VGref
GND_A
1u
2927
1u
2928
SS_R
100p
2515
4K7
3502
2523
100p
T014
2934
100p
1
2
4
3
T
3592
8K2
YKC21-3418
1501
USB_LEFT
USB_RIGHT
1n0
2642
100p
2516
2940
47u 25V
4K7
3437
4920
2547
3n3
A_Tp
GND_A
7
+12V_A
1n0
2641
FE-BT-VK-N
1532
1
2
3
4
5
6
3643
12K
4642
4u7
T012
100n
2521
2535
A_Aux
2203
47u
10K
3508
BC817-25
7693
GND_A
T009
A_Aux
3511
680R
470R
3665
470R
3737
470R
3735
1
2
3
4
5
25V47u
2941
3943
68R
1510
FE-BT-VK-N
3550
5K6
A_Tp
2904
100n
5K6
3549
3525
470R
T008
A_CD
GND_A
2921
100n
A_TU
2u2
5403
1n0
2567
4501
2n2
2205
3543
15K
2935
100u
T019
B_REF3
A_CD
1u
2930
2202
22u
2544
33n
1n0
2663
1N4148
6641
GND_A
1
2
3
4
5
6
7
8
A_Tp
+5V6
FE-BT-VK-N
1692
10
11
12
13
14
15
23
4
5
6
9
VDD
16
VEE
7
VSS
8
HEF4052BT
7694
1
GND_M
100p
2708
GND_A
GND_A
3948
27K
A_Tp
2662
1u
3503
12K
470p
2501
6201
1N4148
GND_A
T001
1u
2504
8K2
3591
22K
3514
9654
2542
470n
B_REF3
3501
4K7
T002
GND_EMC
GND_A
2696
22u
GND_A
T013
4
3736
470R
7695-2
NJM4560M5
67
8
3
21
8
4
7695-1
NJM4560M
MIC_DET
2666
470p
1n0
2568
GND_A
GND_A
3534
27K
I2C_Data
3K3
3547
470n
2593
GND_A
820R
3951
2908
100n
680R
3512
2923
10n
2534
100p
Line_R
GND_A
T006
2592
470n
39K
3942
1504
YKC21-3418
1
2
4
3
3202
7201
A_CD
390R
I2C_Clk
BC847B
3937
10K
3666
470R
A_Aux
3532
1K5
GND_A
GND_A
GND_A
USB_RIGHT
1691
YKC21-3416
1
3
2
22K
3949
A_Aux
2543
33n
1K0
3690
GND_EMC
T005
GND_A
GND_A
GND_EMC
+12V_A
1K0
3707
TU_Right
GND_A
4u7
2536
220n
2590
+12V_A 3936
5K6
3208
4K7
3201
820R
CD_Left
GND_A
2507
100n
220R
3642
2531
4u7
A_Mic
3946
22K
3952
820R
GND_A
T004
3513
22K
2503
1u
2522
100n
CD_Right
3934
470p
2502
A_CD
39K
T016
100p
2506
1506
1
2
4n7
2565
2546
4n7
EH-B
GND_D
2512
1u
B_REF3
100p
2505
2929
1u
A_DPL
2K2
3663
1n0
2514
BC857B
7663
A_Aux
T010
+12V_M
A_TU
+12V_A
GND_A
470R
3526
9522
A_Aux
9618
T024
2K7
3661
220R
3641
3667
1M0
T018
1u
2661
-CMOS
220u
2204
GND_A
6202
BZX79-C9V1
3662
2K7
3669
10K
GND_A
A_Tp
4813
A_Tp
3K3
3548
GND_A
T020
2513
1n0
1u
2511
470p
2665
FE-BT-VK-N
1502
1
2
3
4
5
100p
2707
3435
A_HP
470R
T025
3522
1K0
GND_A
GND_A
100n
2698
10K
3938
3664
2K2
AB
TP_LEFT
TP_REC_RIGHT
AB
VOL_R
Mute2
LINE_R
LINE_L
VOL_L
A_Aux
+MIX
+9.1V
SS_L
SS_R
TP_REC_LEFT
+12V_A
TP_RIGHT
-CMOS
MIC_DET
GND_A_Tp
VREF
LINE_L
LINE_R
+MIX
ALC_LEVEL
1
0
AF12 BOARD - CIRCUIT DIAGRAM (PART 2)
11-6 11-6
9904 F7
T050 B1
T051 B1
T052 A3
T113 A8
T114 A8
T115 A8
T116 E2
T117 E8
T118 E8
T119 E8
T120 F7
T066 E1
T067 E1
T068 E1
T070 E1
T071 E1
T072 F1
T073 F1
T074 F1
T090 A7
T091 B7
T092 B7
T093 B7
T106 D6
Q10
4912 B8
4913 B8
4914 B6
4915 C8
T094 B7
T095 B7
T096 B7
T097 C7
T098 C7
T099 C7
T100 C7
T101 C7
SW_INFO
T107 E6
T108 E6
T109 E6
T110 E6
T111 E6
T112 A8
6208 C5
6775 D4
6776 F2
7802 A3
9405 C8
9483 F6
9486 E7
9662 B5
3809 B2
3810 F3
4404 C5
4801 B4
T053 C4
T054 C1
P
+5V6
GND_M
I2C_DATA
T122 F6
T123 F6
T130 B8
T131 C5
T058 C1
T059 D1
T060 D1
T061 D1
T062 D1
T063 D1
T064 D1
T065 E1
4904 F7
4905 D3
4906 A5
4907 C8
4908 C8
4909 A3
4910 A3
4911 A4
2901 F6
2950 E7
2951 E7
2952 E7
4921 C1
5662 B5
For CDR version only
-10V
POWER_DOWN
T102 D7
T103 D7
T104 D7
T105 D6
DSA_STB/GND_D
5801 B2
5802 A3
5907 C8
5915 C8
6204 F7
6205 D3
6207 B5
3801 B4
3802 A4
3803 B3
3804 A3
3805 B2
3806 A1
3807 B4
3808 A3
1801 B1
2207 D3
2208 D5
2520 E7
4802 E4
4903 B8
FROM / TO Power Board
GND_D
For VCD version only
CD_SH_CLK
+11V_D
T055 C1
T056 C1
T057 C1
COAX
+5V6_CON
2804 B3
2805 B2
2806 B2
2807 B1
2808 B4
2809 B4
2810 A4
2820 C5
P
FOR DVD ONLY
1100 F6
2953 E7
2954 E6
S96
P
FRONT
F1
P2955 D1
2956 F3
3205 D2
3412 A8
1401 A9
1402 D9
1405 A9
1520 F6
1522 A6
1523 D6
1524 A5
1525 B6
B
C
D
E
2801 B4
2802 C3
W96
CD_SH_STR
CD_RIGHT
I2C_CLK
GND_D
COAX2
2.9V
FROM / TO Mains Board
2803 B3
S30
+5V6_Con
TU_DATA
GND_A
3456
1201 C1
1202 F1
COAX1
Tu_Gnd
P
SA_L_IN
P
GND_A
TU_ENAB
SW_INFO
1203 E1
1204 E1
SA_R_IN
CD_SH_DATA
89
A
2345
F
T78 F1
CD_LEFT
CD_SH_CLK
TU_DATA
-VKK
GND_D
OUT
TU_ENAB
S96
8.5V
FROM/TO
U60
-32V
P
789
12
DIGITAL
GND_D
SILD
PORE / DSA_STB
7
TU_CLK
SILD
J96
GND_D
TU_STEREO
NTC
F2
CD_SH_STR
For Non-VCD version only
GND_D
TU_CLK
SICL
C
D
E
F
T75 F1
T76 F1
T77 F1
1
R96
P
C96
+12V_A
FROM/TO 3CDC
U50
CD_SH_DATA
+12V_M
4.5V
FROM/TO TUNER
LOW_PWR_CTRL
P
FROM / TO Regulator Board
SHIELD
+5V_CD
TU_STEREO
A
B
6
SICL
ERROR_DET
2
VIN
1
VOUT
3
22K
3808
Low_Pw_Ctrl
6775
L7805CV
2804
100n
T77
AMP_RIGHT
I2C_Data
9662
SA_R_IN
CD_PORE
T097
6
7
+12V_M
+5V6
NTC
1201
FE-BT-VK-N
1
2
3
4
5
9
Low_Pw_Ctrl
T074
10
11
12
13
14
15
16
2
3
4
5
6
7
8
1405
1
GND_D
NTC
T118
AMP_LEFT
T091
560R
3803
T072
T101
4905
T061
4921
T115
T117
-CMOS
3809
47R
T107
DSA_STB
GND_M
T102
GND_D
T106
T053
TU_Left
F2
A_CD
T064
F2
A_TU
4904
T111
4903
9904
4801
2952
100p
GND_D
T052
2806
150p
T068
+12V_M
470R
3801
GND_D
T109
2802
9483
GND_A
1n0
GND_D
T093
T119
T095
T104
CD_PORE
T131
+5V_CD
YKC21-3416
1801
1
7
8
9
T122
1525
FE-BT-VK-N
1
2
3
4
5
6
GND_EMC
T78
Pw_Dn
T092
+5V6_Con
CD_Right
5802
2u2
T110
T108
3804
220R
220u
2820
470n
2208
4404
2901
100n
GND_M
470p
2951
470p
2950
GND_D
1N4003
6208
T055
+5V6
Pw_Dn
8
9
T096
1
10
11
12
13
14
15
2
3
4
5
6
7
T051
1523
FE-BT-VK-N
-Vkk
T071
1u
2803
GND_EMC
GND_D
GND_D
+5V6
3802
22K
7
VCC
14
+12V_M
GND_M
LEFT_REF
1A
1
1Y
2
2A
3
2Y
4
3A
5
3Y
6
4A
9
4Y
8
5A
11
5Y
10
6A
13
6Y
12
GND
T099
74LVU04D
7802
I2C_Clk
GND_D
VCD_ON
2K2
3807
GND_A
T112
F1
T094
MIC_DET
1520
FE-BT-VK-N
1
2
3
4
5
6
7
8
+5V_CD
2805
100n
8
9
220R
3805
11
12
13
14
15
16
17
18
19
2
3
4
5
6
7
1522
FE-BT-VK-N
1
10
SA_L_IN
T120
1K0
3412
aa
T090
47p
2810
1204
1
2
3
4
5
6
+12V_A
EH-B
T114
T060 T103
T054
T050
T063
4912
2801
100n
4913
T070
T073
9405
T067
T130
T116
GND_M
1n
2955
T76
4914
F1
5662
+5V_VCD
4909
4907
GND_D
4908
AmOn
BZX79-B3V3
6204
4906
GND_D
100n
2808
GND_D
T066
3205
5K6
RIGHT_REF
1
2
3
4
5
6
7
8
75R
3806
+5V
1203
TU_Right
4915
BZX79-C10
6205
T056
1202
1
2
3
4
5
6
7
8
9
6207
1N4003
EH-B
2954
47n
2520
10n
+12V_A
4911
5907
T057
CD_Left
T75
T062
47u
2207
GND_D
T098
2956
2u2 50V
220R
3810
+5V6_Mute
34
6
T113
5801
TYPE
1
2
GND_D
+12V_M
7
8
9
5915
T123
11
12
13
14
15
16
17
18
19
2
3
4
5
6
1401 1
10
1
2
3
4
5
6
7
8
9
1100
FE-BT-VK-N
1402
9486
100n
2807
EH-B
1524
1
2
3
GND_M
T058
4910
6776
1N4148
T059
100n
T100
FREQ_MODE_SEL
2809
T065
+5V6_Con
T105
GND_D
4802
470p
2953
DSA_STB
-Vkk
SILD
SILD
AF12 BOARD - CIRCUIT DIAGRAM (PART 3)
11-7 11-7
88
88 8
CHIP SELECT
I2C BUS
TRANSCEIVER
I/O PORT
DATA LATCHES
PWR
RES OUT I/O IN
SHIFT
REG
8
I
A
B
C
D
E
F
G
H
I
U7 E7
U8 E7
U9 E7
1102 H3
1103 H3
W
3.9V
15K
123456789101112
0.2V
0.2V
P
3K9 for W
0V
8K2
0V
1K
0V
P
3644
For VCD only
45678910
1603 E7
1604 A11
2209 D5
2210 G5
5.9V
I50
P
5.9V
0.2V
4K7
0V
W
W
B
C
D
E
F
G
13
123
For VCD only
3K3
2212 A10
2213 A12
2214 G4
2215 C12
2216 C12
2217 F2
2401 G13
2402 G12
2403 G12
2404 G12
2581 D2
2582 G2
2583 E2
2584 F2
2585 D3
2586 G3
2587 E3
2588 F3
2601 E2
2602 G2
11 12 13
A
FRONT
W
4.8V
2605 D3
2606 G3
2607 D3
2608 F3
2609 E4
2610 F4
2611 D4
2612 F4
2620 H12
2621 B2
2622 H11
2624 G5
2625 H13
2626 I10
2653 A7
2654 B7
2681 C10
2682 C10
2683 C10
2691 B3
2902 H2
2905 H13
H
0V
0V
P
W
2K2
HighPower / ALC Enable
2925 B10
2926 E2
3203 C12
3204 C12
3206 D12
3207 C12
3401 F13
3402 F13
3403 G12
3406 F11
3408 F10
3409 E10
3410 E9
3581 D3
2603 D2
P
U96
2604 G2
For VCD only
P
P
3601 D3
3602 G3
3607 E3
3608 F3
3609 E4
3610 F4
3611 D5
3612 F5
3613 E5
3614 F5
3615 D6
3616 F6
3621 I9
3622 I9
2922 D7
3.2V
0.7V
5.9V
5.4V
11.6V
10K
3624 H10
3625 H11
3626 I11
3627 G5
3628 H13
3629 H13
3630 E5
3631 D8
3633 B2
3634 B2
3635 C4
3636 B3
3637 C3
3638 B3
3582 G3
0V
P
3640 C8
3644 I1
3651 A5
3652 C5
3653 A6
3654 B6
3655 A6
3656 B6
3657 A6
3658 B6
3659 E4
3660 F4
3683 C9
3684 D9
3686 D10
3687 C10
3688 C10
3623 H10
0V
TAPO
5.9V
S30
0V
0.7V
3692 C10
3694 F10
3711 E10
3721 A9
3722 A9
3723 A10
3724 A9
3725 A10
3726 A9
3727 A9
3728 A10
3729 B9
3730 B10
3731 E11
3732 E11
3733 D5
3734 G5
4403 F11
3639 A4
P
0V
U40
5.4V
0V
P
For VCD only
0.6V
W40
4408 A13
4811 E3
4812 F3
4814 B9
4923 B2
4924 A2
4925 H9
5401 F12
5621 G5
6401 G11
6774 B4
3689 B13
5.9V
P
P
W
7204 C12
7401 E10
7402 F10
7403 D12
7601-A G4
7601-B D4
7603 E6
7604 F6
7621 H10
7622 G11
7623 I10
7635 B3
7636 C2
7651 A7
7652 B7
4407 I13
W
0V
0V
0.7V
0V
5.9V
U10
7654 B5
7681 C11
7682 C10
7803 B3
9401 E9
9402 G10
9403 G10
9404 F10
9598 H9
9600 A9
T026 F7
T027 G5
T028 I10
T029 H13
T030 F12
T031 F12
7203 C13
P
4.9V
T037 I1
3K9 for W
5.9V
0V
T038 I1
T039 E3
T040 F3
T041 A11
T042 A11
7653 A5
W
6K8
P
390R
3207
15p
2682
2216
100n
MicDetect
2585
47n
T038
47n
2581
6774
1N4148
4K7
3638
+12V_A
10
D5
11
D6
12
D7
8
GND
2
SCL
3
SDA
1
SO
13
VDD
3634
5K6
7403
M62320
CS0
16
15
CS1
14
CS2
D0
4
D1
5
6
D2
7
D3
9
D4
82K
3686
+5V6
T037
9404
3628
GND_A
4K7
2209
22u 16V
7402
BC847B
4925
+5V_CD
3402
470R
VCD_ON
A_HP
+5V_VCD
3734
100R
A_HP
T040
GND_A
-Vkk
SUB_W
AMP_LEFT
1103
1
3K3
3659
3601
12K
HP_DET
15R
3615
47u
2681
7204
BC847B
CD_PORE1
CD_PORE1
7401
BC327-25
9403
CD_PORE
3409
1K0
7635
BC857B
+12V_A
3K3
3727
GND_A
GND_D
2926
22u
100R
3733
BC847B
7623
MUTE_SW_FR
12K
3602
T027
3608
6K8
3684
82K
SA_L_IN
1K2
3687
+5V6
+5V
A_HP
2925
180p
2404
100n
2212
2215
15p
5621
180p
7653
BC817-25
2u2
7621
BC847B
I2C_Clk
1n0
2602
aa
GND_A
47u
2214
2605
100p
2213
1n
2582
47n
330K
16V22u
2210
2612
22u
3204
GND_D
3694
2K2
18K
3730
3401
470R
8K2
3721
3581
15K
2603
470n
22u
2217
+5V
aa
2609
47p
T031
GND_A
7604
BC817-25
4408
T029
3
2
1
8
4
-Vkk
+12V_A
NJM4556AM
7601-A
GND_D
T028
3609
13K
AmOn
10K
3635
3206
82K
A_HP
4K7
3629
GND_D
4M7
3639
470p
2608
1K0
3656
1K0
3406
BC817-25
7654
2584
470n
100p
2606
470p
12R
3612
2607
4814
GND_D
18K
3724
4811
2905
22n
8K2
3722
GND_D
MUTE_SW
3652
1K0
3633
1K0
2601
1n0
GND_A
7681
BC857B
3692
100p
2922
330K
2625
100u
470n
2588
I2C_Data
3640
5K6
A_HP
470n
2902
1K0
3651
100p
U8
2622
47p
2610
2621
10u
2654
100p
AMP_RIGHT
7636
BC847B
7601-B
NJM4556AM
5
6
7
8
4
GND_D
3688
390R
3203
1K2
+5V6
BC817-25
7603
FREQ_MODE_SEL
15K
3731
T041
4403
GND_D
GND_D
BC857B
7203
A_HP
3658
1K0
9401
100p
2401
3611
15R
1604
YKC21-3418
3
4
A_HP
100n
2403
1603
FE-BT-VK-N
1
2
100p
2691
A_HP
GND_D
BC857B
7622
100n
2683
3623
1K0
3403
100R
4K7
3636
13K
3610
MUTE_SW
3630
4M7
SA_R_IN
1K0
3654
7682
U9
BC847B
7803
BC847B
3723
GND_D
470R
150R
3689
GND_D
aa
9402
GND_D
GND_D
6401
1N4148
3616
15R
2620
470n
GND_D
1K0
3657
2604
470n
3624
5K6
GND_D
3653
1K0
A_HP
3408
10K
2587
470n
7651
BC817-25
47n
2586
3732
12K
BC817-25
7652
1K
3631
T039
2626
10u
5K6
3711
470n
2583
U7
22n
2624
100p
2653
22u
2611
GND_A
Mute1
4812
+5V6
2K7
3726
6K8
3607
3644
1K0
9600
GND_D
2402
100p
1
GND_EMC
3728
1102
470R
+5V6_Mute
3410
2R2
4923
+5V6_Mute
9598
T042
4407
4924
3660
3K3
T026
3729
18K
+5V_CD
1K0
3655
T030
GND_D
1K0
3614
3613
1K0
15K
3582
3625
4K7
18K
3725
A_HP
GND_A
10K
3637
3621
10K
2u2
5401
3683
82K
+5V6_Con
3626
4K7
GND_D
GND_A
3622
HPREF
10R
3627
10K
HP_in_R
HP_in_L
RIGHT_REF
LEFT_REF
MUTE_SW
Mute1
HPREF
SS_R
SS_L
Mute2
VOL_L
VOL_R
HPREF
B_REF3
B_REF3
HPREF
HPREF
HPREF
B_REF3
HP_DET
11-8 11-8
VIDEO OUT CINCH BOARD -
COMPONENT LAYOUT
VIDEO OUT CINCH BOARD - CHIP
LAYOUT
VIDEO OUT CINCH BOARD - CIRCUIT DIAGRAM
23
A
B
1800 A3 1803 B1 1809 A1 2885 A1
1
CE50
CM50
CW50
1
123
1800
1
2
1809
2
1
2885
100p
EH-B
1803
YKC21-3564
3
ELECTRICAL PARTS - AF12 BOARD
1501 996500014506 SOC CINCH H 2P
1504 996500014506 SOC CINCH H 2P
1803 994000001852 SOC CINCH H 1P
3627 996500018242 FUSE RES NFR 25A 10R
7403 482220917345 IC M62320FP
7501 932215074668 IC TDA7468D
7601 532220915853 IC NJM4556AM-TE1
7694 532220911102 IC HEF4052BT
7695 482220983357 IC NJM4560M
Note: Only these parts mentioned in the list are
normal service parts.
!
12-1 12-1
SET MECHANICAL EXPLODED VIEW
36
37
35
24
8
12
06
05
09
39
41 42
22
21
23
19
1004
38
11
08
04
07
286
32
27
29
31
15
14
02
03
20
(4x)
01
10
13
16
17
25
26
28
18
33
34
44
46
47
43
48
45
12-2 12-2
ELECTRICAL PARTS - MISCELLANEOUS
994000001797 FFC FOIL 04P/180/04P
994000001798 FFC FOIL 06P/080/06P
994000001799 FFC FOIL 07P/180/07P
994000001801 FFC FOIL 07P/180/07P
994000001802 FFC FOIL 07P/220/07P
994000001803 FFC FOIL 08P/180/08P
994000001804 FFC FOIL 08P/280/08P
994000001805 FFC FOIL 08P/280/08P
994000001806 FFC FOIL 09P/280/09P
994000001807 FFC FOIL 11P/180/11P
994000001808 FFC FOIL 15P/180/15P
994000001809 FFC FOIL 19P/280/19P
994000001922 TUNER BOARD ASS`Y /22
994000001915 MAIN BOARD ASS`Y
994000001916 FRONT BOARD ASS`Y /22
994000001917 KEY BOARD ASS`Y
994000001918 AMP BOARD ASS`Y
994000001919 MAINS UCD BOARD ASS`Y /22
994000001921 REGULATOR BOARD ASS`Y
994000001923 SPEAKER BOARD ASS`Y
Note: Only these parts mentioned in the list are
normal service parts.
994000002245 TUNER BOARD ASS`Y /07
994000002244 MAINS UCD BOARD ASS`Y /07
994000002243 FRONT BOARD ASS`Y /07
MECHANICAL & ACCESSORIES
1 994000001825 LENS CASSETTE LEFT 994000001811 L/R BOX SPK ASSY /22
2 994000001823 COVER CASS LEFT 994000002827 L/R BOX SPK ASS'Y /07
3 994000001849 SPRING TORSION LEFT 994000001786 FM AERIAL /22
4 994000001821 CASS DOOR LEFT 994000002828 FM ANT 300R CABLE 2.6M /07
6 994000001827 KNOB VOL MASTER 994000001787 ANT AM LOOP LAN-006 /22
7 994000001832 KNOB RTY (GAME SOUND) 994000001192 AM LOOP ANT LAN-031 /07
8 994000001839 COVER RING FTD 994000001788 REMOTE CONTROL /22
9 994000001815 COVER TRAY CDC 994000002826 REMOTE CONTROL /07
10 994000001814 PANEL COVER CDC DISC 994000001789 AC CORD /22
10 994000001814 PANEL COVER CDC DISC /22 994000001688 AC CORD SET 6FT /07
11 994000002248 PANEL COVER CDC DISC /07
994000001791 CBLE CINCH/1M7/CINCH /22
12 994000001818 PANEL LEFT
994000001025 CD DA12T3 ASSY
13 994000001817 COVER TOP
994000001315 RCA PLUG CORD 1P 1M5 /07
14 994000001826 LENS CASSETTE RIGHT
15 994000001824 COVER CASS RIGHT
16 994000001851 SPRING TORSION RIGHT
17 994000001822 CASS DOOR RIGHT
18 482249242787 SPRING CASSETTE
19 994000001848 FOOT RUBBER 4mm
20 994000001812 FRONT CAB.
21 994000001843 DAMPER ASSY MODULE 0.8
22 994000001846 PUSH-CATCH RIGHT
23 994000001844 BRACKET-RIGHT
25 994000001838 BUTTON CASSETTE
26 994000001837 BUTTON SOURCE (WOOX)
27 994000001836 BUTTON MAX-WOOX
28 994000001831 BUTTON SET CDC SELECT
29 313911470980 BRACKET CDC RIGHT
31 313911470970 BRACKET CDC LEFT
32 994000001829 BUTTON POWER STANDBY
33 994000001819 PANEL RIGHT
34 994000001794 TRAFO MAINS UCD 240W/22
34 994000002246 TRAFO MAINS UCD 110W/07
35 994000001796 METER VU FOR MINI404
36 994000001795 FAN 12V DC 0.8W
38 994000001816 BACK PANEL
39 994000001847 PUSH CATCH LEFT
41 482249242787 SPRING COMPRESSION Note: Only these parts mentioned in the list are
42 994000001845 BRACKET-LEFT normal service parts.
43 994000001828 CAP KNOB VOL PNT
44 994000001813 PANEL FRONT DISPLAY /22
44 994000002247 PANEL FRONT DISPLAY /07
45 994000001835 BUTTON CONTROL PLAY(1)
46 994000001834 BUTTON CONTROL (2)
47 994000001833 BUTTON DSC/DBB/VAC
48 994000001842 COVER RING VU METER
!
!
!
!
REVISION LIST
Version 1.0 (3141 785 30180)
* Initial Release FWM70/22
Version 1.1 (3141 785 30181)
* Add FWM70/07 information,
1) Page 1-2 Version Variations add /07 version
2) Page 1-3 Specifications add /07 version.
3) Page 8-13 and page 12-2 partslist adapted.
4) Chapter 7A - ECO6 Non Cenelec have been added.
13-1

Navigation menu
