FastTrak_TX_Series_User_v2.0 Fast Trak TX2200 TX Series User V2.0
User Manual: FastTrak TX2200
Open the PDF directly: View PDF .
Page Count: 138 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- FastTrak User Manual
- Contents
- Chapter 1: Introduction
- Chapter 2: Installation
- Chapter 3: Install Drivers
- Chapter 4: FastBuild™ Utility
- Chapter 5: WebPAM
- Log-in to WebPAM
- Log-out of WebPAM
- User Management
- Host Management
- Utility Configuration
- FastTrak
- Controller
- Physical Drives
- Logical Drives
- Logical Drive View
- Create a Logical Drive
- JBOD
- Delete a Logical Drive
- Logical Drive Information
- Logical Drive Settings
- Logical Drive Migration and Expansion
- Logical Drive Rebuild
- Synchronize/Redundancy Check All Logical Drives
- Logical Drive Synchronization/Redundancy Check
- Logical Drive Initialization
- Logical Drive Activation
- Logical Drive Critical / Offline
- Enclosures
- Spare Drives
- Chapter 6: Technology
- Chapter 7: Support

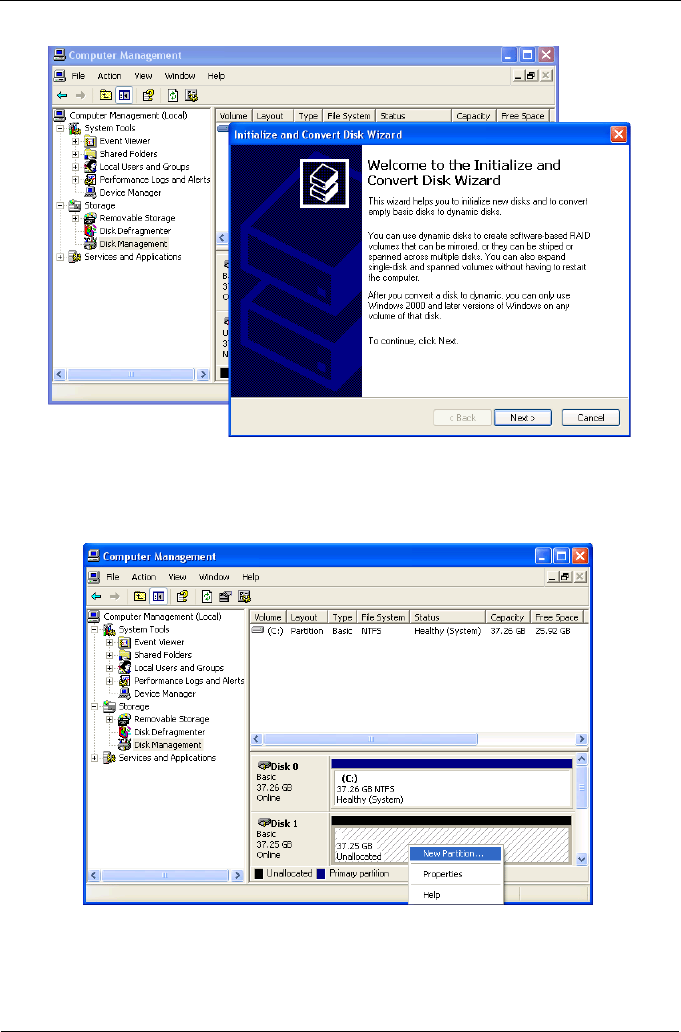

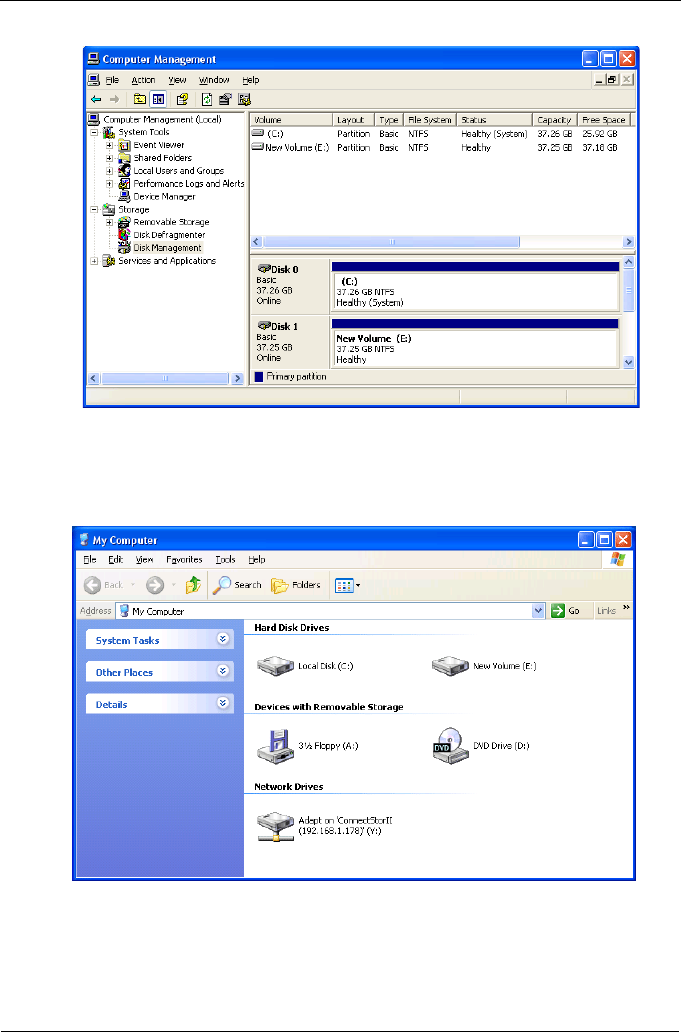

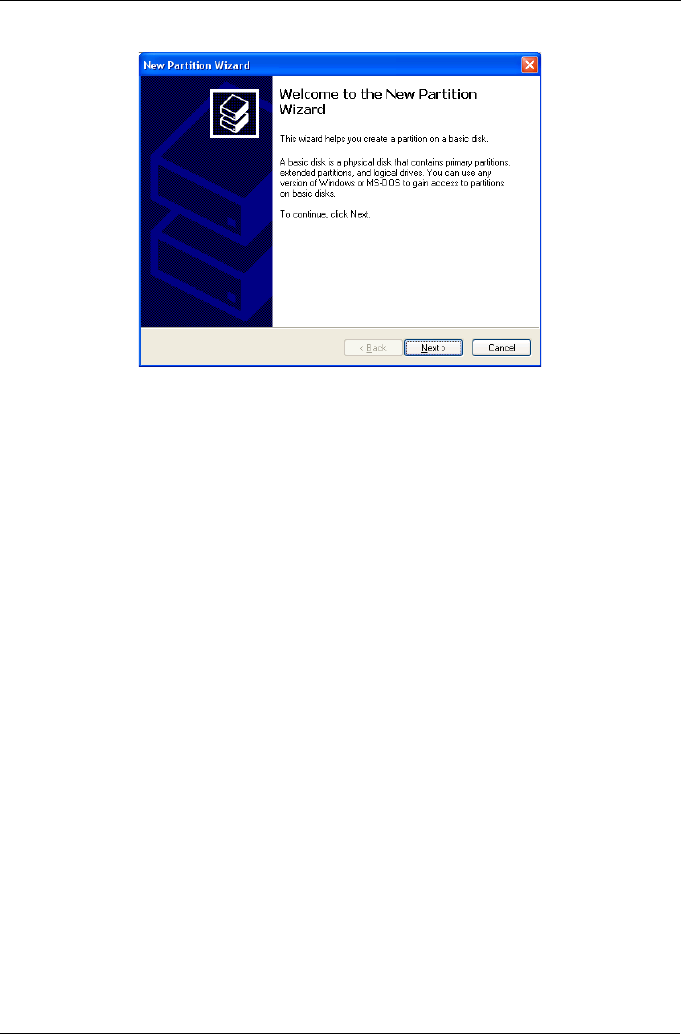

- Appendix A: Partition and Format
- Appendix B: Upgrades
![](asset-1.png)
F
AST
T
RAK
TX2200 / TX2300
TX4200 / TX4300
U
SER
M
ANUAL
Version 2.0
![](asset-2.png)
FastTrak TX2200/2300,TX4200/4300 User Manual
ii
Copyright
© 2005 Promise Technology, Inc. All Rights Reserved.
Copyright by Promise Technology, Inc. (Promise Technology). No part of this
manual may be reproduced or transmitted in any form without the expressed,
written permission of Promise Technology.
Trademarks
Promise, and the Promise logo are registered in U.S. Patent and Trademark
Office. All other product names mentioned herein may be trademarks or
registered trademarks of their respective companies.
Important data protection information
You should back up all data before installing any drive controller or storage
peripheral. Promise Technology is not responsible for any loss of data resulting
from the use, disuse or misuse of this or any other Promise Technology product.
Notice
Although Promise Technology has attempted to ensure the accuracy of the
content of this manual, it is possible that this document may contain technical
inaccuracies, typographical, or other errors. Promise Technology assumes no
liability for any error in this publication, and for damages, whether direct, indirect,
incidental, consequential or otherwise, that may result from such error, including,
but not limited to loss of data or profits.
Promise Technology provides this publication “as is” without warranty of any kind,
either express or implied, including, but not limited to implied warranties of
merchantability or fitness for a particular purpose.
The published information in the manual is subject to change without notice.
Promise Technology reserves the right to make changes in the product design,
layout, and driver revisions without notification to its users.
This version of the User Manual supersedes all previous versions.
Recommendations
The appearance in this manual of products made by other companies, including,
but not limited to software, servers and disk drives, is for the purpose of
illustration and explanation only. Promise Technology does not recommend,
endorse, prefer or support any product made by another manufacturer.
![](asset-3.png)
iii
Contents
Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
FastTrak TX Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
WebPAM Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Key Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Chapter 2: Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Unpack Your FastTrak Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Install the FastTrak Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Install the Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Create Your Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
WebPAM Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Utility Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Java Runtime Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Operating System Support . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

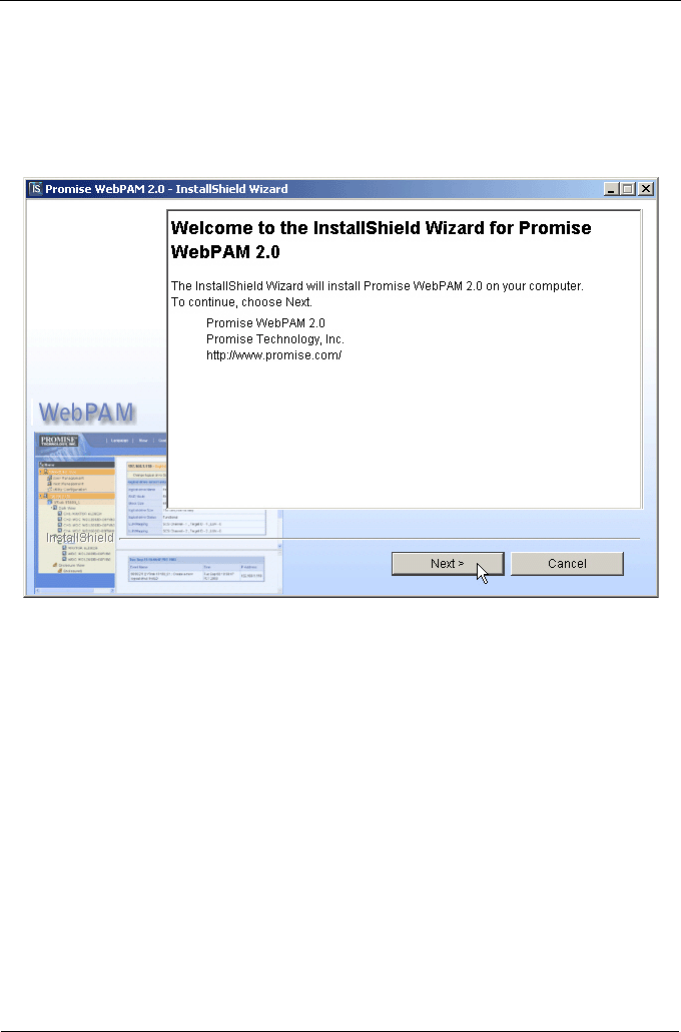

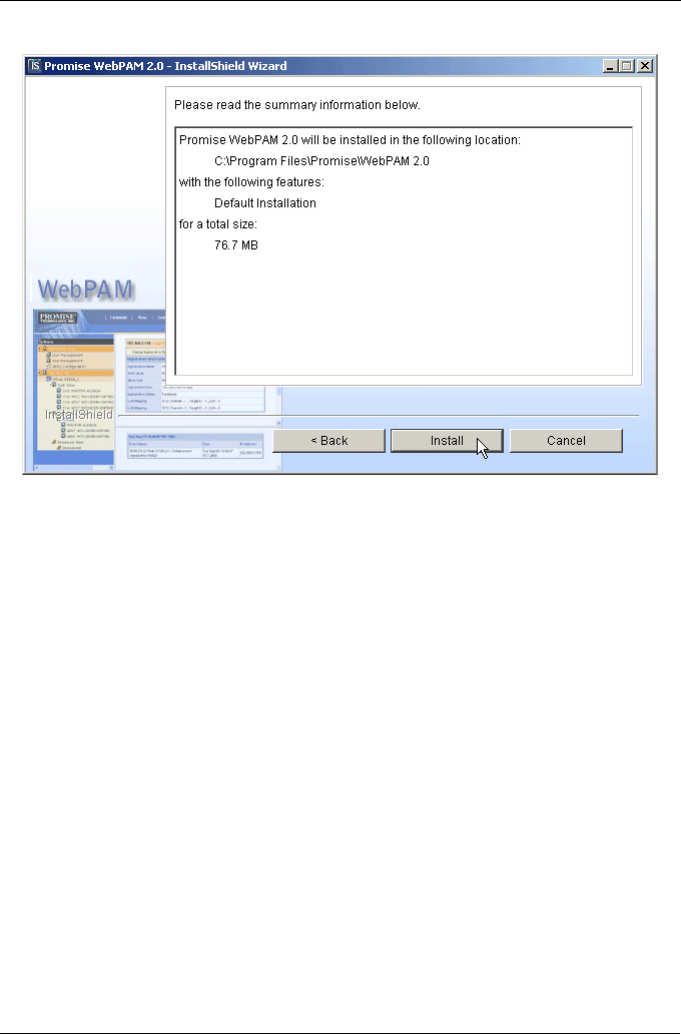

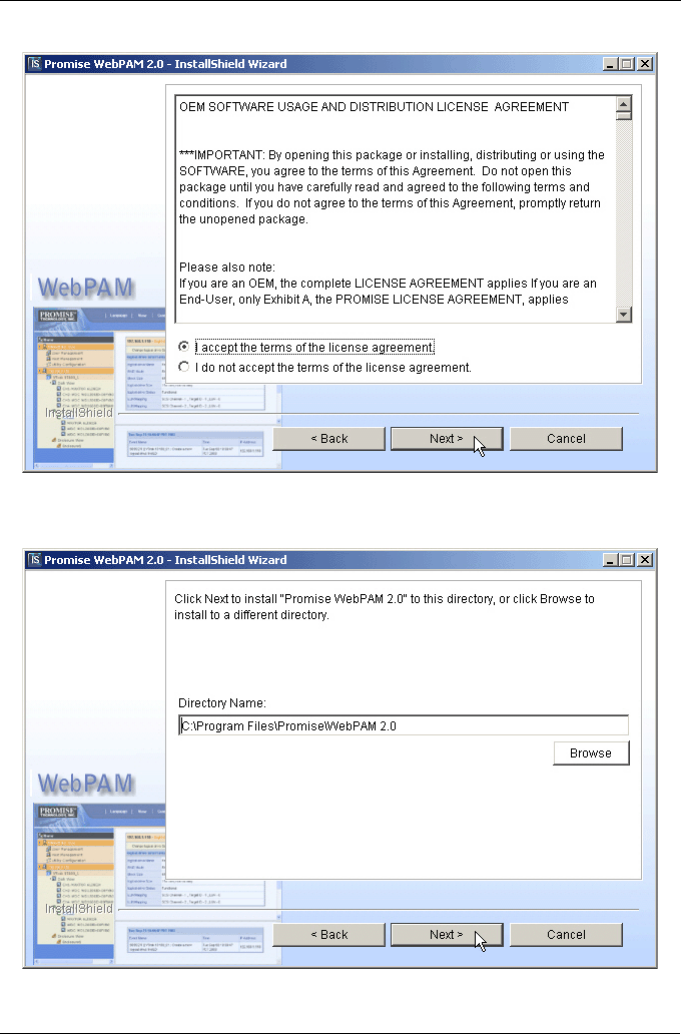

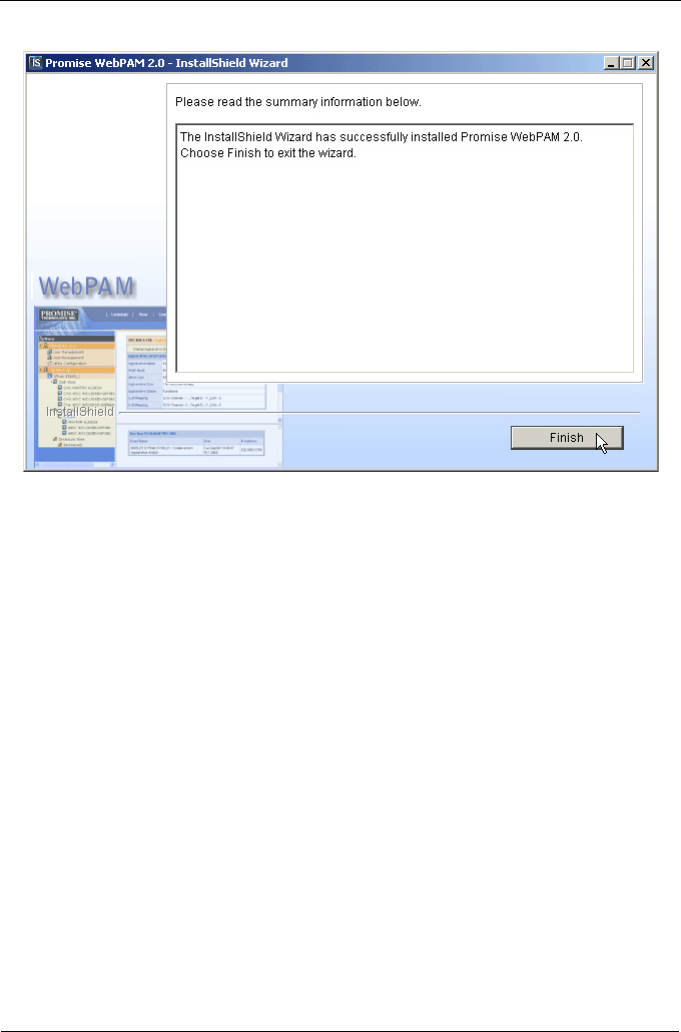

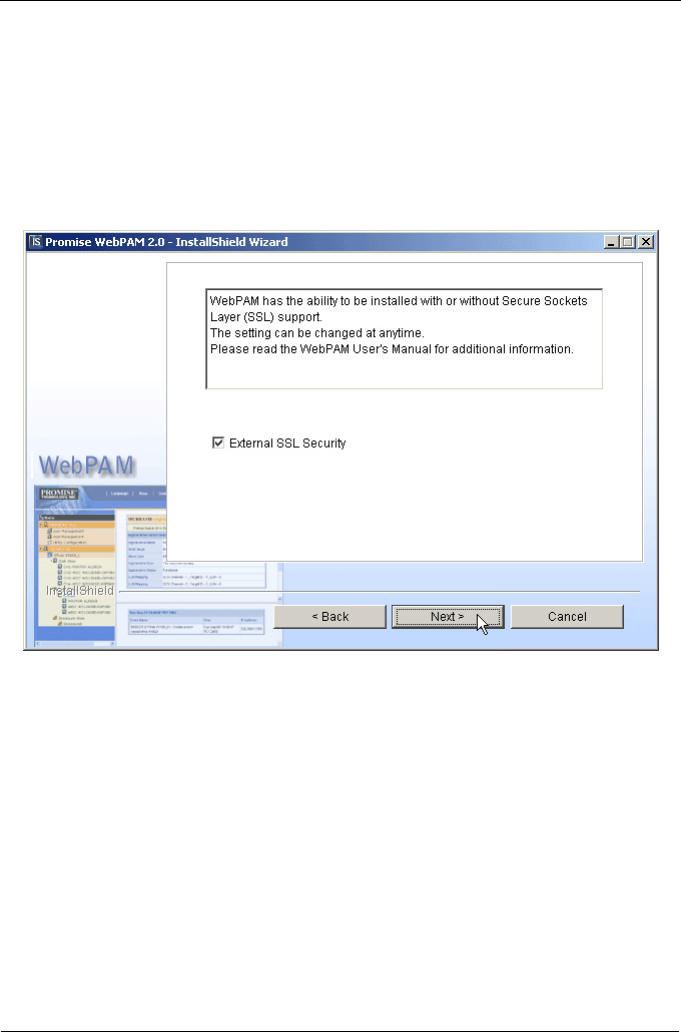

Install WebPAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Chapter 3: Install Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Make an Installation Floppy Diskette . . . . . . . . . . . . . . . . . . . . . . . .26
Windows Server 2003
New Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Existing Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Confirm Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Windows XP
New Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Existing Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Confirm Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Windows 2000
New Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Existing Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Confirm Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
![](asset-4.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
iv
Chapter 4: FastBuild™ Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

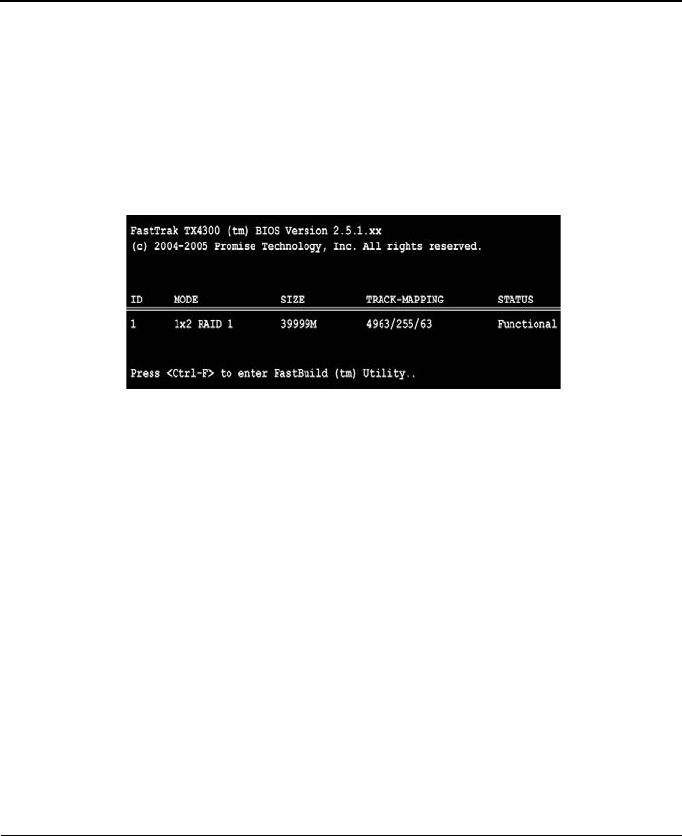

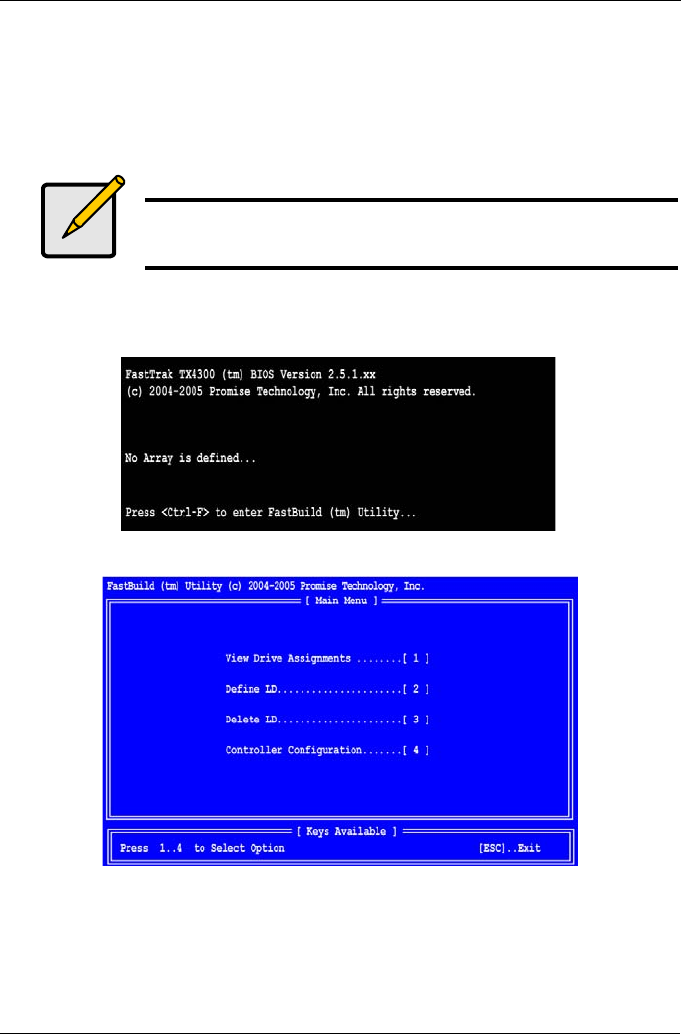

FastTrak BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

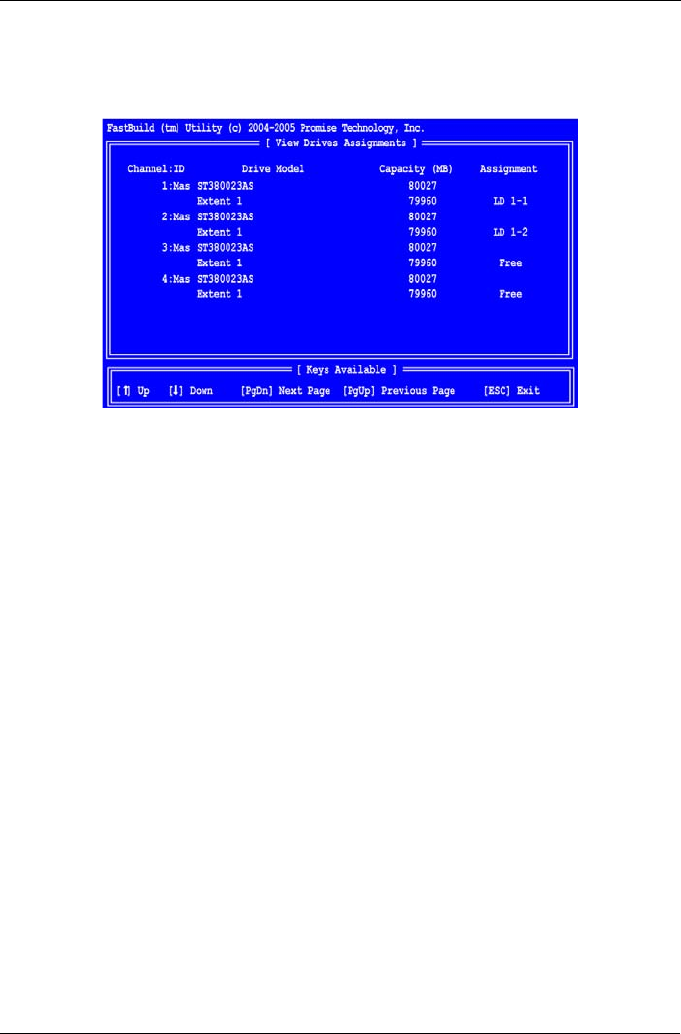

View Drive Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

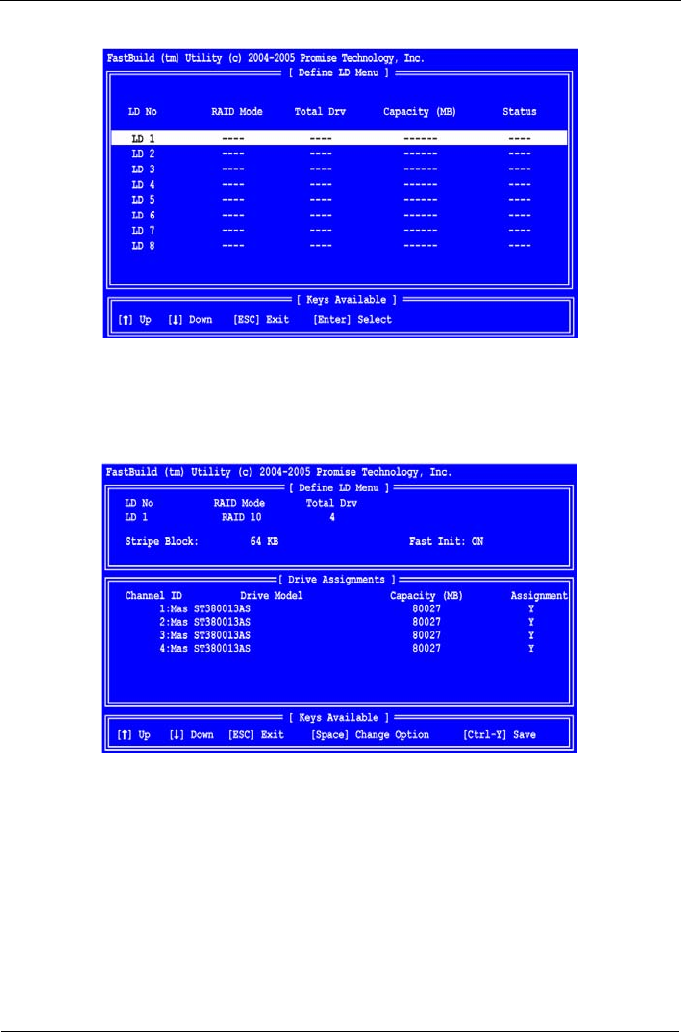

Create a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
One Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

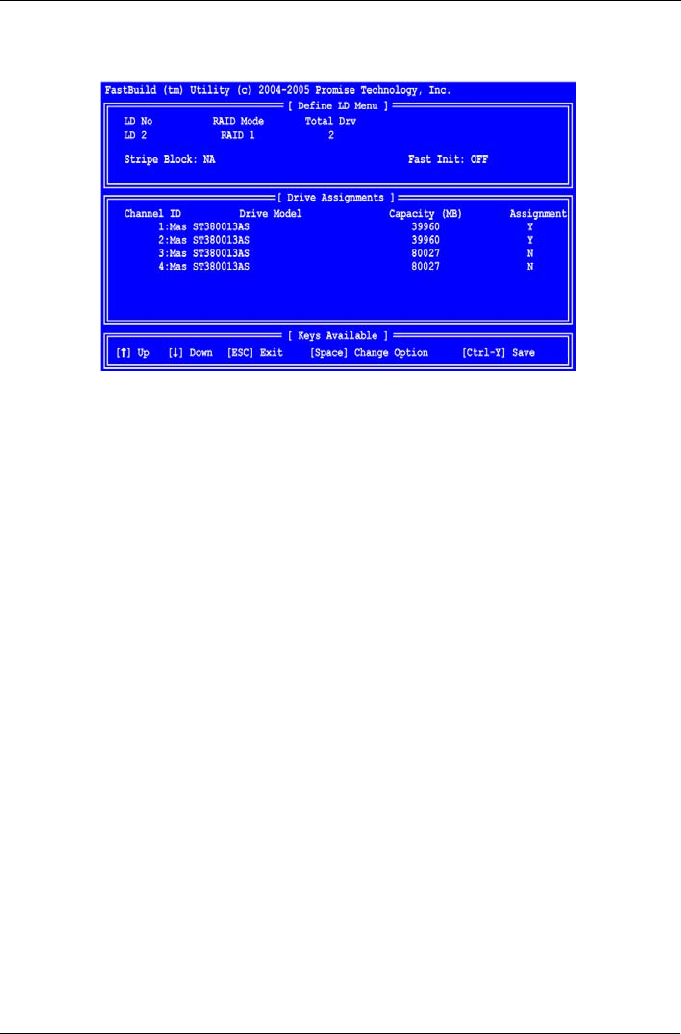

Two Logical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

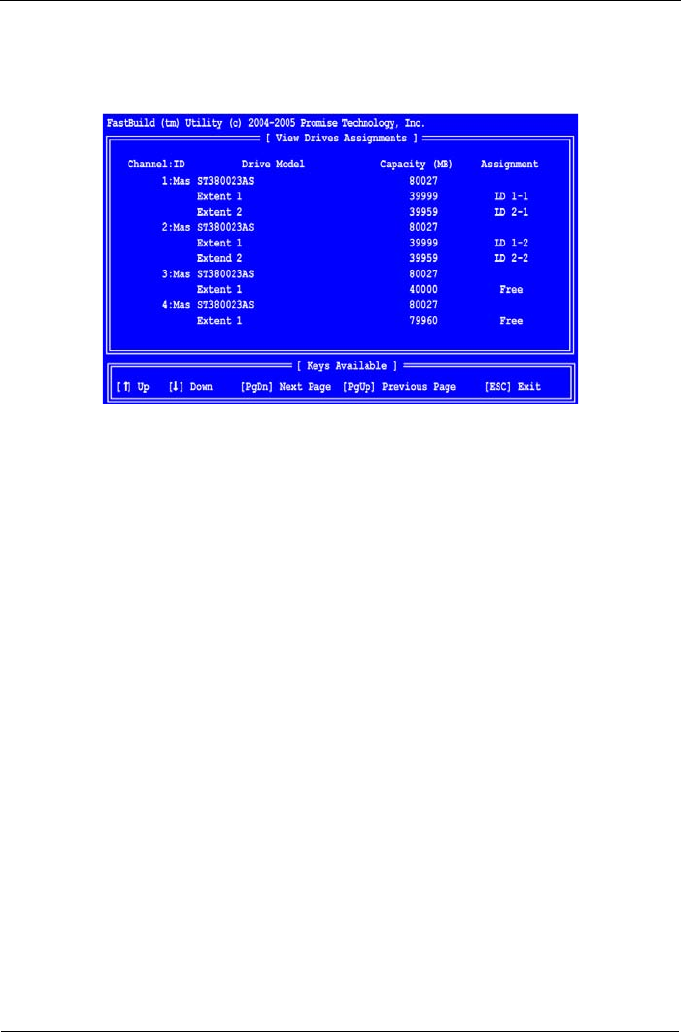

View Drive Assignments, Split Disk Drives . . . . . . . . . . . . .40
Delete Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Controller Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

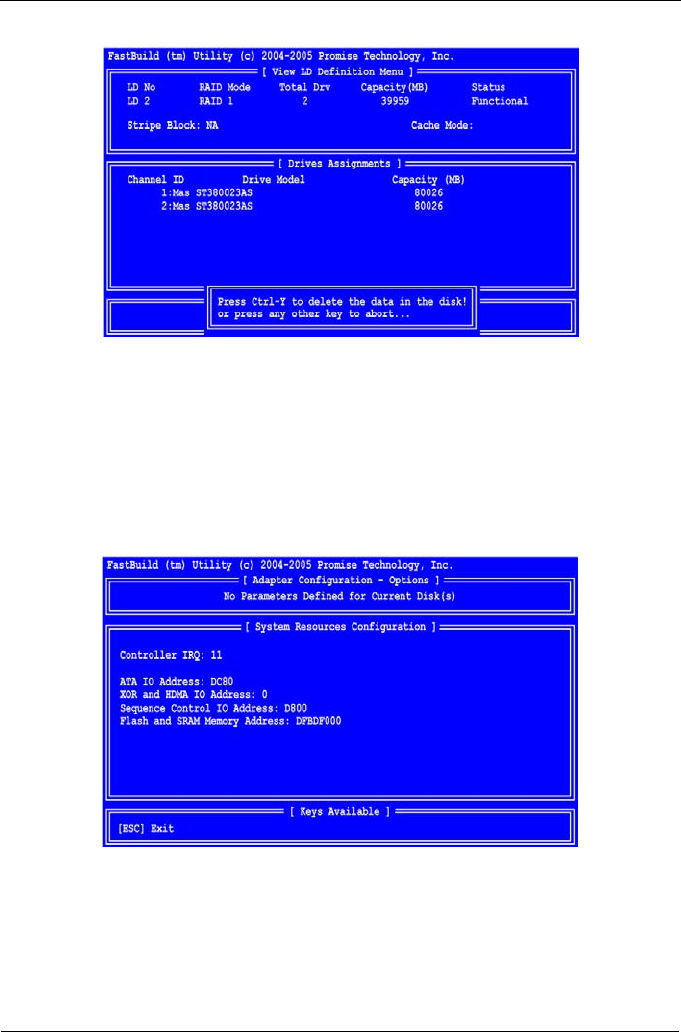

System Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Logical Drive Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Chapter 5: WebPAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

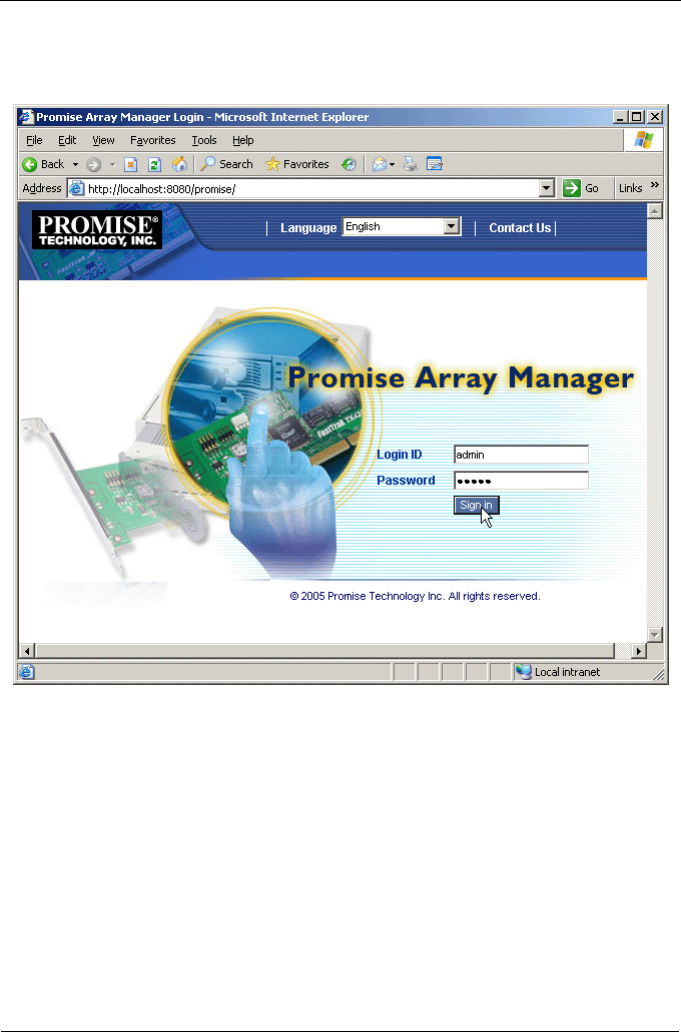

Log-in to WebPAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Regular Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Secure Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Log-out of WebPAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

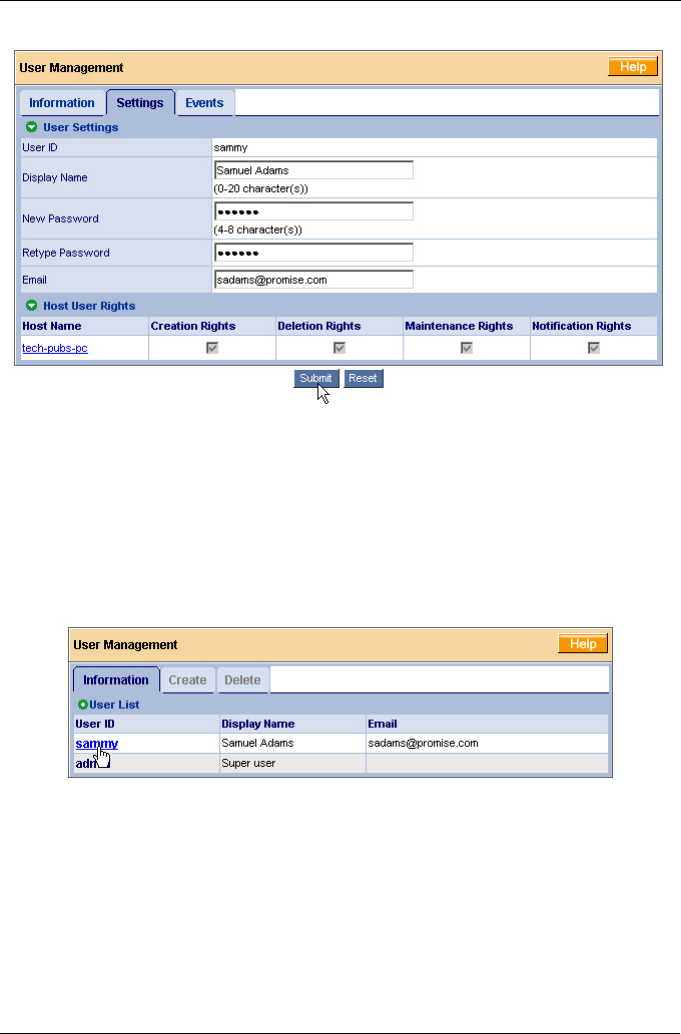

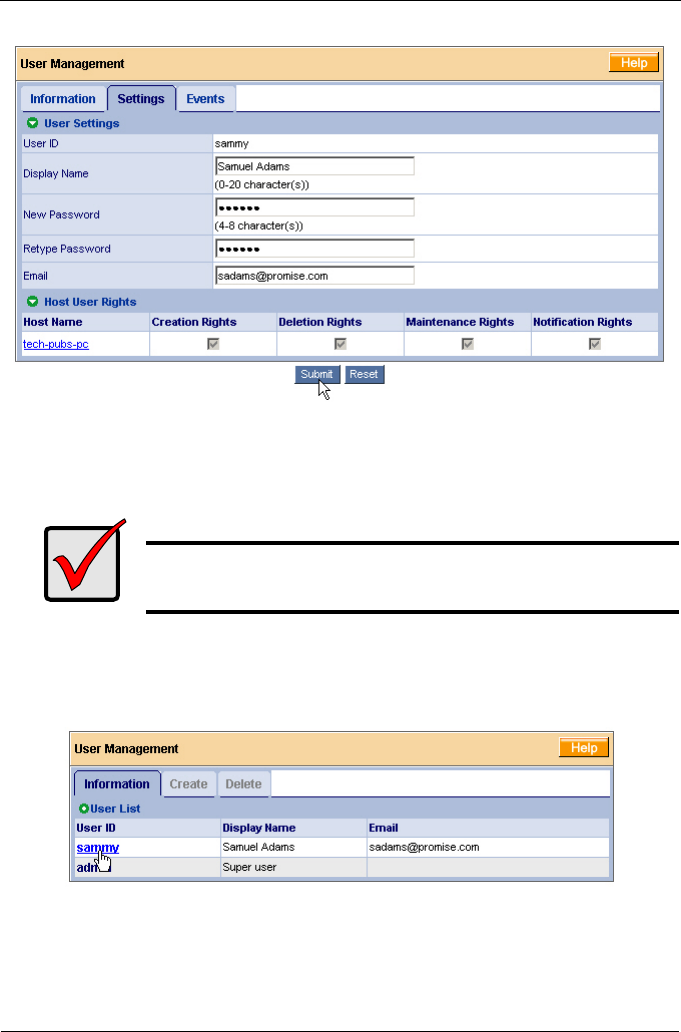

User Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Add a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Event Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

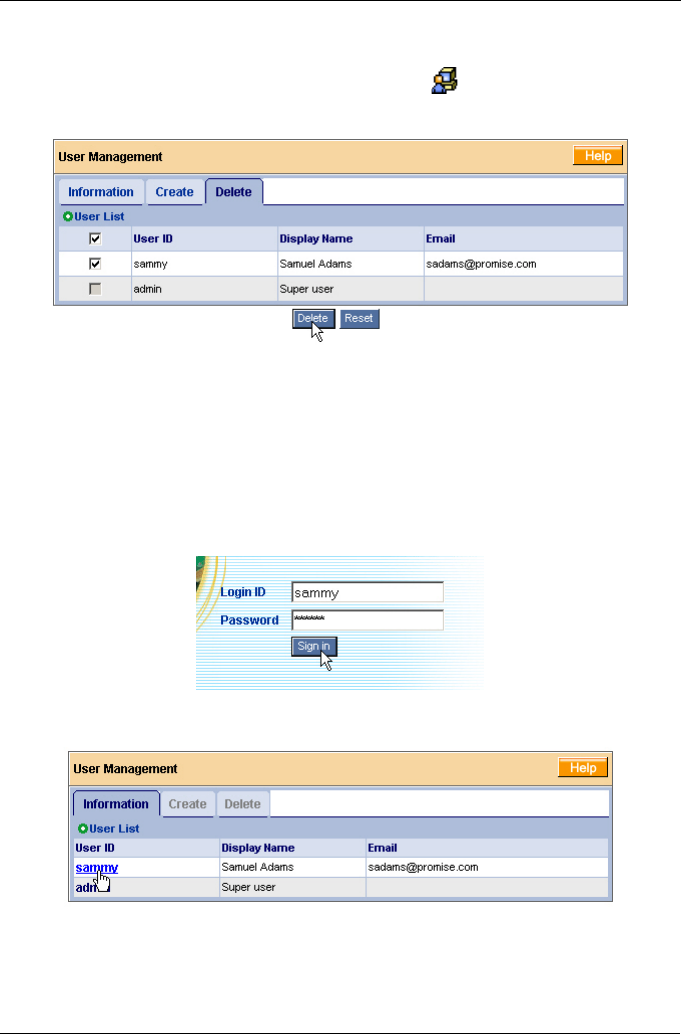

Delete a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Change a User’s Password . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Change a User’s Email Address . . . . . . . . . . . . . . . . . . . . . . . .52
Change a User’s Access Rights . . . . . . . . . . . . . . . . . . . . . . . .53
Host Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

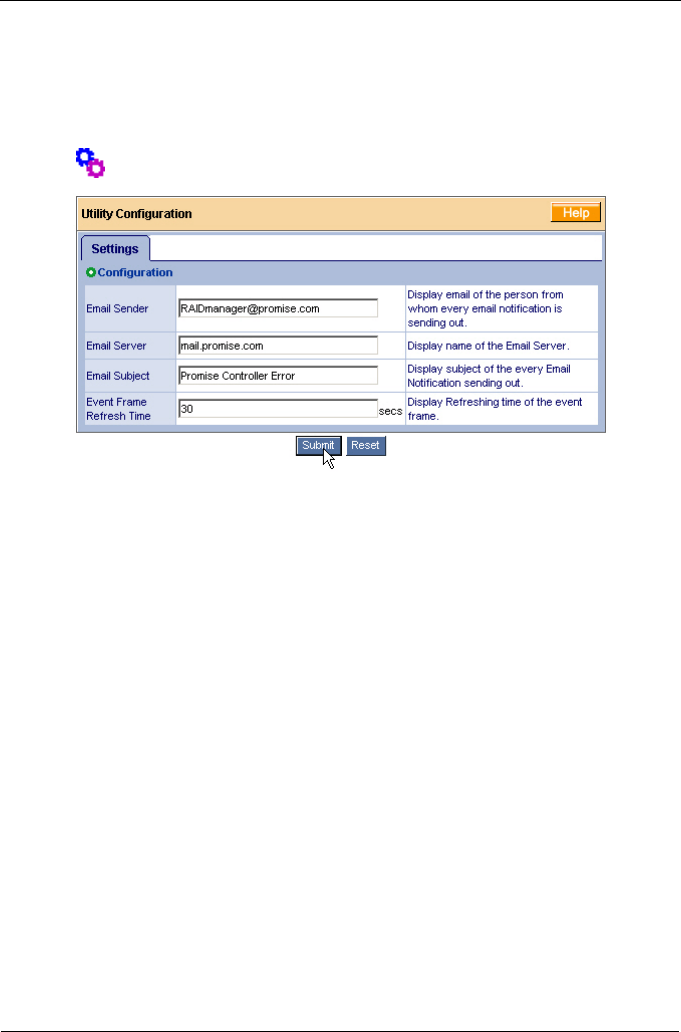

Utility Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
FastTrak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Controller Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

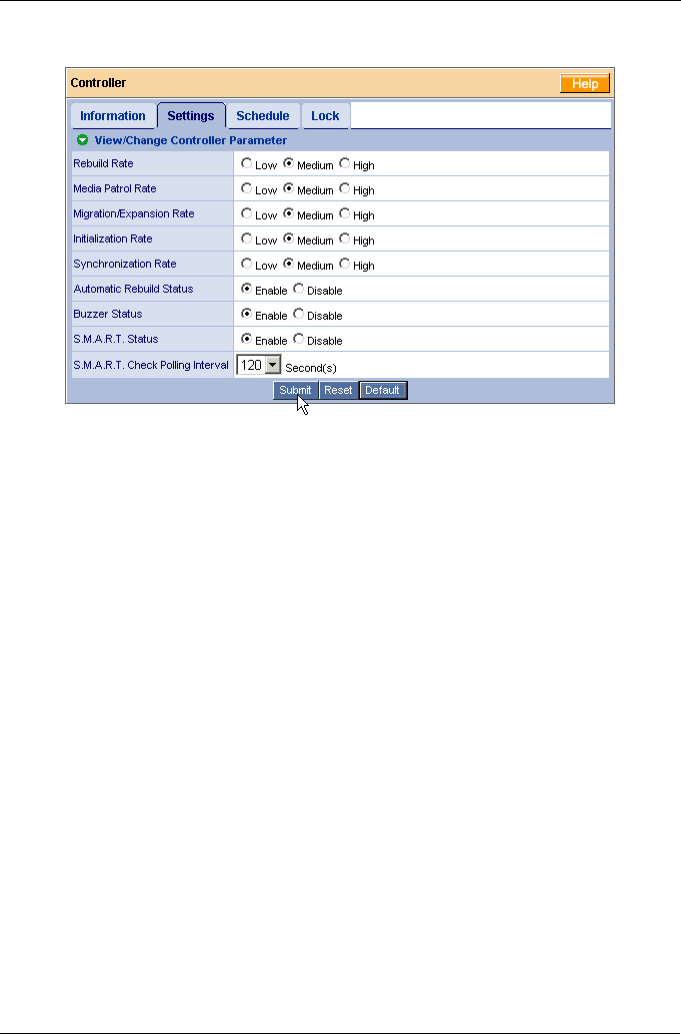

Controller Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

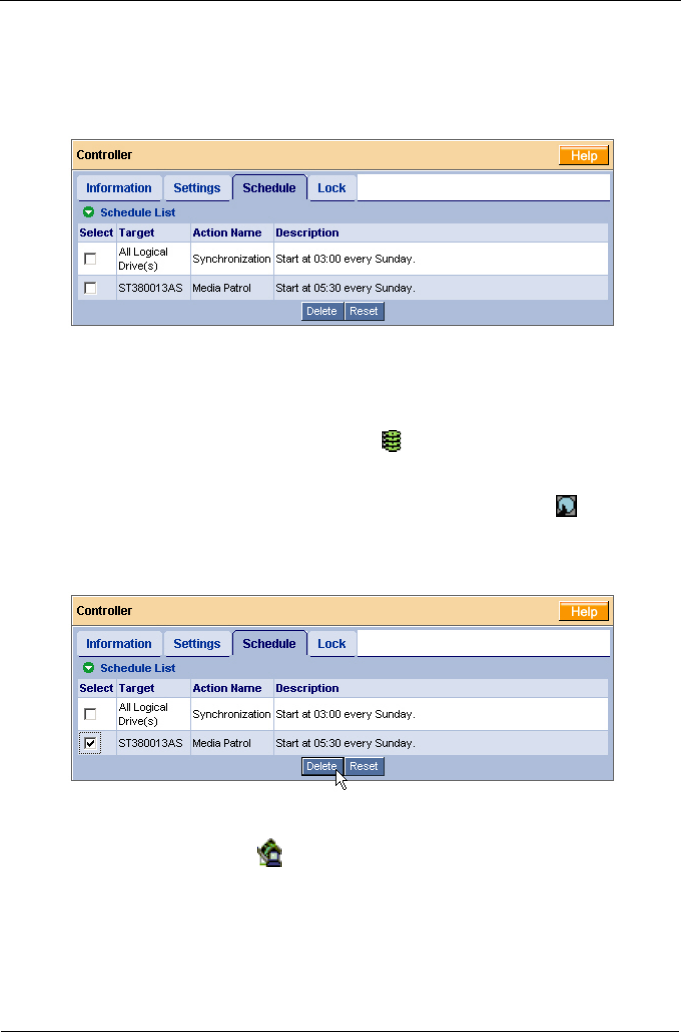

Controller Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Controller Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Physical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

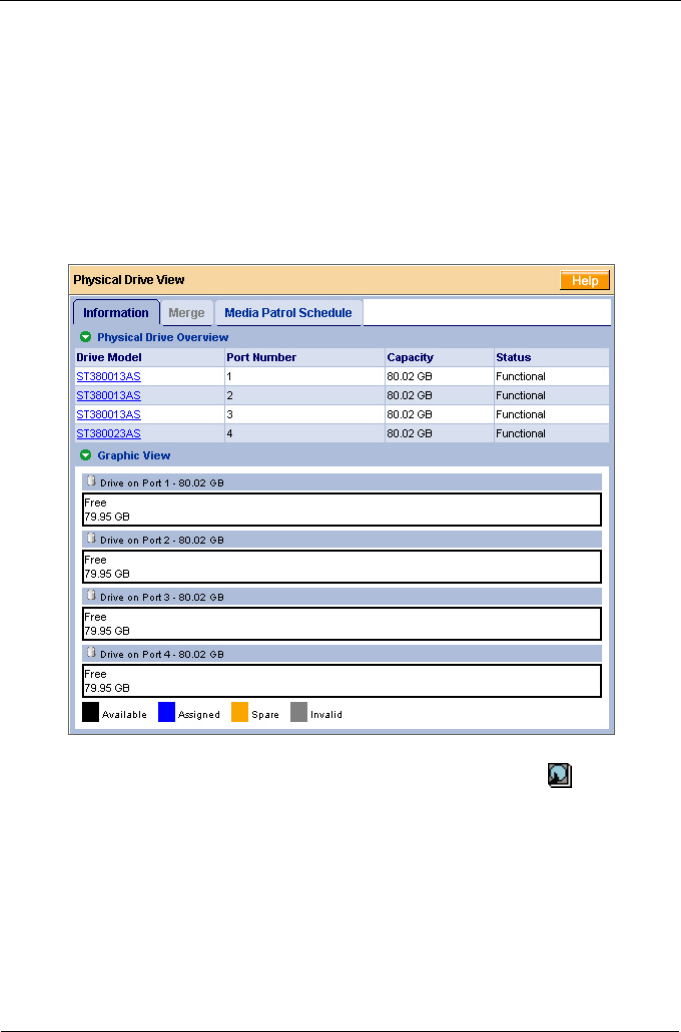

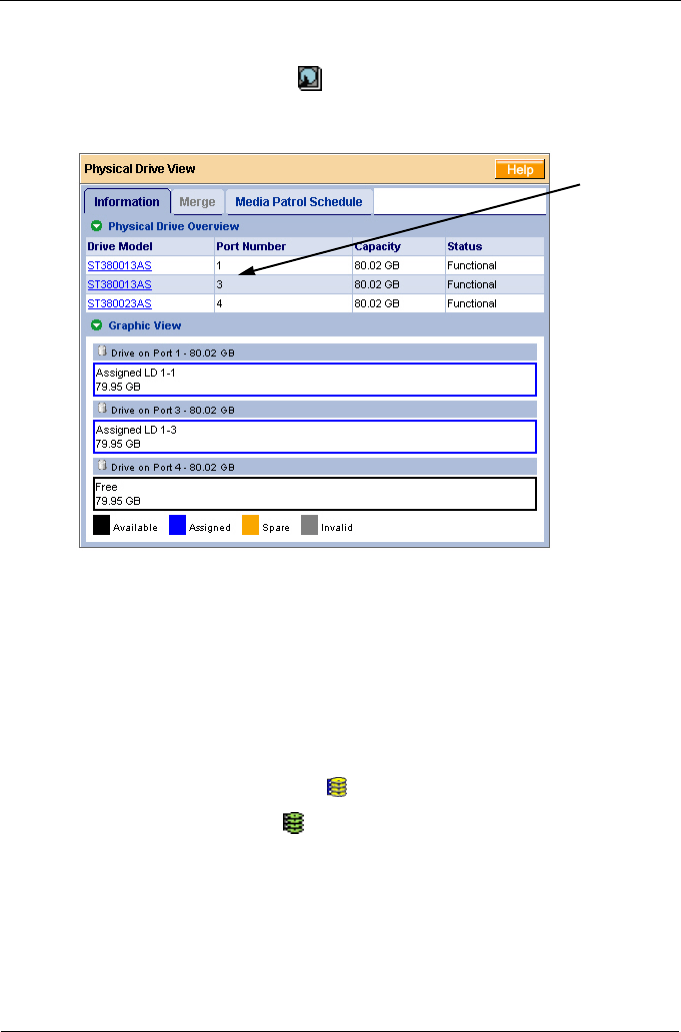

Physical Drive View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

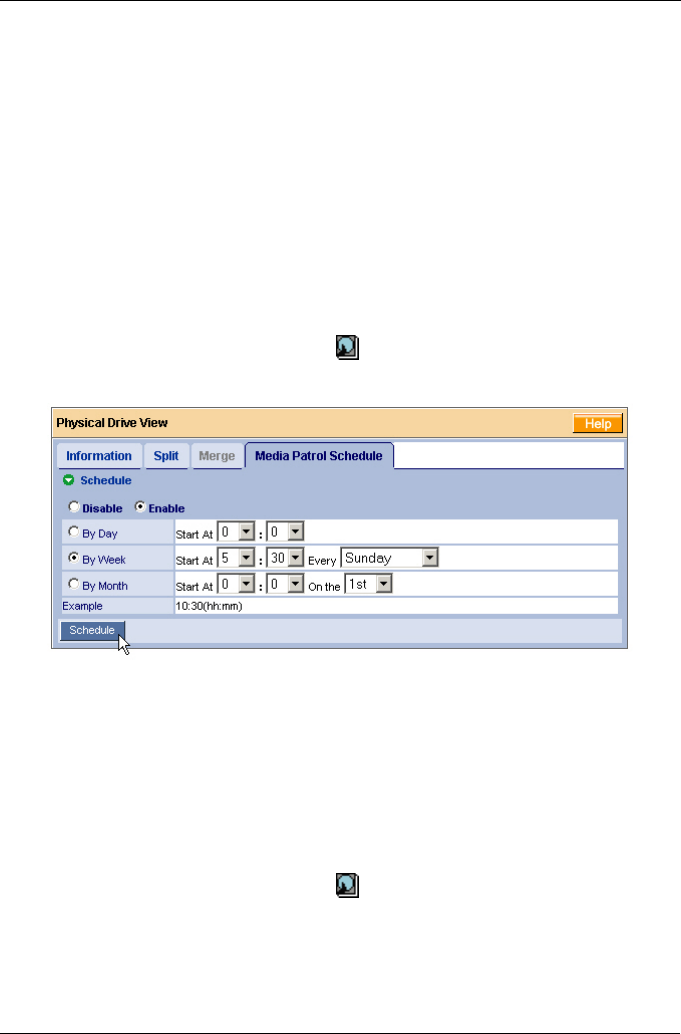

Media Patrol Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Physical Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Physical Drive Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Physical Drive Media Patrol . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Physical Drive Bad Sector Log . . . . . . . . . . . . . . . . . . . . . . . . .67
Locate a Physical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
![](asset-5.png)
Contents
v
Logical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Logical Drive View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Create a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
JBOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

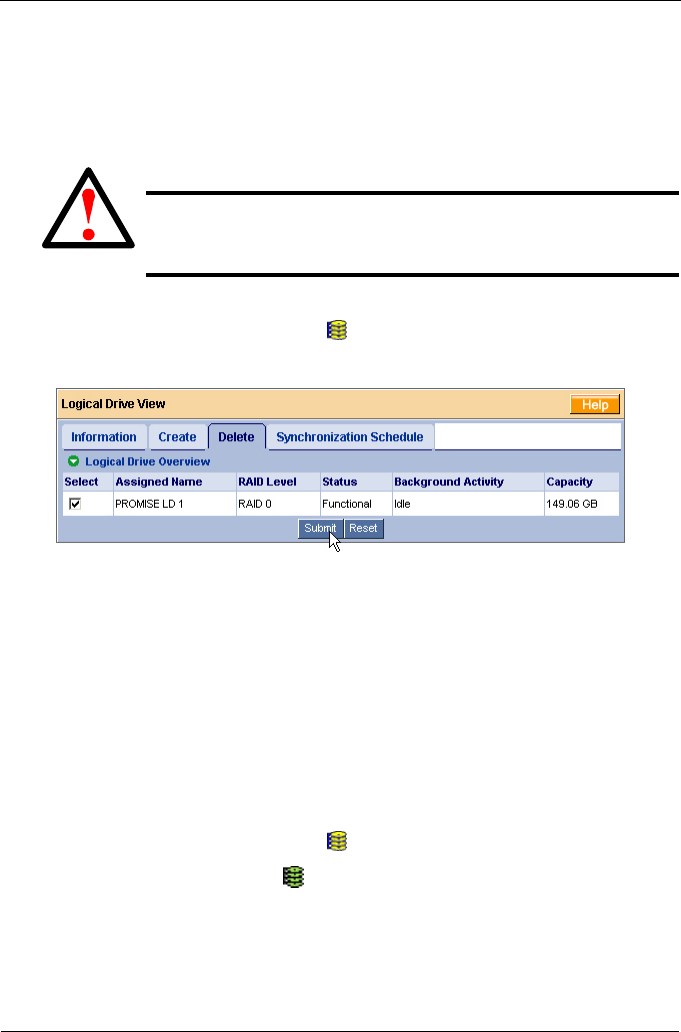

Delete a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Logical Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Logical Drive Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Logical Drive Migration and Expansion . . . . . . . . . . . . . . . . . . .76
FastTrak TX2200, TX2300 . . . . . . . . . . . . . . . . . . . . . . . .76
FastTrak TX4200, TX4300 . . . . . . . . . . . . . . . . . . . . . . . .76
On Demand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Scheduled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Cancel a Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

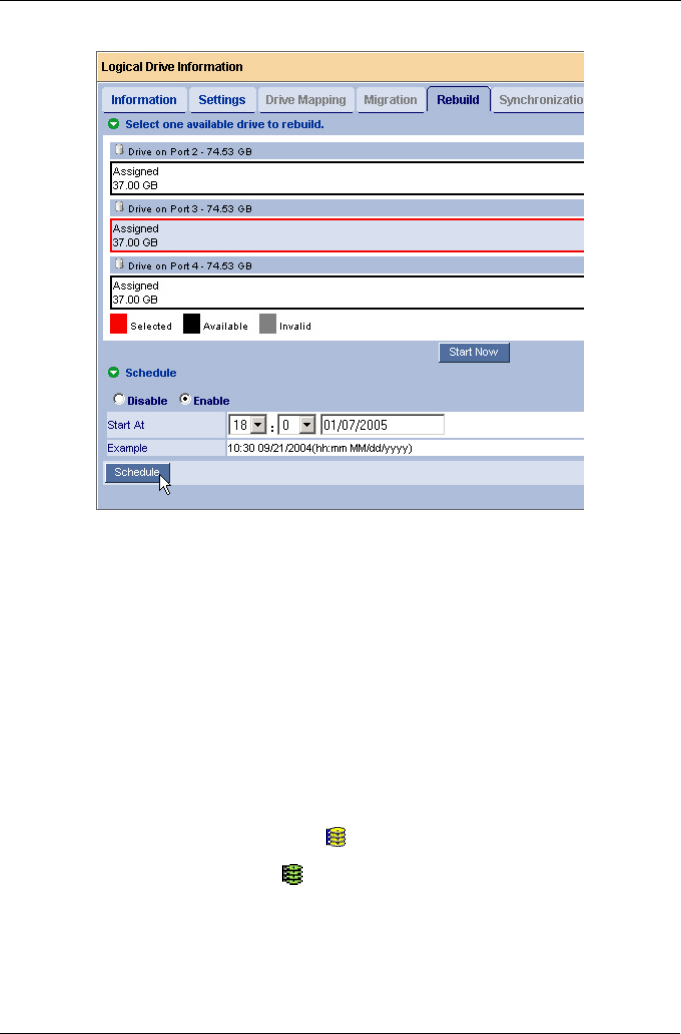

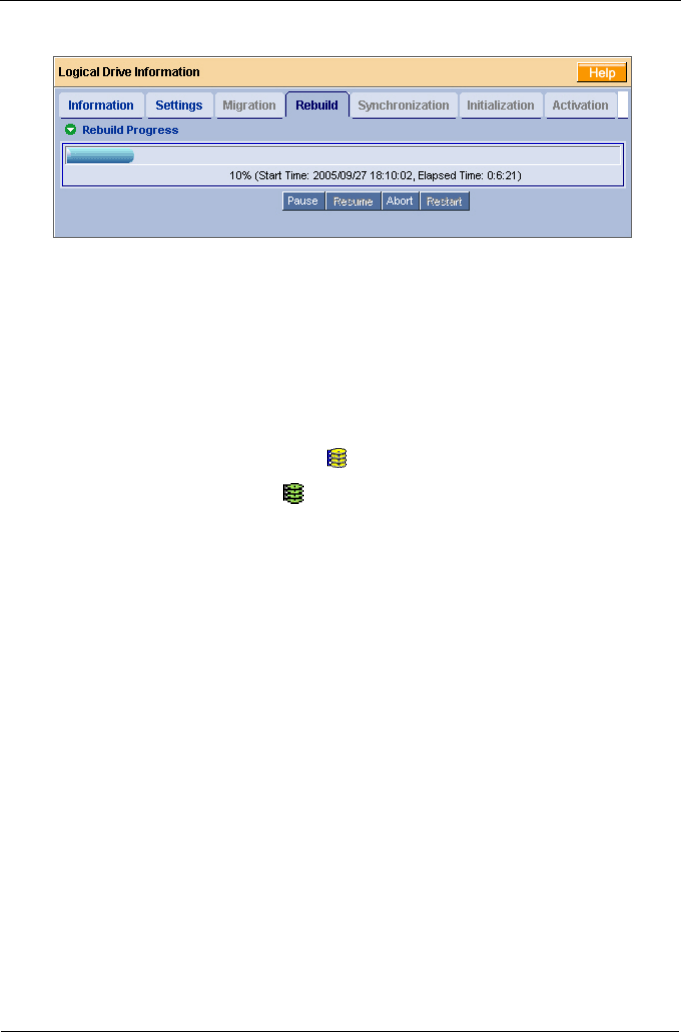

Logical Drive Rebuild . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
On Demand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Scheduled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Cancel a Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Automatic Rebuild . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Synchronize/Redundancy Check All Logical Drives . . . . . . . . .82
Logical Drive Synchronization/Redundancy Check . . . . . . . . .84
On Demand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Scheduled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Cancel a Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Logical Drive Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Logical Drive Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Logical Drive Critical / Offline . . . . . . . . . . . . . . . . . . . . . . . . . .86
When a Disk Drive Fails . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Replace the Failed Disk Drive . . . . . . . . . . . . . . . . . . . . . .88
Rebuild Your Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . .88
Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

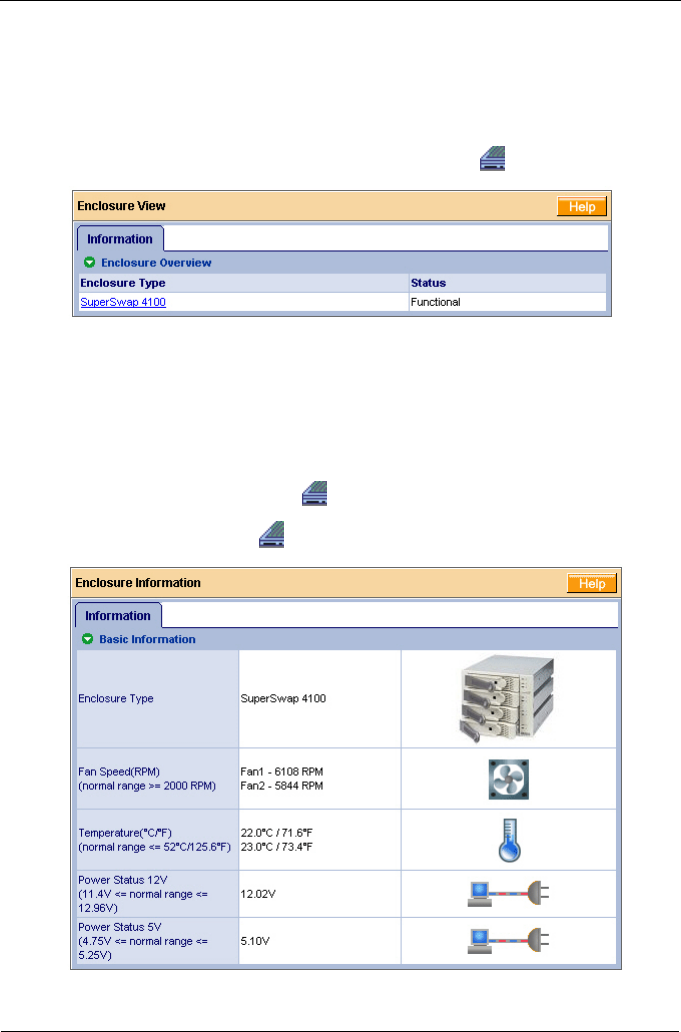

Enclosure View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Spare Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

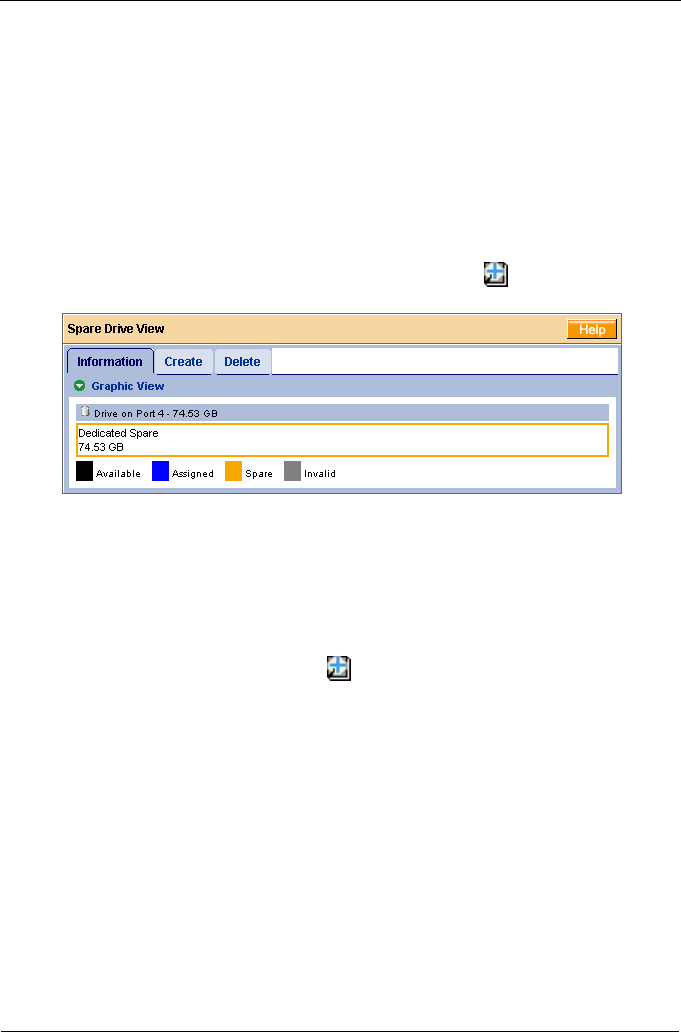

Spare Drive View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

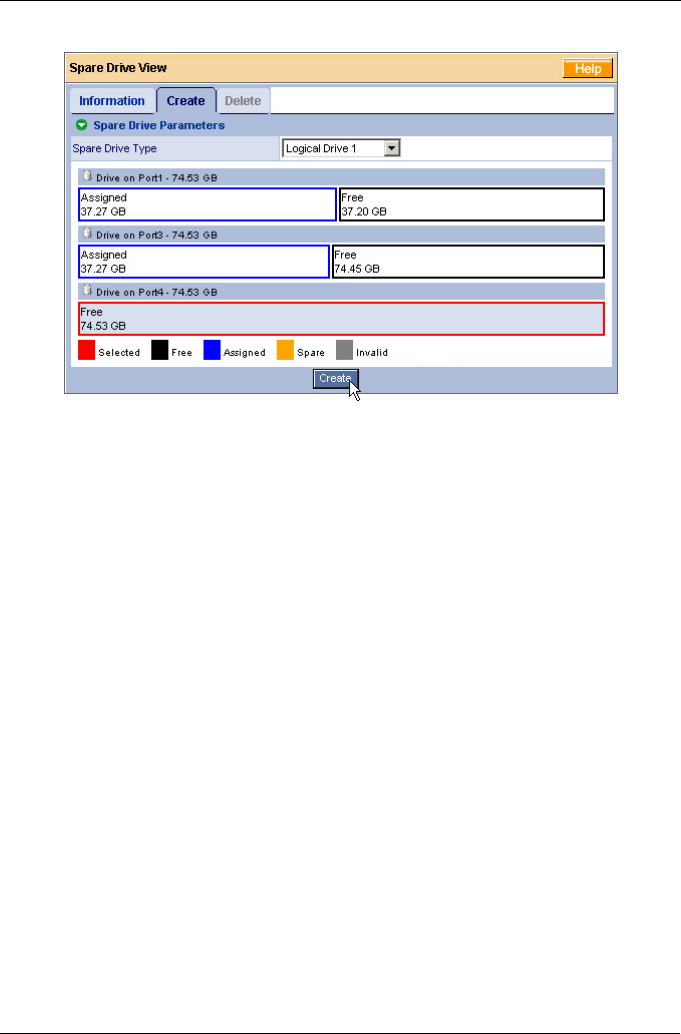

Create a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

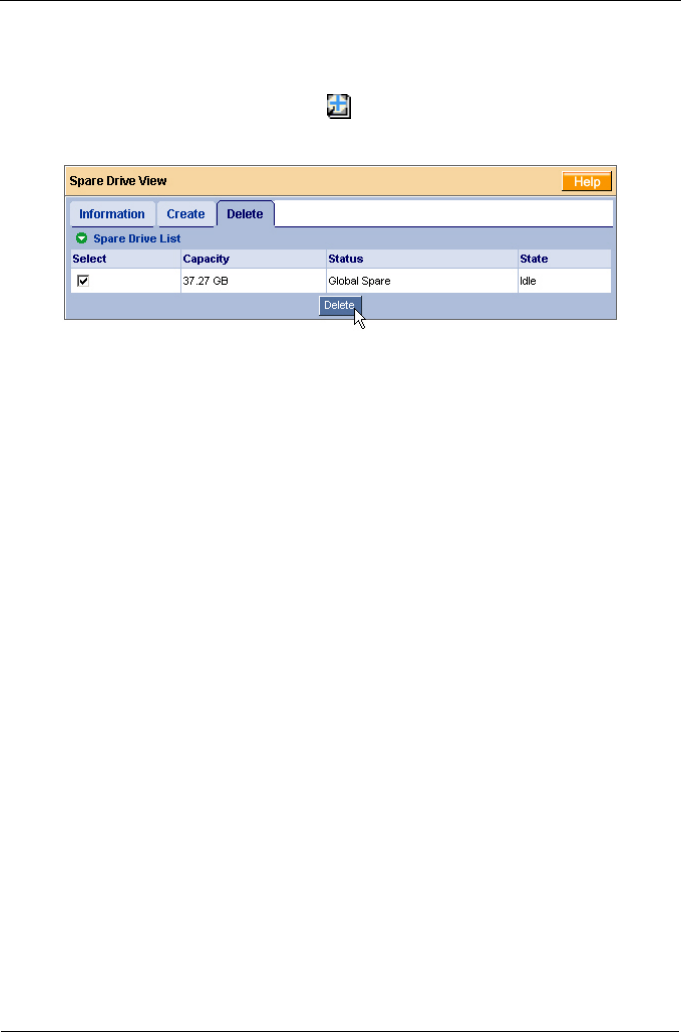

Delete a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Chapter 6: Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
About FastTrak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Adapter BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Introduction to RAID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
![](asset-6.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
vi
RAID 0 – Stripe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

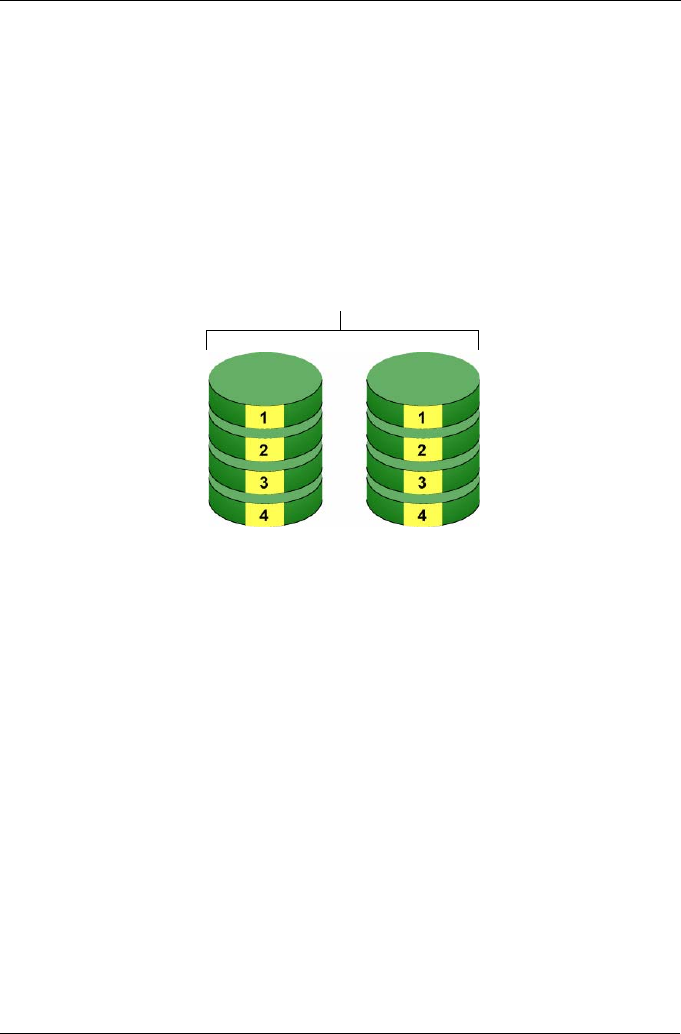

RAID 1 – Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

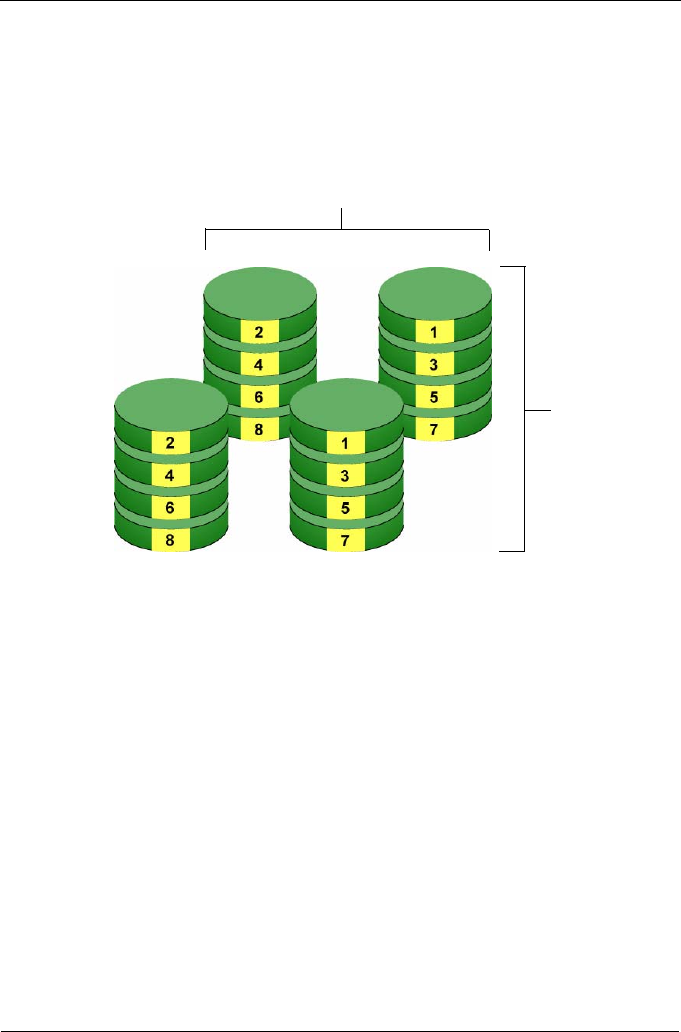

RAID 10 – Mirror / Stripe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
About Dual Data Redundancy . . . . . . . . . . . . . . . . . . . . . .99
JBOD – Single Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Choosing a RAID Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
RAID 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
RAID 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
RAID 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
JBOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Other Logical Drive Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Stripe Block Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Hot Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Cache Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Logical Drive Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
RAID Level Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Ranges of Disk Array Expansion . . . . . . . . . . . . . . . . . . .105
Chapter 7: Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Motherboard Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
System CMOS Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Drive Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Operating System-Related Issues . . . . . . . . . . . . . . . . . . . . .111
Installation Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Post-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Performance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Contact Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Return Product For Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Appendix A: Partition and Format . . . . . . . . . . . . . . . . . . . . . . . . . .121
Appendix B: Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
BIOS and Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Software Driver Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127
WebPAM Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
![](asset-7.png)
1
Chapter 1: Introduction
• About This Manual, below
• Overview (page 2)
• FastTrak TX Series (page 2)
• WebPAM Software (page 3)
• Key Features and Benefits (page 3)
• Specifications (page 6)
Thank you for purchasing Promise Technology’s FastTrak TX2200/2300 or
TX4200/4300 RAID Controller card.
About This Manual
This User Manual describes how to setup, use and maintain your FastTrak TX
Series RAID Controller cards.
This manual includes a full table of contents, chapter task lists and numerous
cross-references to help you find the specific information you are looking for.
Also included are four levels of notices:
Note
A Note provides helpful information such as hints or alternative
ways of doing a task.
Important
An Important calls attention to an essential step or point required
to complete a task. Important items include things often missed.
Caution
A Caution informs you of possible equipment damage or loss of
data and how to avoid them.
Warning
A Warning notifies you of probable equipment damage or loss of
data, or the possibility of physical injury, and how to avoid them.
![](asset-8.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
2
Overview
The PC which you are using either already contains FastTrak TX2200/2300 or
TX4200/4300 RAID Controller card installed by a third-party or you have acquired
a FastTrak TX2200/2300 or TX4200/4300 retail product for your existing PC and
plan to install the card yourself.
• For PC owners wishing to install their TX2200/2300 or TX4200/4300 RAID
Controller card, go to Chapter 2: Installation on page 5.
• For PCs with a FastTrak TX2200/2300 or TX4200/4300 RAID Controller card
already installed, and you are experiencing any difficulties with the disk
drives being recognized by the card, go to Chapter 6: Troubleshooting on
page 51.
• If your operating system has crashed for some reason or you have
downloaded updated drivers from the Promise website (www.promise.com),
you may wish to reinstall software drivers for the FastTrak TX2200/2300 or
TX4200/4300 RAID controller card. See Chapter 4: Installing Drivers on
page 33.
FastTrak TX Series
Promise originally designed the FastTrak TX2200/2300 and TX4200/4300 as a
cost-effective, high performance RAID controller cards that add performance
and/or reliability to PC desktops and/or servers using Serial ATA drives.
FastTrak TX2200/2300 have two independent data channels to support a
maximum of two Serial ATA drives and supports:
• Stripe (RAID 0) – Identical drives can read and write data in parallel to
increase performance.
• Mirror (RAID 1) – Mirror increases read performance through load balancing
and elevator sorting while creating a complete backup of your files.
FastTrak TX4200/4300 have four independent data channels to support a
maximum of four Serial ATA drives and supports:
• Stripe (RAID 0) – Identical drives can read and write data in parallel to
increase performance.
• Mirror (RAID 1) – Mirror increases read performance through load balancing
and elevator sorting while creating a complete backup of your files.
• Mirror / Stripe (RAID 10) – Combining mirror with stripe offers both high read/
write performance and fault tolerance
A FastTrak TX2200/2300 or TX4200/4300 striped logical disk can double the
sustained data transfer rate of Serial ATA drives.
![](asset-9.png)
Chapter 1: Introduction
3
FastTrak TX2200/2300 and TX4200/4300 offer fault tolerant, data redundancy for
entry-level network file servers or simply for desktop PC users wanting to
continually protect valuable data on their PC.
Should a drive that is part of a mirrored logical disk fail, FastTrak TX2200/2300
and TX4200/4300 use the mirrored drive (which contains identical data) to
assume all data handling. When a new replacement drive is later installed,
FastTrak TX2200/2300 and TX4200/4300 rebuild data to the new drive from the
mirrored drive to restore fault tolerance.
FastTrak TX2200/2300 and TX4200/4300 bootable BIOS supports individual
drives larger than 137 GB. With FAT32 and NTFS partitioning, the logical disk
can be addressed as one large single volume.
WebPAM Software
The Web-based Promise Array Management (WebPAM) RAID management
software offers local management and monitoring of FastTrak disk arrays.
Browser-based GUI provides email notification of all major events/alarms,
memory cache management, logging for Windows servers, disk array
maintenance, rebuild, and access to all components in disk array (server,
controller, data channels, individual drives, and enclosure). For information on
using WebPAM, refer to “Chapter 5: WebPAM” on page 43.
Key Features and Benefits
The following information offers an overview of the major features of your new
Promise FastTrak TX2200/2300 and TX4200/4300.
Advanced Hardware Design
Features Benefits
Supports 66 MHz PCI bus
motherboards (automatically
backward compatible with 33
MHz PCI slots)
Allows maximum data transfers of up to 266MB
per second (133 MB/s in 33 MHz slot) over the
bus to dramatically reduce the time to save and
retrieve large files.
Supports:
data stripe (RAID 0), mirror
(RAID 1), and mirror/stripe
(RAID 10)
RAID 10 on 4200/4300 only
Provides dramatic increase in drive performance
and/or fault tolerant options. Offers performance
customization and data rebuilds from the BIOS
menu.
TX 2300 and TX4300 support
Serial ATA Specification II Burst data transfer rates up to 300 MB/s from
Serial ATA drives to boost overall system
performance.
![](asset-a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
4
TX 2200 and TX4200 support
Serial ATA Specification 1.0a Burst data transfer rates up to 150 MB/s from
Serial ATA drives to boost overall system
performance.
Independent data channels
for Serial ATA drives Drives can multiply their data transfer
performance when striped together and each
drive uses a separate data channel.
PCI Plug-n-Play, PCI Interrupt
sharing and coexists with
motherboard IDE and SCSI
controllers
Easy to install; supports up to 4 Serial ATA
drives on the FastTrak RAID Controller card
while still supporting 4 devices on motherboard
ATA controller.
Supports multiple logical disks TX2200/2300 supports up to 2 logical disks,
TX4200/4300 supports up to 8 logical disks (2
LUNs per physical disk).
Supports online logical disk
expansion Add disk drives to the logical disk without
affecting data availability.
Supports online logical disk
migration Change RAID level without affecting data
availability.
Supports Hot Spare drive Uses any free disk to replace a failing disk in a
logical disk automatically.
Utilizes FastBuild™ automenu
from the FastTrak onboard
BIOS
Has “Auto Setup” option for quick and easy
logical disk builds.
Displays status and error
checking messages during
bootup
Notifies user of possible errors and allows for
recovery of mirrored drive logical disks directly
from FastBuild™.
Supports S.M.A.R.T.
monitoring and reporting Polls status every 15 minutes, reports through
WebPAM.
Employs the latest Promise
PCI Serial ATA ASIC
technology
Fully supports Serial ATA specifications with 150
and 300 MB/sec timing and CRC error-checking
at high speeds.
Mirror supports automatic
background rebuilds Fault tolerance can be restored automatically
without rebooting.
DOS based flash upgrade of
BIOS and Firmware Verifies proper file, option to backup existing file.
Download files from Promise website.
Gigabyte Rounding Allows easier interchangeability among disk
drive vendors.
Advanced Hardware Design
Features Benefits
![](asset-b.png)
Chapter 1: Introduction
5
System reboot not required
after create, delete, migrate or
expand logical disk
System boot process continues without
restarting.
Compatibility
Features Benefits
Complies with PCI v2.3 Local
Bus standard Provides highest level of hardware compatibility.
Complies with SATA
Specification 1.0a Provides full compatibility with first generation
Serial ATA hard drives.
Complies with Serial ATA II:
Extensions to Serial ATA 1.0a
Specification
Provides enclosure and drive monitoring
compatibility.
Compliant with PCI Bus
Master standard. PCI Bus
Master support
Provides 32-bit I/O and, Bus Master, and Serial
ATA performance for optimal system
performance.
Tested compatibility to coexist
with motherboards that have
integrated IDE controllers
Improves system performance and minimizes
system conflicts for new and existing
installations.
Compatible with all major
SATA generation 1 and SATA
generation 2, phase 1 and
phase 2 disk drives
Promise performs verification testing with major
drive manufacturers and development partners.
Features LBA support Supports drives greater than 137 GB capacity.
Supports BIOS Boot
Specification All logical disks attached to the FastTrak card
appear in the BBS-compliant motherboards
BIOS boot list.
Compatible with Promise
SuperSwap enclosures Provides enclosure management including fan,
temperature and voltages.
Advanced Hardware Design
Features Benefits
![](asset-c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
6
Specifications
• Low-profile printed circuit board
• PCI Slot 33 MHz or 66 MHz
• Controller card dimensions
TX2200/2300/4300 (HWD): 2.25 x 4.75 x 0.33 inches (57 x 121 x 8 mm)
TX4200 (HWD): 2.00 x 4.69 x 0.33 inches (57 x 119 x 8 mm)
• Operating temperatures: 32° to 122°F (0°C to 50°C)
• Operating humidity: 5% to 95% non-condensing
![](asset-d.png)
7
Chapter 2: Installation
• Unpack Your FastTrak Card (below)
• Install the FastTrak Card (page 8)
• Install the Disk Drives (page 10)
• Create Your Logical Drive (page 13)
• WebPAM Installation (page 16)
This Chapter is designed to quickly get your FastTrak TX Series RAID Controller
card up and running.
If you plan to run the WebPAM software, you must also install the driver
appropriate to your operating system. See “Chapter 3: Install Drivers” on
page 25.
Unpack Your FastTrak Card
When you receive the FastTrak TX Series RAID Controller card, the package
should contain the items listed below:
• FastTrak TX2200/2300 or TX4200/4300 Serial ATA RAID Controller card
• Quick Start Guide
• 0.65 m (26 inch) Serial ATA data cables. Two 1.5 Gb cables for TX2200, two
3.0 Gb cables for TX2300, four 1.5 Gb cables for TX4200, four 3.0 Gb cables
for TX4300
• Y power splitter cable, one for TX2200/2300, two for TX4200/4300
• CD with all Promise RAID Management (WebPAM) software, Windows
drivers and FastTrak TX2200/2300, TX4200/4300 User Manual
If any of the items are missing or appear to be damaged, please contact your
dealer or distributor immediately.
Warning
The electronic components on the FastTrak RAID Controller card
are sensitive to damage from Electro-Static Discharge (ESD).
Observe appropriate precautions at all times when handling the
FastTrak card or its subassemblies.
![](asset-e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
8
Install the FastTrak Card
The FastTrak TX2200/2300 or TX4200/4300 Serial ATA RAID card fits into any
available PCI slot on your PC's motherboard (below):
• 32-bit PCI slot (must be PCI 2.2 or 2.3 compliant)
• The 32-bit portion of a 64-bit PCI or PCI-X slot
Warning
Before installing the adapter into an existing system, backup any
important or useful data. Failure to follow this accepted PC
practice could result in data loss.
Note
The FastTrak TX Series RAID Controller card is a PCI Plug-n-Play
(PnP) device. No changes are necessary in the motherboard
CMOS/BIOS Setup for resources or drive types in most
applications.
![](asset-f.png)
Chapter 2: Installation
9
1. Remove the cover of your system.
2. Install the FastTrak Serial ATA RAID card into the open PCI slot.
3. Fasten the controller card bracket to the system’s frame.
4. Attach your system case’s 2- or 4-pin LED cable to the LED connector on the
FastTrak card (see Install the Disk Drives, below).
Bracket
Attaching screw
FastTrak Serial
ATA RAID card
PCI slots
Motherboard
System frame
![](asset-10.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
10
Install the Disk Drives
The FastTrak TX2200/2300 and TX4200/4300 RAID Controller cards support
only Serial ATA disk drives. For optimal performance, install disk drives of the
same model and capacity. The drives’ matched performance allows the logical
drive to function better as a single drive.
The table above shows the number of drives required for each RAID level. If you
plan to create a mirror (RAID 1) for protection, you can use two new drives OR
use an existing drive and a new drive. The new drive must be the same size or
larger than the existing drive.
1. Install the disk drives into the disk drive bays of your system.
Important
If you wish to include your current bootable Serial ATA drive using
the Windows operating system as part of a bootable Mirrored
(RAID 1) logical drive on your FastTrak card, do NOT connect the
disk drive to the FastTrak yet. You MUST install the Windows
driver software first onto this drive while it is still attached to your
existing disk drive controller.
Level Number of Drives
RAID 0 any number
RAID 1 2 only
RAID 10 4 only
JBOD 1 only
Caution
Use of removable disk drive enclosures other than Promise
Technology’s SuperSwap is not supported and may result in
performance loss or other undesired results.
![](asset-11.png)
Chapter 2: Installation
11

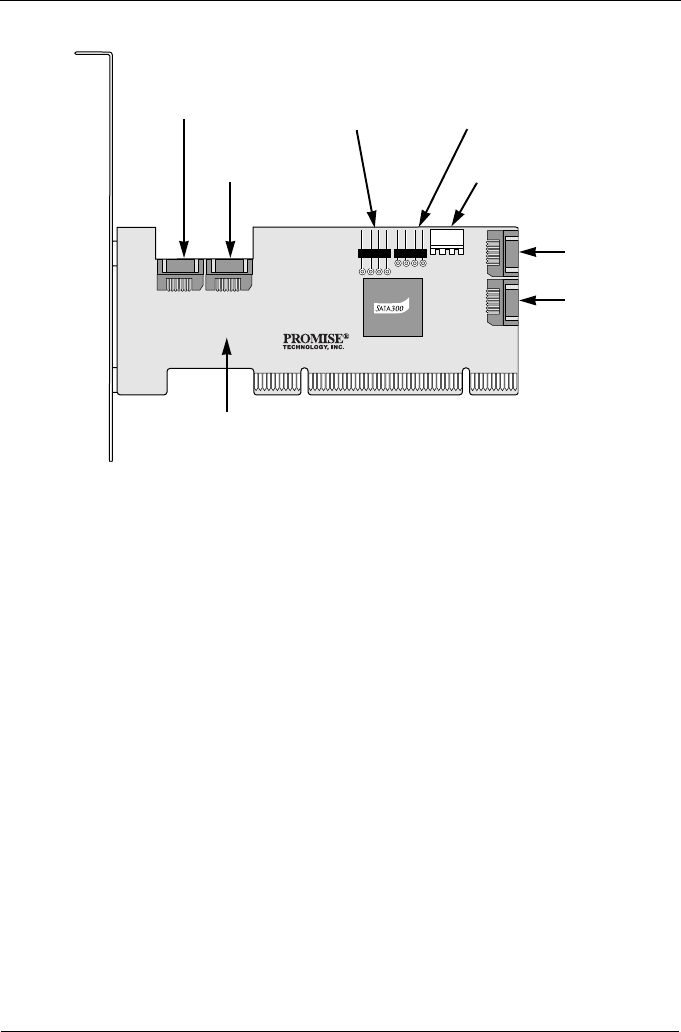

FastTrak
TX2200
Port 1 /
Channel 1
Management
Connector
Port 2 /
Channel 2
FastTrak TX2200/2300 Serial
ATA RAID Controller card
Individual LED
Connectors
Aggregate LED
Connectors
FastTrak
TX4200
Port 1 /
Channel 1
Port 2 /
Channel 2
Port 3 /
Channel 3
Port 4 /
Channel 4
FastTrak TX4200 Serial ATA
RAID Controller card
Management
Connector
Individual LED
Connectors Aggregate LED
Connectors
![](asset-12.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
12
2. Attach one Serial ATA data cable to each disk drive. Then attach the other
ends of the cables to the connectors on the FastTrak card (above).
3. Attach the Y-cable power splitters to your Serial ATA disk drives.
If you are using a Promise SuperSwap 1100 or 4100 enclosure in your PC:
• Connect the power cables to the SuperSwap enclosure.
• Attach a SMBus cable from the Management Connector on the
FastTrak card to the Management Connector on the first enclosure
These actions are described in Chapter 2 of the SuperSwap User Manual.
FastTrak
TX4300
Port 1 /
Channel 1
Port 2 /
Channel 2
Port 3 /
Channel 3
Port 4 /
Channel 4
FastTrak TX4300 Serial ATA
RAID Controller card
Management
Connector
Individual LED
Connectors Aggregate LED
Connectors
![](asset-13.png)
Chapter 2: Installation
13
Create Your Logical Drive
You will now use the onboard FastBuild BIOS utility to create a logical drive with
the attached drives.
For an explanation of the logical drive concepts, see Chapter 6
1. Boot your system. If this is the first time you have booted with the FastTrak
card and drives installed, the Promise onboard BIOS will display the
following screen (below).

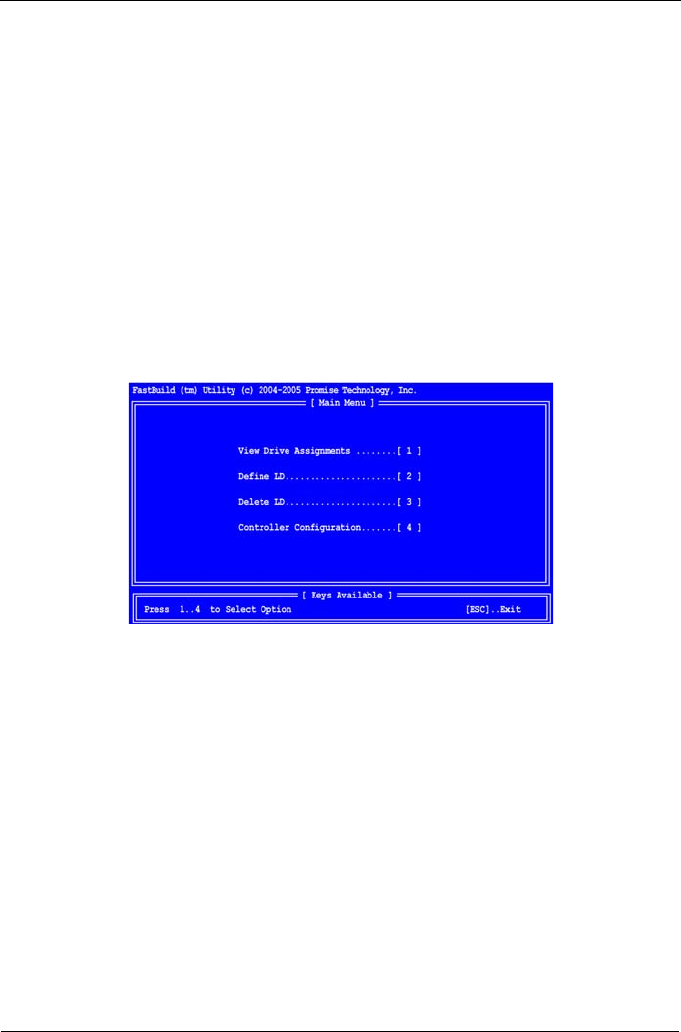

2. Press the Ctrl-F keys to display the FastBuild Utility Main Menu (below).
3. Press 2 on the Main Menu screen to display the Define LD Menu (below).
Note
You can omit this step and create your logical drive using the
WebPAM software.
![](asset-14.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
14

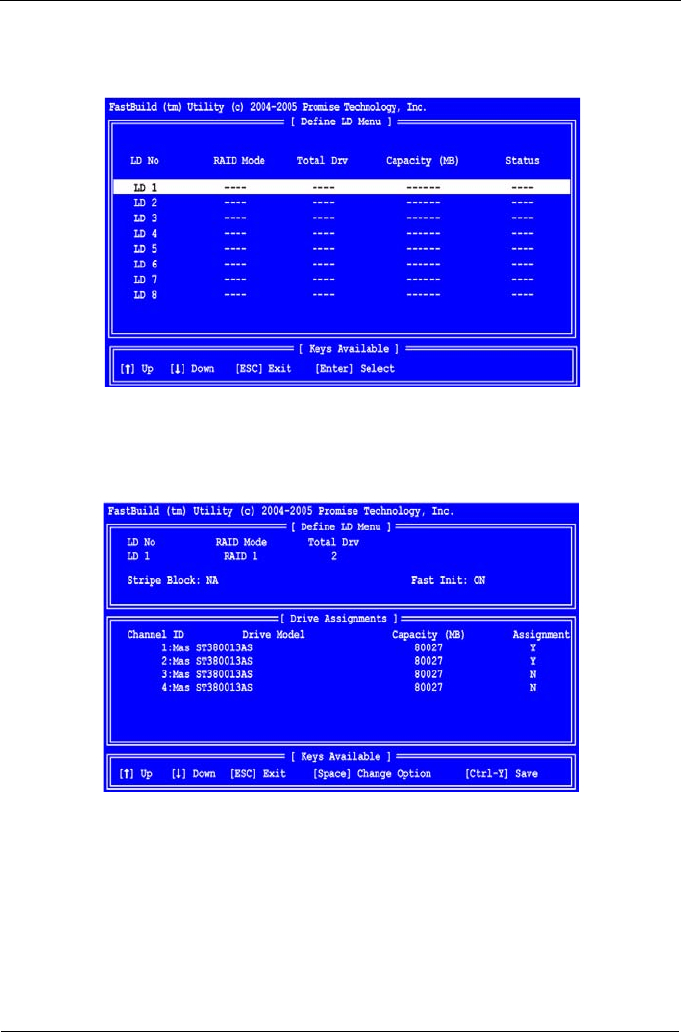

4. Press the arrow keys to highlight an logical drive number you want to define
and press Enter to select it.
The Define LD Menu for the logical drive number you selected will next
appear (below).
5. Choose the RAID Level you want. In the Define LD Menu section, press the
Spacebar to toggle through logical drive types:
•RAID 0 (Stripe)
• RAID 1 (Mirror)
• RAID 10 (Stripe / Mirror)
• JBOD (Single Drive)
![](asset-15.png)
Chapter 2: Installation
15
6. Press the arrow keys to move to the next option. Option choices depend on
the RAID Level you selected.
• Fast Init erases the Master Boot Record (MBR) of the disk drives when
this feature is set to ON. Applies to RAID 0, 1 or 10.
• Stripe Block Size. Press the Spacebar to toggle through 32, 64 or
128KB. 64KB is the default. See “Stripe Block Size” on page 102 for
more information. Applies to RAID 0 or 10.
7. Press the arrow keys to move to Disk Assignments. Press the spacebar to
toggle between N and Y for each available drive. Y means this disk drive will
be assigned to the logical drive.
Assign the appropriate number of disk drives to your logical drive. Refer to
the table under “Install the Disk Drives” on page 10.
A disk drive that is not assigned to a logical drive will automatically function
as a Hot Spare Drive.
8. Press Ctrl-Y to save your logical drive configuration.

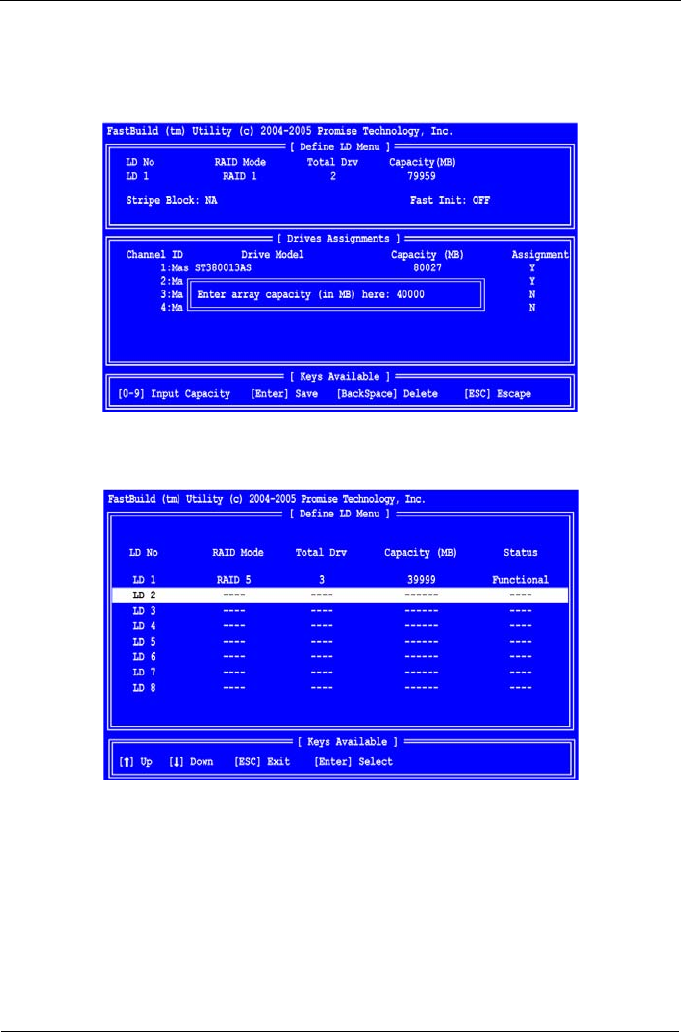

You have the option allocating a portion to a second logical drive. This option
is discussed under “Create a Logical Drive” on page 36.
9. Press any key (except for Ctrl-Y) to use the full portion of the logical drive for
one logical drive.
10. Press Esc to exit to the Main Menu. Press Esc again to exit the Utility.
11. Press Y to restart the computer.
You have successfully created a new RAID logical drive.
Important
You must be partition and format your new logical drive before you
can use it. Use the same method of partitioning and formatting a
logical drive as you would any other fixed disk added to your
computer system.
![](asset-16.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
16
WebPAM Installation
WebPAM installation software will install two major components:
• Utility Server – WebPAM RAID monitoring and Networking software
• Java Runtime Environment (if not previously installed)
Utility Server
The Utility Server installs on the PC with the FastTrak RAID Controller card (the
“Host PC”).

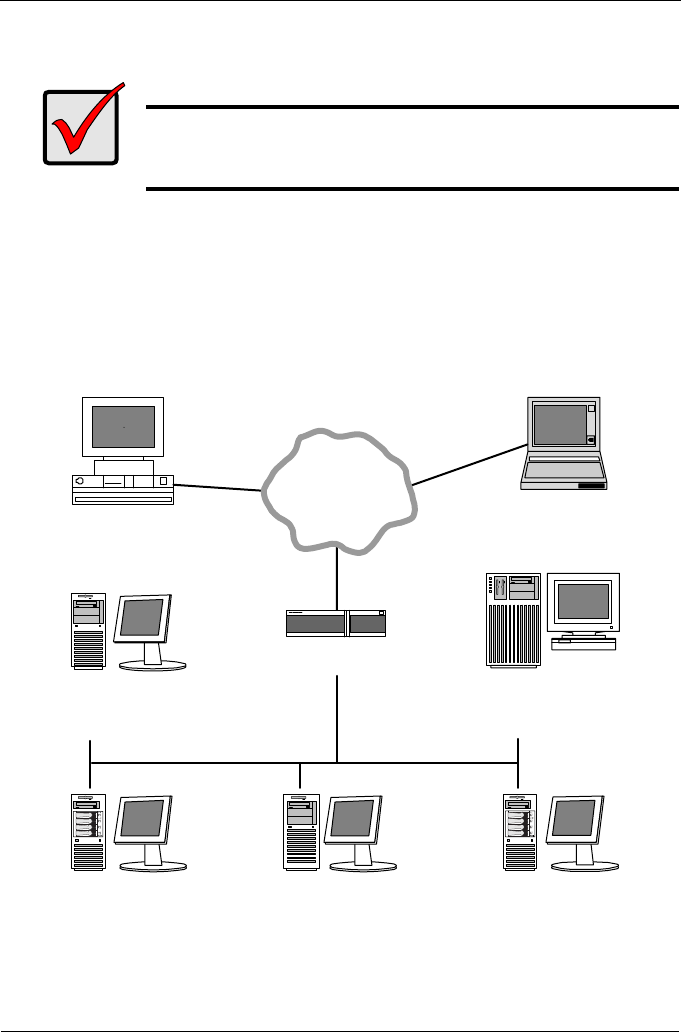

Figure 12.WebPAM on a network
Important
Install the FastTrak software drives for your operating system
before installing WebPAM. See “Chapter 3: Install Drivers” on
page 25 for instructions.
Desktop PC
with Internet
browser
Laptop PC
with Internet
browser
The
Internet
Networked PC
with Internet browser
Router & Firewall
Host PC with
FastTrak Controller Host PC with
FastTrak Controller Host PC with
FastTrak Controller
File Server with
Utility Server
![](asset-17.png)
Chapter 2: Installation
17
Java Runtime Environment
If you are planning to use other applications that rely on JRE or JDK, always
install them first before you install WebPAM. WebPAM will use the existing JRE
rather than installing a second one.
WebPAM will install JRE 1.4 on your system unless you already have JRE or JDK
versions 1.3.0 or 1.4.
Operating System Support
On the Host PC where you install the FastTrak controller and WebPAM, Promise
Technology recommends:
• Windows 2000
• Windows XP Professional
• Windows 2003
• Red Hat EL 4.0
• SuSE ES 9.0
The Utility Server supports these operating systems. Choose one of them to take
full advantage of all the features of WebPAM.
Install WebPAM
Windows
Follow these steps to install WebPAM on your Windows-based PC or Server.
1. Boot up the PC/server and launch Windows.
If the computer is already running, exit all programs.
2. Insert the software CD into your CD-ROM drive.
3. Double-click on the Install CD's icon to open it.
4. Double-click on the Installer icon to launch it (right).
The first WebPAM installation dialog box appears. Go to
“WebPAM Installation for Windows and Linux, continued” on page 18
Linux
Follow these steps to install WebPAM on your Linux-based PC or Server.
1. Boot up the PC/server and launch the Linux GUI.
If the computer is already running, exit all programs.
2. Insert the software CD into your CD-ROM drive.
3. In the CD window, double-click on the webpam...bin icon to
begin installation (right).
![](asset-18.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
18
4. When the Run or Display? dialog box appears, click Run in Terminal.
After several moments, the Terminal window closes and the first WebPAM
PRO installation dialog box appears.
WebPAM Installation for Windows and Linux, continued
The first WebPAM installation dialog box appears, as shown below.
5. When the Introduction screen appears (above), click the Next button.
![](asset-19.png)
Chapter 2: Installation
19
6. When the License Agreement appears (above), click the “I accept the terms
of the license agreement” radio button. Then click the Next button.
![](asset-1a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
20
7. When the Choose Install Folder screen appears (above), make your
selection of a folder for the WebPAM applications you are installing. The
default folder is C:\Program Files\Promise\WebPAM 2.0. If you want a
different folder, type its location or click the Browse button and select a new
location.
If you change your mind and want the default location, click on the Back
button, then the Next button.
Click the Next button when you are finished.
8. When the SSL Security Options screen appears (above), you can check
External Security. An explanation follows.
External SSL Security – Applies security to all connections involving the
Internet or outside your company firewall.
Security options are invisible to authorized users.
Promise Technology provides a default certificate for the server as well as for
internal data communication. However, in some cases it is always better to
install and verify your own certificate for the webserver. And, and if possible,
verify certificate by certificate authority like Verisign or Thwate. See your MIS
Administrator for guidance.
Click the Next button when you have made your choice.
![](asset-1b.png)
Chapter 2: Installation
21
9. When the Installation Summary screen appears (above), review your
choices.
To make changes, click the Back button.
To continue, click the Install button.
![](asset-1c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
22
10. When the Install Complete screen appears (above), the installation process
is finished. Click the Finish button.
![](asset-1d.png)
Chapter 2: Installation
23
11. When the Install Complete screen appears (above), the installation process
is finished. Click the Finish button to go to the Promise Registration website.
This completes the WebPAM installation. Go to“Chapter 5: WebPAM” on page 45
for information about using WebPAM.
Important
Registration of your FastTrak and WebPAM provides useful
information that helps Promise Technologies to offer better
products and support. Please take a few minutes to register.
Thanks!
![](asset-1e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
24
![](asset-1f.png)
25
Chapter 3: Install Drivers
• Make a Driver Installation Diskette, page 26
• Windows Server 2003
• New, page 27
• Exsting, page 28
• Confirm, page 28
•Windows XP
• New, page 29
• Exsting, page 30
• Confirm, page 30
• Windows 2000
• New, page 31
• Exsting, page 32
• Confirm, page 32
Following are driver installation procedures for the Windows operating systems
that support the FastTrak TX Series RAID Controller card. The FastTrak drivers
for Windows are included on the CD.
Drivers and installation instructions for Linux are downloadable from the Promise
website at www.promise.com.
Important
If you wish to include your current bootable drive using the
Windows 2000, XP or Server 2003 operating system as part of a
bootable Mirrored (RAID 1) disk array, you MUST install the
FastTrak driver to this drive while it is still attached to your existing
disk drive controller.
![](asset-20.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
26
Make an Installation Floppy Diskette
This procedure requires one write-enabled blank 3.5-inch diskette.
1. Place your blank diskette in the appropriate drive.
2. Insert the Promise CD into your CD-ROM drive.
The display screen should open automatically.
If the display screen does not open, click on MyComputer > CD Drive D: and
double-click on the Launch.exe icon.
3. Click on the Windows Driver button.
The Disk Copy Utility opens.
4. Click the Create button in the Utility.
A confirmation box appears.
5. Click the Yes button in the confirmation box.
The utility prepares your driver installation diskette.
When the utility is finished, it displays a message.
6. In the message, click the OK button.
7. Click the Exit button to close the Promise CD.
![](asset-21.png)
Chapter 3: Install Drivers
27
Windows Server 2003
New Installation
The following details the installation of the FastTrak TX Series RAID Controller
drivers while installing Windows Server 2003.
1. Start the installation:
• Floppy Install: Boot the computer with the Windows Server 2003
installation diskettes.
• CD-ROM Install: Boot from the CD-ROM. Press F6 after the message
"Press F6 if you need to install third party SCSI or RAID driver" appears.
2. When the Windows Server 2003 Setup window is generated, press S to
specify an Additional Device(s).
3. Insert the FastTrak driver diskette into drive A: and press Enter.
4. Choose Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm)
Controller from the list that appears on screen, and then press the Enter.
5. Press S to use the driver on the floppy disk and then press Enter to continue
with installation.
6. The Windows Server 2003 Setup screen will appear again saying “Setup will
load support for the following mass storage devices:” The list will include
“Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm) Controller”.
NOTE: If there are any additional devices to be installed, specify them now.
When all devices are specified, continue to the next step.
7. From the Windows Server 2003 Setup screen, press the Enter. Setup will
now load all device files and then continue the Windows Server 2003
installation.
![](asset-22.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
28
Existing Installation
After installing the FastTrak TX Series RAID Controller card and rebooting your
system, Windows Server 2003 setup will show a “Found New Hardware” dialog
box. Under Windows 2003, “RAID Controller” will be displayed.
1. Insert the FastTrak driver diskette into the A:\ drive.
2. Choose Install the software automatically and press the Enter key.
3. Choose Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm)
Controller from the list that appears on screen, and then press the Enter key.
4. If using a driver that has not been digitally signed by Microsoft, you will be
asked if you want to continue the installation. Click Continue anyway.
5. When the New Hardware Wizard has finished installing the FastTrak driver,
click Finish.
Confirm Installation

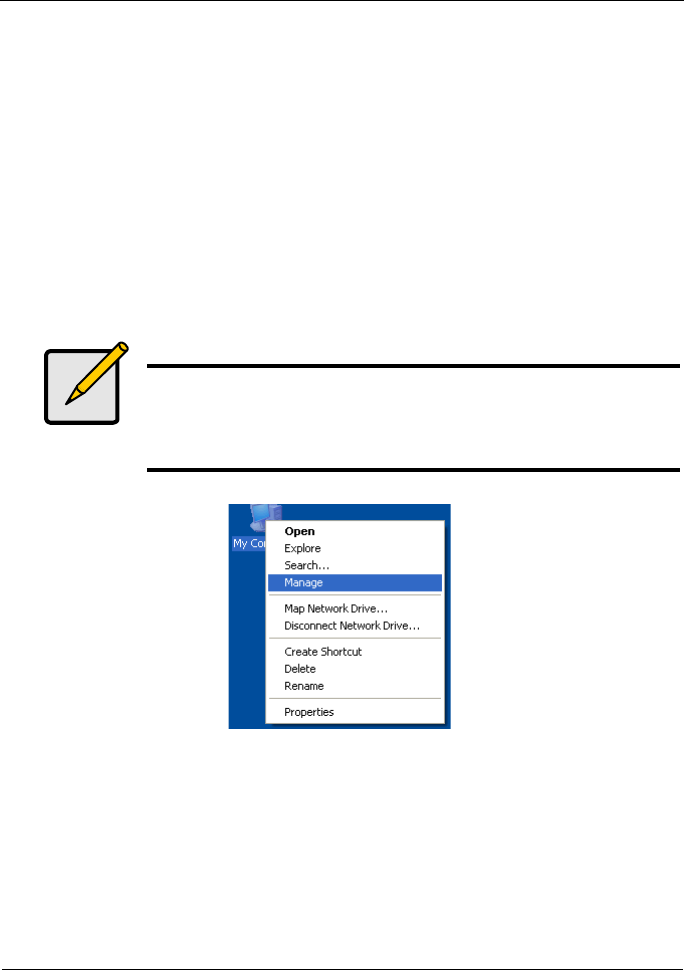

1. Right-click on the My Computer icon and select Manage from the popup
menu.
2. From the left panel, select Device Manager.
3. Click the “+” in front of SCSI and RAID controllers. “Windows Promise
FastTrak TX [2200, 2300, 4200, 4300] (tm) Controller” and “Promise RAID
Console SCSI Processor Device” should appear.
![](asset-23.png)
Chapter 3: Install Drivers
29
Windows XP
New Installation
The following details the installation of the FastTrak TX Series RAID Controller
drivers while installing Windows XP.
1. Start the installation:
• Floppy Install: Boot the computer with the Windows XP installation
diskettes.
• CD-ROM Install: Boot from the CD-ROM. Press F6 after the message
"Press F6 if you need to install third party SCSI or RAID driver" appears.
2. When the Windows XP Setup window is generated, press S to specify an
Additional Device(s).
3. Insert the FastTrak driver diskette into drive A: and press Enter.
4. Choose Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm)
Controller from the list that appears on screen, and then press the Enter.
5. Press S to use the driver on the floppy disk and then press Enter to continue
with installation.
6. The Windows XP Setup screen will appear again saying “Setup will load
support for the following mass storage devices:” The list will include
“Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm) Controller”.
NOTE: If there are any additional devices to be installed, specify them now.
When all devices are specified, continue to the next step.
7. From the Windows XP Setup screen, press the Enter. Setup will now load all
device files and then continue the Windows XP installation.
![](asset-24.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
30
Existing Installation
After installing the FastTrak TX Series RAID Controller card and rebooting your
system, Windows XP setup will show a “Found New Hardware” dialog box.
1. Insert the FastTrak driver diskette into the A:\ drive.
2. Choose Install the software automatically and press the Enter key.
3. Choose Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm)
Controller from the list that appears on screen, and then press the Enter key.
4. If using a driver that has not been digitally signed by Microsoft, you will be
asked if you want to continue the installation. Click Continue anyway.
5. When the New Hardware Wizard has finished installing the FastTrak driver,
click Finish.
Confirm Installation
1. Right-click on the My Computer icon and select Manage from the popup
menu.
2. From the left panel, select Device Manager.
3. Click the “+” in front of SCSI and RAID controllers. “Windows Promise
FastTrak TX [2200, 2300, 4200, 4300] (tm) Controller” and “Promise RAID
Console SCSI Processor Device” should appear.
![](asset-25.png)
Chapter 3: Install Drivers
31
Windows 2000
New Installation
The following details the installation of the FastTrak TX Series RAID Controller
drivers while installing Windows 2000.
1. Start the installation:
• Floppy Install: Boot the computer with the Windows 2000 installation
diskettes.
• CD-ROM Install: Boot from the CD-ROM. Press F6 after the message
“Press F6 if you need to install third party SCSI or RAID driver” appears.
2. When the Windows 2000 Setup window is generated, press S to specify an
Additional Device(s).
3. Insert the FastTrak driver diskette into drive A: and press Enter.
4. Choose Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm)
Controller from the list that appears on screen then press Enter.
5. The Windows 2000 Setup screen will appear again saying “Setup will load
support for the following mass storage devices:” The list will include
“Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm) Controller”.
NOTE: If there are any additional devices to be installed, specify them now.
When all devices are specified, continue to the next step.
6. From the Windows 2000 Setup screen, press Enter. Setup will now load all
device files and then continue the Windows 2000 installation.
![](asset-26.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
32
Existing Installation
After installing the FastTrak TX Series RAID Controller card and rebooting your
system, Windows 2000 setup will show a “New Hardware Found” dialog box.
Under Windows 2000, “PCI Mass Storage Controller” will be displayed.
1. Choose Add New Hardware Wizard from the list, and then press Enter.
2. Choose Add/Troubleshoot a device and click Next. The new hardware
wizard will show device list
3. Choose Mass Storage controller and click Next. At the following screen click
Finish.
4. Choose Display a list the known drivers for this device so that I can choose a
specific driver then click Next.
5. When the Windows 2000 supported SCSI adapter drivers list appears, click
Have disk.
6. Insert the FastTrak driver diskette in drive A:\.
7. Type A:\Win2000 in the text box. Click OK.
8. Choose Windows Promise FastTrak TX [2200, 2300, 4200, 4300] (tm)
Controller from the list that appears on screen, then click Next.
9. Click Yes to confirm continue the installation and copy the driver to system.
10. Remove the diskette and click Finish to restart the system.
Windows 2000 will then restart for the driver installation to take effect.
Confirm Installation
1. Right-click on the My Computer icon and select Manage from the popup
menu.
2. From the left panel, select Device Manager.
3. Click the “+” in front of SCSI controllers. “Windows Promise FastTrak TX
[2200, 2300, 4200, 4300] (tm) Controller” and “Promise RAID Console SCSI
Processor Device” should appear.
![](asset-27.png)
33
Chapter 4: FastBuild™ Utility
FastTrak BIOS
The FastTrak BIOS is a built-in component of the FastTrak TX Series RAID
Controller card.
When the FastTrak BIOS loads during bootup, it displays pertinent information
about the RAID logical drives that it finds. At this point, you can press Ctrl-F to
enter the FastBuild Configuration Utility.
When the FastTrak BIOS screen appears, press Ctrl-F to enter the FastBuild
Utility.
The FastTrak BIOS screen displays the following information:
ID – An identification number assigned to each logical drive by the BIOS.
Mode – The RAID mode (level) configuration of the logical drive
Size – The data capacity of the logical drive in MB (Megabytes).
Track-Mapping – This is the CHS (Cylinder/Head/Sector) equivalent of the
logical drive geometry as hosted by the FastTrak BIOS int 13h disk services.
Status – Shows one of three logical drive conditions:
Functional – The logical drive is fully operational, and no problems are
present.
Critical – The logical drive is operational, but has lost its fault tolerance. For
RAID levels 1 and 10, the logical drive contains a failed drive. If there is a hot
• FastTrak BIOS (below)
• Main Menu (page 34)
• View Drive Assignments (page 35)
• Create a Logical Drive (page 36)
• Delete Logical Drive (page 41)
• Controller Configuration (page 42)
• Logical Drive Problems (page 43)
![](asset-28.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
34
spare drive, the logical drive will rebuild automatically. You must identify and
replace the failed disk drive.
Offline – The logical drive is no longer operational and the FastBuild utility
cannot rebuild it. You must identify and replace the failed drive(s). Then you
can create a new logical drive and copy your data to it from the last tape
backup or other device.
For RAID levels 1 and 10, at least two or more disk drives in the logical drive
have failed.
For a RAID 0 or JBOD logical drive, at least one disk drive has failed.
Main Menu
When the FastTrak BIOS displays on your computer screen, press Ctrl-F to
launch the FastBuild utility and display the Main Menu.
The Main Menu (above) has five options:
• Press 1 to view disk drive assignments
• Press 2 to create a logical drive or view information about an existing logical
drive.
• Press 3 to delete a logical drive.
• Press 4 to view and change controller configuration.
• Press Esc (Escape) to exit the menu.
![](asset-29.png)
Chapter 4: FastBuild™ Utility
35
View Drive Assignments
From the Main Menu screen, press 1 to see the View Drive Assignments screen
(below).
This screen reports disk drive assigments and provides the following information:
Channel: ID – Shows the FastTrak Controller channel ID (1 through 4) to which a
particular disk drive is attached.
Drive Model – Identifies the manufacturer, model, and model number (if
applicable) of each disk drive.
Capacity (MB) – Reflects the capacity in MB (megabytes) of the disk drive.
Assignment – This field identifies the logical drive to which the disk drive
belongs. In the example above, there is one logical drive composed of three disk
drives. LD 1-2 means logical drive 1, disk drive 2.
Unassigned drives are labeled free and are considered hot spares to provide
fault tolerance. Unassigned drives may also be used to create a new logical drive
at any time.
Extent – An extent is a portion of the disk drive. The FastTrak TX Series RAID
Controller card allows you to split the capacity of a disk drives between two
logical drives. The portion of a disk drive available to be used in a logical drive is
called an extent. The extent, or sum of two extents, is slightly smaller than the
total capacity of the disk drive.
See “View Drive Assignments, Split Disk Drives” on page 40 for an example of
two extents for each disk drive.
![](asset-2a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
36
Create a Logical Drive
1. From the Main Menu screen, press 2 to display the Define LD Menu (below).
2. Press the arrow keys to highlight an logical drive number you want to define
and press Enter to select it.
The Define LD Menu for the logical drive number you selected will next
appear (below).
3. Choose the RAID Level you want. In the Define LD Menu section, press the
Spacebar to toggle through logical drive types:
•RAID 0 (Stripe)
• RAID 1 (Mirror)
• RAID 10 (Stripe / Mirror)
• JBOD (Single Drive)
See for more information.
![](asset-2b.png)
Chapter 4: FastBuild™ Utility
37
4. Press the arrow keys to move to the next option. Option choices depend on
the RAID Level you selected.
• Fast Init erases the Master Boot Record (MBR) of the disk drives when
this feature is set to ON. Applies to RAID 0, 1 or 10.
• Stripe Block Size. Press the Spacebar to toggle through 32, 64 or
128KB. 64KB is the default. Applies to RAID 0 or 10.
5. Press the arrow keys to move to Disk Assignments. Press the spacebar to
toggle between N and Y for each available drive. Y means this disk drive will
be assigned to the logical drive.
Assign the appropriate number of disk drives to your logical drive.
A disk drive that is not assigned to a logical drive will automatically function
as a Hot Spare Drive.
6. Press Ctrl-Y to save your logical drive configuration.
If you set Fast Init to ON, the following message displays:
Press Ctrl-Y to perform the Fast Initialization. Press any other key to skip it.
You have the option of using all of the disk drive capacity for one logical drive
or allocating a portion to a second logical drive.
7. Choose one of the following:
• Use the full capacity of the disk drives for a single logical drive. Go to
“One Logical Drive” below.
• Split the disk drives among two logical drives. This option does not apply
to JBOD. Go to “Two Logical Drives” on page 38.
One Logical Drive
Continued from Create Logical Drive step 7, above.
1. Press any key (except for Ctrl-Y) to use the full portion of the logical drive for
one logical drive.
2. Press Esc to exit to the Main Menu. Press Esc again to exit the Utility.
3. Press Y to restart the computer.
You have successfully created a new RAID logical drive.
You must be partition and format your new logical drive before you can use it.
Use the same method of partitioning and formatting a logical drive as you would
any other fixed disk added to your computer system.
![](asset-2c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
38
Two Logical Drives
Continued from Create Logical Drive step 7, above.
1. Press Ctrl-Y to allocate a portion of the disk drives to the first logical drive.
2. Enter the desired capacity in MB for the first logical drive and press Enter.
The Define LD Menu displays again.
![](asset-2d.png)
Chapter 4: FastBuild™ Utility
39
3. Press the up and down arrow keys to select an available logical drive
number and press Enter.
4. Choose the RAID level and options for the second logical drive.
Note that the disk drives in Channels 1 and 2 reflect smaller capacities
because a portion of their original capacity belongs to a different logical
drive.
In this example the disk drive in Channel 4 is not assigned to a logical drive
in order to use it as a hot spare drive.
5. Press Ctrl-Y to save your logical drive configuration.
6. Press Esc to exit to the Main Menu. Press Esc again to exit the Utility.
7. Press Y to restart the computer.
You have successfully created a new RAID logical drive.
You must partition and format your new logical drive before you can use it. Use
the same method of partitioning and formatting a logical drive as you would any
other fixed disk added to your computer system.
![](asset-2e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
40
View Drive Assignments, Split Disk Drives
After you create two logical drives from the same set of disk drives, press 1 on
the Main Menu screen to see the View Drive Assignments screen (below).
In this example, observe how each of the disk drives in Channels 1, 2 and 3 are
split between two logical drives. Extent 1 belongs to logical drive 1 (LD 1). Extent
2 belongs to logical drive 2 (LD 2).
Under Assignment, the disk drive is divided into LD 1 and LD 2. For example, LD
1-2 means logical drive 1, disk drive 2. LD 1-2 means logical drive 1, disk drive 2.
Note that the combined size of the extents is slightly smaller than the total
capacity of the disk drive.
Unassigned drives are labeled free and are considered hot spares to provide
fault tolerance in the event of a disk drive failure. Alternatively, you can use an
unassigned drive to create a new logical drive.
![](asset-2f.png)
Chapter 4: FastBuild™ Utility
41
Delete Logical Drive
To delete a logical drive:
1. From the Main Menu screen, press 3 to display the Delete LD Menu (below).
2. Highlight the logical drive you wish to delete and press the Del key or Alt-D.
The Delete LD Menu for the selected logical drive appears (below).
Caution
Deletion of an existing logical drive will result in the loss of all data
saved on the logical drive.
Record all logical drive information, including RAID level, disk
members, stripe block size and gigabyte boundary, in case you
wish to undo a deletion.
Logical drives may possibly be recovered after deletion by
immediately re-defining the logical drive with information identical
to the original configuration.
![](asset-30.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
42
3. Press Ctrl-Y to confirm and complete logical drive deletion.
The screen returns to the Delete LD Menu. Press Esc to return to the Main
Menu.
Controller Configuration
From the Main Menu screen, press 4 to display the Controller Configuration
Options screen (below).
the Controller Configuration Options screen provides diagnostic information.
![](asset-31.png)
Chapter 4: FastBuild™ Utility
43
System Resources
The information in the System Resources section might be helpful for
troubleshooting purposes:
• The system IRQ used by the FastTrak card
• ATA IO Address
• XOR and HDMA IO Address
• Sequence Control IO Address
• Flash and SRAM IO Address
Logical Drive Problems
While disk drives are highly reliable, on occasion a disk drive can fail. Fault-
tolerant (RAID 1 and 10) logical drives go Critical when a disk drive fails. Non-
fault-tolerant logical drives (RAID 0) and JBOD go Offline when a disk drive fails.

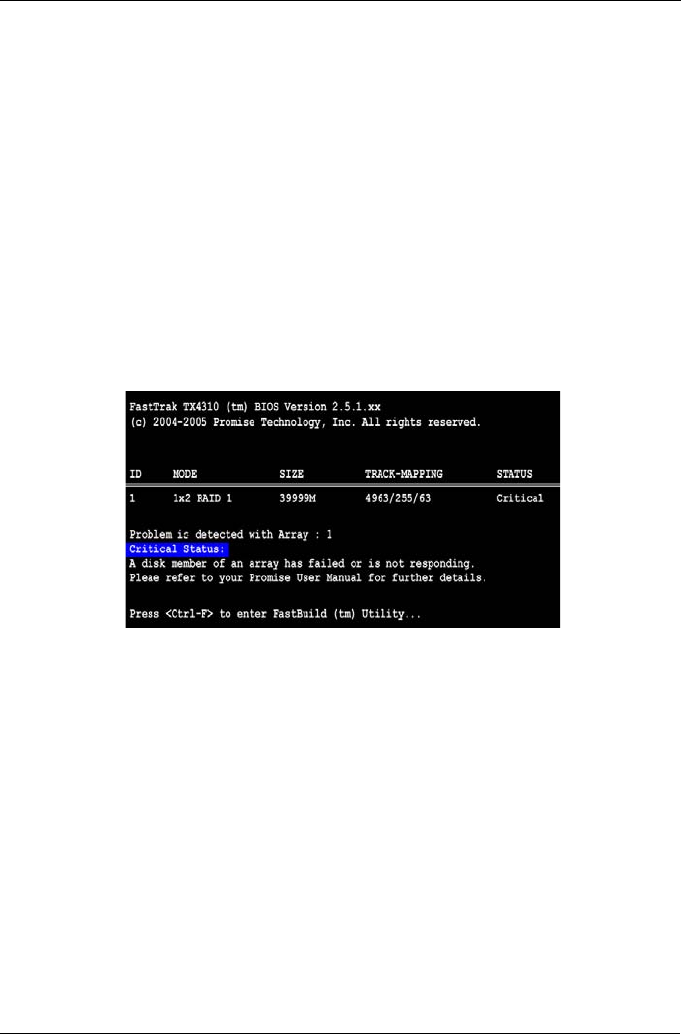

When you boot your system, the FastTrak BIOS screen informs you if there is a
critical or offline logical drive. Allow your PC to finish booting and use WebPAM to
identify the failed drive and to rebuild your logical drive.
See “Logical Drive Critical / Offline” on page 86 for more information.
![](asset-32.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
44
![](asset-33.png)
45
Chapter 5: WebPAM
WebPAM is a RAID management software application. If you have not installed
WebPAM on your PC, see “WebPAM Installation” on page 16.
Log-in to WebPAM
Double-click on the WebPAM icon on your desktop (right). Or,
1. Launch your Browser.
2. In the Browser address field, type in the IP address of the Host PC, as
explained below.
If you did not choose the External Security option during WebPAM
installation (see page 20), use the Regular connection.
If you chose the External Security option during WebPAM installation, use
the Secure connection.
Regular Connection
• WebPAM uses an HTTP connection . . . . . . . . . . . . . . . . . . . . .http://
• Enter the Host PC’s IP address. . . . . . . . . . . .127.0.0.1 or localhost
• Enter the Port number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . :8080
• Add to launch WebPAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . /promise
Together, your entry looks like this:
http://127.0.0.1:8080/promise or https://localhost:8443/promise
Secure Connection
• WebPAM uses a secure HTTP connection . . . . . . . . . . . . . . .https://
• Enter the Host PC’s IP address. . . . . . . . . . . .127.0.0.1 or localhost
• Enter the Port number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . :8443
• Add to launch WebPAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . /promise
Together, your entry looks like this:
https://127.0.0.1:8443/promise or https://localhost:8443/promise
• Log-in to WebPAM (page 45)
• Log-out of WebPAM (page 47)
• User Management (page 47)
• Host Management (page 55)
• Utility Configuration (page 56)
• FastTrak (page 57)
• Controller (page 58)
• Physical Drives (page 62)
• Logical Drives (page 69)
• Enclosures (page 90)
• Spare Drives (page 92)
![](asset-34.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
46
Note that the IP address shown above applies to a log-in at the Host PC.
When you log in over a network, you will enter the Host PC’s actual IP
address.
When the opening screen appears (above):
1. Type admin in the Login ID field.
2. Type admin in the Password field.
3. Click the Sign in button.
This is the default login for the Administrator. Each user will have their own Login
ID (the User ID) and password. See “Add a User” on page 47 and “Change a
User’s Password” on page 51 for more information.
The Login ID and Password are case sensitive.
![](asset-35.png)
Chapter 5: WebPAM
47
Log-out of WebPAM
There are two ways to log out of WebPAM PRO:
• Close your browser window
•Click Logout on the WebPAM banner (below)
After logging out, you must enter your user name and password to log in again.
Clicking Logout brings you back to the Login Screen.

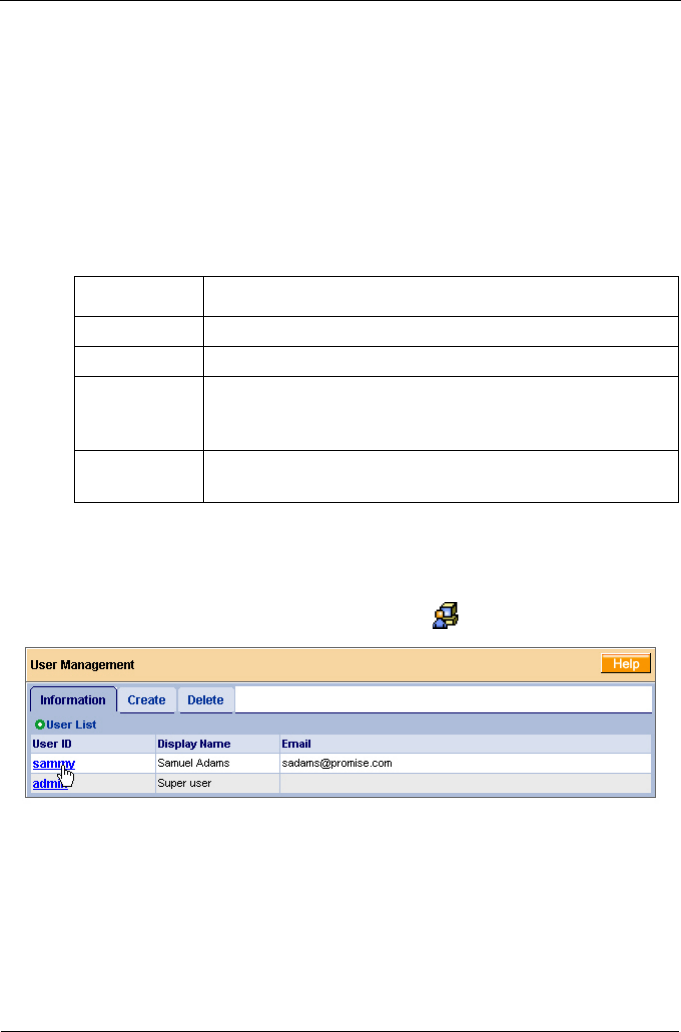

User Management
Add a User
1. In Tree View, click on the User Management icon.
2. Click on the Create tab.
3. Type a User ID into the User ID field.
• Add a User (below)
• Event Notification (page 48)
• Delete a User (page 51)
• Change a User’s Password (page 51)
• Change a User’s Email Address
(page 52)
• Change a User’s Access Rights
(page 53)
![](asset-36.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
48
This will be the User’s login name.
4. Type the user’s display name into the Display Name field.
This could be the User’s actual name.
5. Type a password into the Password field.
Use up to 8 letters and numbers but no spaces or other characters.
6. Type the same password into the Retype Password field.
7. If you plan to set up Event Notification, type the user’s email address in the
Email field.
8. Under Host User Rights, check the boxes to select rights for this user.
9. Click on the Submit button.
Event Notification
1. In Tree View, click on the User Management icon.
2. Click on the User ID link.
3. Click on the Settings tab.
Right Meaning
Creation Permission to create a logical drive and a spare drive
Deletion Permission to delete a logical drive and a spare drive
Maintenance Permission to migrate, rebuild and synchronize a logical
drive; to run Media Patrol on a physical drive; make
controller and physical drive settings
Notification Permission to receive notification of events affecting the
logical drive
![](asset-37.png)
Chapter 5: WebPAM
49

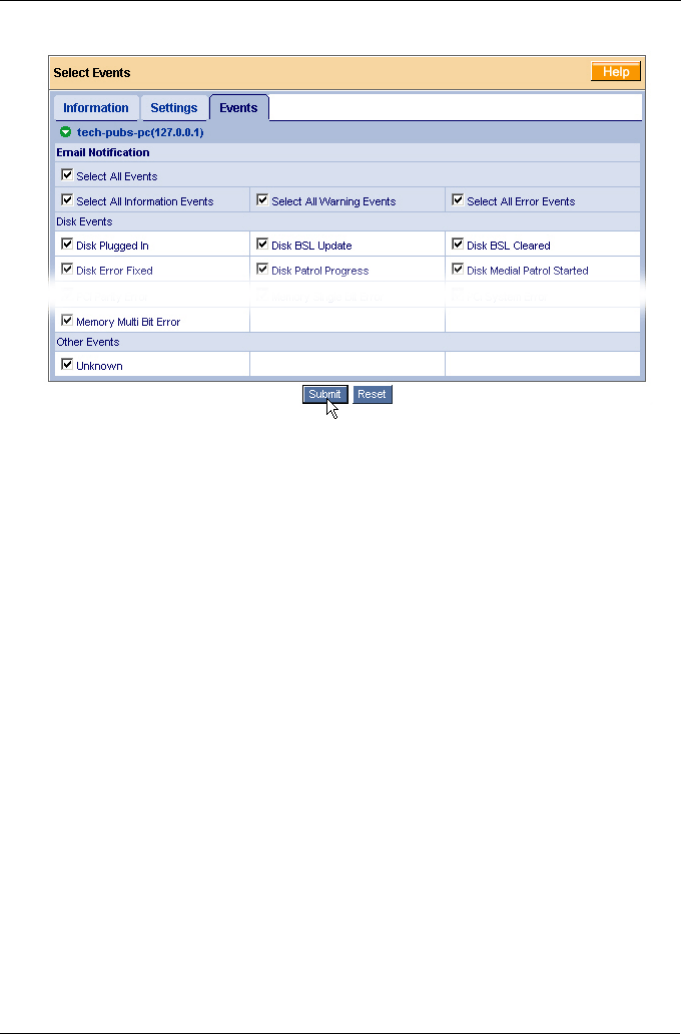

The image above was shortened to fit into the available space.
4. Check the boxes of the notification events that you want to have reported to
you via email and popup messages.
To select events by their severity, check one of the four Select Events boxes
at the top of the window. See the table on the next page.
5. Click on the Submit button.
![](asset-38.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
50
Event Notification Severity Levels
Information Events
Disk Plugged In
Disk BSL Update
Disk BSL Cleared
Disk Error Fixed
Disk Patrol Progress
Disk Media Patrol Started
Disk Media Patrol Completed
Disk Media Patrol Paused
Disk Media Patrol Resumed
Disk Media Patrol Aborted
Array Online
Array Created
Array Deleted
Synchronization Started
Synchronization Completed
Synchronization Paused
Synchronization Resumed
Synchronization Aborted
Synchronization Progress
Synchronization Inconsistency Fixed
Redundancy Check Started
Redundancy Check Completed
Redundancy Check Paused
Information Events, continued
Redundancy Check Resumed
Redundancy Check Aborted
Redundancy Check Progress
Rebuild Started
Rebuild Completed
Rebuild Paused
Rebuild Resumed
Rebuild Aborted
Rebuild Restarted
Rebuild Progress
Background Initialization Progress
Background Initialization Started
Background Initialization Completed
Background Initialization Paused
Background Initialization Resumed
Background Initialization Aborted
Migration Started
Migration Completed
Migration Paused
Migration Resumed
Migration Aborted
Migration Progress
Warning Events
Disk Unplugged
Disk Timeout
Task Error
Disk Media Patrol Aborted with Error
Array Critical
Array Degrade
Synchronization Requested
Redundancy Check Rejected
Fan Error
Voltage 3.3 Out Of Range
Voltage 5 Out Of Range
Voltage 12 Out Of Range
Temperature Above Threshold
PCI Parity Error
Error Events
Disk Setdown
Disk S.M.A.R.T. Error
Array Offline
Synchronization Aborted with Error
Redundancy Check Aborted with Error
Redundancy Check Inconsistency
Found
Rebuild Aborted with Error
Background Initialization Aborted with
Error
Migration Aborted with Error
PCI System Error
Unknown (error)
![](asset-39.png)
Chapter 5: WebPAM
51
Delete a User
1. In Tree View, click on the User Management icon.
2. Click on the Delete tab.
3. Check the box to the left of the user you want to delete.
4. Click the Delete button.
5. In the Confirmation box, click the OK button.
Change a User’s Password
In WebPAM, each user can change his/her own password. To change a user’s
password:
1. Log into WebPAM under the User name.
2. Click on your User ID link.
3. Click on the Settings tab.
![](asset-3a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
52
4. Type a new password in the New Password field.
5. Retype the new password in the Retype Password field.
6. Click the Submit button.
Change a User’s Email Address
In WebPAM, each user can change his/her own email address or the
Administrator can do it. To change a user’s email address:
1. Click on the User ID link for the user whose email address will change.
2. Click on the Settings tab.
Important
If a user forgets his/her password, the Administrator must delete
that User and create a new User, as described above.
![](asset-3b.png)
Chapter 5: WebPAM
53
3. Type a new email address in the Email field.
4. Click the Submit button.

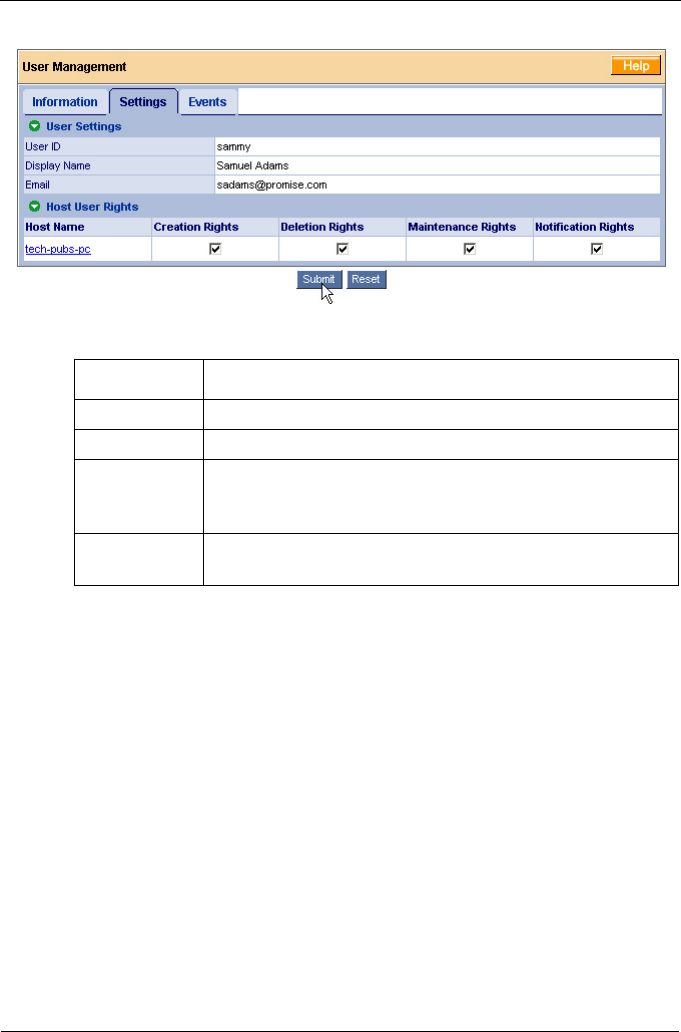

Change a User’s Access Rights
In WebPAM, the Administrator can change a user’s access rights. To change a
user’s access rights:
1. Log in as the Administrator.
2. Click on the User ID link for the user whose access rights will change.
3. Click on the Settings tab.
![](asset-3c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
54
4. Under Host User Rights, check the boxes to select rights for this user.
5. Uncheck the boxes of rights to be deleted.
6. Click the Submit button.
Right Meaning
Creation Permission to create a logical drive and a spare drive
Deletion Permission to delete a logical drive and a spare drive
Maintenance Permission to migrate, rebuild and synchronize a logical
drive; to run Media Patrol on a physical drive; make
controller and physical drive settings
Notification Permission to receive notification of events affecting the
logical drive
![](asset-3d.png)
Chapter 5: WebPAM
55

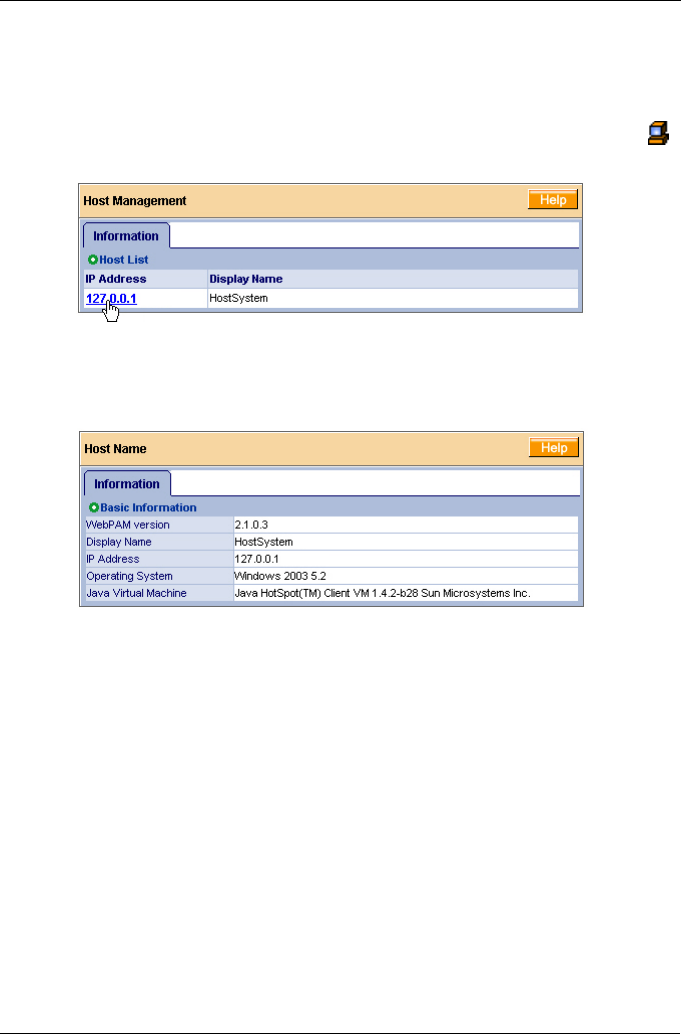

Host Management
This function provides information only. There are no user settings. To access
Host Management:
1. Under Administrative Tools in Tree View, click on the Host Management
icon.
2. Under Host List, click on the link to the host you want to see.
The Host IP address is always 127.0.0.1. If you log in over a network, the
actual IP address of the PC or server with the FastTrak card is shown..
The Information tab displays with information about the Host PC.
• WebPAM Version – The version number of the WebPAM software.
• Display Name – The display name of the Host PC. “localhost” is the default.
• IP Address – 127.0.0.1 is the IP address of the Host PC, accessed at the
Host PC. Other addresses, such as 192.168.1.184, refer to a Host PC
accessed over the network.
• Operating System – The Operating System running on the Host PC.
• Java Virtual Machine – The version number of JVM running on the Host PC.
![](asset-3e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
56
Utility Configuration
Use this function to make email settings for WebPAM and also to set the
refresh interval for the Event Frame.
1. Under Administrative Tools in Tree View, click on the Utility Configuration
icon.
2. Enter the Sender’s address in the Email Sender field.
Be sure the sender has an account in your email system. See your IT
administrator.
3. Enter your email server in the Email Server field.
4. Keep or change the Email Subject line.
5. Type a new interval (in seconds) in the Event Frame Refresh Time field.
30 seconds is the default interval.
6. Click the Submit button when you are done.
![](asset-3f.png)
Chapter 5: WebPAM
57
FastTrak
The FastTrak–Information tab displays a photograph of the FastTrak TX Series
RAID Controller card installed in your system.
WebPAM will display the FastTrak controller installed in your system.
To display this screen in Management View, click on the FastTrak icon in Tree
View.
If you have multiple FastTrak controller cards in the same system, they will
appear under the FastTrak icon as Controller 1, Controller 2, and so on.
![](asset-40.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
58
Controller
• Controller Information (below)
• Controller Settings (page 59)
• Controller Schedule (page 60)
• Controller Lock (page 61)
The term Controller refers to the device that controls your RAID. To access the
controller, click on the Controller icon in Tree View.
Controller Information
The Information tab displays with information about the controller.
•Product Name – The Promise product name for this controller.
•BIOS Version – Version number of the controller’s BIOS.
•Driver Version – Version number of the controller’s software driver.
•Maximum Number of Ports – The number of ports on the controller.
•Maximum Physical Drives – The maximum number of physical (disk)
drives the controller can support.
•Maximum Logical Drives – The maximum number of logical drives (arrays)
the controller can support.
![](asset-41.png)
Chapter 5: WebPAM
59
Controller Settings
Click on the Settings tab to access controller settings.
•Rates – Allocates system resources between the background process (such
as Rebuild, Media Patrol, Expansion/Migration, Initialization and
Synchronization) and the data read/write activity.
A High setting assigns most of the system resources to background
processes. The process will finished sooner but read/write requests are
handled slower.
A Medium setting tries to balance system resources between the
background processes and data input/output activity.
A Low setting assigns most of the system resources to handling read/write
requests. Read/write requests are handled at nearly normal speed while the
background processes take longer.
•Automatic Rebuild Status – When enabled, and a hot spare drive is
available, a critical or degraded logical drive will rebuild itself automatically.
Automatic Rebuilding applies to RAID 1 logical drives only.
•Buzzer – When enabled, the FastTrak controller’s buzzer will sound to
report a problem.
•S.M.A.R.T. Status – SMART, an acronym for Self-Monitoring Analysis and
Reporting Technology, is a feature of the disk drive software. When enabled,
the FastTrak controller polls the disk drives for SMART information and
reports it to you.
•S.M.A.R.T. Check Polling Interval – The FastTrak controller periodically
polls the physical drives for SMART information and displays it in WebPAM.
![](asset-42.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
60
Choose an interval from the dropdown menu. The range is 0 to 120 seconds.
A setting of 0 seconds disables the polling function.
Controller Schedule
Click on the Schedule tab to access scheduled background processes (such as
Rebuild, Media Patrol, Expansion/Migration, Initialization and Synchronization).
To access or schedule a Rebuild, Expansion, Migration, Initialization or
Synchronization, click on the Logical Drive icon in Tree View then select the
appropriate tab in Management View.
To access or schedule a Media Patrol, click on the Physical Drive icon in Tree
View then select the Media Patrol tab in Management View.
Delete a Scheduled Process
To delete a scheduled process:
1. Click on the Controller icon in Tree View.
2. Select the Schedule tab in Management View.
3. Check the box to the left of the process you want to delete.
4. Click the Delete button.
5. In the Confirmation box, click the OK button.
Alternative method to delete a scheduled process:
![](asset-43.png)
Chapter 5: WebPAM
61
1. Go to its function tab under the Physical Drive icon or Logical Drive
icon.
2. Under Schedule, click the Disable radio button.
Controller Lock
The Lock tab displays lock status and enables you to lock or unlock a subsystem
controller. The locking mechanism isolates the controller during maintenance
operations and other periods when you want to avoid interruption from other
users trying to access the logical drives under this controller.
To lock the Controller on the Host PC:
1. Click on the Controller icon in Tree View.
2. Select the Lock tab in Management View.
3. From the dropdown menu, select a period of time to hold the lock.
The lock time range is 1 to 30 minutes.
4. Click on the Lock button to set the lock.
The lock will release itself automatically at the end of the period you
specified.
5. To release the lock before the scheduled time, click the Unlock button.
![](asset-44.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
62
Physical Drives
Physical Drive View
To access Physical Drive View, click on the Physical Drive View icon in Tree
View. From this window, you can click on the links to access information and
functions of individual physical drives and use the Split and Merge feature.
Media Patrol Schedule
The Physical Drive View–Media Patrol tab allows you to start Media Patrol on all
physical drives. You can also run Media Patrol on individual physical drives, see
page 65.
Media Patrol is a routine maintenance procedure that checks the magnetic media
on each disk drive, sector by sector. Media Patrol checks physical drives
• Physical Drive View (below)
• Media Patrol Schedule (page 62)
• Physical Drive Information
(page 64)
• Physical Drive Settings (page 65)
• Physical Drive Media Patrol
(page 65)
• Physical Drive Bad Sector Log
(page 67)
• Locate a Physical Drive (page 68)
![](asset-45.png)
Chapter 5: WebPAM
63
assigned to logical drives, spare drives and currently unassigned physical drives
that were once part of a logical drive or a spare. Media Patrol does not check new
physical drives that have never been configured nor physical drives assigned as
JBOD.
Unlike Synchronization and Redundancy Check, Media Patrol is concerned with
the condition of the media itself, not the data recorded on the media. If Media
Patrol encounters a suspect sector, it will attempt to regenerate the data and
write to the suspect sector. If the write operation is successful, Media Patrol
continues checking other sectors. If the write operation fails, Media Patrol reports
the error to your PC's system log and to the physical drive's Bad Sector Log (see
page 67). This action triggers a BSL update message and an email message if
you enabled that notification option (see page 48).
To schedule Media Patrol:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Media Patrol tab in Management View.
3. Click on the Enable radio button.
4. Click on the by Day, by Week or by Month radio button.
5. From the dropdown menus, select a start time and a day of the Week or
Month, if applicable.
Start time is based on a 24-hour clock.
6. Click the Schedule button.
To cancel the scheduled Media Patrol operation:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Media Patrol tab in Management View.
3. Click the Disable radio button.
![](asset-46.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
64

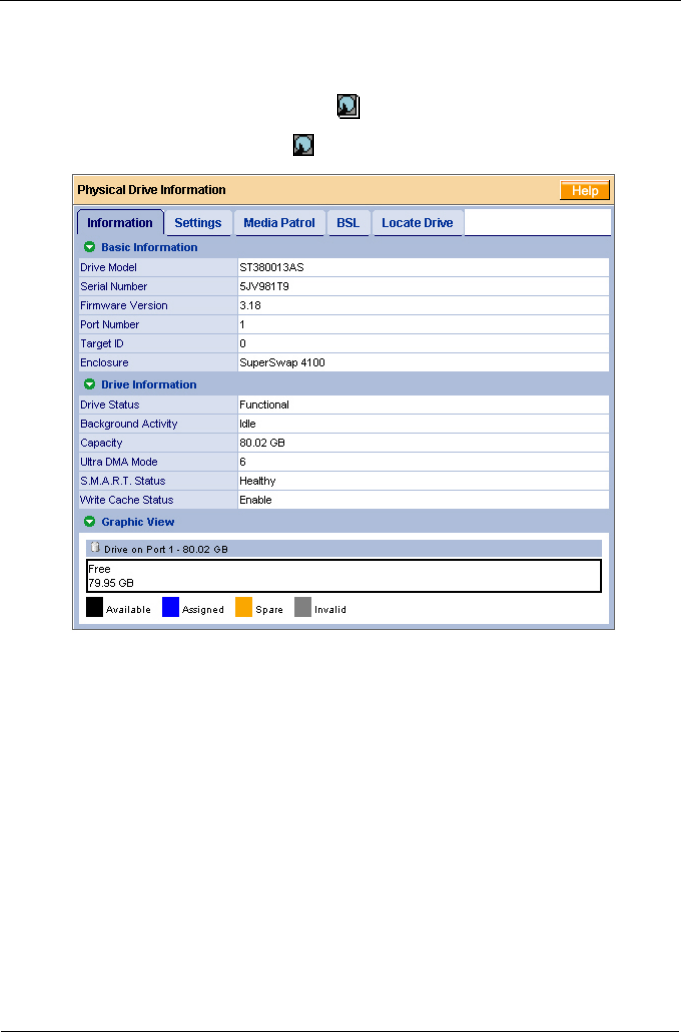

Physical Drive Information
To access information about a physical drive:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Physical Drive icon.
The information tab displays the following information:
•Drive Model – The disk drive manufacturer’s model name or number.
•Serial Number – The serial number of this disk drive.
•Firmware Version – The version number of the firmware on this disk drive.
•Enclosure – The model of SuperSwap enclosure in which the disk drive is
installed. If there is no SuperSwap enclosure, the field says None.
•Drive Status – The operational of this disk drive. Functional means normal.
Others include Offline.
•Background Activity – The current background activity affecting this disk
drive. Idle means no activity. Others include Initializing and Rebuilding.
•Capacity – The data capacity of this disk drive in GB.
•Ultra DMA Mode – The UDMA mode in which this disk drive currently
operates.
![](asset-47.png)
Chapter 5: WebPAM
65
•S.M.A.R.T. Status – SMART, an acronym for Self-Monitoring Analysis and
Reporting Technology, is a feature of the disk drive software. When this
feature is supported, the drive will pass SMART information to the FastTrak
controller when it polls the physical drives.
•Write Cache Status – Indicates whether the disk drive’s write cache is
Enabled or Disabled. You can change this status under the Settings tab (see
below).

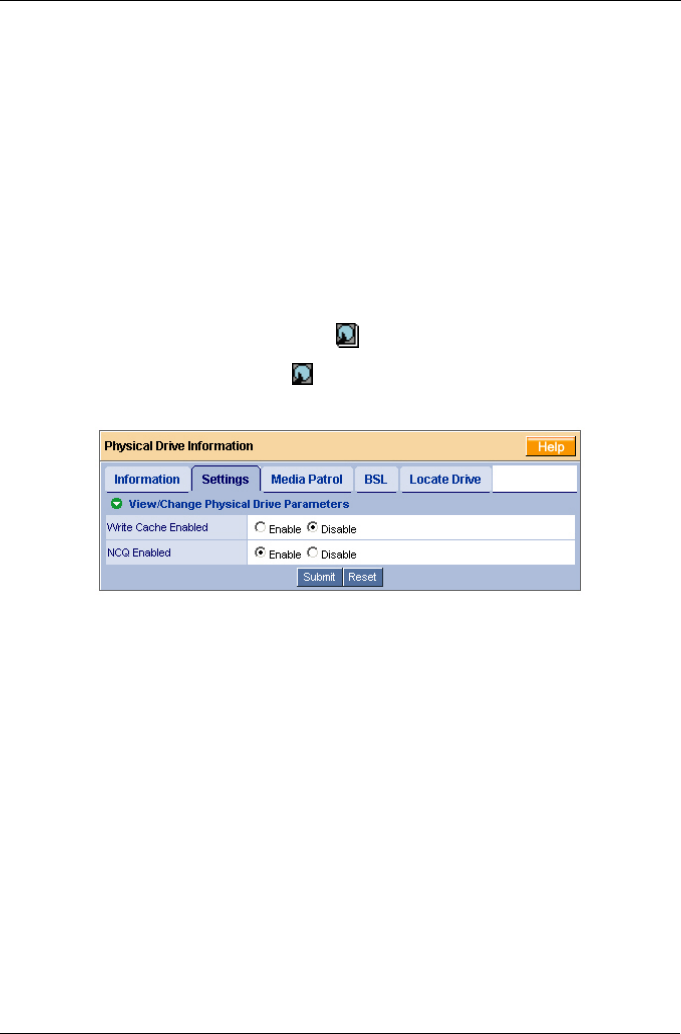

Physical Drive Settings
Physical Drive Settings allows you to enable or disable the Write Cache and
Native Command Queuing (NCQ) on an individual physical drive. To access the
physical drive setting:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Physical Drive icon.
3. Click on the Settings tab in Management View.
4. Click the Write Cache Enable or Disable radio button.
5. Click the NCQ Enable or Disable radio button.
6. Click the Submit button.
Physical Drive Media Patrol
The Physical Drive–Media Patrol tab allows you to start Media Patrol on an
individual physical drive. You can also run Media Patrol on all physical drives at
the same time, see page 62.
Media Patrol is a routine maintenance procedure that checks the magnetic media
on each disk drive, sector by sector. Media Patrol checks physical drives
assigned to logical drives, spare drives and currently unassigned physical drives
that were once part of a logical drive or a spare. Media Patrol does not check new
physical drives that have never been configured nor physical drives assigned as
JBOD.
Unlike Synchronization and Redundancy Check, Media Patrol is concerned with
the condition of the media itself, not the data recorded on the media. If Media
![](asset-48.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
66
Patrol encounters a suspect sector, it will attempt to regenerate the data and
write to the suspect sector. If the write operation is successful, Media Patrol
continues checking other sectors. If the write operation fails, Media Patrol reports
the error to your PC's system log and to the physical drive's Bad Sector Log (see
page 67). This action triggers a BSL update message and an email message if
you enabled that notification option (see page 48).
To start Media Patrol immediately:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Physical Drive icon.
3. Click on the Media Patrol tab in Management View.
4. Click the Start Now button.
To schedule Media Patrol to run at a later time:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Physical Drive icon.
3. Click on the Media Patrol tab in Management View.
4. Click on the Enable radio button.
5. Click on the by Day, by Week or by Month radio button.
![](asset-49.png)
Chapter 5: WebPAM
67
From the dropdown menus, select a start time and a day of the Week or
Month, if applicable.
Start time is based on a 24-hour clock.
6. Click the Schedule button.
To cancel the scheduled Media Patrol operation:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Physical Drive icon.
3. Click on the Media Patrol tab in Management View.
4. Click the Disable radio button.
Physical Drive Bad Sector Log
On occasion, an error can arise with the media on a physical drive. WebPAM
keeps track of bad sectors in order to inform you of the condition of individual
physical drives.
To access a physical drive’s bad sector log:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Physical Drive icon.
3. Click on the BSL tab in Management View.
If any bad sectors are found, they are listed here. WebPAM informs you by popup
and email messages when a bad sector error is logged (see page 48).
After 10 bad sectors have been discovered on a physical drive, WebPAM issues
a warning to replace the drive.
After 20 bad sectors have been discovered:
• On fault-tolerant (RAID 1 or 10) logical drives, the FastTrak controller will set
down the physical drive (take it offline) and the logical drive will go critical.
Replace the physical drive and rebuild your logical drive.
• On non-fault-tolerant (RAID 0) logical drives, the physical drive remains
online.
Backup your data, replace the physical drive, create a new logical drive and
copy your data to it.
![](asset-4a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
68
See “Logical Drive Rebuild” on page 79 and “Logical Drive Critical / Offline” on
page 86.
See the SuperSwap User Manual for more information about replacing a physical
drive.
Locate a Physical Drive
When it becomes necessary to access a physical drive installed in a SuperSwap
enclosure, this function will help you identify the physical drive you want. To
locate a physical drive:
1. Click on the Physical Drive View icon in Tree View.
2. Click on the Physical Drive icon.
3. Click on the Locate Drive tab in Management View.
4. Click the Locate Drive button.
The Management Window will display the message “Identified started” and the
Status LED for this physical drive will flash rapidly on the SuperSwap enclosure.
If you remove the physical drive, the Status LED stops blinking, the Activity LED
goes dark and WebPAM will report that the physical drive was unplugged. When
you replace the drive, the LEDs will return to normal operation.
If you do not remove the physical drive, click on the Located Release button to
stop the Status LED from blinking. For more information, see the SuperSwap
User Manual.
![](asset-4b.png)
Chapter 5: WebPAM
69

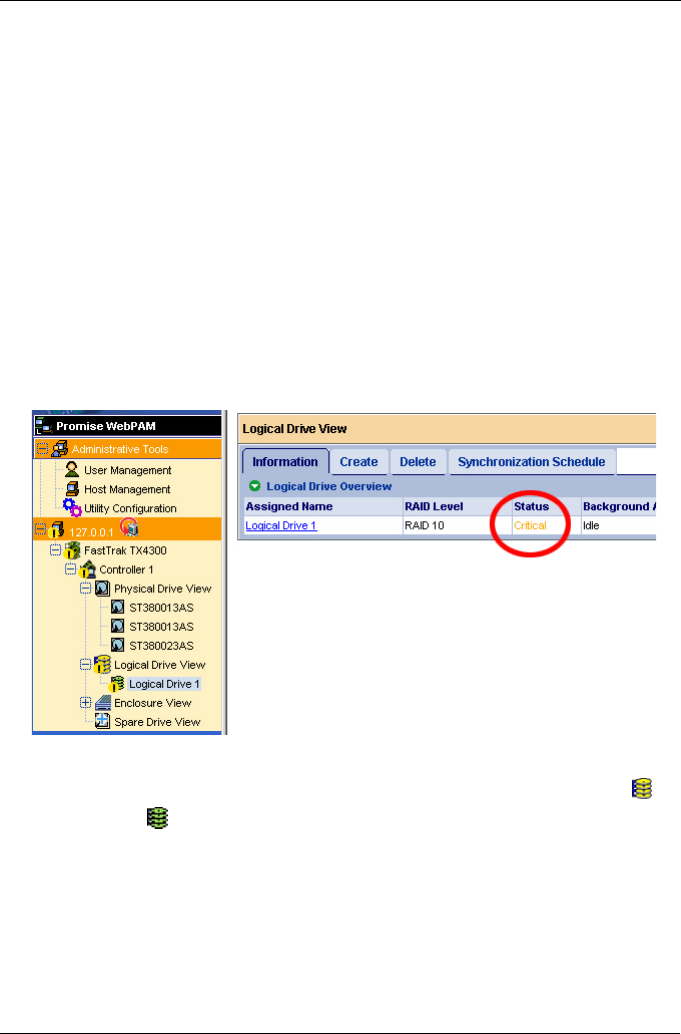

Logical Drives
Logical Drive View
Logical Drive View provides a list of all logical drives currently on the Host PC. To
access Logical Drive View, click on the Logical Drive View icon in Tree View.
From this screen, you can click on the links to access information and functions
of individual logical drives and use the Create and Delete features.
Create a Logical Drive
A logical drive is a collection of physical drives in a RAID.
To create a new logical drive:
1. Click on the Logical Drive View icon.
2. Click on the Create tab.
• Logical Drive View (below)
• Create a Logical Drive (page 69)
• JBOD (page 73)
• Delete a Logical Drive (page 74)
• Logical Drive Information (page 74)
• Logical Drive Settings (page 75)
• Logical Drive Migration and
Expansion (page 76)
• Logical Drive Rebuild (page 79)
• Synchronize/Redundancy Check
All Logical Drives (page 82)
• Logical Drive Synchronization/
Redundancy Check (page 84)
• Logical Drive Initialization
(page 86)
• Logical Drive Activation (page 86)
![](asset-4c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
70
3. Select the radio button beside the RAID level you want for your logical drive.
WebPAM displays the RAID levels you can use with the available disk
drives. You can also select JBOD on this screen.
See “Choosing a RAID Level” on page 100 for information about the
advantages and requirements of the available RAID levels and JBOD.
4. In the Select Drive Group
5. screen, click on the radio button for one of the following:
•Free Drives – Select all Free (unassigned) disk drives
•Logical Drive – Select the Free portion of disk drives whose other
portion is assigned to a Logical Drive
The available choices depend on the RAID level you selected and the disk
drives available.
6. Click the Next button.
![](asset-4d.png)
Chapter 5: WebPAM
71
7. If you want to create a logical drive with unused capacity, enter the assigned
(used) capacity in the Logical Drive Size field.
To use the maximum capacity, check the Use Maximum Capacity box.
8. Click on the disk drives to select them.
Available drives have a black frame. Selected drives have a red frame.
9. Click the Next button.
If you selected JBOD, click the Finish button on the Select Drives screen.
This completes the creation process for JBOD.
10. Enter a name for the logical drive in the field provided.
11. Click the Next button.
![](asset-4e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
72
12. For RAID 0 and RAID 10 logical drives, select a Stripe Block Size of 32, 64
or 120 KB. 64 KB is the default.
See “Stripe Block Size” on page 102 for more information.
13. Select an Initialization policy from the dropdown menu.
•Fast Initialization – Erases the Master Boot Record (MBR) of the
physical drives being added to the logical drive.
•Full Initialization – Erases all sectors of the physical drives being
added to the logical drive.
•None – No initialization. This choice is not recommended.
14. Click the Finish button.
If there are physical drives available, the Select RAID Level screen appears
again, where you can create an additional logical drive.
![](asset-4f.png)
Chapter 5: WebPAM
73
Click on the Logical Drive Icon to see all of the information about your new
logical drive.
Before you can use your new logical drive, you must partition and format the
logical drive using your PC’s operating system. See “Appendix A: Partition and
Format” on page 121 for more information.
JBOD
In WebPAM, JBOD is created, managed and deleted the same as a logical drive.
You can also use the FastTrak BIOS for this purpose. See the FastTrak User
Manual for more information on the BIOS.
JBODs do not have Settings, Rebuild, Migration, Synchronization or other
functions that pertain to Logical Drives.
![](asset-50.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
74
If you attach a physical drive that was initialized using Windows disk
management, that drive will be automatically recognized as a JBOD by the
FastTrak controller and WebPAM.
Delete a Logical Drive
To delete a logical drive:
1. Click on the Logical Drive View icon.
2. Select the Delete tab.
3. Check the box to the left of the logical drive you want to delete.
4. Click the Submit button.
5. In the Confirmation box, click the OK button.
6. In the Warning box, click the OK button.
The selected logical drive is deleted.
Logical Drive Information
Logical Drive View provides a list of all logical drives currently on the Host PC. To
access Logical Drive View:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to see.
Warning
When you delete a logical drive, you delete all data on the logical
drive. Be sure to backup any important data before you delete a
logical drive!
![](asset-51.png)
Chapter 5: WebPAM
75
From this screen, you can click on the links to access the Settings, Drive
Mapping, Migration, Rebuild, Synchronization, Initialization and Activation
features. The features that apply to this logical drive have blue tabs. Features
that do not apply have grayed tabs.
Logical Drive Settings
Logical Drive Settings allows you to assign a name to a logical drive and to
change its controller cache settings. To access logical drive settings:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to see.
3. Click on the Settings tab in Management View.
4. Enter a name in the Assigned Name field, as desired.
5. Click the Submit button when you are done.
![](asset-52.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
76
Logical Drive Migration and Expansion
The Logical Drive–Migration tab enables you to migrate or expand a logical drive.
Migration is the process of changing the RAID level of an existing logical drive.
Expansion is the process of adding more physical drives to a logical drive while
keeping the same RAID level.
The Migration feature applies to certain combinations of RAID level and number
of physical drives, as described in the table below.
FastTrak TX2200, TX2300
FastTrak TX4200, TX4300
Migration and Expansion are not available for JBOD.
For more information, see “Logical Drive Expansion” on page 103 and “RAID
Level Migration” on page 104.
You can set up an Migration to begin immediately (on demand) or schedule a
Migration for a time when there is less demand on the RAID system.
On Demand
To migrate a logical drive:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to migrate.
3. Click on the Migration tab in Management View.
From To Result
RAID 0: 1 drive RAID 0: 2 drives Increased performance
and capacity
RAID 1: 2 drives Adds redundancy
From To Result
RAID 0: 1 drive RAID 0: 2, 3 or 4 drives Increased performance
and capacity
RAID 1: 2 drives Adds redundancy
RAID 0: 1 or 2 drives RAID 10: 4 drives Increased performance
and capacity, adds
redundancy
RAID 1: 2 drives RAID 10: 4 drives Increased performance
and capacity
![](asset-53.png)
Chapter 5: WebPAM
77
4. If the Migration or Expansion requires additional physical drives, click on a
free physical drive to select it.
Available drives have a black frame. Selected drives have a red frame.
5. Click the Start Now button.
You can monitor Migration or Expansion progress on the Logical Drive Migration
tab. Click the respective buttons to pause and resume the Migration.
Scheduled
To schedule a Migration or Expansion:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to migrate or
expand.
![](asset-54.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
78
3. Click on the Migration tab in Management View.
4. Click on a free physical drive to select it.
Available drives have a black frame. Selected drives have a red frame.
5. Click on the Enable radio button.
6. From the dropdown menus, select a start time.
Start time is based on a 24-hour clock.
7. Click in Start At field to display a popup calendar.
8. Click on the start date in the calendar or enter a date manually.
9. Click the Schedule button.
Cancel a Schedule
If you want to cancel the scheduled Migration, do the following:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon.
3. Click on the Migration tab in Management View.
4. Click on the Disable radio button.
![](asset-55.png)
Chapter 5: WebPAM
79
Logical Drive Rebuild
Rebuild refers to the process of repairing a logical drive by reconstruction the
data on one of its physical drives.This feature only applies to logical drives with
redundancy, RAID 1 and RAID 10.
You can set up a Rebuild to:
• Begin immediately (on demand)
• Schedule a Rebuild for a time when there is less demand on the RAID
system
• Begin automatically when a logical drive goes critical or degraded (see
“Create a Spare Drive” on page 92)
On Demand
To rebuild a logical drive:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to rebuild.
3. Click on the Rebuild tab in Management View.
4. Select physical drive to use in the rebuild.
Available drives have a black frame. Selected drives have a red frame.
5. Click the Start Now button.
![](asset-56.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
80
You can monitor Rebuild progress on the Logical Drive Rebuild tab.
Click the respective buttons to pause and resume the Rebuild.
Click the Abort button to stop the Rebuild. After an abort, click the Restart button
to start the Rebuild from the beginning (zero percent).
Scheduled
To schedule a Rebuild:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to rebuild.
3. Click on the Rebuild tab in Management View.
![](asset-57.png)
Chapter 5: WebPAM
81
4. Select the physical drive you want to rebuild.
Available drives have a black frame. Selected drives have a red frame.
5. Click on the Enable radio button.
6. From the dropdown menus, select a start time.
Start time is based on a 24-hour clock.
7. Click in Start At field to display a popup calendar.
8. Click on the start date in the calendar or enter a date manually.
9. Click the Schedule button.
Cancel a Schedule
If you want to cancel the scheduled Rebuild, do the following:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon.
3. Click on the Rebuild tab in Management View.
4. Click on the Disable radio button.
![](asset-58.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
82
Automatic Rebuild
Automatic rebuilding of a logical drive is possible under the following conditions:
• The logical drive is a RAID 1.
See “Create a Logical Drive” on page 69.
• There is a spare drive present in the RAID system.
See “Create a Spare Drive” on page 92.
• Automatic Rebuild Status is enabled in the Controller Settings.
See “Controller Settings” on page 59.
If the three above conditions are met, a logical drive will replace a faulty disk
drive and rebuild itself automatically. WebPAM will report the critical logical drive
and automatic rebuild in its user interface as well as via popup messages.
Depending on your Event Notification settings (see page 48), WebPAM can also
notify you via email message.
When the automatic rebuild operation is completed, you must remove and
replace the faulty physical drive with a new one.
See “Replace the Failed Disk Drive” on page 88 and the FastTrak User Manual
and SuperSwap User Manual for more information on replacing a physical drive.
Synchronize/Redundancy Check All Logical Drives
The Logical Drive View–Synchronization Schedule tab enables you to
synchronize all logical drives. You can also synchronize an individual logical
drive, see page 84.
Synchronization refers to an automated process of checking and correcting data
and parity. Unlike a Rebuild, Synchronization is a maintenance operation.
Redundancy Check is an automated process of checking data and parity but it
only reports and does not correct, any inconsistencies that it finds.
Synchronization and Redundancy Check apply to RAID 1 and RAID 10 logical
drives. When an logical drive is first created and you select Full Initialization, the
same action as Synchronization takes place.
To schedule Synchronization for all logical drives:
1. Click on the Logical Drive View icon in Tree View.
![](asset-59.png)
Chapter 5: WebPAM
83
2. Click on the Synchronization Schedule tab in Management View.
3. In the Policy dropdown menu, select Fix if you want Synchronization or
Redundancy Check if you do not want to correct inconsistencies.
4. Click on the Enable radio button.
5. Click on the by Day, by Week or by Month radio button.
6. From the dropdown menus, select a start time and a day of the Week or
Month, if applicable.
Start time is based on a 24-hour clock.
7. Click the Schedule button.
If you want to cancel the scheduled Synchronization, do the following:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Synchronization tab in Management View.
3. Click on the Disable radio button.
![](asset-5a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
84
Logical Drive Synchronization/Redundancy Check
Synchronization refers to an automated process of checking and correcting data
and parity. Unlike a Rebuild, Synchronization is a maintenance operation. You
can also synchronize all logical drives at the same time, see page 82.
Redundancy Check is an automated process of checking data and parity but it
only reports and does not correct, any inconsistencies that it finds.
Synchronization and Redundancy Check apply to RAID 1 and RAID 10 logical
drives. When an logical drive is first created and you select Full Initialization, the
same action as Synchronization takes place.
You can set up a Synchronization or Redundancy Check to begin immediately
(on demand) or schedule a Synchronization or Redundancy Check for a time
when there is less demand on the RAID system.
On Demand
To Synchronize or Redundancy Check a logical drive:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to
synchronize.
3. Click on the Synchronization tab in Management View.
4. In the Policy dropdown menu, select Fix if you want Synchronization or
Redundancy Check if you do not want to correct inconsistencies.
5. Click the Start Now button.
![](asset-5b.png)
Chapter 5: WebPAM
85
You can monitor Migration progress on the Logical Drive Migration tab. Click the
respective buttons to pause, resume or abort the Synchronization or Redundancy
Check.
Scheduled
To schedule a Synchronization or Redundancy Check:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to
synchronize.
3. Click on the Synchronization tab in Management View.
4. In the Policy dropdown menu, select Fix if you want Synchronization or
Redundancy Check if you do not want to correct inconsistencies.
5. Click on the Enable radio button.
6. Click on the by Day, by Week or by Month radio button.
7. From the dropdown menus, select a start time and a day of the Week or
Month, if applicable.
Start time is based on a 24-hour clock.
8. Click the Schedule button.
Cancel a Schedule
If you want to cancel the scheduled Synchronization or Redundancy Check, do
the following:
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon.
![](asset-5c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
86
3. Click on the Synchronization tab in Management View.
4. Click on the Disable radio button.
Logical Drive Initialization
When logical drive is first created, you can select one of three choices for
initialization:
•Quick Initialization – Erases the reserve and master boot sectors of the
physical drives being added to the logical drive.
•Full Initialization – Erases all sectors of the physical drives being added to
the logical drive.
•None – No initialization. This choice is not recommended.
When you select full initialization, the process takes some time, depending on the
size of the physical drives selected for the logical drive. The Initialization tab
enables you to pause the initialization process so that more of FastTrak's
resources are available for other operations. When the other operations are
done, you can resume the initialization of your new logical drive.
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive whose initialization you
want to pause.
3. Click on the Initialization tab in Management View.
4. Click the Pause button.
The initialization process stops.
5. Click the Resume button.
The initialization resumes from the point where you paused it.
Logical Drive Activation
This feature enables you to designate a hot plug-and-play logical drive. It will
become available in a future release of the FastTrak Controller card.
Logical Drive Critical / Offline
A fault-tolerant logical drive—RAID 1 or 10—goes critical when a disk drive is
removed or fails. Due to the fault tolerance of the logical drive, the data is still
available and online. However, once the logical drive goes critical, it has lost its
fault tolerance and performance may be adversely affected.
If the fault was caused by a failed disk drive that was removed, the drive must be
replaced by another drive, either identical or larger, in order for the RAID system
to rebuild and restore optimal configuration.
![](asset-5d.png)
Chapter 5: WebPAM
87
A non-fault tolerant logical drive—RAID 0—goes offline when a disk drive is
removed or fails. Since the logical drive is not fault tolerant, the data stored in the
disk array is no longer accessible.
If one disk drive fails, all of the data on the logical drive is lost. You must replace
the failed drive. Then, if the logical drive had more than one disk drive, delete the
logical drive and re-create it. Restore the data from a backup source.
When a Disk Drive Fails
The following will occur when a disk drive fails or goes offline:
• The FastTrak Controller’s audible alarm, if enabled, will sound
• The SuperSwap Status LED changes from green to red
• WebPAM reports the condition in Tree View, with popup messages and, if
Event Notification is set up, email messages
• If you have a RAID 1 logical drive with a hot spare drive properly configured,
the logical drive will automatically rebuild itself using the spare drive
In the example above, amber ! icons appear over the FastTrak, Controller,
Logical Drive View and Logical Drive icons. Click on the Logical Drive View or
Logical Drive icons to verify the condition of the logical drive.
In this example, the Status is Critical and Background activity is Idle. This
indicates that there is no automatic rebuild, so you must take action to restore the
logical drive:
1. Identify the failed disk drive.
2. Replace the failed disk drive.
3. Rebuild your logical drive.
![](asset-5e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
88
Identify the Failed Disk Drive
Click on the Physical Drive View icon in the WebPAM user interface. Look for
a missing physical drive. A drive that used to be present but is suddenly absent is
the failed disk drive.
In this example, there were four disk drives connected to the FastTrak Controller.
Notice that there is no drive on Port 2. This is the failed drive.
Replace the Failed Disk Drive
Replace the failed disk drive with a new one of equal or greater capacity. Then
rebuild the logical drive. See “Install the Disk Drives” on page 10 and the
SuperSwap User Manual for more information about replacing a disk drive.
Rebuild Your Logical Drive
1. Click on the Logical Drive View icon in Tree View.
2. Click on the Logical Drive icon of the logical drive you want to rebuild.
3. Click on the Rebuild tab in Management View.
Port 1
Port 3
Port 4
No drive
on Port 2
![](asset-5f.png)
Chapter 5: WebPAM
89
4. Select the physical drive you just replaced or an available Free drive.
5. Click the Start Now button.
You can monitor Rebuild progress on the Logical Drive Rebuild tab. Click the
respective buttons to pause and resume the Rebuild. When the Rebuild is
finished, your logical drive will be Functional again.
![](asset-60.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
90
Enclosures
Enclosure View
Enclosure View provides a list of all enclosures currently on the Host PC. To
access Enclosure View, click on the Logical Drive View icon in Tree View.
From this window, you can click on the links to access information and functions
of individual Enclosures.
Enclosure
To access information about an Enclosure:
1. Click on the Enclosure View icon in Tree View.
2. Click on the Enclosure icon.
![](asset-61.png)
Chapter 5: WebPAM
91

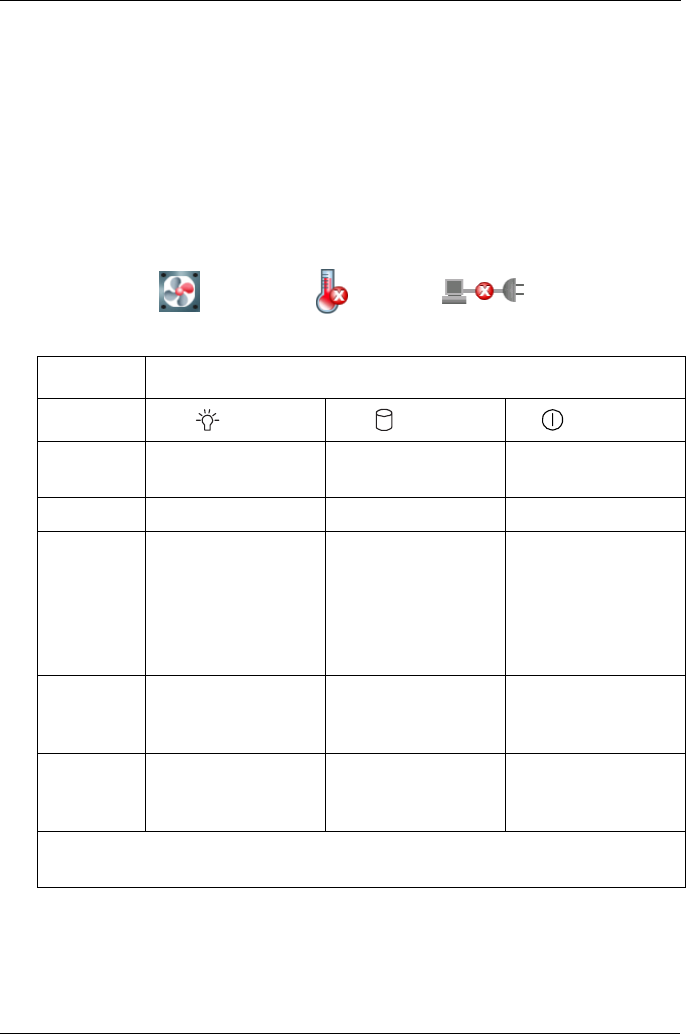

The information tab displays the following information:
•Enclosure Type – The manufacturer’s model name or number.
•Fan Speed – The RPM of the enclosure’s cooling fans.
•Temperature – The internal temperature of the enclosure. Each reading
reflects a separate measurement.
•Power Status – The voltages supplied by the enclosure’s 12V and 5V
systems.
The Fan, Temperature and Power icons change color when an error is
indicated, as shown below.
For more information on Enclosures, replacing disk drives and other repair
operations, refer to the SuperSwap User Manual.
LEDs
State Status Activity Enclosure
Green Disk drive is present
and ready Disk drive is present
and ready Normal status
Blinking n/a Read/write activity n/a
Amber Disk drive:
• is spinning up
•is critical
• is rebuilding
• reports a SMART
error
n/a 1 incident
(see below)
Enclosure is critical
but still functional
Attention required
Red Disk drive:
•is offline
•is not installed
n/a 2 or more incidents
(see below)
Dark Power is off Disk drive:
• has failed
•is not installed
Disk drives are
spinning up
An incident refers to one occurrence of out-of-range voltage, temperature or fan
speed. Any incident requires immediate attention.
Fan Error Temperature Error Power Error
![](asset-62.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
92
Spare Drives
A spare drive is a physical drive designated to function as a hot spare drive. A hot
spare drive automatically replaces a failed physical drive. You can also set the
Controller to rebuild a logical drive from a Free disk drive. See “Controller
Settings” on page 59 and “Logical Drive Rebuild” on page 79 for more
information on how spare drives work.
Spare Drive View
Spare Drive View provides a list of all spare drives currently on the Host PC. To
access Spare Drive View, click on the Spare Drive View icon in Tree View.
From this screen, you can view the current Spare Drives and click on the tabs to
access the Create and Delete features.
Create a Spare Drive
To create a spare drive:
1. Click on the Logical Drive View icon.
2. Click on the Create tab.
![](asset-63.png)
Chapter 5: WebPAM
93
3. From the Logical Drive dropdown menu, select
•Global Spare – This Spare Drive can be used by any qualified Logical
Drive.
•Logical Drive – The name of the logical drive to which this Spare Drive
will be assigned or dedicated.
4. Click on a disk drive to select it.
Available drives have a black frame. Selected drives have a red frame.
Drives with a blue frame are assigned to a logical drive.
You cannot assign a split drive as a spare drive.
5. Click the Create button.
The new Spare Drive appears under Physical Drive View and Spare Drive View.
![](asset-64.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
94
Delete a Spare Drive
To delete a spare drive:
1. Click on the Logical Drive View icon.
2. Select the Delete tab.
3. Check the box to the left of the spare drive you want to delete.
4. Click the Delete button.
5. In the Confirmation box, click the OK button.
The selected spare drive is deleted.
![](asset-65.png)
95
Chapter 6: Technology
• About FastTrak, below
• Introduction to RAID, below
• Choosing a RAID Level (page 100)
• Other Logical Drive Features (page 102)
About FastTrak
FastTrak TX Series RAID controller card features concurrent data channel
operation and onboard BIOS. The channels on the FastTrak card support
concurrent operation that allows for overlapped I/O under multi-tasking operating
systems and sharing the workload between multiple drives.
Adapter BIOS
The FastTrak card contains a BIOS code that extends the standard disk service
routine provided through Int13. The BIOS is bootable for DOS and other
operating systems that rely on the system BIOS for drive operation. When the
FastTrak BIOS appears during bootup, press Ctrl-F to enter the FastBuild setup
to select from menu settings.
Introduction to RAID
RAID (Redundant Array of Independent Disks) allows multiple hard drives to be
combined together into a logical drive. The operating system sees the logical
drive as a single storage device, and treats it as such. The RAID software and/or
controller handle all of the individual drives on its own. The benefits of a RAID
can include:
• Higher data transfer rates for increased server performance
• Increased overall storage capacity for a single drive designation (such as, C,
D, E, etc.)
• Data redundancy/fault tolerance for ensuring continuous system operation in
the event of a hard drive failure
Different types of logical drives use different organizational models and have
varying benefits. Also see Choosing RAID Level on page 100. The following
outline breaks down the properties for each type of RAID logical drive:
![](asset-66.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
96
RAID 0 – Stripe
When a logical drive is striped, the read and write blocks of data are interleaved
between the sectors of multiple disk drives. Performance is increased, since the
workload is balanced between drives or “members” that form the logical drive.
Identical drives are recommended for performance as well as data storage
efficiency. The logical drive's data capacity is equal to the number of drive
members multiplied by the smallest logical drive member's capacity.
Figure 1. RAID 0 Stripe interleaves data across multiple drives
For example, one 100GB and three 120GB drives will form a 400GB (4 x 100GB)
logical drive instead of 460 GB.
RAID 0 logical drives on the FastTrak TX Series RAID consist of one or more disk
drives.
Data
Stripe
Disk Drives
![](asset-67.png)
Chapter 6: Technology
97
RAID 1 – Mirror
When a logical drive is mirrored, identical data is written to a pair of disk drives,
while reads are performed in parallel. The reads are performed using elevator
seek and load balancing techniques where the workload is distributed in the most
efficient manner. Whichever drive is not busy and is positioned closer to the data
will be accessed first.
With RAID 1, if one disk drive fails or has errors, the other mirrored disk drive
continues to function. This is called Fault Tolerance. Moreover, if a spare disk
drive is present, the spare drive will be used as the replacement drive and data
will begin to be mirrored to it from the remaining good drive.
Figure 2. RAID 1 Mirrors identical data to two drives
Due to the data redundancy of mirroring, the capacity of the logical drive is only
the size of the smallest disk drive. For example, two 100GB disk drives which
have a combined capacity of 200GB instead would have 100GB of usable
storage when set up in a mirrored logical drive. Similar to RAID 0 striping, if disk
drives of different capacities are used, there will also be unused capacity on the
larger drive.
RAID 1 logical drives on the FastTrak TX Series RAID consist of two disk drives.
When two drives do not offer sufficient data capacity, consider a RAID 10 logical
drive, see page 98.
Data Mirror
Disk Drives
![](asset-68.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
98
RAID 10 – Mirror / Stripe
Mirror/Stripe combines both of the RAID 0 and RAID 1 logical drive types. It can
increase performance by reading and writing data in parallel while protecting data
with duplication. At least four disk drives are needed for RAID 10 to be installed.
With a four-disk-drive logical drive, one drive pair is mirrored together then
striped over a second drive pair.
Figure 3. RAID 10 takes a data mirror on one drive pair and stripes it over
two drive pairs
The data capacity is similar to a RAID 1 logical drive, with half of the total storage
capacity dedicated for redundancy. An added plus for using RAID 10 is that, in
many situations, such a logical drive offers double fault tolerance. Double fault
tolerance may allow your logical drive to continue to operate depending on which
two disk drives fail.
RAID 10 logical drives on the FastTrak TX Series RAID consist of 4 disk drives.
Data Stripe
Data
Mirror
Disk Drives
![](asset-69.png)
Chapter 6: Technology
99
About Dual Data Redundancy
One unique (though rarely occurring) feature of RAID 10 is dual fault tolerance. In
some cases, two drives can fail simultaneously and still maintain the integrity of
data. There are six combinations in which two drives can fail. The FastTrak TX
Series RAID protects your data array in four of those cases. Assume the drives
are configured as follows:
• CH indicates channels on the FastTrak Controller card.
• A/B indicates which striped pair the drive belongs to.
• 1/2 indicates which part of stripe data.
Under RAID 10, the array maintains data integrity if any 1, 2 combination
survives.
CH1 CH2 CH3 CH4
Drive A1 Drive A2 Drive B1 Drive B2
Event Failed
Drives Logical Drive
Status Why?
1 A1/A2 Functional B1/B2 retain integrity
2 B1/B2 Functional A1/A2 retain integrity
3 A1/B2 Functional B1/A2 retain integrity
4 B1/A2 Functional A1/B2 retain integrity
5 A1/B1 Offline B2/A2 contain only half the data
6 B2/A2 Offline A1/B1 contain only half the data
![](asset-6a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
100
JBOD – Single Drive
An alternative to RAID, JBOD capacity is equal to the size of the disk drive itself.
JBOD appears in the User Interface as one individual drive.
There are no performance or fault-tolerance features. When one disk fails, all
data on that disk is lost. The other disks are unaffected.
Choosing a RAID Level
There are several issues to consider when choosing the RAID Level for your
FastTrak logical drive. The following discussion summarizes some advantages,
disadvantages and applications for each choice.
RAID 0
Recommended Applications for RAID 0
•Image Editing
• Pre-Press Applications
• Any application requiring high bandwidth
Advantages Disadvantages
Implements a striped disk logical drive,
the data is broken down into blocks and
each block is written to a separate disk
drive
I/O performance is greatly improved by
spreading the I/O load across many
channels and drives
No parity calculation overhead is
involved
Not a true RAID because it is not fault-
tolerant
The failure of just one drive will result in
all data in an logical drive being lost
Should not be used in mission critical
environments
Disk Drive
![](asset-6b.png)
Chapter 6: Technology
101
RAID 1
Recommended Applications for RAID 1
• Accounting
•Payroll
•Financial
• Any application requiring very high availability
RAID 10
Recommended Applications for RAID 10
• Imaging applications
• Database servers
• General fileserver
JBOD
Advantages Disadvantages
Simplest RAID storage subsystem
design
Can increase read performance by
processing data requests in parallel
since the same data resides on two
different drives
Very high disk overhead - uses only
50% of total capacity
Advantages Disadvantages
Implemented as a mirrored logical drive
whose segments are RAID 0 logical
drives
High I/O rates are achieved thanks to
multiple stripe segments
Very high disk overhead - uses only
50% of total capacity
Advantages Disadvantages
Enables you to manage a large number
of disk drives from a single controller
The failure of one drive has no effect
upon the data in other disk drives
An alternative to RAID without any
RAID advantages
Should not be used in mission critical
environments
![](asset-6c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
102
Recommended Applications for JBOD
• Any application requiring multiple disk drives but where read/write speed or
fault-tolerance are not important
• Applications were low-cost operation critical
Other Logical Drive Features
Stripe Block Size
The stripe block size value can be set to 32 KB, 64 KB and 128 KB.
64 KB is the default. This selection will directly affect performance. There are two
issues to consider when selecting the stripe block size.
• Choose a stripe block size equal to or smaller than the smallest cache buffer
found on any physical drive in your logical drive. A larger value slows the
logical drive down because physical drives with smaller cache buffers need
more time for multiple accesses to fill their buffers.
• If your data retrieval consists of fixed-size data blocks, such as some
database and video applications, choose that data block size as your stripe
block size.
Generally speaking, email, POS and webservers prefer smaller stripe block
sizes. Video and database applications prefer larger stripe block sizes.
Initialization
Fast Initialization erases the Master Boot Record (MBR) in all of the selected disk
drives. Use this function when one or more disk drives has been used in a
previous logical drive. This function is available in the FastBuild utility and in
WebPAM.
Full Initialization erases all the data on the selected disk drives, including the
MBR. Use this function when one or more disk drives has been used in a
previous logical drive and you want to remove all data stored on the drive. This
function is available in WebPAM.
Hot Spare Drive
Any extra drive that is not assigned to an array is designated Free in the View
Drive Assignments screen (see below). In order for a free drive to serve as a hot
spare drive, you must designate the free drive as a spare using the WebPAM
software.
![](asset-6d.png)
Chapter 6: Technology
103
Spare Drives are automatically added to an array once a disk member of the
array has been detected as failed. To restore fault tolerance as quickly as
possible, the FastTrak Controller performs an automatic data rebuild on the spare
drive in the background without the need to restart the system. At a later time, the
failed drive can be physically removed and a new drive added in its place to
function as the spare drive.
Cache Settings
Cache settings are not adjustable on the FastTrak TX Series RAID Controller
card.
Logical Drive Expansion
To expand a logical drive is to increase the number of disk drives.
The FastTrak TX Series RAID Controller card supports logical drive expansion.
However, you must use the WebPAM software to access this function.
See “Logical Drive Migration and Expansion” on page 76.
Expansion takes place on an existing Functional logical drive without disturbing
the existing data. While the logical drive is expanding, you can access the data as
![](asset-6e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
104
before. When expansion is complete, your logical drive will have a larger
capacity.
RAID Level Migration
To migrate a logical drive is to change its RAID level. The FastTrak TX Series
RAID controller card supports RAID Level Migration. You must use the WebPAM
software to access this function.
See “Logical Drive Migration and Expansion” on page 76.
Migration takes place on an existing Functional logical drive without disturbing
the existing data. While the logical drive is migrating, you can access the data as
before. When migration is complete, your logical drive will have a different RAID
level and/or a larger capacity.
Different types of logical drives use different organizational models and have
varying benefits. The following outline breaks down the properties for each type
of RAID supported by FastTrak TX Series.
Level Current Number
of Drives Possible Number
of Drives
RAID 0 3 4
23 or 4
1 2, 3 or 4
From To Increase Add
Redundancy
Capacity Performance
RAID 1 RAID 10 • •
RAID 0 RAID 10 • • •
RAID 1 •
![](asset-6f.png)
Chapter 6: Technology
105
Ranges of Disk Array Expansion
There are limitations to how large you can expand a logical drive, depending on
the size of your current logical drive.
The current PC Operating Systems support a 10-byte LBA format. This means
that a logical drive can have up to 4 billion address blocks or sectors.
Multiply the number of blocks by the sector size to find the capacity of a logical
drive:
4,000,000,000 blocks x 512 bytes per sector = 2,048,000,000,000 bytes
of data for a 2TB drive.
Note that you cannot change the size of the sectors nor can you increase the
number of address blocks above 4 billion.
As a result, there are range limits imposed upon logical drive expansion as
shown in the table above. For example:
• You can expand a 2.5 TB logical drive up to 4 TB
• You can only expand a 1.9 TB logical drive up to 2 TB
See the table below.
Important
• The Target logical drive may require more disk drives than the
Source logical drive
• If the Target logical drive requires an EVEN number of disk
drives but the Source logical drive has an ODD number, ADD
a disk drive as part of the migration process
• You cannot reduce the number of disk drives in your logical
drive
• RAID 1 (mirror) works with two disk drives only
• You cannot migrate a logical drive when it is Critical or
performing activities such as Synchronizing, Rebuilding and
PDM
• RAID level migration is not possible to or from JBOD
![](asset-70.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
106
You can direct WebPAM to expand a logical drive beyond the maximum
expansion size. However, when expansion is finished, your logical drive will be
the maximum size listed in the table.
If you require a logical drive larger than the maximum expansion size:
1. Backup the data from the current logical drive.
2. Delete the current logical drive.
3. Create a new logical drive with the desired capacity.
4. Restore the data to the new logical drive.
Current LD Size Maximum LD
Expansion Size Sector Size
8 to 16 TB 16 TB 4096 bytes
4 to 8 TB 8 TB 2048 bytes
2 to 4 TB 4 TB 1024 bytes
0 to 2 TB 2 TB 512 bytes
Caution
Before you begin logical drive Expansion or RAID Level Migration,
always back up your important data.
![](asset-71.png)
107
Chapter 7: Support
• Frequently Asked Questions
• Pre-Installation, below
• Motherboard Issues (page 108)
• System CMOS Issues (page 108)
• Drive Issues (page 109)
• Operating System-Related Issues (page 111)
• Installation Issues (page 112)
• Post-Installation (page 113)
• Performance Tips (page 113)
• Contact Technical Support, page 114
• Limited Warranty, page 117
• Return Product for Repair, page 119
Frequently Asked Questions
This section lists frequently asked questions and other issues with the FastTrak
TX Series RAID Controller card.
Pre-Installation
(Speed, Device Types, Capacity, Cabling)
What kind of hard drives can I use for a FastTrak disk array?
You can use any Serial ATA disk drive(s) to create disk arrays on the
FastTrak Serial ATA RAID Controller card. Use matching drives for multiple-
disk arrays to maximize capacity usage as well as performance.
Will ACPI work with disk drives on the FastTrak?
Yes.
Can I use ATAPI devices on the FastTrak?
No. The FastTrak TX Series does not support ATAPI devices.
How can I change the resources that the FastTrak Controller uses?
The FastTrak TX Series is fully PnP. This means all the resources that it
uses are given to it by the PnP BIOS on the motherboard. The FastTrak
Serial ATA RAID Controller does support IRQ sharing, but this will not work
unless ALL the concerned devices support the feature. If your motherboard
![](asset-72.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
108
allows you to control the assignment of these resources, you may be able to
remedy the problem by:
• Changing the IRQ assignments to the PCI slots in the motherboard
BIOS during boot up.
• Reset the configuration data in your CMOS. This is usually an option in
the PnP section of your CMOS.
• Otherwise, switch the FastTrak card to a different PCI slot.
Motherboard Issues
Freeing additional IRQ resources
Since the Promise card supports PCI Interrupt sharing, it is possible to use
IRQs already assigned to another PCI card. Interrupt Sharing is not
supported with onboard IDE controllers. If the onboard IDE controller(s) are
not used, you may disable the controllers to free IRQ 14 and/or 15.
Configuring PCI IRQ resources
Setting the IRQ for a particular PCI slot will be different depending on the
motherboard BIOS. This setting is usually made in the PCI Configuration
and/or Plug and Play (PnP) section of the motherboard BIOS setup.
Consult your motherboard manual for information that is specific to your
motherboard.
System CMOS Issues
Set motherboard CMOS Boot sequence to boot to FastTrak Controller
On some Motherboard BIOS, it is necessary to set the Boot sequence to
SCSI, A:, C: since the Promise card is identified as a SCSI card.
Motherboard CMOS displays C: or D: drive failure during startup
See the Drive-Related Errors section.
Using an onboard IDE card with FastTrak Controller
If an onboard IDE controller is installed with hard disks, enable support in the
Motherboard Standard CMOS Setup for the drives. Note that the onboard
IDE hard drives will then be the bootable hard disk unless the system BIOS
has a boot sequence setting with the option to specify booting to a different
device.
![](asset-73.png)
Chapter 7: Support
109
Drive Issues
Can I add a drive to a FastTrak disk array via hot-swap and dynamically
adjust the disk array size?
Yes. The FastTrak TX Series supports dynamically adjustable RAID size and
RAID level. See “Logical Drive Migration and Expansion” on page 76.
Do the disk drives on the FastTrak have to be the same size?
The disk drives connected to the FastTrak TX Series do not have to be the
same size. If the sizes differ, the FastTrak controller will truncate the bigger
drive so the drives match. The resulting difference in drive space is
unusable, so avoid using disk drives of significantly different capacities.
I already have a disk array on an older FastTrak controller. Can I move that
disk array to my new FastTrak TX Series?
Yes, provided your disk array was build using Serial ATA disk drives. All
FastTrak controllers read the disk arrays the same way so you can move
them from one controller to another.
Can I take a drive used in a FastTrak disk array and access it directly with a
different controller, such as the one integrated on the motherboard?
Only Single-drive striped (RAID 0) and mirrored (RAID 1) disk array
configurations allow the drive(s) to be accessed individually on another
controller. Multiple-drive striped (RAID 0) or mirrored/striped (RAID 10)
drives will not work.
If I have a problem with one of the drives on the FastTrak Controller, how
can I low-level format it to correct the problem?
Do NOT do this. Low-level formatting is unnecessary and generally does not
correct problems commonly experienced. If you think the disk drive is faulty,
run the drive manufacturer’s diagnostic utility on it.
Errors such as bad sectors or ECC/CRC failure are best remedied by
completely replacing the drive. For this reason, do NOT low-level format the
drives attached to the FastTrak controller.
Do I have to install disk management software on my disk array in order to
access the full storage capacity of drives?
No! Disk management software will only complicate things. The disk array
should be fully addressable by your OS as it is. Remember that some
operating systems have varying limits on the sizes of partitions and disk
arrays that can be defined. Consult your OS documentation about
partitioning larger drives.
![](asset-74.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
110
What system BIOS setup settings do I use for the drives on the FastTrak?
None. The drives on the FastTrak TX Series are supported by the FastTrak
BIOS and/or OS drivers, not by your system BIOS.
How do I partition/format my FastTrak disk array?
The FastTrak TX Series represents the disk array as a single disk drive to
your system. Therefore, anything that you can do to a single disk drive you
can do to a FastTrak disk array. You can partition the disk array as you see fit
using any file system you want.
Critical disk array (array) status error reported during boot
If a critical status error message appears on the FastTrak BIOS startup
screen for a RAID1 or RAID 10 disk array, there is a drive in the disk array
that has failed or is not responding. The mirrored disk array has lost its fault
tolerance, but will still perform normal drive reads and writes. See “Logical
Drive Critical / Offline” on page 86.
Disk drives cannot be formed into a disk array
Disk drives must support Serial ATA and be free of media defects in order to
be added to a disk array. Promise recommends using new identical disk
drives for each disk array. Also, re-check the data and power cabling and
connections.
System CMOS displays C: or D: drive failure during Startup
Do not reference C: or D: in the Motherboard Standard CMOS for drives
attached to the FastTrak Serial ATA RAID Controller. Only enter drive
information in the Motherboard CMOS for drives attached to the onboard
IDE controller.
![](asset-75.png)
Chapter 7: Support
111
The disk array constantly goes critical or offline during reboot.
This condition may occur when the Master Boot Record (MBR) of one of the
drives has become corrupt or bad. Removing (erasing) the MBR will remedy
any issue related directly to a bad MBR.
To erase the MBR, follow these steps:
1. Backup any important data from the disk array.
2. Note the disk array information, including which drives are used, the
number of drives, RAID Level, etc.
3. Delete the disk array.
4. Create a new disk array using the specifications from the previous disk
array.
5. During the disk array creation process:
• In FastBuild, set the Fast Init feature to ON
• In WebPAM, select Fast or Full Initialization
6. Partition and format the disk array using your PC’s operating system.
See “Appendix A: Partition and Format” on page 121.
Unable to partition or format disk array
See “The disk array constantly goes critical or offline during reboot,” above.
Cannot rebuild mirrored (RAID 1) disk array
See “The disk array constantly goes critical or offline during reboot,” above.
Fatal errors or data corruption are constantly reported when reading or
writing to the disk array
See “The disk array constantly goes critical or offline during reboot,” above.
Operating System-Related Issues
The Operating System no longer boots after creating a Mirrored disk array
using your existing boot drive using Windows
This is due to Drive Geometry issues. You can verify this if you move the
original drive back to the onboard controller and it boots successfully. Each
controller can view a drive differently. This can be an issue for a new
Warning
Before removing the MBR of the drive(s), backup any existing
data. Removal of the MBR of any disk drive permanently deletes
all existing data on the drive.
![](asset-76.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
112
controller that loads the original Master Boot Record (MBR) and then has a
problem translating it or the Operating System boot record.
Promise recommends a clean install of the Operating System. This action
restores the MBR and OS boot record. This action requires partitioning and
formatting the drive.
Promise Windows driver does not appear in Device Manager
Windows may already be listing the controller under Other Devices instead
of the Hard disk controllers section. In Device Manager under Other Devices
to see if it lists a PCI Card or RAID Controller. If so, highlight this listing and
click on the Properties button then click on the Driver tab. Depending on your
version of Windows, choose either Change Driver or Update Driver. Follow
the on-screen prompts to complete installation of the driver. If Windows asks
if you want to test if the device can be removed safely, click on CANCEL.
Reboot the system to complete installation of the driver.
“Inaccessible Boot Device” message appears during floppyless installation
of Windows
The F6 key was not pressed at the appropriate time. Reboot the system, and
press the F6 key when the message "Press F6 if you need to install third
party SCSI or RAID driver" appears in Windows.
“No Hard Drives Found” message appears during CD-ROM installation of
Windows
The F6 key was not pressed at the appropriate time. Reboot the system, and
press the F6 key when the message “Press F6 if you need to install third
party SCSI or RAID driver” appears in Windows.
Installation Issues
How can I change the system boot sequence in order to boot from the
FastTrak disk array?
The boot sequence is controlled by the system BIOS. As far as the system
BIOS is concerned, the FastTrak Serial ATA RAID Controller and its defined
disk arrays are categorized as a SCSI device. This allows you to set the boot
sequence in your BIOS setup utility to boot from SCSI first, rather than IDE.
If there are multiple SCSI add-in controllers in the system, then the boot
sequence among is determined by their PCI slot priority. PCI slot #1 will be
first, slot #2 second, etc. If you want to boot from the disk array, put the
FastTrak Controller in the PCI slot where it will be accessed before the other
SCSI controllers.
![](asset-77.png)
Chapter 7: Support
113
How can I change the boot sequence between a PCI SCSI card and the
FastTrak disk array?
Since all PCI devices are PnP, it is difficult to determine which device is
addressed first. Some newer motherboard BIOSes have advanced options
that identify devices and allow you to select which device will be assigned
resources first. Otherwise you may have to physically switch the device
cards on the PCI slots so that the boot device is in the highest priority slot
number, as described in the previous answer.
Post-Installation
Why can't I see the drives on the FastTrak Controller card under FDISK?
You have not created a disk array yet. If no disk array has been created, the
system will not recognize drive(s) attached to the FastTrak card.
Performance Tips
Here are some tips that may optimize performance in a RAID 0 striped disk array.
If you are using an audio/video-editing card, we also recommend reviewing your
card's documentation for additional information.
Use FastTrak array as D: or other non-bootable drive in a striped disk array
For Audio/Video editing, keep the original system boot drive on the standard
IDE controller as C: drive. Partitioning software will see the disk array as one
physical drive, D: or later. This will prevent file fragmentation and provide
better accessibility to the disk array.
Re-Configure PCI Latency Setting
The PCI Latency setting appears in some Motherboard BIOS. The setting
governs how much time is allocated to service each PCI slot. Promise
recommends a value of 64. An optimal value will vary from system to
system.
![](asset-78.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
114
Contact Technical Support
Promise Technical Support provides several support options for Promise users to
access information and updates. We encourage you to use one of our electronic
services, which provide product information updates for the most efficient service
and support.
If you decide to contact us, please have the following information available:
• Product model and serial number
• Firmware, BIOS and driver version numbers
• A description of the problem / situation
• System configuration information, including: motherboard and CPU type,
hard drive model(s), SAS/SATA/ATA/ATAPI drives & devices, and other
controllers.
Technical Support Services
United States
Europe, Africa and Middle East
Promise Online™ Web
Site http://www.promise.com
(technical documents, drivers, utilities, etc.)
E-mail Support support@promise.com
Fax Technical Support (408) 228-1097 Attn: Technical Support
Phone Technical Support (408) 228-1400 option 4
If you wish to write us for
support: Promise Technology, Inc.
Attn: Technical Support
580 Cottonwood Drive
Milpitas, CA 95035, USA
E-mail Support support@promise.nl
Fax Technical Support +31 (0) 40 256 9463 Attn: Technical Support
Phone Technical Support +31 (0) 40 235 2600
If you wish to write us for
support: Promise Technology Europe B.V.
Attn: Technical Support
Science Park Eindhoven 5542
5692 EL Son, The Netherlands
![](asset-79.png)
Chapter 7: Support
115
Germany
Italy
Taiwan
E-mail Support support-de@promise-emea.com
Fax Technical Support +49 (0) 2 31 56 76 48 - 29
Attn: Technical Support
Phone Technical Support +49 (0) 2 31 56 76 48 - 10
If you wish to write us for
support: Promise Technology Germany
Attn: Technical Support
Europaplatz 9
44269 Dortmund, Germany
E-mail Support support-it@promise-emea.com
Fax Technical Support 0039 06 367 12400 Attn: Technical Support
Phone Technical Support 0039 06 367 12626
8:30am-5:00pm M-F Italy Time
If you wish to write us for
support: Promise Technology Italy
Attn: Technical Support
Piazza del Popolo 18
00187 Roma, Italy
E-mail Support support@promise.com.tw
Fax Technical Support +886 3 564 53 13 Attn: Technical Support
Phone Technical Support +886 3 578 23 95 (ext. 8811)
If you wish to write us for
support: Promise Technology, Inc.
Attn: Technical Support
2F, No. 30, Industry E. Rd. IX
Science-based Industrial Park
Hsinchu, Taiwan, R.O.C.
![](asset-7a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
116
China
E-mail Support support-china@promise.com
Fax Technical Support +86 10 6872 3940 Attn: Technical Support
Phone Technical Support +86 10 6872 3941
If you wish to write us for
support: Promise Technology China
Attn: Technical Support
Room 1205, Tower 3, Webok Time Center No. 17
South Zhong Guan Cun Street
Hai Dian District, Beijing 100081
P.R. China
![](asset-7b.png)
Chapter 7: Support
117
Limited Warranty
Promise Technology, Inc. (“Promise”) warrants that for three (3) years from the
time of the delivery of the product to the original end user:
a) the product will conform to Promise’s specifications;
b) the product will be free from defects in material and workmanship under
normal use and service.
This warranty:
a) applies only to products which are new and in cartons on the date of
purchase;
b) is not transferable;
c) is valid only when accompanied by a copy of the original purchase
invoice.
d) Is not valid on spare parts, fans, and power supplies
This warranty shall not apply to defects resulting from:
a) improper or inadequate maintenance, or unauthorized modification(s),
performed by the end user;
b) operation outside the environmental specifications for the product;
c) accident, misuse, negligence, misapplication, abuse, natural or
personal disaster, or maintenance by anyone other than a Promise or a
Promise-authorized service center.
Disclaimer of other warranties
This warranty covers only parts and labor, and excludes coverage on software
items as expressly set above.
Except as expressly set forth above, Promise DISCLAIMS any warranties,
expressed or implied, by statute or otherwise, regarding the product, including,
without limitation, any warranties for fitness for any purpose, quality,
merchantability, non-infringement, or otherwise. Promise makes no warranty or
representation concerning the suitability of any product for use with any other
item. You assume full responsibility for selecting products and for ensuring that
the products selected are compatible and appropriate for use with other goods
with which they will be used.
Promise DOES NOT WARRANT that any product is free from errors or that it will
interface without problems with your computer system. It is your responsibility to
back up or otherwise save important data before installing any product and
continue to back up your important data regularly.
![](asset-7c.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
118
No other document, statement or representation may be relied on to vary the
terms of this limited warranty.
Promise’s sole responsibility with respect to any product is to do one of the
following:
a) replace the product with a conforming unit of the same or superior
product;
b) repair the product.
Promise shall not be liable for the cost of procuring substitute goods, services,
lost profits, unrealized savings, equipment damage, costs of recovering,
reprogramming, or reproducing of programs or data stored in or used with the
products, or for any other general, special, consequential, indirect, incidental, or
punitive damages, whether in contract, tort, or otherwise, notwithstanding the
failure of the essential purpose of the foregoing remedy and regardless of
whether Promise has been advised of the possibility of such damages. Promise
is not an insurer. If you desire insurance against such damage, you must obtain
insurance from another party.
Some states do not allow the exclusion or limitation of incidental or consequential
damages for consumer products, so the above limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights that
vary from state to state. This limited warranty is governed by the State of
California.
Your Responsibilities
You are responsible for determining whether the product is appropriate for your
use and will interface with your equipment without malfunction or damage. You
are also responsible for backing up your data before installing any product and
for regularly backing up your data after installing the product. Promise is not liable
for any damage to equipment or data loss resulting from the use of any product.
![](asset-7d.png)
Chapter 7: Support
119
Return Product For Repair
If you suspect a product is not working properly, or if you have any questions
about your product, contact our Technical Support Staff through one of our
Technical Services, making sure to provide the following information:
• Product model and serial number (required)
• Return shipping address
• Daytime phone number
• Description of the problem
• Copy of the original purchase invoice
The technician will assist you in determining whether the product requires repair.
If the product needs repair, the Technical Support Department will issue an RMA
(Return Merchandise Authorization) number.
Return ONLY the specific product covered by the warranty (do not ship cables,
manuals, diskettes, etc.), with a copy of your proof of purchase to:
You must follow the packaging guidelines for returning products:
• Use the original shipping carton and packaging
• Include a summary of the product’s problem(s)
• Write an attention line on the box with the RMA number
• Include a copy of proof of purchase
Important
Obtain an RMA number from Technical Support before you return
the product and write the RMA number on the label. The RMA
number is essential for tracking your product and providing the
proper service.
USA and Canada: Promise Technology, Inc.
Customer Service Dept.
Attn.: RMA # ______
47654 Kato Road
Fremont, CA 94538
Other Countries: Return the product to your dealer
or retailer.
Contact them for instructions
before shipping the product.
![](asset-7e.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
120
You are responsible for the cost of insurance and shipment of the product to
Promise. Note that damage incurred due to improper transport or packaging is
not covered under the Limited Warranty.
When repairing returned product(s), Promise may replace defective parts with
new or reconditioned parts, or replace the entire unit with a new or reconditioned
unit. In the event of a replacement, the replacement unit will be under warranty
for the remainder of the original warranty term from purchase date, or 30 days,
whichever is longer.
Promise will pay for standard return shipping charges only. You will be required to
pay for any additional shipping options (such as express shipping).
![](asset-7f.png)
121
Appendix A: Partition and Format
In order for your operating system to recognize and work with the disk drives
attached to your FastTrak TX Series RAID controller card, the drives must be
partitioned and formatted.
• If your drives were previously partitioned and formatted they are ready to use
and you can skip this procedure
• If your drives have not been partitioned and formatted, you must do that job
before you can use them
The actions of partitioning and formatting create a file structure on the disk drives
with which your operating system can work. In the example below, we show how
this is done in Windows. A similar procedure is required for Linux PC’s. However,
partitioning and formatting in Linux is not automated, therefore please refer to
your system documentation for the exact procedure.
1. From the desktop, right-click on the My Computer icon and select Manage
from the popup menu. The Computer Management window opens.
2. From the left menu, click on Disk Management. The Disk Management
window opens with your new disk array identified as Disk 1. The Initialize
Wizard appears automatically.
Note
If you plan to boot your computer from this disk array, go to
Windows and Device Driver Installation under the Installation
section for instructions. The instructions here are for data disk
arrays only.
![](asset-80.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
122
3. Click the Next button to start the Wizard.
4. In the following windows, select Disk 1 to Initialize. Do not select any disks to
Convert. Click the Finish button to Initialize the disk array.
5. Right-click on the Unallocated portion of Disk 1 and select New Partition...
from the popup menu. The New Partition Wizard appears.
![](asset-81.png)
Appendix A: Partition and Format
123
6. Click the Next button to start the wizard.
7. In the following windows, do the following actions. Click Next to move to the
next window.
• Select Primary Partition
• Specify the maximum available partition size in MB
• Assign the available drive letter of your choice
• Choose Format this partition with the following settings
• File system: NTFS
• Allocation unit size: Default
• Volume label: Enter your choice of name
• Do not check “Perform a quick format” or “Enable file and folder
compression”
8. Review your selections and click Finish. The New Partition Wizard will
disappear while partitioning and formatting begin.
This process will take some time. The Disk Management window displays
the progress.
![](asset-82.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
124
When formatting is complete, your disk array will appear as a hard drive in
the Disk Management window (above) and the My Computer window
(below).
![](asset-83.png)
125
Appendix B: Upgrades
• BIOS and Firmware Upgrade (page 125)
• Software Driver Upgrade (page 127)
• WebPAM Upgrade (page 130)
BIOS and Firmware Upgrade
Follow this procedure to upgrade the BIOS and Firmware on your FastTrak TX
Series Controller card.
The FastTrak card must be properly installed in your PC or server in order to
perform the upgrade. See “Install the FastTrak Card” on page 8 for more
information.
Step 1: Preparation
To perform this procedure, you need a:
• DOS-bootable diskette
• Blank DOS formatted diskette
Step 2: Download BIOS File
1. Go to the Promise website www.promise.com/support.
2. Click on Downloads.
3. Click on the Select Product popup menu and choose FastTrak TX2200,
TX2300, TX4200 or TX4300 depending on which FastTrak controller you
have.
4. Click on the Select Category popup menu and choose BIOS.
5. Click the GO button.
The list of current BIOS options displays. Be sure you select the appropriate
BIOS for your system.
6. Click on BIOS you want.
7. In the File Download dialog box, click the Save button.
8. In the Save As dialog box, direct the file to save to a convenient location on
your PC.
9. Unzip the file and copy the contents to the DOS-bootable diskette.
10. Label this diskette FastTrak Upgrade.
Use the upgrade diskette to install the BIOS and firmware upgrade package
to the FastTrak controller. Go to step 3, below.
![](asset-84.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
126
Step 3: Install the BIOS Package
1. Boot your PC from the DOS-bootable diskette.
2. When the A:\> prompt appears, remove the DOS-bootable diskette and
insert the FastTrak Upgrade diskette.
3. Find your model of FastTrak controller and type corresponding line at the
A:\> prompt:
• TX2200, type pflash /f 571.bin and press Enter
• TX2300, type pflash /f 771.bin and press Enter
• TX4200, type pflash /f 519.bin and press Enter
• TX4300, type pflash /f 719.bin and press Enter
4. When the A:\> prompt appears, remove the upgrade diskette and insert the
DOS-bootable diskette.
5. Reboot your PC from the DOS-bootable diskette.
6. When the A:\> prompt appears, remove the DOS-bootable diskette and
insert the FastTrak Upgrade diskette.
7. Find your model of FastTrak controller and type corresponding line at the
A:\> prompt:
• TX2200, type pflash /f 571.bin and press Enter
• TX2300, type pflash /f 771.bin and press Enter
• TX4200, type pflash /f 519.bin and press Enter
• TX4300, type pflash /f 719.bin and press Enter
8. When the A:\> prompt appears, remove the FastTrak Upgrade diskette.
9. Reboot your PC normally.
This completes BIOS upgrade procedure.
Cautions
• Before you begin, backup any important or useful data.
• Do NOT skip any steps in the procedure.
• Do NOT power off your PC during the procedure.
Note
For systems with multiple FastTrak TX Series controllers:
With the new BIOS installed, only the FastTrak in the lowest
numbered PCI slot will appear in the BIOS screen. However, all
properly installed FastTraks will appear in WebPAM.
![](asset-85.png)
Appendix B: Upgrades
127
Software Driver Upgrade
Follow this procedure to upgrade the FastTrak software drivers on your PC or
server.
Step 1: Preparation
You need one blank, formatted diskette to perform this procedure.
Step 2: Download Driver Files
1. Go to the Promise website www.promise.com/support.
2. Click on Downloads.
3. Click on the Select Product popup menu and choose Windows Promise
FastTrak TX2200, TX2300, TX4200 or TX4300 depending on which
FastTrak controller you have.
4. Click on the Select Category popup menu and choose Driver.
5. Click the GO button.
The list of current drivers displays. Promise provides 32-bit and 64-bit
versions of its drivers. Be sure you select the appropriate driver for your
system.
6. Click on the driver you want.
7. In the File Download dialog box, click the Save button.
8. In the Save As dialog box, direct the driver to save to a convenient location
on your PC.
9. Copy the files to one of the blank, formatted floppy diskettes.
For Windows driver files: Unzip the downloaded driver package and copy the
files to the diskette.
For Linux driver files:
• On a Windows PC, run the rawrite.exe utility and extract the image file
to the diskette.
• On a Linux PC, run the command dd if=imagefilename
of=floppydevicename bs-10k to copy the image file to the diskette.
imagefilename = the disk image file name
floppydevice name = the device name, such as /dev/fd0.
10. Label the diskette FastTrak Driver.
Use the FastTrak Driver diskette to upgrade to the latest software driver. Go
to step 3, below.
![](asset-86.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
128
Step 3: Install the Software Drivers
Windows Server 2003, XP and 2000
1. Insert the FastTrak Driver diskette in the A: drive.
2. In the Start Menu, go to Settings > Control Panel. Double-click on the
System icon. Click on the Hardware tab. Click on the Device Manager
button.
3. At the Device Manager, click on the “+” icon to the left of SCSI and RAID
Controllers to expand the list.
4. Right-click on Promise FastTrak TX [2200, 2300, 4200, 4300] (tm) Controller
and select Update Driver...
5. In the Hardware Update Wizard, select No, not this time and click Next.
6. In the Hardware Update Wizard, select Install from a list or specific location
(Advanced) and click Next.
7. Under Please choose your search and installation options, select Don’t
search. I will choose the driver to install and click Next.
8. Under Select the device driver you want to install, click Have Disk...
9. Under Install from Disk, type A:\ and click OK.
10. Under Select the device driver you want to install, click Next.
If a warning about Digital Signature appears, click Continue Anyway.
11. Under Completing the Hardware Update Wizard, click Finish.
12. Click Yes to restart your PC.
13. Remove the FastTrak Driver diskette.
Red Hat Enterprise Linux 4.0
1. Insert FastTrak Driver diskette into the floppy drive.
2. Log in as root.
3. Run mount -r /dev/fd0 /media/floppy.
4. Run cd /media/floppy.
5. Run sh ./install.
6. When the Installer asks, You are installing a driver on an existing OS. Is it
true (y/n)?, type Y and press Enter.
7. Run cd; umount /media/floppy.
8. Remove the FastTrak Driver diskette.
9. Run reboot to restart the system.
![](asset-87.png)
Appendix B: Upgrades
129
SuSE Linux ES 9.0
1. Insert FastTrak Driver diskette into the floppy drive.
2. Log in as root.
3. Run mount /dev/fd0 /media/floppy.
4. Run cd /media/floppy.
5. Run ./install.
6. Run cd; umount /media/floppy.
7. Remove the FastTrak Driver diskette.
8. Run reboot to restart the system.
![](asset-88.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
130
WebPAM Upgrade
Follow this procedure to upgrade the WebPAM Software on your PC or server.
Step 1: Download the WebPAM File
1. Go to the Promise website www.promise.com/support.
2. Click on Downloads.
3. Click on the Select Product popup menu and choose FastTrak TX2200,
TX2300, TX4200 or TX4300.
4. Click on the Select Category popup menu and choose Utility.
5. Click the GO button.
The list of the current WebPAM software displays. Promise provides
versions of WebPAM software for Windows and Linux. Be sure you select
the appropriate version for your system.
6. Click on the WebPAM you want.
7. In the File Download dialog box, click the Save button.
8. In the Save As dialog box, direct the software to save to a convenient
location on your PC.
9. Unzip the downloaded WebPAM package.
The result is a single installer file. Go to step 2, below.
Step 2: Install WebPAM
You can install the latest version of WebPAM over an existing installation. The
installer will delete the previous version and then install the new one.
Windows
Follow these steps to install WebPAM on your Windows-based PC or Server.
1. Boot up the PC/server and launch Windows.
If the computer is already running, exit all programs.
2. Double-click on the WebPAM Installer file to launch it (right)
The first WebPAM PRO installation dialog box appears.
3. Follow the prompts in the installation dialog box.
![](asset-89.png)
Appendix B: Upgrades
131
Linux
Follow these steps to install WebPAM on your Linux-based PC or Server.
1. Boot up the PC/server and launch the Linux GUI.
If the computer is already running, exit all programs.
2. Double-click on the WebPAM Installer file to launch it (right).
3. When the Run or Display? dialog box appears, click Run in
Terminal.
After several moments, the Terminal window closes and the first WebPAM
installation dialog box appears.
4. Follow the prompts in the installation dialog box.
Step 3: Log-in to WebPAM
Double-click on the WebPAM icon on your Windows desktop (right). Or,
1. Launch your Browser.
2. In the Browser address field, type in the IP address of the Host PC, as
explained below.
If you did not choose the External Security option during WebPAM
installation, use the Regular connection.
If you chose the External Security option during WebPAM installation, use
the Secure connection.
Regular Connection
• WebPAM uses an HTTP connection . . . . . . . . . . . . . . . . . . . . .http://
• Enter the Host PC’s IP address. . . . . . . . . . . .127.0.0.1 or localhost
• Enter the Port number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . :8080
• Add to launch WebPAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . /promise
Together, your entry looks like this:
http://127.0.0.1:8080/promise or http://localhost:8080/promise
Secure Connection
• WebPAM uses a secure HTTP connection . . . . . . . . . . . . . . .https://
• Enter the Host PC’s IP address. . . . . . . . . . . .127.0.0.1 or localhost
• Enter the Port number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . :8443
• Add to launch WebPAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . /promise
Together, your entry looks like this:
https://127.0.0.1:8443/promise or https://localhost:8443/promise
![](asset-8a.png)
FastTrak TX2200/2300, TX4200/4300 User Manual
132
Note that the IP address shown above applies to a log-in at the Host PC.
When you log in over a network, you will enter the Host PC’s actual IP
address.
When the opening screen (above) appears:
1. Type admin in the Login ID field.
2. Type admin in the Password field.
3. Click the Sign in button.
This is the default login for the Administrator. Each user will have their own Login
ID (the User ID) and password. See “Add a User” on page 47 and “Change a
User’s Password” on page 51 for more information.
The Login ID and Password are case sensitive.
