Technical Specifications

On-board Storage

．SD/SDHC card slot

．Stores snapshots and video clips

Security

．Multi-level user access with password protection

．IP address filtering

．HTTPS encrypted data transmission

．802.1X port-based authentication for network protection

Users

．Live viewing for up to 10 clients

Dimension

．Camera: Ø 170 mm x 133 mm

．Cable length: 690 mm

．Cable diameter: Ø 10 mm; Max Connector: Ø 18 mm

Weight

．Net: 1907 g

LED Indicator

．System restore status indicator

Power

．24V AC

．Power consumption: Max. 5.3W

Max. 9.9W

(with heater, fan, and IR illuminator)

．802.3af compliant Power-over-Ethernet (Class 3)

Housing

．Metal base and polycarbonate transparent cover

．Vandal-proof: 1,000 kg

．Weather-proof IP66-rated housing

Approvals

．CE, LVD, FCC, VCCI, C-Tick

Operating Environments

．Temperature: -30 ~ 50 °C (-22 ~ 122 °F )

．Humidity: 20 ~ 95% RH

Viewing System Requirements

．OS: Microsoft Windows 7/Vista/XP/2000

．Browser: Mozilla Firefox, Internet Explorer 7.x or above

．Cell phone: 3GPP player

．Real Player: 10.5 or above

．Quick Time: 6.5 or above

Installation, Management, and Maintenance

．3-axis mechanism for flexible ceiling and wall mount installation

．Drop-ceiling mount installation

．Camera angle adjustment: pan 350°, tilt 65°, rotate 350°

．BNC connector for video output

．NTSC/PAL video output switch

．Installation Wizard 2

．32-CH ST7501 recording software

．Supports firmware upgrade

Applications

．SDK available for application development and system integration

Warranty

．24 months

System

．CPU: TI DM365 SoC

．Flash: 128MB

．RAM: 256MB

．Embedded OS: Linux 2.6

Lens

．Board lens, Vari-focal, f = 3 ~ 9 mm, F1.2 (wide), F2.1 (tele), auto-iris

．Removable IR-cut filter for day & night function

Angle of View

．31.7° ~ 93.0° (horizontal)

．23.8° ~ 68.4° (vertical)

Shutter Time

．1/5 sec. to 1/40,000 sec.

Image Sensor

．1/3.2” CMOS sensor in 1600x1200 resolution

Minimum Illumination

．0 Lux / F1.2 (IR LED on)

IR Illuminators

．Built-in IR illuminators, effective up to 20 meters

．IR LED*18

Video

．Compression: H.264, MJPEG & MPEG-4

．Streaming:

Simultaneous multiple streams

H.264 streaming over UDP, TCP, HTTP, or HTTPS

MPEG-4 streaming over UDP, TCP, HTTP, or HTTPS

MPEG-4 multicast streaming

MJPEG streaming over HTTP or HTTPS

．Supports activity adaptive streaming for dynamic frame rate control

．Supports video cropping for bandwidth efficiency

．Supports ePTZ for data efficiency

．Supports 3GPP mobile surveillance

．Frame rates:

H.264: up to 30 fps at 1280x720

up to 15 fps at 1600x1200

MPEG-4: up to 30 fps at 1280x720

up to 15 fps at 1600x1200

MJPEG: up to 30 fps at 1280x720

up to 15 fps at 1600x1200

．Interface:

BNC connector for video output

NTSC/PAL video output switch

Image Settings

．Adjustable image size, quality, and bit rate

．Time stamp and text caption overlay

．Flip & mirror

．Configurable brightness, contrast, saturation, sharpness, white

balance, and exposure

．AGC, AWB, AES

．Automatic, manual, or scheduled day/night mode

．BLC (Backlight Compensation)

．Supports privacy masks

Networking

．10/100 Mbps Ethernet, RJ-45

．ONVIF support

．Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,

RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS,

PPPoE, CoS, QoS, SNMP, and 802.1X

Alarm and Event Management

．Triple-window video motion detection

．Tamper detection

．Event notification using HTTP, SMTP, or FTP

．Local recording of MP4 files

Fixed Dome Network Camera

FD8361L

2MP • H.264 • Vandal-Proof • Day & Night • 3-axis

VIVOTEK’s FD8361L is the latest professional-series outdoor fixed dome network camera featuring superb megapixel image

quality and exceptional bandwidth efficiency. With day & night functionality and a weatherproof housing, it is especially suitable

for tough outdoor surveillance environments such as parking lots and streets.

Featuring a 2-megapixel sensor, the FD8361L is able to provide extremely wide coverage with the finest details. Additionally, the

camera is incorporated with high performance H.264 compression technology, and has adopted a number of innovative

bandwidth-efficient technologies built into the camera, including cropping, ePTZ, and activity adaptive streaming.

In order to adapt to constantly changing outdoor lighting conditions, the FD8361L features an auto-iris lens to protect from

damage induced by direct sunlight. The camera also comes with a removable IR-cut filter and IR illuminators for superior

image quality around the clock. For protection against the elements, the camera is furnished with an IP66-rated housing and

vandal-proof casing to withstand rain, dust, and vandalism. The PoE-powered heater and fan further enhance the FD8361L’s

performance and reliability in extremely cold and warm weather.

The integrated BNC connector allowing the FD8361 to be connected directly to an analog monitor provides enhanced flexibility

and usability and ease of installation. Other advanced features include a 3-axis mechanism for flexible installation, 802.3af PoE,

SD/SDHC card slot, and tamper detection. With the included ST7501 32-CH recording software, the FD8361 is the ultimate

camera for demanding outdoor environments.

Ver 1.1

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T: +886-2-82455282|F: +886-2-82455532|E: sales@vivotek.com

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: salesusa@vivotek.com

All specications are subject to change without notice. Copyright © 2012 VIVOTEK INC. All rights reserved.

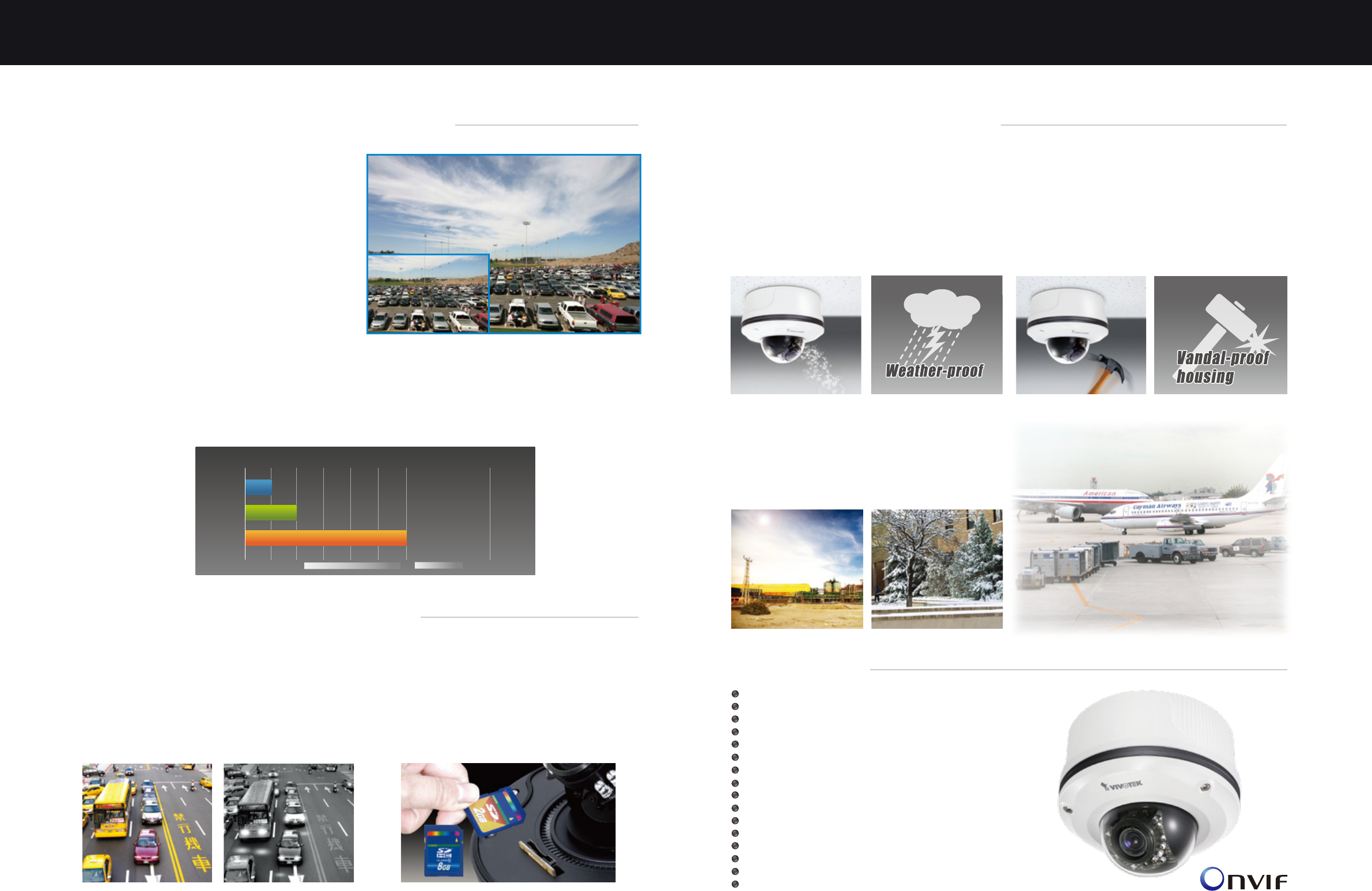

Constant, Uninterrupted Surveillance

Flawless Image Quality & Data Efficiency

Product Features

The FD8361L is equipped with a 2-megapixel sensor, making it

capable of providing highly detailed images by which users can

easily and accurately identify minute objects such as vehicle

license plates or facial features.

To take full advantage of the high resolution capabilities, the

FD8361L is incorporated with several innovative bandwidth-

saving technologies. Cropping allows for the removal of unnec-

essary information and transmits only the image of a selected

region. ePTZ can zoom in on a target area without changing the

camera direction physically, then deliver only the image of that

region via the Multiple Streams feature for optimal bandwidth

allocation. Activity Adaptive Streaming allocates bandwidth

usage dynamically with a configurable frame rate to optimize

bandwidth consumption for different situations.

Ultimate Outdoor Surveillance Ultimate Outdoor Surveillance

The FD8361L's weather-proof IP66-rated housing provides

protection from extreme weather conditions, dust, and mois-

ture. It offers total protection against contamination and with-

stands water jet ingress, allowing for operation in demanding

environments.

SD/SDHC Card SD/SDHC Card

IP66-rated HousingIP66-rated Housing

With a heater and fan incorporated in the housing, the

FD8361L can operate in extreme temperatures ranging from

-30 to 50 °C and humidity from 20 to 95% RH.

Extended Temperature RangeExtended Temperature Range

The ability to detect camera tampering attempts and send

out real time alerts makes the FD8361L an invaluable solu-

tion for vandalism-prone areas. Additionally, the vandal-proof

housing consisting of a metal base and polycarbonate cover

enables the camera to withstand an impact of up to 1,000

kg, making it suitable for high-risk environments.

Protection against Tampering and VandalismProtection against Tampering and Vandalism

The FD8361L features an SD/SDHC card slot to provide

short-term and portable video storage on removable

memory cards, thereby providing a higher level of conveni-

ence. With this feature, because camera images are con-

tinuously recorded on the SD/SDHC card, the chance of

data loss due to network disconnection is greatly reduced.

The FD8361L delivers day & night functionality with a built-in

removable IR-cut filter and IR illuminators effective up to 20

meters. By day, the IR-cut filter screens out infrared light to

reduce color distortion, and at night, the filter is removed to

accept infrared light and the IR illuminators are activated for

higher light efficiency.

Clear Images 24/7

H.264 is the latest high performance video compression standard that boasts a much higher compression ratio than MJPEG or

MPEG-4. With a 90% reduction in file size, a 2MB image can be drastically reduced to 20KB with H.264. As such, uncompromised

image quality and less required bandwidth and storage space make H.264 ideal for megapixel cameras.

H.264

0 1

1%

2%

20%

2 20 100%

Compressed File Size

H.264

MPEG-4

MJPEG

VGA

2MP

2-megapixel CMOS Sensor

3 ~ 9 mm Vari-focal, Auto-iris Lens

Removable IR-cut Filter for Day and Night Function

Built-in IR Illuminators, Effective up to 20 Meters

Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)

Multiple Simultaneous Streams

Video Cropping for Bandwidth Saving

ePTZ for Data Efficiency

Activity Adaptive Streaming for Dynamic Frame Rate Control

Tamper Detection for Unauthorized Changes

Vandal-proof and Weather-proof IP66-rated Housing

Built-in 802.3af Compliant PoE (Class 3)

Built-in SD/SDHC Card Slot for On-board Storage

Built-in Heater and Fan, Supported by PoE

3-axis Mechanical Design for Ceiling and Wall Mount Installation

Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
