2015 / 2016
GENERAL CATALOGUE
BUILDING COMMUNICATIONS
2015/2016 GENERAL CATALOGUE
1st Edition. May 2015
DESIGN
Fermax Electrónica S.A.U.
www.fermax.co.uk
Palm Jumeirah DUBAI-UAE
Reections SINGAPORE
Eureka Tower MELBOURNE-AUSTRALIA
King Abdullah Financial D. ARABIA SAUDI
Torres Isozaki BILBAO-SPAIN
Millenium Tower VIENNA- AUSTRIA
BUILDING COMMUNICATIONS
Fermax is a company with Spanish origin specialized in designing,
manufacturing and commercializing audio and video door entry
systems, with its Headquarters based in Valencia, Spain.
Founded by Mr. Fernando Maestre in 1949, Fermax has always
encouraged creativity and enterprising spirit to develop the most
innovative advance communications system solutions for the building.
Fermax, throughout its 65 year history, has known how to develop its
cutting-edge products, while keeping the essence of its corporate
identity unchanged. The values of specialization and a family business,
along with a passion for technology and design, have guided the rm
to its prominent positioning among the world’s most important brands.
With a decisive customer focus, the team is proud to transmit the
Fermax values in the 15 countries where the company has its own
subsidiaries or representative ofces, as well as in the rest of the 70
countries where Fermax products are sold through a well-established
network of distributors.
Etihad Towers ABU DHABI- EAU Capital Group MOSCOW-RUSSIA Trafalgar Place, LONDON, UK
Folkart Towers TURKEY
Central Park MEXICO DF - MEXICOOne 57 NEW YORK - USA
FERMAX UK Ltd
FERMAX was established in the UK in the early 80’s, becoming one of the rst audio & video
door entry companies in the country, recognized for the quality of its products.
In 1997, after years of great success in the UK, FERMAX decided to open a subsidiary ofce
based in Essex. FERMAX UK Ltd then took over the distribution of Fermax products, and in the
following 18 years, has become one of the leading brands in the UK door entry market.
Today, the company continues to work towards facing future challenges, creating new
communication lines and making the video entry system the technological heart of the
home. The inclusion in our portfolio of new lines of business such as fully digital video entry
systems, home automation or energy-efcient solutions enables the company to supply the
most complete range of products to meet the specic needs both of professional client and
end-users. And always under the rm commitment to being an excellent company in the
sector, setting the highest quality standards for both products and processes.
Participation in benchmark projects worldwide is the main guarantee of success for Fermax
over the years. They make up our past and present, and will continue to be our paradigm in
the future.
SMART SYSTEM
NEW PRODUCTS
DUOX SMART SYSTEM
LYNX: CALL DIVERTER APP AND VIVO IN DIFFERENT COLOURS
WAY KIT
DOMINIUM PACKS
NO MORE TANGLES,
INCOMPATIBLE CONNECTIONS AND IMPOSSIBLE INSTALLATIONS.
WITH DUOX IT COMES EASY.
THE NEW, THE
REVOLUTIONARY
SMART SYSTEM
Changes everything
It is a technological revolution destined
to change our notions of audio and
video door entry systems. Because
it provides better performance and
capacities, greater simplication and
speed. But above all, because it takes us
to a new dimension, where information
(audio, video, data) becomes digital
material which is transported using just
two non-polarized wires.
With DUOX something more than a new
video entry system reaches homes.
With DUOX today, we are installing THE
FUTURE.
FULL DIGITAL. SMART SYSTEM
LIMITLESS CAPACITIES. ALL TYPES OF INSTALLATION
FOR ALL. YOU CHOOSE THE WIRING
BASIC WIRING, SIMPLIFIED INSTALLATION AND VOICE-GUIDED PROGRAMMING
FOR SPECIALIST COMPANIES
THE USER DECIDES THE EQUIPMENT
DIGITAL PLATFORM. TECHNOLOGICAL INFRASTRUCTURE
DUOX IS THE FIRST FULL DIGITAL AUDIO AND VIDEO DOOR ENTRY SMART SYSTEM
IN 2-WIRE NON POLARIZED TECHNOLOGY.
IT IS THE WORLD’S MOST TECHNOLOGICALLY ADVANCED SYSTEM AND EXCEEDS ALL
EXPECTATIONS. BECAUSE IT MAKES THE DIFFICULT EASY.
RE
VOLU
TION

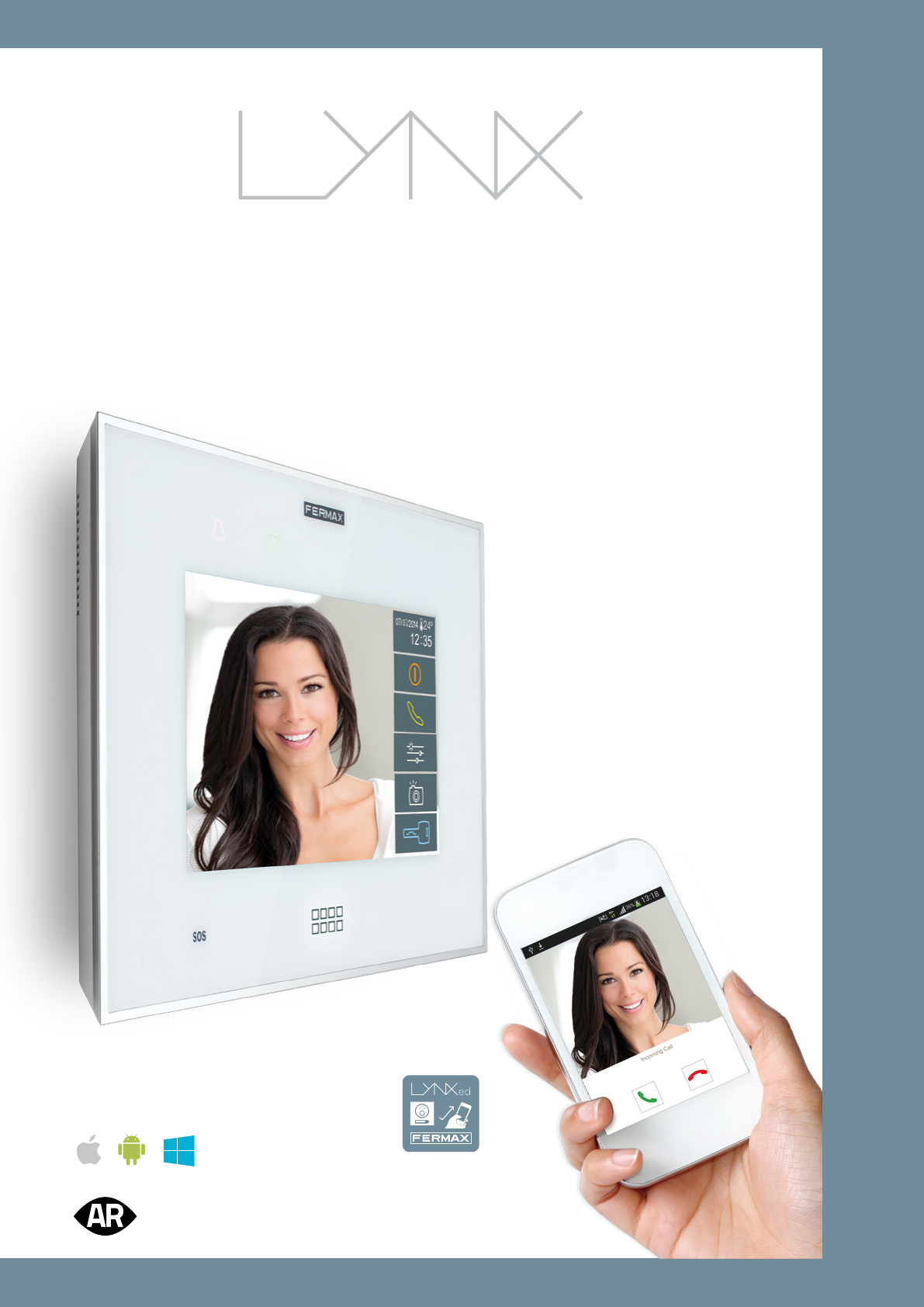

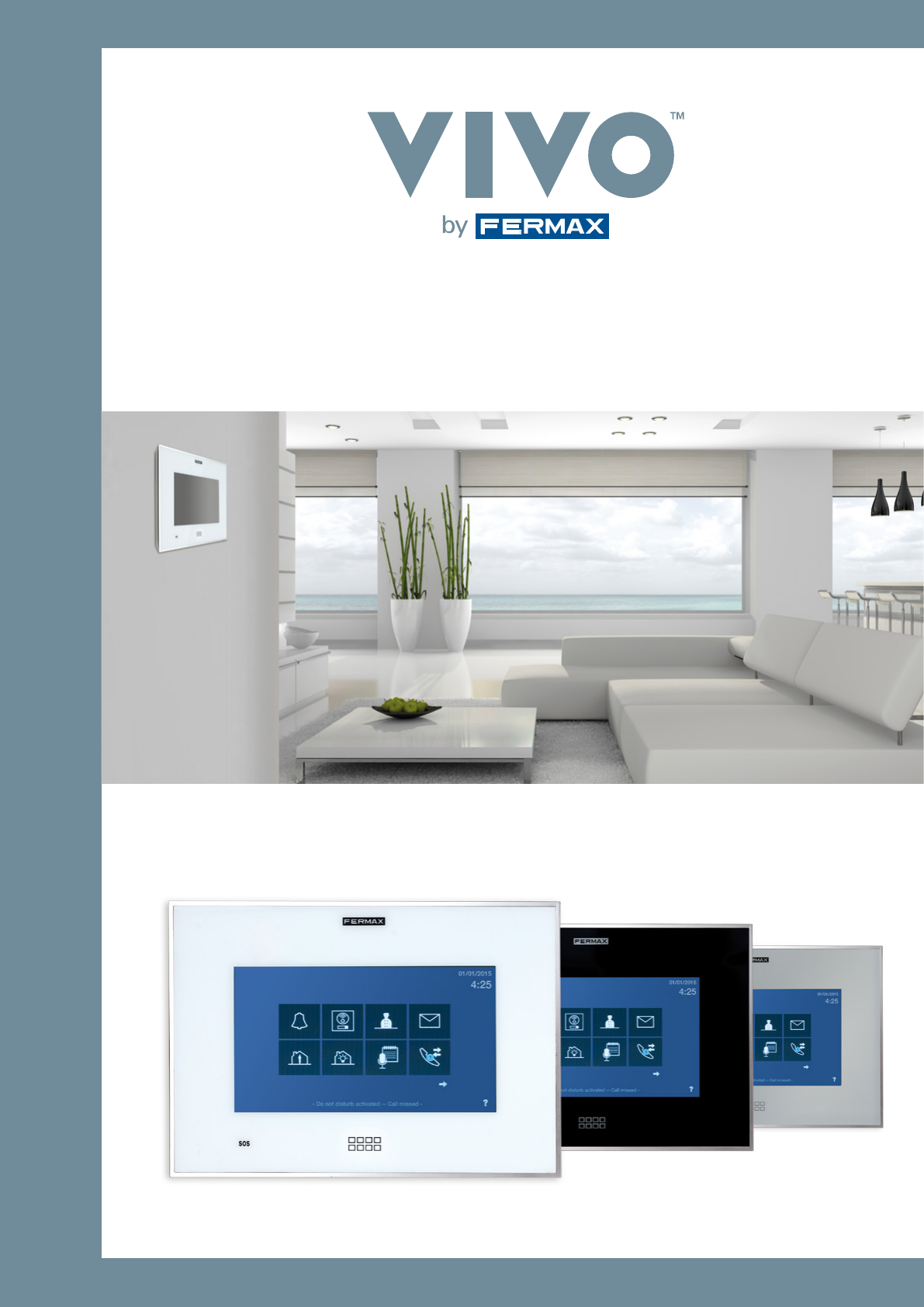

For LYNX, the most cutting-edge TCP/IP technology system, FERMAX has created VIVO,
the video entry monitor with capacitive touchscreen that becomes the technological
interface of the home. VIVO manages the communication, security and comfort of
the world’s most prestigious residential complexes.
White
Black
Silver
AN EXCLUSIVE SPACE
PERFECTLY INTEGRATED TECHNOLOGY
VIVO with call diverter through the FERMAX
LYNXed APP. Free App. Available in Apple
Store, Play Store and Windows Store.

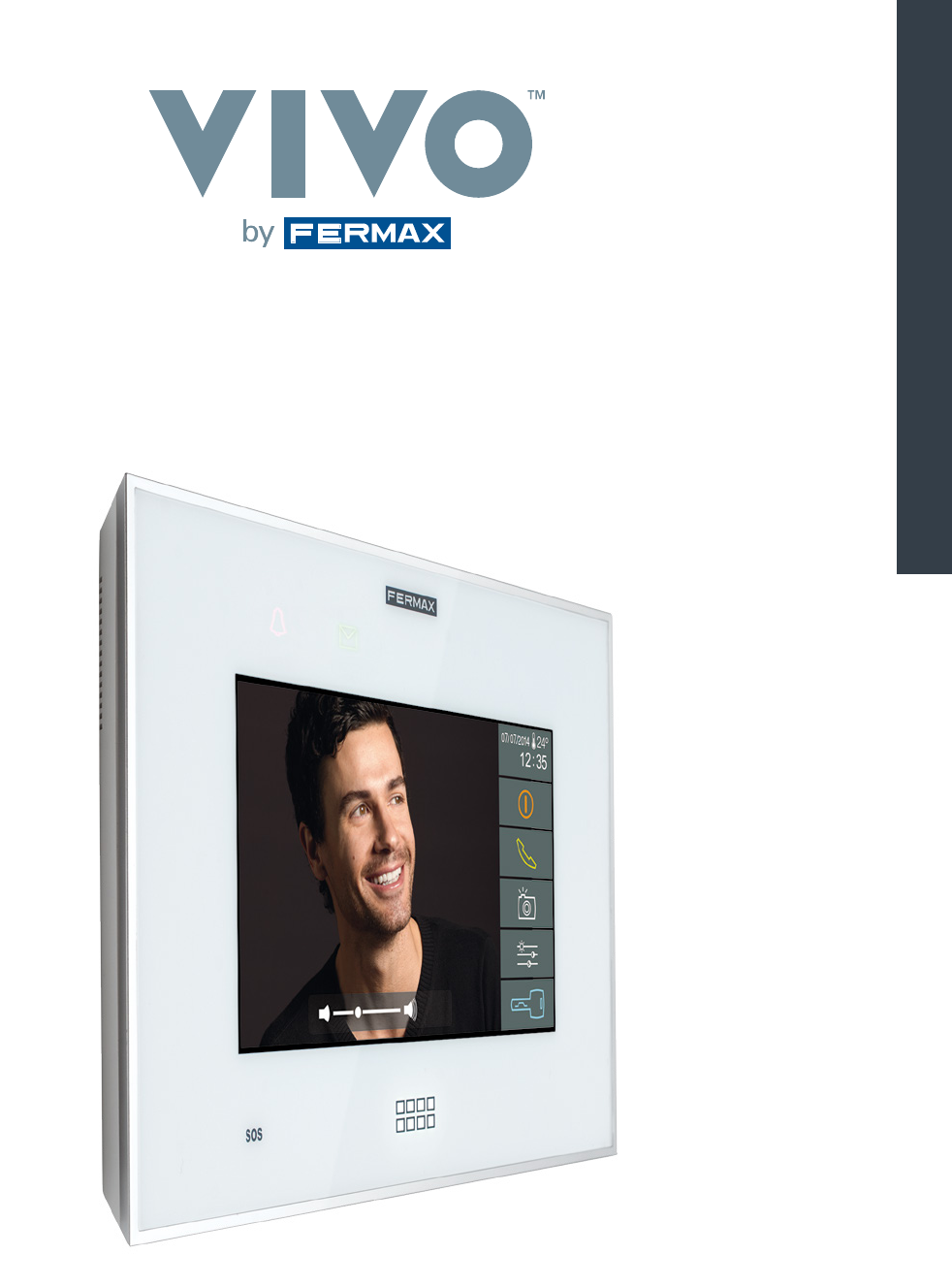

IP VIVO Monitor
PERFECTLY INTEGRATED TECHNOLOGY
Always connected to VIVO. From any tablet or mobile device, VIVO allows to control the apartment
door from any place in the world.
By incorporating a LYNX router in the installation, calls received at the door entry panel can be diverted
to mobile devices, where the user can view the visitor’s picture, set up communication with them and,
if desired, open the door.
Installation for this application is
stand-alone, without affecting any
other apartments in the building.
Once installed, the VIVO monitor
works normally, so the call can
be answered directly... If there is
anybody at home.
If no one is at home, the visitor
doesn’t know, as the call is
diverted to the resident’s mobile
device anywhere in the world.
All they will need is a 3G or Wi-Fi
connection to receive it.
Choose among 20 different melodies, customize the monitor’s settings, record
videos and capture images of your visits and all of this in a single Kit!
PLUG&PLAY. The monitor and the door entry panel are already programmed and
ready for installation!
THE OUTDOOR PANEL. The Way kit includes a video door entry
panel made of zamak metal with high sensitivity colour CCD
camera as standard. Surface installation.
THE MONITOR. A digital 7” TFT colour monitor with capacitive
touch screen that facilitates an intuitive use.
3 shortcut buttons for a quick access without using the screen.
Kit
Monitor
Call Record
Intercom
Do not
Disturb
Playback
Close
1
Do it your
Kits for 1 & 2 residences
Technology: 2 wires non-polarized
Touch screen
Digital TFT colour monitor with
capacitive touch screen that
facilitates an intuitive use.
3 shortcut buttons for a quick
access without using the screen.
Call record
All the calls from panel-to-monitor,
monitor-to-monitor and between
monitors will be recorded and can be
reviewed afterwards.
Call record 01/08
06-23 15:22 Neighbour
06-12 21:43 Neighbour
06-18 20:54 Outdoor Panel
05-29 13:16 Inner call
06-18 21:43 Outdoor Panel
Take your time to relax.
Activate the Do not Disturb in
1 HOUR, 8 HOURS or ALWAYS.
Do not disturb
Brightness, contrast, selection of
melodies, date & time, scene mode
(brightly, soft and user), ring volume
for day time and night time, language
selection (16 different), etc.
Settings
After 3 seconds the monitor
automatically records a video (in case
there is a micro SD Card installed) or
a picture (in case there isn’t) of the
visitors. While answering, you also have
the option to manually take a snapshot
of your visit. The recorded videos/
pictures from the outdoor panel will be
played on the screen.
Playback
Capacity:
118 pictures
(without micro
SD Card) or
audio&video
record up to
32G (with micro
SD Card).
Establish communication with other
installed monitor inside the house.
In the 2 apartments kit
the option to call to another apartment
is available as well.
Intercom
dominium
home management
DOMINIUM is the line FERMAX has created to furnish the market with a robust and exible
home automation system designed specically for residential surroundings. Able to adjust
to the simplest needs of a small apartment or the complex specications of a large villa.
Able to grow and change to continue to meet the needs of the user. And, of course, with
the option of controlling the system from the video door entry system.
The iLOFT DOMINIUM monitor is available in HOME PACKS format ready for inclusion in any
VDS installation. Three models for different needs:
-Security and well-being at home.
-Monitoring of electrical consumption.
-All energy consumption under control.
HOME MANAGEMENT INTEGRATED IN YOUR VIDEO DOOR
ENTRY SYSTEM
COMFORT
A PLACE TO FEEL AT HOME
COMMUNICATION
THE CONNECTED HOME
ENERGY MANAGEMENT
MOTORIZE. RATIONALIZE.
PROGRAM
SECURITY
TECHNICAL AND PERSONAL
PROTECTION
DUOX WEB
In Fermax we want to make it really easy to nd the
solution that each customer is looking for at any time,
from any device and any place.
www.fermax.co.uk has two very different
environments: a corporate website and another
professional area, supporting both end users and
professionals.
As a professional, in this section you will nd specic
and useful technical information, whether you are
an installer, distributor, architect or developer interior
decorator or builder:
· Technical specications, installation conguration
and management software.
· Catalogues, brochures and product photographs.
· Guides, manuals, courses and technical
presentations.
And if you can’t nd what you’re looking for, you can
use our powerful search engine, which provides wide-
ranging and structured information in response to the
product or service sought.
www.duoxbyfermax.com is the Fermax website
for end users, who can set up a communication
channel where we present the advantages of DUOX
as full-digital video door entry technology.
With DUOX, it is the user who decides which
equipment or solution best suits their needs and from
the web we will gradually incorporate all the new
features, applications and products we place at
your disposal, as well as for professionals. With DUOX,
we leave the door open to the future.
IN YOUR HANDS
OUR WEB
Changes everything
SMART SYSTEM
NEWSLETTERS FERMAX FOR REAL
Fermax regularly publishes two circulars with all the
latest company news:
Fermax Global News: Corporate newsletter with
the latest technological developments, the
best products, and the world’s most prestigious
installations or interesting marketing ideas.
Tech Channel: For true professionals with a purely
technical prole, where you will discover the latest
developments in the world of technology for video
door entry systems.
FERMAX FOR REAL is the new free app from Fermax for
mobile devices, so you can check how our products
would look in your customer’s home or your own
ofce. Interact with them as though they were already
installed. Thanks to its built-in Augmented Reality
technology, everything is possible. Fermax for Real
is a great tool in the sales process, as it minimizes the
customary hesitation and indecision that crop up in
owner communities. Because with this application and
via a tablet or mobile you have all the Fermax solutions
within your reach. You will have the most complete
information on each product and be able to integrate
a virtual image into a real one and then take a picture
of the nal result and save it or attach it along with the
budget estimates, speeding up the decision-making
process.
Available in:
Apple Store, Play Store and Windows Store.
Fermax for Real
NEW APP
WITH AUGMENTED REALITY

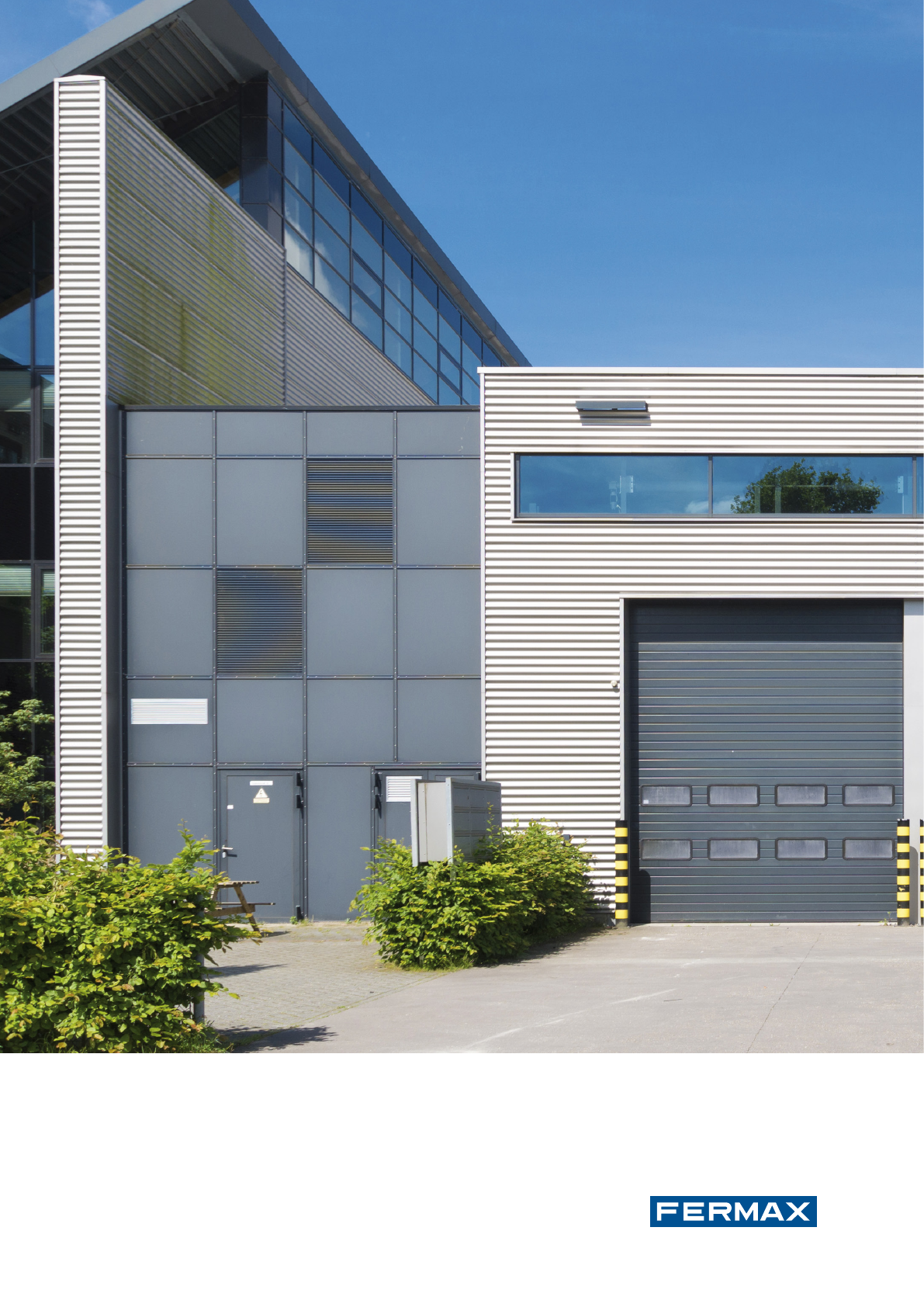

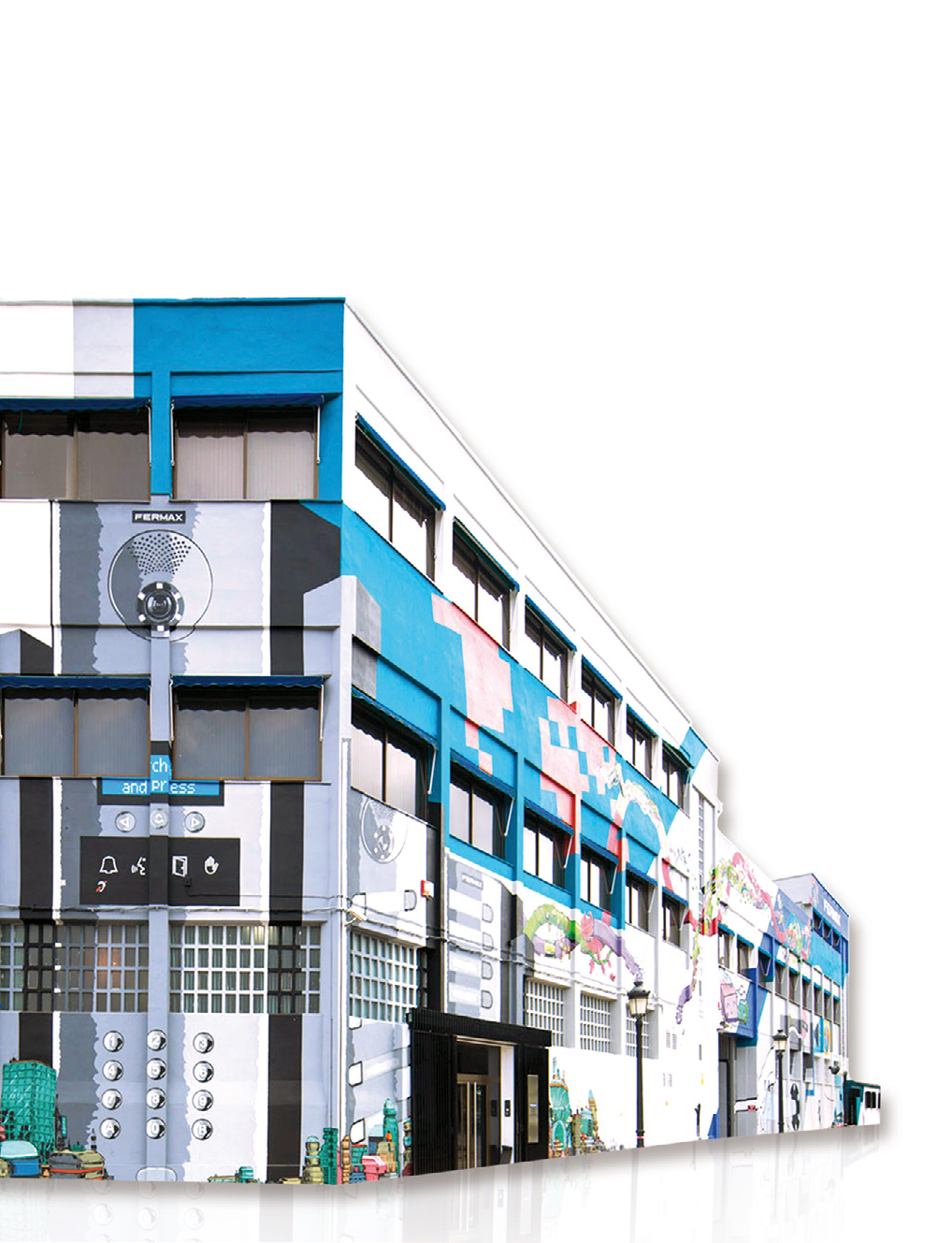

FERMAX General Headquarters facade in Valencia, Spain
Skyline 42
Marine 52
Flush-mounted 69
Surface 70
Specials 71
Accessories 71
City Panel 122
Marine Panel 122
Projects 136
Diagrams 140
Duox features 146
Index of references 150
Contacts 160
Video 20
Home-Automation 29
Audio 30
VIVO Monitor 74
Smile Monitor 76
Loft Monitor 78
iLoft Monitor 80
iLoft Telephone 83
Loft Telephone 84
Citymax Telephone 85
Universal Frames 86
DUOX 90
VDS 96
MDS 104
LYNX 116
KITSPANELSLOCK RELEASEMONITORS AND TELEPHONESSYSTEMSACC. CONTROL SIP PANELSTECH. INFOINDEX REF.
Stand-alone 126
Centralised 130
KITS
VIDEO HOME-AUTOMATION AUDIO
KITS
20 2015 GENERAL CATALOGUE
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-monitor)
EXTENSIONS
w/o extra PSU
1401 1/W 2-WIRE WAY KIT 28VDC-2A
(ref.1410)
Twisted
cable
2x0,75mm2
2x1 mm2
120 m
160 m
1 monitor
The way kits admit a 2nd monitor in the
apartment, without extra supply.
Only 2 wires are necessary between monitor 1
and monitor 2.
1405 7’’ additional monitor 1/W way kit
1406 7’’ additional monitor 2/W way kit
EXTENSIONSFEATURES
DIAGRAM
2 22
DIMENSIONS
VIDEO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
· 7’’ touch screen monitor.
· Slim surface panel made of zamak. Hood
included.
· Intercommunication between 2 monitors.
· Pictures capture.
· Video recording with a SD card (not included
in the kit).
· Calls records.
· 20 melodies to choose.
1401 1/W 2-WIRE WAY KIT
1402 2/W 2-WIRE WAY KIT
The same as kit ref.1401 but with 2/W video panel
(ref.1408) and two 7” monitors (one ref.1405 for 1st
apartment and one ref.1406 for 2nd apartment).
1407. 1/W video door entry panel with hood.
Surface panel: 95x155x25.
1405. 7’’ touch screen colour monitor
1410. Power supply.
NON POLARIZED
wires
95 25
155
225
131
18
Plug & Play
Power-supply included in the kit limited for a 12Vdc 250mA door-lock.
Kit
KITS
2015 GENERAL CATALOGUE 21
60203
220
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-monitor)
EXTENSIONS
w/o extra PSU
RELAY
4961
5432
1/W COLOUR VDS
VIDEO CITY KIT
1/W COLOUR VDS
VIDEO MARINE KIT
DIN10 230VAC/12VAC
+ 18VDC-1.5A
REF. 4810
- Coax
recommended for
the video.
- Possible with CAT5
0,5 mm2
CAT5
1 mm2
1,5 mm2
50 m
80 m
100 m
150 m
2 handsets or 1
monitor
Ref. 2013 for
additional
functions
The same as in ref.4961but with panel ref.48515 and
2 monitors.
The same as in ref.4961but with panel ref.54337.
4961 1/W VDS COLOUR CITY VIDEO KIT
49627 2/W VDS COLOUR CITY VIDEO KIT
5432 1/W VDS COLOUR MARINE VIDEO KIT
Citykits
8851 Flush box S1: 115x114x45
7061 Surface box S1: 130x128x33
9191 Decorative frame S1: 211x210
8400 Hood S1: 135x130
Marine kit (stainless steel)
4641 Marine ST1 ush box: 130x160x55
4645 Marine ST1 surface box: 154x184x96
4701 Marine ST1 hood: 154x184x40
In option:
4545 Telephone interface
To forward the call from the outdoor panel to a
home telephone or a mobile phone. A power supply
ref.4810 is required. See more info at VDS section.
ACCESSORIESEXTENSIONS
DIAGRAM
2
3+coax, 5 wires
or UTP CAT5
DIMENSIONS
130
128
45
cityline
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Recommended distance between panel and power supply: 30m
VIDEO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
48505. 1/W COLOUR VDS CITY panel and ush box.
Panel S1: 130x128 / Kit ush box: 115x114x45.
3305. VDS COLOUR LOFT monitor.
3314. Surface connector.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A.DIN10.
It is possible to install 1 additional monitor or 2
handsets without adding any power supply. For
bigger extensions, extra PSU will be necessary.
3305 Colour VDS Loft monitor
3314 VDS Loft connector
3390 VDS Basic Loft telephone
3391 VDS Extra Loft telephone
The VDS VIDEO KITS can be extended with a 2nd
access. A switcher module (ref. 2450) is necessary.
48505 1/W colour VDS video City kit panel
48515 2/W colour VDS video City kit panel
54337 1/W Marine VDS video panel
Stainless Steel Panel
Technology
VDS
Optional
Telephone
interface
Dimensions: (width) x (height) x (depth) mm.
KITS
22 2015 GENERAL CATALOGUE
ACCESSORIES
EXTENSIONS
DIAGRAM
2
DIMENSIONS
131
197
35 130
128
45
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Recommended distance between panel and power supply: 30m
8851 Kit ush box S1: 115x114x45
7061 Surface box S1: 130x128x33
9191 Decorative frame S1: 211x210
8400 Hood S1: 135x130
Optional:
4545 Telephone interface
To forward the call from the outdoor panel to a
home telephone or a mobile phone. A power
supply ref. 4810 is required.
Panel ACCESSORIES:
VIDEO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
It is possible to install 1 additional monitor or 2
handsets without adding any power supply. For
bigger extensions, extra PSU will be necessary.
5620 VDS colour iLoft monitor (ush-mounted)
5614 VDS surface iLoft monitor
5601 iLoft telephone
3390 VDS Basic Loft telephone
3391 VDS Extra iLoft telephone
The VDS VIDEO KITS can be extended with a 2nd
access. A switcher module (ref. 2450) is necessary.
48505 1/W Colour VDS video city kit panel
48505. 1/W COLOUR VDS CITY panel with kit ush box S1.
Panel S1: 130x128. Kit ush box: S1 115x114x45.
5620. iLOFT VDS COLOUR monitor (ush-mounted).
5630. iLOFT ush box. 158x108x45.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
Same as in ref.4950 but with iLOFT SURFACE VDS
monitor ref.5614
4950 1/W VDS iLOFT VIDEO KIT
4954 1/W VDS iLOFT SURFACE VIDEO KIT
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-monitor)
EXTENSIONS
w/o extra PSU
RELAY
4950
4954
1/W VDS iLOFT
VIDEO KIT
1/W VDS iLOFT
SURFACE VIDEO KIT
DIN10 230VAC/12VAC
+ 18VDC-1.5A
REF. 4810
- Coax
recommended for
the video.
- Possible with CAT5
0,5 mm2
CAT5
1 mm2
1,5 mm2
50 m
80 m
100 m
150 m
2 handsets or 1
monitor
Ref. 2013 for
additional
functions
3+coax,
5 wires or
UTP CAT5
Technology
VDS
Optional
Telephone
interface
Dimensions: (width) x (height) x (depth) mm.
KITS
13
45
Surface Flush moutend
2015 GENERAL CATALOGUE 23
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Recommended distance between panel and power supply: 30m
48505. 1/W COLOUR VDS CITY panel with kit ush box S1.
Panel S1: 130x128. Kit ush box: S1 115x114x45.
5620. iLOFT VDS COLOUR monitor (ush-mounted).
5630. iLOFT ush box. 158x108x45.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
4950 1/W VDS iLOFT VIDEO KIT
4954 1/W VDS iLOFT SURFACE VIDEO KIT
VIDEO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S 3.5”
Technology
VDS
3+coax,
5 wires or
UTP CAT5
2
5061 1/W VDS 3.5” SMILE KIT
To t the monitor into the wall:
6547 3.5” Smile decorative frame (127x196x44)
6546 3.5” Smile ush box (112x186x44)
Panel accessories
8851 Flush box S1: 115x114x45
7061 Surface box S1: 130x128x33
9191 Modular frame S1: 211X210
8400 Hood S1: 135x130
Optional:
4545 Telephone interface
To forward the call from the outdoor panel to a
home telephone or a mobile phone. A power
supply ref. 4810 is required.
5062 2/W VDS 3.5” SMILE KIT
ACCESSORIES
It is possible to install 1 additional monitor or 2
handsets without adding any power supply. For
bigger extensions, extra PSU will be necessary.
6545 VDS colour 3.5’’ Smile monitor
6548 VDS Smile connector
3390 VDS basic Loft telephone
3391 VDS extra Loft telephone
The VDS VIDEO KITS can be extended with a
2nd access. A switcher module (ref. 2450) is
necessary.
48505 1/W Colour VDS video city kit panel
48515 2/W Colour VDS video city kit panel
KITS ALREADY PROGRAMMED
EXTENSIONS
DIAGRAM
DIMENSIONS
103 20 130
128172
45
Telephone
interface
optional
Calling
The same as kit ref.5061 but with 2/W video panel
(ref.48515) and two 3.5” SMILE monitors (ref.6545).
48505. 1/W COLOUR VDS CITY panel and S1kit ush box.
Panel S1: 130x128 / Kit ush box: 115x114x45.
6545. VDS COLOUR 3.5” SMILE monitor.
6548. SMILE connector.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN10.
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-monitor)
EXTENSIONS
w/o extra PSU
RELAY
5061 1/W VDS 3.5’’ SMILE KIT DIN10 230VAC/12VAC
+ 18VDC-1.5A
REF. 4810
- Coax
recommended for
the video.
- Possible with CAT5
0,5 mm2
CAT5
1 mm2
1,5 mm2
50 m
80 m
100 m
150 m
2 handsets or 1
monitor
Ref. 2013 for
additional
functions
Dimensions: (width) x (height) x (depth) mm.
KITS
24 2015 GENERAL CATALOGUE
VIDEO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
The same as kit ref.5071 but with 2/W video panel
(ref.48515) and two 7” SMILE monitors (ref.6550).
ACCESSORIES
It is possible to install 1 additional monitor or 2
handsets without adding any power supply. For
bigger extensions, extra PSU will be necessary.
6550 VDS colour 7’’ Smile monitor
6548 VDS Smile connector
3390 VDS Basic Loft telephone
3391 VDS Extra Loft telephone
The VDS VIDEO KITS can be extended with a 2nd
access. A switcher module (ref. 2450) is necessary.
48505 1/W Colour VDS video city kit panel
48515 2/W Colour VDS video city kit panel
EXTENSIONS
DIAGRAM 3+coax,
5 wires or
UTP CAT5
2
DIMENSIONS
185 20 130
128172
45
7”
5071 1/W VDS 7” SMILE KIT
5072 2/W VDS 7” SMILE KIT
Technology
VDS
Telephone
interface
optional
Calling
KITS ALREADY PROGRAMMED
48505. 1/W COLOUR VDS CITY panel and S1 kit ush
box.
Panel S1: 130x128 / Kit ush box: 115x114x45.
6550. VDS COLOUR 7” SMILE monitor.
6548. SMILE connector.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN10.
To t the monitor into the wall:
6552 7” Smile decorative frame.
6551 7” Smile ush box.
Panel accessories
8851 Flush box S1: 115x114x45
7061 Surface box S1: 130x128x33
9191 Modular frame S1: 211X210
8400 Hood S1: 135x130
Optional:
4545 TELEPHONE INTERFACE
To forward the call from the outdoor panel to a
home telephone or a mobile phone. A power
supply ref.4810 is required.
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Recommended distance between panel and power supply: 30m
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-monitor)
EXTENSIONS
w/o extra PSU
RELAY
5071 1/W VDS 7’’ SMILE KIT DIN10 230VAC/12VAC
+ 18VDC-1.5A
REF. 4810
- Coax
recommended for
the video.
- Possible with CAT5
0,5 mm2
CAT5
1 mm2
1,5 mm2
50 m
80 m
100 m
150 m
2 handsets or 1
monitor
Ref. 2013 for
additional
functions
Dimensions: (width) x (height) x (depth) mm.
KITS
2015 GENERAL CATALOGUE 25
1620 Vivo Monitor
1605 Vivo connector
1625 1/W Lynx IP City Panel
233 20
ACCESSORIES
With the switch included in the kit it is possible to
install up to 3 monitors and 3 additional panels
without any additional switch (1 PSU per panel).
KIT ALREADY PROGRAMMED.
FULL IP TECHNOLOGY
PLUG & PLAY
EXTENSIONS
DIAGRAM
CAT5/6/7 IP CAT5/6/7 IP
DIMENSIONS
130
128164
45
REF. DESCRIPTION POWER SUPPLY CABLE MAX. DISTANCE
(panel-monitor)
EXTENSIONS
w/o extra PSU
RELAY
1635
1636
1/W VIVO-LYNX KIT
1/W VIVO-LYNX KIT WITH CALL DIVERT
12Vdc/2A CAT5/CAT6
Fiber optic
80 m
5 km
3 monitors and
1 panel
2 relays included
on the panel
1635 1/W VIVO-LYNX KIT
1636 1/W VIVO-LYNX KIT
WITH CALL DIVERT
Technology
TCP/IP
VIDEO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
1625. 1/W COLOUR LYNX CITY panel (130x128).
8948. Kit ush box S1: 115x114x45.
1620. VIVO monitor.
1605. VIVO connector.
1617. Switch (4 PoE + 4).
4813. Power supply 12Vdc/2A. DIN6.
With call diverter to mobile or tablet!
The same as kit ref.1635 but with LYNX router (ref.1609).
8851 Flush box S1: 115x114x45
7061 Surface box S1: 130x128x33
9191 Decorative frame S1: 211x210
8400 Hood S1: 135x130
Panel ACCESSORIES:
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Recommended distance between panel and power supply: 30m
Dimensions: (width) x (height) x (depth) mm.
KITS
26 2015 GENERAL CATALOGUE
With OneToOne module 4889 1/W VDS COLOUR ONE-TO-ONE
VIDEO KIT
With proximity reader 4887 1/W VDS COLOUR PRIVATE VIDEO KIT
With keypad 4984 1/W VDS COLOUR MEMOVISION KIT
With ngerprint module 4926 1/W VDS COLOUR BIOVISION KIT
It is possible to install 1 additional monitor or 2
handsets without adding any power supply. The
installation can be extended with a 2nd access
(video: ref. 48505, audio: ref.48455.) A switcher
module (ref. 2450) is necessary.
Optional:
4545 TELEPHONE INTERFACE
To forward the call from the outdoor panel to a
home telephone or a mobile phone. A power
supply ref. 4810 is required.
EXTENSIONS DIAGRAM
Technology
VDS
2
3+coax
5 wires or
UTP CAT5
VIDEO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Recommended distance between panel and power supply: 30m
7357. 1/W COLOUR VDS OneToOne CITY panel
and kit ush box S4 (ref.8949).
Panel S4: 130x199. Flush box s4: 115x185x45.
COLOUR VDS LOFT monitor w/induction loop.
3314. VDS connector.
2438. Light/buzzer activator.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN10.
4902. 1/W COLOUR VDS MEMOVISION panel.
Panel S5: 130x246.
8855. Flush box S5: 115x233x45.
3305. COLOUR VDS LOFT monitor.
3314. VDS connector.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
4910. 1/W COLOUR VDS BIOVISION panel and ush
box (ref.8855)
Panel S5:130x246 / Kit Flush box S5: 115x233x45.
3305. LOFT COLOUR VDS monitor.
3314. VDS connector.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN10.
23361. Proximity card.
4515. Proximity keyring.
4899. 1/W COLOUR VDS PRIVATE CITY panel and
Kit ush box S4 (ref.8949).
Panel S4: 130x199. Flush box S4: 115x185x45.
2336. Proximity cards (5units).
4515. Proximity keyring.
3305. VDS COLOUR LOFT monitor.
3314. VDS connector.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
KITS
2015 GENERAL CATALOGUE 27
KITS
The 1 and 2 way kits are supplied compete. The kits from 3
to 24 apartments are supplied with all necessary material for
a complete video installation (except
monitor and connectors): video door entry panel with
COLOUR camera, ush box, power supply 18Vdc-1,5A
(ref.4812) for the system and power supply 12Vac (ref.4800)
for the lock release. 2 line terminations (ref.3255) are
required for each additional riser.
INSTALLATION: 2 WIRES
1 apartment
5 apartments
2 apartments
6 apartments
4341 1/W DUOX VIDEO KIT
70708. 1CP101 DUOX CITY panel.
S1: 130x128.
8948. Kit ush box S1: 115x114x45.
3412. DUOX LOFT COLOUR monitor.
3415. DUOX surface connector.
3255. Line Termination.
3243. DUOX Power supply adaptor mod.
4810. Power supply 18Vdc/1,5A-
12Vac/1,5A.DIN10.
70828. 5CP105 DUOX CITY panel. S5: 130x246.
8855. Kit ush box S5: 115x233x45.
2008. 8-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A
70008. 1CP201 DUOX CITY panel.
S1: 130x128.
8948. Kit ush box S1: 115x114x45.
3412. DUOX LOFT COLOUR monitor (2 u.).
3415. DUOX surface connector.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor mod.
4810. Power supply 18Vdc/1,5A-
12Vac/1,5A.DIN10.
4342 2/W DUOX VIDEO KIT
3 apartments 4 apartments
49638 3/W DUOX VIDEO KIT
70738. 4CP103 DUOX CITY panel. S4: 130x199.
8949. Kit ush box S4: 115x185x45.
2008. 8-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A
70748. 4CP104 CITY DUOX panel. S4: 130x199.
8949. Kit ush box S4: 115x185x45.
2008. 8-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A
49648 4/W DUOX VIDEO KIT
70038. 4CP203 DUOX CITY panel. S4: 130x199.
8949. Kit ush box S4: 115x185x45.
2008. 8-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A
49668 6/W DUOX VIDEO KIT49658 5/W DUOX VIDEO KIT
DUOX BUILDING KITS
UP TO 24 APARTMENTS
LOFT
Monitors NOT included
(except 1/W and 2/W kits)
VIDEO KITS
BUILDINGS
wires
non polarized
28 2015 GENERAL CATALOGUE
8 apartments
12 apartments
10 apartments
14 apartments
70048. 4CP204 DUOX CITY panel. S4: 130x199.
8949. Kit ush box S4: 115x185x45.
2008. 8-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A
49688 8/W DUOX VIDEO KIT
16 apartments 18 apartments
70238. 6CP208 DUOX CITY panel. S6: 130x294.
8856. Kit ush box S6: 115x280x45.
2441. 16-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A (2 units).
70128. 5CP205 DUOX CITY panel. S5: 130x246.
8855. Kit ush box S5: 115x233x45.
2441. 16-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A
49718 10/W DUOX VIDEO KIT
49758 18/W DUOX VIDEO KIT
70328. 7CP209 DUOX CITY panel. S7: 130x341.
8857. Kit ush box S7: 115x328x45.
2441. 16-call extension module (2 units).
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A (2 units).
49748 16/W DUOX VIDEO KIT
49768 20/W DUOX VIDEO KIT 49778 22/W DUOX VIDEO KIT
20 apartments 22 apartments
71148. 8CP211 DUOX CITY panel. S8: 130x389.
8858. Kit ush box S8: 115x375x45.
2441. 16-call extension module (2 units).
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A (2 units).
70338. 7CP210 DUOX CITY panel. S7: 130x341.
8857. Kit ush box S7: 115x328x45.
2441. 16-call extension module (2 units).
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A (2 units).
24 apartments
49788 24/W DUOX VIDEO KIT
71158. CITY DUOX 8CP212 panel. S8: 130x389.
8858. Kit ush box S8: 115x375x45.
2441. 16-call extension module (2 units).
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A (2 units).
2 wires
2 wires
2 wires
2 wires
2 wires
2 wires
42
70138. 5CP206 DUOX CITY panel. S5: 130x246.
8855. Kit ush box S5: 115x233x45.
2441. 16-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A
49738 14/W DUOX VIDEO KIT
70228. Panel CITY DUOX 6CP207. S6: 130x294.
8856. Caja de empotrar S6: 115x280x45.
2441. 16-call extension module.
3255. Line Termination (2 units).
3243. DUOX Power supply adaptor module.
(2 units).
4800. Power supply 12Vac/1,5A. DIN4.
4812. Power supply 18Vdc/1,5A (2 units).
49728 12/W DUOX VIDEO KIT
NOTE: The kits don’t
include monitors.
Required monitors
must be requested
separately to
complete the
installation
depending on
the number of
apartments.
VIDEO KITS
BUILDINGS
KITS
2015 GENERAL CATALOGUE 29
HOME AUTOMATION PACKS dominium
home management
In apartments with VDS digital video entry installation, the home’s functions can be expanded with Home
Automation packs, including a high-performance iLOFT DOMINIUM monitor with touchscreen and iconic
menu. The monitor easily manages functions such as security, air conditioning or energy efciency. The iLOFT
DOMINIUM monitors included in the packs have built-in Wi-Fi connectivity, so users can control the home
automation features from mobile devices (Android and iOS). These packs do not include an outdoor panel.
For installation in residences, please ask for the VDS panel and power supply. Packs can be expanded with
additional elements to handle other functions such as raising and lowering blinds, lighting control, etc.
HOME AUTOMATION PACKS FOR BUILDING
COMFORT AND ENERGY EFFICIENCY
COMFORT PACK. Security and well-being at home.
ENERGY EFFICIENCY HOME PACK. Monitoring of electrical consumption.
ENERGY EFFICIENCY HOME PACK PLUS. All energy consumption under control
9845 iLOFT COMFORT HOME PACK
9847 iLOFT EFFICIENCY HOME PACK
9846 iLOFT EFFICIENCY PLUS HOME PACK
5641. iLOFT DOMINIUM surface monitor.
9865. Flood sensor.
9867. Infrared movement sensor.
9854. Detection central with notices.
9890. BUSing NTC temperature sensor.
9855. BUSing-FERMAX gateway.
5641. iLOFT DOMINIUM surface monitor.
9869. Power mater 1C.
9855. BUSing-FERMAX gateway.
4813. Power supply 100-240VAC/12VDC-2A. DIN6.
5641. iLOFT DOMINIUM surface monitor.
9868. BUSing temperature sensor.
9850. 2 inputs and outputs digital module.
9853. Power meter 3C.
9852. 3 inputs module adaptor.
9855. BUSing-Fermax gateway.
4813. Power supply 100-240VAC/12VDC-2A. DIN6.
· 3.5“ colour monitor with touchscreen for functions control.
· 3-channel home electricity consumption metering (general + 2 channels).
· Inputs to gauge water and gas consumption by pulse output meter.
· Instant consumption reading and archive water, gas and electricity usage statistics.
· Temperature probe for air conditioning control.
· 3.5“ colour monitor with function control touchscreen.
· Presence and water leak detector with outputs for electro valve control and sirens.
· Telephone alerts and remote control by talking menus.
· Temperature probe for air conditioning control.
· Remote control of the facility by phone.
· 3.5“ colour monitor with touchscreen for functions control.
· General home electricity consumption metering.
· Instant consumption reading and archive consumption statistics.
KITS
30 2015 GENERAL CATALOGUE
AUDIO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
Same as in ref.4860 but with 2 LOFT BASIC 4+N telephones
(ref.3393) and 2/W 4+N CITY KIT panel (ref.4846).
4845. 1/W 4+N CITY panel and ush box (ref.8948).
Panel S1: 130x128.
Kit ush box: 115x114x45.
3393. 4+N LOFT BASIC telephone.
4800. Power supply 12Vac/1,5A-DIN4.
ACCESSORIESEXTENSIONS
DIAGRAM
DIMENSIONS
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-telephone)
EXTENSIONS
w/o extra PSU
4860
5431
1/W 4+N CITY AUDIO KIT
1/W 4+N MARINE AUDIO KIT
18Vdc/1,5A-
REF. 4812
4+N CABLE 0,5 mm2
1 mm2
CAT5
0-100 m
100-300 m
UP to 80 m
3 handsets
4860 1/W 4+N CITY AUDIO KIT
4862 2/W 4+N CITY AUDIO KIT
5431 1/W 4+N MARINE AUDIO KIT
220
85 40 130
128
45
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Without extra power supply.
3 LOFT telephones (Basic: ref.3393 - Extra:
ref.3394). For more than 4 telephones, 1 power
supply ref.4812 and 1 call multiplier (ref.2340) are
required.
2nd Audio access
4845. 1/W audio panel and ush box.
5433. 1/W Marine audio panel.
8819. 1/W Automatic Switcher
8851. Kit ush box S1: 115x114x45 .
7061. Surface box S1: 130x128x33.
9191. Decorative frame S1: 211x210.
8400. Hood S1: 135x130.
3380. Telephone decorative frame. 200x240.
54331. 1/W 4+N AUDIO MARINE panel and ush box.
(Flush box included ref.4641)
Panel ST1: 150x180. Flush box ST1: 130x160x55.
3391. VDS LOFT EXTRA telephone.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
Technology
4+N
Stainless Steel Panel
5
2
Vac
Vac
2 2
Dimensions: (width) x (height) x (depth) mm.
KITS
2015 GENERAL CATALOGUE 31
ACCESSORIESEXTENSIONS
DIAGRAM
DIMENSIONS
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(PSU - Panel)
MAX. DISTANCE
(Panel - telephone)
EXTENSIONS
w/o extra PSU
RELAY
4920 1/W DUOX CITY AUDIO KIT 18Vdc/12Vac
REF.4810
Any type
of cable
2x1 mm2
2x0,5 mm2
2x0,2 mm2
50 m
25 m
15 m
300 m
200 m
90 m
2 handsets REF.3257
4920 1/W DUOX CITY AUDIO KIT
4921 2/W DUOX CITY AUDIO KIT
220
85 40 130
128
45
* Recommended lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
It is possible to install 2 additional handset without
adding any PSU.
3421. DUOX Loft telephone
The DUOX kits can be extended with a 2nd access.
70704. 1/W DUOX City panel
70004. 2/W DUOX City panel
8851. Kit ush box S1: 115x114x45 .
7061. Surface box S1: 130x128x33.
9191. Decorative frame S1: 211x210.
8400. Hood S1: 135x130.
3380. Telephone decorative frame. 200x240.
Dimensions: (width) x (height) x (depth) mm.
AUDIO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
non polarized
wires
70704. 1AP101 DUOX CITY panel. Panel S1: 130x128.
8948. Kit ush box S1: 115x114x45.
3421. DUOX LOFT telephone.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN10.
3243. DUOX power supply adaptor module.
70004. 1AP201 DUOX CITY panel. Panel S1: 130x128.
8948. Kit ush box S1: 115x114x45.
3421. DUOX LOFT telephone (2 units).
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN10.
3243. DUOX power supply adaptor module.
222
2
KITS
32 2015 GENERAL CATALOGUE
AUDIO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
HANDS-FREE
COMMUNICATION
ACCESSORIES
It is possible to install 2 additional handsets without
adding any power supply. For bigger extensions,
extra PSU will be necessary.
5601 iLoft telephone
The VDS 1/w AUDIO KITS can be extended with a
2nd access.
48455. 1/W audio video City kit panel
EXTENSIONS
DIAGRAM
2
DIMENSIONS
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-telephone)
EXTENSIONS
w/o extra PSU
RELAY
4878
1/W VDS ILOFT AUDIO KIT DIN10
230VAC/12VAC
+ 18VDC-1.5A
REF. 4810
- Coax
recommended for
the video.
- Possible with CAT5
0,5 mm2
CAT5
1 mm2
1,5 mm2
50 m
80 m
100 m
150 m
2 handsets Ref. 2013 for
additional
functions
4878 1/W VDS iLOFT AUDIO KIT
4879 2/W VDS iLOFT AUDIO KIT
90 20 130
128146,5
45
Technology
VDS
3+coax
5 wires or
UTP CAT5
48455. 1/W VDS AUDIO CITY panel.
Panel S1: 130X128.
8948. Kit ush box S1: 115x114x45.
5601. VDS iLOFT telephone.
4800. Power supply 12Vac/1,5A. DIN 4.
Same as in ref.4878 but with 2 telephones
and 2/W panel (ref.48465).
8851. Kit ush box S1: 115x114x45
7061. Surface box S1: 130x128x33
9191. Decorative frame S1: 211x210
8400. Hood S1: 135x130
Panel ACCESSORIES:
* Recommended Lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
Recommended distance between panel and power supply: 30m
Dimensions: (width) x (height) x (depth) mm.
KITS
2015 GENERAL CATALOGUE 33
TECHNOLOGY: 4+N
DIMENSIONS
6201 1/W 4+N CITYMAX AUDIO KIT
6202 2/W 4 N CITYMAX AUDIO KIT
130
128
4580 60
200
Without extra power supply.
3 CITYMAX telephones (ref.80447). For more than
4 telephones, 1 power supply ref.4812 and 1 call
multiplier (ref.2340) is required.
2nd Audio access
8300. 1/W City Classic kit Panel
8819. 1/W Automatic Switcher
EXTENSIONS
DIAGRAM
8300. 1/W CITY CLASSIC panel and ush box.
Panel S1: 130x128
Kit ush box S1: 115x114x45.
80447. CITYMAX BASIC telephone.
4800. Power supply. 12Vac/1,5A-DIN4.
The same as in ref.6201 but with 2/W panel
(ref.8301) and 2 telephones.
AUDIO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
* Recommended Lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
citymax
Technology
4+N
REF. DESCRIPTION POWER SUPPLY CABLE SECTION MAX. DISTANCE
(panel-telephone)
EXTENSIONS
w/o extra PSU
6201 1/W 4+N CITYMAX AUDIO KIT 18Vac/1,5A
REF. 4812
4+N CABLE 0,5 mm2
1 mm2
CAT5
0-100 m
100 - 300 m
UP to 80 m
3 handsets
5
2
Vac
Vac
2 2
ACCESSORIES
8851. Kit ush box S1: 115x114x45.
8951. Surface box S1.130x128X33.
9191. Decorative frame S1: 211x210.
8400. Hood S1: 135x130.
48455. 1/W VDS AUDIO CITY panel.
Panel S1: 130X128.
8948. Kit ush box S1: 115x114x45.
5601. VDS iLOFT telephone.
4800. Power supply 12Vac/1,5A. DIN 4.
Dimensions: (width) x (height) x (depth) mm.
KITS
34 2015 GENERAL CATALOGUE
DIMENSIONS
REF. DESCRIPTION POWER SUPPLY CABLE SECTION DISTANCE MAX.
(platine-poste)
EXTENSIONS SANS
ALIM. SUP.
1502
1503
1/W 4+N MINI KIT
2/W 4+N MINI KIT
12Vac 4+N CABLE 0,5 mm2
1 mm2
CAT5
0-100 m
100-300 m
UP to 80 m
1 handset
1502 1/W 4+N MINI KIT
1503 2/W 4+N MINI KIT
EXTENSIONS
DIAGRAM
AUDIO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
1519. 1/W surface MINI panel.
Panel: 100x166x26,50.
80447. CITYMAX telephone.
Power supply 12Vac.
The same as ref.1502 but with 2 CITYMAX telephones
and 2/W surface MINI panel (ref.1520).
Technology
4+N
The Mini Kits allow the installation of 1 Extra
telephone without additional P.S.U.
80447. 4+N Citymax Basic Telephone
5
2
Vac
Vac
2 2
Surface mounted
100
200
80 60
26,5 (Surface panel)
166
A second panel can be installed.
1519. 1/W Mini surface Panel
1520. 2/W Mini surface Panel
* Recommended Lock release ref.67501 Universal Multi-voltage 12Vac / 12Vdc 250mA.
KITS
2015 GENERAL CATALOGUE 35
AUDIO KITS
FOR INDIVIDUAL RESIDENCES AND SME’S
4982 1/W VDS MEMOPHONE KIT
4925 1/W VDS BIOPHONE KIT
4888 1/W VDS ONE-TO-ONE AUDIO KIT
4886 1/W VDS PRIVATE AUDIO KIT
2
EXTENSIONS DIAGRAM
Technology
VDS
3+coax
5 wires or
UTP CAT5
With OneToOne module
With proximity reader
With keypad
With ngerprint module
4842. 1/W VDS MEMOPHONE panel. S5: 130x246.
8855. Flush box S5. 115x233x45.
3391. VDS LOFT EXTRA telephone.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
4911. 1/W VDS BIOPHONE panel and kit ush box (ref.8855).
Panel S5: 130x246 / Flush box S5: 115x233x45.
3391. VDS LOFT EXTRA telephone.
4810 Power Supply 18Vdc/1,5A-12Vac/1,5A. DIN10.
23361. Proximity card.
4515 . Proximity Keyring.
7356. 1/W VDS OneToOne CITY panel (S4: 130x199)
and kit ush box (S4. ref.8949: 115x185x45).
VDS LOFT EXTRA telephone with induction loop.
2438. Light/buzzer activator.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
4841. 1/W VDS PRIVATE CITY panel (S4: 130x199) and
kit ush box (S4. 115x185x45).
2336. Proximity cards (5 units).
4515. Proximity keyrings.
3391. VDS LOFT EXTRA telephone.
4810. Power supply 18Vdc/1,5A-12Vac/1,5A. DIN 10.
It is possible to install 2 handsets without adding
any power supply. The installation can be
extended with a 2nd access (audio: ref.48455.)
A switcher module (ref. 2450) is necessary.
KITS
36 2015 GENERAL CATALOGUE
AUDIO KITS
BUILDING
INSTALLATION: 4+N (1 WIRE PER APARTMENT)
ANALOGUE BUILDING KITS UP TO 24 APARTMENTS
4860 1/W CITY AUDIO KIT
4845. 1AP101 CITY kit panel and ush box.
Panel S1: 130x128.
Flush box (ref.8948)
S1: 115x114x45.
3393. LOFT 4+N telephone.
4800. Power supply 12Vac/1,5A. DIN4.
(4+1)
4863 3/W CITY AUDIO KIT
4847. 4AP103 CITY kit panel and ush box.
Panel S4: 130x199.
Flush box (ref.8949) S4: 115x185x45.
3393. LOFT 4+N telephone (3 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+3)
X3
4866 6/W CITY AUDIO KIT
4849. 4AP203 CITY kit panel and ush box.
Panel S4: 130x199.
ush box (ref.8949) S4: 115x185x45.
3393. LOFT 4+N telephone (6 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+6)
X6
4865 10/W CITY AUDIO KIT
4853. 5AP205 CITY kit panel and ush box.
Panel S5: 130x246.
Flush box (ref.8855) S5: 115x233x45.
3393. LOFT 4+N telephone (10 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+10)
X10
4864 4/W CITY AUDIO KIT
4848. 4AP104 CITY kit panel and ush box.
Panel S4: 130x199.
Flush box (ref.8949) S4: 115x185x45.
3393. LOFT 4+N telephone (4 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+4)
X4
4862 2/W CITY AUDIO KIT
4846. 1AP201 CITY kit panel and ush box.
Panel S1: 130x128.
Flush box (ref.8948)
S1: 115x114x45.
3393. LOFT 4+N telephone (2 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+2)
X2
4868 8/W CITY AUDIO KIT
4852. 4AP204 CITY kit panel and ush box.
Panel S4: 130x199.
Flush box (ref.8949) S4: 115x185x45.
3393. LOFT 4+N telephone (8 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+8)
X8
4867 12/W CITY AUDIO KIT
4854. 5AP206 CITY kit panel and ush box.
Panel S5: 130x246.
Flush box (ref.8855) S5: 115x233x45.
3393. LOFT 4+N telephone (12 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+12)
X12
KIT EXTENSION AND ACCESSORIES:
• 2nd Access: Required panel and ush box + audio switcher (ref.8811) + voltage distributor (ref.88231).
Only on 2/W (ref.48620), 2 additional wires (ref.2540) are required.
• At apartment: up to 3 telephones (ref.3393) without additional power supply.
• Recommended door lock: 450N-S (ref.30711).
Technology
4+N
KITS
2015 GENERAL CATALOGUE 37
BUILDING
AUDIO KITS
4877 24/W CITY AUDIO KIT
4844. 8AP212 CITY kit panel and ush box.
Panel S8: 130x389.
Flush box (ref.8858) S8: 115x375x45.
3393. LOFT 4+N telephone (24 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+24)
4876 22/W CITY AUDIO KIT
4843. 8AP211 CITY kit panel and ush box.
Panel S8: 130x389.
Flush box (ref.8858) S8: 115x375x45.
3393. LOFT 4+N telephone (22 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+22)
4874 18/W CITY AUDIO KIT
4857. 7AP209 CITY kit panel and ush box.
Panel S7: 130x341.
Flush box (ref.8857) S7: 115x328x45.
3393. LOFT 4+N telephone (18 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+18)
4875 20/W CITY AUDIO KIT
4858. 7AP210 CITY kit panel and ush box.
Panel S7: 130x341.
Flush box (ref.8857) S7: 115x328x45.
3393. LOFT 4+N telephone (20 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+20)
X18
X22
X20
X24
4871 16/W CITY AUDIO KIT
4856. 6AP208 CITY kit panel and ush box.
Panel S6: 130x294.
Flush box (ref.8856) S6: 115x280x45.
3393. LOFT 4+N telephone (16 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+16)
4869 14/W CITY AUDIO KIT
4855. 6AP207 CITY kit panel and ush box.
Panel S6: 130x294.
Flush box (ref.8856) S6: 115x280x45.
3393. LOFT 4+N telephone (14 units).
4800. Power supply 12Vac/1,5A. DIN4.
(4+14)
X14 X16
4+N Basic installation
22
4+1
4+1
4+N
4+1
4+1
Technology
4+N
KITS
38 2015 GENERAL CATALOGUE
CITYMAX KITS UP TO 24 APARTMENTS
6201 1/W CITYMAX AUDIO KIT
ANALOGUE 4+1
8300. 1/W CITY CLASSIC panel and ush
box (ush box included ref.8948).
Panel S1: 130x128.
Kit ush box S1: 115x114x45.
80447. CITYMAX BASIC telephone.
4800. Power supply 12Vac/1,5A. DIN4.
6202 2/W CITYMAX AUDIO KIT
ANALOGUE 4+2
8301. 2/W CITY CLASSIC panel and ush
box (ush box included ref.8948).
Panel S1: 130x128.
Kit ush box S1: 115x114x45.
80447. CITYMAX BASIC telephone (2 units).
4800. Power supply 12Vac/1,5A. DIN4.
X2
8302. 3/W CITY CLASSIC panel and ush
box (ush box included ref.8949).
Panel S4: 130x199.
Flush box S4: 115x185x45.
80447. CITYMAX BASIC telephone (3 units).
4800. Power supply 12Vac/1,5A. DIN4.
X3
6203 3/W CITYMAX AUDIO KIT
ANALOGUE 4+3
8303. 4/W CITY CLASSIC panel and ush
box (ush box included ref.8949).
Panel S4: 130x199.
Flush box S4: 115x185x45.
80447. CITYMAX BASIC telephone (4 units).
4800. Power supply 12Vac/1,5A. DIN4.
X4
6204 4/W CITYMAX AUDIO KIT
ANALOGUE 4+4
8304. 6/W CITY CLASSIC panel and ush
box (ush box included ref.8949).
Panel S4: 130x199.
Flush box S4: 115x185x45.
80447. CITYMAX BASIC telephone (6 units).
4800. Power supply 12Vac/1,5A. DIN4.
X6
6206 6/W CITYMAX AUDIO KIT
ANALOGUE 4+6
8305. 8/W CITY CLASSIC panel and ush
box (ush box included ref.8949).
Panel S4: 130x199.
Flush box S4: 115x185x45.
80447. CITYMAX BASIC telephone (8 units).
4800. Power supply 12Vac/1,5A. DIN4.
X8
6208 8/W CITYMAX AUDIO KIT
ANALOGUE 4+8
8320. 10/W CITY CLASSIC panel and ush
box (Flush box included ref.8855).
Panel S5: 130x246.
Flush box S5: 115x246x45.
80447. CITYMAX BASIC telephone (10 units).
4800. Power supply 12Vac/1,5A. DIN4.
8321. 12/W CITY CLASSIC panel and ush
box (Flush box included ref.8855).
Panel S5: 130x246.
Flush box S5: 115x246x45.
80447. CITYMAX BASIC telephone (12 units).
4800. Power supply 12Vac/1,5A. DIN4.
X12X10
6210 10/W CITYMAX AUDIO KIT 6212 12/W CITYMAX AUDIO KIT
ANALOGUE 4+10 ANALOGUE 4+12
INSTALLATION: 4+N (1 WIRE PER APARTMENT)
KIT EXTENSION AND ACCESSORIES:
• 2nd Access: Required panel and ush box + audio switcher (ref.8811) + voltage distributor
• At apartment: Up to 3 telephones (ref.80447) without additional power supply.
• Recommended door lock: 450N-S (ref.30711).
AUDIO KITS
BUILDING
Technology
4+N
KITS
2015 GENERAL CATALOGUE 39
8660. 14/W CITY CLASSIC panel.
Panel S6: 130x294.
8856. Flush box S6: 115x280x45.
80447. CITYMAX BASIC telephone (14 units).
4800. Power supply 12Vac/1,5A. DIN4.
8700. 18/W CITY CLASSIC panel.
Panel S7: 130x341.
8857. Flush box S7: 115x328x45.
80447. CITYMAX BASIC telephone (18 units).
4800. Power supply 12Vac/1,5A. DIN4.
8740. 22/W CITY CLASSIC panel.
Panel S8: 130x389.
8858. Flush box S8: 115x375x45.
80447. CITYMAX BASIC telephone (22 units).
4800. Power supply 12Vac/1,5A. DIN4.
8661. 16/W CITY CLASSIC panel.
Panel S6: 130x294.
8856. Flush box S6: 115x280x45.
80447. CITYMAX BASIC telephone (16 units).
4800. Power supply 12Vac/1,5A. DIN4.
8701. 20/W CITY CLASSIC panel.
Panel S7: 130x341.
8857. Flush box S7: 115x328x45.
80447. CITYMAX BASIC telephone
(20 units).
4800. Power supply 12Vac/1,5A. DIN4.
8741. 24/W CITY CLASSIC panel.
Panel S8: 130x389.
8858. Flush box S8: 115x375x45.
80447. CITYMAX BASIC telephone
(24 units).
4800. Power supply 12Vac/1,5A. DIN4.
X16
X24
X20
X14
X22
X18
6214 14/W CITYMAX AUDIO KIT
6218 18/W CITYMAX AUDIO KIT
6222 22/W CITYMAX AUDIO KIT
6216 16/W CITYMAX AUDIO KIT
6220 20/W CITYMAX AUDIO KIT
6224 24/W CITYMAX AUDIO KIT
ANALOGUE 4+14
ANALOGUE 4+18
ANALOGUE 4+22
ANALOGUE 4+16
ANALOGUE 4+20
ANALOGUE 4+24
AUDIO KITS
BUILDING
Technology
4+N
4+1
4+1
4+1
4+1
4+1
2 2
4+N Basic installation
KITS
PANELS
SKYLINE PANEL. MARINE PANEL
PANELS
42 2015 GENERAL CATALOGUE
SKYLINE PANEL
VERSATILITY. MODULAR COMPOSITION
SKYLINE is the perfect door entry panel for contemporary
installations that requires multiple integration systems:
information, communication and access control.
It’s versatility makes it the only panel capable to respond
to any requirements which may arise in any residential,
industrial or service sector project.
It’s modular design and versatility provide TOTAL CREATIVE
FREEDOM to create any imaginable combination.
COMBINES
It consists of different modules: 8 frames of different
dimensions, audio-video modules, push buttons modules,
digital modules, access control readers, information
modules and other accessories.
ENHANCES
SKYLINE modules include the most cutting-edge
technologies and functionalities, such as the OneToOne
module or the ngerprint reader module.
The modules are smart system linked, facilitating their
repair and maintenance, as well as the subsequent
inclusion of more cutting-edge equipment or new
modules.
RESISTS
SKYLINE manufacturing materials – anodized aluminium
prole, chromed zamak push buttons and reinforcements,
polycarbonate in transparent elements, stainless
steel inner grids, etc - are chosen for their beauty and
maximum resistance to bad weather conditions.
FERMAX guarantees the immediate supply of SKYLINE
products (except stock breaks or fault of the company).
PANELS
2015 GENERAL CATALOGUE 43
SKYLINE PANEL
PROJECT
VIDEO AND AUDIO MODULES SKYLINE FRAMES
Frame 1V
Video W Audio W
Frame 2V Frame 3V Frame 4V Frame 5V Frame 6V Frame 7V Frame 8V
DIGITAL PUSH BUTTONS INFORMATION MODULES
Direct/Digital
keypad W
Cardholder WDisplay W Cardholder VDisplay Lynx W OneToOne VDigitizer MDS V
ACCESSORIES ACCESS CONTROL
Metallic
complement W
Metallic
complement V
Keypad W Fingerprint W Proximity V Bluetooth V
DOUBLE PUSH BUTTONS SINGLE PUSH BUTTONS
8 Push. 204 W 4 Push. 104 W4 Push. 202 V 2 Push. 102 V2 Push. 201 V 1 Push. 101 V
SKYLINE consists of 8 different-sized frames where different modules can easily be tted. Modules come in 2 sizes,
designated V and W (W is twice the size of V).
The audio and video modules are available in all FERMAX technologies. Once technology has been selected,
the use of these modules with the appropriate frames, allows to set up the panel necessary for any installation.
PANELS
44 2015 GENERAL CATALOGUE
6V
6V
1W=2V
1W=2V
1W=2V
TOTAL: 6V
1W=2V
1V
1V
1W=2V
TOTAL: 6V
2
1
COMBINATIONS
The combination of frames and modules depend on
the number of apartments at the building and the
accessories needed.
There are two module sizes: V and W (W is twice the
size of V).
Frames are designated according to their V module
inclusion capacity.
ASSEMBLY
The module-frame clip-on assembly system is very
simple and effective.
The modules t perfectly into the prole.
Watertight tapes prevent water and dirt to get in.
Once the panel is assembled, the different modules
are connected to each other.
The nal result is a compact and robust equipment set,
just like a monoblock panel (IP43 IK7).
The push buttons contacts and digital keypad are
watertight, assuring their operation and reliability.
Proven in laboratory trials to be able to resist 100,000
pressings in 48 hours.
V = 105,2x47,5mm W = 105,2x95mm
Module Assembly sequence. Dimensions: (width) x (height) mm.
PANELS
2015 GENERAL CATALOGUE 45
Dimensions: (width) x (height) mm.
TECHNICAL FEATURES
VDS VIDEO PANEL WITH PUSH BUTTONS
REAR VIEW
SKYLINE PANEL
Zamak injected prole tops.
Sliding logo. Concealed screw bolt xes
panel to ush box.
Compact audio and video module.
Frontal module in aluminium and inner
stainless steel grid.
Extruded aluminium curved-convex.
Anodized nish.
Zamak injected call button with
chromed nish.
Polycarbonate card slot. Frontal card slot
access. Outdoor resistant labels.
Concealed screw bolt xes panel
to ush box.
High power and
performance 2W amplier.
Elliptical loudspeaker.
CCD COLOUR camera
and optical of 3,7mm.
Lighting for night vision
by LEDs.
Permanent card
slot lighting by low
consumption LEDS.
High sensitivity electret
microphone.
Electronic circuit manufactured in SMD.
Operating test connector:
audio, video and monitors programmation.
Smart connection between modules.
Extension call modules are not required.
Voice synthesizer as standard
(32 languages). “The door is
open. Please, close the door
behind you”.
Adjust of conversation
volume control from monitor,
outdoor panel and synthesizer
message.
PAN&TILT of camera
to adjust ±10º.
Push button with waterlight
contacts. IP 66.
Able to resist 100.000
pressings in 48 hours.
Laterally folding hinges.
VDS connections:
+,- Power supply 18Vdc.
L Data
V,M Video
NC, NO, C Potential free relay contact.
Door opening programmable timing.
- , BS Push button to active lock from
indoors.
PANELS
46 2015 GENERAL CATALOGUE
ref.7341
1V
ref.7332
2V
ref.7333
3V
ref.7334
4V
ref.7335
5V
ref.7336
6V
ref.7337
7V
ref.7338
8V
DUOX/VDS
ref.2541/ 2540
1. FRAMES
TWO OR MORE PANELS
7341 SKYLINE FRAME 1V - S1 130x128
7332 SKYLINE FRAME 2V - S2 130x151
7333 SKYLINE FRAME 3V - S4 130x199
7334 SKYLINE FRAME 4V - S5 130x246
7335 SKYLINE FRAME 5V - S6 130x294
7336 SKYLINE FRAME 6V - S7 130x341
7337 SKYLINE FRAME 7V - S8 130x389
7338 SKYLINE FRAME 8V - S9 130x436,5
8829 JOINING BOLTS SET
2540 4+N (3W) CONNECTION CABLE
2541 DUOX/VDS (6W) CONNECTION CABLE
2542 DUOX/VDS (5W) CONNECTION CABLE
2543 MDS (7W) CONNECTION CABLE
Allows to combine two or more
frames. One set is required for each
additional frame installed between
the ush box.
Needed when there is more than one frame for connection of
push buttons modules between frames (70 cm).
Choose the right cable depending on the panel conguration:
CONNECTION CABLES
PUSH BUTTONS
4+N 4+N
Ref.2540
Ref.2541
Ref.2542
Ref.2543
CARDHOLDER ONE-TO-ONE KEYPAD DISPLAY
DUOX/VDS
4+N
DUOX/VDS
LYNX
DUOX/VDS
LYNX
DUOX/VDS
LYNX
DUOX/VDS
DUOX/VDS
4+N MDS
SKYLINE PANEL
PANELS
2015 GENERAL CATALOGUE 47
Dimensions: (width) x (height) x (depth) mm.
SKYLINE AND CITYLINE ACCESSORIES
FLUSH BOX
Made in aluminium and zamak, with folding hinges.
SURFACE BOX
For those cases where a hole in the wall cannot be
made for the ush mounted box.
HOOD
To protect the outdoor panel when due to its
location it may be affected by external agents such
as rain, snow, etc.
ANGULAR COMPLEMENT
Necessary when the panel must be tted in a
point hard to access, for example behind a gate.
MODULAR DECORATIVE FRAME
In replacement applications, allows to cover up
the hole left by the old panel. It is also an aesthetic
element. Modular assembly.
* Extension kit for double or triple panels: ref.9200 Double panel modular frame kit (H:341) or ref.9201 Triple panel modular frame kit (H:471)
Included in modular
decorative frame
FLUSH
BOX
ref.8852
115x138x45
ref.8851
115x114x45
ref.8854
115x185x45
ref.8855
115x233x45
ref.8856
115x280x45
ref.8857
115x328x45
ref.8858
115x375x45
ref.8982
115x420,5x45
ref.7062
130x151x33
ref.7061
130x128x33
ref.7064
130x199x33
ref.7065
130x246x33
ref.7066
130x294x33
ref.7067
130x341x33
ref.7068
130x389x33
ref.7069
130x436,5x33
ref.9191
211x210
ref.8251
225x310
ref.8252
225x310
ref.8254
225x375
ref.8255
225x375
ref.8256
225x450
ref.8257
225x450
ref.8258
225x450
ref.8259
225x495
ref.9192
211x234
ref.8378
ref.8379
ref.8381
ref.8382
ref.9194
211x281
ref.9195
211x329
ref.9196
211x376
ref.9197
211x424
ref.9198
211x471
ref.9199
211x519
ref.8383
ref.8384
ref.8385
ref.8386
S1
(1V)
S2
(2V)
S4
(3V)
S5
(4V)
S6
(5V)
S7
(6V)
S8
(7V)
S9
(8V)
SURFACE
BOX
ref.8401
135x155
ref.8400
135x130
ref.8403
135x203
ref.8404
135x250
ref.8405
135x300
ref.8406
135x345
ref.8407
135x393
ref.8480
135x440,5
HOOD MODULAR*
FRAME
CITY FRAME ANGULAR
COMPLEMENT
SKYLINE PANEL
PANELS
48 2015 GENERAL CATALOGUE
PUSH BUTTON MODULES
1 PUSH. 101 V2 PUSH. 201 V
4 PUSH. 104 W
2 PUSH. 102 V4 PUSH. 202 V
8 PUSH. 204 W
COLOUR VIDEO MODULE W AUDIO MODULE W
AUDIO AND VIDEO AMPLIFIER
DOUBLE PUSH BUTTONS
SINGLE PUSH BUTTONS
BRAILLE LABELS
2. MODULES
7391 DUOX VIDEO MODULE W
7421 VDS VIDEO MODULE W
7406 ANALOGUE VIDEO MODULE W
1622 LYNX VIDEO MODULE W
7367 4 PUSH. 104 DUOX/VDS/LYNX W
7365 4 PUSH. 104 4+N W
7371 8 PUSH. 204 DUOX/VDS/LYNX W
7369 8 PUSH. 204 4+N W
7376 2 PUSH. 201 DUOX/VDS/LYNX V
7374 2 PUSH. 201 4+N V
7375 1 PUSH. 101 DUOX/VDS/LYNX V
7373 1 PUSH. 101 4+N V
7368 2 PUSH. 102 DUOX/VDS/LYNX V
7366 2 PUSH. 102 4+N V
7372 4 PUSH. 202 DUOX/VDS/LYNX V
7370 4 PUSH. 202 4+N V
6945 BRAILLE SINGLE PUSH BUTTON LABEL Nº1-76
6946 BRAILLE DOUBLE PUSH BUTTON LABEL Nº1-76
7390 DUOX AUDIO MODULE W
7415 VDS AUDIO MODULE W
7400 ANALOGUE AUDIO MODULE W
PANELS
SKYLINE PANEL
2015 GENERAL CATALOGUE 49
Le Pont Neuf
Résidentiel
ref.7448
ref.7443 ref.7442
ref.7445 ref.7444
The DISPLAY module makes it possible to search through the
list of residents and their allocated door codes (telephone
book type). It indicates the communication status. The keys
allow to browse through the menu. Press to call the
apartment after keying the door number on the keypad.
The KEYPAD module allows to call the homes by keying the
allocated door code. It also acts as an access control system,
activating the door release when a given code is entered
(depending on the technology).
DIGITAL MODULES
7449 DUOX/VDS DIGITAL DISPLAY W
7451 MDS DIGITAL DISPLAY W
1623 LYNX/AC+ DISPLAY W
7447 DUOX/VDS/MDS DIGITAL KEYPAD W
7439 DUOX/VDS/MDS DIRECT KEYPAD W
7457 LYNX DIRECT KEYPAD W
7460 MDS DIGITIZER V
7445 CARDHOLDER W
7444 CARDHOLDER V
7448 ONE-TO-ONE MODULE V
INFORMATION MODULES AND ACCESSORIES
ref.7439 ref.7447
ref.1623
ref.7449/7451
PANELS
SKYLINE PANEL
Necessary in MDS-CITY and MDS DIRECT panel combinations.
OneToOne functions included.
Device that informs on door entry operation using illuminated
pictograms: calling, in call, door open or busy channel.
Facilitates use for people with hearing difculties.
7443 METALLIC COMPLEMENT W
7442 METALLIC COMPLEMENT V
Made in the same material as the aluminium panels.
Allows to cover gaps in the panel for future module installations.
Informative cardholder with lighting to personalize the
building, indicate the address or use as a residents and door
codes directory needed in codied digital panels.
50 2015 GENERAL CATALOGUE
SKYLINE PANEL
ref.7438
ref.6936
ref.7440
ref.23361 ref.4515
ref.7441
Door opens when a proximity card is shown. Only authorized cards
will activate the device. No physical contact is necessary.
Capacity: Up to 400 cards (stand-alone).
Indoor/outdoor. Maximum capacity of 4.500 user (stand-alone).
Includes an informative display and signalation leds. Includes a
built-in proximity reader to boost security and a remote infrared
keypad for programming. 12Vdc/Vac.
For access control combinations: keypad with proximity.
The following SKYLINE access control modules can be set up in stand-
alone, centralized mode (MDS central unit ref.2405) or ACPlus (Central
Unit ref.4410). The number of users in centralized mode depends on the
central unit. (See Access Control section).
7440 PROXIMITY READER V
6936 FINGERPRINT READER W
7438 MEMOKEY W
7453 MDS/AC+ KEYPAD W
7457 LYNX/AC+ SKYLINE DIRECT KEYPAD W
ACCESS CONTROL MODULES
23361 PROXIMITY CARD W/O MAGNETIC BAND
2336 PROXIMITY CARD WITH MAGNETIC BAND
4515 PROXIMITY KEYRING
For more information, see “Access Control” section.
Allows to activate the electric lock remotely by means of a mobile
phone with built-in bluetooth wireless connection technology.
Can store up to 40 authorized telephones in stand-alone mode.
The door opens automatically when detected, by key conrmation
or entering a PIN code as a security mechanism.
The telephone Bluetooth must be activated in order to receive
the opening and administration commands as well as to send the
corresponding conguration commands.
7441 BLUETOOTH READER V
Backlit stand-alone keypad with signal LEDs. Activates the door
release when a code up to 6 digits is entered. Admits 100 different
codes that can activate 1 or 2 relays. Power supply 12Vac/Vdc.
For centralized systems with MDS Central Unit ref.2405 or ACPlus
ref.4410.
PANELS
2015 GENERAL CATALOGUE 51
VDS VIDEO COMBINATIONS
SKYLINE PANEL
7337 Frame 7V S8
7421 Audio-Video VDS
7371 8P 204W (2u.)
7376 2P 201V
8858 Flush box S8
18 PUSHBUTTONS
7338 Frame 8V S9
7421 Audio-Video VDS
7371 8P 204W (3u.)
8982 Flush box S9
24 PUSHBUTTONS
7333 Frame 3V S4
7421 Audio-Video VDS
7376 2P 201V
8854 Flush box S4
2 PUSHBUTTONS
7334 Frame 4V S5
7421 Audio-Video
VDS
7371 8P 204W
8855 Flush box S5
8 PUSHBUTTONS
7335 Frame 5V S6
7421 Audio-Video VDS
7371 8P 204W
7376 2P 201V
8856 Flush box S6
10 PUSHBUTTONS
7336 Frame 6V S7
7421 Audio-Video VDS
7371 8P 204W (2u.)
8857 Flush box S7
16 PUSHBUTTONS
7337 Frame 7V S8
7421 Audio-Video VDS
7371 8P 204W (2u.)
7372 4P 202V
8858 Flush box S8
20 PUSHBUTTONS
7333 Frame 3V S4
7421 Audio-Video VDS
7372 4P 202V
8854 Flush box S4
4 PUSHBUTTONS
7335 Frame 5V S6
7421 Audio-Video VDS
7371 8P 204W
7372 4P 202V
8856 Flush box S6
12 PUSHBUTTONS
7338 Frame 8V S9
7421 Audio-Video VDS
7371 8P 204W (2u.)
7372 4P 202V
7376 2P 201V
8982 Flush box S9
22 PUSHBUTTONS
7334 Frame 4V S5
7421 Audio-Video VDS
7372 4P 202V
7376 2P 201V
8855 Flush box S5
6 PUSHBUTTONS
7336 Frame 6V S7
7421 Audio-Video VDS
7371 8P 204W
7372 4P 202V
7376 2P 201V
8857 Flush box S7
14 PUSHBUTTONS
7335 Frame 5V S6 (2u.)
7421 Audio-Video VDS
7371 8P 204W (2u.)
7372 4P 202V (2u.)
7376 2P 201V
7442 Metallic module V
8856 Flush box S6 (2u.)
8829 Joining bolts
2541 Connection cable
7335 Frame 5V S6 (2u.)
7421 Audio-Video VDS
7371 8P 204W (3u.)
7372 4P 202V
7442 Metallic module V
8856 Flush box S6 (2u.)
8829 Joining bolts
2541 Connection cable
26 PUSHBUTTONS 28 PUSHBUTTONS
7335 Frame 5V S6 (2u.)
7421 Audio-Video VDS
7371 8P 204W (3u.)
7372 4P 202V
7376 2P 201V
8856 Flush box S6 (2u.)
8829 Joining bolts
2541 Connection cable
30 PUSHBUTTONS
PUSHBUTTON PANELS
DIGITAL PANELS
DIGITAL
DIGITAL DIRECTORY
7336 Frame 6V S7 (3u.)
7421 Audio-Video VDS
7449 Display Digital VDS
7447 Digital keypad VDS
7444 Cardholder V (12u.)
8857 Flush box S7 (3u.)
8829 Joining bolts (2u.)
2541 Connection cable (2u.)
DIGITAL PANORAMIC 7332 Frame 2V S2 (3u.)
7421 Audio-Video VDS
7449 Digital Display VDS
7447 Digital keypad VDS
8857 Flush box S2 (3u.)
9192 Modular frame S2
9201 Triple modular
frame kit S2
8829 Joining bolts (2u.)
2541 Connection cable
(2u.)
7336 Frame 6V S7
7421 Audio-Video VDS
7449 Digital Display VDS
7447 Digital keypad VDS
8857 Flush box S7
DIGITAL WITH
PROXIMITY
7337 Frame 7V S8
7421 Audio-Video VDS
7449 Digital Display VDS
7447 Digital keypad VDS
7440 Proximity reader
8858 Flush box S8
Create your own SKYLINE, save
the image and draw up a list
of materials with SKYLINER at
www.fermax.co.uk
PANELS
52 2015 GENERAL CATALOGUE
MARINE PANEL
Select the corresponding panel accessories. Flush and
surface box must be requested separately. The indicated
references include DUOX, VDS or 4+N amplier and COLOUR
camera.
1. PANELS WITH PUSH BUTTONS
PANELS
In case of DUOX and VDS ampliers, extension call modules
are required: 8-calls (ref.2008) or 16-calls (ref.2441).
For the combination of 2 Marine panels of the same
series, joining bolts (ref.2289are required between the ush
boxes.
VANDAL-PROOF MADE IN STAINLESS STEEL
FEATURES
Dimensions: (width) x (height) x (depth) mm.
Marine is a range of vandal-proof door-entry panels made
of 2.5 mm-thick stainless steel. Straight lines that highlight the
quality of the steel. Cutting-edge technology and resistance
to even the most harshest of environments.
• The vandal-proof CALL BUTTONS are made of stainless steel
and are able to resist high impacts.
• The panel is attached to the ush box by means of vandal-
proof SAFETY SCREWS made of stainless steel, which can
only be removed using the torx key supplied.
• The FLUSH-MOUNTED BOX is galvanized metal and is
attached to the wall by means of self-expanding screws
and plugs, to avoid warping.
• The SMD (Surface Mounting Device) AMPLIFIER, which has
been subjected to a process of tropicalisation, is designed
to withstand the most adverse weather conditions.
Incorporates voice synthesis: a message is emitted when
the lock-release is activated: “Door open, please close the
door behind you”.
• The CAMERA, equipped with lighting for low-light conditions,
has a PAN&TILT adjustment system to move the camera ±10°
in any direction. Incorporates a 3.6 mm wide angle lens.
2015 GENERAL CATALOGUE 53
PANELS
AUDIO MARINE PANEL
Dimensions: (width) x (height) x (depth) mm.
1PB
VDS: ref. SSLA01_3
4+N: ref. SSLA01_1
DUOX: ref. SSLA01_4
4PB
VDS: ref. SSLA04_3
4+N: ref. SSLA04_1
DUOX: ref. SSLA04_4
10PB
VDS: ref. SSLA10_3
4+N: ref. SSLA10_1
DUOX: ref. SSLA10_4
16PB
VDS: ref. SSLA16_3
4+N: ref. SSLA16_1
DUOX: ref. SSLA16_4
7PB
VDS: ref. SSLA07_3
4+N: ref. SSLA07_1
DUOX: ref. SSLA07_4
13PB
VDS: ref. SSLA13_3
4+N: ref. SSLA13_1
DUOX: ref. SSLA13_4
2PB
VDS: ref. SSLA02_3
4+N: ref. SSLA02_1
DUOX: ref. SSLA02_4
5PB
VDS: ref. SSLA05_3
4+N: ref. SSLA05_1
DUOX: ref. SSLA05_4
11PB
VDS: ref. SSLA11_3
4+N: ref. SSLA11_1
DUOX: ref. SSLA11_4
17PB
VDS: ref. SSLA17_3
4+N: ref. SSLA17_1
DUOX: ref. SSLA17_4
8PB
VDS: ref. SSLA08_3
4+N: ref. SSLA08_1
DUOX: ref. SSLA08_4
14PB
VDS: ref. SSLA14_3
4+N: ref. SSLA14_1
DUOX: ref. SSLA14_4
3PB
VDS: ref. SSLA03_3
4+N: ref. SSLA03_1
DUOX: ref. SSLA03_4
6PB
VDS: ref. SSLA06_3
4+N: ref. SSLA06_1
DUOX: ref. SSLA06_4
12PB
VDS: ref. SSLA12_3
4+N: ref. SSLA12_1
DUOX: ref. SSLA12_4
18PB
VDS: ref. SSLA18_3
4+N: ref. SSLA18_1
DUOX: ref. SSLA18_4
9PB
VDS: ref. SSLA09_3
4+N: ref. SSLA09_1
DUOX: ref. SSLA09_4
15PB
VDS: ref. SSLA15_3
4+N: ref. SSLA15_1
DUOX: ref. SSLA15_4
Panel: 150x180
SERIES ST1
Panel: 150x240
SERIES ST2
Panel: 150x360
SERIES ST3
AUDIO MARINE PANELS WITH PUSH BUTTONS ONLY
ref.2289
ref.4642
130x220x55
ref.4641
130x160x55
ref.4643
130x340x55
ref.4644
130x465x55
ref.4646
154x244x96
ref.4645
154x184x96
ref.4647
154x364x96
ref.4648
154x489x96
ref.4704
154x489x40
ref.4703
154x364x40
ref.4702
154x244x40
ref.4701
154x184x40
ST1 ST2 ST3 ST4
FLUSH
BOX
FLUSH
BOX
FLUSH
BOX
FLUSH
BOX
SURFACE
BOX
SURFACE
BOX
SURFACE
BOX
SURFACE
BOX
HOODHOODHOODHOOD
JOINING
BAOLTS
SET
Hood included in the surface box.
54 2015 GENERAL CATALOGUE
AUDIO MARINE PANEL
4PB + KPAD
VDS: ref. SSLA04N_3
4+N: ref. SSLA04N_1
DUOX: ref. SSLA04N_4
1PB + KPAD
VDS: ref. SSLA01N_3
4+N: ref. SSLA01N_1
DUOX: ref. SSLA01N_4
7PB + KPAD
VDS: ref. SSLA07N_3
4+N: ref. SSLA07N_1
DUOX: ref. SSLA07N_4
10PB + KPAD
VDS: ref. SSLA10N_3
4+N: ref. SSLA10N_1
DUOX: ref. SSLA10N_4
16PB + KPAD
VDS: ref. SSLA16N_3
4+N: ref. SSLA16N_1
DUOX: ref. SSLA16N_4
13PB + KPAD
VDS: ref. SSLA13N_3
4+N: ref. SSLA13N_1
DUOX: ref. SSLA13N_4
5PB + KPAD
VDS: ref. SSLA05N_3
4+N: ref. SSLA05N_1
DUOX: ref. SSLA05N_4
2PB + KPAD
VDS: ref. SSLA02N_3
4+N: ref. SSLA02N_1
DUOX: ref. SSLA02N_4
8PB + KPAD
VDS: ref. SSLA08N_3
4+N: ref. SSLA08N_1
DUOX: ref. SSLA08N_4
11PB + KPAD
VDS: ref. SSLA11N_3
4+N: ref. SSLA11N_1
DUOX: ref. SSLA11N_4
17PB + KPAD
VDS: ref. SSLA17N_3
4+N: ref. SSLA17N_1
DUOX: ref. SSLA17N_4
14PB + KPAD
VDS: ref. SSLA14N_3
4+N: ref. SSLA14N_1
DUOX: ref. SSLA14N_4
6PB + KPAD
VDS: ref. SSLA06N_3
4+N: ref. SSLA06N_1
DUOX: ref. SSLA06N_4
3PB + KPAD
VDS: ref. SSLA03N_3
4+N: ref. SSLA03N_1
DUOX: ref. SSLA03N_4
9PB + KPAD
VDS: ref. SSLA09N_3
4+N: ref. SSLA09N_1
DUOX: ref. SSLA09N_4
12PB + KPAD
VDS: ref. SSLA12N_3
4+N: ref. SSLA12N_1
DUOX: ref. SSLA12N_4
18PB + KPAD
VDS: ref. SSLA18N_3
4+N: ref. SSLA18N_1
DUOX: ref. SSLA18N_4
15PB + KPAD
VDS: ref. SSLA15N_3
4+N: ref. SSLA15N_1
DUOX: ref. SSLA15N_4
SERIES ST3
AUDIO MARINE PANELS WITH PUSH BUTTONS & KEYPAD
SERIE ST4
Panel: 150x360
Panel: 150x485
Dimensions: (width) x (height) x (depth) mm.
PANELS
2015 GENERAL CATALOGUE 55
1PB + PROX
VDS: ref. SSLA01X_3
4+N: ref. SSLA01X_1
DUOX: ref. SSLA01X_4
7PB + PROX
VDS: ref. SSLA07X_3
4+N: ref. SSLA07X_1
DUOX: ref. SSLA07X_4
13PB + PROX
VDS: ref. SSLA13X_3
4+N: ref. SSLA13X_1
DUOX: ref. SSLA13X_4
4PB + PROX
VDS: ref. SSLA04X_3
4+N: ref. SSLA04X_1
DUOX: ref. SSLA04X_4
10PB + PROX
VDS: ref. SSLA10X_3
4+N: ref. SSLA10X_1
DUOX: ref. SSLA10X_4
16PB + PROX
VDS: ref. SSLA16X_3
4+N: ref. SSLA16X_1
DUOX: ref. SSLA16X_4
2PB + PROX
VDS: ref. SSLA02X_3
4+N: ref. SSLA02X_1
DUOX: ref. SSLA02X_4
8PB + PROX
VDS: ref. SSLA08X_3
4+N: ref. SSLA08X_1
DUOX: ref. SSLA08X_4
14PB + PROX
VDS: ref. SSLA14X_3
4+N: ref. SSLA14X_1
DUOX: ref. SSLA14X_4
5PB + PROX
VDS: ref. SSLA05X_3
4+N: ref. SSLA05X_1
DUOX: ref. SSLA05X_4
11PB + PROX
VDS: ref. SSLA11X_3
4+N: ref. SSLA11X_1
DUOX: ref. SSLA11X_4
17PB + PROX
VDS: ref. SSLA17X_3
4+N: ref. SSLA17X_1
DUOX: ref. SSLA17X_4
3PB + PROX
VDS: ref. SSLA03X_3
4+N: ref. SSLA03X_1
DUOX: ref. SSLA03X_4
9PB + PROX
VDS: ref. SSLA09X_3
4+N: ref. SSLA09X_1
DUOX: ref. SSLA09X_4
15PB + PROX
VDS: ref. SSLA15X_3
4+N: ref. SSLA15X_1
DUOX: ref. SSLA15X_4
6PB + PROX
VDS: ref. SSLA06X_3
4+N: ref. SSLA06X_1
DUOX: ref. SSLA06X_4
12PB + PROX
VDS: ref. SSLA12X_3
4+N: ref. SSLA12X_1
DUOX: ref. SSLA12X_4
18PB + PROX
VDS: ref. SSLA18X_3
4+N: ref. SSLA18X_1
DUOX: ref. SSLA18X_4
SERIES ST3
AUDIO MARINE PANEL
AUDIO MARINE PANELS WITH PUSH BUTTONS & PROXIMITY READER
SERIES ST2
Panel: 150x485
SERIES ST4
Panel: 150x240
Panel: 150x360
AUDIO MARINE PANELS WITH PUSH BUTTONS & KEYPAD
Dimensions: (width) x (height) x (depth) mm. Dimensions: (width) x (height) x (depth) mm.
PANELS
56 2015 GENERAL CATALOGUE
AUDIO MARINE PANEL
AUDIO MARINE PANELS WITH PUSH BUTTONS & PAC CUT OUT
1PB + PAC
VDS: ref. SSLA01P_3
4+N: ref. SSLA01P_1
DUOX: ref. SSLA01P_4
7PB + PAC
VDS: ref. SSLA07P_3
4+N: ref. SSLA07P_1
DUOX: ref. SSLA07P_4
13PB + PAC
VDS: ref. SSLA13P_3
4+N: ref. SSLA13P_1
DUOX: ref. SSLA13P_4
4PB + PAC
VDS: ref. SSLA04P_3
4+N: ref. SSLA04P_1
DUOX: ref. SSLA04P_4
10PB + PAC
VDS: ref. SSLA10P_3
4+N: ref. SSLA10P_1
DUOX: ref. SSLA10P_4
16PB + PAC
VDS: ref. SSLA16P_3
4+N: ref. SSLA16P_1
DUOX: ref. SSLA16P_4
2PB + PAC
VDS: ref. SSLA02P_3
4+N: ref. SSLA02P_1
DUOX: ref. SSLA02P_4
5PB + PAC
VDS: ref. SSLA05P_3
4+N: ref. SSLA05P_1
DUOX: ref. SSLA05P_4
11PB + PAC
VDS: ref. SSLA11P_3
4+N: ref. SSLA11P_1
DUOX: ref. SSLA11P_4
17PB + PAC
VDS: ref. SSLA17P_3
4+N: ref. SSLA17P_1
DUOX: ref. SSLA17P_4
3PB + PAC
VDS: ref. SSLA03P_3
4+N: ref. SSLA03P_1
DUOX: ref. SSLA03P_4
6PB + PAC
VDS: ref. SSLA06P_3
4+N: ref. SSLA06P_1
DUOX: ref. SSLA06P_4
12PB + PAC
VDS: ref. SSLA12P_3
4+N: ref. SSLA12P_1
DUOX: ref. SSLA12P_4
18PB + PAC
VDS: ref. SSLA18P_3
4+N: ref. SSLA18P_1
DUOX: ref. SSLA18P_4
SERIES ST3
SERIES ST2
SERIE ST4
8PB + PAC
VDS: ref. SSLA08P_3
4+N: ref. SSLA08P_1
DUOX: ref. SSLA08P_4
14PB + PAC
VDS: ref. SSLA14P_3
4+N: ref. SSLA14P_1
DUOX: ref. SSLA14P_4
9PB + PAC
VDS: ref. SSLA09P_3
4+N: ref. SSLA09P_1
DUOX: ref. SSLA09P_4
15PB + PAC
VDS: ref. SSLA15P_3
4+N: ref. SSLA15P_1
DUOX: ref. SSLA15P_4
Panel: 150x485
Panel: 150x240
Panel: 150x360
(Paxton Reader not included)
PANELS
2015 GENERAL CATALOGUE 57
VIDEO MARINE PANEL
AUDIO MARINE PANELS WITH PUSH BUTTONS & PAC CUT OUT
1PB
VDS: ref. SSLV01_3
4+N: ref. SSLV01_1
DUOX: ref. SSLV01_4
4PB
VDS: ref. SSLV04_3
4+N: ref. SSLV04_1
DUOX: ref. SSLV04_4
10PB
VDS: ref. SSLV10_3
4+N: ref. SSLV10_1
DUOX: ref. SSLV10_4
16PB
VDS: ref. SSLV16_3
4+N: ref. SSLV16_1
DUOX: ref. SSLV16_4
7PB
VDS: ref. SSLV07_3
4+N: ref. SSLV07_1
DUOX: ref. SSLV07_4
13PB
VDS: ref. SSLV13_3
4+N: ref. SSLV13_1
DUOX: ref. SSLV13_4
2PB
VDS: ref. SSLV02_3
4+N: ref. SSLV02_1
DUOX: ref. SSLV02_4
5PB
VDS: ref. SSLV05_3
4+N: ref. SSLV05_1
DUOX: ref. SSLV05_4
11PB
VDS: ref. SSLV11_3
4+N: ref. SSLV11_1
DUOX: ref. SSLV11_4
17PB
VDS: ref. SSLV17_3
4+N: ref. SSLV17_1
DUOX: ref. SSLV17_4
8PB
VDS: ref. SSLV08_3
4+N: ref. SSLV08_1
DUOX: ref. SSLV08_4
14PB
VDS: ref. SSLV14_3
4+N: ref. SSLV14_1
DUOX: ref. SSLV14_4
3PB
VDS: ref. SSLV03_3
4+N: ref. SSLV03_1
DUOX: ref. SSLV03_4
6PB
VDS: ref. SSLV06_3
4+N: ref. SSLV06_1
DUOX: ref. SSLV06_4
12PB
VDS: ref. SSLV12_3
4+N: ref. SSLV12_1
DUOX: ref. SSLV12_4
18PB
VDS: ref. SSLV18_3
4+N: ref. SSLV18_1
DUOX: ref. SSLV18_4
9PB
VDS: ref. SSLV09_3
4+N: ref. SSLV09_1
DUOX: ref. SSLV09_4
15PB
VDS: ref. SSLV15_3
4+N: ref. SSLV15_1
DUOX: ref. SSLV15_4
Panel: 150x180
SERIES ST1
Panel: 150x240
SERIES ST2
Panel: 150x360
SERIES ST3
VIDEO MARINE PANELS WITH PUSH BUTTONS ONLY
PANELS
58 2015 GENERAL CATALOGUE
VIDEO MARINE PANEL
4PB + KPAD
VDS: ref. SSLV04N_3
4+N: ref. SSLV04N_1
DUOX: ref. SSLV04N_4
1PB + KPAD
VDS: ref. SSLV01N_3
4+N: ref. SSLV01N_1
DUOX: ref. SSLV01N_4
7PB + KPAD
VDS: ref. SSLV07N_3
4+N: ref. SSLV07N_1
DUOX: ref. SSLV07N_4
10PB + KPAD
VDS: ref. SSLV10N_3
4+N: ref. SSLV10N_1
DUOX: ref. SSLV10N_4
16PB + KPAD
VDS: ref. SSLV16N_3
4+N: ref. SSLV16N_1
DUOX: ref. SSLV16N_4
13PB + KPAD
VDS: ref. SSLV13N_3
4+N: ref. SSLV13N_1
DUOX: ref. SSLV13N_4
5PB + KPAD
VDS: ref. SSLV05N_3
4+N: ref. SSLV05N_1
DUOX: ref. SSLV05N_4
2PB + KPAD
VDS: ref. SSLV02N_3
4+N: ref. SSLV02N_1
DUOX: ref. SSLV02N_4
8PB + KPAD
VDS: ref. SSLV08N_3
4+N: ref. SSLV08N_1
DUOX: ref. SSLV08N_4
11PB + KPAD
VDS: ref. SSLV11N_3
4+N: ref. SSLV11N_1
DUOX: ref. SSLV11N_4
17PB + KPAD
VDS: ref. SSLV17N_3
4+N: ref. SSLV17N_1
DUOX: ref. SSLV17N_4
14PB + KPAD
VDS: ref. SSLV14N_3
4+N: ref. SSLV14N_1
DUOX: ref. SSLV14N_4
6PB + KPAD
VDS: ref. SSLV06N_3
4+N: ref. SSLV06N_1
DUOX: ref. SSLV06N_4
3PB + KPAD
VDS: ref. SSLV03N_3
4+N: ref. SSLV03N_1
DUOX: ref. SSLV03N_4
9PB + KPAD
VDS: ref. SSLV09N_3
4+N: ref. SSLV09N_1
DUOX: ref. SSLV09N_4
12PB + KPAD
VDS: ref. SSLV12N_3
4+N: ref. SSLV12N_1
DUOX: ref. SSLV12N_4
18PB + KPAD
VDS: ref. SSLV18N_3
4+N: ref. SSLV18N_1
DUOX: ref. SSLV18N_4
15PB + KPAD
VDS: ref. SSLV15N_3
4+N: ref. SSLV15N_1
DUOX: ref. SSLV15N_4
SERIES ST3
VIDEO MARINE PANELS WITH PUSH BUTTONS & KEYPAD
SERIE ST4
Panel: 150x360
Panel: 150 x 485
PANELS
2015 GENERAL CATALOGUE 59
MARINE PANEL
VIDEO MARINE PANELS WITH PUSH BUTTONS & KEYPAD
1PB + PROX
VDS: ref. SSLV01X_3
4+N: ref. SSLV01X_1
DUOX: ref. SSLV01X_4
7PB + PROX
VDS: ref. SSLV07X_3
4+N: ref. SSLV07X_1
DUOX: ref. SSLV07X_4
13PB + PROX
VDS: ref. SSLV13X_3
4+N: ref. SSLV13X_1
DUOX: ref. SSLV13X_4
4PB + PROX
VDS: ref. SSLV04X_3
4+N: ref. SSLV04X_1
DUOX: ref. SSLV04X_4
10PB + PROX
VDS: ref. SSLV10X_3
4+N: ref. SSLV10X_1
DUOX: ref. SSLV10X_4
16PB + PROX
VDS: ref. SSLV16X_3
4+N: ref. SSLV16X_1
DUOX: ref. SSLV16X_4
2PB + PROX
VDS: ref. SSLV02X_3
4+N: ref. SSLV02X_1
DUOX: ref. SSLV02X_4
8PB + PROX
VDS: ref. SSLV08X_3
4+N: ref. SSLV08X_1
DUOX: ref. SSLV08X_4
14PB + PROX
VDS: ref. SSLV14X_3
4+N: ref. SSLV14X_1
DUOX: ref. SSLV14X_4
5PB + PROX
VDS: ref. SSLV05X_3
4+N: ref. SSLV05X_1
DUOX: ref. SSLV05X_4
11PB + PROX
VDS: ref. SSLV11X_3
4+N: ref. SSLV11X_1
DUOX: ref. SSLV11X_4
17PB + PROX
VDS: ref. SSLV17X_3
4+N: ref. SSLV17X_1
DUOX: ref. SSLV17X_4
3PB + PROX
VDS: ref. SSLV03X_3
4+N: ref. SSLV03X_1
DUOX: ref. SSLV03X_4
9PB + PROX
VDS: ref. SSLV09X_3
4+N: ref. SSLV09X_1
DUOX: ref. SSLV09X_4
15PB + PROX
VDS: ref. SSLV15X_3
4+N: ref. SSLV15X_1
DUOX: ref. SSLV15X_4
6PB + PROX
VDS: ref. SSLV06X_3
4+N: ref. SSLV06X_1
DUOX: ref. SSLV06X_4
12PB + PROX
VDS: ref. SSLV12X_3
4+N: ref. SSLV12X_1
DUOX: ref. SSLV12X_4
18PB + PROX
VDS: ref. SSLV18X_3
4+N: ref. SSLV18X_1
DUOX: ref. SSLV18X_4
SERIES ST3
VIDEO MARINE PANELS WITH PUSH BUTTONS & PROXIMITY READER
SERIES ST2
Panel: 150x485
SERIES ST4
Panel: 150x240
Panel: 150x360
PANELS
60 2015 GENERAL CATALOGUE
VIDEO MARINE PANEL
VIDEO MARINE PANELS WITH PUSH BUTTONS & PAC CUT OUT
1PB + PAC
VDS: ref. SSLV01P_3
4+N: ref. SSLV01P_1
DUOX: ref. SSLV01P_4
7PB + PAC
VDS: ref. SSLV07P_3
4+N: ref. SSLV07P_1
DUOX: ref. SSLV07P_4
13PB + PAC
VDS: ref. SSLV13P_3
4+N: ref. SSLV13P_1
DUOX: ref. SSLV13P_4
4PB + PAC
VDS: ref. SSLV04P_3
4+N: ref. SSLV04P_1
DUOX: ref. SSLV04P_4
10PB + PAC
VDS: ref. SSLV10P_3
4+N: ref. SSLV10P_1
DUOX: ref. SSLV10P_4
16PB + PAC
VDS: ref. SSLV16P_3
4+N: ref. SSLV16P_1
DUOX: ref. SSLV16P_4
2PB + PAC
VDS: ref. SSLV02P_3
4+N: ref. SSLV02P_1
DUOX: ref. SSLV02P_4
5PB + PAC
VDS: ref. SSLV05P_3
4+N: ref. SSLV05P_1
DUOX: ref. SSLV05P_4
11PB + PAC
VDS: ref. SSLV11P_3
4+N: ref. SSLV11P_1
DUOX: ref. SSLV11P_4
17PB + PAC
VDS: ref. SSLV17P_3
4+N: ref. SSLV17P_1
DUOX: ref. SSLV17P_4
3PB + PAC
VDS: ref. SSLV03P_3
4+N: ref. SSLV03P_ 1
DUOX: ref. SSLV03P_4
6PB + PAC
VDS: ref. SSLV06P_3
4+N: ref. SSLV06P_1
DUOX: ref. SSLV06P_4
12PB + PAC
VDS: ref. SSLV12P_3
4+N: ref. SSLV12P_1
DUOX: ref. SSLV12P_4
18PB + PAC
VDS: ref. SSLV18P_3
4+N: ref. SSLV18P_1
DUOX: ref. SSLV18P_4
SERIES ST3
SERIES ST2
SERIE ST4
8PB + PAC
VDS: ref. SSLV08P_3
4+N: ref. SSLV08P_1
DUOX: ref. SSLV08P_4
14PB + PAC
VDS: ref. SSLV14P_3
4+N: ref. SSLV14P_1
DUOX: ref. SSLV14P_4
9PB + PAC
VDS: ref. SSLV09P_3
4+N: ref. SSLV09P_1
DUOX: ref. SSLV09P_4
15PB + PAC
VDS: ref. SSLV15P_3
4+N: ref. SSLV15P_1
DUOX: ref. SSLV15P_4
Panel: 150x485
Panel: 150x240
Panel: 150x360
(Paxton Reader not included)
PANELS
2015 GENERAL CATALOGUE 61
MARINE DIGITAL PANEL
VIDEO MARINE PANELS WITH PUSH BUTTONS & PAC CUT OUT IP54 IK09
COLOUR CAMERA as standard.
AMPLIFIER
DISPLAY
Includes: illumination for night vision
in poor lighting conditions. PAN &
TILT system to adjust camera lens
(+/-10º).
Amplifier manufactured in SMD
and subjected to tropicalization
process for weather resistance.
Voice synthesizer configurable in 32
languages. Loudspeaker ensures
high performance level and sound
quality.
That can only be removed with a
special key supplied.
METALLIC KEYPAD
VANDAL-PROOF SAFETY BOLTS
The metallic keys are made in zamak
with permanent BACKLIGHTING
allowing to see the numbers in poor
light conditions. Its robust design and
airtight keys guarantee reliability and
durability in any atmosphere.
High contrast, enables to view the
names of the residents and the
codes through a phone book type
DIRECTORY. The display shows the
communication status: calling, busy
channel, etc.
The keys allow to browse through
the user and programming menu.
Once the door code is entered, press
to call the house.
PANELS
62 2015 GENERAL CATALOGUE
MARINE DIGITAL PANELS
Dimensions: (width) x (height) x (depth) mm.
5470 MDS DIGITAL VIDEO MARINE PANEL ST3
5467 MDS DIGITAL AUDIO MARINE PANEL ST3
5485 LYNX DIGITAL VIDEO MARINE PANEL ST3
4643 MARINE FLUSH BOX ST3 130x340x55
4703 MARINE HOOD ST3 154x364x40
4647 MARINE SURFACE BOX ST3 154x364x55. With hood
2289 JOINING BOLTS SET
2. DIGITAL PANELS
VDS
MDS
LYNX
ACCESSORIES
ref.5483 / ref.5468 /
ref.5470
ref.5523 / ref.5465 /
ref.5467
Flush or surface box must be requested separately.
ST3: 150x360
ST3: 150x360
The MARINE DIGITAL panel includes a keypad which calls the apartments by dialling the door number or a
corresponding code.
• COLOUR camera as standard.
• A DIRECTORY DISPLAY allows to search for neighbours and their door number.
• Once the code is entered, press the BELL KEY to call.
• The metallic keys are made of zamak. BACKLIGHTING enabling users to see the numbers in poor light
conditions.
• Through the keypad it is possible to activate the installation’s electric lock. The management of codes/user
numbers depend on the type of panel: 350 codes (VDS) and 1,020 codes (MDS with Central Unit ref.2405) .
5468 VDS DIGITAL VIDEO MARINE PANEL ST3
5465 VDS DIGITAL AUDIO MARINE PANEL ST3
DUOX
5523 DUOX DIGITAL AUDIO MARINE PANEL ST3
5483 DUOX DIGITAL VIDEO MARINE PANEL ST3
DIGITAL PANELS
ACCESS CONTROL READERS
4699 MEMOKEY MARINE READER
4696 MDS/AC+ MARINE KEYPAD
5472 MARINE PROXIMITY READER
5482 MARINE FINGERPRINT READER
5473 MARINE BLUETOOTH READER
The reader includes the ush box ref.4641. Dimensions ST1: 150x180. ref.5472
ref.5473ref.5482
ref.4699
PANELS
2015 GENERAL CATALOGUE 63
MARINE DIGITAL PANELS Marine
VDS
MDS
LYNX
ref.5481/ref.5480
ST4: 150x485
ref.5486
ST4: 150x485
Proximity reader included. Flush or surface box must requested
separately.
5481 VDS DIG. VIDEO MARINE PANEL W/PROX ST4
5479 VDS DIG. AUDIO MARINE PANEL W/PROX ST4
5480 MDS DIG. VIDEO MARINE PANEL W/PROX ST4
5478 MDS DIG. AUDIO MARINE PANEL W/PROX ST4
5486 LYNX DIG. VIDEO MARINE PANEL W/PROX
DIGITAL PANELS WITH PROXIMITY READER
4644 MARINE FLUSH BOX ST4 130x460x55
4704 MARINE HOOD ST4
4648 MARINE SURFACE BOX ST4. 154x489x55. With hood.
2289 JOINING BOLTS SET
ref.5508/ref.5505
ST4: 150x485
Paxton reader not included. Flush or surface box must be
requested separately.
5508 VDS DIGITAL VIDEO MARINE PANEL W/PAC ST4
5506 VDS DIGITAL AUDIO MARINE PANEL W/PAC ST4
5505 MDS DIGITAL VIDEO MARINE PANEL W/PAC ST4
5507 MDS DIGITAL AUDIO MARINE PANEL W/PAC ST4
DIGITAL PANELS WITH PAC CUT OUT
ACCESSORIES
VDS
MDS
4644 MARINE FLUSH BOX ST4 130x460x55
4704 MARINE HOOD ST4 154x489x40
4648 MARINE SURFACE BOX ST4. 154x489x55. With hood
2289 JOINING BOLTS SET
ACCESSORIES
PANELS
64 2015 GENERAL CATALOGUE
MARINE PANELS
PANELS
BESPOKE PANELS
SSLQ BESPOKE MARINE PANEL
FERMAX has a laser-cut machining line for stainless steel panels. This process allows us complete lexibility to
make the Marine panel required, with optimum delivery time for the customised panel.
Choose your combination, design your panel in the next page form, and send your order to
sales@fermaxuk.com
The following variations may be ordered:
· Panel with special formats and dimensions.
· Integration of ingerprint reader, access control
modules and special combinations with ampliier,
push buttons and other accessories.
· Logotype laser marking.
· House number and messages integration.
· Push buttons without cardholder and free layout.
· Including backlighting.
Marine
Manufacturing process of the Marine Panel in Fermax, Spain
DDA MODULE: In order to comply with current DDA requirements, FERMAX oers bespoke stainless steel
panels which will meet your speciic requirements.
2015 GENERAL CATALOGUE 65
MARINE PANELS
“Special Marine Application Form” for panels is available at www.fermax.co.uk
Amplier Amplier+Camera
Proximity Pac cut out OneToOne Finger print
Digital Display Keypad
Pushbutton
BESPOKE MARINE PANEL FORM
ELEMENTS
ENGRAVING
MARK THE TYPE OF BOX:
FLUSH BOX SURFACE BOX WITHOUT BOX
DATE:
COMPANY NAME:
TELEPHONE: E-MAIL:
CONTACT PERSON:
DRAW YOUR PANEL
PANELS
SIZE
(if any special requirement)
TYPE OF AMPLIFIER
NUMBER OF PUSH BUTTONS
TYPE OF PUSH BUTTONS
DIGITAL (Display + keypad)
KEYPAD
PROXIMITY READER
DDA MODULE
PAC CUT OUT
DIGITIZER
ENGRAVING
FINGERPRINT READER
TYPE OF BOX
TECHNOLOGY
ST1 (150 x 180 mm)
ST2 (150 x 240 mm)
ST3 (150 x 360 mm)
ST4 (150 x 485 mm)
AUDIO
NAME CARDHOLDER
Nº
VDS
4+N/MDS
DUOX
LYNX
VIDEO
ENGRAVED BUTTONS
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
(width x height)
SPECIAL DIMENSIONS
LOCK RELEASE
FLUSH-MOUNTED. SURFACE. SPECIALS. ACCESSORIES
LOCK RELEASE
68 2015 GENERAL CATALOGUE
ELECTRIC LOCK RELEASE
For more information about door locks, see current “Lock release catalogue”.
- Unlocking level – D
The lock release with D in its
description indicates the addition
of a manual release lever which
inhibits its function, which inhibits its
operation, allowing free access.
• ND Normal operation with
release.
• AD Automatic operation with
release.
- Built-in microswitch - CTC
Allows monitoring of door status
(open/closed). Suitable for security
systems. Not available for MAX
version.
- Adjustable latch bolt - MAX
Allows a perfect t between latch
and bolt in the lock, with a 4mm
margin. To order a MAX lock release,
please add an 8 to the end of the
reference of the compatible lock.
OPERATING MODES
ELECTRIC
MECHANISM
SHIELDFLUSH-MOUNTED
LOCK RELEASE
ELECTRIC
MECHANISM
CASESURFACE
LOCK RELEASE
NORMAL OPERATION - N
AUTOMATIC OPERATION - A
Allows door opening while the lock is
powered.
N 12 Vac activation
N-412 12 Vdc activation
N-424 24 Vdc activation
Allows door opening while power
to the lock release is off.
N-512 12 Vdc activation
N-524 24 Vdc activation
INVERTED OPERATION N-500
ADDITIONAL OPERATION
Enables door opening with a short electric pulse. The lock
release is automatically blocked when the door is closed
again.
Ab (Sliding automatic) & Aa (Invisible automatic)
A Automatic operation
Aa Invisible automatic operation
The automatic pin is suppressed to
allow an easier t to the mechanical
lock. A very short electrical pulse is
recommended.
A 12 Vac activation
A-412 12 Vdc activation
A-424 24 Vdc activation
Ab 12 Vac activation
Ab-412 12 Vdc activation
Aa 12 Vac activation
Aa-412 12 Vdc activation
Ab Sliding automatic operation
Lets you slide the automatic
function with the MAX latch
setting.
D
CTC
MAX
FLUSH-MOUNTED SURFACE
N, A
N-412
N-512
A-424
MAX
12Vac
12Vdc
12Vdc
24Vdc
12Vac/dc
12Vdc
980mA
260mA
200mA
180mA
250mA/280mA
175mA
UNIVERSAL STANDARD (540)UNIVERSAL (990)
67
20,5 28
66
16 25,2
+ 2 mm
12Vac
12Vdc
980mA
400mA
EUROPEAN PROFILE (410)
67
16,4 28
+ 1 mm+ 3 mm
An electric lock-release
basically consists of an
electrical mechanism
and a shield or case,
depending of the
installation system
(ush-mounted or surface).
LOCK RELEASE
2015 GENERAL CATALOGUE 69
FLUSH-MOUNTED
ELECTRIC LOCK RELEASE
1. FLUSH-MOUNTED LOCK RELEASE
540 STANDARD SERIES
With MAX adjustable latchbolt version. Reversible and sym-
metrical. Electric strike requires a short S shield (ref.2973) or a
large M shield (ref.2893).
540 SERIES
540Ab MAX
990 MULTIVOLTAGE UNIVERSAL SERIES
67501 LOCK RELEASE 990N-P22 10-24V MAX
67511 LOCK RELEASE 990ND-P22 10-24V MAX
1817 LOCK RELEASE 990ND-L22 10-24V MAX
67521 LOCK RELEASE 990A-P22 10-24V MAX
67531 LOCK RELEASE 990AD-P22 10-24V MAX
67532 LOCK RELEASE 990AD-L22 10-24V MAX
6750 MECHANISM 990N MAX 10-24Vac/dc
1813 MECHANISM 990ND MAX 10-24Vac/dc
1814 MECHANISM 990ND TOPMAX 10-24Vac/dc
6753 MECHANISM 990AD MAX 10-24Vac/dc
6780 MECHANISM 990N-512 MAX 12Vdc
67500 MECHANISM 990N CTC 10-24Vac/dc
67800 MECHANISM 990N-512 CTC 12Vdc
Requires a S short shield (ref.2973) or P22 (ref.2894) or M large
shield (ref.2893) or L22 (ref.2892). The TOP version requires S
short shield (ref.7770) or YG large type (ref.7771).
990 SERIES
990 990TOP
990TOP
1777 MECHANISM 540N MAX 12 Vac
1780 MECHANISM 540Aa MAX 12 Vac
1781 MECHANISM 540AaD MAX 12 Vac
1728 MECHANISM 540Aa-412 MAX 12 Vdc
1794 MECHANISM 540N-512 MAX 12 Vdc
30711 LOCK RELEASE 540N-S MAX 12 Vac
28341 LOCK RELEASE 540ND-S MAX 12 Vac
1821 LOCK RELEASE 540Ab-S MAX 12 Vac
64551 LOCK RELEASE 540AbD-S MAX 12 Vac
30701 LOCK RELEASE 540N-412-S MAX 12 Vdc
1820 LOCK RELEASE 540Ab-412-S MAX 12 Vdc
64651 LOCK RELEASE 540AbD -412-S MAX 12 Vdc
64801 LOCK RELEASE 540N-512-S MAX 12 Vdc
64721 LOCK RELEASE 540A-424-S MAX 24Vdc
N 12Vac: 250mA
12Vdc: 280mA
24Vac: 500mA
24Vdc: 560mA
990 Series Consumption
N-512 12Vdc: 175mA
N,A 980mA
N-412 260mA
N-512 200mA
A-424 180mA
540 Series Consumption
410 SERIES. EUROPEAN PROFILE
3040 LOCK RELEASE 410N-P22 MAX 12 Vac
3048 LOCK RELEASE 410A-P22 MAX 12 Vac
3068 LOCK RELEASE 410AD-P22 MAX 12 Vac
Recommended for very thin frames.
410 Consumption series
N,A 12Vac 980mA
410 SERIES
410-P22 MAX 410N-MAX
540Ab-S
LOCK RELEASE
70 2015 GENERAL CATALOGUE
2. SURFACE LOCK RELEASE
SERIES 6000
2001 SERIES 2003 SERIES
2001-2003 SERIES
6000 SERIES
480 SERIES
490 SERIES
SURFACE LOCK RELEASE ACCESSORIES
3004 LOCK RELEASE 6000N GREY
3005 LOCK RELEASE 6000A GREY
3021 MECHANISM 660N GREY
3030 LOCK RELEASE 480N
3031 LOCK RELEASE 480A
Reversible and non symmetrical.
For doors with bolt locks. Reversible. Right-hand and
left-hand opening. 12Vac activation.
Allows MAX version: add 8 at the end of the reference.
SURFACE
ELECTRIC LOCK RELEASE
2923 LOCK RELEASE N-2001 CHROME
2917 LOCK RELEASE A-2001 CHROME
2940 LOCK RELEASE N-2003 ALUM. ANOD.
2942 LOCK RELEASE A-2003 ALUM. ANOD.
2000 Consumption Series
N 12Vac 980mA
6000 Consumption Series
N,A 12Vac 980mA
6000A DIN Left
3034 LOCK RELEASE 490N
3035 LOCK RELEASE 490A
2979 2001-TYPE CHROME CASE
2987 2006-TYPE GREY CASE
2964 2007-TYPE GREY CASE
480 SERIES
490 SERIES
Compatible with 540 and 990 mechanism series.
480-490 Series Consumption
N,A 12Vac 980mA
For deadbolt entry doors. Reversible, symmetrical.
With bolt up to 20mm. 12Vac activation.
For deadbolt entry doors. Reversible, symmetrical.
With bolt up to 20mm. 12Vac activation.
2001-2006 2007
For more information about door locks, see current “Lock
release catalogue”.
LOCK RELEASE
2015 GENERAL CATALOGUE 71
8000 SERIES / P SERIES (ANTI-PANIC)
C GLASS / CII GLASS SERIES
2998 GLASS CAD CHROMED LOCK RELEASE
3098 GLASS CIIN-512-SX LOCK RELEASE
For installation on double-plate glass doors of up to 12mm.
Inverted functioning or MAX version not allowed.
AUTOMATIC LOCK
2984 8000N LOCK RELEASE WITH CHAIN
3064 PN LOCK RELEASE
3101 AUTOMATIC LOCK 850/50 A
8000 series with chain for opening of doors with surface
locks with knob. P series antipanic surface locks with handle
to t doors with panic bars.
850 Series. Automatically closes the lock bolt without having
to use the key and allows remote opening from the dwelling.
SPECIALS / ACCESSORIES
ELECTRIC LOCK RELEASE
Articulated ush-mounted lock-release for one plate glass
doors (of up to 12mm). MAX version not allowed.
3102 AUTOMATIC LOCK 850/25 A
For wood and iron doors.
For aluminium doors.
C SERIES CII SERIES
Strike plate
Latch
28
105 160
25
C Series Consumption
N,A 12Vac 980mA
CII Series Consumption
N-512 12Vdc 150mA
ELECTROMAGNETICS
3050 FLUSH-MOUNTED 300KG
30503 FLUSH-MOUNTED 750KG (swing door)
3052 SURFACE 300KG
3078 BRACKET (for ref.3052)
3079 DOUBLE Z BRACKET
2837 U BRACKET (for ref.3052)
Inverted operating. 12/24Vdc. For security installations.
The lock release can be installed in wall with bracket.
4. ACCESSORIES
FLUSH-MOUNTED LOCK RELEASE
(Shields)
2973 S-TYPE SHIELD
2893 M-TYPE SHIELD
2975 G-TYPE GREY SHIELD (36mm)
2985 GE-TYPE GREY SHIELD (12mm)
2979 2001-TYPE CHROME CASE
FOR ALL TYPE OF LOCK RELEASE
2913 DOUBLE DOOR CONTACT 2C (WHITE)
7776 DOUBLE DOOR CONTACT 2C (BLACK)
2922 TRIPLE DOOR CONTACT 3C
3083 X1 FLEXIBLE CONDUIT (30cm)
3084 X2 RIGID VANDAL PROOF CONDUIT (26cm)
4800 POWER SUPPLY. DIN 4. 12Vac/1,5A
4813 POWER SUPPLY. DIN 6. 12Vc/2A
1076 MAGNETIC CONTACT
2894 P22-TYPE GREY SHIELD
2892 L22-TYPE GREY SHIELD
7770 YSX-TYPE SHORT SHIELD STA.STEEL.
7771 YGX-TYPE LARGE SHIELD STA.STEEL.
3. SPECIAL LOCK RELEASE 960 SERIES
ELECTRIC RIM LOCK
2878 ELECTRIC RIM LOCK 961 DOUBLE KEY
2879 ELECTRIC RIM LOCK 962 WITH KEY + PUSH
Electric lock for more security. Automatic operation.
960 Series Consumption
12Vac/Vdc 850mA/1,7A
960
85
25/30/35/50
850 Series consumption
12Vdc 1.350mA
12Vac 990mA
Short chain section
R
Large chain section
Knob
Transformer
8000 SERIES
(with chain)
P SERIES
(anti-panic)
P Series consumption
N 12Vac 980mA
N-412 12Vdc 150mA
N-512 12Vdc 150mA
8000 Series consumption
N 12Vac 980mA
ELECTROMAGNETIC
Series consumption
12Vdc 500mA
24Vdc 250mA
U
3052
3050
3078
LOCK RELEASE
MONITORS & TELEPHONES
VIVO MONITOR SMILE MONITOR ILOFT MONITOR LOFT MONITOR
ILOFT TELEPHONE LOFT TELEPHONE CITYMAX TELEPHONE UNIVERSAL FRAME
MONIT. & TEL.
74 2015 GENERAL CATALOGUE
AND TELEPHONES
MONITORS
DIMENSIONS / INSTALLATION
Hands-free slim line VIVO monitor with crystal surface.
Featuring a high tech 7-inch capacitive touch screen,
the VIVO monitor operation ows naturally, offering
a full and extensive range of operating options and
multi-task capacities.
VIVO provides comprehensive and effective control
over communication, security and comfort, operating
with Full-IP technology. Android operative system.
Surface installation.
Monitor: 233x164x20.
20mm protrusion from the wall once xed.
FUNCTIONS
• TFT Colour screen.
• Hands-free communication.
• Calls to and from:
- Lynx panels.
- Any Property Management Unit.
- Any other VIVO monitor inside home.
- Any other VIVO monitor in the same
installation and accepted as a friend.
• Messages: Receives messages from
and sends messages to the Property
Management Units and other VIVO
monitors in the friends list.
• Captures and stores images from any
Lynx call panel or IP cameras
connected to the system.
• Panic call to the Property Management
Units upon the activation of one of its
sensors or additional panic push buttons
placed in other parts of the home.
• Audio Notes. Records and stores audio
messages.
• Do not disturb. Silent calls can be
congured for given or unlimited periods
of time.
• Timer. VIVO monitor also acts as an
alarm for time management purposes.
Surface
Dimensions: (width) x (height) x (depth) mm.
233
164
20
CCTV
LIFT
MULTI-BRAND
HOME
AUTOMATION
ALARMS
99
VIVO MONITOR
MONIT. & TEL.
2015 GENERAL CATALOGUE 75
VIVO offers a wide-ranging freedom of choice for
users. The monitor allows:
FRIENDS LIST MANAGEMENT
Any call between different units is only possible upon
the acceptance of those units in the friends list.
BACKGROUND SETTINGS
VIVO monitor blends with individual decors and
surroundings by providing a range of screen
background colours.
RING TONE SETTINGS
A wide range of melodies specically composed for
VIVO monitor provide ring tone selections for each
user and each situation, delivered with surround
sound through the monitor’s two high
performance speakers.
MENU CONFIGURATION
With a touch of the nger, the on-screen menu layout
can be simply re-congured to reect the habits and
preferences of each individual.
PRIVACY AND RESTRICTIONS MANAGEMENT
The user and installer can simply set or remove
barriers for data protection.
LYNX enables projects to be customised to
address the different needs of unique real
estate developments. Whatever the project
environment the VIVO monitor can be smoothly
integrated.
COMPATIBILITY WITH MULTI-BRAND
HOME AUTOMATION SYSTEMS
Each home is unique and so are its requirements
for device integration: wired or wireless, open
standards or proprietary protocols, simple
or complete. The VIVO monitor is the ideal
communication gateway as it can integrate with
dedicated applications for each specic Home
Automation brand.
CCTV CAMERAS
VIVO monitor can display the images from any IP
camera connected to the Lynx system making it
a window to the world.
LIFT
The LYNX system and VIVO monitor interact with
the elevators for the convenience and increased
protection of the residents.
PERSONALISATION & INTEGRATION
CALL DIVERT TO
SMARTPHONE
AND TABLETS
By incorporating a LYNX router in the installation,
calls received at the door entry panel can be
diverted to mobile devices, where the user can
view the visitor’s picture, set up communication
with them and, if desired, open the door.
MONIT. & TEL.
76 2015 GENERAL CATALOGUE
SMILE hands free monitor with 7” or 3.5”
TFT COLOUR screen. It is distinguished by its
resistant cover with ultraviolet protection, its
digital audio quality, its capacitive keypad and
its OSD screen menu.
The same monitor can be installed surface or
ush-mounted.
When a call is received from the video door entry panel,
the image comes up automatically. The user will receive
additional information regarding the call status on
screen: calling, in conversation or door open.
PERFORMANCE
7” version 3.5” version
DIMENSIONS / INSTALLATION
20mm protrusion from the wall once xed. 4mm protrusion from the wall once xed.
172
185 20
172
103 20
196
209 4
196
127 4
CHOOSE YOUR COLOUR
ABSOLUTE WHITE
(white prole and monochrome push buttons)
3.5” ABSOLUTE WHITE
(white prole and monochrome
pushbuttons)
SILVER BLACK
Surface Flush-mounted
SMILE MONITOR
AND TELEPHONES
MONITORS
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
2015 GENERAL CATALOGUE 77
Smile includes an additional keypad which
remains invisible until it is activated allowing
to program them as direct accesses to the
functions you want to establish as “favourite”.
ADDITIONAL KEYPAD
INTUITIVE OSD MENU
ACCCESSORIES (Flush-mounted)
FUNCTIONS
The OSD menu allows to browse through the
screen by means of intuitive interpretation of
the graphic icons, achieving the maximum
performance from the monitor features.
“Do not disturb”
function activated
Invisible additional
push buttons /
Additional functions
Intuitive screen
FLUSH BOX
6551 7” FLUSH BOX
6546 3.5” FLUSH BOX
Dim.: 112X186X44
Dim.: 198X186X44
DECORATIVE FRAME
6552 SMILE 7” WHITE
6559 SMILE 7” SILVER
6560 SMILE 7” BLACK
6547 SMILE 3.5” WHITE
7” Dim.: 209x196x4
3.5” Dim.: 127X196X4
Dimensions: (width) x (height) x (depth) mm.
• Colour TFT screen, available in 7” and 3.5”.
• Activates/deactivates the
communication with the outdoor panel.
• Door opening.
• Access to MENU by pressing during 5 sec.
A quick keystroke (1 sec.) activates the invisible
keypad to access the additional functions.
• Activates the panel camera manually.
• F1-F2: Activates additional functions: stair light
switching, 2nd door opening, etc.
• Call status information is displayed on screen.
• Allows to install a CCTV camera and view the
image via the monitor.
• VDS technology.
MONIT. & TEL.
78 2015 GENERAL CATALOGUE
The LOFT monitor is made of high-impact ABS
plastic. Texturised nish for easy cleaning and
ultraviolet protection. It has many attachment
points for wall mounting, as well as coiled cord
with telephone plug connectors.
A magnet located in the handset allows it to
hang safely.
Surface installation.
When a call is received, the image appears
automatically on screen. When the handset is
picked-up a conversation with the visitor can
take place. Push the corresponding button
to open the door. The image disappears
after a few seconds, or when the handset is
hanged.
PERFORMANCE
FUNCTIONS
DIMENSIONS / INSTALLATION ACCESSORIES (optional)
• Available in B/W, COLOUR and with memories.
• Call to guard and door opener button.
• Autostart of main camera.
• F1-F2: Button to activate additional functions:
stair light switching, 2nd door opening, panic call,
etc.
• Door bell, for direct connection to house call
push button (VDS version).
• Selectable call tones.
• Call volume control: high, medium,
disconnected.
• Brightness, contrast and colour control.
Monitor: 203x220x60.
Surface installation.
60203
220
3386 DECORATIVE FRAME
3441 LOFT HANDSET W/INDUCTION LOOP
Dimensions: 250X240
Adapted for people with a
hearing disability.
LOFT MONITOR
Surface
AND TELEPHONES
MONITORS
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
2015 GENERAL CATALOGUE 79
FUNCTIONS
OSD MENU
FUNCTIONS
• COLOUR TFT screen.
• Call to guard and door opener button.
• Autostart of main camera. If there is
more than one panel, you can choose
in which one you want to trigger the
camera.
• F1: Button to activate 1 additional
function: stair light switching, 2nd door
opening, panic call, etc.
• MENU: Digital menu to congure and
adjust the internal parametres:
• Switch off call tone mode. “Do not
disturb” function.
• Selection of call melodies and
volume.
• F2: Activation of a 2nd additional
function.
• Brightness/Contrast/Colour
adjustment.
• QR code: access to
www.duoxbyfermax.com that
contains manuals, complements,
catalogues, etc that Duox
technology offers you.
The LOFT DUOX monitor maintains the same
aesthetic as its version in other technologies, but
provides other much more advanced features,
thanks to its built-in full digital technology.
(Check availability).
The OSD menu lets you browse the screen using
intuitively interpreted graphic icons.
The icons displayed on the screen (browser
buttons) are handled with the corresponding
buttons located on the monitor:
Conrm choice and activate function.
Select previous menu option.
Enter next menu option.
Go back to previous screen or standby.
LOFT DUOX MONITOR
F2 QR
1
2
0
F2 OK
“Do not disturb” function
2nd additional function
Autostart of cameras
Volume and melody selection
QR code with DUOX information
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
80 2015 GENERAL CATALOGUE
Hands-free colour video monitor. Compact
and extra slim. Its essential design features a
transparent polycarbonate sheet, a singular
audio output, multifunction buttons and a TFT
screen displaying top quality and clarity.
Flush-mounted installation.
The integrated digital audio technology ensures
a high quality hands-free communication without
interferences.
When a call is received, the image appears
automatically on the monitor. To communicate
with the outdoor panel the button has to be
pressed, allowing hands-free conversation.
• COLOUR TFT screen.
• Activate/deactivate the communication
with the door entry panel.
• Call to guard and door opener button.
• Autostart of main camera.
• Door bell, for direct connection to house call
pushbutton.
• F1-F2: Button to activate additional functions:
stair light switching, 2nd door opening, panic call,
etc.
• OSD menu for adjustment/regulation of
internal parameters.
- Call volume control: high, medium and
disconnected.
- Ringtone selection.
- Brightness/Contrast/Colour adjustment.
FUNCTIONSiLOFT VDS MONITOR
PERFORMANCE
Polycarbonate
sheet
Multi-function
PUSH BUTTONS
Audio output 3.5” TFT screen display
with OSD menu
AND TELEPHONES
MONITORS
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
2015 GENERAL CATALOGUE 81
Made of beveled crystal.
Only for ush-mounted monitor.
DIMENSIONS / INSTALLATION
PROGRAMMING
FRONTAL COLOUR COVERS
(Only iLOFT VDS)
5631 DECORATIVE FRAME
5635 GOLD
5634 BLACK
5633 SILVER
Dimensions: 189X256X6
AND TELEPHONES
MONITORS
Dimensions: (width) x (height) x (depth) mm.
The iLoft monitor contains an innovative system that allows internal parameters set up and adjusted from the
monitor itself once installed, through the digital .
The monitor has to be programmed depending on the number of apartments that are installed.
SILVER
DECORATIVE RAME
Ref.5631
BLACK GOLD
Frontal colour covers.
COVERS
36 mm protusion from the
wall one xed.
13 mm protusion from the
wall one xed.
Surface
197
131 36
Flush-mounted
197
13
45
131
REFERENCES
MONIT. & TEL.
82 2015 GENERAL CATALOGUE
FUNCTIONS
• COLOUR TFT screen.
• Door opener button and call to guard.
• Autostart of main camera. If there is
more than one panel, you can choose
in which one you want to trigger the
camera.
• F1: To activate an additional function:
stair light switching, 2nd door, panic call,
etc.
• MENU: Digital menu to congure and
adjust the internal parametres:
• Switch off call tone mode. “Do not
disturb” function.
• Selection of call melodies and
volume.
• F2: Activation of a 2nd additional
function.
• Brightness/Contrast/Colour
adjustment.
• QR code: access to
www.duoxbyfermax.com,that
contains manuals, complements,
catalogues, etc that Duox
technology offers you.
The iLOFT DUOX monitor keeps the same look
as versions in other technologies, but with
much more advanced features thanks to the
full digital technology incorporated.
Available in ush version (iLOFT DUOX) or
surface mounted (iLOFT PURE DUOX).
iLOFT DUOX MONITOR
F2 OK
“Do not disturb” function
2nd additional function.
Autostart cameras
Volume and melody selection
QR code with DUOX information
F2 QR
1 2
0
AND TELEPHONES
MONITORS
Dimensions: (width) x (height) x (depth) mm.
OSD MENU
The OSD menu lets you browse the screen using
intuitively interpreted graphic icons.
The icons displayed on the screen (browser
buttons) are handled with the corresponding
buttons located on the monitor:
Conrm choice and activate function.
Select previous menu option.
Enter next menu option.
Go back to previous screen or standby.
(Check availability).
MONIT. & TEL.
2015 GENERAL CATALOGUE 83
AND MONITORS
TELEPHONES
The iLOFT telephone is a compact and extra
slim door entry system that works in hands-free
communication with the outdoor panel.
The integrated digital audio technology ensures
a high quality, hands-free communication
without interferences.
Surface installation.
• Button to activate/deactivate the
communication with the door entry panel
• Call to guard and door opener button.
• F1: Button to activate additional functions:
stair light switching, 2nd door opening,
panic call…
• 5 selectable or call tones.
• Sequential control volume.
“Do not disturb” function: volume off-red led.
• Option change of operation, from hands-free
to press-to-talk (PTT).
• VDS technology.
3 signaling leds:
- Blue: calling/in communication.
- Green: automatic opening function activated.
- Red: Do not disturb/volume off function.
• Automatic door opening (Doormatic).
When receiving a call, press the button
to establish a hands-free communication
with the outdoor panel. Communication will
end automatically after 90 sec or when is
pressed again.
PERFORMANCE
FUNCTIONS
DIMENSIONS / INSTALATION
Telephone: 90x146,5x20.
Surface installation.
90 20
146,5
Volume control
iLOFT TELEPHONE
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
84 2015 GENERAL CATALOGUE
AND MONITORS
TELEPHONES
PERFORMANCE
FUNCTIONS AND MODELS
ACCESORIES (optional)DIMENSIONS
Made of high-impact ABS plastic with a
texturised nish for easy cleaning and ultraviolet
protection. It has many attachment points
for wall mounting, as well as coiled cord with
telephone plug connectors.
A magnet located in the handset allows to
hang it safely.
The EXTRA version includes the following
features:
• Call to guard and door opener button.
• F1-F2: Button to activate additional functions:
stair light switching, 2nd door opening, panic
call, etc.
• 2 selectable call tones.
• Volume control: high, medium, disconnected.
UNIVERSAL version can replace the majority of
standard telephones from other brands, both
call buzzer and electronic. Also classic Fermax
models.
When a call is received it is possible to establish
a conversation with the outdoor panel. Push
the corresponding button to open the door.
85
220
40
85x220x40.
3441 LOFT HANDSET W/INDUCTION LOOP
3749 DESKTOP SUPPORT
Adapted for people with auditive
disabilities.
3380 DECORATIVE FRAME
An aesthetic complement. Useful in replacement
applications or replacing from older equipment.
Dimensions: 200x240.
LOFT TELEPHONE
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
2015 GENERAL CATALOGUE 85
FUNCTIONS AND MODELS
ACCESORIES (optional)
PERFORMANCE
When a call is received it is possible to establish
a conversation with the outdoor panel. Push
the corresponding button to open the door.
Adapted for people with hearing
disabilities.
ACCESSORIES (optional)
DIMENSIONES
80x200x60.
• BASIC, UNIVERSAL. The UNIVERSAL version can
replace the majority of standard telephones from
other brands, both call buzzer and electronic.
Also classic Fermax models.
• PALACE: includes intercom pushbuttons.
Depending on the model, telephone colour varies:
- BASIC: white nish.
- UNIVERSAL AND PALACE: pearl nish.
AVAILABLE MODELS
Made of high-impact ABS plastic with
a texturised nish for easy cleaning and
ultraviolet protection. It has many attachment
points for wall mounting, as well as coiled cord
with telephone plug connectors.
60
200
80
CITYMAX TELEPHONE
Basic Universal
3442 CITYMAX HANDSET W/INDUCTION LOOP
3749 DESKTOP SUPPORT
2127 DECORATIVE FRAME
Dimensions: 120x240
2 decorative frames in pearl nish, available
for models UNIVERSAL and PALACE, useful in
replacement applications or changing older
equipment.
max
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
86 2015 GENERAL CATALOGUE
AND TELEPHONES
MONITORS
DIMENSIONS
There are two different UNIVERSAL
FRAMES to choose depending on
the terminal which is going to be
installed.
3388 UNIVERSAL FRAME
Allows to assemble:
- CITYMAX, LOFT and iLOFT
telephones.
- 3.5” SMILE monitor.
3389 LARGE UNIVERSAL FRAME
Allows to assemble:
- CITYMAX, LOFT and iLOFT
telephones.
- 3.5” SMILE monitor.
- 7” SMILE monitor.
- VIVO monitor.
TWO DIFFERENT MODELS
Universal frame compatible with
FERMAX telephones and monitors. With
an extra slim format, it is manufactured
in a high resistant ABS plastic with a
texturised nish.
In replacement works, allows to cover
the space left by older equipments. In
addition, it keeps the wall protected
from the dirt produced by the use of
telephones and monitors.
ref.3388
Citymax
Citymax Loft iLoft
Loft iLoft 3.5” Smile
3.5” Smile 7” Smile Vivo
ref.3389
240
120
240
210
3388 UNIVERSAL FRAME
3389 LARGE UNIVERSAL FRAME
120X240
210X240
UNIVERSAL FRAME
Dimensions: (width) x (height) x (depth) mm.
MONIT. & TEL.
VIVO is the most cutting-edge monitor from FERMAX using IP technology. An evolution in the concept
of video entry, through a capacitive touchscreen, enables you to manage the communications, security
and comfort of the world’s most prestigious residential complexes and homes. A tribute for blending a
state of the art technology with an exceptional design, redeining its category to become the home’s true
technological interface.
www.fermax.co.uk
YOU WILL HAVE MUCH MORE
In the future, everyone will have a video entry system at home.
You WON’T.
MONIT. & TEL.
SYSTEMS
DUOX. VDS. MDS. LYNX
SYSTEMS
90 2015 GENERAL CATALOGUE
DUOX SYSTEM
FEATURES
• A simplied installation system. It realises the
transmission of the signal (audio, video & data) in
a complete digital way increasing the equipments
capacity using only 2 non polarized wires.
• Capacity: The system enables management of
up to 999.999 homes, up to 10 general entrance
panels, up to 10 panels by block and 10 panels by
sub-blocks, up to 100 interior blocks and up to 100
subblocks.
• Wiring: there is no restriction concerning the type of
cable.
- In new construction it is possible to use equally
parallel cable, twisted pair cable, UTP (CAT-5), 4+N
or 9/10º.
- In replacement works, DUOX works with the existing
cable from old installations: 5 wires, 2 wires doorbell
or even old 4+N wires.
• Maximum distance: up to 130 meters (expandable
with regenerators).*
• No need for oor distributors or panel switchers. One
line terminal is needed at the start and end of each
riser.
• Requires 1 power supply per 20 monitors.
• Extensions inside the home: may be extended with
up to 2 monitors or 2 phones.
PUSH BUTTONS PANELS
1. OUTDOOR PANEL
ref.2441 ref.2008
MARINE
2441 16-CALL EXTENSION MODULE
2008 8-CALL EXTENSION MODULE
COMPOSITION OF A COMPLET DUOX SYSTEM
• All panels include colour camera as standard issue.
• The DUOX amplier comes with built-in voice
synthesizer. When door release is activated, the
message is heard: “The door is open. Please,
close the door behind you.” Congurable in 64
languages.
• The DUOX amplier has a built-in voice guided
programming system to facilitate installation
conguration and start-up.
• DUOX amplier does not include PAN&TILT.
• DUOX monitors and handsets must be programmed
with the nº of the apartment where they are installed
from a panel congured as Master.
• Home-door entry panel.
• DUOX monitors and handsets can be combined in
the same installation, with no need for additional
elements.
• Phone handsets can be upgraded to monitors in
the home at any time, without including additional
elements.
* For audio installations, see the “Audio DUOX information”
at the “Technical Info” section.
+++++
Panel Power supply + Adaptor Line termination Door lock
Accesses Home Accessories
Monitors & telephones Relay (optional)
VIDEO: 2 NON-POLARIZED WIRES
• Select the required panel in the Marine section, according to the
number of apartments of the building (Marine section). DUOX
amplier is required.
• Select the corresponding ush box or panel accessory.
• Call extension modules are required depending on the number of
apartments.
MARINE
SYSTEMS
2015 GENERAL CATALOGUE 91
DUOX SYSTEM
ref.7391 ref.7390
SKYLINE FRAMES
Video W
ref.7371 ref.7372 ref.7376 ref.7367
8 Push. 204 W 4 Push. 202 V 2 Push. 201 V 4 Push. 104 W
ref.7368
2 Push. 102 V
ref.7375
1 Push. 101 V
DOUBLE PUSH BUTTONS SINGLE PUSH BUTTONS
ACCESSORIES STAND-ALONE ACCESS CONTROL
ref.7443 ref.7442 ref.7438
Metallic complement W Metallic complement V keypad W
ref.7440ref.6936
Proximity V
ref.7441
Bluetooth V
Frame 1V
ref.7341
Series 1
130x128
Frame 4V
ref.7334
Series 5
130x246
Frame 2V
ref.7332
Series 2
130x151
Frame 5V
ref.7335
Series 6
130x294
Frame 7V
ref.7337
Series 8
130x389
Frame 3V
ref.7333
Series 4
130x199
Frame 6V
ref.7336
Series 7
130x341
Frame 8V
ref.7338
Series 9
130x436,5
SKYLINE consists of 8 different-sized frames where different modules can easily be
tted. Modules come in 2 sizes, designated V and W (W is twice the size of V).
ref.7439 ref.7447 ref.7445 ref.7444 ref.7448ref.7449
Direct keypad W Digital keypad W Cardholder W Cardholder V OneToOne VDisplay W
DIGITAL PUSH BUTTONS INFORMATION MODULES
Fingerprint W
SKYLINE PANELS
If the conguration calls for more than one panel, a connection cable ref.2541 between them is needed (1 cable for each additional panel).
They can be joined laterally within the same series by means of a joining bolt set (ref.8829).
See Skyline section for more info.
FLUSH
BOXES
ref.8852
115x138x45
ref.8851
115x114x45
ref.8854
115x185x45
ref.8855
115x233x45
ref.8856
115x280x45
ref.8857
115x328x45
ref.8858
115x375x45
ref.8982
115x420,5x45
S1 (1V) S2 (2V) S4 (3V) S5 (4V) S6 (5V) S7 (6V) S8 (7V) S9 (8V)
VIDEO AND AUDIO MODULES
Audio W
Dimensions: (width) x (height) x (depth) mm.
DUOX
92 2015 GENERAL CATALOGUE
MARINE
SKYLINE
ref.5483
2. POWER SUPPLY/ADAPTOR
ref.3243
ref.4812
To power the DUOX System. 1 power supply is required for
each 20 monitors. Must be combined with 3243 lter.
Combining with the power supply ref.4812 or ref.4810.
4812 POWER SUPPLY 18Vdc/1,5A
4810 POWER SUPPLY 18Vdc/1,5A-12Vac/1,5A
3243 DUOX POWER SUPPLY ADAPTOR MODULE
DIGITAL PANELS
2070 BATTERY 12V/2,2A. LEAD ACID
For operation in the event of power cuts. Requires 2 lead
acid batteries 12V/2,2A (ref.2070).
1021 EMERGENCY MODULE 18Vdc
ref.1021
5483 DUOX DIGITAL VIDEO MARINE PANEL ST3
5523 DUOX DIGITAL AUDIO MARINE PANEL ST3
4643 FLUSH BOX ST3
2289 JOINING BOLTS SET
4647 SURFACE BOX ST3 (with hood included)
DUOX SYSTEM
• DIGITAL panels include a keypad and a directory display.
The keypad incorporates an access control function (350
codes).
It is possible to congure any DIGITAL panel combination
with other access control or signaling accessories.
Select the required panel in the Skyline section.
3255 DUOX LINE TERMINATION
Necessary at the beginning and the end of every riser for
video installations. Only at the end for audio installations.
ref.3255
DUOX
2015 GENERAL CATALOGUE 93
Splits a riser into 2 separate branches, regenerating the signal
and isolating each branch against possible breakdowns. Up
to 4 modules on 2 levels (16 outputs). Risers can share the
power source or have one supply per riser.
Cascade connection up to 2 levels. A higher load (up to
200 terminals per riser) may be connected by adding power
supplies and depending on the type of wiring used.
3256 DUOX REGENERATOR
3254 DUOX PROGRAMMER
3258 DUOX AUDIO SHUNT ISOLATOR
3253 DUOX VIDEO SHUNT ISOLATOR
N,Ab 12Vac 980mA
N-412 12Vdc 260mA
540 Series Consumption
N,A 12Vac 250mA
12Vdc 280mA
990 Series Consumption
3. LOCK RELEASE
A power supply ref.4800 (12Vac/1,5A) or Vac door lock
release activator (ref.3264) is required.
30711 LOCK RELEASE 540N-S MAX
1821 LOCK RELEASE 540Ab-S MAX
3264 AC ELECTRIC LOCK COMMANDER
A/C ELECTRIC LOCK (Vac)
D/C ELECTRIC LOCK (Vdc)
MULTIVOLTAGE UNIVERSAL MECHANISM (12Vac/12Vdc)
30701 LOCK RELEASE 540N-412-S MAX
6750 UNIV. MECHANISM 990N MAX 10-24Vac/dc
6752 UNIV. MECHANISM 990A MAX 10-24Vac/dc
1820 LOCK RELEASE 540Ab-412-S MAX
Sliding automatic functioning and small shield. 12Vdc.
Requires short shield (S ref.2973 or P22 ref.2894) or large (M
ref.2893 or L22 ref.2892)
ref.3254ref.3256
ref.3258
990540
DUOX SYSTEM
To regenerate the DUOX signal and extend distances and
terminal capacity.
The operational status of any DUOX installation can be pro-
grammed and checked quickly and easily.
Normal functioning and small shield. 12Vac.
Normal functioning and small shield. 12Vdc.
Automatic functioning and small shield. 12Vac.
Maximum current: 1 Ampere.
DUOX
94 2015 GENERAL CATALOGUE
4. MONITORS AND TELEPHONES
The DUOX monitors and telephones include door opener
and call to the guard button as standard. They must be
programmed with the number of the home in which they are
installed. Maximum 3 terminal per house. You can choose
the ring tone and set the volume.
ref.3388 ref.3389
ref.3421 ref.3422
3412 DUOX COLOUR LOFT MONITOR
3415 DUOX LOFT CONNECTOR
3416 DUOX DESKTOP SUPPORT 210x240
3386 DECORATIVE FRAME
3417 DUOX LOFT CONNECTOR WITH
DECORATIVE FRAME
5602 DUOX iLOFT MONITOR
3425 DUOX BASIC CITYMAX TELEPHONE
3380 DECORATIVE FRAME 200x240
3749 DESKTOP SUPPORT
3388 UNIVERSAL FRAME 120x240
3389 LARGE UNIVERSAL FRAME 200x240
LOFT
iLOFT
CITYMAX
UNIVERSAL DECORATIVE FRAMES
120x240mm 210x240mm
5603 DUOX iLOFT PURE MONITOR
5630 iLOFT FLUSH BOX 108x158x45
5631 iLOFT CRYSTAL FRAME 189x256x6
ref.5602
ref.3412 ref.3416
3421 DUOX BASIC PLUS LOFT TELEPHONE
3422 DUOX EXTRA LOFT TELEPHONE
Flush-mounted model:
Surface model
DUOX SYSTEM
DUOX
2015 GENERAL CATALOGUE 95
5. ACCESSORIES
6. CABLES
29001 TIMMER
ref.29001
2040 ELECTRONIC CALL EXTENSION BELL
2438 LIGHT OR BUZZER ACTIVATOR
5925 DUOX PARALLEL CABLE. 2x1mm2
ref.2040
2
An additional function may be triggered from the DUOX
handset F1 or F2 buttons, with no extra wiring required.
The relay can also be triggered by call or electric lock/door
release activation. Allows pairing of 2 relays, one as sender
and the other as receiver, for remote switching. It can be
installed at any point of the bus.
3257 DUOX RELAY MODULE
Cables are supplied in 100 metre rolls.
ref.3257
2013 ADDITIONAL FUNCTION RELAY
ref.2013
ADDITIONAL FUNCTIONS
CALL ACCESSORIES
DUOX SYSTEM
Allows to activate a device for a given time (programmable
from 0 to 6 minutes or 0 to 60 seconds). The activation can be
automatic when a call is received or by means of a specic
button on the telephone or monitor.
Allows to activate electrical devices remotely using an
additional button on the telephone or monitor: switch on the
stair light, open the garage, open a 2nd door, etc.
12Vdc, 12Vac or 18Vdc.
For monitors and Extra Duox telephones.
Equipment that receives the door entry system call tone,
allowing to hear it in any place where the call extender
is located. It is possible to connect 1 for each monitor or
handset.
Allows to activate high powered devices or indicators when
a call is received: bells, sirens, light bulbs, etc. It is possible to
connect 1 for each monitor or handset.
DUOX
96 2015 GENERAL CATALOGUE
VDS SYSTEM
FEATURES
• VDS wiring: 5 wires, UTP CAT5 or 3 wires+coax.
• Capacity: buildings of up to 199 homes, 2 entry
accesses and central guard unit.
• Maximum distance: 200 mtrs. (See VDS technical info).
• The VDS AMPLIFIER includes Voice Synthesizer as
standard in 32 languages. A message is reproduced
when the lock-release is activated: “The door is open.
Please, close the door behind you”. Available in 32
languages.
• The CAMERA is always in COLOUR.
VIDEO: 5 WIRES / 3 WIRES+COAXIAL / UTP CAT5
AUDIO: 3 WIRES
AUDIO
ref.4830
(+ref.4800 only if
Vac lock release).
UTP CAT5 /
5 wires
UTP CAT5 /
5 wires
UTP CAT5 /
5 wires
UTP CAT5 /
5 wires
UTP CAT5 / 5 wires
42
ref.4830 (+ref.4800
only if Vac lock
release).
VIDEO
* It’s possible to use 3 wires+coax.
See specic technical information.
CHANGE FROM AN
AUDIO 4+N SYSTEM
TO A VDS VIDEO
SYSTEM
Old 4+N audio
installation
New VDS video
installation
+ + + + + ++
Panel
(Push button
/digital)
Power supply Lock release
Accesses Building (by oor) Home Accessories
Guard Unit Switcher
(2 video accesses)
Distributor (video) Monitors & telephones Relay (optional)
COMPOSITION OF A COMPLETE VDS SYSTEM
• The VDS MONITORS & HANDSETS must
be programmed with the number of the
corresponding home. It is possible to combine
monitors and telephones in the same
installation.
• The communication is PRIVATE.
• In replacement, the VDS allows to change
4+N entry system for a VDS video entry setup,
making use of the existing wiring.
VDS
2015 GENERAL CATALOGUE 97
VDS SYSTEM
PUSH BUTTONS
1. OUTDOOR PANEL
• Select the panel according to the number of
apartments. VDS amplier required.
• Request the ush-mounted box and accessories.
• For Cityline and Marine panels add the
necessary call extension modules depending on
the number of apartments.
DIGITAL PANELS
MARINE
SKYLINE (See next page)
MARINE (See MARINE Panel Section)
2289 JOINING BOLTS SET
2441 16 CALL EXTENSION MODULE
2008 8 CALL EXTENSION MODULE
ref.2441 ref.2008
MARINESKYLINE
ref.5468
Panel dimensions: 150x360 (ST3)
Flush box dim.: 130x340x45 (ST3)
5468 VDS DIGITAL VIDEO PANEL ST3
5465 VDS DIGITAL AUDIO PANEL ST3
4643 MARINE FLUSH BOX ST3
4647 MARINE SURFACE BOX ST3
SKYLINE (See SKYLINE Panel Section)
• DIGITAL panels include a KEYPAD and a
DIRECTORY DISPLAY. The keypad incorporates
an access control function (350 codes).
Flush or surface box must be requested separately.
5508 VDS DIGITAL VIDEO PANEL W/PAX ST4
5506 VDS DIGITAL AUDIO PANEL W/PAX ST4
4644 MARINE FLUSH BOX ST4
4648 MARINE SURFACE BOX ST4
5481 VDS DIGITAL VIDEO PANEL W/PRO ST4
5479 VDS DIGITAL AUDIO PANEL W/PRO ST4
VDS
98 2015 GENERAL CATALOGUE
VDS SYSTEM
ref.7421 ref.7415
SKYLINE FRAMES
Video W
ref.7371 ref.7372 ref.7376 ref.7367
8 Push. 204 W 4 Push. 202 V 2 Push. 201 V 4 Push. 104 W
ref.7368
2 Push. 102 V
ref.7375
1 Push. 101 V
DOUBLE PUSH BUTTONS SINGLE PUSH BUTTONS
ACCESSORIES STAND-ALONE ACCESS CONTROL
ref.7443 ref.7442 ref.7438
Metallic complement W Metallic complement V keypad W
ref.7440ref.6936
Proximity V
ref.7441
Bluetooth V
Frame 1V
ref.7341
Series 1
130x128
Frame 4V
ref.7334
Series 5
130x246
Frame 2V
ref.7332
Series 2
130x151
Frame 5V
ref.7335
Series 6
130x294
Frame 7V
ref.7337
Series 8
130x389
Frame 3V
ref.7333
Series 4
130x199
Frame 6V
ref.7336
Series 7
130x341
Frame 8V
ref.7338
Series 9
130x436,5
SKYLINE consists of 8 different-sized frames where different modules can easily be
tted. Modules come in 2 sizes, designated V and W (W is twice the size of V).
ref.7439 ref.7447 ref.7445 ref.7444 ref.7448ref.7449
Direct keypad W Digital keypad W Cardholder W Cardholder V OneToOne VDisplay W
DIGITAL PUSH BUTTONS INFORMATION MODULES
Fingerprint W
SKYLINE PANELS
If the conguration calls for more than one panel, a connection cable ref.2541 between them is needed (1 cable for each additional panel).
They can be joined laterally within the same series by means of a joining bolt set (ref.8829).
FLUSH
BOXES
SURFACE
BOXES
ref.8852
115x138x45
ref.8851
115x114x45
ref.8854
115x185x45
ref.8855
115x233x45
ref.8856
115x280x45
ref.8857
115x328x45
ref.8858
115x375x45
ref.8982
115x420,5x45
S1 (1V) S2 (2V) S4 (3V) S5 (4V) S6 (5V) S7 (6V) S8 (7V) S9 (8V)
VIDEO AND AUDIO MODULES
Audio W
Dimensions: (width) x (height) x (depth) mm.
ref.7062
130x151x33
ref.7061
130x128x33
ref.7064
130x199x33
ref.7065
130x246x33
ref.7066
130x294x33
ref.7067
130x341x33
ref.7068
130x389x33
ref.7069
130x436,5x33
VDS
2015 GENERAL CATALOGUE 99
VDS SYSTEM
ref.4830 ref.4812
ref.1021
ref.2450
ref.4800
2409 VDS Decoder
2448 Video distributor
2450 Switcher
2409 VDS Decoder
2448 Video
distributor
2409 VDS Decoder
MDS
Audio
E.G.
VDS Video I.B
MDS
Video
E.G.
2409 VDS Decoder
2. POWER SUPPLY/SWITCHER/DECODER
4830 POWER SUPPLY 18Vdc/3,5A
2070 BATTERY 12V/2,2A. LED ACID
2450 VDS VIDEO SWITCHER
2409 VDS/MDS DECODER
3265 VDS TESTER
To power the electric lock (Vac). DIN4 format.
For additional monitors in homes. 1 power supply is required
for every 2 additional monitors in the apartment. DIN6 format.
For operation in the event of power cuts. Requires 2 lead acid
batteries 12V/2,2A (ref.2070).
For installations with 2 VDS video outdoor panels (w/o guard
unit).
For condominiums where a VDS system is combined in
apartment internal blocks (I.B.) the condominiums with an
MDS system at general entrances (G.E.). 1 decoder is required
for each apartment block. At video installation, one distributor
(ref.2448) and/or a switcher (ref.2450) is required.
4812 POWER SUPPLY 18Vdc/1,5A
4800 POWER SUPPLY 12Vac/1,5A
4810 POWER SUPPLY 18VDc/1,5A-12Vac/1,5A
1021 EMERGENCY MODULE 18Vdc
To power the system. One power supply is required for each
40 monitors or each 80 telephones. DIN6 format.
COMBINATION WITH OTHER SYSTEMS
N,Ab 12Vac 980mA
N-412 12Vdc 260mA
540 Series Consumption
N,A 12Vac 250mA
12Vdc 280mA
990 Series Consumption
3. LOCK RELEASE
A power supply ref.4800 (12Vac/1,5A) or Vac door lock
release activator (ref.3264) is required.
30711 LOCK RELEASE 540N-S MAX
1821 LOCK RELEASE 540Ab-S MAX
3264 AC ELECTRIC LOCK COMMANDER
A/C ELECTRIC LOCK (Vac)
D/C ELECTRIC LOCK (Vdc)
30701 LOCK RELEASE 540N-412-S MAX
1820 LOCK RELEASE 540Ab-412-S MAX
Sliding automatic functioning and small shield. 12Vdc.
990540
Normal functioning and small shield. 12Vac.
Normal functioning and small shield. 12Vdc.
Automatic functioning and small shield. 12Vac.
Maximum current: 1 Ampere.
VDS Audio I.B
For programming and checking the workings in a faster, more
convenient and efcient way.
VDS
100 2015 GENERAL CATALOGUE
5. MONITORS AND TELEPHONES
ref.3305
ref.6550 ref.6545
ref.6545 + ref.6547 ref.6550 + ref.6552
ref.3384
250x240
ref.3325
3305 COLOUR VDS LOFT MONITOR
3299 COLOUR VDS LOFT MEMORY MONITOR
All VDS models include door opener button as standard and
are suitable for guard unit. They must be programmed with
the number of the home in which they are installed.
6545 3.5” VDS SMILE MONITOR
6558 3.5” VDS SMILE MONITOR ABSOLUTE WHITE
6550 7” VDS SMILE MONITOR
6555 7” VDS SMILE MONITOR ABSOLUTE WHITE
6556 7” VDS SMILE MONITOR SILVER
6557 7” VDS SMILE MONITOR BLACK
6548 VDS SMILE MONITOR CONNECTOR
6547 3.5” SMILE DECORATIVE FRAME
6546 3.5” SMILE FLUSH BOX
6552 7” SMILE DECORATIVE FRAME
6559 7” SMILE DECOR. FRAME SILVER
6560 7” SMILE DECOR. FRAME BLACK
6551 7” SMILE FLUSH BOX
LOFT MONITOR
SMILE MONITOR
VDS SYSTEM
3314 VDS LOFT CONNECTOR
3325 VDS LOFT DESKTOP CONNECTOR
3384 VDS LOFT CONNECTOR
WITH DECORATIVE FRAME
250x240
3441 LOFT HANDSET W/INDUCTION LOOP
Dimensions: (width) x (height) x (depth) mm.
MULTIVOLTAGE UNIVERSAL MECHANISM (12Vac/12Vdc)
6750 UNIV. MECHANISM 990N MAX 10-24Vac/dc
6752 UNIV. MECHANISM 990A MAX 10-24Vac/dc
Requires short shield (S ref.2973 or P22 ref.2894) or large (M ref.2893
or L22 ref.2892)
VDS
2015 GENERAL CATALOGUE 101
5633 SILVER COVER
5634 BLACK COVER
5635 GOLD COVER
VDS SYSTEM
5620 VDS iLOFT MONITOR
5630 iLOFT FLUSH BOX 108x158x45
5631 iLOFT CRYSTAL FRAME 189x256x6
5614 VDS iLOFT SURFACE MONITOR
iLOFT MONITOR
ref.5620 ref.5631
ref.2448 ref.3260
DECORATIVE FRAME
iLOFT
3441 LOFT HANDSET W/INDUCTION LOOP
3749 DESKTOP SUPPORT
Flush-mounted model.
Surface model.
Frontal covers (Only iLOFT model).
VIDEO DISTRIBUTORS
3390 VDS BASIC LOFT TELEPHONE
3391 VDS EXTRA LOFT TELEPHONE
3380 DECORATIVE FRAME 200x240
2448 2-WAYS VIDEO DISTRIBUTOR
2449 4-WAYS VIDEO DISTRIBUTOR
5632 ACCESSORIES FOR PLASTRBOARD
INSTALLATION
3260 2-WAYS VIDEO MINIDISTRIBUTOR
3262 4-WAYS VIDEO MINIDISTRIBUTOR
LOFT TELEPHONE
iLOFT TELEPHONE
5601 VDS iLOFT TELEPHONE
BASIC EXTRA
ref.3388 ref.3389
3388 UNIVERSAL FRAME 120x240
3389 LARGE UNIVERSAL FRAME 210x240
UNIVERSAL FRAMES
120x240mm 210x240mm
ref.5634 ref.5635ref.5633
It is recommended to carry out all video signal distribution
by means of distributors.
Compact sized distributor (44x44x16) designed to
be tted in appliance cabinets and 50mm standard
junction boxes. Recommended in installations without
coax cable.
Dimensions: (width) x (height) x (depth) mm.
VDS
102 2015 GENERAL CATALOGUE
6. VDS ACESSORIES
ADDITIONAL FUNCTIONS
ref.2013
ref.4545
ref.29001
Allows to remotely activate electrical devices using an
additional button on the telephone or monitor: switch on the
stair light, open the garage, open a 2nd door, etc.
Allows to activate a device for a given time (programmable
from 0 to 6 minutes or 0 to 60 seconds). The activation can be
automatic when a call is received or by means of a specic
button on the telephone or monitor.
2013 2A ADDITIONAL RELAY FUNCTIONS
3491 DIN RAIL RELAY 12Vdc/12A
88101 DOUBLE CONTACT RELAY. 18Vdc
29001 TIMMER
4545 TELEPHONE INTERFACE
Installed at home and connected to the telephone, it allows
the communication with the outdoor panel as well as opening
the door remotely from any conventional or wireless telephone
at home. It allows as well to forward the call to one or two
external land lines or mobile telephones.
VDS SYSTEM
*It is necessary to add a wire in all the installation for each additional function.
TO OPEN A
SECOND DOOR
APPLICATION USE
OTHER OPTIONS
NECESSARY EQUIPMENT
To open a door other than the one where the panel is
from the telephone or monitor (for example, a rear door
or a 2nd security door).
• Relay (ref.2013).
• Additional button on the telephone or monitor*.
• Power supply (ref.4800).
To activate the stair light timer from the telephone or
monitor.
SWITCHING ON THE STAIR
LIGHT
ACTIVATING A BELL FOR
ADDITIONAL LIGHT WHEN
A CALL IS RECEIVED
ACTIVATING A BELL,
LIGHT OR DOOR
FOR A CONSIDERABLE
LENGTH OF TIME
HEARING THE CALL
FROM ANOTHER PLACE
THAN THAT WHERE
THE TELEPHONE IS
VIEW FROM A SECOND
CAMERA
TO RELEASE 2 ELECTRIC
LOCKS AT THE SAME TIME
TO ACTIVATE A LOCK
RELEASE BY MEANS OF
AN EXIT BUTTON
For places with excessive ambient noise or for people
with auditive disabilities.
To activate a device automatically when a call is
received or manually by means of an additional button
but for a pre-established time.
When it is necessary to send the call sound to different
parts of the home or business premises.
To view a different place from that seen from the video
camera on the door entry panel (rear of the house,
etc.).
When a security door is installed in front of the main
door and both need to be opened at the same time.
To open the door from a different place to where the
telephone is. To open a door or security door that does
not have a handle from inside the hallway.
• Additional button on the telephone or monitor*.
• Relay (ref.2013).
• Activator (ref.2438).
• Timer (ref.29001).
• Additional button on the telephone or monitor if
the activation is manual*.
• Call extender (ref.2040) for electronic call.
• As standard in Smile monitors.
• Selector-changer (ref.2450) and camera kit for VDS
system. Possible to expand up to 8 cameras with the
selector ref.2472.
• 2 additional buttons on the monitor.
• Relay (ref.2013).
• Power supply (ref.4800).
• Automatic lock release (ref.3069).
• Does not require any special equipment.
For VDS systems, connect the button between the
corresponding exit terminals of the outdoor panel
amplier.
VDS
2015 GENERAL CATALOGUE 103
To regenerate the video signal of the coaxial in installations
with cable distances of more than 200 metres.
4110 VIDEO AMPLIFIER
VIDEO ACCESSORIES
CABLES
5919 VIDEO BUS CABLE. 1MTR
CALL ACCESSORIES
2040 ELECTRONIC CALL EXTENSION BELL
2438 VDS LIGHT OR BUZZER ACTIVATOR
Equipment that receives the door entry system call tone,
allowing to hear it in any place where the call extender
is located. It is possible to connect 1 for each monitor or
handset.
Allows to activate high powered devices or indicators when
a call is received: bells, sirens, light bulbs, etc. It is possible to
connect 1 for each monitor or handset.
2472 8-CAMERAS SELECTOR
4614 2
ND CAMERA SELECTOR
2450 VDS VIDEO SELECTOR/SWITCHER
Necessary in VDS video entry system with 2 video entry
panels.
Allows to control up to 8 additional cameras from the
monitor (F1 and F2 buttons).
Allows to select a 2nd camera by means of F1 push button.
ref.5919
ref.2040
2
ref.2450
ref.2472
VDS SYSTEM
It is possible to expand video door-entry installations with
a 2nd overhead camera and select and view it from the
monitor (expandable up to 8 cameras).
All cables are supplied in 100 metre rolls.
Orders must be multiples of 100.
3 wires of 1mm2 + 1 coaxial of 75 Ohms.
VDS
104 2015 GENERAL CATALOGUE
MDS SYSTEM
FEATURES MDS SYSTEM OPTIONS
General Entrance
(CENTRAL UNIT)
1er block entranceBus 2nd block entrance
PROXIMITY reader at
entrance to tennis court.
RF receiver
for garage entrance.
Integrated services: control and management of accesses, in lifts,
automations and security system.
1
33
2 2
33
33
2
Dimensions: (width) x (height) x (depth) mm.
• MDS (Multiplexed Digital System) is a digital audio
and video door-entry system that integrates all the
services of the apartment block or housing complex:
• Allows to manage buildings and condominiums of
whatever size.
- AUDIO AND VIDEO DOOR ENTRY SYSTEM.
- INTERCOMMUNICATION between accesses, homes,
guard units and lifts.
- ACCESS MANAGEMENT AND CONTROL according
to authorisations to restricted areas. Each user has an
identication code for all accesses.
- SECURITY centralised in the guard unit, for protection
of common areas and control of incidents in the
homes.
- AUTOMATION of functions and services of the
apartment block or condominium (sprinklers, lights,
swimming-pool, etc).
• MDS is a system with simplied BUS installation 1.
• The Central Unit 2 incorporates all the electronics
for management and control of the system.
• The oor MDS decoders and MDS distributors 3
connect the homes to the installation BUS and act as
isolators.
• Home to outdoor panel communication is private.
• MDS DIGITAL: Requires a Central Unit (C.U.
Capacity: 9.999 homes, 32 accesses/guard units).
Up to 63 Central Units can be connected.
Incorporates all the MDS services.
• MDS COMBINED WITH OTHER SYSTEMS: In the case
of housing complexes, the exibility of MDS allows
to combine general MDS entrances and internal
apartment blocks with VDS, BUS2 or conventional
4+N audio or video door-entry system or with
individual houses.
MDS DECODER
AUDIO BUS + DATA + TELEPHONE BUS AUDIO BUS + DATA + VIDEO BUS
MDS DECODER & DISTRIBUTOR
LARGE INSTALLATIONS
MDS
2015 GENERAL CATALOGUE 105
MDS DIGITAL SYSTEM
MDS DIGITAL
1. OUTDOOR PANEL
SKYLINE (See Skyline Panel Section)
Panel with KEYPAD + ELECTRONIC DIRECTORY.
A Central Unit is required.
It allows to create any audio or video door entry panel with
access control and informative displays.
+ + + +++ ++
MDS digital
panel
Guard Unit Power supply
(video & audio)
Lock release
(cc)
MDS DIGITAL general entrances/accesses Building
(by oors)
At building/block
SwitcherCentral Unit
(up to 32
accesses)
Readers VDS Monitors
and telephones
A complete MDS DIGITAL system basically consists of the following elements:
Dimensions: (width) x (height) x (depth) mm.
Video
distributor
Audio
distributor
7336 SKYLINE FRAME 6V-S7 130x341
8857 FLUSH BOX S7 115x328x45
7337 SKYLINE FRAME 7V-S8 130x389
8858 FLUSH BOX S8 115x375x45
7338 SKYLINE FRAME 8V-S9 130x436,5
8982 FLUSH BOX S9 115x420,5x45
ref.7406 ref.7400
ref.7336
6V
ref.7337
7V
ref.7338
8V
7406 ANALOGUE VIDEO MODULE W
7400 ANALOGUE AUDIO MODULE W
AMPLIFIER AND COLOUR CAMERA
FRAMES
ref.7447ref.7451
7451 MDS DIGITAL DISPLAY MODULE W
7447 MDS DIGITAL KEYPAD MODULE W
INFORMATION MODULES
ACCESS CONTROL MODULES
7448 ONE-TO-ONE MODULE V
7444 CARDHOLDER MODULE V
7440 PROXIMITY READER V
7441 BLUETOOTH READER V
ref.7448 ref.7444
ref.7441ref.7440
LARGE INSTALLATIONS
MDS
106 2015 GENERAL CATALOGUE
MDS DIGITAL SYSTEM
Access control readers are considered by the Central Unit as
just another access. No switcher is required.
The panel is supplied with the corresponding ush box. Every
central Unit (ref.2405) allows to manage up to 1.020 users of
access control.
CITYLINE
MARINE
PROXIMITY IDENTIFIERS
Panel S1: 130x128 / Flush box S1(ref.8948):115x114x45.
Panel ST1:150x180 / Flush box ST1(ref.4641):130X160X55.
6992 CITY PROXIMITY READER
6994 CITY MDS/AC+ KEYPAD
5472 MARINE PROXIMITY READER
4696 MARINE MDS/AC+ KEYPAD
23361 PROXIMITY CARD WITHOUT STRIP
2336 PROXIMITY CARD WITH STRIP
4515 PROXIMITY KEYRING
ref.6992 ref.6994
ref.23361
ref.4696ref.5472
ref.4515
Dimensions: (width) x (height) x (depth) mm.
2. ACCESS CONTROL READERS
5470 MDS DIGITAL VIDEO PANEL ST3
5467 MDS DIGITAL AUDIO PANEL ST3
4643 MARINE FLUSH BOX ST3
4647 MARINE SURFACE BOX ST3
2289 JOINING BOLTS SET
Flush or surface box must be requested separately.
ref.5470 ref.5467 ref.5505ref.5480
Dimensions:
ST4 Panel: 150x485
ST4 Flush box: 130x460x55
ST4 Surface box: 154x489x55
Dimensions:
ST3 Panel: 150x360
ST3 Flush box: 130x340x45
ST3 Surface box: 154x364x55
5480 MDS DIGITAL VIDEO PANEL W/PROX ST4
5478 MDS DIGITAL AUDIO PANEL W/PROX ST4
5505 MDS DIGITAL VIDEO PANEL W/PAC ST4
5507 MDS DIGITAL AUDIO PANEL W/PAC ST4
4644 MARINE FLUSH BOX ST4
4648 MARINE SURFACE BOX ST4
MARINE
LARGE INSTALLATIONS
MDS
2015 GENERAL CATALOGUE 107
RADIOFREQUENCY
Bluetooth and ngerprint readers need a door controller
(ref.4420) for each access.
1065 RF DIGITAL RECEIVER
24651 RF DIGITAL EMITTER
4420 DOOR CONTROLLER
ref.24651ref.1065
ref.5482
ref.4420
ref.6935
FINGERPRINT WITH PROXIMITY
Includes a built-in proximity reader for major security or for
independent registrement of users. Includes display and LEDs
indicating the door opening, user’s number, if the ngerprint
reading is correct or not, conguration and authorizations-
cancellations menu management.
Includes a remote infrared keypad for programmation.
6935 CITYLINE FINGERPRINT READER
5482 MARINE FINGERPRINT READER
MDS DIGITAL SYSTEM
Dimensions: (width) x (height) x (depth) mm.
LARGE INSTALLATIONS
3. GUARD UNIT
2537 MDS DIGITAL GUARD UNIT
ref.2537
Desktop support included. Allows surface installation. Includes
a 4” graphic display that informs of all the events and actions
of the installation: origin of call, type of call, call, call waiting,
latest communication, etc.
The guard unit has 3 operation modes: day, night and mixed,
and in the case of MDS Digital Installations, it can act as a
panic reception centre. The guard unit can communicate
with any access or home, and can stablish communication
between any 2 points of the installation (exclusively MDS
installation).
MDS
108 2015 GENERAL CATALOGUE
2379 2-ACCESSES SWITCHER
24661 USB TO RS-485 PC ADAPTOR
2466 PC INTERFACE DECODER
PC CONNECTION ACCESSORIES
ref.2379
C.U.
ref.24661
RS-485
Twisted pair
USB
Pc
Necessary to connect more than one video panel/guard
unit to C.U. Add 1 module for more than 1 additional
panel/guard unit.
Enables Central Unit programming by PC in FXL network.
PC Connection by USB.
Enables Central Unit programming by PC (serial port).
ref.2466
Cable included
RS-232
C.U.
Cable included (1m)
RS-485
Pc
2338 RS-232 TO RS-485 PC ADAPTOR
Allows Central Unit programming in FXL network. DIN. RS-
232 connection to PC. Allows to connect 1 modem for
remote management by telephone. Maximum distance
to Central Unit: 1.200m.
Twisted pair
ref.2466
ref.1087
Pc
C.U.
2
3RJ-45
RS-232
RJ-45
IP
ref.2338
Cable included
2
RS-232
230Vac
U.C.
Maximum distance: 1.200m
Twisted pair Pc
1087 IP REMOTE MANAGEMENT MODULE
Is connected to the Central Unit by means of the
adaptor ref.2466. Allows communication between the
management computer and the installation using the
computer network (Ethernet),avoiding additional wiring.
4. CENTRAL UNIT
2405 MDS 1-ACCESS CENTRAL UNIT
Essential in installations with digital panels
Manages up to 9.999 apartments and 1.020 access
control users.
- In individual blocks: manages up to 32 accesses (1
of them can be audio/video). For more audio/video
accesses, switcher (ref.2379) every 2 accesses will be
required.
- In housing complexes: up to 31 accesses per Central
Unit if the accesses are audio/video, 2-access switchers
ref.2379 will be required. Includes WINCOM PLUS software
for PC conguration. Includes memory for incidents
record (A.C. applications).
ref.2405
MDS DIGITAL SYSTEM
LARGE INSTALLATIONS
MDS
2015 GENERAL CATALOGUE 109
ref.4813 ref.4830
ref.4812
4812 VIDEO POWER SUPPLY. 18Vdc/2A
4813 AUDIO POWER SUPPLY. 12Vdc/2A
4830 VIDEO POWER SUPPLY. 18Vdc/3,5A
5. POWER SUPPLY
To extend the number of monitors in homes. Requires:
1 unit for every 2 additional monitors per home. DIN6
format.
Requires: 1 unit for each Central Unit and up to 6
accesses; or 1 unit for every 10 VDS decoders or audio
decoders, depending on the distance and cable cross-
section used. DIN6 format.
Requires: 1 unit for each 40 monitors or 1 unit for each 4
monitors per apartment. DIN6 format.
2060 EMERGENCY BATTERY ADAPTOR. 12Vdc
1021 EMERGENCY BATTERY ADAPTOR. 18Vdc
For functioning of the power unit if the electricity supply
fails, it is necessary to connect it to an adapter, to which
a battery is connected. Compatible with any type of
standard lead acid battery.
ref.2060
EMERGENCY POWER SUPPLY
MDS DIGITAL SYSTEM
LARGE INSTALLATIONS
MDS
110 2015 GENERAL CATALOGUE Dimensions: (width) x (height) x (depth) mm.
2424 4-WAYS AUDIO MDS DECODER
2425 8-WAYS AUDIO MDS DECODER
2426 4-WAYS AUDIO ISO DECODER
1 unit for each 4 homes. DIN10.
1 unit for each 8 homes. DIN10.
1 unit for every 4 homes (audio/video). Necessary in MDS installations
where total isolation of the telephones from the rest of the installation
is required (anti-sabotage) and in MDS DIGITAL installations with
“panic button” or with light indicator on telephones. DIN10 format.
6. AUDIO DECODER /
VIDEO DISTRIBUTORS
ref.2424
AUDIO DECODER
VIDEO DISTRIBUTOR
2436 4-PANEL DECODER
2466 DECODER PROGRAMMING MODULE.
ADAPTOR RS-232 TO RS-485
1 unit for every 4 panels 4+N of up to 2 pushbuttons. For installation
in lifts or garages, in order to make calls to concierge. DIN10.
Includes DECOWIN software and connection cables. Allows remote
programming of the MDS Digital Central Unit and decoders.
ref.2436
24661 ADAPTOR USB to RS-485
2418 4-WAYS VIDEO DISTRIBUTOR
2419 8-WAYS VIDEO DISTRIBUTOR
Enables programming of MDS Digital Central Unit (ref.2405) and
decoders by PC via USB port.
1 unit for each 4 homes (video). DIN10.
1 unit for each 8 homes (video). DIN10.
ref.2419
MDS DIGITAL SYSTEM
LARGE INSTALLATIONS
MDS
2015 GENERAL CATALOGUE 111
Dimensions: (width) x (height) x (depth) mm.
8. MDS REPEATER /
VIDEO AMPLIFIER
7. COMBINATION WITH
OTHER SYSTEMS
2339 MDS REPEATER
2409 VDS/MDS DECODER
4110 VIDEO AMPLIFIER
1345 FIBER OPTICS CONVERTER
To regenerate the digital signal of the panels or decoders
BUS that is transmitted by the twisted pair of the installation.
DIN10 format. Requires:
• Length of the BUS>to 1.200m: One repeater every 1.200m.
• When there are more than 120 decoders.
The MDS decoder allows connecting the general entrance
(G.E.) with interior blocks (I.B.) with VDS technology.
To regenerate the video signal when the length of the BUS is
greater than 250m. One amplier every 250m.
ref.2339
Allows MDS signal transmissions (audio, video and data) by
means of a ber optic cable (monomode ber with FC/PC
connectors). Advantages: links up to 5 km, noise immunity
and discharges isolation. Includes: transmitter (TX), receiver
(RX) and two power supplies.
Necessary for enclosures in VDS interior blocks already
installed 1 decoder per block. Add one distributor (ref.2448)
and/or switcher (ref.2450) in general video entry installations.
2409 VDS decoder
2448 Video distributor
2450 Switcher
2409 VDS decoder
2448 Video distributor
2409 VDS decoder 2409 VDS decoder
MDS
Audio
G.E.
MDS
Video
G.E.
VDS Audio I.B. VDS Video I.B.
9. CABLES
5918 DECODER-PANEL-FXL CENTRAL UNIT BUS
CABLE. 1MTR
5919 VIDEO BUS CABLE. 1MTR
5922 DECODER-TEL. CONNECTION CABLE (1M)
4 wires 1mm2+1 twisted pair shielded of 2 x 0,5 mm2.
3 wires of 1mm2+1 coaxial of 75 Ohms.
6 wires of 0,5mm2.
All cables are supplied in 100 metre rolls. Orders must be
multiples of 100.
ref.5919
ref.5922
ref.5918
MDS DIGITAL SYSTEM
LARGE INSTALLATIONS
MDS
112 2015 GENERAL CATALOGUE
10. MONITORS & TELEPHONES
3307 4+N COLOUR LOFT MONITOR
3315 LOFT CONNECTOR
ref.3307
All models include electric lock release pushbutton and call
to guard unit by default. Always colour TFT screen included.
For the replacement of most of the standard telephones
from other brands (see equivalence table included in the
equipment) in both telephones with buzzer call as with
electronic call. 4 common call wires.
3393 BASIC LOFT TELEPHONE
3394 EXTRA LOFT TELEPHONE
3399 UNIVERSAL LOFT TELEPHONE
3380 DECORATIVE FRAME 200x240
3441 LOFT HANDSET WITH INDUCTION LOOP
ref.3393/ref.3399 ref.3394
ref.3394+ref.3380
ref.3324
LOFT
LOFT TELEPHONE
3324 DESKTOP CONNECTOR
3441 LOFT HANDSET WITH INDUCTION LOOP
MDS DIGITAL SYSTEM
LARGE INSTALLATIONS
MDS
2015 GENERAL CATALOGUE 113
Enables communication only between telephones in the
same house. Maximum up to 12 terminals. 1 power supply
(ref.4812) is required per home and a multiline switcher
(ref.9017) to distinguish indoor/outdoor conversation. Max.
distance: 100m.
120x240mm.
210x240mm.
ref.4812 ref.9017
3 wires
Rest of installation
Audio
analogue
5 WIRES
At home
Maximum: 100mts (ø1mm2)
8084 PALACE CITYMAX TELEPHONE
9017 MULTIWAY SWITCHER
BASIC
3388 UNIVERSAL DECORATIVE FRAME
3389 UNIVERSAL LARGE DECORATIVE FRAME
80447 CITYMAX TELEPHONE (white nish)
ref.3388 ref.3389
UNIVERSAL DECORATIVE FRAMES
CITYMAX TELEPHONE
INTERCOMMUNICATION. PALACE BUS
MDS DIGITAL SYSTEM
LARGE INSTALLATIONS
MDS
114 2015 GENERAL CATALOGUE
MDS/VDS SYSTEM
• MDS/VDS combination is the system with the most
complete functions and maximum wiring simplicity.
• It consist of a combination of:
- MDS Digital System for General Entrances.
- VDS Digital System for Interior Blocks.
• Its capacity is expandable:
- From 1 to 9.999 units.
- Up to 32 entrances or guard/managements
- Combined with single houses, medium or big
blocks.
- Possibility of several access control readers along
the condominiums.
• System with simplied MDS BUS installation
connecting general entrances, interior blocks and
access control readers.
- MDS AUDIO BUS: 4 common wires + 1 common
shielded twisted pair.
- MDS VIDEO BUS: 6 common wires + 1 common
shielded twisted pair + 1 video coax cable.
• MDS Central Unit is required in general entrances.
Capacity: 9.999 homes, 32 accesses/guards units.
Central Unit 2 includes all the electronic elements
for managing and controlling the system.
• The MDS System (MDS BUS) installed at general
entrances can be combined with VDS System
(UTP CAT 5, 5 WIRES or 3+COAX) in the blocks,
thanks to a MDS/VDS decoder 3.
The MDS/VDS decoder (new version) allows VDS
Monitors and Telephones to make additional
functions as panic call to the guardian or control lift.
Apartments
General Entrance
(CENTRAL UNIT)
Entrance 1st block
MDS
Bus Entrance 2nd block
Proximity reader
RF receiver for
garage entrance.
Integrated services: control and management of accesses, in lifts,
automations, security systems.
1
3
2
3
44
VDS VDS
IN MEDIUM SIZE BLOCKS INSTALLATIONS
One MDS/VDS Decoder is required 3 per block.
VDS cable inside the building : UTP CAT5,
5 WIRES or 3+COAX.
VDS telephones & monitors are required.
4
FEATURES INSTALLATION
1
LARGE INSTALLATIONS
MDS
2015 GENERAL CATALOGUE 115
RF receiver for
garage entrance.
MDS/VDS Digital system with big-size interior blocks basically consist of the following elements:
MDS/VDS SYSTEM
MDS/VDS Digital system with medium-size interior blocks basically consists of the following elements:
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
MDS digital
panel
MDS digital
panel
Guard Unit
Guard Unit
P.S.U.
(audio & video)
P.S.U.
(audio & video)
Lock
release
Lock
release
At interior
At interior per oor
Switcher
Switcher
Central Unit
(Up to 32
accesses)
Central Unit
(up to 32
accesses)
Readers
Readers
VDS Monitors
or Telephones
VDS Monitors
or Telephones
MDS/VDS
decoder
by oor
VDS
entry panel
VDS
entry panel
MDS/VDS decoder
per block
C.U. (up
to 32
accesses)
IN BIG SIZE BLOCKS INSTALLATIONS
In big interior blocks with several terminals in each oor or specic functionalities are demanded, a MDS/VDS
Decoder 3 is required per oor.
MDS BUS in the riser and VDS cable in each oor : UTP CAT5, 5 WIRES or 3+COAX.
VDS telephones & monitors are required.
4
At MDS General entrance and common accesses
At MDS General entrance and common accesses
MDS/VDS decoder
Access to building
Apartments
General Entrance
(CENTRAL UNIT)
Entrance 1st block
MDS
Bus
Entrance 2nd block
RF receiver for garage entrance.Integrated services: control and management of accesses, in lifts,
automations, security systems.
1
2
Proximity
reader
3 3
3 3
3 3
VDS VDS
LARGE INSTALLATIONS
MDS
116 2015 GENERAL CATALOGUE
LYNX SYSTEM
FEATURES
• TCP/IP system.
• It allows to manage from single family homes to buildings without size limit:
- A virtually unlimited number of monitors can run under one LYNX installation.
- Unlimited distances from end to end of and installation.
- Multichannel for conversations and data ows, which unlimited capacity.
• Easy and simple installation with the maximum robustness:
- Power over Ethernet (PoE) simplies the installation.
- LYNX can be integrated into existing local area networks. LYNX employs structured cabling system (SCS),
and standard network equipment with network convergence.
- Blackout free. SIP peer to peer distributed architecture allows independent operation for each device,
without the need for a centralized server.
- Upload conguration from an SD card makes installation a basic, straightforward process without any
need for complicated training.
• Compatible with home automation systems.
• Simple access control included.
• Easily expandable.
N Floor
Monitor Monitor Monitor
Monitor Monitor Monitor
Monitor Monitor Monitor
Monitor Monitor Monitor
Monitor Monitor Monitor
Monitor Monitor Monitor
2nd Floor
1st Floor
switch switch switch
switch
switch
switch
switch switch
Block Panel
Block Panel Block PanelSector Panel
General Panel
Interior Panel Interior Panel Interior Panel
Property
Management Unit
Property
Management Unit
Property
Management Unit
Property
Management Unit
switch switch switch
Block 1 Block 2 Block 3
LYNX SYSTEM COMPOSITION
+ + +
+ +++
Panel PC Lock release
Accesses Building (by oors) At home Accessories
Power supply Switch Switch Monitors Relay decoder
LYNX
2015 GENERAL CATALOGUE 117
LYNX SYSTEM
1. OUTDOOR PANEL
• CAMERA is always in COLOUR.
• The LYNX amplier includes Voice Synthesizer as standard. A messages is reproduced when the lock-
released is activated: “The door is open. Please, close the door behind you”. Congurable in 32 languages.
SKYLINE consists of 8 different-sized frames where the modules can easily be tted. Modules come in 2 sizes:
V and W (W is twice the size of V).
ref.1623
Display Lynx W
SKYLINE PANEL
ref.1622
LYNX VIDEO MODULE SKYLINE FRAMES
Video W
ref.7371 ref.7372 ref.7376 ref.7367
8 Push. 204 W 4 Push. 202 V 2 Push. 201 V 4 Push. 104 W
ref.7368
2 Push. 102 V
ref.7375
1 Push. 101 V
DOUBLE PUSH BUTTONS SINGLE PUSH BUTTONS
ACCESSORIES STAND-ALONE ACCESS CONTROL
ref.7443 ref.7442 ref.7438 ref.6936
Metallic complement W Metallic complement V Keypad W
ref.7440
Proximity V
Frame 1V
ref.7341
Series 1
130x128
Frame 4V
ref.7334
Series 5
130x246
Frame 2V
ref.7332
Series 2
130x151
Frame 5V
ref.7335
Series 6
130x294
Frame 7V
ref.7337
Series 8
130x389
Frame 3V
ref.7333
Series 4
130x199
Frame 6V
ref.7336
Series 7
130x341
Frame 8V
ref.7338
Series 9
130x436,5
ref.7457 ref.7445 ref.7444
Direct keypad W Cardholder W Cardholder V
LYNX DIGITAL PUSH BUTTONS INFORMATION MODULES
Fingerprint W
If the conguration calls for more than one panel, a connection cable ref.2541 between them is needed (1 cable for each additional panel). If the conguration
requires an access control reader connected to the outdoor panel, a connection cable ref.2545 between them is needed. They can be joined laterally within the
same series by means of a joining bolt set (ref.8829).
See more info at Skyline section.
FLUSH BOXES ref.8852
115x138x45
ref.8851
115x114x45
ref.8854
115x185x45
ref.8855
115x233x45
ref.8856
115x280x45
ref.8857
115x328x45
ref.8858
115x375x45
ref.8982
115x420,5x45
S1 (1V) S2 (2V) S4 (3V) S5 (4V) S6 (5V) S7 (6V) S8 (7V) S9 (8V)
Dimensions: (width) x (height) x (depth) mm.
LYNX
118 2015 GENERAL CATALOGUE
1625 1/W CITY LYNX PANEL
1620 VIVO MONITOR
1640 VIVO MONITOR (SILVER)
1641 VIVO MONITOR (BLACK)
1605 VIVO CONNECTOR
5484 1/W MARINE LYNX PANEL ST1
5485 MARINE DIGITAL LYNX PANEL ST3
5486 MARINE DIGITAL LYNX PANEL ST4 W/PROX
Flush box and surface box to be ordered separately.
ref.1625 ref.5484
ref.1620
4. MONITORS
Panel ST1: 150x180 Flush box: 130x160x55
Panel ST3: 150x360 Flush box: 130x340x55
Panel S1: 130x128 Kit box S1: 115x114x45
2. POWER SUPPLY
5. ACCESSORIES
ref.4813
4813 AUDIO POWER SUPPLY. 12Vdc/2A
A power supply is required for each outdoor panel.
DIN6 format.
3. LOCK RELEASE
ref.5485
CITY PANEL
MARINE PANEL
It’s possible to divert the calls received at the door entry panel to a mobile devices, where the user can view
the visitor’s picture, set up communication with them and, if desired, open the door.
To do so, users only need to download the LYNXed application (free download), available for iOS and Android
devices. The mobile device is paired with the VIVO monitor by reading a QR code and calls from the outdoor
panel are received normally. Several different mobile devices can be linked up to the same VIVO monitor.
In the installation, whether for a building or detached house, a LYNX ROUTER is required to handle the call divert.
When a call is received from the outdoor panel, all the devices linked up will sound at the same time as the
monitor. (Check availability).
CALL DIVERT TO MOBILE
1609 LYNX ROUTER
N,A 12Vac 980mA
N-412 12Vdc 260mA
540 Serie Consumption
N 12Vac 250mA
12Vdc 280mA
990 Serie Consumption
30701 LOCK RELEASE 540N-412-S MAX
3264 AC ELECTRIC LOCK COMMANDER
6750 UNIV. MECHANISM 990N MAX 10-24Vdc/ac
Normal operation and short shield. 12Vdc.
Normal operation. 12Vdc or 12 Vac. Standard issue with
adjustable MAX latch bolt. Requires short shield (S ref.2973
or P22 ref.2894) or large (M ref.2893 or L22 ref.2892)
Maximum current: 1 Ampere.
For more information about door locks, see Lock release
section or current Lock release catalogue.
990540
LYNX SYSTEM
LYNX
2015 GENERAL CATALOGUE 119
1615 MASTER LYNX RELAY DECODER
1617 LYNX SWITCH (4 PoE +4)
1616 10-WAYS LYNX RELAY DECODER
1618 SWITCH LYNX (8 PoE +8)
NOTE: LYNX requieres a local area network. A switch is required. The
system is compatible with most of the switcher (preferably with PoE
and QoS support). No need of any special conguration for LYNX.
LITE software is the limited functionality version of Property
Management Station, for those cases where the LYNX
installation will be working without the same. Enables LYNX
installation start-up from the installer’s own PC, as well as
friends’ list management.
Available at www.fermax.com
LITE RESIDENTIAL MANAGEMENT SOFTWARE
6. INTEGRATION WITH OTHER SYSTEMS
1610 LYNX PROPERTY MANAGEMENT UNIT
Property Management Unit is LYNX’s software application
which allows to manage the communication, security and
comfort in buildings in an intuitive manner, developing guard
unit and conguration functions of the system. It is prepared for
its use by means of a PC touch screen or with a conventional
keypad. It operates using three user proles:
- Installer prole (conguration): Allows to customise
function and performance to the specic needs of each
residence.
- Administrator prole (maintenance): Allows to manage
system passwords, user-privilege settings and to create or
delete guard proles.
- Guard prole (operation): To operate in normal mode.
Depending on the circumstances, the Property Management
Unit offers three operating modes:
- Full service: All calls from panels to units are forwarded to
the assigned Property Management Unit for ltering.
- Home service: Visitors can call both the apartment or
the PMU.
- Off service: When guards are absent calls can be
forwarded to others on duty. Supplies multifunction
services: communication with homes, message service,
event recording, protection using CCTV cameras, lift
control…
ref.1615 ref.1616
LYNX SYSTEM
LYNX provides users freedom of choice through existing
technologies and home automation systems. This system
generates synergies through unlimited solutions supporting the
integration, interaction and compatibility with other systems.
LYNX
120 2015 GENERAL CATALOGUE
SIP PANEL
2015 GENERAL CATALOGUE 121
CITY. MARINE
SIP PANELS
122 2015 GENERAL CATALOGUE
SIP PANELS
FUNCTIONS CONFIGURATION
FEATURES
SIP PANEL
SIP
SERVER
SIP
TERMINALS
The SIP PANELS video door entry panel from FERMAX is an outdoor panel ideal for applications in the service
industries, for example in businesses, ofces, airports, hospitals, public buildings or parking facilities, etc. Calls are
controlled from the outdoor panel, connecting to an SIP server which in turn is linked to third-party SIP devices.
The SIP PANELS panel sets up communication through an SIP server and lets you see the caller at the door with
VoIP devices (like PBX, telephones, softphones, etc.) that support the following SIP functionalities:
• 3CX
• Asterisk
1/W SIP VIDEO COLOUR PANEL
Call to SIP devices by pushbutton:
• AUDIO AND VIDEO communication via standard
SIP server.
• DOOR OPENING: using DTMF (Dual-Tone - Multi-
Frequency) signals between devices to open
the door. Each device that interacts with the
SIP panel may be using a different DTMF code.
FERMAX provides the option of conguring the
SIP panel from the webserver according to the
combination of tones (keys) for each SIP device
to open the door. The panel has two built-in
congurable relays.
• AUTO-ON: When called, the SIP panel will
automatically answer calls from any device on
the SIP network, opening up the audio and video
streaming.
ASSIGNING PANEL IP ADDRESS
When connecting the panel’s RJ-45, the IP address
is obtained automatically by DHCP (Dynamic Host
Conguration Protocol) server. If the is no DHCP
server, the installer enters it from the webserver.
ASSIGNING PANEL SIP “EXTENSION”
The panel’s SIP extension is congured via
webserver.
ASSIGNING PANEL PUSHBUTTON SIP “EXTENSION”
In the 1W panel, we use the webserver to set up
the SIP “extension” for pushbutton calls.
PANEL RELAY ACTIVATION DTMF SETUP
Congurable from the webserver, using each
manufacturer’s SIP tones (keys) to open the door.
The panel has two built-in congurable relays.
Power supply 12 Vdc.
NOTE: panel not compatible with FERMAX LYNX system.
SIP PANELS
2015 GENERAL CATALOGUE 123
SIP PANELS
1661 SIP CITYLINE PANEL
5488 SIP MARINE PANEL
8851 FLUSH BOX S1 115x114x45
7061 SURFACE BOX S1 130x128x33
8400 SIMPLE HOOD S1 135x130
9191 MODULAR FRAME S1 211x210
8251 SIMPLE CITY FRAME S1 225x310
8378 ANGULAR COMPLEMENT S1
8829 JOINING BOLTS SET
4641 FLUSH BOX ST1 130x160x55
4645 SURFACE BOX ST1 154x184x96
4701 HOOD ST1
2289 JOINING BOLTS SET
SIP PANELS
ACCESSORIES
Cityline
Marine
ref.8851
ref.8400
ref.8251
ref.7061
ref.9191
ref.8378
SIP PANELS
ACCESS CONTROL
STAND-ALONE CENTRALIZED
ACC. CONTROL
126 2015 GENERAL CATALOGUE
ACCESS CONTROL
ref.4540ref.4699
ref.3610
ref.6991 ref.7438
Reader dimensions: 130x128 (S1)
Flush box dim.: 115x114x45 (S1)
Reader dimensions: 130x128 (S1)
Flush box dim.: 115x114x45 (S1)
Reader dimensions: 150x180 (ST1)
LOFT reader dim.: 60x130
1. KEYPAD (MEMOKEY)
Includes reader (ref.6991) and power supply (ref.4800).
4540 LOFT MEMOKEY
3623 LOFT MEMOKEY KIT
6991 CITYLINE MEMOKEY
4906 CITYLINE MEMOKEY KIT
3610 MEMOKEY CITY CLASSIC
Includes reader (ref.3610) and 12Vac/1,5A power supply
(ref.4800).
3600 CITY CLASSIC MEMOKEY KIT
Includes Memokey (ref.4540) and power supply (ref.4800).
Accessory for SKYLINE panels.
7438 SKYLINE MEMOKEY W
Outdoor. 2,5mm stainless steel panel with backlight keypad
and signal LEDs. Flush-box ST1 included (ref.4641).
4699 MARINE MEMOKEY
STAND-ALONE
2
2
Vac
ref.6991 Vac
ref.4800
(12Vac/1,5A
recommended)
Stand alone systems allow to control a door or access.
Recommended for ofces, businesses, garages, etc.
SKYLINE readers can be integrated in audio or video door
entry panels to enable access to the building for residents.
• Maximum capacity: 100 codes.
• Power supply 12Vac/12Vdc. Power supply 12Vac/1,5A
(ref.4800) is recommended.
• Input for exit button on the inside.
• Input for free access button.
• 2 relay outputs (2A,NC/NA) (1 output in LOFT model)
for activation of lock-release and connection of alarm.
Programmable time.
• Each code can activate one or two relays at the same
time.
• Acoustic conrmation of acceptance/rejection of the
code.
• Programming from the keypad by means of a master code.
Indoor/outdoor. Aluminium panel. Permanent backlight
keypad made in zamak with signal LEDs. Flush-box included
(ref.8948). Surface installation option (ref.7061).
Indoor/outdoor. Flush-mounted box included (ref.8948).
Surface installation option (ref.8951).
Indoor. Surface mounting. Membrane keypad.
Includes a 50cm cable.
Dimensions: (width) x (height) x (depth) mm.
ACC. CONTROL
2015 GENERAL CATALOGUE 127
ACCESS CONTROL
2. PROXIMITY (PRIVATE)
• Up to 400 users. Power supply 12 Vac/12 Vdc. Power
supply 12Vac/1,5A (ref.4800) recommended.
• Input for exit button.
• Input for door sensor.
• Relay output for activation of lock-release.
Programmable time.
• Conrmation, by means of LED and sound, of
acceptance or refusal of the card presented.
• Programming-assistance LEDs (activation/deactivation
cards).
• Programming users by means of a master card or by
PC. Free Winprox software at www.fermax.com
Indoor/Outdoor. Aluminium panel. Flush box included
(ref.8948). Optional surface box (ref.7061).
6992 CITYLINE PROXIMITY READER
7440 SKYLINE PROXIMITY READER V
Indoor. Surface installation. Includes cable 50cm.
4530 LOFT PRIVATE READER
Outdoor. Stainless steel reader. Flush box included
ST1(ref.4641).
5472 MARINE PROXIMITY READER
Accessory for SKYLINE and CITYLINE panels.
2306 PRIVATE PROGRAMMING KEYPAD
24661 RS-485 TO USB PC ADAPTOR
23361 PROXIMITY CARD W/O MAGNETIC STRIP
2336 PROXIMITY CARD W/MAGNETIC STRIP
4515 PROXIMITY KEYRING
IDENTIFIERS
ACCESSORIES
ref.6992 ref.7440
ref.4530ref.5472
ref.23361
Customizable
ref.2306
ref.2336
Reader dimensions: 130x128 (S1)
Flush box dim.: 115x114x45 (S1)
Reader dimensions: 150x180 (ST1)
Flush box dim.: 130x160x55 (ST1)
LOFT reader dim.:
60x130
2
2
Vac
ref.4800
(12Vac/1,5A
recommended)
ref.6992
Vac
ref.4515
Dimensions: (width) x (height) x (depth) mm.
ACC. CONTROL
128 2015 GENERAL CATALOGUE
6993 CITYLINE BLUETOOTH READER
6935 CITYLINE FINGERPRINT READER
4479 MINI BLUETOOTH READER
6936 SKYLINE FINGERPRINT READER W
Exterior/Interior. Flush box include (ref.8948).
Optional surface box (ref.7061).
Compact-sized module. ref.6993
6937 CITYLINE KEYPAD/FINGERPRINT READER
5482 MARINE FINGERPRINT READER
Stainless steel. Flush box included (ref.7061).
4. BLUETOOTH
NOTE: The telephone Bluetooth must
be activated in order to receive
the opening and administration
commands as well as to send
the corresponding conguration
commands.
Remote infrared keypad (included)
ref.6935 ref.6936
Reader dimensions: 130x128 (S1)
Flush box dim.: 115x114x45 (S1)
ref.5482ref.6937
Reader dim.: 150X180 (ST1)
3. FINGERPRINT WITH PROXIMITY
22
ref.4800
(12Vac/1,5A
recommended)
230Vac
ref.6935 Vac
ACCESS CONTROL
• Biometric recognition system based on ngerprint.
• Capacity: 4.500 users in 1 ngerprint mode or 2.970 in 2
ngerprints per user mode.
• Includes a built-in proximity reader for major security or for
independent register of users. It’s estimated that 1% of the
population cannot register in biometric systems because
their ngerprint rings do not have enough information. This
people may use the proximity reader.
• Includes display and LEDs indicating the door opening,
user’s number, if the nferprint reading is correct or not,
conguration and authorizations-cancellations menu
management.
• Includes a remote infrared keypad.
• Power supply 12Vac/Vdc.
(Free Programming Software at www.fermax.com)
Accessory for SKYLINE and CITYLINE panels.
Allows to activate the electric lock remotely by using a
mobile telephone with bluetooth technology.
Power supply 12Vac/Vdc (ref.4800 recommended).
The system has 2 operating modes:
1. Restricted to authorised telephones. Maximum capacity:
40 telephones. Automatic opening when the authorised
cell phone is within range of the receiver, or by means of a
keypad conrmation or introducing a PIN.
2. Access to any telephone. Within range of the receiver,
requesting the personal access code to open the door.
Outdoor/Indoor. Flush box included (ref.8948).
Optional surface box (ref.7061).
Dimensions: (width) x (height) x (depth) mm.
ACC. CONTROL
2015 GENERAL CATALOGUE 129
7441 SKYLINE BLUETOOTH READER V
5473 MARINE BLUETOOTH READER
Accessories for SKYLINE and CITYLINE panels.
Stainless steel. Flush box included (ref.7061).
ref.7441 ref.5473
Reader dimensions:
130x128 (S1)
Flush box dim.:
115x114x45 (S1)
5. RADIO FREQUENCY (433Mhz)
For installation inside electronic door or video entry system
outdoor panels.
7952 SINGLE CHANNEL RECEIVER. 433Mhz
79561 TRINARY TRANSMITTER. 433Mhz
10 users maximum. Input for exit button. Relay output (2A, NC/
NA). Programmable time. Mono-stable/bi-stable functioning.
12Vac/12Vdc. Compact-sized dimensions, so it can be hidden
in distribution boxes. Dimensions: 90x60x20.
With 1 unique code by transmitter.
79561 TRINARY TRANSMITTER. 433Mhz
7900 COMPATIBLE SINGLE CHANNEL RECEIVER
7903 RF RECEIVER FOR STORE
ref.79561ref.7900
ref.7903
ref.7960 ref.24651
ref.79561ref.7952
7960 SECURITY RF RECEIVER
24651 DIGITAL RF REMOTE CONTROL
SHOP SYSTEM
SECURITY SYSTEM
COLLECTIVE GARAGES SYSTEM
ACCESS CONTROL
Dimensions: (width) x (height) x (depth) mm.
Conguration by means of trinary dip-switch. Input for exit
button. Relay output (2A, NO) for activation of lock-release.
230 Vac power supply. DIN6 Box. Dimensions: 105x90x60.
Conguration by trinary dip-switch.
A single code for all emitters.
Conguration by trinary dip-switch.
A single code for all emitters.
The RF digital emitters have an exclusive code for each user.
Recommended for garage access and remote control of
devices: lights, blinds, sirens, etc.
Conguration by means of trinary dip-switch. Accepts a card
for addition of a 2nd channel. Relay output (2 A, NC/NA).
230Vac power supply. ABS IP65 box.
Dimensions: 91x198x57.
ACC. CONTROL
130 2015 GENERAL CATALOGUE
ACCESS CONTROL
CENTRALISED
For advanced access control functions and home
automation only. Each Central Unit allows:
• 2.048 users.
• 32 doors. It can manage one reader to enter and
another to exit.
• 64 groups of users (proles).
• 4 special proles without restrictions.
• 32 areas. Denes the doors to which access is permitted.
• 32 timetables. It is possible to dene holidays.
• Recording of the last 3.000 incidents (entries,
exits, accesses denied, alerts, etc.)
• Capable to manage 1.000 intercommunication
panels/1.000 sensors/1.000 relays.
Includes 2 software PC for programming and
system management:
- AC PLUS SERVER. To congure the hardware
(central unit, readers, decoders, etc).
- AC PLUS ACCESS. To manage the users and the restrictions.
CENTRALISATION
4410 AC+ CENTRAL UNIT
AC PLIUS Access software
ref.4410
AC PLUS Server software
ref.4813
General power supply. 1 power supply for each 6 accesses is
required.
4813 POWER SUPPLY. 12Vdc/2A. DIN6
2060 BATTERY ADAPTOR. 12Vdc
The centralisation of the system contains: Central Unit, power
supply, battery and the necessary module for communications
with the PC. An emergency power supply is recommended. In
installations with large distances, it will be necessary to install
additional power supplies at the access in order to avoid
voltage drops in the cabling.
Installed between the power supply and the system. It has a
connector to link with an external PB-Acid battery.
• Single or multiple site over WAN connection.
• 64 Access Groups.
• Individual cardholder access rights and/or access
group rights.
• Manages 100s of doors.
• Event reporting.
• Event triggers and actions.
• Scaleable; and easily expandable.
• Integrates with building systems.
• Proximity, magstripe or Keypads.
• Unlimited input/out extensions.
• Door alarm management.
• TCP/IP or RS485 connectivity.
• Mifare Smart cardand reader options.
• Multiple Work Stations.
• Peak time door management.
• Web downloadable licence free software.
INTEGRATED NETWORKED SOLUTIONS.
ACPlus
ACC. CONTROL
2015 GENERAL CATALOGUE 131
ref.2339
C.U.
ref.24661
RS-485
Twisted pair
USB
Pc
Cable included
2
RS-232
230Vac
C.U.
Maximum distance: 1.200m
Twisted pair Pc
ref.2466
Cable included
RS-232
C.U.
Cable included (1m)
RS-485
Pc
Twisted pair
ref.2466
ref.1087
Pc
C.U.
2
3RJ-45
RS-232
RJ-45
IP
2070 BATTERY 12V/2,2A. ACID LEAD
2337 BATTERY 12V/7A. ACID LEAD
PC CONNECTION ACCESSORIES
• Connection between PC (USB) and Guard Unit.
• Direct power supply from USB.
• Drivers included.
• Connection between Pc and Central Unit (or network
of centrals).
• Allows to connect the modem to the Central Unit in
case of remote management.
• Connection to PC: RS-232. Max.: 30m (cable included:
3m).
• Connection to Central: RS-485 (twisted pair). Max.:
1.200m.
• DIN6 format. Power supply: 230Vac.
• Programming addresses and parameters to decoders
from PC.
• Maintenance of installations that have no permanently
connected PC, as an installer tool.
• Includes RS-232 cable with DB-9 connector for PC
linkup.
• Includes RS-232 cable with DB-9 connector for PC
connection.
• Communication between management station and
the installation using IT network (Ethernet), avoiding
additional wiring.
• Connection to Central Unit by programmer (ref.2466).
• An IP address must be congured for network
connection using the built-in software.
• Remote management via internet if allowed by
protective devices (Firewall) in the IT installation
(specialist staff needed to congure router for internet
access).
• Power supply: 230Vac via adapter (included).
• Ethernet connection RJ4.
24661 USB TO RS-485 PC ADAPTOR
2338 RS-232 TO RS-485 PC ADAPTOR
2466 DECODER PROGRAMMING MODULE
Necessary for distances of over 1.200m between door
controllers or decoders and the central unit. Format DIN10.
1087 IP REMOTE MANAGEMENT MODULE
2339 MDS REPEATER
ACCESS CONTROL
ACC. CONTROL
132 2015 GENERAL CATALOGUE
ref.6992
Microprox reader
ref.7440
ref.5472
ref.6994
Prox VR reader
ref.7453
ref.4696
Flush box S1 included (ref.8948): 115x114x45.
Flush box ST1 included (ref.4641): 130x160x55.
READERS WITH INTEGRATED
CONTROLLER
6992 CITY PROXIMITY READER
6994 CITY MDS/AC+ KEYPAD
ACMPR AC PLUS MICROPROX READER
ACMPVR AC PLUS MICROPROX VR READER
7440 SKYLINE PROXIMITY READER V
7453 SKYLINE MDS/AC+ KEYPAD W
6995 CITY KEYPAD/PROXIMITY READER
5472 MARINE PROXIMITY READER
4696 MARINE MDS/AC+ KEYPAD
ref.2013 ref.2430
ACCESSORIES
2013 ADDITIONAL FUNCTIONS RELAY
3491 DIN RELAY. 12VDC/12A
2430 8-RELAY DECODER
2429 8-SENSOR DECODER
FIBER OPTIC ACCESSORIES
1345 FIBER OPTICS CONVERTER
Allows MDS/AC+ signals transmissions (audio, video and
data) by means a ber optic cable (monomode ber with
FC/PC connectors). Advantages: links up to 5 km, noise
immunity and discharges isolation. Includes: transmitter (TX),
receiver (RX) and two power supplies. It can be used in any
communication point of an MDS system.
For access control combinations of keypad with proximity
and ngerprint readers.
7457 SKYLINE LYNX/AC+ DIRECT KEYPAD
ACCESS CONTROL
It handles 8 sensors: door contacts, presence, ooding...
The 8 inputs are programmable from the software (DECOWIN).
Secure activation of the lock-release from the inside. The 8
outputs are programmable from the software (DECOWIN).
These controllers require an external relay to activate a lock-
release with consumption greater than 500mA or inverted
functioning.
Dimensions: (width) x (height) x (depth) mm.
ACC. CONTROL
2015 GENERAL CATALOGUE 133
READERS WITH AN EXTERNAL
CONTROLLER
Recommended for higher security applications, where
the electronics are located in an independent controller
(ref.4420). One per reader is required.
Accepts Wiegand-26 bit or magstrip (Data/Clock)
readers. Incorporates one relay to activate the lock
release and another for auxiliary functions. Accepts a
reader for entrance and another for exit, exit button,
door sensor, free access button. Is installed in 100x100mm
boxes.
4420 DOOR CONTROLLER
4560 LOFT WIEGAND PROXIMITY READER
4550 LOFT WIEGAND PROXIMITY/KEYPAD
READER
6992 CITYLINE PROXIMITY READER
6995 CITYLINE PROXIMITY/KEYPAD READER
5472 MARINE PROXIMITY READER
5482 MARINE FINGERPRINT READER
7440 SKYLINE PROXIMITY READER V
6936 SKYLINE FINGERPRINT READER W
6935 CITYLINE FINGERPRINT READER
6937 CITYLINE KEYPAD/FINGERPRINT READER
23361 PROXIMITY CARD W/O MAGNETIC STRIP
2336 PROXIMITY CARD W/MAGNETIC STRIP
4515 PROXIMITY KEYRING
IDENTIFIERS
ref.4420
ref.6992
S1: 130x128
Flush box (ref.8948)
ref.6995
S4: 130x199
Flush box (ref.8854)
ref.6937
S5: 130x246
Flush box (ref.8855)
ref.7440
ref.4560/ref.4550
60x130
Surface
ref.5472
ST1: 150x180
Flush box ref.4641
ref.5482
ST1: 150x180
Flush box ref.4641
ref.23361
Customizable
ref.2336
ref.6935
ref.6936
ref.4515
ACCESS CONTROL
Dimensions: (width) x (height) x (depth) mm.
* Flush box included.
* Flush box included.
ACC. CONTROL
134 2015 GENERAL CATALOGUE
TECHNICAL INFO
2015 GENERAL CATALOGUE 135
PROJECTS DIAGRAMS APPLICATION FORMS
TECH. INFO
136 2015 GENERAL CATALOGUE
wires
DUOX VIDEO (SKYLINE)
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
S4
S4
S5
S5
S6
S6
S7
S7
S8
S8
S9
S9
S5
S6
S6
S6
S6
S7
S7
S7
S7
S7
1
1
1
1
2
Nº
A P.
SE-
RIE
ref.
7336
ref.
7335
ref.
7333
ref.
8854
ref.
7334
ref.
8855
ref.
8856
FRAME
6V
ref.
8857
FLUSH
BOX
ref.
8858
FLUSH
BOX
ref.
7337
FRAME
7V
ref.
7338
ref.
8982
ref.
8829
ref.
4812
ref.
3243
ref.
3255
ref.
3412
ref.
3415
ref.
2541
VIDEO
ref.7391
201
ref.7376
202
ref.7372
204
ref.7371
V
ref.7442
2V
ref.7443
MARCO
8V
FLUSH
BOX
JOINING
BOLTS
POWER
SUPPLY
ADAPTOR LINE
TERMINA.
COLOUR
MONITOR CONNECTOR
CABLE AMPLI.
MOD
PUSH BUTTON
MODULES
BLANK MODULE
FRAME
3V
FRAME
4V
FLUSH
BOX
FLUSH
BOX
FRAME
5V
FLUSH
BOX
SKYLINE
PANEL
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
3
3
2
3
3
3
4
4
4
4
5
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
1
1
2
1
1
2
2
2
2
1
1
2
2
2
2
1
1
2
2
2
2
2
1
1
2
2
2
2
2
1
1
NOTE: If an AC electric lock is used, an additional power supply (ref.4800 12Vac/1,5A) or an AC electric lock commander (ref.3264) are required. CC electric lock is ref.30701. Electric lock
540N-412-S MAX.
TECH. INFO
2015 GENERAL CATALOGUE 137
DUOX AUDIO (SKYLINE) wires
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
S4
S4
S5
S5
S6
S6
S7
S7
S8
S8
S9
S9
S5
S6
S6
S6
S6
S7
S7
S7
S7
S7
1
1
1
1
2
Nº
A P.
SE-
RIE
ref.
7336
ref.
7335
ref.
7333
ref.
8854
ref.
7334
ref.
8855
ref.
8856
FRAME
6V
ref.
8857
FLUSH
BOX
ref.
8858
FLUSH
BOX
ref.
7337
FRAME
7V
ref.
7338
ref.
8982
ref.
8829
ref.
4812
ref.
3243
ref.
3421
ref.
3425
ref.
2541
VIDEO
ref.7391
201
ref.7376
202
ref.7372
204
ref.7371
V
ref.7442
2V
ref.7443
FRAME
8V
FLUSH
BOX
JOINING
BOLTS
POWER
SUPPLY
ADAPTOR LOFT
TELEPHONE
CITYMAX
TELEPHONE
CABLE AMPLIF.
MOD
FRAME
3V
FRAME
4V
FLUSH
BOX
FLUSH
BOX
FRAME
5V
FLUSH
BOX
SKYLINE
PANEL
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
3
3
2
3
3
3
4
4
4
4
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
1
1
2
1
1
2
2
2
2
1
1
2
2
2
2
1
1
2
2
2
2
2
1
1
2
2
2
2
2
1
1
NOTE: If an AC electric lock is used, an additional power supply (ref.4800 12Vac/1,5A) or an AC electric lock commander (ref.3264) are required. CC electric lock is
ref.30701. Electric lock 540N-412-S MAX.
PUSH BUTTON
MODULES
BLANK MODULE
TECH. INFO
138 2015 GENERAL CATALOGUE
VDS VIDEO (SKYLINE)
*NOTE: If an AC electric lock is used, an additional power supply (ref.4800 12Vac/1,5A) or an AC electric
lock commander (ref.3264) are required. There are 2 distributor models, 2 and 4 ways, that can be
combined in an installation. *See VDS system. X2 = Order 2 units of the indicated reference.
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
41
42
43
44
45
46
47
48
49
50
60
80
100
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
41
42
43
44
45
46
47
48
49
50
60
80
100
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
41
42
43
44
45
46
47
48
49
50
60
80
100
S4
S4
S5
S5
S6
S6
S7
S7
S8
S8
S9
S9
S5
S6
S6
S6
S6
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
S7
3V
3V
4V
4V
5V
5V
6V
6V
7V
7V
8V
8V
4V
5V
5V
5V
5V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
6V
7333
7333
7334
7334
7335
7335
7336
7336
7337
7337
7338
7338
7334X2
7335X2
7335X2
7335X2
7335X2
7336X2
7336X2
7336X2
7336X2
7336X2
7336
7336
7336
7336
7336
7336
7336
7336
7336
7336
7336
7336
7336
8854
8854
8855
8855
8856
8856
8857
8857
8858
8858
8982
8982
8855X2
8856X2
8856X2
8856X2
8856X2
8857X2
8857X2
8857X2
8857X2
8857X2
1
1
1
1
1
1
1
1
1
2
2
2
2
3
3
2
3
3
3
4
4
4
4
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
3
1
2
2
3
3
4
4
5
5
6
6
6
7
7
8
8
8
9
9
10
10
11
11
11
11
12
12
12
12
13
13
15
20
25
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
Nº
APART.
ref.
8829
ref.
2541
ref.
7421
ref.
7376
ref.
7372
ref.
7371
ref.
7442
ref.
7443
ref.
4830
ref.
2449
ref.3311 B/W
ref.3305 COL
ref.
3314
SERIES FRAME CA-
BLE
COL.
VIDEO
201 202 204 COMPL.
V
COMPL.
W
POWER
SUPPLY
4 WAYS
DISTRIB.
MONITOR CONNECTORJOIN.
BOLTS
REF.
FRAME
FLUSH
BOX
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
DISPLAY
VDS
REF.7421
DISPLAY
KEYPAD
REF.7447
For 24-40 apartments a digital panel is recommended.
TECH. INFO
2015 GENERAL CATALOGUE 139
ref. ref. ref. ref. ref. ref. ref. ref. ref ref.
8829 2541 7415 7376 7372 7371 7442 7443 4830 3390
Nº SERIES FRAME FLUSH JOINING CABLE AMP. 201 202 204 W/PUS. W/PUS. P.S.U. TELEPHONE
APART. REF. BOX BOLTS V W
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
2
4
6
8
10
12
14
16
18
20
22
24
24
26
28
30
32
32
34
36
38
40
S4
S4
S5
S5
S6
S6
S7
S7
S8
S8
S9
S9
S5
S6
S6
S6
S6
S7
S7
S7
S7
S7
3V
3V
4V
4V
5V
5V
6V
6V
7V
7V
8V
8V
4V
5V
5V
5V
5V
6V
6V
6V
6V
6V
7333
7333
7334
7334
7335
7335
7336
7336
7337
7337
7338
7338
7334x2
7335x2
7335x2
7335x2
7335x2
7336x2
7336x2
7336x2
7336x2
7336x2
8854
8854
8855
8855
8856
8856
8857
8857
8858
8858
8982
8982
8855x2
8856x2
8856x2
8856x2
8856x2
8857x2
8857x2
8857x2
8857x2
8857x2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
1
1
1
1
2
2
2
2
3
3
2
3
3
3
4
4
4
4
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
*NOTE: If an AC electric lock is used, an additional power supply (ref.4800 12Vac/1,5A) or an AC electric lock commander (ref.3264) are required. X2 = Order 2 units of the
indicated reference.
VDS AUDIO (SKYLINE)
TECH. INFO
140 2015 GENERAL CATALOGUE
DIAGRAMS: 1/W DUOX AUDIO KIT
T1
P1
F1
A1D1
DUOX CITYLINE Panel.
Electrical lock release 12Vac (ref.30711).
Power supply 18Vdc + 12Vac (ref.4810).
DUOX power supply adaptor Module (ref.3243).
DUOX LOFT Telephone (ref.3421).
P1
F1
A1
T1
D1
1/W DUOX AUDIO KIT. INSTALLATION: 2 WIRES
TECH. INFO
2015 GENERAL CATALOGUE 141
DIAGRAMS: 1/W DUOX AUDIO KIT DIAGRAMS. DUOX VIDEO (SKYLINE)
P1
F1
A1D1
M1
M3
M2
M4
L1
L2
Mn
L2
1 ACCES VIDEO DUOX WITH SKYLINE PANEL. INSTALLATION: 2 WIRES
P1
F1
A1
M1
D1
L1
DUOX SKYLINE Panel.
Electrical lock release 12Vdc (ref.30701).
Power supply 18Vdc (ref.4812).
DUOX power supply adaptor Module (ref.3243).
DUOX LOFT Monitor (ref.3412) + DUOX Connector (ref.3415).
Line termination (ref.3255)
TECH. INFO
142 2015 GENERAL CATALOGUE
DIAGRAMS. VDS VIDEO (SKYLINE)
1 ACCESS VDS VIDEO WITH SKYLINE/CITYLINE PANEL. INSTALLATION: 5 WIRES/UTP CAT5
AC electric lock commander
(ref.3264) connection.
CITYLINE
SKYLINE
NOTE: It’s necessary to place a
resistance of 10KOhmios be-
tween the “+” and “L” at the end
of the points of the installation.
SKYLINE/CITYLINE panel.
Lock release 12Vdc (ref.30701).
Power supply 18Vdc (ref.4830).
2-ways video distributor (ref.3260).
B/W Loft monitor (ref.3311) or Colour (ref.3305) +
VDS connector (ref.3314).
P1
F1
A1
M1Mn
D1
TECH. INFO
2015 GENERAL CATALOGUE 143
DIAGRAMS: VDS VIDEO
1 ACCESS VDS VIDEO WITH SKYLINE/CITYLINE PANEL. INSTALLATION: 3+COAX
SKYLINE/CITYLINE panel.
Lock release 12Vdc (ref.30701).
Power supply 18Vdc (ref.4830).
2-ways video distributor (ref.2448).
B/W Loft monitor (ref.3311) or Colour (ref.3305) +
VDS connector (ref.3314).
P1
F1
A1
M1Mn
D1
CITYLINE
AC lock commander connection with
aditional power supply (ref.4800).
SKYLINE
NOTE: It’s necessary to place a
resistance of 10 Ohm between
the “+” and “L” at the end of the
points of the installation.
TECH. INFO
144 2015 GENERAL CATALOGUE
DIAGRAMS: VDS AUDIO
1 ACCESS VDS AUDIO WITH SKYLINE/CITYLINE PANEL. INSTALLATION: 3 WIRES.
P1
F1
A1
T1Tn
SKYLINE
CITYLINE
AC electric lock commander (ref.3264)
connection.
NOTE: It’s necessary to
place a resistance of 10
Ohm between the “+” and
“L” at the end of the points
of the installation.
SKYLINE/CITYLINE panel.
Lock release 12Vdc (ref.3070).
Power supply 18Vdc (ref.4830).
Loft Basic telephone (ref.3390).
TECH. INFO
2015 GENERAL CATALOGUE 145
DIAGRAMS: 4+N AUDIO
1 ACCESS 4+N AUDIO WITH CITYLINE/CITYLINE CLASSIC PANEL
CITYLINE/CITYLINE CLASSIC panel.
Door lock release 12Vac (ref.3071).
Power supply 12Vac (ref.4800).
Loft telephone (ref.3393).
P1
F1
A1
T1Tn
CITYLINE CITYLINE
CLASSIC
CALLS to the
call terminal
(4) of each
telephone
UNIVERSAL
AMPLIFIER
TECH. INFO
146 2015 GENERAL CATALOGUE
· Until 999.999 apartments.
· Until 10 General entrance panels.
· Until 100 Interior blocks with 10 panels and 9.999 apartments.
· Until 100 Sub-blocks with 10 panels and 99 apartments.
(i) For 12 Vdc door lock max. 250 mA supplied from amplifier.
(ii) Each additional PSU+filter allow to expand the system in distance and terminals according to the table.
(iii) Longer distances can be reached via regenerators.
2 x 1.0mm2 20m 20m 40m 20 120m 100
2 x 0.5mm2 15m 20m 35m 20 100m 80
2 x 0.2mm2 10m 15m 30m 20 100m 80
CABLE
SECTION
Maximum distance (A)
PSU/Filter until Panel
(Panel+door lock) (i)
Maximum distance (A)
PSU/Filter until Panel (without
door lock)
Maximum Distance (B)
PSU/Filter until FURTHEST
TERMINAL (ii)
Maximum Distance
PANEL-FURTHEST
TERMINAL with additional
PSUs+lters (iii)
Max.
Quantity of
MONITORS
per PSU (ii)
MAX.TOTAL
Quantity of
MONITORS
2 x 1.0mm2 10m 10m 40m 20 100m 100
(50 per riser)
2 x 0.5mm2 10m 10m 35m 20 85m 80
(40 per riser)
2 x 0.2mm2 10m 10m 30m 20 85m 80
(40 per riser)
2 x 1.0mm2 10m 10m 40m 20 70m 60
(24 per riser)
2 x 0.5mm2 10m 10m 35m 20 70m 60
(20 per riser)
2 x 0.2mm2 10m 10m 30m 20 70m 60
(20 per riser)
CABLE
SECTION
CABLE
SECTION
1 RISER: VIDEO BUILDING INSTALLATION
2 RISERS: VIDEO BUILDING INSTALLATION
3 RISERS: VIDEO BUILDING INSTALLATION
Maximum distance (A)
PSU/Filter until Panel
(Panel+door lock) (i)
Maximum distance (A)
PSU/Filter until Panel
(Panel+door lock) (i)
Maximum distance (A)
PSU/Filter until Panel (without
door lock)
Maximum distance (A)
PSU/Filter until Panel (without
door lock)
Maximum Distance (B)
PSU/Filter until FURTHEST
TERMINAL (ii)
Maximum Distance (B)
PSU/Filter until FURTHEST
TERMINAL (ii)
Maximum Distance
PANEL-FURTHEST
TERMINAL with additional
PSUs+lters (iii)
Maximum Distance
PANEL-FURTHEST
TERMINAL with additional
PSUs+lters (iii)
Max.
Quantity of
MONITORS
per PSU (ii)
Max.
Quantity of
MONITORS
per PSU (ii)
MAX.TOTAL
Quantity of
MONITORS
MAX.TOTAL
Quantity of
MONITORS
Expands with 2 terminals for apartments.
Expands with 1 terminal for apartments.
Expands with 2 terminals for apartments.
BASIC VIDEO INSTALLATION WITHOUT ADDITIONAL ELEMENTS
VIDEO INSTALLATION WITH ADDITIONAL ELEMENTS
DUOX VIDEO SYSTEM FEATURES
TECH. INFO
2015 GENERAL CATALOGUE 147
DUOX VIDEO SYSTEM FEATURES
DUOX BASIC AUDIO INSTALLATION WITHOUT ADDITIONAL ELEMENTS
TECHNOLOGIES
DUOX
VDS
LYNX
ANALOGUE
MDS
LOFT iLOFT SMILE 7” SMILE 3.5” VIVO LOFT iLOFT CITYMAX
IN THE APARTMENT
MONITORS TELEPHONES
YES YES YES YES
YES YES YES YES YES YES
YES YES YES
YES
CHOOSE BETWEEN MONITOR OR TELEPHONE DEPENDING ON THE REQUIRED
TECHNOLOGY
DUOX
VDS
LYNX
ANALOGUE
MDS
TECHNOLOGY VIDEO VIDEOAUDIO AUDIO
DOOR ENTRY PANELS
SKYLINE
YES YES YES YES YES
YES YES YES YES YES
YES YES YES YES YES
YES YES YES
VIDEO
MARINE DIGITAL
MARINE PUSH BUTTON
DEPENDING OF THE TECHNOLOGY, CHOOSE THE DOOR ENTRY PANEL REQUIRED
2 x 1.0mm2 25m 50m 75m 48 300m 100
2 x 0.5mm2 15m 30m 60m 32 300m 80
2 x 0.2mm2 10m 15m 35m 16 300m 80
CABLE
SECTION
Maximum distance (A)
PSU/Filter until Panel
(Panel+door lock) (i)
Maximum distance (A)
PSU/Filter until Panel (without
door lock)
Maximum Distance (B)
PSU/Filter until FURTHEST
TERMINAL (ii)
Maximum Distance
PANEL-FURTHEST
TERMINAL with additional
PSUs+lters (iii)
Max.
Quantity of
TELEPHONS
per PSU (ii)
1 RISER: AUDIO BUILDING INSTALLATION
Expands with 2 terminals for apartments.
TERMINALS AND DOOR ENTRY PANELS
TECH. INFO
148 2015 GENERAL CATALOGUE
INDEX OF REFERENCES
INDEX REF.
2015 GENERAL CATALOGUE 149
INDEX REF.
150 2015 GENERAL CATALOGUE
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
1021 EMERG. BATTERY ADAPTOR. 18VDC 92,99,109
1065 RF DIGITAL RECEIVER 107
1076 MAGNETIC CONTACT 71
1087 IP REMOTE MANAGEMENT MODULE 108,131
1345 FIBER OPTICS CONVERTER 111,132
1401 1/W 2-WIRE WAY KIT 20
1402 2/W 2-WIRE WAY KIT 20
1405 7" KIT WAY MONITOR 20
1406 7" KIT WAY MONITOR (2/W KIT) 20
1502 1/W 4+N MINI KIT 34
1503 2/W 4+N MINI KIT 34
1519 1/W MINI SURFACE PANEL 34
1605 VIVO CONNECTOR 25,118
1609 LYNX ROUTER 118
1610 LYNX PROPERTY MANAGEMENT UNIT 119
1615 MASTER LYNX RELAY DECODER 119
1616 10-WAYS LYNX RELAY DECODER 119
1617 LYNX SWITCH (4 POE +4) 119
1618 SWITCH LYNX (8 POE +8) 119
1620 VIVO MONITOR 25,118
1622 LYNX VIDEO MODULE W 48,117
1623 LYNX/AC+ DISPLAY W 49,117
1625 CITY LYNX COLOUR PANEL S1 CP 101 25,118
1635 1/W VIVO-LYNX KIT 25
1636 K1/W LYNX VIDEO VIVO CITY KIT W/CALL FORW. 25
1640 VIVO MONITOR (SILVER) 118
1641 VIVO MONITOR (BLACK) 118
1661 CITY PANEL SIP COLOUR S1 CP 101 123
1728 ELECTRIC STRIKE MOD.540AA-412 MAX 69
1777 ELECTRIC STRIKE MOD.540N MAX 69
1780 ELECTRIC STRIKE MOD.540AA MAX 69
1781 ELECTRIC STRIKE MOD.540AAD MAX 69
1794 ELECTRIC STRIKE 540N-512 MAX 69
1813 ELECTRIC STRIKE MOD.990ND MAX 10-24VAC-DC 69
1814 ELE.STRIKE MOD.990ND MAX PRO 10-24VAC-DC 69
1817 LOCK RELEASE 990ND-L22 10-24V MAX 69
1820 LOCK RELEASE 540AB-412-S MAX 69,93,99
1821 LOCK RELEASE 540AB-S MAX 69,93,99
2008 8-CALL EXTENSION MODULE 90,97
2013 ADDITIONAL FUNCTION RELAY 95,102,132
2040 ELECTRONIC CALL EXTENSION BELL 95,103
2060 EMERG. BATTERY ADAPTOR. 12VDC 109, 130
2070 BATTERY 12V/2,2A. LEAD ACID 92,99,131
2127 DECORATIVE FRAME 85
2289 JOINING BOLTS SET 54,62,63,
92,97,
106,123
2306 PRIVATE PROGRAMMING KEYPAD 127
2336 PROXIMITY CARD WITH MAGNETIC BAND 50,106,
127,133
2337 BATTERY 12V/7A. ACID LEAD 131
2338 RS-232 TO RS-485 PC ADAPTOR 108,131
2339 MDS REPEATER 111,131
2379 2-ACCESSES SWITCHER 108
REF. DESCRIPTION PAGE
2405 MDS 1-ACCESS CENTRAL UNIT 108
2409 VDS/MDS DECODER 99,111
2418 4-WAYS VIDEO DISTRIBUTOR 110
2419 8-WAYS VIDEO DISTRIBUTOR 110
2424 4-WAYS AUDIO MDS DECODER 110
2425 8-WAYS AUDIO MDS DECODER 110
2426 4-WAYS AUDIO ISO DECODER 110
2429 8-SENSOR DECODER 132
2430 8-RELAY DECODER 132
2436 4-PANEL DECODER 110
2438 VDS LIGHT OR BUZZER ACTIVATOR 95,103
2441 16-CALL EXTENSION MODULE 90,97
2448 VIDEO DISTRIBUTOR 99,101,111
2449 4-WAYS VIDEO DISTRIBUTOR 101
2450 VDS VIDEO SELECTOR/SWITCHER 99,103,111
2466 DECODER PROG. MOD. ADAP. RS-232 TO RS-485 108,110,131
2472 8-CAMERAS SELECTOR 103
2537 MDS DIGITAL GUARD UNIT 107
2540 4+N (3W) CONNECTION CABLE 46
2541 DUOX/VDS (6W) CONNECTION CABLE 46,51
2542 DUOX/VDS (5W) CONNECTION CABLE 46
2543 MDS (7W) CONNECTION CABLE 46
2837 U BRACKET (FOR REF.3052) 71
2878 ELECTROLOCK 961 DOUBLE KEY 71
2879 ELECTROLOCK 962 WITH KEY+PUSHB. 71
2892 L22-TYPE GREY SHIELD 71
2893 SHIELD TYPE-M. GREY 71
2894 P22-TYPE GREY SHIELD 71
2913 DOUBLE DOOR CONTACT 2C (WHITE) 71
2917 LOCK RELEASE A-2001 CHROME 70
2922 DOOR CONTACT 3C (TRIPLE) 71
2923 LOCK RELEASE N-2001 CHROME 70
2940 LOCK RELEASE N-2003 70
2942 LOCK RELEASE A-2003 AL.ANOD 70
2964 2007-TYPE GREY CASE 70
2973 SHIELD TYPE-S. GREY 71
2975 SHIELD TYPE-G. GREY (36MM) 71
2979 2001-TYPE CHROME CASE 70,71
2984 LOCK RELEASE 8000N WITH CHAIN 71
2985 SHIELD TYPE-GE. GREY (12MM) 71
2987 2006-TYPE GREY CASE 70
2998 CRYSTAL LOCK RELEASE MOD.CAD CHROME 71
3004 LOCK RELEASE 6000N-GREY 70
3005 LOCK RELEASE 6000A GREY 70
3021 MECHANISM 660N GREY 70
3030 LOCK RELEASE 480N 70
3031 LOCK RELEASE 480A 70
3034 LOCK RELEASE 490N 70
3035 LOCK RELEASE 490A 70
3040 LOCK RELEASE 410N-P22 MAX 69
3048 LOCK RELEASE 410A-P22 MAX 69
3050 FLUSH-MOUNTED 300KG 71
3052 SURFACE 300KG 71
3064 LOCK RELEASE PN 71
2015 GENERAL CATALOGUE 151
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
3068 LOCK RELEASE MOD.410AD-P22 MAX 69
3078 BRACKET (FOR REF.3052) 71
3079 DOUBLE Z BRACKET 71
3083 X1 FLEXIBLE CONDUIT (30CM) 71
3084 X2 RIGID VANDAL PROOF CONDUIT (26CM) 71
3098 GLASS CIIN-512-SX LOCK RELEASE 71
3101 AUTOMATIC LOCK 850/50 A 71
3102 AUTOMATIC LOCK 850/25 A 71
3243 DUOX POWER SUPPLY ADAPTOR MODULE 92
3253 DUOX VIDEO RISER SHUNT ISOLATOR 93
3254 DUOX PROGRAMMER 93
3255 DUOX LINE TERMINATION 92
3256 DUOX REGENERATOR 93
3257 DUOX RELAY MODULE 95
3258 DUOX AUDIO RISER SHUNT ISOLATOR 93
3260 2-WAYS VIDEO MINIDISTRIBUTOR 101
3262 4-WAYS VIDEO MINIDISTRIBUTOR 101
3264 AC ELECTRIC LOCK COMMANDER 93,99,118
3265 VDS PROGRAMMER 99
3299 COLOUR VDS LOFT MEMORY MONITOR 100
3305 COLOUR VDS LOFT MONITOR 21, 100
3307 4+N COLOUR LOFT MONITOR 112
3314 VDS LOFT CONNECTOR 21, 100
3315 LOFT CONNECTOR 112
3324 DESKTOP CONNECTOR 112
3325 VDS LOFT DESKTOP CONNECTOR 100
3380 DECORATIVE FRAME 200X240 30,31,84,
94,101,112
3384 VDS LOFT CONNECTOR W/DECORATIVE FRAME 100
3386 DECORATIVE FRAME 78,94
3388 UNIVERSAL FRAME 86,94,
101,113
3389 UNIVERSAL FRAME LARGE 86,94,
101,113
3390 VDS LOFT BASIC TELEPHONE 21,22,23,
24,101
3391 VDS LOFT EXTRA TELEPHONE 21,22,23,
24,101
3393 BASIC LOFT TELEPHONE 112
3394 EXTRA LOFT TELEPHONE 112
3399 UNIVERSAL LOFT TELEPHONE 112
3412 DUOX COLOUR LOFT MONITOR 94
3415 DUOX LOFT CONNECTOR 94
3416 DUOX DESKTOP SUPPORT. 210X240 94
3417 DUOX LOFT CONNECTOR WITH DECOR. FRAME 94
3421 DUOX BASIC PLUS LOFT TELEPHONE 31,94
3422 DUOX EXTRA LOFT TELEPHONE 94
3425 DUOX BASIC CITYMAX TELEPHONE 94
3441 LOFT HANDSET WITH INDUCTION LOOP 78,84,100,
101,112
3442 CITYMAX HANDSET W/INDUCTION LOOP 85
3491 DIN RAIL RELAY 12VDC/12A 102,132
3600 CITY CLASSIC MEMOKEY KIT 126
3610 MEMOKEY CITY CLASSIC 126
3623 LOFT MEMOKEY KIT 126
3749 DESKTOP SUPPORT 84,85,94,101
REF. DESCRIPTION PAGE
4110 VIDEO AMPLIFIER 103,111
4341 1/W DUOX VIDEO KIT 27
4342 2/W DUOX VIDEO KIT 27
4410 AC+ CENTRAL UNIT 130
4420 DOOR CONTROLLER 107,133
4479 MINI BLUETOOTH READER 128
4515 PROXIMITY KEYRING 50,106,
127,133
4530 LOFT PRIVATE READER 127
4540 LOFT MEMOKEY 126
4545 TELEPHONE INTERFACE 21,22,23,
24,26,102
4550 LOFT WIEGAND PROXIMITY/KEYPAD READER 133
4560 LOFT WIEGAND PROXIMITY READER 133
4614 2ND CAMERA SELECTOR 103
4641 MARINE FLUSH BOX ST1 21,53,123
4642 MARINE FLUSH BOX ST2 53
4643 MARINE FLUSH BOX ST3 53,62,92,
97,106
4644 MARINE FLUSH BOX ST4 53,63,97,106
4645 MARINE SURFACE BOX ST1 21,53,123
4646 MARINE SURFACE BOX ST2 53
4647 MARINE SURFACE BOX ST3 53,62,92,
97,106
4648 MARINE SURFACE BOX ST4 53,63,97,106
4696 MDS/AC+ MARINE KEYPAD 62,106,132
4699 MEMOKEY MARINE READER 62,126
4701 MARINE HOOD ST1 21,53,123
4702 MARINE HOOD ST2 53
4703 MARINE HOOD ST3 53,62
4704 MARINE HOOD ST3 53,63
4800 POWER SUPPLY. DIN 4. 12VAC/1,5A 71,99,126,
127,128
4810 POWER SUPPLY 18VDC/1,5A-12VAC/1,5A 92,99
4812 POWER SUPPLY 18VDC/1,5A 92,99,
109,113
4813 POWER SUPPLY. DIN 6. 12VC/2A 71,109,
118,130
4830 POWER SUPPLY 18VDC/3,5A 99,109
4841 1/W VDS PRIVATE CITY PANEL 35
4842 1/W VDS MEMOPHONE CITY PANEL 35
4843 22/W AUDIO PANEL AND FLUSH BOX. 37
4844 24/W AUDIO PANEL AND FLUSH BOX. 37
4845 1/W AUDIO PANEL AND FLUSH BOX. 3,36
4846 2/W AUDIO PANEL AND FLUSH BOX. 36
4847 3/W AUDIO PANEL AND FLUSH BOX. 36
4848 4/W AUDIO PANEL AND FLUSH BOX. 36
4849 6/W AUDIO PANEL AND FLUSH BOX. 36
4852 8/W AUDIO PANEL AND FLUSH BOX. 36
4853 10/W AUDIO PANEL AND FLUSH BOX. 36
4854 12/W AUDIO PANEL AND FLUSH BOX. 36
4855 14/W AUDIO PANEL AND FLUSH BOX. 37
4856 16/W AUDIO PANEL AND FLUSH BOX. 37
4857 18/W AUDIO PANEL AND FLUSH BOX. 37
4858 20/W AUDIO PANEL AND FLUSH BOX. 37
4860 1/W 4+N CITY AUDIO KIT 30,36
152 2015 GENERAL CATALOGUE
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
4862 2/W 4+N CITY AUDIO KIT 30,36
4863 3/W CITY AUDIO KIT 36
4864 4/W CITY AUDIO KIT 36
4865 10/W CITY AUDIO KIT 36
4866 6/W CITY AUDIO KIT 36
4867 12/W CITY AUDIO KIT 36
4868 8/W CITY AUDIO KIT 36
4869 14/W CITY AUDIO KIT 37
4871 16/W CITY AUDIO KIT 37
4874 18/W CITY AUDIO KIT 37
4875 20/W CITY AUDIO KIT 37
4876 22/W CITY AUDIO KIT 37
4877 24/W CITY AUDIO KIT 37
4878 1/W VDS ILOFT AUDIO KIT 32
4879 2/W VDS ILOFT AUDIO KIT 32
4886 1/W VDS PRIVATE AUDIO KIT 35
4887 1/W VDS COLOUR PRIVATE VIDEO KIT 26
4888 1/W VDS ONE-TO-ONE AUDIO KIT 35
4889 1/W VDS COLOUR ONE-TO-ONE VIDEO KIT 26
4899 1/W COLOUR VDS PRIVATE CITY 26
4902 1/W COLOUR VDS MEMOVISION CITY 26
4906 CITYLINE MEMOKEY KIT 126
4910 1/W COLOUR VDS BIOVISION CITY 26
4911 1/W VDS BIOPHONE CITY PANEL 35
4920 1/W DUOX CITY AUDIO KIT 31
4921 2/W DUOX CITY AUDIO KIT 31
4925 1/W VDS BIOPHONE KIT 35
4926 1/W VDS COLOUR BIOVISION KIT 26
4950 1/W VDS ILOFT VIDEO KIT 22
4954 1/W VDS ILOFT SURFACE VIDEO KIT 22
4961 1/W VDS COLOUR CITY VIDEO KIT 21
4982 1/W VDS MEMOPHONE KIT 35
4984 1/W VDS COLOUR MEMOVISION KIT 26
5061 1/W VDS 3.5” SMILE KIT 23
5062 2/W VDS 3.5” SMILE KIT 23
5071 1/W VDS 7” SMILE KIT 24
5072 2/W VDS 7” SMILE KIT 24
5431 1/W 4+N MARINE AUDIO KIT 30
5432 1/W VDS COLOUR MARINE VIDEO KIT 21
5433 1/W MARINE AUDIO PANEL. 30
5465 VDS DIGITAL AUDIO MARINE PANEL 62,97
5467 MDS DIGITAL AUDIO MARINE PANEL ST3 62,106
5468 VDS DIGITAL VIDEO MARINE PANEL ST3 62,97
5470 MDS DIGITAL VIDEO MARINE PANEL ST3 62,106
5472 MARINE PROXIMITY READER 62,106,127
132,133
5473 MARINE BLUETOOTH READER 62,129
5478 MDS DIG. AUDIO MARINE PANEL W/PROX ST4 63,106
5479 VDS DIGITAL AUDIO MARINE PANEL W/PROX. ST4 63,97
5480 MDS DIG. VIDEO MARINE PANEL W/PROX ST4 63,106
5481 VDS DIGITAL VIDEO MARINE PANEL W/PROX. ST4 63,97
5482 MARINE FINGERPRINT READER 62,107,
128,133
5483 DUOX DIGITAL VIDEO MARINE PANEL ST3 62,92
5484 1/W MARINE LYNX PANEL ST1 118
REF. DESCRIPTION PAGE
5485 LYNX DIGITAL VIDEO MARINE PANEL ST3 62,118
5486 LYNX DIG. VIDEO MARINE PANEL W/PROX 63,118
5488 SIP MARINE PANEL 123
5505 MDS DIGITAL VIDEO MARINE PANEL W/PAC ST4 63,106
5506 VDS DIGITAL AUDIO MARINE PANEL W/PAX. ST4 63,97
5507 MDS DIGITAL AUDIO MARINE PANEL W/PAC ST4 63,106
5508 VDS DIGITAL VIDEO MARINE PANEL W/PAX. ST4 63,97
5523 DUOX DIGITAL AUDIO MARINE PANEL ST3 62,92
5601 VDS ILOFT TELEPHONE 22,32,101
5602 DUOX ILOFT MONITOR 94
5603 DUOX ILOFT PURE MONITOR 94
5614 VDS ILOFT SURFACE MONITOR 22,101
5620 VDS ILOFT MONITOR 22,101
5630 ILOFT FLUSH BOX. 108X158X45 94,101
5631 CRYSTAL DECORATIVE FRAME 81,94,101
5632 ACCESSORIES FOR PLASTRBOARD 101
5633 SILVER ILOFT COVER 81,101
5634 BLACK ILOFT COVER 81,101
5635 GOLD ILOFT COVER 81,101
5641 ILOFT DOMINIUM SURFACE MONITOR 29
5918 DECODER-PANEL-FXL CENTRAL UNIT BUS CABLE 111
5919 VIDEO BUS CABLE (1MTR) 103,111
5922 TELEPHONE CONNECTION CABLE 111
5925 DUOX PARALLEL CABLE 2X1 RED/BLACK 95
6201 1/W 4+N CITYMAX AUDIO KIT 33,38
6202 2/W 4 N CITYMAX AUDIO KIT 33,38
6203 3/W CITYMAX AUDIO KIT 38
6204 4/W CITYMAX AUDIO KIT 38
6206 6/W CITYMAX AUDIO KIT 38
6208 8/W CITYMAX AUDIO KIT 38
6210 10/W CITYMAX AUDIO KIT 38
6212 12/W CITYMAX AUDIO KIT 38
6214 14/W CITYMAX AUDIO KIT 39
6216 16/W CITYMAX AUDIO KIT 39
6218 18/W CITYMAX AUDIO KIT 39
6220 20/W CITYMAX AUDIO KIT 39
6222 22/W CITYMAX AUDIO KIT 39
6224 24/W CITYMAX AUDIO KIT 39
6545 3,5" VDS SMILE MONITOR 23, 100
6546 3,5” SMILE FLUSH BOX 23,77,100
6547 3,5” SMILE DECORATIVE FRAME 23,77,100
6548 SMILE MONITOR CONNECTOR 23,24,100
6550 7" VDS SMILE MONITOR 24, 100
6551 7" SMILE FLUSH BOX 24,77,100
6552 7” SMILE DECORATIVE FRAME 24,77,100
6555 7” VDS SMILE MONITOR ABSOLUTE WHITE 100
6556 7” VDS SMILE MONITOR SILVER 100
6557 7” VDS SMILE MONITOR BLACK 100
6558 3.5” VDS SMILE MONITOR ABSOLUTE WHITE 100
6559 SMILE 7” SILVER 77, 100
6560 SMILE 7” BLACK 77, 100
6750 UNIVERSAL ELECTRIC STRIKE 990N 10-24V MAX 69,93,100,118
6752 UNIVERSAL ELECTRIC STRIKE 990A 10-24V MAX 93, 100
6753 UNIVERSAL ELECTRIC STRIKE 990AD 10-24V MAX 69
2015 GENERAL CATALOGUE 153
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
6780 UNIVERSAL ELECTRIC STRIKE 990N-512 MAX 69
6935 CITYLINE FINGERPRINT READER 107,128,133
6936 FINGERPRINT READER W 50,91,98,1
17,128,133
6937 CITYLINE KEYPAD/FINGERPRINT READER 128,133
6945 BRAILLE SINGLE PUSHB. LABEL 1-76 48
6946 BRAILLE DOUBLE PUSHB. LABEL 1-76 48
6991 CITYLINE MEMOKEY READER 126
6992 CITY PROXIMITY READER 106,127,
132,133
6993 CITYLINE BLUETOOTH READER 128
6994 CITY AC KEYPAD 106,132
6995 CITY PROXIMITY/KEYPAD READER 132,133
7061 SURFACE BOX S1-1V. 130X128X33 21-25,30-32,
47,98,123
7062 SURFACE BOX S2-2V. 130X151X33 47,98
7064 SURFACE BOX S4-3V. 130X199X33 47,98
7065 SURFACE BOX S5-4V. 130X246X33 47,98
7066 SURFACE BOX S6-5V. 130X294X33 47,98
7067 SURFACE BOX S7-6V. 130X341X33 47,98
7068 SURFACE BOX S8-7V. 130X389X33 47,98
7069 SURFACE BOX S9-8V. 130X436,5X33 47,98
7332 SKYLINE FRAME 2V - S2. 130X151MM 46,91,
98,117
7333 SKYLINE FRAME 3V - S4. 130X199MM 46,51,91,
98,117
7334 SKYLINE FRAME 4V - S5. 130X246MM 46,51,91,
98,117
7335 SKYLINE FRAME 5V - S6. 130X294MM 46,51,91,
98,117
7336 SKYLINE FRAME 6V - S7. 130X341MM 46,51,91,
98,105,117
7337 SKYLINE FRAME 7V - S8. 130X389MM 46,51,91,
98,105,117
7338 SKYLINE FRAME 8V - S9. 130X436,5MM 46,51,91,
98,105,117
7341 SKYLINE FRAME 1V - S1. 130X128MM 46,91,98
7356 1/W VDS ONETOONE CITY PANEL 35
7357 1/W COLOUR VDS ONETOONE CITY PANEL 26
7365 SKYLINE 4 PUSH. 104 ANALOGUE MODULE W 48
7366 SKYLINE 2 PUSH. 102 ANALOGUE MODULE V 48
7367 SKYLINE 4 PUSH. 104 VDS MODULE W 48,91,98,117
7368 SKYLINE 2 PUSH. 102 VDS MODULE V 48,91,98,117
7369 8 PUSH. 204 ANALOGUE MODULE W 48
7370 SKYLINE 4 PUSH. 202 ANALOGUE MODULE V 48
7371 SKYLINE 8 PUSH. 204 VDS MODULE W 48,51,91,117
7372 SKYLINE 4 PUSH. 202 VDS MODULE V 48,51,91,
98,117
7373 SKYLINE 1 PUSH. 101 ANALOGUE MODULE V 48
7374 SKYLINE 2 PUSH. 201 ANALOGUE MODULE V 48
7375 SKYLINE 1 PUSH. 101 VDS MODULE V 48,91,98,117
7376 SKYLINE 2 PUSH. 201 VDS MODULE V 48,51,91,
98,117
7390 DUOX AUDIO SKYLINE MODULE W 48,91
7391 DUOX VIDEO MODULE W 48,91
7400 SKYLINE ANALOGUE AUDIO MODULE W 48,105
7406 SKYLINE ANALOGUE COLOUR VIDEO MODULE W 48,105
7415 SKYLINE VDS AUDIO MODULE W 48,98
REF. DESCRIPTION PAGE
7421 SKYLINE VDS COLOUR VIDEO MODULE W 48,51,98
7438 SKYLINE MEMOKEY W 50,91,98,
117,126
7439 DUOX/VDS/BUS2/MDS DIRECT KEYPAD W 49,91,98
7440 SKYLINE PROXIMITY READER V 15,50,91,
98,117,127,
132,133
7441 SKYLINE BLUETOOTH READER V 50,91,98,
105,129
7442 SKYLINE METALLIC COMPLEMENT V 49,51,91,
98,117
7443 SKYLINE METALLIC COMPLEMENT W 49,91,
98,117
7444 SKYLINE CARDHOLDER V 49,91,98,
105,117
7445 SKYLINE CARDHOLDER W 49,91,98,117
7447 DUOX/VDS/BUS2/MDS DIGITAL KEYPAD W 49,51,91
,98,105
7448 SKYLINE ONE-TO-ONE MODULE V 49,91,98,105
7449 SKYLINE DUOX/VDS/BUS2 DIGITAL DISPLAY W 49,51,91,98
7451 MDS DIGITAL DISPLAY MODULE W 49,105
7453 AC KEYPAD W 50,132
7457 SKYLINE LYNX/AC DIRECT KEYPAD W 49,50,
117,132
7460 MDS DIGITISER V 49
7770 YSX-TYPE SHORT SHIELD STA.STEEL. 71
7771 YGX-TYPE LARGE SHIELD STA.STEEL. 71
7776 DOOR CONTACT 2CN BLACK 71
7900 COMPATIBLE SINGLE CHANNEL RECEIVER 129
7903 RF RECEIVER FOR STORE 129
7952 MONOCHANNEL RECEIVER 433 MHZ 129
7960 SECURITY RF RECEIVER 129
8084 PALACE CITYMAX TELEPHONE 113
8251 CITY DECORATIVE FRAME S1. 225X310 47,123
8252 CITY DECORATIVE FRAME S2. 225X310 47
8254 CITY DECORATIVE FRAME S4. 225X375 47
8255 CITY DECORATIVE FRAME S5. 225X375 47
8256 CITY DECORATIVE FRAME S6. 225X450 47
8257 CITY DECORATIVE FRAME S7. 225X450 47
8258 CITY DECORATIVE FRAME S8. 225X450 47
8259 CITY DECORATIVE FRAME S9. 225X495 47
8300 1/W CITY CLASSIC KIT PANEL 33,38
8301 2/W CITY CLASSIC KIT PANEL 38
8302 3/W CITY CLASSIC KIT PANEL 38
8303 4/W CITY CLASSIC KIT PANEL 38
8304 6/W CITY CLASSIC KIT PANEL 38
8305 8/W CITY CLASSIC KIT PANEL 38
8320 10/W CITY CLASSIC KIT PANEL 38
8321 12/W CITY CLASSIC KIT PANEL 38
8378 CITY SINGLE ANGLE BOX S1 47,123
8379 CITY SINGLE ANGLE BOX S2 47
8381 CITY CITY ANGULAR COMPLEMENT (S4-3V) 47
8382 CITY ANGULAR COMPLEMENT (S5-4V) 47
8383 CITY ANGULAR COMPLEMENT (S6-5V) 47
8384 CITY ANGULAR COMPLEMENT (S7-6V) 47
8385 CITY ANGULAR COMPLEMENT (S8-7V) 47
8386 CITY CITY ANGULAR COMPLEMENT (S9-8V) 47
154 2015 GENERAL CATALOGUE
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
8400 CITY SINGLE HOOD (S1-1V). 135X130 21-25,30-33,
47,123
8401 CITY SINGLE HOOD (S2-2V). 135X155 47
8403 CITY SINGLE HOOD (S4-3V). 135X203 47
8404 CITY SINGLE HOOD (S5-4V). 135X250 47
8405 CITY SINGLE HOOD (S6-5V). 135X300 47
8406 CITY SINGLE HOOD (S7-6V). 135X345 47
8407 CITY SINGLE HOOD (S8-7V). 135X393 47
8480 CITY SINGLE HOOD (S9-8V). 135X440,5 47
8819 1/W AUTOMATIC SWITCHER 30,33
8829 JOINING BOLTS SET 46,51,123
8851 CITY FLUSH BOX (S1-1V). 115X114X45 21-25,30-
33,47,
91,98,117,123
8852 CITY FLUSH BOX (S2-2V). 115X138X45 47,91,98,117
8854 CITY FLUSH BOX (S4-3V). 115X185X45 47,51,91
98,117
8855 CITY FLUSH BOX (S5-4V). 115X233X45 47,51,91
98,117
8856 CITY FLUSH BOX (S6-5V). 115X280X45 47,51,91
98,117
8857 CITY FLUSH BOX (S7-6V). 115X328X45 47,51,91,98
105,117
8858 CITY FLUSH BOX (S8-7V). 115X375X45 47,51,91,98
105,117
8951 SURFACE BOX S1.130X128X33. 33
8982 CITY FLUSH BOX (S9-8V). 115X420,5X45 47,51,91
98,105,117
9017 MULTIWAY SWITCHER 113
9191 MODULAR DECORATIVE FRAME (S1) 21-25,30-33
47,123
9192 MODULAR DECORATIVE FRAME (S2) 47
9194 MODULAR DECORATIVE FRAME (S4) 47
9195 MODULAR DECORATIVE FRAME (S5) 47
9196 MODULAR DECORATIVE FRAME (S6) 47
9197 MODULAR DECORATIVE FRAME (S7) 47
9198 MODULAR DECORATIVE FRAME (S8) 47
9199 MODULAR DECORATIVE FRAME (S9) 47
9845 ILOFT COMFORT HOME KIT 29
9846 ILOFT EFFICIENCY PLUS HOME KIT 29
9847 ILOFT EFFICIENCY HOME KIT 29
9850 2 INP/ 2 OUT DIGITAL MODULE 29
9852 2 INPUTS DIGITAL MODULE 29
9853 POWER METER 3C 29
9854 DETECTION CENTRAL W/NOTICES & TELEP. CON 29
9865 FLOODING SENSOR 29
9867 INFRARED MOVEMENT SENSOR 29
9868 TEMPERATURE SENSOR FOR CONT. THROUGH 29
9890 NTC TEMPERATURE SENSOR FOR CO. THROUGH 29
23361 PROXIMITY CARD W/O MAGNETIC BAND 50,106
127,133
24651 DIGITAL RF REMOTE CONTROL 107,129
24661 USB TO RS-485 PC ADAPTOR 108,110
127,131
28341 LOCK RELEASE 540ND-S MAX 69
29001 TIMER 95,102
30503 SWING ELECTROMAGNETIC LOCK M540 (750KG) 71
REF. DESCRIPTION PAGE
30701 LOCK RELEASE 540N-412-S MAX 69,93
99,118
30711 LOCK RELEASE 540N-S MAX 69,93,99
48455 1/W AUDIO VIDEO CITY KIT PANEL 32
48465 2/W AUDIO VIDEO CITY KIT PANEL 32
48505 1/W COLOUR VDS VIDEO CITY KIT PANEL 21,22,23,24
48515 2/W COLOUR VDS VIDEO CITY KIT PANEL 21,23,24
49627 2/W VDS COLOUR CITY VIDEO KIT 21
49638 3/W DUOX VIDEO KIT 27
49648 4/W DUOX VIDEO KIT 27
49658 5/W DUOX VIDEO KIT 27
49668 6/W DUOX VIDEO KIT 27
49688 8/W DUOX VIDEO KIT 28
49718 10/W DUOX VIDEO KIT 28
49728 12/W DUOX VIDEO KIT 28
49738 14/W DUOX VIDEO KIT 28
49748 16/W DUOX VIDEO KIT 28
49758 18/W DUOX VIDEO KIT 28
49768 20/W DUOX VIDEO KIT 28
49778 22/W DUOX VIDEO KIT 28
49788 24/W DUOX VIDEO KIT 28
54331 1/W MARINE 4+N AUDIO PANEL 30
54337 1/W MARINE VDS VIDEO PANEL 21
64551 LOCK RELEASE 540ABD-S MAX12 VAC 69
64651 LOCK RELEASE 540ABD -412-S MAX 12 VDC 69
64721 LOCK RELEASE 540A-424-S MAX 24VDC 69
64801 LOCK RELEASE 540N-512-S MAX 12 VDC 69
67500 MECHANISM 990N CTC 10-24VAC/DC 69
67501 UNIVERSAL L.RELEASE 990N-P22 10-24V MAX 69
67511 UNIVERSAL L.RELEASE 990ND-P22 10-24V MAX 69
67521 UNIVERSAL LOCK RELEASE 990A-P22 10-24V MAX 69
67531 UNIVERSAL L.RELEASE 990AD-P22 10-24V MAX 69
67532 UNIVERSAL L.RELEASE 990AD-L22 10-24V MAX 69
67800 MECHANISM 990N-512 CTC 12VDC 69
70004 2/W DUOX CITY PANEL 31
70008 1CP201 DUOX CITY PANEL 27
70038 4CP203 DUOX CITY PANEL 27
70048 4CP204 DUOX CITY PANEL 28
70128 5CP205 DUOX CITY PANEL 28
70138 5CP206 DUOX CITY PANEL 28
70228 6CP207 DUOX CITY PANEL 28
70238 6CP208 DUOX CITY PANEL 28
70328 7CP209 DUOX CITY PANEL 28
70338 7CP210 DUOX CITY PANEL 28
70704 1/W DUOX CITY PANEL 31
70708 1CP101 DUOX CITY PANEL 27
70738 4CP103 DUOX CITY PANEL 27
70748 4CP104 DUOX CITY PANEL 27
70828 5CP105 DUOX CITY PANEL 27
71148 8CP211 DUOX CITY PANEL 27
71158 8CP212 DUOX CITY PANEL 27
79561 TRINARY TRANSMITTER. 433MHZ 129
80447 4+N CITYMAX BASIC TELEPHONE 34,113
88101 DOUBLE CONTACT RELAY. 18VDC 102
2015 GENERAL CATALOGUE 155
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
88231 POWER SUPPLY/VOLTAGE DISTRIBUTOR 36
ACMPR AC PLUS MICROPROX READER 132
ACMPVR AC PLUS MICROPROX VR READER 132
SLV15X_4 15PB + PROX DUOX 59
SSLA01_1 ST1 1W 4+N AUDIO MARINE PANEL 53
SSLA01_3 ST1 1W VDS AUDIO MARINE PANEL 53
SSLA01_4 ST1 1W DUOX AUDIO MARINE PANEL 53
SSLA01N_1 ST3 1W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA01N_3 ST3 1W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA01N_4 ST3 1W DUOX AUDIO MARINE PANEL W/ KEYPAD 54
SSLA01P_1 ST2 1W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA01P_3 ST2 1W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA01P_4 ST2 1W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA01X_1 ST2 1W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA01X_3 ST2 1W VDS AUDIO MARINE PANEL WI/PROX. 55
SSLA01X_4 ST2 1W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA02_1 ST1 2W 4+N AUDIO MARINE PANEL 53
SSLA02_3 ST1 2W VDS AUDIO MARINE PANEL 53
SSLA02_4 ST1 2W DUOX AUDIO MARINE PANEL 53
SSLA02N_1 ST3 2W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA02N_3 ST3 2W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA02N_4 ST3 2W DUOX AUDIO MARINE PANEL W/ KEYPAD 54
SSLA02P_1 ST2 2W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA02P_3 ST2 2W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA02P_4 ST2 2W DUOX AUDIO MARINE PANEL W/PAXTON 56
SSLA02X_1 ST2 2W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA02X_3 ST2 2W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA02X_4 ST2 2W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA03_1 ST1 3W 4+N AUDIO MARINE PANEL 53
SSLA03_3 ST1 3W VDS AUDIO MARINE PANEL 53
SSLA03_4 ST1 3W DUOX AUDIO MARINE PANEL 53
SSLA03N_1 ST3 3W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA03N_3 ST3 3W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA03N_4 ST3 3W DUOX AUDIO MARINE PANEL W/ KEYPAD 54
SSLA03P_1 ST2 3W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA03P_3 ST2 3W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA03P_4 ST2 3W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA03X_1 ST2 3W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA03X_3 ST2 3W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA03X_4 ST2 3W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA04_1 ST2 4W 4+N AUDIO MARINE PANEL 53
SSLA04_3 ST2 4W VDS AUDIO MARINE PANEL 53
SSLA04_4 ST2 4W DUOX AUDIO MARINE PANEL 53
SSLA04N_1 ST3 4W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA04N_3 ST3 4W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA04N_4 ST3 4W DUOX AUDIO MARINE PANEL WI/KEYPAD 54
SSLA04P_1 ST3 4W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA04P_3 ST3 4W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA04P_4 ST3 4W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA04X_1 ST3 4W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA04X_3 ST3 4W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA04X_4 ST3 4W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA05_1 ST2 5W 4+N AUDIO MARINE PANEL 53
SSLA05_3 ST2 5W VDS AUDIO MARINE PANEL 53
REF. DESCRIPTION PAGE
SSLA05_4 ST2 5W DUOX AUDIO MARINE PANEL 53
SSLA05N_1 ST3 5W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA05N_3 ST3 5W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA05N_4 ST3 5W DUOX AUDIO MARINE PANEL W/ KEYPAD 54
SSLA05P_1 ST3 5W 4+N AUDIO MARINE PANEL W/ PAXTON 56
SSLA05P_3 ST3 5W VDS AUDIO MARINE PANEL W/ PAXTON 56
SSLA05P_4 ST3 5W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA05X_1 ST3 5W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA05X_3 ST3 5W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA05X_4 ST3 5W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA06_1 ST2 6W 4+N AUDIO MARINE PANEL 53
SSLA06_3 ST2 6W VDS AUDIO MARINE PANEL 53
SSLA06_4 ST2 6W DUOX AUDIO MARINE PANEL 53
SSLA06N_1 ST3 6W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA06N_3 ST3 6W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA06N_4 ST3 6W DUOX AUDIO MARINE PANEL W/KEYPAD 54
SSLA06P_1 ST3 6W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA06P_3 ST3 6W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA06P_4 ST3 6W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA06X_1 ST3 6W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA06X_3 ST3 6W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA06X_4 ST3 6W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA07_1 ST2 7W 4+N AUDIO MARINE PANEL 53
SSLA07_3 ST2 7W VDS AUDIO MARINE PANEL 53
SSLA07_4 ST2 7W DUOX AUDIO MARINE PANEL 53
SSLA07N_1 ST3 7W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA07N_3 ST3 7W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA07N_4 ST3 7W DUOX AUDIO MARINE PANEL W/ KEYPAD 54
SSLA07P_1 ST3 7W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA07P_3 ST3 7W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA07P_4 ST3 7W DUOX AUDIO MARINE PANEL W/PAXTON 56
SSLA07X_1 ST3 7W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA07X_3 ST3 7W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA07X_4 ST3 7W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA08_1 ST2 8W 4+N AUDIO MARINE PANEL 53
SSLA08_3 ST2 8W VDS AUDIO MARINE PANEL 53
SSLA08_4 ST2 8W DUOX AUDIO MARINE PANEL 53
SSLA08N_1 ST3 8W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA08N_3 ST3 8W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA08N_4 ST3 8W DUOX AUDIO MARINE PANEL W/ KEYPAD 54
SSLA08P_1 ST3 8W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA08P_3 ST3 8W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA08P_4 ST3 8W DUOX AUDIO MARINE PANEL W/PAXTON 56
SSLA08X_1 ST3 8W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA08X_3 ST3 8W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA08X_4 ST3 8W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA09_1 ST2 9W 4+N AUDIO MARINE PANEL 53
SSLA09_3 ST2 9W VDS AUDIO MARINE PANEL 53
SSLA09_4 ST2 9W DUOX AUDIO MARINE PANEL 53
SSLA09N_1 ST3 9W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA09N_3 ST3 9W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA09N_4 ST3 9W DUOX AUDIO MARINE PANEL W/KEYPAD 54
SSLA09P_1 ST3 9W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA09P_3 ST3 9W VDS AUDIO MARINE PANEL W/PAXTON 56
156 2015 GENERAL CATALOGUE
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
SSLA09P_4 ST3 9W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA09X_1 ST3 9W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA09X_3 ST3 9W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA09X_4 ST3 9W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA10_1 ST3 10W 4+N AUDIO MARINE PANEL 53
SSLA10_3 ST3 10W VDS AUDIO MARINE PANEL 53
SSLA10_4 ST3 10W DUOX AUDIO MARINE PANEL 53
SSLA10N_1 ST4 10W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA10N_3 ST4 10W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA10N_4 ST4 10W DUOX AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA10P_1 ST3 10W 4+N AUDIO MARINE PANEL W/AXTON 56
SSLA10P_3 ST3 10W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA10P_4 ST3 10W DUOX AUDIO MARINE PANEL W/PAXTON 56
SSLA10X_1 ST3 10W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA10X_3 ST3 10W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA10X_4 ST3 10W DUOX AUDIO MARINE PANEL W/PROX. 55
SSLA11_1 ST3 11W 4+N AUDIO MARINE PANEL 53
SSLA11_3 ST3 11W VDS AUDIO MARINE PANEL 53
SSLA11_4 ST3 11W DUOX AUDIO MARINE PANEL 53
SSLA11N_1 ST4 11W 4+N AUDIO MARINE PANEL W/KEYPAD 54
SSLA11N_3 ST4 11W VDS AUDIO MARINE PANEL W/KEYPAD 54
SSLA11N_4 ST4 11W DUOX AUDIO MARINE PANEL W/ KEYPAD 54
SSLA11P_1 ST3 11W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA11P_3 ST3 11W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA11P_4 ST3 11W DUOX AUDIO MARINE PANEL W/PAXTON 56
SSLA11X_1 ST3 11W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA11X_3 ST3 11W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA11X_4 ST3 11W DUOX AUDIO MARINE PANEL W/ PROX. 55
SSLA12_1 ST3 12W 4+N AUDIO MARINE PANEL 53
SSLA12_3 ST3 12W VDS AUDIO MARINE PANEL 53
SSLA12_4 ST3 12W DUOX AUDIO MARINE PANEL 53
SSLA12N_1 ST4 12W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA12N_3 ST4 12W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA12N_4 ST4 12W DUOX AUDIO MARINE PANEL W/ KEYPAD 54,58
SSLA12P_1 ST3 12W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA12P_3 ST3 12W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA12P_4 ST3 12W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA12X_1 ST3 12W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA12X_3 ST3 12W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA12X_4 ST3 12W DUOX AUDIO MARINE PANEL W/ PROX. 55
SSLA13_1 ST3 13W 4+N AUDIO MARINE PANEL 53
SSLA13_3 ST3 13W VDS AUDIO MARINE PANEL 53
SSLA13_4 ST3 13W DUOX AUDIO MARINE PANEL 53
SSLA13N_1 ST4 13W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA13N_3 ST4 13W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA13N_4 ST4 13W DUOX AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA13P_1 ST3 13W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA13P_3 ST3 13W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA13P_4 ST3 13W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA13X_1 ST3 13W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA13X_3 ST3 13W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA13X_4 ST3 13W DUOX AUDIO MARINE PANEL W/ PROX. 55
SSLA14_1 ST3 14W 4+N AUDIO MARINE PANEL 53
SSLA14_3 ST3 14W VDS AUDIO MARINE PANEL 53
REF. DESCRIPTION PAGE
SSLA14_4 ST3 14W DUOX AUDIO MARINE PANEL 53
SSLA14N_1 ST4 14W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA14N_3 ST4 14W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA14N_4 ST4 14W DUOX AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA14P_1 ST3 14W 4+N AUDIO MARINE PANEL W/PAXTON 56
SSLA14P_3 ST3 14W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA14P_4 ST3 14W DUOX AUDIO MARINE PANEL W/ PAXTON 56
SSLA14X_1 ST3 14W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA14X_3 ST3 14W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA14X_4 ST3 14W DUOX AUDIO MARINE PANEL W/ PROX. 55
SSLA15_1 ST3 15W 4+N AUDIO MARINE PANEL 53
SSLA15_3 ST3 15W VDS AUDIO MARINE PANEL 53
SSLA15_4 ST3 15W DUOX AUDIO MARINE PANEL 53
SSLA15N_1 ST4 15W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA15N_3 ST4 15W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA15N_4 ST4 15W DUOX AUDIO MARINE PANEL W/ KEYPAD 54,58
SSLA15P_1 ST3 15W 4+N AUDIO MARINE PANEL W/AXTON 56
SSLA15P_3 ST3 15W VDS AUDIO MARINE PANEL W/PAXTON 56
SSLA15P_4 ST3 15W DUOX AUDIO MARINE PANEL W/PAXTON 56
SSLA15X_1 ST3 15W 4+N AUDIO MARINE PANEL W/PROX. 55
SSLA15X_3 ST3 15W VDS AUDIO MARINE PANEL W/PROX. 55
SSLA15X_4 ST3 15W DUOX AUDIO MARINE PANEL W/ PROX. 55
SSLA16_1 ST3 16W 4+N AUDIO MARINE PANEL 53
SSLA16_3 ST3 16W VDS AUDIO MARINE PANEL 53
SSLA16_4 ST3 16W DUOX AUDIO MARINE PANEL 53
SSLA16N_1 ST4 16W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA16N_3 ST4 16W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA16N_4 ST4 16W DUOX AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA16P_1 ST4 16W 4+N AUDIO MARINE PANEL W/PAXTON 56, 60
SSLA16P_3 ST4 16W VDS AUDIO MARINE PANEL W/PAXTON 56, 60
SSLA16P_4 ST4 16W DUOX AUDIO MARINE PANEL W/PAXTON 56, 60
SSLA16X_1 ST4 16W 4+N AUDIO MARINE PANEL WI/PROX. 55,59
SSLA16X_3 ST4 16W VDS AUDIO MARINE PANEL W/PROX. 55,59
SSLA16X_4 ST4 16W DUOX AUDIO MARINE PANEL W/PROX. 55,59
SSLA17_1 ST3 17W 4+N AUDIO MARINE PANEL 53
SSLA17_3 ST3 17W VDS AUDIO MARINE PANEL 53
SSLA17_4 ST3 17W DUOX AUDIO MARINE PANEL 53
SSLA17N_1 ST4 17W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA17N_3 ST4 17W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA17N_4 ST4 17W DUOX AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA17P_1 ST4 17W 4+N AUDIO MARINE PANEL W/PAXTON 56, 60
SSLA17P_3 ST4 17W VDS AUDIO MARINE PANEL W/PAXTON 56, 60
SSLA17P_4 ST4 17W DUOX AUDIO MARINE PANEL W/ PAXTON 56, 60
SSLA17X_1 ST4 17W 4+N AUDIO MARINE PANEL WI/PROX. 55,59
SSLA17X_3 ST4 17W VDS AUDIO MARINE PANEL W/PROX. 55,59
SSLA17X_4 ST4 17W DUOX AUDIO MARINE PANEL W/PROX. 55,59
SSLA18_1 ST3 18W 4+N AUDIO MARINE PANEL 53
SSLA18_3 ST3 18W VDS AUDIO MARINE PANEL 53
SSLA18_4 ST3 18W DUOX AUDIO MARINE PANEL 53
SSLA18N_1 ST4 18W 4+N AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA18N_3 ST4 18W VDS AUDIO MARINE PANEL W/KEYPAD 54,58
SSLA18N_4 ST4 18W DUOX AUDIO MARINE PANEL W/ KEYPAD 58
SSLA18P_1 ST4 18W 4+N AUDIO MARINE PANEL W/PAXTON 56, 60
SSLA18P_3 ST4 18W VDS AUDIO MARINE PANEL W/PAXTON 56, 60
2015 GENERAL CATALOGUE 157
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
SSLA18P_4 ST4 18W DUOX AUDIO MARINE PANEL W/PAXTON 56, 60
SSLA18X_1 ST4 18W 4+N AUDIO MARINE PANEL W/PROX. 55,59
SSLA18X_3 ST4 18W VDS AUDIO MARINE PANEL W/PROX. 55,59
SSLA18X_4 ST4 18W DUOX AUDIO MARINE PANEL W/PROX. 55,59
SSLQ BESPOKE MARINE PANEL 64
SSLV01_1 ST1 1W 4+N VIDEO MARINE PANEL 57
SSLV01_3 ST1 1W VDS VIDEO MARINE PANEL 57
SSLV01_4 ST1 1W DUOX VIDEO MARINE PANEL 57
SSLV01N_1 ST3 1W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV01N_3 ST3 1W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV01N_4 ST3 1W DUOX VIDEO MARINE PANEL W/ KEYPAD 58
SSLV01P_1 ST2 1W 4+N VIDEO MARINE PANEL WI/PAXTON 60
SSLV01P_3 ST2 1W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV01P_4 ST2 1W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV01X_1 ST2 1W 4+N VIDEO MARINE PANEL WI/PROX. 59
SSLV01X_3 ST2 1W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV01X_4 ST2 1W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV02_1 ST1 2W 4+N VIDEO MARINE PANEL 57
SSLV02_3 ST1 2W VDS VIDEO MARINE PANEL 57
SSLV02_4 ST1 2W DUOX VIDEO MARINE PANEL 57
SSLV02N_1 ST3 2W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV02N_3 ST3 2W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV02N_4 ST3 2W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV02P_1 ST2 2W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV02P_3 ST2 2W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV02P_4 ST2 2W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV02X_1 ST2 2W 4+N VIDEO MARINE PANEL WITH PROX. 59
SSLV02X_3 ST2 2W VDS VIDEO MARINE PANEL WITH PROX. 59
SSLV02X_4 ST2 2W DUOX VIDEO MARINE PANEL WITH PROX. 59
SSLV03_1 ST1 3W 4+N VIDEO MARINE PANEL 57
SSLV03_3 ST1 3W VDS VIDEO MARINE PANEL 57
SSLV03_4 ST1 3W DUOX VIDEO MARINE PANEL 57
SSLV03N_1 ST3 3W 4+N VIDEO MARINE PANEL WITH KEYPAD 58
SSLV03N_3 ST3 3W VDS VIDEO MARINE PANEL WITH KEYPAD 58
SSLV03N_4 ST3 3W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV03P_1 ST2 3W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV03P_3 ST2 3W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV03P_4 ST2 3W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV03X_1 ST2 3W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV03X_3 ST2 3W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV03X_4 ST2 3W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV04_1 ST2 4W 4+N VIDEO MARINE PANEL 57
SSLV04_3 ST2 4W VDS VIDEO MARINE PANEL 57
SSLV04_4 ST2 4W DUOX VIDEO MARINE PANEL 57
SSLV04N_1 ST3 4W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV04N_3 ST3 4W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV04N_4 ST3 4W DUOX VIDEO MARINE PANEL W/ KEYPAD 58
SSLV04P_1 ST3 4W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV04P_3 ST3 4W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV04P_4 ST3 4W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV04X_1 ST3 4W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV04X_3 ST3 4W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV04X_4 ST3 4W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV05_1 ST2 5W 4+N VIDEO MARINE PANEL 57
REF. DESCRIPTION PAGE
SSLV05_3 ST2 5W VDS VIDEO MARINE PANEL 57
SSLV05_4 ST2 5W DUOX VIDEO MARINE PANEL 57
SSLV05N_1 ST3 5W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV05N_3 ST3 5W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV05N_4 ST3 5W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV05P_1 ST3 5W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV05P_3 ST3 5W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV05P_4 ST3 5W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV05X_1 ST3 5W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV05X_3 ST3 5W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV05X_4 ST3 5W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV06_1 ST2 6W 4+N VIDEO MARINE PANEL 57
SSLV06_3 ST2 6W VDS VIDEO MARINE PANEL 57
SSLV06_4 ST2 6W DUOX VIDEO MARINE PANEL 57
SSLV06N_1 ST3 6W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV06N_3 ST3 6W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV06N_4 ST3 6W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV06P_1 ST3 6W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV06P_3 ST3 6W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV06P_4 ST3 6W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV06X_1 ST3 6W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV06X_3 ST3 6W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV06X_4 ST3 6W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV07_1 ST2 7W 4+N VIDEO MARINE PANEL 57
SSLV07_3 ST2 7W VDS VIDEO MARINE PANEL 57
SSLV07_4 ST2 7W DUOX VIDEO MARINE PANEL 57
SSLV07N_1 ST3 7W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV07N_3 ST3 7W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV07N_4 ST3 7W DUOX VIDEO MARINE PANEL W/ KEYPAD 58
SSLV07P_1 ST3 7W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV07P_3 ST3 7W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV07P_4 ST3 7W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV07X_1 ST3 7W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV07X_3 ST3 7W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV07X_4 ST3 7W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV08_1 ST2 8W 4+N VIDEO MARINE PANEL 57
SSLV08_3 ST2 8W VDS VIDEO MARINE PANEL 57
SSLV08_4 ST2 8W DUOX VIDEO MARINE PANEL 57
SSLV08N_1 ST3 8W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV08N_3 ST3 8W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV08N_4 ST3 8W DUOX VIDEO MARINE PANEL W/ KEYPAD 58
SSLV08P_1 ST3 8W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV08P_3 ST3 8W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV08P_4 ST3 8W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV08X_1 ST3 8W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV08X_3 ST3 8W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV08X_4 ST3 8W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV09_1 ST2 9W 4+N VIDEO MARINE PANEL 57
SSLV09_3 ST2 9W VDS VIDEO MARINE PANEL 57
SSLV09_4 ST2 9W DUOX VIDEO MARINE PANEL 57
SSLV09N_1 ST3 9W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV09N_3 ST3 9W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV09N_4 ST3 9W DUOX VIDEO MARINE PANEL W/ KEYPAD 58
SSLV09P_1 ST3 9W 4+N VIDEO MARINE PANEL W/PAXTON 60
158 2015 GENERAL CATALOGUE
REF. DESCRIPTION PAGE
SSLV09P_3 ST3 9W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV09P_4 ST3 9W DUOX VIDEO MARINE PANEL WI/PAXTON 60
SSLV09X_1 ST3 9W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV09X_3 ST3 9W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV09X_4 ST3 9W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV10_1 ST3 10W 4+N VIDEO MARINE PANEL 57
SSLV10_3 ST3 10W VDS VIDEO MARINE PANEL 57
SSLV10_4 ST3 10W DUOX VIDEO MARINE PANEL 57
SSLV10N_1 ST4 10W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV10N_3 ST4 10W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV10N_4 ST4 10W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV10P_1 ST3 10W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV10P_3 ST3 10W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV10P_4 ST3 10W DUOX VIDEO MARINE PANEL W/ PAXTON 60
SSLV10X_1 ST3 10W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV10X_3 ST3 10W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV10X_4 ST3 10W DUOX VIDEO MARINE PANEL W/ PROX. 59
SSLV11_1 ST3 11W 4+N VIDEO MARINE PANEL 57
SSLV11_3 ST3 11W VDS VIDEO MARINE PANEL 57
SSLV11_4 ST3 11W DUOX VIDEO MARINE PANEL 57
SSLV11N_1 ST4 11W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV11N_3 ST4 11W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV11N_4 ST4 11W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV11P_1 ST3 11W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV11P_3 ST3 11W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV11P_4 ST3 11W DUOX VIDEO MARINE PANEL W/ PAXTON 60
SSLV11X_1 ST3 11W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV11X_3 ST3 11W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV11X_4 ST3 11W DUOX VIDEO MARINE PANEL W/ PROX. 59
SSLV12_1 ST3 12W 4+N VIDEO MARINE PANEL 57
SSLV12_3 ST3 12W VDS VIDEO MARINE PANEL 57
SSLV12_4 ST3 12W DUOX VIDEO MARINE PANEL 57
SSLV12N_1 ST4 12W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV12N_3 ST4 12W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV12N_4 ST4 12W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV12P_1 ST3 12W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV12P_3 ST3 12W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV12P_4 ST3 12W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV12X_1 ST3 12W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV12X_3 ST3 12W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV12X_4 ST3 12W DUOX VIDEO MARINE PANEL W/ PROX. 59
SSLV13_1 ST3 13W 4+N VIDEO MARINE PANEL 57
SSLV13_3 ST3 13W VDS VIDEO MARINE PANEL 57
SSLV13_4 ST3 13W DUOX VIDEO MARINE PANEL 57
SSLV13N_1 ST4 13W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV13N_3 ST4 13W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV13N_4 ST4 13W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV13P_1 ST3 13W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV13P_3 ST3 13W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV13P_4 ST3 13W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV13X_1 ST3 13W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV13X_3 ST3 13W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV13X_4 ST3 13W DUOX VIDEO MARINE PANEL W/ PROX. 59
REF. DESCRIPTION PAGE
SSLV14_1 ST3 14W 4+N VIDEO MARINE PANEL 57
SSLV14_3 ST3 14W VDS VIDEO MARINE PANEL 57
SSLV14_4 ST3 14W DUOX VIDEO MARINE PANEL 57
SSLV14N_1 ST4 14W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV14N_3 ST4 14W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV14N_4 ST4 14W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV14P_1 ST3 14W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV14P_3 ST3 14W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV14P_4 ST3 14W DUOX VIDEO MARINE PANEL W/ PAXTON 60
SSLV14X_1 ST3 14W 4+N VIDEO MARINE PANEL WITH PROX. 59
SSLV14X_3 ST3 14W VDS VIDEO MARINE PANEL WITH PROX. 59
SSLV14X_4 ST3 14W DUOX VIDEO MARINE PANEL W/ PROX. 59
SSLV15_1 ST3 15W 4+N VIDEO MARINE PANEL 57
SSLV15_3 ST3 15W VDS VIDEO MARINE PANEL 57
SSLV15_4 ST3 15W DUOX VIDEO MARINE PANEL 57
SSLV15N_1 ST4 15W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV15N_3 ST4 15W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV15N_4 ST4 15W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV15P_1 ST3 15W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV15P_3 ST3 15W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV15P_4 ST3 15W DUOX VIDEO MARINE PANEL W/ PAXTON 60
SSLV15X_1 ST3 15W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV15X_3 ST3 15W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV15X_4 ST3 15W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV16_1 ST3 16W 4+N VIDEO MARINE PANEL 57
SSLV16_3 ST3 16W VDS VIDEO MARINE PANEL 57
SSLV16_4 ST3 16W DUOX VIDEO MARINE PANEL 57
SSLV16N_1 ST4 16W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV16N_3 ST4 16W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV16N_4 ST4 16W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV16P_1 ST4 16W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV16P_3 ST4 16W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV16P_4 ST4 16W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV16X_1 ST4 16W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV16X_3 ST4 16W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV16X_4 ST4 16W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV17_1 ST3 17W 4+N VIDEO MARINE PANEL 57
SSLV17_3 ST3 17W VDS VIDEO MARINE PANEL 57
SSLV17_4 ST3 17W DUOX VIDEO MARINE PANEL 57
SSLV17N_1 ST4 17W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV17N_3 ST4 17W VDS VIDEO MARINE PANEL W/KEYPAD 58
SSLV17N_4 ST4 17W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV17P_1 ST4 17W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV17P_3 ST4 17W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV17P_4 ST4 17W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV17X_1 ST4 17W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV17X_3 ST4 17W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV17X_4 ST4 17W DUOX VIDEO MARINE PANEL W/PROX. 59
SSLV18_1 ST3 18W 4+N VIDEO MARINE PANEL 57
SSLV18_3 ST3 18W VDS VIDEO MARINE PANEL 57
SSLV18_4 ST3 18W DUOX VIDEO MARINE PANEL 57
SSLV18N_1 ST4 18W 4+N VIDEO MARINE PANEL W/KEYPAD 58
SSLV18N_3 ST4 18W VDS VIDEO MARINE PANEL W/KEYPAD 58
INDEX OF REFERENCES
2015 GENERAL CATALOGUE 159
INDEX OF REFERENCES
REF. DESCRIPTION PAGE
SSLV18N_4 ST4 18W DUOX VIDEO MARINE PANEL W/KEYPAD 58
SSLV18P_1 ST4 18W 4+N VIDEO MARINE PANEL W/PAXTON 60
SSLV18P_3 ST4 18W VDS VIDEO MARINE PANEL W/PAXTON 60
SSLV18P_4 ST4 18W DUOX VIDEO MARINE PANEL W/PAXTON 60
SSLV18X_1 ST4 18W 4+N VIDEO MARINE PANEL W/PROX. 59
SSLV18X_3 ST4 18W VDS VIDEO MARINE PANEL W/PROX. 59
SSLV18X_4 ST4 18W DUOX VIDEO MARINE PANEL W/PROX. 59
CONTACT US
OUR OFFICE HOURS ARE:
• Monday to Thursday: 9.00 to 17.30h
• Friday: 9.00 to 17.00h
Bebington Close
Billericay Essex CM12 ODT
01277 634 555
FAX: 01277 634 666
fermax@fermaxuk.com
sales@fermaxuk.com
technical@fermaxuk.com
www.fermax.co.uk
London/South East:
07551154811
Central/South West & Wales:
07801317940
London East:
07713985497
North:
07736364196
SALES AREA
Our customers are professionals with whom we
intend to establish long lasting bonds based on
condence and trust.
Despite having grown into a leading international
company in its eld, Fermax cherishes and
maintains its family roots and values.
Our mission/commitment is to guarantee your
satisfaction.
• Quick deliveries
• Quotations within 24 hours.
• Free technical help line.
• Dynamic and professional telephone assistance to
solve problems.
• Customized diagrams adapted to your installation.
• Excellent post sales service.
• Personalized commercial or technical training
intended for installers and distributors.
• Product presentations and training from our
commercial team.
ALWAYS AT OUR CUSTOMERS SERVICE
GENERAL
These general conditions shall apply to all
contracts entered into by FERMAX UK Ltd. for
the sale of goods and shall extend to any
goods supplied in substitution or in addition to
the contract goods.
No terms, conditions or reservations stipulated
by the Buyer and no course of dealing shall
annul, vary or add to any of these Conditions
except in so far as expressly consented to by
FERMAX UK in writing.
QUOTES
Prices are valid for 30 days from date of
quotation.
ORDERS
Orders bellow £400 net will be subject to a
carriage charge of £10.50.
DELIVERY
1. In the absence of any agreement to the
contrary, the place of delivery shall be that of
the Buyers premises and the risk in the goods
shall pass to the Buyer on receipt of delivery.
2. FERMAX UK will, if the goods are damaged
or lost in transit, at FERMAX UKs option, replace
the damaged or lost goods free of charge or
refund the cost, provided that notication is
received from the Buyer within 7 days in the
case of damage or loss.
3. Every endeavour will be made by the
Company to adhere to the delivery dates
quoted, but such dates are only estimated
and are not guaranteed neither shall they be
a term of condition between the Buyer an the
Company.
4. The Buyer shall be responsible for arranging
insurance on goods collected by their own
carriers.
5. Delay in delivery shall by no means entitle
the Buyer to cancel the order or thereby
render FERMAX UK liable to the Buyer for any
loss or expense arising from the delay unless
otherwise agreed in writing.
OWNERSHIP OF GOODS
The goods shall remain the property of FERMAX
UK until paid for in full by the Buyer.
CANCELLATION
Cancellation of any order or goods or any part
of an order will not be valid after the Buyer has
placed the order unless the cancellation is
accepted by FERMAX UK in writing.
RETURNS
A detailed copy of our returns policy is
available on request. In general; Material
returns are not accepted, except for reasons
directly attributable to FERMAX UK. Goods
intended for return must obtain a returns
number from FERMAX UK prior to their
dispatch; the ‘dispatcher’ shall ensure where
reasonably practical, that the product(s) are
complete and in their original packaging.
• FERMAX UK reserves the right to supply direct
replacements for faulty goods returned within
warranty.
• Credits may be raised at the discretion of
FERMAX UK or where direct replacements are
not available.
• Shortages are to be notied to us within 14
working days.
• Refunds for incorrectly ordered products
may incur a handling charge up to 25%.
PRODUCT WARRANTY
FERMAX guarantees its products against any
manufacturing defects for a period of 2 years
from the date of our original invoice. Products
found to be defective due to incorrect
handling or installation are excluded from
warranty.
PAYMENT
1. Credit customers must settle accounts within
30 days nett of invoice date, unless otherwise
specied by FERMAX UK.
2. There is a minimum charge of £10 made
on each occasion any cheque rendered
for payment is refused and requires
representation.
3. FERMAX UK may charge interest on overdue
accounts at Banco Sabadell S.A base rate
plus 3% per annum from the due date for
payment until the nal date of payment.
CREDIT FACILITY LIMITATION
Where the situation arises that the value of an
order exceeds the funding limit of an account,
alternative methods of payment for the excess
amount will be requested.
LIMITATION ON COMPANY’S LIABILITY
FERMAX UK will pass guarantees as extended
by the manufacturer or manufacturers agent
to the Buyer. FERMAX UK will not be responsible
for any guarantee in excess of these. Technical
information or performance is supplied in
good faith but the onus falls fully on the Buyer
to determine that the equipment is usable for
the application in question, and will work in
conjunction with existing equipment.
JURISDICTION
Any contract entered into by FERMAX UK
shall be governed and constructed under
English Law and the Buyer shall submit to the
jurisdiction of the English Court. Otherwise
agreed in writing.
FERMAX reserves the right to modify these
commercial conditions of sale, as well as the
prices of the Products. The technical and
aesthetic characteristics of the Products
may be modied from time to time. The
graphic representations included are
merely for illustrative purposes. FERMAX ®
is a registered trademark. All intellectual
property and licence rights reserved.
www.fermax.co.uk fermax@fermaxuk.com
PU01211
