ArcSight FlexConnector Developer's Guide Flex Conn Dev Config

User Manual:

Open the PDF directly: View PDF PDF.
Page Count: 242 [warning: Documents this large are best viewed by clicking the View PDF Link!]

HPE SecurityArcSightConnectors
FlexConnector
Developer's Guide
February 15, 2017
Legal Notices
Warranty
The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
The information contained herein is subject to change without notice.
The network information used in the examples in this document (including IP addresses and hostnames) is for illustration
purposes only.
HPE Security ArcSight products are highly flexible and function as you configure them. The accessibility, integrity, and
confidentiality of your data is your responsibility. Implement a comprehensive security strategy and follow good security
practices.
This document is confidential.
Restricted Rights Legend
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use or copying.
Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical
Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.
Copyright Notice
© Copyright 2016, 2017 Hewlett Packard Enterprise Development, LP
Follow this link to see a complete statement of copyrights and acknowledgements:
https://www.protect724.hpe.com/docs/DOC-13026
Support
Phone A list of phone numbers is available on the HPE Security ArcSight Technical Support
Page:
https://softwaresupport.hpe.com/documents/10180/14684/esp-support-
contact-list
Support Web Site https://softwaresupport.hpe.com
Protect 724 Community https://www.protect724.hpe.com
Contact Information
Revision History
Date Description
02/15/2017 lAdded JSON to the list of available extra processors. See "Extra Processors".
lClarified the configuration file names and locations for vulnerabilities, open ports,
and URIs for scanner FlexConnectors for normal text reports. See "Getting
Vulnerabilities for Scanned Hosts", "Getting Open Ports on Scanned Hosts", and
"Getting OS and Applications (URIs) on Scanned Hosts".
11/30/2016 lUpdated installation procedure for setting preferred IP address mode. Updated
FlexConnector information for IPv6-aware parsers.
Developer's Guide
HPE Connectors Page 2 of 242
Date Description
08/30/2016 lReorganized and expanded content for increased usability.
lUpdated the "Configure the JDBC Driver and Windows Authentication” section.
lIn "Advanced Parameters", updated information regarding preservestate
parameters.
06/30/2016 lAdded parameters to “Parameters Common to all SmartConnectors”.
05/16/2016 lUpdates and clarifications in the “Log Rotation Types” section. Added a section on
the unparsed events detection feature: “Unparsed Events Detection”.
lIn "Advanced Parameters", clarified the descriptions of several advanced
parameters.
03/31/2016 lAdded advanced parameters to customize connector behavior as Chapter 5.
lIn "Advanced Parameters", noted that for Syslog connectors, the
persistenceinterval parameter must be a positive integer to enable persistence.
lIn "Advanced Parameters", noted that the rawlogfolder and usefilequeue
parameters cannot be applied to Syslog Pipe/File Connector.
lAdded configuration properties for JSON Folder Follower FlexConnector.
lNoted that only one question mark is supported for time-based database
FlexConnector queries.
lRemoved agents[x].maxfilesize parameter.
02/15/2016 lEnd of life for FlexConnector SNMP (install the SmartConnector for SNMP Unified).
lAdded the new feature to detect and log unparsed events.
lUpdated the time format for __parseMutableTimeStamp function.
lUpdated the wildcard parameter default value to use *.
11/17/2015 lChapter 2: Added _SYSLOG_SOURCE_ADDR for tokens available for syslog parsers.
lChapter 2: Enhanced the JSON Folder Follower information to say there may be
multiple root nodes in each file.
lChapter 3: Added information for time-based and ID-based databases.
lChapter 4: Updated the description for the advanced parameter agents
[x].followexternalrotation.
lAppendix A: Added the __hexStringToIPV6Adress and __stringToIPv6Address
operators. Updated the description for __getIpV6AddressFromHighLow.
Developer's Guide
HPE Connectors Page 3 of 242
Date Description
6/30/2015 lAppendix A: Added a new operation to extract IPv4 addresses from IPv6 formats.
05/15/2015 lRestructured the book appendices to move Frequently Asked Questions appendix
to the end.
lChapter 4: Replaced the Log File and Folder Follower tables in the Advanced
Topics Chapter with updated information.
lChapter 5: Added instructions for !Flags line and edited Map File instructions.
02/16/2015 lChapter 2: Updated event mapping table. (CON-14296)
lChapter 3: Corrected Microsoft SQL Server driver reference. (Protect 724)
lChapter 3: Updated the Database JDBC Driver for ODBC. (CON-14948)
lMarked FlexConnector SNMP as Legacy. (CON-14843)
Developer's Guide
HPE Connectors Page 4 of 242
Contents
What's New in Release 7.4.0 13
IPv6-Aware Parsers 13
Developer Considerations 14
Chapter 1: Overview 15
FlexConnector Development 15
Folder Structure 16
Key Files 16
FlexConnector Management 17
ArcSight Connector Appliance 17
ArcSight Management Center 17
Chapter 2: Choose a FlexConnector Type 19
FlexConnector Types 19
Event Data Format Examples 21
Log File FlexConnector 22
ID-Based Database FlexConnector 22
JSON Folder Follower FlexConnector 22
Multiple Database FlexConnector 23
Regex FlexConnectors (Variable-Format File FlexConnectors) 24
Scanner FlexConnector 24
SNMP FlexConnector 25
Syslog FlexConnector 27
Time-Based Database FlexConnector 27
XML File FlexConnector 28
Chapter 3: Install and Configure the FlexConnector 30
FlexConnector Installation 30
Install Core Software 30
Set Global Parameters (Optional) 31
Select Connector and Add Parameter Information 32

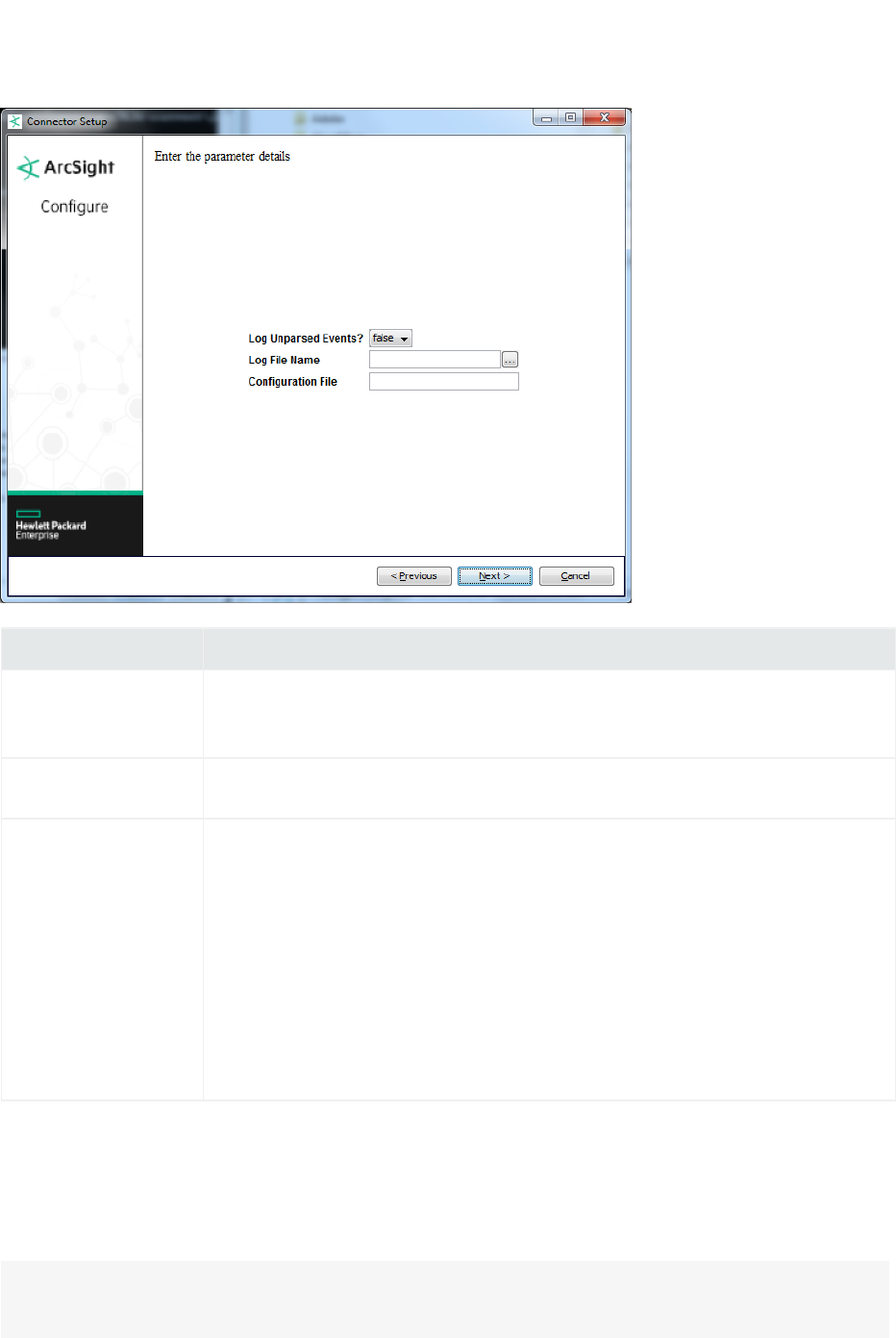

ArcSight FlexConnector File 32

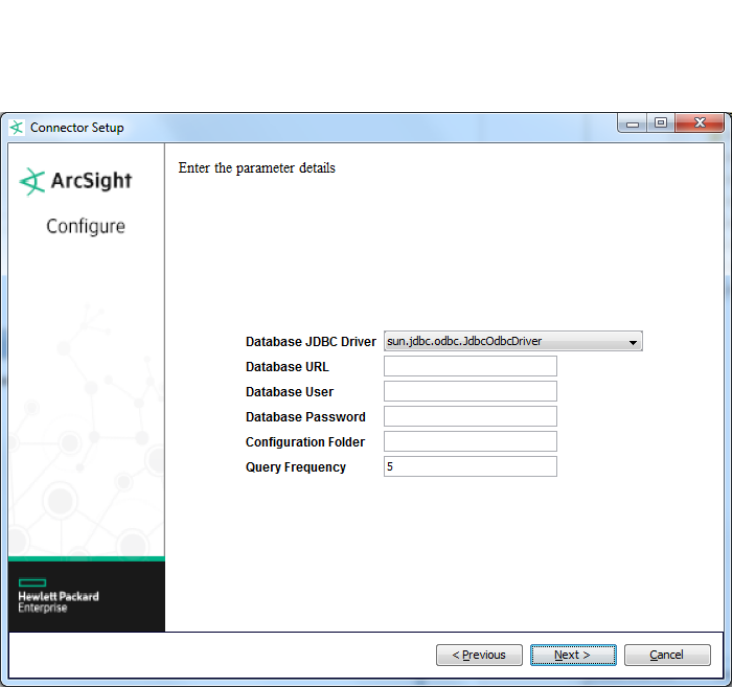

ArcSight FlexConnector ID-Based Database 33
Developer's Guide
HPE Connectors Page 5 of 242

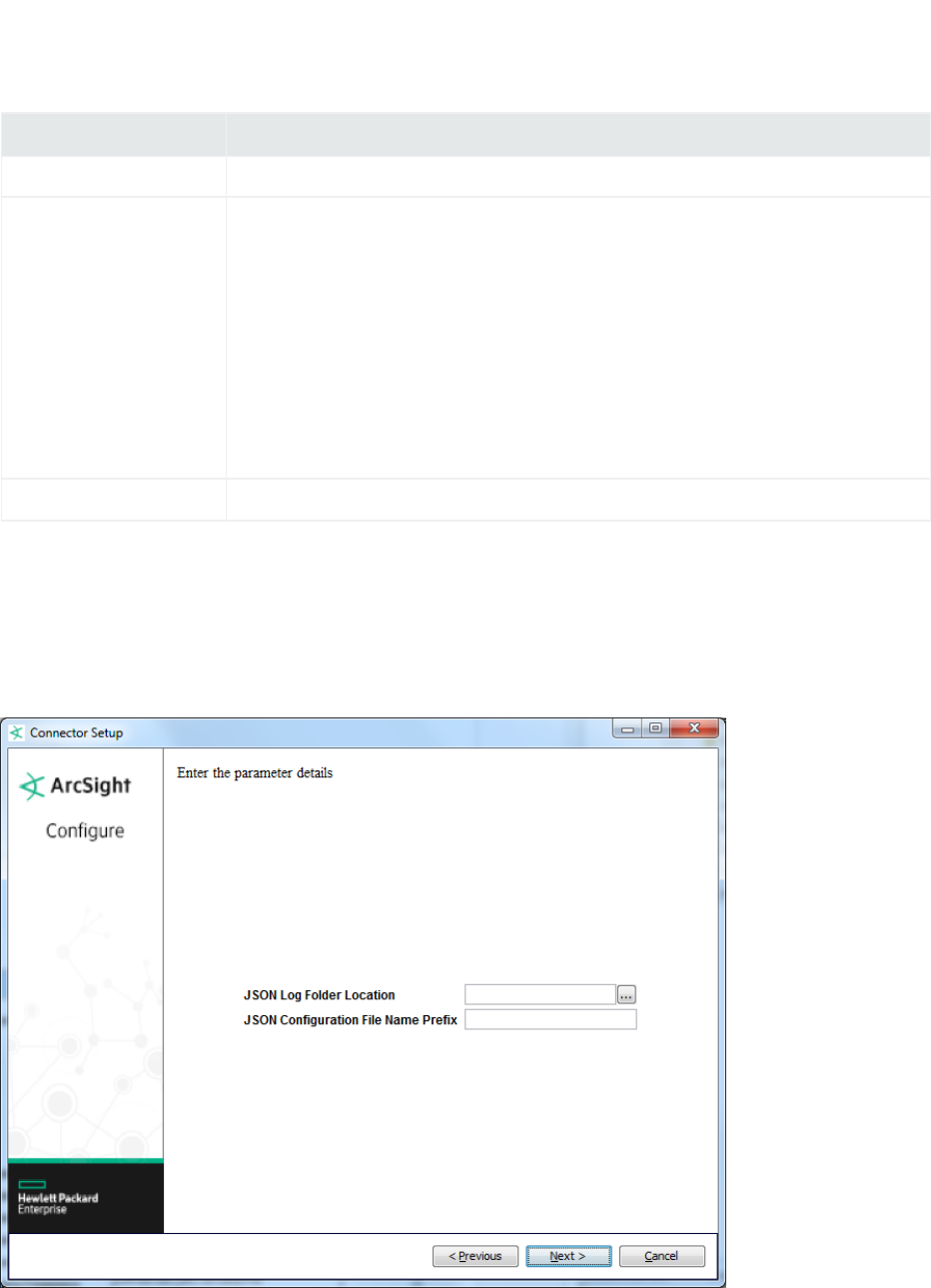

ArcSight FlexConnector JSON Folder Follower 36
ArcSight FlexConnector Multiple Database 37

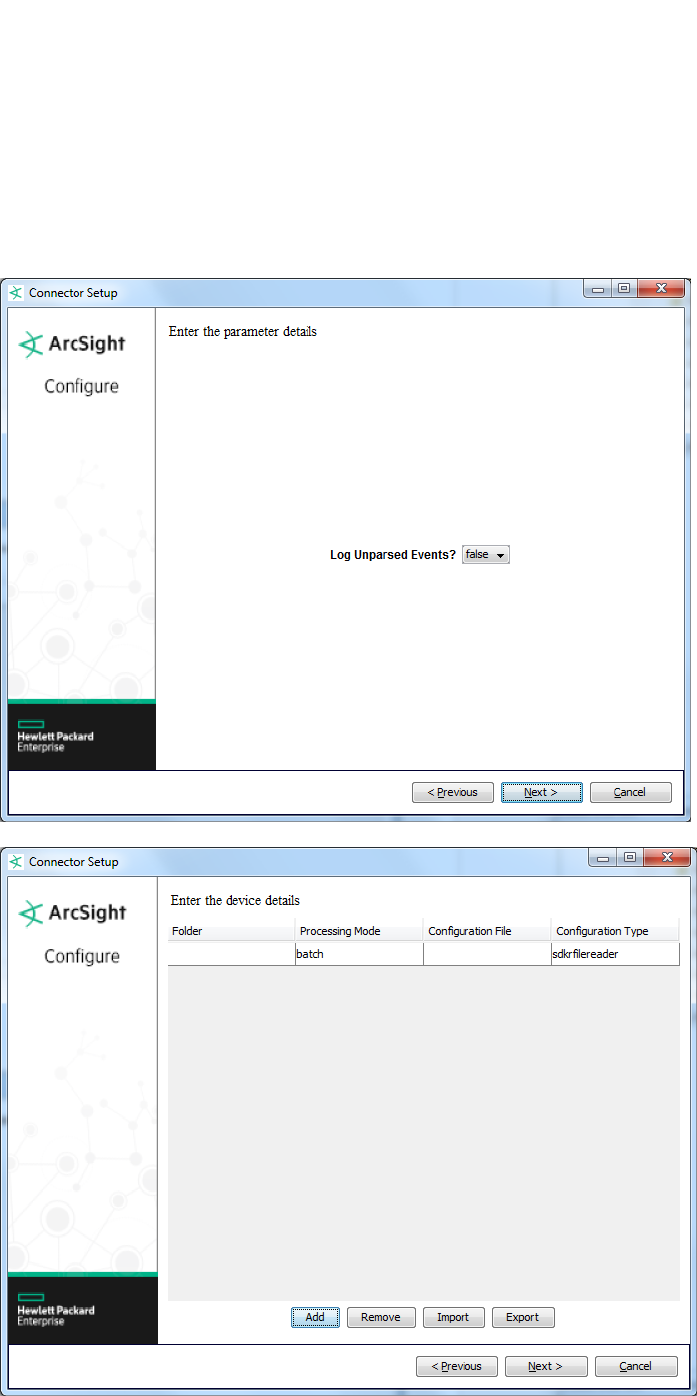

ArcSight FlexConnector Multiple Folder File 40
ArcSight FlexConnector Regex File 41
ArcSight FlexConnector Regex Folder File 42

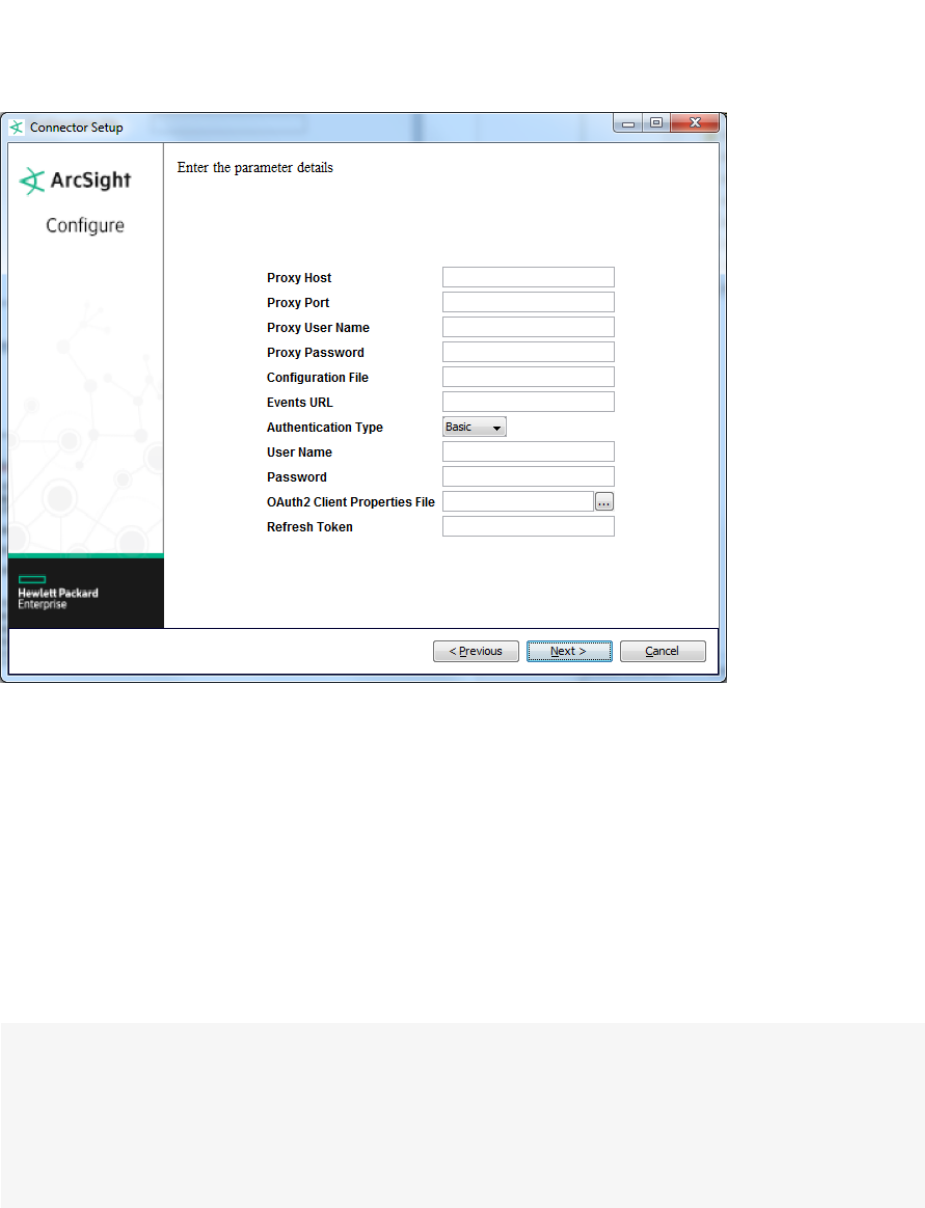

ArcSight FlexConnector REST 43
ArcSight FlexConnector Scanner Database 44
ArcSight FlexConnector Scanner Text Reports 47
ArcSight FlexConnector Scanner XML Reports 49
ArcSight FlexConnector XML File 50

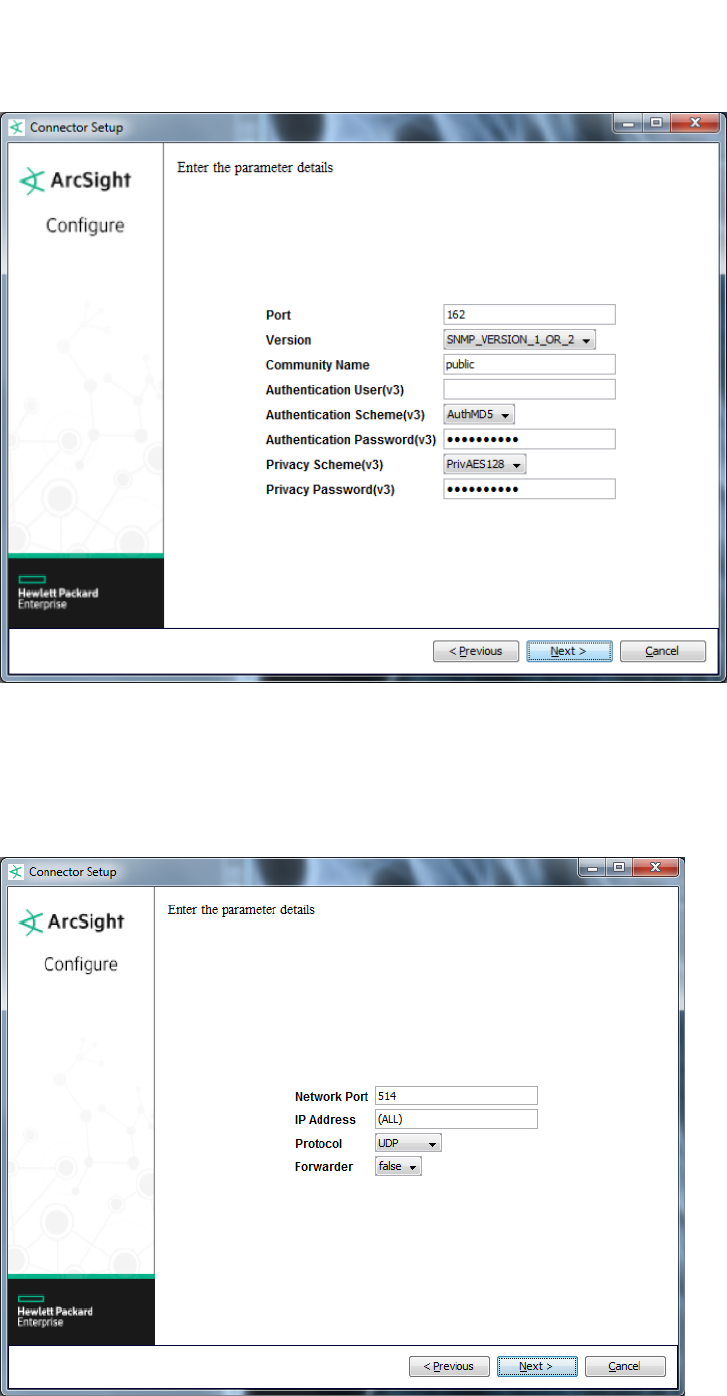

ArcSight FlexConnector Simple Network Management Protocol (SNMP Unified) 51
ArcSight FlexConnector Syslog 52
Select a Destination 53
Complete Installation and Configuration 53
Additional Configuration for Database Connectors 54
Install SQL Server JDBC Driver 54
Install MySQL Driver 56
Add a JDBC Driver to the Connector Appliance/ArcSight Management Center 56
Configure the JDBC Driver and Windows Authentication 57
Oracle 8i Support 58
Troubleshooting Duplicate Events 58
Example 1: ID-based Database Connectors Only 59
Example 2: ID-based and Time-based Connectors 59
Example 3: Complex Main Query with a Join 60
Chapter 4: Create a Configuration File 62
Parser File Locations and Names 62
Example Parser File 63

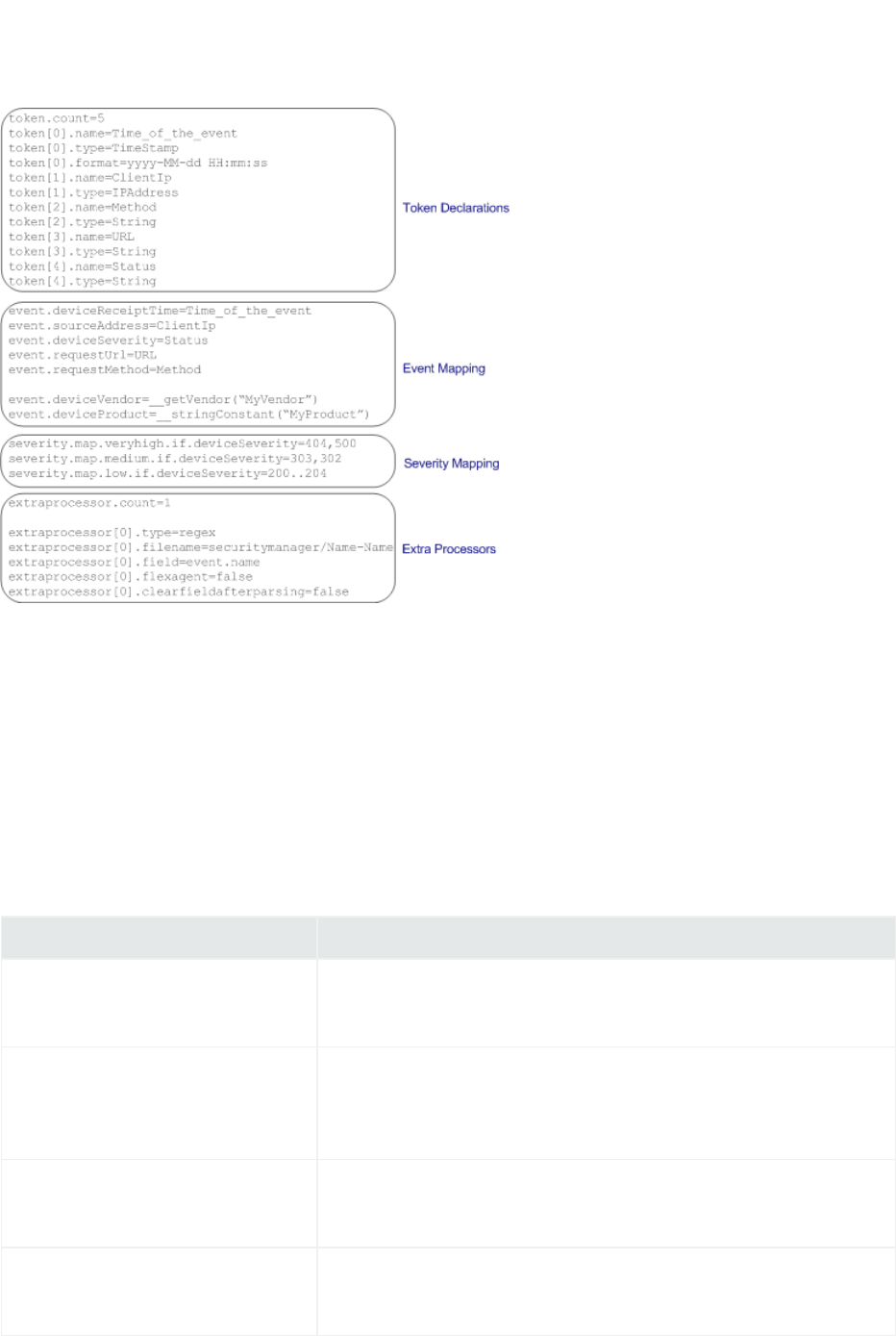

Parser File Structure 64
Token Declarations 65
Token Types 66
Event Mapping 66
RequestUrl Event Field 66
Operations Table 67
Severity Mapping 67
Examples 68
Extra Processors 69
Key-Value Parsers 71
Developer's Guide
HPE Connectors Page 6 of 242
FlexConnector Creation Wizard for Delimited Log Files 71
Regex Tool for Regex FlexConnectors 75
Start the FlexConnector 78
Chapter 5: Configuration File Examples 79
Configuration Properties for a Log File FlexConnector 79
Configuration Properties for all Regex FlexConnectors 80
Configuration Properties for a Time-based Database FlexConnector 81
Version 81
Query 82
Timestamp 83
UniqueID 83

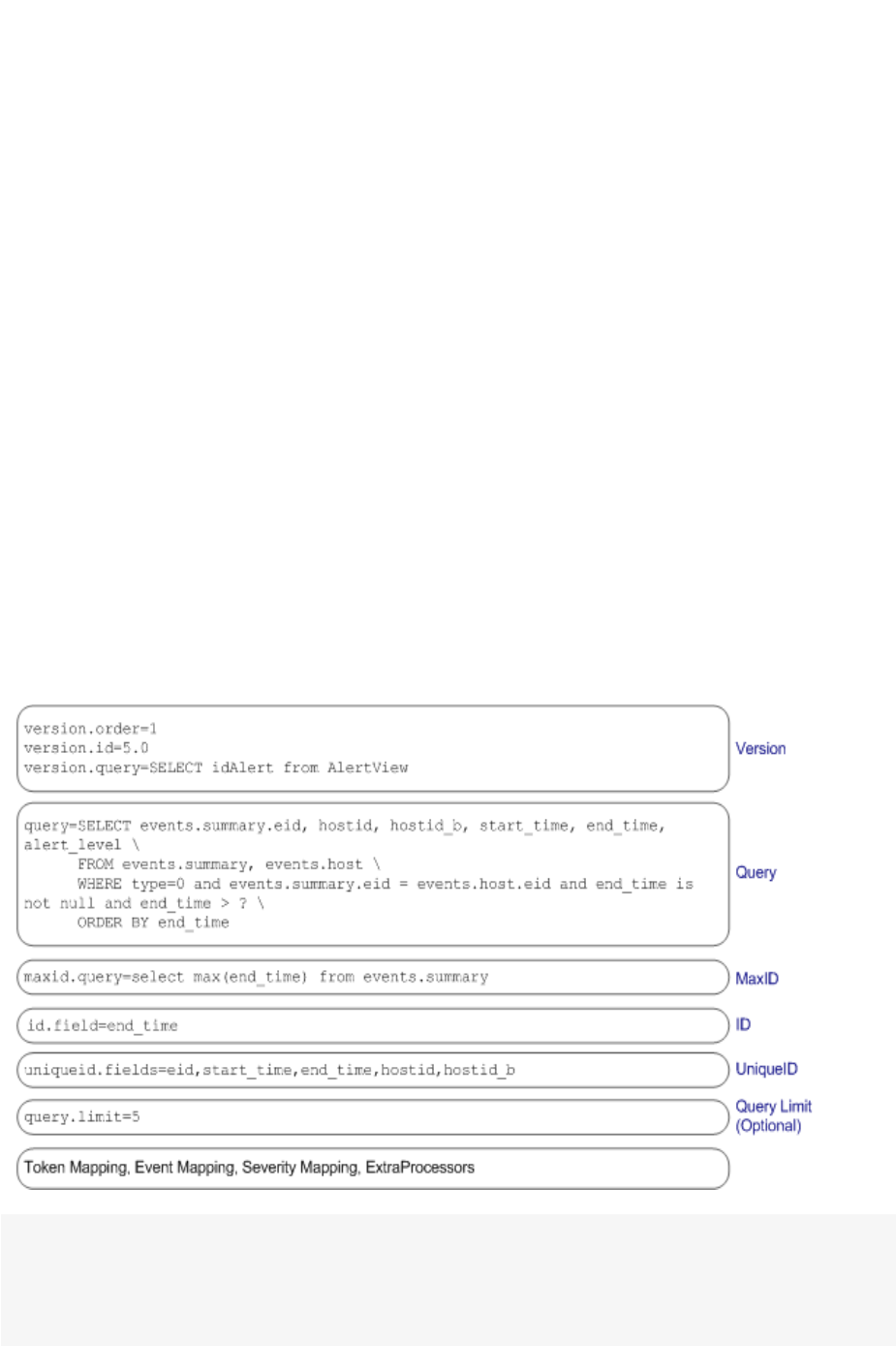

Configuration Properties for an ID-based Database FlexConnector 83
Version 84
MaxID 84
Query 84
ID 85
UniqueID 85
Query Limit 85
Configuration Properties for an SNMP Connector 85

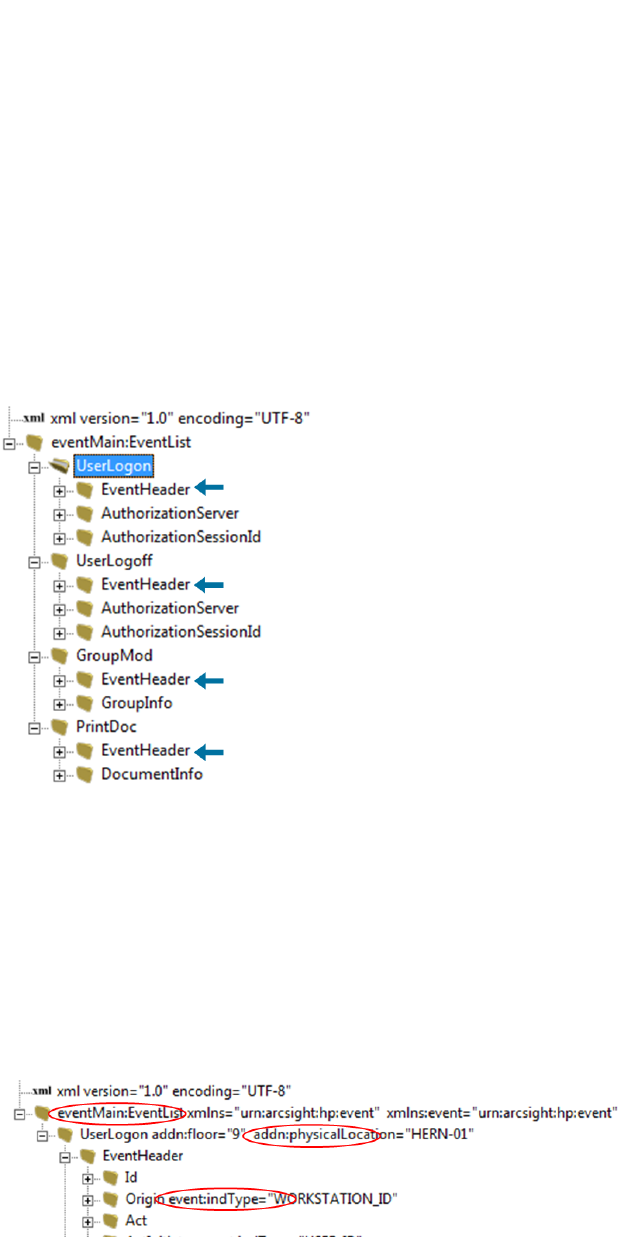

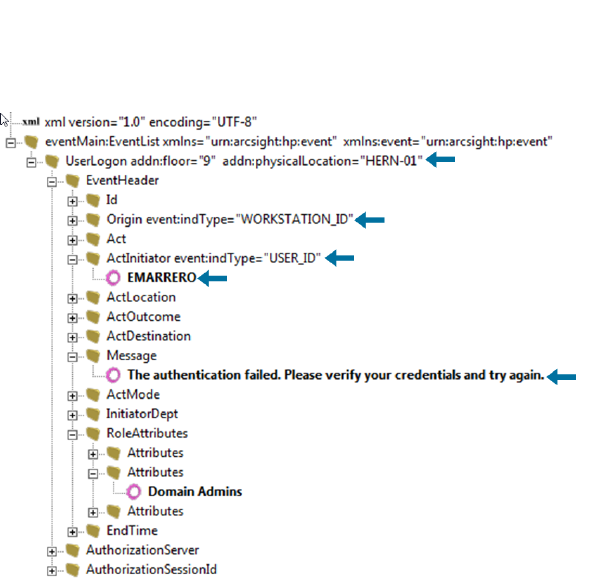

Configuration Properties for an XML FlexConnector 87
Namespace 88
Hop Nodes 88
Trigger Nodes 88
Token Mappings 89
Examples of Token Mappings 89
Extra Events 90
Configuration Properties for a JSON Folder Follower FlexConnector 90
Trigger Node 92
Token Location and Mappings 92
JSON Parsers for Complex Event Schemas 92
Working with Hierarchical Schemas 92
Representing a JSON Array with a Key Element 94
Representing a Token Value in URI Format 95
Sample JSON Array 96
Configuration Properties for Scanner FlexConnectors 96
Scanner FlexConnectors for Normal Text or XML Scan Reports 96
Developer's Guide
HPE Connectors Page 7 of 242
How Scanner FlexConnectors Parse Scan Reports 97
Parser Files for Normal Text Reports 97
Getting a List of Hosts 98
Ignore or Include Line 99
Regular Expression and Token Mappings 99
Use IP 100
Invalid Vulnerabilities 100
Extra Events 100
Getting Vulnerabilities for Scanned Hosts 101
Token Mappings 102
Event Mappings 102
Severity Mappings 103
Ignore or Include Line 103
Getting Open Ports on Scanned Hosts 104
Token Mappings 105
Event Mappings 105
Ignore or Include Line 105
Getting OS and Applications (URIs) on Scanned Hosts 106
Token Mappings 106
Event Mappings 107
Ignore or Include Line 107
Configuration Files for XML Reports 107
Getting a List of Hosts 107
Token Mappings 108
Use IP 108
Invalid Vulnerabilities 108
Extra Events 109
Getting Vulnerabilities for Scanned Hosts 109
Token Mappings 111
Event Mappings 111
Severity Mappings 112
Getting Open Ports on Scanned Hosts 112
Token Mappings 114
Event Mappings 114
Getting OS and Applications (URIs) on Scanned Hosts 114
Token Mappings 115
Event Mappings 115
Scanner FlexConnectors for Database Scan Reports 116
Getting the Version of the Database 116
Version 116
Developer's Guide
HPE Connectors Page 8 of 242
Getting the List of Scan Jobs 117
Scan Job 117
Use IP 117
Invalid Vulnerabilities 117
Extra Queries 118
Vulnerability Query 118
Open Ports Query 121
Getting OS and Applications (URIs) on Scanned Hosts 122
Getting Scanned Hosts (Host Query) 122
Chapter 6: Advanced Features 124
Regular Expressions 124
Multi-line Parsing 126
Sub-Messages 130
Default Sub-message 135
Extra Mappings 136
Conditional Mappings 138
Using Conditional Mapping in Sub-messages 140
Additional Data Mapping 141

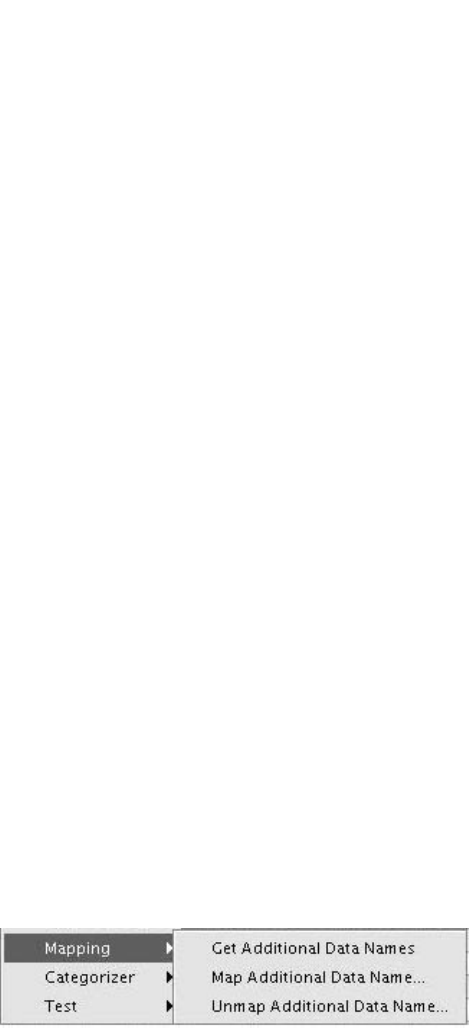

Using the Get Additional Data Names Command 141
Using the Map Additional Data Name… Command 143
Using the Unmap Additional Data Name… Command 143
Using the Get Status Command 144
Log Rotation Types 144
Name Following Log Rotation 145
Daily Rotation 145
Index Rotation 145
Parameters for Daily and Index Rotation 145
Using rotationschemeparams for Daily Log File Rotation 146
Using rotationschemeparams for Index Log File Rotation 147
Using wildcard for Daily and Index Log File Rotation (File Folder Follower Only) 148
Using wildcard for Date Rotation 148
Using wildcard for Index Rotation 148
Log Internal Events for File-Reading FlexConnectors 149
Unparsed Events Detection 149
Supported Parser Types 150
Unparsed Events Detection Criteria 150
Comment Expressions 152
Developer's Guide
HPE Connectors Page 9 of 242
Parsing Expressions 153
Token Expressions 154
Mapping Expressions 154
Extra-Processor Expressions 155
Criteria for Unparsed Events 155
Unparsed Events Output File 158
Chapter 7: Map Files 160
What Are Map Files? 160
Map File Examples 160
Multiple "Getters" and "Setters" 161
Using the “No Getter” Trick 162
Map File Details 162
Controlling Map File Operation 162
Basic Map Files 163
AgentInfoAdder1 Map Files 164
Categorizer Map Files 164
Extra Processor Map Files 165
Using Ranges in Map Files 165
Using Regular Expressions in Map Files 166
Using Parser-Like Expressions in Map Files 167
More About Parser-Like Expressions Syntax 168
Operations Containing Commas 168
Backslashes in Expressions Versus in Parsers 168
Real World Examples 169
Adding Country Names to Events 169
Getting Domain Name from Hostname 169
Appendix A: ArcSight Operations 171
Appendix B: ArcSight Built-in Tokens 186
Appendix C: ArcSight Built-in Token Types 187
Appendix D: Date and Time Format Symbols 188
Appendix E: ArcSight Built-in Event Field Mappings 189
Developer's Guide
HPE Connectors Page 10 of 242
Appendix F: Configuring a Connector for ArcSight ESM Domain Field Sets 195
Appendix G: Advanced Parameters 198
Parameters Common to all SmartConnectors 199
CEF Syslog Parameters 201
File Connector Parameters 203
File Folder Follower Parameters 205
Syslog Parameters 209
Syslog Daemon Parameters 209
Event Parsing (Sub-agents) Parameters 210
Event Reception Parameters 211
Raw Log Parameters 214
Event Queue Parameters 215
Event Processing Parameters 216
Syslog Pipe Parameters 217
Syslog File Parameters 217
Syslog NG Daemon Parameters 219
Raw Syslog Daemon Parameters 219
ArcSight CEF Encrypted Syslog (UDP) Parameters 220
TippingPoint SMS Syslog Extended Parameters 220
Appendix H: FlexConnectors and Categorization 221
Categorization 221
HTTP Status Code Categorization Example 221
Firewall Example 223
Appendix I: Developing a Syslog FlexConnector 225
Appendix J: Developing an XML FlexConnector 227
XML FlexConnector Development 227
XML Tools 227
XML Concepts for FlexConnector Development 228
General XML Concepts 228
XML FlexConnector Concepts 229
Namespace 229
Hop Nodes 229
Developer's Guide
HPE Connectors Page 11 of 242
Trigger Nodes 230
Token Mappings 230
Extra Events 230
Examples of Token Mappings 231
Prepare to Write the Parser - Identify Namespace, Nodes, and Tokens 231
Find the Trigger Node - the Most Important Step 232
Decide if You Need a Namespace 232
Identify Hop Nodes 233
Identify Tokens 233
Create the XML FlexConnector Parser 234
Parser Development - First Several Lines 234
Parser Development Continued - Tokens 235
Parser Development Continued - Mappings 235
Categorization 236
Copy the Parser Into the Folder 236
Install the FlexConnector 237
Appendix K: Frequently Asked Questions 238
Send Documentation Feedback 242
Developer's Guide
HPE Connectors Page 12 of 242
What's New in Release 7.4.0
IPv6-Aware Parsers
With only a few exceptions, ArcSight connectors now fully support IPv6 and IPv4 addresses for
receiving and processing events. You no longer need an extra mapping for setting Device Custom
fields to IPv6 addresses.
Note: Older FlexConnectors and parsers will continue to use the Device Custom IPv6
Address fields for IPv6 addresses.
Updates to Connector Installation
The installation procedure has been updated for setting the preferred IP address mode. See
"Install Core Software" and "Set Global Parameters (Optional)".
Event Fields
To support IPv6-aware parsers, the following ArcSight event fields can accept both IPv4 and IPv6
addresses. See "ArcSight Built-in Event Field Mappings" for details on the following event fields.
lDestination Address
lDestination Translated Address
lDevice Address
lDevice Translated Address
lSource Address
lSource Translated Address
The Bytes In and Bytes Out event field parameters have been changed to type Long.
For an IPv6-aware parser, the Device Custom IPv6 Address 1, 2, and 3 fields can contain either
IPv4 or IPv6 addresses. However, these fields should rarely be used. If they are, the
corresponding labels should be set to an appropriate value.
Operations
To support IPv6-aware parsers, the behavior of the following operations has changed. See
"ArcSight Operations" for details.
l__byteArrayToIPAddress (new parameter)
l__byteArrayToIPv6
Developer's Guide
What's New in Release 7.4.0
HPE Connectors Page 13 of 242
l__getIPv4AddressEmbeddedInIPv6Address
l__hexStringToAddress
l__hexStringToIPV6Address
l__oneOfAddress
l__oneOfHostName
l__stringToIPv6Address
Developer Considerations
lFor an IPv6-aware parser, the main parser and all of the extra processors for the connector
should be marked with the property ipv6.aware=true.
lMixed ranges are not supported (that is, where one end of the range is an IPv4 address and the
other is an IPv6 address).
lBecause the standard IP address fields (such as Device Address, Source Address, Destination
Address, and so on) support both IPv4 and IPv6 addresses, the Device Custom IPv6 Address
fields are almost never needed in an IPv6-aware parser. These mappings should be redirected
to the standard address fields. If there are any addresses which do not fall into any of the
normal device, source, or destination categories, then the Device Custom IPv6 Address fields
can be used, but that would be a very rare case.
lDo not use the __stringToIPv6Address or __byteArrayToIPv6 operations as they are not
relevant in IPv6-aware parsers.
lRename the __byteArrayToIPv6 operation to the new generic __byteArrayToIPAddress
operation in the parser.
lThe __oneOfAddress operation returns the first non-null IP address whether IPv4 or IPv6,
when that operation is used in an IPv6-aware parser.
lThe Bytes In and Bytes Out event fields are now type Long.
Developer's Guide
What's New in Release 7.4.0
HPE Connectors Page 14 of 242
Chapter 1: Overview
HPE Security ArcSight provides a range of device-specific SmartConnectors with which to gather
security event information.The connectors send normalized security events to the specified destination
for storage and further processing.For information about the possible destination types, see the
ArcSight SmartConnector User Guide.
FlexConnectors are custom connectors you define to gather security events from log files, databases,
and other software and devices. FlexConnectors let you create custom connectors that can read and
parse information from third-party devices and map that information to ArcSight’s event schema.
FlexConnector Development
This guide describes these basic steps for creating a FlexConnector:
lDeciding the type of FlexConnector to develop based on the source data to be collected. (See
“Choose a FlexConnector Type".)
lProviding a log file. For database connectors, this includes developing a query for pulling events.
lInstalling and configuring one of the FlexConnector types.For SNMP, you install the SNMP Unified
connector; for syslog, you install the Syslog Daemon connector. (See “Install and Configure the
FlexConnector".)
lCreating your properties file (parser) and mapping events to ArcSight fields. (See “Create a
Configuration File”.)
lCreating the categorization.csv file and assigning appropriate categories. (See “FlexConnectors
and Categorization".)
This guide also describes related topics, such as:
lLog Rotation Types
lUnparsed Events Detection
lAdvanced Parameters that can be used to tune the collection process
lMap Files
lArcSight Operations
lFlexConnectors and Categorization
lConfiguring a Connector for ArcSight ESM Domain Field Sets
HPE Connectors Page 15 of 242
Folder Structure
The following table lists the connector folder structure after connector installation and configuration,
and describes the contents of each folder.
Directory Description
$ARCSIGHT_HOME\current\bin Executables and scripts; for example, runagentsetup.bat.
$ARCSIGHT_HOME\current\config\agent Default and base configurations; for example,
agent.defaults.properties.
$ARCSIGHT_HOME\current\logs Generated logs; for example agent.log.
$ARCSIGHT_HOME\current\user\agent Connector property files and destination-specific configurations;
for example, agent.properties.
$ARCSIGHT_HOME\current\user\agent\agentdata Queue, cache, and persistence files.
$ARCSIGHT_
HOME\current\user\agent\acp\categorizer\current
Categorizaton files (ArcSight Content), which provide additional
meaning to events.
$ARCSIGHT_HOME\current\user\agent\flexagent Custom parsers that are developed for the FlexConnector.
$ARCSIGHT_HOME\current\user\agent\map Mapping files that can be used to set fields in the Security Event
object; for example, map.0.properties.
Key Files
During connector installation and configuration, several key files are created. The following table
describes these files, their locations, and their purpose.
File Name Path Description
agent.log $ARCSIGHT_HOME\current
\logs
Generated log that contains information on the running of the
connector; search for ERROR to see any errors that occurred
during the running of the connector. The most current log is
agent.log, but there can be older logs in the folder as well,
such as agent.log.1 or agent.log.2.
agent.properties $ARCSIGHT_HOME\current
\user\agent
Contains configuration parameters and values, created from
the values entered during connector configuration.
agent.default.
properties
$ARCSIGHT_HOME\current\
config\agent
Contains default framework parameters; for example, contains
the syntax for enabling debugging and increasing the
agent.log file size and agent log count. Do not modify
agent.default.properties as it is overwritten when the
connector is upgraded. Make any property changes in
agent.properties.
Developer's Guide
Chapter 1: Overview
HPE Connectors Page 16 of 242
FlexConnector Management
There are currently two ways to manage SmartConnectors: through ArcSight Management Center (also
referred to as "ArcMC") and through ArcSight Connector Appliance.Eventually, ArcSight Management
Center will replace ArcSight Connector Appliance.
ArcSight Connector Appliance
The ArcSight Connector Appliance is a hardware solution that incorporates a number of onboard
ArcSight SmartConnectors and a web-based user interface that provides centralized management for
SmartConnectors across a potentially large number of hosts.
FlexConnectors can generally be managed by a Connector Appliance and can be hosted on the
appliance if they are compatible with a Linux platform. The Connector Appliance ships with several
prototype FlexConnectors, including the following:
lArcSight FlexConnector File
lArcSight FlexConnector ID-Based DB
lArcSight FlexConnector Multiple DB
lArcSight FlexConnector Regex File
lArcSight FlexConnector Regex Folder File
lArcSight FlexConnector Simple Network Management Protocol (SNMP Unified)
lArcSight FlexConnector Time-Based DB
lArcSight FlexConnector XML File
For detailed information and instructions for using the Connector Appliance, see the ArcSight
Connector Appliance Administrator’s Guide.
ArcSight Management Center
ArcSight Management Center includes all of the functions of ArcSight Connector Appliances, and also
the ability to manage and monitor an additional range of ArcSight products, such as Connector
Appliances, Loggers, and other ArcSight Management Centers, as illustrated in the following figure.
Developer's Guide
Chapter 1: Overview
HPE Connectors Page 17 of 242
ArcSight Management Center uses the concept of nodes to manage various entities.A node is a
networked ArcSight product that can be centrally managed using ArcSight Management Center.Each
node is associated with a single networked host that has been assigned either a hostname, an IP
address, or both.
A single host can include multiple nodes.For example, a single Connector Appliance (with a single IP
address or hostname) could have multiple containers, each of which could be a separate node.In
addition, a node can be in a parent or child relationship with other modes.
You can perform any of the following node management tasks:
lView managed nodes by location, host, or node type
lAdd, view, edit, and delete locations for hosts
lAdd nodes from a host, import hosts from a .csv file, view and delete hosts, view all hosts in a
location, move hosts to different locations, and scan hosts for new connectors or containers
See the ArcSight Management Center Administrator’s Guide for details.
Developer's Guide
Chapter 1: Overview
HPE Connectors Page 18 of 242
Chapter 2: Choose a FlexConnector Type
The FlexConnector type you choose should be based on the format of the security event data.
Examples of data formats for different FlexConnector types are provided in “Event Data Format
Examples”.
FlexConnector Types
The available FlexConnector types are listed in the following table; selection criteria is included.
FlexConnector Type Description
File Choose this type if the event data is in log files that use a fixed, delimited format. In this
case, each line in the text file represents a unique event, and each line contains the same
number of fields, in the same order. Fixed-format log files can be delimited by commas,
tabs, or another character, such as a pipe (‘|’).
All file-reader FlexConnectors can process GZIP and ZIP files. Other compression formats
are not supported. Compressed files are processed in batch mode only. The connectors
read the file from the beginning to the end and then stop monitoring the file. See " Log
File FlexConnector" and "ArcSight FlexConnector File".
ID-Based Database Choose ID-Based Database or Time-Based Database for devices that write security event
information to a database. Each row represents a single event, and the number and
meaning of the columns are fixed. If you use unique IDs to read events from a database,
choose ID-Based Database.
Knowledge of SQL is a prerequisite for coding database FlexConnectors. See " ID-Based
Database FlexConnector" and "ArcSight FlexConnector ID-Based Database".
JSON Folder Follower Choose this type for devices that write event information to JSON files. Event information
in these files is presented in standard JSON format. This type recursively reads events
from JSON-based files in a folder. See "JSON Folder Follower FlexConnector" and "ArcSight
FlexConnector JSON Folder Follower".
Multiple Database Choose this type to retrieve information from multiple databases that use the same query
or retrieve different set of events using different queries from the same database.
Knowledge of SQL is a prerequisite for coding database FlexConnectors. See "Multiple
Database FlexConnector" and "ArcSight FlexConnector Multiple Database".
Multiple Folder File Choose this type for devices that write log files to multiple folders.This connector type
can read events in real time or in batch mode. See "Multiple Database FlexConnector" and
"ArcSight FlexConnector Multiple Folder File".
HPE Connectors Page 19 of 242
FlexConnector Type Description
Regex File Choose this type if the source log files have one event per line, but the format of each line
varies based on the type of event information. In this case, each line shares a common
section (for example, the date and hostname), but the number and content of the other
fields on the line varies.
The regular expression-based FlexConnectors require a familiarity with Java-compatible
regular expressions. See "Regex FlexConnectors (Variable-Format File FlexConnectors)"
and "ArcSight FlexConnector Regex File".
Regex Folder File File and Regex File FlexConnectors read events in real time, one line at a time, from a log
file. However, some devices may not write to log files in real time. To read such events, use
a Regex Folder Follower FlexConnector. This connector processes all log files in a specified
folder.
The regular expression-based FlexConnectors require a familiarity with Java-compatible
regular expressions. See "Regex FlexConnectors (Variable-Format File FlexConnectors)"
and "ArcSight FlexConnector Regex Folder File".
REST The REST FlexConnector uses REST API endpoints, JSON parser, and OAuth2
authentication to collect security events from cloud vendors (such as Salesforce or Google
Apps). See "ArcSight FlexConnector REST". For detailed information about this
FlexConnector, see the ArcSight REST FlexConnector Developer’s Guide for details.
Scanner DB
Scanner Text Reports
Scanner XML Reports
Choose a Scanner FlexConnector type to import the results of a scan from a scanner
device and forward the data to ESM so that ESM can model an organization’s assets, open
ports, operating systems, applications, and vulnerabilities. The connector imports periodic
scans to ESM, which uses this information for event prioritization, reporting, and
correlation.
Database:
A database contains results for multiple scans where each scan is identified by a job
identifier (ID). The scan results are organized in multiple tables that are linked by job IDs
or other IDs. SQL query-based parsers are used to extract relevant information from the
scan results.
Knowledge of SQL is a prerequisite for coding database FlexConnectors. See "Scanner
FlexConnector" and "ArcSight FlexConnector Scanner Database".
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 20 of 242
FlexConnector Type Description
Text Reports:
A normal text report contains results for a single scan with each line in the report
containing a piece of information about a host. Regular expression based parsers are used
to extract relevant information from the report.
The regular expression-based FlexConnectors require a familiarity with Java-compatible
regular expressions. See "Scanner FlexConnector" and "ArcSight FlexConnector Scanner
Text Reports".
XML Reports:
An XML report contains results for a single scan with scan results organized in the form of
nested XML elements. XQuery/XPath-based parsers are used to extract relevant
information from the report.
The XML FlexConnector require a familiarity with XML, XPath, and XQuery. See "Scanner
FlexConnector" and "ArcSight FlexConnector Scanner XML Reports".
Time-Based Database Choose ID-Based Database or Time-Based Database for devices that write security event
information to a database. Each row represents a single event, and the number and
meaning of the columns are fixed. One column represents the event timestamp and can
be used to order the rows. To read events from database table rows, choose Time-Based
DB.
Knowledge of SQL is a prerequisite for coding database FlexConnectors. See "Time-Based
Database FlexConnector" and "ArcSight FlexConnector Time-Based DB".
XML File Choose this type for devices that write event information to XML files. Event information
in these files is presented in standard XML format, using namespaces, elements,
attributes, text, and cdata.This connector type recursively reads events from XML-based
files in a folder.
The XML FlexConnectors require a familiarity with XML, XPath, and XQuery.
See "XML File FlexConnector" and "ArcSight FlexConnector XML File". See "Developing an
XML FlexConnector" for a description of the development of an example of an XML
FlexConnector.
SNMP Unified For SNMP devices, choose the SmartConnector for SNMP Unified. See the SmartConnector
configuration guide for installation and configuration information. See "SNMP
FlexConnector" and "ArcSight FlexConnector Simple Network Management Protocol
(SNMP Unified)".
Syslog For reading events from syslog messages, choose the SmartConnector for Syslog Daemon
and define a Syslog FlexConnector sub-connector to parse syslog packets of interest. See
"Syslog FlexConnector" and "ArcSight FlexConnector Syslog".
Event Data Format Examples
You choose a FlexConnector type based on the format of the event data.The following examples
illustrate the kind of source data expected by the various FlexConnector types.
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 21 of 242
Log File FlexConnector
The following is an example of a fixed-format, delimited log file. In this example, there are three events;
each has the same format composed of six tokens separated by a comma.
01/01/2016-11:33:00,1.1.1.1,52123,2.2.2.2,80,Invalid URL
01/01/2016-12:43:00,3.3.3.3,49123,2.2.2.2,80,Buffer Overflow Attempt
01/01/2016-13:53:00,4.4.4.4,35123,2.2.2.2,80,Web Cgi Access
ID-Based Database FlexConnector
Two rows of a security event table in a database might look like this. This example describes two events:
one with ID 123456 and another with ID 123457.
EventId
Incident
Time Signature SourceIP
Destination
IP Priority Protocol
123456 09/01/16
12:56:00
Port Scan 9.10.11.12 13.14.15.16 1 TCP
123457 09/01/16
12:54:00
ICMP Failure 1.2.3.4 5.6.7.8 3 ICMP
JSON Folder Follower FlexConnector
An JSON file with event information might look like this:
{
"chunk_size":100,
"entries":[{
"source":null,
"created_by":{
"type":"user",
"id":"175265599",
"name":"Mary Jane",
"login":"mary.jane@abc.com"
},
"created_at":"1324497497",
"event_id":"13254621",
"event_type":"FAILED_LOGIN",
"ip_address":"192.168.233.76",
"type":"event",
"session_id":null
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 22 of 242
},
{
"source":null,
"created_by":{
"type":"user",
"id":"175265599",
"name":"Mary Jane",
"login":"mary.jane@abc.com"
},
"created_at":"1324497544",
"event_id":"13254633",
"event_type":"FAILED_LOGIN",
"ip_address":"192.168.233.76",
"type":"event",
"session_id":null
},
{
"source":null,
"created_by":{
"type":"user",
"id":"175265599",
"name":"Mary Jane",
"login":"mary.jane@abc.com"
},
"created_at":"1324497614",
"event_id":"13254649",
"event_type":"LOGIN",
"ip_address":"192.168.233.76",
"type":"event",
"session_id":null
}
]
}
Multiple Database FlexConnector
The Multi-Database FlexConnector reads events from more than one database or multiple event types
from different tables in the same database. For data format examples, see "ID-Based Database
FlexConnector" and "Time-Based Database FlexConnector".
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 23 of 242
Regex FlexConnectors (Variable-Format File
FlexConnectors)
FlexConnectors , capable of processing variable-format log files, include Regex Log File, Regex Folder
Follower and Regex Multiple Folder Follower. Variable-format log files might look like this:
Aug 21 15:28:49 beach sshd[24939]: Failed password for rajiv from
192.168.10.27 port 33654 ssh2
Aug 21 15:28:51 beach sshd[24939]: Accepted password for rajiv from
192.168.10.27 port 33654 ssh2
Aug 21 15:28:51 beach PAM_unix[24948]: (ssh) session opened for user rajiv by
(uid=525)
Aug 21 15:28:53 beach PAM_unix[24948]: (ssh) session closed for user rajiv
Aug 22 00:13:23 beach sshd[6305]: Did not receive IDentification string from
192.168.10.28
Scanner FlexConnector
The following is an example scan report:
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 24 of 242
SNMP FlexConnector
SNMP traps contain variables (varbinds) that must be mapped to the ArcSight Database Schema. The
SmartConnector for SNMP Unified supports SNMP traps in versions 1, 2, and 3. The following example
is the output of an SNMP connector when it receives a trap (in this case, generated by SecureNet Pro)
for which it is not yet configured:
[Wed May 21 11:11:17 PDT 2016] [INFO ] Unable to process trap (not
configured) :
Received SNMPv1 trap
Port : 162
Generating Agent : 10.0.112.104
Sending Agent : 10.0.112.104
Time Stamp : 412257333
Enterprise OID : 1.3.6.1.4.1.8678.1.1.2
Trap Type : 1
Var Binds:14
VarBind #0
0.0.0.0.0.0.0.0.412257333.0
StringValue: 439228089
TimeStamp: 0
Value: 439228089
VarBind #1
0.0.0.0.0.0.0.0.412257333.0
StringValue: 439228089
TimeStamp: 0
Type: ASN_INTEGER | ASN_INTEGER32
Value: 439228089
VarBind #2
0.0.0.0.0.0.0.0.412257333.0
StringValue: [] - TCP Connection from 10.0.112.132
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@29e357
VarBind #3
0.0.0.0.0.0.0.0.412257333.0
StringValue: TCP Session Logging
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@ca470
VarBind #4
0.0.0.0.0.0.0.0.412257333.0
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 25 of 242
StringValue: Miscellaneous
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@7fc686
VarBind #5
0.0.0.0.0.0.0.0.412257333.0
StringValue: TCP (Stream)
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@42bece
VarBind #6
0.0.0.0.0.0.0.0.412257333.0
StringValue: 1
TimeStamp: 0
Type: ASN_INTEGER | ASN_INTEGER32
Value: 1
VarBind #7
0.0.0.0.0.0.0.0.412257333.0
StringValue: 05/21/2003 10:58:26
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@7cfa52
VarBind #8
0.0.0.0.0.0.0.0.412257333.0
StringValue: 00:b0:d0:61:6c:6e
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@161dff
VarBind #9
0.0.0.0.0.0.0.0.412257333.0
StringValue: 00:00:d1:ee:c4:2e
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@b81e3
VarBind #10
0.0.0.0.0.0.0.0.412257333.0
StringValue: 10.0.112.132
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@7c6e42
VarBind #11
0.0.0.0.0.0.0.0.412257333.0
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 26 of 242
StringValue: 10.0.111.26
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@2af0b3
VarBind #12
0.0.0.0.0.0.0.0.412257333.0
StringValue: 60901
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@2082e2
VarBind #13
0.0.0.0.0.0.0.0.412257333.0
StringValue: 64288
TimeStamp: 0
Type: ASN_OCTSTR
Value: [B@70c85e
Syslog FlexConnector
A security appliance might send syslog messages with the following format:
Myapplication: Intruder Detected from 1.1.1.1 to 2.2.2.2 High
In this case, Myapplication is the name of the security appliance, Intruder Detected is the name
of the event, 1.1.1.1 and 2.2.2.2 are the source and target addresses and High refers to the
severity of the event. This message is not delimited; however, you can identify that this message comes
from the security appliance by the prefix Myapplication. Regular expressions are a simple mechanism
to identify and tokenize the message, so the format of a FlexConnector Syslog configuration file is
similar to the FlexConnector Regex Log-file. The only difference is that the detected time and sending
host will automatically be set by the syslog daemon and only additional mappings need to be specified.
Time-Based Database FlexConnector
Two rows of a security event table in a database might look like this. This example describes two events:
one at 12:56 and another at 12:54.
EventId
Incident
Time Signature SourceIP
Destination
IP Priority Protocol
CCC-DDD 09/01/16
12:56:00
Port Scan 9.10.11.12 13.14.15.16 1 TCP
AAA-BBB 09/01/16
12:54:00
ICMP Failure 1.2.3.4 5.6.7.8 3 ICMP
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 27 of 242
XML File FlexConnector
An XML file with event information looks like this:
<?xml version="1.0" encoding="UTF-8" ?>
- <mycompanyReport version="1.1">
- <reportHeader>
<copyrightNotice value="Copyright 2016 MyCompany, Inc." />
<trademarkNotice value="MyCompany is a registered trademark of MyCompany,
Inc. All rights reserved." />
<productVersion value="MyCompany for Servers version 1.2.3 for Windows(R)
Operating Systems" />
<reportFile value="Memory Mapped File" />
<reportFileEncrypted value="0" />
<policyFile value="C:\Program Files\MyCompany\MyCompany Trial
Kit\SMTP\policy\mc.pol" />
<configFile value="C:\Program Files\MyCompany\MyCompany Trial
Kit\SMTP\bin\mc.cfg" />
<databaseFile value="C:\Program Files\MyCompany\MyCompany Trial
Kit\SMTP\db\Application.twd" />
<systemName value="HOGWARTS" />
<commandLine value="C:\Program Files\MyCompany\MyCompany Trial
Kit\SMTP\bin\MyCompany.exe --check --no-tty-output --cfgfile C:\Program
Files\MyCompany\MyCompany Trial Kit\SMTP\bin\mc.cfg -- email-report --email-
report-level 3 --report-format xml --twrfile
C:\Program Files\MyCompany\MyCompany Trial Kit\SMTP\report\Report- .twr" />
<ipAddress value="172.16.252.58" />
<creator value="SYSTEM" />
<hostID value="S-1-5-21-3494633144-188423603-1740787705" />
<creationTime raw="1117725227" value="Thu, 02 Jun 2005 10:13:47 -0500" />
<lastDBUpdateTime raw="0" value="Never" />
</reportHeader>
- <section type="NTFS" name="Windows File System">
- <rule name="SMTP Server" startPoint="C:\Program Files\MyCompany\MyCompany
Trial Kit\active_files\SMTP\bin\help">
- <ruleHeader>
<severity value="30" />
<onViolation value="" />
<match value="" />
<emailAddressList />
</ruleHeader>
- <ruleSummary>
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 28 of 242
<violationCount value="3" />
<addedCount value="0" />
<removedCount value="3" />
<changedCount value="0" />
</ruleSummary>
<errorList />
- <added>
<object name="C:\Program Files\MyCompany\MyCompany Trial Kit\active_
files\SMTP\bin\help\smtpserver.pdf" />
</added>
- <removed>
<object name="C:\Program Files\MyCompany\MyCompany Trial Kit\active_
files\SMTP\bin\help\releasenotes.txt" />
</removed>
- <changed>
<object name="C:\Program Files\MyCompany\MyCompany Trial Kit\active_
files\SMTP\bin\help\xyz.txt" />
</changed>
</rule>
- <sectionSummary>
<objectsScanned value="35" />
<sectionViolationCount value="26" />
<sectionMaxSeverity value="100" />
</sectionSummary>
</section>
</mycompanyReport>
Developer's Guide
Chapter 2: Choose a FlexConnector Type
HPE Connectors Page 29 of 242
Chapter 3: Install and Configure the
FlexConnector
Installation and configuration consists of installing the FlexConnector core software, and then selecting
and configuring the destination for the log messages.
FlexConnector Installation
The installation process installs the framework, tools, and sample files necessary for configuring a
FlexConnector. Once a FlexConnector is installed, it functions the same as any SmartConnector.
The installation directory (for example, C:\FlexConnector\current) is referred to as $ARCSIGHT_
HOME, regardless of the platform.
To successfully configure a FlexConnector, the ArcSight Manager or Logger and database components
with which the FlexConnector will communicate must be up and running. The FlexConnector tries to
connect to the destination during the configuration process. If it cannot connect, configuration fails.
Install Core Software
A FlexConnector can be installed on all ArcSight supported platforms; for the complete list, see the
SmartConnector Product and Platform Support document, available from the HP SSO and Protect 724
sites.
1. Download the SmartConnector executable for your operating system from the HP SSO site.
2. Start the SmartConnector Installer by running the executable for your operating system platform.
Follow the installation wizard through the following folder selection tasks and installation of the
core connector software:
Introduction
Choose Install Folder
Choose Shortcut Folder
Pre-Installation Summary
Installing...
3. When the installation of SmartConnector core component software is finished, the following
window is displayed:
HPE Connectors Page 30 of 242
Set Global Parameters (Optional)
If you choose to perform any of the operations shown in the following table, do so before adding your
connector. After installing core software, you can set the following parameters:
Global Parameter Setting
Set FIPS mode Set to Enable to enable FIPS compliant mode. To enable FIPS Suite B Mode, see
the SmartConnector User Guide under "Modifying Connector Parameters" for
instructions. Initially, this value is set to Disable.
Set Remote Management Set to Enable to enable remote management from ArcSight Management Center.
When queried by the remote management device, the values you specify here for
enabling remote management and the port number will be used. Initially, this
value is set to Disable.
Remote management listener port The remote management device will listen to the port specified in this field. The
default port number is 9001.
Preferred IP Version If both IPv4 and IPv6 IP addresses are available for the local host (the machine on
which the connector is installed), you can choose which version is preferred.
Otherwise, you will see only one selection. When both values are present, the initial
setting is IPv4.
After making your selections, click Next. A summary screen is displayed. Review the summary of your
selections and click Next. Click Continue to return to the "Add a Connector" window. Continue the
installation procedure with "Select Connector and Add Parameter Information."
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 31 of 242
Select Connector and Add Parameter Information
1. Select Add a Connector and click Next. If applicable, you can enable FIPS mode and enable remote
management later in the wizard after connector configuration.
2. Select a specific connector to install. The FlexConnectors are mostly grouped together beginning
with ArcSight FlexConnector. The exceptions are syslog FlexConnectors (choose Syslog Daemon)
and SNMP FlexConnectors (choose SNMP Unified connector). Click Next when you have made
your selection.
3. Enter the required SmartConnector parameters to configure the SmartConnector, then click Next.
The installation wizard prompts for different parameters depending upon the type of
FlexConnector or Syslog SmartConnector selected. In addition to the parameters you can
configure through the installation wizard, you can also configure parameters directly in the
agent.properties file. Those parameters are discussed in "Advanced Parameters".
ArcSight FlexConnector File
Choose this type if the event data is in log files that use a fixed, delimited format. In this case, each line in
the text file represents a unique event, and each line contains the same number of fields, in the same
order. Fixed-format log files can be delimited by commas, tabs, or another character, such as a pipe (‘|’).
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 32 of 242
Parameter Description
Log Unparsed Events The default value is false. Select true for the connector to detect and log unparsed
events to $ARCSIGHT_HOME\current\logs\events.log. For more information on
unparsed events, see “Unparsed Events Detection".
Log File Name The absolute path and name of the file that this FlexConnector will read. For example:
c:\temp\sample_data.txt
Configuration File The base name of the configuration file that describes the format of the log file.For a
connector that parses fixed-format files, the suffix .sdkfilereader.properties is
appended automatically.
For a connector that parses variable-format files, the suffix
.sdkrfilereader.properties is appended automatically.
For example, if you specify the following name for a configuration file that parses fixed-
format log files:sample
The filename becomes:
ARCSIGHT_
HOME\user\agent\flexagent\sample.sdkfilereader.properties.
ArcSight FlexConnector ID-Based Database
Choose this type for devices that write security event information to a database. This type will read
events from the database based on unique IDs.(If the connector is to read events from database table
rows, you should select ArcSight FlexConnector Time-Based DB.)
Note:
lAfter installing connector core software and before configuring the ArcSight FlexConnector ID-
Based DB, you will need to download an appropriate JDBC driver.See “Additional Configuration
for Database Connectors” for complete information.
lKnowledge of SQL is a prerequisite for coding database FlexConnectors.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 33 of 242
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 34 of 242
Parameter Description
Database JDBC Driver The JDBC driver that will be used to connect to the database.
lFor SQL Server, perform the procedure in "Install SQL Server JDBC Driver".
lFor MySQL, perform the procedure in "Install MySQL Driver".
lFor Oracle, use:
oracle.jdbc.driver.OracleDriver
lThis default Oracle JDBC driver works with Oracle 9i, 10g, 11g, and 12c database
versions. If you are using Oracle 8i, see "Oracle 8i Support".
lFor PostGreSQL, use:
org.postgresql.Driver
lFor DB2 unified driver, use:
com.ibm.db2.jcc.DB2Driver
lFor DB2 Legacy CLI-based, use:
COM.ibm.db2.jdbc.net.DB2Driver
lFor Sybase, use:
com.sybase.jdbc2.jdbc.SybDriver
Database URL The JDBC URL that identifies the database.
lFor Oracle, use:
jdbc:oracle:thin:@hostname_or_IP:1521:database_name
lFor MySQL, use:
jdbc:mysql://hostname_or_IP:3306/database_name
lFor Microsoft SQL Server 2000, use:
jdbc:microsoft:sqlserver://host:port;databasename=name
lFor Microsoft SQL Server 2005 and later, use:
jdbc:sqlserver://host:port;databasename=name
lFor PostGreSQL, use:
jdbc:postgresql://host/database
lFor DB2 unified driver, use:
jdbc:db2:database_name
lFor DB2 Legacy CLI-based, use:
jdbc:db2://host_name: port_number/ database_name
lFor Sybase, use:
jdbc:sybase:Tds: hostname_or_IP:5000/sybsecurity
Database User The database user name.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 35 of 242
Parameter Description
Database Password Password for the database user.
Configuration Folder Enter the name of the folder that contains the properties file. Do not enter the full path to
the file as doing so will result in an error.
This is also the root name of the configuration file. If the configuration folder is
myfolder, then the FlexConnector will look for the configuration file in the directory:
ARCSIGHT_HOME\user\agent\flexagent\myfolder
lThe configuration file for time-based connectors will be named:
myfolder.sdktbdatabase.properties
lThe configuration file for ID-based connectors will be named:
myfolder.sdkibdatabase.properties
Query Frequency Specifies how often, in seconds, to query the database.The default is 5 seconds.
ArcSight FlexConnector JSON Folder Follower
Choose this type for devices that write event information to JSON files. Event information in these files
is presented in standard JSON format. This connector recursively reads events from JSON-based files in
a folder.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 36 of 242
Parameter Description
JSON Log Folder Location The absolute path of the directory where log files for the FlexConnector are
located. For example:
c:\logs
JSON Configuration File Name
Prefix
The base name of the configuration file that describes the format of the log file.
The suffix .jsonparser.properties is appended automatically. For example,
if you specify:
vendor_product
The filename becomes:
$ARCSIGHT_HOME\user\agent\flexagent\vendor_
product.jsonparser.properties
ArcSight FlexConnector Multiple Database
Choose this type to retrieve information from multiple databases that use the same query or retrieve
different set of events using different queries from the same database.
Note:
lAfter installing connector core software and before configuring the ArcSight FlexConnector ID-
Based DB, you will need to download an appropriate JDBC driver.See “Additional Configuration
for Database Connectors” for complete information.
lKnowledge of SQL is a prerequisite for coding database FlexConnectors.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 37 of 242
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 38 of 242
Parameter Description
JDBC/ODBC Driver The JDBC driver that will be used to connect to the database.
lFor SQL Server, perform the procedure in "Install SQL Server JDBC Driver".
lFor MySQL, perform the procedure in "Install MySQL Driver".
lFor Oracle, use: oracle.jdbc.driver.OracleDriver
This default Oracle JDBC driver works with Oracle 9i, 10g, 11g, and 12c database
versions. If you are using Oracle 8i, see "Oracle 8i Support".
lFor PostGreSQL, use: org.postgresql.Driver
lFor DB2 unified driver, use: com.ibm.db2.jcc.DB2Driver
lFor DB2 Legacy CLI-based, use: COM.ibm.db2.jdbc.net.DB2Driver
lFor Sybase, use: com.sybase.jdbc2.jdbc.SybDriver
URL The JDBC URL that identifies the database.
lFor Oracle, use: jdbc:oracle:thin:@hostname_or_IP:1521:database_name
lFor MySQL, use: jdbc:mysql://hostname_or_IP:3306/database_name
lFor Microsoft SQL Server 2000, use:
jdbc:microsoft:sqlserver://host:port;databasename=name
lFor Microsoft SQL Server 2005 and later, use:
jdbc:sqlserver://host:port;databasename=name
lFor PostGreSQL, use: jdbc:postgresql://host/database
lFor DB2 unified driver, use: jdbc:db2:database_name
lFor DB2 Legacy CLI-based, use: jdbc:db2://host_name: port_number/
database_name
lFor Sybase, use: jdbc:sybase:Tds: hostname_or_IP:5000/sybsecurity
User The database user name.
Password Password for the database user.
Frequency Specifies how often, in seconds, to query the database.The default is 5 seconds.
Config Folder Enter the name of the folder that contains the properties file. Do not enter the full path to
the file as doing so will result in an error.
This is also the root name of the configuration file. If the configuration folder is
myfolder, then the FlexConnector will look for the configuration file in the directory:
ARCSIGHT_HOME\user\agent\flexagent\myfolder
lThe configuration file for time-based connectors will be named:
myfolder.sdktbdatabase.properties
lThe configuration file for ID-based connectors will be named:
myfolder.sdkibdatabase.properties
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 39 of 242
ArcSight FlexConnector Multiple Folder File
This type parses files (fixed, delimited, or using regular expressions) that are written to multiple folders.
Events can be read in real time or in batch mode.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 40 of 242
Parameter Description
Log Unparsed Events? The default value is false. Select true for the connector to detect and log unparsed events
to $ARCSIGHT_HOME\current\logs\events.log. For more information on unparsed events,
see “Unparsed Events Detection”.
Folder The absolute path of the directory where log files for the FlexConnector are located. For
example: c:\logs
Processing Mode If the files in the folder are not being written to in real time and are complete, select
batch.If the files are open and new log lines are being added to them, select
realtime.
Configuration File The base name of the configuration file that describes the format of the log file.
lFor a connector that parses fixed-format files, the suffix
.sdkfilereader.properties is appended automatically.
lFor a connector that parses variable-format files, the suffix
.sdkrfilereader.properties is appended automatically.
For example, if you specify the following name for a configuration file that parses fixed-
format log files:sample
The filename becomes:
ARCSIGHT_
HOME\user\agent\flexagent\sample.sdkfilereader.properties
Configuration Type lIf the file is a fixed-format log file, select sdkfilereader.
lIf the file is a variable-format log file, select sdkrfilereader.
lIf the file is a keyvalue-format log file, select sdkkeyvalue.
lIf the file is a CEF-format log file, select cef.
ArcSight FlexConnector Regex File
This type reads variable-format log files. Choose this type if the source log files have one event per line,
but the format of each line varies based on the type of event information. In this case, each line shares a
common section (for example, the date and hostname), but the number and content of the other fields
on the line varies. For devices that may not write to log files in real time, use the "ArcSight
FlexConnector Regex Folder File".
Note: The regular expression-based FlexConnectors require a familiarity with Java-compatible
regular expressions.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 41 of 242
Parameter Description
Log Unparsed Events The default value is false. Select true for the connector to detect and log unparsed events
to $ARCSIGHT_HOME\current\logs\events.log. For more information on unparsed
events, see “Unparsed Events Detection”.
Log File Name The absolute path and name of the file that this FlexConnector will read. For example:
c:\temp\sample_data.txt
Configuration File The base name of the configuration file that describes the format of the log file.
lFor a connector that parses fixed-format files, the suffix
.sdkfilereader.properties is appended automatically.
lFor a connector that parses variable-format files, the suffix
.sdkrfilereader.properties is appended automatically.
For example, if you specify the following name for a configuration file that parses fixed-
format log files:sample
The filename becomes:
ARCSIGHT_HOME\user\agent\flexagent\sample.sdkfilereader.properties
ArcSight FlexConnector Regex Folder File
Choose this type to parse log files using regular expressions to which data is not written in real time.
This type recursively reads variable-format log files in a folder or multiple folders.
Note: The regular expression-based FlexConnectors require a familiarity with Java-compatible
regular expressions.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 42 of 242
Parameter Description
Log Unparsed Events? The default value is false. Select true for the connector to detect and log unparsed
events to $ARCSIGHT_HOME\current\logs\events.log. For more information on
unparsed events, see “Unparsed Events Detection”.
Log Folder The absolute path of the directory where log files for the FlexConnector are located. For
example:c:\logs
Configuration File The base name of the configuration file describing the format of the log file.
lFor a connector that parses fixed-format files, the suffix
.sdkfilereader.properties is appended automatically.
lFor a connector that parses variable-format files, the suffix
.sdkrfilereader.properties is appended automatically.
For example, if you specify the following name for a configuration file that parses fixed-
format log files:sample
The filename becomes:
ARCSIGHT_HOME\user\agent\flexagent\sample.sdkfilereader.properties
ArcSight FlexConnector REST
This type uses REST API endpoints, JSON parser, and OAuth2 authentication to collect security events
from cloud vendors (such as Salesforce or Google Apps). This FlexConnector is not documented in this
guide. See the ArcSight FlexConnector REST Developer’s Guide for details.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 43 of 242
ArcSight FlexConnector Scanner Database
Choose this type to import the results of a scan from a scanner device and forward the data to ESM so
that ESM can model an organization’s assets, open ports, operating systems, applications, and
vulnerabilities. The connector imports periodic scans to ESM, which uses this information for event
prioritization, reporting, and correlation.
A database contains results for multiple scans where each scan is identified by a job identifier (ID). The
scan results are organized in multiple tables that are linked by job IDs or other IDs. SQL query-based
parsers are used to extract relevant information from the scan results.
Note:
lAfter installing connector core software and before configuring the ArcSight FlexConnector ID-
Based Database, you will need to download an appropriate JDBC driver.See “Additional
Configuration for Database Connectors” for complete information.
lKnowledge of SQL is a prerequisite for coding database FlexConnectors.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 44 of 242
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 45 of 242
Parameter Description
Database JDBC Driver The JDBC driver that will be used to connect to the database.
lFor SQL Server, perform the procedure in "Install SQL Server JDBC Driver".
lFor MySQL, perform the procedure in "Install MySQL Driver".
For Oracle, use:
oracle.jdbc.driver.OracleDriver
This default Oracle JDBC driver works with Oracle 9i, 10g, 11g, and 12c database
versions. If you are using Oracle 8i, see "Oracle 8i Support".
lFor PostGreSQL, use:
org.postgresql.Driver
lFor DB2 unified driver, use:
com.ibm.db2.jcc.DB2Driver
lFor DB2 Legacy CLI-based, use:
COM.ibm.db2.jdbc.net.DB2Driver
lFor Sybase, use:
com.sybase.jdbc2.jdbc.SybDriver
Database URL The JDBC URL that identifies the database.
lFor Oracle, use:
jdbc:oracle:thin:@hostname_or_IP:1521:database_name
lFor MySQL, use:
jdbc:mysql://hostname_or_IP:3306/database_name
lFor Microsoft SQL Server 2000, use:
jdbc:microsoft:sqlserver://host:port;databasename=name
lFor Microsoft SQL Server 2005 and later, use:
jdbc:sqlserver://host:port;databasename=name
lFor PostGreSQL, use:
jdbc:postgresql://host/database
lFor DB2 unified driver, use:
jdbc:db2:database_name
lFor DB2 Legacy CLI-based, use:
jdbc:db2://host_name: port_number/ database_name
lFor Sybase, use:
jdbc:sybase:Tds: hostname_or_IP:5000/sybsecurity
Database User The database user name.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 46 of 242
Parameter Description
Database Password Password for the database user.
Configuration Folder Enter the name of the folder that contains the properties file. Do not enter the full path to
the file as doing so will result in an error.
This is also the root name of the configuration file. If the configuration folder is
“myfolder,” the FlexConnector will look for the configuration file in the directory:
ARCSIGHT_HOME\user\agent\flexagent\myfolder
lThe configuration file for time-based connectors will be named:
myfolder.sdktbdatabase.properties
lThe configuration file for ID-based connectors will be named:
myfolder.sdkibdatabase.properties
Mode lIf the files in the folder are not being written to in real time and are complete, select
batch.
lIf the files are open and new log lines are being added to them, select realtime.
ArcSight FlexConnector Scanner Text Reports
Choose this type to import the results of a scan from a scanner device and forward the data to ESM so
that ESM can model an organization’s assets, open ports, operating systems, applications, and
vulnerabilities. The connector imports periodic scans to ESM, which uses this information for event
prioritization, reporting, and correlation.
A normal text report contains results for a single scan with each line in the report containing a piece of
information about a host. Regular expression based parsers are used to extract relevant information
from the report
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 47 of 242
Parameter Description
Log Unparsed Events The default value is false. Select true for the connector to detect and log unparsed events to
$ARCSIGHT_HOME\current\logs\events.log. For more information on unparsed
events, see “Unparsed Events Detection”.
Mode lIf the files in the folder are not being written to in real time and are complete, select
batch.
lIf the files are open and new log lines are being added to them, select realtime.
Scan Report Folder The folder in which the scanner reports are located.
Configuration File The base name of the configuration file describing the format of the log file.
lFor a connector that parses fixed-format files, the suffix
.sdkfilereader.properties is appended automatically.
lFor a connector that parses variable-format files, the suffix
.sdkrfilereader.properties is appended automatically.
For example, if you specify the following name for a configuration file that parses fixed-
format log files:sample
The filename becomes:
ARCSIGHT_HOME\user\agent\flexagent\sample.sdkfilereader.properties
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 48 of 242
ArcSight FlexConnector Scanner XML Reports
Choose this type to import the results of a scan from a scanner device and forward the data to ESM so
that ESM can model an organization’s assets, open ports, operating systems, applications, and
vulnerabilities. The connector imports periodic scans to ESM, which uses this information for event
prioritization, reporting, and correlation.
An XML report contains results for a single scan with scan results organized in the form of nested XML
elements. XQuery/XPath-based parsers are used to extract relevant information from the report.
Note: The XML FlexConnectors require a familiarity with XML, XPath, and XQuery.
Parameter Description
Mode lIf the files in the folder are not being written to in real time and are complete, select
batch.
lIf the files are open and new log lines are being added to them, select realtime.
Report Folder The folder in which the SAINT scanner reports are located.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 49 of 242
Parameter Description
Configuration File The base name of the configuration file describing the format of the log file.
lFor a connector that parses fixed-format files, the suffix
.sdkfilereader.properties is appended automatically.
lFor a connector that parses variable-format files, the suffix
.sdkrfilereader.properties is appended automatically.
For example, if you specify the following name for a configuration file that parses fixed-
format log files:sample
The filename becomes:
ARCSIGHT_HOME\user\agent\flexagent\sample.sdkfilereader.properties
ArcSight FlexConnector XML File
Choose this type for devices that write event information to XML files. Event information in these files is
presented in standard XML format, using namespaces, elements, attributes, text, and cdata.The
connector recursively reads theevents from the XML-based files in a folder.
Note: The XML FlexConnectors require a familiarity with XML, XPath, and XQuery.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 50 of 242
Parameter Description
Folder The absolute path of the directory where log files for the FlexConnector are located. For
example: c:\logs
Configuration File The base name of the configuration file describing the format of the log file.
lFor a connector that parses fixed-format files, the suffix
.sdkfilereader.properties is appended automatically.
lFor a connector that parses variable-format files, the suffix
.sdkrfilereader.properties is appended automatically.
For example, if you specify the following name for a configuration file that parses fixed-
format log files:sample
The filename becomes:
ARCSIGHT_HOME\user\agent\flexagent\sample.sdkfilereader.properties
ArcSight FlexConnector Simple Network Management Protocol (SNMP
Unified)
To install a connector to collect event information from SNMP traps, select SNMP Unified from the list
of SmartConnector to install. The SmartConnector for SNMP Unified requires that you create a specific
folder and copy your parser into that folder. After installation of core connector software, under
$ARCSIGHT_HOME/current/user/agent, create the following subfolder if it does not already exist.
This folder is for the various trap OIDs.
flexagent/snmp/subfolder
For example:
$ARCSIGHT_HOME/current/user/agent/flexagent/snmp/<trap OID>
For complete connector installation and configuration information, see the configuration guide for the
SmartConnector for SNMP Unified.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 51 of 242
ArcSight FlexConnector Syslog
Select the Syslog Daemon connector from the list of SmartConnector to install if you want to create a
Syslog FlexConnector.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 52 of 242
Parameter Description
Network Port The port the connector listens to for syslog events.
IP Address The connector listens for syslog events only from this IP address.Enter (ALL) for all IP
addresses in the specified port address.
Protocol Select UDP or Raw TCP as the protocol to be used to receive events.
Forwarder The CEF Forwarder mode parameter is false by default. If the destination is a Syslog
Daemon connector and you want to preserve information about the original connector, then
the CEF Forwarder mode should be set to true both in this destination and in the receiving
connector. That is, if you have a chain of connectors connected by syslog, syslog NG, or CEF
encrypted syslog (UDP), and you want to preserve information about the original connector,
the destinations should all have the CEF Forwarder mode set to true (which is implicitly
true for CEF Encrypted Syslog (UDP)), and the connectors receiving from them should also
have the CEF Forwarder mode set to true.
For example, you can configure a number of connectors to all send events using the CEF
Syslog destination type to one Syslog Daemon connector, which then sends to ESM . In
order for the events arriving at ESM to retain information about the specific connector that
collected the event, the connector’s CEF Syslog destinations should have the Forwarder
mode set to true, and the Syslog Daemon connector should also set the Forwarder mode to
true. The information will display in the original agent fields of the events.
Select a Destination
This section describes selecting the ArcSight Manager (encrypted) destination.For information about
this destination or any of the other possible destinations, see the ArcSight SmartConnector User Guide.
1. The next window asks for the destination type; make sure ArcSight Manager (encrypted) is
selected and click Next.
2. Enter values for the Manager Host Name,Manager Port,User, and Password required
parameters.This is the same ArcSight user name and password you created during the ArcSight
Manager installation.Click Next.
3. Enter a name for the SmartConnector and provide other information identifying the connector's
use in your environment.Click Next. The connector starts the registration process.
4. The certificate import window for the ArcSight Manager is displayed. Select Import the certificate
to the connector from destination and click Next.(If you select Do not import the certificate
to connector from destination, the connector installation will end.)The certificate is imported
and the Add connector Summary window is displayed.
Complete Installation and Configuration
1. Review the Add Connector Summary and click Next.If the summary is incorrect, click Previous to
make changes.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 53 of 242
2. The wizard now prompts you to choose whether you want to run the SmartConnector as a stand-
alone process or as a service.If you choose to run the connector as a stand-alone process, select
Leave as a standalone application, click Next, and continue with step 5.
3. If you chose to run the connector as a service, with Install as a service selected, click Next. The
wizard prompts you to define service parameters.Enter values for Service Internal Name and
Service Display Name and select Yes or No for Start the service automatically. The Install
Service Summary window is displayed when you click Next.
4. Click Next on the summary window.
5. To complete the installation, choose Exit and click Next.
Additional Configuration for Database Connectors
For database connectors, connection to the database through a JDBC driver is required.The following
sections provide instructions for downloading and installing JDBC drivers, instructions for adding JDBC
drivers to Connector Appliance/ArcSight Management Center, and how to use a JDBC driver with
connectors that connect to Microsoft SQL Servers using Windows Authentication only:
lInstall SQL Server JDBC Driver
lInstall MySQL Driver
lAdd a JDBC Driver to the Connector Appliance/ArcSight Management Center
lConfigure the JDBC Driver and Windows Authentication
Some changes are required if you are using an Oracle 8idatabase. See:
lOracle 8i Support
To avoid duplicate events when developing a new connector, see:
lTroubleshooting Duplicate Events
See "Why does my connection to SQL Server fail/hang?" in "Frequently Asked Questions" for
information on possible database connection issues that can result from certain Java versions.
Install SQL Server JDBC Driver
There are a number of steps that must be completed outside of FlexConnector setup before the
connector will be able to establish a connection with an SQL Server.
First, a Microsoft SQL Server JDBC Driver must be downloaded. For information about and to
download the MS SQL Server JDBC Driver, see:
http://msdn.microsoft.com/en-us/sqlserver/aa937724
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 54 of 242
Different versions of the JDBC driver are required for different SQL Server database versions; be sure
to use the correct driver for your database version. The name of the jar file may be different for some
JDBC driver versions.
Install the JDBC driver.
After installation of SmartConnector core software, when the “Add a Connector” window is displayed,
perform the following tasks:
1. Copy the sqljdbc jar file to $ARCSIGHT_HOME\current\user\agent\lib. The version of the
jar file depends on the version of the Java Runtime Environment (JRE) the connector uses.
SmartConnector versions 7.1.2 and later use JRE 1.7 (also referred to as Java 7) and require
sqljdbc41.jar. Prior versions of connectors that run JRE 1.6 (also referred to as Java 6) require
sqljdbc4.jar.
2. If using Windows authentication copy sqljdbc_auth.dll to $ARCSIGHT_
HOME\current\jre\bin. Note that there are additional prerequisites that are outside the scope
of ArcSight for Windows authentication to work, and confirming connectivity with an SQL Server
user might prove easier during the initial setup (Microsoft recommends Windows Authentication).
3. Copy the FlexConnector Configuration File (such as .sdkibdatabase.properties) to
$ARCSIGHT_HOME\user\agent\flexagent\<Configuration Folder> (the FlexConnector
database parameter configuration folder). The setup will run queries in the FlexConnector
configuration file as part of verification of the connector parameters. One of the queries is
maxid.query for id-based connectors and lastdate.query for time-based connectors, which
will set MaxID or lastdate.query for the FlexConnector; when the FlexConnector is started, it
will only process rows added after MaxID or lastdate.query.
4. From the $ARCSIGHT_HOME/current/bin directory, double-click runagentsetup to return to
the SmartConnector Configuration Wizard At this point FlexConnector setup can be completed.
Below are some additional things to consider when configuring the following connector
parameters.
lThe database JDBC Driver must be
com.microsoft.sqlserver.jdbc.SQLServerDriver
lThe database URL should be similar to
jdbc:sqlserver://host:port;databasename=db (append
;integratedSecurity=true if using Windows authentication).
For Microsoft SQL Server 2000, use:
jdbc:microsoft:sqlserver://host:port;databasename=name
For Microsoft SQL Server 2005 and later, use:
jdbc:sqlserver://host:port;databasename=name
lThe database user must include the domain if using Windows authentication and the connector
host and the SQL Server host are in different domains.
lThe database Password must correspond to the database user (SQL Server or Windows).
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 55 of 242
lThe configuration folder must correspond to the folder where the FlexConnector configuration
file is placed (see step 3 above).
When using the ArcSight Connector Appliance or ArcSight Management Center, after downloading
and extracting the JDBC driver, upload the driver into the repository and apply it to the appropriate
container or containers. See “Add a JDBC Driver to the Connector Appliance/ArcSight Management
Center" for detailed information.
Install MySQL Driver
After installing connector core software and before configuring the ArcSight FlexConnector ID-based
DB, you will need to follow these instructions to download an appropriate JDBC driver.
1. Click Cancel to leave the configuration wizard at this point.
2. The following steps are required when you use the MySQL JDBC driver, required for Connector
Appliance/ArcSight Management Center and Linux systems.
a. For connector versions 7.2.4 and later, download the latest MySQL JDBC Driver from:
http://dev.mysql.com/downloads/connector/j
For connector versions 7.2.3 and earlier, download the MySQL 5.0.8 JDBC Driver from:
https://dev.mysql.com/downloads/connector/j/5.0.html
Install the driver.
b. For software connectors, copy the appropriate jar file to $ARCSIGHT_
HOME\current\user\agent\lib, where $ARCSIGHT_HOME refers to the connector install
folder, such as c:\ArcSight\SmartConnectors.For Connector Appliance/ArcSight
Management Center users, see "Add a JDBC Driver to the Connector Appliance/ArcSight
Management Center".
c. From $ARCSIGHT_HOME/current/bin, double-click runagentsetup to return to the
SmartConnector Configuration Wizard.
Add a JDBC Driver to the Connector Appliance/ArcSight
Management Center
1. After downloading and extracting the JDBC driver, upload the driver into the repository and apply
it to the appropriate container or containers, as described in this section.
2. From the Connector Appliance/ArcSight Management Center, select Setup > Repositories.
3. Select JDBC Drivers from the left pane and click the JDBC Drivers tab.
4. Click Upload to Repository.
5. From the Repository File Creation Wizard, select Individual Files, then click Next.
6. Retain the default selection and click Next.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 56 of 242
7. Click Upload and locate and select the .jar file you downloaded in step 3 of SmartConnector
Installation.
8. Click Submit to add the specified file to the repository and click Next to continue.
9. After adding all files you require, click Next.
10. In the Name field, enter a descriptive name for the zip file (JDBCdriver, for example). Click Next.
11. Click Done to complete the process; the newly added file is displayed in the Name field under Add
Connector JDBC Driver File.
12. To apply the driver file, select the driver .zip file and click the up arrow to invoke the Upload
Container Files wizard. Click Next.
13. Select the container or containers into which the driver is to be uploaded; click Next.
14. Click Done to complete the process.
15. Add the connector through the Connector Appliance/ArcSight Management Center interface; see
the Connector Appliance/ArcSight Management Center Online Help for detailed information.
Descriptions of parameters to be entered during connector configuration are provided in "Select
Connector and Add Parameter Information".
Configure the JDBC Driver and Windows Authentication
This section provides guidance on how to use a JDBC driver with SmartConnectors that connect to
Microsoft SQL Servers using Windows Authentication only. As previously described, download the SQL
JDBC drivers from Microsoft and install the driver before beginning this procedure.
Note:
lThe JDBC driver does not provide function to supply Windows authentication credentials such
as user name and password. In such cases, the applications must use SQL Server Authentication.
When installing the connector on a non-Windows platform, configure the Microsoft SQL Server
for Mixed Mode Authentication or SQL Server Authentication.
lMicrosoft Type 4 JDBC drivers (versions 4.0 or later) support integrated authentication.
Windows Authentication works only when using one of these drivers. You also must add
;integratedSecurity=true to the JDBC URL entry for the connection to your database.
1. Copy the sqljdbc_auth.dll file from the JDBC driver download to the $ARCSIGHT_
HOME\jre\bin directory. For example, the JDBC driver download path for SQL JDBC driver
version 4.0 for 32-bit environment would be sqljdbc_4.0\enu\auth\x86\sqljdbc_
auth.dll and, for 64-bit environment, sqljdbc_4.0\enu\auth\x64\sqljdbc_auth.dll.
Note: When upgrading a connector, the $ARCSIGHT_HOME\jre\bin directory is overwritten,
therefore, you must copy the sqljdbc_auth.dll authentication file to this folder again after
update.
2. Go to $ARCSIGHT_HOME\current\bin and double-click runagentsetup to continue the
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 57 of 242
SmartConnector installation.
3. When entering the connector parameters, in the JDBC Database URL field, append
;integratedSecurity=true to the end of the URL string. In the following example, note that
the name or instance of the database configured at installation/audit time should be used.
jdbc:sqlserver://mysqlserver:1433;DatabaseName=mydatabase;integratedSecuri
ty=true
4. Complete the remaining connector wizard configuration steps.
5. After completing the connector installation, if running on a Windows Server, change the service
account to use the Windows account that should login to the database. The connector will use the
account used to start the service, regardless of the account value setting entered in the connector
setup process.
Oracle 8iSupport
With the addition of Oracle 11gsupport, ArcSight replaced the 10.2.0.1 oracle-jdbc driver in
$ARCSIGHT_HOME\current\lib\agent with the oracle-jdbc-11.1.0.6.jar. This driver no
longer connects to Oracle 8idatabases; therefore, before upgrading the connector:
1. Go to $ARCSIGHT_HOME\Current\lib\agent and locate the oracle-jdbc-10.2.0.1.jar
file. Copy it to a temporary location.
2. After completing connector upgrade and before running the connector, replace the
11.1.0.6.jar file with the 10.2.0.1.jar file.
Troubleshooting Duplicate Events
This section provides guidelines that can be used to troubleshoot duplicate events or to avoid duplicate
events when developing a new connector
Duplicate events are ignored and not forwarded to ESM or other destinations. Duplicate events caused
by the connector can result in lost events. Reasons for connector-caused duplicate events include:
primary key not used as ID field, uniqueid.fields that are not unique to only one event, and
incorrect queries.
Typical parser queries can be divided into two groups:
lsimple main query - queries one event table or view.
lcomplex main query - queries one event table or view with left outer join to secondary tables, views
and sub-queries.
Some duplicate events can originate in the connector’s parser with either of the following:
lMain query
lId.field and unique.idfields for the ID-based DB connector or the timestamp.field and
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 58 of 242
unique.idfields for the time-based DB connector
If the combination of fields is not unique for each event, then duplicate events will occur.
Auniqueid.field can be one or more table fields separated by commas.
You can identify duplicate events by errors in the agent log file such as the following:
[..][ERROR][…][processQuery] Event with duplicate ID …, ignoring
Example 1: ID-based Database Connectors Only
This example is for ID-based database connectors only and shows a simple main query with id field.
query= select evt. ID, evt.SourceHost,… FROM Events as evt
WHERE evt.ID > ? order by ID
id.field=ID
Usually, the ID used in the where clause condition and the id.field should be the table’s primary key.
If a duplicate event occurs, that means the id.field is not the primary key. To fix the issue:
lIf possible, change the id.field to be the primary key.
lIf the id.field cannot be changed to become a unique primary key for each event, add one or more
table fields to the uniqueid.field so that the id.field and uniqueid.field combination is
unique for each event.
Example 2: ID-based and Time-based Connectors
For ID-based database connectors:
query= select evt. ID, evt.IDX,… FROM Events as evt
WHERE evt.ID > ? order by ID
id.field=ID
uniqueid.field=IDX
If duplicate events occur, then the id.field is not the primary key and the combination of id.field
and unique.idfield is also not unique to each event. To fix the issue, you should extend
uniqueid.field to add more fields to it. Add one more field to uniqueid.field and then test the
connector until the Event with duplicate ID error messages do not occur.
For time-based database connectors:
query=select evt.ReceivedTime, evt.IDX,… FROM Events as evt
WHERE evt.ReceivedTime >= ? order by evt.ReceivedTime
timestamp.field= ReceivedTime
uniqueid.field=IDX
If duplicate events occur, then the timestamp.field is not the primary key and the combination of
timestamp.field and unique.idfield is also not unique to each event. To fix the issue, you
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 59 of 242
should extend uniqueid.field to add more fields to it. Add one more field to uniqueid.field and
then test the connector until the Event with duplicate ID error messages do not occur.
Example 3: Complex Main Query with a Join
This example is for a complex main query with a join.
select evt. ID, etype. EventTypeID ,etype.EventName FROM Events as evt
Left Join EventType as etype on evt.EventTypeID=etype.EventTypeID
WHERE evt.AutoID > 0 order by ID
The following tables shows the join condition relationship between evt.EventTypeID and
etype.EventTypeID.
If evt.EventTypeID is a "many-to-one" or "one-to-one" relationship with etype.EventTypeID as
shown in the following table:
evt.EventTypeID etype.EventTypeID etype.EventName
1 1 select
1 2 update
2
The query result will be the same number of events as in the Events table and no duplicate events as
shown in the following table.
evt.EventTypeID etype.EventTypeID etype.EventName
1 1 select
1 1 select
2 2 update
However, if evt.EventTypeID is “one-to-many” relationship to etype.EventTypeID as shown in the
following table:
evt.EventTypeID etype.EventTypeID etype.EventName
1 1 select
2 1 insert
2 update
The query result will be one more event as compared to the Events table and a duplicate event will
happen as shown in the following table:
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 60 of 242
evt.EventTypeID etype.EventTypeID etype.EventName
1 1 select
1 1 insert
2 2 update
One way to find out, if the duplicate event is caused by the join condition, is to run two queries: the
original query and the query without the join:
select evt. ID, etype. EventTypeID ,etype.EventName FROM Events as evt
Left Join EventType as etype on evt.EventTypeID=etype.EventTypeID
WHERE evt.AutoID > 0 order by ID
Without the join:
select evt. ID FROM Events as evt WHERE evt.AutoID > 0 order by ID
If the total number of rows returned by the original query is equal to the query without the join, then
the duplicate event is not caused by the join condition. You can then debug the duplicate event error
using Example 1: ID-based Database Connectors Only and Example 2: ID-based and Time-based
Connectors.
If the total number of rows returned by the original query is greater than the query without the join,
then the issue is caused by join condition and the query must be modified to fix the duplicate event.
Developer's Guide
Chapter 3: Install and Configure the FlexConnector
HPE Connectors Page 61 of 242
Chapter 4: Create a Configuration File
The configuration file (also referred to as a parser) is a text file containing properties (name, value pairs)
that describe how the FlexConnector parses event data. Blank lines and lines beginning with the
comment character ‘#’ are ignored. Other lines consist of a name, an equal sign, and a value.
Note: Parsers are obfuscated for security reasons. Contact Customer Support for assistance with
parser overrides.
The REST FlexConnector is documented in the ArcSight REST FlexConnector Developer’s Guide.
This chapter contains the following information:
lParser File Locations and Names
lExample Parser File
lParser File Structure
lFlexConnector Creation Wizard for Delimited Log Files
lRegex Tool for Regex FlexConnectors
lStart the FlexConnector
Parser File Locations and Names
The following table describes the location and filename of the configuration file used for each type of
FlexConnector. The vendor or database is usually named for the device vendor (such as “superSecure”).
Type Location Filename
Log file ARCSIGHT_HOME\user\agent\ flexagent vendor.sdkfilereader.properties
Regex Log file ARCSIGHT_HOME\user\agent\ flexagent vendor.sdkrfilereader.properties
Regex Folder
Follower
ARCSIGHT_HOME\user\agent\ flexagent vendor.sdkrfilereader.properties
Time-based
Database
ARCSIGHT_HOME\user\agent\ flexagent\vendor
or product_name
database.sdktbdatabase.properties
ID-based Database ARCSIGHT_HOME\user\agent\ flexagent\vendor
or product_name
database.sdkibdatabase.properties
Multi-Database ARCSIGHT_HOME\user\agent\ flexagent\vendor
or product_name
database.sdktbdatabase.properties
HPE Connectors Page 62 of 242
Type Location Filename
SNMP For the SmartConnector for SNMP Unified, create
folders for your various trap OIDs as follows:
ARCSIGHT_HOME\user\agent\
flexagent\snmp\<various trap OIDs>
sdksnmp.#.snmptrap properties
(# = trap type, such as ‘1’) and
sdksnmp.#.sdksnmptrap properties
(varies from the type sdksnmp.#.snmptrap in
that trap types must be defined in the parser
using the token trap.types)
Syslog ARCSIGHT_HOME\user\agent\flexagent\syslog vendor.subagent.sdkrfilereader.properties
XML Folder
Follower
ARCSIGHT_HOME\user\agent\flexagent vendor.xqueryparser.properties
JSON Folder
Follower
ARCSIGHT_HOME\user\agent\flexagent vendor.jsonparser.properties
Scanner (for
normal text)
ARCSIGHT_HOME\user\agent\flexagent vendor.scanner.sdkrfilereader.properties
vendor.vulns.sdkrfilereader.properties
See also "Getting Vulnerabilities for Scanned
Hosts".
vendor.openports.sdkrfilereader.properties
See also "Getting Open Ports on Scanned
Hosts".
vendor.uris.sdkrfilereader.properties
See also "Getting OS and Applications (URIs)
on Scanned Hosts".
Scanner (for XML) ARCSIGHT_HOME\user\agent\flexagent vendor.scanner.xqueryparser.properties
vendor.vulns.xqueryparser.properties
vendor.openports.xqueryparser.properties
vendor.uris.xqueryparser.properties
Scanner (for
database)
ARCSIGHT_HOME\user\agent\flexagent\vendor
or product_name
database.sdkdatabase.properties
Example Parser File
FlexConnectors are controlled by a configuration file, which is described in more detail the examples
shown in “Configuration File Examples”. The following example illustrates a simple Log File
FlexConnector configuration file:
comments.start.with=#
delimiter=,
token.count=5
token[0].name=Time_of_the_event
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 63 of 242
token[0].type=TimeStamp
token[0].format=yyyy-MM-dd HH:mm:ss
token[1].name=ClientIp
token[1].type=IPAddress
token[2].name=Method
token[2].type=String
token[3].name=URL
token[3].type=String
token[4].name=Status
token[4].type=String
event.deviceReceiptTime=Time_of_the_event
event.sourceAddress=ClientIp
event.deviceSeverity=Status
event.requestUrl=URL
event.requestMethod=Method
event.deviceVendor=__getVendor(“MyVendor”)
event.deviceProduct=__stringConstant(“MyProduct”)
severity.map.veryhigh.if.deviceSeverity=404,500
severity.map.medium.if.deviceSeverity=303,302
severity.map.low.if.deviceSeverity=200..204
Parser File Structure
The type of information a configuration file contains depends on its FlexConnector type. However, the
following information types are common to all types of FlexConnectors:
lToken Declarations (Tokenization)
lEvent Mapping (Normalization)
lSeverity Mapping
lExtra Processors
Here is an example of a configuration file that contains the most common information types.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 64 of 242
Token Declarations
The Token Declarations section specifies the tokens that will be parsed from each input record. Each
token has a name and a type. Depending on the type, some tokens (such as TimeStamp) have a format,
as well. XML FlexConnectors also have a path expression and a context node, which are described in
“Configuration Properties for an XML FlexConnector”.
In addition to assigning parsed tokens to events, you can also assign built-in tokens, which are
described in “Event Mapping”.
Parameter Description
token.count This property specifies the number of tokens that each line of the file
contains. For example, token.count=7 indicates there are seven tokens. Token
declarations are numbered from 0 to token.count-1.
token[x].name This property specifies a user-defined name for the token, this can be a
friendly name used to identify the token. For example, token[0].name=Time_
of_the_event would set the name of the token of index 0 to Time_of_the_
event. Use this friendly name to identify how to map it to the event object.
token[x].type This property specifies the data type of the object. It is important to set the
correct type so the mapping to the event object can be correctly performed.
For a list of supported types, see "Token Types".
token[x].format This property modifies the type of the token, for example, when using the
TimeStamp type, the format defines the actual format of the timestamp. See
"Date and Time Format Symbols".
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 65 of 242
Token Types
Token types are important because tokens can only be mapped to ArcSight event fields with matching
types. See "ArcSight Built-in Token Types" for descriptions of the token types. They also listed in the
ArcSight Console User’s Guide, in the Reference Guide, under "Data Fields".
Event Mapping
The Event Mapping section lists tokens by name, which are mapped to ArcSight event fields, such as
event.sourceAddress. The type of the token must match the type of the ArcSight Event field.
In addition to the tokens that are parsed from each input record, you can also configure built-in tokens
for specific FlexConnector. Built-in tokens are predefined strings that assign values associated with
them to events. For example, if you want to set the event.deviceHostName to the name of the syslog
sender, you can set event.deviceHostName=_SYSLOG_SENDER.
For a complete list of built-in tokens available for each type of FlexConnector, see "ArcSight Built-in
Tokens". For a complete list of the ArcSight event fields, see "ArcSight Built-in Event Field Mappings".
See “RequestUrl Event Field” for information on how to use requestUrl.
RequestUrl Event Field
The connector returns a URL when the requestUrl event field is invoked. The URL is stored in the event
table. ESM can then parse the URL to derive the following URIs:
lrequestProtocol
lrequestUrlAuthority
lrequestUrlHost
lrequestUrlPort
lrequestUrlFileName
lrequestUrlQuery
The requestUrl event field has the following format:
<protocol>://<authority>@<host>:<port>/<filename>?<query>
Note: Do not set a value for the requestUrl event field and set a value for one or more of the URIs.
Setting a value for the requestUrl event field and one or more of the URI fields will result in error
messages such as: Attempting to set the _URL_ when _URI_ is already set.. or
Attempting to set the _URIcomponent_ when _URL_ is already set.. Set values for
either the requestUrl event field or for one or more of the other URI event fields.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 66 of 242
Operations Table
Operations are used primarily when tokens are mapped to HPE ArcSight event fields. The following list
contains the essential operations. "ArcSight Operations" describes all of the operations that can be used
when tokens are mapped to HPE ArcSight event fields.
IP Address Operations
l__doubleToAddress
l__noDot4QuadStringsToAddress
l__numberToAddress
l__regexTokenAsAddress
Number Operations
l__regexTokenAsInteger
l__safeToInteger
l__safeToLong
String Operations
l__concatenate
l__stringConstant
l__simpleMap
l__toLowerCase
l__toUpperCase
TimeStamp Operations
l__createLocalTimeStampFromGMTSecondsMillis
l__createLocalTimeStampFromSecondsSinceEpoch
l__createTimeStamp
l__useCurrentYear
Severity Mapping
The Severity Mapping section provides a severity mapping capability in order to further categorize (or
normalize) each event. For example, severity.map.low.if.deviceSeverity.
FlexConnector severity mapping must be flexible because not all devices will report severity, or use the
same format even with devices of the same type. Some use a scale of 0 to 10 levels. Devices that don’t
really provide a severity-oriented field require that you map severity to an action, or some other event-
specific field.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 67 of 242
Your severity mappings can also reflect your environment. You might want to consider what would
normally be a Medium or Low severity event as Very-High simply because it shouldn’t be there to begin
with. Or, the opposite: you might lower the severity because the event represents a normal situation on
your network. As a general rule, map severity as accurately as possible and use Filters to ignore noise
and Rules to respond to specific incidents.
Given the possibilities for Connector Severity mapping mentioned above you should cover all of the
possible values of a device severity with a severity map line. All of the mappings follow the same syntax:
severity.map.agent_severity.if.deviceSeverity=value
In this case, agent_severity will be one of very high, high, medium or low and value can either be a
comma-separated list of values or use the “..” notation for ranges of values.
Examples
severity.map.veryhigh.if.deviceSeverity=OPEN-INBOUND
severity.map.low.if.deviceSeverity=DROP
severity.map.medium.if.deviceSeverity=OPEN,CLOSE
severity.map.high.if.deviceSeverity=400..599
severity.map.medium.if.deviceSeverity=300..399
severity.map.low.if.deviceSeverity=100..299
This table lists severity mappings:
ArcSight Severity Property
Very High severity.map.veryhigh.if.deviceSeverity
High severity.map.high.if.deviceSeverity
Medium severity.map.medium.if.deviceSeverity
Low severity.map.low.if.deviceSeverity
These properties cause the ArcSight Severity to be set to a specific level if the Device Severity is one of
the values specified. For example:
severity.map.veryhigh.if.deviceSeverity=404,500
This would cause a Very High severity event when the status of the request was 404 or 500.
severity.map.medium.if.deviceSeverity=303,302
This would cause a Medium severity event when the status of the request was 303 or 302.
severity.map.low.if.deviceSeverity=200..204
This would cause a Low severity event when the status of the request was 200, 201, 202, 203, or 204.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 68 of 242
Extra Processors
Optional. You can use the extra processor property to chain two configuration files together. This
property is useful if you need to use two or more different types of FlexConnectors for the same data.
Extra processors are particularly useful when an event has more than one type of data in it and cannot
be parsed by a single parser. This property is also referred to as parser linking.
Extra processor definition:
extraprocessor.count= <the number of extra processors>
#index start from 0
extraprocessor[<index>].type= <extra processor type>
extraprocessor[<index>].filename= <extra process file name>
extraprocessor[<index>].<extra processor variable>=
<extra processor parameter or conditional value>
…
This example illustrates properties that can be added to a time-based database FlexConnector, which
cause it to invoke a Regex configuration file for further processing of the event.message:
extraprocessor.count=1
extraprocessor[0].type=regex
extraprocessor[0].filename=netiq/netiq
extraprocessor[0].field=event.message
extraprocessor[0].flexagent=true
extraprocessor[0].clearfieldafterparsing=false
One configuration file can link with many other configuration files (by setting the
extraprocessor.count to a number greater than one). In addition, there is no limit to the number of
configuration files, each containing one or more extraprocessor properties that can be chained
together.
The following table lists the extra processor types you can specify.
Extra Processor Type Description
delimited For any of the delimited parsers
json For JSON parsers
keyvalue For key-value parsers
map For a map file
ntsubparser For supported Windows application parsers
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 69 of 242
Extra Processor Type Description
regex For any regular expression parsers
standardkeyvalue For key-value parsers with “=” as the key-value separator and “,” as the key
value pair separator
xml For XML parsers
Except for the map extra processor configuration file, all extra processor configuration files should be
placed in the \user\agent\flexagent folder. The map extra processor file should be placed in
\user\agent\fcp or \user\agent\aup\fcp. If a map configuration file exists in both the paths, the
one in \user\agent\aup\fcp overrides the one in \user\agent\fcp.
The following table lists the fields that can be used with an extra processor:
Field Name Description
field The value of this field is the input to the extra processor.
flexagent true or false
ltrue: The connector uses the parsers in the flexagent directory.
lfalse: The connector uses the parsers in the fcp directory.
clearfieldafterparsing Clear the input field after completion of parsing.
charencoding Specifies the type of character encoding.
overrideeventmappings true or false
ltrue: Override the mapping event field.
lfalse: Do not override the mapping event field.
conditionfield Specifies the condition field the extra processor uses.
conditiontype Specifies how the condition field relates to the condition values.
conditionvalues Specifies condition values. Use commas to separate multiple values.
Casesensitive true or false
lTrue = Use case sensitive parsing.
lFalse = Do not use case sensitive parsing.
concatenatevalues true or false
Applies to key-value parsers.
lIf true and there is a duplicate key, do not override the value, but concatenate the values.
lIf false and there is a duplicate key, override the value.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 70 of 242
Key-Value Parsers
Key-value parsers divide log lines into key-value pairs (key=value), extract the key-value pairs into
tokens, and then the tokens are mapped to event fields. An example of a key-value log event:
TIME=28/09/11 08:15:00 SRC=194.168.0.12 DST=195.172.0.12 SPT=4236 DPT=80
Key-value parsers are used with keyvalue extra processors and syslog subagents use key-value parsers
for secondary processing. The configuration file name for key-value parsers is
vendor.subagent.sdkkeyvaluefilereader.properties. Key-value parsers have the following
properties:
Property Description
key.delimiter Regular expression consisting of single character or string that
specifies how key value pairs are separated on a log line. For example,
key.delimiter=\\s
key.value.delimiter Regular expression consisting of single character or string that
specifies how keys and values are separated into a single key value
pair. For example,
key.value.delimiter==
key.regexp Regular expression to capture a key. For example,
key.regexp=([^\\s]+)
text.qualifier Regular expression consisting of a single character or string that
specifies how text is separated in a log line. For example,
text.qualifier=“
trim.message true or false - True trims the leading and trailing white spaces of the log
line.
trim.tokens true or false - True trims the leading and trailing white spaces of each
token.
trim.keys true or false - True trims the leading and trailing white spaces of each
key.
FlexConnector Creation Wizard for Delimited Log
Files
The FlexConnector Creation Wizard is a GUI program that guides you through the process of creating
the configuration file for a FlexConnector that read events from comma-delimited or tab-delimited log-
files. The file generated by the wizard can be manually edited to include any FlexConnector features or
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 71 of 242
special operations that the wizard does not support. To illustrate how the wizard works, assume that
you have a log file named sample.log on drive W: that contains the following content:
2003-09-23 12:07:57,Customer Zone Accessed,
38.1.123.206,192.168.10.100,POST,/search,?ID=apple,302
2003-09-23 12:07:57,Home Page Accessed,
38.41.123.206,192.168.10.100,GET,/search,?ID=candy,302
This is a comma-separated file, so you would select the Log-file FlexConnector.
1. Start the Log-file FlexConnector Wizard by executing the following command from the
ARCSIGHT_HOME/bin folder:
arcsight flexagentwizard
The following screen displays:
2. Enter or browse to the log file you want to parse and enter the name of the configuration file. Click
Next.
3. The wizard displays the following screen, on which you specify the format of the log-file:
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 72 of 242
Field Description
Delimiter Choose the delimiter that the file is using, in this case ','
Other delimiter Use this option if your file contains a delimiter not listed in the “Delimiter” options
Text qualifier Sometimes the format contains a character such as a double-quote (") surrounding the
text fields. If that is the case, enter that character here. If the character is not found it
will be ignored; so for this example, use the default.
Comment identifier Lines that start with this character will be ignored (the parser will assume that they are
comments). For this case, use the default as #.
Trim fields Set to true if the fields contain leading and/or trailing spaces and you want to remove
them from the field
Contains empty fields Set to true if you are expecting to receive empty tokens. The default (true) will work for
most cases.
When you are finished entering parameters, click Next.
4. The wizard reads the specified log file and displays the field mappings. Map each of the parsed
fields to a field in the ArcSight Schema. Click Next.
5. If some of the fields contain dates, the wizard will prompt you for the correct date format in a
separate screen. If the format you need does not appear in the list, choose any format and modify it
in the generated configuration file. Choose the format and Click Next.
6. Select a vendor (or unknown) and specify a product name. If you don’t see the vendor for your
device, select Unknown and then edit the entry manually in the configuration file. Click Next to
continue.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 73 of 242
7. The wizard displays the following screen. Click Next to finish or to launch the connector
configuration wizard.
At this point, the FlexConnector configuration-file has been created, so you can edit it directly to
make further changes, if required.
Note: If you choose to continue with registration and configuration of the connector, the wizard
will remove any existing connector and launch the FlexConnector configuration wizard again,
where you can complete the configuration of your connector with your newly-created
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 74 of 242
FlexConnector log-file configuration file. One benefit of this is that the wizard will make sure that
your connector is configured properly with the configuration file that you just created.
Regex Tool for Regex FlexConnectors
The FlexConnector Development Kit includes the FlexConnector Regex Tester (Regex Tool) that
analyzes .log (event data) files using configuration files (parsers, or .properties files), and can also
generate regular expressions to use as properties in configuration files that you create.
Use the Regex Tool only with Regex (regular expression) parsers.
See "Developing a Syslog FlexConnector for general instructions on using the Regex Tool to create a
syslog FlexConnector.
To analyze log files using a parser in the Regex Tool:
1. Copy the parser file and log file you wish to analyze into this location:
ARCSIGHT_HOME\current\user\agent\flexagent
2. Run the Regex Tool by executing:
ARCSIGHT_HOME\current\bin\arcsight regex
3. Select File > Load FlexAgent Regex File and browse to ARCSIGHT_
HOME\current\user\agent\flexagent to select and load the parser file (the .properties
file).
4. Select File > Load Log File and browse to ARCSIGHT_HOME\current\user\agent\flexagent
to select and load the corresponding .log file. The first line of the file appears in the Message field,
and the number of lines in the file displays on the window title bar.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 75 of 242
Also, you can load .csv files instead of a .log file for analysis. in this case, choose File > Load CSV
Export with Raw Event rather than File > Load Log File. The .csv file you load must contain a
header as well as the raw event data. Use this feature to parse and test raw events that did not
initially parse correctly, and that you have exported to a .csv file.
5. If you are working with a syslog connector, select Options > Treat as Syslog Subagent. Click the
check box to select.
6. Click Generate to produce a regular expression that will parse the line shown in the Message field,
as shown below:
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 76 of 242
Notice that literals, such as the square brackets around the date and time, are preserved in the
generated regular expression.
Use the navigation buttons to view different lines in the log file.
7. Analyze the log file line by line using the navigation buttons.
8. Select File > Exit when data analysis is compete.
When you use the Regex Tool to analyze data, two files are generated:
lregextester.properties
lregistrycache.properties
Delete these generated files when you are done with your data analysis. If you do not delete these
files, data will persist in the Regex Tool interface.
To create lines for use in configuration files (parsers):
1. Run the Regex Tool by executing:
ARCSIGHT_HOME\current\bin\arcsight regex
2. Select File > New FlexAgent Regex File.
3. Enter a name for the new .properties file. This file is generated in the location:
ARCSIGHT_HOME\current\user\agent\flexagent
The new Regex .properties file is generated containing generic Regex you can use to begin creating
a configuration file. This Regex is generated one line at a time, and does not generate an entire
parser. The Regex tool lists recommended fields to tokenize and map that are associated with the
generated Regex. For example:
4. When you are done, select FlexConnectorFile > Save FlexConnector Regex File.
The Regex tool can also be used to edit existing configuration files by choosing File > Load
FlexConnector Regex File.
If changes do not work as expected, revert to the previously saved version of the file by clicking
ReloadParser.
Caution: The Regex tool is designed for single-line use only. You can load the entire log file
into the tool, but can only process one event at a time.
5. Select File > Exit when data analysis is compete.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 77 of 242
Start the FlexConnector
Once the FlexConnector is installed and the configuration file is created, start the FlexConnector and
test it. Before starting the new connector, make sure that the ArcSight Manager and database or
Logger are up and running.
Start the FlexConnector by opening a command window on ARCSIGHT_HOME/bin and running:
arcsight agents
For more information about running SmartConnectors, including how to establish a SmartConnector as
a service or daemon, refer to the SmartConnector User’s Guide.
The new FlexConnectorshould begin sending any events it receives from its device to the ArcSight
Manager. In the case of database types, note that only records created after the connector starts will be
sent as events.
Developer's Guide
Chapter 4: Create a Configuration File
HPE Connectors Page 78 of 242
Chapter 5: Configuration File Examples
The following sections describe examples of configuration files for the various connector types.
lConfiguration Properties for a Log File FlexConnector
lConfiguration Properties for all Regex FlexConnectors
lConfiguration Properties for a Time-based Database FlexConnector
lConfiguration Properties for an ID-based Database FlexConnector
lConfiguration Properties for an SNMP Connector
lConfiguration Properties for an XML FlexConnector
lConfiguration Properties for a JSON Folder Follower FlexConnector
lJSON Parsers for Complex Event Schemas
lConfiguration Properties for Scanner FlexConnectors
Configuration Properties for a Log File
FlexConnector
You can create a configuration properties file for a Log File FlexConnector in two ways:
lUse a text editor to add properties you need.
lUse the FlexConnector Creation Wizard, which is discussed in detail in "FlexConnector Creation
Wizard for Delimited Log Files".
In addition to the properties described earlier, a Log File FlexConnector must also contain Source Log
File Format declarations. The Source Log File Format section describes how the FlexConnector will read
the source information. The following table lists the properties that you can specify:
Property Description
comments.start.with This property specifies which lines of the log file should be ignored and which
ones are comments. In this example, you would set this property to a pound sign
(#) since every comment begins with this symbol.
contains.empty.tokens Set this property to “false” only if you are sure that the file being parsed will never
contain empty tokens. For example, in the following line:
token1,token2,,token4
token3 is empty (there are two commas together), so this flag should be set to
true. By default, this flag is set to true.
HPE Connectors Page 79 of 242
Property Description
delimiter This property specifies which character delimits each of the tokens of the file. In
this example, you would set this property to a comma (,) since the tokens are
separated by a comma. Other possible values are:
delimiter= backslash ( \ ); note that there is a space after the backslash (\)
delimiter= pipe ( | )
delimiter= comma ( , )
start.at.line Some files will contain a fixed number of lines as a header before the actual
content starts. Using this property you can have the FlexConnector ignore those
lines before the actual processing starts. For example, the property:
start.at.line=10
would ignore the first 9 lines of the file.
text.qualifier Sometimes the tokens in a file will be surrounded by “ or another character (for
example, Excel CSV). For example, in the line:
"token1","token2","token3"
All tokens are surrounded by " so you can set this property as:
text.qualifier="
and the " will not be part of the token value.
trim.message Removes leading and trailing spaces or tab characters from the full message
before sending it to the parser.
trim.tokens Set this flag to true if you want to remove leading and trailing spaces and tab
characters from the token values. By default, this flag is false.
Configuration Properties for all Regex
FlexConnectors
For Regex FlexConnectors, the regex property must be set to the regular expression:
regex=(.*) ([^\\ ]*) ([^\\ ]*)\\[\\d+\\]: (.*) password for (.*) from
(\\d+.\\d+.\\d+.\\d+) port (\\d+) ssh2
Additionally, you can configure these:
lThe trim.message and trim.submessage properties that trim (remove leading and trailing
spaces or tab characters) the full message and sub-message before sending it to the parser.
lSub-messages that allow a Regex-based FlexConnector to switch intelligently between regular
expressions. For more information about sub-messages, see "Sub-Messages".
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 80 of 242
lOptional properties in the agent.properties file that when configured allow you to control which
log files to process in a folder, whether to process the folder and subfolders recursively, and so on.
These properties are discussed in Log Internal Events for File-Reading FlexConnectors.
Configuration Properties for a Time-based Database
FlexConnector
The following is an example of a time-based Database FlexConnector configuration file:
Note: Ensure that queries conform with the schema definition so as to avoid errors such as case
sensitivity. For example, if the database fields are using all uppercase, column names in the queries
and the values in the timestamp.field and the uniqueid.field should use uppercase:
timestamp.field=TIME_STAMP
uniqueid.field=UNIQUE_ID
In addition to the common properties listed in "Parser File Structure", the following properties need to
be configured for time-based database FlexConnectors:
Version
Mandatory. The version properties enable you to define the order in which the parser files will be
sequentially processed. If there are multiple parser files there should be one for each version of the
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 81 of 242
database with which the FlexConnector communicates.
Note: If you are not concerned about the connector adjusting to new versions, you can skip the
version check by doing the following: set version.order=1 and omit version.query and
version.id. Note that this will remove the safeguard of checking the schema version.
lversion.order—Specifies the order in which versions are checked, from the lowest number to the
highest; for example, if you have two parser files parserA and parserB and you want to process
parserB before parserA, set parserB’s version.order=1 and parserA’s version.order=2.
lversion.query—This property enables you to perform a test query against the database to
validate the database version. Specify a unique entity in the database schema that differentiates it
from other database versions. For example, version.query=SELECT idAlert from
AlertView.
lversion.id—If the version.query succeeds, the deviceVersion token (described in "ArcSight
Built-in Event Field Mappings") is set to the version.id. Typically, you would assign the database
version as the value for this property. However, you can assign any integer value. For example, if the
product version is 8.1, assign version.id=8.1.
Query
Mandatory. This property retrieves the rows that were inserted between the last time the query was run
and the current time. The query is executed every five seconds, but the frequency can be configured.
For example:
query = \
SELECT \
ComputerName, ComputerDomain, Culprit, DNSName, Name, idAlert,\
Description, RepeatCount, AlertLevel, TimeRaised, TimeOfFirstEvent, \
TimeOfLastEvent, TimeResolved, CustomField1, CustomField2, \
CustomField3, CustomField4, CustomField5 \
FROM \
AlertView \
WHERE \
TimeRaised >= ? \
ORDER BY \
TimeRaised
To change the frequency at which the query is executed, set the agent[x].frequency property in
ARCSIGHT_HOME\current\user\agent\agent.properties.
All syntactically and semantically correct SQL statements are supported in SELECT queries with the
following exception:
lOnly one question mark is supported in a time-based Database FlexConnector query.
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 82 of 242
Timestamp
Mandatory. Specifies the field to use to determine when to run the next query; for example, for the
query specified earlier in this section, you can set the timestamp field to
timestamp.field=TimeRaised.
UniqueID
Mandatory. Specifies the fields to use to distinguish rows with the same timestamp field; for example,
for the query specified earlier in this section, you can set the unique ID field to
uniqueid.fields=idAlert. Use a comma-separated list to specify multiple values for this field.
Configuration Properties for an ID-based Database
FlexConnector
The following is an example of the ID-based Database FlexConnector configuration file:
Note: Ensure that queries conform with the schema definition so as to avoid errors such as case
sensitivity. For example, if the database fields are using all uppercase, the column names in the
queries and the values in the id.field and the uniqueid.field should use uppercase:
id.field=ID
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 83 of 242
uniqueid.field=UNIQUE_ID
In addition to the common properties listed in "Parser File Structure", the following properties should be
configured for an ID-based database FlexConnectors.
Version
Mandatory. The version properties enable you to define the order in which the parser files will be
sequentially processed. If there are multiple parser files there should be one for each version of the
database with which the FlexConnector communicates.
Note: If you are not concerned about the connector adjusting to new versions, you can skip the
version check by doing the following: set version.order=1 and omit version.query and
version.id. Note that this will remove the safeguard of checking the schema version.
lversion.order—Specifies the order in which versions are checked, from the lowest number to the
highest; for example, if you have two parser files parserA and parserB and you want to process
parserB before parserA, set parserB’s version.order=1 and parserA’s version.order=2.
lversion.query—This property enables you to perform a test query against the database to
validate the database version. Specify a unique entity in the database schema that differentiates it
from other database versions. For example, version.query=SELECT idAlert from
AlertView.
lversion.id—If the version.query succeeds, the deviceVersion token (described in "ArcSight
Built-in Event Field Mappings") is set to the version.id. Typically, you would assign the database
version to which the configuration file pertains as the value to this property; however, you can assign
any integer value. For example, if the product version is 8.1, assign version.id=8.1.
MaxID
Mandatory. Specifies the query to use to retrieve the maximum ID present in the database when the
query is run; for example, maxid.query=select max(end_time) from events.summary.
Query
Mandatory. This property retrieves the rows that were inserted between the last checked ID and the
maximum ID (maxid) at the current time. The query is executed every five seconds, but this frequency is
configurable.
For example:
query=SELECT events.summary.eid, hostid, hostid_b, start_time, end_time, \
alert_level \
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 84 of 242
FROM events.summary, events.host \
WHERE type=0 and events.summary.eid = events.host.eid and end_time is \
not null and end_time > ? \
ORDER BY end_time
To change the frequency at which the query is executed, set the agent[x].frequency property in
ARCSIGHT_HOME\current\user\agent\agent.properties.
All syntactically and semantically correct SQL statements are supported in SELECT queries.
ID
Mandatory. Specifies the field to use to determine when to run the next query; for example, for the
query specified earlier in this section, you can set the ID field to id.field=end_time.
UniqueID
Optional. Specifies the field to use to distinguish rows with the same ID field; for example, for the query
specified earlier in this section, you can set the unique ID field to uniqueid.fields=eid,start_
time,end_time,hostid,hostid_b.
Use a comma-separated list to specify multiple values for this field.
Note: The IDs for two events might be identical if the ID field is set to an entity such as a
timestamp. For example, if the ID field is set to end_time, two events may have the same ID. The
Unique ID field is used to distinguish such events.
Query Limit
Optional. Specifies the maximum number of rows to return when a query is run; for example,
query.limit=3. If default value for query.limit is set to unlimited; that is, there is no limit imposed
on the number of rows that will be returned when a query is run.
Configuration Properties for an SNMP Connector
The information in this section is applicable to the SmartConnector for SNMP Unified.
You can create one of these types of configuration files:
lone configuration file per trap, with the tokens specified in the same order as the variables (varbinds)
that appear in the trap packet, or
la single configuration file with a trap.types property that lists the trap types to capture
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 85 of 242
Example of token mapping in a configuration file per each trap
(sdksnmp.0.snmptrap.properties)
Note: When a trap with the trap type=0 is received, the first varbind (in the trap) would be parsed
as the first token variable regardless of the oid. The second varbind is parsed as the second token
variable, and so on through the varbinds and token variables.
token.count=5
token[0].name=ApplicationId
token[0].type=String
token[1].name=IncidentName
token[1].type=String
token[2].name=IncidentSourceNodeHostname
token[2].type=String
token[3].name=IncidentSourceNodeMgmtAddr
token[3].type=String
token[4].name=IncidentOtherNodeMgmtAddr
token[4].type=String
Example of token mapping in a configuration file for a list of trap types
(sdksnmp.0.sdksnmptrap.properties)
Note that the trap types must be listed in the trap.types variable before the token.count in the
sdksnmp.0.sdksnmptrap.properties configuration file. In this example, this is specified as
trap.types=0,1,2 (0, 1, 2 are the trap types in this example). Also, you must define an .oid for each
token listed in the parser.
trap.types=0,1,2
token.count=4
token[0].name=ApplicationId
token[0].oid=1.3.6.1.4.1.11.2.17.19.2.2.1
token[0].type=String
token[1].name=NmsUrl
token[1].oid=1.3.6.1.4.1.11.2.17.19.2.2.2
token[1].type=String
token[2].name=Reserved1
token[2].oid=1.3.6.1.4.1.11.2.17.19.2.2.3
token[2].type=String
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 86 of 242
token[3].name=Reserved2
token[3].oid=1.3.6.1.4.1.11.2.17.19.2.2.4
token[3].type=String
Configuration Properties for an XML FlexConnector
The XML FlexConnector parser builds a tree representation of the XML log file. A root node is at the
top of the tree, hop nodes are in between, and trigger nodes are at the bottom (where they generate
events). The following is an example of an XML FlexConnector configuration file:
In addition to the common properties listed in "Parser File Structure", the following sections list the
optional and mandatory properties for an XML FlexConnector configuration file.
Note: You can also configure optional properties in the agent.properties file that when
configured allow you to control which log files to process in a folder, whether to process the folder
and subfolders recursively, and so on. These properties are discussed in "Log Internal Events for
File-Reading FlexConnectors".
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 87 of 242
Namespace
Optional. However, if your XML log file uses explicit namespaces or a default namespace, you must
specify those namespaces using these properties:
lnamespace.count—Specifies the number of namespaces that your XML log file uses; for example,
namespace.count=2.
lnamespace.prefix—Specifies the namespace prefix to use; for example, namespace
[1].prefix=ac.
lnamespace[x].prefix=default—Use when your XML file specifies a namespace but does not
use any prefixes in the file. That is, your XML file uses a default namespace.
lnamespace.uri—Specifies the Uniform Resource Identifier (URI) for the namespace; for example,
namespace[0].uri=http://example.org/2003/08/sdee
Hop Nodes
Optional. Hop nodes are the nodes in the path from the root node to the event triggering node. These
nodes are necessary when tokens need to be captured from nodes other than the triggering node or
when events pertaining to a particular node need to be grouped in one block.
Multiple hop node levels can be defined with each new level of hop nodes defined in reference to the
previously defined level. Hop nodes can also reference root nodes directly as variables.
To define hop nodes, use these properties:
lhop.node.count—Specifies the number of hop nodes; for example, hop.node.count=1
lhop.node.name—Specifies the names for the hop nodes; for example, hop.node[0].name=host
lhop.node.expression—Specifies the XPath/XQuery path expressions to select the nodes; for
example, hop.node[1].expression=/audits/audit/hosts/host
Trigger Nodes
Mandatory. These are the nodes that trigger events. An XPath/XQuery path expression for a trigger
node can be the last defined hop node or the root node if no hop nodes are available.
To define trigger nodes, use this property:
trigger.node.expression=$host/applications/application
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 88 of 242
Token Mappings
Mandatory. In addition to the token properties listed in "Token Declarations", you must specify these
two properties for the XML parser:
ltoken[x].expression—Specifies the XPath/XQuery path expression that is traversed to obtain
the value for the token. This is a mandatory property. For example,
token[0].expression=audits/audit/startDate
ltoken[x].node—Specifies the context node—root node, hop node, or trigger node—relative to
which the path expression is evaluated. A context node can be a hop node or a root node. If this
property is not specified, it defaults to the trigger node. For example,
token[0].node=host
Examples of Token Mappings
lA token captured from the root node:
token[0].expression=audits/audit/startDate
lA token captured from the hop node 1:
token[2].name=ip
token[2].type=IPAddress
token[2].expression=ip
token[2].node=host
lA token captured from the hop node 2:
token[5].name=protocol
token[5].expression=protocol
token[5].node=vulnref
lA token captured from the trigger node, when token[x].node is specified:
token[8].name=name
token[8].expression=name
token[8].node=
lA token captured from the trigger node, when token[x].node is not specified:
token[13].name=descr
token[13].expression=description
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 89 of 242
Extra Events
Optional. If you need your FlexConnector to collect different event types for the same trigger node or
from different trigger nodes, you can use this property to specify other XQuery configuration files in
the current configuration file.
To specify extra events, use these properties:
lextraevent.count—Specifies the number of extra events; for example, extraevent.count=2
lextraevent[x].filename—Specifies the file name of the additional configuration file that this
parser should use; for example, extraevent[0].filename=ncircle_xml_file/ncircle_xml_
file.xml3.uri
lextraevent[x].name—Specifies a name to associate with the extra events; for example,
extraevent[0].name=/scanner/device/uri/aggregated
Configuration Properties for a JSON Folder Follower
FlexConnector
The JSON Folder Follower FlexConnector parser builds a tree representation of the JSON log file. A
root node is at the top of the tree and trigger nodes are at the bottom (where they generate events).
There may be multiple root nodes in each file. The following is an example of a JSON Folder Follower
FlexConnector configuration file:
trigger.node.location=/entries
token.count=5
token[0].name=type
token[0].type=String
token[0].location=type
token[1].name=eventId
token[1].type=String
token[1].location=event_id
token[2].name=eventType
token[2].type=String
token[2].location=event_type
token[3].name=sessionId
token[3].type=String
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 90 of 242
token[3].location=session_id
token[4].name=ipAddress
token[4].type=String
token[4].location=ip_address
additionaldata.enabled=true
event.deviceVendor=__stringConstant("Box")
event.deviceProduct=__stringConstant("Box.net")
event.deviceEventClassId=eventType
event.name=eventType
event.sourceUserName=created_by_name
event.sourceUserId=created_by_user_id
event.sourceHostName=ipAddress
#The code uses event.externalId to get the eventId to persist. Please don't
change this mapping. You may get duplicates if you do that
event.externalId=eventId
event.deviceReceiptTime=__createOptionalTimeStampFromString(created_at,"YYYY-
MM-DDThh:mm:ss.SSSX")
event.fileName=__oneOf(source_item_name,source_folder_name)
event.fileId=__oneOf(source_folder_id,source_item_id)
event.fileType=__oneOf(source_item_type,__ifThenElse(source_folder_
id,,,"folder"))
event.destinationUserName=__oneOf(source_name,source_user_name)
event.destinationUserId=__oneOf(source_id,source_user_id)
event.deviceCustomString1=__oneOf(created_by_login,source_login)
event.deviceCustomString1Label=__stringConstant("Source User Email Address")
event.deviceCustomString2=source_type
event.deviceCustomString2Label=__stringConstant("Source Type")
Note: You can also configure optional properties in the agent.properties file that when
configured allow you to control which log files to process in a folder, whether to process the folder
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 91 of 242
and subfolders recursively, and so on. These properties are discussed in "Log Internal Events for
File-Reading FlexConnectors".
Trigger Node
Mandatory. This is the node that triggers events.
To define trigger nodes, use this property:
trigger.node.location=/entries
Token Location and Mappings
Mandatory. In addition to the token properties listed in "Token Declarations", you must specify this
property for the JSON parser:
token[x].location—Specifies the JSON path expression that is traversed to obtain the value for
the token. This is a mandatory property.
For example, token[2].location=event_type
Examples of token mappings:
ltoken[2].name=eventType
ltoken[2].type=String
ltoken[2].location=event_type
JSON Parsers for Complex Event Schemas
For more complex event schemas, the JSON parser can:
lHandle a hierarchical schema
lHandle an array with a key element
lRepresent the value of a token in URI format
Working with Hierarchical Schemas
In some cases, a web application can have a common schema and product-specific schemas, as
illustrated in the following figure.
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 92 of 242
lThe product-specific schemas could in turn have product base schemas and more specific schemas.
lThe main parser will contain the token specification for the common schema.
lThe main parser will have sub-parsers that contain the token specification for the product-specific
base schemas.
lEach product base schema sub-parser will, in turn, have its own sub-parsers that contain the token
specification for the more specific product schemas.
lEach parser file will have its own event mapping specification.
The __subParse(mapFileName) format in the JSON parser supports this scenario.
When the JSON parser encounters this format specified for a token, it looks for the sub-parser. The
mapFileName points to a map file with a key and a value. The key will be matched with the token value.
The value points to the sub-parser file. The sub-parser, if found, will be processed and the resulting
SecurityEvent will be merged into the parent SecurityEvent. An error will be logged if no sub-
parser is found. The token itself will still be included in the current token map.
For example, the following common schema has a RecordType determining the type of operation,
which can be used to determine the sub-parser file:
token[5].name=RecordType
token[5].type=string
token[5].format=__subParse(recordtype-map.csv)
token[5].location=RecordType
The parameter for __subParse is the recordtype-map file path, which is a relative path to
$ARCSIGHT_HOME\user\agent\flexagent.
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 93 of 242
The main parser is located in $ARCSIGHT_HOME\user\agent\flexagent. The sub-parsers (the
.json.properties files) and the sub-parser map (the .csv files) can locate in any sub-folder of that
folder.
Also assume that the recordtype-map.csv has the following content:
1,product_admin
2,product_item
...
If the RecordType value is 2, then the product_item.jsonparser.properties file will be
processed.
Representing a JSON Array with a Key Element
Some event schemas have collections, which are arrays of JSON objects. Some of the collections have a
significant element in a JSON object that should be used to identify the rest of the JSON elements.
For example, assume that the value of the Name field used in the JSON array illustrated in "Sample
JSON Array" is significant, and its value should be used to identify the element. A desirable output of
the token map could be something like the following:
ForwardTo alias1@mail.com
From
MoveToFolder
SentTo alias2@mail.com
The __collection(keyField, withPrefix, withPostfix, keyFieldMapFileName) format
in the JSON parser supports this scenario. The arguments to the __collection format have the
follow definitions:
lkeyField (required)—points to the significant field.
lwithPrefix (optional)—indicates if the target token names should be prefixed with the parent key.
Default value is true.
lwithPostfix (optional)—indicates if the target token names should be postfixed with the key of
the value elements. Default value is true.
lkeyFieldMapFileName (optional)—points to a map file which will be used to map a more
meaningful target token name.
The delimiter for the prefix and postfix is "->" .
The __collection format can be used only on an array node. The array node itself is not part of the
current token map. The array is processed to generate a token map, which is merged into the current
token map. This format is ignored if it is applied to a non-array node, and the node is handled as normal.
Using the JSON array in Sample JSON Array as an example, the Parameters token will be as follows:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 94 of 242
token[5].name=Parameters
token[5].type=String
token[5].format=__collection(Name,false,false)
token[5].location=Parameters
The format value __collection (Name,false,false) produces the following token map:
ForwardTo alias1@mail.com
From
MoveToFolder
SentTo alias2@mail.com
Changing the format value to __collection(Name) produces the following token map:
Parameters->ForwardTo->Value alias1@mail.com
Parameters->From->Value
Parameters->MoveToFolder->Value
Parameters->SentTo->Value alias2@mail.com
Changing the format value to __collection(Name,,false) produces the following token map:
Parameters->ForwardTo alias1@mail.com
Parameters->From
Parameters->MoveToFolder
Parameters->SentTo alias2@mail.com
Representing a Token Value in URI Format
There are times when it is desirable to translate a JSON node into a URI format string. The __uri()
format in the JSON parser supports this scenario.
This format can be applied to any node.
Using the JSON array in "Sample JSON Array " as an example, the Parameters token will be as follows:
token[5].name=Parameters
token[5].type=String
token[5].format=__uri()
token[5].location=Parameters
The token specification above produces the following token map:
Parameters Name:"ForwardTo"|/Value:"alias1@mail.com"|/Name:"From"|/Value:""|
/Name:"MoveToFolder"|/Value:""|/Name:"SentTo"|/Value:"alias2@mail.com"
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 95 of 242
Sample JSON Array
The following code represents a JSON array.
"Parameters": [
{
"Name": "ForwardTo",
"Value": "alias1@mail.com"
},
{
"Name": "From",
"Value": "" },
{
"Name": "MoveToFolder",
"Value": ""
},
{
"Name": "SentTo",
"Value": "alias2@mail.com"
}"
]
Configuration Properties for Scanner FlexConnectors
The configuration properties you can set depend on the type of source report that the FlexConnector
will process. These source report types are described in the following sections:
l"Scanner FlexConnectors for Normal Text or XML Scan Reports"
l"Configuration Files for XML Reports"
l"Scanner FlexConnectors for Database Scan Reports"
Scanner FlexConnectors for Normal Text or XML Scan
Reports
Scanner FlexConnectors that process normal text or XML scan reports are parsers that make several
passes through the scan report to extract relevant information. The first pass must be to get a list of
hosts scanned. Subsequent passes for extracting vulnerability, open ports, operating system, and
applications information can be run in any order.
Note: Avoid using // symbols which can have a huge impact on performance. For example,
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 96 of 242
$root//@startTime -- scans every node in the entire document for the startTime attribute.
To define a scanner FlexConnector for normal text or XML scan reports, you must define parser files to
retrieve the following information:
lA list of hosts scanned
lThe vulnerabilities for each scanned host
lThe open ports for each scanned host
lThe operating system and applications running on each scanned host
The name of the configuration files and properties required for each depend on whether the
configuration file is for processing a normal text scan report or an XML report.
How Scanner FlexConnectors Parse Scan Reports
A scanner FlexConnector obtains the following information from a scan report:
lList of hosts scanned
lList of open ports
lList of vulnerabilities
lOperating systems and applications on each host
lAny other information such as users, shares, and so on
This information is obtained by making several passes over the report. The first pass obtains a list of
hosts while subsequent passes, which can be done in any order, obtain the remaining information.
Scanner FlexConnectors retrieve information from scan reports that provide data in normal text or XML
form use multiple parsers to obtain information in which each parser extracts information specific to its
function. That is, the first parser extracts the list of hosts and defines the other parsers and the order in
which they will run. The subsequent parsers extract the open ports, vulnerabilities, operating system,
and applications information for each host.
Scanner FlexConnectors that scan results in a database use one database parser that defines the SQL
queries required to extract information from the database. Each SQL query represents a single pass that
extracts information specific to its function as described for scanner FlexConnectors for normal text or
XML form reports. A few additional SQL queries are also included in this FlexConnector to obtain the
version of the database, obtain a list of scan jobs in the database, and so on.
Parser Files for Normal Text Reports
To create parser files for normal text reports, see the following sections:
l"Getting a List of Hosts "
l"Getting Vulnerabilities for Scanned Hosts"
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 97 of 242
l"Getting Open Ports on Scanned Hosts"
l"Getting OS and Applications (URIs) on Scanned Hosts"
Getting a List of Hosts
The configuration file for getting a list of scanned hosts must be named
vendor.scanner.sdkrfilereader.properties, where vendor is usually the name of the
scanner device vendor.
The following is an example configuration file for getting a list of hosts from a scan report:
line.include.regex=[\\w\\.-]+\\|.*
regex=([\\w\\.-]+)\\|(.*?)\\|(.*?)\\|.*
token.count=3
token[0].name=ip
token[0].type=IPAddress
token[1].name=hostname
token[2].name=mac
token[2].type=MacAddress
event.destinationAddress=ip
event.destinationHostName=hostname
event.destinationMacAddress=mac
use.ip=false
invalid.vulnerability.ids=CVE|null,CVE|NOCVE,CVE|,Nessus|
extraevent.count=3>
extraevent[0].filename=nessus_nsr_osuris
extraevent[0].name=/scanner/device/uri/aggregated
extraevent[1].filename=nessus_nsr_openports
extraevent[1].name=/scanner/device/openport/aggregated
extraevent[2].filename=nessus_nsr_vulnerabilities
extraevent[2].name=/scanner/device/vulnerability/aggregated
In addition to the common properties listed in "Parser File Structure", the following properties need to
be configured:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 98 of 242
Ignore or Include Line
Optional. This property enables you to specify filters (as regular expressions) that help identify lines in a
scan report that need to be processed to obtain information about scanned hosts. Lines that do not
meet the criteria specified in the filter are not processed.
The include filter specifies a regular expression that a line must match for it to be processed for
extracting scanned hosts.
The ignore filter specifies a regular expression that, when matched to a line, that line is excluded and
not processed for extracting scanned hosts.
The following is the syntax for the include and ignore filters:
line.include.regex=<regular_expression>
line.ignore.regex=<regular_expression>
For example:
line.include.regex=[\\w\\.-]+\\|.*
line.ignore.regex=[\\w\\.-]+\\|.*?\\|.*
Regular Expression and Token Mappings
Mandatory. At a minimum, IP address or host name must be extracted from the scan report. In addition,
if a MAC address and other information are available, they should also be extracted.
The following regular expression extracts IP address, host name, and MAC address into these tokens:
regex=([\\w\\.-]+)\\|(.*?)\\|(.*?)\\|.*
token.count=3
token[0].name=ip
token[0].type=IPAddress
token[1].name=hostname
token[2].name=mac
token[2].type=MacAddress
event.destinationAddress=ip
event.destinationHostName=hostname
event.destinationMacAddress=mac
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 99 of 242
Use IP
Optional. Some scanners report only the IP addresses or host names of hosts scanned, while others
might report both. The Use IP property indicates whether the scan reports contain IP addresses. When
this property is set to false, it indicates that the scan report does not contain IP addresses.
use.ip=false
If this property is not set, the scanner FlexConnector expects IP addresses in the scan report.
Invalid Vulnerabilities
Optional. This property specifies the vulnerability identifiers (IDs) that the FlexConnector should ignore
when processing the scan report. If you want to specify multiple vulnerability IDs, separate them with a
pipe ( | ) character.
The syntax for this property is as follows:
invalid.vulnerability.ids=<vulnerability_ids>
For example:
invalid.vulnerability.ids=CVE|null,CVE|NOCVE,CVE|,Nessus
Extra Events
Mandatory. These properties specify the names and locations of other configuration files required for
parsing the scan report to extract the vulnerabilities, open ports, operating system, and applications
information.
lextraevent[x].filename—Specifies the file name of the additional configuration file; for
example, extraevent[0].filename=nessus_nsr_osuris
lextraevent[x].name—Specifies a name to associate with the extra events; for example,
extraevent[0].name=/scanner/device/uri/aggregated
Although you can specify the extra events in any order, you must use the following event names
(extraevent[x].name):
lVulnerabilities: /scanner/device/vulnerability/aggregated
lOpen ports:/scanner/device/openport/aggregated
lURIs (for operating system and applications): /scanner/device/uri/aggregated
For example:
extraevent.count=3
extraevent[0].filename=nessus_nsr_osuris
extraevent[0].name=/scanner/device/uri/aggregated
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 100 of 242
extraevent[1].filename=nessus_nsr_openports
extraevent[1].name=/scanner/device/openport/aggregated
extraevent[2].filename=nessus_nsr_vulnerabilities
extraevent[2].name=/scanner/device/vulnerability/aggregated
Getting Vulnerabilities for Scanned Hosts
The configuration file for getting vulnerabilities for the scanned hosts must be named
<vendor>.vulns.sdkrfilereader.properties, where vendor is usually the name of the scanner
device vendor. This configuration file is used to extract the following information for the scanned hosts:
lVulnerabilities as indicated by the vendor vulnerability IDs
lName, description, risk or severity, solution or recommendation, if available
lExternal references such as CVE, Bugtraq, and so on
lAny other relevant information that is available
Note: Typically, FlexConnectors look for extra processor configurations in {ARCSIGHT_
HOME}/current/user/agent/flexagent/. The Normal Text Report Scan FlexConnector is an
exception. FlexConnectors will look for these configurations in {ARCSIGHT_
HOME}/current/user/agent/aup/<agents[0].entityid>/fcp/.
Also, instead of looking for a <vendor>.vulns.sdkrfilereader.properties file,
FlexConnectors look for a <vendor>.sdkrfilereader.properties file.
To work around these problems:
lCopy the vulnerability file from current/user/agent/flexagent/ to
current/user/agent/aup/<agents[0].entityid>/fcp/.
lRename the file from <vendor>.vulns.sdkrfilereader.properties to
<vendor>.sdkrfilereader.properties.
The following is an example configuration file for getting vulnerabilities from a scan report:
regex=([\\w\\.-]+)\\|((\\w+).*?(\\d+)?.*?)\\|(\\d+)\\|(.*?)\\|(.*)
token.count=7
token[0].name=ScannedHostNameOrIp
token[1].name=ServiceDescription
token[2].name=ServiceName
token[3].name=Port
token[3].type=Integer
token[4].name=PluginId
token[5].name=Severity
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 101 of 242
token[6].name=Description
event.destinationHostName=ScannedHostNameOrIp
event.destinationServiceName=ServiceName
event.destinationPort=Port
event.transportProtocol=__regexToken(ServiceDescription,"^.*?/(\\w+).*$")
event.deviceEventClassId=__concatenateDeleting
("Nessus=",NessusID,"#",Name,"#",Risk,"#",INFO,"%CVE=",CVE,"%Bugtraq=",Bugtra
q,"%|#=/@")
event.name=__concatenate(ServiceName," - ",Severity)
event.deviceSeverity=Severity
event.message=Description
event.categoryTechnique=__stringConstant("/scanner/device/vulnerability")
event.deviceVendor=__stringConstant(Nessus)
event.deviceProduct=__stringConstant(Nessus)
severity.map.veryhigh.if.deviceSeverity=Security Hole,HOLE
severity.map.high.if.deviceSeverity=Security Warning
severity.map.medium.if.deviceSeverity=Security Note,NOTE,INFO,REPORT
In addition to the common properties listed in "Parser File Structure", the following properties need to
be configured.
Token Mappings
Mandatory. At a minimum, IP address or host name must be extracted from the scan report. In addition,
if a MAC address and other information are available, they should also be extracted, as shown in the
previous example.
Event Mappings
Mandatory. The following event mappings must be defined in the configuration file:
levent.name
levent.deviceSeverity
levent.categoryTechnique
The value for this property must be set to the value shown in the previous example.
event.deviceEventClassId = __concatenateDeleting(“<vendor_vulnerability_
name>=”, vendor_vuln_id, “#”, Name, “#”, Severity, “#”, Description, “%”,
“<ref_name1>=”, ref_id1,”%’,”<ref_name2>=”, ref_id2, "%|#=/@")
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 102 of 242
Note: Use __concatenateDeleting() instead of __concatenate() only if the Description
field contains characters such as %, |, #, =, @, which are used as delimiters in parsers. For
information about __concatenateDeleting(), see "ArcSight Operations".
The value for this property is obtained by concatenating the following vulnerability information (as
indicated by the syntax above):
lVendor vulnerability collection name
For example, “Nessus=” in the example illustrated previously in this section.
lVendor vulnerability ID
For example, NessusID in the example illustrated previously in this section.
lVendor vulnerability name
For example, Name in the example illustrated previously in this section.
lRisk or severity
For example, Risk in the example illustrated previously in this section.
lList of description, recommendation, and remediation (separated by the ‘#’ character)
For example, INFO in the example illustrated previously in this section.
lList of external references (separated by the ‘%’ character)
For example, "%CVE=",CVE,"%Bugtraq=",Bugtraq in the example illustrated previously in this
section.
levent.destinationHostName,event.destinationAddress,
event.destinationMACAddress, and event.destinationPort (whichever is available)
If you are setting the event.destinationPort field, it must contain the open port that the
scanner reported.
Severity Mappings
Mandatory. You must define the device severity to FlexConnector severity mapping as shown in section
#6 of the example that follows in this section.
Ignore or Include Line
Optional. This property enables you to specify filters (as regular expressions) that help identify lines in a
scan report that need to be processed to obtain vulnerability information about scanned hosts. Lines
that do not meet the criteria specified in the filter are not processed.
lThe include filter specifies a regular expression that a line must match for it to be processed for
extracting vulnerability information about scanned hosts.
lThe ignore filter specifies a regular expression that when matches a line, the line is excluded and not
processed for extracting vulnerability information.
The syntax for the include and ignore filters is as follows:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 103 of 242
line.include.regex=<regular_expression>
line.ignore.regex=<regular_expression>
For example:
line.include.regex= [\\w\\.-]+\\|.*?\\|\\d+\\|.*?\\|.*
Getting Open Ports on Scanned Hosts
The configuration file for getting the open ports and protocols on each scanned host should be named
vendor.openports.sdkrfilereader.properties, where vendor is usually the name of the
scanner device vendor.
Note: Typically, FlexConnectors look for extra processor configurations in {ARCSIGHT_
HOME}/current/user/agent/flexagent/. The Normal Text Report Scan FlexConnector is an
exception. FlexConnectors will look for these configurations in {ARCSIGHT_
HOME}/current/user/agent/aup/<agents[0].entityid>/fcp/.
Also, instead of looking for a <vendor>.openports.sdkrfilereader.properties file,
FlexConnectors look for a <vendor>.sdkrfilereader.properties file.
To work around these problems:
lCopy the vulnerability file from current/user/agent/flexagent/ to
current/user/agent/aup/<agents[0].entityid>/fcp/.
lRename the file from <vendor>.openports.sdkrfilereader.properties to
<vendor>.sdkrfilereader.properties.
The following is an example configuration file for getting an open port on each scanned host from a
scan report:
regex=([\\w\\.-]+)\\|((.*?) \\((\\d+)/(\\w+)\\)).*
token.count=5
token[0].name=ScannedHostNameOrIp
token[1].name=Name
token[2].name=ServiceName
token[3].name=Port
token[3].type=Integer
token[4].name=TransportProtocol
event.destinationHostName=ScannedHostNameOrIp
event.name=Name
event.destinationServiceName=ServiceName
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 104 of 242
event.destinationPort=Port
event.transportProtocol=TransportProtocol
event.categoryTechnique=__stringConstant("/scanner/device/openport")
event.deviceVendor=__stringConstant(Nessus)
event.deviceProduct=__stringConstant(Nessus)
In addition to the common properties listed in "Parser File Structure", the following properties need to
be configured:
Token Mappings
Mandatory. At a minimum, the IP address or host name must be extracted from the scan report. In
addition, if a MAC address and other information are available, it should also be extracted, as shown in
the example above.
Event Mappings
Mandatory. The following event mappings must be defined in the configuration file:
levent.name
levent.categoryTechnique
The value for this property must be set to the value shown in the previous example.
levent.transportProtocol
levent.destinationPort
The event.destinationPort field must contain the open port that the scanner reported.
levent.destinationHostName,event.destinationAddress, and
event.destinationMacAddress (whichever is available)
Ignore or Include Line
Optional. This property enables you to specify filters (as regular expressions) that help identify lines in a
scan report that need to be processed to obtain open ports (and protocols) information about scanned
hosts. Lines that do not meet the criteria specified in the filter are not processed.
lThe include filter specifies a regular expression that a line must match for it to be processed for
extracting open ports information about scanned hosts.
lThe ignore filter specifies a regular expression that when matches a line, the line is excluded and not
processed for extracting open ports information.
The syntax for the include and ignore filters is as follows:
line.include.regex=<regular_expression>
line.ignore.regex=<regular_expression>
For example:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 105 of 242
line.include.regex= [\\w\\.-]+\\|.*? \\(\\d+/\\w+\\).*
Getting OS and Applications (URIs) on Scanned Hosts
The configuration file for getting the operating system and applications on each scanned host must be
named <vendor>.uris.sdkrfilereader.properties, where vendor is usually the name of the
scanner device vendor.
Note: Typically, FlexConnectors look for extra processor configurations in {ARCSIGHT_
HOME}/current/user/agent/flexagent/. The Normal Text Report Scan FlexConnector is an
exception. FlexConnectors will look for these configurations in {ARCSIGHT_
HOME}/current/user/agent/aup/<agents[0].entityid>/fcp/.
Also, instead of looking for a <vendor>.uris.sdkrfilereader.properties file,
FlexConnectors look for a <vendor>.sdkrfilereader.properties file.
To work around these problems:
lCopy the vulnerability file from current/user/agent/flexagent/ to
current/user/agent/aup/<agents[0].entityid>/fcp/.
lRename the file from <vendor>.uris.sdkrfilereader.properties to
<vendor>.sdkrfilereader.properties.
The following is an example configuration file for getting operating system and applications on each
scanned host from a scan report:
regex=([\\w\\.-]+)\\|.*?\\|(10336|10785|11936|18261)\\|.*?\\|(.*)
token.count=3
token[0].name=ScannedHostOrIp
token[1].name=PluginId
token[2].name=Description
event.destinationHostName=ScannedHostOrIp
event.deviceEventClassId=PluginId
event.message=Description
event.categoryTechnique=__stringConstant("/scanner/device/uri")
event.deviceVendor=__stringConstant(Nessus)
event.deviceProduct=__stringConstant(Nessus)
event.filePath=__getNormalizedOS(OS)
Token Mappings
Mandatory. At a minimum, IP address or host name must be extracted from the scan report. In addition,
if a MAC address and other information is available, it should also be extracted, as shown in the example
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 106 of 242
above.
Event Mappings
Mandatory. The following event mappings must be defined in the configuration file:
levent.name
levent.categoryTechnique
The value for this property must be set to the value shown in the previous example.
levent.filePath
Use the __getNormalizedOS() operation to ensure that the operating system information is
translated to a normalized OS asset category, as shown in the example above.
Ignore or Include Line
Optional. This property enables you to specify filters (as regular expressions) that help identify lines in a
scan report that need to be processed to obtain the operating system and applications information
about scanned hosts. Lines that do not meet the criteria specified in the filter are not processed.
lThe include filter specifies a regular expression that a line must match for it to be processed for
extracting the operating system and applications information about scanned hosts.
lThe ignore filter specifies a regular expression that when matches a line, the line is excluded and not
processed for extracting the operating system and applications information.
The syntax for the include and ignore filters is as follows:
line.include.regex=<regular_expression>
line.ignore.regex=<regular_expression>
For example:
line.include.regex= [\\w\\.-]+\\|.*?\\|(?:10336|10785|11936|18261) \\|.*?\\|
(.*)
Configuration Files for XML Reports
Getting a List of Hosts
The configuration file for getting a list of scanned hosts needs to be named
vendor.scanner.xqueryparser.properties, where vendor is usually the name of the scanner
device vendor. In addition, this configuration file specifies the other configuration files to use to extract
information and the order in which they need to run.
The following is an example configuration file for getting a list of hosts from a scan report:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 107 of 242
trigger.node.expression=/report/details/host_info
token.count=3
token[0].name=hostname
token[0].expression=hostname
token[1].name=ipaddr
token[1].type=IPAddress
token[1].expression=ipaddr
token[2].name=macaddr
token[2].type=MacAddress
token[2].expression=macaddr
event.destinationAddress=ipaddr
event.destinationHostName=hostname
event.destinationMacAddress=macaddr
In addition to the common properties listed in "Parser File Structure", the following properties must be
configured:
Token Mappings
Mandatory. At a minimum, IP address or host name must be extracted from the scan report. In addition,
if a MAC address and other information is available, it should also be extracted, as shown in the example
above.
Use IP
Optional. Some scanners report only the IP addresses or host names of hosts scanned, while others
might report both. The Use IP property indicates whether the scan reports contain IP addresses. When
this property is set to false, it indicates that the scan report does not contain IP addresses.
use.ip=false
If this property is not set, the scanner FlexConnector expects IP addresses in the scan report.
Invalid Vulnerabilities
Optional. This property specifies the vulnerability identifiers (IDs) that the FlexConnector should ignore
when processing the scan report. If you want to specify multiple vulnerability IDs, separate them with a
pipe ( | ) character.
The syntax for this property is:
invalid.vulnerability.ids=<vulnerability_ids>
For example:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 108 of 242
invalid.vulnerability.ids=CVE|null,CVE|NOCVE,CVE|,Nessus
Extra Events
Mandatory. These properties specify the names and locations of other configuration files required for
parsing the scan report to extract the vulnerabilities, open ports, operating system, and applications
information.
lextraevent[x].filename—Specifies the file name of the additional configuration file; for
example, extraevent[0].filename=nessus_nsr_osuris
lextraevent[x].name—Specifies a name to associate with the extra events; for example,
extraevent[0].name=/scanner/device/uri/aggregated.
Although you can specify the extra events in any order, you must use the following event names
(extraevent[x].name):
lVulnerabilities: /scanner/device/vulnerability/aggregated
lOpen ports: /scanner/device/openport/aggregated
lURIs (for operating system and applications): /scanner/device/uri/aggregated
For example:
extraevent.count=3
extraevent[0].filename=saint_xml_file.vulns
extraevent[0].name=/scanner/device/vulnerability/aggregated
extraevent[1].filename=saint_xml_file.openports
extraevent[1].name=/scanner/device/openport/aggregated
extraevent[2].filename=saint_xml_file.uris
extraevent[2].name=/scanner/device/uri/aggregated
Getting Vulnerabilities for Scanned Hosts
The configuration file for getting vulnerabilities for the scanned hosts needs to be named
vendor.vulns.xqueryparser.properties, where vendor is usually the name of the scanner
device vendor. This configuration file is used to extract the following information for the scanned hosts:
Vulnerabilities as indicated by the vendor vulnerability IDs
lName, description, risk or severity, solution or recommendation, if available
lExternal references such as CVE, Bugtraq, and so on
lAny other relevant information that is available
The following is an example configuration file for getting vulnerabilities from a scan report:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 109 of 242
hop.node.count=2
hop.node[0].name=scan_information
hop.node[0].expression=/report/scan_information
hop.node[1].name=host_info
hop.node[1].expression=/report/details/host_info
trigger.node.expression=$host_info/vulnerability[severity!=
"Service"]
token.count=11
token[0].name=scanner_version
token[0].expression=$scan_information/scanner_version
token[1].name=hostname
token[1].expression=$host_info/hostname
token[2].name=ipaddr
token[2].type=IPAddress
token[2].expression=$host_info/ipaddr
token[3].name=hosttype
token[3].expression=$host_info/hosttype
token[4].name=scan_time
token[4].type=TimeStamp
token[4].format=MMM dd HH:mm:ss yyyy
token[4].expression=$host_info/scan_time
token[5].name=description
token[5].expression=description
token[6].name=severity
token[6].expression=severity
token[7].name=cve
token[7].expression=fn:replace(cve," ","%CVE=")
token[8].name=impact
token[8].expression=impact
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 110 of 242
token[9].name=resolution
token[9].expression=resolution
token[10].name=reference
token[10].expression=reference
event.categoryTechnique=__stringConstant("/scanner/device/
vulnerability")
event.destinationAddress=ipaddr
event.destinationHostName=hostname
event.deviceEventClassId=__concatenate(__concatenateDeleting
("Saint=",description,"#",description,"#",severity,"#","Impact",
impact,"Resolution",resolution," Reference",reference, "%|#=/@"),"%CVE=",cve)
event.deviceProduct=__stringConstant(SAINT Vulnerability Scanner)
event.deviceReceiptTime=scan_time
event.deviceSeverity=severity
event.deviceVendor=__stringConstant(SAINT)
event.deviceVersion=scanner_version
event.name=description
severity.map.veryhigh.if.deviceSeverity=critical,Critical Problem
severity.map.high.if.deviceSeverity=concern,Area of Concern
severity.map.medium.if.deviceSeverity=potential,Potential Problem
severity.map.low.if.deviceSeverity=info,service,Service
In addition to the common properties listed in "Parser File Structure", the following properties must be
configured.
Token Mappings
Mandatory. At a minimum, IP address or host name must be extracted from the scan report. In addition,
if a MAC address and other information is available, it should also be extracted, as shown in the example
above.
Event Mappings
Mandatory. The following event mappings must be defined in the configuration file:
levent.name
levent.deviceSeverity
levent.categoryTechnique
The value for this property must be set to the value shown in the previous example.
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 111 of 242
levent.deviceEventClassId = __concatenateDeleting(“<vendor_vulnerability_
name>=”, vendor_vuln_id, “#”, Name, “#”, Severity, “#”, Description, “%”,
“<ref_name1>=”, ref_id1,”%’,”<ref_name2>=”, ref_id2, "%|#=/@")
Note: Use __concatenateDeleting() instead of __concatenate() only if the Description
field contains characters such as %, |, #, =, @, which are used as delimiters in parsers. For
information about __concatenateDeleting(), see "ArcSight Operations".
The value for this property is obtained by concatenating the following vulnerability information (as
indicated by the syntax above):
lVendor vulnerability collection name=vendor vulnerability ID
lVendor vulnerability name
lRisk or severity
lList of description, recommendation, and remediation (separated by the ‘#’ character)
lList of external references (separated by the ‘%’ character)
levent.destinationHostName,event.destinationAddress, and destinationMACAddress
(whichever is available)
Severity Mappings
Mandatory. You must define the device severity to FlexConnector severity mapping as shown in section
#6 of the example presented earlier in this section.
Getting Open Ports on Scanned Hosts
The configuration file for getting the open ports and protocols on each scanned host needs to be
named vendor.openports.xqueryparser.properties, where vendor is usually the name of the
scanner device vendor.
The following is an example configuration file for getting open port on each scanned host from a scan
report:
hop.node.count=2
hop.node[0].name=scan_information
hop.node[0].expression=/report/scan_information
hop.node[1].name=host_info
hop.node[1].expression=/report/details/host_info
trigger.node.expression=$host_info/vulnerability[severity="Service"]
token.count=7
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 112 of 242
token[0].name=scanner_version
token[0].expression=$scan_information/scanner_version
token[1].name=hostname
token[1].expression=$host_info/hostname
token[2].name=ipaddr
token[2].type=IPAddress
token[2].expression=$host_info/ipaddr
token[3].name=hosttype
token[3].expression=$host_info/hosttype
token[4].name=scan_time
token[4].type=TimeStamp
token[4].format=MMM dd HH:mm:ss yyyy
token[4].expression=$host_info/scan_time
token[5].name=description
token[5].expression=description
token[6].name=severity
token[6].expression=severity
event.applicationProtocol=__regexToken(description,"(?:([a-zA-Z]+) ?)?\\(?
(?:\\d+/\\w+)?\\)?")
event.destinationServiceName=__regexToken(description,"(.*?) .*")
event.categoryTechnique=__stringConstant("/scanner/device/
openport")
event.destinationAddress=ipaddr
event.destinationHostName=hostname
event.destinationPort=__regexTokenAsInteger(description,"
\\D*(\\d*).*?")
event.deviceProduct=__stringConstant(SAINT Vulnerability Scanner)
event.deviceReceiptTime=scan_time
event.deviceSeverity=severity
event.deviceVendor=__stringConstant(SAINT)
event.deviceVersion=scanner_version
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 113 of 242
event.name=__concatenate("Service: ",description)
event.transportProtocol=__regexToken(description,"(?:[a-zA-Z]+ ?)?\\(?
(?:\\d+/(\\w+))?\\)?")
In addition to the common properties listed in "Parser File Structure", the following properties need to
be configured:
Token Mappings
Mandatory. At a minimum, IP address or host name must be extracted from the scan report. In addition,
if a MAC address and other information is available, it should also be extracted, as shown in the example
above.
Event Mappings
Mandatory. The following event mappings must be defined in the configuration file:
levent.name
levent.categoryTechnique
The value for this property needs to be set to the value shown in the previous example.
levent.transportProtocol
levent.destinationPort
The event.destinationPort field must contain the open port that the scanner reported.
levent.destinationHostName,event.destinationAddress, and
event.destinationMacAddress (whichever is available)
Getting OS and Applications (URIs) on Scanned Hosts
The configuration file for getting the operating system and applications on each scanned host needs to
be named vendor.uris.sdkrfilereader.properties, where vendor is usually the name of the
scanner device vendor.
The following is an example configuration file for getting operating system and applications on each
scanned host from a scan report:
hop.node.count=2
hop.node[0].name=scan_information
hop.node[0].expression=/report/scan_information
hop.node[1].name=host_info
hop.node[1].expression=/report/details/host_info
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 114 of 242
trigger.node.expression=$host_info
token.count=5
token[0].name=scanner_version
token[0].expression=$scan_information/scanner_version
token[1].name=hostname
token[1].expression=$host_info/hostname
token[2].name=ipaddr
token[2].type=IPAddress
token[2].expression=$host_info/ipaddr
token[3].name=hosttype
token[3].expression=$host_info/hosttype
token[4].name=scan_time
token[4].type=TimeStamp
token[4].format=MMM dd HH:mm:ss yyyy
token[4].expression=$host_info/scan_time
event.categoryTechnique=__stringConstant("/scanner/device/uri")
event.destinationAddress=ipaddr
event.destinationHostName=hostname
event.deviceProduct=__stringConstant(SAINT Vulnerability Scanner)
event.deviceReceiptTime=scan_time
event.deviceVendor=__stringConstant(SAINT)
event.deviceVersion=scanner_version
event.filePath=__getNormalizedOS(hosttype)
event.name=__concatenate("OS: ",hosttype)
Token Mappings
Mandatory. At a minimum, IP address or host name must be extracted from the scan report. In addition,
if a MAC address and other information is available, it should also be extracted, as shown in the example
above.
Event Mappings
Mandatory. The following event mappings must be defined in the configuration file:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 115 of 242
levent.name
levent.categoryTechnique
The value for this property must be set to the value shown in the previous example.
levent.filePath
Use the __getNormalizedOS() operation to ensure that the operating system information is
translated to a normalized OS asset category, as shown in the example above.
Scanner FlexConnectors for Database Scan Reports
Unlike the scanner FlexConnectors that process normal text or XML scan reports, the scanner
FlexConnector that processes database scan reports is a single configuration file. This file must be
named vendor.sdkdatabase.properties, where vendor is usually the name of the scanner device
vendor.
This file contains properties that extract the following information from a scan report:
lVersion of the database
lList of scan jobs stored in the database
lList of hosts scanned in a scan job
lVulnerabilities, open ports, operating system, and applications for each scanned host in a scan job
Getting the Version of the Database
Version
The following version properties are used to detect and identify the version of the database or product:
lversion.id
lversion.query
lversion.order
For a detailed explanation of these properties, see "Configuration Properties for a Time-based
Database FlexConnector".
Example for FoundScan:
version.id=5.x
version.query=select Version from Version where (Name='Database') and
(Version like '5%')
version.order=3
Example for eEye Retina:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 116 of 242
version.id=5.x
version.order=0
version.query=select count(id_) from eeye_Groups
Getting the List of Scan Jobs
Scan Job
The scan job properties obtain a list of scan job IDs for various scan results stored in the database.
lQuery—Obtains a list of scan job IDs for the scan jobs that have completed.
lscanjob.column—Enables you to specify the fields to display in the GUI for scan jobs when the
scanner FlexConnector is used in the interactive mode.
lscanjob.jobid.column.index,timestamp.field,uniqueid.fields, and event.name—
Required by the database parsing framework; therefore, these need to be configured.
For example:
query=select jobID,startTime,stopTime,jobDesc from jobs where jobID>? and
termStatus='Finished' order by JobId
scanjob.column.names=jobID,startTime,stopTime,jobDesc
scanjob.column.types=String,String,Integer,TimeStamp,TimeStamp
scanjob.jobid.column.index=3
timestamp.field=stopTime
uniqueid.fields=jobID
event.name=jobDesc
Use IP
Optional. Some scanners report only the IP addresses or host names of hosts scanned, while others
might report both. The use.ip property indicates whether the scan reports contain IP addresses. When
this property is set to false, it indicates that the scan report does not contain IP addresses.
use.ip=false
If this property is not set, the scanner FlexConnector expects IP addresses in the scan report.
Invalid Vulnerabilities
Optional. This property specifies the vulnerability identifiers (IDs) that the FlexConnector should ignore
when processing the scan report. If you want to specify multiple vulnerability IDs, separate them with a
pipe ( | ) character.
The syntax for this property is as follows:
invalid.vulnerability.ids=<vulnerability_ids>
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 117 of 242
For example:
invalid.vulnerability.ids=CVE|null,CVE|NOCVE,CVE|,Nessus
Extra Queries
Mandatory. Extra queries are used to extract the list of hosts from a scan job, their open ports,
vulnerabilities, operating system and applications on those hosts.
extraevent[x].name—Specifies a name to associate with the extra events; for example,
extraevent[0].name=/scanner/device/uri/aggregated.
Although you can specify the extra events in any order, you must use the following event names
(extraevent[x].name):
lVulnerabilities: /scanner/device/vulnerability/aggregated
lOpen ports: /scanner/device/openport/aggregated
lURIs (for operating system and applications):/scanner/device/uri/aggregated
The extra queries that you must configure are:
lextra.queries.count
The number of queries in the configuration file. The number is one less than the total number of
queries because the first query starts at 0. For example, if you have three queries defined to extract
operating system, open ports, and vulnerabilities, then set this property to 2.
llast.data.query.index
The highest index number for the query that will generate events. For example, if you have 6
extra.queries configured and you set this number to 4, any queries with index number 5, 6, and 7 will
not generate events; all others will do so.
lhost.query.index
The index number of the query that generates a list of scanned hosts.
The property extra.queries.count determines the number of different queries that will be
executed. The order of the extra queries is important. The extra queries that generate events should be
placed first, followed by the ones that do not. There are two query index properties:
host.query.index determines the query that is used to find the hosts in the scan and
last.data.query.index determines which is the last data query that generates an event that is
displayed on the console. The rest of the queries may be used for different purposes, but they do not
generate events that are displayed on the console. For example:
extra.queries.count=4
last.data.query.index=2
host.query.index=3
Vulnerability Query
The vulnerability query extracts the following information:
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 118 of 242
lVulnerabilities as indicated by the vendor vulnerability IDs
lName, description, risk or severity, solution or recommendation, if available
lExternal references such as CVE, Bugtraq, and so on
lAny other relevant information
This query uses the order by clause to sort the results by host ID.
The following is an example of the vulnerability query defined in a configuration file:
extra.queries[0].name=/scanner/device/vulnerability/aggregated
extra.queries[0].query=select
Jobs.JobID,Jobs.EndTime,JobName,Organizations.Name \
as \
CompanyName,Hosts.IPAddress,OSName,NBName,NBWorkGroup, DNSName,Alive, \
Virtual,ICMP,IdentifyWith,Wireless,Subscan,Batch,VulnFoundID, \
VulnsFound.FaultlineID,CVE,Type,Vulns.Name \
as \
VulnName,Vulns.Description \
as \
VulnDescription,Observation,RiskText,Risk,Recommendation,ExploitDate,Simplici
ty, \
Popularity,Impact,ExploitLink,
Person,LHF,ExploitDataType,Intrusive,SANS,Vulns.Status, \
ScanConfigurations.ConfigurationName \
from \
Jobs,Organizations,Hosts,VulnsFound,Vulns, ScanConfigurations \
where \
Jobs.CustomerID = Organizations.OrgId and \
Jobs.CustomerID = Hosts.CustomerID and Jobs.ConfigurationID =
Hosts.ConfigurationID and \
Jobs.JobID = Hosts.JobID and Jobs.CustomerID = VulnsFound.CustomerID and \
Jobs.ConfigurationID = VulnsFound.ConfigurationID and Jobs.JobID =
VulnsFound.JobId \
and Hosts.HostID = VulnsFound.HostID and VulnsFound.FaultlineID =
Vulns.FaultlineID and \
Jobs.CustomerID = ScanConfigurations.CustomerID and \
Jobs.ConfigurationID = ScanConfigurations.ConfigurationID and Jobs.JobId = ?
\
order by Hosts.HostID
# from Vulns and VulnsFound table
extra.queries[0].event.name=VulnName
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 119 of 242
extra.queries[0].event.deviceSeverity=Risk
extra.queries[0].severity.map.high.if.deviceSeverity=7,8,9,10
extra.queries[0].severity.map.medium.if.deviceSeverity=4,5,6
extra.queries[0].severity.map.low.if.deviceSeverity=0,1,2,3
extra.queries[0].event.categoryTechnique=__stringConstant
("/scanner/device/vulnerability")
extra.queries[0].event.deviceEventClassId=__concatenateDeleting
("Faultline=",FaultlineID,"#",VulnName,"#",Risk,"#","Description",VulnDescrip
tion,"Observation",Observation," RiskText",
RiskText,"Recommendation",Recommendation, "%CVE=",CVE,"%|#=/@")
extra.queries[1].event.destinationAddress=IPAddress
extra.queries[1].event.destinationHostName=DNSName
The following event mappings must be defined in the configuration file for the vulnerability query:
levent.name
levent.deviceSeverity
levent.categoryTechnique
The value for this property must be set to the value shown in the previous example.
levent.deviceEventClassId = __concatenateDeleting(“<vendor_vulnerability_
name>=”, vendor_vuln_id, “#”, Name, “#”, Severity, “#”, Description, “%”,
“<ref_name1>=”, ref_id1,”%’,”<ref_name2>=”, ref_id2, "%|#=/@")
Note: Use __concatenateDeleting() instead of __concatenate() only if the
Description field contains characters such as %, |, #, =, @, which are used as delimiters in
parsers. For information about __concatenateDeleting(), see "ArcSight Operations".
The value for this property is obtained by concatenating the following vulnerability information (as
indicated by the syntax above):
oVendor vulnerability collection name=vendor vulnerability ID
oVendor vulnerability name
oRisk or severity
oList of description, recommendation, and remediation (separated by the ‘#’ character)
oList of external references (separated by the ‘%’ character)
levent.destinationHostName,event.destinationAddress, and destinationMACAddress
(whichever is available)
lDevice severity to FlexConnector severity mapping:
extra.queries[x].severity.map.high.if.deviceSeverity
extra.queries[x].severity.map.medium.if.deviceSeverity
extra.queries[x].severity.map.low.if.deviceSeverity
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 120 of 242
Open Ports Query
The open ports query extracts the ports open on the scanned hosts and transport protocols allowed on
those ports.
This query uses the order by clause to sort the results by host ID.
The following is an example of the open ports query defined in a configuration file:
extra.queries[1].name=/scanner/device/openport/aggregated
extra.queries[1].query=select
Jobs.JobID,Jobs.EndTime,JobName,Organizations.Name as \
CompanyName,Hosts.IPAddress,OSName,NBName,NBWorkGroup, \
DNSName,Alive,Virtual,ICMP,IdentifyWith,Wireless,Subscan,Batch,ServicesFound.
Banner, \
ServiceName,Services.Port,Protocol,Services.Description, \
Detail, ServicesFound.ServiceID \
from \
Jobs,Hosts,Organizations,ServicesFound,Services where \
Jobs.CustomerID = Organizations.OrgId and \>
Jobs.CustomerID = Hosts.CustomerID and Jobs.ConfigurationID =
Hosts.ConfigurationID and \
Jobs.JobID = Hosts.JobID and \
Jobs.CustomerID = ServicesFound.CustomerID and Jobs.ConfigurationID =
ServicesFound.ConfigurationID \
and Jobs.JobID = ServicesFound.JobId and Hosts.HostID = ServicesFound.HostID
and \
ServicesFound.ServiceID = Services.ServiceID and Jobs.JobId = ? \
order by Hosts.HostID
extra.queries[1].event.name=Service
extra.queries[1].event.destinationPort=Port
extra.queries[1].event.transportProtocol=Protocol
extra.queries[1].event.destinationAddress=IPAddress
extra.queries[1].event.destinationHostName=DNSName
The following event mappings must be defined in the configuration file:
levent.name
levent.categoryTechnique
The value for this property needs to be set to the value shown in the previous example.
levent.transportProtocol
levent.destinationPort
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 121 of 242
The event.destinationPort field must contain the open port that the scanner reported.
levent.destinationHostName,event.destinationAddress, and destinationMacAddress
(whichever is available)
Getting OS and Applications (URIs) on Scanned Hosts
The OS and applications (URIs) query extracts the operating systems and applications found on the
scanned hosts.
This query uses the order by clause to sort the results by host ID.
The following is an example of the OS and applications query defined in a configuration file:
extra.queries[2].name=/scanner/device/uri/aggregated
extra.queries[2].query=Select IPAddress, DNSName, NBWorkGroup, \
OSName, EndTime from Hosts, Jobs \
where \
Jobs.CustomerID=Hosts.CustomerID and
Jobs.ConfigurationID=Hosts.ConfigurationID and \
Jobs.JobID=Hosts.JobID and Jobs.JobID=?
extra.queries[2].event.name=OSName
extra.queries[2].event.categoryTechnique=__stringConstant("/
scanner/device/uri")
extra.queries[2].event.filePath=__getNormalizedOS(OSName)
extra.queries[2].event.destinationAddress=IPAddress
extra.queries[2].event.destinationHostName=DNSName
extra.queries[2].event.destinationNtDomain=NBWorkGroup
The following event mappings must be defined in the configuration file:
levent.name
levent.categoryTechnique
The value for this property needs to be set to the value shown in the previous example.
levent.filePath
Use the __getNormalizedOS() operation to ensure that the operating system information is
translated to a normalized OS asset category, as shown in the example above.
Getting Scanned Hosts (Host Query)
This query extracts the IP addresses, host names, MAC addresses of the hosts in a scan job. Because all
scanners do not provide all three pieces of information, the query extracts whatever information is
available.
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 122 of 242
This query does not generate events, but generates a list of hosts that the connector uses to create
assets and update their information in ESM.
The following is an example of the query:
extra.queries[3].name=HostList
extra.queries[3].query= \
SELECT DISTINCT Hosts.IPAddress, Hosts.DNSName, ServicesFound.Banner \
FROM Jobs INNER JOIN Hosts ON Jobs.CustomerID = Hosts.CustomerID AND
Jobs.ConfigurationID \
= Hosts.ConfigurationID AND Jobs.JobID = Hosts.JobID \
LEFT OUTER JOIN ServicesFound ON Hosts.JobID = ServicesFound.JobID AND
Hosts.HostID \
= ServicesFound.HostID AND ServicesFound.ServiceID = 236 \
WHERE Jobs.JobID = ?
>extra.queries[3].event.destinationAddress=IPAddress
extra.queries[3].event.destinationHostName=DNSName
extra.queries[3].event.destinationMacAddress=__getLongMACAddressByString(__
regexToken(Banner,"(?s)MAC Address:\\s*(\\S+)"))
Developer's Guide
Chapter 5: Configuration File Examples
HPE Connectors Page 123 of 242
Chapter 6: Advanced Features
This chapter contains the following information:
lRegular Expressions
lSub-Messages
lLog Rotation Types
lLog Internal Events for File-Reading FlexConnectors
lUnparsed Events Detection
Regular Expressions
Regular expression-based FlexConnector parse fields from a line-based text log file. The Regex
FlexConnector will not manipulate binary files or text files that aren’t line based. Multiple line based
regex parsers are addressed later in this document.
This table lists meta-characters:
MChar Definition Pattern Sample Matches
. Any character (except \n new-line) a.c abc, aac, acc, adc, aec,
...
| Alternation. bill|ted ed, bill
{...} Explicit quantifier notation. ab{2}c abbc
[...] Explicit set of characters to match. a[bB]c abc, aBc
(...) Logical grouping of part of an expression. (abc){2} abcabc
* 0 or more of previous expression. ab*c ac, abc, abbc, abbbc, ...
+ 1 or more of previous expression. ab+c abc, abbc, abbbc, ...
? 0 or 1 of previous expression; also forces minimal
matching when an expression might match several
strings within a search string.
ab?c ac, abc
\ Preceding one of the above, it makes it a literal
instead of a special character. Preceding a special
matching character, see below.
a\sc a c
HPE Connectors Page 124 of 242
This table lists escape characters:
Escaped Char Description
ordinary characters Characters other than . $ ^ { [ ( | ) ] } * + ? \ match themselves.
\t Matches a tab \u0009.
\r Matches a carriage return \u000D.
\n Matches a new line \u000A.
\x20 Matches an ASCII character using hexadecimal representation (exactly two digits).
\* When followed by a character that is not recognized as an escaped character, matches that
character. For example, \* is the same as \x2A.
This table lists character classes:
Char Class Description
[aeiou] Matches any single character included in the specified set of characters.
[^aeiou] Matches any single character not in the specified set of characters.
[0-9a-fA-F] Use of a hyphen (–) allows specification of contiguous character ranges.
\w Matches any word character.
\W Matches any non-word character.
\s Matches any white-space character.
\S Matches any non-white-space character.
\d Matches any decimal digit. Equivalent to [0-9]
\D Matches any non-digit. Equivalent to [^0-9]
This table lists common Regex :
Data Type Regex for FlexConnector Example
IPAddress (\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d
{1,3})
123.45.67.89
IPAddress:Port (\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d
{1,3})\:(\\d{1,5})
123.45.67.89:25
Date & Time HTTP \\[(\\d{2}\\/\\w+\\/\\d{4}:\\d{2}:\\d
{2}:\\d{2} [+|-]\\d{4})\\]
[04/Dec/2004:00:21:37 +0000]
Date & Time (\\d{2}\\/\\d{2}\\/\\d{4} \\d{2}:\\d
{2}:\\d{2}) 01/31/2005 10:45:50
31/01/2005 22:15:10
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 125 of 242
Multi-line Parsing
Some files may contain events that are split into multiple lines. Some types parse files in which each line
is an event, but FlexConnector Regex Log file FlexConnectors also support reading multi-line files.
FlexConnectors will try to concatenate all the lines belonging to a single event separated by a space.
The problem becomes simpler because the events go back to being one line.
When events are split across several lines, there is typically a way to identify the message start and end.
To support multi-line messages, you need to define the message start and end in the configuration file.
The properties, in the following table, can be used for this purpose.
This table lists multi-line properties:
Property Description
multiline.starts.regex This property can be set to a regular expression that identifies when the multi-line
event starts. (This is required for multi-line files.)
multiline.ends.regex This property can be set to a regular expression that identifies when the multi-line
event ends. (This property is optional. If it is not present, it is assumed that when a
new event begins the previous one has ended.)
multiline.max.count This is an overflow protection that is not required but is recommended. The
FlexConnector will truncate the message if it reaches this specified number of lines
plus one.
multiline.delimiter By default, lines are concatenated with a space (' ') between, but this can be
changed by setting this property to a different character.
multiline.singleline.
nowaiting=(True or False)
If True, the connector does not wait for another line when the log file has a single
line without a second line. It proceeds to the next multi-line and continues
processing.
Note: Multi-line regular expression support is available only for Log File agents.
A log file that requires a multi-line FlexConnector might look like this:
|01/01/2005 11:00:50|1.1.1.1|7663|2.2.2.2|80|this
is
a
message
that
takes
multiple
lines|
|01/01/2005 11:00:51|1.1.1.1|7663|2.2.2.2|80|this
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 126 of 242
is another large message that takes
multiple lines|
To parse this message with a simple FlexConnector Regex Log file, add the following multiline
property to the configuration file:
multiline.starts.regex=\|\d+/\d+/\d+ \d+:\d+:\d+\|.*
The FlexConnector will concatenate multiple lines into a single line. The events will look like this:
|01/01/2005 11:00:50|1.1.1.1|7663|2.2.2.2|80|this is a message that takes
multiple lines|
|01/01/2005 11:00:51|1.1.1.1|7663|2.2.2.2|80|this is another large message
that takes multiple lines|
Such a log can be parsed by a standard FlexConnector Regex Log file. Another example:
multiline.ends.regex=.*\|$
In this case, the ends property is not required because an expression was defined that will always
match the start of a message.
The full FlexConnector Regex Logfile configuration file that can parse this message looks like this:
# FlexConnector Regex Configuration File
multiline.starts.regex=\\|\\d+/\\d+/\\d+ \\d+\:\\d+\:\\d+\\|.*
regex=\\|(.*?)\\|(\\S+)\\|(\\d+)\\|(\\S+)\\|(\\d+)\\|(.*)\\|
token.count=6
token[0].name=Timestamp
token[0].type=TimeStamp
token[0].format=MM/dd/yyyy HH\:mm\:ss
token[1].name=SourceAddress
token[1].type=IPAddress
token[2].name=SourcePort
token[2].type=Integer
token[3].name=DestinationAddress
token[3].type=IPAddress
token[4].name=DestinationPort
token[4].type=Integer
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 127 of 242
token[5].name=Message
token[5].type=String
#submessage.messageid.token=
#submessage.token=
event.sourceAddress=SourceAddress
event.destinationAddress=DestinationAddress
event.sourcePort=SourcePort
event.destinationPort=DestinationPort
event.deviceVendor=__getVendor("MyVendor")
event.message=Message
event.deviceProduct=__stringConstant("MyProduct")
This is an example of a log file that requires multi-line processing:
Multi-Line Virus Wall Log File
Date: 11/29/2004 09:44:11
Method: HTTP
From: http://www.nextern.net/downloads/pgtaff/pgtaff.cab
To: 10.0.1.19
File: pgtaff.cab
Action: The uncleanable file is deleted.
Virus: ADW_SCANPORTAL.A
----------------------------------
Date: 11/29/2004 11:34:37
Method: HTTP
From: http://www.nextern.net/downloads/pgtaff/pgtaff.cab
To: 10.0.1.19
File: pgtaff.cab
Action: The uncleanable file is deleted.
Virus: ADW_SCANPORTAL.A
----------------------------------
Date: 11/29/2004 12:21:32
Method: HTTP
From: http://192.168.176.227/webplugin.cab
To: 10.0.1.9
File: webplugin.cab
Action: The uncleanable file is deleted.
Virus: TROJ_ONECLICK.A
----------------------------------
The regular expression portion of the configuration file that defines this "Virus Wall" FlexConnector
looks like this:
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 128 of 242
multiline.starts.regex=Date:.*
multiline.ends.regex=----------------------------------
regex=Date:\\s(\\d{2}\\/\\d{2}\\/\\d{4} \\d{2}:\\d{2}:\\d{2}).Method:\\s
(\\w+).From:\\s(\\S+).To:\\s(\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d
{1,3}).File:\\s(\\S+).Action:\\s([^\\.]+)\\..Virus:\\s(\\S+).*
The following is another example of a multi-line log file:
BEA WebLogic Log File
####<30-mar-04 9:04:34 PST> <Info> <HTTP> <bcnproo41> <myserver>
<ExecuteThread: '9' for queue: 'default'> <> <> <101047> <
[WebAppServletContext(206735,Scort,/Scort)] SmartDemo
TerminalNewSessionServlet: web application context path=[/Scort]>
####<30-mar-04 9:10:35 PST> <Info> <HTTP> <bcnproo41> <myserver>
<ExecuteThread: '7' for queue: 'default'> <> <> <101047> <
[WebAppServletContext(206735,Scort,/Scort)] [2004.03.30 09:10:35.468]:Thread
Group for Queue: 'default'.ExecuteThread: '7' for queue:
'default'@565cd0:aa4:[Apn2T1cX5PWUVbP4nVXhHM6U714NKT2vVLXhPid1eYtCWY602fn4!-
1600671479!169410899!3001!7002!1080666038968] !!!
com.scort.agent.terminal.servlet.ServletHelper.traceOrError Timeout on
receiving response
receive timeout=60000
mode=send and receive
>
####<30-mar-04 9:10:57 PST> <Info> <HTTP> <bcnproo41> <myserver>
<ExecuteThread: '9' for queue: 'default'> <> <> <101047> <
[WebAppServletContext(206735,Scort,/Scort)] SmartDemo
TerminalNewSessionServlet: web application context path=[/Scort]>
####<30-mar-04 9:11:24 PST> <Info> <HTTP> <bcnproo41> <myserver>
<ExecuteThread: '9' for queue: 'default'> <> <> <101047> <
[WebAppServletContext(206735,Scort,/Scort)]
In this case, the regular expression portion of the configuration file looks like this:
multiline.starts.regex=####<.*
multiline.ends.regex=####
regex=####<([^>]*)> <([^>]*)> <([^>]*)> <([^>]*)> <([^>]*)> <([^>]*)> <
([^>]*)> <([^>]*)> <([^>]*)> <([^>]*)>(.*)
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 129 of 242
Sub-Messages
In some cases, the files being parsed by FlexConnectors may contain more than one message format.
For example:
Nov 28 22:02:42 10.0.111.2 %PIX-6-106015: Deny TCP (no connection) from
3.3.3.3/4532 to 4.4.4.4/80 flags RST on interface outside
Nov 28 22:06:10 10.0.111.2 %PIX-3-305005: No translation group found for tcp
src inside:10.0.112.9/37 dst outside:4.5.6.7/3562
Nov 29 01:46:42 10.0.111.2 %PIX-6-305005: Translation built for gaddr 1.2.3.4
to laddr 10.0.111.9
Nov 29 01:35:15 10.0.111.2 %PIX-4-500004: Invalid transport field for
protocol=6, from 2.2.2.2/0 to 3.3.3.3/0
Nov 28 12:03:21 10.0.111.2 %PIX-6-106015: Deny TCP (no connection) from
1.1.1.1/3564 to 2.2.2.2/80 flags RST on interface outside
Nov 29 04:11:32 10.0.111.2 %PIX-4-500004: Invalid transport field for
protocol=6, from 5.5.5.5/0 to 6.6.6.6/0
There is no easy way to define a regular expression that could match all four possible formats in this
example. For this reason, the FlexConnector Regex log-file supports using multiple regular expressions,
one for each format, by defining sub-messages.
Almost every message can be divided in two portions, one that is common to all messages and one that
varies with each message format. The common, or standard, portion requires only one regular
expression. A sub-message is defined as the non-standard portion of the message being parsed. In the
example above, divide the message:
Nov 28 22:02:42 10.0.111.2 %PIX-6-106015: Deny TCP (no connection) from
199.248.65.116/3564 to 10.0.111.22/80 flags RST on interface outside
Into:
Nov 28 22:02:42 10.0.111.2 %PIX-6-106015:
And:
Deny TCP (no connection) from 199.248.65.116/3564 to 10.0.111.22/80 flags RST
on interface outside
Identify that the first portion of the message is common to all messages; it contains the month, the day
of the month, the time, an IP address and an identifier (in this case formed by the mnemonic %PIX
(which comes from a Cisco Pix device) followed by a single digit that specifies the device severity and
finally message ID). The second portion of the message varies between each of the messages in the
example.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 130 of 242
Usually one or more sub-messages can be identified by a message ID or format identifier. A message ID,
if available, will improve performance of the FlexConnector engine.
In the example, the message ID is the last portion of the identifier provided with each message.
Determine that all messages with message ID 106015 have the same format; likewise message identifier
500004. Messages with message ID 305005 have slightly different formats, but they both refer to
translations.
The file described above must be parsed using a FlexConnector Regex Log file and sub-messages. The
first thing to do is to define a regular expression that will match all messages using knowledge of the
standard and non-standard part of the messages:
regex=(\S+ \d+ \d+:\d+:\d+) (\S+) %PIX-(\d)-(\d+): (.*)
This regular expression matches all the messages above and separates the standard part of the
message into tokens. The last (.*) matches everything after the %PIX identifier; that expression group
will become the sub-message to parse further.
With a common expression for all messages, now define the common tokens that are captured:
token.count=5
token[0].name=Timestamp
token[0].type=TimeStamp
token[0].format=MMM dd HH\:mm\:ss
token[1].name=PixIP
token[1].type=IPAddress
token[2].name=PixSeverity
token[2].type=String
token[3].name=SubmessageIdToken
token[3].type=String
token[4].name=SubmessageToken
token[4].type=String
Now add the common mappings:
event.deviceReceiptTime=Timestamp
event.deviceAddress=PixIp
event.deviceSeverity=PixSeverity
event.deviceEventClassId=SubmessageIdToken
event.deviceVendor=__getVendor(“CISCO”)
event.deviceProduct=__stringConstant(“PIX”)
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 131 of 242
Notice that the timestamp does not contain the year (this is typical in a syslog message). Use a
FlexConnector operation to add the current year to avoid all of the messages defaulting to the year
1970. The operation to use is __useCurrentYear(). The corrected mappings should be:
event.deviceReceiptTime=__useCurrentYear(Timestamp)
event.deviceAddress=PixIp
event.deviceSeverity=PixSeverity
event.deviceEventClassId=SubmessageIdToken
event.deviceVendor=__getVendor(“CISCO”)
event.deviceProduct=__stringConstant(“PIX”)
Map the severity, which is also common:
severity.map.veryhigh.if.deviceSeverity=0,1
severity.map.high.if.deviceSeverity=2,3
severity.map.medium.if.deviceSeverity=4,5
severity.map.low.if.deviceSeverity=6,7
Having parsed the standard part of the message, define which token will contain the message ID and
which token will contain the sub-message to be parsed. This is accomplished by defining the following
properties:
lsubmessage.messageid.token=SubmessageIdToken
lsubmessage.token=SubmessageToken
The (submessage.messageid.token) property identifies the token that will hold the message
identifier. The (submessage.token) property identifies the token that contains the actual sub-
message.
Now define the additional regular expressions for each sub-message ID. To do this, define the number
of sub-messages that are required. In this case, there are three sub-message IDs (106015,305005,
500004). Define the sub-message count as 3:
submessage.count=3
Follow these steps to define the sub-message:
1. Define the corresponding sub-message ID.
2. Define the regular expression(s) to use.
3. Define the mappings to event fields.
To define the first sub-message for message ID 106015, first define the message ID:
submessage[0].messageid=106015
Next, define the number of regular expressions (also known as patterns) needed. Message 305005 will
require two regular expressions but the other messages will require only one:
submessage[0].pattern.count=1
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 132 of 242
Define the regular expression to use for this message ID:
submessage[0].pattern[0].regex=Deny (\\S+) \\(no connection\\) from
(\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+) to (\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+)
flags RST on interface (\\S+)
The expression captures the protocol, the source address and source port, the destination address and
destination port and finally the interface. Now define how these tokens will map into event fields:
submessage[0].pattern[0].fields=event.transportProtocol,
event.sourceAddress,event.sourcePort,
event.destinationAddress,event.destinationPort,
event.deviceInboundInterface
However, you may have noticed that the type of each token was not defined; nor were any possible
token formats. Because you can have several of these sub-messages for each file, the sub-message
engine tries to deduce the type based on the mapping. This may not always work, so there is a way to
explicitly set the types and the formats. Internally, the sub-message engine labels each token by its
position in the regular expression (like Perl). In the engine, the tokens are named $1, $2, $3, $4, and so
on, and you can set their type and format explicitly by defining the following properties:
submessage[0].pattern[0].types=String,IPAddress,Integer,
IPAddress,Integer,String
The format can also be defined using one sub-message property (in this case, formats are not needed
for the types specified. Use the keyword null):
submessage[0].pattern[0].formats=null,null,null,null,null,null
The combination of these last three properties:
submessage[0].pattern[0].fields=event.transportProtocol,
event.sourceAddress,event.sourcePort,
event.destinationAddress,event.destinationPort,
event.deviceInboundInterface
submessage[0].pattern[0].types=String,IPAddress,Integer,
IPAddress,Integer,String
submessage[0].pattern[0].formats=null,null,null,null,null,null
Will be internally equivalent to:
# Six tokens
token.count=6
token[0].name=$1
token[0].type=String
token[0].format=null
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 133 of 242
token[1].name=$2
token[1].type=IPAddress
token[1].format=null
token[2].name=$3
token[2].type=Integer
token[2].format=null
token[3].name=$4
token[3].type=IPAddress
token[3].format=null
token[4].name=$5
token[4].type=Integer
token[4].format=null
token[5].name=$6
token[5].type=String
token[5].format=null
event.transportProtocol=$1
event.sourceAddress=$2
event.sourcePort=$3
event.destinationAddress=$4
event.destinationPort=$5
event.deviceInboundInterface=$6
Using FlexConnector operations with the mapping properties of the sub-message is also possible. The
following is an example with the sub-message for message ID 500004. The definition of that sub-
message is as follows:
submessage[1].messageid=500004
submessage[1].pattern.count=1
submessage[1].pattern[0].regex=Invalid transport field for protocol\=(\\d+),
from (\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+) to (\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+)
submessage[1].pattern
[0].fields=event.applicationProtocol,event.sourceAddress,event.sourcePort,eve
nt.destinationAddress,event.destinationPort
Recall the original message:
Nov 29 01:35:15 10.0.111.2 %PIX-4-500004: Invalid transport field for
protocol=6, from 2.2.2.2/0 to 3.3.3.3/0
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 134 of 242
Notice that the event.applicationProtocol is mapped to $1 which has the value 6. The
FlexConnector operation __getProtocolName translates protocol numbers into their description (for
example, protocol number 6is TCP). To use this operation, define a custom mappings property, so
instead of event.applicationProtocol=$1 use event.applicationProtocol =__
getProcotolName($1). Use the following property:
submessage[1].pattern[0].mappings=__getProtocolName($1)|$2|$3|$4|$5
In this case, each of the mappings is separated by a pipe (‘|’) instead of a comma (‘,’) because some
operations could contain a comma. You can customize the delimiter if needed by setting the property
submessage[1].pattern[0].mappings.delimiter. For example:
submessage[1].pattern[0].mappings.delimiter=@
submessage[1].pattern[0].mappings=
__getProtocolName($1)@$2@$3@$4@$5
Moving on to message ID 305005, notice that the same message ID has two slightly different formats.
As mentioned before, sub-messages also support multiple regular expressions for a single message ID.
The expressions are evaluated in order and the first match that succeeds wins. Try to order your
expressions from the most specific to the most generic. The sub-message properties for message
305005 are as follows:
submessage[2].messageid=305005
submessage[2].pattern.count=2
submessage[2].pattern[0].regex=No translation group found for (\\S+) src
inside\:(\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+) dst outside\:
(\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+)
submessage[2].pattern[0].fields=event.transportProtocol,
event.sourceAddress,event.sourcePort,
event.destinationAddress,event.destinationPort
submessage[2].pattern[1].regex=Translation built for gaddr
(\\d+\\.\\d+\\.\\d+\\.\\d+) to laddr (\\d+\\.\\d+\\.\\d+\\.\\d+)
submessage[2].pattern[1].fields=
event.destinationTranslatedAddress,event.destinationAddress
Default Sub-message
There is one more sub-message feature that can be useful situations where you do not know every
single message ID that can be received, but still want to try to parse them. In this case, define a default
sub-message to use for any message with a message ID that is not defined (anything other than
106015, 305005, 500004, in this example, will be sent to the default sub-message). The default sub-
message can also contain multiple patterns so that you can use several regular expressions to see if one
of them matches.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 135 of 242
The default sub-message is the same as a normal sub-message with no messageid property. The
definition of a default sub-message for the current example configuration file will be:
submessage[3].pattern.count=1
submessage[3].pattern[0].regex=(.*)
submessage[3].pattern[0].fields=event.message
Of course, since new sub-message is added (the default sub-message is still a sub-message), increase
the submessage.count to 4:
submessage.count=4
The default sub-message defined here will simply map the event.message to the full sub-message.
You might want to alert the user that the particular message was not fully parsed; to do that, you can
set the event.name to a fixed string, such as Unparsed message and the deviceProduct to
Unknown so that separate statistics are kept for all these messages. See "Extra Mappings” for details.
Extra Mappings
Extra mappings (extramappings) is another property of the sub-message that can be used to directly
add additional mapping properties. For the example described above, the extramappings property
must be defined as:
submessage[3].pattern[0].extramappings=event.name=
__stringConstant("Unparsed event")
|event.deviceProduct=__stringConstant("Unknown")
Notice that you can add as many mappings as you require; each separated by ‘|’. The ‘|’ can also be
replaced with a different delimiter (just like the mappings delimiter):
submessage[3].pattern[0].extramappings.delimiter=@
submessage[3].pattern[0].extramappings=event.name=
__stringConstant("Unparsed event")
@event.deviceProduct=__stringConstant("Unknown")
Now the example FlexConnector with sub-messages is complete. The full FlexConnector configuration
file looks like this:
# FlexConnector Regex Configuration File
regex=(\\S+ \\d+ \\d+\:\\d+\:\\d+) (\\S+) %PIX-(\\d)-(\\d+)\: (.*)
token.count=5
token[0].name=Timestamp
token[0].type=TimeStamp
token[0].format=MMM dd HH\:mm\:ss
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 136 of 242
token[1].name=PixIP
token[1].type=IPAddress
token[2].name=PixSeverity
token[2].type=String
token[3].name=SubmessageIDToken
token[3].type=String
token[4].name=SubmessageToken
token[4].type=String
submessage.messageid.token=SubmessageIdToken
submessage.token=SubmessageToken
event.deviceReceiptTime=__useCurrentYear(Timestamp)
event.deviceAddress=PixIP
event.message=SubmessageToken
event.deviceVendor=__stringConstant(CISCO)
event.deviceSeverity=PixSeverity
event.deviceProduct=__stringConstant(PIX)
event.deviceEventClassId=SubmessageIDToken
severity.map.veryhigh.if.deviceSeverity=0,1
severity.map.high.if.deviceSeverity=2,3
severity.map.medium.if.deviceSeverity=4,5
severity.map.low.if.deviceSeverity=6,7
submessage.count=4
submessage[0].messageid=106015
submessage[0].pattern.count=1
submessage[0].pattern[0].regex=Deny (\\S+) \\(no connection\\) from
(\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+) to (\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+)
flags RST on interface (\\S+)
submessage[0].pattern[0].fields=event.transportProtocol,
event.sourceAddress,event.sourcePort,
event.destinationAddress,event.destinationPort,
event.deviceInboundInterface
submessage[0].pattern[0].types=String,IPAddress,Integer,
IPAddress,Integer,String
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 137 of 242
submessage[0].pattern[0].formats=null,null,null,null,null,null
submessage[1].messageid=500004
submessage[1].pattern.count=1
submessage[1].pattern[0].regex=Invalid transport field for protocol\=(\\d+),
from (\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+) to (\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+)
submessage[1].pattern[0].mappings.delimiter=@
submessage[1].pattern[0].fields=event.applicationProtocol,
event.sourceAddress,event.sourcePort,
event.destinationAddress,event.destinationPort
submessage[1].pattern[0].mappings=
__getProtocolName($1)@$2@$3@$4@$5
submessage[2].messageid=305005
submessage[2].pattern.count=2
submessage[2].pattern[0].regex=No translation group found for (\\S+) src
inside\:(\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+) dst outside\:
(\\d+\\.\\d+\\.\\d+\\.\\d+)/(\\d+)
submessage[2].pattern[0].fields=event.transportProtocol,
event.sourceAddress,event.sourcePort,
event.destinationAddress,event.destinationPort
submessage[2].pattern[1].regex=Translation built for gaddr
(\\d+\\.\\d+\\.\\d+\\.\\d+) to laddr (\\d+\\.\\d+\\.\\d+\\.\\d+)
submessage[2].pattern[1].fields=
event.destinationTranslatedAddress,event.destinationAddress
# Default sub-message descriptor
submessage[3].pattern.count=1
submessage[3].pattern[0].regex=(.*)
submessage[3].pattern[0].extramappings.delimiter=@
submessage[3].pattern[0].fields=event.message
submessage[3].pattern[0].extramappings=
event.name\=__stringConstant("Unparsed event")
@event.deviceProduct\=__stringConstant("Unknown")
Conditional Mappings
Conditional mappings enable you to map tokens that can contain different types of information, based
on the characteristic of the event.
For example, assume the following event:
Event id is 532 type A with parameter 3.3.3.3
Event id is 533 type A with parameter root
Event id is 534 type A with parameter 3.3.3.3
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 138 of 242
In this example, the parameter token can be either an IP address or a user name.
The regular expression to parse this event is:
Event id is (\\d+) type (\\S+) with parameter (\\S+)
You can define three tokens for the above events: EVENTID,TYPE, and PARAMETER. If the event id is
532 or 534, set the ArcSight event field event.sourceAddress to 3.3.3.3 and if the event id is 533, set
the event.sourceUserName to root.
Without conditional mappings, you will have to create two regular expressions to match the two unique
information types in this event—the IP address and the user name. Although it is feasible to define two
regular expressions for this case, if there were hundreds of messages with unique information types,
this solution will not scale well.
With conditional mappings, you can define the following mapping properties in your parser for the
above example:
regex=Event id is (\\d+) type (\\S+) with parameter (\\S+)
token.count=3
token[0].name=EVENTID
token[1].name=TYPE
token[2].name=PARAMETER
#Standard mappings
event.deviceEventClassId=EVENTID
event.deviceEventCategory=TYPE
#Conditional mappings
conditionalmap.count=1
conditionalmap[0].field=event.deviceEventClassId
conditionalmap[0].mappings.count=2
conditionalmap[0].mappings[0].values=532,534
conditionalmap[0].mappings[0].event.sourceAddress=PARAMETER
conditionalmap[0].mappings[1].values=533
conditionalmap[0].mappings[1].event.sourceUserName=PARAMETER
The properties in the Conditional mappings section above define the following logic:
lconditionalmap.count—Specifies the number of conditional mappings. In the above example,
one conditional mapping is defined.
lconditionalmap[x].field or conditionalmap[x].token—Specifies the field or token to
evaluate. You can only use one of these properties for each conditional mapping, and not both.
When using conditionalmap[x].field, you must use the event.eventIdField format to
specify a value for this property. In the above example, conditionalmap
[0].field=event.deviceEventClassId.
When using conditionalmap[x].token, you must specify the token as the value. For example,
conditionalmap[0].token=PARAMETER (not shown in the above example).
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 139 of 242
lconditionalmap[x].mappings.count—Specifies the count of information types. In the above
example, 2—sourceAddress and sourceUserName.
lconditionalmap[x].mappings[x].values—Specifies a list of values to match with each token
or field defined. In the example above, conditionalmap[0].mappings[0].values = 532,
534.
If you have more than one value, use a comma to separate them.
If this property is omitted, the conditional mapping is processed as a DEFAULT mapping that is
executed ONLY if the previous mappings did not match. This is analogous to the Else behavior in the
If…Else construct. For example, if the following conditional mapping was defined in addition to the
mappings in the above example:
conditionalmap[0].mappings[2].event.destinationAddress=PARAMETER
Then, if an event with an event id other than 532, 533, and 534 was received, its
event.destinationAddress will be set to PARAMETER. If you added the DEFAULT conditional map
as suggested above to the previous example, then you must change the conditionalmap
[0].mappings.count to 3 for the example to work.
lconditionalmap[x].mappings[x].event.{xxxx} or conditionalmap[x].mappings
[x].additionaldata.{xxx}-Specifies the mapping properties to be evaluated if
conditionalmap[x].mappings[x].values match the conditionalmap[x].field or
conditionalmap[x].token.
lconditionalmap[x].mappings[x].delimiter—Specifies the delimiter to use for the values
defined above. By default, comma (,). This property is optional.
Using Conditional Mapping in Sub-messages
You can use conditional mappings in sub-messages. For example:
submessage[3].messageid=conditionalmapsample
submessage[3].pattern.count=1
submessage[3].pattern[0].regex=Event id is (\\d+) type (\\S+) with parameter
(\\S+)
submessage[3].pattern[0].fields=event.deviceEventClassId
submessage[3].pattern[0].conditionalmap.count=2
submessage[3].pattern[0].conditionalmap[0].field=event.deviceEventClassId
submessage[3].pattern[0].conditionalmap[0].mappings.count=2
submessage[3].pattern[0].conditionalmap[0].mappings[0].values=532,534
submessage[3].pattern[0].conditionalmap[0].mappings
[0].event.destinationAddress=$3
submessage[3].pattern[0].conditionalmap[0].mappings[1].values=533
submessage[3].pattern[0].conditionalmap[0].mappings
[1].event.destinationUserName=$3
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 140 of 242
submessage[3].pattern[0].conditionalmap[1].token=$2
submessage[3].pattern[0].conditionalmap[1].mappings.count=1
submessage[3].pattern[0].conditionalmap[1].mappings[0].values=B
submessage[3].pattern[0].conditionalmap[1].mappings
[0].event.destinationAddress=$3
The regular expression is divided into groups. A group is an element between two parentheses ( ). Each
group is represented by $number from left to right, where number is a sequentially increasing whole
number, starting at 1.
In the above example, there are three groups:
$1 -- (\\d+)
$2 -- (\\S+)
$3 -- (\\S+)
Additional Data Mapping
In some environments it is useful to map certain additional data names to normal ArcSight schema
fields. The mapping can vary based on the device vendor and product and can be controlled from the
ArcSight Console, with the mappings stored on the SmartConnector machine.
The SmartConnector tracks whatever additional data names it encounters and reports this information
to the ArcSight Console (otherwise, spelling and capitalization errors would make the mapping feature
much more difficult to use.)
All data mapping is done through SmartConnector commands from the ArcSight Console, as shown:
Using the Get Additional Data Names Command
The Get Additional Data Names command specifies the additional data names assigned to each
device vendor or product combination since the SmartConnector started running. This process has a
default limitation of the most recent 100 device vendor/product combinations, and the most recent 100
names for each (this limit can be changed with the SmartConnector property
agent.additionaldata.mapper.track.max.names).
The command output looks like this:
Additional Data Names Seen:
Generic (no vendor/product):
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 141 of 242
test1 [3 times]
test11
test13 [2 times]
test14 [3 times]
test15 [4 times]
test17 [5 times]
test18 [6 times]
test2 [4 times]
test20 [2 times]
test3 [5 times]
test4
test5 [3 times]
Vendor/product [vend/prod]:
test1
test10 [6 times]
test11
test12 [4 times]
test13 [2 times]
test14
test15 [2 times]
test17 [4 times]
test19 [2 times]
test2 [3 times]
test20 [4 times]
test5 [4 times]
test9
Vendor/product [vend/prod2]:
test10 [2 times]
test11 [5 times]
test12 [5 times]
test13 [7 times]
test15 [4 times]
test17 [2 times]
test18 [5 times]
test19
test2 [4 times]
test20 [6 times]
test3 [3 times]
test4 [6 times]
test6
test7
test9 [4 times]
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 142 of 242
If an additional data name appears more than once, the number of times it has been seen is included in
the command output, as shown above.
Using the Map Additional Data Name… Command
The Map Additional Data Name… command opens this dialog:
The Device vendor and Device product fields can be left blank to create a generic mapping, or filled in
for a specific mapping. The additional data name is usually one of the names shown in the Get
Additional Data Names output, but does not have to be. The ArcSight field must be a valid ArcSight
event field. The command output for a successful generic mapping looks as follows:
Successfully mapped additional data name [test11] to event field [message]
for vendor/product []
A successful device vendor/product-specific mapping has output similar to the following:
Successfully mapped additional data name [test10] to event field [message]
for vendor/product [vend/prod]
If the additional data name has not been seen, the name is still mapped, but with a warning as follows:
Successfully mapped additional data name [foo] to event field
[deviceCustomString1] for vendor/product [vend/prod] (note that additional
data name [foo] has not been seen for vendor/product [vend/prod])
If the ArcSight field is not valid, an error similar to the following is displayed:
Failed to map additional data name [bar] to event field [messages] for
vendor/product [vend/prod] (event field [messages] is unknown)
Using the Unmap Additional Data Name… Command
The Unmap Additional Data Name… command opens this dialog:
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 143 of 242
The Device vendor field and Device product fields can be left blank to remove a generic mapping, or
be filled to remove a specific mapping. The additional data name should be one that was previously
mapped for the specified device vendor and product combination.
The command output for a successful generic unmapping displays as follows:
Successfully unmapped additional data name [test11] for vendor/product []
A successful device vendor/product-specific unmapping has output similar to the following:
Successfully unmapped additional data name [foo] for vendor/product
[vend/prod]
If the specified additional data name was not previously mapped, the output displays as follows:
Failed to unmap additional data name [foo] for vendor/product [vend/prod]
(not previously mapped)
Note: One additional data name can be mapped to more than one ArcSight field for the same
device vendor/product combination. In such cases, unmapping it unmaps it from all ArcSight fields
for that device vendor/product.
In the opposite case, where multiple additional data names are mapped to the same ArcSight field
for the same device vendor/product combination, the last mapping takes precedence over previous
mappings to that ArcSight field and its corresponding device vendor/product combination.
Using the Get Status Command
The Get Status command includes the status for additional data names which are mapped to ArcSight
fields, as shown below:
NGCustomAdditionalDataMapper0................Generic mappings:test11=>message
NGCustomAdditionalDataMapper1................Mappings for
vend/prod:test10=>message, foo=>deviceCustomString1
Note: Only mappings for loaded device vendor/product combinations are included. This includes
mappings for vendor/product combinations that have had mapping or unmapping commands
executed (even unsuccessful ones), and vendor/product combinations for which additional data-
laden events have been seen. Unloaded mappings on disk are not included.
Log Rotation Types
For connectors that follow log files, there are three mechanisms for rotating the log files implemented in
the connector framework. See "File Connector Parameters " for more information and the parameters
available for log rotation.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 144 of 242
lName Following Log Rotation
lDaily Rotation
lIndex Rotation
Several of the parameters are described here:
lParameters for Daily and Index Rotation
Name Following Log Rotation
An example of name following log rotation would be, the device writes to xyz.log. At rotation time,
the device renames xyz.log to xyz1.log and creates a new xyz.log and begins to write to it. The
connector detects the drop in size of xyz.log and terminates the reader thread to the old xyz.log
after processing is completed. The connector creates a new reader thread to the new xyz.log and
begins processing that file. To enable this log rotation, set followexternalrotation to true.
Daily Rotation
A typical scenario of daily rotation could be, the device writes to xyz.timestamp.log on a daily basis.
At a specified time, the device creates a new daily log and begins to write to it. The connector detects
the new log and terminates the reader thread to the previous log after processing is complete. The
connector then creates a new reader thread to the new xyz.timestamp.log and begins processing
that file. To enable this log rotation, set rotationscheme to Daily. See also "Parameters for Daily and
Index Rotation".
Index Rotation
In the case of index rotation, the device writes to indexed files - xyz.log.001,xyz.log.002,
xyz.log.003 and so on. At startup, the connector processes the log with highest index. When the
device creates a log with a greater index, the connector terminates the reader thread to the previous log
after processing completes, creates a thread to the new log and begins processing that log. To enable
this log rotation, set rotationscheme to Index. See also "Parameters for Daily and Index Rotation".
Parameters for Daily and Index Rotation
Use the rotationschemeparams parameter to set the parameters for daily or index log file rotation.
The rotationschemeparams parameter can be used only if the rotationscheme parameter is set to
Daily or Index.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 145 of 242
Using rotationschemeparams for Daily Log File Rotation
This section describes values for the rotationschemeparams parameter when
rotationscheme=Daily. Applications use this value to generate date coded log files (for example,
Trend Micro ScanMail).
A filename template has the following syntax:
[prefix,]dateFormat,suffix[,true|false]
Symbols used in the dateformat can be read by the connector. They do not need to be declared as
strings. For example:
yyyy.MM.dd
yyyy-MM-dd
Any character can be used in the prefix and suffix fields except the comma ( , ).
To include a literal string in a field, escape it with a single quote ( ‘ ). For example:
access_,yyyyMMdd’in TimeZone: PST’,.log,true
The [prefix] and [true|false] fields are optional. The [true|false] field indicates that the
rotated file has an additional counter so it can be rotated multiple times a day. For example, to obtain
the following output:
Access.yyyyMMdd.log.1
Access.yyyyMMdd.log.2
...
the syntax would have to be:
Access.,yyyyMMdd,.log,true
If you use periods (or “full stops”) within filenames, then they must be stated within the parameters. The
commas which separate prefix,dateFormat,appendix do not replace them. For example, to obtain
this output:
Filename.yyyyMMdd.appendix
use this syntax:
Filename.,yyyyMMdd,.appendix
Example:
yyyyMMdd,log
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 146 of 242
In this example, prefix is omitted, therefore, the following comma is not required. dateFormat is
yyyyMMdd,suffix is log, and the [true|false] field is omitted. Because [true|false] is the last
field and is omitted, a comma is not required at the end.
Example:
Access,yyyyMMdd,log
In this example, prefix is Access,dateFormat is yyyyMMdd,suffix is log, and the [true|false]
field is omitted.
Example:
Access.,yyyyMMdd,
In this example the prefix is Access. and yyyyMMdd is the mandatory dateFormat field. The file does
not have an suffix, but the configuration still must end with a comma to indicate that it is the end of the
file name. This syntax will produce an output such as Access.20160209.
Example:
Access,yyyyMMdd,log,true
In this example, prefix is Access,dateFormat is yyyyMMdd,suffix is log, and the [true|false]
field is set to true. Here true means even if the file name does not exactly match with the above given
format, if the file name ends with the suffix and starts with prefix and also has the date in it then
that file is matched.
For example: Access_v2.20150225.log
Using rotationschemeparams for Index Log File Rotation
This section describes values for the rotationschemeparams parameter when
rotationscheme=Index. For example:
my.'%03d,001,999,false’.log
The value %03d specifies how many digits are allowed before .log in the file name. In this example, 3
digits are allowed. The value 001,999 specifies how high to count in the index. In this example, the file
rotation could go to my.999.log.
The last parameter, [true|false], is optional. The default is false, which means missing indexes are
not allowed. The connector does not stop reading the current file until the log file with the next index
appears.
When true, it specifies that the connector continues processing if there is a missing file, for example if
the device rotates the log from my.636.log to my.638.log.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 147 of 242
Using wildcard for Daily and Index Log File Rotation (File Folder
Follower Only)
Use the agents[x].wildcard parameter to match file names when rotating log files.
Note: The Regex File connector processes only files with the specified file extension.
To process all files for Regex File connectors on the Windows platform, use the value "asterisk dot
asterisk" (*.*) . because all files have an extension by default.
To process all files for Regex File connectors on the Unix/Linux platforms, the recommended value
is "asterisk" (*). For example, if you configure this property to *.ext, then the Regex connector will
read events from only log files with the extension .ext.
Using wildcard for Date Rotation
A typical scenario could be, the device writes to xyz.timestamp.log on a daily basis. At a specified
time, the device creates a new daily log and begins to write to it. The connector detects the new log and
terminates the reader thread to the previous log after processing is complete. The connector then
creates a new reader thread to the new xyz.timestamp.log and begins processing that file. To
enable this log rotation, set wildcard to a data file format, as shown in the following example:
agents[x].wildcard=fileName.'yyyy-MM-dd'.fileSuffix
For a data file name of myFile.2013-09-23.log, the wildcard command is:
agents[x].wildcard=foo.'yyyy-MM-dd'.log
Where myFile is the fileName, 'yyyy-mm-dd' is the date format, and .log is the fileSuffix.
Pattern matching is performed only for the portion within quotes.
Using wildcard for Index Rotation
In this case, the device writes to indexed files, for example: xyz.001.log,xyz.002.log,
xyz.003.log, and so on. At startup, the connector processes the log with highest index. When the
device creates a log with a greater index, the connector terminates the reader thread to the previous log
after processing completes, creates a thread to the new log and begins processing that log. To enable
this log rotation, set wildcard using the syntax shown in the following example:
agents
[x].wildcard=FileName.'patternOfIndex,minValue,maxValue,ignoreMissingIndex'.f
ileSuffix
where:
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 148 of 242
lpatternOfIndex is the pattern of the index. It specifies how many digits are allowed before .log
in the file name. For example, to allow a 3-digit index, enter %d03.
lminValue is the minimum value the index can take.
lmaxValue is the maximum value the index can take, after which it again starts from minValue. For
example, assume that minValue=000, and maxValue=999. When the connector finds a file with a
999 index, it will then look for a rotated file with the index 000.
lignoreMissingIndex is a Boolean value that describes what the connector should do if a file with
the next index is never created, If true, the connector checks if there is a new file with the correct file
name pattern instead of waiting for the next index-based file forever.
For example, the command:
agents[x].wildcard=myFile.'%d01,0,9,true'.log
will support the processing of log files myFile.0.log through myfile.9.log before searching for
myFile.0.log again.
Log Internal Events for File-Reading FlexConnectors
File-reading FlexConnectors have internal events that are sent when the connector begins to process a
file and when the connector finishes processing the file. Another event can be configured so that the
event is sent when a specified number of files are not processed in a specified amount of time. The
events are configured in ARCSIGHT_HOME/user/agent/agent.properties.
linternalevent.filestart.enable=true/false - the default is true.
linternalevent.fileend.enable=true/false - the default is true.
linternalevent.filecount.enable=false/true - the default is false. This event has the
following parameters:
ointernalevent.filecount.duration=nnn - specifies the number of seconds that the
connector has to process a specified number of files.
ointernalevent.filecount.minfilecount=nnn - specifies the minimum number of files that
the connector should process in a specified number of seconds.
ointernalevent.filecount.timer.delay=nnn - specifies, in seconds, how often the
connector should check to see if the connector is compliant with the other parameters.
Unparsed Events Detection
The unparsed event detection feature syntactically detects unparsed events and logs them to a
separate file for easier identification. This feature can be enabled by configuring the
unparsedevents.log.enabled parameter and setting it to true. See "Parameters Common to all
SmartConnectors" for more information about this parameter.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 149 of 242
To verify whether the feature is enabled, see the agent.log file. The following sample log message
indicates that the feature is enabled:
[2016-05-10 18:00:40,190][INFO ]
[default.com.arcsight.agent.loadable.agent._DHCPFileAgent]
[parseParameters] Logging of unparsed events is [enabled] for SmartConnector
[dhcp_file][3vEFHnVQBABCAA9NWrEbq5g==]
Supported Parser Types
Connectors with the following parser types can use the unparsed event detection feature:
lRegex parser—Configuration files for this parser type have the extension
sdkrfilereader.properties.
lKey-Value parser—Configuration files for this parser type have the extension
sdkkeyvaluefilereader.properties.
lDelimited parser—Configuration files for this parser type have the extension
sdkfilereader.properties.
To determine whether a connector uses any of the these parser types, see the agent.log file. The
following sample log message indicates that the connector uses a delimited parser:
[2016-05-10 18:00:40,222][INFO ]
[default.com.arcsight.agent.content.FCPContentInputStreamProvider]
[getInputStream] Resource [dhcp_file\dhcp_file_v6.sdkfilereader.properties]
found in [Z:\\system\agent\fcp\arcsightagents.aup|dhcp_file\dhcp_file_
v6.sdkfilereader.properties.arc]
Unparsed Events Detection Criteria
An ArcSight parser configuration file can contain any of these expressions:
lComment Expressions
lParsing Expressions
lToken Expressions
lMapping Expressions
lExtra-Processor Expressions
To understand these expressions, consider the following parser file:
#
# Parser file for Microsoft Windows DHCP File Agent
#Event ID Meaning
#00 The log was started.
#01 The log was stopped.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 150 of 242
#02 The log was temporarily paused due to low disk space.
#10 A new IP address was leased to a client.
#11 A lease was renewed by a client.
#12 A lease was released by a client.
#13 An IP address was found to be in use on the network.
#14 A lease request could not be satisfied because the scope's
# address pool was exhausted.
#15 A lease was denied.
#16 A lease was deleted.
#17 A lease was expired.
#20 A BOOTP address was leased to a client.
#21 A dynamic BOOTP address was leased to a client.
#22 A BOOTP request could not be satisfied because the scope's
# address pool for BOOTP was exhausted.
#23 A BOOTP IP address was deleted after checking to see it was
# not in use.
#24 IP address cleanup operation has began.
#25 IP address cleanup statistics.
#30 DNS update request to the named DNS server
#31 DNS update failed
#32 DNS update successful
#50+ Codes above 50 are used for Rogue Server Detection information.
#DHCP 2008 QResult: 0: NoQuarantine, 1:Quarantine,
2:Drop Packet, 3:Probation,6:No Quarantine Information ProbationTime:Year-
Month-Day Hour:Minute:Second:MilliSecond.
#ID,Date,Time,Description,IP Address,Host Name,MAC Address,User Name,
TransactionID, QResult,Probationtime, CorrelationID,Dhcid.
#DHCP 2003 ID,Date,Time,Description,IP Address,Host Name,MAC Address
regex=(\\d+),(\\d+/\\d+/\\d+),(\\d+:\\d+:\\d+),((?:(?:.*?, )*)?.*?),(.*?),
([^,]*),([-\\+]?\\w*),?
line.ignore.regex=\\s*
comments.start.with=#
token.count=7
token[0].name=EventID
token[0].type=String
token[1].name=Date
token[1].type=Date
token[1].format=MM/dd/yy
token[2].name=Time
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 151 of 242
token[2].type=Time
token[2].format=HH:mm:ss
token[3].name=EventName
token[3].type=String
token[4].name=Address
token[4].type=String
token[5].name=HostName
token[5].type=String
token[6].name=sourceMAC
token[6].type=String
event.sourceHostName=HostName
event.deviceEventClassId=EventID
event.name=EventName
event.deviceReceiptTime=__createTimeStamp(Date,Time)
#Convert address for event id = 30 - DNS update request
event.sourceAddress=__splitAsAddress(__ifThenElse(EventID,"30",
__reverseDottedDecimalAddressByteOrder(Address),Address),,)
event.deviceProduct=__stringConstant("DHCP Server")
event.deviceVendor=__getVendor("Microsoft")
event.deviceCustomString4=__toUpperCase(__regexTokenNoWarning
(sourceMAC,"(\\S{1,6}).*"))
event.sourceMacAddress=__getLongMACAddressByHexString(sourceMAC)
event.deviceCustomString4Label=__stringConstant(MAC Vendor Prefix)
event.deviceCustomString5Label=__stringConstant(Ethernet Vendor)
event.deviceCustomNumber1=__safeToLong(__ifThenElse(EventID,"25",
__regexTokenNoWarning(EventName,"(\\d+) leases.*"),))
event.deviceCustomNumber2=__safeToLong(__ifThenElse(EventID,"25",
__regexTokenNoWarning(EventName,".* and (\\d+) leases.*"),))
event.deviceCustomNumber1Label=__ifThenElse(EventID,"25",
__stringConstant(leases expired),)
event.deviceCustomNumber2Label=__ifThenElse(EventID,"25",
__stringConstant(leases deleted),)
extraprocessor.count=2
extraprocessor[0].type=map
extraprocessor[0].filename=dhcp_file/event_ref.csv
extraprocessor[1].type=map
extraprocessor[1].filename=dhcp_file/ethernet_vendor_ref.csv
Comment Expressions
The following lines in the parser file represent the comment expressions:
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 152 of 242
#
# Parser file for Microsoft Windows DHCP File Agent
#Event ID Meaning
#00 The log was started.
#01 The log was stopped.
#02 The log was temporarily paused due to low disk space.
#10 A new IP address was leased to a client.
#11 A lease was renewed by a client.
#12 A lease was released by a client.
#13 An IP address was found to be in use on the network.
#14 A lease request could not be satisfied because the scope's
# address pool was exhausted.
#15 A lease was denied.
#16 A lease was deleted.
#17 A lease was expired.
#20 A BOOTP address was leased to a client.
#21 A dynamic BOOTP address was leased to a client.
#22 A BOOTP request could not be satisfied because the scope's
# address pool for BOOTP was exhausted.
#23 A BOOTP IP address was deleted after checking to see it was
# not in use.
#24 IP address cleanup operation has began.
#25 IP address cleanup statistics.
#30 DNS update request to the named DNS server
#31 DNS update failed
#32 DNS update successful
#50+ Codes above 50 are used for Rogue Server Detection information.
#DHCP 2008 QResult: 0: NoQuarantine, 1:Quarantine, 2:Drop Packet,
3:Probation,6:No Quarantine Information ProbationTime:Year-Month-Day
Hour:Minute:Second:MilliSecond.
#ID,Date,Time,Description,IP Address,Host Name,MAC Address,User Name,
TransactionID, QResult,Probationtime, CorrelationID,Dhcid.
#DHCP 2003 ID,Date,Time,Description,IP Address,Host Name,MAC Address
#Convert address for event id = 30 - DNS update request
Parsing Expressions
The following lines in the parser file indicate the parsing expressions. This parsing expression indicates
how an event should be broken down and tokenized by the parser.
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 153 of 242
regex=(\\d+),(\\d+/\\d+/\\d+),(\\d+:\\d+:\\d+),((?:(?:.*?, )*)?.*?),(.*?),
([^,]*),([-\\+]?\\w*),?
line.ignore.regex=\\s*
comments.start.with=#
Token Expressions
The following lines in the parser file indicate the token expressions, that is, how many tokens to capture,
the token name, token data type, and so on.
token.count=7
token[0].name=EventID
token[0].type=String
token[1].name=Date
token[1].type=Date
token[1].format=MM/dd/yy
token[2].name=Time
token[2].type=Time
token[2].format=HH:mm:ss
token[3].name=EventName
token[3].type=String
token[4].name=Address
token[4].type=String
token[5].name=HostName
token[5].type=String
token[6].name=sourceMAC
token[6].type=String
Mapping Expressions
The following lines in the parser file represent mapping expressions to indicate how the captured
tokens should be mapped to ArcSight event schema fields.
event.sourceHostName=HostName
event.deviceEventClassId=EventID
event.name=EventName
event.deviceReceiptTime=__createTimeStamp(Date,Time)
event.sourceAddress=__splitAsAddress(__ifThenElse(EventID,"30",
__reverseDottedDecimalAddressByteOrder(Address),Address),,)
event.deviceProduct=__stringConstant("DHCP Server")
event.deviceVendor=__getVendor("Microsoft")
event.deviceCustomString4=__toUpperCase(__regexTokenNoWarning
(sourceMAC,"(\\S{1,6}).*"))
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 154 of 242
event.sourceMacAddress=__getLongMACAddressByHexString(sourceMAC)
event.deviceCustomString4Label=__stringConstant(MAC Vendor Prefix)
event.deviceCustomString5Label=__stringConstant(Ethernet Vendor)
event.deviceCustomNumber1=__safeToLong(__ifThenElse(EventID,"25",
__regexTokenNoWarning(EventName,"(\\d+) leases.*"),))
event.deviceCustomNumber2=__safeToLong(__ifThenElse(EventID,"25",
__regexTokenNoWarning(EventName,".* and (\\d+) leases.*"),))
event.deviceCustomNumber1Label=__ifThenElse(EventID,"25",
__stringConstant(leases expired),)
event.deviceCustomNumber2Label=__ifThenElse(EventID,"25",
__stringConstant(leases deleted),)
Extra-Processor Expressions
The following lines in the parser file indicate the extra-processor expressions, to hand off the event to
another parser file for further processing.
extraprocessor.count=2
extraprocessor[0].type=map
extraprocessor[0].filename=dhcp_file/event_ref.csv
extraprocessor[1].type=map
extraprocessor[1].filename=dhcp_file/ethernet_vendor_ref.csv
Criteria for Unparsed Events
If an event fails to tokenize based on the parsing expression used by the parser, then it is considered to
be an unparsed event. The criteria for an event to be labeled an unparsed event is its failure to pass the
parsing expression.
Note the following considerations on parsing criteria:
lMulti-line merging parsers, token operations, sub-messages, and conditional maps are out of scope
of the detection criteria.
lExtra-processors that belong to the supported parser types are included in the detection criteria.
Example:
The following event line completely matches the parsing expression of the parser, hence it is considered
to be a parsed event:
11000,03/23/15,12:43:35,DHCPV6 Solicit,2001:db8::f80f:9757:b0a5:c40c,2k12-
dhcpsvr.fadetoblack.
local,,14,000100011C87C704000C290FFAAF,,,,,
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 155 of 242
However, the following event line with an incorrect date string of 03/23 does not match the parsing
expressions of the parser, hence it is considered to be an unparsed event:
11000,03/23,12:43:35,DHCPV6 Solicit,2001:db8::f80f:9757:b0a5:c40c,2k12-
dhcpsvr.fadetoblack.
local,,14,000100011C87C704000C290FFAAF,,,,,
This unparsed event also generates an exception stack trace in the agent.log file. The following is a
sample stack trace:
[2016-03-10 18:00:41,031][ERROR]
[default.com.arcsight.agent.dhcp.DhcpFileProcessor][processLine]
[java.text.ParseException: Unparseable date: "03/23"
at java.text.DateFormat.parse(DateFormat.java:357)
at com.arcsight.agent.parsers.token.DateParser.parseToken
(DateParser.java:105)
at com.arcsight.agent.sdk.parsers.SDKCustomParser.addToken
(SDKCustomParser.java:292)
at com.arcsight.agent.dhcp.DhcpSemiConfigurableParser.parseTokens
(DhcpSemiConfigurableParser.java:307)
at com.arcsight.agent.parsers.GenericParserImpl.parseValues
(GenericParserImpl.java:397)
at com.arcsight.agent.parsers.GenericParserImpl.parse
(GenericParserImpl.java:755)
at com.arcsight.agent.parsers.GenericParserImpl.parseString
(GenericParserImpl.java:806)
at com.arcsight.agent.baseagents.filereader.multifile.FileProcessor.
parseLine(FileProcessor.java:202)
at com.arcsight.agent.baseagents.filereader.multifile.FileProcessor.
processLine(FileProcessor.java:186)
at com.arcsight.agent.baseagents.filereader.
NameFollowingFileReaderThread.processLine
(NameFollowingFileReaderThread.java:769)
at com.arcsight.agent.baseagents.filereader.
BaseAutoConfigParserFileReaderThread.processLine
(BaseAutoConfigParserFileReaderThread.java:157)
at com.arcsight.agent.dhcp.DhcpFileReaderThread.processLine
(DhcpFileReaderThread.java:79)
at com.arcsight.agent.baseagents.filereader.FileReaderThread.run
(FileReaderThread.java:859)
at java.lang.Thread.run(Thread.java:745)
When an event line fails to match the parsing expression of the parser, then it is considered to be an
unparsed event. This information is logged in the agent.log file. The following is an example message:
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 156 of 242
[2016-03-10 18:00:41,027][ERROR]
[default.com.arcsight.common.log.EventLogManager]
[logUnparsedEvent] Cannot parse raw event [11000,03/23,12:43:35,DHCPV6
Solicit,2001:db8::f80f:9757:b0a5:c40c,2k12-dhcpsvr.fadetoblack.
local,,14,000100011C87C704000C290FFAAF,,,,,] with ArcSight SmartConnector
[class com.arcsight.agent.loadable.agent._DHCPFileAgent], and Parser [class
com.arcsight.agent.dhcp.DhcpSemiConfigurableParser]. Parser Result: [].
Parsing Exception: [Unparseable date: "03/23"].
If an exception occurs when parsing the event, then it is also logged in the agent.log file. The
following is an example exception message:
[2016-03-10 18:00:41,028][ERROR]
[default.com.arcsight.common.log.EventLogManager]
[logUnparsedEvent]
java.text.ParseException: Unparseable date: "03/23"
at java.text.DateFormat.parse(DateFormat.java:357)
at com.arcsight.agent.parsers.token.DateParser.parseToken(DateParser.
java:105)
at com.arcsight.agent.sdk.parsers.SDKCustomParser.addToken
(SDKCustomParser.java:292)
at com.arcsight.agent.dhcp.DhcpSemiConfigurableParser.parseTokens
(DhcpSemiConfigurableParser.java:307)
at com.arcsight.agent.parsers.GenericParserImpl.parseValues
(GenericParserImpl.java:397)
at com.arcsight.agent.parsers.GenericParserImpl.parse
(GenericParserImpl.java:755)
at com.arcsight.agent.parsers.GenericParserImpl.parseString
(GenericParserImpl.java:806)
at com.arcsight.agent.baseagents.filereader.multifile.FileProcessor.
parseLine(FileProcessor.java:202)
at com.arcsight.agent.baseagents.filereader.multifile.FileProcessor.
processLine(FileProcessor.java:186)
at com.arcsight.agent.baseagents.filereader.
NameFollowingFileReaderThread.processLine(
NameFollowingFileReaderThread.java:769)
at com.arcsight.agent.baseagents.filereader.
BaseAutoConfigParserFileReaderThread.processLine
(BaseAutoConfigParserFileReaderThread.java:157)
at com.arcsight.agent.dhcp.DhcpFileReaderThread.processLine
(DhcpFileReaderThread.java:79)
at com.arcsight.agent.baseagents.filereader.FileReaderThread.run
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 157 of 242
(FileReaderThread.java:859)
at java.lang.Thread.run(Thread.java:745)
Unparsed Events Output File
Unparsed events detected by the connector are logged to the %ARCSIGHT_HOME%/logs/events.log
(Linux) or $ARCSIGHT_HOME/logs/events.log (Windows) file. The following is a sample message:
"Timestamp","ArcSight SmartConnector","ArcSight Parser","Parser
Result","Parsing Exception","Unparsed Event"
"2016-05-10 18:00:41.030 -0700","class com.arcsight.agent.loadable.agent._
DHCPFileAgent","class com.arcsight.agent.dhcp.DhcpSemiConfigurableParser","",
"Unparseable date: ""03/23""","11000,03/23,12:43:35,DHCPV6
Solicit,2001:db8::f80f:9757:b0a5:c40c,2k12-dhcpsvr.fadetoblack.
local,,14,000100011C87C704000C290FFAAF,,,,,"
The events.log file is a CSV file containing the column headers on the first line and the unparsed
events on the following lines. The following table describes the columns in the CSV file:
Column Name
Column
Description Sample Value Required/Optional
Timestamp The time stamp
at which the
event was
detected as an
unparsed event
2016-05-10 18:00:41.030 -0700 Required
ArcSight
SmartConnector
The ArcSight
SmartConnector
class that
detected the
unparsed event
class
com.arcsight.agent.loadable.agent._DHCPFileAgent Required
ArcSight Parser The ArcSight
parser class that
detected the
unparsed event
class
com.arcsight.agent.dhcp.DhcpSemiConfigurableParser Required
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 158 of 242
Column Name
Column
Description Sample Value Required/Optional
Parser Result The parser result,
if any
Optional
Parsing
Exception
The parser
exception
message, if any
Unparseable date: "03/23" Optional
Unparsed Event The unparsed
event string
11000,03/23,12:43:35,DHCPV6
Solicit,2001:db8::f80f:9757:b0a5:c40c,2k12-
dhcpsvr.fadetoblack.local,,14,
000100011C87C704000C290FFAAF,,,,,
Required
Developer's Guide
Chapter 6: Advanced Features
HPE Connectors Page 159 of 242
Chapter 7: Map Files
The following topics are covered in this chapter:
lWhat Are Map Files?
lMap File Examples
lMap File Details
lUsing Ranges in Map Files
lUsing Regular Expressions in Map Files
lUsing Parser-Like Expressions in Map Files
lReal World Examples
What Are Map Files?
Map files are actual physical files, located in the connector itself. Map files operate on events after they
are collected and parsed, but before they are sent to the destination, conditionally changing one or
more event fields. There are several parts of the connector code that use map files:
lBasic map files, which operate on events early in the event flow
lAgentInfoAdder1 map files, which operate on events later in the event flow, and can be made to
operate differently when there are multiple destinations and/or multiple connectors running in one
container
lThe categorizer modules use map files to do their work
lMap file “extra processors” can be specified in FlexConnector parsers
Note: Map files are kept in memory for performance reasons, so large ones will affect the memory
usage of the connector.
Map File Examples
A map file is a comma-separated file that you can edit in a text editor (such as Notepad or vi, which do
not add formatting) or in a spreadsheet. The following is an example of a simple map file. In this
document, map file examples are shown in tables for clarity.
Note: If you use a spreadsheet application to create or edit your map files, be sure to save the
resulting files in the comma-separated value (CSV) format.
HPE Connectors Page 160 of 242
The first line normally defines the event fields that will be looked at ("getters") and those that will be
potentially set ("setters"). Optionally, there can be a line before that, starting with !Flags, that controls
certain values (see "Controlling Map File Operation"). In that case, it's the second line that defines the
"getters" and "setters." A simple example without a !Flags line is:
event.destinationPort set.event.applicationProtocol
20 ftp
21 ftp
80 http
110 pop3
In this example, the applicationProtocol event field is set based on the value of the
destinationPort event field, but only if the destinationPort is one of the values in the “getter”
column. If destinationPort is 21, applicationProtocol will be set to ftp, but if
destinationPort is 22, applicationProtocol will not be set at all, because the value 22 does not
appear in the destinationPort “getter” column.
There is a duplicate value (ftp) in the applicationProtocol column, which is allowed because it is a
“setter”, but not in the destinationPort column, in which a duplicate value would be an error.
This example would look like this in a text editor:
event.destinationPort,set.event.applicationProtocol
20,ftp
21,ftp
80,http
110,pop3
Multiple "Getters" and "Setters"
More complicated map files can have multiple “getter” columns (the row is only used if all column values
match the event) and/or multiple “setter” columns (to set more than one field).
The following is an example with two "getters:"
event.flexString1 event.deviceEventCategory set.event.deviceEventCategory
1 1 Vulnerability - Buffer/Heap Overflow
3 1 Vulnerability - Configuration Error
1 2 Malicious Code - Worm
In this case, if the flexString1 and deviceEventCategory event fields are both 1, then the value
for the deviceEventCategory event field is changed to Vulnerability-Buffer/Heap
Overflow. If they are 3 and 1, respectively, the value is set to Vulnerability-Configuration
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 161 of 242
Error, and if the values are 1 and 2, the value is set to Malicious Code-Worm. Any other combination
leaves the deviceEventCategory event field unchanged.
This example (and the next one) also shows that you can have a "getter" event field also appear as a
"setter."
The following is an example with two "setters:"
event.name set.event.name set.event.deviceEventClassId
accept(2) AUE_ACCEPT AUE_ACCEPT
access(2) AUE_ACCESS AUE_ACCESS
acct(2) AUE_ACCT AUE_ACCT
In this case, the name event field is looked up to both replace the name event field and set the
deviceEventClassId event field.
Also, you can have both multiple "getters" and multiple "setters" in the same map file.
Using the “No Getter” Trick
By having no “getters,” you can set one or more fields to specific constant values, unconditionally. For
example:
set.event.message
Map file was here
This type of map file always has exactly two lines. It can have more than one column if you want to set
more than one field, like this:
set.event.message set.event.deviceCustomString1
Map file was here And also here
Map File Details
The following subsections describe details for the various map file types.
Controlling Map File Operation
Any map file can be controlled with an optional initial line starting with !Flags, that can be omitted. If
this line is present, it precedes the line that defines the "getters" and "setters." It is a comma-separated
line similar to the rest of the file, but the number of columns do not have to match the other lines. The
line must begin with !Flags, followed by one or more of the following flags, with commas in between:
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 162 of 242
Flag Description
Overwrite allow fields that are already set to be overwritten
Overwrite- fields that are already set will not be overwritten
CaseSens "getters" are case sensitive
CaseSens- "getters" are case insensitive
TrimGetters any leading or trailing whitespace or tabs are removed
from "getters"
TrimGetters- any leading or trailing whitespace or tabs are not
removed from "getters"
TrimSetters any leading or trailing whitespace or tabs are removed
from "setters"
TrimSetters- any leading or trailing whitespace or tabs are not
removed from "setters" are
EnfrcUniqID duplicate "getter" values are treated as fatal errors
EnfrcUniqID- duplicate "getter" values are treated as warnings
Note: The minus sign after the flag reverses its meaning.
For example, the following would make "getters" case insensitive, not allow overwriting fields, and not
remove any leading or trailing whitespace or tabs from "setters":
!Flags,CaseSens-,Overwrite-,TrimSetters-
Basic Map Files
Place basic map files in the user/agent/map directory under the ArcSight home directory of the
connector file system. Name the files map.0.properties,map.1.properties, and so on. Basic map
files are named as properties files (with the .properties extension), but they are actually CSV files.
New or changed map files will be automatically applied approximately every five minutes. Also, you can
use the Reload custom map files command in the ArcSight Console to reload the basic map files on
demand. See the ArcSight Console User’s Guide, "Managing SmartConnector", "Sending Control
Commands to SmartConnectors", under the "Categorizer" mapper category.
The files are numbered so that the connector knows what order to apply them, since changes made by
one map file may affect a later map file. The numbering sequence must stay consecutive and files cannot
be skipped. For example, the sequence 0, 1, 2, 3 is valid. The sequence 0, 1, 3 is not, and will cause the
reading of the files to be stopped at 1 in this example.
By default, basic map files overwrite the values in event fields. Any leading or trailing whitespace or tabs
are removed (trimmed) from "getters" and "setters", "getters" are case sensitive, and duplicate "getters"
generate warnings. Any of these default behaviors can be changed with the !Flags line.
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 163 of 242
AgentInfoAdder1 Map Files
Put the files in the user/agent/aup/acp directory under the ArcSight home directory. Or use the
user/agent/aup/<id>/acp directory for destination/connector-specific files, where <id> is
replaced with the actual ID of the connector or destination. Name the files
AgentInfoAdder1.map.10.csv,AgentInfoAdder1.map.11.csv, and so on.
The AgentInfoAdder1 map files are numbered starting at 10, not 0 or 1, since files 0 to 9 are reserved
for internal map files that are not visible to users. The files are numbered so that the connector knows
what order to apply them, since changes made by one map file may affect a later map file. If there is a
missing number (like files 10 and 12 but not file 11), no files after the missing number will be processed.
Restart the connector to reload AgentInfoAdder1 map files.
AgentInfoAdder1 map files will not overwrite event fields that are already set. By default, leading and
trailing spaces are removed from “getter” and “setter” values before processing. “Getter” values are not
case sensitive. If two rows have duplicate “getters”, a warning is logged. This is the default behavior of
basic map files. These default behaviors can be modified by using the !Flags line.
Categorizer Map Files
Connectors categorize events, whichis to say that the category fields (for example,
categorySignificance and categoryTechnique) are set. The mechanism described here can
categorize events that otherwise would not be categorized. And in fact that is key, because any event
that has already been categorized will not be modified.
Put the files under the user/agent/aup/acp/categorizer/current directory under the ArcSight
home directory. Under that, create a directory that matches the deviceVendor field of the events you
want to categorize, and under that create a map file named for the deviceProduct field of the events
you want to categorize, with the .csv extension. The deviceVendor and deviceProduct names
must be modified as follows:
lConvert any uppercase letters to lowercase.
lConvert any characters that are not letters or digits to underscore characters.
For example, if the events will have deviceVendor set to "Giant Corp" and deviceProduct set to "It's
a Big Product", then you would create user/agent/aup/acp/categorizer/current/giant_
corp/it_s_a_big_product.csv.
This map file is just like any other map file, though they often only have one getter, on the
deviceEventClassId field, and generally only set the category fields (categoryObject,
categoryBehavior,categoryTechnique,categoryDeviceGroup,categorySignificance,
and categoryOutcome).
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 164 of 242
You can use the Reload custom categorizations command in the ArcSight Console to reload the
categorizer map files on demand. See the ArcSight Console User’s Guide, "Managing SmartConnectors",
"Sending Control Commands to SmartConnectors", under the "Categorizer" mapping category.
Categorizer map files can overwrite the values in event fields, though that rarely matters since events
that have any of the category fields set will not be processed. Leading and trailing spaces are removed
from “getter” and “setter” values before processing. The "getter” values are not case sensitive. If two
rows have duplicate “getters”, a warning is logged.
Extra Processor Map Files
See "Extra Processors" for general information on extra processors. An example of parser contents
follows:
extraprocessor.count=1
extraprocessor[0].type=map
extraprocessor[0].filename=customvendor/customproduct.csv
extraprocessor[0].allowoverwrite=false
extraprocessor[0].casesensitive=false
extraprocessor[0].charencoding=US-ASCII
extraprocessor[0].trimgettertokens=false
extraprocessor[0].trimsettertokens=false
In this case the map file is the user/agent/aup/fcp/customvendor/customproduct.csv file. The
other optional properties let you change the default operation, which allows overwriting values, is case
sensitive, removes leading or trailing whitespace or tabs from "getters" and "setters", and uses the
platform's default character encoding. The map file is just like any other map file, and operates on the
event after the parser and any extra processors earlier in the list (if extraprocessor.count is greater
than 1) is finished. If you need more than one map file, adjust extraprocessor.count accordingly
and specify them.
Using Ranges in Map Files
You can use ranges in map files to simplify map file creation. For example, a map file that lists many
source addresses can be quite large:
event.sourceAddress set.event.flexString1
1.0.1.0 China
1.0.1.1 China
1.0.1.2 China
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 165 of 242
event.sourceAddress set.event.flexString1
1.0.1.3 China
...763 more addresses...
1.0.3.255 China
The above example would list 768 addresses, if the entire map file was shown.
Using a range in a map file, you can create a simpler file that does the same task. For example:
range.event.sourceAddress set.event.flexString1
1.0.1.0-1.0.3.255 China
The resulting map file is easier to create, and is smaller and less prone to typing errors.
Ranges can be used on:
lNumber event fields like sourcePort or fileSize
lIP address fields like sourceAddress and deviceCustomIPv6Address1 (each range in the map
file must be either IPv4 or IPv6, meaning it cannot have an IPv4 starting address and an IPv6 ending
address, or vice versa. For IPv6-aware parsers, the map file should expect the possibility of either IP
address type in any IP address field. For a non-IPv6-aware parser, the map file would only expect
IPv4 in the normal fields and IPv6 in the deviceCustomIPv6Address fields)
lMAC address event fields like destinationMacAddress
Additional details pertaining to ranges:
lIPv6 addresses can use the :: and dotted-quad formats. In IPv6-aware parsers, IPv6 addresses can be
used where they were previously not valid.
lMAC addresses must be in hexadecimal with colon separators
lUse the hyphen character as the separator between the lower bound and upper bound in the range
lAvoid overlapping ranges in the same column
Using Regular Expressions in Map Files
You can use regular expressions in map files to provide look up functionality to set field values. For
example:
regex.event.sourceUserName set.event.flexString1
.*?arcsight.com.* ArcSight
.*?somesoft.com.* Somesoft
In this example, the sourceUserName event field is looked up to see if it matches either of the regular
expressions, and if it does, the flexString1 event field is set accordingly.
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 166 of 242
The regular expression “getter” event field must be a string field, and the value in each event is matched
against all of the regular expressions in that column. Unlike with ranges, it’s more difficult to avoid
regular expressions that “overlap,” and the rule is that in that case the first one wins.
If you combine regular expressions with ranges, and there are no overlapping ranges (overlapping
ranges are not recommended), it is best to put the ranges before (to the left of) the regular expressions,
for performance reasons.
Using Parser-Like Expressions in Map Files
You can use parser-like expressions in map files to extend the functionality of map files.
Here is an example with three input events:
deviceCustomNumber1 deviceCustomString1 deviceCustomString3
1 “ Leading and trailing ” “Whatever”
10 “Anyone reading this?” “Overwrite with this”
17 “ Hello ” “. . . there!”
These are the resulting deviceCustomString1 values that we want for those three events:
deviceCustomString1
“Leading and trailing”
“Overwrite with this”
“ Hello ”
Unlike ranges and regular expressions, this feature isn’t about the “getters,” but about the “setter(s)”. In
this example, we want to remove (trim) leading and trailing spaces from deviceCustomString1 when
the number is 1, and copy the value of deviceCustomString3 into deviceCustomString1 if the
number is 10. For any other number, no change is desired.
Here is an example of a map file that can achieve the result shown above:
event.deviceCustomNumber1
set.expr
(deviceCustomString1|deviceCustomString3).event.deviceCustomString1
1 __stringTrim(deviceCustomString1)
10 deviceCustomString3
Additional details:
lThe “getter” column (or columns) controls which row, if any, is used
lIn the header line, the expression “setter” lists what event fields might be used in the expressions in
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 167 of 242
that column, inside the parentheses, and what event field will be set, at the end
lThen one of the actual expressions below that is evaluated and the result put into the event field
Note: Operations (such as __stringTrim) are described in "ArcSight Operations".
In this case deviceCustomString1 and deviceCustomString3 are listed inside the parentheses in the
header row since they are used as described in "More About Parser-Like Expressions Syntax".
More About Parser-Like Expressions Syntax
For parser-like expressions, the “setter” header has several parts:
lTwo constant parts: “set.expr(“ and “).event.”
lBetween those is the list of event fields and/or additional data fields that might be used in the
expressions, separated by pipes (two pipes separate event fields from additional data)
lThe one event field that will be set to the result of the expression
Note: Expression “setters” cannot be used to set additional data fields, only event fields.
Below is a “no getter” example:
set.expr(deviceCustomNumber1|deviceCustomNumber2||addnumber).event.deviceCustomNumber3
"_sum(deviceCustomNumber1,deviceCustomNumber2,_safeToInteger(addnumber))"
This example sets deviceCustomNumber3 to the sum of deviceCustomNumber1,
deviceCustomNumber2, and (if it is a valid number) the additional data field addnumber.
Operations Containing Commas
When an operation contains any commas, most commonly with operations that have multiple
arguments (for example, __regexToken), use quotes around the entire operation, and then change
any quote characters that are now inside the outer quotes to two quote characters. The CSV parsing
code will turn those doubled quote characters back into one quote character. For example:
"__regexToken(proto,"".*?/(.*)"")"
Backslashes in Expressions Versus in Parsers
In parsers you must use \\ to represent one backslash character, but in these expressions you do not
need to use the double backslash. Parsers are properties files, which use backslashes for quoting. Map
files are CSV files (regardless what the file extension is), which use actual quotes for quoting.
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 168 of 242
Real World Examples
This section contains the following information:
lAdding Country Names to Events
lGetting Domain Name from Hostname
Adding Country Names to Events
In the following example, the goal is to add new fields to events that contain the name of the source and
destination countries, based on the sourceAddress and destinationAddress event fields.
The data divides the IPv4 address space into many ranges, each of which is associated with a particular
country. The map files are large enough (order of magnitude 100K lines) that you might need to
increase the connector heap size. The resulting map file would look like this:
range.event.sourceAddress set.additionaldata.SCN
1.0.0.0-1.0.0.255 Australia
1.0.1.0-1.0.3.255 China
1.0.4.0-1.0.7.255 Australia
. . . additional lines in the map file . . .
This example uses the range feature on an IPv4 event field. A second map file with the same data is also
needed for the destinationAddress event field.
Getting Domain Name from Hostname
The map file example below uses the last two part of a hostname to get the domain name only.
set.expr(sourceHostName).event.deviceCustomString2
"__regexToken(sourceHostName,""*\.([^\.]+\.[^\.]+)$"")"
This table shows the results of this map file:
soureHostName deviceCustomString2
14-202-33-238.static.tpgi.com.au com.au
bzq-79-181-26-177.red.bezeqint.net bezeqint.net
dynamic-27-121-217-28.goi.ne.jp ne.jp
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 169 of 242
soureHostName deviceCustomString2
05405efe.skybroadband.com skybroadband.com
dail-95-105-128-25-orange.orange.sk orange.sk
host-19-157-66-217.spbmts.ru spbmts.ru
118-160-227-230.dynamic.hinet.net hinet.net
Developer's Guide
Chapter 7: Map Files
HPE Connectors Page 170 of 242
Appendix A: ArcSight Operations
The following table describes all of the operations that can be used when tokens are mapped to HPE
ArcSight event fields.
Operation Return Type Definition and Comments
__BASE64Decode String The parameter is a single Base-64 encoded string, which is
decoded to bytes, and then converted to a string using the
platform's default character set.
__byteArrayToIPAddress IPAddress This operation takes a byte array representation of an IPv4
or IPv6 address as a parameter and returns an IPAddress
object. This operation can be used only for IPv6-aware
parsers.
__byteArrayToIPv6 IPAddress This parameter returns an IPv6 address stored as an
IPAddress object. Use this parameter for mapping to event
fields or additional fields which can have an IPv6 address
type. Use this operation only in a non-IPv6-aware parser.
For an IPv6-aware parser use the __byteArrayToIPAddress
operation.
__byteArrayToIPv6String String The parameter returns the string representation of an IPv6
address stored in a byte array.
__concatenate String The parameters can be literal strings or other values of
various types. The result is a string that consists of all of
these parameters concatenated together.
__concatenate("Active",protocol," Ports:
",portnum)
__concatenate("CompanyName: [",
CompanyName,"]")
__concatenate("PF: ",PassOrBlock)
__concatenateDeleting String The last parameter is a literal string containing a set of
characters to delete. The other parameters can be literal
strings or other values of various types. The result is a string
that consists of all of these parameters (except the last)
concatenated together, with the specified characters
deleted from the non-literal parameters. For example, if the
parameters are “Literal”, “Foobar”, and “r” (where the first
and third parameters are literal), then the result would be
“LiteralFooba”. Note that the “r” in “Foobar” was deleted but
the “r” in “Literal” was not.
HPE Connectors Page 171 of 242
Operation Return Type Definition and Comments
__contains Boolean This operation searches for one string within another and
returns true if it is found and false otherwise. For example,
like
__contains(stringInWhichToSearch,
stringToFind)
__containsFromList Boolean This operation tries to match a string (the first operand,
which is searched in) with a list of comma-separated strings
and returns true when a string match is found. Otherwise
returns false. For example,
__containsFromList(stringInWhichToSearch ,
firstStringToFind, secondStringToFind)
__convertMSDNSURL String This operation converts a Microsoft DNS URL in the form:
(n)nchars(m)mchars(0)
To a normal URL:
nchars.mchars
__createLocalTimeStampFromSeconds
MicrosZone
TimeStamp The parameters are 2 long integer numbers and a string.
The first parameter is the number of seconds since January
1, 1970, while the second is the number of microseconds
within the second. These are combined into a TimeStamp.
If the third parameter is a valid time zone name, the
number of seconds is interpreted relative to January 1, 1970
in that time zone. Otherwise GMT is used. Some of the
precision of the microseconds is currently lost.
__createLocalTimeStampFromGMT
SecondsMillis
TimeStamp The 2 parameters are each long integer numbers. The first
is the number of seconds since January 1, 1970 GMT, while
the second is the number of milliseconds within the second.
They are combined into a TimeStamp. __
createLocalTimeStampFromGMTSecondsMillis(tv_sec,tv_
msec)
__createLocalTimeStampFromGMT
Second Nanoseconds
TimeStamp The 2 parameters are each long integer numbers. The first
is the number of seconds since January 1, 1970 GMT, while
the second is the number of nanoseconds within the
second. They are combined into a TimeStamp. Some of the
precision of the nanoseconds is currently lost.
__createLocalTimeStampFrom
NanoSeconds
TimeStamp The parameter is a long integer number. It is the number of
nanoseconds since January 1, 1970 GMT. It is converted into
a TimeStamp. Some of the precision of the nanoseconds is
currently lost.
__createLocalTimeStampFromNTP TimeStamp The parameter is a string. It should contain the number of
seconds since January 1, 1970 GMT before a decimal point,
and the number of microseconds after the decimal point.
They are combined into a TimeStamp.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 172 of 242
Operation Return Type Definition and Comments
__createLocalTimeStampFromSeconds
SinceEpoch
TimeStamp The parameter is a single long integer number, which is the
number of seconds since January 1, 1970 GMT. It is
converted into a TimeStamp, with the fractional seconds set
to zero.
__createLocalTimeStampFrom
SecondsSinceEpoch(srcTimestamp)
__createOptionalTimeStamp
FromString
TimeStamp The parameters are two strings. The first string is date and
time specified by default in the yyyy-MM-dd HH:mm:ss
format. The second, optional parameter specifies the format
for the first string if it needs to be different from the
default. If the value of the first string is null, nothing is
mapped. Otherwise the value is mapped using the format
specified for the second parameter, if present, or the default
format.
__createRuleFiringInfo String This operation takes an arbitrary number of parameters.
Each can be either a literal string or a value of some other
type. The result is simply the parameters concatenated
together as a long string, with commas between the
parameters. The parameters which are not literal strings are
converted to strings.
__createSafeLocalTimeStamp TimeStamp The first parameter is a string, which is the date/time to
parse, while the second is a literal string, which is the
format (same style as the format for the Date, Time, and
TimeStamp tokens). The string is parsed and returned as a
TimeStamp. Most errors result in the current time being
returned.
__createTimeStamp TimeStamp The first parameter is a Date and the second parameter is a
Time. They are combined into a single TimeStamp an
returned. Everything is assumed to be in local time.
__createTimeStamp(date,time)
__createTimeStampByHexEncodedTime TimeStamp The parameter is a single string of 12 hexadecimal digits,
with 2 each for year (0 means 1970), month (0-11), day (1-31),
hou (0-23), minute (0-59), and second (0-59). The
milliseconds are implicitly set to zero, and the numbers are
interpreted as local time. The resulting TimeStamp is
returned.
__createTimeStampByStartTimeElapsed TimeStamp The parameters are 2 strings. The first is the starting time
in ddMMMyyyy hh:mm:ss format, while the second is an
elapsed time in hh:mm:ss format. The result is a
TimeStamp for the ending time, assuming the starting time
is a local time.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 173 of 242
Operation Return Type Definition and Comments
__createTimeStampForOpsecStartTime TimeStamp The parameter is a single string in ddMMMyyyy HH:mm:ss
format. It is parsed and the resulting TimeStamp,
interpreted as being local time, is returned.
__createTimeStampStringFrom
SecondsMicros
String The parameters are 2 long integer numbers. The first
parameter is the number of seconds since January 1, 1970
GMT, while the second is the number of microseconds
within the second. These are combined into a TimeStamp
and then into a string. Some of the precision of the
microseconds is currently lost.
__currentTimestampInSeconds Long Any parameters are ignored. The current time, expressed as
the number of seconds since January 1, 1970 GMT, is
returned as a long integer.
__divide Integer The first parameter is the numerator and the second
parameter is the denominator. The result is an integer with
the value of the numerator divided by the denominator,
rounded to the nearest integer.
__doubleToAddress IPAddress This is the same as the numberToAddress operation except
that the parameter is a double-precision floating-point
number.
__doubleToAddress(DestIP)
__extractNTDomain String The only parameter is a string. If it contains a back slash,
the part of the string up to but not including that backslash
is returned. Otherwise the entire string is returned.
__extractNTUser String The only parameter is a string in the form 'domain\user',
where domain is an NT domain and user is an NT user
name. The user name is returned. If there is no backslash in
the string, it is returned unchanged.
__extractProtocol String The only parameter is a string. If the string contains any of
the defined protocol strings (TCP, ICMP, UDP, IGMP, or
RTSP), just that string is returned (the search is case-
insensitive, and the first protocol found is returned). If none
of the protocol strings is found, the whole string is returned.
__firstOfPositiveInteger Integer This operation takes an arbitrary number of integer
number parameters. The first one which is positive is
returned. If no positive parameter is found, null is returned.
__foundScanHostName String The host name is returned in most cases. The exception is
if the string is “[Unknown]”, in that case null is returned.
__getCVEStringFor String The only parameter is a string, which should be a CVE
identifier. What is returned is “CVE|id” where id is the
identifier. Note that the separator character is a vertical bar.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 174 of 242
Operation Return Type Definition and Comments
__getDeviceDirection Enumeration
(Integer)
The only parameter is a string. If it is one of the defined
inbound strings (e.g., “in” or “incoming”), then the inbound
constant (0) is returned. If it is one of the defined outbound
strings (e.g., “outbound” or “=>”), then the outbound
constant (1) is returned. Otherwise the unknown constant
(Integer.MIN_VALUE, - 2147483648) is returned.
__getIPv4AddressEmbeddedIn
IPv6Address
IPAddress The operation extracts and returns an IPv4 address
embedded in an IPv6 address. The return parameter is an
IPv4 address. The input parameter is an IPv6 address in
byte array format.
To assign the IPv4 address to an IPv4 address event field
in a non-IPv6-aware parser:
__getIPv4AddressEmbeddedInIPv6Address (__
stringToIPv6Address("::ffff:10.14.11.140"))
__getIpV6AddressFromHighLow String This operator takes two string parameters consisting of
decimal numbers and returns a string representation of an
IPv6 address. The numbers are a decimal representation of
the first four and last four segments of the IPv6 address.
__getLongMACAddressByHexString MacAddress The parameter is a 12-character hexadecimal string, which
is converted to a MAC address.
__getLongMACAddressByString MacAddress The only parameter is a string. It is a MAC address, which is
a 6-part hexadecimal address separated by colons or
dashes. It is returned.
__getManhuntPriority String The two parameters are both long integers, with the first
representing the severity and the second representing the
reliability. The result is a string containing the product of
the two values, divided by 256.
__getNormalizedOS String The only parameter is a string. This string is looked up in a
map that comes from an AUP file. If found, the result is
returned. Otherwise a string of the form “/Operating
System/param” is returned, where param is the parameter
string, with any slashes replaced by dashes. For example,
“OS/2” would become “/Operating System/OS-2” (unless
OS/2 appeared in the os.mappings.csv map, in which case
that value would be returned).
__getNotZeroPort Integer The only parameter is a string. If it is null, not a valid
integer, or zero, then null is returned.
Otherwise (it is a valid non-zero integer), the numeric value
is returned.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 175 of 242
Operation Return Type Definition and Comments
__getOriginator Enumeration
(Integer)
The only parameter is a string. If the string is “Source”, the
result is the source constant (0). If the string is
“Destination”, the result is the destination constant (1).
Otherwise the unknown constant (Integer.MIN_VALUE, -
2147483648) is returned.
__getOriginatorFromSourcePort Enumeration
(Integer)
The parameters are an Integer (the port number) and a
literal integer. If neither is null and the port is less than the
limit specified in the second (literal) parameter, then the
destination constant (1) is returned. Otherwise the source
constant (0) is returned.
__getProtocolName String The only parameter is an Integer, which is converted into a
string for the matching protocol, as defined in RFC 1700. If
the parameter is null, null is returned. And if the parameter
is out of range, then the number itself is returned as a
string.
__getProtocolNameFromString String This operation is like the getProtocolName operation,
except that the parameter is a string instead of an integer.
If the string does not contain a valid integer, then the
string is returned unchanged.
__getSymantecNSPriority String The two parameters are both long integers, with the first
representing the severity and the second representing the
reliability. The result is a string containing the product of
the two values, divided by 10.
__getTimeZone String The only parameter is a string. If the string does not
represent a valid timezone, it returns null. If the string is in
the general timezone format, it returns the passed
parameter. If the string is an offset in the RFC 822 format
(such as "-08:00"), the return string is found by offset into
the "timezones" list in agent.properties.
Valid RFC 822 formats that are not found in
agent.properties will return a reasonable default string.
__getTrendMicroHost Name String The single parameter is a string. If it is null, null is returned.
If it contains a backslash, then the part before the
backslash is returned. If it contains an '@' or a '.', null is
returned.
Otherwise, the original string is returned.
__getTrendMircoUser String The first parameter is a string. If it contains a backslash
that is not the final character of the string, then the part
after the backslash is returned. If it contains an '@' or a '.',
null is returned. Otherwise, the second parameter (which is
a string if specified) is returned if specified. A null is
returned if the second parameter is not specified.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 176 of 242
Operation Return Type Definition and Comments
__getTypeEnumeration (Integer) The only parameter is a literal string. If it is “correlation” or
“correlated”, then the correlation constant (2) is returned. If
it is “aggregated,” then the aggregated constant (1) is
returned. Otherwise the base constant (0) is returned. The
comparisons are made case- insensitively.
__getVendor String This is a synonym for the stringConstant operation.
__getVulnerabilityCategory String The only parameter is a literal integer, which should be in
the range 0 to 4. The values returned are:
l/scanner/device/vulnerability for 0
l/scanner/device/openport for 1
l/scanner/device/user for 2
l/scanner/device/banner for 3
l/scanner/device/uri for 4
__getXForceStringFor String If the one string parameter is not null, it is returned with 'X-
Force|' prepended to it. If it is null, then null is returned.
__hexStringToAddress IPAddress This is similar to the noDotStringFormatToAddress
operation, except that the parameter is in hexadecimal. In
other words, it should be 8 hexadecimal digits, where each
set of 2 digits is a part of the IP address, zero-filled and
with no dots. For example, “C0A80A0C” would become the
IP address 192.168.10.12.
Use this operation only with IPv6-aware parsers for both
IPv4 and IPv6 addresses.
__hexStringToLong Long The one string parameter represents a hexadecimal value.
If it starts with '0x' or '$', those are removed before parsing
the value. The result is returned as a long integer.
__hexStringToIPV6Address IPAddress For non-IPv6-aware parsers, this operator takes as input a
32-character string consisting of hexadecimal digits and
converts it to an IPv6 address. If the length is 8 characters,
as it would be for an IPv4 address, the return value is null.
Any other input size results in an exception.
For IPv6-aware parsers, this operation is obsolete and
should not be used.
__hexStringToString String The parameter is a single string, which should consist of
hexadecimal digits. It is converted to an array of bytes (two
hexadecimal digits per byte), which is then converted to a
string using UTF-8 encoding (RFC 3629). If the input is null,
the result is also null.
__hourMinuteSecondsToSeconds Long The parameter is a single string, in HH:mm:ss format. The
duration is converted to seconds and returned.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 177 of 242
Operation Return Type Definition and Comments
__ifAorBThenElse String There are five parameters. Each can be either a literal
string or a regular string (although other types are
converted to strings). If the first parameter is equal to the
second or the first parameter is equal to the third
parameter, then the fourth parameter is returned.
Otherwise, the fifth parameter is returned.
__ifGreaterOrEqual String The four parameters are strings. If either of the first two
parameters is null, null is returned and an error is logged.
Otherwise, those two parameters are parsed as integers and
compared. Any parsing errors treat the value as zero. If the
first parameter is numerically larger than the second, then
the third parameter is returned. Otherwise, the fourth
parameter is returned.
__ifPositive String There are three parameters. If the first (integer) operand is
positive, return the second (string) operand; otherwise,
return the third (string) operand.
__ifThenElse String There are four parameters. Each can be either a literal
string or a regular string (although other types are
converted to strings). The first two parameters are
compared, and if they are equal, then the third parameter is
returned as the result. Otherwise (if the first two parameters
differ), the fourth parameter is returned.
__ifThenElseAddress IPAddress There are four parameters. The first two parameters are
string. The first two parameters are compared, and if they
are equal, then the third parameter is returned as the result.
Otherwise (if the first two parameters differ), the fourth
parameter is returned.
__ifTrueThenElse String There are three parameters. The first is a Boolean value
(true or false), and if it is true, then the second parameter is
returned; if the Boolean value is false, then the third
parameter is returned.
__integerConstant Integer The parameter is a single literal integer, which is returned.
If a literal string which is not a valid integer is passed
instead, then null is returned.
__integerToLong Long The parameter is a single integer number, which is
converted to a long integer number and returned. If the
parameter is null, the returned value is too.
__length Integer This operation retrieves the length of the operand string.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 178 of 242
Operation Return Type Definition and Comments
__longToDot4QuadAddress String The parameter is a single long integer number, which is
converted to an IP address in the same manner as for the
numberToAddress operation, but is then converted to a 4-
part dotted string. For example, 16909060 would become
the string “1.2.3.4”.
__longToInteger Integer The parameter is a single long integer number, which is
converted to an integer number (possibly truncating it) and
returned. If the parameter is null, the returned value is too.
__longToString String This operation returns the string representation of a long
object. The optional second operand is the radix (integer,
minimum value is 2). The optional third operand is the
minimum length (integer, minimum value is 0), and the
result will be left-padded with zeroes, if needed to achieve
that minimum length. This is useful in making numbers
comparable as strings.
__longToTimeStamp TimeStamp The parameter is a single long integer number, which is the
number of milliseconds since January 1, 1970 GMT. It is
converted into a TimeStamp.
__noDot4QuadStringsToAddress IPAddress The parameters are 4 strings, each of which is a decimal
number, and in the normal order for IP addresses. For
example, the strings “192”, “168”, “10”, “12” would become the
IP address 192.168.10.12.
__noDot4QuadStringsToAddress (src_ip1,src_
ip2,src_ip3,src_ip4)
__noDotStringFormatTo Address IPAddress The parameter is a single string of 12 decimal digits, where
each set of 3 digits is a part of the IP address, zero-filled
and with no dots. For example, “192168010012” would
become the IP address 192.168.10.12.
__numberToAddress IPAddress The parameter is a single long integer number, which is
converted to an IP address with the least signifigant byte of
the number corresponding to the rightmost part of the
address. For example, 16909060 would become the IP
address 1.2.3.4.
__numberToAddress(IPAddress)
__oneOf String This operation takes an arbitrary number of parameters.
Each can be either a literal string or a regular string. The
first one that is not null and not zero-length is returned.
__oneOfAddress IPAddress For non-IPv6-aware parsers, this operation returns only the
first non-null IPv4 address. For IPv6-aware parsers, this
operation returns the first non-null IPv4 or IPv6 address.
__oneOfDateTime TimeStamp The parameters are any number of TimeStamp tokens. The
first token, which is not null, is returned.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 179 of 242
Operation Return Type Definition and Comments
__oneOfHostName String For non IPv6-aware parsers, this operation works like the
oneOf operation, but any parameter which looks like an IP
address (4 decimal numbers separated by 3 periods) is
skipped.
For IPv6-aware parsers, this operation works like the oneOf
operation, but any parameter which looks like an IPv4 or
IPv6 address is skipped.
__oneOfInteger Integer This works like the oneOf operation, but the result is then
parsed as an integer number and returned. If the value is
not a valid number, null is returned.
__oneOfLong Long This works like the oneOf operation, but the result is then
parsed as a long integer number and returned. If the value
is not a valid number, null is returned.
__oneOfMac MacAddress This works like the oneOf operation, but the result is then
parsed as a MAC address (a six octet hexadecimal
representation, separated by colons) and returned. For
example, 00:08:74:4C:7F:1D. If the value is not a valid MAC
address, null is returned.
__oneOfNetBIOSName String This works like the oneOf operation, except for the removal
of one or two leading backslashes, if present, before
returning the result.
__parseMultipleTimeStamp TimeStamp The first parameter is a timestamp value, passed as a
string. If it is null, null is returned. Otherwise, the second
and any additional parameters are constant time stamp
formats (as defined for Java's SimpleDateFormat class).
They are used to attempt to parse the first parameter. The
result of the first one that works, without throwing an
exception, is returned as a TimeStamp. If none of the
formats works, an exception is thrown.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 180 of 242
Operation Return Type Definition and Comments
__parseMutableTimeStamp TimeStamp The parameter is a single string, which can be in one of
these formats:
lMMM dd HH:mm:ss
lMMM dd HH:mm:ss.SSS zzz
lMMM dd HH:mm:ss.SSS
lMMM dd HH:mm:ss zzz
lMMM dd yyyy HH:mm:ss
lMMM dd yyyy HH:mm:ss.SSS zzz
lMMM dd yyyy HH:mm:ss.SSS
lMMM dd yyyy HH:mm:ss zzz
If this operation has been called before successfully, the
same format is tried first. If one of the first four formats
(which do not include a year) is used, then the year is
changed as described for the setYearToCurrentYear
operation. If no format works, a fatal error is written to the
log and null is returned.
__parseMutableTimeStampSilently TimeStamp This is the same as the _parseMutableTimeStamp
operation, except that when no format works, no fatal error
is written to the log.
__parseSignedLong Long This is the same as the safeToLong operation, except that
a leading “+” sign is also allowed.
__product Integer Each parameter is either an integer variable or a string
constant that can be a floating-point value. The result is an
integer with the value of the product of the parameters
multiplied together and rounded to the nearest integer.
__regexToken String This operation takes two strings as parameters. The first is
the string to parse. The second is the regular expression (a
literal string). If the regular expression is blank or null then
the result is the same as the first argument. Otherwise the
string to parse is parsed using the regular expression, and
the first matching group (expression inside parentheses) is
returned as a string. For example, if the parameters are
“foobar” and “fo+(o.*)(r)”, the result will be “oba”.
__regexToken(proto,".*?/(.*)")
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 181 of 242
Operation Return Type Definition and Comments
__regexTokenAsAddress IPAddress For non-IPv6-aware parsers, this operation is similar to the
regexToken operation: it takes two string parameters, and
the result (expected to be in four-part dotted decimal
format) is then converted from a string to an IP address.
That is, if the parameters are “foo/192.168.10.12/bar” and “[a-
z]+\/([0- 9\.]+)\/bar”, the result will be the IP address
192.168.10.12.
__regexTokenAsAddress (dst,"(.*?)[: ].*")
For IPv6-aware parsers, this operation can return both IPv4
and IPv6 addresses.
__regexTokenAsInteger Integer This is like the regexToken operation, also taking 2 string
parameters, except that the result is then converted from a
string to an integer (or null if it is not a valid number).
__regexTokenAsInteger (port,".*?:(\\d+)")
__regexTokenAsInteger (dst,".*?:(\\d+)[:
].*")
__regexTokenAsLong Long This is like the regexToken operation, also taking 2 string
parameters, except that the result is then converted from a
string to a long integer (or null if it is not a valid number).
__regexTokenFindAndJoin String There are five string parameters. The first parameter is the
string to be processed. The second is a regular expression
with at least one capturing group. The third is an optional
join delimiter. The fourth and fifth are optional strings to
prepend and append to the final result, respectively. The
operation repeatedly attempts to find the regular
expression in the string to be processed, starting each time
at the end of where the regular expression was last found.
Each time it is found, the capturing groups from the regular
expression are added to the result, with the join delimiter
between them. Finally, the prepend and append strings are
added, if they are not null.
__regexTokenNoWarning String This operation works similarly to the regexToken operation.
The primary differences are that 1) the regular expression
has to match the entire string, not just be found in it, and 2)
if the regular expression does not match, there is no
warning logged.
__replaceAll String The three parameters are all strings. The first is the
starting string, the second is the regular expression, and
the third is the replacement string. Each place the regular
expression is found in the starting string is replaced by the
replacement string, and the result is returned. Note that the
replacement string can contain references to capturing
groups in the regular expression, in the form '$n', where n is
0 to 9.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 182 of 242
Operation Return Type Definition and Comments
__replaceFirst String The three parameters are all strings. The first is the
starting string, the second is the regular expression, and
the third is the replacement string. The first place the
regular expression is found in the starting string it is
replaced by the replacement string, and the result is
returned. Note that the replacement string can contain
references to capturing groups in the regular expression, in
the form '$n', where n is 0 to 9.
__reverseDottedDecimalAddress
ByteOrder
String The parameter is an IP address passed as a string, which
must have exactly 3 dot characters. The result is an IP
address returned as a string, but with the 4 parts reversed
in order. For example, passing '2.1.168.192' will result in
'192.168.1.2' being returned.
__safeToDate TimeStamp This operation works like the
createOptionalTimeStampFromString operation, except
that if errors occur, null is returned.
__safeToInteger Integer The parameter is a single string, which is converted to an
integer, or null if the string is not a valid number. Useful for
log formats that use "-" to specify null values on integer
fields, such as Microsoft Windows XP SP2 Personal Firewall.
__safeToInteger(bytes)
__safeToInteger(srcPort)
__safeToLong Long The parameter is a single string, which is converted to a
long integer, or null if the string is not a valid number.
__safeToLong(time_taken)
__safeToRoundedLong Long The parameter is a string that is parsed as a number (which
can have a fractional part) and then rounded to the nearest
long integer and returned. If the string is not a valid
number, null is returned.
__setYearToCurrentYear TimeStamp The parameter is a single TimeStamp, for which the year is
forcibly set to the current year, plus or minus one
(depending in part on the syslog.future.limit property). This
is used for TimeStamps that do not have a defined year.
__signedNumberToAddress IPAddress The parameter is a long integer that is returned as an IP
address, but with the byte-order reversed.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 183 of 242
Operation Return Type Definition and Comments
__simpleMap String There are n+1 or n+2 parameters. The first parameter is a
string which is to be looked up in the map. The next n
parameters are the map, in the form of string literals each
of which has a key, an equals sign, and a value. If the key
matches the first parameter, then the value for that key is
returned. If the final parameter is a single character, it is
used as the delimiter instead of the equals sign. For
example, if the parameters are (all literal except the first):
“Foo”, “Bar=17”, “Foo=34”, then the returned value will be
“34”. If no key matches, null is returned.
__simpleMap(FileInfected,"0=No",
"1=Yes","=")
__simpleMap(Type,"8=Success", "16=Failure")
__split String This operation takes three parameters. The first is the
string to split (a string). The second is the delimiter (a
literal string). The third is the index (a literal integer). If the
delimiter or the index is blank or null, then the result is the
same as the first argument. Otherwise the string to split is
split around occurrences of the delimiter, with the index'th
string returned. For example, if the parameters are “The
string to split,” “ “ (space), and “2”, the result will be “string”.
__splitAsAddress IPAddress For non-IPv6-aware parsers, this operation is like the split
operation: it takes three string parameters, and the result
(expected to be in four-part dotted decimal format) is then
converted from a string to an IP address. That is, if the
parameters are “foo/192.168.10.12/bar”, “/”, and 2, the result
will be the IP address 192.168.10.12.
For IPv6-aware parsers, this operation converts the result to
an IPv4 or IPv6 address.
__splitAsInteger Integer This is like the split operation, also taking 3 string
parameters, except that the result is then converted from a
string to an integer (or null if it is not a valid number).
__splitAsLong Long This is like the split operation, also taking 3 string
parameters, except that the result is then converted from a
string to a long integer (or null if it is not a valid number).
__stringConstant String This takes a single string literal parameter, and returns it.
__stringConstant("Example")
__stringToIPv6Address IPAddress In a non-IPv6-aware parser, this operation takes a string
representation of an IPv6 address as input and returns a
value of type IPv6 address.
This operation should not be used in a IPv6-aware parser.
Instead, use the IP Address token parser or directly map the
IPv6 address string to event fields.
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 184 of 242
Operation Return Type Definition and Comments
__stringTrim String The parameter is a string, that is returned with any leading
or trailing whitespace characters removed.
__subtract Integer The two parameters must be integer variables, or can be
string constants that are floating- point values. The result is
an integer with the value of the first parameter minus the
second and rounded to the nearest integer.
__sum Integer Each parameter must be an integer variable, or can be a
string constants that are floating-point values. The result is
an integer with the value of the sum of the parameters
added together and rounded to the nearest integer
__toHex String The parameters are a long integer number and a literal
integer. The value of the first parameter is converted to
hexadecimal and returned, padded to the number of digits
specified by the second parameter, and preceded by “0x”.
Note that odd lengths are rounded down, and if the
specified length is insufficient some of the bits of the first
parameter are simply lost. For example, with parameters of
65535 and 8, the result is “0x0000FFFF”. With parameters of
65535 and 3, the result is “0xFF” (the 3 is rounded down to
2, and the high-order bits of 65535 are lost).
__toLongTimeStamp Long The parameter is a single string, which is a date and time
in yyyy-MM-dd HH:mm:ss format. The string is parsed,
interpreting it as local time, and the resulting date in
returned as the long integer number of milliseconds since
January 1, 1970 GMT.
__toLowerCase String The parameter is a single string, which is converted to
lowercase and returned.
__toLowerCase(protocol)
__toUpperCase String The parameter is a single string, which is converted to
uppercase and returned.
__toUpperCase(protocol)
__useCurrentYear TimeStamp The parameter is a single TimeStamp, which is returned
with its year changed to the current year. The calculation is
done in the local timezone, which will affect the result near
either end of the year.
__useCurrentYear(date)
Developer's Guide
Appendix A: ArcSight Operations
HPE Connectors Page 185 of 242
Appendix B: ArcSight Built-in Tokens
This table lists ArcSight built-in tokens
Token String Description
Tokens Available for Database Parsers Only
_DB_DRIVER JDBC Driver Name.
_DB_URL Database URL.
_DB_HOST Host name or IP Address of the machine hosting the
database.
_DB_PORT Port where the database is listening for SQL queries.
_DB_NAME Database name.
Tokens Available for Syslog Parsers Only
_SYSLOG_TIMESTAMP Time stamp received in the header of the syslog message.
_SYSLOG_SENDER Host name or IP address of the sender received in the header
of the syslog message. In the unusual case if the header did
not contain a host name or IP address, this will be the address
that the connector received the packet from.
_SYSLOG_SOURCE_ADDR The actual IP address that the connector received the syslog
message from. The token value can be assigned to the event
field of your choice. (For example,
event.deviceCustomString6=_SYSLOG_SOURCE_ADDR). The
value of this token can be an IPv4 or an IPv6 address.
_SYSLOG_FACILITY Facility received in the header of the syslog message (applies
only to Syslog Daemon connector).
_SYSLOG_PRIORITY Priority received in the header of the syslog message (applies
only to Syslog Daemon connector).
Tokens Available for SNMP Parsers Only - the following token strings are for use only in the properties file type
sdksnmp.#.sdksnmptrap.properties
_SNMP_TRAP_TYPE Trap type received in the SNMP trap header.
_SNMP_TIMESTAMP Time stamp received in the SNMP trap header.
_SNMP_ENTERPRISE_ OID Enterprise OID received in the SNMP trap header.
_SNMP_SENDER SNMP agent address that sends the SNMP trap.
HPE Connectors Page 186 of 242
Appendix C: ArcSight Built-in Token Types
Token types are important because tokens can only be mapped to ArcSight event fields with matching
types. Event fields and their types are listed in the ArcSight Console User’s Guide, in the "Reference
Guide", under "Data Fields".
Type Meaning Format
Date A value evaluating to a particular day. MM/dd/yyyy
Integer A number from -2147483648 to 2147483647. n/a
IPAddress For non-IPv6-aware parsers, this is an IPv4 address (for example:
1.1.1.1). This type cannot be used for IPv6 addresses. If it is, then null
will be returned.
For IPv6-aware parsers, this can be an IPv4 or an IPv6 address (for
example: fdeb:f59b:2e13:56c9:xxxx:xxxx:xxxx:xxxx).
n/a
IPv6Address An IPv6 address - 16 bytes specified as 32 hexadecimal characters
where each byte consists of two hexadecimal characters.
n/a
Long A number from -9223372036854775808 to 9223372036854775807. n/a
MacAddress An Ethernet MAC address of the form: 00-06-3E-22-51-B9 or
00:06:3E:22:51:B9.
n/a
RegexToken This token type is useful when a simple regular expression needs to
be used to extract further information from a token.
For example: Assume that the token contained the string ‘From:
rajiv’ and the only needed part is ‘rajiv’ then the following
expression could be used:
s/From: (.*)/$1/
Substitution regular
expression of the form:
s/{exp}/{subst}/
String Any free form sequence of characters. n/a
Time A value evaluating to a particular time of day. HH:mm:ss
TimeStamp A date, a time or a date and a time. Date/time format (see Date
and Time Format Symbols)
HPE Connectors Page 187 of 242
Appendix D: Date and Time Format Symbols
This table contains date and time format symbols:
Symbol Meaning Presentation Examples
G Era designator (Text) AD
y Year (Number) 2016 or 16
M Month in year (Text & Number) July or Jul or 07
w Week in year (Number) 27
W Week in month (Number) 2
D Day in year (Number) 129
d Day in month (Number) 10
F Day of week in month (Number) 2 (indicating 2nd Wed. in July)
E Day in week (Text) Tuesday or Tue
a Am/pm marker (Text) AM or PM
H Hour in day (0~23) (Number) 0
k Hour in day (1~24) (Number) 24
K Hour in am/pm (0~11) (Number) 0
h Hour in am/pm (1~12) (Number) 12
m Minute in hour (Number) 30
s Second in minute (Number) 55
S Millisecond (Number) 978
z Time zone (Text) Pacific Standard Time or PST or GMT-08:00
Z Time zone RFC 822 -0800 (indicating PST)
For example, one date format might be:
yyyy-MM-dd HH:mm:ss
Use single quotes around text that is not meant to be interpreted as date format characters. Use this
example for a date like: 2016.07.04 AD at 12:08:56 PDT.
yyyy.MM.dd G 'at' HH:mm:ss z
Use two single quotes to insert a single quote. Use this example for a date like: Wed, Jul 4, '16.
EEE, MMM d, ''yy
HPE Connectors Page 188 of 242
Appendix E: ArcSight Built-in Event Field
Mappings
The following table lists ArcSight event fields. See the numbered Range Notes (n) following this table
for further explanations of certain field ranges.
ArcSight Mapping Type Length Range
Application Protocol String 31 n/a
Base Event Count Integer n/a 0 -> 231-1
Bytes In Long n/a 0 -> 263-1
Bytes Out Long n/a 0 -> 263-1 -1
Category Behavior String 1023 n/a (1)
Category Device Group String 1023 n/a (1)
Category Object String 1023 n/a (1)
Category Outcome String 1023 n/a (1)
Category Significance String 1023 n/a (1)
category Technique String 1023 n/a (1)
Crypto Signature String 512 n/a
customer URI String - n/a (2)
Destination Address IPAddress n/a IPv4 or IPv6 (3)
Destination Dns Domain String 255 n/a
Destination Host Name String 1023 n/a
Destination Mac Address MacAddress n/a MAC (4)
Destination Nt Domain String 255 n/a
Destination Port Integer n/a 0 ->65535
Destination Process Name String 1023 n/a
Destination Service Name String 1023 n/a
Destination Translated Address IPAddress n/a IPv4 or IPv6 (3)
Destination Translated Port Integer n/a 0 -> 65535
Destination Translated Zone URI String - n/a (2)
HPE Connectors Page 189 of 242
ArcSight Mapping Type Length Range
Destination User Id String 1023 n/a
Destination User Name String 1023 n/a
Destination User Privileges String 1023 n/a
Destination Zone URI String - n/a (2)
Device Action String 63 n/a
Device Address IPAddress n/a IPv4 or IPv6 (3)
Device Custom Date 1 TimeStamp n/a n/a (5)
Device Custom Date 1 Label String 1023 n/a
Device Custom Date 2 TimeStamp n/a n/a (5)
Device Custom Date 2 Label String 1023 n/a
Device Custom IPv6 Address 1 IPAddress n/a IPv6 (8)
Device Custom IPv6 Address 1 Label String 1023 Should be “Device IPv6 Address”
Device Custom IPv6 Address 2 IPAddress n/a IPv6 (8)
Device Custom IPv6 Address 2 Label String 1023 Should be “Source IPv6 Address”
Device Custom IPv6 Address 3 IPAddress n/a IPv6 (8)
Device Custom IPv6 Address 3 Label String 1023 Should be “Destination IPv6 Address”
Device Custom Number 1 Long n/a - 263 -> 263-1
Device Custom Number 1 Label String 1023 n/a
Device Custom Number 2 Long n/a - 263 -> 263-1
Device Custom Number 2 Label String 1023 n/a
Device Custom Number 3 Long n/a - 263 -> 263-1
Device Custom Number 3 Label String 1023 n/a
Device Custom String 1 String 1023 (4.x)
4000 (5.x)
n/a
Device Custom String 1 Label String 1023 n/a
Device Custom String 2 String 1023 (4.x)
4000 (5.x)
n/a
Device Custom String 2 Label String 1023 n/a
Device Custom String 3 String 1023 (4.x)
4000 (5.x)
n/a
Developer's Guide
Appendix E: ArcSight Built-in Event Field Mappings
HPE Connectors Page 190 of 242
ArcSight Mapping Type Length Range
Device Custom String 3 Label String 1023 n/a
Device Custom String 4 String 1023 (4.x)
4000 (5.x)
n/a
Device Custom String 4 Label String 1023 n/a
Device Custom String 5 String 1023 (4.x)
4000 (5.x)
n/a
Device Custom String 5 Label String 1023 n/a
Device Custom String 6 String 1023 (4.x)
4000 (5.x)
n/a
Device Custom String 6 Label String 1023 n/a
Device Dns Domain String 255 n/a
Device Domain String 1023 n/a
Device Event Category String 1023 n/a
Device Event Class Id String 1023 n/a
Device External Id String 255 n/a
Device Facility String 1023 n/a
Device Host Name String 63 n/a
Device Inbound Interface String 15 n/a
Device Mac Address MacAddress n/a MAC (4)
Device Nt Domain String 255 n/a
Device Outbound Interface String 15 n/a
Device Payload Id String 128 n/a
Device Process Name String 1023 n/a
Device Product String 63 n/a
Device Receipt Time TimeStamp n/a n/a (5)
Device Severity String 63 n/a
Device Time Zone String 255 n/a
Device Translated Address IPAddress n/a IPv4 or IPv6 (3)
Device Translated Zone URI String - n/a (2)
Device Vendor String 63 n/a
Device Version String 31 n/a
Developer's Guide
Appendix E: ArcSight Built-in Event Field Mappings
HPE Connectors Page 191 of 242
ArcSight Mapping Type Length Range
Device Zone URI String - n/a (2)
End Time TimeStamp n/a n/a (5)
External Id String 40 n/a
File Create Time TimeStamp n/a n/a (5)
File Hash String 255 n/a
File Id String 1023 n/a
File Modification Time TimeStamp n/a n/a (5)
File Name String 1023 n/a
File Path String 1023 n/a
File Permission String 1023 n/a
File Size Long n/a 0 -> 263-1
File Type String 1023 n/a
Flex Date 1 TimeStamp n/a n/a (5)
Flex Date 1 Label String 128 n/a
Flex Number 1 Long n/a - 263 -> 263-1
Flex Number 1 Label String 128 n/a
Flex Number 2 Long n/a -2 63 -> 263-1
Flex Number 2 Label String 128 n/a
Flex String 1 String 1023 n/a
Flex String 1 Label String 128 n/a
Flex String 2 String 1023 n/a
Flex String 2 Label String 128 n/a
Message String 1023 n/a
Name String 512 n/a (9)
Old File Create Time TimeStamp n/a n/a (5)
Old File Hash String 255 n/a
Old File Id String 1023 n/a
Old File Modification Time TimeStamp n/a n/a (5)
Old File Name String 1023 n/a
Old File Path String 1023 n/a
Developer's Guide
Appendix E: ArcSight Built-in Event Field Mappings
HPE Connectors Page 192 of 242
ArcSight Mapping Type Length Range
Old File Permission String 1023 n/a
Old File Size Long n/a 0 -> 263-1
Old File Type String 1023 n/a
Raw Event String 4000 n/a (7)
Request Client Application String 1023 n/a
Request Context String 2048 n/a
Request Cookies String 1023 n/a
Request Method String 1023 n/a
Request Url String 1023 n/a
Source Address IPAddress n/a IPv4 or IPv6 (3)
Source Dns Domain String 255 n/a
Source Host Name String 1023 n/a
Source Mac Address MacAddress n/a MAC (4)
Source Nt Domain String 255 n/a
Source Port Integer n/a 0 -> 65535
Source Process Name String 1023 n/a
Source Service Name String 1023 n/a
Source Translated Address IPAddress n/a IPv4 or IPv6 (3)
Source Translated Port Integer n/a 0 -> 65535
Source Translated Zone URI String - n/a (2)
Source User Id String 1023 n/a
Source User Name String 1023 n/a
Source User Privileges String 1023 n/a
Source Zone URI String - n/a (2)
Start Time TimeStamp n/a n/a (5)
Transport Protocol String 31 n/a (6)
Range Notes
1. Although these fields can be set using the FlexConnector properties file, the recommended way is
to create a categorization file. For more about the possible values, see the "Categories" topic in the
Console Help or the ArcSight Console User’s Guide. Also, see "FlexConnectors and Categorization".
2. Although URI fields can be set using the FlexConnector properties file, these are really links to
Developer's Guide
Appendix E: ArcSight Built-in Event Field Mappings
HPE Connectors Page 193 of 242
resources in the database. Therefore, it is recommended that those fields be set using the network-
model and customer-setting features.
3. This can be an IPv4 address (from 0.0.0.0 to 255.255.255.255) or an IPv6 address
(xxxx:xxxx:xxxx:xxxx:xxxx:xxxx).
4. This is a MAC address: XX:XX:XX:XX:XX:XX or XX-XX-XX-XX-XX-XX.
5. This is a timestamp stored as milliseconds since January 1, 1970.
6. The options are: TCP, UDP, ICMP, IGMP, ARP.
7. Set PreserveRawEvent to Yes to have the connector automatically preserve the original event
log received from the device. With the default No, you can configure this field. To find the
PreserveRawEvent field in the ArcSight Console interface, go to the Connectors resource tree
> Configure > Default tab > Content >Processing section > PreserveRawEvent.
8. For a non-IPv6-aware parser, the IPv6 fields (deviceCustomIPv6Address1,2, and 3) should
consistently use 1 for device, 2 for source, and 3 for destination. The labels for them will
automatically be set if the IPv6 address field is set, but if your ArcSight Console parser sets them
explicitly, it should use the exact strings shown above.
For an IPv6-aware parser, the IPv6 fields (deviceCustomIPv6Address1,2, and 3) can contain
either IPv4 or IPv6 addresses. In practice, these fields should rarely be used. If they are, the labels
should be set to an appropriate value.
9. The name field is mandatory.
See "ArcSight Built-in Tokens" for a list of ArcSight built-in tokens.
Developer's Guide
Appendix E: ArcSight Built-in Event Field Mappings
HPE Connectors Page 194 of 242
Appendix F: Configuring a Connector for
ArcSight ESM Domain Field Sets
This appendix applies to Oracle-based ESM and provides information on configuring a FlexConnector
for ESM domain field sets, which allow you to map additional data.
ArcSight ESM offers a series of special user-configurable fields called domain fields that you can use to
leverage additional data available in an event, and that identifies a business-related attribute. When
events come in to the ArcSight Manager, they are evaluated against the available domain field sets. If
the event matches the fields in a domain field set, the event is tagged as relevant to that domain. These
fields then are displayed in the Event Inspector and anywhere that domain field set is referenced.
Before creating a FlexConnector or modifying an existing connector to send additional data to support
domain field sets, create the domain fields and domain field sets from the ArcSight Console as described
in Domain Field Sets in the ArcSight ESM User's Guide.
Supported data types include:
FlexConnector Data Type ESM Data Type
String String
Long Long
TimeStamp Date
IPAddress (IPv4) IPv4Address
Integer Number
IPv6Address IPv6Address
Double (Floating Point) Floating Point
You can modify an existingFlexConnector or create a new FlexConnector to take advantage of the
fields you have defined as part of the domain field set. For example, the following is a domain field set
for credit card transactions:
Field Type
Credit Card Number Integer (Number)
Transaction Amount Double (Floating Point)
Currency String
Transaction Host IP IPv6Address
Transaction Time TimeStamp (Date)
HPE Connectors Page 195 of 242
Assuming these fields are not defined in a current parser, you will need to add mappings for these fields
in the FlexConnector parser as additional data fields.
For example, for this sample domain field set, you can add the following entries to the FlexConnector
parser you are developing:
token[0].name=Credit Card Number
token[0].type=Integer
token[1].name=Transaction Amount
token[1].type=Double
token[2].name=Currency
token[2].type=String
token[3].name=Transaction Host IP
token[3].type=IPAddress
token[4].name=Transaction Time
token[4].type=TimeStamp
additionaldata.Credit Card Number=Credit Card Number
additionaldata.Transaction Amount=Transaction Amount
additionaldata.Currency=Currency
additionaldata.Transaction Host IP=Transaction Host IP
additionaldata.Transaction Time=Transaction Time
The connector processes the additional data fields with the data type you assigned along with the
token names.
If you have an existing FlexConnector, you can modify your parser to include the new fields for a
domain field set as shown in the following example. To modify the parser of an existing
SmartConnector that you have installed, contact Professional Services or your ArcSight representative
for assistance.
The domain field set for this example includes the following fields:
Field Type
Credit Card Number Integer (Number)
Credit Card Holder String
Transaction Host IP IPAddress (for IPv6-aware parsers, this can be an IPv4 or IPv6 address)
Transaction Time TimeStamp (Date)
In this example, your existing parser contains entries such as the following:
Developer's Guide
Appendix F: Configuring a Connector for ArcSight ESM Domain Field Sets
HPE Connectors Page 196 of 242
token[9].name=abc
token[9].type=TimeStamp
token[10].name=def
token[10].type=Integer
token[11].name=ghi
token[11].type=IPAddress
token[12].name=jkl
token[12][.type=String
token[13][.name=mno
token[13].type=Long
You can use currently defined tokens to assign data types to your new domain feature set fields by
adding these additional data fields. Transaction Time will assume the data type of the jkl field
(TimeStamp).
When you add this... Then...
additionaldata.Credit Card Number=abc Credit Card Number assumes the data type of the abc field (Integer)
additionaldata.Credit Card Holder=def Credit Card Holder assumes the data type of the def field (String)
additionaldata.Transaction Host IP=ghi Transaction Host IP assumes the data type of the ghi field (IPAddress)
additionaldata.Transaction Time=jkl Transaction Time assumes the data type of the jkl field (TimeStamp)
These additional data fields associate your newly created fields with the data types of fields already
defined in the parser.
After modifying the parser, restart the connector. When the connector comes back online, it sends the
added fields to the ArcSight Manager.
Developer's Guide
Appendix F: Configuring a Connector for ArcSight ESM Domain Field Sets
HPE Connectors Page 197 of 242
Appendix G: Advanced Parameters
The following topics are covered in this appendix:
lParameters Common to all SmartConnectors
lCEF Syslog Parameters
lFile Connector Parameters
lFile Folder Follower Parameters
lSyslog Parameters
Note:
lThe advanced parameters have been designed to assist developers in creating new
FlexConnectors. The advanced parameters might not be applicable to all connectors even if they
are present in the agent.properties file. If they are applicable to a connector, they will work
as described.
lDo not change any parameter value in the agent.properties file unless the parameter is
described in your connector’s guide. This appendix is meant for developing new FlexConnectors,
and not for changing parameters in the implemented connectors. Changing the parameters from
their default values can prevent the connectors from working.
You can customize connector behavior by using the advanced parameters described in this appendix.
These parameters can be added to or updated in the agent.properties file located in the
$ARCSIGHT_HOME/current/user/agent directory after connector installation.
Note: The folder path examples in this chapter refer to the Linux form where the path starts with
$ARCSIGHT_HOME and uses slashes. For Windows, the path starts with %ARCSIGHT_HOME% and
uses back slashes. For example:
lLinux: $ARCSIGHT_HOME/current/user/agent/agent.properties
lWindows: %ARCSIGHT_HOME%\current\user\agent\agent.properties
The agent.properties file is a plain text file. Use the appropriate editor for your operating system to
edit the content. For example, use Notepad for Windows and vi for Linux. Any modifications to the
agent.properties file should be performed very carefully with knowledge of how parameters
operate. This way, you would avoid inadvertently altering the behavior of the SmartConnector.
HPE Connectors Page 198 of 242
Parameters Common to all SmartConnectors
The following table describes the parameters that can be used with all ArcSight SmartConnectors.
Parameter Default Description
agents[x].deviceconnection
alertinterval
60000 Connectors update internal device connectivity state
based on this interval (milliseconds).
agents[x].extractfieldnames [blank] List of event fields separated by comma; for example:
fileName, sourcePort.
This parameter is related to fieldextractor feature that
allows to populate the event field based on the file name
the connector is reading. It can be used in all connectors
that have files as input (for example any file connector,
file folder connector and a few other connectors like DB
Audit processing, Juniper Steel-Belted Radius).
extractfieldnames, extractregex and extractsource are
used together. Only when usefieldextractor is true,
extractfieldnames, extractregex and extractsource can be
used.
agents[x].extractregex [blank] The regular expression that will extract as many tokens
(filename, sourcePort, and so on) as the number of
fieldnames from the name of the log file.
This parameter is related to fieldextractor feature that
allows to populate the event field based on the file name
the connector is reading. It can be used in all connectors
that have files as input (for example any file connector,
file folder connector and a few other connectors like DB
Audit processing, Juniper Steel-Belted Radius).
extractfieldnames, extractregex and extractsource are
used together. Only when usefieldextractor is true,
extractfieldnames, extractregex and extractsource can be
used.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 199 of 242
Parameter Default Description
agents[x].extractsource File Name Source from which to extract the fields.
Possible Values: A constant—“File Name” or “File Path”.
This parameter is related to fieldextractor feature that
allows to populate the event field based on the file name
the connector is reading. It can be used in all connectors
that have files as input (for example any file connector,
file folder connector and a few other connectors like DB
Audit processing, Juniper Steel-Belted Radius).
extractfieldnames, extractregex and extractsource are
used together. Only when usefieldextractor is true,
extractfieldnames, extractregex and extractsource can be
used.
agents[x].persistenceinterval
Note: For Syslog File connectors, the
persistenceinterval parameter must be
a positive integer to enable
persistence.
0 Interval in milliseconds when persisting properties in
some connectors.
lThe persisted file is located at $ARCSIGHT_
HOME/current/user/agent/
persisted.properties.
lIf 0, then every change in the property value will
persist in the file. This could impact the performance.
lIf <0, then the properties file is not persisted.
lIf >0, then wait for the specified interval and then
persist properties file. The property file will have the
properties specified by the connector. For example, for
legacy connectors it could contain the file name as a
key, and “true” as value if file was processed.
agents[x].unparsedevents.log.
enabled
false The default value is false. Specify true for the connector to
detect and log unparsed events to $ARCSIGHT_
HOME/current/logs/events.log. See also "Unparsed Events
Detection".
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 200 of 242
Parameter Default Description
agents[x].usefieldextractor false Indicates whether the event fields should be extracted
from the log file name.
Possible Values: true/false
This parameter is related to fieldextractor feature that
allows to populate the event field based on the file name
the connector is reading. It can be used in all connectors
that have files as input (for example any file connector,
file folder connector and a few other connectors like DB
Audit processing, Juniper Steel-Belted Radius).
deviceeventcounter.maxdevicestoevent 1000 This property pertains to the DeviceEventCounter module.
It specifies the default maximum number of devices for
which the DeviceEventCounter module will send
agent:043 internal events. If an agent properties file
specifies agent.component[x].maxdevstoevent as a legacy
parameter, then it will be used instead of the
deviceeventcounter.maxdevicestoevent value.
deviceeventcounter.maxdevicestolog 1000 This property pertains to the DeviceEventCounter module.
It specifies the default maximum number of devices for
which the DeviceEventCounter module will log the EPS
status. If an agent properties file specifies
agent.component[x].maxdevicestolog as legacy
parameter, then it will be used instead of the
deviceeventcounter.maxdevicestolog value.
CEF Syslog Parameters
The following table describes the CEF syslog parameters.
Parameter Default Description
transport.cefsyslog.header false Change to true to enable RFC 3164 headers for the
CEF Syslog destination type.
transport.cefsyslog.header.facility 4 This parameter, which is ignored unless
transport.cefsyslog.header is true, changes the facility
value used to calculate the <PRI> value in the
generated header. The range of valid values is 0 to
23. The default value of 4 means
"security/authorization messages".
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 201 of 242
Parameter Default Description
transport.cefsyslog.header.keepdomain false This parameter, which is ignored unless
transport.cefsyslog.header is true, controls whether
the value in deviceHostname is used as is in the
header (if the property changed to true), or if the
domain is first removed. For example, if the
deviceHostName field of an event is server.foo.com,
only "server" would normally be used in the header.
But if this property is changed to true, then
"server.foo.com" would be used. Note that for any
events that do not have the deviceHostName field
set, this property does not matter (the deviceAddress
will be used instead).
transport.cefsyslog.header.severitymap 7,6,5,3,2 This parameter, which is ignored unless
transport.cefsyslog.header is true, controls how the
event's agentSeverity field is converted into an RFC
3164 severity value, which in turn is combined with
the facility value to create the <PRI> value in the
generated header. If this property is changed, there
must be 5 values, representing agentSeverity values
unknown, low, medium, high, and very-high,
respectively. And each value must be in range of 0
(emergency) to 7 (debug). The default mapping is
unknown=>debug, low=>informational,
medium=>notice, high=>error, and very-
high=>critical.
transport.cefsyslog.header.useconadrashost true This parameter, which is ignored unless
transport.cefsyslog.header is true, controls what to do
if neither the deviceHostname nor the
deviceAddress field is set in an event. By default the
connector's own IP address is used, but that can be
disabled (leaving that part of the header empty) by
changing this property to false.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 202 of 242
File Connector Parameters
The following table describes the file connector parameters.
Parameter Default Description
agents[x].configfile Agent_
type/Agent_
type
Path of the config file. This is the directory where the connector gets a
parser for log(s).
agents[x].followexternal
rotation
false If property is set to false, the rotation “in place” is not followed, the file
read once, the drop in size may not be monitored. If set to true, it will be
monitored. There are different ways files are rotated:
lIf the new file has “index” suffix. For example, log1.txt,log2.txt
lIf the new file has a new date stamp added. For example, log2013-07-
31.txt for daily rotation.
So, these types of rotations are captured with “rotationscheme” and
related parameters, or some rotation specified directly in file name
regex, like those based on multifolderfollower (Apache Tomcat is an
example).
If this property is set to true, the Connector will monitor the size of the
file (using the file’s name, not its inode). If the file size has decreased,
the connector will assume that the file has been rotated.
agents[x].internalevent.
filecount.enable
false Enable/disable internal events when the number of files processed does
not meet the user defined limits.
lagents[x].internalevent.filecount.duration=n
Specifies the number of seconds.
lagents[x].internalevent.filecount.minfilecount=n
Specifies the minimum number of files that the connector should
process in the duration specified.
lagents[x].internalevent.filecount.timer.delay=n
Specifies, in seconds, the time the SmartConnector waits after it starts
monitoring and sending internal events when needed.
agents[x].internalevent.
fileend.enable
true Sends and internal event when file has completed processing.
agents[x].internalevent.
filestart.enable
true Sends an internal event when file has started to process.
agents[x].logfilename [blank] This property will be interpreted as a directory/folder. For example:
logfilename=/home/logfiles/
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 203 of 242
Parameter Default Description
agents[x].onrotation None Possible Values:
lNone: Nothing is done
lDeleteFile: The file is deleted on rotation
lRenameFileInTheSameDirectory: The file is renamed as per the
onrotationoptions parameter, described below on rotation.
agents
[x].onrotationoptions
processed If the onrotation parameter is chosen as
"RenameFileInTheSameDirectory", this parameter tells what to rename
the file.
For example: If the default value is processed, on rotation, the file
sample.log is renamed to sample.log.processed.
The Unix extension cannot have spaces in it.
agents[x].preservestate false If set to true, remembers the last location read in the file periodically,
depending on the values set for the perservedstatecount and
preservedstateinterval properties.
If set to false, then nothing is written and the connector has no record of
where it left off. In this case, the values of perservedstatecount and
preservedstateinterval are ignored.
agents[x].preservedstate
count
10 The number of times the value has to change or has to be updated
before actually preserving the state.
agents[x].preservedstate
interval
30000 The number of idle milliseconds that will trigger a state persistence.
agents
[x].rotationsleeptime
10 Used in conjunction with rotationonlywheneventexists, rotation will not
occur until the specified time has elapsed since the new event appeared.
Default is 10 seconds.
agents[x].rotationscheme Daily Possible values: Daily, Index, None
agents[x].
rotationonlywhen
eventexists
false Used only by the daily log follower in conjunction with
rotationsleeptime, no rotation occurs until there is new event in the file
or there is a new event and the time for rotationsleeptime has elapsed
since the new event appeared. Default is false - not enabled.
agents[x].rotationscheme
params
[blank] Configure this parameter when rotationscheme parameter is set to Daily
or Index.
A filename template has the following syntax:
prefix,]dateFormat,suffix[,true|false]
For a complete description of how to use the rotationschemeparams
parameter, see "Parameters for Daily and Index Rotation"
agents[x].rotationdelay 30 In seconds. Specifies how long to wait after a new file is detected before
the file reader thread for the current file is terminated and a file reader
thread launches for a new file.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 204 of 242
Parameter Default Description
agents[x].startatend true The default is true. Useful when log files to be processed already exist
and contain data at connector startup or when the log file rotation takes
place. Setting this value to false will cause the entire file to be read at
every startup, which could lead to duplicate events, unless the
preservestate parameter is set to true. (Setting preservestate to true lets
the connector skip the old events and start from the last preserved read
position of the file.)
agents[x].usealternate
rotationdetection
true Use an alternate mechanism to detect log rotation. Used with
followexternalrotation parameter. The log rotation detection logic uses a
file’s length as opposed the number of bytes counted in byte counting
input stream.
Setting this value to true, compares a new file length to the previous file
length. Setting the value to false, compares a new file length to the
number of bytes read from the file (input stream).
agents[x].usenonlocking
windowsfilereader
true Does not lock the log file read by the connector on the Windows
platform.
File Folder Follower Parameters
The following table describes the File Folder Follower parameters. If you do not see the parameter you
need in the table, see "File Connector Parameters ".
Parameter Default Description
agents[x].delay 10000 In milliseconds. Specifies how long the connector waits to start
before processing after it detects the file for the first time in the
folder.
agents[x].encoding UTF8 Specifies the encoding or character set used in the log file. Only
Java recognized encoding is accepted. Informal names for
encoding will result in assuming UTF8 as logs encoding value.
agents[x].fixedlinelength
Note: For SAP only
-1 If set to a positive integer, this parameter sets the line length
for an event. The length can be expressed as either the number
of characters or bytes. The -1 default value indicates that one
line represents one event. This is because one line is typically
one event.
agents[x].fixedlinelength
contains
Note: For SAP only
[Fixed Number of
Characters.]
Related to the fixedlinelength parameter. Specifies whether the
fixed length is the number of bytes or number of characters.
Possible Values are Fixed Number Of Bytes (default) or Fixed
Number Of Characters.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 205 of 242
Parameter Default Description
agents[x].followexternal
rotation
false Specifies whether the file reader thread is going to follow any
rotation to the file done by the external device writing to the
log. Is operational only when agents[x]. processingmode is set
to realtime.
If property is set to false, the rotation “in place” is not followed,
the file read once, the drop in size may not be monitored. If set
to true, it will be monitored. There are different ways files are
rotated:
lif the new file has “index” suffix, for example, log1.txt,log2.txt
lif the new file has a new date stamp added, for example,
log2013-07-31.txt for daily rotation
These types of rotation are captured with “rotationscheme” and
related parameters, or some rotation specified directly in file
name regex, like those based on multifolderfollower (Apache
Tomcat is an example).
If this property is set to true, the Connector will monitor the size
of the file (using the file’s name, not its inode). If the file size
has decreased, the Connector will assume that the file has been
rotated.
agents[x].maxretries -1 Maximum number of retries before giving up on a file.
Files will be moved to the “bad” directory if unable to read at
once. Positive means retry up to maxretries times to read again.
agents[x].minfilelength -1 Prevents processing of files smaller than the specified size.
agents[x].mode RenameFile
InTheSameDirectory
Specifies the action to perform on a log file after the Connector
has processed it. Possible actions are:
lRenameFileInTheSameDirectory—Renames the
processed log file to filename.processed.
lDeleteFile—Deletes the file once it has been processed.
lPersistFile—Retains the file with its original name after
it has been processed. However, the Connector remembers
the files it has already processed so that those are not
processed again.
Note: The value for agents
[x].usenonlockingwindowsfilereader must be set to true in
Windows environments for the modes
RenameFileInTheSameDirectory and DeleteFile to function
correctly.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 206 of 242
Parameter Default Description
agents[x].modeoptions processed Specifies the extension to add to processed files.
For example, .processed.
The Unix extension cannot have spaces in it.
agents[x].monitoringinterval 30000 Specifies the amount of time (in milliseconds) that the
connector will wait before re-reading the log file. The connector
checks if file was updated; if it was, then the connector
continues to read the file.
After the file is read to the EOF, the connector checks for new
records until the value of the processingtimeout parameter is
reached. If no updates have occurred, then the connector checks
for updates only at intervals equal to the value of the
monitoringinterval parameter. If no updates have occurred up to
the value of the processingthreshold parameter, then the
connector marks file as done and terminates reading.
The monitoringinterval parameter should be used only when
the processingmode parameter is set to realtime. The value of
the monitoringinterval parameter must be greater than 0 and
less than the value of the processing timeout parameter (0<
monitoringinterval < processingtimeout < processingthreshold).
agents[x].processfolder
recursively
false Specifies whether to process log files in the subfolders of a
specified folder.
Possible values: true and false
When this property is set to true, the Connector traverses the
subfolders in a folder to locate log files to process.
agents[x].processinglimit 256 Set to specify the number of files to read in real time. There is
one file reader thread per file. When this limit is reached no
new files will be processed until some of the existing files are
temporarily suspended because of inactivity or are completely
processed.
agents[x].processingmode batch Specifies the mode for connector log file processing. Possible
values are:
lbatch—Batch processing of the log file.
lrealtime—Realtime processing of the log file.
If realtime is specified, then the properties, monitoringinterval,
processingthreshold, and processingtimeout must also be
specified.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 207 of 242
Parameter Default Description
agents
[x].processingthreshold
3600000 Specifies the amount of time (in milliseconds) that the
connector will wait for inactivity on the realtime log file. When
the processingthreshold value is exceeded, the log file is
deleted or renamed depending on the agents[x].mode value
specified.
The processingthreshold parameter should be used only when
the processingmode parameter is set to realtime. The value of
the processingthreshold parameter must be greater than 0 and
greater than the value of the processingtimeout parameter (0<
monitoringinterval < processingtimeoutparameter <
processingthreshold).
Note: When the processingthreshold value is exceeded,
the log file is deleted or renamed depending on the
agents[x].mode value specified.
agents[x].processingtimeout 120000 Specifies the threshold time (in milliseconds) for detecting
inactivity on the realtime log file. If inactivity on the log file
exceeds this value, then reading of the log file is suspended.
The log file is again checked whether to suspend, resume or
terminate after the monitoringinterval has elapsed.
The processingtimeout parameter should be used only when
the processingmode parameter is set to realtime. The value of
the processingtimeout parameter must be greater than 0 and
less than the value of the processingthreshold parameter (0 <
monitoringinterval < processingtimeout < processingthreshold).
agents[x].retryinterval 1000 In milliseconds. If you want to try again to process unprocessed
files (which were not processed because of an exception, such as
a busy device), use these fields.
agents[x].sleeptime 5000 Specified how long to wait before checking the folder for new
files.
agents[x].triggerextension .done This parameter is used only if usertriggerfile parameter is set to
true.
Specifies the file extension that the connector should look for to
identify a trigger file. Used in conjunction with usetriggerfile. It
can be any word at the end.
For example, .trigger.
agents
[x].usealternaterotation
detection
false Use an alternate mechanism to detect log rotation. Used with
followexternalrotation parameter. It tells the log rotation
detection logic to use a file’s length as opposed the number of
bytes counted in byte counting input stream.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 208 of 242
Parameter Default Description
agents[x].usenonlocking
windowsfilereader
false Does not lock the log file read by the connector on the Windows
platform so the device writing the log can rotate it if it chooses.
On Windows platform one process that writes into the file can
prevent the other process from reading. “true” allows the
connector to read the file regardless. Connector never locks the
file, it is always only a reader.
agents[x].usetriggerfile false Specifies whether to look for a trigger file before processing a
log file.
Possible values: true or false
A trigger file is an empty file that has the same name as the log
file, but a different extension.
This file is created by certain systems to indicate that a log file
is ready for processing.
If this property is set to true, the connector will not process a log
file until a trigger file for it has been created in the same folder
where the log file exists.
agents[x].wildcard [blank] Use the wildcard parameter to match file names for daily or
index file rotation. The wildcard parameter can be used only for
file folder follower connectors and has special restrictions for
Regex File connectors. For more information on how to use the
wildcard parameter and its syntax, see "Using wildcard for Daily
and Index Log File Rotation (File Folder Follower Only)".
Syslog Parameters
This section contains information on the following Syslog parameters:
lSyslog Daemon Parameters
lSyslog Pipe Parameters
lSyslog File Parameters
lSyslog NG Daemon Parameters
lRaw Syslog Daemon Parameters
lArcSight CEF Encrypted Syslog (UDP) Parameters
lTippingPoint SMS Syslog Extended Parameters
Syslog Daemon Parameters
The following sections describe the Syslog Daemon parameters.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 209 of 242
lEvent Parsing (Sub-agents) Parameters
lEvent Reception Parameters
lRaw Log Parameters
lEvent Queue Parameters
lEvent Processing Parameters
Event Parsing (Sub-agents) Parameters
The following table describes the Syslog Event Parsing (Sub-agents) parameters.
Parameter Default Description
agents[x].customsubagentlist [The default
is too long to
display.]
Set this property to the restricted subagent list based on device
types in your environment. List parsers’ names separated by |
(vertical bar) and no “ “ (quotes) are allowed.
This parameter is used in conjunction with agents
[x].usecustomsubagentlist. It can help reduce the time the connector
needs to pick up the right parser.
Examples: agents[x].customsubagentlist=ciscopix_
syslog if your Connector is designed to parse cisco pix syslog
events. Or agents[x].customsubagentlist=ciscopix_
syslog|cyberguard_syslog if your Connectors are going to take care
of those 2 kinds of events.
agents[x].forwardmode false If set to true, every message is run through every available syslog
parser and the first parser whose main regex matches the message
is assumed to be the correct parser. This is very inefficient because
every message potentially must be run through 100+ parsers.
However, in this mode, the message is less likely to be picked up by
the incorrect parser.
If set to false, the connector will pick the first match parser and save
time. However, this mode may raise the chance that the wrong
parser is picked.
agents[x].usecustomsubagentlist false Set to true to use the agents[x].customsubagentlist property. This
makes the connector to consider the customized subagent list.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 210 of 242
Event Reception Parameters
The following table describes the Syslog Event Reception parameters.
Parameter Default Description
agents[x].encoding [blank] By default, there is no entry for agents[x].encoding in agent property
file. If you want to use an alternative value, add this parameter
manually.
If this is specified and is valid, the specified encoding (for example,
UTF-16) is used. If not, then the default depends on the protocol:
UTF-8 for Raw TCP or the platform default for UDP. UTF-16 would be
an example of a value to set the property.
agents[x].tcpbindretrytime 5000 Time between TCP bind retries (in milliseconds). Time gap to retry
to bind to a socket address.
agents[x].tcpbuffersize 10240 Raw TCP buffer (in bytes). This is the initial size. It will be expanded
if necessary, up to the value defined by tcpmaxbuffersize parameter.
By default, tcpbuffersize is 10k and tcpmaxbuffersize is 1M. The
reason we set tcpbuffersize small is to save system resources.
Example of how these two parameters work with each other:
When a single tcp event is less than 10k in length (most of the event
won't be longer than this), nothing will be changed.
When a single tcp event is 15k in length, the connector will first try
with 10k tcpbuffersize and if failed, it will check if tcpbuffersize
exceeded the limit of tcpmaxbuffersize. If not, it will double
tcpbuffersize to 20k, and find if 20k buffer is efficient to hold the 15k
tcp event. After this event, the system will continue with the 20k
tcpbuffersize and 1M tcpmaxbuffersize.
When the single tcp event is 25k in length and the connector finds
the 20k tcpbuffersize is still not enough to hold the event, it will
double tcpbuffersize again until it can hold the event. After this
event, the system will continue to work with 40k tcpbuffersize.
But when the tcp event is even larger than tcpmaxbuffersize, for
example 1.5M (this is rare), the connector keeps doubling its
tcpbuffersize until it reaches tcpmaxbuffersize. And then it will
truncate the 1.5M event immediately.
Notice you can also set tcpmaxbuffersize<tcpmaxbuffersize=
tcpbuffersize> at the beginning. The connector will still use
tcpbuffersize to measure the event length. When the event is longer
than tcpbuffersize, it won't try to expand; instead, it will truncate the
event immediately.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 211 of 242
Parameter Default Description
agents[x].tcpcleanupdelay -1 Idle TCP cleanup delay (in milliseconds). How often the idle TCP
socket should be cleaned up. The default value of -1 indicates the
idle TCP socket is never cleaned up.
Note that both tcpcleanupdelay and tcpmaxidletime must be set to
values greater than zero in order for idle TCP sockets to be cleaned
up. Also, if tcppeerclosedchecktimeout is set it takes precedence.
agents[x].tcpendchar [blank] Optional message terminating hex character, can use either 0x00 or
NUL.
Not defined by default.
agents[x].tcpmaxsockets 1000 Specifies the maximum number of TCP connections that connector
will accept simultaneously. Parameter value should be any positive
integer that can reasonably utilize system resource and won't crash
the system. Connector will only accept TCP connection when the
total connection is under the number defined by this parameter, as
soon as exceeded, the connection will be rejected and print out fatal
message. The default value of this parameter is 1000, increase this
value as required to accommodate simultaneous connections from a
large number of devices.
agents[x].tcpmaxbuffersize 1 MB Maximum raw TCP buffer (in bytes). Any message larger than the
given size will be truncated. The tcpmaxbuffersize is not used to
truncate events, this value is used to limit the expansion of
tcpbuffersize, and how to cut event is determined by tcpbuffersize.
See also agents[x].tcpbuffersize.
agents[x].tcpmaxidletime -1 The number of milliseconds a TCP socket must be idle before it is
closed. The default value of -1 indicates the idle TCP socket is never
closed.
Note that both tcpcleanupdelay and tcpmaxidletime must be set to
values greater than zero in order for idle TCP sockets to be cleaned
up. If using a non-default value, set the value to a number that is
greater than the longest expected gap between message sends.
agents[x].tcppeerclosedcheck
timeout
-1 Number of milliseconds the system should wait after a TCP socket
has been idle before checking if the peer has closed its side of the
TCP connection (milliseconds). If the peer has closed its side then
the connector closes its side resulting in an orderly shutdown.
The default -1 means the tcpmaxidletime/tcpcleanupdelay
mechanism can be enabled to clean up idle sockets.
Recommendation: Set it to 30000 milliseconds or higher to tell the
connector to check for connections closed by peer proactively and
close them on the connector side as well.
This is not exposed in the connector setting tool, but it can be
changed directly in the agent.properties file.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 212 of 242
Parameter Default Description
agents[x].tcpsetsocketlinger false This parameter works in conjunction with "tcpmaxidletime". Once a
socket is idle for more than tcpmaxidletime (and if tcpcleanupdelay
is greater than zero) the connector's side of the socket is closed. The
close can be fully completed only if the client has closed its side. But
if tcpsetsocketlinger is set to true the close will happen immediately
even if the client has not closed its side. Setting tcpsetsocketlinger to
true should be used with caution since there is a possibility of data
loss if any data has been sent by the client but not yet read by the
connector. Setting tcpsetsocket linger is valuable in cases where the
client cannot be guaranteed to close the socket because in that case
the connector can be left with sockets in the CLOSED_WAIT state
indefinitely.
agents[x].tcpsleeptime 50 If no data because either no sockets or sockets have no data, then
sleep this long (in milliseconds) before checking again.
agents[x].overwriterawevent false With the default value of false, if the parser for this syslog device
directly sets the rawEvent event field, the connector leaves that
value as is. And if the parser does not set that event field, then the
full syslog message is put into that event field. If this property is
changed to true, then the full syslog message is always used, even if
that means overwriting a rawEvent value that was explicitly set by
the parser.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 213 of 242
Raw Log Parameters
The following table describes the Syslog Raw Log parameters.
Parameter Default Description
agents[x].rawlogfolder
Note: rawlogfolder and
all related properties
(folder name, interval,
and max size) cannot
be applied to Syslog
Pipe/File Connector.
[blank] This parameter defines the folder used for storing raw logs files.
By default this parameter is omitted from the agent.properties file.
If you want to store raw log files add this parameter and specify the
folder where the raw log files are stored. The connector creates the
specified folder if it does not exist.
The value for this property can be an absolute path for a folder in which
to store the raw log files. For example:
agents[x].rawlogfolder=/opt/arcsight
will cause the raw log files to be stored in the /opt/arcsight folder.
Alternatively the value for this property can be a relative path. This path
is prefixed with $ARCSIGHT_HOME/current/user/agent/ to form
the full path. For example:
agents[x].rawlogfolder=arcsight
will cause the raw log files to be stored in the $ARCSIGHT_
HOME/current/user/agent/arcsight folder.
If value given for rawlogfolder contains any invalid character for path
and folder name (e.g. '<' and '>' on Windows), then the raw log files will
be stored in $ARCSIGHT_HOME/current/user/agent/agentdata.
If you want to use the rawlogfolder feature, then you must set this
parameter and also set at least one of agents[x].rawloginterval
and agents[x].rawlogmaxsize to positive values.
agents[x].rawloginterval -1 The raw log interval before each rotation (in seconds, or -1 to not rotate
based on time), if rawlogfolder is enabled.
agents[x].rawlogmaxsize -1 Raw event log maximum size in MB, or -1 to not rotate on size, if
rawlogfolder is enabled.
If both rawloginterval and rawlogmaxsize have positive values then both
values are used to control log rotation. Log rotation occurs whenever
either of the values are reached.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 214 of 242
Event Queue Parameters
The following table describes the Syslog Event Queue parameters.
Parameter Default Description
agents[x].filequeuemaxfilecount 100 File queue maximum file count. If the number passes
filequeuemaxfilecount, the connector starts to take action to
avoid filling up the disk. An action can be dropping events or
whole files may be omitted. It is important to choose the
filequeuemaxfilecount value carefully to avoid losing data.
agents[x].filequeuemaxfilesize 10000000 File queue max file size (Bytes). Increase this parameter to
increase the size of each file in the file queue.
agents[x].usefilequeue
Note: usefilequeue and all
related properties cannot be
applied to Syslog Pipe/File
connectors.
true This parameter is to determine whether Connector will keep
the raw events received into a file queue consisting of a certain
number of fix-sized files.
Possible values: true and false
When this parameter is set to true the connector stores raw
events in files as they are received and then processes the
events by reading the files. Using file queues helps avoid
event loss when bursts of events are arrive faster than they
can be processed. The values for filequeuemaxfilecount and
filequeuemaxfilesize are used to define the file queue
behavior.
When this parameter is set to false file queues are not used
and the values for filequeuemaxfilecount and
filequeuemaxfilesize are ignored.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 215 of 242
Event Processing Parameters
The following table describes the Syslog Event Processing parameters.
Parameter Default Description
agents[x].aggregationcachesize 1000 Aggregation Cache Size.
For syslog connectors the aggregation cache stores the
last event received from each distinct source. When an
event is received that indicates “last message repeated n
times” the stored event is used as the security event,
marked as “aggregated” and annotated with the
repetition count.
Parameter aggregationcachesize specifies the maximum
number of aggregation cache entries. Avoid
configurations where there are more than
aggregationcachesize sources. Aggregation is not done
for a source whose event is not stored in the cache due to
the aggregationcachesize being exceeded.
syslog.setdevicehostname
conservatively.syslog
false With the default value of false, the deviceHostName
event field is set based on where the syslog message
came from, before the parser operates. If this property is
changed to true, then the deviceHostName event field is
similarly set but after the parser operates, and only if
neither the deviceHostName nor the deviceAddress
event fields were set by the parser.
This is a container level parameter.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 216 of 242
Syslog Pipe Parameters
The following table describes the Syslog Pipe parameters. All of the parameters described under "Syslog
Daemon Parameters" also apply to Syslog Pipe.
Parameter Default Description
agents[x].configrestartsleeptime 5000 Time (in milliseconds) to wait before sending
the configuration restart signal to Syslog when
running on Solaris.
agents[x].sleeptime 5 Time (in seconds) to wait between file polling
after pipe has ended.
agents[x].solarissyslogconfigrestart
command
kill –HUP
‘cat/etc/syslog.pid’
Configuration restart signal to
Syslog/Command to execute after the
connector starts reading the pipe when
running on Solaris.
syslog.setdevicehostname
conservatively.syslog_pipe
false With the default value of false, the
deviceHostName event field is set based on
where the syslog message came from, before
the parser operates. If this property is changed
to true, then the deviceHostName event field
is similarly set but after the parser operates,
and only if neither the deviceHostName nor
the deviceAddress event fields were set by the
parser.
This is a container level parameter.
Syslog File Parameters
The following table describes the Syslog File parameters. All the parameters described under "Syslog
Daemon Parameters" apply.
Parameter Default Description
agents
[x].internalevent.filestart.enable
true When true, an internal audit event is generated whenever the
connector opens a file for processing.
If you don’t want to receive ArcSight internal events, you can turn
this off.
agents
[x].internalevent.fileend.enable
true When true, an internal audit event is generated whenever the
connector completes processing a file.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 217 of 242
Parameter Default Description
agents[x].internalevent.filecount.
enable
false This feature has the following parameters:
agents[x].internalevent.filecount.duration=nnn
Specifies the number of seconds that the connector has to process a
specified number of files.
agents
[x].internalevent.filecount.minfilecount=nnn
Specifies the minimum number of files that the connector should
process in a specified number of seconds.
agents[x].internalevent.filecount.timer.delay=nnn
Specifies, in seconds, how often the connector should check to see if
the connector is compliant with the other parameters.
If agents[x].internalevent.filecount.enable=true and
all three affiliate parameters are set appropriately, every
internalevent.filecount.timer.delay second, the connector checks if in
the last internalevent.filecount.duration second, the connector
processed enough events defined by the
internalevent.filecount.minfilecount.
If not, the connector will send an internal event to the destination
with the name:
Number of files processed is less than expected value.
agents[x].startatend true If set to true, the connector receives only new lines inserted into the
file.
If set to false, when the connector starts to process a file, it will
process the whole file.
syslog.setdevicehostname
conservatively.syslog_file
false With the default value of false, the deviceHostName event field is
set based on where the syslog message came from, before the
parser operates. If this property is changed to true, then the
deviceHostName event field is similarly set but after the parser
operates, and only if neither the deviceHostName nor the
deviceAddress event fields were set by the parser.
This is a container level parameter.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 218 of 242
Syslog NG Daemon Parameters
The following table describes the Syslog NG Daemon parameters. All the parameters described under
"Syslog Daemon Parameters" apply.
Parameter Default Description
agents[x].syslogng.mutual.auth.
enabled
false (disabled) Determines whether mutual authentication is enabled
for TLS. If false, mutual authentication is disabled, and
the Syslog NG agent is authenticated by the client. If
true, mutual authentication is enabled, and the client
is authenticated by the Syslog NG agent.
agents[x].syslogng.subagents.
with.ietf
generic_
syslog
List of subagents for SyslogNG (when IETF format is
enabled).
syslogng.tls.cert.file user/agent/syslog-
ng.cert
Location for the cert file to be used by Syslog NG
clients for TLS communication with the Syslog NG
agent.
This is a container level parameter.
syslogng.header (?s)^(?:\\d{1})?\\s+
(\\S+)\\s+(\\S+)\\s+
(.*)
Pattern to parse the header and extract outSYSLOG-
VERSION, TIMESTAMP, HOST, REST_OF_MESSAGE
This is a container level parameter.
syslogng.header.tag (?s)^(\\S+)\\s+
(\\S+)\\s+(\\S+)\\s+
(-|(?:\\[\\S+@
[^\\]]+\\])+)\\s+(.*)
Pattern to parse the header and extract
outAPPNAME,PROCID, MSGID, STRUCTURED_DATA,
MESSAGE
These are specific parameters for syslog input format.
They can be changed if needed, but it is a rare
occurrence.
This is a container level parameter.
syslogng.header.timestamp (?s)^(\\d{4}-\\d{2}-
\\d{2}T\\d{2}:\\d
{2}:\\d{2})(\\.\\d+)?
(Z|(?:-|\\+)\\d
{2}:\\d{2})?
Pattern to parse the time stamp.
Example of a time stamp string that could be parsed
by the default pattern: 1985-04-12T23:20:50.52Z
This is a container level parameter.
Raw Syslog Daemon Parameters
The following table describes the Raw Syslog Daemon parameters. All of the parameters described
under "Syslog Daemon Parameters" and "Syslog NG Daemon Parameters" apply.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 219 of 242
Parameter Default Description
agents[x].simpletimestampformat [Blank] Custom format for Captured Timestamp. This uses Java’s
SimpleDateFormat pattern syntax.
If left blank, the _parseMutableTimeStampSilently operation is
used to parse the time stamp.
ArcSight CEF Encrypted Syslog (UDP) Parameters
The following table describes the ArcSight CEF Encrypted Syslog (UDP) parameters. All of the
parameters described under"Syslog Daemon Parameters" apply.
Parameter Default Description
agents[x].customsubagentlist cef_syslog cef_syslog is the only supported value for this parameter. Do
not change the default for this property.
agents[x].protocol Encrypted
UDP
Encrypted UDP is the only supported value for this parameter.
Do not change the default for this property.
agents[x].usecustomsubagentlist true Indicates whether this agent uses the custom subagent list
(cef_syslog). Do not change the default for this property.
TippingPoint SMS Syslog Extended Parameters
The following table describes the TippingPoint SMS Syslog Extended parameters. All of the parameters
described under "Syslog Daemon Parameters" apply.
Parameter Default Description
agents[x].eventidfilepath ARCSIGHT_
HOME/user/agent/
Path for event ID file.
agents[x].syslogmode SyslogD Syslog Mode can be SyslogD, Pipe or
File. Only SyslogD is supported. Do not
change this value.
syslog.setdevicehostnameconservatively.
tippingpoint_sms_syslog
false With the default value of false, the
deviceHostName event field is set
based on where the syslog message
came from, before the parser operates. If
this property is changed to true, then
the deviceHostName event field is
similarly set but after the parser
operates, and only if neither the
deviceHostName nor the deviceAddress
event fields were set by the parser.
This is a container level parameter.
Developer's Guide
Appendix G: Advanced Parameters
HPE Connectors Page 220 of 242
Appendix H: FlexConnectors and
Categorization
This topic describes categorization in the context of FlexConnectors.
For details on using categorization, see the ArcSight Console User’s Guide, Reference Guide, under the
topic “Categorization”; for additional information on custom categorization (especially for
FlexConnectors) see the subtopic “Event Categorization”.
Categorization
You can categorize the events collected by your FlexConnector. The following examples illustrate
categorization for HTTP status code-based devices (such as proxy, cache, or web servers) and for
Firewall devices (which use pass/open/allow, drop/deny/reject). Put the categorization file in this
location:
ARCSIGHT_HOME/user/agent/acp/categorizer/current/
<device_vendor>/
<device_product>.csv
In this case, <device_vendor> is the value of the event.deviceVendor field (in lower case and with
spaces or other special characters replaced by an underline). The <device_product> is the value the
event.deviceProduct field (likewise in lower case with spaces replaced by underlines). Your
FlexConnector must set these fields before you can use categorization.
HTTP Status Code Categorization Example
event.deviceEventClassId,set.event.categoryObject,
set.event.categoryBehavior,set.event.categoryTechnique,set.event.
categoryDeviceGroup,set.event.categorySignificance,set.event.
categoryOutcome
100,/Host/Application/Service,/Communicate/Query,,/Application,/
Informational,/Success
101,/Host/Application/Service,/Communicate/Query,,/Application,/
Informational/Error,/Attempt
200,/Host/Application/Service,/Communicate/Query,,/Application,/
Normal,/Success
201,/Host/Resource,/Create,,/Application,/Normal,/Success
202,/Host/Application,/Execute,,/Application,/Informational/Error,
HPE Connectors Page 221 of 242
/Failure
203,,,,/Application,,
204,/Host/Resource,/Access/Start,,/Application,/Normal,/Success
205,/Host/Resource,/Access/Start,,/Application,/Informational,/
Success
206,/Host/Resource,/Access/Start,,/Application,/Informational,/
Success
300,/Host/Resource,/Access/Start,,/Application,/Informational,/
Success
301,/Host/Application/Service,/Communicate/Query,/Redirection/
Application,/Application,/Informational,/Success
302,/Host/Application/Service,/Communicate/Query,/Redirection/
Application,/Application,/Informational,/Success
303,/Host/Application/Service,/Communicate/Query,/Redirection/
Application,/Application,/Informational,/Success
304,/Host/Application/Service,/Communicate/Query,/Redirection/
Application,/Application,/Informational,/Success
305,/Host/Application/Service,/Communicate/Query,/Redirection/
Application,/Application,/Informational/Error,/Attempt
306,/Host/Application/Service,/Execute/Query,,/Application,/
Informational/Alert,/Failure
307,/Host/Application/Service,/Communicate/Query,/Redirection/
Application,/Application,/Informational,/Success
400,/Host/Application/Service,/Access/Start,/Traffic
Anomaly/Application Layer/Syntax
Error,/Application,/Informational/Warning,/Failure
401,/Host/Application/Service,/Authentication/Verify,,/Application
,/Informational/Warning,/Failure
402,/Host/Application/Service,/Communicate/Query,/Traffic
Anomaly/Application Layer/Unsupported
Command,/Application,/Informational/Error,/Failure
403,/Host/Application/Service,/Authentication/Verify,,/Application
,/Informational/Warning,/Failure
404,/Host/Resource,/Access/Start,,/Application,/Informational/
Warning,/Failure
405,/Host/Application/Service,/Communicate/Query,/Traffic
Anomaly/Application Layer/Unsupported
Command,/Application,/Informational/Error,/Failure
406,/Host/Application/Service,/Communicate/Query,,/Application,/
Informational/Error,/Failure
407,/Host/Application/Service,/Authentication,,/Application,/
Developer's Guide
Appendix H: FlexConnectors and Categorization
HPE Connectors Page 222 of 242
Informational/Error,/Failure
408,/Host/Application/Service,/Communicate/Query,,/Application,/
Informational/Error,/Failure
409,/Host/Application/Service,/Communicate/Query,,/Application,/
Informational/Error,/Failure
410,/Host/Resource,/Access/Start,,/Application,/Informational/
Warning,/Failure
411,/Host/Application/Service,/Access/Start,/Traffic
Anomaly/Application Layer/Syntax
Error,/Application,/Informational/Warning,/Failure
412,/Host/Application/Service,/Access/Start,,/Application,/
Informational/Warning,/Failure
413,/Host/Application/Service,/Communicate/Query,/
Traffic Anomaly/Application Layer/Syntax
Error,/Application,/Informational/Error,/Failure
414,/Host/Application/Service,/Communicate/Query,/
Traffic Anomaly/Application Layer/Syntax
Error,/Application,/Informational/Error,/Failure
415,/Host/Application/Service,/Communicate/Query,/
Traffic Anomaly/Application Layer/Syntax
Error,/Application,/Informational/Error,/Failure
416,/Host/Application/Service,/Communicate/Query,/
Traffic Anomaly/Application Layer/Syntax
Error,/Application,/Informational/Error,/Failure
417,/Host/Application/Service,/Communicate/Query,/
Traffic Anomaly/Application Layer/Syntax
Error,/Application,/Informational/Error,/Failure
500,/Host/Application/Service,/Execute,,/Application,/
Informational/Error,/Failure
501,/Host/Application/Service,/Execute,,/Application,/
Informational/Error,/Failure
502,/Host/Application/Service,/Execute,,/Application,/
Informational/Error,/Failure
503,/Host/Application/Service,/Access/Start,,/Application,/
Informational/Error,/Failure
504,/Host/Application/Service,/Execute,,/Application,/
Informational/Error,/Failure
Firewall Example
event.deviceEventClassId,set.event.categoryObject,
set.event.categoryBehavior,set.event.categoryDeviceGroup,
Developer's Guide
Appendix H: FlexConnectors and Categorization
HPE Connectors Page 223 of 242
set.event.categorySignificance,set.event.categoryOutcome
OPEN,/Host/Application/Service,/Communicate/Query,/Firewall,/
Normal,/Success
pass,/Host/Application/Service,/Communicate/Query,/Firewall,/
Normal,/Success
DROP,/Host/Application/Service,/Communicate/Query,/Firewall,/
Informational/Warning,/Failure
Developer's Guide
Appendix H: FlexConnectors and Categorization
HPE Connectors Page 224 of 242
Appendix I: Developing a Syslog
FlexConnector
Follow these general steps to create a syslog FlexConnector.
1. Capture the RAW syslog by sending samples to a receiver (that is, the machine where the connector
is installed). Capture the logs by enabling RAW event. Extract the ASCII and modify the logs to
represent syslog format. Analyze the raw syslog.
Note: Do not pull the RAW syslog from the logger, because it does not format the output
correctly.
2. Save a small sample of the file and use it as input to the ArcSight Regex Tool
(/$HOME/user/current/bin/arcsight.bat regex). See "Regex Tool for Regex
FlexConnectors".
The Regex Tool will automatically detect the syslog header if it is in the correct format (that is,
timestamp hostname/hostIP). Otherwise, it will not.
3. Choose syslog subagent in the Regex Tool (Options > Treat as Syslog SubAgent). The regex
should be able to start after the automatically detected syslog header that the Regex Tool picks up.
4. Name the file as myCompany_syslog.subagent.sdkfilereader.properties.
5. Complete the coding and mapping. For a list of the syslog tokens that can be used in the parser for
mapping to event fields, see "ArcSight Built-in Tokens". Save the .properties file in the
/current/user/agent/flexagent/syslog folder on the syslog receiver you are using.
6. Verify the value of the agents[0].usecustomsubagentlist property is set to true in the
agent.properties file:
agents[0].usecustomsubagentlist=true.
7. Add an entry in agent.properties file to include your custom subagent name. The
agent.properties file already contains a list of subagents. Ensure that your FlexConnector
subagent name is first in the list, for example:
agents[0].customsubagentlist=MyCompany_syslog
...
8. Test the syslog connector against the new parser.
The connector automatically generates an entry in the syslog.properties file when syslog is
running. This value should be automatically detected by the FlexConnector. Verify that the property is
present in the file, for example:
HPE Connectors Page 225 of 242
...
syslog.subagentdef=xxx.xxx.x.xx\:myCompany_syslog|flexagent_syslog|generic_
syslog
Developer's Guide
Appendix I: Developing a Syslog FlexConnector
HPE Connectors Page 226 of 242
Appendix J: Developing an XML
FlexConnector
You can create an XML FlexConnector to recursively read events from XML-based files in a folder.
Choose the XML FlexConnector for devices that write event information to XML files, such as
vulnerability scanners that produce XML reports.
The following topics are covered:
lXML FlexConnector Development
lXML Tools
lXML Concepts for FlexConnector Development
lPrepare to Write the Parser - Identify Namespace, Nodes, and Tokens
lCreate the XML FlexConnector Parser
lInstall the FlexConnector
XML FlexConnector Development
Use XML tools to read the XML log files that you are using as your source for your parser. The sections
below breakdown parser development, categorization, and XML FlexConnector installation.
XML Tools
You can use various XML query tools to edit XML documents, find information in XML documents, or to
extract elements and attributes from XML documents to use in parser creation.
XML query tools include XPath and XQuery, which are available from:
lhttp://www.w3schools.com/xpath (XPath is a language for finding information in XML documents)
lhttp://www.w3schools.com/xquery (XQuery is a tool for finding and extracting elements and
attributes from XML documents)
These pages contain additional information on using XQuery:
lhttp://www.stylusstudio.com/xquery_primer.html
lhttp://www.stylusstudio.com/xquery_flwor.html
lhttp://www.xqueryfunctions.com/xq/alpha.html (XQuery function library; useful for building
expressions)
These are some XML editors:
HPE Connectors Page 227 of 242
lhttp://www.mindfusion.eu/product1.html (XML Viewer)
lhttp://www.stylusstudio.com/xml_download.html (Stylus Studio XML)
lhttp://www.altova.com/download-trial.html (Altova XML Spy)
Tools like these are useful for parser creation. Try these or you might other similar tools on the web that
you like better.
XML Concepts for FlexConnector Development
These are some useful XML concepts that will help you develop your XML FlexConnector.
General XML Concepts
These are some concepts that are common to XML files, but that are good for you to keep in mind when
you are creating your parser:
The following example of an XML file is annotated to highlight the code that corresponds with these
key concepts:
1. Root Node
2. Leaf Nodes
3. Intermediate Nodes
4. Attributes
5. Text
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 228 of 242
XML FlexConnector Concepts
These are some concepts that are specific to XML FlexConnector parsers:
lNamespace
lHop Nodes
lTrigger Nodes
lToken Mappings
lExtra Events
Namespace
Use if your XML log file uses explicit namespaces or a default namespace in the header. Using
namespaces allows you to differentiate between elements that have the same name in the schema, but
actually refer to different content.
Specify those namespaces using these properties:
lnamespace.count—Specifies the number of namespaces that your XML log file uses; for example,
namespace.count=2.
lnamespace.prefix—Specifies the namespace prefix to use; for example, namespace
[1].prefix=ac.
lnamespace[x].prefix=default—Use when your XML file specifies a namespace but does not
use any prefixes in the file. That is, your XML file uses a default namespace.
lnamespace.uri—Specifies the Uniform Resource Identifier (URI) for the namespace; for example,
namespace[0].uri=http://example.org/2003/08/sdee
For example:
namespace.count=2
namespace[0].prefix=default
namespace[0].uri=http://www.mycompany.com/ids/2014/09/example
namespace[1].prefix=ac
namespace[1].uri=http://www.yourcompany.com/fds/acfg
Hop Nodes
Optional. Hop nodes are the nodes in the path from the root node to the event triggering node. These
nodes are necessary when tokens need to be captured from nodes other than the triggering node or
when events pertaining to a particular node need to be grouped in one block. Select nodes other than
the trigger node that contain relevant security event information to be hop nodes.
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 229 of 242
Multiple hop node levels can be defined with each new level of hop nodes defined in reference to the
previously defined level. Hop nodes can also reference root nodes directly as variables.
To define hop nodes, use these properties:
lhop.node.count—Specifies the number of hop nodes; for example, hop.node.count=1
lhop.node.name—Specifies the names for the hop nodes; for example, hop.node[0].name=host
lhop.node.expression—Specifies the XPath/XQuery path expressions to select the nodes; for
example, hop.node[1].expression=/audits/audit/hosts/host
For example:
hop.node.count=1
hop.node[0].name=host
hop.node[0].expression=/audits/audit/hosts/host
Trigger Nodes
Mandatory. These are the nodes that trigger events. An XPath/XQuery path expression for a trigger
node can be the last defined hop node or the root node if no hop nodes are available.
The number of trigger nodes determines the number of events that are generated using your parser.
The parser will generate an event each time the trigger node is discovered in the log file.
To define trigger nodes, use a property like this:
trigger.node.expression=$host/applications/application,$host/
vulnerablities/vulnerability
Token Mappings
Mandatory. In addition to the token properties listed in "Token Declarations" you must specify these
properties for the XML parser:
ltoken[x].expression—Specifies the XPath/XQuery path expression that is traversed to obtain
the value for the token. This is a mandatory property.
For example, token[0].expression=audits/audit/startDate
ltoken[x].node—Specifies the context node (root node, hop node, or trigger node) relative to
which the path expression is evaluated. A context node can be a hop node or a root node. If this
property is not specified, it defaults to the trigger node.
For example, token[0].node=host
Extra Events
Optional. If you need your FlexConnector to collect different event types for the same trigger node or
from different trigger nodes, you can use this property to specify other XQuery configuration files in
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 230 of 242
the current configuration file.
To specify extra events, use these properties:
lextraevent.count—Specifies the number of extra events; for example, extraevent.count=2
lextraevent[x].filename—Specifies the file name of the additional configuration file that this
parser should use; for example, extraevent[0].filename=ncircle_xml_file/ncircle_xml_
file.xml3.uri
lextraevent[x].name—Specifies a name to associate with the extra events; for example,
extraevent[0].name=/scanner/device/uri/aggregated
Examples of Token Mappings
A token captured from the root node: token[0].expression=audits/audit/startDate
lA token captured from the hop node 1:
token[2].name=ip
token[2].type=IPAddress
token[2].expression=ip
token[2].node=host
lA token captured from the hop node 2:
token[5].name=protocol
token[5].expression=protocol
token[5].node=vulnref
lA token captured from the trigger node, when token[x].node is specified:
token[8].name=name
token[8].expression=name
token[8].node=
lA token captured from the trigger node, when token[x].node is not specified:
token[13].name=descr
token[13].expression=description
Prepare to Write the Parser - Identify Namespace,
Nodes, and Tokens
Before writing the parser, examine your source XML log files and complete the following tasks:
lFind the Trigger Node - the Most Important Step
lDecide if You Need a Namespace
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 231 of 242
lIdentify Hop Nodes
lIdentify Tokens (including attributes and nodes as needed)
Find the Trigger Node - the Most Important Step
Look at the XML log file and find which node that all events have in common. When you determine this,
you can use this node as the trigger node. The trigger node will generate events. In the XML example
below, the trigger node identified is EventHeader:
Decide if You Need a Namespace
You will need a namespace if a namespace is declared in the header of your XML source file. If you find
an element or a node with a colon (:) in its name, the first part of that element or node is its namespace,
and must be declared in the parser. See "Namespace " for more information.
In the following example, elements with colons are circled.
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 232 of 242
Identify Hop Nodes
Optionally, identify which node or nodes other than the trigger node contain relevant information for
security events. See "Hop Nodes" for details.
In the following example, the trigger node, Attributes, is indicated by an arrow.
In this example, the trigger node is Attributes, so the hop nodes could be:
hop.node.count=2
hop.node[0].name=header
hop.node[0].expression=//EventHeader
hop.node[1].name=role
hop.node[1].expression=$header//RoleAttributes
You can think of hop nodes as variable declarations for long expression paths. For example, if you have
to jump three nodes down before finding the trigger and the information to be parsed, you can declare
this a named "constant" path in the hop nodes. You can then use this as a variable for the token
expression instead of typing the entire path repeatedly.
Identify Tokens
Identify which information you want to extract from each event. Tokens are attributes or text under any
node. See "Token Declarations" for more information.
In the following example, tokens are identified by arrows.
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 233 of 242
Create the XML FlexConnector Parser
To create the parser, use the information on namespaces, hop nodes (not used in this example), trigger
nodes, and tokens you gathered when you examined the source XML file.
lParser Development - First Several Lines
lParser Development Continued - Tokens
lParser Development Continued - Mappings
lCategorization
lCopy the Parser Into the Folder
Parser Development - First Several Lines
This is an example of the top portion of a parser:
namespace.count=4
namespace[0].prefix=default
namespace[0].uri=urn:arcsight:hp:event
namespace[1].prefix=event
namespace[1].uri=urn:arcsight:hp:event
namespace[2].prefix=addn
namespace[2].uri=urn:arcsight:hp:addn
namespace[3].prefix=eventMain
namespace[3].uri=urn:arcsight:hp:event:main
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 234 of 242
# Tokenization Section
trigger.node.expression=//EventHeader
additionaldata.enabled=true
token.count=25
"Parser Development Continued - Tokens" contains examples of tokens, and continues after the line
token.count=25.
Parser Development Continued - Tokens
Use the XML tools listed in "XML Tools" to create expressions for the tokens. All expressions are relative
to the trigger node. Expressions are shown in the example below, which is a continuation of the parser
stared in the previous section:
Parser Development Continued - Mappings
Map tokens to event fields, and add severity mappings. Note that all unmapped tokens are passed as
additional data fields. See the following example:
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 235 of 242
Note that severity mappings are often overlooked, and are key to event normalization. These mappings
are required. See "Severity Mapping" for details on adding severity mappings.
Categorization
Add categorization to your parser. This section is required. This is an are that is often overlooked, and is
important because categorization is used for event normalization. For example:
For more about the possible values, see the "Categories" topic in the Console Help or the ArcSight
Console User’s Guide. Also, see "FlexConnectors and Categorization".
Copy the Parser Into the Folder
After you develop the parser file, you must copy it into this location: ARCSIGHT_
HOME\current\user\agent\flexagent. This is the required location of the custom parsers you
develop for the FlexConnector.
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 236 of 242
Install the FlexConnector
To install a connector to parse event information presented in standard XML schema, select ArcSight
FlexConnector XML File from the list of SmartConnectors to install.
Parameter Description
Folder The absolute path of the directory where log files for the FlexConnector are located. For
example:
c:\logs
Configuration File The base name of the configuration file that describes the format of the log file. The suffix
.xqueryparser.properties is appended automatically. For example, if you specify:
log
The filename becomes:
ARCSIGHT_HOME\user\agent\flexagent\log.xqueryparser.properties
Run the connector either as a service or standalone.
Developer's Guide
Appendix J: Developing an XML FlexConnector
HPE Connectors Page 237 of 242
Appendix K: Frequently Asked Questions
For general troubleshooting information, participate in the ArcSight user community located at
https://protect724.hp.com. Many questions are answered there.
Where should I look for FlexConnector error and warning messages?
Examine the agent.log file located in ARCSIGHT_HOME\current\logs. Look for lines containing
[ERROR] and [WARN].
What data types are supported in SQL server database?
These are the supported SQL server data types. For other data types, the CASTing function might be
required.
tinyint
bit
smallint
numeric
bigint
varbinary
float
char
varchar
nvarchar
ntext
timestamp
Why does my connection to SQL Server fail/hang?
Check agent.log for the underlying error as the user interface error does not show the root cause.
Oracle has released Java 6 update 30 (6u30) that behaves differently from JRE 6u29, causing possible
database connection problems for SQL Server database connectors using JDBC connection. These
connection problems can occur with JRE 1.6.0_29 (6u29) and later versions.
Microsoft recommends using JRE 6u30 (and above) instead of JRE 6u29. Apply the "SQL Server 2008
R2 Service Pack 1 Cumulative Update 6" patch to the SQL server if you are experiencing connection
failures or hangs.
How do I define multiple trigger nodes for an XML FlexConnector?
Specify multiple triggers. To do so, specify each trigger node in its own properties file, with one for each
extra event or trigger node.
Is it possible to have SNMP traps with the same OID but different meanings (for example, for
login failed or user created)? In such cases, can I use the SNMP connector?
HPE Connectors Page 238 of 242
Yes. If there are different trap types, define one parser for each trap type and define the field
assignments differently within each parser.
I have successfully developed a FlexConnector with a connector type daemon but now need to
change the connector type from Syslog daemon to Syslog file. How do I implement this change?
Use the same properties files in the same location, but remove the agent.properties file from
user/agent. Re-install it as a Syslog File Connector.
Can host names take values with spaces?
No. Host names that include spaces are invalid.
Is there a way to perform a one-time query to get past events?
Yes, set the startatdate parameter in ARCSIGHT_HOME\current\user\agent\agent.properties
file, as follows:
For a time-based FlexConnector:
agents[x].startatdate=01/01/1970 00:00:00
For an ID-based FlexConnector:
agents[x].startatid=0
My database has date and time in two columns. How can I map this to a timestamp?
The two columns will need to be concatenated and possibly converted to strings using SQL functions so
that they can be mapped to a single ArcSight event field.
What does the error “Unable to detect DB version” mean?
This error indicates that the connector property version.query in the configuration file is invalid,
returns no data, or there is a database connection problem.
Are there best practices for writing regular expressions?
Try to be as specific as possible. For example, to parse a string "abc,def,ghi," do not use:
".*,.*,.*" or
".*?,.*?,.*?" or
"\\S+,\\S+,\\S+"
Instead, use:
"[^,]+,[^,]+,[^,]+"
This is because the first examples will cause the pattern matcher to compute all the possibilities. Of
course, if the string is space-separated, S+ makes sense.
Developer's Guide
Appendix K: Frequently Asked Questions
HPE Connectors Page 239 of 242
The .* expression is not recommended. Never use more than one of these in a regular expression,
preferably at the end. A question mark (?) is also not recommended. Never use more than one.
How do I parse a timestamp in the RFC 5424 format?
Use “T” in the timestamp, which represents the RFC 5424 syslog time format. For example:
2012-01-17:2012-01-17T10:39:32+08:00
with this format
yyyy-MM-dd'T'HH\:mm\:ssZ
Should I include comments in my connector configuration (parser) file?
Yes, comments can be helpful. Use the #sign at the beginning of each comment line to indicate that it is
a comment. You can also include some sample events in your comments that you used to help you write
the parser.
How do I keep track of the contents of device custom string field?
If you are populating deviceCustomString1, fill in deviceCustomSting1Label=_
stringConstant (describe the contents of deviceCustomString1). If a number of bytes go into
deviceCustomString1, then Number of Bytes must be included in
deviceCustomString1Label.
How can I identify my events?
Add deviceVendor,deviceProduct,deviceVersion to your configuration file.
How do I specify format for a datestamp extracted from a file name?
In agent.properties, add the format after the field your are populating. For example:
agents[0].extractfieldnames=deviceCustomDate1(yyyymmdd)
Can FlexConnectors directly read compressed files (such as .zip)?
Yes.
What can I do if events are not being collected?
If an event or events are not being collected, include do.unparsed.events=true in the configuration
file.
Where can I find errors and messages related to FlexConnector operation?
Examine the agent.log file to look for errors and warnings.
I cannot always find Regex Tool errors. Where do some of the Regex Tool errors appear?
FlexConnector Regex Tool can write errors to the command window where the tool was launched.
Developer's Guide
Appendix K: Frequently Asked Questions
HPE Connectors Page 240 of 242
How can I enable debug mode logging for a FlexConnector?
Enabling debug mode logging increases the amount of FlexConnector log information. With debug
mode logging enabled, the agent.log files are created quickly, so limit the amount of time the
FlexConnector is in debug mode to 10 to 15 minutes.
To enable debug mode logging:
1. Add the following two lines to ARCSIGHT_HOME\current\user\agent\agent.properties:
llog.global.debug=true
llog.channel.file.property.package.com.arcsight=0
2. After you complete your troubleshooting, remove the two above lines from the
agent.properties file.
Developer's Guide
Appendix K: Frequently Asked Questions
HPE Connectors Page 241 of 242
Send Documentation Feedback
If you have comments about this document, you can contact the documentation team by email. If an
email client is configured on this system, click the link above and an email window opens with the
following information in the subject line:
Feedback on Developer's Guide (Connectors )
Just add your feedback to the email and click send.
If no email client is available, copy the information above to a new message in a web mail client, and send
your feedback to arc-doc@hpe.com.
We appreciate your feedback!
HPE Connectors Page 242 of 242
