MF1893(Floor Feeder Scale Systems And Components) Floor Components

User Manual: Floor Feeder Scale Systems and Components

Open the PDF directly: View PDF .
Page Count: 16

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 127

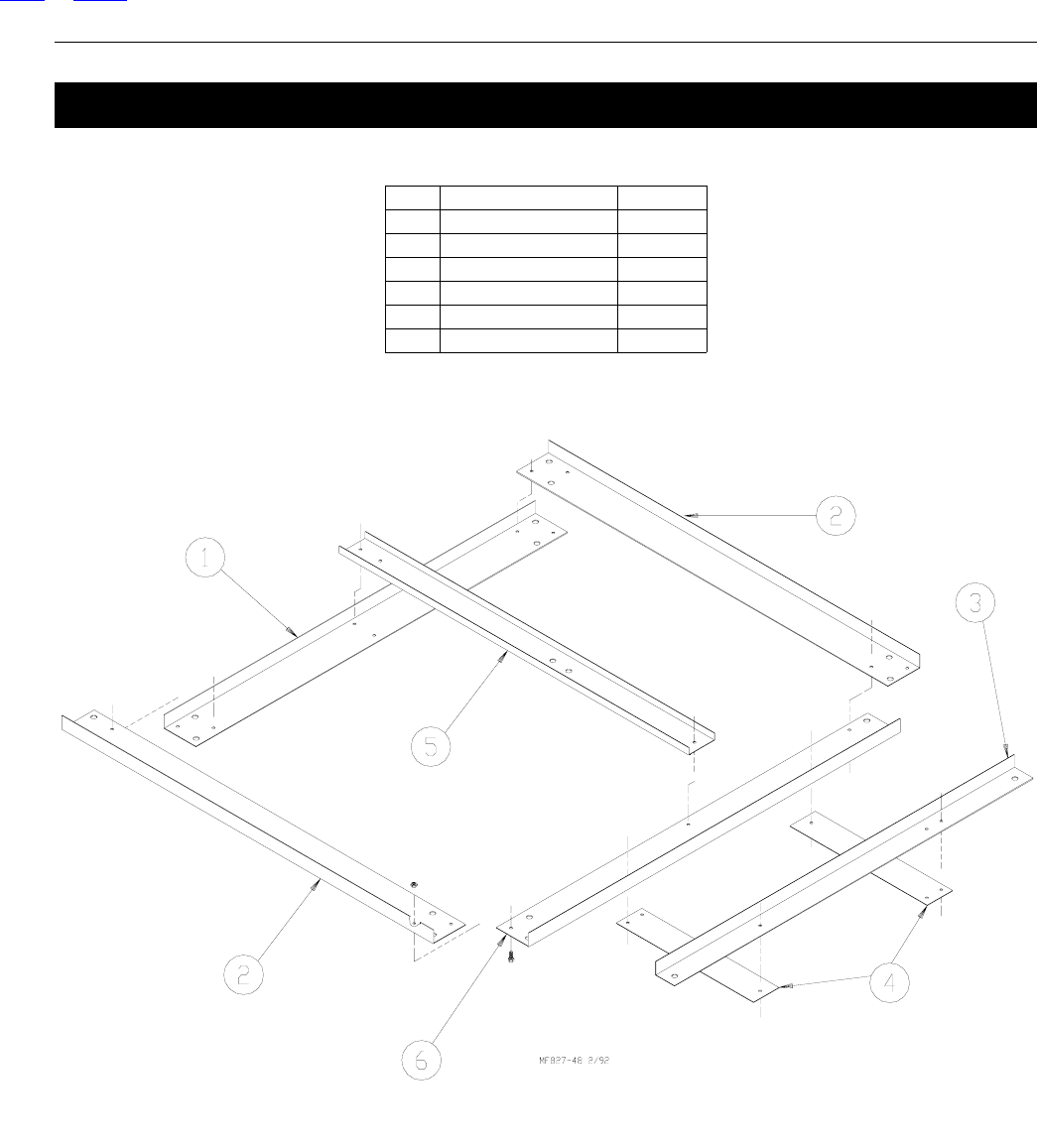

Weigh Scale Template: Part No 5978

Floor Feeder Scale Systems and Components

Item Description Part No

1 Rear Plate 5984

2 Side Plate 5988

3 Beam Box Leg Plate 5986

4 Connector Plate 5985

5 Center Plate 5989

6 Front Plate 5987

Back Home

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

128 MF1893A

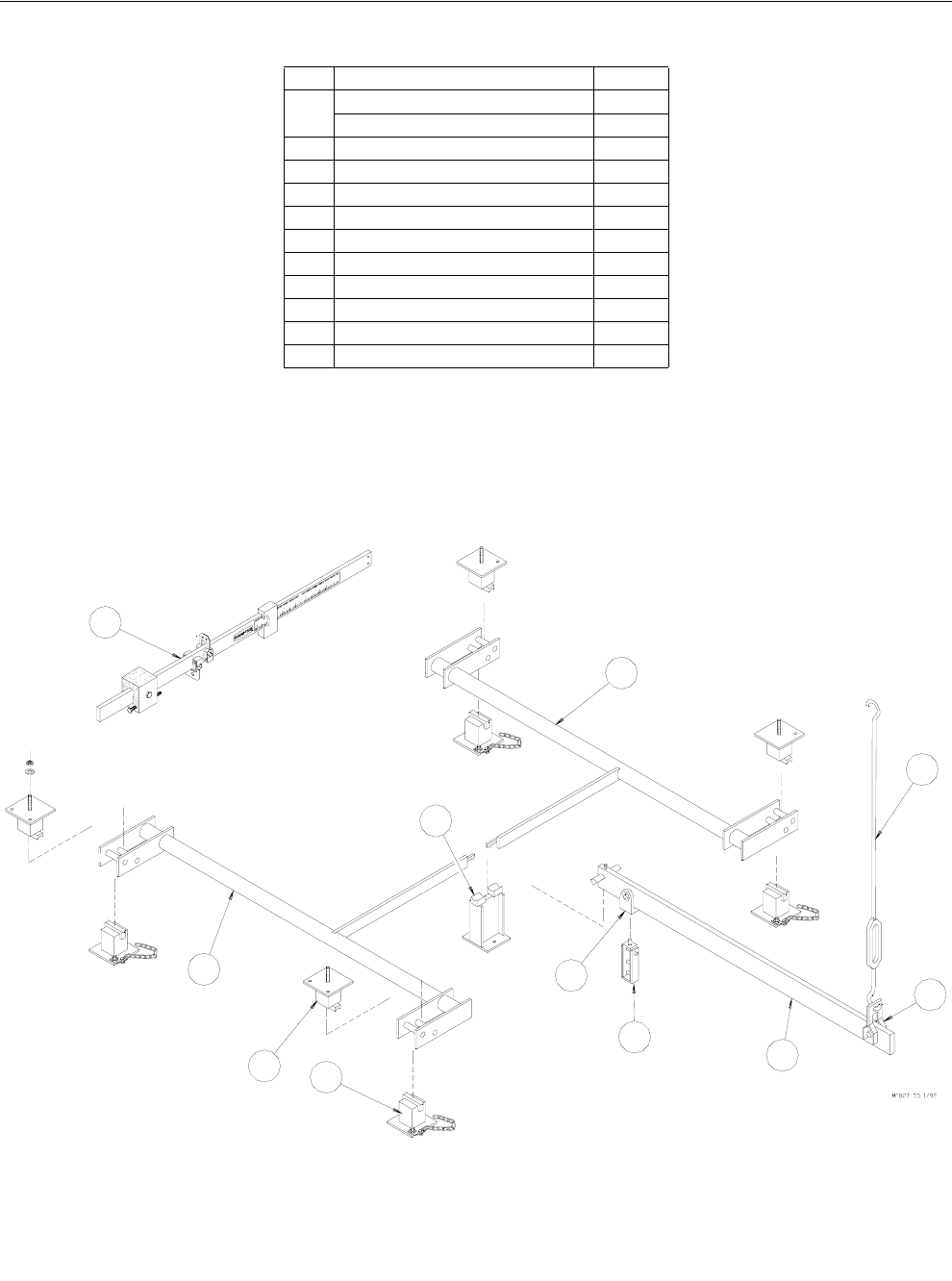

Weigh Scale Assembly

A 5000 lb [2286 kg] Bin Scale Assembly without Beam Box may be ordered under Part No. 46050.

A 8000 lb [3629 kg] Bin Scale Assembly without Beam Box may be ordered under Part No. 46055

A 5000 lb [2286 kg] Bin Scale Assembly with Beam Box may be ordered under Part No. 46044.

A 8000 lb [3629 kg] Bin Scale Assembly with Beam Box may be ordered under Part No. 46054.

Item Description Part No

1 5000 lb [2286 kg] Beam Assembly 46086

8000 lb [3629 kg] Beam Assembly 46085

2 Transverse Stand Assembly 46084

3 Right Main Lever Assembly 46078

4 Steelyard Rod Assmbly 46079

5 Trip Loop 46080

6 Transverse Lever Assembly 46081

7 Shackle 46082

8 Load Loop 46083

9 Lower Main Stand Assembly 46075

10 Upper Main Stand Assembly 46076

11 Left Main Lever Assembly 46077

1

2

3

4

5

6

7

8

9

10

11

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 129

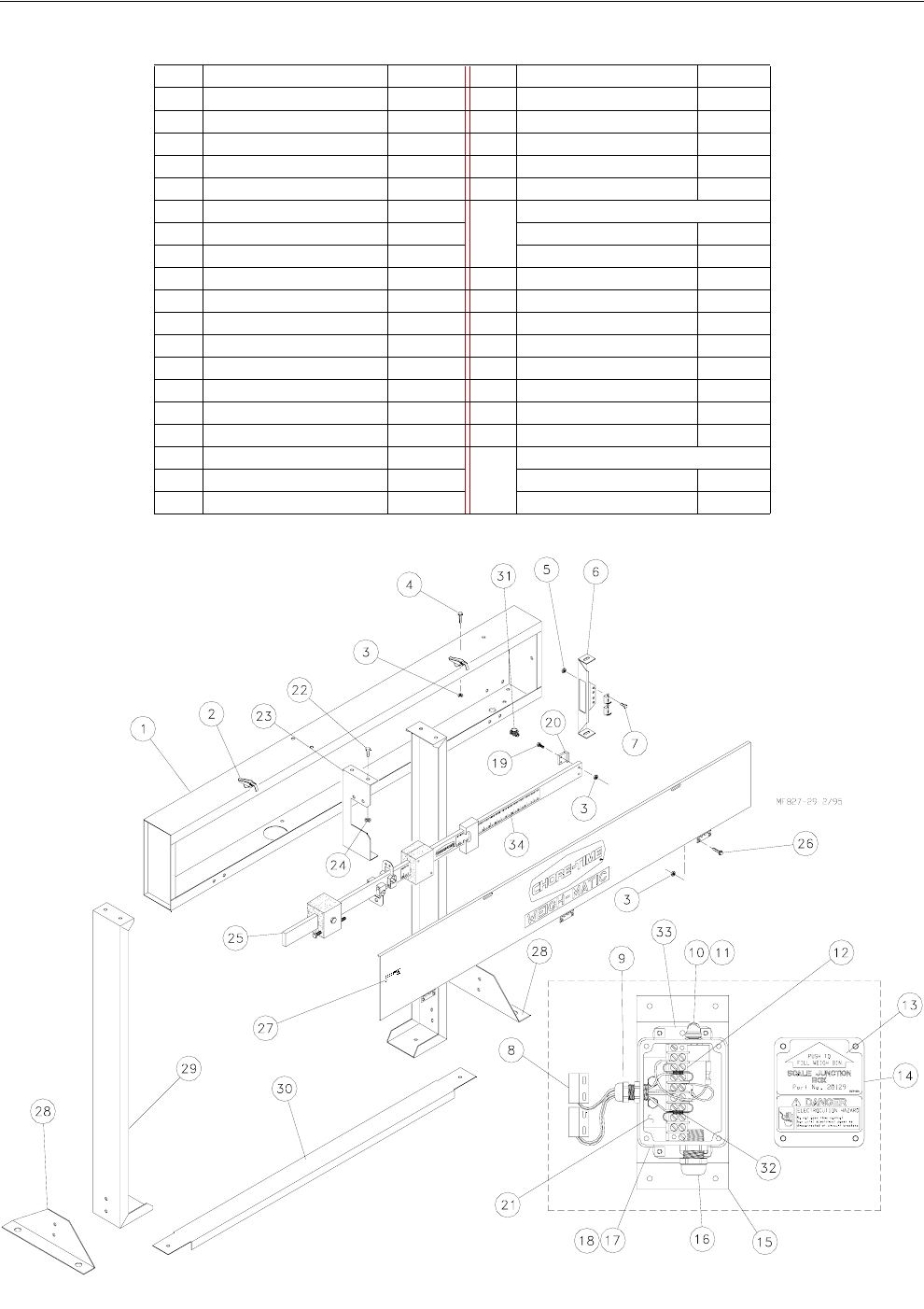

Beam Box Assembly: Part No. 5790

Item Description Part No Item Description Part No

1 Case Weldment 5797 20 Magnetic Actuator 5789

2 Over Center Clamp 2536 21 Terminal Mount 28599

3 10-24 Nut 27725 22 3/8-16 x 3/4 HHCS 2182

4 10-24 x 3/8" Rd Hd M.S. 1553 23 Pivot Bracket 5803

5 4-40 Hex Nut 3511 24 3/8-16 Hex Nut 1549

6 Trig Loop 7472 25 Weigh Beam Assembly

7 4-40 x 5/8" Rd Hd M.S. 3510 5000 lb [2286 kg] 46086

8 Proximity Sensor 6689 8000 lb [3629 kg] 46085

9 Liquid Tight Connector 13477 26 10-24 x 3/8 Truss Screw 501

10 Momentary Switch 5785 27 Cover Weldment 5799

11 Push Button Boot 20784 28 Leg Support 5924

12 Terminal Block 7270 29 Leg Weldment 5793

13 Terminal Box Decal 2529-326 30 Channel 7589

14 Switch Box Cover 6776 31 Romex Connector 1317

15 Switch Mount Bracket 28247 32 Resistor, 390 ohm 1709-19

16 Water TIght Connector 23779 33 Mounting Cover 6956

17 Terminal Mount Box 28597 34 Beam Bar Decal

18 Gasket 6777 5000 lb [2286 kg] 46679

19 4-40 x 3/4" Rd Hd M.S. 4143-2 8000 lb [3629 kg] 46680

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

130 MF1893A

Model 100 & Model 200 Digital Indicators

Connection Box: Part No. 30266

Model 100 Indicator

Part No Description

47590

30210 Model 100 Indicator w/Computer

Interface

30232 Model 100 Indicator w/Computer

Interface and Connection Box

Not Shown

30189 Cable for RS232 Port

30177 Power Cable

30194 10’ Data Cable

30187 20 Milliampere Connector

Model 200 Indicator

Part No Description

47595

30225 Model 200 Indicator w/Computer

Interface

34456 Model 200 Indicator w/Pulsed Output

30228 Model 200 Indicator w/Computer

Interface and Junction Control

Not Shown

30189 Cable for RS232 Port

30177 Power Cable

30194 10’ Data Cable

30187 20 Milliampere Connector

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 131

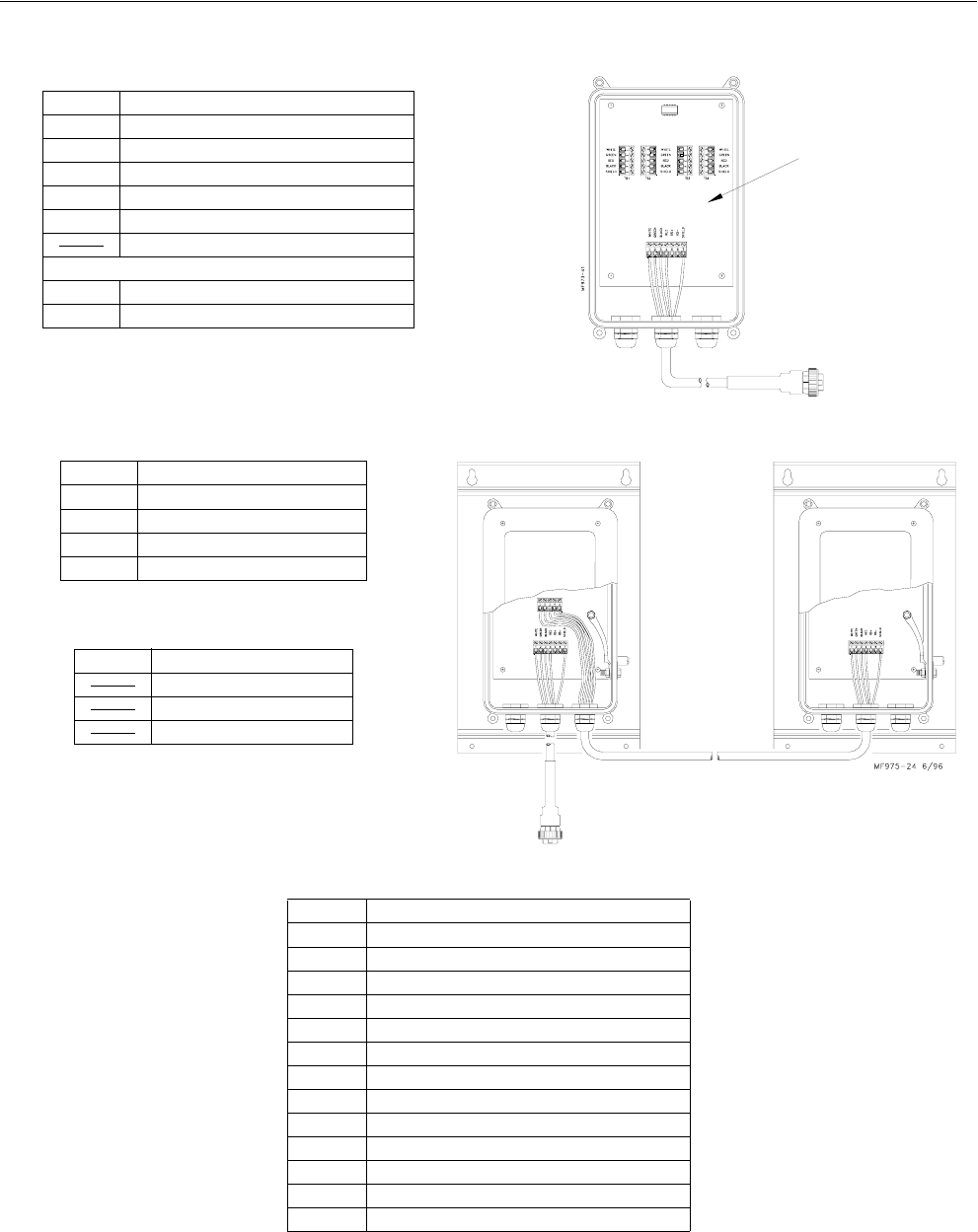

J-Boxes & Cable Sets

*Includes Power Cable and Cord (as specified)

Note: J-Box Cables may be ordered separately. See

Miscellaneous Components and Cable Sets Parts List.

J-Box Duplex Kit

Duplex J-Box

Miscellaneous Components and Cable Sets

*Includes (1) male and (1) female Cannon Plug

**Used with Livestock Scales only

Part No Description

30201* J-Box w/30’ Cord

30202* J-Box w/50’ Cord

30203* J-Box w/70’ Cord

30204* J-Box w/90’ Cord

30182 J-Box Assembly (No Plug)

30235 J-Box Assembly

Not Shown

30192 J-Box Extension Plug Kit (Plugs Only)

30190 J-Box Extension Cable (Cable Only)

Part No Description

30207 J-Box Duplex Kit w/30’ Cord

36752 J-Box Duplex Kit w/50’ Cord

36753 J-Box Duplex Kit w/70’ Cord

36754 J-Box Duplex Kit w/90’ Cord

Part No Description

36687 Duplex J-Box w/50’ Cord

36688 Duplex J-Box w/70’ Cord

36689 Duplex J-Box w/90’ Cord

Part No Description

36690 J-Box Cable (30’)

36691 J-Box Cable (50’)

36692 J-Box Cable (70’)

36693 J-Box Cable (90’)

30192 J-Box Extension Kit (Plugs only, no Cable)

30190 J-Box Extension Cable (Cable Only)

30188* J-Box Extension Cable Assembly

30189 Cable for RS232 Port

30177 Power Cable

30194 10’ Data Cable

34453 Pulsed Output 10’ Data Cable

30187 20 Milliampere Connector

37692** "Y" Cable (2 female, 1A male Connector)

42742

Circuit Board

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

132 MF1893A

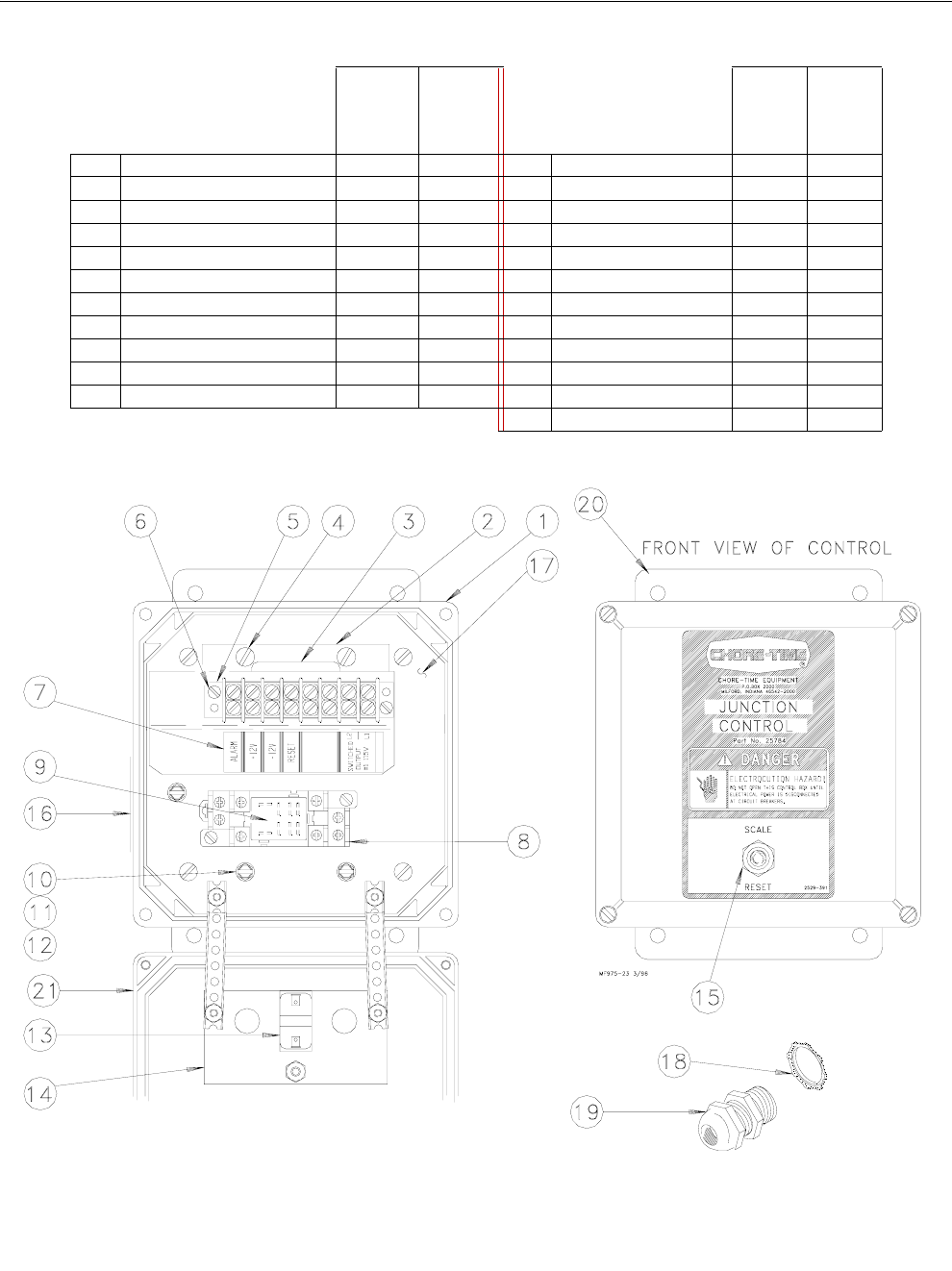

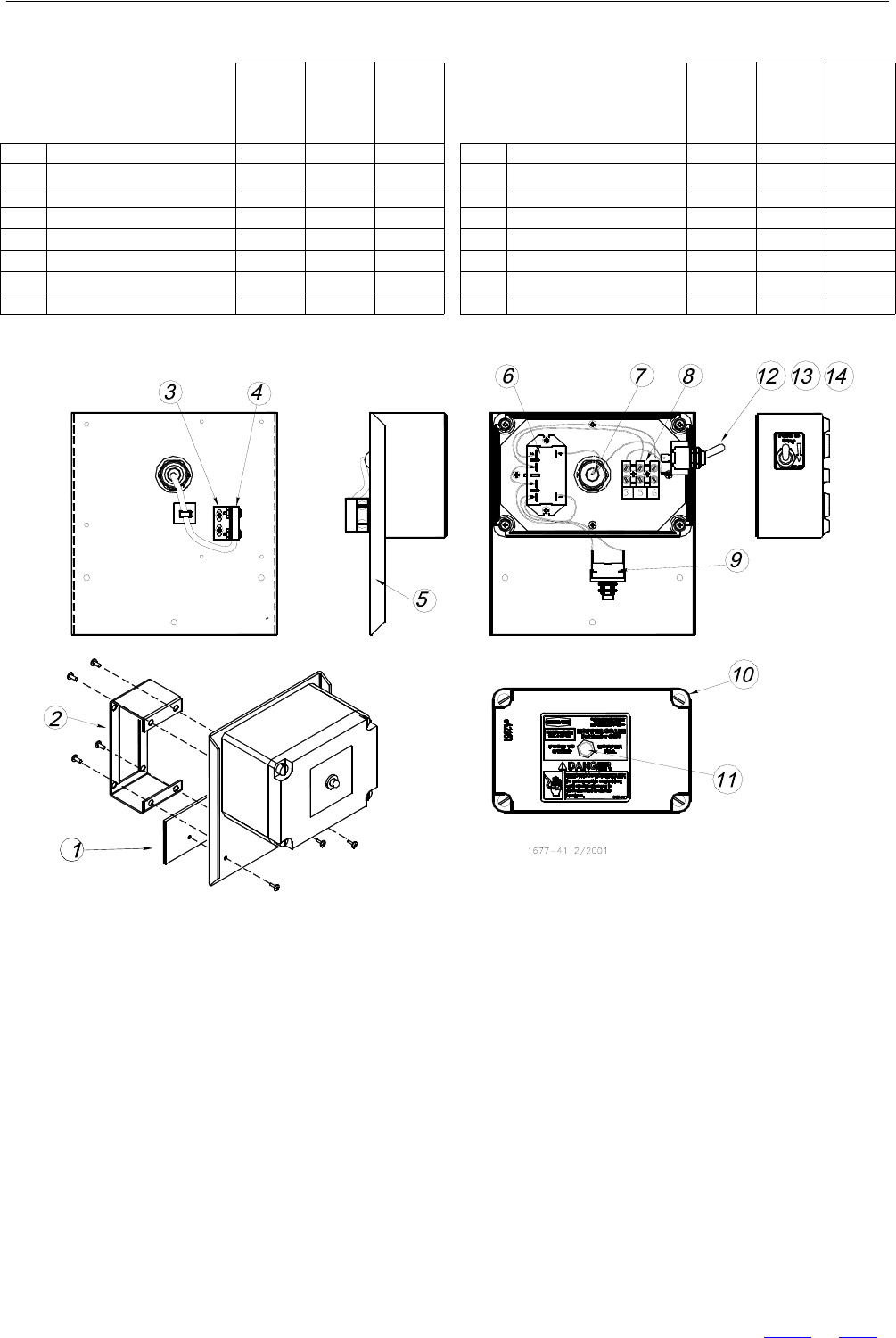

Junction Control: Part No. 25784

Mfg’d

4/1993

thru

3/1997

Mfg’d

3/1997

to

3/1999

Mfg’d

4/1993

thru

3/1997

Mfg’d

3/1997

to

3/1999

Item Description Part No Part No Item Description Part No Part No

1 Control Box 29011 39700 11 #10-32 Ground Screw 4968 4968

2 Terminal Block Bracket 30233 30233 12 Cup Washer 5775 5775

3 Grommet 8514 8514 13 Momentary Switch 5785 5785

4 #10-32 x 3/8" Pan Hd Screw 4418-3 4418-3 14 Grounding Plate 30237 30237

5 Terminal Block 7270 7270 15 Push Button Boot 20784 20784

6 #6-32 x 1/2" Pan Hd Screw 4402-6 4402-6 16 Warning Decal 2527-15 2527-15

7 Scale Reset Terminal Decal 2526-318 2526-318 17 Mounting Plate 30143 30143

8 Relay Socket 30234 30234 18 Conduit Lock Washer 3357 3357

9 Relay 30236 30236 19 Liquid Tight Connector 23779 23779

10 #10 External Lock Washer 305 305 20 Mounting Feet --- 39698

21 Control Box Lid --- 39706

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 133

Junction Control w/Fill Option: Part No. 30240

Mfg’d

5/1993

thru

3/1997

Mfg’d

3/1997

thru

3/1998

Mfg’d

3/1998

to

3/1999

Mfg’d

5/1993

thru

3/1997

Mfg’d

3/1997

thru

3/1998

Mfg’d

3/1998

to

3/1999

Item Description Part No Part No Part No Item Description Part No Part No Part No

1 Control Box 30238 39700 39700 13 Momentary Switch 5785 5785 5785

2 Terminal Block Bracket 30233 30233 30233 14 Grounding Plate 30237 30237 30237

3 Grommet 8514 8514 8514 15 Push Button Boot 20784 20784 20784

4 #10-32 x 3/8" Pan Hd Screw 4418-3 4418-3 4418-3 16 Warning Decal 2527-15 2527-15 2527-15

5 Terminal Block 7347 7347 7347 17 Mounting Plate 30143 30143 30143

6 #6-32 x 1/2" Pan Hd Screw 4402-6 4402-6 4402-6 18 Toggle Switch 20135 20135 20135

7 Scale Reset Terminal Decal 2526-319 2526-319 2526-319 19 Relay 27051 27051 28904

8 Relay Socket 30234 30234 30234 20 Toggle Switch Boot 1739 1739 1739

9 Relay 30236 30236 30236 21 Conduit Lock Washer 3357 3357 3357

10 #10 External Lick Washer 305 305 305 22 Liquid Tight Connector 23779 23779 23779

11 #10-32 Ground Screw 4968 4968 4968 23 Mounting Feet --- 39698 39698

12 Cup Washer 5775 5775 5775 24 Control Box Lid --- 39707 39707

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

134 MF1893A

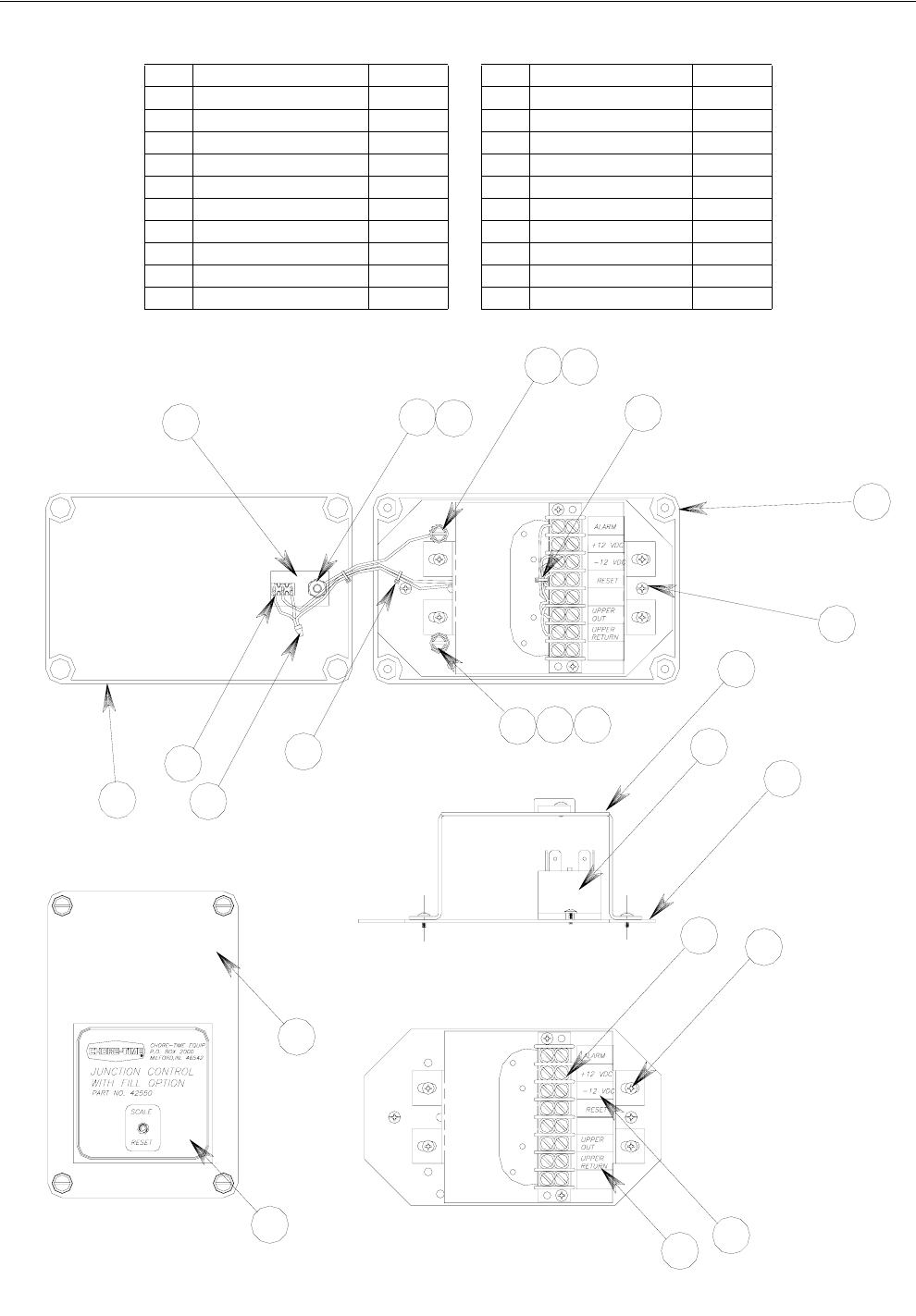

Junction Control w/Fill Option: 42550

Item Description Part No Item Description Part No

1 Machined Electric Box 42532-1 11 10-32 Nut 6963

2 Terminal Block Bracket 42376 12 Lock Washer 305

3 Relay 12 Volt DC 42553 13 10-32 Ground Screw 34682

4 Mount Base 4 x 6 42375 14 Cup Washer 5775

5 Terminal Block 7270 15 Wire Tie 6635

6 #8 Thread Cut Screw 34660 16 Wire Nut 5907-1

7 Terminal Block Decal 2526-383 17 #6 Twin Helix Screw 46011

8 Control I.D. Decal 2529-707 18 Terminal Block Decal 2526-384

9 Toggle Switch Spot 34579 19 Electric Box Bottom 42853

10 Grounding Plate 42373 20 Gasket 42854

18 7

6

5

4

3

2

19

17

14

13

12

15

12

13

12

11

10

9

16

15

8975-52 3/2006

1

20

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 135

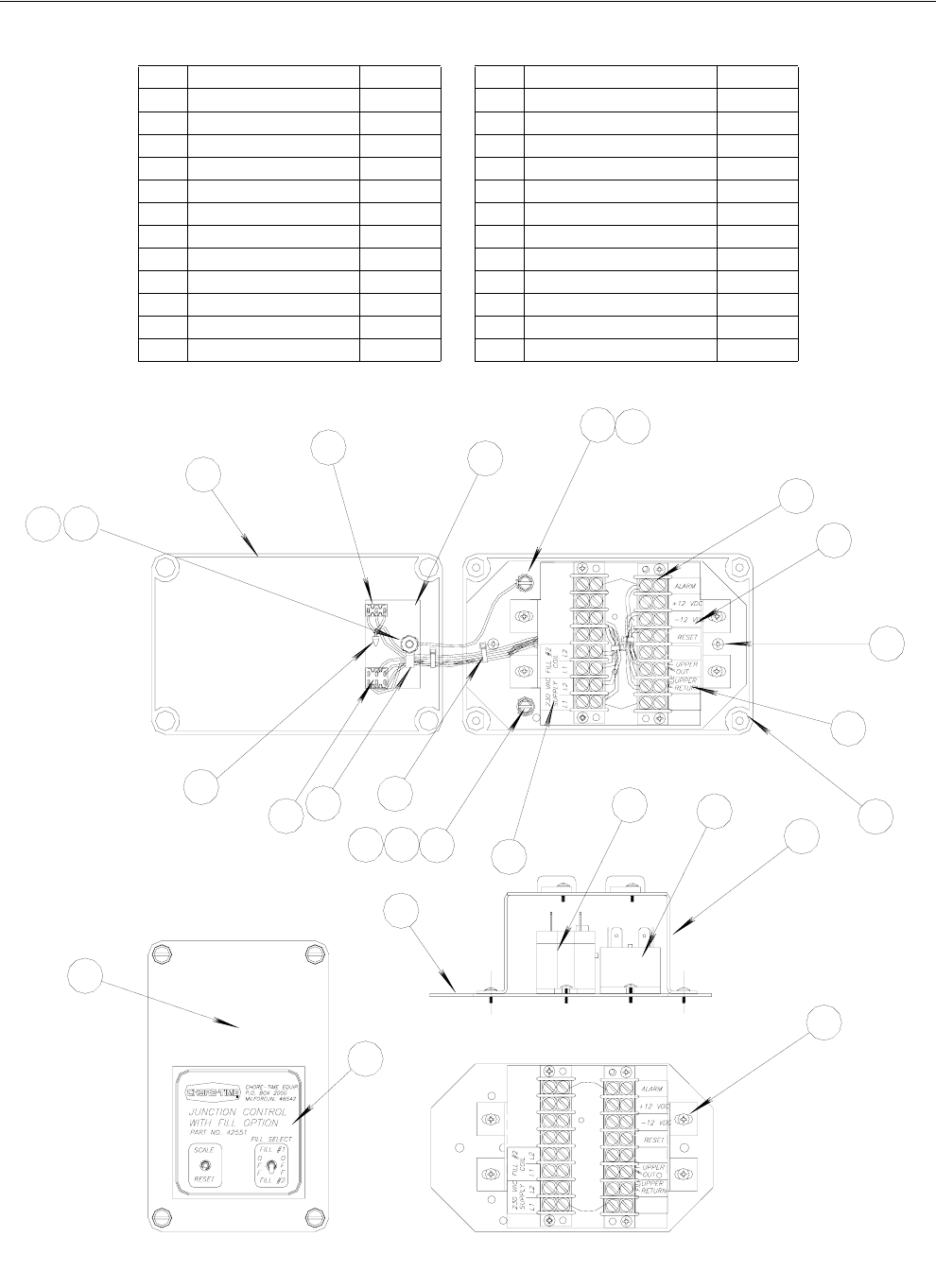

Junction Control w/Fill Option: 42551

Item Description Part No Item Description Part No

1 Terminal Block 7270 13 Cup Washer 5775

2 Terminal Block Decal 2526-383 14 Switch, DPDT on-off-on 34578

3 Relay, SPDT 240 VAC 28904 15 Switch, SPDT on-off-on 34579

4 Relay, DPDT 12v DC 42533 16 Grounding Plate 2 Switch 42374

5 Mount Base 4 x 6 42375 17 10-32 Nut 6963

6 #8 Thread Cut Screw 34660 18 Wire Nut 5907-1

7 6-32 Screw SFST 34660 19 Cable Clip 565B

8 Control I.D. Decal 2529-708 20 Wire Tie 6635

9 4 x 6 Machined Box 42532-2 21 #6 Twin Helix Screw 46011

10 Terminal Block Decal 2526-382 22 Terminal Block Decal 3536-384

11 10-32 Ground Screw 34662 23 Gasket 42854

12 Lock Washer 305 24 Box Bottom 42853

117

23 15 16

11 12

1

2

21

22

24

5

4

3

10

11

12

20

13

6

19

14

18

9

8

7

975-53 3/2006

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

136 MF1893A

Dual Fill Control: 35021

Mfg’d

6/1995

thru

8/1996

Mfg’d

8/1996

to

Present

Mfg’d

6/1995

thru

8/1996

Mfg’d

8/1996

to

Present

Item Description Part No Part No Item Description Part No Part No

1 Fuse Holder 24431 24431 14 Terminal Mount Bracket 35094 35094

2 3 Amp Fuse 20472 20472 15 Terminal Strip 34925-6 34925-6

3 Control Box Mount Panel 34852 34852 16 Mounting Strap 29014-4 29014-4

4 Control Box 30860-4 30860-4 17 Toggle Switch 34579 34579

5 Control Box Latch Pivot 30863 30863 18 Pilot Light 20708 20708

6 Control Box Latch 30862 30862 19 Pilot Light Assembly 35461 35461

7 Control I.D. Decal 2529-462 2529-462 20 Terminal Block 7347 7347

8 Neoprene Seal 34767 34767 21 Mount Bracket 35022 35022

9 Clear Lid 30859-1 30859-1 22 Front Panel 36144 36144

10 DPDT 240 VAC Relay 34733 28904 23 Toggle Switch 34578 34578

11 Back Mount Panel 34564 34564 24 Toggle Switch 34388 34388

12 Terminal Mount Bracket 34563 34563 25 Relay Socket 30234 30234

13 Terminal Strip 34925 34925 26 Relay 30263 30263

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 137

Load Cells and Mount Kits

T.C. 15

*The Mount Kit does not include Item (3).

T.C. 35 & 125

*The Mount Kit does not include Item (3).

T.C. 180

*Mount Kit does not include Item (3).

Item Description Part No

2 Top Plate 30176-4

3 T.C. 15 Load Cell 30219

4 Leveling Pin 30716-5

5* Mount Kit for T.C. 15 30176

Item Description Part No

1 .750" x 3.563" Quick Pin 42861

2 T.C. 35 Top Plate 30216-4

T.C. 125 Top Plate 30217-5

3 T.C. 35 Load Cell 30221

T.C. 125 Load Cell 30222

4 5/8" x 5" Quick Pin 42862

5* Mount Kit for T.C. 35 30216

Mount Kit for T.C. 125 30217

Item Description Part No

1 .750" x 6.00" Quick Pin 42860

2 Top Plate ---

3 T.C. 180 Load Cell 30223

T.C. 180 Load Cell w/21’ cord 30224

4 .625" x 4.438" Quick Pin 42862

5* Mount Kit T.C. 180 30218

6 Lynch Pin 42683

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

138 MF1893A

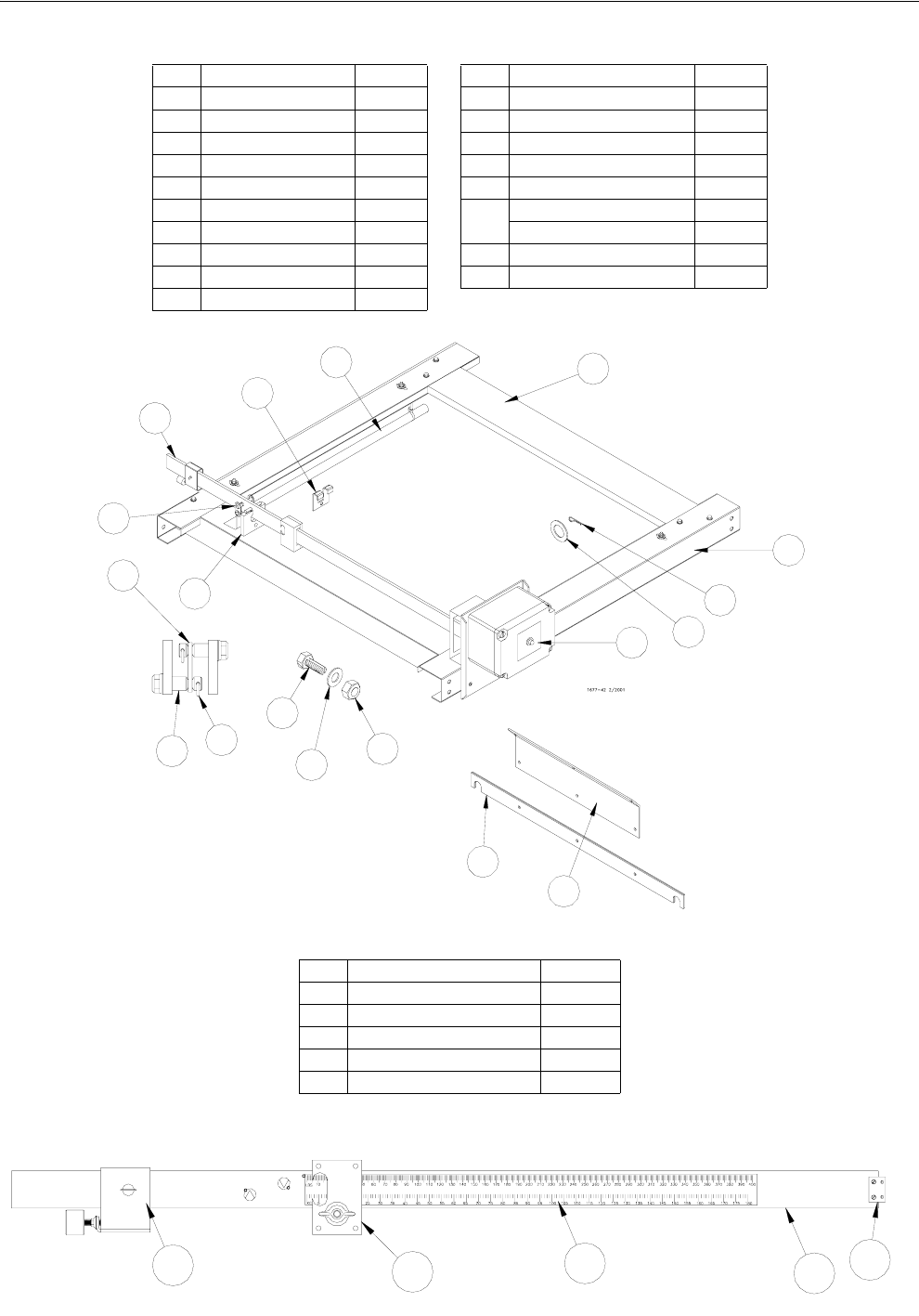

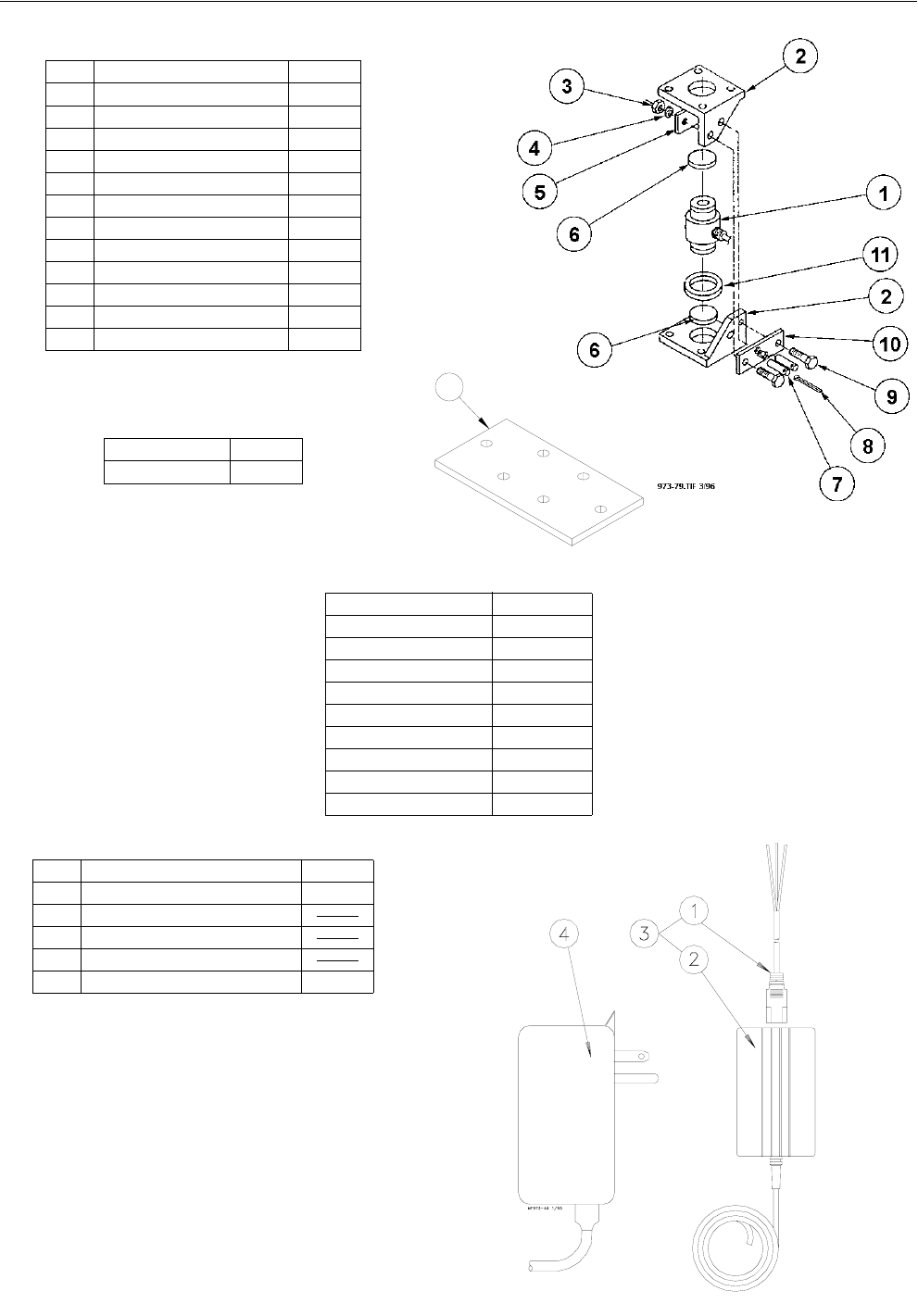

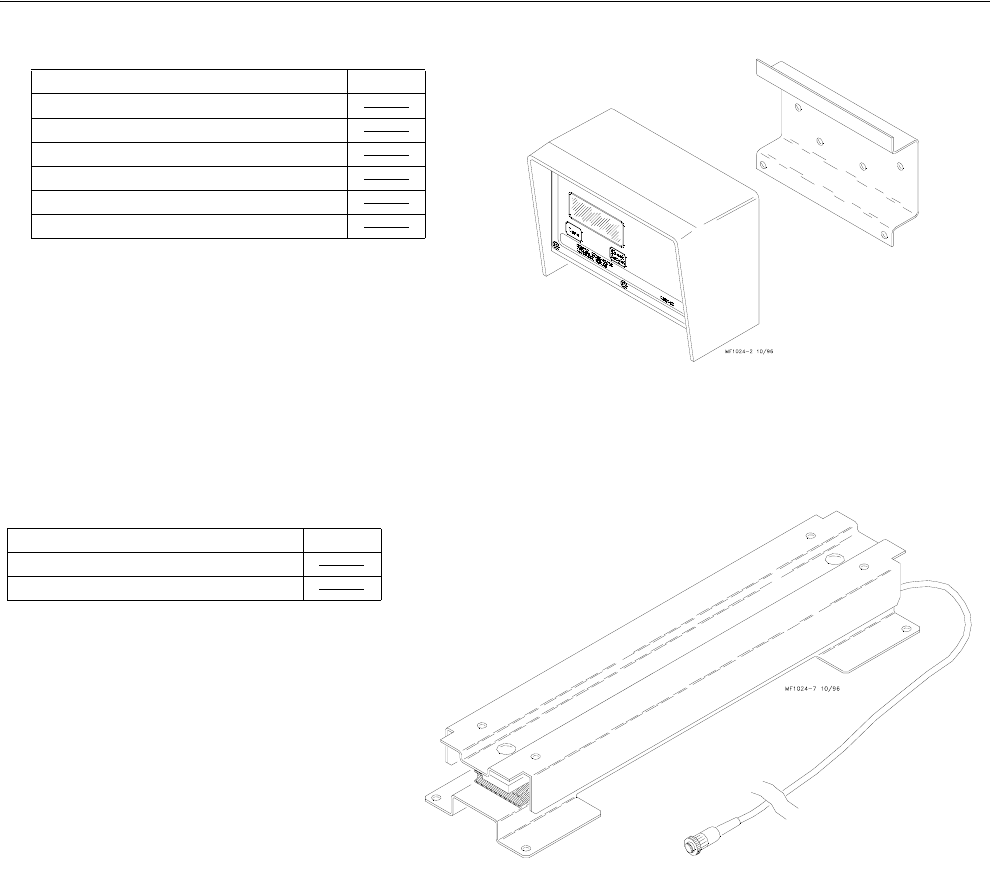

C.T. 30K

Note: Items 2-11 may be ordered as a Mount Kit for

C.T. 30 Scale under Part No. 35017.

6-Legged Bin Adapter Kit

The 6-Legged Bin Adapter Kit, including (2) Beam

Assemblies and (1) Beam Assembly Hardware Kit,

may be ordered under Part No. 30208.

Scale Systems available (by weight)

Power Supply

Item Description Part No

1 C.T. 30 Load Cell 35018

2 C.T. Mount Half 47625

3 M16 x mm Hex Nut ---

4 M16 Lock Washer ---

5 Threaded Plate 47623

6 Rubber Shim (Pkg of 2) 43410

7 Pin ---

8 Cotter Pin ---

9 M16 x 2 mm x 65 mm Nut ---

10 Welded Plate 47624

11 Sealing Spring Ring 47622

12 Spacer Plate 41478

Description Part No

Beam Assembly 30183

Weight Part No

5,000 lb. 30209

12,000 lb. 30211

48,000 lb. (7’ Bins) 30213

48,000 lb. (9’ Bins) 30212

60,000 lb. 30214

60, 000 lb. 34580

80,000 lb. 34575

90,000 lb. 30215

120,000 lb. 35020

Item Description Part No

1 Power Cord (220 V) 30682

2 Power Supply (220 V) 30863

3 Power Supply (Cord Included) 30200

4 Power Supply (110 V) 30206

-- Power Cord for Indicator 30177

12

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 139

Livestock Scale Indicators

Note: Model 100 shown.

Model Bracket included with indicator.

Livestock Scale Load Cells

Description Part No

Model 100 Indicator (2,000 lb.) 34435

Model 111 Indicator (907 kg) 34817

Model 210 Indicator (2,000 lb./907 kg) 34581

Model 115 Indicator (6,000 lb.) 34436

Model 116 Indicator (2,721 kg) 34818

Model 215 Indicator (6,000 lb./2,721 kg) 34582

Description Part No

2,000 lb. (907 kg) Load Cell (2 req.) 34437

6,000 lb. (2,721 kg) Load Cell (2 req.) 34438

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

140 MF1893A

Hopper Scales: Part No. 24176

Manufactured from

4/1987 to 11/1997

Hopper Scales Switch Assembly: Part No. 33653

*Item (12) Is a component of Item (11).

Item Description Part No

1 Switch Assembly 24171

2 Counterbalance Weight 24162

3 Sliding Weight 24163

4 Beam Assembly 24177

5 Eyebolt 24175

6 Weight Washer 2955-30

5# Weight Washer 24164

7 Master Suspension Cable ---

8 3/16" Cable Clamp 732

9 Cable Plate 24172

10 1/8" Cable Clamp 14898

11 3/32" Stainless Steel Cable 7130

Item Description Part No

1 Relay Assembly 24174

2 Terminal Box 33654

3 Box Cover 6776

4 Gasket 6777

5 Danger Decal 2527-25

6 Momentary Switch 5785

7 Push Button Boot 20784

8 1/2" Conduit Locknut 3357

9 Proximity Switch Assembly 33605

Proximity Switch 6689

Liquid Tight Connector 23779

1/4" Vinyl Tubing 14454-7

10 Liquid Tight Connector 23779

11 Switch Mount Assembly 33655

12* Scale Bar Guide 33613

13 Switch Mount Guide 33615

Floor Feeder Repair Parts Floor Feeder Scale Systems and Components

MF1893A 141

Scale Platform Assembly: 46280

Beam Bar Assembly: 46279

Item Description Part No Item Description Part No

1 Transfer Loop 46243 11 Hopper Support Adapter 46250

2 Beam Bar Assembly 46279 12 3/8" Hex Nut 1549

3 Bar Retainer 46257 13 3/8" Flat Washer 4967

4 Support Tube 46270 14 3/8" Split Bolt 6342

5 Scale End Frame 46248 15 Hair Pin 13906

6 Scale Side Frame 46247 16 Bar Pivot Bearing (short) 46263

7 Hair Pin 2664 Bar Pivot Bearing (long) 46264

8 7/8" Flat Washer 2955-14 17 Pivot Shackle 46254

9 Switch Assembly 46273 18 Main Pivot Block 46265

10 Support Bar 46251

Item Description Part No

1 Counter Weight Assembly 46261

2 Poise Assembly 46268

3 Beam Bar Decal 2526-401

4 Machined Beam Bar 46249

5 Actuator Magnet 5789

98

7

6

5

4

3

2

1

18

17

16 15

14

13 12

10

11

345

2

1

1893-24 2/2006

Floor Feeder Scale Systems and Components Floor Feeder Repair Parts

142 MF1893A

Switch Assembly: 46273

Mfg’d

11/2000

thru

5/2001

Mfg’d

5/2001

thru

8/2001

Mfg’d

8/2001

to

Present

Mfg’d

11/2000

thru

5/2001

Mfg’d

5/2001

thru

8/2001

Mfg’d

8/2001

to

Present

Item Description Part No Part No Part No Item Description Part No Part No Part No

1 Scale Control Spacer 46256 46256 46256 8 Terminal Block 34925-3 34925-3 34925-3

2 Trip Loop 46273 46273 46273 9 Push Button Switch 5785 5785 5785

3 Scale Switch Bracket 46246 46246 46246 10 4 x 6 Box Screw (Plastic) 42849 42849 42849

4 Reed Switch 6689 46815 46815 11 Push Button Boot 20784 20784 20784

5 Scale Control Mount Panel 46271 46271 46271 12 Washer 2955-34 2955-34 2955-34

6 General Duty Relay 28904 28904 28904 13 Toggle Switch Boot --- --- 1739

7 3/8" Liquid Tight Conn 13477 --- --- 14 Toggle Switch --- --- 46894

NextHome
