REVOLUTIONIZE YOUR DENSITY AND CONCENTRATION

MEASUREMENT TECHNOLOGY

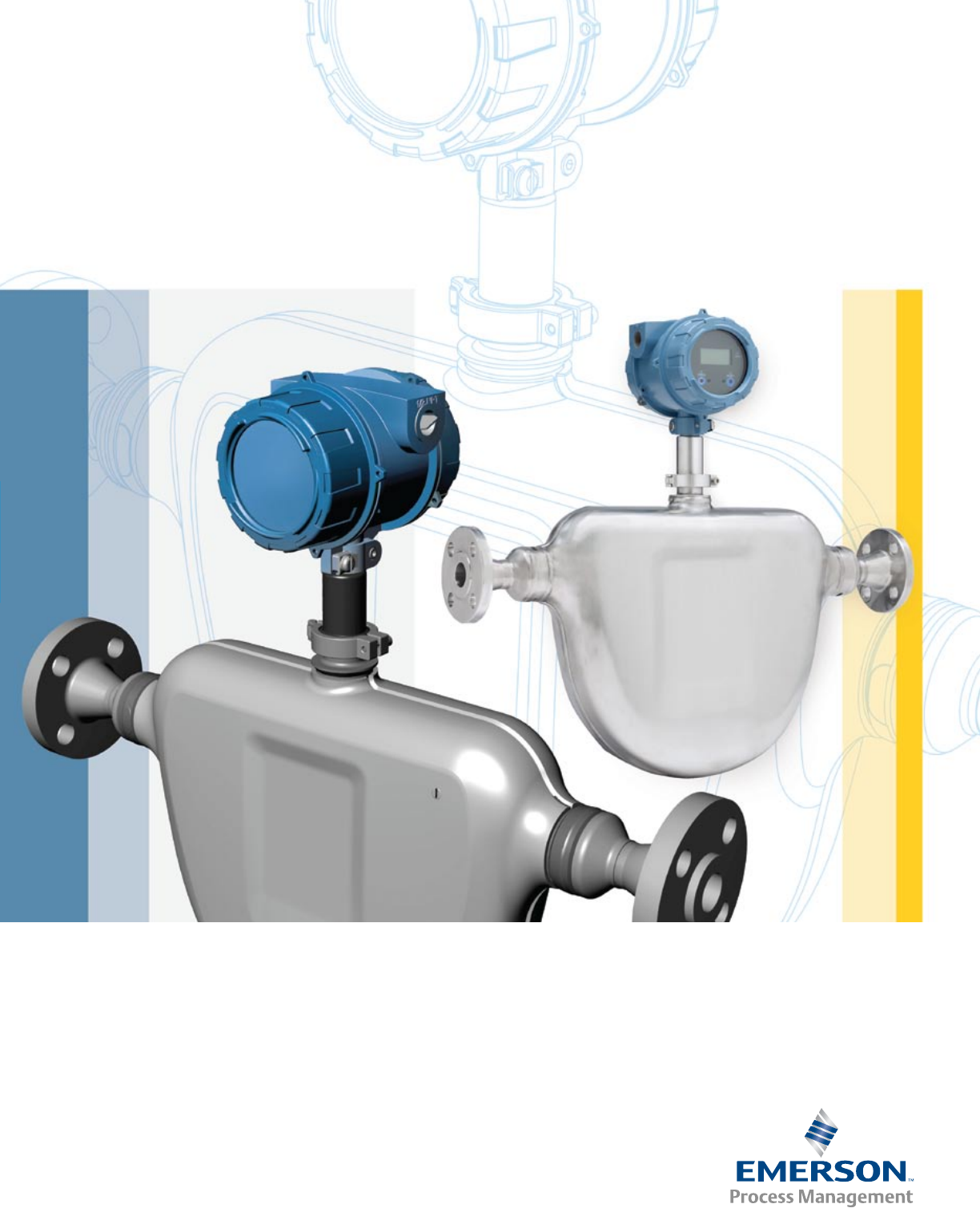

Micro Motion Compact Density Meter

INTRODUCING EMERSON’S

MICRO MOTION®

COMPACT DENSITY METER

Density and Concentration

Measurement with Performance

and Confidence

The combination of our industry-leading technology,

wide breadth of products, unparalleled application

expertise and customer support allows us to deliver

unbeatable performance and value, time and time again. The Micro Motion Compact Density Meter Delivers:

Superior Measurement Capabilities

•Ourinnovativeplatformprovidesthebest,real-world

measurement performance

•Thetightestdensityresolutionandrepeatability

available (

±

0.02 kg/m3)

A World-Class Leading Electronics Platform

•New-to-worldintegralflowrateindicatorconfirms

sample integrity and enables effective field validation

•Localdisplayanduserinterfaceallowsforsimplifieddevice

management, minimizing maintenance requirements

•SimpleintegrationintoDCS,PLC,andflowcomputers

(Frequency/Time Period, Analog 4-20mA, HART®,

Modbus RS-485, and FOUNDATIONTM fieldbus)

Accredited Density & Temperature Measurement

•State-of-the-artIEC/ISO17025accredited,traceable

density and temperature calibrations

•OIMLR117-1certifiedconformstoMeasurement

Instrument Directive (pending)

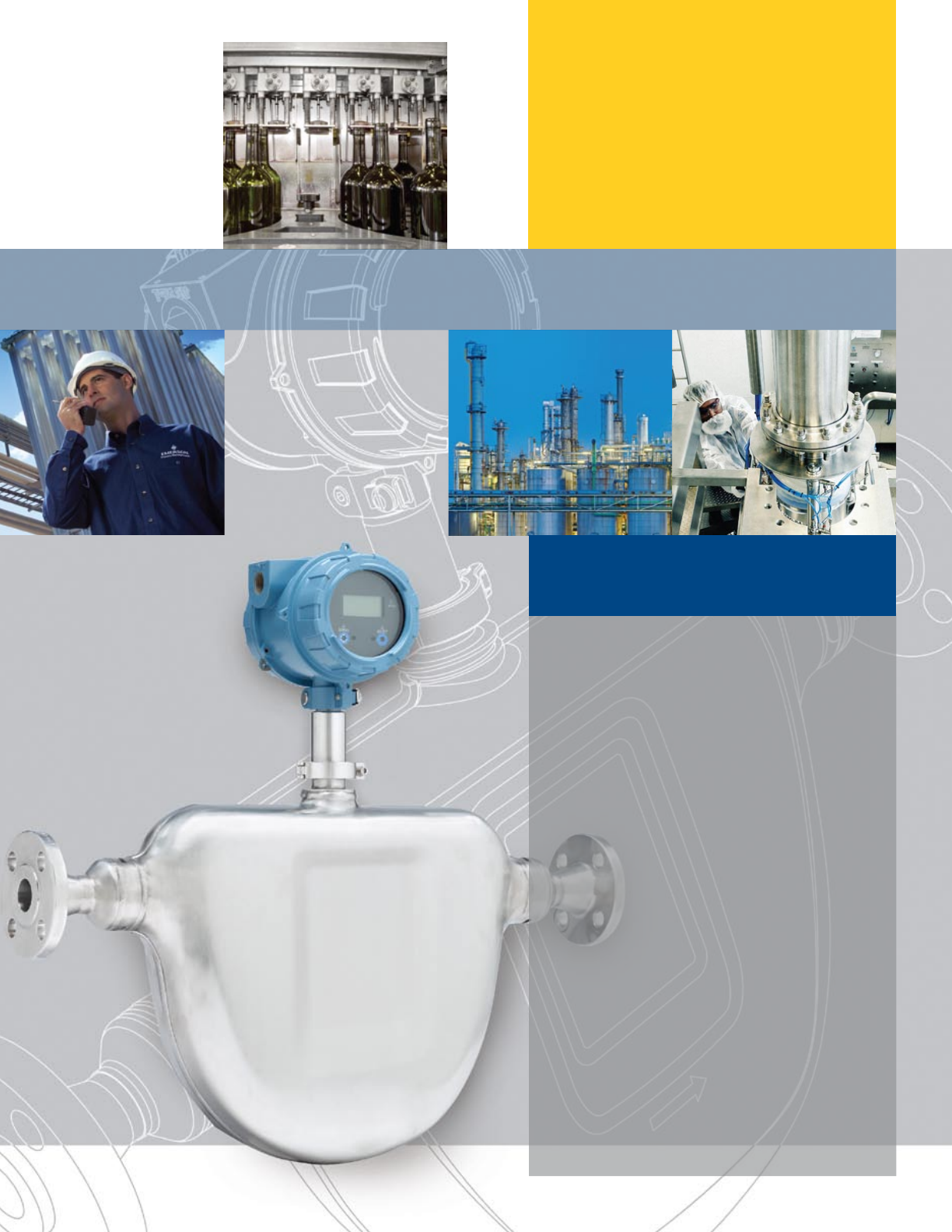

Our Compact Density Meter (CDM) delivers precision

online density and concentration measurement in a

drainable, compact design. This rugged and reliable

meter raises the standard for online density metering

and enhances the custody transfer, processing and

blending operations of high-value products such as

crude oil, refined hydrocarbons, alcohols and critical

process fluids.

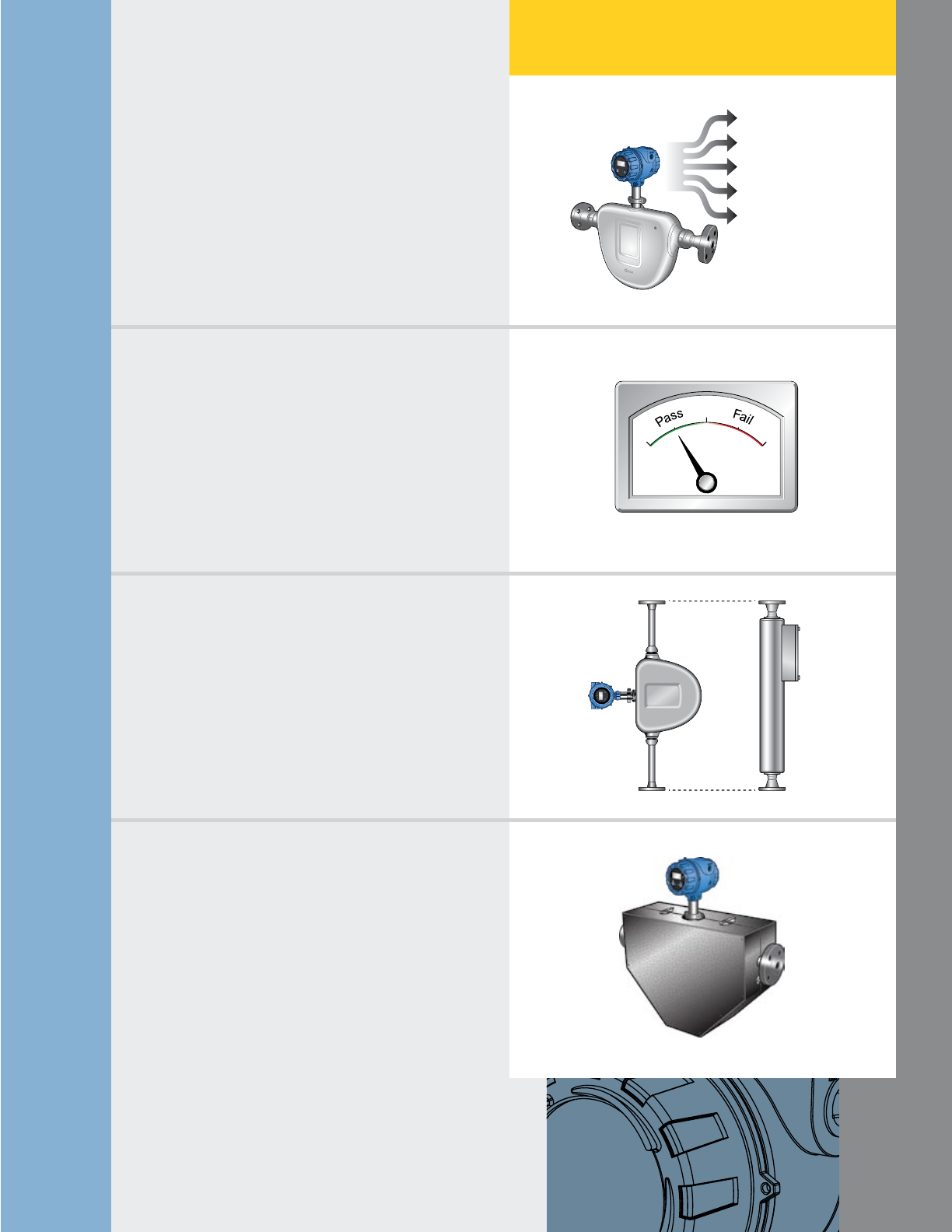

Meter Diagnostics

Built-in diagnostics for real-time monitoring

and automated meter verification systems

Application-Specific Configurations

Automatic, application-specific measurement

and output configurations ensure simple

set-up and commissioning

Unrivalled Density Performance

A choice of installation options for

replacement solutions give you the

performance you need

Temperature Control & Measurement

Multi-point temperature measurement and

thermal insulation solutions eliminate process

and environmental temperature impacts

PRODUCT HIGHLIGHTS

r%UL[r%DXPHr3ODWR

5HIHUUHG'HQVLW\

'HQVLW\

&RQFHQWUDWLRQ$%9

r$3,

Density

Specific Gravity

% Concentration

°API

°Brix, °Baume, °Plato

Performance & confidence

Pipeline & Terminals

•Fiscal and Custody Transfer Measurement

Minimize exposure and gain/loss uncertainty

•Interface and Product Detection

Improve cut-over accuracy and product quality

determination and reduce scrap, waste, or

down-grading of multi-product pipelines

Refining, Chemical & Petrochemical

•Product Quality and Process Control

Optimize residence/cycle time while minimizing

energy usage in condensers, contactors and

reactors

•Blending and Concentration Control

Reduce waste, rework and giveaways with

optimal feed and production fluid quality

measurement

Food & Beverage

•Continuous Measurement and Control

Deliver finished product quality for sugar, dairy,

starch and confectionery food and beverage

products

•Concentration Control

Accurately measure alcohol content for brewing,

fermentation and distillation processes

Control System

Static Mixer

Water

Balance

Tank

Balance

Tank

Buffer Ta nk

Concentrate

Vent

Pump

Sample Point

KEY APPLICATIONS

7:HOO 37

3\F

Pycnometer

Thermowell

Pressure

Transmitter

Vent

YOUR SOLUTION FOR THE

MOST DEMANDING PROCESS

APPLICATIONS

MICRO MOTION

For over 30 years, Emerson’s Micro Motion

has been a technology leader delivering the

most precise flow, density and concentration

measurement devices for fiscal applications,

process control and process monitoring.

Our passion for solving flow and density

measurement challenges is proven through

the highly accurate and unbeatable

performance of our devices.

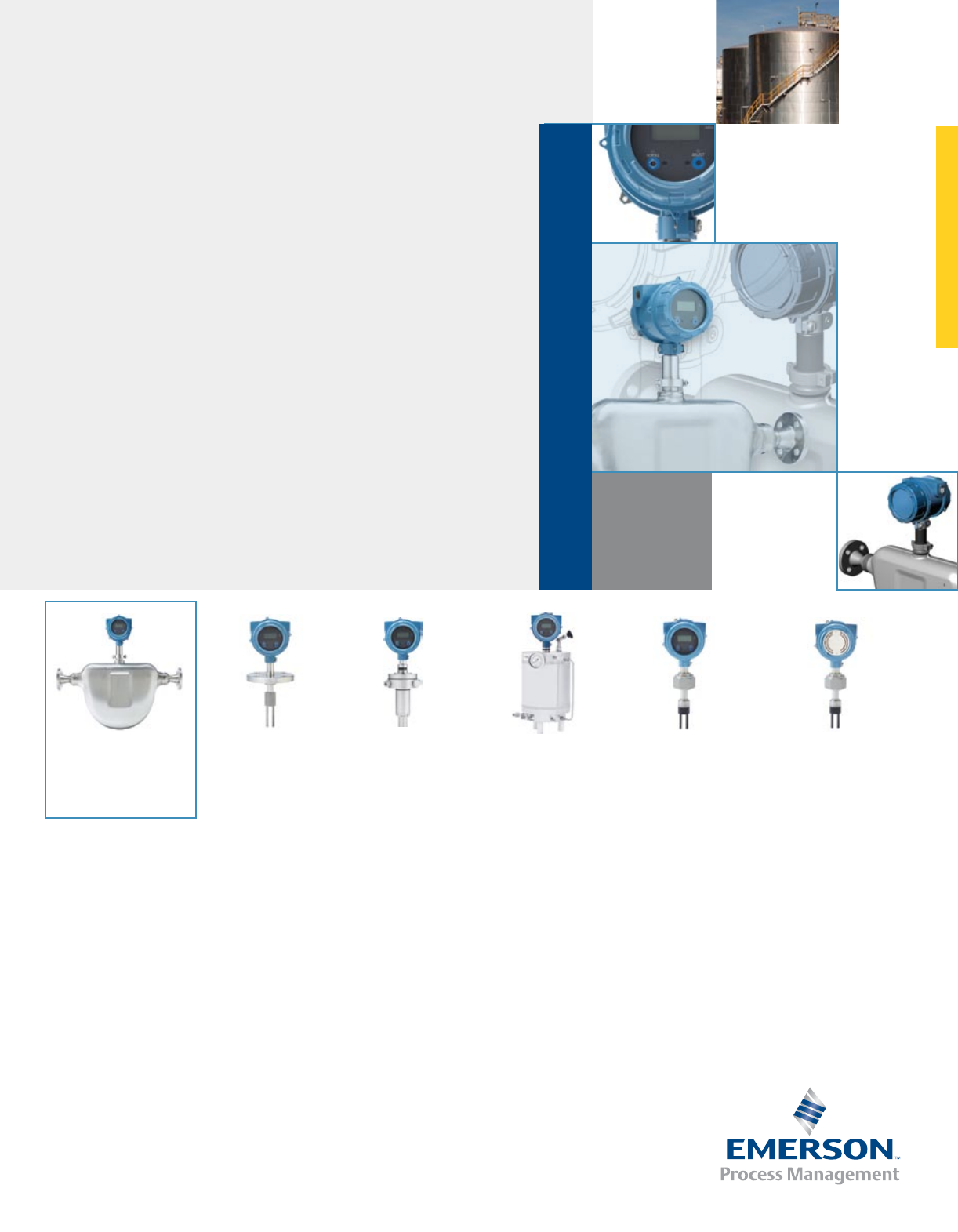

Fork Density Meter

Direct Insertion

Density Meter

Gas Density Meter

Fiscal Gas

Density Meter

Specific Gravity Meter

Gas Specific Gravity

/BTU Meter

Fork Viscosity Meter

Multi-Variable

Viscosity Meter

Heavy Fuel Viscosity Meter

Multi-Variable Marine & Power

HFO Viscosity Meter

Compact Density Meter

Peak Performance

Precision Density Meter

MC-001796 Rev A

09/2013

For more information, please visit: www.MicroMotion.com/density

©2013 Micro Motion, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE, ProLink, MVD and

MVD Direct Connect marks are marks of one of the Emerson Process Management family of companies. All other marks are property of their respective owners.

Emerson Process Management

Americas

7070 Winchester Circle

Boulder, Colorado USA 80301

www.MicroMotion.com

www.Rosemount.com

T: +1 800 522 6277

T: +1 (303) 527 5200

F: +1 (303) 530 8459

Mexico T: 52 55 5809 5300

Argentina T: 54 11 4837 7000

Brazil T: 55 15 3413 8000

Venezuela T: 58 26 1300 8100

Emerson Process Management

Europe/Middle East

Central & Eastern Europe T: +41 41 7686 111

Dubai T: +971 4 811 8100

Abu Dhabi T: +971 2 697 2000

France T: 0800 917 901

Germany T: 0800 182 5347

Italy T: 8008 77334

The Netherlands T: +31 318 495 555

Belgium T: +32 2 716 77 11

Spain T: +34 913 586 000

U.K. T: 0870 240 1978

Russia/CIS T: +7 495 981 9811

Emerson Process Management

Asia Pacific

Australia T: (61) 3 9721 0200

China T: (86) 21 2892 9000

India T: (91) 22 6662 0566

Japan T: (81) 3 5769 6803

South Korea T: (82) 2 3438 4600

Singapore T: (65) 6 777 8211

Measuring Range 0-3000 kg/m3 (0-3 g/cc)

Density Accuracy ±0.1 kg/m3 (±0.0001 g/cc)

Equivalent to: ±0.05°API,

±0.02° Brix, ±0.1% ABV, ±0.01% Conc.

Temperature Accuracy BS1904, DIN 43760 Class ‘A’ (±0.15 ± 0.002 X T)°C

Flow Rate Accuracy ±5% of reading (10:1 turndown)

Accreditation & Standards ISO17025, OIML R117-1, MID compliant

Safety Approvals ATEX, CSA, IECEx

(Intrinsically-safe and Explosion/Flame Proof)

Display Two-line, LCD screen,

Optical switch configuration

Outputs Standard : Time Period, 4-20mA, HART,

Modbus RS-485

Optional : FOUNDATION

TM

fieldbus, WirelessHART

TM

Protection Class Ingress Protection : IP66/67, NEMA4

EMC compliant with EN61326

Dimensions Standard Flange to Flange : 600 mm (24”)

7835/45 Retrofit Option : 1030 mm (40.5”)

Weight (Typical) 14 kg (31 lbs)

Compact Density Meter Specifications

Density & ConCentration
