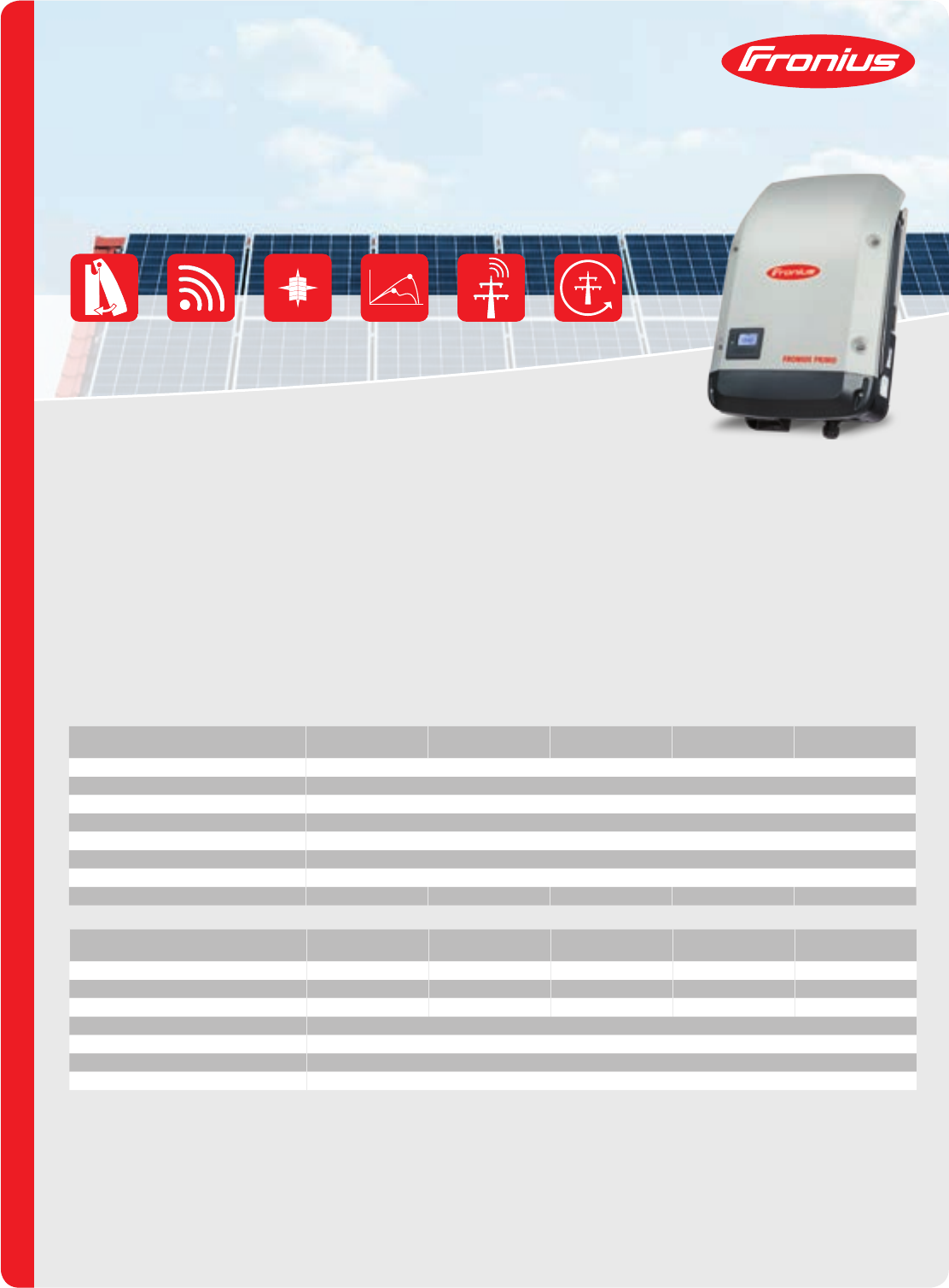

/ The Fronius Primo in power categories from 3.0 to 8.2 kW perfectly completes the SnapINverter generation. This
single-phase, transformerless device is the ideal inverter for private households. Its innovative SuperFlex Design pro-
vides maximum flexibility in system design, while the SnapINverter mounting system makes installation and mainte-
nance easier than ever before. The communication package included as standard, with WLAN, energy management,
several interfaces and much more besides, makes the Fronius Primo a communicative inverter for owner-occupiers.
TECHNICAL DATA FRONIUS PRIMO (3.0-1, 3.5-1, 3.6-1, 4.0-1, 4.6-1)
INPUT DATA PRIMO 3.0-1 PRIMO 3.5-1 PRIMO 3.6-1 PRIMO 4.0-1 PRIMO 4.6-1
Number of MPP trackers 2
Max. input current (Idc max 1 / Idc max 2)12.0 A / 12.0 A
Max. array short circuit current (MPP1/MPP2)18.0 A / 18.0 A
DC input voltage range (Udc min - Udc max) 80 - 1,000 V
Feed-in start voltage (Udc start)80 V
Usable MPP voltage range 80 - 800 V
Number of DC connections 2 + 2
Max. PV generator output (Pdc max) 4.5 kWpeak 5.3 kWpeak 5.5 kWpeak 6.0 kWpeak 6.9 kWpeak
OUTPUT DATA PRIMO 3.0-1 PRIMO 3.5-1 PRIMO 3.6-1 PRIMO 4.0-1 PRIMO 4.6-1
AC nominal output (Pac,r)3,000 W 3,500 W 3,680 W 4,000 W 4,600 W
Max. output power 3,000 VA 3,500 VA 3,680 VA 4,000 VA 4,600 VA
AC output current (Iac nom)13.0 A 15.2 A 16.0 A 17.4 A 20.0 A
Grid connection (voltage range) 1 ~ NPE 220 V / 230 V (180 V - 270 V)
Frequency (frequency range) 50 Hz / 60 Hz (45 - 65 Hz)
Total harmonic distortion < 5 %
Power factor (cos φac,r) 0.85 - 1 ind. / cap.
Fronius Primo
/ The communicative inverter for optimised
energy management.
GENERAL DATA PRIMO 3.0-1 PRIMO 3.5-1 PRIMO 3.6-1 PRIMO 4.0-1 PRIMO 4.6-1
Dimensions (height x width x depth) 645 x 431 x 204 mm
Weight 21.5 kg
Degree of protection IP 65
Protection class 1
Overvoltage category (DC / AC) 1) 2 / 3
Night time consumption < 1 W
Inverter design Transformerless
Cooling Regulated air cooling
Installation Indoor and outdoor installation
Ambient temperature range -40 - +55 °C
Permitted humidity 0 - 100 %
Max. altitude 4,000 m
DC connection technology 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm²
AC connection technology 3-pole AC screw terminals 2.5 - 16 mm²
Certicates and compliance with standards DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727,
AS 4777-2, AS 4777-3, G83/2, G59/3, CEI 0-21, VDE AR N 4105
EFFICIENCY PRIMO 3.0-1 PRIMO 3.5-1 PRIMO 3.6-1 PRIMO 4.0-1 PRIMO 4.6-1
Max. eciency 98.0 % 98.0 % 98.0 % 98.1 % 98.1 %
European eciency (ηEU) 96.1 % 96.8 % 96.8 % 97.0 % 97.0 %
MPP adaptation eciency > 99.9 %
PROTECTIVE DEVICES PRIMO 3.0-1 PRIMO 3.5-1 PRIMO 3.6-1 PRIMO 4.0-1 PRIMO 4.6-1
DC insulation measurement Yes
Overload behaviour Operating point shift. Power limitation
DC disconnector Yes
Reverse polarity protection Yes
INTERFACES PRIMO 3.0-1 PRIMO 3.5-1 PRIMO 3.6-1 PRIMO 4.0-1 PRIMO 4.6-1
WLAN / Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 inputs and 4 digital in/out Interface to ripple control receiver
USB (A socket) 2) Datalogging, inverter update via USB ash drive
2x RS422 (RJ45 socket) 2) Fronius Solar Net
Signalling output 2) Energy management (potential-free relay output)
Datalogger and Webserver Included
External input 2) S0-Meter Interface / Input for overvoltage protection
RS485 Modbus RTU SunSpec or meter connection
1) According to IEC 62109-1.
2) Also available in the light version.
TECHNICAL DATA FRONIUS PRIMO (3.0-1, 3.5-1, 3.6-1, 4.0-1, 4.6-1)
Further information regarding the availability of the inverters in your country can be found at www.fronius.com.
TECHNICAL DATA FRONIUS PRIMO (5.0-1, 5.0-1 AUS, 6.0-1, 8.2-1)
GENERAL DATA PRIMO 5.0-1 PRIMO 5.0-1 AUS PRIMO 6.0-1 PRIMO 8.2-1
Dimensions (height x width x depth) 645 x 431 x 204 mm
Weight 21.5 kg
Degree of protection IP 65
Protection class 1
Overvoltage category (DC / AC) 1) 2 / 3
Night time consumption < 1 W
Inverter design Transformerless
Cooling Regulated air cooling
Installation Indoor and outdoor installation
Ambient temperature range -40 - +55 °C
Permitted humidity 0 - 100 %
Max. altitude 4,000 m
DC connection technology 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm²
AC connection technology 3-pole AC screw terminals 2.5 - 16 mm²
Certicates and compliance with standards DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, CEI 0-21, VDE AR N 4105 2)
INPUT DATA PRIMO 5.0-1 PRIMO 5.0-1 AUS PRIMO 6.0-1 PRIMO 8.2-1
Number of MPP trackers 2
Max. input current (Idc max 1 / Idc max 2)12.0 A / 12.0 A 18.0 A / 18.0 A
Max. array short circuit current (MPP1/MPP2)18.0 A / 18.0 A 27.0 A / 27.0 A
DC input voltage range (Udc min - Udc max) 80 - 1,000 V
Feed-in start voltage (Udc start)80 V
Usable MPP voltage range 80 - 800 V
Number of DC connections 2 + 2
Max. PV generator output (Pdc max) 7.5 kWpeak 7.5 kWpeak 9.0 kWpeak 12.3 kWpeak
OUTPUT DATA PRIMO 5.0-1 PRIMO 5.0-1 AUS PRIMO 6.0-1 PRIMO 8.2-1
AC nominal output (Pac,r)5,000 W 4,600 W 6,000 W 8,200 W
Max. output power 5,000 VA 5,000 VA 6,000 VA 8,200 VA
AC output current (Iac nom)21.7 A 21.7 A 26.1 A 35.7 A
Grid connection (voltage range) 1 ~ NPE 220 V / 230 V (180 V - 270 V)
Frequency (frequency range) 50 Hz / 60 Hz (45 - 65 Hz)
Total harmonic distortion < 5 %
Power factor (cos φac,r) 0.85 - 1 ind. / cap.

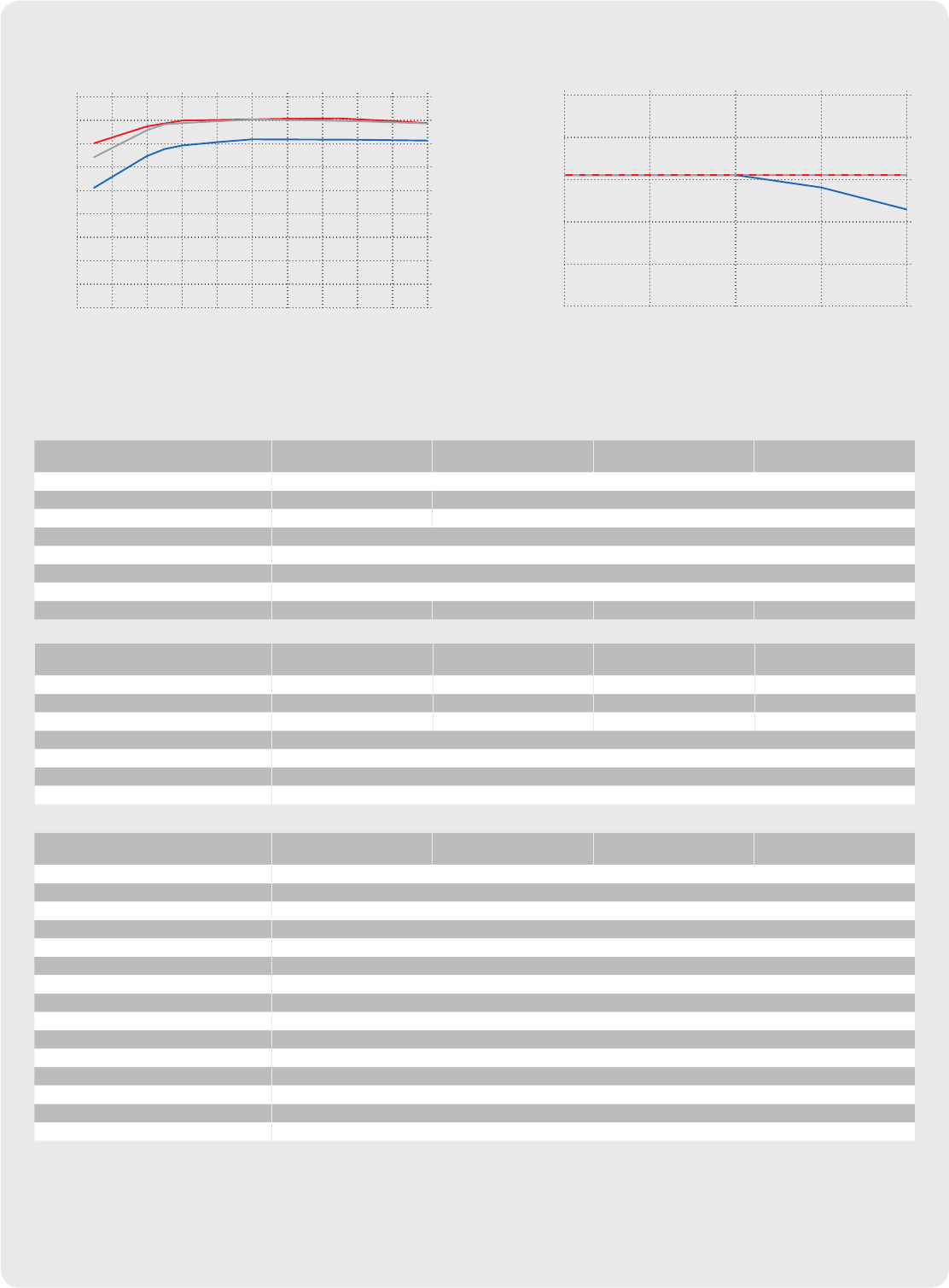

FRONIUS PRIMO 8.2-1 EFFICIENCY CURVE FRONIUS PRIMO 8.2-1 TEMPERATURE DERATING
1) According to IEC 62109-1.
2) Fronius Primo 5.0-1, Fronius Primo 6.0-1 and Fronius Primo 8.2-1 are not fully compliant with VDE AR N 4105.
Further information regarding the availability of the inverters in your country can be found at www.fronius.com.
■ 270 VDC ■ 710 VDC ■ 800 VDC
EFFICIENCY [%]
STANDARDISED OUTPUT POWER P
AC
/P
AC,R
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
92
94
98
96
86
90
100
88
84
82
OUTPUT POWER [W]
AMBIENT TEMPERATURE [°C]
2,000
30 35 40 45 50
■ 270 V
DC
■ 710 V
DC
■
800 V
DC
4,000
8,000
12,000
6,000
10,000
as17
Fronius International GmbH
Froniusplatz 1
4600 Wels
Austria
pv-sales@fronius.com
www.fronius.com
Fronius UK Limited
Maidstone Road, Kingston
Milton Keynes, MK10 0BD
United Kingdom
pv-sales-uk@fronius.com
www.fronius.co.uk
Fronius Australia Pty Ltd.
90-92 Lambeck Drive
Tullamarine VIC 3043
Australia
pv-sales-australia@fronius.com
www.fronius.com.au
Fronius India Private Limited
GAT no 312, Nanekarwadi
Chakan, Taluka - Khed District
Pune 410501
India
pv-sales-india@fronius.com
www.fronius.in
/ Perfect Welding / Solar Energy / Perfect Charging
v06 Apr 2016 EN
Text and images correspond to the current state of technology at the time of printing. Subject to modifications.
All information is without guarantee in spite of careful editing - liability excluded. Copyright © 2011 Fronius™. All rights reserved.
Further information about all Fronius products and our global sales partners and representatives can be found at www.fronius.com
WE HAVE THREE DIVISIONS AND ONE PASSION: SHIFTING THE LIMITS OF POSSIBILITY.
/ Whether welding technology, photovoltaics or battery charging technology − our goal is clearly defined: to be the innovation leader. With around
3,700 employees worldwide, we shift the limits of what’s possible - our record of over 800 granted patents is testimony to this. While others progress
step by step, we innovate in leaps and bounds. Just as we’ve always done. The responsible use of our resources forms the basis of our corporate policy.
EFFICIENCY PRIMO 5.0-1 PRIMO 5.0-1 AUS PRIMO 6.0-1 PRIMO 8.2-1
Max. eciency 98.1 % 98.1 % 98.1 % 98.1 %
European eciency (ηEU) 97.1 % 97.1 % 97.3 % 97.5 %
MPP adaptation eciency > 99.9 %
PROTECTIVE DEVICES PRIMO 5.0-1 PRIMO 5.0-1 AUS PRIMO 6.0-1 PRIMO 8.2-1
DC insulation measurement Yes
Overload behaviour Operating point shift. power limitation
DC disconnector Yes
Reverse polarity protection Yes
INTERFACES PRIMO 5.0-1 PRIMO 5.0-1 AUS PRIMO 6.0-1 PRIMO 8.2-1
WLAN / Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 inputs and 4 digital in/out Interface to ripple control receiver
USB (A socket) 1) Datalogging, inverter update via USB ash drive
2x RS422 (RJ45 socket) 1) Fronius Solar Net
Signalling output 1) Energy management (potential-free relay output)
Datalogger and Webserver Included
External input 1) S0-Meter Interface / Input for overvoltage protection
RS485 Modbus RTU SunSpec or meter connection
1) Also available in the light version.
Further information and technical data can be found at www.fronius.com.
