Section 61186025L1-17B

Issue 2, July 2004

61186025L1-17B 1

Trademarks: Any brand names and product names included in this document are

trademarks, registered trademarks, or trade names of their respective holders.

The following information can be used as a guideline when wiring the ADTRAN® Future Bus-To-Stub cable. If you

experience any problems, call ADTRAN Technical Support at 800-726-8663. Table 1 contains wire color

information for the Future Bus-to-Stub cable.

Table 1. Future Bus-To-Stub Cable Pinout

Pair # Wire Color (RNG) Wire Color (Tip)

1 Blue/White White/Blue

2 Orange/White White/Orange

3 Green/White White/Green

4 Brown/White White/Brown

5 Slate/White White/Slate

6 Blue/Red Red/Blue

7 Orange/Red Red/Orange

8 Green/Red Red/Green

9 Brown/Red Red/Brown

10 Slate/Red Red/Slate

11 Blue/Black Black/Blue

12 Orange/Black Black/Orange

13 Green/Black Black/Green

14 Brown/Black Black/Brown

15 Slate/Black Black/Slate

16 Blue/Yellow Yellow/Blue

17 Orange/Yellow Yellow/Orange

18 Green/Yellow Yellow/Green

19 Brown/Yellow Yellow/Brown

20 Slate/Yellow Yellow/Slate

21 Blue/Violet Violet/Blue

22 Orange/Violet Violet/Orange

23 Green/Violet Violet/Green

24 Brown/Violet Violet/Brown

25 Slate/Violet Violet/Slate

26 Blue/White * White/Blue *

27 Orange/White * White/Orange *

28 Green/White * White/Green *

* Bold Indicates Blue Binder Group

NOTICE

Future Bus-To-Stub Cable Wiring Diagram

2 61186025L1-17B

The information in Figure 1 and Table 2 may be used to cross-reference the wire color information contained in

Table 1 with the pins of the Future Bus connector. Table 2 also shows cross-reference connection information for

cables with an Amp Champ connector on the opposite end instead of stub termination

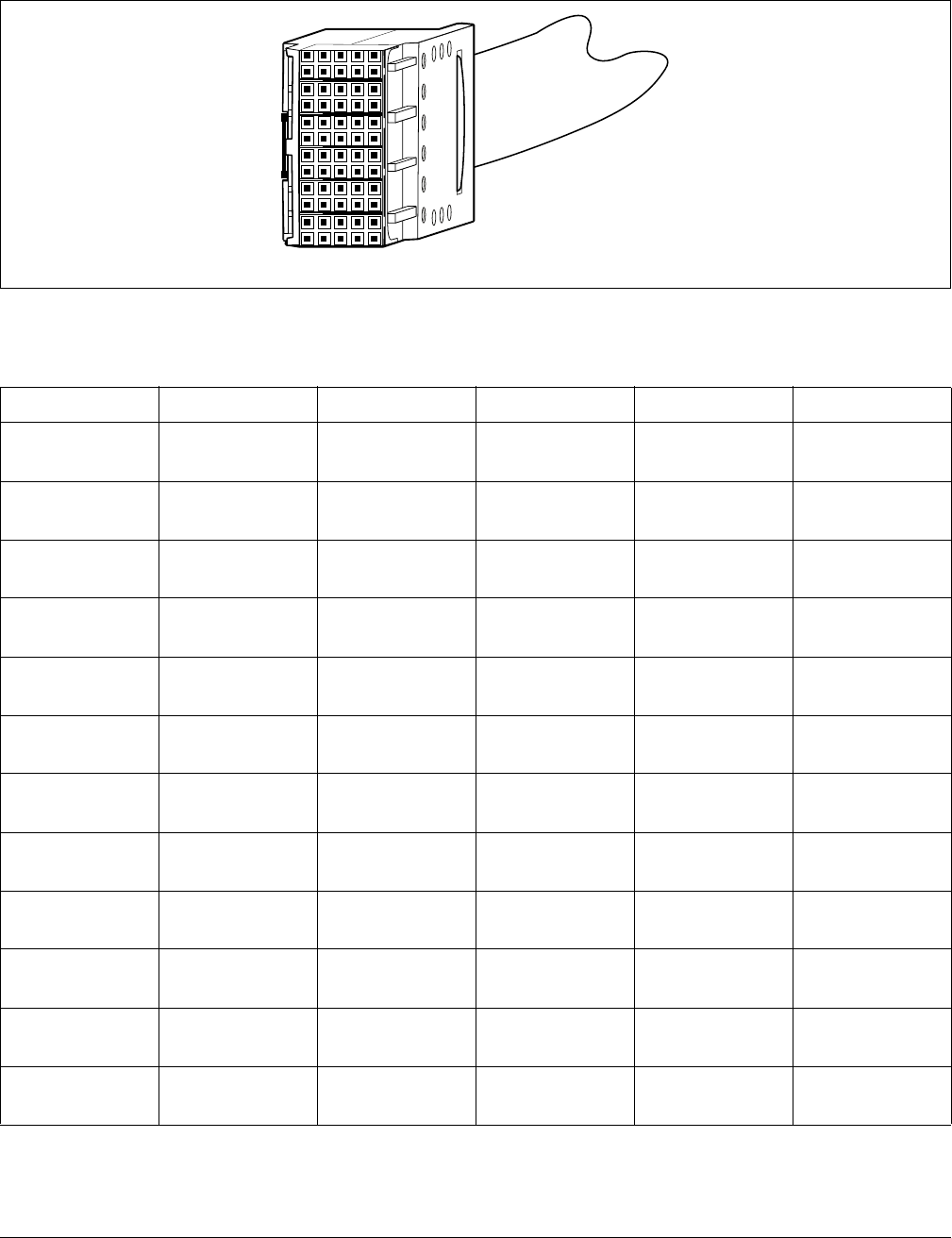

Figure 1. Future Bus-To-Stub Cable Connector

Table 2. Future Bus Connector Map

Future BusABCDE

1 CHAMP #28

Green (RNG28)

CHAMP #27

Orange (RNG27)

CHAMP #26

Blue (RNG26)

CHAMP #25

Slate (RNG25)

CHAMP #24

Brown (RNG24)

2 CHAMP #60

White (TIP28)

CHAMP #59

White (TIP27)

CHAMP #58

White (TIP26)

CHAMP #57

Violet (TIP25)

CHAMP #56

Violet (TIP24)

3 CHAMP #23

Green (RNG23)

CHAMP #22

Orange (RNG22)

CHAMP #21

Blue (RNG21)

CHAMP #20

Slate (RNG20)

CHAMP #19

Brown (RNG19)

4 CHAMP #55

Violet (TIP23)

CHAMP #54

Violet (TIP22)

CHAMP #53

Violet (TIP21)

CHAMP #52

Yellow (TIP20)

CHAMP #51

Yellow (TIP19)

5 CHAMP #18

Green (RNG18)

CHAMP #17

Orange (RNG17)

CHAMP #16

Blue (RNG16)

CHAMP #15

Slate (RNG15)

CHAMP #14

Brown (RNG14)

6 CHAMP #50

Yellow (TIP18)

CHAMP #49

Yellow (TIP17)

CHAMP #48

Yellow (TIP16)

CHAMP #47

Black (TIP15)

CHAMP #46

Black (TIP14)

7 CHAMP #13

Green (RNG13)

CHAMP #12

Orange (RNG12)

CHAMP #11

Blue (RNG11)

CHAMP #10

Slate (RNG10)

CHAMP #9

Brown (RNG9)

8 CHAMP #45

Black (TIP13)

CHAMP #44

Black (TIP12)

CHAMP #43

Black (TIP11)

CHAMP #42

Red (TIP10)

CHAMP #41

Red (TIP9)

9 CHAMP #8

Green (RNG8)

CHAMP #7

Orange (RNG7)

CHAMP #6

Blue (RNG6)

CHAMP #5

Slate (RNG5)

CHAMP #4

Brown (RNG4)

10 CHAMP #40

Red (TIP8)

CHAMP #39

Red (TIP7)

CHAMP #38

Red (TIP6)

CHAMP #37

White (TIP5)

CHAMP #36

White (TIP4)

11 CHAMP #3

Green (RNG3)

CHAMP #2

Orange (RNG2)

CHAMP #1

Blue (RNG1)

12 CHAMP #64

Drain Wire

CHAMP #35

White (TIP3)

CHAMP #34

White (TIP2)

CHAMP #33

White (TIP1)

The raw cable used for these assemblies is constructed of 28 twisted pairs with 2.5 twists per foot (minimum) utilizing 24

AWG solid tinned copper. The cable is shielded with a single aluminum/polyester shield and has a 24 AWG solid drain wire.

EDCBA

12

11

10

9

8

7

6

5

4

3

2

1
