IPL, Gardena Robotic Lawn Mower R160, 587 02 62-01, 2014-01
Spare parts
Reservdelar
Repuestos
Ersatzteile
Pièces détachées
Reserve onderdelen
2014
®
GARDENA Robotic Lawn Mower R160
34
32
31
14
12
13
29
17
11
10
30
16
15
18
5
7
4
21
8
9
20
19
33
35
26
23
28
27
24
6
3

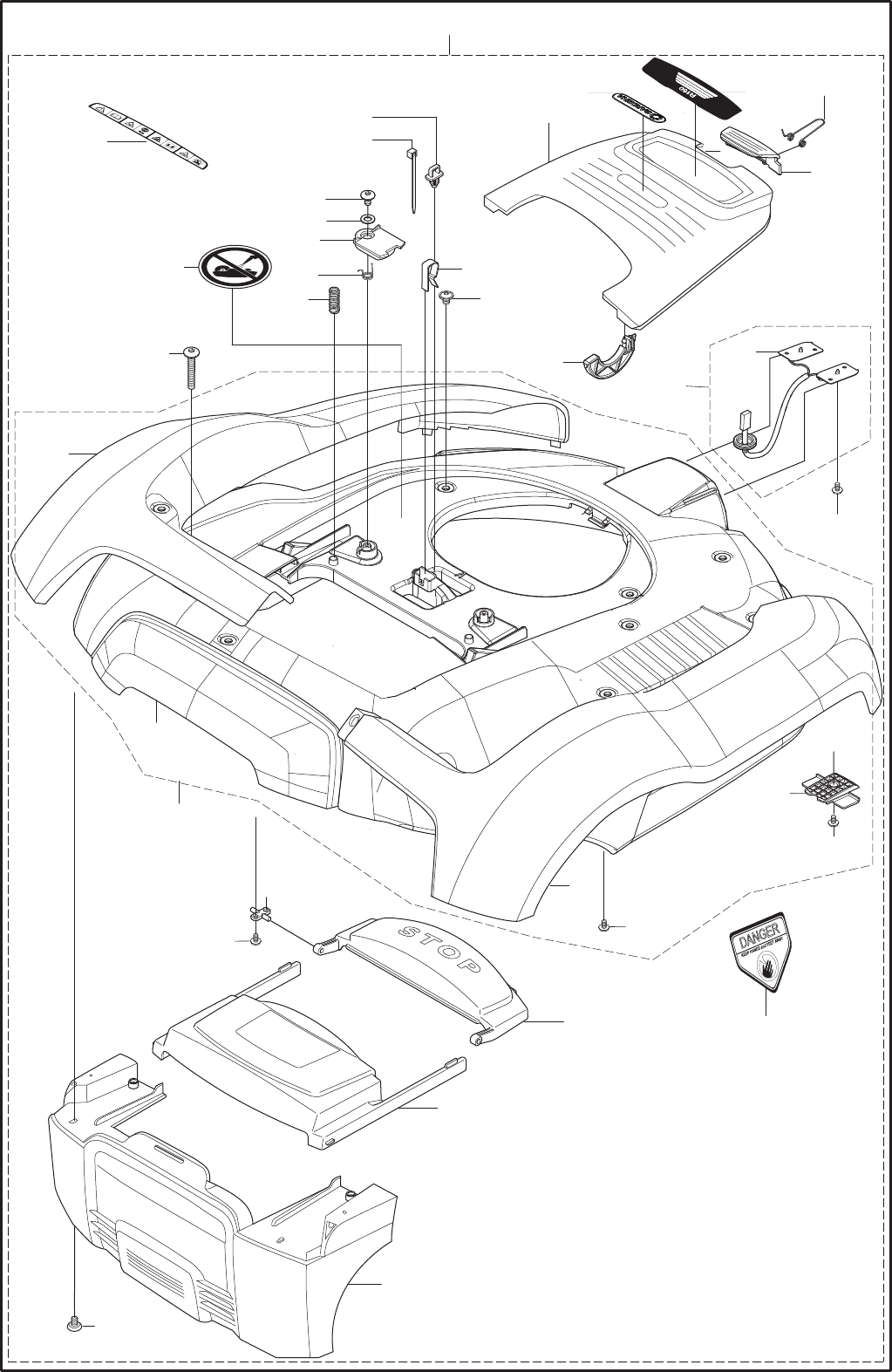

A GARDENA R160
COVER
1
25
22
2
36
Page A GARDENA R160 COVER
Position Article Quantity Notes Kit
1 581 08 04-02 1 BODY SYSTEM
2 581 01 27-01 1 LABEL WARNING
3 580 78 02-01 1 COVER
4 510 31 03-01 1 DECAL GARDENA
5 581 01 28-01 1 LABEL MODEL NAME
6 583 95 16-01 1 TORSION SPRING
7 580 78 03-01 1 LOCK SPRING
8 535 13 04-01 1 ANCHOR
9 900 23 87-08 1 TIE WRAP
10 575 54 33-10 2 SCREW
11 734 11 37-41 2 WASHER
12 535 12 68-01 2 LOCK CLAMP
13 535 13 02-01 2 TORSION SPRING
14 535 13 01-01 2 SPRING
15 535 08 98-01 1 CLIPS
16 535 07 60-02 2 SCREW
17 535 12 93-04 2 SCREW IHPANM
18 535 13 53-01 2 PIVOT
19 535 13 73-01 1 WIRING compl
20 535 13 59-01 2 CHARGING PLATE 19
21 575 54 33-06 2 SCREW
22 580 78 06-01 1 COVER MAIN BODY LEFT 24
23 580 77 96-01 1 MAIN BODY 24
24 510 09 67-04 1 BODY compl
25 580 78 06-02 1 COVER MAIN BODY RIGHT 24
26 575 54 33-14 11 SCREW 24
27 521 93 60-01 1 SPACER 24
28 575 54 33-12 1 SCREW 24
29 535 12 78-01 2 SHAFT
30 575 54 33-10 4 SCREW
31 535 12 67-03 1 STOP BUTTON
32 535 12 66-02 1 HATCH
33 575 54 33-14 2 SCREW 24
34 580 78 01-01 1 BUMPER
35 581 06 05-01 1 DECAL US/AU/NZ
36 586 29 10-01 1 WARNING LABEL "Do not wash" (10 pcs)
1
3
5
7
9
12
11
10
8
13
14
15
16
18
17
19
26
27
28
29
30
31
32
33
24
23
25
22
21
20
B GARDENA R160
CHASSIS UPPER
6
2
4
Page B GARDENA R160 CHASSIS UPPER
Position Article Quantity Notes Kit
1 581 06 03-01 1 KEYBOARD 6
2 577 52 72-01 1 CABLE CLAMP
3 535 10 17-01 1 CAP 8
4 574 45 01-01 4 SCREW ITXPANT
5 575 98 63-01 1 SEALING STRIP (10 pcs, Ø4mm) 6
5 574 87 47-02 1 SEALING STRIP (Ø4mm)
6 575 94 42-05 1 DISPLAY COVER compl
7 535 14 47-01 1 FILTER
8 535 12 39-01 1 MAIN SWITCH compl
9 577 59 23-01 1 SWITCH KIT
10 540 06 03-01 1 DISPLAY
11 535 12 79-01 1 BRACKET
12 575 54 33-14 1 SCREW
13 577 67 06-01 2 RUBBER DAMPER 20
14 575 54 33-14 8 SCREW
15 505 17 43-01 2 RING FASTENER
16 506 49 53-01 2 RUBBER GAITERS 20
17 503 22 66-01 2 SQUARE NUT 20
18 579 24 88-01 2 COLUMN 20
19 535 14 32-01 2 DEFLECTION LIMITER
20 577 59 84-03 2 COLUMN compl
21 510 74 70-00 1 LOCKWASHER
22 544 14 15-01 1 SENSOR
23 535 12 22-02 1 HEIGHT ADJUSTMENT KNOB
24 574 45 01-01 16 SCREW ITXPANT
25 581 01 29-01 1 LABEL HEIGHT ADJUSTMENT
26 575 94 38-01 1 CHASSIS
27 575 98 62-01 1 SEALING STRIP (10 pcs, Ø4mm)
27 574 87 47-01 1 SEALING STRIP (Ø4mm)
28 544 12 69-01 1 WIRING
29 578 78 90-01 2 PRINTED CIRCUIT ASSY
30 535 07 60-02 2 SCREW
31 578 78 90-01 1 PRINTED CIRCUIT ASSY
32 535 12 79-01 1 BRACKET
33 575 54 33-14 1 SCREW
20
19
22
26
21
27
17
18
23
25
24
31
29
28
30
41
32 33
34
42
37
38
36
40
39
35
1 2
4 3
5
6
7
8 9 10
11
12
13
14
15
16

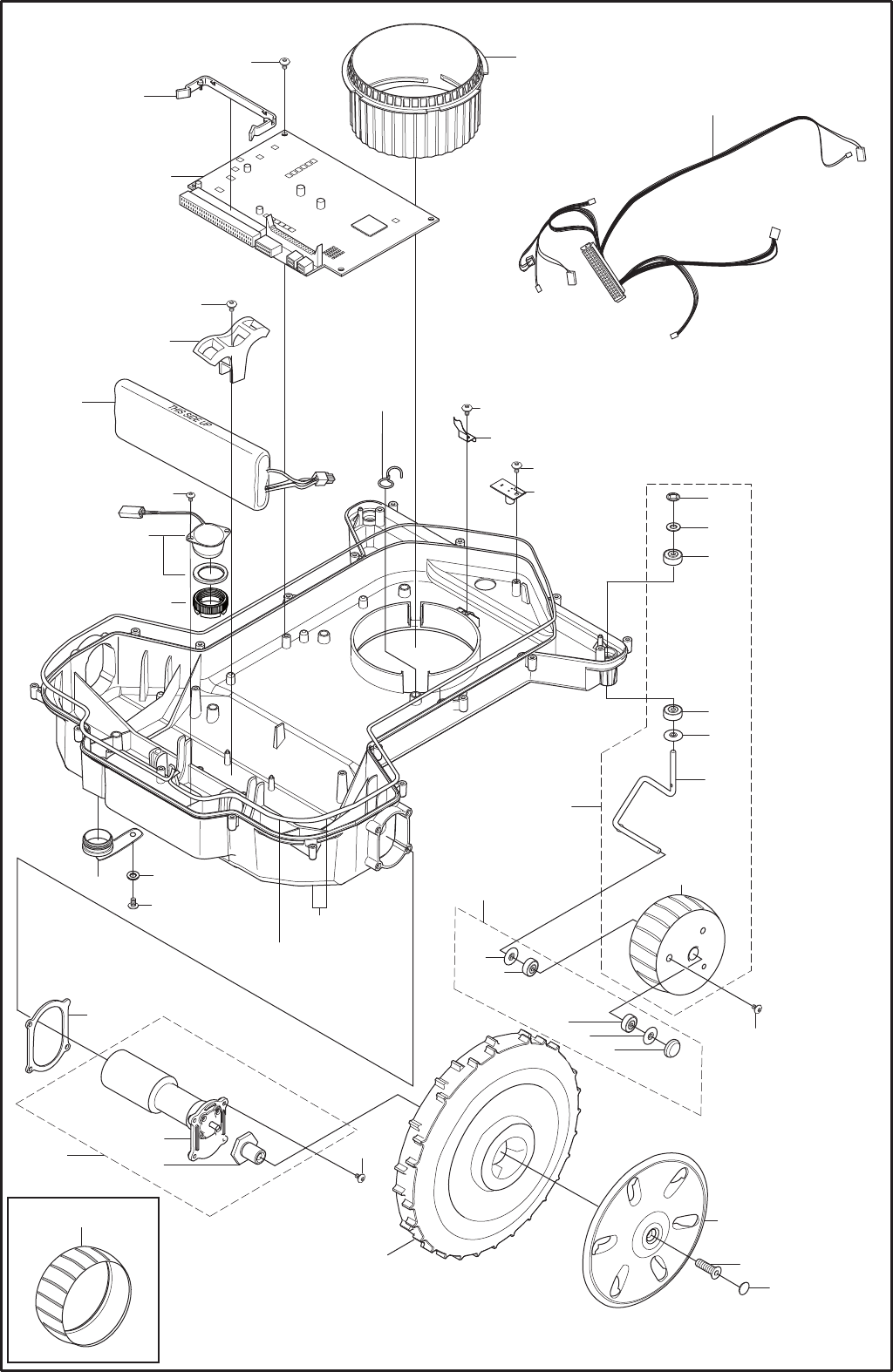

C
GARDENA R160
CHASSIS LOWER
44
43
45
46
Page C GARDENA R160 CHASSIS LOWER
Position Article Quantity Notes Kit
1 575 54 33-10 4 SCREW
2 535 12 21-02 1 NUT
3 501 00 37-03 1 MAIN WIRING
4 578 05 61-01 1 CLIP
4 578 05 61-02 50 CLIP
5 581 09 04-01 1 PRINTED CIRCUIT ASSY
6 575 54 33-14 2 SCREW
7 544 90 78-01 2 BRACKET
8 535 12 09-01 1 BATTERY
9 535 13 96-01 1 CABLE HOLDER
10 535 13 03-14 1 SCREW ITXPANT
11 535 12 24-01 1 LOCKING SPRING
12 575 54 33-10 2 SCREW
13 578 78 88-01 2 PRINTED CIRCUIT ASSY
14 502 85 96-01 2 SCREW
15 501 00 42-01 1 BUZZER
16 579 52 12-01 1 NUT
17 735 58 41-09 2 WASHER 23
18 734 11 52-09 2 WASHER 23
19 522 50 50-01 2 BALL BEARING 23
20 522 50 50-01 2 BALL BEARING 23
21 535 08 78-02 2 WASHER 23
22 522 50 48-01 2 SPINDLE 23
23 522 66 45-02 1 KIT compl
24 575 23 17-01 2 WHEEL ASSY 23
25 523 34 37-01 1 BEARING KIT compl 23
26 535 08 78-02 2 WASHER 23,25
27 522 50 50-01 2 BALL BEARING 23,25
28 522 50 50-01 2 BALL BEARING 23,25
29 535 08 78-02 2 WASHER 23,25
30 521 93 31-01 2 COVER WASHER 23,25
31 575 50 76-01 6 SCREW ITXPANT
32 574 42 74-02 1 PLUG
33 734 11 37-41 1 WASHER
34 575 54 33-14 1 SCREW
35 575 94 39-01 1 CHASSIS
36 535 13 92-04 2 GASKET
37 575 54 33-16 8 SCREW
38 502 63 36-02 2 DRIVE MOTOR compl
39 502 49 81-01 1 GABLE 38
40 544 90 68-02 1 HUB 38
41 574 44 98-01 2 WHEEL
42 544 90 58-03 2 REAR WHEEL
43 580 78 07-01 2 HUB CAP
44 535 13 94-01 2 SCREW IHCSFM
45 504 20 08-01 2 COVER WASHER
46 575 98 62-01 1 SEALING STRIP (10 pcs, Ø4mm)
46 574 87 47-01 1 SEALING STRIP (Ø4mm)
1
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16
17
18
19

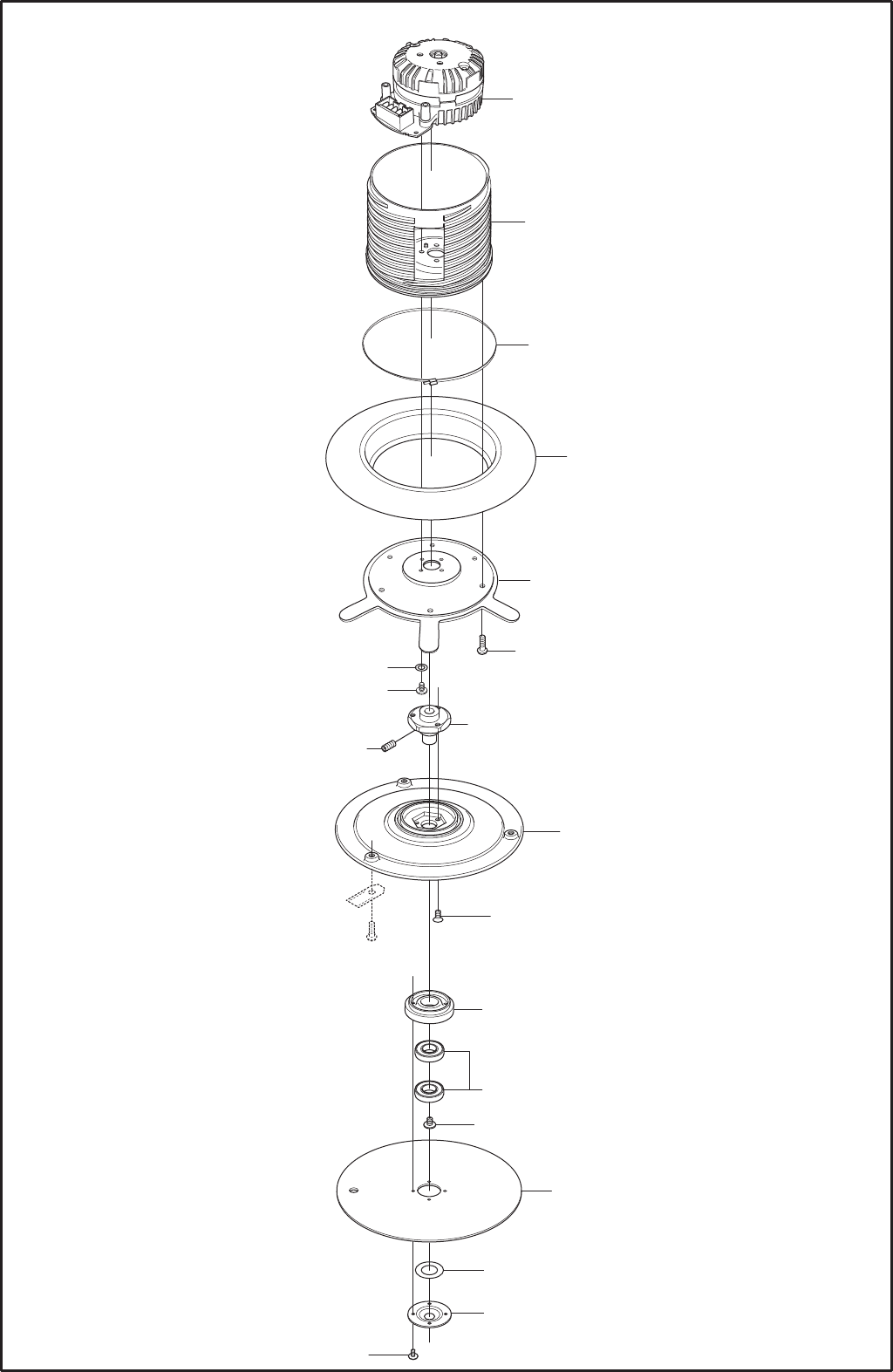

D GARDENA R160
BLADE MOTOR
& CUTTING EQUIPMENT
Page D GARDENA R160 BLADE MOTOR & CUTTING EQUIPMENT
Position Article Quantity Notes Kit
1 535 12 36-01 1 CUTTING MOTOR
2 510 14 41-01 1 MOTOR BOWL
3 525 25 14-01 1 TIE WRAP
4 535 12 23-01 1 RUBBER GAITERS
5 522 77 15-02 1 PLATE
6 575 54 33-14 6 SCREW
7 734 11 37-41 4 WASHER
8 502 23 91-01 4 SCREW
9 535 07 55-01 1 HUB
10 728 82 85-01 1 SCREW IHSETM
11 535 12 63-01 1 BLADE DISK 11
12 535 13 05-01 3 SCREW 11
13 535 12 64-01 1 BEARING BOX
14 535 07 57-03 1 BALL BEARING
15 535 07 60-01 1 SCREW
16 535 07 59-01 1 SKID PLATE
17 535 08 25-01 1 GASKET
18 535 08 15-01 1 COVER WASHER
19 575 54 33-10 4 SCREW

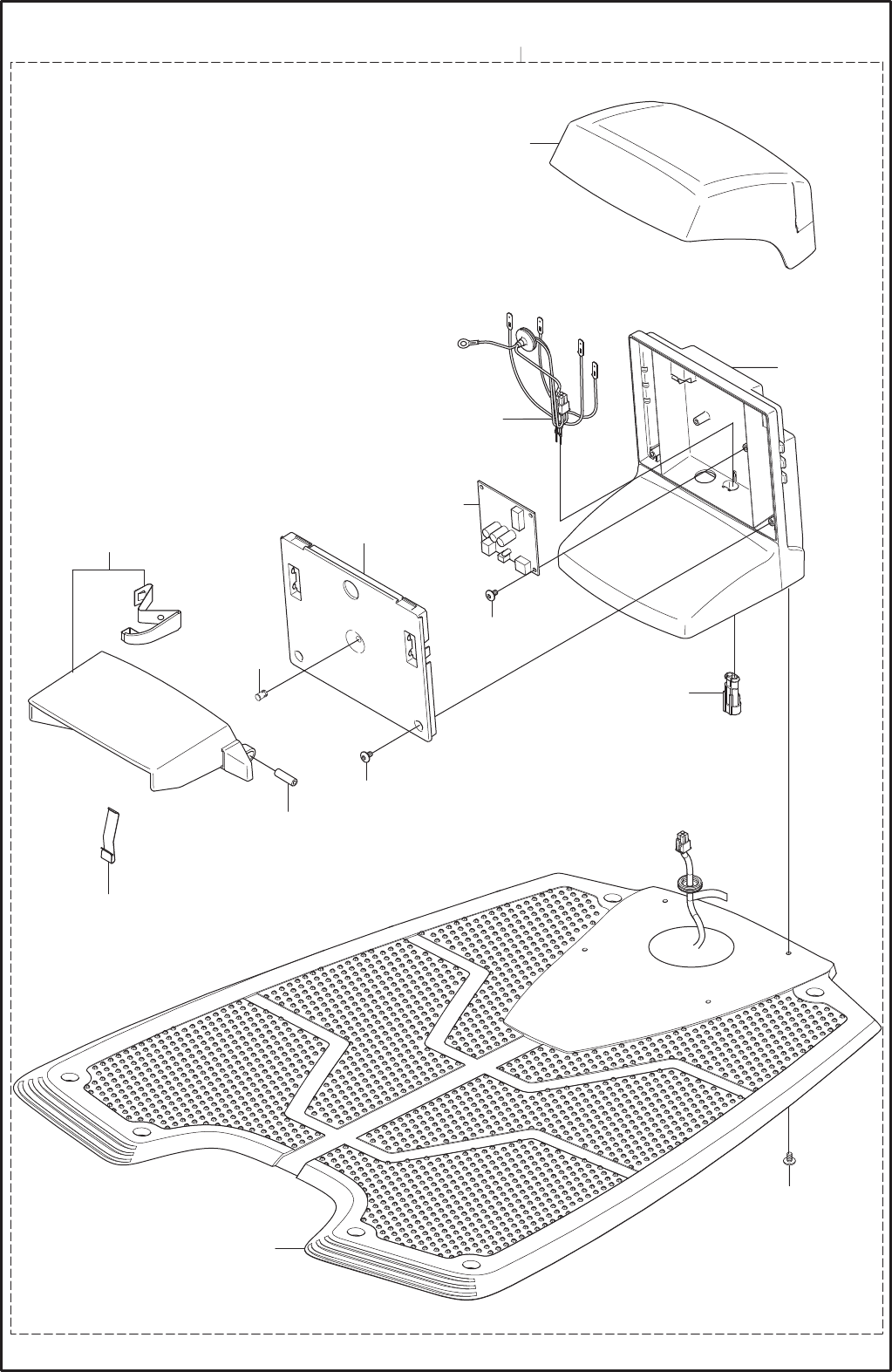

E GARDENA R160
CHARGING STATION 1
2
4
3
7
9
6
8
5
10
11
12
13
15
14
Page E GARDENA R160 CHARGING STATION
Position Article Quantity Notes Kit
1 574 90 20-12 1 CHARGING STATION
2 580 78 08-01 1 COVER
3 544 98 38-06 1 WIRING ASSY
4 574 82 75-02 1 BODY
5 510 05 97-02 1 KIT, CHARGING PLATE
6 535 12 44-02 1 CAP
7 578 78 84-01 1 PRINTED CIRCUIT ASSY
8 535 12 87-02 1 DIODE LENS
9 575 54 33-10 2 SCREW
10 535 12 86-01 2 SPRING PLATE
11 535 12 50-01 2 PIN
12 575 54 33-14 2 SCREW
13 535 12 85-01 1 CONTACT HOUSING
14 575 23 16-02 1 ANTENNA PLATE
15 575 54 33-14 4 SCREW

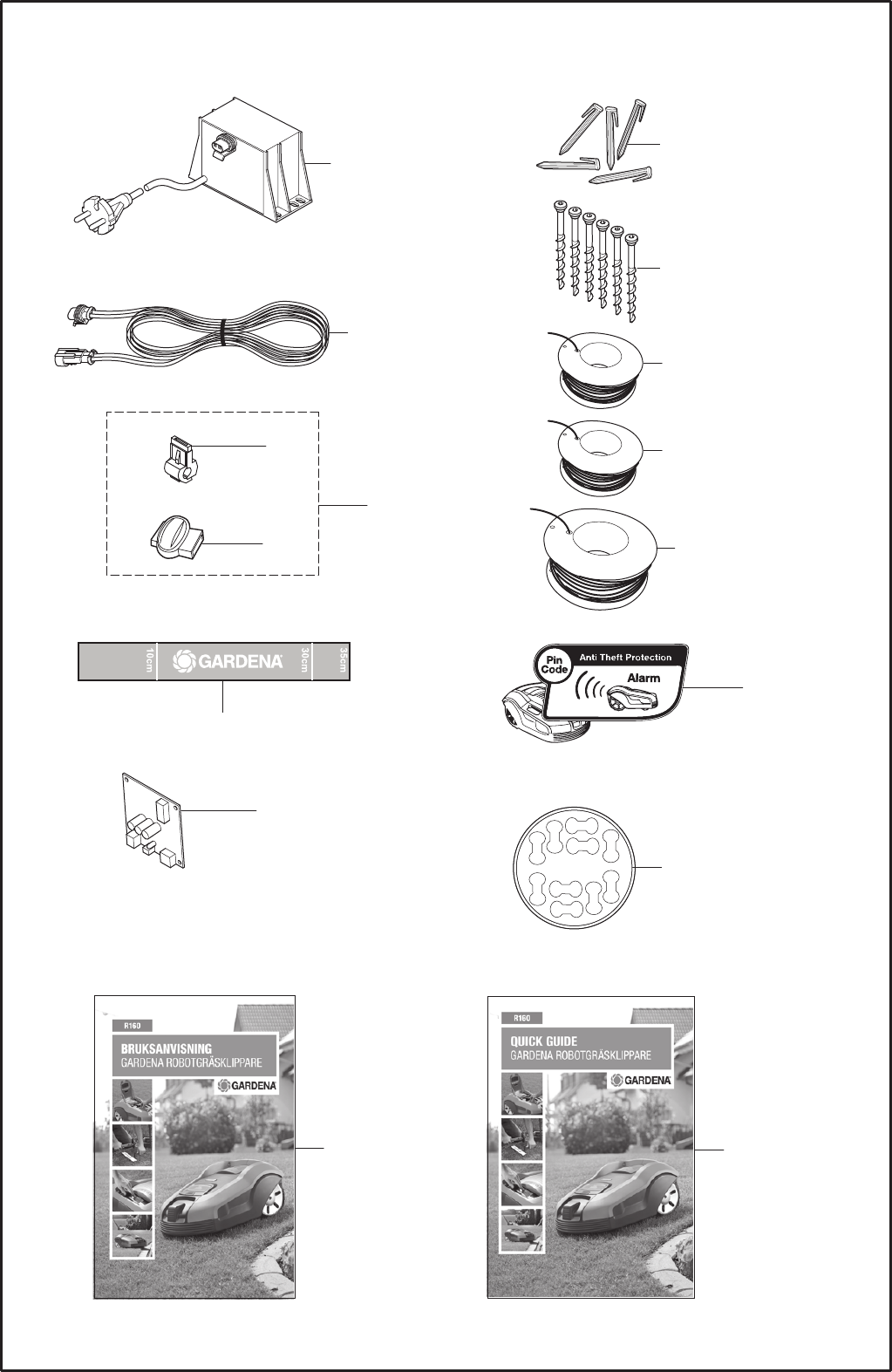

F GARDENA R160
ACCESSORIES
1
3
6
8
10
11
2
4
5
7
9
12
13
14
15 16
Page F GARDENA R160 ACCESSORIES
Position Article Quantity Notes Kit
1 535 12 37-01 1 TRANSFORMER (EU)
1 535 12 37-02 1 TRANSFORMER (UK/IRL)
1 535 12 37-03 1 TRANSFORMER (CH)
1 535 12 37-04 1 TRANSFORMER (US/MX)
1 535 12 37-05 1 TRANSFORMER (AU/NZ)
2 966 80 98-01 1 STAPLES (100pcs), Gardena blister pack
2 Gardena 4090-20 1 STAPLES (100pcs), Gardena blister pack
3 535 12 73-05 1 WIRING (20m)
4 575 23 86-01 1 SCREW KIT, 6pcs
4 575 23 86-02 1 ANCHOR SCREW (3pcs) incl. Allen key
5 966 80 96-01 1 LOOP WIRE (150m), Gardena blister pack
5 Gardena 4088-20 1 LOOP WIRE (150m), Gardena blister pack
6 580 66 20-01 1 LOOP WIRE (250m)
7 522 91 41-01 1 LOOP WIRE (500m, Ø3.4 mm)
8 535 12 90-01 1 LOOP WIRE CONNECTOR
9 501 98 02-01 1 SPLICE (1pcs)
9 501 98 02-03 1 SPLICE KIT (100pcs)
10 966 80 97-01 1 2 CONNECTORS+6 SPLICES, Gardena blister
10 Gardena 4089-20 1 2 CONNECTORS+6 SPLICES, Gardena blister
10 579 04 81-01 1 5 CONNECTORS+5 SPLICES
11 581 06 04-01 1 MEASURING TAPE
12 535 13 16-01 1 LABEL
13 584 82 20-01 1 CS CB Thunder lightning protection
14 586 27 79-01 1 STICKER, Cable markers, 10pcs
15 115 59 11-01 1 OPERATOR'S MANUAL, Swedish
15 115 59 11-06 1 OPERATOR'S MANUAL, Danish
15 115 59 11-11 1 OPERATOR'S MANUAL, Finnish
15 115 59 11-21 1 OPERATOR'S MANUAL, Norwegian
15 115 59 11-31 1 OPERATOR'S MANUAL, French
15 115 59 11-36 1 OPERATOR'S MANUAL, Dutch
16 115 49 68-01 1 QUICK GUIDE, Swedish
16 115 49 68-06 1 QUICK GUIDE, Danish
16 115 49 68-11 1 QUICK GUIDE, Finnish
16 115 49 68-21 1 QUICK GUIDE, Norwegian
16 115 49 68-31 1 QUICK GUIDE, French
16 115 49 68-36 1 QUICK GUIDE, Dutch
9
10
11
4
6
5
13
7 8
2

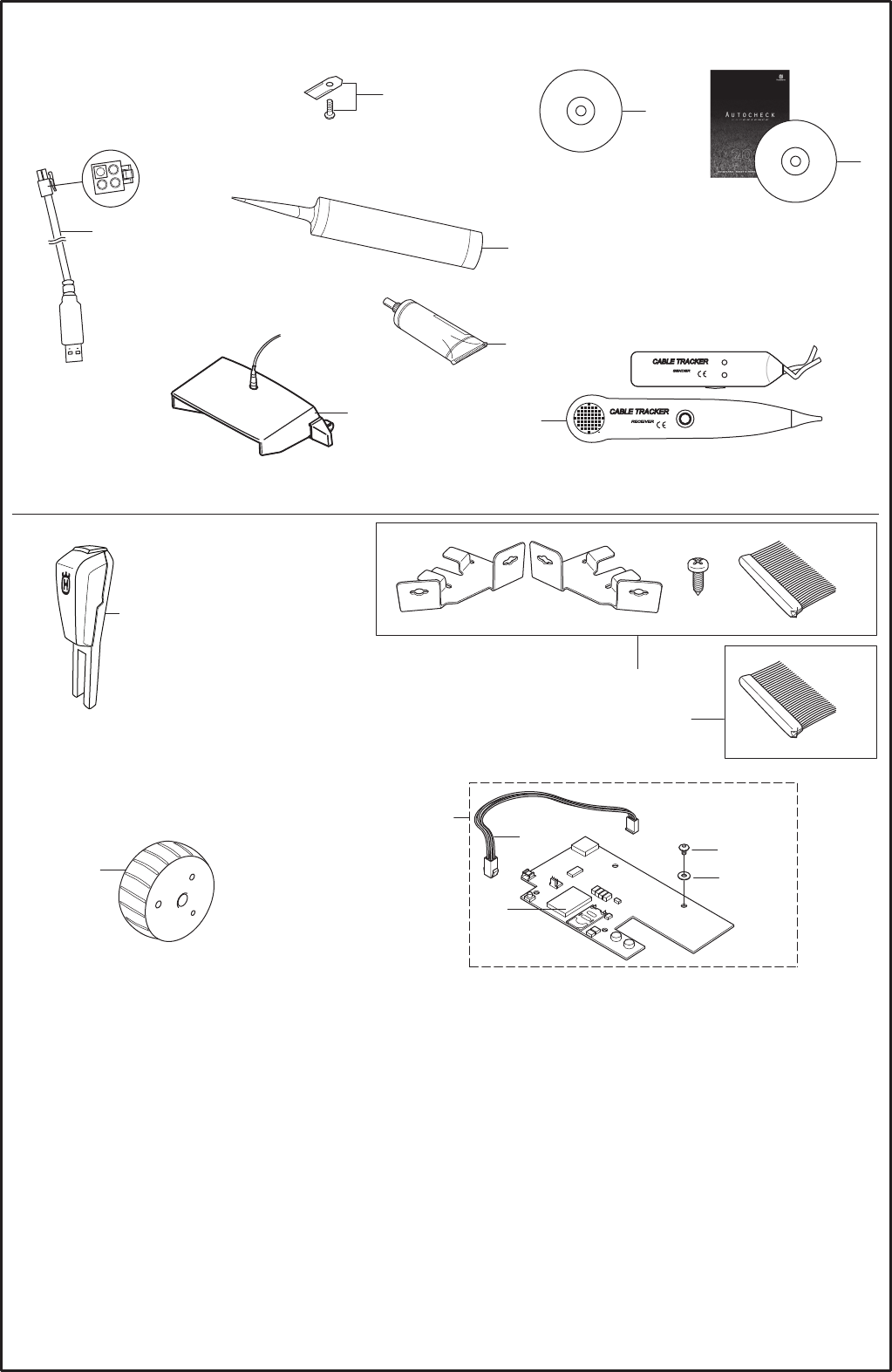

GGARDENA R160
ACCESSORIES
1
4
14
15
16
17
18
Page G GARDENA R160 ACCESSORIES
Position Article Quantity Notes Kit
1 966 80 95-01 1 BLADE, Gardena blister pack, 9pcs
1 Gardena 4087-20 1 BLADE, Gardena blister pack, 9pcs
1 535 13 88-03 1 BLADE, 45pcs
1 505 12 78-02 1 BLADE, 500pcs
2 581 12 56-01 1 INSTALLATION DVD
3 577 85 81-02 1 AUTOCHECK DVD
4 535 13 23-02 1 SERVICE CABLE (USB)
5 578 05 13-02 1 GREASE TUBE, Yellow (300 ml)
5 579 38 19-02 1 GREASE TUBE, Transparent (300 ml)
6 578 05 13-01 1 GREASE TUBE, Yellow (85 ml)
6 579 38 19-01 1 GREASE TUBE, Transparent (85 ml)
7 522 73 65-01 1 ADAPTER PIN code transfer unit
8 577 60 68-01 1 INTERRUPTION DETECTOR
9 522 42 58-01 1 SIGNAL BOOSTER
10 505 13 27-01 1 BRUSH KIT, Incl Brush, 6pcs
11 505 13 28-02 1 BRUSH, 6pcs
13 575 23 17-02 1 HEAVY WHEEL (400G)
14 575 24 24-02 1 GPS UNIT compl GPS module
15 576 21 94-01 1 LOOM 14
16 576 38 10-01 1 Battery GPS module 14
17 522 59 71-01 2 SCREW 14
18 522 59 72-01 2 WASHER 14
