69% of Business Professionals are impressed

when they receive a Bound Presentation*

Document Presentation Solutions

Six Great Ways to Manage, Express & Impress on Paper

It's all about showing your style, keeping organised and impressing those who receive what you have created.

GBC's extensive range of solutions and 50 year industry experience shows you six great ways to Manage,

Express and Impress all your best ideas and creations on paper.

From Scrap Books to Student theses, from Home Telephone Lists to International Consultancy

Proposals, from Quotations to Government Tenders, from Software manuals to Training manuals, the message

remains the same - you only get one chance to make a first impression. Make it.

*GBC Independent Research

The Way we chose to Present

Your Six Great Ways to great Document Presentation perfectly reflects the

logic contained within its pages.

It is expected that it would have to last at least 12 months. It has also been

assumed that some of its detail will be continually referred to so we wanted

it to be able to lie absolutely flat and be viewable on the shelf. We knew no

page needed to be changed.

We chose GBC WireBind. We Presented.

Contents

ThermaBind™Systems

Integral and Secure

CoilBind™Systems

Flexible, Fast and Lightweight

WireBind Systems

Stylish and Robust

ClickBind™Systems

Innovative and Editable

StripBind™Systems

Simplicity, Security and Speed

CombBind®Systems

The Worlds Favourite System

Document Presentation Solutions

CombBind®Systems 4-9

StripBind™Systems (Velobind®& Surebind™)10-15

ClickBind™Systems 16-19

WireBindSystems 20-23

CoilBind™Systems 24-27

ThermaBind™Systems 28-31

MultiFunctional™Systems 32-37

Presentation Covers 38-44

At-a-Glance Appendix Separate Module

Document Presentation Solutions

For whoever, wherever and whenever!

Home,Leisure & Hobby

The twin dynamics of increasing

'home-working' and interest in

leisure activities is driving the

need to replicate at home what

has only traditionally been done

at school or work.

Namely - the need to create,

print and present!

Work& Office

Increasing use of technology; the

development of multi-tasking; the

need for ever-greater commercial

productivity and efficiency is

driving the demand to

communicate more

comprehensively and

professionally… on paper.

Bound paper.

Education & Training

With successful employment as

a key social goal, excellence in

education and on-going adult

re-training are spheres of activity

that largely depend upon the

written and published word.

Printed, tailored and bound

to the individual.

Graphics & Print

Faster commercial cycles; diversity

of demand; the desire to appear

different and fast-changing

technologies are all creating

significant changes in the print

and graphics industry.

Better and faster!

CombBind®The Traditional Wa y

The Wo r l d ’s Favourite System

C o m b B i n d ®has become the clear global Document Presentation 'standard' in all Home, Office,

Educational and Reprographic usage environments across a very broad spectrum of applications.

The ability to bind from just two pages up to 450; a lie-flat capability; easy page-changing ;

the possibility to personalize Binding elements for shelf recognition and an extensive range of

Equipment and Accessory solutions, all contribute to make CombBind®a true 'World Favourite'.

Favourites become favourites for good reasons!

CombBind®

The Wo r l d ’s Favourite System

The success of CombBind®lies in its inherent versatility and simplicity. Based on the punching of 21 equally spaced rectangular

(3.2 x 8mm) holes per 297mm (A4) length and the insertion of one of the 14 capacities of Plastic 'Comb',

the system can adapt to almost any length of paper, and from literally 2 pages to a maximum of 450 (80gsm)*.

The hole dimension and spacing gives security of bind across the full page capability of the system and allows true

'lie-flat' usage - ideal when copying individual pages.

C o m b B i n d ®elements or 'Combs' are designed and produced with extra long 'fingers'; wide backs or 'spines'; using

4 gauges of high quality plastic resin that becomes thicker as the capacity of Comb becomes larger. The resins

also include UV Inhibitors to ensure that Combs do not fade or crack over time.

These key features deliver: easy-page changing; page security in relation to document length/weight and usage

period; customizable 'Combs' for shelf recognition and excellent presentation qualities.

How to?

In all cases - type of equipment, size of book, location, etc - CombBind®is a four step process:

Collation (of pages to be bound) Punching, Insertion and Close.

The Punching processes can be done manually or electrically depending upon model/system choice.

C o m b B i n d ®Hole Spacing Layout

C o m b B i n d ®Comb Capacities

6 - 28mm 32 - 51mm

Round Profile Oval Profile

The Punching Process

Having Collated the Document, the pages

are punched in steps according to the page

punching or binding capacity of the model

The Insertion Process

With the Binding mechanism holding the

'fingers' of the Comb open, the pages are

inserted onto the chosen Comb capacity

The Closing Process

With all pages and respective Covers placed

securely on Comb, the Binding mechanism

is closed to secure the Binding and the

process is complete

*Estimate depending upon how printed and quality of paper

o f f i c e e d u c a t i o n

h o m e o f f i c e

o f f i c e e d u c a t i o n

C o m b B i n d ®C 1 1 0 e

A great-value, great-looking Electric Punch option for low volume

D e s k Top use.

Fixed 21 Ring A4, punching up to 15 pages per 'lift', the C110e is

capable of binding up to 330 sheets (38mm max. Comb size) of 80

gsm capturing 95% of what is needed in conventional office and

educational documentation.

Includes easily removable 'Chip-Tray' with Chip Tray Indicator; Jam

Indicator; adjustable Side Guide and a separate Bind Lever to keep

Combs open whilst finger-tip punching.

Model Max Binding Length Product Code

C o m b B i n d ®C 1 1 0 e A4 7700160 (EU)

7700170 (UK)

7705570 (CH)

ibico ibiMaster 115E A 4 IB277924 (EU)

IB277931 (UK)

IB277955 (CH)

C o m b B i n d ®C 1 1 0 A4 (manual) 7 7 0 4 1 9 0

ibico ibiMaster 115 A4 (manual) I B 2 7 7 9 1 7

SimplyBind C B 1 0 5

A true personal assistant.

Ideal for ‘home’ use or that ‘rapid report’ that needs to be produced

‘on the desk’ immediately and privately.

Light weight and portable, the CB105 offers an easy punch action for

up to 5 sheets in one go and can bind up to 95 sheets using up to a

12mm comb.

Designed to operate with A4 and US letter formats and offers rotary

comb opening for control and convenience.

Model Max Binding Length Product Code

Rexel CB105 A4 2 1 0 0 7 9 4

C o m b B i n d ®C 7 5

Ideal for Small Office Desktop and even home use.

No bigger than a large book and capable of Punching/Binding

A4 Plastic Ring Documents up to approximately 125 sheets

with 10 pages per lift. The full width Punch Handle maintains

equilibrium during the Punching process.

Under body Suction Cups keep the 85 firmly fixed to the

desk to ensure stability.

Model Max Binding Length Product Code

C o m b B i n d ®C 7 5 A4 7 7 0 4 1 8 0

ibico ibiMaster 85 A 4 I B 2 7 7 9 0 0

SimplyBind C B 2 5 6 e

A compact electric comb binder ideal for light office use.

Offers electric punching at the touch of a button and is capable of

punching up to 15 sheets at a time and can bind up to 165 pages

using up to a 19mm comb.

The CB256E can be stored vertically so is an ideal machine to choose

when space is an issue in the office.

Model Max Binding Length Product Code

Rexel CB256e A4 2101107 (EU)

2101106 (UK)

Rexel CB256 A4 (manual) 2 1 0 1 1 0 5

h o m e o f f i c e

CombBind®For SoHo&Personal use

FlowlinePro C B 3 5 6 e

The CB356E electric punching comb binding machine combines

simplicity with strength allowing you to create a perfect document

with ease.

Featuring the unique Flowline Pro binding system which offers paper

separating and auto centring as standard , the CB356E makes the

binding process easy and ensures perfect results every time.

This machine offers an A4 punch capacity of 25 sheets and binding

up to the maximum 51mm comb.

Model Max Binding Length Product Code

Rexel CB356e A 4 2 1 0 1 4 4 3 ( E U )

2101433 (UK)

Rexel CB356 A4 (manual) 2 1 0 1 4 3 2

h o m e o f f i c e

o f f i c e e d u c a t i o n

ibiMaster200

Potentially the best looking fixed 21 Ring A4 Punch Bind System available!!

Punching up to 20 pages per 'lift' the 200 is capable of binding

up to the maximum 450 sheets (51mm) of 80 gsm possible with

a Plastic Binding System.

Includes easily accessible 'Comb Tray'; removable 'Chip-Tr a y ' ,

adjustable Side Guide to adapt to 14 Ring (A5) and 20 Ring (A4)*

and a single full width Punch/Bind Handle for 'effort - free' production.

Model Max Binding Length Product Code

ibico ibiMaster 200 A4 I B 2 7 1 0 2 5

The single full width Handle of the ibiMaster 200

ensures really smooth punching across full paper

w i d t h !

*20 Hole A4 is a preferred ring length when binding large books

CombBind®For DeskTop&GeneralOfficeuse

o f f i c e e d u c a t i o n

ibiMaster250e

Created specifically for typical Office environments where demand is

highly variable, the 250e electronically 'takes the strain' with push-

button simplicity improving productivity and reducing office frustration.

The durable 230 volt 50 Hz motor can punch through up to 20 pages

in under 2 seconds delivering significant productivity gains without the

fatigue of traditional manual systems.

A full range of De-selector pins, an Anti-Jam feature, and Margin

Depth Control makes the 250e ideally suited for those needing to

produce A4; A5, US Quarto and other non-standard sizes quickly.

Model Max Binding Length Product Code

ibico ibiMaster 250e A 4 IB277603 (EU)

IB277702 (UK)

IB277801 (CH)

ibico ibiMaster 250 A4 (manual) I B 2 7 7 5 0 4 The Punch Pin Tray gives convenient access to

the De-selector Punch Pins used for A5 and

other non-standard paper sizes.

F l o w l i n e P r o CB366e

Developed following extensive consumer research, the

CB366E offers everything you could possibly want from a

binding machine thanks to the Flowline Pro binding system.

From dividing the pages to centering the document and

adjusting the settings, it completes each binding stage in an

entirely logical sequence. The CB366E offers a high punch

capacity of 30 sheets at the press of a button and can bind

up to the max 51mm comb size.

Perfect Pages

The “auto edge” feature ensures

there are no ugly paper break

outs at either edge.

Document Separation

The unique “document

separator” divides your pages

into punchable quantities...

A4/A5 Slider

Using automatic

deselection of punch

pins, ensures a perfect

A5 document

h o m e o f f i c e

Model Max Binding Length Product Code

Rexel CB366e A 4 2101444 (EU)

2101435 (UK)

Rexel CB366 A4 (manual) 2 1 0 1 4 3 4

Comb Selection

...while the “SimplyClick”

comb selector adjusts the

settings to suit the comb size.

CombBind®

For improved productivity in the General Office

Simple Operation

The clippings tray simply

slides out.

Automatic Centering of Pages

The “auto centering” feature

positions the pages for perfect

p u n c h i n g . . .

6 8 10 12 14 16 19 22 25 & 28mm

360µ 430µ 570µ 690µ 690µ

6mm 28mm 32mm 51mm

White Black Blue Red Green Clear Dark Blue Grey Brown Yellow

Industry Standard Colours* Industry Non-Standard Colours**

* Industry Standard colours are those usually stocked in A4 21 Ring only - Refer to GBC or GBC Re-Seller for availability across capacities

** Industry Non-Standard colours are those standard plastic resins available but normally produced as part of the GBC Specials Service - Refer to GBC or GBC Re-Seller .

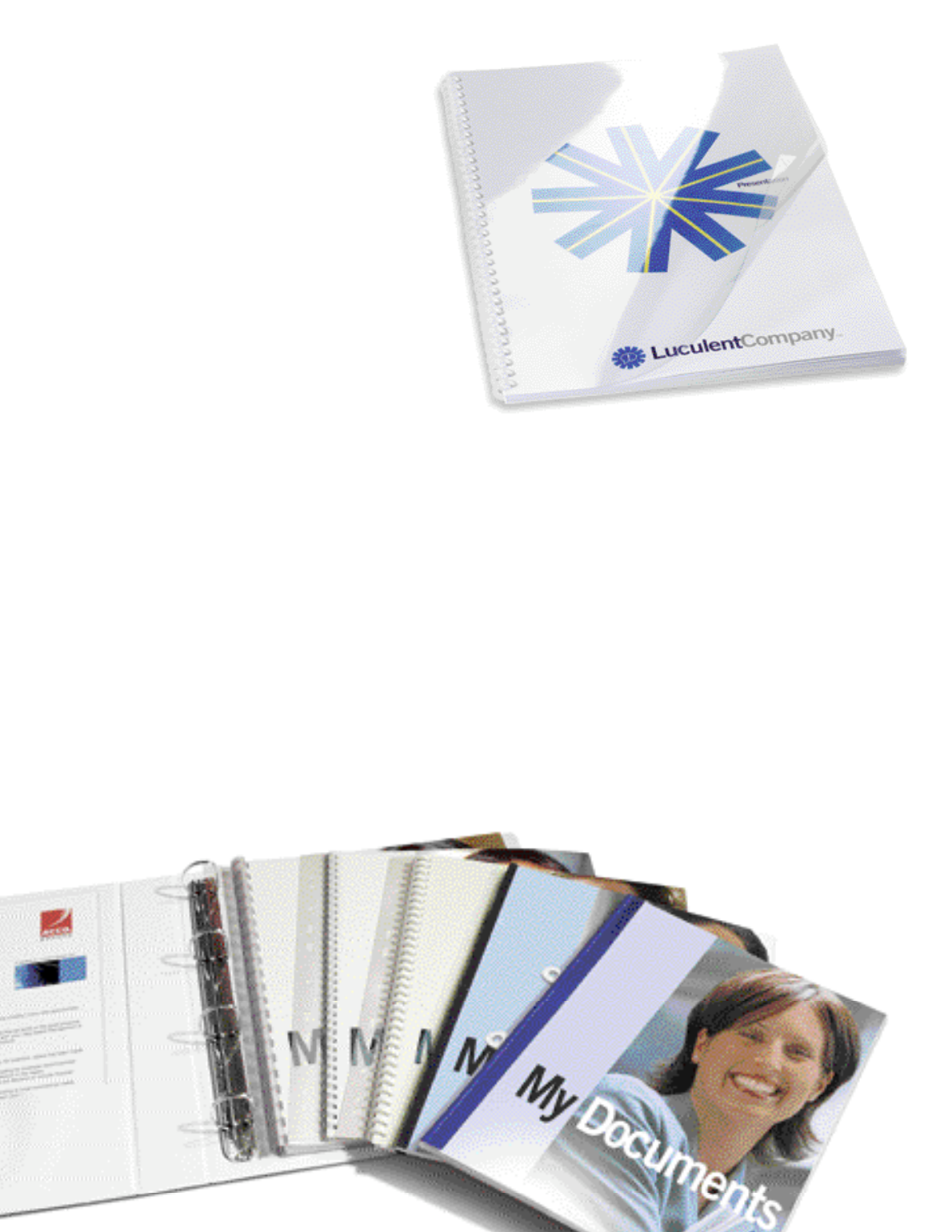

Presentation Report Covers &Add-Ons

The lie-flat facility of CombBind®, its ability to bind up to 450 pages, the broad range of colours and

the ability to customize, makes it ideal for use with practically the entire Presentation Cover Range.

From lightweight 150 micron see-through HiClear™PVC Covers to prestigious heavy-weight Regency™,

or the business-like PolyDesigner, CombBind®looks great and works well for all.

All documents bound with CombBind®, can use the convenient FileStrip™for subsequent archiving

in 2 or 4 hole Ring Binders.

32, 38, 45 & 51mm with three ‘locks’

at Ring positions 2, 11 & 20

Micron (µ) Thickness of Plastic Resin

Paper Size Ring No Paper Length mm (Long Edge)

A4 (Std) 21 Rings 297

A4 (Non Std) 20 Rings 297

A5 14/15 Rings 158

A6 10 Rings 148

US Quarto 19 Rings 280

*Note - normally only A4 (21 Ring) are stocked. To achieve ring lengths for paper sizes less than 297mm, Combs

can be simply cut or produced to special order as part of the GBC Specials Service - minimum quantities will

apply. Refer to GBC or GBC Re-Seller.

Standard Round Capacities Standard Oval Capacities

Industry Standard Lengths*

CombBind®Accessories

The versatility and popularity of the World’s Favourite System has created an extensive range of

accessories designed to ensure maximum presentation potential across the diversity of applications.

Understanding the Steps

Accessories are made up of three elements: Binding 'Combs',Presentation Covers and Add-Ons.

Selecting your Binding 'Comb'

The Binding 'Combs' that are used with the CombBind®system are available in 14 capacities;

6 standard colours; 4 non-standard colours and 5 industry 'standard' lengths. Choice depends

upon page numbers; paper size/weight; colour co-ordination; customization requirements and

equipment compatibility.

StripBind™The Secure Wa y

Simplicity, Security and Speed

GBC StripBind™Systems fall into two distinct categories that address two distinct types of user - SoHo/Office

Personal and Office Professionals - both of whom understand and appreciate the sleek, professional and unique

appeal of the GBC StripBind™finish.

In its simplicity lies its speed and in its Office Professional form, its secure page nature makes it indispensable

in contractual, legal and personnel documentation.

When page security matters, GBC Strip Binding solves.

*Estimate depending upon how printed and quality of paper

How to?

In all cases - type of equipment, size of book, location, etc - GBC StripBind™is a four step process:

Collation (of pages to be bound) Punching, Insertion and Bind.

The Punching processes can be done manually or electrically depending upon model/system choice**

The Punching Process

Having Collated the Document, the pages

are punched in steps according to the page

punching capacity of the model.

The Insertion Process

Strips - either VeloBind®or SureBind™

- are then simply pushed through the

entire texts and the appropriate Covers.

The Closing Process

With pins pushed through all pages and respective

Covers, the Strips are either folded over (Velobind®)

or cut and welded by the unit (Surebind™).

StripBind™

S i m p l i c i t y, Security & Speed

The two categories of GBC StripBind™are represented by two world-renowned brands - VeloBind®and Surebind™.

The Velobind®re-closeable' 4-pin format allows typical small desktop or personal usage to bind and re-open

with just one simple A4 plastic strip. The strategically equally spaced holes ensure that up to 200* pages are

securely held along the full length and by simply folding over the pins they adjust to the number of pages and

'lock in' for security. Page changing is simple - unlock, add and re-close.

In contrast, the Surebind™'secure' 10 pin format is the Office/Professional solution when fully secure and

tamper-proof documents are specified. The 10 pins are pushed through texts of up to 750 pages* and

welded accordingly. Page changing is only possible if the weld is broken and the text fully rebound.

The Surebind™format additionally permits previously CombBind®bound documents (21 hole 9/16”) to be re-bound

securely with the Surebind™strip - a great feature when moving from draft to final versions that should not be altered.

VeloBind®Hole spacing layout

SureBind™Hole spacing layout

Four circular holes of 3mm diameter,

3mm from paper edge, spaced centrally

along a 297mm length at 76, 127 and

76mm spacing. See Schematic

Ten circular holes of 3mm diameter, 3mm

from paper edge, spaced along a 297mm

length at 24, 31 and then 28mm spacing.

See Schematic

45mm Pin Length

A4 (297mm) length

76mm spacing

*Colours are available ex Stock - A4 only

**Industry Non-Standard colours are those that use standard

industry plastic resins but are not normally stocked.

Refer to GBC Re-Seller for local availability.

Industry Standard Colours*

White Black Blue Red

Industry Non-Standard Colours**

Green

76mm spacing

127mm spacing

h o m e e d u c a t i o n

VeloBind®Accessories

Simplicity is the key to VeloBind®success. Just three simple

colours; one length (A4); and one capacity - it's that easy!

Colour co-ordinate or contrast VeloBind®Strips with GBC Presentation

Report Covers.Owing to the firm hold of the VeloBind®style, lighter

weight HiClear™PVC , LeatherGrain™, LinenWeave™or colour co-ordinated

Regency™are ideal to convey the importance and relevance of the contents.

D e s k t o p Velobinder

Punch up to 20 pages of 80 gsm, push …. and 'close'.

A single strip capacity of 45mm permits binding of documents

up to 200 pages of 80 gsm.

By re-opening the pins, pages can easily be changed or

substituted simply unlock, add and re-close to represent

the best of one’s work.

Model Max Binding Length Product Code

Desktop Ve l o b i n d e r A 4 9 7 0 7 1 2 1

Press to Punch Push through holes in paper …Fold Pins to close or unfold to re-open

VeloBind®

Perfectly suited for homes, students, SoHo or personal office usage.

Produces stylish, distinctive A4 documents on the desktop….in seconds!

o f f i c e e d u c a t i o n

SureBind™System 2 also features

Electric Binding - just press and watch.

SureBind™System 1

The Office entry-point solution for the 'secure' Surebind™f o r m a t .

Manual Punch and Electric Bind suitable for A4, A5, Foolscap

and US Quarto documents up to 250 pages (80 gsm).

Using just one capacity of Strip (25mm), the System 1 will manually

punch up to 22 pages per lift and bind in under 10 seconds by simply

lowering the handle and trimming/welding the pins to the 'partner strip'

in one simple, swift action.

The incorporation of Indicator Lights and Punch/Bind Guides ensure

simplicity of use for any level of user giving perfect results every time.

The System 1 also prepares documents for subsequent GBC

HardCase™ Binding - the really prestigious finish for the really

prestigious document.

Model Max Binding Length Product Code

S u r e b i n d ™System 1 3 3 0 m m 9707050

SureBind™System 2

A Fully Electric Punch and Bind System for the busy Office

Push button 22 sheet (80 gsm) punching and a full 500

page electric bind capacity for A4, A5, Foolscap and US Quarto

paper sizes make the System 2 the ideal solution for most busy

offices with many users and with a broad spectrum of

documentation requirements.

Key Features include Jam-Stopper that retracts the punch pins if unit

is overloaded and Tray-Full indicators that cut out usage when Chip

Tray full - simple ideas to minimise damage and inconvenience when

the rush is on!

In common with other SureBind™options, the System 2 also

prepares documents for subsequent GBC HardCase™Binding -

for when it really must count.

Model Max Binding Length Product Code

S u r e b i n d ™System 2 3 3 0 m m 9707051 ( E U )

9707051CH (CH)

SureBind™

The secure solution for contractual, legal, consultative and personnel documentation

Edge Guides ensure punching and binding are

perfectly registered to the paper size chosen.

o f f i c e e d u c a t i o n r e p r o

Model Max Binding Length Product Code

S u r e b i n d ™System 3 3 3 0 m m 9 7 0 7 1 0 1

Independent Punching Station

Using Button, Table-Top

Sensor or Foot Pedal.

Binding Paper Edge Guide

Positions pages perfectly for Binding.

Independent Electric

Binding Station

Binding can be actioned

as one punches.

Control Panel

Shows users where they

are in the Binding process.

Electric Push Button Punching

Electric Push Button

Punching Increases

productivity & reduces fatigue.

DeBind Function

Prepares a bound book

to be disassembled.

Foot Pedal

Leaves both hands free

during Punching process.

SureBind™

High Productivity Options for OfficePro and Reprographic productivity

SureBind™System 3 P r o

When document numbers surge page numbers increase, users multiply and time to produce gets tighter -

the answer becomes System 3Pro.

Punching up to 26 sheets of 80gsm per 'lift' via a button, foot pedal (for hands free) or a Table Top sensor -

for real 'speed punching'. Binds all standard Surebind™paper size formats - A4, A5, Foolscap and US Quarto -

up to an incredible 750 pages of 80gsm using one of the three standard Surebind™Strip capacities.

The largest capacity Office Binding Style available.

A unique dual-blade binding technology increases bind speed and permits simultaneous punching.

Fully automatic De-Binder easily opens books for page changing or page alteration.

System 3 also prepares documents for subsequent HardCase™Binding - its enough to take a strip bound book

using the special 'fly sheets' as front and back cover and carefully insert into one of the HardCase™Cover capacities.

Chip Tr a y

Keeps all paper waste clean &

tidy and away from moving parts.

Punching Paper Edge Guide

Positions pages perfectly for

Punching - includes sensor.

Presentation Report Covers & Add-Ons

A presentation style as professional as StripBind™must have the very best Presentation Cover.

The traditional charm, colour and grain of the Regency™range have been designed to match

perfectly with the various colours of strips and are flexible, durable and highly presentable.

When see-through visibility and title page protection is needed, the range of lighter weight

HiClear™PVC or PolyClearView are constant favourites. Cover weights above 300 gsm are

not recommended.

Documents bound with SureBind™can also be presented within prestigious GBC HardCase™

Covers to really make that impression - see Presentation Report Covers.

All documents bound with SureBind™can use the convenient FileStrip™for subsequent

archiving in 2 or 4 hole Ring Binders.

Paper Size Pin No’sPaper Length mm (Long Edge)

A4 (Std) 10 Pins 297

A5 7 Pins 158

US Quarto 10 Pins 280

FoolScap 12 Pins 330

*In most cases only A4 Strips are stocked. Refer to GBC or GBC Re-Seller for local availability of other lengths

Strips can be made to special length as part of the GBC Custom Service - restrictions will apply.

Industry Standard Lengths*

SureBind™Accessories

The professionalism and security of the Surebind™system derives from its unique design and method of binding.

Understanding the Steps

Accessories are made up of three elements: Strips, Presentation Covers and Add-Ons.

Selecting your Strip

Strips are available in lengths that match with the long edge of the most popular standard

international paper sizes and three capacities (pin length) that determine the maximum

number of pages able to be bound.

* Industry standard colours are generally not available in all

Strip capacities. Refer to GBC Re-Seller for local availability.

Capacity Actual Pin Length* Paper Capacity** (80gsm)

25mm (1“) 30mm Max 250

50mm (2“) 56mm Max 500

75mm (3“) 82mm Max 750

* Pin Length of Pin #1 (Registration Pin) is always 7mm longer

** Pages numbers are estimates only and depend upon covers used and age/quality of paper and how printed

Industry Standard Strip Capacities

Industry Standard Colours*

White Black Blue Red Grey Green Burgundy

*Note - For registration

purposes spacing

between hole #1

& hole #2 is 23mm

297mm

31mm (11/4")

spacing*

25mm (1"), 50mm (2")

& 75mm (3") Capacities

ClickBind™The Modern Wa y

Innovative and Editable

C l i c k B i n d ™is innovative and modern. It is innovative due to its patented click system which offers

back-to-back 360° page rotation with polypropylene robustness, environmental friendliness and

really easy page-changing.

The three simple 'Click' capacities click all the way to approximately 145 pages, giving ClickBind™

the ability to cater for nearly 80% of all traditional Home/Office/Education produced documentation.

The advantages of the ClickBind™System - Punch & Click - are absolutely ideal for the SoHo,

occasional Office, and mobile Office user.

Something a little different - ClickBind™

8, 12 & 16mm

ClickBind™

Innovative and Editable

The appeal of C l i c k B i n d™is that it uses exactly the same hole pitch as one of the world's most popular commercial

Binding Systems - 34 holes per A4 for WireBind (3 :1) - meaning that it can be used with both specifically designed

Click™units or any existing 34 hole per A4 Wirebind Paper Punch.

The 34 holes are equally spaced along the length of A4 and offer extraordinary page strength ensuring that even with

constant page rotation, sheets will not detach and detract from the value of the document.

This inherent strength is then multiplied by the use of durable, environmentally-friendly polypropylene Clicks™further

enhanced by each individual ring itself being 'clickable'. Even if one Click™becomes undone, another 33 ensure the

integrity of the entire document. Page changing involves the simple use of a Zipper™that literally unzips and zips up

the Click™when pages are added, amended or substituted.

ClickBind™Hole spacing layout*

for Industry Standard 34 hole

3:1 WireBind (round or square)

per A4 297mm length'

How to?

In all cases - type of equipment, size of book, location, etc - ClickBind™is a four step process:

Collation (of pages to be bound) Punching, Insertion and 'Zipping'.

The Closing Process

With all pages and respective Covers placed

securely on the Click™, the Zipper™is then

pulled along the length of the Click™to bind

and the process is complete

ClickBind™Click Capacities

The Punching Process

Having collated the Document, the pages are

punched in steps according to the punching

capacity of the model.

*Because ClickBind™is also possible with certain WireBind Punching units also refer to WireBind and MultiFunctional sections.

The Insertion Process

The punched pages are then inserted

onto the opened fingers of the Click™

and pushed together ready for Zipping.

*Image shows 5.5mm Hole diameter - the ideal for ClickBind™- and the use of Zipper™to add/amend pages.

Round Profile

o f f i c e e d u c a t i o n

h o m e o f f i c e

ClickMan punches by

simply sliding the handle

along the paper length

with a downward pressure

ClickMan

A lightweight, portable A4 6 sheet (80 gsm) easy-to-use

manual punch that produces the 34 round hole (5.5mm)

ClickBind™punch pattern.

Simply insert paper, slide to punch…and Click!

Ideal on the desk and even at Home!

Model Max Binding Length Product Code

C l i c k M a n A4 C A 6 1 0 0 0 0

ClickBind™

A big difference with a little 'Click' - at home, at school and in the office

Binding Station

Keeps Click firm when

loading punched papers

Punching Station

Horizontal Design keeps dust

& other abrasive materials

away from mechanics

Click Storage Tr a y

Keeps Clicks at hand

for convenience.

Full width Punch Handle

Evenly spreads load

over full page length

extending longevity.

Chip Tray (Under Body)

Retains punched paper

safely away from punching

mechanism for later

disposal

Adjustable Paper Guide

Positions paper for

perfectly aligned holes ClickMaster

Ideal for SoHo or small departmental usage.

A modern, robust, desk top beautifully designed machine.

The full width handle evenly punches up to 16 sheets of 80gsm

in the 3:1 (three holes to 1 inch) 5.5 mm hole diameter pitch

preparing the document for manual insertion and subsequent

'Zipping'. Includes an adjustable Paper Guide and Click Storage Tray.

Model Max Binding Length Product Code

C l i c k M a s t e r A4 C A 6 2 0 0 0 0

8mm 16mm

ClickBind™Accessories

The simplicity and personal nature of ClickBind™dictates an accessory selection that is focused,

clear and easily understandable.

Understanding the Steps

Accessories are made up of three elements: Binding 'Clicks', Presentation Covers and Add-On’s.

Selecting your Binding 'Click'

The Binding 'Clicks' that are used with the ClickBind™system are available in 3 capacities

and 4 standard colours - all in the universal A4 industry 'standard' length- and all made

from high grade re-cycleable polypropylene.

Choice depends upon page numbers, paper weight, and colour co-ordination.

Owing to the simplicity of the binding process, there are no restrictions on

the Binding capacity by the choice of equipment.

Paper Size Ring No Paper Length mm (Long Edge)

A4 (Std) 34 Rings 297

A5 24 Rings 158

US Quarto 33 Rings 280

*To achieve A5 and US Quarto, the A4 length needs to be trimmed accordingly

Industry Standard Lengths*

Standard Round Capacities

Presentation Report Covers & Add-Ons

The modern appeal, durability, lie-flat facility and use of environmentally friendly

polypropylene, makes it ideal for use with the entire polypropylene PolyCover™

Presentation Cover Range.

From medium weight 300 micron PolyOpaque to the tactile heavy-weight PolyTechno

or the business-like PolyDesigner, ClickBind™looks superb and works well. All documents

bound with ClickBind™can use the convenient FileStrip for subsequent archiving in 2 or 4

hole Ring Binders.

Industry Standard Colours

White Black Blue Frost

WireBind The Professional Wa y

Stylish and Robust

WireBind has taken all the benefits seen by the Professional Bindery and adapted them to the office market.

The exceptional durability; the security of page; the beauty of 360° degree page revolution and the stylish professional 'look' are

all available for an entirely new set of users and office applications that need to produce documents of up to approximately

125 pages of 80 gsm.

The blossoming and developing need for the written word to be used as an on-going reference continues to drive the

applications for which WireBind is so popular.

Practical appeal remains popular!

WireBind

Stylish and Robust

The success of WireBind and the reason it has become so popular in mainstream offices, is its 360º degree back-to-back

facility in addition to the robustness and professional 'bindery look' of the metal wire used in the binding process.

Robustness of finish is enhanced by two key factors: the use of 34 square holes along the full paper length of an A4 sheet

(3 holes per 25.4mm) and the 'double-loop' design of the wire element itself. The 34 square holes maintain rigidity and

enable the free rotation of the sheets through the holes whilst the 'double-loop' construction minimizes flexing and bending.

When bound, pages can only be replaced or amended by removal of the Wire itself. Ideal when page security or

confidentiality is an integral requirement of the document.

All Wires are pre-cut to standard paper sizes with turned ends ensuring no loss of sheet through continuous rotation and use.

WireBind Hole spacing layout

WireBind Element Capacities (3:1)

6, 8, 9.5, 11, 12.5, 14 & 16mm

Round

Profile

How to?

In all cases - type of equipment, size of book, location, etc - WireBind is a four step process:

Collation (of pages to be bound) Punching, Insertion and Binding.

The Punching processes can be done manually or electrically depending upon model/system choice*

The Punching Process

Having collated the document, the pages

are punched in steps according to the page

punching or binding capacity of the model.

The Insertion Process

The punched pages are then inserted onto

the opened fingers of the wire to prepare

for wire closing.

The Binding Process

With all pages and respective covers placed

securely, the wire is then compressed to the

correct distance and the process is complete.

*Estimate depending upon how printed and quality of paper

This product is not in the catalogue any more, can you please tell me what product

you wish to replace this with, and where to source the images.

F l o w l i n e P r o W B 6 0 6

The WB606 office wire binding machine combines

simplicity with strength to create a professional bound

document with ease.

Featuring the unique Flowline Pro binding system which

offers paper separating and auto centring as standard , the

WB606 makes the binding process easy and ensures

perfect results every time.

This machine offers an A4 punch capacity of 15 sheets

and binding up to the maximum 14mm wire.

Model Max Binding Length Product Code

Rexel WB606 A 4 2101440

o f f i c e

F l o w l i n e P r o W B 7 0 6 e

Developed following extensive consumer research, the WB706E offers

everything you could possibly want from a wire binding machine

thanks to the Flowline Pro binding system.

From dividing the pages to centering the document and adjusting the

settings, it completes each binding stage in an entirely logical

sequence. It also offers consistent wire closure and a foot pedal for

optional hands free punching.

TheWB706E offers a high punch capacity of 25 sheets and can bind

up to the max 14mm wire size.

Model Max Binding Length Product Code

Rexel WB706e A 4 2101446 (EU)

2101439 (UK)

Rexel WB656 A4 (manual) 2 1 0 1 4 3 8

Wire Selection

The "SimplyClick" wire selector adjusts the

settings to suit the wire size.

Simple Operation

The clippings tray simply

slides out.

Automatic Centering of Pages

The “auto centering” feature positions the

pages for perfect punching.

h o m e o f f i c e

HiTech Wi r e

The ideal DeskTop unit for low-volume users.

Foldable “legs” and punching handle plus an aluminium

construction offer total portability and surprising durability

in a small desk top unit of just 3.5 kgs.

Designed for A4, the Hi Tech will punch up to 12 sheets

of 80 gsm and bind documents up to 125 pages

using the entire 6mm to 14mm Wire 34 hole range.

Model Max Binding Length Product Code

ibico HiTech Wi r e A 4 I B 2 7 5 9 8 2

h o m e o f f i c e e d u c a t i o n

WireBind For DeskTop&GeneralOfficeuse

6mm 14mm

Presentation Report Covers &Add-Ons

The 360º page-turning facility and the inherent robustness and the strength of

WireBind, makes it ideal for use with practically the entire Presentation Cover

Range but even better suited to the durable PolyCover™range when protection

and longevity are specifically desirable.

All documents bound with WireBind can use the convenient FileStrip™

for subsequent archiving in 2 or 4 hole Ring Binders.

*Industry Special Colours may be standard in your location -

Refer to GBC or GBC Re-seller

White Black Blue Silver

Industry Special Colours*

Red Green Grey Bronze

Paper Size Ring No Paper Length mm (Long Edge)

A3 55 Rings 420

A4 (Std) 34 Rings 297

A5 26 Rings 158

US Quarto 33 Rings 280

* Wires can be cut to special length as part of GBC customised service

Industry Standard Lengths

Standard Round Capacities

Industry Standard Colours*

6, 8, 9.5, 11, 12.5 & 14mm

Note - Larger capacities are available

as part of the Professional range

WireBindAccessories

The practicality of Wirebind is so all-encompassing that a broad range of accessories have been developed

to ensure that the diverse ranges of reference applications are catered for.

Understanding the Steps

Accessories are made up of three elements: Binding 'Wires', Presentation Covers and Add-Ons.

Selecting your Binding 'Wire'

The Binding 'Wires' that are used with the WireBind 34 hole system are available in 6 office

capacities; 5 standard colours; 3 non-standard colours and four industry 'standard' lengths.

Choice depends upon page numbers, paper size, paper weight, colour co-ordination,

and equipment compatibility

CoilBind™The Flexible Wa y

Flexible and Light-weight

GBC CoilBind™combines the convenience of 360º page rotation with speed-to-bind, flexibility and

light-weight - qualities recognised by the professional Bindery that have now passed into daily office use.

Certain applications demand flexibility - to bend, to file, to post, to handle, to archive - and they still need

to look good, work well and endure.

The increasing deluge of documentation exiting from ever-increasing numbers of printers for even more

applications continues to ensure that CoilBind™will be demanded.

Flexibility is a resource in demand

How to?

In all cases - type of equipment, size of book, location, etc - CoilBind™is a four step process:

Collation (of pages to be bound) Punching, Insertion and Crimping.

The Punching processes can be done manually or electrically depending upon model/system choice.

The Punching Process

Having Collated the Document, the pages are

punched in steps according to the page punching

or binding capacity of the model.

The Insertion Process

The Coil is then 'threaded' onto the punched

pages and Covers and then positioned centrally

on page length for the 'crimping' process.

CoilBind™Element Capacities (4:1)

CoilBind™Hole spacing layout

6, 8, 10, 12, 14, 16 & 18mm

Round

Profile

*Estimate depending upon how printed and quality of paper

The Closing Process

With all pages and respective Covers

threaded securely, the ColorCoil™, is then

'crimped 'to turn over the ends of the

filament and the process is complete.

CoilBind™

Flexible and Light-We i g h t .

CoilBind™uses a total of 47 small round holes for a single A4 sheet through which a thin high quality plastic

filament with an excellent 'memory' is wound - this is the secret to its full-page rotation capabilities and its

excellent weight-to-strength ratio.

The Plastic filament ColorCoil™is then 'crimped' at both ends leaving a secure but flexible finish that will not

fade or break. Page changing and/or alteration is possible only by cutting one end of the Coil and unwinding.

The amended document must then be re-bound and re-crimped to ensure confidentiality and page security.

With Coils available in 7 capacities, CoilBind™can produce documents up to 145* pages of 80 gsm and by

virtue of the ColorCoil™qualities can easily be adapted to paper sizes less than A4 by simple trimming to suit.

o f f i c e e d u c a t i o n

C100

A simple-to-use entry point model ideal for SoHo

environments with low usage.

A robust A4 12 page (80gsm) punch with manual

'coil-and-crimp' insertion to create books up to 145

pages (18mm capacity).

Includes simple Size Guide for correct ColorCoil™

capacity selection and under-body Chip Tr a y.

Model Max Binding Length Product Code

C 1 0 0 A 4 7 7 0 5 4 1 0

Coil Capacity Selector

Defines correct Coil capacity

for sheet numbers.

Feeding Roller

Speeds Coil Insertion into Paper.

Punch Handle

Extra length gives super

smooth care free punching.

Crimper Storage Tray

A convenient compartment to

store the ColorCoil ™Crimper.

Vertical Punch Throat

Design keeps papers more

accurately aligned during

punching process.

C200

A robust Manual A4 Punch and Electric Coil

Feeder that is ideal for the general office to speed productivity.

Punching up to 20 sheets (80 gsm) per 'lift' using a vertical

Punch throat for perfect page alignment. Feeding/Binding is

made easy with an electric ColorCoil™Feeder that negates the

manual Coil insertion process.

Coil Size Guide and Paper Alignment Guide are included as

s t a n d a r d to ensure correct lateral page alignment and Coil choice.

Manual Crimping to create books up to 145 pages (18mm

capacity). Crimpers included.

Model Max Binding Length Product Code

C 2 0 0 A 4 7705520 (EU)

7705510 (UK)

Coi l Bind™For DeskTop&GeneralOfficeuse

Paper Side Guide

For perfect alignment

along Paper length.

Chip Tray

Easily accessible Chip Tray

that keeps all paper chips

cleanly stored.

6mm 18mm

The superb flexibility and 360º page turning facility of CoilBind™makes it ideal for

use with practically the entire Presentation Cover Range but even better suited to

the PolyCover range when protection and longevity are specifically desirable.

The combination of the flexibility of CoilBind™with the durability afforded by

the PolyCover range is an ideal mix.

CoilBind™Accessories

The flexibility of CoilBind™is matched by the large array of consumables and accessories

that adapt to the many applications for which CoilBind™is used in offices the world over.

Understanding the Steps

Accessories are made up of three elements: Binding 'Coils', Presentation Covers and Add-Ons.

Selecting your Binding 'Coil'

The Binding 'Coils' that are used with the CoilBind™system are available in 7 capacities;

6 standard colours; 5 non-standard colours and four industry 'standard' lengths.

Choice depends upon page numbers, paper size, paper weight and colour co-ordination.

Paper Size Ring No Paper Length mm (Long Edge)

A3 67 Rings 420

A4 (Std) 47 Rings 297

A5 33 Rings 158

US Quarto 44 Rings 280

*Coils can be cut to special length as part of GBC customised service or simply trimmed with scissors to suit.

Normally only A4 is stocked.

Industry Standard Lengths (4:1)

Standard Round Capacities

Presentation Report Covers &Add-Ons

*Industry Special Colours may be standard in your location -

Refer to GBC Re-Seller

Industry Standard Colours

White Black R o y a l B l u e Navy Blue Red Clear

Industry Special Colours*

Green Yellow B u r g u n d y Brown Gold

6, 8, 10, 12, 14, 16 & 18mm

Note - Larger capacities are available

as part of the Professional range.

ThermaBind™The Published Wa y

Integral and Secure.

Thermal Binding Systems turn loose pages into 'Perfect Bound' Paperbook 'look' books in seconds.

By using unique ThermaBind™Covers where the adhesive is already inserted into a pre-formed

Cover, one can conveniently arrive at what is truly a professional, secure, stylish and 'published-feel'.

The square-backed finish is ideal to post and archive and the inherent security of page makes

the system ideal for legal, contractual and personnel documentation.

Easy to use, easy to understand and great results - that's ThermaBind™

The Cooling Process

After the Binding process 'completion

signal', the bound document needs to

be cooled to ensure maximum bond

strength before use - approx 30 seconds

depending upon ambient temperature.

1.5, 2, 3, 4, 6, 8, 9, 10, 12, 15,

20, 25, 30, 35, 40, 45 & 50mm

ThermaBind™Cover Spine Capacities

ThermaBind™Cover

Adhesive Extrusion Profile

How to?

In all cases - type of equipment, size of book, location, etc - ThermaBind™is a three step process:

Collation (of pages to be bound) Binding, and Cooling.

The Binding and Cooling processes can be done in single or multiple documents depending upon model choice.

The Collation Process

All pages have to be carefully squared

up prior to insertion into the correct

capacity of ThermaBind™Cover to

ensure best results.

The Binding Process

The collated pages and the Cover are

then placed into the unit which must

be at 'Ready' temperature status.

The duration of bind depends upon

model choice.

ThermaBind™

Integral and Secure.

ThermaBind™is modern simply because one can arrive at what is that published 'book-look' in no more than about one

minute - and easily. It's a perfect example of a complicated professional Bindery process made simple for the office user.

The secret lies in the pre-formed integral ThermaBind™Cover in which is already extruded a high contact adhesive that

when used in the appropriate model, penetrates firmly into the fibres of the paper to form a totally secure 'spine' exactly

like a paperback book. The spine is integrated into the Cover itself to form one unique piece making the process

simple, clean and quick.

The profile of the adhesive extrusion is even designed in a 'U' that ensures the first and last pages are always

in contact with the molten adhesive giving total page security from the first to the last page.

The operating temperatures of the ThermaBind™system are carefully controlled to ensure no liquefaction of the

adhesive and no scalding in cases where the binding process is 'forgotten' in situ.

o f f i c e e d u c a t i o n

Thermotronic 400

In Professional Offices where the volume of books is high or the speed

with which they need to be produced is particularly short then the

Thermotronic 400 with its 500 sheet page capacity is the correct

r e s p o n s e .

The independent Cooling Racks and Automatic Binding Cycle both

help to speed the process to maximize office productivity.

Model Max Binding Length Product Code

ibico Thermotronic 400 5 0 0 m m IB304019 (EU)

IB304026 (UK)

IB304033 (CH)

Ready Light & Audible Signal

Advises when ready for binding and

when binding is finished

Cooling Rack

Bound documents can be

left to cool avoiding

confusion with work-in-

p r o g r e s s

A Digital Control Panel

Automatically starts

the binding process as

the Cover is inserted into

the Thermotronic 400

Extra Wide Binding Throat

Permits 50 mm capacity covers

or simultaneous multiple binding

of lesser capacities

2 6 0

With a full 25mm Binding Capacity, the 260 can produce a single

full 250 page A4 document (25 mm cover capacity) or multiple

bind many smaller presentations simultaneously.

Lightweight, very simple-to-use, with a 30 second bind cycle and built-

in Cooling Rack, the 260 is ideal in any Desk Top environment for the

production of fast, short-run, good-looking presentations, etc

Model Max Binding Length Product Code

ibico 260 A4 25mm IB277306 (EU)

IB277405 (UK)

T 4 0

An executive machine perfect for medium to high usage.

The T40 has a large capacity machine with audio and visual ‘cycle

complete’ signals and is capable of binding up to 40mm (400 sheets)

in a single cycle.

The document support rail also aids multiple binding.

Model Max Binding Length Product Code

Rexel T40 A4 40mm 0 0 0 0 0 0 0 ( E U )

2100837 (UK)

3 1 0 E

A perfect machine for the general office – for the A4 user needing a

full 200 sheet capacity.

A 30-second bind cycle plus visual and acoustic signals offer

productivity of up to 240 presentations per hour.

Model Max Binding Length Product Code

ibico 310E A4 20mm IB900013 (EU)

IB303180 (UK)

IB303197 (CH)

ThermaBind™For S o H o , DeskTop&GeneralOfficeuse

ThermaBind™Accessories

That great published 'book-look' is only possible by using one of a variety of the specifically designed ThermaBind™Covers.

Understanding the Steps

Accessories are made up of just two simple elements: ThermaBind™Covers and Add-Ons.

Selecting your Binding 'ThermaBind' Cover

The correct choice of ThermaBind™Cover determines not only the integrity of the bind itself but also the final 'look'.

A total of 17 cover spine capacities ensure that whatever you produce is possible to present with ThermaBind™

depending upon your equipment and cover choice. Your choice of capacity must match with your page numbers (See Chart)

Step two is to define the finish. All ThermaBind™Covers have convenient 150 µ transparent clear front covers ideal for

see-through titles. One can then choose from three types of White Back Covers (Tr a d i t i o n a l ™, Silk, or Hi-Gloss™) or 4 colours

of distinctive LinenWe a v e ™ or 4 of LeatherGrain™emboss depending upon the choice of 'feel', 'look' and durability one needs.

*Note - 1. Refer to GBC Reseller to ensure capacity

availability for chosen Cover type.

2. With differing types of print (Copy/Laser/Litho,

etc) the number of pages per Cover capacity

may change. LeatherGrain™Emboss. LinenWeave™Emboss.

ThermaBind™Cove r Capacit y Char t *

Silk White

150 u/240 gsm Silk White

HiGloss White

150 u/215 gsm Gloss White

Traditional White

150 u/200 gsm Plain White

Cover Capacity Approx no.of sheets(80gsm)

1.5 1-15

2 16-20

3 20-30

431-40

6 41-50

8 51-80

9 81-90

10 91-100

12 100-120

15 120-140

20 141-180

25 181-240

30 241-280

35 281-320

40 321-370

45 371-420

50 421-440

150 u Clear 240 gsm LinenWeave™or LeatheGrain™Emboss

Note: Royal Blue only available in LeatherGrain™

and Navy Blue only available in LinenWeave™

L e a t h e r G r a i n ™& LinenWeave™C o l o u r s

White Black Royal Blue Navy Blue Red

The PVC Front that features on all

ThermaBind™Covers both protects

and enhances Title pages

MultiFunctional™ The Versatile Wa y

All your binding needs in one.

The bound document has a myriad of applications. Each application can have its own special requirements -

who, where, for how long, value, frequency, size, page numbers and last but not least, personal preference.

It is no wonder that not one finishing 'style' can suit all. In cases where either multiplicity of application and

user are clear evident facts, the Multi-Functional™option is a unique solution to remove indecision.

The entire MultiFunctional™range is focused on the preference for lay-flat document usage and can combine

up to four styles in one single unit with a combination of both secure and easy page-changing systems.

Multi - Functionality - that's Versatility.

6mm 51mm 8mm 16mm 6mm 14mm

ClickBind™

There is a no better option when

speed and flexibility are needed

- just Punch and Click later.

Pages can even be changed

on-the-move and the tough

polypropylene Clicks™withstand

the toughest environments

and the hardest handling.

WireBind21

When durability and total page

security need to go hand-in-hand

with ease-of-reference and great

looks WireBind21 is the practical

proposal.

Using the same punch pattern as

CombBind®makes WireBind21

ideal for final presentation versions.

4Hole

The need to punch pages for

archiving in 2 or 4 hole Ring

Binders or Files of whatever

description is a universal need

throughout the globe.

Intelligent hole diameters of

6mm ensure 'filability' up to the

largest diameter Ring mechanism.

CombBind®

The 'World's Favourite System'

is the core competence of

MultiFunctional™.

The famous 21 ring system

binds all the way to 450 pages;

offers easy page changing and

lie-flat convenience.

Combs are even customizable

for shelf recognition.

From 2 to 450 Pages From 2 to 145 Pages From 2 to 125 Pages For all Standard Ring Diameters

Up to Four Ways inOne Solution

The Capabilities of MultiFunctional i t y

The System and its Success

With the World's Favourite System CombBind®as its core competence, MultiFunctional™adds, depending

upon model choice, the ability to bind WireBind using its own unique 21 loop format, ClickBind™and even

a tough 4Hole paper punch for standard archiving.

The combination of lie-flat options in formats that either offer page security (WireBind) or page changeability

( C o m b B i n d ®or ClickBind™) ensures that no matter the final application, the presentation method is ideal.

From first draft to final, from colleague to customer, MultiFunctional™offers all and more to almost everybody.

o f f i c e e d u c a t i o n

h o m e o f f i c e e d u c a t i o n

C o m b B i n d ®

WireBind

CombBind®WireBind21

4Hole

C o m b B i nd

®CombBind®4Hole

C o m b B i n d ®

WireBind

MultiFunctiona l ™For DeskTop & General Office use

ibiBaby

Ideal for Small/Home office.

Durable, desk top dual function A4 CombBind®/WireBind21 unit.

Up to 145 sheets of 80 gsm paper (max 16mm Comb) in the popular

C o m b B i n d ®or up to 125 sheets with WireBind21 using

the unique 21 Loop format Multi-Functional 14mm capacity Wi r e .

With a Punch capacity of up to 12 sheets of 80 gsm, the ibiBaby can

create up to 200 bound documents per hour.

Model Max Binding Length Product Code

ibico ibiBaby A 4 I B 2 7 1 0 1 4

HiTech

A durable, innovative, compact, and stable dual function

C o m b B i n d ®/ WireBind21 unit ideal for personal office use

and at just 5kgs even portable!

Can Punch/Bind A4 CombBind®documents up to c.145 sheets

(16mm Comb capacity). In addition with the use of a Closing

'chamber' can also produce WireBind documents in 21 Loop format up

to c.125 sheets (14mm).

Punch Capacity: up to 12 pp of 80gsm per 'lift'.

Model Max Binding Length Product Code

ibico HiTe c h A 4 I B 2 7 5 9 9 9

i b i M a s t e r 300

A combination CombBind®and tough 4Hole Punch unit for full

co-ordination with all popular Rexel Office filing and archiving

S y s t e m s .

Modern design offers 'looks', durability, portability and functional

u t i l i t y. The 20 pp Punch (30 pp for 4Hole) is capable of producing a

full 450 page CombBind®document in both A4 and A5 format.

Vertical Punching for greater accuracy and independent binding/

punching handles gives extra productivity.

Model Max Binding Length Product Code

ibico ibiMaster 300 3 1 5 m m I B 2 7 1 0 9 0

Foldable Legs on the HiTech ensure

full stability during Binding process.

The ibimaster 300 4Hole Punch is capable of

punching up to a full 30 pages of 80 gsm and

fully co-ordinates with all popular Rexel office

organisation and archiving solutions.

F l o w l i n e P r o C W B 4 0 6

Ideal for everyday office use the CWB406 is perfect for everyday comb

and 21 loop wire binding.

T h i s m a c h i n e o f f e r s a n i m p r e s s i v e p u n c h c a p a c i t y o f 3 0 s h e e t s ‘per lift’.

The unique and patented Flowline Pro features such as the simply

click comb selector and auto centering offer stress free binding in a

busy office, so your last minute comb or wire presentation can be done

quickly and efficiently on this stylish machine.

Suitable for documents up to 450 pages (comb) and up to 140 pages

(21 loop wire)

Model Max Binding Length Product Code

Rexel CWB406 A 4 / A 5 2101436

o f f i c e e d u c a t i o n

C o m b B i n d®

WireBind

CombBind®WireBind21 4Hole

4Hole

C o m b B i n d®

WireBind

4Hole

MultiFunctiona l ™For General Office & Office Pro use

i b i M a s t e r 400

Take all the benefits of the 300, add a WireBind Compression

Chamber and ….. welcome to the ibiMaster 400!

Many offices produce drafts before going to final versions -

the 400 is ideally suited to this dynamic. Drafts can be produced

using CombBind®and final versions moved to the more robust and

secure WireBind21 loop format.

The ever-useful 30 page 4Hole Paper Punch serves as a final office

'plus' for general Rexel organisational and archiving solutions.

Includes 7 disengageable pins for A4 landscape presentations,

A5 and even US paper sizes documents.

A 20 page A4 Punch Capacity per lift will produce CombBind®

documents of up to 450 pages or 125 pages in 21 loop Wi r e B i n d

f o r m a t .

Model Max Binding Length Product Code

ibico ibiMaster 400 3 1 5 m m I B 2 7 1 0 7 6

ibiMa s t e r 400 e

The versatility and 'MultiFunctionality' of the 400 …with 'One To u c h '

Electric Punching!

All the principal features and benefits of the 400 Manual but

including a robust, quiet, 12 page 80gsm capacity electric Punch via

foot pedal or switch. The ever-useful 4Hole Punch will also now go

through 20 pages easily at the touch of the button.

Model Max Binding Length Product Code

ibico ibiMaster 400e 3 1 5 m m IB271212 (EU)

IB271236 (UK)

IB271250 (CH)

The ibiMaster 400e can Punch and Bind a

CombBind®document, a WireBind presentation

and then punch up to 20 pages for 4Hole

archiving... with just a button!

CombBind®WireBind21

o f f i c e e d u c a t i o n

F l o w l i n e P r o C W B 4 0 6 e

Ideal for medium to high office use the CWB406E combines simplicity

with strength.

At the touch of a button this machines offers an impressive punch

capacity of 30 sheets for either comb or WireBind 21 loop binding.

The unique and patented Flowline Pro features offer stress free

binding in a busy office, so your last minute comb or wire presentation

can be done quickly and efficiently on this stylish machine.

Suitable for documents up to 450 pages (comb) and up to 140 pages

(21 loop wire)

Model Max Binding Length Product Code

Rexel CWB406e A 4 / A 5 2101445 (EU)

2101437 (UK)

Comb Selection

The “SimplyClick” comb

selector adjusts the settings to

suit the comb size.

Simple Operation

The clippings tray

simply slides out.

Automatic Centering of Pages

The “auto centering” feature

positions the pages for perfect

p u n c h i n g .

o f f i c e e d u c a t i o n

Punch Handle

Full width across unit

delivers effortless

precision regardless of

Bind style chosen.

De-Selector Pins

Placed behind Paper

Support for safety.

Binding Stop

Eases the CombBind®

binding process.

MultiFunctiona l ™For General Office & Office Pro use

Binding Lever

Used for both CombBind® & Wi r e B i n d .

Closes completely when in Portable mode.

Paper Alignment Screw

Precisely position holes

in centre of paper.

Punch Chambers

Clearly marked for

each Style for

e a s e - o f - r e f e r e n c e .

Wire Compression Chamber

For compressing (Binding)

WireBind documents.

CombBind®WireBind21 WireBind34 ClickBind™

CombBind®WireBind21

ibiMaster 500

Engineering excellence brings the benefits of MultiFunctional™to a

supreme conclusion in an office environment - CombBind®,

C l i c k B i n d ™, Wire Bind34 and WireBind21 are all possible in this

spectacular manual office unit.

Tough Manual Punching of up to 20 sheets of 80gsm per 'lift' for

C o m b B i n d ®and 14 sheets for WireBind whilst respectively binding full

450 or 125 page documents. The additional 34 hole ClickBind™

Punching Chamber is capable of accepting 12 sheets per 'lift'

confirming ClickBind™as the ideal 'personal' Presentation option.

7 De-Selector pins and adjustable Margin Depth give true flexibility

across a full 315mm bind width to bind A4; US Quarto and

Landscape A5/A4 paper formats.

Model Max Binding Length Product Code

ibico ibiMaster 500 3 1 5 m m I B 2 7 0 2 0 8

8mm 16mm

6mm 14mm

6mm 28mm 32mm 51mm

MultiFunctional™ Accessories

Choose your 'Style' and then choose your Accessory. Each Style has its own Binding element and

all Report Covers can be used on any 'style' depending upon the capabilities of the individual unit.

CombBind®

Selecting your Binding 'Comb' to bind all the way to 450 pages with the World's Favourite System.

The Binding 'Combs' that are used with the MultiFunctional™system are available in 14 capacities;

6 standard colours and 5 industry 'standard' lengths.

Industry Standard Colours*

White Black Blue Red Green C l e a r

ClickBind™

Selecting your Binding 'Click' to achieve that Special 'style'.The Binding 'Clicks' that are used with

in the MultiFunctional™system are available in 3 capacities and 4 standard colours - all in the

universal A4 industry 'standard' length - and all made from high grade re-cycleable polypropylene.

*Other colours are available as part of the GBC Custom

Service. Refer to GBC or GBC Re-Seller. Restrictions will apply.

Standard Capacities 8, 12 & 16mm

Standard Capacities - 6, 8, 10, 12 & 14mm

Presentation Report Covers & Add-Ons

The lie-flat facility of all the MultiFunctional™Binding Styles makes it ideal for use with practically

the entire Presentation Cover Range no matter if your preference is ClearView™or ProView™or a

combination of both.

From lightweight 150 micron see-through HiClear™PVC Covers to prestigious heavy-weight Regency™

or the business-like highly durable PolyCover Ranges, all the 'Styles' look great and work well for all.

All documents bound with any of the three MultiFunctional™Styles can use the convenient FileStrip™

for subsequent archiving in 2 or 4 hole Rexel Ring Binders.

Wi r e Bind

Selecting your Binding 'Wire' to get that practical and robust appeal. The Binding 'Wires' that

are used with the MultiFunctional™21 Loop system are available in 5 capacities and 3 standard

colours all in the A4 industry 'standard' length.

White Black Blue Frost

Industry Standard Colours*

White Black Silver

Industry Standard Colours*

Presentation Repor t Covers

People do judge a book by its Cover

Arguably the most important page of all - the one you first see, the one that can impress,

the one that makes all the difference.

It protects, it catches the eye, it conveys the message, it reflects you and your company.

And it represents the packaging of all your effort. It is critical.

The choice depends upon so many things; who, where, the style you bind, how long it

should last, the machine you use, the colour you like, the touch you prefer, what's its use,

how to get it to the reader, the value, the audience and much, much more.

Make the judgement a positive

White Black Blue Burgundy

Presentation Repor t Covers

Choose from ClearVi e w™or ProVi e w ™to find the very best in presentation appeal for all

C o m b B i n d ®, StripBind™, ClickBind™, WireBind, and CoilBind™Document Presentation Systems.

P r o Vi e w ™

A Range of Report Covers with diverse finishes and textures to give a

traditional appeal to Document Presentation when 'touch, feel and

colour' are especially important.

Ideal as title pages when windows or some form of personalisation are

added or as simple colour co-ordinated rear Covers when ClearVi e w ™

is used as the Title page.

ReGency™is made from a

combination of natural wood

fibres and re-cycled materials

P o l yOpaque™

Made from high quality Polypropylene, PolyOpaque is a 300 micron weight Cover

with a very slight 'sand' grain on one side and absolutely smooth on the reverse.

A combination that is both ideal to 'feel' and yet limits offsetting from Copy

p a p e r. Durable, scratch-free and flexible. Ideal for all Binding Styles

P o l y O p a q u e ™is available in White, Blue, Dark Blue, Green, Dark Red and Black.

A range of colours that co-ordinate or contrast with a broad range of Binding

elements from all styles.

Recommended Binding Styles

C l i c k B i n d ™, WireBind, CombBind®and CoilBind™R e G e n c y ™

R e G e n c y ™is a 325gsm plasticised board material with a

slight pinpoint finish. The finish is elegant and yet includes

exceptional anti-scuff properties resisting heavy handling.

Ideal for personalisation - foil stamping, silk-screening

and embossing.

R e G e n c y ™is available in White, Blue, Burgundy and Black.

Each ReGency™colour has been designed to match perfectly

with SureBind™and Ve l o B i n d ®Strip colours.

They can be also be used to contrast with the Binding

elements of all other Binding styles.

Recommended Binding Styles

S t r i p B i n d ™, WireBind, CombBind®and CoilBind™

PolyOpaque™is made from

re-cyleable Polypropylene

White Black Blue Wedgewood Red Green

Presentation Repor t Covers

H i G l o s s ™

A vivacious and modern colour series of single-sided cast-coated

Hi-Gloss Chromo Covers that really bring presentations to life.

The 250 gsm weight is complimented by a 'feel' of rigidity and

the colours do not fade due to the use of colour- f a s t e n e r s .

is available in 6 bright modern colours: White, Black, Red, Blue,

Green and Ye l l o w.

All compliment or contrast with binding element colours to reflect

company colours schemes or just great professional content.

L e a t h e r G r a i n ™

A hint of 'yesterday' is clearly evident in the leather-like

grain and colour pallet of LeatherGrain™. The type of Cover

that exudes professional content without being over-bearing

or pretentious.

The 250 gsm weight and double-sided colouring enables colour

matching or contrasting both inside and outside a document.

Colour fasteners ensure minimal fading over time.

L e a t h e r G r a i n ™is available in 14 colours - a testimony to its

popularity and versatility: White, Black, Royal Blue, Blue,

Navy Blue, Wedgewood Blue, Sky Blue, Red, Dark Red,

B u r g u n d y, Dark Green, Ivory, Light Grey and Dark Grey.

This broad colour range gives a series of great colour combination

option with binding elements.

Recommended Binding Styles:

C l i c k B i n d ™, WireBind, CombBind®and CoilBind™

LeatherGrain™is made from high wood

content pulp with a minimal percentage

of re-cycled content.

HiGloss™is a high wood fibre cover with a

bright shiny single-sided reflective surface

White Black B l u e R e d G r e e n Yellow

White Black Navy Blue Royal Blue Blue Sky Blue We d g e w o o d

Red Dark Red Burgundy Dark Green Ivory Light Grey Dark Grey

Recommended Binding Styles:

C l i c k B i n d ™, WireBind, CombBind®and CoilBind™

The popularity of the ‘leather-like’

grain of LeatherGrain is evident

in its wide colour pallet choice

LinenWeave™is made from high wood content pulp

with a minimal percentage of re-cycled content.

Presentation Repor t Covers

Traditional™is made from high wood

content pulp with a minimal percentage

of re-cycled content.

*Traditional™White has a thickness of

220gsm making it suitable for certain

DeskTop printers

L i n e n We a v e ™

As its name suggests LinenWe a v e ™evokes the natural fibre

and feel of Linen - delightful to touch and classic to see.

In common with LeatherGrain™the 250gsm weight shows

the double-sided colouring format and colour fastening

features that permits excellent colour co-ordination and

duration. The LinenWe a v e ™colour pallet is classic and

succinct: Black, White, Red and Royal Blue.

Recommended Binding Styles:

C l i c k B i n d ™, WireBind, CombBind®and CoilBind™

Tr a d i t i o n a l ™

In many cases simplicity simply wins the day. Tr a d i t i o n a l ™

takes away all the embellishments and presents a silky

smooth matt feel that charms through its very simplicity.

The 250 gsm* board weight maintains the double-sided

colour formatting and colour fastened shades of

L e a t h e r G r a i n ™and LinenWe a v e ™.

Tr a d i t i o n a l ™is available in the most popular European

colour choices: Black, White, Ivory, Red and Blue.

Recommended Binding Styles:

C l i c k B i n d ™, WireBind, CombBind®and CoilBind™

White Black Blue R e d Ivory

White Black Royal Blue Red

The natural fibre ‘tactile appeal’

of LinenWeave immediately draws

attention to a documents value.

PolyDesigner™is a 350 micron Polypropylene Cover.

Its chemical make-up properties make it far more

suitable for recycling.

Due to the thickness of PolyTe c h n o ,

care should be taken to establish that

one's choice of binding model can

punch the 700 micron thickness.

PolyTechno™is a 700 micron

Polypropylene Cover. Its chemical

make-up properties make it far

more suitable for recycling.

Compass DesignGlobe Design

P o l y D e s i g n e r ™

P o l y D e s i g n e r ™takes your titles and almost designs them for you!

By integrating international business imagery into the 350 micron

Polypropylene itself, your title pages look as if they have

been 'designer- m a d e ' .

Furthermore the two integrated design options - Globe or Compass -

have been pre-printed on the inside of the cover ensuring that

with continual use, the imagery will not scuff, fade or disappear.

Recommended Binding Styles:

C l i c k B i n d ™, WireBind, CombBind®and CoilBind™

P o l y Te c h n o ™

P o l y Te c h n o ™approaches your creative work as if it should endure for ever!

The 700 micron weight can manage the roughest handling and the

highly grained surface is almost unable to be marked by scratches.

The five colour pallet is contemporary and striking - it immediately

demonstrates individuality and purpose: Ice White, Lavender,

Mandarin Orange, Ruby Red and Emerald Green.

Recommended Binding Styles:

P o l y Te c h o ™is suitable for all lie-flat Binding Styles:

C o m B i n d ®, WireBind, ClickBind™, and CoilBind™.

Presentation Repor t Covers

C l e a r Vi e w ™

The ClearVi e w ™ranges are ideal as 'windows of expression'. They enable your creative

ideas to shine through and make an impact. By choosing from the lighter weight

PVC-based HiClear™range or the heavier duty.

By choosing from the lighter weight PVC-based HiClear™range or the heavier duty

recyclable PolyCover™ranges, you can opt for a combination of colours, shades,

textures and thicknesses that will let your ideas endure and impress.

ColorClear™is clear two-sided

coloured PVC with a medium weight

of between 180 and 200 microns*.

It is flexible and highly reflective

*Variations in thickness is due to

manufacturing variance tolerances

Presentation Repor t Covers

P o l y C l e a r V i e w ™

P o l y C l e a r V i e w ™is a robust semi-clear solution to protect title pages.

Available in three weights (300, 350 or 450 micron) depending upon

type and colour, in its matt option it features a slightly 'frosted' grain

finish that is a delight to touch.

The Matt/Gloss Clear option (350 micron) is ideal to minimise

copies off-setting whilst giving 'sparkle' to the title itself.

Available in three colour options: Clear, Blue and Red.

Recommended Binding Styles:

P o l y C l e a r V i e w ™is suitable for all lie-flat Binding Styles:

C o m B i n d ®, WireBind, ClickBind™, and CoilBind™.

C o l o r C l e a r™

C o l o r C l e a r ™represents a colourful way to see, to impress

and to colour co-ordinate simultaneously.

The medium-weight 180-200* micron PVC structure is

ideal for all popular Binding machines and the colour

pallet of 5 striking colours both matches with all types

of Binding elements and most popular corporate designs.

Colour options: Blue, Red, Green, Smoke and Ye l l o w.

Recommended Binding Styles:

C o l o r C l e a r ™is suitable for all Binding Styles: ComBind®,

WireBind, StripBind™, ClickBind™, and CoilBind™.

P o l y C l e a r Vi e w™is a Frosted Polypropylene

Cover available in three thicknesses -

300, 350 and 450 depending upon

colour and finish.

Its chemical make-up properties make

it far more suitable for recycling.

Presentation Repor t Covers.

* Variations in thickness is due to

manufacturing variance tolerances

Shown Below: A Rexel Presentation

Binder with examples of FileStrips

in all styles prepared for archiving.

* HiClear™is a transparent PVC available in 4

standard weights: Light weight 150 micron;

Medium weight 180/200*; Heavy weight 240

micron and Super Heavy weight 300 micron.

H i C l e a r™

When in its crystal clear form, HiClear™forms an

essential element in any document presentation portfolio.

In its various weight options (150, 180/200, 240 or

300 micron),the principal HiClear™properties of clarity and

flexibility serve as a defence, a colour 'enhancer', or even a

divider depending upon the document needs of the day.

Recommended Binding Styles:

C l i c k B i n d ™, WireBind, CombBind®and CoilBind™

Presentation Accessories

F i l e S t r i p s ™

Finished Documents frequently need storing, archiving or organising for later

reference or updating.

The GBC FileStrip is a simple way to enable bound documents to be incorporated

into almost any conventional Rexel organisational or archiving solution.

They are bound into the document during the Binding process and being

of clear plastic remain discreet yet strong.

Available for C o m b B i n d ®/ W ireBind21, C l i c k B i n d ™, Wi r e B i n d ™

S t r i p B i n d ™( S u r e B i n d ™) and ThermaBind™.

REXEL CB105 GBC Binding Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
