Quick start guide

Technical Assistance

If you need assistance setting up or using your Gator

product now or in the future, call Gator Support.

Australia

TEL: 03 – 8587 8898

FAX: 03 – 8587 8866

Mon-Fri 9am – 5pm AEST

Please retain this quick start guide for future reference.

If you would like to download a more detailed

function manual, or other Gator manuals/software,

please visit the http://gatordriverassist.com website

and click on ‘Firmware & Manuals” for information on

where to nd the manuals/software.

This manual is considered correct at time of printing

but is subject to change.

For latest manuals and updates refer to the website.

Up Button

(WiFi)

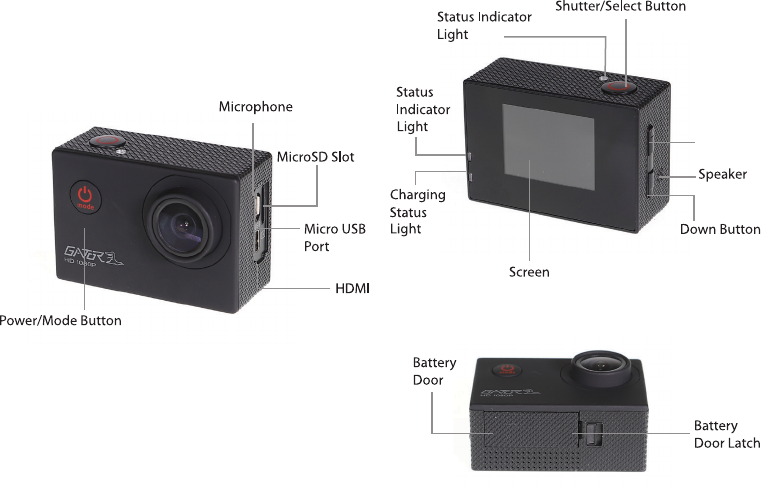

Features

Note: Camera is not waterproof until placed securely

in Waterproof housing

Up Button Locking

Clip

Locking

Mount

Down Button

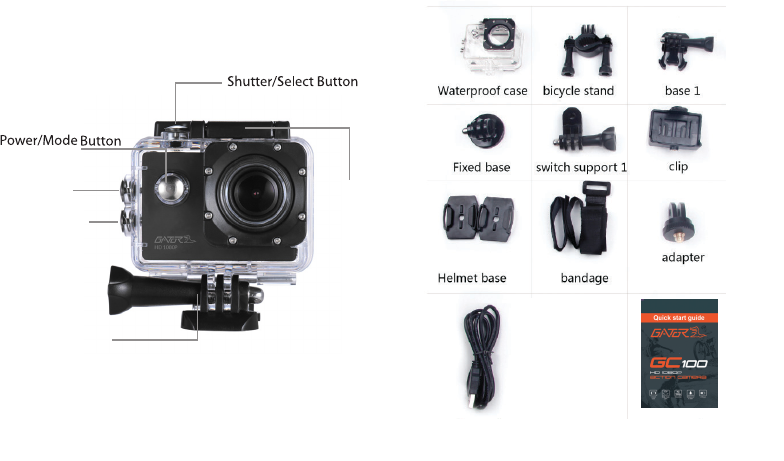

AccessoriesWaterproof Housing

Charge/Data cable Quick start guide

Thank you for purchasing the Gator GC100. This Quick

Start Guide will help you learn the basics of using the

action camera. For a more detailed manual please refer

to our website at www.gatordriverassist.com

Inserting Micro SD Card

Note: Please choose a branded Micro SD card and

format it on computer before use. The camera

supports up to 32GB, Class 10 (Non Ultra).

Installing and removing battery

1. Slide latch across and lift battery cover up to open.

2. Correctly install battery into camera as indicated by

+/- symbols and direction of arrows marked on the

battery until it’s in place.

3. Replace cover

4. To remove battery pull battery door latch upwards

Charging

1. Charging can be done by either connecting the

camera to a computer or power adapter (not included)

Getting Started

Press & hold the mode button on the front of the

camera for 3 - 5 seconds to turn it on. Press the mode

button to cycle through camera modes.

1. Video mode- to record video

2. Photo mode- to take pictures

3. Playback mode- to view videos and pictures

4. Setup menu.

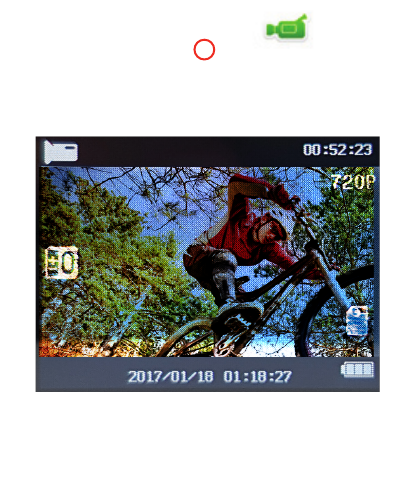

Video mode

When in recording mode symbol is displayed

on top of screen, press red shutter button to start

and stop recording. A red circle appears next to this

symbol and ashes whilst recording.

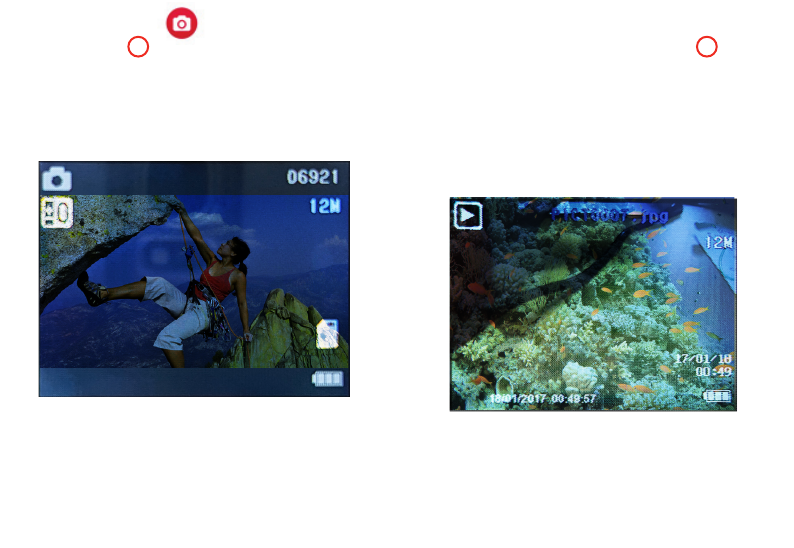

Photo mode

When in photo mode symbol is displayed on top

of screen, press red shutter button to take a

picture.

Playback mode

Use the up & down buttons to cycle through video

and picture taken on the device. Press the red

shutter button to select & play. For le storage &

playing after you are done recording, use a the USB

cable provided to export the videos and pictures onto

a computer to play. Or you can take the Micro SD card

out and access the image data with a card reader.

Setup Menu

Press the up and down buttons on the side of the

camera to cycle through setup settings. Press the

shutter button to select setting. Use up and down

arrows to select sub setting and press shutter button

to conrm selection.

Video Resolution:

1080P @ 30 FPS, 720P @ 30 FPS, VGA

Loop Recording:

O, 1 Min, 3 Mins, 5 Mins or 10 Mins

Exposure:

+2/3, +1/3, +0/0, -1/3, -2/3, -1/0, -4/3, -5/3 or -2/0

Picture Resolution:

12M, 10M, 8M, 5M, 3M, 2M, 1.3M & VGA

Record Audio

O/On

Date/Time:

Year/Month/Day

Time

Format

Auto Power o:

O, 1 Min, 3 Mins, 5Mins

Language:

English, Chinese,French, Dutch, Italian, Portuguese,

Russian, Spanish,

Frequency:

50Hz - 60Hz

Screen LCD Saver:

O, 3 Mins, 5Mins

Vehicle:

O/On

Format:

All data will be deleted

Cancel/OK

Default Setting

Return menu setting to defaults

Cancel/OK

Date Stamp

O/On

Delete:

Delete Current

Delete All

Cancel/OK

Protect:

Lock Current

Unlock Current

Lock All

Unlock All

Cancel/OK

Volume:

0-7

Version:

rmware version

Specications

CPU: GP1247

Sensor: GC1024

Lens:

140 degrees

Screen:

1.5” LCD screen

Video/Compression format:

MP4/H.264

Video resolution:

1080P HD @ 30 FPS

720P HD @ 30 FPS

Picture format:

JPG

Picture resolution:

12MP 4032 x 3024

Storage format:

Micro SD card Class 10 Up to 32GB (Non Ultra )

Waterproof:

30M with case

Audio frquency:

Stereo

Battery:

Rechargeable 3.7V/900mAh Li-ion

Battery autonomy: 90 Minutes

Operating system: Windows XP/ Mac OS

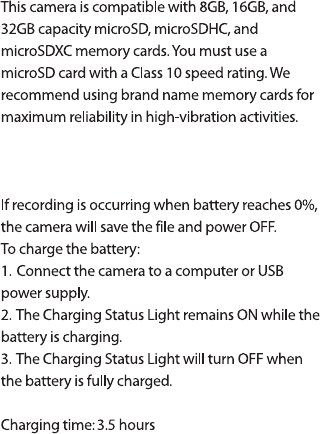

Micro SD Cards:

Charging the battery:
