PRODUCT RANGE CATALOGUE
GDX Door Entry
®
2T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
2T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
About Stanley
®
, GDX
®
and PAC
®
GDX and PAC are product brands of Stanley Security Products. Stanley Security Products are part of Stanley
Black & Decker Inc, an S&P 500 company. Stanley Black & Decker Inc is one of the world’s largest security and
tools providers and offer a financially secure and stable partner for all of your security product requirements.
About GDX
The GDX design, manufacturing and technical support teams are based in the UK at a custom facility in Paisley,
Scotland.With over 30 years experience in designing and manufacturing Door Entry and Access Control products
we are amongst the market leaders in this market sector. We have worked closely in partnership with an extensive
list of local government, housing association, consultant and architect partners over this time to continually
develop our system functionality to meet the ever demanding and ever changing requirements of this market and
it’s associated legislation.
The GDX5 Door Entry range has been designed to provide unbeatable reliability and robust functionality to meet
the rigorous demands of both the residential and commercial market sectors. As well as providing a high level
of user functionality combined with elegant styling and a large flexible range of options it can be tailored to suit
virtually any application for door entry control requirements. With a focus on design reliability and an ease of
installation and maintenance we offer a solution that delivers an extremely cost effective solution to your security
needs across the entire product life cycle for both customer and installer alike.
GDX have long history of product innovation and new product development investment and pioneered the use of
Voice Over IP (VoIP) Technology within Door Entry systems to allow the benefits of digital audio distribution over
Local Area and Wide Area IP networks to be utilised in the ever growing digital environment the equipment is
now utilised.
GDX Product Availability
The GDX range of equipment is supplied exclusively through authorised GDX distributors, dealers and installers.
This allows us to ensure that our approved suppliers are trained in the installation and support of our products
to allow them to offer the highest levels of support to our customers. Please contact your approved supplier for
details or contact GDX Customer Services for details of approved suppliers.
GDX Design Support Services
GDX offer a full range of pre-sales design, specification, technical and site survey support to all our customers
and approved suppliers. We have an extremely experienced sales and support team based in various locations
throughout the UK who are available to offer support, help and advice on all aspects of the pre-sales and
post-sales design, specification and tender process if required.
Please see inside back cover for full details of the sales and design support services
we can offer along with full contact details for both sales and support.
3
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk 3
Features Selection Box
3
GDX5 Lite Low Rise Range
4
GDX5 Lite High Rise Range
5
GDX5 Full Low Rise Range
6
GDX5 Full High Rise Range
7

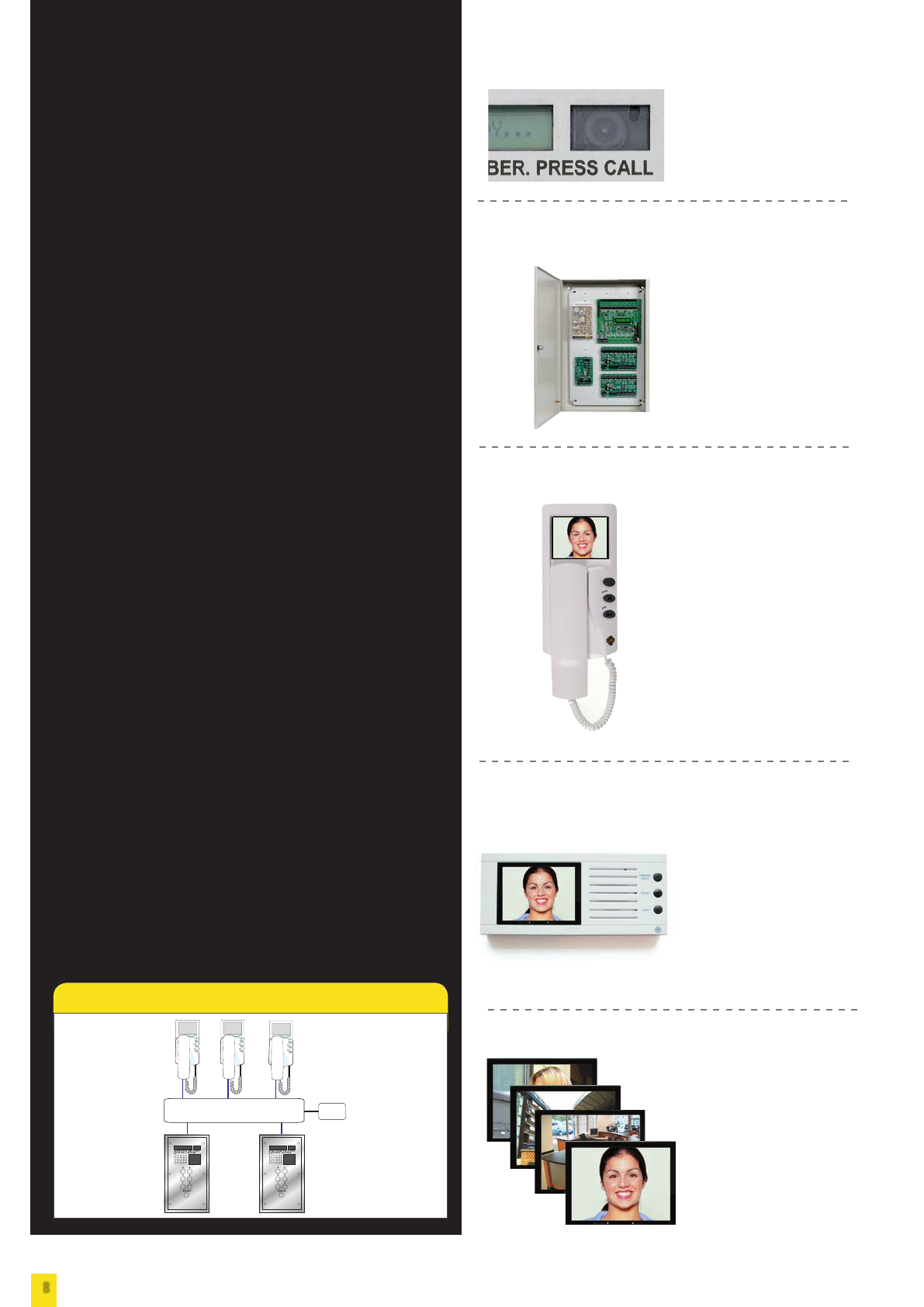

GDX5 Video Options 8

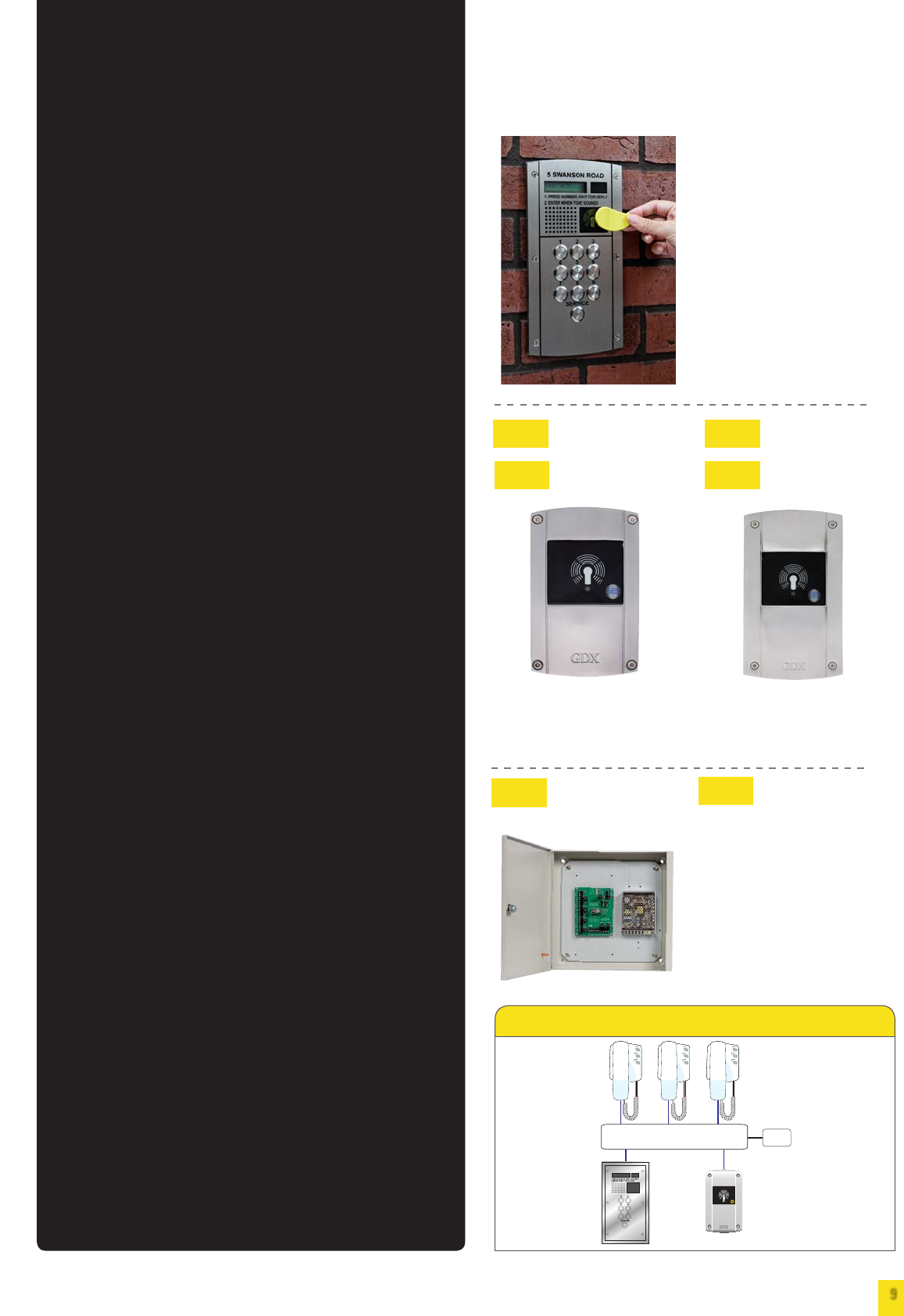

Integrated GDX5 Indigo Proximity Access Options 9
GDX5 Entrance Panel Range
10
GDX5 Handset and Apartment Station Range
11

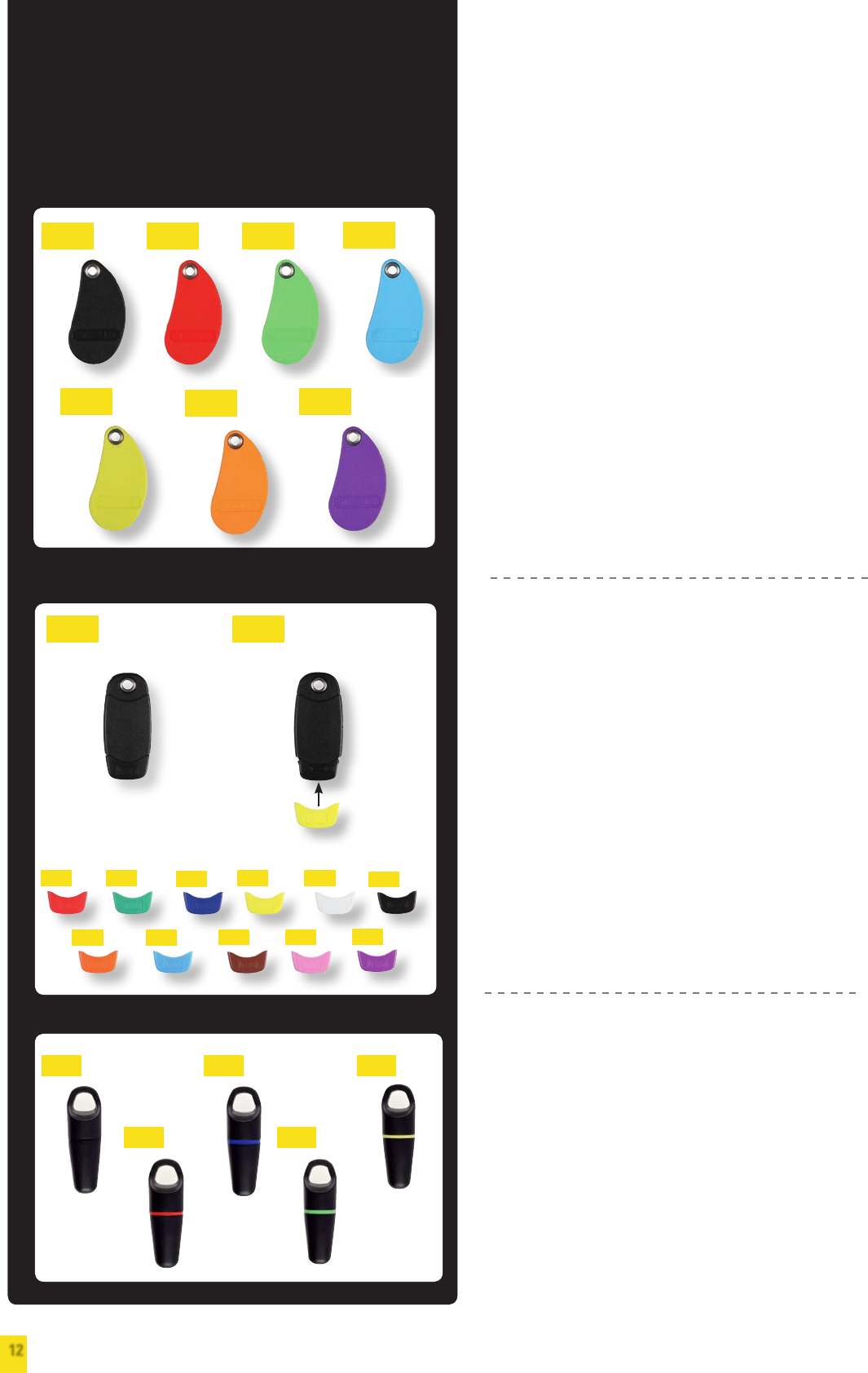

GDX5 Proximity Access Token Fob Ranges 12

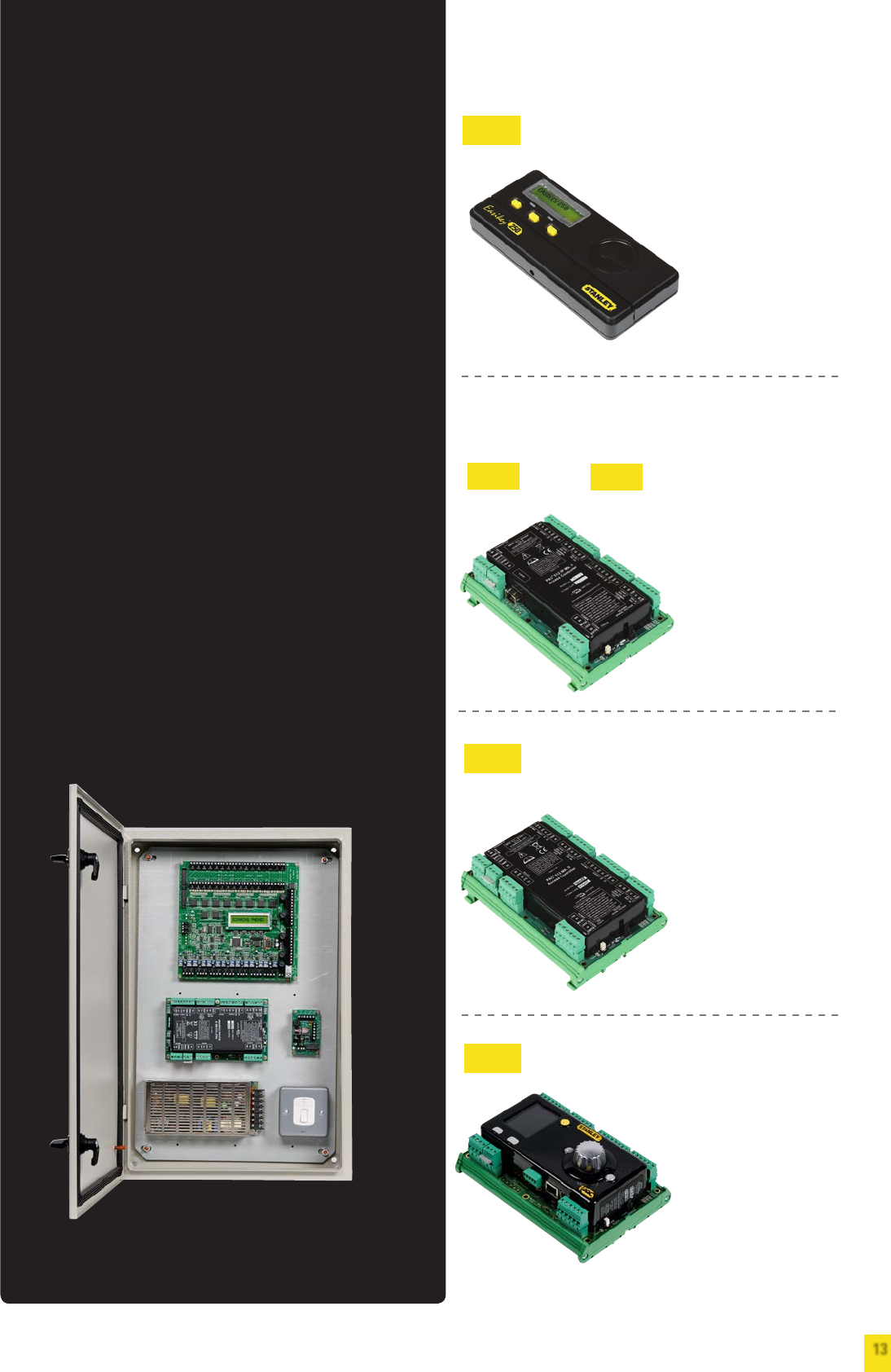

GDX5 PAC Proximity Access Control Options 13

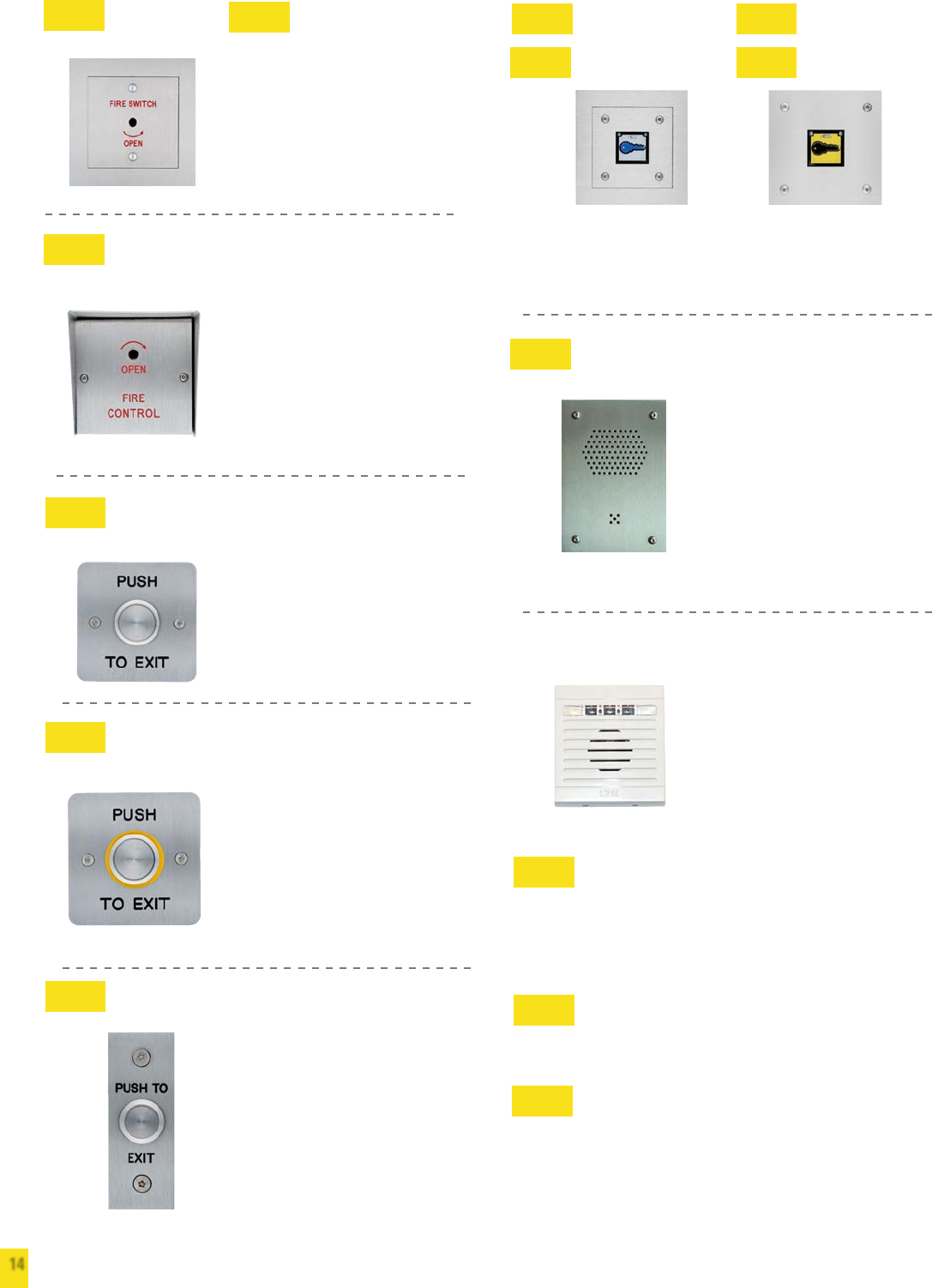

GDX5 Door Entry Ancillaries Range 14

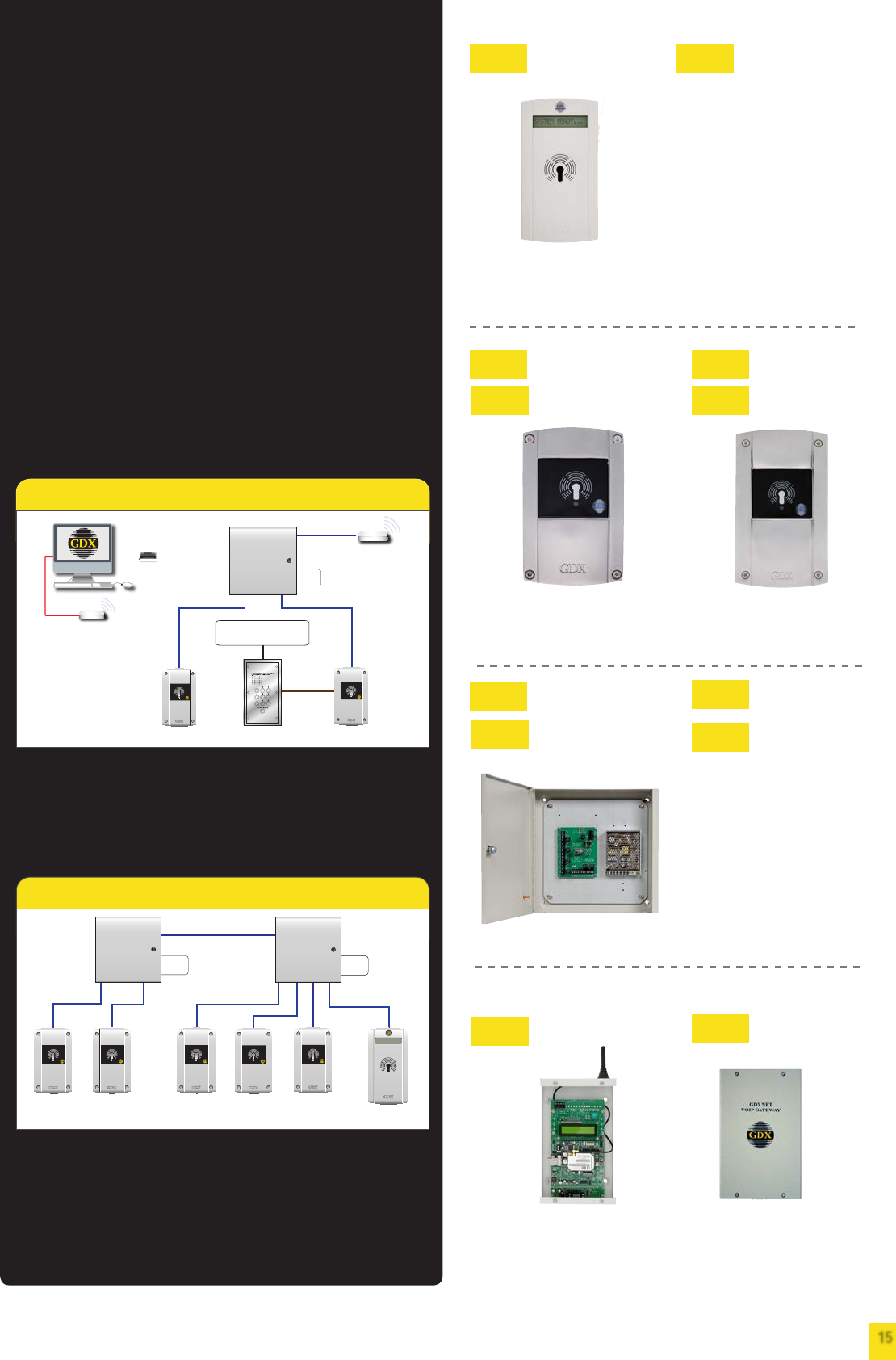

Standalone Indigo Proximity Access Range 15

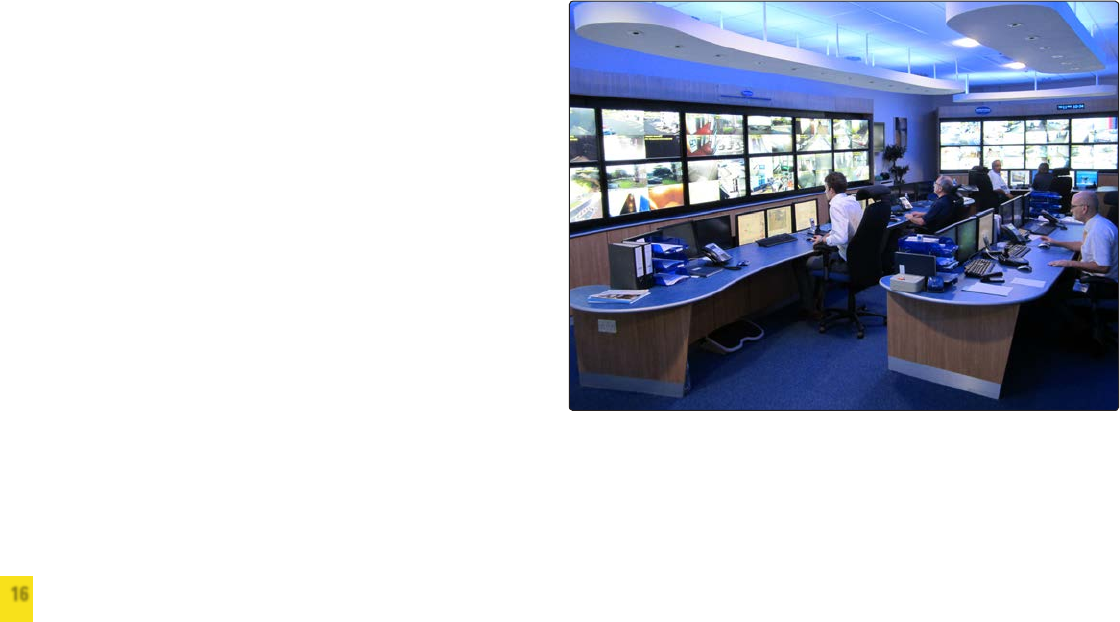

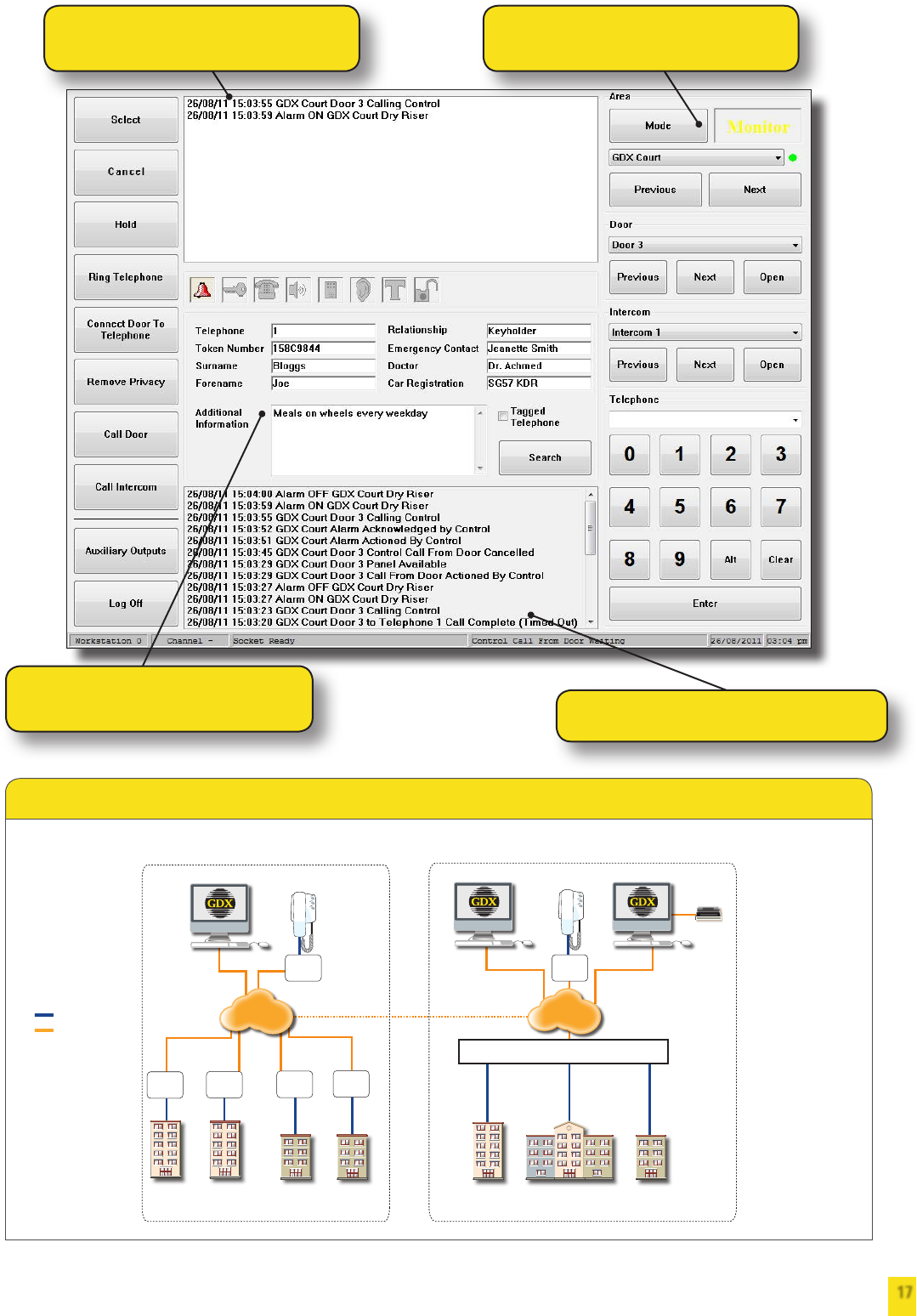

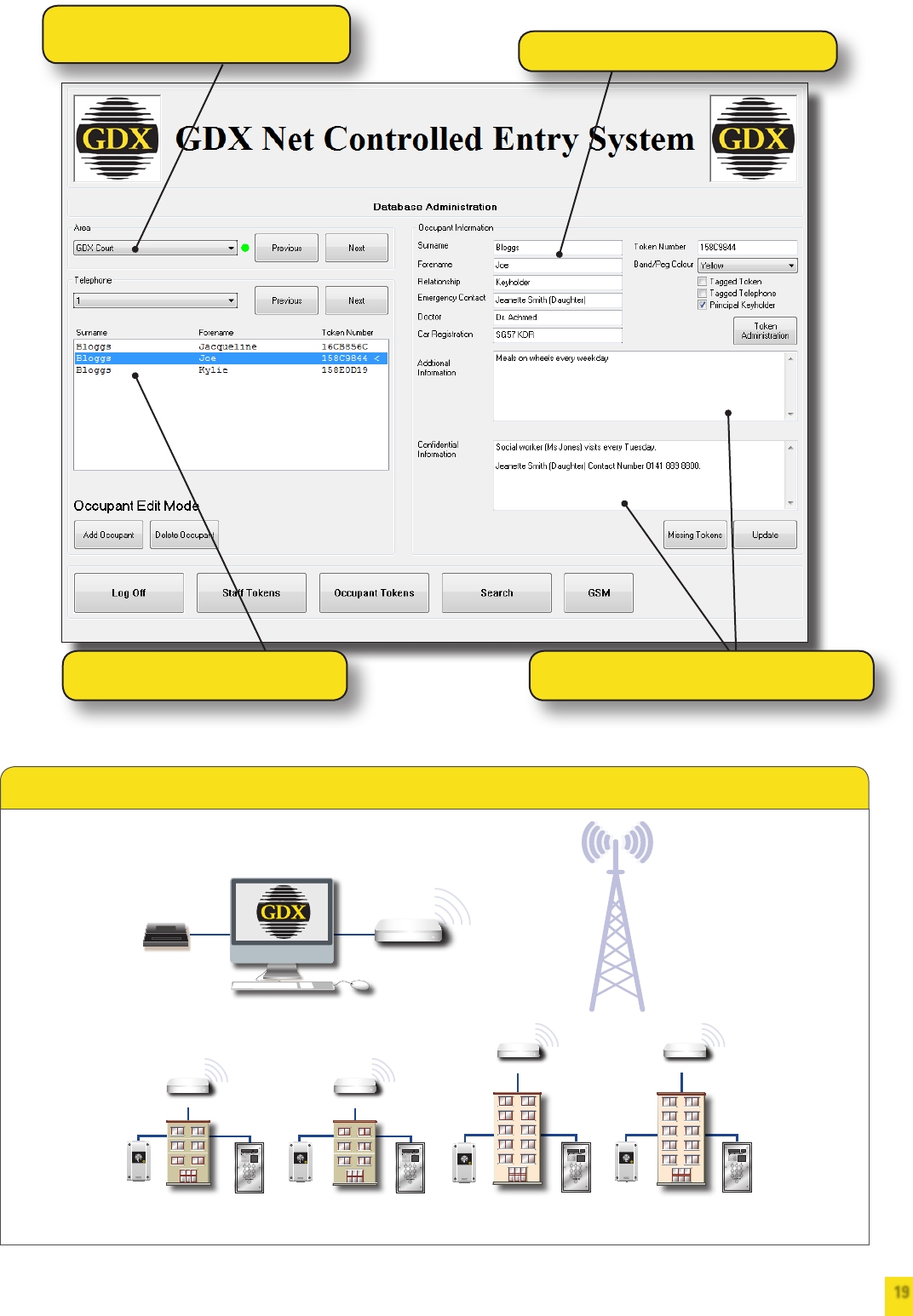

GDX5 Concierge Central Control Software
16

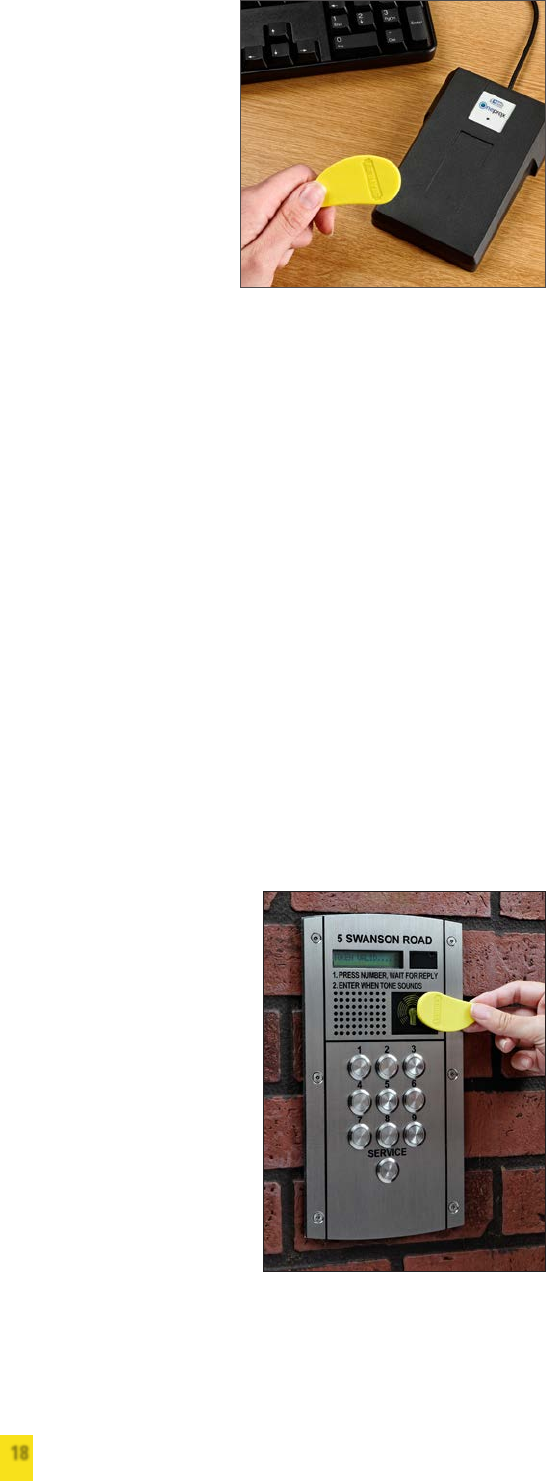

GDX5 Token Administration Control Software
18
GDX5 Technical Tips 20
GDX5 Glossary of Terms 21

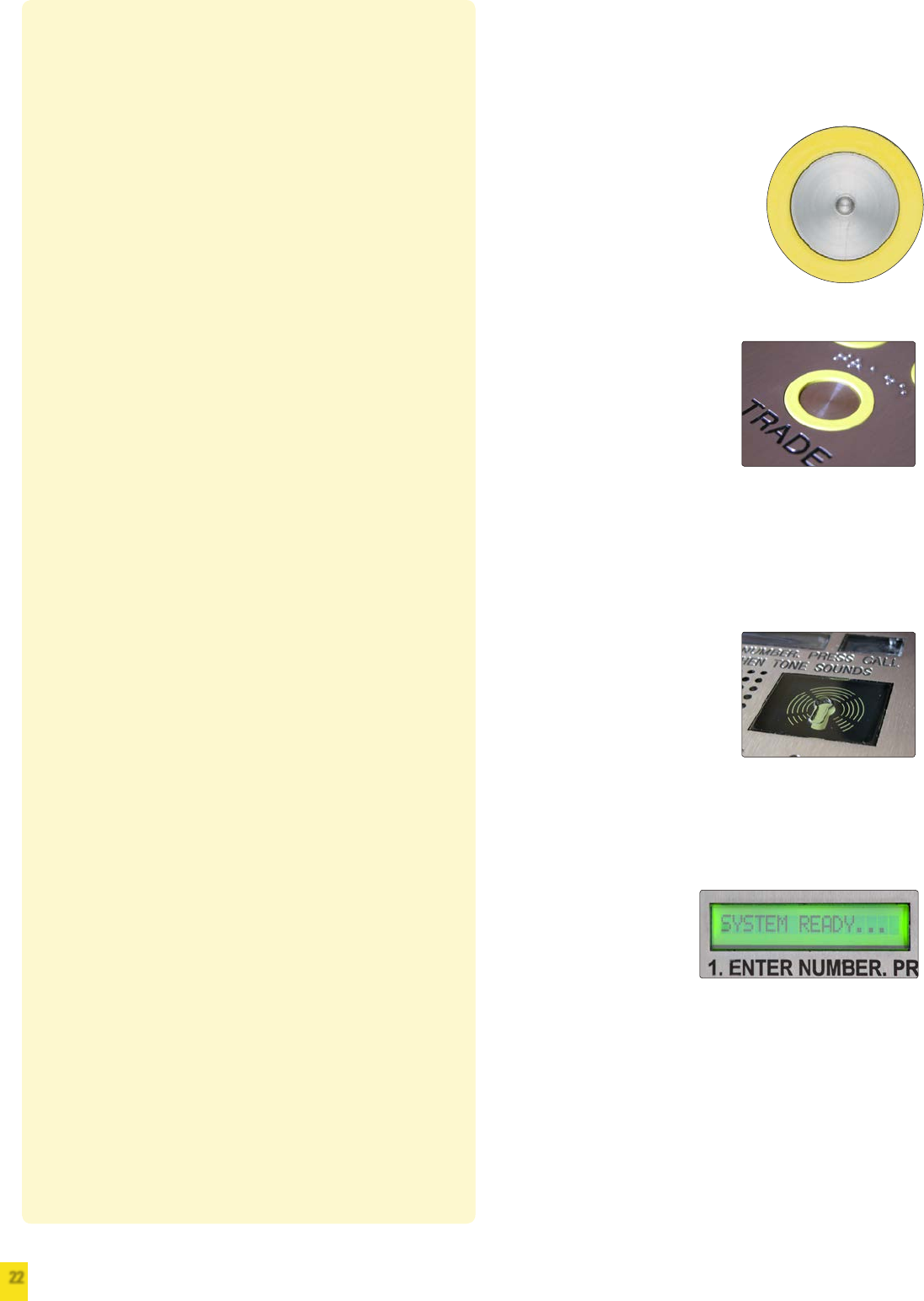

Disability Discrimination Act (DDA) Information 22
Customer Services/Technical Training/
Design Support Services/Technical Support 23
Contents
GDX5 Lite
Low Rise
GDX5 Lite
High Rise
GDX5 Full
Low Rise
GDX5 Full
High Rise
AUDIO ENTRANCE
PANELS/CHANNELS
HANDSETS
CONCIERGE
COMPATIBLE
INDIGO TOKEN
ACCESS
COMPATIBLE
PAC TOKEN
ACCESS
COMPATIBLE
VIDEO
COMPATIBLE

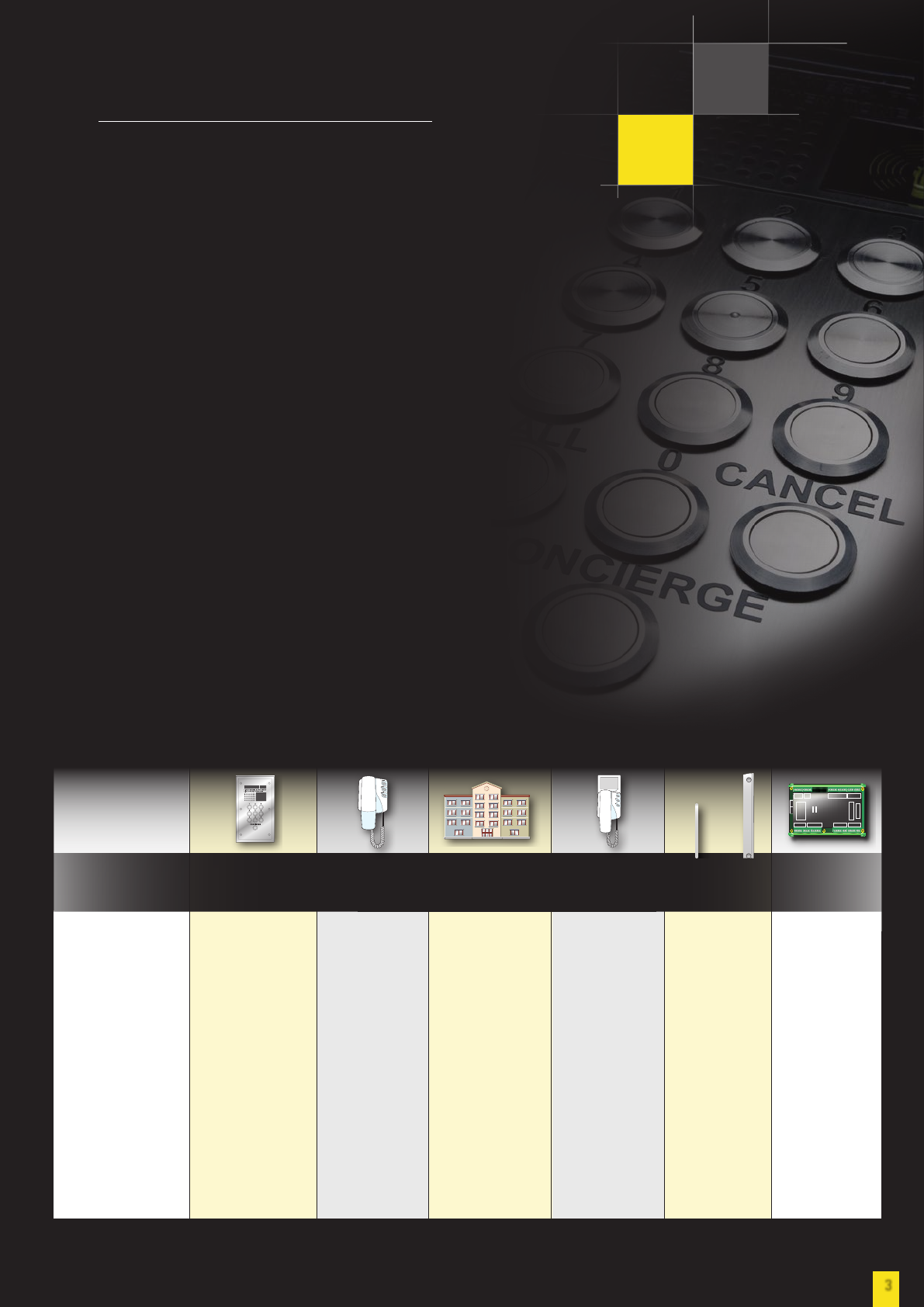

Features Selection Box
2 32 No Yes Yes Yes
2 255 No Yes Yes Yes
7 32 Yes Yes Yes Yes
7 255 Yes Yes Yes Yes
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
4T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk

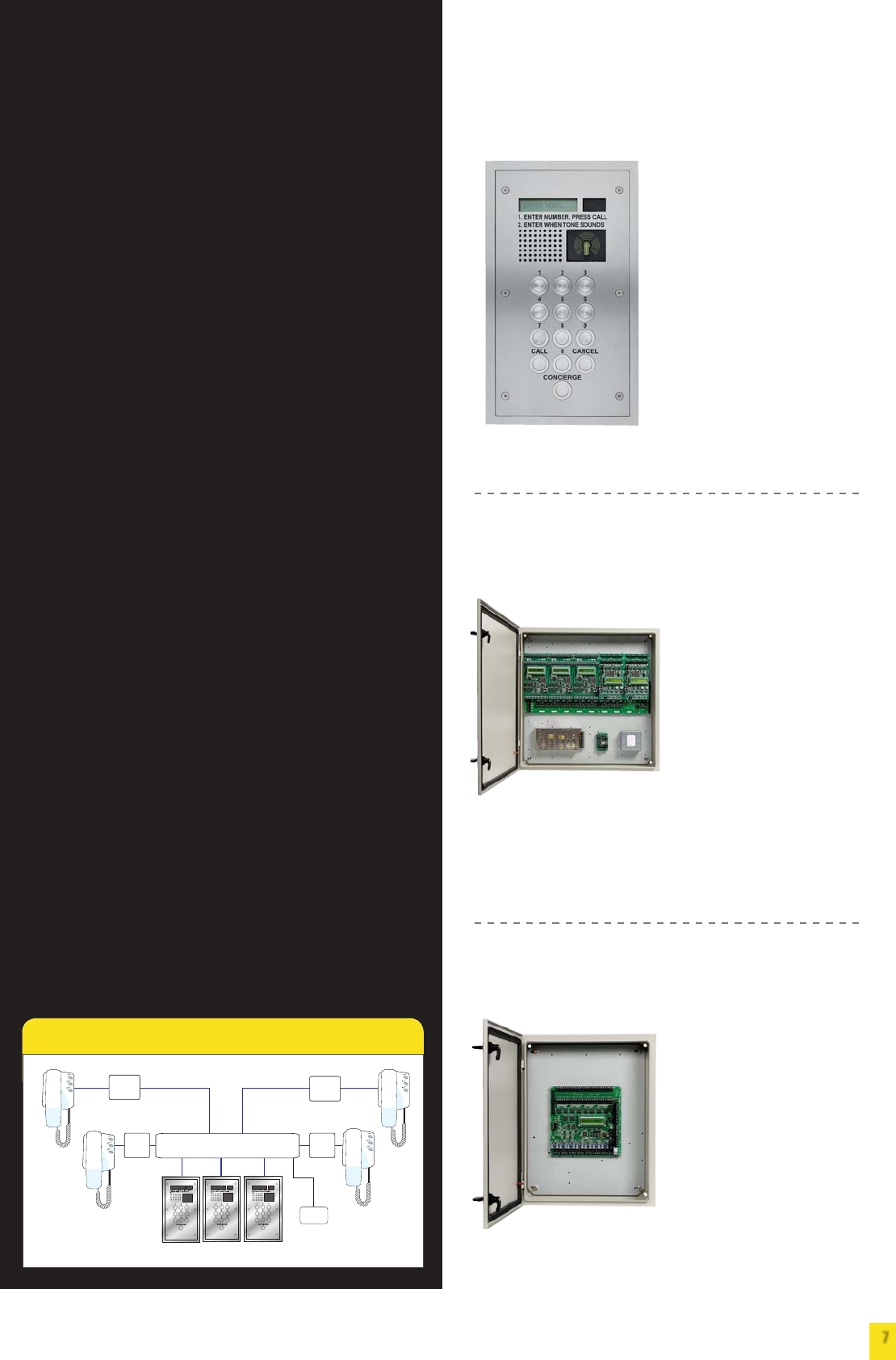

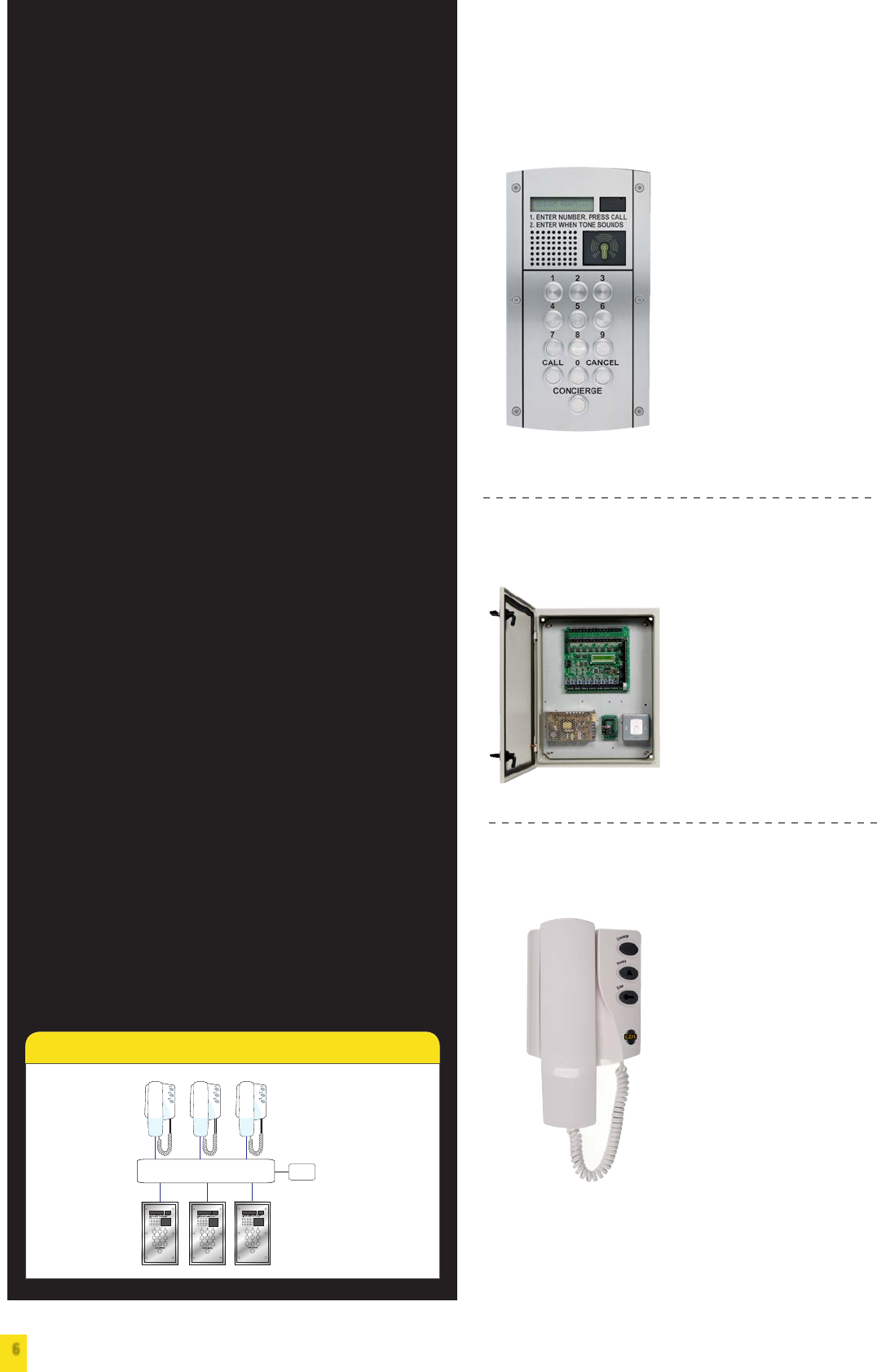

FEATURES:
• Duplex speech
• Secrecy of conversation
• Two simultaneous speech channels (no engaged doors)
• Handset timed privacy as standard (centrally adjustable)
• Door alarm monitoring and handset alert facility
• Two programmable trades access periods
• Automatic BST adjusting electronic time-clock
• Fully isolated and individually fused handset outputs
• Anti tailgating facility
• Vandal resistant high grade stainless steel entrance panels
• Custom engraved entrance panels
• Backlit LCD on entrance panels for full user notification
• Engineer adjustment of key system settings
• Diagnostic display unit for wiring and fault tracing
• Utilises standard CW1308 telephone cable (Note 1)

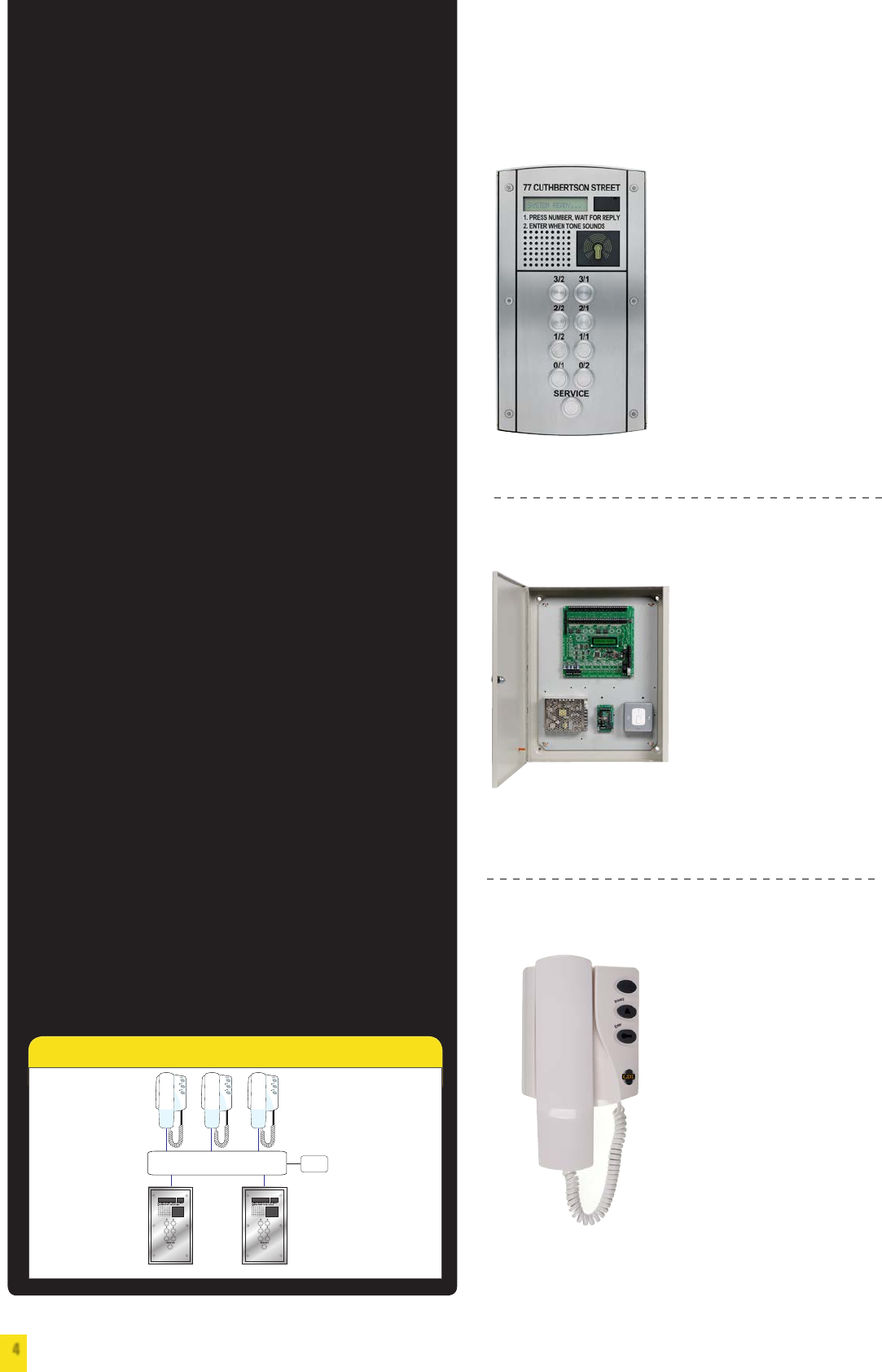

The GDX5 Lite Low Rise range is designed for projects requiring
either single or dual door entry control of premises up to a
maximum of 32 handsets without any requirement for central
concierge control.
The control equipment contains within a single enclosure all of
the necessary electronic control, distribution and power supplies
required for the system installation.
An overall system can then be designed using control equipment,
door entrance panels and handsets as required. A range of options
and ancillaries are also available to allow system specification to
meet even the most demanding of application requirements.
GDX5 Lite Low Rise Range
OPTIONAL FEATURES (see later sections for details):
• Fully integrated Indigo proximity access
• Remote proximity access administration
• Remote maintenance diagnostics
• Colour video
• Battery backup facility
Note 1 : Excluding underground cable runs and video option over 50m
• Vandal resistant stainless steel
• Available as compact (shown) or
mitred bezel
• Available as functional (shown)
or digital
• Available as Lite or Full
specification depending on
handset requirements
• Surface mount option available
for compact
• Available with Trades & Service
buttons
Entrance Panel
• Available in 8, 16, 24 and 32 way
handset sizes
• Takes 2 entrance panels as
standard
• Single high security key lock
sheet steel enclosure
• H: 500 mm x W: 400 mm x D: 100
mm (8 or 16 handsets)
• H: 600 mm x W: 600 mm x D: 100
mm (24 or 32 handsets)
• 3 .5 Amp PSU
• Utilises 4 wire connection for all
functionality for ease of install
• Attractive vandal resistant UL
Rated high gloss nish
• 2 button operation as standard
(enter & privacy).
• Large 20mm LED illuminated
buttons for DDA compliance
• Tactile button symbols for DDA
compliance
• Engineer adjustable caller ring
tone volume
Audio Handset
See page 10 on Entrance Panels for all available options and detailed specifications.
Lite Control Rack
TYPICAL GDX 5 LOW RISE SYSTEM
Low Rise Controller
TYPICAL GDX 5 LOW RISE SYSTEM
(Available in 8, 16, 24 or 32 Way Version)
240v
Please see page 11 on handsets and apartment stations for all available options.
5
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk

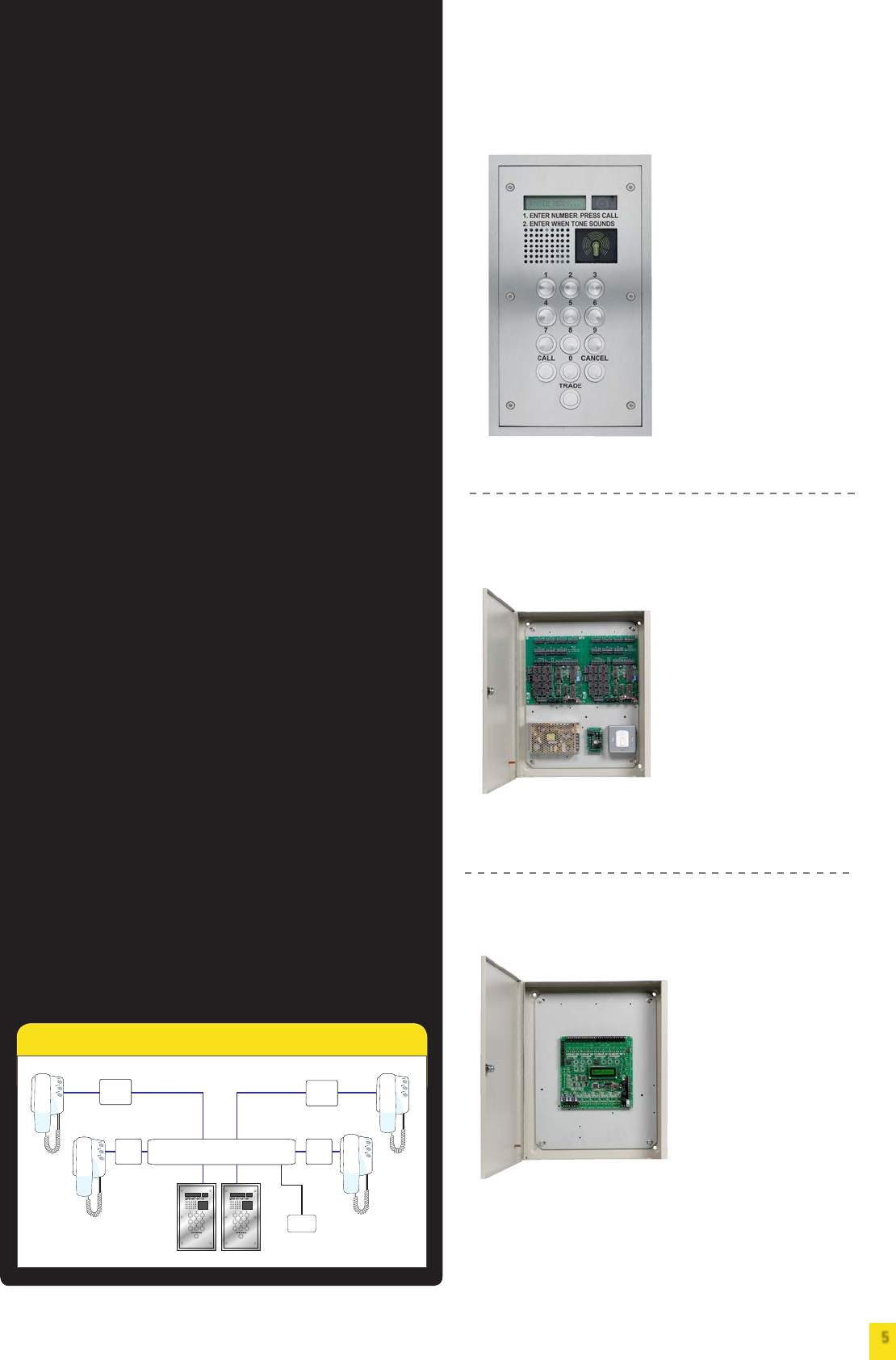

GDX5 Lite High Rise Range
The GDX5 Lite High Rise range is designed for projects requiring
either single or dual door entry control of premises up to a maximum of
255 handsets without any requirement for central concierge control.
The control equipment contains all of the necessary electronics,
distribution and power supplies required for installation. This can
be split into distribution units to simplify and reduce wiring
depending on the architecture of the application.
An overall system can then be designed using control equipment,
door entrance panels and handsets as required. A range of options
and ancillaries are also available to allow system specification to
meet even the most demanding of application requirements.
FEATURES:
• Duplex speech
• Secrecy of conversation
• Two simultaneous speech channels (no engaged doors)
• Handset timed privacy as standard (centrally adjustable)
• Door alarm monitoring and handset alert facility
• Two programmable trades access periods
• Automatic BST adjusting electronic time-clock
• Fully isolated and individually fused handset outputs
• Anti tailgating facility
• Vandal resistant high grade stainless steel entrance panels
• Custom engraved entrance panels
• Backlit LCD on entrance panels for full user notification
• Engineer adjustment of key system settings
• Diagnostic display unit for wiring and fault tracing
• Utilises standard CW1308 telephone cable (Note 1)
OPTIONAL FEATURES (see later sections for details):
• Fully integrated Indigo proximity access
• Remote proximity access administration
• Remote maintenance diagnostics
• Colour video
• Battery backup facility
Note 1 : Excluding underground cable runs and video option over 50m
• Vandal resistant stainless steel
• Available as compact or mitred
bezel (shown)
• Available as functional or digital
(shown)
• Available as Lite or Full
specification depending on
handset requirements
• Surface mount option available
for compact
• Available with Trades/Service,
Cancel & Call Buttons
Entrance Panel
Lite High Rise Exchange
• Available in 8, 16, 24 and 32 way
handset sizes
• Takes 2 entrance panels as
standard
• Single high security key lock
sheet steel enclosure
• H: 500 mm x W: 400 mm x D: 100
mm (8 or 16 Handsets)
• H: 600 mm x W: 400 mm x D: 100
mm (24 or 32 Handsets)
Lite Landing Junction Box
• Available in 7 or 14 LJB versions.
• Takes 2 audio channels as
standard
• Single high security key lock
sheet steel enclosure
• H: 600 mm x W: 400 mm x D: 100
mm (7 LJB’s)
• H: 600 mm x W: 600 mm x D: 100
mm (14 lJB’s)
• 7.5 Amp PSU
Note: Handset options as per GDX5 Lite Low Rise range opposite
TYPICAL GDX 5 HIGH RISE SYSTEM
240v
24 WAY
LJB 24 WAY
LJB
GDX 5 High Rise Exchange
8 WAY
LJB
8 WAY
LJB
See page 10 on Entrance Panels for all available options and detailed specifications
6T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
FEATURES:
• Duplex speech
• Secrecy of conversation
• 7 simultaneous speech channels reducing engaged calls
• Landing deck door entrance panel capabilities
• Handset timed privacy as standard (centrally adjustable)
• Door alarm monitoring and handset alert facility
• Two programmable trades access periods
• Automatic BST adjusting electronic time-clock
• Fully isolated and individually fused handset outputs
• Anti tailgating facility
• Vandal resistant high grade stainless steel entrance panels
• Custom engraved entrance panels
• Backlit LCD on entrance panels for full user notication
• Robust steel enclosure with high security key lock
• Engineer adjustment of key system settings
• Diagnostic display unit for wiring and fault tracing
• Utilises standard CW1308 telephone cable (Note 1)
OPTIONAL FEATURES (see later sections for details):
• Concierge control and monitoring facilities
• Fully integrated Indigo proximity access
• Remote proximity access administration
• Remote maintenance diagnostics
• Colour video
• DDA compliance options and features
• Battery backup facility
Note 1 : Excluding underground cable runs and video option over 50m
GDX5 Full Low Rise Range
Entrance Panel
Full Control Rack
Audio Handset
• Vandal resistant stainless steel
• Available as compact (shown) or
mitred bezel
• Available as functional or digital
(shown)
• Available as Full specication
only
• Surface mounting option
available for compact
• Available with Concierge, Trades/
Service, Cancel and Call buttons
• Available in 8, 16, 24 and 32 way
handset sizes
• Double high security key lock
sheet steel enclosure
• 7 Audio Channels as Standard
• H: 500 mm x W: 400 mm x D: 100
mm (8 or 16 handsets)
• H: 600 mm x W: 600 mm x D: 100
mm (24 or 32 handsets)
• 7.5 Amp PSU
• Utilises 4 wire connection for all
functionality for ease of install
• Attractive vandal resistant UL
Rated high gloss nish
• 2 or 3 button operation as
required ((enter & privacy) or
(concierge, enter & privacy))
• Large 20mm LED illuminated
buttons for DDA compliance
• Tactile button symbols for DDA
compliance
• Engineer adjustable caller ring
tone volume
The GDX5 Full Low Rise range is designed for projects requiring
multiple door entry control of premises up to a maximum of 32
handsets with the option for central concierge control.
The control equipment contains within a single enclosure all of the
necessary electronic control, distribution and power supplies
required for the system installation.
A range of options and ancillaries are also available to allow
system specification to meet even the most demanding of
application requirements.

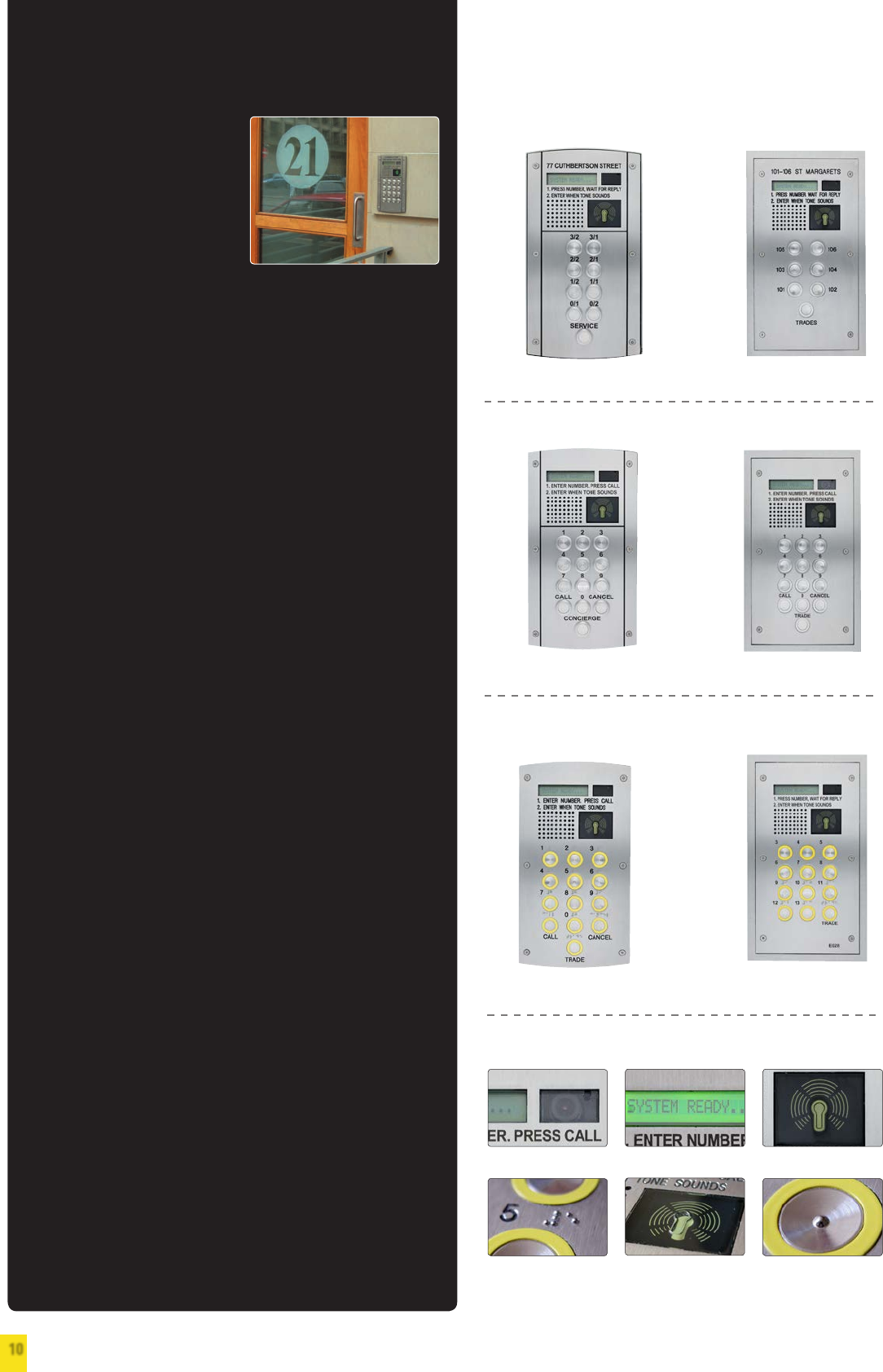

See page 10 on Entrance Panels for all available options and detailed specifications
Please see page 11 on handsets and apartment stations for all available options
TYPICAL GDX 5 FULL LOW RISE SYSTEM
Low Rise Controller
TYPICAL GDX 5 FULL LOW RISE SYSTEM
(Available in 16 or 32 Way Version)
240v
7
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Full High Rise Range
FEATURES:
• Duplex speech
• Secrecy of conversation
• 7 simultaneous speech channels reducing engaged calls
• Landing deck door entrance panel capabilities
• Handset timed privacy as standard (centrally adjustable)
• Door alarm monitoring and handset alert facility
• Two programmable trades access periods
• Automatic BST adjusting electronic time-clock
• Fully isolated and individually fused handset outputs
• Anti tailgating facility
• Vandal resistant high grade stainless steel entrance panels
• Custom engraved entrance panels
• Backlit LCD on entrance panels for full user notication
• Robust steel enclosure with high security key lock
• Engineer adjustment of key system settings
• Diagnostic display unit for wiring and fault tracing
• Utilises standard CW1308 telephone cable (Note 1)
Entrance Panel
Full High Rise Exchange
Full Landing Junction Box
OPTIONAL FEATURES (see later sections for details):
• Concierge control and monitoring facilities
• Fully integrated Indigo proximity access
• Remote proximity access administration
• Remote maintenance diagnostics
• Colour video
• DDA compliance options and features
• Battery backup facility
Note 1 : Excluding underground cable runs and video option over 50m
• Vandal resistant stainless steel
• Available as compact or mitred
bezel (shown)
• Available as functional or digital
(shown)
• Available as Full specication
only
• Surface mounting option
available for compact
• Available with Concierge, Trades/
Service, Cancel and Call buttons
• Available built to order
specification
• 1 or 2 motherboard base unit (5
or 10 cards)
• Congurable for a maximum of 7
audio channels (Entrance Panels
or Concierges)
• Can include alarm input, foyer/
lift intercom and auxiliary output
control cards
• Double high security key lock
sheet steel enclosure
• H: 600 mm x W: 600 mm x D: 100
mm (5 way motherboard)
• H: 800 mm x W: 600 mm x D: 200
mm (10 way motherboard)
• 7.5 Amp PSU
• Available in 8, 16, 24 and 32 way
handset sizes
• Takes 7 audio channels (Doors or
Concierge) as standard
• Double high security key lock
sheet steel enclosure
• H: 500 mm x W: 400 mm x D: 100
mm (8 or 16 handsets)
• H: 600 mm x W: 400 mm x D: 100
mm (24 or 32 handsets)
TYPICAL GDX 5 FULL HIGH RISE SYSTEM
240v
24 WAY
LJB 24 WAY
LJB
GDX 5 High Rise Exchange
16 WAY
LJB
16 WAY
LJB
The GDX5 Full High Rise range is designed for projects requiring
multiple door entry control of premises up to a maximum of 255
handsets with the option for central concierge control.
The control equipment contains all of the necessary electronics,
distribution and power supplies required for installation. This can
be split into distribution units to simplify and reduce wiring
depending on the architecture of the application.
A range of options are also available to allow system specification
to meet even the most demanding of application requirements.
See page 10 on Entrance Panels for all available options and detailed specifications
Handset options as per GDX5 Full Low Rise range opposite
8T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
All of the GDX5 range of door entry systems can have video
facilities incorporated into them.
Video pictures can be provided by integrated CCD cameras housed
within the entrance panels themselves or can be provided by
externally housed cameras located as required around the
entrances to the building with signals fed directly into the GDX5
door entry system.
The addition of video facilities directly into the GDX5 door entry
system itself however enhances security by allowing the user the
benefit of a visual identification of any visitor before admitting them
to the premises.
The GDX5 range of video handsets and apartment stations
incorporate a 4” Colour TFT Screen that offers a clear, full colour,
high definition image with a wide viewing angle for ease of use.
Each video unit has user adjustable colour and brightness facili-
ties to
allow picture optimisation to match the surrounding light
conditions within the dwelling.
Depending on the range of GDX5 door entry system selected up to
four simultaneous video channels can be used within a block (Lite
Systems - 2 Channels and Full Systems - 4 Channels) to allow
simultaneous access control of multiple doors within a block.
Audio and video handsets can be mixed on the same system to
cater for instances where there is a requirement for higher video
security for more vulnerable dwellings but where audio would
suffice for the majority of dwellings.
As well as the provision of video pictures to the tenants locally
these video pictures can be utilised for monitoring and
identification within a central control or concierge scheme
allowing full visual verification before visitor access is allowed
by staff.
The GDX5 concierge software platform can also be interfaced with
3rd party CCTV equipment to provide event driven camera
switching to synchronise operation of the door entry and CCTV
schemes implemented. This would allow for example calls from
audio panels or activated remote alarms to automatically switch
CCTV monitors to the correct camera feed for that audio panel or
area.
8
GDX5 Video Options

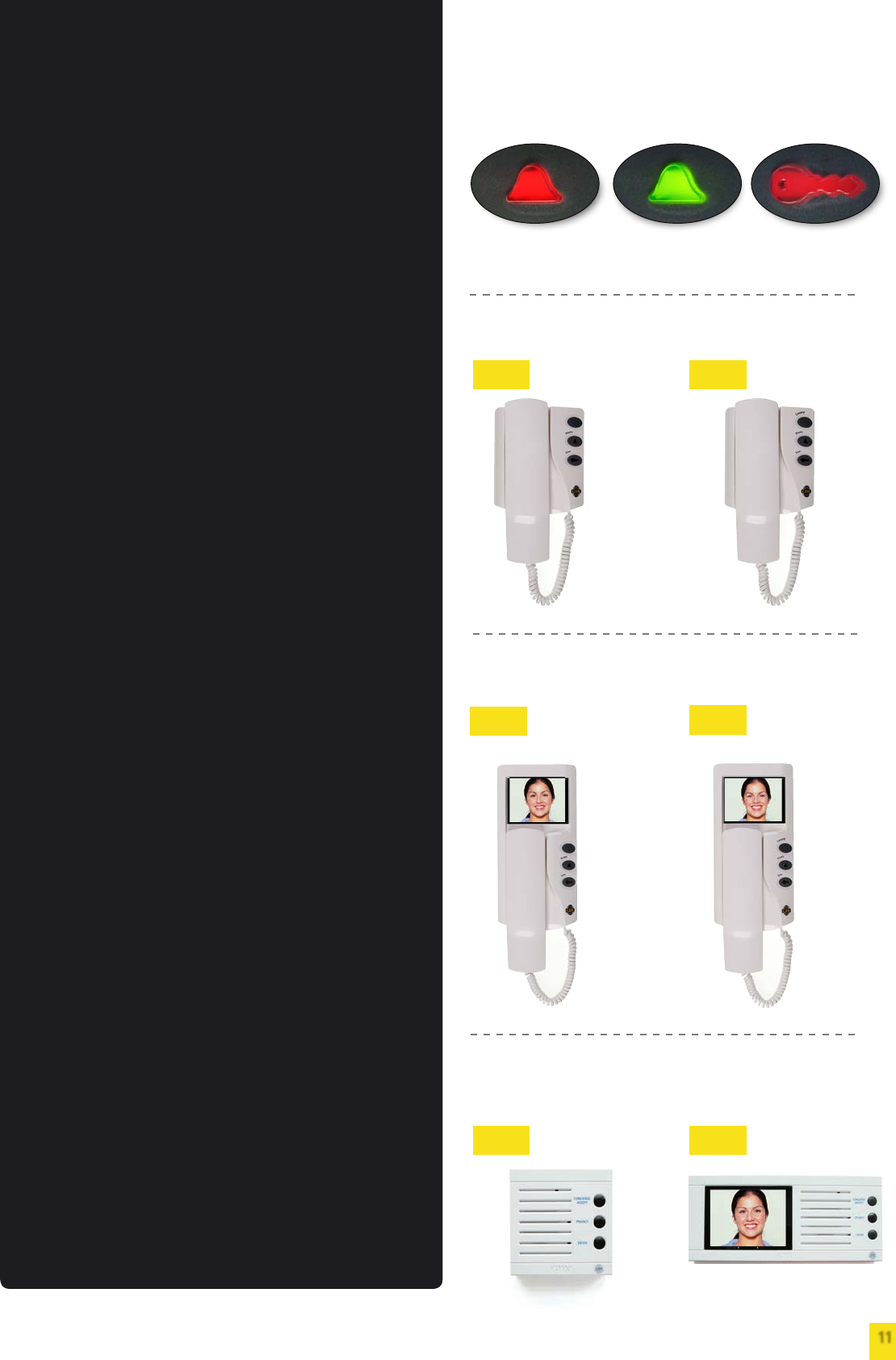

The video handsets and apartment stations offer the same high
specification and functionality as the audio versions - see page 11
for all available options and detailed specifications.
Video Handset
• Attractive vandal resistant UL
Rated high gloss nish
• 3 button operation (enter, privacy,
concierge/accept)
• Hands free audio communication
• 4” Colour TFT high denition with
wide viewing angle
Video Apartment Station
• Full colour CCD camera can be
included within all entrance
panel ranges
• High impact vandal resistant
polycarbonate lexan protection
Entrance Panel Camera
• Option available to utilise camera
scrolling facility on 3 button
handsets to allow tenants to
view additional cameras in
foyers or landings when called
to provide additional security for
tenant
Camera Scrolling
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
• Attractive vandal resistant UL
Rated high gloss nish
• 2 or 3 button operation as
required ((enter & privacy) or
concierge, enter & privacy))
• Large 20mm LED illuminated
buttons for DDA compliance
• Tactile button symbols for DDA
compliance
• Engineer adjustable caller ring
tone volume
• 4” Colour TFT high denition with
wide viewing angle
Video Switching Cards
• Additional cards incorporated
into audio control units and audio
high rise exchange units for the
addition of video switching
• 2 video channel (Lite) or 4 video
channel (Full) options
• 8 handsets per card
TYPICAL GDX 5 LOW RISE VIDEO SYSTEM
Video Low Rise Controller
TYPICAL GDX 5 LOW RISE VIDEO SYSTEM
240v
9
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
Proximity access token fobs provide ease of access to blocks for
residents and authorised personnel whilst restricting access to
areas such as communal work areas or car park barriers. Lost keys
are easily deleted or replaced without the need to replace expensive
door locks thereby offering a valuable ROI from reduced maintenance
and administration costs.
Within the GDX5 range there are three available options for the
provision of proximity token access facilities (the PAC and Standalone
Indigo options are covered in more detail on pages 13 & 15 of this
catalogue):
•
Indigo integrated within GDX5 Door Entry
•
PAC integrated within GDX5 Door Entry
•
Standalone Indigo Proximity Access
Traditionally adding proximity access control facilities into a door
entry system requires the addition of a separate proximity access
controller onto the door entry system. These are then interfaced
together resulting in additional cabling, increased equipment and
installation costs, increased maintenance complexity and increased
spares holdings. In contrast, as the Indigo proximity access control
is integrated completely into the GDX5 door entry system itself, this
avoids the unnecessary complexity and expense of interfacing two
separate systems together.
Token fob administration can then be carried out directly from the
GDX5 entrance panel by means of unique master tokens. This
removes any requirement for qualified personnel to access electrical
control equipment to administer fobs. Lost master tokens can also
be replaced on-site by maintenance personnel without the need for
resident token replacement or manufacturer support to do so.
A major advantage of this integrated solution is that it is retrospectively
upgradeable to central administration without need to recall token
fobs from the fob holders – once the stock of managed properties
reaches a point that central administration is considered a necessity
no change of equipment on site is required to do so and it can be
achieved without token recall.
Central token fob administration can be carried out from a PC based
central administration software platform over the mobile GSM
network or from a GDX5 Concierge software central control platform
that can also be added to provide full audio control, event monitoring,
alarm monitoring & event reporting facilities as well.
Integrated GDX5 Indigo
Proximity Access Options
Surface VR Reader
• Connect directly into a GDX5 door entry system without the need for any
additional proximity access controllers
• Available as slave version for read-in / read-out operation
Flush VR Reader
129
• Provides power and distribution for
adding 4 additional VR readers onto a
GDX5 Door Entry system
• Fused outputs for 4 VR readers and
locks
• Available with 3A or 7A PSU
• Single lock sheet metal steel enclosure
(H: 350 mm x W: 350 mm x D: 100 mm)
Integrated Indigo Proximity Access Panel Reader
• Proximity access reader integrated
directly into the GDX5 door entry
panel
• No need for any additional
proximity access controllers
• Slave reader can be connected for
read-in / read-out operation
• Can be administered locally with
master tokens via the entrance
panel itself
• Can be administered remotely via a
variety of communication methods
• Raised tactile symbol on reader
lexan for DDA compliance
131 151
135 155 Slave Flush VR Reader
129/01
3 Amp Distribution Unit
FEATURES:
• Proximity access readers are integrated directly into audio panels
• No additional cabling required to add readers into audio panels
• LCD Indication of “Valid” or “Invalid” Tokens For Benet of User
• Standalone vandal resistant readers available for non-audio doors
• Up to 3 unique master tokens per system for token administration
• Add and delete tokens from audio entrance panel using master
• Up to 1,000 user tokens per reader
• Up to 40 readers per system
• Can utilise any of the Indigo, Stanley or PAC token ranges
• No batteries or user replaceable parts within token fobs
• Up to 10mm token read range
• Colour coded tokens for ease of identication
Slave Surface VR Reader
7 Amp Distribution Unit
TYPICAL INTEGRATED DOOR ENTRY & ACCESS LAYOUT
Low Rise Controller
TYPICAL GDX 5 LOW RISE SYSTEM
(Available in 8, 16, 24 or 32 Way Version)
240v
10 T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Entrance Panel Range
The GDX5 Entrance Panel range
offers a variety of styles and options
to suit a wide range of applications.
The vandal resistant panels have
been designed to withstand the
harshest and most demanding of
installation environments.
With ease of installation and
maintenance in mind the panel design incorporates an internal hinged
chassis onto which all of the panel electronics and wiring connections
are mounted.
Functional Compact Functional Mitred
Camera LCD Display
Yellow Bezel Option Bezel and Braille Option
DDA Entrance Panels
Digital Compact Digital Mitred
Functional Entrance Panels
FEATURES:
• Vandal resistant 2.5mm high grade BS316 stainless steel faceplates
• High impact vandal resistant Polycarbonate Lexan
• Backlit LCD display for full user notication
• Duplex speech
• Audible reassurance tones for all panel events
• Privacy of conversation
• Two fully programmable trades access periods
• Automatic BST adjusting electronic time-clock
• Raised tactile symbol on proximity access reader Lexan
• Anti tailgating facility
• 5 to 8 digit coded access facility on digital panels
• Global Fireswitch option to release all system doors
• Engineer adjustable settings for:
• Lock release period
• Door alarm period
• Faceplate secured with tamperproof mono-drive 5 security screws
• Panels can include Service, Trade, Concierge, Call and Cancel buttons
Digital Entrance Panels
Entrance Panel Features
OPTIONAL FEATURES (Please also see later section on DDA):
• Block address engraved on panel
• Logo engraving on panel
• Raster™ Braille
• High visibility yellow button bezels
• Colour video camera
• Proximity access reader
• Surface stainless steel backbox option for compact panel
ENTRANCE PANEL STYLES
• Compact panel has rounded edges top and bottom
• Mitred Bezel panel has square edges top and bottom and comes
complete with a backbox incorporating a bezel surrounding the faceplate to
offer an additional degree of protection
• Functional panels have an individual call button for each handset on the
system. Each button is identied by the engraving on the faceplate. A
maximum of 20 buttons can be tted onto a faceplate (15 if Braille is added)
• Digital panels incorporate a call button. Flat addresses of up to 4 digits can
be entered before the call button is pressed to call the required handset.
This allows single entrance panels to call up to a maximum of 255 handsets
Token Reader
Raster™ Braille Raised Symbol
on Lexan
Raised Pip
on Button
11
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Handset & Apartment
Station Range
23121
Audio Handsets
23121/02
123510
Apartment Stations
The handset range has recently been completely redesigned to
provide a sleek, modern look and feel which combined with a new
high quality gloss finish make it suitable for installation into any
environment.
AUDIO HANDSET FEATURES:
• Attractive and sleek modern design in UL rated high gloss nish
• Available in 2 Button (Enter & Privacy) and 3 Button (Enter, Privacy &
Concierge) Models
• Large 20mm LED illuminated buttons for DDA compliance
• Raised tactile buttons with bell symbol which lights up green when called
and red when on privacy
• Raised tactile button with key symbol which will light up red and ash on
and off to indicate door open
• LED indication of door left open alarm
• Key shape mounting hole at top of handset rear for ease of install
• Engineer adjustable ring tone volume as standard
Video Handsets
123018 123016
123530
OPTIONAL FEATURES:
• Inductive coupler within handset handpiece for use with “T” position on
Hearing Aids
• Alarm input monitoring on 3 button audio handset
Illuminated Tactile Handset Buttons
VIDEO HANDSET FEATURES:
• Attractive and sleek modern design in UL rated high gloss nish
• Available in 2 Button (Enter & Privacy) and 3 Button (Enter, Privacy &
Concierge) Models
• Large 20mm LED illuminated buttons for DDA compliance
• Raised tactile buttons with bell symbol which lights up green when called
and red when on privacy
• Raised tactile button with key symbol which will light up red and ash on
and off to indicate door open
• LED indication of door left open alarm
• 4” Colour TFT monitor which provides high denition full colour and wide
angle viewing image
• Engineer adjustable ring tone volume as standard
• Colour and brightness adjustment controls to suit the handset environment
• Key shape mounting hole at top of handset rear for ease of install
• Standard CW1308 twisted pair cable for video signal up to 50m
• Alarm input monitoring as standard on 3 button video handset
• Camera scroll option as standard on 3 button handset
APARTMENT STATION FEATURES:
• Attractive modern design in UL rated high gloss nish
• Handsfree Speech Unit
• Available in 3 Button (Enter, Privacy & Concierge/Accept) Model
• Green LED indication when unit is called
• Red LED indication when unit is in privacy mode
• Red LED indication of door left open alarm
• Facility for remote button operation with pendants, footswitches, remote
control etc
• Key shape mounting hole at top of handset rear for ease of install
2 Button
2 Button
3 Button
3 Button
Audio Video
Privacy On Handset Called Lock Released /
Door Alarm
12 T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Proximity Access Token
Fob Ranges
• Can be used with GDX5 Indigo or PAC Access Controllers
• Uses PAC (153KHz) proximity technology
• Easy to use, non contact proximity door reader technology
• Each token has a unique ID code
• Constructed from durable and tough UL Rated ABS Plastic which is
double sealed and ultrasonically welded
• Lifetime guarantee against electronic failure
• Choice of distinct colours for ease of identication
• H: 60 x W: 33 x D: 6mm
• Token electronics fully encapsulated for the ultimate in protection and
robust operation in all environments
• Exceptionally high IP rating of IP67 due to the encapsulation and
construction used to protect against moisture and dust ingress
• Robust metal eyelet incorporated into token for easy t onto a keyring
• No batteries required within the token
21082 Green
21084 Yellow
21081 Red 21083 Blue
21086 Purple
Orange
• Can be used with GDX5 Indigo but not PAC Access Controllers
• Each token has a unique ID code
• Constructed from durable and tough UL Rated ABS Plastic
• Lifetime guarantee against electronic failure
• Choice of colour banded tokens for ease of identication
• Token electronics fully encapsulated for the ultimate in protection and
robust operation in all environments
• H:40mm x W:12mm x D:6mm
• Exceptionally high IP rating due to the encapsulation and construction
used to protect against moisture and dust ingress
• Easy tted onto a keyring
• No batteries required within the token
STANLEY® Token Fobs
PAC® Token Fobs
The Stanley and PAC token fob ranges are also fully compliant for
use with the PAC range of access control equipment that can be
incorporated within the GDX5 range of Door Entry equipment.
Indigo™ Token Fobs
21020 PAC Token
• Black with PAC logo clip
20204 PAC Token
• Black without PAC logo clip
21087 Black
• Can be used with GDX5 Indigo or PAC Access Controllers
• Uses PAC (153KHz) proximity technology
• Easy to use, non contact proximity door reader technology
• Each token has a unique ID code
• Constructed from durable and tough UL Rated ABS Plastic which is
double sealed and ultrasonically welded
• Lifetime guarantee against electronic failure
• Choice of distinct coloured clips for ease of identication
• H: 60 x W: 33 x D: 5.5mm
• Token electronics fully encapsulated for the ultimate in protection and
robust operation in all environments
• Exceptionally high IP rating of IP67 due to the encapsulation and
construction used to protect against moisture and dust ingress
• Robust metal eyelet incorporated into token for easy t onto a key-ring
• No batteries required within the token
40108 40204
40101 Red 40103 Blue 40105 White
Orange Brown
40102 Green 40104 Yellow 40106 Black
40109 Turquoise 40206
40205 Purple
Pink
• Coloured Clips (x 10) for PAC Token (20204)
GDX offer 3 ranges of non-contact proximity access token fobs that
are fully compliant with the Indigo Access Control technology
integrated within the GDX5 range of Door Entry equipment.
21085
122 Black
123 Red
124 Blue
125 Green
126 Yellow
13
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
As part of the Stanley Security Products portfolio GDX can offer the
market leading range of PAC proximity Access Control controllers
fitted within the GDX5 range of Door Entry equipment.
The utilisation of a single enclosure for both door entry and access
control equipment reduces the required installation footprints and
installation costs due to a reduction in cable containment and the
provision of only a single mains supply for all installed equipment.
We have selected the most popular of PAC’s controllers for
inclusion directly within the GDX door entry control equipment to
offer a market beating solution for the convenience of our
installers.
GDX5 PAC Proximity Access
Control Options
PAC CONTROLLERS AVAILABLE:
• EasiKey 250
• PAC512
• PAC512IP
• iPAC
GDX5 DOOR ENTRY CONTROLLERS OPTIONS INCLUDED:
• GDX5 8 or 16 Way Lite Low Rise Audio Control Rack
• GDX5 8 or 16 Way Lite Low Rise Video Control Rackk
• GDX5 8 or 16 Way Full Low Rise Audio Control Rack
• GDX5 8 or 16 Way Full Low Rise Video Control Rack
ENCLOSURES AND POWER SUPPLY RATINGS:
• Enclosure Sizes may differ from the standard GDX5 Door Entry control
rack enclosures
• Power supply ratings may differ from the standard GDX5 Door Entry
control rack specications
• Please contact GDX Sales for assistance and further information
Typical GDX5 control rack with PAC controller fitted
Easikey 250 Controller
• 2 Doors
• 3 Master Tokens
• 250 User Tokens
• Administered Locally
Residential PAC 512 Controller
• 2 Doors
• 75,000 User Tokens
• RS485 & RS232 Communication
Ports
• Administered Remotely
PAC 512 IP Controller
• 2 Doors
• 75,000 User Tokens
• Built-in 1-/100 Mbps Ethernet
connection
• RS485 & RS232 Communication
Ports
• Administered Remotely
iPAC Controller
• 2 Doors
• 100 Master Tokens
• 1,100 User Tokens
• Built-in 1-/100 Mbps Ethernet
connection
• Built-in Web Browser
• Administered Locally or remotely
22370
20155
20245
21072 20055
v2.6 v3.2 (incl. v3.1 or later)
14 T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Door Entry Ancillaries Range
GDX PAC VR Readers
GDX5 Audio Intercom Unit
H&C No7 Key Drop Leaf Key
23002 Push To Exit
23003 DDA Push To Exit
23120
23000 Architrave Push To Exit 24110
Master Beacon / Extension Sounder
• 2.5mm stainless steel faceplate
c/w security screws
• Flush mounted backbox
• 2.5mm stainless steel ange on
backbox
• Single gang 2.5mm stainless
steel ush mounting plate
• 25 mm IP68 sealed stainless
steel button
• DDA compliant engraved yellow
ring around button
• Double pole change over switch
• Single gang 2.5mm stainless steel
ush mounting plate
• 25 mm IP68 sealed stainless steel
button
• Double pole change over switch
• Stainless steel ush mounting
plate
• 20 mm IP66 sealed stainless
steel button
• Double pole change over switch
• 2.5mm stainless steel faceplate c/w security screws
• Flush mounted backbox
• Tactile raised symbol on reader lexan for DDA compliance
• Typically for use in lifts, foyers or
communal areas
• 2.5mm thick stainless steel ush
mounting plate c/w security
screws and galvanized steel
backbox
• Surface mount stainless steel
backbox option available
• Call button option for concierge
alert facility
Handset Extension Sounder & Beacons
• Manufactured from high quality
UL rated ABS plastic
• Connects directly onto GDX audio
and video handsets with no
requirement for additional control
rack cabling
• H: 90 mm x W: 90 mm x D: 25mm
24120
110025 Surface Fireman’s Switch
(Drop Leaf Key)
• 2.5mm stainless steel faceplate
c/w security screws
• Surface mounted stainless steel
backbox
24100
• Combined high visibility LED beacon and sounder
• User adjustable volume control
• Drives a maximum of 3 slave beacons
• Maximum of 1 extension sounder per handset
Slave Beacon
• High visibility LED beacon
• Connects directly into a Master Beacon
• Extension call alert sounder
• User adjustable volume control
• Maximum of 1 extension sounder per handset
Extension Sounder
Flanged Yellow / Black
Flanged Blue / Grey
123015
123014 123005
123006
Yellow / Black
Blue / Grey
110019 110027
Flush Fireman’s Switch
15
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
Standalone Indigo Proximity
Access Range
Proximity access token fobs provide ease of access to blocks
for residents and authorised personnel whilst restricting access
to areas such as communal work areas or car park barriers. Lost
keys are easily deleted or replaced without the need to replace
expensive door locks thereby offering a valuable ROI from reduced
maintenance and administration costs.
Within the GDX5 range there are three available options for the
provision of proximity token access facilities (The Integrated
Indigo and PAC options are covered in more detail on Pages 9 and
13 of this catalogue):
• Indigo integrated within GDX5 Door Entry
• PAC integrated within GDX5 Door Entry
• Standalone Indigo Proximity Access
The Indigo standalone range allows for the easy addition of
proximity access facilities onto existing audio door entry systems
whether GDX or other manufacturers without the need to replace
the existing door entry equipment.
The 133 programming unit is for administering tokens for part no’s 131 and 151.
The 138 internal reader controller can be used for both administering tokens for
Part no’s 131 and 151 and as a door reader controlling a lock release itself.
Internal Reader Controller
138
TYPICAL RESIDENTIAL INDIGO PROXIMITY ACCESS LAYOUT
TYPICAL STANDALONE INDIGO PROXIMITY ACCESS LAYOUT
Programming Unit
133
• White ABS Plastic
• Internal use only
• 1000 tokens per programming unit
• Backlit LCD
• Can be used to program up to 40
readers per system
• H: 165mm x W: 90 mm x D: 17 mm
Remote Interface
Allows remote administration of proximity access fobs from PC based GDX5
Token Administration Software
• H: 235mm x W: 145mm x D: 50mm
25740 25700 IP Interface
129
129/01
3 Amp Distribution
7 Amp Distribution
GSM Interface
The Indigo standalone range also offers an ideal solution when only
proximity access control is required without any audio door entry.
The on-site programming unit allows the user administration of
proximity fobs on site and removes any requirement for
qualified personnel to access electrical control equipment to
administer fobs.
Alternatively, with the addition of an interface unit (GSM or IP), this
flexibility allows the same GDX5 central administration platform to
be utilised for administering all of your proximity access control and
audio door entry stock. This administration can be carried out on
either a hardwired or on a remote connectivity basis over the
mobile GSM network.
Surface VR Reader
• Connect directly into a GDX5 door entry system without the need for any
additional proximity access controllers
• Available as slave version for read-in / read-out operation
Flush VR Reader
131 151
135 155 Slave Flush VR Reader Slave Surface VR Reader
• Provides power and distribution for
adding 4 additional VR readers onto a
GDX5 Door Entry system
• Fused outputs for 4 VR readers and
locks
• Available with 3A or 7A PSU
• Single lock sheet metal steel enclosure
(H: 350 mm x W: 350 mm x D: 100 mm)
129/02
129/03
3 Amp Distribution
& Timeclock Module
7 Amp Distribution
& Timeclock Module
Door Panel
Main Door
240v
PSTN MODEM
ADMIN READER
MODEM
3rd Party Door Entry
Lock Trigger
Distribution
VR Reader VR Reader
VR Reader Programming
Unit
240v
VR Reader VR ReaderVR ReaderVR Reader
Distribution
240v
Distribution
16 T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Concierge Central Control Software
OVERVIEW
The GDX5 Concierge Central Control software allows full control of the
GDX5 Door Entry system by providing control and administration of all
functionality within the door entry and access control systems installed
within the residential blocks.
MULTIPLE OPERATOR WORKSTATIONS
If required, multiple operator workstations can be located in several
locations either on or off site. As the software is Microsoft® Windows® PC
operating system based this allows for standard networking
implementations to be utilised to do so. Connection can be made via a
variety of options including local or wide area networks, wireless links,
ADSL connections or bre-optic backbones.
TENANT RECORD & PROXIMITY TOKEN ADMINISTRATION
The software allows various elds of tenant information to be recorded
within it that are automatically displayed on the operator screens when
calls are made or received. It can also be utilised for the central
administration of proximity access token fobs issued to tenants within the
blocks. The solution does however offer a major advantage over
virtually all other systems on the market in that it utilises a single
database record for both tenant and token information together
rather than separate databases created by interfacing two different door
entry and access control packages together.
This truly integrated solution offers administration of both tenant and
token information from a single database record for each dwelling as
opposed to attempting to maintain two separate records – thereby
removing the possibility of two different unsynchronised records as well
as saving time in maintaining records on a day to day basis.
SOFTWARE FUNCTIONALITY
The software is user friendly and intuitive to use as it is designed with
layout and menu operation similar to most Windows® environment
software - so no special training is required other than basic operator
skills. Various levels of user permission can be setup within the concierge
software to restrict by operator password access to functionality such as
for example:
• Operator door entry call control
• Proximity token access administration
• Tenant record administration
• Engineering control
DOOR ENTRY CALL CONTROL
The software permits either full intercept control of all system audio
calls (Control Mode) or simply the monitoring of calls without
intervention (Monitor Mode). This mode is selectable on a block by block
or even dwelling by dwelling basis. The following can be controlled or
monitored:
• Door to dwelling calls
• Door to concierge call
• Concierge to dwelling calls
• Dwelling to concierge callback requests
• PA audio Intercoms within communal areas such as lifts or foyers
ALARM MONITORING FACILITIES
The software also allows for the live monitoring of common area and
dwelling alarm inputs that can be utilised for as examples:
• Smoke, Panic, Temperature and Hypothermia alarms
• Security contacts
• Stair lighting, boiler failure, water overow and lift failure alarms
EVENT LOGGING & ARCHIVING
All system events are logged by the software allowing the capture and
time stamping of all events such as for example:
• Door entry call trafc
• Proximity token access usage
• Alarm events
• Concierge operator event handling
The software comes with a series of standard prewritten reports for the
analysis of these logged system events, such as the following report
examples:
• Door calls to particular ats
• Proximity Token usage
• Dwelling to concierge callback requests
These event logs or event reports can be printed off or electronically
archived if required for a permanent record.
SYSTEM DIAGNOSTICS
Remote engineering system diagnostics can be performed from the
central software to assist in preventative maintenance and the
identication of any system issues within the remote blocks. This will
assist engineering maintenance staff and reduce any system maintenance
costs and downtimes.
ADDITIONAL SYSTEM OPTIONS
There are several additional options that can be incorporated into the
overall system design to provide additional capacity or ease of use:
• The addition of a Touchscreen monitor to the operator
workstation allows for greater operator freedom
• Additional operator workstations can be added either on-site
or remotely for large sites or to allow exible operator shift
patterns
• An administration workstation can be added either on-site or remotely
for updating tenant records, running event reports and controlling the
issuing of proximity access token fobs
17
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
Typical GDX5 Concierge Control Screen
Events requiring action automatically appear
along with an audible alert and ashing icon
Active call details displayed automatically to
allow visitor verication procedure by staff All event transactions displayed, logged and
archived
Select any area, door, intercom or telephone
handset as required to initiate call
TYPICAL CONCIERGE LAYOUT CONTROLLING AUDIO & TOKEN ACCESS
VoIP
Interface
ADMIN READER
Satellite Site Main Site
IP Interface Units
HIGH RISE
MULTI-TENANT
BLOCK
LARGE
CONCIERGE
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
VoIP
Interface
HIGH RISE
MULTI-TENANT
BLOCK
HIGH RISE
MULTI-TENANT
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
Concierge 1
Concierge 2 Administration
VoIP
Interface
VoIP
Interface
VoIP
Interface
LAN/WAN
VoIP
Interface
LAN/WAN
KEY
Analogue
IP
VoIP
Interface
ADMIN READER
Satellite Site Main Site
IP Interface Units
HIGH RISE
MULTI-TENANT
BLOCK
LARGE
CONCIERGE
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
VoIP
Interface
HIGH RISE
MULTI-TENANT
BLOCK
HIGH RISE
MULTI-TENANT
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
Concierge 1
Concierge 2 Administration
VoIP
Interface
VoIP
Interface
VoIP
Interface
LAN/WAN
VoIP
Interface
LAN/WAN
KEY
Analogue
IP
18 T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Token Administration Control Software
OVERVIEW
Within the GDX5
Concierge Central Control
software package there
is the facility to centrally
administer proximity
access token fobs issued
to the tenants within the
blocks. This can be used in
conjunction with the full
concierge audio control
monitoring facility to
monitor the door entry
system or it can be used
simply to provide cost effective remote administration of the integrated
Indigo proximity token access fobs within the blocks.
TENANT RECORD & PROXIMITY TOKEN ADMINISTRATION
The solution offers a major advantage over virtually all other systems on
the market in that it utilises a single database record for both tenant
and token information together rather than separate databases
created by interfacing two different door entry and access control
packages together.
This truly integrated solution offers administration of both tenant and
token information from a single database record for each dwelling as
opposed to attempting to maintain two separate records – thereby
removing the possibility of two different unsynchronised records as well
as saving time in maintaining records on a day to day basis.
The database is constructed to match the required layout of the specic
site. Token fobs issued are recorded against the dwelling they are issued
to and multiple tenant records can be created within each dwelling to
identify which tenant within the dwelling a particular token has been
issued to. When combined with the use of coloured coded tokens that
can also be logged within the tenant record this provides an extremely
effective method of controlling and identifying issued token fobs.
Database elds are provided to allow the creation of detailed tenant
record databases to assist concierge or housing staff. These elds include
the following:
• Surname
• Forename
• Relationship
• Emergency Contact
• Doctor’s Details
• Car Registration
• Additional Information
• Condential Information
• Token Colour Identier
SOFTWARE FUNCTIONALITY
The software is user friendly and intuitive to use. Various levels of user
permission can be setup within the software to restrict by operator
password access to different functionality.
Within the token administration software the following functionality is
provided:
• Add user tokens remotely as required
• Delete user tokens remotely as required
• Create access groups covering multiple blocks to assign to user tokens
to save repeat token additions
• Add Staff tokens covering one, several or all blocks
• Ability to “Tag” individual tokens to alert the concierge of their use
without blocking the access rights of the token
• Ability to mark “Missing” individual tokens to alert the concierge of
their use whilst blocking the access rights of the token
• Ability to search for particular tokens within database records if found
and handed in to identify the token owner
EVENT LOGGING & ARCHIVING
Token access proximity usage can be logged by the software allowing the
recording and time stamping of all events. This will be possible on a live
basis if on permanent data connection or remotely for later retrieval if
required if on dial-up data connection.
The software comes with a series of standard pre-written reports for the
analysis of these logged system events, such as the following report
examples:
• Reports on overall proximity token usage
• Reports on specic proximity token usage
• Reports to identify “Unused Tokens” over a specied period of time
These event logs or event reports can be printed off or electronically
archived if required for a permanent record.
PERMANENT CONNECTION
When used in conjunction with full concierge facilities a permanent
connection to the blocks allows the live administration of token access
fobs as required. This permanent connection also facilitates the logging
of all token access events for later analysis if required.
DIAL-UP CONNECTION
When used for remote administration without a permanent connection
then dialling in by GSM modem to specic blocks facilitates the download
of proximity token updates to the remote blocks as required. This also
allows the selective upload of stored event transactions from a remote
block for analysis if for instance there is an incident within the block.
19
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
Typical GDX5 Token Administration Screen
Multiple tenant token records can be
allocated against each dwelling
Select area and dwelling telephone number to
store token against for ease of reference Enter tenant details against each token issued
Additional elds for extra information – that can
be restricted according to operator privileges
TYPICAL GSM ADMINISTRATION LAYOUT ADMINISTERING TOKEN ACCESS
ADMIN READER
HIGH RISE
MULTI-TENANT
BLOCK
HIGH RISE
MULTI-TENANT
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
LOW RISE
MULTI-TENANT
BLOCK
Token Administration
PSTN MODEM
MODEM
PSTN OR GSM
NETWORK
Reader
Panel
MODEM
Panel
MODEM
Panel
MODEM
Panel
Reader Reader Reader
20 T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Technical Tips
Numbering
Each entrance panel and linecard on a system needs to have a unique
number identifying it. Entrance panels start at Door Number 0 and the
linecards also start at Linecard 0. So a system with two entrance panels
and three linecards will have a Door 0, Door 1, Linecard 0, Linecard 1 and
Linecard 2.
Indigo stand-alone readers are numbered as Doors. For proper
operation of the Indigo reader the system must have an
entrance panel or stand-alone reader numbered as Door 0.
Audio channels start at Audio Channel 1. On a lite system only two audio
channels are available (Channels 1 and 2). On a full system there are seven
audio channels available (Channels 1 to 7).
CAN Connections and Balancing
For communication between various parts of the system a 2 wire serial
data bus (CAN) is used. Each part of the system will have a CANH and a
CANL connections. There is no cross in these connections and CANH wires
directly to CANH and CANL wires directly to CANL. To balance the CAN bus
two header termination links must be tted. These are normally tted on the
rst entrance panel (Door 0) and the rst linecard (Linecard 0) on the system.
A balanced CAN bus will measure approximately 60 ohms across the CANH
and CANL connections on any part of the system when powered down.
COMMS errors can occur if there are not two termination links installed.
Audio Connections
Audio channels on a GDX5 system consist of 4 wire audio (TX+, TX-, RX+,
RX-). Between entrance panels, high rise exchanges, low rise controllers
and landing junction boxes the wiring is the same for each audio channel.
The audio cabling is crossed as follows:
TX+ connects to RX+
TX- connects to RX-
RX+ connects to TX+
RX- connects to TX-
The audio wiring should use appropriate CW1308 cable with 2 pairs of the
cable assigned to each audio channel. The cable normally includes a pair
for the CAN connections.
Audio Handset Connections
Between a linecard and an audio handset connect terminals 1,2,3,4 on the
appropriate linecard port directly to terminals 1,2,3,4 on the handset using
3 pair CW1308 cable. The maximum distance the handset can be from the
linecard is 50 metres.
Video Handset Connections
Two separate 3 pair CW1308 cables should be used for a video handset.
One for the audio side, which should be wired into the linecard as per
an audio only handset. The second cable is used to power and supply a
video signal to the handset and runs from the Video Switching Card. The
connections are one to one and are 15V, 0V, Video Signal+ and Video
Signal-. On long cable or noisy environments a coaxial cable could be used
to run the video signals.
Slave Handset Connection
A parallel slave handset can be added onto a main handset. Remove the
links LK1 and LK2 in the slave handset only and connect wires 1,2,3,4 and
“EXT PRIV+” between the two handsets.
Only one parallel slave handset can be added per main handset. A main
video handset cannot have a slave video handset but can have a slave audio
handset.
Combined Beacon Sounder Connections
A combined beacon sounder unit can be wired into a GDX5 handset by
connecting wires 3, 4, TR and EXT SND between them using CW1308 cable.
Changing Entrance Panel Settings
Various settings including door and audio channel numbering, service
times, time and date settings, etc. can be altered at the GDX5 entrance
panel. These settings can be displayed and changed by way of the four
small buttons visible through the hole in the plastic carrier - which are
reached by removing the entrance panel button faceplate. These four
buttons – from the left hand side have the following functions - Settings
Display, Increment Setting, Decrement Setting, Enter New Setting. Pressing
the Settings Display button repeatedly will bring up each setting in turn.
Before any setting can be changed a security link must be moved before
the Increment, Decrement or Enter buttons can be used - link PG10 should
always normally sit in the position labeled SP (Settings Protect) – to adjust
any settings move this link into the position labeled SE (Settings Enable).
This link change will then allow the Increment and Decrement buttons to
vary the setting – pressing the Enter button will save the new setting. This
new setting will not be saved until the Enter button has been pressed. The
settings routine will time out 8 seconds after the last button press. Panel
operation will not return to normal until the security link has been replaced
again to secure the settings again.
Linecard Settings
Linecard settings including privacy time settings can be changed in a similar
way to the entrance panels using the four small buttons immediately below
the LCD display. Again to allow changes to the settings a link (LK6) has
to moved from the PROTECT to the ENABLE setting. Make sure the link is
returned to the ENABLE position once changes have been made.
Indigo Entrance Panel Adding A Token
Present an editor token to the panel reader and “EDIT ADD MODE” will be
displayed on the LCD. Press any button on the panel and the rst available
token location will be displayed in the format “0017 : --------“. Present the
token to be added to the panel reader and the token ID will be displayed
on the LCD, the token will be added and the next available token location
will be displayed automatically. Continue adding tokens as required by
presenting them to the panel reader. When all tokens required have been
added, present the editor token to the panel reader again to exit from
editor mode. A count of the tokens stored in the controller will be displayed
automatically as the controller exits from editor mode.
21
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
GDX5 Lite System
A non-concierge range of GDX5 equipment that offers a maximum of 2
audio channels within the system.
GDX5 Full System
Concierge compatible range of GDX5 equipment that offers a maximum
of 7 audio channels within the system as well as the exibility to
congure additional sub-landing or deck entrance panels into the
system architecture.
Low Rise Control Unit (LRC)
A Low Rise Control Unit (LRC) is the basic building block of a GDX5
system. A single enclosure containing all of the required power,
distribution and terminations for connecting together Entrance Panels
and Handsets. Available in a variety of sizes up to a maximum of 32
handsets. Requires a mains supply.
High Rise Control Units (HRC)
A High Rise Control Unit (HRC) allows systems to be constructed above
the 32 handset limit of an LRC or LJB by allowing the connection
together of more than one LRC or LJB. Contains the required power,
distribution and terminations for connection together Entrance Panels
and multiple LRC’s or LJB’s. Requires a mains supply.
Landing Junction Box (LJB)
A Landing Junction Box (LJB) is used in conjunction with an HRC to
build up a system of up to 255 handsets. Powered from an HRC it
contains all of the required power, distribution and terminations for
connecting handsets. Available in a variety of sizes up to a maximum
of 32 handsets. If sub-landing or deck entrance panel operation is
required an LRC rather than an LJB must be used with local mains
powering.
Functional Entrance Panel
An entrance panel that has an individual button to call each handset
within the system. Each button is identied by the engraving on the
entrance panel faceplate. A maximum of 20 buttons can be tted onto
a functional entrance panel (15 if Braille is added).
Digital Entrance Panel
An entrance panel that incorporates a call button. Flat addresses of up
to 4 digits can be entered before the call button is pressed to call the
required handset. This allows single entrance panels to call up to a
maximum of 255 handsets.
Linecard
Card which switches audio from an entrance panel or a concierge to the
appropriate connected handset
Compact & Mitred Bezel Entrance Panels
Two different styles of entrance panel appearance. The Compact panel has
rounded edges top and bottom and does not offer a mitred bezel edge on
the backbox surrounding the faceplate. The Mitred Bezel panel has square
edges top and bottom and comes complete with a backbox incorporating
a mitred bezel surrounding the faceplate to offer an additional degree of
protection.
Audio Channels
The GDX5 control equipment is extremely exible in terms of how the
audio switching paths within it can be factory congured. The term
Audio Channels is used to denote the number of simultaneous audio
conversations that can be congured within the equipment at any
one time. These audio channels can be used for either Entrance Panel
or Concierge audio conversations within the GDX5 system and are
programmed and xed as a factory option.
CAN Data Bus
The GDX5 system uses a 2 wire digital databus technology known as
Controller Area Network (CAN) to communicate between the various
control cards within the system. Each of these control cards are factory
programmed with a unique card address to facilitate this communication.
GDX5 Indigo Proximity Token Range
Many door entry systems require an access control facility. The GDX Indigo
range can be integrated directly into our GDX5 door entry equipment to
provide this access control functionality. The range consists of Entrance
Panels with built in access control, Stand-Alone Readers, Programming
Units and a range of tokens. The system is capable of taking up to 1000
tokens and can be administered from Entrance Panels, Programming Units
or remotely via the GDX5 Concierge System.
GDX5 Concierge System
This is a PC controlled system running the GDX NET CONCIERGE software
package. It is designed to interface with the GDX5 door entry system
over a TCP/IP Ethernet network and provides control and monitoring
capabilities for the system. It provides the following:
•
Audio concierge facilities
•
Access control token management
•
Alarm monitoring
•
Reporting
•
Remote hardware diagnostics
The system can also be congured to run over the GSM mobile phone
network but does not provide the audio concierge and alarm monitoring
capabilities.
GDX5 Glossary of Terms
22 T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk
In order to assist with Equality Act / DDA legislation compliance
the GDX5 range of equipment can be supplied with the following
enhancements to assist with system operation for those with
disabilities.
Yellow Button Bezels (Option)
As an additional aid to the partially
sighted the entrance panel buttons can
incorporate a bright yellow bezel around
each button to make it more highly
visible. On Digital Panels the No.5 button
can also include a “raised pip” to allow
keypad layout to be easily followed.
Raster™ Braille (Option)
Entrance panels can incorporate
Raster Braille for all buttons and
block addresses engraved on the
entrance panel.
Raster Braille is a patented
technology for producing braille
signage using perfectly rounded
domed Braille dots that complies with all of the latest standards.
Traditionally routed Braille on steel entrance panels does not in all cases
comply with all of the latest legislation due to the proximity of the steel
edges to the Braille itself.
Raised Symbol On Lexan (Standard)
As an aid to the partially sighted
the vandal resistant lexan covering
the proximity reader incorporates a
tactile raised symbol to allow easy
identication of where to present
token fobs to gain access to the
building.
Backlit LCD On Entrance Panel (Standard)
As an aid to the hard of hearing all GDX5 Entrance Panels include a
backlit LCD to provide user notication and guidance of each step of the
process whilst in use.
The following system ancillaries can also be provided for
incorporation within the GDX5 system to improve the system
accessibility for those with disabilities.
•
Extension Sounders For The Hard of Hearing
•
Flashing Beacons For The Hard of Hearing
•
Inductive Coupler Within Handset Handpiece For Use With “T” Position
On Hearing Aids
Please see page 14 for details of ancillaries
Equality Act / Disability Discrimination Act (DDA) Information
Legislation
Equality legislation has been in place in the UK since the mid-1970’s. Over
time the laws have become more complex as our understanding of what’s
meant by equality has become more sophisticated.
From 1 October 2010, the Equality Act replaced most of the Disability
Discrimination Act (DDA) and is a vital piece of legislation to bear in mind
when specifying products for buildings. However the Disability Equality Duty
in the DDA continues to apply.
The legislation stipulates that a disabled person cannot be restricted from
gaining access to a site to obtain ‘goods or services’. This includes people
who use wheelchairs, blind and partially sighted people, deaf people, people
with arthritis, people with long-term illnesses and people with learning
disabilities. This obviously has an impact on the installation of new and
existing Access Control Systems and these issues need to be considered at
any Public building.
Implementation
In the case of disability employers and service providers are under a duty
to make reasonable adjustments to their premises to overcome barriers
experienced by disabled people.
Problems and solutions vary from business to business. The law says you can
make the alterations in four ways:
•
Remove the barrier or obstacle
•
Altering such as adding a ramp, clearer signage, counter/reception heights
altered etc.
•
Find a means of avoiding the problem - for example, reconguring the
internal layout of a building
•
Providing a service or access by reasonable alternative means, offering
a home service, installing call bells at approved heights, adjusting door
opening strengths etc.
What is reasonable will depend on all the circumstances, including the cost
of an adjustment, the potential benet it might bring to others (ramps and
automatic doors for instance benet those with small children or heavy
luggage), the resources an organisation has and how practical the changes
are. An inexhaustive list of factors that might be taken into account in
consideration of what is reasonable would be:
•
Whether taking any particular steps would be effective in overcoming the
difculty that disabled people face in accessing the services in question
•
The extent to which it is practicable for the service provider to take the
steps
•
The nancial and other costs of making the adjustment
•
The extent of any disruption which taking the steps would cause
•
The extent of the service provider’s nancial and other resources
•
The amount of any resources already spent on making adjustments
•
The availability of nancial or other assistance
Summary
The legislation does not require the adoption of any one particular way of
meeting obligations to disabled users. The focus of the legislation is on results.
The aim is to make services accessible to disabled people or to ensure that a
disabled person is not at any substantial disadvantage. Taking positive steps
to improve accessibility mitigates these risks and can create real benet. The
legislation does not prescribe what approach the service provider should use.
However, the Disability Rights Commission (DRC) believes that good practice
and the most sensible approach will be to remove or alter the physical
barrier to the service wherever this is possible. This is undoubtedly the most
effective long term solution for both the service provider and disabled people.
As always with such complex and ever changing legislation it is essential to
seek professional advice from the appropriate bodies on the interpretation of
requirements to ensure full compliance.
31
T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk T: +44 (0)141 889 8800 customerservices@stanleysecurityproducts.co.uk www.stanleysecurityproducts.co.uk 23
Customer Services
The GDX Customer Services Team are
committed to providing a first class
Service. We understand how important it
is to handle your day to day requirements
with speed, efficiency and accuracy.
Please do not hesitate to contact us if
there is anything we can do to assist you.
Design Support Services
The GDX range has been developed to provide flexible solutions across a
wide range of applications and can therefore offer a versatile solution to
meeting your own particular security requirements and needs.
In support of this GDX offer a full
range of design support services to our
customers and approved installers. We
have an extremely experienced sales
and support team based in locations
throughout the UK who are available
to offer no obligation support, help and
advice in all aspects of the following:
• Pre –sales System Design
• Tender and Specification Support
• Technical and Site Survey Support
As the flexibility of the GDX range offers many ways to achieve what may
seem like a demanding specification we would actively encourage you to
seek advice and assistance from us and we would be delighted to have
the opportunity to provide this to you.
If you do wish to discuss your requirements on any matter related to the
GDX product range please contact Customer Services to request contact
details for the local support representative in your area.
Full information on the GDX and other Stanley Security Products ranges is
available online at the following web address:
www.stanleysecurityproducts.co.uk
Customer Services
GDX, 61-63 Back Sneddon Street, Paisley, Scotland, PA3 2DD
Tel : +44 (0)141 889 8800 - Option 1
Fax : +44 (0)161 406 8984 +44 (0)141 889 2838
Email : customerservices@stanleysecurityproducts.co.uk
Web : www.stanleysecurityproducts.co.uk
Technical Support
The GDX Technical Support team
are highly trained in all aspects
of the GDX product range and
are committed to providing the
highest level of technical support
to our dealers and installers.
Technical Training
GDX are committed to providing technical training
to ensure all installation and maintenance
engineers employed by our approved dealers
and installers are competent and confident in
working with the GDX range of equipment.
Based at our facility in Paisley we offer courses
that can be tailored to suit the requirements of the individual dealer or
installer – ranging from an overview of the basic GDX equipment to a more
in-depth look at the GDX range of networked and PC based systems.
All of our courses offer practical, hands-on technical experience with the
various ranges of equipment and are not limited to theoretical overviews.
Please contact Customers Services for availability if you would be interested
in this training.
Customer Services, Training and Support
Technical Support
Tel : +44 (0)141 889 8800 - Option 2
Product Knowledge Database
A searchable knowledge base including technical bulletins,
manuals and frequently asked questions is available at
www.stanleysecurityproducts.co.uk/support
Lines are open Monday – Friday 8.30am to 5.30pm (GMT), excluding UK Public Holidays
V2/2013
GDX - A Stanley Security Products Business
61-63 Back Sneddon Street
Paisley
Scotland
PA3 2DD
Tel: +44 (0) 141 889 8800
Fax: +44 (0) 161 406 8984
Email: customerservices@stanleysecurityproducts.co.uk
www.stanleysecurityproducts.co.uk
Stanley Security Products is a sales channel of Stanley Security Solutions Ltd
Stanley Security Solutions Ltd
Registered in England and Wales No. 181585
Registered Office: Stanley House, Bramble Road,
Swindon, Wiltshire SN2 8ER.
VAT No. 232 2446 95
All reasonable care has been taken to ensure that the information contained in this publication is accurate as at the date of printing. Such information is nevertheless
liable to variation in the event of changes occurring subsequent to the date of printing in the products, services or statements referred to in this publication. All images
contained are illustrative of the product supplied and actual products supplied may differ in detail from that illustrated.
GDX and PAC are registered trade marks of Stanley Security Products, and STANLEY is a registered trade mark of Stanley Black & Decker, Inc. WINDOWS is a registered
trade mark of Microsoft Corporation. Other companies and products named herein may be trade marks or registered trade marks of their respective owners, and are
hereby acknowledged.
© Copyright 2011, Stanley Security Solutions Ltd. All Rights Reserved.
