GE Appliances
Specification Created 11/01
GSD2200GWW/CC/BB—GE Nautilus™Built-In Dishwasher
Wood Insert Cut-Out

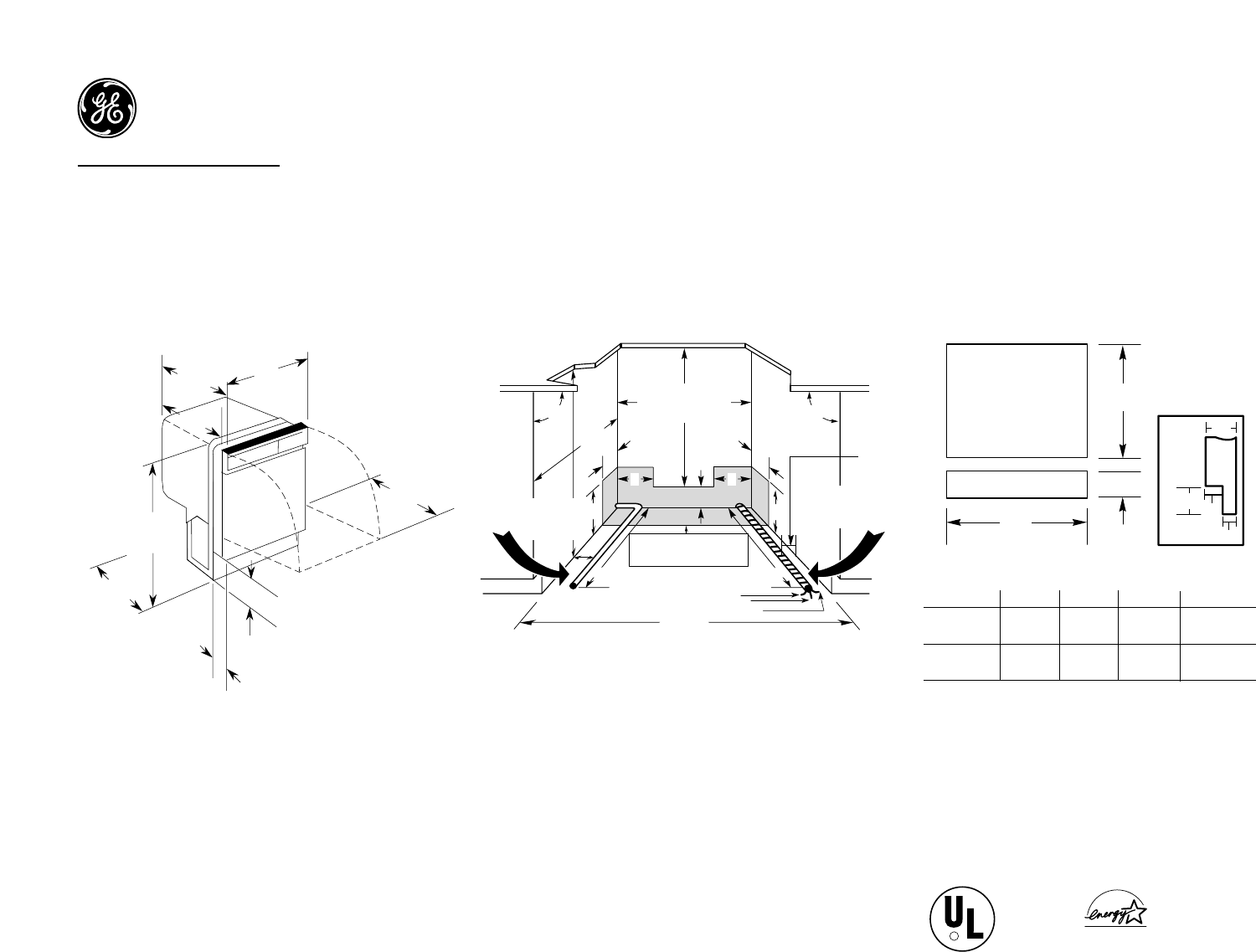

Dimensions (in inches)
Note: Dishwasher must not be installed more than 10 feet from
sink for proper drainage. All plumbing and electrical work must
be in accordance with local codes.
Electrical Rating
Voltage AC.......................................................120
Hertz ..................................................................60
Total connected load amperage.......................6.2
Calrod®heater watts.......................................500
For use on adequately wired 120-volt, 15-amp
circuit having 2-wire service with a separate
ground wire. This appliance must be grounded
for safe operation.
Rough-In Installation Information
(in inches)
Built-In Dishwasher Dimensions
(in inches)
For answers to your Monogram,
® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
White (neutral)
Black (line)
Ground
24
25-3/4
MAX.
21-1/2
3-1/4 4 (Adjustable)
34 MIN.
adj. to 35
24-3/4
23-3/8*
B
Access insert
Door insert A
C
Panel
Models/Kits A B C Thickness
GE Models
GPF325 Kit 18-7/8”23-9/16”3-11/16”1/4”
4-1/4” to
GPF375 Kit 18-15/16”23-5/8”* 3-3/4”** 3/4”
*Bottom of panel must be notched 1-1/2" x 1/2" to clear
across panel
**Adjustment required to match adjcent cabinets fronts due to
leveling leg adjustment, 4" nominal.
Panel Thickness
Front
of
Panel
1-1/2 1/2
1/4
3/4
As an ENERGY STAR
®
Partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
GE Appliances
Specification Created 11/01
GSD2200GWW/CC/BB—GE Nautilus™Built-In Dishwasher
Features and Benefits
• Energy Star®Qualified
• Standard Wash System with Two Wash Levels
• Food Disposer
• Turn-to-Start Controls with Pushbuttons
• Standard Upper Rack
• Deluxe Lower Rack
• Deluxe Silverware Basket
• Five Cycle Selections: Pots & Pans, Normal Wash, Short Wash,
Plate Warmer and Rinse Only
• 12 Options: Heated Dry and HotStart™
• Rinse Aid Dispenser
• QuietPower™Motor
• QuietDesign™Sound Insulation Package
• Trimless Appearance
• Model GSD2200GWW - White on white
• Model GSD2200GCC - Bisque on bisque
• Model GSD2200GBB - Black on black
• Model GSD2201GWW - Has power cord attached
