GF450K7
User Manual: GF450K7
Open the PDF directly: View PDF .
Page Count: 25
![](asset-1.png)
GF-450K7
NOTES CONTENTS
1 SAFETY INFORMATION ........................................................2
2 SPECIFICATIONS ........................................................................3
3 ADJUSTMENT AND CHECK ..............................................4
4 EXPLODED VIEW AND PARTS LIST ...........................8
5 PC BOARDS AND PARTS LIST ..................................... 12

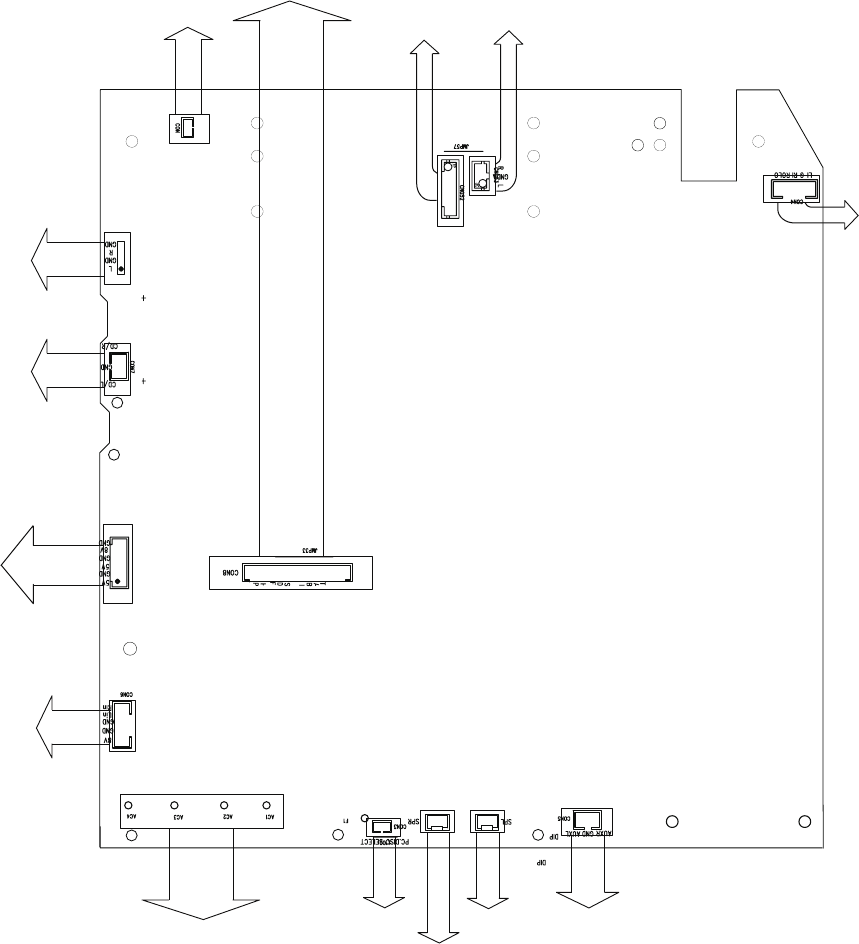

6 WIRING DIAGRAM ................................................................... 18
7 INCLUDED ACCESSORIES ............................................... 21
Micro Hi-Fi system
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
components - refer to the appropriate parts list and
ensure exact replacement.
Parts of [ ] mark can be used only with the version
designated.
[USA] - U.S.A.; [JPN] - Japan
!
![](asset-2.png)
2
GF-450K7

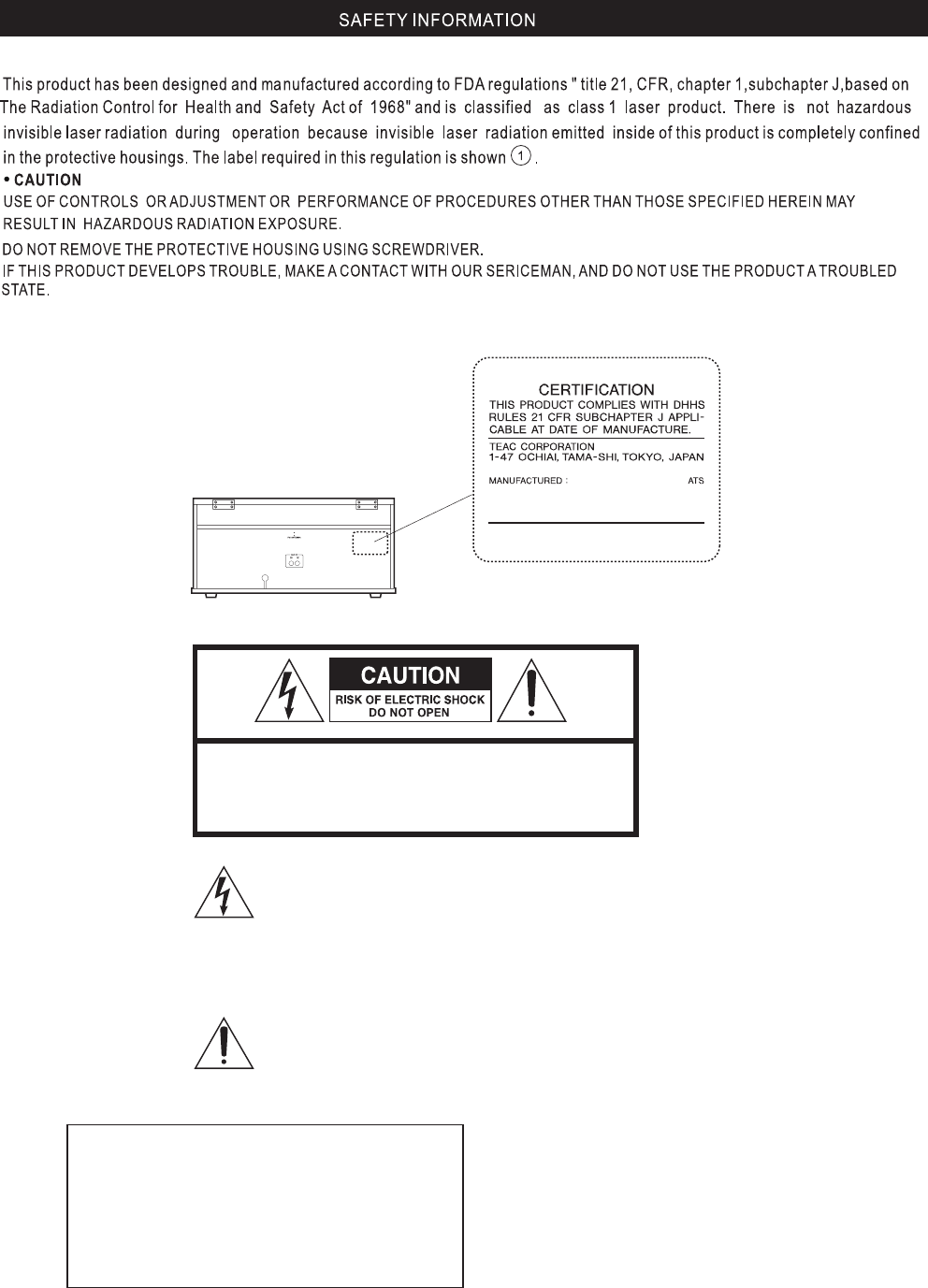

1 SAFETY INFORMATION
Optical pickup :
Type : SF-W37SGT
Manufacturer : SANYO ELECTRIC CO., LTD.
Laser output : Less than 1 mW (Play) on the objective lens
Less than 5 mW (Record) on the objective lens
Less than 10 mW (Erase) on the objective lens
Wavelength : 783 nm
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
![](asset-3.png)
3
GF-450K7
2 SPECIFICATIONS
Amplifier Section
Output power 3.5 W + 3.5 W
Frequency response 60 Hz to 20 kHz
Audio input sensitivity/Impedance AUX: -6dBV(0.5V)/20kΩ
Maximum iutput level AUX:+6dBV(2.0V)
CD Recorder Section
Media type CD-RW and CD-R for Digital audio
(record and playback), CD (playback only)
Recording sampling frequency 44.1kHz
Frequency response 20Hz to 20kHz
(playback:±2dB, recording:±3dB)
Signal to noise ratio More than 90dB (playback)
More than 80dB (recording)
Total harmonic distortion Less than 0.05% (playback)
Less than 0.07% (recording)
Tuner Section
Frequency range(FM) 87.5MHz to 108.0 MHz (100 kHz step) [USA]
Frequency range(AM) 530 kHz to 1,720 kHz (10 kHz step)
Frequency range(FM) 76.0 MHz to 90.0 MHz (100 kHz step) [JPN]
Frequency range(AM) 522 kHz to 1,620 kHz (9 kHz step)
Record Player Section
Motor DC servo motor
Drive system Belt Drive
Speed 33-1/3 rpm, 45 rpm, 78 rpm
Wow and Flutter less than 0.35% (WDT)
Cartridge type Ceramic Stereo Cartridge
Stylus STL-103
Output level 158 -348mV
Cassette tape section
Tracking system 4-track, 2-channel stereo
Tape speed 4.8 cm/sec
Wow&flutter 0.3%
Frequency characteristic 125 to 10,000 Hz
S/N ratio 45 dB
Speaker System Section
Unit 70 mm (3”)
Impedance 4 ohms
GENERAL
Power requirements 120V, 60Hz [USA]
Power requirements 100V, 50~60Hz [JPN]
Power consumption 55 W
Dimensions (W x H x D) 480 x 230 x 380 mm
(18 7/8” x 9 1/16” x 14 15/16”)
Weight 11 kg (24 1/4 lb)
Standard Accessories
Owner’s manual x 1
Warranty card x 1
45 RPM adaptor x 1
Remote control unit (RC-992) x 1 [USA]
Remote control unit (RC-1069) x 1 [JPN]
Battery (AA, R6, SUM-3) x 2
Quick Start Guide for recording x 1
Stereo RCA pin cable x 1
Design and specifications are subject to change without notice.
Weight and dimensions are approximate.
Illustrations may differ slightly from production models.
![](asset-4.png)
4
GF-450K7
3 ADJUSTMENTS AND CHECKS
ALIGNMENT PROCEDURES
3-1 TUNER SECTION
Use a screwdriver with a plastic or ceramic grip for all adjustment.
3-1-1 FM adjustment
1.Set the function switch to the FM position.
2.Connect the signal generator output through a 75 ohm dummy antenna to "ANT" on MAIN PCB.
3.Connect the oscilloscope to the speaker terminal.
4.Set the signal generator as listed in the alignment chart.
3-1-2 AM adjustment
1.Set the function switch to the AM position.
2.Connect the test loop antenna across the output of the signal generator.
3.Connect the oscilloscope to the speaker terminal.
4.Set the signal generator as listed in the alignment chart.
3-1-3 Turntable Section
1.Set the function switch to the PHONE position.
2.Connect the oscilloscope to the speaker terminal.
3.Use a HP-4005 record for all adjustment.
3-2 Adjustment and Test Points
Spec. Limit 1 2 3 UNIT
zHK01-/+525dnE woL
zHK03-/+0371dnE hgiH
zHK5-/+554
m/vuBd8525zHK 006
m/vuBd8525zHK 0001
m/vuBd8525zHK 0041
m/vuBd4685zHK 006
m/vuBd4665zHK 0001
m/vuBd4665zHK 0041
05. I.F.Rejection(Max.Sens) bd0353zHK 006 ta
bd5203zHK 0041 ta)Vm5(noitcejeR egamI .60
%515.F.1 x 2m/Vm5 ta teewT .70
%//.F.1 x 3
bd5102zHK 0001 tazHK 01-/+.A.C.A .80
zHK9-45
bd0353
%52
W5.36.3
zH521001
zHK22.2
VM013)emuloV niM( esioN & muH .41
bd5304
02. I .F
01. Tuning Range
ITEM
03. MAX. Sens.
04. Sen. For -20db S/N
09. Band Width -6db at 10% 1000khz Max Sens
10. A.G.C.(-10db) at 1000KHz 100db/m
11.T.H.D. 74db/m 30%MOD
12. Power Output at 10% THD 80%74db/m
13. Ferq. Resp. -Low
-6 db High
15. HUM Modulation 100db/m
:DEVORPPA: YB TSET:SKRAMER
120 V UL model Tuner adjustments AM
![](asset-5.png)
5
GF-450K7
120 V UL model Tuner adjustments FM
Spec. Limit 1 2 3 UNIT
zHM5.0-/+5.78dnE woL
zHM5.0-/+5.801dnE hgiH
zHK2.0-/+7.01
bd0231ZHM 09
bd0231zHM 89
bd0231zHM 601
bd6202zHM 09
bd6202zHM 89
bd6202zHM 601
bd8304
06.Image Rejection at 106MHz bd8102
bd5152
30 25 db
09. A.F.C Holding at 98MHz 1mV 300 +/-250 KHz
bd0454
%21
W5.36.3
%0301
zH05105
zHK45.4
VM51
db
bd5281
bd6203
bd31
bd43
ITEM
01. Tuning Range
02. Intermediate Frequency
03.MAX. Sens.
04. Sen. For -30db S/N
05. I.F.Rejection
07.-3db limiting Sens . at98MHz 1mV
08. A.M.Suppression at 98MHz 1mV
10.S/N Ratio at 98MHz 1mV
11.T.H.D. 22.5KHz DEV.
12. Power Output at 10% THD 75KHz DEV 1mv
Max. v olume T.H.D
13. Ferq. Resp. -6db -Low
High
14. HUM & NOISE (Min. Volume)
01.Stereo Indication Sens.at 98Mhz 75KHz Dev.1KHz
02.Separation at 98 MHz 1mV 40KHz Dev.
03. Channel Balance
04. Stereo Distortion at 98MHz 1mV 45KHz Dev.
Multiplex:
TEST BY : APPROVED:REMARKS
![](asset-6.png)
6
GF-450K7
AM I.F. ALIGNMENT
1. Set the POWER BUTTON to POWER "ON".
2. Set the Radio and band button to Radio and AM BAND.
3. Connect a SWEEPSCOPE OUTPUT to AM antenna terminal.
4. Connect a SWEEPSCOPE INPUT to pin17 of IC2 through a 1uf capacitor and ground.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 4455KHz GANG OPEN T3 CENTER
&MAXIMUM OUTPUT
AM R.F. ALIGNMENT
1. Connect an RF generator to a standard radiating loop.
2. Connect a SCOPE and VTVM across the speaker output.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 515KHz GANG CLOSED L6
MAXIMUM
OUTPUT
2 1640KHz GANG OPEN PVC-D
3 600KHz 1400KHz L4
4 1400KHz 1400KHz PVC-C
5 REPEAT STEPS 3 AND 4 TO OBTAIN BEST TRACKING.
FM R.F. ALIGNMENT
1. Connect an RF generator to the FM antenna terminal and ground.
2. Connect a SCOPE & VTVM across the speaker output.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 76MHz GANG CLOSED L3
MAXIMUM
OUTPUT
2 108MHz GANG OPEN PVC-A
3 90MHz 90MHz L2
4 106MHz 1106MHz PVC-B
5 REPEAT STEPS 3 AND 4 TO OBTAIN MAX ADJUST.

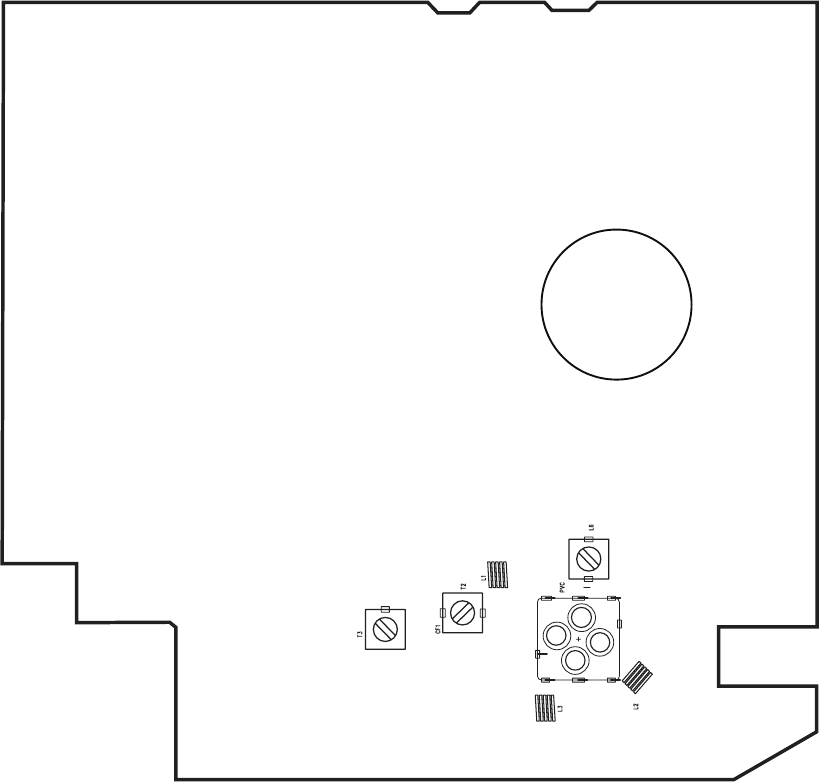

100 V JPN model Tuner adjustments
![](asset-7.png)
7
GF-450K7

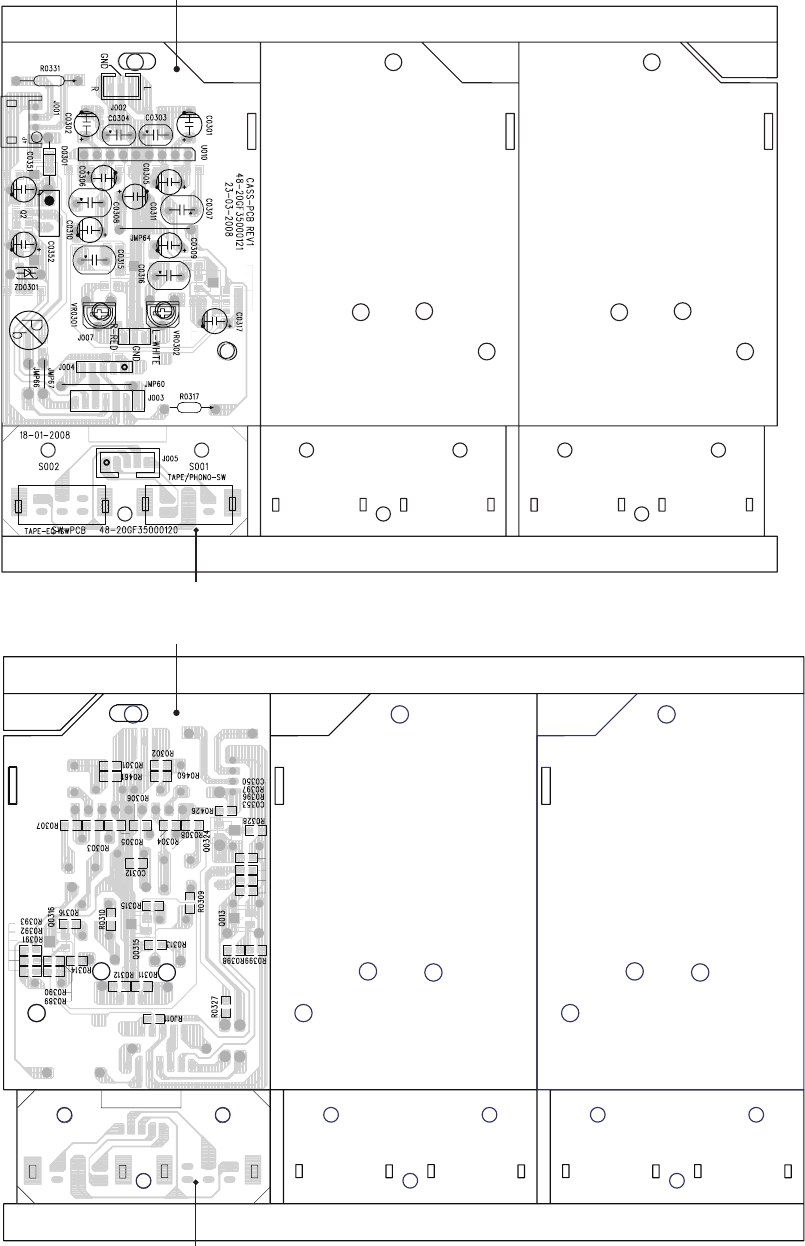

MAIN PCB
MAIN PCB
![](asset-8.png)
GF-450K7
8
4 EXPLODED VIEWS AND PARTS LIST
EXPLODE VIEW
![](asset-9.png)
9
GF-450K7
REF. NO. PARTS NO. DESCRIPTION REMARKS
1 56-04GF3500B050 FRONT PANEL (HIPS) JAPAN BLACK [JPN]
56-04GF3500B030 FRONT PANEL (HIPS) JAPAN BLACK [USA]
2 56-07GF3500B000 DIAL BRACKET(ABS)
3 56-07GF3501B000 PULLEY BKT (1) (ABS)
4 56-07GF3502B000 PULLEY BKT (2) (ABS)
5 56-07GF35039000 DISPLAY BACKET HOLDER (ABS)
6 56-07GF35049000 TUNING BACKLIGHT HOLDER(ABS)
7 56-07GF3505B000 LIGHT BKT(ABS)
8 56-14GF3500B010 CD DOOR (ABS)(BLACK 931289) 429C
9 56-22GF35008010 DIAL BACK LIGHT LENS COVER-L(ABS)(gray 91144)
10 56-22GF35018010 DIAL BACK LIGHT LENS COVER-R(ABS)(gray 91144)
11 56-25GF3500B000 DIAL DRUM (ABS)
12 56-54GF35008000 TUNING KNOB (ABS)(gray8402C)
13 56-54GF35018000 VOLUME/REC. LEVEL KNOB (ABS)(gray8402C)
14 56-54GF3502B000 POWER SWITCH KNOB (ABS)(BLACK 931289)
15 56-54GF3503B000 FUNCTION KNOB (ABS)(BLACK 931289)
16 56-54GF3504B000 RECORD KNOB (ABS)(BLACK 931289)
17 56-54GF3505B010 STOP/PLAY/PAUSE KNOB (ABS)(BLACK 931289)
18 56-54GF3506B010 OPEN/CLOSE KNOB (ABS)(BLACK 931289)
19 56-54GF3507B000 DELETE KNOB (ABS)(BLACK 931289)
20 56-54GF3508B000 SKIP/REW KNOB (ABS)(BLACK 931289)
21 56-57GF35000030 DISPLAY LENS (PMMA)TEAC [JPN]
56-57GF35000040 DISPLAY LENS (PMMA) [USA]
22 56-57GF35019000 REC KNOB LENS (PMMA)
23 56-57GF35020000 LCD BACKLIGHT LENS (PMMA)
24 56-57GF35030010 TUNING BACKLIGHT LENS (PMMA)
25 56-69GF3500B000 WOODEN BOX COVER PLATE (ABS)(BLACK 931289)
26 56-75GF3500G000 POINT (ABS) (CHROME)
27 56-76ST1500B000 DIAL PULLEY (POM)
28 56-79GF3500B000 TUNING SHAFT(ABS)
29 57-08ST15000120 PVC PLATE 22x8x1mm (BLACK)
30 56-80S16800B000 SPEAKER PANEL STUD (PE) BLACK
31 56-86GF3500B000 SPEAKER FRAME-L (HIPS)
32 56-86GF3501B000 SPEAKER FRAME-R (HIPS)
33 57-26GF35000020 FILTER PLATE (1) 114x22.6x0.1mm
34 57-26GF35000120 FILTER PLATE (2) 118.1x20.8x0.3mm
35 58-263102200020 RUBBER FOOT(PORON) DIA10mm T=2mm
36 58-263182600020 RUBBER FOOT DIA18 T=6mm (AC619)
37 58-70GF35000420 REAR BOARD 100V "TEAC GF-450-K7" [JPN]
58-70GF35000621 REAR BOARD 120V "TEAC GF-450-K7" R1 [USA]
38 58-71GF35000220 WOODEN PLATE 230x292x3mm
39 58-71GF35000420 WOODEN BOARD 449.6x58x9mm (BLACK)"GF450-K7
40 58-71GF35000520 WOODEN TOP COVER (BLACK) "GF450-K7"
41 58-73GF35000220 WOODEN BOX (PVC: F-2905-53) "GF450-K7"
42 61-11GF35000021 CD MACHINE BRACKET (L)
43 61-11GF35000120 CD MACHINE BRACKET (R)
44 61-11GF35000221 WOODEN BRACKET R1
45 61-11SN11600021 PVC BRACKET
46 61-22SG19000020 BUSHING MOUNTING PLATE
47 61-25SCD6600020 CONTACT PLATE (THK 1.2mm) 11x11x8mm
48 61-57GF35000020 LOOSE LEAF
49 61-57GF35000120 WOODEN BOX OPEN/CLOSE SHAFT
50 61-95T060800020 SPRING DIAL
51 66-120226150321 MACHINE SCREW RoHS MS/BH 2.6x5mm
52 66-120230180321 MACHINE SCREW RoHS MS/BH 3x8mm
EXPLODED VIEW
![](asset-a.png)
10
GF-450K7
53 66-120230210321 MACHINE SCREW RoHS MS/BH 3x10mm
54 66-120930214121 MACHINE SCREW RoHS MS/CH 3x14mm (BLACK)
55 66-120240222321 MACHINE SCREW RoHS MS/BH 4x22mm
56 66-120330160321 MACHINE SCREW RoHS MS/PH 3x6mm
57 66-120526140321 MACHINE SCREW RoHS MS/KH 2.6x4mm (H:4mm)
58 66-120830220321 MACHINE SCREW RoHS MS/WH 3x20mm
59 66-140226180321 SELF-TAPPING SCREW RoHS TA/BH 2.6x8mm
60 66-140230180121 SELF-TAPPING SCREW RoHS TA/BH 3x8mm (BLACK)
61 66-140230210121 SELF-TAPPING SCREW RoHS TA/BH 3x10mm (BLACK)
62 66-140230210321 SELF-TAPPING SCREW RoHS TA/BH 3x10mm
63 66-140230212121 SELF-TAPPING SCREW RoHS TA/BH 3x12mm(BLACK)
64 66-140230214121 SELF-TAPPING SCREW RoHS TA/BH 3x14mm(BLACK)
65 66-140230214321 SELF-TAPPING SCREW RoHS TA/BH 3x14mm
66 66-140330180321 SELF-TAPPING SCREW RoHS TA/PH 3x8mm
67 66-140330210321 SELF-TAPPING SCREW RoHS TA/PH 3x10mm
68 66-140530180121 SELF-TAPPING SCREW RoHS TA/KH 3x8mm(BLACK)
69 66-140830210321 SELF-TAPPING SCREW RoHS TA/WH 3x10mm
70 66-141430210321 SCREW RoHS TA/WH 3x10mm(HEAD:10mm)
71 66-150330160321 SELF-TAPPING SCREW RoHS TB/PH 3x6mm
72 66-150830180121 SELF-TAPPING SCREW RoHS TB/WH 3x8mm(BLACK)
73 66-170230160103 HARDEN SCREW RoHS STTB 3x6mm AB(BLACK) RoHS
74 67-021300000120 NUT+WASHER DIA M3mm
75 67-021400000020 NUT M4mm
76 68-112403101000 METAL WASHER 4x10x1mm
77 68-412400000000 RING E TYPE 4mm
78 06-200GF3501001 CD MECH ASSY, CRD-RA2A (205010)
79 18-201GF3500120 H/TRANSFORMER EI66 100V TJ61193F0 [JPN]
18-203GF3500120 H/TRANSFORMER EI66 120V TU61153F0 [USA]
80 190021093100220 SPEAKER 3" 10W 4Ω #JHD-SA78-25
81 20-60ST15000000 PHONOGRAPH MECHANISM #H10B (HANPIN)
58-43GF35000020 BELT, PHONOGRAPH MECH 9A10630600
82 41-193220000220 POWER SWITCH (WELLLONG) SP3-22SPA-W4CZ
83 43-500000002020 AC CORD BUSHING T=1.6mm #4N4
84 05-GF4500100000 PCBA-MAIN -JAPAN "GF450-K7" [JPN]
05-GF4500100010 PCBA-MAIN -UL "GF450-K7" [USA]
85 05-GF4500400000 PCBA-DIS-JAPAN "GF450-K7"
86 PCBA-HP UL.............................................................................. Included in Ref. No. 84 PCBA-MAIN, refer
to page 12
87 PCBA-AUX UL........................................................................... Included in Ref. No. 84 PCBA-MAIN, refer
to page 12
88 56-07GF4501B010 PUSH KNOB BRAOKET (ABS) [JPN]
56-07GF4501B020 PUSH KNOB BRAOKET (ABS) [USA]
89 56-55GF4500B000 CASSETTE KNOB (ABS) SP572#931289
90 61-11SCD6600020 REC. PCB BRACKET (1.0mm THK)
91 20-06GF35000020 F/CASS DECK JS-21FB8947-SGS "GF450-K7"
92 05-GF4502000000 PCBA-CASS -JAPAN "GF450-K7"
93 56-01GF35000020 45 RPM ADAPTER (100-S300-069)
94 45-113420300150 AC CORD UL APP L=420mm 105C BLK
95 41-142210010820 SWITCH SSE-22F10-G8-NS/SS-22F10-G8................................ included in Ref. No. 92 PCBA-CASS, refer
to page 17
96 LED PCB .................................................................................. included in Ref. No. 85 PCBA-DIS, refer
to page 14
EXPLODED VIEW
REF. NO. PARTS NO. DESCRIPTION REMARKS
![](asset-b.png)
11
GF-450K7
EXPLODED VIEW
REF. NO. PARTS NO. DESCRIPTION REMARKS
97 66-120230216121 MACHINE SCREW RoHS MS/BH 3x16mm (BLACK)
98 66-140230180321 SELF-TAPPING SCREW RoHS TA/BH 3x8mm
99 66-180230235121 SCREW RoHS TC/BH 3x35mm
100 66-140326180321 SELF-TAPPING SCREW RoHS TA/PH 2.6x8mm
101 66-140530210121 SELF-TAPPING SCREW RoHS TA/KH 3x10mm (BLACK)
102 66-140826210321 SELF-TAPPING SCREW TA/WH 2.6x10mm
103 66-170220130321 HARDEN SCREWRoHS TT/BH 2x3mm
104 66-140330212121 SELF-TAPPING SCREW RoHS TA/PH 3x12 (BLACK)
105 56-07GF4500B010 CASSETTE HOLDER (ABS) [JPN]
56-07GF4500B020 CASSETTE HOLDER (ABS) [USA]
![](asset-c.png)
12
GF-450K7
MAIN PCB HP PCB AUX PCB
MAIN PCB HP PCB AUX PCB
MAIN PCB
5 PC BOARDS AND PARTS LIST
![](asset-d.png)
13
GF-450K7
REF. NO. PARTS NO. DESCRIPTION REMARKS
05-GF4500100000 PCBA-MAIN -JAPAN "GF450-K7"[JPN]
05-GF4500100010 PCBA-MAIN -UL "GF450-K7"[USA]
48-01GF35001121 MAIN PCB 94V0 "GF450-K7"
C41,42 26-017220760121 E.CAP 2200UF 16V +-80% -20% 105C
C43,81,83 26-017100750121 E.CAP 1000UF 16V +-20% 105C
C87,102 26-017470850121 E.CAP 4700UF 25V +-20% 85C
CF1 31-026455000120 CERAMIC FILTER KTP455Y
CF2 31-028107000110 CERAMIC FILTER SFE10.7MA5-A(3PIN)RED
CON,3 43-012200120120 WAFER 2mm 2P 180C
CON4 43-012200150120 WAFER 2mm 5P 180C
CON5,053 43-012200130120 WAFER 2mm 3P 180C
CON6 44-566320055620 5P SHIELDx2C/WIREx2 L=200mm HSG+TML(2.5) J006
CON7 44-515290053520 3P WIRE L=90mm TML+HSG(2) (UL1007#26) J003
CN052 43-012200170120 WAFER 2mm 7P 180C
CON8 43-012200214120 WAFER 2mm 14P 180C
CON9 44-515290054520 4P WIRE L=90mm TML+HSG(2) (UL1007#26) J004
CON10,11 43-012250120120 WAFER 2.5mm 2P 180C
CON12 44-515319056520 6P WIRE L=190mm HSG+TML(2) (UL1007#26) J005
D3,12,13 12-1N4148000125 DIODE 1N4148 (T=52mm)
D4,5,6,7,8,9,10,11 12-1N5401000021 RECTIFIER DIODE 1N5401 3A 100V
D17 12-1N40010000P1 RECTIFIER DIODE 1N4001 (T=52mm)
F1,2 46-015200300010 AXIAL FUSE 4x10mm W/LEAD 2A/250V
FB13 32-031351600025 FERRITE BEAD 3.5x6x0.8TB (TAPING)
L001 40-213120215120 AM COIL (AD)/M3 120:15T 100mmx4
L1 40-351550135020 FM COIL 5.5x3.5T (0.8mm)
L2,3 40-351550145020 FM COIL 5.5x4.5T (0.8mm)
L4,8,9 38-013100050120 AXIAL INDUCTOR 10UH +-10% 350mA EC-24
L6 40-019100002020 I.F.T 10mm 910 (RED)
L5,7,10 38-013100050120 AXIAL INDUCTOR 10UH +-10% 350mA EC-24
L11,12 38-013100050120 AXIAL INDUCTOR 10UH +-10% 350mA EC-24
IC1 16-SA2111000021 IC (SILAN) SA2111N
IC2 16-BA5417000021 IC (ROHM) BA5417
IC3 16-TC4052BP0021 IC (TOSHIBA) TC4052BP (DIP)
IC4 16-HEF4066B0121 IC (PHILIPS) HEF4066BP
IC5 16-TC9260P00021 IC (TOSHIBA) TC9260PAG
IC7,9 16-KA7805000121 IC (SAMSUNG) KA7805E (TO-220)
IC6,8 16-KA7808000221 IC (SAMSUNG) KA7808E (TO-220)
U0301 16-BA4558F00021 IC (ROHM) BA4558F SOP8
U0302 16-HEF4066B0021 IC (PHILIPS) HEF4066BT(D)(SOT108-1)
PVC 27-010000130120 P.V.C (TOMY) #443DF-1DF (A/F) H15mm
Q1,23 11-8050C0000025 TRANSISTORS 2W 8050C (TAPING)
Q3,4,6,7,8,9,11,15, 11-MMBT39040221 SMD TRANSISTORS MMBT3904 SOT23 ......................... Ref. No. Continues: Q18,20~22,25,26,
Q5 11-DTA124EK0021 SMD TRANSISTORS DTA124EKA-T146 (ROHM)
Q10 11-MMBT85500021 SMD TRANSISTORS MMBT8550D (SOT23)
Q12 11-8550D0000025 TRANSISTORS 2W 8550D (TAPING)
Q14 11-9013G0000021 NPN TRANSISTORS 9013G 1W
Q16,19 11-KSB772YS0021 TRANSISTORS KSB772YS (SAMSUNG)
T2 40-01A049004020 I.F.T 10mm A049 (YELLOW)
T3 40-017400003020 I.F.T 10mm 740 (ORANGE) (#7A40DZ)
ZD1 12-011390320125 ZENER DIODE +-5% 3.9V 1/2W (T=52mm)
ZD2 12-011430320125 ZENER DIODE +-5% 4.3V 1/2W (T=52mm)
ZD4 12-011620320125 ZENER DIODE +-5% 6.2V 1/2W (T=52mm)
ZD0302 12-012100320125 ZENER DIODE +-5% 10V 1/2W (T=52mm)
ZD05 12-012120320125 ZENER DIODE +-5% 12V 1/2W (T=52mm)
0101 32-022102700020 FERRITE BAR 10x70mm
0102 32-042162120020 FERRITE CORE 16x12mm H=8mm
48-09GF35001120 AUX PCB 94V0
J001 43-451200001020 RCA JACK 2P (R/W) PJB-12V01
J002 44-365342053620 3P SHIELD WIRE L=420mm HSG(2)
48-09GF35000120 HP PCB 94V0
L4,8,9 38-013100050120 AXIAL INDUCTOR 10UH +-10% 350mA EC-24
J001 43-431360006020 PH 3.6mm JY353507001/PJ322A/HTJ03513AB
CP4 44-515290055520 5P WIRE L=90mm TML+HSG(2) (UL1007#26)
MAIN PCB ASSY
Q311~314,Q321~323
![](asset-e.png)
14
GF-450K7

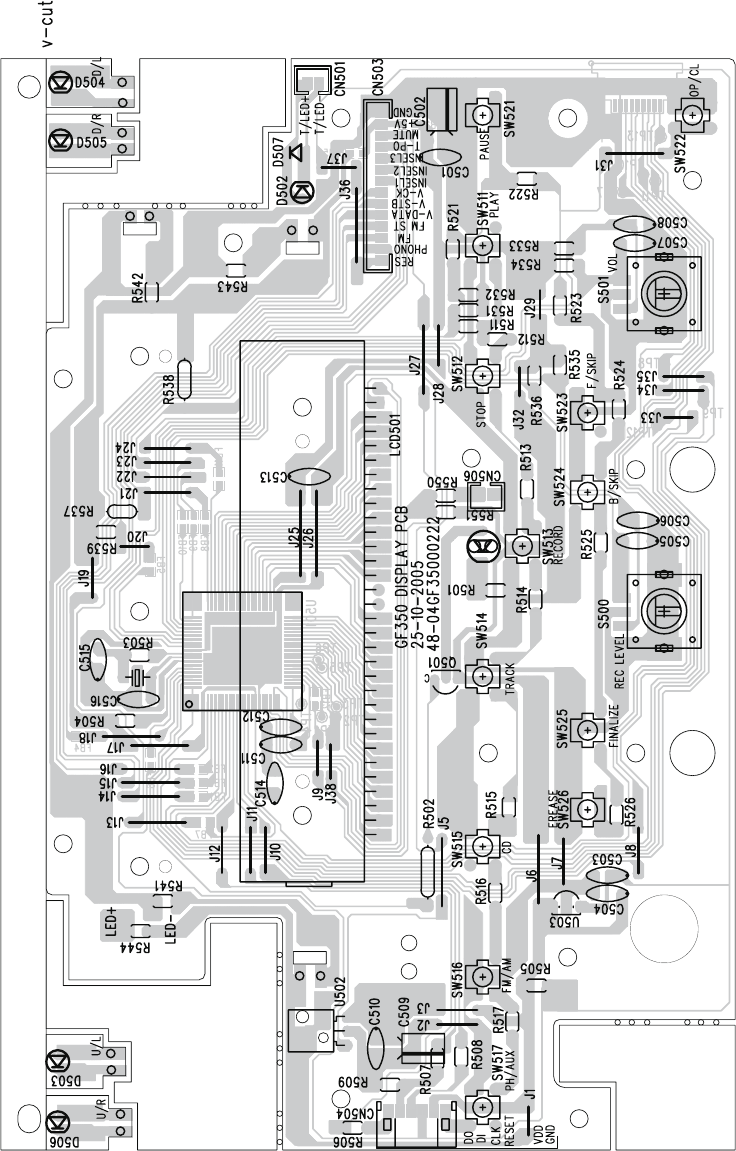

DISPLAY PCB
![](asset-f.png)
15
GF-450K7
REF. NO. PARTS NO. DESCRIPTION REMARKS
05-GF4500400000 PCBA-DIS-JAPAN "GF450-K7"
48-04GF35000223 DISPLAY PCB 94HB
13-05GF35000120 LCD DISPLAY SDT-DA1746-TP-1
CN501 44-315312052620 2P WIRE L=120mm HSG(2)x1 (UL1571#28) J002
CN502 43-012100190530 SMD FFC.WAFER 1MM 9P 90C W/LOCK (BY CEC)
CN503 44-515325064520 14P WIRE L=250mm TML+HSG(2) (UL1007#26) J003
CN504 43-022200160120 WAFER 2mm 6P 90C
CN506 44-515340052520 2P WIRE L=400mm TML+HSG(2) (UL1571#26) J004
D502 13-011306622020 LED LAMP 3mm (BLUE) LA304B2MA-2C-05
D507 12-1N4148000021 DIODE 1N4148
D508 13-011292121020 LED LAMP (MICRO) MSC32D-C 2.94mm (RED)
FB1,2,3,4,5,6,7,8,9, 32-03M352000120 SMD FERRITE BEAD 800Ω +-25% (1608)
FB10,11,12,15,16
Q501 11-DTA124ES0025 TRANSISTORS DTA124ES (ROHM) (TAPING)
S500,501 22-501200000820 ROTARY ENCODER E1211A3AV1NG0000
SW511,512,513,514, 41-150010030020 TACT SWITCH 6x6mm 5mm (160g+-30g) 4LEGS
SW515,516,517,521,
SW522,523,524,525,
SW526
U501 16-LC877C32C021 IC (SANYO) LC877C32C-57A7
U502 17-05FM60380011 OPTIC SENSER (OPTO..) FM-6038TM2-5A
U503 16-PST600D00021 IC (MITSUMI) PST600D
X501 31-047450000020 CERAMIC RESONATOR 4.5MHZ
LED PCB
D503,504,505,506 13-011200022020 LED LAMP 2x5x7mm (WHITE) MT-513UWC/W120
DISPLAY PCB ASSY
![](asset-10.png)
16
GF-450K7
CASS PCB
CASS PCB
SWITCH PCB
CASS PCB
SWITCH PCB
![](asset-11.png)
17
GF-450K7
REF. NO. PARTS NO. DESCRIPTION REMARKS
05-GF4502000000 PCBA-CASS -JAPAN "GF450-K7"
48-20GF35000121 CASS PCB 94V0 110x50x1.6mm "GF450-K7"
D0301 12-1N4001000021 RECTIFIER DIODE 1N4001 1A 50V
J002 43-012200130120 WAFER 2mm 3P 180C
J001 43-022200140120 WAFER 2mm 4P 90C
J007 44-365325053620 3P SHIELD WIRE L=250mm HSG(2)x1
J004 44-315315055520 5P WIRE L=150mm HSG(2)x1 (UL1007#26)
J003 44-315325057520 7P WIRE L=250mm HSG(2)x1 (UL1007#26)
Q2 11-2SD882P000P1 TRANSISTORS 2SD882P
Q0324 11-MMBT85500021 SMD TRANSISTORS MMBT8550D (SOT23)
Q013,0315,0316 11-MMBT39040221 SMD TRANSISTORS MMBT3904 SOT23
U010 16-LS2224100021 IC (RPF) LS22241
VR0301,0302 22-800064500020 SEMI-FIXED 6mm 5K
ZD0301 12-012120320125 ZENER DIODE +-5% 12V 1/2W (T=52mm)
48-20GF35000120 SW PCB 94V0
J005 43-022200150120 WAFER 2mm 5P 90C (42369763700)
S001,002 41-142210010820 SWITCH SSE-22F10-G8-NS/SS-22F10-G8
CASS PCB ASSY
![](asset-12.png)
18
GF-450K7
MAIN PCB
6 WIRING DIAGRAM
TO CD
TO CD
TO DISPLAY PCB
TO CASS PCB
TO HP PCB
TO CASS PCB
TO CD
TO CD
TO PHONO
TO TRANSF ORMER
TO DISPLAY PCB
TO SPEAKER R
TO SPEAKER L TO AUX PCB
![](asset-13.png)
19
GF-450K7

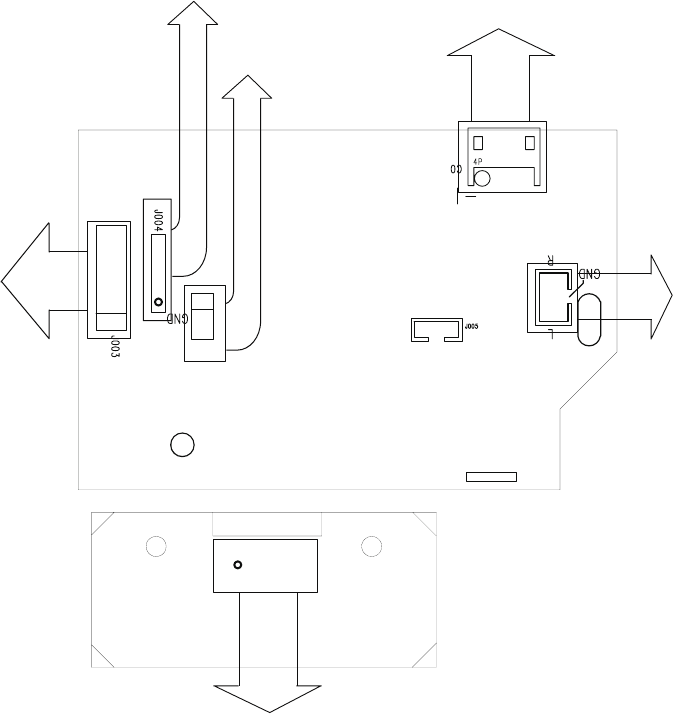

CASS PCB
TO MAIN PCB
TO MAIN PCB
TO MAIN PCB
TO MAIN PCB
TO DECK
TO DECK
![](asset-14.png)
20
GF-450K7

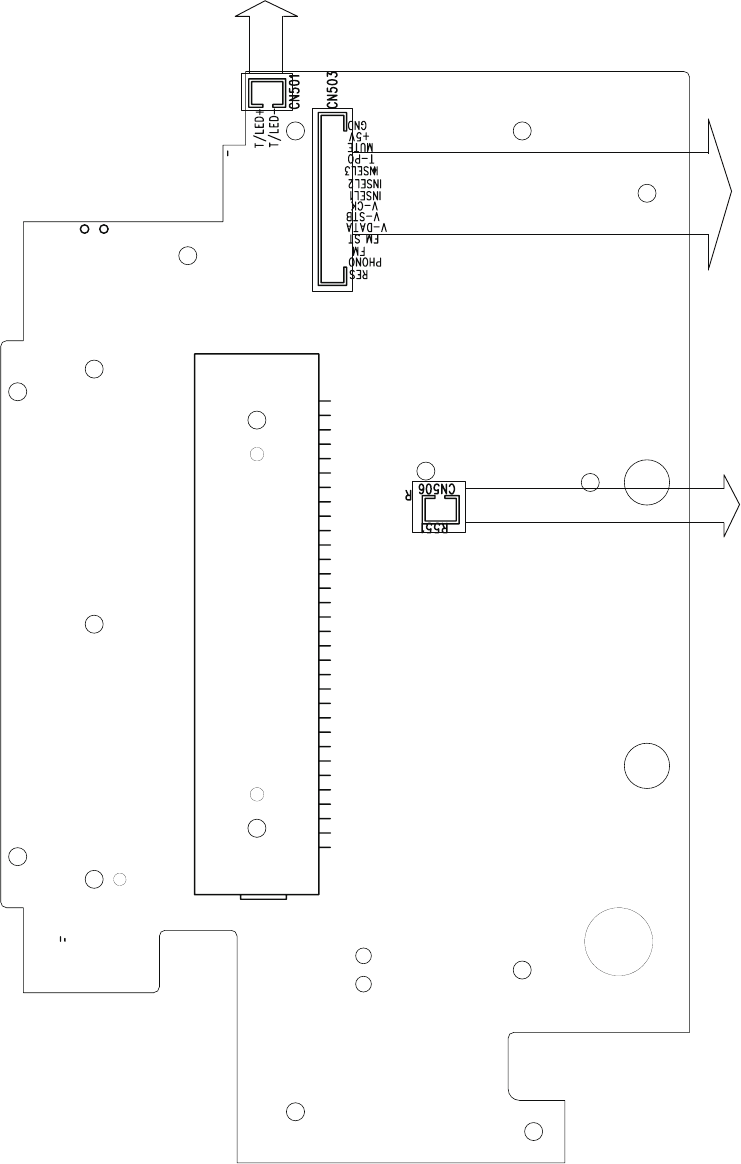

DISPLAY PCB
TO MAIN PCB
TO MAIN PCB
TO MAIN PCB
![](asset-15.png)
21
GF-450K7
PARTS NO. DESCRIPTION REMARKS
02-170GF4501700 REMOTE CONTROL RC-992 [USA]
02-170GF3501100 REMOTE CONTROL RC-1069 [JPN]
51-011150300010 BATTERY 1.5V AA/UM-3x2
77-20GF35000621 INSTRUCTION MANUAL "GF450-K7" [JPN]
77-20GF45000021 INSTRUCTION MANUAL (UL) (E/F/S) [USA]
77-21GF35000620 INSTRUCTION SHEET "GF450-K7" [JPN]
77-21GF45000021 INSTRUCTION SHEET (UL) (E/F/S) [USA]
77-23ST15000121 PHONOGRAPH TRAY CARD #R10 R3 [JPN]
77-23ST15000023 PHONOGRAPH TRAY CARD #R10 R3 [USA]
45-203840005220 RCA PLUG CORD 2P L=840MM (R/W) (BLK)
INCLUDED ACCESSORIES
7 INCLUDED ACCESSORIES
![](asset-16.png)
GF-450K7
SKTE-SM0807002
PREPARED IN CHINA
JULY 2008
TEAC CORPORATION 1-47, Ochiai, Tama-shi, Tokyo 206-8530, Japan Phone: (042) 356-9155
TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: (323) 726-0303
TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905) 890-8008
TEAC MEXICO, S.A. De C.V
TEAC UK LIMITED Unit 19 & 20, The Courtyards, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K. Phone: (0845) 130-2511
TEAC EUROPE GmbH Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany Phone: 0611-71580
Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacán, CP 04100, México DF, México Phone:(5255)5010-6000
![](asset-17.png)

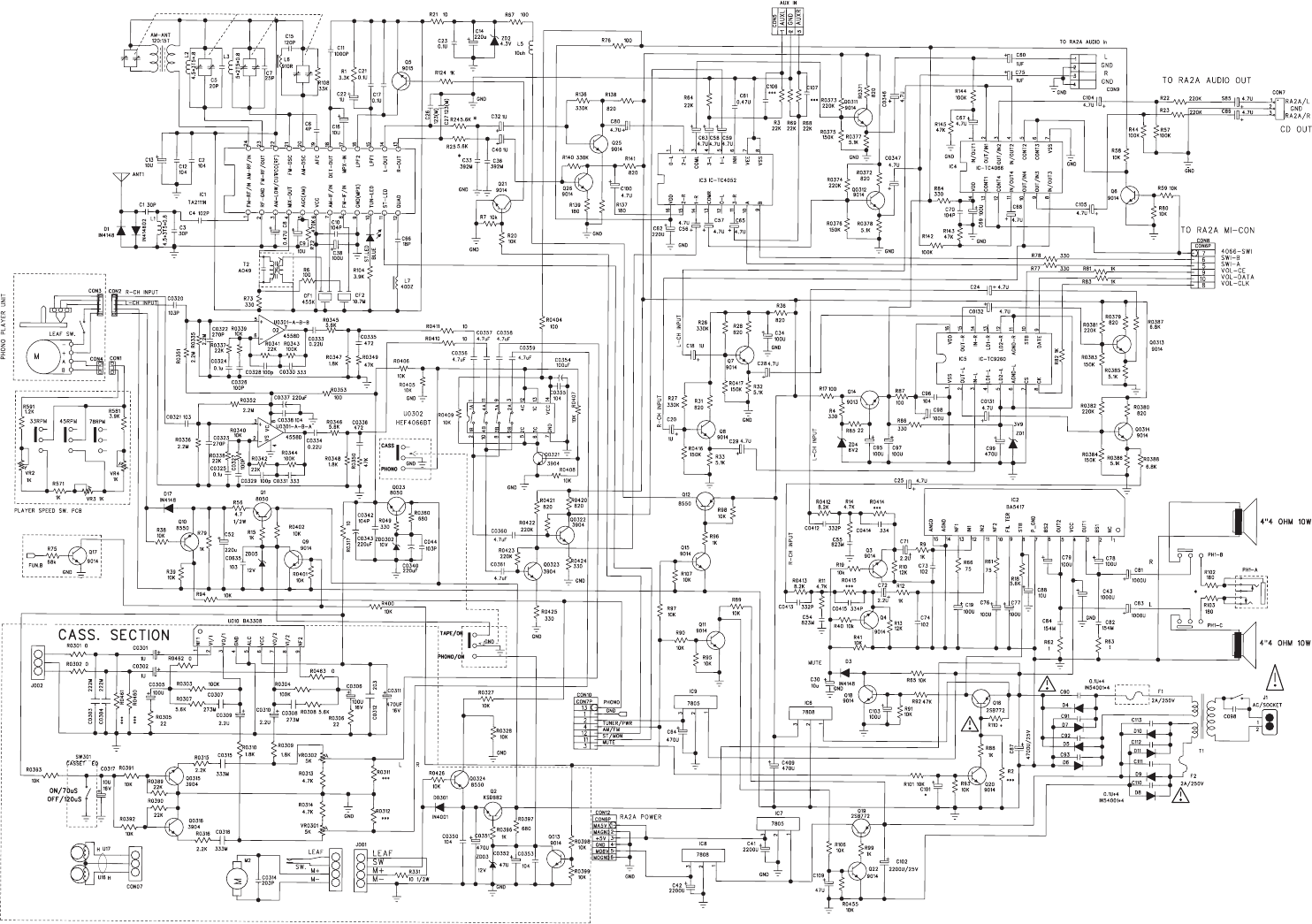

MAIN PCB
GF-450K7
Micro Hi-Fi system
![](asset-18.png)

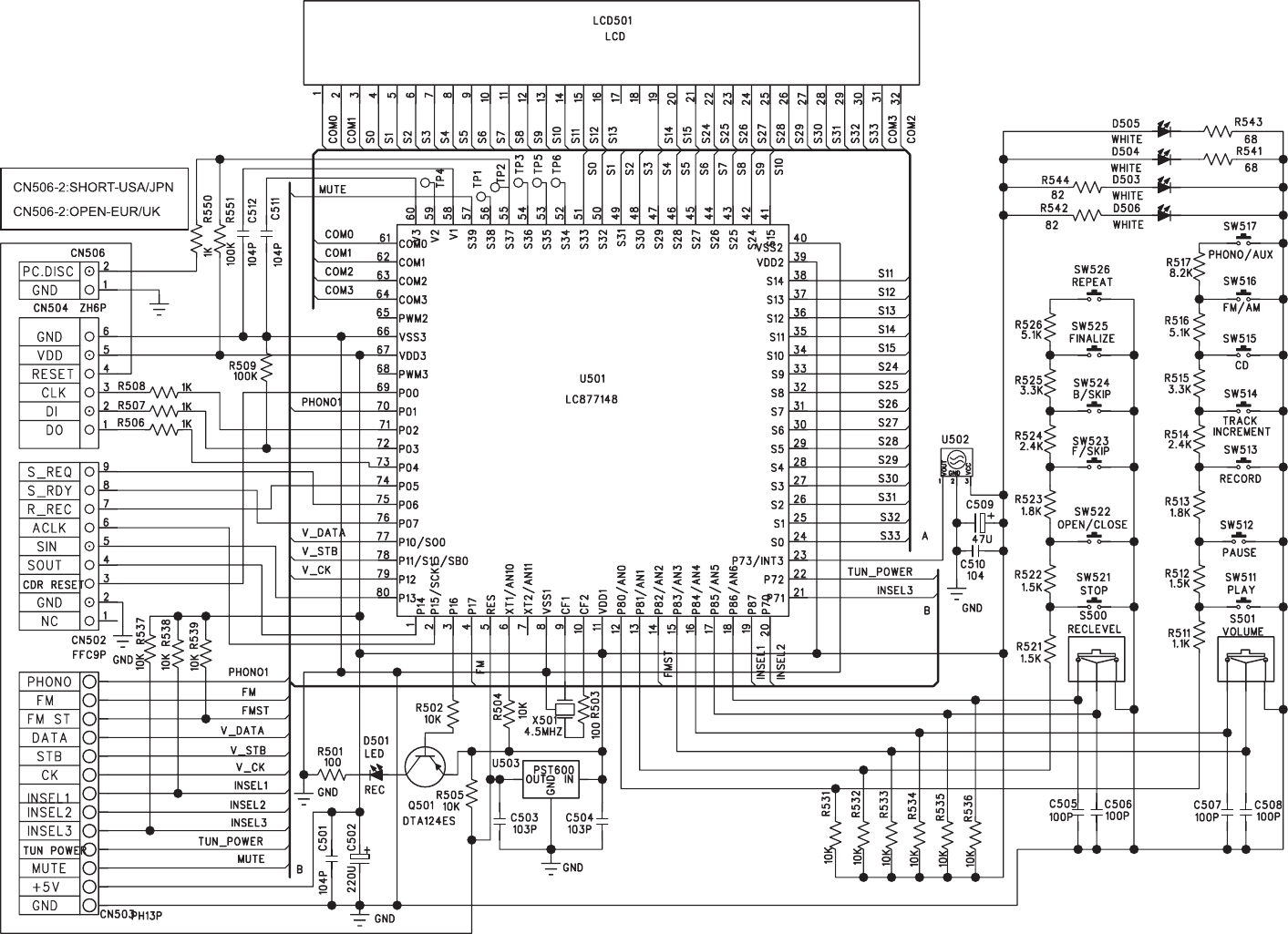

DISPLAY PCB
GF-450K7
Micro Hi-Fi system
![](asset-19.png)

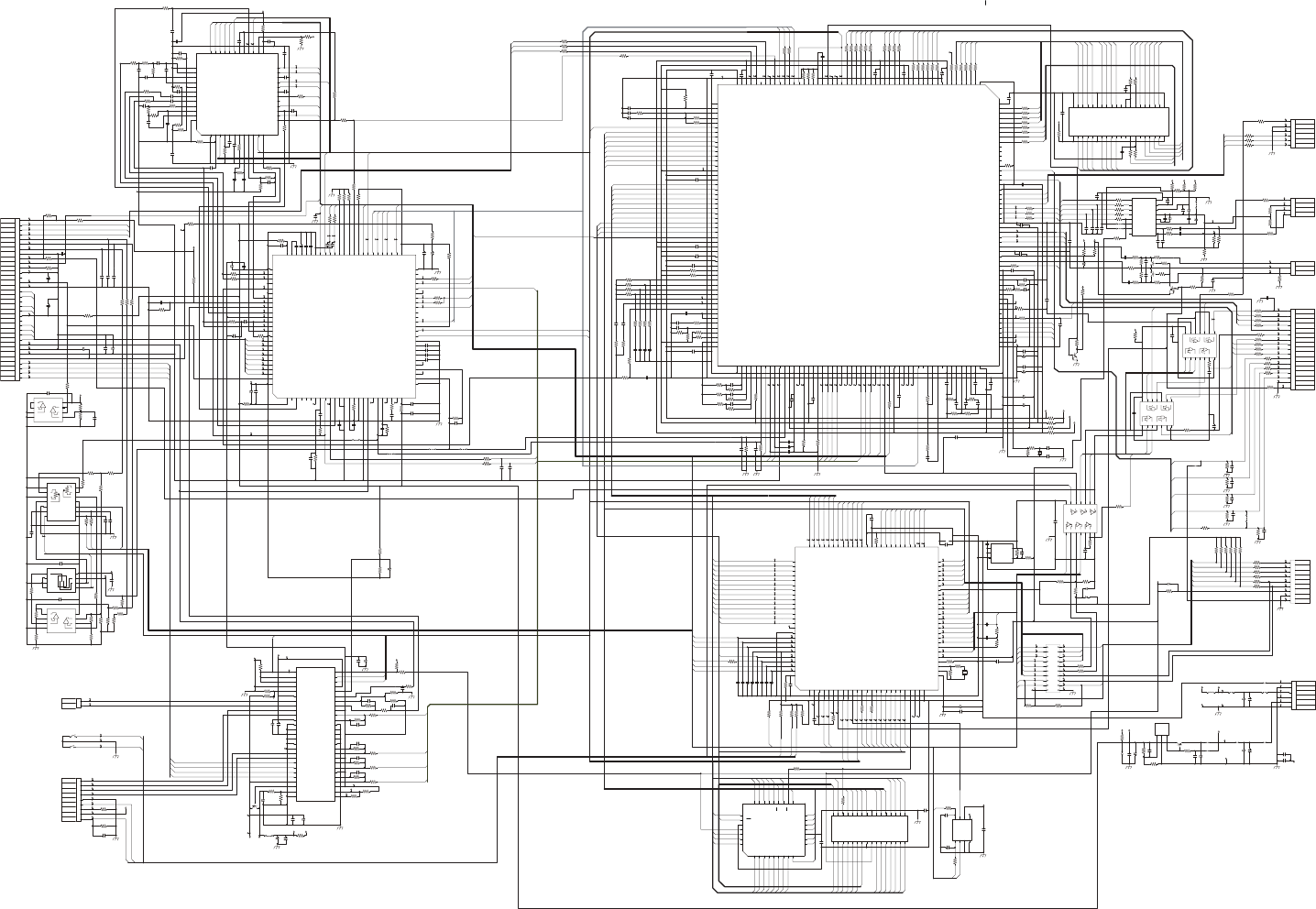

POWER MAIN PCB (CD MECHAN.ASSY)
GF-450K7
Micro Hi-Fi system
DVSS1 1
RA4 2
RA5 3
RA6 4
RA7 5
RA8 6
RA9 7
D5VDD1 8
DVSS2 9
100 10
101 11
102 12
103 13
104 14
105 15
D3VDD1 16
DVSS3 17
106 18
107 19
108 20
109 21
D5VDD2 22
DVSS4 23
1010 24
1011 25
1012 26
1013 27
1014 28
1015 29
EFMG 30
ATIPORCND 31
MON3 32
MON4 33
D5VDD3 34
DVSS5 35
TEST0 36
TEST1 37
TEST2 38
WRITE 39
SSP2 40
SP1 41
RAPC 42
WAPC 43
H11T0 44
LDH 45
ATEST3 46
ATEST1 47
WDAT 48
NWDAT 49
D5VAA4 50
DVSS5 51
A3VDD1 52
53 AVSS1
54 R1
55 VCNT1
56 DCN1
57 PD1
58 ZINT
59 D0
60 D1
61 D2
62 D3
63 D4
64 D5
65 D6
66 D7
67 SPSTNBY
68 A3VDD2
69 AVSS2
70 SLIA0
71 SLIA1
72 SLIA2
73 SLIA3
74 SLIA4
75 SLIA5
76 SLIA6
77 SLIA7
78 ZRD
79 ZCS
80 ZWR
81 ZRESET
82 D5VDD5
83 DVSS7
84 D3VDD2
85 DVSS8
86 A3VDD3
87 AVSS3
88 SLCIST1
89 SLCIST2
90 SLCO0
91 SLCO1
92 SLCO2
93 SLCO3
94 EFMIN
95 EFMIN2
96 DSLB
97 JITIN
98 JITC
99 RPO
100 OPP
101 PCKISTF
102 PCKISTP
103 PDO
104 A3VDD4
105 AVSS4
106 PDS1
107 PDS2
108 PDS3
109 FR
110 ADO
111 RPEC
112 FE
113 TE
114 VREF
115 AD1
116 A5VDD1
117 AVSS5
118 BOT
119 R.E
120 D3VDD3
121 DVSS9
122 PK
123 TDO
124 FDO
125 SLDO
126 SPDO
127 SUBSYNC
128 ZRFDET
129 SHOCK
130 LOCK
131 DEF
132 HFL
133 TES
134 EFMO
135 LDON
136 FG
137 PCK2
138 D5VDD6
139 DVSS10
140 ATIPSYNC
141 BIDATA
142 BICLK
143 WOBBLE
144 JITERR
145 JITPCO
146 JITLPFI
147 JITLPFO
148 JITVCOIN
149 AVSS5
150 A3VDD5
151 DIRRS
152 DIRVCO
153 DIRLPF
154 A3VDD6
155 AVSS7
156 D5VDD7
DVSS11 157
DIRERR 158
DIN1 159
DIN2 160
DIN3 161
DIN4 162
DACCKOUT 163
ENCCKOUT 164
CDCKOUT 165
AUXMCKIN 166
XTALCK 167
XTAL 168
PDOO 169
VCNTO 170
RO 171
A3VDD7 172
AVSS8 173
TEST4 174
ROUT 175
A5VDD5 176
AVSS9 177
LOUT 178
DACDATA 179
DACLRCK 180
DACBCK 181
D3VAA4 182
DVSS12 183
ADCDATA 184
ADCBCK 185
ADCLRCK 186
AUXDATA 187
AUXBCK 188
AUXLRCK 189
D5VDD8 190
DVSS13 191
ADCSTBY 192
AUXTX 193
DITOUT 194
TEST3 195
SBDATA 196
CLCK 197
SFSY 198
SBSY 199
ZRAS 200
ZCAS 201
ZWE 202
ZDE 203
RAD 204
RA1 205
RA2 206
RA3 207
D5VDD9 208
U501
LC89587
R560
0
1 VCC
2 IO1
3 IO2
4 IO3
5 IO4
6 VDC1
7 IO5
8 IO6
9 IO7
10 IO8
13 NC
14 NC1
15 /WE
16 /RAS
17 NC2
18 A0
19 A1
20 A2
21 A3
22 VCC2 VSS 23
A4 24
A5 25
A6 26
A7 27
A8 28
/DE 29
/UCAS 30
/LCAS 31
NC3 32
IO9 35
IO10 36
IO11 37
IO12 38
VSS1 39
IO13 40
IO14 41
IO15 42
IO16 43
VSS2 44
U504
LC324265AT-25
RA7
RA6
RA5
RA4
R547 33 RA8
RA3
RA2
RA1
RA0
OE
WE
CAS
RAS
OE
CAS
RA8
RA7
RA6
RA5
RA4
RA3
RA2
RA1
RA0
RAS
WE
C907
0.1u
D5V
C905
10P
C906
10p
C537
0.1u
C532
0.1u
R562
5.6K
C542
0.1u
C548
0.01u
R563
75
C534
0.1u
R567
33K
R566
5.1K
A3.3V
TP712
TP713
TP714
TP718
TP719
TP723
TP724
TP725
TP726
TP727
TP728
TP730
TP731
TP732
TP733
TP734
TP736
TP737
TP740
TP741
TP742
C531
0.1u D3.3V
A5V
D5V
R581
270
C528
0.1u
C511 0.1u
C589
0.1u
C590
470p C591470p
C535
0.1u
R625
0
R624
0
R585
0
C515
0.1u
C527
0.1u
C533
0.1u
C530
0.1u
TP530
TP531
TP532
TP533
IO15
IO14
IO0
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
IO9
IO10
IO11
IO12
IO13
IO8
IO9
IO10
IO11
IO12
IO13
IO14
IO15IO0
IO1
IO2
IO3
IO4
IO5
IO6
IO7
TP540
TP541
TP542
TP543
TP544
TP545
TP548
TP549
R573 0
R571 0
R572 0
WLDON
SPDSH
MPDSH
RFPDSH
WFPDSH
TP757
TP758
TP759
TP763
TP765
TP766
R513
10K R503
200 C501
0.1u
C503 0.1u
R505
5.6K
C541
0.1u
R584
BLM11B141S
C809
2.2u R809
1K
R811
100K
C811
1000p
R818 0
C810
2.2u R810
1K
R812
100K
C812
1000p
Q802
2SC4555
Q801
2SC4555
R814
1K
R815
10K
R816
10K
R813
1K
Q803
DTA124EK
R820
4.7K
R819
*
R847 22
5V
C540
0.1u
+C829
100u/6.3V
C538
0.1u
DIN4
DIN1
DIN2
DIN3
DITOUT
TP801
TP802
TP803
TP804
TP805
TP806
TP807
TP808
TP809
TP810
R935
56
R936
R937
BLM11B252SD
R938
BLM11B141S
R941
R942
R943
R945
ABCK
ALRCK
ASTBY
DACCKOUT
DATA
LRCK
BCK
BCK
ADCCKOUT
LRCK
DATA
LOUT
TP844
TP845
TP846
TP848
R835 0
R837 0
R839 0
R836
100K
R838
100K
R840
100K
R843 100
R842
*
C841
*
C842
*
C843
*
C844
*
AINR 1
AINL 2
VREF 3
VCOM 4
AGND 5
VA 6
VD 7
DGND 8
9 SDTO
10 LRCK
11 MCLK
12 SCLK
13 PD
14 DIF
15 TTL
16 TST
U502
AK5353VT
R910 470
R911 470
R912 0
R913 470
ALRCK
ADCCKOUT
ABCK
ASTBY
C556 0.1u
+
C566
22u/6.3V
C575
7p
C5767p C577
*C578
7p
C554 0.1u
+
C565
22u/6.3V
+
C567
22u/6.3V
C552
0.1u
R598 470
R597 470
C550
2.2u
C549 2.2u
R922
0TP510
TP511
TP512
TP509
R921
0
C563
2200p C564
2200p R595
47K
R596
47K
5V
TP849
TP811
R952
10K
C919
33p
DACCKOUT
C524 0.22u
C525
0.1u
C526
0.068
R577 *
R578 330K
R579 100K
R523
270
R524
270
R525
270
R526
5.6K
R574
10K
R575
10K TDO
FDO
SLDO
SPDO
DFCT
MIRR
TES
RLDON
MCLK1
ATFG
R518
220
C520
0.1
C559 0.1u
C560
0.1u
C5610.1u
R568
220 R589 *
R569
5.6K
R570 15K
C507
0.1u
TP567
C522 0.1u
C509 0.1u
C508 0.1u
R510 12K
R511 6.8K
R5140 R5120 R50833K R515*
C512 0.01u
C506 3300P
C505 0.033
C514 *
R504 68K
R506 68K
R507 33K
R517 39K
C517 330pR582 100
R583 1K C518 6800p
D0
D1
D2
D3
D4
D5
D6
D7
SUA0
SUA1
SUA2
SUA3
SUA4
SUA5
SUA6
SUA7
RD
CS
WR
DECENC
R519 12K
R520
12K
C510 0.1u
FOK
FE
TE
XRST
C544
0.1u
+
C545
47U/6.3V
C546
0.1u
+
C572
22U/16V
+
C571
47U/6.3V
R502
1M
R501
330
X501
33M
C502
5P
C504
7P
+
C547
100U/6.3V
ASTBY
AMUTE
GND
DITOUT
DIN4
DIN3
DIN2
DIN1
ADCSTBY
ADCLRCK
ADCBCK
ADCDATA
ADCCKOUT
DEM
DACBCK
DACLRCK
DACDATA
DACCKOUT
R-OUT
AGND
L-OUT
R_IN-
R_IN+
L_IN-
L_IN+
C539 0.1u
C581
*
C543
0.1u
R930
0
R929
0
R919
0
TP502
TP501
TP503
1
2
3
4
5
6CN503
ZR-6P
1
2
3
4
CN502
PH-4P
R908
56
R909
47
R559 33
R558 33
R557 33
R556 33
R555 33
R554 33
R553 33
AKDATA
C579
*
J501 0
R914 *
J502 0
R902 220 ADATA
R903 220
R904 220
ABCK
ALRCK
TP786
TP785
TP784
AUXLRCK
AUXBCK
AUXDATA
TP781
TP780
TP779
R817
*
A5V
J503
*
C558 0.1u
R916
*
D5V A5V
R917
0
R953
*R580
0
R616
BLM11B141S
R614
BLM11B141S
R613
BLM11B252SD
TP520
TP519
TP518
TP517
TP775
TP774
R630 33
AUXDATA
AUXBCK
AUXLRCK
M CLK
GND
GND
AUXLRCK
AUXBCK
AUXDATA
1
2
3
CN801
PH-3P
TP842
TP843
TP841
R848
*
C523
*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
CN501
52271-17P
Q501
*
R939
0
R940 0
3
4
5
6
1
7 GND 8
9
10
11
12
2 13
VCC 14
U506TC74VHC32FT
R576
BLM11B141SR
R627
680
C582
*
R951
*
D5V
R617
470
ADATA
C562
7p
C553
0.1
TP773
3
4
5
6
1
7 GND 8
9
10
11
12
2 13
VCC 14
U505
TC74VHC08FT
AKDATA
AKMWL
SPD4
WLDON
EXT-ADC
R631
33 ADCCKOUT
C568
33p
C551 0.1
CD-RW
GAIN UP
R841 * TP847
DIN1
DIN2
DIN3
DIN4
DITOUT
J8010
3
4
5
6
1
7 GND 8
9
10
11
12
2 13
VCC 14
U507
74VHC14FT
EXT-ADC
AKMWL
R586 330
BH_CLK
R561
1K
C557
2200p
1 1VREFL
2 AVSS
3 AVCC
4 DAOUT0
5 DAOUT1
6 /NMI
7 P53|/BUSREQ
8 P54|/BUSAK
9 P55|/WAIT
10 P56|INTO
11 P57|SCLK2|CTS2
12 P80|TXDO
13 P81|RXDO
14 P82|SCLKO|CTS0
15 P83|SCLK1|CTS1
16 P84|RXD1
17 P85|SCLK1|CTS1
18 P86|TXD2
19 P87|RXD2
20 P60|/CS0
21 P61|/CS1
22 P62|/CS2
23 P63|/CS3
24 CLK
25 VCC1
VSS1 26
X1 27
X2 28
/EA 29
/RESET 30
P70|T10|INT1 31
P71|T01 32
P72|T03|INT2 33
P73|T14|INT3 34
P74|T05 35
P75|T07|INT4 36
P90|T18|INT5 37
P91|T19|INT6 38
P92|T08 39
P93|T09 40
P94|T1A|INT7 41
P95|T1B|INT8 42
P96|T0A|T0B 43
VCC2 44
PD0|D0 45
PD1|D1 46
PD2|D2 47
PD3|D3 48
PD4|D4 49
PD5|D5 50
PD6|D6 51
PD7|D7 52
P10|D8 53
P11|D9 54
P12|D10 55
P13|D11 56
P14|D12 57
P16|D14 58
P15|D13 59
P17|D15 60
AM8|16 61
VSS3 62
VCC3 63
P27|A23 64
P26|A22 65
P25|A21 66
P24|A20 67
P23|A19 68
P22|A18 69
P21|A17 70
P20|A16 71
P37|A15 72
P36|A14 73
P35|A13 74
P34|A12 75
76 P33|A11
77 P32|A10
78 P31|A9
79 P30|A8
80 P47|A7
81 P46|A6
82 P45|A5
83 P44|A4
84 P43|A3
85 P42|A2
86 P41|A1
87 P40|A0
88 P50|RD
89 P51|WR
90 P52|/HWR
91 VSS4
92 PA0|AN0
93 PA1|AN1
94 PA2|AN2
95 PA3|AN3
96 PA4|AN4
97 PA5|AN5
98 PA6|AN6
99 PA7|AN7
100 VREFH
U601
TMP95CS265F
TP664
TP665
TP666
TP667
TP668
C606
0.1
TP643
TP638
TP639
TP640
TP641
TP642
TP630
TP631
TP633
TP634
SPD4
EXT-ADC
DECENC
ACT-MUTE
D0
D1
D2
D3
D4
D5
SUA12
SUA13
SUA14
SUA15
SUA16
SUA17
CD-RW
BHRST
LDIN
LDOUT
D15
D14
D13
D12
D11
S-RDY
S-REQ
R-REQ
PITWOB
XRST
D6
D7
1 M/R
2 SUB
3 GND VOUT 4
VCC 5
U604 PST597
R629
5.6K
C619
0.1u
X601
22.57MHZ
C613
0.01
TP602
TP603
TP604
TP605
TP607
TP608
TP609
TP610
TP611
TP612
TP613
TP614
TP620
TP621
TP623
TP624
R620
100
R621
100
RX
BUSY-TX
ACLK
SIN
FLOUT
SBCK
COMIN
SDATA
XLAT
R635
10K
C605
0.1u
R603
4.7K
R602
8.2K
R601 0
TP698
TP697
TP690
TP692
TP693
TP694
C618 *
CS
LDSW
LSW
ULDSW
R604
4.7K
COMIN
C600 0.01u
C603 0.01u
C604 0.01u
C607 0.01u
C608 0.01u
C610 0.01u
C611 0.01u
C612 0.01u
R615 10K
EJECT
RECD1
TEST
OFFSET
BH
PH
SUA0
SUA1
SUA2
SUA3
SUA4
SUA5
SUA6
SUA7
SUA8
SUA9
SUA10
SUA11
RD
WR
C602 0.1u
+
C601 220U/6.3V
C609
0.1u
1 A18
2 A16
3 A15
4 A12
5 A7
6 A6
7 A5
8 A4
9 A3
10 A2
11 A1
12 A0
13 D00
D01 14
D02 15
VSS 16
D03 17
D04 18
D05 19
D06 20
D07 21
CE 22
A10 23
DE 24
A11 25
A9 26
A8 27
A13 28
A14 29
32 VCC
31 WE
30 A17
U602
FLASH-ROM
1 A11
2 A9
3 A8
4 A13
5 A14
6 A17
7 /WE
8 VCC
9 /RESET
10 A16
11 A15
12 A12
13 A7
14 A6
15 A5
16 A4 A3 17
A2 18
A1 19
A0 20
I/D0 21
I/D1 22
I/D2 23
GND 24
I/D3 25
I/D4 26
I/D5 27
I/D6 28
I/D7 29
/CE 30
A10 31
/DE 32
U603 AT49F002
SUA14
SUA13
SUA8
SUA9
SUA11
RD
SUA10
D7
D1
D2
D3
D4
D5
D6
D0
SUA0
SUA1
SUA2
SUA3
SUA4
SUA5
SUA6
SUA7
SUA12
SUA15
SUA16
WR
SUA17
SUA4
SUA5
SUA6
SUA7
SUA12
SUA15
SUA16 PRESET
WR
SUA17
SUA14
SUA13
SUA8
SUA9 DR11AUS SUA10
D7
D0
D1
D2
D3
D4
D5
D6
SUA0
SUA1
SUA2
SUA3
R/B 1
VCC 2
CS 3
SK 45 D1
6 D0
7 GND
8 WC
U605
BR9080F
SBCK
SDATA
COMIN
C621
0.1u
C617
0.1u
AMUTE
R693 100
R694 100
R695 100
R696 100
R697 100
R698 100 TP931
TP932
TP933
TP934
TP935
TP936
TP930
TP938
TP939
R687 100K
R688 100K
R689 100K
R690 100K
R691 100K
R692 100K
S-REQ
S-RDY
R-REQ
ACLK
SIN
FLOUT
TP701
TP702
TP704
TP708
TP749
TP720
C710 *
C711 *
C702
0.1u
J701
0
F701
SSTC-2A
+
C701
220u/6.3V
MA5V
MO8V
D5V
L701
0
+
C703
100u/16V C704
0.1u
F702
SSTC-2A
MECHA-CHASSIS
A5V
TP707
TP705
TP750
TP717
R699
*
D601
RB501V-40
TP940
C615
0.1u
MA5V
MAGND
+5V
GND
MD8V
MDGND
NC
GND
CDR-RES
SOUT
SIN
ACLK
R-REQ
S-RDY
S-REQ
R528
BLM11B141S
R587 *
R564
0
R588
0
R565
0
R530 1K
R944
680
C570
1u
C573
*
C574*
R527 *
R5320
R590
0
R591 0
R516
*
R509
*
C513
*
C521
0.01
R522
10K R521
10K
C519 1000P
TP595
TP594
TP676
TP677
TP678
TP679
TP680
TP681
TP682
TP683
TP684
TP685
TP686
TP687
TP675
TP674
TP673
TP672
TP671
TP670
TP669
HFPILE
BETAST
D10
D9
D8
R610
0
TP650
TP649
TP648
TP647
TP646
TP645
GAIN
ROPCSW
POLCHG
R609 0
R608
0
R607
*
TP695
TP696
TP699
R605 0
R600 15K
FG
CS1
DAOUT0
DAOUT1
SELDPM0
SELDPM1
R632
0
C622
*
C623
*
R633
0
S-EEPROM
R636
0
R637
0
ROPCC
C698
*
C555
0.1
R619
0
R611
1K R612
5.6K
C616
1u
C614
0.22
ROPC
12
34
56
78
910
1112
1314
1516
1718
19
20
CN602
20P
TP956
TP955
TP954
TP953
TP952
TP951
TP950
TP962
TP961
TP960
DAOUT0
DAOUT1
BUSY-TX
D12
D13
D14
D15
EJECT
CS1
D5V
R639
4.7K
TP941
TP942
TP943
TP944
TP945
TP946
TP947
TP957
TP958
TP959
D10
D9
D8
D11
TEST
R638
4.7K
1
2
3
4
5
6
7
8
9
CN601
52271-9P
1
2
3
4
5
6
CN701
PH-6P
IN
1COM
2OUT
3
U701
M5237ML
J706
0
L703
MF-MSMD020
L702
*
+C705
*
C706
0.1u
R704
220
Q700
2SB1132
R703
7.5K
R702
22K
C709 1u
+
C707
100u/16V
C708 0.1u
D609 5.6B
5V
A5V
R701
*
J705
0
TP706
R622
470
R623
1K
D5V
MA5V
R626 1K
D500
DAN217
R618
*
R634
100K
BUSY-TX
RX
PRESET
PRESET
R844
*
C845
*
J602
*
R906
56
R907 47
R905
0
R548 33
R549 33
R550 33
R552 33
R551 33
TP507
R546 33
R545 33
R544 33
R543 33
R542 33
R541 33
R540 33
R539 33
R538 33
R537 33
R536 33
R535 33
R534 33
R533 33
R531 33
R529 33
1 MUTE4
2 MUTE3
3 MUTE1.2
4 GND1
5 LOADING
6 POWVCC3
7 REVOUT
8 FWDOUT
9 OUT4-
10 OUT4+
11 POWVCC2
12 GND2
13 GND3
14 GND4
15 GND5
16 GND6
17 POWGND
18 OUT3-
19 OUT3+
20 OUT2-
21 OUT2+
22 OUT1-
23 OUT1+
24 POWVCC1
25 REG-B
26 REG-P
27 GND7 OP1IN- 28
OP1OUT 29
OPIN+ 30
OPIN- 31
OPOUT1 32
OPIN+2 33
OPIN-2 34
OPOUT2 35
OPIN+3 36
OPIN-3 37
OPOUT3 38
GND8 39
GND9 40
GND10 41
GND11 42
GND12 43
OPOUT4 44
OPIN-4 45
OPIN+4 46
OP2OUT 47
OP2IN- 48
OP2IN+ 49
BIAS 50
PREVCC 51
LODINF 52
LODINR 53
REGMUTE 54
U301
BA5960FS
R322
0
R316
0
R307
10K
R308 10K
C306
470P
R309
33K
R310 10K
C307
470P
R311
10K
R312 22K
C308
1000P
FDO
TDO
SPDO
C309 0.01
R313
22K R314
10K
R283
15K
R282 75K
C260
2200P
C263
0.1
R284 15K
R289
150K
C261
1000P
C305
0.1
R303 18K 1%
R304 10K 1%
+C303
22U/16V
+C399
22U/16V
Q301
2SB1132
J301
0+
C310
22U/16V C314
0.1
D3.3V A3.3V
R306
2.2
TP321
TP317
A5V
TP316
R281
15K
LDOUT
LDIN
R321
1K R325
*
D5V
PRESET
C312
0.1 +C311
10U/16V
C302
0.1
+
C301
22U/16V
MO8V
TP325
TP301
ACT-MUTE
R315
10K
R301
11K
R320
47K
TP305
1
2
CN301
ZR-2P
TP307
TP308
LDIN
LDOUT
1
2
3
4
5
6
7
8
9
CN302
ZR-9P
R318
330
D5V
R317
22K
C316
0.01
TP304
TP309
TP310
TP319
TP318
TP320
TP315
TP324
TP323
TP322
SL+
SL-
SP-
SP+
GND
IN.SW
LED
VDD
SENS
SW300
SW1AB-350-1T15
SW301
SW1AB-350-1T15
LDSW
ULDSW
CLOSE
OPEN
T+
T-
F-
F+
3
4 V-
1
5
6
27
V+ 8
+-
-
+
U207
NJM3404AV
3 VEE
4 VSS
1
5
6
2 INH 7
VDD 8
U206
TC4W53FU
R235 22K
R236
15K R237
15K
R238
15K
R234
6.8K
C267
0.1
R239
8.2K
R240 10K
R241 10K
R242 10K
R203
0
R202
0
R220
*
TP249
TP241
1 AGND
VDD 11
/RS 10
CLK 9
SDI 8
5 DGND
6 /SHDN
7 /CS
U205
AD8402
TP240
A5V
C265
0.1
R253
0
R226
*R201
0
R257
0
C259
0.1
CD-RW
C266
0.1
SELDPM1
R254
0
R255 0
SDATA
SBCK
C268
10P
C269 10P
XRST
1 AVDD3
2 BCENT
3 PHBETA
4 BHBETA
5 PHBTC
6 BHBTC
7 MPP
8 TEIN
9 TE
10 FE
11 SBAO
12 TZCLVL
13 VREF
14 AGND1
15 BIAS
16 VSS1
17 FVREF
18 FPDO
19 RREF
20 VRDC
21 VRDCN
22 VRDC2N
23 WREF
24 WDA0
25 AVDD2
AVSS2 26
VWDC 27
VWDC2N 28
VWDCN 29
ATFM 30
AGC1C 31
AGC2C 32
AGC3C 33
AGND2 34
VSS 35
SGAINDN 36
GAINUP 37
AGCON 38
ATFG 39
XTOR 40
XTAND 41
TZC 42
RECD2 43
RECD1 44
RC 45
DFCT 46
MIRR 47
MCLK1 48
MCLK2 49
DVSS 50
DVDD 51
FOK 52
RZC 53
MPDSH 54
SPDSH 55
RFPDSH 56
WFPDSH 57
WLDON 58
RLDON 59
SPBLVL 60
SPRFTR 61
VWDSW 62
VRDSW 63
RSBETA 64
SCLK 65
SDATA 66
XLAT 67
XRST 68
VSS3 69
DSTCC 70
AGCC 71
PHD2C 72
RCCMP1 73
PBHO 74
AVDD1 75
76 AVSS1
77 RRFTOP
78 RRFBTM
79 M.CI
80 EQRF
81 M.C2
82 AUX1
83 AUX2
84 AUX3
85 MPXOUT
86 RRFVC
87 RECD1N
88 RRF
89 WRF
90 VSS2
91 AIN
92 BIN
93 CIN
94 DIN
95 EIN
96 FIN
97 GIN
98 HIN
99 HAVG
100 AVSS3
U201
AK8567
R326
1.2K
R327
1.2K
+C313
100u/6.3v
C202
0.1
+
C201
100U/6.3V
TP276
R206
0
TP277
TP278
TP280
TP282
TP283
TP284
TP285
TP286
TP287
TP288
TP289
TP291
TP292
TP293
TP294
TP296
TP297
TP298
TP299
C230
0.1
+
C229
100u/6.3v
R127
*
R126
*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
CN201
SF-W03PDX
GND-FM
VRER-FM
VCC-FM
F-
T+
T-
F+
OUT-FM
NC
IINR(R.E)
IIN1(PK)
IIN2(BOT)
GND-LD1
OUTW2
OUTW1
OUTR
GND-LD2
ADDJ
ENBL
HFM
Vcc-LD
GND-PD
Vc-PD
RRF
D
A
G
E
Vcc-PD
WRF
C
B
H
F
TP200
TP201
TP213
TP215
TP208
TP209
TP211
TP270
TP269
TP234
TP238
TP231
TP225
TP271
TP221
TP220
TP272
TP218
TP232
TP233
A
B
C
D
E
F
G
H
R224
1M
C231
47P
R223
1.5K
C233
10P
R214
BLM11B252SD
1 GND
2 RF
3 POLCHG
4 RFC1
5 RFC2
6 CMP1
7 BETASW
8 BETAP
9 BETA
10 BETAM
11 BETAST
12 WRF
11T 13
ROPCO 14
ROPCC 15
ROPCSW 16
LESW 17
OFFSET 18
BHC 19
B/H 20
RST 21
PHC 22
P/H 23
OFFSET2 24
VCC 25
NC 26
GAIN 27
IN 28
VDD 29
D-GND 30
CLOCK 31
PIT/WBL 32
OFT 33
P/OFT 34
P/TZC 35
TZC 36
37 A-GND
38 TEC1
39 TE
40 TEC2
41 SH1
42 SH2
43 EFGH
44 ABCD
45 DRC
46 DRCP
47 DRCM
48 VC
U101
BH3802KV
R207
0
C228
0.1
C227
6800p
C226
4700p
C225
0.33 C224
2200p
R222
0
R2150
C232
*
C234 *
TP266
TP265
C299
10k
SDATA
XRST
SBCK R221
0
R217
0
R216
0R213
0
R124
*
R209
0
R219
0
C223
0.1
+
C222
47u/6.3v
RLDON
AKMWL
XLAT
WFPDSH
RFPDSH
SPDSH
MPDSH
TP258
TP256
TP254
TP252 FOK
R228
0
R265
0
TP248
TP239 ATFG
MCLK1
POFT
DFCT
TP245
TP244
TP243
TP242
R259
*
R260
0
RECD1
TZC
GAIN UP
CD-RW
TP237
C221 1u
C220 0.33
C219 0.047
C218 0.047
TP230
TP228
C216
0.1
C217
0.1
R218
0
R210
750K
C205
0.01
J202
*
J204
0
TP224
R227
22K
C203
1000P
TP222
R208
750K
C204
0.01
J201
*
TP219
VREF
R212
4.7K
C210
1U
C2091U
J203
0
TP210
SLDO
R258 10K
R353 10K
C243
*C244
*
C207
1000P
R211
10K TP207
R262 100K
R11715K
R114
10K
C206 *
TP212
+
C284
47U/6.3V
R298
BLM11B252SD
R277
10K
C536
0.1
C580
*
TP729
TP735
VRDC2
VWDC2
C516
0.1
FE
TE
R592 0
BETAST
R101
100K
R122
330K
R123 330K
C128
33P
R119 10K
R120
10K
R121
10K
C127
560P
C126
220P
C125 0.1
R118
15K C124 0.1
C123
0.01
R129 *
C121
0.1
C120
33P
R116
10K
C119
220P
R115
10K C118
560P R128
*
C122
0.01
C117
0.1
C199
33P
R199 1K
C115
0.1
TP128
TP127
R113
22K
C113
0.1
R112
0
D5V
BH_CLK
TES
TZC
POFT
MIRR
PITWOB
GAIN
R110
10K
R111
*
A5V
C111
0.027
C112
*
OFFSET
PH
TP124
TP123
BHRST
TP121 BH
ROPC
ROPCSW
ROPCC
TP120
C110
0.027
R109 10K
C109
0.015
R125
6.8K
POLCHG
C105
*
C102
0.1
R103
2.2K
C104
0.01
C103
0.01
R104
10K
C106
0.01
R105
220K C107
560P
R108
1K
R107
180K
C108
1500P
R106
43K
TP227 VREF
C281
0.1
C282
0.1
F-
T+
T-
F+
TP229
R204
BLM11B252SD
+
C283
47U/6.3V
R205
10K
A5V
PWO
PEO
PBO
PBO
PWO
PEO
RLDON
C288 1000p
C287 1000p
C289 1000p
R.E
PK
BOT
R285 2.7K
R287 1K
R286 6.2K
C277
0.1
LSW
FG
R915
0
R593
0
D5V
C569 100P
TP247
TP250
TP306
TP312
TP313
TP314
TP326
TP327
TP328
TP535
TP546
TP600
TP606
TP615
TP616
TP617
TP618
TP619
TP635
TP636
TP637
TP651
TP652
TP688
TP689
/AKMWL
VREF
VREF PD
C286
*
TP236
3
4 V-
1
5
6
2 7
V+ 8
+-
-
+
U208
NJM3404AV
A5V
R292
15K
R291
11K
C290
0.1
R293
0
R294
*
C285
0.1
R937 R943 R945
R936 R938 R941 R942
R295
220
C291
0.1
ROUT
R299 10K
A
B
C
D
E
F
G
H
