GNS-XLS FMS

GNS-XLS Enhanced

Global Flight Management System

GNS-XLS Enhanced

Database Features

• All VHF NAVAIDs

• All airports with hard surface

runways

• All high-and low-altitude

intersections

• All on-and off-airway NDBs

• All outer markers

• Runway thresholds

• High-altitude and low-altitude

airways by name

• SID and STAR waypoints by

procedure name

• All RNAV/GPS approach

procedures

Derived from the GNS-X, the industry’s most popular navigation

management system, the GNS-XLS Enhanced Flight Management System

represents a natural evolutionary step in a low cost FMS. With a built-in GPS

receiver, the GNS-XLS Enhanced provides en route, terminal and non-precision

approach navigation capability. It also offers text and graphical weather

through our exclusive AFIS® Airborne Flight Information Service.

The GNS-XLS has the capacity to blend position data from a full

complement of other navigation sensors, ensuring navigation availability,

accuracy and reliability.

Major functions include advanced search patterns for search and rescue

operations, flight planning, flight plan storage, fuel management and COMM,

NAV, ADF and transponder radio tuning, with 8.33 MHz support.

WORLD-CLASS PERFORMANCE…

Providing easy-to-use great circle navigation, the GNS-XLS Enhanced

combines sensor input with internal database information to calculate

“Direct-To” paths. It can follow a predetermined flight plan or track a route

programmed in flight, while its vertical navigation feature even allows you

to fly VNAV flight paths.

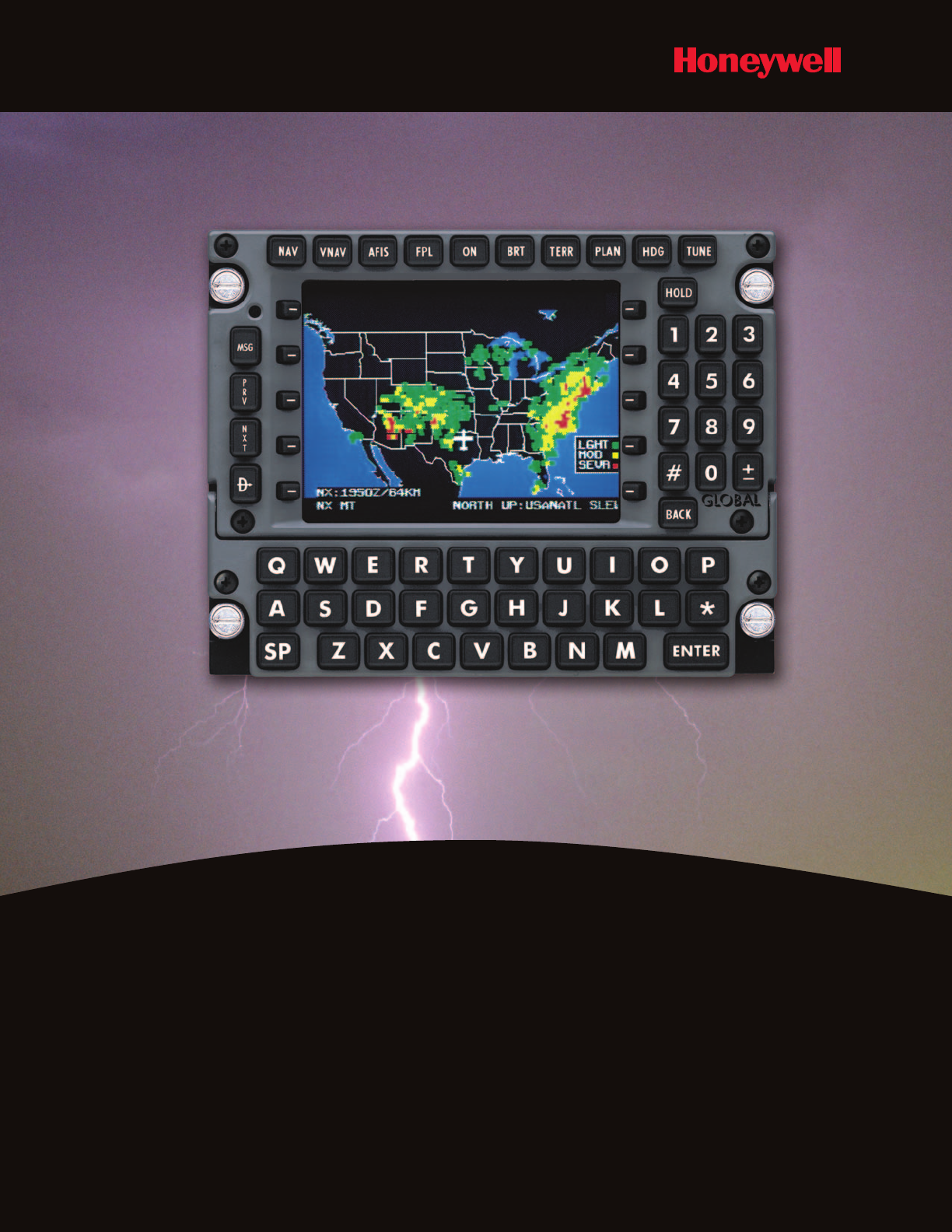

Information is displayed to the flight crew on a full color, 4–inch flat-panel

liquid crystal display (LCD). The GNS-XLS Enhanced features internal analog

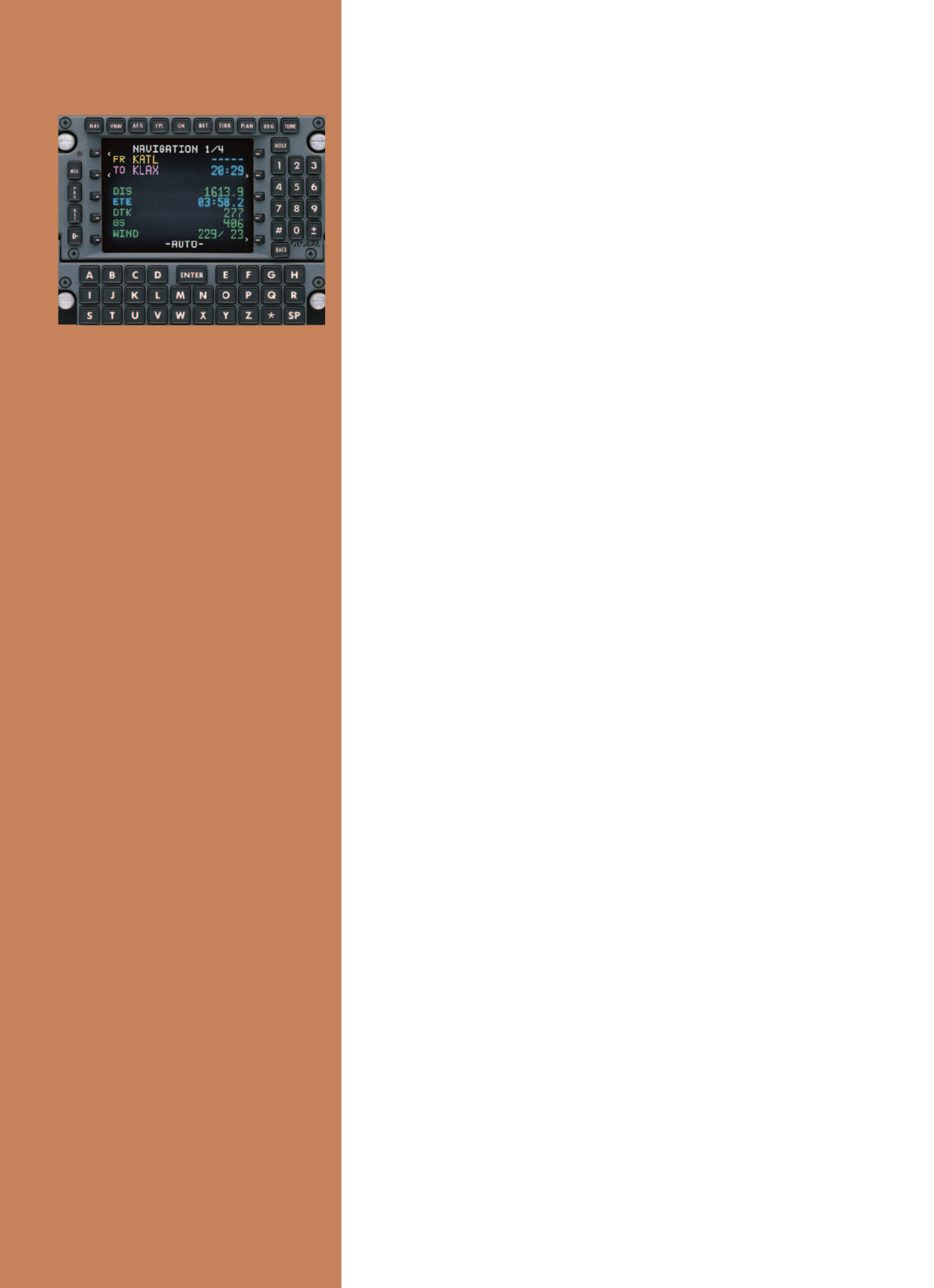

and digital interfaces, and either a standard or typewriter-style keyboard with

line select keys for fast, efficient data entry.

…WITH BUILT-IN GPS

With its internal eight-channel GPS receiver, the GNS-XLS can continuously

acquire and track signals from as many as eight Global Positioning Systems

satellites. For greater reliability, the GNS-XLS Enhanced features fault detection

and exclusion (FDE) for oceanic and remote area operations and receiver

autonomous integrity monitoring (RAIM).

GNS-XLS Enhanced:

New Levels Of Capability

A compact, low cost FMS combining GPS approach

technology with graphical weather and EGPWS display

capability. — The new GNS-XLS Enhanced offers performance,

flexibility and value in a single integrated unit.

PLANNING AHEAD

The GNS-XLS Enhanced automates the functions of area navigation (RNAV).

It also provides B-RNAV and RNP-10 (Required Navigation Performance)

capability for world-wide flight planning.

With an easy-to-use reference and coupled VNAV capability, vertical

portions of a flight plan can be built in advance, with altitude constraints,

offsets and flight path angles programmed to vertical waypoints. By

preprogramming a cruise altitude, the system automatically projects a

top-of-climb and top-of-descent, reducing pilot workload; a Vertical

Direct-To feature makes vertical profile changes fast and easy.

CONVENIENCE AND SAVINGS

Amazingly compact, the GNS-XLS Enhanced incorporates its own database

card reader. Allowing you to perform database updates more easily and

quickly, eliminating the need for a separate data transfer unit.

The system’s four-channel auto fuel flow feature provides the crew with

access to such information as fuel remaining, fuel consumed, gross weight

and individual engine fuel consumption, to help determine your optimum

range and fuel requirements. Combine Area Navigation (RNAV) and direct

routing with Vertical Navigation (VNAV) operation and the GNS-XLS Enhanced

will literally pay for itself over time.

GNS-XLS Enhanced lateral and

vertical navigation functions

• Greenwich date and mean time

• Present position coordinates

• Magnetic variation

• Stored waypoint coordinates

• Stored flight plans

• Departure time/time over

last waypoint

• Bearing and distance to waypoint

• Estimated time to waypoint

• Estimated time of arrival (ETA)

• Wind direction and speed

• Desired track

• Drift angle

• Ground speed

• Track angle error

• Crosstrack distance

• Vertical deviation

• Range-and time-to-altitude

profile point

• Estimated crossing altitudes

• Target altitude rate

The GNS-XLS Enhanced is the ideal

platform with our exclusive AFIS

Airborne Flight Information Service.

AFIS brings real-time data link

communications and graphical

weather to the flight deck.

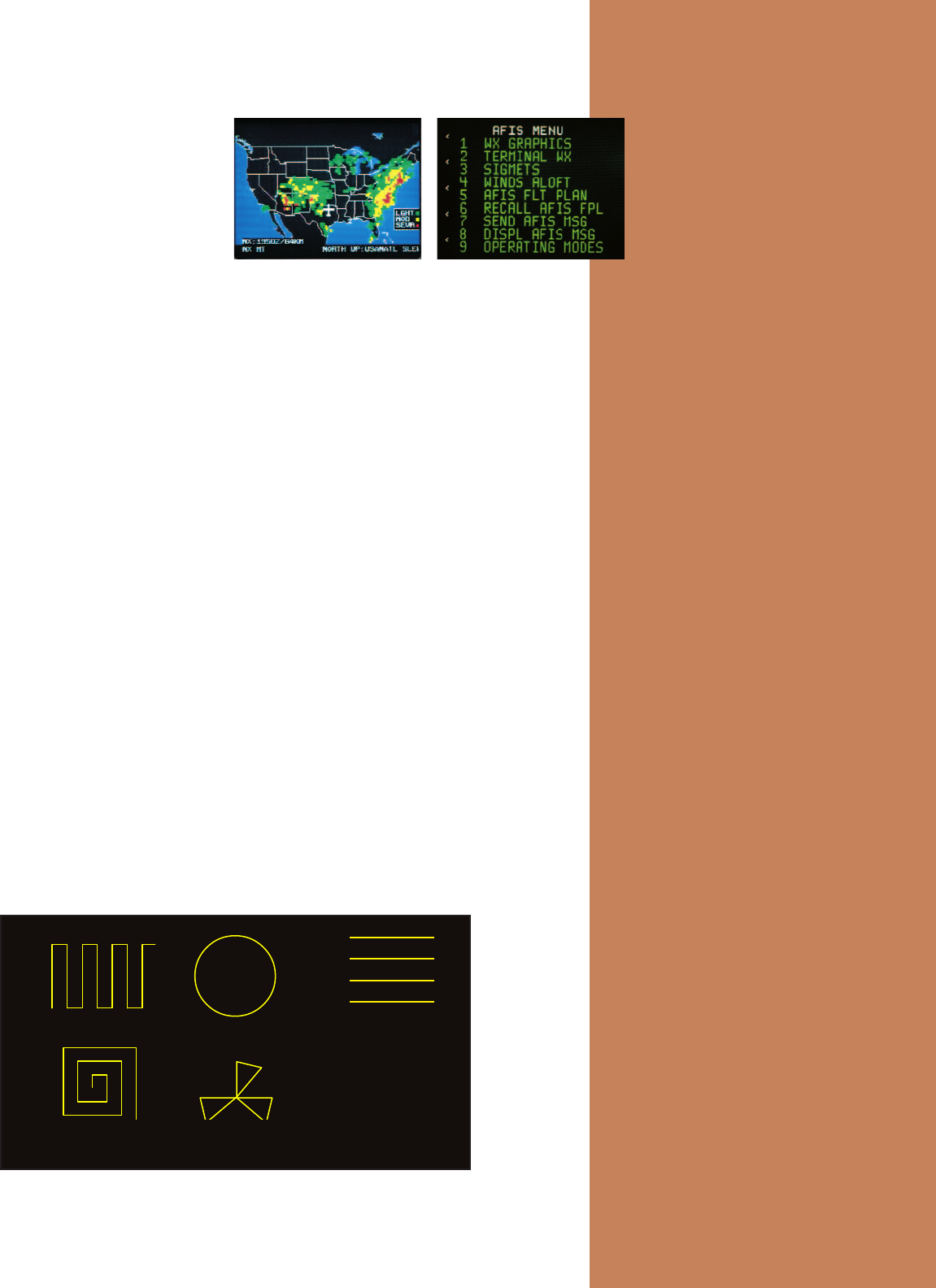

PARALLEL

SEARCH

ORBIT SEARCH

EXPANDING

SQUARE SEARCH

SECTOR SEARCH

LADDER SEARCH

Typical

search

patterns

For special missions, the GNS-XLS Enhanced offers the added configuration capability for Maritime

Surveillance Programming. This allows the use of distinct search patterns, along with a newly

implemented break-and-resume capability.

A60-0963-000-000

August 2007

© 2007 Honeywell International Inc.

Honeywell Aerospace

Business & General Aviation

1944 E. Sky Harbor Circle

Phoenix, AZ 85034

U.S. Toll Free: 800.601.3099

International Tel: 602.365.3099

www.honeywell.com

GNS-XLS Enhanced specifications

TSO: C 115a, C129 A1/B1/C1

Environmental: RTCA DO-160C (DIFI) VBA-(MNB)

E1XXXXXXXZAAZZXZKXXX

Height: 4.5 in. (11.430 cm)

Width: 5.75 in. (14.605 cm)

Depth: 6.51 in. (16.535 cm)

Depth w/connector: 8.5 in. (21.59 cm)

Weight: 7.0 lbs. (3.18 kg)

Power Requirements: 18-32VDC, 27.5W nominal; 1.6A nominal, 3.6A max.

26VAC, 400 Hz AC Reference, 3.0VA max.

Global customer support

Honeywell’s avionics are based on

proven technology providing

exceptionally high reliability and

simplified maintenance.

To help ensure optimal operation

conditions, Honeywell provides

comprehensive installation

consultation and support tailored to

the unique needs of each operator.

Additionally, our product support

services include regularly scheduled

maintenance and pilot training

courses and support documentation.

When service is needed, our

customer engineers and service

centers are strategically located

around the world to provide efficient,

responsive support. Honeywell

remains unsurpassed in the scope

and variety of services, which range

from SPEX exchange of line

replaceable units to personalized

service contracts designed to fit the

resources and circumstances of

every operation regardless of size or

business nature.
