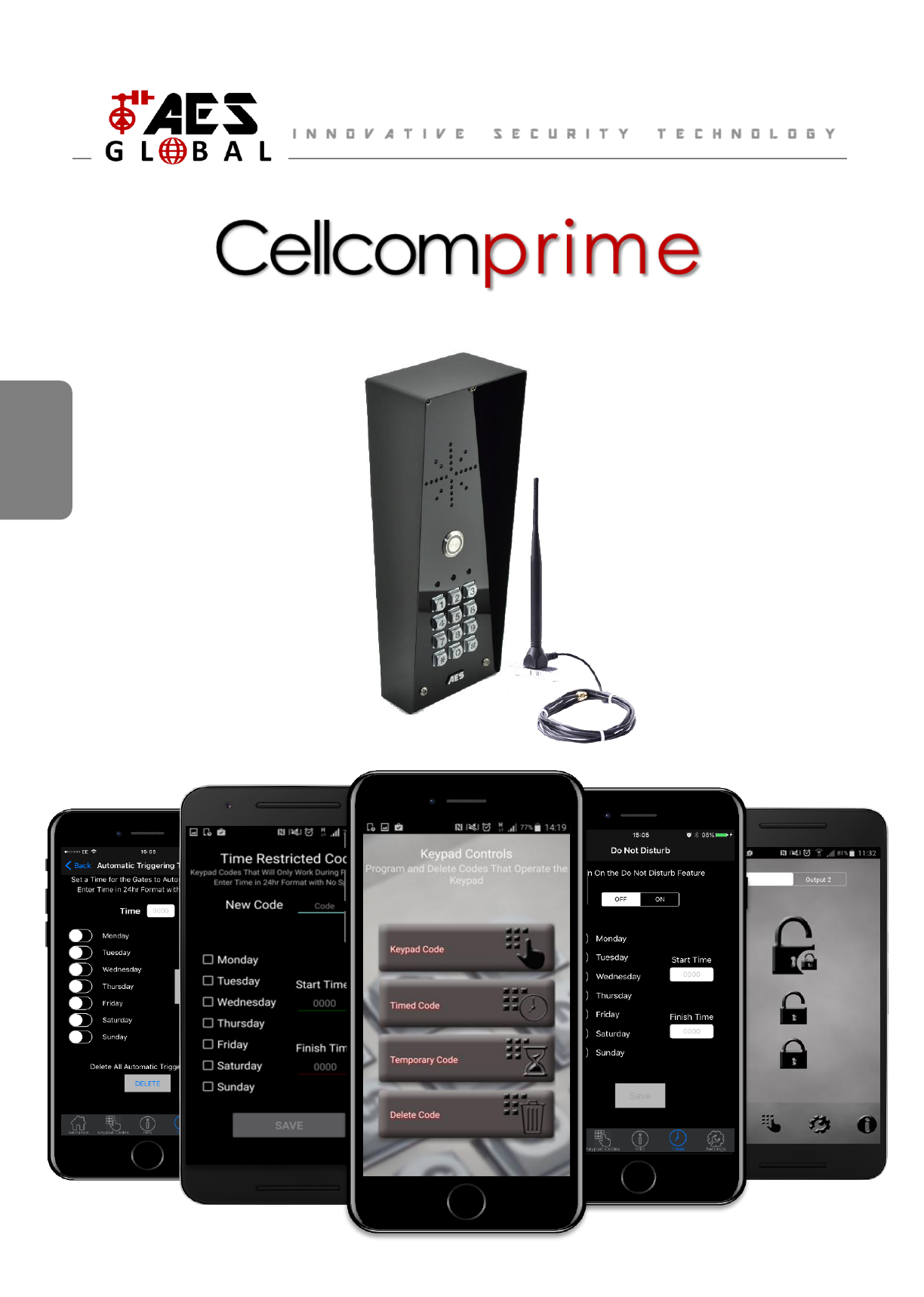

I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
Add keypad codes by APP.
Built in time clock.
Issue time restricted codes.
Set automatic gate
open & close times*.
Do not disturb
watershed time.
User history log to
your phone. Trigger & latch open gates.
A d v a n c e d G S M I n t e r c o m
Cellcom
Prime
Illuminated push button
Security screw
access
Wide range of stylish panel
options, including marine
grade stainless steel
Optional keypad for coded
access control option
Hinged bottom door for
easy install access
Speaker unit
Antenna
Wall mount
bracket
Te c h n i c a l D e t a i l s
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
Dial out numbers 4 Power supply 12-24v dc (24v dc adaptor included)
Permanent codes 200 Relays 2
Time restricted codes 20 Relay type N/C and N/O
Temporary codes 30 Relay load 2 amps 24v ac max
Automatic trigger events
per week
40 Power consumption 300mA on dial out, 2amp peak demand
Caller ID numbers 100 Modem models 2G quad band, 3G EU, 3G USA
Call fixed
line phone
Calls up to 4
numbers in
sequence
(depending on
model)
Call mobile
phone
GSM SIGNAL
A d v a n c e d G S M I n t e r c o m
603
Cellcom
Prime
K i t s & P a r t n u m b e r s
GSM-5ABK PRIME model (2G only)
GSM-5ABK/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5ABK/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Stylish curved architectural model. Constructed from BS316 marine grade stainless steel and finished with gloss black
acrylic trim. Modern blue backlighting.
-Kit includes power supply, antenna and install manual.
A r c h i t e c t u r a l P a n e l w i t h K e y p a d
GSM-5AB PRIME model (2G only)
GSM-5AB/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5AB/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Stylish curved architectural model. Constructed from BS316 marine grade stainless steel and finished with gloss black
acrylic trim. Modern blue backlighting.
-Kit includes speech panel, antenna, power supply and install manual.
A r c h i t e c t u r a l P a n e l
CellCom
Prime
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
GSM-5ASK PRIME model (2G only)
GSM-5ASK/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5ASK/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Curved architectural model in an attractive and rugged all brushed BS316 marine grade stainless steel, with modern
cool white back lighting illumination.
-Kit includes power supply, antenna and install manual.
A l l S t a i n l e s s A r c h i t e c t u r a l w i t h K e y p a d
GSM-5AS PRIME model (2G only)
GSM-5AS/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5AS/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Curved architectural model in an attractive and rugged all brushed BS316 marine grade stainless steel, with modern
cool white back lighting illumination.
-Kit includes speech panel, antenna, power supply and install manual.
A l l S t a i n l e s s A r c h i t e c t u r a l P a n e l
CellCom
Prime
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
K i t s & P a r t n u m b e r s
GSM-5IMPK PRIME model (2G only)
GSM-5IMPK/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5IMPK/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Ultra stylish all black panel, with textured powder coated aluminium hood, and gloss black acrylic facia trim over a
tough metal back plate. Complete with modern white illuminated buttons.
-Kit includes power supply, antenna and install manual.
I m p e r i a l p a n e l w i t h k e y p a d - N E W D E S I G N !
GSM-5IMP PRIME model (2G only)
GSM-5IMP/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5IMP/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Ultra stylish all black panel, with textured powder coated aluminium hood, and gloss black acrylic facia trim over a
tough metal back plate. Complete with modern white illuminated push button.
-Kit includes speech panel, antenna, power supply and install manual.
I m p e r i a l R a n g e - N E W D E S I G N !
CellCom
Prime
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
K i t s & P a r t n u m b e r s
GSM-5EDK EDGE Style GSM PRIME model with Keypad (2G only)
GSM-5EDK/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5EDK/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Edge lit in modern blue trim, with stainless steel back box, faceplate, trimmed with modern gloss black acrylic.
-Kit includes speech panel, antenna, power supply and install manual.
E d g e p a n e l w i t h k e y p a d - N E W D E S I G N !
GSM-5ED Edge Style GSM PRIME model (2G only)
GSM-5ED/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5ED/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Edge lit in modern blue trim, with stainless steel back box, faceplate, trimmed with modern gloss black acrylic.
-Kit includes speech panel, antenna, power supply and install manual.
E D G E R a n g e - N E W D E S I G N !
CellCom
Prime
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
K i t s & P a r t n u m b e r s
GSM-5EDFK PRIME 2G EDGE Style GSM Intercom with Keypad (Flush Model)
GSM-5EDFK/3GE PRIME model with dual 3G/2G capability (European & Australian version) (Flush Model)
GSM-5EDFK/3GA PRIME model with dual 3G/2G capability (US & Canada version) (Flush Model)
-Edge lit in modern blue trim, with stainless steel back box, faceplate, trimmed with modern gloss black acrylic.
-Kit includes speech panel, antenna, power supply and install manual.
I m p e r i a l p a n e l w i t h k e y p a d - N E W D E S I G N !
GSM-5EDF 2G Edge Style GSM PRIME Flush model
GSM-5EDF/3GE PRIME model with dual 3G/2G capability (European & Australian version) (Flush Model)
GSM-5EDF/3GA PRIME model with dual 3G/2G capability (US & Canada version) (Flush Model)
-Edge lit in modern blue trim, with stainless steel back box, faceplate, trimmed with modern gloss black acrylic.
-Kit includes speech panel, antenna, power supply and install manual.
E D G E R a n g e - N E W D E S I G N !
CellCom
Prime
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
K i t s & P a r t n u m b e r s
GSM-5ABP PRIME model (2G only)
GSM-5ABP/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5ABP/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Curved architectural model with proximity reader.
-Comes with 3 user tags, 1 add tag and 1 delete tag.
-Can store up to 1000 user tags.
-BS316 marine grade stainless steel construction, with gloss black acrylic, and modern blue back lighting.
PROX1 Additional Prox Tag.
A r c h i t e c t u r a l P a n e l w i t h P r o x R e a d e r
A d d i t i o n a l P r o x T a g s
CellCom
Prime
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
K i t s & P a r t n u m b e r s
GSM-5iB PRIME model (2G only)
GSM-5iB/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5iB/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Industrial version for pedestal mount, vehicle entrances, trucks and loud industrial applications.
-BS316 marine grade stainless steel construction with gloss black face trim.
-Kit includes speech panel, antenna, power supply and install manual.
I n d u s t r i a l P a n e l
GSM-5iBK PRIME model (2G only)
GSM-5iBK/3GE PRIME model with dual 3G/2G capability (European & Australian version)
GSM-5iBK/3GA PRIME model with dual 3G/2G capability (US & Canada version)
-Industrial version for pedestal mount, vehicle entrances, trucks and loud industrial applications.
-BS316 marine grade stainless steel construction with gloss black face trim.
-Kit includes speech panel, antenna, power supply and install manual.
I n d u s t r i a l P a n e l w i t h K e y p a d
CellCom
Prime
I N N O V A T I V E S E C U R I T Y T E C H N O L O G Y
K i t s & P a r t n u m b e r s
