GSM TEST REPORT
No. F1062_07GT03
according to GCF-CC (V.3.26.0) and NAPRD.03 (V.3.11.0)
for
Wavecom
GSM 850/900/1800/1900 Terminal Equipment
Type Fastrack Supreme 10
This Test Report consists of 11 pages and the following Annexes:
with
Final Hardware Version: 401;
Wavecom Q2687 Classic: 421
Final Software Version: Open AT® Firmware 6.63;
Wavecom Q2687 Classic: Open AT® Firmware 6.63
Annex A – Accreditation Certificate 2 pages
Annex B – Test Equipment 8 pages
Annex C – PICS/PIXIT Information 22 pages

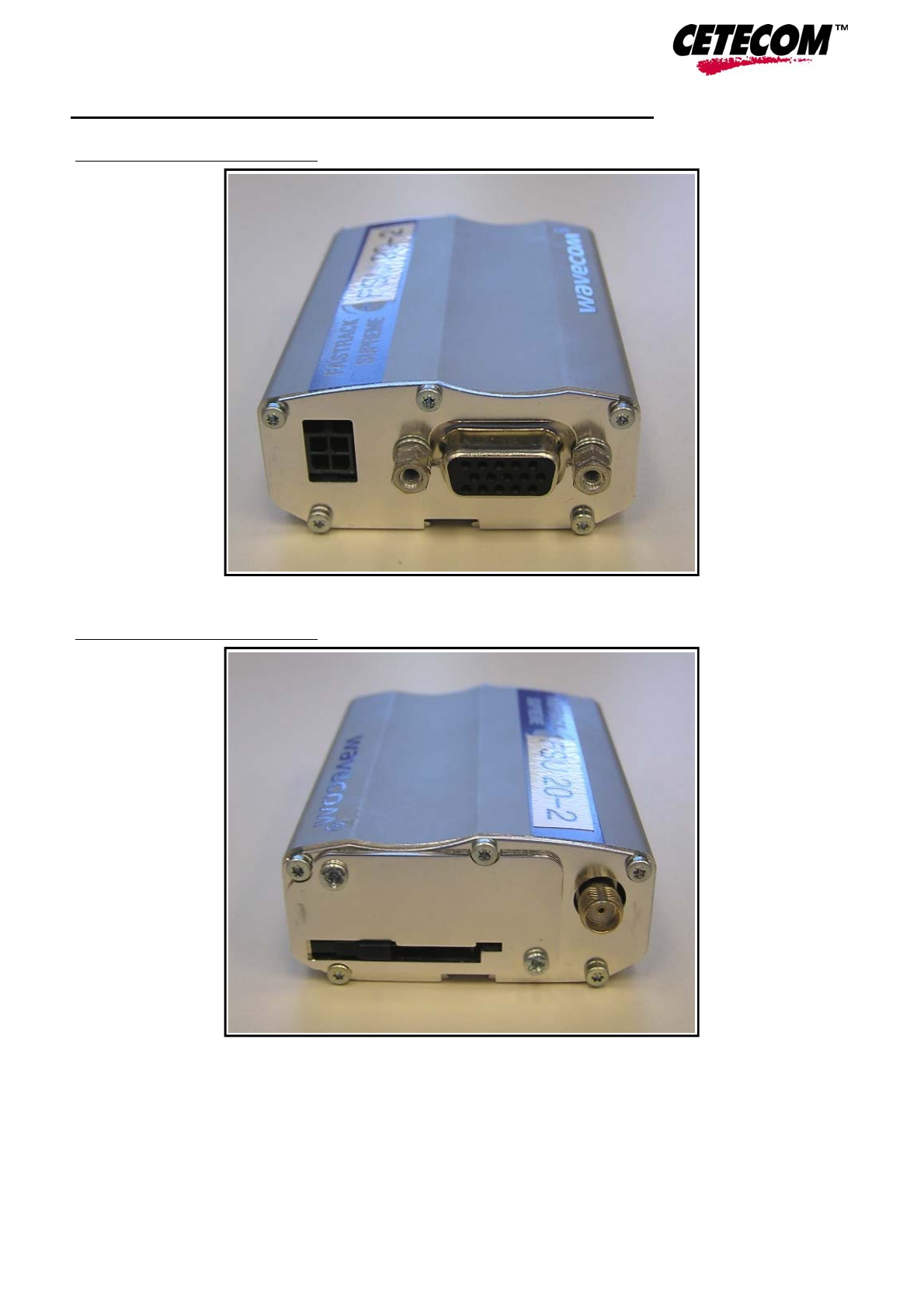

Annex D – Photographs 4 pages
Annex E – Detailed Test Results 6 pages
Date of Report: 2007-09-19
CETECOM is accredited
according to
DIN EN ISO/IEC 17025 by:
CETECO
M
Inc.
411 Dixon Landing Road ♦ Milpitas, CA 95035 ♦ U.S.A.
Phone: (+1) 408.586.6200 ♦ Fax: (+1) 408.586.6299 ♦ E-mail: info@cetecomusa.com ♦ http://www.cetecom.com
CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686
Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May
V4.02 2007-02-01 © Copyright ♦ All rights reserved by CETECOM
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 2 of 11
Contents
1. TEST RESULTS
1.1. Summary of Test Results
1.2. CETECOM's different Types of GSM Test Reports
1.3. Documentation received from the Client/Manufacturer
1.4. Validity of Test Results
2. ADMINISTRATIVE DATA
2.1. Identification of the Responsible Testing Laboratory
2.2. Identification of the Testing Location(s)
2.3. Organisational Items
2.4. Identification of the Client
2.5. Identification of the Manufacturer
3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE)
3.1. Identification of the Equipment under Test
3.2. Front View of the Equipment under Test
3.3. Identification of all used Test Samples of the Equipment under Test
3.4. Identification of the Ancillary Equipment
4. APPLIED REFERENCE DOCUMENTS
4.1. Leading Reference Documents for Testing
4.2. Specific Reference Documents for Testing
4.3. Additional Reference Documents for Testing
Annex A - ACCREDITATION CERTIFICATE
Annex B - TEST EQUIPMENT
Annex C - PICS/PIXIT INFORMATION
Annex D - PHOTOGRAPHS
Annex E - DETAILED TEST RESULTS
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 3 of 11
1. Test Results
1.1. Summary of Test Results
Tables 1a and 1b summarise the final test results of the tested GSM Terminal Equipment. Detailed
results for each test case including the used/subcontracted testing location (according to sec. 2.2) are
documented in Annex E of this Test Report.
An explanation of the terms used for each column in tables 1a and 1b is given on page 5.
Table 1a: Summary of Test Results according to GCF-CC (V.3.26.0)
Test Sections of
3GPP TS 51.010-1 / 3GPP TS 51.010-4 Amount of Test Cases
GSM 900 GSM 1800
No. Description PASS FAIL INC PASS FAIL INC
11 General Tests 000 000
12 Transceiver 20 0 20 0
13 Transmitter 000 000
14 Receiver 000 000
15 Timing advance and absolute delay 000 000
16 Reception time tracking speed 000 000
17 Access times during handover 000 000
18 Temporary reception gaps 000 000
19 Channel release after unrecoverable errors 000 000
20 Cell selection and reselection 000 000
21 Received signal measurements 000 000
22 Transmit power control timing and confirmation 000 000
25 Tests of layer 2 signalling functions 000 000
26 Testing of layer 3 functions 40 0 40 0
27 Testing SIM/ME interface 000 000
28 Test of autocalling restrictions 000 000
29 Testing of bearer services 000 000
30 Speech teleservices 000 000
31 Test of supplementary services 000 000
32 Testing of speech transcoding functions 000 000
33 Mobile station features 000 000
34 Short message service (SMS) 000 000
41 GPRS Paging, TBF establishment/release and DCCH related procedures 000 000
42 Test of Medium Access Control (MAC) protocol 000 000
43 RLC Test Cases 000 000
44 Test Case requirements to GPRS mobility management 000 000
45 Session Management Procedure 000 000
46 LLC and SNDCP Tests 000 000
47 Dual Transfer Mode 000 000
51 EGPRS Paging, TBF establishment/release and DCCH related procedures 000 000
52 EGPRS Test of Medium Access Control (MAC) protocol 000 000
53 Test of EGPRS Radio Link Control (RLC) Protocol 000 000
57 EGPRS Dual Transfer Mode 000 000
60 Inter-system hard handover from GSM to UTRAN 000 000
70 Location Services 000 000
81 no description yet 000 000
82 no description yet 000 000
83 no description yet 000 000
90 Text Telephony (TTY) Services 000 000
Total: 600 600
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 4 of 11
Table 1b: Summary of Test Results according to NAPRD.03 (V.3.11.0)
Test Sections of
3GPP TS 51.010-1 / 3GPP TS 51.010-4 Amount of Test Cases
GSM 850 GSM 1900
No. Description PASS FAIL INC PASS FAIL INC
11 General Tests 000 000
12 Transceiver 20 0 20 0
13 Transmitter 000 000
14 Receiver 000 000
15 Timing advance and absolute delay 000 000
16 Reception time tracking speed 000 000
17 Access times during handover 000 000
18 Temporary reception gaps 000 000
19 Channel release after unrecoverable errors 000 000
20 Cell selection and reselection 000 000
21 Received signal measurements 000 000
22 Transmit power control timing and confirmation 000 000
25 Tests of layer 2 signalling functions 000 000
26 Testing of layer 3 functions 30 0 40 0
27 Testing SIM/ME interface 000 10 0 0
28 Test of autocalling restrictions 000 000
29 Testing of bearer services 000 000
30 Speech teleservices 000 000
31 Test of supplementary services 000 000
32 Testing of speech transcoding functions 000 000
33 Mobile station features 000 000
34 Short message service (SMS) 000 000
41 GPRS Paging, TBF establishment/release and DCCH related procedures 000 000
42 Test of Medium Access Control (MAC) protocol 000 000
43 RLC Test Cases 000 000
44 Test Case requirements to GPRS mobility management 000 000
45 Session Management Procedure 000 000
46 LLC and SNDCP Tests 000 000
47 Dual Transfer Mode 000 000
51 EGPRS Paging, TBF establishment/release and DCCH related procedures 000 000
52 EGPRS Test of Medium Access Control (MAC) protocol 000 000
53 Test of EGPRS Radio Link Control (RLC) Protocol 000 000
57 EGPRS Dual Transfer Mode 000 000
60 Inter-system hard handover from GSM to UTRAN 000 000
70 Location Services 000 000
81 no description yet 000 000
82 no description yet 000 000
83 no description yet 000 000
90 Text Telephony (TTY) Services 000 000
TTY Test Cases, Reference: NAPRD.03 Annex H6 000 000
Request for Tests (RFT), Reference: NAPRD.03 Annex H7 000 000
Total: 500 16 0 0
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 6 of 11
2. Administrative Data
2.1. Identification of the Responsible Testing Laboratory
Company Name: CETECOM Inc.
Department: Mobile Communications
Address: 411 Dixon Landing Road
Milpitas, CA 95035
U.S.A.
Telephone: (+1) 408.586.6200
Fax: (+1) 408.586.6299
Responsible Test Lab
Managers:
COO Lars Eriksson
M.Sc. Maan Ghanma
2.2. Identification of the Testing Location(s)
Company Name: CETECOM Inc.
Address: 411 Dixon Landing Road
Milpitas, CA 95035
U.S.A.
2.3. Organisational Items
CETECOM Reference No.: F1062_07GT03
CETECOM Order No.: 4500027855
CETECOM Project Leader: David Ahn
CETECOM Deputy Project
Leader: Rami Saman
Start of Testing: 2007-08-29
End of Testing: 2007-09-04
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 7 of 11
2.4. Identification of the Client
Company Name: Wavecom, Inc.
Address: 430 Davis Drive Suite 300
Research Triangle Park
NC 27709 USA
Contact Person: Mr. Brian Young
Telephone: +1 919 389 6631
Fax: +1 919 237 4140
2.5. Identification of the Manufacturer
Company Name: Wavecom S.A.
Address: 3, esplanade du Foncet
Issy les Moulineaux Cedex 92442
France
Contact Person: Ms. Carine Direxel
Telephone: +33 1 4629 0800
Fax: +33 1 4629 0808
Note: This data is based on the client's information.
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 8 of 11
3. Equipment under Test (EUT) and Ancillary Equipment (AE)
3.1. Identification of the Equipment under Test
Brand Name: Wavecom
Type Name: Fastrack Supreme 10
Marketing Name: Fastrack Supreme 10
GSM Frequency Bands: GSM 850/900/1800/1900
FCC ID Number: O9EQ2687
Industry Canada ID: 3651C-Q2687
Special Features / Comments: GPRS (MSC 10) AMR
3.2. Front View of the Equipment under Test
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 9 of 11
3.3. Identification of all used Test Samples of the Equipment under Test
EUT
ID * Serial
Number Hardware Version Software Version
EUT1 2386 401;
Wavecom Q2687 Classic: 421
Open AT® Firmware 6.63;
Wavecom Q2687 Classic: Open AT® Firmware 6.63
EUT2 2360 401;
Wavecom Q2687 Classic: 421
Open AT® Firmware 6.63;
Wavecom Q2687 Classic: Open AT® Firmware 6.63
*) The Equipment under Test Identifier (EUT ID) is used to simplify the identification in this Test Report
3.4. Identification of the Ancillary Equipment
AE ID * Description Serial Number HW Status SW Status
AE1 Standard Laptop - - -
*) The Ancillary Equipment Identifier (AE ID) is used to simplify the identification in this Test Report
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 10 of 11
4. Applied Reference Documents
4.1. Leading Reference Documents for Testing
The Equipment under Test (EUT) has been tested at CETECOM's (own or subcontracted) laboratories
according to the leading reference documents given in table 2 below:
Table 2: Leading Reference Documents
No. Identity Document Title Version/Date
[1] GCF-CC Global Certification Forum - Certification Criteria V3.26.0
(2007-04)
[2] NAPRD.03 GSM N.A. Permanent Reference Document V3.11.0
(2007-03)
4.2. Specific Reference Documents for Testing
Table 3 summarizes specific reference documents such as harmonized standards or test
specifications which were used for testing at CETECOM's (own or subcontracted) laboratories.
Table 3: Specific Reference Documents
No. Identity Document Title Version/Date
[3] 3GPP TS 51.010-1 3rd Generation Partnership Project; Technical Specification
Group GSM/EDGE Radio Access Network; Digital cellular
telecommunications system (Phase 2+); Mobile Station (MS)
conformance specification; Part 1: Conformance specification
V7.6.0
Release 7
(2007-06)
[4] 3GPP TS 51.010-2 3rd Generation Partnership Project; Technical Specification
Group GSM/EDGE Radio Access Network; Digital cellular
telecommunications system; Mobile Station (MS) conformance
specification; Part 2: Protocol Implementation Conformance
Statement (PICS) proforma specification
V7.6.0
Release 7
(2007-06)
[5] ETSI EN 301 511 Global System for Mobile communications (GSM);
Harmonized EN for mobile stations in the GSM 900 and GSM
1800 bands covering essential requirements under article 3.2
of the R&TTE directive (1999/5/EC)
V9.0.2
(2003-03)
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 11 of 11
4.3. Additional Reference Documents for Testing
Table 4 summarizes additional reference documents which were used for testing at CETECOM's (own
or subcontracted) laboratories.
Table 4: Additional Reference Documents
No. Identity / Description Valid Since
[6] 200705-02.ZIP
Error in test case 26.9.6.1.2 on all test platforms
2007-05-10
[7] PVG26_388_04_TC_26_9_6_1_1
PVG26_388_04_TC_26_9_6_1_1.doc PVG26_388
2004-07-26
ANNEX A
of
Partial GSM TEST REPORT
No. F1062_07GT03
Accreditation Certificate
This Annex consists of 2 pages
Date of Report: 2007-09-19
CETECOM is accredited
according to
DIN EN ISO/IEC 17025 by:
CETECO
M
Inc.
411 Dixon Landing Road ♦ Milpitas, CA 95035 ♦ U.S.A.
Phone: (+1) 408.586.6200 ♦ Fax: (+1) 408.586.6299 ♦ E-mail: info@cetecomusa.com ♦ http://www.cetecom.com
CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686
Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May
V4.02 2007-02-01 © Copyright ♦ All rights reserved by CETECOM
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex A: Accreditation Certificate
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 2 of 2
The annex pages of the certificate may be received from CETECOM on request.
ANNEX B
of
Partial GSM TEST REPORT
No. F1062_07GT03
Test Equipment
This Annex consists of 8 pages
Date of Report: 2007-09-19
CETECOM is accredited
according to
DIN EN ISO/IEC 17025 by:
CETECO
M
Inc.
411 Dixon Landing Road ♦ Milpitas, CA 95035 ♦ U.S.A.
Phone: (+1) 408.586.6200 ♦ Fax: (+1) 408.586.6299 ♦ E-mail: info@cetecomusa.com ♦ http://www.cetecom.com
CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686
Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May
V4.02 2007-02-01 © Copyright ♦ All rights reserved by CETECOM
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex B: Test Equipment
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 2 of 8
1. Test Equipment Location
Testing was performed at the following marked location:
1.1 Location "Essen"
Address: CETECOM GmbH
Im Teelbruch 116
D-45219 Essen
Germany
1.2 Location "Milpitas, CA"
Address: CETECOM Inc.
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A.
1.3 Location "Buc"
Address: CETECOM SARL
320 Rue Hélène Boucher
78530 Buc Cdx
France
1.4 Location "Feldkirchen / Munich"
Address: CETECOM GmbH
Kapellenstraße 13
85622 Feldkirchen / Munich
Germany
1.5 Location "Taipei"
Address: CETECOM Taiwan Ltd.
2F, No. 181, Ti Ding Blvd. Sec.2, Neihu Dist.
Taipei 114
Taiwan, R.O.C.
1.6 Location "San Diego, CA"
Address: CETECOM Inc. - Branch San Diego
3636 Nobel Dr., Suite 250
San Diego, CA 92122
U.S.A
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex B: Test Equipment
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 3 of 8
1.7 Location "Yongin"
Address: CETECOM MOVON Ltd.
194-1, Geumeo-Ri, Pogok-Myon, Yongin City
Yongin 449-812
Korea
1.8 Location "Gumi"
Address: CETECOM MOVON Ltd.
PakJaeDal Bldg. 3rd floor, 39B 1L, Inui-dong,
Gumi-si, Gyeong-buk
Gumi 730-320
Korea
1.9 Location "Shanghai"
Address: CETECOM Shanghai Communication Testing and
Consulting Co., Ltd.
Zhangjiang, Building 27 No. 1387 Zhangdong Rd.
Shanghai Zip: 201203
China
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex B: Test Equipment
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 4 of 8
2. List of Test Equipment
2.1 Anechoic Chamber
ID: Anechoic Chamber [Mil 1]
Location: Milpitas, CA (1.2)
Serialnumber: N/A
Ambient Conditions: Temperature: 15°C - 35°C Rel. Humidity: 20% - 75%
Calibration: Date of last Test Equipment Calibration: N/A
2.2 R&S CRTU-G
ID: R&S CRTU-G [Mil 1]
Location: Milpitas, CA (1.2)
Serialnumber: Master: RU:100290 SER:100209
Slave1: RU:100383 SER:100095
Slave2: RU:100270 SER:100198
Slave3: RU:100236 SER:100174
Hardware: Multibox (4)
Software version: Basis Software:
CR02P2P BP version 1.32
CR02P2P ASP version 2.04 and v.2.06 and v.2.13 and v.2.20 and v.2.31 and
v.2.32 and v.2.45 and v.2.50 and v.3.31 and v.3.34 and v.3.44 and v.3.50 and
v.3.60 and v.3.61 and v.4.10 and v.4.11
CR02P2P EP version v1.66
U02P2P version 1.60 and v.1.80 and v.1.99 and v.1.9902
Test Case Software:
CRTKEGS version 2.10
CRTKLU1 version 1.60
CRTKSS1 version 1.90
CRTKSS2 version 1.70
CRTKSS3 version 1.70
CRTKSS5 version 1.80
CRTKSS6 version 1.70
CRTPK51 version 2.20
CRTPK52 version 2.10
CRTPK53 version 2.20
CRTPK54 version 2.21
CRTPK56 version 2.20
CRTPK58 version 2.00 and v.2.10
CRTPK59 version 2.20
CRTPK5B version 2.10
CRTPK61 version 2.20
CRTPK62 version 2.10
CRTPK63 version 2.20
CRTPK64 version 2.21
CRTPK66 version 2.20
CRTPK68 version 2.00 and v.2.10
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex B: Test Equipment
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 5 of 8
Software version: (continued)
CRTPK69 version 2.20
CRTPK6B version 2.10
CRTPK71 version 2.20
CRTPK72 version 2.10
CRTPK73 version 2.20
CRTPK74 version 2.21
CRTPK76 version 2.20
CRTPK78 version 2.00 and v.2.10
CRTPK79 version 2.20
CRTPK7B version 2.10
CRTU-GC02 version 1.80
CRTU-GC03 version 1.70
CRTU-GC04 version 1.60
CRTU-GC05 version 1.60
CRTU-GC06 version 1.60
CRTU-GC07 version 1.60
CRTU-GC08 version 1.70
CRTU-GC09 version 4.10
CRTU-GC12 version 1.22
CRTU-GC18 version 4.20
CRTU-GC19 version 1.90
CRTU-GC20 version 1.70
CRTU-GC21 version 1.20 and v.1.30
CRTU-GC23 version 1.41
CRTU-GC24 version 1.80
CRTU-GC28 version 1.20
CRTU-GC29 version 1.20
CRTU-GC31 version 4.20
CRTU-GC32 version 4.20
CRTU-GC33 version 4.20
CRTU-GC34 version 4.20
CRTU-GC35 version 4.20
CRTU-GC36 version 4.20
CRTU-GC37 version 4.20
CRTU-GC39 version 4.20
CRTU-GC41 version 4.10 and v.4.20
CRTU-GC61 version 4.20
CRTU-GC62 version 4.20
CRTU-GC63 version 4.20
CRTU-GC64 version 4.10
CRTU-GC65 version 4.10
CRTU-GC68 version 4.20
CRTU-GC69 version 4.20
CRTU-GC70 version 4.20
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex B: Test Equipment
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 6 of 8
Software version: (continued)
CRTU-GC71 version 4.20
CRTU-GC72 version 4.20
CRTU-GC73 version 4.20
CRTU-GC74 version 4.20
CRTU-GC75 version 4.20
CRTU-GC76 version 4.20
CRTU-GC77 version 4.10 and v.4.20
CRTU-GC78 version 4.10 and v.4.20
CRTU-GC79 version 4.11
CRTU-GC80 version 4.20
CRTU-GC84 version 4.10
CRTU-GC85 version 4.20
CRTU-GC86 version 4.20
CRTU-GC87 version 4.20
CRTU-GC88 version 4.20
CU-GC01 version 1.71
Ambient Conditions: Temperature: 15°C - 35°C Rel. Humidity: 20% - 75%
Calibration: Date of last Test Equipment Calibration: 2007-05-28
2.3 R&S CMU 200
ID: R&S CMU 200 [Mil 1]
Location: Milpitas, CA (1.2)
Serialnumber: 101821
Hardware: CMU-B21
CMU-B52
CMU-K21
CMU-K22
CMU-K23
CMU-K24
Software version: Test Case Software:
Firmware CMU version 3.54
Ambient Conditions: Temperature: 15°C - 35°C Rel. Humidity: 20% - 75%
Calibration: Date of last Test Equipment Calibration: 2007-05-25
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex B: Test Equipment
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 7 of 8
2.4 COMPRION IT³
ID: COMPRION IT3 [Mil 1]
Location: Milpitas, CA (1.2)
Serialnumber: B3203-50064
Hardware: V1.2 (Analog Simulator)
V1.2 (Digital Simulator)
Software version: Basis Software:
IT³ Test Platform version 3.8.4
Test Case Software:
IT³ 3GPP TS 51.010-1 (analog) version 3.8.4
IT³ 3GPP TS 51.010-1 (analog-PCS1900) version 3.8.4
IT³ 3GPP TS 51.010-1 (digital) version 3.8.4
IT³ 3GPP TS 51.010-1 (digital-PCS1900) version 3.8.4
IT³ 3GPP TS 51.10-4 Stage 1 version 3.8.4
IT³ 3GPP TS 51.10-4 Stage 1 (PCS1900) version 3.8.4
IT³ 3GPP TS 51.10-4 Stage 2 version 3.8.4
IT³ 3GPP TS 51.10-4 Stage 2 (PCS1900) version 3.8.4
Ambient Conditions: Temperature: 20°C - 26°C Rel. Humidity: 20% - 75%
Calibration: Date of last Test Equipment Calibration: 2006-10-13
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex B: Test Equipment
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 8 of 8
2.5 Additional Equipment for Testing the Radiated Spurious Emissions
ID Loc Instrument / Equipment Type Manufacturer Serialnumber
SE101M 1.2 EMI Receiver/Analyzer ESIB 40 Rohde & Schwarz 100107
SE102M 1.2 Pre Amplifier AFS4-00101 MITEQ 800-55-LN
SE103M 1.2 High Pass Filter-1 System Integrated Weinschel N.A.
SE104M 1.2 High Pass Filter-2 System Integrated Weinschel N.A.
SE105M 1.2 Notch Filter-1 (GSM 900) System Integrated Weinschel N.A.
SE106M 1.2 Notch Filter-2 (GSM 1800) System Integrated Weinschel N.A.
SE107M 1.2 Notch Filter-3 (GSM 1900) System Integrated Weinschel N.A.
SE108M 1.2 Biconilog Antenna 3141 EMCO 0005-1186
SE111M 1.2 Notch Filter-4 (GSM 850) System Integrated Weinschel 3
SE112M 1.2 Horn Antenna 3115 EMCO 35114
ANNEX C
of
Partial GSM TEST REPORT
No. F1062_07GT03
for
Wavecom
GSM 850/900/1800/1900 Terminal Equipment
Type Fastrack Supreme 10
PICS/PIXIT Information
This Annex consists of 23 pages
Date of Report: 2007-09-19
with
Final Hardware Version: 401;
Wavecom Q2687 Classic: 421
Final Software Version: Open AT® Firmware 6.63;
Wavecom Q2687 Classic: Open AT® Firmware 6.63
The PICS/PIXIT data
g
iven or referenced in this annex is based on the latest
information received from the client or User Equipment (UE) manufacturer, either
verbally or in writin
g
. Therefore, this
g
iven information has been used for testin
g
at
CETECOM for the above mentioned UE confi
g
uration. It is the responsibility of the
legal owner of the tested UE (i.e. owner of the UE’s brand name as
g
iven on the
cover pa
g
e of this report) to verify the correctness of the data on the followin
g
pa
g
es
and to indicate any possible incorrectness to CETECOM.
CETECOM is accredited
according to
DIN EN ISO/IEC 17025 by:
CETECO
M
Inc.
411 Dixon Landing Road ♦ Milpitas, CA 95035 ♦ U.S.A.
Phone: (+1) 408.586.6200 ♦ Fax: (+1) 408.586.6299 ♦ E-mail: info@cetecomusa.com ♦ http://www.cetecom.com
CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686
Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May
V4.02 2007-02-01 © Copyright ♦ All rights reserved by CETECOM
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 2 of 23
PIXIT - Protocol Implementation Extra Information for Testing
Fastrack Supreme 10
*Power Supply
Nominal testing voltage 13.2 V [Q2687 Classic: 3.6V]
Maximal testing voltage 32 V [Q2687 Classic: 4.5V]
Minimal testing voltage 5.5 V [Q2687 Classic: 3.2V]
PICS - Protocol Implementation Conformance Statement
According to Specification 3GPP TS 51.010-2 V7.6.0 (2007-06)
Table A.1: Types of Mobile Stations
Item Release T
yp
e of Mobile Station Su
orted
1 Ph2 Standard GSM Band (P-GSM) N
2 Ph2 Extended GSM Band (E-GSM), (including standard Band) Y
3 R96 R-GSM Band (including standard and E-GSM Band) N
4 Ph2 GSM 1800 band Y
5 Ph2 Multiple-band, not simultaneously N
6 Ph2 Multiple-band, simultaneously Y
7 Ph2 Small Mobile Station Y
8 Ph2 GSM Power Class 2 N
9 Ph2 GSM Power Class 3 N
10 Ph2 GSM Power Class 4 Y
11 Ph2 GSM Power Class 5 N
12 Ph2 DCS Power Class 1 Y
13 Ph2 DCS Power Class 2 N
14 Ph2 DCS Power Class 3 N
15 R96 HSCSD Multislot MS N
16 R99 GSM 450 band N
17 R99 GSM 480 band N
18 R98 GSM 1900 band Y
19 R98 GSM 1900 Power Class 1 Y
20 R98 GSM 1900 Power Class 2 N
21 R98 GSM 1900 Power Class 3 N
22 R96 Multislot Class1 N
23 R96 Multislot Class2 N
24 R96 Multislot Class3 N
25 R96 Multislot Class4 N
26 R96 Multislot Class5 N
27 R96 Multislot Class6 N
28 R96 Multislot Class7 N
29 R96 Multislot Class8 N
30 R96 Multislot Class9 N
31 R96 Multislot Class10 N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 3 of 22
Item Release T
yp
e of Mobile Station Su
orted
36 R96 Multislot Class15 N
37 R96 Multislot Class16 N
38 R96 Multislot Class17 N
39 R96 Multislot Class18 N
40 R97 Multislot Class19 N
41 R97 Multislot Class20 N
42 R97 Multislot Class21 N
43 R97 Multislot Class22 N
44 R97 Multislot Class23 N
45 R97 Multislot Class24 N
46 R97 Multislot Class25 N
47 R97 Multislot Class26 N
48 R97 Multislot Class27 N
49 R97 Multislot Class28 N
50 R97 Multislot Class29 N
51 R97 GPRS Multislot operation Y
52 R99 EGPRS capable of 8PSK in Uplink, of all Multislot classes N
53 Rel-4 GSM 700 band N
54 Rel-4 GSM 750 band N
55 R99 GSM 850 band Y
56 R99 Support of UTRAN Radio Access Technology N
57 R97 Support of GPRS Multislot class on the uplink Y
58 R99 Support of COMPACT N
59 R99 DTM/GPRS Multislot Class 1 N
60 R99 DTM/GPRS Multislot Class 5 N
61 R99 DTM/GPRS Multislot Class 9 N
62 R99 Support of singleslot allocation in DTM/GPRS N
63 R99 Support of UTRAN FDD N
64 R99 Support of UTRAN TDD N
65 R98 Support of Conventional GPS N
66 R99 EGPRS Multislot operation N
67 R97 GPRS Multislot Class1 N
68 R97 GPRS Multislot Class2 N
69 R97 GPRS Multislot Class3 N
70 R97 GPRS Multislot Class4 N
71 R97 GPRS Multislot Class5 N
72 R97 GPRS Multislot Class6 N
73 R97 GPRS Multislot Class7 N
74 R97 GPRS Multislot Class8 N
75 R97 GPRS Multislot Class9 N
76 R97 GPRS Multislot Class10 Y
77 R97 GPRS Multislot Class11 N
78 R97 GPRS Multislot Class12 N
79 R97 GPRS Multislot Class13 N
80 R97 GPRS Multislot Class14 N
81 R97 GPRS Multislot Class15 N
82 R97 GPRS Multislot Class16 N
83 R97 GPRS Multislot Class17 N
84 R97 GPRS Multislot Class18 N
85 R97 GPRS Multislot Class19 N
86 R97 GPRS Multislot Class20 N
87 R97 GPRS Multislot Class21 N
88 R97 GPRS Multislot Class22 N
89 R97 GPRS Multislot Class23 N
90 R97 GPRS Multislot Class24 N
91 R97 GPRS Multislot Class25 N
92 R97 GPRS Multislot Class26 N
93 R97 GPRS Multislot Class27 N
94 R97 GPRS Multislot Class28 N
95 R97 GPRS Multislot Class29 N
96 R99 EGPRS Multislot Class1 N
97 R99 EGPRS Multislot Class2 N
98 R99 EGPRS Multislot Class3 N
99 R99 EGPRS Multislot Class4 N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 4 of 22
Item Release T
yp
e of Mobile Station Su
orted
100 R99 EGPRS Multislot Class5 N
101 R99 EGPRS Multislot Class6 N
102 R99 EGPRS Multislot Class7 N
103 R99 EGPRS Multislot Class8 N
104 R99 EGPRS Multislot Class9 N
105 R99 EGPRS Multislot Class10 N
106 R99 EGPRS Multislot Class11 N
107 R99 EGPRS Multislot Class12 N
108 R99 EGPRS Multislot Class13 N
109 R99 EGPRS Multislot Class14 N
110 R99 EGPRS Multislot Class15 N
111 R99 EGPRS Multislot Class16 N
112 R99 EGPRS Multislot Class17 N
113 R99 EGPRS Multislot Class18 N
114 R99 EGPRS Multislot Class19 N
115 R99 EGPRS Multislot Class20 N
116 R99 EGPRS Multislot Class21 N
117 R99 EGPRS Multislot Class22 N
118 R99 EGPRS Multislot Class23 N
119 R99 EGPRS Multislot Class24 N
120 R99 EGPRS Multislot Class25 N
121 R99 EGPRS Multislot Class26 N
122 R99 EGPRS Multislot Class27 N
123 R99 EGPRS Multislot Class28 N
124 R99 EGPRS Multislot Class29 N
125 R99 GSM 850 Power Class 2 N
126 R99 GSM 850 Power Class 3 N
127 R99 GSM 850 Power Class 4 Y
128 R99 GSM 850 Power Class 5 N
129 R99 8-PSK GSM Power Class E1 N
130 R99 8-PSK GSM Power Class E2 N
131 R99 8-PSK GSM Power Class E3 N
132 R99 8-PSK DCS Power Class E1 N
133 R99 8-PSK DCS Power Class E2 N
134 R99 8-PSK DCS Power Class E3 N
135 R99 8-PSK PCS Power Class E1 N
136 R99 8-PSK PCS Power Class E2 N
137 R99 8-PSK PCS Power Class E3 N
138 R99 8-PSK GSM 850 Power Class E1 N
139 R99 8-PSK GSM 850 Power Class E2 N
140 R99 8-PSK GSM 850 Power Class E3 N
141 R99 GSM850 and GSM1800 Band Interworking N
142 R99 GSM900 and GSM1900 Band Interworking N
143 R99 GSM850 and GSM900 Band Interworking N
144 R99 DTM/EGPRS Multislot Class 1 N
145 R99 DTM/EGPRS Multislot Class 5 N
146 R99 DTM/EGPRS Multislot Class 9 N
147 R99 Support of singleslot allocation in DTM/EGPRS N
148 R99 DTM/GPRS Multislot Class 11 N
149 Rel-5 GPRS Multislot Class30 N
150 Rel-5 GPRS Multislot Class31 N
151 Rel-5 GPRS Multislot Class32 N
152 Rel-5 GPRS Multislot Class33 N
153 Rel-5 GPRS Multislot Class34 N
154 Rel-5 GPRS Multislot Class35 N
155 Rel-5 GPRS Multislot Class36 N
156 Rel-5 GPRS Multislot Class37 N
157 Rel-5 GPRS Multislot Class38 N
158 Rel-5 GPRS Multislot Class39 N
159 Rel-5 GPRS Multislot Class40 N
160 Rel-5 GPRS Multislot Class41 N
161 Rel-5 GPRS Multislot Class42 N
162 Rel-5 GPRS Multislot Class43 N
163 Rel-5 GPRS Multislot Class44 N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 5 of 22
Item Release T
yp
e of Mobile Station Su
orted
164 Rel-5 GPRS Multislot Class45 N
165 Rel-5 EGPRS Multislot Class30 N
166 Rel-5 EGPRS Multislot Class31 N
167 Rel-5 EGPRS Multislot Class32 N
168 Rel-5 EGPRS Multislot Class33 N
169 Rel-5 EGPRS Multislot Class34 N
170 Rel-5 EGPRS Multislot Class35 N
171 Rel-5 EGPRS Multislot Class36 N
172 Rel-5 EGPRS Multislot Class37 N
173 Rel-5 EGPRS Multislot Class38 N
174 Rel-5 EGPRS Multislot Class39 N
175 Rel-5 EGPRS Multislot Class40 N
176 Rel-5 EGPRS Multislot Class41 N
177 Rel-5 EGPRS Multislot Class42 N
178 Rel-5 EGPRS Multislot Class43 N
179 Rel-5 EGPRS Multislot Class44 N
180 Rel-5 EGPRS Multislot Class45 N
181 --- Void N
182 Rel-7 GSM 710 band N
183 Rel-7 T GSM 810 band N
184 Rel-4 DTM/EGPRS Multislot Class 11 N
185 Rel-6 T-GSM 380 band N
186 Rel-6 T-GSM 410 band N
187 Rel-6 T-GSM 900 band N
188 R99 EGPRS Multislot Operation in Uplink Direction N
Table A.1b: MS Feature Release Supported
Item Release MS Feature Release Supported
V
alues
Allowed Su
orted
1 R97 Release of GPRS supported R97 N
R98 N
R99 Y
Release 4 N
Release 5 N
Release 6 N
Release 7 N
2 R98 Release of AMR supported R98 N
R99 Y
Release 4 N
Release 5 N
Release 6 N
Release 7 N
3 R99 Release of EGPRS supported R99 N
Release 4 N
Release 5 N
Release 6 N
Release 7 N
Table A.2: Mobile Station Features
Item Release Mobile Station Feature Su
orted
1 Ph2 Display of Called Numbe
r
N
2 Ph2 Indication of Call Progress Signals N
3 Ph2 Country / PLMN Indication N
4 Ph2 Country / PLMN Selection Y
5 Ph2 Keypad N
6 Ph2 IMEI Y
7 Ph2 Short Message Overflow Indication N
8 Ph2 DTE /DCE Interface Y
9 Ph2 ISDN ”S” Interface N
10 Ph2 International Access Function Y
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 6 of 22
Item Release Mobile Station Feature Su
orted
11 Ph2 Service Indicator N
12 Ph2 Autocalling restriction capabilities N
13 Ph2 Dual Tone Multi Frequency function Y
14 Ph2 Subscription Identity Management Y
15 Ph2 On / Off switch Y
16 Ph2 Subaddress N
17 Ph2 Support of Encryption A5/1 Y
18 --- Void N
19 Ph2 Short Message Service Cell Broadcast DRX Y
20 Ph2 Abbreviated Dialling Y
21 Ph2 Fixed Number Dialling Y
22 Ph2 Barring of Outgoing Calls N
23 Ph2 DTMF Control Digits Separator N
24 Ph2 Selection of Directory No in Short Messages N
25 Ph2 Last Numbers Dialled Y
26 Ph2 At least one autocalling feature N
27 Ph2 Alphanumeric display N
28 Ph2 Other means of display N
29 Ph2 Speech indicator N
30 R96 Support of the extended Short message cell broadcast channel N
31 R96 Support of Additional Call Set-up MMI Procedures N
32 --- Void Y
33 Ph2 Ciphering Indicator N
34 R96 Network’s indication of alerting in the MS $(NI Alert in MS)$ N
35 R96 ME-SIM lock Y
36 R96 Service Dialling Numbers Y
37 R99 Extended timing advance N
38 R98 Support of SoLSA N
39 R96 Audible Indication of Service Tones N
40 Ph2 Autocalling_Cause 27 Implemented in Cat 3 N
41 R97 Support of GPRS Y
42 R99 Support of EGPRS N
43 R98 Support of GPRS Encryption Y
44 Ph2 Control of Supplementary Services Y
45 Ph2 Short message Y
46 Ph2 Emergency calls capabilities Y
47 R97 GPRS operation mode class A N
48 R97 GPRS operation mode class B Y
49 R97 GPRS operation mode class C Y
50 R99 MS supporting SMS over GPRS Y
51 --- void N
52 --- Void N
53 R99 Support of ECSD N
54 R97 GPRS test mode A Y
55 R97 GPRS test mode B N
56 --- EGPRS test mode N
57 R98 Support of MS-Assisted E-OTD N
58 R97 Non-zero value of Non_DRX_Timer Y
59 R98 Support of MS-Based GPS N
60 R98 Support of MS-Assisted GPS N
61 R98 Privacy Option Supported N
62 R99 Support of DTM/GPRS N
63 R98 Support MS Assisted EOTD Performance for GMSK N
64 R99 Support MS Assisted EOTD Performance for 8PSK N
65 R99 Support of EGPRS Packet Access enhancement N
66 --- void N
67 R99 Support of MT SMS over GPRS Y
68 --- void N
69 R99 Support of DTM/EGPRS N
70 R99 Support of Extended dynamic allocation Y
71 Rel-6 Support of GAN N
72 Rel-4 Support of GERAN FEATURE PACKAGE 1 Y
73 Rel-6 Support of Encryption A5/3 N
74 Rel-4 Support of Fine Time Assistance N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 7 of 22
Item Release Mobile Station Feature Su
orted
75 R97 Support of Encryption GEA2 Y
76 Rel-6 Support of Encryption GEA3 N
77 Ph2 up to R98 Use of R99 Emergency numbers Y
78 Rel-5 Support of GERAN FEATURE PACKAGE 2 N
79 Rel-6 Support of GAN to UTRAN CS Handover
80 Rel-6 Support of UTRAN to GAN CS Handover
81 Rel-6 Support of Enhanced DTM CS
Table A.3: Teleservices
Item Release Teleservice Su
orted
1 Ph2 Telephony Y
2 Ph2 Emergency Call Y
3 Ph2 Short Message MT/PP Y
4 Ph2 Short Message MO/PP Y
5 Ph2 SMS Cell Broadcast Y
6 Ph2 Teleservice Alternate Speech and G3 fax N
7 Ph2 Teleservice Automatic G3 fax Y
8 R96 Voice Group Call Service (VGCS) N
9 R96 Voice Broadcast Service (VBS) N
10 R96 SMS description Y
Table A.4: Bearer Services
Item Release Bearer Service Su
orted
1 Ph2 Data circuit duplex async. 300 bit/s Y
2 Ph2 Data circuit duplex async. 1 200 bit/s Y
3 Ph2 Data circuit duplex async. 1 200/75 bit/s Y
4 Ph2 Data circuit duplex async. 2 400 bit/s Y
5 Ph2 Data circuit duplex async. 4 800 bit/s Y
6 Ph2 Data circuit duplex async. 9 600 bit/s Y
7 Ph2 Data circuit duplex sync. 1 200 bit/s N
8 Ph2 Data circuit duplex sync. 2 400 bit/s N
9 Ph2 Data circuit duplex sync. 4 800 bit/s N
10 Ph2 Data circuit duplex sync. 9 600 bit/s N
11 Ph2 PAD Access 300 bit/s N
12 Ph2 PAD Access 1 200 bit/s N
13 Ph2 PAD Access 1 200/75 bits/s N
14 Ph2 PAD Access 2 400 bit/s N
15 Ph2 PAD Access 4 800 bit/s N
16 Ph2 PAD Access 9 600 bit/s N
17 Ph2 Packet Access 2 400 bit/s N
18 Ph2 Packet Access 4 800 bit/s N
19 Ph2 Packet Access 9 600 bit/s N
20 Ph2 Alternate Speech/Data N
21 Ph2 Speech Followed by Data N
22 R97 GPRS Y
23 Rel-6 Bluetooth data rate N
24 Rel-6 WLAN data rate N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 8 of 22
Table A.5: Supplementary Services
Prerequisite: A.25/29 -- TSPC_AddInfo_SS
Item Release Su
pp
lementar
y
Service Su
orted
1 Ph2 Calling Line Identification Presentation Y
2 Ph2 Calling Line Identification Restriction Y
3 Ph2 Connected Line Identification Presentation Y
4 Ph2 Connected Line Identification Restriction N
5 Ph2 Call Forwarding Unconditional Y
6 Ph2 Call Forwarding on Mobile Subscriber Busy Y
7 Ph2 Call Forwarding on No Reply Y
8 Ph2 Call Forwarding on Mobile Subscriber Not Reachable Y
9 Ph2 Call Waiting Y
10 Ph2 Call Hold Y
11 Ph2 Multi Party Service Y
12 Ph2 Closed User Group Y
13 Ph2 Advice of Charge (Information) Y
14 Ph2 Advice of Charge (Charging) Y
15 Ph2 Barring of All Outgoing Calls Y
16 Ph2 Barring of Outgoing International Calls Y
17 Ph2 Barring of Outgoing International Calls except those directed to the Home PLMN Country Y
18 Ph2 Barring of All Incoming Calls Y
19 Ph2 Barring of Incoming Calls when Roaming Outside the Home PLMN Country Y
20 Ph2 Unstructured SS Data Y
21 R96 enhanced Multi-Level Precedence and Pre-emption service (eMLPP) N
22 R96 Call Deflection N
23 R96 User-to-User signalling Y
24 R96 Explicit Call Transfe
r
Y
25 R96 Implicit UUS1 N
26 R98 Sending of implicit UUS1 in the ALERTING message N
27 R98 Sending of implicit UUS1 in the CONNECT message N
28 R99 Follow Me N
29 Rel-4 User-to-Dispatcher Information N
30 Rel-4 Compressed User-to-Dispatcher N
31 R97 Completion of Calls to Busy SS N
32 R97 Completion of Calls to Busy Requests N
33 R97 Support of Private Numbering Plan SS N
34 R97 Support of Private Numbering Plan , Numbering Plans N
35 R97 Name Identification SS N
36 Rel-7 Support of Periodic Location N
Table A.6: Groups for possible bearer capabilities
Item Release Bearer Ca
p
abilit
y
Grou
p
Su
orted
1 Ph2 (R96) Bearer Service 21(20) .. 26, unrestricted digital information transfer capability Y
2 Ph2 (R96) Bearer Service 21(20) .. 26, 3.1 kHz audio ex-PLMN information transfer capability Y
3 Ph2 (R96) Bearer Service 31(30) .. 34, unrestricted digital information transfer capability; Non-X.32 Cases (BS 31 .. BS
34)
N
4 Ph2 (R96) Bearer Service 31(30) .. 34, unrestricted digital information transfer capability; X.32 Cases N
5 Ph2 (R96) Bearer Service 31(30) .. 34, 3.1 kHz audio ex-PLMN information transfer capability; Non-X.32 Cases N
6 Ph2 (R96) Bearer Service 31(30) .. 34, 3.1 kHz audio ex-PLMN information transfer capability; X.32 Cases N
7 Ph2 (R96) Bearer Service 41(40)..46, PAD Access Asynchronous N
8 Ph2 (R96) Bearer Service 51(50)..53, Data Packet Duplex Synchronous N
9 Ph2 Bearer Service 61, Alternate Speech/Data, N
10 Ph2 Bearer Service 61, Alternate Speech/Data, 3.1 kHz audio ex-PLMN information transfer capability;
Asynchronous
N
11 Ph2 Bearer Service 61, Alternate Speech/Data, 3.1 kHz audio ex-PLMN information transfer capability;
Synchronous
N
12 Ph2 Bearer Service 81, Speech followed by Data, N
13 Ph2 Bearer Service 81, Speech followed by Data, 3.1 kHz audio ex-PLMN information transfer capability;
Asynchronous
N
14 Ph2 Bearer Service 81, Speech followed by Data, 3.1 kHz audio ex-PLMN information transfer capability;
Synchronous
N
15 Ph2 Teleservice 11..12, Speech Y
16 Ph2 Teleservice 61, Alternate Speech and Facsimile group 3; N
17 Ph2 Teleservice 61, Alternate Speech and Facsimile group 3; Facsimile group 3 N
18 Ph2 Teleservice 62, Automatic Facsimile group 3 Y
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 9 of 22
Table A.7: Bearer Service 20..26, UDI/RDI
Prerequisite: A.6/1 -- TSPC_BS2x_UDI
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Signalling Access Protocol (SAP) I.440 Y
X.28nond Y
2 Ph2 Connection Element (CE) NT Y
bothNT Y
T Y
bothT Y
3 Ph2 User Info Layer 2 Protocol (UIL2P) ISO6429 Y
COPnoFlCt Y
NAV Y
4 Ph2 Number of Data Bits(NDB) 7 bits Y
8 bits Y
5 Ph2 Parity Information (NPB) odd Y
even Y
0 Y
1 Y
none Y
6 Ph2 Number of Stop Bits (NSB) 1 bit Y
2 bits Y
7 Ph2 Radio Channel Requirement (RCR) dualHR Y
FR Y
dualFR Y
8 Ph2 Intermediate Rate (IR) 8 kbps Y
16 kbps Y
9 Ph2 User Rate (UR) 0.3 Y
1.2 Y
2.4 Y
4.8 Y
9.6 Y
1.2/0.075 Y
10 R96 Fixed Network User Rate (FNUR) 9.6 Y
14.4 Y
19.2 Y
28.8 Y
38.4 Y
48 Y
56 Y
NAV Y
11 R96 Wanted Air Interface User Rate (WAIUR) 9.6 Y
14.4 Y
19.2 Y
28.8 Y
38.4 Y
43.2 Y
57.6 Y
NAV Y
12 R96 User Initiated Modification Indication (UIMI) not req. Y
upto1 Y
upto2 Y
upto3 Y
upto4 Y
NAV Y
13 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 Y
2 Y
3 Y
4 Y
NAV Y
10a --- all allowed combinations according to GSM 07.01 B.1.2.1 (3GPP TS 27.001) implemented (if
not, provide detailed description)
N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 10 of 22
Table A.8: Bearer Service 20..26, 3.1 kHz
Prerequisite: A.6/2 -- TSPC_BS2x_31kHz
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Signalling Access Protocol (SAP) I.440 Y
X.28nond Y
2 Ph2 Connection Element (CE) NT Y
bothNT Y
T Y
bothT Y
3 Ph2 User Info Layer 2 Protocol (UIL2P) ISO6429 Y
COPnoFlCt Y
NAV Y
4 Ph2 Number of Data Bits (NDB) 7 bits Y
8 bits Y
5 Ph2 Parity Information (NPB) odd Y
even Y
0 Y
1 Y
none Y
6 Ph2 Number of Stop Bits (NSB) 1 bit Y
2 bits Y
7 Ph2 Radio Channel Requirement (RCR) dualHR Y
FR Y
dualFR Y
8 Ph2 Intermediate Rate (IR) 8 kbps Y
16 kbps Y
9 Ph2 User Rate (UR) 0.3 Y
1.2 Y
2.4 Y
4.8 Y
9.6 Y
1.2/0.075 Y
10 Ph2 Modem Type (MT) V.21 Y
V.22 Y
V.22bis Y
V.26ter Y
V.32 Y
V.23 Y
auto Y
11 R96 Fixed Network User Rate (FNUR) 9.6 N
14.4 N
19.2 N
28.8 N
NAV N
12 R96 Wanted Air Interface User Rate (WAIUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
43.2 N
13 R96 Acceptable channel codings (ACC) 4.8 N
9.6 N
14.4 N
NAV N
14 R96 User Initiated Modification Indication (UIMI) not req. N
upto1 N
upto2 N
upto3 N
upto4 N
NAV N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 11 of 22
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
15 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 N
2 N
3 N
4 N
NAV N
11a --- all allowed combinations according to 3GPP TS 07.01 B.1.2.2 (3GPP TS 27.001)
implemented (if not, provide detailed description)
N
Table A.9: Bearer Service 30..34, UDI, Non-X.32
Prerequisite: A.6/3 -- TSPC_BS3x_UDI_nonX32
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Signalling Access Protocol (SAP) I.440 N
X.21 N
2 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
3 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
4 Ph2 User Rate (UR) 1.2 N
2.4 N
4.8 N
9.6 N
5 R96 Fixed Network User Rate (FNUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
48 N
56 N
NAV N
6 R96 Acceptable channel codings (ACC) 4.8 N
9.6 N
14.4 N
NAV N
7 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 N
2 N
3 N
4 N
NAV N
5a --- all allowed combinations according 3GPP TS 07.01 A2 1.3.1.1 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
Table A.10: Bearer Service 30..34, UDI, X-32
Prerequisite: A.6/4 -- TSPC_BS3x_UDI_X32
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
2 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
3 Ph2 User Rate (UR) 2.4 N
4.8 N
9.6 N
4 Ph2 (R96) User Info Layer 2 Protocol (UIL2P) X.25 N
(X.75) N
5 Ph2 (R96) Rate Adaptation (RA) X.31Flag N
(V.120) N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 12 of 22
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
6 R96 Fixed Network User Rate (FNUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
48 N
56 N
NAV N
7 R96 Wanted Air Interface User Rate (WAIUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
43.2 N
57 N
NAV N
8 R96 User Initiated Modification Indication (UIMI) not req. N
upto1 N
upto2 N
upto3 N
upto4 N
NAV N
9 R96 Acceptable channel codings (ACC) 4.8 N
9.6 N
14.4 N
NAV N
10 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 N
2 N
3 N
4 N
NAV N
4a --- all allowed combinations according to 3GPP TS 07.01 B.1.3.1.2 (3GPP TS 27.001)
implemented (if not, provide detailed description)
N
Table A.10a: Bearer Service 30..34, UDI, 48 kbps and 56 kbps bit transparent
Prerequisite: A.6/4 -- TSPC_BS3x_UDI_X32
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Signalling Access Protocol (SAP) I.440 N
X.21 N
2 R96 Fixed Network User Rate (FNUR) 48 N
56 N
3 --- all allowed combinations according to 3GPP TS 07.01 B.1.3.1.4 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
Table A.10b: Bearer Service 30..34, UDI, 64 kbps bit transparent
Prerequisite: A.6/4 -- TSPC_BS3x_UDI_X32
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Signalling Access Protocol (SAP) I.440 N
X.21 N
2 R96 Acceptable channel codings (ACC) 9.6 N
14.4 N
3 R96 Maximum number of Traffic Channels (MaxNumTCH) 5 N
6 N
4 --- all allowed combinations according to 3GPP TS 07.01 B.1.3.1.5 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 13 of 22
Table A.11: Bearer Service 30..34, 3.1 kHz, Non-X-32
Prerequisite: A.6/5 -- TSPC_BS3x_31kHz_nonX32
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
2 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
3 Ph2 User Rate (UR) 1.2 N
2.4 N
4.8 N
9.6 N
4 Ph2 Modem Type (MT) V.22 N
V.22bis N
V.26ter N
V.32 N
5 R96 Other Modem Type (OMT) no other N
MT N
V.34 N
NAV N
6 R96 Fixed Network User Rate (FNUR) 9.6 N
14.4 N
19.2 N
28.8 N
NAV N
7 R96 Acceptable channel codings (ACC) 4.8 N
9.6 N
14.4 N
NAV N
8 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 N
2 N
3 N
4 N
NAV N
5a --- all allowed combinations according to 3GPP TS 07.01 B.1.3.2.1 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
Table A.12: Bearer Service 30..34, 3.1kHz, X-32
Prerequisite: A.6/6 -- TSPC_BS3x_31kHz_X32
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Connection Element (CE) NT N
bothNT N
T N
bothT N
2 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
3 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
4 Ph2 User Rate (UR) 2.4 N
4.8 N
9.6 N
5 Ph2 Modem Type (MT) V.22bis N
V.26ter N
V.32 N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 14 of 22
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
6 R96 Other Modem Type (OMT) no other N
MT N
V.34 N
NAV N
7 R96 Fixed Network User Rate (FNUR) 9.6 N
14.4 N
19.2 N
28.8 N
NAV N
8 R96 Wanted Air Interface User Rate (WAIUR) 9.6 N
14.4 N
19.2 N
28.8 N
NAV N
9 R96 Acceptable channel codings (ACC) 4.8 N
9.6 N
14.4 N
NAV N
10 R96 User Initiated Modification Indication (UIMI) not req. N
upto1 N
upto2 N
upto3 N
upto4 N
NAV N
11 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 N
2 N
3 N
4 N
NAV N
6a --- all allowed combinations according to 3GPP TS 07.01 B.1.3.2.2 (3GPP TS 27.001)
implemented (if not, provide detailed description)
N
Table A.13: Bearer Service 40..46, PAD Access
Prerequisite: A.6/7 -- TSPC_BS4x_PAD
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Connection Element (CE) NT N
bothNT N
T N
bothT N
2 Ph2 User Info Layer 2 Protocol (UIL2P) ISO6429 N
COPnoFlCt N
NAV N
3 Ph2 Number of Data Bits(NDB) 7 bits N
8 bits N
4 Ph2 Parity Information (NPB) odd N
even N
0 N
1 N
none N
5 Ph2 Number of Stop Bits (NSB) 1 bit N
2 bits N
6 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
7 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 15 of 22
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
8 Ph2 User Rate (UR) 0.3 N
1.2 N
2.4 N
4.8 N
9.6 N
1.2/0.075 N
9 R96 Fixed Network User Rate (FNUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
48 N
56 N
NAV N
10 R96 Wanted Air Interface User Rate (WAIUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
43.2 N
57.6 N
NAV N
11 R96 Acceptable channel codings (ACC) 4.8 N
9.6 N
14.4 N
NAV N
12 R96 User Initiated Modification Indication (UIMI) not req. N
upto1 N
upto2 N
upto3 N
upto4 N
NAV N
13 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 N
2 N
3 N
4 N
NAV N
9a --- all allowed combinations according to 3GPP TS 07.01 B.1.4 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
Table A.14: Bearer Service 50..53, Data Packet Duplex Synchronous
Prerequisite: A.6/8 -- TSPC_BS5x_Packet
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
2 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
3 Ph2 User Rate (UR) 0.3 N
1.2 N
2.4 N
4.8 N
9.6 N
1.2/0.075 N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 16 of 22
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
4 R96 Fixed Network User Rate (FNUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
48 N
56 N
NAV N
5 R96 Wanted Air Interface User Rate (WAIUR) 9.6 N
14.4 N
19.2 N
28.8 N
38.4 N
43.2 N
57.6 N
NAV N
6 R96 Acceptable channel codings (ACC) 4.8 N
9.6 N
14.4 N
NAV N
7 R96 User Initiated Modification Indication (UIMI) not req. N
upto1 N
upto2 N
upto3 N
upto4 N
NAV N
8 R96 Maximum number of Traffic Channels (MaxNumTCH) 1 N
2 N
3 N
4 N
NAV N
4a --- all allowed combinations according to 3GPP TS 07.01 B.1.5 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
Table A.15: Bearer Service 61, Alternate Speech/Data, "Speech"
Prerequisite: A.6/9 -- TSPC_BS61_Speech
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
Table A.16: Bearer Service 61, Alternate Speech/Data, 3.1kHz,
Prerequisite: A.6/10 -- TSPC_BS61_31kHz_Async
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Connection Element (CE) NT N
bothNT N
T N
bothT N
2 Ph2 User Info Layer 2 Protocol (UIL2P) ISO6429 N
COPnoFlCt N
NAV N
3 Ph2 Number of Data Bits (NDB) 7 bits N
8 bits N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 17 of 22
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
4 Ph2 Parity Information (NPB) odd N
even N
0 N
1 N
none N
5 Ph2 Number of Stop Bits (NSB) 1 bit N
2 bits N
6 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
7 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
8 Ph2 User Rate (UR) 0.3 N
1.2 N
2.4 N
4.8 N
9.6 N
1.2/0.075 N
9 R96 Modem Type (MT) V.21 N
V.22 N
V.22bis N
V.26ter N
V.32 N
V.23 N
auto1 N
10 --- all allowed combinations according to 3GPP TS 07.01 B.1.6.2.1 (3GPP TS 27.001)
implemented (if not, provide detailed description)
N
Table A.17: Bearer Service 61, Alternate Speech/Data, 3.1kHz,
Prerequisite: A.6/11 -- TSPC_BS61_31kHz_Sync
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
2 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
3 Ph2 User Rate (UR) 1.2 N
2.4 N
4.8 N
9.6 N
4 R96 Modem Type (MT) V.22 N
V.22bis N
V.26ter N
V.32 N
5 --- all allowed combinations according to 3GPP TS 07.01 B.1.6.2.2 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
Table A.18: Bearer Service 81, Speech followed by Data, "Speech"
Prerequisite: A.6/12 -- TSPC_BS81_Speech
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 18 of 22
Table A.19: Bearer Service 81, Speech followed by Data, 3.1kHz, Async
Prerequisite: A.6/13 -- TSPC_BS81_31kHz_Async
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Connection Element (CE) NT N
bothNT N
T N
bothT N
2 Ph2 User Info Layer 2 Protocol (UIL2P) ISO6429 N
COPnoFlCt N
NAV N
3 Ph2 Number of Data Bits(NDB) 7 bits N
8 bits N
4 Ph2 Parity Information (NPB) odd N
even N
0 N
1 N
none N
5 Ph2 Number of Stop Bits (NSB) 1 bit N
2 bits N
6 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
7 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
8 Ph2 User Rate (UR) 0.3 N
1.2 N
2.4 N
4.8 N
9.6 N
1.2/0.075 N
9 R96 Modem Type (MT) V.21 N
V.22 N
V.22bis N
V.26ter N
V.32 N
V.23 N
auto1 N
10 --- all allowed combinations according to 3GPP TS 07.01 B.1.7.2.1 (3GPP TS 27.001) implemented
(if not, provide detailed description)
N
Table A.20: Bearer Service 81, Speech followed by Data, 3.1kHz, Sync
Prerequisite: A.6/14 -- TSPC_BS81_31kHz_Sync
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
2 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
3 Ph2 User Rate (UR) 1.2 N
2.4 N
4.8 N
9.6 N
4 R96 Modem Type (MT) V.22 N
V.22bis N
V.26ter N
V.32 N
5 --- all allowed combinations according 3GPP TS 07.01 B.1.7.2.2 (3GPP TS 27.001) implemented (if
not, provide detailed description)
N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 19 of 22
Table A.21: Teleservice 11..12, Speech
Prerequisite: A.6/15 -- TSPC_TS1x_Speech
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR Y
FR Y
dualFR Y
Table A.22: Alternate Speech and Facsimile group 3, Speech
Prerequisite: A.6/16 -- TSPC_TS61_Speech
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Radio Channel Requirement (RCR) dualHR N
FR N
dualFR N
Table A.23: Alternate Speech and Facsimile group 3, Facsimile
Prerequisite: A.6/17 -- TSPC_TS61_G3FAX
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Connection Element (CE) NT N
bothNT N
T N
bothT N
2 Ph2 User Info Layer 2 Protocol (UIL2P) X.25 N
NAV N
3 Ph2 Intermediate Rate (IR) 8 kbps N
16 kbps N
4 Ph2 User Rate (UR) 2.4 N
4.8 N
9.6 N
5 --- all allowed combinations according 3GPP TS 07.01 B.1.10.2 (3GPP TS 27.001) implemented (if
not, provide detailed description)
N
Table A.24: Teleservice 62, Automatic G3 fax
Prerequisite: A.3/7 -- TSPC_Serv_TS62
Item Release Bearer Capability Elements
V
alues
Allowed Su
orted
1 Ph2 Connection Element (CE) NT N
bothNT N
T Y
bothT Y
2 Ph2 User Info Layer 2 Protocol (UIL2P) X.25 N
NAV Y
3 Ph2 Intermediate Rate (IR) 8 kbps Y
16 kbps Y
4 Ph2 User Rate (UR) 2.4 Y
4.8 Y
9.6 Y
5 --- all allowed combinations according to 3GPP TS 07.01 B.1.11 (3GPP TS 27.001, annex B)
implemented (if not, provide detailed description)
N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 20 of 22
Table A.25: Additional Information
Item Release
A
dditional Information Su
orted
1 Ph2 at least one half rate service Y
2 Ph2 Speech supported for Full rate version 1 (GSM FR). Y
3 Ph2 Speech supported for Half rate version 1 (GSM HR). Y
4 Ph2 at least one data service Y
5 Ph2 at least one full rate data service Y
6 Ph2 at least one half rate data service N
7 Ph2 at least one non transparent data service Y
8 Ph2 at least one transparent data service Y
9 Ph2 only transparent data service N
10 Ph2 at least one asynchronous data service Y
11 Ph2 at least one asynchronous non transparent data service Y
12 Ph2 2.4 k full rate data mode Y
13 Ph2 2.4 k half rate data mode N
14 Ph2 4.8 k full rate data mode Y
15 Ph2 4.8 k half rate data mode N
16 Ph2 9.6 k full rate data mode Y
17 Ph2 non transparent service with full rate channel at a user rate of 4.8 kbit/s Y
18 Ph2 at least one bearer capability Y
19 Ph2 at least one MT circuit switched basic service Y
20 Ph2 at least one MO circuit switched basic service Y
21 Ph2 only SDCCH N
22 Ph2 at least one service on traffic channel supported Y
23 Ph2 dual rate ratio channel types (no relation to supported speech codecs). Y
24 Ph2 only full rate radio channel type (no relation to supported speech codecs). N
25 Ph2 at least one teleservice Y
26 Ph2 CC protocol for at least one BC Y
27 Ph2 only circuit switched basic service supported by the mobile is emergency call N
28 Ph2 Fax Error Correction Mode N
29 Ph2 at least one supplementary service Y
30 Ph2 non call related supplementary service Y
31 Ph2 at least one short message service Y
32 Ph2 (SMS) reply procedure N
33 Ph2 replace SMS N
34 Ph2 display of received SMS Y
35 Ph2 SMS status report capabilities Y
36 Ph2 Storing of short messages in the SIM Y
37 Ph2 Storing of short messages in the ME Y
38 Ph2 detach on power down Y
39 Ph2 detach on SIM remove Y
40 Ph2 SIM removable without power down Y
41 Ph2 ID-1 SIM N
42 Ph2 Plug-In SIM Y
43 Ph2 Disable PIN feature Y
44 Ph2 PIN2 feature Y
45 Ph2 Feature requiring entry of PIN2 Y
46 Ph2 Chars 0-9, *, # supported Y
47 Ph2 A, B, C, D chars. supported Y
48 Ph2 automatically enter automatic selection of PLMN mode Y
49 Ph2 alerting indication to the user Y
50 R98 Appl. Layer is always running N
51 Ph2 Immediate connect supported for all circuit switched basic services N
52 Ph2 In-Call modification Y
53 Ph2 follow-on request procedure Y
54 Ph2 refusal of call N
55 Ph2 RF amplification N
56 Ph2 Number of B-party number for autocalling is greater than the number of entries in the blacklist N
57 Ph2 Handset MS supporting speech N
58 Ph2 MT2 Configuration Y
59 Ph2 MT2 Configuration or any other possibility to send data over Um interface Y
60 Rel-4 Permanent Antenna Connector Y
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 21 of 22
Item Release
A
dditional Information Su
orted
61 Ph2 Pseudo-synchronized handover supported Y
62 R96 5V only SIM/ME interface N
63 R96 3V only SIM/ME interface Y
64 R96 3V/5V SIM/ME interface N
65 Ph2 Speech supported for Full rate version 2 (GSM EFR) Y
66a Ph2 RLP supports non default parameters Y
66b R96 Support of listening to voice broadcast calls (VBS listening) N
67 R96 Support of originating voice broadcast call (VBS originating) N
68 R96 Support of listening to voice group calls (VGCS listening) N
69 R96 Support of talking in voice group calls (VGCS talking) N
70 R96 Support of originating voice group call (VGCS originating) N
71 R96 Support reduced NCH monitoring N
72 R96 14.4 k data mode Y
73 Ph2 Implementation of cause number 27 of busy autocalling in category 2 N
74 Ph2 Implementation of cause number 27 of busy autocalling in category 3 N
75 --- Void N
76 Ph2 Artificial ear type 1 Y
77 Ph2 Artificial ear type 3.2, Low leak option N
78 R96 Artificial ear type 3.4 Y
79 R98 Speech supported for Full rate version 3 (FR AMR). Y
80 R96 NCH monitoring in group receive mode N
81 R96 NCH monitoring in group transmit mode N
82 R96 NCH monitoring in dedicated mode N
83 R97 Support of one PDP context activation Y
84 R97 Support of more than one PDP context activation N
85 R97 Support of more than one PDP context activation simultaneously on the same SAPI N
86 R97 Support of GPRS data compression N
87 R98 Support of GPRS header compression Y
88 R97 Support of Network requested PDP context activation Y
89 R97 Support for user settings of minimum QoS Y
90 R97 Automatic GPRS attach procedure at switch-on/power-on Y
91 R97 MMI controlled attach/detach procedures for non-GPRS services Y
92 R97 Automatic attach procedure when MS identity cannot derived by the network Y
93 R98 Automatic MM IMSI attach procedure at switch-on / power-on Y
94 R96 Support of SIM Application Toolkit Y
95 R98 1,8V only SIM/ME interface Y
96 R98 1,8V/3V SIM/ME interface Y
97 Ph2 Multiple SM MO/PP on same RR link Y
98 Ph2 Support of stored list cell selection Y
99 Ph2 at least one service not support immediate connection Y
100 --- Void N
101 --- Void N
102 Ph2 EFR_EmgCallSetup message contains the bearer capability Y
103 Ph2 Support of MonitorPCH_GroupTransmitMode N
104 Rel-4 Integral_Antenna Connector N
105 R97 User requested combined GPRS and non-GPRS detached without powering off Y
106 R97 User requested non-GPRS detached Y
107 Ph2 Artificial ear type 3.2, High leak option N
108 R96 Artificial ear type 3.3 N
109 Ph2 Support of Multiple SMS Y
110 R97 Cell Reselection after T3184 Expiry N
111 R97 GPRS attach attempted automatically due to outstanding request Y
112 R98 Speech supported for Half rate version 3 (HR AMR) Y
113 Rel-5 AMR LoopBack Modes N
114 R99 TTY services Y
115 R99 Support of Secondary PDP Context Activation N
116 Ph2 Support of MO SMS Concatenation Y
117 Ph2 Support of MT SMS Concatenation Y
118 R97 NITZ Supported Y
119 R97 Use of NITZ DST (Daylight Saving Time) N
120 --- Void Y
121 R97 Re-attach automatically when the network commands a detach with no cause value N
122 R98 Support of GPRS header compression algoritm type RFC 1144 Y
123 R99 Support of GPRS header compression algoritm type RFC 2507 N
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex C: PICS/PIXIT Information
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 22 of 22
Item Release
A
dditional Information Su
orted
124 Rel-6 Support of ROHC algoritm type RFC 3241 N
125 Rel-6 Support of ROHC algoritm type RFC 3242 N
126 Rel-6 Support of ROHC algorithm type RFC 3408 N
127 Rel-6 Support of ROHC algorithm type RFC 3095 N
128 R97 The way to trigger transferring of new user data in a different PDP context while an uplink transfer is in
progress
N
129 R99 Support of DARP phase 1 N
130 R99 Support of Card Application N
131 Rel-5 Support of GSM speech half rate version 6 (O-TCH/AHS) N
132 R99 MS with improved receiver performance N
133 Rel-5 Support of GSM speech full rate version 4 (O-TCH/WFS) N
134 R97 Verification for correct repetition of new password N
135 R99 MS using reduced interslot dynamic range in multislot configurations N
136 Rel-5 Support of GSM speech Half rate version 4 (O-TCH/WHS) N
137 Rel-5 Support of GSM Speech Full Rate version 5 (TCH/WFS) N
138 Ph2 Support of overwriting the existing Class 2 SMS N
139 Rel-6 Support of Repeated ACCH N
140 R98 Support for a method for resetting stored A-GPS assistance data N
141 Rel-7 Support of DARP phase 2 N
142 Rel-4 Support of Rel-4 acoustic implementation
143 R99 MS with no components having RF performance sensitive to vibration condition during testing
144 R97 Use of NITZ Full Name
145 R97 Use of NITZ Short Name
146 R97 Use of NITZ Universal Time
147 R97 Use of NITZ Local Time Zone
Table A.25.1: Additional Information (requiring values)
Item Release Additional Information (requiring values)
V
alues
Allowed Su
orted
1 R98 AMR C/I normalization factor (units: dB) 0... 0
2 R98 Loop C delay Full rate (round trip delay, in number of TDMA frames) 1... 1
3 R99 AMR C/I normalization factors (AFS, DARP) 12 values representing SS adjustment of variable
normalisation factors for C/I values as stated in 14.10.3 (units: dB)
0...
4 R99 AMR C/I normalization factors (AHS, DARP) 10 values representing SS adjustment of variable
normalisation factors for C/I values as stated in 14.10.4 (units: dB)
0...
5 Rel-5 O-TCH/F C/I normalisation factor (units: dB) 0...
6 R98 Loop C delay Half rate (round trip delay, in number of TDMA frames) 1...
7 R99 Averaging time Tav (This time is the time between the first and the last measurement sample
taken on one carrier during one averaging period when measurering received signal strength)
0...
Table A.27: Support of UTRAN Radio Access Technology
Prerequisite: A.1/56 -- TSPC_Type_UTRAN
Item Release Su
pp
ort of UTRAN Radio Access Technolo
gy
Su
orted
1 R99 Conversational / speech / UL:12.2 DL:12.2 kbps / CS RAB + UL:3.4 DL 3.4 kbps SRBs for DCCH N
2 R99 Streaming / unknown / UL:14.4 DL:14.4 kbps / CS RAB + UL:3.4 DL 3.4 kbps SRBs for DCCH N
3 R99 Streaming / unknown / UL:28.8 DL:28.8 kbps / CS RAB + UL:3.4 DL 3.4 kbps SRBs for DCCH N
4 R99 Streaming / unknown / UL:57.6 DL:57.6 kbps / CS RAB + UL:3.4 DL 3.4 kbps SRBs for DCCH N
ANNEX D
of
Partial GSM TEST REPORT
No. F1062_07GT03
for
Wavecom
GSM 850/900/1800/1900 Terminal Equipment
Type Fastrack Supreme 10
Photographs
This Annex consists of 4 pages
Date of Report: 2007-09-19
with
Final Hardware Version: 401;
Wavecom Q2687 Classic: 421
Final Software Version: Open AT® Firmware 6.63;
Wavecom Q2687 Classic: Open AT® Firmware 6.63
CETECOM is accredited
according to
DIN EN ISO/IEC 17025 by:
CETECO
M
Inc.
411 Dixon Landing Road ♦ Milpitas, CA 95035 ♦ U.S.A.
Phone: (+1) 408.586.6200 ♦ Fax: (+1) 408.586.6299 ♦ E-mail: info@cetecomusa.com ♦ http://www.cetecom.com
CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686
Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May
V4.02 2007-02-01 © Copyright ♦ All rights reserved by CETECOM
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex D: Photographs
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 2 of 4
1. Photographs of the Equipment under Test
1.1 Top View of the EUT
1.2 Bottom View of the EUT
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex D: Photographs
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 3 of 4
1.3 Side View #1 of the EUT
1.4 Side View #2 of the EUT
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex D: Photographs
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 4 of 4
1.5 SIM Interface View of the EUT
1.6 EUT with Accessories
ANNEX E
of
Partial GSM TEST REPORT
No. F1062_07GT03
for
Wavecom
GSM 850/900/1800/1900 Terminal Equipment
Type Fastrack Supreme 10
Detailed Test Results
This Annex consists of 6 pages
Date of Report: 2007-09-19
with
Final Hardware Version: 401;
Wavecom Q2687 Classic: 421
Final Software Version: Open AT® Firmware 6.63;
Wavecom Q2687 Classic: Open AT® Firmware 6.63
CETECOM is accredited
according to
DIN EN ISO/IEC 17025 by:
CETECO
M
Inc.
411 Dixon Landing Road ♦ Milpitas, CA 95035 ♦ U.S.A.
Phone: (+1) 408.586.6200 ♦ Fax: (+1) 408.586.6299 ♦ E-mail: info@cetecomusa.com ♦ http://www.cetecom.com
CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686
Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May
V4.02 2007-02-01 © Copyright ♦ All rights reserved by CETECOM
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex E: Detailed Test Results
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 2 of 6
1. General Description
This annex of the GSM Test Report includes a table with detailed test results of the Equipment under
Test (EUT).
2. Terms used in the Test Result Table
This section defines the terms which are used in the enclosed test result table.
2.1 Main Terms
The following main terms are used in the test result table:
Term Explanation
Test Case Test case identifier of test specification 3GPP TS 51.010-1 or 3GPP TS 51.010-4 as
referenced in section 4 of this Test Report.
Test
Description
Name of the test case as referenced in the corresponding test specification.
Cat Category of the related test case in the related GSM frequency band. The interpretation
of the corresponding category is defined in Permanent Reference Document GCF-CC
(for GSM 900 and/or GSM 1800) and/or in Annex H of Permanent Reference Document
NAPRD.03 (for GSM 850 and/or GSM 1900).
Verdict Verdict for each test case. See section 2.2 of this annex for detailed information.
Loc If testing has been performed in subcontracted laboratories, this term identifies the
testing location according to section 1 of Annex B.
Notes Information about used test samples, special test situations, special test setups or
special interpretations of the test results. See section 2.3 of this annex for detailed
information.
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex E: Detailed Test Results
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 3 of 6
2.2 Terms in Column "Verdict"
The following terms are used in the test result table to identify the verdicts of each test case in each
given GSM frequency band:
Verdict Explanation
PASS EUT has been tested at CETECOM's (own or subcontracted) laboratories and is
conformant to the applied standards for this test case in the given GSM frequency band.
FAIL EUT has been tested at CETECOM's (own or subcontracted) laboratories but is not
conformant to the applied standards for this test case in the given GSM frequency band.
PASS/---- For not completely validated tests only the validated parts of the test are "PASS" as
mentioned above.
INC. "Inconclusive": EUT has been tested at CETECOM's (own or subcontracted) laboratories
but the test verdict for this test case in the given GSM frequency band is ambiguous.
Detailed explanation is given in the note for the corresponding test case.
N/A "Not Applicable": According to the client's and/or manufacturer's documentation
(PICS/PIXIT) this test is not applicable for the given GSM frequency band.
R"Redundant": This test has not been performed in the given GSM frequency band but the
test requirement has been verified by means of another test case (e.g. in the W-CDMA
technology).
NO This test has not been performed with the EUT in the given GSM frequency band and/or
with the given test parameter(s) although the test may be mandatory for conformance
testing.
GSM850 This test has not been performed in the given GSM frequency band but in the GSM 850
frequency band instead. The result for this test is given in the appropriate column for
"GSM 850".
GSM900 This test has not been performed in the given GSM frequency band but in the GSM 900
frequency band instead. The result for this test is given in the appropriate column for
"GSM 900".
GSM1800 This test has not been performed in the given GSM frequency band but in the GSM 1800
frequency band instead. The result for this test is given in the appropriate column for
"GSM 1800".
GSM1900 This test has not been performed in the given GSM frequency band but in the GSM 1900
frequency band instead. The result for this test is given in the appropriate column for
"GSM 1900".
---- Test is not defined or not validated for the given GSM frequency band or not used by the
specific certification regime.
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex E: Detailed Test Results
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 4 of 6
2.3 Terms in Column "Notes"
2.3.1 Test Samples used for Testing
The test result table contains numerical notes (e.g. "1,4,...") to identify the EUT test samples used for
each performed test case.
These numerical notes directly refer to the corresponding EUT Identifier defined in section 3.3 of the
Test Report (e.g. note "1,4" indicates that the given test case in the given GSM frequency band has
been tested with both terminal test samples identified as EUT1 and EUT4).
2.3.2 Additional Reference Documents for Testing
The test result table may also contain numerical notes in brackets (e.g. "[9],[14],..."). These notes
directly refer to the corresponding "additional reference documents for testing" as listed in section 4.3
(table 4) of the Test Report. They indicate that these additional reference documents have been
applied to the corresponding test case(s).
2.3.3 Special Test Situations, Test Setups and Verdict Interpretations
The test result table may also contain letter notes (e.g. "A,C,...") to identify special test situations,
special test setups or special interpretations for the given test case. The following letter notes are
used:
Note Explanation
AIMEI SV=06
3. General Note
3.1 General Note GN1
Conformance testing was performed by using a terminal program (HyperTerminal) and AT commands
as provided by the manufacturer.
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex E: Detailed Test Results
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 5 of 6
Test Results of Wavecom Fastrack Supreme 10
TS 51.010-1 or TS 51.010-4 Requirement GCF-CC (V.3.26.0) GCF-CC (V.3.26.0) NAPRD.03 (V.3.11.0) NAPRD.03
(V.3.11.0)
Test Case Test Description
GSM 900 GSM 1800 GSM 850 GSM 1900
Cat Verdict Notes Cat Verdict Notes Cat Verdict Notes Cat Verdict Notes
12.2.1
Radiated spurious emissions - MS allocated a
channel --- ----- --- --- ----- --- --- ----- --- --- ----- ---
Normal Temperature \ Normal Voltage APASS 1 APASS 1 APASS 1 APASS 1
Normal Temperature \ Low Voltage ANO --- ANO --- ANO --- ANO ---
Normal Temperature \ High Voltage ANO --- ANO --- ANO --- ANO ---
12.2.2
Radiated spurious emissions - MS in idle
mode --- ----- --- --- ----- --- --- ----- --- --- ----- ---
Normal Temperature \ Normal Voltage APASS 1 APASS 1 APASS 1 APASS 1
Normal Temperature \ Low Voltage ANO --- ANO --- ANO --- ANO ---
Normal Temperature \ High Voltage ANO --- ANO --- ANO --- ANO ---
26.6.8.5 Ciphering mode / IMEISV request AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2,A
26.9.6.1.1 Structured procedures / emergency call / idle
updated / preferred channel rate APASS 2 APASS 2 APASS 2,[7] APASS 2,[7]
26.9.6.1.2 Structured procedures / emergency call / idle
updated / non-preferred channel rate BPASS 2,[6] BPASS 2,[6] --- ------- --- --- ------- ---
26.9.6.2.1 Structured procedures / emergency call / idle,
no IMSI / accept case APASS 2 APASS 2 APASS 2 APASS 2
26.9.6.2.2 Structured procedures / emergency call / idle,
no IMSI / reject case APASS 2 APASS 2 APASS 2 APASS 2
27.17.1.1 Electrical tests- Phase preceding ME power
on AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.1.2 Electrical tests - Phase during SIM power on AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.1.3 Electrical tests- Phase during ME power off
with clock stop forbidden A N/A --- A N/A --- A N/A --- A N/A ---
27.17.1.4 Electrical tests- Phase during ME power off
with clock stop allowed AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.1.5.1 Reaction of 3V only MEs on SIM type
recognition failure A N/A --- A N/A --- A N/A --- A N/A ---
27.17.1.5.2 Reaction of 3V only MEs on type recognition
of 5V only SIMs A N/A --- A N/A --- A N/A --- A N/A ---
27.17.1.5.3 Reaction of 3V technology MEs on type
recognition of 5V only SIMs A N/A --- A N/A --- A N/A --- A N/A ---
27.17.1.5.4 Reaction of 3V technology MEs on type
recognition of 3V technology SIMs A N/A --- A N/A --- A N/A --- A N/A ---
27.17.1.5.7 Reaction of 1,8V technology MEs on type
recognition of 3V technology SIMs AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
This Report shall not be reproduced except in full without the written approval of CETECOM
© Copyright ♦ All rights reserved by CETECOM
Mobile Communications
411 Dixon Landing Road
Milpitas, CA 95035 · U.S.A.
Partial GSM Test Report No. F1062_07GT03
Annex E: Detailed Test Results
Date of Report: 2007-09-19 V4.02 2007-02-01 Page 6 of 6
Test Results of Wavecom Fastrack Supreme 10
TS 51.010-1 or TS 51.010-4 Requirement GCF-CC (V.3.26.0) GCF-CC (V.3.26.0) NAPRD.03 (V.3.11.0) NAPRD.03
(V.3.11.0)
Test Case Test Description
GSM 900 GSM 1800 GSM 850 GSM 1900
Cat Verdict Notes Cat Verdict Notes Cat Verdict Notes Cat Verdict Notes
27.17.1.5.8 Reaction of 1,8V technology MEs on type
recognition of 1,8V technology SIMs AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.2.1.1 Electrical tests on contact C1 / test 1 AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.2.1.2 Electrical tests on contact C1 / test 2 AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.2.2 Electrical tests on contact C2 AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.2.3 Electrical tests on contact C3 AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
27.17.2.5 Electrical tests on contact C7 AGSM 1900 --- AGSM 1900 --- AGSM 1900 --- APASS 2
Please refer to GSM Test Report Annex E section 2 for detailed information of the used terms and notes.

Navigation menu
