PRODUCT USER MANUAL
Wired
Network
3
G
/4
G
GPS
Data Recording
2
Introduction
Thank you for purchasing the
GTRACK4G GPS Tracker. Please
ensure that you have read the product
manual and instructions in full, prior to
installation and use. Failure to do so
may result in product failure/damage or
incorrect operation and therefore impact
the product performance.
Product overview
The GTRACK4G GPS Tracker has been
designed to offer an efcient, effective
vehicle tracking system for managing
your business eet. A 3G/4G GPS
tracking solution allows you to locate
and track the whereabouts of your
vehicle in real time via the Internet on a
computer or Smartphone.
3
Product features:
• Built-in cellular and GPS antenna for
easy installation
• 3G/4G compatible
• Requires active Text/Data Standard
SIM card (Mobile SIM) not included
• Real-time tracking with history route
• Lithium-ion rechargeable battery
• 3 hour battery backup
• Built-in motion sensor
• Shock/displacement/ low battery/
power off/ over speed alert
• Main power cut off alert
• Power saving sleep mode
• Built-in motion sensor
• ACC detection
• Geo-fence capable
• Remote immobilization
• A-GPS locating
(improves startup performance)
• Unit dimension 75x40x12mm
• Weight 39.5g
4
Table of contents
Introduction...................................................p2
Product overview..................................................p2
Product features...................................................p3
Table of contents...................................................p4
Package components...........................................p5
Installation & setup.............................................p6-9
Check list ......................................................p10-11
Function commands ......................................p12-14
Download Smartphone App................................p14
Login by Smartphone App............................p15-16
Smartphone home screen..................................p17
Device list screen...............................................p18
Historical route screen........................................p19
Geofence location screen...................................p20
Issue command screen.......................................p21
Device screen.....................................................p22
Common command screen................................p23
General command screen..................................p24
Alarm setting screen...........................................p25
Login by Website.................................................p26
LED indicator denition......................................p27
Trouble shooting guide........................................p28
Cautions....................................................p29
Product specications...................................p30-31
SIM card information...........................................p32
APN settings.......................................................p33
Technical assistance......................................p34-35
IMEI/SIM card number safeguard......................p36
5

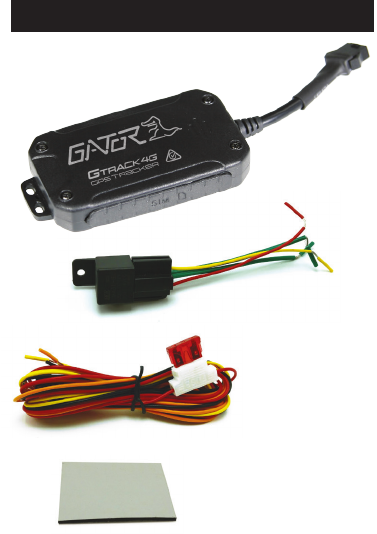

1. GPS tracker
module
2. Relay
and harness
3. Power cable
with in-line
fuse
4. Adhesive
MountPad
6
Activation & Authorisation

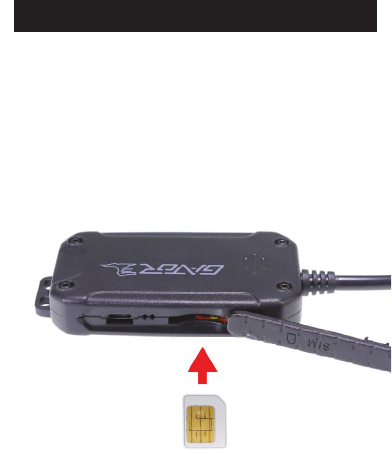

1. Open the rubber plug, Insert an
active Text/Data Standard SIM card that
supports 3G/4G/GPRS network into the
slot and make sure the chip side is up.
(Picture 1)
2. Connect power cable and relay
(optional) and follow wiring diagram
7
3. The GTRACK4G must know who you
are and where to send alerts.
Set ADMIN number, by sending a SMS
command to the SIM card inside your
device.
For example:
admin123456 xxxxxxxxxx
(123456) is the default password.
xxxxxxxxxx is your mobile number.
NOTE: There is a space between
password and mobile number.
GTRACK4G replies (admin okay).
4. Set APN number, by sending a SMS
command to the SIM card inside your
device.
APN123456 SIMCARD PROVIDER
(please use your local APN instead of
CMNET (default), if you do not know the
APN content you should contact your
SIM card supplier).
8
For example:
apn123456 xxxxxxxxxx
(123456) is the default password.
xxxxxxxxxx is your mobile SIM card
provider.
NOTE: There is a space between
password and SIM card provider.
For use in other countries replace the
APN with the corresponding countries
SIM card provider
5. Set the current time by sending a
SMS command to the SIM card inside
your device.
For example:
timezone123456 +10
(VIC daylight savings +10 hours ahead
of GMT).
NOTE: There is a space between
password and GMT time.
9
Earth to
Chassis
10
Check List
1. Sim card must have active service/
dial, minimum data of 2 gbs and sms.
2. Insert the Sim card contacts side up.
3. Plug power into the tracker module.
4. Make sure the red wire goes to the
12v battery and the orange wire goes to
12v accessory ignition.
5. Send sms command from your mobile
phone to the tracker
“admin123456_(insert your mobile
number here)” sms reply to your phone
should be “admin ok”
6. Send sms command from your mobile
phone to the tracker “apn123456_(insert
your apn provider here)”
Optus is yesinternet
Telstra is telstra.internet
Vodafone is live.vodafone.com
2. Connect power cable and relay
(optional) and follow wiring diagram
11
SMS reply to your phone should be
“apn ok”
NOTE: 4g tracker will work with all
providers.
This check list is important, if you type
in the incorrect APN the device will not
established a connection, the yellow led
will not ash nor will it track.
7. Send sms command from your phone
to the tracker “param1” sms reply should
give details about the tracker.
e.g. imei number, internet provider and
ip address this function will check if the
parameters are correct.
8. Flashing yellow led is when the device
is now communicating.
9. Blue ashing led has established a
connection with the satellites.
12
Function commands
Function
Text to send to Gtrack4G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply
13
Function
Text to send to Gtrack4G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply
14
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply
Downloading Smartphone APP
For iPhone: search “GTRACK” in the
App Store to download
For Android: search “GTRACK” in the
App Google play store to download
For further instructions of the Apps
functionality, go to
www.tdj.com.au/help-downloads
and search for your product name
15
Log in by Smartphone APP

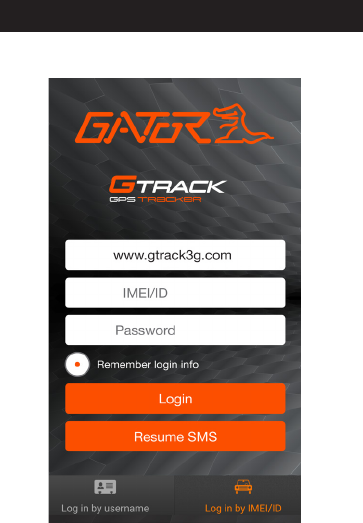

Log in by IMEI/ID
Function
Text to send to Gtrack3G Reply
apn+123456+space+SIM
provider apn ok
apnuser+123456+space+SIM
provider
apnuser
ok
APN
apnpasswd+123456+space+
SIM provider
apnpasswd
ok
admin
number
admin123456+space+admin
phone number admin ok
time
zone
timezone+123456+space+
GMT No.
timezone
ok
time
sleep sleep123456 time sleep time
ok
shock
sleep
(default)
sleep123456 shock sleep
shock ok
no sleep
sleep123456 off sleep off
ok
upload
frequency
upload123456+space+time upload ok
Desired
circuit
to
immobilise
555 Cut oil OK
Arm &
Disarm 111 or SF Arm delay
in 0s
Position G123456# or where Google
map
Restart rst restart ok
Back to
factory format No reply
16
Log in by Smartphone APP

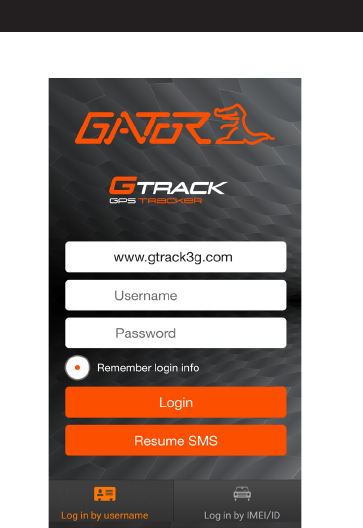

Log in by Username (pending)

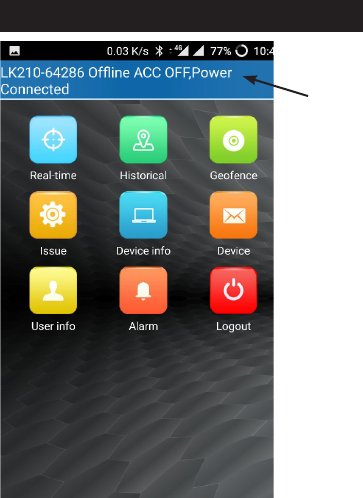

17
Home screen
Device
status
info

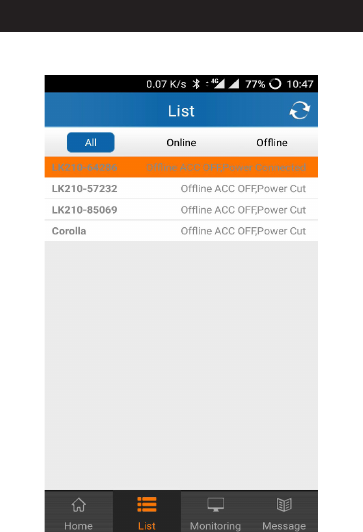

18
Device List screen
19

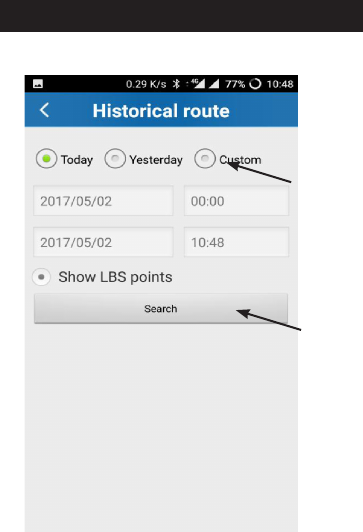

Historical route screen
Set a
time
range
LBS
location
20

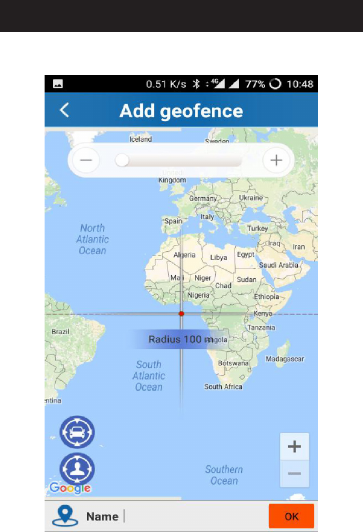

Geofence location screen
21

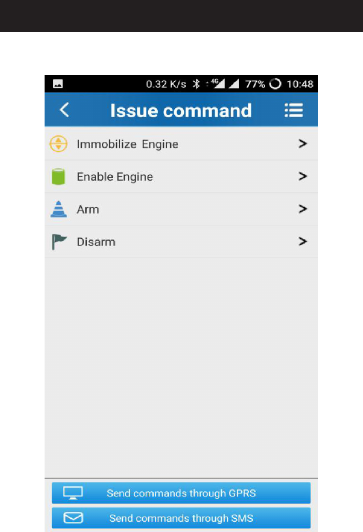

Issue command screen
22

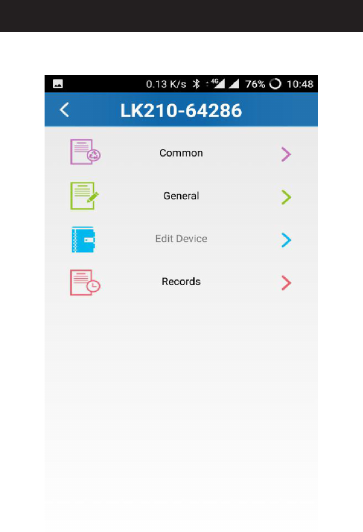

Device screen

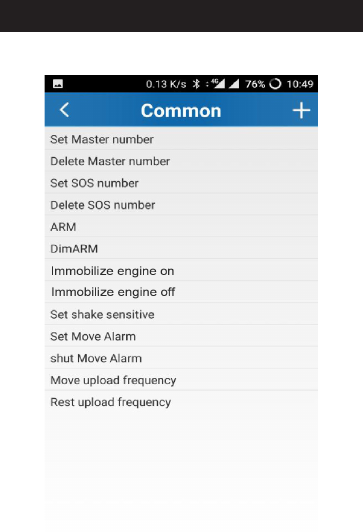

23
Common command screen

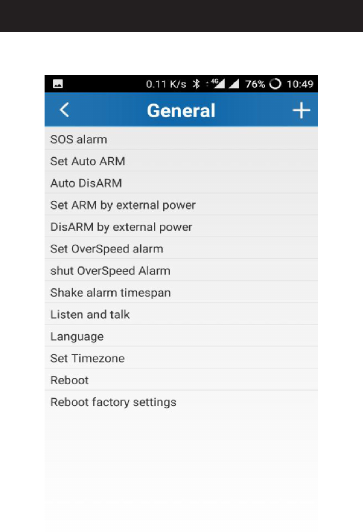

24
General command screen
25

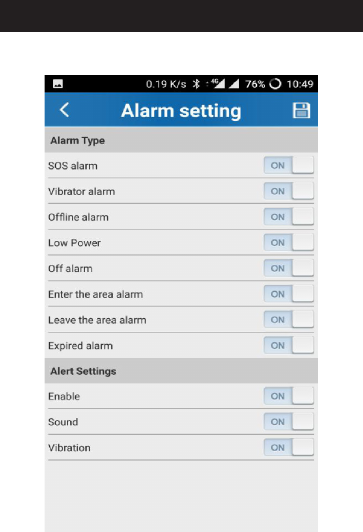

Alarm setting screen
26

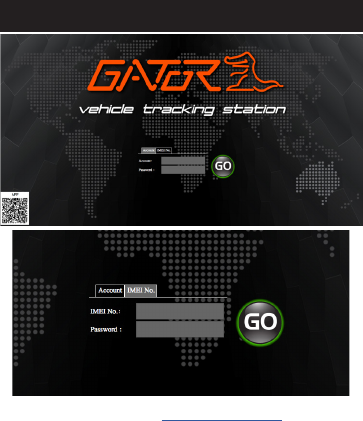

Log in by website
Open the website gtrack3g.com, choose
IMEI No, enter the 10-digit ID code of the
device, the default password is 123456,
click “GO” to log in into the platform.
IMEI number is printed on a sticker on
the back of the unit.
27
Led indicator denition
Green Indicator: Mobile Network (3G/4G)
Blue Indicator: GPS
Status of indicator Meaning
Flash 3G/4G conversation
start
Solid No 3G/4G signal
Off Power off or in sleep
mode
Status of indicator Meaning
Flash GPS location
successful
Solid Searching
Off Power off or in sleep
mode
28
NOTE: When the equipment in power
saving sleep mode, the light will turn off
after about 10 minutes (settable) without
any operation.
Trouble shooting guide
Q: Start up Fail?
A: Check all wiring connections and
fuses
Q: The device cannot obtain location
information?
A: Place the unit in an open area to test.
Q: How to choose SIM card?
A: The SIM card must support 3G/4G
& GPRS and ensure that the card has
enough currency and credit.
29
Cautions
Please comply with the instructions to
extend the unit life:
1. Keep the unit dry. Any liquid, i.e. rain,
moisture, may destroy or damage the
inside circuitry.
2. Don’t use & store the unit in dusty
places.
3. Do not place the unit in extremely hot
or cold places
4. Handle carefully. Do not vibrate or
shake it violently.
5. Clear the unit with a piece of dry
cloth. Do not clean with chemicals or
detergents.
6. Don’t paint the unit, this may cause
some foreign materials left in between
the parts.
7. Don’t disassemble or ret the unit.
30
8. Please use the battery and charger
provided by manufacturer. Using other
batteries and chargers will cause un-
wanted situation.
Product specications
◆ Real-time tracking
◆ Vibration/Displacement/Low battery/
Power off/over speed alert
◆ Main power cut off alert
◆ ACC detection
◆ Geo-fence
◆ History Route
◆ Cut and resume functions remotely
◆ AGPS locating
31
Product specications cont....
Frequency WCDMA
850/900/1900/2100 MHz
3G/4G Version support
Backup Battery 3.7V 370mAh
Networks WCDMA/GPRS
Operating voltage 9-75V
Cold start 35s-80s Location time
Hot start 1s
Location accuracy 5 meters
Operating
temperature
-
Dimension 75*40*12mm
Weight 39.5g
°C °C
32
SIM card information
Product specications
3G/4G GSM TEXT & DATA Standard
SIM CARD is required. It can be prepaid
or plan, depending on usage usually
$5-$10 per month is sufcient.
The GTRACK4G operating frequency is:
WCDMA 850/900/1900/2100 MHz.
If the tracker is outside of this frequency
range it will not work. For best coverage
use Optus/Virgin & Vodafone. Telstra will
only work in areas where the operating
frequency is 2100MHz (generally built
up/metro areas).
Depending on the network provider, you
may need to rst install the SIM Card
into a mobile phone to receive the sim
card activation sms. Please ensure the
SIM Card is activated before installing
it into the GTRACK4G. Ensure the SIM
Card has sufcient TEXT & DATA credit.
33
APN settings
When conguring the GTRACK4G, you
need to setup the mobile network APN
(Access Point Name) to your GPS
tracker (refer manual pg 7-8).
This is required to access the mobile
data service by the tracker.
Your carrier APN is:
◆ ALDI Mobile: TELSTRA.INTERNET
◆ Amaysim: YESINTERNET
◆ Optus: YESINTERNET
◆ Telstra: TELSTRA.INTERNET
◆ TPG: YESINTERNET
◆ Virgin Mobile: VIRGININTERNET
◆ Vodafone: LIVE.VODAFONE.COM
◆ Kogan Mobile LIVE.VODAFONE.COM
◆ iiNET: YESINTERNET
If the APN / Service Provider is not listed
above, please contact your Service
Provider and ask for the APN.
34
Technical assistance
If you need assistance setting up or
using your Gator product now or in the
future, call Gator Support.
Australia
TEL: 03 – 8587 8898
FAX: 03 – 8587 8866
Mon-Fri 9am – 5pm AEST
Please retain this user guide for future
reference.
If you would like to download a digital
copy of this manual, or other Gator
manuals/software, please visit the
http://gatordriverassist.com website
and click on ‘Firmware & Manuals” This
manual is considered correct at time of
35
printing but is subject to change. For
latest manuals and updates refer to the
website.
Copyright © 2017 by TDJ Australia
All rights reserved. No part of this
publication may be reproduced, distrib-
uted, or transmitted in any form or by
any means, including photocopying,
recording, copying or other electronic or
mechanical methods, without the prior
written permission of the author.
36
IMEI/SIM number safeguard
Copy the IMEI/I.D. number (10-digit bar
code of the device), and the SIM card
number and place here for safe keeping
before installing the device.
IMEI number
_ _ _ _ _ _ _ _ _ _
SIM number
--------------------
Retailer
____________
Date of purchase
____________
