Gemini
®
Gemini Catalog
1www.LorenCook.com
®
Gemini
Ceiling, Wall and Inline Duct Fans
Introduction 2
Standard Construction Features 3
Specications & Dimensions
GC 126 - 188 4
GC 222 - 960 5
GC 1000 - 2000 6
GN 126 - 188 7
GN 222 - 960 8
GN 1000 - 2000 9
Options & Accessories

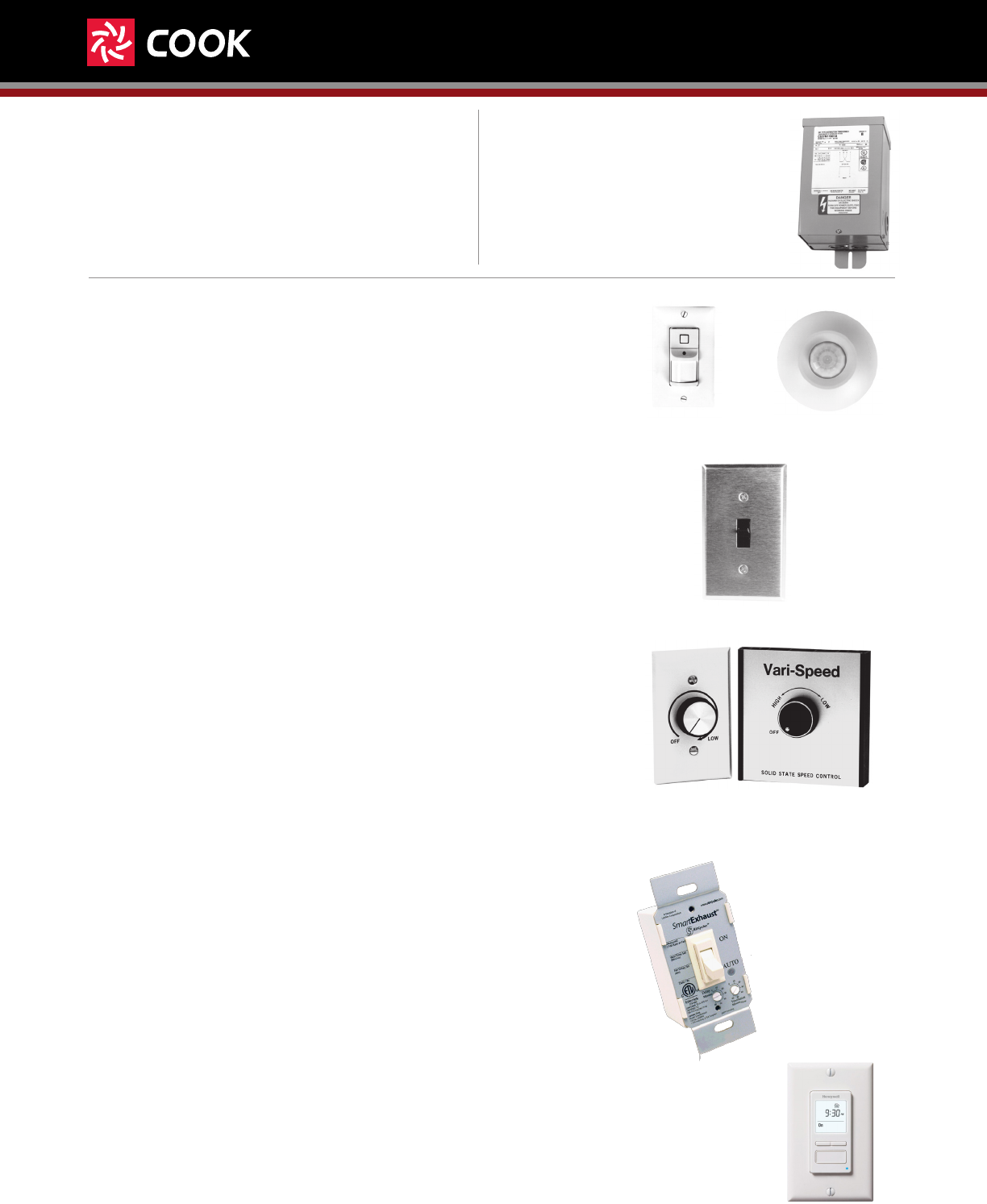

Motors, Transformer, Switches & Controls 10
Grilles, Damper & Filters 11

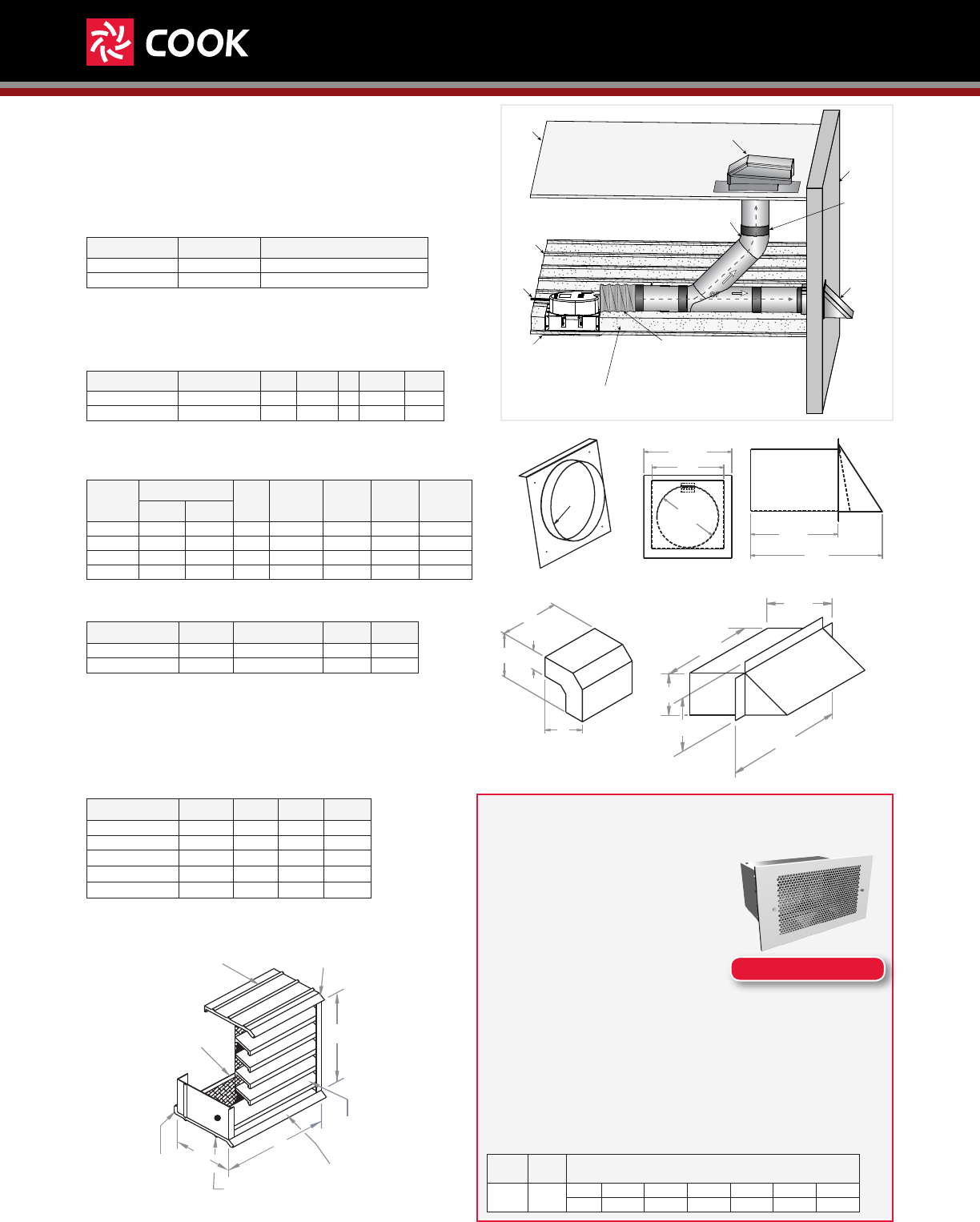

Duct Adapters & Vents 12

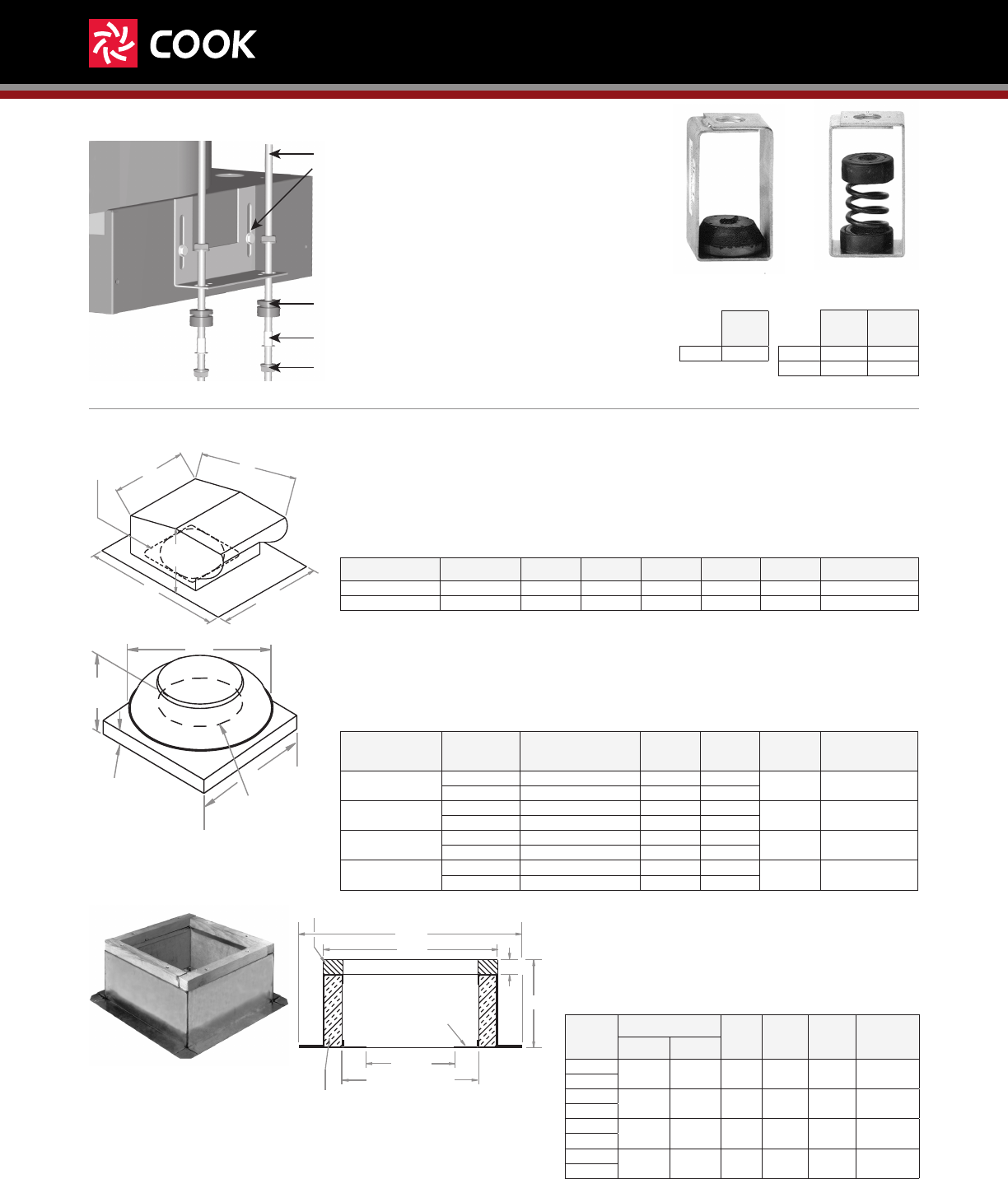

Isolator & Roof Accessories 13

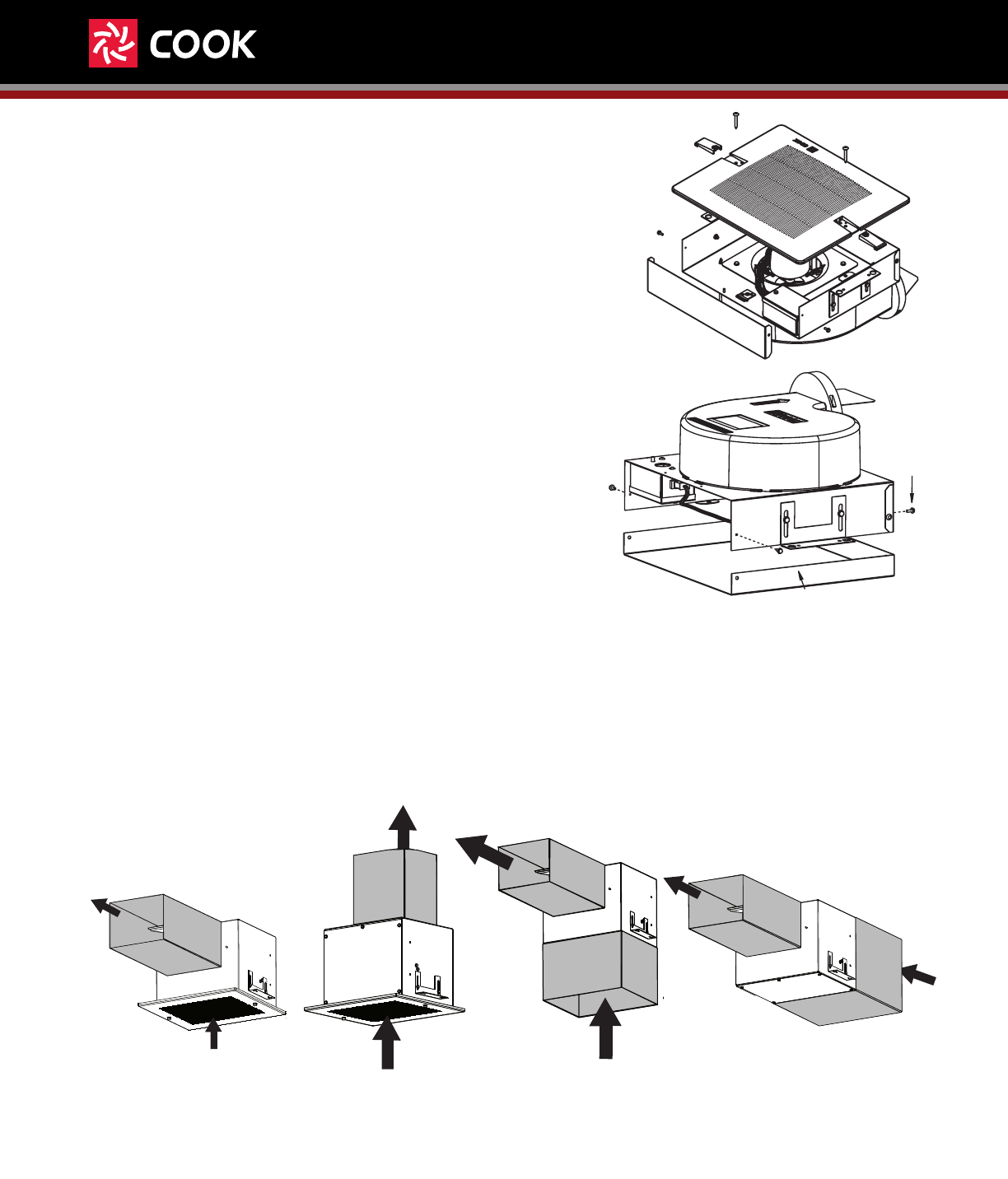

Conversion Kits and Discharge Direction Installation Options 14
Performance Data
GC Data Tables 15
GN Data Tables 16
Gemini Catalog
2www.LorenCook.com
®

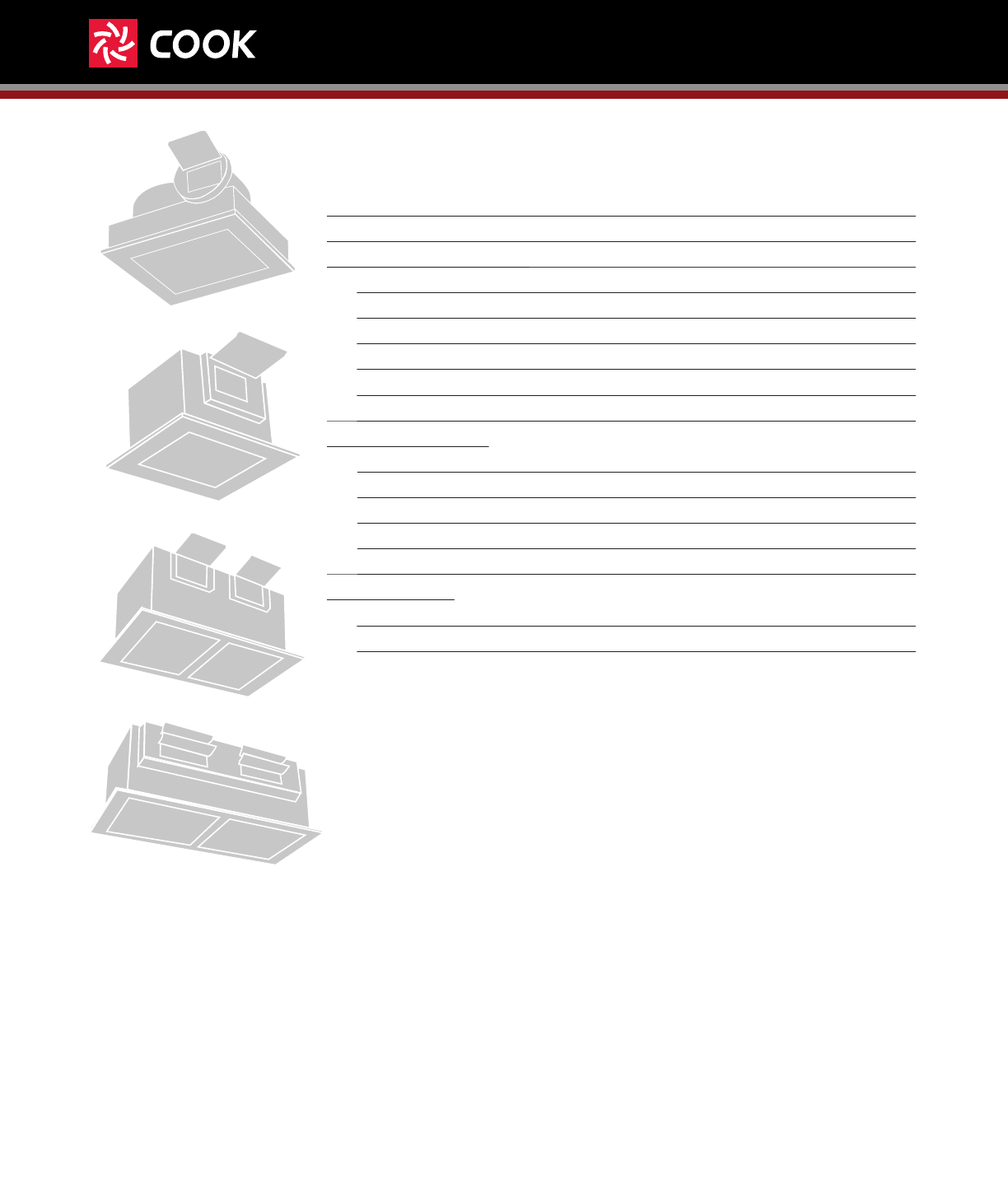

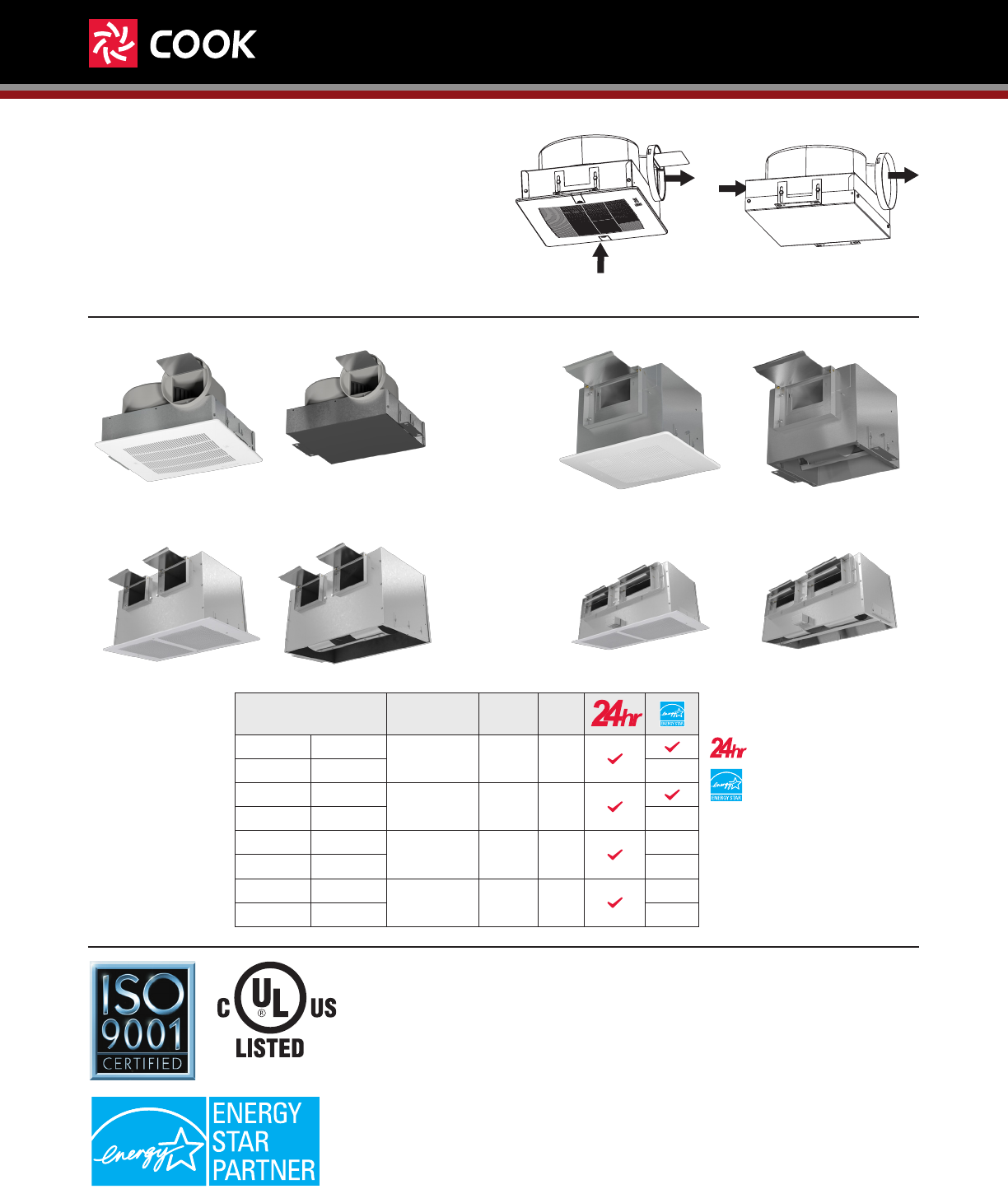

A Range of Size and Installations
LOREN COOK COMPANY Gemini fans provide maximum
performance, durability, and ease of installation in a wide
variety of ceiling (GC) and inline (GN) clean air exhaust
applications.
There is a range of sizes, with direct drive motors, in either
single wide or double wide construction.
Also, Gemini fans are easily eld convertible from ceiling to
inline or inline to ceiling, depending on the installation needs.
Introduction
Sizes 126 - 188 shown. See page 14 for additional options.
Ceiling (GC) Inline (GN)
Quality Tested
Made in the USA in an ISO 9001 certied factory.
Tested in COOK’s AMCA registered laboratory in accordance with AMCA
standards.
GC sizes 128, 222 & 242 are ENERGY STAR® certied products.
All units are listed by Underwriters Laboratory (UL 705) and UL listed for
Canada (cUL 705). GC and GN 126-188 are UL 507 and cUL 507 listed.
GN sizes 200 through 2000 series units are available with UL 1995 listing
(Heating & Cooling Equipment) and cUL 1995 listing for Canada. When a
Gemini 200 - 2000 unit is supplying a separate modular cooling or heating
source, UL 1995 listing may be required by local code.
GC & GN “Gemini”
Room Exhausts
Size Max.
CFM
Max.
SP
Ceiling GC 126 - 188 260 1”
Inline GN
Ceiling GC 222 - 740 850 1”
Inline GN
Ceiling GC 822 - 960 1,800 1”
Inline GN
Ceiling GC 1000 - 2000 3,400 1”
Inline GN
GC GN
Size: 126 - 188 Size: 222 - 740
GC GN
GC GN
Size: 822 - 960
GC GN
Size: 1000 - 2000
= 24 Hour Express
= ENERGY STAR®
certied (select models)
Gemini Catalog
3www.LorenCook.com
®

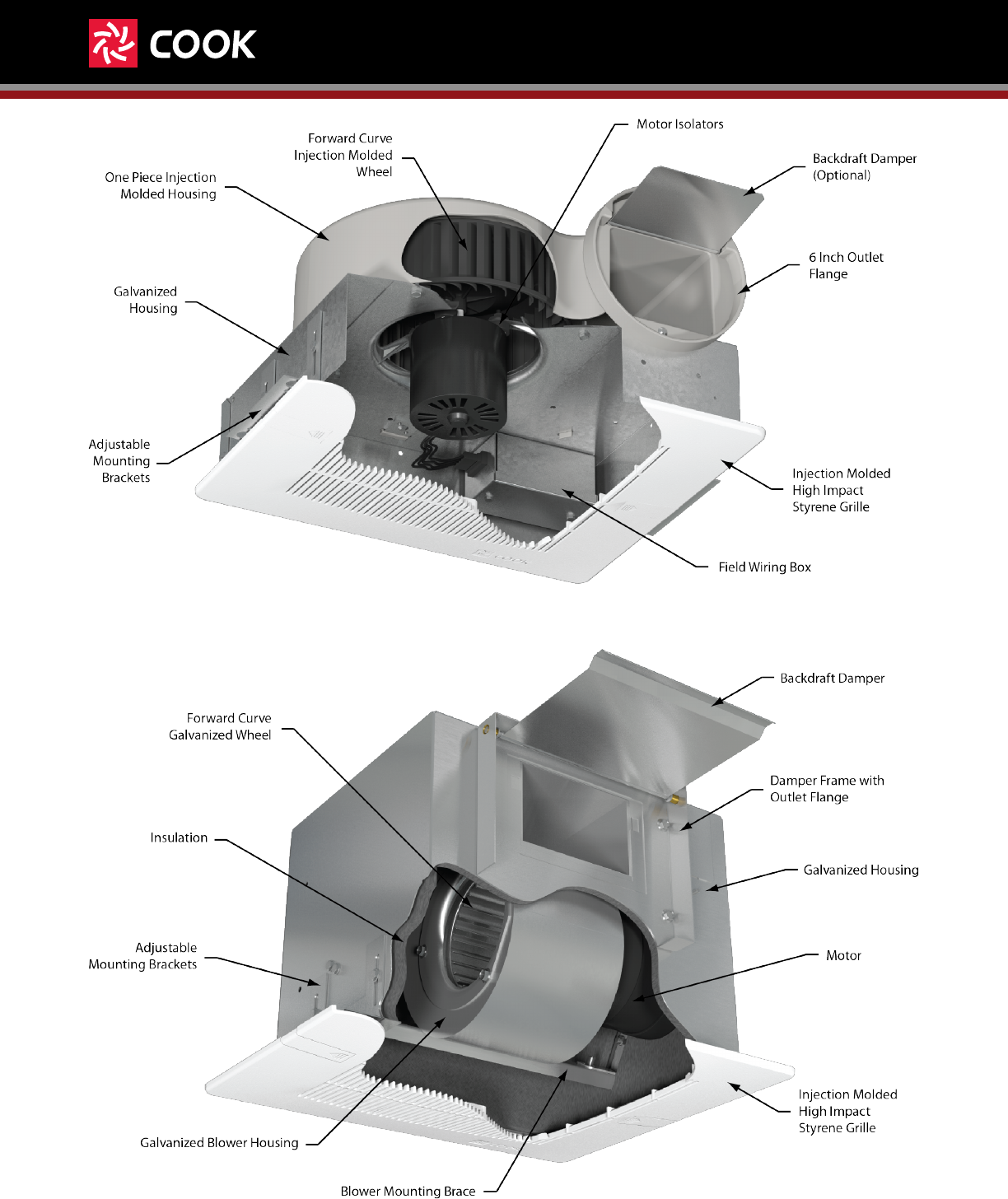

Standard Construction Features
GC 126 - 188
GC 222 - 2000
GC 222 shown
Gemini Catalog
4www.LorenCook.com
®
Type Gemini GC 126-188 are
furnished standard with UL 507
& cUL 507 listing (Electric Fan/
GPWX).
Loren Cook Company certies
that the Gemini GC 126-188
are licensed to bear the AMCA
Seal. The ratings shown are
based on tests and procedures
performed in accordance with
AMCA Publication 211 and AMCA
Publication 311, and comply
with requirements of the AMCA
Certied Ratings Program.
Specifications & Dimensions

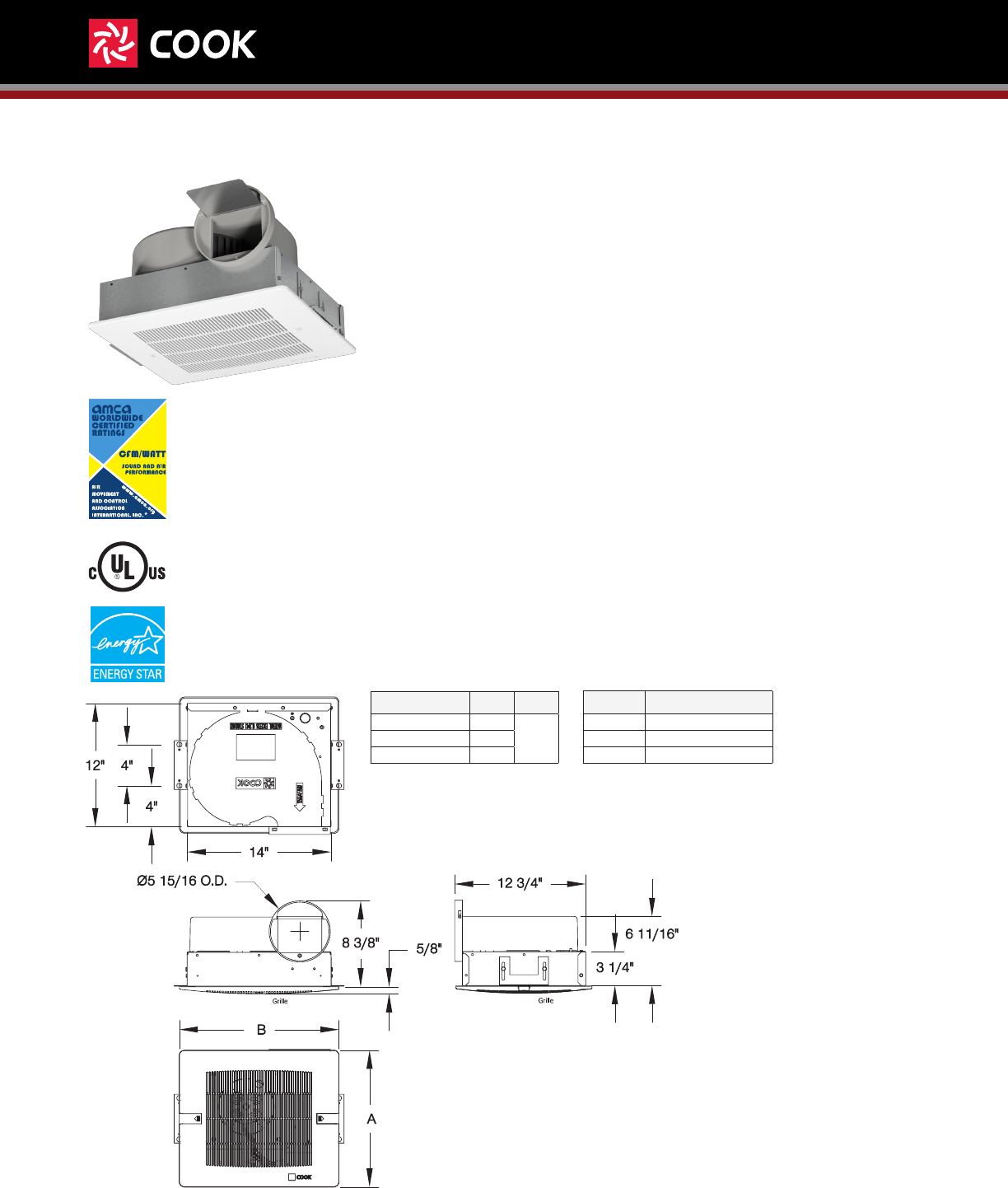

GC Sizes 126 - 188
Gemini Ceiling Fan
Specications
• Description: Fan shall be ceiling mounted, direct driven, centrifugal exhaust fan.
• Certications: Fan shall be manufactured by an ISO 9001 certied company. Fan
shall be listed by Underwriters Laboratories (UL 507). Fan shall bear the AMCA
Certied Ratings Seal for Sound and Air Performance. Select fans are ENERGY
STAR® certied products.
• Construction: Fan wheel housing and integral outlet duct collar shall be injection
molded from a specially engineered resin exceeding UL requirements for smoke
and heat generation. The outlet duct shall have provision for an aluminum
backdraft damper with continuous aluminum hinge rod. The inlet box shall be
minimum 22 gauge galvanized steel. Motor shall be isolation mounted to a
one piece galvanized stamped steel integral motor mount/inlet. A eld wiring
compartment with disconnect receptacle shall be standard. To accommodate
different ceiling thickness, an adjustable prepunched mounting bracket shall be
provided. A white, non-yellowing, high impact styrene injection molded grille shall
be provided as standard. Unit shall be designed with provision for eld conversion
from ceiling to inline. Unit shall be shipped in ISTA Certied Transit Tested
Packaging.
• Wheel: Wheel shall be centrifugal forward curved type, injection molded of
polypropylene resin. Wheel shall be balanced in accordance with AMCA Standard
204-05, Balance Quality and Vibration Levels for Fans.
• Motor: Motor shall be permanent split capacitor with permanently lubricated
sealed bearings and include impedance or thermal overload protection and
disconnect plug. Motor shall be furnished at the specied voltage.
• Product: Fan shall be model Gemini GC 126-188 as manufactured by Loren Cook
Company of Springeld, Missouri.
Dimensions (inches)
Grille Material A B
Plastic 13-1/4
15-1/2Steel 13-1/2
Aluminum 13-3/4
Gemini GC 128 is a ENERGY
STAR® certied product.
Weights (pounds)
Size Shipping Weight
126 - 128 13
146 - 168 15
186 - 188 16
Weights are in pounds.
Gemini Catalog
5www.LorenCook.com
®
Loren Cook Company certies
that the Gemini GC 222-960
are licensed to bear the AMCA
Seal. The ratings shown are
based on tests and procedures
performed in accordance with
AMCA Publication 211 and AMCA
Publication 311, and comply
with requirements of the AMCA
Certied Ratings Program.

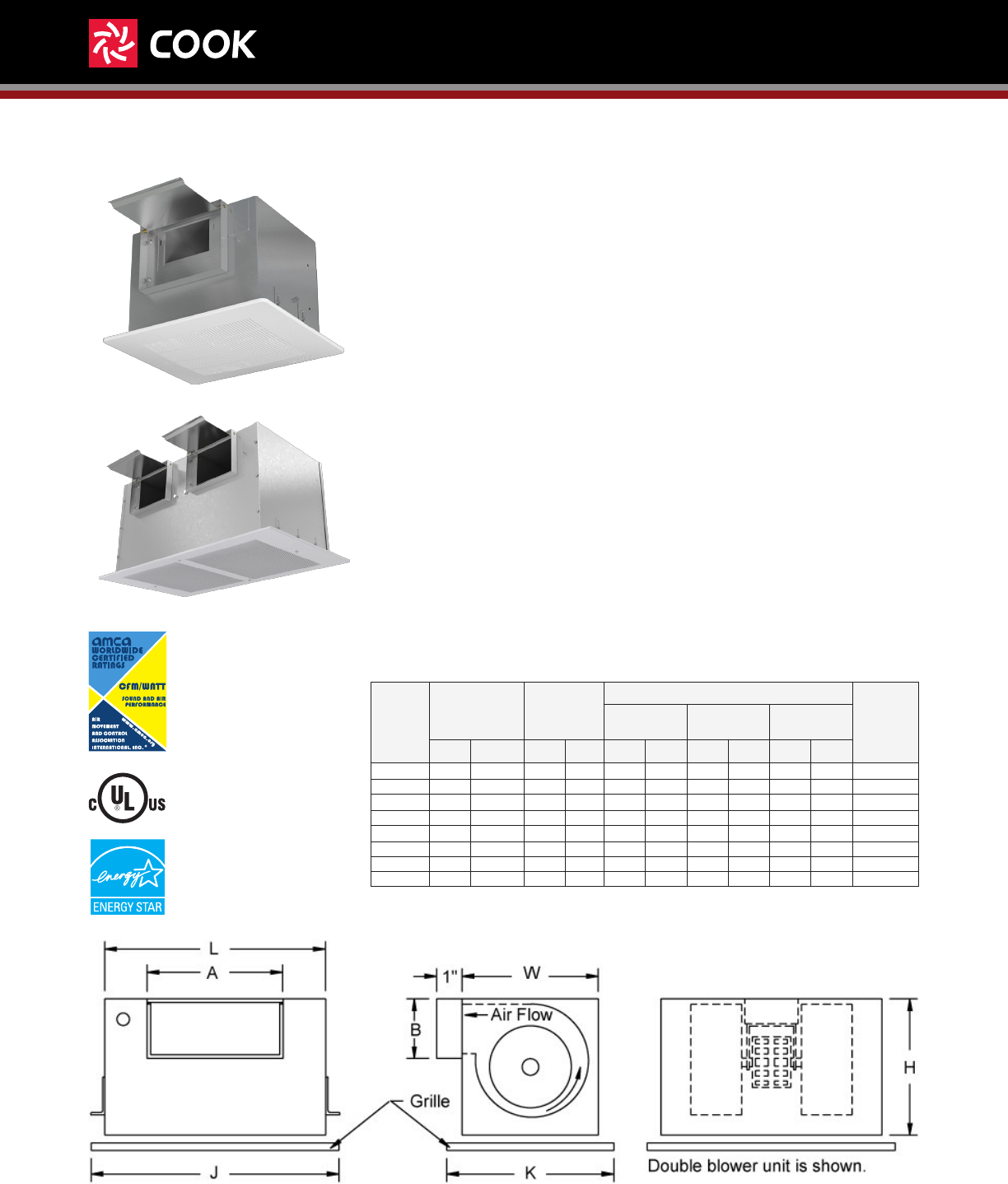

Specifications & Dimensions
GC Sizes 222 - 960
Gemini Ceiling Fan
Type Gemini GC 222-960 are
furnished standard with UL 705 &
cUL 705 listing (Power Ventilator/
ZACT).
Specications
• Description
: Fan shall be ceiling, wall, or inline mounted, direct drive, centrifugal
exhaust fan.
• Certications: Fan shall be manufactured by an ISO 9001 certied company. Fan
shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada
(cUL 705). Fan shall bear the AMCA Certied Ratings Seal for Sound and Air
Performance.
• Construction: Fan housing shall be minimum 20 gauge galvanized steel and
acoustically insulated. Blower and motor assembly shall be mounted to a minimum
14 gauge reinforcing channel and shall be easily removable from the housing.
Motor shall be mounted on vibration isolators. Unit shall be supplied with integral
wiring box and disconnect receptacle shall be standard. Discharge position shall
be convertible from right angle to straight through by moving interchangeable
panels. The outlet duct collar shall include a reinforced aluminum damper with
continuous aluminum hinge rod and nylon bushings. To accommodate different
ceiling thickness, an adjustable prepunched mounting bracket shall be provided. A
white, non-yellowing, high impact styrene injection molded grille shall be provided
as standard on 200 and 300 series. A powder painted white steel grille shall be
provided as standard on 400 - 900 series. Unit shall be shipped in ISTA Certied
Transit Tested Packaging.
• Wheel: Wheel shall be centrifugal forward curved type, constructed of galvanized
steel. Wheel shall be balanced in accordance with AMCA Standard 204-05,
Balance Quality and Vibration Levels for Fans.
• Motor: Motor shall be permanent split capacitor with permanently lubricated
sealed bearings, built-in thermal overload protection and disconnect plug. Motor
shall be furnished at the specied voltage.
• Product: Fan shall be model Gemini GC 222-960 as manufactured by Loren Cook
Company of Springeld, Missouri.

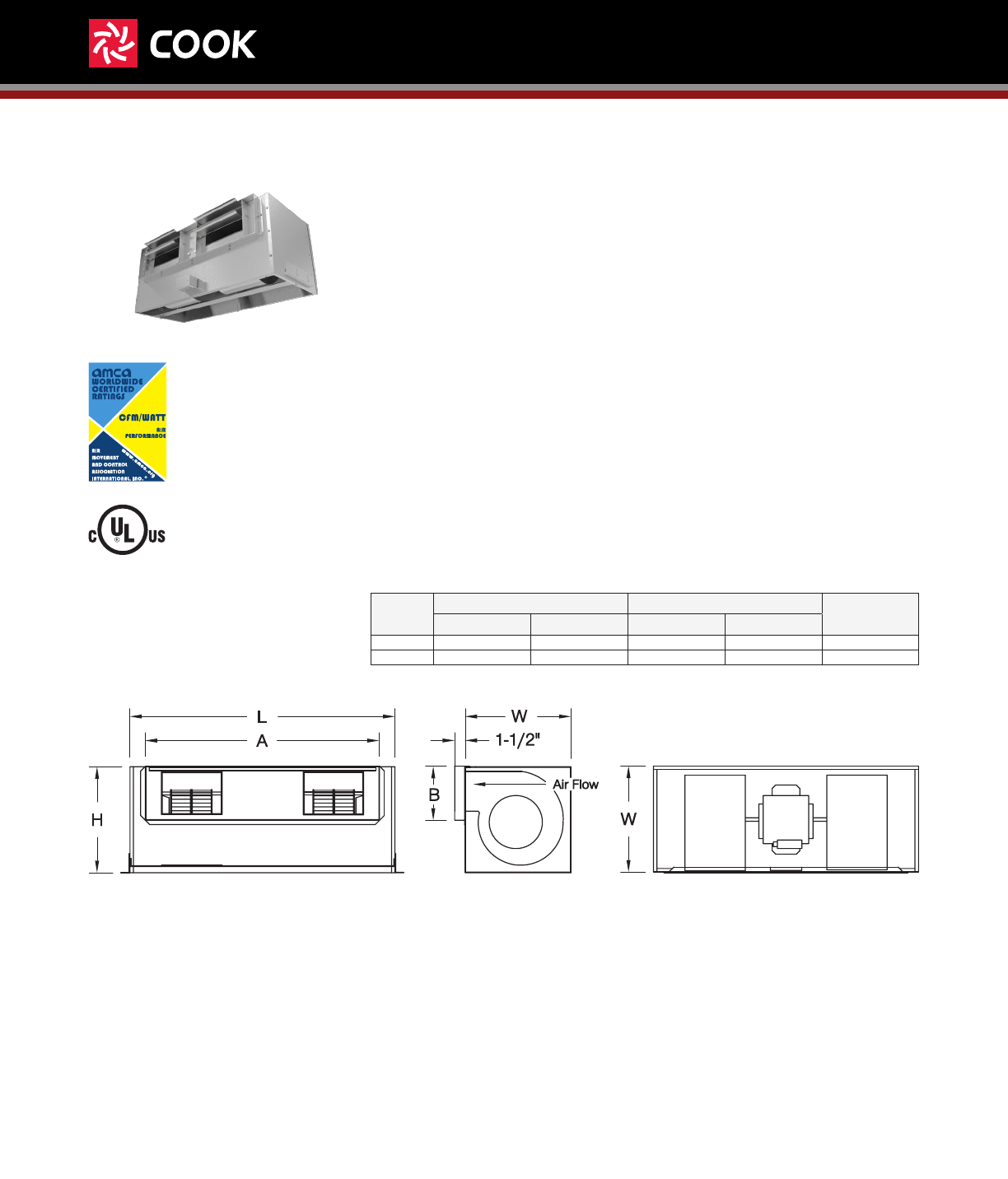

Dimensions (inches)
Size Housing Outlet
Grille
Shipping
Weight
Plastic Steel Deluxe
Aluminum
LW & H A B J K J K J K
222 - 242 12-3/8 9-3/4 6 4-1/2 15-1/2 13-1/4 16-3/8 13-5/8 14-1/4 11 22
322 - 342 12-3/8 10-3/4 8 6 15-1/2 13-1/4 16-3/8 13-5/8 14-1/4 12-1/4 25
422 17 11-7/8 8 6 - - 21 14-1/4 18-3/4 13-3/4 30
522 - 542 17 11-7/8 8 6 - - 21 14-1/4 18-3/4 13-3/4 32
622 - 642 17 11-7/8 10-1/2 4-3/4 - - 21 14-1/4 18-3/4 13-3/4 35
720 - 740 17 11-7/8 10-1/2 4-3/4 - - 21 14-1/4 18-3/4 13-3/4 36
822 - 862 27 14-11/16 20 6 - - 31-3/8 17-1/8 28-3/4 16-1/4 74
920 - 960 31 14-11/16 24-1/4 6 - - 35-1/8 17-1/8 32-3/4 16-1/4 86
Weights are in pounds.
222 - 740
822 - 960
Gemini GC 222-242 are ENERGY
STAR® certied products.
Gemini Catalog
6www.LorenCook.com
®

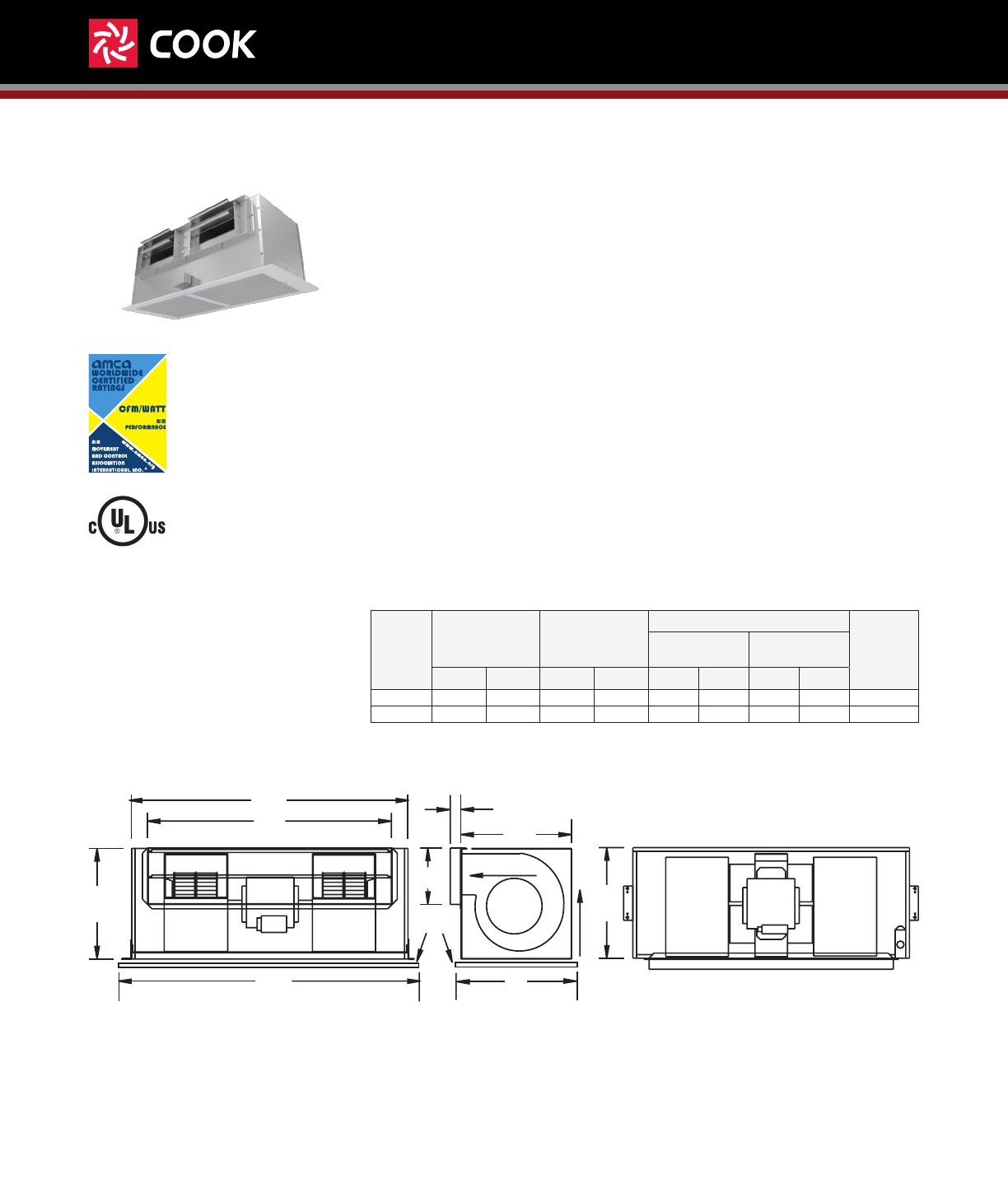

Type Gemini GC 1000 and 2000
are furnished standard with UL
705 & cUL 705 listing (Power
Ventilator/ZACT).

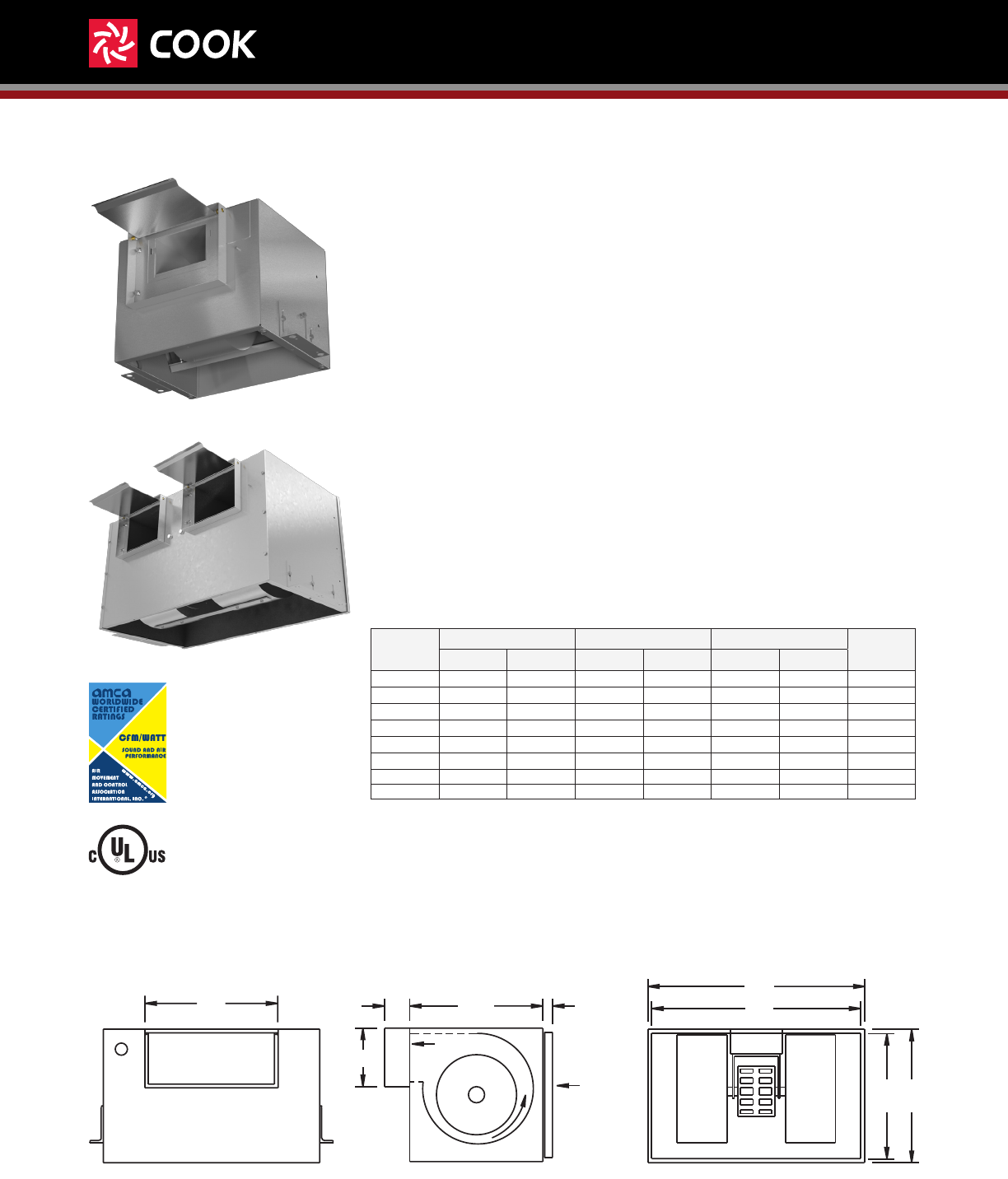

Specifications & Dimensions
Specications
• Description: Fan shall be ceiling, wall, or inline mounted, direct drive, centrifugal
exhaust fan.
• Certications: Fan shall be manufactured by an ISO 9001 certied company. Fan
shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada
(cUL 705). Fan shall bear the AMCA Certied Ratings Seal for air performance.
• Construction: Fan housing shall be minimum 20 gauge galvanized steel and
acoustically insulated. Blower and motor assembly shall be mounted to a minimum
14 gauge reinforcing channel. Motor shall be resiliently mounted. Unit shall be
supplied with integral wiring box. Discharge position shall be convertible from right
angle to straight through by moving interchangeable panels. The outlet duct collar
shall include reinforced aluminum dampers with continuous aluminum hinge rods
and nylon bushings. To accommodate different ceiling thickness, an adjustable
pre-punched mounting bracket shall be provided. A powder painted white steel
grille shall be provided as standard. Unit shall be shipped in ISTA Certied Transit
Tested Packaging.
• Wheel: Wheels shall be twin DWDI centrifugal forward curved type, constructed
of galvanized steel. Wheel shall be balanced in accordance with AMCA Standard
204-05, Balance Quality and Vibration Levels for Fans.
• Motor: Motor shall be totally enclosed type with permanently lubricated sealed
bearings and built-in thermal overload protection. Motor shall be furnished at the
specied voltage and phase.
• Product: Fan shall be model GC 1000 and GC 2000 as manufactured by Loren
Cook Company of Springeld, Missouri.
Dimensions (inches)
Size Housing Outlet
Grille
Shipping
Weight
Standard Deluxe
Aluminum
LW & H A B J K J K
1000 38-1/8 15-1/4 33-11/16 7-11/16 42-3/8 17-1/8 38-3/4 15-3/4 125
2000 45-7/16 16-5/8 41-1/8 9-5/8 49-1/2 18-1/2 45-3/4 17-1/4 165
Weights are in pounds.
GC
Sizes 1000 - 2000
Gemini Ceiling Fan
Air Flow
W
K
BAir Flow
A
J
H
L
1-1/2"
W
Grille
Loren Cook Company certies
that the Gemini 1000 and 2000
series are licensed to bear
the AMCA Seal. The ratings
shown are based on tests
and procedures performed
in accordance with AMCA
Publication 211 and comply with
the requirements of the AMCA
Certied Ratings Program.
Gemini Catalog
7www.LorenCook.com
®

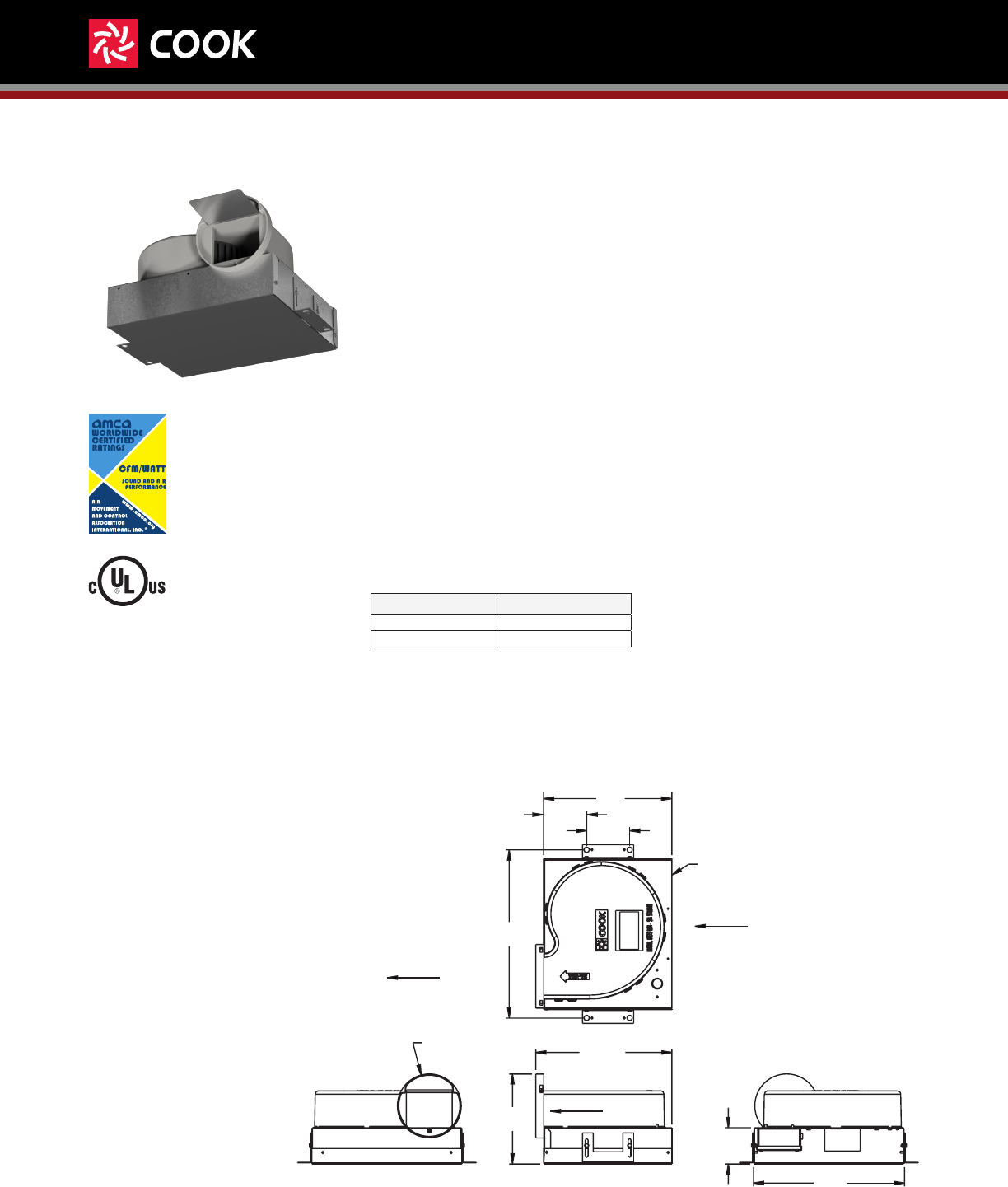

Type Gemini GN 126 - 188 are
furnished standard with UL 507
& cUL 507 listing (Electric Fan/
GPWX).
Specifications & Dimensions
Specications
• Description: Fan shall be inline mounted, direct drive, centrifugal exhaust fan.
• Certications: Fan shall be manufactured by an ISO 9001 certied company. Fan
shall be listed by Underwriters Laboratories (UL 507) and UL listed for Canada
(cUL 507). Fan shall bear the AMCA Certied Ratings Seal for sound and air
performance.
• Construction: Fan wheel housing and integral outlet duct collar shall be injection
molded from a specially engineered resin exceeding UL requirements for smoke
and heat generation. The outlet duct shall have provision for an aluminum
backdraft damper with continuous aluminum hinge rod. The inlet box shall be
minimum 22 gauge galvanized steel. Motor shall be isolation mounted to a
one piece galvanized stamped steel integral motor mount/inlet. A eld wiring
compartment with disconnect receptacle shall be standard. To accommodate
different mounting positions, an adjustable prepunched mounting bracket shall be
provided. Unit shall be shipped in ISTA Certied Transit Tested Packaging.
• Wheel: Wheel shall be centrifugal forward curved type, injection molded of
polypropylene resin. Wheel shall be balanced in accordance with AMCA Standard
204-05, Balance Quality and Vibration Levels for Fans.
• Motor: Motor shall be permanent split capacitor with permanently lubricated
sealed bearings and include impedance or thermal overload protection and
disconnect plug. Motor shall be furnished at the specied voltage and phase.
• Product: Fan shall be model Gemini GN 126 - 188 as manufactured by Loren
Cook Company of Springeld, Missouri.
Dimensions (inches)
Model Shipping Weight
126 - 148 15
162 - 188 16
Weights are in pounds.
GN Sizes 126 - 188
Gemini Inline Fan
4"
14"
5-15/16" O.D.
Discharge
Inlet (14" x 3-1/4")
4"
12"
8-3/8"
12-3/4"
15-1/2"
3-1/4"
Air Flow
Air Flow
Air Flow
Loren Cook Company certies
that the Gemini GN 126-188
are licensed to bear the AMCA
Seal. The ratings shown are
based on tests and procedures
performed in accordance with
AMCA Publication 211 and AMCA
Publication 311, and comply
with requirements of the AMCA
Certied Ratings Program.
Gemini Catalog
8www.LorenCook.com
®
A1"
L
B
J
K
Air Flow
H
Double blower unit is shown.
W5/8"
Air Flow
Specifications & Dimensions
Type Gemini GN 222-960 are
furnished standard with UL 705 &
cUL 705 listing (Power Ventilator/
ZACT).
Type Gemini GN 222-960 is
available with UL 1995 & cUL
1995 listing (Heating and Cooling
Equipment-Fan Unit), when
installed with inlet and outlet duct.
Specications
• Description: Fan shall be inline mounted, direct drive, centrifugal exhaust fan.
• Certications: Fan shall be manufactured by an ISO 9001 certied company. Fan
shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada
(cUL 705). Fan shall bear the AMCA Certied Ratings Seal for sound and air
performance.
• Construction: Fan housing shall be minimum 20 gauge galvanized steel
and acoustically insulated. Blower and motor assembly shall be mounted to a
minimum 14 gauge reinforcing channel and shall be easily removable from the
housing. Motor shall be mounted on vibration isolators. Unit shall be supplied with
integral wiring box and receptacle and disconnect receptacle shall be standard.
Discharge position shall be convertible from right angle to straight through by
moving interchangeable panels. The outlet duct collar shall include a reinforced
aluminum damper with continuous aluminum hinge rod and nylon bushings. To
accommodate different mounting positions, an adjustable prepunched mounting
bracket shall be provided. Unit shall be shipped in ISTA Certied Transit Tested
Packaging.
• Wheel: Wheel shall be centrifugal forward curved type, constructed of galvanized
steel. Wheel shall be balanced in accordance with AMCA Standard 204-05,
Balance Quality and Vibration Levels for Fans.
• Motor: Motor shall be permanent split capacitor with permanently lubricated
sealed bearings and built-in thermal overload protection and disconnect plug.
Motor shall be furnished at the specied voltage and phase.
• Product: Fan shall be model Gemini GN 222-960 as manufactured by Loren Cook
Company of Springeld, Missouri.
Dimensions (inches)
Model Housing Outlet Inlet Collar Shipping
Weight
LW & H A B J K
222 - 242 12-3/8 9-3/4 6 4-1/2 12-5/16 9-11/16 22
322 - 342 12-3/8 10-3/4 8 6 12-5/16 10-11/16 25
422 17 11-7/8 8 6 16-15/16 11-15/16 30
522 - 542 17 11-7/8 8 6 16-15/16 11-15/16 32
622 - 642 17 11-7/8 10-1/2 4-3/4 16-15/16 11-15/16 35
720 - 740 17 11-7/8 10-1/2 4-3/4 16-15/16 11-15/16 36
822 - 862 27 14-11/16 20 6 27 14-1/2 74
920 - 960 31 14-11/16 24-1/4 6 31 14-1/2 86
Weights are in pounds.
GN Sizes 222 - 960
Gemini Inline Fan
222 - 740
822 - 960
Loren Cook Company certies
that the Gemini GN 222-960
are licensed to bear the AMCA
Seal. The ratings shown are
based on tests and procedures
performed in accordance with
AMCA Publication 211 and AMCA
Publication 311, and comply
with requirements of the AMCA
Certied Ratings Program.
Gemini Catalog
9www.LorenCook.com
®
Specifications & Dimensions
Type Gemini GN 1000 - 2000 are
furnished standard with UL 705 &
cUL 705 listing (Power Ventilator/
ZACT).
Type Gemini GN 1000-2000 is
available with UL 1995 & cUL
1995 listing (Heating and Cooling
Equipment-Fan Unit), when
installed with inlet and outlet duct.
Specications
• Description: Fan shall be inline mounted, direct drive, centrifugal exhaust fan.
• Certications: Fan shall be manufactured by an ISO 9001 certied company. Fan
shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada
(cUL 705). Fan shall bear the AMCA Certied Ratings Seal for air performance.
• Construction: Fan wheel housing shall be minimum 20 gauge galvanized steel
and acoustically insulated. Blower and motor assembly shall be mounted to
a minimum 14 gauge reinforcing channel. Motor shall be resiliently mounted.
Unit shall be supplied with integral wiring box. Discharge position shall be eld
convertible from straight through, inline conguration to right angle conguration
by moving interchangeable panels. The outlet duct collar shall include reinforced
aluminum dampers with continuous aluminum hinge rods and nylon bushings.
To accommodate different ceiling thickness, an adjustable prepunched mounting
bracket shall be provided. Unit shall be shipped in ISTA Certied Transit Tested
Packaging.
• Wheel: Wheels shall be twin DWDI centrifugal forward curved type, constructed
of galvanized steel. Wheel shall be balanced in accordance with AMCA Standard
204-05, Balance Quality and Vibration Levels for Fans.
• Motor: Motor shall be totally enclosed type with permanently lubricated sealed
bearings and built-in thermal overload protection. Motor shall be furnished at the
specied voltage and phase.
• Product: Fan shall be model Gemini GN 1000 or GN 2000 as manufactured by
Loren Cook Company of Springeld, Missouri.
Dimensions (inches)
Model Housing Outlet Shipping
Weight
LW & H A B
1000 38-1/8 15-1/4 33-11/16 7-11/16 125
2000 45-7/16 16-5/8 41-1/8 9-5/8 165
Weights are in pounds.
GN
Sizes 1000 - 2000
Gemini Inline Fan
Loren Cook Company certies
that the Gemini 1000 and 2000
series are licensed to bear
the AMCA Seal. The ratings
shown are based on tests
and procedures performed
in accordance with AMCA
Publication 211 and comply with
the requirements of the AMCA
Certied Ratings Program.
Gemini Catalog
10www.LorenCook.com
®
Options & Accessories
Motors
Gemini fans can be specied to meet different line
voltages. The Gemini 100 series is available in standard
115 volt. Contact factory for other voltages available. The
Gemini 200-900 series are available in standard 115 volt
or optional 220/240 volt. The Gemini 1000 and 2000 are
available in single-phase 115/208-230 volt or three-phase
208-230/460.
277 Volt Transformer
Available for the Gemini 220 - 960 series.
This step-down transformer allows for the
operation of a 120 volt Gemini fan from a
277 volt source. It is shipped loose for eld
installation.
Switches / Controls
Motion Sensor
The wall or ceiling mount passive infrared motion sensor will automatically turn the
fan on when the room is occupied. Each sensor features an adjustable time delay
of 20 seconds to 30 minutes allowing the fan to continue to run after the room is no
longer occupied up to the chosen setting. Energy and air demands of the building
will be reduced. The sensor must be installed in a 2x4 handy box and should be
mounted within the line-of sight of the occupant. Maximum sensor coverage is
1200 square feet. Shipped loose for eld installation. 120 volt only. Refer to the 277
volt transformer.
Time Delay
This accessory operates both the fan and room light. Moving the switch to the “on”
position turns the light & fan on immediately. When the switch is moved to the “off”
position, power to the light is interrupted, but the fan will continue to operate one
to 60 minutes, based on the time delay setting. 120 volt only. Refer to the 277 volt
transformer.
Fan Speed Controller
The FSC offers excellent energy conservation and lower sound levels when 100
percent of a direct drive fan operating capacity is not required. It employs solid
state circuitry for long life and dependability. Available only on 115 volt 230 volt and
277 volt shaded pole or permanent split capacitor direct drive motors and is not
available on 1140 RPM and 1725 RPM motors. It is normally shipped loose for eld
installation. Optional pre-wiring is available.
ASHRAE 62.2 Controllers
Fan/Light Controller
The ASHRAE 62.2 Gemini Fan/Light Controller is designed to monitor and control
fan operation to deliver a specic amount of ventilation in order to comply with
ASHRAE 62.2. It utilizes a microprocessor and two dial presets, DELAY and
VENTILATION, to monitor and control fan operation. When properly connected
to a fan/light combo, the switch acts as a simple on/off switch for the light while
controlling the fan operation as preset with the DELAY and VENTILATION dials.
VENTILATION Setting – determines the minimum number of minutes per hour the
fan must run.
DELAY Setting – determines the number of minutes the fan should run after the
toggle switch has been turned to OFF, allowing the fan to complete the necessary
ventilation during the use cycle.
Programmable Controller
The ASHRAE 62.2 Programmable Gemini Fan Controller is designed to allow more
exibility in control of Gemini ceiling fans. It allows input of the square footage
and bedrooms to calculate the proper ventilation requirements in order to comply
with ASHRAE 62.2 for whole residence ventilation strategies. The controller can
also be used to cycle the fan to specic on/off cycles and allows manual override
for continuous operation. While this unit provides sophisticated programming
capabilities, it does not allow for the separate control of fan and light.
Wall Motion
Sensor
Ceiling Motion
Sensor
Models
126 - 862
Models
920 - 2000
FSC
Time Delay
Programmable Controller
Fan/Light Controller
Gemini Catalog
11www.LorenCook.com
®

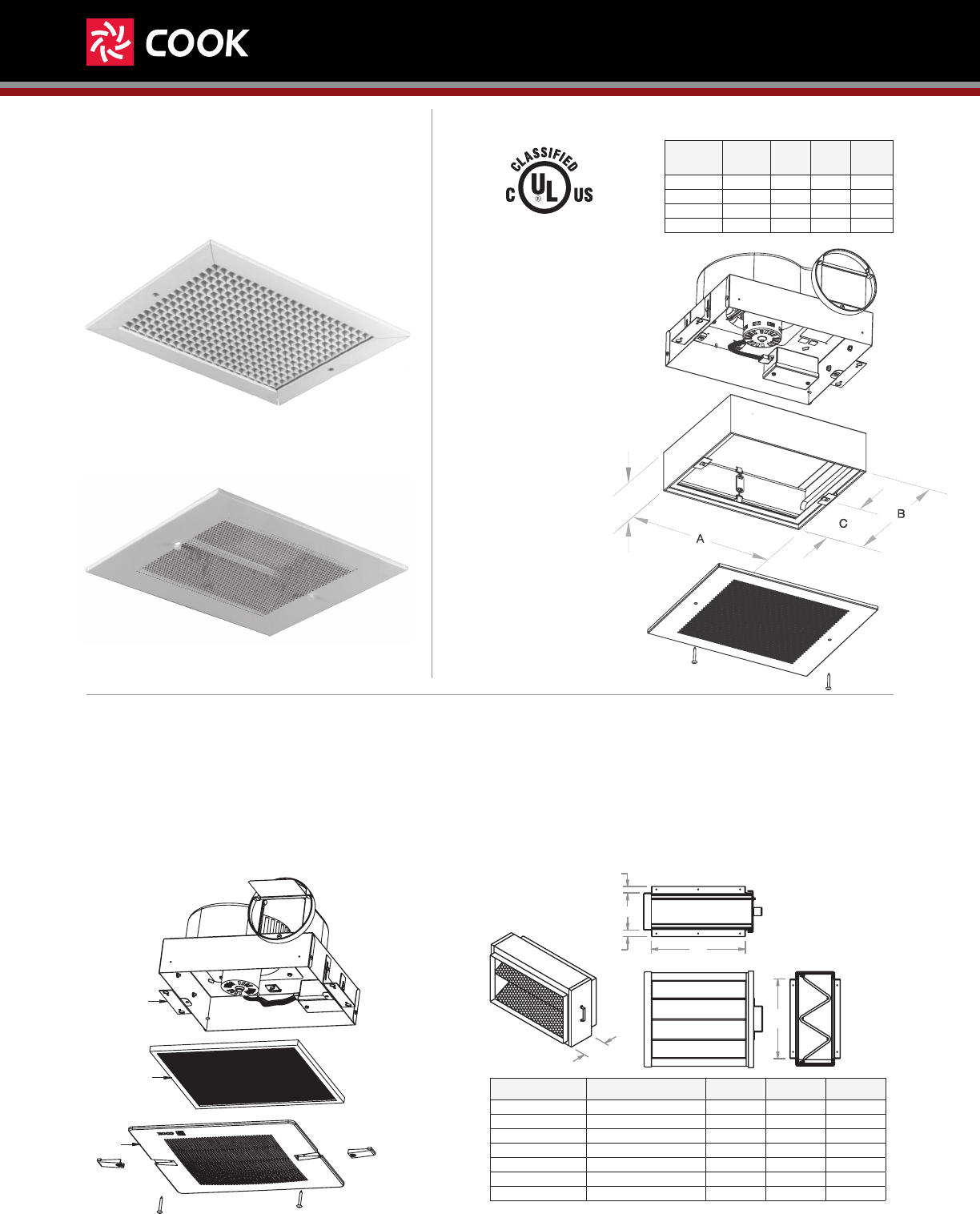

Ceiling Radiation Damper
Classied by UL to function
as a heat barrier in an air
handling penetration through a
re resistive membrane ceiling
assembly.
Meets
• NFPA 90A requirements
• BOCA, SBCCA, UBC
requirements
• City of New York 460-88-5A
• California State Fire Marshal
3225-0935: 102
4-3/16
Options & Accessories
Grilles
Deluxe Aluminum
Attractive, architectural styled grilles available
in painted white or aluminum anodized nish.
Not available on GC-160, GC-180, GC-1000 or
GC-2000 units. Not for use with ceiling radiation
damper.
Filter
Grill
Unit
Filters
Grille mounted unit lter
The grille mounted unit lter is a washable aluminum mesh
lter which is placed between the grille and the unit. This
lter reduces the accumulation of dirt build-up on the motor
and the fan wheel. Dirt build-up on the motor can cause the
motor to overheat and fail. Dirt build-up on the fan wheel
can reduce performance and cause imbalance which leads
to higher noise levels.
Inline lter box
The Gemini lter box can be mounted either directly before
the Gemini inline fan or remotely in the duct work. It features
a removable lter drawer and a washable lter media. It is
constructed of corrosion resistant galvanized steel. Other
lter media is available by consulting the factory.
1
1A
C
B
Gemini Series Filter Unit AB C
200 GFB-200 12-1/16 9-7/16 5
300 GFB-300 12-1/16 10-7/16 5
400-700 GFB-400 - GFB-700 16-11/16 11-11/16 6
800 GFB-800 26-3/4 14-1/4 6
900 GFB-900 30-3/4 14-1/4 6
1000 GFB-1000 37-11/16 14-1/4 6
2000 GFB-2000 45-3/16 15-7/8 6
All dimensions in inches.
Painted Steel
Available for the 100, 200, and 300 series fans
whenever a steel grille is desired for cosmetic
reasons.
Gemini
Series Model A B C
100 CRD1 14-1/2 12-3/8 6-3/16
200 CRD2 12-5/8 10-1/8 5-1/16
300 CRD3 12-5/8 11-1/8 5-9/16
400-700 CRD4 17-5/8 12-1/4 6-1/8
All dimensions in inches.
Gemini Catalog
12www.LorenCook.com
®
Duct Adapters & Wall Vents
Round Duct Adapter
The Gemini 200-500 can be eld converted from a rectangular
outlet to a round outlet by removing the rectangular damper
frame and replacing it with the round duct adaptor.
Gemini Series Model Duct Diameter
200-300 RDA-6 6
200-500 RDA-8 8
Round Duct Wall Cap with Damper
Corrosion resistant aluminum with integral aluminum backdraft
damper
.
Gemini Series Model Size A Sq. BC Dia. D
100-300 WCR6-Alum. 6 8 7 6 12-3/4
200-500 WCR8-Alum. 810 9 8 14-1/4
Wall Cap with Birdscreen
Corrosion resistant galvanized steel or aluminum, with 1/2” birdscreen
.
Gemini
Series
Model No. Size A B C D
Galv. Alum.
300-500 WCG-2 WCA-2 2 10-5/16 7-3/16 6-3/8 8-5/16
600-700 WCG-6 WCA-6 6 12-13/16 6 5 10-13/16
800-800 WCG-8 WCA-8 8 22-5/16 7-3/16 6-3/16 20-5/16
900-900 WCG-9 WCA-9 9 26-9/16 7-15/16 6-15/16 24-9/16
Eave Elbow
Gemini Series Model Type B C
300-500 SE 2 Short Eave 12-1/4 12-1/4
300-500 LE 2 Long Eave 15-1/2 14
Brick Vent
Frame and blades are constructed from .125” thick materials.
Designed for maximum protection against water entering
building with 4” deep frame and 45 degree blades. The vents
come standard with clear anodized nish.
Gemini Series Model A BC
100 BV1 4-3/4 16-1/2 4
200-400 BV2 4-3/4 16-1/2 4
500-700 BV5 7-3/4 16-1/2 4
800-1000 BV8 24 24 2
2000 BV20 30 30 2
All dimensions in inches.
Roof jack with damper
or roof cap
Wall cap
with damper
Exterior
Wall
Roof
Joists
Power
cord
Seal around the
unit with caulk.
Insulation around unit.
Also, cover the fan with insulation.
Short (1’) piece of flexible duct
will absorb vibration & noise.
6” round duct. Insulated duct will help
absorb vibration. Use the shortest runs
possible & long radius elbows.
or
Use foil tape
on the joints
to ensure a
good seal.
Structural ribs for strength
and good masonry bond
Continuous drip flange
keeps water from vent face
A
B
C
Overlapping
blades
Extended sill
Bottom masonry ribs
Aluminum mesh
insect screen
High water stop
Options & Accessories
A Sq.
B
C Dia.
8-1/2
D
1" deep
C
BA
5"
D
6-1/8
8-1/8
C
B
Related product: Cinder Block Fan
CBF direct drive transfer fans are
ideal for ventilating equipment rooms,
plumbing & electrical chases or nearly
any conned space. The compact
design and maintenance free motors
provide an economic solution to small
ventilating challenges. The efcient
propeller and venturi result in quiet
operation.
• Fits in place of a standard
16 by 8 inch cinder block
• Mountable in any wall
construction
• Supply or exhaust
• Corrosion resistant
galvanized steel housing
• Tinnerman clips for grille
mounting
• Junction box for easy wiring
• Mounting anges
• Powder coated steel grille
• Easily removable internal
assembly
• Options
• Fan speed control
• Second grille
Model Max
Watts Air Performance
CBF 82 SP 0.000” 0.100” 0.125” 0.250” 0.375” 0.400”
CFM 539 487 472 361 233 218
Go to LorenCook.com/CBF
Round Duct Adapter
Brick Vent
Round Duct Wall Cap with Damper
Eave Elbow Wall Cap with Birdscreen
Gemini Catalog
13www.LorenCook.com
®
Options & Accessories
Hanging Isolator Kit
For ceiling and inline units 122
through 740. Bushings are
made of resilient thermoplastic.
The bushings and eyelets are
sized to be used with common
1/4” x 20 all thread. Standard
Gemini mounting brackets
easily accommodate the isolator
bushings. Flanged nuts eliminate
the need for additional washers
and provide for a more simplied
eld assembly. Rated Load 160
lbs.
1/4” all thread (by others)
Mounting Bracket
Isolator Bushing
Eyelet
Flanged Nut
Isolators
Rubber In Shear Spring
Roof Vents
A
B
CD
E
Throat
Roof Jack
Corrosion resistant galvanized steel with black baked enamel nish, 1/2” birdscreen and
built-in
backdraft damper
. Optional Roof Jack Adapter is available for the RJ200. The
Roof Jack Adapter is a transition from the Gemini Fan to the Roof Jack. The RJR100
has an integral 6 inch round adapter for ease of installation of duct.
Gemini Series Model A B C D E Throat Size
100 RJR100 14-1/4 18-3/4 10-3/8 14-1/2 6-1/2 6 Dia.
200-500 RJ200 14-1/4 18-3/4 10-3/8 14-1/2 6-1/2 10-1/4 X 10-3/4
Roof Cap: Curb Mount or Flat Base Design
All aluminum construction, anti-backdraft ange. Available with optional birdscreen.
PR8F, PR12F and PR20F mount directly on the roof with integral ashing. PR8, PR12,
PR16 and PR20 are curb mount.
Gemini Series Model Type AB C Throat Dia.
100-500PR8 Curb Mount 18-1/4 10-1/8 18 8-19/32
PR8F Flat Base 18-1/4 8-1/8
600-700PR12 Curb Mount 28-1/4 10-5/16 20 12-1/2
PR12F Flat Base 28-1/4 8-5/16
800-900PR16 Curb Mount 28-1/4 12-5/8 28 16-1/2
PR16F Flat Base 28-1/4 10-5/8
1000-2000 PR20 Curb Mount 36-1/2 13-5/8 32 20-1/2
PR20F Flat Base 36-1/2 11-5/8
A
Throat
B
C
2"
Not included on
flat base
Curb
Gravity dampers are not recommended with the
Gemini fans. Motorized dampers are available, by
consulting factory. Sound curbs available. Contact
factory for dimensions.
Model Curb Model F
Sq.
V
Sq.
W
Sq.
Roof
Opening
Galv. Alum.
PR8 RCG-16 RCA-16 16-1/2 20-1/2 9-3/4 13-1/2
PR8F
PR12 RCG-18 RCA-18 18-1/2 22-1/2 11-3/4 15-1/2
PR12F
PR16 RCG-26 RCA-26 26-1/2 30-1/2 19-3/4 23-1/2
PR16F
PR20 RCG-30 RCA-30 30-1/2 34-1/2 23-3/4 27-1/2
PR20F
All dimensions in inches.
Treated Wood Nailer
F Sq.
V Sq.
Insulation
W Sq.
Roof Opening
Optional
Damper Tray
9-1/2"
1-1/2"
Rated
Load
SC-75 75
Rated
Load
Spring
Rate
SC-35 35 23
SC-70 70 51
Pounds
Gemini Catalog
14www.LorenCook.com
®
Conversion Kits
Unit are available as ceiling installation or inline
installation. The fans may also be converted, in the
eld, from a ceiling fan to an inline fan – or vise
versa.
Gemini 100 Series: Kits include all the necessary
components to convert a 100 series fan from a
ceiling to inline installation, or vice versa.
Gemini 200 - 2000 Series: No kits are needed when
converting ceiling to inline installation. Instructions
are provided. When converting an inline to a ceiling
installation, contact a rep for a grille.
Standard Ceiling
Installation
Alternate Ceiling
Installation
Standard Inline
Installation
Alternate Inline
Installation
Inline to Ceiling
Conversion Kit
Includes: Inlet box end
plate, 2 grille screw clips,
2 grille screws & grille
Ceiling to Inline
Conversion Kit
Includes: Inline cover
panel
2
Sheet
Metal
Screws
Installation Options For Sizes 200 - 2000
Discharge direction can be converted from right angle to straight line, without a kit, by swapping an outer panel and / or grille.
Airow is illustrated by black arrows. Ductwork (furnished by the installer) is illustrated by shaded areas.
Options & Accessories
Gemini Catalog
15www.LorenCook.com
®
Ceiling Performance Data
GC 126 - 188
Model RPM
CFM/
Watt
at 0.1
SP
0.0 SP .100 SP .125 SP .250 SP .375 SP .500 SP .625 SP .750 SP .875 SP 1.000 SP
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
GC-126 550 2.5 70 0.3 53 0.3 48 0.3 32 0.7
GC-128 750 2.8 94 0.8 82 0.9 79 0.9 63 1.0 49 1.3 37 2.0
GC-146 900 2.9 114 1.2 105 1.2 103 1.2 90 1.3 77 1.5 64 2.0 50 2.5 36 3.0
GC-148 1075 3.1 152 2.5 144 2.5 142 2.5 132 2.5 120 2.5 108 3.0 94 3.0 78 3.5 56 3.5
GC-166 1100 3.1 164 3.0 157 3.0 155 3.0 145 3.0 133 3.0 119 3.0 105 3.0 88 3.5 66 3.5 40 3.5
GC-168 1160 3.0 180 3.5 173 3.5 171 3.5 162 3.5 150 3.5 136 4.0 121 4.0 105 4.5 86 4.5 54 5.0
GC-186 1100 2.4 231 5.5 226 5.5 225 5.5 218 5.5 209 5.5 199 5.0 186 5.0 170 5.0 151 5.0 129 4.5
GC-188 1450 2.2 261 7.0 254 6.5 252 6.5 244 6.5 235 6.0 223 6.0 209 6.0 191 5.5 172 5.5 150 5.5
★ ENERGY STAR® certied.
Performance certied is for Installation Type B: Free Inlet, Ducted Outlet. Performance ratings for GC-126 through GC-188 include the effects of inlet grille. Speed
(RPM) shown is nominal. Performance is based on actual speed of the test. The sound ratings shown are loudness values in spherical sones at 5 ft. (1.5m) in a
spherical free eld calculated per AMCA Standard 301. Values shown are for Installation Type B: Free inlet spherical sone levels.
GC 222 - 960
Model RPM
CFM/
Watt
at 0.1
SP
0.0 SP .100 SP .125 SP .250 SP .375 SP .500 SP .625 SP .750 SP .875 SP 1.000 SP
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
GC-222 1332 4.8 130 1.5 115 1.3 111 1.3 85 1.2
GC-242 1483 5.2 158 2.5 142 2.0 137 2.0 112 1.5 56 1.3
GC-322 1600 3.2 204 4.0 191 4.0 187 4.0 165 3.5 139 3.5
GC-342 1725 3.0 268 5.0 252 5.0 248 4.5 224 4.5 195 4.5 153 4.5
GC-422 1500 2.8 308 4.0 298 4.0 295 4.0 282 4.0 267 4.5 250 4.0 223 4.0
GC-522 1400 2.7 213 1.5 208 2.0 207 2.0 201 2.0 194 2.5
GC-542 1600 2.9 391 5.5 380 5.5 377 5.5 361 5.5 340 5.5 314 5.5 285 5.0 248 4.5
GC-622 1400 3.3 501 3.5 486 3.5 482 3.5 461 3.0 433 3.0 392 3.0 339 3.0
GC-642 1500 3.1 602 5.0 582 4.5 576 4.5 548 4.5 512 4.0 471 4.0 421 3.5 350 3.5
GC-720 1375 2.4 709 5.5 687 5.5 682 5.5 653 5.5 619 5.0 578 5.0 535 5.0 480 4.5 385 4.5
GC-740 1625 2.2 852 7.0 823 7.0 815 7.0 775 6.5 727 6.0 672 6.0 616 5.0 552 4.5 463 4.0 303 3.5
GC-822 910 3.4 944 3.5 929 3.5 925 3.5 904 4.0 879 4.0 830 4.0
GC-842 974 3.3 1187 5.0 1157 5.0 1149 5.0 1106 5.0 1043 4.5 905 4.5 637 3.5
GC-862 1098 3.4 1433 7.0 1371 7.0 1355 6.5 1266 6.5 1149 5.5 995 5.0 775 4.0
GC-920 925 3.6 1471 6.0 1427 6.0 1415 6.0 1356 6.0 1286 6.5 1190 6.5 1003 7.0
GC-940 1040 3.5 1653 7.5 1582 7.5 1565 7.0 1481 7.0 1400 7.0 1293 7.0 1089 7.0
GC-960 1112 3.4 1807 8.5 1716 8.0 1694 8.0 1588 7.5 1491 7.0 1386 7.0 1197 7.0
★ ENERGY STAR® certied.
Performance certied is for Installation Type B: Free Inlet, Ducted Outlet. Performance ratings for GC-222 through GC-960 include the effects of inlet grille and
backdraft damper. Speed (RPM) shown is nominal. Performance is based on actual speed of the test. The sound ratings shown are loudness values in spherical
sones at 5 ft. (1.5m) in a spherical free eld calculated per AMCA Standard 301. Values shown are for Installation Type B: Free inlet spherical sone levels.
GC 1000 & 2000
Model RPM
CFM/
Watt
at 0.1
SP
0.0 SP .100 SP .125 SP .250 SP .375 SP .500 SP .625 SP .750 SP .875 SP 1.000 SP
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
GC-1000
1100 3.1 N/A N/A 2230 7.8 2207 7.8 2090 7.6 1958 7.1 1796 6.7 1575 6.6 1090 6.6
GC-200
0 1140 2.8 N/A N/A 3472 9.0 3441 9.0 3282 8.5 3105 8.5 2925 8.5 2736 8.0 2503 8.0
2147
8.0 1431 8.0
Performance certied for GC-1000 and GC-2000 is for Installation Type B: Free inlet, ducted outlet. Performance ratings do not include the effects of
appurtenances in the airstream. Speed (RPM) shown is nominal. Performance is based on actual speed of the test. The AMCA Certied Ratings Seal applies to air
performance ratings only.
★
★
★
Gemini Catalog
16www.LorenCook.com
®
Inline Performance Data
GN 126 - 188
Model RPM
CFM/
Watt
at 0.1
SP
0.0 SP .100 SP .125 SP .250 SP .375 SP .500 SP .625 SP .750 SP .875 SP 1.000 SP
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
GN-126 550 2.5 70 0.3 53 0.3 48 0.3 32 0.7
GN-128 750 2.8 94 0.8 82 0.9 79 0.9 63 1.0 49 1.3 37 2.0
GN-146 900 2.9 114 1.2 105 1.2 103 1.2 90 1.3 77 1.5 64 2.0 50 2.5 36 3.0
GN-148 1075 3.1 152 2.5 144 2.5 142 2.5 132 2.5 120 2.5 108 3.0 94 3.0 78 3.5 56 3.5
GN-166 1100 3.1 164 3.0 157 3.0 155 3.0 145 3.0 133 3.0 119 3.0 105 3.0 88 3.5 66 3.5 40 3.5
GN-168 1160 3.0 180 3.5 173 3.5 171 3.5 162 3.5 150 3.5 136 4.0 121 4.0 105 4.5 86 4.5 54 5.0
GN-186 1100 2.4 231 5.5 226 5.5 225 5.5 218 5.5 209 5.5 199 5.0 186 5.0 170 5.0 151 5.0 129 4.5
GN-188 1450 2.2 261 7.0 254 6.5 252 6.5 244 6.5 235 6.0 223 6.0 209 6.0 191 5.5 172 5.5 150 5.5
Performance certied is for Installation Type B: Free Inlet, Ducted Outlet. Performance ratings for GN-126 through GN-188 include the effects of inlet grille. Speed
(RPM) shown is nominal. Performance is based on actual speed of the test. The sound ratings shown are loudness values in spherical sones at 5 ft. (1.5m) in a
spherical free eld calculated per AMCA Standard 301. Values shown are for Installation Type B: Free inlet spherical sone levels.
GN 222 - 960
Model RPM
CFM/
Watt
at 0.1
SP
0.0 SP .100 SP .125 SP .250 SP .375 SP .500 SP .625 SP .750 SP .875 SP 1.000 SP
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
GN-222 1332 4.8 130 1.5 115 1.3 111 1.3 85 1.2
GN-242 1483 5.2 158 2.5 142 2.0 137 2.0 112 1.5 56 1.3
GN-322 1600 3.2 204 4.0 191 4.0 187 4.0 165 3.5 139 3.5
GN-342 1725 3.0 268 5.0 252 5.0 248 4.5 224 4.5 195 4.5 153 4.5
GN-422 1500 2.8 308 4.0 298 4.0 295 4.0 282 4.0 267 4.5 250 4.0 223 4.0
GN-522 1400 2.7 213 1.5 208 2.0 207 2.0 201 2.0 194 2.5
GN-542 1600 2.9 391 5.5 380 5.5 377 5.5 361 5.5 340 5.5 314 5.5 285 5.0 248 4.5
GN-622 1400 3.3 501 3.5 486 3.5 482 3.5 461 3.0 433 3.0 392 3.0 339 3.0
GN-642 1500 3.1 602 5.0 582 4.5 576 4.5 548 4.5 512 4.0 471 4.0 421 3.5 350 3.5
GN-720 1375 2.4 709 5.5 687 5.5 682 5.5 653 5.5 619 5.0 578 5.0 535 5.0 480 4.5 385 4.5
GN-740 1625 2.2 852 7.0 823 7.0 815 7.0 775 6.5 727 6.0 672 6.0 616 5.0 552 4.5 463 4.0 303 3.5
GN-822 910 3.4 944 3.5 929 3.5 925 3.5 904 4.0 879 4.0 830 4.0
GN-842 974 3.3 1187 5.0 1157 5.0 1149 5.0 1106 5.0 1043 4.5 905 4.5 637 3.5
GN-862 1098 3.4 1433 7.0 1371 7.0 1355 6.5 1266 6.5 1149 5.5 995 5.0 775 4.0
GN-920 925 3.6 1471 6.0 1427 6.0 1415 6.0 1356 6.0 1286 6.5 1190 6.5 1003 7.0
GN-940 1040 3.5 1653 7.5 1582 7.5 1565 7.0 1481 7.0 1400 7.0 1293 7.0 1089 7.0
GN-960 1112 3.4 1807 8.5 1716 8.0 1694 8.0 1588 7.5 1491 7.0 1386 7.0 1197 7.0
Performance certied is for Installation Type B: Free Inlet, Ducted Outlet. Performance ratings for GN-222 through GN-960 include the effects of inlet grille and
backdraft damper. Speed (RPM) shown is nominal. Performance is based on actual speed of the test. The sound ratings shown are loudness values in spherical
sones at 5 ft. (1.5m) in a spherical free eld calculated per AMCA Standard 301. Values shown are for Installation Type B: Free inlet spherical sone levels.
GN 1000 & 2000
Model RPM
CFM/
Watt
at 0.1
SP
0.0 SP .100 SP .125 SP .250 SP .375 SP .500 SP .625 SP .750 SP .875 SP 1.000 SP
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
CFM
Sones
GN-1000
1100 3.1 N/A N/A 2230 7.8 2207 7.8 2090 7.6 1958 7.1 1796 6.7 1575 6.6 1090 6.6
GN-200
0 1140 2.8 N/A N/A 3472 9.0 3441 9.0 3282 8.5 3105 8.5 2925 8.5 2736 8.0 2503 8.0
2147
8.0 1431 8.0
Performance certied for GN-1000 and GN-2000 is for Installation Type B: Free inlet, ducted outlet. Performance ratings do not include the effects of
appurtenances in the airstream. Speed (RPM) shown is nominal. Performance is based on actual speed of the test. The AMCA Certied Ratings Seal applies to air
performance ratings only.
2015 E. DALE STREET
SPRINGFIELD, MO 65803-4637
417.869.6474
FAX 417.862.3820
lorencook.com
Gemini Catalog - September 2015
B50181-001
