© 2017 GigaDevice Semiconductor (Beijing) Inc. Printed in China July 2017
Welcome to GigaDevice
About Us
Contents
01 GD32 MCU
14 SPI NOR Flash
18 SPI NAND Flash
20 Flash Package Options
GigaDevice, established in 2005, is a leading
fabless company engaged in advanced
memory technology and IC solutions. The
company has successfully completed the
IPO at Shanghai Stock Exchange in 2016.
GigaDevice provides a wide range of high
performance Flash memory and 32-bit
general-purpose MCU products. Gigadevice
is among the companies that pioneered SPI
NOR Flash memory and is currently ranked
number three in the world in this market
segment with more than 1 billion units
shipped every year.
Since 2007, GigaDevice is ISO9001 and
ISO14001 certified by SGS. GigaDevice has
filed 600+ patent applications with 200+
patents granted. More than 55% employees
are in research and development, which
continues to di erentiate our products from
competitions in the market. The GigaDevice
management team embodies leading
semiconductor industry experience from
renowned memory companies in California’s
Silicon Valley, Korea, and Taiwan.
GigaDevice currently produces a wide
range of SPI NOR Flash, SPI NAND Flash,
Parallel NOR Flash and MCU for use
in embedded, consumer, and mobile
communications applications. GigaDevice
operates a manufacturing model based
on strong relationships with: foundry,
assembly, and test subcontractor partners.
GigaDevice believes this well-defined
fabless manufacturing model provides us
with a competitive advantage over the
conventional fabrication-based Integrated
Device Manufacturers because the capital
equipment expenditure to maintain
advanced memory process technologies
is beyond the market return of many IC
memory market segments. The consistent
investment in advanced equipment by our
foundry partners and their rapid growth
in 12” wafer capacity are key factors in our
success over our competitors.
GD32 MCU
GD32 Cortex®-M3 MCU Portfolios
GD32 Cortex®-M4 MCU Portfolios
GD32 MCU 01
ARM Powered
GD32 MCU
02
GD32 MCU Confi guration
New GD32F4, Leading Performance
Outstanding Value
Innovation Choice
GD32 MCU 03

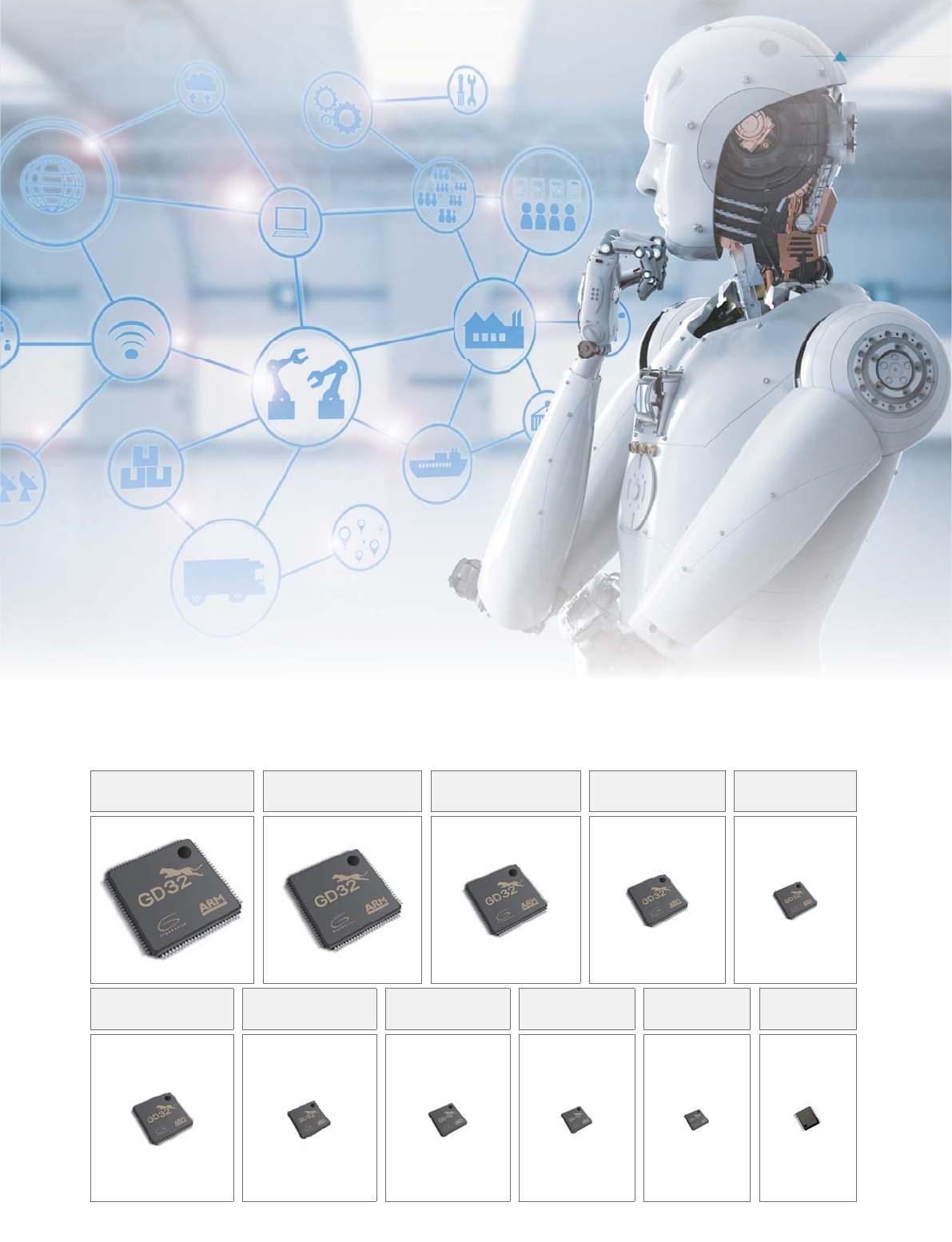

LQFP176
(24*24mm)
LQFP144
(20*20mm)
LQFP100
(14*14mm)
LQFP64
(10*10mm)
LQFP48
(7*7mm)
BGA176
(10*10mm)
BGA100
(7*7mm)
QFN36
(6*6mm)
QFN32
(5*5mm)
QFN28
(4*4mm)
TSSOP20
(6.5*4.4mm)
MCU Package Options
GD3
GD
GD
D
D3
D3
D
D3
G
2M
2M
2 M
2
2
M
2
2
CU
U
CU
U
U
U
0
03
03
3
3
3
0
0
03
3
3
GD32 MCU
04

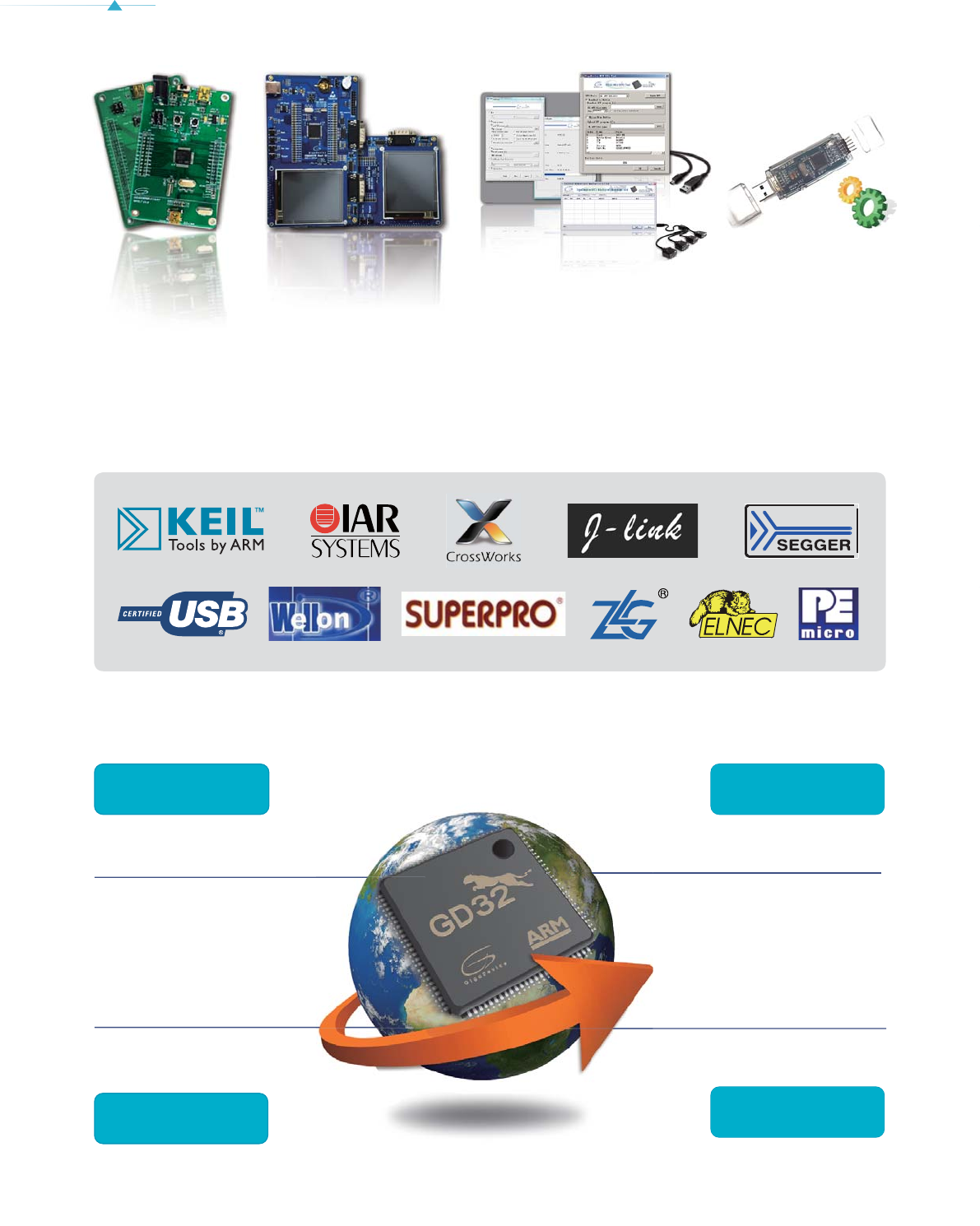

GD32 Development Eco-system
Build GD32 development environment with H/W and S/W compatible
Multiplex products
Best peripherals
Sufficient Capacity
Fast lead time
Series compatible
Easy to use
High Performance
Cost-effective
Product Line Service
Eco-system Quality
s
GD32F3 series of
32-bit ARM® Cortex®-M4 MCUs Selection Guide
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity
EXMC
Analog Interface
Package
Flash SRAM GPTM
(16bit)
Advanced
TM (16bit)
Basic TM
(16bit)
SysTick
(24bit) WDG RTC USART
+UART I2C SPI CAN
2.0B
USB
2.0 FS I2S SDIO Ether-
net
12bit ADC
Units (CHs)
12bit DAC
Units
GD32F303
GD32F303CCT6 120 256K 48K up to 37 4 1 2 1 2 1 3 2 3 1 1 2 3(10) 2 LQFP48
GD32F303CET6 120 512K 64K up to 37 4 1 2 1 2 1 3 2 3 1 1 2 3(10) 2 LQFP48
GD32F303CGT6 120 1024K 96K up to 37 10 1 2 1 2 1 3 2 3 1 1 2 3(10) 2 LQFP48
GD32F303RCT6 120 256K 48K up to 51 4 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F303RET6 120 512K 64K up to 51 4 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F303RGT6 120 1024K 96K up to 51 10 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F303RIT6 120 2048K 96K up to 51 10 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F303RKT6 120 3072K 96K up to 51 10 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F303VCT6 120 256K 48K up to 80 4 2 2 1 2 1 5 2 3 1 1 2 1 •3(16) 2 LQFP100
GD32F303VET6 120 512K 64K up to 80 4 2 2 1 2 1 5 2 3 1 1 2 1 •3(16) 2 LQFP100
GD32F303VGT6 120 1024K 96K up to 80 10 2 2 1 2 1 5 2 3 1 1 2 1 •3(16) 2 LQFP100
GD32F303VIT6 120 2048K 96K up to 80 10 2 2 1 2 1 5 2 3 1 1 2 1 •3(16) 2 LQFP100
GD32F303VKT6 120 3072K 96K up to 80 10 2 2 1 2 1 5 2 3 1 1 2 1 •3(16) 2 LQFP100
GD32F303ZCT6 120 256K 48K up to 112 4 2 2 1 2 1 5 2 3 1 1 2 1 •3(21) 2 LQFP144
GD32F303ZET6 120 512K 64K up to 112 4 2 2 1 2 1 5 2 3 1 1 2 1 •3(21) 2 LQFP144
GD32F303ZGT6 120 1024K 96K up to 112 10 2 2 1 2 1 5 2 3 1 1 2 1 •3(21) 2 LQFP144
GD32F303ZIT6 120 2048K 96K up to 112 10 2 2 1 2 1 5 2 3 1 1 2 1 •3(21) 2 LQFP144
GD32F303ZKT6 120 3072K 96K up to 112 10 2 2 1 2 1 5 2 3 1 1 2 1 •3(21) 2 LQFP144
GD32F305
GD32F305RBT6 120 128K 64K up to 51 4 1 2 1 2 1 5 2 3 2 OTG 2 2(16) 2 LQFP64
GD32F305RCT6 120 256K 96K up to 51 4 1 2 1 2 1 5 2 3 2 OTG 2 2(16) 2 LQFP64
GD32F305RET6 120 512K 96K up to 51 4 2 2 1 2 1 5 2 3 2 OTG 2 2(16) 2 LQFP64
GD32F305RGT6 120 1024K 96K up to 51 10 2 2 1 2 1 5 2 3 2 OTG 2 2(16) 2 LQFP64
GD32F305VCT6 120 256K 96K up to 80 4 1 2 1 2 1 5 2 3 2 OTG 2 •2(16) 2 LQFP100
GD32F305VET6 120 512K 96K up to 80 4 2 2 1 2 1 5 2 3 2 OTG 2 •2(16) 2 LQFP100
GD32F305VGT6 120 1024K 96K up to 80 10 2 2 1 2 1 5 2 3 2 OTG 2 •2(16) 2 LQFP100
GD32F305ZCT6 120 256K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 •2(21) 2 LQFP144
GD32F305ZET6 120 512K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 •2(21) 2 LQFP144
GD32F305ZGT6 120 1024K 96K up to 112 10 2 2 1 2 1 5 2 3 2 OTG 2 •2(21) 2 LQFP144
GD32F307
GD32F307RCT6 120 256K 96K up to 51 4 1 2 1 2 1 5 2 3 2 OTG 2 •2(16) 2 LQFP64
GD32F307RET6 120 512K 96K up to 51 4 2 2 1 2 1 5 2 3 2 OTG 2 •2(16) 2 LQFP64
GD32F307RGT6 120 1024K 96K up to 51 10 2 2 1 2 1 5 2 3 2 OTG 2 •2(16) 2 LQFP64
GD32F307VCT6 120 256K 96K up to 80 4 1 2 1 2 1 5 2 3 2 OTG 2 ••2(16) 2 LQFP100
GD32F307VET6 120 512K 96K up to 80 4 2 2 1 2 1 5 2 3 2 OTG 2 ••2(16) 2 LQFP100
GD32F307VGT6 120 1024K 96K up to 80 10 2 2 1 2 1 5 2 3 2 OTG 2 ••2(16) 2 LQFP100
GD32F307ZCT6 120 256K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 ••2(21) 2 LQFP144
GD32F307ZET6 120 512K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 ••2(21) 2 LQFP144
GD32F307ZGT6 120 1024K 96K up to 112 10 2 2 1 2 1 5 2 3 2 OTG 2 ••2(21) 2 LQFP144
GD32 MCU 05
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity Analog Interface
Package
Flash SRAM GPTM
(32bit)
GPTM
(16bit)
Advanced
TM (16bit)
Basic TM
(16bit)
SysTick
(24bit) WDG RTC USART I2C SPI USB
2.0 FS I2S CEC Comp 12bit ADC
Units (CHs)
12bit DAC
Units
GD32F330
GD32F330F4P6 84 16K 4K up to 15 1 4 1 1 2 1 1 1 1 1(9) TSSOP20
GD32F330F6P6 84 32K 4K up to 15 1 4 1 1 2 1 2 1 1 1(9) TSSOP20
GD32F330F8P6 84 64K 8K up to 15 1 4 1 1 2 1 2 2 2 1(9) TSSOP20
GD32F330G4U6 84 16K 4K up to 23 1 4 1 1 2 1 1 1 1 1(10) QFN28
GD32F330G6U6 84 32K 4K up to 23 1 4 1 1 2 1 2 1 1 1(10) QFN28
GD32F330G8U6 84 64K 8K up to 23 1 5 1 1 2 1 2 2 2 1(10) QFN28
GD32F330K4U6 84 16K 4K up to 27 1 4 1 1 2 1 1 1 1 1(10) QFN32
GD32F330K6U6 84 32K 4K up to 27 1 4 1 1 2 1 2 1 1 1(10) QFN32
GD32F330K8U6 84 64K 8K up to 27 1 5 1 1 2 1 2 2 2 1(10) QFN32
GD32F330C4T6 84 16K 4K up to 39 1 4 1 1 2 1 1 1 1 1(10) LQFP48
GD32F330C6T6 84 32K 4K up to 39 1 4 1 1 2 1 2 1 1 1(10) LQFP48
GD32F330C8T6 84 64K 8K up to 39 1 5 1 1 2 1 2 2 2 1(10) LQFP48
GD32F330CBT6 84 128K 16K up to 39 1 5 1 1 2 1 2 2 2 1(10) LQFP48
GD32F330R8T6 84 64K 16K up to 55 1 5 1 1 2 1 2 2 2 1(16) LQFP64
GD32F330RBT6 84 128K 16K up to 55 1 5 1 1 2 1 2 2 2 1(16) LQFP64
GD32F350
GD32F350G4U6 108 16K 4K up to 24 1 5 1 1 1 2 1 1 1 1 OTG 1 1 2 1(10) 1 QFN28
GD32F350G6U6 108 32K 6K up to 24 1 5 1 1 1 2 1 2 1 1 OTG 1 1 2 1(10) 1 QFN28
GD32F350G8U6 108 64K 8K up to 24 1 5 1 1 1 2 1 2 2 2 OTG 1 1 2 1(10) 1 QFN28
GD32F350K4U6 108 16K 4K up to 27 1 5 1 1 1 2 1 1 1 1 OTG 1 1 2 1(10) 1 QFN32
GD32F350K6U6 108 32K 6K up to 27 1 5 1 1 1 2 1 2 1 1 OTG 1 1 2 1(10) 1 QFN32
GD32F350K8U6 108 64K 8K up to 27 1 5 1 1 1 2 1 2 2 2 OTG 1 1 2 1(10) 1 QFN32
GD32F350C4T6 108 16K 4K up to 39 1 5 1 1 1 2 1 1 1 1 OTG 1 1 2 1(10) 1 LQFP48
GD32F350C6T6 108 32K 6K up to 39 1 5 1 1 1 2 1 2 1 1 OTG 1 1 2 1(10) 1 LQFP48
GD32F350C8T6 108 64K 8K up to 39 1 5 1 1 1 2 1 2 2 2 OTG 1 1 2 1(10) 1 LQFP48
GD32F350CBT6 108 128K 16K up to 39 1 5 1 1 1 2 1 2 2 2 OTG 1 1 2 1(10) 1 LQFP48
GD32F350R4T6 108 16K 4K up to 55 1 5 1 1 1 2 1 1 1 1 OTG 1 1 2 1(16) 1 LQFP64
GD32F350R6T6 108 32K 8K up to 55 1 5 1 1 1 2 1 2 1 1 OTG 1 1 2 1(16) 1 LQFP64
GD32F350R8T6 108 64K 16K up to 55 1 5 1 1 1 2 1 2 2 2 OTG 1 1 2 1(16) 1 LQFP64
GD32F350RBT6 108 128K 16K up to 55 1 5 1 1 1 2 1 2 2 2 OTG 1 1 2 1(16) 1 LQFP64
GD32F3 series of
32-bit ARM® Cortex®-M4 MCUs Selection Guide
GD32 MCU
06
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity
EXMC/
SDRAM
Analog Interface
Package
Flash SRAM GPTM
(16bit)
Adv TM
(16bit)
GPTM
(32bit)
Bsc TM
(16bit) WDG RTC USART
+UART I2C SPI CAN
2.0B
USB
OTG I2S SDIO LCD-
TFT
Cam
era
ETH
MAC IPA 12bit ADC
Units (CHs)
12bit DAC
Units
GD32F450
GD32F450VET6 200 512K 256K up to 82 8 2 2 2 2 1 4+4 3 5 2 FS+HS 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F450VGT6 200 1024K 256K up to 82 8 2 2 2 2 1 4+4 3 5 2 FS+HS 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F450VIT6 200 2048K 512K up to 82 8 2 2 2 2 1 4+4 3 5 2 FS+HS 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F450VKT6 200 3072K 256K up to 82 8 2 2 2 2 1 4+4 3 5 2 FS+HS 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F450ZET6 200 512K 256K up to 114 8 2 2 2 2 1 4+4 3 6 2 FS+HS 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F450ZGT6 200 1024K 256K up to 114 8 2 2 2 2 1 4+4 3 6 2 FS+HS 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F450ZIT6 200 2048K 512K up to 114 8 2 2 2 2 1 4+4 3 6 2 FS+HS 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F450ZKT6 200 3072K 256K up to 114 8 2 2 2 2 1 4+4 3 6 2 FS+HS 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F450IGH6 200 1024K 256K up to 140 8 2 2 2 2 1 4+4 3 6 2 FS+HS 2 1 1 1 1 1 1/1 3(24) 2 BGA176
GD32F450IIH6 200 2048K 512K up to 140 8 2 2 2 2 1 4+4 3 6 2 FS+HS 2 1 1 1 1 1 1/1 3(24) 2 BGA176
GD32F450IKH6 200 3072K 256K up to 140 8 2 2 2 2 1 4+4 3 6 2 FS+HS 2 1 1 1 1 1 1/1 3(24) 2 BGA176
GD32F405
GD32F405RET6 168 512K 192K up to 51 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(16) 2 LQFP64
GD32F405RGT6 168 1024K 192K up to 51 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(16) 2 LQFP64
GD32F405RKT6 168 3072K 192K up to 51 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(16) 2 LQFP64
GD32F405VGT6 168 1024K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(16) 2 LQFP100
GD32F405VKT6 168 3072K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(16) 2 LQFP100
GD32F405VGH6 168 1024K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(16) 2 BGA100
GD32F405VKH6 168 3072K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(16) 2 BGA100
GD32F405ZGT6 168 1024K 192K up to 114 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(24) 2 LQFP144
GD32F405ZKT6 168 3072K 192K up to 114 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 3(24) 2 LQFP144
GD32F407
GD32F407RET6 168 512K 192K up to 51 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 3(16) 2 LQFP64
GD32F407RGT6 168 1024K 192K up to 51 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 3(16) 2 LQFP64
GD32F407RKT6 168 3072K 192K up to 51 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 3(16) 2 LQFP64
GD32F407VET6 168 512K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/0 3(16) 2 LQFP100
GD32F407VGT6 168 1024K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/0 3(16) 2 LQFP100
GD32F407VKT6 168 3072K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/0 3(16) 2 LQFP100
GD32F407VEH6 168 512K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/0 3(16) 2 BGA100
GD32F407VGH6 168 1024K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/0 3(16) 2 BGA100
GD32F407VKH6 168 3072K 192K up to 82 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/0 3(16) 2 BGA100
GD32F407ZET6 168 512K 192K up to 114 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/1 3(24) 2 LQFP144
GD32F407ZGT6 168 1024K 192K up to 114 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/1 3(24) 2 LQFP144
GD32F407ZKT6 168 3072K 192K up to 114 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/1 3(24) 2 LQFP144
GD32F407IEH6 168 512K 192K up to 140 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/1 3(24) 2 BGA176
GD32F407IGH6 168 1024K 192K up to 140 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/1 3(24) 2 BGA176
GD32F407IKH6 168 3072K 192K up to 140 8 2 2 2 2 1 4+2 3 3 2 FS+HS 2 1 1 1 1/1 3(24) 2 BGA176
GD32F4 series of
32-bit ARM® Cortex®-M4F MCUs Selection Guide
GD32 MCU 07
GD32 MCU
08
GD32F4 series of
32-bit ARM® Cortex®-M4F MCUs Selection Guide
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity EXMC/
SDRAM
Analog Interface
Package
Flash SRAM GPTM
(16bit)
Adv TM
(16bit)
GPTM
(32bit)
Bsc TM
(16bit) WDG RTC USART
+UART I2C SPI CAN
2.0B
USB
OTG I2S SDIO LCD-
TFT
Cam
era
ETH
MAC IPA 12bit ADC
Units (CHs)
12bit DAC
Units
GD32F403
GD32F403RCT6 168 256K 64K up to 51 8 2 2 2 1 3+2 2 3 2 OTG 2 1 0/0 3(16) 2 LQFP64
GD32F403RET6 168 512K 96K up to 51 8 2 2 2 1 3+2 2 3 2 OTG 2 1 0/0 3(16) 2 LQFP64
GD32F403RGT6 168 1024K 128K up to 51 8 2 2 2 1 3+2 2 3 2 OTG 2 1 0/0 3(16) 2 LQFP64
GD32F403RIT6 168 2048K 128K up to 51 8 2 2 2 1 3+2 2 3 2 OTG 2 1 0/0 3(16) 2 LQFP64
GD32F403RKT6 168 3072K 128K up to 51 8 2 2 2 1 3+2 2 3 2 OTG 2 1 0/0 3(16) 2 LQFP64
GD32F403VCT6 168 256K 64K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 LQFP100
GD32F403VET6 168 512K 96K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 LQFP100
GD32F403VGT6 168 1024K 128K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 LQFP100
GD32F403VIT6 168 2048K 128K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 LQFP100
GD32F403VKT6 168 3072K 128K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 LQFP100
GD32F403VCH6 168 256K 64K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 BGA100
GD32F403VEH6 168 512K 96K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 BGA100
GD32F403VGH6 168 1024K 128K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 BGA100
GD32F403VIH6 168 2048K 128K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 BGA100
GD32F403VKH6 168 3072K 128K up to 80 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(16) 2 BGA100
GD32F403ZCT6 168 256K 64K up to 112 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(21) 2 LQFP144
GD32F403ZET6 168 512K 96K up to 112 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(21) 2 LQFP144
GD32F403ZGT6 168 1024K 128K up to 112 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(21) 2 LQFP144
GD32F403ZIT6 168 2048K 128K up to 112 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(21) 2 LQFP144
GD32F403ZKT6 168 3072K 128K up to 112 8 2 2 2 1 3+2 2 3 2 OTG 2 1 1/0 3(21) 2 LQFP144
GD32 MCU 09
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity
EXMC/
SDRAM
Analog Interface
Package
Flash SRAM GPTM
(16bit)
Adv TM
(16bit)
Bsc TM
(16bit)
SysTick
(24bit) WDG RTC USART
+UART I2C SPI CAN
2.0B
USB
2.0 FS I2S SDIO LCD-
TFT
Cam
era
ETH
MAC
Crypto/
Hash
12bit ADC
Units (CHs)
12bit DAC
Units
GD32F205
GD32F205RCT6 120 256K 128K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 3(16) 2 LQFP64
GD32F205RET6 120 512K 128K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 3(16) 2 LQFP64
GD32F205RGT6 120 1024K 256K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 3(16) 2 LQFP64
GD32F205RKT6 120 3072K 256K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 3(16) 2 LQFP64
GD32F205VCT6 120 256K 128K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/0 3(16) 2 LQFP100
GD32F205VET6 120 512K 128K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/0 3(16) 2 LQFP100
GD32F205VGT6 120 1024K 256K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/0 3(16) 2 LQFP100
GD32F205VKT6 120 3072K 256K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/0 3(16) 2 LQFP100
GD32F205ZCT6 120 256K 128K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/1 3(24) 2 LQFP144
GD32F205ZET6 120 512K 128K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/1 3(24) 2 LQFP144
GD32F205ZGT6 120 1024K 256K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/1 3(24) 2 LQFP144
GD32F205ZKT6 120 3072K 256K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1/1 3(24) 2 LQFP144
GD32F207
GD32F207RCT6 120 256K 128K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 1 1 1 3(16) 2 LQFP64
GD32F207RET6 120 512K 128K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 1 1 1 3(16) 2 LQFP64
GD32F207RGT6 120 1024K 256K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 1 1 1 3(16) 2 LQFP64
GD32F207RKT6 120 3072K 256K up to 51 10 2 2 1 2 1 4+2 3 3 2 OTG 2 1 1 1 1 3(16) 2 LQFP64
GD32F207VCT6 120 256K 128K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F207VET6 120 512K 128K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F207VGT6 120 1024K 256K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F207VKT6 120 3072K 256K up to 82 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/0 3(16) 2 LQFP100
GD32F207ZCT6 120 256K 128K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F207ZET6 120 512K 128K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F207ZGT6 120 1024K 256K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F207ZKT6 120 3072K 256K up to 114 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/1 3(24) 2 LQFP144
GD32F207IET6 120 512K 128K up to 140 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/1 3(24) 2 LQFP176
GD32F207IGT6 120 1024K 256K up to 140 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/1 3(24) 2 LQFP176
GD32F207IKT6 120 3072K 256K up to 140 10 2 2 1 2 1 4+4 3 3 2 OTG 2 1 1 1 1 1 1/1 3(24) 2 LQFP176
GD32F2 series of
32-bit ARM® Cortex®-M3 MCUs Selection Guide
GD32 MCU
10
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity Analog Interface
Package
Flash SRAM GPTM
(32bit)
GPTM
(16bit)
Advanced
TM (16bit)
Basic TM
(16bit)
SysTick
(24bit) WDG RTC USART I2C SPI USB
2.0 FS I2S CEC 12bit ADC
Units (CHs)
12bit DAC
Units
GD32F130
GD32F130F4P6 48 16K 4K up to 15 1 4 1 1 2 1 1 1 1 1(9) TSSOP20
GD32F130F6P6 48 32K 4K up to 15 1 4 1 1 2 1 2 1 1 1(9) TSSOP20
GD32F130F8P6 48 64K 8K up to 15 1 4 1 1 2 1 2 2 2 1(9) TSSOP20
GD32F130G4U6 48 16K 4K up to 23 1 4 1 1 2 1 1 1 1 1(10) QFN28
GD32F130G6U6 48 32K 4K up to 23 1 4 1 1 2 1 2 1 1 1(10) QFN28
GD32F130G8U6 48 64K 8K up to 23 1 5 1 1 2 1 2 2 2 1(10) QFN28
GD32F130K4U6 48 16K 4K up to 27 1 4 1 1 2 1 1 1 1 1(10) QFN32
GD32F130K6U6 48 32K 4K up to 27 1 4 1 1 2 1 2 1 1 1(10) QFN32
GD32F130K8U6 48 64K 8K up to 27 1 5 1 1 2 1 2 2 2 1(10) QFN32
GD32F130C4T6 48 16K 4K up to 39 1 4 1 1 2 1 1 1 1 1(10) LQFP48
GD32F130C6T6 48 32K 4K up to 39 1 4 1 1 2 1 2 1 1 1(10) LQFP48
GD32F130C8T6 48 64K 8K up to 39 1 5 1 1 2 1 2 2 2 1(10) LQFP48
GD32F130R8T6 48 64K 8K up to 55 1 5 1 1 2 1 2 2 2 1(16) LQFP64
GD32F150
GD32F150G4U6 72 16K 4K up to 24 1 5 1 1 1 2 1 1 1 1 1 1 1 1(10) 1 QFN28
GD32F150G6U6 72 32K 6K up to 24 1 5 1 1 1 2 1 2 1 1 1 1 1 1(10) 1 QFN28
GD32F150G8U6 72 64K 8K up to 24 1 5 1 1 1 2 1 2 2 2 1 1 1 1(10) 1 QFN28
GD32F150K4U6 72 16K 4K up to 27 1 5 1 1 1 2 1 1 1 1 1 1 1 1(10) 1 QFN32
GD32F150K6U6 72 32K 6K up to 27 1 5 1 1 1 2 1 2 1 1 1 1 1 1(10) 1 QFN32
GD32F150K8U6 72 64K 8K up to 27 1 5 1 1 1 2 1 2 2 2 1 1 1 1(10) 1 QFN32
GD32F150C4T6 72 16K 4K up to 39 1 5 1 1 1 2 1 1 1 1 1 1 1 1(10) 1 LQFP48
GD32F150C6T6 72 32K 6K up to 39 1 5 1 1 1 2 1 2 1 1 1 1 1 1(10) 1 LQFP48
GD32F150C8T6 72 64K 8K up to 39 1 5 1 1 1 2 1 2 2 2 1 1 1 1(10) 1 LQFP48
GD32F150R4T6 72 16K 4K up to 55 1 5 1 1 1 2 1 1 1 1 1 1 1 1(16) 1 LQFP64
GD32F150R6T6 72 32K 6K up to 55 1 5 1 1 1 2 1 2 1 1 1 1 1 1(16) 1 LQFP64
GD32F150R8T6 72 64K 8K up to 55 1 5 1 1 1 2 1 2 2 2 1 1 1 1(16) 1 LQFP64
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity Analog Interface
Package
Flash SRAM GPTM
(32bit)
GPTM
(16bit)
Advanced
TM (16bit)
Basic TM
(16bit)
SysTick
(24bit) WDG RTC USART I2C SPI CAN
2.0B I2S LCD OP-
amp Comp 12bit ADC
Units (CHs)
12bit DAC
Units
GD32F170
GD32F170T4U6 48 16K 4K up to 28 1 4 1 1 2 1 1 1 1 2 1(10) QFN36
GD32F170T6U6 48 32K 4K up to 28 1 4 1 1 2 1 2 1 2 1(10) QFN36
GD32F170T8U6 48 64K 8K up to 28 1 5 1 1 2 1 2 3 3 2 1(10) QFN36
GD32F170C4T6 48 16K 4K up to 39 1 4 1 1 2 1 1 1 1 2 1(10) LQFP48
GD32F170C6T6 48 32K 4K up to 39 1 4 1 1 2 1 2 1 1 2 1(10) LQFP48
GD32F170C8T6 48 64K 8K up to 39 1 5 1 1 2 1 2 3 3 2 1(10) LQFP48
GD32F170R8T6 48 64K 8K up to 55 1 5 1 1 2 1 2 3 3 2 1(16) LQFP64
GD32F190
GD32F190T4U6 72 16K 4K up to 28 1 5 1 1 1 2 1 1 1 1 2 1 2 2 1(10) 2 QFN36
GD32F190T6U6 72 32K 6K up to 28 1 5 1 1 1 2 1 2 1 1 2 1 2 2 1(10) 2 QFN36
GD32F190T8U6 72 64K 8K up to 28 1 5 1 1 1 2 1 2 3 3 2 2 2 2 1(10) 2 QFN36
GD32F190C4T6 72 16K 4K up to 39 1 5 1 1 1 2 1 1 1 1 2 1 4x18 2 2 1(10) 2 LQFP48
GD32F190C6T6 72 32K 6K up to 39 1 5 1 1 1 2 1 2 1 1 2 1 4x18 2 2 1(10) 2 LQFP48
GD32F190C8T6 72 64K 8K up to 39 1 5 1 1 1 2 1 2 3 3 2 2 4x18 2 2 1(10) 2 LQFP48
GD32F190R4T6 72 16K 4K up to 55 1 5 1 1 1 2 1 1 1 1 2 1 8x32 3 2 1(16) 2 LQFP64
GD32F190R6T6 72 32K 6K up to 55 1 5 1 1 1 2 1 2 1 1 2 1 8x32 3 2 1(16) 2 LQFP64
GD32F190R8T6 72 64K 8K up to 55 1 5 1 1 1 2 1 2 3 3 2 2 8x32 3 2 1(16) 2 LQFP64
GD32F1 series of
32-bit ARM® Cortex®-M3 MCUs Selection Guide
GD32 MCU 11
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity
EXMC
Analog Interface
Package
Flash SRAM GPTM
(16bit)
Advanced
TM (16bit)
Basic TM
(16bit)
SysTick
(24bit) WDG RTC USART
(UART) I2C SPI CAN
2.0B
USB
2.0 FS I2S SDIO Ether-
net
12bit ADC
Units (CHs)
12bit DAC
Units
GD32F103
GD32F103T4U6 108 16K 6K up to 26 2 1 1 2 1 2 1 1 1 1 2(10) QFN36
GD32F103T6U6 108 32K 10K up to 26 2 1 1 2 1 2 1 1 1 1 2(10) QFN36
GD32F103T8U6 108 64K 20K up to 26 3 1 1 2 1 2 1 1 1 1 2(10) QFN36
GD32F103TBU6 108 128K 20K up to 26 3 1 1 2 1 2 1 1 1 1 2(10) QFN36
GD32F103C4T6 108 16K 6K up to 37 2 1 1 2 1 2 1 1 1 1 2(10) LQFP48
GD32F103C6T6 108 32K 10K up to 37 2 1 1 2 1 2 1 1 1 1 2(10) LQFP48
GD32F103C8T6 108 64K 20K up to 37 3 1 1 2 1 3 2 2 1 1 2(10) LQFP48
GD32F103CBT6 108 128K 20K up to 37 3 1 1 2 1 3 2 2 1 1 2(10) LQFP48
GD32F103R4T6 108 16K 6K up to 51 2 1 1 2 1 2 1 1 1 1 2(16) LQFP64
GD32F103R6T6 108 32K 10K up to 51 2 1 1 2 1 2 1 1 1 1 2(16) LQFP64
GD32F103R8T6 108 64K 20K up to 51 3 1 1 2 1 3 2 2 1 1 2(16) LQFP64
GD32F103RBT6 108 128K 20K up to 51 3 1 1 2 1 3 2 2 1 1 2(16) LQFP64
GD32F103RCT6 108 256K 48K up to 51 4 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F103RDT6 108 384K 64K up to 51 4 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F103RET6 108 512K 64K up to 51 4 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F103RFT6 108 768K 96K up to 51 10 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F103RGT6 108 1024K 96K up to 51 10 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F103RIT6 108 2048K 96K up to 51 10 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F103RKT6 108 3072K 96K up to 51 10 2 2 1 2 1 5 2 3 1 1 2 1 3(16) 2 LQFP64
GD32F103V8T6 108 64K 20K up to 80 3 1 1 2 1 3 2 2 1 1 • 2(16) LQFP100
GD32F103VBT6 108 128K 20K up to 80 3 1 1 2 1 3 2 2 1 1 • 2(16) LQFP100
GD32F103VCT6 108 256K 48K up to 80 4 2 2 1 2 1 5 2 3 1 1 2 1 • 3(16) 2 LQFP100
GD32F103VDT6 108 384K 64K up to 80 4 2 2 1 2 1 5 2 3 1 1 2 1 • 3(16) 2 LQFP100
GD32F103VET6 108 512K 64K up to 80 4 2 2 1 2 1 5 2 3 1 1 2 1 • 3(16) 2 LQFP100
GD32F103VFT6 108 768K 96K up to 80 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(16) 2 LQFP100
GD32F103VGT6 108 1024K 96K up to 80 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(16) 2 LQFP100
GD32F103VIT6 108 2048K 96K up to 80 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(16) 2 LQFP100
GD32F103VKT6 108 3072K 96K up to 80 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(16) 2 LQFP100
GD32F103ZCT6 108 256K 48K up to 112 4 2 2 1 2 1 5 2 3 1 1 2 1 • 3(21) 2 LQFP144
GD32F103ZDT6 108 384K 64K up to 112 4 2 2 1 2 1 5 2 3 1 1 2 1 • 3(21) 2 LQFP144
GD32F103ZET6 108 512K 64K up to 112 4 2 2 1 2 1 5 2 3 1 1 2 1 • 3(21) 2 LQFP144
GD32F103ZFT6 108 768K 96K up to 112 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(21) 2 LQFP144
GD32F103ZGT6 108 1024K 96K up to 112 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(21) 2 LQFP144
GD32F103ZIT6 108 2048K 96K up to 112 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(21) 2 LQFP144
GD32F103ZKT6 108 3072K 96K up to 112 10 2 2 1 2 1 5 2 3 1 1 2 1 • 3(21) 2 LQFP144
GD32F1 series of
32-bit ARM® Cortex®-M3 MCUs Selection Guide
GD32 MCU
12
GD32F1 series of
32-bit ARM® Cortex®-M3 MCUs Selection Guide
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity
EXMC
Analog Interface
Package
Flash SRAM GPTM
(16bit)
Advanced
TM (16bit)
Basic TM
(16bit)
SysTick
(24bit) WDG RTC USART
(UART) I2C SPI CAN
2.0B
USB
2.0 FS I2S SDIO Ether-
net
12bit ADC
Units (CHs)
12bit DAC
Units
GD32F105
GD32F105R8T6 108 64K 64K up to 51 4 1 2 1 2 1 5 2 3 2 OTG 2 2(16) 2 LQFP64
GD32F105RBT6 108 128K 64K up to 51 4 1 2 1 2 1 5 2 3 2 OTG 2 2(16) 2 LQFP64
GD32F105RCT6 108 256K 96K up to 51 4 1 2 1 2 1 5 2 3 2 OTG 2 2(16) 2 LQFP64
GD32F105RDT6 108 384K 96K up to 51 4 2 2 1 2 1 5 2 3 2 OTG 2 3(16) 2 LQFP64
GD32F105RET6 108 512K 96K up to 51 4 2 2 1 2 1 5 2 3 2 OTG 2 3(16) 2 LQFP64
GD32F105RFT6 108 768K 96K up to 51 10 2 2 1 2 1 5 2 3 2 OTG 2 3(16) 2 LQFP64
GD32F105RGT6 108 1024K 96K up to 51 10 2 2 1 2 1 5 2 3 2 OTG 2 3(16) 2 LQFP64
GD32F105V8T6 108 64K 64K up to 80 4 1 2 1 2 1 5 2 3 2 OTG 2 • 2(16) 2 LQFP100
GD32F105VBT6 108 128K 64K up to 80 4 1 2 1 2 1 5 2 3 2 OTG 2 • 2(16) 2 LQFP100
GD32F105VCT6 108 256K 96K up to 80 4 1 2 1 2 1 5 2 3 2 OTG 2 • 2(16) 2 LQFP100
GD32F105VDT6 108 384K 96K up to 80 4 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP100
GD32F105VET6 108 512K 96K up to 80 4 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP100
GD32F105VFT6 108 768K 96K up to 80 10 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP100
GD32F105VGT6 108 1024K 96K up to 80 10 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP100
GD32F105ZCT6 108 256K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 • 3(21) 2 LQFP144
GD32F105ZDT6 108 384K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 • 3(21) 2 LQFP144
GD32F105ZET6 108 512K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 • 3(21) 2 LQFP144
GD32F105ZFT6 108 768K 96K up to 112 10 2 2 1 2 1 5 2 3 2 OTG 2 • 3(21) 2 LQFP144
GD32F105ZGT6 108 1024K 96K up to 112 10 2 2 1 2 1 5 2 3 2 OTG 2 • 3(21) 2 LQFP144
GD32F107
GD32F107RBT6 108 128K 96K up to 51 4 1 2 1 2 1 5 1 3 2 OTG 2 • 2(16) 2 LQFP64
GD32F107RCT6 108 256K 96K up to 51 4 1 2 1 2 1 5 1 3 2 OTG 2 • 2(16) 2 LQFP64
GD32F107RDT6 108 384K 96K up to 51 4 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP64
GD32F107RET6 108 512K 96K up to 51 4 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP64
GD32F107RFT6 108 768K 96K up to 51 10 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP64
GD32F107RGT6 108 1024K 96K up to 51 10 2 2 1 2 1 5 2 3 2 OTG 2 • 3(16) 2 LQFP64
GD32F107VBT6 108 128K 96K up to 80 4 1 2 1 2 1 5 1 3 2 OTG 2 • • 2(16) 2 LQFP100
GD32F107VCT6 108 256K 96K up to 80 4 1 2 1 2 1 5 1 3 2 OTG 2 • • 2(16) 2 LQFP100
GD32F107VDT6 108 384K 96K up to 80 4 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(16) 2 LQFP100
GD32F107VET6 108 512K 96K up to 80 4 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(16) 2 LQFP100
GD32F107VFT6 108 768K 96K up to 80 10 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(16) 2 LQFP100
GD32F107VGT6 108 1024K 96K up to 80 10 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(16) 2 LQFP100
GD32F107ZCT6 108 256K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(21) 2 LQFP144
GD32F107ZDT6 108 384K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(21) 2 LQFP144
GD32F107ZET6 108 512K 96K up to 112 4 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(21) 2 LQFP144
GD32F107ZFT6 108 768K 96K up to 112 10 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(21) 2 LQFP144
GD32F107ZGT6 108 1024K 96K up to 112 10 2 2 1 2 1 5 2 3 2 OTG 2 • • 3(21) 2 LQFP144
GD32 MCU 13
Series Part No.
Max
Speed
(MHz)
Memory (Bytes)
I/O
Timer Connectivity
EXMC
Analog Interface
Package
Flash SRAM GPTM
(16bit)
Advanced
TM (16bit)
Basic TM
(16bit)
SysTick
(24bit) WDG RTC USART
(UART) I2C SPI CAN
2.0B
USB
2.0 FS I2S SDIO Ether-
net
12bit ADC
Units (CHs)
12bit DAC
Units
GD32F101
GD32F101T4U6 56 16K 4K up to 26 2 1 2 1 2 1 1 1(10) QFN36
GD32F101T6U6 56 32K 6K up to 26 2 1 2 1 2 1 1 1(10) QFN36
GD32F101T8U6 56 64K 10K up to 26 3 1 2 1 2 1 1 1(10) QFN36
GD32F101TBU6 56 128K 16K up to 26 3 1 2 1 2 1 1 1(10) QFN36
GD32F101C4T6 56 16K 4K up to 37 2 1 2 1 2 1 1 1(10) LQFP48
GD32F101C6T6 56 32K 6K up to 37 2 1 2 1 2 1 1 1(10) LQFP48
GD32F101C8T6 56 64K 10K up to 37 3 1 2 1 3 2 2 1(10) LQFP48
GD32F101CBT6 56 128K 16K up to 37 3 1 2 1 3 2 2 1(10) LQFP48
GD32F101R4T6 56 16K 4K up to 51 2 1 2 1 2 1 1 1(16) LQFP64
GD32F101R6T6 56 32K 6K up to 51 2 1 2 1 2 1 1 1(16) LQFP64
GD32F101R8T6 56 64K 10K up to 51 3 1 2 1 3 2 2 1(16) LQFP64
GD32F101RBT6 56 128K 16K up to 51 3 1 2 1 3 2 2 1(16) LQFP64
GD32F101RCT6 56 256K 32K up to 51 4 2 1 2 1 5 2 3 1(16) 2 LQFP64
GD32F101RDT6 56 384K 48K up to 51 4 2 1 2 1 5 2 3 1(16) 2 LQFP64
GD32F101RET6 56 512K 48K up to 51 4 2 1 2 1 5 2 3 1(16) 2 LQFP64
GD32F101RFT6 56 768K 80K up to 51 10 2 1 2 1 5 2 3 2(16) 2 LQFP64
GD32F101RGT6 56 1024K 80K up to 51 10 2 1 2 1 5 2 3 2(16) 2 LQFP64
GD32F101RIT6 56 2048K 80K up to 51 10 2 1 2 1 5 2 3 2(16) 2 LQFP64
GD32F101RKT6 56 3072K 80K up to 51 10 2 1 2 1 5 2 3 2(16) 2 LQFP64
GD32F101V8T6 56 64K 10K up to 80 3 1 2 1 3 2 2 • 1(16) LQFP100
GD32F101VBT6 56 128K 16K up to 80 3 1 2 1 3 2 2 • 1(16) LQFP100
GD32F101VCT6 56 256K 32K up to 80 4 2 1 2 1 5 2 3 • 1(16) 2 LQFP100
GD32F101VDT6 56 384K 48K up to 80 4 2 1 2 1 5 2 3 • 1(16) 2 LQFP100
GD32F101VET6 56 512K 48K up to 80 4 2 1 2 1 5 2 3 • 1(16) 2 LQFP100
GD32F101VFT6 56 768K 80K up to 80 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP100
GD32F101VGT6 56 1024K 80K up to 80 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP100
GD32F101VIT6 56 2048K 80K up to 80 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP100
GD32F101VKT6 56 3072K 80K up to 80 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP100
GD32F101ZCT6 56 256K 32K up to 112 4 2 1 2 1 5 2 3 • 1(16) 2 LQFP144
GD32F101ZDT6 56 384K 48K up to 112 4 2 1 2 1 5 2 3 • 1(16) 2 LQFP144
GD32F101ZET6 56 512K 48K up to 112 4 2 1 2 1 5 2 3 • 1(16) 2 LQFP144
GD32F101ZFT6 56 768K 80K up to 112 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP144
GD32F101ZGT6 56 1024K 80K up to 112 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP144
GD32F101ZIT6 56 2048K 80K up to 112 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP144
GD32F101ZKT6 56 3072K 80K up to 112 10 2 1 2 1 5 2 3 • 2(16) 2 LQFP144
GD32F1 series of
32-bit ARM® Cortex®-M3 MCUs Selection Guide
SPI NOR Flash
GD SPI NOR Flash Features
3.0V
◆Single Power Supply Voltage
- Voltage range: 2.7V~3.6V
◆High Speed Clock Frequency
- Maximum 120MHz for fast
read with 30pF load*
- Dual I/O Data transfer up to
240Mbits/s
- Quad I/O Data transfer up to
480Mbits/s
- Continuous Read With
8/16/32/64-Byte Wrap
◆Flexible Memory Architecture
- Sector Size: 4K Bytes
- Block Size: 32/64K Bytes
2.5V
◆Single Power Supply Voltage
- Voltage range: 2.3V~3.6V
◆High Speed Clock Frequency
- Maximum 104MHz for fast
read with 30pF load**
- Dual I/O Data transfer up to
208Mbits/s
- Quad I/O Data transfer up to
416Mbits/s
- Continuous Read With
8/16/32/64-Byte Wrap
◆Flexible Memory Architecture
- Sector Size: 4K Bytes
- Block Size: 32/64K Bytes
1.8V
◆Single Power Supply Voltage
- Voltage range: 1.65V~2.0V
◆High Speed Clock Frequency
- 120MHz for fast read with
30pF load***
- Dual I/O Data transfer up to
240MHZ
- Quad I/O Data transfer up to
480Mbits/s
- QPI Data transfer up to
480Mbits/s
- Continuous Read With
8/16/32/64-Byte Wrap
◆Flexible Memory Architecture
- Sector Size: 4K Bytes
- Block Size: 32/64K Bytes
GD SPI NOR Flash Example
* This feature is available on most of devices. Please refer to page 12-13.
** This Feature is available on most of devices. Please refer to Page 12-13.
*** This Feature is available on most of devices. Please refer to Page 12-13.
SPI NOR Flash
14
GD SPI NOR Flash Feature list
Flash Type 3.0V 2.5V 1.65V~3.6V 1.8V
Family GD25Q GD25B GD25R GD25D GD25VQ GD25VE GD25VD GD25WD GD25LQ GD25LB GD25LH GD25LE GD25LD
Part No. xx x1B xxB xxC xxB xxC xxB xxC xxD xxB xxC x1B xxC xxC xxB xxC xx/
xxB xxC xxD xx xxC xxD xx/
xxB xxC xxC/
xxD xxC
Single I/O (1-1-1) • • • • • • • • • • • • • • • • • • • • • • • • • •
Dual Output (1-1-2) • • • • • • • • • • • • • • • • • • • • • • • • • •
Dual I/O (1-2-2) • • • • • • • • • • • • • • • • • • • • •
Quad Output (1-1-4) • • • • • • • • • • • • • • • • • • • • •
Quad I/O (1-4-4) • • • • • • • • • • • • • • • • • • • • •
QPI (4-4-4) •••••••• •
HOLD# Pin • • • • • • • • • • • • •
H/W Reset (RESET
Pin) •* •* •*
S/W Reset • • • • • • • • • • • • • • •
H/W Write Protection
(WP# Pin) •••• •••• • • • ••• •• • •
S/W Write Protection • • • • • • • • • • • • • • • • • • • • • • • • • •
Enhanced Block
Protection •••••••• •• • •••••••• •
Volatile & Non-
volatile Status
Register Bits
• • • •• •• • •••••••• •
Output Driver
Strength •••• ••
Security Regisrers
with OTP locks ••• • •• •• • •••••••• •
SFDP Register • • • • • • • • • • • • • • • • •
* Only available in Q64, Q127, Q256, Q512M device.
SPI NOR Flash 15
GD SPI NOR Flash Product list
Part No. Density Voltage Organization I/O Bus Frequency (MHz)
GD25Q512MC 512Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25Q256C* 256Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25Q256D 256Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25B256D 256Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25R256D 256Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25B256C* 256Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25Q127C 128Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25B127D 128Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25R127D 128Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25Q64C 64Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25B64C 64Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25R64C 64Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25Q32C 32Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25B32C 32Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25Q16C 16Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25B16C 16Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25Q80C 8Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25Q40C 4Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25D40C 4Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2)
GD25Q20C 2Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25D20C 2Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2)
GD25D10B 1Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 80MHz(x1, x2)
GD25WD40C 4Mb 1.65V~3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2)
GD25WD20C 2Mb 1.65V~3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2)
GD25VD10B 1Mb 2.3V-3.6V 4KB / 32KB / 64KB Single / Dual Output 80MHz(x1, x2)
GD25D05B 512Kb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 80MHz(x1, x2)
GD25VD05B 512Kb 2.3V-3.6V 4KB / 32KB / 64KB Single / Dual Output 80MHz(x1, x2)
GD25VQ64C 64Mb 2.3V-3.6V 4KB / 32KB / 64Kb Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VQ32C 32Mb 2.3V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VQ16C 16Mb 2.3V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VQ80C 8Mb 2.3V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VQ40C 4Mb 2.3V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VQ20C 2Mb 2.3V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VE64C 64Mb 2.1V-3.6V 4KB / 32KB / 64Kb Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VE32C 32Mb 2.1V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VE16C 16Mb 2.1V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VE40C 4Mb 2.1V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25VE20C 2Mb 2.1V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LQ256D 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LE256D 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LQ128D 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LE128D 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LB128D 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LQ64C 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4)
GD25LE64C 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LB64C 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4)
GD25LQ32D 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LE32D 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LB32D 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LQ16* 16Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LQ16C 16Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LE16C 16Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LB16* 16Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LB16C 16Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LH16* 16Mb 1.65V-1.95V 4KB / 32KB / 64KB Single / Dual / Quad 120MHz(x1, x2, x4)
GD25LH16C 16Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LQ80B 8Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LH80B 8Mb 1.65V-1.95V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LQ40B 4Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LD40C 4Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual Output 40MHz(x1, x2)
GD25LQ20B 2Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LD20C 2Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual Output 40MHz(x1, x2)
GD25LQ10B 1Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
GD25LQ05B 512Kb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4)
* Not recommended for new design.
2.5V
VQ: Quad I/O, General
VD: Dual Output
VE: Quad I/O, For DPD
1.8V
LQ: Quad I/O, General
LB: Quad I/O,QE=1
LH: Quad I/O, For HDD
LD: Dual Output
LE: Quad I/O, For DPD
3V
Q: Quad I/O, General
B: Quad I/O,QE=1
D: Dual Output
R: Quad I/O,QE=1, For RPMC
Product Series
SPI NOR Flash
16
Packages

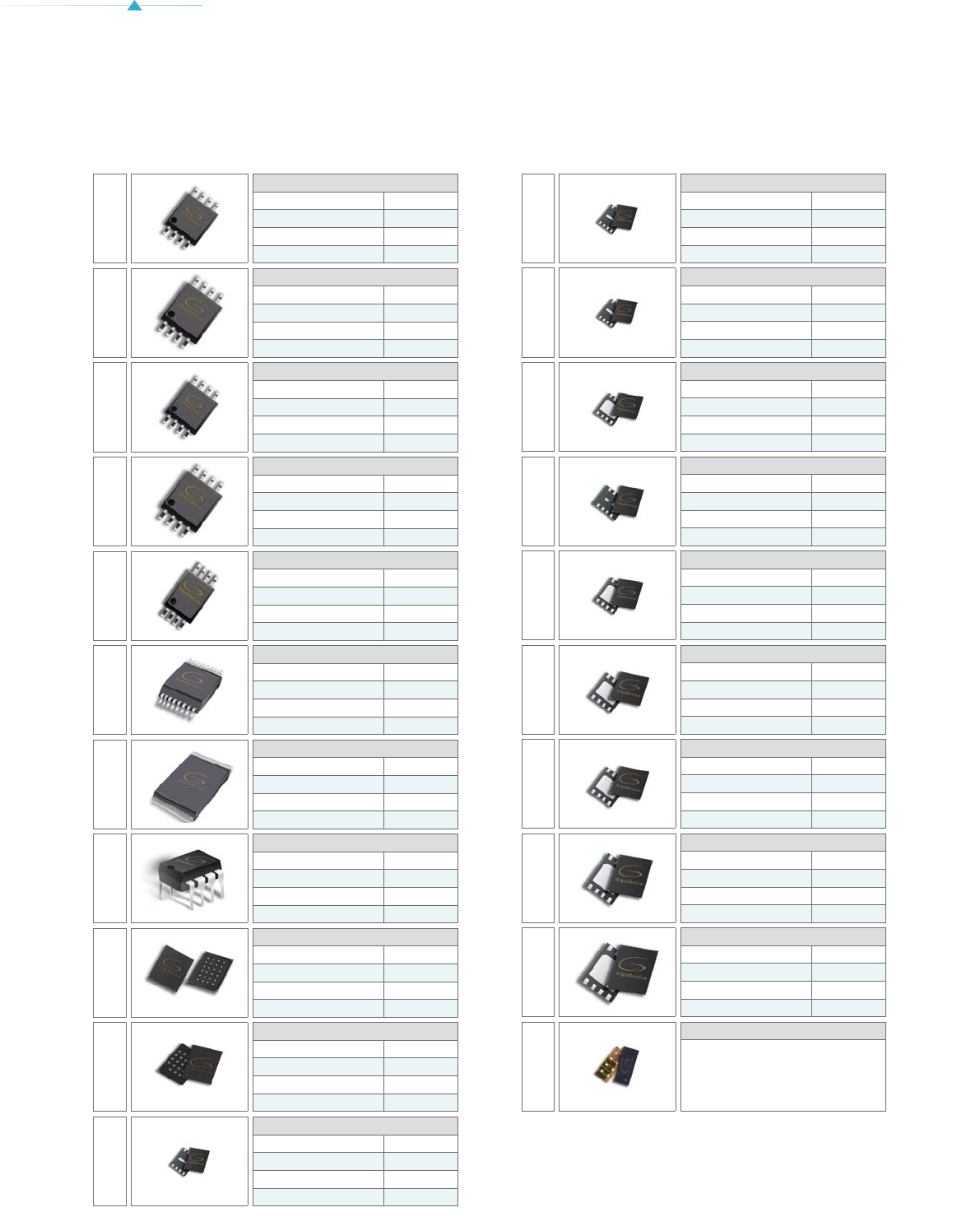

SOP16 300mil WSON8 8*6mm TFBGA-24ball 6*8mm (5*5ball array) TFBGA-24ball 6*8mm (6*4ball array)
SOP16 300mil WSON8 8*6mm TFBGA-24ball 6*8mm (5*5ball array) TFBGA-24ball 6*8mm (6*4ball array)
SOP16 300mil WSON8 8*6mm TFBGA-24ball 6*8mm (5*5ball array)
SOP16 300mil WSON8 8*6mm TFBGA-24ball 6*8mm (5*5ball array)
SOP16 300mil WSON8 8*6mm TFBGA-24ball 6*8mm (5*5ball array)
SOP16 300mil WSON8 8*6mm TFBGA-24ball 6*8mm (5*5ball array)
SOP8 208mil SOP16 300mil VSOP8 208mil DIP8 300mil WSON8 6*5mm WSON8 8*6mm TFBGA-24ball 6*8mm (6*4ball array)
SOP8 208mil SOP16 300mil VSOP8 208mil DIP8 300mil WSON8 6*5mm WSON8 8*6mm TFBGA-24ball 6*8mm (6*4ball array)
SOP8 208mil SOP16 300mil VSOP8 208mil DIP8 300mil WSON8 6*5mm WSON8 8*6mm TFBGA-24ball 6*8mm (6*4ball array)
SOP8 208mil SOP16 300mil DIP8 300mil WSON8 6*5mm USON8 4*4mm (0.45mm) TFBGA-24ball 6*8mm (6*4ball array) TFBGA-24ball 6*8mm (5*5ball array)
SOP8 208mil DIP8 300mil WSON8 6*5mm
SOP8 208mil
SOP8 150mil SOP8 208mil VSOP8 208mil DIP8 300mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm USON8 4*4mm (0.45mm)
TFBGA-24ball 6*8mm (5*5ball array) TFBGA-24ball 6*8mm (6*4ball array)
SOP8 208mil DIP8 300mil WSON8 6*5mm
SOP8 150mil SOP8 208mil VSOP8 208mil DIP8 300mil WSON8 6*5mm USON8 3*2mm (0.45mm) USON8 3*4mm USON8 4*4mm (0.55mm)
TFBGA-24ball 6*8mm (6*4ball array)
SOP8 208mil WSON8 6*5mm
SOP8 150mil SOP8 208mil DIP8 300mil TSSOP8 173mil WSON8 6*5mm USON8 3*2mm (0.45mm) USON8 3*4mm USON8 4*4mm (0.45mm)
SOP8 150mil SOP8 208mil VSOP8 150mil TSSOP8 173mil USON8 3*2mm (0.45mm) USON8 3*4mm
SOP8 150mil SOP8 208mil TSSOP8 173mil DIP8 300mil USON8 3*2mm (0.45mm)
SOP8 150mil SOP8 208mil VSOP8 150mil TSSOP8 173mil USON8 3*2mm (0.45mm) USON8 3*4mm
SOP8 150mil SOP8 208mil TSSOP8 173mil DIP8 300mil USON8 3*2mm (0.45mm)
SOP8 150mil TSSOP8 173mil USON8 3*2mm (0.55mm)
SOP8 150mil SOP8 208mil TSSOP8 173mil DIP8 300mil USON8 3*2mm (0.45mm)
SOP8 150mil SOP8 208mil TSSOP8 173mil DIP8 300mil USON8 3*2mm (0.45mm)
SOP8 150mil TSSOP8 173mil USON8 3*2mm (0.55mm)
SOP8 150mil TSSOP8 173mil USON8 3*2mm (0.55mm)
SOP8 150mil TSSOP8 173mil USON8 3*2mm (0.55mm)
SOP8 208mil SOP16 300mil DIP8 300mil WSON8 6*5mm USON8 4*4mm (0.45mm) TFBGA-24ball 6*8mm (6*4ball array)
SOP8 150mil SOP8 208mil VSOP8 208mil DIP8 300mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm TFBGA-24ball 6*8mm (5*5ball array)
TFBGA-24ball 6*8mm (6*4ball array)
SOP8 150mil SOP8 208mil VSOP8 208mil DIP8 300mil WSON8 6*5mm USON8 3*2mm (0.45mm) USON8 3*2mm (0.55mm) USON8 3*4mm
USON8 4*4mm (0.45mm) TFBGA-24ball 6*8mm (5*5ball array) TFBGA-24ball 6*8mm (6*4ball array)
SOP8 150mil SOP8 208mil DIP8 300mil USON8 3*2mm (0.45mm) USON8 3*4mm
SOP8 150mil SOP8 208mil VSOP8 150mil TSSOP8 173mil USON8 3*2mm (0.45mm)
SOP8 150mil SOP8 208mil VSOP8 150mil TSSOP8 173mil USON8 3*2mm (0.45mm)
SOP8 208mil SOP16 300mil DIP8 300mil WSON8 6*5mm USON8 4*4mm(0.45mm) TFBGA-24ball 6*8mm (6*4ball array)
SOP8 150mil SOP8 208mil VSOP8 208mil DIP8 300mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm TFBGA-24ball 6*8mm (5*5ball array)
TFBGA-24ball 6*8mm (6*4ball array)
SOP8 150mil SOP8 208mil VSOP8 208mil DIP8 300mil WSON8 6*5mm USON8 3*2mm (0.45mm) USON8 3*2mm (0.55mm) USON8 3*4mm
USON8 4*4mm (0.45mm) TFBGA-24ball 6*8mm (5*5ball array) TFBGA-24ball 6*8mm (6*4ball array)
SOP8 150mil SOP8 208mil VSOP8 150mil TSSOP8 173mil USON8 3*2mm (0.45mm)
SOP8 150mil SOP8 208mil VSOP8 150mil TSSOP8 173mil USON8 3*2mm (0.45mm)
WSON8 6*5mm WSON8 8*6mm TFBGA-24ball 6*8mm (6*4ball array)
WSON8 6*5mm WSON8 8*6mm TFBGA-24ball 6*8mm (6*4ball array)
SOP8 208mil VSOP8 208mil WSON8 6*5mm WSON8 8*6mm LGA8 4*4mm
SOP8 208mil VSOP8 208mil WSON8 6*5mm WSON8 8*6mm LGA8 4*4mm WLCSP
SOP8 208mil VSOP8 208mil WSON8 6*5mm
SOP8 208mil VSOP8 208mil WSON8 6*5mm USON8 4*4mm (0.45mm)
SOP8 208mil VSOP8 208mil USON8 4*4mm (0.45mm) WLCSP
SOP8 208mil VSOP8 208mil WSON8 6*5mm
SOP8 208mil VSOP8 208mil WSON8 6*5mm USON8 3*4mm USON8 4*4mm (0.45mm)
SOP8 208mil VSOP8 208mil WSON8 6*5mm USON8 3*4mm USON8 4*4mm (0.45mm) WLCSP
SOP8 208mil VSOP8 208mil WSON8 6*5mm USON8 4*4mm (0.45mm)
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm USON8 4*4mm (0.45mm)
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm USON8 4*4mm (0.45mm) LGA8 3*2mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm USON8 4*4mm (0.45mm) WLCSP LGA8 3*2mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil WSON8 6*5mm USON8 3*4mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm USON8 4*4mm (0.45mm) LGA8 3*2mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil WSON8 6*5mm USON8 3*4mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil WSON8 6*5mm USON8 3*3mm USON8 3*4mm USON8 4*4mm (0.45mm) LGA8 3*2mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil TSSOP8 173mil WSON8 6*5mm USON8 2*3mm USON8 3*4mm USON8 4*4mm (0.45mm)
SOP8 150mil SOP8 208mil VSOP8 150mil USOP8 208mil WSON8 6*5mm USON8 3*2mm (0.55mm) USON8 3*4mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil TSSOP8 173mil WSON8 6*5mm USON8 2*3mm USON8 3*4mm USON8 4*4mm (0.45mm)
SOP8 150mil SOP8 208mil TSSOP8 173mil DIP8 300mil USON8 3*2mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil TSSOP8 173mil WSON8 6*5mm USON8 3*2mm (0.45mm) USON8 3*2mm (0.55mm) USON8 3*4mm
SOP8 150mil SOP8 208mil TSSOP8 173mil DIP8 300mil USON8 3*2mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil TSSOP8 173mil WSON8 6*5mm USON8 3*2mm (0.45mm) USON8 3*2mm (0.55mm) USON8 3*4mm
SOP8 150mil SOP8 208mil VSOP8 150mil VSOP8 208mil TSSOP8 173mil WSON8 6*5mm USON8 3*2mm (0.45mm) USON8 3*2mm (0.55mm) USON8 3*4mm

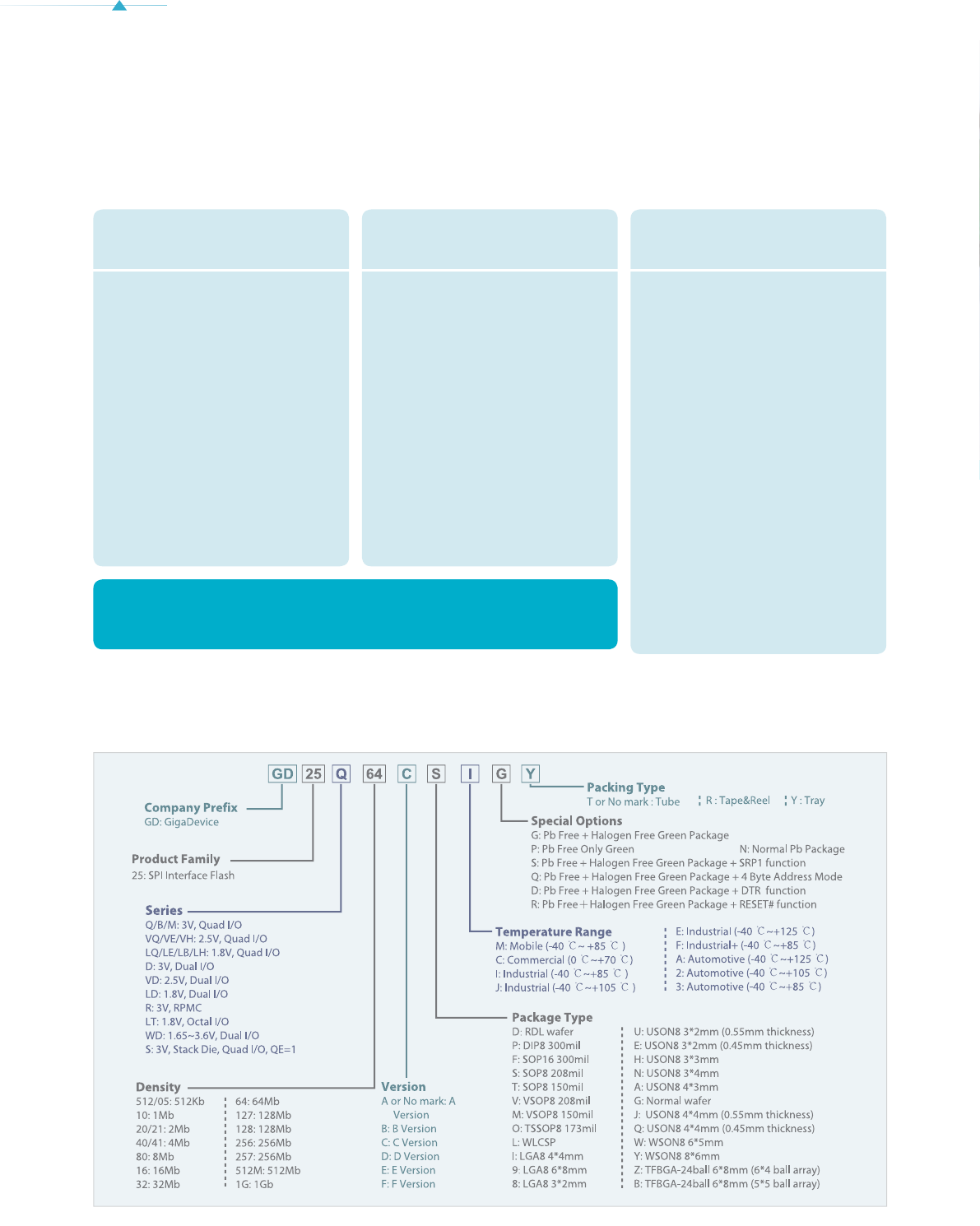

1.65V~3.6V WD: Dual Output
SPI NOR Flash 17
3.0V
GD SPI NAND Flash Features
◆ Power Supply Voltage: 2.7V~3.6V
◆ High Speed Clock Frequency
- 120MHz for fast read with 30PF load
- Quad I/O Data transfer up to 480Mbits/s
◆ Flexible Memory Architecture
1Gbit & 2Gbit:
- 2048-Byte page for read and program, spare
area128-Byte
- (128K + 8K)-Byte per block for erase
4Gbit & 8Gbit:
- 4096-Byte page for read and program, spare area
256-Byte
- (256K + 16K)-Byte per block for erase
◆ Enhanced Access Performance
- 2K-Byte cache for fast random read for 1G & 2G
- 4K-Byte cache for fast random read for 4G & 8G
- Cache read and cache program
◆ Advanced Feature for NAND
- Internal ECC option
- Internal data move by page with ECC
- Promised good block0 with ECC
◆ Power Supply Voltage: 1.7V~2.0V
◆ High Speed Clock Frequency
- 120MHz for fast read with 30PF load
- Quad I/O Data transfer up to 480Mbits/s
◆ Flexible Memory Architecture
1Gbit & 2Gbit:
- 2048-Byte page for read and program, spare area
128-Byte
- (128K + 8K)-Byte per block for erase
4Gbit & 8Gbit:
- 4096-Byte page for read and program, spare area
256-Byte
- (256K + 16K)-Byte per block for erase
◆ Enhanced Access Performance
- 2K-Byte cache for fast random read for 1G & 2G
- 4K-Byte cache for fast random read for 4G & 8G
- Cache read and cache program
◆ Advanced Feature for NAND
- Internal ECC option
- Internal data move by page with ECC
- Promised good block0 with ECC
SPI NAND Flash
GD SPI NAND Flash Product List

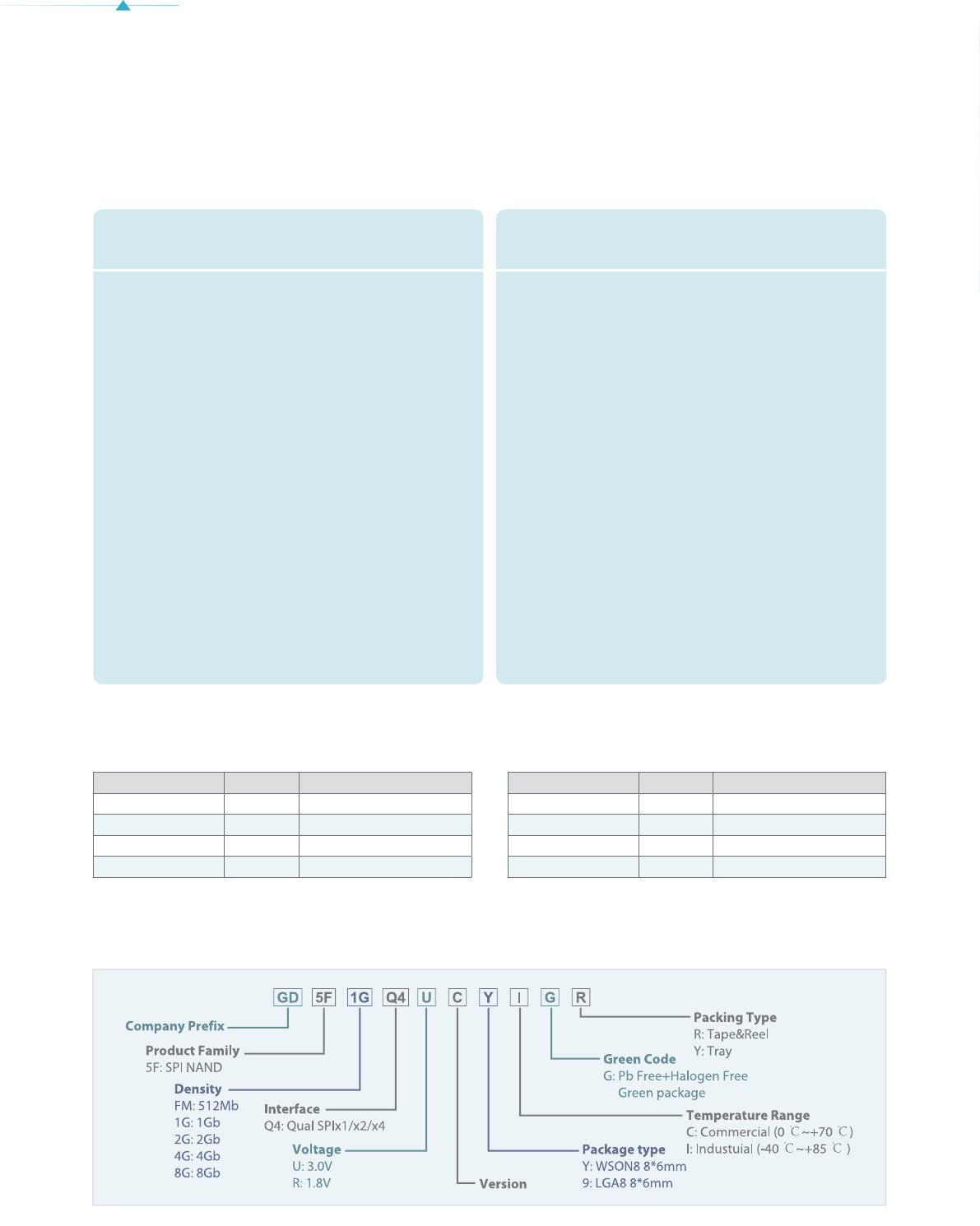

Part No. Density Package
GD5F8GQ4R 8Gb LGA8 8*6mm
GD5F4GQ4R 4Gb WSON8/LGA8 8*6mm
GD5F2GQ4R 2Gb WSON8/LGA8 8*6mm
GD5F1GQ4R 1Gb WSON8/LGA8 8*6mm
1.8V
SPI NAND Flash
18
Part No. Density Package
GD5F8GQ4U 8Gb LGA8 8*6mm
GD5F4GQ4U 4Gb WSON8/LGA8 8*6mm
GD5F2GQ4U 2Gb WSON8/LGA8 8*6mm
GD5F1GQ4U 1Gb WSON8 8*6mm
GD SPI NAND Flash Example
Advantages – Small Size
Parallel NAND Flash
SPI NAND Flash
Advantages – Less Pin Advantages – PCB cost
Parallel NAND FlashSPI NAND Flash
Advantages – Design
Less pins than Parallel
NAND Flash, help make it
easier for layout, reduce
PCB design difficulty,
Cut down design cycles
of electronic products.
Design based
on SPI NAND
Flash
Design based
on Parallel
NAND Flash
Reduce
Package cost
Reduce
PCB diffi culty
Cut down
design cycles
SPI NAND Flash
8
8
Parallel NAND Flash
27/48
27/48
Reduce
Core Chip Cost
Fewer pins required by
SPI NAND reduces the
Core Chip pin count.
Reduced pin count Core Chip and small SPI NAND Flash chip
result in smaller PCB area and cost reduction.
Reduce PCB Cost
SPI NAND Flash 19
Flash Package Options
20
Flash Package Options
T
SOP8 150mil
Length(Normal) 4.90
Width(Normal) 6.00
Thickness(Max) 1.75
Pitch(Normal) 1.27
S
SOP8 208mil
Length(Normal) 5.23
Width(Normal) 7.90
Thickness(Max) 2.16
Pitch(Normal) 1.27
M
VSOP8 150mil
Length(Normal) 4.90
Width(Normal) 6.00
Thickness(Max) 0.90
Pitch(Normal) 1.27
V
VSOP8 208mil
Length(Normal) 5.28
Width(Normal) 7.90
Thickness(Max) 1.00
Pitch(Normal) 1.27
O
TSSOP8 173mil
Length(Normal) 2.96
Width(Normal) 6.40
Thickness(Max) 1.20
Pitch(Normal) 0.65
F
SOP16 300mil
Length(Normal) 10.30
Width(Normal) 10.35
Thickness(Max) 2.75
Pitch(Normal) 1.27
C
TSOP56 14*20
Length(Normal) 14.00
Width(Normal) 20.00
Thickness(Max) 1.20
Pitch(Normal) 0.50
P
DIP8 300mil
Length(Normal) 9.32
Width(Normal) 7.94
Thickness(Max) 3.50
Pitch(Normal) 2.54
Z
TFBGA-24ball 6*8 (6*4ball array)
Length(Normal) 6.00
Width(Normal) 8.00
Thickness(Max) 1.20
Pitch(Normal) 1.00
B
TFBGA-24ball 6*8 (5*5ball array)
Length(Normal) 6.00
Width(Normal) 8.00
Thickness(Max) 1.20
Pitch(Normal) 1.00
8
LGA8 3*2
Length(Normal) 3.00
Width(Normal) 2.00
Thickness(Max) 0.50
Pitch(Normal) 0.50
U
USON8 3*2 (0.55mm)
Length(Normal) 3.00
Width(Normal) 2.00
Thickness(Max) 0.60
Pitch(Normal) 0.50
E
USON8 3*2 (0.45mm)
Length(Normal) 3.00
Width(Normal) 2.00
Thickness(Max) 0.50
Pitch(Normal) 0.50
H
USON8 3*3
Length(Normal) 3.00
Width(Normal) 3.00
Thickness(Max) 0.60
Pitch(Normal) 0.50
N
USON8 3*4
Length(Normal) 3.00
Width(Normal) 4.00
Thickness(Max) 0.60
Pitch(Normal) 0.80
A
USON8 4*3
Length(Normal) 4.00
Width(Normal) 3.00
Thickness(Max) 0.60
Pitch(Normal) 0.80
J
USON8 4*4 (0.55mm)
Length(Normal) 4.00
Width(Normal) 4.00
Thickness(Max) 0.60
Pitch(Normal) 0.80
Q
USON8 4*4 (0.45mm)
Length(Normal) 4.00
Width(Normal) 4.00
Thickness(Max) 0.50
Pitch(Normal) 0.80
W
WSON8 6*5
Length(Normal) 6.00
Width(Normal) 5.00
Thickness(Max) 0.80
Pitch(Normal) 1.27
Y
WSON8 8*6
Length(Normal) 8.00
Width(Normal) 6.00
Thickness(Max) 0.80
Pitch(Normal) 1.27
L
WLCSP
Depends on specific product
Note:
1. The values provided are the normal values for length, width
and pitch, as well as the max values for thickness.
2. The pictures are for reference only, please subject to
practicality.
Unit: mm
GigaDevice Semiconductor (Beijing) Inc.
www.gigadevice.com
Beijing Headquarter
Add: A12, USTB Techart Plaza, Xueyuan Road 30,
Haidian District, Beijing, China
Tel
: +86-10-82881666
Fax: +86-10-82881668
E-mail: info@gigadevice.com
Add: A23 Truth Plaza, Zhichun Road 7, Haidian
District, Beijing, China
Tel: +86-10-82263375/76/78/79
Fax: +86-10-82263376-6200
E-mail：info@gigadevice.com
Shanghai Office
Add: Room 603, Tianshan Road 18, Zhaoyi Science
Zone, Shanghai, China
Tel
: +86-21-32567770
Fax: +86-21-32567770-803
E-mail: info@gigadevice.com
Add: Room 1515, 5F, Building 1, Guoshoujing Road
498, Zhangjiang High-Tech Park, Pudong New Area,
Shanghai, China
Tel
: +86-21-50395591
Fax: +86-21-50395591-803
E-mail: info@gigadevice.com
Shenzhen Office
Add: 2209 Main Building of Tianan Cyber Times,
Chegongmiao, Futian District, Shenzhen, China
Tel
: +86-775-83438655
Fax: +86-775-83438655-801
E-mail: info@gigadevice.com
Hefei Office
Add: Fanhua Avenue 266, Economic & Technological
Development Area, Hefei, Anhui, China
Tel
: +86-551-68999734
E-mail: info@gigadevice.com
Xi'an Office
Add: B6-04, Ascendas Innovation Hub, Gao Xin 6
Road 38, Hi-tech Industrial Development Zone,
Xi'an,China
Tel: +86-29-88858591
E-mai: info@gigadevice.com
GigaDevice Semiconductor (Beijing) Inc.
Taiwan Office
Add: 6F.-5,No.171,SongdeRd.,XinyiDist.,TaipeiCity
110,Taiwan(R.O.C.)
Tel
: +886-2-27277210
Fax: +886-2-27277216
E-mail: info@gigadevice.com
USA Office
Add: 2975 Bowers Ave, Suite 323,
Santa Clara, CA 95051 USA
Tel
: +1-408-596-3166
E-mail: info@gigadevice.com
Korea Office
Add: Room 108, Business Incubator Center, Korea
Electronics Technology Institute (KETI), Yatap-dong 68,
Bundang-gu, Seongnam, Gyeonggi-do, Korea,
463-816
Tel
: +82-31-701-0824
Fax: +82-31-705-0824
E-mail: james@gigadevice.com
Japan Office
Add: DSM Shin-Yokohama building 2F, 2-6-3
Shin-Yokohama, Kohoku, Yokohama 222-0033
Tel : +81-45-534-4102
Fax : +81-45-534-4103
E-mail: info@gigadevice.com
UK Office
GigaDevice Semiconductor Europe Ltd
Add: Innovation House
Molly Millars Close
Wokingham
Berkshire
RG41 2RX
United Kingdom
Tel: +44 (0) 7585 707735 PRODUCT
SELECTION GUIDE
GD32 MCU
SPI NOR FLASH
SPI NAND FLASH
© 2017 GigaDevice Semiconductor (Beijing) Inc. Printed in China July 2017
