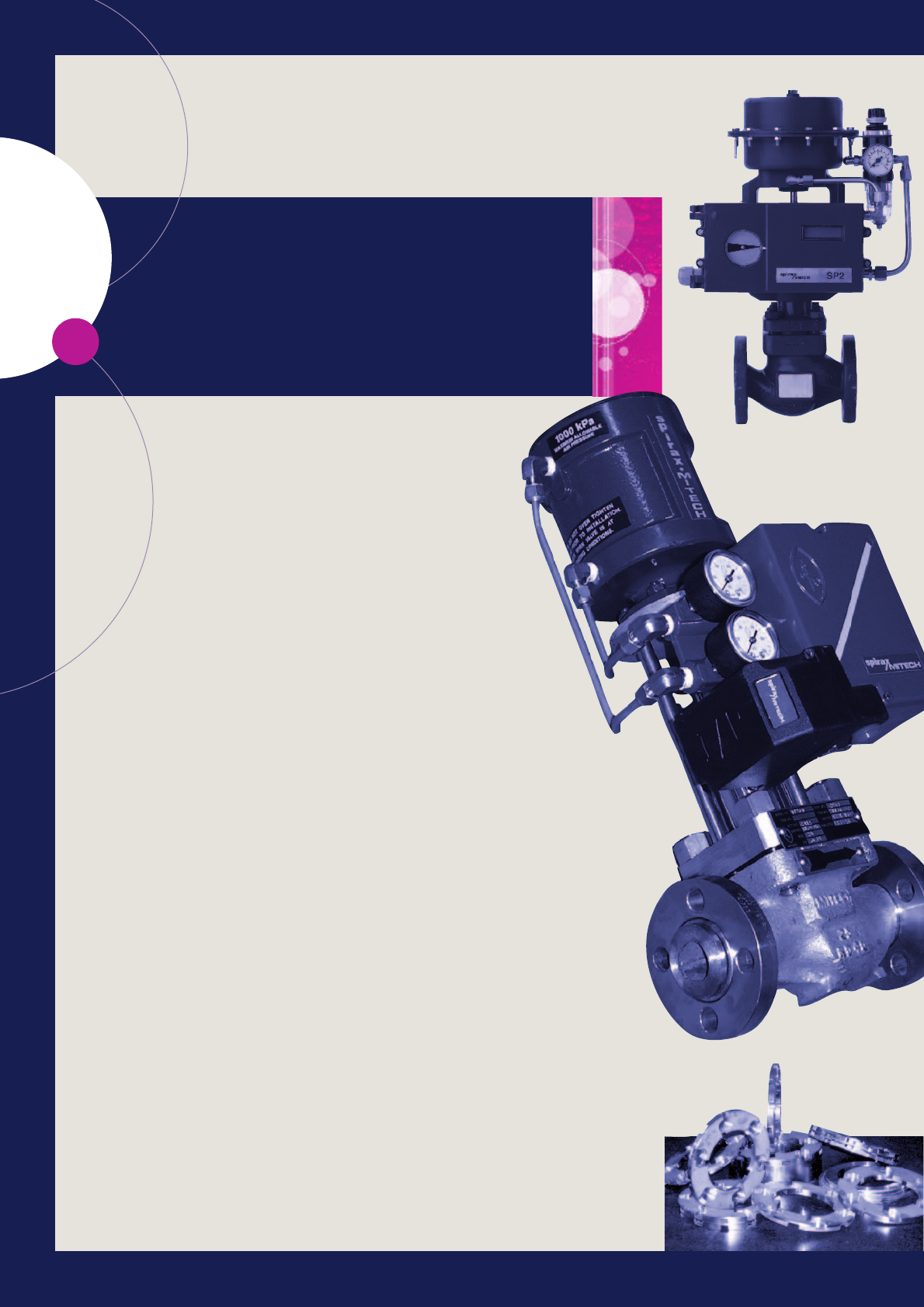

Globe Control Valves
UK-C&I-MITECH
GLOBE
CONTROL VALVES
The modular, flexible option
ABOUT GLOBE CONTROL VALVES
The SPIRA-TROL and M-Series Globe Control valves
are general purpose control valves that can
be engineered to solve both complex and
basic requirements. Their robust construction
makes them long-lasting and easy to maintain,
while their modular design makes them easy to
specify, reducing spares inventory requirements.
l From standard to severe service
l ½” to 16” NB
l PN16 to ANSI 2500
l Tight shut-off, low noise, cavitation control, energy dissipating trims
INDUSTRIES AND APPLICATIONS
l Oil and gas
l Chemical
l Food
l Breweries
l Pulp and paper
l Power generation
SEVERE SERVICE SPECIAL TRIMS

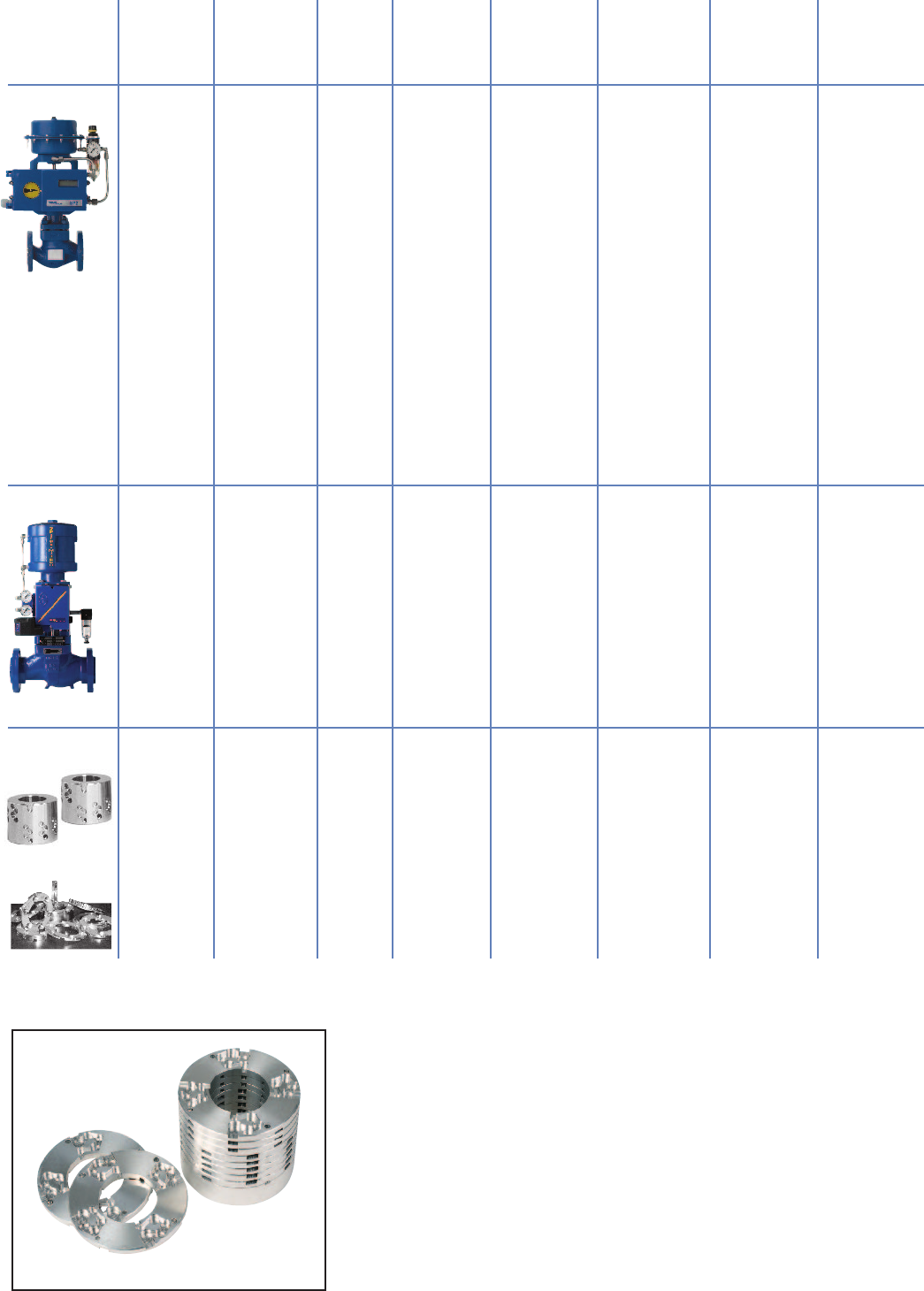

THE RANGE AT A GLANCE
Valve
name
Valve
type
Body
materials
Valve
sizes
Connections Flow
characteristics
Special trims Stem seals Actuation
SPIRA-TROL 2-port globe
to ANSI or EN
SG iron
Carbon steel
Stainless steel
Cast iron
NACE
DN15 to
DN100
½” to 4”
Larger
sizes to
order
Flanged:
ANSI 125
ANSI 150
ANSI 300
PN16
PN25
PN40
JIS 10
JIS 20
KS 10
KS 20
Screwed:
BSP
NPT
Socket weld
Equal
percentage
Linear
Fast opening
Reduced flow
including
microflute
Low noise
Soft seal
Hard facing
Spring
loaded
chevron and
‘O’ ring
Graphite
Bellows
Bonnet
extension
Pneumatic
diaphragm
spring return
Electric
Modulating
On / off
M-Series 2-port globe
3-way globe
2-port angle
Sweep angle
Carbon steel
Stainless steel
Bronze
Chrome moly
Special alloys
DN15 to
DN400
½” to 16”
ASME 600
Separable up
to 100 NB
Integral in
all sizes
Butt weld
Equal
percentage
Linear
Fast opening
Low noise
Anti-cavitation
Soft seat
Pressure
balance
PTFE
Graphite
Bellows
Live loading
Cryogenic
Heat extended
Pneumatic
piston spring
return or
double acting
Electric
Modulating
On / off
Severe Service 2-port globe
3-way globe
Sweep angle
Carbon steel
Stainless steel
Chrome moly
Special alloys
DN15 to
DN400
½” to 16”
On
request
up to 24”
ASME
600-4500
Separable up
to 100 NB
Integral in all
sizes
Butt weld
Linear
Bi-linear
Tri-linear
ED trims
200:1 turndown
Pressure
balance
Graphite
Bellows
Custom made
when required
Pneumatic
piston spring
return or
double acting
Electric
Modulating
On / off
Energy dissipating disk stack.
Spirax-Mitech can supply severe service trims to eliminate noise,
vibration and cavitation. Applications include oil/gas, refining,
power and major process industries.
SEVERE SERVICE SPECIAL TRIMS
THE RANGE AT A GLANCE
Valve
name
Valve
type
Body
materials
Valve
sizes
Connections Flow
characteristics
Special trims Stem seals Actuation
SPIRA-TROL 2-port globe
to ANSI or EN
SG iron
Carbon steel
Stainless steel
Cast iron
NACE
DN15 to
DN100
½” to 4”
Larger
sizes to
order
Flanged:
ANSI 125
ANSI 150
ANSI 300
PN16
PN25
PN40
JIS 10
JIS 20
KS 10
KS 20
Screwed:
BSP
NPT
Socket weld
Equal
percentage
Linear
Fast opening
Reduced flow
including
microflute
Low noise
Soft seal
Hard facing
Spring
loaded
chevron and
‘O’ ring
Graphite
Bellows
Bonnet
extension
Pneumatic
diaphragm
spring return
Electric
Modulating
On / off
M-Series 2-port globe
3-way globe
2-port angle
Sweep angle
Carbon steel
Stainless steel
Bronze
Chrome moly
Special alloys
DN15 to
DN400
½” to 16”
ASME 600
Separable up
to 100 NB
Integral in
all sizes
Butt weld
Equal
percentage
Linear
Fast opening
Low noise
Anti-cavitation
Soft seat
Pressure
balance
PTFE
Graphite
Bellows
Live loading
Cryogenic
Heat extended
Pneumatic
piston spring
return or
double acting
Electric
Modulating
On / off
Severe Service 2-port globe
3-way globe
Sweep angle
Carbon steel
Stainless steel
Chrome moly
Special alloys
DN15 to
DN400
½” to 16”
On
request
up to 24”
ASME
600-4500
Separable up
to 100 NB
Integral in all
sizes
Butt weld
Linear
Bi-linear
Tri-linear
ED trims
200:1 turndown
Pressure
balance
Graphite
Bellows
Custom made
when required
Pneumatic
piston spring
return or
double acting
Electric
Modulating
On / off
Energy dissipating disk stack.
Spirax-Mitech can supply severe service trims to eliminate noise,
vibration and cavitation. Applications include oil/gas, refining,
power and major process industries.

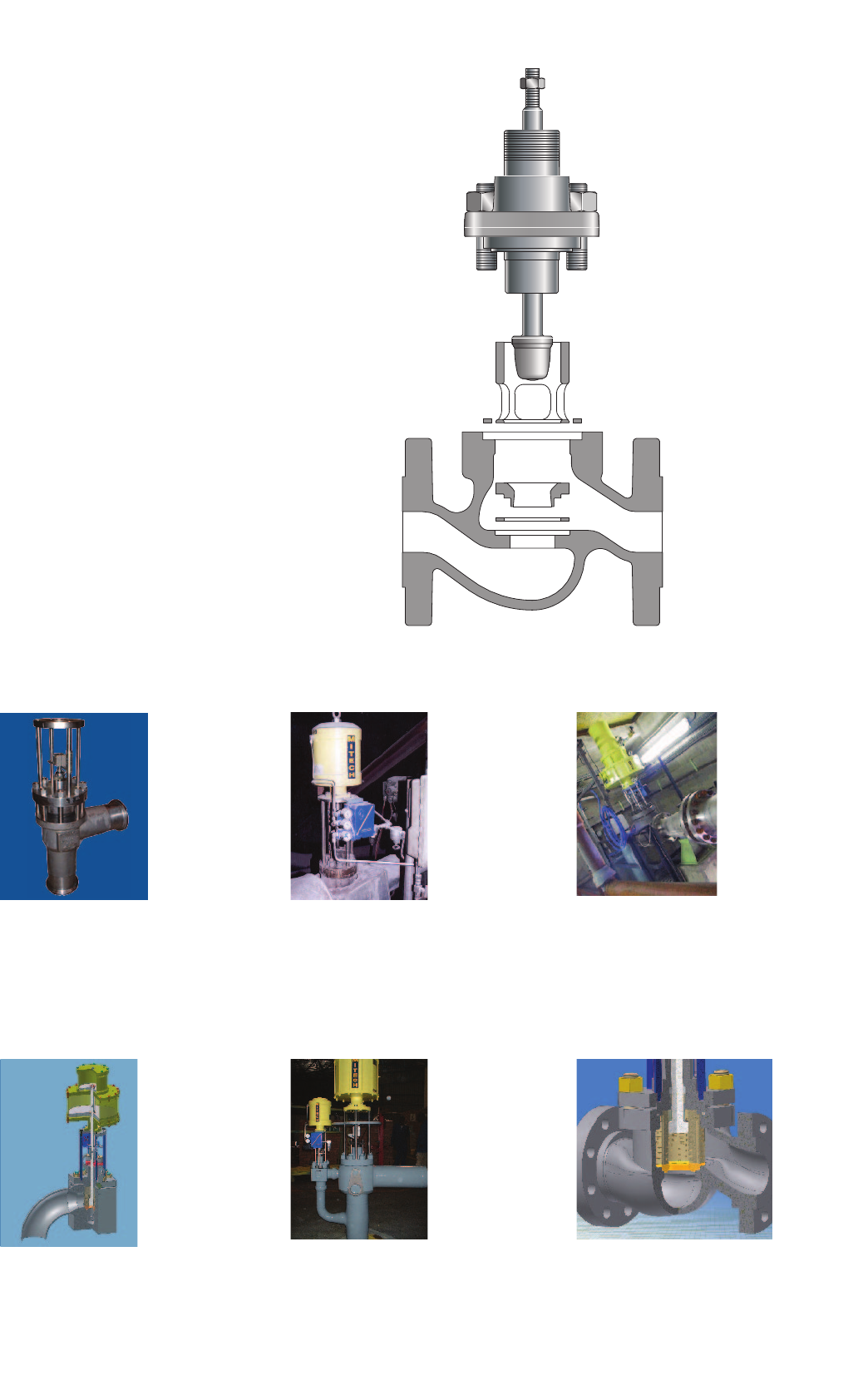

CLAMP IN PLACE, FREE FLOAT DESIGN
The entire Spirax-Mitech range of control valves utilises
the clamp in place, free float design. All trim components
are designed to clamp in place so the valve can be quickly
configured to the users specific process needs. The free
float of the seat and plug during assembly means that
stem, plug and seat alignment is easily achieved. When
compared to alternative designs, the free float designs
provides the user with longer stem seal life and better
valve shut-off performance.
The simplicity of build also means that maintenance is
quick and easy, with no special tools required to achieve
the design performance of the valve.
APPLICATIONS
Angle body choke valve
4” class 2500 angle valve
Crude oil from P1=210 bar to P2=46 bar
Tungsten carbide trim
Steam pressure reducing valve
6” x 10” class 2500 x 600 angle valve
Steam from P1=98 bar to P2=22 bar
Flow = 46700 kg/h
Recycle and pressure control valve
8” class 300 globe valve
Oxygen at 112ºC from 36 bar to 1 bar
Soot blower valve
2” class 2500 globe valve
Steam at 540ºC from 190 bar to 30 bar
Turbine isolation
Turbine isolation and warm-up station
Steam at 430ºC from 46 bar to 1 bar
Energy dissipating disk stack
SUMMARY OF KEY FEATURES AND BENEFITS
Model Key features Key benefits
SPIRA-TROL Precise control Guaranteed control performance across a wide range of
applications
Universal application Standardised control valve for your plant, which
minimises maintenance training and spares inventory
High performance long life stem seal Low emissions from the valve stem, which means a better
environment and no loss of valuable product or energy
Infrequent seal replacement, consequently maintenance
personnel are free for other work
Long life valve internals Fit and forget
Low number of components Highly flexible supply
Minimises spares inventory
Quick and easy maintenance Limited plant downtime
Low cost of ownership Larger profits for you
M-Series General purpose valve Solves basic and complex requirements
Robust construction Long lasting
Modular design Reduces spares
Suitable for high pressure and extreme
temperature conditions
Versatile and eliminates noise or cavitation problems
Can be adapted for corrosive fluids Versatile
Various sizes Versatile
Pneumatic, electro-pneumatic or smart
positioners
Versatile
Severe Service Local CFD design Can be engineered to suit a specific application
Linear / bi-linear / tri-linear Suitable for large turndowns (200:1)
Wide range of materials Can be engineered to suit a specific application
ZZ or disk stack Potential cost reduction on smaller sizes
Compact design Suitable for retrofitting
SPIRA-TROL
M-SERIES
SEVERE SERVICE
UK-C&I-MITECH
SUMMARY OF KEY FEATURES AND BENEFITS
Model Key features Key benefits
SPIRA-TROL Precise control Guaranteed control performance across a wide range of
applications
Universal application Standardised control valve for your plant, which
minimises maintenance training and spares inventory
High performance long life stem seal Low emissions from the valve stem, which means a better
environment and no loss of valuable product or energy
Infrequent seal replacement, consequently maintenance
personnel are free for other work
Long life valve internals Fit and forget
Low number of components Highly flexible supply
Minimises spares inventory
Quick and easy maintenance Limited plant downtime
Low cost of ownership Larger profits for you
M-Series General purpose valve Solves basic and complex requirements
Robust construction Long lasting
Modular design Reduces spares
Suitable for high pressure and extreme
temperature conditions
Versatile and eliminates noise or cavitation problems
Can be adapted for corrosive fluids Versatile
Various sizes Versatile
Pneumatic, electro-pneumatic or smart
positioners
Versatile
Severe Service Local CFD design Can be engineered to suit a specific application
Linear / bi-linear / tri-linear Suitable for large turndowns (200:1)
Wide range of materials Can be engineered to suit a specific application
ZZ or disk stack Potential cost reduction on smaller sizes
Compact design Suitable for retrofitting
SPIRAX-SARCO LIMITED
CHARLTON HOUSE
CHELTENHAM
GLOUCESTERSHIRE GL53 8ER
t: 01242 521361
f: 01242 573342
enquiries@spiraxsarco.com
www.spiraxsarco.com/uk
© Copyright 2006 Spirax-Sarco Limited
Spirax Sarco is a registered trademark of Spirax-Sarco Limited
