Warewashing

Green & Clean Undercounter Dishwasher with Wash Safe Control, drain

pump & CWS

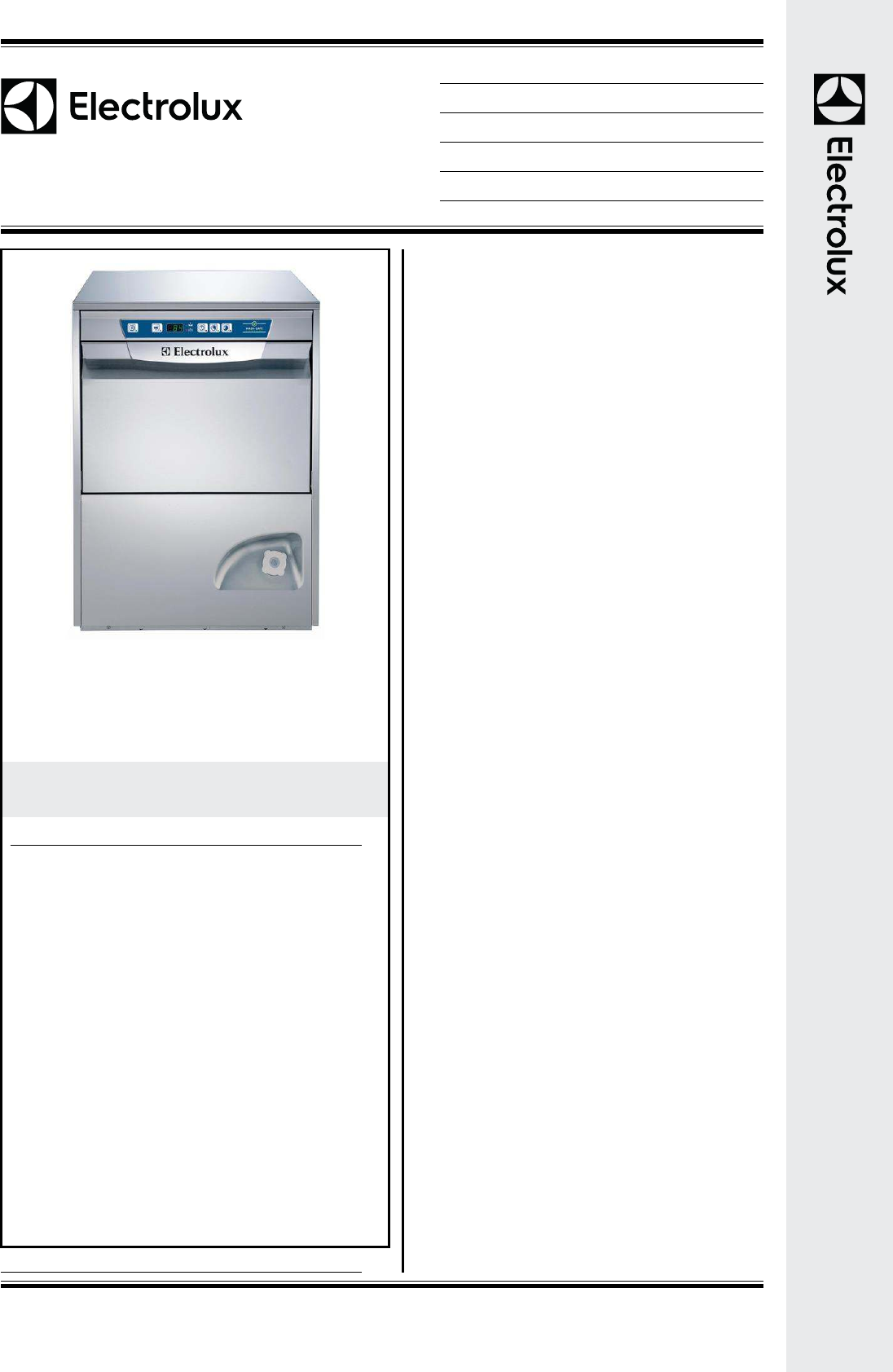

502028 (EUCAIWS)Green & Clean

Undercounter Dishwasher

with Wash Safe Control,

drain pump & CWS - 400

V/3N/50 Hz

Unit shall be Electrolux Green & Clean undercounter type hot water rinsing

dishmachine with Wash Safe Control, drain pump and continuous water

softener. Electrical characteristics to be ___400 volts three phase operation

with three automatic cycles of 90/120/240 seconds for lightly, normal or

heavily soiled items. Rinse temperature and pressure guaranteed by built in

atmospheric boiler and built in rinse booster pump. Washing performance is

guaranteed by a powerful wash pump, upper and lower stainless steel

revolving washing spray arms. Unit to feature "Wash Safe Control" led light.

Green light will indicate that all items washed have been properly rinsed.

304 Stainless steel construction to include door, frame, wash tank, and jets.

The unit shall include rinse aid dispenser pump and drain pump.

Main Features

•Continuous water softener (CWS) to ensure

complete and automatic regeneration of rinse

water without pressure drop.

•Front loading of regeneration salt: 2 resin

containers alternate for non-stop washing.

•Built-in atmospheric boiler sized to raise incoming

50 °C water to 84 °C minimum for sanitizing rinse.

No external booster is required.

•Built-in rinse aid dispenser with automatic initial

and continuous cycle loading for perfect result

while minimizing service and maintenance needs.

•Constant temperature of 84 °C thoughout the

rinsing cycle regardless of the network's water

pressure and temperature.

•Unique temperature interlock guarantees required

temperatures in both the wash and final rinse.

•Washing capacity of 40 baskets or 720 dishes per

hour.

•90/120/240 seconds cycle.

•Incorporated Soft Start feature to offer additional

protection to more delicate items.

•High efficiency air gap (class A) in water inlet circuit

to avoid water being siphoned back into the

network as a result of a sudden drop in main

pressures.

•4 second (variable) pause after washing and

before rinsing ensures that no drops of unclean

water will fall on the clean items at the end of the

rinsing cycle.

•Fault auto-diagnosis system.

•An effective rinse system uses only 3 litres of clean

hot water per basket for lower running costs.

•Double skinned insulated wall ensures a low noise

level and a reduction in heat loss from the machine.

•Utilizes fresh hot rinse water.

•Unique strainer to enhance soil filtering.

•Green light of "WASH SAFE CONTROL" confirms

that items have been rinsed properly.

•Three phase or single phase electrical connection,

convertible on-site.

•Low noise level.

•IPX 4 water protection.

•State-of-the-art electronic controls with built-in

programming, self-diagnostics for serviceability

and automatic interior self-cleaning cycle.

•Digital read-out keeps operator informed as to

temperatures.

Construction

•Heavy duty Stainless steel construction.

•Internal cavity as well as exterior panels are all 304

series Stainless steel.

•Special designed Stainless steel nozzles provide

superior cleaning action.

•Revolving Stainless steel wash/rinse arms above

and below the basket.

•Interchangeable wash/rinse arms screw out for

simple clean up.

Warewashing

Green & Clean Undercounter Dishwasher

with Wash Safe Control, drain pump & CWS

Warewashing

Green & Clean Undercounter Dishwasher with Wash Safe Control, drain

pump & CWS

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2018.02.13

•Large deep drawn wash tank and internal wash area

with round corners and no pipes to avoid dirt built-up.

•Element protection from dry fire and low water.

•The boiler drain facilitates the evacuation of stagnant

water after long periods of inactivity to ensure a higher

level of hygiene.

•Incorporated drain pump to control water level in wash

tank draining.

Included Accessories

•2 of Yellow cutlery containerPNC 864242

•1 of Basket for 18 dinner plates - yellowPNC 867002

•1 of Basket for 48 small cups or 24 cups

- bluePNC 867007

Optional Accessories

•Stand for undercounter dishwasherPNC 860418

❑

•Brass inlet valve kit for undercounter

and hood type dishwashersPNC 864000

❑

•External detergent level probe kit PNC 864004

❑

•External rinse aid level probe kitPNC 864005

❑

•Kit 4 castors for double skin

undercounter dishwashersPNC 864008

❑

•Stainless steel inlet hose kitPNC 864016

❑

•Kit to measure total and partial water

hardnessPNC 864050

❑

•Detergent dosing kitPNC 864218

❑

•Yellow cutlery containerPNC 864242

❑

•Filter for total demineralizationPNC 864367

❑

•Pressure reducer for single tank

dishwasherPNC 864461

❑

•Half size basket universalPNC 864527

❑

•Half size basket for plates PNC 864528

❑

•Half size basket for glassesPNC 864529

❑

•Kit 4 plastic boxes for cutlery - yellowPNC 865574

❑

•Basket for 18 dinner plates - yellowPNC 867002

❑

•Basket for 5 trays 530x325 mm - red, for

undercounter (top level), utensil

dishwashers, hood type, rack type

PNC 867006

❑

•Basket for 48 small cups or 24 cups -

bluePNC 867007

❑

•Wire basket for 12 plates up to 320 mmPNC 867014

❑

•Cover rack for small and light items

(500x500 baskets)PNC 867016

❑

•Basket for long stem wine glassesPNC 867019

❑

•Basket for 16 vertical glasses (h 70 mm -

diam 100 mm) - bluePNC 867023

❑

•Basket semi-professional

500x500x190mmPNC 867024

❑

Warewashing

Green & Clean Undercounter Dishwasher

with Wash Safe Control, drain pump & CWS

Warewashing

Green & Clean Undercounter Dishwasher with Wash Safe Control, drain

pump & CWS

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2018.02.13

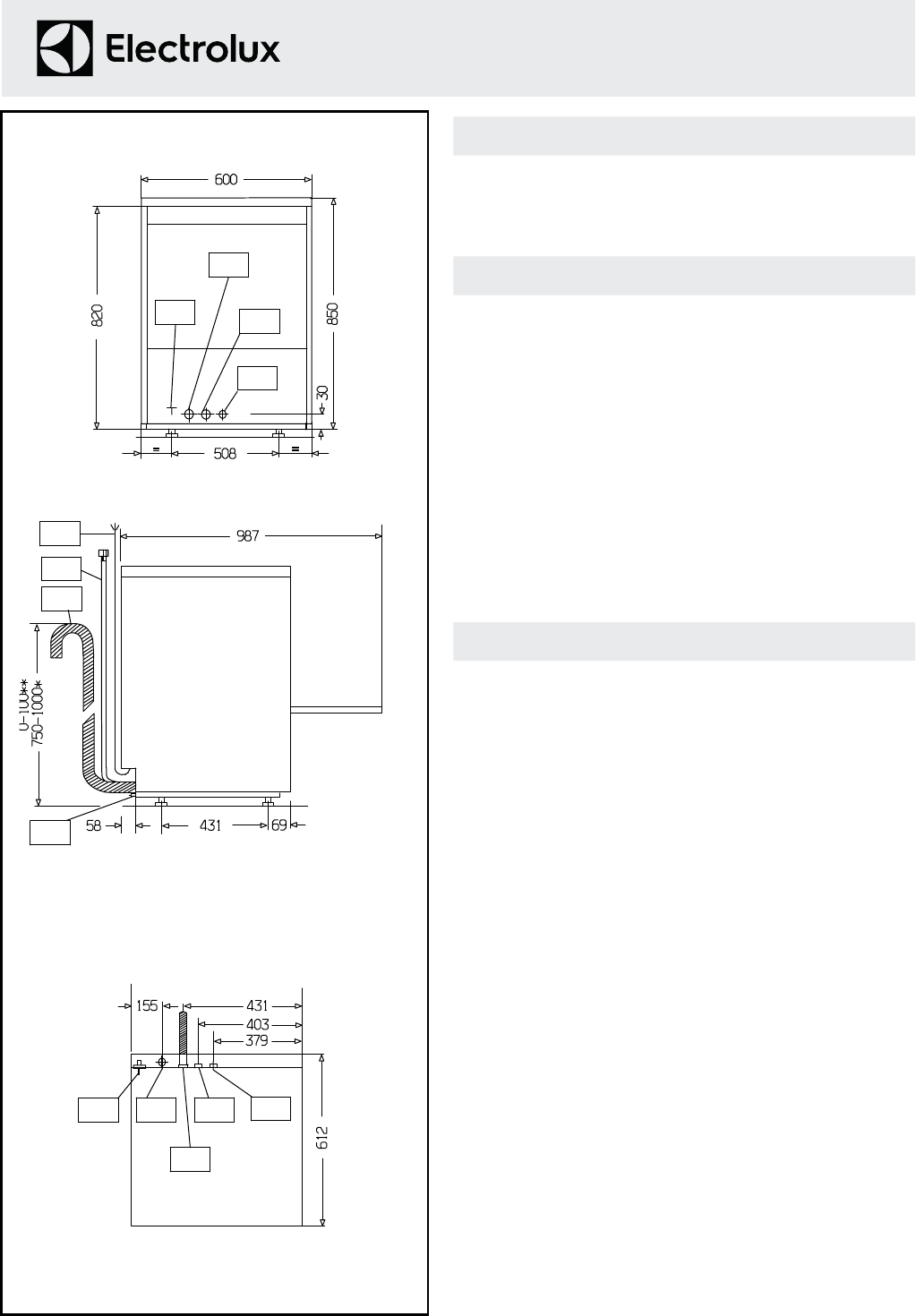

Front

HWI

With drain pump

Without drain pump

Side

HWI

With drain pump

Without drain pump

D=Drain

EI=Electrical inlet (power)

EO=Electrical Outlet

HWI=Hot water inlet

V=Air vents

XD=Detergent connection

XR=Rinse aid connection

Top

HWI

With drain pump

Without drain pump

Electric

Supply voltage:400 V/3N ph/50 Hz

Convertible to:230V 3~; 230V 1N~

Total Watts:5.35 kW

Tank heating elements:2 kW

Wash pump power:0.736 kW

Water:

Water supply temperature*:50 °C

Drain line size:20.5mm

Inlet Water supply pressure:7 - 102 psi (0.5 - 7 bar)

Water consumption per cycle

(lt):3

Working cycles time (sec.):90/120/240

Boiler Capacity (lt):12

Tank Capacity (lt):23

Washing cycle temperature:55-65 °C

Washing tank capacity (lt):23

Washing cycle electrical

elements:2 kW

Hot rinse cycle duration

(sec.):12

Hot rinse cycle temperature:84 °C

Hot rinse cycle water

consumption (lt):3

Key Information:

Baskets per hour*:40

N° of working cycles - sec.:3 (90/120/240)

Cell dimensions - width:500 mm

Cell dimensions - depth:500 mm

Cell dimensions - height:335 mm

Dishes per hour:720

Wash temperature:55-65°C

Rinse temperature:84 °C

External dimensions, Width:600 mm

External dimensions, Height:850 mm

External dimensions, Depth:612 mm

Noise level:<65 dBA

Dishes capacity:720/hr
