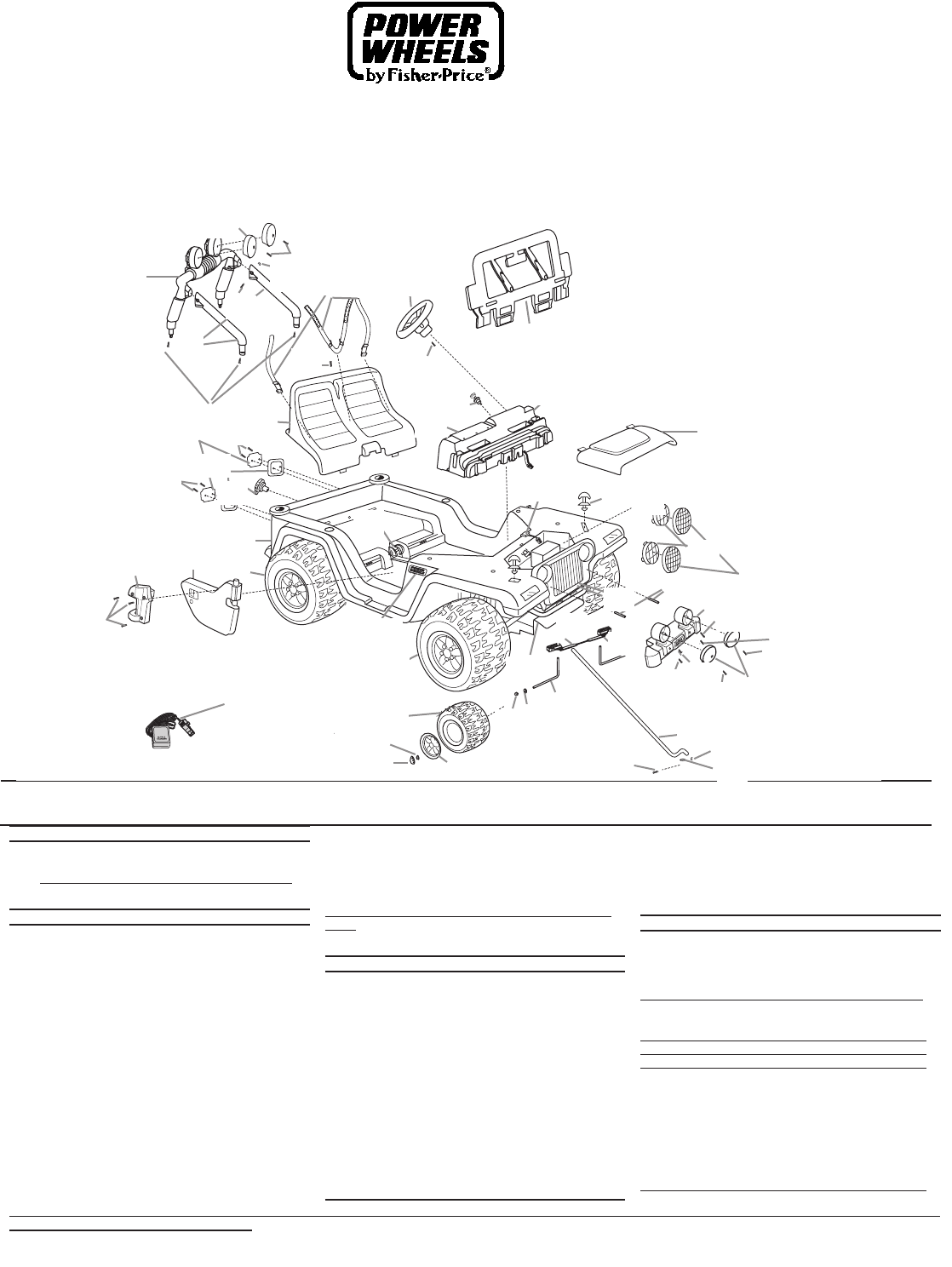

BARBIE JAMMIN' JEEP H3427 Jammin
User Manual: BARBIE JAMMIN' JEEP H3427
Open the PDF directly: View PDF
.
Page Count: 1
I
tem Part
No. Description No. Qty.
Item Part
No. Description No. Qty.
Item Part
No. Description No. Qty.
Working / Electrical Parts
1. 12V Single Battery 00801-0638 1
2. 12V Single Charger 00801-0972 1
3. Main Harness Assembly C2390-9799D1
4. Shifter Assembly 74310-9239 1
Plastic/Other Parts
11. Body N/A 1
12. Seat H3427-2519 1
13. Wheel B7659-2459 4
14. Windshield B0155-2619 1
15. Sport Bar B0155-2219 1
16. Hood w/Bag H3427-2859 1
17. Sport Bar Support B0155-2769 2
18. Steering Wheel H3427-7645 1
19. Dash w/ Radio H3427-9259D 1
20. Door (Right) H3427-9229 1
21. Door Hinge (Right) H3427-2249 1
22. Brushguard/Bumper H3427-2189 1
23. Seatbelt Set H3427-5339 1
24. Taillight Lens Set 73233-2279 1
25. Taillight Housing Set H3427-2749 1
26. Lens Guard H3427-2839 2
27. Headlight Lens 74450-2279 2
28. Light Cover H3427-2169 4
29. Hood Latch H3427-9559 2
30. Key Assembly 75840-9409 1
31. Spacer H3427-2529 2
32. Gas Cap H3427-2539 1
34. Grill 78478-2849 1
35. Hubcap B7659-2469 4
36. Hubcap Cover B7659-2679 4
37. Front Module H3427-2119 1
39. **Radio H3427-9309 1
(Consumer Replaceable By Ordering Part 19
(Dash w/Radio Assy.)
Hardware / Metal Parts
45. Steering Column* H3427-4239 1
46. 8 x 1 Screw N/A 00912-8003 5
47. 8-32 x 1.625” Screw 00801-1276 2
48. 10 x 1 Screw N/A 00801-1256 11
49. 8 Acorn Lock Nut N/A 00801-1277 2
50. 10 x 1/2 Screw N/A 00801-0255 10
51. 8 x 5/8 Screw N/A 1
52. 8 x 3 Screw N/A 00914-0040 2
(Order Hardware Bag)
53. 6 x 1 1/2 Screw N/A 1
(Order Hardware Bag)
54. 8 Lock Nut N/A 00905-0117 1
55. 3/8 Washer N/A 1
(Order Hardware Bag)
56. 7/16 Washer 0801-0196 4
57. .437 Cap Nut 0801-0227 6
59. 7/16 Round/Axle Bushing 74550-2689 2
60. Cross Bar 75840-4409 1
61. Front Axle B7659-4519 2
62. Steering Linkage B7659-9419D 1
63. Power Wheels Emblem 74460-9069 2
Parts Not Shown
Parts Bag H3427-9269 1
Hardware Bag H3427-9299 1
Owners Manual H3427-0920 1
Decal Sheet H3427-0310A 1
Switch Control (Shifter Rocker) 00801-0923
Door Hinge (Left) H3427-2279 1
Door (Left) H3427-9209 1
Motor Gearbox Assembly 00968-2912 2
Gearbox W/out Motor 00968-2802 2
Motor Pinion Assembly 00968-2702 2
Rear Axle B7659-4529 1
Footboard Assembly 74020-9839D 1
Battery Retainer H3427-7809 1
1/4 x 1 1/2 Screw 0801-0578 2
Wheel Driver 74460-2249 2
Channel Cover H3427-2489 1
Radio Battery Cover w/screws and washers
H3427-2459 1
Footswitch 00801-2039 1
Rev. 6/29/07
H3427
Barbie Jammin’ Jeep
12V
Advanced Series
Age Range: 3 and up
Weight Limit: 130 lbs.
Surfaces: Grass/Asphalt/Hard
Surfaces
Speed: 2.5 For/Rev
5.0 For
Colors: Purple Body/Pink Seat/
Black Wheels
Intro: 2005
Suggested Retail: 219.99
Box Dimensions:
18.375 x 33.375 x 44.750
67 lbs.
Warranty
One Year Vehicle
6 Months Battery
17
34
25
46
46
24
12
32
11
13
20
21
48
2
13
4
63
13
57
36
59 56
61
60
37
45
54
55
51
35
49
47
50
23
50
28
15
14
30
39 16
1
26
27
31
62
29
3
22
52
28
50
52
48
50
48
46
18
53
19
Bold and Underlined parts are to be purchased and installed by Service Centers only. These items may not be sold directly to consumers
by Service Centers or Fisher-Price.
**Service Centers: Please see Service Bulletin #176 for replacement of Radio/CD Combo.
* Please see Service Bulletin #182 entitled Assembly Change to Steering Column
N/A = Not Available
