SERVICE MANUAL
Sony Corporation
Home Audio Division
Published by Sony Techno Create Corporation
AEP Model
HCD-DZ119/DZ410
UK Model
HCD-DZ410
DVD RECEIVER
9-887-190-02
2006I16-1
© 2006.09
Ver. 1.1 2006.09
HCD-DZ119/DZ410
•HCD-DZ119 is the amplifier, DVD/CD and
tuner section in DAV-DZ119.
•HCD-DZ410 is the amplifier, DVD/CD and
tuner section in DAV-DZ410.
SPECIFICATIONS
Model Name Using Similar Mechanism HCD-DZ110
Mechanism Type CDM85-DVBU102
Optical Pick-up Name
KHM-310CAA
This system incorporates with Dolby*1 Digital and Dolby Pro Logic (II)
adaptive matrix surround decoder and the DTS*2 Digital Surround
System.
*1 Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are trademarks of
Dolby Laboratories.
*2 Manufactured under license from Digital Theater Systems, Inc.
“DTS” and “DTS Digital Surround” are trademarks of Digital
Theater Systems, Inc.
Stereo mode (rated) 108 W + 108 W (3 ohms at
1 kHz, 1 % THD)
Surround mode (reference) RMS output power, 10 %
THD
Front: 142 W + 142 W
(with SS-TS53)
Center*: 142 W
(with SS-CT51)
Surround*: 142 W + 142 W
(with SS-TS53)
Subwoofer*: 140 W
(with SS-WS51)
*Depending on the sound field settings and the source,
there may be no sound output.
Inputs (Analog)
LINE (AUDIO IN) Sensitivity: 450/250 mV
AUDIO IN Sensitivity: 250/125 mV
Outputs (Analog)
Phones Accepts low-and high-
impedance headphones.
DVD system
Laser Semiconductor laser
(DVD: λ = 650 nm)
(CD: λ = 790 nm)
Emission duration:
continuous
Signal format system PAL
Tuner section
System PLL quartz-locked digital
synthesizer system
FM tuner section
Tuning range 87.5 – 108.0 MHz (50 kHz
step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range 531 – 1,602 kHz (with the
interval set at 9 kHz)
Antenna (aerial) AM loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Outputs VIDEO: 1 Vp-p 75 ohms
R/G/B: 0.7 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
P
B
/C
B
, P
R
/C
R
: 0.7 Vp-p
75 ohms
Amplifier section
General
Power requirements 220 – 240 V AC, 50/60 Hz
Power consumption On: 150 W
Standby: 0.3 W (at the
Power Saving mode)
Dimensions (approx.) 430 × 55 × 360 mm (w/h/d)
incl. projecting parts
Mass (approx.) 3.8 kg
Design and specifications are subject to change
without notice.
DZ119
DZ410
Stereo mode (rated) 108 W + 108 W (3 ohms at
1 kHz, 1 % THD)
Surround mode (reference) RMS output power, 10 %
THD
Front: 142 W + 142 W
(with SS-TS51)
Center*: 142 W
(with SS-CT51)
Surround*: 142 W + 142 W
(with SS-TS51)
Subwoofer*: 140 W
(with SS-WS51)
Photo : HCD-DZ410
2
HCD-DZ119/DZ410
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
This appliance is classified as
a CLASS 1 LASER product.
This marking is located on
the bottom exterior.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

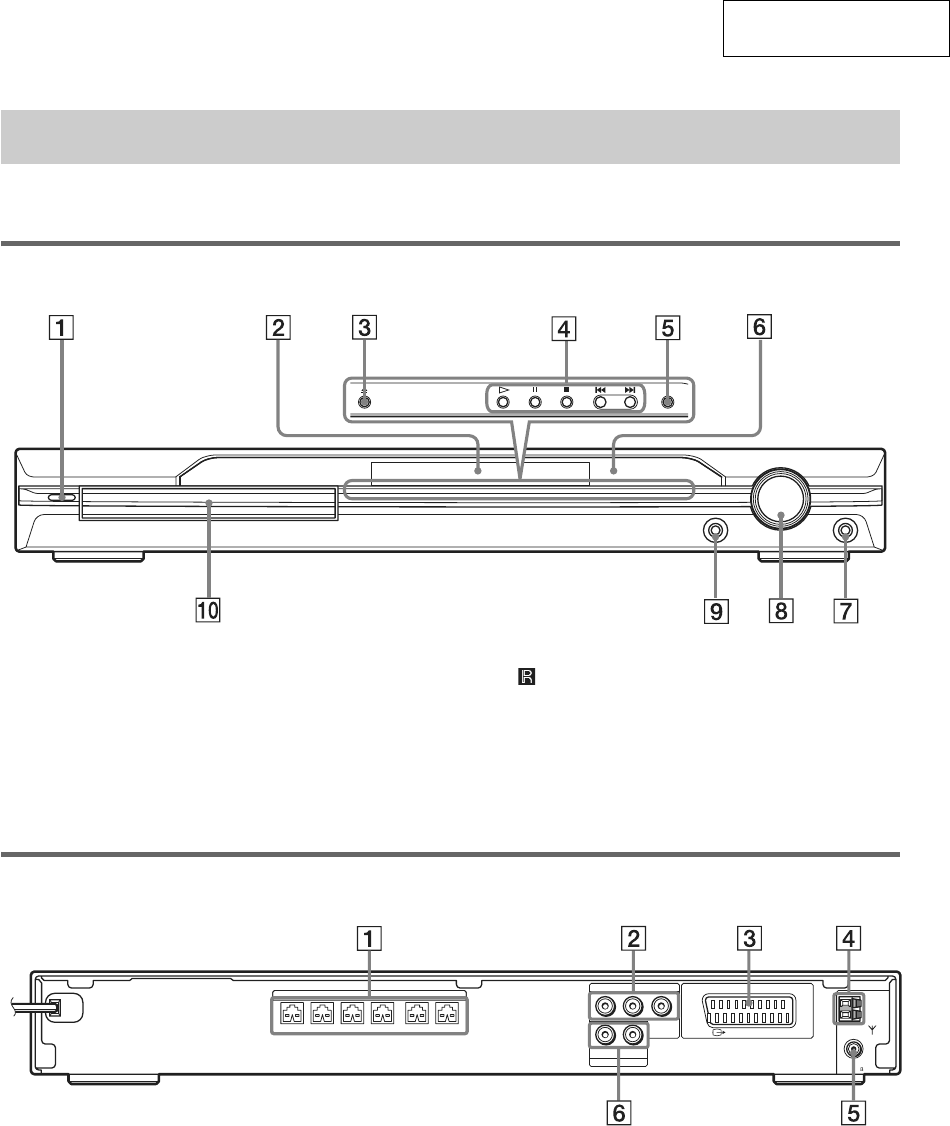

MODEL IDENTIFICATION
– Rear Panel –
COAXIAL
AM
FM
75
SPEAKER
EURO AV
FRONT R FRONT L
Part No.
SUR R SUR LCENTER WOOFER
OUTPUT(TO TV)
COMPONENT VIDEO OUT
YP
B
/C
B
P
R
/C
R
(DVD ONLY)
RLAUDIO IN
LINE
Model Part No.
HCD-DZ119 2-661-239-0[]
HCD-DZ410 2-661-238-3[]
3
HCD-DZ119/DZ410
TABLE OF CONTENTS
1. SERVICING NOTE ................................................... 4
2. GENERAL ................................................................... 9
3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 12

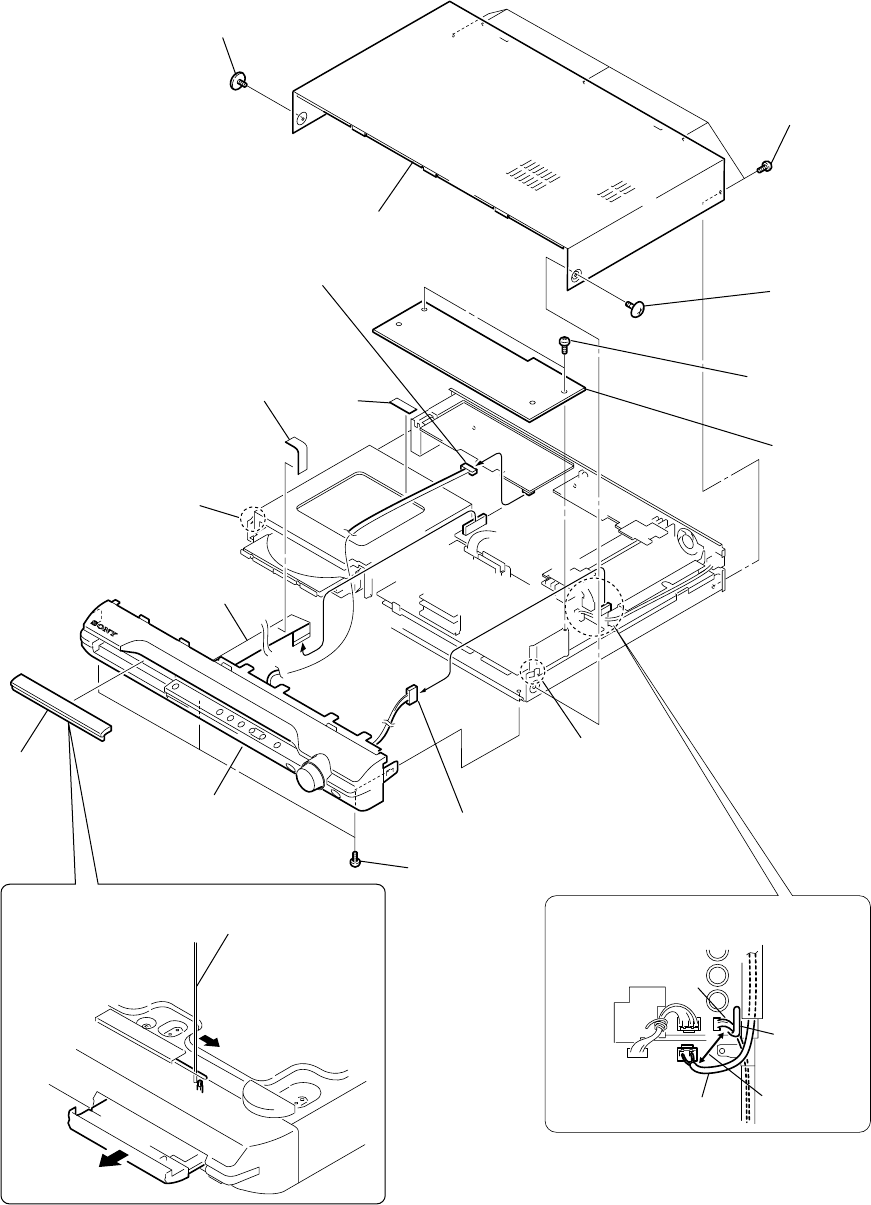

3-2. Case, Front Panel Assy .................................................... 13
3-3. FL Board.......................................................................... 14
3-4. JACK Board, SW Board .................................................. 14
3-5. I/O SCART Board ........................................................... 15
3-6. MAIN Board.................................................................... 15

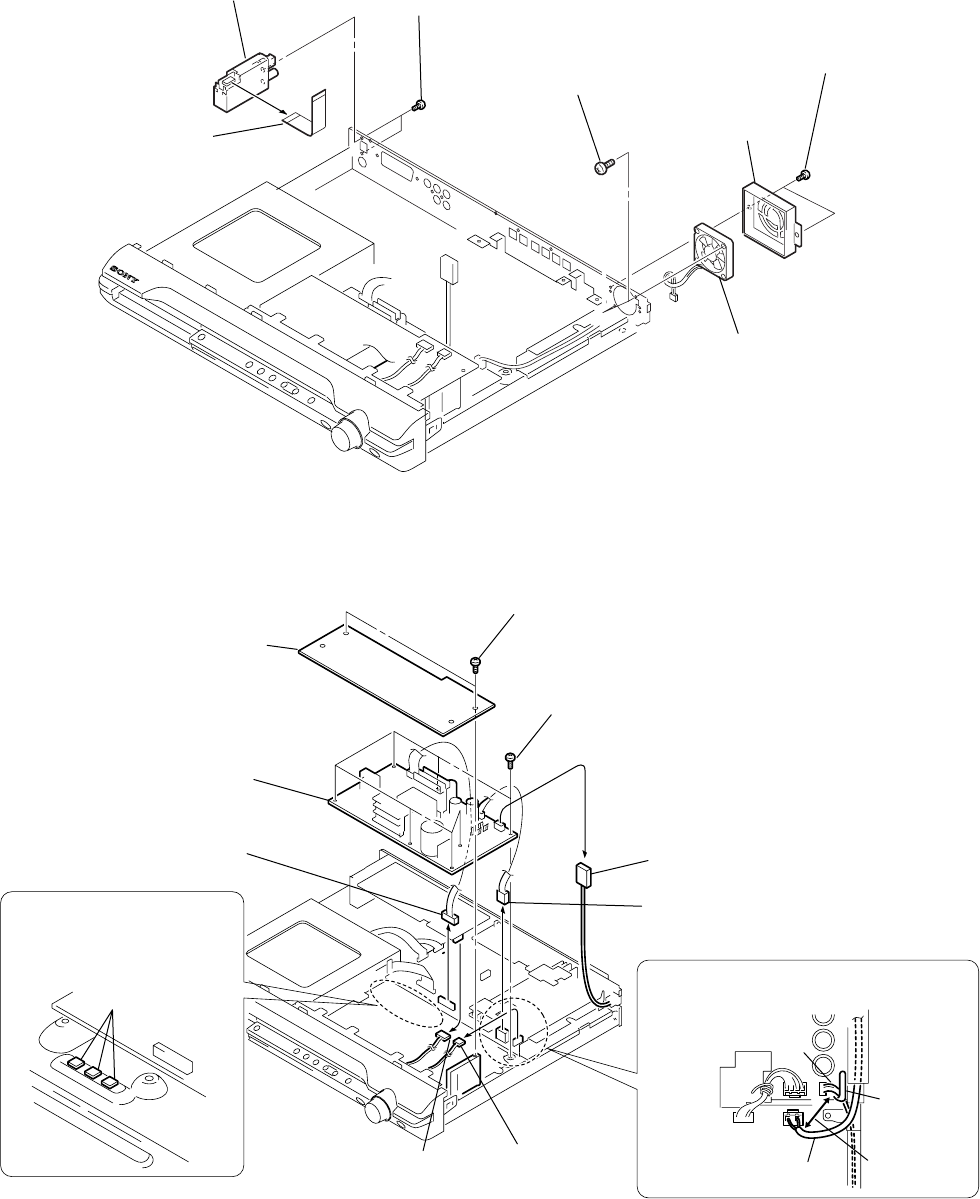

3-7. DC Fan, Tuner Unit ......................................................... 16
3-8. POWER Board ................................................................ 16

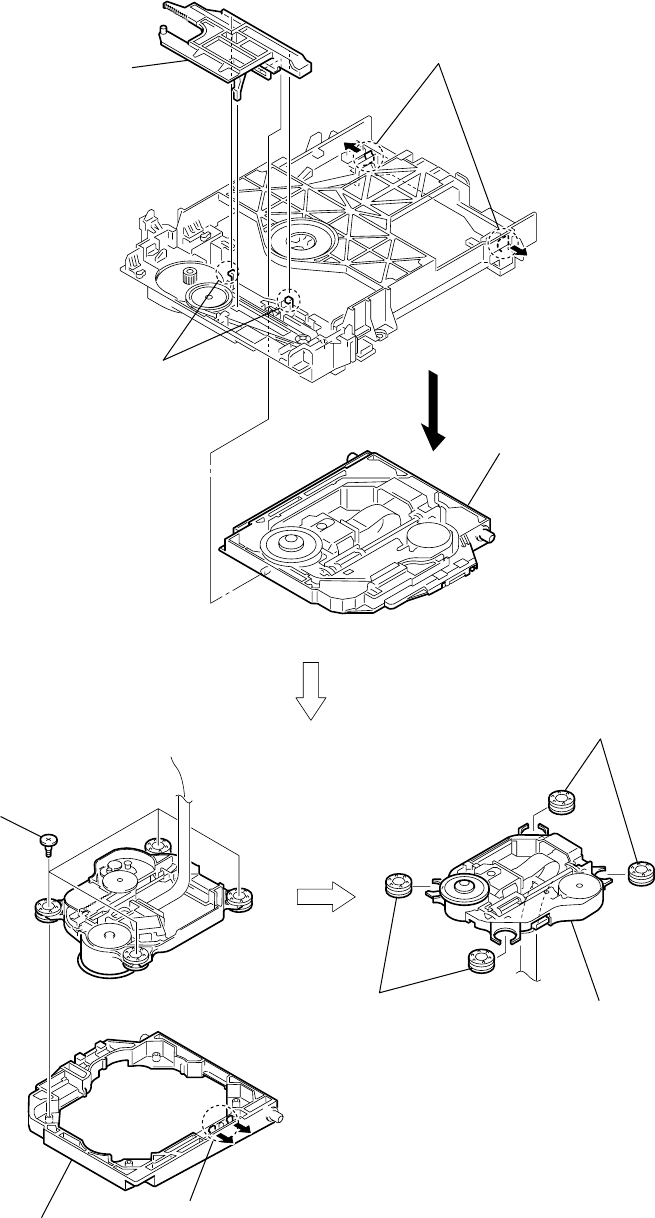

3-9. DVD Mechanism Deck (CDM85-DVBU102) ................ 17
3-10. Tray.................................................................................. 17

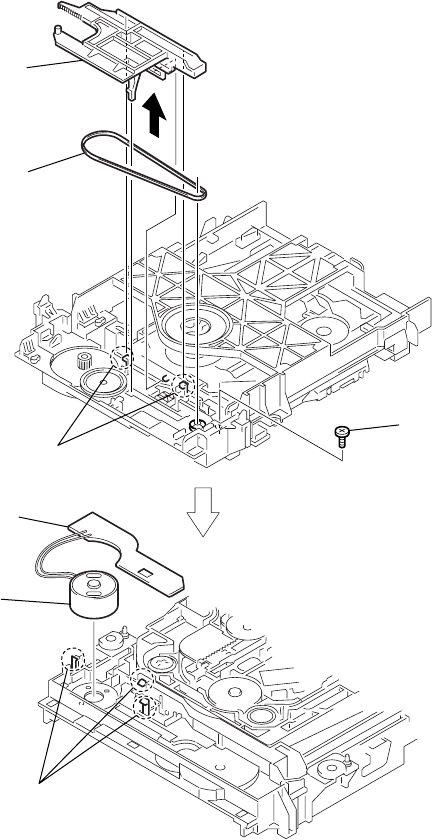

3-11. Belt, MS-203 Board ........................................................ 18
3-12. Optical Pick-up (KHM-310CAA) ................................... 19
4. TEST MODE ............................................................... 20

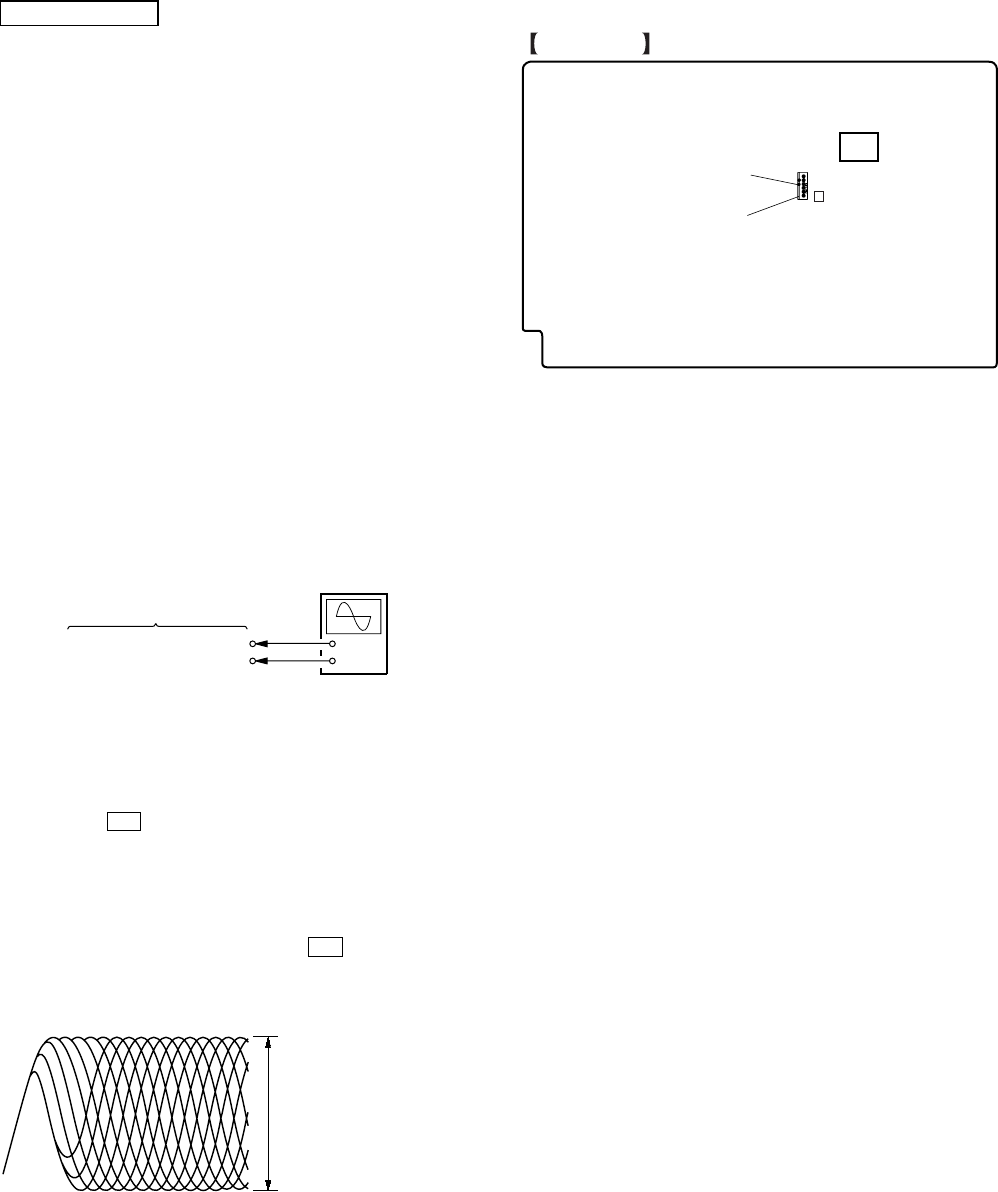

5. ELECTRICAL ADJUSTMENT ............................. 24
6. DIAGRAMS
6-1. Block Diagram – RF Section –....................................... 26

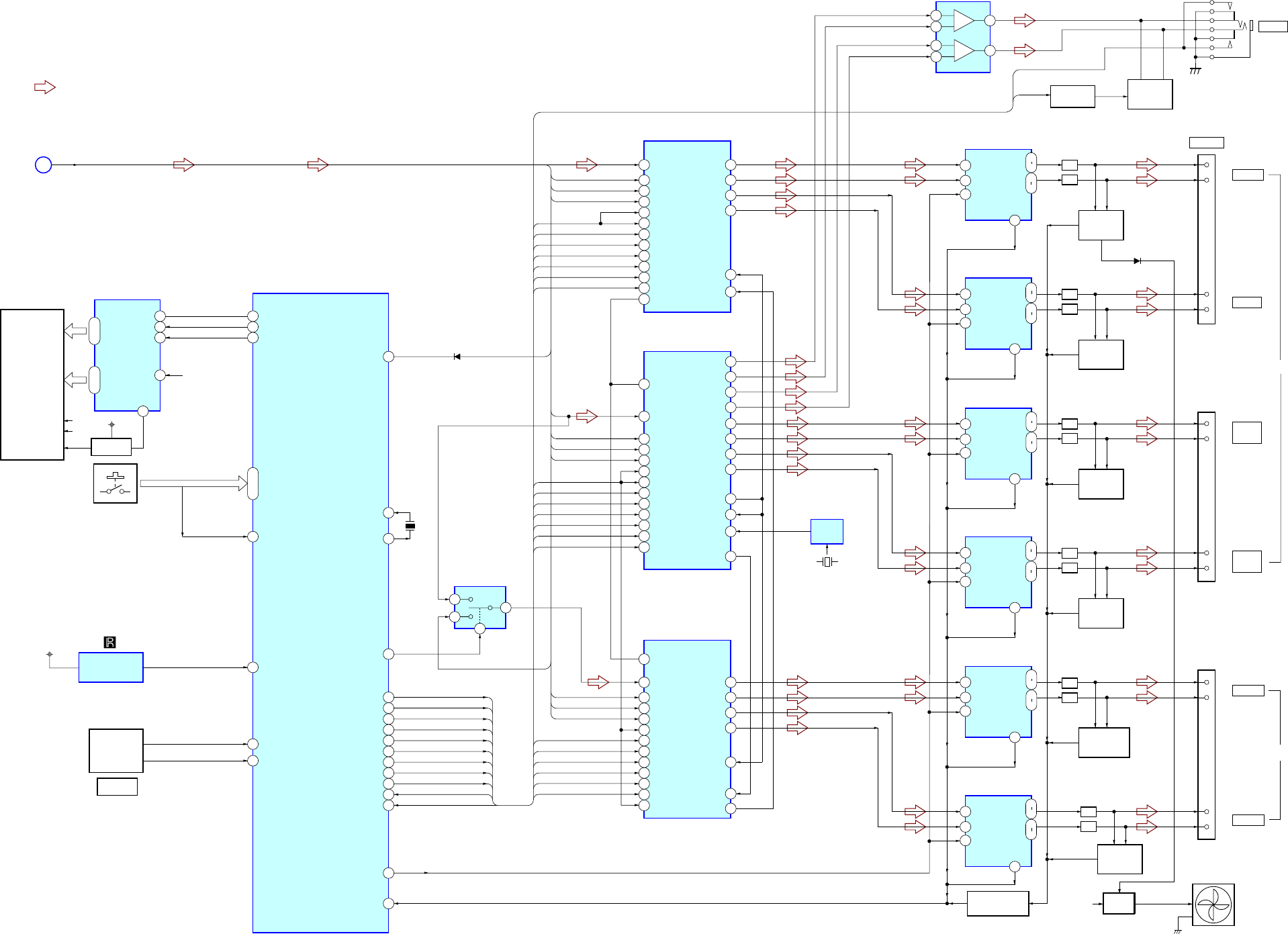

6-2. Block Diagram – AMP Section – ................................... 27
6-3. Block Diagram – AUDIO Section – ............................... 28

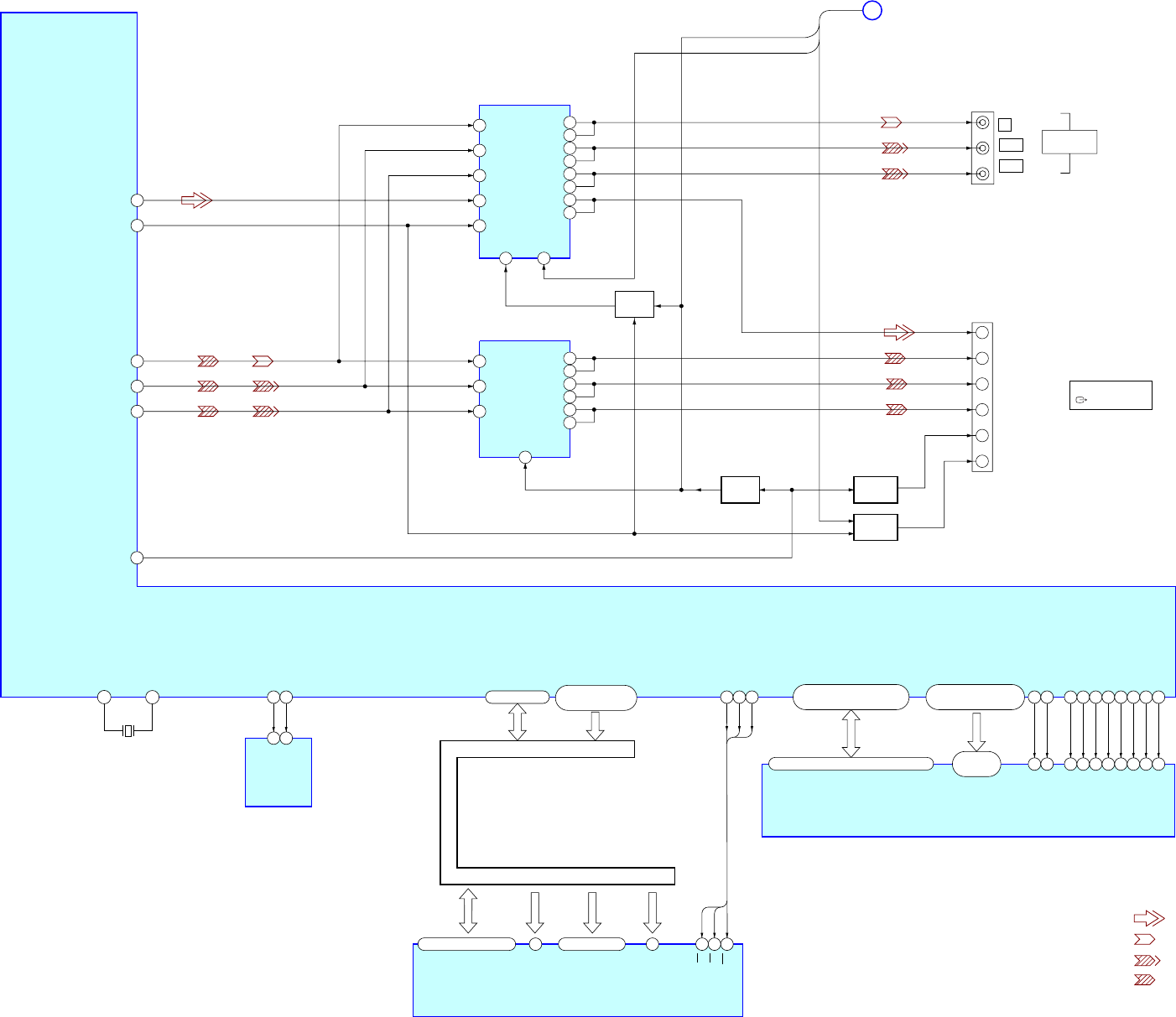

6-4. Block Diagram – VIDEO Section – ............................... 29
6-5. Block Diagram – POWER Section –.............................. 30

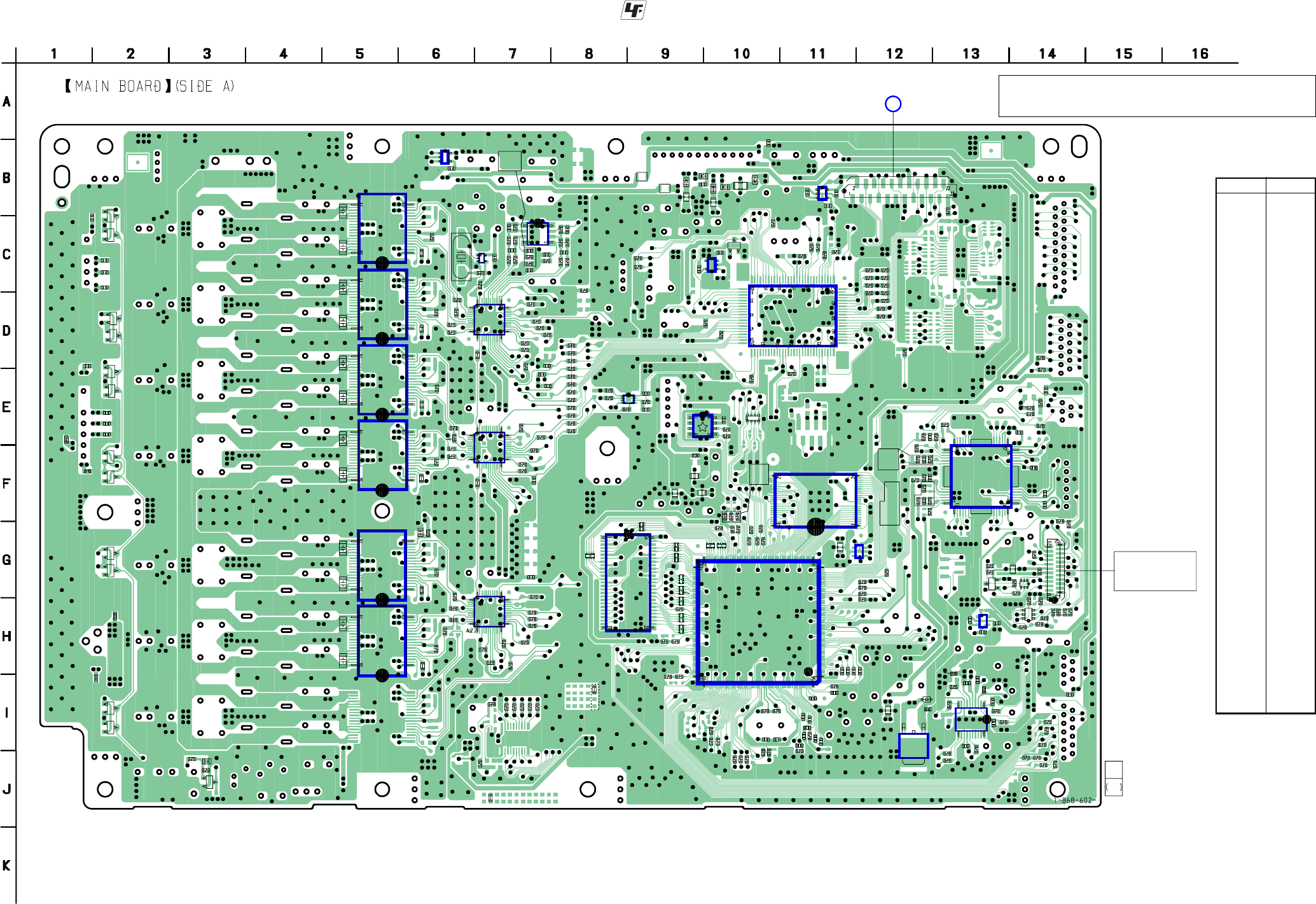

6-6. Printed Wiring Board – MAIN Board (Side A) – ............ 31

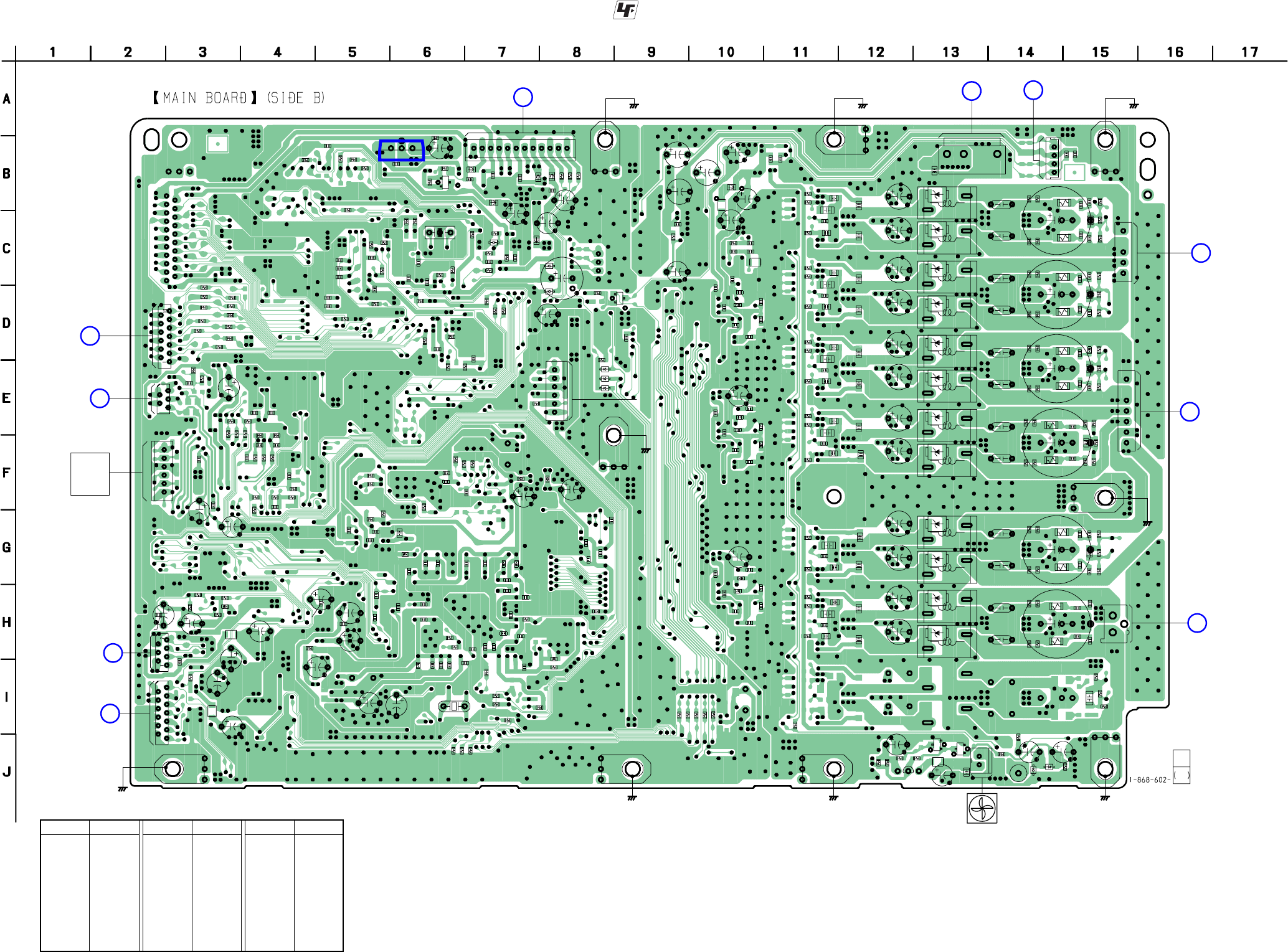

6-7. Printed Wiring Board – MAIN Board (Side B) –............ 32

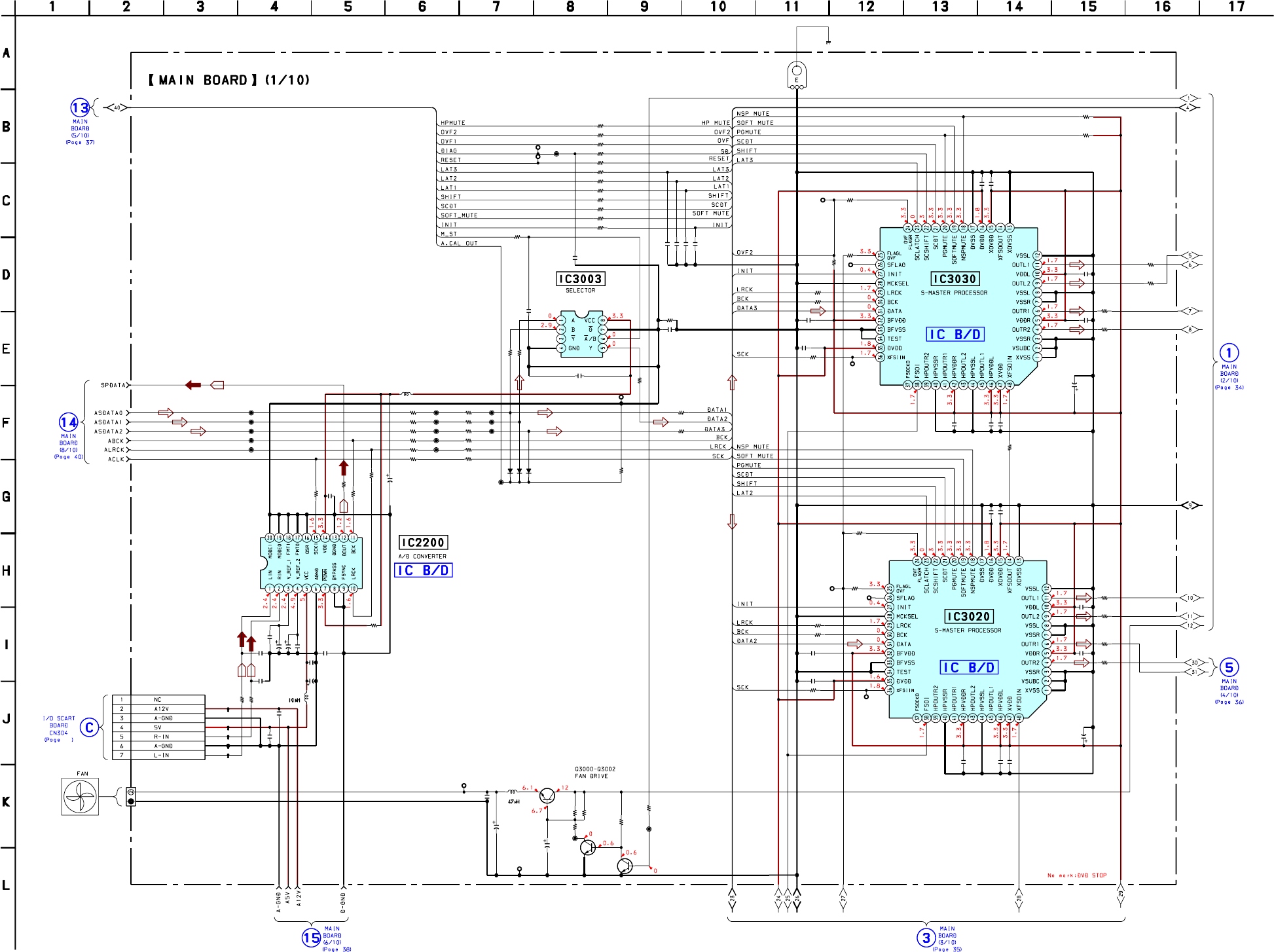

6-8. Schematic Diagram – MAIN Board (1/10) – ................. 33
6-9. Schematic Diagram – MAIN Board (2/10) – ................. 34

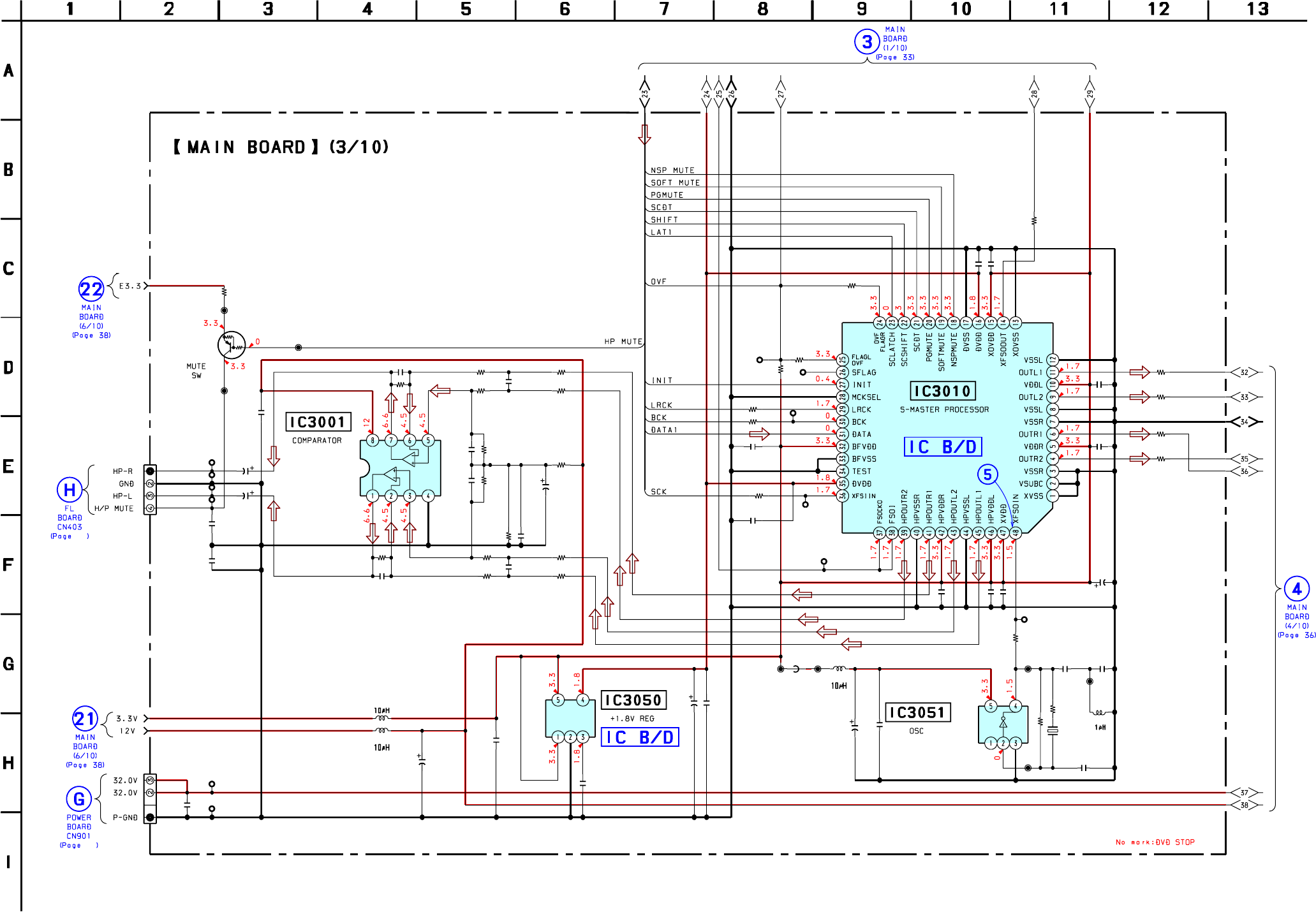

6-10. Schematic Diagram – MAIN Board (3/10) – ................. 35

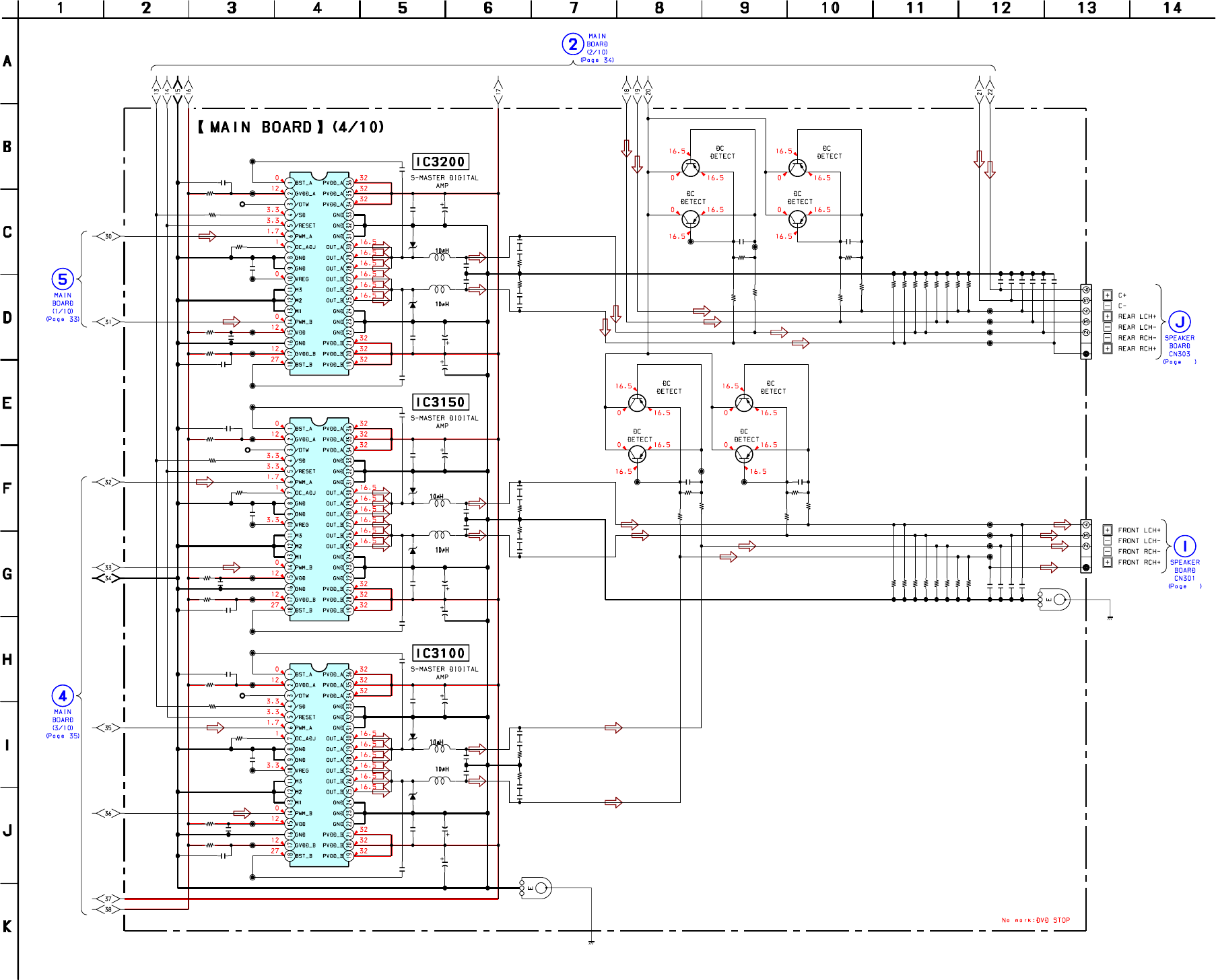

6-11. Schematic Diagram – MAIN Board (4/10) – ................. 36

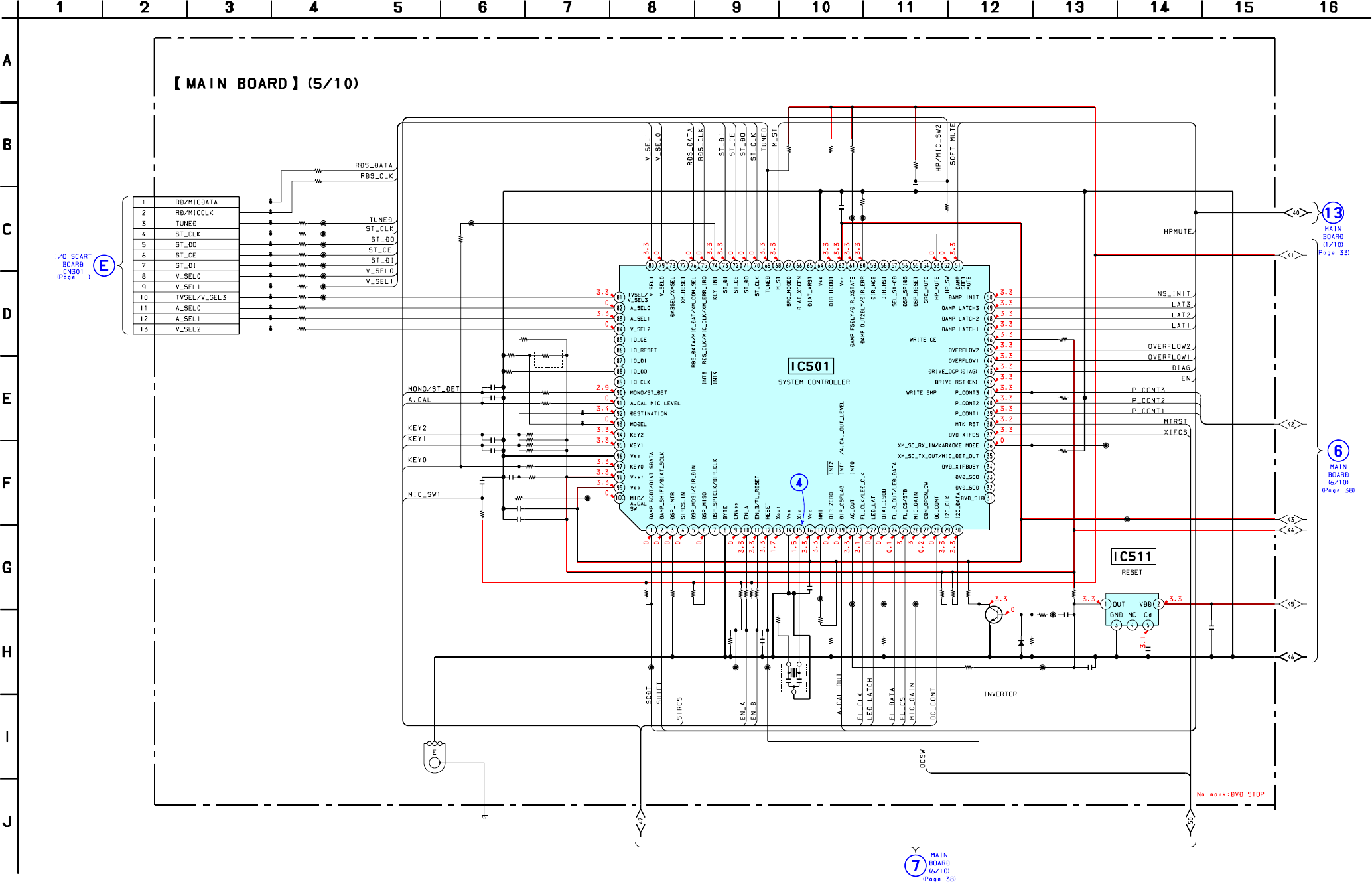

6-12. Schematic Diagram – MAIN Board (5/10) – ................. 37

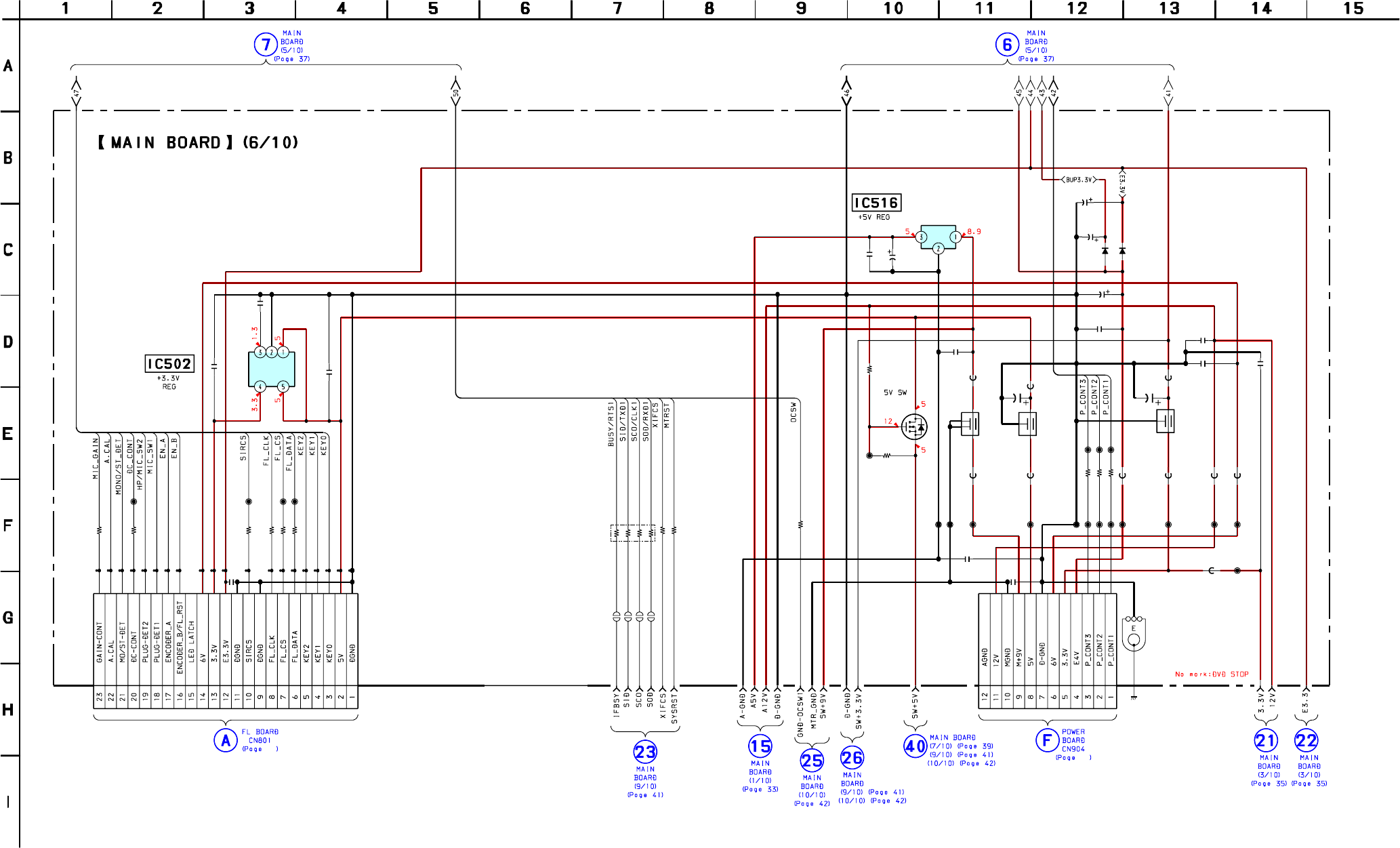

6-13. Schematic Diagram – MAIN Board (6/10) – ................. 38

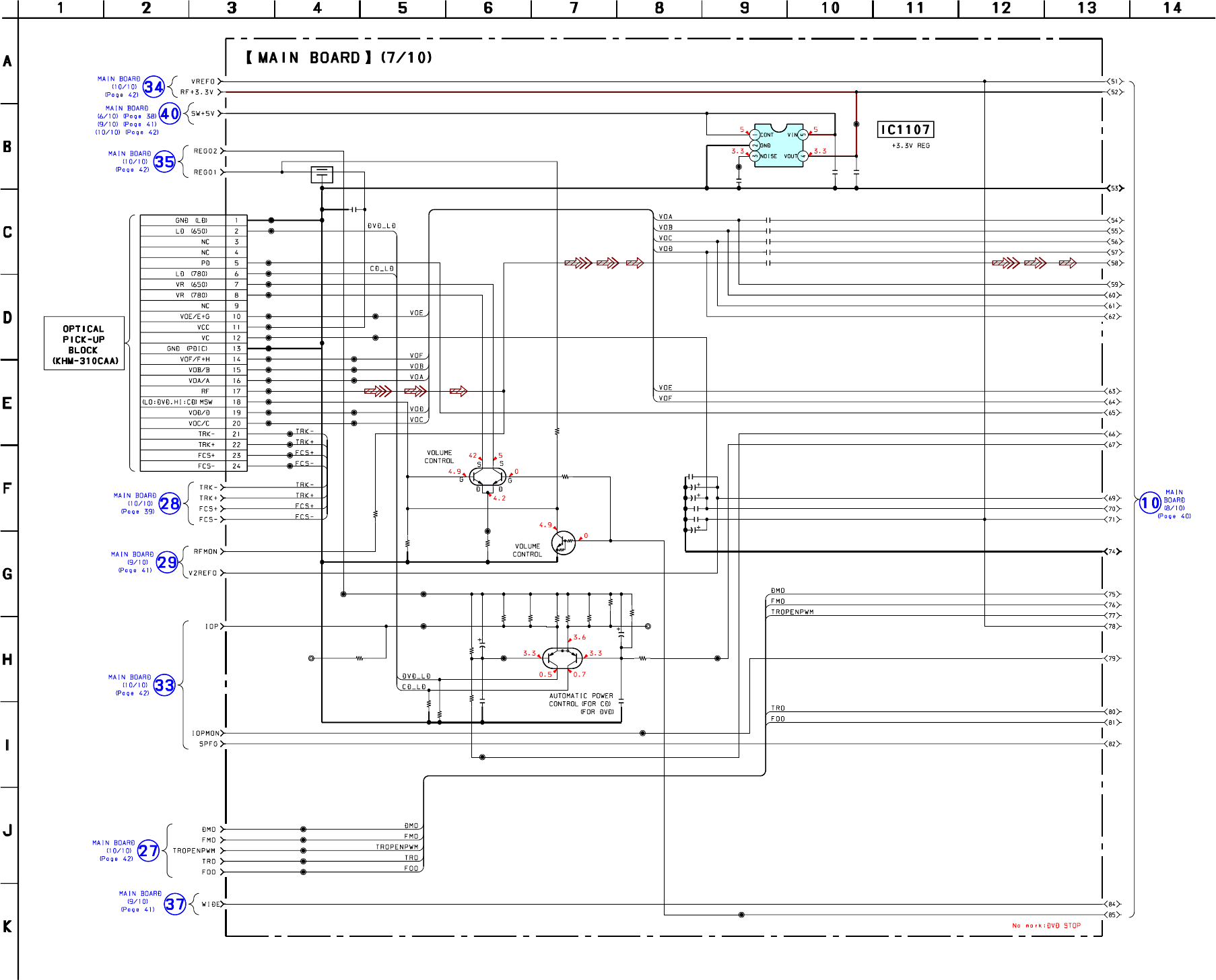

6-14. Schematic Diagram – MAIN Board (7/10) – ................. 39

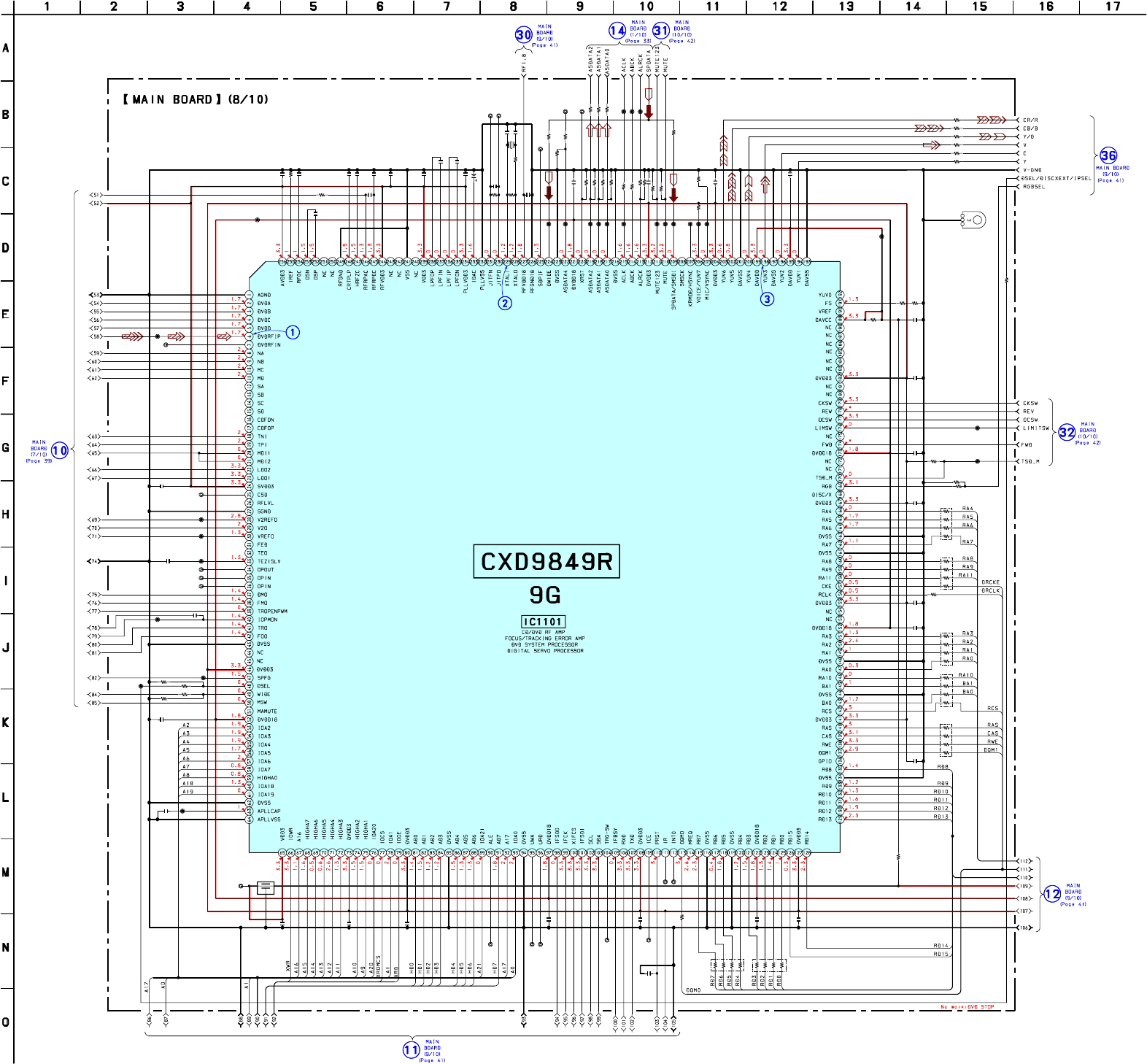

6-15. Schematic Diagram – MAIN Board (8/10) – ................. 40

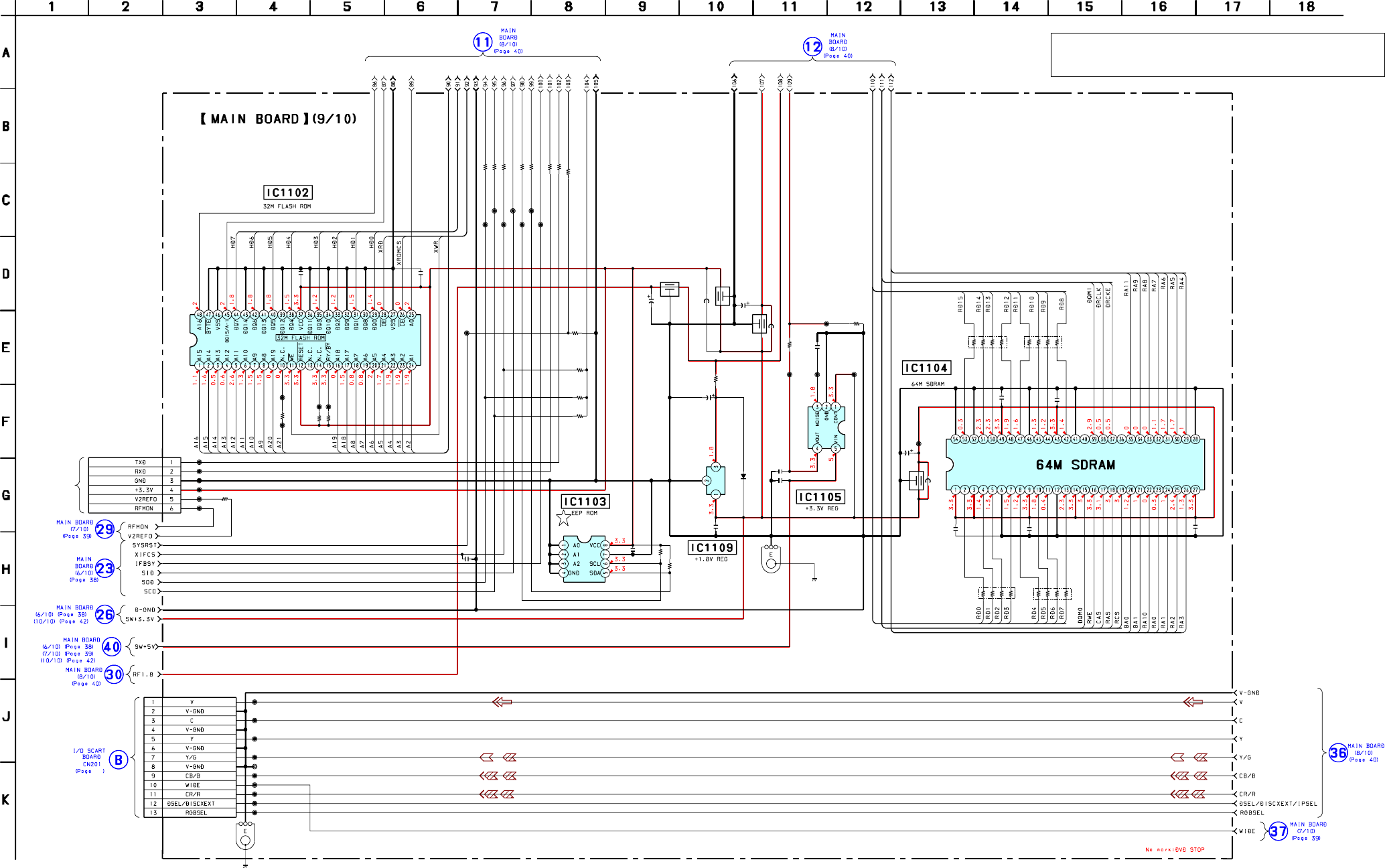

6-16. Schematic Diagram – MAIN Board (9/10) – ................. 41

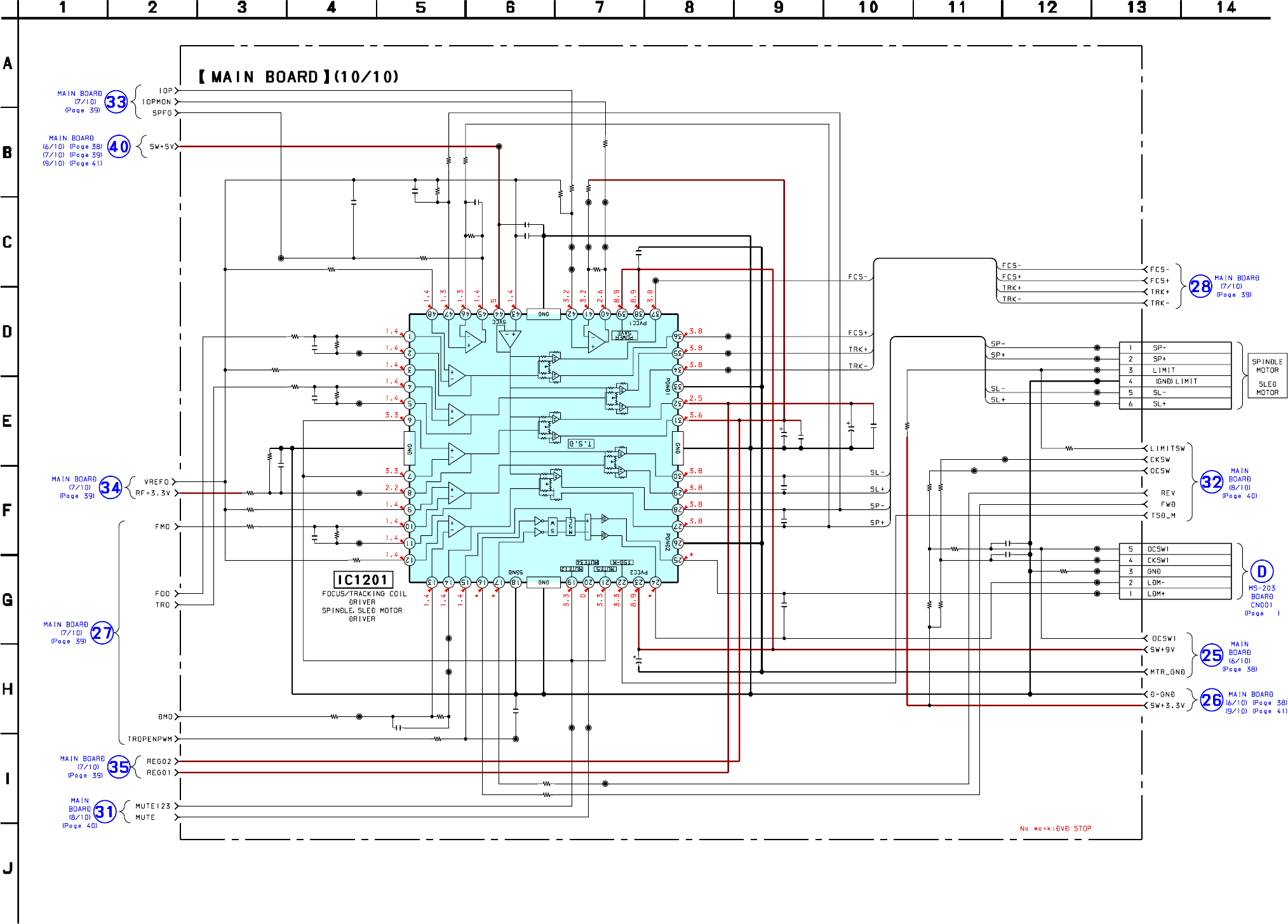

6-17. Schematic Diagram – MAIN Board (10/10) – ............... 42

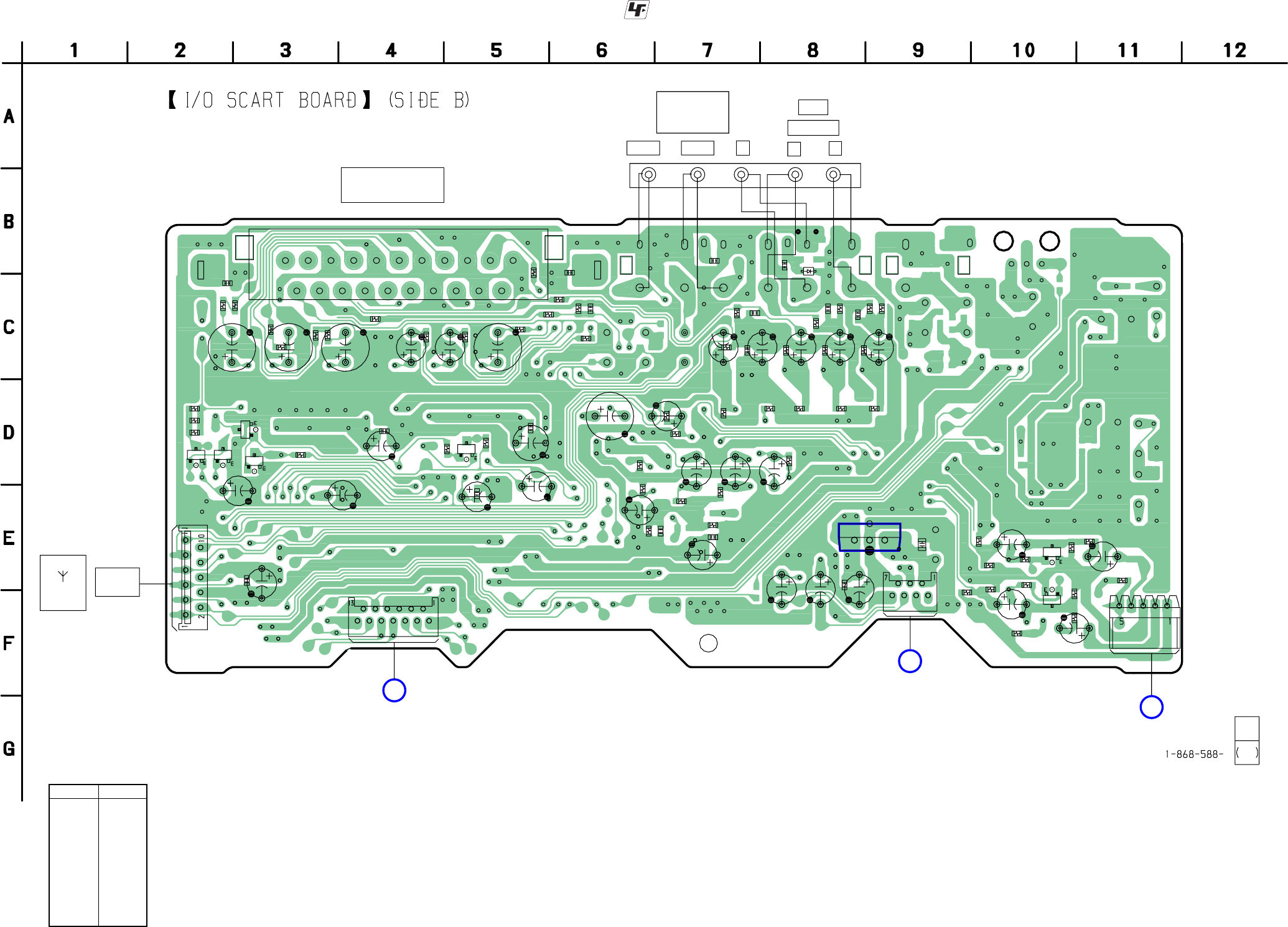

6-18. Printed Wiring Board – I/O SCART Board (Side A) – ... 43
6-19. Printed Wiring Board – I/O SCART Board (Side B) – ... 44

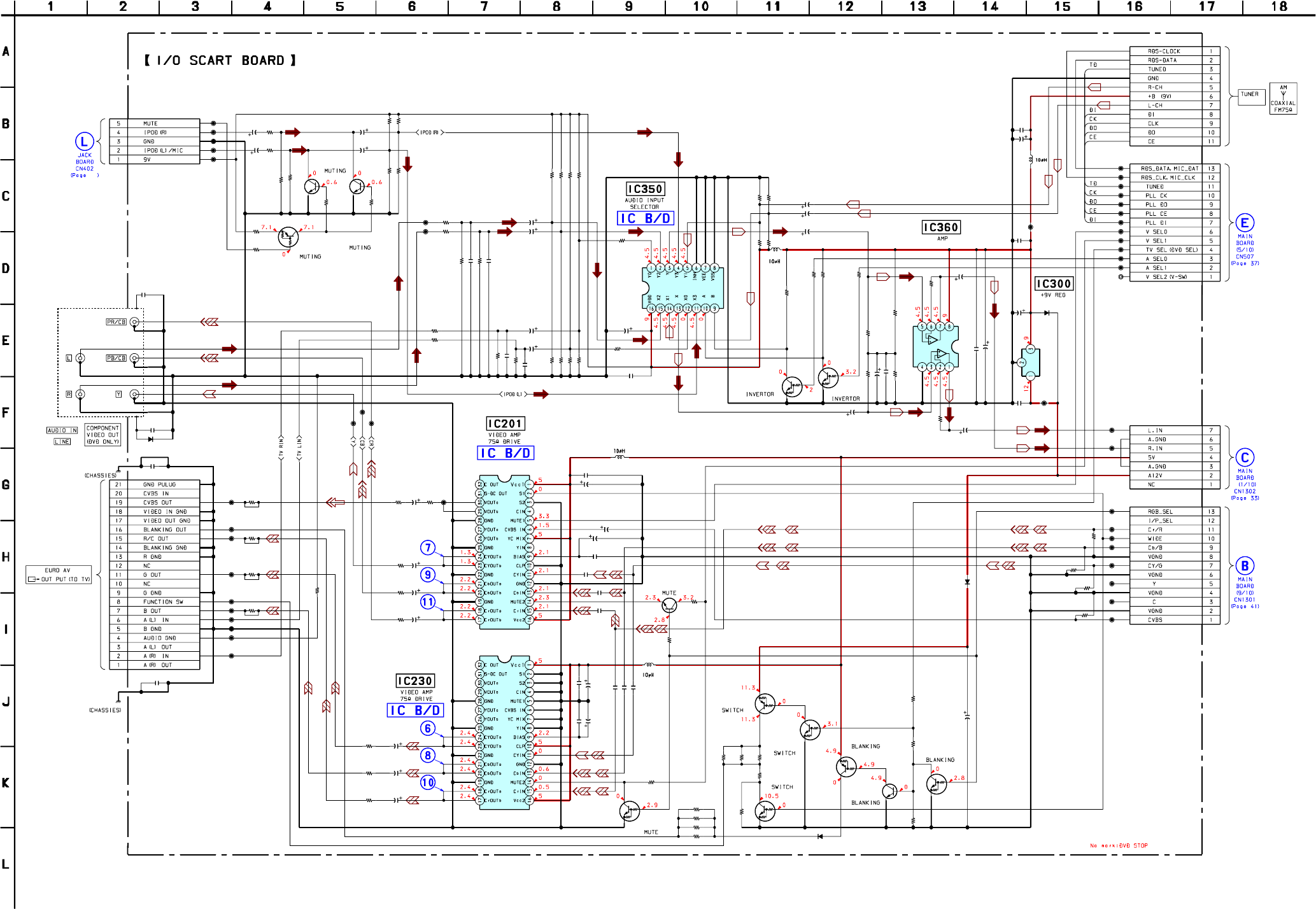

6-20. Schematic Diagram – I/O SCART Board – .................... 45

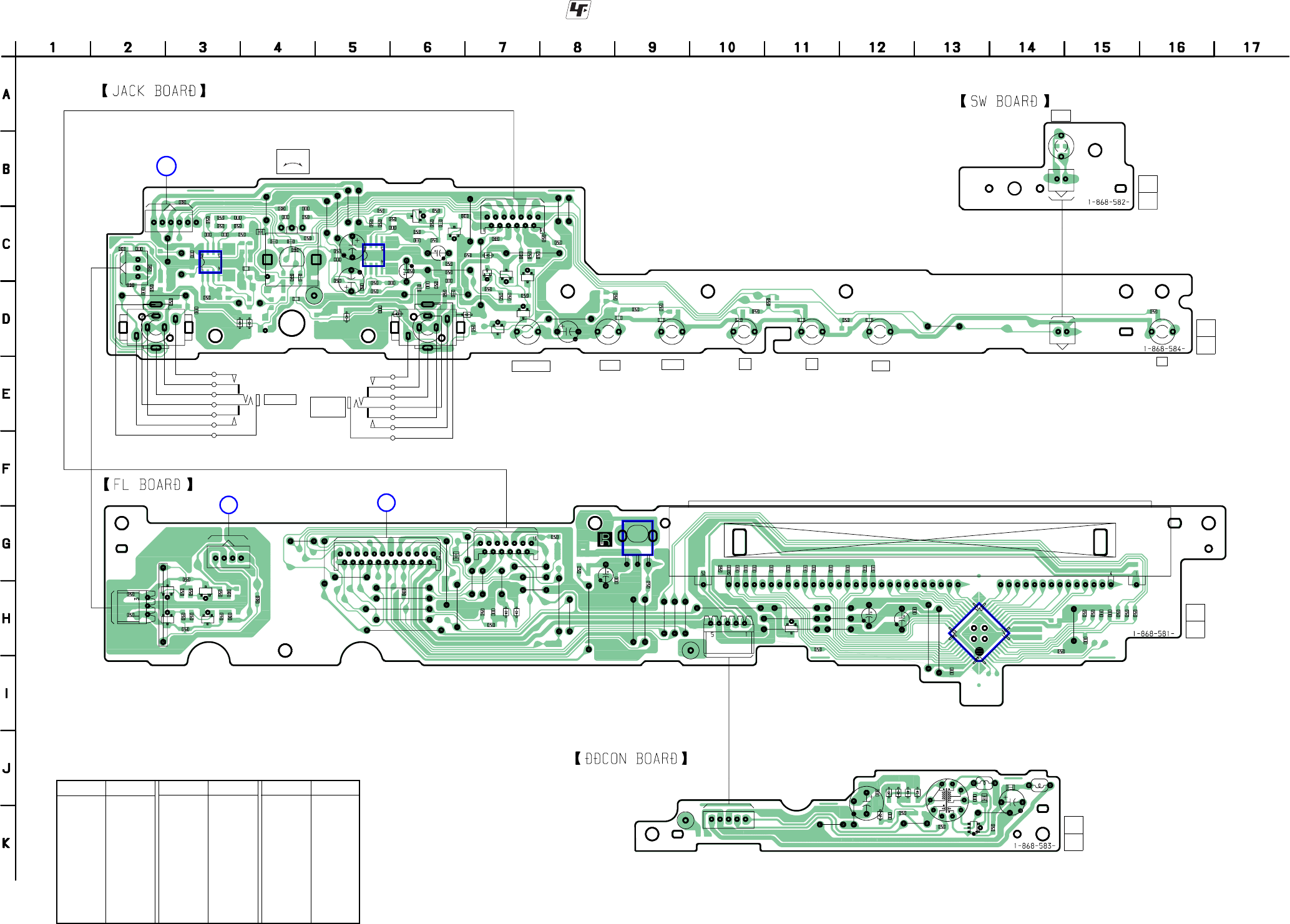

6-21. Printed Wiring Board – PANEL Section – ...................... 46

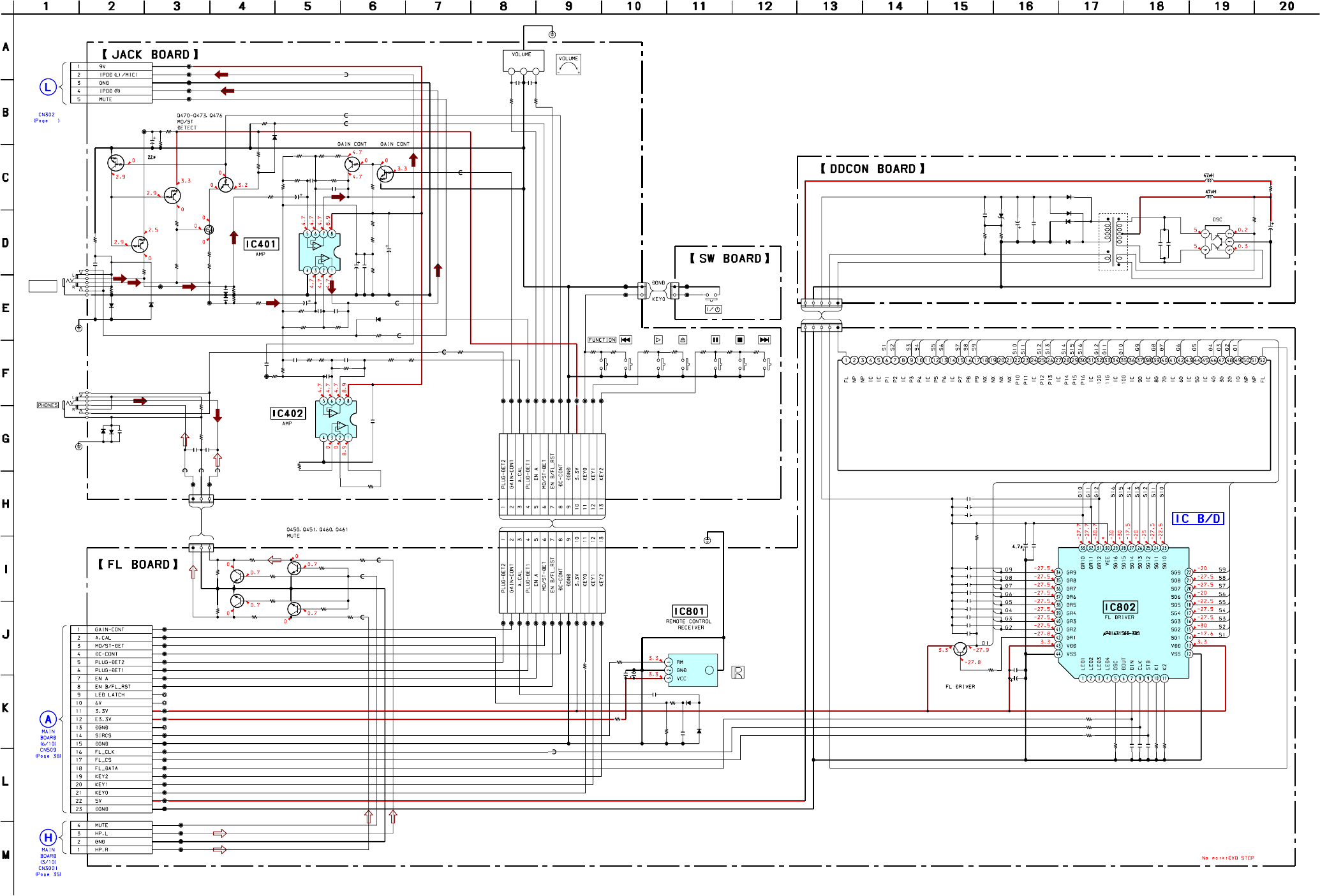

6-22. Schematic Diagram – PANEL Section – ....................... 47

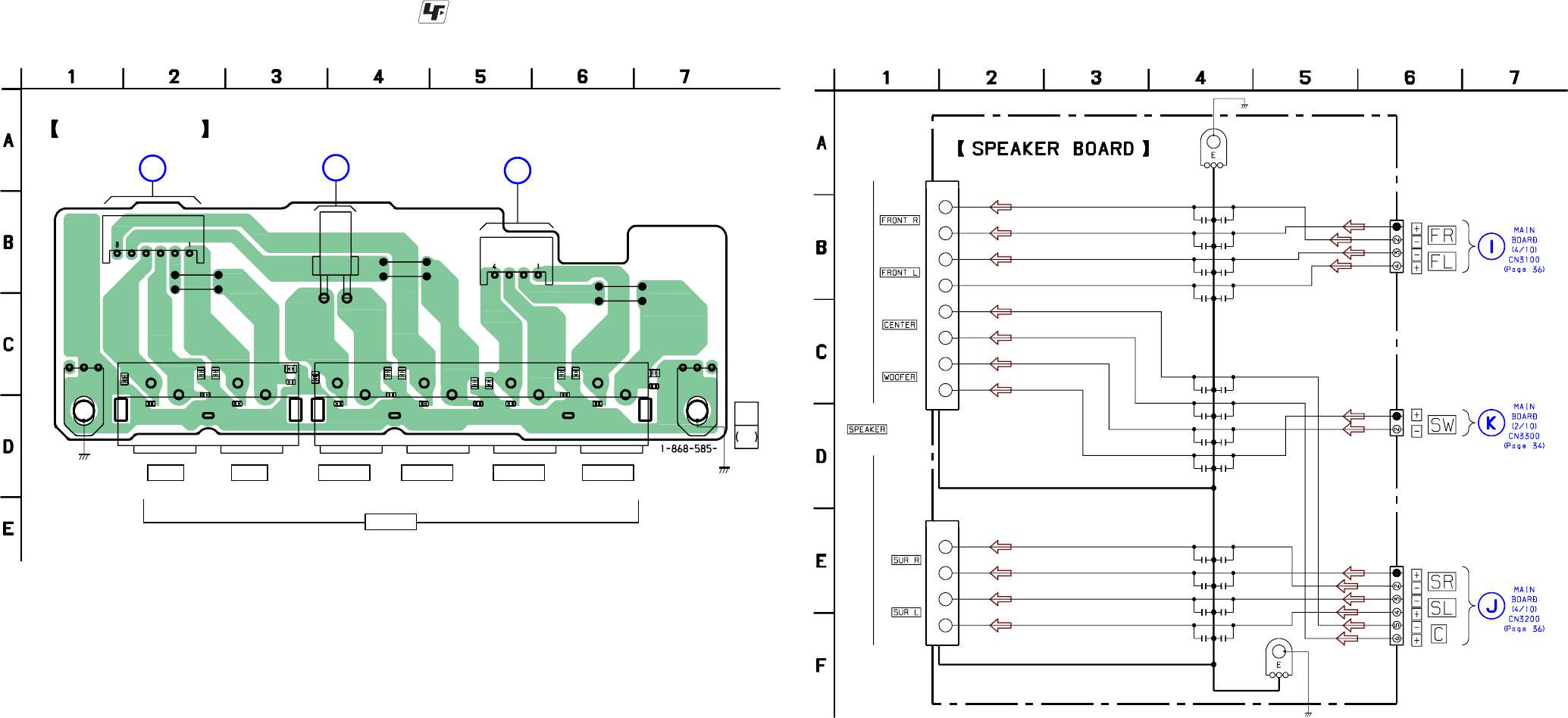

6-23. Printed Wiring Board – SPEAKER Board – ................... 48
6-24. Schematic Diagram – SPEAKER Board – .................... 48

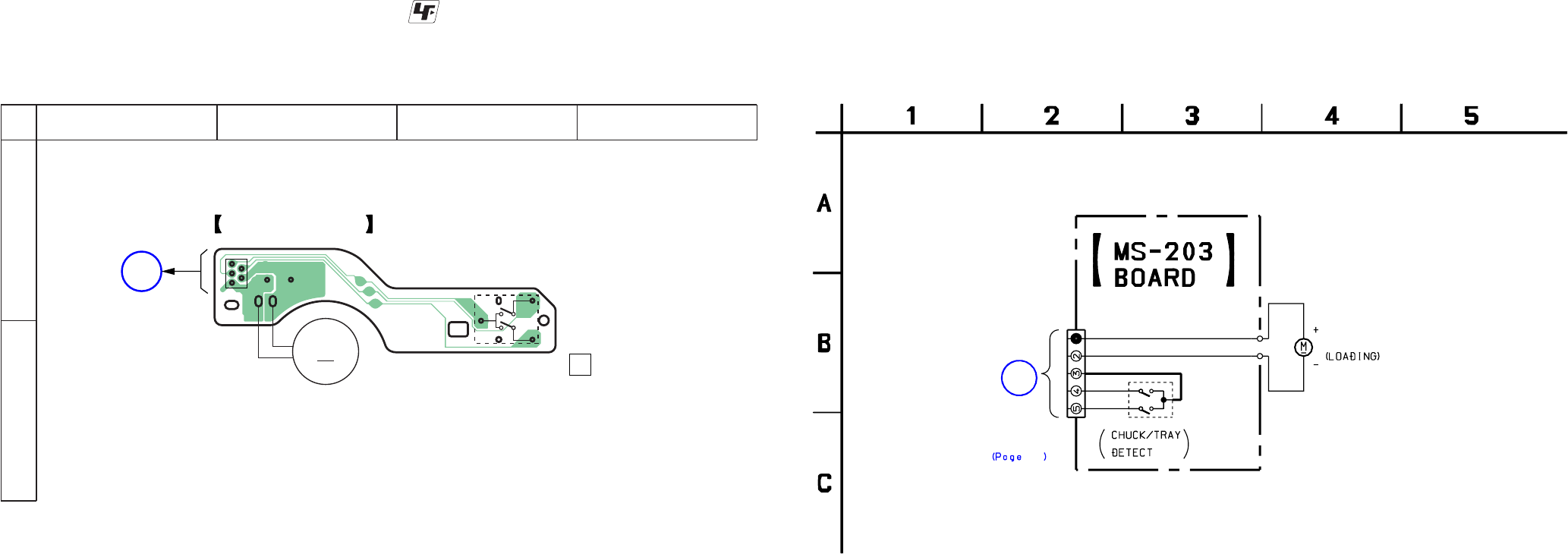

6-25. Printed Wiring Board – MS-203 Board – ........................ 49
6-26. Schematic Diagram – MS-203 Board – ........................ 49

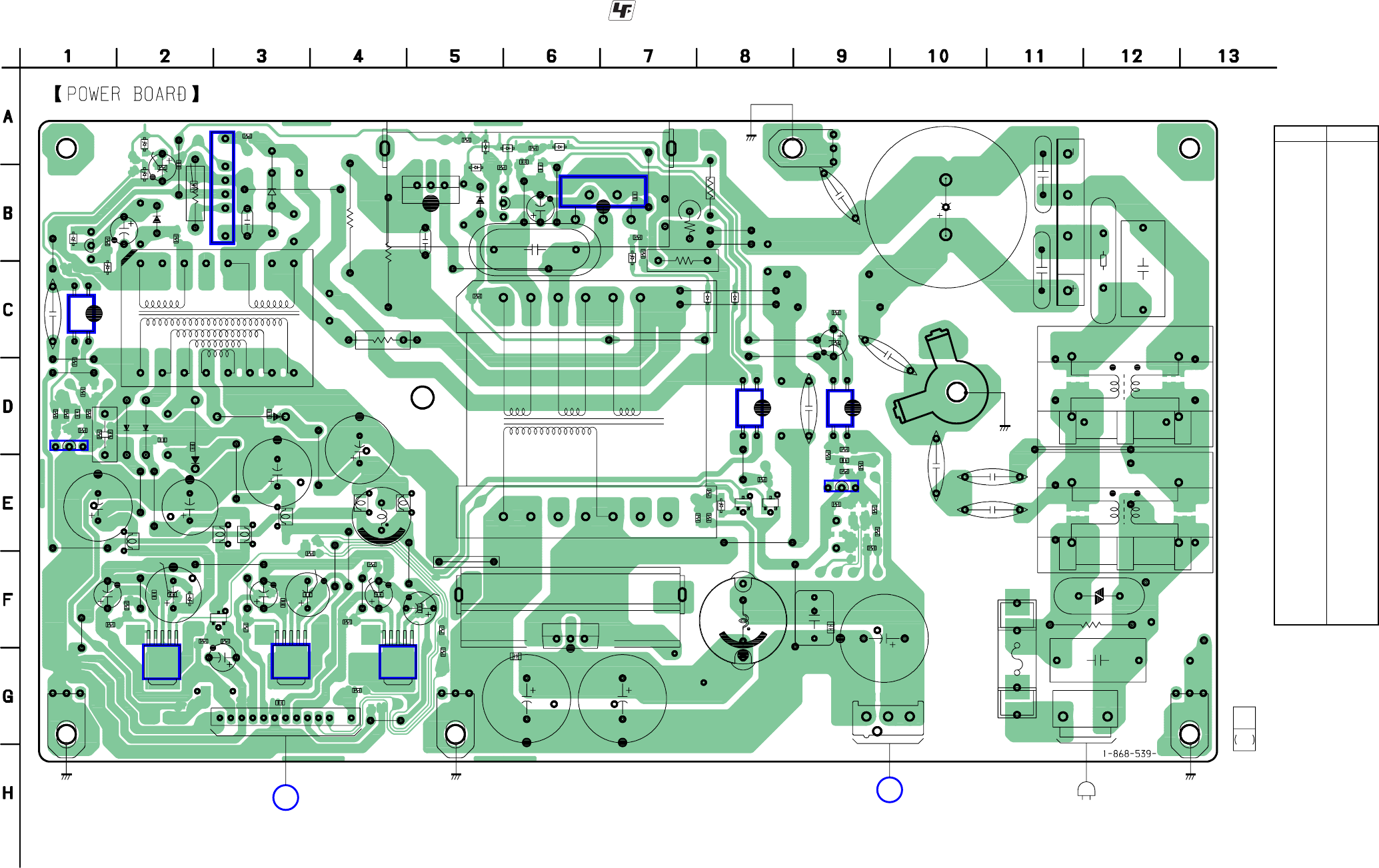

6-27. Printed Wiring Board – POWER Board – ....................... 50

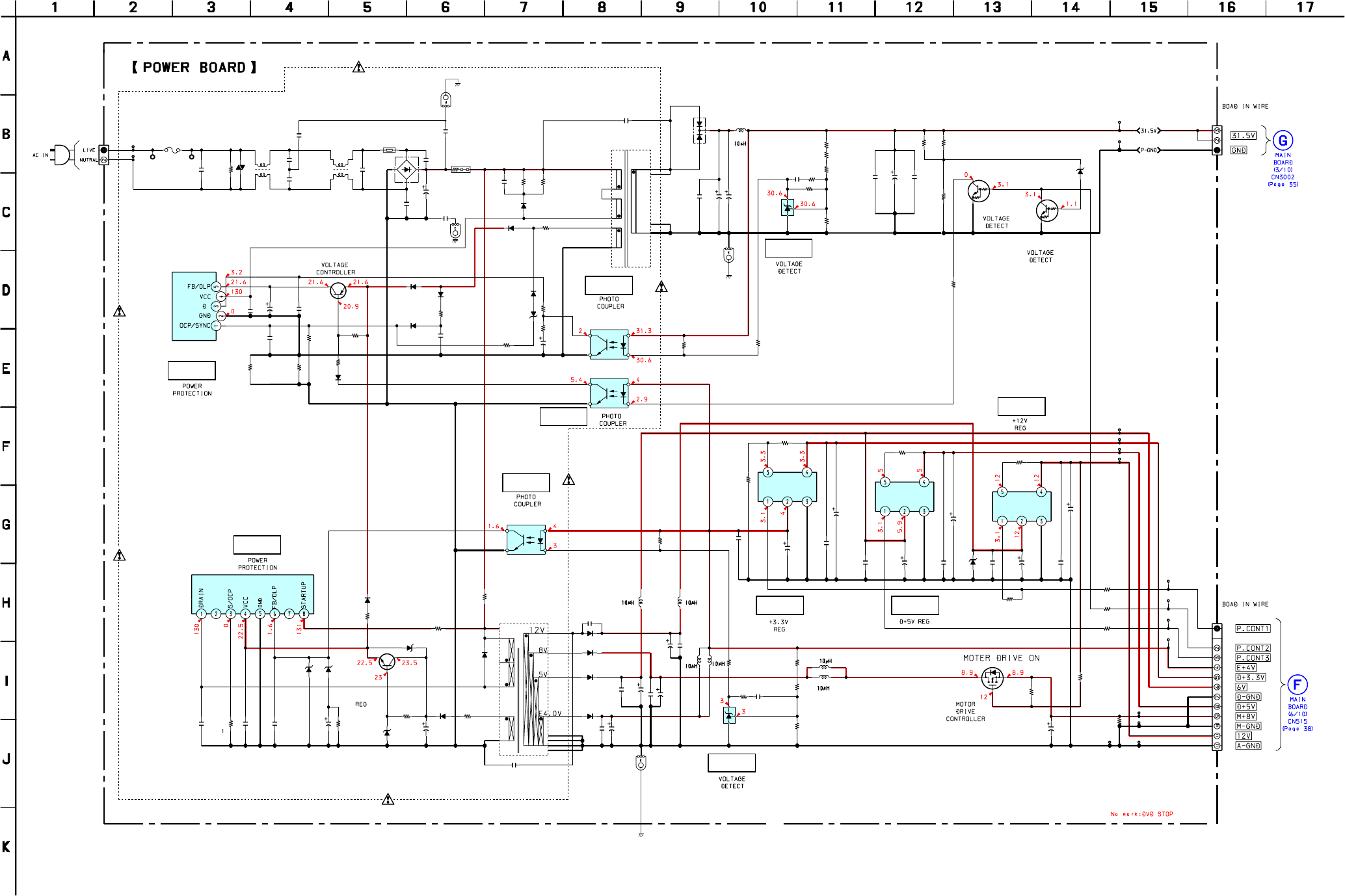

6-28. Schematic Diagram – POWER Board –........................ 51
7. EXPLODED VIEWS

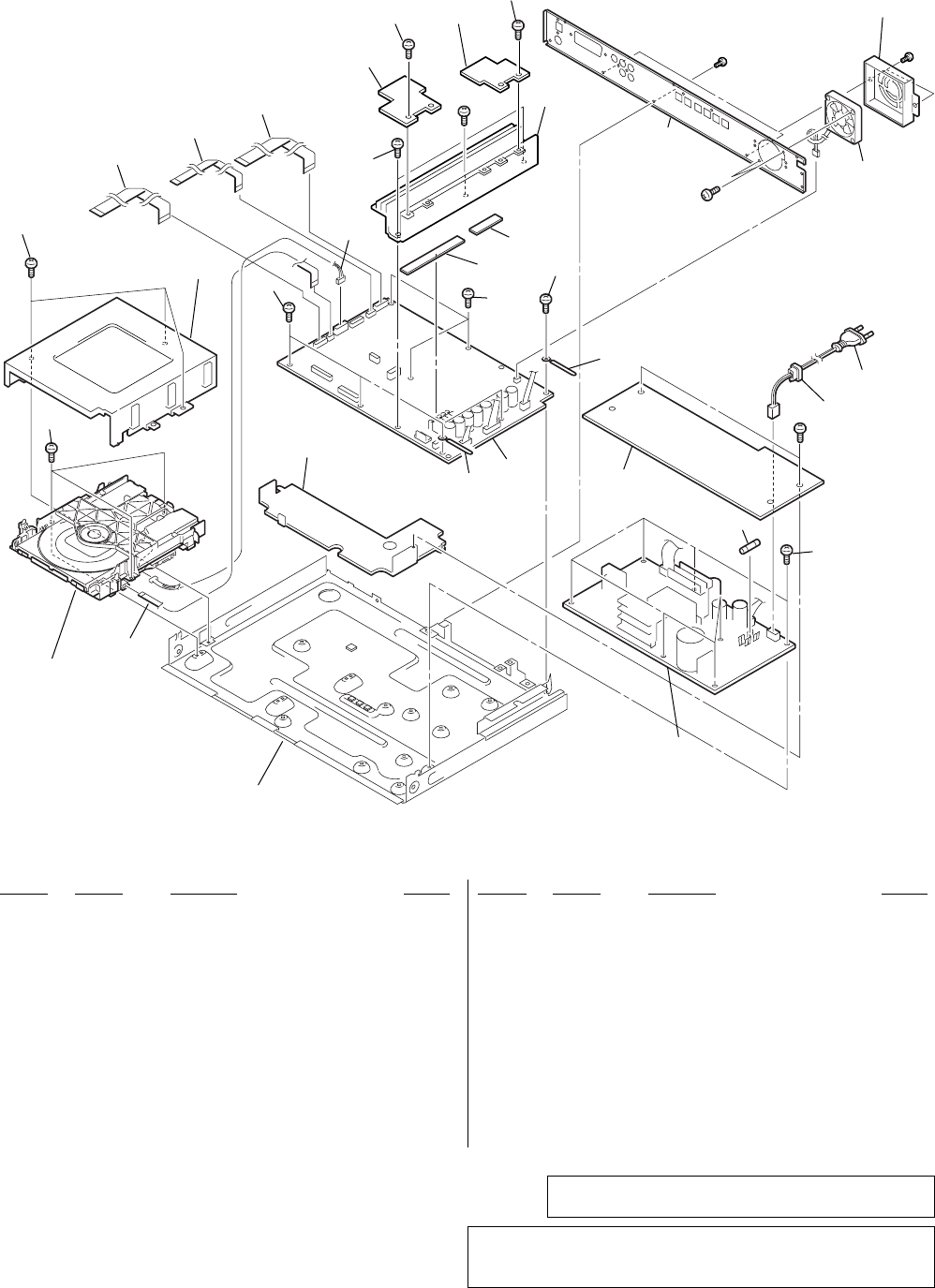

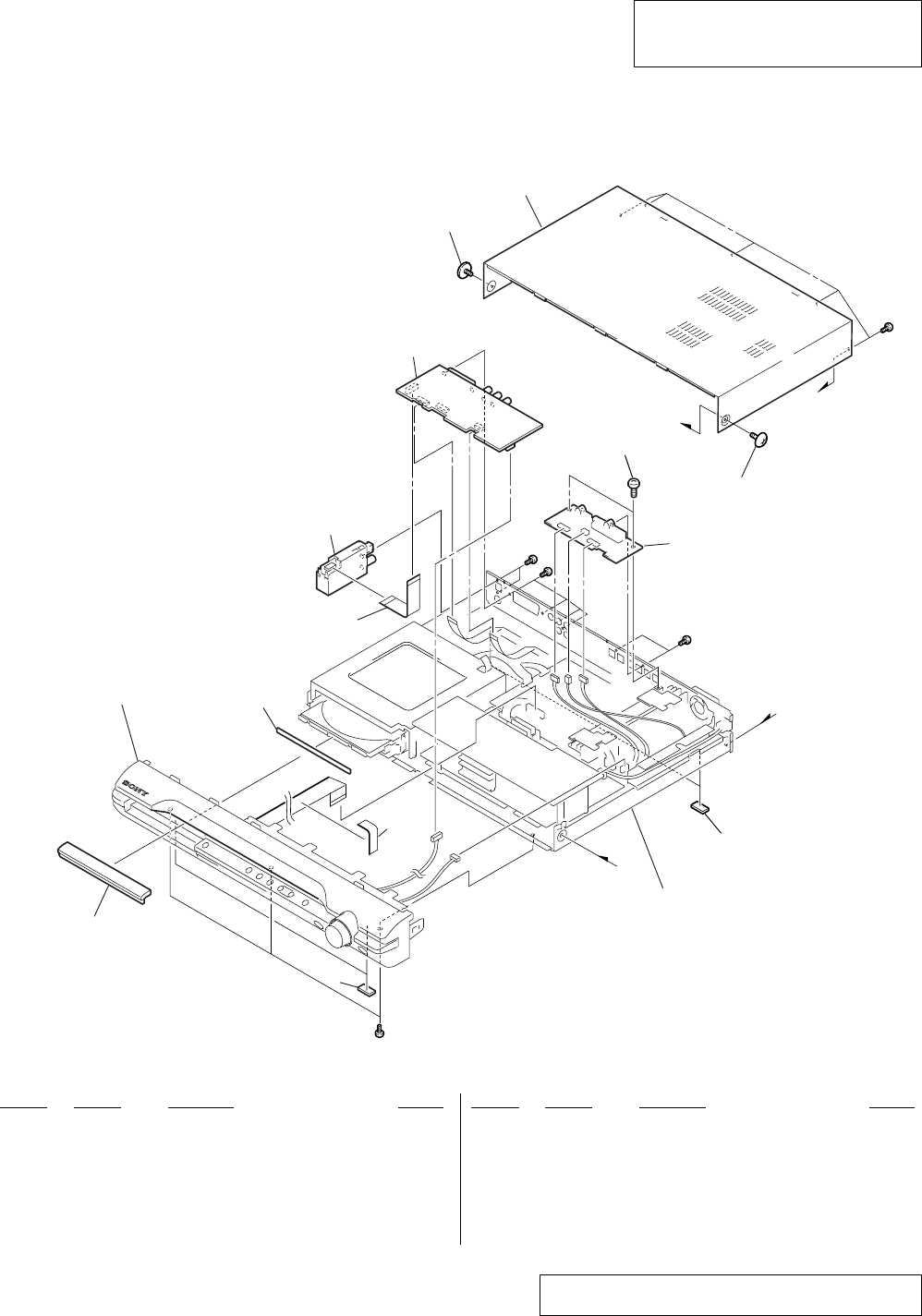

7-1. Overall Section ................................................................ 63

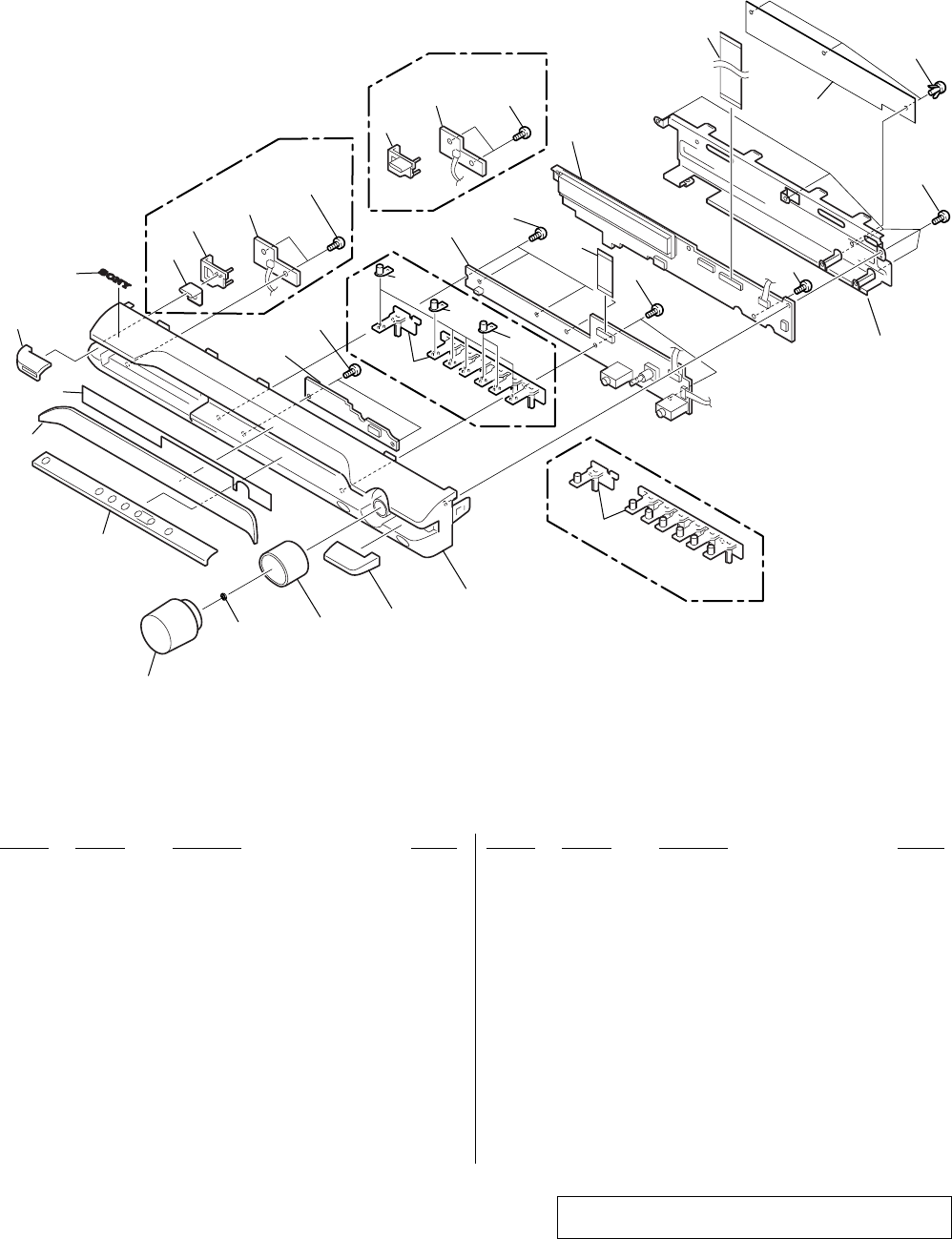

7-2. Front Panel Section ......................................................... 64
7-3. Chassis Section ................................................................ 65
7-4. DVD Mechanism Deck Section (CDM85-DVBU102) ... 66
8. ELECTRICAL PARTS LIST .................................. 67
4
HCD-DZ119/DZ410 SECTION 1
SERVICING NOTE
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH
1. Open the cover and turn POWER on with no disc inserted.
2. Confirm that the following operation is performed while
observing the objecting lens.
1) Confirm that laser beam is spread.
2) Up and down motion of the objective lens. (3 times)
DISC TRAY LOCK
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Setting Procedure :
1. Press the ?/1 button to turn the set on.
2. Press the [FUNCTION] button to set DVD function.
3. Insert a disc.
4. Press the x button and the A button simultaneously for five
seconds.
5. The message “LOCKED” is displayed and the tray is locked.
Releasing Procedure :
1. Press the x button and the A button simultaneously for five
seconds again.
2. The message “UNLOCKED” is displayed and the tray is
unlocked.
Note: When “LOCKED” is displayed, the tray lock is not released by
turning power on/off with the ?/1 button.
Note on MAIN board replacement
New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1144-739-A, etc.) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
When the self-diagnosis function is activated to
prevent the system from malfunctioning, a 5-
character service number (e.g., C 13 50) with a
combination of a letter and 4 digits appears on
the screen and the front panel display. In this
case, check the following table.
When displaying the version
number on the screen
When you turn on the system, the version
number [VER.X.XX] (X is a number) may
appear on the screen. Although this is not a
malfunction and for Sony service use only,
normal system operation will not be possible.
Turn off the system, and then turn on the system
again to operate.
Self-diagnosis Function
(When letters/numbers appear in the
display)
First 3
characters of
the service
number
Cause and/or corrective action
C 13 The disc is dirty.
,Clean the disc with a soft cloth
C 31 The disc is not inserted correctly.
,Restart the system, then re-insert
the disc correctly.
E XX
(xx is a number)
To prevent a malfunction, the
system has performed the self-
diagnosis function.
,Contact your nearest Sony
dealer or local authorized Sony
service facility and give the 5-
character service number.
Example: E 61 10
C:13:50
VER.X.XX
5
HCD-DZ119/DZ410

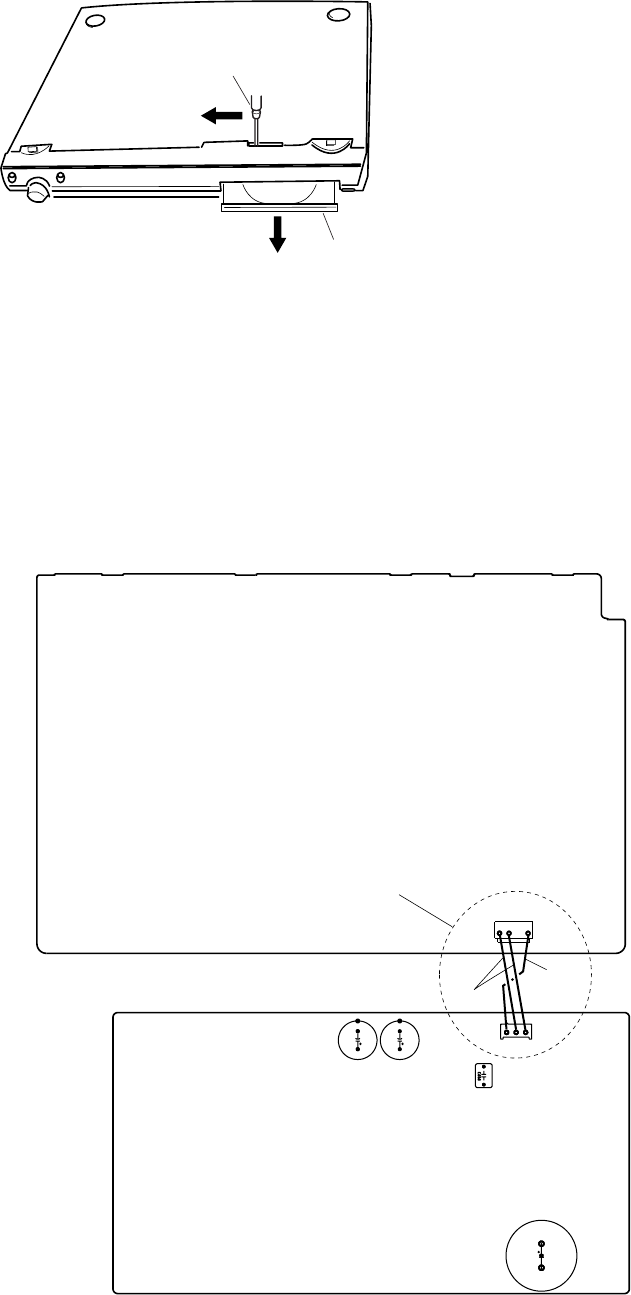

HOW TO OPEN THE DISC TABLE WHEN POWER SWITCH TURNS OF
F
Insert a tapering driver into the aperture of the unit bottom, and slide
it in the direction of the arrow.
disc tray
tapering driver
CN3002

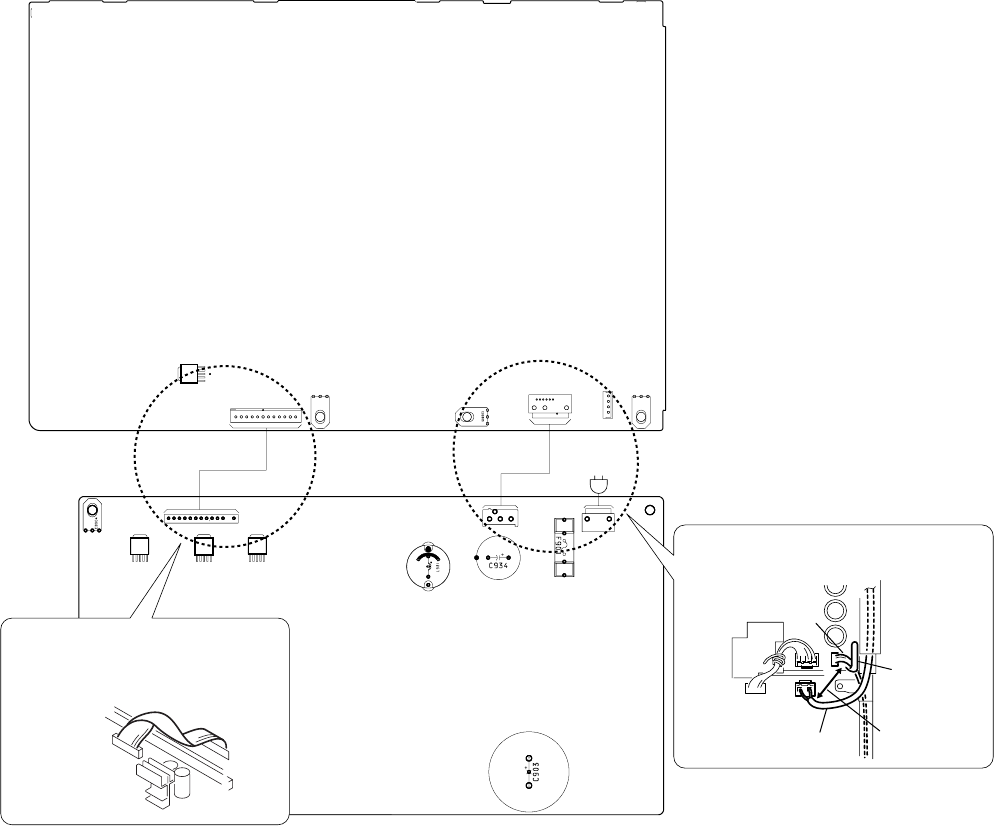

MAIN BOARD
POWER BOARD
CN902
RED
BLACK
C903
C939
C933
C932
Discharge the charged electricity in capacitors to prevent electric shock as follows
When disassembling the machine, be sure to discharge the charged electricity in the following capacitors.
Use a resistor of 800 ohms, 2 Watts for discharging the following capacitors.
POWER board
C903 : 600V
C932, C933, C939, CN902 : 30V
MAIN board
CN3002 : 30 V
(Parts face side)
(Parts face side)
*
Connect the specified resistor
between black and red leads
6
HCD-DZ119/DZ410

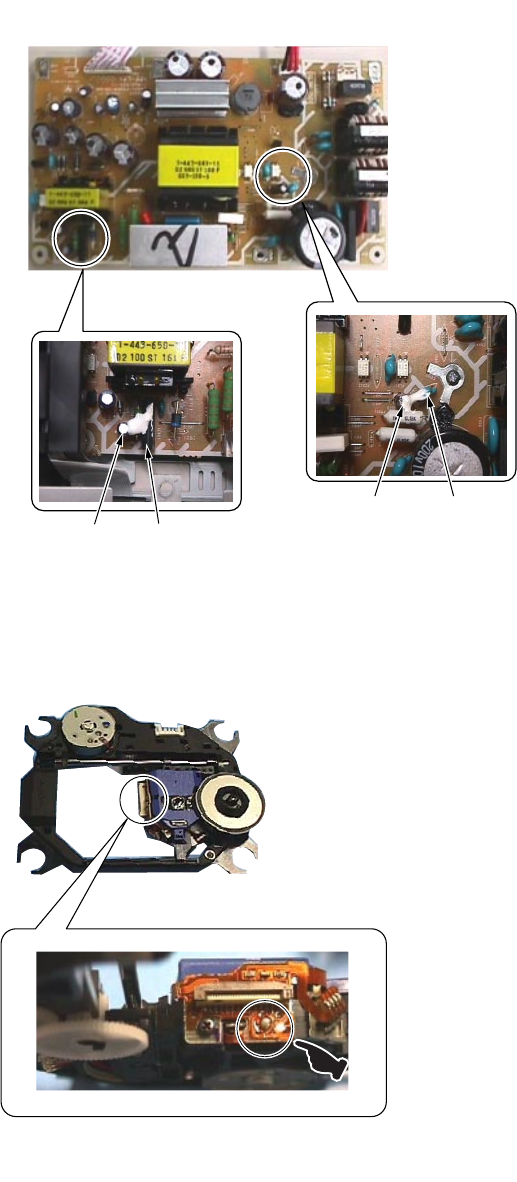

Fix the capacitors with adhesive agent as follows
Fixing the capacitors with adhesive agent is required by the safety regulation.
Be sure to fix the capacitors with adhesive agent when part or circuit board is replaced.
POWER BOARD
C910
C924 IC921
C930
PRECAUTION WHEN INSTALLING A NEW OP UNIT /
PRECAUTION BEFORE UNSOLDERING THE STATIC ELECTRICITY
PREVENTION SOLDER BRIDGE
When installing a new OP unit, be sure to connect the flexible printed circuit board first of all before removing the static
electricity prevention solder bridge by unsoldering. Remove the static electricity prevention solder bridge by unsoldering
after the flexible printed circuit board has already been connected.
(Do not remove nor unsolder the solder bridge as long as the OP unit is kept standalone.)
7
HCD-DZ119/DZ410
JACK board
BUTTON BASE
(PLAY)
CAP (POWER)
wire (flat type)
13core (CNP802)
connector (CNP801)
six screws (+BVTP 2.6)
two screws
(+BVTP 2.6)
BUTTON BASE (POWER)
SW board
CAP (PLAY)
CAP
(AMS)
CAP
(FUNC)
Precaution when replacing the CAP (HCD-DZ410 model)
Please apply the adhesive agent to the BUTTON BASE (PLAY) when replacing the CAP (PLAY) or CAP (FUNC) or CAP (AMS).
Please apply the adhesive agent to the BUTTON BASE (POWER) when replacing the CAP (POWER).
8
HCD-DZ119/DZ410
MAIN BOARD
POWER BOARD
Precaution on the connector processing of the POWER board.
AC IN
13
1
12
After twist the harness once,
install the connector.
POWER board
MAIN board
(Parts face side)
(Parts face side)
IC504
CN506 CN3002
CN3001
CN902
CN901
CN904
IC941 IC942 IC943
When re-assembling, leave 30 mm between
harnesses A and B for safety.
harnesses A
harnesses B
clamp
30mm
9
HCD-DZ119/DZ410
SECTION 2
GENERAL This section is extracted
from instruction manual.
For more information, refer to the pages indicated in parentheses.
Front panel
A"/1 (on/standby) (29)
BFront panel display (90)
CA (open/close) (29)
DDisc operation (29)
EFUNCTION (29)
F (remote sensor) (8)
GPHONES jack (29)
HVOLUME control (29)
IAUDIO IN/A.CAL MIC jack (19, 30)
JDisc tray (29)
Rear panel
ASPEAKER jacks (12)
BCOMPONENT VIDEO OUT jacks (24)
CEURO AV T OUTPUT (TO TV) jack (12,
24)
DAM terminal (12)
ECOAXIAL FM 75Ω jack (12)
FLINE (AUDIO IN R/L) jacks (27)
Index to Parts and Controls
COAXIAL
AM
FM
75
SPEAKER
EURO AV
FRONT R FRONT L SUR R SUR LCENTER WOOFER
OUTPUT(TO TV)
COMPONENT VIDEO OUT
YP
B
/C
B
P
R
/C
R
(DVD ONLY)
RLAUDIO IN
LINE
10
HCD-DZ119/DZ410

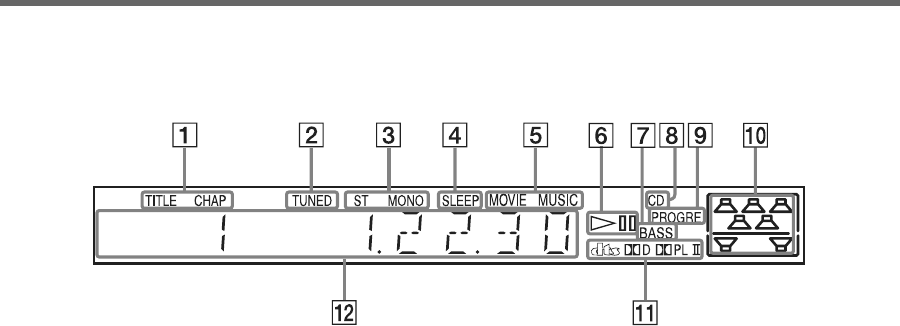

Front panel display
About the indications in the front panel display
ALights up when the time information of
a title or chapter appears in the front
panel display. (DVD only) (45)
BLights up when a station is received.
(Radio only) (57)
CMonaural/Stereo effect (Radio only)
(57)
DLights up when the sleep timer is set.
(62)
ELights up when the music or movie
mode is selected. (32)
FPlaying status (DVD function only)
GLights up when the DYNAMIC BASS is
selected. (61)
HLights up when CD is loaded.
ILights up when the system outputs
progressive signals (DVD function
only). (25)
JIndicates the selected [SPEAKER
FORMATION]. (66)
KCurrent surround format (Except for
JPEG)
LDisplays system’s status such as
chapter, title, or track number, time
information, radio frequency, playing
status, sound field, etc.
11
HCD-DZ119/DZ410

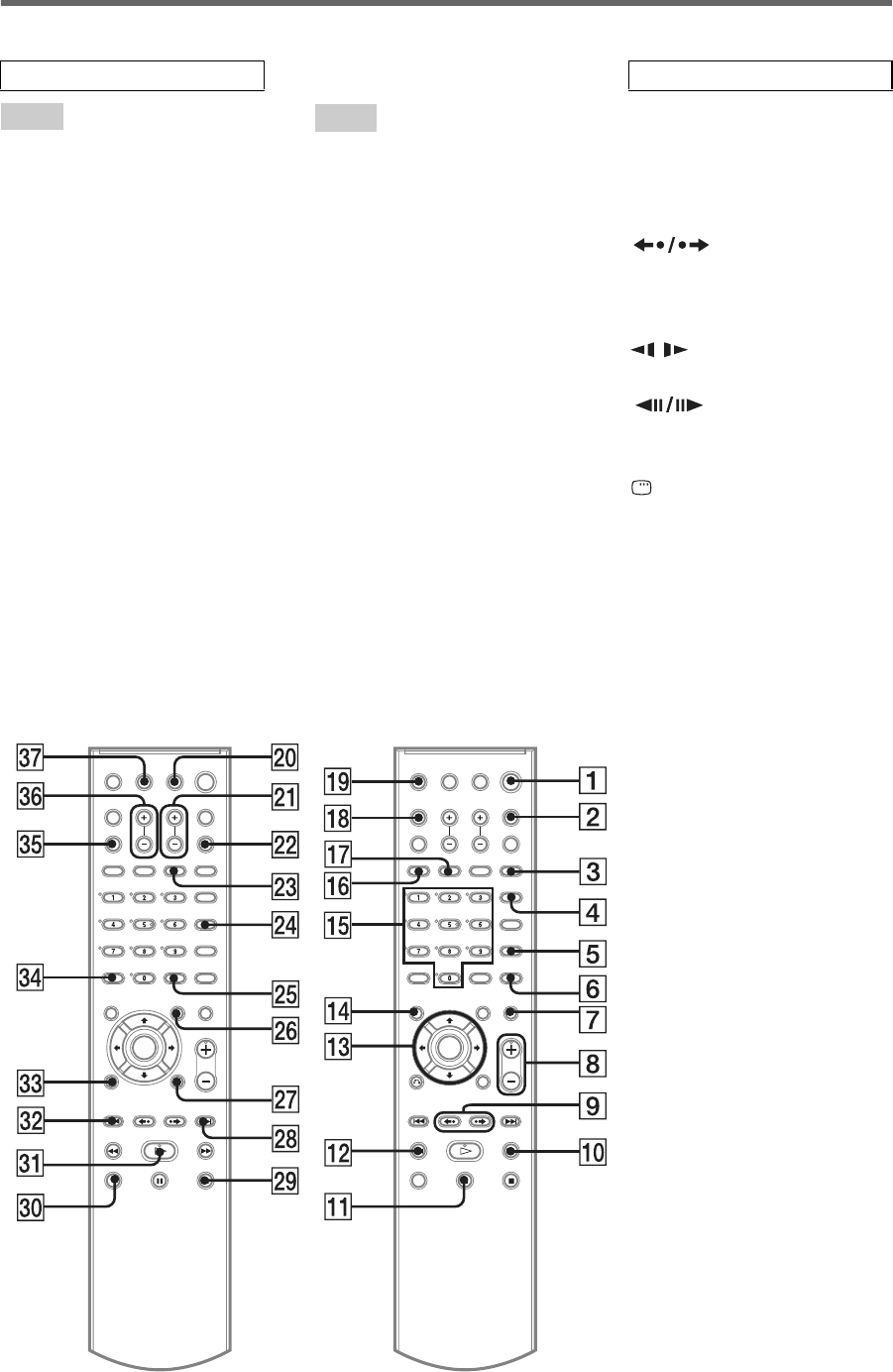

Remote control
AMP MENU wg (22, 30, 60, 62,
95)
ANGLE 5 (47)
AUDIO 4 (42)
CLEAR ef (36, 60, 71)
D.TUNING wf (57)
DISC SKIP* qk
DISPLAY 3 (45, 58)
DYNAMIC BASS wd (61)
ENTER qd (19, 22, 30, 36, 57,
63)
FUNCTION ws (25, 29, 30, 37,
57, 66)
MENU wh (42, 57)
MOVIE/MUSIC qj (32)
MUTING 7 (29)
Number buttons** qg (36, 57, 60,
63)
PICTURE NAVI 6 (37, 60)
PRESET +/– wk es (57)
PROGRESSIVE eg (25)
SLEEP ql (62)
SOUND FIELD qh (33)
SUBTITLE wf (48)
THEATRE SYNC w; (61)
TOP MENU qf (42)
TUNING +/– 0 qs (57)
TV e; (60)
TV CH +/– wa (60)
TV VOL +/– eh (60)
TV/VIDEO 2 (60)
VOLUME +/–** 8 (29, 57, 76)
[/1 (on/standby) 1 (19, 22, 29,
37, 57)
TV [/1 (on/standby) ej (60)
C/X/x/c qd(19, 22, 30, 36, 57,
63)
REPLAY/
ADVANCE 9 (29)
./> es wk (29)
m/M qs 0 (35)
/LSOW qs 0 (35)
H (play)** ea (29, 37, 64)
STEP 9 (35)
x (stop) wl (29, 37, 63)
X (pause) qa (29)
DISPLAY wj (21, 36, 63, 91)
O RETURN ed (37)
-/-- ef (60)
*The DISC SKIP button is not
available for this model.
**The H, number 5, and
VOLUME + buttons have
tactile dots. Use the tactile dots
as references when operating
the system.
ALPHABETICAL ORDER
A – O P – Z
BUTTON DESCRIPTIONS
12
HCD-DZ119/DZ410 SECTION 3
DISASSEMBLY
3-1. DISASSEMBLY FLOW
•This set can be disassembled in the order shown below.
3-3. FL BOARD
(Page 14)
3-4. JACK BOARD, SW BOARD
(Page 14)
3-9. DVD MECHANISM DECK
(CDM85-DVBU102)
(Page 17)
3-10. TRAY
(Page 17)
3-11. BELT, MS-203 BOARD
(Page 18)
3-12. OPTICAL PICK-UP
(KHM-310CAA)
(Page 19)
3-6. MAIN BOARD
(Page 15)
3-5. I/O SCART BOARD
(Page 15)
3-7. DC FAN, TUNER UNIT
(Page 16)
3-8. POWER BOARD
(Page 16)
3-2. CASE, FRONT PANEL ASSY
(Page 13)
SET
13
HCD-DZ119/DZ410
3-2. CASE, FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
1
The lever is moved in the direction
of the arrow with the thin rod.
2
3
loading panel
4
screw (CASE3 TP2)
5
screw
(CASE3 TP2
)
7
case
qk
front panel assy
qg
three screws (+BV 3
×
6)
9
connector (CN302)
qf
connector (CN3001)
qd
wire (flat type)
23core (CN501)
qj
claw
qh
claw
6
five screws
(+BVTP 3
×
8)
q;
two screws
(+BVTP 3
×
8)
When re-assembling, leave 30 mm between
harnesses A and B for safety.
qa
cover (top)
8
sheet
qs
sheet
harnesses A
harnesses B
clamp
30mm
14
HCD-DZ119/DZ410

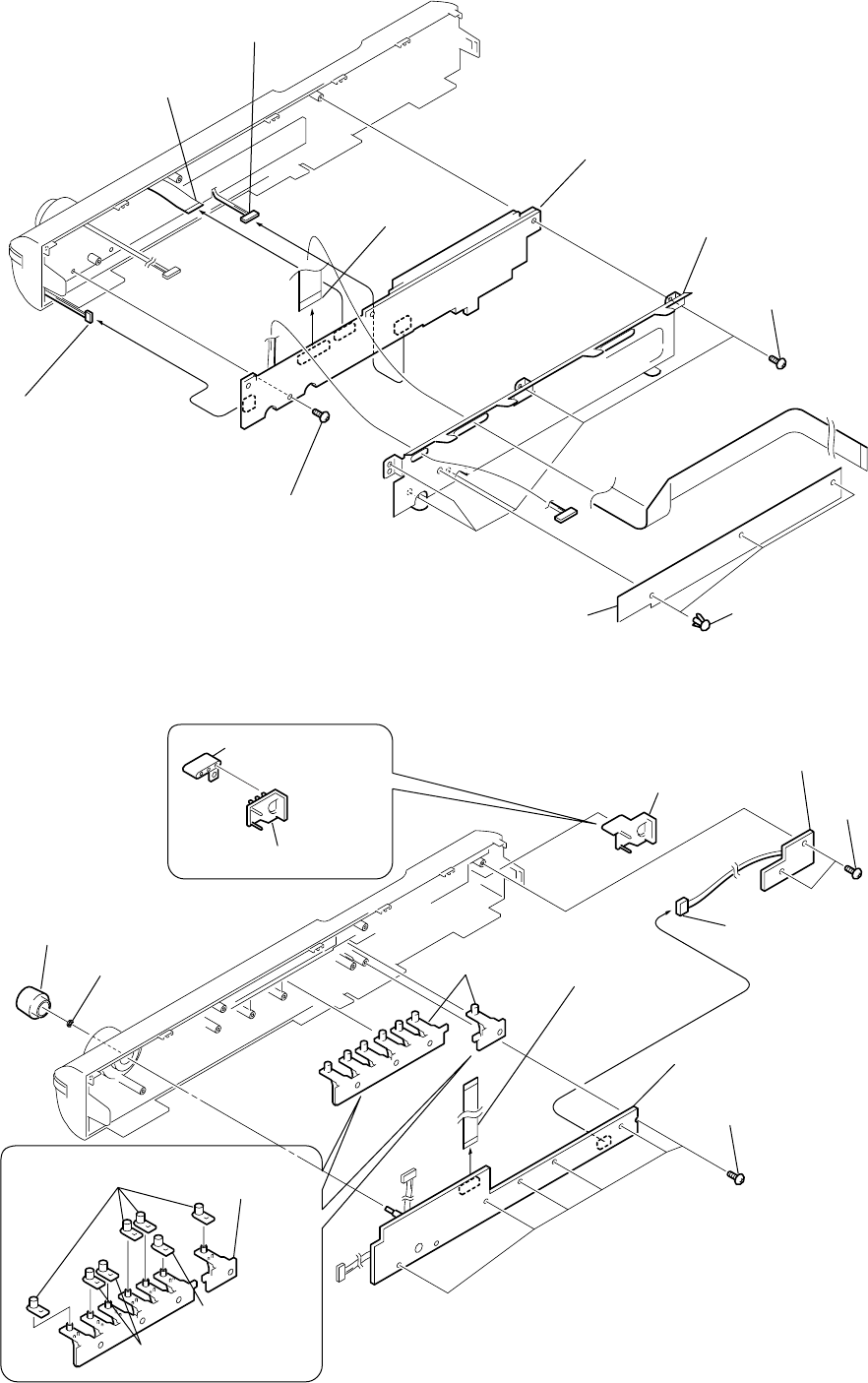

3-4. JACK BOARD, SW BOARD
3-3. FL BOARD
4
shield plate (fs)
q;
FL board
9
wire (flat type)
23core (CN801)
7
wire (flat type)
13core (CN805)
3
five
screws (+BVTP 2.6
×
8
)
5
screw (+BVTP 2.6
×
8)
6
connector (CN803)
8
connector (CN811)
1
three rivets
2
retainer K
(DZ410)
qf
button (power)
(DZ110)
1
knob (vol)
2
nut
5
JACK board
6
button (play)
(DZ110)
4
wire (flat type)
13core (CNP802)
qa
connector (CNP801)
3
six
screws (+BVTP 2.6)
qs
two
screws
(+BVTP 2.6)
qd
SW board
(DZ410)
q;
button base
(play)
8
cap (play)
9
two
caps (AMS)
7
four
caps (FUNC)
qh
cap (power)
qg
button base (power)
15
HCD-DZ119/DZ410

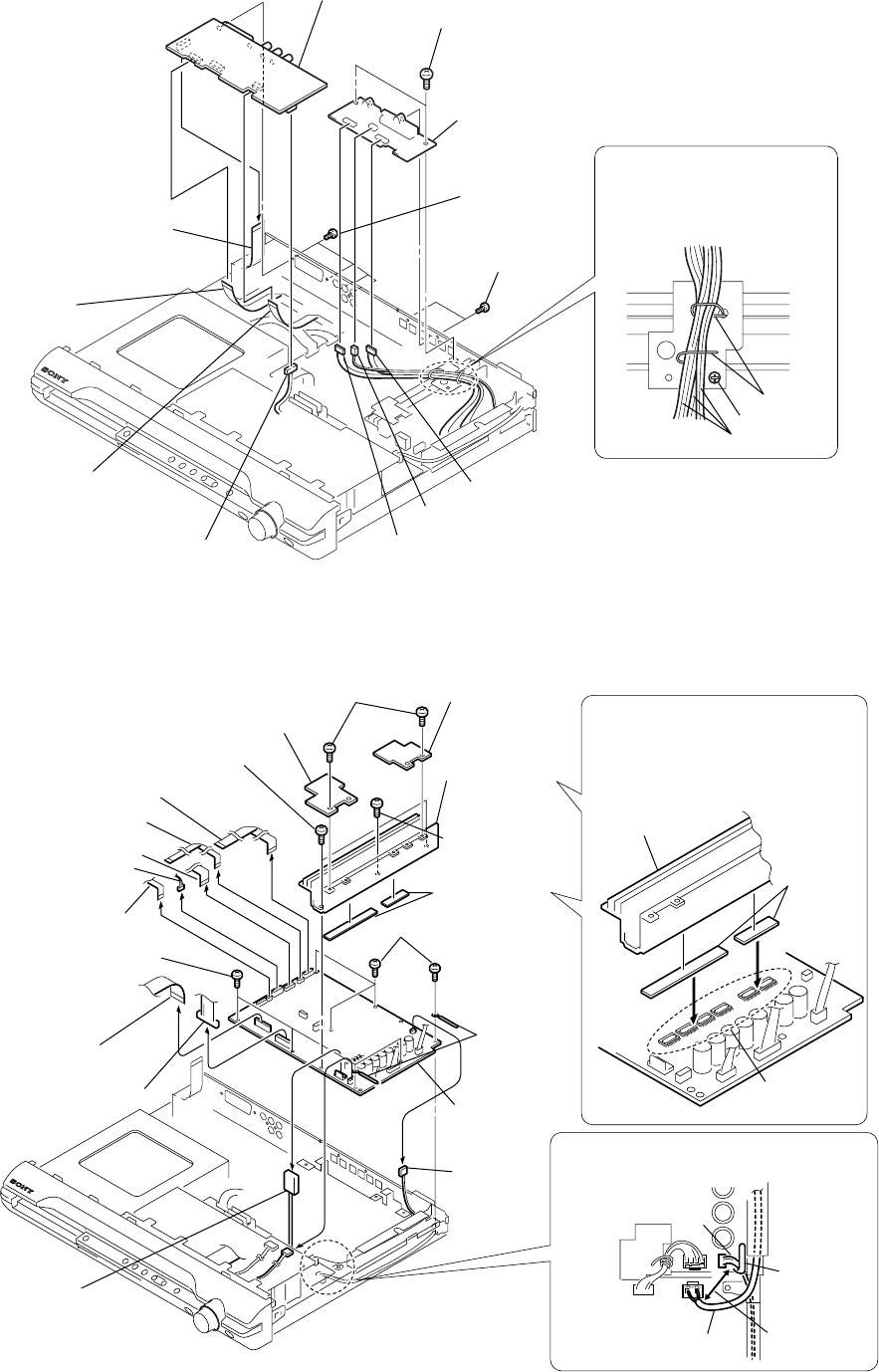

3-6. MAIN BOARD
3-5. I/O SCART BOARD
6
I/O SCART board
5
four
screws
(+BVTP 3
×
8)
3
wire (flat type)
13core (CN201)
2
wire (flat type)
7core (CN304)
qs
SPEAKER board
qa
two screws (+BV 3
×
6)
7
connector (CN303)
8
connector (CN302)
4
wire (flat type)
9core (CN303)
1
connector
(CN302)
q;
two screws
(+BVTP 3
×
8)
9
connector (CN301)
screw
lead pin
When assembling,
clamp the three harnesses with
a lead pin or a similar tool so
that they do not touch this screw.
three harnesses
9
connector
(CN3000)
6
wire (flat type)
23core (CN509)
5
wire (flat type) 5core (CN1202)
3
wire (flat type) 24core (CN1101)
2
wire (flat type) 7core (CN1302)
1
wire (flat type) 13core (CN1301)
q;
two screws (+BV 3
×
6)
qk
four screws (+BV 3
×
6)
w;
MAIN board
qj
four screws (+BV 3
×
6)
7
connector (CN515)
4
connector (CN1201)
ql
two clamps
When re-assembling, attaching the
two heat radiation sheets on the
IC MAIN board first, and then attach
the heat sink (AMP).
heatsink (AMP)
radiation
sheets
IC on the
MAIN board
qs
HEATSINK
B board
qg
heatsink (AMP)
qa
HEATSINK A board
qf
screw
(+BVTP 3
×
12)
qh
two radiation
sheet
8
connector
(CN3002)
qd
two screws
(+BVTP 3
×
10)
When re-assembling, leave 30 mm between
harnesses A and B for safety.
harnesses A
harnesses B
clamp
30mm
16
HCD-DZ119/DZ410
3-7. DC FAN, TUNER UNIT
7
DC fan
3
tuner unit
4
two screws
(+BVTP 3
×
8)
5
cover (fan)
1
two screws (+BVTT 3
×
6)
6
two screws
(+BVTT 4
×
8)
2
wire (flat type)
3-8. POWER BOARD
8
seven screws
(+BV 3
×
8)
When re-assembling, attach the
heat radiation sheets on the
chassis, and then install the
POWER board.
radiation sheets
2
connector
(CN3001)
5
connector
(CN901)
6
connector
(CN3002)
7
connector
(CN515)
9
POWER board
1
connector
(CN302)
3
two screws
(+BVTP 3
×
8)
4
cover (top)
When re-assembling, leave 30 mm between
harnesses A and B for safety.
harnesses A
harnesses B
clamp
30mm
17
HCD-DZ119/DZ410
3-10. TRAY
3-9. DVD MECHANISM DECK (CDM85-DVBU102)
1
two screws
(+BVTP 3
×
8)
qs
DVD mechanism deck
(CDM85-DVBU102)
9
cover (MD)
2
cover (top)
6
sheet
7
Remove the wire and harness.
q;
three screws (+BV 3
×
6)
8
three screws (+BV 3
×
6)
5
wire (flat type) 24core
(CN1101)
4
wire (flat type) 5core
(CN1202)
qa
wire (flat type) 5core
3
connector (CN1201)
4
2
3
two claws
5
tray
1
Move the chuck cam
in the direction of the arrow.
bottom side
18
HCD-DZ119/DZ410
3-11. BELT, MS-203 BOARD
1
two claws
5
three claws
7
MS-203 board
6
DC motor
3
belt
2
chuck cam
4
screw
(M 1.7
×
2.5)
19
HCD-DZ119/DZ410
3-12. OPTICAL PICK-UP (KHM-310CAA)
1
two claws
3
two claws
2
chuck cam
4
base unit
5
two claws
7
bu holder
8
two insulators
9
two insulators
6
four insulator screws
0
optical pick-up
(KHM-310CAA)
20
HCD-DZ119/DZ410 SECTION 4
TEST MODE
Note 1: Regarding the notification symbol “R”
Because the number of the operating buttons of this product
are limited, some operations require use of the operating
buttons of the remote commander, When a specific operation
requires use of the operating buttons of the remote
commander, “R” is added to the specific operating procedure
in this manual. Example MENU/NO “R” The MENU/NO
button of remote commander.
Note 2: Incorrect operations may be performed if the test mode is
not entered properly.
In this case, press the ?/1 button to turn the power off, and
retry to enter the test mode.
3. Disc Tray Lock
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Setting Procedure :
1. Press the ?/1 button to turn the set on.
2. Press the FUNCTION button to set DVD function.
3. Insert a disc.
4. Press the x button and the A button simultaneously for five
seconds.
5. The message “LOCKED” is displayed and the tray is locked.
Releasing Procedure :
1. Press the x button and the A button simultaneously for five
seconds again.
2. The message “UNLOCKED” is displayed and the tray is
unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by
turning power on/off with the ?/1 button.
4. DVD Ship Mode
•Use this mode when returning the set to the customer after
repair.
Procedure:
1. Press the ?/1 button to turn the set on.
2. Press the FUNCTION button to set the function “DVD”.
3.
Remove all discs, and then press two buttons
x
and
.
simultaneously.
4. After a message “MECHA LOCK” is displayed on the
fluorescent indicator tube, pull out the AC plug.
5. To exit from this mode, press the ?/1 button to turn the set on.
5. AM Step Change
•A step of AM channels can be changed over between 9 kHz
and 10 kHz.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Select the function “TUNER”, and press FUNCTION button
to select the BAND “AM”.
3. Press the ?/1 button to turn the set OFF.
4. Press two buttons > and ?/1 simultaneously, and the
display of fluorescent indicator tube changes to “AM 9 k
STEP” or “AM 10 k STEP”, and thus the channel step is
changed over.
6. Volume Test Mode
Procedure:
1. Press the ?/1 button to turn the power on.
2. Press three buttons . , H and > simultaneously.
3. The message “VOLUME MAX” is displayed, when the
VOLUME control is turned in the dirction of (+).
The message “VOLUME MIN” is displayed, when the
VOLUME control is turned in the dirction of (–).
4. To exit from this mode, press the ?/1 button to turn the set off.
7. Product Out
This mode moves the optical pick-up to the position durable to
vibration and clears all data including preset data stored in the RAM
to initial conditions. Use this mode when returning the set to the
customer after repair.
Procedure:
1. Press the ?/1 button to turn the power on.
2. Press the FUNCTION button to set the function “DVD”.
3.
Remove all discs, and then
press three buttons > , A and
?/1 simultaneously.
4. After the “STANDBY” blinking display finishes, the message
“MECHA LOCK” is displayed on the fluorescent indicator
tube disconnect the AC power plug, then the ship mode is set.
1. Cold Reset
•The cold reset clears all data including preset data stored in
the RAM to initial conditions. Execute this mode when
returning the set to the customers.
Procedure:
1. Press the ?/1 button to turn the power on.
2. Press three buttons x , A and ?/1 simultaneously.
3. When this button is operated, display as “COLD RESET” for
a while and all of the settings are reset.
2. Panel Test Mode
•This mode is used to check the software version, FL, LED
and KEY.
2-1. Display Test Mode
Procedure:
1. Press the ?/1 button to turn the power on.
2. Press three buttons X , . and A simultaneously.
3. When the display test mode is activated, all segments and LEDs
are turned on.
4. To exit from this mode, press three buttons X , . and A
simultaneously.
2-2. Version Test Mode
Procedure:
1. When the display test mode is activated, press the . button
and the message “DSX1D” (DZ119), “DSX1F” (DZ410) are
displayed, the version test mode is activated.
2. Whenever the . button is pressed, the display changes in
the following order.
*1: Changes depending on destination.
3. Press the > button and the date of the software production
is displayed.
4. Press the > button again and the version is displayed.
5. To exit from this mode, press three buttons X , . and A
simultaneously.
2-3. Key Test Mode
Procedure:
1. When the display test mode is activated, press the H button,
to select the key test mode.
2. To enter the KEY test mode, the fluorescent indicator displays
“K0 V0”. Each time a button is pressed, “KEY” value
increases. However, once a button is pressed, it is no longer
taken into account. When all keys are pressed correctly, “K8
V0” is displayed.
3. When the VOLUME control is turned in the direction of (+),
“V0” is changed to “V1”, then ... “V9”.
When the VOLUME control is turned in the direction of (–),
“V0” is changed to “V9”, then ... “V1”.
4. To exit from this mode, press three buttons X , . and A
simultaneously.
“DSX1D” (Model name) t “XX
*1
” (Destination) t MC
TM T DSP T TA T ST T DVD T UI T SYS
Ver. 1.1
21
HCD-DZ119/DZ410
DVD SECTION
8-1. GENERAL DESCRIPTION
The IOP measurement allows you to make diagnosis and adjustment
simply by using the remote commander and monitor TV. The
instructions, diagnosis results, etc. are given on the on-screen display
(OSD).
Be sure to execute the IOP measurement when a BU (Base Unit) is
replaced.
8-2. HOW TO ENTER TEST MODE
While pressing the x and A buttons simultaneously, turn
VOLUME + with the DVD player in power on.
The Test Mode starts, then the menu shown below will be displayed
on the TV screen.
*The display of the “Model Name” of the “Remocon Diagnosis
Menu” change with the model and the destination. Refer to below
on the model name.
DZ119 : DSX1D
DZ410 : DSX1F
The menu above is the Remocon Diagnosis Menu screen which
consists of five main functions. At the bottom of the menu screen, the
model name and IF-con version. To exit from the Test Mode, press
the power button on the remote commander.
8-3. EXECUTING IOP MEASUREMENT
In order to execute IOP measurement, the following standard
procedures must be followed.
(1) In power on, while pressing the x and A buttons
simultaneously, turn VOLUME + .
Remocon Diagnosis Menu
0. External Chip Check
1. Servo Parameter Check
2. Drive Manual Operation
3. Emergency History Check
4. Version Information
Model Name
IF-con : V
Syscon : Ver.
er. XX.XX (XXXX)
X.XXX
: DSX1D_ XX
*
1
*1: Changes depending on destination
Remocon Diagnosis Menu
0. External Chip Check
1. Servo Parameter Check
2. Drive Manual Operation
3. Emergency History Check
4. Version information
Model Name
IF-con : Ver. XX.XX (XXXX)
Syscon : Ver. X.XXX
: DSX1D_ XX
*
1
*1: Changes depending on destination
Ver. 1.1
(2) Select “2. Drive Manual Operation” by pressing the 2 “R”
button on the remote commander. The screen will appear as
shown.
(3) Select “3. Manual Adjustment” by pressing the 3 “R” button
on the remote commander. The screen will appear as shown.
(4)Select “6.IOP” by pressing the 6 “R” button on the remote
commander.
(5) Wait until a hexadecimal number appear.
(6) Convert each data from hexadecimal to decimal using
conversion table.
(7) Please find the label on the rear of the BU (Base Unit).
The default IOP value is written in the label.
(8) Subtract between these two values.
(9) If the remainder is smaller than 93 (decimal), then it is OK.
However if the value is higher than 93, then the BU is defective
and need to be change.
(10) Press the RETURN “R” button to return back to previous
menu.
(11) Press the 0 “R” button to return to Top Menu and power
off the DVD Player.
Drive Manual Operation
1. Servo Control
2. Track/Layer Jump
3. Manual Adjustment
4. Tray Aging Mode
5. MIRR time adjust
0. Return to top Menu
Manual Adjust
1. Track Balance Adjust:
2. Track Gain Adjust:
3. Focus Balance Adjust:
4. Focus Gain Adjust:
5. Eq boost Adjust:
6. Iop:
7. TRV. Level:
8. S curve(FE) Level:
9. RFL(PI) Level:
0. MIRR Time:
o O Change Value
[RETURN] Return to previous menu
Manual Adjust
1. Track Balance Adjust:
2. Track Gain Adjust:
3. Focus Balance Adjust:
4. Focus Gain Adjust:
5. Eq Boost Adjust:
6. Iop. 5B:
7. TRV. Level:
8. S curve(FE) Level:
9. RFL(PI) Level:
0. MIRR Time:
Change Value
[0] Return to previous menu
22
HCD-DZ119/DZ410
8-4. EMERGENCY HISTORY
To check the emergency history, please follow the following
procedure.
(1) From the Top Menu of Remocon Diagnosis Menu, select “3.
Emergency History Check” by pressing the 3 “R” button on
the remote commander. The following screen appears on the
on-screen display.
(2) You can check the total time when the laser is turned on during
playback of DVD and CD from the above menu. The maximum
time, which can be displayed are 999h 59min.
(3) You can check the error code of latest 10 emergency history
from the above menu. To view the previous or next page of
emergency history, press . “R” or > “R” on the remote
commander. The error code consists of the following three
blocks. The first block indicates the error code. The second
block indicates the parameter and the third block indicates the
time of error code as shown below.
• Error Code
*1 : Error Code
*2 : Parameter of error code
*3 : Time of error code
Emg.History Check
1. 01 05 04 04
Laser Hours CD 999h 59min
DVD 999h 59min
00 92 46 00
00 00 00 00 00 00 23 45
2. 02 02 01 01 00 A9 4B 00
00 00 00 00 00 00 23 45
Next Next Page Prev Prev Page
O Return to Top Menu
Emg.History Check
1. 01 05 04 04
Laser Hours CD 999h 59min
DVD 999h 59min
00 92 46 00
00 00 00 00 00 00 23 45
2. 02 02 01 01 00 A9 4B 00
00 00 00 00 00 00 23 45
Next Next Page Prev Prev Page
O Return to Top Menu
*
1
*
2
*
3
The meaning of error code is as below:
01: Communication error (No reply from syscon)
02: Syscon hung up
03: Power OFF request when syscon hung up
19: Thermal shutdown
24: MoveSledHome error
25: Mechanical move error (5 Changer)
26: Mechanical move stack error
30: DC motor adjustment error
31: DPD offset adjustment error
32: TE balance adjustment error
33: TE sensor adjustment error
34: TE loop gain adjustment error
35: FE loop gain adjustment error
36: Bad jitter after adjustment
40: Focus NG
42: Focus layer jump NG
52: Open kick spindle error
51: Spindle stop error
60: Focus on error
61: Seek fail error
62: Read Q data/ID error
70: Lead in data read fail
71: TOC read time out (CD)
80: Can’t buffering
81: Unknown media type
8-4-1. Clear the Laser Hour
Press DISPLAY “R” button and then press CLEAR “R” button.
The data for both CD and DVD data are reset.
Emg.History Check
1. 01 05 04 04
Laser Hours CD 0h 0min
DVD 0h 0min
00 92 46 00
00 00 00 00 00 00 23 45
2. 02 02 01 01 00 A9 4B 00
00 00 00 00 00 00 23 45
Next Next Page Prev Prev Page
O Return to Top Menu
Emg.History Check
1. 00 00 00 00
Laser Hours CD 999h 59min
DVD 999h 59min
00 00 00 00
00 00 00 00 00 00 00 00
2. 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00
Next Next Page Prev Prev Page
O Return to Top Menu
8-4-2. Clear the Emergency History
Press TOP MENU “R” button and then press CLEAR “R” button.
The error code for all emergency history would be reset.
8-4-3. Clear the Initialize Setup Data
Press MENU “R” button and then press CLEAR “R” button on
the remote commander.
Ver. 1.1
23
HCD-DZ119/DZ410
Version information
O Return to Top Menu
Firm (Main) : Ver. xxxxx
Firm (Sub) : xxxxx
RISC : xxxxx
8032 : xxxxx
Audio DSP : xxxxx
Servo DSP : xxxxx
8-4-4. Return to the Top Menu of Remocon Diagnosis
Menu
Press 0 “R” button on the remote commander.
• Check Version Information
To check the version information, please follow the following
procedure.
(1) From the Top Menu of Remocon Diagnosis Menu, select “4.
Version Information” by pressing the 4 “R” button on the
remote commander. The following screen appears on the on-
screen display.
To return to the Top Menu of Remocon Diagnosis Menu, press
0 “R” on the remote commander.
Ver. 1.1
24
HCD-DZ119/DZ410 SECTION 5
ELECTRICAL ADJUSTMENT
DVD SECTION
When the base unit is replaced, perform the adjustment and the
measurement as shown below in this order.
EXECUTING IOP MEASUREMENT (See page 21)
[TEST DISC LIST]
Be sure to use the DVD disc that matches the signal standards of
your region.
• CD YEDS-18 (Part No.: 3-702-101-01)
PATD-012 (Part No.: 4-225-203-01)
• DVD SL (Single Layer)
NTSC : HLX-503 (Part No.: J-6090-069-A)
HLX-504 (Part No.: J-6090-088-A)
PAL : HLX-506 (Part No.: J-6090-077-A)
• DVD DL (Dual Layer)
NTSC : HLX-501 (Part No.: J-6090-071-A)
HLX-505 (Part No.: J-6090-089-A)
PAL : HLX-507 (Part No.: J-6090-078-A)
[RF Level Check]
Connection:
Procedure:
1. Connect an oscilloscope to CN1105 pin 6 (RFMON) and
CN1105 pin 3 (GND) on the MAIN board.
2. Turn the power on.
3. Insert the CD test disc (refer to the TEST DISC LIST), and
press the H button to play the disc back.
4. Confirm that oscilloscope waveform is clear and check RF
signal level is correct or not.
Note: A clear RF signal waveform means that the shape “◊” can be
clearly distinguished at the center of the waveform.
5. Eject the CD disc, and insert the DVD SL test disc (refer to
the TEST DISC LIST), and press the H button to play the
disc back.
Checking Location: MAIN board (Side A)
+
–
CN1105 pin 6 (RFMON)
CN1105 pin 3 (GND)
oscilloscope
MAIN board
RF signal waveform VOLT/DIV: 200 mV
TIME/DIV: 500 ns
level: 0.57 to 1.1 Vp-p (CD)
0.58 to 1.23 Vp-p (DVD
)
IC501
IC1103
3
6
CN1105 Pin 3 (GND)
CN1105 Pin 6 (RFMON)
CN1105
MAIN BOARD (SIDE A)
Ver. 1.1
2525
HCD-DZ119/DZ410
HCD-DZ119/DZ410

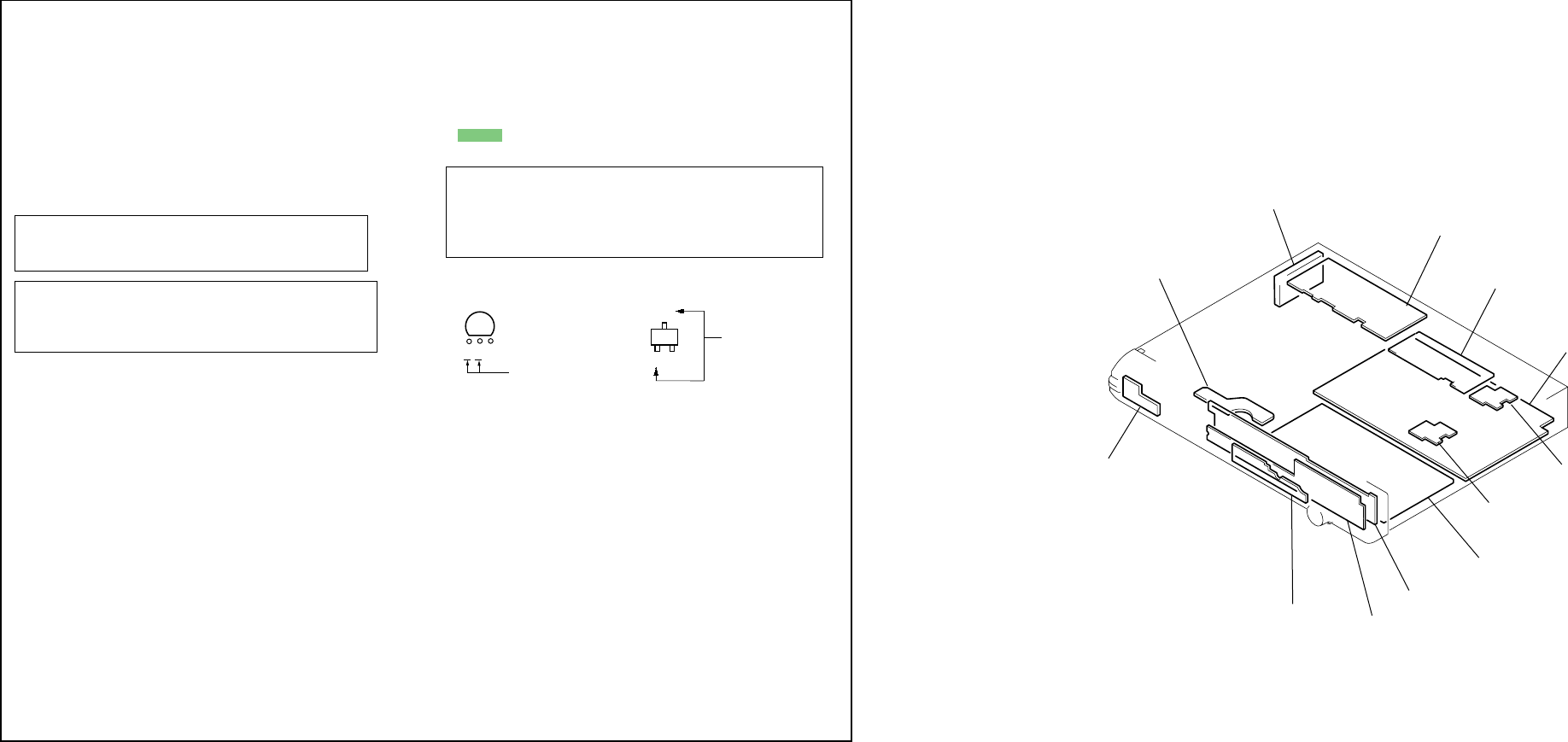

• Circuit Boards Location
SECTION 6
DIAGRAMS
For Schematic Diagrams.
Note:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
•All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•f: internal component.
•C: panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
•A: B+ Line.
•Voltages and waveforms are dc with respect to ground un-
der no-signal (detuned) conditions.
•Voltages and waveforms are dc with respect to ground in
service mode.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
no mark : DVD STOP
* : Impossible to measure
•Voltages are taken with VOM (Input impedance 10 MΩ).
•Circled numbers refer to waveforms.
•Signal path.
F: AUDIO
J: CD PLAY
c: DVD PLAY
I: SACD PLAY
d: TUNER
L: VIDEO
E: Y
r: COMPONENT VIDEO
q: R, G, B
f: AUDIO IN
For Printed Wiring Boards.
Note:
•X: parts extracted from the component side.
• a: Through hole.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•Indication of transistor.
Caution:
Parts face side: Parts on the parts face side seen from
(SIDE A) the parts face are indicated.
Pattern face side: Parts on the pattern face side seen from
(SIDE B) the pattern face are indicated.
✩New part of EEP ROM (IC1103) on the MAIN board
cannot be used. Therefore, if the mounted MAIN board
(A-1144-739-A, etc.) is replaced, exchange new EEP
ROM (IC1103) with that used before the replacement.
C
B
These are omitted.
E
Q
CEB
These are omitted
FL board
JACK board
DDCON board
SW board
I/O SCART board
SPEAKER board
MAIN board
HEATSINK A board
HEATSINK B board
POWER board
TUNER UNIT
MS-203 board
Note: The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
2626
HCD-DZ119/DZ410
HCD-DZ119/DZ410

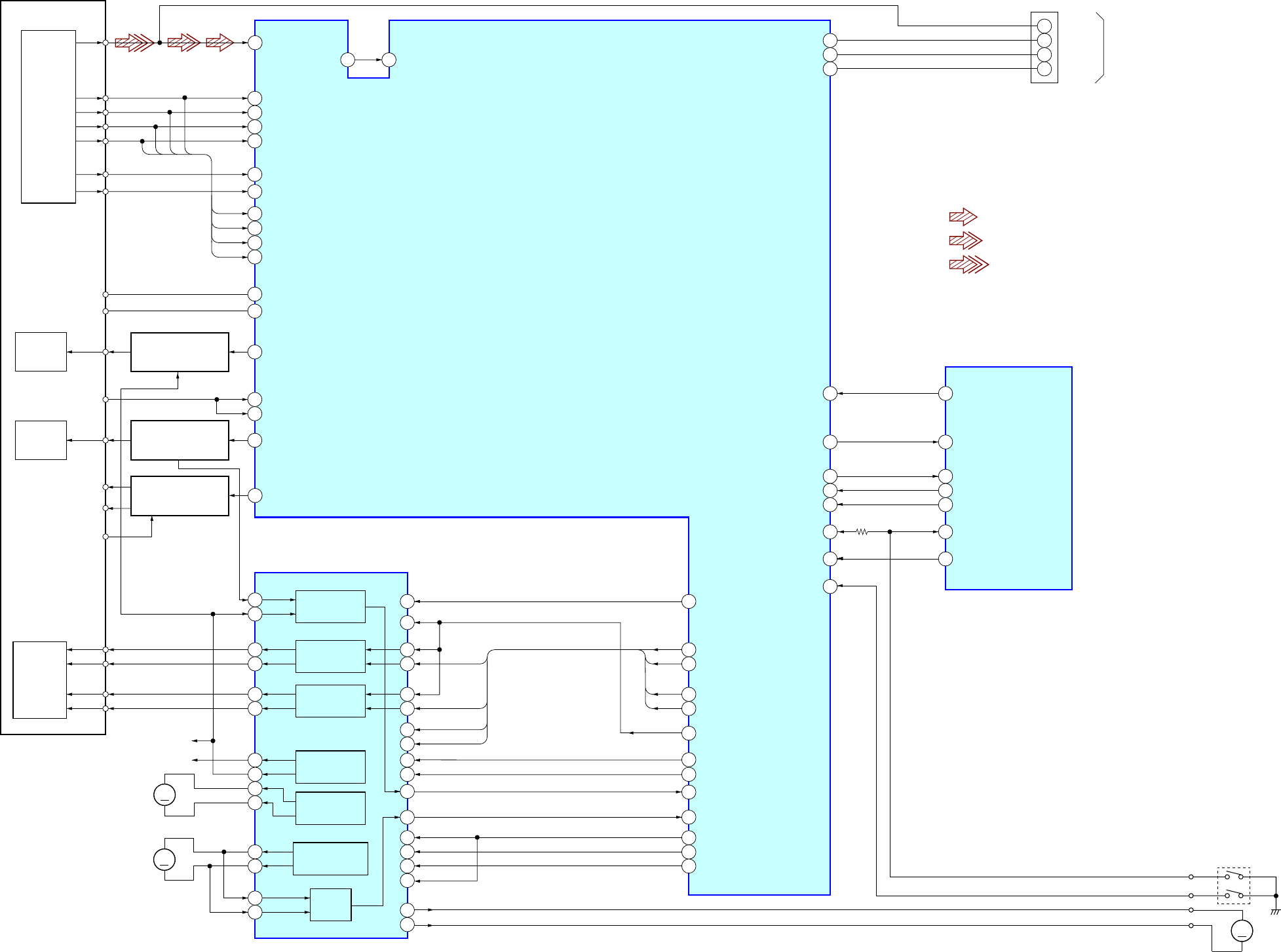

6-1. BLOCK DIAGRAM – RF SECTION –
: CD PLAY
: DVD PLAY
: SACD PLAY
• Signal Path
DETECTOR
6
2
3
4
5
11
10
19
18
252 253
DVDRFIP
DVDA
DVDB
DVDC
DVDD
TPI
TNI
MD
MC
29 V2O
D
C
LD01
MD12
LD02
MSW
IOP
MD11
OSP OSN
IC1101 (1/3)
CD/DVD RF AMP,
FOCUS/TRACKING ERROR AMP
DVD SYSTEM PROCESSOR
DIGITAL SERVO PROCESSOR
OPTICAL PICK-UP
BLOCK
(KHM-310CAA)
2AXIS
DEVICE
FOCUS/
TRACKING
COIL
23
20
LI M SW
176
22
21
36 48
43
15
37 1
Q1102 (2/2)
AUTOMATIC POWER
CONTROL (FOR DVD)
Q1101, Q1103
VOLUME CONTROL
Q1102 (1/2)
AUTOMATIC POWER
CONTROL (FOR CD)
LASER
DIODE
(FOR CD)
LASER
DIODE
(FOR DVD)
FOCUS COIL
DRIVE
42
41 BUFFER
35 3
34 4
TRACKING COIL
DRIVE
32
31
38
42
39
37
41
30
47
SLED MOTOR
DRIVE
IC1201
FOCUS/TRACKING COIL DRIVER,
SPINDLE, SLED MOTOR DRIVER
27
28
SPINDLE MOTOR
DRIVE
MM
(SPINDLE MOTOR)
47
46
FMO
TROPENPWN
FOO
DND
TRO
V REFO
SPFG
40 IOPMON
FOO
RF
A
B
C
D
F
E
VC
LIMIT
CD LD
PD
VR650
VR780
MSW
DVD LD
FCS+
FCS–
TRK+
+3.6V
+2.5V
TRK–
SP+
SP–
SL+
SL–
D
C
B
A
VREFO
9
NB
B
8
NA
A
30
29 SLED MOTOR
DRIVE
MM
(SLED MOTOR)
50
BUFFER
19
20
22
21
40
45
IC501 (1/4)
SYSTEM
CONTROLLER
99
IFCK DVD_SCO
33
100
XIFCS DVD_XIFCS
37
110
PRST MTK_RST
SYSRST
SCO
SCD
SID
43
98
IFSDO DVD_SOD
32
101
IFSDI
177
OCSW CDM_OPEN_SW
27
105
IFBSY
CKSW
DVD_XIFBUSY
34
DVD_SID
31
TRO
FMO
FOO
DMO
TRO
10
13
16
17
FMO
DMO
178
REV
174
FWD
211
MUTE123
210
MUTE
170
TSDM
22
24
25
179
OCSW/CKSW
OCSW1
S001
(CHUCK/TRAY DETECT)
MM
(LOADING MOTOR)
LDM+
LDM-
28
V2REFO
106
RXD
107
TXD
5
6
2
1
RFMON
CN1105
TO DIAG JIG
V2REFO
RXD
TXD
2727
HCD-DZ119/DZ410
HCD-DZ119/DZ410

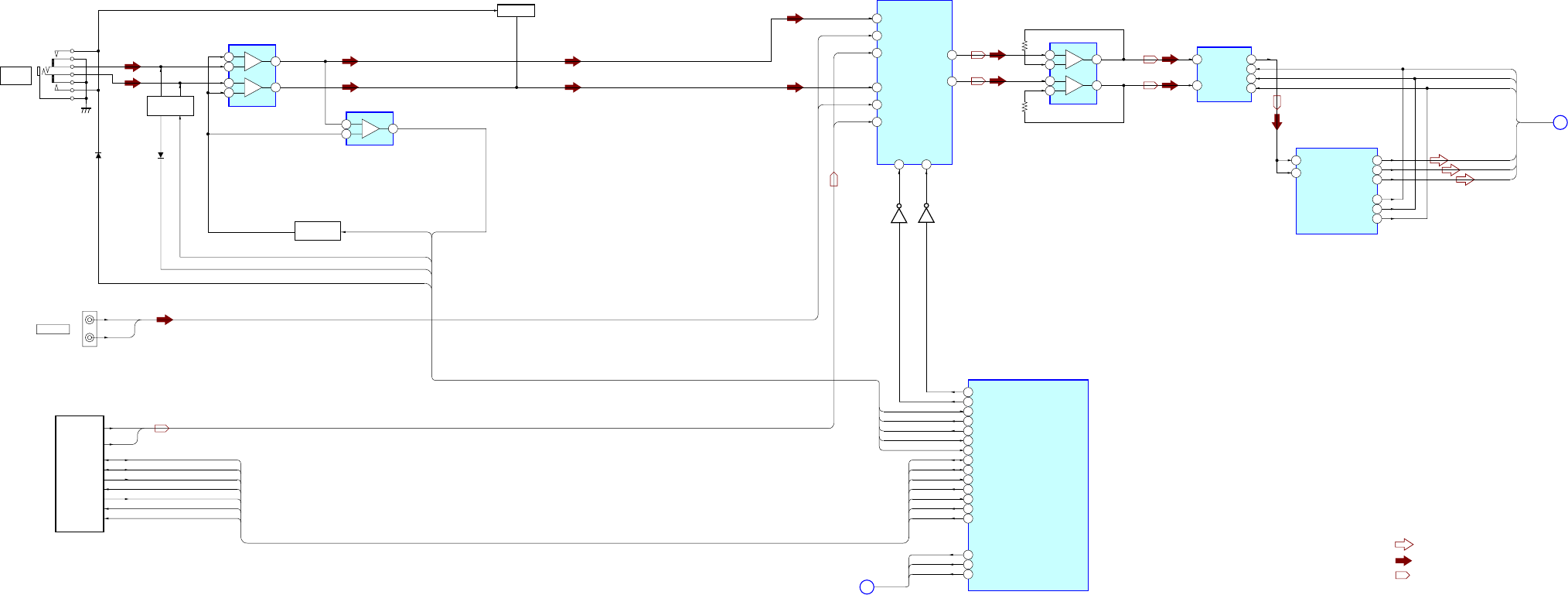

6-2. BLOCK DIAGRAM – AMP SECTION –
: AUDIO
• Signal Path
: AUDIO IN
: TUNER
J401
AUDIO IN/
A.CAL MIC
IC401
AMP
+
–
6
57
+
–
3
21
Q470-473,476
MO/ST DETECT
IC402
AMP
+
–
5
67
GAIN CONT ACAL
DC CONT
MO/ST DET
PLUG DET1
Q474,475
GAIN CONT
MUTING
Q300,310,320
IC350
AUDIO INPUT SELECTOR
4Y3
2Y2
5Y1
13
X
3
Y
A
A SEL1
A SEL0
10
B
9
11 X3
15 X2
L
R
14 X1
Q395 Q396
IC360
AMP
+
–
3
21
+
–
5
67
IC2200
A/D CONVERTER
1LIN
LIN 12
DOUT
10
LRCK
2RIN
RIN 11
BCK
15
SCKI
IC1101 (2/3)
DVD SYSTEM PROCESSOR
209
SPDATA
217
SDATA0 AMP D1
AMP MCKO
AMP BCKO
AMP LRCKO
AMP D2
AMP D3
218
SDATA1
224
DWIDE
219
SDATA2
213
ALRCK
214
ABCK
215
ACLK
IC501 (2/4)
SYSTEM CONTROL
82 A-SEL0
83 A-SEL1
76 RDS_DATA
RDS_DATA
75 RDS_CLK
RDS_CLK
69 TUNED
TUNED
70 ST_CLK
PLL CK
PLL DO
PLL CE
PLL DI
71 ST_DO
72 ST_CE
73 ST_DI
91 ACAL MIC LEVEL
26 MIC GAIN
28 DC CONT
90 MONO/ST DET
100 MIC/A CALSW
ACAL
GAIN CONT
MO/ST DET
PLUG DET1
71 V_SEL0
72 V_SEL1
81 TVSEL/V_SEL3
V_SEL0
V_SEL1
DVD_SEL
J203
VIDEO/SAT
TUNER
UNIT
RDS_DATA
L-CH
R-CH
L
R
RDS_CLK
TUNED
PLL CK
PLL DO
PLL CE
PLL DI
A
AUDIO
SECTION
(Page 28)
B
VIDEO
SECTION
(Page 29)
D433 D470
2828
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-3. BLOCK DIAGRAM – AUDIO SECTION –
: AUDIO
• Signal Path
IC3250
S-MASTER DIGITAL AMP
TB301
(+)
(–)
IC3030
S-MASTER PROCESSOR
31 DATA
36 XFSIIN
30 BCK
23 SCLATCH
27 INIT
18 NSPMUTE
SOFTMUTE
21 SCDT
29 LRCK
22 SCSHIFT
25 FLAGL OVF
24 OVF FLAGR
LAT3
INIT
NSPMUTE
SCDT
OVF2
SHIFT
9
OUTL2
6
OUTR1
11
OUTL1
4
OUTR2
38
FS0I
Q3401,3402
DC
DETECT
WOOFER
24 FL DATA
21 FL CLK
25 FL CS/STB
VFL
(+)
(–)
Q3301,3302
DC
DETECT
CENTER
(+)
(–)
IC3010
S-MASTER PROCESSOR
IC501 (3/4)
SYSTEM CONTROLLER
IC802
FL DRIVER
31 DATA
36 XFSIIN
30 BCK
23 SCLATCH
27 INIT
18 NSPMUTE
21 SCDT
29 LRCK
22 SCSHIFT
9
OUTL2
6
OUTR1
11
OUTL1
4
OUTR2
38
FS0I
7
DIN
8
CLK
9
42
STB
30
F1
F2
Q3101,3102
DC
DETECT
(+)
(–)
Q3151,3152
DC
DETECT
(+)
(–)
IC3020
S-MASTER PROCESSOR
31 DATA
20 PGMUTE
36 XFSIIN
30 BCK
23 SCLATCH
27 INIT
18
19
NSPMUTE
SOFTMUTE
SCDT
29 LRCK
22
21
SCSHIFT
4
OUTR2
11
OUTL1
6
OUTR1
9
OUTL2
38
FS0I
48
XFS0IN
48
XFS0IN
48
XFS0IN
Q3201,3202
DC
DETECT
FRONT
R
SD
4
6PWMBP
14
5
PWMAP
RESET
(+)
(–)
OUTA
OUTB
IC3200
S-MASTER DIGITAL AMP
SD
4
4
14 PWMB
6
5
PWMA
RESET
OUTA
OUTB
IC3150
S-MASTER DIGITAL AMP
SD
6PWMA
14
5
PWMB
RESET
OUTB
OUTA
4
IC3100
S-MASTER DIGITAL AMP
SD
14 PWMB
6
5
PWMA
RESET
OUTB
OUTA
4
IC3300
S-MASTER DIGITAL AMP
SD
6PWMA
14
5
PWMB
RESET
OUTA
OUTB
4
IC3400
S-MASTER DIGITAL AMP
IC3001
COMPARATOR
SD
14 PWMB
6
5
PWMA
RESET
OUTB
25
28
OUTA
Q3251,3252
DC
DETECT
43
DRIVE OCP
FRONT
L
SUR R
SPEAKER
J402
SUR L
AMP_D3 WF
WF
C
C
MCK0
BCK0
LRCK0
LAT1
INIT
NSPMUTE
SOFTMUTE
INIT
SOFTMUTE
SCDT
SHIFT
LAT1
LAT2
LAT3
SCDT
SHIFT
AMP_D1
MCK0
BCK0
LRCK0
LAT2
INIT
NSPMUTE
SCDT
SHIFT
AMP_D2
MCK0
BCK0
LRCK0
24 OVF FLAGR
FLAGL OVF
25
19 SOFTMUTE
19
20
FL801
FLUORESCENT
INDICATOR TUBE
Q3551
PROTECT DETECT
AMP_D1-D3
AMP_BCK0,LRCK0,MCK0
A
AMP
SECTION
(Page 27)
1
DAMP SCDT
2
DAMP SHIFT
SG1 – SG16
HPMUTE
PLUG_DET2
53
HP_MUTE
MST
52
HP_SW
47
DAMP LAT1
48
DAMP LAT2
49
DAMP LAT3
50
DAMP INIT
51
DAMP SOFT MUTE
42
DRIVE RST RESET
DIAG
OVF
44
OVERFLOW1 OVF2
45
OVERFLOW2
14 – 29
GR2 – GR12
GR1
G1
41 – 31
74 KEY INT
4SIRCS–IN
IC801
REMOTE CONTROL
RECEIVER
97,95,94
KEY0 – KEY2
KEY0
S801 – S808
(FUNCTION KEY)
10 ENA
S800
VOLUME
ENCODER 11 ENB
15
13
X502
5MHz
IC3003
SELECTER
Xin
Xout
LPF
LPF
LPF
LPF
LPF
LPF
LPF
LPF
LPF
LPF
LPF
LPF
Q802
FL DRIVER
+3.3V
FAN
FAN
DRIVE
Q3000-3002
+12V
SOFTMUTE
SOFTMUTE
FR
HP
HP
HP
HP
FR
FL
FL
SR
SR
SL
SL
VOLUME
25 FLAGL OVF
24 OVF FLAGR
OVF
TB302
E3.3V
19
DIPCSFLAG AMP_D0-D3
D3071-D3073
2
1
5
6
68
20 PGMUTE
41
HPOUTR1
43
HPOUTL2
39
HPOUTR2
45
HPOUTL1
PGMUTE
14
XFS0OUT
14
XFS0OUT
37
FSOCKOUT
IC3051
OSC
X450
49.152MHz
30
25
28
30
25
28
30
25
28
30
25
28
30
25
28
30
+
–
3
21
+
–
5
67
Q450,451
Q460,461
MUTE
Q3081
MUTE SW
HPMUTE
PLUG DET2
L
RPHONES
27
27
27
27
27
27
2929
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-4. BLOCK DIAGRAM – VIDEO SECTION –
• Signal Path
: VIDEO
: Y
: COMPONENT VIDEO
: R, G, B
IC1101(3/3)
DVD SYSTEM PROCESSOR
203
YUV6
49
WIDE WIDE
200
YUV4
202
YUV5
IC1103
EEPROM
6 5
SCL
SDA
198
YUV3
XROMCS
XWR
XRD
IC1102
32M FLASH ROM
125-123, 121, 120, 118,
117, 115, 135, 133-128, 126
146, 147, 149-151,
158-160, 162, 164-166
22-26,
29-35
HIGHA0-7
IOA0-7, IOA18-IOA21
A16, A17
AD0 – AD7
A1-A20
DATA & ADDRESS BUS
DATA & ADDRESS BUS
81-84,86-88,91 53-61, 67-72, 74-76,
78, 89, 92, 93
HD0 – HD7 A0 – A21
HD0 – HD7
A21
A0
2645
CE
WE
28
OE
11
A0 – A19DQ15/A-1
77
IOCS
IOWA
79
IOUE
66
DQ0 – DQ7
RCLK
IC1104
64M SDRAM
38
DRCLK
RD0 – RD15 RA0 – RA11
RA0 – RA11
RD0 – RD15
142
RCS
19
RCS
138
RWE
16
RWE
140
MRAS
18
RAS
139
CAS
17
CAS
MDQM0
15
DQM0
MDQM1
39
DQM1
CLE
37
DRCLE
102
SCL
103
SDA
143
BA0
20
BS0
BA1
21
BS1
29,31,33,35,38,40,42,44 25-16, 9-1, 48
145 156 113 137 157
2,4,5,7,8,10,11,13,42,44,45,47,48,50,51,53
10
NC
XROMCS
XWR
XRD
15 CRIN
11 CYIN
13 CBIN
15 CRIN
11 CYIN
13 CBIN
2S1
6CVBSIN
Y
P
B
/C
B
P
R
/C
R
J230
J203
COMPONENT
VIDEO OUT
CVBS OUT
G OUT
B OUT
R/C OUT
BLANKING OUT
FUNCTION SW
169
RGB RGB SEL
CY
CB
CR
B
AMP
SECTION
(Page 27)
IC230
VIDEO AMP, 75Ω DRIVE
23
CYOUTB
24
CYOUTA
21
CBOUTA
18
CROUTA
20
CBOUTB
17
CROUTB
14
MUTE2
IC201
VIDEO AMP, 75Ω DRIVE
23
CYOUTB
CYOUTA 24
V SEL0
V SEL1
DVD SEL
21
CBOUTA
18
CROUTA
20
CBOUTB
17
CROUTB
29
VOUTB
30
VOUTA
14
MUTE2
5
MUTE1
Q277
MUTE
Q279
MUTE
Q271-273
BLANKING
Q274-276
SWITCH
19
11
7
15
16
8
EURO AV
OUT PUT(TO TV)
228 229
X1102
27MHz
3030
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-5. BLOCK DIAGRAM – POWER SECTION –
F1
F2
VFL
TO FLUORESCENT
INDICATOR TUBE
T801
DC/DC
CONVERTER
IC511
RESET
RECT
D801,802
D804,805 OSC
Q801
12RESET
20AC_CUT
40P CONT2
41P CONT3
IC501 (4/4)
SYSTEM CONTROLLER
+5V
Q506
39P CONT1
IC941
+12V REG
IC931
VOLTAGE
DETECT
IC300
+9V REG
D943
D942
D944
D941
D922
D910
Q921 IC921
POWER
PROTECTION
T902
TRANSFORMER (SUB)
T901
TRANSFORMER(MAIN)
PC902
COUPLER
D931
D905
Q943,947
PC901
PC903
D901
E4V
E 4V
RF +3.3V
+31.5V
IC901
POWER
PROTECTION
AC IN
SW+3.3V,+3.3V
+5V
COUPLER
COUPLER
REG
IC1107
+3.3V REG
IC1105
+3.3V REG
IC942
D+5V REG
IC943
+3.3V REG
IC951
VOLTAGE
DETECT
IC1109
+1.8V REG
IC3050
+1.8V REG
+6V
SW+9V
VOLTAGE
DETECT
Q901
VOLTAGE
CONTROLLER
Q945
MOTOR DRIVE
CONTROLLER
+3.3V
IC516
+5V REG
A5V
+9V
A12V
+1.8V
D503
D505
E3.3V
BMP3.3V
+1.8V
Q502
5V SW
IC502
+3.3V REG
+3.3V
SW +5V
F901
POWER
Thermistor
LINE
FILTER
3131
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-6. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) – • See page 25 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No.
Location
D2001 I-12
IC501 D-11
IC502 B-11
IC511 C-10
IC1101 H-10
IC1102 F-11
IC1103 E-9
IC1104 H-8
IC1105 G-12
IC1107 H-13
IC1109 J-12
IC1201 F-13
IC2200 I-13
IC3001 C-7
IC3003 E-8
IC3010 D-7
IC3020 E-7
IC3030 H-7
IC3050 B-6
IC3051 C-7
IC3100 C-5
IC3150 D-5
IC3200 E-5
IC3250 F-5
IC3300 G-5
IC3400 H-5
Q506 C-10
Q1101 G-14
Q1102 H-14
Q1103 G-13
Q3101 C-2
Q3102 C-2
Q3151 D-2
Q3152 D-2
Q3201 E-2
Q3202 E-2
Q3251 F-2
Q3252 F-2
Q3301 G-2
Q3302 G-2
Q3401 I-2
Q3402 I-2
Q3551 J-3
✩New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1144-739-A, etc) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
IC502
IC501
IC1103
IC1102
IC1101
IC1104
IC3030
IC3020
IC3010
IC3001
IC3051
IC3100
IC3150
IC3200
IC3250
IC3300
IC3400
IC3050
IC1105
IC1107
IC1109
IC2200
IC1201
IC3003
IC511
10 1
11 20
1
34
5
4
51
3
1
34
5
31
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
12
12
A
FL BOARD
CN801
(Page 46)
OPTICAL
PICK-UP BLOCK
(KHM-310CAA)
C3322
Q3102 Q3101
C3122
C3222
C3173
C3172
C3123
Q3152 Q3151
Q3202 Q3201
C3273
C3272
C3223
Q3252 Q3251
C3323
Q3302 Q3301
C3422
Q3402 Q3401
C3423
R3554
R3555 C3555
C3408
Q3551
C3413 C3263C3313 C3208C3258 C3213
R3407
R3404
R2315
R3402
R3033
R2318
R2316
R2317
C3163 C3108C3158 C3113
R3104
R3107
C3308
R3099
R3096
C3055
C3088
R3154
X3051
R3204
R3207
R3055
R3157
R3013
R3101
R3069
R3072
R3067
R3070
R3257
R3252
R3202
R3251
R3254
R3201
R3026
R3057
C3305
R3316
R3024
R3022
R3023
R3021
C3068
R3304
R3302
R3307
R3031
R2314
R3401
R3301
RB1106
C3075
R3076
R3037
R3035
R3034
R3060 R3032
R3059
JC521
R2319
R2306
JC501 DZ119
R3066
R3062
R3065
R3073
R3151 R3012
R3102
R3152
C3067
C3070
R3011
C3069
R3017
R3075
R3015
R3014
RB1112
RB1113
FL1104
R2115
RB1105
R3064
R3071
R3068
R3063 R3079
R3097
R3078
R3077
C3073
C3072
R3088
C3085 R730
R729
R4002
R3090
L3052
C3084
R3086
R3089
L3051
FB500
FB502
R3085
C3083
C3087
R3098
R3087
C3086
R3053
C3057
R3092
R3094
R3093
C3089
R3091
R3054
FB503
FL503
FB504
FL501
FL502
FB506 C509
C507
R592
C587
Q506
C589 R713 R708
R616
R793
R612
R614
R792
R789
R577
R791
R790
R515
R720 R726
R728
R513
R656
R756
R742
R746
R744
R1193
R1191
C1167
RB501
FB1111
R1154
FL1106
R2546
R1155
R1152
R1215
R1209
C1206
R1214
R1208
C1205
R1206
RB1108 FL1108
RB1107
R1153
C1160
R1156
R1148
R1147
R1145
RB1103
RB1111
RB1104
RB1115
R2555
R2114
R2111
RB1114
R2553
R2101
C1221
R1243
C1219
C1215
R1236
R2168
C1152
R2551 C1153
R1142
R1161
R1181
R1160
R1180
R1182
R1164
R1144
FL1107
R1132
C1139
C1137
C1122
C1120
C1123
C1147
C1148
C1135
C1151
C1138
R1141
C1133
R1136
C1132
C2206
C1121
D2001
R2212
C2205
C2208
C2204
C2202
R2200
R2203
C1188
C2211
R2202
R2214
R2120
R2211
C2201
R2121
R2122
R2123
C2213
R1192
R2124
R2125
R2213
R1120
R1115
R1118
R1107
R1113
R1112
C1195
R1117
C1193
R1121
R1116
R1108
C1192
Q1103
Q1102
FL1101
R2129
R1111
R1114
CN1101
C1101
R1101
Q1101
C1222
R1247
R1246
R1212
R1238
C1225
R1255
R536
R535
C513
R707
C511
CN509
C517
R1207
R1216
R1210
C1208
C1203
R1204
R1213
R1183 R1205
FL1105
R2161
R2554
R2109
R2126
3232
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-7. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) – • See page 25 for Circuit Boards Location. :Uses unleaded solder.
FPOWER BOARD
CN904
(Page 50)
E
I/O SCART BOARD
CN301
(Page 43)
D
MS-203 BOARD
CN001
(Page 49)
C
I/O SCART BOARD
CN304
(Page 44)
B
I/O SCART BOARD
CN201
(Page 44)
FAN
K
SPEAKER BOARD
CN302
(Page 48)
JSPEAKER BOARD
CN303
(Page 48)
SPINDLE
MOTOR
SLED
MOTOR
ISPEAKER BOARD
CN301
(Page 48)
HFL BOARD
CN403
(Page 46)
G
POWER BOARD
CN902
(Page 50)
for ADJUSTMENT
(CHASSIS)
1
6
1
13
1
6
5
1
12
31
1
31
4
1
4
1
6
1
1
2
1
2
E
E
E
EE
(CHASSIS) (CHASSIS) (CHASSIS)
(CHASSIS)(CHASSIS)(CHASSIS)
(CHASSIS)
(CHASSIS)
12
12
IC516
R598
R594
R595
CN507
C572
C570
C571
C503
R590
R586
R588
R591
R589
R585
R587
R597
CN1202
R1239
R1237
C1217
R1234
C1226
R774
C501
R702
C855
C1212
C1214
R1230
R1233
C1224
R1232
R1231
C1213
R1226
C1209
R1221
C1211
R1222
R1224
CN1201
C1228
R1225
R1220
R1223
C1220
C1223
R1227
C1184
C1210 R1219R1228
C1218
R1106 C1110
R1105 C1102
R2133
C1186
R2152
R2151
R1151
R2150
R2176
C1109
C1131
C1177
C1182
C1190
FB1106
FB1108
C1136
C1144
C1158
C1155
C1162
C1199
C1114
C1124
C1173
C1176
C1164
C1128
C1126
R2547
C1125
R1146
R2311
R2310
R2308
R2309
R2307
C1175
C1174
C1172
C1156
C1154
C1130
C1140
C1149
C1146
R1126 C1159
C1161
C1170
C1163
R1176
C1197
C1171
R2103
R2104
R1168
C1150
R1159
X1102
C1178
R2548
R2550
R2549
C1118
C1119
C1117
C1116
C1127
C1115
R2134
C1187
C1112
R1124
C2212
CN1302
R2506
R1123 R1109
R1110
C1106
C1105
R524
R733
C856
R624
CN1105
CN1301
L2201
C2209
C2210
L2200 C2207
C2200
C1113
EB1002
C762 R593
C582
R2110
R709
R692
R693
R739
R741
C716
C3071
R3080
D3072
D3071
D3073
R755
C798
C712
C799
R717
R719
C583
R662
R775
R622
R725
R657
R727
R507
FB501
R3050
Q3081
X502
R628
R659
D504
C598
R620
R608
R519
C512
R601
C601
C602
R506
FB507
CN515
C506
C510
C508
FB508
C525
FB505
C504
FB509
Q502
R710
R704
R703
R673
C875
C603
EB903
C505
D503
D505
C580
C1191
EB1004
C1179
C1180
C1181
R3061
C3090
C3406
C3092
C3081 C3082
R3095
C3091
EB3001
R3006
R3003
Q3002
Q3001
C3002
R3004
R3001
L3000
C3001
C3000
Q3000
CNP3000
C3552
R3002
C3551
R3553
CN3000
R3551
D3552
R3427
C3421
D3551
R3425
R3426
EB3005
D3401
L3401
L3402
D3402 C3415
C3414 R3419
C3416
R3420
C3419
R3424
R3423
C3420
R3421
CN3300
R3422 R3324
C3320
R3323
R3325
D3301
L3301
L3302
D3302 C3315
R3322
R3321
C3319 C3318
C3317
C3417 C3321
R3326R3327
EB3004
R3319
C3314
R3320
C3316
C3418
R3274
R3273 R3271
R3272
R3275
L3252
D3252
D3251
L3251
C3265
C3270
R3277
C3267
R3276
CN3200
R3269
R3270
C3266
C3268
C3269
C3271
R3224
C3220
R3223
R3225
C3219 C3218
R3222
R3221
R3173
C3221
R3227 R3175
R3226
R3177
C3215
R3220
C3214 R3219
C3216
C3217
C3170
C3167
C3171
R3176
C3164
C3165 C3166
R3169
R3170
R3174
R3171
C3169
R3172
C3168
L3152
D3201
D3202
L3201
L3202
C3209
C3212
C3262
C3259
C3264
D3112
L3112
D3151
L3151
D3152
C3114
C3115
R3119
C3116
R3120
D3111
L3111
CN3002 EB3003
C3159
CN3100
R3125 C3121
R3127
C3120 C3117
R3126
C3119 C3118
R3124
R3123 R3121
CN3001
R3122
C3094
C3095
EB3002
C3106
C3051
C3107
C3109
C3112
R3115
R3116
R3103
C3105
C3100
C3103
C3104
R3166
C3054
FB3051
C3056
C3011
R3052 C3058
C3060
L3054
C3059
C3155
C3052
C3053
C3017 L3053
C3020
C3157
R3165
R3153
C3154
C3150
C3153
C3162
C3019
C3015
C3018
C3014 R3216
R3215
C3200
R3203
C3204
C3016
C3013
C3156
C3012
C3207
C3203
R3266 C3255
R3265
C3254
C3250
C3253
C3021
R3253
C3030
C3206
C3257
C3027
C3256
C3026
C3205
C3029
C3028
C3025
C3024
C3022
C3023
C3032
C3037
C3033
C3031
R3315
R3303
C3304
R3416
C3040
C3039
C3035
C3038
C3034
C3036
C3307
C3407
C3306
R3415
C3309
C3312
C3412
C3409
C3300
C3303
C3405
C3404
C3400
R3403 C3403
EB1003
R2105
•Semiconductor Location
Ref. No.
Location
D503 D-8
D504 C-7
D505 C-8
D3071 E-8
D3072 E-8
D3073 E-8
D3111 B-13
D3112 C-13
D3151 C-13
D3152 D-13
Ref. No.
Location
D3201 D-13
D3202 E-13
D3251 E-13
D3252 F-13
D3301 G-13
D3302 G-13
D3401 H-13
D3402 H-13
D3551 J-14
D3552 J-14
Ref. No.
Location
IC516 B-6
Q502 B-6
Q3000 J-12
Q3001 J-13
Q3002 J-13
Q3081 D-9
3333
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-8. SCHEMATIC DIAGRAM – MAIN BOARD (1/10) –
45
C3021
IC3020
C3031
IC3030
CN3000
C3000
Q3000
C3072
C3073
R3078
R3077
R3079
R3080
D3071
D3072
D3073
R3063
R3064
R3065
L3000
ICT3001
ICT3002
ICT3063
ICT3062
R2309
R2310
R2311
R2308
R2307
R2306
R2316
R2315
R2314
R2319
R2318
R2317
TP577
TP581
TP582
C2210
L2200
L2201
C2205
C2200
R2203 R2202
C2209
C2204
IC2200
CN1302
TP580
TP579
R3075
R3076
R3023
R3034
C3024
C3023
C3022
C3030
C3029
C3028
C3026
C3025
C3027
R3057
C3034
C3033
C3032
R3301
R3302
R3401
R3402
C3040
C3039
C3038
C3036
C3035
C3037
R3001
R3002
R3006
R3004
R3060
R3059
R3033
C3067
C3068
C3069
C3070
TP3003
R3032
R3031
R3021
R3022
TP3021
TP3031
C3001
C3075
TP3002
TP3000
R4002
R3035
R3024
R3037
R3026
Q3001
Q3002
TP3032
TP3022
R3066
R3067
R3068
R3069
R3070
R3071
R3072
R3073
R3003
R3202
R3201
R3252
R3251
TP3023
EB3001
IC3003
R3097
TP3033
C3071
R3062
C3002
TP3001
TP3004
C2208
C2206
C2207
C2211
R2200
R2214
R2213
R2212
R2211
C2202
C2201
C2212
C2213
ICT503
ICT502
ICT501
ICT506
ICT505
ICT504
ICT512
ICT513
ICT510
ICT511
ICT507
ICT508
ICT5090
0
0
0
0
0
0
0
0
0
0
0
10 50V 7L
10 50V 7L
10 50V 7L
47
16V
7L
47
16V
47
16V
*1
2P
100
16V
2SD1616-TP-LK
0.1 16V
0.1
16V
100
100
100
100k
1SS355WTE-17
1SS355WTE-17
1SS355WTE-17
1k
1k
1k
0
0.1
470 470
0.1
IC PCM1803DBR
7P
FFC 1MM
100
100
100
100
0.1
25V
0.1 25V
0.1 25V
0.1 25V
0.1
25V
0.1
25V
0.1 25V
0.1
25V
0.1 25V
100
0.1
25V
0.1 25V
0.1 25V
100
100
100
100
0.1
25V
0.1
25V
0.1
25V
0.1
25V
0.1
25V
0.1 25V
10k
10k
2.2k
1.2k
10k
10k
10k
100p
100p
100p
0.001
470
470
470
1/10W
470
1/10W
47
16V
0.0047
0
100
100
100
100
2SC3052EF
-T1-LEF
2SC3052EF-T1-LEF
100
100
100
100
100
100
100
100
1.5k
100
100
100
100
TERMINAL BOARD
TC7WH157FK (TE85R)
100
0.1
100
0.1
50V
0.1
0
0.1
100
100
100
100
100
0.01
0.01
0.1
0.001
IC3020, IC3030
*1
DZ119 : CXD9843AR
DZ410 : CXD9788AR
*1
(CHASSIS)
• See page 52 for IC Block Diagrams.
3434
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-9. SCHEMATIC DIAGRAM – MAIN BOARD (2/10) –
48
C3268
C3269
C3318
C3319
C3418
C3419
C3555
Q3551
R3554
R3426 R3425
C3421
R3427
R3325R3326
C3321
R3327
D3551
D3552
C3552
C3551
C3267
C3270
C3317
C3320
C3417
C3420
R3254
L3252
L3251
C3250
C3255
C3253
R3304
L3302
L3301
C3300
C3305
C3303
R3404
L3402
L3401
C3400
C3405
C3403
TP3301
TP3302
TP3303
TP3304
CN3300
ICT3051
ICT3052 ICT3053 ICT3054
ICT3010
ICT3011
ICT3012
ICT3015
ICT3014
ICT3013
ICT3016
ICT3017
ICT3018
ICT3020
ICT3019
ICT3021
ICT3022
ICT3023
ICT3026
ICT3025
ICT3024
ICT3060
ICT3061
R3270
R3269
R3320
R3319
C3422
C3423
R3420
R3419
Q3401
Q3402
Q3301
Q3302
R3551
R3553
R3423
R3421
R3323
R3321
R3322
R3324
R3422
R3424
R3555
EB3005
R3061
EB3004
C3256
C3257
C3254
C3263
C3258
C3265
C3264
D3251
D3252
C3266
2200
35V
IC3250
R3266
R3265
R3253
R3257
TP3250 C3262
C3259
C3306
C3307
C3304
C3313
C3308
C3315
C3314
D3301
D3302
C3316
IC3300
R3316
R3315
R3303
R3307
TP3310 C3312
C3309
C3406
C3407
C3404
C3413
C3408
C3415
C3414
D3401
D3402
C3416
IC3400
R3416
R3415
R3403
R3407
TP3410 C3412
C3409
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.1
16V
2SC3052EF-T1-LEF
100k
1/10W
100k
1/10W
100k
1/10W
10
10V
F
100k
1/10W
100k
1/10W
100k
1/10W
2.2
16V
F
100k
1/10W
1SS355WTE-17
1SS355WTE-17
10
50V
150V
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0
0.1 50V
0.1 16V
0.1 16V
0
0.1 50V
0.1 16V
0.1 16V
0
0.1 50V
0.1 16V
0.1 16V
2P
VH
BOARD IN
2.7 1/8W
2.7 1/8W
2.7 1/8W
2.7 1/8W
0.001 50V B
0.001 50V B
2.7 1/8W
2.7 1/8W
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
100k
1/10W
10k
1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
0
TERMINAL BOARD
0
TERMINAL BOARD
0.033
50V
0.033 50V
0.1
25V
0.1
50V
0.1
50V
1
50V
1
50V
P6SMBJ33A-5
P6SMBJ33A-5
CXD9883M
10
10
10
15k
100
35V
100
35V
0.033
50V
0.033 50V
0.1
25V
0.1
50V
0.1
50V
1
50V
1
50V
P6SMBJ33A-5
P6SMBJ33A-5
CXD9883M
10
10
10
15k
100
35V
100
35V
0.033
50V
0.033 50V
0.1
25V
0.1
50V
0.1
50V
1
50V
1
50V
P6SMBJ33A-5
P6SMBJ33A-5
CXD9883M
10
10
10
15k
100
35V
100
35V
2200
35V
2200
35V
(CHASSIS)
(CHASSIS)
3535
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-10. SCHEMATIC DIAGRAM – MAIN BOARD (3/10) –
47
51
C3081
C3082
IC3001
C3090
IC3051
X3051
C3056
FB3051
R3054
C3011
IC3010
IC3050
C3055
C3053
C3054
L3053
L3051
L3052
R3050
ICT3007
ICT3006
ICT3008
ICT3009
ICT3005
ICT3004
ICT3003
ICT3064
R3014
C3091
R3085
R3086
R3088
R3087
R3089
R3090C3084
C3083
R3099 R3098
C3088
C3087 R3095
C3089
R3096
C3092
C3086
C3085
R3091
R3092
R3093
R3094
R3052
C3058
C3059
C3057
L3054
C3060
R3053
TP3056
C3014
C3013
C3012
C3020
C3019
C3018
C3016
C3015
R3013
C3017
R3055
C3052
TP3081
TP3083
TP3084
TP3054
R3011
R3012
TP3011
TP3053
TP3082
R3015
R3017
TP3012
C3051
R3102
R3101
R3152
R3151
TP3014
TP3013
C3094
CN3001
TP3015C3095
Q3081
CN3002
470
10V
470
10V
NJM4565M(TE2)
100
10V
SN74AHC1GU04DCKR
49.152
SMD-49TB
220
10V
0
22
47
16V
TK11118CSCL-G
0.01 25V B
0.001 50V B
100 16V
0
100
220
16V
33k 1/10W
33k
1/10W
22k 1/10W
22k 1/10W
22k 1/10W
22k 1/10W100p 50V CH
100p 50V CH
22k 1/10W 22k 1/10W
100p
50V
CH
100p
50V
CH
2.2k
1/10W
0.1
25V
F
2.2k
1/10W
0.1
25V
F
100p 50V CH
100p 50V CH
22k 1/10W
22k
1/10W
22k
1/10W
22k 1/10W
1M 1/10W
5p 50V CH
0.001
50V
B
0.01 25V B
10p
50V
CH
100
1/10W
0.1
25V
0.1 25V F
0.1 25V F
0.1 25V F
0.1 25V F
0.1 25V F
0.1 25V
0.1
25V
10k
1/10W
0.1 25V
100
110V
470 1/10W
470
1/10W
100
100
0.1
50V
B
100
100
100
100
100p 50V CH
4P
0.001 50V B
RT1P141C-TP-1
3P
JST VH 3.96MM
IC3010
DZ119 : CXD9843AR
DZ410 : CXD9788AR
*
1
*
1
• See page 25 for Waveform. • See page 52, 53 for IC Block Diagrams.
3636
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-11. SCHEMATIC DIAGRAM – MAIN BOARD (4/10) –
48
48
R3104
L3112
L3111
C3118
C3119
C3168
C3169
C3218
C3219
R3125
R3126
C3121
R3127
R3175
R3176
C3171
R3177
R3225
R3226
C3221
R3227
R3275
R3276
C3271
R3277
C3117
C3120
C3167
C3170
C3217
C3220
C3100
C3105
C3103
R3154
L3152
L3151
C3150
C3155
C3153
R3204
L3202
L3201
C3200
C3205
C3203
TP3201
TP3202
TP3203
TP3204
TP3101
TP3102
TP3103
TP3104
CN3100
CN3200
ICT3057
ICT3058
ICT3059
ICT3055 ICT3056
ICT3027
ICT3028
ICT3029
ICT3032
ICT3031
ICT3030
ICT3033
ICT3034
ICT3035
ICT3038
ICT3037
ICT3036
ICT3039
ICT3040
ICT3041
ICT3044
ICT3043
ICT3042
C3106
C3107
C3104
C3113
C3108
C3115
C3114
C3122
C3123
R3120
R3119
C3172
C3173
R3170
R3169
C3222
C3223
R3220
R3219
C3272
C3273
C3322
C3323
Q3102
Q3101
Q3152
Q3151
Q3202
Q3201
Q3252
Q3251
D3111
D3112
R3273
R3271
R3223
R3121
R3172
R3174
R3123
R3173
R3171
R3124
R3122
R3224
R3272
R3274
R3222
R3221
EB3003
EB3002
C3116
2200
35V
IC3100
R3116
R3115
R3103
R3107
TP3110 C3112
C3109
C3156
C3157
C3154
C3163
C3158
C3165
C3164
D3151
D3152
C3166
IC3150
R3166
R3165
R3153
R3157
TP3150 C3162
C3159
C3206
C3207
C3204
C3213
C3208
C3215
C3214
D3201
D3202
C3216
IC3200
R3216
R3215
R3203
R3207
TP3210 C3212
C3209
0
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
100k
1/10W
100k
1/10W
2.2
16V
F
100k
1/10W 100k
1/10W
100k
1/10W
2.2
16V
F
100k
1/10W
100k
1/10W
100k
1/10W
2.2
16V
F
100k
1/10W
100k
1/10W
100k
1/10W
2.2
16V
F
100k
1/10W
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.0022 50V B
0.1 50V
0.1 16V
0.1 16V
0
0.1 50V
0.1 16V
0.1 16V
0
0.1 50V
0.1 16V
0.1 16V
4P
SCN
BOARD IN
4P
SCN
BOARD IN
0.033
50V
0.033 50V
0.1 25V F
0.1
50V
0.1
50V
1
50V
1
50V
0.001 50V B
0.001 50V B
2.7 1/8W
2.7 1/8W
0.001 50V B
0.001 50V B
2.7 1/8W
2.7 1/8W
0.001 50V B
0.001 50V B
2.7 1/8W
2.7 1/8W
0.001 50V B
0.001 50V B
0.001 50V B
0.001 50V B
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
P6SMBJ33A-5
P6SMBJ33A-5
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
10k 1/10W
TERMINAL BOARD
TERMINAL BOARD
CXD9883M
10
10
10
15k
100
35V
100
35V
0.033
50V
0.033 50V
0.1 25V
0.1
50V
0.1
50V
1
50V
1
50V
P6SMBJ33A-5
P6SMBJ33A-5
CXD9883M
10
10
10
15k
100
35V
100
35V
0.033
50V
0.033 50V
0.1 25V F
0.1
50V
0.1
50V
1
50V
1
50V
P6SMBJ33A-5
P6SMBJ33A-5
CXD9883M
10
10
10
15k
100
35V
100
35V
2200
35V
2200
35V
(CHASSIS)
(CHASSIS)
3737
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-12. SCHEMATIC DIAGRAM – MAIN BOARD (5/10) –
45
DZ119 : M30622MEP-A49FPU0
DZ410 : M30622MEP-A76FPU0
TP793
R793
DZ410
TP792
R792 4.7k
R791
R612
Q506
C583
R775
R756
R616
R614
R789
R624
TP592
TP591
TP590
TP589
TP588
TP587
TP586
TP585
TP584
R595
R591
R594
R590
R589
R588
R587
R586
R585
R657
R662
R659
R673
R790
R774
R717
X502
R709
R729
R730
R741
R713
R577
R577
DZ119 : 1k
DZ410 : 47k
R536
R535
TP545
TP546
R727
R725
R728
R726
R524
R719
R744
R733
R720
R755
R622
R746
R702
R708
TP578
TP576
R592
R593
R739
R597
R598
R513
R515
R742
CN507
ICT580
ICT581
C570
C716
C798
D504
C712
C799
C572
C571
C587
C589
IC511
C762
C856
IC501
IC501
C875
C855
EB1001
C503
C501
ICT514
ICT515
ICT516
ICT517
ICT518
ICT519
ICT520
ICT521
ICT525
ICT526
ICT527
ICT528
ICT529
ICT530
ICT531
ICT532
ICT533
ICT535
ICT534
ICT547
ICT548
33k
10k
1k
1k
100
10k
2SC3052EF
-T1-LEF
0.22
16V
B
47k
1k
10k
10k
100
100
100
100
100
100
100
100
100
100
47k
47k
100k
10k
100
1k
10k
5MHz
10k
4.7k
4.7k
10k
0
10k
10k
1k
1k
10k
10k
10k
10k
10k
1k
10k
10k
10k
10k
10k
10k
10k
100
100
1k
1k
10k
13P
FFC-S-1.0
0.1
0.1
0.1
1SS355WTE
-17
0.1
0.1
0.1
0.1
0.22 16V B
0.1
IC PST3635NR
0.1
0.1
0.01
0.1
TERMINAL BOARD
GROUND
0.01 25V B
0.01 25V
*
1
*
1
*
2
*
2
(CHASSIS)
• See page 25 for Waveform. • See page 55 for IC Pin Function Description.
3838
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-13. SCHEMATIC DIAGRAM – MAIN BOARD (6/10) –
51
47
C582
R707
R628
R601
R608
R620
R704
R703
TP596
TP597
TP598
TP599
TP600
TP601
TP603
TP595
TP570
TP632
TP560
TP635
TP594
TP631
R692
R693
TP624
TP625
IC516
R656
C504 C505
JL505
JL504
JL503
JL506
JL507
JL501
JL502
CN515
R710
R506
Q502
R507
JL508
JL509
JL512
JL510
JL511
R519
IC502
C517
TP636
TP637
TP638
TP639
SOL501
SOL502
SOL503
SOL504
D505
C580
C603
C525
C598
C601
C602
D503
FB502
FL502
FB505
FB500
FL501
FB501
FB504
FL503 FB506
FB503
FB507
EB903
FB508
RB501
C508
C509
C507
C506
FB509
C510
C512
C513
C511
CN509
ICT540
ICT539
ICT538
ICT536
ICT546
ICT543
ICT544
ICT545
ICT542
0
100
10V
100
1k
100
100
100
100
100
100
100
IC TA7805LS
47
16V 47
16V
12P
JST PH 2MM
100
1k
RSR025N03
47k
100
TK11133CSCL-G
0.001
1SS355WTE-17
2200
6.3V
100 10V
0.1
1
47
16V0.1
1SS355WTE-17
0UH
0UH
0UH
0UH
0UH
0UH
0UH
EMI0UH
0UH
0UH
TERMINAL BOARD
GROUND
0UH
100
0.001
0.001
0.1
0.1
0UH
0.1
0.1 16V B
110V
1
10V
23P
FFC-S-1.0
(CHASSIS)
3939
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-14. SCHEMATIC DIAGRAM – MAIN BOARD (7/10) –
CN1101
CL1115
CL1118
CL1117
CL1116
CL1114
CL1112
CL1107
CL1106
JL1159
JL1158
JL1157
JL1156
JL1155
JL1154
JL1153
JL1152
JL1151
JL1150
JL1149
JL1147
JL1146
JL1145
JL1144
JL1143
JL1142
JL1141
JL1140
R1123
R1112 R1113 R1115
R1118 R1120
R1121
R1124
R1110
R1109
R1107
R1108
R1111
R1117
R1116
C1106
C1113
C1101
R1114
R2129
R1101
C1195C1193
C1192
C1120
C1121
C1122
C1123
C1114
C1115
C1116
JL1139
CL1113
JL1148
ICT1134
ICT1114
ICT1115
ICT1116
ICT1117
ICT1118
ICT1126
ICT1125ICT1124
ICT1121
ICT1123
ICT1127
ICT1128
ICT1129
CL2501
Q1102
FL1101
Q1103
C1112
C1105
IC1107
C1117
C1118
C1119
C1124
Q1101
ICT569
10 50V 7L
10 50V 7L
10 50V 7L
24P
0
22
1/10W
0.5%
22
1/10W
0.5%
22
1/10W
0.5% 22 22
22
47k
47k
0
10k
1M
100
47k
1k
0.01 25V B
0.01
25V
B
0.01
25V
B
100k
100k
100
0.22
16V
B
0.22
16V
B
0.01 25V B
110V B
110V B
110V B
110V B
0.1 16V B
0.1 16V B
0.1 16V B
QST8TR
0UH
RT1N241C-TP-1
47
16V47
16V
TK11133CSC L-G
110V B
UM6K1N-TN
4040
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-15. SCHEMATIC DIAGRAM – MAIN BOARD (8/10) –
R2120
R2121
R2122
R2123
R2124
R2125
R1180
R1181
R1182
R1146
R1144
R2101
R1174
R2161R2126
R2103
R2104
R2105
R2109
R2111
R2114
R1176
R2115
R1132
C1163
C1161
C1159
C1156
C1153
C1152
C1154
C1151
C1148
C1147
C1149
C1146C1140C1139C1137
C1135
C1133
C1132
C1130
C1125
C1126
C1127
C1128
C1131 C1136 C1144 C1155
C1162
C1164C1158
C1176
C1175
C1174
C1172
C1173
C1170
C1171
C1160
CL1109
CL1101
CL1103
CL1104
CL1105
CL1108
JL1135
CL1102
JL1136
JL1105
JL1106
JL1166
JL1165
JL1129
JL1128
JL1176
JL1161
JL1160
CL1123
JL1137
CL1122
CL1121
CL1120
C1138
X1102
ICT1109
ICT1112
ICT1133
ICT1136
ICT1138
R1136
R1164
R1126
R1171
0
R1168
C1199
R2553
R2506
ICT1139
ICT1140
ICT1143
JL1113
ICT1141
ICT1142
ICT1144
R1161
R1160
R1159
JL1167
ICT1131
RB1112 RB1113
C1150
FL1105
R2168
R1141
R1142
R2547
R2548
R2549
R2550
R2551
R2554
R2555
RB1111
RB1103
RB1104
RB1115
RB1114
EB1003
ICT568
ICT570
ICT575
ICT576
ICT577
ICT578
ICT579
ICT567
IC1101
0
0
0
0
0
0
010k
1k
0
10 50V 7L
10k
47 1/10W
47 1/10W
47
47
0
2.2k
XX 2 W
10k
10k
10k
0
100
0
100
100k
0.01
25V
B
0.01
25V
B
0.01 25V B
0.01 25V B
15p 50V CH
10p 50V CH
0.1 16V B
0.001 25V CH
0.047 16V B
0.047 16V B
0.1 16V B
0.1
16V
B
0.1
16V
B
22p
50V
CH
0.1
16V
B
0.033 16V B
0.1 16V B
0.1 16V B
0.1 16V B
0.1 16V B
0.1
16V
B
0.01 25V B
0.0015
50V
B
2.2
6.3V
B
0.01
25V
B
0.01
25V
B
0.01
25V
B0.01
25V
B
0.01
25V
B
0.01
25V
B
0.01 25V B
0.01
25V
B
0.01
25V
B
0.01 25V B
0.01
25V
B
0.01 25V B
0.01 25V B
0.01
25V
B
0.001
50V
B
27MHz
15k
0
4.7k
10k
0.0047
0
0
0
47
47
1/32W 47
1/32W
0UH
330
750k
100k
4.7k
4.7k
4.7k
4.7k
4.7k
4.7k 100 1/32W
100
1/32W
100
1/32W
100 1/32W
100 1/32W
TERMINAL BOARD
CXD9849R
• See page 25 for Waveforms. • See page 58 for IC Pin Function Description.
4141
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-16. SCHEMATIC DIAGRAM – MAIN BOARD (9/10) –
45
for
ADJUSTMENT
IC1103
R1191
R1193
IC1102
IC1102
DZ119 : MX29LV320CBTC70-0BA1-0603CE
DZ410 : MX29LV320CBTC70-0BA2-0604CE
R1105
R1106
C1102
R1151
R2133
R2134
R2110
R2151
R2152
R2150
R1156
R1155
R1152
C1109
C1167
C1186
C1182
C1184
C1191
C1180
JL1107
JL1108
JL1109
JL1110
JL1111
JL1112
ICT1108
ICT1110
ICT1111
ICT1107
ICT1101
ICT1102
ICT1104
ICT1106
ICT1105
ICT1103
ICT1137
D2001
R1154
R1153
R1147
R1148
R1145
C1110
C1197
C1181
IC1109
C1188
JL1701
JL1702
JL1703
JL1704
JL1705
JL1706
JL1707
JL1709
JL1711
JL1713
CN1105
IC1105
IC1104
RB1106
RB1105
FL1106
FL1104
FL1107
FL1108 C1190
C1187
C1178
C1177
C1179
R2176
R2546
FB1106
FB1111
RB1107 RB1108
FB1108
EB1004
ICT563
ICT564
ICT565
ICT566
ICT572
ICT573
EB1002CN1301
47
16V
7L
47
16V
7L
BR24L64F-W
E2
1k
1k
10k
10k
1
10V
B
10k
1/10W
0
0
2.7k
3.3k
3.3k
3.3k
100
100
0
0.001 50V B
0.01
25V
B
0.22
16V
B
0.22
16V
B
0.01 25V B
0.1
16V
B
0.1
16V
B
RB501V -40TE-17
100
0
0
0
0
0.01
25V
B
0.1
16V
B
0.1
16V
B
NJM2885DL1-18
(TE2)
0.33
10V
B
6P
JST
TK11133CSC
L-G
A2V64S40CTP-G75
100 1/32W
100 1/32W
0UH
0UH
0UH
0UH 47 16V
47
16V
0.1 16V B
0
3.3k
0UH
0UH
100 1/32W 100 1/32W
0UH
TERMINAL BOARD
GROUND
TERMINAL BOARD13P
FFC 1MM
*1
*1
(CHASSIS)
(CHASSIS)
✩New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1144-739-A, etc) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
Ver. 1.1
4242
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-17. SCHEMATIC DIAGRAM – MAIN BOARD (10/10) –
49
JL1207
JL1208
JL1209
JL1210
JL1211
CL1205
CL1204
CL1203
CL1202
CL1201
CL1206
CL1207
CL1208
R1223 R1225
R1220
R1233
R1234
R1232
R1231
R1230
R1228
R1227
R1219 R1224
R1213
R1210
R1216
R1205
R1204
R1207
R1209
R1215
R1214R1208
C1203
C1209
C1211
C1212
C1214
C1215
C1219
C1224
C1221
C1222
C1223
C1225
C1226
C1210
R1222
C1205
C1206
C1208
C1217
JL1201
JL1202
JL1203
JL1204
JL1205
JL1206
CL1210
CL1211
CL1212
CL1209
C1213
ICT1207
ICT1203
ICT1204
C1228
R1255 CN1202
ICT1208
C1218
C1220
CN1201
R1243
R1247
R1236 R1237
R1238 R1239
R1246
R1226
R1221
R1212
R1206
ICT549
ICT550
ICT551
ICT552
ICT553
ICT555
ICT554
ICT557
ICT556
IC1201
0
0
0.1
16V
B
0.001 50V B
0.001 50V B
33k
05P FFC
100
1k 1k
4.7k 4.7k
100k
1/10W
0.5%
100k
1/10W
0.5%
10k
33k 1/10W 0.5%
10k
18k 1/10W 0.5%
15k 1/10W 0.5%
82k
1/10W
0.5%
27k
10k
6.8k
47k
12k 1/10W
10k
1.2k
2.7k
33k
12k
15k33k
0.01
25V
B
0.033
16V
B
0.033 16V B
0.01
25V
B
0.001
50V
B0.01 25V B
0.01
25V
B
0.01
25V
B
0.1 16V B
0.1 16V B
0.01 25V B
220p
50V
CH
220p 50V CH
0.01 25V B
47 16V
0.01
25V
B
0.0047
10
50V
10
50V
6P JST
1k
4.7k
56k 1/10W 0.5%
56k
1/10W
0.5%
10k
10k
FAN8036L
4343
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-18. PRINTED WIRING BOARD – I/O SCART BOARD (SIDE A) – • See page 25 for Circuit Boards Location. :Uses unleaded solder.
IC230
IC201
IC360
IC350
E
MAIN BOARD
CN507
(Page 32)
12
12
Q300
D300
R365
R355
L350 R366
Q396Q395
R357R399
R367
R209
R281
R282
R280
R278
R279
D272
Q273 Q272
R277
Q276
C238
C234
C239
C240
R273
R272
R271
D271
R227
R228
L300
R229
CN301 R232
C209
C208
C210
L231
L201
• Semiconductor
Location
Ref. No.
Location
D271 D-10
D272 C-10
D300 D-4
IC201 C-8
IC230 C-9
IC350 C-5
IC360 D-5
Q272 C-10
Q273 C-10
Q276 C-10
Q300 E-2
Q395 D-6
Q396 C-6
4444
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-19. PRINTED WIRING BOARD – I/O SCART BOARD (SIDE B) – • See page 25 for Circuit Boards Location. :Uses unleaded solder.
IC300
COMPONENT
VIDEO OUT
(DVD ONLY) AUDIO IN
Y
PB/CB
PR/CRR
L
LINE
EURO AV
OUTPUT(TO TV)
T
B
MAIN BOARD
CN1301
(Page 32)
TUNER
UNIT
AM
COAXIAL
FM75Ω
12
12
13
21
1
L
JACK BOARD
CN402
(Page 46)
C
MAIN BOARD
CN1302
(Page 32)
J230
J230
C295
R245
R250
C216
R246
R249
C246
R248
Q274 Q279
C271
R285
C245
R247
R244
R216
C244
R215
C215
J203
C296
R316
R326
R225
R214
C214
R251
R348
C343
R276
R275
R274
Q275
Q271
CN303
C306
C233
C232
C305
C231
Q277
C203
R284
R286
C204
C201
C390
C351
R338
C202
C206
C225
C361
R356
R358
R360
C366
C365
R361
C352 C362
R362
R352
R363
R350
R353
R359
C356
C355
R349 R339 R335 R345
C344
R332
C331
R331
CN201
R341
R342
C341
C354
C364
C303
C302
C304
R314
CN304
R324
R323
R313
C311
R301
C310
C321
R322
R312
Q320
Q310
R320
R311
R310
R321
C320
R302
CN302
R336
C332
R346
C342
C359
C358
R340
C334
C389 D280
C333
R351
J203
• Semiconductor
Location
Ref. No.
Location
D280 B-8
IC300 E-8
Q271 D-3
Q274 D-2
Q275 D-2
Q277 D-5
Q279 D-3
Q310 E-10
Q320 E-10
4545
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-20. SCHEMATIC DIAGRAM – I/O SCART BOARD –
47
UNIT
TP201
TP202
TP203
TP204
TP205
TP206
TP207
TP208
TP339
TP340
TP211
TP212
TP213
TP214
TP215
TP216
TP217
TP218
TP219
TP220
TP221
TP222
TP223
TP224
C203
C204
C206
C209
C210
C214
C215
C216
C225
C303
C305
C306
C310 C311
C332
C342
C351
C354
C355
C356
C358
C359
C361
C362
C364
C365
C366
C389
IC300
IC350
L201
L300
L350
Q300
R214
R215
R216
R225
R301
R302
R310
R312
R313 R314
R320
R322
R323
R353
R360
R363
TP327
TP328TP335
TP336
R286
TP305
TP306
TP307
TP308
TP309
TP310
TP311
TP312
TP313
TP314
TP315
TP316
TP317
TP329
TP330
TP331
TP332
TP333
C232
C233 C271
C234
C238
C239
C240
C244
C245
C246
C333
C344
D271
D272
J230
L231
R244
R245
R246
R247
R248
R251
R271
R277
R272
R273
R274
R278
R316
R326
R351R361
R285
R284
R321
R341
CN201
CN304
R366
R367
CN302
R227
R232
CN303
D280
IC360
D300
Q275
Q274
Q273
Q276
Q271
Q396
Q395
Q279
Q277
IC201
IC230
R355
C304
R365
C352
R358R357 R399
R356
C302
R352
R359
R209
C231
C202
C201
R279
R280
R281
R282
R276 R275
Q272
R250
C321C320
R335
R345
R339
R349
R336
R346
R340
R350
C334
R229
R228
R362
R311
C390
R338
C343
R348
R342
C331
R332
C341
R331
C296
C295
R249
CN301
C208
J203
R324
Q320
Q310
100 16V
0.1
10 50V
1
1
1000
6.3V
100
16V
100
16V
1000
6.3V
47
16V
100
16V
0.1
22
25V
22
25V
22
25V
22
25V
22 25V
1
50V
100 16V
0.1
100 16V
0.1
22 25V
22 25V
1
50V
22 25V
0.1
0.001
IC TA7809LS

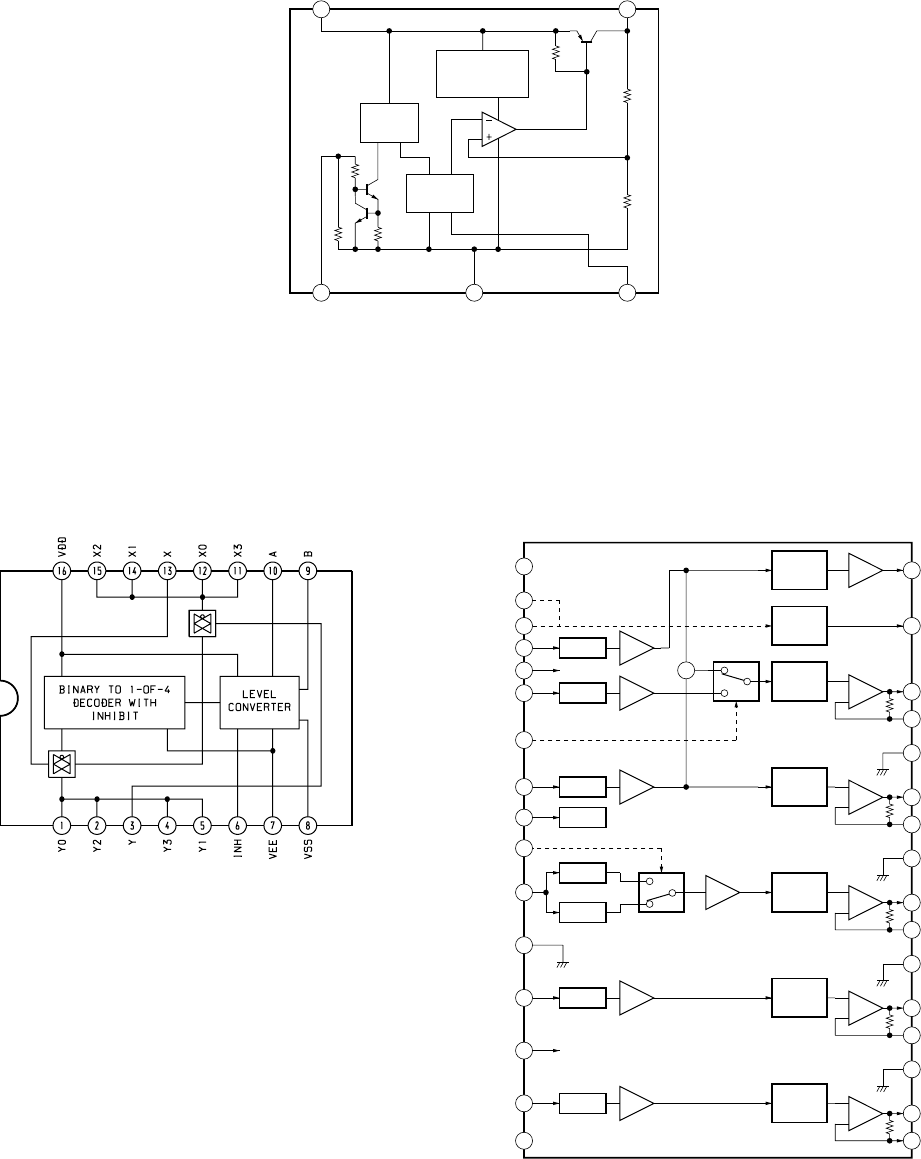

MC14052 BDR2
DTA114EKA-T146
75
75
75
75
1k
1k
4.7k
10k
47k 47k
4.7k
10k
47k
47k
4.7k
47k
1k
100
16V
100
16V
100
16V
0.1
1
1
1
1000
6.3V
1000
6.3V
1000
6.3V
220p
22
25V
1SS355TE-17
1SS355TE-17
21P
75
75
75
0
0
0
1k
1k
47k
220k
2.2k
22k
10k
10k
100k100k
10k
10k
4.7k
4.7k
FFC-13P L
5P
AMP-L
11P
NJM4558M-TE2
RB501V-40TE-17
DTA114EKA-T146
DTC144EKA-T146
DTA114EKA-T146
DTC144EKA-T146
DTC144EKA-T146
DTC124EK DTC124EK
DTC124EK
2SC1623-L5L6
BH7868FS-E2
BH7868FS-E2
470
0.1
16V
470
22
25V
10k1k 1k
10k
1
100k
4.7k
0.1
470 10V
0.1
330
330
330
330
2.2k 2.2k
2SC1623-L5L6
0
22 25V22 25V
47k
47k
47k
47k
47k
47k
47k
47k
22 25V
100k
4.7k
10k
220p
10k
4.7k
220p
4.7k
220p
4.7k
0.001
0.001
0
FFC-13P L
REVERSE
1
5P
47k
2SC1623-L5L6
2SC1623-L5L6
FFC-7P L
0
0
150
150
1SS355TE-17
0
150
150
0.001
• See page 25 for Waveforms. • See page 53 for IC Block Diagrams.
4646
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-21. PRINTED WIRING BOARD – PANEL SECTION – • See page 25 for Circuit Boards Location. :Uses unleaded solder.
IC801
IC802
IC402 IC401
A
H
xX
.
>
FUNCTION
AUDIO IN/
A.CAL MIC
PHONES
VOLUME
–+
I/O SCART BOARD
CN302
(Page 44)
L
I/1
5
3
1
13
1
2
4
5
15
E
E
E
E
E
E
E
E
E
E
E
14
(13)
13
(13)
13
(13)
13
(13)
13
JW854
D490
JR816
R490
FB450
CN402
FB410
C450
FB460C460 R495
CN802
FB479
JW861
C405
R434
R433
C434
R432
R431
C432C433
JW862
JR908
C431
R435
FB420
C819
C820
R822
R444
R821
S800
JR817JR811
R492 JR907
S800
D491
JW857
JW858
JW859
D497
D496
C493
JW860
CNP807
FB474
Q474
JW856
C401
R402
FB475
R416
R414
R403
C412
R413
C413
R415
R482
R401
Q473
JW850
R471
C404
R412
R421
C403
JR813
R422
C423
R423
C421
C422
R424
FB472 CNP802
FB471
D470
JW851
Q475
JR814
R411
R481
C411
C410
R410
JW853
R420
C420
JR815
Q472
JW852
R479
R478
FB470
Q476
JW848
JW849
R488
R487
R470
C490
Q470
R480
D433
R477
R472
Q471
S806S802
C471
JW855
S803
JR904
R857
JR905
R854
R853
S805 S804
JR902
R856
JR903
R855
S808
JR901R851
JW847
S807
R852
CNP801
CN804
S801
JW824
JW823
R436
J402 J401
JW822
R823
R800
C814
CN805
Q460 Q450
CN803
R453
R464 R454
R463
R452
FB461 FB451
R462
JW827
JW830
JW826
JW829
R460
R451
R450
FB478
Q451
Q461
R461
CN801
JW838
JW836
CN403
FB806
JW832
JW833
JW831
JW835
JW834
JW837
JW825
JW828
JW821
C435
C436
D432
D431
R437
JW819
JW817
JW818
JW820
R819
JW816
C811
JW815
C813
C815
R820
C812
JW813
JW814
CN811
JW810
C818
C821
C816
C817
C825
C826
C822
C823
JW807
JW808
C832
R817
JW812
Q802
JW811
C824
JW806
C809
C829
JW805
C810
C806
JW809
R811
JW804
R815
R816
R814
FL801
R812
C808
R813
C807
D803
C805
C802
C804
JW803
CN810
CNP805
JW800
C800
R801
T801
JW802
D805
D802
D804
D801
R802
R805
C803
L801
Q801
L802
JW801
R804
C801
JW840
MAIN BOARD
CN3001
(Page 32)
H
MAIN BOARD
CN509
(Page 31)
A
1
•Semiconductor Location
Ref. No.
Location
D431 H-7
D432 H-7
D433 D-6
D470 C-7
D496 D-3
D497 D-4
D801 J-13
D802 J-12
D803 K-12
D804 J-12
D805 J-12
Ref. No.
Location
IC401 C-5
IC402 C-3
IC801 G-9
IC802 H-13
Q450 H-3
Q451 H-3
Q460 H-3
Q461 H-3
Q470 D-7
Q471 D-7
Ref. No.
Location
Q472 C-7
Q473 C-7
Q474 C-6
Q475 C-6
Q476 C-7
Q477 D-4
Q478 D-4
Q801 K-13
Q802 H-11
4747
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-22. SCHEMATIC DIAGRAM – PANEL SECTION – • See page 54 for IC Block Diagram.
I/O SCART
BOARD
45
AUDIO IN/
A.CAL MIC
R857
R819
R802
C808C807
C806
R812
R813
L801
C803
C805
R854
TP831
TP832
L802
Q802
R817
R853 R851 R855 R856
TP801
TP802
C802
IC801
R800
TP841
TP842
TP803
TP804
TP805
TP806
TP807
TP808
TP809
TP810
TP811
TP812
TP813
TP814
TP815
TP816
TP817
TP818
TP819
TP820
TP821
TP822
TP823
TP851
TP852
TP853
TP854
TP855
TP856
TP857
TP858
TP859
TP860
TP861
TP862
TP863
TP871
TP872
TP873
TP876
TP877
CNP806
CNP807
R852
R823
CN801
T801
R437
S800
FB806
FL801
C436
C829
R479
R411
R421
R414
R471
R492
R490
C490
TP417TP426
FB470
FB471
R470
R480
CNP401
CNP402
JR814
Q471
R488
R413
R423 R424
R415
C422
R401
R402
R422
R412
R433
R431
R435
R432 C433
C413
R416
R478
R477
C405
C431
JR811 JR817
R403
J401
J402
C434
C823
C822
C821
C818
C817
C816
C815
C813
C812
C832
R816
R815
R814
R811
C471
Q473
D470
IC401
IC402
D496
D497
C450C460
FB450
FB479
FB460
CN802
CN803
R460
R453
R463
R452 FB451
FB461
FB478
Q461Q460
Q450 Q451
CN403
TP420
TP423
TP422
TP424
Q801
R801
D803
D432
D431
C826
C825
C810
C809
C824
R820
R804
C801C800
D801
D804
D805
D802
C804
TP882
TP883
TP880
TP881
TP879
TP878
TP874
TP875
S802 S803 S808 S807 S804 S805 S806
R436
C814
C811
C435
C493
C819 C820
TP416
C403
D433
TP414
C421
R434
FB420
C404
C412
R482
TP415
R481
TP413
FB474 JR812
Q472
Q476
R487
Q470
C411
TP402
TP409
TP400
TP410
TP418
R454
R464
R450
R445
R495
R472
Q474
FB472
R420C420
C410
R410
JR813 FB475
CN402
JR816
CNP801 CN804
R461
CN810
CN811
R805
C423
C401
FB410
CNP802
CN805
R444
R462
R451
C432
S801
R822R821
Q475
IC802
2.2k 2.2k
47
100
100p
50V
100p
50V
100p50V
100k
100k
100
10V
0.1
16V
2SC1623-L5L6
1k
2.2k 1k 1k 2.2k
47
35V
NJL23H400A
1k
CHASSIS GND
CHASSIS GND
2.2k
0
23P
FFC_1.0
L
DC-DC CONVERTER
15k
VOLUME KNOB
0UH
52P
1
35V
0
470
470
15k
2.2k
0
0
1000p
0UH
0UH
2.2k
39
CHASSIS GND
CHASSIS GND
0
DTA114EKA-
T146
100k
1k
1k 1k
1k
47p
3.3k
4.7k
22k
22k
3.3k
0
1M
22k
68p
220p
22
220
4.7k
0.1
0.47
00
1k
0.047
220p 50V
220p 50V
220p 50V
220p 50V
220p 50V
220p 50V
220p 50V
220p 50V
220p 50V
220p 50V
100
100
100
82k
6.3V
DTA114EKA-
T146
1SS355
TE-17
NJM4558M-TE2
NJM4558M
-TE2
1SS355WTE-17
1SS355WTE-17
0.010.01
4.7k
4.7k
4.7k
47
2SC5938-T112-1B2SC5938-T112-1B
2SC5938-T112-1B 2SC5938-T112-1B
CPH5504-TL-E
33k
UDZSTE-17-6.2B
1SS355
TE-17
1SS355
TE-17
220p 50V
220p 50V
0.1
16V
10
16V
0.01
50V
100k
3.9k
0.022
50V
0.0047
50V
1SS355 TE-17
1SS355 TE-17
1SS355 TE-17
1SS355 TE-17
0.01
50V
12k
10
16V
0.01
25V
0.47
1000p
0.01
25V
0.01
25V
10010V
1SS355 TE-17
10
0
0UH
0.1
47p
10k
100k
0UH 0
2SK3018-T106
DTC144EKA-
T146
0
DTC144EKA-T146
10
4.7k
4.7k
4.7k
0
0
680
DTA114EKA-T146
0UH
100k100p
100p
100k
00UH
0
2P 2P
22
5P
5P
0
220p
47
16V
0UH
13P
13P
47
22
47p
00
DTC144EKA-T146
0
D490
1SS355WTE-17
D491
1SS355WTE-17
4848
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-23. PRINTED WIRING BOARD – SPEAKER BOARD – • See page 25 for Circuit Boards Location.
:Uses unleaded solder.
6-24. SCHEMATIC DIAGRAM – SPEAKER BOARD –
SUR R SUR L FRONT R
SPEAKER
FRONT L CENTER WOOFER
SPEAKER BOARD
12
(CHASSIS)
(CHASSIS)
CN303
JW845
JW846
CN302
JW843
JW844
JW841
JW842
CN301
EP301
C313
C301
C315
C314
C317
C316
C319
C318
C323
C322
EP302
C312
C324
C311
C310
TB302
C308
C307
C306 C305 C304
C303
C302
TB301
C321
C309
C319
J
MAIN BOARD
CN3200
(Page 32)
K
MAIN BOARD
CN3300
(Page 32)
I
MAIN BOARD
CN3100
(Page 32)
13
13
EP301
EP302
C301
C302
C303
C304
C305
C306
C307
C308
CN302
TB301
CN301
CN303
C309
C310
C311
C312
C313
C314
C315
C316
C317
C318
C319
C320
C321
C322
C323
C324
TB302
EARTH PLATE
EARTH PLATE
1000p
1000p
1000p
1000p
1000p
1000p
1000p
1000p
VH-L 2P
DICS 4P
EH-4P
EH-6P
1000p
1000p
1000p
1000p
10000p
10000p
10000p
10000p
10000p
10000p
10000p
10000p
10000p
10000p
10000p
10000p
DICS 2P
(CHASSIS)
(CHASSIS)
4949
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-25. PRINTED WIRING BOARD – MS-203 BOARD – • See page 25 for Circuit Boards Location.
:Uses unleaded solder.
6-26. SCHEMATIC DIAGRAM – MS-203 BOARD –
M
42
51
CN001
1-861-327- 12
S001
(CHUCK/TRAY DETECT)
M203
(LOADING)
D
MAIN
BOARD
CN1202
(Page 32)
MS-203 BOARD
+
-
12
A
B
34
CN001
S001
5P
42
MAIN
BOARD
(10/10)
CN1202
D
5050
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-27. PRINTED WIRING BOARD – POWER BOARD – • See page 25 for Circuit Boards Location. :Uses unleaded solder.
IC941
IC942
IC943
IC901
IC951
IC931
PC903
PC901
IC921
PC902
F
MAIN BOARD
CN515
(Page 32)
G
MAIN BOARD
CN3002
(Page 32)
AC IN
8
1
SUB POWER
TRANSFORMER
3
6
515151
13
1
12
E
E
E
EE
E
K
C
A
A
K
AKA
1
24
5
CE
AK
C
EB905
E
A
A
K
K
(CHASSIS) (CHASSIS) (CHASSIS)
(CHASSIS)
MAIN POWER
TRANSFORMER
AAk
12
12
(CHASSIS)
C923
C929
R927
D925D926
C922
JW946
R956
JW944
R926
R969
JW919
D932
JW923
C939
R937
R940 R938
R923
D924
R922
JW922
D923
Q921
C925
D921
C928
D922 C924
JW920
R952
C952
C953
R951
R955
R954
D944
C968
C967
R963
C960
D941
JW941
JW940
C946 D942
JW937
C941
C940
L947
L948 C958
C944
JW934
L941
T902
D943
C942
L942
L951
R942
JW943
C951
L945
C943
JW945
R941 R958
Q945
JW942
C971 JW936
R957
JW932
JW931
JW929
R966
JW935
C954
C976
R946
C949
R971
C970
C945
R948
C955
C947
R943
C973
CN904
R968
EB903
C948
JW930
R967 C969
JW928
JW927
C935
C932
D931
C933
CN902
C934
R931
EB904
C936 R934
R933
L931
R932
R965
JW925
R949
Q947 Q943
JW912
T901
D914 D909
R939
R936
C937
R935
EB901
F901
C964
C963
C965
JW905
JW908
JW909
JW910
JW911
C930
R909
R910
JW907
C938
C910
D915
R911
R912
R908
R907
C906
JW916
D913
R914
R919
JW906
C909
JW913
EB902
C913
D908
R903
C905
D905
Q901
R904
C911
C908
JW915
JW914
D910
D906 R906 D907
C907
R925
R905
R929
LF902
LF901
VDR901
C902
TH901
C920 C918
D901
R901
C901
CN901
FH902
FH901
D945
R953
C903
• Semiconductor
Location
Ref. No.
Location
D901 B-11
D905 B-5
D906 A-6
D907 A-7
D908 B-5
D909 C-8
D910 A-5
D913 B-5
D914 C-8
D915 B-7
D921 B-3
D922 B-2
D923 B-1
D924 C-1
D925 A-1
D926 B-2
D931 F-6
D932 E-8
D941 D-2
D942 E-2
D943 D-3
D944 D-2
D945 F-2
IC901 B-6
IC921 B-3
IC931 E-9
IC941 G-2
IC942 G-3
IC943 G-4
IC951 D-1
PC901 D-9
PC902 C-1
PC903 D-8
Q901 B-5
Q921 B-1
Q943 E-8
Q945 F-3
Q947 E-8
5151
HCD-DZ119/DZ410
HCD-DZ119/DZ410
6-28. SCHEMATIC DIAGRAM – POWER BOARD –
IC901
IC921
PC902
PC903
PC901
IC943 IC942
IC941
IC931
IC951
C951
R933
Q943
TP916
C955
C909
FH901 FH902
C929
D901
TP910
C934
TP914
C944
EB904
TP915
L951
L947
C947
C949
TP901
C936
TP907
C953
L941
EB903
TP909
TP911
C940
C911
C923
C937
TP912
TP903
R955
R956
R908
L942
L948
Q947
TP913
TP918
TP904
TP902
TP908
TP917
C954
C902
D913
C920
C918
C901
C913
IC921
IC941
IC942
IC943
VDR901
C922
C925
C948
C945 C942
C946
CN901
C958
C960
C967
C968
C969
C970
C941
L945
C971
C939
R966
R967
R968
T902
C924
R965
C976
CN902
D941
C930
EB902
CN904
FR901
R971
R974
T901
D931
R929
L931
R901
LF901
LINE FILTER
LINE FILTER
C963
0.001
250V
0.001
250V
C965
C964
LF902
TH901
C903
330
400V
C905
0.0033
400V
R903
100K
3W 3W
100K
R904
C938
680p
C906
100p
1.5kV
IC901
R914
0.1
5W
R912
0.33
2W
R911
R907
C907
0.001
R906
D906
D908
D907
D909
R905
R910
R909
R919
R935
D914
D915
C910
22
50V
PC901
PC903
R934
R927
D910
R925 R969
D923
R926 R923 R922
C928
480p
250V
PC902
D942
D943
Q945
D945
R958
R957
R954
R948
R946
IC931
R931 R940 R937
R938
D932
R949
R939
R932
R951
R952
R953
C943
R943
R941
D944
D921
D926 D925
D924
D905
D922
C908
C933
C935 C932 R936
Q901
C952
IC951
Q921
F901
0.1
25V
4.7k
RT1N441C-TP-1
0.1
25V
220p
50V
HOLDER
FUSE HOLDER
FUSE
0.1
50V
1W
D5SBA60F01
2200
35V
2200
16V
100
10V
100
10V
0.1
50V
0.001 2kV
3300
10V
0.0047
50V
0.0047
50V
0.047
50V
470
1k
1/10W
3.3k
1/2W
RT1N441C-TP-1
0.1
25V
0.22
SARS03
250
0.01
250V
0.01
0.22
275V
T6.3AL/250V
100p
250V
STR-V153
SI-3120KM-TL
SI-3050KM-TL
SI-3033KM-TL
VARISTOR
TNR14SE471K490
22
100V
47p
2kV
470
10V
470
16V
470
25V
1000
16V
2P
0.1
0.1
0.1
0.1
0.1
0.1
1000
25V
0.1
0.1
50V
1k 1/10W
1k 1/10W
1k 1/10W
2.2
50V 100
16V
WIRE 3P
EK19LF-F7
100p
250V
WIRE 12P
0.1
1W
0
3.3k
FCU20UC20
2.2
1/2W
220
10k
3.3k
1SS355WTE-17
1SS355WTE-17
1SS355WTE-17
1SS355WTE-17
10
2.2k
100k
18k
1k
1SS355WTE-17
UDZSTE-1710B TLP421F(D4-GR)
TLP421F(D4-GR)
1k
1SS355WTE-17
10 1k
UDZSTE-1710B
680k 4.7k 4.7
TLP421F(D4-GR)
RK36LF-B3
RK36LF-B3
RSR025N03TL
UDZSTE-1720B
1k
47k
22k
10k
150
TA76431AS
(TPE6)
10k 10k
1k
UDZSTE-175.1B
1k
3.3k
33k
220
2.2k
3.9k
100 16V
0
0
EK19LF-F7
ST02D-140
UDZSTE
-1710B
UDZSTE
-175.1B
UDZSTE
-1724B
D1NL20U-TR2
D1NL20U
-TR2
47
35V
2200
35V0.1 2200
35V
470k
2SB1116A- TP-LK
0.047 50V
TA76L431S (TPE6,Q)
2SD1616A -TP-LK
MAIN POWER
TRANSFORMER
5.6k
1M
0.001 THERMISTOR 3.3k
SUB POWER
TRANSFORMER
EB905
(CHASSIS)
(CHASSIS)
(CHASSIS)
(CHASSIS)
IC STR-F6168-LF1352
5252
HCD-DZ119/DZ410
HCD-DZ119/DZ410

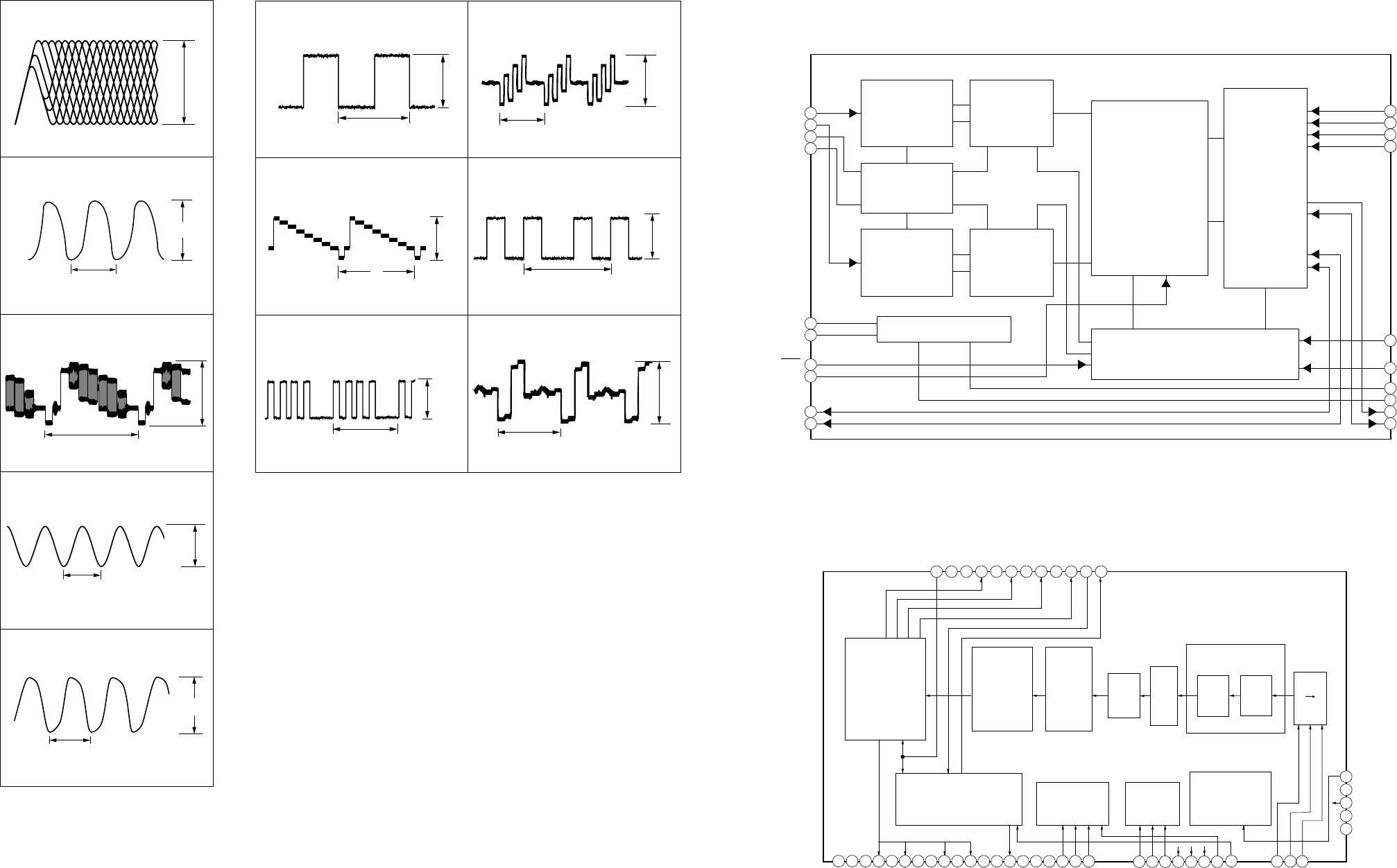

•IC Block Diagrams
– MAIN Board –
IC2200 PCM1803DBR
VINL 1
VINR 2
VERF1 3
VERF2 4
VCC 5
AGND 6
PDWN 7
BYPAS 8
FSYNC 9
LRCK 10
MODE120
MODE0
19
FMT1
18
FMT0
17
OSR16
SCKI15
VDD
14
DGCD
13
DOUT
12
BCK
11
Single-End
/Differential
Converter
5 th Order
Delta-Sigma
Modulator
5 th Order
Delta-Sigma
Modulator
Reference
Single-End
/Differential
Converter
× 1/64 (× 1/128)
Decimation
Filter
with
DC Cut Filter
Power Supply
Clock and Timing Control
Serial
Interface
Mode/
Format
Control
IC3010, IC3020, IC3030 CXD9843AR (DZ119), CXD9788AR (DZ410)
S P
Sampling Rate
Converter
DF1
DF2
Gain
Control
Filter
&
LOW
CUT
Filter
Serial Control
Liner
Interpolator
∆ ∑ Converter
XVSS
PWM
INIT/MUTE
Clock Generator
Clock Generator
(Secondary Clock System)
1
VSUBC
2
VSSR
VSSL
VSSL
VSSR
3
OUTR2
OUTL2
OUTR1
OUTL1
4
VDDR
DVDD
DVSS
VDDL
5678
XOVSS
XOVDD
9
XFSOOUT
10 11
NSPMUTE
12
SOFTMUTE
13
PGMUTE
SCSHIFT
14
SCDT
15
SCLATCH
OVF FLAGR
OVF FLAGL
16
SFLAG
INIT
17
MCKSEL
18
LRCK
19
BCK
20
DATA
BFVDD
BFVSS
TEST
DVDD
XFSIIN
21
42
43 41 40 39 38 37
XFSOIN
36
XVDD
35
HPVDDL
34
HPOUTL2
33
HPVSSL
32
31
HPVDDR
30
HPOUTR1
HPOUTL1
29
28
HPVSSR
27
26
25
HPOUTR2
24
FSOI
23
FSOCKO
22
4445
46
47
48
(Primary Clock System)
•Waveforms
– MAIN Board – – I/O SCART Board –
200 ns
2.7 Vp-p
5.5 Vp-p
20.3 ns
5
IC3010 rk (XFSOIN)
1 V/DIV, 10 ns/DIV
4 IC501 qg (XIN)
1 V/DIV, 100 ns/DIV
2 IC1101 <xx. (XTALI)
1 V/DIV, 10 ns/DIV
37 ns
1.7 Vp-p
1 IC1101 6 (DVDRFIP)
200 mV/DIV, 100 ns/DIV
900 mVp-p
3
IC1101 <z., (YUV3)
500 mV/DIV, 20
µ
s/DIV
H
1.5 Vp-p
6
IC230
wf
(CYOUT)
7
IC201
wf
(CYOUT)
8
IC230
wa
(CbOUT)
9
IC201
wa
(CbOUT)
0
IC230
qk
(CrOUT)
qa
IC201
qk
(CrOUT)
500 mV/DIV, 20
µ
s/DIV
H
1.7 Vp-p
1 V/DIV, 20
µ
s/DIV
2.2 Vp-p
H
500 mV/DIV, 20
µ
s/DIV
1.7 Vp-p
H
500 mV/DIV, 20
µ
s/DIV
1.7 Vp-p
H
1.6 Vp-p
H
500 mV/DIV, 20
µ
s/DIV
500 mV/DIV, 20
µ
s/DIV
H
1.6 Vp-p
53
HCD-DZ119/DZ410
IC3050 TK1118CSCL-G
1 2 3
5 4
VCONT
GND
NP
VIN
VOUT
CONTROL
CIRCUIT
OVER HEAT &
OVER CURRENT
PROTECTION
BANDGAP
REFERENCE
IC201, IC230 BH7868FS-E2
30
1
2
3
29
28
CV OUT
VCC1
6CV IN
5MUTE1
7SEL (CV/MIX)
13
PB/B IN
15
PR/R IN
14
MUTE2
16
VCC2
11PY/G IN
12
GND
8Y IN
10SEL (BIAS/CLAMP)
4C IN
S1
S2
CV OUT SAG
GND
BIAS 6dB
75Ω
32 C OUT
75Ω
31 S-DC OUT
6MHz
LPF
27
26
Y OUT
Y OUT SAG
75Ω
6MHz
LPF
6MHz
LPF
S-DC OUT
S1/S2
+
25 GND
24
23
PY/G OUT
PY/G OUT SAG
75Ω
12MHz
LPF
22 GND
21
20
PB/B OUT
PB/B OUT SAG
75Ω
12MHz
LPF
19 GND
18
17
PR/R OUT
PR/R OUT SAG
75Ω
12MHz
LPF
CLAMP 6dB
CLAMP 6dB
6dB
9BIAS BIAS
BIAS 6dB
BIAS 6dB
CLAMP
BIAS
MUTE1
MUTE2
H
L
L
H
– I/O SCART Board –
IC350 MC14052BDR2
– MAIN Board –
54
HCD-DZ119/DZ410
– FL Board –

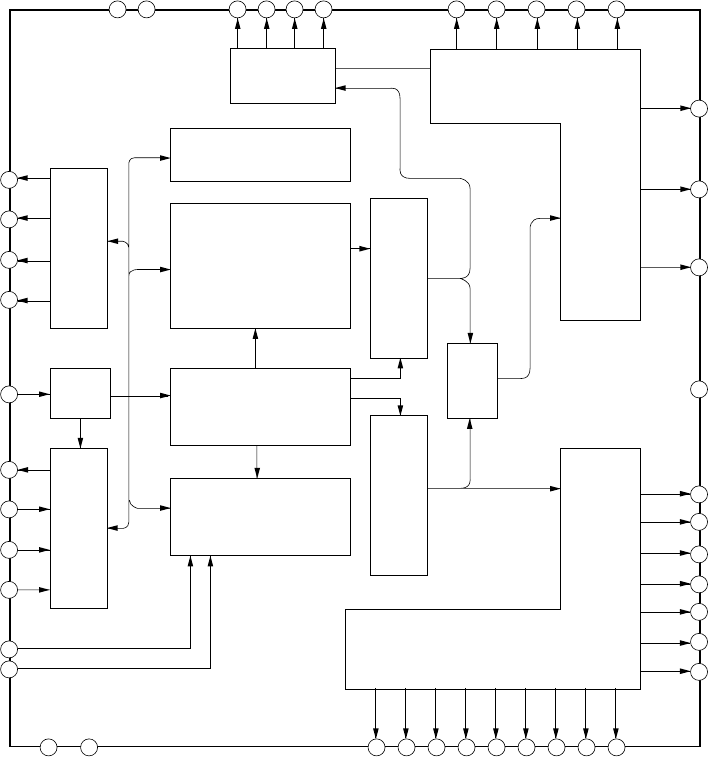

IC802 uPD16315GB-3BS
1
2
3
4
5
4-bit latch
24-bit output latch 12-bit shift register
Data selector
6
7
8
9
10
11
12 13 14 15 16 17 18 19 20 21 22
23
24
25
26
27
28
29
30
31
32
33
3435363738
Serial
interface
OSC Timing generator
key scan
Display memory
24 bits x 12 words
Key data memory
(2 x 16 bits)
Command decoder
segment driver
Grid driver
Multiplexed driver
394041424344
LED1
LED2
LED3
LED4
OSC
DOUT
DIN
CLK
STB
KEY1
KEY2
VSS
VDD
SEG1/KS1
SEG2/KS2
SEG3/KS3
SEG4/KS4
SEG5/KS5
SEG6/KS6
SEG7/KS7
SEG8/KS8
SEG9/KS9
SEG10/KS10
SEG20/GRID9
SEG21/GRID8
SEG22/GRID7
SEG23/GRID6
SEG24/GRID5
GRID4
GRID3
GRID2
GRID1
VDD
VSS
SEG11/KS11
SEG12/KS12
SEG13/KS13
SEG14/KS14
SEG15/KS15
SEG16/KS16
VEE
SEG17/GRID12
SEG18/GRID11
SEG19/GRID10
55
HCD-DZ119/DZ410
• IC Pin Function Description
MAIN BOARD IC501 M30622MEP-A49FPU0 (DZ119), M30622MEP-A76FUPU0 (DZ410)(SYSTEM CONTROLLER)
Pin No. Pin Name I/O Description
1DAMP_SCDT/ ODAMP processor and Diat data output
DIAT_SDATA
2DAMP_SHIFT/ ODAMP processor and Diat clock output
DIAT_SCLK
3DSP_INTR I DSP interrupt (not used)
4SIRCS_IN I Sircs input
5DSP_MOSI/DIR_DIN O DSP and DIR data output (not used)
6DSP_MOSI I DSP data input (not used)
7DSP_SPICLK/DIR_CLK O DSP/DIR clock output (not used)
8BYTE I External data bus (Ground terminal)
9CNVSS I Change processor mode (Pull down)
10 EN_A I Volume control for ENCODER (Pull up)
11 EN_B/FL_RESET I Volume control for ENCODER (Pull up)
12 RESET I System reset signal input
13 XOUT O Crystal output for main clock (5MHz)
14 VSS — Ground terminal
15 XIN I Crystal input for main clock (5MHz)
16 VCC — Power supply (BUP+3.3V)
17 NMI I BUP 3.3V
18 DIR_ZERO I DIR zero data detect (not used)
19 DIR_CSFLAG I Out level detect for auto calibration
20 AC_CUT I Detect AC-CUT
21 FL_CLK/LED_CLK O FL and LED driver clock output
22 LED_LAT O LED driver latch (not used)
23 DIAT_CSOD I DIAT CSOD signal input (not used)
24 FL_D_OUT/LED_DATA O FL and LED driver data output
25 FL_CS/STB O FL driver chip select
26 MIC_GAIN O MIC gain control
27 CDM_OPEN_SW I CDM open switch input
28 DC_CONT O A.CAL MIC DC control output
29 I2C_CLK I/O I2C clock input
30 I2C_DATA I/O I2C data input
31 DVD_SID O Media Tek data out/Flash white TXD1
32 DVD_SOD I Media Tek data in/Flash white RXD1
33 DVD_SCO I Media Tek clock in/Flash white CLK1
34 DVD_XIFBUSY O Media Tek busy request/Flash white RTS1
35 XM_SC_TX_OUT/
MIC_DET_OUT OMIC detect status out to Media Tek
36 XM_SC_RX_IN/
KARAOKE MODE IKARAOKE mode information from Media Tek
37 DVD XIFCS I Media Tek chip select
38 MTK RST O Media Tek reset
39 P_CONT1 O Control for power supply 1
40 P_CONT2 O Control for power supply 2
41 P_CONT3 O Control for power supply 3
42 DRIVE_RST (EN) O DAMP driver reset
43 DRIVE_OCP (DIAG) I DAMP driver shut down
56
HCD-DZ119/DZ410
Pin No. Pin Name I/O Description
44 OVERFLOW1 I DAMP processor F/C/S over flow detect
45 OVERFLOW2 I DAMP processor SW over flow detect
46 WRITE CE I Flash write CE (not used)
47 DAMP LATCH1 O DAMP processor latch1
48 DAMP LATCH2 O DAMP processor latch2
49 DAMP LATCH3 O DAMP processor latch3
50 DAMP INIT O DAMP processor reset
51 DAMP SOFT MUTE O DAMP processor soft muting
52 MIC2_SW I MIC2 insert switch
53 HP_MUTE O Headphone muting (not used)
54 SRC_MUTE O Sampling rate converter mute control (not used)
55 DSP_RESET O DSP reset (not used)
56 DSP_SPIDS O DSP device select (not used)
57 SEL_SA-CD O DSP input data select (not used)
58 DSP_RST O DIR reset (not used)
59 DSP_HCE O DIR chip enable (not used)
60 DAMP OUT2DLY/
DIR_ERR INot used
61 DAMP FSDLY/
DIR_XSTATE INot used
62 VCC — Power supply (BUP 3.3V)
63 DIR_HDOUT I DIR data in (not used)
64 VSS — Ground terminal
65 DIAT_XRST O DIAT reset (not used)
66 DIAT_XSCEN O DIAT chip enable (not used)
67 SRC_MODEO O Sampling rate convertor MODEO control (not used)
68 M_ST O LINK (Multi STEREO) control
69 TUNED I TUNER tuned input
70 ST_CLK O TUNER clock output
71 ST_DC I TUNER data input
72 ST_CE O TUNER chip enable
73 ST_DI O TUNER data output
74 KEY INT I Wakeup from ECO mode by key input
75 RDS_CLK/MIC_CLK/
XM_ERR_IRQ ORDS clock input
76 RDS-DATA/MIC-DAT/
XM_COM_SEL ORDS data input
77 XM_RESET O XM reset (not used)
78 DABSEL/XMSEL O XM clock select (not used)
79 V_SEL0 O VIDEO selector 0
80 V_SEL1 O VIDEO selector 1
81 TVSEL/V_SEL3 O TV control/VIDEO selector 3 (not used)
82 A_SEL0 O Audio selector 0
83 A_SEL1 O Audio selector 1
84 V_SEL2 O VIDEO selector 2
85 IO_CE O I/O expander IC chip enable (not used)
86 IO_RESET O I/O expander IC reset (not used)
87 IO_DI O I/O expander IC data output (not used)
88 IO_DO I I/O expander IC data input (not used)
57
HCD-DZ119/DZ410
Pin No. Pin Name I/O Description
89 IO_CLK O I/O expander IC clock output (not used)
90 MONO/ST_DET I Front jack MONO or STEREO detect
91 A.CAL MIC LEVEL I MIC level detect for auto calibration
92 DESTINATION I Destination select input
93 MODEL I Model select input
94 KEY2 I Key input 2 input
95 KEY1 I Key input 1 input
96 VSS — Ground terminal
97 KEY0 I Key input 0 input
98 VREF I Reference voltage (E3.3V)
99 VCC I Power supply (BUP3.3V)
100 MIC/A.CAL SW I MIC insert switch
58
HCD-DZ119/DZ410
MAIN BOARD IC1101 CXD9849R
(CD/DVD RF AMP, FOCUS/TRACKING ERR AMP, DVD SYSTEM PROCESSOR, DIGITAL SERVO PROCESSOR)
Pin No. Pin Name I/O Description
1AGND — Ground terminal
2DVDA I AC coupled input path A
3DVDB I AC coupled input path B
4DVDC I AC coupled input path C
5DVDD I AC coupled input path D
6DVDRFIP I AC coupled DVD RF signal input RFIP
7DVDRFIN I AC coupled DVD RF signal input RFIN (not used)
8NAIDC coupled main-beam RF signal input A
9NBIDC coupled main-beam RF signal input B
10 MC I DC coupled main-beam RF signal input C
11 MD I DC coupled main-beam RF signal input D
12 SA I DC coupled sub-beam RF signal input A (not used)
13 SB I DC coupled sub-beam RF signal input B (not used)
14 SC I DC coupled sub-beam RF signal input C (not used)
15 SD I DC coupled sub-beam RF signal input D (not used)
16 CDFON I CD focusing error negative input (not used)
17 CDFOP I CD focusing error positive input (not used)
18 TNI I 3 beam satellite PD signal negative input
19 TPI I 3 beam satellite PD signal positive input
20 MDI1 I Laser power PD monitor input
21 MDI2 I Laser power PD monitor input
22 LDO2 O Laser drive output
23 LDO1 O Laser drive output
24 SVDD3 — Power supply (RF+3.3V)
25 CSD O Central servo, positive main beam summing output (not used)
26 RFLVL O RFRP low pass, or Positive main beam summing output (not used)
27 SGND — Ground terminal
28 V2REFO O Reference voltage 2.8V
29 V2O O Reference voltage 2.0V
30 VREFO O Reference voltage 1.4V
31 FED O Focus error monitor output (not used)
32 TEO O Tracking error monitor output (not used)
33 TEZISLV O TE slicing level (not used)
34 OPOUT O Op amp output (not used)
35 OPIN I Op amp negative input (not used)
36 OPIN I Op amp positive input (not used)
37 DMO O Disk motor control output. PWM output
38 FMO O Feed motor control. PWM output
39 TROPENPWM O Tray PWM output/tray open output.
40 IOPMON O General PWM output
41 TRO O Tracking servo output
42 FOO O Focus servo output
43 DVSS — Ground terminal
44 NC — USB port DPLUS analog pin (not used)
45 NC — USB port DMINUS analog pin (not used)
46 DVDD3 — Power supply (SW+3.3V)
47 SPFG I Motor hall sensor input
59
HCD-DZ119/DZ410
Pin No. Pin Name I/O Description
48 DSEL — Not used
49 WIDE I Wide switch signal input terminal
50 MSW I Mute signal control input
51 MAMUTE O MAMUTE signal output to system controller (IC501) (not used)
52 DVDD18 — Power supply (+1.8V from IC1109)
53 to 58 IOA 2 to 7 O Address bus 2 to 7 output to PROM (IC1102)
59 HIGHA0 O Address bus 8 output to PROM (IC1102)
60, 61 IOA18, 19 O Address bus 18, 19 output to PROM (IC1102)
62 DVSS — Ground terminal
63 APLLCAP I APLL external capacitance connection
64 APLLVSS — Ground terminal
65 VDD3 — Power supply (+3.3V from IC1105)
66 I OWR O WE signal output to PROM (IC1102)
67 A16 O Address bus 16 output to PROM (IC1102)
68 to 72 HIGHA 7 to 3 O Address bus 15 to 11 output to PROM (IC1102)
73 DVDD3 — Power supply (SW+3.3V)
74, 75 HIGHA 2, 1 O Address bus 10, 9 output to PROM (IC1102)
76 IOA20 O Address bus 20 output to PROM (IC1102)
77 IOCS O CE signal output to PROM (IC1102)
78 IOA1 O Address bus 1 output to PROM (IC1102)
79 IOOE O OE signal output to PROM (IC1102)
80 DVDD3 — Power supply (SW+3.3V)
81 to 84 AD 0 to 3 I Data bus 0 to 3 input from PROM (IC1102)
85 DVSS — Ground terminal
86 to 88 AD 4 to 6 I Data bus 4 to 6 input from PROM (IC1102)
89 IOA21 O Address bus 21 output to PROM (IC1102)
90 ALE O Address latch enable (not used)
91 AD7 I Data bus 7 input from PROM (IC1102)
92 A17 O Address bus 17 output to PROM (IC1102)
93 IOA0 O Address bus 0 output to PROM (IC1102)
94 DVSS — Ground terminal
95 UWA I System controller write strobe (not used)
96 URD I System controller read strobe (not used)
97 DVDD18 — Power supply (+1.8V from IC1109)
98 IFSDO I DVD SOD signal input from system controller (IC501)
99 IFCK O DVD SCO signal output to system controller (IC501)
100 XIFCS I DVD XIFCS signal input from system controller (IC501)
101 IFSDI I VIFBUSY signal input from system controller (IC501)
102 SCL O SCL signal output to EEPROM (IC1103)
103 SDA O SDA signal output to EEPROM (IC1103)
104 TRG-SW O RS232 RXD signal output (not used)
105 IFBSY I RS232 TXD signal input from system controller (IC501)
106 RXD I RD232 RXD clock
107 TXD I RD232 TXD data
108 DVDD3 — Power supply (SW+3.3V)
109 ICE I ICE mode enable (not used)
110 PRST I MTRST signal input from system controller (IC501)
111 IR I IR control signal input (not used)
112 INT0 I External interrupt0 (not used)
60
HCD-DZ119/DZ410
Pin No. Pin Name I/O Description
113 DQMO O DQM0 signal output to SD-RAM (IC1104)
114 MREQ I DQM signal input (not used)
115 RD7 I Data bus 7 from SD-RAM (IC1104)
116 DVSS — Ground terminal
117, 118 RD 6, 5 I Data bus 6, 5 from SD-RAM (IC1104)
119 DVSS — Ground terminal
120, 121 RD 4, 3 I Data bus 4, 3 from SD-RAM (IC1104)
122 DVDD18 — Power supply (+1.8V from IC1109)
123 to 125 RD 2 to 0 I Data bus 2 to 0 from SD-RAM (IC1104)
126 RD15 I Data bus 15 from SD-RAM (IC1104)
127 DVDD3 — Power supply (SW+3.3V)
128 RD 14 I Data bus 14 from SD-RAM (IC1104)
129 to 133 RD 13 to 9 I Data bus 13 to 9 from SD-RAM (IC1104)
134 DVSS — Ground terminal
135 RD8 I Data bus 8 from SD-RAM (IC1104)
136 GPI0 — Not used
137 DQM1 O DQM1 signal output to SD-RAM (IC1104)
138 RWE O WE signal output to SD-RAM (IC1104)
139 CAS O CAS signal output to SD-RAM (IC1104)
140 RAS O RAS signal output to SD-RAM (IC1104)
141 DVDD3 — Power supply (SW+3.3V)
142 RCS O RCS signal output to SD-RAM (IC1104)
143 BA0 O BAO signal output to SD-RAM (IC1104)
144 DVSS — Ground terminal
145 BA1 O BA1 signal output to SD-RAM (IC1104)
146 RA10 O Address bus 10 output to SD-RAM (IC1104)
147 RA0 O Address bus 0 output to SD-RAM (IC1104)
148 DVSS — Ground terminal
149 to 151 RA 1 to 3 O Address bus 1 to 3 output to SD-RAM (IC1104)
152 DVDD18 — Power supply (+1.8V from IC1109)
153 NC — Reference voltage
154 NC — Dram clock
155 DVDD3 — Power supply (SW+3.3V)
156 RCLK O CLK signal output to SD-RAM (IC1104)
157 CKE O CKE signal output to SD-RAM (IC1104)
158 to 160 RA 11 to 8 O Address bus 11 to 8 output to SD-RAM (IC1104)
161 DVSS — Ground terminal
162 RA7 O Address bus 7 output to SD-RAM (IC1104)
163 DVSS — Ground terminal
164 to 166 RA 6 to 4 O Address bus 6 to 4 output to SD-RAM (IC1104)
167 DVDD3 — Power supply (SW+3.3V)
168 DISC/X — Not used
169 RGB O RGB control signal output
170 TSD_M O TSD signal output to IC1201
171 NC — Not used
172 NC — Not used
173 DVDD18 — Power supply (+1.8V)
174 FWD O FWD signal output to IC1201
175 NC — Not used
61
HCD-DZ119/DZ410
Pin No. Pin Name I/O Description
176 LIMSW O LIMSW signal output to optical pick-up
177 OCSW I SEN signal input from system controller (IC501)/OCSW signal input
178 REW — REW signal output to IC1201
179 CKSW I CKSW signal input
180 NC — Not used
181 NC — Not used
182 DVDD3 — Power supply (SW+3.3V)
183 NC — Not used
184 NC — Not used
185 NC — Not used
186 NC — Not used
187 NC — Not used
188 NC — Not used
189 DAVCC — Power supply (+3.3V from IC1105)
190 VREF I Bandgap reference voltage (not used)
191 FS O Full scale adjustment (pull down)
192 YUV0 — Not used
193 DAVSS — Ground terminal
194 YUV1 O Y signal output to VIDEO AMP (IC201)
195 DAVDD — Power supply (+3.3V from IC1105)
196 YUV2 O CHROMA signal output to VIDEO AMP (IC201)
197 DAVSS — Ground terminal
198 YUV3 O VIDEO signal output to VIDEO AMP (IC201)
199 DAVDD — Power supply (+3.3V from IC1105)
200 YUV4 O G signal output to VIDEO AMP (IC201)
201 DAVSS — Ground terminal
202 YUV5 O B signal output to VIDEO AMP (IC201)
203 YUV6 O R signal output to VIDEO AMP (IC201)
204 DVDD3 — Power supply (SW+3.3V)
205 MIC/VSYNC I MIC_DET signal to IC501
206 VOICE/YUV7 — Not used
207 KRMOD/HSYNC O KARAOKE MODE signal to IC501
208 SMSCK — Not used
209 SPDATA/SMSDI I Audio data of SPDIF input
210 MUTE O MUTE signal to IC1201
211 MUTE123 O MUTE123 signal to IC1201
212 DVDD3 — Power supply (SW+3.3V)
213 ALRCK I Audio left/right channel clock
214 ABCK O Audio bit clock
215 ACLK I Audio DAC master clock
216 DVSS — Ground terminal
217 ASDATA0 O Audio serial data 0
218 ASDATA1 O Audio serial data 1
219 ASDATA2 O Audio serial data 2
220 XRST — Not used
221 DVDD18 — Power supply (+1.8V)
222 ASDATA4 O Audio serial data (not used)
223 DVSS — Ground terminal
224 DWIDE — To pin 209 of IC1101
62
HCD-DZ119/DZ410
Pin No. Pin Name I/O Description
225 SDPIF — SPDIF output (not used)
226 RFGND18 — Ground terminal
227 RFVDD18 — Power supply (RF+1.8V)
228 XTALO O Oscillator output signal (27MHz)
229 XTALI I Oscillator input signal (27MHz)
230 JITFO O RF jitter meter output
231 JITFN I Negative input of operation amplifier for RF jitter meter
232 PLLVSS — Ground terminal
233 IDAC — Not used
234 PLLVDD3 — Power supply (RF+3.3V)
235 LPFON O Negative output of loop filter amplifier
236 LPFIP I Positive input of loop filter amplifier
237 LPFIN I Negative input of loop filter amplifier
238 LPFOP O Positive output of loop filter amplifier
239 VDD3 I Power supply (RF+3.3V)
240 NC I Not used
241 VSS — Ground terminal
242 NC — Not used
243 NC — Not used
244 RFVDD3 — Power supply (RF+3.3V)
245 RFRPDC I RFRP signal input
246 RFRPAC I RFRP signal input
247 HRFZC I High frequency RF ripple zero crossing
248 CRTPLP O Defect level filter capacitor connecting
249 RFGND — Ground terminal
250 NC — Not used
251 NC — Not used
252 OSP O RF offset cancellation capacitor connecting
253 OSN I RF offset cancellation capacitor connecting
254 RFGC O RF offset loop capacitor connecting for DVD-ROM
255 IREF I Current reference input (not used)
256 AVDD3 — Power supply (RF+3.3V)
63
HCD-DZ119/DZ410
SECTION 7
EXPLODED VIEWS
NOTE:
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-1. OVERALL SECTION
12-652-972-01 PANEL, LOADING
24-232-478-41 FOOT
31-693-700-11 TUNER (FM/AM) (TM10SCE)
4A-1146-119-A I/O SCART BOARD, COMPLETE (DZ410)
4A-1167-326-A I/O SCART BOARD, COMPLETE (DZ119)
53-077-331-21 +BV3 (3-CR)
63-363-099-51 SCREW (CASE 3 TP2)
72-653-932-01 CASE
81-828-962-11 WIRE (FLAT TYPE)(11 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
not supplied
not supplied
not
supplied
#1
#1
#3
front panel section
b
b
a
a
6
7
6
1
3
2
5
#1
5
4
chassis section
8
2
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
64
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-652-983-01 KNOB (VOL)
52 2-652-982-01 RING (VOL)
53 2-652-981-01 ORNAMENT (RIGHT)
54 2-652-980-01 ORNAMENT (PLAY)
55 2-652-984-01 WINDOW, INDICATION
56 2-652-979-01 ORNAMENT (POWER)
57 2-661-952-01 SHEET (WINDOW), ADHESIVE
58 3-943-995-31 EMBLEM (NO.5), SONY (DZ410)
59 2-652-977-01 BUTTON BASE (POWER)(DZ410)
59 2-653-929-01 BUTTON (POWER)(DZ119)
60 2-654-345-41 PANEL, FRONT (DZ119)
60 2-661-871-31 PANEL, FRONT (SB)(DZ410)
61 3-087-053-01 +BVTP2.6 (3CR)
62 2-652-978-01 BUTTON BASE (PLAY)(DZ410)
62 2-653-930-01 BUTTON (PLAY)(DZ119)
63 A-1144-767-A JACK BOARD, COMPLETE (DZ410)
63 A-1167-323-A JACK BOARD, COMPLETE (DZ119)
64 A-1144-764-A FL BOARD, COMPLETE (DZ410)
64 A-1167-320-A FL BOARD, COMPLETE (DZ119)
65 1-828-384-11 WIRE (FLAT TYPE)(23 CORE)
66 1-828-325-11 WIRE (FLAT TYPE)(13 CORE)
67 2-652-973-01 CAP (POWER)(DZ410)
68 2-652-974-01 CAP (PLAY)(DZ410)
69 2-652-975-01 CAP (FUNC)(DZ410)
70 2-652-976-01 CAP (AMS)(DZ410)
71 3-531-576-01 RIVET
7-2. FRONT PANEL SECTION
61
61
61
64
61
63
51
54
55
52 53 60
not
supplied
not
supplied
including
S800
56
57
59
67
58
not
supplied
61
61
66
65
61
not
supplied
59
DZ119
DZ119
DZ410
DZ410
not
supplied
71
68
70
62
62
69
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
65
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-21 +BV3 (3-CR)
✩102 A-1144-739-A MAIN BOARD, COMPLETE (DZ119)
✩102 A-1178-935-A MAIN BOARD, COMPLETE (DZ410)
103 3-077-331-01 +BV3 (3-CR)
104 1-787-331-11 FAN, D.C.
0106 1-751-520-31 CORD, POWER (UK)
0106 1-777-071-22 CORD, POWER (DZ119)
0106 1-830-188-11 CORD, POWER (DZ410:AEP)
107 3-703-244-00 BUSHING (2104), CORD
108 3-077-331-11 +BV3 (3-CR)
109 A-1144-737-A POWER BOARD, COMPLETE (DZ119)
109 A-1177-660-A POWER BOARD, COMPLETE (DZ410)
110 1-828-292-11 WIRE (FLAT TYPE)(5 CORE)
111 1-828-332-11 WIRE (FLAT TYPE)(13 CORE)
112 1-828-300-11 WIRE (FLAT TYPE)(7 CORE)
113 1-828-330-11 WIRE (FLAT TYPE)(13 CORE)
114 2-597-972-11 SHEET, RADIATION
115 2-597-972-21 SHEET, RADIATION
0F901 1-532-325-00 FUSE, TIME-LAG (T6.3AL/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-881-09 SCREW +BVTT 4X8 (S)
7-3. CHASSIS SECTION
101
114
102
104
103
109
115
101
103
101
107
106
101
101
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
F901
not
supplied
not
supplied
not
supplied
not
supplied
#1 #1
#1
#4
not supplied
DVD mechanism
deck section
(CDM85-DVBU102)
#2
103
not
supplied
111
108
112
113
110
✩New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1144-739-A, etc.) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
Ver. 1.1
66
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-4. DVD MECHANISM DECK SECTION (CDM85-DVBU102)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
501
504
502
503
505
505
505
505
506
507
508
506
506
506
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
501 A-6071-669-A LOADING ASSY (J)
502 3-088-371-01 BELT
503 4-974-725-11 SCREW (M1.7X2.5), P
504 4-674-137-11 SCREW (PTP2X5)
505 2-634-618-01 INSULATOR
506 3-087-599-01 INSULATOR SCREW
0507 8-820-290-02 DEVICE, OPTICAL KHM-310CAA/C2RP
508 1-828-773-51 WIRE (FLAT TYPE)(24 CORE)
67
HCD-DZ119/DZ410
SECTION 8
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•CAPACITORS
uF: µF
•COILS
uH: µH
•RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
•SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. ., uPA. . : µPA. .,
uPB. . : µPB. ., uPC. . : µPC. .,
uPD. . : µPD. .
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
When indicating parts by reference number,
please include the board name.
DDCON BOARD
************
< CAPACITOR >
C800 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C801 1-163-037-11 CERAMIC CHIP 0.022uF 10% 50V
C802 1-119-772-91 ELECT 47uF 20% 35V
C803 1-124-584-00 ELECT 100uF 20% 10V
C804 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C805 1-164-360-11 CERAMIC CHIP 0.1uF 16V
< DIODE >
D801 8-719-988-61 DIODE 1SS355TE-17
D802 8-719-988-61 DIODE 1SS355TE-17
D803 8-719-069-56 DIODE UDZSTE-176.2B
D804 8-719-988-61 DIODE 1SS355TE-17
D805 8-719-988-61 DIODE 1SS355TE-17
< COIL >
L801 1-410-671-31 INDUCTOR 47uH
L802 1-410-671-31 INDUCTOR 47uH
< TRANSISTOR >
Q801 6-550-065-01 TRANSISTOR CPH5504-TL-E
< RESISTOR >
R801 1-216-839-11 METAL CHIP 33K 5% 1/10W
R802 1-216-809-11 METAL CHIP 100 5% 1/10W
R804 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R805 1-216-295-91 SHORT CHIP 0
< TRANSFORMER >
T801 1-443-645-11 TRANSFORMER, DC CONVERTER
*************************************************************
A-1144-764-A FL BOARD, COMPLETE (DZ410)
A-1167-320-A FL BOARD, COMPLETE (DZ119)
******************
< CAPACITOR >
C435 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C436 1-115-156-11 CERAMIC CHIP 1uF 10V
C806 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C807 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C808 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C809 1-126-157-11 ELECT 10uF 20% 16V
C810 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C811 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C812 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C813 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C814 1-126-157-11 ELECT 10uF 20% 16V
C815 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C816 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C817 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C818 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C821 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C822 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C823 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C824 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C825 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C826 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C829 1-124-259-11 ELECT 4.7uF 20% 35V
C832 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
< CONNECTOR >
CN801 1-779-560-21 CONNECTOR, FFC (LIF (NON-ZIF)) 23P
CN803 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P
CN805 1-794-506-51 CONNECTOR, FFC/FPC 13P
CN811 1-785-331-11 PIN, CONNECTOR (LIGHT ANGLE) 5P
< DIODE >
D431 8-719-988-61 DIODE 1SS355TE-17
D432 8-719-988-61 DIODE 1SS355TE-17
< FERRITE BEAD >
FB451 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB461 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB478 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB806 1-414-813-11 FERRITE, EMI (SMD) (2012)
< FLUORESCENT INDICATOR >
FL801 1-519-852-11 FLUORESCENT INDICATOR
< IC >
IC801 6-600-349-21 IC NJL23H400A
IC802 8-759-643-83 IC PT6315
< TRANSISTOR >
Q450 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q451 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
DDCON FL
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
68
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q460 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q461 6-550-889-01 TRANSISTOR 2SC5938-T112-1B
Q802 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R436 1-216-834-11 METAL CHIP 12K 5% 1/10W
R437 1-216-835-11 METAL CHIP 15K 5% 1/10W
R450 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R451 1-216-801-11 METAL CHIP 22 5% 1/10W
R452 1-216-805-11 METAL CHIP 47 5% 1/10W
R453 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R454 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R460 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R461 1-216-801-11 METAL CHIP 22 5% 1/10W
R462 1-216-805-11 METAL CHIP 47 5% 1/10W
R463 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R464 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R800 1-216-821-11 METAL CHIP 1K 5% 1/10W
R811 1-216-844-11 METAL CHIP 82K 5% 1/10W
R812 1-216-845-11 METAL CHIP 100K 5% 1/10W
R813 1-216-845-11 METAL CHIP 100K 5% 1/10W
R814 1-216-809-11 METAL CHIP 100 5% 1/10W
R815 1-216-809-11 METAL CHIP 100 5% 1/10W
R816 1-216-809-11 METAL CHIP 100 5% 1/10W
R817 1-216-821-11 METAL CHIP 1K 5% 1/10W
R819 1-216-805-11 METAL CHIP 47 5% 1/10W
R820 1-216-845-11 METAL CHIP 100K 5% 1/10W
R823 1-216-864-11 SHORT CHIP 0
*************************************************************
A-1146-119-A I/O SCART BOARD, COMPLETE (DZ410)
A-1167-326-A I/O SCART BOARD, COMPLETE (DZ119)
*************************
< CAPACITOR >
C201 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C202 1-126-925-91 ELECT 470uF 20% 10V
C203 1-126-933-11 ELECT 100uF 20% 16V
C204 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C206 1-126-964-11 ELECT 10uF 20% 50V
C208 1-115-156-11 CERAMIC CHIP 1uF 10V
C209 1-115-156-11 CERAMIC CHIP 1uF 10V
C210 1-115-156-11 CERAMIC CHIP 1uF 10V
C214 1-126-916-11 ELECT 1000uF 20% 6.3V
C215 1-126-933-11 ELECT 100uF 20% 16V
C216 1-126-933-11 ELECT 100uF 20% 16V
C225 1-126-916-11 ELECT 1000uF 20% 6.3V
C231 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C232 1-126-933-11 ELECT 100uF 20% 16V
C233 1-126-933-11 ELECT 100uF 20% 16V
C234 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C238 1-115-156-11 CERAMIC CHIP 1uF 10V
C239 1-115-156-11 CERAMIC CHIP 1uF 10V
C240 1-115-156-11 CERAMIC CHIP 1uF 10V
C244 1-126-916-11 ELECT 1000uF 20% 6.3V
C245 1-126-916-11 ELECT 1000uF 20% 6.3V
C246 1-126-916-11 ELECT 1000uF 20% 6.3V
C271 1-126-933-11 ELECT 100uF 20% 16V
C295 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C296 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C302 1-127-573-11 CERAMIC CHIP 1uF 10% 16V
C303 1-126-947-11 ELECT 47uF 20% 16V
C304 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C305 1-126-933-11 ELECT 100uF 20% 16V
C306 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C310 1-104-662-91 ELECT 22uF 20% 25V
C311 1-104-662-91 ELECT 22uF 20% 25V
C320 1-104-662-91 ELECT 22uF 20% 25V
C321 1-104-662-91 ELECT 22uF 20% 25V
C331 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C332 1-104-662-91 ELECT 22uF 20% 25V
C333 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C334 1-104-662-91 ELECT 22uF 20% 25V
C341 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C342 1-104-662-91 ELECT 22uF 20% 25V
C343 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C344 1-104-662-91 ELECT 22uF 20% 25V
C351 1-104-662-91 ELECT 22uF 20% 25V
C352 1-104-662-91 ELECT 22uF 20% 25V
C354 1-126-960-11 ELECT 1uF 20% 50V
C355 1-126-933-11 ELECT 100uF 20% 16V
C356 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C358 1-126-933-11 ELECT 100uF 20% 16V
C359 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C361 1-104-662-91 ELECT 22uF 20% 25V
C362 1-104-662-91 ELECT 22uF 20% 25V
C364 1-126-960-11 ELECT 1uF 20% 50V
C365 1-104-662-91 ELECT 22uF 20% 25V
C366 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C389 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C390 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
< CONNECTOR >
CN201 1-779-550-21 CONNECTOR, FFC (LIF (NON-ZIF)) 13P
CN302 1-785-331-11 PIN, CONNECTOR (LIGHT ANGLE) 5P
CN303 1-568-830-11 CONNECTOR, FFC 11P
CN304 1-779-544-21 CONNECTOR, FFC (LIF (NON-ZIF)) 7P
< DIODE >
D271 8-719-988-61 DIODE 1SS355TE-17
D272 8-719-988-61 DIODE 1SS355TE-17
D280 8-719-988-61 DIODE 1SS355TE-17
D300 8-719-058-24 DIODE RB501V-40TE-17
< IC >
IC201 6-707-489-01 IC BH7868FS-E2
IC230 6-707-489-01 IC BH7868FS-E2
IC300 6-703-550-01 IC TA7809LS
IC350 8-759-385-76 IC MC14052 BDR2
IC360 8-759-100-96 IC NJM4558M-TE2
< JACK >
J203 1-819-925-11 JACK, PIN 5P
((Y, PB/CB, PR/CR)COMPONENNT VIDEO OUT)
((R, AUDIO IN, L)LINE)
J230 1-815-911-11 CONNECTOR, SQUARE TYPE 21P
(EURO AV T OUT PUT (TO TV))
FL I/O SCART
69
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< COIL >
L201 1-469-525-91 INDUCTOR 10uH
L231 1-469-525-91 INDUCTOR 10uH
L300 1-469-525-91 INDUCTOR 10uH
L350 1-469-525-91 INDUCTOR 10uH
< TRANSISTOR >
Q271 8-729-027-59 TRANSISTOR DTC144EKA-T146
Q272 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q273 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q274 8-729-027-59 TRANSISTOR DTC144EKA-T146
Q275 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q276 8-729-027-59 TRANSISTOR DTC144EKA-T146
Q277 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q279 8-729-901-00 TRANSISTOR DTC124EK
Q300 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q310 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q320 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q395 8-729-901-00 TRANSISTOR DTC124EK
Q396 8-729-901-00 TRANSISTOR DTC124EK
< RESISTOR >
R209 1-216-864-11 SHORT CHIP 0
R214 1-218-285-11 METAL CHIP 75 5% 1/10W
R215 1-218-285-11 METAL CHIP 75 5% 1/10W
R216 1-218-285-11 METAL CHIP 75 5% 1/10W
R225 1-218-285-11 METAL CHIP 75 5% 1/10W
R227 1-218-827-11 METAL CHIP 150 0.5% 1/10W
R228 1-218-827-11 METAL CHIP 150 0.5% 1/10W
R229 1-218-827-11 METAL CHIP 150 0.5% 1/10W
R232 1-218-827-11 METAL CHIP 150 0.5% 1/10W
R244 1-218-285-11 METAL CHIP 75 5% 1/10W
R245 1-218-285-11 METAL CHIP 75 5% 1/10W
R246 1-218-285-11 METAL CHIP 75 5% 1/10W
R247 1-216-864-11 SHORT CHIP 0
R248 1-216-864-11 SHORT CHIP 0
R249 1-216-864-11 SHORT CHIP 0
R250 1-216-864-11 SHORT CHIP 0
R251 1-216-864-11 SHORT CHIP 0
R271 1-216-821-11 METAL CHIP 1K 5% 1/10W
R272 1-216-841-11 METAL CHIP 47K 5% 1/10W
R273 1-216-849-11 METAL CHIP 220K 5% 1/10W
R274 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R275 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R276 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R277 1-216-821-11 METAL CHIP 1K 5% 1/10W
R278 1-216-837-11 METAL CHIP 22K 5% 1/10W
R279 1-216-815-11 METAL CHIP 330 5% 1/10W
R280 1-216-815-11 METAL CHIP 330 5% 1/10W
R281 1-216-815-11 METAL CHIP 330 5% 1/10W
R282 1-216-815-11 METAL CHIP 330 5% 1/10W
R284 1-216-833-11 METAL CHIP 10K 5% 1/10W
R285 1-216-833-11 METAL CHIP 10K 5% 1/10W
R286 1-216-821-11 METAL CHIP 1K 5% 1/10W
R301 1-216-821-11 METAL CHIP 1K 5% 1/10W
R302 1-216-821-11 METAL CHIP 1K 5% 1/10W
R310 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R311 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R312 1-216-833-11 METAL CHIP 10K 5% 1/10W
R313 1-216-841-11 METAL CHIP 47K 5% 1/10W
R314 1-216-841-11 METAL CHIP 47K 5% 1/10W
R316 1-216-833-11 METAL CHIP 10K 5% 1/10W
R320 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R321 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R322 1-216-833-11 METAL CHIP 10K 5% 1/10W
R323 1-216-841-11 METAL CHIP 47K 5% 1/10W
R324 1-216-841-11 METAL CHIP 47K 5% 1/10W
R326 1-216-833-11 METAL CHIP 10K 5% 1/10W
R331 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R332 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R335 1-216-841-11 METAL CHIP 47K 5% 1/10W
R336 1-216-841-11 METAL CHIP 47K 5% 1/10W
R338 1-216-833-11 METAL CHIP 10K 5% 1/10W
R339 1-216-841-11 METAL CHIP 47K 5% 1/10W
R340 1-216-841-11 METAL CHIP 47K 5% 1/10W
R341 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R342 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R345 1-216-841-11 METAL CHIP 47K 5% 1/10W
R346 1-216-841-11 METAL CHIP 47K 5% 1/10W
R348 1-216-833-11 METAL CHIP 10K 5% 1/10W
R349 1-216-841-11 METAL CHIP 47K 5% 1/10W
R350 1-216-841-11 METAL CHIP 47K 5% 1/10W
R351 1-216-845-11 METAL CHIP 100K 5% 1/10W
R352 1-216-845-11 METAL CHIP 100K 5% 1/10W
R353 1-216-841-11 METAL CHIP 47K 5% 1/10W
R355 1-216-817-11 METAL CHIP 470 5% 1/10W
R356 1-216-833-11 METAL CHIP 10K 5% 1/10W
R357 1-216-821-11 METAL CHIP 1K 5% 1/10W
R358 1-216-833-11 METAL CHIP 10K 5% 1/10W
R359 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R360 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R361 1-216-845-11 METAL CHIP 100K 5% 1/10W
R362 1-216-845-11 METAL CHIP 100K 5% 1/10W
R363 1-216-841-11 METAL CHIP 47K 5% 1/10W
R365 1-216-817-11 METAL CHIP 470 5% 1/10W
R366 1-216-864-11 SHORT CHIP 0
R367 1-216-864-11 SHORT CHIP 0
R399 1-216-821-11 METAL CHIP 1K 5% 1/10W
*************************************************************
A-1144-767-A JACK BOARD, COMPLETE (DZ410)
A-1167-323-A JACK BOARD, COMPLETE (DZ119)
*********************
< CAPACITOR >
C401 1-124-589-11 ELECT 47uF 20% 16V
C403 1-124-584-00 ELECT 100uF 20% 10V
C404 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C405 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C410 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C411 1-126-157-11 ELECT 10uF 20% 16V
C412 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C413 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C420 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C421 1-126-157-11 ELECT 10uF 20% 16V
I/O SCART JACK
70
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C422 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C423 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C431 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C432 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C433 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C434 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C450 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C460 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C471 1-124-222-91 ELECT 22uF 20% 6.3V
C490 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V
C493 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V
C819 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C820 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
CNP802 1-779-550-21 CONNECTOR, FFC (LIF (NON-ZIF)) 13P
< DIODE >
D433 8-719-988-61 DIODE 1SS355TE-17
D470 8-719-988-61 DIODE 1SS355TE-17
D490 6-501-193-01 DIODE 1SS355WTE-17
D491 6-501-193-01 DIODE 1SS355WTE-17
D496 6-501-193-01 DIODE 1SS355WTE-17
D497 6-501-193-01 DIODE 1SS355WTE-17
< FERRITE BEAD >
FB410 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB420 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB450 1-216-864-11 SHORT CHIP 0
FB460 1-216-864-11 SHORT CHIP 0
FB470 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB471 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB472 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB474 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB475 1-469-144-21 FERRITE, EMI (SMD) (2012)
FB479 1-500-284-21 INDUCTOR, FERRITE BEAD
< IC >
IC401 8-759-100-96 IC NJM4558M-TE2
IC402 8-759-100-96 IC NJM4558M-TE2
< JACK >
J401 1-819-878-11 JACK (AUDIO IN/A.CAL MIC)
J402 1-819-878-11 JACK (PHONES)
< SHORT >
JR811 1-216-864-11 SHORT CHIP 0
JR813 1-216-864-11 SHORT CHIP 0
JR814 1-216-864-11 SHORT CHIP 0
JR815 1-216-864-11 SHORT CHIP 0
JR816 1-216-864-11 SHORT CHIP 0
JR817 1-216-864-11 SHORT CHIP 0
JR901 1-216-864-11 SHORT CHIP 0
JR902 1-216-864-11 SHORT CHIP 0
JR903 1-216-864-11 SHORT CHIP 0
JR904 1-216-864-11 SHORT CHIP 0
JR905 1-216-864-11 SHORT CHIP 0
JR907 1-216-864-11 SHORT CHIP 0
JR908 1-216-864-11 SHORT CHIP 0
< TRANSISTOR >
Q470 8-729-027-59 TRANSISTOR DTC144EKA-T146
Q471 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q472 8-729-048-50 TRANSISTOR 2SK3018-T106
Q473 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q474 8-729-027-24 TRANSISTOR DTA114TKA-T146
Q475 8-729-027-59 TRANSISTOR DTC144EKA-T146
Q476 8-729-027-44 TRANSISTOR DTC114EKA-T146
< RESISTOR >
R401 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R402 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R403 1-216-821-11 METAL CHIP 1K 5% 1/10W
R410 1-216-845-11 METAL CHIP 100K 5% 1/10W
R411 1-216-817-11 METAL CHIP 470 5% 1/10W
R412 1-216-837-11 METAL CHIP 22K 5% 1/10W
R413 1-216-821-11 METAL CHIP 1K 5% 1/10W
R414 1-216-835-11 METAL CHIP 15K 5% 1/10W
R415 1-216-821-11 METAL CHIP 1K 5% 1/10W
R416 1-216-801-11 METAL CHIP 22 5% 1/10W
R420 1-216-845-11 METAL CHIP 100K 5% 1/10W
R421 1-216-817-11 METAL CHIP 470 5% 1/10W
R422 1-216-837-11 METAL CHIP 22K 5% 1/10W
R423 1-216-821-11 METAL CHIP 1K 5% 1/10W
R424 1-216-821-11 METAL CHIP 1K 5% 1/10W
R431 1-216-864-11 SHORT CHIP 0
R432 1-216-837-11 METAL CHIP 22K 5% 1/10W
R433 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R434 1-216-864-11 SHORT CHIP 0
R435 1-216-857-11 METAL CHIP 1M 5% 1/10W
R444 1-216-864-11 SHORT CHIP 0
R445 1-216-864-11 SHORT CHIP 0
R470 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R471 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R472 1-216-819-11 METAL CHIP 680 5% 1/10W
R477 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R478 1-216-813-11 METAL CHIP 220 5% 1/10W
R479 1-216-864-11 SHORT CHIP 0
R480 1-216-804-11 METAL CHIP 39 5% 1/10W
R481 1-216-845-11 METAL CHIP 100K 5% 1/10W
R482 1-216-833-11 METAL CHIP 10K 5% 1/10W
R487 1-216-864-11 SHORT CHIP 0
R488 1-216-845-11 METAL CHIP 100K 5% 1/10W
R490 1-216-864-11 SHORT CHIP 0
R492 1-216-864-11 SHORT CHIP 0
R495 1-216-864-11 SHORT CHIP 0
R821 1-216-864-11 SHORT CHIP 0
R822 1-216-864-11 SHORT CHIP 0
R851 1-216-821-11 METAL CHIP 1K 5% 1/10W
R852 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R853 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R854 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R855 1-216-821-11 METAL CHIP 1K 5% 1/10W
R856 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
JACK
71
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R857 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
< SWITCH >
S800 1-418-725-51 ENCODER, ROTARY (12 TYPE)
(VOLUME,– +)
S802 1-762-875-21 SWITCH, KEYBOARD (FUNCTION)
S803 1-762-875-21 SWITCH, KEYBOARD (.)
S804 1-762-875-21 SWITCH, KEYBOARD (X)
S805 1-762-875-21 SWITCH, KEYBOARD (x)
S806 1-762-875-21 SWITCH, KEYBOARD (>)
S807 1-762-875-21 SWITCH, KEYBOARD (A)
S808 1-762-875-21 SWITCH, KEYBOARD (H)
*************************************************************
✩A-1144-739-A MAIN BOARD, COMPLETE (DZ119)
✩A-1178-935-A MAIN BOARD, COMPLETE (DZ410)
*********************
< CAPACITOR >
C501 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C503 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C504 1-126-947-11 ELECT 47uF 20% 16V
C505 1-126-947-11 ELECT 47uF 20% 16V
C506 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C507 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C508 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C509 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C510 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C511 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C512 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C513 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C517 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C525 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C570 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C571 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C572 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C580 1-104-656-11 ELECT 2200uF 20% 6.3V
C582 1-104-658-91 ELECT 100uF 20% 10V
C583 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V
C587 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V
C589 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C598 1-127-573-11 CERAMIC CHIP 1uF 10% 16V
C601 1-126-947-11 ELECT 47uF 20% 16V
C602 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C603 1-104-658-91 ELECT 100uF 20% 10V
C712 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C716 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C762 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C798 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C799 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C855 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C856 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C875 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1102 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1105 1-126-947-11 ELECT 47uF 20% 16V
C1106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1112 1-126-947-11 ELECT 47uF 20% 16V
C1113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1117 1-126-795-11 ELECT 10uF 20% 50V
C1118 1-126-795-11 ELECT 10uF 20% 50V
C1119 1-126-795-11 ELECT 10uF 20% 50V
C1120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C1125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1128 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V
C1130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1131 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C1132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C1136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C1140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C1148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C1149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1150 1-126-795-11 ELECT 10uF 20% 50V
C1151 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C1152 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C1153 1-162-917-11 CERAMIC CHIP 15PF 5% 50V
C1154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1167 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1171 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1173 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1177 1-126-947-11 ELECT 47uF 20% 16V
C1178 1-126-786-11 ELECT 47uF 20% 16V
C1179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
MAINJACK
✩New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1144-739-A, etc.) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
72
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C1180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1182 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V
C1184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1186 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V
C1187 1-126-786-11 ELECT 47uF 20% 16V
C1188 1-128-934-91 CERAMIC CHIP 0.33uF 20% 10V
C1190 1-126-947-11 ELECT 47uF 20% 16V
C1191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1192 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1193 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V
C1195 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V
C1197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1199 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C1203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C1206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C1208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C1210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C1212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1217 1-126-947-11 ELECT 47uF 20% 16V
C1218 1-126-964-11 ELECT 10uF 20% 50V
C1219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1220 1-126-964-11 ELECT 10uF 20% 50V
C1221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1223 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1225 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1226 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1228 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C2200 1-126-795-11 ELECT 10uF 20% 50V
C2201 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C2202 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C2204 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2205 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2206 1-216-864-11 SHORT CHIP 0
C2207 1-126-786-11 ELECT 47uF 20% 16V
C2208 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2209 1-126-795-11 ELECT 10uF 20% 50V
C2210 1-126-795-11 ELECT 10uF 20% 50V
C2211 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2212 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2213 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3000 1-125-972-91 ELECT 100uF 20% 16V
C3001 1-126-947-11 ELECT 47uF 20% 16V
C3002 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C3011 1-126-947-11 ELECT 47uF 20% 16V
C3012 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3013 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3014 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3015 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3016 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3017 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3018 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3019 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3020 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3021 1-126-947-11 ELECT 47uF 20% 16V
C3022 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3023 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3024 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3025 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3026 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3027 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3028 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3029 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3030 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3031 1-126-947-11 ELECT 47uF 20% 16V
C3032 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3033 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3034 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3035 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3036 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3037 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3038 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3039 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3040 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3051 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C3052 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C3053 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3054 1-126-933-11 ELECT 100uF 20% 16V
C3055 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C3056 1-126-923-91 ELECT 220uF 20% 10V
C3057 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C3058 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V
C3059 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3060 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C3067 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3068 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3069 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3070 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3071 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3072 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C3073 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C3075 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C3081 1-126-925-91 ELECT 470uF 20% 10V
C3082 1-126-925-91 ELECT 470uF 20% 10V
C3083 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3084 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3085 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3086 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3087 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3088 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3089 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3090 1-104-658-91 ELECT 100uF 20% 10V
C3091 1-126-934-11 ELECT 220uF 20% 16V
C3092 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3094 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C3095 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3100 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
MAIN
73
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C3103 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3104 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3105 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3106 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3107 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3108 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3109 1-112-246-11 ELECT 100uF 20% 35V
C3112 1-112-246-11 ELECT 100uF 20% 35V
C3113 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3114 1-136-177-00 FILM 1uF 5% 50V
C3115 1-136-177-00 FILM 1uF 5% 50V
C3116 1-112-831-11 ELECT 2200uF 20% 35V
(DZ410)
C3116 1-126-953-11 ELECT 2200uF 20% 35V
(DZ119)
C3117 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3118 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3119 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3120 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3121 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C3122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3123 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3150 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3153 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3154 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3155 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3156 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3157 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3158 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3159 1-112-246-11 ELECT 100uF 20% 35V
C3162 1-112-246-11 ELECT 100uF 20% 35V
C3163 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3164 1-136-177-00 FILM 1uF 5% 50V
C3165 1-136-177-00 FILM 1uF 5% 50V
C3166 1-112-831-11 ELECT 2200uF 20% 35V
(DZ410)
C3166 1-126-953-11 ELECT 2200uF 20% 35V
(DZ119)
C3167 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3168 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3169 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3170 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3171 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C3172 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3173 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3200 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3203 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3204 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3205 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3206 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3207 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3208 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3209 1-112-246-11 ELECT 100uF 20% 35V
C3212 1-112-246-11 ELECT 100uF 20% 35V
C3213 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3214 1-136-177-00 FILM 1uF 5% 50V
C3215 1-136-177-00 FILM 1uF 5% 50V
C3216 1-112-831-11 ELECT 2200uF 20% 35V
(DZ410)
C3216 1-126-953-11 ELECT 2200uF 20% 35V
(DZ119)
C3217 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3218 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3219 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3220 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3221 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C3222 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3223 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3250 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3253 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3254 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3255 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3256 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3257 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3258 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3259 1-112-246-11 ELECT 100uF 20% 35V
C3262 1-112-246-11 ELECT 100uF 20% 35V
C3263 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3264 1-136-177-00 FILM 1uF 5% 50V
C3265 1-136-177-00 FILM 1uF 5% 50V
C3266 1-112-831-11 ELECT 2200uF 20% 35V
(DZ410)
C3266 1-126-953-11 ELECT 2200uF 20% 35V
(DZ119)
C3267 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3268 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3269 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3270 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3271 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C3272 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3273 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3300 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3303 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3304 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3305 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3306 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3307 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3308 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3309 1-112-246-11 ELECT 100uF 20% 35V
C3312 1-112-246-11 ELECT 100uF 20% 35V
C3313 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3314 1-136-177-00 FILM 1uF 5% 50V
C3315 1-136-177-00 FILM 1uF 5% 50V
C3316 1-112-831-11 ELECT 2200uF 20% 35V
(DZ410)
C3316 1-126-953-11 ELECT 2200uF 20% 35V
(DZ119)
C3317 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3318 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3319 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3320 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3321 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C3322 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3323 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3400 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3403 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
MAIN
74
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C3404 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C3405 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V
C3406 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3407 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V
C3408 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3409 1-112-246-11 ELECT 100uF 20% 35V
C3412 1-112-246-11 ELECT 100uF 20% 35V
C3413 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V
C3414 1-136-177-00 FILM 1uF 5% 50V
C3415 1-136-177-00 FILM 1uF 5% 50V
C3416 1-112-831-11 ELECT 2200uF 20% 35V
(DZ410)
C3416 1-126-953-11 ELECT 2200uF 20% 35V
(DZ119)
C3417 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3418 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3419 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3420 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C3421 1-117-370-11 CERAMIC CHIP 10uF 10V
C3422 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3423 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C3551 1-126-960-11 ELECT 1uF 20% 50V
C3552 1-126-964-11 ELECT 10uF 20% 50V
C3555 1-163-038-91 CERAMIC CHIP 0.1uF 25V
< CONNECTOR >
CN507 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P
CN509 1-784-380-51 CONNECTOR, FFC/FPC 23P (DZ410)
CN509 1-793-991-21 CONNECTOR, FFC/FPC 23P (DZ119)
*CN515 1-564-714-11 PIN, CONNECTOR (SMALL TYPE) 12P
CN1101 1-815-763-32 CONNECTOR, FFC/FPC 24P
*CN1105 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P
*CN1201 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P
CN1202 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P
CN1301 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P
CN1302 1-779-275-11 CONNECTOR, FFC (LIF (NON-ZIF)) 7P
CN3000 1-564-704-41 PIN, CONNECTOR (SMALL TYPE) 2P
CN3001 1-506-469-11 PIN, CONNECTOR 4P
CN3002 1-785-101-11 PIN, CONNECTOR (3.96mm PITCH) 3P
< DIODE >
D503 6-501-193-01 DIODE 1SS355WTE-17
D504 6-501-193-01 DIODE 1SS355WTE-17
D505 6-501-193-01 DIODE 1SS355WTE-17
D2001 8-719-058-24 DIODE RB501V-40TE-17
D3071 6-501-193-01 DIODE 1SS355WTE-17
D3072 6-501-193-01 DIODE 1SS355WTE-17
D3073 6-501-193-01 DIODE 1SS355WTE-17
D3111 6-500-885-01 DIODE P6SMBJ33A-5
D3112 6-500-885-01 DIODE P6SMBJ33A-5
D3151 6-500-885-01 DIODE P6SMBJ33A-5
D3152 6-500-885-01 DIODE P6SMBJ33A-5
D3201 6-500-885-01 DIODE P6SMBJ33A-5
D3202 6-500-885-01 DIODE P6SMBJ33A-5
D3251 6-500-885-01 DIODE P6SMBJ33A-5
D3252 6-500-885-01 DIODE P6SMBJ33A-5
D3301 6-500-885-01 DIODE P6SMBJ33A-5
D3302 6-500-885-01 DIODE P6SMBJ33A-5
D3401 6-500-885-01 DIODE P6SMBJ33A-5
D3402 6-500-885-01 DIODE P6SMBJ33A-5
D3551 6-501-193-01 DIODE 1SS355WTE-17
D3552 6-501-193-01 DIODE 1SS355WTE-17
< GROUND TERMINAL BOARD >
*EB903 1-537-738-21 TERMINAL, EARTH (DZ119)
EB903 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB1001 1-537-738-21 TERMINAL, EARTH (DZ119)
EB1001 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB1002 1-537-738-21 TERMINAL, EARTH (DZ119)
EB1002 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB1003 1-537-738-21 TERMINAL, EARTH (DZ119)
EB1003 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB1004 1-537-738-21 TERMINAL, EARTH (DZ119)
EB1004 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB3001 1-537-738-21 TERMINAL, EARTH (DZ119)
EB3001 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB3002 1-537-738-21 TERMINAL, EARTH (DZ119)
EB3002 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB3003 1-537-738-21 TERMINAL, EARTH (DZ119)
EB3003 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB3004 1-537-738-21 TERMINAL, EARTH (DZ119)
EB3004 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB3005 1-537-738-21 TERMINAL, EARTH (DZ119)
EB3005 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
< FERRITE BEAD >
FB500 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB501 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB502 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB503 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB504 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB505 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB506 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB507 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB508 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB509 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB1106 1-414-226-21 INDUCTOR, FERRITE BEAD
FB1108 1-414-226-21 INDUCTOR, FERRITE BEAD
FB1111 1-414-226-21 INDUCTOR, FERRITE BEAD
FB3051 1-216-295-91 SHORT CHIP 0
< FLUORESCENT INDICATOR >
FL501 1-234-177-21 FILTER, CHIP EMI
FL502 1-234-177-21 FILTER, CHIP EMI
FL503 1-233-893-21 FILTER, CHIP EMI
FL1101 1-234-177-21 FILTER, CHIP EMI
FL1104 1-234-177-21 FILTER, CHIP EMI
FL1105 1-234-177-21 FILTER, CHIP EMI
FL1106 1-234-177-21 FILTER, CHIP EMI
FL1107 1-234-177-21 FILTER, CHIP EMI
FL1108 1-234-177-21 FILTER, CHIP EMI
< IC >
IC501 6-806-015-01 IC M30622MEP-A49FPU0 (DZ119)
IC501 6-806-589-01 IC M30622MEP-A76FPU0 (DZ410)
IC502 6-702-302-01 IC TK11133CSCL-G
MAIN
75
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
IC511 6-708-922-01 IC PST3635NR
IC516 6-703-547-01 IC TA7805LS
IC1101 6-707-535-01 IC CXD9849R
IC1102 6-806-818-01 IC MX29LV320CBTC70-OBA2-0604CE (DZ410)
IC1102 6-806-745-01 IC MX29LV320CBTC70-OBA1-0603CE (DZ119)
✩IC1103 not supplied IC BR24L64F-WE2
IC1104 6-709-370-01 IC A2V64S40CTP-G75
IC1105 6-702-302-01 IC TK11133CSCL-G
IC1107 6-702-302-01 IC TK11133CSCL-G
IC1109 6-707-485-01 IC NJM2885DL1-18 (TE2)
IC1201 6-704-524-01 IC FAN8036L
IC2200 6-707-608-01 IC PCM1803DBR
IC3001 8-759-710-97 IC NJM4565M (TE2)
IC3003 8-759-680-48 IC TC7WH157FK (TE85R)
IC3010 6-705-979-01 IC CXD9788AR (DZ410)
IC3010 6-707-939-01 IC CXD9843AR (DZ119)
IC3020 6-705-979-01 IC CXD9788AR (DZ410)
IC3020 6-707-939-01 IC CXD9843AR (DZ119)
IC3030 6-705-979-01 IC CXD9788AR (DZ410)
IC3030 6-707-939-01 IC CXD9843AR (DZ119)
IC3050 6-702-300-01 IC TK11118CSCL-G
IC3051 8-759-649-50 IC SN74AHC1GU04DCKR
IC3100 6-708-921-01 IC CXD9883M
IC3150 6-708-921-01 IC CXD9883M
IC3200 6-708-921-01 IC CXD9883M
IC3250 6-708-921-01 IC CXD9883M
IC3300 6-708-921-01 IC CXD9883M
IC3400 6-708-921-01 IC CXD9883M
< SHORT >
JC500 1-216-864-11 SHORT CHIP 0 (DZ410)
JC501 1-216-864-11 SHORT CHIP 0 (DZ119)
JC521 1-216-864-11 SHORT CHIP 0
< COIL >
L2200 1-414-754-11 INDUCTOR 10uH
L2201 1-216-295-91 SHORT CHIP 0
L3000 1-469-527-91 INDUCTOR 47uH
L3051 1-414-754-11 INDUCTOR 10uH
L3052 1-414-754-11 INDUCTOR 10uH
L3053 1-414-754-11 INDUCTOR 10uH
L3054 1-412-939-11 INDUCTOR 1uH
L3111 1-456-680-11 INDUCTOR 10uH
L3112 1-456-680-11 INDUCTOR 10uH
L3151 1-456-680-11 INDUCTOR 10uH
L3152 1-456-680-11 INDUCTOR 10uH
L3201 1-456-680-11 INDUCTOR 10uH
L3202 1-456-680-11 INDUCTOR 10uH
L3251 1-456-680-11 INDUCTOR 10uH
L3252 1-456-680-11 INDUCTOR 10uH
L3301 1-456-680-11 INDUCTOR 10uH
L3302 1-456-680-11 INDUCTOR 10uH
L3401 1-456-680-11 INDUCTOR 10uH
L3402 1-456-680-11 INDUCTOR 10uH
< TRANSISTOR >
Q502 6-550-718-01 TRANSISTOR RSR025N03TL
Q506 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1101 6-550-008-01 TRANSISTOR UM6K1N-TN
Q1102 6-550-653-01 TRANSISTOR QST8TR
Q1103 8-729-901-00 TRANSISTOR DTC124EK
Q3000 8-729-142-48 TRANSISTOR 2SD1616-TP-LK
Q3001 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q3002 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q3081 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q3101 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3101 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3102 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3102 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3151 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3151 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3152 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3152 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3201 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3201 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3202 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3202 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3251 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3251 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3252 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3252 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3301 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3301 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3302 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3302 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3401 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3401 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3402 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R (DZ119)
Q3402 8-729-600-22 TRANSISTOR 2SA1235-F (DZ410)
Q3551 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R506 1-216-821-11 METAL CHIP 1K 5% 1/10W
R507 1-216-841-11 METAL CHIP 47K 5% 1/10W
R513 1-216-821-11 METAL CHIP 1K 5% 1/10W
R515 1-216-821-11 METAL CHIP 1K 5% 1/10W
R519 1-216-809-11 METAL CHIP 100 5% 1/10W
R524 1-216-833-11 METAL CHIP 10K 5% 1/10W
R535 1-216-821-11 METAL CHIP 1K 5% 1/10W
R536 1-216-821-11 METAL CHIP 1K 5% 1/10W
R577 1-216-821-11 METAL CHIP 1K 5% 1/10W
(DZ119)
R577 1-216-841-11 METAL CHIP 47K 5% 1/10W
(DZ410)
R585 1-216-809-11 METAL CHIP 100 5% 1/10W
R586 1-216-809-11 METAL CHIP 100 5% 1/10W
R587 1-216-809-11 METAL CHIP 100 5% 1/10W
R588 1-216-809-11 METAL CHIP 100 5% 1/10W
R589 1-216-809-11 METAL CHIP 100 5% 1/10W
R590 1-216-809-11 METAL CHIP 100 5% 1/10W
R591 1-216-809-11 METAL CHIP 100 5% 1/10W
R592 1-216-833-11 METAL CHIP 10K 5% 1/10W
R593 1-216-833-11 METAL CHIP 10K 5% 1/10W
R594 1-216-809-11 METAL CHIP 100 5% 1/10W
R595 1-216-809-11 METAL CHIP 100 5% 1/10W
MAIN
✩New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1144-739-A, etc.) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
Ver. 1.1
76
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R597 1-216-809-11 METAL CHIP 100 5% 1/10W
R598 1-216-809-11 METAL CHIP 100 5% 1/10W
R601 1-216-809-11 METAL CHIP 100 5% 1/10W
R608 1-216-809-11 METAL CHIP 100 5% 1/10W
R612 1-216-833-11 METAL CHIP 10K 5% 1/10W
R614 1-216-833-11 METAL CHIP 10K 5% 1/10W
R616 1-216-833-11 METAL CHIP 10K 5% 1/10W
R620 1-216-809-11 METAL CHIP 100 5% 1/10W
R622 1-216-833-11 METAL CHIP 10K 5% 1/10W
R624 1-216-833-11 METAL CHIP 10K 5% 1/10W
R628 1-216-821-11 METAL CHIP 1K 5% 1/10W
R656 1-216-864-11 SHORT CHIP 0
R657 1-216-841-11 METAL CHIP 47K 5% 1/10W
R659 1-216-845-11 METAL CHIP 100K 5% 1/10W
R662 1-216-841-11 METAL CHIP 47K 5% 1/10W
R673 1-216-833-11 METAL CHIP 10K 5% 1/10W
R692 1-216-809-11 METAL CHIP 100 5% 1/10W
R693 1-216-809-11 METAL CHIP 100 5% 1/10W
R702 1-216-833-11 METAL CHIP 10K 5% 1/10W
R703 1-216-809-11 METAL CHIP 100 5% 1/10W
R704 1-216-809-11 METAL CHIP 100 5% 1/10W
R707 1-216-809-11 METAL CHIP 100 5% 1/10W
R708 1-216-833-11 METAL CHIP 10K 5% 1/10W
R709 1-216-833-11 METAL CHIP 10K 5% 1/10W
R710 1-216-809-11 METAL CHIP 100 5% 1/10W
R713 1-216-864-11 SHORT CHIP 0
R717 1-216-833-11 METAL CHIP 10K 5% 1/10W
R719 1-216-833-11 METAL CHIP 10K 5% 1/10W
R720 1-216-833-11 METAL CHIP 10K 5% 1/10W
R725 1-216-833-11 METAL CHIP 10K 5% 1/10W
R726 1-216-821-11 METAL CHIP 1K 5% 1/10W
R727 1-216-833-11 METAL CHIP 10K 5% 1/10W
R728 1-216-821-11 METAL CHIP 1K 5% 1/10W
R729 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R730 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R733 1-216-833-11 METAL CHIP 10K 5% 1/10W
R739 1-216-833-11 METAL CHIP 10K 5% 1/10W
R741 1-216-833-11 METAL CHIP 10K 5% 1/10W
R742 1-216-833-11 METAL CHIP 10K 5% 1/10W
R744 1-216-833-11 METAL CHIP 10K 5% 1/10W
R746 1-216-833-11 METAL CHIP 10K 5% 1/10W
R755 1-216-821-11 METAL CHIP 1K 5% 1/10W
R756 1-216-821-11 METAL CHIP 1K 5% 1/10W
R774 1-216-821-11 METAL CHIP 1K 5% 1/10W
R775 1-216-841-11 METAL CHIP 47K 5% 1/10W
R789 1-216-809-11 METAL CHIP 100 5% 1/10W
R790 1-216-809-11 METAL CHIP 100 5% 1/10W
R791 1-216-809-11 METAL CHIP 100 5% 1/10W
R792 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R793 1-216-839-11 METAL CHIP 33K 5% 1/10W
(DZ410)
R1101 1-216-809-11 METAL CHIP 100 5% 1/10W
R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1106 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1107 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1108 1-216-857-11 METAL CHIP 1M 5% 1/10W
R1109 1-216-864-11 SHORT CHIP 0
R1110 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1111 1-216-809-11 METAL CHIP 100 5% 1/10W
R1112 1-211-977-11 METAL CHIP 22 0.5% 1/10W
R1113 1-211-977-11 METAL CHIP 22 0.5% 1/10W
R1114 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1115 1-211-977-11 METAL CHIP 22 0.5% 1/10W
R1116 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1117 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1118 1-216-801-11 METAL CHIP 22 5% 1/10W
R1120 1-216-801-11 METAL CHIP 22 5% 1/10W
R1121 1-216-801-11 METAL CHIP 22 5% 1/10W
R1123 1-216-864-11 SHORT CHIP 0
R1124 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1126 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1132 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1136 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1141 1-218-916-11 METAL CHIP 750K 5% 1/10W
R1142 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1144 1-216-864-11 SHORT CHIP 0
R1145 1-216-864-11 SHORT CHIP 0
R1146 1-216-805-11 METAL CHIP 47 5% 1/10W
R1147 1-216-864-11 SHORT CHIP 0
R1148 1-216-864-11 SHORT CHIP 0
R1151 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1152 1-216-864-11 SHORT CHIP 0
R1153 1-216-864-11 SHORT CHIP 0
R1154 1-216-809-11 METAL CHIP 100 5% 1/10W
R1155 1-216-809-11 METAL CHIP 100 5% 1/10W
R1156 1-216-809-11 METAL CHIP 100 5% 1/10W
R1159 1-216-805-11 METAL CHIP 47 5% 1/10W
R1160 1-216-864-11 SHORT CHIP 0
R1161 1-216-864-11 SHORT CHIP 0
R1164 1-216-864-11 SHORT CHIP 0
R1168 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1171 1-216-864-11 SHORT CHIP 0
R1176 1-216-864-11 SHORT CHIP 0
R1180 1-216-805-11 METAL CHIP 47 5% 1/10W
R1181 1-216-805-11 METAL CHIP 47 5% 1/10W
R1182 1-216-805-11 METAL CHIP 47 5% 1/10W
R1191 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1193 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R1205 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1206 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R1208 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1209 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1210 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1212 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1213 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R1214 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1215 1-216-834-11 METAL CHIP 12K 5% 1/10W
R1216 1-216-834-11 METAL CHIP 12K 5% 1/10W
R1219 1-216-838-11 METAL CHIP 27K 5% 1/10W
R1220 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W
R1222 1-216-839-11 METAL CHIP 33K 5% 1/10W
R1223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W
MAIN
77
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R1224 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W
R1226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W
R1227 1-216-864-11 SHORT CHIP 0
R1228 1-216-864-11 SHORT CHIP 0
R1230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W
R1231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R1232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W
R1233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R1234 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1236 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1237 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1238 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1239 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1243 1-216-809-11 METAL CHIP 100 5% 1/10W
R1246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1247 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1255 1-216-864-11 SHORT CHIP 0
R2101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R2103 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2104 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2105 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2109 1-216-864-11 SHORT CHIP 0
R2110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R2111 1-216-821-11 METAL CHIP 1K 5% 1/10W
R2114 1-216-809-11 METAL CHIP 100 5% 1/10W
R2115 1-216-809-11 METAL CHIP 100 5% 1/10W
R2120 1-216-864-11 SHORT CHIP 0
R2121 1-216-864-11 SHORT CHIP 0
R2122 1-216-864-11 SHORT CHIP 0
R2123 1-216-864-11 SHORT CHIP 0
R2124 1-216-864-11 SHORT CHIP 0
R2125 1-216-864-11 SHORT CHIP 0
R2126 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2129 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2133 1-216-864-11 SHORT CHIP 0
R2134 1-216-864-11 SHORT CHIP 0
R2150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2161 1-216-864-11 SHORT CHIP 0
R2168 1-216-815-11 METAL CHIP 330 5% 1/10W
R2176 1-216-864-11 SHORT CHIP 0
R2200 1-216-809-11 METAL CHIP 100 5% 1/10W
R2202 1-216-817-11 METAL CHIP 470 5% 1/10W
R2203 1-216-817-11 METAL CHIP 470 5% 1/10W
R2211 1-216-809-11 METAL CHIP 100 5% 1/10W
R2212 1-216-809-11 METAL CHIP 100 5% 1/10W
R2213 1-216-809-11 METAL CHIP 100 5% 1/10W
R2214 1-216-809-11 METAL CHIP 100 5% 1/10W
R2306 1-216-864-11 SHORT CHIP 0
R2307 1-216-864-11 SHORT CHIP 0
R2308 1-216-864-11 SHORT CHIP 0
R2309 1-216-864-11 SHORT CHIP 0
R2310 1-216-864-11 SHORT CHIP 0
R2311 1-216-864-11 SHORT CHIP 0
R2314 1-216-864-11 SHORT CHIP 0
R2315 1-216-864-11 SHORT CHIP 0
R2316 1-216-864-11 SHORT CHIP 0
R2317 1-216-864-11 SHORT CHIP 0
R2318 1-216-864-11 SHORT CHIP 0
R2319 1-216-864-11 SHORT CHIP 0
R2506 1-216-864-11 SHORT CHIP 0
R2546 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2547 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2548 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2549 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2550 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2553 1-216-864-11 SHORT CHIP 0
R2554 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2555 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3001 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3002 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3003 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R3004 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R3006 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R3011 1-216-817-11 METAL CHIP 470 5% 1/10W
R3012 1-216-817-11 METAL CHIP 470 5% 1/10W
R3013 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3014 1-216-809-11 METAL CHIP 100 5% 1/10W
R3015 1-216-809-11 METAL CHIP 100 5% 1/10W
R3017 1-216-809-11 METAL CHIP 100 5% 1/10W
R3021 1-216-817-11 METAL CHIP 470 5% 1/10W
R3022 1-216-817-11 METAL CHIP 470 5% 1/10W
R3023 1-216-809-11 METAL CHIP 100 5% 1/10W
R3024 1-216-809-11 METAL CHIP 100 5% 1/10W
R3026 1-216-809-11 METAL CHIP 100 5% 1/10W
R3031 1-216-817-11 METAL CHIP 470 5% 1/10W
R3032 1-216-817-11 METAL CHIP 470 5% 1/10W
R3033 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3034 1-216-809-11 METAL CHIP 100 5% 1/10W
R3035 1-216-809-11 METAL CHIP 100 5% 1/10W
R3037 1-216-809-11 METAL CHIP 100 5% 1/10W
R3050 1-216-864-11 SHORT CHIP 0
R3052 1-216-857-11 METAL CHIP 1M 5% 1/10W
R3053 1-216-809-11 METAL CHIP 100 5% 1/10W
R3054 1-216-801-11 METAL CHIP 22 5% 1/10W
R3055 1-216-809-11 METAL CHIP 100 5% 1/10W
R3057 1-216-809-11 METAL CHIP 100 5% 1/10W
R3059 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3060 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3061 1-216-864-11 SHORT CHIP 0
R3062 1-216-809-11 METAL CHIP 100 5% 1/10W
R3063 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3064 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3065 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3066 1-216-809-11 METAL CHIP 100 5% 1/10W
R3067 1-216-809-11 METAL CHIP 100 5% 1/10W
R3068 1-216-809-11 METAL CHIP 100 5% 1/10W
R3069 1-216-809-11 METAL CHIP 100 5% 1/10W
R3070 1-216-809-11 METAL CHIP 100 5% 1/10W
R3071 1-216-809-11 METAL CHIP 100 5% 1/10W
R3072 1-216-809-11 METAL CHIP 100 5% 1/10W
R3073 1-216-809-11 METAL CHIP 100 5% 1/10W
MAIN
78
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R3075 1-216-809-11 METAL CHIP 100 5% 1/10W
R3076 1-216-809-11 METAL CHIP 100 5% 1/10W
R3077 1-216-809-11 METAL CHIP 100 5% 1/10W
R3078 1-216-809-11 METAL CHIP 100 5% 1/10W
R3079 1-216-809-11 METAL CHIP 100 5% 1/10W
R3080 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3085 1-216-839-11 METAL CHIP 33K 5% 1/10W
R3086 1-216-839-11 METAL CHIP 33K 5% 1/10W
R3087 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3088 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3089 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3090 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3091 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3092 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3093 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3094 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3095 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R3096 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R3097 1-216-809-11 METAL CHIP 100 5% 1/10W
R3098 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3099 1-216-837-11 METAL CHIP 22K 5% 1/10W
R3101 1-216-809-11 METAL CHIP 100 5% 1/10W
R3102 1-216-809-11 METAL CHIP 100 5% 1/10W
R3103 1-216-797-11 METAL CHIP 10 5% 1/10W
R3104 1-216-864-11 SHORT CHIP 0
R3107 1-216-835-11 METAL CHIP 15K 5% 1/10W
R3115 1-216-797-11 METAL CHIP 10 5% 1/10W
R3116 1-216-797-11 METAL CHIP 10 5% 1/10W
R3119 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3120 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3121 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3122 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3123 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3124 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3125 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3126 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3127 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3151 1-216-809-11 METAL CHIP 100 5% 1/10W
R3152 1-216-809-11 METAL CHIP 100 5% 1/10W
R3153 1-216-797-11 METAL CHIP 10 5% 1/10W
R3154 1-216-864-11 SHORT CHIP 0
R3157 1-216-835-11 METAL CHIP 15K 5% 1/10W
R3165 1-216-797-11 METAL CHIP 10 5% 1/10W
R3166 1-216-797-11 METAL CHIP 10 5% 1/10W
R3169 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3170 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3171 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3172 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3173 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3174 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3175 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3176 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3177 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3201 1-216-809-11 METAL CHIP 100 5% 1/10W
R3202 1-216-809-11 METAL CHIP 100 5% 1/10W
R3203 1-216-797-11 METAL CHIP 10 5% 1/10W
R3204 1-216-864-11 SHORT CHIP 0
R3207 1-216-835-11 METAL CHIP 15K 5% 1/10W
R3215 1-216-797-11 METAL CHIP 10 5% 1/10W
R3216 1-216-797-11 METAL CHIP 10 5% 1/10W
R3219 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3220 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3221 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3222 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3223 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3224 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3225 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3226 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3227 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3251 1-216-809-11 METAL CHIP 100 5% 1/10W
R3252 1-216-809-11 METAL CHIP 100 5% 1/10W
R3253 1-216-797-11 METAL CHIP 10 5% 1/10W
R3254 1-216-864-11 SHORT CHIP 0
R3257 1-216-835-11 METAL CHIP 15K 5% 1/10W
R3265 1-216-797-11 METAL CHIP 10 5% 1/10W
R3266 1-216-797-11 METAL CHIP 10 5% 1/10W
R3269 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3270 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3271 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3272 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3273 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3274 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3275 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3276 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3277 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3301 1-216-809-11 METAL CHIP 100 5% 1/10W
R3302 1-216-809-11 METAL CHIP 100 5% 1/10W
R3303 1-216-797-11 METAL CHIP 10 5% 1/10W
R3304 1-216-864-11 SHORT CHIP 0
R3307 1-216-835-11 METAL CHIP 15K 5% 1/10W
R3315 1-216-797-11 METAL CHIP 10 5% 1/10W
R3316 1-216-797-11 METAL CHIP 10 5% 1/10W
R3319 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3320 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3321 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3322 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3323 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3324 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3325 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3326 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3327 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3401 1-216-809-11 METAL CHIP 100 5% 1/10W
R3402 1-216-809-11 METAL CHIP 100 5% 1/10W
R3403 1-216-797-11 METAL CHIP 10 5% 1/10W
R3404 1-216-864-11 SHORT CHIP 0
R3407 1-216-835-11 METAL CHIP 15K 5% 1/10W
R3415 1-216-797-11 METAL CHIP 10 5% 1/10W
R3416 1-216-797-11 METAL CHIP 10 5% 1/10W
R3419 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3420 1-216-136-00 RES-CHIP 2.7 5% 1/8W
R3421 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3422 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3423 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3424 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3425 1-216-845-11 METAL CHIP 100K 5% 1/10W
MAIN
79
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R3426 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3427 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3551 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3553 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3554 1-216-845-11 METAL CHIP 100K 5% 1/10W
R3555 1-216-864-11 SHORT CHIP 0
R4002 1-216-864-11 SHORT CHIP 0
< NETWORK RESISTOR >
RB501 1-233-576-11 RES, CHIP NETWORK 100 (3216)
RB1103 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1104 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1105 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1106 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1107 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1108 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1111 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1112 1-234-371-21 RES, NETWORK 47 (1005X4)
RB1113 1-234-371-21 RES, NETWORK 47 (1005X4)
RB1114 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1115 1-234-372-11 RES, NETWORK 100 (1005X4)
< VIBRATOR >
X502 1-795-058-21 VIBRATOR, CERAMIC 5MHz
X1102 1-813-539-11 QUARTZ CRYSTAL UNIT 27MHz
X3051 1-795-660-21 QUARTZ CRYSTAL UNIT 49.152MHz
*************************************************************
MS-203 BOARD
*************
< CONNECTOR >
CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P
< SWITCH >
S001 1-786-693-11 SWITCH, DETECTION
*************************************************************
A-1144-737-A POWER BOARD, COMPLETE (DZ119)
A-1177-660-A POWER BOARD, COMPLETE (DZ410)
**********************
< CAPACITOR >
0C901 1-165-529-11 MYLAR 0.22uF 10 275V
0C902 1-165-529-11 MYLAR 0.22uF 10 275V
0C903 1-112-332-11 ELECT (BLOCK) 330uF 20% 400V
0C905 1-112-335-91 FILM 0.0033uF 5% 400V
0C906 1-117-815-11 FILM 1000PF 3% 1.5KV
0C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
0C908 1-107-909-11 ELECT 47uF 20% 35V
0C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
0C910 1-126-965-91 ELECT 22uF 20% 50V
0C911 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
0C913 1-117-693-11 CERAMIC 100PF 10% 250V
0C918 1-113-925-11 CERAMIC 0.01uF 20% 250V
0C920 1-113-925-11 CERAMIC 0.01uF 20% 250V
0C922 1-128-560-11 ELECT 22uF 20% 100V
0C923 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
0C924 1-126-961-11 ELECT 2.2uF 20% 50V
0C925 1-107-974-81 CERAMIC 47PF 5% 2KV
0C928 1-113-900-11 CERAMIC 470PF 10% 250V
0C929 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
0C930 1-117-693-11 CERAMIC 100PF 10% 250V
C932 1-100-924-21 ELECT 2200uF 20% 35V
C933 1-100-924-21 ELECT 2200uF 20% 35V
C934 1-112-831-11 ELECT 2200uF 20% 35V
(DZ410)
C934 1-126-953-11 ELECT 2200uF 20% 35V
(DZ119)
C935 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C936 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C937 1-100-756-91 CERAMIC CHIP 0.047uF 50V
0C938 1-117-698-51 CERAMIC 680PF 10% 250V
C939 1-136-165-00 FILM 0.1uF 5% 50V
C940 1-128-947-31 ELECT 3300uF 20% 10V
C941 1-128-954-11 ELECT 1000uF 20% 25V
C942 1-126-941-11 ELECT 470uF 20% 25V
C943 1-126-933-11 ELECT 100uF 20% 16V
C944 1-128-951-21 ELECT 2200uF 20% 16V
C945 1-126-935-11 ELECT 470uF 20% 16V
C946 1-128-950-21 ELECT 1000uF 20% 16V
C947 1-104-658-91 ELECT 100uF 20% 10V
C948 1-126-925-91 ELECT 470uF 20% 10V
C949 1-165-722-11 ELECT 100uF 20% 10V
C951 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C952 1-100-756-91 CERAMIC CHIP 0.047uF 50V
C953 1-117-214-11 CERAMIC 0.001uF 10% 2KV
C954 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C955 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C958 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C960 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
0C963 1-117-699-11 CERAMIC 0.001uF 99% 250V
0C964 1-117-699-11 CERAMIC 0.001uF 99% 250V
C965 1-117-699-11 CERAMIC 0.001uF 99% 250V
C967 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C968 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C969 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C970 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C971 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C976 1-126-933-11 ELECT 100uF 20% 16V
< CONNECTOR >
CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
0D901 8-719-082-57 DIODE D5SBA60F01
0D905 8-719-063-74 DIODE D1NL20U-TR2
0D906 6-501-193-01 DIODE 1SS355WTE-17
0D907 6-501-193-01 DIODE 1SS355WTE-17
0D908 6-501-193-01 DIODE 1SS355WTE-17
0D909 6-501-193-01 DIODE 1SS355WTE-17
0D910 6-501-193-01 DIODE 1SS355WTE-17
0D913 6-500-241-01 DIODE SARS03
0D914 6-501-193-01 DIODE 1SS355WTE-17
0D915 8-719-977-28 DIODE UDZSTE-1710B
0D921 6-501-424-01 DIODE STO2D-140
MAIN MS-203 POWER
80
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0D922 8-719-063-74 DIODE D1NL20U-TR2
0D923 8-719-977-28 DIODE UDZSTE-1710B
0D924 8-719-083-69 DIODE UDZSTE-1724B
0D925 8-719-069-54 DIODE UDZSTE-175.1B
0D926 8-719-977-28 DIODE UDZSTE-1710B
D931 6-501-413-01 DIODE FCU20UC20
D932 8-719-069-54 DIODE UDZSTE-175.1B
D941 6-500-288-11 DIODE EK19LF-F7
D942 8-719-080-53 DIODE RK36LF-B3
D943 8-719-080-53 DIODE RK36LF-B3
D944 6-500-288-11 DIODE EK19LF-F7
D945 8-719-083-67 DIODE UDZSTE-1720B
< GROUND TERMINAL BOARD >
EB901 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB901 1-537-738-21 TERMINAL, EARTH (DZ119)
EB902 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB902 1-537-738-21 TERMINAL, EARTH (DZ119)
EB903 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB903 1-537-738-21 TERMINAL, EARTH (DZ119)
EB904 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
*EB904 1-537-738-21 TERMINAL, EARTH (DZ119)
< FUSE HOLDER >
0FH901 1-533-217-41 HOLDER, FUSE (DZ119)
0FH901 1-533-313-11 FUSE HOLDER 0A 0V (DZ410)
0FH902 1-533-217-41 HOLDER, FUSE (DZ119)
0FH902 1-533-313-11 FUSE HOLDER 0A 0V (DZ410)
< FUSIBLE >
0FR901 1-220-886-11 FUSIBLE 0.1 10% 1W
< IC >
0IC901 6-707-742-01 IC STR-F6168-LF1352
0IC921 6-707-740-01 IC STR-V153
IC931 8-759-648-34 IC TA76431AS (TPE6)
IC941 6-707-746-01 IC SI-3120KM-TL
IC942 6-707-745-10 IC SI-3050KM-TL
IC943 6-707-744-01 IC SI-3033KM-TL
IC951 6-707-743-01 IC TA76L431S (TPE6, Q)
< COIL >
L931 1-457-226-11 INDUCTOR 10uH
L941 1-414-398-11 INDUCTOR 10uH
L942 1-414-398-11 INDUCTOR 10uH
L945 1-414-398-11 INDUCTOR 10uH
L947 1-414-398-11 INDUCTOR 10uH
L948 1-414-398-11 INDUCTOR 10uH
L951 1-414-398-11 INDUCTOR 10uH
< LINE FILTER >
0LF901 1-457-079-11 COIL, LINE FILTER
0LF902 1-457-079-11 COIL, LINE FILTER
< IC >
0PC901 6-600-438-01 IC TLP421F (D4-GR)
0PC902 6-600-438-01 IC TLP421F (D4-GR)
0PC903 6-600-438-01 IC TLP421F (D4-GR)
< TRANSISTOR >
0Q901 8-729-140-04 TRANSISTOR 2SB1116A-TP-LK
0Q921 8-729-142-51 TRANSISTOR 2SD1616A-TP-LK
Q943 8-729-027-59 TRANSISTOR DTC144EKA-T146
Q945 6-550-718-01 TRANSISTOR RSR025N03TL
Q947 8-729-027-59 TRANSISTOR DTC144EKA-T146
< RESISTOR >
0R901 1-219-759-11 METAL 1M 5% 1/2W
0R903 1-215-929-11 METAL OXIDE 100K 5% 3W
0R904 1-215-929-11 METAL OXIDE 100K 5% 3W
0R905 1-216-797-11 METAL CHIP 10 5% 1/10W
0R906 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
0R907 1-216-833-11 METAL CHIP 10K 5% 1/10W
0R908 1-260-105-11 CARBON 3.3K 5% 1/2W
0R909 1-216-845-11 METAL CHIP 100K 5% 1/10W
0R910 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
0R911 1-216-813-11 METAL CHIP 220 5% 1/10W
0R912 1-216-363-00 METAL OXIDE 0.33 5% 2W
0R914 1-219-718-11 METAL 0.1 10% 5W
0R919 1-216-836-11 METAL CHIP 18K 5% 1/10W
0R922 1-216-793-11 METAL CHIP 4.7 5% 1/10W
0R923 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
0R925 1-216-797-11 METAL CHIP 10 5% 1/10W
0R926 1-216-855-11 METAL CHIP 680K 5% 1/10W
0R927 1-216-349-00 METAL OXIDE 1 5% 1W
0R929 1-249-478-11 CARBON 2.2 5% 1/2W
R931 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R932 1-218-883-11 METAL CHIP 33K 0.5% 1/10W
R933 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R934 1-216-821-11 METAL CHIP 1K 5% 1/10W
R935 1-216-821-11 METAL CHIP 1K 5% 1/10W
R936 1-216-853-11 METAL CHIP 470K 5% 1/10W
R937 1-216-833-11 METAL CHIP 10K 5% 1/10W
R938 1-216-821-11 METAL CHIP 1K 5% 1/10W
R939 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R940 1-216-833-11 METAL CHIP 10K 5% 1/10W
R941 1-216-864-11 SHORT CHIP 0
R943 1-216-864-11 SHORT CHIP 0
R946 1-216-811-11 METAL CHIP 150 5% 1/10W
R948 1-216-833-11 METAL CHIP 10K 5% 1/10W
R949 1-216-821-11 METAL CHIP 1K 5% 1/10W
R951 1-218-831-11 METAL CHIP 220 0.5% 1/10W
R952 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R953 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W
R954 1-216-837-11 METAL CHIP 22K 5% 1/10W
R955 1-216-817-11 METAL CHIP 470 5% 1/10W
R956 1-216-821-11 METAL CHIP 1K 5% 1/10W
R957 1-216-841-11 METAL CHIP 47K 5% 1/10W
R958 1-216-821-11 METAL CHIP 1K 5% 1/10W
R965 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W
R966 1-216-821-11 METAL CHIP 1K 5% 1/10W
R967 1-216-821-11 METAL CHIP 1K 5% 1/10W
R968 1-216-821-11 METAL CHIP 1K 5% 1/10W
0R969 1-216-821-11 METAL CHIP 1K 5% 1/10W
R971 1-216-864-11 SHORT CHIP 0
POWER
81
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R974 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
< TRANSFORMER >
0T901 1-443-874-11 TRANSFORMER, CONVERTER
0T902 1-443-650-11 TRANSFORMER, CONVERTER
< THERMISTOR >
0TH901 1-805-842-21 THERMISTOR, NTC 6.0
< VARISTOR >
0VDR901 1-805-482-11 VARISTOR
*************************************************************
SPEAKER BOARD
**************
< CAPACITOR >
C301 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C302 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C303 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C304 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C305 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C306 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C307 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C308 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C310 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C311 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C312 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C313 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C314 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C315 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C316 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C317 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C318 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C319 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C320 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C321 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C322 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C323 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C324 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
< CONNECTOR >
*CN301 1-564-519-11 PLUG, CONNECTOR 4P
CN302 1-818-651-11 PIN, CONNECTOR 2P
*CN303 1-564-521-11 PLUG, CONNECTOR 6P
< EARTH TERMINAL >
EP301 1-537-738-21 TERMINAL, EARTH (DZ119)
EP301 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
EP302 1-537-738-21 TERMINAL, EARTH (DZ119)
EP302 1-537-770-21 TERMINAL BOARD, GROUND (DZ410)
< TERMINAL >
TB301 1-780-344-11 TERMINAL BOARD (SPEAKER) 4P
(FRONT R, FRONT L, CENTER, WOOFER)
TB302 1-780-343-11 TERMINAL BOARD (SPEAKER) 2P
(SUR R, SUR L)
SW
*************************************************************
SW BOARD
*********
< SWITCH >
S801 1-762-875-21 SWITCH, KEYBOARD (?/1)
*************************************************************
MISCELLANEOUS
**************
31-693-700-11 TUNER (FM/AM) (TM10SCE)
81-828-962-11 WIRE (FLAT TYPE)(11 CORE)
65 1-828-384-11 WIRE (FLAT TYPE)(23 CORE)
66 1-828-325-11 WIRE (FLAT TYPE)(13 CORE)
104 1-787-331-11 FAN, D.C.
0106 1-751-520-31 CORD, POWER (UK)
0106 1-777-071-22 CORD, POWER (DZ119)
0106 1-830-188-11 CORD, POWER (DZ410:AEP)
110 1-828-292-11 WIRE (FLAT TYPE)(5 CORE)
111 1-828-332-11 WIRE (FLAT TYPE)(13 CORE)
112 1-828-300-11 WIRE (FLAT TYPE)(7 CORE)
113 1-828-330-11 WIRE (FLAT TYPE)(13 CORE)
0507 8-820-290-02 DEVICE, OPTICAL KHM-310CAA/C2RP
508 1-828-773-51 WIRE (FLAT TYPE)(24 CORE)
0F901 1-532-325-00 FUSE, TIME-LAG (T6.3AL/250V)
POWER SPEAKER
HCD-DZ119/DZ410
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2006.04 New
1.1 2006.09 Correction of TEST MODE (ENG-06006)
Change of IC1102 (ECN-ECB59671)
(ECN-ECB64174)
Change of screw of “7-3. CHASSIS SECTION” (ECN-ECB68052)

Navigation menu
