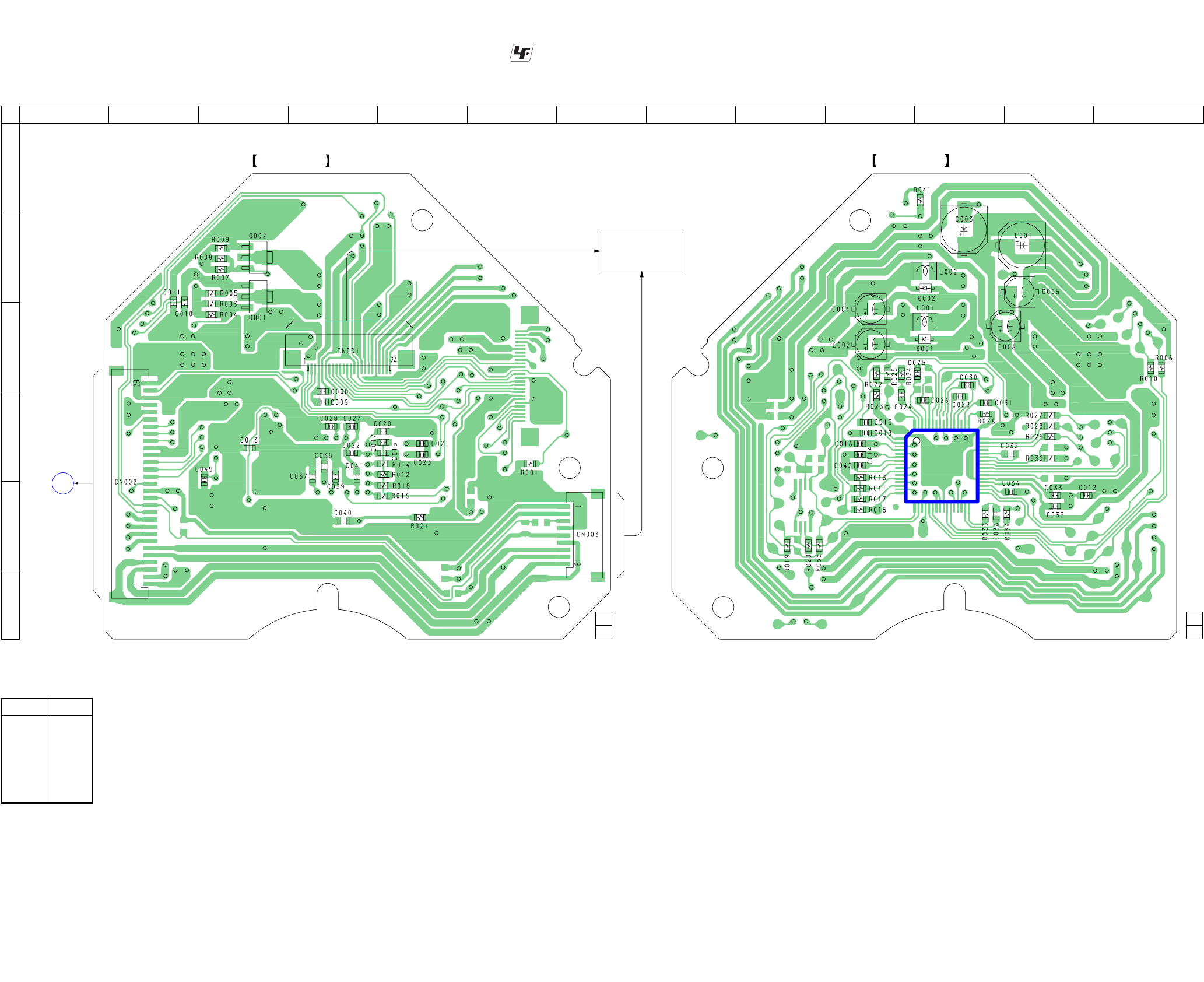

- 6-3. PRINTED WIRING BOARD – RF SECTION –

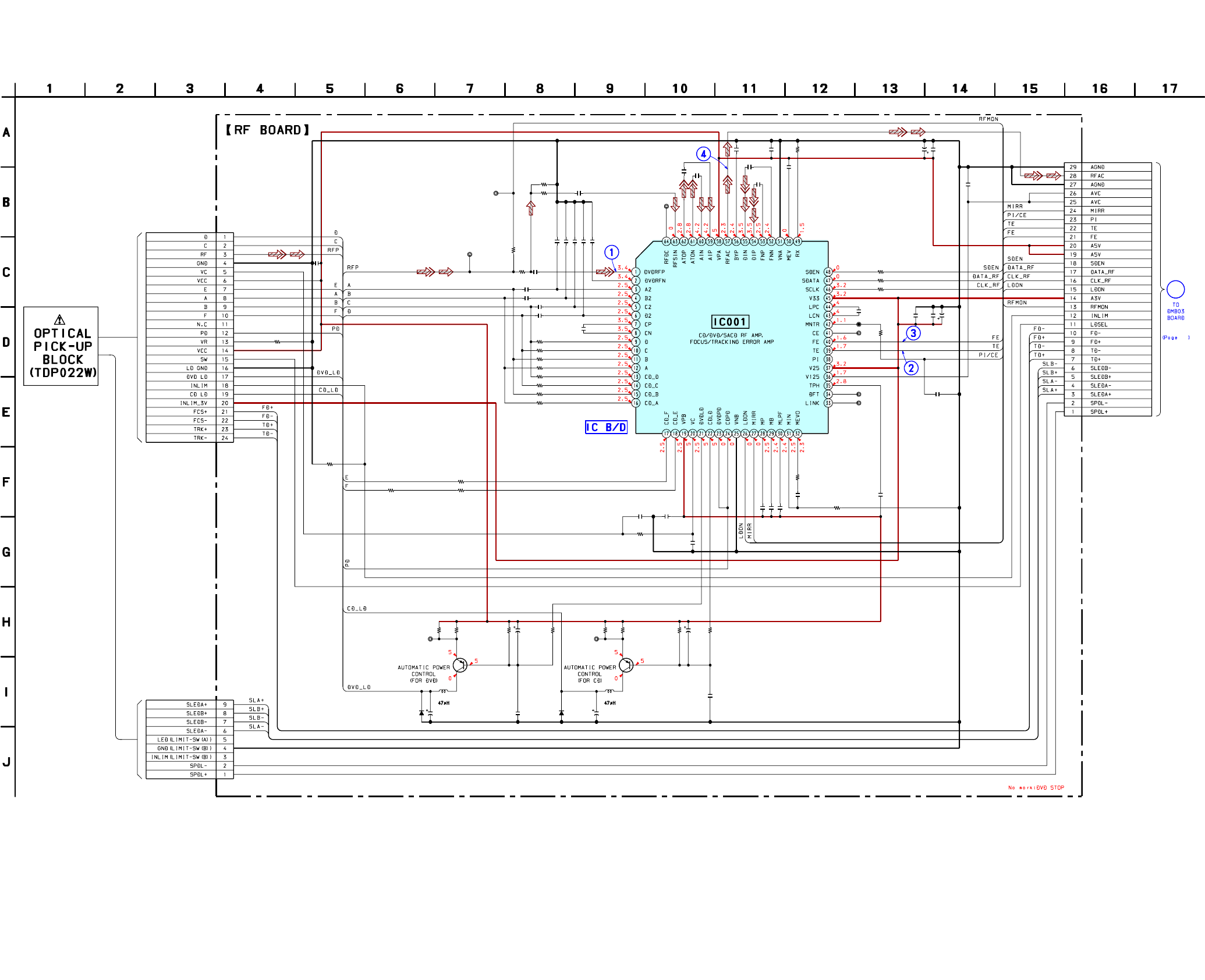

- 6-4. SCHEMATIC DIAGRAM – RF SECTION –
- 6-5. PRINTED WIRING BOARD – LOADING SECTION –
- 6-6. SCHEMATIC DIAGRAM – LOADING SECTION –

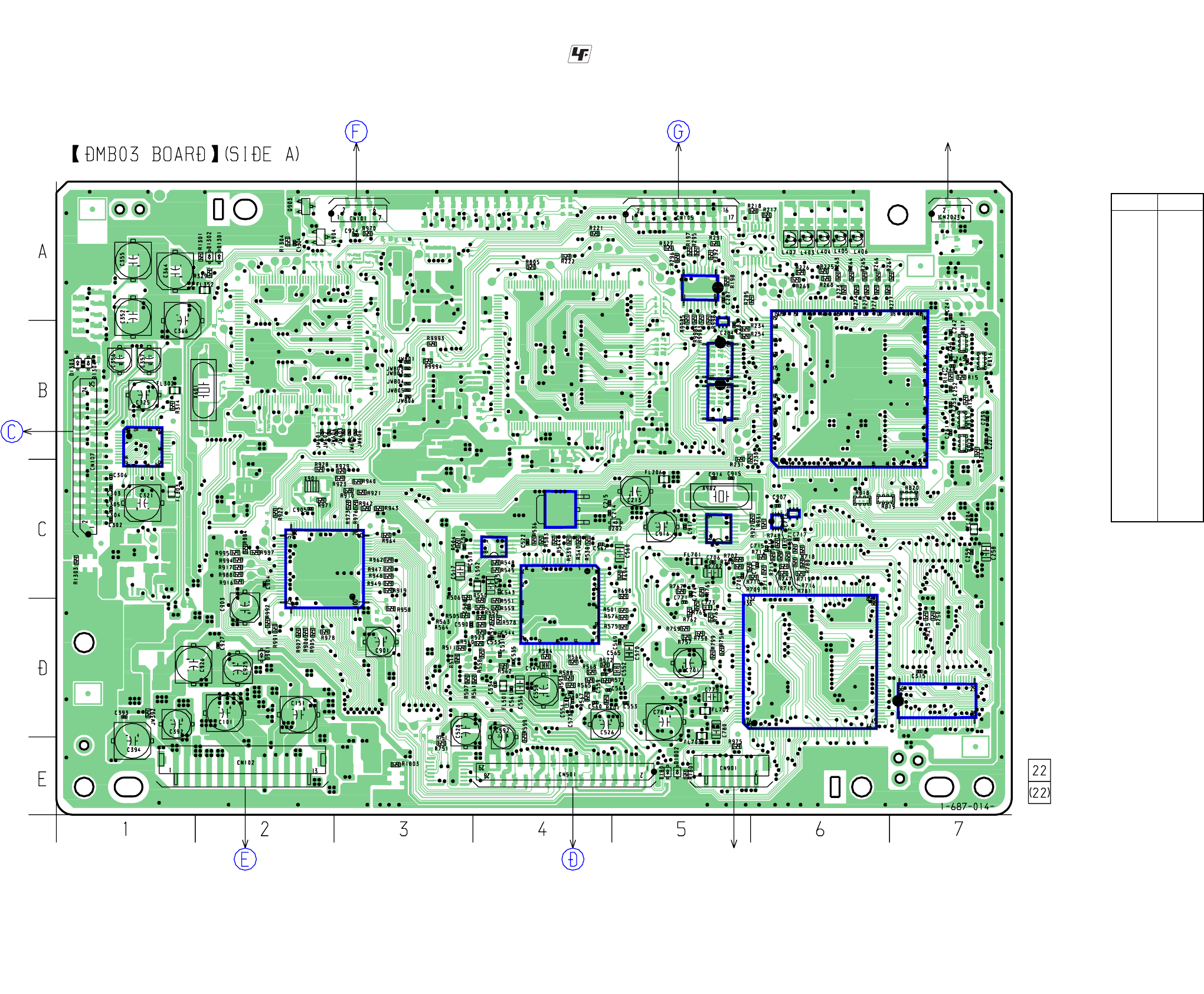

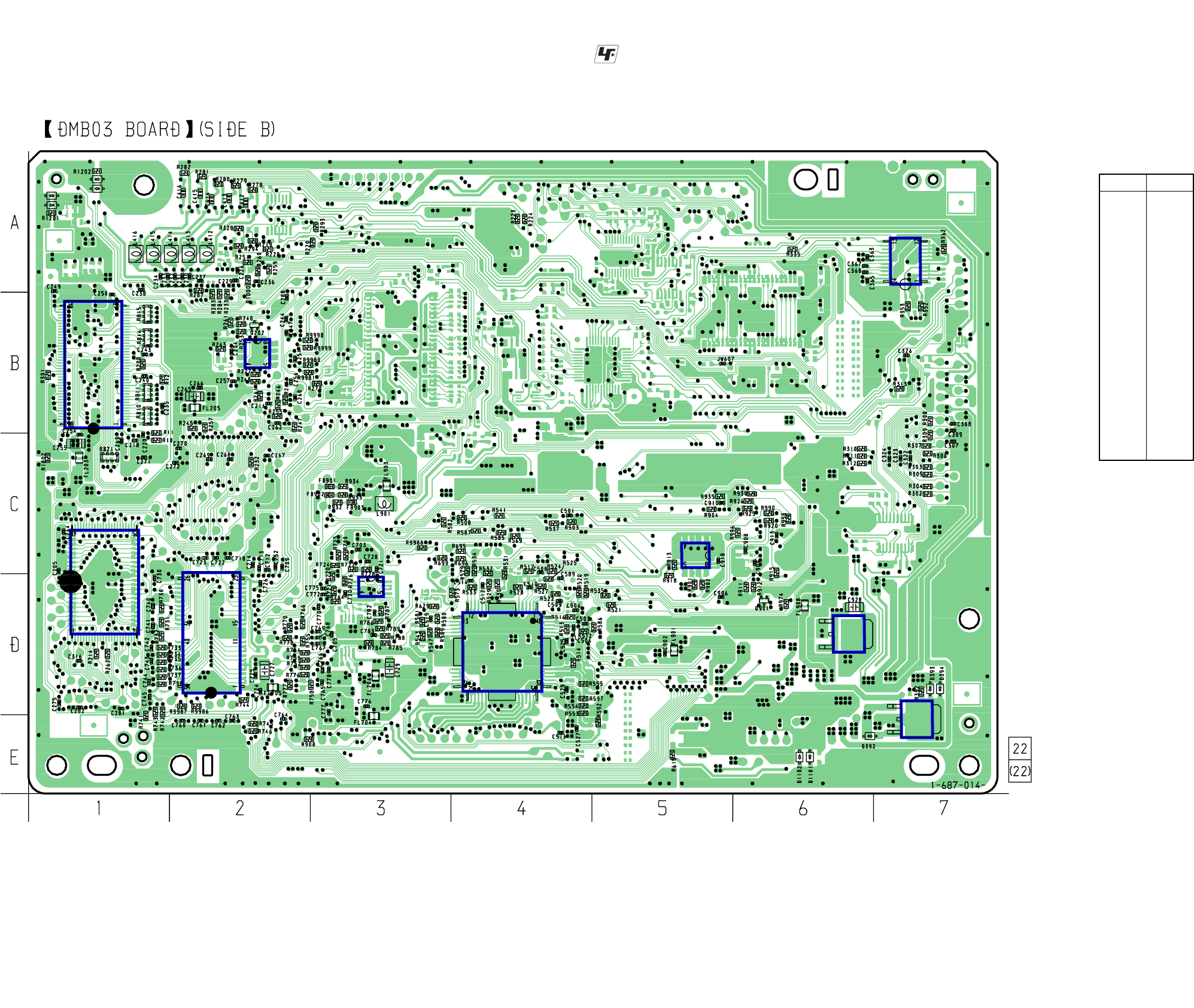

- 6-7. PRINTED WIRING BOARD – DMB SECTION (SIDE A) –
- 6-8. PRINTED WIRING BOARD – DMB SECTION (SIDE B) –
- 6-9. SCHEMATIC DIAGRAM – DMB SECTION (1/8) –
- 6-10. SCHEMATIC DIAGRAM – DMB SECTION (2/8) –
- 6-11. SCHEMATIC DIAGRAM – DMB SECTION (3/8) –

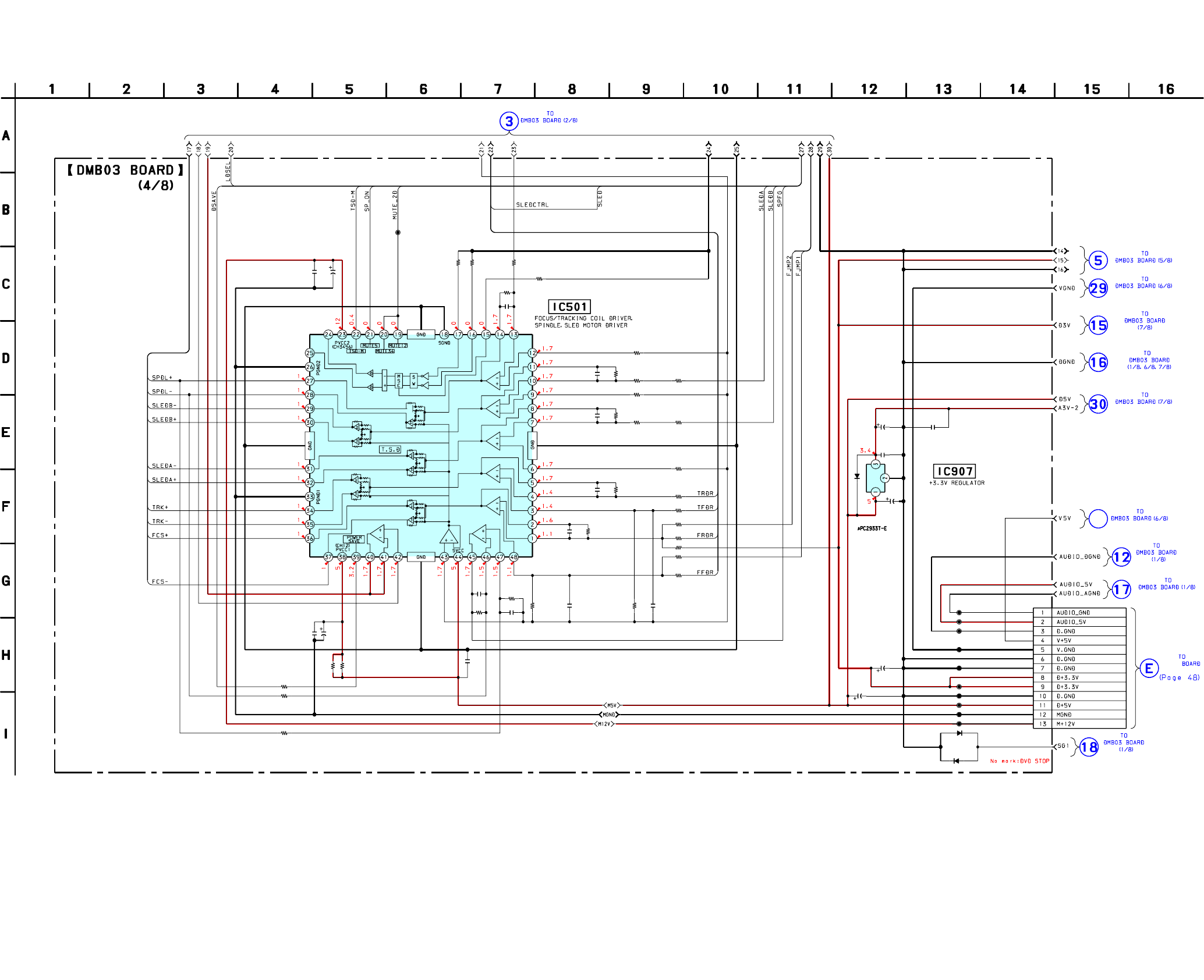

- 6-12. SCHEMATIC DIAGRAM – DMB SECTION (4/8) –

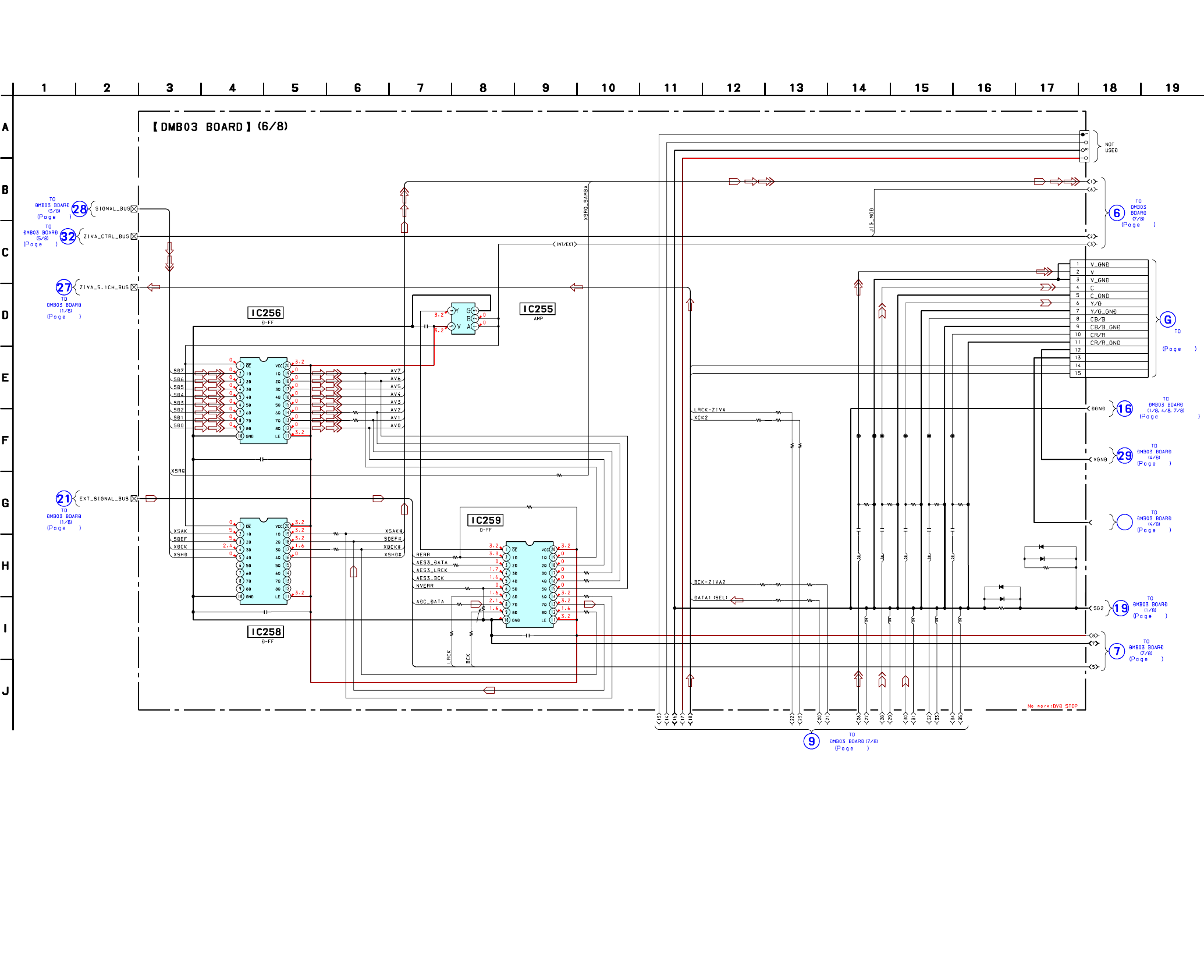

- 6-13. SCHEMATIC DIAGRAM – DMB SECTION (5/8) –

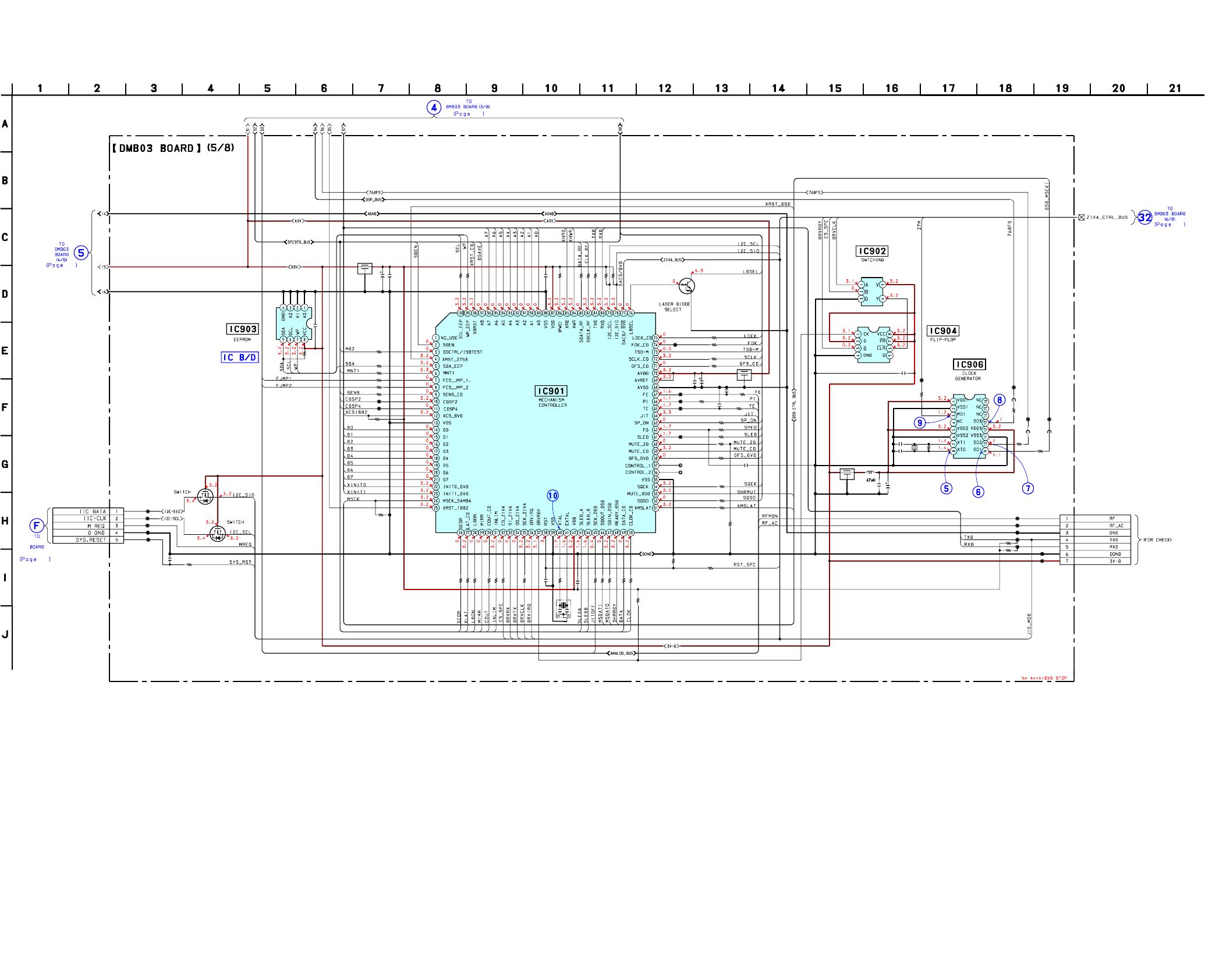

- 6-14. SCHEMATIC DIAGRAM – DMB SECTION (6/8) –

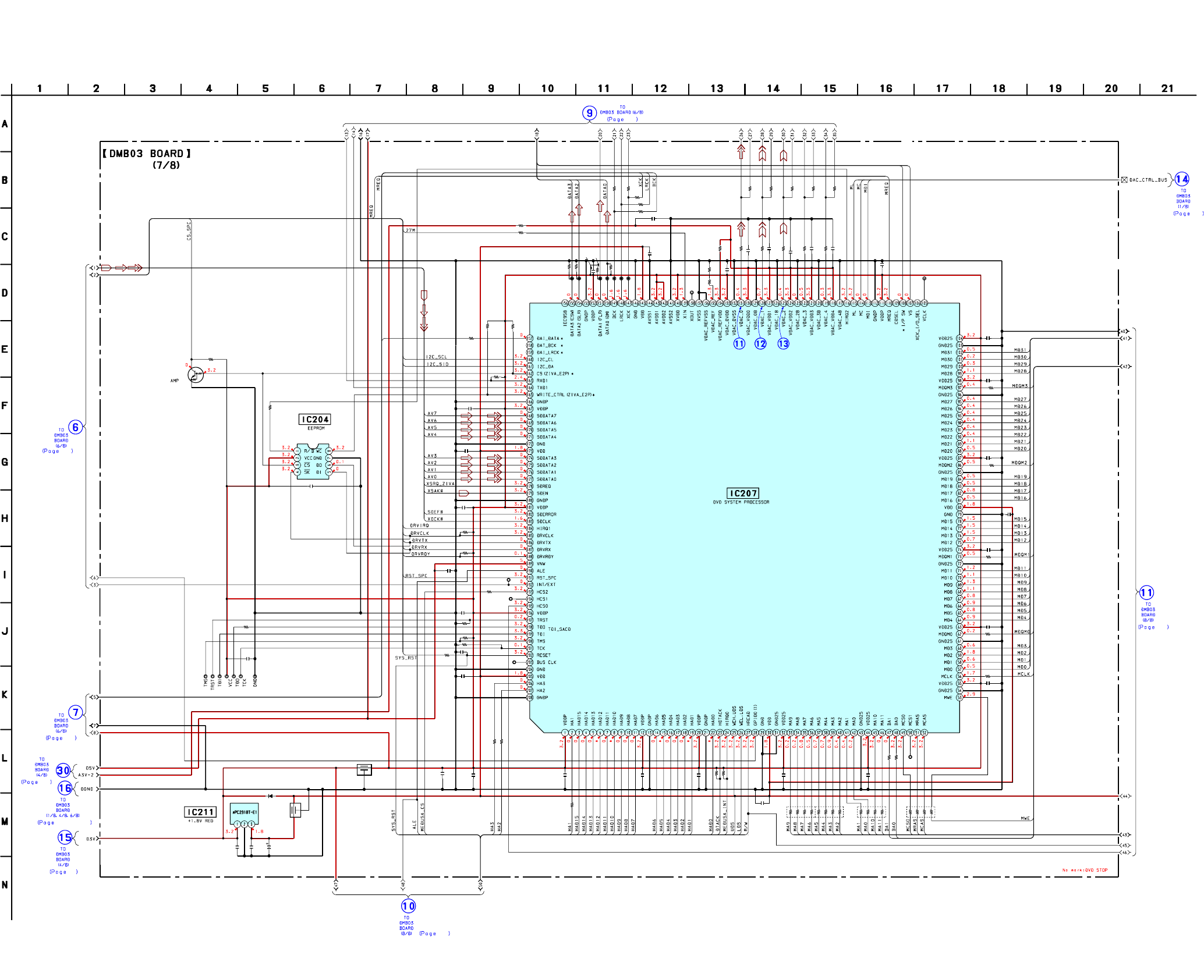

- 6-15. SCHEMATIC DIAGRAM – DMB SECTION (7/8) –
- 6-16. SCHEMATIC DIAGRAM – DMB SECTION (8/8) –
- 6-17. PRINTED WIRING BOARD – UCOM SECTION –

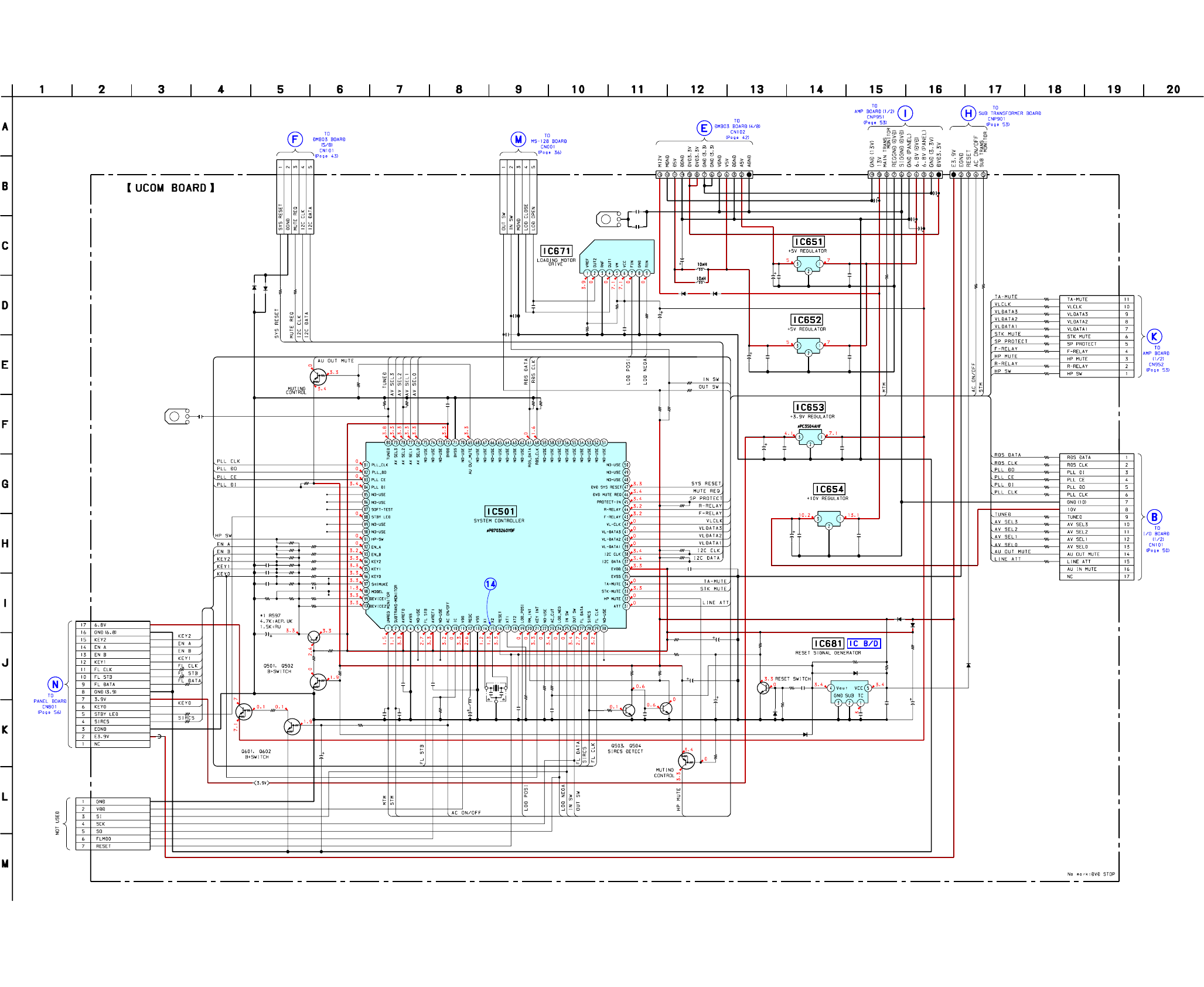

- 6-18. SCHEMATIC DIAGRAM – UCOM SECTION –
- 6-19. PRINTED WIRING BOARD – I/O SECTION –

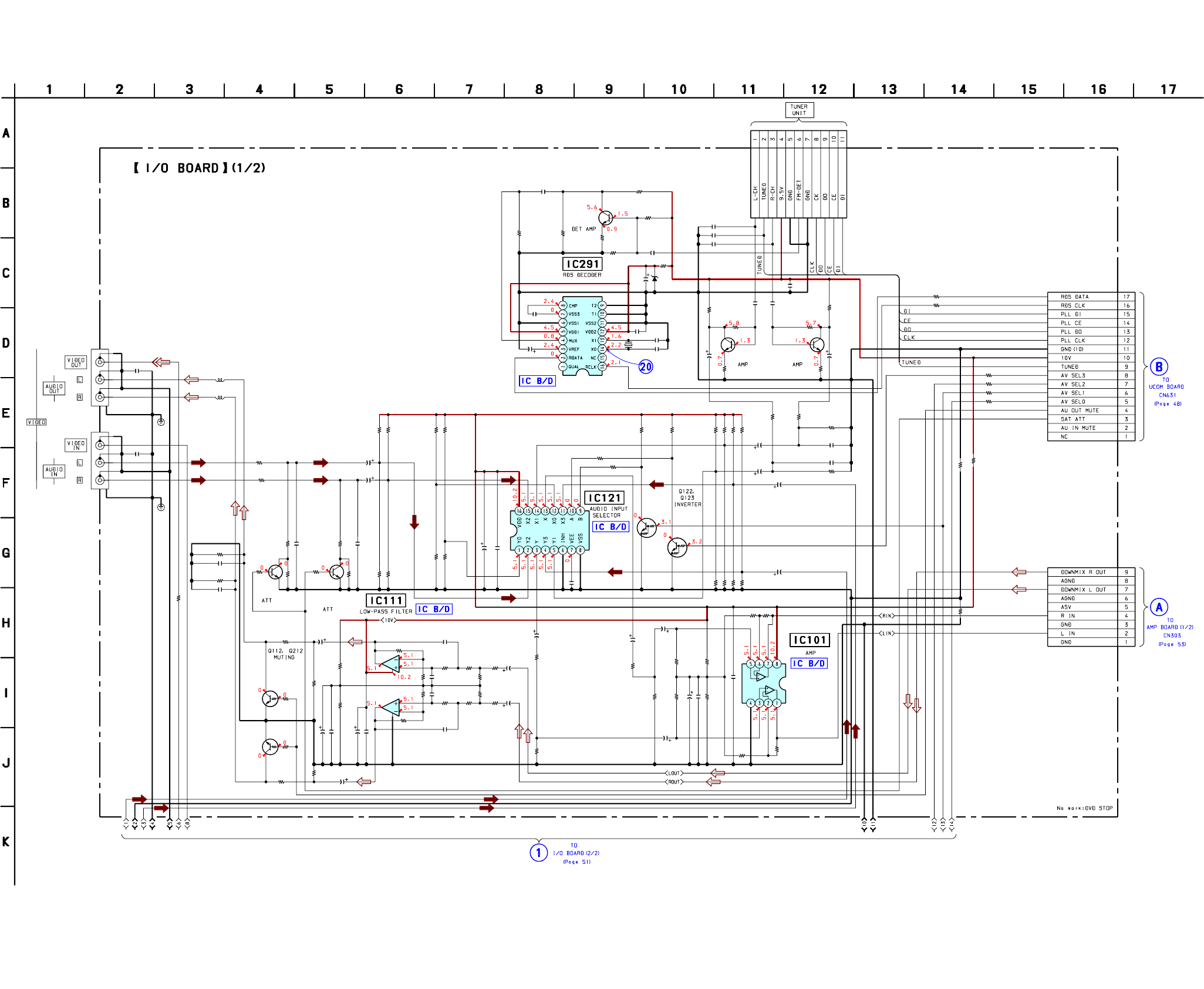

- 6-20. SCHEMATIC DIAGRAM – I/O SECTION (1/2) –

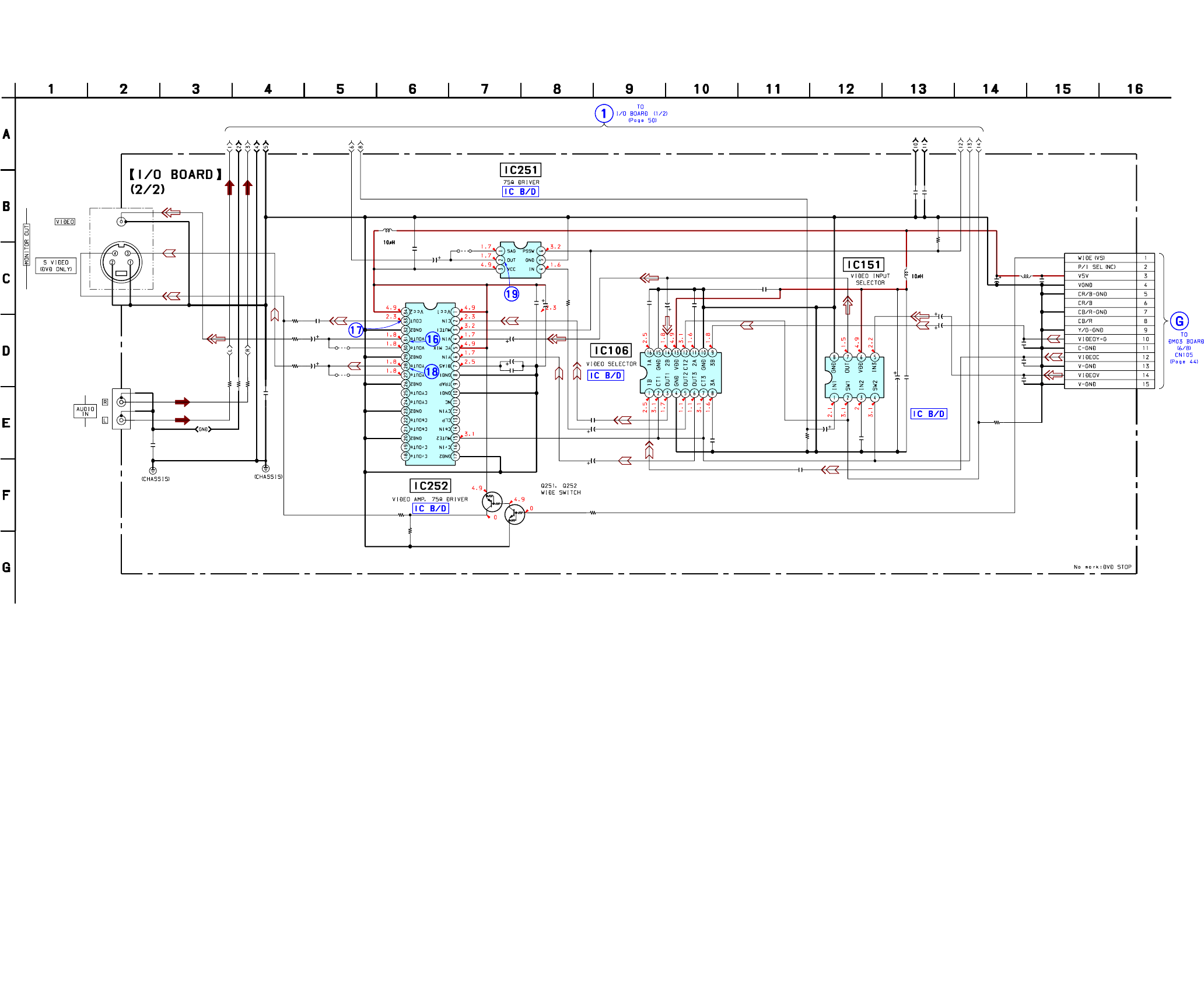

- 6-21. SCHEMATIC DIAGRAM – I/O SECTION (2/2) –

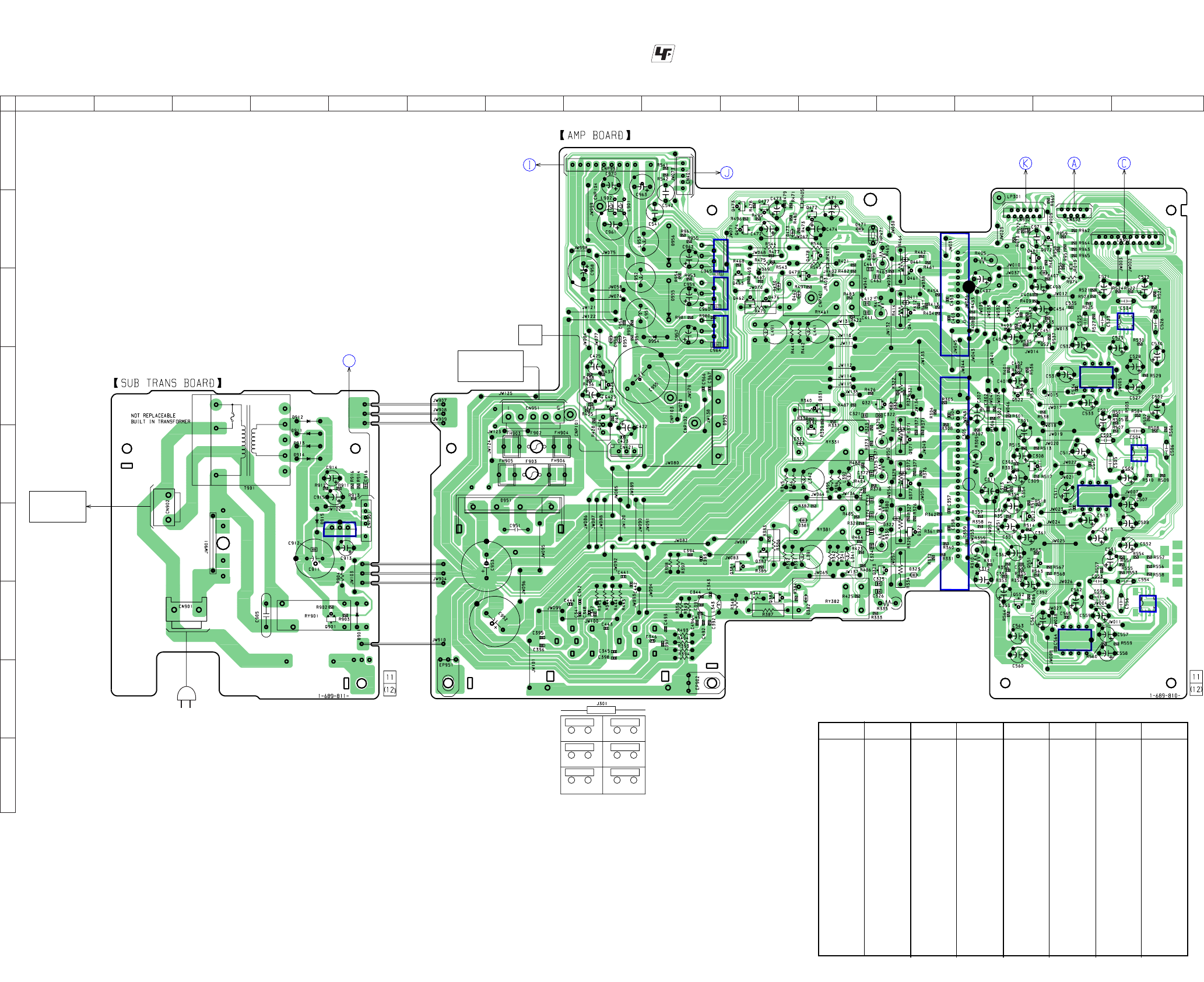

- 6-22. PRINTED WIRING BOARD – AMP/SUB TRANSFORMER SECTION –

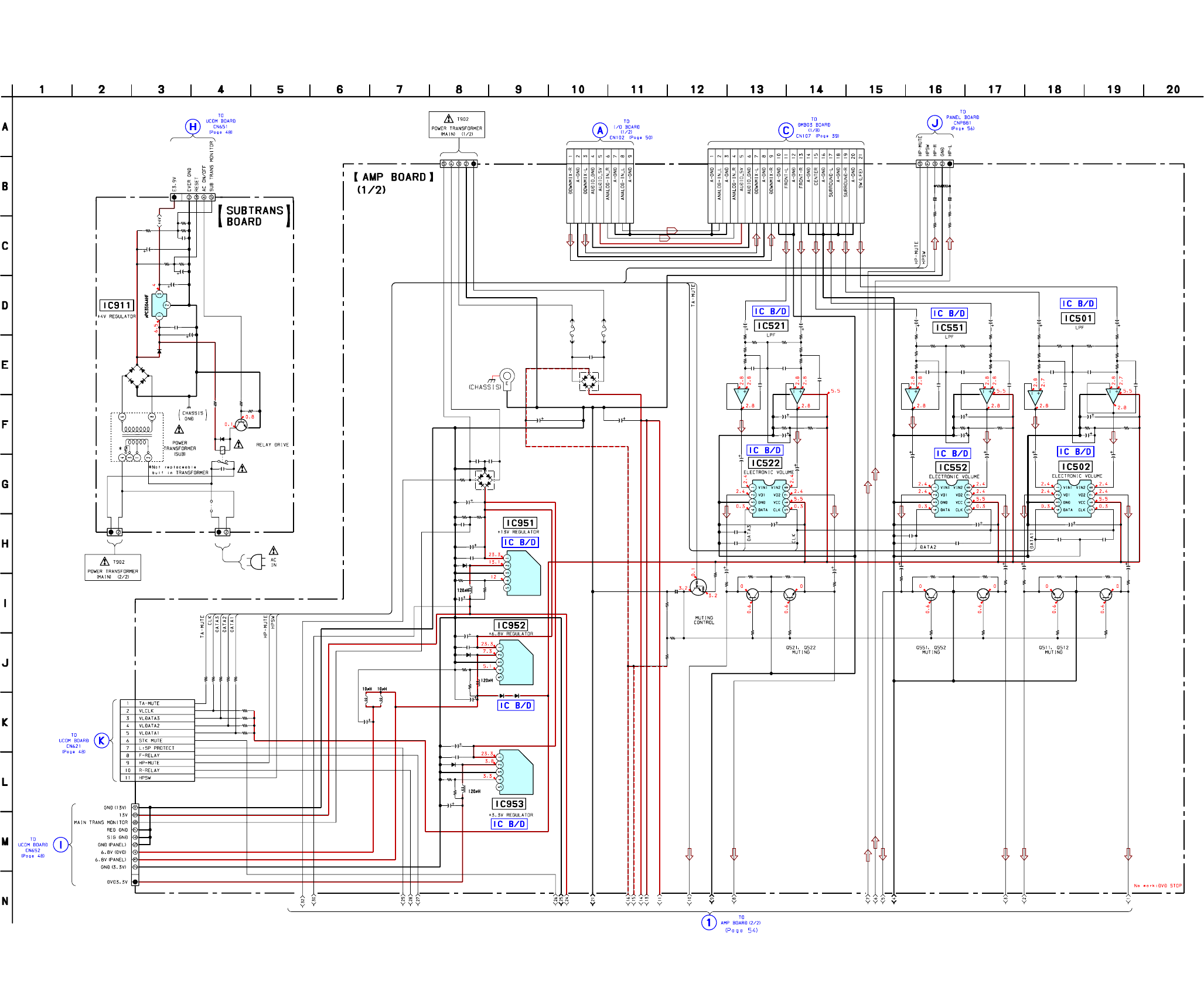

- 6-23. SCHEMATIC DIAGRAM – AMP/SUB TRANSFORMER SECTION (1/2) –
- 6-24. SCHEMATIC DIAGRAM – AMP/SUB TRANSFORMER SECTION (2/2) –

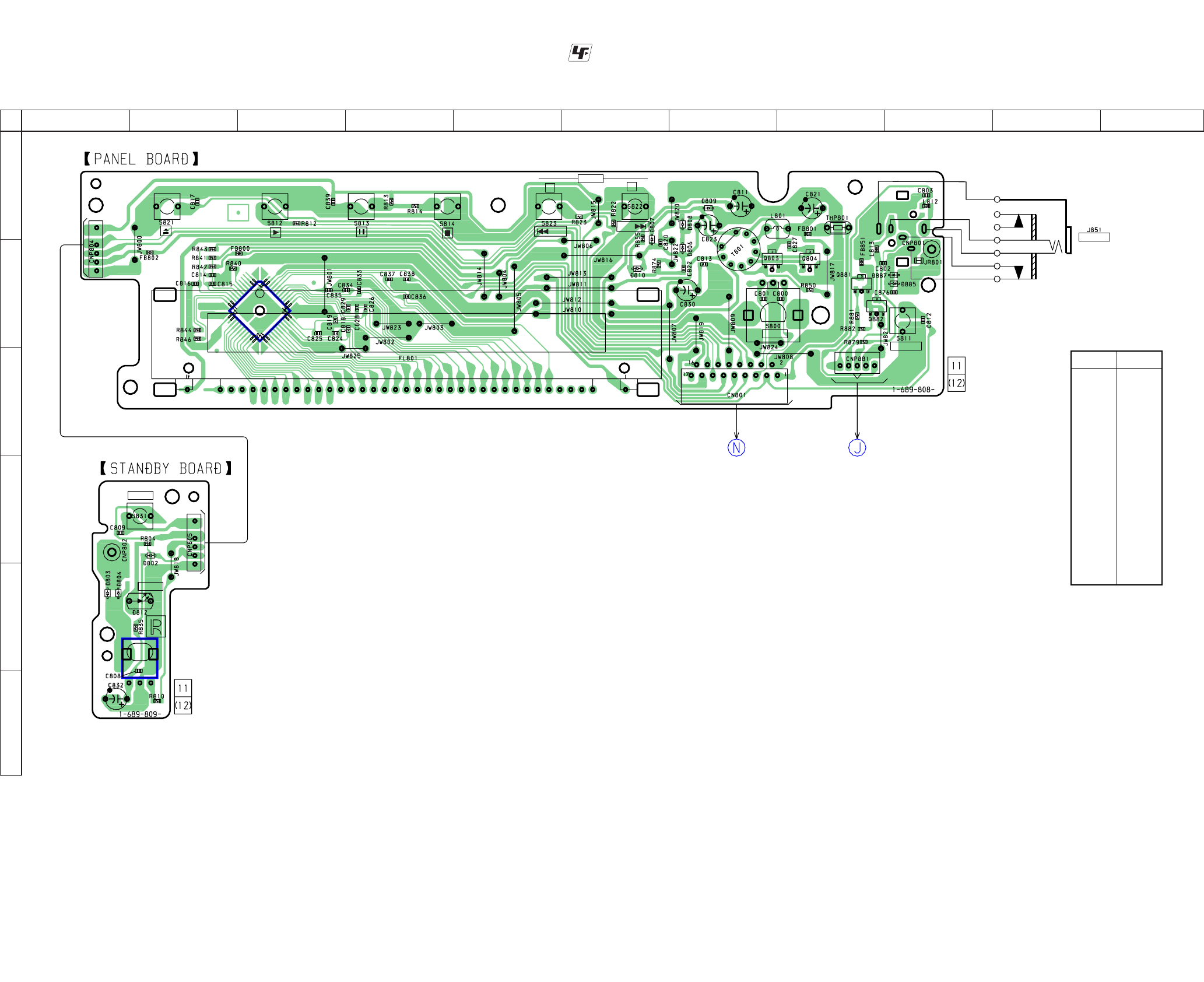

- 6-25. PRINTED WIRING BOARD – PANEL SECTION –

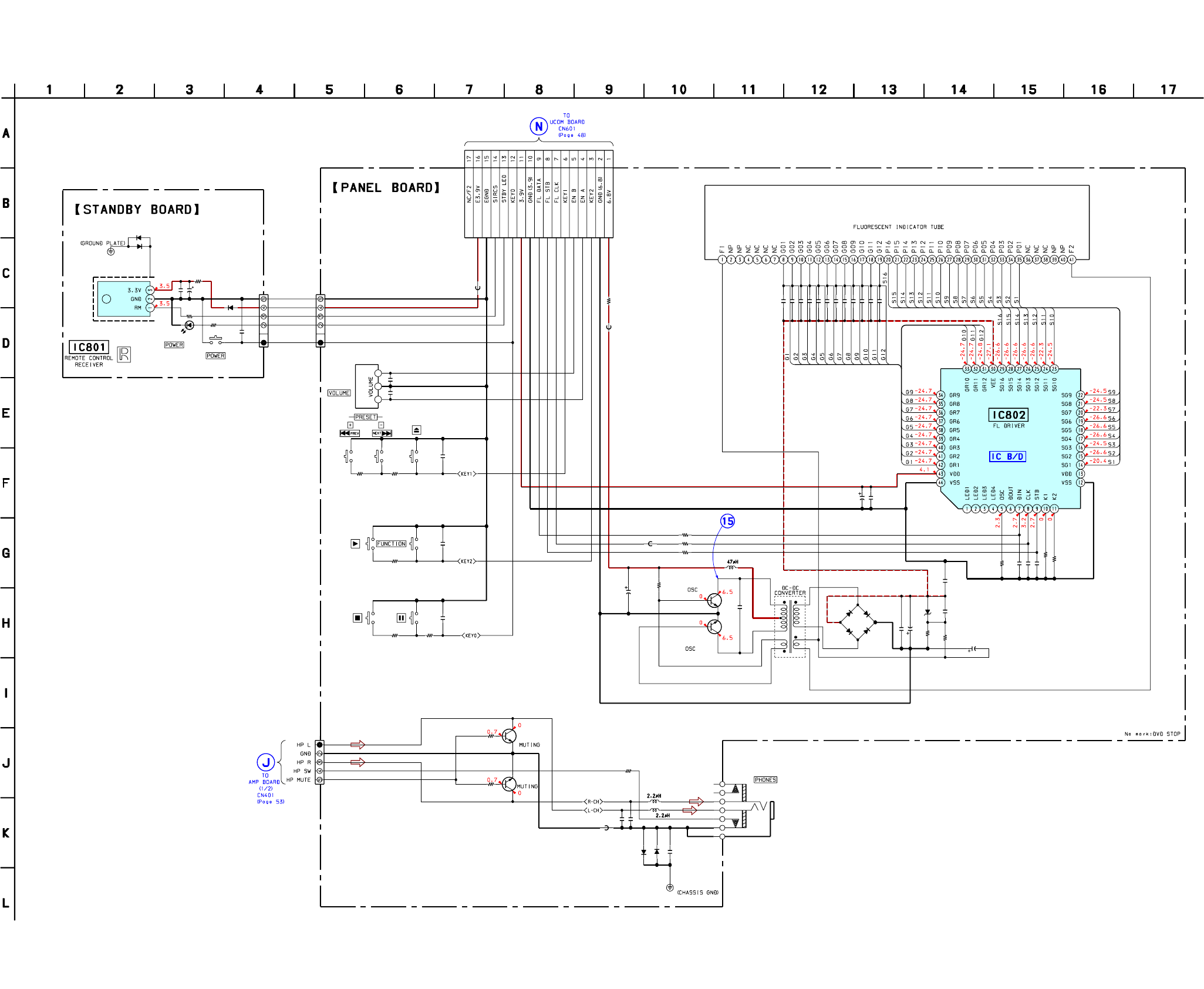

- 6-26. SCHEMATIC DIAGRAM – PANEL SECTION –

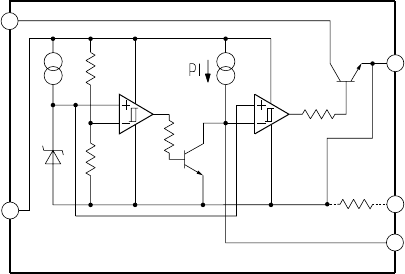

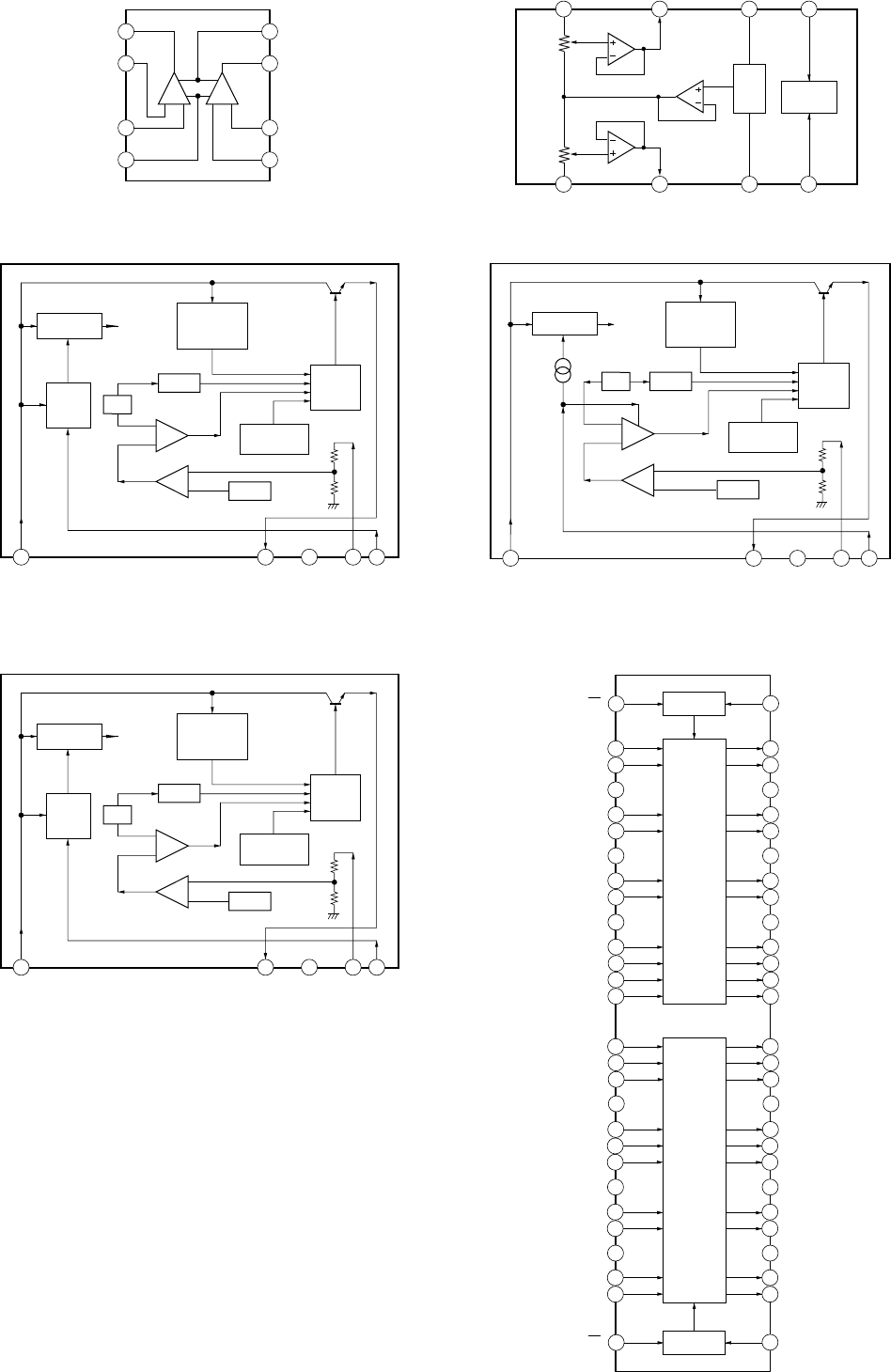

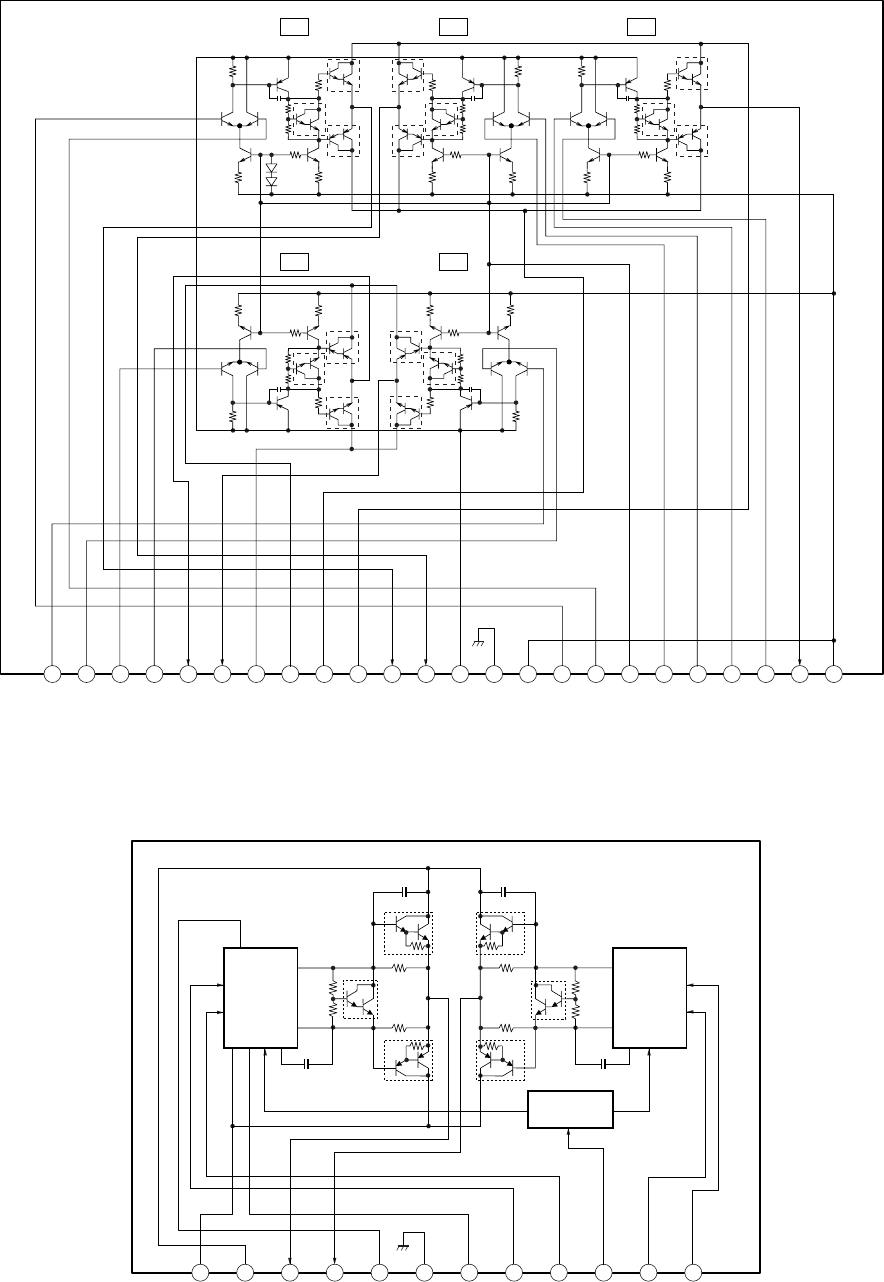

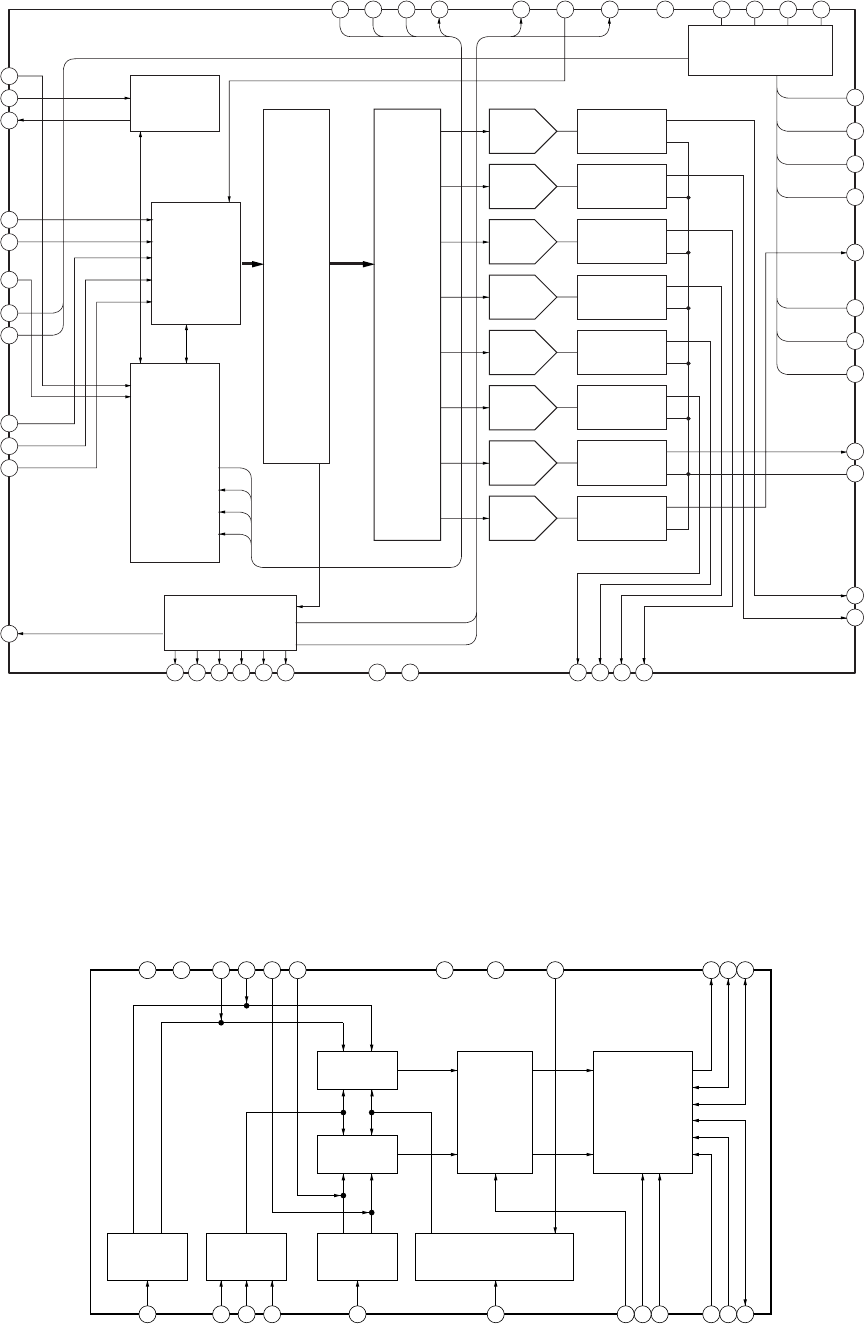

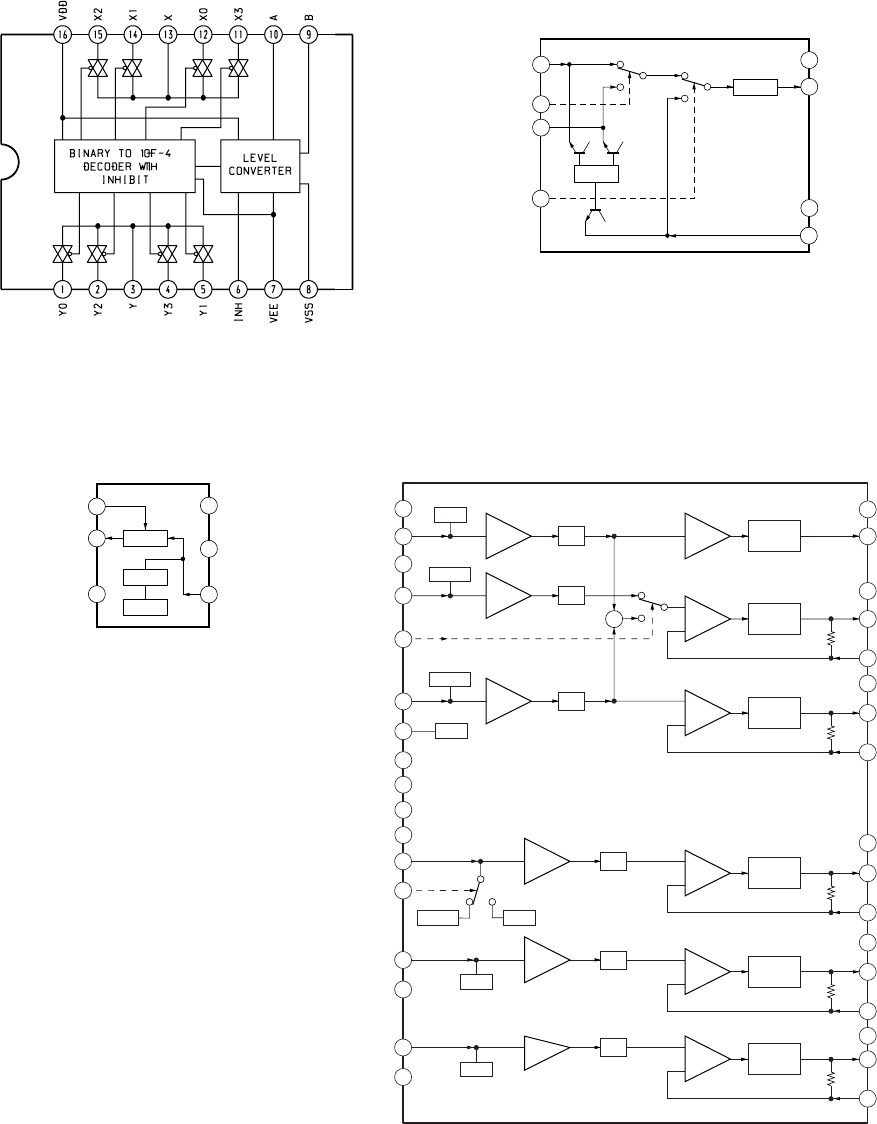

- 6-27. IC BLOCK DIAGRAMS
- 6-28. IC PIN FUNCTION DESCRIPTION
- 7.EXPLODED VIEWS
- 8.ELECTRICAL PARTS LIST
- REVISION HISTORY
HCD-EA20
AEP Model
UK Model
SERVICE MANUAL
CD/DVD RECEIVER
Sony Corporation
Home Audio Company
Published by Sony Engineering Corporation
9-961-254-01
2003J1678-1
© 2003.10
HCD-EA20 is the amplifier, DVD/CD
and tuner section in DAV-EA20.
Ver 1.0 2003. 10
SPECIFICATIONS
Amplifier section
Stereo mode (rated) 25 W + 25 W (6 ohms at 1
kHz, THD 10 %)
Surround mode (reference) Front: 25 W + 25 W
Center*: 25 W
Surround*: 25 W + 25 W
(6 ohms at 1 kHz, THD
10 %)
Subwoofer*: 50 W
(8 ohms at 100 Hz, THD
10 %)
*Depending on the sound field settings and the source,
there may be no sound output.
Inputs VIDEO:
Sensitivity: 150 mV
Impedance: 50 kilohms
SAT:
Sensitivity: 300 mV
Impedance: 50 kilohms
AUDIO IN:
sensitivity: 150 mV
Impedance: 50 kilohms
Outputs VIDEO (AUDIO OUT):
Voltage: 1 V
Impedance: 1 kilohm
Phones Accepts low-and high-
impedance headphones.
DVD system
Laser Semiconductor laser
(DVD: λ = 650 nm)
(CD: λ = 780 nm)
Emission duration:
continuous
Signal format system NTSC or NTSC/PAL
Frequency response (at 2CH STEREO mode)
DVD (PCM): 2 Hz to 22
kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0
dB)
Harmonic distortion Less than 0.03 %
Tuner section
System PLL quartz-locked digital
synthesizer system
FM tuner section
Tuning range 87.5 – 108.0 MHz (50 kHz
step)
Aerial FM wire aerial
Aerial terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range 531 – 1,602 kHz (with the
interval set at 9 kHz)
Aerial AM loop aerial
Intermediate frequency 450 kHz
Video section
Inputs Video: 1 Vp-p 75 ohms
Outputs Video: 1 Vp-p 75 ohms
General
Power requirements 230 V AC, 50/60 Hz
Power consumption 130 W (230 V AC)
0.3 W (230 V AC) (at the
Power Saving Mode)
Dimensions (approx.) 355 ×80 ×395 mm (w/h/d)
incl. projecting parts
Mass (approx.) 6.4 kg
Operating temperature 5°C to 35°C
Operating humidity 5 % to 90 %
Design and specifications are subject to change
without notice.
Model Name Using Similar Mechanism HCD-SA30
Mechanism Type
CDM77A-DVBU20
Optical Pick-up Name
TDP022W
2
HCD-EA20
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of soldering iron around 270˚C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
This appliance is classified as
a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
3
HCD-EA20
TABLE OF CONTENTS
1. SERVICING NOTE ·························································· 4
2. GENERAL ·········································································· 7
3. DISASSEMBLY ································································ 9

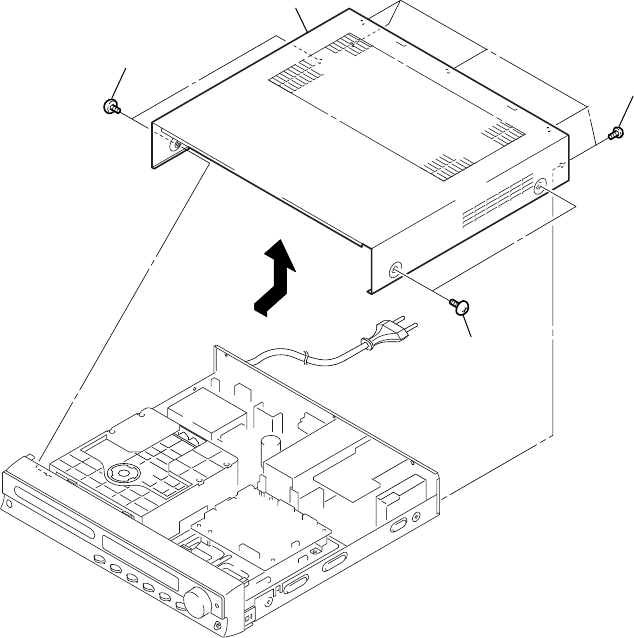

3-1. CASE ··········································································· 10
3-2. FRONT PANEL SECTION ········································· 11
3-3. PANEL BOARD, STANDBY BOARD ······················· 11
3-4. UCOM BOARD ··························································· 12
3-5. DMB03 BOARD·························································· 12
3-6. I/O BOARD ································································· 13
3-7. AMP BOARD, SUB TRANSFORMER BOARD ······· 14
3-8. DVD MECHANISM (CDM77A-DVBU20) ··············· 15
3-9. TRAY (AU) ·································································· 15

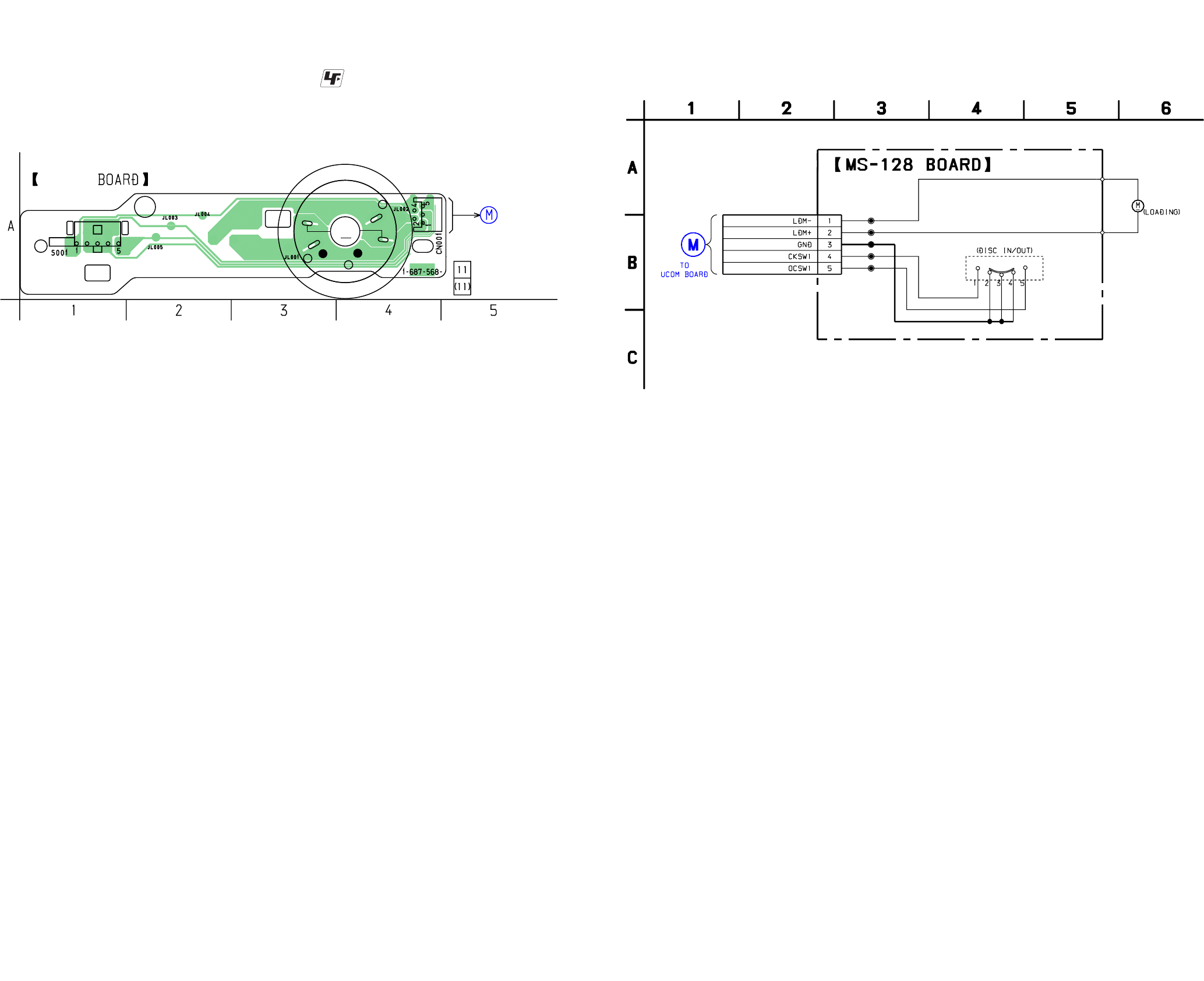

3-10. MS-128 BOARD ························································ 16
3-11. BASE UNIT ······························································· 16

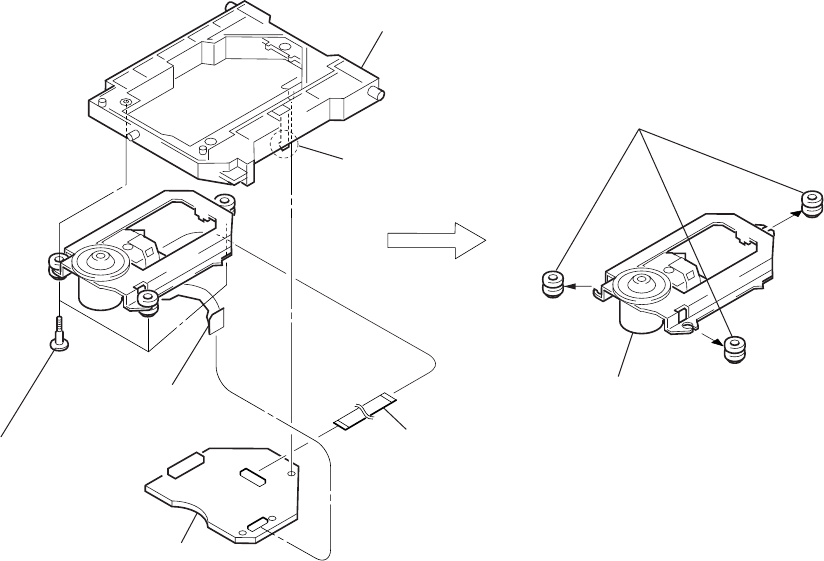

3-12. OPTICAL PICK-UP (TDP022W) ····························· 17
4. TEST MODE ···································································· 18
5. ELECTRICAL ADJUSTMENT ·································· 26
6. DIAGRAMS

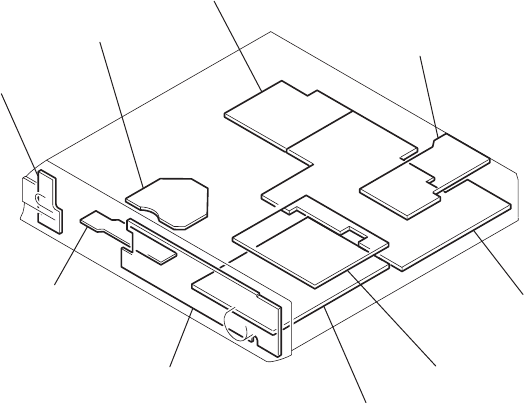

6-1. CIRCUIT BOARDS LOCATION ······························· 27
6-2. BLOCK DIAGRAMS – RF/SERVO SECTION – ······ 29
– VIDEO SECTION – ················································· 30
– AUDIO SECTION – ················································· 31
– AMP SECTION –····················································· 32
– POWER SUPPLY SECTION – ································ 33
6-3. PRINTED WIRING BOARD – RF SECTION –········ 34
6-4. SCHEMATIC DIAGRAM – RF SECTION –············· 35
6-5. PRINTED WIRING BOARD
– LOADING SECTION – ··········································· 36
6-6. SCHEMATIC DIAGRAM
– LOADING SECTION – ··········································· 36
6-7. PRINTED WIRING BOARD
– DMB SECTION (SIDE A) – ···································· 37
6-8. PRINTED WIRING BOARD
– DMB SECTION (SIDE B) – ···································· 38
6-9. SCHEMATIC DIAGRAM
– DMB SECTION (1/8) – ·········································· 39
6-10.SCHEMATIC DIAGRAM
– DMB SECTION (2/8) – ··········································· 40
6-11.SCHEMATIC DIAGRAM
– DMB SECTION (3/8) – ··········································· 41
6-12.SCHEMATIC DIAGRAM
– DMB SECTION (4/8) – ··········································· 42
6-13.SCHEMATIC DIAGRAM
– DMB SECTION (5/8) – ··········································· 43
6-14.SCHEMATIC DIAGRAM
– DMB SECTION (6/8) – ··········································· 44
6-15.SCHEMATIC DIAGRAM
– DMB SECTION (7/8) – ··········································· 45
6-16.SCHEMATIC DIAGRAM
– DMB SECTION (8/8) – ··········································· 46
6-17.PRINTED WIRING BOARD
– UCOM SECTION – ················································· 47
6-18.SCHEMATIC DIAGRAM
– UCOM SECTION – ················································· 48
6-19. PRINTED WIRING BOARD
– I/O SECTION – ························································ 49
6-20.SCHEMATIC DIAGRAM
– I/O SECTION (1/2) – ··············································· 50
6-21.SCHEMATIC DIAGRAM
– I/O SECTION (2/2) – ··············································· 51
6-22.PRINTED WIRING BOARD
– AMP/SUB TRANSFORMER SECTION – ············· 52
6-23.SCHEMATIC DIAGRAM
– AMP/SUB TRANSFORMER SECTION (1/2) – ···· 53
6-24.SCHEMATIC DIAGRAM
– AMP/SUB TRANSFORMER SECTION (2/2) – ···· 54
6-25.PRINTED WIRING BOARD
– PANEL SECTION –················································· 55
6-26.SCHEMATIC DIAGRAM
– PANEL SECTION –················································· 56

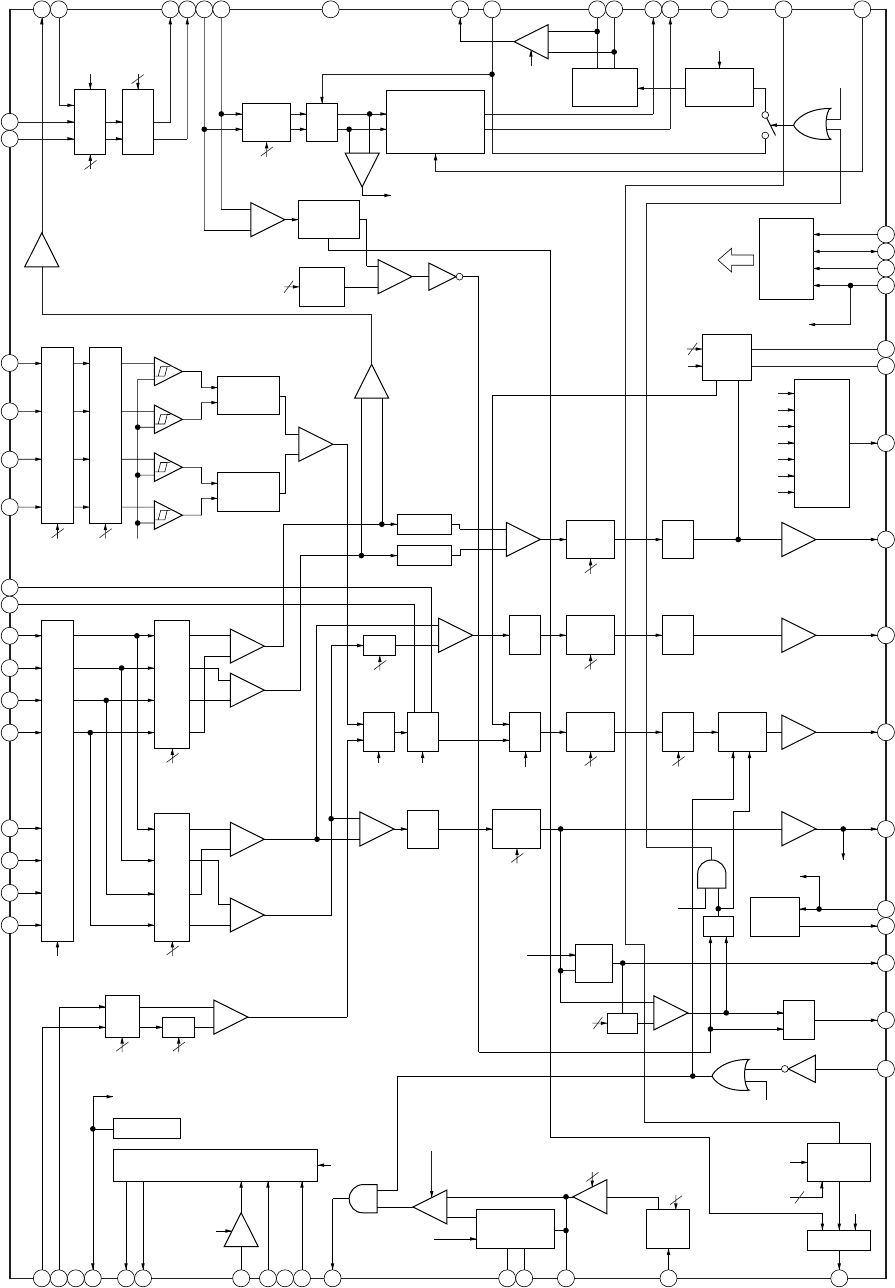

6-27.IC BLOCK DIAGRAMS ············································ 59
6-28.IC PIN FUNCTION DESCRIPTION ························· 68
7. EXPLODED VIEWS

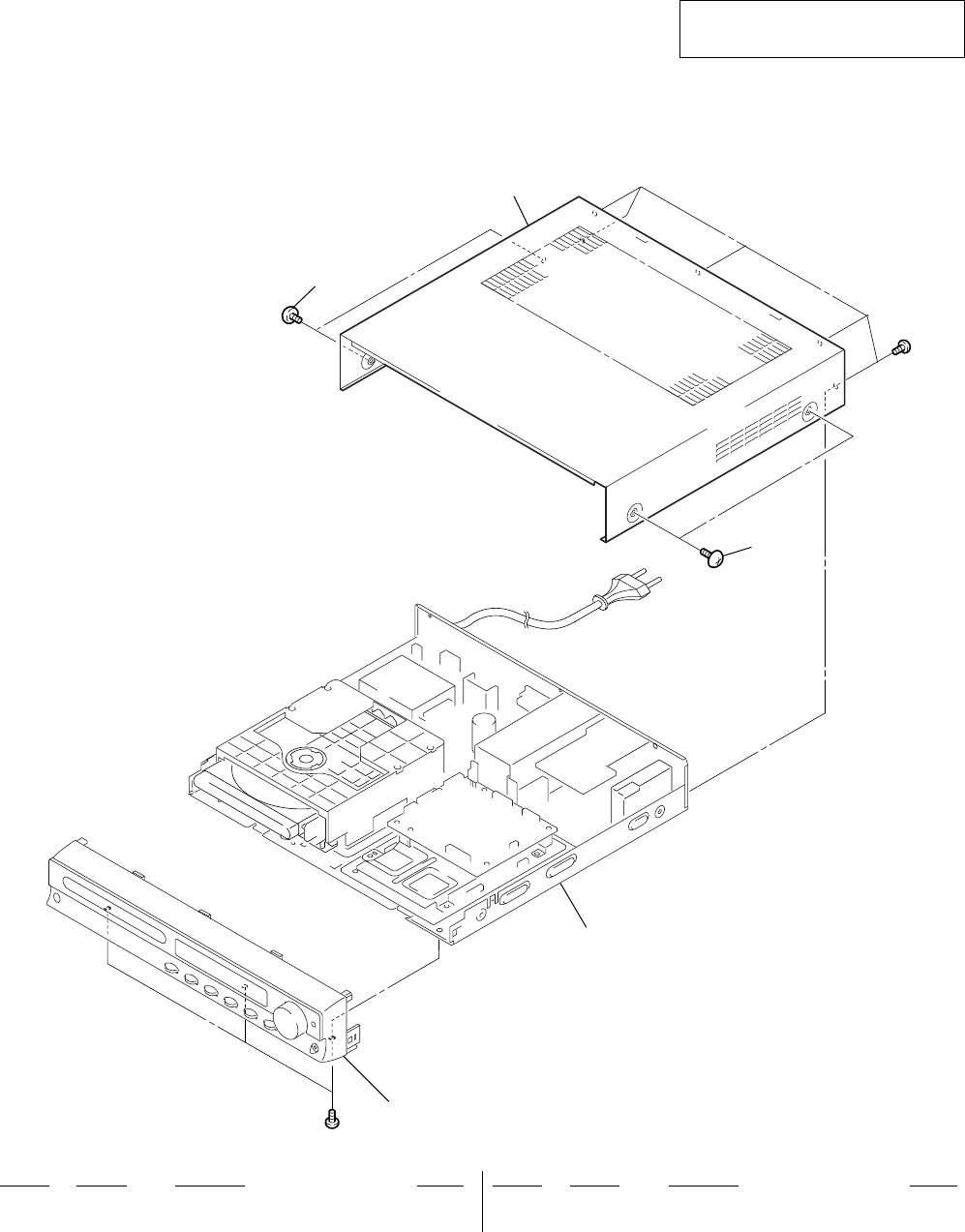

7-1. CASE SECTION ························································· 80
7-2. FRONT PANEL SECTION········································· 81
7-3. CHASSIS SECTION··················································· 82

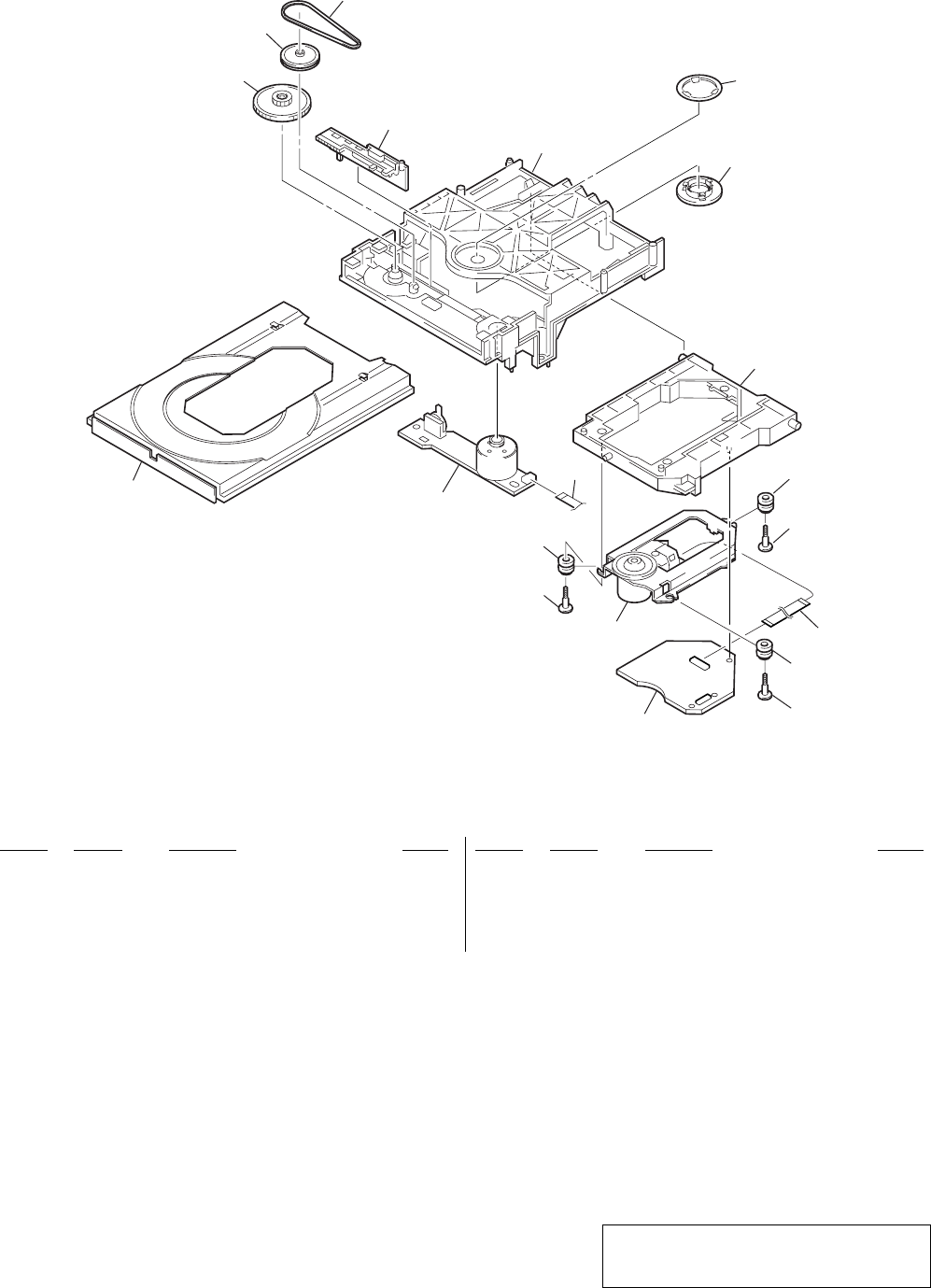

7-4. DVD MECHANISM SECTION
(CDM77A-DVBU20) ·················································· 83
8. ELECTRICAL PARTS LIST ······································· 84
4
HCD-EA20
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

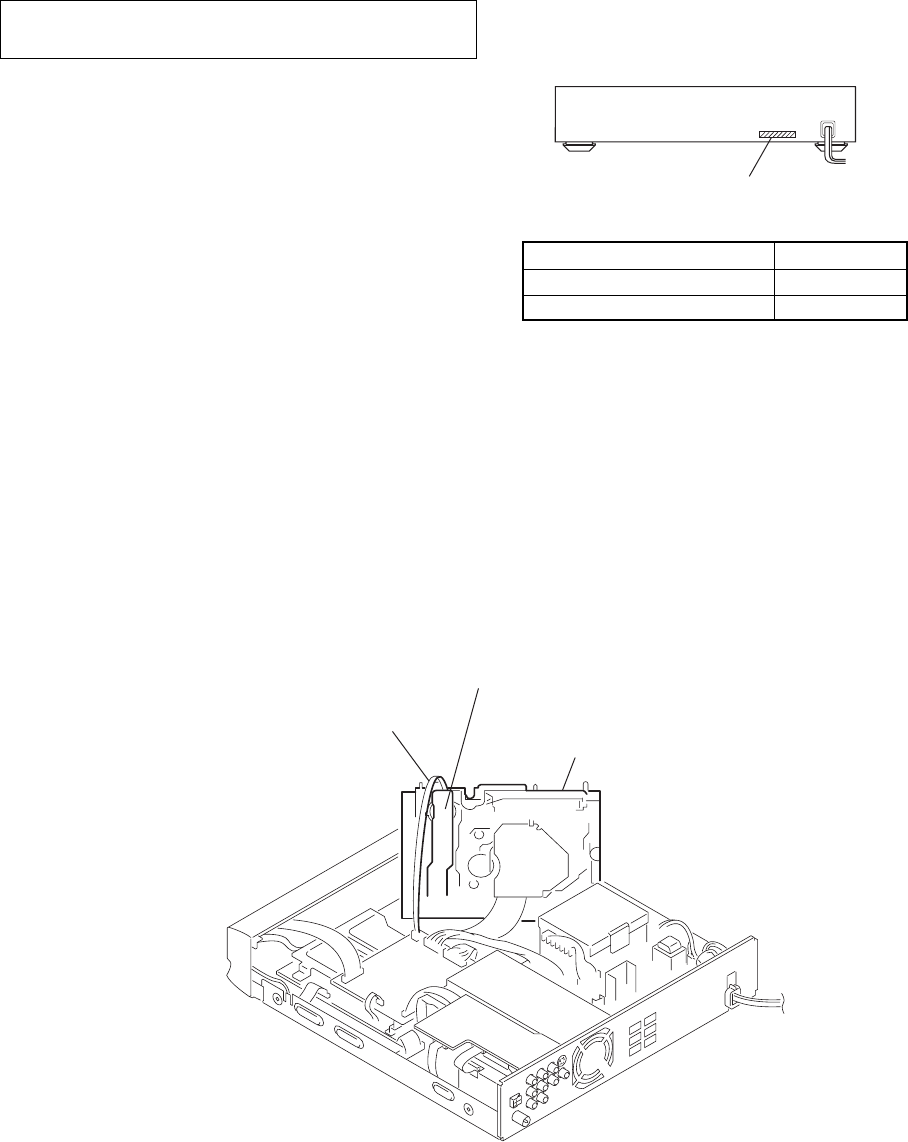

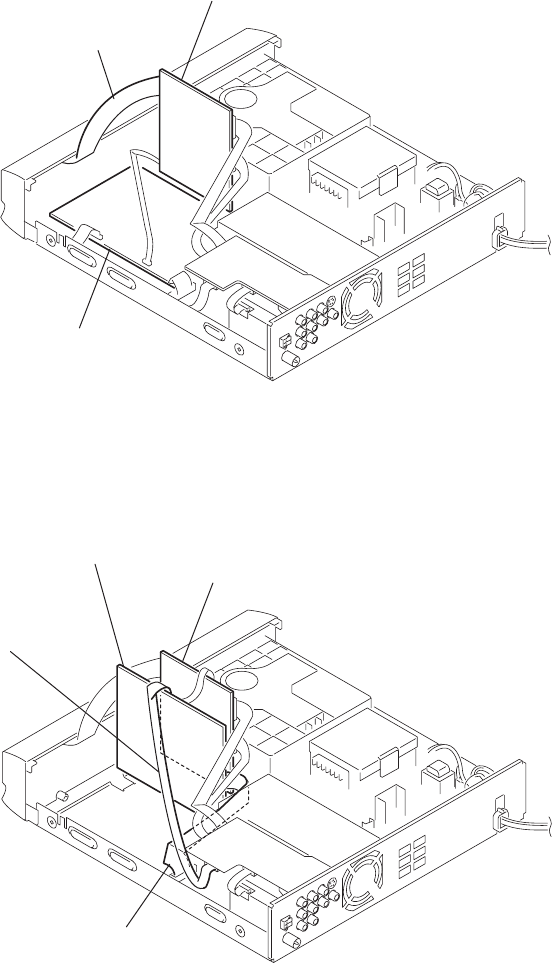

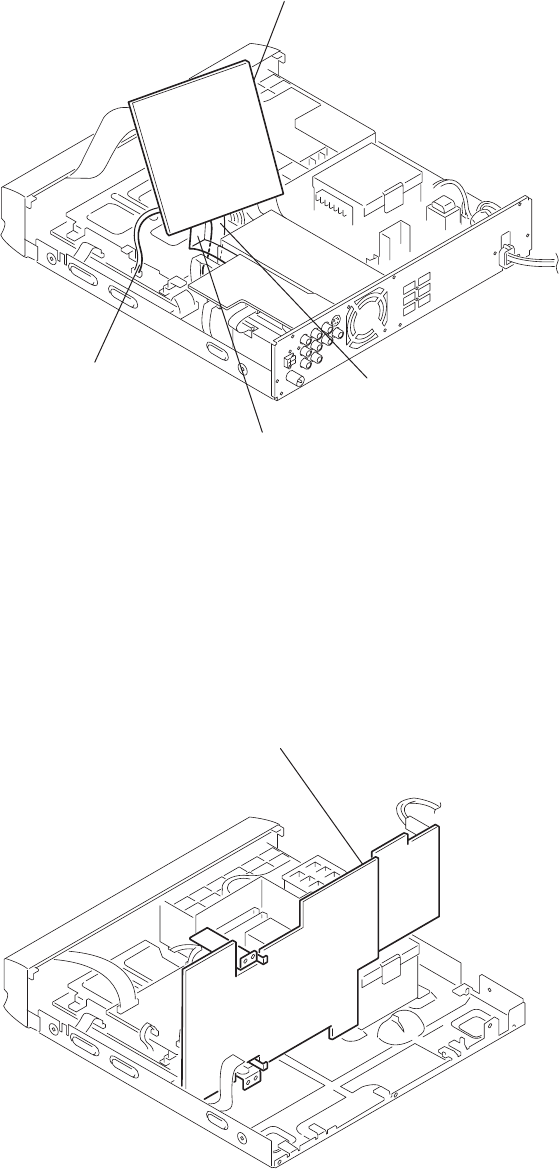

JIG ON REPAIRING
When repairing this set, etc., connect the extension cable as the
figure shown below.
• Service position of mechanism block
MODEL IDENTIFICATION
— BACK PANEL —
Part No.
Model
AEP, UK models
Russian model
PARTS No.
4-249-697-0s
4-249-697-1s
SECTION 1
SERVICING NOTE
MS-128 board
J-2501-212-A (1mm/5P/L300) DVD mechanism section
(CDM77A-DVBU20)
5
HCD-EA20
• Service position of UCOM board
• Service position of AMP board
UCOM board
J-2501-212-A (1mm/5P/L300)
J-2501-198-A (1mm/17P/L300)
J-2501-200-A (1mm/11P/L300)
AMP board
6
HCD-EA20
• Service position of DMB03 board
UCOM board
DMB03 board
J-2501-167-A (1.25mm/17P/L300)
UCOM board
DMB03 board
J-2501-188-A (1mm/15P/L400)
J-2501-075-A (1mm/21P/L500)
7
HCD-EA20
SECTION 2
GENERAL

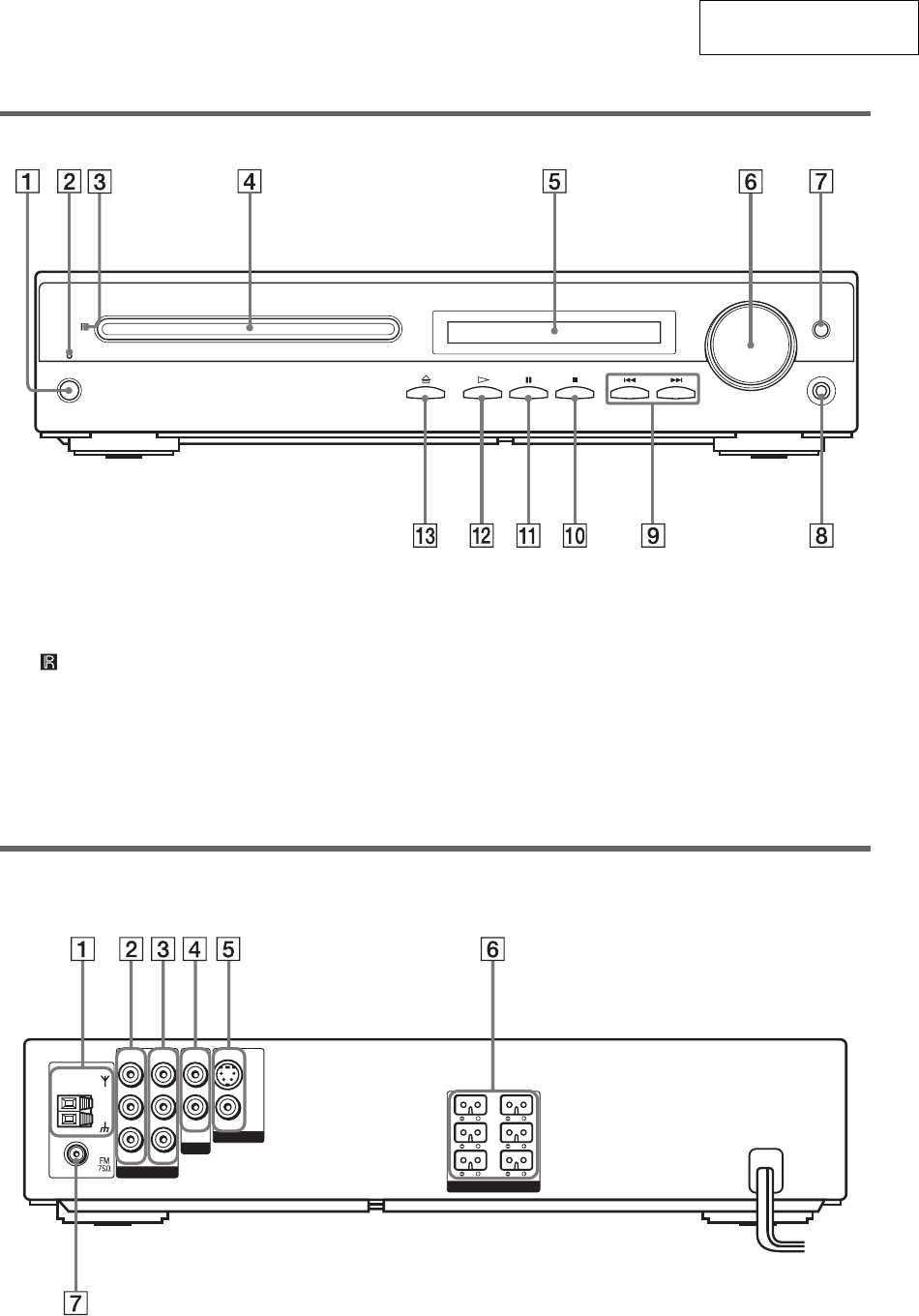

Front Panel
A"/1 (power) (21)
BSTANDBY indicator (21)
C (remote sensor) (11)
DDisc tray (21)
EFront panel display (70)
FVOLUME control (21, 62)
GFUNCTION (21, 52, 53, 54)
HPHONES jack (21)
I./>, PREV/NEXT, PRESET –/+
(22, 23, 52, 54)
Jx (stop) (22)
KX (pause) (22)
LH (play) (21)
MA (open/close) (21)
This section is extracted
from instruction manual.
Rear Panel
AAM terminals (15)
BVIDEO (ANALOGUE OUT) jacks (17)
CVIDEO/SAT (ANALOGUE IN) jacks (17)
DTV jacks (17)
EMONITOR OUT (VIDEO/S VIDEO) jacks
(17)
FSPEAKER jacks (12)
GFM 75Ω COAXIAL jack (15)
COAXIAL
AM
FRONT R FRONT L
WOOFERCENTER
SURR L
SURR R
SPEAKER
S VIDEO
(DVD ONLY)
VIDEO
AUDIO IN
MONITOR OUT
TV
R
L
VIDEO
VIDEO OUT
AUDIO OUT
VIDEO/SAT
IN
AUDIO IN
L
R
8
HCD-EA20
Remote
Note
This remote control glows in the dark. However,
before glowing, the remote must be exposed to light for
a while.
ATV [/1 (on/standby) (51)
BSLEEP (56)
CTV/VIDEO (51)
DPLAY MODE (28, 29)
EMENU (52, 54)
FREPEAT/FM MODE (28, 30, 53)
GCLEAR (28, 29, 30, 32)
HAUDIO (39)
IANGLE (44)
JSUBTITLE (45)
KVOL +/– (51, 53)
L./>, PREV/NEXT, TV CH –/+,
PRESET –/+ (22, 23, 51, 52, 53, 54)
MH PLAY/SELECT (21, 23, 28, 29, 30,
47)
NDVD TOP MENU/ALBUM– (23, 25, 26)
ODVD DISPLAY (25, 26, 30, 32, 37, 38, 39,
44, 45)
PC/X/x/c/ENTER (23, 25, 26, 27, 28, 30,
32, 39, 44, 45, 46, 47, 52, 54)
QDVD SETUP (47, 57)
R"/1 (standby) (21, 52)
SDISPLAY (34, 37, 53)
TDDSG (43)
UMUTING (22)
VNIGHT MODE (43)
WAUTO FORMAT DIRECT (41)
XSOUND FIELD +/– (41, 42)
YNumber buttons (23, 28, 32, 44, 46, 47,
51)
ZFUNCTION (21, 52, 53, 54)
wj TUNER/BAND (52, 53)
wk ENTER (51, 52)
wl COMMAND MODE switch (11, 51)
e; m/M// SLOW, TUNING –/+ (31,
52)
ez x STOP (23, 46)
es X PAUSE (22)
ed DVD MENU/ALBUM+ (23, 25, 26)
ef O RETURN (23, 25, 26, 28, 32, 46, 47)
eg DIMMER (56)
123
456
7
>
10 10/0
8 9
9
HCD-EA20
SECTION 3
DISASSEMBLY
• The equipment can be removed using the following procedure.
CASE
DVD MECHANISM
(CDM77A-DVBU20)
PANEL BOARD,
STANDBY BOARD
FRONT PANEL
SECTION UCOM BOARD
TRAY (AU)
OPTICAL PICK-UP
(TDP022W)
MS-128 BOARD BASE UNIT
DMB03 BOARD
I/O BOARD
AMP BOARD,
SUB TRANSFORMER BOARD
SET
10
HCD-EA20
3-1. CASE
1
two screws
(CASE 3 TP2)
2
two screws
(CASE 3 TP2)
4
case
3
five screws
(+BVTP3
×
8
)
11
HCD-EA20
3-2. FRONT PANEL SECTION
3-3. PANEL BOARD, STANDBY BOARD
1
connector
(CN401)
4
three screws
(+BVTP3
×
8)
6
front panel section
5
two claws
2
w
ire (flat type)
17core (CN601)
3
chassis groun
d
4
five screws
(BVTP2.6
×
8)
3
two screws
(BVTP2.6
×
8
)
8
front panel assy
1
vol knob
5
w
ire (flat type)
17core (CN801)
6
STANDBY board
7
PANEL board
2
nut
12
HCD-EA20
3-4. UCOM BOARD
5
connector
(CN653)
4
connector
(CN652)
3
connector
(CN651)
2
w
ire (flat type)
5core (CN654)
1
w
ire (flat type)
17core (CN601)
6
w
ire (flat type)
11core (CN621)
8
w
ire (flat type)
5core (CN611)
7
w
ire (flat type)
17core(CN631)
q;
UCOM board
9
four screws
(+BVTP3
×
8)
3-5. DMB03 BOARD
5
connector
(CN102)
6
w
ire (flat type)
21core (CN107)
7
w
ire (flat type)
5core (CN101)
8
w
ire (flat type)
15core (CN105)
4
w
ire (flat type)
29core (CN501)
9
DMB03 board
1
two screws
(+BVTP3
×
8)
2
two screws
(+BVTP3
×
8)
3
heat sink
13
HCD-EA20
3-6. I/O BOARD
5
four screws
(+BVTP3
×
8)
9
four screws
(+BVTP3
×
8)
7
two screws
(+BVTP3
×
8)
qa
two screws
(+BVTP3
×
8)
8
tuner unit
qs
DC fan
qd
back panel
4
connector
(CN421)
1
w
ire (flat type)
17core (CN101)
2
w
ire (flat type)
9core (CN102)
3
w
ire (flat type)
15core (CN103)
6
w
ire (flat type)
11core (CN104)
0
I/O board
14
HCD-EA20
3-7. AMP BOARD, SUB TRANSFORMER BOARD
qs
AMP board
qd
SUB TRANSFORMER board
9
five screws
(+BVTP3
×
8)
qa
five screws
(+BVTP3
×
8)
qf
four screws
8
power cord
qg
power transformer
(main) (T101)
0
two screws
(sumitite 3
×
6)
6
connector
(CN951)
4
connector
(CN652)
5
connector
(CN401)
3
connector
(CN651)
7
connector
(CN902)
2
w
ire (flat type)
11core (CN952)
1
w
ire (flat type)
25core (CN302)
15
HCD-EA20
3-8. DVD MECHANISM (CDM77A-DVBU20)
3-9. TRAY (AU)
4
tray (AU)
3
two claws
bottom side
1
2
6
two claws
7
CD lid
4
w
ire (flat type)
5core (CN001)
5
w
ire (flat type)
29p (CN002)
3
three screws
(sumitite 3
×
6)
8
DVD mechanism
(CDM77A-DVBU20)
1
two screws
(+BVTP2.6
×
8)
2
cover
16
HCD-EA20
3-10. MS-128 BOARD
3-11. BASE UNIT
1
belt
2
four claws
3
MS-128 board
5
two claws
6
base unit
2
claw
4
gear
3
puley
1
belt
7
chuck cam
17
HCD-EA20
3-12. OPTICAL PICK-UP (TDP022W)
3
w
ire (flat type)
24p (CN001)
2
flexible board
(CN003)
5
three step screws (M)
8
optical pick-up
(TDP022W)
1
claw
6
holder (DVU1)
7
three insulators
4
RF board
18
HCD-EA20 SECTION 4

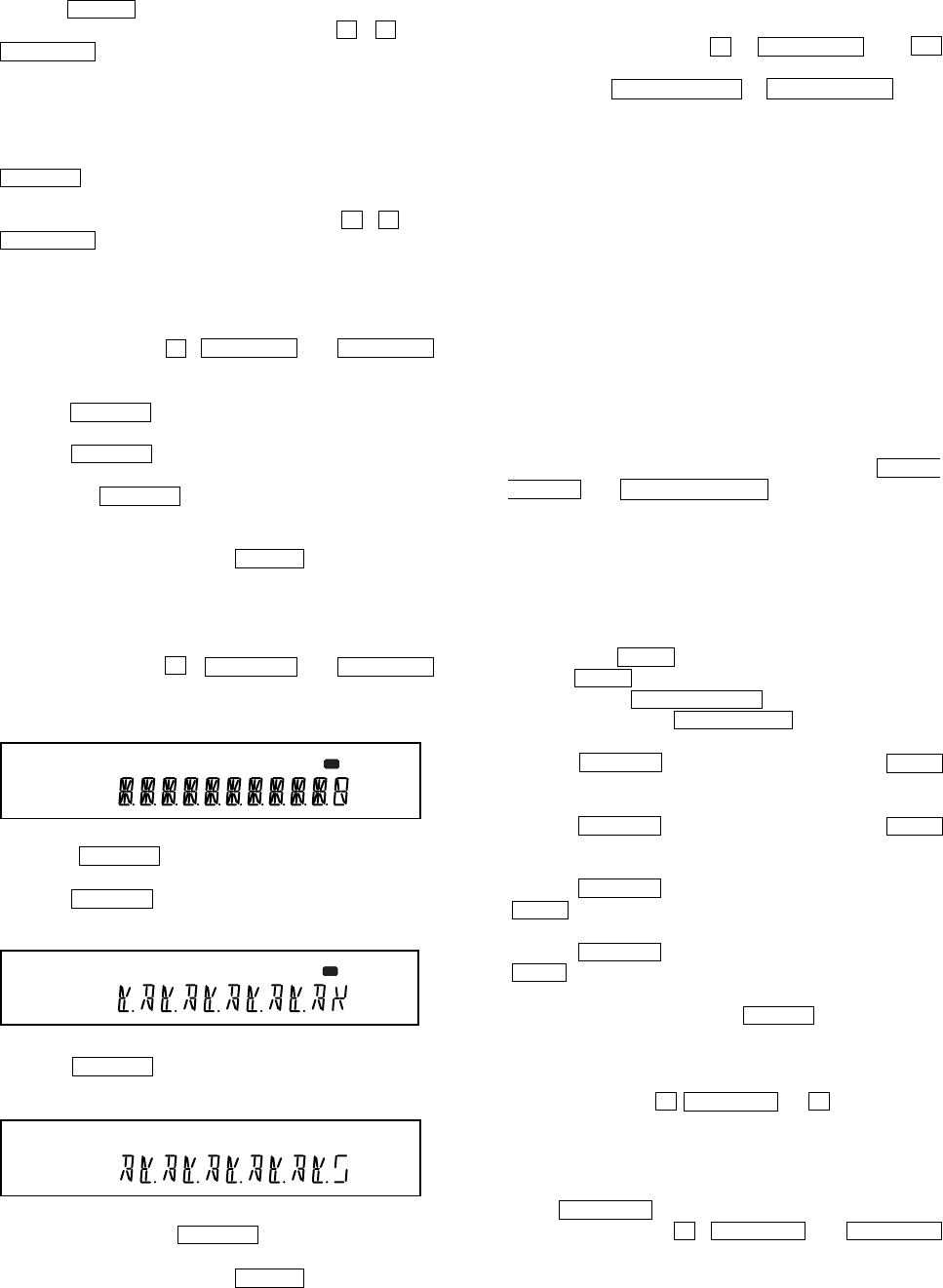

TEST MODE
[KEY TEST]
*Key check and volume check.
Procedure:
1. Press the POWER button to turn the set on.
2. To enter the test mode, press three buttons of x , A and
FUNCTION simultaneously.
3. In the key check mode, the fluorecent indicator displays
“KEY00 VOL0”. Each time a button is pressed, “KEY**” value
increases. However, once a button is pressed, it is no longer
taken into account.
4. “VOL*” value increases like 0, 1, 2, 3, ... if rotating the
VOLUME knob clockwise, or it decreases like 0, 9, 8, 7, ... if
rotating counter-clockwise.
5. To exit from this mode, press three buttons x , A and
FUNCTION simultaneously.
[VERSION DISPLAY MODE]
*The software version is displayed.
Procedure:
1. Press three buttons of X , NEXT > and FUNCTION
simultaneously.
2. The microcomputer version and destination are displayed.
3. Press the DISPLAY button on the remote commander. The
STR version is displayed.
4. Press the DISPLAY button on the remote commander. The
DVD version is displayed.
5. Each time the DISPLAY button on the remote commander is
pressed, the display changes in the order of microcomputer
version/destination, STR and DVD.
6. To exit from this mode, press the POWER button.
[DISPLAY TEST MODE]
*Fluorescent segments are tested when this test is activated.
Procedure:
1. Press three buttons of X , . PREV and FUNCTION
simultaneously.
2. All segments are turned on.
3. When the DISPLAY button on the remote commander is
pressed, all segments are turned off.
4. Press the DISPLAY button on the remote commander, the
display will light up as follows and confirm the display.
5. Press the DISPLAY button on the remote commander, the
display will light up as follows and confirm the display.
6. Every pressing of the DISPLAY button on the remote
commander turns on each segments in the same order.
7. To exit from this mode, press the POWER button.
[AMP TEST MODE]
*SOUND FIELD and volume function is tested.
Note: In advance of Amp test mode SOUND FIELD is set except AFD
AUTO.
Procedure:
1. Press three buttons of x , NEXT > and H
simultaneously.
2. Every time the SOUND FIELD + or SOUND FIELD - button
on the remote commander is pressed, the following items
changes in the order as shown below.
“SWAP F2S” (Lch/Rch inputs are output to both FRONT Lch/
Rch and SURR Lch/Rch.)
“SWAP F2CW” (Lch input is output to CENTER and Rch
input is output to WOOFER.)
“SWAP FLL” (Lch or Rch input is output to all speakers.)
“EQ MIN” (Bass and treble equalizers are set to -6dB.)
“EQ MAX” (Bass and treble equalizers are set to +6dB.)
“SRAM CHECK” (Not for service)
3. In the case of headphone inserted, every time the SOUND
FIELD + or SOUND FIELD - button on the remote
commander is pressed, the following items changes in the order
as shown below.
“HP 2CH”
“HP SURR”
4. Each time the DDSG button on the remote commander is
pressed, DDSG will change to on or off.
5. Each time the NIGHT MODE button on the remote
commander is pressed, NIGHT MODE will change to on or
off.
6. When the VOLUME knob is turned clockwise or the VOL +
button on the remote commander is pressed, volume goes from
“VOLUME MIN” to “VOLUME 21”.
7. When the VOLUME knob is turned clockwise or the VOL +
button on the remote commander is pressed again, volume goes
to “VOLUME MAX”.
8. When the VOLUME knob is turned counter-clockwise or the
VOL - button on the remote commander is pressed, volume
goes to “VOLUME 21”.
9. When the VOLUME knob is turned counter-clockwise or the
VOL - button on the remote commander is pressed again,
volume goes to “VOLUME MIN”.
10. To exit from this mode, press the POWER button.
[FORCED RESET MODE]
Procedure:
1. Press three buttons of X , FUNCTION and A simultaneously.
2. The set is turned off and microcomputer is reset.
[DVD REPEAT 5 TIMES LIMIT RELEASE MODE]
Procedure:
1. Set the FUNCTION to DVD.
2. Press three buttons of x , NEXT > and FUNCTION
simultaneously.
3. DVD repeat 5 times limit is released.
IIPRO LOGIC
DIGITAL
MUTING
SLEEP
VCDJPEG
STEREOREP 1 TUNED
PBC
MONO
AUTO
NTSCTRAKTITLE CHAP DDSG
NX
NIGHTALBM
ALBM
SHUF
MP3 MULTIPGM
kHz
MHz
a
a
dts
N
II
MUTING
V
REP TUNED
PBCTRAK CHAP NIGHT
ALBM
SHUF
MP3PGM
kHz
dts
X
PRO LOGIC
DIGITAL
SLEEP
CDJPEG
STEREO1
MONO
AUTO
NTSCTITLE DDSGALBM MULTI
MHz
a
a
19
HCD-EA20
[COLOR SYSTEM SELECTION]
*Color system can be changed to PAL or NTSC.
Procedure:
1. Set the FUNCTION to DVD.
2. Turn off the main power.
3. Press two buttons . PREV and POWER simultaneously.
4. The color system is changed to PAL or NTSC.
[DISC TRAY LOCK]
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Setting Procedure :
1. Press the POWER button to turn the set on.
2. Press two buttons of x and A simultaneously for five seconds.
3. The message “LOCKED” is displayed and the tray is locked.
Releasing Procedure :
1. Press two buttons of x and A simultaneously for five seconds
again.
2. The message “UNLOCKED” is displayed and the tray is
unlocked.
Note: When “LOCKED” is displayed, the tray lock is not released
by turning power on/off with the POWER button.
[DVD SERVICE MODE (OSD)]
Procedure:
1. Press the POWER button on the main unit or the ?/1 button
on the remote commander to turn the set on.
2. Set the FUNCTION to DVD.
3. While pressing two buttons of x and A , turn the VOLUME
knob clockwise to enter the test mode.
4. The message “SERVICE IN” is displayed on the display. The
Test Mode Menu is displayed on the TV screen.
5. To execute each function, select the number on the remote
commander.
6. See the following section for explanation in detail.
7. To exit from this mode, press the POWER button.
[INTERLACE FORCED SETTING MODE]
*The video signal format is forced to set to interlace.
Procedure:
1. Set the FUNCTION to DVD.
2. Press three buttons of x , . PREV and FUNCTION
simultaneously.
3. The video signal format is forced to set to interlace.
[GENERAL DESCRIPTION]
The Test Mode allows you to make diagnosis and adjustment easily
using the remote commander and monitor TV. The instructions,
diagnostic results, etc. are given on the on-screen display (OSD).
[TEST DISC LIST]
Use the following test disc on test mode.
TDV-520CSO (DVD-SL): PART No. J-2501-236-A
LUV-P01 (CD): PART No. 4-999-032-01
TDV-540C (DVD-DL): PART No. J-2501-235-A
Note: Do not use exiting test disc for DVD.
[STARTING TEST MODE]
1. Press the POWER button to turn the power on, and set the
function to DVD.
2. While pressing the x and Abutton, turn the VOLUME
knob clockwise to enter the test mode.
3. It displays “SERVICE IN” on the fluorescent indicator tube,
and displays the Test Mode Menu on the monitor screen as
follows. (At the bottom of the menu screen, the model name
and revision number are displayed)
Test Mode Menu
0. Syscon Diagnosis
1. Drive Auto Adjustment
2. Drive Manual Operation
3. Mecha Aging
4. Emergency History
5. Mecha Error History
6. Version Information
7. Video Level Adjustment
Exit: POWER Key
Model :DAV-EA20 xx
Revision :x.xx
4. To execute each function, select the desired menu and press its
number on the remote commander (RM-SS200).
5. To release from test mode, press the POWER button and turn
the power off.
[OPERATING TEST MODE]
0. SYSCON DIAGNOSIS
The same contents as board detail check by serial interface can be
checked from the remote commander operation.
On the Test Mode Menu screen, press [10/0] key on the remote
commander, and the following Check Menu will be displayed.
### Syscon Diagnosis ###
Check Menu
0. Quit
1. All
2. Version
3. EEPROM
4. GPIO
5. SD Bus
6. Video
0-0. Quit
Quit the Syscon Diagnosis and return to the Test Mode Menu.
20
HCD-EA20
0-1. All (All items continuous check)
This menu checks all diagnostic items continuously. Normally, all
items are checked successively one after another automatically
unless an error is found, but at a certain item that requires judgment
through a visual check to the result, the following screen is displayed
for the key entry.
•Example display
### Syscon Diagnosis ###
Diag All Check
No.2 Version
2-3. ROM Check Sum
Check Sum = 7BC6
Press NEXT Key to Continue
Press PREV Key to Repeat
For the ROM Check, the check sum calculated by the Syscon is
output, and therefore you must compare it with the specified value
for confirmation.
Following the message, press the [NEXT ] button to go to the
next item, or press the [ PREV] button to repeat the same
operation again.
To quit the diagnosis and return to Check Menu screen, press the
[RETURN] key on the remote commander to display Check Menu.
•Error occurred
If an error occurred, the diagnosis is suspended and error is displayed.
Press the [RETURN] key on the remote commander to quit the
diagnosis, or press the [ PREV] button to repeat the same check
where an error occurred, or press the [NEXT ] button to continue
the check from the item next to faulty item.
General Description of Checking Method
Selecting 2 and subsequent items calls the submenu screen of each
item. And selecting 2 and subsequent items executes respective
menus and outputs the results.
For the contents of each submenu, see “Check Items List” as below.
Check Items List:
0-2. Version
0-2-1. All
0-2-2. Revision
0-2-3. ROM Check Sum
0-2-4. Model Type
0-2-5. Region
0-3. EEPROM Check
0-3-1. Sampling Check
0-3-2. Detail Check
0-4. GP I/O Check
0-5. SD Bus Check
0-6. Video Check
0-2. Version
0-2-2. Revision
The revision number of ROM (IC206) that the program for
the DVD system processor (IC207) is stored.
0-2-3. ROM Check Sum
Check sum is calculated. (4 digits hexadecimal number)
>
.
>
.
0-2-4. Model Type
Model name is displayed. (DAV-EA20)
0-2-5. Region
Model destination code is displayed. (2 digits number)
0-3. EEPROM Check
0-3-1. Sampling Check
EEPROM check at every 64 words.
It compares read data with write data of each address. When
there are discrepancies between two data, it displays error.
0-3-2. Detail Check
EEPROM check at every 1 word.
It compares read data with write data of each address. When
there are discrepancies between two data, it displays error.
0-4. GP I/O Check
Pull up/down setting check of the DVD system processor (IC207)
pin 150, 151 and 154 (for clock setting port).
0-5. SD Bus Check
SD bus data check between DVD decoder (IC701) and D-RAM
(IC706).
0-6. Video Check
Output the color bars for video level adjustment.
1. DRIVE AUTO ADJUSTMENT
On the Test Mode Menu screen, press the [1] key on the remote
commander, and the Adjustment Menu will be displayed.
## Drive Auto Adjustment ##
Adjustment Menu
0. ALL
1. DVD-SL
2. CD
3. DVD-DL
Exit: RETURN
Normally, [10/0] is selected to adjust DVD (single layer), CD and
DVD (dual layer) in this order. But, individual items can be adjusted
for the case where adjustment is suspended due to an error. In this
mode, the adjustment can be made easily through the operation
following the message displayed on the screen.
The disc used for adjustment must be the one specified for
adjustment.
1-0. ALL
Press the [10/0] key on the remote commander, and the servo set
data in EEPROM will be initialized. Then, 1. DVD-SL disc, 2. CD
disc and 3. DVD-DL disc are adjusted in this order.
Each time one disc was adjusted, it is ejected. Replace it with the
specified disc following the message. You can finish the adjustment
by pressing the [RETURN] button on the remote commander.
Note: During adjustment of each disc, the measurement for disc type judg-
ment is made. As automatic adjustment does not judge the disc
type unlike conventional models, take care not to insert wrong type
discs. Also, do not give a shock during adjustment.
21
HCD-EA20
1-1. DVD-SL (single layer)
Press the [1] key on the remote commander and insert a DVD single
layer disc following the message. Then the adjustment will be made
through the steps below, then adjusted values will be written to the
EEPROM.
DVD Single Layer Disc Adjustment Steps:
1. Sled tilt reset
2. Disc check memory SL
3. Wait 300 msec
4. Set disc type SL
5. LD on
6. Spindle start
7. Wait 1 sec
8. Focus servo on 0
9. Auto track offset adjust
10. CLVA on
11. Wait 500 msec
12. Tracking on
13. Wait 1 sec
14. Sled on
15. Check CLV on
16. Auto LFO adjust
17. Auto focus offset adjust
18. Auto tilt position adjust
19. Auto focus gain adjust
20. Auto focus offset adjust
21. EQ boost adjust
22. Auto loop filter offset adjust
23. Auto track gain adjust
Search Check
24. 32 track jump forward
25. 32 track jump reverse
26. 500 track jump forward
27. 500 track jump reverse
28. All servo stop
29. EEP copy loop filter offset
1-2. CD
Press the [2] key on the remote commander and insert a CD disc
following the message. Then the adjustment will be made through
the steps below, then adjusted values will be written to the EEPROM.
CD Adjustment Steps
1. Sled tilt rest
2. Disc check memory CD
3. Wait 500 msec
4. Set disc type CD
5. LD on
6. Spindle start
7. Wait 500 msec
8. Focus servo on 0
9. Auto track offset adjust
10. CLVA on
11. Wait 500 msec
12. Tracking on
13. (TC display start)
14. Wait 1 sec
15. Jitter display start
16. Sled ON
17. Check CLV on
18. Auto loop filter offset adjust
19. Auto focus offset adjust
20. Auto focus gain adjust
21. Auto focus offset adjust
22. EQ boost adjust
23. Auto LFO Adjust
24. Auto track gain adjust
Search Check
25. 32Tj forward
26. 32Tj reverse
27. 500Tj forward
28. 500Tj reverse
29. All servo stop
1-3. DVD-DL (dual layer)
Press the [3] key on the remote commander and insert a DVD dual
layer disc following the message. Then the adjustment will be made
through the steps below, then adjusted values will be written to the
EEPROM.
DVD Dual Layer Disc Adjustment Steps:
1. Sled tilt reset
2. Disc check memory DL
3. Wait 500 msec
4. Set disc type DL
5. LD on
6. Spindle start
7. Wait 1 sec
Layer 1 Adjust
8. Focus servo on 0
9. Auto track offset adjust
10. CLVA on
11. Wait 500 msec
12. Tracking on
13. Wait 500 msec
14. Sled on
15. Check CLV lock
16. Auto loop filter offset adjust, Auto focus adjust
17. Auto focus gain adjust
18. Auto focus offset adjust
19. EQ boost adjust
20. Auto loop filter offset adjust
21. Auto Track Gain Adjust
Search Check
22. 32 track jump forward
23. 32 track jump reverse
24. 500 track jump forward
25. 500 track jump reverse
Layer 0 Adjust
26. Focus jump (L1 t L0)
27. Auto track offset adjust L0
28. CLVA on
29. Wait 500 msec
30. Tracking on
31. Wait 500 msec
32. Sled on
33. Check CLV lock
34. Auto focus filter offset adjust
35. Auto Focus Adjust
36. Auto focus gain adjust
37. Auto focus offset adjust
38. EQ boost adjust
39. Auto Loop Filter Offset
40. Auto track gain adjust
Search Check
41. 32 track jump forward
42. 32 track jump reverse
43. 500 track jump forward
44. 500 track jump reverse
Layer Jump Check
45. Layer jump (L0 t L1)
46. Layer jump (L1 t L0)
47. All servo stop
22
HCD-EA20
2. DRIVE MANUAL OPERATION
Note: This mode is used for design, and not used in service fundamen-
tally.
On the Test Mode Menu screen, press the [2] key on the remote
commander, and the Operation Menu will be displayed. For the
manual operation, each servo on/off control and adjustment can be
executed manually.
## Drive Manual Operation ##
Operation Menu
1. Disc Type
2. Servo Control
3. Track/Layer Jump
4. Non EEPROM Write Adjust
5. EEPROM Write Adjust
6. Memory Check
7. Disc Check Memory
8. Error Rate Display
9. SACD Water Mark
Exit: RETURN
In using the manual operation menu, take care of the following
points. These commands do not provide protection, thus requiring
correct operation. The sector address or time code field is displayed
when a disc is loaded.
Note:
1. Set correctly the disc type to be used on the Disc Type screen.
2. In case of an alarm, immediately press the x button to stop the
servo operation, and press the POWER button to turn the power
off.
Basic operation:
(controllable from front panel or remote commander)
POWER / @/1 :Power OFF (release the Test Mode)
x :Servo stop
A:Stop and eject/Loading
[RETURN] :Return to Operation Menu or Test
Mode Menu
[ PREV], [NEXT ] :Transition between sub modes of menu
[1] to [9], [10/0] :Selection of menu items
Cursor o/O:Increase/Decrease in manually
adjusted value
>
.
2-1. Disc Type
Disc Type
Disc Type Select
1. Disc Type Auto Check
2. Set Disc Type DVD
3. Set Disc Type CD
4. Set Disc Type Hybrid
Exit: RETURN
2-1-1. Disc Type Auto Check
1) Press the [1] key on the remote commander to display the Disc
Type Auto Check screen.
2) Insert a disc and press the [ENTER] key on the remote
commander.
3) It judges the type of inserted disc automatically and displays
the disc type and so on as below.
Disc Type Auto Check
Disc Type xx
Layer xx
Mirr Time xx
Mirr Count xx
FZC Count xx
PI Reference xx
PI Peak xx
ENTER.Execute
Exit: RETURN
Disc Type : CD, DVD or Hybrid (SACD)
Layer : SINGLE, DUAL or HYBRID
Mirr Time : Mirror time of between disc surface and record
surface when disc type judgment. (hexadecimal
number)
Mirr Count : The number of times which mirror counts between
disc surface and record surface when disc type
judging. (hexadecimal number)
FZC Count : The number of times which focus zero cross points
of each layer when lens down. (hexadecimal number)
PI Reference : The average of PI reference voltage. (hexadecimal
number)
PI Peak : PI peak level voltage. It performs only when disc
type judgment is successful. (hexadecimal number)
2-1-2. Disc Type DVD
It sets up so that it may judge as a disc type of specification of the
disc with which the set was inserted.
[1]: DVD single layer disc (12 cm)
[2]: DVD dual layer disc (0 layer, 12 cm)
[3]: DVD dual layer disc (1 layer, 12 cm)
[4]: DVD-RW disc (12 cm)
[5]: DVD single layer disc (8 cm)
[6]: DVD dual layer disc (0 layer, 8 cm)
[7]: DVD dual layer disc (1 layer, 8 cm)
23
HCD-EA20
2-1-3. Disc Type CD
It sets up so that it may judge as a disc type of specification of the
disc with which the set was inserted.
[1]: CD disc (normal speed, 12 cm)
[2]: CD disc (double speed, 12 cm)
[3]: CD disc (normal speed, 8 cm)
[4]: CD disc (double speed, 8 cm)
[5]: CD-RW disc (normal speed, 12 cm)
[6]: CD-RW disc (double speed, 12 cm)
[7]: CD-RW disc (normal speed, 8 cm)
[8]: CD-RW disc (double speed, 8 cm)
2-1-4. Disc Type Hybrid
It sets up so that it may judge as a disc type of specification of the
disc with which the set was inserted.
[1]: SACD Hybrid disc (SACD layer, 12 cm)
[2]: SACD Hybrid disc (CD layer, normal speed, 12 cm)
[3]: SACD Hybrid disc (CD layer, double speed, 12 cm)
[4]: SACD Hybrid disc (SACD layer, 8 cm)
[5]: SACD Hybrid disc (CD layer, normal speed, 8 cm)
[6]: SACD Hybrid disc (CD layer, double speed, 8 cm)
2-2. Servo Control
Note: Be sure to perform the disc type setup before performing this item.
Servo Control
1.LD off R.Sled FWD
2.Focus off L.Sled REV
3.SPDL off U.Sled Reset
4.CLVA off D.Sled Limit
5.Trk. off
6.Sled off
7.Fcs.Srch off
0.All Servo Off
Exit: RETURN
On this screen, the servo on/off control necessary for replay is
executed. Normally, turn on each servo from 1 sequentially and
when CLVA is turned on, the usual trace mode becomes active. In
the trace mode, DVD sector address or CD time code is displayed.
This is not displayed where the spindle is not locked.
The spindle could run overriding the control if the spindle system is
faulty or RF is not present. In such a case, do not operate CLVA.
[1] LD : Turn on/off the laser.
[2] Focus : Search the focus and turn on the focus.
[3] SPDL : Turn on/off the spindle.
[4] CLVA : Turn on/off normal servo of spindle servo.
[5] Trk. : Turn on/off the tracking servo.
[6] Sled : Turn on/off the sled servo.
[7] FCS. Srch : Turn on/off the focus search.
[8] FCS. OppL : Turn on/off the focus search to another layer
of designated layer in Disc Type setting. (dual
layer disc only)
[10/0] :All servo off.
[R] Sled FWD (right cursor) : Move the sled forward.
[L] Sled REV (left cursor) : Move the sled reverse.
[U] Sled FWD (up cursor) : Reset the sled.
[D] Sled REV (down cursor): Limit in the sled.
2-3. Track/Layer Jump
Track/Layer Jump
1. 1Tj FWD R.Lj L0>L1
2. 1Tj REV L.Lj L1>L0
3.500Tj Fine FWD U.Fj L0>L1
4.500Tj Fine REV D.Fj L1>L0
5.10kTj Dirc FWD
6.10kTj Dirc REV
7.20kTj Dirc FWD
8.20kTj Dirc REV
0. All Servo Off
Exit: RETURN
On this screen, track jump, etc. can be performed. Only for the DVD
dual layer disc, the focus jump and layer jump are displayed in the
right field
[1] 1Tj FWD : 1 track jump forward.
[2] 1Tj REV : 1 track jump reverse.
[3] 500Tj FWD: 500 track jump (fine search)forward.
[4] 500Tj REV : 500 track jump (fine search) reverse.
[5] 10kTj FWD: 10k track jump (direct search) forward.
[6] 10kTj REV : 10k track jump (direct search) reverse.
[7] 20kTj FWD: 20k track jump (direct search) forward.
[8] 20kTj REV : 20k track jump (direct search) reverse.
[10/0] :All servo off.
2-4. Non EEPROM Write Adjust
Non EEPROM Write Adjust
1. Focus Offset
2. Focus Gain
3. Trk. Offset Coarse
4. Trk. Offset Fine
5. Trk. Gain
6. EQ Boost
0.All Servo Off
Exit: RETURN
On this screen, each item can be adjusted manually. Select the desired
number [1] to [10/0] from the remote commander, and current
setting for the selected item will be displayed, then increase or
decrease numeric value with the Okey or okey. This value is
stored in the EEPROM. If CLV has been applied, the jitter is
displayed for reference for the adjustment.
[1] Focus Offset : Adjusts focus offset.
[2] Focus Gain : Adjusts focus gain.
[3] TRK. Offset : Adjusts tracking offset of the RF amp
(IC001) side.
[4] TRK. Offset : Adjusts tracking offset of the DSP (IC401)
side.
[5] TRK. Gain : Adjusts track gain.
[6] EQ Boost : Adjusts amount of boost of equalizer.
[10/0] :All servo off.
24
HCD-EA20
2-7. Disc Check Memory
Disc Check Memory
1. SL Disc check
2. CD Disc check
3. DL Disc check
Exit: RETURN
On this screen, measure the mirror time of chucked disc, and write
to the EEPROM.
2-8. Error Rate Display
Error Rate Display
UC CR Address
PI1 Err Now xx xxxx xxxxxxxx
Max xx xxxx xxxxxxxx
Avg xx xxxx
PI2 Err Now xx xxxx xxxxxxxx
Max xx xxxx xxxxxxxx
Avg xx xxxx
PO Err Now xx xxxx xxxxxxxx
Max xx xxxx xxxxxxxx
Avg xx xxxx
Start:ENTER Exit: RETURN
On this screen, measure and display the error rate.
UC : Incorrect value
CR : Correct value
2-9. SACD Water Mark Check (Not used)
SACD Water Mark Check
PSP AMP
PSN
Start: ENTER Exit: RETURN
On this screen, measure the PSP AMP value and PSN value of SACD
water mark.
2-5. EEPROM Write Adjust
EEPROM Write Adjust
1. Focus Offset
2. Focus Gain
3. Trk. Offset Coarse
4. ——————
5. Trk. Gain
6. EQ Boost
0.All Servo Off
Exit: RETURN
On this screen, each item can be adjusted automatically. Select the
desired number [1] to [10/0] from the remote commander, and
selected item is adjusted automatically.
[1] Focus Offset : Adjusts focus offset.
[2] Focus Gain : Adjusts focus gain.
[3] TRK. Offset : Adjusts tracking offset of the RF amp
(IC001) side.
[5] TRK. Gain : Adjusts track gain.
[6] EQ Boost : Adjusts amount of boost of equalizer.
[10/0] :All servo off.
2-6. Memory Check
Display images are shown as follows, and all two screens are able
to switch by the Okey (UP) or okey (DW).
EEPROM Data 1/2 CD SL L0 L1
Focus Gain xx xx xx xx
Trk. Gain xx xx xx xx
Focus Offset xx xx xx xx
Trk. Offset xx xx xx xx
EQ. Boost xx xx xx xx
PI Level xx xx -- --
Fcs. Balance -- xx -- --
Jitter xx xx xx xx
Mirror Time xx xx xx --
FE Level -- xx -- --
Traverse Lv1. -- xx -- --
Next:DW Default:CLR Exit:RET
EEPROM Data 2/2 CDRW DVDRW
Focus Gain xx xx
Trk. Gain xx xx
Focus Offset xx xx
Trk. Offset xx xx
EQ. Boost xx xx
Prev:UP Default:CLR Exit:RET
On this screen, current servo adjusted data stored in the EEPROM
are displayed. The adjusted data are initialized by pressing the
[CLEAR] key, but be careful that they are not recoverable after
initialization.
Before clearing the adjusted data, make a note of the set data. This
screen will also appear if [0]-All is selected in the Drive Auto
Adjustment. In this case, default setting cannot be made.
25
HCD-EA20
3. MECHA AGING
On the Test Mode Menu screen, selecting [3] executes the aging of
the mechanism deck.
### Aging Test MENU ###
** Pls use over 40min. CD **
Operation Menu
1. Open/Close Test
Exit: RETURN
1) On the Aging Test MENU screen, press the [1] key on the
remote commander to display the Open/Close Test screen.
2) Insert discs and press the [ENTER] key on the remote
commander.
3) Is starts the aging.
During aging, the disc number, operating status and repeat cycle
are displayed. Aging can be aborted at any time by pressing
the [RETURN] key. After the operation is stopped, press the
[RETURN] key to return to the Aging Test MENU.
4. EMERGENCY HISTORY
On the Test Mode Menu screen, selecting [4] displays the
information such as servo emergency history.
The history information from last 1 up to 10 can be scrolled with
the Okey or okey. Also, specific information can be displayed
by directly entering that number with ten keys.
### EMG. History ###
Laser Hours CD xxxxhxxm
DVD xxxxhxxm
a. bb xx xx xx xx xx xx xx
xx xx xx xx xx xx xx xx
a. bb xx xx xx xx xx xx xx
xx xx xx xx xx xx xx xx
Select:1-9 Scroll:UP/DOWN
(1.Latest EMG.) Exit: RETURN
xxxxhxxm: The laser on total hours. Data below minutes are
omitted.
a. : Error number.
bb : Error code.
xx : Not used.
•Clearing History Information
Clearing laser hours:
Press the [DVD DISPLAY] and [CLEAR] keys in this order.
Then both CD and DVD data are cleared.
Clearing emergency history:
Press the [DVD TOP MENU] and [CLEAR] keys in this order.
Initializing set up data:
Press [DVD MENU] and [CLEAR] keys in this order.
The data have been initialized when “EEPROM Initialize
Finished.”. message is displayed. The EMG. History screen
will be restored soon.
•Code list of Emergency History
10: Communication to RF AMP (IC001) failed.
11: Each servo for focus, tracking, and spindle is unlocked.
12: Check sum error of EEPROM (IC204).
14: Communication to servo DSP (IC509) failed, or servo DSP
(IC509) is faulty.
15: Communication to DVD decoder (IC701) failed, or DVD
decoder (IC701) is faulty.
16: Communication to DSD decoder failed, or DSD decoder is
faulty. (Not used)
20: Initialization of sled servo failed. It is not placed in the ini-
tial position.
23: Sled servo operation error.
24: Made a request to move the sled servo to wrong position.
30: Tracking balance adjustment error.
31: Tracking gain adjustment error.
33: Focus bias adjustment error.
34: Focus gain adjustment error.
35: Equalizer adjustment error.
40: Focus servo does not operate.
41: With a DVD dual layer disc, focus jump failed.
50: CLV (spindle) servo does not operate.
51: Spindle does not stop.
60: Made a request to seek nonexistent address.
61: Seek error of retry more than regulated times.
70: Control data could not be read.
80: Disc reading failed.
5. MECHA ERROR HISTORY
On the Test Mode Menu screen, selecting [5] displays the information
of mechanism deck error history.
The history information from last 1 up to 8 can be scrolled with the
Okey or okey.
### Mecha Error History ###
1. aa bb cc xx xx xx xx xx
2. aa bb cc xx xx xx xx xx
3. aa bb cc xx xx xx xx xx
4. aa bb cc xx xx xx xx xx
5. aa bb cc xx xx xx xx xx
6. aa bb cc xx xx xx xx xx
7. aa bb cc xx xx xx xx xx
8. aa bb cc xx xx xx xx xx
Scroll:UP/DOWN
(1.Latest Err.) Exit: RETURN
aa: Initialization is completed or not.
FF : Complete.
other number : Not complete.
bb:Operating status of mechanism deck at an error occurred.
(lod sq jcp)
00 : Initializing.
10 to 15 : Open operating.
16 to 19 : Kicking cause open failed.
1A to 1F : Open operating.
20 to 27 : Complete the open operation.
28 : No disc and complete the open operation.
29 to 2F : Complete the open operation.
30 to 3F : Close requesting.
40 to 4F : Open requesting.
50 to 5F : Close operating.
60 to 6F : Complete the chucking operation.
80 to 8F : Complete the release operation.
(BU is home position)
26
HCD-EA20
[TEST DISC LIST]
Use the following test disc on test mode.
TDV-520CSO (DVD-SL): PART No. J-2501-236-A
LUV-P01 (CD): PART No. 4-999-032-01
TDV-540C (DVD-DL): PART No. J-2501-235-A
Note: Do not use exiting test disc for DVD.
AUTO SERVO ADJUSTMENT
After parts related to the servo circuit (RF amplifier (IC001), DSP
(IC501), motor driver (IC501), EEPROM (IC903) so on) are
replaced, re-adjusting the servo circuit is necessary. Select “ALL”
at “1. DRIVE AUTO ADJUSTMENT” (Refer to page 28 in TEST
MODE) and adjust DVD-SL (single layer), CD and DVD-DL (dual
layer).
SECTION 5
ELECTRICAL ADJUSTMENT
90 to 9F : BU down operating.
A0 to AF : Opening/closing the shutter. Or stationary state in
open/close the shutter is enablement.
B0 to BF : BU up requesting.
C0 to CF : BU down requesting.
D0 to DF : BU upping.
E0 to EF : No disc checking in disc loading.
cc: Operating status of mechanism deck at an error occurred.
(lod oq jcp)
00 : Complete the operation.
10 to 1F : Open operating.
20 to 2F : Close operating.
30 to 3F : Release operating.
60 to 6F : Chucking operating.
70 to 7F : Kicking operating.
80 to 8F : Returning the BU to home position. (after kicking)
6. VERSION INFORMATION
On the Test Mode Menu screen, selecting [6] displays the ROM
version and region code.
The parenthesized hexadecimal number in version field is checksum
value of ROM.
## Version Information ##
IF con. Ver.x. xx
SYScon. Ver.x. xx (xxxx)
Model DAV-EA20
Region 0x
Config xxxxxxxx
Front End Ver.x.xx
Exit: RETURN
IF con. : The version of system controller (IC501).
SYScon. : The version of DVD system processor (IC207).
Front End: The version of mechanism controller (IC901).
7. VIDEO LEVEL ADJUSTMENT
On the Test Mode Menu screen, selecting [7] displays color bars
for video level adjustment. During display of color bars, OSD
disappears but the menu screen will be restored if pressing the
[RETURN] key.
27
HCD-EA20
SECTION 6
DIAGRAMS
6-1. CIRCUIT BOARDS LOCATION
MS-128 board
RF board
PANEL board
I/O board
AMP boar
d
DMB03 board
UCOM board
SUB TRANSFORMER board
STANDBY board
28
HCD-EA20
•Indication of transistor
CEB
These are omitte
d
Q
C
EB
These are omitte
d
For schematic diagrams.
Note:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•f: internal component.
•C: panel designation.
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•a: Through hole.
•b: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•A: B+ Line.
•B: B– Line.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
•Voltages and waveforms are dc with respect to ground in
service mode.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
no mark : STOP
•Circled numbers refer to waveforms.
•Signal path.
F: AUDIO
J: CD PLAY
c: DVD PLAY
d: TUNER
L: VIDEO
a: CHROMA
E: Y
e: AUX IN
•Abbreviation
RU : Russian model
Caution:
Pattern face side: Parts on the pattern face side seen from
(SIDE A) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE B) the parts face are indicated.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
2929
HCD-EA20
6-2. BLOCK DIAGRAMS – RF/SERVO SECTION –
• SIGNAL PATH
: CD
: DVD : VIDEO
: AUDIO
DETECTOR
1
63
3
4
5
6
9
10
11
12
14
15
16
13
18
17
62
61
53
52
54
55
59
60
DVDRFP
RFSIN
A2
B2
C2
D2
CD E
CD F
A
B
C
D
B
A
D
C
B
A
D
C
CD A
CD B
CD C
CD D
CDLD
CDPD
DVDLD
V125
DVDPD
ATOP
ATON
FNP
FNN
AIP
AIN
DIP
DIN 57
27
40
39
47
46
48
IC001
CD/DVD/SACD RF AMP,
FOCUS/TRACKING ERROR AMP
OPTICAL PICK-UP
BLOCK
(TDP022W)
2AXIS
DEVICE
FOCUS/
TRACKING
COIL
22
24
21
23
36 48
37 1
Q001
AUTOMATIC POWER
CONTROL (FOR DVD)
Q002
AUTOMATIC POWER
CONTROL (FOR CD)
Q901
LASER DIODE
SELECT
LASER
DIODE
(FOR CD)
LASER
DIODE
(FOR DVD)
FOCUS COIL
DRIVE
34 3
35 4
TRACKING COIL
DRIVE
32
31
33
34
20
22
19
8
40
41
39
43
31
32
29
30
SLED MOTOR
DRIVE
IC501
FOCUS/TRACKING COIL DRIVER,
SPINDLE, SLED MOTOR DRIVER
27
28
SPINDLE MOTOR
DRIVE
MM
(SPINDLE)
19
47
46 45
FFDR
FRDR
TFDR
TRDR
SFDR
SRDR
SLED_A
SLED_B
SLED
26
SE
TE
FE
RFDC
IC509
CD DECODER,
DIGITAL SERVO PROCESSOR
MIRR
FF
FR
FOK
COUT
SCLK
RF
A
B
C
D
F
E
CD LD
PD
DVD LD
FCS+
FCS–
TRK+
TRK–
SW
INLIM
D
C
B
A
RFAC
MIRR
DATA_RF
CLK_RF
SDEN
TE
FE
PI
TE
FE
PI
FE
TE
SDATA
SCLK
SDEN
LDON
FCS_JMP_2
FCS_JMP_1
50 RFAC
30
29 SLED MOTOR
DRIVE
MM
(SLED)
4042
36
42MNTR
BUFFER
MUTE12
20
MUTE34
21
MUTE5
22
TSD-M
13
7
10
43
FG
62
MUTE_2D
60
SP_ON
63
TSD-M
73
39
POWER SAVE A8
97
BUFFER
IC901 (1/2)
MECHANISM
CONTROLLER
61
7
LDON
28
INLIM
LDSEL
76 31
SDEN
2
FE
67
PI
66
COUT_CD
30
SDA
5
SCL
6
WP
7
15
SCOR
66
PCMD
67
BCK
65
LRCK
14
C2PO
17
WDCK
10
WFCK
80
EXCK
79
SBSO
BCLK
LRCK
C2PO
GSCOR
WFCK
EXCK
27M
SBSO
25
MDP
SCOR
SCOR
26
24
LOCK LOCK_CD
75
13
GFS GFS_CD
71
3
MUTE MUTE_CD
59
7
SENS SENS_CD
9
76
SQSO SQSO
52
SCLK_CD
72
4
DATA DATA_CD
49
63
MD2
71
XTAI
DOCTRL/
ISBTEST
3
77
SQCK 85
XRD XRD
17
58
GFS_DVD GFS
107
45
109
SCK_DSD
APE0
64
JIT
84
XWR XWR
18
12
XCS_DVD XCS
19
25
XRST_1882 XRST
164
22
INIT0_DVD XINT0
20
23
INIT1_DVD XINT1
21
SQCK
54
2
XRST XDRST
98
6
CLOK CLOK_CD
50
5
XLAT LAT_CD
27
FOK_CD
74
MIRR
29
TE
65
SDCLK_RF
82
SDATA_RF
83
44
38
42
VC
CE
26 SSTP
AVC
(1.65V)
MIRR
MIRR
DATA_RF
CLK_RF
SDEN
TE
FE
PI
26
HDB8
48
XHWR
46
HDRQ
53
XHAC
92
MNT1
17 WE
76
XMWR
33 OE
94
XMOE
18 RAS
78
XRAS
34 UCAS
95
XCAS
117 RFIN
135 SPO
137 MDIN2
170 XTL1
169 XTL2
167 XTAL
IC701
DVD DECODER
IC706
16Mbit
D-RAM
160 MDAT
158 BCLK
163 LRCK
155 C2PO
146 GSCOR
HDB0 – HDB7
MDB0 – MDB9,
MDBA – MDBF
I/O0 – I/O15A0 – A9
151 WFCK
147 EXCK
148 SBIN
BCLK
LRCK
C2PO
GSCOR
WFCK
EXCK
SCOR
SBSO
150 SCOR
IC703 (2/2)
BUFFER
IC703 (1/2)
COMPARATOR
IC906
CLOCK
GENERATOR
66-69, 71, 73-75, 96, 97,
99, 101, 102, 104-106
2-5, 7-10,
41-44, 46-49
44, 41, 39, 35,
32, 30, 27, 24
21-24,
27-32
MA0 – MA9
79, 80, 82-87,
89, 91
35 LCAS
TF
8
TR
FF
FR
FF
FR
TF
TR
7 8
XTI
XTO
D0 – D7
D0 – D7
10
SO2
13 3
SO3
MO1
X902
27MHz
14-21
172-176, 1, 2, 4
A0 – A7
A0 – A7
89-96
5, 7, 9-14
VIDEO
SECTION
VIDEO
SECTION
VIDEO
SECTION
VIDEO
SECTION
SD0 – SD7
A
XSRQ-ZIVA
D
C
27M
XDCK, XSAK, SDEF
XDCK
XSAK
SDEF
B
5
SDA_EEP
99
SCL_EEP 100
WP_EEP
6
MNT1
IC903
EEPROM
IC503
AMP
8
3030
HCD-EA20

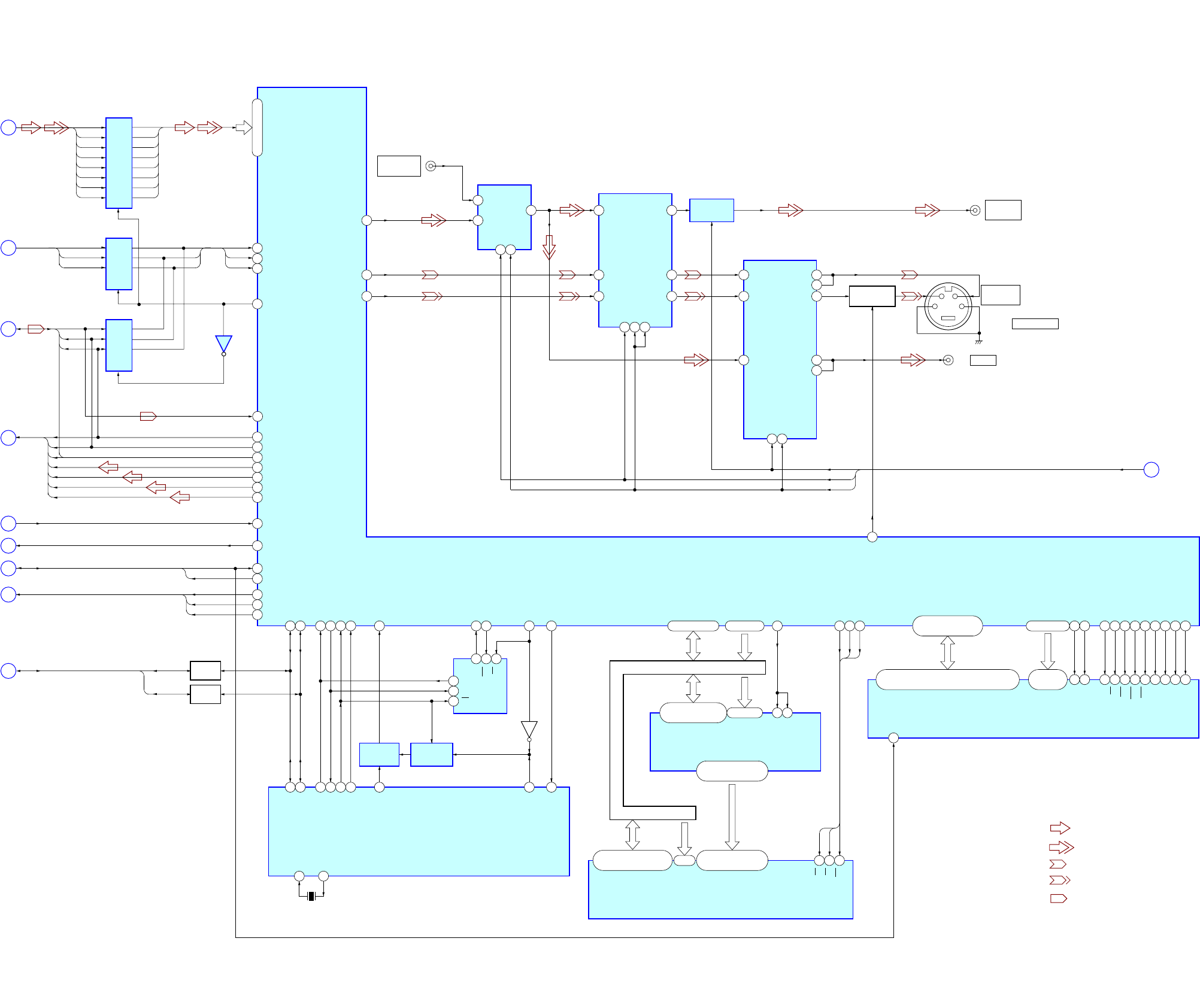

– VIDEO SECTION –
• SIGNAL PATH
: VIDEO
: Y
: CHROMA
: AUDIO
: TUNER
IC207
DVD SYSTEM PROCESSOR
125
VDAC_2
131
VDAC_0
Q251, 252
WIDE SWITCH
183 SDCLK
179 SDEN
182 SDERROR
192 INT/EXT
151 DATA1(FLR)
152 DATA2(SLR)
153 DATA3(CSW)
147 XCK
148 LRCK
149 BCK
150 DATA0(DM)
SDEF#
XDCK#
XSAK#
SDEF#
XDCK#
XSAK#
178 SDREQ
XSRQ_ZIVA
SDDATA0 – SDDATA7
177-174, 171-168
SD0 AV0
AV1
AV2
AV3
AV4
AV5
AV6
AV7
SD1
SD2
SD3
SD4
SD5
SD6
SD7
ADC_DATA
BCK
LRCK
BCK-ZIVA
DATA1
DATA2
DATA3
LRCK-ZIVA
XCK
XSAK
SDEF
XDCK
A
RF SERVO
SECTION
RF SERVO
SECTION
B
D
139 XIN
27M
C
202 RESET
110 MREQ
SYS RESET, MUTE REQ SYS RESET
G
I2CDATA, I2CCLK
I
AMP
SECTION
AUDIO
SECTION
AMP
SECTION
RE SERVO
SECTION
RE SERVO
SECTION
144 MC
143 MDI
145 ML
MC
MDI
ML
MDI, MC, ML
H
AUDIO
SECTION
AUDIO
SECTION
F
I2CCLK
I2CDATA
128
190
VDAC_1
J102(1/2)
IC151
VIDEO INPUT
SELECTOR
1IN1
7
2 4
OUT
SW1
SW2
5IN3
IC204
EEPROM
IC901 (2/2)
MECHANISM CONTROLLER
Q202
5DI
6DO
1 8
R/B
WC
3
CS
4SK
IC106
VIDEO SELECTOR
11B
93B
3
12 7
OUT1
CT2
CT3
14 2B
6
OUT3
5
OUT2
2
CT1
IC252
VIDEO AMP, 75Ω DRIVER
J101 (1/2)
J251
4VIN
3
MUTE1
31
VOUTB
30
VOUTA
2CIN
6YIN
33
COUT
28
YOUTB
27
YOUTA
VOUT
AV SEL1
AV SEL0
AV SEL2
15
MUTE2
VIDEO
VIDEO IN
12
34
IC251
75Ω DRIVER
IC904
FLIP-FLOP IC902
SWITCHING
CE
WE
OE
56 29
1LE
2LE
ALE
IC216
BUS INTERFACE
IC206
PROGRAMMABLE ROM
1D1 – 1D10, 2D1 – 2D6
55, 54, 52, 51,
49-47, 45-40, 38-36
57-60, 64-71, 75-78,
81-84, 88-95, 99-102
25-27,
60-66,24,21
2,4,5,7,8,10,11,13,74,76,77,79,80,82,83,85,31,
33,34,36,37,39,40,42,45,47,48,50,51,53,54,56
1Q1 – 1Q10, 2Q1 – 2Q9
HA1 – HA3HAD0 – HAD15
2, 3, 5, 6, 8-10, 12-17,
19-21, 23, 24, 26
22-18, 8-1, 48,
17, 16, 9, 10, 13
29,31,33,35,38,40,42,44,
30,32,34,36,39,41,43,45
ADDRESS BUS
DATA & ADDRESS BUS
DATA & ADDRESS BUS
22, 19-14, 11-3 2, 207, 206
2D7 – 2D9
HAD0 – HAD15 HA1 – HA3
HAD0 – HAD15 HA1 – HA3
HAD0 – HAD15 HA1 –
HA3
HA4 –HA22
34, 33, 31
26
CE
WE
28
OE
11
A3 – A21
195
HCS0
WEN.UDS
27
HREAD
25
CKE
69
A0 – A2
25-23
DQ0 – DQ15
56
MCLK
CE
WE
OE
IC203
128Mbit SD-RAM
68
CLK
DQ0 – DQ31 A0 – A11
MA0 – MA11
MD0 – MD31
42-33, 45, 46 49
MCS0
20
CS
53
MWE
17
WE
51
MRAS
19
RAS
52
MCAS
18
CAS
62
MDQM0
16
DQM0
73
MDQM1
71
DQM1
86
MDQM2
28
DQM2
97
MDQM3
59
DQM3
161
I2C_DA
78
I2C_SIO
160
I2C_CL
79
I2C_SCL
186
DRVTX
34
SO_ZIVA
187
DRVRX
33
SI_ZIVA
185
DRVCLK
35
SCK_ZIVA
184
HIRQ1
188
DRVRDY
36
DRVIRQ
37
DRVRDY
32
CS_ZIVA
191
RST_SPC
38
RST
116
HIRQ2
165
WRITE_CTRL(ZIVA_E2P)
162
CS_(ZIVA_E2P)
48
BA0
22
BS0
47
BA1
23
BS1
107
VS/WIDE
XTAL
EXTAL
41 40
X901
20MHz
VIDEO
VIDEO OUT
S VIDEO
(DVD ONLY)
MONITOR OUT
VIDEO
AV SEL0 – AV SEL2
J
AUDIO
SECTION
MUTE REQ
Q904
SWITCH
Q903
SWITCH
E
DATA0
IC256
D-FF
IC258
D-FF
IC259
D-FF IC255
157 DAI_DATA
3131
HCD-EA20
– AUDIO SECTION –
• SIGNAL PATH
: AUDIO
: AUX IN
: TUNER
• R-ch is omitted due
to same as L-ch.
J
AV SEL0 – AV SEL2
VIDEO
SECTION
ADC_DATA
BCK
LRCK
ADC_DATA, BCK, LRCK, XCK
84 PLL_DI
81 PLL_CLK
83 PLL_CE
80 TUNED
82 PLL_DO
IC501 (1/3)
SYSTEM CONTROLLER
Q123
J102 (2/2)
J171
Q122
IC101
AMP
FM/AM TUNER PACK
IC121
AUDIO INPUT
SELECTOR IC352
A/D CONVERTER
Q103
AMP
4Y3
2Y2
3
10 9
Y
AB
15
DOUT
14
BCK
13
LRCK
5Y1
1VINL
5VINR
R-CH
DO
CK
CE
TUNED
FM-DET
FM ANT
GND
AM ANT
GND
L-CH
R-CH
DI TUDO
TUCLK
TCE
TUNED
TUDI
RDSC
RDSD
R-CH
R-CH
R-CH
TUDO
TUCLK
TCE
TUNED
TUDI
COAXIAL
FM
75Ω
AM
XCK
16
SYSCK
77 AV SEL1
78 AV SEL2
76 AV SEL0
60 RDS_CLK
61 RDS_DATA
RDSC
RDSD
AV
SEL3
AV
SEL1
79 AV SEL3
AV SEL1
AV SEL2
AV SEL0
AV SEL3
69
AU OUT-MUTE
39
VL-DATA1
40
VL-DATA2
41
VL-DATA3
42
VL-CLK
DATA1
DATA2
DATA3
CLK
31
ATT
VIDEO
AUDIO IN
AUDIO IN
L
R
L
R
4
13 14
2
Q291
DET AMP 16
X291
4.332MHz
IC291
RDS DECODER
MUX
XI XO
RDATA
RCLK
IC111
LOW-PASS
FILTER
Q112, 212
MUTING
Q507
MUTING
CONTROL
J101 (2/2)
VIDEO
AUDIO OUT
L
R
Q121
ATT
VIDEO
SECTION
E
34
TA-MUTE
Q972
MUTING
CONTROL
Q521, 522
MUTING
Q551, 552
MUTING
Q511, 512
MUTING
IC522
ELECTRONIC
VOLUME
1VIN1
8
4 5
2
7
VIN2
DATA
CLK
VO1
VO2
IC552
ELECTRONIC
VOLUME
1VIN1
8
4 5
2
7
VIN2
DATA
CLK
VO1
VO2
IC502
ELECTRONIC
VOLUME
1VIN1
8
4 5
2
7
VIN2
DATA
CLK
VO1
VO2
31 DATA4
DATA3
CLK
45 DATA1
46 DATA2
47 DATA3
41 LRCK
40 BCK
IC521
LPF
IC551
LPF
IC501
LPF
IC302
D/A CONVERTER
14
VOUT1
13
VOUT2
10
VOUT5
12
VOUT3
34 MDI
35 MC
36 ML
MDI
MC
ML
11
VOUT4
9
VOUT6
FL
FR
C
SL
SR
57
31
57
31
57
31
SW
FL
FR
C
SL
SR
SW
DATA1
DATA0
DATA3
DATA2
LRCK-ZIVA
BCK-ZIVA
XCK 38 SCKI
AMP
SECTION
K
VIDEO
SECTION
H
VIDEO
SECTION
F
16
VOUT7
20
VOUT8
DM-L
DM-R
FL
FR
C
SL
SR
SW
DATA2
CLK
DATA1
CLK
3232
HCD-EA20
– AMP SECTION –
• SIGNAL PATH
: AUDIO
HP-MUTE
HP-SW
J851
J301
(+)
(–)
Q505
MUTING
CONTROL
FRONT
L
27 FL DATA
29 FL CLK
6FL STB
(+)
(–)
FRONT
R
(+)
(–)
IC501 (2/3)
SYSTEM CONTROLLER
IC401
POWER AMP
IC802
FL DRIVER
91
HP-SW
7
DIN
8
CLK
9
STB
(+)
(–)
(+)
(–)
SURR
L
(+)
(–)
Q401
STANDBY
CONTROL
43
F-RELAY
45
PROTECT-IN
SURR
R
CENTER
SPEAKER
WOOFER
PHONES
FL801
FLUORESCENT
INDICATOR TUBE
Q881 - 882
MUTING
Q503, 504
SIRCS DETECT
FL, FR, SL, SR, C, SW
K
AUDIO
SECTION
VIDEO
SECTION
VIDEO
SECTION
32
HP MUTE
HP-SW
HP-MUTE
SG1 – SG16
44
R-RELAY
14 – 29
GR1 – GR12
42 – 31
21 KEY INT
I2CDATA,
I2CCLK
I
SYS RESET, MUTE REQ
G
28 SIRCS
S800
ROTARY
ENCODER
IC801
REMOTE CONTROL
RECEIVER
VOLUME
96 – 94
KEY0 – KEY2
KEY0
S811 – 814,
S821 – 823,
S831
12 4
CH2IN CH2OUT
8 3
10
CH1IN CH1OUT
STBY
20 RM_INT
93 EN B
92 EN A
47 DVD SYS RESET
38 I2C-CLK
37 I2C-DATA
I2CCLK
I2CDATA
46 DVD MUTE REQ
SYS RESET
MUTE REQ
15
14 X501
5MHz
X2
X1
88
STBY LED
33STK-MUTE
D812
STANDBY
RELAY
DRIVER
Q462, 463
RELAY
DRIVER
Q381, 382
RELAY
DRIVER
Q383
RELAY
DRIVER
Q331, 332
IC301
POWER AMP
20 12
CH2IN CH2OUT
16 11
CH1IN CH1OUT
21 23
CH3IN CH3OUT
1
6
CH5IN
CH5OUT
5
CH4OUT
RY461
RY381
RY331
RY382
PROTECT
SWITCH
Q473, 474, 477
OVERLOAD
DETECT
Q411, 461
OVERLOAD
DETECT
Q322, 372
OVERLOAD
DETECT
Q321, 371
OVERLOAD
DETECT
Q323
THP471
RELAY
DRIVER
Q476
DC DETECT
Q478, 479
TEMP
DETECT
Q472
Q424 - 426
FAN CONTROL
FAN
FL
FR
C
SL
SR
SW
3333
HCD-EA20

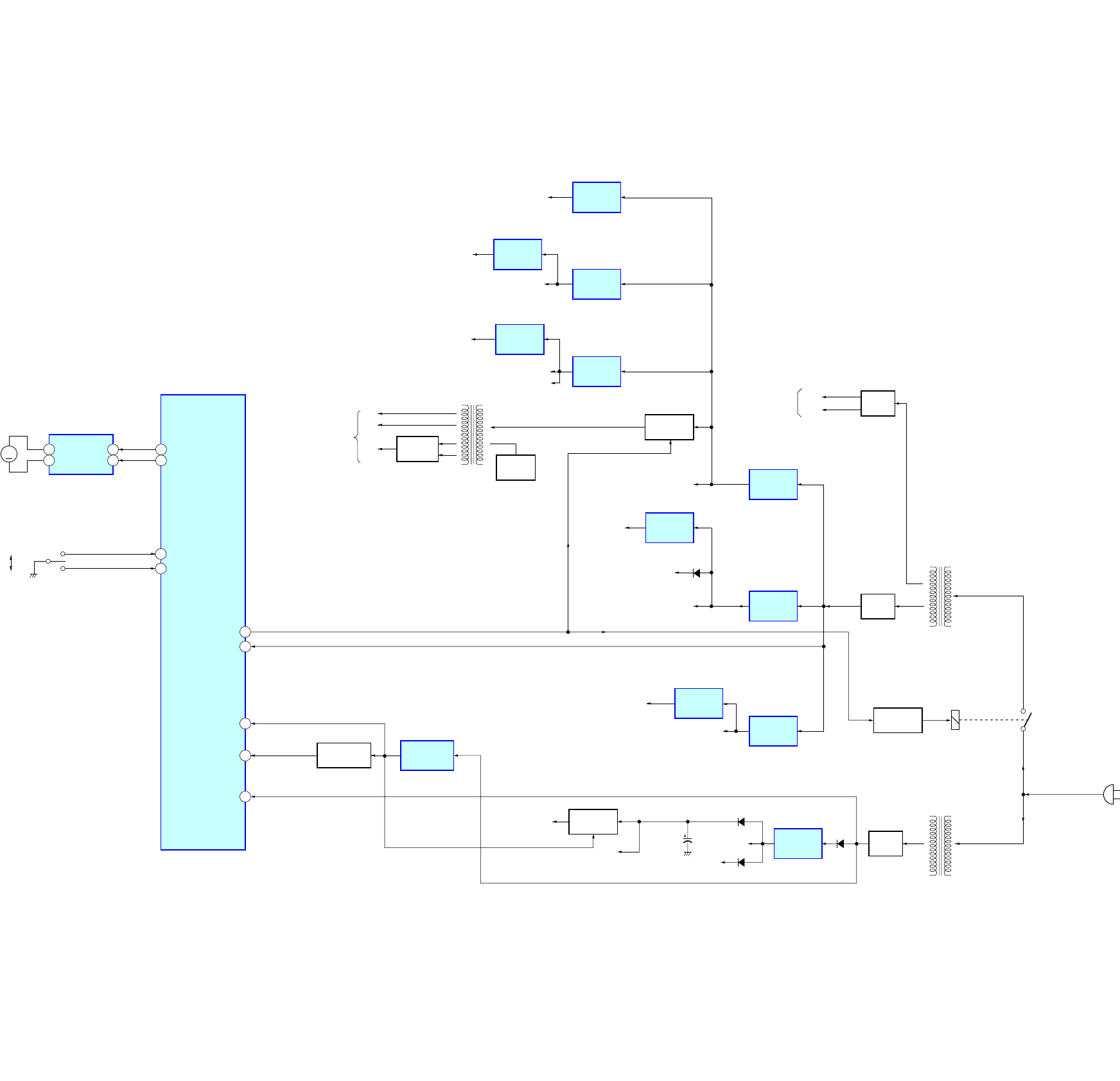

– POWER SUPPLY SECTION –
(AC IN)
13V
+VCC
-VCC
TO
POWER
AMP
Q901
RELAY DRIVE
Q681
RESET SWITCH
D952
RECT
D951
RECT
IC951
+13V
REGULATOR
IC654
+10V
REGULATOR
IC952
+6.8V
REGULATOR
M12V
10V
Q501, 502
B+ SWITCH
VDD
(KEY, ENC CIRCUIT)
IC953
+3.3V
REGULATOR
+6.8V
IC653
+3.9V
REGULATOR
IC907
+3.3V
REGULATOR
D5V
+3.9V
A3V-2
(ZIVA)
IC652
+5V
REGULATOR
V5V
F1
F2
VFL
IC392
+3.3V
REGULATOR
AUDIO D3.3V
IC651
+5V
REGULATOR
A5V
TO FLUORESCENT
INDICATOR TUBE
DC/DC
CONVERTER
T801
Q601, 602
B+ SWITCH
DVD 3.3V
IC211
+1.8V
REGULATOR
IC911
+4V
REGULATOR
E3.9V
VDD
C681
0.22F
VDD
+1.8V
IC681
RESET SIGNAL
GENERATOR
T902
MAIN
TRANSFORMER
T901
SUB
TRANSFORMER
D911-914
RECT
RECT
D806 – 809
OSC
Q803, 804
16RESET
2SUBTRANS-MONITOR
23AC_CUT
1UNREG MONITOR
9AC ON/OFF
IC501 (3/3)
SYSTEM CONTROLLER
LOD_POSI
LOD_NEG
OUT1 FIN
OUT2 RIN
IC671
LOADING MOTOR DRIVE
(LOADING)
M
7
9
4
2
19
24
OUT SW
IN SW
26
OUT
IN
25
S001
(DISC IN/OUT)
D651, 652
D915
D684
D683
RY901
3434
HCD-EA20
6-3. PRINTED WIRING BOARD – RF SECTION – • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
Ref. No. Location
D001 C-11
D002 B-11
IC001 D-11
Q001 C-3
Q002 B-3
• Semiconductor
Location
(SIDE A)
RF BOARD (SIDE B)
RF BOARD
IC001
TO
DMB03 BOARD
CN501
D
E
E
OPTICAL PICK-UP
BLOCK
(TDP022W)
1-684-822-
11
(11) 1-684-822-
11
(11)
1
16
17 32
48
33
64 49
1 2 3 4 5 6 7 8 9 10 11 12 13
A
B
C
D
E
F
(Page 37)
3535
HCD-EA20
6-4. SCHEMATIC DIAGRAM – RF SECTION –
D
CN501
(2/8)
40
JL005
C011
R033
C036 R034
C039
C038
C037
C040
R021
JL007
C003 R010R008R007
IOP1
L002
C004D002
R006
C001
C010
R004R003
IOP2
L001
C002D001
R022
R025
R023
C016
C015
C014
R014
R013
R012
R011
R018
R017
R016
R015
C042
C020
C021
C022
C023
R024
R026C027C028
C029
C018
C017
C019
C024
C031
C033 C012 C005
R032
JL003
JL006
R029
R028
R027
JL002
JL001
C032
C034
C049
C009
C035
IC001
CN003
CN001
CN002
C025
C006 C013
R005 R009
R035
R019 R020
C041
R001
Q001 Q002
C008
R041
JL004
C030
C026
1000p
0
0.47
10M
0.033
0.033
330p
0.1
0
100
6.3V 4703333
10
16V
1SS355TE
-17
470
100
6.3V
1000p
3333
10
16V
1SS355TE
-17
220
100
820
2200p
2200p
2200p
0
0
0
0
0
0
0
0
180p
22p
22p
22p
22p
0
12k0.10.1
0.01
5600p
2200p
5600p
0.01
1000p
0.1 0.1 22
10V
100
0
0
0
0.047
0.1
0.1
0.1
0.1
CXD1881AR
9P
24P
29P
0.1
22
10V 0.1
47k 47k
0
00
0.1
100
2SB1132-T100-QR 2SB1132-T100-QR
0.1
1k
0.01
0.1
3737
HCD-EA20
6-7. PRINTED WIRING BOARD – DMB SECTION (SIDE A) – • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
Ref. No. Location
D202 C-4
D901 D-2
D1301 A-2
D1302 A-2
D1303 B-1
D1304 B-1
D1801 E-5
D1802 E-5
IC207 B-6
IC211 C-4
IC216 D-7
IC255 A-5
IC256 B-5
IC258 B-5
IC259 A-5
IC302 B-1
IC503 C-4
IC509 D-4
IC701 D-6
IC901 C-2
IC902 C-6
IC904 C-6
IC906 C-5
Q903 A-2
Q904 A-2
• Semiconductor
Location
IC901
IC509
IC701
IC207
IC503
IC211
IC906
IC904
IC902
IC216
IC259
IC256
IC255
IC258
IC302
TO
UCOM
BOARD
CN653
(Page 47)
TO
AMP
BOARD
CN302
(Page 52)
TO
UCOM
BOARD
CN611
(Page 47)
TO
I/O
BOARD
CN103
(Page 49)
TO
RF
BOARD
CN002
(Page 34)
FOR
CHECK
NOT
USED
1
3
3838
HCD-EA20
6-8. PRINTED WIRING BOARD – DMB SECTION (SIDE B) – • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
Ref. No. Location
D392 D-6
D393 D-7
D394 D-7
D1101 E-6
D1102 E-6
D1201 A-1
D1202 A-1
D1203 A-1
D1204 A-1
IC203 B-1
IC204 B-2
IC206 C-1
IC352 A-7
IC392 E-7
IC501 D-4
IC703 D-3
IC706 D-2
IC903 C-5
IC907 D-7
Q202 B-2
Q901 D-6
• Semiconductor
Location
IC352
IC392
IC907
IC903
IC204
IC703
IC706
IC203
IC206
IC501
D1203
D1204
D1201
D1202
3939
HCD-EA20

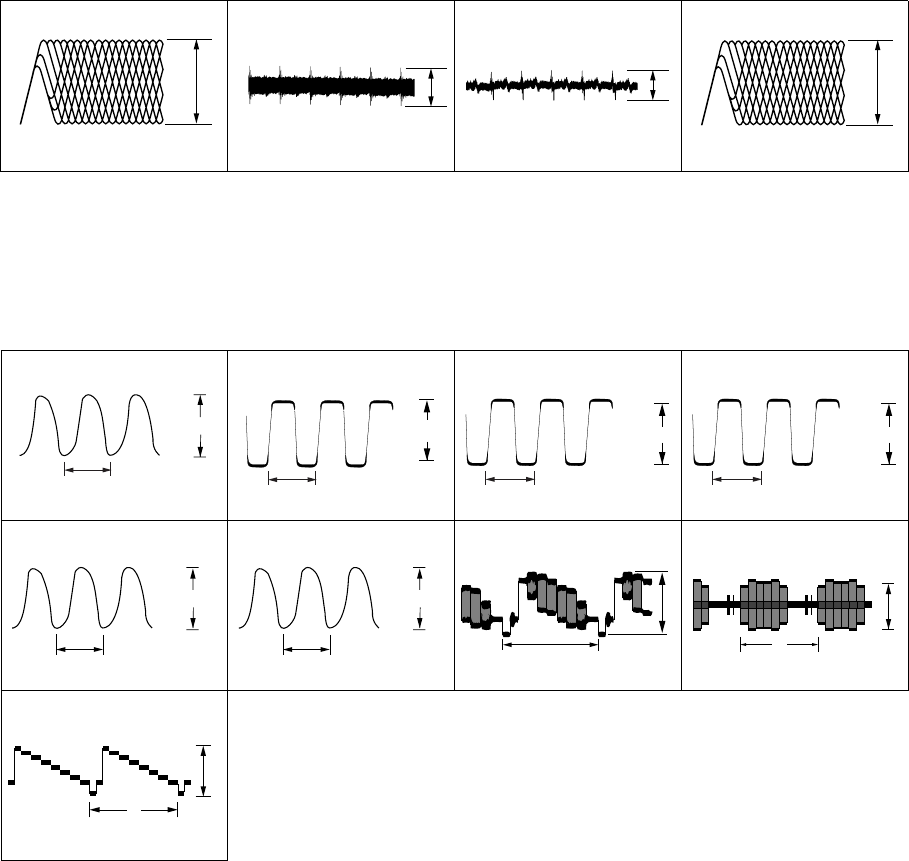

6-9. SCHEMATIC DIAGRAM – DMB SECTION (1/8) –
R328
R329
R335
R327
C356
C364
C366
FL352
IC352
R352
R353
C392 C394 JW392
C352
C363
C367
C368
C365
R362
C308
C309
R309
R311
R312
D392
IC392
C393
R392
D393
D394
C357
CL316
CL317
CL318
CL319
CL320
CL321
CL322
CL323
R1301
D1301
D1302
R1801
R1803
R1802
R1303
R1304
D1802
D1801
D1304
D1303
CN107
IC302
R310
FL303
JW601
JW602
JW603
JW604
JW605
JW606
JW607
JW806
JW805
JW804
JW803
JW802
JW801
FL302
SL302
R313
R314
C325 C326
C324
C323
C322
C321 R307
R306
R305
C305
C304R304
R303
R302
C303
C302
C306
C307
R308
CL309
CL310
CL311
CL312
CL313
CL314
CL315
SL392
C1304
C355
0
DAC_RST
22
16V 220
4V
0
1
50V
100 6.3V
100
6.3V
0UH
PCM1800E/2 K 0
0
220
220
0
100 6.3V
0.1
470p
470p
0.1
10k
100p
100p
220
100
100
1SS355TE-17
0.01
10
1SS355TE-17
1SS355TE-17
1
50V
0.1
1SS355TE-17
1SS355TE-17
100p
0.1
0.1
0
0
1SS355TE-17
1SS355TE-17
1SS355TE-17
1SS355TE-17
21P
PCM1609KPTR
100
0
10k
0
100 0.01
0.1
0.1
0.1
100
6.3V 220
220
220
0.01
0.01220
220
220
0.01
0.01
0.01
0.01
220
0
100
6.3V
0UH
AMP
CN302
(1/2)
(Page 44)
(Page 42)
(Page 45)
(Page 42)
(Page 42,44,45)
(Page 42)
(Page 44)
(Page 44)
(Page 53)
4040
HCD-EA20
6-10. SCHEMATIC DIAGRAM – DMB SECTION (2/8) –
C516
C517
C518
C522
FL501
FL502
C558
C592
R501
R502
R507
R508
R538
R539
R540
R541
R544
R555
R575
R576
R577
R578
R583
R585
R592 R695
R696
IC509
R698
IC503
CN501
R601
R615
C552
C502
C501
C531 C533
C534 C535
C544
C543
C545
C590
C589
R550
R551
R552
R559
R563
R564
R545
R548
R569
R587
C567
C568
R573
R694
R9988
R699
C569
C570
C556
C561
C548
C551 R593
R588
R584
CL505
CL504
CL503
CL502
CL501
CL544
CL537
CL536
CL535
CL531
CL530
CL529
CL527
CL526
CL525
CL524
CL523
CL522
CL509
CL510
CL511
CL512
CL513
CL514
CL515
CL516
CL517
CL518
CL519
CL520
CL521
C563
R568
C565
R572
R571
R566
R565
R567
C560
C559
C573 CL528
C553
C547
CL508
CL507
CL506
R536
R537
R599
R503 R504
R506
R505
R560
SL501
R558
SL502
R561
R562
C588
R629
0.0022
50V
B
10 10V F
0.01 50V F
0.1
6.3V
B
0UH
0UH
100
4V
10
16V
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
CXD3068Q
0
NJM3404AV(
TE2)
0.01
0.01
0.047 0.0022
0.022 0.0022
0.1
0.1
10
0.0022
0.0022
1k
1k
1k
1k
1k
1k
10k
10k
0
0
0.1
10
10k
10k
0
0
0.1
10
10
0.1
0.01
0.47 100k
10k
33k
10k
68k
1k
47k 47k
47k
47k
1k
47k
1k
1k
0.0022
0
29P
0
0
0
100p
1M
0.1
470k
1M
10k
1k
3.3k
0.0015
0.1
100p
0.0033
0.1
(Page 35)
(Page 42)
(Page 41)
4141
HCD-EA20
6-11. SCHEMATIC DIAGRAM – DMB SECTION (3/8) –
C764
R746
R745
C762
C730
C740
C741
C743
C744
C745
C723
C722
C714
C713
C718
C716
C708
C717
C712
C711
C709
C772
C770
C769
C767
C773
C771
R721 C720
R724
R726
R725
R720
C760
C763
C765
C768
C715
C706
R767
R765
C774
C775
R732
R737
R735
C776
IC703(2/2)
C742
R758
C778C777
C721
C726
C766
C725
C752
R780
R781
R728
R727
C728
C783
R799
C703
C729
C702
C780 C779
C727
C705
C781
C701
R738
R736
R734
R733
R9986
R9987
C724
R716
R718
R717
R719
R713
R712
R711
R710
R709
R708
R707
R764 R763
R762
R769
R750
IC703(1/2)
R714
R778
FL704
FL701
FL703
FL702
FL705
R741
R742
R743
R744
R757
R759
R755
R754
R753
R752
R766
R756
R731
R730
IC706
R777
R776
C782
FL706
R770
R748
R747
R784
R700
R788
R789
TP703
CL703
SL703
CL791
CL787
CL786
CL785
CL770CL771
CL772
CL773
CL774
CL775
CL776
CL777
CL778
R715
TP701
CL701
C761
R785
R786
R787
R751
IC701
0.1
47k
47k
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.47
0.01
0.01
100p
0.047
0.1
0.1
0.1
0.1
0.1
0.47
0.047
33k 0.1
1k
100k
1.8k
1k
0.1
0.1
0.1
0.1
0.0015
0.1
47k
22k
0.0047
0.1
10k
10k
10k
0.1
NJM3404AV(
TE2)
0.1
0
0.10.1
0.1
0.1
100p
0.1
0.1
0
0
10k
3.3k
0.1
0.0015
50V
B
0
0.1
10
10V
F10
10 10
10
0.01 16V B
150
4V
100
4V
10k
10k
10k
10k
0
0
0.1
100
10k
100k
1k
10k
10k
2.2k
10k
150k
470k
100
1M 8.2k
22k
2.2k
10k
NJM3404AV(
TE2)
10k
100k
0UH
0UH
0UH
0UH
0UH
22
22
22
22
0
0
0
0
0
0
0
0
22
22
MSM51V1816
5F-60TSKR1
0
0
0.0015 50V B
0UH
0
33k
33k
0
8.2k
100k
100k
10k
0.1
10k
100k
100k
0
CXD1882R
(Page 40)
(Page 43)
(Page 44)
• See page 73 for IC PIN FUNCTION DESCRIPTION.
4242
HCD-EA20
6-12. SCHEMATIC DIAGRAM – DMB SECTION (4/8) –
34
UCOM
CN653
CN102
CL932
CL931
CL933
CL935
CL937
CL943
CL942
CL941
CL940
CL939
C101
C151
D901
IC907
C927
C926
R535
R579
R534
R533
C514
R532
R530 R531
R529
C512
R528
R527C510
R525
R524
R521
R523
R586
R519
R520
C508
R517
R522
C509
C506
R516
R512
C503
C504
R513
C525
C528
C529
R554
R553
R597
R510
R511
C526
C527
JL521
R543 R547 R581
R589
C519
R580
C925
IC501
D1101
D1102
13P
220
4V
100
6.3V
1SS355TE-17
2
0.01 C928
10
50V
F
220
4V
0
8.2k
56k
33k
0.01
0
56k 0
33k
0.01
0
2.2k
0.001
10k
10k
100k
10k
200k
100k
10k
0.001
2.2k
4.7k
330p
330p
4.7k
56k
33000p
33000p
56k
0.01
22
16V
0.01
0
0
0
150k
150k
22
16V
0.01
50V
F
0012k
10k
0.01
33k
22 16V
FAN8035L
1SS355TE-17
1SS355TE-17
(Page 40)
(Page 43)
(Page 44)
(Page 45)
(Page 45)
(Page 44)
(Page 39)
(Page 39)
(Page 39,44,45)
(Page 39)
4343
HCD-EA20
6-13. SCHEMATIC DIAGRAM – DMB SECTION (5/8) –
42
48
UCOM
CN611
41
44
IC903
C918
R913
CN101
CL910
CL909
CL908
CL907
CL906
C924
R970
FL901 C902
C901
R958
R918
R919
R949
R948
R947
JL910
JL911
R962
R901
R902
C906
R978
R905
R906
R907
R911
R912
CL922
R991
R992
R974
R915
FL908
C909
C903
C904
JL967
JL966
JL965 R988
R916
C908
R917
R994
R995
CL934
JL957
JL956
R996
R997
R998
C913
R920
R990
R922
R984
R935
R925
R904
R926
R928
R929
R930
C905
R971
C910
R940
R910
R921
R973
R976
R942
R943
X901
IC902
IC904
C907
CL905
R931
IC906
R927
X902
C916
C917
L901
FL903
CL913
FB903
R932
R933
R934
CL904
FB902
CL903
FB901
CN901
CL954
CL959
CL955
CL950
CL951
CL952
CL953
R908
R975
Q904
Q903
Q901
R964
R923
C914
C915
IC901
BR24L16F-WE2
0.01
10k
5P
0.01
0
0UH 0.01
100
4V
22
22
0
0
0
0
10k
22
22
0.01
10k
22
22
22
10k
10k
0
0
0
100
0UH
100p
100
4V
0.01
0
1k
100p
1k
0
0
0
0
0
33000p
100
0
22
10k
4.7k
100
10k
100
100
100
100
0.01
0
0.01
100
0
100
0
0
100
100
20MHz
SN74AHC1G32DCKR
TC7W74FK-T
E85L
0.01
50V
F
22
SM8707GV-G
-E2
1M
27MHz
100
4V
0.01
0UH
0UH
22
22
22
0UH 0UH
7P
10k
10k
2SK1828TE85L
2SK1828TE85L
DTC114TE-TL
10k
220
9p
7p
CXP973064-232R
• See page 76 for IC PIN FUNCTION DESCRIPTION.
4444
HCD-EA20
6-14. SCHEMATIC DIAGRAM – DMB SECTION (6/8) –
VGND
V5V
I/P SW
WIDE
I/P SW
WIDE
34
I/O BOARD
(2/2) CN103
41
43
39
39
45
45
39
42
42
39, 42, 45
51
45
CN202
CL210
CL209
CL208
CL207
CL206
CL204
R281R280R279
R278
L412 L416
L415
L414L413
R219
R220
R221
R217
R223
R224
R9994
IC259
R9982
R9983
R9984
R9985
C287
R296
R295
R293
R294
R292
R291
R9981
IC255
R9998
R9999
C284
IC258
C286
R9980
R218
R222
C415
C414
C413C412
L402 L403 L404 L405 L406
C416
IC256
R1201
D1201 0
D1202 0
D1204 1SS355TE-17
D1203 1SS355TE-17
R1202 0
C283
R270
R198
R9993
CN105
R282
V5V
4P
757575
75
00
0
00
0
0
0
220
0
0
0
SN74LV573A
PWR
0
0
0
0
0.01 50V F
0
R197
4.7K
0
0
0
0
0
0
SN74AHC1G00DCKR
0
0
0.01 50V F
SN74LV573A
PWR
0.01 50V F
0
0
0
0
0
00
00000
0
SN74LV573A
PWR
0
0.01
0
4.7K
0
15P
75
4545
HCD-EA20
6-15. SCHEMATIC DIAGRAM – DMB SECTION (7/8) –
44
44
42
39, 42, 44
42
46
46
39
44
R207
R213
C213
C215
C214
C216
R273
R274
R275
R276
R277
R284
R268
R269
R10
R11
R12
R13
R14
R15
R1000
C244
C260
C251
C257
C267
C268
C269
C270
C271
C263
C261
C253
C248
C242
C241
C238
C236
C262
C272
C252
C229
C247
C226
C256
FL205 C266
C230
C231
C232
C233
C234
C237
FL206
R232
R231R230
R233
R234
C265
C204
R241
R227
R245
R248
R255
R257
R254
R243
R244
R246
R247
R259
R261
R260
R251
R283
RB18
RB19
RB20 RB21
JL214
JL213
JL212
JL211
JL210
JL209
JL208
JL207
R263 R264 R265 R266 R267
JL203
R253
JL217
JL216
JL218
JL202
R225
R226
R228
CL251
CL252
CL253
CL254
CL255
CL256
CL257
R240
Q202
D202
IC211
IC207
IC204
R805
R285
ADC_DATA
0
68
100
4V
0.01
0.01
0.01
0
0
0
0
0
180
0
220
22
22
22
22
22
22
4.7k
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.1
0.01
0UH 0.01
0.01
0.01
0.01
0.01
0.01
I/P SW
WIDE
0.01
0UH
33
3333
0
10k
10
0.01
50V
F
0
4.7k
4.7k
4.7k
0
4.7k
4.7k
0
1k
10k
1k
4.7k
4.7k
4.7k
0
1k
33
33
33 33
75 75 75 75 75
4.7k
0
220
220
47k
DTC114TE-TL
1SS355TE-17
ZIVA5X-C1F
BR9040F-WE2
0
0
• See page 68 for IC PIN FUNCTION DESCRIPTION.
4646
HCD-EA20
6-16. SCHEMATIC DIAGRAM – DMB SECTION (8/8) –
45
45
R214
R215
C254
C259
C258
C205
R250
C275
FL204
FL203
C250
C246
C243
C240
C235
C220
C218
C227
C239
C245
C249
C264
C282
C281
C315
C316
IC203
IC216
R301
CL390
CL389
CL388
CL387
CL386
CL385
CL384
CL383
CL382
CL381
CL380
CL379
CL378
CL377
CL376
CL375
CL374
CL373
CL372
CL371
CL350
CL351
CL352
CL353
CL354
CL355
CL356
CL357
CL358
CL359
CL360
CL361
CL362
CL363
CL364
CL365
CL366
CL367
CL368
CL369
CL370
R262
C255
RB10
RB11
RB14
RB15 RB17
RB16
RB13
RB12
IC206
0
0
0.01
0.01
10
0.01
0
0.01
0UH
0UH
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
HY57V283220T-6
SN74ALVCH1
6841DGGR
1k
0
10 10V F
68
68
68
68 68
68
68
68
MBM29PL32BM90TN-SB3V107
SYS-RST
4747
HCD-EA20
6-17. PRINTED WIRING BOARD – UCOM SECTION – • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
Ref. No. Location
D501 C-2
D611 C-11
D612 C-12
D651 D-7
D652 C-7
D683 B-8
D684 B-8
D685 C-8
D686 B-8
D687 B-9
IC501 C-9
IC651 D-8
IC652 C-8
IC653 B-7
IC654 D-8
IC671 A-8
IC681 B-9
Q501 C-2
Q502 C-2
Q503 D-3
Q504 C-2
Q505 D-9
Q507 C-11
Q601 B-9
Q602 B-9
Q681 B-9
• Semiconductor
Location
IC653
IC652
IC654
IC651
IC671
IC681
IC501
E
E
E
E
TO
DMB03
BOARD
CN102
(Page 37)
TO
AMP
BOARD
CNP951
(Page 52)
TO
SUB TRANS
BOARD
CNP901
(Page 52)
TO
MS-128
BOARD
CN001
(Page 36)
TO
PANEL
BOARD
CN801
(Page 55)
TO
DMB03
BOARD
CN101
(Page 37)
TO
I/O
BOARD
CN101
(Page 49)
TO
AMP
BOARD
CN952
(Page 52)
3
3
E
E
E
E
E
1
1
3
1
3
1
1
5
1
10
13
1
1
NOT
USED
9
12
A
B
C
D
E
345678910 11
4848
HCD-EA20
6-18. SCHEMATIC DIAGRAM – UCOM SECTION –
TP597
TP598
TP505
CN621
TP585
TP586
TP587
TP589
TP590
TP530
C656
TP508
C504 C530
C652
C683
CN602
CN611
CN631
CN651
CN652CN653CN654
IC651
IC652
IC653
IC671
EPT601
EPT602
C516
C536
C682
C685
C664
C609
R611
R612
R602
R601
R592
R593
R594
R595
R596
R588
R502
R503
R510
R517
R522
R529 R530
R569
R561
R677 R676
R675
R674
C660
R672
R671
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R631
R632
R633
R634
R635
R636
R637
R638
R639
R640
R641
R642
R537
R531
R688 R687
R684
R683
R682
C651
D652
D612
D611
Q507
Q501
R501 Q502
Q504
Q505
Q681 D686
D685
D684
Q601
C596
C594
C595
R581
R591
R582
R583
R586
R599
R585
R598
R600
C502
FB512
C503
C523
R523
R538
R545
R651
R653
CN601
C604
R608
C529
R528
R605
R604
R532
C676
IC681
D687Q503
C677
R580
R578
R560
C675
C606
C607
C572
C501
IC654
L652
C663
D651
Q602
C653
L651
C665
C666
C661C662
C658C659 C657
C672
C671
R673
C655 C654
R654
R603
FB601
R597
R584
D501
C667
D683
C681
C688
R681
IC501
C511
C512
R685
X501
C528
R607
11P
FFC-V-1.0
220
10V
220
10V 1000 6.3V
220
10V
0.001
50V
7P
5P 5P
10P13P5P
BA05T
BA05T
BA6956AN
0.1 25VF
0.1 25V F
0.1
25V
F
0.22
B
0.1
25V
F
22p
CH
100
100
100
100
100
100
100
100
100
3.3k
100k
10k
10k
100k
10k
47k 47k
10k
3.3k
10k 10k
4.7k
4.7k
47010V
1k
820
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
4.7k
2.2k
4.7k 47k
47k
10k
10k
22010V
EC10DS2-TE12L5
1SS355TE-17
1SS355TE-17
DTA114EKA
-T146
2SB1690K
-T146
4.7k DTC114EKA
-T146
2SC2412K
-T-146-QR
DTA114EKA
-T146
2SC2412K
-T-146QR
1SS355TE-17
1SS355TE-17
1SS355TE-17
RT1P137L-TP
0.1
0.1
0.1
47k
10k
47k
10k
10k
4.7k
10k
4.7k
4.7k
0.00150V
0UH
0.1 25VF
0.1
47k
4.7k
10k
100
100
17P
47 16V
10k
47 16V
470k
100
100
0
0.0125V
PST9229NL
1SS355
TE-17
2SC2412K
-T-146-QR
0.0125V
15k
10k
3.3k
0.0125V
0
0
0.01 25V
0.001 50V
TA7810S
100
16V
EC10DS2-TE12L5
DTC114EKA -T146
100 16V
0.1
25V
F
100
16V
0.1
25V
F
0.1
25V
F
0.1
25V
F
220
10V 0.1
25V
F
0.1 25V
100 16V
4.7k
0.1
25V
F
0.1
25V
F100
100
0
10k
1SS355 TE-17
100
16V
1SS355TE-17
0.22F
5.5V
4.7
50V
220
-S07-JBT-A
0.1
25V
F
4.7 50V
100k
5MHz
0.1
0
17P
FFC-V-1.0
1k
1k
• See page 78 for IC PIN FUNCTION DESCRIPTION.
4949
HCD-EA20
6-19. PRINTED WIRING BOARD – I/O SECTION – • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D291 B-4
IC101 C-3
IC106 C-8
IC111 B-3
IC121 E-2
IC151 B-8
IC251 C-2
IC252 D-8
IC291 B-3
Q103 D-3
Q112 C-3
Q121 E-3
Q122 D-3
Q123 D-2
Q203 D-3
Q212 C-3
Q221 E-2
Q251 E-1
Q252 E-2
Q291 B-4
IC151
IC106
IC252
IC291
IC111
IC101
IC251
IC121
E
E
E
13
4
6
EE
E
E
E
E
E
E
TUNER
UNIT
TO
DMB03
BOARD
CN105
(Page 37)
TO
AMP
BOARD
CN303
(Page 52)
TO
UCOM
BOARD
CN631
(Page 47)
VIDEO
S VIDEO
(DVD ONLY)
VIDEO
12
A
B
C
D
E
F
G
H
3456789
5050
HCD-EA20

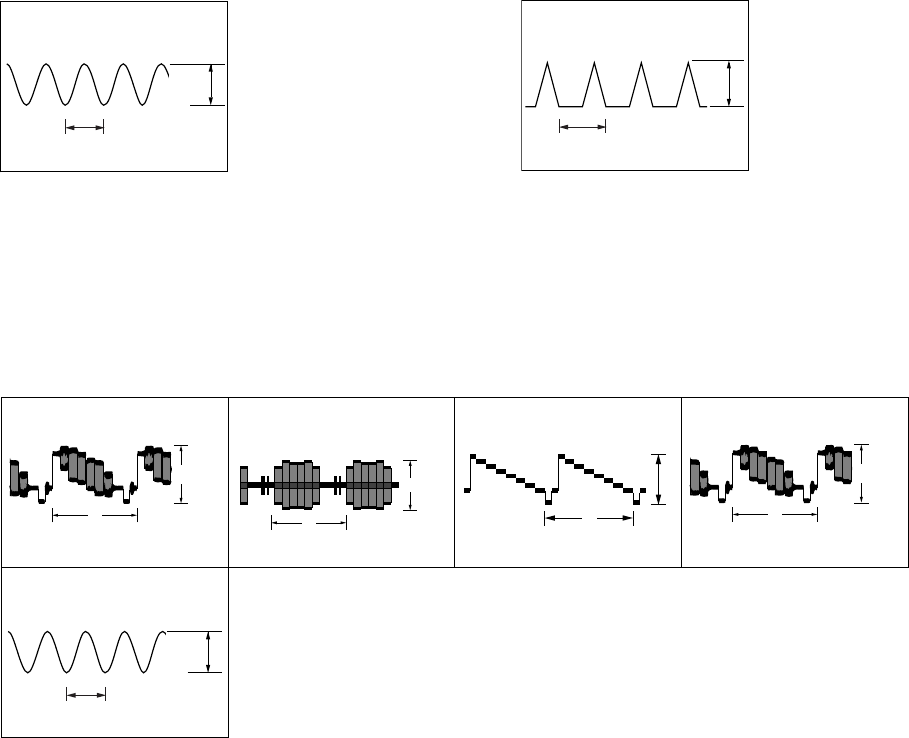

6-20. SCHEMATIC DIAGRAM – I/O SECTION (1/2) –
C215
C101
C102
C105
C111
C112
C113
C114
C121
C122
C123
C124
C126
C129
C131
C202
C211
C212
C213
C214
C221
C222
C223 C224
C227
C292
C294
C295
C296
C297
C298
CN102
CN104
FB121
FB221
IC291
Q103 Q203
Q291
R113
R141
R142
R213
C135
C128 C228
C132
C133
C103
C104
C136
C293
R149
C225
C125
J101
J102
Q112
Q221
Q121
Q212
IC111(2/2)
IC111(1/2)
IC121
Q122
Q123
IC101
C226
R122
R124 R224 R226 R126
R222
R127R227
R225R125
R240
R239
R223
R140
R139
R121
R221
R111
R109
R209
R114
R214
R116
R216
R117
R217
R118
R218
R119
R219
R120
R220
R107
R207
R206 R105
R106
R205 R204
R104
R103 R102
R131
R229 R231
R146
R145
R144
R143
R236
R235
R234R134
R135
R232R233R133
R132
R237R238
R137
R138
R295
R296
R294
R297
C299
D291
R293
R292R291
C115
R123
R192
C192
C191
R150
R147
R203
R202
C201
C216
C116
R211
R215
R115
C229
CN101
R136
C127
R228
R230
R130
R128
R129
X291
10
50V
22
25V
22
25V
10
50V
10
50V
0.0012 50V
0.0022 50V
10
50V
0.001 50V
220p
50V
22
25V 0.015 16V
3300p
50V
22 25V
22
25V
10 50V
0.0012 50V
0.0022 50V
10
50V
0.001 50V
220p
50V
22
25V
22 25V
9P
11P
4.7UH
4.7UH
2SC2412K-T
-146-QR 2SC2412K-T
-146-QR
100k
100k
10000p
110V B 1 10V B
0.1 25V F
0.1 25V F
0.1 25V F
0.1
25V
F
10000p
0
22 25V
22 25V
DTC343TK
-T-146
2SC2412K
-T-146-QR
2SC2412K
-T-146-QR
DTC343TK
-T-146
NJM4580E(TE2)
NJM4580E(TE2)
MC14052BDR2
DTC124EKA
-T146
DTC124EKA
-T146
NJM4580E(TE2)
0.015
3.3k
100k 100k 100k 100k
3.3k
100k100k
100k100k
3.3k
10k
47k
3.3k
10k
100k
100k
1k
1k
1k
2.2k
2.2k
10k
10k
2.2k
2.2k
560
560
6.8k
6.8k
2.2k
2.2k
1k
1k
100k 47k
100k
47k 4.7k
4.7k
2.2k 470
10k
33k 10k
100
100
100
100
2.2k
470k
330330
470k
33k6.8k6.8k
33k
10k10k
100
100
22 25V
47k
75
220p
220p
0
0
2.2k
470
22 25V
0.1 25V F
0.1 25V F
1k
3.3k
3.3k
(GND)
(GND)
3300p
50V
2.2k
22 25V
33k
10k
10k
33k
33k
0
0
22 25V
22 25V
4.7
50V
0.01 25V
51p
50V
56p
50V
47
16V
330p
50V
BU1924F-E2
2SC2412K-T
-146-QR
560p 50V
4.7k
470k
100k
270
0.1
UDZSTE-174.3B
4.332MHz
1k
47k68k
17P
5151
HCD-EA20
6-21. SCHEMATIC DIAGRAM – I/O SECTION (2/2) –
C153
C258
R251
R171
R172
R173
C169
R191
C273 JW251
JW254
JW253
C170
C142
C143
C144
C160
C161
C159
C157
L251
C154
C152
C256
C164
L152
C257
C252
C151
CN103
C141
FB151
C145
C155
J251
J171
C171
C272
C269
R261
R262
Q251
Q252
R263
C162
IC252
IC251
IC106
IC151
C156
R151
R153
C254
C255
C168
R255
R256
R257
C266
C268
C163
C158
0.1 25V F
0.01 25V
0
10
50V
75
1/10W
0.1
25V
F
0.1
F
22p
22p
22p
10 50V
0.1
25V
F0.1
25V
F
0.1
25V
F
100 16V
10
50V
10 50V
10 50V
22 25V
1000 6.3V
10
50V
15P
0.1
F
0UH
0.1
F
100 16V
220p
220p
0.1
10k
10k
DTA114EKA
-T146
DTC114EKA
-T146
1k
0.1
MM1568AJBE
MM1510XNRE
NJM2285V-TE2
NJM2235V(TE2)
0.1
10k
10k
100 16V
0.1 25V F
0.1 25V F
75
75
75
1000 6.3V
1000 6.3V
10 50V
0.1 25V F
1k
1k
0
5252
HCD-EA20
IC401
IC953
IC952
IC951
IC911
IC301
IC521
IC522
IC502
IC552
IC501
IC551
TO
UCOM
BOARD
CN652
(Page 47)
TO
UCOM
BOARD
CN651
(Page 47)
TO
UCOM
BOARD
CN621
(Page 47)
TO
I/O
BOARD
CN102
(Page 49)
TO
DMB03
BOARD
CN107
(Page 37)
TO
PANEL BOARD
CNP881
(Page 55)
(1)
(2) (5)
(3)
(4) (6)
(7)
(10)
(9)
(12)
(8)
(8)
(11)
(11)
SPEAKER
FRONT R
-+
(2)
(5)
FRONT L
-+
(7)
(9)
CENTER
-+
(1)
(3)
WOOFER
-+
(10)
(12)
SURR R
-+
(4)
(6)
SURR L
-+
POWER TRANSFORMER
(MAIN)
(1/2)
T902
POWER TRANSFORMER
(MAIN)
(2/2)
POWER TRANSFORMER
(SUB)
T902
FAN
1
5
1
10
E
E
E
13
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
EE
E
AC
IN
1
1
1
1
2
2
2
3
5
E
H
12
A
B
C
D
E
F
G
H
I
3456789101112131415
**
6-22. PRINTED WIRING BOARD – AMP/SUB TRANSFORMER SECTION – • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
Ref. No. Location
•Semiconductor Location
Ref. No. Location
D321 D-12
D322 F-12
D323 F-12
D331 E-11
D371 E-12
D372 E-12
D381 F-11
D382 G-11
D401 C-13
D411 C-12
D430 C-10
D461 B-12
D462 C-10
D471 B-11
D472 C-11
D473 C-10
D901 G-5
D911 E-4
D912 D-4
Ref. No. Location
•Semiconductor Location
D913 E-4
D914 E-4
D915 F-4
D951 F-7
D952 E-10
D954 C-9
D955 C-9
D956 B-9
D957 D-8
D958 D-8
IC301 E-12
IC401 C-12
IC501 E-15
IC502 E-14
IC521 C-15
IC522 D-14
IC551 G-15
IC552 H-14
IC911 F-5
IC951 D-10
IC952 C-9
IC953 C-9
Q321 D-11
Q322 F-12
Q323 F-12
Q331 D-11
Q332 D-11
Q371 E-12
Q372 E-12
Q381 F-10
Q382 F-10
Q383 G-10
Q401 B-13
Q411 C-11
Q424 E-8
Q425 D-8
Q426 D-8
Q461 C-12
Q462 C-10
Q463 C-10
Q472 B-11
Q473 B-10
Q474 B-10
Q476 C-10
Q477 B-10
Q478 B-11
Q479 C-10
Q511 E-13
Q512 F-13
Q521 C-13
Q522 D-13
Q551 F-13
Q552 G-13
Q901 G-5
Q972 B-14
Ref. No. Location
5353
HCD-EA20
6-23. SCHEMATIC DIAGRAM – AMP/SUB TRANSFORMER SECTION (1/2) –
EP951
C958
D955
R954
IC953
R953
R961
C963
C502
C503C504
C505
C506
C507
C508
C513
C521C522
C523
C524
C525
C526
C527
C528
C531
C532
C533
C551C552
C553
C556
C558
C562C563
C956
C970
R501R502 R503
R504
R505R506
R507R508
R509R510
R513R514
R515
R516
R517R518
R521R522
R523R524 R525R526
R527R528
R529
R533
R535R536
R537R538
R541R542
R551
R552 R553R554
R555
R556
R557
R558
R559
R563
R564
R565
R566
R567R568
R951
R960
R971
R972
R973
R980
R981
L951
L952
L953
C501
C512
IC502
IC522
IC552
R952
FH903
FH904
FH905
FH906
R955
R974
C960
C554
C555
C966C967
R962
R963
R964
R965
R959
R956
R957
R958
F902F903
R497
R560
C955
C957
C964
D954
C959
C962
C965
R530
C511
C953
C952
R534
C912
C905
JW901
C916
CN902
R911
R912
C911
RY901
R902R903R904
R913 R914
R916
T901
C914
C913
R543
R545
R544
R546
IC911
D914
D913D911
D912
D901 Q901
CN901
C541C542
IC501(2/2)
IC501(1/2)IC551(1/2)
IC551(2/2)
C560 C559 C510 C509
Q511Q512Q551Q552
C564 C565
Q521
Q522
Q972
C971
C534
C535
C530
C529
IC521(2/2)
IC521(1/2)
C951
D951
D952
C961
D958
CNP901
C915
D915
CN952
CNP951
L901L902
IC952
IC951
C515C514
CN401
CN302CN303
CN951
C561
D956
C557
1000
16V
RK36LF-A4
120
SI-8033JF
330
120
1000
6.3V
10
50V
0.0010.001
0.0047
0.0047
47 16V
10
50V
10
50V
10
50V
10
50V
0.001
0.001
0.0047
0.0047
4716V
10
50V
47
16V
10
50V
10
50V
10
50V
10
50V
0.001
0.0047
10
50V
10
50V
10
50V
0.1
470
10V
2.2k2.2k 10k
10k
2.2k2.2k
2.2k2.2k
2.2k2.2k
2.2k2.2k
10k
10k
22k22k
2.2k2.2k
10k10k 2.2k2.2k
2.2k2.2k
2.2k
2.2k
10k10k
22k22k
100k100k
2.2k
2.2k 10k10k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
10k
10k
22k22k
100k
100
100k
4.7k
10k
560
47
22
50V
22
50V
M62429P
M62429P
M62429P
6.8k
2.2k
2.2k
0.47
0.001
0.0047
0.010.01
10k
10k
10k
10k
10k
22k
22k
22k
T6.3ALT6.3AL
2.2k
2.2k
6800 35V
100 35V
0.47
11EQS04-TA1B
100 35V
100 35V
0.47
2.2k
47 16V
2200 35V
2200 35V
2.2k
0.1
0.01
250V
0.1
2P
15k
33k
2200
16V
RELAY
100k68022
100k 22k
100k
150V
100 10V
150 1/2W
100 1/2W
150 1/2W
100 1/2W
10EDB40
-TA2B5
10EDB40
-TA2B5
10EDB40
-TA2B5
10EDB40
-TA2B5
1SS133T
-77
2SC2412KLN
-T146-E
2P
22 35V22 35V
NJM4580
E(TE2) NJM4580
E(TE2)
NJM4580
E(TE2)
NJM4580
E(TE2)
10
50V
10
50V 10
50V 22
50V
2SC3624A
-T1L15
2SC3624A
-T1L15
2SC3624A
-T1L15
2SC3624A
-T1L15
470p 470p
2SC3624A
T1-L15
2SC3624A
T1-L15
DTA114EKA
-T146
4.7
50V
470p
470p
10
50V
10
50V
NJM4580
E(TE2)
NJM4580
E(TE2)
0.22
100V
D15XB20
-4001
D15XB20
-4001
1000
10V
1SS355TE-17 D957
1SS355TE-17
5P
47 16V
10EDB40-TA2B5
11P
10P
SI-8050S-LF1101
SI-8120JF
470p470p
5P
21P9P
5P
47 16V
RK36LF-A4
47 16V
5454
HCD-EA20
6-24. SCHEMATIC DIAGRAM – AMP/SUB TRANSFORMER SECTION (2/2) –
TO
PROTECT SWITCH
C444
C443
C494
C493
R453
R452
C454
R402
R403
EP902
C348
C347
C398
C397
RY461
RY381
RY382
RY331
C396
C395
C346
C345
R462
R463
R413
R412 R461
R411
R377
R378
R328
R327 R376R326
R325 R375
R372
R373R323
R322 R371R321
R407 R406
C451
C401
R451R401
R469
R468
R467
R339
R338
R337
R384
R471
R473
R477
C472 R478
R475
R479
C473R480
R332
R333
R331
R482
R359C362
R358
R362
R357
C360
R304
R305
R303
R301
C351
R354
R355
R356
R353
C353
CN421
R434
C423
R495
R435
R437
R436
R438
C421
R313
R409
R428
R429
IC401 IC301
C403
C491C441
C492
C442
C341
C342
C391
C392
C343
C344
C393
C394
C461
R379
C323 C324 C373C374
R374
C321 C322 C371C372
R324
C406
R405
C452
C402
R470
C326
R310
C359
C358
C357
R309
C305
C354
C355
C356
C313
R352
R308
R404
R454
C453
C471
R426
R425
R424
R423
R422
R421
R441
R442
R444
R494
R443
R341
R342
R344
R343R493
C462
C412
R415
C411
R330 R380
R334
R392
R391
R395
R396
R345
R346
R347
R348
R394
R393
R350
R349
R398
R397
R383
C303
R302
C422
C308
C301
R351
C309
R414
R465
R464
C311
R361
C312
R329
THP471
J301
L441
L491
L341
L391
L343
L342
L392
CN953
Q424
D430
Q425
Q472
Q474
Q478
Q479
Q426
Q476
Q477
D471
D472
D411 D461
Q411 Q461
Q462
D462
Q382
Q381
D381
D382
Q383 Q332
D331
Q371
Q321
D371D321
Q323
D323D372D322
Q372
Q322
Q401
R306
R307
R360
R382
Q331
Q463
R408
Q473
R487
R486
R485
R483
R484
R488
C425
C474
D473
D401
C407
C404
R311
C307
C302
C361
R335 C325
R387
C352
C304
C408
R385
R386 R340
R496
220p
220p
220p
220p
680
47k
10
50V
47k
680
220p
220p
220p
220p
220p
220p
220p
220p
15k
100k
100k
15k 1k
1k
15k
100k
100k
15k 1k1k
10
1/2W 10
1/2W
15k
100k100k
15k 1k1k
33k 1k
1
50V
1
50V
1k1k
47k
47k
10k
47k
47k
10k
47k
47k
1k
22k
100
10V 33k
2.2k
10k
2.2
50V
10k
15k
100k
1k
47k
68010
50V
680
47k
680
10
50V
47k
47k
47k
1k
150V
47k
47k
47k
1k
150V
3P
EH
2.2k
0.1
4.7k
220k
47k
100
4.7k
100
16V
10k
10k
2.2k
2.2k
STK403-030 STK402-920
220p
0.10.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.222W
0.1 0.1 0.10.1
0.22 2W
0.1 0.1 0.10.1
0.22
2W
0.001
100
1/4W
1000p
1000p
220
1W
0.1
100 1/4W
220p
220p
220p
100
1/4W
220p
1000p
1000p
1000p
0.001
1k
47k
47k
47k
220p
10 50V
47k
47k
47k
47k
47k
47k
22
22
22
22
22
22
22
22
2222
0.1
0.1
10 1/2W
0.1
10 1/2W 10 1/2W
0.222W
22
22
22
22
22
22
22
22
22
22
22
22
22
22
47k
1000p
47k
10
50V
100 10V
150V
1k
100 10V
0.22 2W
10 1/2W
0.22 2W
100 35V
47k
100 35V
0.22
2W
2P
2SD25258(TP)
1SS355
TE-17
2SC2412
KLN-T146-E
2SC2412
KLN-T146-E
2SC2412
KLN-T146-E
2SC2412
KLN-T146-E
2SC2412
KLN-T146-E
2SC2412
KLN-T146-E
2SD1781
K-T146
-QR
2SA1037AK
-T146-Q
1SS355
TE-17
1SS355
TE-17 1SS355
TE-17 1SS355
TE-17
2SA1037AK
-T146-Q 2SA1037AK
-T146-Q
DTA114EKA
-T146
1SS355
TE-17
2SC2412
KLN-T146-E
DTA114EKA
-T146
1SS355
TE-17
1SS355
TE-17
DTA114EKA
-T146 2SC2412
KLN-T146-E
1SS355
TE-17
2SA1037AK
-T146-Q
2SA1037AK
-T146-Q
1SS355
TE-17
1SS355
TE-17
2SA1037AK
-T146-Q
1SS355
TE-17
1SS355
TE-17
1SS355
TE-17
2SA1037AK
-T146-Q2SA1037AK
-T146-Q
2SC2412
KLN-T146-E
560
560
47k
10k
DTA114EKA
-T146
2SC2412
KLN-T146-E
4.7k
2SC2412
KLN-T146-E
47k
68k
56k
56k
47k
56k
4.7 50V
100 10V
1SS355 TE-17
1SS355
TE-17
100 35V
10 50V
10k
150V
1000p
10 50V
10 1/2W 0.1
2201W
150V
220p
10 50V
47k
220
1W
220 1W
4.7k
5555
HCD-EA20
IC802
IC801
TO
UCOM
BOARD
CN601
(Page 47)
TO
AMP
BOARD
CN401
(Page 52)
PREV NEXT
PRESET
VOLUME
-
+
FUNCTION
PHONES
E
E
E
E
FLUORESCENT INDICATOR TUBE
1
1
1
5
5
5
POWER
POWER
12
A
B
C
D
E
F
34567891011
6-25. PRINTED WIRING BOARD – PANEL SECTION – • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
Ref. No. Location
D802 E-2
D803 E-1
D804 E-1
D806 B-7
D807 B-6
D808 A-7
D809 A-7
D810 B-6
D812 E-2
D885 B-9
D887 B-9
IC801 E-1
IC802 B-3
Q803 B-7
Q804 B-8
Q881 B-8
Q882 C-8
• Semiconductor
Location
5656
HCD-EA20
6-26. SCHEMATIC DIAGRAM – PANEL SECTION –
C811
FB800
R850
D812
C800
C801
C809
C812
C817
L813
R881
R882
C839
C832
C827
L801
C821
C820
T801
C822
IC801
D806
D807
D808
D809
C818
C825
C826
C828
C829
C833
C834
C836
C835
C837
C838
C824
J851
S800
C814
C815 C816
C830 C813
FB802
FB801
C819
S822 S821S823
S812 S811
S814 S813
L812
IC802
FL801
R844
R846
R840
R855
R874
D810
C823
Q803
Q804
R843
R842
R841
THP801
CN801
CNP804
R822R823
R812
R814 R813
D802
R804
R810
R835
CNP805
D804
D803
CNP802
S831
Q882
Q881
CNP881
R879
C803
C802FB851
C876
CNP801
D885
D887
C808
10 50V
0
3.9k
1/10W
SEL2210R-T P6
0.01 25V B
0.01 25V B
0.001
0.001
50V
0.001
50V
2.2k
2.2k
0.001
50V
10 50V
0.01
25V
B
10
50V
0.01
50V
F
0.1
16V
F
IC NJL74H4
00A
1SS355TE-1
7
1SS355TE-1
7
1SS355TE-1
7
1SS355TE-1
7
220p
220p
220p
220p
220p
220p
220p
220p
220p
220p
220p
220p
0.001
50V
B
100p 0.001
50V
B
10
16V
0.1
16V
F
0
0UH
0.01
50V
F
PT6315
100k
100k
82k
100
33k
MA8039-H-TX
10 50V
2SD1624T-
TD-E
2SD1624T-
TD-E
100
100
100
17P
5P
1k2.2k
1k
2.2k 1k
5P
1k
47
47
5P
1SS355TE-17
1SS355TE-17
2SC3624A
-T1L15
2SC3624A
-T1L155P
100
0.0022
0.00220
330p
RB501V
-40TE-17
RB501V
-40TE-17
0.01
25V
B
57
HCD-EA20
• Waveforms
– RF BOARD –
– DMB03 BOARD –
1 IC001 1 (DVDRFP) 4 IC001 tj (RFAC)
3 IC001 r; (FE)
100m V/DIV, 1 ms/DIV
200m V/DIV, 100 ns/DIV 500m V/DIV, 100 ns/DIV
800m Vp-p
0.3 Vp-p
1.3 Vp-p
2 IC001 el (TE)
500m V/DIV, 1 ms/DIV
0.5 Vp-p
5 IC906 8 (XTO)
qa to qd :Color bars video signal
6 IC906 9 (SO1)
9 IC906 3 (MO1)
7 IC906 q; (SO2)
29.5 ns
37 ns
37 ns
29.5 ns
1 V/DIV, 10 ns/DIV
1 V/DIV, 10 ns/DIV
1 V/DIV, 10 ns/DIV 1 V/DIV, 10 ns/DIV
4.5 Vp-p 4.2 Vp-p 4.6 Vp-p
1.5 Vp-p
8 IC906 qd (SO3)
29.5 ns
1 V/DIV, 10 ns/DIV
4.6 Vp-p
5.6 Vp-p
q; IC901 r; (XTAL)
50 ns
1 V/DIV, 20 ns/DIV
3.8 Vp-p
qa IC207 <zcz (VDAC_0)
500 mV/DIV, 20
µ
s/DIV
H
qs IC207 <zx, (VDAC_1)
500 mV/DIV, 20
µ
s/DIV
1.2 Vp-p
H
qd IC207 <zxb (VDAC_2)
500 mV/DIV, 20
µ
s/DIV
1.3 Vp-p
H
58
HCD-EA20
– UCOM BOARD – – PANEL BOARD –
– I/O BOARD –
qf IC501 qg (X2)
200 ns
3.1 Vp-p
1 V/DIV, 100 ns/DIV 10 V/DIV, 4
µ
s/DIV
qg Q803 collector
8.0
µ
s
24.4 Vp-p
H
2.7 Vp-p
H
2.0 Vp-p
H
2.7 Vp-p
qh IC252 ea (VOUTb) qj IC252 ed (COUT)
1 V/DIV, 20
µ
s/DIV 1 V/DIV, 20
µ
s/DIV
ql IC251 2 (OUT)
1 V/DIV, 20
µ
s/DIV
w; IC291 qf (XO)
231 ns
3.3 Vp-p
1 V/DIV, 100 ns/DIV
qk IC252 wk (YOUTb)
1 V/DIV, 20
µ
s/DIV
2.2 Vp-p
H
qh to ql :Color bars video signal
59
HCD-EA20
6-27. IC BLOCK DIAGRAMS
– AMP BOARD –
IC301 STK402-920
21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CH5 IN
CH5 NF
CH4 IN
CH4 NF
CH4 OUT
CH5 OUT
+VCC
-VCC
CH1 OUT
+PRE VCC
-PRE VCC
CH1 NF
-VCC
+VCC
CH2 OUT
SUB GND
CH1 IN
BIAS
CH2 NF
CH2 IN
CH3 IN
CH3 NF
CH3OUT
-PRE VCC
SUB
CH1 CH2
CH4 CH5
CH3
TR1
TR6
R1
R2
R3
R4
TR3
TR4
TR2 TR5
C1
BIAS CIRCUIT
C2
R5
R6
R7
R8
C3 C4
PRE DRIVER
IC CH2
PRE DRIVER
IC CH1
1 2 3 4 5 6 7 8 9 10 11 12
-VCC
+VCC
CH1 OUT
CH2 OUT
+PRE
SUB
SUB
GND
CH1 IN
CH1 NF
ST-BY
CH2 NF
CH2 IN
IC401 STK403-030
60
HCD-EA20
IC501,521,551 NJM4580E(TE2)
1
2
3
45
6
7
8
A OUT
A –IN
A +IN
V–
V+
B OUT
B –IN
B +IN
AB
VR 2
VR 1
VIN1 VOUT1 GND DATA
VIN2 VOUT2 VCC CLOCK
7
2 3 4
8
1
REF AMP
VOL AMP 2
VOL AMP 1
6
LOGIC
CONTROL
5
VREF
IC502,522,552 M62429P
OVER
CURRENT
PROTECTOR
LATCH
&
DRIVER
OVER HEAT
PROTECTOR
REGULATOR
ON/OFF
SOFT
START +
–
+
–
RESET
VREF
COMPARATOR
ERROR AMP
OSC
1
VIN
2
SW OUT
3
GND
4
VOS
5
ON/OFF
IC951 SI-8120JF
OVER
CURRENT
PROTECTOR
LATCH
&
DRIVER
OVER HEAT
PROTECTOR
REGULATOR
+
–
+
–
RESET
VREF
COMPARATOR
ERROR AMP
OSC
1
VIN
2
SW OUT
3
GND
4
VOS
5
S.S
IC952 SI-8050S-LF1101
OVER
CURRENT
PROTECTOR
LATCH
&
DRIVER
OVER HEAT
PROTECTOR
REGULATOR
ON/OFF
SOFT
START +
–
+
–
RESET
VREF
COMPARATOR
ERROR AMP
OSC
1
VIN
2
SW OUT
3
GND
4
VOS
5
ON/OFF
IC953 SI-8033JF
1
1OE 56 1LELE
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
LATCH
LATCH
28
2OE 29 2LE
OE
LE
OE
1D1
1D2
GND
1D3
1D4
VCC
1D5
1D6
GND
1D7
1D8
1D9
1D10
2D1
2D2
2D3
GND
2D4
2D5
2D6
VCC
2D7
2D8
GND
2D9
2D10
1Q1
1Q2
GND
1Q3
1Q4
VCC
1Q5
1Q6
GND
1Q7
1Q8
1Q9
1Q10
2Q1
2Q2
2Q3
GND
2Q4
2Q5
2Q6
VCC
2Q7
2Q8
GND
2Q9
2Q10
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
– DMB03 BOARD –
IC216 SN74ALVCH16841DGGR
61
HCD-EA20
Serial
Input
I/F
Function
Control
I/F
8x
Oversampling
Digital Filler
with
Function
Controller
System Clock
Manager
Zero Detect
Enhanced
Multi-level
Delta-Sigma
Modulator
DAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
Output Amp and
Low-pass Filter
Output Amp and
Low-pass Filter
Output Amp and
Low-pass Filter
Output Amp and
Low-pass Filter
Output Amp and
Low-pass Filter
Output Amp and
Low-pass Filter
Output Amp and
Low-pass Filter
Output Amp and
Low-pass Filter
Power Supply
ZERO1/GPO1
ZERO2/GPO2
ZERO3/GPO3
ZERO4/GPO4
ZERO5/GPO5
ZERO6/GPO6
NC
NC
VOUT6
VOUT5
VOUT4
VOUT3
VCC3
AGND3
VCC4
AGND4
VOUT8
AGND6
VCC5
AGND5
VOUT7
VCOM
VOUT1
VOUT2
ML
MC
MDI
MDO
ZERO8
DATA4
ZERO7
NC
VCC1
AGND1
VCC2
AGND2
RST
SCKI
SCKO
BCK
LRCK
TEST
VDD
DGND
DATA1
DATA2
DATA3
ZEROA
1 2 3 4 5 6 7 8 9 10 11 12
13
14
15
16
17
18
19
20
21
22
23
24
252627282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
IC302 PCM1609KPTR
SINGLE-END
DEFERENTIAL
CONVERTER REFERENCE SINGLE-END
DEFERENTIAL
CONVERTER
DIGITAL ∑
MODULATOR
DIGITAL ∑
MODULATOR 1/64
DECIMATION
FILTER
&
LOW-CUT
FILTER
CLOCK/
TIMING CONTROL RESET/
POWER CONTROL
SERIAL I/O
INTERFACE
&
MODE/FORMAT
CONTROL
LIN
V REF 1
REFCOM
V REF 2
RIN
RSTB
FMT0
BYPASS
FMT1
MODE1
MODE0
FSYNC
1 2 345 6 87 9 1110 12
AGND
VCC
C PR
C NR
C PR
C NR
DGND
SYSCLK
DOUT
BCK
LRCK
VDD
24 23 22 21 20 19 17 16 15 14 13
18
IC352 PCM1800E/2K
62
HCD-EA20
IC706 MSM51V18165F-60TSKR1
IC509 CXD3068Q
DOUT
LRCK
PCMD
BCK
DVDD2
ASYE
MD2
EMPH
XTSL
DVSS2
XTAI
XTAO
SQSO
SQCK
SCSY
SBSO
EXCK
SOUT
SOCK
XOLT
SE
TE
VC
TES1
TEST1
DVSS1
FRDR
FFDR
TRDR
TFDR
SRDR
SFDR
DVDD1
FSTO
SSTP
MDP
LOCK
PWMI
FOK
DFCT
DIGITAL
CLV
PROCESSOR
OSC
DIGITAL
OUT
EFM
DEMODULATOR
32K
RAM ERROR
CORRECTOR
D/A DIGITAL
INTERFACE
MIRR, DFCT,
FOK
DETECTOR
CPU
INTERFACE
SUBCODE
PROCESSOR
SERVO
AUTO
SEQUENCER
SERVO INTERFACE
DVDD0
XRST
MUTE
DATA
XLAT
CLOK
SENS
SCLK
ATSK
WFCK
XUGF
XPCK
GFS
C2PO
SCOR
C4M
WDCK
DVSS0
COUT
MIRR
AVDD0
IGEN
AVSS0
ADIO
RFDC
CE
TE
AVSS1
RFAC
ASYI
ASYO
BIAS
AVDD1
PCO
FILI
FILO
CLTV
V16M
VCTL
VPCO
59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
OPERATIONAL
AMPLIFIER &
ANALOG SWITCH
A/D
CONVERTER
FOCUS
PWM
GENERATOR
TRACKING
PWM
GENERATOR
SLED
PWM
GENERATOR
FOCUS
SERVO
DSP
TRACKING
SERVO
DSP
SLED
SERVO
DSP
ASYMMETRY
CORRECTOR
DIGITAL
PLL
CLOCK
GENERATOR
60
NC
A9
A8
A7
A6
A5
A4
VSS
NC
NC
A0
A1
A2
A3
VDD
VDD
DQ1
DQ2
DQ3
DQ4
VCC
DQ5
DQ6
DQ7
DQ8
WE
RAS
3132 2930 262728
2019 2221 24 25232
VDD
1 43 65 87 109
VSS
DQ16
DQ15
DQ14
DQ13
VSS
DQ12
DQ11
DQ10
DQ9
4950 4748 4546 4344 4142 35
I/O
SELECTOR
OUTPUT
BUFFER INPUT
BUFFER
OUTPUT
BUFFER INPUT
BUFFER
SENSE
AMPLIFIER COLUMN
DECODERS
MEMORY
CELLS WORD
DRIVERS ROW
DECODERS
ON CHIP
VBB GENERATOR
ON CHIP
IVCC GENERATOR
COLUMN
ADDRESS
BUFFERS
LCAS
34
UCAS
33
OE
I/O
CONTROLLER
I/O
CONTROLLER
17 18
11 – 16
NC
40 – 36
ROW
ADDRESS
BUFFERS
INTERNAL
ADDRESS
COUNTER
REFRESH
CONTROL
CLOCK
TIMING
GENERATOR
VCC VDD
VDD
VDD
63
HCD-EA20
IC903 BR24L16F-WE2
IC101,111 NJM4580E(TE2)
– I/O BOARD –
8
VCC
7
TEST
6
SCL
5
SDA
1A0
2A1
3A2
4GND
ADDRESS
DECODER SLAVE WORD
ADDRESS REGISTER DATA
REGISTER
16 K bit EEPROM ARRAY
CONTROL CIRCUIT
POWER SUPPLY
VOLTAGE DETECTION
HIGHT VOLTAGE
GENERATOR
11 bit 8 bit
11 bit
STOPSTART
ACK
1
2
3
45
6
7
8
A OUT
A –IN
A +IN
V–
V+
B OUT
B –IN
B +IN
AB
1 2 3 4 5 6 7 8
16 15 14 13 12 11 10 9
IN1B CTL1 OUT1 GND2 OUT2 OUT3 CTL3 IN3A
IN1A GND1 IN2B VDD CTL2 IN2A GND3 IN3B
Bias Type
Clamp Type
Clamp Type
L
H
L
H
L
H
IC106 NJM2285V-TE2
64
HCD-EA20
IC121 MC14052 BDR2
1
2
3
46
5
7
8
IN 1
SW 1
SW 2 VDD
VIN 3
OUT
GND
IN 2
BIAS
BUFFER
IC151 NJM2235V(TE2)
4
1
OUT2
2
OUT1
3
VCC IN
5GND
6SW
BIAS
CLAMP
DRIVER
4dB
4dB
VCC2
75Ω
DRIVER
LPF
LPF
LPF
75Ω
DRIVER
2dB4dB
2dB
75Ω
DRIVER
2dB
75Ω
DRIVER
2dB
4dB
75Ω
DRIVER
2dB
4dB
75Ω
DRIVER
4dB 2dB
CIN 2
VIN 4
MUTE1 3
YC MIX 5
YIN 6
BIAS 7
GND1 8
NC 9
GND1 10
NC 11
CYIN 12
CLP 13
CbIN 14
CrIN 16
GND2 17
MUTE2 15
VCC1 134
CrSAG
18
CrOUT
19
CbSAG
21
GND2
20
CbOUT
22
CYSAG
24
GND2
23
GND2
26
CYOUT
25
YSAG
27
YOUT
28
VSAG
30
GND2
29
GND2
32
VOUT
31
COUT
33
+
BIAS
BIAS
BIAS
BIAS
BIAS
CLAMP
CLAMP
CLAMP
LPF
LPF
LPF
IC251 MM1510XNRE IC252 MM1568AJBE
65
HCD-EA20
ANALOG
DIGITAL
RCLK
NC
XO
XI
VSS2
T2
VDD2
T1
QUAL
RDAT
VREF
MUX
VDD1
VSS1
VSS3
CMP
1 43 65 872
141516 13 12 11 10 9
CLOCK
PLL 57kHz
RDS/ARI
COMPARATOR
8th SWITCHED
CAPACITOR
FILTER
ANTI-ALIASING
FILTER
BIPHASE
DECODER
PLL
1187.5Hz
DEFFERENTIAL
DECODER
TEST
– PANEL BOARD –
IC802 PT6315
IC291 BU1924F-E2
1
2
3
4
5
4-bit latch
24-bit output latch 12-bit shift register
Data selector
6
7
8
9
10
11
12 13 14 15 16 17 18 19 20 21 22
23
24
25
26
27
28
29
30
31
32
33
3435363738
Serial
interface
OSC Timing generator
key scan
Display memory
24 bits x 12 words
Key data memory
(2 x 16 bits)
Command decoder
segment driver
Grid driver
Multiplexed driver
394041424344
LED1
LED2
LED3
LED4
OSC
DOUT
DIN
CLK
STB
KEY1
KEY2
VSS
VDD
SEG1/KS1
SEG2/KS2
SEG3/KS3
SEG4/KS4
SEG5/KS5
SEG6/KS6
SEG7/KS7
SEG8/KS8
SEG9/KS9
SEG10/KS10
SEG20/GRID9
SEG21/GRID8
SEG22/GRID7
SEG23/GRID6
SEG24/GRID5
GRID4
GRID3
GRID2
GRID1
VDD
VSS
SEG11/KS11
SEG12/KS12
SEG13/KS13
SEG14/KS14
SEG15/KS15
SEG16/KS16
VEE
SEG17/GRID12
SEG18/GRID11
SEG19/GRID10
66
HCD-EA20
IC001 CXD1881AR
– RF BOARD –
MUX ATT INPUT
BIAS AGC
GCA
PROGRAMMABLE
EQUALIZER
FILTER
DIFFERENTIATOR
64 63 62 61 60 59 58 57 5156
1
2
FULL WAVE
RECTIFER AGC CHARGE
PUMP
+
–
+
–
+
+
+
+
+
+
+
+
+
+
––
+
–
+
–
INPUT
SEL ATT
2
4
2
2
INPUT
IMPEDANCE
SEL
OFFSET
CANSEL
MNTR
CONTROL
SERIAL
PORT
REGISTER
4
FROM
S-PORT
4
FROM
S-PORT
INPUT
IMPEDANCE
SEL
3
FROM
S-PORT
CLAMP &
ENVELOPE
LEVEL
DAC
SIGDET
AGCO
BUFFER
55 54 53 52 50 49
OUTPUT
INHIBIT
FROM S-PORT
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
GCA
CD/DVD
4
FROM
S-PORT
3
FROM
S-PORT
MUX
3
FROM
S-PORT
GCA
3
FROM
S-PORT
3
FROM
S-PORT
EQ
VC
COMPARATOR
PHASE
DETECTOR
PHASE
DETECTOR
A+D
B+D
+
+
A+C
B+C
GCA
W/LPF
SUM
AMP
18 19 20 21 22 24 2523 26 27 28 29 31 3230
GCA
GCA
VCI FOR SERVO INPUT
VC = VPB/2
DUAL APC
LD H/L
FROM S-PORT
APC SEL
DVD/CD
TOPHOLD
GCA
TOPHOLD
GCA
41
48
47
46
45
GCA
OFFSET
CANSEL
5
FROM
S-PORT
GCA 40
GCA
OFFSET
CANSEL
6
FROM
S-PORT
3
FROM
S-PORT
GCAGCA
CEFDB
CP/CN
LOW
IMPEDANCE
CD/DVD
SUBGCAMUX GCALPF
GCALPF
39
38
37
36
OFFSET
CANSEL
PEAK/BOTTOM
HOLD
BOTTOM
ENVELOPE
INPUT
BUFFER
5
FROM
S-PORT
GCALPF
V25/2
TE
RST
35
34
33
FOR SERVO
OUTPUT PH
TOP
HOLD
GCASEL
LINKEN
MUX
HOLDEN
+
–
+
–
COMPA-
RATOR
INTERNAL
FDGHG
HYSTERESISTER
& OFFSET
FROM S-PORT
MIRR
COMPARATOR
INPUT GAIN
FROM S-PORT
SEL
DAC
SINK CURRENT
FROM S-PORT
2
AGCO
FAST ATTACK
AGC
HOLD
BCA
DET
2
FROM
S-PORT
PH
2
2
INPUT
IMPEDANCE
FROM S-PORT
44
43
42
V33 FOR
OUTPUT
BUFFER
PI
FE
TE
CE
V25
V125
V25/3
LPF ATT
POL SEL
BUFFER
CONTROL
SIGNALS
TO EACH
BLOCK
3
CE ATT
CEPOL
D
C
B
A
CD F
CD E
VPB
VC
DVDLD
CDLD
CDPD
DVDPD
LDON
VNB
MIRR
MP
MB
MIN
MEVO
MLPF
CE
SDEN
SDATA
SCLK
V33
FE
TE
PI
V25
V125
TPH
DFT
LINK
LCP
LCN
MNTR
DVDRFP
DVDRFN
A2
B2
C2
D2
CP
CN
D
C
B
A
CD D
CD C
CD B
CD A
RFDC
RFSIN
ATOP
ATON
AIN
AIP
VPA
RFAC
VNA
BYP
DIN
DIP
FNP
FNN
MEV
RX
68
HCD-EA20
6-28. IC PIN FUNCTION DESCRIPTION
• IC207 ZIVA5X-C1F (DVD SYSTEM PROCESSOR)(DMB03 BOARD)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
I/O
—
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
—
—
I/O
I/O
I/O
I/O
I/O
I/O
—
—
I/O
I/O
I
I/O
I/O
I/O
I/O
—
—
—
—
O
O
O
O
O
O
O
O
O
O
—
—
O
O
O
O
O
O
Pin Name
VDDP
HA1
HD15
HD14
HD13
HD12
HD11
HD10
HD9
HD8
HD7
VDDP
GNDP
HD6
HD5
HD4
HD3
HD2
HD1
VDDP
GNDP
HD0
HDTACK
HIRQ0
WEH.UDS
WEL.LDS
HREAD
GPIO0
GND
VDD
GND25
VDD25
MA9
MA8
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
GND25
VDD25
MA10
MA11
BA1
BA0
MCS0
MCS1
Description
Power supply terminal (+3.3V) (I/O signal)
Address bus
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Power supply terminal (+3.3V) (I/O signal)
Ground terminal (I/O signal)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Data bus (address signal multiplexed)
Power supply terminal (+3.3V) (I/O signal)
Ground terminal (I/O signal)
Data bus (address signal multiplexed)
Acknowledge signal input/output for host data transfer (not used)
Interrupt signal input for Medusa (not used)
Host upper data strobe signal output
Host lower data strobe signal output (not used)
Read/write strobe signal output
Jig detection port (pull-up)
Ground terminal (inside core)
Power supply terminal (+1.8V) (inside core)
Ground terminal (SDRAM I/O signal)
Power supply terminal (+3.3V) (SDRAM I/O signal)
SDRAM address bus
SDRAM address bus
SDRAM address bus
SDRAM address bus
SDRAM address bus
SDRAM address bus
SDRAM address bus
SDRAM address bus
SDRAM address bus
SDRAM address bus
Ground terminal (SDRAM I/O signal)
Power supply terminal (+3.3V) (SDRAM I/O signal)
SDRAM address bus
SDRAM address bus
SDRAM bank select 1 signal output
SDRAM bank select 0 signal output
SDRAM chip select 0 signal output
Not used
69
HCD-EA20
Pin No.
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
I/O
O
O
O
—
—
O
I/O
I/O
I/O
I/O
—
O
—
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
—
O
—
I/O
I/O
I/O
I/O
—
—
I/O
I/O
I/O
I/O
—
O
—
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
—
O
—
I/O
I/O
Pin Name
MRAS
MCAS
MWE
GND25
VDD25
MCLK
MD0
MD1
MD2
MD3
GND25
MDQM0
VDD25
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
GND25
MDQM1
VDD25
MD12
MD13
MD14
MD15
GND
VDD
MD16
MD17
MD18
MD19
GND25
MDQM2
VDD25
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
GND25
MDQM3
VDD25
MD28
MD29
Description
SDRAM row address strobe signal output
SDRAM column address strobe signal output
SDRAM write enable signal output (“H” : read, “L” : write)
Ground terminal (SDRAM I/O signal)
Power supply terminal (+3.3V) (SDRAM I/O signal)
SDRAM Clock output
SDRAM data
SDRAM data
SDRAM data
SDRAM data
Ground terminal (SDRAM I/O signal)
Byte read /write mask signal 0 output
Power supply terminal (+3.3V) (SDRAM I/O signal)
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
Ground terminal (SDRAM I/O signal)
Byte read /write mask signal 1 output
Power supply terminal (+3.3V) (SDRAM I/O signal)
SDRAM data
SDRAM data
SDRAM data
SDRAM data
Ground terminal (inside core)
Power supply terminal (+1.8V) (inside core)
SDRAM data
SDRAM data
SDRAM data
SDRAM data
Ground terminal (SDRAM I/O signal)
Byte read /write mask signal 2 output
Power supply terminal (+3.3V) (SDRAM I/O signal)
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
SDRAM data
Ground terminal (SDRAM I/O signal)
Byte read /write mask signal 3 output
Power supply terminal (+3.3V) (SDRAM I/O signal)
SDRAM data
SDRAM data
70
HCD-EA20
Pin No.
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
I/O
I/O
I/O
—
—
I/O
I/O
O
O
O
O
—
—
O
O
O
I
—
—
O
—
—
O
—
—
O
—
—
O
—
—
O
—
—
—
I
—
—
O
I
—
—
—
—
—
—
—
O
O
O
O
Pin Name
MD30
MD31
GND25
VDD25
VCLK
XCK_I/O_SEL
VS
I/P SW
CDSEL
MREQ
VDDP
GNDP
MDI
MC
ML
HIRQ2_
VDAC_4B
VDAC_VDD4
VDAC_4
VDAC_3B
VDAC_VDD3
VDAC_3
VDAC_2B
VDAC_VDD2
VDAC_2
VDAC_1B
VDAC_VDD1
VDAC_1
VDAC_0B
VDAC_VDD0
VDAC_0
VDAC_DVSS
VDAC_DVDD
VDAC_REFVDD
VDAC_REF
VDAC_REFVSS
XVSS
XOUT
XIN
XVDD
AVSS2
AVDD2
AVDD1
AVSS1
VDD
GND
XCK
LRCK
BCK
DATA0(DM)
Description
SDRAM data
SDRAM data
Ground terminal (SDRAM I/O signal)
Power supply terminal (+3.3V) (SDRAM I/O signal)
System clock (not used)
5.1ch/downmix switch signal output
S1 signal output
Progressive/interlace switch signal output (not used)
CD-DA selection signal output (not used)
Audio muting request signal output
Power supply terminal (+3.3V) (I/O signal)
Ground terminal (I/O signal)
Serial data output to the D/A converter (IC332)
Serial data clock output to the D/A converter (IC332)
Latch enable signal output to the D/A converter (IC332)
Busy signal input from the EEPROM (IC204)
Video DAC bias bit 4 (connected to the ground)
Power supply terminal (+3.3V) (Video DAC 4)
VDAC output 4
Video DAC bias bit 3 (connected to the ground)
Power supply terminal (+3.3V) (Video DAC 3)
VDAC output 3
Video DAC bias bit 2 (connected to the ground)
Power supply terminal (+3.3V) (Video DAC 2)
VDAC output 2
Video DAC bias bit 1 (connected to the ground)
Power supply terminal (+3.3V) (Video DAC 1)
VDAC output 1
Video DAC bias bit 0 (connected to the ground)
Power supply terminal (+3.3V) (Video DAC 0)
VDAC output 0
Ground terminal (Video DAC digital system)
Power supply terminal (+3.3V) (Video DAC digital system)
Power supply terminal (Video DAC reference)
Reference voltage input terminal(for Video DAC)
Ground terminal (Video DAC reference)
Ground terminal (crystal oscillator)
Crystal oscillation signal output
Crystal oscillation signal input
Power supply terminal (crystal oscillator)
Ground terminal (analog PLL)
Power supply terminal (+3.3V) (analog PLL)
Power supply terminal (+3.3V) (analog PLL)
Ground terminal (analog PLL)
Power supply terminal (+1.8V) (inside core)
Ground terminal (inside core)
Audio system clock output
LRCK signal output for audio
BCK signal output for audio
Audio data(Down Mix signal) output
71
HCD-EA20
Pin No.
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
I/O
O
—
—
O
O
O
I
I
I
I/O
I/O
O
I
O
O
—
—
I
I
I
I
—
—
I
I
I
I
O
I
—
—
I
I
I
I
I
O
I
—
O
O
O
O
I/O
O
—
I
O
I
I
Pin Name
DATA1(FLR)
VDDP
GNDP
DATA2(SLR)
DATA3(CSW)
IEC958
DAI_DATA
DAI_BCK
DAI_LRCK
I2C_CL
I2C_DA
CS(ZIVA_E2P)
RXD1
TXD1
WRITE_CTRL(ZIVA_E2P)
GNDP
VDDP
SDDATA7
SDDATA6
SDDATA5
SDDATA4
GND
VDD
SDDATA3
SDDATA2
SDDATA1
SDDATA0
SDREQ
SDEN
GNDP
VDDP
SDERROR
SDCLK
HIRQ1
DRVCLK
DRVTX
DRVRX
DRVRDY
VNW
ALE
RST_SPC
INT/EXT
HCS2
HCS1
HCS0
VDDP
TRST
TDO
TDI
TMS
Description
Audio data(Front L/R signal) output
Power supply terminal (+3.3V) (I/O signal)
Ground terminal (I/O signal)
Audio data(Rear L/R signal) output
Audio data(Center/Subwoofer signal) output
S/PDIF signal (not used)
Data input from ADC (not used)
BCK signal input from ADC (not used)
LRCK signal input from ADC (not used)
I2C clock bus
I2C data bus
Chip select signal output to the EEPROM (IC204)
Serial data input for check jig
Serial data output for check jig
Write control signal output to the EEPROM (IC204)
Ground terminal (I/O signal)
Power supply terminal (+3.3V) (I/O signal)
SDBus data7 input
SDBus data6 input
SDBus data5 input
SDBus data4 input
Ground terminal (inside core)
Power supply terminal (+1.8V) (inside core)
SDBus data3 input
SDBus data2 input
SDBus data1 input
SDBus data0 input
SDBus data request signal output
SDBus data enable signal input
Ground terminal (I/O signal)
Power supply terminal (+3.3V) (I/O signal)
SDBus data error signal input
SDBus data clock input
Interrupt signal input from the mechanism controller (IC901)
Serial data clock input from the mechanism controller (IC901)
Serial data input from the mechanism controller (IC901) and the EEPROM (IC204)
Serial data output to the mechanism controller (IC901) and the EEPROM (IC204)
Ready signal input from the mechanism controller (IC901)
Power supply for 5V tolerance voltage input
Latch enable signal output for address data demux
Reset signal output to the mechanism controller (IC901)
Input selection signal output for SDBus or ADC
Chip select signal output for Medusa (not used)
Not used
Chip select signal output to the external ROM (IC206)
Power supply terminal (+3.3V) (I/O signal)
Reset signal input
Data output
Data input
TMS signal input
72
HCD-EA20
Pin No.
201
202
203
204
205
206
207
208
I/O
I
I
I/O
—
—
I/O
I/O
—
Pin Name
TCK
RESET
BUS CLK
GND
VDD
HA3
HA2
GNDP
Description
TCK signal input
ZIVA reset input
Not used
Ground terminal (inside core)
Power supply terminal (+1.8V) (inside core)
Address bus 3
Address bus 2
Ground terminal (I/O signal)
73
HCD-EA20
• IC701 CXD1882R (DVD DECODER)(DMB03 BOARD)
Pin No.
1, 2
3
4
5
6
7
8
9 to 14
15
16
17
18
19
20, 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
I/O
I/O
—
I/O
I
—
I
—
I
—
O
I
I
I
O
—
I
O
—
O
O
—
O
O
O
O
—
O
O
—
O
—
O
O
O
—
O
O
O
O
—
O
O
—
O
—
I
O
O
I
Pin Name
D5, D6
VSS
D7
A0
VDD
A1
VDD5V
A2 to A7
VSS
XWAIT
XRD
XWR
XCS
XINT0, XINT1
VDD
XHRS
HDB7
VSS
HDB8
HDB6
VDDS
HDB9
HDB5
HDBA
HDB4
VSS
HDBB
HDB3
VDD
HDBC
VDDS
HDB2
HDBD
HDB1
VSS
HDBE
HDB0
HDBF
XSAK
VDDS
XDCK
XSHD
VDD
REDY
VSS
XSRQ
HINT
XS16
HA1
Description
Two-way data bus with the mechanism controller
Ground terminal (digital system)
Two-way data bus with the mechanism controller
Address signal input from the mechanism controller
Power supply terminal (+3.3V) (digital system)
Address signal input from the mechanism controller
Power supply terminal (+5V)
Address signal input from the mechanism controller
Ground terminal (digital system)
Wait signal output terminal Not used
Read strobe signal input from the mechanism controller
Write strobe signal input from the mechanism controller
Chip select signal input from the mechanism controller
Interrupt signal output to the mechanism controller
Power supply terminal (+3.3V) (digital system)
Not used
Stream data signal output to the DSD decoder and DVD system processor
Ground terminal (digital system)
Error flag signal output to the DSD decoder and DVD system processor
Stream data signal output to the DSD decoder and DVD system processor
Power supply terminal (+5V) (digital system)
Not used
Stream data signal output to the DSD decoder and DVD system processor
Not used
Stream data signal output to the DSD decoder and DVD system processor
Ground terminal (digital system)
Not used
Stream data signal output to the DSD decoder and DVD system processor
Power supply terminal (+3.3V) (digital system)
Not used
Power supply terminal (+5V) (digital system)
Stream data signal output to the DSD decoder and DVD system processor
Not used
Stream data signal output to the DSD decoder and DVD system processor
Ground terminal (digital system)
Not used
Stream data signal output to the DSD decoder and DVD system processor
Not used
Serial data effect flag signal output to the DSD decoder and DVD system processor
Power supply terminal (+5V) (digital system)
Serial data transfer clock signal output to the DSD decoder and DVD system processor
Header flag signal output to the DSD decoder
Power supply terminal (+3.3V) (digital system)
Not used
Ground terminal (digital system)
“DVD mode: Serial data request signal input from the DVD system processor
SACD mode: Serial data request signal input from the DSD decoder”
Not used
Not used
Not used
74
HCD-EA20
Pin No.
57
58
59, 60
61
62, 63
64
65
66 to 69
70
71
72
73 to 75
76
77
78
79, 80
81
82 to 87
88
89
90
91
92
93
94
95
96, 97
98
99
100
101, 102
103
104 to 106
107
108
109
110
111
112
113, 114
115
116
117
118, 119
120
121
122, 123
124
125
126, 127
Pin Name
XPDI
VDDS
HA0, HA2
VSS
HCS0, HCS1
VDD
DASP
MDB0 to MDB3
VSS
MDB4
VDD5V
MDB5 to MDB7
XMWR
VDD
XRAS
MA0, MA1
VSS
MA2 to MA7
VDD
MA8
VSS
MA9
MNT1
MNT2
XMOE
XCAS
MDB8, MDB9
VSS
MDBA
VDD
MDBB, MDBC
VDD5V
MDBD to MDBF
GFS
VSS
APEO
VDD
DASYO
GNDA5
ASF1, AFS2
DASYI
RFDCC
RFIN
VCCA5, VCCA4
VCOR1
VCOIN
GNDA4, GNDA3
LPF5
VC1
LPF2, LPF1
I/O
I/O
—
I
—
I
—
I/O
I/O
—
I/O
—
I/O
O
—
O
O
—
O
—
O
—
O
O
O
O
O
I/O
—
I/O
—
I/O
—
I/O
O
—
O
—
O
—
—
I
I
I
—
—
I
—
O
I
I
Description
Not used
Power supply terminal (+5V) (digital system)
Not used
Ground terminal (digital system)
Not used
Power supply terminal (+3.3V) (digital system)
Not used
Two-way data bus with the D-RAM
Ground terminal (digital system)
Two-way data bus with the D-RAM
Power supply terminal (+5V)
Two-way data bus with the D-RAM
Write enable signal output to the D-RAM
Power supply terminal (+3.3V) (digital system)
Row address strobe signal output to the D-RAM
Address signal output to the D-RAM
Ground terminal (digital system)
Address signal output to the D-RAM
Power supply terminal (+3.3V) (digital system)
Address signal output to the D-RAM
Ground terminal (digital system)
Address signal output to the D-RAM
EEPROM ready signal output to the mechanism controller
Operation clock signal output for PSP physical disc mark detection to DSD decoder
Output enable signal output to the D-RAM
Column address strobe signal output to the D-RAM
Two-way data bus with the D-RAM
Ground terminal (digital system)
Two-way data bus with the D-RAM
Power supply terminal (+3.3V) (digital system)
Two-way data bus with the D-RAM
Power supply terminal (+5V)
Two-way data bus with the D-RAM
Guard frame sync signal output to the mechanism controller
Ground terminal (digital system)
Absolute phase error signal output
Power supply terminal (+3.3V) (digital system)
RF binary signal output
Ground terminal (analog system)
Filter connected terminal for selection the constant asymmetry compensation
Analog signal input after integrated from the RF binary signal
Input terminal for adjusting DC cut high-pass filter for RF signal Not used
RF signal input from the DVD/CD RF amplifier
Power supply terminal (+3.3V) (analog system)
VCO oscillating range setting resistor connected terminal
VCO input terminal
Ground terminal (analog system)
Signal output from the operation amplifier from PLL loop filter
Middle point voltage (+1.65V) input terminal
Inverted signal input to the operation amplifier from PLL loop filter
75
HCD-EA20
Pin No.
128, 129
130
131
132
133, 134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172 to 176
Pin Name
VCCA3, VCCA2
PD0
PDHVCC
FDO
GNDA2, GNDA1
SPO
VC2
MDIN2
MDIN1
VCCA1
CLVS
VSS
MDSOUT
VDD
MDPOUT
DEFECT
GSCOR
EXCK
SBIN
VSS
SCOR
WFCK
VDD5V
XRCI
VDDS
C2PO
VDD
DBCK
BCLK
DDAT
MDAT
VSS
DLRC
LRCK
XRST
IFS0
IFS1
XTAL
VSS
XTL2
XTL1
VDD
D0 to D4
I/O
—
O
I
O
—
O
I
I
I
—
O
—
O
—
O
I
I
O
I
—
I
I
—
I
—
I
—
O
I
O
I
—
O
I
I
I
I
I
—
O
I
—
I/O
Description
Power supply terminal (+3.3V) (analog system)
Signal output from the charge pump for phase comparator
Middle point voltage input terminal for RF PLL
Signal output from the charge pump for frequency comparator
Ground terminal (analog system)
Spindle motor control signal output
Middle point voltage (+1.65V) input terminal
Spindle motor servo drive signal input
MDP input terminal
Power supply terminal (+3.3V) (analog system)
Control signal output for selection the spindle control filter constant at CLVS
Ground terminal (digital system)
Frequency error output terminal of internal CLV circuit
Power supply terminal (+3.3V) (digital system)
Phase error output terminal of internal CLV circuit
Defect signal input terminal (conected to ground terminal)
Guard subcode sync (S0+S1) detection signal input from the digital signal processor
Subcode serial data reading clock signal output to the digital signal processor
Subcode serial data input from the digital signal processor
Ground terminal (digital system)
Subcode sync (S0+S1) detection signal input from the digital signal processor
Write frame clock signal input from the digital signal processor
Power supply terminal (+5V)
RAM overflow signal input terminal (conected to ground terminal)
Power supply terminal (+5V) (digital system)
C2 pointer signal input from the digital signal processor
Power supply terminal (+3.3V) (digital system)
Bit clock signal (2.8224 MHz) output terminal Not used
Bit clock signal (2.8224 MHz) input from the digital signal processor
PCM data output terminal
Serial data input from the digital signal processor
Ground terminal (digital system)
L/R sampling clock signal (44.1 kHz) output terminal Not used
L/R sampling clock signal (44.1 kHz) input from the digital signal processor
Reset signal input from the mechanism controller “L”: reset
Interface selection signal input terminal Fixed at “L” in this set
Interface selection signal input terminal Fixed at “H” in this set
33.8688 MHz clock signal input terminal
Ground terminal (digital system)
System clock output terminal (33.8688 MHz)
System clock input terminal (33.8688 MHz)
Power supply terminal (+3.3V) (digital system)
Two-way data bus with the mechanism controller
76
HCD-EA20
• IC901 CXP973064-232R (MECHANISM CONTROLLER)(DMB03 BOARD)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14 to 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43, 44
45
46
47
48
49
50
51
52
53
54
55
56
I/O
O
O
O
O
I/O
I
O
O
I
O
O
O
—
I/O
I
I
O
O
I
O
O
I
I
I
O
I
O
O
O
O
I
—
I
O
—
O
O
O
I
I
O
O
O
I
O
O
—
I
Pin Name
NO USE
SDEN
DOCTRL/
ISBTEST
XPST 2753
SDA EEP
MNT1
FCS JMP 1
FCS JMP 2
SENS CD
CDSP2
CDSP4
XCS DVD
VSS
D0 to D7
INIT0 DVD
INIT1 DVD
MSCK SAMBA
XRST 1882
SCOR
LAT CD
LD ON
MIRR
COUT CD
INLIM
CS ZIVA
SI ZIVA
SO ZIVA
SCK ZIVA
DRVIRQ
DRVRDY
RST
VSS
XTAL
EXTAL
VDD
SLED A, SLED B
SCK DSD
SDOUT DSD
SDIN DSD
READY DSD
DATA CD
CLOK CD
XMSLAT
SQSO
MUTE DSD
SQCK
VSS
CONTROL 4
Description
Not used
Serial data enable signal output to DVD/CD RF amplifier
Digital out on/off control signal output to the digital signal processor
“L”: digital out off, “H”: digital out on
Reset signal output for DSD decoder
Two-way data bus with the EEPROM
EEPROM ready signal input from the DVD decoder
Focus jump 1 signal output to the motor/coil driver
Focus jump 2 signal output to the motor/coil driver
Internal status (SENSE) signal input from the digital signal processor
Loading motor drive signal (loading in direction) output terminal
Loading motor drive signal (loading out direction) output terminal
Chip select signal output to the DVD decoder
Ground terminal (digital system)
Two-way data bus with the DVD decoder
Interrupt signal input from the DVD decoder
Interrupt signal input from the DVD decoder
Serial data transfer clock signal output to the DSD decoder
Reset signal output to the DVD decoder “L”: reset
Subcode sync (S0+S1) detection signal input from the digital signal processor
Serial data latch pulse signal output to the digital signal processor
Laser diode on/off control signal output to the DVD/CD RF amplifier
“L”: laser diode off, “H”: laser diode on
Mirror signal input from the digital signal processor
Numbers of track counted signal input from the digital signal processor
Detection signal input from limit in switch The optical pick-up is inner position when “H”
Chip select signal output to the DVD system processor
Serial data input from the DVD system processor
Serial data output to the DVD system processor
Serial data transfer clock signal output to the DVD system processor
Interrupt request signal output to the DVD system processor
Ready signal output to the DVD system processor
System reset signal input from the DVD system processor “L”: reset
Ground terminal (digital system)
System clock input terminal (20 MHz)
System clock output terminal (20 MHz)
Power supply terminal (+3.3V) (digital system)
Sled motor drive signal output
Output terminal for offset adjustment of APEO
Serial data output to the DSD decoder
Serial data input from the DSD decoder
Ready signal input from the DSD decoder “L”: ready
Serial data output to the digital signal processor
Serial data transfer clock signal output to the digital signal processor
Serial data latch pulse signal output to the DSD decoder
Subcode Q data input from the digital signal processor
Muting on/off control signal output to the DSD decoder “H”: muting on
Subcode Q data reading clock signal output to the digital signal processor
Ground terminal (digital system)
Disc tray in detection signal input terminal Not used
77
HCD-EA20
Pin No.
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89 to 96
97
98
99
100
Pin Name
CONTROL 2
GFS DVD
MUTE CD
MUTE 2D
SLED
FG
SP ON
JIT
TE
PI
FE
AVSS
AVREF
AVDD
GFS CD
SCLK CD
TSD
FOK CD
LOCK CD
LDSEL
SACD/DVD
I2C SIO
I2C SCL
RXD
TXD
SDCLK RF
SDATA RF
XWR
XRD
(PWE)
VDD
VSS
A0 to A7
DSAVE
XDRST
WP EEP
SCL EEP
I/O
I
I
O
O
I
I
O
I
I
I
I
—
I
—
I
O
O
I
I
O
O
I/O
I/O
I
O
O
I/O
O
O
—
—
—
O
O
O
O
O
Description
Disc tray out detection signal input terminal Not used
Guard frame sync signal input from the DVD decoder
Muting on/off control signal output to the digital signal processor “H”: muting on
Muting on/off control signal output to the motor/coil driver “H”: muting on
Sled motor servo drive PWM signal input terminal
Spindle motor control signal input
Muting on/off control signal output to the motor/coil driver “H”: muting on
Jitter signal input
Tracking error signal input from the DVD/CD RF amplifier
Pull in signal input from the DVD/CD RF amplifier
Focus error signal input from the DVD/CD RF amplifier
Ground terminal (for A/D converter)
Reference voltage input terminal (for A/D converter)
Power supply terminal (+3.3V) (for A/D converter)
Guard frame sync signal input from the digital signal processor
SENSE serial data reading clock signal output to the digital signal processor
Thermal shut down signal output to the motor/coil driver
Focus OK signal input from the digital signal processor
GFS is sampled by 460 Hz “H” input when GFS is “H”
Laser diode selection signal output
“SACD/DVD selection signal output “L”: DVD, “H”: SACD”
Communication data bus with the DVD system processor and system controller
Communication data reading clock signal input or transfer clock signal output with the DVD system processor
and system controller
Serial data input (RS-232C)
Serial data output (RS-232C)
Serial data transfer clock signal output to the DVD/CD RF amplifier
Two-way data bus with the DVD/CD RF amplifier
Write strobe signal output to the DVD decoder
Read strobe signal output to the DVD decoder
Not used
Power supply terminal (+3.3V) (digital system)
Ground terminal (digital system)
Address signal output to the DVD decoder
Motor/coil driver power save control signal output terminal
Reset signal output to the digital signal processor and DSD decoder “L”: reset
Write protect signal output to the EEPROM
Clock signal output to the EEPROM
78
HCD-EA20
• IC501 µPD703260YGF-S07-JBT-A (SYSTEM CONTROLLER)(UCOM BOARD)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48 to 59
60
61
I/O
I
I
—
—
O
O
—
O
O
—
—
—
—
I
O
I
I
O
O
I
I
I
I
O
I
I
O
I
O
O
O
O
O
O
—
—
I
I
O
O
O
O
O
O
I
I
O
O
I
I
Pin Name
UNREG MONITOR
SUBTRANS-MONITOR
AVREF0
AVSS
NO-USE
FL STB
AVREF1
NO-USE
AC ON/OFF
IC
VDD
REGC
VSS
X1
X2
RESET
XT1
XT2
LOD_POSI
RM_INT
KEY INT
NO-USE
AC_CUT
LOD_NEG
IN SW
OUT SW
FL DATA
SIRCS
FL_CLK
NO-USE
ATT
HP MUTE
STK-MUTE
TA-MUTE
EVSS
EVDD
I2C DATA
I2C CLK
VL-DATA1
VL-DATA2
VL-DATA3
VL-CLK
F-RELAY
R-RELAY
PROTECT-IN
DVD MUTE REQ
DVD SYS RESET
NO-USE
RDS_CLK
RDS_DATA
Description
Monitoring voltage input for protecting power block
Monitoring voltage input for protecting power block
Analog reference voltage for A/D converter
Ground terminal (analog)
Not used (open)
Strobe signal output to the FL driver (IC802)
Analog reference voltage for D/A converter
Not used (open)
Power supply and relay control signal output
Flash programing mode terminal
Power supply terminal
Regulator control terminal (connected to the capacitor)
Ground terminal
Main oscillator signal input
Main oscillator signal output
System reset signal input
Sub oscillator signal input (pull-down)
Sub oscillator signal output (open)
Loading motor control signal output (open action)
Wakeup signal input from standby mode by sircs input
Wakeup signal input from standby mode by key input
Not used (pull-down)
AC-CUT detection signal input (primary power off)
Loading motor control signal output (close action)
Switch (tray position) signal input (tray in)
Switch (tray position) signal input (tray out)
Data output to the FL driver (IC802)
SIRCS signal input from the remote sensor (IC801)
Clock output to the FL driver (IC802)
Not used (open)
Line attenuation control signal output
Muting control signal output for the headphone signal
Standby control signal output to the power amplifier (IC401)
Line muting signal output
Ground terminal (port)
Power supply terminal (port)
I2C data input
I2C clock input
Volume control data output to the electronic volume (IC502)
Volume control data output to the electronic volume (IC552)
Volume control data output to the electronic volume (IC522)
Clock output to the electronic volumes
Front speaker relay and woofer relay control signal output
Rear speaker relay and center speaker relay control signal output
Speaker protection signal input
Muting request signal input from the DVD system processor (IC207)
Reset signal output to the DVD system processor (IC207)
Not used (open)
RDS clock input
RDS data input
79
HCD-EA20
Pin No.
62 to 68
69
70
71
72
73 to 75
76
77
78
79
80
81
82
83
84
85, 86
87
88
89, 90
91
92
93
94
95
96
97
98
99
100
I/O
O
O
O
—
—
O
O
O
O
O
I
O
O
O
I
O
O
O
O
I
I
I
I
I
I
I
I
I
I
Pin Name
NO-USE
AU OUT MUTE
NO-USE
BVSS
BVDD
NO-USE
AV SEL0
AV SEL1
AV SEL2
AV SEL3
TUNED
PLL_CLK
PLL_DO
PLL CE
PLL DI
NO-USE
SOFT-TEST
STBY LED
NO-USE
HP-SW
EN_A
EN_B
KEY2
KEY1
KEY0
SHIMUKE
MODEL
DEVICE1
DEVICE2
Description
Not used (open)
Analog audio signal output muting control signal output
Not used (open)
Ground terminal (bus interface)
Power supply terminal (bus interface)
Not used (open)
Audio / video select0 signal output
Audio / video select1 signal output
Audio / video select2 signal output
Audio / video select3 signal output
Tuner tuned status signal input from the tuner
Clock output to the tuner
Data output to the tuner
Chip enable signal output to the tuner
Data input from the tuner
Not used (open)
Soft check terminal
Standby LED control signal output
Not used (open)
HP plug insert detection signal input
Volume signal input from the encoder
Volume signal input from the encoder
Key input 2
Key input 1
Key input 0
Destination selection terminal
Model selection terminal
Device selection1 terminal (DISPLAY)
Device selection2 terminal (AMP)
NOTE:
•-XX, -X mean standardized parts, so they may
have some difference from the original one.
•Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
SECTION 7
EXPLODED VIEWS
80
HCD-EA20
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
RU : Russian model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-1. CASE SECTION
1
2
2
#1
#1
chassis section
front panel section
14-249-698-01 CASE
23-363-099-11 SCREW (CASE 3 TP2)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
81
HCD-EA20
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-2. FRONT PANEL SECTION
51
52 58
56
59
54
53
55
55 57
including
S800
not supplied
not supplied
not supplied
not supplied
not supplied
51 4-249-176-01 KNOB, VOL
52 4-249-179-01 PLATE, ORNAMENTAL
53 4-249-175-01 POWER, INDICATOR
54 1-689-809-11 STANDBY BOARD
55 4-951-620-01 SCREW (2.6X8), +BVTP
56 A-4748-517-A PANEL BOARD, COMPLETE
57 1-773-039-11 WIRE (FLAT TYPE) (17 CORE)
58 4-250-787-01 FOOT
59 4-249-173-01 BUTTON (EZ)
82
HCD-EA20
7-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101
102
#1
#1
#1
#1
#1 #1
#1
#1
#1
#1
#1
103
104
107 108
106
118
119
120
121 117
122
123
109
110
111
105
105
112
114
116
115
113
105
DVD mechanism section
(CDM77A-DVBU20)
not
supplied not
supplied
not
supplied
not
supplied
not
supplied
T101
F903
F902
101 4-249-177-01 CD (LID)
102 1-775-267-11 WIRE (FLAT TYPE) (29 CORE)
103 4-951-620-01 SCREW (2.6X8), +BVTP
104 4-900-386-01 SCREW
105 3-970-608-01 SUMITITE (B3), +BV (AEP,UK)
105 3-970-608-11 SUMITITE (B3), +BV (RU)
*106 3-703-244-00 BUSHING (2104), CORD
0107 1-575-651-21 CORD, POWER
108 1-763-697-21 DC FAN (AEP,UK)
108 1-787-094-11 FAN, DC (RU)
109 1-500-386-21 FILTER, CLAMP (FERRITE CORE)
110 A-4748-523-A SUB TRANS BOARD, COMPLETE
111 A-4748-520-A AMP BOARD, COMPLETE
112 A-4748-534-A I/O BOARD, COMPLETE
113 A-4748-528-A UCOM BOARD, COMPLETE (AEP,UK)
113 A-4750-132-A UCOM BOARD, COMPLETE (RU)
114 A-4748-541-A DMB03 BOARD, COMPLETE (AEP,UK)
114 A-4750-134-A DMB03 BOARD, COMPLETE (RU)
115 4-250-787-01 FOOT
116 1-773-989-11 WIRE (FLAT TYPE) (5 CORE)
117 A-4738-774-A TUNER UNIT
118 1-775-152-11 WIRE (FLAT TYPE) (17 CORE)
119 1-775-083-11 WIRE (FLAT TYPE) (9 CORE)
120 1-827-627-11 WIRE (FLAT TYPE) (15 CORE)
121 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
122 1-775-102-11 WIRE (FLAT TYPE) (11 CORE)
123 1-775-189-11 WIRE (FLAT TYPE) (21 CORE)
0F902 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0F903 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0T101 1-443-067-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
83
HCD-EA20
7-4. DVD MECHANISM SECTION (CDM77A-DVBU20)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
401
404
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
403
409
410
407
410
410
408
405
406
402
402
402
401 4-243-742-01 TRAY (AU)
402 4-981-923-01 SCREW (M), STEP
403 1-773-983-11 WIRE (FLAT TYPE)(5 CORE)
404 3-080-478-01 BELT
405 A-4728-690-A RF BOARD, COMPLETE
406 4-243-741-01 BASE (AU), LOADING
407 1-689-264-11 PWB, FLEXIBLE (24 CORE)
0408 1-477-263-11 OPTICAL PICK-UP (TDP022W)
409 4-243-743-01 HOLDER (DBU1)
410 3-053-847-41 INSULATOR
84
HCD-EA20 SECTION 8
ELECTRICAL PARTS LIST
Note:
•Due to standardization, replacements in the parts
list may be different from the parts specified in the
diagrams or the components used on the set.
•-XX, -X mean standardized parts, so they may
have some difference from the original one.
•Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
•RESISTORS
All resistors are in ohms
METAL: Metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F : nonflammable
•CAPACITORS
uF : µ F
•COILS
uH : µ H
•SEMICONDUCTORS
In each case, u: µ , for example:
uA...: µ A..., uPA...: µ PA..., uPB...: µ PB...,
uPC...: µ PC..., uPD...: µ PD.
•Abbreviation
RU : Russian model
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
AMP
A-4748-520-A AMP BOARD, COMPLETE
********************
< CAPACITOR >
C301 1-126-044-11 ELECT 1uF 20.00% 50V
C302 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C303 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C304 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C305 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C307 1-126-044-11 ELECT 1uF 20.00% 50V
C308 1-104-665-11 ELECT 100uF 20.00% 10V
C309 1-104-665-11 ELECT 100uF 20.00% 10V
C311 1-126-948-11 ELECT 100uF 20.00% 35V
C312 1-126-948-11 ELECT 100uF 20.00% 35V
C313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C321 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C322 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C323 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C324 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C325 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C326 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C341 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C342 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C343 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C344 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C345 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C346 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C347 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C348 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C351 1-126-044-11 ELECT 1uF 20.00% 50V
C352 1-126-044-11 ELECT 1uF 20.00% 50V
C353 1-126-044-11 ELECT 1uF 20.00% 50V
C354 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C355 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C356 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C357 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C358 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C359 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C360 1-126-059-11 ELECT 10uF 20.00% 50V
C361 1-126-059-11 ELECT 10uF 20.00% 50V
C362 1-126-059-11 ELECT 10uF 20.00% 50V
C371 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C372 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C373 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C374 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C391 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C392 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C393 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C394 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C395 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C396 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C397 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C398 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C401 1-126-044-11 ELECT 1uF 20.00% 50V
C402 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C403 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C404 1-126-059-11 ELECT 10uF 20.00% 50V
C406 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C407 1-126-948-11 ELECT 100uF 20.00% 35V
C408 1-126-964-11 ELECT 10uF 20.00% 50V
C411 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C412 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C421 1-126-933-11 ELECT 100uF 20.00% 16V
C422 1-126-964-11 ELECT 10uF 20.00% 50V
C423 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C425 1-126-963-11 ELECT 4.7uF 20.00% 50V
C441 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C442 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C443 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C444 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C451 1-126-044-11 ELECT 1uF 20.00% 50V
C452 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C453 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C454 1-126-059-11 ELECT 10uF 20.00% 50V
C461 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C462 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C471 1-126-964-11 ELECT 10uF 20.00% 50V
C472 1-104-665-11 ELECT 100uF 20.00% 10V
C473 1-126-961-11 ELECT 2.2uF 20.00% 50V
C474 1-104-665-11 ELECT 100uF 20.00% 10V
C491 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C492 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C493 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C494 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
85
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
AMP
C501 1-126-233-11 ELECT 22uF 20% 50V
C502 1-126-059-11 ELECT 10uF 20.00% 50V
C503 1-130-471-00 MYLAR 0.001uF 5% 50V
C504 1-130-471-00 MYLAR 0.001uF 5% 50V
C505 1-136-287-11 MYLAR 0.0047uF 5.00% 50V
C506 1-136-287-11 MYLAR 0.0047uF 5.00% 50V
C507 1-126-022-11 ELECT 47uF 20.00% 16V
C508 1-126-059-11 ELECT 10uF 20.00% 50V
C509 1-126-233-11 ELECT 22uF 20% 50V
C510 1-126-059-11 ELECT 10uF 20.00% 50V
C511 1-126-022-11 ELECT 47uF 20.00% 16V
C512 1-126-233-11 ELECT 22uF 20% 50V
C513 1-126-059-11 ELECT 10uF 20.00% 50V
C514 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V
C515 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V
C521 1-126-059-11 ELECT 10uF 20.00% 50V
C522 1-126-059-11 ELECT 10uF 20.00% 50V
C523 1-130-471-00 MYLAR 0.001uF 5% 50V
C524 1-130-471-00 MYLAR 0.001uF 5% 50V
C525 1-136-287-11 MYLAR 0.0047uF 5.00% 50V
C526 1-136-287-11 MYLAR 0.0047uF 5.00% 50V
C527 1-126-022-11 ELECT 47uF 20.00% 16V
C528 1-126-059-11 ELECT 10uF 20.00% 50V
C529 1-126-059-11 ELECT 10uF 20.00% 50V
C530 1-126-059-11 ELECT 10uF 20.00% 50V
C531 1-126-022-11 ELECT 47uF 20.00% 16V
C532 1-126-059-11 ELECT 10uF 20.00% 50V
C533 1-126-059-11 ELECT 10uF 20.00% 50V
C534 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V
C535 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V
C541 1-107-715-11 ELECT 22uF 20.00% 35V
C542 1-107-715-11 ELECT 22uF 20.00% 35V
C551 1-126-059-11 ELECT 10uF 20.00% 50V
C552 1-126-059-11 ELECT 10uF 20.00% 50V
C553 1-130-471-00 MYLAR 0.001uF 5% 50V
C554 1-130-471-00 MYLAR 0.001uF 5% 50V
C555 1-136-287-11 MYLAR 0.0047uF 5.00% 50V
C556 1-136-287-11 MYLAR 0.0047uF 5.00% 50V
C557 1-126-022-11 ELECT 47uF 20.00% 16V
C558 1-126-059-11 ELECT 10uF 20.00% 50V
C559 1-126-059-11 ELECT 10uF 20.00% 50V
C560 1-126-059-11 ELECT 10uF 20.00% 50V
C561 1-126-022-11 ELECT 47uF 20.00% 16V
C562 1-126-059-11 ELECT 10uF 20.00% 50V
C563 1-126-059-11 ELECT 10uF 20.00% 50V
C564 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V
C565 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V
C951 1-137-401-11 MYLAR 0.22uF 5.00% 100V
C952 1-126-041-11 ELECT 2200uF 20.00% 35V
C953 1-126-041-11 ELECT 2200uF 20.00% 35V
C955 1-119-939-51 ELECT 6800uF 20.00% 35V
C956 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C957 1-126-948-11 ELECT 100uF 20.00% 35V
C958 1-126-767-11 ELECT 1000uF 20.00% 16V
C959 1-126-948-11 ELECT 100uF 20.00% 35V
C960 1-137-980-91 CERAMIC CHIP 0.47uF 10% 50V
C961 1-126-926-11 ELECT 1000uF 20.00% 10V
C962 1-126-948-11 ELECT 100uF 20.00% 35V
C963 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C964 1-137-980-91 CERAMIC CHIP 0.47uF 10% 50V
C965 1-137-980-91 CERAMIC CHIP 0.47uF 10% 50V
C966 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C967 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C970 1-126-935-11 ELECT 470uF 20.00% 10V
C971 1-107-713-11 ELECT 4.7uF 20.00% 50V
< CONNECTOR >
CN302 1-779-289-11 CONNECTOR,FFC(LIF(NON-ZIF))21P
CN303 1-779-277-11 CONNECTOR, FFC(LIF(NON-ZIF))9P
CN401 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
CN421 1-564-506-11 PLUG, CONNECTOR 3P
CN801 1-784-739-11 CONNECTOR, FFC 17P
*CN951 1-564-242-00 PIN, CONNECTOR(3.96mm PITCH)5P
CN952 1-779-279-11 CONNECTOR,FFC(LIF(NON-ZIF))11P
CN953 1-568-951-11 PIN, CONNECTOR 2P
< DIODE >
D321 8-719-988-61 DIODE 1SS355TE-17
D322 8-719-988-61 DIODE 1SS355TE-17
D323 8-719-988-61 DIODE 1SS355TE-17
D331 8-719-988-61 DIODE 1SS355TE-17
D371 8-719-988-61 DIODE 1SS355TE-17
D372 8-719-988-61 DIODE 1SS355TE-17
D381 8-719-988-61 DIODE 1SS355TE-17
D382 8-719-988-61 DIODE 1SS355TE-17
D401 8-719-988-61 DIODE 1SS355TE-17
D411 8-719-988-61 DIODE 1SS355TE-17
D430 8-719-988-61 DIODE 1SS355TE-17
D461 8-719-988-61 DIODE 1SS355TE-17
D462 8-719-988-61 DIODE 1SS355TE-17
D471 8-719-988-61 DIODE 1SS355TE-17
D472 8-719-988-61 DIODE 1SS355TE-17
D473 8-719-988-61 DIODE 1SS355TE-17
D951 6-500-250-01 DIODE D15XB20-4001
D952 6-500-250-01 DIODE D15XB20-4001
D954 8-719-210-21 DIODE 11EQS04-TA1B
D955 8-719-079-47 DIODE RK36LF-A4
D956 8-719-079-47 DIODE RK36LF-A4
D957 8-719-988-61 DIODE 1SS355TE-17
D958 8-719-988-61 DIODE 1SS355TE-17
< GROUND TERMINAL BOARD >
EP902 1-537-770-21 TERMINAL BOARD, GROUND
EP951 1-537-770-21 TERMINAL BOARD, GROUND
< FUSE HOLDER >
FH903 1-533-233-11 FUSE HOLDER
FH904 1-533-233-11 FUSE HOLDER
FH905 1-533-233-11 FUSE HOLDER
FH906 1-533-233-11 FUSE HOLDER
< IC >
IC301 6-704-868-01 IC STK402-920
IC401 6-703-084-01 IC STK403-030
86
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
AMP
IC501 8-759-385-17 IC NJM4580E(TE2)
IC502 8-759-539-45 IC M62429P
IC521 8-759-385-17 IC NJM4580E(TE2)
IC522 8-759-539-45 IC M62429P
IC551 8-759-385-17 IC NJM4580E(TE2)
IC552 8-759-539-45 IC M62429P
IC951 6-701-021-01 IC SI-8120JF
IC952 8-759-474-09 IC SI-8050S-LF1101
IC953 6-700-813-01 IC SI-8033JF
< JACK >
J301 1-694-919-11 TERMINAL BOARD (6CH SPEAKER)
< COIL >
L341 1-420-872-52 COIL, AIR-CORE
L342 1-420-872-52 COIL, AIR-CORE
L343 1-420-872-52 COIL, AIR-CORE
L391 1-420-872-52 COIL, AIR-CORE
L392 1-420-872-52 COIL, AIR-CORE
L441 1-420-872-52 COIL, AIR-CORE
L491 1-420-872-52 COIL, AIR-CORE
L901 1-414-398-11 INDUCTOR 10uH
L902 1-414-398-11 INDUCTOR 10uH
L951 1-456-419-11 INDUCTOR 120uH
L952 1-456-419-11 INDUCTOR 120uH
L953 1-456-419-11 INDUCTOR 120uH
< TRANSISTOR >
Q321 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q322 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q323 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q331 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q332 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q371 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q372 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q381 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q382 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q383 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q401 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q411 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q424 8-729-026-68 TRANSISTOR 2SD2525(TP)
Q425 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q426 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q461 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q462 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q463 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q472 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q473 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q474 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q476 8-729-921-73 TRANSISTOR 2SD1781K-T146-QR
Q477 8-729-026-48 TRANSISTOR 2SA1037AK-T146-Q
Q478 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q479 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
Q511 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
Q512 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
Q521 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
Q522 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
Q551 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
Q552 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
Q972 8-729-027-23 TRANSISTOR DTA114EKA-T146
< RESISTOR >
R301 1-216-821-11 METAL CHIP 1K 5% 1/16W
R302 1-216-841-11 METAL CHIP 47K 5% 1/16W
R303 1-216-841-11 METAL CHIP 47K 5% 1/16W
R304 1-216-841-11 METAL CHIP 47K 5% 1/16W
R305 1-216-841-11 METAL CHIP 47K 5% 1/16W
R306 1-216-818-11 METAL CHIP 560 5% 1/16W
R307 1-216-818-11 METAL CHIP 560 5% 1/16W
R308 1-216-841-11 METAL CHIP 47K 5% 1/16W
0R309 1-245-605-51 FUSIBLE 100 5% 1/4W
0R310 1-245-605-51 FUSIBLE 100 5% 1/4W
R311 1-216-833-11 METAL CHIP 10K 5% 1/16W
R313 1-216-833-11 METAL CHIP 10K 5% 1/16W
R321 1-216-821-11 METAL CHIP 1K 5% 1/16W
R322 1-216-835-11 METAL CHIP 15K 5% 1/16W
R323 1-216-845-11 METAL CHIP 100K 5% 1/16W
0R324 1-208-602-11 METAL 0.22 2W
R325 1-249-625-31 CARBON 10 5% 1/2W
R326 1-216-821-11 METAL CHIP 1K 5% 1/16W
R327 1-216-835-11 METAL CHIP 15K 5% 1/16W
R328 1-216-845-11 METAL CHIP 100K 5% 1/16W
0R329 1-208-602-11 METAL 0.22 2W
R330 1-249-625-31 CARBON 10 5% 1/2W
R331 1-216-821-11 METAL CHIP 1K 5% 1/16W
R332 1-216-835-11 METAL CHIP 15K 5% 1/16W
R333 1-216-845-11 METAL CHIP 100K 5% 1/16W
0R334 1-208-602-11 METAL 0.22 2W
R335 1-249-625-31 CARBON 10 5% 1/2W
R337 1-216-833-11 METAL CHIP 10K 5% 1/16W
R338 1-216-841-11 METAL CHIP 47K 5% 1/16W
R339 1-216-841-11 METAL CHIP 47K 5% 1/16W
0R340 1-215-865-11 METAL OXIDE 220 5% 1W
R341 1-247-791-91 CARBON 22 5% 1/4W
R342 1-247-791-91 CARBON 22 5% 1/4W
R343 1-247-791-91 CARBON 22 5% 1/4W
R344 1-247-791-91 CARBON 22 5% 1/4W
R345 1-247-791-91 CARBON 22 5% 1/4W
R346 1-247-791-91 CARBON 22 5% 1/4W
R347 1-247-791-91 CARBON 22 5% 1/4W
R348 1-247-791-91 CARBON 22 5% 1/4W
R349 1-247-791-91 CARBON 22 5% 1/4W
R350 1-247-791-91 CARBON 22 5% 1/4W
R351 1-216-821-11 METAL CHIP 1K 5% 1/16W
R352 1-216-821-11 METAL CHIP 1K 5% 1/16W
R353 1-216-821-11 METAL CHIP 1K 5% 1/16W
R354 1-216-841-11 METAL CHIP 47K 5% 1/16W
R355 1-216-841-11 METAL CHIP 47K 5% 1/16W
R356 1-216-841-11 METAL CHIP 47K 5% 1/16W
R357 1-216-819-11 METAL CHIP 680 5% 1/16W
R358 1-216-819-11 METAL CHIP 680 5% 1/16W
R359 1-216-819-11 METAL CHIP 680 5% 1/16W
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
87
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
AMP
R360 1-216-841-11 METAL CHIP 47K 5% 1/16W
R361 1-216-841-11 METAL CHIP 47K 5% 1/16W
R362 1-216-841-11 METAL CHIP 47K 5% 1/16W
R371 1-216-821-11 METAL CHIP 1K 5% 1/16W
R372 1-216-835-11 METAL CHIP 15K 5% 1/16W
R373 1-216-845-11 METAL CHIP 100K 5% 1/16W
0R374 1-208-602-11 METAL 0.22 2W
R375 1-249-625-31 CARBON 10 5% 1/2W
R376 1-216-821-11 METAL CHIP 1K 5% 1/16W
R377 1-216-835-11 METAL CHIP 15K 5% 1/16W
R378 1-216-845-11 METAL CHIP 100K 5% 1/16W
0R379 1-208-602-11 METAL 0.22 2W
R380 1-249-625-31 CARBON 10 5% 1/2W
R382 1-216-833-11 METAL CHIP 10K 5% 1/16W
R383 1-216-841-11 METAL CHIP 47K 5% 1/16W
R384 1-216-841-11 METAL CHIP 47K 5% 1/16W
R385 1-216-841-11 METAL CHIP 47K 5% 1/16W
0R386 1-215-865-11 METAL OXIDE 220 5% 1W
0R387 1-215-865-11 METAL OXIDE 220 5% 1W
R391 1-247-791-91 CARBON 22 5% 1/4W
R392 1-247-791-91 CARBON 22 5% 1/4W
R393 1-247-791-91 CARBON 22 5% 1/4W
R394 1-247-791-91 CARBON 22 5% 1/4W
R395 1-247-791-91 CARBON 22 5% 1/4W
R396 1-247-791-91 CARBON 22 5% 1/4W
R397 1-247-791-91 CARBON 22 5% 1/4W
R398 1-247-791-91 CARBON 22 5% 1/4W
R401 1-216-821-11 METAL CHIP 1K 5% 1/16W
R402 1-216-841-11 METAL CHIP 47K 5% 1/16W
R403 1-216-819-11 METAL CHIP 680 5% 1/16W
R404 1-216-841-11 METAL CHIP 47K 5% 1/16W
0R405 1-245-605-51 FUSIBLE 100 5% 1/4W
R406 1-216-821-11 METAL CHIP 1K 5% 1/16W
R407 1-216-839-11 METAL CHIP 33K 5% 1/16W
R408 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R409 1-216-833-11 METAL CHIP 10K 5% 1/16W
R411 1-216-821-11 METAL CHIP 1K 5% 1/16W
R412 1-216-835-11 METAL CHIP 15K 5% 1/16W
R413 1-216-845-11 METAL CHIP 100K 5% 1/16W
0R414 1-208-602-11 METAL 0.22 2W
R415 1-249-625-31 CARBON 10 5% 1/2W
R421 1-216-841-11 METAL CHIP 47K 5% 1/16W
R422 1-216-841-11 METAL CHIP 47K 5% 1/16W
R423 1-216-841-11 METAL CHIP 47K 5% 1/16W
R424 1-216-841-11 METAL CHIP 47K 5% 1/16W
R425 1-216-841-11 METAL CHIP 47K 5% 1/16W
R426 1-216-841-11 METAL CHIP 47K 5% 1/16W
R428 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R429 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R434 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R435 1-216-849-11 METAL CHIP 220K 5% 1/16W
R436 1-216-809-11 METAL CHIP 100 5% 1/16W
R437 1-216-841-11 METAL CHIP 47K 5% 1/16W
R438 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R441 1-247-791-91 CARBON 22 5% 1/4W
R442 1-247-791-91 CARBON 22 5% 1/4W
R443 1-247-791-91 CARBON 22 5% 1/4W
R444 1-247-791-91 CARBON 22 5% 1/4W
R451 1-216-821-11 METAL CHIP 1K 5% 1/16W
R452 1-216-841-11 METAL CHIP 47K 5% 1/16W
R453 1-216-819-11 METAL CHIP 680 5% 1/16W
R454 1-216-841-11 METAL CHIP 47K 5% 1/16W
R461 1-216-821-11 METAL CHIP 1K 5% 1/16W
R462 1-216-835-11 METAL CHIP 15K 5% 1/16W
R463 1-216-845-11 METAL CHIP 100K 5% 1/16W
0R464 1-208-602-11 METAL 0.22 2W
R465 1-249-625-31 CARBON 10 5% 1/2W
R467 1-216-833-11 METAL CHIP 10K 5% 1/16W
R468 1-216-841-11 METAL CHIP 47K 5% 1/16W
R469 1-216-841-11 METAL CHIP 47K 5% 1/16W
0R470 1-215-865-11 METAL OXIDE 220 5% 1W
R471 1-216-841-11 METAL CHIP 47K 5% 1/16W
R473 1-216-821-11 METAL CHIP 1K 5% 1/16W
R475 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R477 1-216-837-11 METAL CHIP 22K 5% 1/16W
R478 1-216-839-11 METAL CHIP 33K 5% 1/16W
R479 1-216-833-11 METAL CHIP 10K 5% 1/16W
R480 1-216-833-11 METAL CHIP 10K 5% 1/16W
R482 1-216-841-11 METAL CHIP 47K 5% 1/16W
R483 1-216-842-11 METAL CHIP 56K 5% 1/16W
R484 1-216-841-11 METAL CHIP 47K 5% 1/16W
R485 1-216-842-11 METAL CHIP 56K 5% 1/16W
R486 1-216-843-11 METAL CHIP 68K 5% 1/16W
R487 1-216-841-11 METAL CHIP 47K 5% 1/16W
R488 1-216-842-11 METAL CHIP 56K 5% 1/16W
R493 1-247-791-91 CARBON 22 5% 1/4W
R494 1-247-791-91 CARBON 22 5% 1/4W
R495 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R496 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R497 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R501 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R502 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R503 1-216-833-11 METAL CHIP 10K 5% 1/16W
R504 1-216-833-11 METAL CHIP 10K 5% 1/16W
R505 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R506 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R507 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R508 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R509 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R510 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R513 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R514 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R515 1-216-833-11 METAL CHIP 10K 5% 1/16W
R516 1-216-833-11 METAL CHIP 10K 5% 1/16W
R517 1-216-837-11 METAL CHIP 22K 5% 1/16W
R518 1-216-837-11 METAL CHIP 22K 5% 1/16W
R521 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R522 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R523 1-216-833-11 METAL CHIP 10K 5% 1/16W
R524 1-216-833-11 METAL CHIP 10K 5% 1/16W
R525 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R526 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R527 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
88
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
DMB03
R528 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R529 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R530 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R533 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R534 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R535 1-216-833-11 METAL CHIP 10K 5% 1/16W
R536 1-216-833-11 METAL CHIP 10K 5% 1/16W
R537 1-216-837-11 METAL CHIP 22K 5% 1/16W
R538 1-216-837-11 METAL CHIP 22K 5% 1/16W
R541 1-216-845-11 METAL CHIP 100K 5% 1/16W
R542 1-216-845-11 METAL CHIP 100K 5% 1/16W
R543 1-247-741-11 CARBON 150 5% 1/2W
R544 1-247-741-11 CARBON 150 5% 1/2W
R545 1-247-739-11 CARBON 100 5% 1/2W F
R546 1-247-739-11 CARBON 100 5% 1/2W F
R551 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R552 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R553 1-216-833-11 METAL CHIP 10K 5% 1/16W
R554 1-216-833-11 METAL CHIP 10K 5% 1/16W
R555 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R556 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R557 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R558 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R559 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R560 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R563 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R564 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R565 1-216-833-11 METAL CHIP 10K 5% 1/16W
R566 1-216-833-11 METAL CHIP 10K 5% 1/16W
R567 1-216-837-11 METAL CHIP 22K 5% 1/16W
R568 1-216-837-11 METAL CHIP 22K 5% 1/16W
R951 1-216-845-11 METAL CHIP 100K 5% 1/16W
R952 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R953 1-216-815-11 METAL CHIP 330 5% 1/16W
R954 1-216-810-11 METAL CHIP 120 5% 1/16W
R955 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R956 1-216-837-11 METAL CHIP 22K 5% 1/16W
R957 1-216-837-11 METAL CHIP 22K 5% 1/16W
R958 1-216-837-11 METAL CHIP 22K 5% 1/16W
R959 1-216-833-11 METAL CHIP 10K 5% 1/16W
R960 1-216-809-11 METAL CHIP 100 5% 1/16W
R961 1-216-810-11 METAL CHIP 120 5% 1/16W
R962 1-216-833-11 METAL CHIP 10K 5% 1/16W
R963 1-216-833-11 METAL CHIP 10K 5% 1/16W
R964 1-216-833-11 METAL CHIP 10K 5% 1/16W
R965 1-216-833-11 METAL CHIP 10K 5% 1/16W
R971 1-216-845-11 METAL CHIP 100K 5% 1/16W
R972 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R973 1-216-833-11 METAL CHIP 10K 5% 1/16W
R974 1-249-421-11 CARBON 2.2K 5% 1/4W F
R980 1-216-818-11 METAL CHIP 560 5% 1/16W
R981 1-216-805-11 METAL CHIP 47 5% 1/16W
< RELAY >
RY331 1-755-170-11 RELAY (12V)
RY381 1-755-170-11 RELAY (12V)
RY382 1-755-170-11 RELAY (12V)
RY461 1-755-170-11 RELAY (12V)
< THERMISTOR(POSITIVE) >
THP471 1-202-854-00 THERMISTOR, POSITIVE
************************************************************
A-4748-541-A DMB03 BOARD, COMPLETE (AEP,UK)
******************************
A-4750-134-A DMB03 BOARD, COMPLETE (RU)
***************************
< CAPACITOR >
C101 1-126-246-11 ELECT CHIP 220uF 20% 4V
C151 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C204 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C205 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C213 1-126-209-11 ELECT CHIP 100uF 20.00% 4V
C214 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C215 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C216 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C218 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C220 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C226 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C227 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C229 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C230 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C231 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C232 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C233 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C234 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C235 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C236 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C237 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C238 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C239 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C240 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C241 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C242 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C243 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C244 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C245 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C246 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C247 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C248 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C249 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C250 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C251 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C252 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C253 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C254 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C255 1-117-370-11 CERAMIC CHIP 10uF 10V
C256 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C257 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C258 1-117-370-11 CERAMIC CHIP 10uF 10V
C259 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C260 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C261 1-164-947-11 CERAMIC CHIP 0.01uF 50V
AMP
89
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
C262 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C263 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C264 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C265 1-117-370-11 CERAMIC CHIP 10uF 10V
C266 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C267 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C268 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C269 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C270 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C271 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C272 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C275 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C281 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C282 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C283 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C284 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C286 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C287 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C302 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C303 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C304 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C305 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C306 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C307 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C308 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C309 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C315 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C316 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C321 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C322 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C323 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C324 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C325 1-126-209-11 ELECT CHIP 100uF 20.00% 4V
C326 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C352 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C355 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C356 1-126-193-11 ELECT 1uF 20% 50V
C357 1-126-193-11 ELECT 1uF 20% 50V
C363 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C364 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C365 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C366 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C367 1-164-935-11 CERAMIC CHIP 470PF 10.00% 50V
C368 1-164-935-11 CERAMIC CHIP 470PF 10.00% 50V
C392 1-126-395-11 ELECT 22uF 20% 16V
C393 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C394 1-126-246-11 ELECT CHIP 220uF 20% 4V
C412 1-216-864-11 METAL CHIP 0 5% 1/16W
C413 1-216-864-11 METAL CHIP 0 5% 1/16W
C414 1-216-864-11 METAL CHIP 0 5% 1/16W
C415 1-216-864-11 METAL CHIP 0 5% 1/16W
C416 1-216-864-11 METAL CHIP 0 5% 1/16W
C501 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C502 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C503 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V
C504 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V
C506 1-164-934-11 CERAMIC CHIP 330PF 10.00% 50V
C508 1-164-937-11 CERAMIC CHIP 0.001uF 10.00% 50V
C509 1-164-934-11 CERAMIC CHIP 330PF 10.00% 50V
C510 1-164-937-11 CERAMIC CHIP 0.001uF 10.00% 50V
C512 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C514 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C516 1-164-939-11 CERAMIC CHIP 0.0022uF 10.00% 50V
C517 1-117-370-11 CERAMIC CHIP 10uF 10V
C518 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C519 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C522 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 6.3V
C525 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C526 1-126-395-11 ELECT 22uF 20% 16V
C527 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C528 1-126-395-11 ELECT 22uF 20% 16V
C529 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C531 1-119-923-11 CERAMIC CHIP 0.047uF 10.00% 10V
C533 1-164-939-11 CERAMIC CHIP 0.0022uF 10.00% 50V
C534 1-107-819-11 CERAMIC CHIP 0.022uF 10.00% 16V
C535 1-164-939-11 CERAMIC CHIP 0.0022uF 10.00% 50V
C543 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C544 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V
C545 1-117-370-11 CERAMIC CHIP 10uF 10V
C547 1-107-725-11 CERAMIC CHIP 0.1uF 10.00% 16V
C548 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C551 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V
C552 1-216-295-91 SHORT CHIP 0
C553 1-164-940-11 CERAMIC CHIP 0.0033uF 10.00% 16V
C556 1-117-370-11 CERAMIC CHIP 10uF 10V
C558 1-126-209-11 ELECT CHIP 100uF 20.00% 4V
C559 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V
C560 1-164-938-11 CERAMIC CHIP 0.0015uF 10.00% 50V
C561 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C563 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C565 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V
C567 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C568 1-117-370-11 CERAMIC CHIP 10uF 10V
C569 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C570 1-117-370-11 CERAMIC CHIP 10uF 10V
C573 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C588 1-164-939-11 CERAMIC CHIP 0.0022uF 10.00% 50V
C589 1-164-939-11 CERAMIC CHIP 0.0022uF 10.00% 50V
C590 1-164-939-11 CERAMIC CHIP 0.0022uF 10.00% 50V
C592 1-124-779-00 ELECT CHIP 10uF 20% 16V
C701 1-126-209-11 ELECT CHIP 100uF 20.00% 4V
C702 1-117-370-11 CERAMIC CHIP 10uF 10V
C703 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 6.3V
C705 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C706 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C708 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C709 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C711 1-119-923-11 CERAMIC CHIP 0.047uF 10.00% 10V
C712 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C713 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C714 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C715 1-164-938-11 CERAMIC CHIP 0.0015uF 10.00% 50V
C716 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V
C717 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V
C718 1-107-820-11 CERAMIC CHIP 0.1uF 16V
DMB03
90
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
C720 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V
C721 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C722 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C723 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C724 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C725 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C726 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C727 1-117-370-11 CERAMIC CHIP 10uF 10V
C728 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V
C729 1-117-370-11 CERAMIC CHIP 10uF 10V
C730 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C740 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C741 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C742 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C743 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C744 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C745 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C752 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C760 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C761 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C762 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C763 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C764 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C765 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C766 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C767 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C768 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C769 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C770 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C771 1-119-923-11 CERAMIC CHIP 0.047uF 10.00% 10V
C772 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C773 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V
C774 1-164-941-11 CERAMIC CHIP 0.0047uF 10.00% 16V
C775 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C776 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C777 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C778 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C779 1-117-370-11 CERAMIC CHIP 10uF 10V
C780 1-117-370-11 CERAMIC CHIP 10uF 10V
C781 1-165-643-21 ELECT CHIP 150uF 20% 4V
C782 1-164-938-11 CERAMIC CHIP 0.0015uF 10.00% 50V
C783 1-164-938-11 CERAMIC CHIP 0.0015uF 10.00% 50V
C901 1-126-209-11 ELECT CHIP 100uF 20.00% 4V
C902 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C903 1-126-209-11 ELECT CHIP 100uF 20.00% 4V
C904 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C905 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C906 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C907 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C908 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C909 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
C910 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C913 1-127-772-81 CERAMIC CHIP 33000PF 10% 10V
C914 1-164-849-11 CERAMIC CHIP 9PF 0.50PF 50V
C915 1-164-847-11 CERAMIC CHIP 7PF 0.50PF 50V
C916 1-126-209-11 ELECT CHIP 100uF 20.00% 4V
C917 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C918 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C924 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C925 1-126-395-11 ELECT 22uF 20% 16V
C926 1-126-246-11 ELECT CHIP 220uF 20% 4V
C927 1-164-947-11 CERAMIC CHIP 0.01uF 50V
C928 1-117-370-11 CERAMIC CHIP 10uF 10V
C1304 1-218-990-11 SHORT CHIP 0
< CONNECTOR >
*CN101 1-784-365-31 CONNECTOR, FFC/FPC 5P
CN102 1-815-954-21 PIN, CONNECTOR (PC BOARD) 13P
CN105 1-784-374-31 CONNECTOR, FFC/FPC 15P (AEP,UK)
CN105 1-784-374-21 CONNECTOR, FFC/FPC 15P (RU)
CN107 1-778-692-11 CONNECTOR, FFC/FPC 21P
CN501 1-778-957-11 CONNECTOR, FFC/FPC 29P
CN901 1-764-177-11 PIN, CONNECTOR (SMD)(1.5mm) 7P
< DIODE >
D202 8-719-988-61 DIODE 1SS355TE-17
D392 8-719-988-61 DIODE 1SS355TE-17
D393 8-719-988-61 DIODE 1SS355TE-17
D394 8-719-988-61 DIODE 1SS355TE-17
D901 8-719-988-61 DIODE 1SS355TE-17
D1101 8-719-988-61 DIODE 1SS355TE-17
D1102 8-719-988-61 DIODE 1SS355TE-17
D1201 1-216-295-91 SHORT CHIP 0
D1202 1-216-295-91 SHORT CHIP 0
D1203 8-719-988-61 DIODE 1SS355TE-17
D1204 8-719-988-61 DIODE 1SS355TE-17
D1301 8-719-988-61 DIODE 1SS355TE-17
D1302 8-719-988-61 DIODE 1SS355TE-17
D1303 8-719-988-61 DIODE 1SS355TE-17
D1304 8-719-988-61 DIODE 1SS355TE-17
D1801 8-719-988-61 DIODE 1SS355TE-17
D1802 8-719-988-61 DIODE 1SS355TE-17
< FERRITE BEAD >
FB901 1-500-284-21 FERRITE 0uH
FB902 1-500-284-21 FERRITE 0uH
FB903 1-500-284-21 FERRITE 0uH
< FILTER >
FL203 1-234-177-21 FERRITE 0uH
FL204 1-234-177-21 FERRITE 0uH
FL205 1-234-177-21 FERRITE 0uH
FL206 1-234-177-21 FERRITE 0uH
FL302 1-234-177-21 FERRITE 0uH
FL303 1-234-177-21 FERRITE 0uH
FL352 1-234-177-21 FERRITE 0uH
FL501 1-234-177-21 FERRITE 0uH
FL502 1-234-177-21 FERRITE 0uH
FL701 1-234-177-21 FERRITE 0uH
FL702 1-234-177-21 FERRITE 0uH
FL703 1-234-177-21 FERRITE 0uH
FL704 1-234-177-21 FERRITE 0uH
FL705 1-234-177-21 FERRITE 0uH
FL706 1-234-177-21 FERRITE 0uH
FL901 1-234-177-21 FERRITE 0uH
FL903 1-234-177-21 FERRITE 0uH
FL908 1-234-177-21 FERRITE 0uH
DMB03
91
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
< IC >
IC203 6-704-069-01 IC HY57V283220T-6
*IC204 6-703-671-01 IC BR9040F-WE2
IC206 6-803-555-01 IC MBM29PL32BM90TN-SB3V107
IC207 6-703-540-01 IC ZIVA5X-C1F
IC211 6-700-398-01 IC uPC2918T-E1
IC216 6-700-437-01 IC SN74ALVCH16841DGGR
IC255 8-759-649-43 IC SN74AHC1G00DCKR
IC256 8-759-549-21 IC SN74LV573APWR
IC258 8-759-549-21 IC SN74LV573APWR
IC259 8-759-549-21 IC SN74LV573APWR
IC302 6-703-787-01 IC PCM1609KPTR
IC352 8-759-560-56 IC PCM1800E/2K
IC392 8-759-583-47 IC uPC2933T-E2
IC501 6-702-157-01 IC FAN8035L
IC503 8-759-058-43 IC NJM3404AV(TE2)
IC509 8-752-408-73 IC CXD3068Q
IC701 6-703-552-01 IC CXD1882R
IC703 8-759-058-43 IC NJM3404AV(TE2)
IC706 8-759-564-30 IC MSM51V18165F-60TSKR1
IC901 8-753-211-15 IC CXP973064-232R
IC902 8-759-649-48 IC SN74AHC1G32DCKR
IC903 6-704-004-01 IC BR24L16F-WE2
IC904 6-702-563-01 IC TC7W74FK-TE85L
IC906 6-700-407-01 IC SM8707GV-G-E2
IC907 8-759-583-47 IC uPC2933T-E2
< JUMPER RESISTOR >
JW392 1-216-864-11 METAL CHIP 0 5% 1/16W
JW601 1-218-990-11 SHORT CHIP 0
JW602 1-218-990-11 SHORT CHIP 0
JW603 1-218-990-11 SHORT CHIP 0
JW604 1-218-990-11 SHORT CHIP 0
JW605 1-218-990-11 SHORT CHIP 0
JW606 1-218-990-11 SHORT CHIP 0
JW607 1-218-990-11 SHORT CHIP 0
JW801 1-218-990-11 SHORT CHIP 0
JW802 1-218-990-11 SHORT CHIP 0
JW803 1-218-990-11 SHORT CHIP 0
JW804 1-218-990-11 SHORT CHIP 0
JW805 1-218-990-11 SHORT CHIP 0
JW806 1-218-990-11 SHORT CHIP 0
< COIL >
L402 1-216-296-11 SHORT CHIP 0
L403 1-216-296-11 SHORT CHIP 0
L404 1-216-296-11 SHORT CHIP 0
L405 1-216-296-11 SHORT CHIP 0
L406 1-216-296-11 SHORT CHIP 0
L412 1-216-296-11 SHORT CHIP 0
L413 1-216-296-11 SHORT CHIP 0
L414 1-216-296-11 SHORT CHIP 0
L415 1-216-296-11 SHORT CHIP 0
L416 1-216-296-11 SHORT CHIP 0
L901 1-412-031-11 INDUCTOR CHIP 47uH
< TRANSISTOR >
Q202 8-729-929-26 TRANSISTOR DTC114TE-TL
Q901 8-729-929-26 TRANSISTOR DTC114TE-TL
Q903 8-729-025-28 TRANSISTOR 2SK1828TE85L
Q904 8-729-025-28 TRANSISTOR 2SK1828TE85L
< RESISTOR >
R10 1-216-801-11 METAL CHIP 22 5% 1/16W
R11 1-216-801-11 METAL CHIP 22 5% 1/16W
R12 1-216-801-11 METAL CHIP 22 5% 1/16W
R13 1-216-801-11 METAL CHIP 22 5% 1/16W
R14 1-216-801-11 METAL CHIP 22 5% 1/16W
R15 1-216-801-11 METAL CHIP 22 5% 1/16W
R197 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R198 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R207 1-216-864-11 METAL CHIP 0 5% 1/16W
R213 1-216-807-11 METAL CHIP 68 5% 1/16W
R214 1-216-864-11 METAL CHIP 0 5% 1/16W
R215 1-216-864-11 METAL CHIP 0 5% 1/16W
R217 1-216-813-11 METAL CHIP 220 5% 1/16W
R218 1-216-864-11 METAL CHIP 0 5% 1/16W
R219 1-216-864-11 METAL CHIP 0 5% 1/16W
R220 1-216-864-11 METAL CHIP 0 5% 1/16W
R221 1-216-864-11 METAL CHIP 0 5% 1/16W
R222 1-216-864-11 METAL CHIP 0 5% 1/16W
R223 1-216-864-11 METAL CHIP 0 5% 1/16W
R224 1-216-864-11 METAL CHIP 0 5% 1/16W
R225 1-543-958-11 FERRITE 0uH
R226 1-216-813-11 METAL CHIP 220 5% 1/16W
R227 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R228 1-216-813-11 METAL CHIP 220 5% 1/16W
R230 1-216-803-11 METAL CHIP 33 5% 1/16W
R231 1-216-803-11 METAL CHIP 33 5% 1/16W
R232 1-216-803-11 METAL CHIP 33 5% 1/16W
R233 1-216-864-11 METAL CHIP 0 5% 1/16W
R234 1-216-833-11 METAL CHIP 10K 5% 1/16W
R240 1-216-841-11 METAL CHIP 47K 5% 1/16W
R241 1-216-864-11 METAL CHIP 0 5% 1/16W
R243 1-216-864-11 METAL CHIP 0 5% 1/16W
R244 1-216-821-11 METAL CHIP 1K 5% 1/16W
R245 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R246 1-216-833-11 METAL CHIP 10K 5% 1/16W
R247 1-216-821-11 METAL CHIP 1K 5% 1/16W
R248 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R250 1-216-864-11 METAL CHIP 0 5% 1/16W
R251 1-216-864-11 METAL CHIP 0 5% 1/16W
R253 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R254 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R255 1-216-864-11 METAL CHIP 0 5% 1/16W
R257 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R259 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R260 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R261 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R262 1-216-864-11 METAL CHIP 0 5% 1/16W
R263 1-218-285-11 METAL CHIP 75 5% 1/10W
R264 1-218-285-11 METAL CHIP 75 5% 1/10W
R265 1-218-285-11 METAL CHIP 75 5% 1/10W
DMB03
92
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
R266 1-218-285-11 METAL CHIP 75 5% 1/10W
R267 1-218-285-11 METAL CHIP 75 5% 1/10W
R268 1-543-958-11 FERRITE 0uH
R269 1-216-813-11 METAL CHIP 220 5% 1/16W
R270 1-216-864-11 METAL CHIP 0 5% 1/16W
R273 1-216-864-11 METAL CHIP 0 5% 1/16W
R274 1-216-864-11 METAL CHIP 0 5% 1/16W
R275 1-216-864-11 METAL CHIP 0 5% 1/16W
R276 1-216-864-11 METAL CHIP 0 5% 1/16W
R277 1-216-864-11 METAL CHIP 0 5% 1/16W
R278 1-218-285-11 METAL CHIP 75 5% 1/10W
R279 1-218-285-11 METAL CHIP 75 5% 1/10W
R280 1-218-285-11 METAL CHIP 75 5% 1/10W
R281 1-218-285-11 METAL CHIP 75 5% 1/10W
R282 1-218-285-11 METAL CHIP 75 5% 1/10W
R283 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
R284 1-218-829-11 METAL CHIP 180 0.5% 1/10W
R285 1-216-864-11 METAL CHIP 0 5% 1/16W
R291 1-216-864-11 METAL CHIP 0 5% 1/16W
R292 1-216-864-11 METAL CHIP 0 5% 1/16W
R293 1-216-864-11 METAL CHIP 0 5% 1/16W
R294 1-216-864-11 METAL CHIP 0 5% 1/16W
R295 1-216-864-11 METAL CHIP 0 5% 1/16W
R296 1-216-864-11 METAL CHIP 0 5% 1/16W
R301 1-216-821-11 METAL CHIP 1K 5% 1/16W
R302 1-216-813-11 METAL CHIP 220 5% 1/16W
R303 1-216-813-11 METAL CHIP 220 5% 1/16W
R304 1-216-813-11 METAL CHIP 220 5% 1/16W
R305 1-216-813-11 METAL CHIP 220 5% 1/16W
R306 1-216-813-11 METAL CHIP 220 5% 1/16W
R307 1-216-813-11 METAL CHIP 220 5% 1/16W
R308 1-216-813-11 METAL CHIP 220 5% 1/16W
R309 1-216-813-11 METAL CHIP 220 5% 1/16W
R310 1-216-809-11 METAL CHIP 100 5% 1/16W
R311 1-216-809-11 METAL CHIP 100 5% 1/16W
R312 1-216-809-11 METAL CHIP 100 5% 1/16W
R313 1-543-958-11 FERRITE 0uH
R314 1-216-801-11 METAL CHIP 22 5% 1/16W
R327 1-216-864-11 METAL CHIP 0 5% 1/16W
R328 1-216-813-11 METAL CHIP 220 5% 1/16W
R329 1-216-813-11 METAL CHIP 220 5% 1/16W
R335 1-543-958-11 FERRITE 0uH
R352 1-216-864-11 METAL CHIP 0 5% 1/16W
R353 1-216-864-11 METAL CHIP 0 5% 1/16W
R362 1-216-833-11 METAL CHIP 10K 5% 1/16W
R392 1-216-797-11 METAL CHIP 10 5% 1/16W
R501 1-216-864-11 METAL CHIP 0 5% 1/16W
R502 1-216-864-11 METAL CHIP 0 5% 1/16W
R503 1-216-841-11 METAL CHIP 47K 5% 1/16W
R504 1-216-841-11 METAL CHIP 47K 5% 1/16W
R505 1-216-841-11 METAL CHIP 47K 5% 1/16W
R506 1-216-841-11 METAL CHIP 47K 5% 1/16W
R507 1-216-864-11 METAL CHIP 0 5% 1/16W
R508 1-216-864-11 METAL CHIP 0 5% 1/16W
R510 1-216-847-11 METAL CHIP 150K 5% 1/16W
R511 1-216-847-11 METAL CHIP 150K 5% 1/16W
R512 1-216-842-11 METAL CHIP 56K 5% 1/16W
R513 1-216-842-11 METAL CHIP 56K 5% 1/16W
R516 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R517 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R519 1-216-845-11 METAL CHIP 100K 5% 1/16W
R520 1-216-833-11 METAL CHIP 10K 5% 1/16W
R521 1-216-845-11 METAL CHIP 100K 5% 1/16W
R522 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R523 1-216-833-11 METAL CHIP 10K 5% 1/16W
R524 1-216-833-11 METAL CHIP 10K 5% 1/16W
R525 1-216-833-11 METAL CHIP 10K 5% 1/16W
R527 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R528 1-216-864-11 METAL CHIP 0 5% 1/16W
R529 1-216-839-11 METAL CHIP 33K 5% 1/16W
R530 1-216-842-11 METAL CHIP 56K 5% 1/16W
R531 1-216-864-11 METAL CHIP 0 5% 1/16W
R532 1-216-864-11 METAL CHIP 0 5% 1/16W
R533 1-216-839-11 METAL CHIP 33K 5% 1/16W
R534 1-216-842-11 METAL CHIP 56K 5% 1/16W
R535 1-216-864-11 METAL CHIP 0 5% 1/16W
R536 1-216-833-11 METAL CHIP 10K 5% 1/16W
R537 1-216-843-11 METAL CHIP 68K 5% 1/16W
R538 1-216-864-11 METAL CHIP 0 5% 1/16W
R539 1-216-864-11 METAL CHIP 0 5% 1/16W
R540 1-216-864-11 METAL CHIP 0 5% 1/16W
R541 1-216-864-11 METAL CHIP 0 5% 1/16W
R543 1-216-864-11 METAL CHIP 0 5% 1/16W
R544 1-216-864-11 METAL CHIP 0 5% 1/16W
R545 1-216-833-11 METAL CHIP 10K 5% 1/16W
R547 1-216-864-11 METAL CHIP 0 5% 1/16W
R548 1-216-833-11 METAL CHIP 10K 5% 1/16W
R550 1-216-821-11 METAL CHIP 1K 5% 1/16W
R551 1-216-821-11 METAL CHIP 1K 5% 1/16W
R552 1-216-821-11 METAL CHIP 1K 5% 1/16W
R553 1-216-864-11 METAL CHIP 0 5% 1/16W
R554 1-216-864-11 METAL CHIP 0 5% 1/16W
R555 1-216-864-11 METAL CHIP 0 5% 1/16W
R558 1-216-841-11 METAL CHIP 47K 5% 1/16W
R559 1-216-821-11 METAL CHIP 1K 5% 1/16W
R560 1-216-821-11 METAL CHIP 1K 5% 1/16W
R561 1-216-821-11 METAL CHIP 1K 5% 1/16W
R562 1-216-821-11 METAL CHIP 1K 5% 1/16W
R563 1-216-821-11 METAL CHIP 1K 5% 1/16W
R564 1-216-821-11 METAL CHIP 1K 5% 1/16W
R565 1-216-821-11 METAL CHIP 1K 5% 1/16W
R566 1-216-833-11 METAL CHIP 10K 5% 1/16W
R567 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R568 1-216-857-11 METAL CHIP 1M 5% 1/16W
R569 1-216-864-11 METAL CHIP 0 5% 1/16W
R571 1-216-857-11 METAL CHIP 1M 5% 1/16W
R572 1-216-853-11 METAL CHIP 470K 5% 1/16W
R573 1-216-833-11 METAL CHIP 10K 5% 1/16W
R575 1-216-864-11 METAL CHIP 0 5% 1/16W
R576 1-216-864-11 METAL CHIP 0 5% 1/16W
R577 1-216-864-11 METAL CHIP 0 5% 1/16W
R578 1-216-864-11 METAL CHIP 0 5% 1/16W
R579 1-216-832-11 METAL CHIP 8.2K 5% 1/16W
R580 1-216-839-11 METAL CHIP 33K 5% 1/16W
R581 1-216-834-11 METAL CHIP 12K 5% 1/16W
DMB03
93
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
R583 1-216-864-11 METAL CHIP 0 5% 1/16W
R584 1-216-839-11 METAL CHIP 33K 5% 1/16W
R585 1-216-864-11 METAL CHIP 0 5% 1/16W
R586 1-218-747-11 METAL CHIP 200K 5% 1/10W
R587 1-216-864-11 METAL CHIP 0 5% 1/16W
R588 1-216-833-11 METAL CHIP 10K 5% 1/16W
R589 1-216-833-11 METAL CHIP 10K 5% 1/16W
R592 1-216-864-11 METAL CHIP 0 5% 1/16W
R593 1-216-845-11 METAL CHIP 100K 5% 1/16W
R597 1-216-864-11 METAL CHIP 0 5% 1/16W
R599 1-216-821-11 METAL CHIP 1K 5% 1/16W
R601 1-216-864-11 METAL CHIP 0 5% 1/16W
R615 1-216-864-11 METAL CHIP 0 5% 1/16W
R629 1-216-864-11 METAL CHIP 0 5% 1/16W
R694 1-216-833-11 METAL CHIP 10K 5% 1/16W
R695 1-216-864-11 METAL CHIP 0 5% 1/16W
R696 1-216-864-11 METAL CHIP 0 5% 1/16W
R698 1-216-864-11 METAL CHIP 0 5% 1/16W
R699 1-216-864-11 METAL CHIP 0 5% 1/16W
R700 1-216-832-11 METAL CHIP 8.2K 5% 1/16W
R707 1-216-809-11 METAL CHIP 100 5% 1/16W
R708 1-216-853-11 METAL CHIP 470K 5% 1/16W
R709 1-216-847-11 METAL CHIP 150K 5% 1/16W
R710 1-216-833-11 METAL CHIP 10K 5% 1/16W
R711 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R712 1-216-833-11 METAL CHIP 10K 5% 1/16W
R713 1-216-833-11 METAL CHIP 10K 5% 1/16W
R714 1-216-833-11 METAL CHIP 10K 5% 1/16W
R715 1-216-833-11 METAL CHIP 10K 5% 1/16W
R716 1-216-809-11 METAL CHIP 100 5% 1/16W
R717 1-216-845-11 METAL CHIP 100K 5% 1/16W
R718 1-216-833-11 METAL CHIP 10K 5% 1/16W
R719 1-216-821-11 METAL CHIP 1K 5% 1/16W
R720 1-216-821-11 METAL CHIP 1K 5% 1/16W
R721 1-216-839-11 METAL CHIP 33K 5% 1/16W
R724 1-216-821-11 METAL CHIP 1K 5% 1/16W
R725 1-216-824-11 METAL CHIP 1.8K 5% 1/16W
R726 1-216-845-11 METAL CHIP 100K 5% 1/16W
R727 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R728 1-216-833-11 METAL CHIP 10K 5% 1/16W
R730 1-216-801-11 METAL CHIP 22 5% 1/16W
R731 1-216-801-11 METAL CHIP 22 5% 1/16W
R732 1-216-833-11 METAL CHIP 10K 5% 1/16W
R733 1-216-833-11 METAL CHIP 10K 5% 1/16W
R734 1-216-833-11 METAL CHIP 10K 5% 1/16W
R735 1-216-833-11 METAL CHIP 10K 5% 1/16W
R736 1-216-833-11 METAL CHIP 10K 5% 1/16W
R737 1-216-833-11 METAL CHIP 10K 5% 1/16W
R738 1-216-833-11 METAL CHIP 10K 5% 1/16W
R741 1-216-801-11 METAL CHIP 22 5% 1/16W
R742 1-216-801-11 METAL CHIP 22 5% 1/16W
R743 1-216-801-11 METAL CHIP 22 5% 1/16W
R744 1-216-801-11 METAL CHIP 22 5% 1/16W
R745 1-216-841-11 METAL CHIP 47K 5% 1/16W
R746 1-216-841-11 METAL CHIP 47K 5% 1/16W
R747 1-216-839-11 METAL CHIP 33K 5% 1/16W
R748 1-216-839-11 METAL CHIP 33K 5% 1/16W
R750 1-216-833-11 METAL CHIP 10K 5% 1/16W
R751 1-216-864-11 METAL CHIP 0 5% 1/16W
R752 1-216-864-11 METAL CHIP 0 5% 1/16W
R753 1-216-864-11 METAL CHIP 0 5% 1/16W
R754 1-216-864-11 METAL CHIP 0 5% 1/16W
R755 1-216-864-11 METAL CHIP 0 5% 1/16W
R756 1-216-864-11 METAL CHIP 0 5% 1/16W
R757 1-216-864-11 METAL CHIP 0 5% 1/16W
R758 1-216-864-11 METAL CHIP 0 5% 1/16W
R759 1-216-864-11 METAL CHIP 0 5% 1/16W
R762 1-216-837-11 METAL CHIP 22K 5% 1/16W
R763 1-216-832-11 METAL CHIP 8.2K 5% 1/16W
R764 1-216-857-11 METAL CHIP 1M 5% 1/16W
R765 1-216-837-11 METAL CHIP 22K 5% 1/16W
R766 1-216-864-11 METAL CHIP 0 5% 1/16W
R767 1-216-841-11 METAL CHIP 47K 5% 1/16W
R769 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R770 1-216-864-11 METAL CHIP 0 5% 1/16W
R776 1-216-864-11 METAL CHIP 0 5% 1/16W
R777 1-216-864-11 METAL CHIP 0 5% 1/16W
R778 1-216-845-11 METAL CHIP 100K 5% 1/16W
R780 1-216-864-11 METAL CHIP 0 5% 1/16W
R781 1-216-864-11 METAL CHIP 0 5% 1/16W
R784 1-216-864-11 METAL CHIP 0 5% 1/16W
R785 1-216-833-11 METAL CHIP 10K 5% 1/16W
R786 1-216-845-11 METAL CHIP 100K 5% 1/16W
R787 1-216-845-11 METAL CHIP 100K 5% 1/16W
R788 1-216-845-11 METAL CHIP 100K 5% 1/16W
R789 1-216-845-11 METAL CHIP 100K 5% 1/16W
R799 1-216-864-11 METAL CHIP 0 5% 1/16W
R805 1-216-864-11 METAL CHIP 0 5% 1/16W
R901 1-216-801-11 METAL CHIP 22 5% 1/16W
R902 1-216-801-11 METAL CHIP 22 5% 1/16W
R904 1-216-833-11 METAL CHIP 10K 5% 1/16W
R905 1-216-801-11 METAL CHIP 22 5% 1/16W
R906 1-216-801-11 METAL CHIP 22 5% 1/16W
R907 1-216-801-11 METAL CHIP 22 5% 1/16W
R908 1-216-833-11 METAL CHIP 10K 5% 1/16W
R910 1-216-864-11 METAL CHIP 0 5% 1/16W
R911 1-216-833-11 METAL CHIP 10K 5% 1/16W
R912 1-216-833-11 METAL CHIP 10K 5% 1/16W
R913 1-216-833-11 METAL CHIP 10K 5% 1/16W
R915 1-216-809-11 METAL CHIP 100 5% 1/16W
R916 1-216-821-11 METAL CHIP 1K 5% 1/16W
R917 1-216-821-11 METAL CHIP 1K 5% 1/16W
R918 1-216-801-11 METAL CHIP 22 5% 1/16W
R919 1-216-864-11 METAL CHIP 0 5% 1/16W
R920 1-216-809-11 METAL CHIP 100 5% 1/16W
R921 1-216-809-11 METAL CHIP 100 5% 1/16W
R922 1-216-801-11 METAL CHIP 22 5% 1/16W
R923 1-216-813-11 METAL CHIP 220 5% 1/16W
R925 1-216-809-11 METAL CHIP 100 5% 1/16W
R926 1-216-809-11 METAL CHIP 100 5% 1/16W
R927 1-216-857-11 METAL CHIP 1M 5% 1/16W
R928 1-216-809-11 METAL CHIP 100 5% 1/16W
R929 1-216-809-11 METAL CHIP 100 5% 1/16W
R930 1-216-809-11 METAL CHIP 100 5% 1/16W
R931 1-216-801-11 METAL CHIP 22 5% 1/16W
DMB03
94
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
R932 1-216-801-11 METAL CHIP 22 5% 1/16W
R933 1-216-801-11 METAL CHIP 22 5% 1/16W
R934 1-216-801-11 METAL CHIP 22 5% 1/16W
R935 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R940 1-216-809-11 METAL CHIP 100 5% 1/16W
R942 1-216-809-11 METAL CHIP 100 5% 1/16W
R943 1-216-809-11 METAL CHIP 100 5% 1/16W
R947 1-216-864-11 METAL CHIP 0 5% 1/16W
R948 1-216-864-11 METAL CHIP 0 5% 1/16W
R949 1-216-864-11 METAL CHIP 0 5% 1/16W
R958 1-216-801-11 METAL CHIP 22 5% 1/16W
R962 1-216-833-11 METAL CHIP 10K 5% 1/16W
R964 1-216-833-11 METAL CHIP 10K 5% 1/16W
R970 1-216-864-11 METAL CHIP 0 5% 1/16W
R971 1-216-864-11 METAL CHIP 0 5% 1/16W
R973 1-216-864-11 METAL CHIP 0 5% 1/16W
R974 1-216-864-11 METAL CHIP 0 5% 1/16W
R975 1-216-833-11 METAL CHIP 10K 5% 1/16W
R976 1-216-864-11 METAL CHIP 0 5% 1/16W
R978 1-216-833-11 METAL CHIP 10K 5% 1/16W
R984 1-216-833-11 METAL CHIP 10K 5% 1/16W
R988 1-216-864-11 METAL CHIP 0 5% 1/16W
R990 1-216-864-11 METAL CHIP 0 5% 1/16W
R991 1-216-864-11 METAL CHIP 0 5% 1/16W
R992 1-216-864-11 METAL CHIP 0 5% 1/16W
R994 1-216-864-11 METAL CHIP 0 5% 1/16W
R995 1-216-864-11 METAL CHIP 0 5% 1/16W
R996 1-216-864-11 METAL CHIP 0 5% 1/16W
R997 1-216-864-11 METAL CHIP 0 5% 1/16W
R998 1-216-864-11 METAL CHIP 0 5% 1/16W
R1000 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R1201 1-216-864-11 METAL CHIP 0 5% 1/16W
R1202 1-216-864-11 METAL CHIP 0 5% 1/16W
R1301 1-164-156-11 CERAMIC CHIP 0.1uF 25V
R1303 1-216-864-11 METAL CHIP 0 5% 1/16W
R1304 1-216-864-11 METAL CHIP 0 5% 1/16W
R1801 1-164-874-11 CERAMIC CHIP 100PF 5.00% 50V
R1802 1-216-864-11 METAL CHIP 0 5% 1/16W
R1803 1-216-864-11 METAL CHIP 0 5% 1/16W
R9980 1-216-864-11 METAL CHIP 0 5% 1/16W
R9981 1-216-864-11 METAL CHIP 0 5% 1/16W
R9982 1-216-864-11 METAL CHIP 0 5% 1/16W
R9983 1-216-864-11 METAL CHIP 0 5% 1/16W
R9984 1-216-864-11 METAL CHIP 0 5% 1/16W
R9985 1-216-864-11 METAL CHIP 0 5% 1/16W
R9986 1-216-864-11 METAL CHIP 0 5% 1/16W
R9987 1-216-864-11 METAL CHIP 0 5% 1/16W
R9988 1-216-864-11 METAL CHIP 0 5% 1/16W
R9993 1-216-864-11 METAL CHIP 0 5% 1/16W
R9994 1-216-864-11 METAL CHIP 0 5% 1/16W
R9998 1-216-864-11 METAL CHIP 0 5% 1/16W
R9999 1-216-864-11 METAL CHIP 0 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB10 1-233-388-11 RES, NETWORK 68 (3216)
RB11 1-233-388-11 RES, NETWORK 68 (3216)
RB12 1-233-388-11 RES, NETWORK 68 (3216)
RB13 1-233-388-11 RES, NETWORK 68 (3216)
RB14 1-233-388-11 RES, NETWORK 68 (3216)
RB15 1-233-388-11 RES, NETWORK 68 (3216)
RB16 1-233-388-11 RES, NETWORK 68 (3216)
RB17 1-233-388-11 RES, NETWORK 68 (3216)
RB18 1-234-524-21 RES, CHIP NETWORK 33
RB19 1-234-524-21 RES, CHIP NETWORK 33
RB20 1-234-524-21 RES, CHIP NETWORK 33
RB21 1-234-524-21 RES, CHIP NETWORK 33
< VIBRATOR >
X901 1-781-945-21 VIBRATOR, CERAMIC 20MHz
X902 1-795-630-11 VIBRATOR, CRYSTAL 27MHz
************************************************************
A-4748-534-A I/O BOARD, COMPLETE
******************
< CAPACITOR >
C101 1-128-551-11 ELECT 22uF 20.00% 25V
C102 1-128-551-11 ELECT 22uF 20.00% 25V
C103 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C104 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C105 1-126-795-11 ELECT 10uF 20.00% 50V
C111 1-126-795-11 ELECT 10uF 20.00% 50V
C112 1-164-730-11 CERAMIC CHIP 0.0012uF 10.00% 50V
C113 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C114 1-126-795-11 ELECT 10uF 20.00% 50V
C115 1-128-551-11 ELECT 22uF 20.00% 25V
C116 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C121 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C122 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C123 1-128-551-11 ELECT 22uF 20.00% 25V
C124 1-128-551-11 ELECT 22uF 20.00% 25V
C125 1-128-551-11 ELECT 22uF 20.00% 25V
C126 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V
C127 1-128-551-11 ELECT 22uF 20.00% 25V
C128 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C129 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C131 1-128-551-11 ELECT 22uF 20.00% 25V
C132 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C133 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C135 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C141 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C142 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C143 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C144 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C145 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C151 1-126-795-11 ELECT 10uF 20.00% 50V
C152 1-126-795-11 ELECT 10uF 20.00% 50V
C153 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C154 1-126-933-11 ELECT 100uF 20.00% 16V
C155 1-126-933-11 ELECT 100uF 20.00% 16V
C156 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C157 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C158 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C159 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C160 1-126-795-11 ELECT 10uF 20.00% 50V
C161 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C162 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
I/ODMB03
95
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
C163 1-126-795-11 ELECT 10uF 20.00% 50V
C164 1-126-795-11 ELECT 10uF 20.00% 50V
C168 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C169 1-126-795-11 ELECT 10uF 20.00% 50V
C170 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C171 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C191 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C192 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C201 1-128-551-11 ELECT 22uF 20.00% 25V
C202 1-128-551-11 ELECT 22uF 20.00% 25V
C211 1-126-795-11 ELECT 10uF 20.00% 50V
C212 1-164-730-11 CERAMIC CHIP 0.0012uF 10.00% 50V
C213 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C214 1-126-795-11 ELECT 10uF 20.00% 50V
C215 1-126-795-11 ELECT 10uF 20.00% 50V
C216 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C221 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C222 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C223 1-128-551-11 ELECT 22uF 20.00% 25V
C224 1-128-551-11 ELECT 22uF 20.00% 25V
C225 1-128-551-11 ELECT 22uF 20.00% 25V
C226 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V
C227 1-128-551-11 ELECT 22uF 20.00% 25V
C228 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C229 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C252 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C254 1-126-933-11 ELECT 100uF 20.00% 16V
C255 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C256 1-126-795-11 ELECT 10uF 20.00% 50V
C257 1-128-551-11 ELECT 22uF 20.00% 25V
C258 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C266 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C268 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C269 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C272 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C273 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C292 1-126-963-11 ELECT 4.7uF 20.00% 50V
C293 1-164-739-11 CERAMIC CHIP 560PF 5.00% 50V
C294 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C295 1-164-380-11 CERAMIC CHIP 51PF 5.00% 50V
C296 1-162-924-11 CERAMIC CHIP 56PF 5.00% 50V
C297 1-126-947-11 ELECT 47uF 20.00% 16V
C298 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C299 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
< CONNECTOR >
CN101 1-779-554-21 CONNECTOR,FFC(LIF(NON-ZIF))17P
CN102 1-779-546-11 CONNECTOR, FFC(LIF(NON-ZIF))9P
CN103 1-779-552-21 CONNECTOR,FFC(LIF(NON-ZIF))15P
CN104 1-784-733-11 CONNECTOR, FFC 11P
< DIODE >
D291 8-719-056-78 DIODE UDZSTE-174.3B
< FERRITE BEAD >
FB121 1-412-002-31 INDUCTOR 4.7uH
FB151 1-500-284-21 FERRITE 0uH
FB221 1-412-002-31 INDUCTOR 4.7uH
< IC >
IC101 8-759-385-17 IC NJM4580E(TE2)
IC106 8-759-284-49 IC NJM2285V-TE2
IC111 8-759-385-17 IC NJM4580E(TE2)
IC121 8-759-385-76 IC MC14052 BDR2
IC151 8-759-696-10 IC NJM2235V(TE2)
IC251 6-702-334-01 IC MM1510XNRE
IC252 6-702-335-01 IC MM1568AJBE
IC291 8-759-557-36 IC BU1924F-E2
< JACK >
J101 1-816-039-11 JACK, PIN 3P (VIDEO OUT/AUDIO OUT)
J102 1-817-876-11 JACK, PIN 3P (VIDEO IN/AUDIO IN)
J171 1-817-877-11 JACK, PIN 2P (AUDIO IN)
J251 1-694-920-11 TERMINAL BOARD (S TERMINAL+1P)
(MONITOR OUT)
< JUMPER RESISTOR >
JW251 1-216-864-11 METAL CHIP 0 5% 1/16W
JW253 1-216-864-11 METAL CHIP 0 5% 1/16W
JW254 1-216-864-11 METAL CHIP 0 5% 1/16W
< COIL >
L152 1-469-525-91 INDUCTOR 10uH
L251 1-469-525-91 INDUCTOR 10uH
< TRANSISTOR >
Q103 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q112 8-729-920-31 TRANSISTOR DTC343TK-T-146
Q121 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q122 8-729-901-00 TRANSISTOR DTC124EKA-T146
Q123 8-729-901-00 TRANSISTOR DTC124EKA-T146
Q203 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q212 8-729-920-31 TRANSISTOR DTC343TK-T-146
Q221 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q251 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q252 8-729-900-53 TRANSISTOR DTC114EKA-T146
Q291 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
< RESISTOR >
R102 1-216-817-11 METAL CHIP 470 5% 1/16W
R103 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R104 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R105 1-216-841-11 METAL CHIP 47K 5% 1/16W
R106 1-216-845-11 METAL CHIP 100K 5% 1/16W
R107 1-216-821-11 METAL CHIP 1K 5% 1/16W
R109 1-216-821-11 METAL CHIP 1K 5% 1/16W
R111 1-216-821-11 METAL CHIP 1K 5% 1/16W
R113 1-216-845-11 METAL CHIP 100K 5% 1/16W
R114 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R115 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R116 1-216-833-11 METAL CHIP 10K 5% 1/16W
R117 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R118 1-216-818-11 METAL CHIP 560 5% 1/16W
R119 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R120 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R121 1-216-845-11 METAL CHIP 100K 5% 1/16W
R122 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
I/O
96
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
R123 1-216-841-11 METAL CHIP 47K 5% 1/16W
R124 1-216-845-11 METAL CHIP 100K 5% 1/16W
R125 1-216-845-11 METAL CHIP 100K 5% 1/16W
R126 1-216-845-11 METAL CHIP 100K 5% 1/16W
R127 1-216-845-11 METAL CHIP 100K 5% 1/16W
R128 1-216-839-11 METAL CHIP 33K 5% 1/16W
R129 1-216-839-11 METAL CHIP 33K 5% 1/16W
R130 1-216-833-11 METAL CHIP 10K 5% 1/16W
R131 1-216-833-11 METAL CHIP 10K 5% 1/16W
R132 1-216-839-11 METAL CHIP 33K 5% 1/16W
R133 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R134 1-216-815-11 METAL CHIP 330 5% 1/16W
R135 1-216-853-11 METAL CHIP 470K 5% 1/16W
R136 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R137 1-216-809-11 METAL CHIP 100 5% 1/16W
R138 1-216-809-11 METAL CHIP 100 5% 1/16W
R139 1-216-833-11 METAL CHIP 10K 5% 1/16W
R140 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R141 1-216-864-11 METAL CHIP 0 5% 1/16W
R142 1-216-864-11 METAL CHIP 0 5% 1/16W
R143 1-216-809-11 METAL CHIP 100 5% 1/16W
R144 1-216-809-11 METAL CHIP 100 5% 1/16W
R145 1-216-809-11 METAL CHIP 100 5% 1/16W
R146 1-216-809-11 METAL CHIP 100 5% 1/16W
R147 1-216-864-11 METAL CHIP 0 5% 1/16W
R149 1-216-864-11 METAL CHIP 0 5% 1/16W
R150 1-216-864-11 METAL CHIP 0 5% 1/16W
R151 1-216-833-11 METAL CHIP 10K 5% 1/16W
R153 1-216-833-11 METAL CHIP 10K 5% 1/16W
R171 1-216-821-11 METAL CHIP 1K 5% 1/16W
R172 1-216-821-11 METAL CHIP 1K 5% 1/16W
R173 1-216-864-11 METAL CHIP 0 5% 1/16W
R191 1-218-285-11 METAL CHIP 75 5% 1/10W
R192 1-218-285-11 METAL CHIP 75 5% 1/10W
R202 1-216-817-11 METAL CHIP 470 5% 1/16W
R203 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R204 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R205 1-216-841-11 METAL CHIP 47K 5% 1/16W
R206 1-216-845-11 METAL CHIP 100K 5% 1/16W
R207 1-216-821-11 METAL CHIP 1K 5% 1/16W
R209 1-216-821-11 METAL CHIP 1K 5% 1/16W
R211 1-216-821-11 METAL CHIP 1K 5% 1/16W
R213 1-216-845-11 METAL CHIP 100K 5% 1/16W
R214 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R215 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R216 1-216-833-11 METAL CHIP 10K 5% 1/16W
R217 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R218 1-216-818-11 METAL CHIP 560 5% 1/16W
R219 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R220 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R221 1-216-845-11 METAL CHIP 100K 5% 1/16W
R222 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R223 1-216-841-11 METAL CHIP 47K 5% 1/16W
R224 1-216-845-11 METAL CHIP 100K 5% 1/16W
R225 1-216-845-11 METAL CHIP 100K 5% 1/16W
R226 1-216-845-11 METAL CHIP 100K 5% 1/16W
R227 1-216-845-11 METAL CHIP 100K 5% 1/16W
R228 1-216-839-11 METAL CHIP 33K 5% 1/16W
R229 1-216-839-11 METAL CHIP 33K 5% 1/16W
R230 1-216-833-11 METAL CHIP 10K 5% 1/16W
R231 1-216-833-11 METAL CHIP 10K 5% 1/16W
R232 1-216-839-11 METAL CHIP 33K 5% 1/16W
R233 1-218-867-11 METAL CHIP 6.8K 5% 1/10W
R234 1-216-815-11 METAL CHIP 330 5% 1/16W
R235 1-216-853-11 METAL CHIP 470K 5% 1/16W
R236 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R237 1-216-833-11 METAL CHIP 10K 5% 1/16W
R238 1-216-833-11 METAL CHIP 10K 5% 1/16W
R239 1-216-833-11 METAL CHIP 10K 5% 1/16W
R240 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R251 1-216-864-11 METAL CHIP 0 5% 1/16W
R255 1-218-285-11 METAL CHIP 75 5% 1/10W
R256 1-218-285-11 METAL CHIP 75 5% 1/10W
R257 1-218-285-11 METAL CHIP 75 5% 1/10W
R261 1-216-833-11 METAL CHIP 10K 5% 1/16W
R262 1-216-833-11 METAL CHIP 10K 5% 1/16W
R263 1-216-821-11 METAL CHIP 1K 5% 1/16W
R291 1-216-843-11 METAL CHIP 68K 5% 1/16W
R292 1-216-841-11 METAL CHIP 47K 5% 1/16W
R293 1-216-821-11 METAL CHIP 1K 5% 1/16W
R294 1-216-845-11 METAL CHIP 100K 5% 1/16W
R295 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R296 1-216-853-11 METAL CHIP 470K 5% 1/16W
R297 1-216-814-11 METAL CHIP 270 5% 1/16W
< VIBRATOR >
X291 1-579-900-21 VIBRATOR, CRYSTAL 4.33MHz
************************************************************
MS-128 BOARD
************
< CONNECTOR >
CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P
< SWITCH >
S001 1-786-509-11 SWITCH, ROTARY
************************************************************
A-4748-517-A PANEL BOARD, COMPLETE
*********************
4-249-178-01 HOLDER (FL)
< CAPACITOR >
C800 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C801 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C802 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C803 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C811 1-126-795-11 ELECT 10uF 20.00% 50V
C812 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C813 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C814 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C815 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C816 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
MS-128I/O PANEL
97
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
C817 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C818 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C819 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C820 1-162-974-11 CERAMIC CHIP 0.01uF 50V
C821 1-126-795-11 ELECT 10uF 20.00% 50V
C822 1-164-360-11 CERAMIC CHIP 0.1uF 16V
C823 1-126-795-11 ELECT 10uF 20.00% 50V
C824 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C825 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C826 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C827 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C828 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C829 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C830 1-126-791-11 ELECT 10uF 20.00% 16V
C833 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C834 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C835 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C836 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C837 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C838 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C839 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C876 1-162-961-11 CERAMIC CHIP 330PF 10% 50V
< DIODE >
D806 8-719-988-61 DIODE 1SS355TE-17
D807 8-719-988-61 DIODE 1SS355TE-17
D808 8-719-988-61 DIODE 1SS355TE-17
D809 8-719-988-61 DIODE 1SS355TE-17
D810 8-719-421-24 DIODE MA8039-H-TX
D885 8-719-058-24 DIODE RB501V-40TE-17
D887 8-719-058-24 DIODE RB501V-40TE-17
< FERRITE BEAD >
FB800 1-216-295-91 SHORT CHIP 0
FB801 1-414-813-11 FERRITE 0uH
FB802 1-216-295-91 SHORT CHIP 0
FB851 1-500-284-21 FERRITE 0uH
< FILTER >
FL801 1-518-932-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC802 8-759-643-83 IC PT6315
< JACK >
J851 1-794-453-11 JACK (PHONES)
< COIL >
L801 1-410-671-31 INDUCTOR 47uH
L812 1-410-997-42 INDUCTOR 2.2uH
L813 1-410-997-42 INDUCTOR 2.2uH
< TRANSISTOR >
Q803 8-729-808-42 TRANSISTOR 2SD1624T-TD-E
Q804 8-729-808-42 TRANSISTOR 2SD1624T-TD-E
Q881 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
Q882 8-729-422-35 TRANSISTOR 2SC3624A-T1L15
< RESISTOR >
R812 1-216-821-11 METAL CHIP 1K 5% 1/16W
R813 1-216-821-11 METAL CHIP 1K 5% 1/16W
R814 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R822 1-216-821-11 METAL CHIP 1K 5% 1/16W
R823 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R840 1-216-844-11 METAL CHIP 82K 5% 1/16W
R841 1-216-809-11 METAL CHIP 100 5% 1/16W
R842 1-216-809-11 METAL CHIP 100 5% 1/16W
R843 1-216-809-11 METAL CHIP 100 5% 1/16W
R844 1-216-845-11 METAL CHIP 100K 5% 1/16W
R846 1-216-845-11 METAL CHIP 100K 5% 1/16W
R850 1-216-828-11 METAL CHIP 3.9K 5% 1/16W
R855 1-216-809-11 METAL CHIP 100 5% 1/16W
R874 1-216-839-11 METAL CHIP 33K 5% 1/16W
R879 1-216-809-11 METAL CHIP 100 5% 1/16W
R881 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R882 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
< SWITCH >
S800 1-418-632-11 ENCODER, ROTARY (12 TYPE) (VOLUME)
S811 1-786-220-11 SWITCH, KEY BOARD (FUNCTION)
S812 1-786-220-11 SWITCH, KEY BOARD (H)
S813 1-786-220-11 SWITCH, KEY BOARD (X)
S814 1-786-220-11 SWITCH, KEY BOARD (x)
S821 1-786-220-11 SWITCH, KEY BOARD (A)
S822 1-786-220-11 SWITCH, KEY BOARD (NEXT > / +)
S823 1-786-220-11 SWITCH, KEY BOARD (. PREV / -)
< TRANSFORMER >
T801 1-443-068-11 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR(POSITIVE) >
THP801 1-804-046-11 THERMISTOR, POSITIVE (RXE030)
************************************************************
A-4728-690-A RF BOARD, COMPLETE
******************
< CAPACITOR >
C001 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C002 1-124-779-00 ELECT CHIP 10uF 20% 16V
C003 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C004 1-124-779-00 ELECT CHIP 10uF 20% 16V
C005 1-128-993-21 ELECT CHIP 22uF 20% 10V
C006 1-128-993-21 ELECT CHIP 22uF 20% 10V
C008 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C009 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C010 1-115-416-11 CERAMIC CHIP 0.001uF 5.00% 25V
C011 1-115-416-11 CERAMIC CHIP 0.001uF 5.00% 25V
C012 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C013 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C014 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C015 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C016 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C017 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C018 1-164-172-11 CERAMIC CHIP 0.0056uF 10.00% 25V
PANEL RF
98
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
STANDBY
C019 1-164-172-11 CERAMIC CHIP 0.0056uF 10.00% 25V
C020 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C021 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C022 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C023 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C024 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C025 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C026 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C027 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C028 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C029 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C030 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C031 1-115-416-11 CERAMIC CHIP 0.001uF 5.00% 25V
C032 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V
C033 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C034 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C035 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C036 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V
C037 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C038 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V
C039 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V
C040 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C041 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C042 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V
C049 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
< CONNECTOR >
CN001 1-815-031-11 CONNECTOR, FFC/FPC (ZIF) 24P
CN002 1-784-836-21 CONNECTOR,FFC(LIF(NON-ZIF))29P
CN003 1-784-861-21 CONNECTOR, FFC(LIF(NON-ZIF))9P
< DIODE >
D001 8-719-988-61 DIODE 1SS355TE-17
D002 8-719-988-61 DIODE 1SS355TE-17
< IC >
IC001 6-703-551-01 IC CXD1881AR
< COIL >
L001 1-412-031-11 INDUCTOR CHIP 47uH
L002 1-412-031-11 INDUCTOR CHIP 47uH
< TRANSISTOR >
Q001 8-729-903-46 TRANSISTOR 2SB1132-T100-QR
Q002 8-729-903-46 TRANSISTOR 2SB1132-T100-QR
< RESISTOR >
R001 1-218-668-11 METAL CHIP 100 0.5% 1/10W
R003 1-216-803-11 METAL CHIP 33 5% 1/16W
R004 1-216-803-11 METAL CHIP 33 5% 1/16W
R005 1-216-841-11 METAL CHIP 47K 5% 1/16W
R006 1-216-817-11 METAL CHIP 470 5% 1/16W
R007 1-216-803-11 METAL CHIP 33 5% 1/16W
R008 1-216-803-11 METAL CHIP 33 5% 1/16W
R009 1-216-841-11 METAL CHIP 47K 5% 1/16W
R010 1-216-817-11 METAL CHIP 470 5% 1/16W
R011 1-216-864-11 METAL CHIP 0 5% 1/16W
R012 1-216-864-11 METAL CHIP 0 5% 1/16W
R013 1-216-864-11 METAL CHIP 0 5% 1/16W
R014 1-216-864-11 METAL CHIP 0 5% 1/16W
R015 1-216-864-11 METAL CHIP 0 5% 1/16W
R016 1-216-864-11 METAL CHIP 0 5% 1/16W
R017 1-216-864-11 METAL CHIP 0 5% 1/16W
R018 1-216-864-11 METAL CHIP 0 5% 1/16W
R019 1-216-864-11 METAL CHIP 0 5% 1/16W
R020 1-216-864-11 METAL CHIP 0 5% 1/16W
R021 1-216-864-11 METAL CHIP 0 5% 1/16W
R022 1-216-813-11 METAL CHIP 220 5% 1/16W
R023 1-216-820-11 METAL CHIP 820 5% 1/16W
R024 1-216-864-11 METAL CHIP 0 5% 1/16W
R025 1-216-809-11 METAL CHIP 100 5% 1/16W
R026 1-218-718-11 METAL CHIP 12K 0.5% 1/10W
R027 1-216-864-11 METAL CHIP 0 5% 1/16W
R028 1-216-864-11 METAL CHIP 0 5% 1/16W
R029 1-216-864-11 METAL CHIP 0 5% 1/16W
R032 1-216-809-11 METAL CHIP 100 5% 1/16W
R033 1-216-864-11 METAL CHIP 0 5% 1/16W
R034 1-219-570-11 METAL CHIP 10M 5% 1/10W
R035 1-216-864-11 METAL CHIP 0 5% 1/16W
R041 1-216-821-11 METAL CHIP 1K 5% 1/16W
************************************************************
1-689-809-11 STANDBY BOARD
**************
< CAPACITOR >
C808 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C809 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C832 1-126-795-11 ELECT 10uF 20.00% 50V
< DIODE >
D802 8-719-988-61 DIODE 1SS355TE-17
D803 8-719-988-61 DIODE 1SS355TE-17
D804 8-719-988-61 DIODE 1SS355TE-17
D812 8-719-300-71 DIODE SEL2210R-TP6
< IC >
IC801 8-759-826-34 IC NJL74H400A ( )
< RESISTOR >
R804 1-216-821-11 METAL CHIP 1K 5% 1/16W
R810 1-216-805-11 METAL CHIP 47 5% 1/16W
R835 1-216-805-11 METAL CHIP 47 5% 1/16W
< SWITCH >
S831 1-786-220-11 SWITCH, KEY BOARD (POWER)
************************************************************
A-4748-523-A SUB TRANSFORMER BOARD, COMPLETE
*********************************
< CAPACITOR >
0C905 1-113-925-11 CERAMIC 0.01uF 20.00% 250V
C911 1-126-768-11 ELECT 2200uF 20.00% 16V
C912 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
RF SUB TRANSFORMER
99
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
C913 1-104-665-11 ELECT 100uF 20.00% 10V
C914 1-126-960-11 ELECT 1uF 20.00% 50V
C915 1-126-947-11 ELECT 47uF 20.00% 16V
C916 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
< CONNECTOR >
CN901 1-774-108-11 PIN, CONNECTOR (PC BOARD)
CN902 1-564-321-00 PIN, CONNECTOR(3.96mm PITCH)2P
< DIODE >
D901 8-719-991-33 DIODE 1SS133T-77
D911 6-500-522-11 DIODE 10EDB40-TA2B5
D912 6-500-522-11 DIODE 10EDB40-TA2B5
D913 6-500-522-11 DIODE 10EDB40-TA2B5
D914 6-500-522-11 DIODE 10EDB40-TA2B5
D915 6-500-522-11 DIODE 10EDB40-TA2B5
< IC >
IC911 6-701-760-01 IC uPC3504AHF
< TRANSISTOR >
Q901 8-729-016-79 TRANSISTOR 2SC2412KLN-T146-E
< RESISTOR >
R902 1-216-845-11 METAL CHIP 100K 5% 1/16W
R903 1-216-819-11 METAL CHIP 680 5% 1/16W
R904 1-247-791-91 CARBON 22 5% 1/4W
R911 1-216-835-11 METAL CHIP 15K 5% 1/16W
R912 1-216-839-11 METAL CHIP 33K 5% 1/16W
R913 1-216-845-11 METAL CHIP 100K 5% 1/16W
R914 1-216-837-11 METAL CHIP 22K 5% 1/16W
R916 1-216-845-11 METAL CHIP 100K 5% 1/16W
< RELAY >
RY901 1-755-467-11 RELAY (POWER)
< TRANSFORMER >
0T901 1-437-730-11 TRANSFORMER, POWER
************************************************************
A-4748-528-A UCOM BOARD, COMPLETE (AEP,UK)
*****************************
A-4750-132-A UCOM BOARD, COMPLETE (RU)
**************************
< CAPACITOR >
C501 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C502 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C503 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C504 1-126-934-11 ELECT 220uF 20.00% 10V
C511 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C512 1-126-963-11 ELECT 4.7uF 20.00% 50V
C516 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C523 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C528 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C529 1-126-947-11 ELECT 47uF 20.00% 16V
C530 1-126-916-11 ELECT 1000uF 20.00% 6.3V
C536 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C572 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C594 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C595 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C596 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V
C604 1-126-947-11 ELECT 47uF 20.00% 16V
C606 1-216-864-11 METAL CHIP 0 5% 1/16W
C607 1-216-864-11 METAL CHIP 0 5% 1/16W
C609 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C651 1-126-934-11 ELECT 220uF 20.00% 10V
C652 1-126-934-11 ELECT 220uF 20.00% 10V
C653 1-126-933-11 ELECT 100uF 20.00% 16V
C654 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C655 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C656 1-126-934-11 ELECT 220uF 20.00% 10V
C657 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C658 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C659 1-126-934-11 ELECT 220uF 20.00% 10V
C660 1-126-935-11 ELECT 470uF 20.00% 10V
C661 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C662 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C663 1-126-933-11 ELECT 100uF 20.00% 16V
C664 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C665 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C666 1-126-933-11 ELECT 100uF 20.00% 16V
C667 1-126-933-11 ELECT 100uF 20.00% 16V
C671 1-126-933-11 ELECT 100uF 20.00% 16V
C672 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C675 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C676 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C677 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C681 1-104-905-11 CAPACITOR 0.22F 5.5V
C682 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C683 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C685 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V
C688 1-126-963-11 ELECT 4.7uF 20.00% 50V
< CONNECTOR >
CN601 1-784-778-11 CONNECTOR, FFC 17P
CN602 1-779-275-11 CONNECTOR, FFC(LIF(NON-ZIF))7P
CN611 1-779-273-11 CONNECTOR, FFC(LIF(NON-ZIF))5P
CN621 1-779-279-11 CONNECTOR,FFC(LIF(NON-ZIF))11P
CN631 1-779-285-11 CONNECTOR,FFC(LIF(NON-ZIF))17P
CN651 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
*CN652 1-764-333-11 PLUG, CONNECTOR 10P
*CN653 1-564-715-11 PIN, CONNECTOR (SMALL TYPE)13P
CN654 1-779-273-11 CONNECTOR, FFC(LIF(NON-ZIF))5P
< DIODE >
D501 8-719-988-61 DIODE 1SS355TE-17
D611 8-719-988-61 DIODE 1SS355TE-17
D612 8-719-988-61 DIODE 1SS355TE-17
D651 8-719-210-33 DIODE EC10DS2-TE12L5
D652 8-719-210-33 DIODE EC10DS2-TE12L5
D683 8-719-988-61 DIODE 1SS355TE-17
D684 8-719-988-61 DIODE 1SS355TE-17
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
SUB TRANSFORMER UCOM
100
HCD-EA20
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
D685 8-719-988-61 DIODE 1SS355TE-17
D686 8-719-988-61 DIODE 1SS355TE-17
D687 8-719-988-61 DIODE 1SS355TE-17
< GROUND TERMINAL BOARD >
EPT601 1-537-770-21 TERMINAL BOARD, GROUND
EPT602 1-537-770-21 TERMINAL BOARD, GROUND
< FERRITE BEAD >
FB512 1-414-813-11 FERRITE 0uH
FB601 1-216-295-91 SHORT CHIP 0
< IC >
IC501 6-803-391-01 IC uPD703260YGF-S07-JBT-A
IC651 8-759-450-47 IC BA05T
IC652 8-759-450-47 IC BA05T
IC653 6-701-760-01 IC uPC3504AHF
IC654 8-759-231-57 IC TA7810S
IC671 8-759-598-69 IC BA6956AN
IC681 8-759-666-13 IC PST9229NL
< COIL >
L651 1-414-398-11 INDUCTOR 10uH
L652 1-414-398-11 INDUCTOR 10uH
< TRANSISTOR >
Q501 6-550-363-01 TRANSISTOR 2SB1690KT146
Q502 8-729-900-53 TRANSISTOR DTC114EKA-T146
Q503 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q504 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q505 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q507 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q601 8-729-040-20 TRANSISTOR RT1P137L-TP
Q602 8-729-900-53 TRANSISTOR DTC114EKA-T146
Q681 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
< RESISTOR >
R501 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R502 1-216-845-11 METAL CHIP 100K 5% 1/16W
R503 1-216-833-11 METAL CHIP 10K 5% 1/16W
R510 1-216-833-11 METAL CHIP 10K 5% 1/16W
R517 1-216-845-11 METAL CHIP 100K 5% 1/16W
R522 1-216-833-11 METAL CHIP 10K 5% 1/16W
R523 1-216-841-11 METAL CHIP 47K 5% 1/16W
R528 1-216-853-11 METAL CHIP 470K 5% 1/16W
R529 1-216-841-11 METAL CHIP 47K 5% 1/16W
R530 1-216-841-11 METAL CHIP 47K 5% 1/16W
R531 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R532 1-216-864-11 METAL CHIP 0 5% 1/16W
R537 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R538 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R545 1-216-833-11 METAL CHIP 10K 5% 1/16W
R560 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R561 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R569 1-216-833-11 METAL CHIP 10K 5% 1/16W
R578 1-216-833-11 METAL CHIP 10K 5% 1/16W
R580 1-216-835-11 METAL CHIP 15K 5% 1/16W
R581 1-216-841-11 METAL CHIP 47K 5% 1/16W
R582 1-216-841-11 METAL CHIP 47K 5% 1/16W
R583 1-216-833-11 METAL CHIP 10K 5% 1/16W
R584 1-216-833-11 METAL CHIP 10K 5% 1/16W
R585 1-216-833-11 METAL CHIP 10K 5% 1/16W
R586 1-216-833-11 METAL CHIP 10K 5% 1/16W
R588 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R591 1-216-833-11 METAL CHIP 10K 5% 1/16W
R592 1-216-809-11 METAL CHIP 100 5% 1/16W
R593 1-216-809-11 METAL CHIP 100 5% 1/16W
R594 1-216-809-11 METAL CHIP 100 5% 1/16W
R595 1-216-809-11 METAL CHIP 100 5% 1/16W
R596 1-216-809-11 METAL CHIP 100 5% 1/16W
R597 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
(AEP,UK)
R597 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
(RU)
R598 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R599 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R600 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R601 1-216-809-11 METAL CHIP 100 5% 1/16W
R602 1-216-809-11 METAL CHIP 100 5% 1/16W
R603 1-216-809-11 METAL CHIP 100 5% 1/16W
R604 1-216-809-11 METAL CHIP 100 5% 1/16W
R605 1-216-809-11 METAL CHIP 100 5% 1/16W
R607 1-216-864-11 METAL CHIP 0 5% 1/16W
R608 1-216-833-11 METAL CHIP 10K 5% 1/16W
R611 1-216-809-11 METAL CHIP 100 5% 1/16W
R612 1-216-809-11 METAL CHIP 100 5% 1/16W
R621 1-216-809-11 METAL CHIP 100 5% 1/16W
R622 1-216-809-11 METAL CHIP 100 5% 1/16W
R623 1-216-809-11 METAL CHIP 100 5% 1/16W
R624 1-216-809-11 METAL CHIP 100 5% 1/16W
R625 1-216-809-11 METAL CHIP 100 5% 1/16W
R626 1-216-809-11 METAL CHIP 100 5% 1/16W
R627 1-216-809-11 METAL CHIP 100 5% 1/16W
R628 1-216-809-11 METAL CHIP 100 5% 1/16W
R629 1-216-809-11 METAL CHIP 100 5% 1/16W
R630 1-216-809-11 METAL CHIP 100 5% 1/16W
R631 1-216-821-11 METAL CHIP 1K 5% 1/16W
R632 1-216-821-11 METAL CHIP 1K 5% 1/16W
R633 1-216-809-11 METAL CHIP 100 5% 1/16W
R634 1-216-809-11 METAL CHIP 100 5% 1/16W
R635 1-216-809-11 METAL CHIP 100 5% 1/16W
R636 1-216-809-11 METAL CHIP 100 5% 1/16W
R637 1-216-809-11 METAL CHIP 100 5% 1/16W
R638 1-216-809-11 METAL CHIP 100 5% 1/16W
R639 1-216-809-11 METAL CHIP 100 5% 1/16W
R640 1-216-809-11 METAL CHIP 100 5% 1/16W
R641 1-216-809-11 METAL CHIP 100 5% 1/16W
R642 1-216-809-11 METAL CHIP 100 5% 1/16W
R651 1-216-809-11 METAL CHIP 100 5% 1/16W
R653 1-216-809-11 METAL CHIP 100 5% 1/16W
R654 1-216-809-11 METAL CHIP 100 5% 1/16W
R671 1-216-820-11 METAL CHIP 820 5% 1/16W
R672 1-216-821-11 METAL CHIP 1K 5% 1/16W
R673 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
UCOM
101
HCD-EA20
Ref. No. Part No. Description Remarks
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
R674 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R675 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R676 1-216-833-11 METAL CHIP 10K 5% 1/16W
R677 1-216-833-11 METAL CHIP 10K 5% 1/16W
R681 1-216-813-11 METAL CHIP 220 5% 1/16W
R682 1-216-833-11 METAL CHIP 10K 5% 1/16W
R683 1-216-833-11 METAL CHIP 10K 5% 1/16W
R684 1-216-841-11 METAL CHIP 47K 5% 1/16W
R685 1-216-845-11 METAL CHIP 100K 5% 1/16W
R687 1-216-841-11 METAL CHIP 47K 5% 1/16W
R688 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
< VIBRATOR >
X501 1-795-058-21 VIBRATOR, CERAMIC 5MHz
************************************************************
MISCELLANEOUS
**************
57 1-773-039-11 WIRE (FLAT TYPE) (17 CORE)
102 1-775-267-11 WIRE (FLAT TYPE) (29 CORE)
0107 1-575-651-21 CORD, POWER
108 1-763-697-21 DC FAN (AEP,UK)
108 1-787-094-11 FAN, DC (RU)
109 1-500-386-21 FILTER, CLAMP (FERRITE CORE)
116 1-773-989-11 WIRE (FLAT TYPE) (5 CORE)
118 1-775-152-11 WIRE (FLAT TYPE) (17 CORE)
119 1-775-083-11 WIRE (FLAT TYPE) (9 CORE)
120 1-827-627-11 WIRE (FLAT TYPE) (15 CORE)
121 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
122 1-775-102-11 WIRE (FLAT TYPE) (11 CORE)
123 1-775-189-11 WIRE (FLAT TYPE) (21 CORE)
403 1-773-983-11 WIRE (FLAT TYPE)(5 CORE)
407 1-689-264-11 PWB, FLEXIBLE (24 CORE)
0408 1-477-263-11 OPTICAL PICK-UP (TDP022W)
0F902 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0F903 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0T101 1-443-067-11 TRANSFORMER, POWER
UCOM
