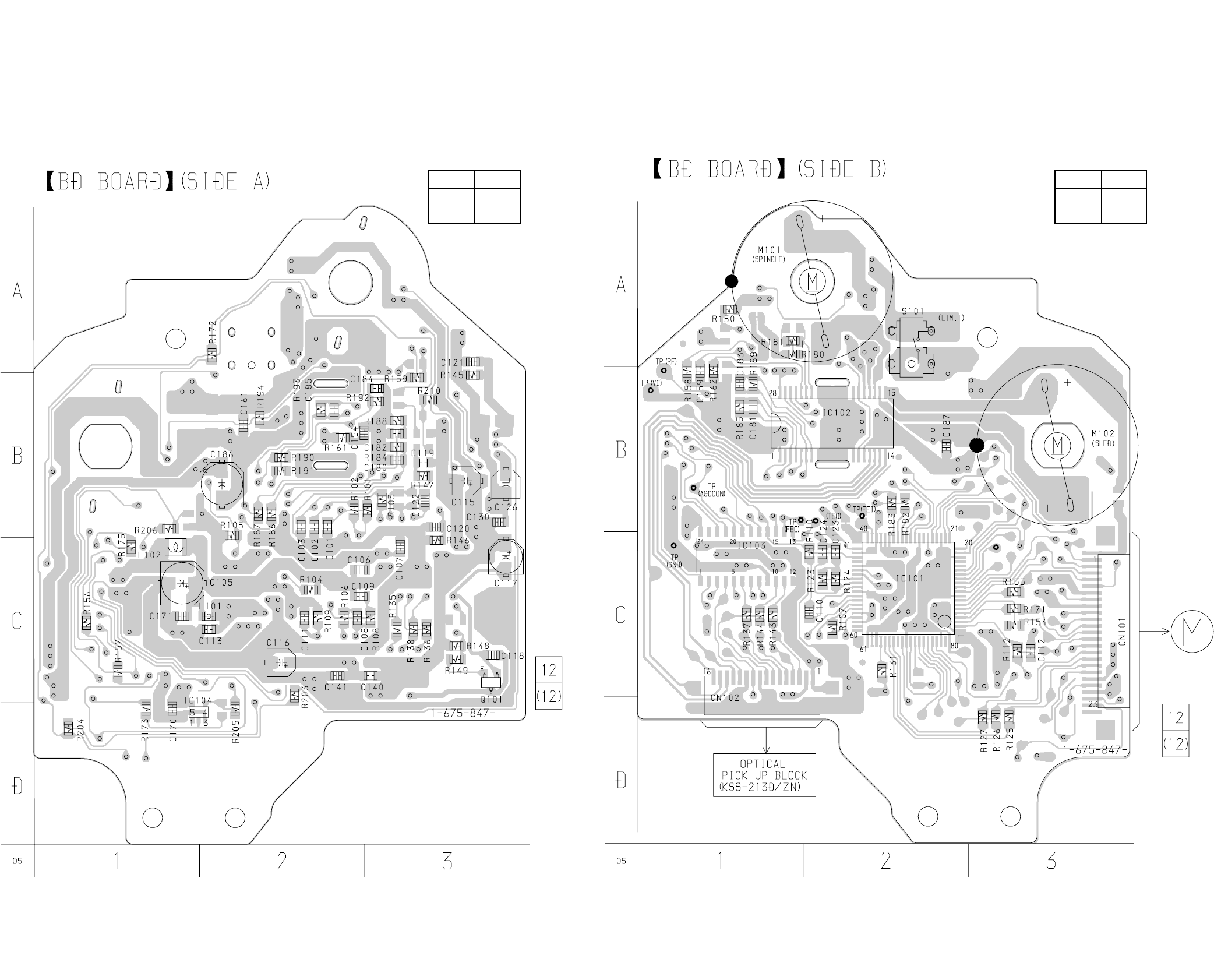

- PRINTED WIRING BOARD – BD SECTION –

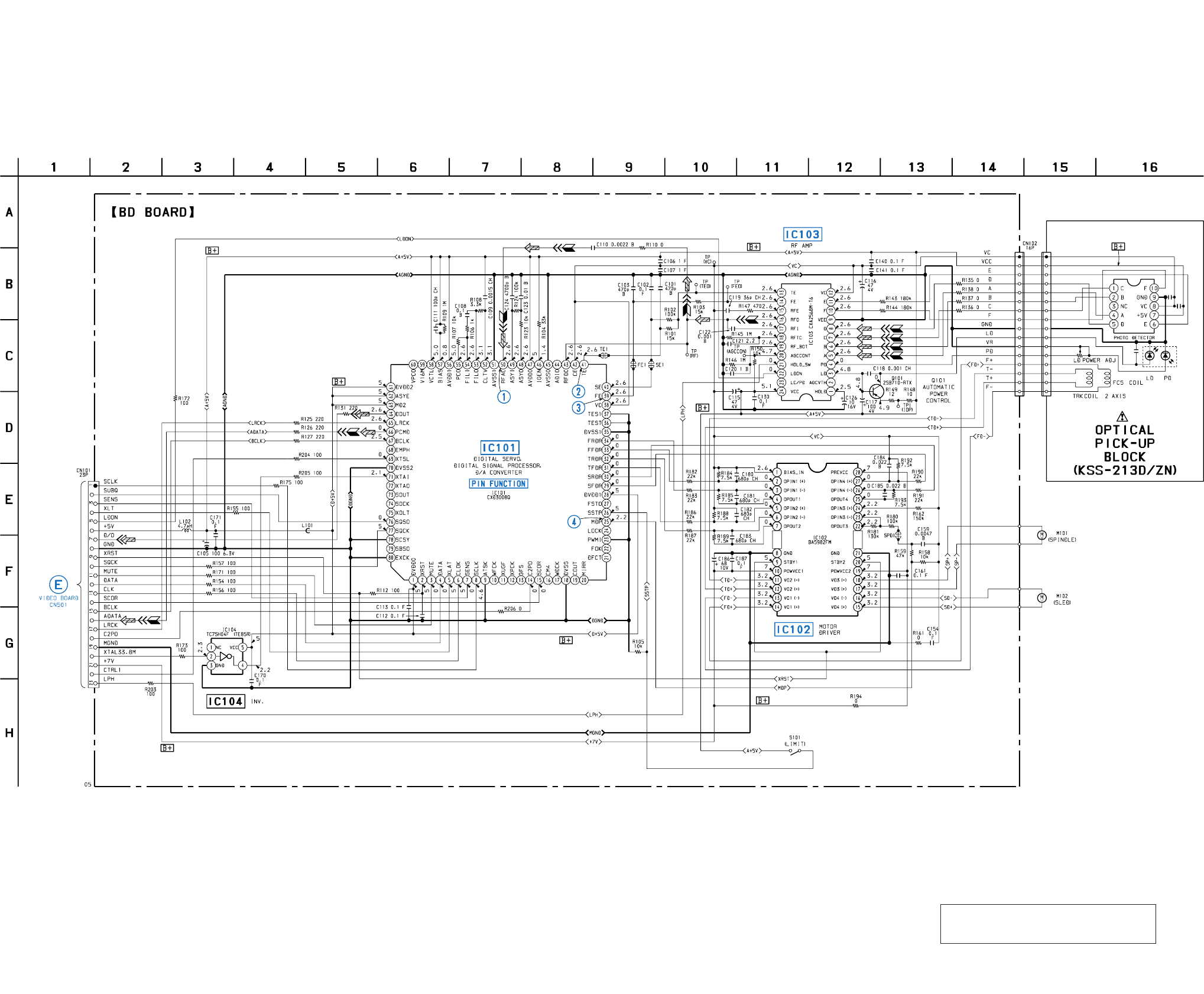

- SCHEMATIC DIAGRAM – BD SECTION –
- PRINTED WIRING BOARD – VIDEO SECTION –
- SCHEMATIC DIAGRAM – VIDEO (1/3) SECTION –
- SCHEMATIC DIAGRAM – VIDEO (2/3) SECTION –
- SCHEMATIC DIAGRAM – VIDEO (3/3) SECTION –

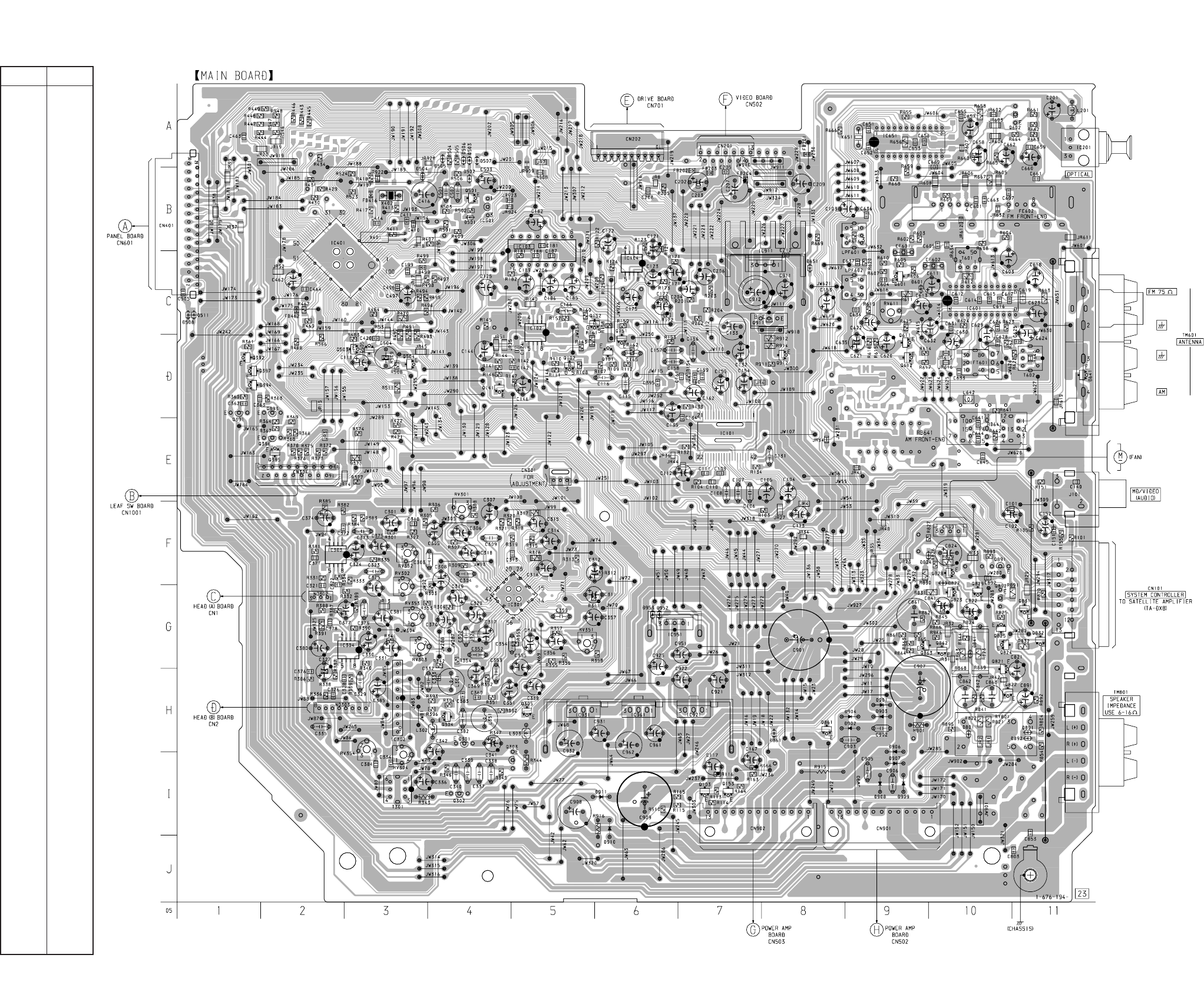

- PRINTED WIRING BOARD – MAIN SECTION –
- SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –

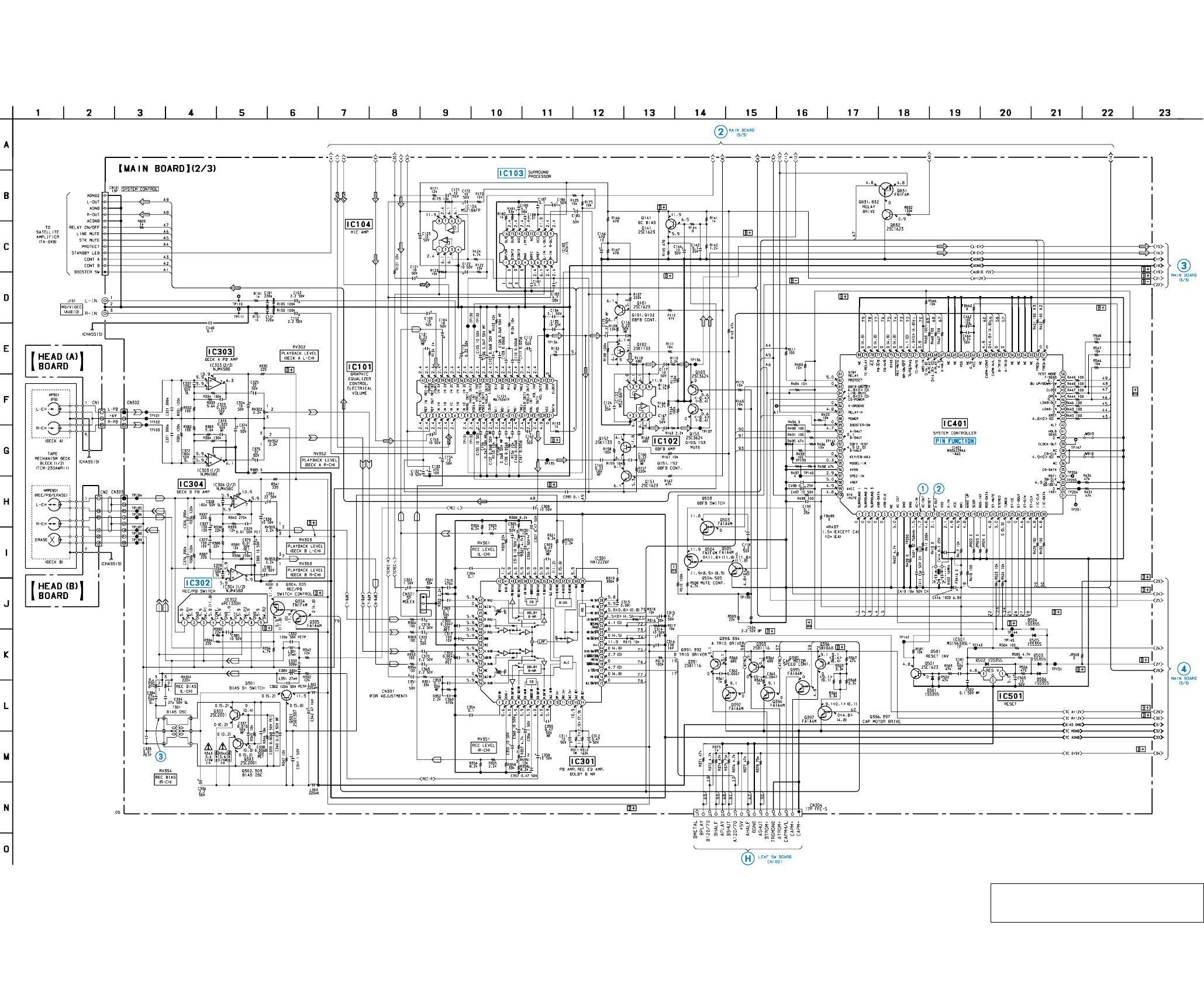

- SCHEMATIC DIAGRAM – MAIN (2/3) SECTION –

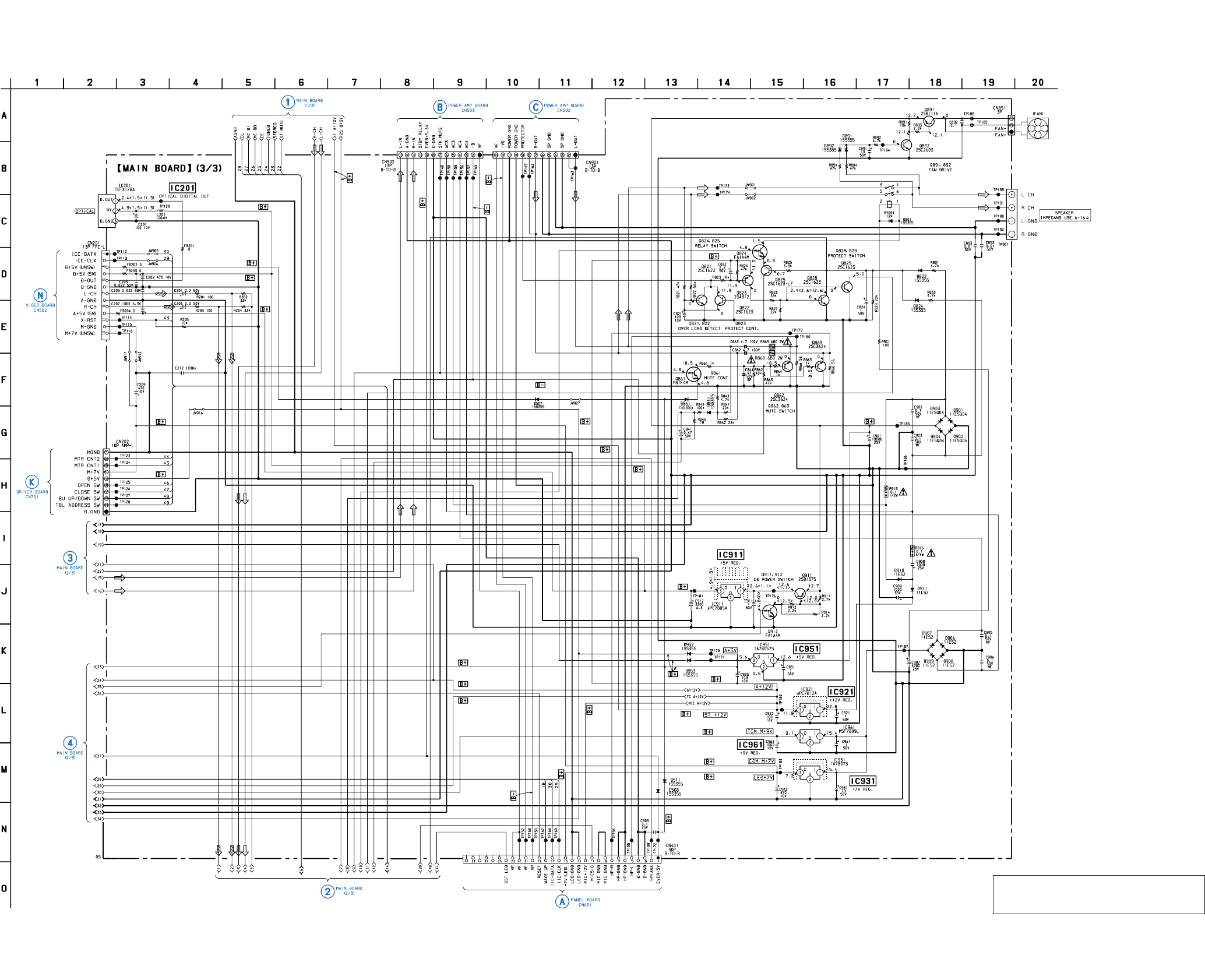

- SCHEMATIC DIAGRAM – MAIN (3/3) SECTION –

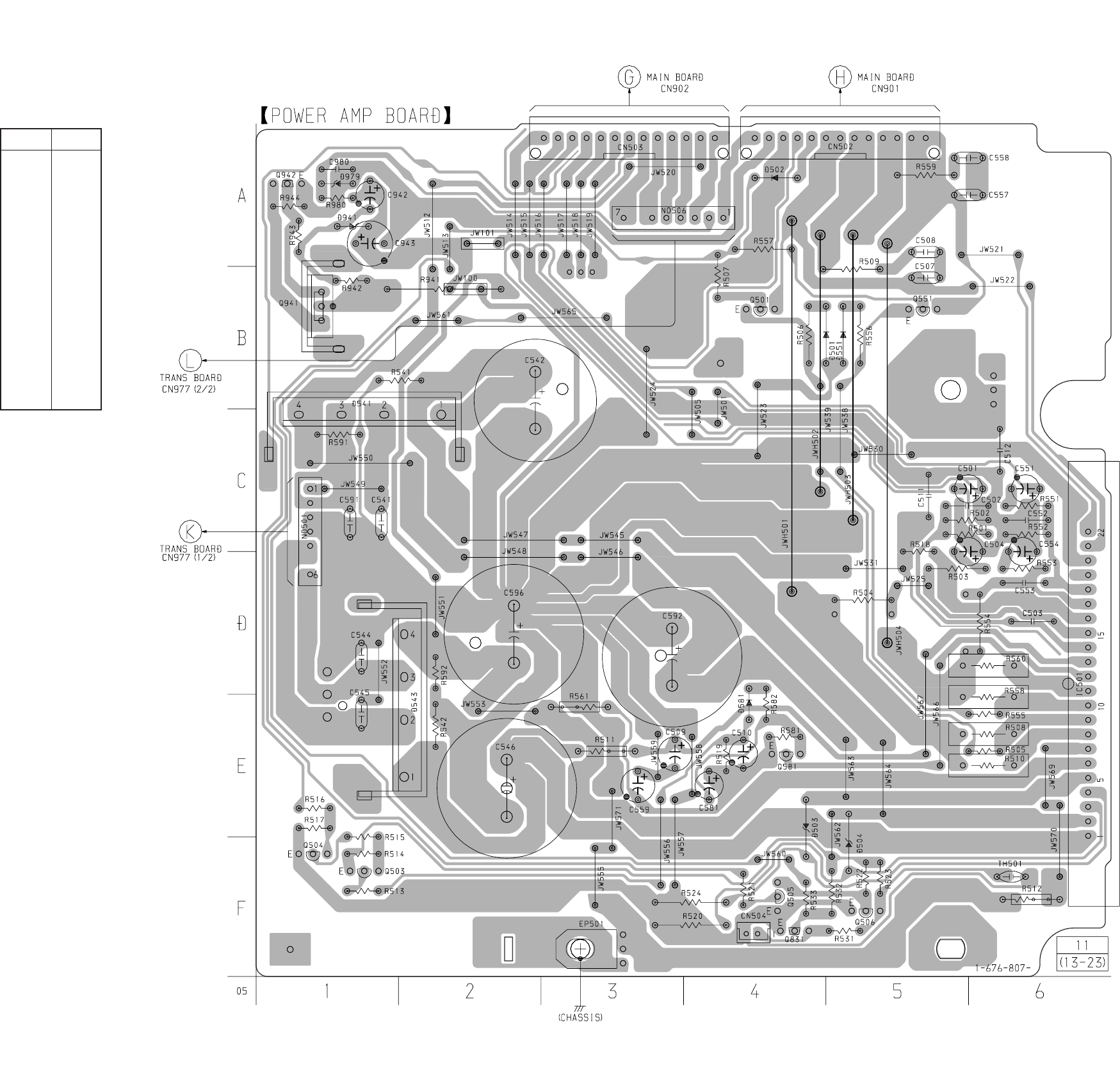

- PRINTED WIRING BOARD – POWER AMP SECTION –

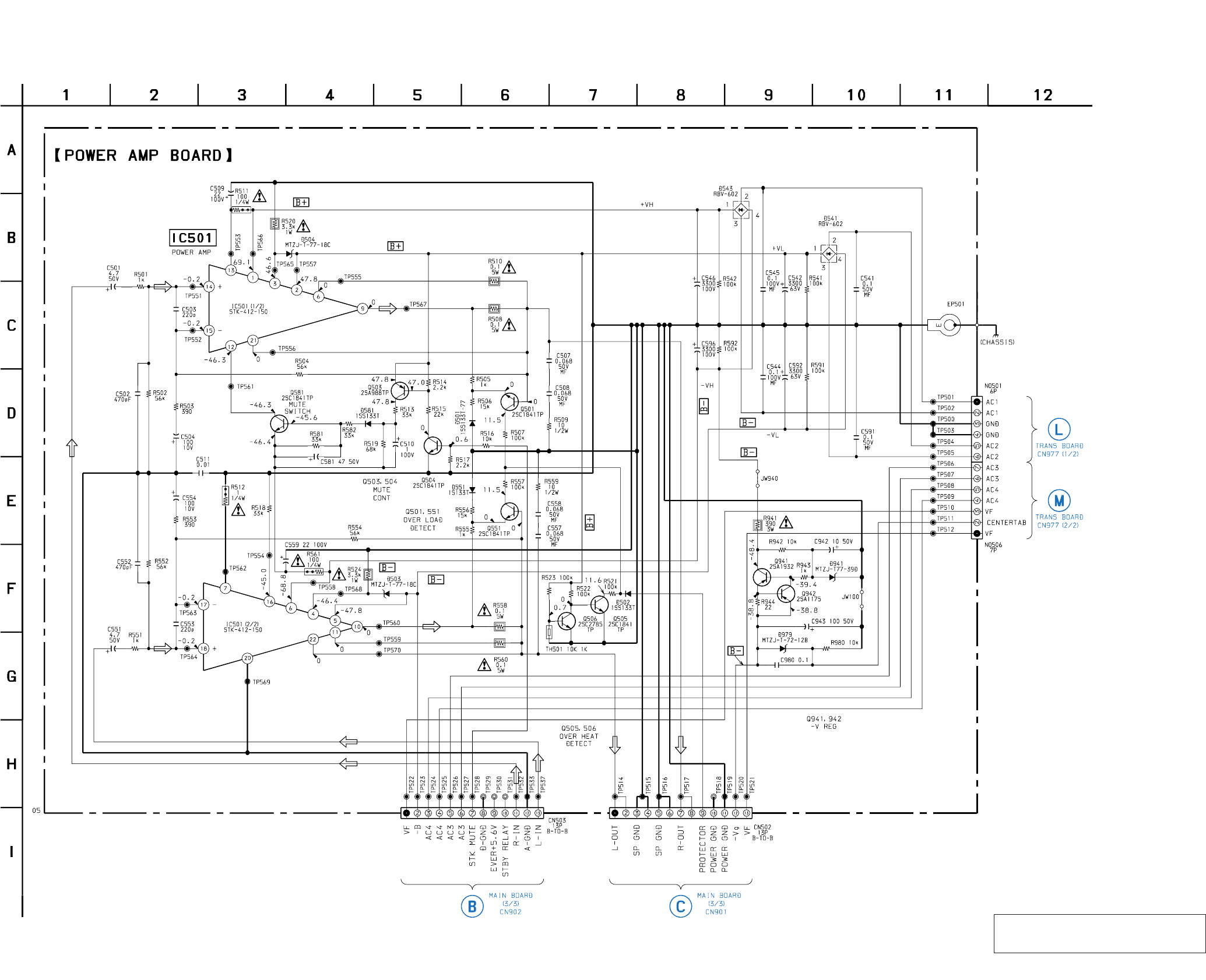

- SCHEMATIC DIAGRAM – POWER AMP SECTION –

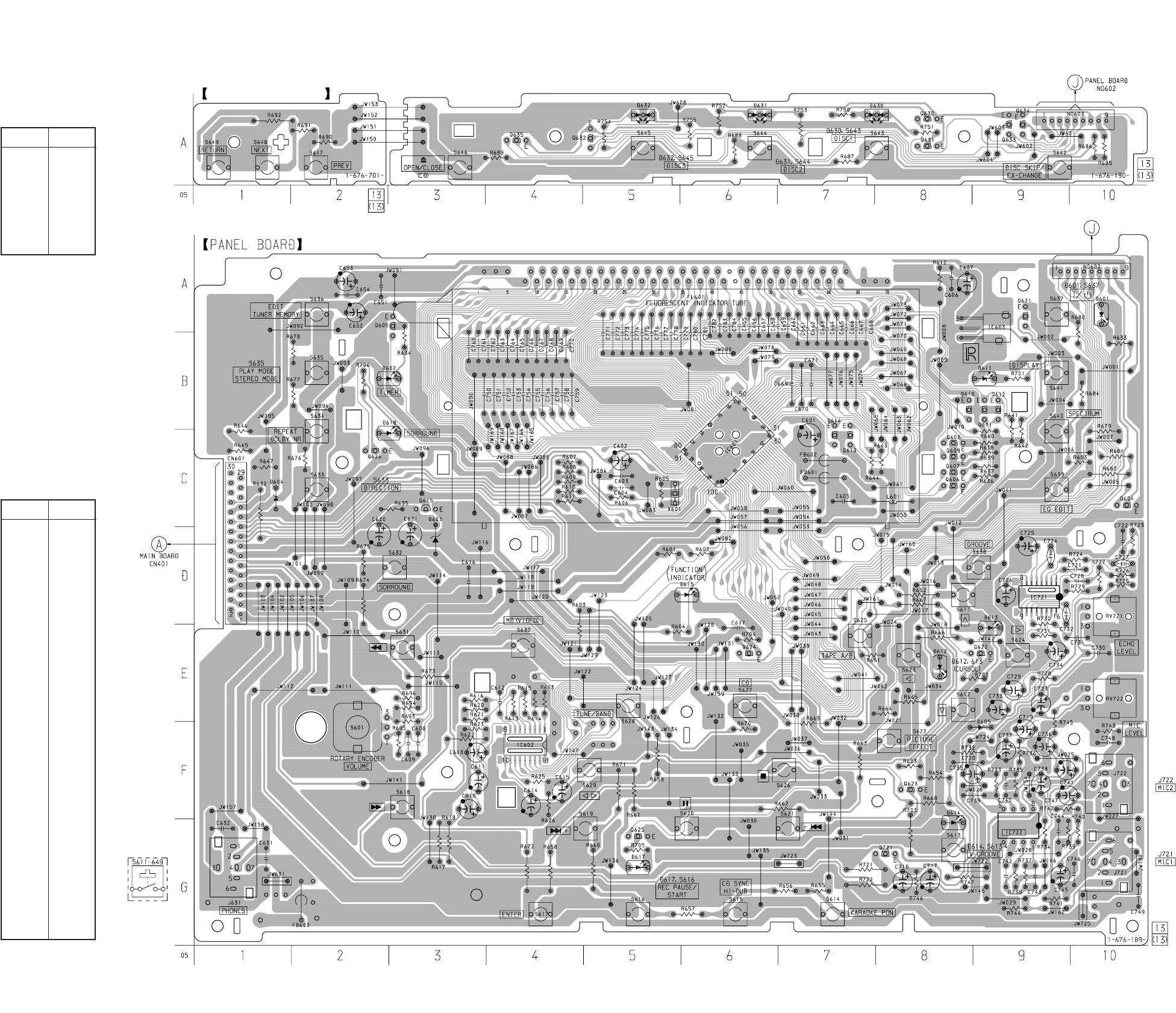

- PRINTED WIRING BOARDS – PANEL SECTION –
- SCHEMATIC DIAGRAM – PANEL SECTION –

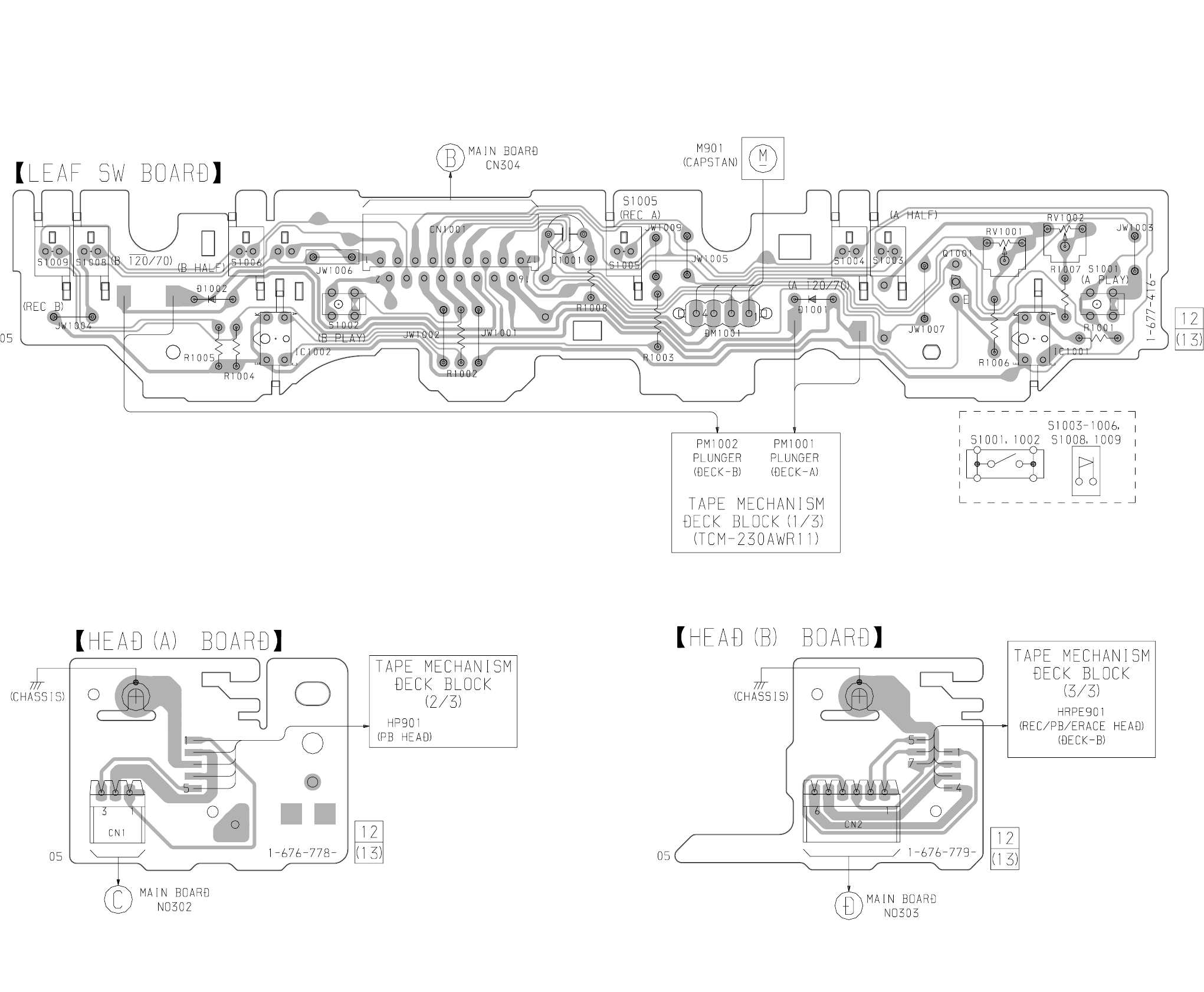

- PRINTED WIRING BOARDS – LEAF SW SECTION –
- SCHEMATIC DIAGRAM – LEAF SW SECTION –

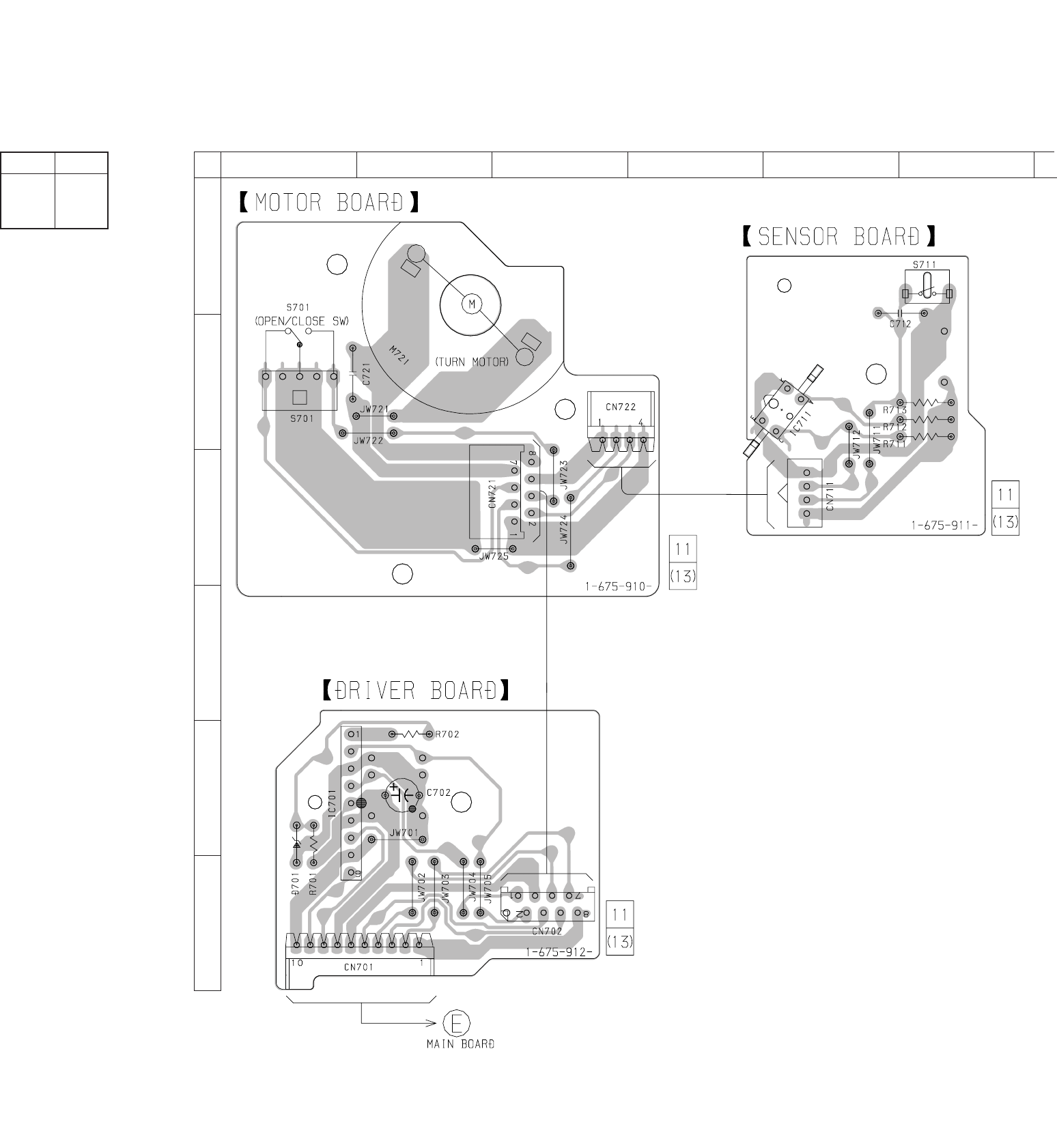

- PRINTED WIRING BOARDS – DRIVER SECTION –
- SCHEMATIC DIAGRAM – DRIVER SECTION –

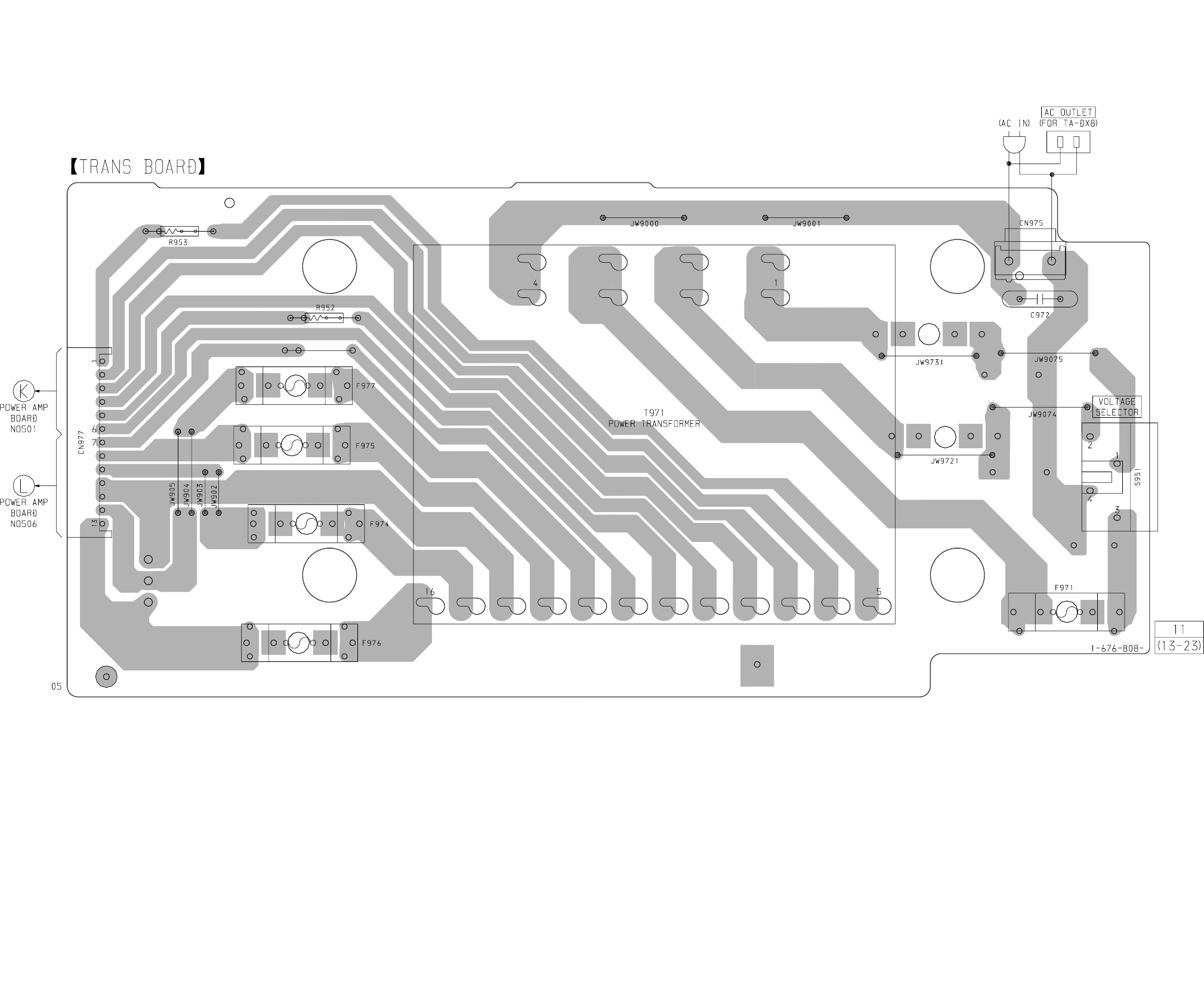

- PRINTED WIRING BOARD – TRANS SECTION –
- SCHEMATIC DIAGRAM – TRANS SECTION –
- IC PIN FUNCTION DESCRIPTION

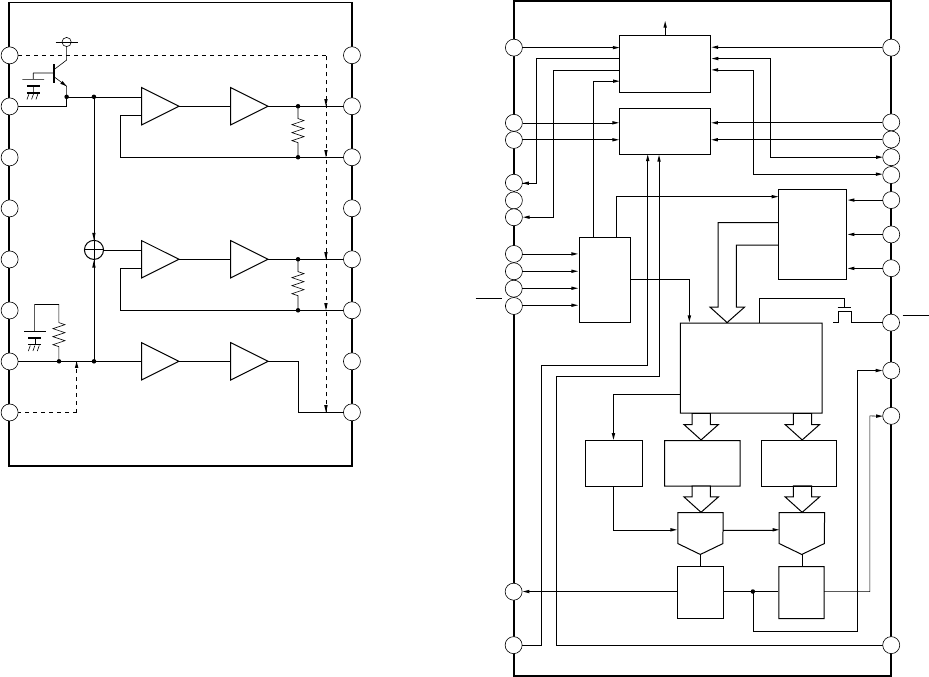

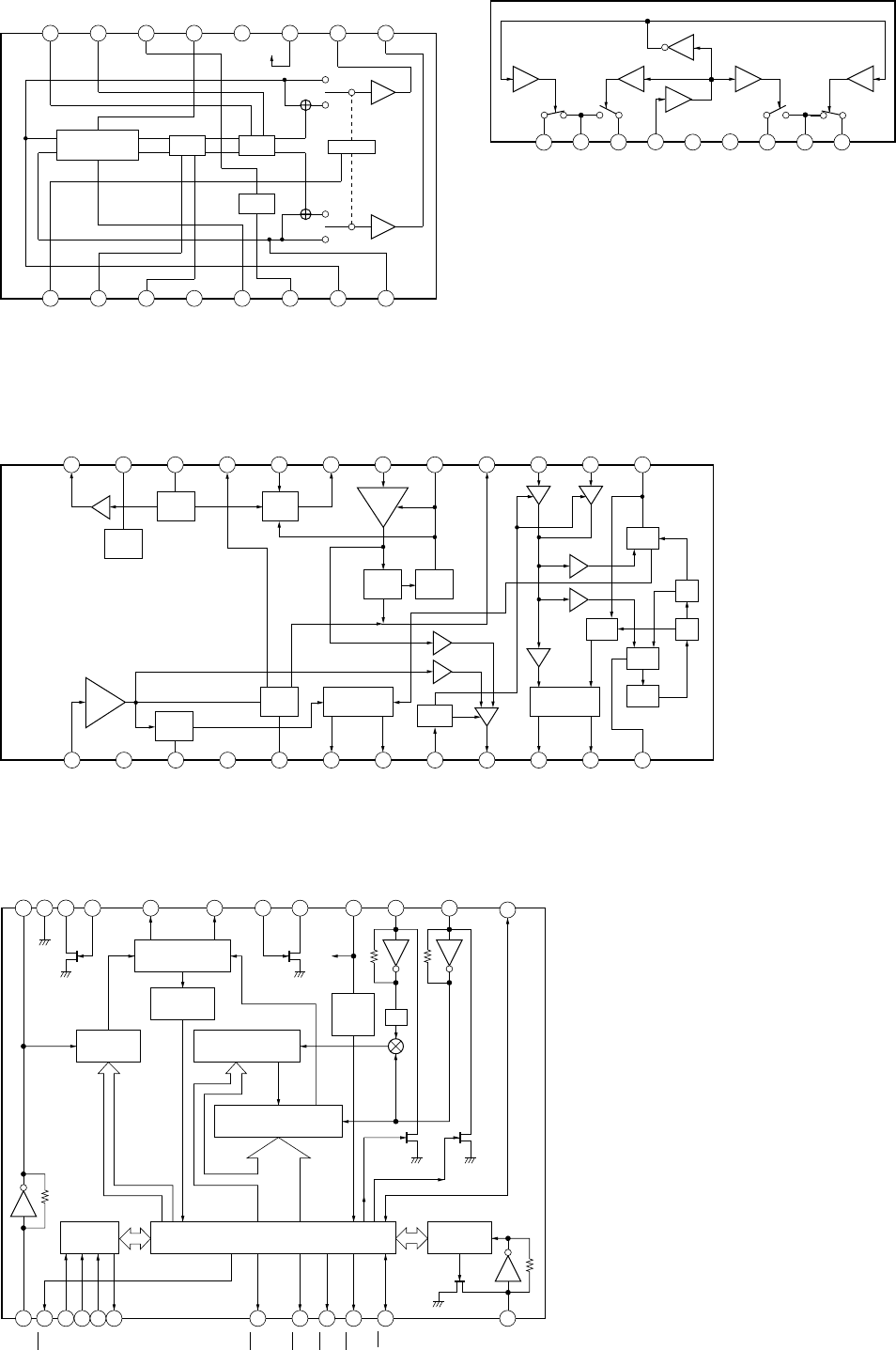

- IC BLOCK DIAGRAMS

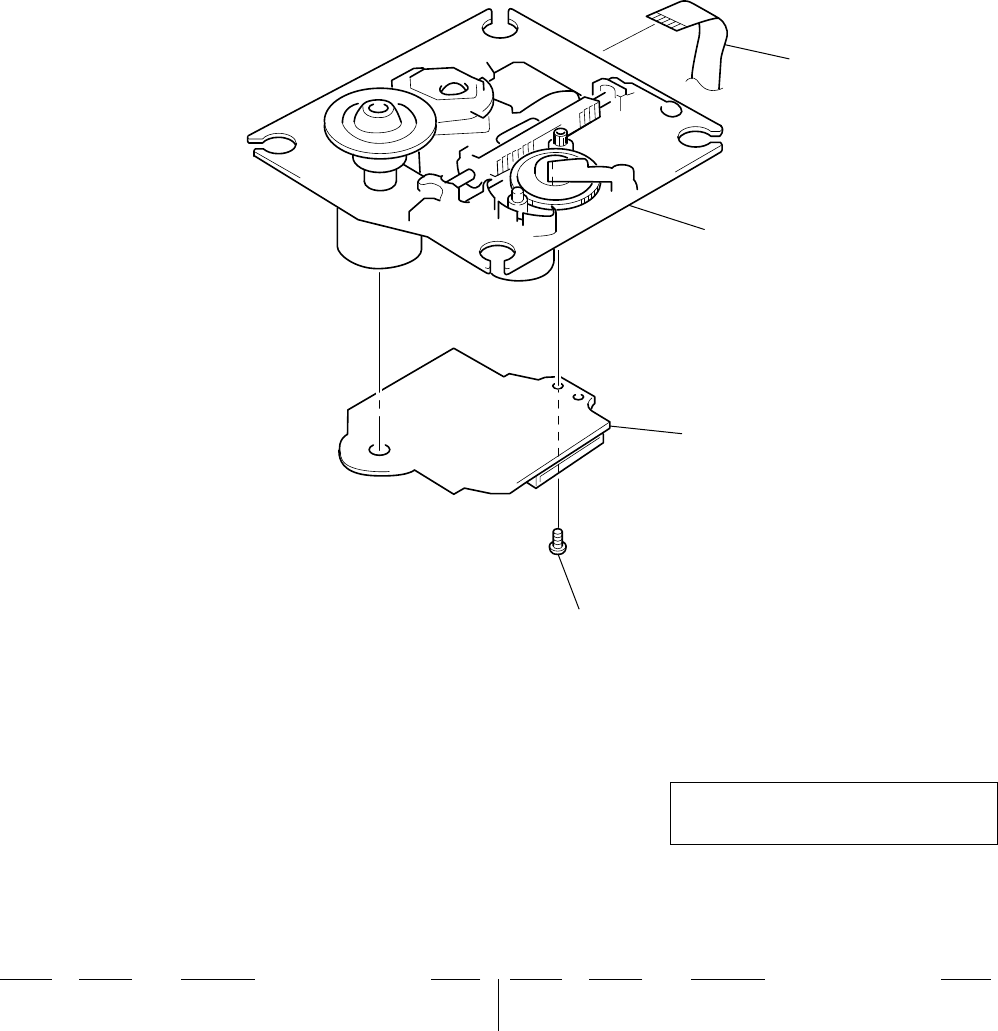

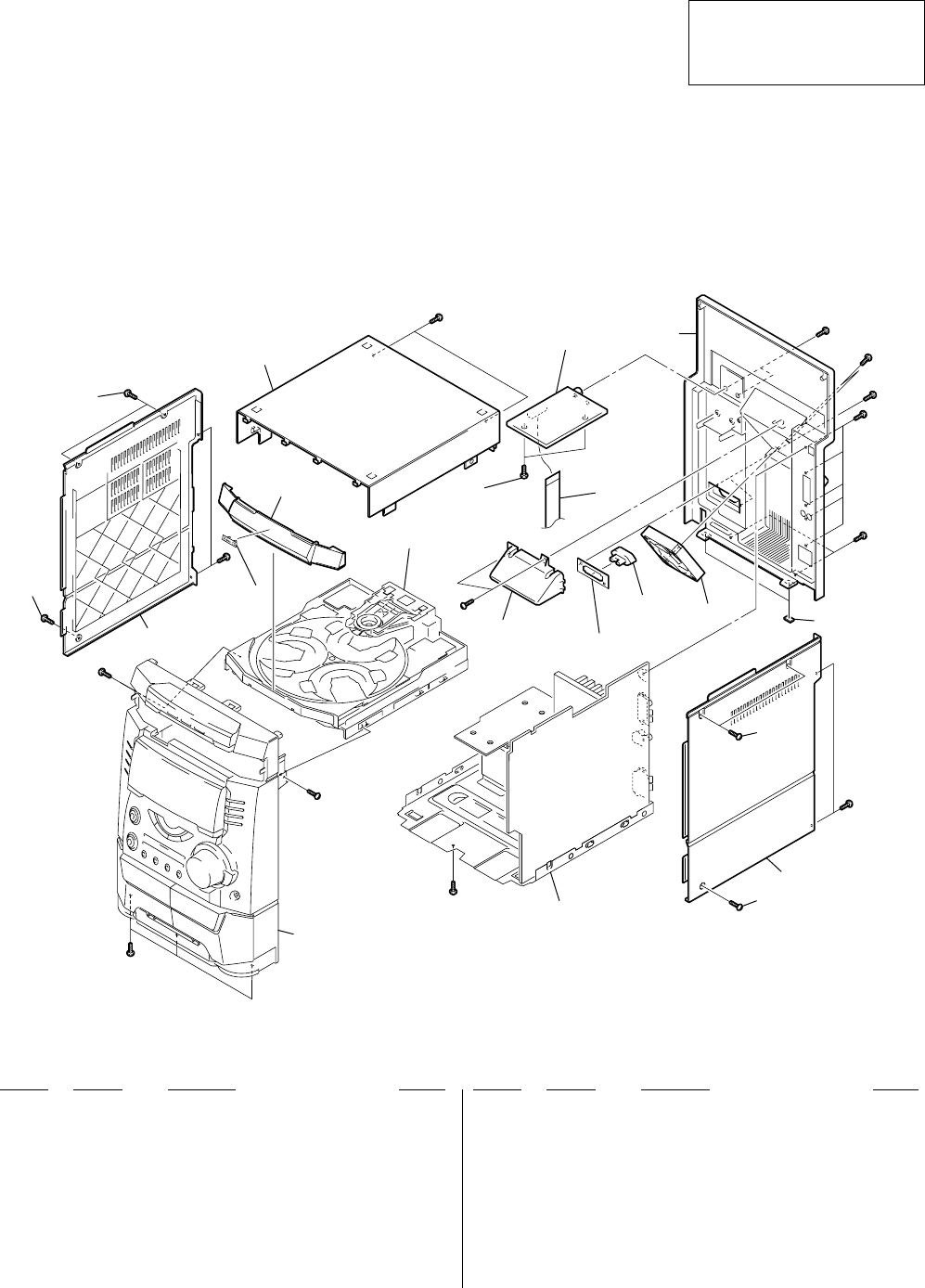

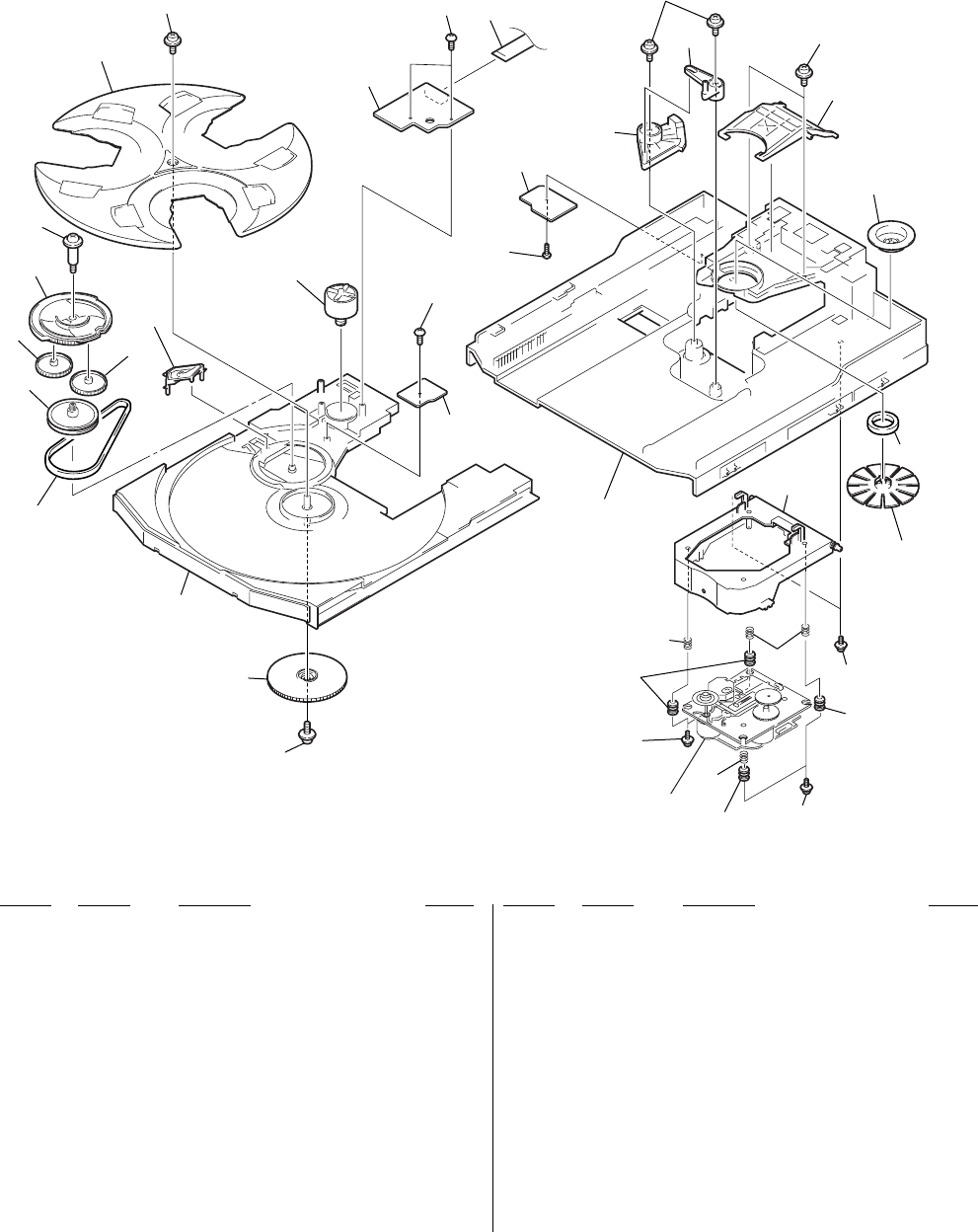

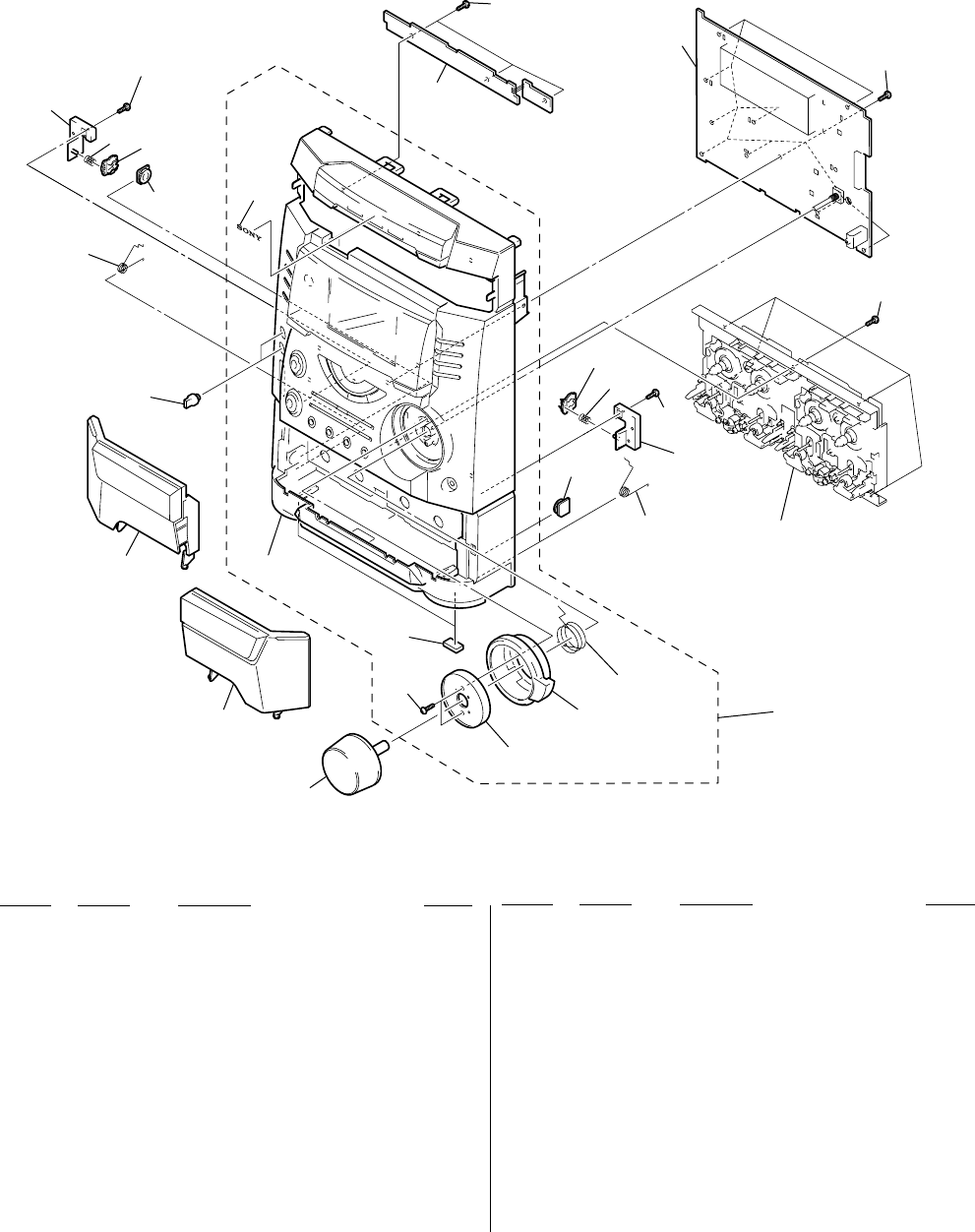

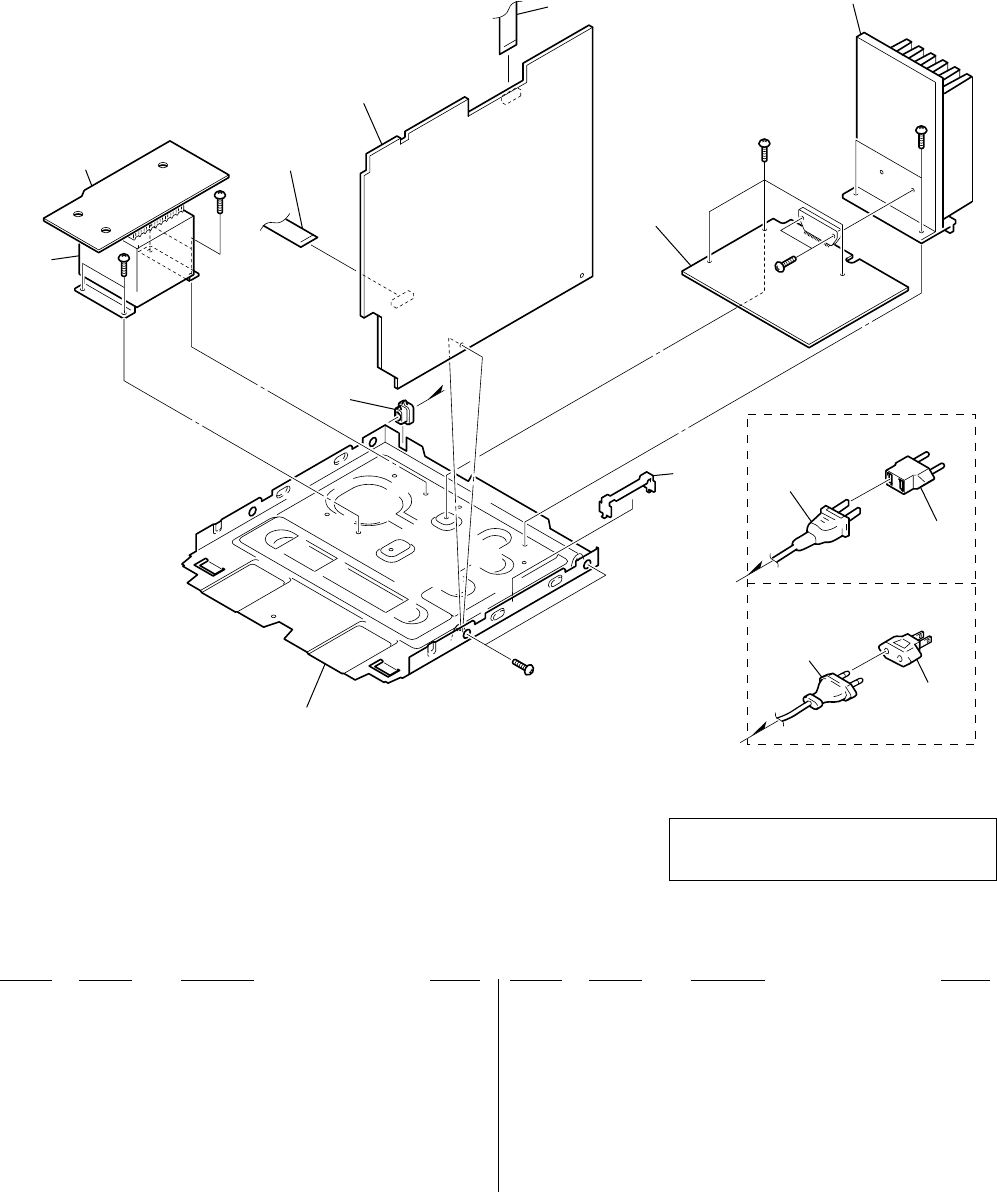

- EXPLODED VIEWS
- ELECTRICAL PARTS LIST
- REVISION HISTORY
1
Amplifier section
The following measured at AC 120, 220, 240V
50/60 Hz
DIN power output (rated) 160 + 160 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
200 + 200 watts
(6 ohms at 1 kHz,
10% THD)
Inputs
MD/VIDEO (AUDIO) IN: voltage 450 mV/250 mV,
(phono jacks) impedance 47 kilohms
MIC: sensitivity 1 mV,
(phone jack) impedance 10 kilohms
Outputs
VIDEO OUT: max. output level 1 Vp-p,
(Phono jack) unbalanced, Sync
negative, load impedance
75 ohms
S-VIDEO OUT: Y: 1 Vp-p, unbalanced
(4 pin/mini-DIN jack) Sync negative
C: 0.286 Vp-p
load impedence 75 ohms
PHONES: accepts headphones of 8
(stereo mini jack) ohms or more
FRONT SPEAKER: accepts impedance of 6 to
16 ohms
SATELLITE SPEAKER: accepts impedance of 6 to
16 ohms
VIDEO CD/CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
(λ=780nm)
Emission duration:
continuous
Laser output Max. 44.6
µ
W*
*This output is the value
measured at a distance of
200 mm from the
objective lens surface on
the Optical Pick-up Block
with 7 mm aperture.
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Wavelength 780 – 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
Video color system format
NTSC, PAL
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength 660 nm
Output Level –18 dBm
Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 – 13,000 Hz (±3 dB),
(DOLBY NR OFF) using Sony TYPE I
cassette
40 – 14,000 Hz (±3 dB),
using Sony TYPE II
cassette
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Middle Eastern models: 531 – 1,602 kHz
(with the interval set at 9
kHz)
Other models: 531 – 1,602 kHz
(with the interval set at 9
kHz)
530 – 1,710 kHz
(with the interval set at 10
kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
HCD-VX88
SERVICE MANUAL
HCD-VX88 is the tuner, tape player, VIDEO CD/
CD player and amplifier section in MHC-VX88.
SPECIFICATIONS
COMPACT DISC DECK RECEIVER
E Model
This stereo system is equipped with the Dolby B-
type noise reduction system*.
* Manufactured under license from Dolby
Laboratories Licensing Corporation.
DOLBY and the double-D symbol ; are
trademarks of Dolby Laboratories Licensing
Corporation.
— Continued on next page —
Model Name Using Similar Mechanism HCD-VX77
CD CD Mechanism Type CDM58-K2BD37A
Section Base Unit Name BU-K2BD37A
Optical Pick-up Name KSM-213DAP/Z-NP
TAPE Model Name Using Similar Mechanism HCD-VX77
Section Tape Transport Mechanism Type TCM-230AWR11
9-929-218-13 Sony Corporation
2001K0500-1 Home Audio Company
C 2001.11 Published by Sony Engineering Corporation
Ver 1.2 2001.11
2
TABLE OF CONTENTS
1. SERVICE NOTES ···························································· 4
2. GENERAL ·········································································· 5
3. DISASSEMBLY ································································ 7
4. TEST MODE ···································································· 12
5. MECHANICAL ADJUSTMENTS ····························· 17
6. ELECTRICAL ADJUSTMENTS ······························· 17
7. DIAGRAMS
7-1. Circuit Boards Location ··················································· 23
7-2. Block Diagrams ································································ 25
7-3. Printed Wiring Board – BD Section – ······························ 28
7-4. Schematic Diagram – BD Section – ································· 29
7-5. Printed Wiring Board – VIDEO Section – ······················· 30
7-6. Schematic Diagram – VIDEO (1/3) Section – ················· 31
7-7. Schematic Diagram – VIDEO (2/3) Section – ················· 32
7-8. Schematic Diagram – VIDEO (3/3) Section – ················· 33
7-9. Printed Wiring Board – MAIN Section – ························· 34
7-10. Schematic Diagram – MAIN (1/3) Section – ··················· 35
7-11. Schematic Diagram – MAIN (2/3) Section – ··················· 36
7-12. Schematic Diagram – MAIN (3/3) Section – ··················· 37
7-13. Printed Wiring Board – POWER AMP Section – ············ 38
7-14. Schematic Diagram – POWER AMP Section – ··············· 39
7-15. Printed Wiring Boards – PANEL Section –······················ 40
7-16. Schematic Diagram – PANEL Section – ·························· 41
7-17. Printed Wiring Boards – LEAF SW Section – ················· 42
7-18. Schematic Diagram – LEAF SW Section – ····················· 43
7-19. Printed Wiring Boards – DRIVER Section – ··················· 44
7-20. Schematic Diagram – DRIVER Section – ······················· 45
7-21. Printed Wiring Board – TRANS Section –······················· 46
7-22. Schematic Diagram – TRANS Section – ························· 47
7-23. IC Pin Function Description ············································· 48
7-24. IC Block Diagrams ··························································· 57
8. EXPLODED VIEWS ······················································ 62
9. ELECTRICAL PARTS LIST ······································· 68
General
Power requirements
Thailand models: 220 V AC, 50/60 Hz
Other models: 120 V, 220 V or 230 - 240
V AC, 50/60 Hz
Adjustable with voltage
selector
Power consumption 250 watts
Dimensions (w/h/d) Approx. 280 x 360 x 425
mm (11
x 14
3
/
16
x 16
11
/
16
in.)
Mass: Approx. 11 kg
(24 lb. 5 oz)
Design and specifications are subject to change
without notice.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
3
Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of soldering iron around 270˚C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

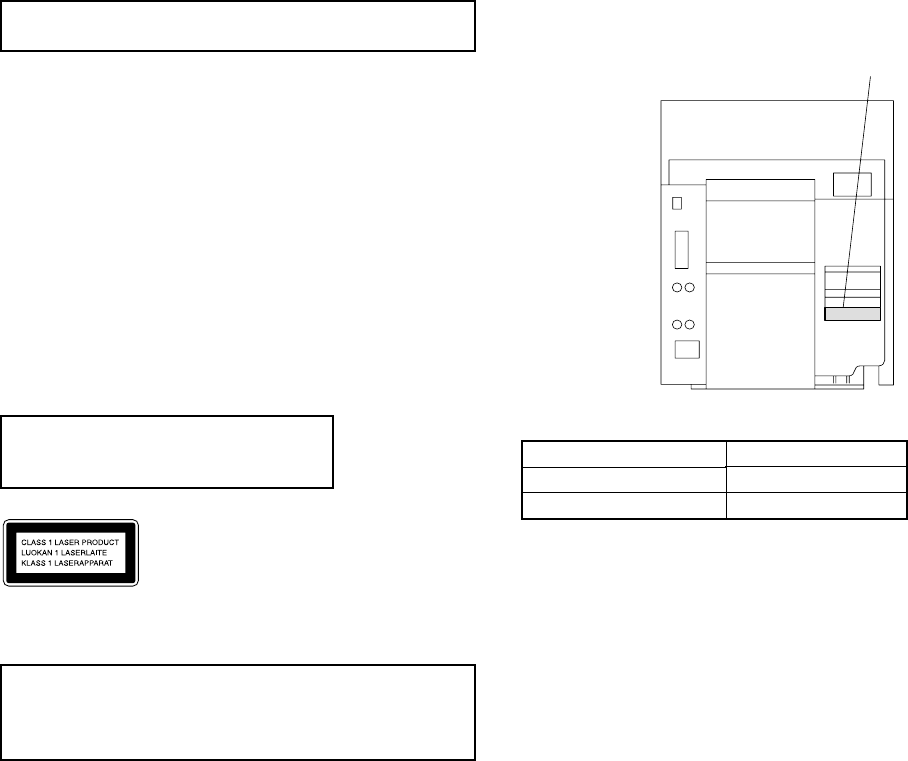

MODEL IDENTIFICATION
— BACK PANEL —
PART No.
•Abbreviation
IA : Indonesian
MODEL
EXCEPT IA model
IA model
PART No.
4-225-040-7s
4-227-061-2s
This appliance is classified
as a CLASS 1 LASER
product. The CLASS 1
LASER PRODUCT
MARKING is located on
the rear exterior.
4
SECTION 1
SERVICE NOTES

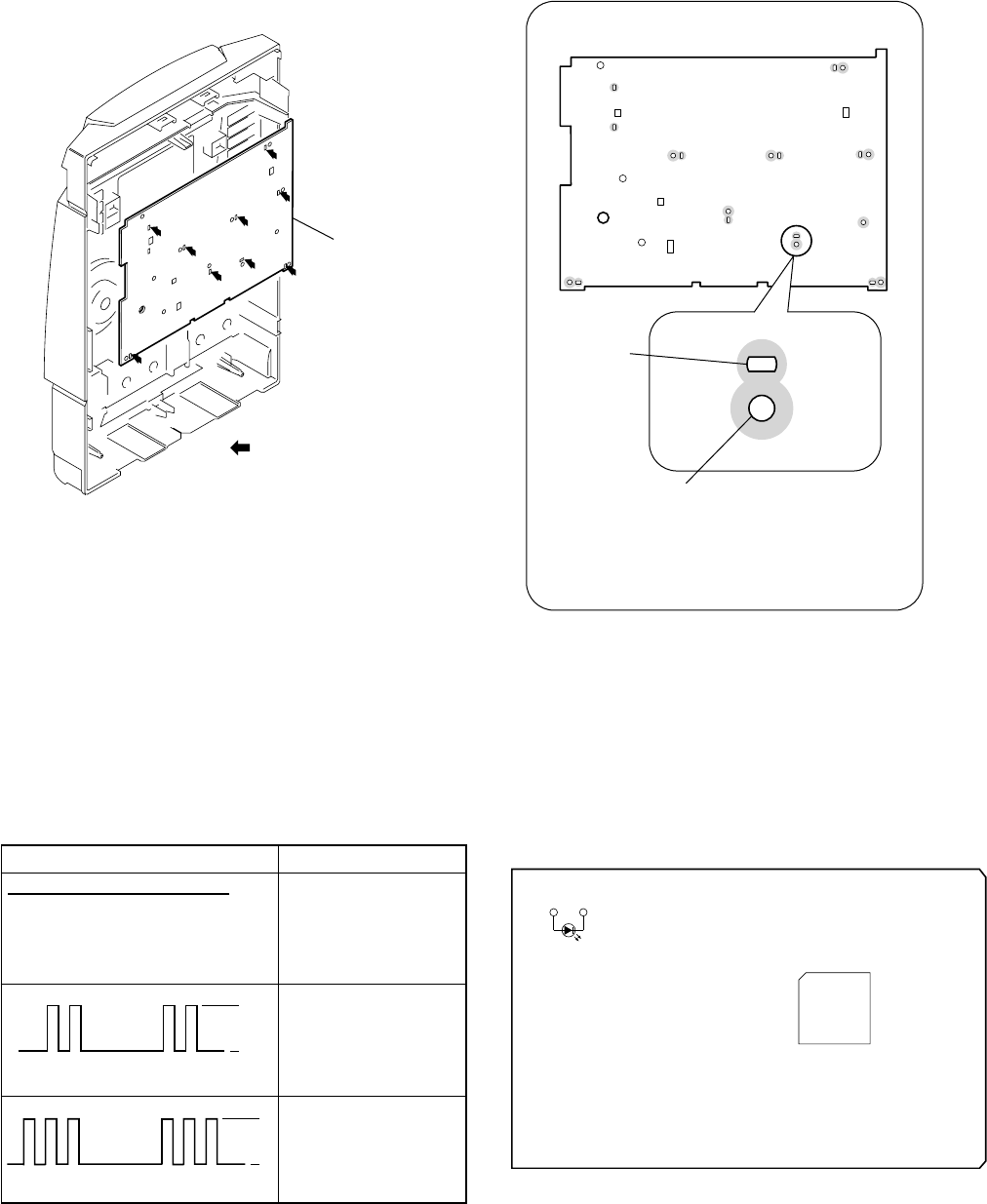

Screw hole
Attach the panel board with
six screws (
+BVTP 2.6
×
8
)
after the board is removed once.
Do not tighten the screws excessively.
1
Cut the nine melted-connection points with cutting pliers.
Note for installing the panel board
2
Panel board
Hot melt
: melted-connection point
SELF-DIAGNOSIS
This model has the self-diagnosis function for the VIDEO and AUDIO decoder sections.
Connecting to the LED between TP522 and TP523 on the VIDEO BOARD.
Immediately after the power on, the self-diagnosis function searches each operation of IC’s around the CD mechanism control microcom-
puter (IC502). and TP5
The results can be checked by LED of the VIDEO board.

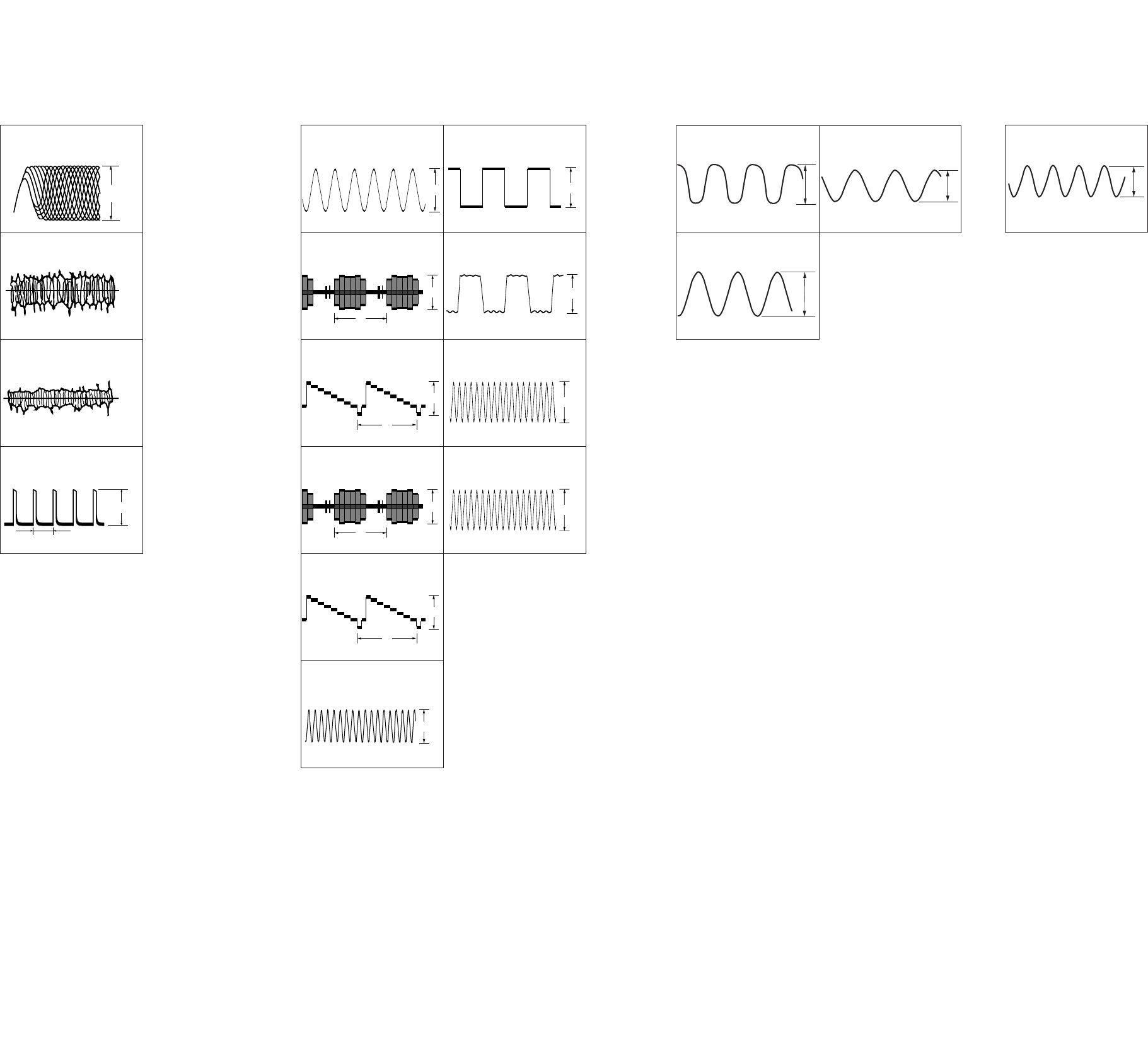

Oscilloscope (Waveform) Symptom
No error
MPEG decoder (IC505)
error
MPEG decoder (IC505)
or
DRAM (IC507) error

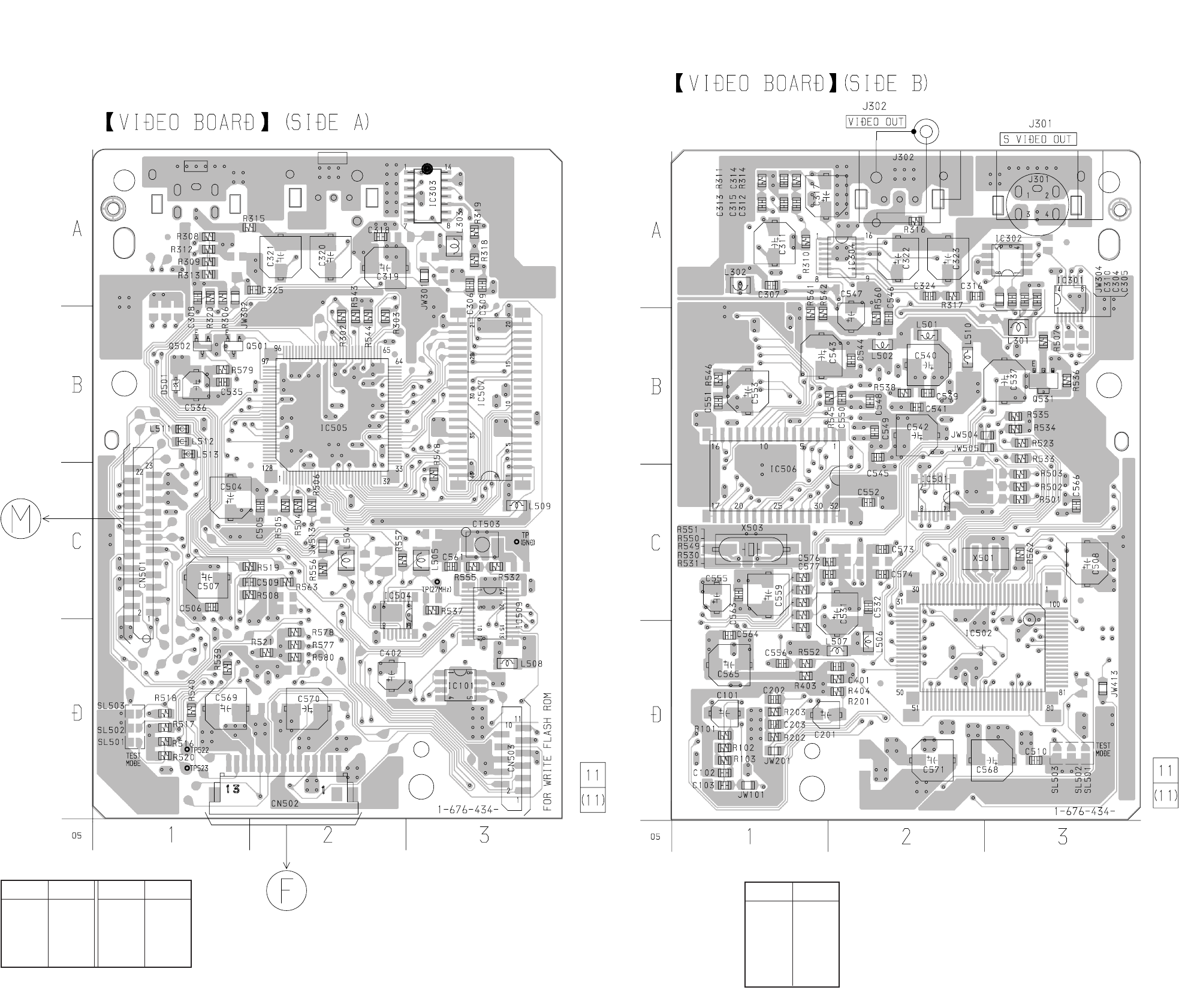

[VIDEO BOARD] (SIDE A)
H
L
Li
g
ht
2 time blinkin
g
H
L
H
L
3 time blinkin
g
TP523 TP522
LED
IC505
100 91
33 64
90
65
1
32
5
SECTION 2
GENERAL
1DISC SKIP button
2DISC 1 button and indicator
3DISC 2 button and indicator
4DISC 3 button and indicator
5Z OPEN/CLOSE button
6PREV button
7NEXT button
8RETURN button
9CD disc tray
0Fluorescent indicator tube
qa EDIT, TUNER MEMORY button
qs PLAY MODE, STEREO/MONO button
qd REPEAT, DOLBY NR button
qf DIRECTION button
qg CINEMA SPACE button
qh VOLUME knob
qj Shuttle knob
qk x button
ql hH button
w; PHONES jack
wa Tape deck-B
ws TAPE A/B button
wd CD button
wf Function indicator
wg TUNER/BAND button
wh MD (VIDEO) button
wj ?/1 button and indicator
wk DISPLAY button
wl SPECTRUM button
e; EQ EDIT button
ea GROOVE button
es ECHO LEVEL knob
ed MIC LEVEL knob
ef MIC2 jack
eg MIC1 jack
eh g, G, f, F button and indicator
ej PICTURE EFFECT button
ek V-GROOVE button and indicator
el Tape deck-A
r; – . button
ra X button
rs > + button
rd KARAOKE PON button
rf CD SYNC HI-DUB button
rg REC PAUSE/START button and indicator
rh ENTER button
1
9
rd
2 3 4 5
0
qa
qs
qd
qf
qg
qh
qj
qkql
w;
wa
rg
rf rh
rs
rar;
wh
wg
wfwd
ws
wj
wk
wl
e;
ea
es
ed
ef
eg
eh
ej
ek
el
76 8
LOCATION OF CONTROLS
• Front view
6
This section is extracted from
instruction manual.
9

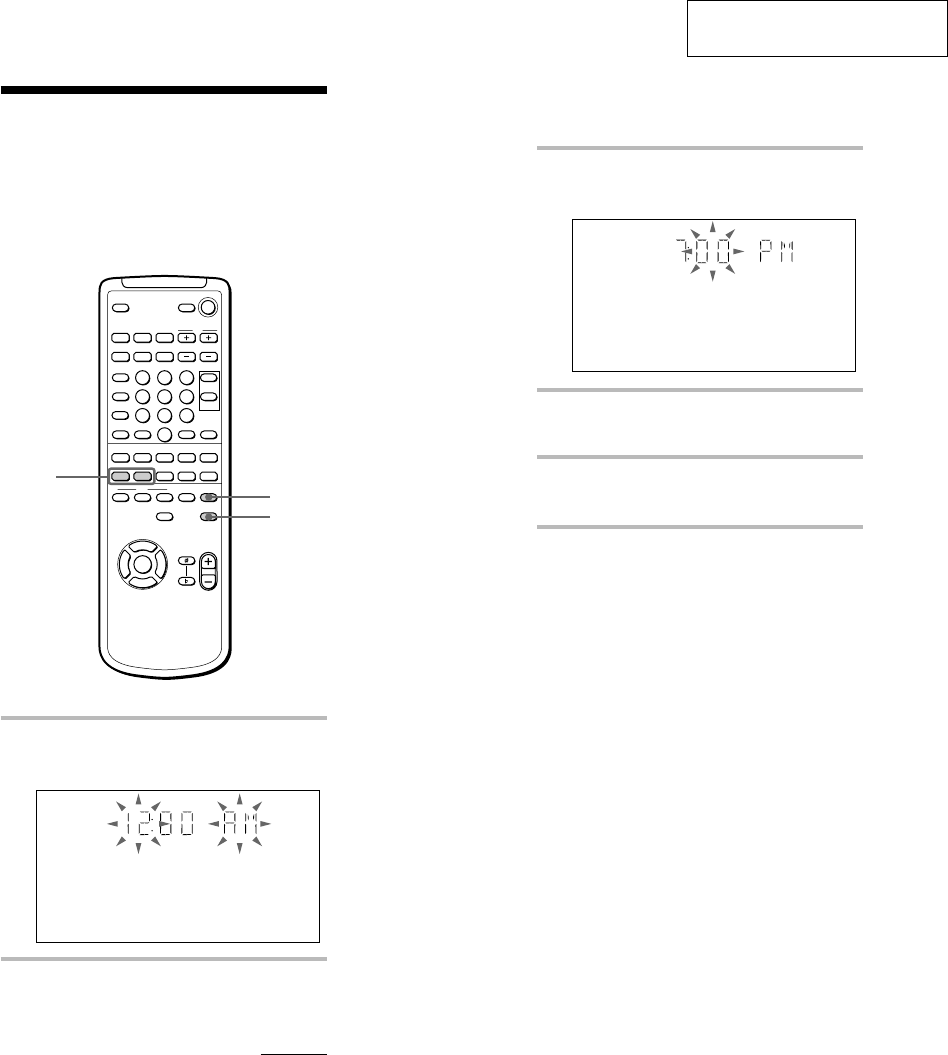

1Press CLOCK/TIMER SET.
The hour indication flashes.
2Press . or > repeatedly to set
the hour.
Step 3: Setting the
time
You must set the time before using the timer
functions.
NX x
xMm>.
nN
O
v
V
bB
X
1
3,5
2,4
continued
10
3Press ENTER.
The minute indication flashes.
4Press . or > repeatedly to set
the minute.
5Press ENTER.
The clock starts working.
Tip
If you’ve made a mistake, start over from step 1.
To change the time
The previous explanation shows you how to set the
time while the power is off. To change the time
while the power is on, do the following:
1Press CLOCK/TIMER SET.
2Press . or > repeatedly to select
SET CLOCK.
3Press ENTER.
4Perform steps 2 through 5 above.
Note
The clock settings are canceled when you disconnect
the power cord or if a power failure occurs.
Step 3: Setting the time
(continued)
7

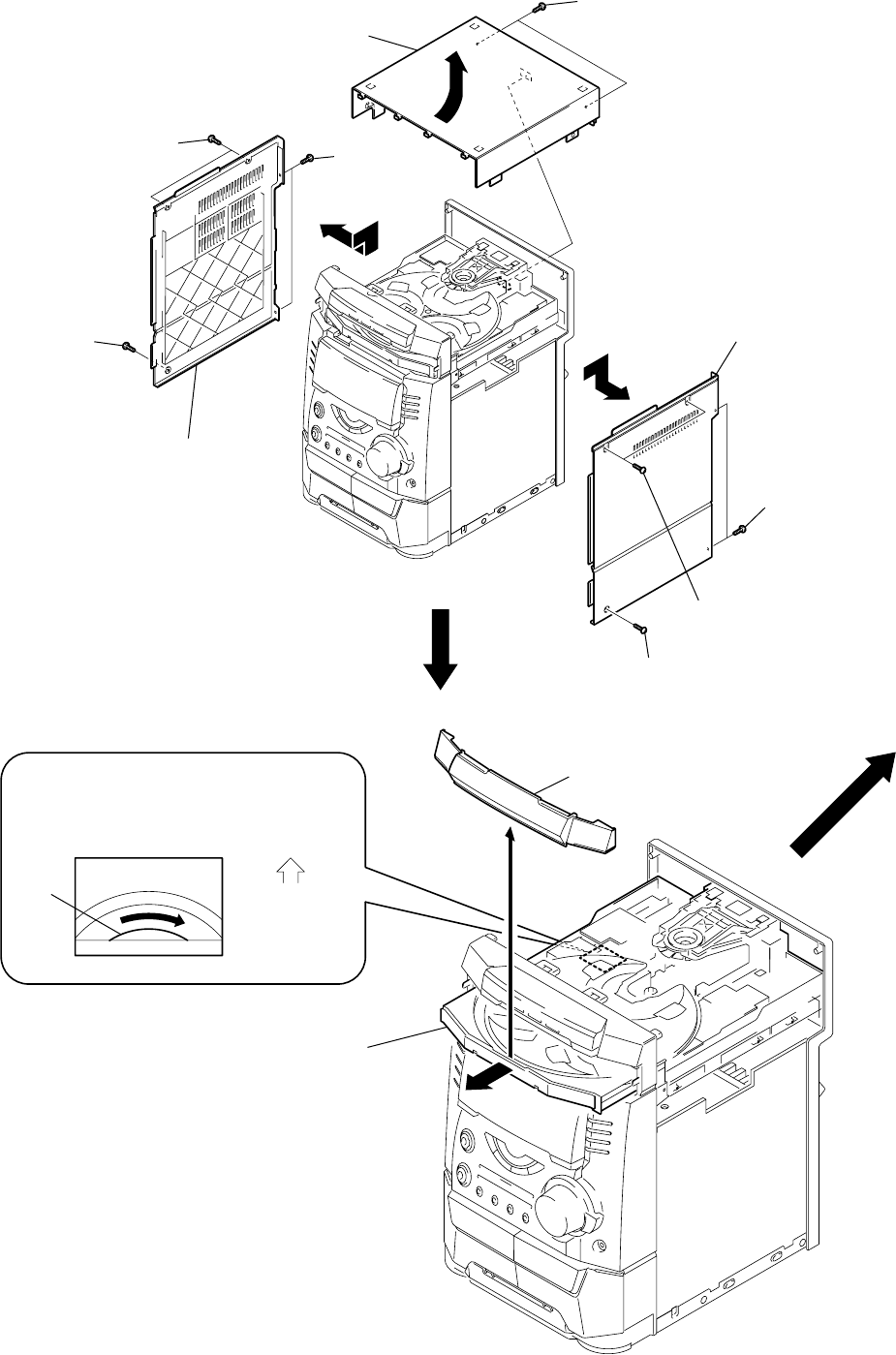

SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
8side panel L
6screw
(case3 TP2)
5two screws
(case3 TP2)
0cover (TOP)
7two screws
(BVTP 3 × 8)
9two screws
(BVTP 3 × 12)
4side panel R
1two screws
(case3 TP2)
3two screws
(BVTP 3 × 10)
2screw
(case 3 TP2)
CD mechanism deck (CDM58-K2BD37A)
1 Turn the pulley (S) in the direction of the arrow.
Front panel side
bottom view
pulley (S)
2Pull out the disc tray
3loading panel ass’y
COVER (TOP)
LOADING PANEL ASS’Y
8

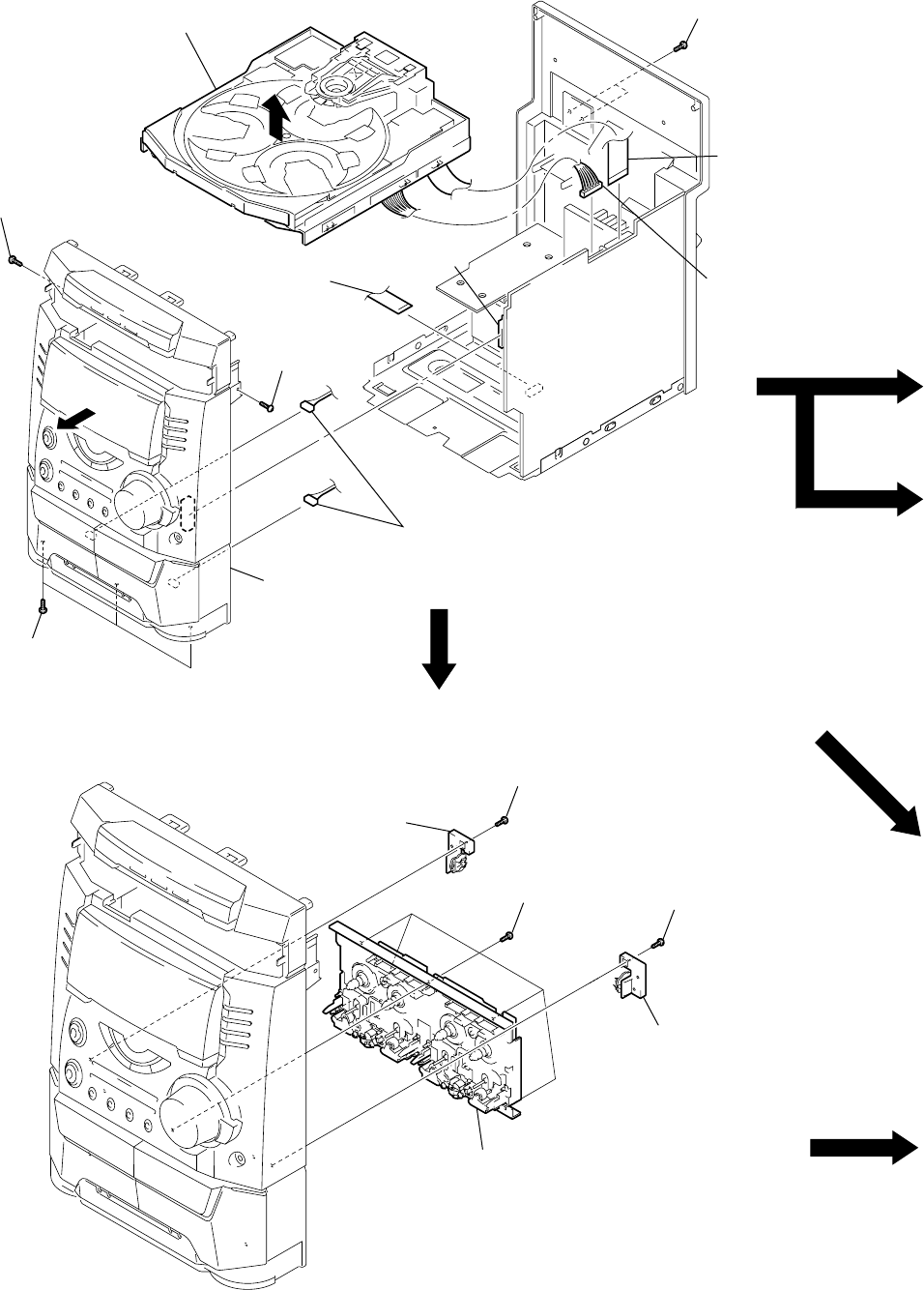

3three screws
(BVTP 3 × 8)
4screw
(BVTP 3 × 10)
4screw
(BVTP 3 × 10)
1wire (flat type) (17 core)
(CN304)
5connector
(CN401)
qa CD mechanism deck
(CDM58-K2BD37A)
7two screws
(BVTP 3 × 10)
9wire (flat type) (13 core)
(CN201)
0connector
(CN202)
2two connectors
(CN 1, 2)
6front panel section
8
4bracket (heat cam L)
3screw
(BVTP 2.6 × 8)
5five screws
(BVTP 2.6 × 8) 1screw
(BVTP 2.6 × 8)
2bracket (heat cam R)
6tape mechanism deck
(TCM-230AWR11)
FRONT PANEL SECTION, CD MECHANISM DECK (CDM58-K2BD37A)

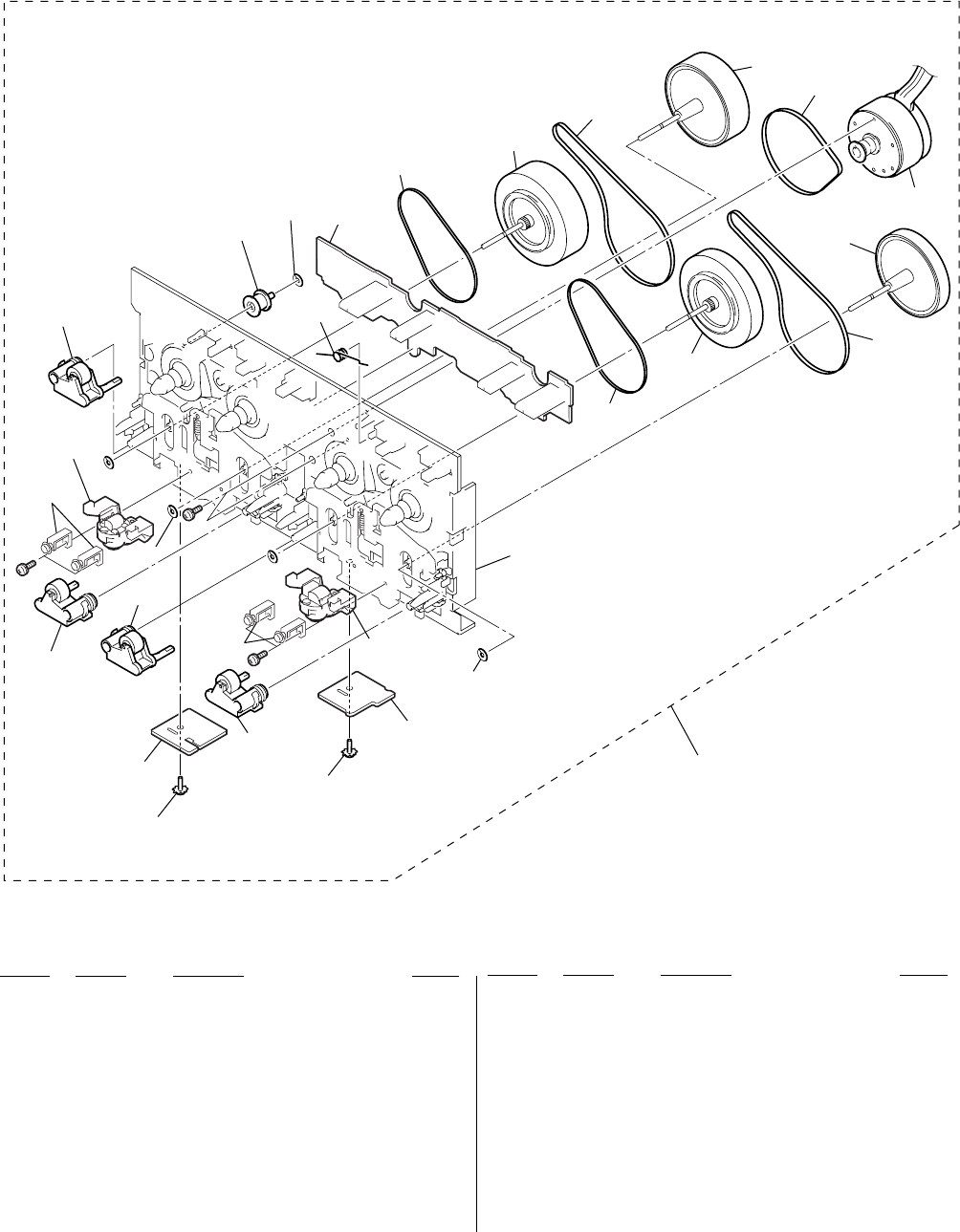

TAPE MECHANISM DECK (TCM-230AWR11)
BASE UNIT (BU-K2BD37A)
(Page 11)
DRIVER/MOTOR/SENSOR/
VIDEO BOARDS
(Page 11)
LEAF SW/HEAD (A)/HEAD (B) BOARDS
(Page 10)
9

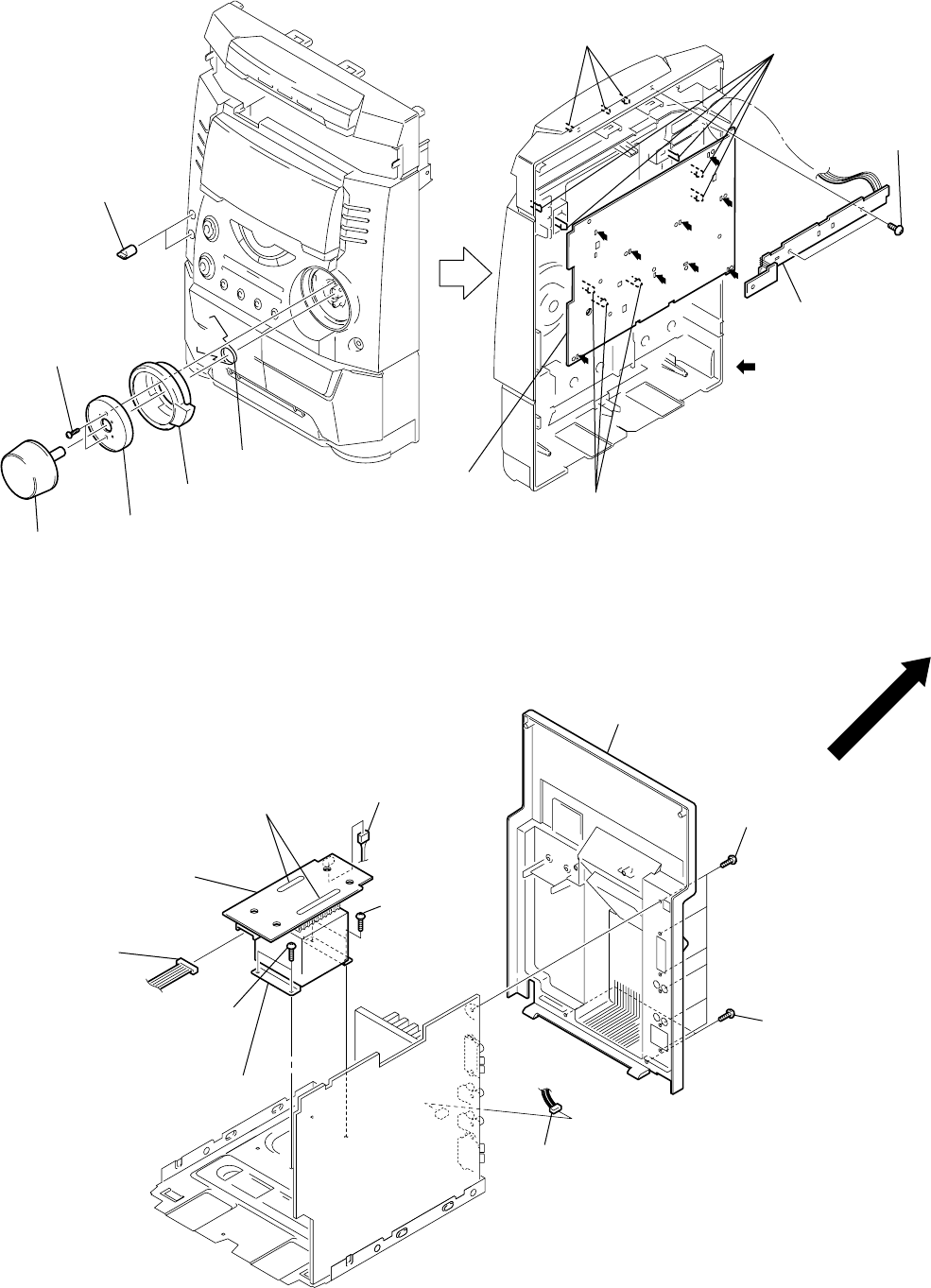

7two
screws
(BVTP2.6
× 8
)
9
CD switch board
qa
three claws
q;
Cut the nine melted-connection points
with cutting pliers.
: melted-connection point
q;
five claws
qs
panel board
8t
hree claws
2two
screws
(BVTP2.6
× 8
)
3
bracket (FR)
4
FR knob
6two
knobs (MIC)
5spring FR
1
vol knob
Note: When attaching the panel board,
refer to "Service Notes" on page 4.
6power transformer
(T971)
5two screws
(BVTP 4 × 8)
4connector
(CN977)
8TRANS board
7Remove six teen solders
of power transformer (T971).
4connector
(CN975)
5two screw
(BVTP 4 × 8)
2connector
(CN891)
1two screws
(BVTP 3 × 10
)
1six screws
(BVTP 3 × 10)
3back panel
PANEL BOARD
POWER TRANSFORMER (T971), TRANS BOARD
10

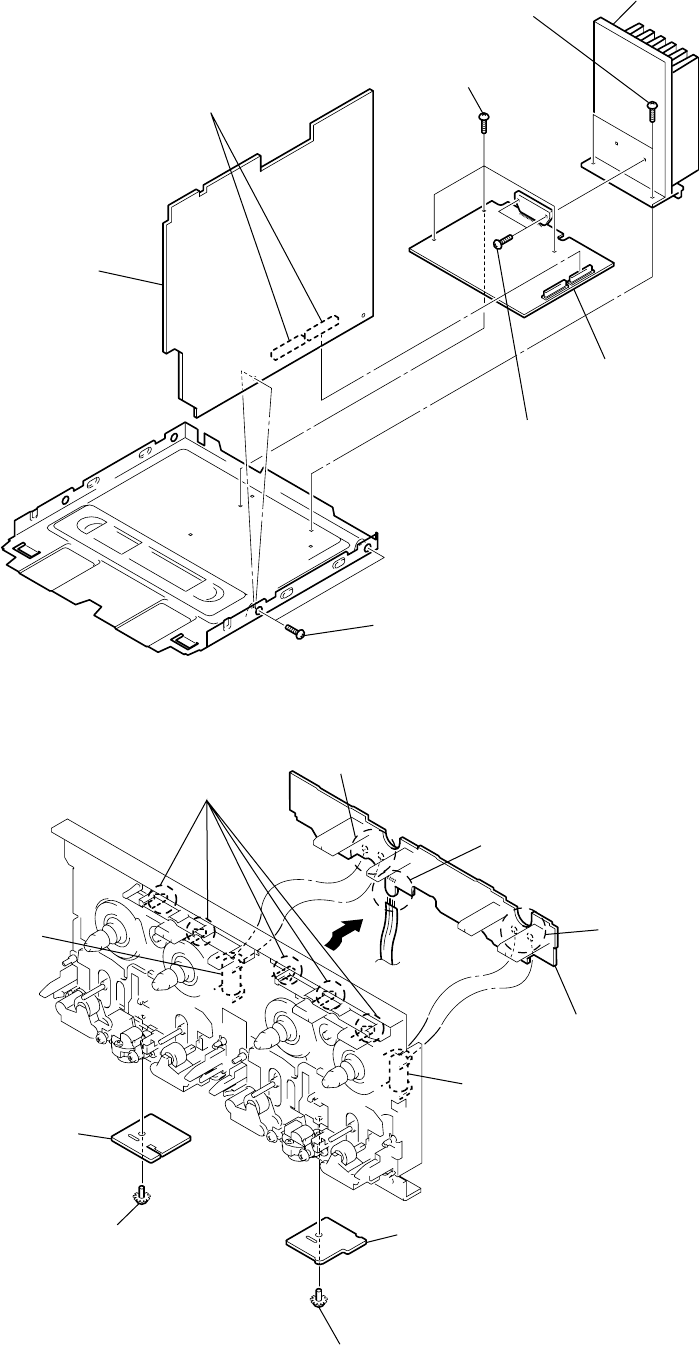

4two screws
(BVTP 3 × 16)
6POWER AMP boar
d
5three screws
(BVTP 3 × 8)
8heat sink
7two screws
(BVTP 3 × 8)
3MAIN board
2two connectors
(CN901, 902)
1two screws
(BVTP 3 × 8)
5ground point screw
(PTT 2 × 4)
6HEAD (A) board
plunger (PM1001)
3five claws
1Remove two solders of plunger (PM1001)
leads.
2Remove four solders of
capstan/reel motor (M901) lead.
4LEAF SW board
1Remove two solders of
plunger (PM1002) leads.
plunger (PM1002)
7ground point screw
(PTT 2 × 4)
8HEAD (B) board
MAIN/POWER AMP BOARDS
LEAF SW/HEAD (A)/HEAD (B) BOARDS
11
3
5base unit
(BU-K2BD37A)
4two insulators
2four screws
(PTPWH M2.6)
1wire (flat type) (23 core)
(CN101)
4two insulators
0screw
(PTPWH 2.6 × 8)
qa tray
1connector
(CN701)
2screw
(BVTP 3 × 10)
3DRIVER board
qd SENSOR board
7
9MOTOR board 6two screws
(BVTP 2.6 × 8)
4wire (flat type) (8 core)
(CN721)
8connector (CN722)
5Remove two solders of turn motor (M721).
qs screw (BVTP 2.6 × 8)
qf two screws
(BVTP 2.6 × 8)
qg VIDEO board
BASE UNIT (BU-K2BD37A)
DRIVER/MOTOR/SENSOR/VIDEO BOARDS
12
SECTION 4
TEST MODE
[MC Cold Reset]
• The cold reset clears all data including preset data stored in the
RAM to initial conditions. Execute this mode when returning
the set to the customer.
Procedure:
1. Press three buttons x , ENTER , and ?/1simulta-neously.
2. The fluorescent indicator tube displays “COLD RESET” and
the set is reset.
[CD Ship Mode]
• This mode moves the pickup to the position durable to vibra-
tion. Use this mode when returning the set to the customer after
repair.
Procedure:
1. Press ?/1button to turn the set ON.
2. Press CD button and ?/1button simultaneously.
3. After the "STANDBY" display blinks six times, a message
“LOCK” is displayed on the fluorescent indicator tube, and the
CD ship mode is set.
[MC Hot Reset]
• This mode resets the set with the preset data kept stored in the
memory. The hot reset mode functions same as if the power
cord is plugged in and out.
Procedure:
1. Press three buttons x, ENTER , and DISC 1 simultaneously.
2. The fluorescent indicator tube becomes blank instantaneously,
and the set is reset.
[CD Service Mode]
• This mode can run the CD sled motor freely. Use this mode, for
instance, when cleaning the pickup.
Procedure:
1. Press ?/1button to turn the set ON.
2. Select the function “CD”.
3. Press three buttons x , ENTER , and OPEN/CLOSE simul-
taneously.
4. The CD service mode is selected.
5. With the CD in stop status, turn the shuttle knob clockwise to
move the pickup to outside track, or turn the shuttle knob
counter-clockwise to inside track.
6. To exit from this mode, perform as follows:
1) Move the pickup to the most inside track.
2) Press three buttons in the same manner as step 2.
Note: • Always move the pickup to most inside track when exiting from
this mode. Otherwise, a disc will not be unloaded.
• Do not run the sled motor excessively, otherwise the gear can be
chipped.
[VACS ON/OFF Mode]
• This mode is used to switch ON and OFF the VACS (Variable
Attenuation Control System).
Procedure:
Press the ENTER and SPECTRUM buttons simultaneously. The
message “VACS OFF” or “VACS ON” appears.
[Change-over of MW Tuner Step between 9 kHz and
10 kHz]
• A step of MW channels can be changed over between 9 kHz
and 10 kHz.
Procedure:
1. Press ?/1button to turn the set ON.
2. Select the function “TUNER”, and press TUNER/BAND
button to select the BAND “AM”.
3. Press ?/1button to turn the set OFF.
4. Press ENTER and ?/1buttons simultaneously, and the display
of fluorescent indicator tube changes to “AM 9 k STEP” or
“AM 10 k STEP”, and thus the channel step is changed over.
[GC Test Mode]
• This mode is used to check the software version, FL tube, LED,
keyboard and VACS.
Procedure:
1. Press three buttons x, ENTER , and DISC 2 simultaneously.
2. LEDs and fluorescent indicator tube are all turned on.
3. When you want to enter the software version display mode,
press DISC 1 . The model number and destination are displayed.
4. Each time DISC 1 is pressed, the display changes starting
from MC version, GC version, VC version, CD version, CM
version, ST version, TC version, TA version, TM version and
BR version in this order, and returns to the model number and
destination display.
5. When DISC 3 is pressed while the version numbers are being
displayed except model number and destination, year, month
and day of the software creation appear. When DISC 3 is
pressed again, the display returns to the software version display.
When DISC 1 is pressed while year, month and day of the
software creation are being displayed, the year, month and day
of creation of the software versions are displayed in the same
order of version display.
6. Press DISC 2 button, and the key check mode is activated.
7. In the key check mode, the fluorescent indicator tube displays
“KEY0 VOL0”. Each time a button is pressed, “KEY” value
increases. However, once a button is pressed, it is no longer
taken into account.
“VOL” value increases like 1, 2, 3 ... if rotating VOLUME
knob in “+” direction, or it decreases like 0, 9, 8 ... if rotating in
“–” direction.
8. Also when DISC 3 is pressed after lighting of all LEDs and FL
tubes, value of VACS appears.
9. To exit from this mode, press three buttons in the same manner
as step 1, or disconnect the power cord.
13
[MC Test Mode]
• This mode is used to check operations of the respective sections
of Amplifier, Tuner, CD and Tape.
Procedure:
1. Press the ?/1 button to turn on the set.
2. Press the three buttons of x , ENTER and DISC 3
simultaneously.
3. A message “TEST MODE” appears on the FL display tube.
4 When f (CURSOR UP) button is pressed, GEQ increases to
its maximum and a message “GEQ ALL MA” appears.
5. When F (CURSOR DOWN) button is pressed, GEQ decreases
to its minimum and a message “GEQ ALL M1” appears.
6. When g (CURSOR LEFT) or G (CURSOR RIGHT) button
is pressed, GEQ is set to flat and a message “GEQ FLAT”
appears.
7. When the VOLUME control knob is turned clockwise even
slightly, the sound volume increases to its maximum and a
message “VOLUME MAX” appears for two seconds, then the
display returns to the original display.
8. When the VOLUME control knob is turned counter-clockwise
even slightly, the sound volume decreases to its minimum and
a message “VOLUME MIN” appears for two seconds, then
the display returns to the original display.
9. In the test mode, the default-preset channel is called even when
the TUNER is selected and an attempt is made to call the preset
channel that has been stored in memory, by operating the Shuttle
knob. (It means that the memory is cleared.)
10. When CD is selected and the EDIT button is pressed, the disc
that is being chucked at this moment becomes the default
setting. It means that the default disc only is accessed when
any other discs are selected even though the display indication
changes accordingly. At the same time, the DISC SKIP EX-
CHANGE and OPEN/CLOSE cannot be accepted. (It means
that the tray motor and the turntable motor are disabled of their
operation.)
11. When a tape is inserted in Deck B and recording is started, the
input source function selects VIDEO automatically.
12. When xbutton is pressed to stop recording, the Tape (Deck)
B is selected and tape is rewound using the Shuttle knob, tape
is rewound, tape is stops at around the record-starting position
and playback of the recorded portion of the tape is started. If
PAUSE is inserted even once during recording, tape is rewound
to the position around the PAUSE position and is played back.
13. When the CD SYNC HI-DUB Button is press during playback
of Deck B, either normal speed or high speed can be selected
by this button.
14. Select the desired loop by pressing the PLAY MODE button.
Insert a test tape AMS-110A or AMS-RO to Deck A.
15. Press the SPECTRUM button to enter the AMS test mode.
16. After a tape is rewound first, the FF AMS is checked, and the
mechanism is shut off after detecting the AMS signal twice.
17. Then the REW AMS is checked and the mechanism is shut off
after detecting the AMS signal twice.
18. When the check is complete, a message of either OK or NG
appears.
19. When you want to exit this mode, press the ?/1 button twice.
The cold reset is enforced at the same time.
14
[Aging Mode]
This mode can be used for operation check of CD section and tape deck section.
• If an error occurred:
The aging operation stops and display status.
• If no error occurs:
The aging operation continues repeatedly.
1. Operating method of Aging Mode
Turn on the main power and select “CD” of the function.
1) Set a disc in DISC1 tray. Select CONTINUE ALL DISCS (press the PLAY MODE button),
and REPEAT OFF (press the REPEAT button).
2) Load the tapes recording use into the decks A and B respectively.
3) Press three buttons x, ENTER , and
DISC SKIP/EX-CHANGE simultaneously.
4) Aging operations of CD and tape are started at the same time.
5) To exit the aging mode, perform [MC Cold Reset].
3. Aging Mode in CD section
1) Display state
• No error occurs
Note:
[*][*][*][*] : Number of aging operations
Error display
E** s## $$ %%
12 3 4 5
• When the buttons x , ENTER and DISC 1 are pressed simultaneously, number of time of the mechanism error and the NO DISC
error can be checked.
Display: EMC**EDC** **: Number of times of error (Maximum three times)
EMC: Mechanism error
EDC: NO DISC error
• When aging operation is complete, be sure to perform the MC Cold Reset to reset the error history.
D: No disc error
01: FOCUS ERROR
02: GFS ERROR
03: SETUP ERROR
01: NO DISC judgment without chucking retry
02: NO DISC judgment after chucking retry
Status at the time of NO DISC judgment
(High order digits only)
1: STOP
2: SETUP
3: TOC READ
4: ACCESS
5: PLAY BACK
6: PAUSE
7: MANUAL SEARCH (PLAY)
8: MANUAL SEARCH (PAUSE)
AGING[*][*][*][*]
1 **
2 s
3 ##
4 $$
5 %%
M: Mechanism error
Don’t care
High order digits only
D: Stopped during closing due to problems other than mechanism.
E: Stopped during opening due to problems other than mechanism.
C: Stopped during chucking due to problems other than mechanism.
F: Stopped during EX-opening due to problems other than mechanism.
Emergency related errors (High order digits only)
1: Stopped during chuck-up
2: Stopped during chuck-down
3: Time out by EX-OPEN
5: Time out by EX-CLOSE
The error No. 00 indicates the newest error. As the error No. increases, it means the older error.
When you want to retrieve the error history, press the PLAY MODE button in the case of mechanism error.
Or press the REPEAT button in the case of NO DISC error.
Display
15
2) Operation during aging mode
In the aging mode, the program is executed in the following
sequence.
(1) The disc tray opens and closes.
(2) The mechanism accesses DISC 2 and makes an attempt to
read TOC. However, since there are no discs, a message
“CD2 NO DISC” appears.
(3) The mechanism accesses DISC 3 and a message “CD3 NO
DISC” appears.
(4) The disc tray turns to select a disc1.
(5) A disc is chucked.
(6) TOC of disc is read.
(7) The pickup accesses to the track 1, and playing 2 seconds.
(8) The pickup accesses to the last track, and playing 2 seconds.
(9) Every time when an aging operation of step 1 to step 8 is
complete, the display “AGING[*][*][*][*]” value increases
as the number of aging operations is counted up.
(10) Returns to step 1.
3. Aging Mode in Tape Deck section
1) Display state
• No error occurs
Display action now
• Error occurred
Display action last time
2) Operation during aging mode
In the aging mode, the program is executed in the following
sequence.
(1) Rewind is executed up to the top of tape A and B.
(2) A tape on FWD side is played for 2 minutes.
(3) FF is executed up to either made for 20 second or the end of
tape.
(4) A tape is reversed, and the tape on REV side is played for 2
minutes.
(5) Rewind is executed up to the top of tape.
(6) Returns to step 2, and repeat steps from 2 to 5.
[Function Change Mode]
* Select either VIDEO or MD of the external FUNCTION input.
Procedure:
1. Turn on the power.
2. Press the two buttons ENTER and ?/1 at the same time.
The main power is turned on and the other function of the
previous function is selected and displayed. “MD” or
“VIDEO”.
NO. Display action Action contents Final timing
1 TAPE A AG-1 Rewind the TAPE A, B The top of tape
2 TAPE A AG-2 FWD play the TAPE A 2 minutes playing
3 TAPE A AG-3 F.F. the TAPE A 20 second FF or the end
of tape
4 TAPE A AG-4 REV play the TAPE A 2 minutes playing
5 TAPE A AG-5 Rewind the TAPE A The top of tape
6 TAPE B AG-2 FWD play the TAPE B 2 minutes playing
7 TAPE B AG-3 F.F. the TAPE B 20 second FF or the end
of tape
8 TAPE B AG-4 REV play the TAPE B 2 minutes playing
9 TAPE B AG-5 Rewind the TAPE B The top of tape
16
VIDEO CD COLOR-BARS MODE
On this mode, the data of the color-bars signal as a picture signal and the 1kHz sine wave signal as a sound signal are output by the CD
mechanism control microcomputer (IC502) for video CD signal check. When measurement of the voltage and waveform on the VIDEO
board, perform it in this mode.
For reference, the color-bars signal can be observed at J302 (VIDEO OUT) and the sound signal can be observed at J101 (VIDEO/MD
(AUDIO) OUT) using an oscilloscope.
1. Connect the lead wire to both ends of the land of SL503 of the VIDEO board.
2. Turn the power on. Press CD button to select CD.
3. After 2 or 3 seconds later, connect the lead wire.
4. After measuring, remove the lead wire connected.

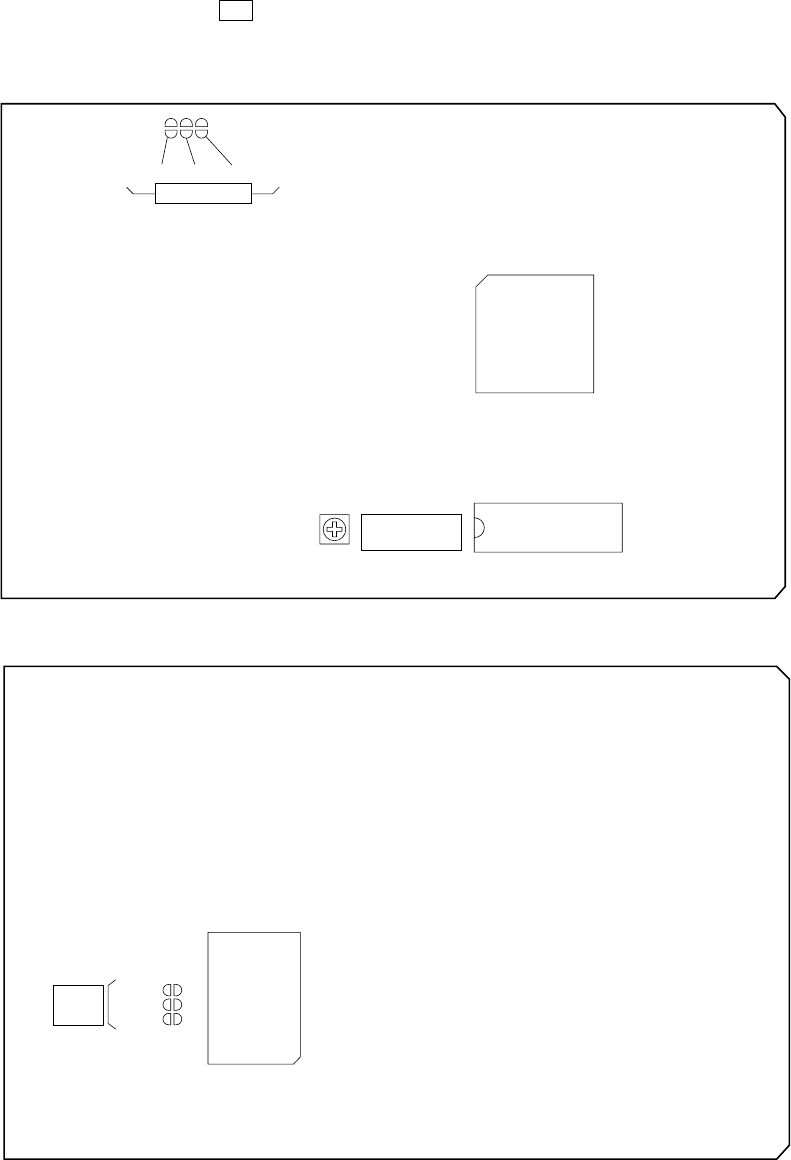

[VIDEO BOARD] (SIDE A)
[VIDEO BOARD] (SIDE B)
SL501 SL502
IC507
IC505
CT503
SL503
TEST MODE
VIDEO
FREQUENCY
SL501
IC502
SL502
SL503
TEST
MODE
17
SECTION 5
MECHANICAL ADJUSTMENTS SECTION 6
ELECTRICAL ADJUSTMENTS
0 dB=0.775 V
DECK SECTION
1. Demagnetize the record/playback head with a head
demagnetizer.
2. Do not use a magnetized screwdriver for the adjustments.
3. After the adjustments, apply suitable locking compound to the
parts adjust.
4. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
5. The adjustments should be performed in the order given in this
service manual. (As a general rule, playback circuit adjustment
should be completed before performing recording circuit
adjustment.)
6. The adjustments should be performed for both L-CH and R-
CH.
7. Switches and controls should be set as follows unless otherwise
specified.
• Test Tape

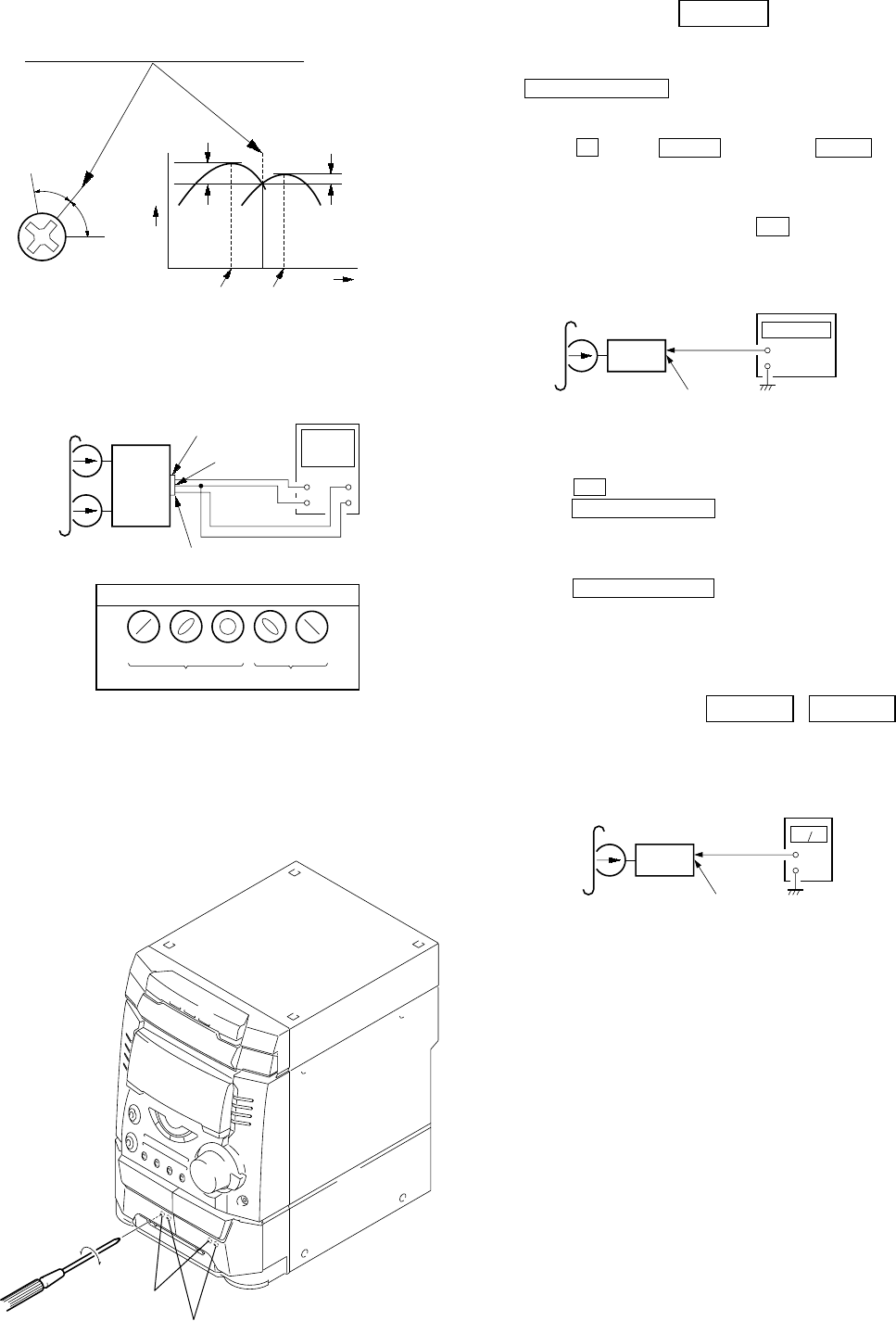

Record/Playback Head Azimuth Adjustment
Tape Signal Used for
P-4-A100 10 kHz, –10 dB Azimuth Adjustment
WS-48B 3 kHz, 0 dB Tape Speed Adjustment
P-4-L300 315 Hz, 0 dB Level Adjustment
DECK A DECK B
Note: Perform this adjustments for both decks
Procedure:
1. Mode: Playback
Precaution
1. Clean the following parts with a denatured alcohol-moistened
swab:
record/playback heads pinch rollers
erase head rubber belts
capstan idlers
2. Demagnetize the record/playback head with a head
demagnetizer.
3. Do not use a magnetized screwdriver for the adjustments.
4. After the adjustments, apply suitable locking compound to the
parts adjusted.
5. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.

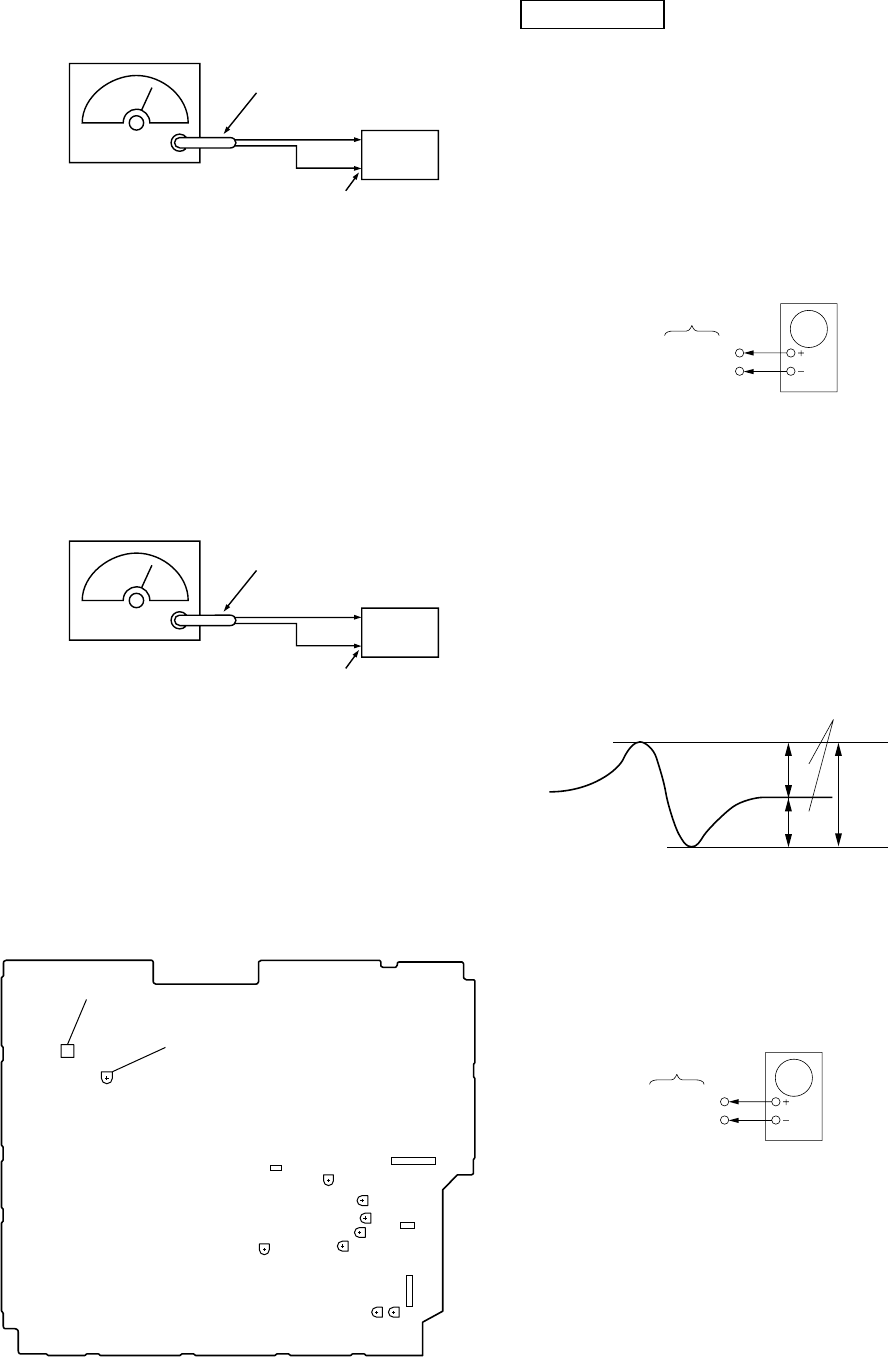

Torque Measurement
set
MAIN board
CN301
Pin 3 (L-CH)
Pin 1 (R-CH)
MAIN board
CN301
Pin 2 (GND)
+
–
level meter

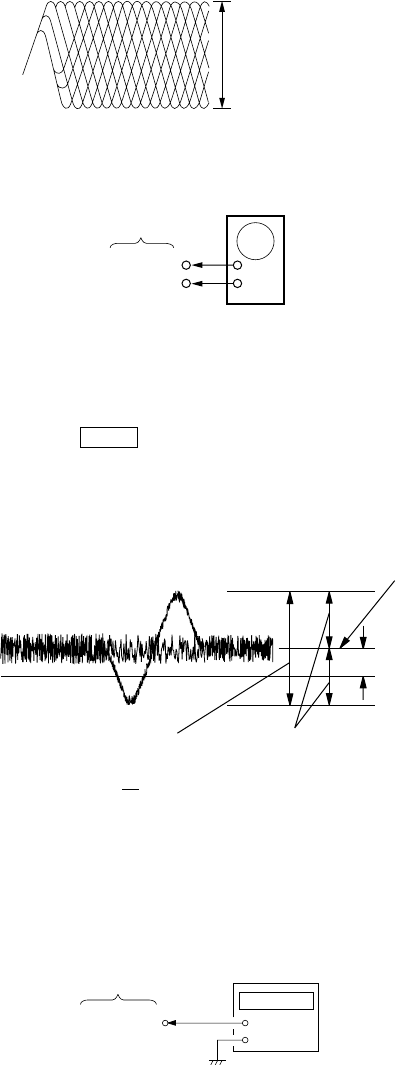

test tape
P-4-A100
(10 kHz, –10 dB)
3.06 N • m to 6.96 N • m
31 to 71 g • cm
(0.43 – 0.98 oz • inch)
0.19 N • m to 0.58 N • m
2 to 6 g • cm
(0.02 – 0.08 oz • inch)
3.06 N • m to 6.96 N • m
31 to 71 g • cm
(0.43 – 0.98 oz • inch)
0.19 N • m to 0.58 N • m
2 to 6 g • cm
(0.02 – 0.08 oz • inch)
6.96 N • m to 14.02 N • m
71 to 143 g • cm
(0.98 – 1.99 oz • inch)
9.80 N • m
100 g or more
(3.53 oz or more)
9.80 N • m
100 g or more
(3.53 oz or more)
Mode Torque meter
CQ-102C
CQ-102C
CQ-102RC
CQ-102RC
CQ-201B
CQ-403A
CQ-403R
Meter reading
FWD
FWD
back tension
REV
REV
back tension
FF/REW
FWD tension
REV tension
18

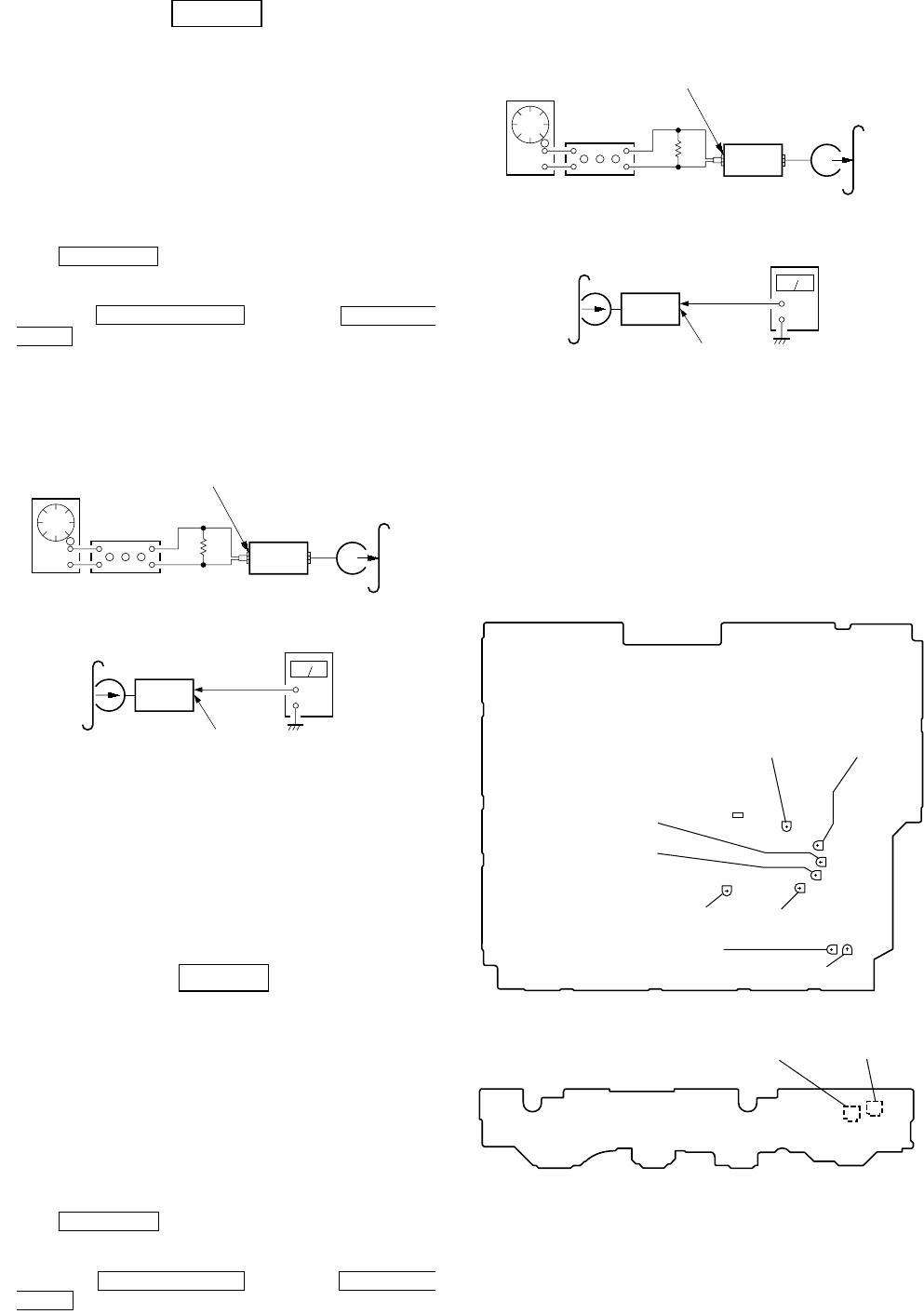

2. Turn the adjustment screw and check output peaks. If the peaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.
3. Mode: Playback
4. After the adjustments, apply suitable locking compound to the
pats adjusted.
Adjustment Location: Playback Head (Deck A).
Record/Playback/Erase Head (Deck B).
Tape Speed Adjustment DECK B
Note: Start the Tape Speed adjustment as below after setting to the test
mode.
In the test mode, the tape speed is high during pressing the
CD SYNC HI-DUB button.
Procedure:
1. Turn the power switch on.
2. Press the xbutton, ENTER button and DISC 3 button
simultaneously.
(The “TEST MODE” on the fluorescent indicator tube display
while in the test mode.)
To exit from the test mode, press the ?/1button.
Mode: Playback
1. Insert the WS-48B into the deck B.
2. Press the gG button on the deck B.
3. Press the CD SYNC HI-DUB button in playback mode.
Then at HIGH speed mode.
4. Adjust RV1001 on the LEAF SW board do that frequency
counter reads 6,000 ± 30 Hz.
5. Press the CD SYNC HI-DUB button.
Then back to NORMAL speed mode.
6. Adjust RV1002 on the LEAF SW board so that frequency
counter reads 3,000 ± 15 Hz.
Adjustment Location: LEAF SW board
Playback Level Adjustment DECK A DECK B
Procedure:
Mode: Playback
Deck A is RV302 (L-CH) and RV352 (R-CH), Deck B is RV303
(L-CH) and RV353 (R-CH) so that adjustment within adjustment
level as follows.
Adjustment Level:
CN301 PB level: 301.5 to 338.3 mV (–8.2 to –7.2 dB) level
difference between the channels: within ±0.5 dB
Adjustment Location: MAIN board
Sample Volue of Wow and Flutter: 0.3% or less W. RMS
(WS-48B)
Screw
position
L-CH
peak
within
1dB
Output
level
L-CH
peak
R-CH
peak
within
1dB
Screw
position
R-CH
peak
MAIN
board
CN301
set
test tape
P-4-A100
(10 kHz, –10 dB)
pin 1
oscilloscope
L-CH
R-CH
VH
waveform of oscilloscope
in phase 45 °90°135°180 °
good wrong
pin 2
pin 3
L
R
+
–
set
test tape
WS-48B
(3 kHz, 0 dB)
MAIN board
CN301 (Pin 3: L-CH)
(
Pin 1: R-CH
)
frequency counte
r
+
–
set
test tape
P-4-L300
(315 Hz, 0 dB)
MAIN board
CN301 (Pin 3: L-CH)
(
Pin 1: R-CH
)
level meter
forward
reverse
19
4. Mode: Record
5. Mode: Playback
6. Confirm playback the signal recorded in step 3 become
adjustable level as follows.
If these levels do not adjustable level, adjustment the RV301
(L-CH) and RV351 (R-CH) on the MAIN board to repeat steps
4 and 5.
Adjustable Level:
CN301 PB level: 47.2 to 53.0 mV (–24.3 to –23.3 dB)
Adjustment Location: MAIN board

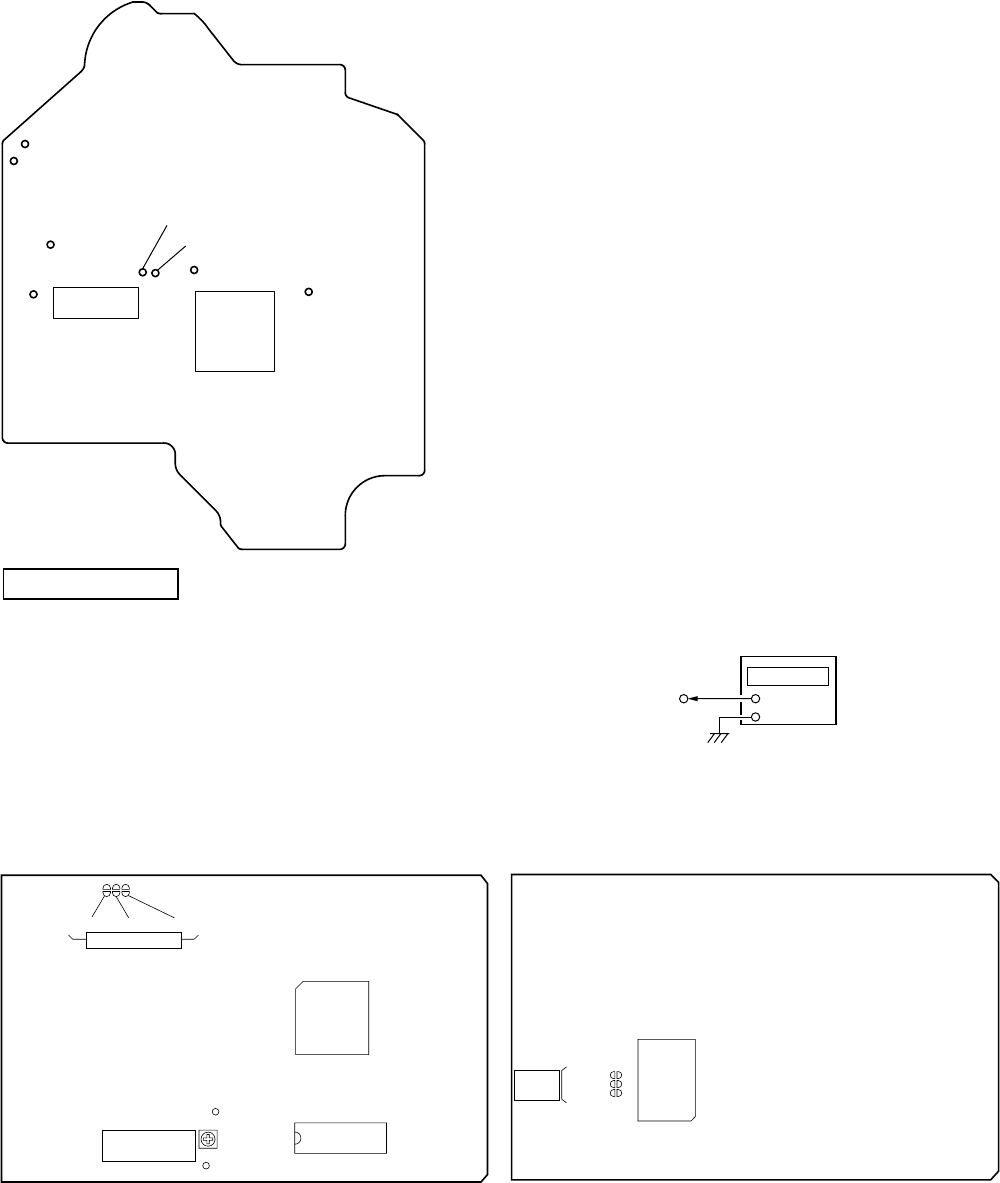

[MAIN BOARD] (Component Side)
[LEAF SW BOARD]
(Conductor Side)
REC Bias Adjustment DECK B
Procedure:
INTRODUCTION
When set to the test mode performed in Tape Speed Adjustment,
when the tape is rewound after recording, the “REC memory mode”
which rewinds only the recorded portion and playback is set.
This “REC memory mode” is convenient for performing this
adjustment. During recording, the input signal FUNCTION will
automatically switch to VIDEO.
(If do not operation of stopped from recording complete, and rotate
of shuttle knob then rewind to recording start position.)
1. Press MD (VIDEO) button to select VIDEO. (This step is not
necessary if the above test mode has already been set.)
2. Insert a tape into deck B.
3. After press REC PAUSE/START button, press REC PAUSE/
START button, then recording start.
4. Mode: Record
5. Mode: Playback
6. Confirm playback the signal recorded in step 3 become
adjustable level as follows.
If these levels do not adjustable level, adjustment the RV304
(L-CH) and RV354 (R-CH) on the AUDIO board to repeat steps
4 and 5.
Adjustable Level: Playback output of 315 Hz to playback output
of 10 kHz: ±1.0 dB
Adjustment Location: MAIN board
REC Level Adjustment DECK B
Procedure:
INTRODUCTION
When set to the test mode performed in Tape Speed Adjustment,
when the tape is rewound after recording, the “REC memory mode”
which rewinds only the recorded portion and playback is set.
This “REC memory mode” is convenient for performing this
adjustment. During recording, the input signal FUNCTION will
automatically switch to VIDEO.
(If do not operation of stopped from recording complete, and rotate
of shuttle knob then rewind to recording start position.)
1. Press MD (VIDEO) button to select VIDEO. (This step is not
necessary if the above test mode has already been set.)
2. Insert a tape into deck B.
3. After press REC PAUSE/START button, press REC PAUSE/
START button, then recording start.
attenuator
set
MD/VIDEO (AUDIO) IN
1) 315 Hz
2) 10 kHz 50 mV (–23.8 dB)
600 Ω
blank tap
e
CN-123
AF OSC
+
–
set
recorded
portion
CN301 (Pin 3: L-CH)
(
Pin 1: R-CH
)
level mete
r
set
MD/VIDEO (AUDIO) IN
315 Hz, 50 mV (–23.8 dB)
blank tape
CS-123
600 Ω
attenuator
AF OSC
+
–
set
recorded
portion
CN301 (Pin 3: L-CH)
(Pin 1: R-CH)
level meter
TAPE SPEED
(HIGH)
RV1002
RV1001
TAPE SPEED
(NORMAL)
RV351
RV354
RV304
RV303
RV352
RV302
RV353
RV301
CN301
13
REC LEVEL (L)
PB LEVEL (L)
(B)
PB LEVEL (L)
(A)
PB LEVEL (R)
(A)
PB LEVEL (R)
(B)
REC BIAS (R)
REC BIAS (L)
REC LEVEL (R)
20
FM Tuned Level Adjustment
Procedure:
1. Supply a 28 dB 98 MHz signal from the ANTENNA terminal.
2. Tune the set to 98 MHz.
3. Adjust RV611 to the point (moment) when the TUNED
indicator on the fluorescent indication tube will change from
going off to going on.
Adjustment Location: MAIN board
Null Adjustment
Procedure:
1. Supply a 60 dB 98 MHz signal from the ANTENNA terminal.
2. Tune the set to 98 MHz.
3. Measure voltage between pin wa of IC 601. Adjust T601 until
the voltage becomes 0 V.
Adjustment Location: MAIN board
[MAIN BOARD] (Component Side)
FM RF SSG
75 Ω coaxial
Carrier frequency : 98 MHz
Modulation : AUDIO 1 kHz, 75 kHz
deviation (100%)
Output level : 28 dB (at 75 W open)
FM ANTENNA terminal
(TM601)
set
FM RF SSG
75 Ω coaxial
Carrier frequency : 98 MHz
Modulation : AUDIO 1 kHz, 75 kHz
deviation (100%)
Output level : 60 dB (at 75 W open)
FM ANTENNA terminal
(TM601)
set
CD SECTION
Note :
1. CD Block is basically designed to operate without adjustment.
Therefore, check each item in order given.
2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10MΩ impedance.
4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.
S-Curve Check
Procedure :
1. Connect oscilloscope to TP (FEO).
2. Connect between TP (FEI) and TP (VC) by lead wire.
3. Connect between TP (AGCCON) and TP (GND) by lead wire.
4. Turn Power switch on.
5. Load a disc (YEDS-18) and actuate the focus search. (In
consequence of open and close the disc tray, actuate the focus
search)
6. Confirm that the oscilloscope waveform (S-curve) is
symmetrical between A and B. And confirm peak to peak level
within 4 ±1 Vp-p.
7. After check, remove the lead wire connected in step 2 and 3.
Note : •Try to measure several times to make sure than the ratio
of A : B or B : A is more than 10 : 7.
•Take sweep time as long as possible and light up the
brightness to obtain best waveform.
RF Level Check
Procedure :
1. Connect oscilloscope to TP (RF).
2. Connect between TP (AGCCON) and TP (GND) by lead wire.
3. Turned Power switch on.
4. Load a disc (YEDS-18) and playback.
5. Confirm that oscilloscope waveform is clear and check RF signal
level is correct or not.
6. After check, remove the lead wire connected in step 2.
BD board
oscilloscope
TP(FEO)
TP(VC)
symmetry
S-curve waveform
within 4 ±1Vp-p
A
B
TP(RF)
TP(VC)
BD board
oscilloscope
T601
RV611
RV351
RV354
RV304
RV303
RV302
RV352
RV353
RV301
CN301 CN304
CN302
CN303
13
NULL
FM TUNED LEVEL
21
Note: Clear RF signal waveform means that the shape “◊” can be
clearly distinguished at the center of the waveform.
RF signal waveform
E-F Balance (1 Track Jump) Check
Procedure:
1. Connect oscilloscope to TP (TEO) and TP (VC) board.
2. Turned Power switch on.
3. Load a disc (YEDS-18) and playback the number five track.
4. Press the hH button. (Becomes the 1 track jump mode.)
5. Confirm that the level B and A (DC voltage) on the oscilloscope
waveform.
1 track jump waveform
Specification level: x 100=less than ±22%
6. After check, remove the lead wire connected in step 1.
RF PLL Free-Run Frequency Check
Procedure :
1. Connect frequency counter to test point (XPCK) with lead wire.
2. Turned Power switch on.
3. Put the disc (YEDS-18) in to play the number five track.
Confirm that reading on frequency counter is 4.3218MHz.
VOLT/DIV : 200mV
TIME/DIV : 500ns
level : 1.45 ± 0.3Vp-p
oscilloscope
BD board
TP (TEO)
TP (VC)
+
–
0V
Center of
waveform
B
Symmetry
A (DC voltage)
level=1.3±0.6Vp-p
A
B
+
–
frequency counte
r
BD board
TP (XPCK)
22
VIDEO SECTION
VIDEO Frequency Adjustment
1. Connect the frequency counter to check point of the VIDEO
board.
2. Adjust CT503 of the VIDEO board so that the frequency counter
read 27MHz ± 80Hz at STOP condition.
[VIDEO BOARD] – SIDE B –
Adjustment Location :
[VIDEO BOARD] – SIDE A –
frequency counte
r
VIDEO board
TP (27 MHz) +
–
SL501
IC502
SL502
SL503
TEST
MODE
SL501 SL502
CT503
SL503
TEST MODE
VIDEO
FREQUENCY
TP
(27MHz)
TP
(GND)
IC507
IC505
Adjustment Location :
[BD BOARD] (SIDE B)
TP
(VC)
TP
(RF)
TP (TEO)
TP (FEO)
TP
(GND)
TP (XPCK)
TP (AGCCON)
IC103
TP (FEI)
IC101
HCD-VX88
2323
SECTION 7
DIAGRAMS

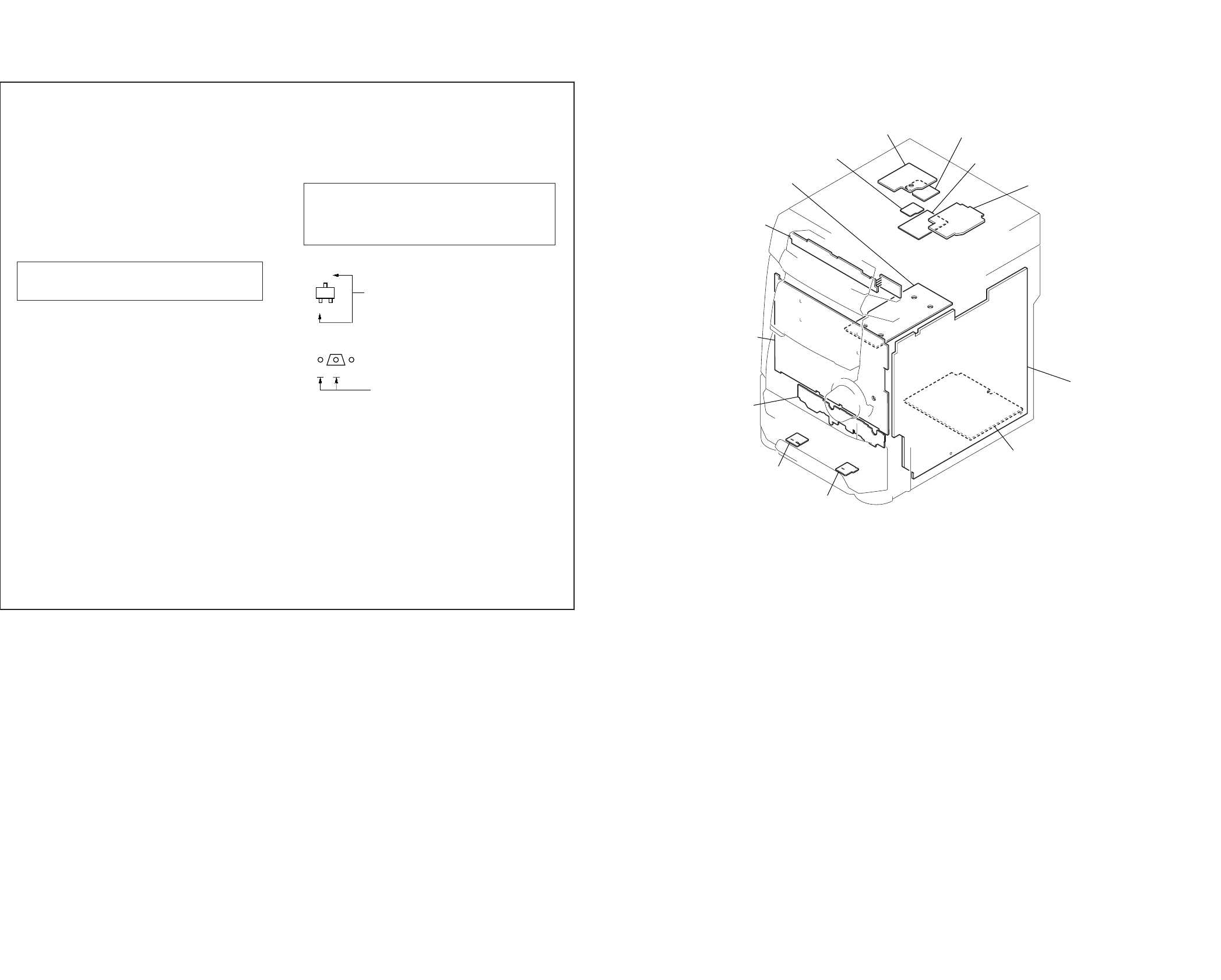

7-1. CIRCUIT BOARDS LOCATION
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
C
B
These are omitted.
E
Q
PANEL board
LEAF SW board
HEAD (A) board
HEAD (B) board
TRANS board
CD SWITCH board
VIDEO board
BD board
DRIVER board
MOTOR board
SENSOR board
MAIN board
POWER AMP board
B
These are omitted.
CE
Q
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
• % : indicates tolerance.
•f: internal component.
•2: nonflammable resistor.
•5: fusible resistor.
•C: panel designation.
•U: B+ Line.
•V: B– Line.
•H: adjustment for repair.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: FM
f: AM
E: PB (DECK A)
d: PB (DECK B)
G: REC (DECK B)
J: CD (AUDIO)
c: digital out
o: CD (VIDEO)
m: VIDEO (C)
n: VIDEO (Y)
• Abbreviation
EA : Saudi Arabia model
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•b: Pattern from the side which enables seeing.
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
• Indication of transistor.
HCD-VX88
24
24
Waveforms
– CD SECTION – – VIDEO SECTION – – MAIN BOARD –
1
IC601 oa
STOP MODE
4.8Vp-p
12.5MHz
– PANEL BOARD –
1
IC101 t;
RFAC
2
IC101 ra
TE
3
IC101 el
FE
4
IC101 wg
MDP
1.3Vp-p
APPROX 500mVp-p
2.5V
APPROX 200mVp-p
2.5V
2.6Vp-p
7.5µsec
1
IC502 qd
XOUT
2
IC505 ug
COUT
3
IC505 yl
YOUT
4
IC304 9
COUT
5
IC304 qg
YOUT
6
IC509 1
XT1
7
IC509 ql
LRCK
8
IC509 qj
BCK
9
IC504 8
384FS
q;
IC504 6
27M
4Vp-p
10MHz
H
1Vp-p
H
1Vp-p
2Vp-p
H
2Vp-p
H
27MHz
5.8Vp-p
4.6Vp-p
44.1kHz
4.8Vp-p
2.11MHz
4.8Vp-p
33.8MHz
3.8Vp-p
27MHz
1
IC401 qa
STOP MODE
3.0Vp-p
32.768kHz
3.4Vp-p
2
IC401 qd
STOP MODE
3
T301 4
TAPE B REC MODE
16MHz
120Vp-p
80.7kHz
HCD-VX88
2525
: FM
: AM
: CD (AUDIO)
• Signal Path
• R-CH: Same as L-CH.
: DIGITAL OUT
: CD (VIDEO)
FM 75Ω
AM
ANTENNA
ANT IN
81
IF OUT 3
F OUT 4
VT
FE602
FM FRONT-END
+B A+12V
Q602
FM
10
FM OSC
15 VT1 IN
18 VT1
17 PD1
19
PLL
IC651
12
FM/AM IF 7
FM 14
AM OSC 2VCO STOP 8IF REQ
6DO 4DI 5
CL 3
CE
XIN
1
XOUT
24
X651
4.5MHz
IF
AMP
Q601
NULL
T601
B+ SWITCH
CF601 CF602
DO
CL
CE
113
3
455
122
14
1511
67
9
RB641
AM FRONT-END
19
AM MIX OUT
IF OUT
9AM/FM
12 AM OSC OUT
24 VCO STOP
13 IF REQ MUTE
8
AM RF IN
20
AM OSC
22
V REG
23
FM DET
5
FM IF
1
AM/FM IF MPX
IC601
11
L OUT
10
R OUT
BUFFER
Q611
LPF601
LPF
18AM IF IN IFT601
R-CH
A
MAIN
SECTION
6
TUNED 7
STEREO
3
FM SD ADJ RV611
ST MUTE
22
ST CE
25 ST CLK
28 ST DOUT
26 ST DIN
27
STEREO
23 TUNED
24
SYSTEM CONTROLLER
IC401(1/2)
DO
CL
CE
DI
DI
OPTICAL PICK-UP
BLOCK
(KSS-213D/ZN)
A
B
C
D
E
F
LD
VC
+5V
GND
PD
VR
AUTOMATIC
POWER
CONTROL
FOCUS
COIL
TRACKING
COIL
05
Q101
RF AMP
IC103
VC
12
A
5B
6C
7D
8E
11 F
10
LD
3
PD
4
IC102
IC104
MOTOR/COIL DRIVE
VO1 (+)
14
VO1 (–)
VO2 (+)
VO2 (–)
13
12
11
16
15
M
M102
(SLED)
18
17
M
M101
(SPINDLE)
F+
F-
T+
T-
2
OPIN1 (+)
OPIN1 (–)
OPIN2 (+)
OPIN2 (–)
OPIN4 (+)
OPIN3 (–)
3
5
6
26
27
23
20
MDP
25
SFDR
29
SRDR
30
TRDR
32
TFDR
31
FRDR
34
FFDR
33
STBY1
STBY2
DIGITAL SIGNAL PROCESSOR,
D/A CONVERTER
IC101
DIGITAL SERVO,
64
D OUT
RFAC
50
17
RFI 16
RFO
14
FE 13
TE
22LD ON
21HOLD SW
RFDC
43
FE
39 TE
41 SE
40 67
65
14
SSTP
26 DIGITAL
OUT
OPTICAL OPTICAL
IC201
4
B
VIDEO
SECTION
L-CH
5
6
7
8
3
69
15
76
77
71
2
66
S101
A+5V (LIMIT)
IIC-DATA
30 IIC-CLK
29 XRST
I2C-DATA
I2C-CLK
XRST 43
A DATA
B CLK
L RCK
C2PO
DATA
XLT
CLK
SENS
S CLK
MUTE
CTRL1
SCOR
SUBQ
SQCK
XRST
MCK
PCMD
B CLK
L RCK
C2PO
DATA
XLAT
CLOK
SENS
S CLK
MUTE
XTSL
SCOR
SQSO
SQCK
XRST
XTAI
LPH
LD ON
TABLE ADDRESS
SENSOR
49
T SENS
IC711
48
BU UP/DOWN SW
46OPEN SW 47CLOSE SW
44
MTR CNT2
(OPEN/CLOSE)
S701
(BU UP/DOWN)
OPEN
CLOSE
S711
45MTR CNT1
MOTOR
DRIVE
9
7
4
2
M
IC701
(TURN)
M721
(Page 27)
(Page 26)
9
VO3 (–)
VO3 (+)
VO4 (–)
VO4 (+)
OPIN4 (–)
C
VIDEO
SECTION
(Page 26)
FM TUNED
LEVEL
TM601

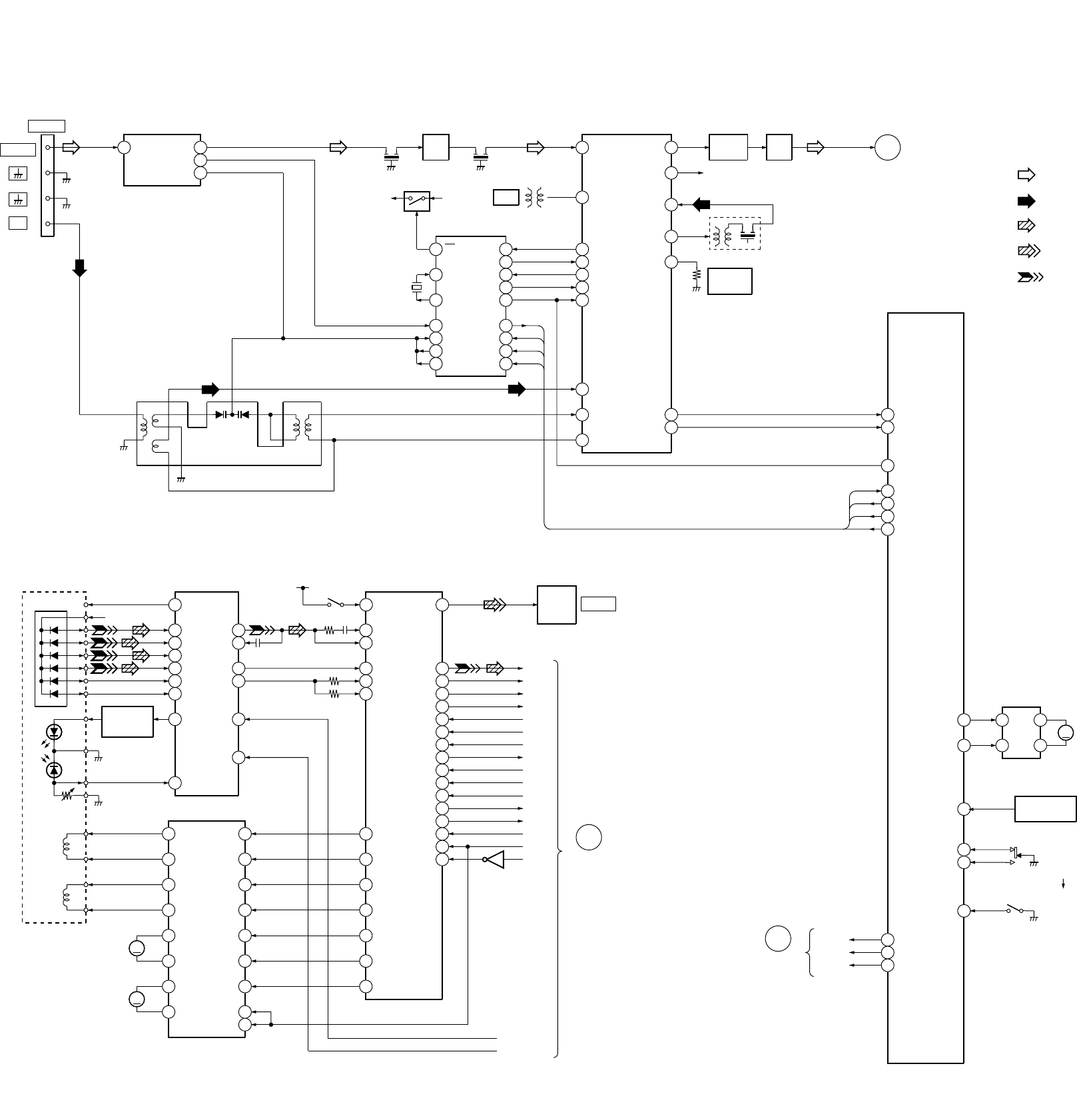

7-2. BLOCK DIAGRAMS
– TUNER/CD SECTION –
HCD-VX88
26
26
15
13
05
41
BUS XHOLD 46
BUS XWRL
XRESET
XOUT
DF LATCH
V. MUTE
XIN
24
25
45
95
97
VSYNC
DSP DATA
DSP LATCH
SENSE CLK
DSP CLK
SENSE
DSP MUTE
CTRL1(L:DOUBLE)
LPH
LDON
SCOR
SUBQ DATA
22
BGP
CHROMA LEVEL
RESOLUTION
65
20
X501
5V
TP522 TP523
SL503
CN503
SL502
SL501
10MHz
X503
27MHz
CD MECHANISM CONTROLLER
IC502
LEVEL SHIFT
IC504
LEVEL SHIFT
IC501
D-RAM
IC507 ROM
IC506
LOW-PASS FILTER
IC101
IC304
Y/C AMP,
MIX AMP
MPEG VIDEO/AUDIO DECODER,
VIDEO SIGNAL PROCESSOR
IC505
DIGITAL FILTER & D/A CONVERTER
IC509
DATA1O
DATA1I
CLK1
CL680 INTR
CL680 HSEL
CL680 HRDY
680 RESET
HSYNC IN
TXD
S CLK
RXD
RST
BUSY
HOLD
XWR
FOR
FLASH
ROM
WRITE
DATAI
CLK1
DATAO
DATAO
DATAI
CLK1
INT
HSEL
HRDY
RESET
ADATA
BCLK
LRCK
C2PO
DATA
XLT
CLK
SENS
SCLK
MUTE
CTRL1
LPH
LDON
SCOR
SUBQ
SQCK
XRST
MCK
B
CD
SECTION
(Page 25)
• R-CH: Same as L -CH.
• SIGNAL PATH
: CD (AUDIO)
: VIDEO (C)
: VIDEO (Y)
: CD (VIDEO)
SUBQ CLK
DEVICE RESET
23
12
I2C-CLK 29
I2C-DATA 30
5
1
3
1
2
5
8
3
4
2
10
11
27
28
18
37
36
77
20
21
33
32
31
69
HD-OUT
6CD-C2PO
CD-LRCK
CD-BCK
HRDY
HD-IN
HCK
HINT
HSEL
RESET
PGIO2/VSYNC/CSYNC
INVERTER
Q502
CD-DATA
MWE WE
RAS
UCAS
LCAS
A0
A8
DQ1
DQ16
RASO
CAS
MCE
MD0
I
MD15
MA0
I
MA10
Y-OUT
DA-DATA
DA-BCK 111
VCK-IN 106
DA-XCLK 86
110
DA-LRCK 108
112
119
117
113
114
121
101
93
PGIO3/HSYNC
INVERTER
Q501
60
3
5
4
13 14 28 29
38 42 40
10
8
4
13
5
1
13
8
6
11
1
3
2
7
19
17
DATAO
CLK1 8
7
10 21 20 4
11
18
MODE
PLM
D/A
CONV
CLOCK
DIVIDER
9
24
1
16 - 19 22 - 26 2 - 10 31 - 39
O0
O7
A11
A17
A0
A10
CE
13 - 15 17 - 21 25 4 28 29 3 2 30 12 - 5 27 26 23
58 - 44
10 - 29
22
37
TEST3 76
TEST2 75
TEST1 74
TEST LED 73
IC302
Y AMP/PICTURE CORRECTION
1V IN
8TINT
5
6
BGD
IC301
V OUT
1
3
2
4
14
J302
J301
VIDEO
FREQUENCY
CT503
CD-L
R-CH
27MHz
384FS
S VIDEO
OUT
(TEST MODE)
SL501-503
(SELF-DIAGNOSIS)
VIDEO OUT
DATAI
DATAO
CLK1
HRDY
INT
HSEL
RST
C-OUT 75
12
15
IC303
HUE CONTROL
VIDEO
IN Y IN MIX OUT1
Y OUT1
C OUT1
C IN
8
9
MUTEB
1MUTEA
5
1
CONTROL
VIDEO
OUT
(XTAL 33.8MHz)
27MHz
RSTB
+3.3V REG
Q531 +3.3VD5V
D
MAIN
SECTION
(Page 27)
CTUNER/CD
SECTION
(Page 25)
34
RTS1 11
10
I2C-DATA
I2C-CLK
XRST
10

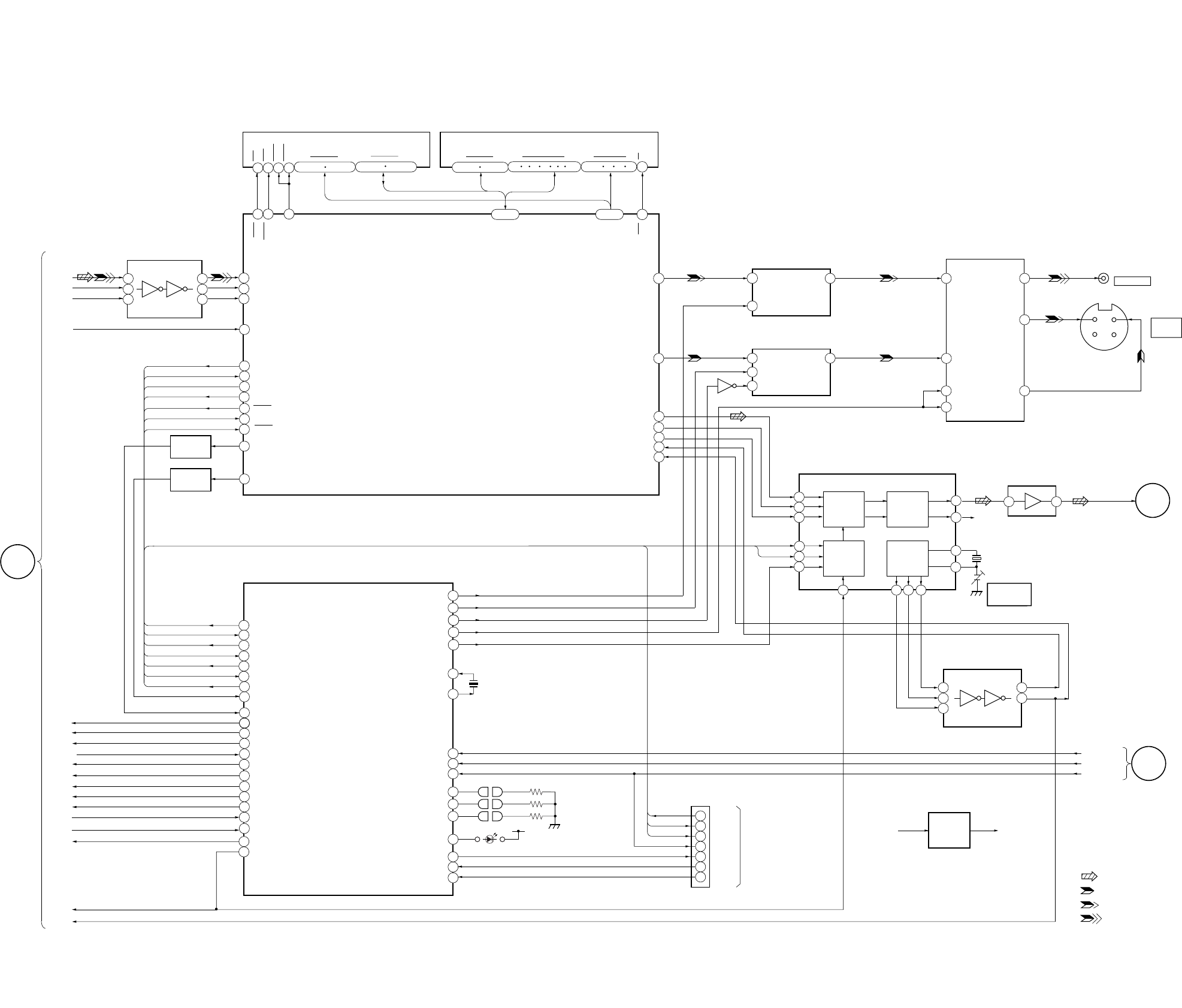

– VIDEO SECTION –
HCD-VX88
2727
RESET
: FM
: CD
• Signal Path
• R-CH: Same as L-CH.
: PB (DECK A)
: PB (DECK B)
: REC (DECK B)
REC
BIAS
(L-CH)
BIAS
TRAP
R-CH
R-CH R CH
BIAS
OSC
BAIS B+
SWITCH
Q302,303
RV304
Q301
TA+12V
C332,L301
ERASE
TAPE
MECHANISM DECK
BLOCK
(TCM-230AWR11)
IC304
RV303
IC302
REC/PB SWITCH
REC
EQ
BIAS
SW
DOLBY
B
NORM
CROM
REC
LEVEL
(L-CH)
RV301
REC OUT
(L)
EQ IN
(L)
EQ OUT
(L)
A IBN (L)
B IN (L)
40
1
2
3
4
48
46
A
B
70
120
PB
REC
DOL
PAS
PB OUT (L)
R IN (L)
36
33
32
38 39
43
BIAS ON/OFF
20
B NORM/CROM/METAL
ALC ON/OFF
15
RM ON/OFF
22
NR ON/OFF
23
REC /PB/PASS
24
LM ON/OFF
25
MS OUT
26
A
TUNER
SECTION
D
VIDEO
SECTION
MD/VIDEO
(AUDIO)
PLAYBACK LEVEL (DECK-A, L-CH)
PLAYBACK LEVEL (DECK-B, L-CH)
R-CH
L-CH
CD-L
L-CH
J101
L
R
R-CHR-CH
HP901
(PB)
HRPE901
(REC/PB/ERASE)
L-CH
R-CH
L-CH
DECK-B
DECK-A
PB AMP
DECK-B
PB AMP
IC303
RV302
REC/PB SWITCH
CONTROL
Q304,305
17
A120/70
PB A/B
16
NORM/HIGH
18
PB AMP, REC EQ AMP,
DOLBY B NR
IC301
GRAPHIC EQUALIZER
CONTROL,
ELECTRICAL VOLUME
SURROUND
PROCESSOR
IC103
IC101
IN2A
40
IN2C
38
IN2D
37
INVOL OUT2
35
IN2B
39
24
VOL OUT2
34
IN2
DATA
21 CLOCK
22
L-IN
7L-OUT 10
BP/SR
CONT2
CONT3
DBFB
SWITCH
Q503
MIC
AMP
IC104
DBFB
CONT
Q101,102
5
67
IC102
DBFB
AMP
MUTE
Q103
MUTE
CONT
Q504,505 POWER
AMP
IC501
15
12
11
MUTE
Q581
MUTE
CONT
Q503,504
MUTE
Q862
MUTE
CONT
Q861
D841 OVER LOAD
DETECT
Q551
OVER HEAT
DETECT
Q506,506+B
RELAY
DRIVE
Q831, 832
D502
R-CH
R-CH
OVER LOAD
DET ECT
Q821,822
PROTECT
CONT
Q823 PROTECT
SWITCH
Q828,829
RELAY
DRIVE
Q824,825 RY801
J631
PHONES
R CH
R CH
FAN
FAN
DRIVE
Q891,892
L
R
TM801
SPEAKER
IMPEDANS USE 6-16
Ω
69
B PLAY
68
A PLAY
93
B HALF
67
A HALF
77
PB A/B
A TRIG
DRIVE
REEL
DETECT
(DECK-B)
IC1002
REEL
DETECT
(DECK-A)
IC1001
CAP MOTOR
DRIVE
Q396,397
M901
(CAPSTAN)
TAPE SPEED
(NORMAL)
RV1002
TAPE SPEED
(HIGH)
R1001
MOTOR
CONTROL
Q1001
CAP MOTOR
SPEED CONT
Q395
Q393,394
B TRIG
DRIVE
Q391,392
A TRIG
57
B TRIG
58
A SHUT
90
B SHOT
CAP H/L
CAP M CONT
91
60
PM1001
(DECK-A)
PM1002
(DECK-B)
19
79
TC RELAY
IC401(2/2)
SYSTEM CONTROLLER
76
EQ H/N
78
ALC
75
BIAS
74
REC MUTE
73
NR ON/OFF
72
R/PB PAS
71
TC MUTE
70
AMS IN
4
DATA
5
1 2 3
1 2 3
CLK
SURROUND1
SURROUND2
SURROUND3
83
DBFB ON/OFF
DC
BIAS
Q141
+6V
AUDIO +5V
S1004
(A 120/70)
AUDIO +5V
S1002 (B PLAY)
S1001 (A PLAY)
A+12V
84
LINE MUTE
100
STK MUTE
87
RELAY H
82
PROTECT
30
IIC DATA
10
XC IN
52
FREQ A
CONT A 3
2
1
12
10
5
8
7
6
4
CONT B
BOOSTER SW
L-OUT L-OUT
RELAY
RELAY ON/OFF
TO
SATELLITE
AMPLIFIER
(TA-DX8)
R-CH
R-OUT
PROTECT PROTECT
STK MUTE
LINE MUTE
STANDBY LED
S MUTE
L MUTE
LED
51
FREQ B
89
BOOSTER SW
11
XC OUT
15
X IN
13
X OUT
32.768kHz
X401 16MHz
X402
BPF 0
BPF 5
P1
P35
G1
G17
FLOURESCENT
INDICATOR TUBE
DISPLAY CONTROLLER
IC601
F1 F2
FL
DRIVER
Q606-614
D611-615
D617,618
11
FUNCTION
KEY
SIRCS
IC603
97 I2C DATA
98 I2CCLOCK
VOL A
1VOL B
2
SIRCS
100
ROTARY
ENCODER
X601
12.5MHz
+5.6V
REG
Q615
FL601
IC602
50
52
85
.
49
33
20
25
ALL BAND
26
HEADPHONE
3
S617,618,623-625,
S627,628,630-636
10
10
5
PLAY1-3
EXIST1-3 LED
DRIVER
Q630-635
D630-632
11
GROOVE LED 12
FILE LED 13
BASS SHIFT LED 14
FUNCTION LED 15REC/PAUSE LED 16SURROUND LED
LED
DRIVER
Q621-626
LED
DRIVER
Q604
28POWER LED D601
LED
DRIVER
27
TIMER LED TIMER
D602
VOLUME
D601
VOLTAGE SELECTOR
POWER
TRANSFORMER
230-240V
220V
120V
S951
Q605
17
12
SPEANA
BPF
6
5
4
3
+7V
KEY0
17
FUNCTION
KEY
S611-616
S619-622,626,629
KEY1
18
FUNCTION
KEY
S637-648
KEY2
19
WAKE UP
92 RESET
89
XIN
90
XOUT
MIC 1
J721
MIC
LEVEL
RV722
IC722 IC722
MIC 2
J722
ECHO
LEVEL
26
DIGITAL
ECHO
IC721 RV721
29
IIC CLK
18
WAKE UP
7
AC CUT
T971
AC
IN
F974
F975
-V
REG
+5V
REG
Q941,942
D541
-B
+B
-B
POWER
AMP
D901-904
F1
F2
1
3
+12V
REG 1
3
+9V
REG 1
3
+7V
REG 1
3
CD POWER
SWITCH
+5V
REG 1
3
IC911 Q911,912
IC951
IC921
IC961
IC931
CD D+5V
CD A+5V
RDS D+5V UNSW
AUDIO +5V
A+12V
TC A+12V
MIC A+12V
ST A+12V
TC M+9V
CD M+7V
LED +7V
D906-909
D952
D953
MIC
REG
Q721
MIC B+ MIC A +12V
D822
D824
D511
EVER +5V
D508
D911
D910
85
CD POWER
RESET
12
Q501 IC501
05
T301
(Page 25)
(Page 26)
F971
R-CH
R-CH
L-OUT
DECK-A
RELAY
LED
PROTECT
S MUTE
L MUTE
IC101
SYSYTEM CONTROL
96
59
M
S1008
(A 120/70)
S1003
(A HALF)
S1005
(REC A)
S1006
(B HALF)
S1009
(REC B)

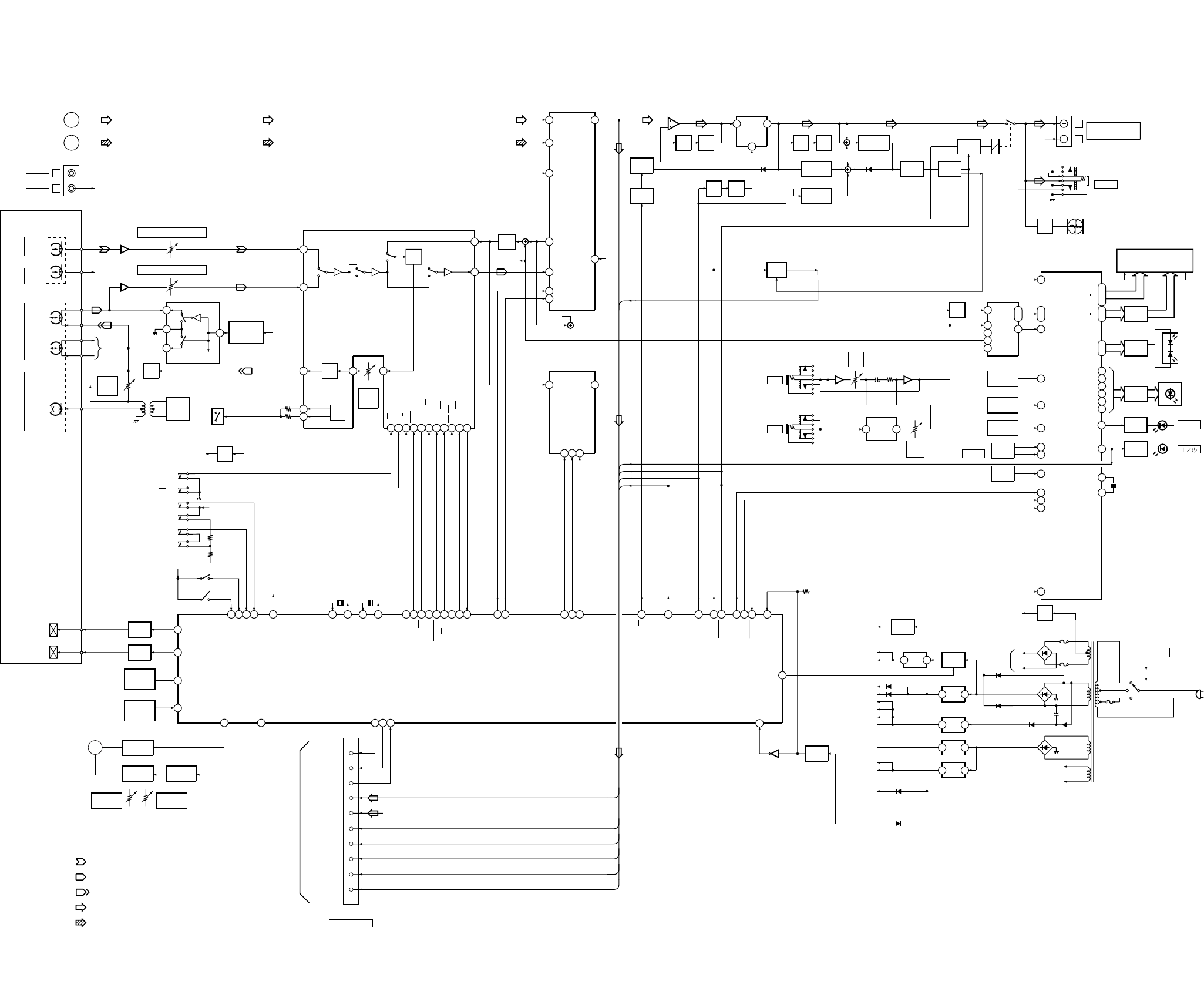

– MAIN SECTION –
HCD-VX88
28
28
TP (XPCK)
VIDEO BOARD
CN501
7-3. PRINTED WIRING BOARD – BD SECTION –
• See page 23 for Circuit Boards Location.
Ref. No. Location
IC104 D-1
Q101 C-3
• Semiconductor Location
Ref. No. Location
IC101 C-2
IC102 B-2
IC103 C-1
• Semiconductor Location
(Page 30)
HCD-VX88
2929
7-4. SCHEMATIC DIAGRAM – BD SECTION –
• See page 24 for Waveforms.
• See page 57 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 31)
HCD-VX88
30
30
BD BOARD
CN101
MAIN BOARD
CN201
7-5. PRINTED WIRING BOARD – VIDEO SECTION –
• See page 23 for Circuit Boards Location.
Ref. No. Location
IC301 A-3
IC302 A-3
IC304 A-2
IC501 C-2
IC502 D-2
IC506 C-1
Q531 B-3
• Semiconductor Location
Ref. No. Location
D501 B-1
IC101 D-3
IC303 A-3
IC504 C-2
IC505 B-2
• Semiconductor Location
Ref. No. Location
IC507 B-3
IC509 C-3
Q501 B-1
Q502 B-1
(Page 28)
(Page 34)
HCD-VX88
34
34
7-9. PRINTED WIRING BOARD – MAIN SECTION – • See page 23 for Circuit Boards Location.
Ref. No. Location
D501 B-4
D502 B-4
D503 A-4
D504 B-3
D505 A-4
D506 A-4
D507 A-4
D508 C-1
D511 C-1
D601 C-9
D641 D-11
D651 C-8
D801 H-10
D822 F-10
D824 F-9
D841 G-10
D861 H-8
D891 H-11
D892 H-11
D901 H-9
D902 H-9
D903 H-9
D904 H-9
D906 H-9
D907 I-9
D908 I-9
D909 I-9
D910 I-6
D911 I-6
D952 G-6
D953 G-6
IC101 E-7
IC102 C-5
IC103 B-5
IC104 C-6
IC201 A-11
IC301 G-5
IC302 H-3
IC303 F-2
IC304 G-3
IC401 B-2
IC501 B-4
IC601 C-10
IC651 A-9
IC911 C-8
IC921 H-7
IC931 H-5
IC951 G-6
IC961 H-6
Q101 D-6
Q102 D-5
Q103 I-7
Q141 D-4
Q151 D-6
Q152 C-5
Q153 I-7
Q301 H-4
Q302 I-4
Q303 I-5
Q304 H-4
Q305 H-5
Q391 D-1
Q392 D-1
Q393 D-2
Q394 D-1
Q395 E-2
Q396 E-2
Q397 D-1
Q501 B-4
Q503 D-3
Q504 D-3
Q505 D-3
Q601 C-9
Q602 A-11
Q611 D-9
Q612 D-9
Q821 H-10
Q822 H-10
Q823 G-10
Q824 G-10
Q825 G-10
Q828 F-10
Q829 G-10
Q831 G-11
Q832 G-11
Q861 H-8
Q862 G-10
Q863 G-9
Q891 F-10
Q892 G-10
Q911 C-8
Q912 D-8
• Semiconductor
Location
(Page 42)
(Page 42)
(Page 42)
(Page 40)
(Page 44) (Page 30)
(Page 38) (Page 38)
HCD-VX88
36
36
7-11. SCHEMATIC DIAGRAM – MAIN (2/3) SECTION –
• See page 24 for Waveforms.
• See page 57 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD (STOP)
( ) : REC
< > : TAPE PB
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 37)
(Page 37)
(Page 37)
(Page 43)
HCD-VX88
3737
7-12. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION –
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD (STOP)
( ) : REC
< > : TAPE PB
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 33)
(Page
45)
(Page 36)
(Page 36)
(Page 36) (Page 41)
(Page 35) (Page 39) (Page 39)
HCD-VX88
38
38
7-13. PRINTED WIRING BOARD – POWER AMP SECTION –
• See page 23 for Circuit Boards Location.
Ref. No. Location
D501 B-5
D502 A-4
D503 E-4
D504 F-5
D541 C-1
D543 E-2
D551 B-5
D581 E-4
D941 A-1
D979 A-1
IC501 D-6
Q501 B-2
Q503 F-1
Q504 F-1
Q505 F-4
Q506 F-5
Q551 B-5
Q581 E-4
Q941 B-1
Q942 A-1
• Semiconductor
Location
(Page 46)
(Page 46)
(Page 34) (Page 34)
HCD-VX88
3939
7-14. SCHEMATIC DIAGRAM – POWER AMP SECTION –
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD (STOP)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 37) (Page 37)
(Page 47)
(Page 47)
HCD-VX88
40
40
7-15. PRINTED WIRING BOARDS – PANEL SECTION – • See page 23 for Circuit Boards Location.
Ref. No. Location
D630 A-8
D631 A-6
D632 A-5
Q630 A-8
Q631 A-8
Q632 A-5
Q633 A-9
Q634 A-9
Q635 A-4
• Semiconductor
Location
– CD SWITCH Board –
CD SWITCH BOARD
CD SWITCH BOARD
NO603
Ref. No. Location
D601 A-10
D602 B-2
D603 D-3
D604 C-1
D605 F-9
D611 B-9
D612 E-8
D613 E-9
D614 G-8
D615 D-6
D617 G-5
D618 C-2
IC601 C-6
IC602 F-4
IC603 A-9
IC721 D-9
IC722 G-9
Q604 C-10
Q605 A-3
Q606 C-8
Q607 C-8
Q608 C-8
Q609 C-8
Q610 B-8
Q611 B-9
Q612 B-9
Q613 C-7
Q614 C-7
Q615 C-3
Q621 A-9
Q622 E-9
Q623 F-8
Q624 E-6
Q625 G-5
Q626 C-2
Q721 G-8
• Semiconductor
Location
– PANEL Board –
(Page 34)
HCD-VX88
42
42
7-17. PRINTED WIRING BOARDS – LEAF SW SECTION – • See page 23 for Circuit Boards Location.
(Page 34)
(Page 34) (Page 34)
HCD-VX88
44
44
7-19. PRINTED WIRING BOARDS – DRIVER SECTION – • See page 23 for Circuit Boards Location.
05
CN202
(BU UP/DOWN)
12
A
B
C
D
E
F
3456
Ref. No. Location
D701 E-1
IC701 E-1
IC711 B-5
• Semiconductor
Location
(Page 34)
HCD-VX88
46
46
7-21. PRINTED WIRING BOARD – TRANS SECTION –
• See page 23 for Circuit Boards Location.
(Page 38)
(Page 38)
HCD-VX88
48
48
Description
41 TE I Tracking error signal input
42 CE I Center servo analog input
43 RFDC I RF signal input
44 ADIO O Test pin (Not used)
45 AVSS0 — Analog ground
46 IGEN I Power supply pin operational amplifiers
47 AVDD0 — +5V power supply (analog)
48 ASYO O EFM full swing output
49 ASYI I Asymmetry comparate voltage input
50 RFAC I EFM RF signal input
51 AVSS1 — Analog ground
52 CLTV I Control voltage input for master VCO
53 FILO O Filter output for master PLL
54 FILI I Filter input for master PLL
55 PCO O Charge-pump output for master PLL
56 AVDD1 — +5V power supply (analog)
57 BIAS I Asymmetry circuit constant current input
58 VCTL I Control voltage input for variable pitch PLL
59 V16M I/O 16.9344MHz output (Not used)
60 VPCO O Charge-pump output for variable pitch PLL (Not used)
61 DVDD2 — +5V power supply (digital)
62 ASYE I Asymmetry circuit ON/OFF (Connected to +5V.)
63 MD2 I Digital-out ON/OFF control (Connected to +5V.)
64 DOUT O Digital-out output
65 LRCK O 48-bit slot D/A interface, LR clock output
66 PCMD O 48-bit slot D/A interface, Serial deta output
67 BCLK O 48-bit slot D/A interface, bit clock output
68 EMPH O Playback disc output in emphasis mode (Not used)
69 XTSL I X’tal selection input pin
70 DVSS2 — Digital ground
71 XTAI I X’tal oscillator circuit input
72 XTAO O X’tal oscillator circuit output (Not used)
73 SOUT O
74 SOCK O (Not used)
75 XOLT O
76 SQSO O Sub-Q serial output
77 SQCK I Clock input for SQSO read-out
78 SCSY I Sub-code input (Connected to ground)
79 SBSO O Sub-P through Sub-W serial output (Not used)
80 EXCK I Clock input for SBSO read-out (Connected to ground)
Pin No.
1 DVDD0 — +5V power supply (digital)
2 XRST I System reset
3 MUTE I Muting selection pin
4 DATA I Serial data input, supplied from CPU
5 XLAT I Latch input, supplied from CPU
6 CLOK I Serial data transfer clock input, supplied from CPU
7 SENS O SENS output
8 SCLK I SENS serial data read-out clock
9 ATSK I/O Input pin for anti-shock (Connected to ground)
10 WFCK O WFCK (Write Frame Clock) output (Not used)
11 XUGF O XUGF output (Not used)
12 XPCK O XPCK output (Not used)
13 GFS O GFS output (Not used)
14 C2PO O C2PO output
15 SCOR O Sub-code sync output
16 CM4 O 4.2336MHz output (Not used)
17 WDCK O 48-bit slot D/A interface word clock (Not used)
18 DVSS — Digital ground
19 COUT O Numbers of track counted signal output (Not used)
20 MIRR O Mirror signal output (Not used)
21 DFCT O Defect signal output (Not used)
22 FOK O Focus OK output (Not used)
23 PWMI I (Not used)
24 LOCK I/O GFS in sampled by 460Hz (Not used)
25 MDP O Output to control spindle motor servo
26 SSTP I Detection signal input from limit switch
27 FSTO O 2/3 divider output (Not used)
28 DVDD1 — Digital power supply
29 SFDR O
30 SRDR O
31 TFDR O
32 TRDR O
33 FFDR O
34 FRDR O
35 DVSS1 — Digital ground
36 TEST I
37 TES1 I
38 VC I Center voltage input
39 FE I FOCUS error signal input
40 SE I Sled error signal input
Pin Name
Pin No. I/O
7-23. IC PIN FUNCTION DESCRIPTION
• IC101 DIGITAL SERVO, DIGITAL SIGNAL PROCESSOR, D/A CONVERTER (CXD3008Q) (BD Board)
Sled motor drive output
Tracking coil drive output
Focus coil drive output
TEST pin connected normally ground
Pin Name I/O Description
49
• IC502 CD, MECHANISM CONTROLLER (M30620MCA-A34FP) (VIDEO Board (1/3))
Pin No. Pin Name I/O Description
1 SENSE I Internal state (SENSE) monitor input (IC101)
2 SENSE CLK O Serial data reading clock output (IC101)
3 RESOLUTION O Serial data output (IC101)
4 CROMA LEVEL O Lach output (IC101)
5 DSP CLK O Serial data clock output (IC101)
6 TSENS I Not used
7 REMOTE IN I Not used
8 BYTE I External bus width change input (Connected to ground)
9 CNVSS – Ground
10 DSP MUTE O Mute output (IC101) “H” : mute
11 CTRL1 (L : DOUBLE) O Double change output (IC101) “L” : double
12 XRESET I System reset input “L” : reset
13 XOUT O Main clock output (10MHz)
14 VSS – Ground
15 XIN I Main clock input (10MHz)
16 VCC – +5V power supply
17 NMI I Requests mask disable interruption input (Connected to +5V)
18 SCOR I Subcode sync input (IC101)
19 D SENS I Not used
20 CL680 INT I Video CD interruption input (IC505)
21 CL680 HSEL O Video CD select data of the host MPU (IC505)
22 DF LATCH O Digital filter latch output (IC509)
23 CL680 HRDY I Ready signal input for communication to the host MPU (IC505)
24 680 RESET O Video CD reset output (IC505) “L” : reset
25 H. SYNC IN I H. sync signal input
26 BGP O BGP output
27 LPH O Double control output (IC101) “H” : double
28 LD ON O Laser diode ON/OFF output
29 IIC-CLK I/O IIC clock input from master control
30 IIC-DATA I/O IIC data input from master control
31 DATA1O O Serial 1 data output (IC505, 509)
32 DATA1I I Serial 1 data input (IC505, 509)
33 CLK1 O Serial 1 clock output
34 RTS1 O Not used
35 XVLEVEL. DOWN O Fix the video signal output level output (Not used)
36 SUBQ DATA I Serial 2 data input for subcode sync reading
37 SUBQ CLK I Serial 2 clock input for subcode sync reading
38 P. ON I Not used
39 BUS XRDY I Not used
40 BUS I Not used
41 BUS XHOLD I Not used
42, 43 BUS I Not used
44 OSD LANGUAGE I Model selection input “L” : chinese model, “H” : except chinese model
45 V. SYNC I V sync signal input
50
I/O DescriptionPin No. Pin Name
46 BUS XWRL I Not used
47 LO. BOOST I Not used
48 AUDIO MUTE O Audio mute output “L” : mute (Not used)
49 LOAD OUT I Not used
50 LOAD IN I Not used
51 INSW I Not used
52 OUTSW I Not used
53 MODEL 1 I L : System input (Fixed at “L”)
54 MODEL 2 I L : System input (Fixed at “L”)
55 TBLL I Not used
56 TBLR I Not used
57 ENC 1 I Not used
58 ENC 2 I Not used
59 ENC 3 I Not used
60 — I Not used
61 — I Not used
62 VCC – +5V power supply
63 — I Not used
64 VSS – Ground
65 V. MUTE O Video mute output “L”
66 to 72 A6 to A0 I Not used
73 TEST LED O TEST LED for MPEG decoder
74 TEST 1 I Test mode for Video CD check
75 TEST 2 I Test mode for servo check
76 TEST 3 I Not used
77 DEVICE RESET O Device system rest output “L” : reset
78 STANDBY I Not used
79 FL CS I Not used
80 FL I Not used
81 to 88 D7 to D0 I Not used
89 MIC CTRL I Not used
90 KEY 1 I Not used
91 KEY 2 I Not used
92 KEY 3 I Not used
93 NY/PAL I NTSC/PAL select switch input (Open)
94 MUSIC VOL I Not used
95 DSP DATA O Serial data output (IC101)
96 AVSS – A/D converter ground
97 DSP LATCH O Serial data latch output (IC101)
98 VREF I A/D converter reference voltage input (Connected to +5V)
99 AVCC – A/D converter +5V power supply
100 AMP. ON I Not used
51
DescriptionPin Name
1 NC – Not used
2 VSS – Ground
3 CD-BCK I CD Decode bit clock
4 CD-DATA I CD Decode data
5 CD-LRCK I CD Decode Left or Right channel selection clock
6 CD-C2PO I CD Decode C2 error data
7 NC – Not used
8 NC – Not used
9 NC – Not used
10 MD0 I/O Data bus between Microcode ROM/D-RAM and CL680
11 MD1 I/O Data bus between Microcode ROM/D-RAM and CL680
12 MD2 I/O Data bus between Microcode ROM/D-RAM and CL680
13 MD3 I/O Data bus between Microcode ROM/D-RAM and CL680
14 MD4 I/O Data bus between Microcode ROM/D-RAM and CL680
15 MD5 I/O Data bus between Microcode ROM/D-RAM and CL680
16 VSS – Ground
17 MD6 I/O Data bus between Microcode ROM/D-RAM and CL680
18 VDD3 – +3.3V Power supply
19 MD7 I/O Data bus between Microcode ROM/D-RAM and CL680
20 VSS – Ground
21 MD8 I/O Data bus between Microcode ROM/D-RAM and CL680
22 VDD3 – +3.3V Power supply
23 MD9 I/O Data bus between Microcode ROM/D-RAM and CL680
24 MD10 I/O Data bus between Microcode ROM/D-RAM and CL680
25 MD11 I/O Data bus between Microcode ROM/D-RAM and CL680
26 MD12 I/O Data bus between Microcode ROM/D-RAM and CL680
27 MD13 I/O Data bus between Microcode ROM/D-RAM and CL680
28 MD14 I/O Data bus between Microcode ROM/D-RAM and CL680
29 MD15 I/O Data bus between Microcode ROM/D-RAM and CL680
30 NC – Not used
31 NC – Not used
32 NC – Not used
33 NC – Not used
34 NC – Not used
35 NC – Not used
36 NC – Not used
37 MCE O Chip enable signal to Microcode ROM
38 MWE O Write enable signal to D-RAM
39 VSS – Ground
40 CAS O Column address strove : Latch the column address to D-RAM
41 VDD3 – +3.3V power supply
42 RAS0 O Row address strove : Latch row address to D-RAM
43 RAS1 – Not used
44 MA10 O Address data from CL680 to Microcode ROM
45 MA9 O Address data from CL680 to Microcode ROM
Pin No. I/O
• IC505 MPEG VIDEO/AUDIO DECODER, VIDEO SIGNAL PROCESSOR (CL680T-D1) (VIDEO Board (2/3))
52
46 MA8 O Address data from CL680 to Microcode ROM/D-RAM
47 VSS – Ground
48 MA7 O Address data from CL680 to Microcode ROM/D-RAM
49 VDD3 – +3.3V Power supply
50 MA6 O Address data from CL680 to Microcode ROM/D-RAM
51 MA5 O Address data from CL680 to Microcode ROM/D-RAM
52 MA4 O Address data from CL680 to Microcode ROM/D-RAM
53 VSS – Ground
54 MA3 O Address data from CL680 to Microcode ROM/D-RAM
55 VDD3 – +3.3V Power supply
56 MA2 O Address data from CL680 to Microcode ROM/D-RAM
57 MA1 O Address data from CL680 to Microcode ROM/D-RAM
58 MA0 O Address data from CL680 to Microcode ROM/D-RAM
59 PGIO7 I/O Not used
60 RESET I Reset signal input from the host MPU
61 VDDMAX-IN I Fix the maxium input voltage each input pin and I/O pin
62 NC – Not used
63 NC – Not used
64 NC – Not used
65 AGND DAC – Ground
66 AVDD DAC – +3.3V Power supply
67 COMPOS OUT O Not used
68 AGND DAC – Ground
69 Y-OUT O Luminance signal out
70 AVDD DAC – +3.3V Power supply
71 AGND DAC – Ground
72 RREF I Fix the video signal output level
73 (1.235V) VREF O Reference voltage (+1.235V)
74 AVDD DAC – +3.3V Power supply
75 C-OUT O Chrominance signal out
76 AGND DAC – Ground
77 (GCK INT) CLK SEL I GCK selection “H”; Internal, “L”; External
78 CLK SEL I DA-XCK selection (1)
79 CLK SEL I DA-XCK selection (2)
80 VSS – Ground
81 RESERVED I Selection the operation clock 42.336MHz
82 VDD3 – +3.3V Power supply
83 DA-EMP – Not used
84 RESERVED – Not used
85 AGND PLL – Ground
86 DA-XCLK I Main reference clock input (16.9344MHz=384fs)
87 AVDD PLL – +3.3V
88 PGIO4 I/O Not used
89 PGIO5 I/O Not used
90 PGIO6 I/O Not used
Pin No. Pin Name I/O Description
53
91 PGIO0 I/O Not used
92 PGIO8 I/O Not used
93 PGIO2/VSYNC/CSYNC O Vertical synchronized signal of video signal
94 AVDD PLL – +3.3V Power supply
95 NC – Not used
96 NC – Not used
97 NC – Not used
98 AGND PLL – Ground
99 VSS – Ground
100 NC – Not used
101 PGIO3/HSYNC O H. sync signal output
102 VDD3 – +3.3V Power supply
103 PGIO1/VCK-OUT I/O Not used
104 VSS – Ground
105 GCK I Not used
106 VCK-IN I Main clock for video signal processer
107 GCKOUT/DA-EMP O Not used
108 DA-LRCK O Digital Audio Left or Right channel selection clock
109 VDDMAX-OUT O Fix the maxium output voltage certain output pins (Connected to +5V)
110 DA-DATA O Digital Audio data
111 DA-BCK O Digital Audio bit clock
112 HD-OUT O Serial Data output from CL680 to the host MPU
113 HRDY O Ready signal CL680 is ready for communication to the host MPU
114 HINT O Request signal for interrupting the host MPU
115 CDG-SCK I/O Not used
116 VSS – Ground
117 HCK I Host clock : referance signal for the host bus interface
118 VDD3 – +3.3V Power supply
119 HD-IN I Serial Data output ftom the host MPU to CL680
120 VDD3 – +3.3V Power supply
121 HSEL I Select data or address of the host MPU
122 CDG-SDATA I Ground
123 CDG-VFSY I Ground
124 CDG-SOS1 I Ground
125 NC – Not used
126 NC – Not used
127 NC – Not used
128 NC – Not used
I/OPin Name DescriptionPin No.
54
• IC401 SYSTEM CONTROLLER (M30622MAA-A60) (MAIN BOARD)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
I/O
O
O
O
O
O
I
I
—
—
I
O
I
O
—
I
—
I
I
I
I
I
O
I
I
O
O
I
O
O
O
—
I
I
I
I
I
I
I
O
I
O
O
O
I
O
I
I
I
I
I
Description
Surround control signal output
Surround control signal output
Surround control signal output
Data signal output for IC101 (M61504FP)
Clock signal output for IC101 (M61504FP)
Not used.
AC CUT ON (L) / OFF (H) CHECK
Connected to ground.
Connected to ground.
SUB CLOCK input. (32.768kHz)
SUB CLOCK output. (32.768kHz)
System reset input.
MAIN SYSTEM CLOCK output. (16MHz)
Connected to ground.
MAIN SYSTEM CLOCK input. (16MHz)
Power supply. (+5V)
PULL UP (EVER +5V)
WAKE UP signal input. (L)
CD Q-data request signal input. (Connected to ground)
RDS interrupt signal input. (Connected to ground)
RDS data signal input. (Connected to ground)
Tuner mute signal output.
STEREO detect signal input. L=ON, H=OF
TUNED detect signal input. L=ON, H=OFF
TUNER chip eneble output.
TUNER data output.
TUNER data input.
TUNER clock signal output.
IIC SCL output.
IIC SDA output.
Not used.
Subcode Q data input. (CD data) (Connected to ground)
Subcode Q data input. (CD clock) (Connected to ground)
Not used.
CD data input. (Not used)
Not used.
CD clock input. (Connected to ground)
Not used.
Clock check signal output. (Not used)
BD condition signal input. (Connected to ground)
MODE signal input. (Not used)
CD latch signal output. (Not used)
CD reset signal output.
Loading motor control signal input.
Loading motor control signal output.
Tray open detect signal input.
Tray close detect signal input.
Pick-up up/down detect signal input.
CD table detect signal input.
Not used.
Pin Name
SURROUND 1
SURROUND 2
SURROUND 3
498-DATA
498-CLK
N.C
AC-CUT
GND
GND
XC IN
XC OUT
RESET
X-OUT
VSS
X-IN
VCC
NMI
WAKE_UP
SCOR
RDS-INT
RDS-DATA
ST-MUTE
STEREO
TUNED
ST-CE
ST-DOUT
ST-DIN
ST-CLK
IIC_CLK
IIC_DATA
TXDI
SQ-DATA
SQ-CLK
RST1
CD-DATA
N.C
CD-CLK
N.C
CLOCK-OUT
SENS
HOLD
XLT
XRST
LOAD-IN
LOAD-OUT
OPEN
CLOSE
UP/DOWN SW
T-SENS
TEST MODE
55
Pin No.
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
I/O
I
I
I
I
I
I
O
O
O
O
I
—
I
—
I
I
I
I
I
I
O
I
O
O
O
O
O
O
O
I
O
I
O
O
O
O
O
O
I
I
I
O
I
O
I
—
I
—
—
O
Description
Sound control signal to the satellite amplifier (TA-DX8).
Sound control signal to the satellite amplifier (TA-DX8).
Not used.
Not used.
Not used.
Not used.
A deck trigger control signal output.H=ON, L-OFF
B deck trigger control signal output.H=ON, L-OFF
Capstan motor High/Low speed control signal output.
Capstan motor REV/FWD/STOP control signal output.H=REV, L=FWD/STOP
Not used.
POWER SUPPLY (+5V)
Not used.
Ground.
Not used.
Not used.
A deck half detect signal input.
A deck play detect signal input.
B deck play detect signal input.
AMS signal input. L=ON,H=OFF
Tape deck line mute ON/OFF signal output. H=ON, L=OFF
REC/PB/PASS select signal input.
DOLBY NR ON/OFF signal output. H=ON, L=OFF
REC mute ON/OFF signal output. L=ON, H=OFF
BIAS ON/OFF signal output.H=ON, L=OFF
EQ High/Normal select signal output. H=High, L=Normal
Playback deckA/B select signal output. H=deckB, L=deckA
ALC ON/OFF signal output. L=ON, H=OFF
Tape deck relay ON/OFF signal output. H=ON, L=OFF
Not used.
STANDBY relay control signal output. (Not used)
Speaker protect signal input. L=ON, H=OFF
DBFD control signal output. H=ON, L=OFF
Line mute signal output. L=ON, H=OFF
CD-POWER ON/OFF signal output. H=ON, L=OFF
Not used.
Speaker terminal relay control signal output. H=ON, L=OFF
POWER ON/OFF signal output. H=ON, L=OFF
Booster switch input from the satellite amplifier (TA-DX8).
A deck reel pulse detect signal input.
B deck reel pulse detect signal input.
Not used.
B deck half detect signal input.
KEY (for jig) / CD adjust.
Model select signal input.
Analog ground.
Version select signal input.
Analog Reference Voltage
Analog Power Supply
Power amplifier mute ON/OFF signal output. H=ON, L=OFF
Pin Name
FREQ-B
FREQ-A
N.C
N.C
N.C
N.C
A TRIG
B TRIG
CAPM-H/L
CAPM-CONT
N.C
VCC
N.C
VSS
N.C
N.C
A HALF
A PLAY
B PLAY
AMS-IN
TC-MUTE
R/PB/PAS
NR-ON/OFF
REC-MUTE
BAIS
EQ-H/N
PB-A/B
ALC
TC-RELAY
N.C
STBY-RELAY
PROTECT
DBFB-ON/OFF
LINE-MUTE
CD-POWER
F-SHIFT
RELAY-H
POWER
BOOSTER SW
A SHUT
B SHUT
SOFT-TEST
B HALF
KEY/CD ADJ
MODEL-IN
AVSS
SPEC-IN
VREF
AVCC
STK-MUTE
56
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17-19
20
21-25
26
27
28
29
30
31
32
33-49
50
51
52-85
86
87
88
89
90
91
92
93-94
95
96
97
98
99
100
I/O
I
I
I
I
O
O
O
O
O
O
O
O
O
O
O
O
I
I
I
I
O
O
—
—
—
—
O
O
—
O
I
—
—
I
—
O
I
I
I
O
O
O
I
I
Description
VOLUME A signal input.
VOLUME B signal input.
Headphone detect signal input. H=ON, L=OFF
Not used.
EXIST LED of disc3 drive signal output.
PLAY LED of disc3 drive signal output.
EXIST LED of disc2 drive signal output.
PLAY LED of disc2 drive signal output.
EXIST LED of disc1 drive signal output.
PLAY LED of disc1 drive signal output.
GROOVE LED drive signal output.(high active)
Cursol LED drive signal output.
V-GROOVE LED drive signal output.
Function indicator LED drive signal output.
REC/PAUSE LED drive signal output.(high active)
SURROUND LED drive signal output.(high active)
KEY input. (AD)
BPF input. (AD)
BPF input. (AD)
BPF input. (AD)
TIMER LED driver output.
?/1 LED output.
Ground.
Ground.
Analog reference voltage.
Power supply (+5V)
FL gride signal output.
FL segment signal output.
Power supply (+5V)
FL segment signal output.
Not used.
–30V driving power for FL.
Power supply (+5V)
12.5MHz (Xin)
Ground.
12.5MHz (Xout)
RESET (low active)
Not used.
Connected to ground.
WAKE UP signal output for master controller. (PULL UP)
IIC SDA
IIC SCL
Not used.
Remote commander input. (input capture)
Pin Name
VOL A
VOL B
HEADPHONE
N.C
EXIST3 LED
PLAY3 LED
EXIST2 LED
PLAY2 LED
EXIST1 LED
PLAY1 LED
GROOVE LED
FILE SEL LED
BASS SHIFT LED
FUNCTIONS LED
REC/PAUSE
SURROUND
KEY0-2
Super Low Freq (BPF 0)
BPF1-5
ALL BAND
TIMER LED
POWER
VSS
AVSS
AVREF
VDD
G17-1
P1
VDD VFT
P2-35
N.C
VKK
VDD
Xin
VSS
Xout
RESET
N.C
TEST
WAKE UP
I2C data
I2C clk
N.C
SIRCS
• IC601 DISPLAY CONTROLLER (TMP88CP77F-1A22) (PANEL BOARD)
57
7-24. IC BLOCK DIAGRAMS
– BD Board –

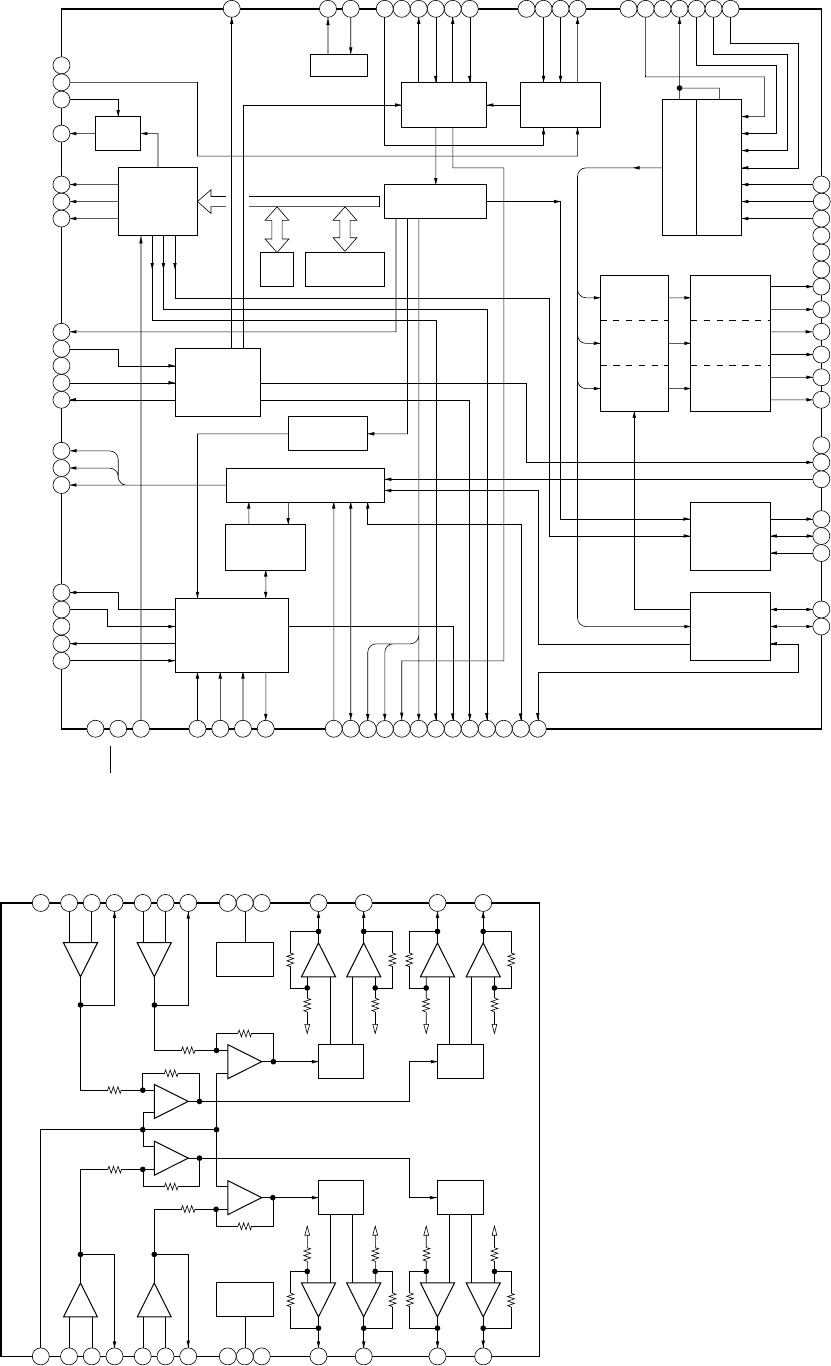

IC101 CXD3008Q
IC102 BA5982FM
STANDBY
CH4
LEVEL
SHIFT
STANDBY
CH1/2/3
PRE VCC
OPIN4 (+)
OPIN4 (–)
OPOUT4
OPIN3 (+)
OPIN3 (–)
OPOUT3
GND
STBY2
POW VCC2
VO3 (–)
VO3 (+)
VO4 (–)
VO4 (+)
BIAS IN
OPIN1 (+)
OPIN1 (–)
OPOUT1
OPIN2 (+)
OPIN2 (–)
OPOUT2
GND
STBY1
POW VCC1
VO2 (–)
VO2 (+)
VO1 (–)
VO1 (+)
1824 23 22 21 20 19 17
+
–
+
–
+
–
+–
+–
+–
27
28 26 25
+–
21 3 4
+–
5 6 7 8 9 10
+–
LEVEL
SHIFT
16 15
+–
+–
LEVEL
SHIFT
11 12
+–
+–
LEVEL
SHIFT
13 14
+–
+–
+
–
DOUT
LRCK
PCMD
BCK
DVDD2
ASYE
MD2
EMPH
XTSL
DVSS2
XTAI
XTAO
SQSO
SQCK
SCSY
SBSO
EXCK
SOUT
SOCK
XOLT
SE
TE
VC
TES1
TEST1
DVSS1
FRDR
FFDR
TRDR
TFDR
SRDR
SFDR
DVDD1
FSTO
SSTP
MDP
LOCK
PWMI
FOK
DFCT
DIGITAL
CLV
PROCESSOR
OSC
DIGITAL
OUT
EFM
DEMODULATOR
32K
RAM
ERROR
CORRECTOR
D/A DIGITAL
INTERFACE
MIRR, DFCT,
FOK
DETECTOR
CPU
INTERFACE
SUBCODE
PROCESSOR
SERVO
AUTO
SEQUENCER
SERVO INTERFACE
DVDD0
XRST
MUTE
DATA
XLAT
CLOK
SENS
SCLK
ATSK
WFCK
XUGF
XPCK
GFS
C2PO
SCOR
C4M
WDCK
DVSS0
COUT
MIRR
AVDD0
IGEN
AVSS0
ADIO
RFDC
CE
TE
AVSS1
RFAC
ASYI
ASYO
BIAS
AVDD1
PCO
FILI
FILO
CLTV
V16M
VCTL
VPCO
59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
OPERATIONAL
AMPLIFIER &
ANALOG SWITCH
A/D
CONVERTER
FOCUS
PWM
GENERATOR
TRACKING
PWM
GENERATOR
SLED
PWM
GENERATOR
FOCUS
SERVO
DSP
TRACKING
SERVO
DSP
SLED
SERVO
DSP
ASYMMETRY
CORRECTOR
DIGITAL
PLL
CLOCK
GENERATOR
60
58
IC103 CXA2568M-T6
APC PD AMP
APC LD AMP
RF SUMMING AMP RF EQ AMP
FOCUS ERROR AMP
TRACKING
ERROR AMP
VC BUFFER
VCC
50µA
VEE
VEE
VC
VC
VC
VC
VC
VC VC VC
VC
VC
VCC
VEE
VCC
VEE
VEE
VC
VCC
LC/PD
LD ON
HOLD SW
AGC CONT
RFTC
RF I
RF O
RFE
TE
FE
RF BOT
HOLD
AGC VTH
LD
PD
A
B
C
D
VEE
F
E
VC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
+
–
+
–
+
–
+
–
+
–
+
–
+
–
VCC
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
65
1234
7
8
TINT
GND
BGP
V OUT
COLOR OFFSET
COLOR
V IN
V+
HUE ADJUST
–X
+Ø
SATURATION
ADJUST
(COLOR BURST)
SATURATION
ADJUST
(COLOR BURST)
– VIDEO Board –
IC302 NJM2255M IC303 NJM2209M
6
5
12347
8
14
N.C
GND
PHASE
DELAY
N.C
N.C
FREQUENCY
CHARACTERISTIC
COMPENSATION
VIDEO
OUTPUT
N.C
DIFFERENTIATION
INPUT
V+
CONTROL
N.C
DIFFERENTIATION
OUTPUT
11
VIDEO
INPUT
12 10
13 9
SECONDARY
DIFFERENTIATION
GAIN ADJ
LPF LOWER
LIMITER
(1)
LOWER
LIMITER
(2)
SWITCH
CONTROL
CLAMP
SYNC
CHIP
59
IC304 BA7665FS-E2
6
5
1
2
3
4
7
8
14
15
16 VCC1
OUTA1
OUTA2
VCC2
MIXOUT1
MIXOUT2
N.C
OUTB
MUTEA
INA
GND
GND
GND
N.C
INB
MUTEB
11
12
10
13
9
75Ω6dB
75Ω6dB
20k
Chroma Mute
75Ω6dB
Mute
IC509 PCM1727E-2/T2
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
POWER
SUPPLY
CLOCK MANAGER
•
DUAL PLL
AUDIO
DATA INPUT
INTERFACE
8 TIME OVER
SAMPLING DIGITAL
FILTER
•
FUNCTION
CONTROL
MODE
CONTROL
MULTI LEVEL
∆Σ
MODULATOR
MULTI LEVEL
∆Σ
MODULATOR
5 LEVEL
DAC
5 LEVEL
DAC
CR LPF
•
OUTPUT
AMP
CR LPF
•
OUTPUT
AMP
BPZ
CONTROL
13
OPEN
XT1
PGND
VCP
MCKO
RSV
SCKO3
ML
MC
MD
RSTB
VOUTR
AGND VCA
ZERO
BCK
DATA
LRCK
SCKO2
SCKO1
VDD
DGND
XT2
384fs
15
14 VOUTL
CAP
60
IC601 BA1450
VCC
6
5
123478
1415
16
GDR
GURP
AOG
LPFC
N.C
VOC
L-OUT
R-OUT
CONT1
CONT2
CONT3
GND
HPFC
VREF
L-IN
R-IN
1112 10
13 9
ON/OFF
VREF
LEVELATT
ANALOG
SURROUND
SW
A
B
SW
A
B
1 2 3 4 5 6 7 8 9 10 11 12
161718
19
20212223
24 15 14 13
AM
OSC
AM
MIX
AM IF
FM
IF
FM
DET
AM
DET
SD
DET
AGC
LED
DRIVER COMP
SD
SW
VCO
PD
1/2
DECODER
VREG
1/2
FM IN
FM DET
TUNED
STEREO
IF OUT
R OUT
L OUT
AM/FM
FM/AM DET OUT
AM MPX IN
FM MPX IN
IN REQ MUTE
FM SD ADJ
VCC
GND
AM OSC OUT
AM OSC
VCO STOP
AM RF IN
AM IF IN
AM AGC
AM MIX OUT
FM BAND WIDTH
V . REG
PHASE DETECTOR
CHARGE PUMP
SWALLOW COUNTER
1/16, 1/17 4BITS
12BITS PROGRAMMABLE
DRIVER
UNIVERSAL
COUNTER
REFERENCE
DIVIDER
POWER
ON
RESET 1/2
C2B
I/F
12 3 45 6 7 8 9 10
20 19 18 17 16 15 14 13
12
11
21222324
XOUT
VSS
AOUT2
AIN2
PD2
PD1
AIN1
AOUT1
VDD
FMIN
AMIN
IO2
XIN
D0
CL
D1
CE
BO5
BO1
BO2
BO3
BO4
IO1
IFIN
UNLOCK
DETECTOR
DATA SHIFT REGISTER LATCH
1234567 8 9
INVERTER
COMPARATER
SW R1 GND SW P1 CONT GND VCC SW P2 GND SW R2
– MAIN Board –
IC103 LA2615
IC651 LC72130
IC302 µPC1330HA
61

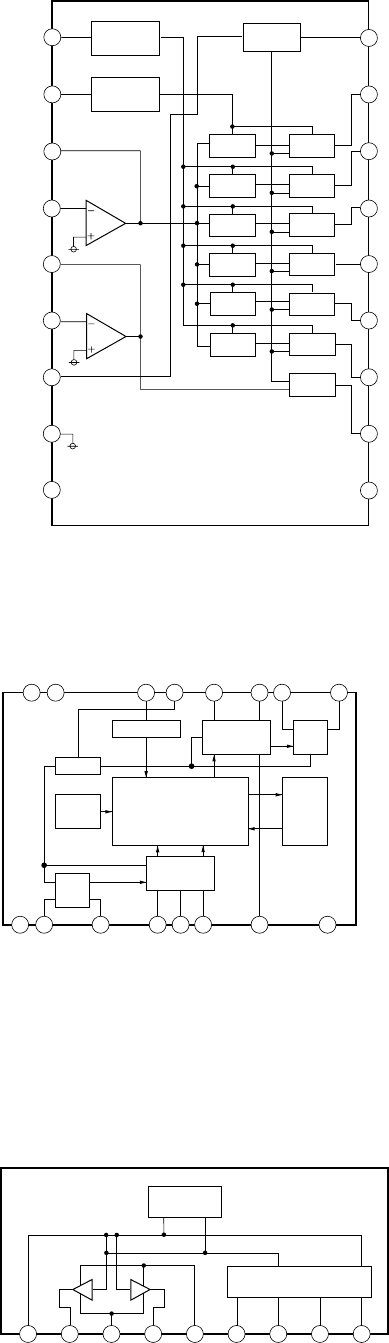

– DRIVER Board –
IC701 BA6956AN
– PANEL Board –
IC602 BA3830F-E2
IC721 M65850FP
2
3
14
1
f04
13 f05
12 f06
11 REC
LEVEL
10 VCC
15 f03
5
REC
NF
6
REC
IN
7
RESET
C
8
BIAS
C
9
GND1
4
16 f02
17 f01
18 RESET
R02
P01
LINE
NF
LINE
IN
REFFERENCE
CURRENT
BPF DET
BPF DET
BPF DET
BPF DET
DET
RESET
Bias
REFFERENCE
CURRENT
DET
DET
BPF
BPF
OSCILLATOR
1/2 VCC
AUTO
RESET
LPF1
MAIN
CONTROL
A/D
20KBIT
SRAM
LPF2
D/A
23 4 56 7 8
910
11
15 14 13 12
CLOCK
RESET
MO
MI
D1 DO0
DO1
VCC
CLOCK
REF
OP2IN
OP2OUT
LPF2IN
LPF2OUT
LPF1IN
1
16
NC
NC
LPF1OUT
OP1OUT
OP1IN
CC1
CC2
GND
1 2 3 4 5 6 7 8 9
CONTROL LOGIC
TSD
VREF
O
UT2
O
UT1
RNF
VM
VCC
FIN
GND
RIN
62
(1) COVER SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
EA : Saudi Arabia model
IA : Indonesian model
MY : Malaysia model
SP : Singapore model
CDM58-K2BD37A
#5
#3
#3
#3
#3
#
2
#3
#3
#3
#3
#5
#2
4
7
3
5
1
1
2
2
6
Front panel section
Chassis section
#3
M961
9
8
10
12 11
not supplied
not supplied
13
1 3-363-099-01 SCREW (CASE 3 TP2)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-21 SIDE PANEL L
4 X-4952-778-1 LOADING PANEL ASSY (EA, MY, SP)
4 X-4952-779-1 LOADING PANEL ASSY (E)
4 X-4952-783-1 LOADING PANEL ASSY (IA)
5 4-225-039-21 SIDE PANEL R
6 4-224-550-21 COVER (TOP) (IA)
6 4-224-550-41 COVER (TOP) (E, EA, MY, SP)
7 4-991-781-01 EMBLEM (VCD)
8 4-225-040-71 BACK PANEL (E, EA, MY, SP)
8 4-227-061-21 BACK PANEL (IA)
9 4-225-252-01 CUSHION (FOOT)
10 A-4724-973-A VIDEO BOARD, COMPLETE
11 1-792-246-11 WIRE (FLAT TYPE) (23 CORE)
12 4-951-620-01 SCREW (2.6X8), +BVTP
013 1-526-794-11 OUTLET, AC
M961 1-763-072-11 FAN, D. C.
63
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(2) FRONT PANEL SECTION
51
52
53
56
69
58
57
70
59
59
63
64
65
66
54
55
*
67
67
67
67
61
60
60
62
* For service only
(Be sure to refer to "Service notes" on page 4.
)
TCM-230AWR11
68
67
67
not supplied
not supplied
51 X-4952-418-1 TC HOLDER (L) ASSY (IA)
51 X-4952-790-1 TC HOLDER (L) ASSY (E, EA)
51 X-4953-019-1 TC HOLDER (L) ASSY (EA, MY, SP)
52 X-4952-729-1 TC HOLDER (R) ASSY (EA, MY, SP)
52 X-4952-730-1 TC HOLDER (R) ASSY (IA)
52 X-4952-793-1 TC HOLDER (R) ASSY (E)
53 4-225-032-01 VOL KNOB
54 A-4473-074-A CD SWITCH BOARD, COMPLETE
55 4-962-708-71 EMBLEM (4-A), SONY
56 4-225-033-01 FR KNOB
57 X-4952-671-1 FRONT PANEL ASSY (EA, MY, SP)
57 X-4952-672-1 FRONT PANEL ASSY (E)
57 X-4952-676-1 FRONT PANEL ASSY (IA)
58 4-224-562-01 BRACKET (HEART CAM L)
59 4-224-803-01 SPRING (PUSH), COMPRESSION COIL
60 4-224-104-11 DAMPER
61 4-224-560-01 CAM (L), HEART
62 4-224-559-01 CAM (R), HEART
63 4-224-561-01 BRACKET (HEART CAM R)
64 4-225-053-01 SPRING R
65 4-225-054-01 SPRING FR
66 A-4473-076-A PANEL BOARD, COMPLETE (E, EA, MY, SP)
66 A-4473-525-A PANEL BOARD, COMPLETE (IA)
67 4-951-620-01 SCREW (2.6X8), +BVTP
68 4-224-578-01 KNOB (MIC)
69 4-225-052-01 SPRING L
70 4-225-252-01 CUSHION (FOOT)
64
(3) CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
E
#2
#2
#4
#6
#2
#6
109
108
103
107
106
101
102
104
105
not supplied
not supplied
T971
108
109
EA, MY, SP, IA
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4428-472-A MAIN BOARD, COMPLETE (E, MY, SP)
102 A-4473-078-A MAIN BOARD, COMPLETE (EA)
102 A-4473-527-A MAIN BOARD, COMPLETE (IA)
*103 4-988-533-01 HOLDER, PWB
104 1-690-589-31 WIRE (FLAT TYPE) (13 CORE)
105 1-676-808-11 TRANS BOARD
*106 3-703-244-00 BUSHING (2104), CORD
107 A-4428-344-A POWER AMP BOARD, COMPLETE (IA)
107 A-4428-483-A POWER AMP BOARD, COMPLETE
(E, EA, MY, SP)
0108 1-575-653-11 CORD, POWER (E)
0108 1-777-071-21 CORD, POWER (MY, SP)
0108 1-777-071-51 CORD, POWER (EA, IA)
0109 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
0109 1-569-008-21 ADAPTOR, CONVERSION 2P (EA, MY, SP, IA)
0T971 1-435-325-11 POWER TRANSFORMER
65
(4) TAPE MECHANISM DESK SECTION
(TCM-230AWR11)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 X-3374-156-5 PINCH LEVER (REV) ASSY
152 X-3374-155-5 PINCH LEVER (FWD) ASSY
153 A-2007-839-A HEAD (A) BOARD, COMPLETE
154 A-2007-840-A HEAD (B) BOARD, COMPLETE
156 3-040-580-02 PULLEY (TENSION)
157 A-2007-838-A LEAF SW BOARD, COMPLETE
158 3-041-947-01 BELT (FR)
159 3-041-946-01 BELT (CAPSTAN B)
160 4-227-239-01 BELT (CAPSTAN C)
162 3-019-208-01 WASHER, STOPPER
163 3-016-533-01 WASHER (FR), STOPPER
164 X-3378-041-1 FLYWHEEL (A-REV) ASSY
165 X-3378-040-1 FLYWHEEL (A-FWD) ASSY
166 X-3378-043-1 FLYWHEEL (B-REV) ASSY
167 X-3378-042-1 FLYWHEEL (B-FWD) ASSY
168 4-227-872-11 SCREW (+PTT 2X4), GROUND POINT
169 4-227-455-02 SPING (HALF), TORSION
170 A-2100-894-A TAPE MECHANISM DECK (TCM-230AWR11)
HP901 X-4954-985-1 BLOCK (A) ASSY, HEAD (PB)
HRPE901X-4954-986-1 BLOCK (B) ASSY, HEAD (REC/PB/ERASE)
M901 X-3378-241-1 MOTOR ASSY (WITH PULLEY)
(CAPSTAN/REEL)
151
158
157
158
170
164
159
159
166
165 160
167
151
152
152
162
169
162
153
154
#1
HP901
HRPE901
not
supplied
not
supplied
not supplied
#7
#8
#8
#7
M901
168
168
163
156
Ver 1.1
66

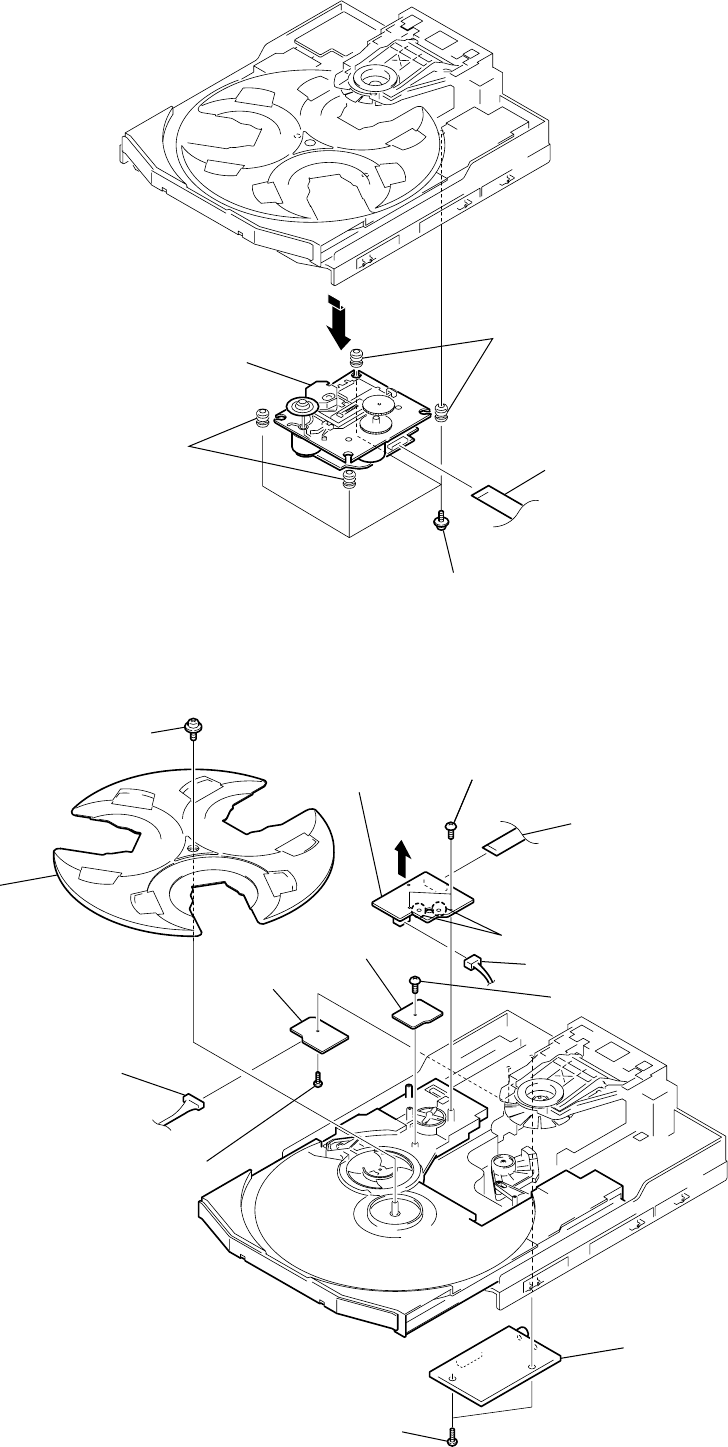

(5) CD MECHANISM DECK SECTION
(CDM58-K2BD37A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 4-933-134-11 SCREW (+PTPWH M2.6X8)
202 4-221-679-01 CAM (RELAY)
203 4-221-675-01 TABLE
204 4-221-686-01 LEVER (CHANGE)
205 4-221-676-01 TRAY
206 4-933-134-51 SCREW (+PTPWH 2.6X8)
207 1-675-910-11 MOTOR BOARD
208 4-951-620-01 SCREW (2.6X8), +BVTP
209 1-791-983-12 WIRE (FLAT TYPE) (8 CORE)
210 1-675-911-11 SENSOR BOARD
211 1-675-912-11 DRIVER BOARD
212 X-4952-608-1 CAM (U/D) ASSY
213 4-221-681-01 LEVER (EX)
214 4-221-682-01 LEVER (LIFTER)
215 4-221-688-01 PULLEY (B), CHUCKING
216 1-471-035-11 MAGNET ASSY
217 X-4952-019-1 PULLEY (A) ASSY, CHUCKING
218 X-4951-889-1 HOLDER (BU) ASSY
219 4-222-097-01 SCREW, STEP
220 4-227-045-11 SPRING (INSULATOR), COIL
221 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
222 4-222-095-01 BELT
223 4-221-678-02 CAM (CONTROL)
224 4-221-683-01 GEAR (U)
225 4-221-685-01 PULLEY (S)
226 4-221-674-03 CHASSIS
M721 A-4672-826-A MOTOR ASSY (TURN)
BU-K2BD37
not supplied
not supplied
not supplie
d
201
202
203
204
223
219
222
225
224 224
M721
205
206
207
209
208
208
208
210
211
212
213
201
214
221
215
216
218
220
220
226
220
221
221
217
221
Ver 1.2
67
(6) BASE UNIT SECTION
(BU-K2BD37A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0251 8-820-116-01 OPTICAL PICK-UP KSM-213DAP/Z-NP
252 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
253 A-4725-001-A BD BOARD, COMPLETE
254 4-951-620-01 SCREW (2.6X8), +BVTP
252
254
253
251
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
68
SECTION 9
ELECTRICAL PARTS LIST
BD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
• Abbreviation
EA : Saudi Arabia model
IA : Indonesian model
MY : Malaysia model
SP : Singapore model
A-4725-001-A BD BOARD, COMPLETE
*******************
< CAPACITOR >
C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C102 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C105 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C106 1-164-346-11 CERAMIC CHIP 1uF 16V
C107 1-164-346-11 CERAMIC CHIP 1uF 16V
C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C109 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C110 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C112 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C113 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C115 1-126-607-11 ELECT CHIP 47uF 20% 4V
C116 1-126-607-11 ELECT CHIP 47uF 20% 4V
C117 1-126-209-11 ELECT CHIP 100uF 20% 4V
C118 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C119 1-163-106-00 CERAMIC CHIP 36PF 5% 50V
C120 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C121 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C122 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C123 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C124 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C126 1-124-779-00 ELECT CHIP 10uF 20% 16V
C130 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C140 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C141 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C154 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C159 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C161 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C170 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C171 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C180 1-163-137-00 CERAMIC CHIP 680PF 5% 50V
C181 1-163-137-00 CERAMIC CHIP 680PF 5% 50V
C182 1-163-137-00 CERAMIC CHIP 680PF 5% 50V
C183 1-163-137-00 CERAMIC CHIP 680PF 5% 50V
C184 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C185 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V
C186 1-128-065-11 ELECT CHIP 68uF 20% 10V
C187 1-163-038-00 CERAMIC CHIP 0.1uF 25V
< CONNECTOR >
CN101 1-770-706-11 CONNECTOR, FFC/FPC 23P
CN102 1-777-937-11 CONNECTOR, FFC/FPC 16P
< IC >
IC101 8-752-397-42 IC CXD3008Q
IC102 8-759-640-22 IC BA5982FM
IC103 8-752-085-51 IC CXA2568M-T6
IC104 8-759-398-25 IC TC7SH04F (TE85L)
< COIL >
L101 1-414-234-22 FERRITE BEAD
L102 1-410-377-31 INDUCTOR CHIP 4.7uH
< TRANSISTOR >
Q101 8-729-049-31 TRANSISTOR 2SB710-RTX
< RESISTOR >
R101 1-216-077-00 RES-CHIP 15K 5% 1/10W
R102 1-216-097-00 RES-CHIP 100K 5% 1/10W
R103 1-216-077-00 RES-CHIP 15K 5% 1/10W
R104 1-216-085-00 METAL CHIP 33K 5% 1/10W
R105 1-216-073-00 METAL CHIP 10K 5% 1/10W
R106 1-216-049-11 RES-CHIP 1K 5% 1/10W
R107 1-216-073-00 METAL CHIP 10K 5% 1/10W
R108 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R109 1-216-121-00 RES-CHIP 1M 5% 1/10W
R110 1-216-295-00 SHORT 0
R112 1-216-025-00 RES-CHIP 100 5% 1/10W
R123 1-216-073-00 METAL CHIP 10K 5% 1/10W
R124 1-216-097-00 RES-CHIP 100K 5% 1/10W
R125 1-216-033-00 METAL CHIP 220 5% 1/10W
R126 1-216-033-00 METAL CHIP 220 5% 1/10W
R127 1-216-033-00 METAL CHIP 220 5% 1/10W
R131 1-216-033-00 METAL CHIP 220 5% 1/10W
R135 1-216-295-00 SHORT 0
R136 1-216-295-00 SHORT 0
R137 1-216-295-00 SHORT 0
R138 1-216-295-00 SHORT 0
R143 1-216-103-00 METAL CHIP 180K 5% 1/10W
R144 1-216-103-00 METAL CHIP 180K 5% 1/10W
R145 1-216-121-00 RES-CHIP 1M 5% 1/10W
R146 1-216-121-00 RES-CHIP 1M 5% 1/10W
69
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BD CD SWITCH DRIVER HEAD (A)
R147 1-216-041-00 METAL CHIP 470 5% 1/10W
R148 1-216-001-00 METAL CHIP 10 5% 1/10W
R149 1-216-003-11 RES-CHIP 12 5% 1/10W
R150 1-216-073-00 METAL CHIP 10K 5% 1/10W
R154 1-216-025-00 RES-CHIP 100 5% 1/10W
R155 1-216-025-00 RES-CHIP 100 5% 1/10W
R156 1-216-025-00 RES-CHIP 100 5% 1/10W
R157 1-216-025-00 RES-CHIP 100 5% 1/10W
R158 1-216-073-00 METAL CHIP 10K 5% 1/10W
R159 1-216-089-00 RES-CHIP 47K 5% 1/10W
R161 1-216-295-00 SHORT 0
R162 1-216-101-00 METAL CHIP 150K 5% 1/10W
R171 1-216-025-00 RES-CHIP 100 5% 1/10W
R172 1-216-025-00 RES-CHIP 100 5% 1/10W
R173 1-216-025-00 RES-CHIP 100 5% 1/10W
R175 1-216-025-00 RES-CHIP 100 5% 1/10W
R180 1-216-097-00 RES-CHIP 100K 5% 1/10W
R181 1-216-100-00 RES-CHIP 130K 5% 1/10W
R182 1-216-081-00 METAL CHIP 22K 5% 1/10W
R183 1-216-081-00 METAL CHIP 22K 5% 1/10W
R184 1-216-070-00 METAL CHIP 7.5K 5% 1/10W
R185 1-216-070-00 METAL CHIP 7.5K 5% 1/10W
R186 1-216-081-00 METAL CHIP 22K 5% 1/10W
R187 1-216-081-00 METAL CHIP 22K 5% 1/10W
R188 1-216-070-00 METAL CHIP 7.5K 5% 1/10W
R189 1-216-070-00 METAL CHIP 7.5K 5% 1/10W
R190 1-216-081-00 METAL CHIP 22K 5% 1/10W
R191 1-216-081-00 METAL CHIP 22K 5% 1/10W
R192 1-216-070-00 METAL CHIP 7.5K 5% 1/10W
R193 1-216-070-00 METAL CHIP 7.5K 5% 1/10W
R194 1-216-295-00 SHORT 0
R203 1-216-025-00 RES-CHIP 100 5% 1/10W
R204 1-216-025-00 RES-CHIP 100 5% 1/10W
R205 1-216-025-00 RES-CHIP 100 5% 1/10W
R206 1-216-295-00 SHORT 0
R210 1-216-295-00 SHORT 0
< SWITCH >
S101 1-771-853-11 SWITCH, DETECTION (LIMIT)
**************************************************************
A-4473-074-A CD SWITCH BOARD, COMPLETE
**************************
< LED >
D630 8-719-056-13 LED SML79423C-TP15 (DISC 1)
D631 8-719-056-13 LED SML79423C-TP15 (DISC 2)
D632 8-719-056-13 LED SML79423C-TP15 (DISC 3)
< TRANSISTOR >
Q630 8-729-422-57 TRANSISTOR BN1A4M-TP
Q631 8-729-422-57 TRANSISTOR BN1A4M-TP
Q632 8-729-422-57 TRANSISTOR BN1A4M-TP
Q633 8-729-422-57 TRANSISTOR BN1A4M-TP
Q634 8-729-422-57 TRANSISTOR BN1A4M-TP
Q635 8-729-422-57 TRANSISTOR BN1A4M-TP
< RESISTOR >
R685 1-249-417-11 CARBON 1K 5% 1/4W
R686 1-249-418-11 CARBON 1.2K 5% 1/4W
R687 1-249-420-11 CARBON 1.8K 5% 1/4W
R688 1-249-422-11 CARBON 2.7K 5% 1/4W
R689 1-247-843-11 CARBON 3.3K 5% 1/4W
R690 1-249-425-11 CARBON 4.7K 5% 1/4W
R691 1-249-427-11 CARBON 6.8K 5% 1/4W
R692 1-249-429-11 CARBON 10K 5% 1/4W
R750 1-249-406-11 CARBON 120 5% 1/4W
R751 1-249-406-11 CARBON 120 5% 1/4W
R752 1-249-406-11 CARBON 120 5% 1/4W
R753 1-249-406-11 CARBON 120 5% 1/4W
R754 1-249-406-11 CARBON 120 5% 1/4W
R755 1-249-406-11 CARBON 120 5% 1/4W
< SWITCH >
S642 1-771-410-21 SWITCH, TACTILE (DISC SKIP/EX-CHANGE)
S643 1-771-410-21 SWITCH, TACTILE (DISC 1)
S644 1-771-410-21 SWITCH, TACTILE (DISC 2)
S645 1-771-410-21 SWITCH, TACTILE (DISC 3)
S646 1-771-410-21 SWITCH, TACTILE (Z OPEN/CLOSE (CD))
S647 1-771-410-21 SWITCH, TACTILE (PREV)
S648 1-771-410-21 SWITCH, TACTILE (NEXT)
S649 1-771-410-21 SWITCH, TACTILE (RETURN)
**************************************************************
1-675-912-11 DRIVER BOARD
*************
< CAPACITOR >
C702 1-126-964-51 ELECT 10uF 20% 50V
< CONNECTOR >
CN701 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P
CN702 1-785-550-11 CONNECTOR, FFC/FPC 8P
< DIODE >
D701 8-719-983-63 DIODE MTZJ-T-72-3.3B
< IC >
IC701 8-759-598-69 IC BA6956AN
< RESISTOR >
R701 1-249-411-11 CARBON 330 5% 1/4W
R702 1-249-401-11 CARBON 47 5% 1/4W
**************************************************************
1-676-220-12 HEAD (A) BOARD
***************
< CONNECTOR >
*CN1 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
**************************************************************
70
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HEAD (B) LEAF SW MAIN
1-676-221-12 HEAD (B) BOARD
***************
< CONNECTOR >
CN2 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P
**************************************************************
A-2007-838-A LEAF SW BOARD, COMPLETE
************************
< CAPACITOR >
C1001 1-107-716-11 ELECT 33uF 20% 10V
< CONNECTOR >
CN1001 1-568-860-21 SOCKET, CONNECTOR 17P
< DIODE >
D1001 8-719-911-19 DIODE 1SS133T-72
D1002 8-719-911-19 DIODE 1SS133T-72
< PHOTO INTERRUPTER >
IC1001 8-749-014-38 PHOTO INTERRUPTER SG-264
IC1002 8-749-014-38 PHOTO INTERRUPTER SG-264
< TRANSISTOR >
Q1001 8-729-029-56 TRANSISTOR DTA144ESA-TP
< RESISTOR >
R907 1-247-879-11 CARBON 100K 5% 1/4W
R1001 1-249-409-11 CARBON 220 5% 1/4W
R1002 1-249-409-11 CARBON 220 5% 1/4W
R1003 1-249-414-11 CARBON 560 5% 1/4W
R1004 1-247-834-11 CARBON 1.3K 5% 1/4W
R1005 1-247-818-11 CARBON 300 5% 1/4W
R1006 1-247-864-11 CARBON 24K 5% 1/4W
R1007 1-247-780-00 CARBON 7.5 5% 1/4W
R1008 1-249-417-11 CARBON 1K 5% 1/4W
< VARIABLE RESISTOR >
RV1001 1-241-785-11 RES, ADJ, CARBON 10K
RV1002 1-241-785-11 RES, ADJ, CARBON 10K
< SWITCH >
S1001 1-570-953-11 SWITCH, PUSH (1 KEY) (A PLAY)
S1002 1-570-953-11 SWITCH, PUSH (1 KEY) (B PLAY)
S1003 1-771-333-11 SWITCH, LEAF (A HALF)
S1004 1-771-536-11 SWITCH, LEAF (A 120/70)
S1005 1-771-536-11 SWITCH, LEAF (REC A)
S1006 1-771-333-11 SWITCH, LEAF (B HALF)
S1008 1-771-536-11 SWITCH, LEAF (B 120/70)
S1009 1-771-536-11 SWITCH, LEAF (REC B)
**************************************************************
A-4428-472-A MAIN BOARD, COMPLETE (E, MY, SP)
A-4473-078-A MAIN BOARD, COMPLETE (EA)
A-4473-527-A MAIN BOARD, COMPLETE (IA)
*********************
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C101 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C102 1-126-961-11 ELECT 2.2uF 20% 50V
C103 1-126-964-11 ELECT 10uF 20% 50V
C104 1-126-964-11 ELECT 10uF 20% 50V
C105 1-126-964-11 ELECT 10uF 20% 50V
C106 1-136-161-00 MYLAR 0.047uF 5% 50V
C107 1-136-495-11 MYLAR 0.068uF 5% 50V
C108 1-136-495-11 MYLAR 0.068uF 5% 50V
C109 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V
C110 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V
C111 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V
C112 1-126-961-11 ELECT 2.2uF 20% 50V
C113 1-126-957-11 ELECT 0.22uF 20% 50V
C115 1-136-169-00 MYLAR 0.22uF 5% 50V
C116 1-136-169-00 MYLAR 0.22uF 5% 50V
C117 1-126-964-11 ELECT 10uF 20% 50V
C118 1-126-961-11 ELECT 2.2uF 20% 50V
C121 1-126-964-11 ELECT 10uF 20% 50V
C122 1-126-964-11 ELECT 10uF 20% 50V
C123 1-126-964-11 ELECT 10uF 20% 50V
C124 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C131 1-136-169-00 MYLAR 0.22uF 5% 50V
C132 1-126-964-11 ELECT 10uF 20% 50V
C133 1-126-925-11 ELECT 470uF 20% 10V
C134 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C135 1-126-964-11 ELECT 10uF 20% 50V
C140 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C142 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C144 1-126-964-11 ELECT 10uF 20% 50V
C146 1-126-925-11 ELECT 470uF 20% 10V
C151 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C152 1-126-961-11 ELECT 2.2uF 20% 50V
C153 1-126-964-11 ELECT 10uF 20% 50V
C154 1-126-964-11 ELECT 10uF 20% 50V
C155 1-126-964-11 ELECT 10uF 20% 50V
C156 1-136-161-00 MYLAR 0.047uF 5% 50V
C157 1-136-495-11 MYLAR 0.068uF 5% 50V
C158 1-136-495-11 MYLAR 0.068uF 5% 50V
C159 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V
C160 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V
C161 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V
C162 1-126-961-11 ELECT 2.2uF 20% 50V
C165 1-136-169-00 MYLAR 0.22uF 5% 50V
C166 1-136-169-00 MYLAR 0.22uF 5% 50V
C167 1-126-964-11 ELECT 10uF 20% 50V
C171 1-126-964-11 ELECT 10uF 20% 50V
C172 1-126-964-11 ELECT 10uF 20% 50V
C181 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C182 1-126-963-11 ELECT 4.7uF 20% 50V
C185 1-126-960-11 ELECT 1uF 20% 50V
71
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
C186 1-126-960-11 ELECT 1uF 20% 50V
C187 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C188 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C189 1-126-963-11 ELECT 4.7uF 20% 50V
C199 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C201 1-104-665-11 ELECT 100uF 20% 10V
C202 1-126-925-11 ELECT 470uF 20% 10V
C203 1-163-033-00 CERAMIC CHIP 0.022uF 50V
C204 1-126-961-11 ELECT 2.2uF 20% 50V
C205 1-163-033-00 CERAMIC CHIP 0.022uF 50V
C206 1-126-961-11 ELECT 2.2uF 20% 50V
C207 1-126-916-11 ELECT 1000uF 20% 6.3V
C209 1-126-925-11 ELECT 470uF 20% 10V
C212 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C301 1-126-960-11 ELECT 1uF 20% 50V
C302 1-130-479-00 MYLAR 0.0047uF 5% 50V
C303 1-136-165-00 MYLAR 0.1uF 5% 50V
C304 1-136-165-00 MYLAR 0.1uF 5% 50V
C305 1-126-964-11 ELECT 10uF 20% 50V
C306 1-126-960-11 ELECT 1uF 20% 50V
C307 1-126-959-11 ELECT 0.47uF 20% 50V
C308 1-126-964-11 ELECT 10uF 20% 50V
C309 1-137-194-81 MYLAR 0.47uF 5% 50V
C310 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C311 1-126-964-11 ELECT 10uF 20% 50V
C312 1-126-959-11 ELECT 0.47uF 20% 50V
C313 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C314 1-126-964-11 ELECT 10uF 20% 50V
C315 1-126-963-11 ELECT 4.7uF 20% 50V
C316 1-126-933-11 ELECT 100uF 20% 16V
C317 1-104-665-11 ELECT 100uF 20% 10V
C318 1-126-964-11 ELECT 10uF 20% 50V
C319 1-126-961-11 ELECT 2.2uF 20% 50V
C320 1-126-961-11 ELECT 2.2uF 20% 50V
C321 1-163-131-00 CERAMIC CHIP 390PF 5% 50V
C322 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C323 1-136-157-00 MYLAR 0.022uF 5% 50V
C324 1-126-964-11 ELECT 10uF 20% 50V
C325 1-126-965-11 ELECT 22uF 20% 50V
C326 1-163-131-00 CERAMIC CHIP 390PF 5% 50V
C327 1-104-665-11 ELECT 100uF 20% 10V
C328 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C329 1-130-483-00 MYLAR 0.01uF 5% 50V
C330 1-126-964-11 ELECT 10uF 20% 50V
C331 1-126-965-11 ELECT 22uF 20% 50V
C332 1-137-427-11 MYLAR 120PF 5% 50V
C333 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C334 1-163-103-00 CERAMIC CHIP 27PF 5% 50V
C335 1-137-150-11 MYLAR 0.01uF 5% 100V
C336 1-126-961-11 ELECT 2.2uF 20% 50V
C337 1-136-155-00 FILM 0.015uF 5% 50V
C338 1-130-481-00 MYLAR 0.0068uF 5% 50V
C339 1-130-481-00 MYLAR 0.0068uF 5% 50V
C340 1-136-156-00 MYLAR 0.018uF 5% 50V
C341 1-126-960-11 ELECT 1uF 20% 50V
C342 1-104-664-11 ELECT 47uF 20% 16V
C351 1-126-960-11 ELECT 1uF 20% 50V
C352 1-130-479-00 MYLAR 0.0047uF 5% 50V
C353 1-136-165-00 MYLAR 0.1uF 5% 50V
C354 1-136-165-00 MYLAR 0.1uF 5% 50V
C355 1-126-964-11 ELECT 10uF 20% 50V
C356 1-126-960-11 ELECT 1uF 20% 50V
C357 1-126-959-11 ELECT 0.47uF 20% 50V
C358 1-126-964-11 ELECT 10uF 20% 50V
C359 1-137-194-81 MYLAR 0.47uF 5% 50V
C360 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
C362 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C363 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C368 1-126-964-11 ELECT 10uF 20% 50V
C369 1-126-961-11 ELECT 2.2uF 20% 50V
C370 1-126-961-11 ELECT 2.2uF 20% 50V
C371 1-163-131-00 CERAMIC CHIP 390PF 5% 50V
C372 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C373 1-136-157-00 MYLAR 0.022uF 5% 50V
C374 1-126-964-11 ELECT 10uF 20% 50V
C375 1-126-965-11 ELECT 22uF 20% 50V
C376 1-163-131-00 CERAMIC CHIP 390PF 5% 50V
C377 1-104-665-11 ELECT 100uF 20% 10V
C378 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C379 1-130-483-00 MYLAR 0.01uF 5% 50V
C380 1-126-964-11 ELECT 10uF 20% 50V
C381 1-126-965-11 ELECT 22uF 20% 50V
C382 1-137-427-11 MYLAR 120PF 5% 50V
C383 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
C384 1-163-103-00 CERAMIC CHIP 27PF 5% 50V
C385 1-126-964-11 ELECT 10uF 20% 50V
C395 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C410 1-163-233-11 CERAMIC CHIP 18PF 5% 50V
C411 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C414 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C416 1-126-916-11 ELECT 1000uF 20% 6.3V
C462 1-104-665-11 ELECT 100uF 20% 10V
C464 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C497 1-126-964-11 ELECT 10uF 20% 50V
C498 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C501 1-136-165-00 MYLAR 0.1uF 5% 50V
C502 1-136-165-00 MYLAR 0.1uF 5% 50V
C503 1-126-964-11 ELECT 10uF 20% 50V
C504 1-109-953-11 ELECT 2.2uF 20% 50V
C505 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C601 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C603 1-104-664-11 ELECT 47uF 20% 16V
C604 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C605 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C607 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C611 1-104-664-11 ELECT 47uF 20% 16V
C612 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C613 1-126-960-11 ELECT 1uF 20% 50V
C614 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C615 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C616 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C617 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C618 1-126-957-11 ELECT 0.22uF 20% 50V
C619 1-163-075-00 CERAMIC CHIP 0.047uF 50V
C620 1-126-962-11 ELECT 3.3uF 20% 50V
72
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
C621 1-126-962-11 ELECT 3.3uF 20% 50V
C622 1-104-664-11 ELECT 47uF 20% 16V
C623 1-126-964-11 ELECT 10uF 20% 50V
C624 1-126-960-11 ELECT 1uF 20% 50V
C625 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C626 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V
C628 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C629 1-126-965-11 ELECT 22uF 20% 50V
C630 1-126-964-11 ELECT 10uF 20% 50V
C631 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C632 1-126-933-11 ELECT 100uF 20% 16V
C633 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C634 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
C635 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V
C636 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C637 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C641 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C644 1-163-087-00 CERAMIC CHIP 4PF 50V
C645 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C651 1-163-239-11 CERAMIC CHIP 33PF 5% 50V
C652 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C653 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C655 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C656 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C657 1-104-664-11 ELECT 47uF 20% 16V
C658 1-126-961-11 ELECT 2.2uF 20% 50V
C659 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C660 1-104-664-11 ELECT 47uF 20% 16V
C661 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C662 1-126-959-11 ELECT 0.47uF 20% 50V
C663 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C669 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C803 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C821 1-104-665-11 ELECT 100uF 20% 10V
C822 1-126-961-11 ELECT 2.2uF 20% 50V
C824 1-126-960-11 ELECT 1uF 20% 50V
C841 1-126-959-11 ELECT 0.47uF 20% 50V
C853 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C861 1-107-717-11 ELECT 47uF 20% 50V
C862 1-107-721-11 ELECT 4.7uF 20% 100V
C863 1-107-721-11 ELECT 4.7uF 20% 100V
C891 1-126-964-11 ELECT 10uF 20% 50V
C892 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C901 1-111-235-61 ELECT 10000uF 20% 25V
C902 1-136-165-00 MYLAR 0.1uF 5% 50V
C903 1-136-165-00 MYLAR 0.1uF 5% 50V
C905 1-136-165-00 MYLAR 0.1uF 5% 50V
C906 1-136-165-00 MYLAR 0.1uF 5% 50V
C907 1-128-548-11 ELECT 4700uF 20% 25V
C908 1-126-942-61 ELECT 1000uF 20% 25V
C909 1-126-952-11 ELECT 1000uF 20% 35V
C911 1-126-960-11 ELECT 1uF 20% 50V
C912 1-126-917-11 ELECT 3300uF 20% 6.3V
C921 1-126-960-11 ELECT 1uF 20% 50V
C922 1-126-933-11 ELECT 100uF 20% 16V
C925 1-104-665-11 ELECT 100uF 20% 10V
C931 1-126-964-11 ELECT 10uF 20% 50V
C932 1-126-925-11 ELECT 470uF 20% 10V
C951 1-126-960-11 ELECT 1uF 20% 50V
C961 1-126-960-11 ELECT 1uF 20% 50V
C962 1-126-926-11 ELECT 1000uF 20% 10V
< CERAMIC FILTER >
CF601 1-760-023-11 FILTER, CERAMIC
CF602 1-760-023-11 FILTER, CERAMIC
< CONNECTOR >
*CN101 1-565-291-11 SOCKET, CONNECTOR 13P
(SYSTEM CONTROL)
CN201 1-565-937-11 SOCKET, CONNECTOR 13P
CN202 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P
*CN301 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P
*CN304 1-569-934-11 SOCKET, CONNECTOR 17P
CN401 1-793-766-11 CONNECTOR, BOARD TO BOARD 30P
*CN891 1-564-506-11 PLUG, CONNECTOR 3P
CN901 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P
CN902 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P
< DIODE >
D501 8-719-988-61 DIODE 1SS355TE-17
D502 8-719-988-61 DIODE 1SS355TE-17
D503 8-719-988-61 DIODE 1SS355TE-17
D504 8-719-988-61 DIODE 1SS355TE-17
D505 8-719-988-61 DIODE 1SS355TE-17
D506 8-719-988-61 DIODE 1SS355TE-17
D507 8-719-988-61 DIODE 1SS355TE-17
D508 8-719-988-61 DIODE 1SS355TE-17
D511 8-719-988-61 DIODE 1SS355TE-17
D601 8-719-056-83 DIODE UDZ-TE-17-6.8B
D641 8-719-914-42 DIODE DA204K-T-146
D651 8-719-988-61 DIODE 1SS355TE-17
D801 8-719-988-61 DIODE 1SS355TE-17
D822 8-719-988-61 DIODE 1SS355TE-17
D824 8-719-988-61 DIODE 1SS355TE-17
D841 8-719-988-61 DIODE 1SS355TE-17
D861 8-719-988-61 DIODE 1SS355TE-17
D891 8-719-988-61 DIODE 1SS355TE-17
D892 8-719-988-61 DIODE 1SS355TE-17
D901 8-719-210-21 DIODE 11EQS04-TA1B
D902 8-719-210-21 DIODE 11EQS04-TA1B
D903 8-719-210-21 DIODE 11EQS04-TA1B
D904 8-719-210-21 DIODE 11EQS04-TA1B
D906 8-719-200-82 DIODE 11ES2-TB5
D907 8-719-200-82 DIODE 11ES2-TB5
D908 8-719-200-82 DIODE 11ES2-TB5
D909 8-719-200-82 DIODE 11ES2-TB5
D910 8-719-200-82 DIODE 11ES2-TB5
D911 8-719-200-82 DIODE 11ES2-TB5
D952 8-719-988-61 DIODE 1SS355TE-17
D953 8-719-988-61 DIODE 1SS355TE-17
< SHORT >
FB201 1-216-295-00 SHORT 0
FB202 1-216-295-00 SHORT 0
FB203 1-216-295-00 SHORT 0
73
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
FB204 1-216-295-00 SHORT 0
FB416 1-216-295-00 SHORT 0
FB462 1-216-295-00 SHORT 0
FB499 1-216-295-00 SHORT 0
< FRONT END >
FE602 1-693-478-11 FRONT END (FM3 GANGS)
< IC >
IC101 8-759-652-04 IC M61504FP-TP
IC102 8-759-099-06 IC M5218AFP-TE1
IC103 8-759-652-01 IC LA2615
IC104 8-759-099-06 IC M5218AFP-TE1
IC201 8-749-923-04 IC TOTX178A (OPTICAL)
IC301 8-759-652-02 IC HA12226F
IC302 8-759-143-54 IC uPC1330HA
IC303 8-759-656-83 IC NJM4580MD-TE
IC304 8-759-656-83 IC NJM4580MD-TE
IC401 8-759-677-43 IC M30622MAA-A60
IC501 8-759-635-63 IC M51943BSL-TP
IC601 8-759-652-00 IC BA1450
IC651 8-759-288-54 IC LC72130
IC911 8-759-039-69 IC uPC7805AHF
IC921 8-759-088-08 IC uPC7812AHF
IC931 8-759-071-48 IC TA7807S
IC951 8-759-158-62 IC TA78057S
IC961 8-759-701-59 IC M5F7809L
< IF TRANSFORMER >
IFT601 1-435-295-11 TRANSFORMER, IF
< JACK >
J101 1-793-987-11 JACK, PIN 2P (MD/VIDEO (AUDIO))
< SHORT >
JR1 1-216-296-00 SHORT 0
JR2 1-216-296-00 SHORT 0
JR3 1-216-296-00 SHORT 0
JR4 1-216-296-00 SHORT 0
JR6 1-216-296-00 SHORT 0
JR7 1-216-296-00 SHORT 0
JR8 1-216-295-00 SHORT 0
JR13 1-216-296-00 SHORT 0
JR14 1-216-296-00 SHORT 0
JR15 1-216-296-00 SHORT 0
JR17 1-216-296-00 SHORT 0
JR18 1-216-295-00 SHORT 0
JR19 1-216-296-00 SHORT 0
JR23 1-216-296-00 SHORT 0
JR25 1-216-296-00 SHORT 0
JR26 1-216-296-00 SHORT 0
JR27 1-216-296-00 SHORT 0
JR29 1-216-296-00 SHORT 0
JR31 1-216-295-00 SHORT 0
JR32 1-216-296-00 SHORT 0
JR33 1-216-296-00 SHORT 0
JR34 1-216-295-00 SHORT 0
JR35 1-216-296-00 SHORT 0 (IA)
JR36 1-216-295-00 SHORT 0
JR37 1-216-296-00 SHORT 0
JR38 1-216-296-00 SHORT 0
JR39 1-216-296-00 SHORT 0 (IA)
JR40 1-216-295-00 SHORT 0 (IA)
JR42 1-216-295-00 SHORT 0
JR44 1-216-296-00 SHORT 0
JR45 1-216-296-00 SHORT 0 (IA)
JR51 1-216-296-00 SHORT 0
JR52 1-216-296-00 SHORT 0
JR53 1-216-296-00 SHORT 0 (IA)
JR54 1-216-295-00 SHORT 0
JR140 1-216-296-00 SHORT 0
JR205 1-216-295-00 SHORT 0 (E, MY, SP, IA)
JR431 1-216-295-00 SHORT 0
JR433 1-216-295-00 SHORT 0 (E, EA, MY, SP)
JR434 1-216-295-00 SHORT 0 (IA)
JR602 1-216-295-00 SHORT 0
JR603 1-216-296-00 SHORT 0
JR604 1-216-296-00 SHORT 0
JR605 1-216-296-00 SHORT 0
JR606 1-216-296-00 SHORT 0
JR607 1-216-295-00 SHORT 0
JR608 1-216-296-00 SHORT 0
JR611 1-216-296-00 SHORT 0
JR612 1-216-295-00 SHORT 0
JR615 1-216-295-00 SHORT 0
JR616 1-216-295-00 SHORT 0
JR619 1-216-295-00 SHORT 0
JR632 1-216-295-00 SHORT 0
JR634 1-216-295-00 SHORT 0
JR640 1-216-295-00 SHORT 0
JR920 1-216-295-00 SHORT 0 (EA)
JR922 1-216-295-00 SHORT 0
JR923 1-216-295-00 SHORT 0
JR924 1-216-295-00 SHORT 0
JR926 1-216-295-00 SHORT 0 (EA)
JR927 1-216-295-00 SHORT 0
JR928 1-216-295-00 SHORT 0 (E, MY, SP, IA)
< COIL/SHORT >
L201 1-414-189-31 INDUCTOR 100uH
L301 1-410-780-11 INDUCTOR 27mH
L302 1-414-193-41 INDUCTOR 220uH
L303 1-414-193-41 INDUCTOR 220uH
L351 1-410-780-11 INDUCTOR 27mH
L642 1-216-296-00 SHORT 0
< LOW-PASS FILTER >
LPF601 1-234-458-11 FILTER, LOW PASS
LPF602 1-234-458-11 FILTER, LOW PASS
< TRANSISTOR >
Q101 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q102 8-729-144-85 FET 2SK1133-T1B
MAIN
74
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q103 8-729-107-45 TRANSISTOR 2SC3624A-T1L15L16
Q141 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q151 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q152 8-729-144-85 FET 2SK1133-T1B
Q153 8-729-107-45 TRANSISTOR 2SC3624A-T1L15L16
Q301 8-729-801-93 TRANSISTOR 2SD1387-34-TP
Q302 8-729-142-46 TRANSISTOR 2SC2001TP-LK
Q303 8-729-142-46 TRANSISTOR 2SC2001TP-LK
Q304 8-729-113-69 TRANSISTOR FN1F4M-T1M32
Q305 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q391 8-729-140-04 TRANSISTOR 2SB1116-TP-LK
Q392 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q393 8-729-140-04 TRANSISTOR 2SB1116-TP-LK
Q394 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q395 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q396 8-729-116-57 TRANSISTOR 2SB1068TP-K
Q397 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q501 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q503 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q504 8-729-113-69 TRANSISTOR FN1F4M-T1M32
Q505 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q601 8-729-201-27 TRANSISTOR 2SC2715Y-TE85L
Q602 8-729-422-57 TRANSISTOR BN1A4M-TP
Q611 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q612 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR
Q821 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q822 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q823 8-729-216-22 TRANSISTOR 2SA812-T1-M5M6
Q824 8-729-113-13 TRANSISTOR FA1A4M-T1L33
Q825 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q828 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q829 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q831 8-729-113-69 TRANSISTOR FN1F4M-T1M32
Q832 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6
Q861 8-729-113-69 TRANSISTOR FN1F4M-T1M32
Q862 8-729-107-45 TRANSISTOR 2SC3624A-T1L15L16
Q863 8-729-107-45 TRANSISTOR 2SC3624A-T1L15L16
Q891 8-729-140-04 TRANSISTOR 2SB1116-TP-LK
Q892 8-729-620-05 TRANSISTOR 2SC2603TP-EF
Q911 8-729-141-83 TRANSISTOR 2SB1375
Q912 8-729-113-13 TRANSISTOR FA1A4M-T1L33
< RESISTOR >
R101 1-216-049-11 RES-CHIP 1K 5% 1/10W
R103 1-216-073-00 METAL CHIP 10K 5% 1/10W
R104 1-216-073-00 METAL CHIP 10K 5% 1/10W
R105 1-216-097-00 RES-CHIP 100K 5% 1/10W
R107 1-216-105-00 RES-CHIP 220K 5% 1/10W
R108 1-216-097-00 RES-CHIP 100K 5% 1/10W
R109 1-216-073-00 METAL CHIP 10K 5% 1/10W
R110 1-216-045-00 METAL CHIP 680 5% 1/10W
R111 1-216-073-00 METAL CHIP 10K 5% 1/10W
R112 1-216-089-00 RES-CHIP 47K 5% 1/10W
R113 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R114 1-216-097-00 RES-CHIP 100K 5% 1/10W
R115 1-216-073-00 METAL CHIP 10K 5% 1/10W
R116 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R121 1-216-224-91 RES-CHIP 12K 5% 1/8W
R122 1-216-073-00 METAL CHIP 10K 5% 1/10W
R123 1-216-073-00 METAL CHIP 10K 5% 1/10W
R124 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R125 1-216-073-00 METAL CHIP 10K 5% 1/10W
R132 1-216-049-11 RES-CHIP 1K 5% 1/10W
R133 1-216-049-11 RES-CHIP 1K 5% 1/10W
R134 1-216-049-11 RES-CHIP 1K 5% 1/10W
R141 1-216-049-11 RES-CHIP 1K 5% 1/10W
R142 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R143 1-216-089-00 RES-CHIP 47K 5% 1/10W
R144 1-216-295-00 SHORT 0
R145 1-216-041-00 METAL CHIP 470 5% 1/10W
R146 1-216-041-00 METAL CHIP 470 5% 1/10W
R147 1-216-041-00 METAL CHIP 470 5% 1/10W
R151 1-216-049-11 RES-CHIP 1K 5% 1/10W
R153 1-216-073-00 METAL CHIP 10K 5% 1/10W
R154 1-216-073-00 METAL CHIP 10K 5% 1/10W
R155 1-216-097-00 RES-CHIP 100K 5% 1/10W
R157 1-216-105-00 RES-CHIP 220K 5% 1/10W
R158 1-216-097-00 RES-CHIP 100K 5% 1/10W
R159 1-216-073-00 METAL CHIP 10K 5% 1/10W
R160 1-216-045-00 METAL CHIP 680 5% 1/10W
R161 1-216-222-00 RES-CHIP 10K 5% 1/8W
R162 1-216-089-00 RES-CHIP 47K 5% 1/10W
R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R164 1-216-097-00 RES-CHIP 100K 5% 1/10W
R165 1-216-073-00 METAL CHIP 10K 5% 1/10W
R166 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R171 1-216-075-00 METAL CHIP 12K 5% 1/10W
R172 1-216-073-00 METAL CHIP 10K 5% 1/10W
R173 1-216-073-00 METAL CHIP 10K 5% 1/10W
R175 1-216-073-00 METAL CHIP 10K 5% 1/10W
R181 1-216-085-11 RES-CHIP 33K 5% 1/10W
R182 1-216-049-11 RES-CHIP 1K 5% 1/10W
R201 1-216-025-00 RES-CHIP 100 5% 1/10W
R202 1-216-085-00 METAL CHIP 33K 5% 1/10W
R203 1-216-025-00 RES-CHIP 100 5% 1/10W
R204 1-216-085-00 METAL CHIP 33K 5% 1/10W
R205 1-216-073-00 METAL CHIP 10K 5% 1/10W
R301 1-216-085-00 METAL CHIP 33K 5% 1/10W
R302 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R303 1-216-025-00 RES-CHIP 100 5% 1/10W
R304 1-216-025-00 RES-CHIP 100 5% 1/10W
R305 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R306 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R307 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R308 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R309 1-216-081-00 METAL CHIP 22K 5% 1/10W
R311 1-216-121-00 RES-CHIP 1M 5% 1/10W
R312 1-216-102-00 RES-CHIP 160K 5% 1/10W
R313 1-216-097-00 RES-CHIP 100K 5% 1/10W
R315 1-216-073-00 METAL CHIP 10K 5% 1/10W
R316 1-216-234-00 RES-CHIP 33K 5% 1/8W
R317 1-216-222-00 RES-CHIP 10K 5% 1/8W
R318 1-216-073-00 METAL CHIP 10K 5% 1/10W
R319 1-216-111-00 METAL CHIP 390K 5% 1/10W
R320 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
MAIN
75
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R321 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R331 1-216-099-00 METAL CHIP 120K 5% 1/10W
R332 1-216-025-00 RES-CHIP 100 5% 1/10W
R333 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R334 1-216-100-00 RES-CHIP 130K 5% 1/10W
R335 1-216-033-00 METAL CHIP 220 5% 1/10W
R336 1-216-099-00 METAL CHIP 120K 5% 1/10W
R337 1-216-033-00 METAL CHIP 220 5% 1/10W
R338 1-216-081-00 METAL CHIP 22K 5% 1/10W
R339 1-216-075-00 METAL CHIP 12K 5% 1/10W
R340 1-216-107-00 METAL CHIP 270K 5% 1/10W
R341 1-216-033-00 METAL CHIP 220 5% 1/10W
R342 1-216-075-00 METAL CHIP 12K 5% 1/10W
0R343 1-219-787-17 FUSIBLE 5.6 5% 1/4W F
0R344 1-219-787-17 FUSIBLE 5.6 5% 1/4W F
R345 1-216-079-00 METAL CHIP 18K 5% 1/10W
R346 1-216-079-00 METAL CHIP 18K 5% 1/10W
R347 1-216-073-00 METAL CHIP 10K 5% 1/10W
R351 1-216-085-00 METAL CHIP 33K 5% 1/10W
R352 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R353 1-216-025-00 RES-CHIP 100 5% 1/10W
R354 1-216-025-00 RES-CHIP 100 5% 1/10W
R355 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R356 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R357 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R358 1-216-071-00 METAL CHIP 8.2K 5% 1/10W
R359 1-216-085-00 METAL CHIP 33K 5% 1/10W
R360 1-216-045-00 METAL CHIP 680 5% 1/10W
R361 1-216-049-11 RES-CHIP 1K 5% 1/10W
R363 1-216-049-11 RES-CHIP 1K 5% 1/10W
R364 1-216-045-00 METAL CHIP 680 5% 1/10W
R366 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R367 1-216-089-00 RES-CHIP 47K 5% 1/10W
R368 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R369 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R371 1-216-238-91 RES-CHIP 47K 5% 1/8W
R372 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R373 1-216-049-11 RES-CHIP 1K 5% 1/10W
R374 1-216-089-00 RES-CHIP 47K 5% 1/10W
R375 1-216-094-00 RES-CHIP 75K 5% 1/10W
R376 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R377 1-216-089-00 RES-CHIP 47K 5% 1/10W
R378 1-216-094-00 RES-CHIP 75K 5% 1/10W
R381 1-216-099-00 METAL CHIP 120K 5% 1/10W
R382 1-216-025-00 RES-CHIP 100 5% 1/10W
R383 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R384 1-216-100-00 RES-CHIP 130K 5% 1/10W
R385 1-216-296-00 SHORT 0
R386 1-216-099-00 METAL CHIP 120K 5% 1/10W
R387 1-216-033-00 METAL CHIP 220 5% 1/10W
R388 1-216-081-00 METAL CHIP 22K 5% 1/10W
R389 1-216-075-00 METAL CHIP 12K 5% 1/10W
R390 1-216-107-00 METAL CHIP 270K 5% 1/10W
R391 1-216-296-00 SHORT 0
R392 1-216-075-00 METAL CHIP 12K 5% 1/10W
R393 1-216-081-00 METAL CHIP 22K 5% 1/10W
R394 1-216-033-00 METAL CHIP 220 5% 1/10W
R396 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R407 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R409 1-216-295-00 SHORT 0
R411 1-216-109-00 METAL CHIP 330K 5% 1/10W
R413 1-216-295-00 SHORT 0
R417 1-216-073-00 METAL CHIP 10K 5% 1/10W
R418 1-216-025-00 RES-CHIP 100 5% 1/10W
R420 1-216-073-00 METAL CHIP 10K 5% 1/10W
R421 1-216-025-00 RES-CHIP 100 5% 1/10W
R422 1-216-025-00 RES-CHIP 100 5% 1/10W
R429 1-216-025-00 RES-CHIP 100 5% 1/10W
R430 1-216-025-00 RES-CHIP 100 5% 1/10W
R431 1-216-089-00 RES-CHIP 47K 5% 1/10W
R434 1-216-089-00 RES-CHIP 47K 5% 1/10W
R443 1-216-025-00 RES-CHIP 100 5% 1/10W
R444 1-216-025-00 RES-CHIP 100 5% 1/10W
R445 1-216-025-00 RES-CHIP 100 5% 1/10W
R446 1-216-025-00 RES-CHIP 100 5% 1/10W
R447 1-216-025-00 RES-CHIP 100 5% 1/10W
R448 1-216-025-00 RES-CHIP 100 5% 1/10W
R449 1-216-025-00 RES-CHIP 100 5% 1/10W
R467 1-216-025-00 RES-CHIP 100 5% 1/10W
R468 1-216-025-00 RES-CHIP 100 5% 1/10W
R469 1-216-025-00 RES-CHIP 100 5% 1/10W
R483 1-216-073-00 METAL CHIP 10K 5% 1/10W
R484 1-216-073-00 METAL CHIP 10K 5% 1/10W
R490 1-216-174-00 RES-CHIP 100 5% 1/8W
R491 1-216-174-00 RES-CHIP 100 5% 1/8W
R493 1-216-174-00 RES-CHIP 100 5% 1/8W
R494 1-216-295-00 SHORT 0
R495 1-216-089-00 RES-CHIP 47K 5% 1/10W
R496 1-216-077-00 RES-CHIP 15K 5% 1/10W
R497 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
(E, MY, SP, IA)
R497 1-216-073-00 METAL CHIP 10K 5% 1/10W
(EA)
R498 1-216-089-00 RES-CHIP 47K 5% 1/10W
R499 1-216-025-00 RES-CHIP 100 5% 1/10W
R501 1-216-073-00 METAL CHIP 10K 5% 1/10W
R502 1-216-089-00 RES-CHIP 47K 5% 1/10W
R503 1-216-089-00 RES-CHIP 47K 5% 1/10W
R504 1-216-025-00 RES-CHIP 100 5% 1/10W
R505 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R506 1-216-041-00 METAL CHIP 470 5% 1/10W
R508 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R509 1-216-081-00 METAL CHIP 22K 5% 1/10W
R510 1-216-097-00 RES-CHIP 100K 5% 1/10W
R511 1-216-174-00 RES-CHIP 100 5% 1/8W
R523 1-216-073-00 METAL CHIP 10K 5% 1/10W
R524 1-216-073-00 METAL CHIP 10K 5% 1/10W
R546 1-216-073-00 METAL CHIP 10K 5% 1/10W
R547 1-216-073-00 METAL CHIP 10K 5% 1/10W
R548 1-216-073-00 METAL CHIP 10K 5% 1/10W
R566 1-216-073-00 METAL CHIP 10K 5% 1/10W
R602 1-216-029-00 METAL CHIP 150 5% 1/10W
R603 1-216-045-00 METAL CHIP 680 5% 1/10W
R604 1-216-017-00 RES-CHIP 47 5% 1/10W
R605 1-216-045-00 METAL CHIP 680 5% 1/10W
R606 1-216-037-00 METAL CHIP 330 5% 1/10W
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
MAIN
76
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R607 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R608 1-216-017-00 RES-CHIP 47 5% 1/10W
R609 1-216-295-00 SHORT 0
R610 1-216-045-00 METAL CHIP 680 5% 1/10W
R611 1-216-182-00 RES-CHIP 220 5% 1/8W
R612 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R613 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R614 1-216-041-00 METAL CHIP 470 5% 1/10W
R615 1-216-049-11 RES-CHIP 1K 5% 1/10W
R616 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R617 1-216-041-00 METAL CHIP 470 5% 1/10W
R618 1-216-049-11 RES-CHIP 1K 5% 1/10W
R619 1-216-025-00 RES-CHIP 100 5% 1/10W
R620 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R621 1-216-075-00 METAL CHIP 12K 5% 1/10W
R622 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R623 1-216-073-00 METAL CHIP 10K 5% 1/10W
R624 1-216-073-00 METAL CHIP 10K 5% 1/10W
R625 1-216-073-00 METAL CHIP 10K 5% 1/10W
R641 1-216-097-00 RES-CHIP 100K 5% 1/10W
R642 1-216-073-00 METAL CHIP 10K 5% 1/10W
R655 1-216-073-00 METAL CHIP 10K 5% 1/10W
R656 1-216-222-00 RES-CHIP 10K 5% 1/8W
R658 1-216-174-00 RES-CHIP 100 5% 1/8W
R659 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R660 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R661 1-216-025-00 RES-CHIP 100 5% 1/10W
R662 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R663 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R664 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R665 1-216-025-00 RES-CHIP 100 5% 1/10W
R666 1-216-073-00 METAL CHIP 10K 5% 1/10W
R667 1-216-222-00 RES-CHIP 10K 5% 1/8W
R668 1-216-049-11 RES-CHIP 1K 5% 1/10W
R669 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R804 1-216-089-00 RES-CHIP 47K 5% 1/10W
R820 1-216-049-11 RES-CHIP 1K 5% 1/10W
R821 1-216-238-91 RES-CHIP 47K 5% 1/8W
R822 1-216-240-00 RES-CHIP 56K 5% 1/8W
R823 1-216-222-00 RES-CHIP 10K 5% 1/8W
R824 1-216-089-00 METAL CHIP 47K 5% 1/10W
R825 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R826 1-216-085-00 METAL CHIP 33K 5% 1/10W
R827 1-216-081-00 METAL CHIP 22K 5% 1/10W
R829 1-216-230-00 RES-CHIP 22K 5% 1/8W
R830 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R831 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R832 1-216-097-00 RES-CHIP 100k 5% 1/10W
R841 1-216-081-00 METAL CHIP 22K 5% 1/10W
R842 1-216-081-00 METAL CHIP 22K 5% 1/10W
R843 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R844 1-216-097-00 RES-CHIP 100K 5% 1/10W
R845 1-216-121-00 RES-CHIP 1M 5% 1/10W
R854 1-216-089-00 RES-CHIP 47K 5% 1/10W
R861 1-216-049-11 RES-CHIP 1K 5% 1/10W
R862 1-216-073-00 METAL CHIP 10K 5% 1/10W
R863 1-216-089-00 RES-CHIP 47K 5% 1/10W
R864 1-216-049-11 RES-CHIP 1K 5% 1/10W
R865 1-216-049-11 RES-CHIP 1K 5% 1/10W
R866 1-216-019-00 METAL CHIP 56 5% 1/10W
0R868 1-215-891-11 METAL OXIDE 680 5% 2W F
0R869 1-215-891-11 METAL OXIDE 680 5% 2W F
R891 1-216-222-00 RES-CHIP 10K 5% 1/8W
R892 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R893 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R901 1-249-405-11 CARBON 100 5% 1/4W
R911 1-216-059-00 METAL CHIP 2.7K 5% 1/10W
R912 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R914 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
0R915 1-219-591-11 FUSIBLE 0.1 5% 1/2W F
0R916 1-219-119-11 FUSIBLE 0.1 5% 1/4W F
R966 1-216-019-00 METAL CHIP 56 5% 1/10W
< ENCAPSULATED COMPONENT >
RB641 1-234-457-11 ENCAPSULATED COMPONENT
(AM FRONT-END)
< VARIABLE RESISTOR >
RV301 1-241-764-11 RES, ADJ, CARBON 10K
RV302 1-241-762-11 RES, ADJ, CARBON 2.2K
RV303 1-241-762-11 RES, ADJ, CARBON 2.2K
RV304 1-241-768-11 RES, ADJ, CARBON 220K
RV351 1-241-764-11 RES, ADJ, CARBON 10K
RV352 1-241-762-11 RES, ADJ, CARBON 2.2K
RV353 1-241-762-11 RES, ADJ, CARBON 2.2K
RV354 1-241-768-11 RES, ADJ, CARBON 220K
RV611 1-241-765-11 RES, ADJ, CARBON 22K
< RELAY >
RY801 1-755-372-11 RELAY
< TRANSFORMER >
T301 1-423-980-11 TRANSFORMER, BIAS OSCILLATION
T601 1-435-195-11 TRANSFORMER, DISCRIMINATOR
< TERMINAL >
TM601 1-694-555-11 TERMINAL BOARD (4P) (ANTENNA)
TM801 1-694-635-11 TERMINAL BOARD (4P)
(SPEAKER, IMPEDANCE USE 6-16Ω)
< VIBRATOR >
X401 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)
X402 1-781-107-21 VIBRATOR, CERAMIC (16MHz)
X651 1-760-549-31 VIBRATOR, CRYSTAL (4.5MHz)
**************************************************************
1-675-910-11 MOTOR BOARD
*************
< CAPACITOR >
C721 1-162-306-11 CERAMIC 0.01uF 30% 16V
< CONNECTOR >
CN721 1-770-516-31 CONNECTOR, FFC 8P
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
MAIN MOTOR
77
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CN722 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE) 4P
< SWITCH >
S701 1-771-822-11 SWITCH, LEVER (SLIDE) (OPEN/CLOSE)
**************************************************************
A-4473-076-A PANEL BOARD, COMPLETE (E, EA, MY, SP)
A-4473-525-A PANEL BOARD, COMPLETE (IA)
***********************
4-224-584-01 HOLDER (FL)
< CAPACITOR >
C601 1-124-589-11 ELECT 47uF 20% 16V
C602 1-126-163-11 ELECT 4.7uF 20% 50V
C603 1-162-306-11 CERAMIC 0.01uF 30% 16V
C604 1-162-294-31 CERAMIC 0.001uF 10% 50V
C605 1-162-306-11 CERAMIC 0.01uF 30% 16V
C606 1-162-294-31 CERAMIC 0.001uF 10% 50V
C607 1-104-664-11 ELECT 47uF 20% 10V
C608 1-162-306-11 CERAMIC 0.01uF 30% 16V
C609 1-162-306-11 CERAMIC 0.01uF 30% 16V
C610 1-126-157-11 ELECT 10uF 20% 16V
C611 1-126-157-11 ELECT 10uF 20% 16V
C612 1-162-303-11 CERAMIC 0.0033uF 30% 16V
C613 1-126-157-11 ELECT 10uF 20% 16V
C614 1-126-157-11 ELECT 10uF 20% 16V
C615 1-126-963-11 ELECT 4.7uF 20% 50V
C616 1-162-306-11 CERAMIC 0.01uF 30% 16V
C617 1-162-294-31 CERAMIC 0.001uF 10% 50V
C620 1-126-933-11 ELECT 100uF 20% 16V
C621 1-104-664-11 ELECT 47uF 20% 16V
C631 1-162-294-31 CERAMIC 0.001uF 10% 50V
C632 1-162-294-31 CERAMIC 0.001uF 10% 50V
C651 1-164-159-11 CERAMIC 0.1uF 50V
C652 1-126-960-11 ELECT 1uF 20% 50V
C653 1-126-960-11 ELECT 1uF 20% 50V
C654 1-164-159-11 CERAMIC 0.1uF 50V
C655 1-162-282-31 CERAMIC 100PF 10% 50V
C656 1-162-282-31 CERAMIC 100PF 10% 50V
C657 1-162-282-31 CERAMIC 100PF 10% 50V
C658 1-162-282-31 CERAMIC 100PF 10% 50V
C659 1-162-282-31 CERAMIC 100PF 10% 50V
C660 1-162-282-31 CERAMIC 100PF 10% 50V
C661 1-162-282-31 CERAMIC 100PF 10% 50V
C662 1-162-282-31 CERAMIC 100PF 10% 50V
C663 1-162-282-31 CERAMIC 100PF 10% 50V
C664 1-162-282-31 CERAMIC 100PF 10% 50V
C665 1-162-282-31 CERAMIC 100PF 10% 50V
C666 1-162-282-31 CERAMIC 100PF 10% 50V
C667 1-162-282-31 CERAMIC 100PF 10% 50V
C668 1-162-282-31 CERAMIC 100PF 10% 50V
C669 1-162-282-31 CERAMIC 100PF 10% 50V
C670 1-162-282-31 CERAMIC 100PF 10% 50V
C671 1-162-282-31 CERAMIC 100PF 10% 50V
C717 1-126-157-11 ELECT 10uF 20% 16V
C718 1-126-157-11 ELECT 10uF 20% 16V
C719 1-126-961-11 ELECT 2.2uF 20% 50V
C720 1-164-159-11 CERAMIC 0.1uF 50V
C721 1-162-294-31 CERAMIC 0.001uF 10% 50V
C722 1-162-305-11 CERAMIC 0.0068uF 30% 16V
C723 1-126-960-11 ELECT 1uF 20% 50V
C724 1-136-495-11 MYLAR 0.068uF 5% 50V
C725 1-126-959-11 ELECT 0.47uF 20% 50V
C726 1-124-465-00 ELECT 0.47uF 20% 50V
C727 1-136-167-00 MYLAR 0.15uF 5% 50V
C728 1-162-294-31 CERAMIC 0.001uF 10% 50V
C729 1-126-960-11 ELECT 1uF 20% 50V
C730 1-161-494-00 CERAMIC 0.022uF 25V
C731 1-162-305-11 CERAMIC 0.0068uF 30% 16V
C732 1-136-495-11 MYLAR 0.068uF 5% 50V
C733 1-104-664-11 ELECT 47uF 20% 10V
C734 1-124-589-11 ELECT 47uF 20% 16V
C735 1-124-257-00 ELECT 2.2uF 20% 50V
C736 1-126-964-11 ELECT 10uF 20% 50V
C737 1-126-964-11 ELECT 10uF 20% 50V
C738 1-126-961-11 ELECT 2.2uF 20% 50V
C739 1-162-215-31 CERAMIC 47PF 5% 50V
C740 1-162-282-31 CERAMIC 100PF 10% 50V
C741 1-124-463-00 ELECT 0.1uF 20% 50V
C742 1-162-215-31 CERAMIC 47PF 5% 50V
C743 1-162-290-31 CERAMIC 470PF 10% 50V
C744 1-162-294-31 CERAMIC 0.001uF 10% 50V
C745 1-126-961-11 ELECT 2.2uF 20% 50V
C746 1-162-306-11 CERAMIC 0.01uF 30% 16V
C747 1-126-961-11 ELECT 2.2uF 20% 50V
C748 1-162-306-11 CERAMIC 0.01uF 30% 16V
C749 1-162-306-11 CERAMIC 0.01uF 30% 16V
C750 1-162-282-31 CERAMIC 100PF 10% 50V
C751 1-162-282-31 CERAMIC 100PF 10% 50V
C752 1-162-282-31 CERAMIC 100PF 10% 50V
C753 1-162-282-31 CERAMIC 100PF 10% 50V
C754 1-162-282-31 CERAMIC 100PF 10% 50V
C755 1-162-282-31 CERAMIC 100PF 10% 50V
C756 1-162-282-31 CERAMIC 100PF 10% 50V
C757 1-162-282-31 CERAMIC 100PF 10% 50V
C758 1-162-282-31 CERAMIC 100PF 10% 50V
C759 1-162-282-31 CERAMIC 100PF 10% 50V
C760 1-162-282-31 CERAMIC 100PF 10% 50V
C761 1-162-282-31 CERAMIC 100PF 10% 50V
C762 1-162-282-31 CERAMIC 100PF 10% 50V
C763 1-162-282-31 CERAMIC 100PF 10% 50V
C764 1-162-282-31 CERAMIC 100PF 10% 50V
C765 1-162-282-31 CERAMIC 100PF 10% 50V
C766 1-162-282-31 CERAMIC 100PF 10% 50V
C767 1-162-282-31 CERAMIC 100PF 10% 50V
C768 1-162-282-31 CERAMIC 100PF 10% 50V
C769 1-162-282-31 CERAMIC 100PF 10% 50V
C770 1-162-282-31 CERAMIC 100PF 10% 50V
C771 1-162-282-31 CERAMIC 100PF 10% 50V
C772 1-162-282-31 CERAMIC 100PF 10% 50V
C773 1-162-282-31 CERAMIC 100PF 10% 50V
C774 1-162-282-31 CERAMIC 100PF 10% 50V
C775 1-162-282-31 CERAMIC 100PF 10% 50V
C776 1-162-282-31 CERAMIC 100PF 10% 50V
C777 1-162-282-31 CERAMIC 100PF 10% 50V
MOTOR PANEL
78
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C778 1-162-282-31 CERAMIC 100PF 10% 50V
C779 1-162-282-31 CERAMIC 100PF 10% 50V
C780 1-162-282-31 CERAMIC 100PF 10% 50V
C781 1-162-282-31 CERAMIC 100PF 10% 50V
C782 1-162-282-31 CERAMIC 100PF 10% 50V
C783 1-162-282-31 CERAMIC 100PF 10% 50V
C784 1-162-282-31 CERAMIC 100PF 10% 50V
< CONNECTOR >
CN601 1-793-767-11 CONNECTOR, BOARD TO BOARD 30P
< DIODE >
D601 8-719-057-30 LED HLMF-K205-2UL (`/1)
D602 8-719-063-93 LED SLR325VC-N-T32 (TIMER)
D603 8-719-921-48 DIODE MTZJ-T-72-5.6C
D605 8-719-109-85 DIODE MTZJ-T-72-5.1B
D611 8-719-071-41 LED SELS5923C-TP15 (GROOVE)
D612 8-719-071-41 LED SELS5923C-TP15 (CURSOL)
D613 8-719-071-41 LED SELS5923C-TP15 (CURSOL)
D614 8-719-071-41 LED SELS5923C-TP15 (V-GROOVE)
D615 8-719-072-82 LED SELU5E20C-STP15 (FUNCTION)
D617 8-719-063-93 LED SLR325VC-N-T32 (REC PAUSE/START)
D618 8-719-071-41 LED SELS5923C-TP15 (SURROUND)
< INDUCTOR >
FB601 1-412-473-21 INDUCTOR 0uH
FB602 1-412-473-21 INDUCTOR 0uH
FB603 1-412-473-21 INDUCTOR 0uH
< FLUORESCENT INDICATOR TUBE >
FL601 1-517-928-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC601 8-759-652-49 IC TMP88CP77F-1A22
IC602 8-759-570-21 IC BA3830F-E2
IC603 8-759-648-23 IC RPM6940-H4
IC721 8-759-496-40 IC M65850FP
IC722 8-759-634-51 IC M5218AP
< JACK >
J631 1-785-569-11 JACK (SMALL TYPE) (PHONES)
J721 1-785-569-11 JACK (SMALL TYPE) (MIC1)
J722 1-785-569-11 JACK (SMALL TYPE) (MIC2)
< COIL >
L601 1-410-509-11 INDUCTOR 10uH
< TRANSISTOR >
Q604 8-729-900-80 TRANSISTOR BA1A4M-TP
Q605 8-729-900-80 TRANSISTOR BA1A4M-TP
Q606 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q607 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q608 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q609 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q610 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q611 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q612 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q613 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q614 8-729-900-74 TRANSISTOR BA1L3Z-TP
Q615 8-729-111-29 TRANSISTOR 2SD1616A-TP-LK
Q621 8-729-900-80 TRANSISTOR BA1A4M-TP
Q622 8-729-900-80 TRANSISTOR BA1A4M-TP
Q623 8-729-900-80 TRANSISTOR BA1A4M-TP
Q624 8-729-900-80 TRANSISTOR BA1A4M-TP
Q625 8-729-900-80 TRANSISTOR BA1A4M-TP
Q626 8-729-900-80 TRANSISTOR BA1A4M-TP
Q721 8-729-119-79 TRANSISTOR 2SC2785TP-FEK
< RESISTOR >
R603 1-249-429-11 CARBON 10K 5% 1/4W
R604 1-247-807-31 CARBON 100 5% 1/4W
R605 1-247-903-00 CARBON 1M 5% 1/4W
R606 1-247-807-31 CARBON 100 5% 1/4W
R607 1-249-429-11 CARBON 10K 5% 1/4W
R608 1-247-807-31 CARBON 100 5% 1/4W
R609 1-249-429-11 CARBON 10K 5% 1/4W
R610 1-247-807-31 CARBON 100 5% 1/4W
R611 1-249-429-11 CARBON 10K 5% 1/4W
R612 1-249-401-11 CARBON 47 5% 1/4W
R613 1-247-893-11 CARBON 390K 5% 1/4W
R614 1-247-893-11 CARBON 390K 5% 1/4W
R615 1-249-441-11 CARBON 100K 5% 1/4W
R616 1-249-440-11 CARBON 82K 5% 1/4W
R617 1-249-429-11 CARBON 10K 5% 1/4W
R618 1-249-441-11 CARBON 100K 5% 1/4W
R619 1-249-441-11 CARBON 100K 5% 1/4W
R620 1-249-437-11 CARBON 47K 5% 1/4W
R621 1-249-440-11 CARBON 82K 5% 1/4W
R622 1-249-429-11 CARBON 10K 5% 1/4W
R623 1-249-431-11 CARBON 15K 5% 1/4W
R625 1-249-435-11 CARBON 33K 5% 1/4W
R626 1-247-895-00 CARBON 470K 5% 1/4W
R632 1-249-429-11 CARBON 10K 5% 1/4W
R633 1-249-411-11 CARBON 330 5% 1/4W
R634 1-249-407-11 CARBON 150 5% 1/4W
R635 1-249-401-11 CARBON 47 5% 1/4W
R636 1-249-441-11 CARBON 100K 5% 1/4W
R637 1-249-441-11 CARBON 100K 5% 1/4W
R638 1-249-441-11 CARBON 100K 5% 1/4W
R639 1-249-441-11 CARBON 100K 5% 1/4W
R640 1-249-441-11 CARBON 100K 5% 1/4W
R641 1-249-441-11 CARBON 100K 5% 1/4W
R642 1-249-441-11 CARBON 100K 5% 1/4W
R643 1-249-441-11 CARBON 100K 5% 1/4W
R644 1-249-441-11 CARBON 100K 5% 1/4W
R651 1-249-429-11 CARBON 10K 5% 1/4W
R652 1-249-410-11 CARBON 270 5% 1/4W
R653 1-249-411-11 CARBON 330 5% 1/4W
R654 1-249-413-11 CARBON 470 5% 1/4W
R655 1-249-415-11 CARBON 680 5% 1/4W
R656 1-249-417-11 CARBON 1K 5% 1/4W
R657 1-249-418-11 CARBON 1.2K 5% 1/4W
R658 1-249-418-11 CARBON 1.2K 5% 1/4W
R659 1-249-417-11 CARBON 1K 5% 1/4W
PANEL
79
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R660 1-249-420-11 CARBON 1.8K 5% 1/4W
R661 1-247-843-11 CARBON 3.3K 5% 1/4W
R662 1-249-425-11 CARBON 4.7K 5% 1/4W
R663 1-249-427-11 CARBON 6.8K 5% 1/4W
R664 1-249-429-11 CARBON 10K 5% 1/4W
R665 1-249-410-11 CARBON 270 5% 1/4W
R666 1-249-411-11 CARBON 330 5% 1/4W
R667 1-249-413-11 CARBON 470 5% 1/4W
R668 1-249-414-11 CARBON 560 5% 1/4W
R669 1-249-414-11 CARBON 560 5% 1/4W
R670 1-249-415-11 CARBON 680 5% 1/4W
R671 1-249-422-11 CARBON 2.7K 5% 1/4W
R672 1-249-420-11 CARBON 1.8K 5% 1/4W
R673 1-249-422-11 CARBON 2.7K 5% 1/4W
R674 1-247-843-11 CARBON 3.3K 5% 1/4W
R675 1-249-425-11 CARBON 4.7K 5% 1/4W
R676 1-249-427-11 CARBON 6.8K 5% 1/4W
R677 1-249-429-11 CARBON 10K 5% 1/4W
R678 1-249-432-11 CARBON 18K 5% 1/4W
R679 1-249-429-11 CARBON 10K 5% 1/4W
R680 1-249-410-11 CARBON 270 5% 1/4W
R681 1-249-411-11 CARBON 330 5% 1/4W
R682 1-249-413-11 CARBON 470 5% 1/4W
R683 1-249-414-11 CARBON 560 5% 1/4W
R684 1-249-415-11 CARBON 680 5% 1/4W
R693 1-249-429-11 CARBON 10K 5% 1/4W
R694 1-249-429-11 CARBON 10K 5% 1/4W
R695 1-249-429-11 CARBON 10K 5% 1/4W
R696 1-249-429-11 CARBON 10K 5% 1/4W
R701 1-249-410-11 CARBON 270 5% 1/4W
R702 1-249-408-11 CARBON 180 5% 1/4W
R703 1-249-410-11 CARBON 270 5% 1/4W
R704 1-249-411-11 CARBON 330 5% 1/4W
R705 1-249-410-11 CARBON 270 5% 1/4W
R706 1-249-410-11 CARBON 270 5% 1/4W
R721 1-260-099-11 CARBON 1K 5% 1/2W
R722 1-260-100-11 CARBON 1.2K 5% 1/2W
R723 1-249-433-11 CARBON 22K 5% 1/4W
R724 1-249-433-11 CARBON 22K 5% 1/4W
R725 1-249-433-11 CARBON 22K 5% 1/4W
R726 1-249-437-11 CARBON 47K 5% 1/4W
R727 1-249-433-11 CARBON 22K 5% 1/4W
R728 1-249-429-11 CARBON 10K 5% 1/4W
R729 1-249-433-11 CARBON 22K 5% 1/4W
R730 1-249-433-11 CARBON 22K 5% 1/4W
R731 1-247-881-00 CARBON 120K 5% 1/4W
R732 1-249-417-11 CARBON 1K 5% 1/4W
R733 1-249-429-11 CARBON 10K 5% 1/4W
R734 1-247-807-31 CARBON 100 5% 1/4W
R735 1-247-885-00 CARBON 180K 5% 1/4W
R736 1-249-429-11 CARBON 10K 5% 1/4W
R737 1-249-437-11 CARBON 47K 5% 1/4W
R738 1-249-417-11 CARBON 1K 5% 1/4W
R739 1-249-441-11 CARBON 100K 5% 1/4W
R740 1-249-417-11 CARBON 1K 5% 1/4W
R741 1-249-429-11 CARBON 10K 5% 1/4W
R742 1-249-417-11 CARBON 1K 5% 1/4W
R744 1-249-441-11 CARBON 100K 5% 1/4W
R745 1-247-807-31 CARBON 100 5% 1/4W
R746 1-249-417-11 CARBON 1K 5% 1/4W
R747 1-260-093-11 CARBON 330 5% 1/2W
< VARIABLE RESISTOR >
RV721 1-225-739-11 RES, VAR CARBON 50K (ECHO LEVEL)
RV722 1-225-739-11 RES, VAR CARBON 50K (MIC LEVEL)
< SWITCH >
S601 1-418-725-11 ENCODER, ROTARY (12 TYPE) (VOLUMUE)
S611 1-771-410-21 SWITCH, TACTILE (f)
S612 1-771-410-21 SWITCH, TACTILE (F)
S613 1-771-410-21 SWITCH, TACTILE (V-GROOVE)
S614 1-771-410-21 SWITCH, TACTILE (KARAOKE PON)
S615 1-771-410-21 SWITCH, TACTILE (CD SYNC/HI-DUB)
S616 1-771-410-21 SWITCH, TACTILE (REC PAUSE/START)
S617 1-771-410-21 SWITCH, TACTILE (ENTER)
S618 1-771-410-21 SWITCH, TACTILE (M)
S619 1-771-410-21 SWITCH, TACTILE (> +)
S620 1-771-410-21 SWITCH, TACTILE (X)
S621 1-771-410-21 SWITCH, TACTILE (– .)
S622 1-771-410-21 SWITCH, TACTILE (PICTURE EFFECT)
S623 1-771-410-21 SWITCH, TACTILE (g)
S624 1-771-410-21 SWITCH, TACTILE (G)
S625 1-771-410-21 SWITCH, TACTILE (TAPE A/B)
S626 1-771-410-21 SWITCH, TACTILE (x)
S627 1-771-410-21 SWITCH, TACTILE (CD)
S628 1-771-410-21 SWITCH, TACTILE (TUNER/BAND)
S629 1-771-410-21 SWITCH, TACTILE (hH)
S630 1-771-410-21 SWITCH, TACTILE (MD (VIDEO))
S631 1-771-410-21 SWITCH, TACTILE (m)
S632 1-771-410-21 SWITCH, TACTILE (CHINEMA)
S633 1-771-410-21 SWITCH, TACTILE (DIRECTION)
S634 1-771-410-21 SWITCH, TACTILE (REPEAT, DOLBY NR)
S635 1-771-410-21 SWITCH, TACTILE
(PLAY MODE, STEREO MODE)
S636 1-771-410-21 SWITCH, TACTILE (EDIT, TUNER MEMORY)
S637 1-771-410-21 SWITCH, TACTILE (`/1)
S638 1-771-410-21 SWITCH, TACTILE (GROOVE)
S639 1-771-410-21 SWITCH, TACTILE (EQ EDIT)
S640 1-771-410-21 SWITCH, TACTILE (SPECTRUM)
S641 1-771-410-21 SWITCH, TACTILE (DISPLAY)
< VIBRATOR >
X601 1-579-352-11 VIBRATOR, CERAMIC (12.5MHz)
**************************************************************
A-4428-344-A POWER AMP BOARD, COMPLETE (IA)
A-4428-483-A POWER AMP BOARD, COMPLETE
(E, EA, MY, SP)
***************************
< CAPACITOR >
C501 1-126-963-11 ELECT 4.7uF 20% 50V
C502 1-162-294-31 CERAMIC 0.001uF 10% 50V
C503 1-162-286-31 CERAMIC 220PF 10% 50V
C504 1-104-665-11 ELECT 100uF 20% 10V
C507 1-136-495-11 MYLAR 0.068uF 5% 50V
PANEL POWER AMP
80
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C508 1-136-495-11 MYLAR 0.068uF 5% 50V
C509 1-128-560-11 ELECT 22uF 20% 100V
C510 1-128-578-11 ELECT 1uF 20% 100V
C511 1-162-306-11 CERAMIC 0.01uF 30% 16V
C541 1-130-777-00 MYLAR 0.1uF 5% 100V
C542 1-127-752-11 ELECT 3300uF 20% 63V
C544 1-130-777-00 MYLAR 0.1uF 5% 100V
C545 1-130-777-00 MYLAR 0.1uF 5% 100V
C546 1-127-755-11 ELECT 3300uF 20% 100V
C551 1-126-963-11 ELECT 4.7uF 20% 50V
C552 1-162-294-31 CERAMIC 0.001uF 10% 50V
C553 1-162-286-31 CERAMIC 220PF 10% 50V
C554 1-104-665-11 ELECT 100uF 20% 10V
C557 1-136-495-11 MYLAR 0.068uF 5% 50V
C558 1-136-495-11 MYLAR 0.068uF 5% 50V
C559 1-128-560-11 ELECT 22uF 20% 100V
C581 1-126-967-11 ELECT 47uF 20% 50V
C591 1-130-777-00 MYLAR 0.1uF 5% 100V
C592 1-127-752-11 ELECT 3300uF 20% 63V
C596 1-127-755-11 ELECT 3300uF 20% 100V
C942 1-126-964-11 ELECT 10uF 20% 50V
C943 1-126-968-11 ELECT 100uF 20% 50V
C980 1-164-159-11 CERAMIC 0.1uF 50V
< CONNECTOR >
CN502 1-778-981-11 CONNECTOR, BOARD TO BOARD 13P
CN503 1-778-981-11 CONNECTOR, BOARD TO BOARD 13P
< DIODE >
D501 8-719-911-19 DIODE 1SS133T-72
D502 8-719-911-19 DIODE 1SS133T-72
D503 8-719-922-03 DIODE MTZJ-T-77-18C
D504 8-719-922-03 DIODE MTZJ-T-77-18C
D541 8-719-302-38 DIODE RBV-602-01
D543 8-719-302-37 DIODE RBV-602
D551 8-719-911-19 DIODE 1SS133T-72
D581 8-719-911-19 DIODE 1SS133T-72
D941 8-719-110-90 DIODE MTZJ-T-77-39D
D979 8-719-110-31 DIODE MTZJ-T-72-12B
< EARTH TERMINAL >
*EP501 1-537-738-21 TERMINAL, EARTH
< IC >
IC501 8-749-017-06 IC STK412-150
< TRANSISTOR >
Q501 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q503 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA
Q504 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q505 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q506 8-729-119-79 TRANSISTOR 2SC2785TP-FEK
Q551 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q581 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA
Q941 8-729-048-52 TRANSISTOR 2SA1932 (TP)
Q942 8-729-119-76 TRANSISTOR 2SA1175TP-HFE
< RESISTOR >
R501 1-249-417-11 CARBON 1K 5% 1/4W
R502 1-249-438-11 CARBON 56K 5% 1/4W
R503 1-249-412-11 CARBON 390 5% 1/4W
R504 1-249-438-11 CARBON 56K 5% 1/4W
R505 1-249-417-11 CARBON 1K 5% 1/4W
R506 1-249-431-11 CARBON 15K 5% 1/4W
R507 1-249-441-11 CARBON 100K 5% 1/4W
0R508 1-219-718-11 METAL 0.1 10% 5W F
R509 1-260-076-11 CARBON 10 5% 1/2W
0R510 1-219-718-11 METAL 0.1 10% 5W F
0R511 1-212-881-11 FUSIBLE 100 5% 1/4W F
0R512 1-202-972-61 FUSIBLE 1 5% 1/4W F
R513 1-249-435-11 CARBON 33K 5% 1/4W
R514 1-249-421-11 CARBON 2.2K 5% 1/4W
R515 1-249-433-11 CARBON 22K 5% 1/4W
R516 1-249-429-11 CARBON 10K 5% 1/4W
R517 1-249-421-11 CARBON 2.2K 5% 1/4W
R518 1-249-435-11 CARBON 33K 5% 1/4W
R519 1-249-439-11 CARBON 68K 5% 1/4W
0R520 1-215-872-11 METAL OXIDE 3.3K 5% 1W F
R521 1-249-441-11 CARBON 100K 5% 1/4W
R522 1-249-441-11 CARBON 100K 5% 1/4W
R523 1-249-441-11 CARBON 100K 5% 1/4W
0R524 1-215-872-11 METAL OXIDE 3.3K 5% 1W F
R541 1-249-441-11 CARBON 100K 5% 1/4W
R542 1-249-441-11 CARBON 100K 5% 1/4W
R551 1-249-417-11 CARBON 1K 5% 1/4W
R552 1-249-438-11 CARBON 56K 5% 1/4W
R553 1-249-412-11 CARBON 390 5% 1/4W
R554 1-249-438-11 CARBON 56K 5% 1/4W
R555 1-249-417-11 CARBON 1K 5% 1/4W
R556 1-249-431-11 CARBON 15K 5% 1/4W
R557 1-249-441-11 CARBON 100K 5% 1/4W
0R558 1-219-718-11 METAL 0.1 10% 5W F
R559 1-260-076-11 CARBON 10 5% 1/2W
0R560 1-219-718-11 METAL 0.1 10% 5W F
0R561 1-212-881-11 FUSIBLE 100 5% 1/4W F
R581 1-249-435-11 CARBON 33K 5% 1/4W
R582 1-249-435-11 CARBON 33K 5% 1/4W
R591 1-249-441-11 CARBON 100K 5% 1/4W
R592 1-249-441-11 CARBON 100K 5% 1/4W
0R941 1-216-478-11 METAL OXIDE 390 5% 3W F
R942 1-249-429-11 CARBON 10K 5% 1/4W
R943 1-249-417-11 CARBON 1K 5% 1/4W
R944 1-247-791-91 CARBON 22 5% 1/4W
R980 1-249-429-11 CARBON 10K 5% 1/4W
< THERMISTOR >
TH501 1-807-796-11 THERMISTOR
**************************************************************
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
POWER AMP
81
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1-675-911-11 SENSOR BOARD
**************
< CAPACITOR >
C712 1-164-159-11 CERAMIC 0.1uF 50V
< PHOTO INTERRUPTER >
IC711 8-749-014-38 PHOTO INTERRUPTER SG-264
< RESISTOR >
R711 1-247-876-11 CARBON 75K 5% 1/4W
R712 1-249-409-11 CARBON 220 5% 1/4W
R713 1-249-429-11 CARBON 10K 5% 1/4W
< SWITCH >
S711 1-771-821-11 SWITCH, PUSH (1 KEY) (BU UP/DOWN)
**************************************************************
1-676-808-11 TRANS BOARD
*************
1-533-293-11 FUSE HOLDER
< CAPACITOR >
0C972 1-113-925-11 CERAMIC 0.01uF 20% 250V
(E, EA, MY, SP)
< CONNECTOR >
CN975 1-564-321-00 PIN, CONNECTOR 2P
*CN977 1-564-528-11 PLUG, CONNECTOR 13P
< FUSE >
0F971 1-532-506-31 FUSE (T6.3AL/250)
0F974 1-532-506-31 FUSE (T6.3AL/250)
0F975 1-532-506-31 FUSE (T6.3AL/250)
0F976 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250)
0F977 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250)
< RESISTOR >
0R952 1-219-120-11 FUSIBLE 0.15 5% 1/4W F
0R953 1-219-120-11 FUSIBLE 0.15 5% 1/4W F
< SWITCH >
0S951 1-771-291-11 SWITCH, POWER (VOLTAGE SELECTOR)
< TRANSFORMER >
0T971 1-435-325-11 POWER TRANSFORMER
**************************************************************
A-4724-973-A VIDEO BOARD, COMPLETE
**********************
< CAPACITOR >
C101 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C102 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V
C103 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C201 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C202 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V
C203 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C304 1-163-127-00 CERAMIC CHIP 270PF 5% 50V
C305 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C306 1-163-127-00 CERAMIC CHIP 270PF 5% 50V
C307 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C308 1-163-263-11 CERAMIC CHIP 330PF 5% 50V
C309 1-163-263-11 CERAMIC CHIP 330PF 5% 50V
C310 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C311 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C312 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C313 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C314 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C315 1-163-255-11 CERAMIC CHIP 150PF 5% 50V
C316 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C317 1-126-193-11 ELECT 1uF 20% 50V
C318 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C319 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C320 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C321 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C322 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C323 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C324 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C325 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C401 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C402 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C504 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C505 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C506 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C507 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C508 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C509 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C510 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C531 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C532 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C535 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C536 1-126-193-11 ELECT 1uF 20% 50V
C537 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C539 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C540 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C541 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C542 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C543 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C544 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C545 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C546 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C547 1-126-193-11 ELECT 1uF 20% 50V
C548 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C549 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C550 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C551 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C552 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C553 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C555 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C556 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C559 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C561 1-163-089-00 CERAMIC CHIP 6PF 50V
C563 1-165-319-11 CERAMIC CHIP 0.1uF 50V
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
SENSOR TRANS VIDEO
82
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C564 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C565 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C566 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C568 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C569 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C570 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C571 1-128-065-11 ELECT CHIP 68uF 20% 10V
C573 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C574 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C576 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C577 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
< CONNECTOR >
CN501 1-779-343-21 CONNECTOR, FFC/FPC 23P
CN502 1-779-416-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P
< TRIMMER >
CT503 1-141-539-11 CAP, ADJ 10PF
< DIODE >
D501 8-719-422-12 DIODE UDZ-TE-17-3.9B
< IC >
IC101 8-759-701-40 IC NJM2100M (TE2)
IC301 8-759-530-30 IC TC74VHCU04FT (EL)
IC302 8-759-662-94 IC NJM2255M (TE2)
IC303 8-759-711-47 IC NJM2209M (TE2)
IC304 8-759-662-95 IC BA7665FS-E2
IC501 8-759-530-30 IC TC74VHCU04FT (EL)
IC502 8-759-663-01 IC M30620MCA-A34FP
IC504 8-759-530-30 IC TC74VHCU04FT (EL)
IC505 8-759-535-48 IC CL680T-D1
IC506 8-759-677-67 IC LC372100PM-K98-TLA
IC507 8-759-342-01 IC MSM514260C-60JS
IC509 8-759-535-62 IC PCM1727E-2/T2
< JACK >
J301 1-537-943-11 TERMINAL, S (S VIDEO OUT)
J302 1-774-227-11 JACK, PIN 1P (VIDEO OUT)
< RESISTOR >
JW101 1-216-295-00 SHORT 0
JW201 1-216-295-00 SHORT 0
JW301 1-216-295-00 SHORT 0
JW302 1-216-025-00 RES-CHIP 100 5% 1/10W
JW304 1-216-295-00 SHORT 0
JW413 1-216-295-00 SHORT 0
JW504 1-216-295-00 SHORT 0
JW505 1-216-295-00 SHORT 0
JW513 1-216-295-00 SHORT 0
< COIL/SHORT >
L301 1-410-372-21 INDUCTOR CHIP 1.8uH
L302 1-410-372-21 INDUCTOR CHIP 1.8uH
L303 1-410-658-31 INDUCTOR CHIP 220uH
L501 1-216-296-00 SHORT 0
L502 1-216-296-00 SHORT 0
L504 1-410-375-11 INDUCTOR CHIP 3.3uH
L505 1-216-296-00 SHORT 0
L506 1-216-296-00 SHORT 0
L507 1-216-296-00 SHORT 0
L508 1-216-296-00 SHORT 0
L509 1-216-296-00 SHORT 0
L510 1-216-296-00 SHORT 0
L511 1-469-705-21 INDUCTOR 0uH
L512 1-469-705-21 INDUCTOR 0uH
L513 1-469-705-21 INDUCTOR 0uH
< TRANSISTOR >
Q501 8-729-900-53 TRANSISTOR DTC114EKA-T146
Q502 8-729-900-53 TRANSISTOR DTC114EKA-T146
Q531 8-729-140-75 TRANSISTOR 2SD999-T1-CLCK
< RESISTOR >
R101 1-216-073-00 METAL CHIP 10K 5% 1/10W
R102 1-208-441-61 RES-CHIP 1.5K 2% 1/10W
R103 1-208-441-61 RES-CHIP 1.5K 2% 1/10W
R201 1-216-073-00 METAL CHIP 10K 5% 1/10W
R202 1-208-441-61 RES-CHIP 1.5K 2% 1/10W
R203 1-208-441-61 RES-CHIP 1.5K 2% 1/10W
R302 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R303 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R306 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R308 1-216-073-00 METAL CHIP 10K 5% 1/10W
R309 1-216-073-00 METAL CHIP 10K 5% 1/10W
R310 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R311 1-216-029-00 METAL CHIP 150 5% 1/10W
R312 1-216-073-00 METAL CHIP 10K 5% 1/10W
R313 1-216-073-00 METAL CHIP 10K 5% 1/10W
R314 1-216-059-00 METAL CHIP 2.7K 5% 1/10W
R315 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R316 1-216-022-00 METAL CHIP 75 5% 1/10W
R317 1-216-022-00 METAL CHIP 75 5% 1/10W
R318 1-216-295-00 SHORT 0
R319 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R320 1-216-295-00 SHORT 0
R403 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R404 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R501 1-216-025-00 RES-CHIP 100 5% 1/10W
R502 1-216-025-00 RES-CHIP 100 5% 1/10W
R503 1-216-025-00 RES-CHIP 100 5% 1/10W
R504 1-216-025-00 RES-CHIP 100 5% 1/10W
R505 1-216-025-00 RES-CHIP 100 5% 1/10W
R506 1-216-025-00 RES-CHIP 100 5% 1/10W
R507 1-216-073-00 METAL CHIP 10K 5% 1/10W
R508 1-216-073-00 METAL CHIP 10K 5% 1/10W
R516 1-216-073-00 METAL CHIP 10K 5% 1/10W
R517 1-216-073-00 METAL CHIP 10K 5% 1/10W
R518 1-216-073-00 METAL CHIP 10K 5% 1/10W
R519 1-216-025-00 RES-CHIP 100 5% 1/10W
R520 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R521 1-216-073-00 METAL CHIP 10K 5% 1/10W
R523 1-216-013-00 METAL CHIP 33 5% 1/10W
R530 1-216-025-00 RES-CHIP 100 5% 1/10W
VIDEO
83
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R531 1-216-025-00 RES-CHIP 100 5% 1/10W
R532 1-216-295-00 SHORT 0
R533 1-216-295-00 SHORT 0
R534 1-216-073-00 METAL CHIP 10K 5% 1/10W
R535 1-216-073-00 METAL CHIP 10K 5% 1/10W
R536 1-216-033-00 METAL CHIP 220 5% 1/10W
R537 1-216-025-00 RES-CHIP 100 5% 1/10W
R538 1-216-073-00 METAL CHIP 10K 5% 1/10W
R539 1-216-295-00 SHORT 0
R540 1-216-295-00 SHORT 0
R542 1-216-651-11 METAL CHIP 1K 0.5% 1/10W
R543 1-216-685-11 METAL CHIP 27K 0.5% 1/10W
R544 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W
R545 1-216-025-00 RES-CHIP 100 5% 1/10W
R546 1-216-049-11 RES-CHIP 1K 5% 1/10W
R548 1-216-049-11 RES-CHIP 1K 5% 1/10W
R549 1-216-025-00 RES-CHIP 100 5% 1/10W
R550 1-216-025-00 RES-CHIP 100 5% 1/10W
R551 1-216-025-00 RES-CHIP 100 5% 1/10W
R552 1-216-025-00 RES-CHIP 100 5% 1/10W
R555 1-216-121-00 RES-CHIP 1M 5% 1/10W
R556 1-216-025-00 RES-CHIP 100 5% 1/10W
R557 1-216-025-00 RES-CHIP 100 5% 1/10W
R560 1-216-653-11 METAL CHIP 1.2K 0.5% 1/10W
R561 1-216-651-11 METAL CHIP 1K 0.5% 1/10W
R562 1-216-073-00 METAL CHIP 10K 5% 1/10W
R563 1-216-073-00 METAL CHIP 10K 5% 1/10W
R577 1-216-081-00 METAL CHIP 22K 5% 1/10W
R578 1-216-081-00 METAL CHIP 22K 5% 1/10W
R579 1-216-073-00 METAL CHIP 10K 5% 1/10W
R580 1-216-073-00 METAL CHIP 10K 5% 1/10W
< VIBRATOR >
X501 1-767-510-11 VIBRATOR, CERAMIC (10Mz)
X503 1-767-519-11 VIBRATOR, CRYSTAL (27MHz)
************************************************************
MISCELLANEOUS
**************
11 1-792-246-11 WIRE (FLAT TYPE) (23 CORE)
013 1-526-794-11 OUTLET, AC
101 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
104 1-690-589-31 WIRE (FLAT TYPE) (13 CORE)
0108 1-575-653-11 CORD, POWER (E)
0108 1-777-071-21 CORD, POWER (MY, SP)
0108 1-777-071-51 CORD, POWER (EA, IA)
0109 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
0109 1-569-008-21 ADAPTOR, CONVERSION 2P (EA, MY, SP, IA)
209 1-791-983-12 WIRE (FLAT TYPE) (8 CORE)
216 1-471-035-11 MAGNET ASSY
0251 8-820-116-01 OPTICAL PICK-UP KSM-213DAP/Z-NP
252 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
HP901 X-4954-985-1 BLOCK (A) ASSY, HEAD (PB)
HRPE901X-4954-986-1 BLOCK (B) ASSY, HEAD (REC/PB/ERASE)
M721 A-4672-826-A MOTOR ASSY (TURN)
M901 X-3378-241-1 MOTOR ASSY (CAPSTAN/REEL)
M961 1-763-072-11 FAN, D. C.
0T971 1-435-325-11 POWER TRANSFORMER
************************************************************
**************
HARDWARE LIST
**************
#1 7-628-254-05 SCREW +PS 2.6X5
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 N-S
#5 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S
#6 7-685-881-09 SCREW +BVTT 4X8 (S)
#7 7-623-921-01 WASHER 1.7, NYLON
#8 7-685-783-09 SCREW +PTT 2X6 (S)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
VIDEO
Ver 1.1
84
HCD-VX88
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.2 2001.11 Addition of Ref. No. 226 for chassis (SPM-01044)
1.1 2001.08 Changing of parts supply classification of tape mechanism deck (SPM-01030)
1.0 2000.04 New
