P55A COVER 1 HCN5527

PROJECTION TV RECEIVER

Chassis : P55A(N) REV.1

Model: HCN553WX/XAC

PROJECTION TV RECEIVER CONTENTS

Precautions

Reference Information

Specifications

Alignment and Adjustments

Troubleshooting

Exploded View and Parts List

Electric Parts List

Block Diagrams

Wiring Diagram

Schematic Diagrams

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

ELECTRONICS

©Samsung Electronics Co., Ltd. JUL. 2003

Printed in Korea

AA82-00825A

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

1. Precautions

1-1 Safety Precautions

1. Be sure that all of the built-in protective

devices are replaced. Restore any missing

protective shields.

2. When reinstalling the chassis and its

assemblies, be sure to restore all protective

devices, including: nonmetallic control knobs

and compartment covers.

3. Make sure that there are no cabinet openings

through which people—particularly

children—might insert fingers and contact

dangerous voltages. Such openings include

the spacing between the picture tube and the

cabinet mask, excessively wide cabinet

ventilation slots, and improperly fitted back

covers.

If the measured resistance is less than 1.0

megohm or greater than 5.2 megohms, an

abnormality exists that must be corrected

before the unit is returned to the customer.

4. Leakage Current Hot Check (Figure 1-1):

Warning: Do not use an isolation

transformer during this test. Use a leakage-

current tester or a metering system that

complies with American National Standards

Institute (ANIS C101.1, Leakage Current for

Appliances), and Underwriters Laboratories

(UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug

the AC line cord directly into the power

outlet. With the unit’s AC switch first in the

ON position and then OFF, measure the

current between a known earth ground (metal

water pipe, conduit, etc.) and all exposed

metal parts, including: antennas, handle

brackets, metal cabinets, screwheads and

control shafts. The current measured should

not exceed 0.5 milliamp. Reverse the power-

plug prongs in the AC outlet and repeat the

test.

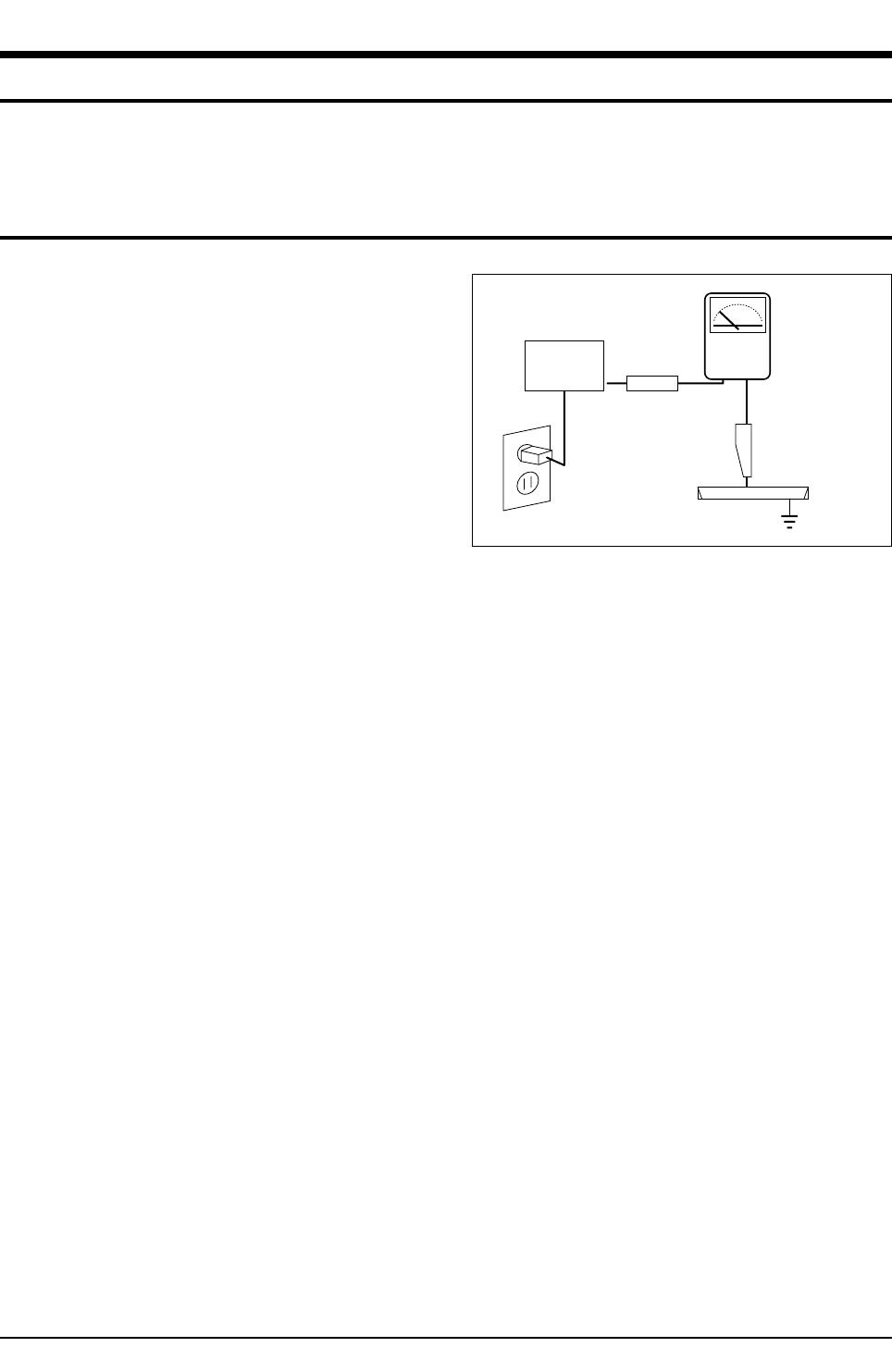

Fig. 1-1 AC Leakage Test

6. Antenna Cold Check:

With the unit’s AC plug disconnected from the

AC source, connect an electrical jumper across

the two AC prongs. Connect one lead of the

ohmmeter to an AC prong. Connect the other

lead to the coaxial connector.

7. X-ray Limits:

The picture tube is especially designed to pro-

hibit X-ray emissions. To ensure continued

X-ray protection, replace the picture tube only

with one that is the same type as the original.

Carefully reinstall the picture tube shields and

mounting hardware; these also provide X-ray

protection.

8. High Voltage Limits:

High voltage must be measured each time ser-

vicing is done on the B+, horizontal deflection

or high voltage circuits. Correct operation of

the X-ray protection circuits must be

reconfirmed whenever they are serviced.

(X-ray protection circuits also may be called

“horizontal disable” or “hold-down”.)

Heed the high voltage limits. These include

the X–ray Protection Specifications Label, and

the Product Safety and X-ray Warning Note on

the service data schematic.

Precautions

Samsung Electronics 1-1

LEAKAGE

CURRENT

TESTER

DEVICE

UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED) EARTH

GROUND

(READING SHOULD

NOT BE ABOVE

0.5mA)

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential

hazards such as electrical shock and X-rays.

1-1 Safety Precautions (Continued)

9. High voltage is maintained within specified

limits by close-tolerance, safety-related

components and adjustments. If the high

voltage exceeds the specified limits, check

each of the special components.

10. Design Alteration Warning:

Never alter or add to the mechanical or

electrical design of this unit. Example: Do not

add auxiliary audio or video connectors. Such

alterations might create a safety hazard. Also,

any design changes or additions will void the

manufacturer’s warranty.

11. Hot Chassis Warning:

Some TV receiver chassis are electrically

connected directly to one conductor of the AC

power cord. If an isolation transformer is not

used, these units may be safely serviced only

if the AC power plug is inserted so that the

chassis is connected to the ground side of the

AC source.

To confirm that the AC power plug is inserted

correctly, do the following: Using an AC

voltmeter, measure the voltage between the

chassis and a known earth ground. If the

reading is greater than 1.0V, remove the AC

power plug, reverse its polarity and reinsert.

Re-measure the voltage between the chassis

and ground.

12. Some TV chassis are designed to operate with

85 volts AC between chassis and ground,

regardless of the AC plug polarity. These units

can be safely serviced only if an isolation

transformer inserted between the receiver and

the power source.

13. Some TV chassis have a secondary ground

system in addition to the main chassis ground.

This secondary ground system is not

isolated from the AC power line. The two

ground systems are electrically separated by

insulating material that must not be defeated

or altered.

14. Components, parts and wiring that appear to

have overheated or that are otherwise

damaged should be replaced with parts that

meet the original specifications. Always

determine the cause of damage or overheat-

ing, and correct any potential hazards.

15. Observe the original lead dress, especially

near the following areas: Antenna wiring,

sharp edges, and especially the AC and high

voltage power supplies. Always inspect for

pinched, out-of-place, or frayed wiring. Do

not change the spacing between components

and the printed circuit board. Check the AC

power cord for damage. Make sure that leads

and components do not touch thermally hot

parts.

16. Picture Tube Implosion Warning:

The picture tube in this receiver employs

“integral implosion” protection. To ensure

continued implosion protection, make sure

that the replacement picture tube is the same

as the original.

17. Do not remove, install or handle the picture

tube without first putting on shatterproof

goggles equipped with side shields. Never

handle the picture tube by its neck. Some

“in-line” picture tubes are equipped with a

permanently attached deflection yoke; do not

try to remove such “permanently attached”

yokes from the picture tube.

18. Product Safety Notice:

Some electrical and mechanical parts have

special safety-related characteristics which

might not be obvious from visual inspection.

These safety features and the protection they

give might be lost if the replacement compo-

nent differs from the original—even if the

replacement is rated for higher voltage,

wattage, etc.

Components that are critical for safety are

indicated in the circuit diagram by shading,

( ) or ( ).

Use replacement components that have the

same ratings, especially for flame resistance

and dielectric strength specifications.

A replacement part that does not have the

same safety characteristics as the original

might create shock, fire or other hazards.

Precautions

1-2 Samsung Electronics

1-2 Servicing Precautions

1. Servicing precautions are printed on the

cabinet. Follow them.

2. Always unplug the unit’s AC power cord from

the AC power source before attempting to: (a)

Remove or reinstall any component or

assembly, (b) Disconnect an electrical plug or

connector, (c) Connect a test component in

parallel with an electrolytic capacitor.

3. Some components are raised above the printed

circuit board for safety. An insulation tube or

tape is sometimes used. The internal wiring is

sometimes clamped to prevent contact with

thermally hot components. Reinstall all such

elements to their original position.

4. After servicing, always check that the screws,

components and wiring have been correctly

reinstalled. Make sure that the portion around

the serviced part has not been damaged.

5. Check the insulation between the blades of the

AC plug and accessible conductive parts

(examples: metal panels, input terminals and

earphone jacks).

6. Insulation Checking Procedure: Disconnect the

power cord from the AC source and turn the

power switch ON. Connect an insulation

resistance meter (500V) to the blades of the AC

plug.

The insulation resistance between each blade

of the AC plug and accessible conductive parts

(see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks.

Do not apply AC power to the unit (or any of

its assemblies) unless all solid-state heat sinks

are correctly installed.

8. Always connect a test instrument’s ground

lead to the instrument chassis ground before

connecting the positive lead; always remove

the instrument’s ground lead last.

9. When some parts inside the optical engine

(except lamp) are damaged, replace the whole

optical engine.

Precautions

Samsung Electronics 1-3

Warning 1 : First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a

conflict between the servicing and safety precautions, always follow the safety precautions.

Warning 2 : An electrolytic capacitor installed with the wrong polarity might explode.

“CAUTION : Double-pole/neutral fusing”

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

1. Some semiconductor (“solid state”) devices

are easily damaged by static electricity. Such

components are called Electrostatically

Sensitive Devices (ESDs); examples include

integrated circuits and some field-effect

transistors. The following techniques will

reduce the occurrence of component damage

caused by static electricity.

2. Immediately before handling any semicon

ductor components or assemblies, drain the

electrostatic charge from your body by

touching a known earth ground. Alternatively,

wear a discharging wrist-strap device. (Be

sure to remove it prior to applying power—

this is an electric shock precaution.)

3. After removing an ESD-equipped assembly,

place it on a conductive surface such as

aluminum foil to prevent accumulation of

electrostatic charge.

4. Do not use freon-propelled chemicals. These

can generate electrical charges that damage

ESDs.

5. Use only a grounded-tip soldering iron when

soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device.

Many solder removal devices are not rated as

“anti-static”; these can accumulate sufficient

electrical charge to damage ESDs.

7. Do not remove a replacement ESD from its

protective package until you are ready to

install it. Most replacement ESDs are

packaged with leads that are electrically

shorted together by conductive foam,

aluminum foil or other conductive materials.

8. Immediately before removing the protective

material from the leads of a replacement ESD,

touch the protective material to the chassis or

circuit assembly into which the device will be

installed.

9. Minimize body motions when handling

unpackaged replacement ESDs. Motions such

as brushing clothes together, or lifting a foot

from a carpeted floor can generate enough

static electricity to damage an ESD.

Precautions

1-4 Samsung Electronics

CAUTION

These servicing instructions are for use by

qualified service personnel only.

To reduce the risk of electric shock do not

perform any servicing other than that contained

in the operating instructions unless you are

qualified to do so.

Reference Information

Samsung Electronics 2-1

2. Reference Information

2-1 Tables of Abbreviations and Acronyms

A

Ah

Å

dB

dBm

°C

°F

°K

F

G

GHz

g

H

Hz

h

ips

kWh

kg

kHz

kΩ

km

km/h

kV

kVA

kW

I

MHz

Ampere

Ampere-hour

Angstrom

Decibel

Decibel Referenced to One

Milliwatt

Degree Celsius

Degree Fahrenheit

degree Kelvin

Farad

Gauss

Gigahertz

Gram

Henry

Hertz

Hour

Inches Per Second

Kilowatt-hour

Kilogram

Kilohertz

Kilohm

Kilometer

Kilometer Per Hour

Kilovolt

Kilovolt-ampere

Kilowatt

Liter

Megahertz

MV

MW

MΩ

m

µA

µF

µH

µm

µs

µW

mA

mg

mH

mI

mm

ms

mV

nF

Ω

pF

Ib

rpm

rps

s

V

VA

W

Wh

Megavolt

Megawatt

Megohm

Meter

Microampere

Microfarad

Microhenry

Micrometer

Microsecond

Microwatt

Milliampere

Milligram

Millihenry

Milliliter

Millimeter

Millisecond

Millivolt

Nanofarad

Ohm

Picofarad

Pound

Revolutions Per Minute

Revolutions Per Second

Second (Time)

Volt

Volt-ampere

Watt

Watt-hour

Table 2-1 Abbreviations

Reference Information

2-2 Samsung Electronics

Table 2-2 Table of Acronyms

ABL

AC

ACC

AF

AFC

AFT

AGC

AM

ANSI

APC

A/V

AVC

BAL

BPF

B-Y

CATV

CB

CCD

CCTV

Ch

CRT

CW

DC

DVM

EIA

ESD

FBP

FBT

FF

FM

FS

GND

G-Y

H

HF

HI-FI

IC

IF

Automatic Brightness Limiter

Alternating Current

Automatic Chroma Control

Audio Frequency

Automatic Frequency Control

Automatic Fine Tuning

Automatic Gain Control

Amplitude Modulation

American National Standards Institute

Automatic Phase Control

Automatic Picture Control

Audio-Video

Automatic Volume Control

Balance

Bandpass Filter

Blue-Y

Community Antenna Television (Cable TV)

Citizens Band

Charge Coupled Device

Closed Circuit Television

Channel

Cathode Ray Tube

Continuous Wave

Direct Current

Digital Volt Meter

Electronics Industries Association

Electrostatic Discharge

Electrostatically Sensitive Device

Feedback Pulse

Flyback Transformer

Flip-Flop

Frequency Modulation

Fail Safe

Ground

Green-Y

High

High-Frequency

High Fidelity

Inductance-Capacitance

Integrated Circuit

Intermediate Frequency

I/O

L

LED

LF

MOSFET

MTS

NAB

NEC

NTSC

OSD

PCB

PLL

PWM

QIF

R

RC

RF

R-Y

SAP

SAW

SIF

SMPS

S/N

SW

TP

TTL

TV

UHF

UL

UV

VCD

VCO

VCXO

VHF

VIF

VR

VTR

VTVM

TR

Input/output

Left

Low

Light Emitting Diode

Low Frequency

Metal-Oxide-Semiconductor-Field-Effect-Tr

Multi-channel Television Sound

National Association of Broadcasters

National Electric Code

National Television Systems Committee

On Screen Display

Printed Circuit Board

Phase-Locked Loop

Pulse Width Modulation

Quadrature Intermediate Frequency

Right

Resistor & Capacitor

Radio Frequency

Red-Y

Second Audio Program

Surface Acoustic Wave(Filter)

Sound Intermediate Frequency

Switching Mode Power Supply

Signal/Noise

Switch

Test Point

Transistor Transistor Logic

Television

Ultra High Frequency

Underwriters Laboratories

Ultraviolet

Variable-Capacitance Diode

Voltage Controlled Oscillator

Voltage Controlled Crystal Oscillator

Very High Frequency

Video Intermediate Frequency

Variable Resistor

Video Tape Recorder

Vacuum Tube Voltmeter

Transistor

Reference Information

Samsung Electronics 2-3

2-2 Description of Dynamic Focus

Most large-screen video display devices that are using CRT (including CDT) usually apply the Dynamic

Focus (hereinafter D/F) circuit.

As CRT has non-spherical surface (perfect spherical surface = 1, non-spherical surface R>1), the distance

that the electron beam emitted from the electron gun reaches to the center of CRT is different from the one

that the electron beam reaches to the corners. (See Figure 1.)

Only the beam, which has the equal distance as the beam from the electron gun to the center of CRT

surface, can maintain the optimum focus.

By this reason, focus dagradation at corners occurs inevitably.

To recover this, the speed of the electron beam injected into the corners of CRT should increase and the

focus dagradation by the difference of distances can be compensated.

Increasing the voltage is used as a method of increasing the speed of the electron beam at the corners of

screen.

In this case, an ideal D/F voltage waveform is the form of parabola where the center of screen has low

voltage and the corners has the highest voltages.

The horizontal D/F waveform compensates the focus dagradation at left and right sides, but the vertical

D/F waveform does at top and bottom sides.

The horizontal D/F and vertical D/F waveforms are separately created and mix two signals to

compensate the focus of the whole screen.

And the vertical Dynamic Focus waveform is composed of the horizontal Dynamic Focus waveforms as

much as the number of scanning lines. (See Figure 2.)

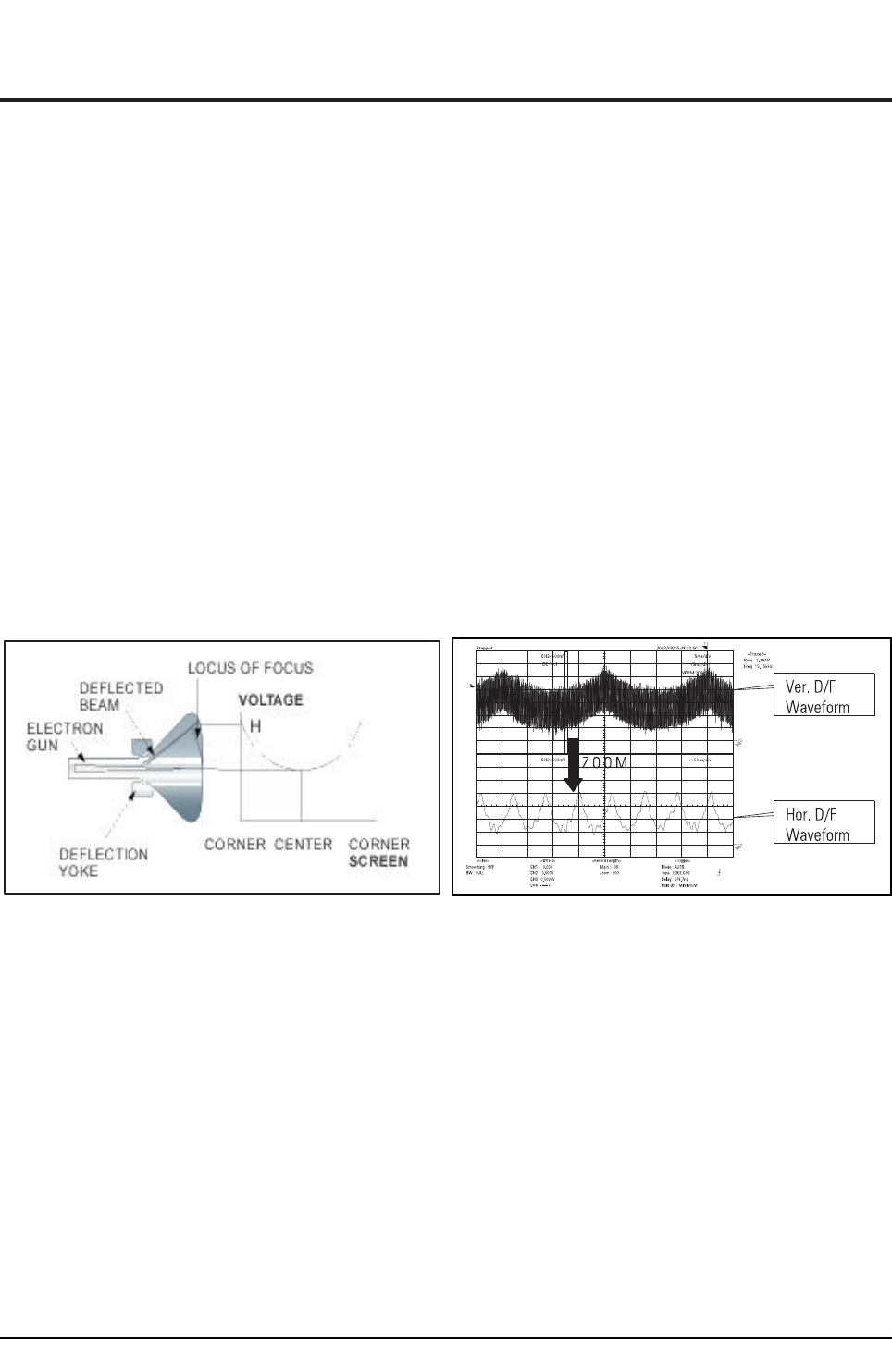

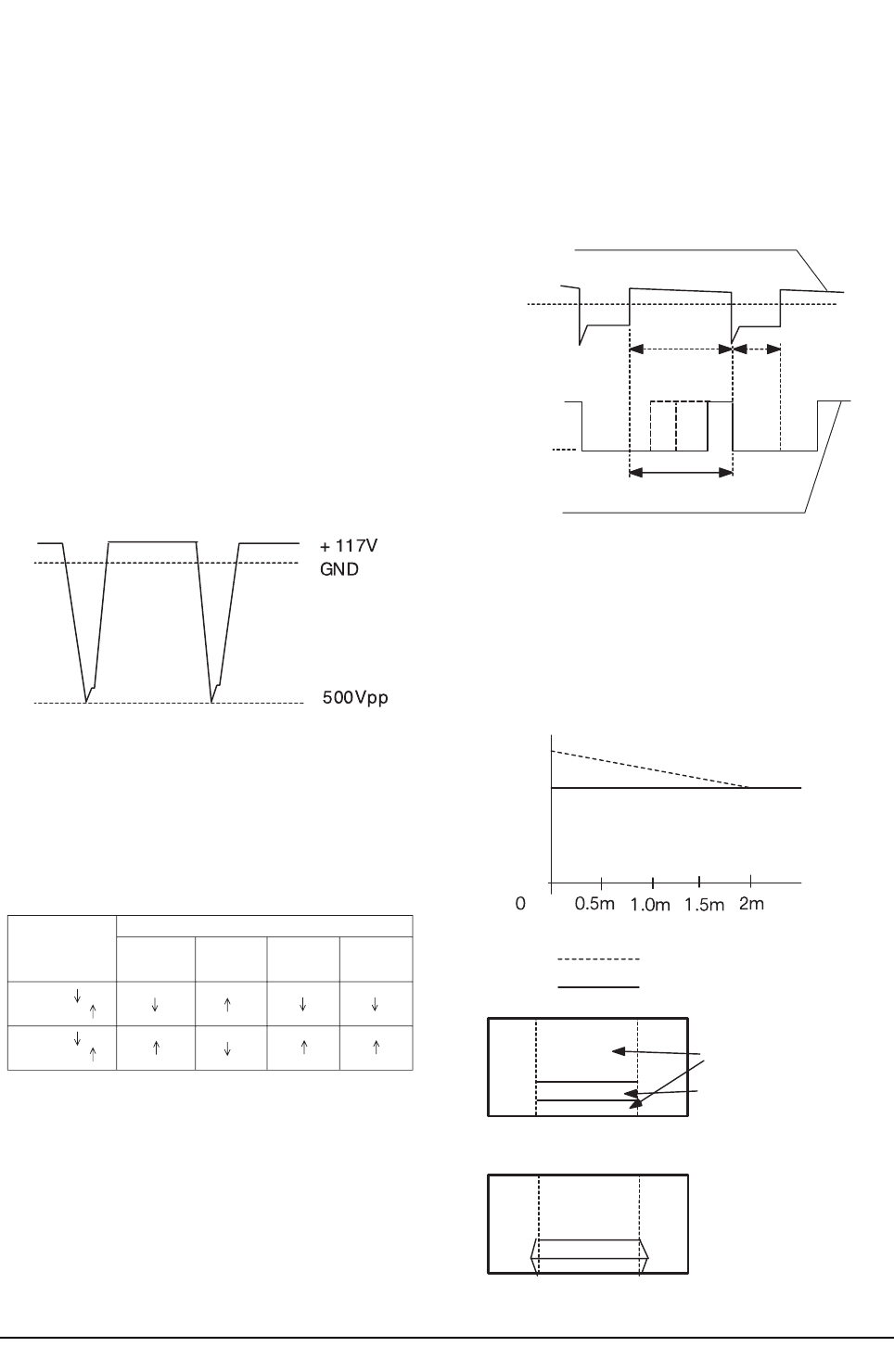

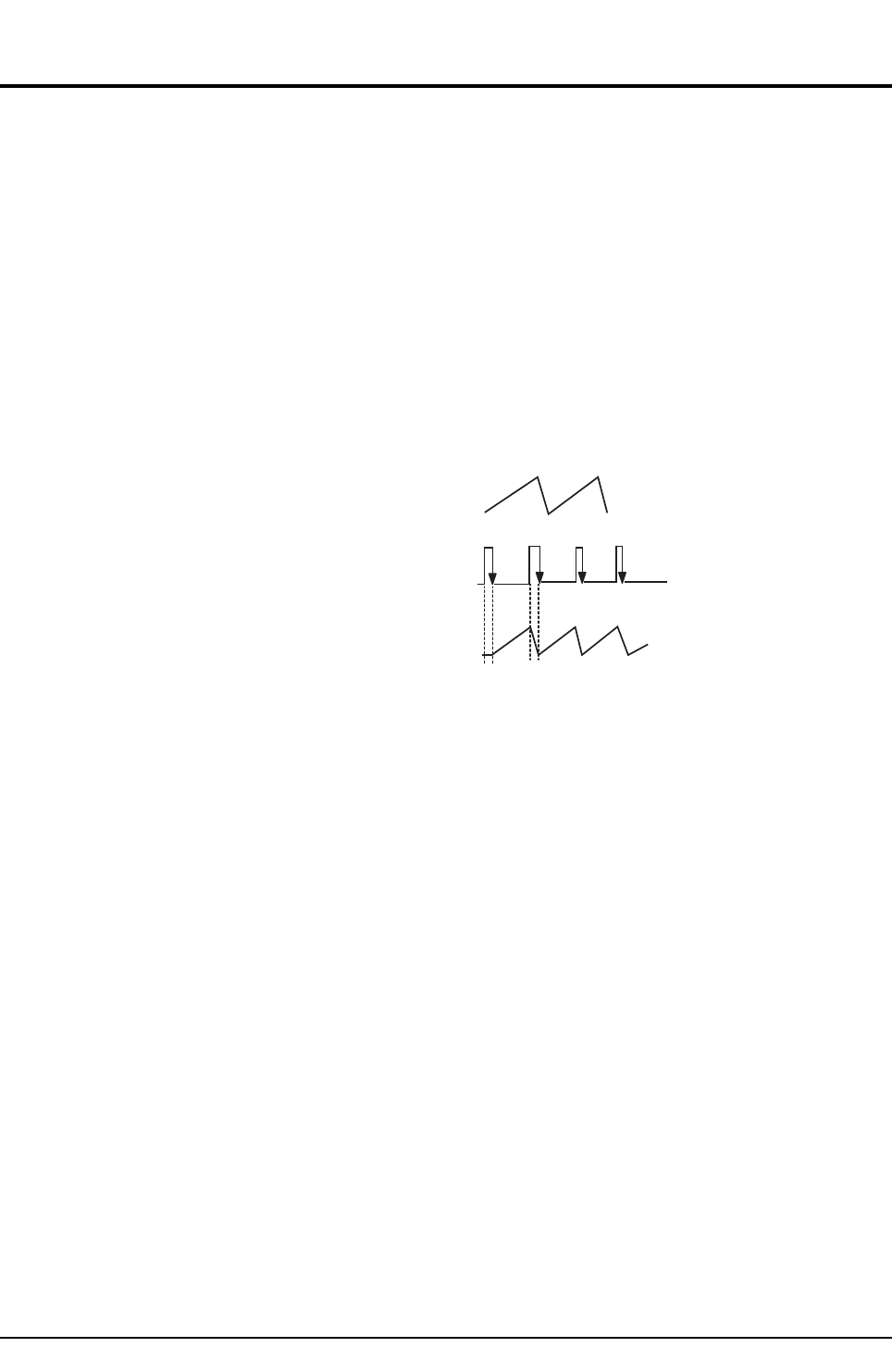

Fig. 1 Dynamic Focus Diagram (Horizantal) Fig. 2 H/V Dynamic Focus Waveform

Reference Information

2-4 Samsung Electronics

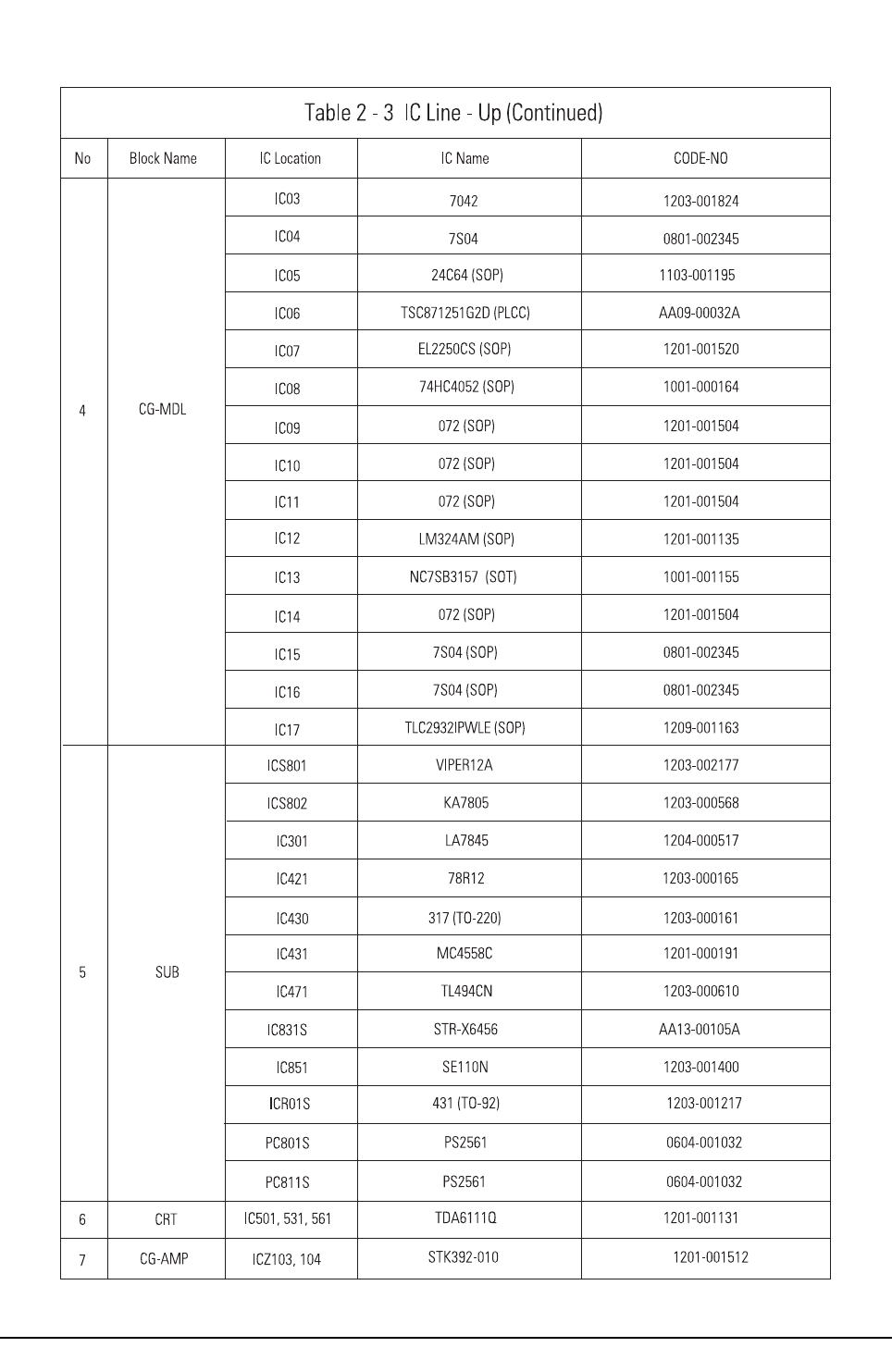

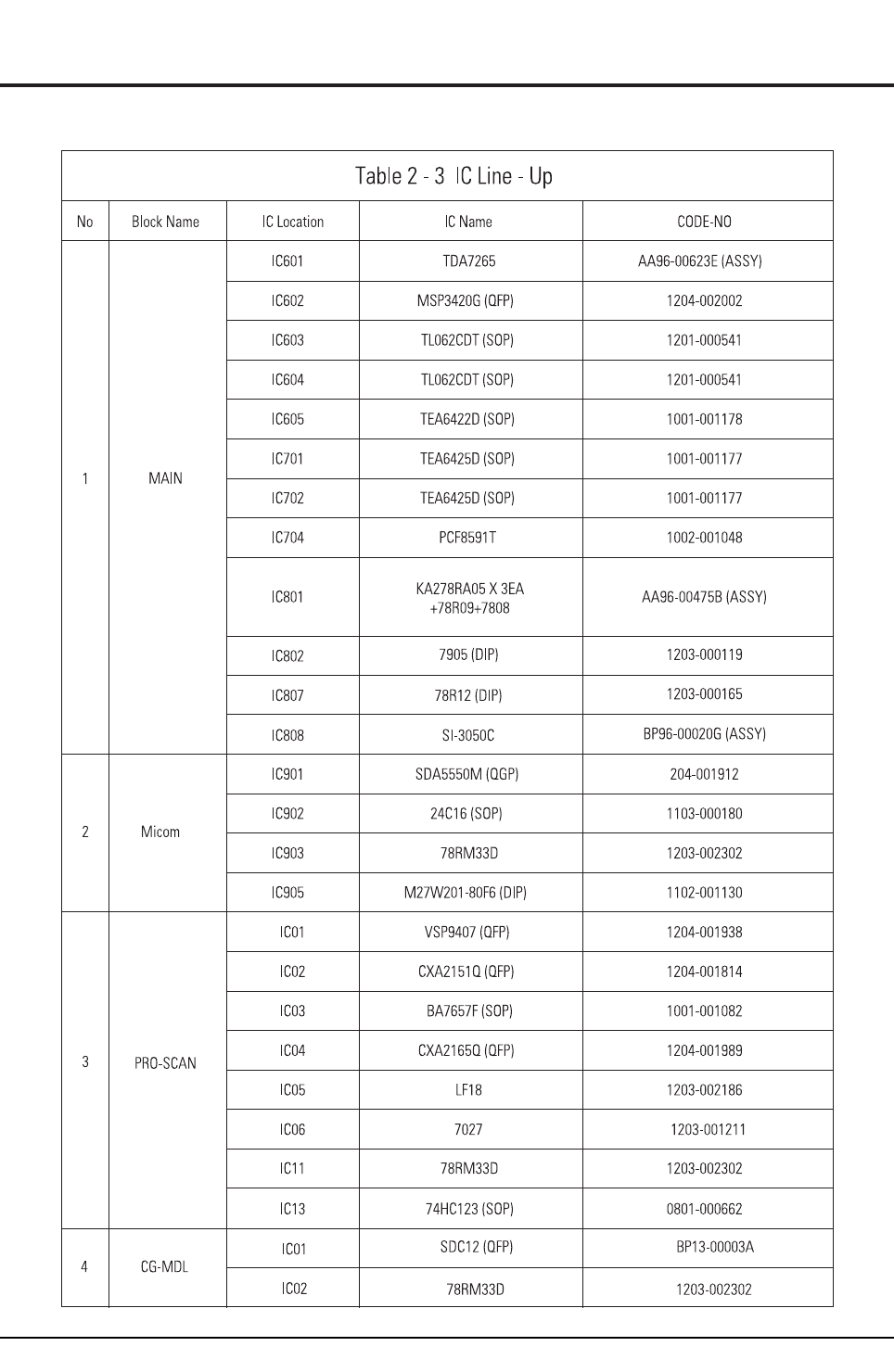

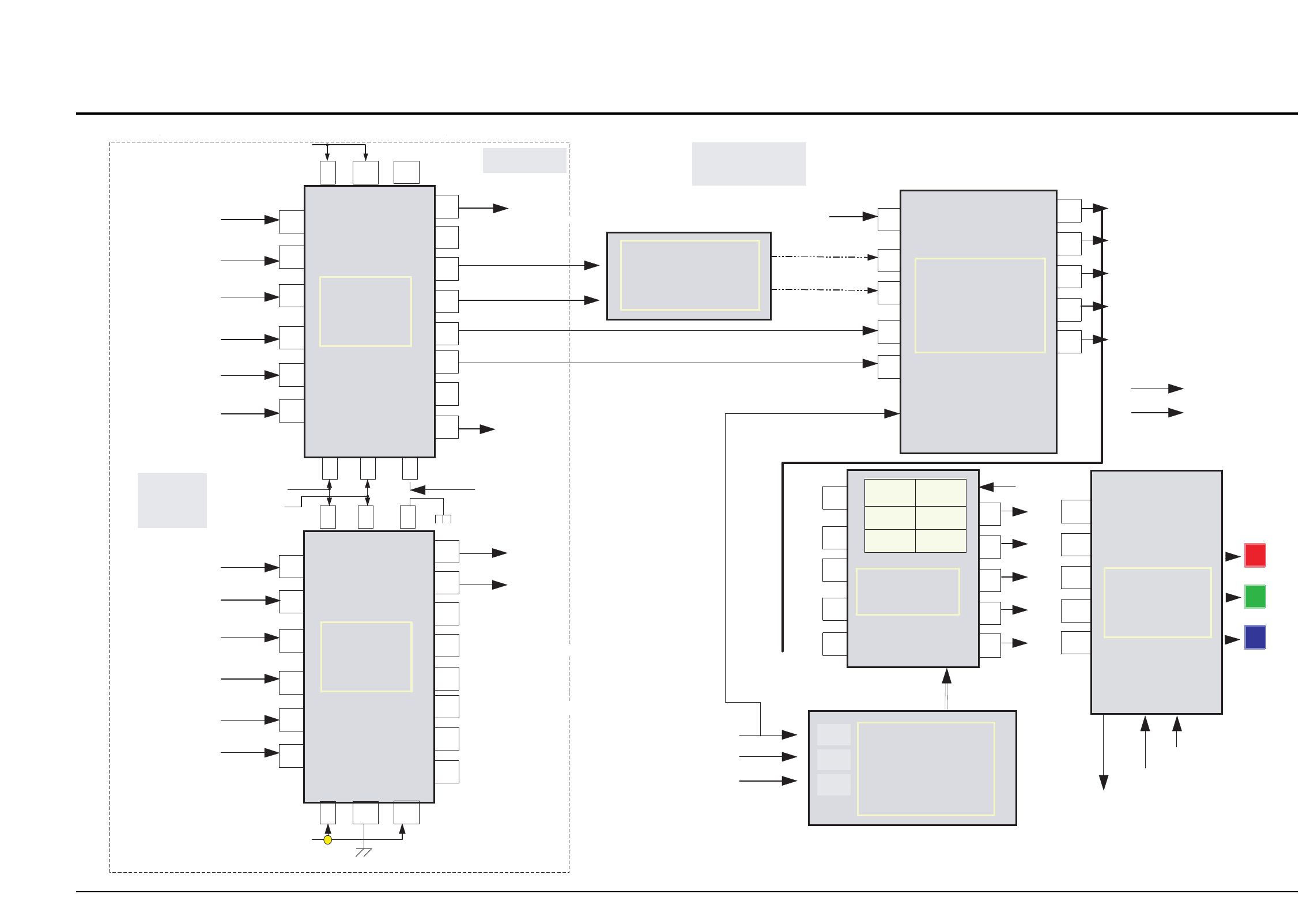

2-3 IC Line Up

2-3-1 Progressive

Reference Information

Samsung Electronics 2-5

Reference Information

2-6 Samsung Electronics

2-4 MICOM IIC BUS LINE -UP

Specifications

Samsung Electronics 3-1

3. Specifications

Broadcasting System

Scanning System

Tuning Range

Antenna Impedance

Intermediate Frequency

Sound Output

Rated Voltage

W/B Coordinates

High Voltage

FUSE

Power Consumption

Dimension

Weight

NTSC

Progressive Scanning

VHF : CH2 ~ CH13

75 ohm Unbalanced

Video : 45.75 MHz

Sound : 42.25 MHz

Chrominance Subcarrier : 42.17 MHz

STD : 10W

MAX : 15W

120V / 60 Hz

Hx : 266 Hy : 280 Y : 8.9

Lx : 268 Ly : 283 Y : 0.38

29KV

250V/6.3A

CODE NO : 3601-000300

240W

1002 X 450 X 1070mm

39.4 X 17.7 X 42.1 inch

49Kg 108lbs

MEMO

3-2 Samsung Electronics

Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

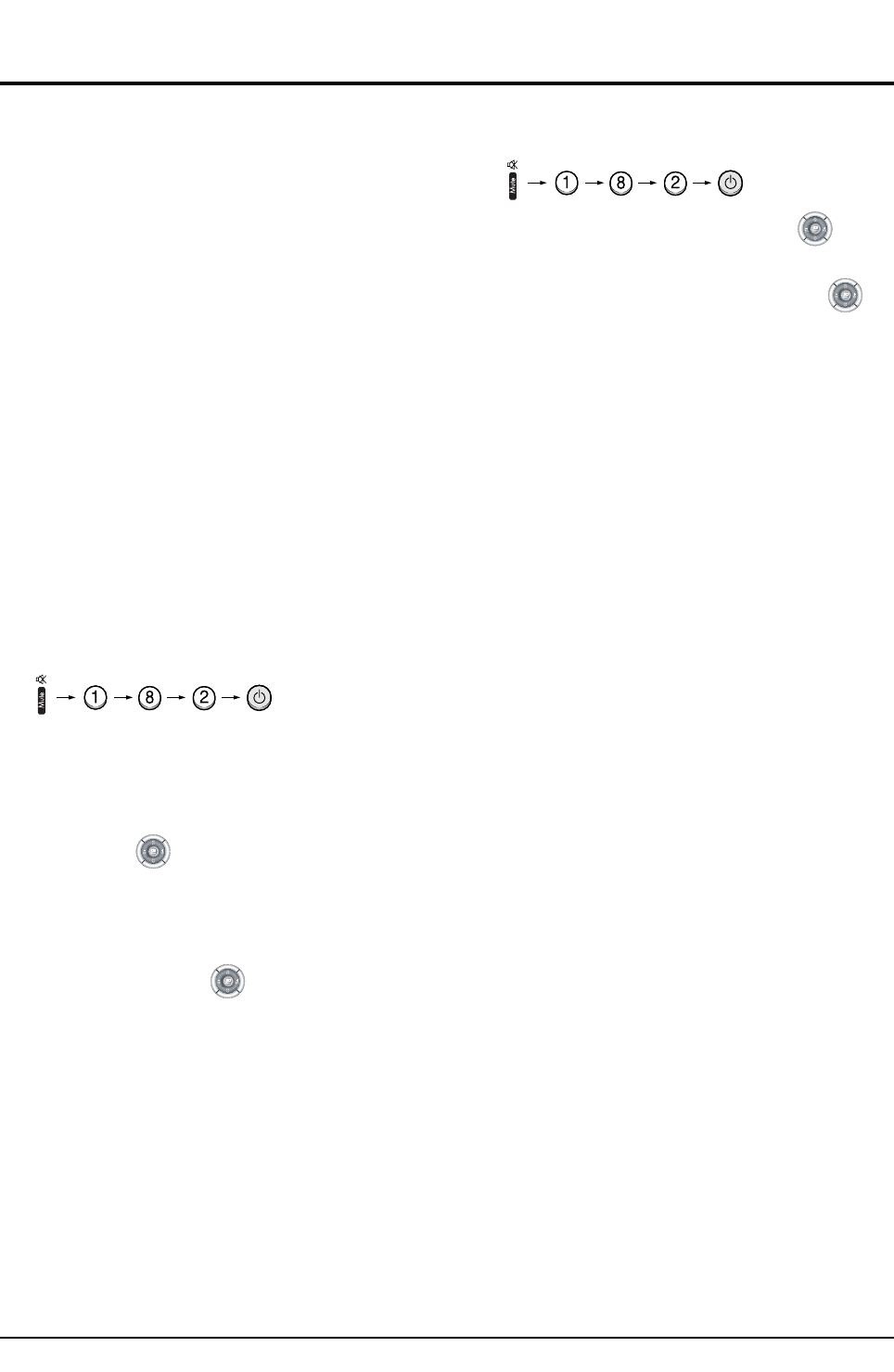

4-1 When entering the service mode:

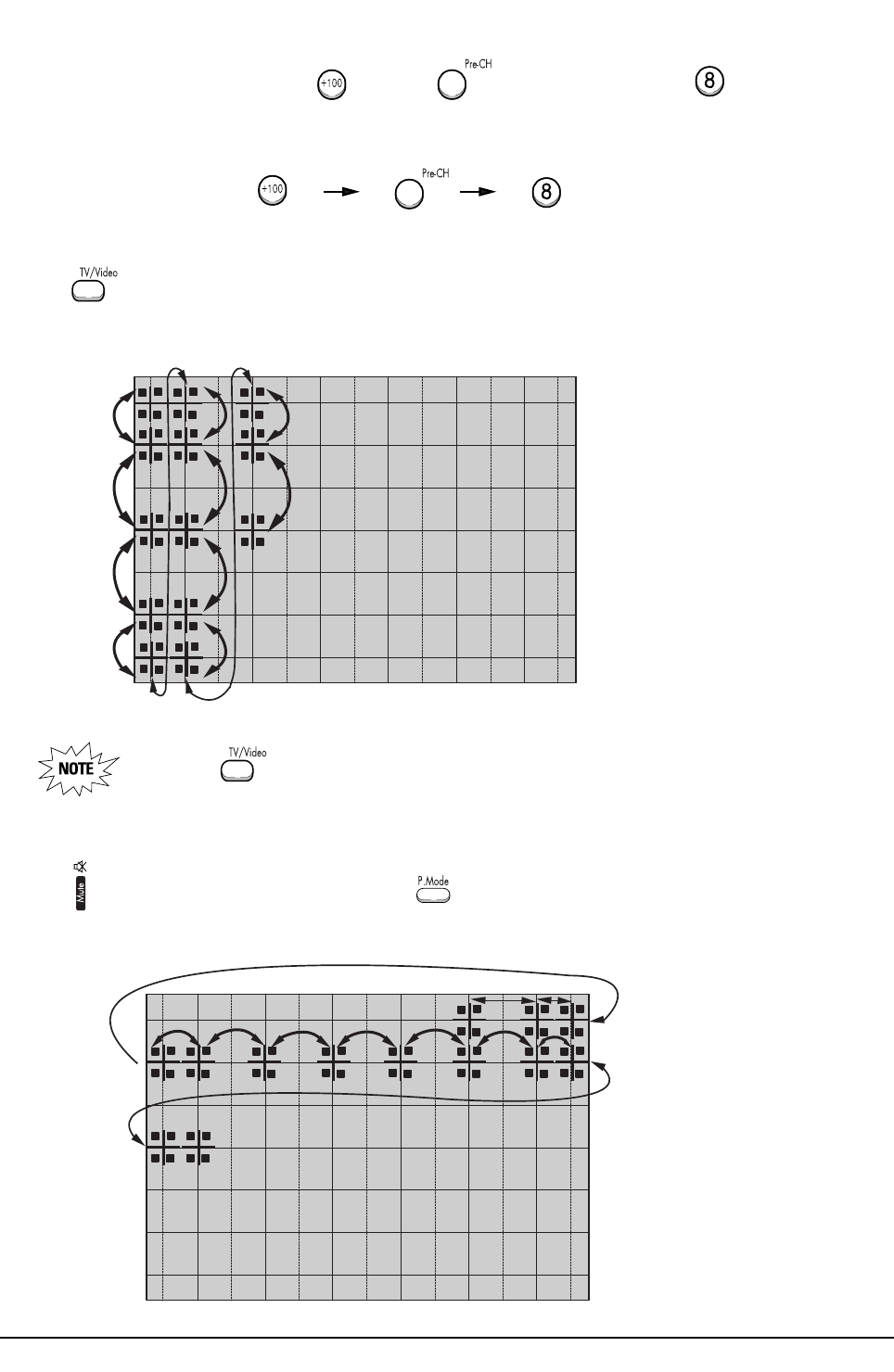

1. Turn on the TV, and then select “STANDARD”on the picture adjustment mode.

2. Turn off the TV (STAND-BY).

3. Enter the service mode by pressing the remote control keys in the following sequence :

Note : If necessary, re-do steps 1~3.

Initial display when the service mode is switched.

SERVICE / Sim-474A

DEFLECTION

480P OFFSET

1080i OFFSET

CONVERGENCE OFFSET

VIDEO ADJUST 1

VIDEO ADJUST 2

VIDEO ADJUST 3

VIDEO ADJUST 4

OPTION (E3h 98h 0ch)

RESET / 02-05-03

1. When a RF signal is received

MAIN MENU MENU DISPLAY

CH UP/DOWN Select item by moving cursor

VOL UP/DOWN Decrease or increase the adjustment values

3. Service Mode Control Keys

< PRECAUTIONS >

1. When EEPROM IC (IC902) is replaced, first connect the power cord and wait for about 4~5 seconds.

2. After replacing EEPROM IC (IC902), enter the Service mode. Next, enter the standard data or the

previous EEPROM IC data before replacement. And then check and adjust any items related to

Geometric, Picture, Option.

Alignment and Adjustments

4-2 Samsung Electronics

4-2-1 Defection

4-2 Factory Data

☞ DVI connection item is corresponded to DVI application model.

variable

fix

variable

fix

V Amp

V Shift 32

H EW

H Shift 32

V Linearity 6 fix

fix

Upper Linearity 7

Lower Linearity 8

VSC 3

H Parabola 10

Upper Corner 32

Lower Corner 32

H Trapezium 32

Bow 32

Angel 32

V Position 32

CXA Left Blk

CXA Right Blk

35

0 ~ 63

0 ~ 15

0 ~ 63

Remark

ITEM INITIAL DATA Range

31

29

31

7

0

7

31

35

RF

-

480P

EEP-ROM Copy Data

1080i

Alignment and Adjustments

Samsung Electronics 4-3

4-2-2 480P Offset

variable

fix

V Amp 0

V Shift 0

H EW 0

H Shift 0

V Linearity 0fix

fix

Upper Linearity 0

Lower Linearity 0

VSC 0

H Parabola 0

Upper Corner 0

Lower Corner 0

H Trapezium 0

0

Bow

0

Angel

V Position 0

0

28

36

CXA Left Blk

CXA Right Blk

Remark

ITEM INITIAL DATA Range

RF 480P

EEP-ROM Copy Data

1080i

-63 ~ 63

-15~ 15

-63 ~ 63

-

Alignment and Adjustments

4-4 Samsung Electronics

4-2-3 1080i Offset

variable

fix

V Amp 0

V Shift 0

H EW 0

H Shift 0

V Linearity 0

Upper Linearity 0

Lower Linearity 0

VSC 0

H Parabola 0

Upper Corner 0

Lower Corner 0

H Trapezium 0

Bow 0

Angel 0

V Position 0

0

CXA Left Blk

CXA Right Blk

63

20

Remark

ITEM INITIAL DATA Range

RF 480P

EEP-ROM Copy Data

1080i

-63 ~ 63

-15~ 15

-63 ~ 63

-

Alignment and Adjustments

Samsung Electronics 4-5

Offset Enable 0 variable

variable

V Amp 15

V Shift 0

H EW 15

V Amp 1080i 15

V Shift 1080i 0

H EW 1080i 15

0

15

0

15

0

15

Remark

ITEM INITIAL DATA Range

RF 480P

EEP-ROM Copy Data

1080i

0 ~ 1

-63 ~ 63

4-2-4 CONVERGRNCE OFFSET

Alignment and Adjustments

4-6 Samsung Electronics

variable

fix

variable

fix

variable

R Cutoff 20

G Cutoff 20

B Cutoff 20

Color On/Off 1

CR offset 32 fix

fix

variable

fix

CB offset 32

R Driver 31

G Driver 31

B Driver 31

Sub Bright 15

Sub Contrast 7

Sub Color 20

SubTint 7

CTI Level 1

CDL AXIS 2

LTI Level 0

20

1

31

15

7

20

31

20

31

20

10

8(AV/SV/DVD/480P)

1 (RF/AV/SV/DVD/480P/1080i)

32

2

1(RF/AV/SV/DVD/480P)

Remark

ITEM INITIAL DATA Range

RF-Copy W/B

Control Value

EEP-ROM Copy Data

1080i

0 ~ 63

0 ~ 1

0 ~ 15

0 ~ 63

0 ~ 15

0 ~ 23

0 ~ 13

0 ~ 3

4-2-5 VIDEO ADJUST 1

Alignment and Adjustments

Samsung Electronics 4-7

ABL Mode 3

Gamma 2

DPIC Level 3

DC Trans 3

ABL TH 15

VM Level 2

VM Coring 0

VM f0 0

VM Limit 0

VM Delay 0

SHP CD 1

SHP f0 0

SHP f1 & P/O 11

AKB Time 13

Y/C Delay 30

PIP Y/C Delay 30

BAND PASS F 1

HIGH PASS F 3

3

1

3

1

15

2

0

1

1 (480P)

2 (RF/AV/SV/DVD/480P)

0

0 (RF/AV/DVD)

1 (AV/SV/DVD/Comp2)

1

0

13 1 (RF/AV/SVHS/DVD/Comp2)

16

30

1

3

fix

Remark

ITEM INITIAL DATA Range

RF 480P

EEP-ROM Copy Data

1080i

0 ~ 3

0 ~ 15

0 ~ 3

0 ~ 1

0 ~ 15

0 ~ 31

0 ~ 7

4-2-6 VIDEO ADJUST 2

Alignment and Adjustments

4-8 Samsung Electronics

VSU 2

Melody Volume 4

H Comp 0

V Comp 0

Pin Comp 0

AFC Comp 0

Sync Comp 0

NR Off Value 5

8

V-Mute(x100ns)

2

4

0

5

8

-

Remark

ITEM INITIAL DATA Range

RF 480P

EEP-ROM Copy Data

1080i

0 ~ 15

0 ~ 20

0 ~ 15

0 ~ 7

0 ~ 1

0 ~ 9

0 ~ 10

4-2-7 VIDEO ADJUST 3

Alignment and Adjustments

Samsung Electronics 4-9

4-2-8 VIDEO ADJUST 4

System RF 1

System_VSD_480P 1

System_1080i 2

Shp_Fo_VSD_480P 1

HPF_VSD 3

BPF_VSD 1

Chrm_bdwth_RF 28

Chrm_bdwth_Video 28

Chrm_bdwth_Svideo 30

Chrm_bdwth_DVD 28

IF_Comp_RF 2

IF_Comp_Video 4

IF_Comp_Svideo 5

IF_Comp_DVD 4

VM_Delay_480P 1

1

2

1

3

1

3 (AVS/SV/DVD)

1 (AVS/SV/DVD)

28

30

28

2

4

5

4

1

fix

Remark

ITEM INITIAL DATA Range

RF 480P

EEP-ROM Copy Data

1080i

0 ~ 3

0 ~ 1

0 ~ 7

0 ~ 63

0 ~ 7

0 ~ 3

Alignment and Adjustments

4-10 Samsung Electronics

CRT WIDE

PIP ON

ON

OFF

3D-Comb Filter OFF

OFF

Large

ON

Large ↔ Double

ON ↔ OFF

Blue Screen

BBE Effect

Auto power On

System CT CT (EN+SP+ER)→CT-A(E+SP+F)

Virtual Dolby

ACS

V chip (CT,CTA)

V chop Area USA

WIDE(4:3)

ON

OFF

ON

OFF

Large

ON

CT

USA

WIDE(4:3)

ON

OFF

ON

OFF

Double

ON

CT

USA

WIDE ↔ 4:3

ON ↔ OFF

USA

Sub Woofer

No Sync Mute

DVI

AGC

Tubo Effect

Burst Screen

DW Multi

HCM422W,HCM473WB

(PCL545RB,PCM545R)

HCM553WB

ITEM INITIAL DATA

Letter Box

Range

HCM4216W,HCM4215W,

HCL4715WB,HCM4715W

(PCL5415RB,PCM5415R)

HCM5525WB,PTH5598W

4-2-9 OPTION

Alignment and Adjustments

Samsung Electronics 4-11

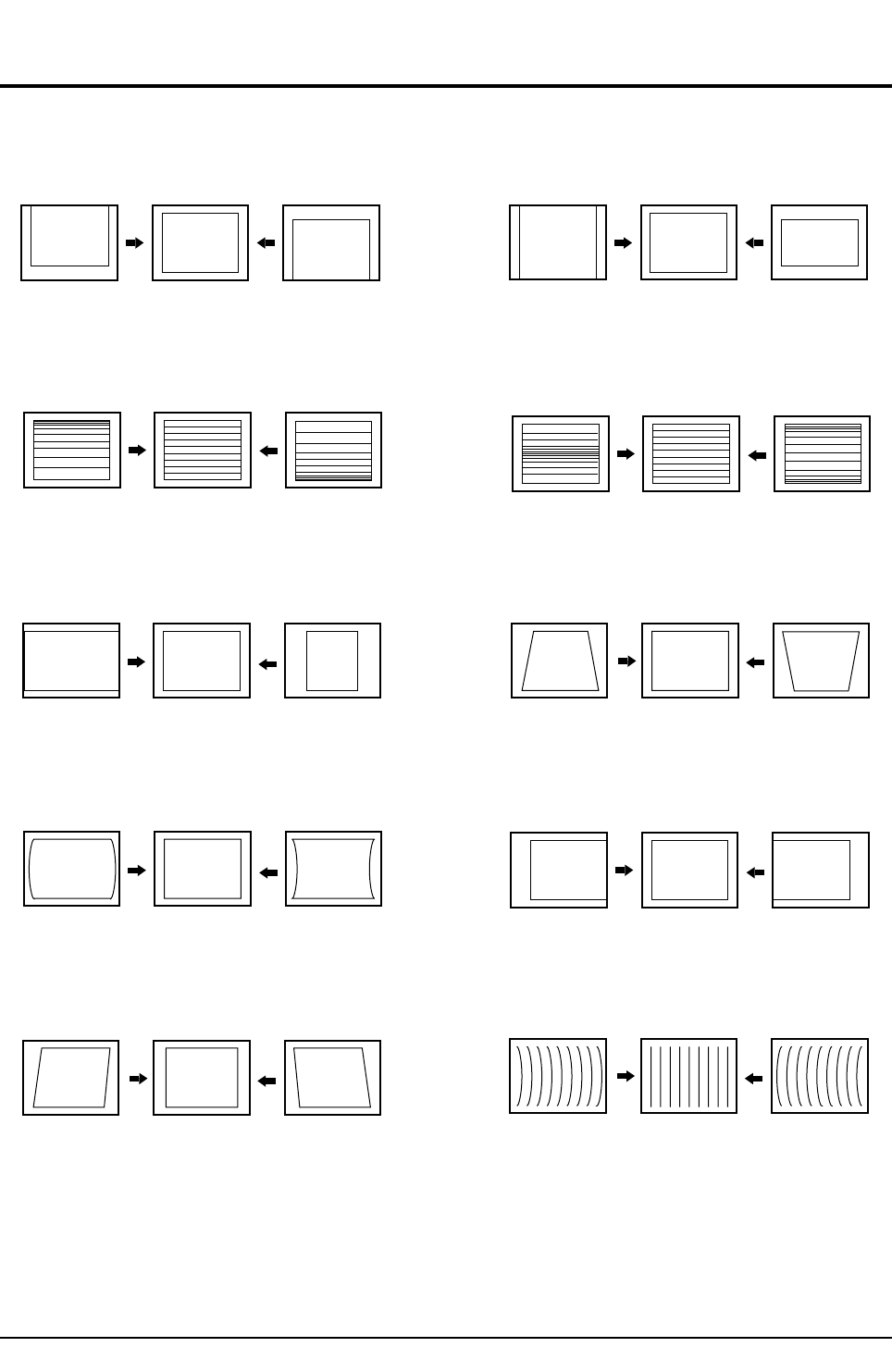

4-3 Screen Change (When adjusting I2C Bus Geometric items)

8 PIN PHASE

10 V BOW

5 V ANGLE

4PIN AMP

2 V LINEARITY

6 V SIZE

3 H SIZE

9 H SHIFT

7 V - S - CORRECTION

1 V SHIFT

Alignment and Adjustments

4-12 Samsung Electronics

4-4 Other Adjustments

4-4-1 Screen Adjustment

1. Warm up the TV for at least 30 minutes.

2. Select the “ STANDARD” Video mode.

3. Turn to the Video Mode (No Signal) using a

remote-control.

4. Connect an oscilloscope to RK,GK,BK.

5. Adjust the VR (VR501, VR531, VR561) screen

so that RK, GK, BK pulse is 20Vp-p each.

(Turn the R,G,B VR screen fully

counterclockwise in the area of each flyback

line.)

4-4-2 White Balance Adjustment

1. Select the “STANDARD” video mode.

2. Input 100% white pattern.

3. In the stand-by mode, press the remote-control

keys in the following sequence:

4. Warm up the TV for at least 30 minutes.

5. Input a 10-step signal.

6. R-cut off, B-cut off, and G-cut off by pressing

the Volume keys.

7. Adjust the low light with viewing the dark

side of the screen.

8. Select R-drive, G-drive, and B-drive by

pressing the Volume keys.

9. Adjust the high light with viewing the light

side of the screen.

10. If necessary, redo adjustments 6~9.

11. Press the Menu key to exit.

4-4-3 Sub-Brightness Adjustment

1. Input a sub-brightness adjustment signal.

(TOSHIBA PATTERN)

2. In the stand-by mode, press the remote-control

keys in the following sequence :

3. Select SBT by pressing the Volume keys.

4. Adjust so that the 63 step on the right side of

the screen is not seen (Use the Volume

keys).

5. Press the Menu key to exit.

4-4-4 High Voltage (29KV) Check

PRECAUTION

1. Input a lion head pattern.

2. Select “STANDARD” video mode.

3. Warm up the TV for at least 10 minutes.

4. Use a 1000:1 probe.

ADJUSTMENT

1. Connect the (+) terminal of the 1000:1 probe to

the high voltage distributor and the (-)

terminal to GND (located on the deflection

board).

2. Adjust RR471S (located on the deflection

board) so that the digital meter indicates

DC 29V ±0.1V.

4-4-5 F.S. (Fail Safe) Adjustment

Note : The finished product has a well-mounted

VR (RR402S).

If necessary, do the F.S. adjustments in the

following sequence.

1. Use a digital multimeter.

2. Connect the digital multimeter to the JIG pin

(DZ482S) terminals

3. Adjust VR (RR402S) so that the voltage

becomes 2.25V.

4. After the adjustments are complete, be sure to

mount VR (RR402S) correctly.

Alignment and Adjustments

Samsung Electronics 4-13

4-4-6 F.S. (Fail Safe) Circuit Check

Note : The F.S. Circuit check must be performed

after servicing.

1. Turn on the TV.

2. Select the “STANDARD” video mode.

3. Short F/S Test point (located on the SUB PCB).

Then, both sound and picture disappear.

(Note: Even if the shorted terminals are

removed, both sound and

picture do not appear. This proves the F.S.

circuit is working. )

4. To restore both sound and picture, turn off the

TV and reset it after about 30 seconds.

4-4-7 Static Focus Adjustment

PRECAUTION

1. Select the “STANDARD” video mode.

2. Input a crosshatch pattern.

3. Cover the lenses that are not being adjusted.

4. Connect a convergence jig and read data.

5. Adjust the lens for best focus.

(See Fig, 4-1)

STATIC FOCUS (CONTINUED)

Vary the focus pack VR (Red, Blue) on the

front cabinet. Adjust the TV for best possible

focus around the center of the crosshatch

pattern, without losing overall screen balance.

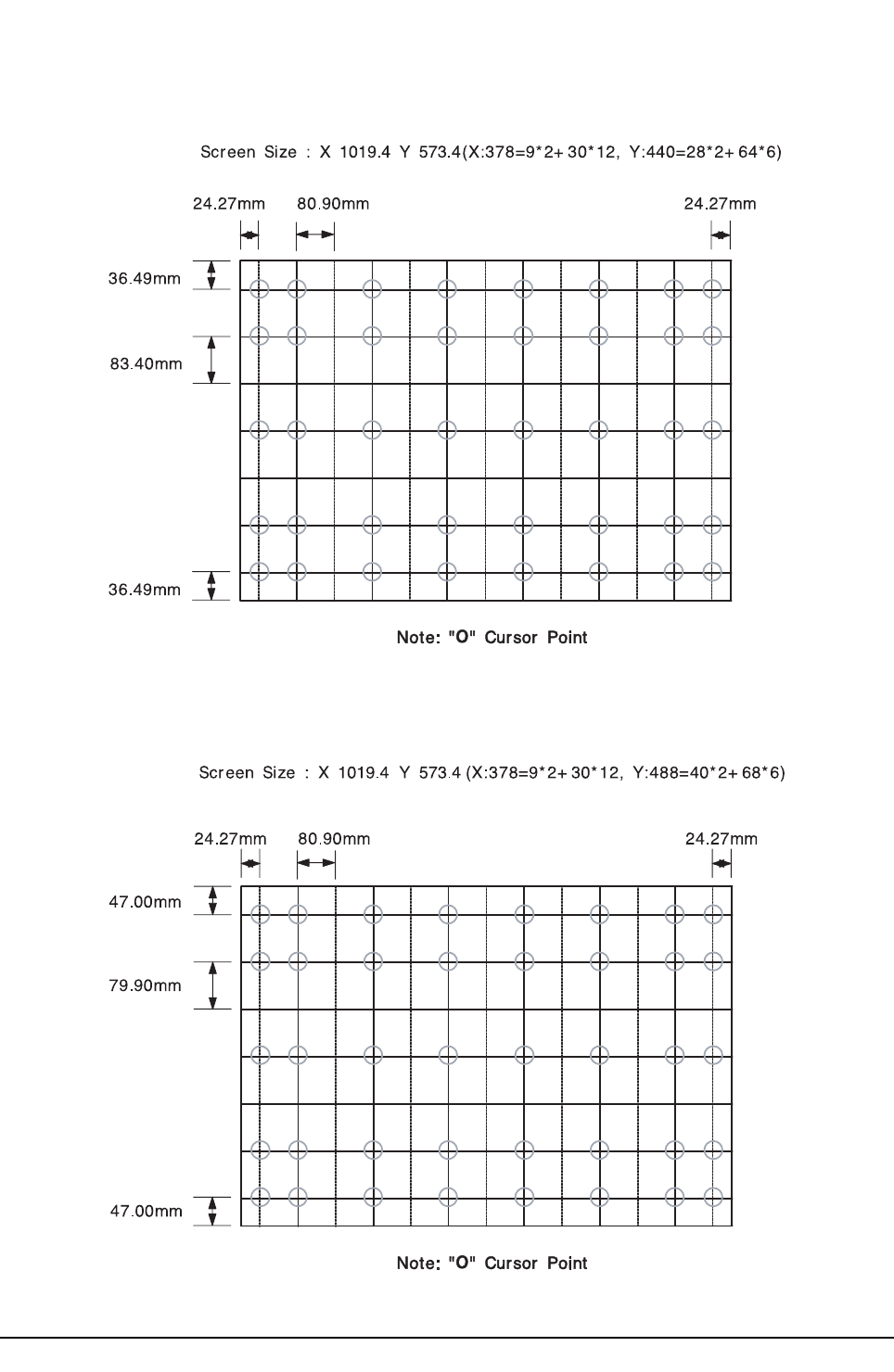

Figure Crosshatch Pattern

Examine these points together.

4-4-8 Lens Focus Adjustment

PRECAUTIONS

1. Do this adjustment after the static focus

adjustment and the tilt adjustment.

2. Select the “STANDARD” video mode.

(Contrast:100, Brightness:50)

3. Input a crosshatch pattern.

ADJUSTMENT

1. Loosen the lens screws.

2. Cover the two lenses that are not being

adjusted.

3. Adjust the lens, observing the color aberration

vertically and horizontally within 3 blocks of

the center of the crosshatch pattern.

4. When the lens is turned clockwise, the color

aberration will change as follows:

Lens Color Aberration Change

R Orange - Crimson

G Blue - Red

B Purple - Green

5. Green lens adjustment:

Set the lens at the point where Blue just

changes to Red. If the color aberration is

irregular throughout the picture screen, adjust

the lens to show Red color aberration

(approximately 1~3 mm area) within a 3-block

grid around the horizontal center-line. If the

color aberration is irregular, adjust the lens as

shown in the diagram below. (Accurate

alignment of Green is important for overall

color quality.)

6. Red lens adjustment

Set the Red lens at the point where Orange

becomes Crimson.

7. Blue lens adjustment

Set the Blue lens at the point where Purple

becomes Green.

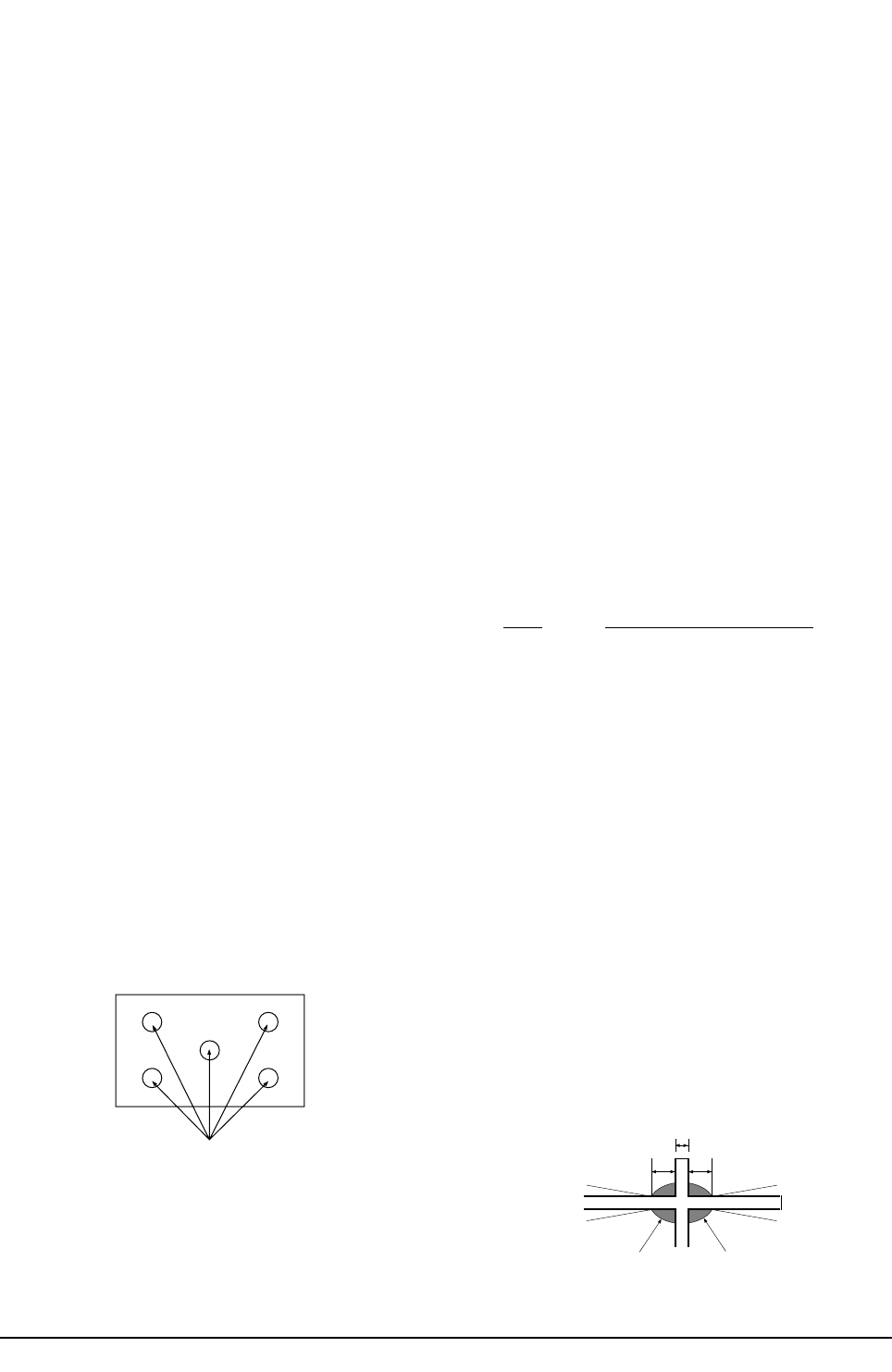

P

L1 L2

RED ABERRATION BLUE ABERRATION

L1, L2 < P

_

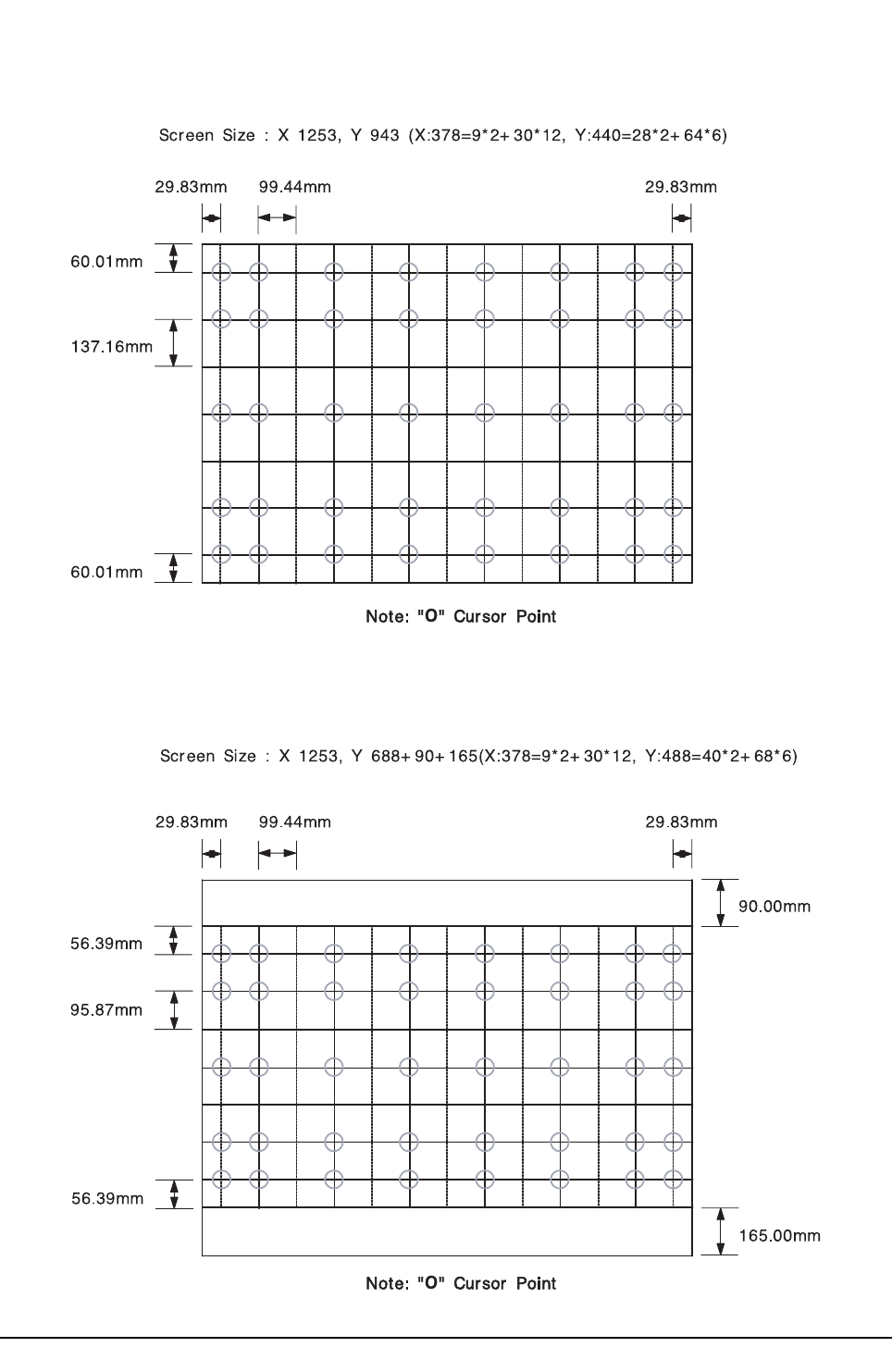

Fig. 4-1 Crosshatch Pattern.

Fig. 4-2 Color Aberration

Examine these points together

Alignment and Adjustments

4-14 Samsung Electronics

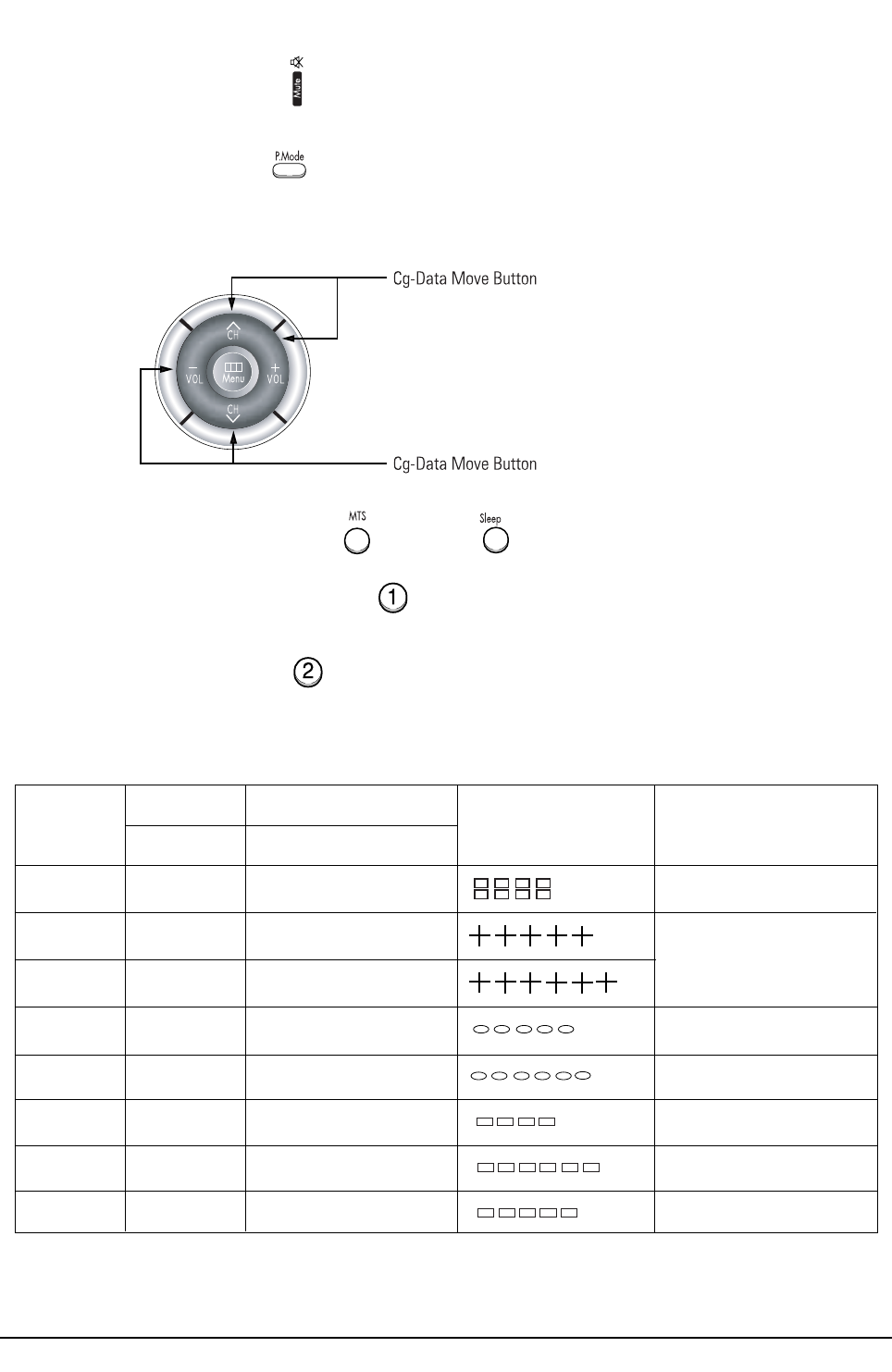

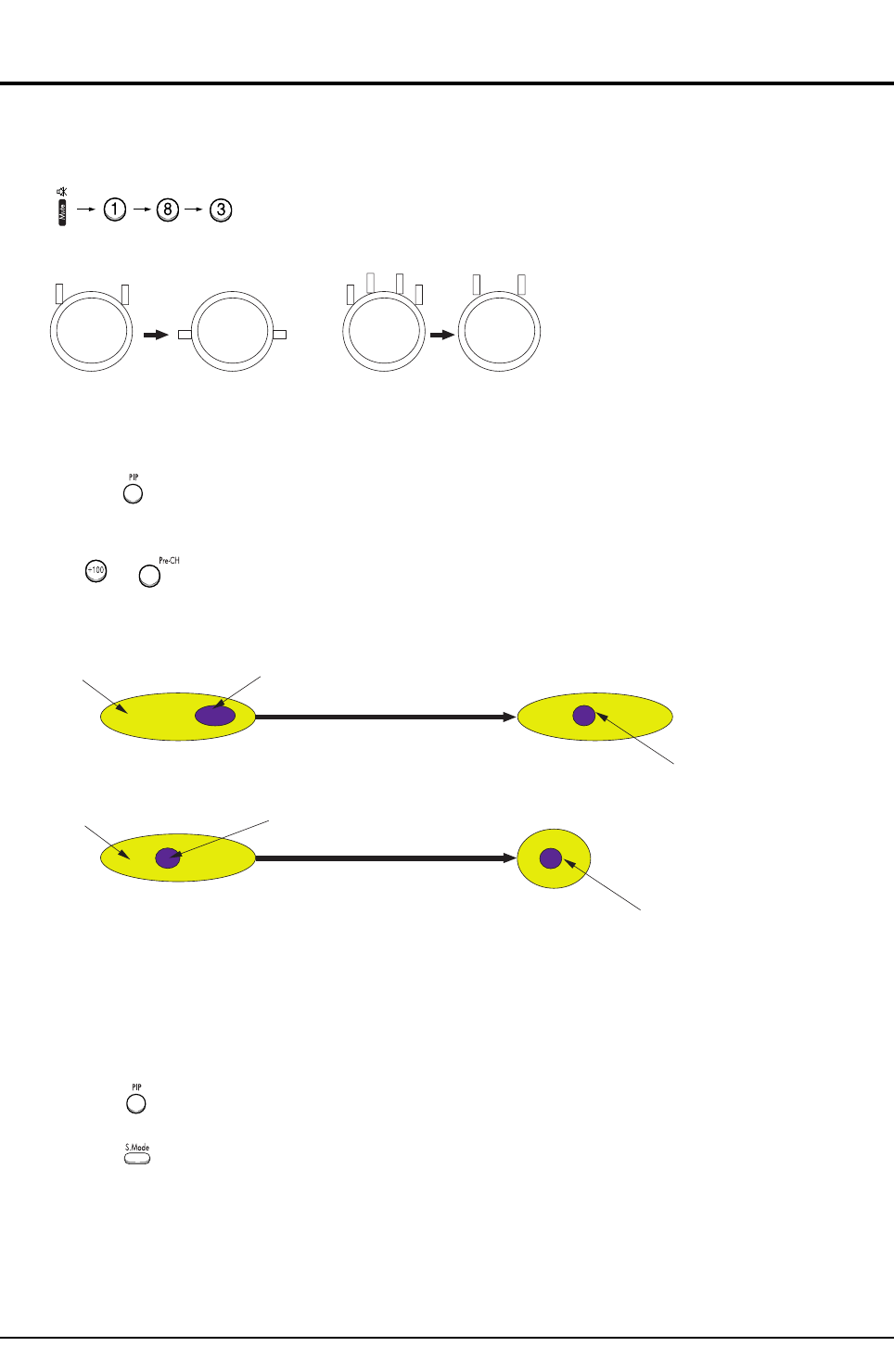

1. Select the “STANDARD” video mode.

2. Warm up the set at least for 10 minutes.

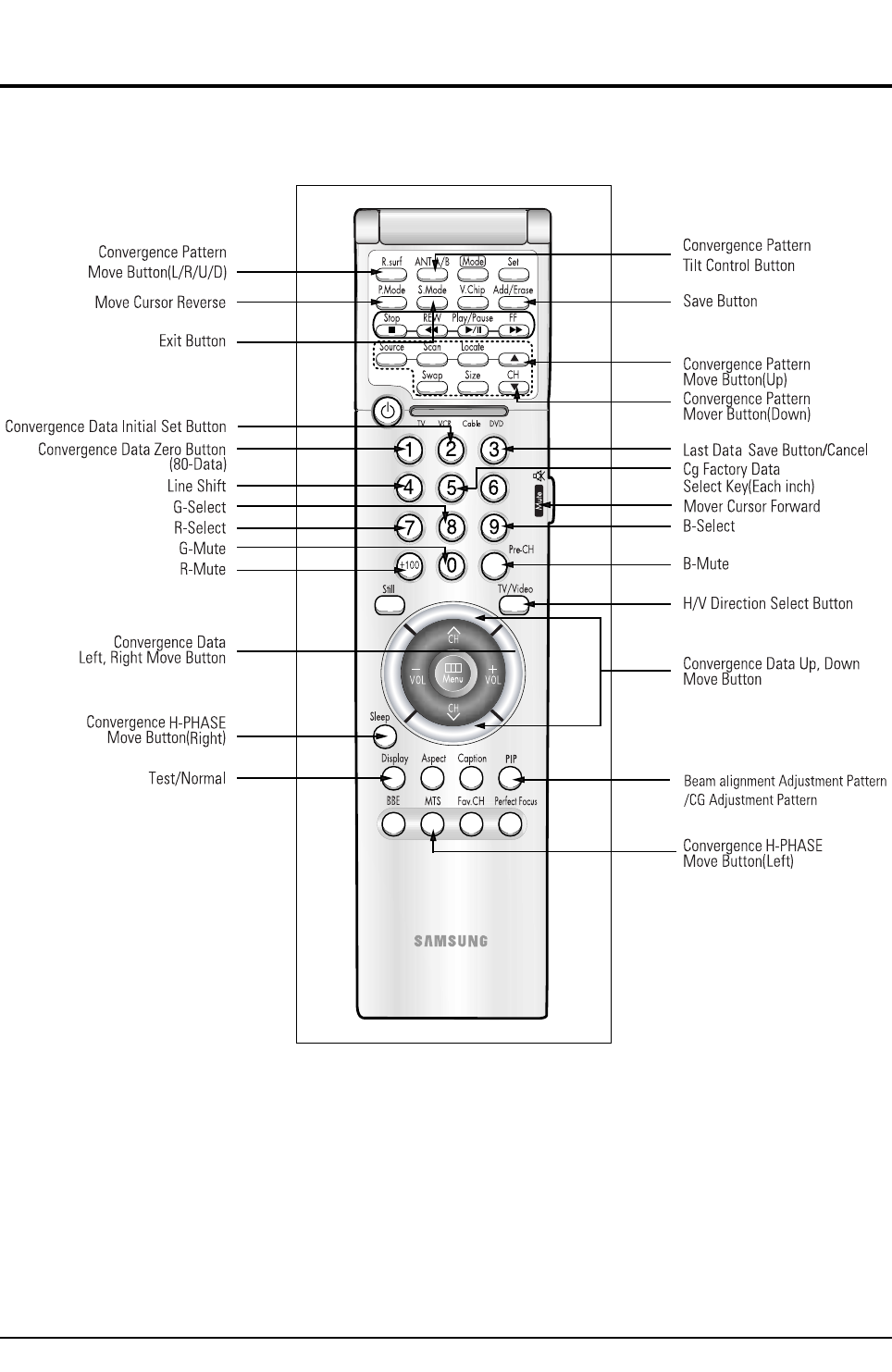

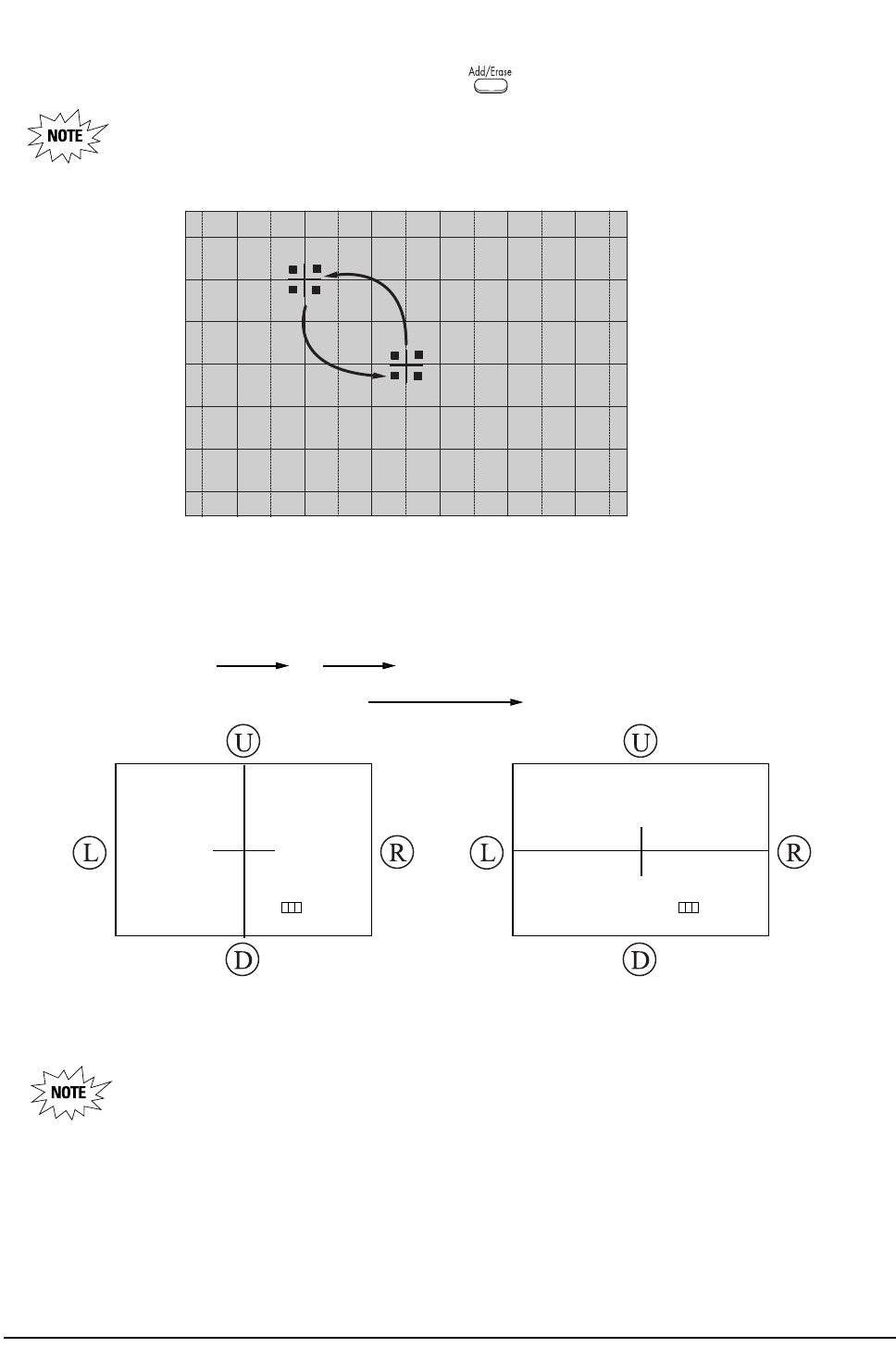

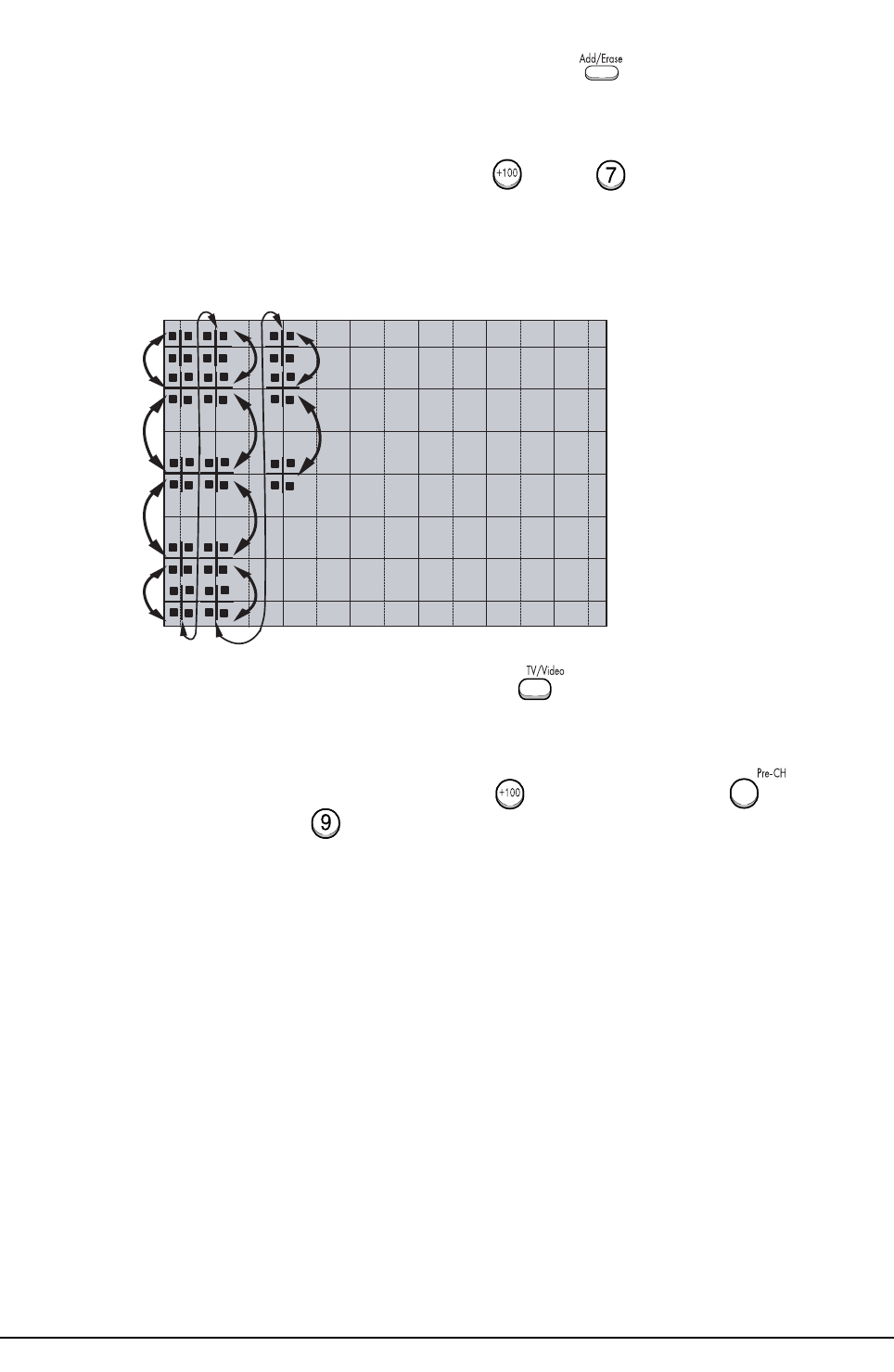

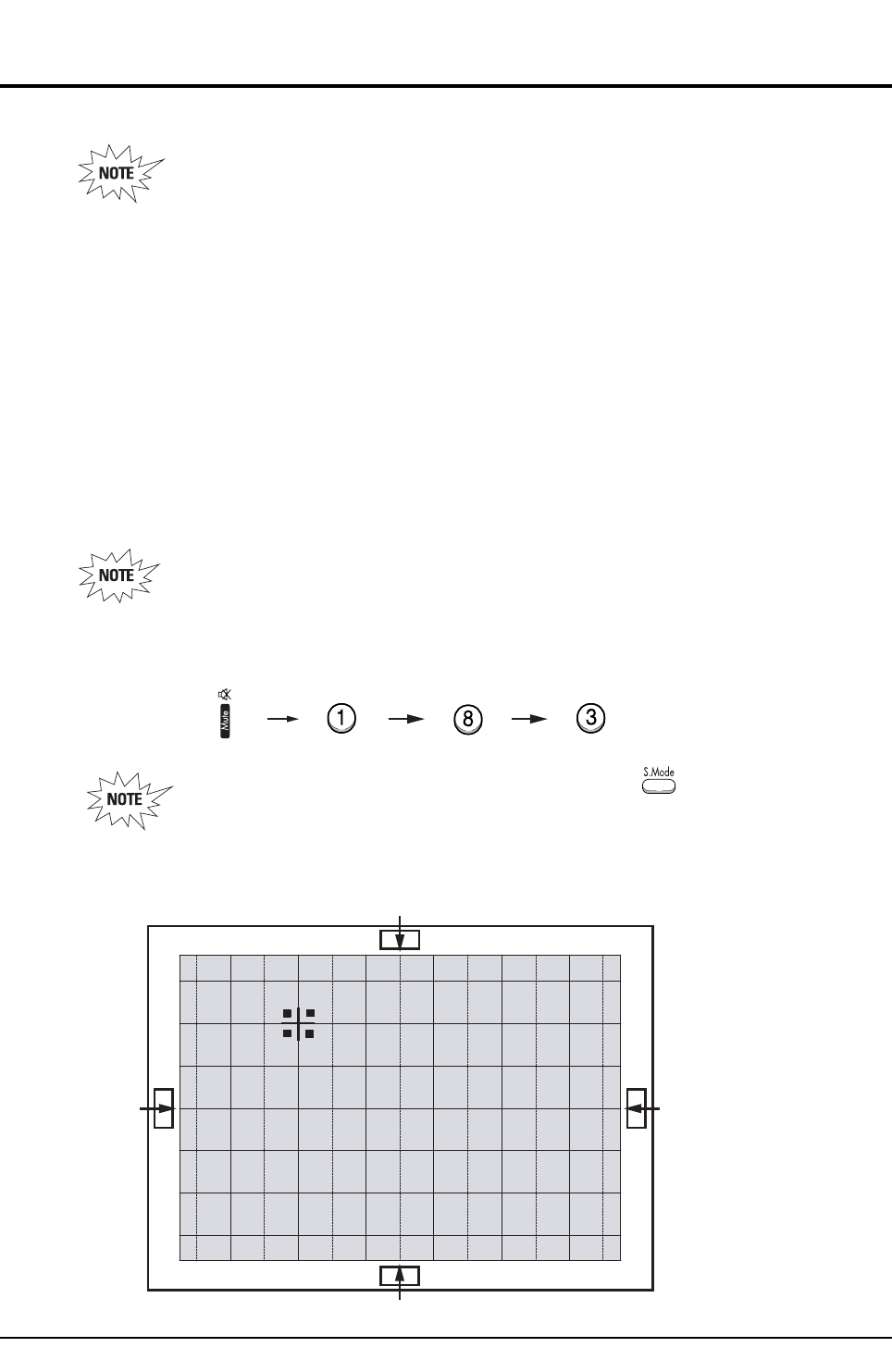

3. Enter the Convergence mode by pressing the remote control buttons in the following sequence

:

4. Set the Beam Alignment Adjustment CY to Zero magnetic field area.

5. Check the squarewave at the point where the focus is misaligned (Use an audio oscillator).

6. Press the button on the remote control, and a vibrating dot-pattern appears.

7. Adjust the Focus-pack VR for defocusing.

8. Mute the other patterns (R/B) other than G-PATTERN.

(Use / buttons on the remote control.)

9. Adjust the 2, 4 polarities of VM-COIL as shown in figure below.

10. Adjust the G-Focus until any light around the core disappears.

11. Adjust G-Focus so that the surrounding flash can disappear from the spot.

12. After G-Focus adjustments are complete, adjust R-Focus as above procedures.

13. The B-CRT adjustments can be omitted because the variance of beam focus is small.

(Only Vm-coil is mounted.)

14. Adjust the Focus-pack VR for fine focusing.

15. Press the button on the remote control, and the mode changes to the Convergence Adjustment

mode.

16. Press the button on the remote control to return to normal viewing.

(Creation of CPM Zero Magnet)

G-FOCUS CORE

CORE

G-FOCUS

(Creation of the 2-pole/4-pole zero magnets)

G-FOCUS CORE

(Varying G-Focus Pack)

Varying the 2-pole of VM

(Positioning the Core in the Center)

Varying the 4-pole of VM

CORE

G-FOCUS

(When VM 2-Pole Adjustment is completed) (Adjust until the light around

the core becomes a circle)

4-5 Beam alignment Adjustments

Alignment and Adjustments

Samsung Electronics 4-15

4-6 Hige Voltage Part

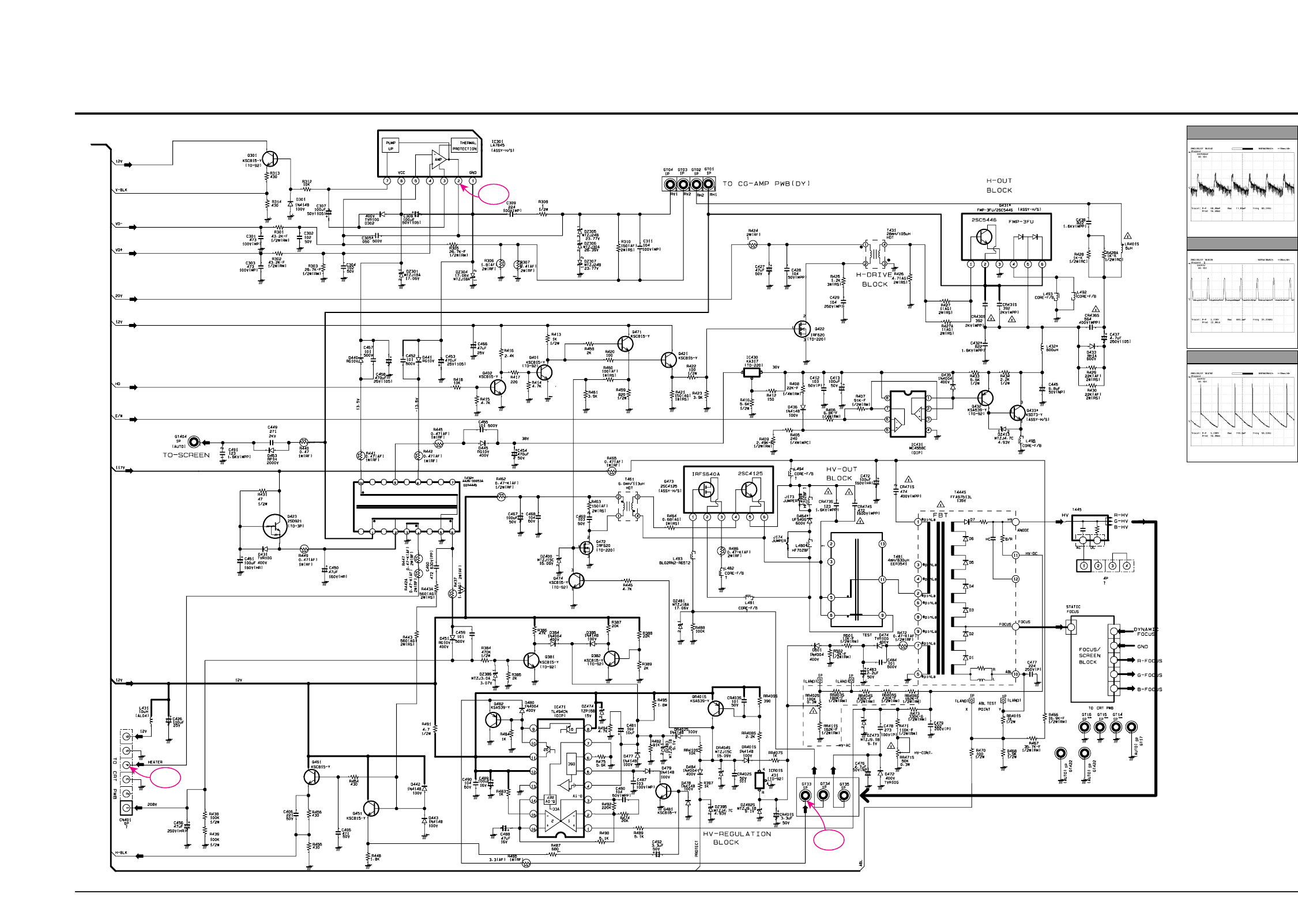

4-6-1 PWM REG Circuit

For the existing high voltage REG circuit (input

voltage variation type), a dynamic REG response

is not provided. So it is difficult for both beam

linearity and uniformity in screen size to be

maintained on the screen with rapidly changing

beams.

A PWM (Pulse Width Modulation) type of high

voltage, however, provides the maintenance of

beam linearity and uniformity in screen size via a

quick response to beam change by performing

sync lock every 1H line, and detecting beam

fluctuation at 1H line, and then controlling the IC

current of high voltage output circuit.

1. High Voltage Fluctuation Detect (DC Detect)

FBT pin 11 detects DC high voltage fluctuation.

The detected DC high voltage value is input to

PWM IC471 pin1 through R473, VR471, R471,

and then it is input to a differential AMP circuit

that differentiates the gap after comparing with

the reference voltage input to pin2.

2. High Voltage Fluctuation Detect (AC Detect)

To check AC high voltage fluctuation, the

output from FBT is detected by using a

capacitor inside the high voltage distributor. The

detection of AC high voltage fluctuation,

a detection of dynamic beam current change is

required in order to keep beam linearity and

uniformity in size.

Regarding the capacitor, a capacity of less than

3000P should be applied to a PWM type. (The

existing type needs a capacity of about 6000P.)

AC detect circuit eliminates unnecessary high

frequency by using C476, D472. Also, AC gain is

limited to + / - 0.7V (D472). This AC gain is

combined with the detection value of DC high

voltage fluctuation by using C478.

3. PWM IC OSC Sync Lock

A PWM type IC needs sync lock for PWM pulse

and horizontal scan line.

The standard time constant of OSC circuit is

determined by C487, R475 (PWM IC pins 5 and 6).

And the standard OSC frequency is about 27

kHz . The horizontal frequency of scan line is

31.5kHz(NT), 3375kHz(DTV), 15.75kHz(Interface),

so sync lock for this horizontal frequency should

be performed using sync lock circuit. The sync

lock circuit consists of Q481(Tr KSC815-Y),

D479, D478, and C492. The input AFC signal is

connected to PWM IC pin 5 through D479 so

that it can be negative Trig.

4. Dead Time (HV Protect)

Dead Time (PWM IN pin4) consists of C481,

delays high voltage for a certain time to soft

start in power on, a x-ray protection circuit.

The voltage of Dead Time is detected by FBT

pin7 and through DC Feedback. The normal

voltage of Dead Time is +27V. When high

voltage increases, however, detected voltage is

in proportion to high voltage. Then, the detected

voltage is applied to ICR01S(TL431).

If the voltage is over 2.5V (normal:about 2.25V),

TL431 turns ON, the base port of QR401S

becomes low, and then an emitter current flows.

At this time, a high voltage protection point is

set. When QR401S turns ON, high voltage is

applied to PWM IC pin4 and then muted.

OSC : 27KHz

AFC Waveform : 31.5KHz(NT)

Locked OSC Waveform : 31.5KHz

Alignment and Adjustments

4-16 Samsung Electronics

5. Output Circuit

The voltages, which are detected form an error

detection circuit of PWM IC (Differential AMP)

and Dead Time, each is applied to PWM

conparator . Due to these detection coltages, Q1,

Q2 (Output TR) parallel operate. Q482 (External

TR), however, functions as a buffer; natches

inpedance between the output port of PWM IC

and the final output TR(IRFS640). The PWM

pulse (applied to the final output FET (IRFS640

GATE) varies the IC current of high voltage

TR(Q473) by adjusting the load impedance of

starage Trans (T431). Due to this variation of

current, the gain for Q473 emitter pulse changes

T444(FBT)makes this emitter pulse became high

voltage. Such change keeps both dynamic and

static changes fixed. The output waveform of

high valtage TR emitter is as shown in the figure

below.

6. Paraneters according to beam

To maintain the set high voltage value (31kV),

parmaters such as +Ve (DC), Vcp High Voltage

change (See the table below).

7. Response Waveform

To reduce unstable high voltage fluctuation, the

existing high voltage type REG circuit controls

dynamic fluctuation by using C-block capacitor.

But, it can't detect actual dynamic fluctuation.

Also, its velocity of response to static fluctuation

is late because +B power supply changes per

about 1V. A PWM modulation type REG detects

static, dynamic high voltage fluctuation for only

Ton Time (when the current of the output TR

collector flows) each 1H, and modulates the

width of PWM pulse. So, this PWM type has

better improvement in the characteristic of high

voltage REG as compared to the existing type.

8. Application Effects

1) Improvement of horizontal size fluctuation

2) Linearity improved

3) Embodiment of X-ray protection circuit

The figures below show characteristics when a

PWM high voltage REG circuit is applied.

Beam

(High voltage )

Factor of high

voltage change

Beam

(High voltage )

Width of FET

Gate Pulse + Ve (DC) Vcp High

Voltage

Parameters

High Voltage Drive Base Current

PWM Input Waveform of FET GATE

GND

PWM Variation tange

Ton Toff

Beam

High Voltage

High Voltage OFF

High Voltage REG ON

BLACK

WHITE

When a Toshiba Pattern

is recrived, the screen is

displayed as shown in

figute side

Existing type

PWM type

Alignment and Adjustments

Samsung Electronics 4-17

4-7 Screen-Jig

42W5ScreenSize:X932,Y524(X:378=9*2+30*12,Y:440=28*2+64*6)

42W5 DTV Mode : X 932, Y 524 (X:408=18*2+31*12, Y:488=40*2+68*6)

22.19mm 73.97mm

33.35mm

76.22mm

22.19mm

33.35mm

41.12mm 70.81mm

42.95mm

73.02mm

41.12mm

42.95mm

42W5 DTV

42W5 TV

4-7-1 HCM4215W/HCM422W/HCM4216W (NORMAL MODE)

4-7-2 HCM4215W/HCM422W/HCM4216W (DTV MODE)

Alignment and Adjustments

4-18 Samsung Electronics

4-7-3 473W/4715W (NORMAL MODE)

4-7-4 473W/4715W (DTV MODE)

Alignment and Adjustments

Samsung Electronics 4-19

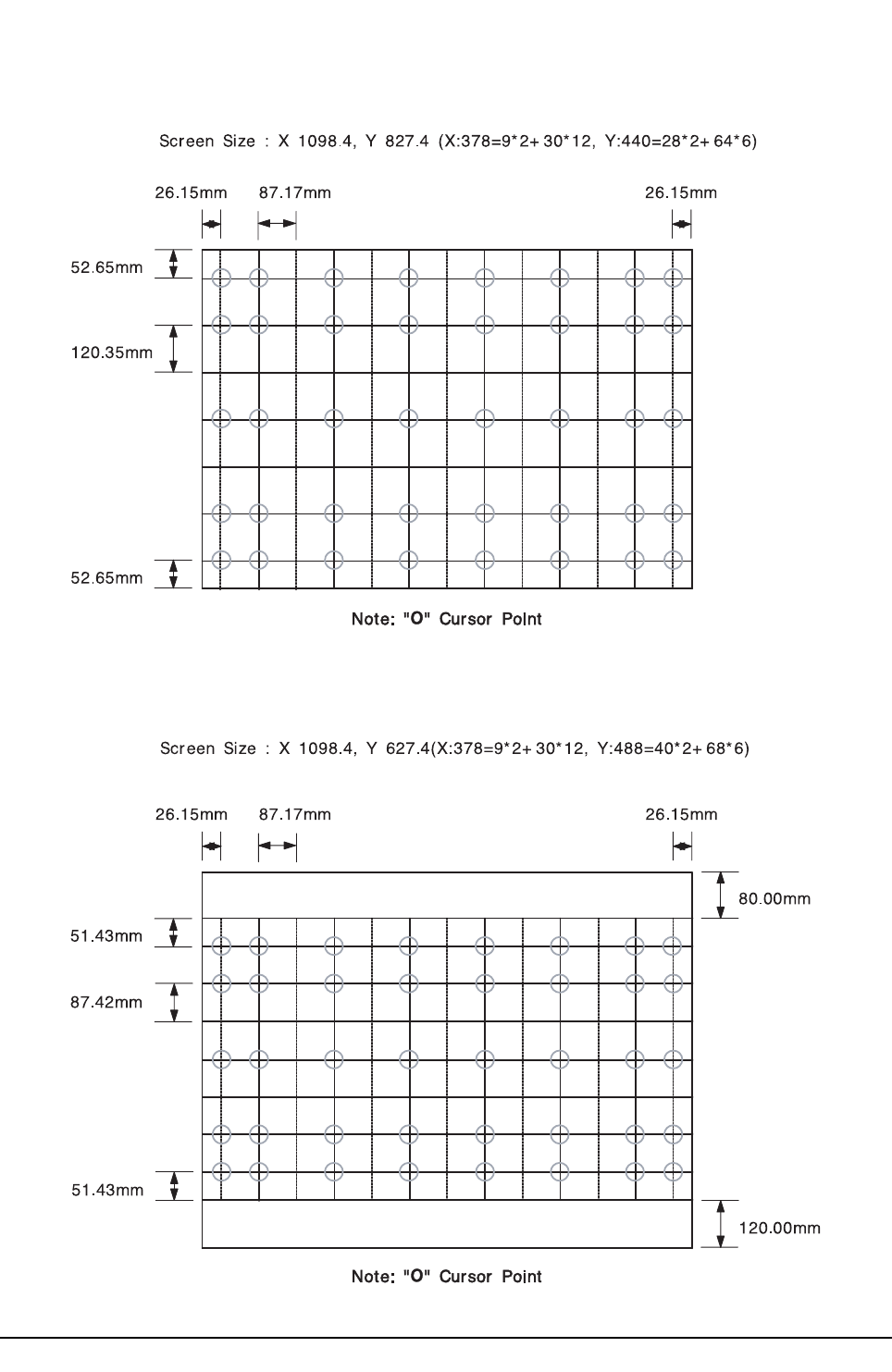

4-7-5 5415R/545R/54J9 (NORMAL MODE)

4-7-6 5415R/545R/54J9 (DTV MODE)

Alignment and Adjustments

4-20 Samsung Electronics

4-7-7 552W/5515W/5525W/553W/PTH5598 (NORMAL MODE)

4-7-8 552W/5515W/5525W/553W/PTH5598 (DTV MODE)

Alignment and Adjustments

Samsung Electronics 4-21

4-7-9 6215R (NORMAL MODE)

4-7-10 6215R (DTV MODE)

Alignment and Adjustments

4-22 Samsung Electronics

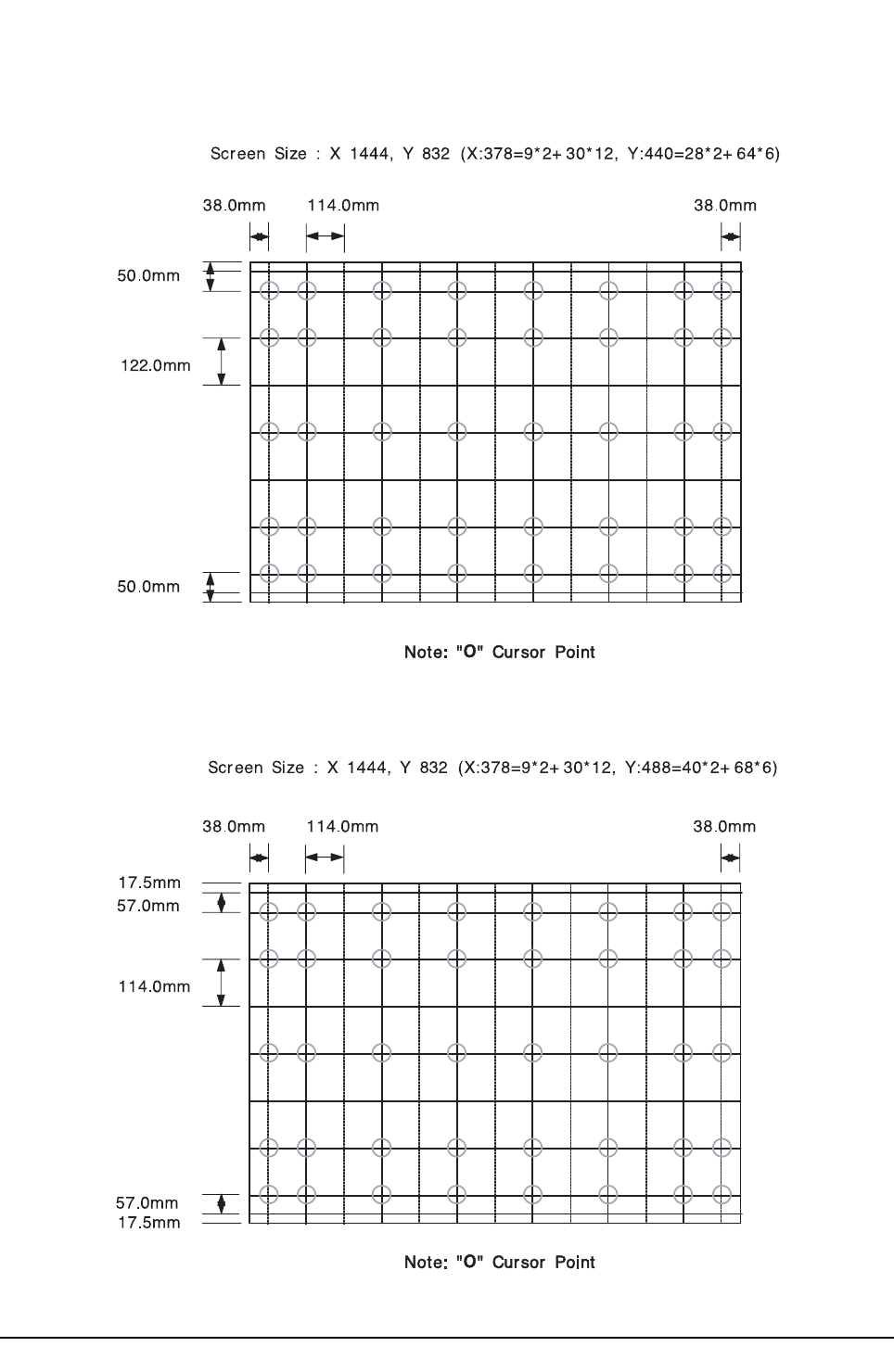

4-7-11 652W/653W/6515R (NORMAL MODE)

4-7-12 652W/653W/6515R (DTV MODE)

Alignment and Adjustments

Samsung Electronics 4-23

4-8 Remote Control for Servicing (Convergence Mode)

Alignment and Adjustments

4-24 Samsung Electronics

4-7-1 KEY Function

1. R-SELECT

Press to select RED color.

2. G-SELECT

Press to select GREEN color.

3. B-SELECT

Press to select BLUE color.

4. R-MUTE

Press to mute RED color.

5. G-MUTE

Press to mute GREEN color.

6. B-MUTE

Press to mute BLUE color.

7. CANCEL KEY

Press to revert to the previous data during the Convergence

Adjustment.

8. TEST/NORMAL

Press to check TV mode in the Convergence Mode.

9. LINE SHIFT

Press to move a line up/down or left/right.

10. FACTORY DATA SELECT BUTTON

Press to call the factory default values.

11. H/V DIRECTION SELECT BUTTON

Press to switch the cursor direction horizontally or vertically.

12. SAVE BUTTON

After the Convergence Adjustments are completed, press to save data.

13 EXIT BUTTON

After the Convergence adjustments are completed, press to exit to TV mode.

Alignment and Adjustments

Samsung Electronics 4-25

14. MOVE CURSOR FORWARD

Press to move the cursor right or down.

15. MOVE CURSOR REVERSE

Press to move the cursor left or up.

16. CONVERGENCE PICTURE MOVE BUTTON

17. CONVERGENCE MOVE BUTTON

Press to move the convergence left ( ) or right ( ) .

18. CONVERGENCE DATA ZERO BUTTON

Press to zero the convergence correction data.

19. INITIAL DATA SET BUTTON

Changes when applying Almighty-Cg, Module (How to extract the basic Cg Data)

Inch (Type)

42” (42W5)

54” (54J9)

62” (62J9)

55” (552W)

65” (652W)

47” (472W)

(473W)

65”(653W)

55”(553W)

Model Name

Representative

Model

422W/4215W

42W5/4216W

PCL545R/

PCL5415R

PCL6215R

HCL552W/

5515W

HCL652W/

6515W

HCL472W/

4715W

HCM653W

HCM5525W/

553W

Basic Data

Number after entring

the Cg-Mode

5-425 (Press in regular order)

5-545 (Press in regular order)

5-625 (Press in regular order)

5-552 (Press in regular order)

5-652 (Press in regular order)

5-473 (Press in regular order)

5-653 (Press in regular order)

5-553 (Press in regular order)

Screen Display Discription

White Cross on the background

(white cross)

White Oval on the background

(white border)

White Oval on the background

(white border)

White Square on the backgrand

(white border )

White Square on the backgrand

(white border )

White Square on the backgrand

(white border )

20. Move Convergence Pattern P55AService Manual

After pressing the R.surf button, use the Channel Up/Down and Volume +/- buttons to move the

Convergence Pattern up/down/left/right.

21. Convergence Pattern Tilt Control Button

After pressing the ANT A/B button, use the Channel Up/Down and Volume +/- buttons to create

a tilt to the Convergence Pattern.

Note : Use the following two buttons only when they are indispensable.

21. Beam aligment Adjustment Pattern achieve Button

Alignment and Adjustments

4-26 Samsung Electronics

Alignment and Adjustments

Samsung Electronics 4-27

4-8 Convergence Adjustment

Special Notes

✏ Asensor is attached on the center of each side of the Convergence Mode pattern

(see figure below). The sensors are required for normal Perfect Focus function.

✏Use a screen jig to do the convergence adjustments correctly (Especially, perform

correct convergence adjustments on the center of each side where a sensor is located.)

✏ Do the convergence adjustments correctly. Otherwise, any Perfect Focus error can

happen.

1. Warm up the TV for a least 30 minutes.

2. Input an NTSC Signal.(Use an antenna or AV source.)

Make sure that deflection yoke are properly adjusted so that the center of

Green, Red, Blue pattern is aligned on the center of screen jig.

3. Enter the Convergence Mode by Pressing the remote control keys in the following sequence:

If OSD displayed as shown in figure below, press the key to exit.

Then, redo step 3 to enter the Convergence Mode.

After entering the Convergence Mode, Stand by for about five seconds

before doing the adjustments.

4-8-1 Convergence Adjustment)

Alignment and Adjustments

4-28 Samsung Electronics

4. To adjust GREEN, first press the and the keys, and then press the key.

Press to move the cursor right or down.

5. The key moves the cursor horizontally or vertically.

When the key is pressed once again, the cursor moves horizontally.

6. . The key moves the cursor right, and the key moves the cursor left.

Alignment and Adjustments

Samsung Electronics 4-29

7. Use the key for overall balance.

8. After the Line Shift is cancelled by pressing the key, use the Channel and Volume keys

(Up/Down)to make big adjustments.

Alignment and Adjustments

4-30 Samsung Electronics

9. After the green convergence adjustments are completed, press the key to save the data.

10. Superimpose the Red and Green colors by pessing the and the keys.

11. To adjust RED, redo steps 5~7.

When the cursor moves vertically

12. To superimpose the blue and green colors, press (1) the key for R-Mute, (2) the key

to cancel the B-Mute, and (3) the key for B- select

13. To adjust BLUE, redo steps 5~7, 13.

14. If any color is not properly adjusted when displaying the red, blue and green colors, readjust the color.

Alignment and Adjustments

Samsung Electronics 4-31

Perfect Focus

Mode On

Process : 83%

130

245

150

Exit Perfect Focus

Mode On

Process : 83%

130

245

150

Exit

4-8-2 Perfect Focus (Factory Mode)

15. After the color adjustments are completed, pree the ( ) key to save the data.

The corser moves to center, and then automatically moves up and to

the left about five seconds later.

1. After the adjustment is completely saved, press the perfecr Focus key to perform Auto Convergence

(Factory Mode). Auto Covergence is porformed in the following sequences :

GRB

Up, Down Left, Right

When auto Convergence is complete, the data is automatically saved and the convergence

pattern revets.

wAfter Factory Auto convergence is complete, make sure that the cursor flickers for about

` 1 second on the center and then it is saved.

wCheck the presence of error though the flicker of the cursor.

wWhen any error happens, be sure to re-do Factory Auto Convergence.

wWhen Convergence Adjustment is not normally done or the convergence center is

misaligned with the sensing point, any adjustment error happens. Therefore, be sure to use

a screen jig to correctly adjust during troubleshooting.

Alignment and Adjustments

4-32 Samsung Electronics

2. After the Convergence Adjustments are completde, press the key to exit.

3. DTV Convergence adjustment must be done same as the above Normal Mode Convergence Adjustment

(Use a 16 : 9 screen jig for DTV)

When Convergence Adjustment is not normally done or the convergence center is

misaligned with the sensing point, any adjustment error happens. Therefore, be sure to

use a screen jig to correctly adjust during troubeshooting.

Alignment and Adjustments

Samsung Electronics 4-33

4-9 MICOM and Pins Voltage

4-9-1 MICOM MODULE Pins

NO ITEM FUNCTION VOLT

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

KEY 1 2.28[V]

PRO TECT

2.47[V]

2.95[V]

4.21[V]

3.49[V]

3.43[V]

0.83[mV]

KEY 2 KEY SCAN 2 2.25[V]

-

GND

IR IN

S-RESET

ST-BY-LED

RESET

KEY 3 KEY SCAN 3 2.29[V]

3.74[V]

STB-5[V] VCC 4.91[V]

POWER

KEY SCAN 1

PROTECT PORT

GND

REMOCON INPUT

POWER ON/OFF RELAY CONTROL

SCL1 SERIAL CLOCK LINE 1

SDA1

SOUND RESET

STANDY-BY LED

RESET

SERIAL DATA LINE 1

1.03[V]

TIMER-LED TIMER LED 2.07[V]

1080 i 1080i MODE SWITCHING 2.53[V]

-

2.84[mV]

-

3.26[V]

0.89[mV]

-

4.58[V]

3.27[V]

1.04[V]

5[mV]

-

2.08[V]

2.57[V]

-

3.27[V]

GND GND

V-RESET VIDEO SIGNAL MUTE

GND

SOUND AMP MUTE

N.C

SW1 (CONTROL)

CENTER SPEAKER MUTE

SW3 (CONTROL)

GND

SERIAL CLOCK LINE 2

GND

AMP-MUTE

N.C

GND

SW1

SCL2

C-SPK-MUTE

SDA2 SERIAL DATA LINE 2

SW3

GND

SW2

SUB-AFT

GND

MAIN-AFT

BUS-STOP

SW2 (CONTROL)

SUB AFT CONTROL

GND

MAIN TUNER AFT CONTROL

I2C BUS STOP

Alignment and Adjustments

4-34 Samsung Electronics

ITEM FUNCTION VOLT

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

5[V] 4.96[V]

J-BLANK

-

1.19[V]

-

215.8[mV]

GND GND -

-12.10[mV]

V-BLANK

GND

S-SW2

2RF-S 2RF-SWITHING 297.68[mV]

GND GND -

-

N.C

5[V]

HORIZONTAL BLANK

VERTICAL BLANK

GND

N.C

GND GND

TTX-CVBS

GND

SUB TUNER SWITCH 2

TTX/CAPTION-CVBS

-

VS1 VERTICAL SYNC -

N.C N.C -

215.51[mV]

-

3.74[V]

-

3.26[V]

168[mV]

-

0.46[V]

-

0.46[V]

7.31[mV]

HS1 HORIZONTAL SYNC

N.C N.C

SUB TUNER SWITCH 1

NOT USE

MAIN TUNER SWITCH 1

ON SCREEN DISPLAY RED

GND

S-SW1

AV-LINK

M-SW1

GND

M-SW2

RXD

GND

TXD

OSD-TTX-R

GND

OSD-TTX-G

WP

OSD-TTX-B

3.3[V]

OSD-TTX-FB

ON SCREEN DISPLAY GREEN

MAIN TUNER SWITCH 2

RXD

GND

WRITE PROTECT

TXD

ON SCREEN DISPLAY BLUE

3.3[V]

OSD/TTX-FB

Alignment and Adjustments

Samsung Electronics 4-35

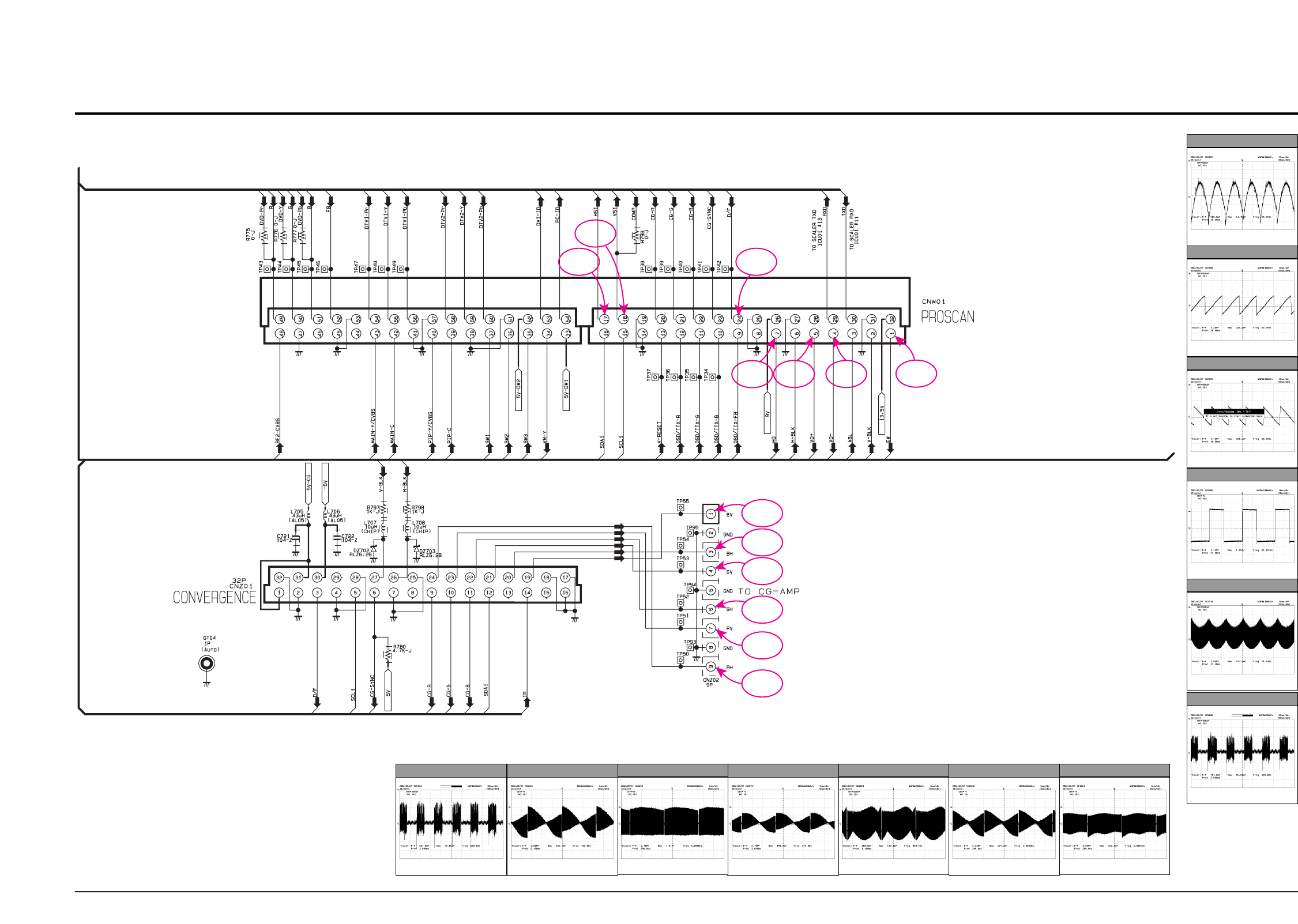

4-9-2 PROSCAN MODULE Pins

NO ITEM FUNCTION VOLT

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

EW 2.26[V]

V-BLK

27.28[mV]

251.4[mV]

3.50[V]

3.42[V]

2.94[mV]

-12.07[mV]

ABL ABL(Automtic Brightness Limiter) 2.26[V]

3.46[V]

VD-

HD

SDA1

HS1

VS1

VD+ VERTICAL DRIVE (+ VOLTAGE) 3.53[V]

2.38[V]

H-BLK HORIZONTAL BLANKING 215.93[mV]

GND

EAST WEST OUT

VERTICAL BLANK

VERTICAL DRIVE (- VOLTAGE)

HORIZONTAL DRIVE

GND

V-RESET VIDEO SIGNAL MUTE

SCL1

SERIAL DATA LINE

HORIZONTAL SYNC

VERTICLA OUT

SERIAL CLOCK LINE

-

OSD/TTX-FB OSD/TTX-FB 7.29[mV]

OSD/TTX-B ON SCREEN DISPLAY BLUE IN 0.46[mV]

0.46[mV]

167.99[mV]

-

1.5[V]

-

0.27[mV]

0.29[mV]

180.03[mV]

-

9[V]

-

14.05[V]

OSD/TTX-G ON SCREEN DISPLAY GREEN IN

OSD/TTX-R ON SCREEN DISPLAY RED IN

GND

CONVERGENCE RED

CONVERGENCE BLUE

DYNAMIC FOCUS

9[V]

CONVERGENCE GREEN

GND

CONVERGENCE SYNC

GND

CG-R

CG-G

CG-B

CG-SYNC

D/F

GND

9[V]

GND

N.C

RXD

TXD

GND

13.5[V]

N.C

RXD

TXD

GND

13.5[V]

Alignment and Adjustments

4-36 Samsung Electronics

ITEM FUNCTION VOLT

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

5[V]-DW1 4.97[V]

VM-Y

-

1.97[V]

SW3 SW3 (CONTROL) 4.98[mV]

2.08[V]

SW2

PIP-C

RF2-CVBS

DVD-Pr/R

DVD-Y/G

SW1 SW1 (CONTROL) 4.58[V]

GND GND -

1.20[mV]

PIP-Y/C CVBS

5[V]-DW1

VM-Y OUTPUT

SW2 (CONTROL)

PIP-C INPUT

PIP-Y/CVBS INPUT

GND GND

GND

RF1-CVBS

DVD-Pr/R (COMPONENT1)

DVD-Y/G (COMPONENT1)

GND

1.33[mV]

GND GND -

MAIN-C MAIN-C INPUT 1.34[mV]

1.57[mV]

-

4.89[V]

-

MAIN-Y/C CVBS MAIN-Y/CVBS INPIUT

N.C N.C

N.C

DVD-Pr/B (COMPONENT1)

NOT USE

DTV2-Pr (COMPONENT3)

GND

DTV2-Y (COMPONENT3)

N.C

DVD-Pb/R

FB

GND

DTV1-Pr

DTV1-Y

DTV1-Pb

GND

DTV2-Pr

DTV2-Y

DTV2-Pb

GND

5[V]-DW2

DVI-ID

PC-ID

DTV2-Pb (COMPONENT3)

DTV1-Pr (COMPONENT3)

DTV1-Y (COMPONENT3)

DTV1Pb (COMPONENT3)

GND

5[V]-DW2

N.C

Alignment and Adjustments

Samsung Electronics 4-37

4-9-3 CONVERGENCE MODULE Pins

NO ITEM FUNCTION VOLT

1 5[V]-CG 5.2[V]

2 GND

-

3 D/F DYNAMIC FOCUS 1.5[V]

4 GND

GND

5SCL1 SERIAL CLOCK LINE 1 3.4[V]

6 CG-SYNC CONVERGENCE SYNC 179[mV]

7

8N.C

5[V]-CG

GND

N.C

N.C N.C

N.C

GND

N.C

5.2[V]

9CG-R CONVERGENCE RED 0.27[mV]

10 CG-G CONVERGENCE GREEN 0.26[mV]

0.29[mV]

3.5[V]

3.7[V]

-88.95[mV]

34.27[mV]

-107.32[mV]

101.52[mV]

-15.83[mV]

104.32[mV]

-

5.24[V]

275[mV]

-13.22[mV]

-

-4.99[V]

-

11 CG-B CONVERGENCE BLUE

12 SDA1 SERIAL DATA LINE 1

INPUT REMOCON

BULE VERTICAL OUT

BULE HORIZONTAL OUT

GREEN HORIZONTAL OUT

RED HORIZONTAL OUT

HORIZONTAL BLANK

GREEN VERTICAL OUT

VERTICAL BLANK

RED VERTICAL OUT

13

14 IR

15

16

17

18

19 BV

20 BH

21 GV

22 GH

23 RV

24 RH

25 GND GND

26 H-BLK

27 V-BLK

28 GND

29 N.C

30 -5[V]

31 5[V]

32 GND

GND

N.C

-5[V]

5[V]

GND

MEMO

4-38 Samsung Electronics

Troubleshooting

Samsung Electronics 5-1

5. Troubleshooting

5-1 Convergence Misaligned

Check the input

voltage of main

CNZ02 and sub CN803

Check the voltage of CNZ03

on the CG-AMP board and

the waveform of CNZ01

Check FD101S,FD102S

on the CG-AMP board

Replace FD101S,FD102S

and check associate circuits

Check the circuits

related to ICZ103,ICZ104

Check the circuits related to

CNZ02,CNZ04,CNZ05

Check DY

Check the input/output

of ICZ103,ICZ104

on the CG-AMP board

Check the output from

CNZ02,CNZ04,CNZ05

on the CG-AMP board

Check connectors

MAIN ↔ CG-AMP

SUB ↔ CG-AMP

Check the output from

CG-MDL and FD855S,

FD802S on the SUB PCB

Abnomal

Nomal

5-2 No Sound

Troubleshooting

5-2 Samsung Electronics

Check the input/output

circuits of IC601

Check the output

volume level of

MAIN CN601

Check SPEAKER

Check ICD603

Abnomal

Nomal

Check the circuits

related to IC601

Check IC602 Check the circuits

related to IC601

Check IC605 Check the circuits

related to IC602

Check various input circuits Check the circuits

related to IC605

Troubleshooting

Samsung Electronics 5-3

5-3 No Raster

Check the operating

status of remote control

and POWER S/W

Check the remote

control and

CONTROL ASSY

Check the input

voltage/waveform of

CRT-PCB CN501,CN504

Check the input/output

circuits of IC501,IC531,IC561

Check the circuits related to

the input/output of IC501,IC531,IC561

Check the voltage

of CRT,SCREEN

Check the Standby

voltage of ICS802

Check the input voltage of PWE CORD

Check MICOM VCC

Check the input voltage

Check IC831,PC801S

Check QS802

Check ICS801,PC811S

Check the voltage/waveform

of CN801,CN802,CN401

Check the output from

D/W-MDL CN03

Check the input of D/W-MDL

Check the operating status

of MICOM POWER PORT Check CONNECTOR WIRE

Check the circuits inside D/W-MDL

Check the circuits related to

MICOM VCC input

Check the circuits related to IR / MICOM

Check the circuits related to QS802

Check the circuits related to ICS801,PC811S

Check the circuits related to

CN801,CN802,CN401

Check the circuits related to

D/W-MDL input

MEMO

5-4 Samsung Electronics

Exploded View& Part List

Samsung Electronics 6-1

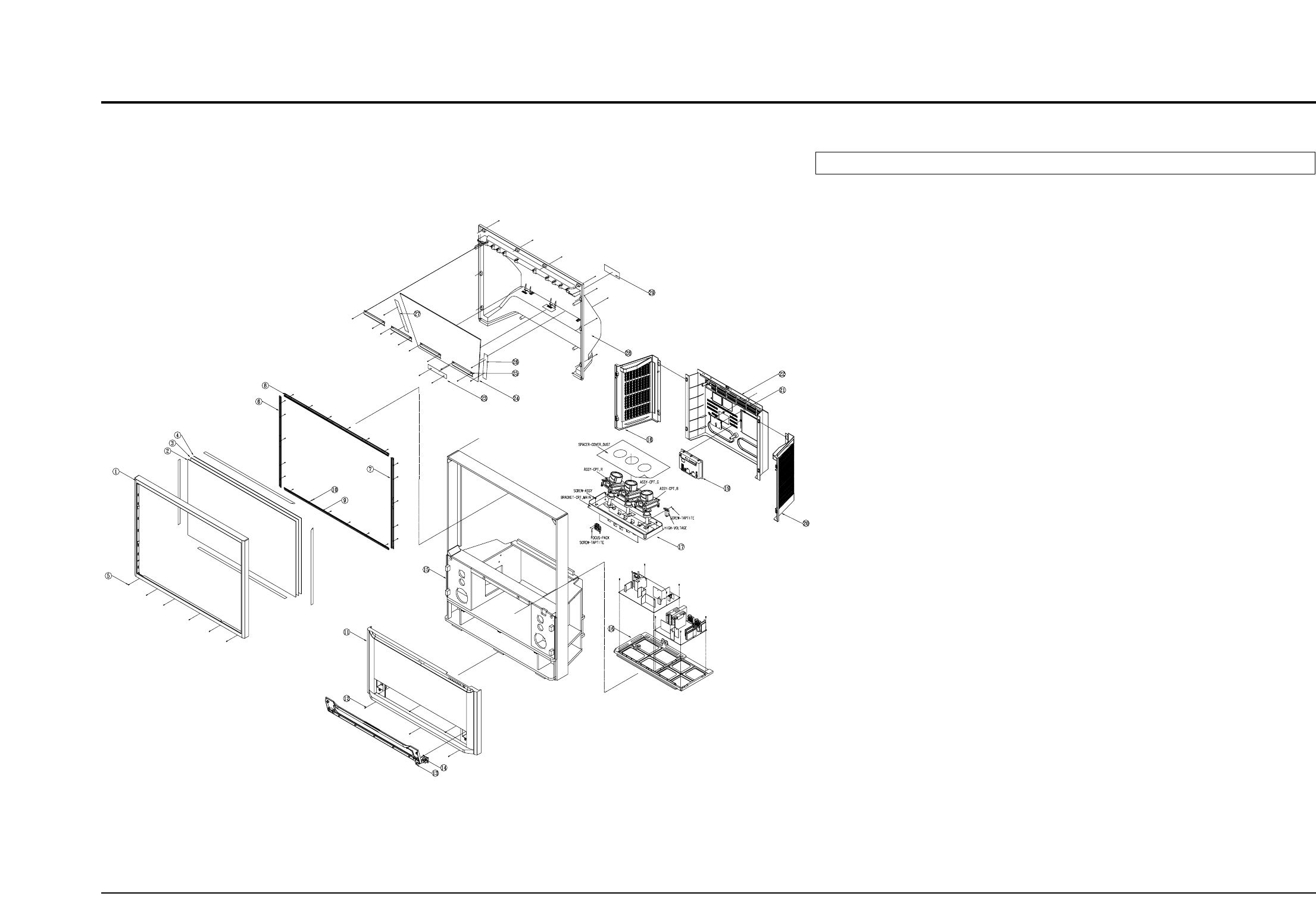

6. Exploded View & Parts List

6-1 HCN5527WX/XAC

No Code No Description;Specification Q’ty Remark S.N.A

1 BP96-00326A ASSY COVER P-FRONT MASK;55W7,HIPS,HB,GRY 1 T0076

2 BP96-00327A ASSY COVER P-FRONT BOT;55W7,HIPS,V0,G430 1 T0071

3 AA67-00132A SUN SCREEN-AG;55W,1251*712*,T=82%,G=110 1 T0110

4 AA67-00124B SCREEN FRESNEL;55W,1251*712,T2 1 T0053

5 AA67-00200A SCREEN-TINT;55W,1249*710,T=0.7,P 1 T0056

6 BP61-00351A HOLDER-SCREEN TOP ASSY;HIPS,55W7,HB,BLK, 1 S.N.A

7 BP61-00352A HOLDER-SCREEN SIDE ASSY;HIPS,47/55W7,HB, 2 S.N.A

8 AA63-60002V SPACER-FELT;-,FELT,-,-,-,BLK,T0.3,-,60X4 1 T0069 S.N.A

9 BP96-00333A ASSY COVER P-WOOD;55W7,WOOD,SEA 1 T0324 S.N.A

10 AA64-02065E CABINET BACK-SIDE;W3,W1,W7,HIPS,V0,GR503 2

11 BP64-00205A KNOB CONTROL;47W7,ABS HB,G3676,SV012P 1 T0022 S.N.A

12 AA91-00762R ASSY-JACK SIDE;W3,SVM1132,P55A,XAC 1 T0147

13 BP91-00509A ASSY CPT-R;HCM5525WX/XAA,P55A,R 1 T0026

14 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF 1 S.N.A

15 BP67-00062E MIRROR-FRONT;FSM,1027*799*540,55W9,Virat 1 S.N.A

16 AA61-01091A BRACKET-FRAME,MIRROR L;55W9,SECC,T1.6,BL 1 S.N.A

17 AA61-01090A BRACKET-FRAME,MIRROR R;55W9,SECC,T1.6,BL 1 S.N.A

18 AA63-00021L SPACER-MIRROR,TOP;50J6,PVC HB,BLK,L1020 1 S.N.A

19 AA63-00021K SPACER-MIRROR;50J6,PVC,BLK,HB L500 1 S.N.A

20 AA63-00021M SPACER-MIRROR,BOT;50J6,PVC HB,L799,BLK 1 S.N.A

21 AA63-00021K SPACER-MIRROR;50J6,PVC,BLK,HB L500 1 S.N.A

22 AA61-01092A BRACKET-MIRROR,TOP;55W9,SECC,T1.0,BLK 1 S.N.A

23 AA61-01093A BRACKET-MIRROR,BOT;55W9,SECC,T1.0 1 S.N.A

24 BP64-00048B CABINET BACK-TOP;55W3,HIPS,HB,GR503 1 M0045

25 BP64-00203B CABINET BACK-BOT;W7,HIPS,V0,GR503 1 T0015

26 BP91-00771J ASSY CHASSIS;HCN5527WX/XAC,P55A 1 M0017 S.N.A

27 BP95-00142P ASSY SUB PCB-CG AMP;HCN4727WX/XAA,P55A 1 T0094

28 AA94-08270A ASSY PCB MISC-DY JACK;COMMANDO 1 T0105

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

Exploded View& Part List

6-2 Samsung Electronics

6-2 ST54T8PCX/STR

No Code No Description;Specification Q’ty Remark S.N.A

1 BP96-00338B ASSY COVER P-FRONT MASK;DP,BP64-00164E,5 1 T0076 S.N.A

2 AA67-00130A SUN SCREEN-AG;54J8,-,T=82%,1125*853*2,-, 1 T0110

3 AA67-00199A SCREEN-TINT;54,1123*852,P=0.52,DNP 1 T0056

4 AA67-00116B SCREEN-FRESNEL;53,-,T2,1125*854,-,-,- 1 T0053

5 6005-001003 SCREW-WOOD;HH,+,M4,L20,ZPC(BLK),SWRCH18A 6 HC+CW S.N.A

6 BP61-00190A BRACKET-SCREEN,RL;54T8,SECC,T1.0,SCREEN 1 T0056 S.N.A

7 BP61-00190A BRACKET-SCREEN,RL;54T8,SECC,T1.0,SCREEN 1 T0056 S.N.A

8 BP61-00189A BRACKET-SCREEN,TB;54T8,SECC,T1.0,SCREEN 1 T0254 S.N.A

9 BP61-00189A BRACKET-SCREEN,TB;54T8,SECC,T1.0,SCREEN 1 T0254 S.N.A

10 6009-001296 SCREW-SPECIAL;BH,+,-,M4,L12(11),ZPC(BLK) 22 HC+CW

11 BP96-00339B ASSY COVER P-FRONT BOT;DP,BP64-00151D,54 1 T0071 S.N.A

12 6005-001003 SCREW-WOOD;HH,+,M4,L20,ZPC(BLK),SWRCH18A 6 HC+CW S.N.A

13 BP96-00340A ASSY COVER P-DOOR RACK;DP,BP64-00154A,54 1 ADRACK S.N.A

14 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZP 3 T0081

15 BP96-00226C ASSY COVER P-WOOD;54T8,WOOD,SEA 1 T0324 S.N.A

16 BP94-00519A ASSY PCB MAIN;ST54T8PCS/XAX,P55A,MEXICO 1 T0073

17 BP98-00180A ASSY K/D-CPT;ST54T8PCS/XAX,P55A 1 A/CPT S.N.A

18 BP64-00263A CABINET BACK-SIDE R;DP,BP64-00153A,54T8, 1 CBSR S.N.A

19 AA65-00023A TERMINAL-BOARD,ANT;,HIPS V0,BLK 1 TBOARD S.N.A

20 BP64-00264A CABINET BACK-SIDE L;DP,BP64-00153B,54T8, 1 CBSL S.N.A

21 BP61-00180C HOLDER-POWER;HIPS,T8,Q7,V0,BLK 1 T0062 S.N.A

22 BP64-00262A CABINET BACK-BOT;DP,BP64-00152A,54T8,HIP 1 T0015 S.N.A

23 AA61-20330A HOLDER-MIRROR,BOT;43J8,54J8,PS,HB,BLK 2 HOLM S.N.A

24 AA67-00080A MIRROR-BACK;54J8,GLASS,940*686*673(132)* 1 T0108

25 AA91-00661A ASSY-BRKT,MIRROR;DP,91-00489B,54J9 4 T0068 S.N.A

26 AA91-00887A ASSY-HOLDER,MIRROR¢Á;,HIPS HB BLK,INLAY-FORM,54J8 1 S.N.A

27 AA91-00887B ASSY-HOLDER,MIRROR(L);,HIPS HB BLK,INLAY-FORM,54J8 1 S.N.A

28 AA64-01379B CABINET-BACK,TOP;54J8,HIPS,-,-,-,HB,BLK, 1 T0112

29 AA64-60449B INLAY-COVER;SP-434JMF,-,PS,T0.5,BLK,149. 1 INLCOV S.N.A

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

ASSY CHASSIS

1 M0017 BP91-00771J ASSY CHASSIS;HCN5527WX/XAC,P55A S.N.A

..2 T0105 AA94-08270A ASSY PCB MISC-DY JACK;COMMANDO

...3 AA97-07230N ASSY AUTO;COMMANDO S.N.A

....4 R301 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R302 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R303 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 PCB AA41-00632A PCB-DY CONNECTION;HCM4215W,FR-1,1L,A,1.6 S.N.A

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 GT01 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A

...3 GT05 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A

...3 GT09 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A

...3 GT13 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A

...3 AA61-01197A HOLDER-PCB,DY;COMANDO,ABS V0,BLK S.N.A

..2 T0101 BP94-00134E ASSY PCB MISC-SENSOR ASSY;SENSOR

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 CN906 3711-000447 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,-

...3 BP97-00208A ASSY SMD;HCM4215W3S/XAA S.N.A

....4 T0156 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-

....4 PCB AA41-00853A PCB-SERSOR;SVP-42W5HRC,FR-4,2L,A,1.6T,24 S.N.A

....4 D01 BP32-00001A SENSOR PHOTO;BCS5030G1,-40 TO +85,0.42 U

....4 R01 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608

....4 R02 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608

....4 R03 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608

....4 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A

..2 T0099 BP94-00264A ASSY PCB CRT-PCB-EMI;HCN553WX/XAA,P55A,D

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 VR561 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE

...3 VR531 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE

...3 VR501 2101-000321 VR-ROTARY;1Mohm,-,0.6W,SIDE

...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 V561 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,-

...3 V531 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,-

...3 V501 3704-001019 SOCKET-CRT;10P,29.1PI,35.5PI,AU30U,-

...3 CN906 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH

...3 CN906 3711-002648 CONNECTOR-HEADER;BOX,9P,1R,2.5mm,STRAIGH

...3 CN906 3711-003052 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

...3 CN906 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG

...3 T0310 4715-001050 SURGE ABSORBER;2.4kV,20%,1500A,-,DISC-RA

...3 SG562 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,

...3 SG532 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,

...3 SG502 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm MIN,

...3 T0245 AA39-00112A LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,10

...3 T0245 AA39-00120F LEAD CONNECTOR-ASSY;SIR-T165,UL1007#26,U

...3 T0245 AA39-00198A LEAD CONNECTOR-ASSY;,3P,900/600MM,YFH800

...3 T0245 AA39-20010D LEAD CONNECTOR-ASSY;,1P,400,YFH800-01,S,

...3 T0245 AA39-20010E LEAD CONNECTOR-ASSY;,1P,800,YFH800-01,S,

...3 T0245 AA39-20010F LEAD CONNECTOR-ASSY;,1P,700,YFH800-01,S,

...3 T0245 AA39-20027H LEAD CONNECTOR-ASSY;,6P,700MM,67096-006,

...3 T0245 AA39-20031G LEAD CONNECTOR-ASSY;,9P,800,67096-009,S,

...3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

...3 Q371 AA96-00244H ASSY H/S;SCREW,2SC4636(2),CRT,SLICON-OIL S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0090 0502-000442 TR-POWER;2SC4636RB,NPN,2W,TO-220,ST,10-

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00046A HEAT SINK-PS;-,-,T1.0,-,D1(DREAM) 60X25X S.N.A

...3 IC501 AA96-50311L ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A

...3 IC531 AA96-50311L ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A

...3 IC561 AA96-50311L ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A

....4 T0074 1201-001131 IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

....4 AA62-30175D HEAT SINK-PS;-,SECC,T1.0,-,33X15X30 FT-2 S.N.A

...3 AA97-07608A ASSY AUTO-CRT;HCM4215W S.N.A

....4 D372 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D504 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D509 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D361 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D362 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D371 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D510 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

....4 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,13V,12.55-13.21V,500

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000366 TR-SMALL SIGNAL;KSC2330-Y,NPN,1W,TO-92L,

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 T0090 0502-000006 TR-POWER;KSC1507,NPN,15W,TO-220,TP,120-

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R584 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R554 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R524 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R580 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R550 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R520 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R577 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R547 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R517 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R366 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000539 R-CARBON;24KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000723 R-CARBON;4.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Samsung Electronics 7-1

Electrical Parts List

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7. Electrical Parts List

7-1 HCN5527WX/XAC

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-001015 R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R581 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

....4 R551 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

....4 R521 2001-001052 R-CARBON(S);1.5MOHM,5%,1/2W,AA,TP,2.4X6.

....4 R371 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R370 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R369A 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R367 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R368 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R369 2001-001065 R-CARBON(S);110KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R567 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R537 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R507 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R381 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R361 2001-001097 R-CARBON(S);2.4KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R374 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R373 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R372 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R377 2001-001110 R-CARBON(S);240KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R375 2001-001113 R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R365 2001-001120 R-CARBON(S);3.3OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R574 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R544 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R514 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R583 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R582 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R553 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R552 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R523 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R522 2002-001006 R-COMPOSITION;4.7KOHM,15%,1/2W,AA,TP,3.7

....4 R589 2002-001015 R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9

....4 R559 2002-001015 R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9

....4 R529 2002-001015 R-COMPOSITION;47Kohm,5%,1/2W,AA,TP,3.7x9

....4 R575 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R545 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R515 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R579 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R578 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R549 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R518 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R519 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R548 2002-001021 R-COMPOSITION;560KOHM,5%,1/2W,AA,TP,3.7X

....4 R588 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12

....4 R538 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12

....4 R508 2003-000738 R-METAL OXIDE(S);56Kohm,5%,2W,AA,TP,4x12

....4 R024 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R573 2008-001129 R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.

....4 R543 2008-001129 R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.

....4 R513 2008-001129 R-FUSIBLE(S);1.5ohm,5%,1/2W,AF,TP,2.5x6.

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000723 C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5

....4 C598 2201-000983 C-CERAMIC,DISC;1NF,10%,2KV,Y5P,TP,9X5MM,

....4 C565 2305-000149 C-FILM,LEAD-PEF;

....4 C535 2305-000149 C-FILM,LEAD-PEF;

....4 C505 2305-000149 C-FILM,LEAD-PEF;

....4 C507 2305-000154 C-FILM,LEAD-PEF;

....4 C537 2305-000154 C-FILM,LEAD-PEF;

....4 C567 2305-000154 C-FILM,LEAD-PEF;

....4 C361 2306-000122 C-FILM,LEAD-PPF;100nF,5%,50V,TP,7.3x4.0x

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000133 C-AL;1000uF,20%,16V,GP,TP,10x20,5

....4 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-001621 C-AL;6.8uF,20%,450V,GP,TP,13x20,5

....4 L531 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L501 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 T0310 4715-001036 SURGE ABSORBER;500V,20%,-,-,TP

....4 EL06 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EL03 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EL563 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL537 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL536 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL535 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL564 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL565 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL566 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL567 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL534 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL01 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL02 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL04 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL05 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL533 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL505 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL504 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL503 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 GT537 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT561 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT536 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT535 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT534 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT562 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT568 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT567 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT564 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT563 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT503 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT502 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT501 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT373 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT372 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT371 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT504 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT533 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT532 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT531 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT506 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT374 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT375 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT566 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 DZ016 0403-000334 DIODE-ZENER;UZ2.7BSA,2.7V,2.54-2.75V,500

....4 R566 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R536 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R506 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R125 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 C598 2201-000599 C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.

....4 C701 2401-001571 C-AL;47uF,+20%-0%,50V,GP,TP,8x11.5,

....4 R125 2001-000319 R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

7-2 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 R125 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000232 R-CARBON;1.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000908 R-CARBON;62KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 L561 2701-000168 INDUCTOR-AXIAL;3.3uH,5%,2534

....4 R382 2002-001014 R-COMPOSITION;6.8Kohm,10%,1/2W,AA,TP,3.7

....4 T0083 0402-000243 DIODE-RECTIFIER;RC2-V1,2000V,0.2A,DO-201

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 0 AA41-00600F PCB CRT;SVP-55W3HD,FR-1,1L,F,1.6T,3,P55A S.N.A

...3 T0245 BP39-00004B LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239

...3 T0245 BP39-00004C LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL3239

...3 T0103 BP59-00005A MODULE-FOCUS PACK ASS’Y;PJT TV,F301-P03A

...3 T0121 3301-001502 CORE-FERRITE;AE,16.5°ø7°ø30MM,-,-

..2 T0098 BP94-00345A ASSY PCB MISC-VM;HCM5525WJX/XAA,P55A

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 RZ120 2008-001097 R-FUSIBLE(S);33OHM,5%,1/2W,AC,BK,2.5X6.5

...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

...3 T0079 AA33-00017A MAGNET CONVERGENCE;JH 92LT - 29G,-,29.1M

...3 T0245 AA39-20055F LEAD CONNECTOR-ASSY;,6P,700MM,YBNH250-06

...3 QZ102 AA96-00243L ASSY H/S;-,CRT,AA62-000450A,2SC2344,HERC S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0090 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 QZ101 AA96-00243M ASSY H/S;-,AMP,AA62-000450A,2SA1011,HERC S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0090 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 AA97-07230M ASSY AUTO-VM;COMMANDO S.N.A

....4 DZ106 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 DZ105 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 DZ102 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 RZ122 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R125 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ110 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ104 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ105 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ106 2001-001139 R-CARBON(S);39KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ103 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m

....4 RZ111 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m

....4 RZ123 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 RZ113 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 RZ112 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 RFZ101 2008-001086 R-FUSIBLE(S);3.3ohm,5%,2W,AG,TP,3.9x12mm

....4 C598 2201-000193 C-CERAMIC,DISC;0.01NF,0.25PF,50V,C0G,TP,

....4 C598 2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP

....4 C598 2201-000604 C-CERAMIC,DISC;0.056NF,+100-0%,500V,SL,T

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

....4 C701 2401-001157 C-AL;33uF,20%,160V,GP,TP,12.5x20,5

....4 C701 2401-001220 C-AL;4.7uF,20%,160V,GP,TP,8x11.5,5

....4 C701 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 LZ101 2701-000002 INDUCTOR-AXIAL;100uH,10%,4298

....4 CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

....4 PCB AA41-00611A PCB-VM;HCM4215W,FR-1,1L,A,1.6T,245X245,P S.N.A

....4 RZ114 2003-000458 R-METAL OXIDE(S);100ohm,5%,2W,AF,TP,4x12

..2 T0073 BP94-00498A ASSY PCB MAIN;HCN4727WX/XAA,P55A

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 IC802 1203-000119 IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS

...3 IC012 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL

...3 C701 2401-000737 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7

...3 C701 2401-001068 C-AL;3300uF,20%,50V,GP,BK,22x40,10

...3 X601 2801-004020 CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF

...3 CN902 3703-001150 CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI

...3 CN902 3703-001187 CONNECTOR-BACK PANEL;64P,2R,FEMALE,STRAI

...3 CN906 3711-003046 CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH

...3 CN906 3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG

...3 CN906 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG

...3 CN906 3711-003975 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG

...3 CN906 3711-004946 CONNECTOR-HEADER;BOX,15P,1R,2.5MM,STRAIG

...3 JA703 3722-001163 JACK-VHS;4P,12mm,AU,BLK,N

...3 JA701 3722-001426 JACK-PIN;9P,3.4mm,NI,BLK,-

...3 JA704 3722-001796 JACK-PIN;7P(10P),-,NI,RD/RD/WH/WH/RD/BL/

...3 JA702 3722-001871 JACK-PIN;5P(9P),8.3MM,NI,GRN/BLU/RED/WHT

...3 L802 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L801 AA29-00004A FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ

...3 TU02 AA40-00049A TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),

...3 TU04 AA40-00049A TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),

...3 TU01 AA59-00164A MODULE-RF,SPLITTER;-,UMX-NT-005,-,2IN/3O

...3 AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A

...3 AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A

...3 AA63-00610A SHIELD CASE;COMMANDO,SPTE,T0.5,W141.5,H1 S.N.A

...3 T0104 AA95-02001K ASSY SUB-PCB MICOM;,C2

....4 T0083 0402-000274 DIODE-RECTIFIER;UF4004,400V,1A,DO-41,TP

....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

....4 IC904 1203-001943 IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC

....4 X901 2801-004071 CRYSTAL-UNIT;6MHZ,30PPM,28-AAM,20PF,40OH

....4 CN902 3703-001175 CONNECTOR-BACK PANEL;64P,2R,MALE,ANGLE,A

....4 AA97-07275A ASSY SMD;SVP-47W3HRT,P55A, , , S.N.A

.....5 D905 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 D906 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 D920 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 D923 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 D602 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 D901 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 D902 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LL-

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0087 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL

.....5 IC901 1204-001912 IC-DECODER;SDA5550M,P-MQFP,100P,-,PLASTI

.....5 R981 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R964 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R960 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R959 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R965 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R956 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R953 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

Electrical Parts List

Samsung Electronics 7-3

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 R952 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R969 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R970 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R972 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R979 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R940 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R909 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R916 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R918 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R939 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R923 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R922 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R907 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R917 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R911 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

.....5 R963 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 R901 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 R930 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R933 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R936 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R974 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R905 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R921 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R924 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R925 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R915 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 R913 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 R912 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 R978 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R976 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R971 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R958 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R980 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R982 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R985 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R986 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R903 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R904 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R906 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R908 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R955 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R954 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R928 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R927 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R983 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R934 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R987 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R957 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R944 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R926 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 R975 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608

.....5 R942 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

.....5 R941 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

.....5 R914 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608

.....5 R988 2007-000290 R-CHIP;100ohm,5%,1/8W,TP,2012

.....5 R962 2007-000583 R-CHIP;22Kohm,1%,1/10W,TP,1608

.....5 R961 2007-000939 R-CHIP;47Kohm,1%,1/10W,TP,1608

.....5 C927 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C926 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C925 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C928 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C929 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C932 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C907 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C914 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C916 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C919 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C920 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C924 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C931 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

.....5 C951 2203-000221 C-CER,CHIP;100nF,20%,50V,Y5V,TP,3216

.....5 C937 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C935 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C934 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C933 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C909 2203-000260 C-CER,CHIP;10nF,10%,50V,X7R,TP,2012

.....5 C903 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 C906 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C904 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C902 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C905 2203-000444 C-CER,CHIP;1nF,10%,50V,X7R,TP,2012,-

.....5 C910 2203-000748 C-CER,CHIP;0.03NF,5%,50V,C0G,TP,2012

.....5 C901 2203-000748 C-CER,CHIP;0.03NF,5%,50V,C0G,TP,2012

.....5 C908 2203-001048 C-CER,CHIP;0.56NF,10%,50V,C0G,TP,2012

.....5 C922 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,TP,2012(T1

.....5 C950 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C936 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C921 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C918 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C915 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C913 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C938 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C917 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 C912 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 C911 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 L905 2703-001245 INDUCTOR-SMD;8.2uH,10%,2012

.....5 T0568 3301-001324 BEAD-SMD;-,15,-,600,TP,-,0.1

.....5 R949 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R950 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R951 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R945 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R946 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R948 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R966 2007-000931 R-CHIP;470ohm,5%,1/8W,TP,2012

.....5 PCB AA41-00599B PCB-MICOM;HCM4215W,FR-4,2L,B,1.6T,180X24 S.N.A

.....5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A

.....5 IC112 1103-001314 IC-EEPROM;AT24C16A,2048x8Bit,SOIC,8P,5.0

....4 IC902 1102-001130 IC-EPROM;M27W201-80F6,256KX8BIT,DIP,32P,

....4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 IC801 AA96-00475C ASSY H/S;SILICON-OIL,KA278R09,KA7808,AA6 S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0087 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS

....4 T0123 1203-002003 IC-VOLTAGE REGULATOR;278R09,TO-220,4P,-,

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

....4 AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00 S.N.A

....4 T0123 1203-001978 IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4

...3 IC601 AA96-00623E ASSY H/S;SCREW,MAIN,AA62-00056A,TDA7265, S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0124 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

....4 AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-, S.N.A

...3 BP63-00030A SHIELD CASE;COMMANDO,SPTE,T0.5,W26.0,L13 S.N.A

...3 IC808 BP96-00020G ASSY HEAT SINK P;AA62-00045B,TAPTITE,SI- S.N.A

....4 CIS 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

....4 CIS AA62-00045B HEAT SINK;COMMANDO,AL1050,T1.0,H45.0 S.N.A

....4 IC012 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA

...3 BP97-00511F ASSY AUTO;0 S.N.A

....4 D607 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D608 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D609 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D601 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D605 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 DZ016 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T

....4 DZ016 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T

....4 DZ016 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO

....4 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 R125 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R810 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R808 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

Electrical Parts List

7-4 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-001000 R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R801 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R674 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R677 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R682 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R681 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R811 2001-001182 R-CARBON(S);7.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R814 2003-001098 R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16

....4 R805 2004-000970 R-METAL;470ohm,1%,1/4W,AA,TP,2.4x6.4mm

....4 R024 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm

....4 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5

....4 C695 2301-000192 C-FILM,LEAD-PEF;

....4 C694 2301-000192 C-FILM,LEAD-PEF;

....4 C689 2305-000665 C-FILM,LEAD-PEF;

....4 C687 2305-000665 C-FILM,LEAD-PEF;

....4 C682 2305-000665 C-FILM,LEAD-PEF;

....4 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C701 2401-000039 C-AL;1000uF,20%,16V,GP,TP,10x16,5

....4 C701 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5

....4 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2

....4 C701 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

....4 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5

....4 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C701 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5

....4 C701 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5

....4 C701 2401-002459 C-AL;220uF,20%,25V,LZ,TP,10x16,5

....4 C701 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

....4 C701 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

....4 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

....4 L105 2701-000106 INDUCTOR-AXIAL;1.5uH,10%,3070

....4 L119 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L120 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L121 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L122 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L123 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L124 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L107 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L108 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L111 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L114 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L113 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L112 2701-000114 INDUCTOR-AXIAL;10uH,10%,2534

....4 L703 2701-000115 INDUCTOR-AXIAL;10uH,10%,3070

....4 L106 2701-000115 INDUCTOR-AXIAL;10uH,10%,3070

....4 L104 2701-000115 INDUCTOR-AXIAL;10uH,10%,3070

....4 L103 2701-000115 INDUCTOR-AXIAL;10uH,10%,3070

....4 L101 2701-000115 INDUCTOR-AXIAL;10uH,10%,3070

....4 L706 2701-001030 INDUCTOR-AXIAL;43uH,10%,4514

....4 L705 2701-001030 INDUCTOR-AXIAL;43uH,10%,4514

....4 L102 2701-001040 INDUCTOR-AXIAL;10uH,10%,4514

....4 L606 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L605 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L128 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

....4 CN906 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH

....4 CN906 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH

....4 GT01 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT02 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT03 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 BP97-00513Q ASSY SMD;HCN4226WX/XAA,P55A S.N.A

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL

Electrical Parts List

Samsung Electronics 7-5

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S

.....5 IC605 1001-001178 IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S

.....5 IC704 1002-001048 IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1

.....5 IC705 1002-001048 IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1

.....5 DU410 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P

.....5 IC602 1204-002002 IC-SOUND PROCESSOR;MSP3420G-B11,PQFP,80P

.....5 R789 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R788 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R777 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R776 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R775 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R791 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R97C 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R904 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R79B 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R795 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R794 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R729 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R145 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R143 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R117 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R712 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R708 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R706 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R646 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R647 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R703 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R627 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R626 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R625 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R624 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R707 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R773 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R772 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R757 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R756 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R724 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R722 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R709 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R602 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R115 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R114 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R103 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R102 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R116 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R601 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R172 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R171 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R170 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R127 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R126 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R125 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R730 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

.....5 R166 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 R150 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 R157 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 R652 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R651 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R643 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R642 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R641 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R653 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R798 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R797 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R793 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R728 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R637 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R630 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R629 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R628 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R603 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R106 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R631 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R636 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R635 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R634 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R633 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R632 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R755 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R771 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R774 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R780 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R604 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R611 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R688 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R750 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R749 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R748 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R747 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R746 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R744 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608

.....5 R743 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608

.....5 R741 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608

.....5 R739 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608

.....5 R164 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 R165 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 R149 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 R151 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 R155 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 R156 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

.....5 R716 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 R704 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 R110 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608

.....5 R105 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608

.....5 R762 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608

.....5 R745 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608

.....5 R742 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608

.....5 R740 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608

.....5 R738 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608

.....5 R612 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

.....5 R607 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

.....5 R609 2007-000329 R-CHIP;11Kohm,5%,1/10W,TP,1608

.....5 R608 2007-000329 R-CHIP;11Kohm,5%,1/10W,TP,1608

.....5 R109 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608

.....5 R104 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608

.....5 R767 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608

.....5 R754 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608

.....5 R753 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608

.....5 R752 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608

.....5 R605 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608

.....5 R610 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608

.....5 R751 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608

.....5 R713 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R710 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R702 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R701 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R174 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R173 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R714 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

Electrical Parts List

7-6 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 R799 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R792 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R731 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R727 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R726 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R725 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R133 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R132 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R121 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R120 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R119 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R118 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R134 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R142 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R140 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R138 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R137 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R613 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608

.....5 R606 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608

.....5 C614 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,-

.....5 C608 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,-

.....5 C829 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C828 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C825 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C820 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C821 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C824 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C814 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C811 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C810 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C807 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C805 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C804 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C904 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C902 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C835 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C833 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C818 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C815 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C657 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C651 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C641 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C634 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C619 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C602 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C722 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C721 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C709 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C663 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C705 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C707 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 C143 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C142 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C141 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C140 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C145 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C146 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C660 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C661 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C114 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C115 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C116 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C117 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C127 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C126 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C121 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C120 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

.....5 C110 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C112 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C717 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C109 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C107 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C105 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C101 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C613 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C611 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C606 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C605 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C659 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C658 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C655 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C638 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608,-

.....5 C637 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608,-

.....5 C636 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608,-

.....5 C635 2203-001211 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1608,-

.....5 C713 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608

.....5 C714 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608

.....5 C715 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608

.....5 C710 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608

.....5 C711 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608

.....5 C712 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,TP,1608

.....5 C704 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 C703 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 C702 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 C701 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 C603 2203-005590 C-CER,CHIP;330NF,10%,16V,X7R,TP,2012

.....5 L701 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L707 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L708 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L901 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L902 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L604 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L125 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L126 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L601 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L602 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 L603 2703-000398 INDUCTOR-SMD;10uH,10%,3225

.....5 T0568 3301-001324 BEAD-SMD;-,15,-,600,TP,-,0.1

.....5 PCB AA41-00597F PCB-MAIN;HCM4215W,FR-4,2L,F,1.6T,245X245 S.N.A

.....5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A

.....5 C653 2203-000872 C-CER,CHIP;0.003NF,0.25PF,50V,C0G,TP,160

.....5 C654 2203-000872 C-CER,CHIP;0.003NF,0.25PF,50V,C0G,TP,160

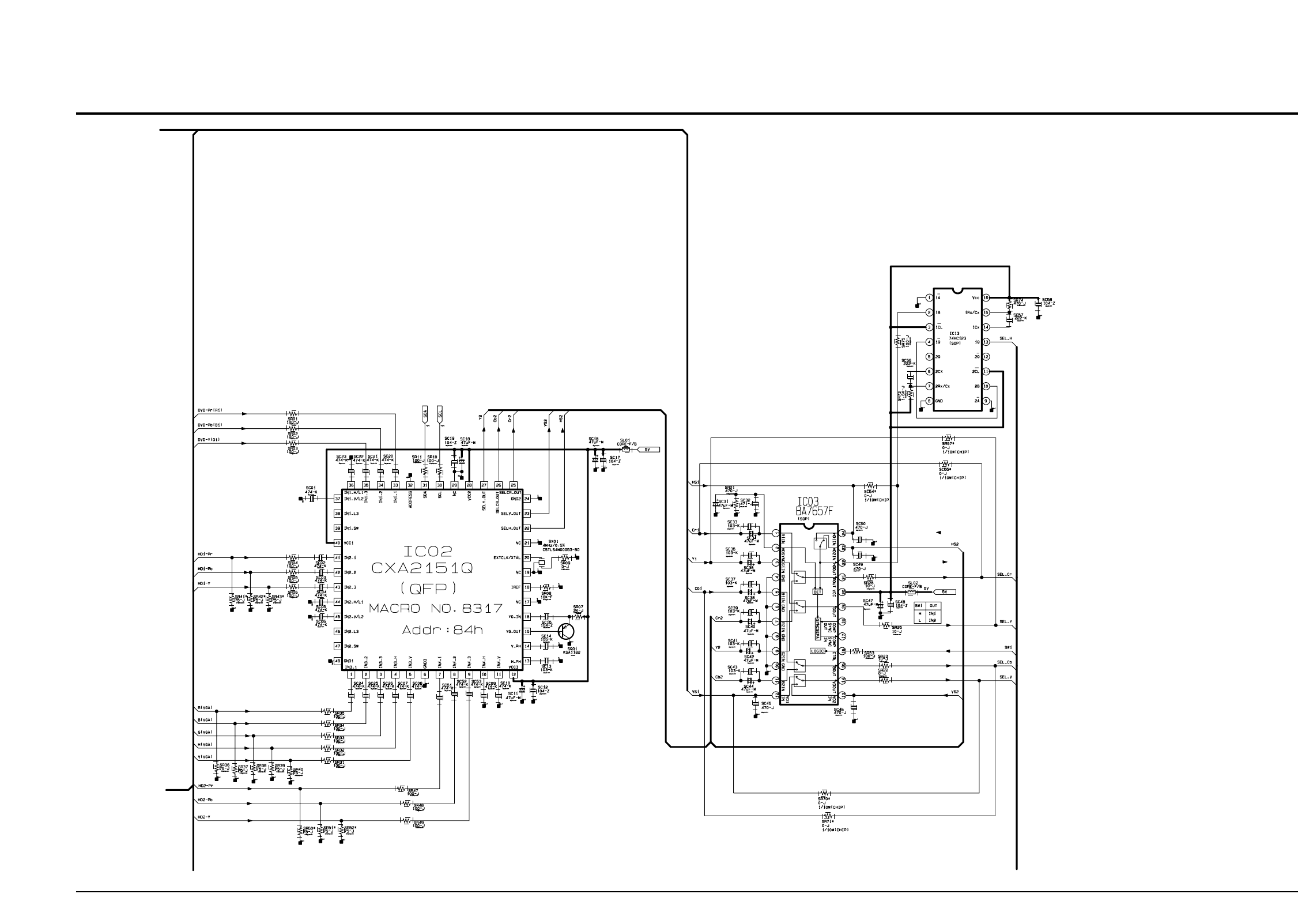

...3 T0095 BP95-00142N ASSY SUB PCB-PRO SCAN;HCN4727WX/XAA,P55A

....4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

....4 FC48 2305-000011 C-FILM,LEAD-PEF;

....4 FC59 2305-000704 C-FILM,LEAD-PEF;

....4 FC58 2301-001664 C-FILM,LEAD-OTHER;100nF,3%,50V,TP,20x16x

....4 EX01 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,

....4 T0122 2802-001177 RESONATOR-CERAMIC;2.696MHZ,0.4%,BK,10X4.

....4 T0122 2802-001179 RESONATOR-CERAMIC;4MHZ,0.5%,BK,8X3X5.5MM

....4 CN902 3703-001124 CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A

....4 CN906 3711-001164 CONNECTOR-HEADER;BOX,9P,1R,2.5mm,ANGLE,-

....4 CN906 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,

....4 BP97-00169A ASSY SMD;HCM4215WJX/XAA,P55A S.N.A

.....5 FD13 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD14 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD15 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD16 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD17 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD10 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD01 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD02 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD07 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD08 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 FD09 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

.....5 DZ016 0403-000746 DIODE-ZENER;RLZ3.9B,3.89-4.16V,500MW,LL-

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-

.....5 DZ016 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

Electrical Parts List

Samsung Electronics 7-7

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

.....5 T0156 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,

.....5 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.

.....5 IC104 0801-000662 IC-CMOS LOGIC;74HC123,MULTIVIBATOR,SOP,1

.....5 IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL

.....5 IC06 1203-001211 IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI

.....5 T0087 1203-002186 IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA

.....5 T0087 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL

.....5 IC02 1204-001814 IC-SELECTOR;CXA2151Q,QFP,48P,144MIL,PLAS

.....5 IC01A 1204-001938 IC-DECODER;VSP9407B-B11,MQFP,80P,14X14MM

.....5 IC118 1204-001989 IC-VIDEO PROCESS;CXA2165Q,QFP,64P,20X14M

.....5 SR08 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 FR80 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 FR79 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 FR78 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 FR57 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

.....5 FR35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 FR07 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER90 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 FR76 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 FR96 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 SR09 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 SR22 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER29 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER04 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER05 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER06 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER13 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER18 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 ER17 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 SR03 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR04 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR05 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR06 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR10 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR11 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR02 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR71 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR74 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR75 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR81 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR82 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR01 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR49 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR53 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR75 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 YR43 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 YR44 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 YR45 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR48 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR33 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR34 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR35 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR47 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 ER84 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR01 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR02 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR17 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR18 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 ER83 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 CR83 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 CR84 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 ER08 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 ER15 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 ER16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 ER82 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR37 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR38 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR39 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR53 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR54 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR56 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR34 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR19 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR21 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR33 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 FR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 SR74 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 SR21 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 FR66 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 ER28 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 ER27 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 ER26 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

.....5 SR07 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 FR40 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 FR72 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

.....5 FR73 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 FR62 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 FR45 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 FR44 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 ER92 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 ER91 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 FR42 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608

.....5 FR41 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608

.....5 PR01 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 FR60 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 FR22 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 FR09 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 FR58 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608

.....5 ER24 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 ER25 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 FR77 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 PR02 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 ER20 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 ER21 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 ER22 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 ER23 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

.....5 FR63 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608

.....5 FR70 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 FR47 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 FR46 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 FR15 2007-000210 R-CHIP;1.1Kohm,5%,1/8W,TP,2012

.....5 FR14 2007-000210 R-CHIP;1.1Kohm,5%,1/8W,TP,2012

.....5 FR13 2007-000210 R-CHIP;1.1Kohm,5%,1/8W,TP,2012

.....5 FR10 2007-000210 R-CHIP;1.1Kohm,5%,1/8W,TP,2012

.....5 FR11 2007-000210 R-CHIP;1.1Kohm,5%,1/8W,TP,2012

.....5 FR12 2007-000210 R-CHIP;1.1Kohm,5%,1/8W,TP,2012

.....5 SR73 2007-000259 R-CHIP;1.6Kohm,5%,1/10W,TP,1608

.....5 SR26 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

.....5 SR25 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

.....5 SR23 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

.....5 FR36 2007-000691 R-CHIP;3.3Mohm,5%,1/10W,TP,1608

.....5 FR43 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608

.....5 ER14 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 SR36 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 SR37 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 SR38 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 SR39 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 SR40 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 ER12 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 EC30 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 EC31 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 ER03 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 ER11 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 ER10 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 ER09 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 FC44 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC55 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC61 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC64 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC02 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC04 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC26 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC30 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC32 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC41 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

Electrical Parts List

7-8 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 FC42 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC43 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC05 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 SC12 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 SC15 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 SC17 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 SC19 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 SC48 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 SC58 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC11 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC13 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC14 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC15 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC16 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 PC31 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC17 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC25 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC61 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC62 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC65 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC66 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC01 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC02 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC03 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC04 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC12 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC13 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC67 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC11 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC21 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC22 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC23 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC24 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC25 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC68 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC69 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 EC70 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC03 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC10 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 FC53 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 FC52 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,TP,2012

.....5 SC37 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 SC39 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 SC41 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 SC43 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 SC35 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 FC54 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 PC17 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 SC13 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 SC33 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 FC57 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 FC02 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 FC01 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 SC57 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

.....5 SC56 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

.....5 FC07 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

.....5 FC47 2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012

.....5 EC11 2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012

.....5 EC10 2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012

.....5 EC09 2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012

.....5 EC64 2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1608

.....5 EC63 2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1608

.....5 EC37 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608

.....5 EC36 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608

.....5 EC35 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608

.....5 EC40 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 EC39 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 EC29 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 EC28 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 EC27 2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608

.....5 FC49 2203-000896 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608

.....5 EC20 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC21 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC22 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC23 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC24 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC19 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC07 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC14 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC15 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC16 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 EC18 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 SC50 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 SC49 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 SC46 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 SC45 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

.....5 FC50 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,TP,1608,-

.....5 SC32 2203-001222 C-CER,CHIP;820pF,10%,50V,X7R,TP,1608,-

.....5 SC23 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC22 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC21 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC20 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC10 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC09 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC53 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC52 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC51 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC26 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC25 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC24 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC02 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC01 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 FC46 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 FC28 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 FC27 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 FC08 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC08 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC07 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC06 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC05 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC04 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 SC03 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012

.....5 EC34 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201

.....5 EC33 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201

.....5 EC32 2203-005384 C-CER,CHIP;4700nF,+80-20%,10V,Y5V,TP,201

.....5 SC14 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,TP,2012(T1

.....5 FC09 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4.3x5.4,

.....5 PC18 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

.....5 FC60 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

.....5 FC29 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

.....5 FC13 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

.....5 SC38 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC36 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC34 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC40 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC42 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC44 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC47 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC31 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 PC01 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 PC03 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 PC06 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 PC32 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC18 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC16 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 SC11 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 FC63 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 FC62 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 FC45 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 FC12 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 FC04 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 PC12 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 PC10 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 PC09 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 FC65 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 FC06 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 PC08 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

.....5 PC07 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

.....5 FC31 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

.....5 CC49 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

.....5 EL05 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 EL06 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 EL07 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 EL08 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

Electrical Parts List

Samsung Electronics 7-9

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 EL01 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 EL02 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 EL03 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 EL04 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012

.....5 FL01 2703-001070 INDUCTOR-SMD;100uH,10%,4532

.....5 T0568 3301-001082 BEAD-SMD;60OHM,3.2X2.5X1.3MM,1500MA,TP,F

.....5 T0568 3301-001186 BEAD-SMD;600ohm,3.2x1.6x1.3mm,2500mA,TP,

.....5 T0568 3301-001324 BEAD-SMD;-,15,-,600,TP,-,0.1

.....5 CR27 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216

.....5 0 AA41-00610E PCB;HCM4215W,PCB,4L,E,1.6,162*223,140*10 S.N.A

.....5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A

...3 T0093 BP95-00151A ASSY SUB PCB-CONV MOD;SVP-43W6HRN,P55A

....4 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

....4 L01 2701-001030 INDUCTOR-AXIAL;43uH,10%,4514

....4 CN902 3703-001124 CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A

....4 CN906 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,

....4 BP97-00468A ASSY SMD;0 S.N.A

.....5 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A

.....5 D10 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D11 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D12 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D13 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D14 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D15 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D16 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D17 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D18 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D01 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D02 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D03 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D04 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D05 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D09 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D08 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D07 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 D06 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

.....5 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-

.....5 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

.....5 T0156 0501-000342 TR-SMALL SIGNAL;KSC1623-Y,NPN,200mW,SOT-

.....5 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0.

.....5 IC104 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4

.....5 IC08 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16

.....5 IC13 1001-001155 IC-ANALOG MULTIPLEX;NC7SB3157P6X,CMOS,SC

.....5 IC112 1103-001195 IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10

.....5 DU410 1201-001135 IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100

.....5 DU410 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

.....5 T0074 1201-001520 IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA

.....5 IC03 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI

.....5 T0087 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL

.....5 IC17 1209-001163 IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC

.....5 R36 2007-000028 R-CHIP;39ohm,5%,1/8W,TP,2012

.....5 R35 2007-000028 R-CHIP;39ohm,5%,1/8W,TP,2012

.....5 R31 2007-000028 R-CHIP;39ohm,5%,1/8W,TP,2012

.....5 R30 2007-000028 R-CHIP;39ohm,5%,1/8W,TP,2012

.....5 R143 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R144 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R122 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R123 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R141 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

.....5 R136 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R15 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R24 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R45 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R46 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R09 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R10 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R129 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R134 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R135 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

.....5 R59 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R65 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R71 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R77 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R91 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R53 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R02 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R17 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R47 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

.....5 R62 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R64 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R68 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R58 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R56 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R52 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R70 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R98 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R94 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R82 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R80 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R76 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R74 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R38 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R37 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R11 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R101 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R03 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R39 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R50 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R44 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R43 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R42 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R41 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R40 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

.....5 R128 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608

.....5 R81 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 R75 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 R69 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 R51 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 R57 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 R63 2007-000080 R-CHIP;2Kohm,5%,1/10W,TP,1608

.....5 R109 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

.....5 R66 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R61 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R60 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R55 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R54 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R79 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R78 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R73 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R72 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R67 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R49 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R08 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R07 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R06 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R04 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R01 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R48 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R133 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

Electrical Parts List

7-10 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 R121 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R119 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R118 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

.....5 R86 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R92 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R93 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R96 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R97 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R85 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R113 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R114 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R115 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R83 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R84 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

.....5 R125 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608

.....5 R05 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608

.....5 R127 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608

.....5 R100 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608

.....5 R32 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608

.....5 R34 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

.....5 R29 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

.....5 R28 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

.....5 R117 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

.....5 R107 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

.....5 R33 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 R120 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

.....5 R90 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

.....5 R89 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

.....5 R88 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

.....5 R87 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

.....5 R108 2007-000381 R-CHIP;13Kohm,5%,1/10W,TP,1608

.....5 R139 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608

.....5 R138 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608

.....5 R137 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608

.....5 R99 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608

.....5 R95 2007-000704 R-CHIP;3.6Kohm,5%,1/10W,TP,1608

.....5 R126 2007-000857 R-CHIP;4.3Kohm,1%,1/10W,TP,1608

.....5 R27 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R26 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R148 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

.....5 R116 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608

.....5 RN04 2011-000585 R-NET;47OHM,5%,1/16W,L,CHIP,8P,TP

.....5 RN05 2011-000585 R-NET;47OHM,5%,1/16W,L,CHIP,8P,TP

.....5 RN06 2011-000585 R-NET;47OHM,5%,1/16W,L,CHIP,8P,TP

.....5 RN01 2011-000585 R-NET;47OHM,5%,1/16W,L,CHIP,8P,TP

.....5 RN02 2011-000585 R-NET;47OHM,5%,1/16W,L,CHIP,8P,TP

.....5 RN03 2011-000585 R-NET;47OHM,5%,1/16W,L,CHIP,8P,TP

.....5 C81 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 C65 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 C61 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 C57 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 C44 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 C48 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 C52 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

.....5 C36 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C37 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C39 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C41 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C45 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C31 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C32 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C33 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C34 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C35 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C49 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C78 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C79 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C83 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C85 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C86 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C53 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C54 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C58 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C62 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C71 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C30 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C09 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C10 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C11 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C12 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C13 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C02 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C04 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C05 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C07 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C08 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C15 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C25 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C26 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C27 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C28 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C29 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C20 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C21 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C22 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C23 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C24 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

.....5 C89 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C75 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C72 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

.....5 C63 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 C59 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 C55 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 C42 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 C46 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 C50 2203-000357 C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608

.....5 C77 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

.....5 C91 2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012

.....5 C90 2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012

.....5 C88 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 C74 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 C73 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

.....5 C82 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C64 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C60 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C56 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C43 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C47 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C51 2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608

.....5 C69 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

.....5 C68 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

.....5 C67 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

.....5 C66 2203-001083 C-CER,CHIP;0.005nF,0.1pF,50V,NP0,TP,1608

.....5 C94 2203-001245 C-CER,CHIP;0.082nF,5%,50V,NP0,TP,2012

.....5 C93 2203-001245 C-CER,CHIP;0.082nF,5%,50V,NP0,TP,2012

.....5 C87 2203-001245 C-CER,CHIP;0.082nF,5%,50V,NP0,TP,2012

.....5 C38 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C40 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C70 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C84 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C01 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C03 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C06 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C14 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

.....5 C80 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

.....5 OSC01 2804-001479 OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V

.....5 T0568 3301-001324 BEAD-SMD;-,15,-,600,TP,-,0.1

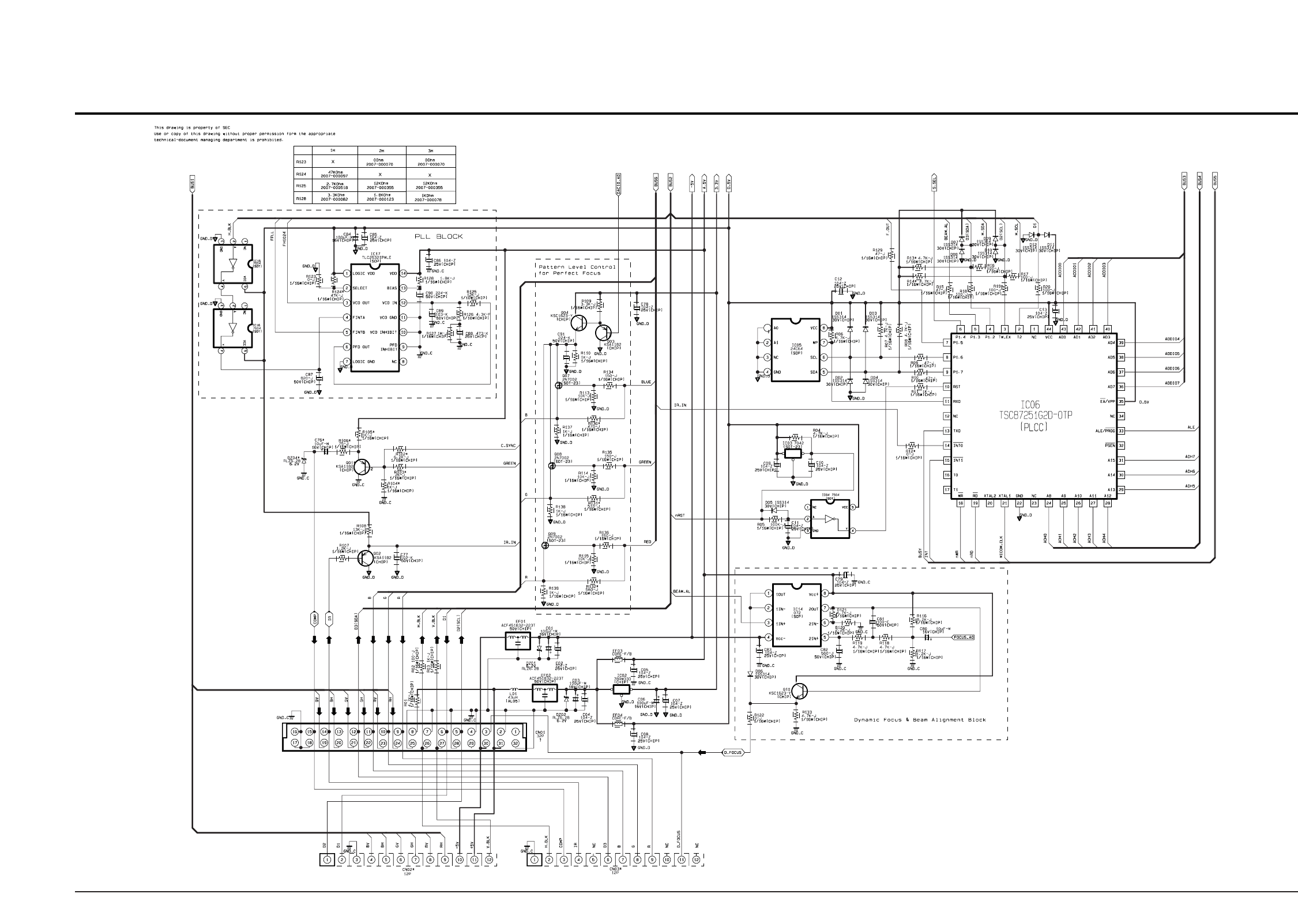

.....5 T0119 AA09-00032A IC MICOM;TSC87251G2D-24IB,TSC87251G2D-OT S.N.A

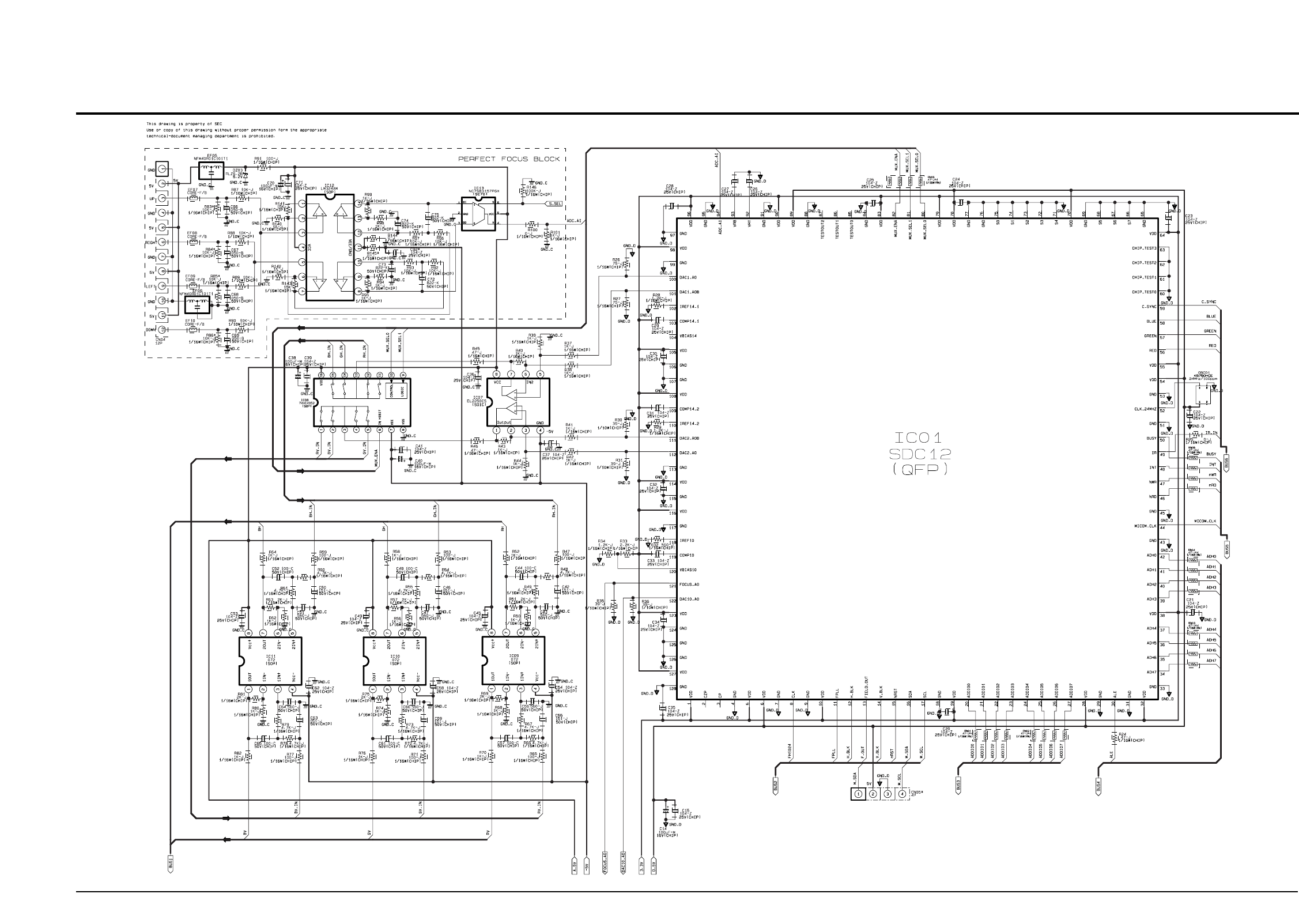

.....5 PCB AA41-00717E PCB;Convergence,FR-4,4,1.6T,245*245,90*1 S.N.A

.....5 IC125 BP13-00003A IC ASIC;SDC12,128,-0.3 TO +3.8,0 TO 70,Q

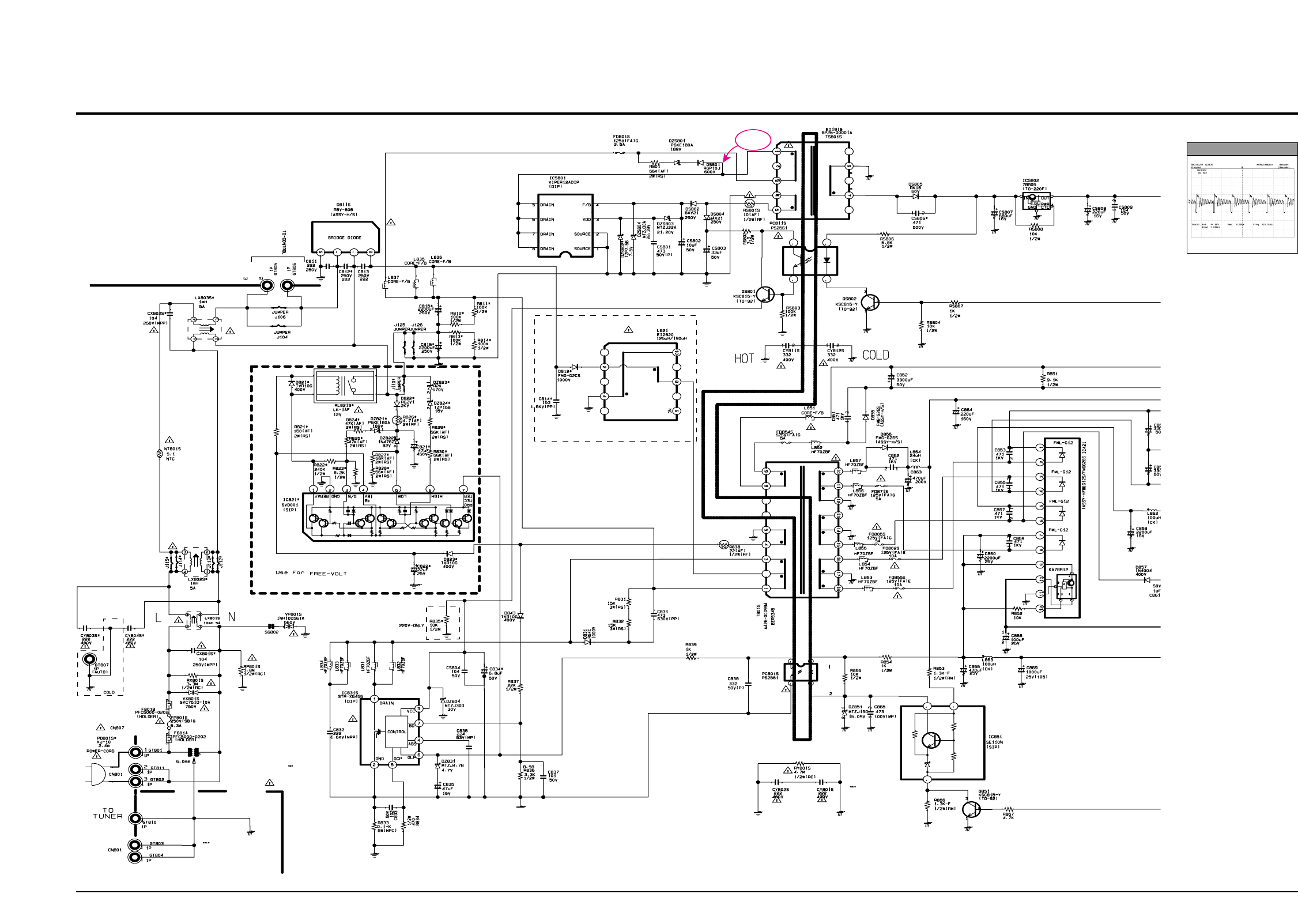

..2 T0097 BP94-00501W ASSY PCB MISC-PWR-DEF;HCN553W,P55A

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 T0083 0402-000236 DIODE-RECTIFIER;GI824,400V,5A,-,TP

...3 T0083 0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,-

...3 DZ307 0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS

...3 T0090 0502-000405 TR-POWER;KSC5039,NPN,70000MW,TO-220,BK,1

...3 PC801S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST

...3 PC811S 0604-001032 PHOTO-COUPLER;TR,170-260%,300mW,DIP-4,ST

...3 DU410 1201-000191 IC-OP AMP;4558,DIP,8P,300MIL,DUAL,20V/mV

...3 IC012 1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS

...3 T0086 1203-000610 IC-PWM CONTROLLER;494,DIP,16P,300MIL,PLA

...3 T0123 1203-001006 IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,

...3 IC851 1203-001400 IC-POWER PRESCALER;SE110N,T0-220(SIP),3P

Electrical Parts List

Samsung Electronics 7-11

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 T0086 1203-002177 IC-PWM CONTROLLER;VIPER12ADIP,DIP,8P,300

...3 NT801S 1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK

...3 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

...3 R384 2002-001079 R-COMPOSITION;470Kohm,5%,1/2W,AA,TP,4x10

...3 C598 2201-000446 C-CERAMIC,DISC;3.3NF,20%,400V,Y5U,BK,15X

...3 C598 2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6

...3 CR471S 2301-001091 C-FILM,LEAD-PPF;470NF,5%,400V,BK,26X21.5

...3 CR430S 2301-001343 C-FILM,LEAD-PPF;3.9NF,5%,2KV,BK,29X9.5X1

...3 CR431S 2301-001343 C-FILM,LEAD-PPF;3.9NF,5%,2KV,BK,29X9.5X1

...3 C832 2301-001418 C-FILM,LEAD-PPF;1.5nF,5%,2kV,TP,29x7x13.

...3 CX802S 2306-000112 C-FILM,LEAD-PPF;100nF,20%,250V,BK,-,15mm

...3 CX801S 2306-000112 C-FILM,LEAD-PPF;100nF,20%,250V,BK,-,15mm

...3 CR436S 2306-000235 C-FILM,LEAD-PPF;560NF,5%,400V,BK,26X22.5

...3 CR473S 2306-000322 C-FILM,LEAD-PPF;12NF,5%,1.6KV,BK,29X20.5

...3 C491 2306-000322 C-FILM,LEAD-PPF;12NF,5%,1.6KV,BK,29X20.5

...3 CR474S 2306-000326 C-FILM,LEAD-PPF;4.7NF,5%,1.6KV,BK,28.5X1

...3 C701 2401-000142 C-AL;1000uF,20%,16V,WT,TP,10x20,5

...3 C701 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1

...3 C701 2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm

...3 C701 2401-002251 C-AL;470uF,20%,200V,GP,BK,25x40mm,1

...3 C701 2401-003076 C-AL;3300UF,20%,50V,WT,BK,18X35.5MM,7.5

...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 FP801S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS

...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH

...3 T432 AA26-00053A TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-,

...3 T481 AA26-00091A TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10

...3 T444S AA26-00100A TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,-

...3 T431 AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,-

...3 T461 AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH,

...3 L432 AA27-00056A COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C

...3 L863 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L862 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

...3 L864 AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m

...3 T0296 AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60

...3 LX801S AA29-30002L FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V

...3 LX804S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,

...3 LX803S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,

...3 LX802S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,

...3 T0245 AA39-00180A LEAD CONNECTOR-ASSY;,14P,100MM,YBNH250-1

...3 GT01 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A

...3 D855 AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S S.N.A

...3 D856 AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0083 0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,4A,TO-220F

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 Q433 AA96-00243H ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0090 0502-000298 TR-POWER;KSD73,NPN,30000mW,TO-220,TP,120

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 IC831S AA96-00275J ASSY H/S;SCREW,SILICON-OIL,AA62-00051A,S S.N.A

....4 CIS 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 IC063 AA13-00105A IC HYBRID;STR-X6456,7,-20TO+125,DIP,21A,

....4 CIS AA62-00051A HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL, S.N.A

...3 D811S AA96-00276A ASSY H/S;-,BRIDGE,AA62-00052A,RBV606,WAS S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0083 0402-000549 DIODE-BRIDGE;RBV606,600V,6A,-,BK

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA60-30003A WASHER;T1.5,SBHG-1 S.N.A

....4 AA62-00052A HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2 S.N.A

...3 IC421 AA96-00475B ASSY H/S;SILICON-OIL,FMLG-12S(4),AA62-00 S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0083 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

....4 IC012 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

....4 AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00 S.N.A

...3 IC301 AA96-00623A ASSY H/S;-,POWER,AA62-00056A,LA7845 S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0088 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

....4 AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-, S.N.A

...3 Q431 BH99-00033H ASSY HEAT/SINK;BH62-00038A,SPRING,FJL692 S.N.A

....4 T0083 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,

....4 T0060 BH61-70003A SPRING ETC;CVT4857,STS304-W1/2H,W3.8,-,L S.N.A

....4 T0090 0502-001230 TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F

....4 CIS BH62-00038B HEAT SINK-FBT;COMMANDO,A1050S,T2.0,85*80 S.N.A

....4 CIS BH73-00028A SILICON/RUBBER-HS;CDT ALL,SILICON,26*33* S.N.A

....4 CIS 0205-001027 OIL-SILICON;G746,-,- S.N.A

...3 TS801S BP26-00001A TRANS SWITCHING-POWER;19B012,P55A,HCM421

...3 T801S BP26-00002A TRANS SWITCHING;EER5345,P55A,160V~280V,P

...3 T0245 BP39-00014A LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1007

...3 M2893 BP39-00091A LEAD CONNECTOR;HCN553W,UL1617#22,UL/CSA, S.N.A

...3 BP97-00503P ASSY AUTO;HCN553W,P55A S.N.A

....4 D477 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D478 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D479 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 DR401S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 DR402S 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D301 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D385 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D436 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D442 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 D443 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

....4 DS804 0401-000006 DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T

....4 DS802 0401-000006 DIODE-SWITCHING;BAV21,250V,250mA,DO-35,T

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000254 DIODE-RECTIFIER;RGP10J,600V,1A,DO-41,TP

....4 T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

....4 T0083 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 T0083 0402-001286 DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP

....4 DZ016 0403-000698 DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DO-

....4 DZ016 0403-000704 DIODE-ZENER;TZP7.5B,7.5V,7.5-8.4V,1W,DO-

....4 DZ016 0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m

....4 DZ016 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

....4 DZ016 0403-000734 DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DO-

....4 DZ016 0403-001167 DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500

....4 DZ016 0403-001316 DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO

....4 DZ016 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO

....4 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

....4 DZ016 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D

....4 DZ016 0403-001328 DIODE-ZENER;MTZJ22A,20.15-21.20V,500mW,D

....4 DZ016 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D

....4 DZ016 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D

....4 C1Z 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

Electrical Parts List

7-12 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q409 0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,

....4 IC012 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL

....4 VP801S 1405-000152 VARISTOR;560V,2500A,14x8.5mm,TP

....4 R125 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R308 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM

....4 R422 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R470 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R836 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R493 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 RS808 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 RS804 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R855 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 RS803 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R814 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R813 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R812 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R811 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R439 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R438 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R834 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R125 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000262 R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-001031 R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R840 2001-001045 R-CARBON(S);1.2KOHM,5%,1/2W,AA,TP,2.4X6.

....4 RS807 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 RR401S 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R854 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R839 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R434 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R413 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R837 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R468 2001-001122 R-CARBON(S);3.9KOHM,5%,1/2W,AA,TP,2.4X6.

....4 RS802 2001-001124 R-CARBON(S);3.9OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R431 2001-001153 R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R410 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R433 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 RS806 2001-001168 R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R459 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R851 2001-001196 R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.

....4 RP801S 2002-001010 R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x

....4 RY801S 2002-001013 R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x

....4 R428 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R428A 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 R425 2003-000417 R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1

....4 R831 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16

....4 R832 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16

....4 R430 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R429 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R310 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 R463 2003-001024 R-METAL OXIDE(S);150ohm,5%,2W,AF,TP,3.9x

....4 R460 2003-002044 R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x

....4 R841 2003-002102 R-METAL OXIDE(S);68Kohm,5%,2W,AF,TP,4x12

....4 R427A 2003-002152 R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM

....4 R427 2003-002152 R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM

....4 R426 2003-002153 R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM

....4 R443 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM

....4 R443A 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM

....4 R464 2003-002158 R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12

....4 R421 2003-002159 R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M

....4 R408 2004-000412 R-METAL;18Kohm,1%,1/4W,AA,TP,2.4x6.4mm

....4 R024 2004-001369 R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001386 R-METAL(S);16.9Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001402 R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001408 R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m

....4 R024 2004-001892 R-METAL(S);162Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-001897 R-METAL(S);43.2Kohm,1%,1/2W,AA,TP,2.5x6.

....4 R024 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-002011 R-METAL(S);110Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-004001 R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R024 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-004366 R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-005051 R-METAL(S);2.2KOHM,1%,1/2W,AA,TP,2.4X6.4

....4 R472 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 R445 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 R465 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R449 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R447 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R441 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R442 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R442A 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R440 2008-000282 R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm

....4 R424 2008-000289 R-FUSIBLE(S);1ohm,5%,1W,AA,TP,3.9x10mm

....4 R307 2008-000290 R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm

....4 R306 2008-000290 R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm

....4 R486 2008-001018 R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10

....4 R838 2008-001053 R-FUSIBLE;22ohm,5%,1/2W,AF,TP,2.5x6.5mm

....4 R437 2008-001087 R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm

....4 R485 2008-001137 R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm

....4 R462 2008-001145 R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 R853 2008-001152 R-FUSIBLE(S);1.3KOHM,5%,1/2W,AA,TP,2.5X6

....4 R833 2009-000017 R-METAL PLATE;0.1ohm,10%,5W,CL,TP,5x14x1

....4 R405 2009-001109 R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6

....4 RR471S 2103-001024 VR-SEMI;50Kohm,25%,0.3W,TOP

....4 RR402S 2103-001086 VR-SEMI;100KOHM,25%,0.3W,TOP

....4 C598 2201-000017 C-CERAMIC,DISC;1NF,10%,50V,Y5P,TP,5X3.5M

....4 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,

Electrical Parts List

Samsung Electronics 7-13

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 C598 2201-000132 C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5

....4 C598 2201-000138 C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,TP,4X4M

....4 C598 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M

....4 C598 2201-000180 C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM

....4 C598 2201-000332 C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4

....4 C598 2201-000370 C-CERAMIC,DISC;0.22NF,10%,50V,Y5P,TP,4X3

....4 C598 2201-000406 C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3

....4 C598 2201-000551 C-CERAMIC,DISC;0.47NF,10%,1KV,Y5P,TP,6.3

....4 C598 2201-000558 C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,TP,5X3

....4 C478 2301-000020 C-FILM,LEAD-PEF;

....4 C479 2301-000200 C-FILM,LEAD-PEF;

....4 C477 2301-000213 C-FILM,LEAD-PEF;

....4 CS801 2301-000356 C-FILM,LEAD-PEF;

....4 C493 2301-000356 C-FILM,LEAD-PEF;

....4 C412 2301-000383 C-FILM,LEAD-PEF;

....4 C831 2301-001216 C-FILM,LEAD-PPF;47nF,5%,630V,TP,20x14.5x

....4 C432 2303-000002 C-FILM,LEAD-PPF;8.2nF 5% 400V TP 19X18X7

....4 C438 2303-000002 C-FILM,LEAD-PPF;8.2nF 5% 400V TP 19X18X7

....4 C460 2303-000331 C-FILM,LEAD-PPF;4.7nF,5%,630V,TP,19.5x12

....4 C311 2305-000149 C-FILM,LEAD-PEF;

....4 C487 2305-000178 C-FILM,LEAD-PEF;

....4 C309 2305-000285 C-FILM,LEAD-PEF;

....4 C871 2305-000289 C-FILM,LEAD-PEF;

....4 C838 2305-000412 C-FILM,LEAD-PEF;

....4 C865 2305-000427 C-FILM,LEAD-PEF;

....4 C303 2305-000427 C-FILM,LEAD-PEF;

....4 C301 2305-000427 C-FILM,LEAD-PEF;

....4 C429 2305-000704 C-FILM,LEAD-PEF;

....4 C480 2306-000122 C-FILM,LEAD-PPF;100nF,5%,50V,TP,7.3x4.0x

....4 C428 2306-000122 C-FILM,LEAD-PPF;100nF,5%,50V,TP,7.3x4.0x

....4 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C701 2401-000050 C-AL;10uF,20%,16V,GP,TP,5x11,2.5

....4 C701 2401-000164 C-AL;1000uF,20%,25V,WT,TP,12.5x20,5

....4 C701 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5

....4 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,

....4 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2

....4 C701 2401-000660 C-AL;2.2uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-000698 C-AL;2200uF,20%,16V,WT,TP,12.5x25,5

....4 C701 2401-000703 C-AL;2200uF,20%,25V,GP,-,12.5x25mm,

....4 C701 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

....4 C701 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5

....4 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C701 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5

....4 C701 2401-001486 C-AL;47uF,20%,160V,HR,TP,13x20mm,5m

....4 C701 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m

....4 C701 2401-001622 C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7.

....4 C701 2401-001625 C-AL;6.8uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-001655 C-AL;680uF,20%,25V,GP,TP,10x20,5

....4 C701 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002216 C-AL;2200uF,20%,35V,GP,TP,16x25,7.5

....4 C701 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5

....4 C701 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5

....4 C701 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

....4 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

....4 C701 2401-003114 C-AL;4.7uF,20%,250V,WT,TP,10x16,5

....4 L431 2701-000116 INDUCTOR-AXIAL;10uH,10%,4298

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 F101 2901-000299 FILTER-EMI ON BOARD;-,6A,UL/CSA,-,9x7.5,

....4 L851 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L837 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L836 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L481 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L495 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L835 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G

....4 L482 3301-000374 BEAD-AXIAL;3.5x1.0x9.0mm,-,-

....4 L494 3301-000374 BEAD-AXIAL;3.5x1.0x9.0mm,-,-

....4 RS801S 3601-000102 FUSE-AXIAL LEAD;125V,1A,FAST-ACTING,GLAS

....4 FD801S 3601-000120 FUSE-AXIAL LEAD;125V,2.5A,FAST-ACTING,GL

....4 FD871S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 FD854S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 FD805S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 F801A 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 F801B 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 CN906 3711-002645 CONNECTOR-HEADER;BOX,6P,1R,2.5mm,STRAIGH

....4 EY52 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY53 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY54 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY55 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY51 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY42 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY41 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY40 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY63 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY62 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY61 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY60 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY59 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY58 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY57 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY56 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL08 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL07 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL06 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL05 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL04 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL03 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL02 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL01 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY39 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL16 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL15 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL14 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL10 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL11 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL12 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EL13 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H S.N.A

....4 EY37 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY38 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY43 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY44 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY36 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY35 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY34 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY32 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY66 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY65 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY64 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY50 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY49 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY47 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY46 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

Electrical Parts List

7-14 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 EY45 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY23 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY22 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY21 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY20 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY19 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY18 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY17 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY16 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY31 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY30 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY29 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY28 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY27 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY26 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY25 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY24 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY67 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY91 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY90 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY89 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY88 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY87 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY86 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY85 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY84 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY99 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY98 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY97 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY96 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY95 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY94 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY93 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY92 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY75 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY74 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY73 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY72 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY71 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY70 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY69 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY68 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY83 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY82 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY81 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY80 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY79 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY78 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY77 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY76 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY114 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY113 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY111 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY11 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY109 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY108 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY107 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY106 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY121 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY120 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY12 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY119 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY118 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY117 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY116 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY115 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY08 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY07 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY06 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY05 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY04 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY03 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY02 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY01 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY105 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY104 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY103 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY102 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY101 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY100 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY10 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY09 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY122 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY148 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY147 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY142 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY141 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY140 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY14 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY139 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY138 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY155 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY154 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY153 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY152 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY151 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY150 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY15 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY149 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY13 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY129 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY128 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY127 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY126 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY125 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY124 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY123 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY137 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY136 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY135 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY134 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY130 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY131 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY132 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY133 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 0 AA41-00598D PCB-SUB;HCM4215W,CEM-1,1L,D,1.6T,330X245 S.N.A

....4 GT404 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT433 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT801 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT802 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT807 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT810 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT811 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT14 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT15 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT16 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT17 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT33 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT34 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT35 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 R801 2003-000713 R-METAL OXIDE(S);47ohm,5%,2W,AF,TP,4x12m

....4 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

...3 Q473 BP96-00006B ASSY HEAT SINK P;HS,SCREW,IRF640B,2SC412 S.N.A

....4 CIS 0205-001027 OIL-SILICON;G746,-,- S.N.A

....4 T0090 0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,8-

....4 Q409 0505-001722 FET-SILICON;IRFS640B,N,200V,18A,0.18OHM,

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 CIS AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A

....4 CIS BP62-00001A HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H50 S.N.A

...3 C598 2201-000234 C-CERAMIC,DISC;0.15NF,5%,50V,C0G,TP,9X3M

...3 R491 2008-001145 R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM

..2 T0098 BP94-00512A ASSY PCB MISC-CONTROL;HCN5527WX/XAA,P55A

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 LEDY01 0601-001381 LED;ROUND,RED/GRN,5.0MM,650/563NM

...3 SWY05 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 SWY06 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 SWY07 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 SWY08 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 SWY04 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 SWY03 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 SWY02 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 SWY01 3404-001006 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST

...3 CN906 3711-000447 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,-

...3 CN906 3711-003353 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,ANGLE,

Electrical Parts List

Samsung Electronics 7-15

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 RMY01 AA32-00012A MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES

...3 T0245 AA39-00259A LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P

...3 BP97-00503K ASSY AUTO;HCN4727WX,P55A S.N.A

....4 DZ016 0403-000510 DIODE-ZENER;MTZJ6.2B,6.2V,5.96-6.27V,500

....4 QY01 0504-000123 TR-DIGITAL;KSR1010,NPN,300mW,10K,TO-92,T

....4 RY07 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 RY09 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RY08 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 C701 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

....4 M0119 BP41-00025B PCB CONTROL;HCN4727W,CONTROL,1L,1.6T,245 S.N.A

...3 T0245 AA39-00223C LEAD CONNECTOR-ASSY;P54A/SVP-42W5HD,UL10

..2 T0100 BP94-00523A ASSY PCB MISC-A/V FRONT;HCN5527WX/XAC,P5

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 SW101 3404-000208 SWITCH-TACT;12V,50mA,120gf,6x6mm,SPST

...3 CN906 3711-000447 CONNECTOR-HEADER;BOX,3P,1R,2.5MM,ANGLE,-

...3 CN906 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,

...3 JK101 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N

...3 JK102 3722-001164 JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22

...3 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

...3 T0245 AA39-00260B LEAD CONNECTOR-ASSY;,UL1007#26,UL/CSA,3P

...3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

...3 T0147 AA91-00762R ASSY-JACK SIDE;W3,SVM1132,P55A,XAC

....4 AA61-00793F HOLDER-JACK;ABS,HB,47W3,WHT,,,SVM1132, S.N.A

....4 T0150 AA64-02085G DOOR-AV;W3,ABS,HB,WHT,SVM1132

....4 AA64-02086F INLAY-AV;W3,PS SHEET,T0.5,P54A XAC S.N.A

...3 AA97-07429A ASSY AUTO-A/V FRONT;HCM4215WX/XAA,P55A S.N.A

....4 R125 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 0 AA41-00499D PCB-FRONT A/V;SVP-54T6SR,FR-1,1L,D,1.6T, S.N.A

...3 M2893 BP39-00016B LEAD CONNECTOR;HCL4715WB,UL2547#26,UL/CS

..2 T0096 BP95-00071A ASSY SUB-DVI;HCM4215WJX/XAA,P55A,DVI

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

...3 DX701 2801-001385 CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16

...3 DX301 2801-001385 CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16

...3 CN906 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH

...3 BP97-00166A ASSY SMD;HCM4215WJX/XAA,DVI-AUTO,P55A S.N.A

....4 DD512 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD511 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD510 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD509 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD513 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD514 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD515 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD516 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD501 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD502 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD503 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD504 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD508 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD507 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD506 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD505 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

....4 DD901 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

....4 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-

....4 IC104 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4

....4 IC01 1002-001333 IC-A/D&D/A CONVERTER;GM7030,10BIT,PQFP,1

....4 T0123 1203-001419 IC-VOLTAGE REGULATOR;4931,TO-252,3P,6.6x

....4 IC05 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI

....4 T0123 1203-002351 IC-VOLTAGE REGULATOR;LF25C,DPAK,3P,240MI

....4 DR514 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR515 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR516 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR517 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR501 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR502 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR504 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR506 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608

....4 DR513 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

....4 DR512 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

....4 DR510 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

....4 DR109 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

....4 DR301 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608

....4 DR901 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

....4 DR519 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

....4 DR518 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

....4 DR511 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

....4 DR508 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

....4 DR701 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR520 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR509 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR210 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR702 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR703 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR704 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR706 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR707 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR202 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR203 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR204 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR205 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR209 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR208 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR207 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR206 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

....4 DR902 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608

....4 DC705 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

....4 DC704 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

....4 DC316 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

....4 DC315 2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608

....4 DC405 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC411 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC414 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC403 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC401 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC313 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC312 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC903 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC902 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC901 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC703 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC606 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC421 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC209 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC207 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC206 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC204 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC203 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC202 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC201 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC311 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC310 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC215 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC214 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC212 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC211 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC210 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC503 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC702 2203-000181 C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,2012

....4 DC103 2203-000236 C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1608

....4 DC111 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC110 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC109 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC108 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC104 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC105 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC106 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC107 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

....4 DC101 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

....4 DC509 2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1608

....4 DC508 2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1608

....4 DC502 2203-000626 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1608

....4 DC506 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

....4 DC505 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

....4 DC504 2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608

Electrical Parts List

7-16 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 DC607 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,TP,32

....4 DC603 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,TP,32

....4 DC314 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,TP,32

....4 DC216 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,TP,32

....4 DC102 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,TP,32

....4 DC205 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,TP,32

....4 DC213 2203-005437 C-CER,CHIP;10000nF,+80-20%,10V,Y5V,TP,32

....4 DC420 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.

....4 DC417 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.

....4 DC413 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.

....4 DC410 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.

....4 DC407 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.

....4 DC406 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.

....4 DC404 2402-000165 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5.3x5.

....4 DC402 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM

....4 DC706 2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM

....4 DC701 2404-001020 C-TA,CHIP;10uF,20%,10V,GP,TP,3216,3.2

....4 DL701 2703-000398 INDUCTOR-SMD;10uH,10%,3225

....4 DL409 2703-000398 INDUCTOR-SMD;10uH,10%,3225

....4 DL408 2703-000398 INDUCTOR-SMD;10uH,10%,3225

....4 DL406 2703-000398 INDUCTOR-SMD;10uH,10%,3225

....4 DL404 2703-000398 INDUCTOR-SMD;10uH,10%,3225

....4 DL401 2703-000398 INDUCTOR-SMD;10uH,10%,3225

....4 T0568 3301-001202 BEAD-SMD;AB,120ohm,4.5x3.2x1.3mm,3000mA,

....4 T0119 BP09-00004A IC MICOM;T89C51IC2-SLSCM,44,5V,32KBYTE,P

....4 CR501 2402-000108 C-AL,SMD;10uF,20%,16V,WT,TP,4.3x4.3x5.4

....4 T0568 3301-001593 BEAD-SMD;200OHM,2.0X1.2X1.3MM,150MA,TP,-

....4 DR705 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

....4 DR708 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

....4 DR503 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

....4 DR505 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

....4 DR507 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

....4 DR521 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

....4 DR522 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608

....4 0 AA41-00793B PCB;HCN473,PCB-DVI,2L,1.6T,245*180,P55A, S.N.A

....4 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A

....4 IC112 1103-001314 IC-EEPROM;AT24C16A,2048x8Bit,SOIC,8P,5.0

...3 CN906 3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG

...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

...3 IC112 1103-001211 IC-EEPROM;24C16-PC27 C,2048x8Bit,DIP,8P,

...3 T0245 AA39-20032B LEAD CONNECTOR-ASSY;,12P,300,67096-012,S

...3 PL1 3701-001173 CONNECTOR-DSUB;24P,3R,FEMALE,ANGLE,AUF

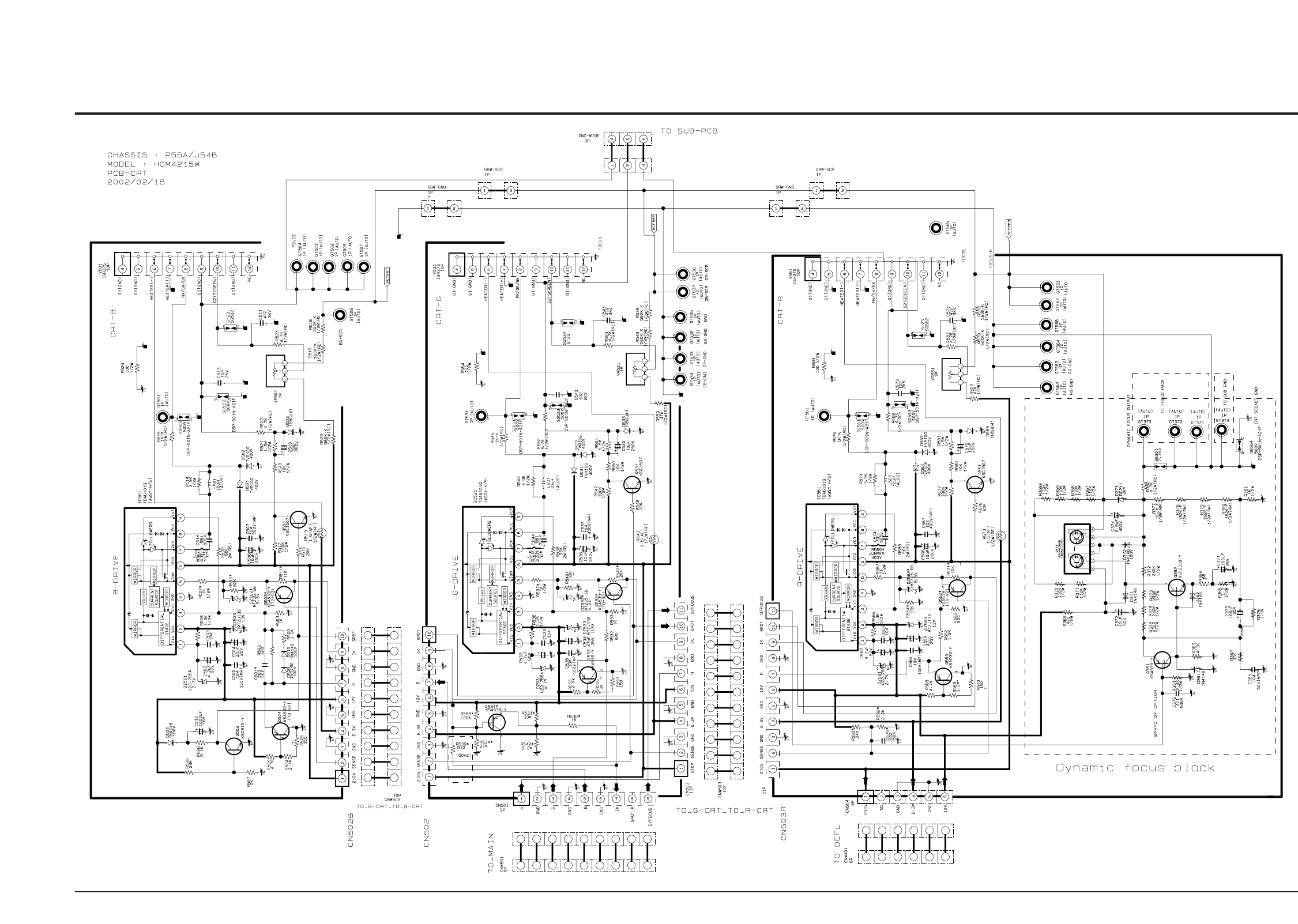

..2 T0094 BP95-00142P ASSY SUB PCB-CG AMP;HCN4727WX/XAA,P55A

...3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb S.N.A

...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH

...3 CN906 3711-003046 CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH

...3 AA65-30110A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A

...3 T0245 BP39-00015A LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1185

...3 BP61-00076A HOLDER-PUSH,A;42W5,NYLON6.6,NATURAL S.N.A

...3 BP61-00077A HOLDER-PUSH,B;42W5,NYLON6.6,NATURAL S.N.A

...3 CZ101 BP96-00005A ASSY HEAT SINK P;BP62-00002A,SCREW,STK39 S.N.A

....4 T0081 6003-001021 SCREW-TAPTITE;RH,+,B,M3,L15,ZPC(YEL),SWR S.N.A

....4 CIS BP62-00002A HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H14 S.N.A

....4 CIS BP62-00008A HEAT SINK;COMMANDO CG AMP,AL6063,T2.0,W1 S.N.A

....4 CIS BP73-00002A SILICON/RUBBER;COMMANDO CG AMP,SILICON , S.N.A

....4 T0074 1201-001225 IC-VIDEO AMP;392,SIP,22P,-,TRIPLE,-,PLAS

...3 M2893 BP39-00005B LEAD CONNECTOR;HCM4727,UL2547#26,UL/CSA,

...3 BP97-00506A ASSY AUTO;HCN5529WX/XAA,P55A S.N.A

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 RZ109 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ108 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ107 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ106 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ105 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 RZ104 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R857 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R856 2001-001155 R-CARBON(S);5.6KOHM,5%,1/2W,AA,TP,2.4X6.

....4 RZ132 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ132A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ148 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ148A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ149 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ149A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ129 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ129A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ130 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ131A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ131 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RZ130A 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 C598 2201-000327 C-CERAMIC,DISC;2.2NF,10%,50V,Y5V,TP,6.5X

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.

....4 CZ114 2202-000561 C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T

....4 CZ113 2202-000561 C-CERAMIC,MLC-RADIAL;0.68NF,5%,50V,C0G,T

....4 C689 2202-000825 C-CERAMIC,MLC-AXIAL;680pF,10%,50V,Y5P,TP

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C701 2401-000183 C-AL;1000uF,20%,35V,WT,TP,12.5x25,5

....4 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5

....4 LZ112 2701-000142 INDUCTOR-AXIAL;1uH,10%,2534

....4 LZ111 2701-000142 INDUCTOR-AXIAL;1uH,10%,2534

....4 LZ110 2701-000142 INDUCTOR-AXIAL;1uH,10%,2534

....4 LZ107 2701-000142 INDUCTOR-AXIAL;1uH,10%,2534

....4 LZ108 2701-000142 INDUCTOR-AXIAL;1uH,10%,2534

....4 LZ109 2701-000142 INDUCTOR-AXIAL;1uH,10%,2534

....4 ELZ03 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 ELZ02 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 ELZ01 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 RZ123 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ125 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ142 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ144 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ146 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ124 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ126 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ143 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ145 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ147 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

Electrical Parts List

Samsung Electronics 7-17

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 RZ127 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 RZ128 2008-001155 R-FUSIBLE;3.9OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 T0310 4715-000106 SURGE ABSORBER;300V,210-390V,-,-,AXIAL S.N.A

....4 0 BP41-00045B PCB;HCN5529W,PCB-Cg Amp,1L,1.6T,245*245, S.N.A

....4 DZ016 0403-000699 DIODE-ZENER;TZP27B,27V,27-30.8V,1W,DO-41

ASSY COVER FRONT

1 M0001 BP90-00151A ASSY COVER FRONT;HCN5527WX/XAA,P55A S.N.A

..2 T0081 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR

..2 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A

..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A

..2 HC+CW 6005-001004 SCREW-WOOD;HH,+,M4,L27,BLK,SWRCH18A S.N.A

..2 BCM+CW6006-001094 SCREW-ASS’Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) S.N.A

..2 T0118 AA26-00101A TRANS FBT-H/V DISTRIBUTOR;FWZ50A001E/FFA

..2 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF S.N.A

..2 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

..2 T0115 AA61-00475B BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,-

..2 AA61-00618C GUIDE-FLOW;54J8,J7,ABS,IVORY,V0 S.N.A

..2 AA61-01090A BRACKET-FRAME,MIRROR R;55W9,SECC,T1.6,BL S.N.A

..2 AA61-01091A BRACKET-FRAME,MIRROR L;55W9,SECC,T1.6,BL S.N.A

..2 AA61-01092A BRACKET-MIRROR,TOP;55W9,SECC,T1.0,BLK S.N.A

..2 AA61-01093A BRACKET-MIRROR,BOT;55W9,SECC,T1.0 S.N.A

..2 AA63-00021K SPACER-MIRROR;50J6,PVC,BLK,HB L500 S.N.A

..2 AA63-00021L SPACER-MIRROR,TOP;50J6,PVC HB,BLK,L1020 S.N.A

..2 AA63-00021M SPACER-MIRROR,BOT;50J6,PVC HB,L799,BLK S.N.A

..2 T0069 AA63-60002V SPACER-FELT;-,FELT,-,-,-,BLK,T0.3,-,60X4 S.N.A

..2 AA65-00016A CLAMPER CORE-CABLE;PJTV,NYLON,NTR,6/6 S.N.A

..2 T0053 AA67-00124B SCREEN FRESNEL;55W,1251*712,T2

..2 T0110 AA67-00132A SUN SCREEN-AG;55W,1251*712*,T=82%,G=110

..2 T0056 AA67-00200A SCREEN-TINT;55W,1249*710,T=0.7,P

..2 M2893 BP39-00090A LEAD CONNECTOR;HCM553W,UL2547#26,UL/CSA, S.N.A

..2 BP61-00158A HOLDER-SENSOR;52Q7,PC,VIOLET S.N.A

..2 T0076 BP96-00326A ASSY COVER P-FRONT MASK;55W7,HIPS,HB,GRY

...3 T0057 BP64-00178A BADGE-BRAND;ALL,AL,T1.5,78,13.0,,BLK,SIL S.N.A

...3 T0017 BP64-00210A CABINET-FRONT MASK;55W7,HIPS HB GRY,DGM1 S.N.A

...3 T0102 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER

...3 T0067 BP60-00032C SPACER-SCREEN;55W7,EVA SPONGE,700,BLK,T1 S.N.A

..2 T0071 BP96-00327A ASSY COVER P-FRONT BOT;55W7,HIPS,V0,G430

...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

...3 CIS7 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, S.N.A

...3 T0023 BP64-00204A KNOB POWER;47W7,ABS HB,G3676,SV012P S.N.A

...3 T0022 BP64-00205A KNOB CONTROL;47W7,ABS HB,G3676,SV012P S.N.A

...3 BP64-00206A WINDOW REMOCON-LED;47W7,ABS HB,,,,,CLR, S.N.A

...3 T0016 BP64-00211A CABINET FRONT-BOT;55W7,HIPS V0 GRY,SV012 S.N.A

...3 T0102 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER

...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

...3 T0069 AA60-00091R SPACER-FELT;,FELT,250X10,,,BLK,T0.5,, S.N.A

...3 BP60-00031A SPACER-DUAL LOCK;W7,20.6,3463 S.N.A

...3 AA61-20129C HOLDER-WIRE;29Z4,NYLON-66,GRAY,DAFC-2500 S.N.A

..2 T0324 BP96-00333A ASSY COVER P-WOOD;55W7,WOOD,SEA S.N.A

...3 T0082 3001-000153 SPEAKER;20W,8ohm,93dB,1.3KHz

...3 T0082 3001-001116 SPEAKER;30W,8OHM,96DB,60HZ

...3 T0245 AA39-00042B LEAD CONNECTOR-ASSY;,2.7UF,300MM,REC,REC

...3 HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A

...3 HC+CW AA60-10051B SCREW-WOOD;-,SWRCH18A,M3.5,L11,RH,+,-,-, S.N.A

...3 AA61-00094C HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480 S.N.A

...3 AA61-00458B CASTER;-,TP4020-05 PLY,-,OH56,-,-,SR44.4 S.N.A

...3 AA61-00506B HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL S.N.A

...3 AA61-00507B HOLDER-CABINET,WOOD;43,54,62J8,ABS,-,-,- S.N.A

...3 AA61-00508D HOLDER-JERSEY;W3,ABS V0,GRAY,G4309 S.N.A

...3 AA61-00722A HOLDER-PIN,DABO;PRJT,NYLON,OD6.5XL25,-,- S.N.A

...3 AA61-00723A HOLDER-PIN,DABO;PRJT,WOODEN NAIL,OD6XL20 S.N.A

...3 AA61-00858C BRACKET-FRAME;,SECC,T2.0,NO-R PJTV S.N.A

...3 AA61-10247A BRACKET-FOCUS;S46DS,SECC,T1.0,-,-,-,- S.N.A

...3 AA63-00348B COVER-DUCT;54,62J8,HIPS,-,-,-,HB,BLK,- S.N.A

...3 AA64-02536B CABINET-HANDLE WOOD;47W7,HIPS,HB,GRY,DG7 S.N.A

...3 AA98-00049A ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 S.N.A

....4 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 BP61-00210C HOLDER-WOOD;ABS,55W7,HB,BLK,1276 S.N.A

...3 BP61-00210D HOLDER-WOOD;ABS,55W7,HB,BLK,740 S.N.A

...3 BP64-00259A CABINET-WOOD;55W7,WOOD,XAA S.N.A

...3 HC+CW AA60-10051B SCREW-WOOD;-,SWRCH18A,M3.5,L11,RH,+,-,-, S.N.A

...3 AA61-00097A HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,- S.N.A

...3 AA60-00078B SPACER-DUAL,LOCK;W3,#250,19*40 S.N.A

...3 BP61-00210B HOLDER-WOOD,SIDE;ABS,47W7,HB,650,BLK S.N.A

...3 AA61-20129D HOLDER-WIRE;NYLON NTR,W7 S.N.A

...3 AA61-00533B BRACKET-GRILLE;43,54,62J8,SECC-1 ,T0.5,- S.N.A

..2 T0102 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER

..2 HC+CW 6005-001005 SCREW-WOOD;HH,+,M4.0,L19,NI PLT,SWRCH18A S.N.A

..2 T0081 6003-001135 SCREW-TAPTITE;TH,+,B,M4,L15,BLK,SWRCH18A S.N.A

..2 BP61-00351A HOLDER-SCREEN TOP ASSY;HIPS,55W7,HB,BLK, S.N.A

...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

...3 BP61-00158A HOLDER-SENSOR;52Q7,PC,VIOLET S.N.A

...3 T0069 AA60-00091T SPACER-FELT;W7,L635,BLK,T0.35,W10 S.N.A

...3 BP61-00208A HOLDER-SCREEN TB;55W7,HIPS HB BLK,,,,, S.N.A

..2 BP61-00351B HOLDER-SCREEN BOT ASSY;HIPS,55W7,HB,BLK, S.N.A

...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

...3 BP61-00158A HOLDER-SENSOR;52Q7,PC,VIOLET S.N.A

...3 T0064 BP65-00005A CLAMPER CORE;52Q7,NYLON S.N.A

...3 T0069 AA60-00091T SPACER-FELT;W7,L635,BLK,T0.35,W10 S.N.A

...3 BP61-00208A HOLDER-SCREEN TB;55W7,HIPS HB BLK,,,,, S.N.A

..2 BP61-00352A HOLDER-SCREEN SIDE ASSY;HIPS,47/55W7,HB, S.N.A

...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

...3 BP61-00158A HOLDER-SENSOR;52Q7,PC,VIOLET S.N.A

...3 BP61-00209A HOLDER-SCREEN SIDE;55W7,HIPS HB BLK,,,,, S.N.A

...3 T0069 AA60-00091T SPACER-FELT;W7,L635,BLK,T0.35,W10 S.N.A

ASSY COVER REAR

1 M0002 BP90-00164A ASSY COVER REAR;HCN5527WX/XAA,P55A S.N.A

..2 T0081 6002-000522 SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR

..2 DVI+TB 6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL) S.N.A

..2 AA64-60421C INLAY-COVER;-,PS,T0.3,-,-,BLK,SEA S.N.A

..2 AA64-60449B INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5 S.N.A

..2 AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,- S.N.A

..2 T0092 BP96-00038H ASSY COVER P-TERMINAL,ANT;WIDE PJT,HIPS

...3 AA64-02836J INLAY-TERMINAL,NT;WIDE PJT,PS SHEET,T0.5 S.N.A

...3 AA65-00023A TERMINAL-BOARD,ANT;,HIPS V0,BLK S.N.A

..2 BP67-00062E MIRROR-FRONT;FSM,1027*799*540,55W9,Virat S.N.A

..2 M0045 BP64-00048B CABINET BACK-TOP;55W3,HIPS,HB,GR503

..2 AA64-02065E CABINET BACK-SIDE;W3,W1,W7,HIPS,V0,GR503

..2 T0015 BP64-00203B CABINET BACK-BOT;W7,HIPS,V0,GR503

ASSY PRT

1 BP91-00491A ASSY PRT;HCM5525WX/XAA,P55A S.N.A

..2 T0028 BP91-00505A ASSY CPT-B;HCM5525WX/XAA,P55A,B

...3 AA03-00202A CRT MONO;P16LSG03BMB,FREE,3.30mH,2.20mH, S.N.A

...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,

...3 T0078 AA27-00249A DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1

...3 T0079 AA33-00018A MAGNET CONVERGENCE;JH 92LT - 36F,-,29.1M

...3 T0245 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P

...3 T0334 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A

...3 T0333 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A

...3 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A

...3 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

...3 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A

Electrical Parts List

7-18 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

...3 AA61-00808B CASE-COUPLER,B;PROJ,ALDC,T8,BLK S.N.A

...3 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A

...3 T0114 AA61-00810B HOLDER-CAP;PROJ,PC,CLR

...3 T0109 AA67-00146A LENS-ASSY;,DELTA 260,CLEAR

...3 T0051 AA67-00156A LENS;,DELTA 240,CLEAR,C-ELEMENT

...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A

...3 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A

...3 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A

..2 T0027 BP91-00507A ASSY CPT-G;HCM5525WX/XAA,P55A,G

...3 AA03-00201A CRT MONO;P16LSG03HKA,FREE,3.30mH,2.20mH, S.N.A

...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,

...3 T0078 AA27-00249A DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1

...3 T0245 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P

...3 T0334 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A

...3 T0333 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A

...3 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A

...3 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

...3 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A

...3 AA61-00807B CASE-COUPLER,G;PROJ,ALDC,T8,BLK S.N.A

...3 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A

...3 T0114 AA61-00810B HOLDER-CAP;PROJ,PC,CLR

...3 T0109 AA67-00146A LENS-ASSY;,DELTA 260,CLEAR

...3 T0051 AA67-00158A LENS;,DELTA 240,GREEN,C-ELEMENT

...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A

...3 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A

...3 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A

..2 T0026 BP91-00509A ASSY CPT-R;HCM5525WX/XAA,P55A,R

...3 AA03-00200A CRT MONO;P16LSG03RJA,FREE,3.30mH,2.20mH, S.N.A

...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS’Y;-,FWZ-50A001C,

...3 T0078 AA27-00249A DEFLECTION YOKE;-,DPD-5292AA,S/S,7,29.1

...3 T0079 AA33-00016A MAGNET CONVERGENCE;JH 92LT - 29F,-,29.1M

...3 T0334 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A

...3 T0333 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A

...3 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A

...3 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A

...3 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A

...3 AA61-00806B CASE-COUPLER,R;PROJ,ALDC,T8,BLK S.N.A

...3 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A

...3 T0114 AA61-00810B HOLDER-CAP;PROJ,PC,CLR

...3 T0109 AA67-00146A LENS-ASSY;,DELTA 260,CLEAR

...3 T0051 AA67-00157A LENS;,DELTA 240,RED,C-ELEMENT

...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ

....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A

....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A

....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A

...3 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A

...3 T0245 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P

...3 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A

ASSY FIXING

1 BP91-00833C ASSY FIXING;HCN553WX/XAA,P55A S.N.A

..2 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A

..2 T0245 AA39-20010B LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,

..2 T0070 AA61-01127A HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A

..2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

..2 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A

..2 AA65-30111A CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,W S.N.A

..2 T0066 AA96-00156A ASSY POWER CORD;-,EP2/YES(US),H/C100MM,K

...3 3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22 S.N.A

...3 T0077 AA39-10007Y CBF POWER CORD;-,EP2/YES,SPT-2 18AWGx2C,

...3 AA61-20284A HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002 S.N.A

...3 AA63-10002B BAND-TIE;NYLON66 V2,L140,NTR S.N.A

...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

ASSY P/MATERIAL

1 BP92-00581B ASSY P/MATERIAL;HCN5527WX/XAC,P55A S.N.A

..2 AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X S.N.A

..2 AA61-20285A HOLDER-BOX;3456,PP,-,-,-,WHT,VO S.N.A

..2 AA63-10007C BAND-PP;W18,CLEA,1G S.N.A

..2 6902-000061 BAG AIR;LDPE,T0.2,L1000,W500,TRP,,, S.N.A

..2 6902-000001 BAG AIR;LDPE,T0.2,L1800,W1000,TRP,,,LDPE S.N.A

..2 6902-000443 BAG PE;HDPE,T0.02,W1500,L1800,TRP S.N.A

ASSY ACCESSORY

1 M0016 BP92-00532E ASSY ACCESSORY;HCN473WX/XAC,P55A,CANAD S.N.A

..2 6902-000018 BAG PE;LDPE,T0.1,W280,L400,GRY,8,2- S.N.A

..2 T0116 AA39-00006A CABLE RCA;,3000MM

..2 T0074 AA59-00262A REMOCON;,TM63,COMMONDO,48,G6671B,EX,S/S

...3 T0122 2802-000194 RESONATOR-CERAMIC;8MHz,1.0%,TP,8.5x4.5x5

...3 T0119 AA09-00275A IC MICOM;Z86L8808SSC-R51PX,SOP,ST,SZTM-8

..2 T0113 AA61-20126A HOLDER-LEG;-,ABS,-,-,-,BLK,HB

..2 AA68-00682C CARD WARRANTY-01;PDP,W/P120(G),SECA,B5,B S.N.A

..2 6902-000023 BAG PE;LDPE,T0.08,L120,W150,TRP,,,PE MAR S.N.A

..2 T0563 BP68-00150A MANUAL USERS;HCN473WX/XAC,FRA,W/P 100g,PS.N.A

..2 T0563 BP68-00054A MANUAL USERS;HCM473WJX,ENG,W/P100G,P55A,

Electrical Parts List

Samsung Electronics 7-19

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

ASSY CHASSIS

1 M0017 BP91-00956A ASSY CHASSIS;ST54T8PCX/XAP, P55A

..2 D/B AA26-00101A TRANS FBT;FWZ50A001E,-,-,-,-,-,-,-,-,-,-

..2 C/WIRE AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL S.N.A

..2 PCB/CP AA65-30104B CLAMP WIRE; NYLON 66, V2,BLK, W2 Z5 S.N.A

..2 BAND-T AA63-10002A BAND-TIE;-,NYLON66V2,-,-,L100,NTR,-,- S.N.A

..2 PWR/AC AA96-20109C ASSY PWR-CORD;CP2/NO(4.0)H/C300,KKP419C, S.N.A

...3 T0077 AA39-10006X POWER-CORD;-,KKP419C,KLCE-2F,2.286MT

...3 AA61-20284A HOLDER P CORD;PP,VO,BLK,KE-002 S.N.A

..2 A/CHAS BP91-00801T ASSY MISC-CHASSIS PACK;ST54T8PCS/XAX,P55 S.N.A

...3 PM+HC 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL) S.N.A

...3 PP+HC 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL) S.N.A

...3 T0070 AA61-01127A HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A

...3 T0097 BP94-00518S ASSY PCB MISC-PWR DEF;ST54T8PCX/XAX,P55A

....4 - 0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6 S.N.A

....4 T0083 0402-000236 DIODE-RECTIFIER;GI824,400V,5A,-,TP

....4 T0083 0402-000250 DIODE-RECTIFIER;RG4C,1000V,1A,

....4 DZ307 0406-001007 DIODE-TVS;P6KE180A,171/180/189V,600W,CAS

....4 T0090 0502-000405 TR-POWER;-,NPN,70W,TO-220,BK,10

....4 PC801S 0604-001032 PHOTO-COUPLER;TR,170-260%,300M

....4 PC811S 0604-001032 PHOTO-COUPLER;TR,170-260%,300M

....4 IC431 1201-000191 IC;MC4558C

....4 IC012 1203-000162 IC-POSI.ADJUST REG.;317,TO-220,3P,-,PLAS

....4 IC471 1203-000610 IC-PWMCONTROLLER;494,DIP,16P,300MIL,PLAS

....4 IC309 1203-001006 IC-VOLTAGEREGULATOR78R05,TO-220F,4P

....4 IC851 1203-001400 IC-POWER PRESCALER;SE110N,T0-220(SIP),3P

....4 T0086 1203-002177 IC-PWM CONTROLLER;VIPER12ADIP,DIP,8P,300

....4 NT801S 1404-001195 THERMISTOR-NTC;5.1ohm,15%,2900,27mW/C,BK

....4 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

....4 R384 2002-001079 R-COMPOSITION;470Kohm,5%,1/2W,AA,TP,4x10

....4 R491 2008-001145 R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM

....4 C598 2201-000234 C-CERAMIC,DISC;150PF,5%,50V,NP

....4 CY801S 2201-000446 C-CERAMIC,AC;CK45PE400V332-M(T

....4 CY802S 2201-000446 C-CERAMIC,AC;CK45PE400V332-M(T

....4 CY811S 2201-000446 C-CERAMIC,AC;CK45PE400V332-M(T

....4 CY812S 2201-000446 C-CERAMIC,AC;CK45PE400V332-M(T

....4 CY803S 2201-000963 C-CERAMIC;CK45Y5U400VACT102-MH

....4 CY804S 2201-000963 C-CERAMIC;CK45Y5U400VACT102-MH

....4 T1294 2301-001091 C-FILM,MPPF;470nF,5%,400V,TP,26x21.5x14.

....4 T1294 2301-001343 C-FILM,MPPF;3.9nF,5%,2kV,TP,29x9.5x16mm,

....4 T1294 2301-001418 C-FILM,MPPF;1.5nF,5%,2kV,TP,29x7x13.5mm,

....4 T1294 2306-000112 C-FILM,MPPF;100NF,20%,250V,-,1

....4 CR436S 2306-000235 C-FILM;CF922P400VT564-J-40/85M

....4 C491 2306-000322 C-FILM;CF922P1.6KVT123-JBUP

....4 CR473S 2306-000322 C-FILM;CF922P1.6KVT123-JBUP

....4 T1294 2306-000326 C-FILM,MPPF;4.7nF,5%,1.6KV,TP,28.5x16x9m

....4 C701 2401-000142 C-AL;1000UF,20%,16V,WT,10X20MM

....4 C701 2401-000701 C-AL;2200uF,20%,250V,GP,-,35x70mm,1

....4 C701 2401-000787 C-AL;220uF,20%,160V,GP,TP,16x31.5mm

....4 C863 2401-002251 C-ELECTROLYTIC;CE04W200V470M(2

....4 C701 2401-003076 C-AL;3300uF,20%,50V,WP,BK,18x35.5mm

....4 T0121 3301-001201 CORE-FERRITE;AE,230.5x10.25x36mm,1500,28

....4 FP801S 3601-000300 FUSE-CARTRIDGE;250V,6.3A,SLOW-BLOW,GLASS

....4 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH

....4 T432 AA26-00053A TRANS;-,-,-,1.2mH,-,-,-,-,-,-,31.5KHZ,-,

....4 T481 AA26-00091A TRANS-HV-STORAGE;4mH,-,14P,830uH,180V,10

....4 T444S AA26-00100A TRANS FBT;FFA97513L,CT29A7DR,0.3mH,-,-,-

....4 T431 AA26-50001U TRANS-HORIZ.DRIVE;-,-,-,28mH,-,-,105uH,-

....4 T461 AA26-50001V TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,113uH,

....4 L432 AA27-00056A COIL HORIZ. WIDTH;-,600uH,YL9N 15x27.5 C

....4 L862 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

....4 L863 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

....4 L864 AA27-10002L COIL-CHOKE;-,24UH,K,-,2A,-,24U

....4 T0296 AA27-30003M COIL LINEARITY;-,5uH,OWA14x15,USRC0.1x60

....4 LX801S AA29-30002L FILTER LINE NOISE;-,10mHMIN,5A,AC90~260V

....4 LX802S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,

....4 LX803S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,

....4 LX804S AA29-30002M FILTER LINE NOISE;-,1mHMIN,5A,AC90~260V,

....4 T0245 AA39-00180A LEAD CONNECTOR-ASSY;,14P,YBNH250-14,3515

....4 GT01 AA60-40012D PIN-GT,ASSY;4P,T1.6,6-12.5-14MM,NYLON66 S.N.A

....4 D855 AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S S.N.A

....4 D856 AA96-00243E ASSY H/S;-,SOUND,AA62-00045A,FMG-G26S S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 T0083 0402-000231 DIODE-RECTIFIER;FMG-G26S,600V,

.....5 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

.....5 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

....4 Q433 AA96-00243H ASSY H/S;-,POWER,AA62-00045A,KSD73Y,C17A S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 T0090 0502-000298 TR-POWER;KSD73,NPN,100V,60V,5A

.....5 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

.....5 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

....4 IC831S AA96-00275Q ASSY H/S;,-,AA62-00051A,STR-X6459,K55A S.N.A

.....5 0205-001027 OIL-SILICON;G746 S.N.A

.....5 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

.....5 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

.....5 AA62-00051A HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL, S.N.A

.....5 AA62-30177A HEAT SINK-PN;-,CUS-1,T1.0,-,KCV12D,-,-,1 S.N.A

.....5 IC063 BP13-00004A IC HYBRID;STR-X6459A,COMMANDO,7,-20 TO +

....4 D811S AA96-00276A ASSY H/S;-,BRIDGE,AA62-00052A,RBV606,WA S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 0402-000549 DIODE;RBV-606

.....5 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

.....5 AA60-30003A WASHER;-,-,-,-,T1.5,-,SBHG-1 S.N.A

.....5 AA62-00052A HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2 S.N.A

....4 IC421 AA96-00475B ASSY H/S;SILICON-OIL,FMLG-12S(4),AA62-00 S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 T0083 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,

.....5 IC057 1203-000165 IC-POSI.ADJUSTREG.;78R12,TO-22

.....5 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

.....5 AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00 S.N.A

....4 IC301 AA96-00623A ASSY H/S;-,POWER,AA62-00056A,LA7845 S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 IC603 1204-000517 IC-LINEAR;LA7845SIPVERTICALAMP

.....5 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

.....5 AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-, S.N.A

....4 Q431 BH99-00033H ASSY HEAT/SINK;BH62-00038A,SPRING,2SC544 S.N.A

.....5 0205-001027 OIL-SILICON;G746 S.N.A

.....5 T0083 0402-001296 DIODE-RECTIFIER;FMP-3FU,1500V,5A,T0-3PF

.....5 T0090 0502-001230 TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F

.....5 BH61-70003A SPRING-PS;SUS304,W1/2H,T0.5,W3.8 S.N.A

.....5 BH62-00038B HEAT SINK-FBT;COMMANDO,A1050S,T2.0,85*80 S.N.A

.....5 BH73-00028A SILICON/RUBBER-HS;CDT ALL,SILICON,26*33* S.N.A

....4 TS801S BP26-00001A TRANS-POWER S/W (DPMS);19B012,P55A,HCM42

....4 T801S BP26-00006A TRANS SWITCHING;EER5345,P55A,HCM4215W,80

....4 T0245 BP39-00014A LEAD CONNECTOR-ASSY;P55A/HCM4215W,UL1007

....4 M2893 BP39-00084A LEAD CONNECTOR;HCL4715WB,UL1617#22,UL/CS

....4 Q473 BP96-00006B ASSY HEAT SINK P;HS,SCREW,IRF640B,2SC412 S.N.A

.....5 CIS 0205-001027 OIL-SILICON;G746 S.N.A

.....5 T0090 0502-001100 TR-POWER;2SC4125,NPN,70W,TO-3PML,BK,8-

.....5 Q409 0505-001722 FET-SILICON;IRFS640B,N,200V,18A,0.18OHM,

.....5 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

.....5 CIS AA60-30001A WASHER-PLATE;-,M3,ID3.5,15X8.5,T1.0,-,SB S.N.A

.....5 CIS BP62-00001A HEAT SINK;COMMANDO,A1050P,T2.0,W62.0,H50 S.N.A

....4 A/AUTO BP97-00511P ASSY AUTO;ST54T8PCX/XAX,P55A S.N.A

.....5 D301 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D385 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D436 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D442 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D443 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D477 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

Electrical Parts List

7-20 Samsung Electronics

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

7-2 ST54T8PCX/STR

.....5 D478 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D479 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 DR401S 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 DR402S 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 DS802 0401-000006 DIODE-SWITCHING;BAV21,250MA,400MW,50NS,2

.....5 DS804 0401-000006 DIODE-SWITCHING;BAV21,250MA,400MW,50NS,2

.....5 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41

.....5 T0083 0402-000254 DIODE-RECTIFIER;RGP10J,600V,1A,DO-41

.....5 T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.5

.....5 T0083 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,

.....5 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

.....5 T0083 0402-001286 DIODE-RECTIFIER;RP1H,2000V,.1A,-,TP

.....5 DZ016 0403-000698 DIODE-ZENER;TZP12A,12V,11.4-12.6V,1W,DO-

.....5 DZS802 0403-000704 DIODEZENER;TZP7.5B,7.5V,7.5-8.

.....5 DZ016 0403-000716 DIODE-ZENER;MTZJ4.7B,4.7V,4.55-4.8V,500m

.....5 DZ016 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

.....5 DZ016 0403-000734 DIODE-ZENER;TZP15B,15V,14.7-16.5V,1W,DO-

.....5 DZ016 0403-001167 DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500

.....5 DZ016 0403-001316 DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO

.....5 DZ016 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO

.....5 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

.....5 DZ016 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500mW,D

.....5 DZ016 0403-001328 DIODE-ZENER;MTZJ22A,20.15-21.20V,500mW,D

.....5 DZ016 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,

.....5 DZ016 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500mW,D

.....5 C1Z 0404-001056 DIODE-SCHOTTKY;RK16,60V,1.5A,DO-204AC,TP

.....5 Q432 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

.....5 Q482 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

.....5 QR401S 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

.....5 Q301 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q381 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q382 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q401 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q402 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q421 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q451 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q461 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q471 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q474 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q481 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q851 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 QS801 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 QS802 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q409 0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,

.....5 ICR01S 1203-001217 IC-POST,ADJUSTREG;431,T0-92,3P,4.58MIL,P

.....5 VP801S 1405-000152 VARISTOR;560V,2500A,14X8.5MM,T

.....5 R125 2001-000005 R-CARBON;390OHM,5%,1/8W,AA,TP,

.....5 R125 2001-000006 R-CARBON;2.4Kohm,5%,1/8W,AA,TP,1.8x3.2m

.....5 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,

.....5 R308 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP

.....5 R422 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AB,

.....5 R470 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AB,

.....5 R493 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA

.....5 R836 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA

.....5 R855 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,

.....5 RS804 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,

.....5 RS808 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,

.....5 R438 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA

.....5 R439 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA

.....5 R811 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA

.....5 R812 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA

.....5 R813 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA

.....5 R814 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA

.....5 RS803 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA

.....5 R834 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

.....5 R125 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m

.....5 R125 2001-000262 R-CARBON;1.8MOHM,5%,1/8W,AA,TP,1.8X3.2M

.....5 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

.....5 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,

.....5 R125 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

.....5 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,

.....5 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1

.....5 R125 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000761 R-CARBON;430OHM,5%,1/8W,AA,TP,

.....5 R125 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R125 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R125 2001-001031 R-CARBON;91KOHM,5%,1/8W,AA,TP,1.8X3.2MM

.....5 R840 2001-001045 R-CARBON(S);1.2KOHM,5%,1/2W,AB

.....5 R413 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R434 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R839 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R854 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RR401S 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 RS807 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R837 2001-001108 R-CARBON(S);22KOHM,5%,1/2W,AA,

.....5 R468 2001-001122 R-CARBON/METALFILM;RD1/2T3.9K-

.....5 RS802 2001-001124 R-CARBON(S);3.9OHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R431 2001-001153 R-CARBON(S);47OHM,5%,1/2W,AA,T

.....5 R410 2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.

.....5 R433 2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.

.....5 RS806 2001-001168 R-CARBON(S);6.8KOHM,5%,1/2W,AB

.....5 R459 2001-001192 R-CARBON(S);820OHM,5%,1/2W,AB,

.....5 R851 2001-001196 R-CARBON(S);9.1KOHM,5%,1/2W,AA,TP,2.4X6.

.....5 RP801S 2002-001010 R-COMPOSITION;1.8MOHM,5%,1/2W,AA,TP,3.7X

.....5 RY801S 2002-001013 R-COMPOSITION;4.7MOhm,5%,1/2W,AA,TP,3.7X

.....5 R428 2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

.....5 R428A 2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m

.....5 R425 2003-000417 R-METAL OXIDE(S);1.2Kohm,5%,3W,AA,TP,6x1

.....5 R831 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16

.....5 R832 2003-000512 R-METAL OXIDE(S);15Kohm,5%,3W,AA,TP,6x16

.....5 R429 2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

.....5 R430 2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

.....5 R801 2003-000713 R-METALOXIDE(S);47OHM,5%,2W,AD

.....5 R310 2003-001024 R-METALOXIDE(S);150OHM,5%,2W,A

.....5 R463 2003-001024 R-METALOXIDE(S);150OHM,5%,2W,A

Electrical Parts List

Samsung Electronics 7-21

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 R460 2003-002044 R-METAL OXIDE(S);100ohm,5%,1W,AF,TP,2.5x

.....5 R841 2003-002102 R-METAL OXIDE;68Kohm,5%,2W,AF,TP,4x12mm

.....5 R427 2003-002152 R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM

.....5 R427A 2003-002152 R-METAL OXIDE;1OHM,5%,2W,AG,TP,6X16MM

.....5 R426 2003-002153 R-METAL OXIDE;4.7OHM,5%,2W,AG,TP,6X16MM

.....5 R443 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM

.....5 R443A 2003-002156 R-METAL OXIDE;560OHM,5%,2W,AG,TP,6X16MM

.....5 R464 2003-002158 R-METAL OXIDE;0.68OHM,5%,1W,AG,TP,4.3X12

.....5 R421 2003-002159 R-METAL OXIDE;150OHM,5%,1W,AG,TP,4.3X12M

.....5 R408 2004-000531 R-METAL;20Kohm,1%,1/2W,AA,TP,3.3x9mm

.....5 R024 2004-001369 R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4

.....5 R024 2004-001386 R-METAL(S);16.9KOHM,1%,1/2W,AA,TP,2.4X6.

.....5 R024 2004-001395 R-METAL(S);330Kohm,2%,1/2W,AA,TP,2.4x6.4

.....5 R024 2004-001402 R-METAL(S);6.8KOHM,1%,1/2W,AA,

.....5 R024 2004-001408 R-METAL(S);91KOHM,1%,1/2W,AA,T

.....5 R024 2004-001892 R-METAL(S);162KOHM,1%,1/2W,AA,

.....5 R024 2004-001897 R-METAL(S);43.2KOHM,1%,1/2W,AA

.....5 R303 2004-001984 R-METAL;26.7KOHM,1%,1/2W,AA,TP

.....5 R305 2004-001984 R-METAL;26.7KOHM,1%,1/2W,AA,TP

.....5 R467 2004-001984 R-METAL;26.7KOHM,1%,1/2W,AA,TP

.....5 R471 2004-002011 R-METAL,FILM;RM1/2T110K-F

.....5 R024 2004-004001 R-METAL(S);180Kohm,1%,1/2W,AA,TP,2.5x6.5

.....5 R024 2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

.....5 R024 2004-004046 R-METAL(S);430Kohm,1%,1/2W,AA,TP,2.5x6.5

.....5 R024 2004-004366 R-METAL(S);1.3Kohm,1%,1/2W,AA,TP,2.5x6.5

.....5 R024 2004-005051 R-METAL(S);2.2KOHM,1%,1/2W,AA,TP,2.4X6.4

.....5 R445 2008-000252 R-FUSIBLE(S);0.47OHM,10%,1/2W,

.....5 R472 2008-000252 R-FUSIBLE(S);0.47OHM,10%,1/2W,

.....5 R441 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

.....5 R442 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

.....5 R442A 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

.....5 R447 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

.....5 R449 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

.....5 R465 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

.....5 R440 2008-000282 R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm

.....5 R424 2008-000289 R-FUSIBLE(S);1ohm,5%,1W,AA,TP,3.9x10mm

.....5 R307 2008-000290 R-FUSIBLE;2.4OHM,5%,2W,AF,TP,3

.....5 R486 2008-001018 R-FUSIBLE(S);0.47OHM,10%,2W,AF

.....5 R838 2008-001053 R-FUSIBLE;22OHM,5%,1/2W,AF,TP,

.....5 R306 2008-001076 R-FUSIBLE(S);1.8ohm,5%,2W,AF,TP,3.9x10mm

.....5 R437 2008-001087 R-FUSIBLE(S);1.8ohm,5%,2W,AG,TP,3.9x12mm

.....5 R485 2008-001137 R-FUSIBLE(S);3.3ohm,5%,1W,AF,TP,3.9x10mm

.....5 R462 2008-001145 R-FUSIBLE;4.7OHM,5%,1/2W,AF,TP,2.5X6.5MM

.....5 R853 2008-001152 R-FUSIBLE(S);1.3KOHM,5%,1/2W,AA,TP,2.5X6

.....5 R833 2009-001096 R-METAL PLATE;0.07ohm,5%,5W,CL,BK,5x14x1

.....5 R405 2009-001109 R-TEMPERATURE;240ohm,5%,1/4W,AA,TP,2.3x6

.....5 RR471S 2103-001024 VR-SEMI;50Kohm,25%,0.3W,TOP

.....5 RR402S 2103-001086 VR-SEMI;100KOHM,25%,0.3W,TOP

.....5 C302 2201-000017 C-CERAMIC,DISK;1NF,10%,50V,Y5P,4X3.5MM,5

.....5 C304 2201-000017 C-CERAMIC,DISK;1NF,10%,50V,Y5P,4X3.5MM,5

.....5 C833 2201-000017 C-CERAMIC,DISK;1NF,10%,50V,Y5P,4X3.5MM,5

.....5 C598 2201-000119 C-CERAMIC,DISC;100NF,+80-20%,50V,5MM,TAP

.....5 C598 2201-000132 C-CERAMIC,DISC;100PF,10%,500V,Y5P,6X3MM,

.....5 C598 2201-000138 C-CERAMIC,DISC;100PF,10%,50V,Y

.....5 C598 2201-000146 C-CERAMIC,DISC;100PF,5%,50V,SL

.....5 C598 2201-000180 C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,6.5*3

.....5 C811 2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

.....5 C812 2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

.....5 C813 2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

.....5 C598 2201-000370 C-CERAMIC,DISC;220PF,10%,50V,Y5P,TP

.....5 C449 2201-000406 C-CERAMIC,HIC;CK45(T)B2KV271-K

.....5 C598 2201-000551 C-CERAMIC,DISC;470PF,10%,1KV,Y

.....5 C598 2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

.....5 C478 2301-000020 C-FILMPEF;27NF,5%,100V,TP,7.3X

.....5 C479 2301-000200 C-FILM,PEF;2.2nF,5%,200V,TP,11.0x6.0x9.0

.....5 C477 2301-000213 C-FILM,PEF;220NF,5%,250V,21.5X

.....5 C493 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

.....5 CS801 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

.....5 C412 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

.....5 C831 2301-001216 C-FILM,PPF;47nF,5%,630V,TP,20x14.5x22,7.

.....5 C432 2303-000002 C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m

.....5 C438 2303-000002 C-FILM,PPF;8.2nF 5% 400V TP 19X18X7,7.5m

.....5 C460 2303-000331 C-FILM;4.7NF,5%,630V,19.5X12X7

.....5 C311 2305-000149 C-FILM;CF922N100VT104-J-40/105

.....5 C487 2305-000178 C-FILM,MPEF;10NF,5%,100V,-,5MM

.....5 C309 2305-000285 C-FILM,MPEF;220NF,5%,100V,-,5M

.....5 C871 2305-000289 C-FILM,MPEF;220NF,5%,63V,-,5MM

.....5 C838 2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

.....5 C301 2305-000427 C-FILM,MPEF;47NF,5%,100V,7.5X1

.....5 C303 2305-000427 C-FILM,MPEF;47NF,5%,100V,7.5X1

.....5 C865 2305-000427 C-FILM,MPEF;47NF,5%,100V,7.5X1

.....5 C429 2305-000704 C-M,POLYESTER;CFS922MTAPG250V1

.....5 T1294 2306-000122 C-FILM,MPPF;100NF,5%,50V,7.3X4

.....5 C489 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

.....5 C701 2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

.....5 C869 2401-000164 C-ALUMINUM;1000UF,20%,25V,WT,TP,12.5X20

.....5 C701 2401-000262 C-AL;100UF,20%,160V,GP,16X25MM,5MM,

.....5 C701 2401-000302 C-AL;100UF,20%,25V,GP,6X11MM,5

.....5 C701 2401-000360 C-AL;100UF,20%,50V,GP,8X11MM,5

.....5 C701 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,

.....5 C701 2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

.....5 C701 2401-000603 C-AL;1UF,20%,50V,GP,5X11MM,5MM

.....5 C483 2401-000660 C-ELECTROLYTIC;CE04WTAPG50V2.2

.....5 C701 2401-000698 C-AL;2200uF,20%,16V,WT,TP,12.5x25,5

.....5 C860 2401-000703 C-ELEC;CE04-40/8525VT222-MWSD

.....5 C701 2401-001026 C-AL;3.3UF,20%,50V,GP,5X11MM,5

.....5 C701 2401-001192 C-AL;33UF,20%,50V,GP,6X11MM,5MM,TP

.....5 C701 2401-001397 C-AL;470UF,20%,25V,GP,10X16MM,

.....5 C701 2401-001428 C-AL;470uF,20%,50V,GP,TP,10x20,5

.....5 C701 2401-001486 C-AL;47UF,20%,160V,HR,13X20MM,5MM,T

.....5 C701 2401-001527 C-AL;47UF,20%,250V,HR,13X25MM,

.....5 C701 2401-001622 C-AL;6.8uF,20%,50V,BP,TP,16x25mm,7.

.....5 C701 2401-001625 C-AL;6.8UF,20%,50V,GP,5X11MM,5

.....5 C701 2401-001655 C-AL;680UF,20%,25V,GP,10X20MM,

.....5 C701 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

.....5 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

.....5 C701 2401-002216 C-AL;2200UF,20%,35V,-,16X25,7.

.....5 C453 2401-002288 C-ELEC;CE04-55/10525VT471-MWRG

.....5 C458 2401-002288 C-ELEC;CE04-55/10525VT471-MWRG

.....5 C427 2401-002300 C-ELECTROLYTIC;CE04WTAPG50V47U

.....5 CS808 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.....5 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

.....5 C701 2401-003114 C-AL;4.7UF,20%,250V,WT,TP,10X1

.....5 L431 2701-000116 INDUCTOR-AXIAL;10UH,10%,4.2X9.

.....5 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

.....5 L483 2901-000299 FILTER-EMIBEAD;BL02RN2-R65T2DB

.....5 L481 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.....5 L495 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.....5 L835 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.....5 L836 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.....5 L837 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

Electrical Parts List

7-22 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 L851 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.....5 G101 3301-000374 CORE-FERRITE BEAD;AA,3.5x1.0x9.0mm,-,-

.....5 RS801S 3601-000102 FUSE-AXIAL LEAD;125V,1A,FAST-ACTING,GLAS

.....5 FD801S 3601-000120 FUSE-FERRULE;125V,2.5A,FA,GLASS,2.4x7.5m

.....5 FD805S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

.....5 FD854S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

.....5 FD871S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

.....5 F801A 3602-000114 FUSE-HOLDER;-,-,30MOHM

.....5 F801B 3602-000114 FUSE-HOLDER;-,-,30MOHM

.....5 CN401 3711-002645 POST-HEADER;67094-006(AUTO)

.....5 EL01 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL02 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL03 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL04 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL05 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL06 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL07 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL08 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL10 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL11 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL12 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL13 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL14 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL15 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EL16 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY39 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY40 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY41 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY42 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY51 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY52 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY53 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY54 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY55 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY56 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY57 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY58 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY59 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY60 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY61 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY62 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY63 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY01 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY02 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY03 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY04 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY05 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY06 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY07 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY08 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY09 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY10 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY100 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY101 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY102 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY103 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY104 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY105 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY106 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY107 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY108 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY109 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY11 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY111 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY113 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY114 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY115 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY116 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY117 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY118 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY119 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY12 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY120 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY121 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY122 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY123 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY124 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY125 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY126 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY127 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY128 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY129 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY13 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY130 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY131 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY132 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY133 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY134 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY135 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY136 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY137 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY138 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY139 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY14 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY140 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY141 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY142 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY147 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY148 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY149 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY15 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY150 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY151 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY152 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY153 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY154 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY155 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY16 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY17 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY18 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY19 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY20 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY21 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY22 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY23 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY24 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY25 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY26 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY27 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY28 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY29 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY30 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY31 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY32 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY34 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY35 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY36 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY37 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY38 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY43 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY44 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY45 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY46 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY47 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY49 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY50 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY64 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY65 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY66 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY67 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY68 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY69 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY70 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY71 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY72 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY73 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY74 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY75 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY76 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY77 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY78 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY79 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY80 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

Electrical Parts List

Samsung Electronics 7-23

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 EY81 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY82 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY83 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY84 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY85 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY86 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY87 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY88 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY89 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY90 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY91 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY92 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY93 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY94 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY95 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY96 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY97 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY98 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 EY99 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

.....5 03VER AA41-00598D PCB-SUB;HCM4215W,CEM-1,1L,D,1.6T,330X245 S.N.A

.....5 GT14 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT15 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT16 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT17 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT33 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT34 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT35 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT404 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT433 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT801 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT802 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT807 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT810 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT811 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

...3 T0073 BP94-00519A ASSY PCB MAIN;ST54T8PCS/XAX,P55A,MEXICO

....4 - 0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6 S.N.A

....4 IC802 1203-000119 IC-NEGA.FIXED REG.;7905,TO-220,3P,-,PLAS

....4 IC057 1203-000165 IC-POSI.ADJUSTREG.;78R12,TO-22

....4 C701 2401-000737 C-AL;2200UF,20%,50V,GP,18X36MM

....4 C701 2401-001068 C-AL;3300uF,20%,50V,GP,BK,22x40,10

....4 X601 2801-004020 CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF

....4 CN902 3703-001150 CONNECTOR-BACK PANEL;32P,2R,FEMALE,STRAI

....4 CN902 3703-001187 CONNECTOR-BACK PANEL;64P,2R,FEMALE,STRAI

....4 CN906 3711-003046 CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH

....4 CN906 3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.

....4 CN906 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG

....4 CN906 3711-003975 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG

....4 CN906 3711-004946 CONNECTOR-HEADER;BOX,15P,1R,2.5MM,STRAIG

....4 JA703 3722-001163 JACK-VHS;4P,12mm,AU,BLK,N

....4 JA701 3722-001426 JACK-PIN;9P,3.4mm,NI,BLK,-

....4 JA704 3722-001870 JACK-PIN;5P(10P),8.3MM,NI,GRN/BLU/RED/WH

....4 JA702 3722-001871 JACK-PIN;5P(9P),8.3MM,NI,GRN/BLU/RED/WHT

....4 L802 AA27-10001C COIL CHOKE;-,100uH,K,-,5.0A,ST,700UH-K(R

....4 L801 AA29-00004A FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ

....4 T0254 AA39-20010B LEAD-CONNECTOR,ASSY;-,YFH800-01,500MM,1P

....4 TU02 AA40-00049A TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),

....4 TU04 AA40-00049A TUNER;TCPN3081PC19C(S),TCPN3081PC19C(S),

....4 TU01 AA59-00164A MODULE-RF,SPLITTER,UMX-NT-005-2IN/3OUT,S

....4 SC AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A

....4 SC AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A

....4 SC AA63-00608A SHIELD CASE;HERCULES TOP,SPTE,T0.5,W140. S.N.A

....4 SC AA63-00610A SHIELD CASE;COMMANDO,SPTE,T0.5,W141.5,H1 S.N.A

....4 BAND AA63-10002A BAND-TIE;-,NYLON66V2,-,-,L100,NTR,-,- S.N.A

....4 CW AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL S.N.A

....4 CCW AA65-30111A CLAMPER CORE-WIRE;ALL MODEL,NYLON,V0,-,W S.N.A

....4 T0104 AA95-02001K ASSY SUB-PCB MICOM;,C2

.....5 T0083 0402-000274 DIODE-RECTIFIER;UF4004,400V,1A,DO-41

.....5 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400

.....5 IC902 1102-001130 IC-EPROM;M27W201-80F6,256KX8BIT,DIP,32P,

.....5 IC904 1203-001943 IC-VOL.DETECTOR;7025,T0-92,3P,PLASTIC

.....5 X901 2801-004071 CRYSTAL-UNIT;6MHZ,30PPM,28-AAM,20PF,40OH

.....5 CN902 3703-001175 CONNECTOR-BACK PANEL;64P,2R,MALE,ANGLE,A

.....5 A/AUTO AA97-07275A ASSY SMD;SVP-47W3HRT,P55A, , , S.N.A

......6 D602 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D901 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D902 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D905 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D906 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D920 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 D923 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 DZ016 0403-001375 DIODE-ZENER;RLZ3.6B,3.6-3.845V,500mW,LL-

......6 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

......6 IC112 1103-001314 IC-EEPROM;AT24C16A,2048x8Bit,SOIC,8P,5.0

......6 T0087 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL

......6 IC901 1204-001912 IC-DECODER;SDA5550M,P-MQFP,100P,-,PLASTI

......6 R959 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R960 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R964 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R965 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R981 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R907 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R909 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R916 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R917 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R918 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R922 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R923 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R939 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R940 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R952 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R953 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R956 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R969 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R970 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R972 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R979 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R911 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

......6 R901 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 R963 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 R905 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R921 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R924 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R925 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R930 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R933 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R936 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R974 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R912 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

......6 R913 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

......6 R915 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

......6 R903 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R904 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R906 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R908 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R927 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R928 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R934 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R954 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R955 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R958 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R971 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R976 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R978 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R980 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R982 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R983 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

Electrical Parts List

7-24 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 R985 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R986 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R944 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R957 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R987 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R926 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 R975 2007-000121 R-CHIP;820ohm,5%,1/16W,DA,TP,1608

......6 R914 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608

......6 R941 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608

......6 R942 2007-000123 R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1608

......6 R988 2007-000290 R-CHIP;100 OHM,5%,1/10W,DA,TP,2012

......6 R962 2007-000583 R-CHIP;22Kohm,1%,1/16W,DA,TP,1608

......6 R966 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012

......6 R961 2007-000939 R-CHIP;47Kohm,1%,1/10W,TP,1608

......6 R945 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R946 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R948 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R949 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R950 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R951 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 C120 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 C120 2203-000189 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 C120 2203-000221 C-CERAMIC,CHIP;100nF,20%,50V,Y5V,TP,3216

......6 C120 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608

......6 C120 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,

......6 C120 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

......6 C120 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-

......6 C120 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-

......6 C120 2203-000748 C-CERAMIC,CHIP;0.03nF,5%,50V,NP0,TP,2012

......6 C120 2203-001048 C-CERAMIC,CHIP;0.56nF,10%,50V,NP0,TP,201

......6 C120 2203-005809 C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201

......6 C950 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C913 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C915 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C918 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C921 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C936 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C938 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C911 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 C912 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 C917 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 L905 2703-001245 INDUCTOR-SMD;8.2uH,10%,2x1.25x1.25mm

......6 G101 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

......6 01VER AA41-00599B PCB-MICOM;HCM4215W,FR-4,2L,B,1.6T,180X24 S.N.A

....4 IC801 AA96-00475C ASSY H/S;SILICON-OIL,KA278R09,KA7808,AA6 S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 T0087 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS

.....5 T0123 1203-001978 IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4

.....5 T0123 1203-002003 IC-VOLTAGE REGULATOR;278R09,TO-220,4P,-,

.....5 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

.....5 AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00 S.N.A

....4 IC601 AA96-00623E ASSY H/S;SCREW,MAIN,AA62-00056A,TDA7265, S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 T0124 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1

.....5 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

.....5 AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-, S.N.A

....4 M2893 BP39-00047A LEAD CONNECTOR;P55A/HCM4215W,UL2547#26,U

....4 T0095 BP95-00077A ASSY SUB-PRO SCAN;HCM4215WJX/XAA,P55A,DV

.....5 - 0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6 S.N.A

.....5 FC58 2301-001664 C-FILM,MPE-PPF;100nF,3%,50V,TP,20x16x8.5

.....5 FC48 2305-000011 C-FILM,MPEF;470nF,5%,250V,TP,21.5X13.0X7

.....5 FC59 2305-000704 C-M,POLYESTER;CFS922MTAPG250V1

.....5 EX01 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,

.....5 T0122 2802-001177 RESONATOR-CERAMIC;2.696MHZ,0.4%,BK,10X4.

.....5 T0122 2802-001179 RESONATOR-CERAMIC;4MHZ,0.5%,BK,8X3X5.5MM

.....5 CN902 3703-001124 CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A

.....5 CN906 3711-001164 CONNECTOR-HEADER;BOX,9P,1R,2.5mm,ANGLE,-

.....5 A/SMD BP97-00169A ASSY SMD;HCM4215WJX/XAA,P55A S.N.A

......6 FD01 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD02 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD07 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD08 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD09 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD10 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD13 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD14 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD15 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD16 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 FD17 0401-000133 DIODE-SWITCHING;RLS4148,100V,200MA,SOD-8

......6 DZ016 0403-000746 DIODE-ZENER;RLZ3.9B,3.9V,3.89-4.16V,400m

......6 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 DZ016 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP

......6 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

......6 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

......6 T0156 0501-000727 TR-SMALL SIGNAL;BC848C,NPN,310mW,SOT-23,

......6 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.

......6 IC104 0801-000662 IC-CMOS LOGIC;74HC123,MULTIVIBATOR,SOP,1

......6 IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL

......6 IC06 1203-001211 IC-VOL. DETECTOR;7027,SOT-89,3P,-,PLASTI

......6 T0087 1203-002186 IC-POSI.FIXED REG.;18,DPAK,3P,240MIL,PLA

......6 T0087 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL

......6 IC02 1204-001814 IC-SELECTOR;CXA2151Q,QFP,48P,144MIL,PLAS

......6 IC01A 1204-001938 IC-DECODER;VSP9407B-B11,MQFP,80P,14X14MM

......6 IC118 1204-001989 IC-VIDEO PROCESS;CXA2165Q,QFP,64P,20X14M

......6 CR27 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216

......6 FR57 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

......6 FR78 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

......6 FR79 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

......6 FR80 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

......6 SR08 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608

......6 ER04 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER05 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER06 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER13 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER17 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER18 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER29 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 ER90 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 FR07 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 FR35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 FR76 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 FR96 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 SR09 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 SR22 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

Electrical Parts List

Samsung Electronics 7-25

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 CR83 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 CR84 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 ER08 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 ER15 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 ER16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 ER82 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 ER83 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 ER84 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR01 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR02 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR17 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR18 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR19 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR21 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR33 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR34 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR37 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR38 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR39 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR53 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR54 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR56 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR71 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR74 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR75 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR81 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 FR82 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR01 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR02 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR03 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR04 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR05 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR06 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR10 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR11 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR32 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR33 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR34 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR35 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR47 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR48 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR49 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR53 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 SR75 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 YR43 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 YR44 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 YR45 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 ER26 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 ER27 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 ER28 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 FR66 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 SR21 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 SR74 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 FR40 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 SR07 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 FR72 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608

......6 FR62 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

......6 FR73 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

......6 ER91 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 ER92 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 FR44 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 FR45 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 FR41 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608

......6 FR42 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608

......6 FR09 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 FR22 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 FR60 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 PR01 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 FR58 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608

......6 ER20 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 ER21 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 ER22 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 ER23 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 ER24 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 ER25 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 FR77 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 PR02 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 FR63 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608

......6 FR46 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

......6 FR47 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

......6 FR70 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

......6 FR10 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012

......6 FR11 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012

......6 FR12 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012

......6 FR13 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012

......6 FR14 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012

......6 FR15 2007-000210 R-CHIP;1.1KOHM,5%,1/10W,DA,TP,2012

......6 SR73 2007-000259 R-CHIP;1.6Kohm,5%,1/16W,DA,TP,1608

......6 SR23 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

......6 SR25 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

......6 SR26 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608

......6 FR36 2007-000691 R-CHIP;3.3Mohm,5%,1/16W,DA,TP,1608

......6 FR43 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608

......6 EC30 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 EC31 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 ER03 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 ER09 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 ER10 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 ER11 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 ER12 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 ER14 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 SR36 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 SR37 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 SR38 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 SR39 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 SR40 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 C120 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

Electrical Parts List

7-26 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 C120 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 C120 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012

......6 C120 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608

......6 C120 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-

......6 C120 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608

......6 C120 2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012

......6 C120 2203-000626 C-CERAMIC,CHIP;0.022NF,5%,50V,C0G,TP,160

......6 C120 2203-000681 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,160

......6 C120 2203-000783 C-CERAMIC,CHIP;0.33NF,5%,50V,C0G,TP,1608

......6 C120 2203-000896 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,1608

......6 C120 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,

......6 C120 2203-000998 C-CERAMIC,CHIP;0.047NF,5%,50V,C0G,TP,160

......6 C120 2203-001140 C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,

......6 C120 2203-001222 C-CERAMIC,CHIP;820pF,10%,50V,X7R,TP,1608

......6 C120 2203-002494 C-CERAMIC,CHIP;470nF,10%,16V,X7R,TP,2012

......6 C120 2203-005384 C-CERAMIC,CHIP;4700nF,+80-20%,10V,Y5V,TP

......6 C120 2203-005809 C-CERAMIC,CHIP;1000nF,10%,16V,X7R,TP,201

......6 FC09 2402-000170 C-AL,CHIP;1uF,20%,50V,GP,TP,4.3x4.3x5.4,

......6 FC13 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

......6 FC29 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

......6 FC60 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

......6 PC18 2402-000173 C-AL,SMD;4.7uF,20%,35V,GP,TP,4.3x4.3x5.

......6 PC01 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 PC03 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 PC06 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 PC32 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC11 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC16 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC18 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC31 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC34 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC36 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC38 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC40 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC42 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC44 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 SC47 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 FC04 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 FC12 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 FC45 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 FC62 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 FC63 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 FC06 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 FC65 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 PC09 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 PC10 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 PC12 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 CC49 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

......6 FC31 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

......6 PC07 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

......6 PC08 2402-001070 C-AL,SMD;470uF,20%,16V,GP,TP,10x10.2,-

......6 EL01 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 EL02 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 EL03 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 EL04 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 EL05 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 EL06 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 EL07 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 EL08 2703-000274 INDUCTOR-SMD;2.2uH,10%,1.25x2x0.85mm

......6 FL01 2703-001070 INDUCTOR-SMD;100uH,10%,4.5x3.2x3.2mm

......6 G101 3301-001082 CORE-FERRITE BEAD;AB,60OHM,3.2X2.5X1.3MM

......6 G101 3301-001186 CORE-FERRITE BEAD;AB,600ohm,3.2x1.6x1.3m

......6 G101 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

......6 PCB AA41-00610E PCB;HCM4215W,PCB,4L,E,1.6,162*223,140*10 S.N.A

....4 T0093 BP95-00151A ASSY SUB PCB-CONV MOD;SVP-43W6HRN,P55A

.....5 - 0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6 S.N.A

.....5 L01 2701-001030 INDUCTOR-AXIAL;43uH,10%,14x4.5mm

.....5 CN902 3703-001124 CONNECTOR-BACK PANEL;32P,2R,MALE,ANGLE,A

.....5 CN906 3711-003601 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,ANGLE,

.....5 A/SMD BP97-00468A ASSY SMD;0 S.N.A

......6 - 0202-001167 SOLDER-CREAM;RX3603-2330HO,S45A,PASTE,SN S.N.A

......6 D01 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D02 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D03 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D04 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D05 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D06 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D07 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

Electrical Parts List

Samsung Electronics 7-27

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 D08 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D09 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D10 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D11 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D12 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D13 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D14 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D15 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D16 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D17 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 D18 0401-000160 DIODE-SWITCHING;ISS314,30V,100mA,USC,TP

......6 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 T0156 0501-000280 TR-SMALL SIGNAL;KSA1182,PNP,150mW,SOT-23

......6 Q04 0501-000342 TR-SMALLSIGNAL;KSC1623-Y,NPN,200mW,SOT-

......6 Q10 0501-000342 TR-SMALLSIGNAL;KSC1623-Y,NPN,200mW,SOT-

......6 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0.

......6 IC104 0801-002345 IC-CMOS LOGIC;7S04,INVERTER,SOT-353,5P,4

......6 IC08 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16

......6 IC13 1001-001155 IC-ANALOG MULTIPLEX;NC7SB3157P6X,CMOS,SC

......6 IC112 1103-001195 IC-EEPROM;24C64,8Kx8Bit,SOP,8P,150MIL,10

......6 DU410 1201-001135 IC-OP AMP;324,SOP,ST,14P,150MIL,QUAD,100

......6 DU410 1201-001504 IC-OP AMP;072,SOP,8P,150MIL,DUAL,-,PLAST

......6 T0074 1201-001520 IC-VIDEO AMP;EL2250CS,SOIC,8P,150MIL,DUA

......6 IC03 1203-001824 IC-VOL. DETECTOR;7042,SOT-89,3P,-,PLASTI

......6 T0087 1203-002302 IC-POSI.FIXED REG.;78RM33D,D-PAK,3P,-,PL

......6 IC17 1209-001163 IC-PLL;TLC2932IPWLE,SOP,14P,-,PLASTIC

......6 R30 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012

......6 R31 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012

......6 R35 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012

......6 R36 2007-000028 R-CHIP;39OHM,5%,1/10W,DA,TP,2012

......6 R122 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R123 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R141 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R143 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R144 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R09 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R10 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R129 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R134 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R135 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R136 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R15 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R24 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R45 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R46 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608

......6 R02 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R17 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R20 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R47 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R53 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R59 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R65 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R71 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R77 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R91 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R03 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R101 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R11 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R110 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R37 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R38 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R39 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R40 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R41 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R42 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R43 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R44 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R50 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R52 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R56 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R58 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R62 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R64 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R68 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R70 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R74 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R76 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R80 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R82 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R94 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R98 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R128 2007-000079 R-CHIP;1.8Kohm,5%,1/16W,DA,TP,1608

......6 R51 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 R57 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 R63 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 R69 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 R75 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 R81 2007-000080 R-CHIP;2Kohm,5%,1/16W,DA,TP,1608

......6 R109 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608

......6 R01 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R04 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R06 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R07 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R08 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R118 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R119 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R121 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R133 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R48 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R49 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R54 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R55 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R60 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R61 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R66 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R67 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R72 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R73 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R78 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R79 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R113 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R114 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R115 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R83 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R84 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R85 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R86 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R92 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R93 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R96 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R97 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R125 2007-000091 R-CHIP;12Kohm,5%,1/16W,DA,TP,1608

......6 R05 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608

......6 R127 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608

......6 R100 2007-000118 R-CHIP;390ohm,5%,1/16W,DA,TP,1608

......6 R32 2007-000119 R-CHIP;560ohm,5%,1/16W,DA,TP,1608

......6 R107 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

......6 R117 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

......6 R28 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

......6 R29 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

......6 R34 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608

......6 R120 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

......6 R33 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608

......6 R87 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

......6 R88 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

......6 R89 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

......6 R90 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608

......6 R108 2007-000381 R-CHIP;13Kohm,5%,1/16W,DA,TP,1608

......6 R137 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608

......6 R138 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608

......6 R139 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608

......6 R95 2007-000704 R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608

Electrical Parts List

7-28 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 R99 2007-000704 R-CHIP;3.6Kohm,5%,1/16W,DA,TP,1608

......6 R126 2007-000857 R-CHIP;4.3Kohm,1%,1/16W,DA,TP,1608

......6 R148 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R26 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R27 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R116 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608

......6 RN01 2011-000585 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP

......6 RN02 2011-000585 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP

......6 RN03 2011-000585 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP

......6 RN04 2011-000585 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP

......6 RN05 2011-000585 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP

......6 RN06 2011-000585 R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP

......6 C120 2203-000041 C-CERAMIC,CHIP;0.01NF,0.25PF,50V,C0G,TP,

......6 C120 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 C120 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608

......6 C120 2203-000357 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,1608

......6 C120 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-

......6 C120 2203-000575 C-CERAMIC,CHIP;220NF,10%,25V,X7R,TP,2012

......6 C120 2203-000975 C-CERAMIC,CHIP;47nF,10%,25V,X7R,TP,1608,

......6 C120 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

......6 C120 2203-001083 C-CERAMIC,CHIP;0.005nF,0.1pF,50V,NP0,TP,

......6 C120 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201

......6 C01 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C03 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C06 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C14 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C38 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C40 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C70 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C84 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5.4

......6 C80 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4

......6 OSC01 2804-001479 OSCILLATOR-CLOCK;24MHZ,100PPM,50PF,TP,5V

......6 G101 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

......6 T0119 AA09-00032A IC MICOM;,TSC87251G2D-OTP,4.5 TO 5.5V,-, S.N.A

......6 PCB AA41-00717E PCB;CONVERGENCE,FR-4,4,1.6T,245*245,90*1 S.N.A

......6 IC125 BP13-00003A IC ASIC;SDC12,128,-0.3 TO +3.8,0 TO 70,Q

....4 IC808 BP96-00020G ASSY HEAT SINK P;AA62-00045B,TAPTITE,SI- S.N.A

.....5 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

.....5 IC012 1203-000203 IC-POSI.ADJUST REG.;3050,TO-220,5P,-,PLA

.....5 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

.....5 AA62-00045B HEAT SINK;COMMANDO,AL1050,T1.0,H45.0 S.N.A

....4 A/AUTO BP97-00244A ASSY AUTO;0 S.N.A

.....5 D601 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D604 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D605 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D607 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D608 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 D609 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

.....5 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

.....5 DZ016 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,

.....5 DZ605 0403-001039 DIODE ZENER;MA2560,56V,52-60V,1W,DO-41,T

.....5 DZ016 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO

.....5 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

.....5 Q601 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q602 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 Q603 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

.....5 R125 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1

.....5 R808 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,

.....5 R810 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,

.....5 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1

.....5 R125 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,

.....5 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

.....5 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP

.....5 R125 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R125 2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R125 2001-001000 R-CARBON ;82Kohm,5%,1/8W,AA,TP,1.8x3.2mm

.....5 R811 2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA,

Electrical Parts List

Samsung Electronics 7-29

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

.....5 R801 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,

.....5 R674 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R677 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

.....5 R681 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,

.....5 R682 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,

.....5 R814 2003-001098 R-METAL OXIDE(S);22KOHM,5%,3W,AA,TP,6X16

.....5 R805 2004-000970 R-METAL;470ohm,1%,1/4W,AA,TP,2.4x6.4mm

.....5 R024 2004-001390 R-METAL(S);1KOHM,2%,1/2W,AA,TP

.....5 R024 2004-001970 R-METAL(S);1.8KOHM,1%,1/2W,AA,

.....5 C694 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

.....5 C695 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

.....5 C682 2305-000665 C-FILM;104J, 60V,5MM TAPING

.....5 C687 2305-000665 C-FILM;104J, 60V,5MM TAPING

.....5 C689 2305-000665 C-FILM;104J, 60V,5MM TAPING

.....5 C716 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

.....5 C803 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

.....5 C819 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

.....5 C822 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

.....5 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5mm

.....5 C104 2401-000039 C-ALUMINUM;1000UF,20%,16V,GP,10*16MM,EA

.....5 C832 2401-000039 C-ALUMINUM;1000UF,20%,16V,GP,10*16MM,EA

.....5 C686 2401-000192 C-ELEC;CE04-40/8550VT102-MW1SG

.....5 C688 2401-000192 C-ELEC;CE04-40/8550VT102-MW1SG

.....5 C701 2401-000302 C-AL;100UF,20%,25V,GP,6X11MM,5

.....5 C701 2401-000360 C-AL;100UF,20%,50V,GP,8X11MM,5

.....5 C701 2401-000471 C-AL;10UF,20%,50V,BP,6X11MM,5M

.....5 C701 2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

.....5 C701 2401-000603 C-AL;1UF,20%,50V,GP,5X11MM,5MM

.....5 C701 2401-000832 C-AL;220UF,20%,25V,GP,8X11MM,5

.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5

.....5 C701 2401-001192 C-AL;33UF,20%,50V,GP,6X11MM,5MM,TP

.....5 C701 2401-001397 C-AL;470UF,20%,25V,GP,10X16MM,

.....5 C701 2401-001513 C-AL;47UF,20%,16V,WT,5X11MM,5M

.....5 C701 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

.....5 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

.....5 C691 2401-002300 C-ELECTROLYTIC;CE04WTAPG50V47U

.....5 C831 2401-002300 C-ELECTROLYTIC;CE04WTAPG50V47U

.....5 C701 2401-002459 C-AL;220UF,20%,25V,WT,10X16MM,

.....5 C111 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.....5 C823 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

.....5 C701 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

.....5 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

.....5 L105 2701-000106 INDUCTOR-AXIAL;1.5uH,10%,2.8x7mm

.....5 L107 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L108 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L111 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L112 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L113 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L114 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L119 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L120 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L121 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L122 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L123 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L124 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

.....5 L101 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

.....5 L103 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

.....5 L104 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

.....5 L106 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

.....5 L703 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

.....5 L705 2701-001030 INDUCTOR-AXIAL;43uH,10%,14x4.5mm

.....5 L706 2701-001030 INDUCTOR-AXIAL;43uH,10%,14x4.5mm

.....5 L102 2701-001040 COIL INDUCTOR; COIL,10uH,ALO5

.....5 L605 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.....5 L606 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

.....5 CN101 3711-002642 POST-HEADER;67094-003(AUTO)

.....5 CN903 3711-002642 POST-HEADER;67094-003(AUTO)

.....5 CN601 3711-002643 POST-HEADER;YW025-04(AUTO)

.....5 CN201 3711-002645 POST-HEADER;67094-006(AUTO)

.....5 GT01 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT02 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 GT03 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

.....5 A/SMD AA97-07233J ASSY SMD;HCM4215WX/XAA,P55A S.N.A

......6 DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,9.1V,8.80-9.30V,400

......6 DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,6.2V,5.96-6.27V,400m

......6 DZ016 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP

......6 T0156 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-

......6 IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S

......6 IC605 1001-001178 IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S

Electrical Parts List

7-30 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 IC704 1002-001048 IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1

......6 DU410 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P

......6 IC602 1204-002002 IC-SOUND PROCESSOR;MSP3420G-B11,PQFP,80P

......6 R101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R117 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R143 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R145 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R706 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R708 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R712 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R729 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R775 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R776 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R777 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R788 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R789 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R791 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R794 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R795 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R79B 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R904 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R97C 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608

......6 R102 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R103 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R114 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R115 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R116 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R125 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R126 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R127 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R170 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R171 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R172 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R601 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R602 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R624 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R625 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R626 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R627 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R646 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R647 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R703 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R707 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R709 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R722 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R724 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R756 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R757 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608

......6 R730 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608

......6 R150 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 R157 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 R166 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608

......6 R106 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R603 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R628 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R629 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R630 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R631 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R632 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R633 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R634 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R635 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R636 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R637 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R641 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R642 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R643 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R651 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R652 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R653 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R728 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R793 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R797 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R798 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608

......6 R604 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R611 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R688 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R750 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R755 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R780 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608

......6 R746 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R747 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R748 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R749 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608

......6 R739 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608

......6 R741 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608

......6 R743 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608

......6 R744 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608

......6 R149 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

......6 R151 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

......6 R155 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

......6 R156 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

......6 R164 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

......6 R165 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608

......6 R704 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 R716 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608

......6 R105 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608

......6 R110 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608

......6 R738 2007-000127 R-CHIP;9.1Kohm,5%,1/16W,DA,TP,1608

......6 R740 2007-000127 R-CHIP;9.1Kohm,5%,1/16W,DA,TP,1608

......6 R742 2007-000127 R-CHIP;9.1Kohm,5%,1/16W,DA,TP,1608

......6 R745 2007-000127 R-CHIP;9.1Kohm,5%,1/16W,DA,TP,1608

......6 R607 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

......6 R612 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608

......6 R608 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608

......6 R609 2007-000329 R-CHIP;11Kohm,5%,1/16W,DA,TP,1608

......6 R104 2007-000828 R-CHIP;39Kohm,1%,1/16W,DA,TP,1608

......6 R109 2007-000828 R-CHIP;39Kohm,1%,1/16W,DA,TP,1608

......6 R605 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608

......6 R610 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608

......6 R751 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608

......6 R752 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608

......6 R753 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608

......6 R754 2007-001010 R-CHIP;51Kohm,5%,1/16W,DA,TP,1608

......6 R118 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R119 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R120 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R121 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R132 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R133 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R134 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R137 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R138 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R140 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R142 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R173 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R174 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R701 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R702 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R710 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R713 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R714 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R725 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R726 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R727 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R731 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R792 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R799 2007-001167 R-CHIP;75ohm,5%,1/16W,DA,TP,1608

......6 R606 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608

......6 R613 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608

......6 C120 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608

......6 C120 2203-000181 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,

......6 C120 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012

Electrical Parts List

Samsung Electronics 7-31

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

......6 C120 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012

......6 C120 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608

......6 C120 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608

......6 C120 2203-000872 C-CERAMIC,CHIP;0.003NF,0.25PF,50V,C0G,TP

......6 C120 2203-000440 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608,-

......6 C120 2203-001071 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,160

......6 C120 2203-001211 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,1608

......6 C120 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,

......6 C120 2203-005590 C-CERAMIC,CHIP;330NF,10%,16V,X7R,TP,2012

......6 L125 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L126 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L601 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L602 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L603 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L604 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L701 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L707 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L708 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L901 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 L902 2703-000398 INDUCTOR-SMD;10uH,10%,3.2x2.5x2.2mm

......6 G101 3301-001324 CORE-FERRITE BEAD;AB,15OHM,2X1.25X0.9MM,

......6 06VER AA41-00597F PCB-MAIN;HCM4215W,FR-4,2L,F,1.6T,245X245 S.N.A

..2 T0094 BP94-00155A ASSY PCB MISC-CG-AMP;DP,HCM4215W3S/XAA,P

...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH

...3 CN906 3711-003046 CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH

...3 4715-000106 SURGEABSORBER;300V,-,-,-,CHIP S.N.A

...3 CWIRE AA65-30110A CLAMP-WIRE;NYLON 66,V2,BLK,PAL TVI,ALL M S.N.A

...3 A/AUTO BP97-00506A ASSY AUTO;HCN5529WX/XAA,P55A S.N.A

....4 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP

....4 R125 2001-000800 R-CARBON;5.1KOHM,5%,1/8W,AA,TP

....4 R125 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,

....4 RZ104 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

....4 RZ105 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

....4 RZ106 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

....4 RZ107 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

....4 RZ108 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

....4 RZ109 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,

....4 R856 2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.

....4 R857 2001-001155 R-CARBON(S);5.6Kohm,5%,1/2W,AA,TP,2.4x6.
