HD OB fact sheet stvmd 2014
Factsheet:

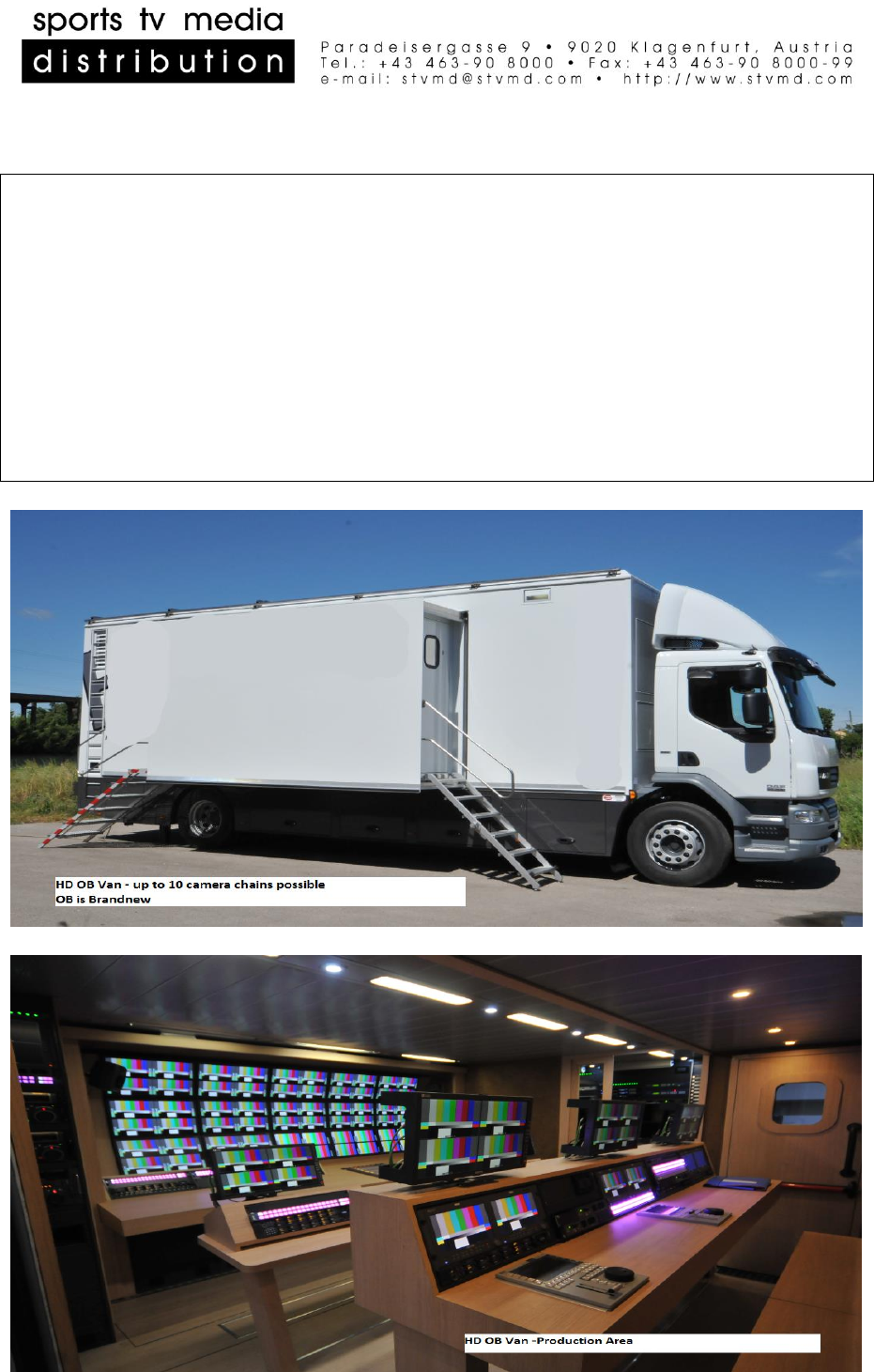

HD OB Van up to 10 Cameras – Brand NEW
Double Expanding
Price: On Request
This 10 camera OB Van is brandnew, built with the latest
technologies. Planned for up to 10 camera chains
Double side expandable
4 K Vision Mixer
5.1 Dolby surround ready
OB Van is coming without camera chains, EVS, Recording
HD OB fact sheet stvmd 2014
COACH BUILDING AND VARIOUS:
Tractor: DAF with FALF 55 Cabin
Year of built: 2014
Dimensions:
Length: 10.10 m
Width: 2.55m - not expanded –open expanded: 4,15 mtr.
Height: 3.8m
Weight: 15 Tons
Power system:
Power System: 63A CEE Connector – 400 Watt
Air Conditionsystem: Split Type

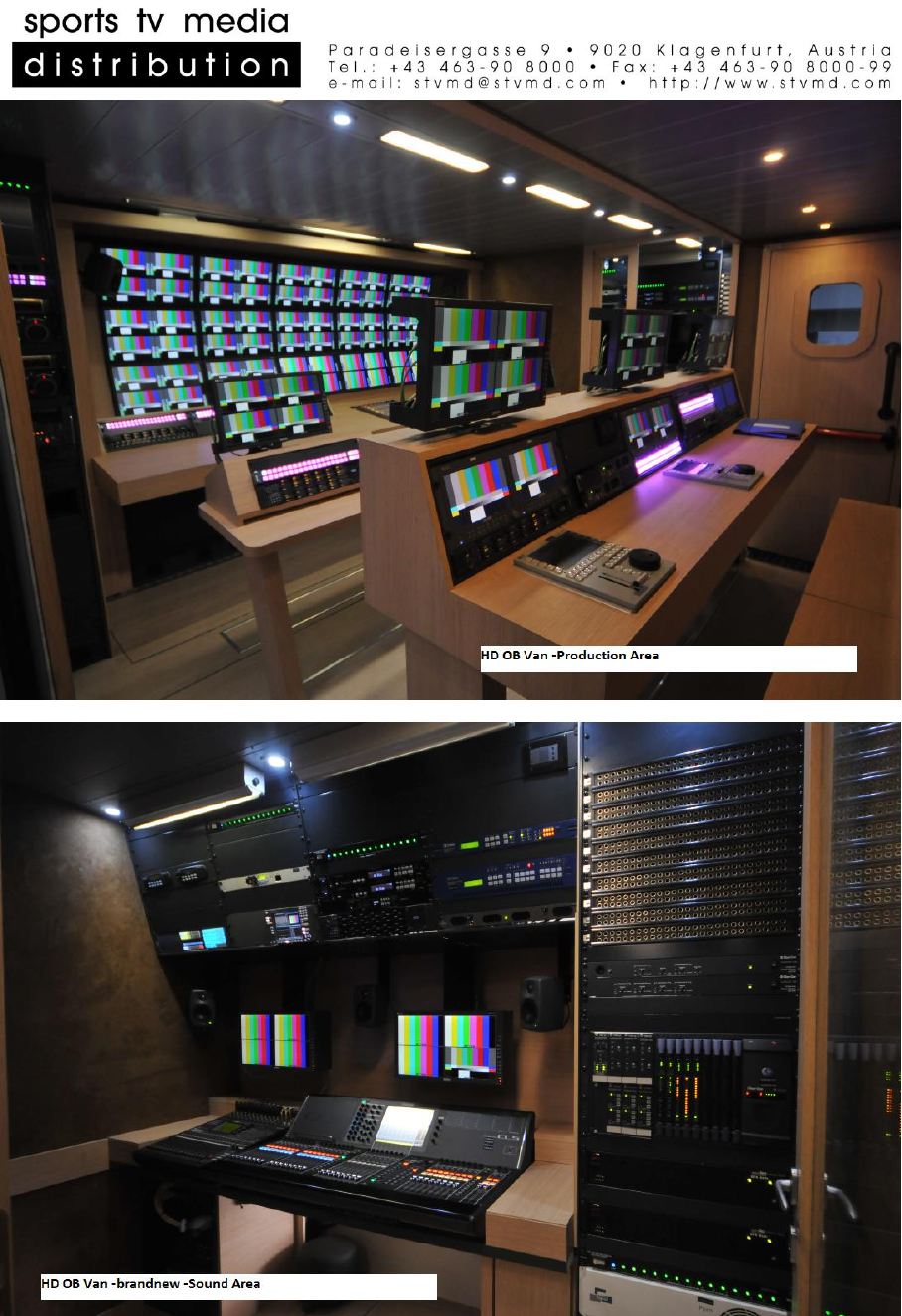

Production Area:
Video Mixer: Sony MVS 7000 – HD-3G-4K
4 ME
40 inputs
24 outputs
Cliprecorder included
Quadsplit
Production Monitor: Vutrix
Recording/EVS:
Precabled for 4 VTR’s
Precabled for 4 EVS
Engineering - Vision Control
Snell SIRIUS 192x102 Multiformat SD/HD/3.
ARGOSY, 448 Patch Points.
Tektronix WVR7200 HD Waveform Vector
5x Kroma 17” Quad, 3x Sony BVM-A14 HD 14’’.
Audio -5.1 ready :
1 x YAMAHA DIGITAL MIXING CONSOLE C01V96I
1 x YAMAHA DIGITAL MIXING CONSOLE CL5 - 72 channel input, 24 channel output
4 x YAMAHA DIGITAL INTERFACE CARD MY-16AE
5 x GENELEC ACTIVE MONITOR GE 6010A
1 x GENELEC ACTIVE SUB WOOFER 5040A
2 x KROMA MONITOR LCD -QUAD 17" QS 17
2x Glensound GS1UO50
2x Glensound GSOC 24
2x Motorola GM 360
10x GP 340
Yamaha 01 V9
8 Matrix Output Snell AES EBU 36x36 ch.
Intercom:
Clearcom Eclipse – 48 channel Median
HD OB fact sheet stvmd 2014
HD OB fact sheet stvmd 2014
HD OB fact sheet stvmd 2014
Technical Details:
COACH BUILDING AND VARIOUS
TRACK WITH CABIN FALF 55 DAF EM575RX
SPOILER FOR TRUCK CABIN DAF
RADIO CB ALAN 68 MIDLAND
CAR RADIO
SPECIAL COACH BUILD RESCAR EM575RX
INTERNAL
POWER INPUT PANEL 63A-400W CGS
ISOLATION TRANSFORMER 20 VA-400V
DISTRIBUTION AND CONTROL PANEL CGS
INTERNA DISTRIBUTION 230V TRC

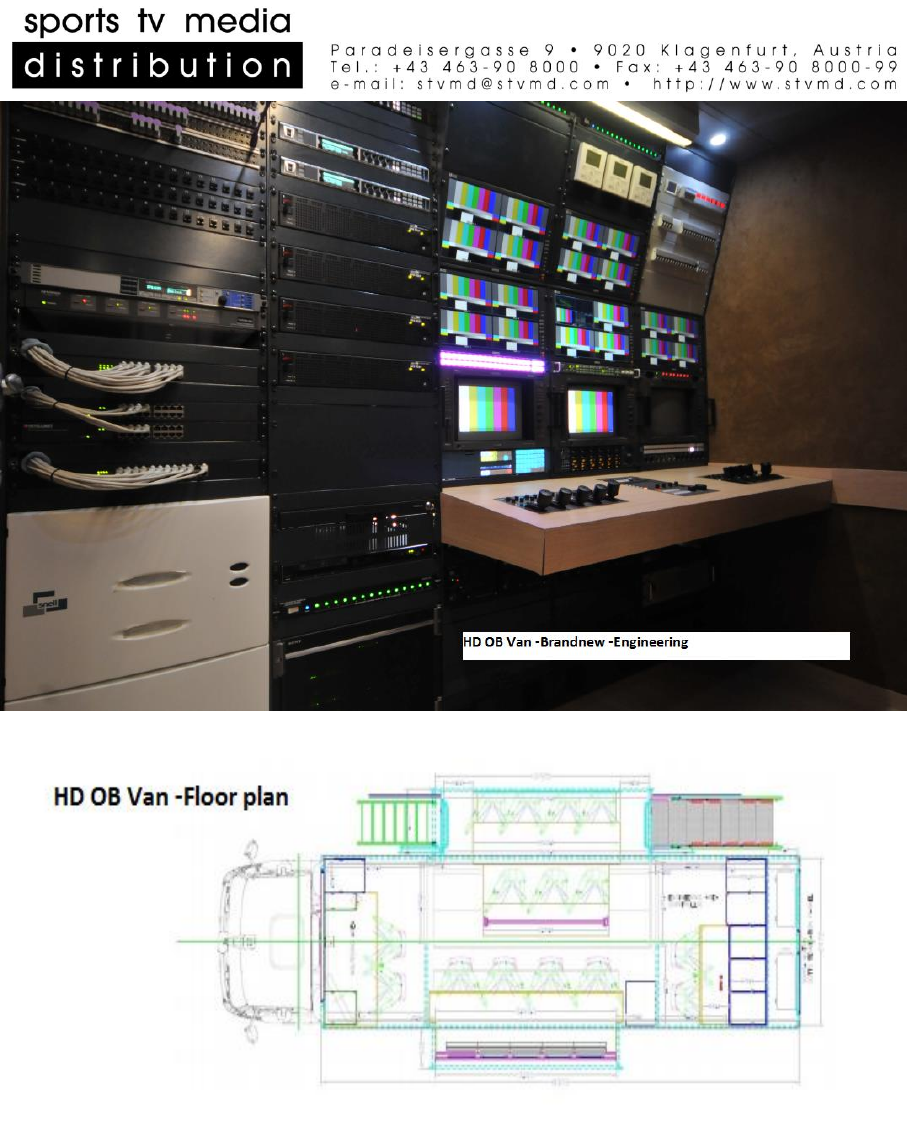

Engineering Rack 1:
1 x MACLAY POWER SUPPLY PDV 14
6 x ARGOSY VIDEO PATCH PANEL 3G 2x32
1 x ARGOSY n.180 U-LINK
1 x ARGOSY n.120 PATCH CORD
1 x INTELLINET 16x2 RJ 45 PATCH 1
1 x INTELLINET 16x2 RJ 45 PATCH 2
1 x INTELLINET 16x2 RJ 45 PATCH 3
1 x HARRIS MULTI-FORMAT CHANGEOVER VSX 11D
1 x LEITCH SYNC GENERATOR SPG 1601
1 x LEITCH HD TEST GENERATOR 1600 HG
1 x HARRIS SYNC GENERATOR VSG 4 MTG
1 x INTELLINET SYRIUS MATRIX SWITCH 1
1 x INTELLINET SYRIUS MATRIX SWITCH 2
1 x INTELLINET MVS 7000 SWITCH 1
1 x INTELLINET MVS 7000 SWITCH 2
1 x INTELLINET ROSS DFR NET SWITCH 1
1 x SNELL
SIRIUS 630 - 16RU256x256 RACK MOUNT FRAME
DUAL CONROLLER, 3G/HD SDI LEVEL 128 3G-HD
SDI RECLOKING IN - 192 3G - HD SDI OUT
1 x SNELL BASIC ROUTER CONTROL MORPHEUS
ENGINEERING - RACK 2
1 x MACLAY POWER SUPPLY PDV 14
3 x FOR A FRAME SYNCRONIZER FA 9500 HD-SD
1 x FOR A FRAME SYNCRONIZER FA 9100
1 x ROSS RACK FRAME 2U DFR 8321 CN
1 x ROSS POWER SUPPLY PS 8300
10 x ROSS ANALOG DISTR. AMPLIFIER VDA 8705A -R2L
1 x ROSS RACK FRAME 2U DFR 8321
1 x ROSS POWER SUPPLY PS8300
10 x ROSS MB-SDI 3GB RECLOK AMPL-SRA 8601 A-R2
1 x ROSS RACK FRAME 2U DFR 8321 CN
1 x ROSS POWER SUPPLY PS 8300
3 x ROSS MB-SDI 3GB RECLOK AMPL-SRA 8601A-R2
1 x ROSS MB-SDI 3GB RECLOK AMPL-SRA 8601A-R2S
1 x ROSS MB-SDI 3GB RECLOK AMPL-SRA 8601A
2 x ROSS UP DOWN CONVERTER UDC 8625A -R2
1 x ROSS RACK FRAME 2U DFR 8321 CN
1 x ROSS POWER SUPPLY PS 8300
HD OB fact sheet stvmd 2014
3 x ROSS SDI TO ANALOG CONVERTER DAC 8016A
2 x ROSS ANALOG COMPOSIT TO SDI CONV. ADC 8732
BS-R2
4 x ROSS HD-SD 8 CHANNEL MUX MUX-8258 A -R2A
1 x EUROVIDEO RACK MOUNT PC-KEYBOARD
1 x EUROVIDEO WORK STATION PC-WINDOWS
1 x ---------- VGA MONITOR
1 x SONY MULTI FORMAT SWITCHER PROC. MVS 7000X
1 x SONY HD UPGRADE SOFTWARE BZS-7500X
1 x SONY ME BOARD 1 HD SOFTWARE BZS-7510X
1 x SONY ME BOARD 2 HD SOFTWARE BZS-7520X
1 x SONY DME CH 1/2 HD SOFTWARE BZS-7540X
1 x SONY POWER SUPPLY UNIT HK-PSU05
2 x SONY M/E BOARD MKS-7210
1 x SONY 2 CHANNEL DME BOARD MKS-7470X
2 x SONY 20 INPUT BOARD MKS 8110X
1 x SONY FRAME MEMORY BOARD MKS-8440X
ENGINEERING - RACK 3
1 x MACLAY POWER SUPPLY PDU-14
1 x LEITCH RACK FRAME 1U
1 x LEITCH POWER SUPPLY PS 3903
4 x LEITCH DOWN CONVERTER HDC-3901
1 x SAT RECEIVER
2 x KROMA MONITOR LCD - QUAD QS17
1 x SONY MONITOR CRT 14" BVM-14F5E
1 x SONY DECODER BOARD BKM 210
1 x SNELL REMOTE CONTROL PANEL XY - 6776
1 x MACLAY POWER SUPPLY PDU-14
1 x TSL UMD-TALLY CONTROLLER TM1
ENGEENERING - RACK 4
1 x MACLAY POWER SUPPLY PDU-14
1 x TRC DVBT RECEIVER
2 x KROMA MONITOR LCD-QUAD 17" QS17
1 x SONY MONITOR CRT 14" BVM 14F5E
1 x SONY DECODER BOARD
1 x CLEAR -COM REMOTE PANEL V24-LDX4
1 x MACLAY POWER SUPPLY PDU-14
1 x TEKTRONIX MULTISANDARD RASTEIZER WVR 7200
1 x TEKTRONIX DOLBY AUDI DECODING WR 7200 DPE
1 x TEKTRONIX JITTER - EYEPATTERN WVR 7200 PHY3
ENGEENERING - RACK 5
1 x CGS POWER SUPPLY CONTROL PANEL
1 x KROMA MONITOR LCD - QUAD 17" QS17
1 x WOHLER AUDIO MONITOR VMDA-SUM 8
1 x SONY MONITOR CRT 14" BVM-D14 H5
1 x SONY DECODER BOARD
1 x SNELL REMOTE CONTROL PANEL 36 BPX
1 x TRC TIE LINE PANEL
1 x MACLAY POWER SUPPLY PDU-14
1 x RTS 4 WIRE CAMERA INTERFACE MDA-100 VIDEOLINEA SYSTEM
ENGEENERING DESK
2 x SNELL REMOTE CONTROL PANEL L36 BPX
HD OB fact sheet stvmd 2014
PRODUCTION - VTR RACK
1 x MACLAY POWER SUPPLY PDU-14
1 x KROMA MONITOR LCD QUAD 17" QS17
1 x WOHLER AUDIO MONITOR HRS-1S
1 x SNELL REMOTE PANEL SIRIUS 36 BPX
1 x SONY VIDEORECORDER HD-CAM HDW-D2000
1 x SONY VIDEORECORDER IMX MSW-M2000
2 x SONY RACK MOUNT KIT RMM 131
2 x PANASONIC DVD RECORDER DMR-EX 773 ECK
1 x SONY MONITOR LCD LMD 4420
1 x NEUTRIC 20 TRASFORMER IMP. 75-110 Ω
PRODUCTION - MONITOR
15 x VUTRIX LCD MONITOR QUAD 24Q
2 x GENELEC AUDIO MONITOR GE 8020
PRODUCTION RACKS
1 x MACLAY POWER SUPPLY QDU-14
1 x INTELLINET VUTRIX SWITCH 16 PORT
1 x SONY SYSTEM CONTROL UNIT MKS-8010B
1 x AJA DIGITAL AUDIO CONVERTER ADA-4
1 x MACLAY POWER SUPPLY PDU-14
PRODUCTION DESK
1 x SNELL CONTROL PANEL 36 BPX
1 x CLEAR-COM REMOTE PANEL V12-LDX4
1 x TRC TIE LINE PANEL
1 x SNELL CONTROL PANEL 36 BPX
1 x WOHLER AUDIO MONITOR AMP 1A - PLUS
1 x SNELL CONTROL PANEL 36 BPX
1 x CLEAR-COM REMOTE PANEL V24-LDX4
1 x SONY POWER SUPPLY HK-PSU02
1 x SONY MENU PANEL MKS - 8011A
1 x SONY 24 XPT AUX BUS MODULE MKS 8014A
2 x SONY 24 XPT MODULE MKS 8018A
3 x SONY STANDARD TRANS. MODULE MKS 8020A
2 x SONY FLEXI PAD MODULE MKS-8024A
1 x SONY MEMORY STICK/USB MODULE MKS-8025MS
1 x SONY 10 KEY PAD MODULE MKS-8026A
1 x SONY KEY FRAM MODULE MKS.8030A
1 x SONY TRACK-BALL MODULE MKS-8031 ATB
1 x SONY FTB MODULE MKS-8034 AFB
1 x SONY KEY CONTROL MODULE MKS-8035A
2 x SONY BLANK PANEL MKS-8041
2 x SONY MULTICORE CABLE SWC-5005
PRODUCTION REAR DESK
2 x SNELL CONTROL PANEL 36 BPX
1 x CLEAR-COM REMOTE PANEL V24-LDX4
1 x CLEAR-COM REMOTE PANEL V12-LDX4
1 x TRC TIE LINE PANEL
2 x KROMA MONITOR LCD QUAD 17" QS 17
PRODUCTION RVM REAR-DESK
3 x KROMA 2 X 9" LCD MONITOR LM6509A11
3 x WOHLER AUDIO MONITOR HRS-1S
3 x SNELL CONTROL PANEL 36 BPX
3 x CLEAR-COM REMOTE PANEL V12-LDX4
1 x TRC TIE LINE PANEL
3 x KROMA MONITOR LCD QUAD 17" QS17
HD OB fact sheet stvmd 2014
AUDIO BRIDGE
1 x MOTOROLA RADIO STATION GM 360-1
1 x MOTOROLA RADIO STATION GM 360-2
2 x GLEN-SOUND CODEC ISDN GS1U-050
1 x GLEN-SOUND BASE STATION GSO-C26
1 x ELMAN GSM HYBRID GAI
1 x AEV TEL. HYBRID ITB 302
2 x DENON CD PLAYER DN-C620
1 x DENON SOLID STATE RECORDER DN-F450R
1 x WOHLER AUDIO MONITOR AMP-1A PLUS VIDEOLINEA SYSTEM
1 x SNELL CONTROL PANEL LXY 6776
1 x CLEAR-COM REMOTE PANEL V24-LDX4
1 x DOLBY AUDIO TOOL DP-570
1 x DOLBY REMOTE CONTROLLER GPI0
1 x DOLBY ENCODER DOLBY E DP 571
2 x MACLAY POWER SUPPLY PDV-14
1 x VIDEOTEK AUDIO MONITOR CMN-LA
1 x VIDEOTEK IN-OUT OPTION AES
1 x DOLBY OPTION DOLBY DECODER
AUDIO RACK
10 x ADC AUDIO PATCH 2x26
1 x CLEAR-COM 2 CHANNEL POWER SUPPLY PS702
1 x CLEAR-COM 4 CHANNEL POWER SUPPLY PS704
1 x CLEAR-COM 8 PORT ISOLATION ADAPTER BAL 8
1 x CLEAR-COM INTERCOM MATRIX 48 PORT ECLIPS MEDIAN
1 x CLEAR-COM CONFIGURATION SOFTWARE 5.2 ECLIPSE
1 x CLEAR-COM 340 mm MICROPHONE n.6
1 x CLEAR-COM TELEPHONE INTERFACE TEL. 14
2 x FOR 22 4 WIRE INTERFACE
1 x FOR 22 4 WIRE RADIO INTERFACE
3 x FOR 22 2 WIRE PARTY INTERFACE CCI-22
1 x ROSS RACK FRAME 5 DFR 8321 CN
1 x ROSS POWER SUPPLY RES. PS8300
10 x ROSS AUDIO DISTR. AMPLIFIER ADA-8405-CR 2C
1 x ROSS RACK FRAME DFR 8321 CN
1 x ROSS POWER SUPPLY RES. PS8300
5 x ROSS AES DISTR. AMPLIFIER ADA 8402 BR2
1 x SNELL AES 36x36 AUDIO MATRIX PYX15-3u
1 x TRC TIE LINE PANEL
2 x INTELLINET SWITCH 16 PORT YAMAHA
1 x YAMAHA DIGITAL INTERFACE BOX RIO 3224D
1 x YAMAHA POWER CABLE PSL 360
1 x YAMAHA POWER SUPPLY PW 800
1 x YAMAHA DIGITAL INTERFACE BOX RIO 3224D
1 x MACLAY POWER SUPPLY PDU-14B
AUDIO DESK
1 x YAMAHA DIGITAL MIXING CONSOLE C01V96I
1 x YAMAHA DIGITAL MIXING CONSOLE CL5
4 x YAMAHA DIGITAL INTERFACE CARD MY-16AE
5 x GENELEC ACTIVE MONITOR GE 6010A
1 x GENELEC ACTIVE SUB WOOFER 5040A
2 x KROMA MONITOR LCD -QUAD 17" QS 17
HD OB fact sheet stvmd 2014
TERMINATION PANEL
5 x TRC VIDEO PANEL 16x2 BNC
1 x TRC RF PANEL 2 + 2
1 x TRC 2 AUDIO 12 CH LDK 37 PANEL
2 x TRC AUDIO-VIDEO PANEL 16 XLR/BNC
1 x TRC TELEPHONE PANEL 16 RJ45
10x TRC AUDIO PANEL 16 XLR
