-DOP-B Series HMI

Project Manager

Pere Roura

Agenda

•Current products review

•New products introduction

•Ethernet solutions

•DVP series PLC with DOP-B series HMI

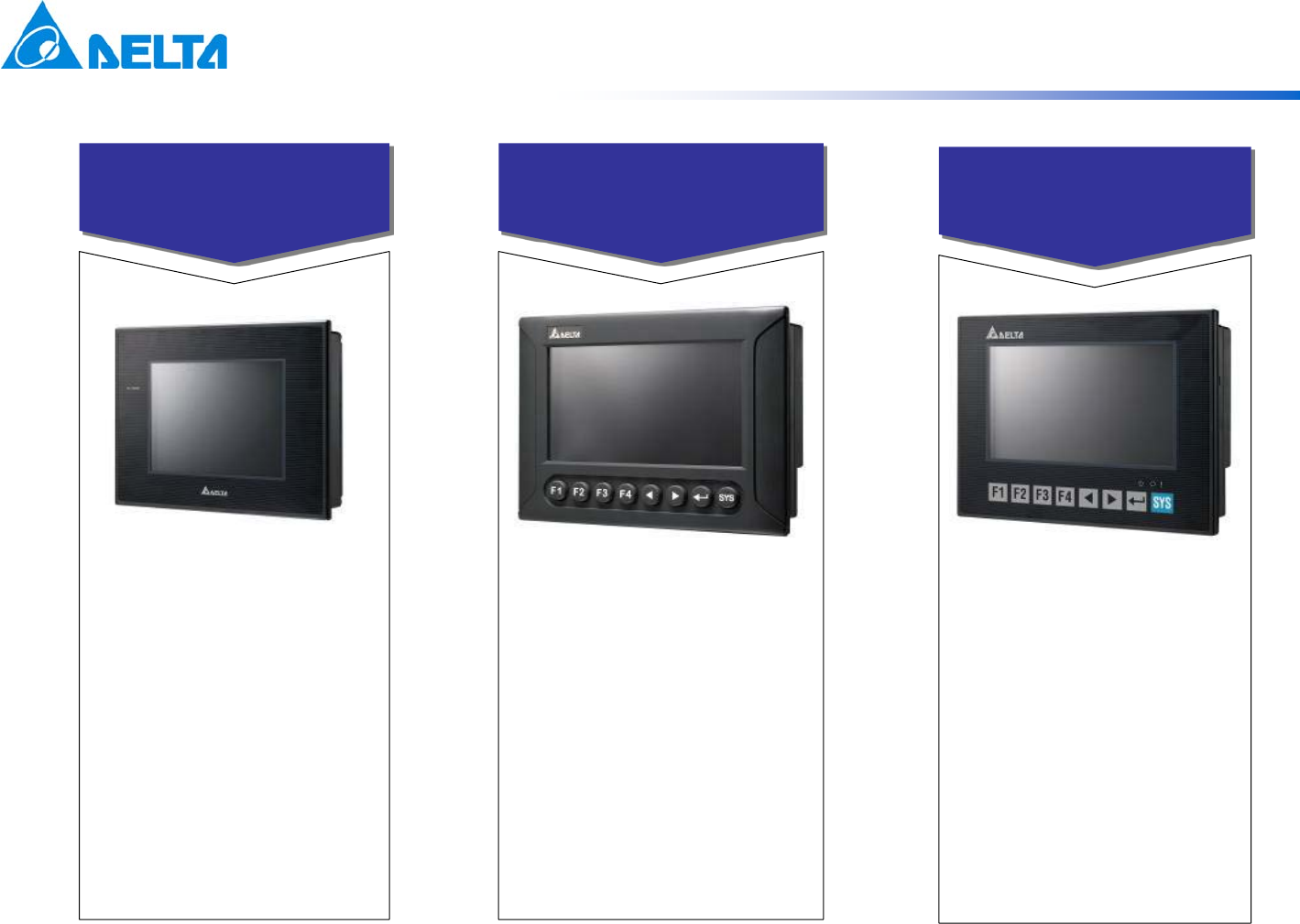

B07S211

•7“

•65,536 colors TFT

•2MB Flash ROM

•256k SRAM

•USB Client/Host

•RS-232/485/422

•Flat panel design

•7“

•65,536 colors TFT

•2MB Flash ROM

•256k SRAM

•USB Client/Host

•RS-232/485/422

B07S201B05S101

•5.6“

•65,536 colors TFT

•6MB Flash ROM

•128k SRAM

•USB Client/Host

•RS-232/485/422

•No function keys

design

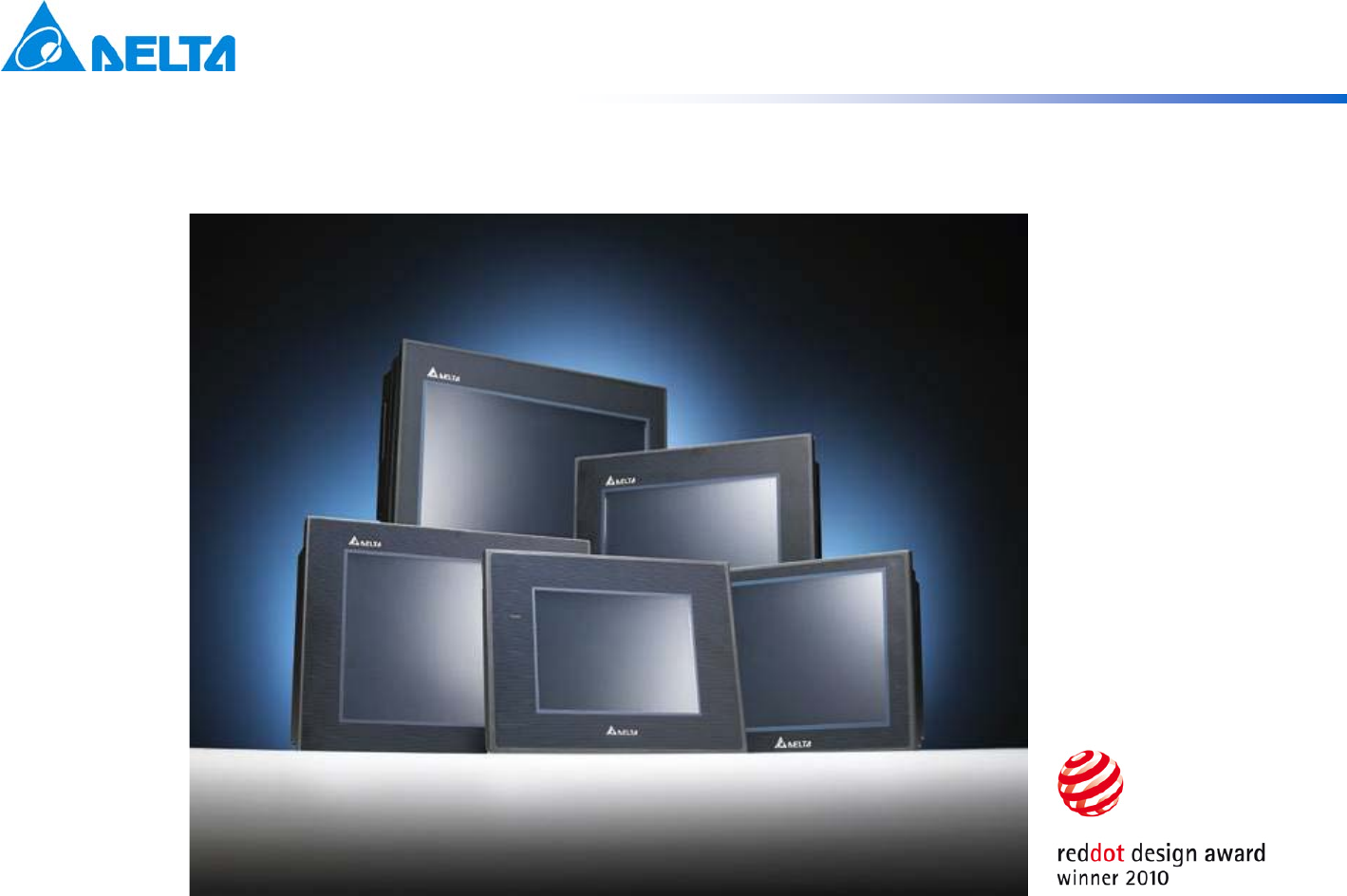

DOP-B Current Products

New Products Introduction

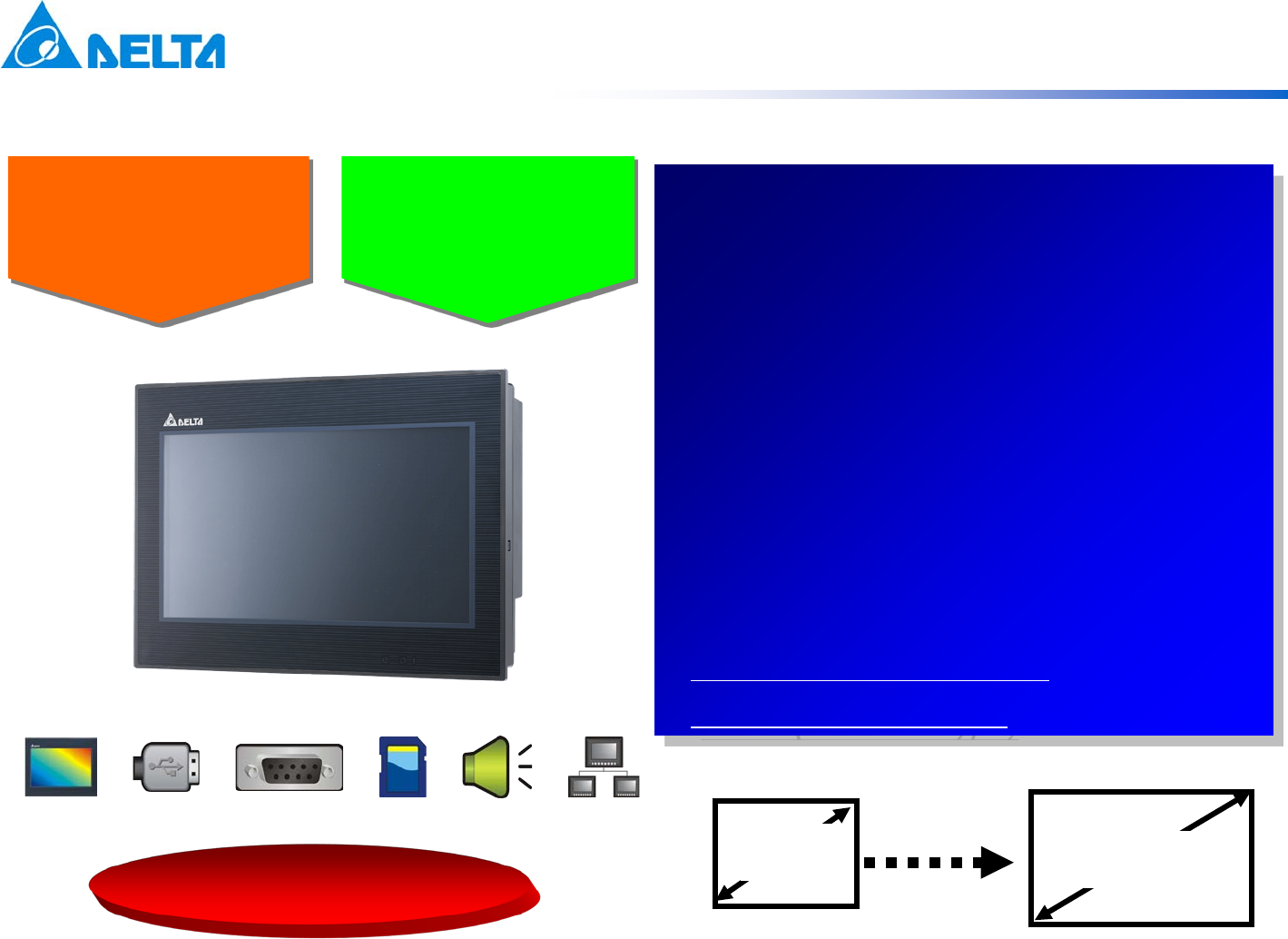

B10S615

Standard

B10E615

Ethernet

New Products

•10.1” 65536 colors TFT

•WXGA (1,024 x 600)

•128MB Flash ROM

•30MB for system

•82MB for user application

•16MB backup memory

•USB Host (v1.1)

•USB Client (v2.0 high-speed)

•RS-232/485/422

•SDHC Card

•

Ethernet (Ethernet Type)

•

Audio (Ethernet Type)

VGA WXGA

640X480 1024X600

DOP-B10

WQVGA WVGA

480X234 800X480

B07S415

Standard

B07E415

Ethernet

•7” 65536 colors TFT

•WVGA (800 x 480)

•128MB Flash ROM

•30MB for system

•82MB for user application

•16MB Backup memory

•USB Host (v1.1)

•USB Client (v2.0 high-speed)

•RS-232/485/422

•SDHC Card

•

Ethernet (Ethernet Type)

•

Audio (Ethernet Type)

DOP-B07 (WVGA)

New Products

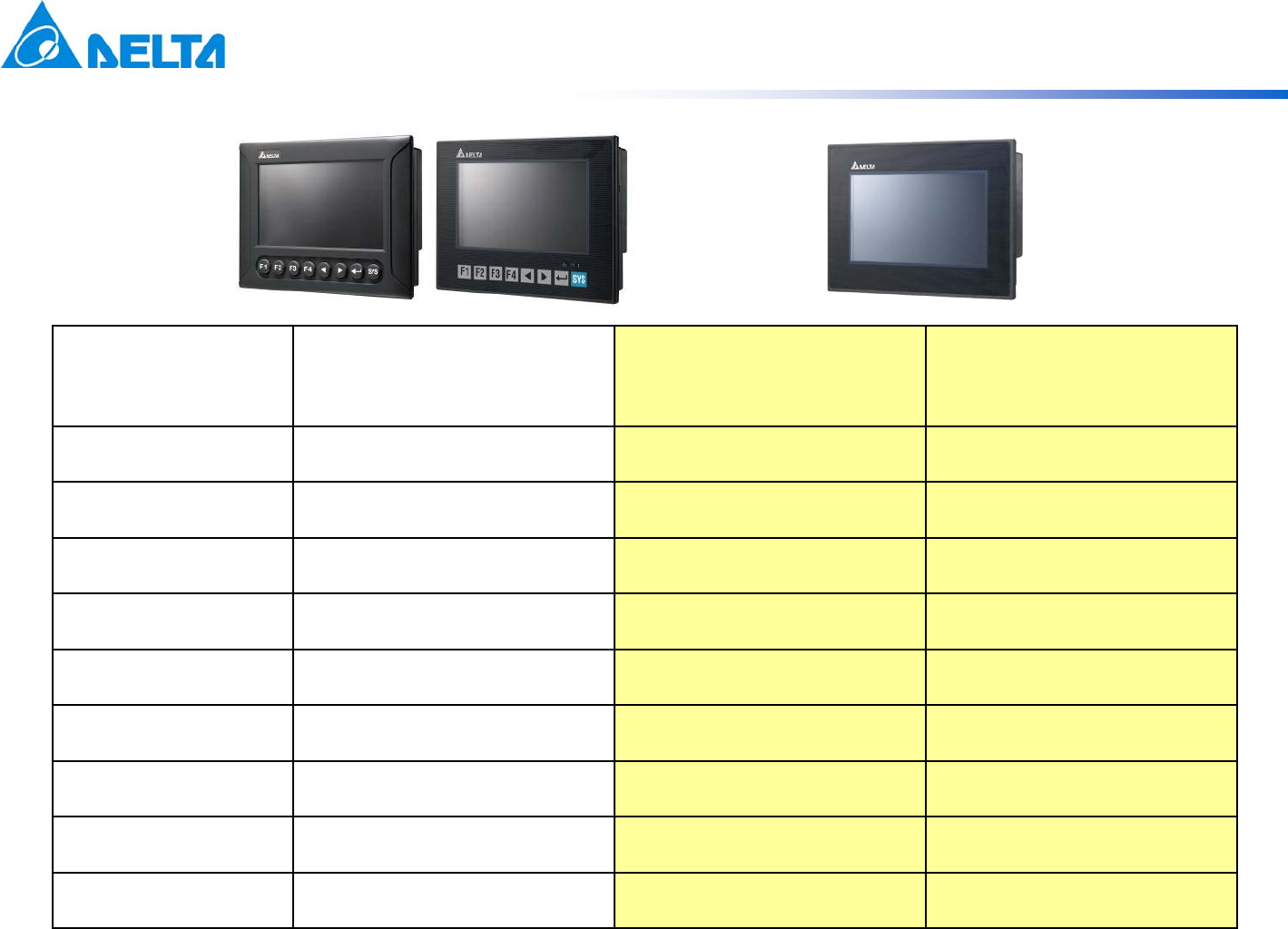

Comparison Table for B07

B07S201

B07S211 B07S415 B07E415

Resolution 480x234 800x480 800x480

Flash ROM 4 MB 128 MB 128 MB

SDRAM 16 MB 64 MB 64 MB

Function keys 8N/A N/A

SD card N/A Yes Yes

USB Client v1.1 v2.0 v2.0

Audio N/A N/A Yes

Ethernet N/A N/A Yes

Panel cutout 196.9 x 142.9mm 196.9 x 142.9mm 196.9 x 142.9mm

Jan., 2011 VGA SVGA

640X480 800X600

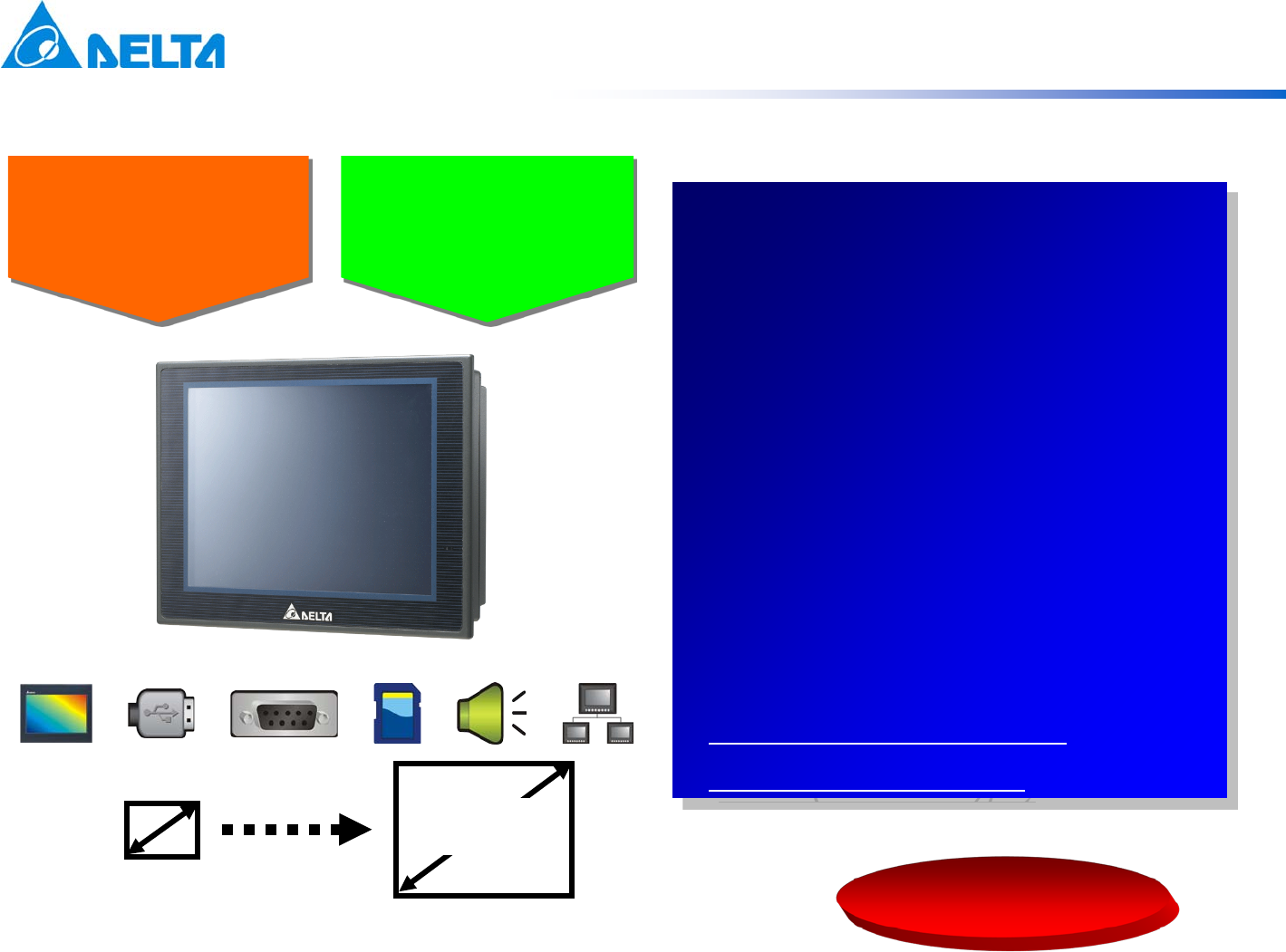

B08S515

Standard

B08E515

Ethernet

•8” 65536 colors TFT

•SVGA (800 x 600)

•128MB Flash ROM

•30MB for system

•82MB for user application

•16MB backup memory

•USB Host (v1.1)

•USB Client (v2.0 high-speed)

•RS-232/485/422

•SDHC Card

•

Ethernet (Ethernet Type)

•

Audio (Ethernet Type)

DOP-B08

Mar., 2011

B07S515

Standard

B07E515

Ethernet

•7” 65,536 colors TFT

•5.6” panel cut-out

•SVGA (800 x 600)

•128MB Flash ROM

•30MB for system

•82MB for user application

•16MB backup memory

•USB Host (v1.1)

•USB Client (v2.0 high-speed)

•RS-232/485/422

•SDHC Card

•

Ethernet (Ethernet Type)

•

Audio (Ethernet Type)

SVGA

320X240 800X600

QVGA

DOP-B07 (SVGA)

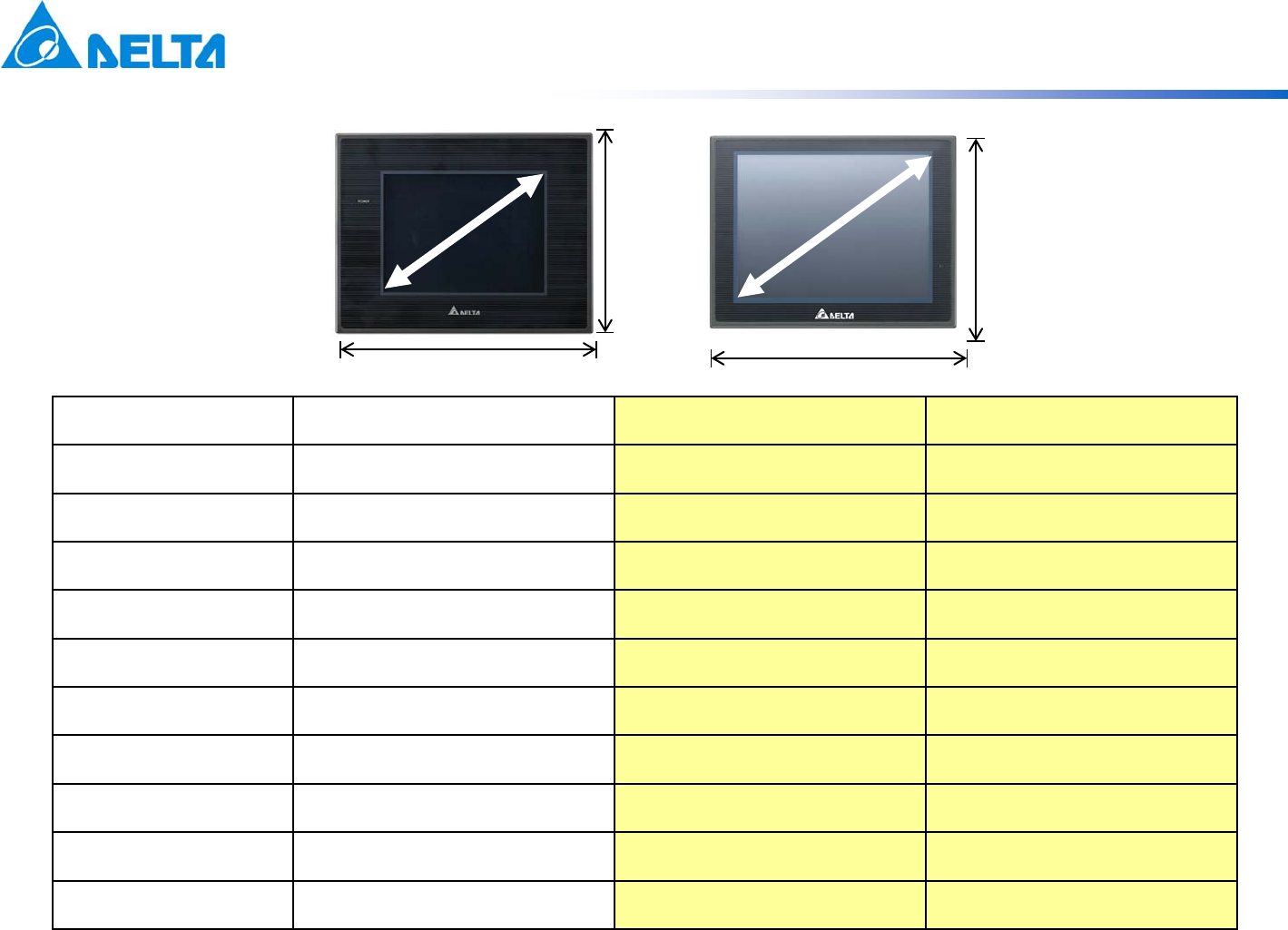

Comparison Table

B05S101 B07S515 B07E515

Display size 5.6” 7” 7”

Resolution 320x234 800x600 800x600

Flash ROM 8 MB 128 MB 128 MB

SDRAM 16 MB 64 MB 64 MB

Function keys 8N/A N/A

SD card N/A Yes Yes

USB Client v1.1 v2.0 v2.0

Audio N/A N/A Yes

Ethernet N/A N/A Yes

Panel cutout 172.4 x 132.4mm 172.4 x 132.4mm 172.4 x 132.4mm

184

144

184

144

5.6” 7”

800x600320x234

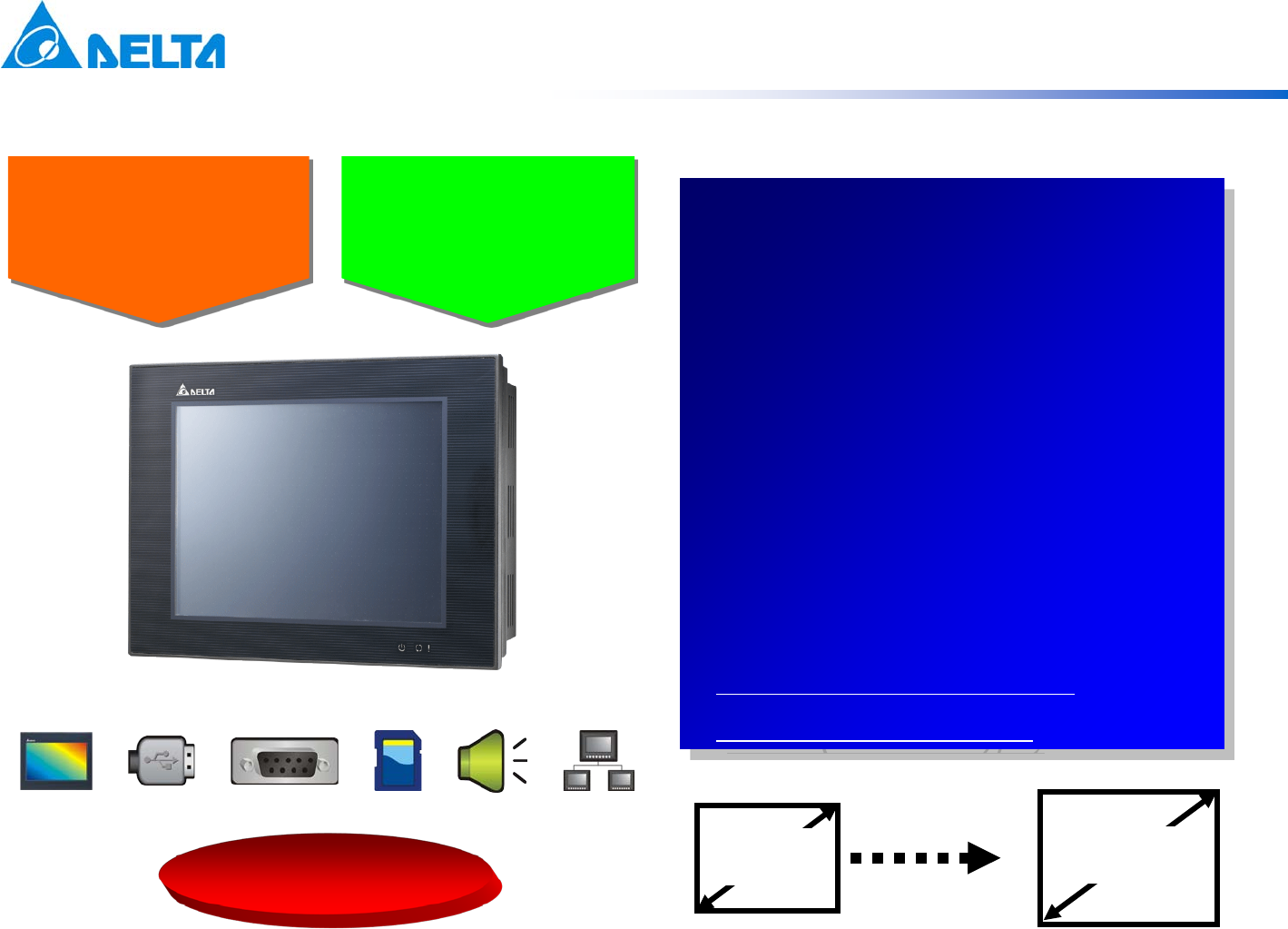

B15E715

Ethernet

Jun., 2011

•12”/15” 65536 colors TFT

•XGA (1024 x 768)

•128MB Flash ROM

•30MB for system

•82MB for user application

•16MB backup memory

•USB Host (v1.1)

•USB Client (v2.0 high-speed)

•RS-232/485/422

•SDHC Card

•

Ethernet (Ethernet Type)

•

Audio (Ethernet Type)

B12E715

Ethernet

XGA

1024X768

DOP-B12/B15

Apr., 2011

WQVGA

480X272

B04S211

Standard

•4.7” 65,536 colors TFT

•WQVGA (480 x 272)

•4MB Flash ROM

•USB Host (v1.1)

•USB Client (v1.1)

•1 Serial port (RS-232/485/422)

320X240

QVGA

DOP-B04

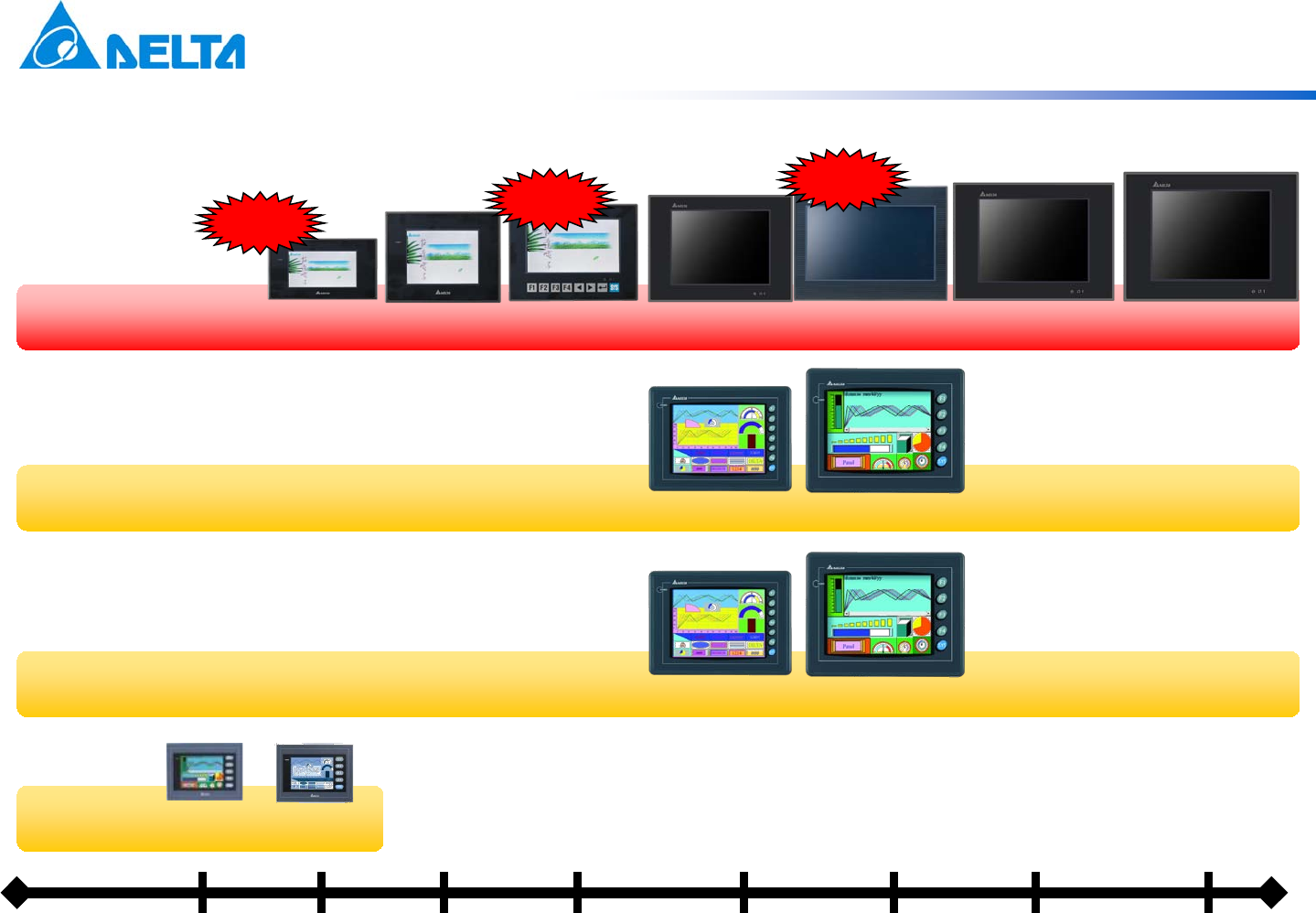

2011 DOP Products Line-Up

DOP-A

DOP-AS

DOP-AE AE10AE80

A10A80

AS38BAS35T

DOP-B B05 B07 B10B08

3.5” 3.8” 5.7” 7” 8” 10.4”

Wide Wide

B12 B15

12” 15”

B04

Wide

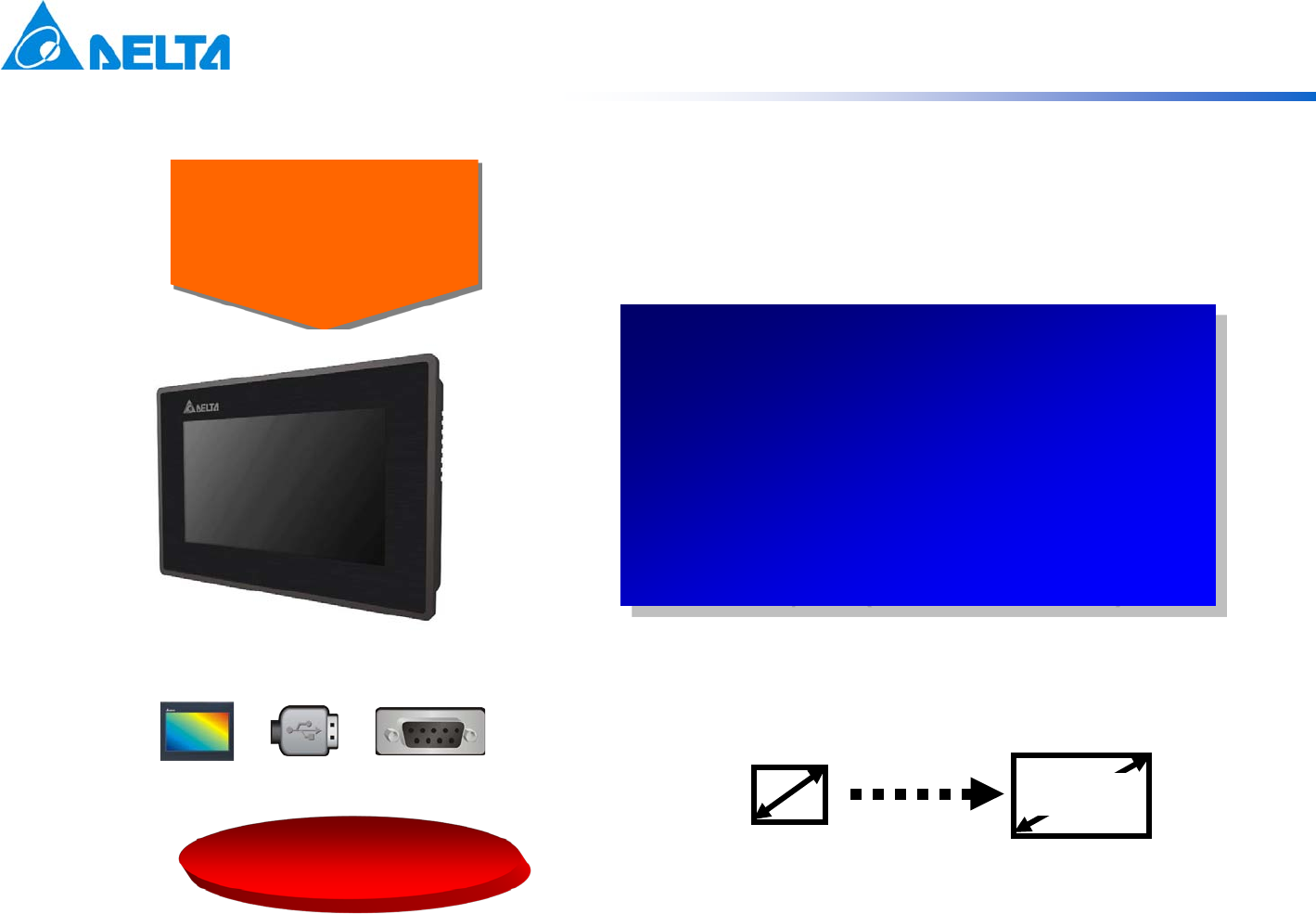

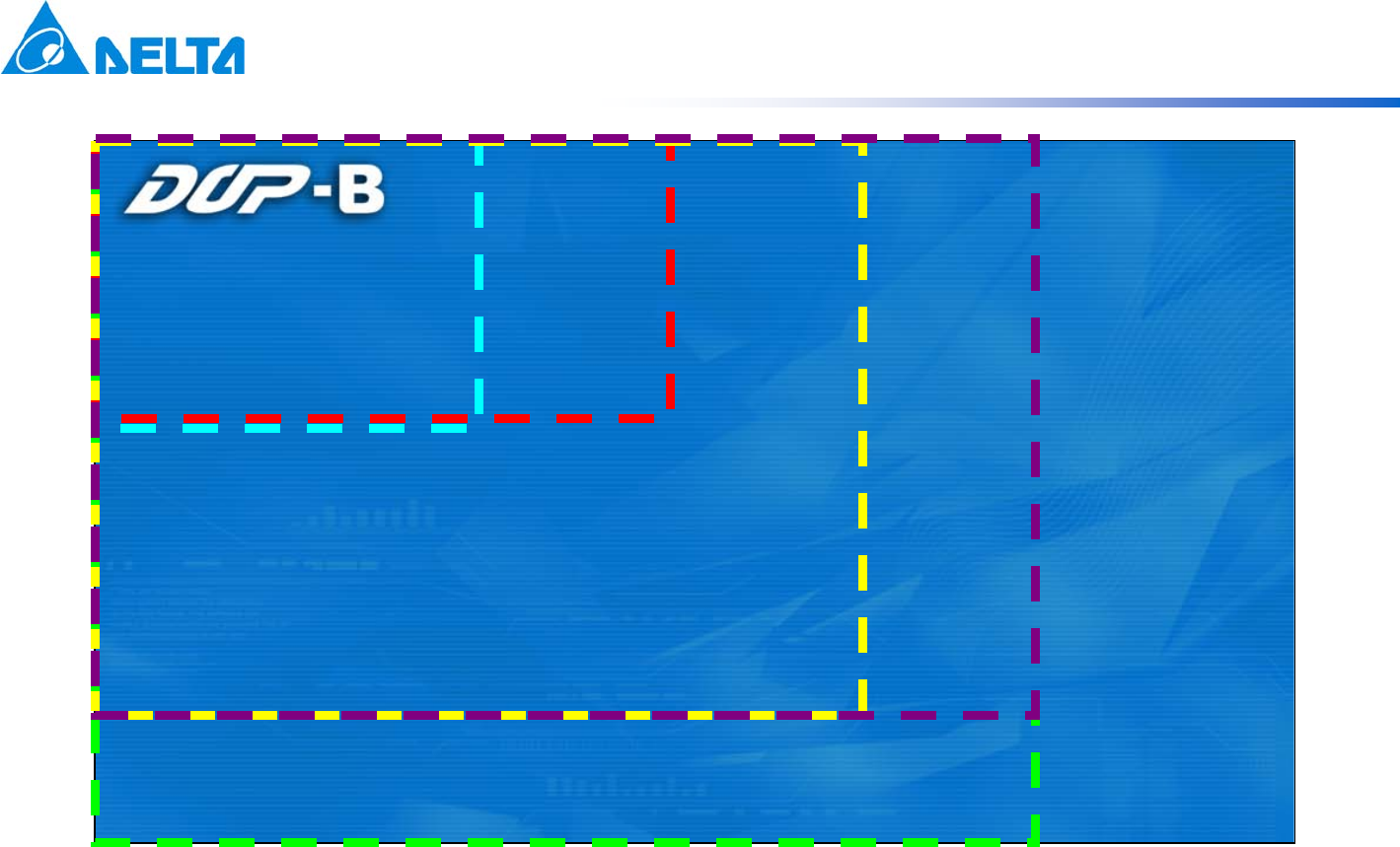

High Resolution Displays

QVGA

320x240 WQVGA

480x234

VGA

640x480

WXGA

1024x600

The latest 2D accelerator technology greatly enhances resolution to WXGA and

enlarges the editing area to double the size (compared with VGA). You will be able to

design more screen elements and create more colorful and attractive displays.

WVGA

800x480

SGA

800x600

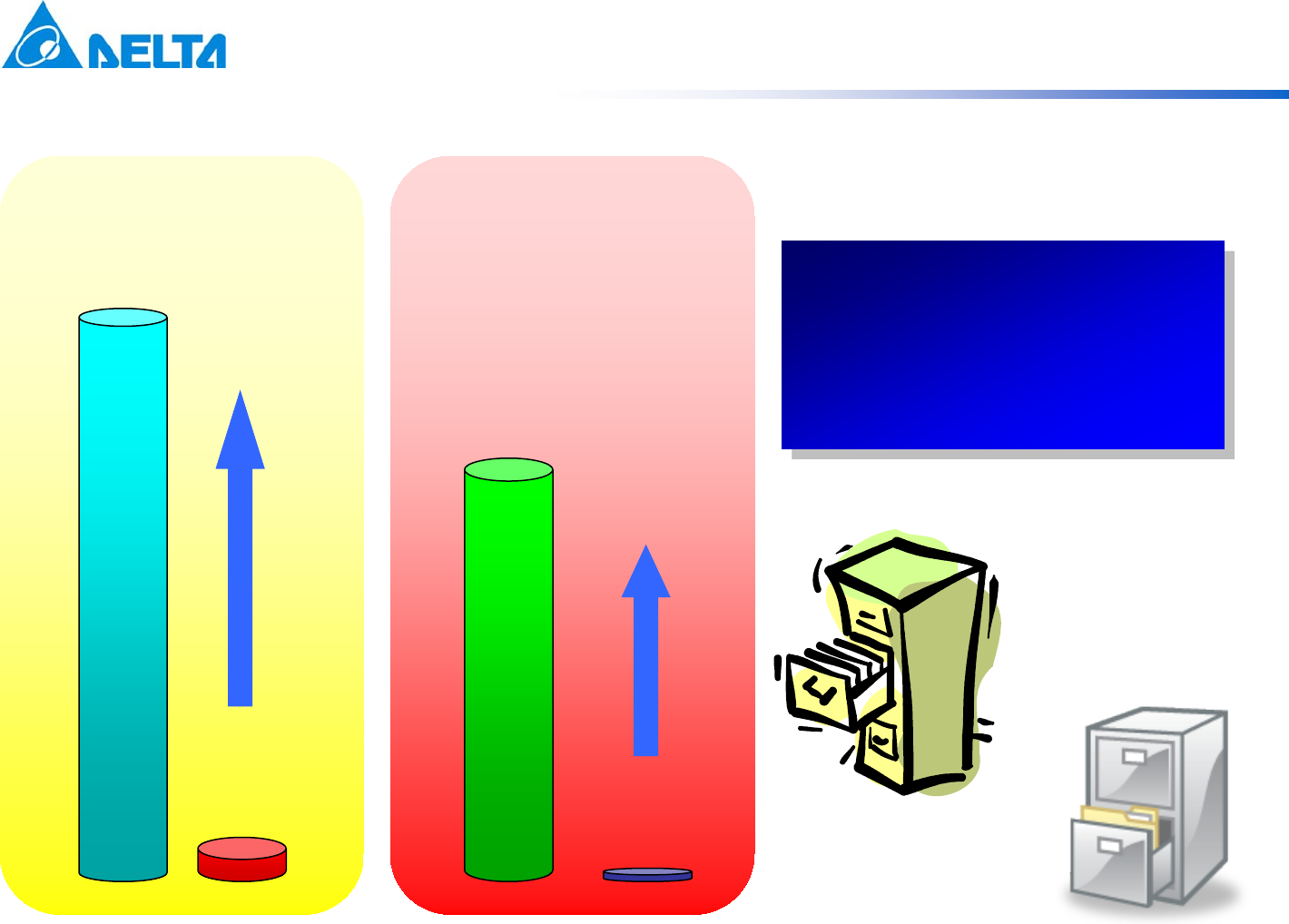

High Capacity Memory

The new DOP-B series HMI

features high-capacity

memory capable of storing

more images and collecting

more historical data.

82MB

6MB 512k

16MB

Flash ROM Backup

memory

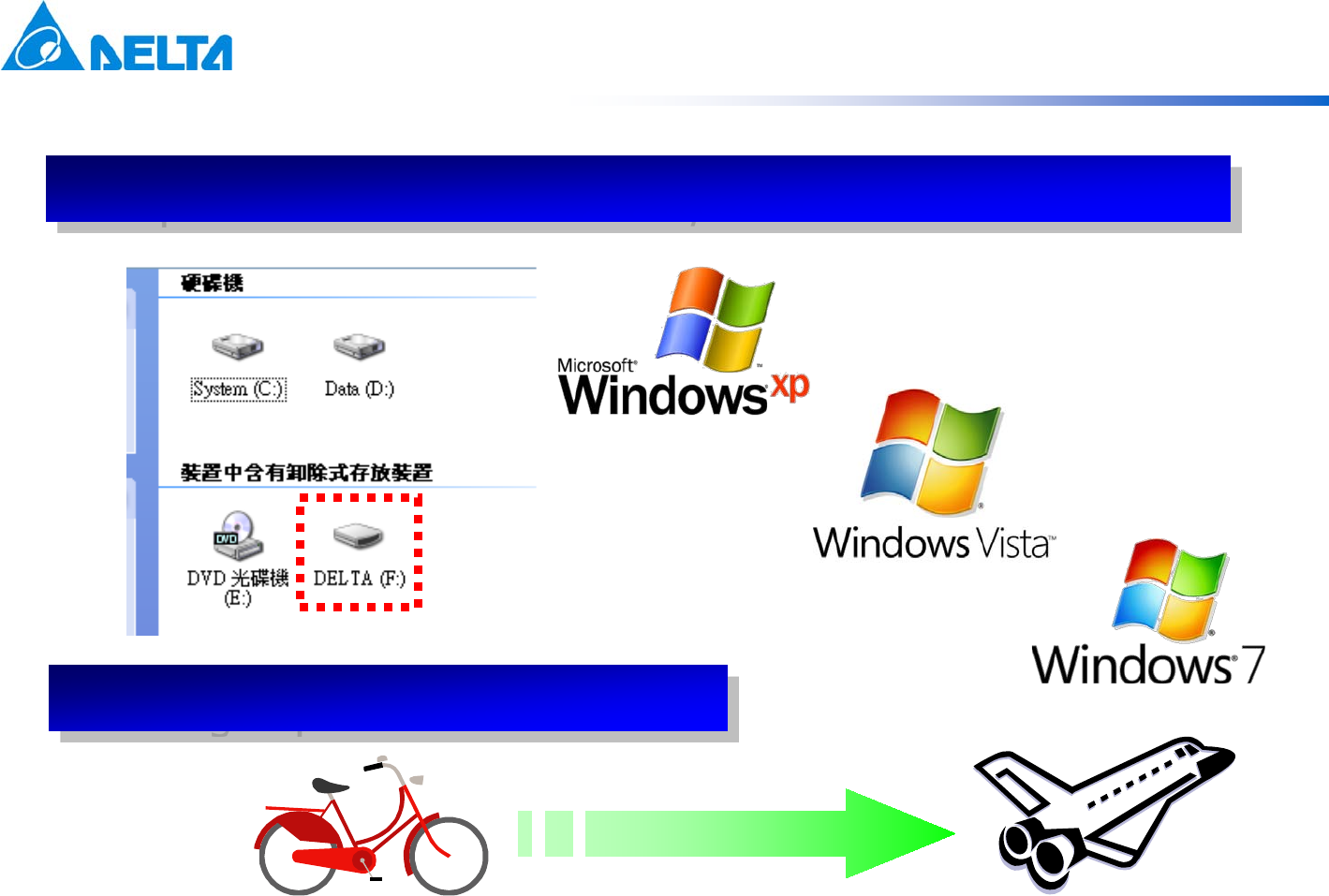

New USB Transfer Mode

Compatible with Windows Vista/Windows 7

USB High-speed Transfer

USB v1.1 12Mbs USB v2.0 480Mbs

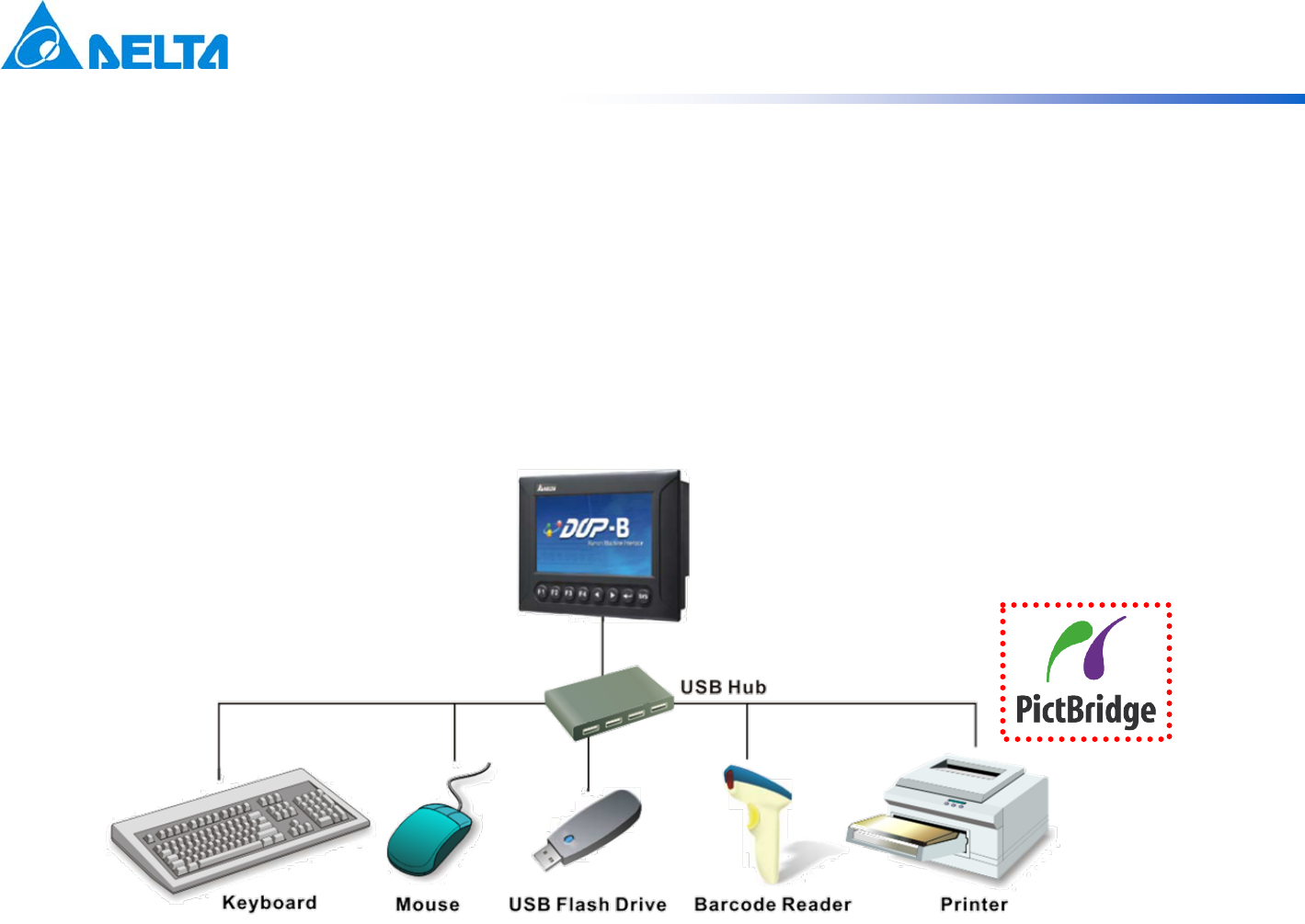

USB Devices

•Various USD devices can be connected via the USB Hub

–Keyboards, mouses

–USB Flash drives

–Barcode readers

–Printers, and

PictBridge compatible

printers

SD Card/USB Flash Drive (1)

•Convenience of SD/USB flash drive: Quick screen data

transfer and collection and expanded HMI storage capacities.

No need to worry about excessive historic and recipe data.

–Recipe data are saved in CSV format and easily edited on an external

PC using Excel files, which saves PLC memory.

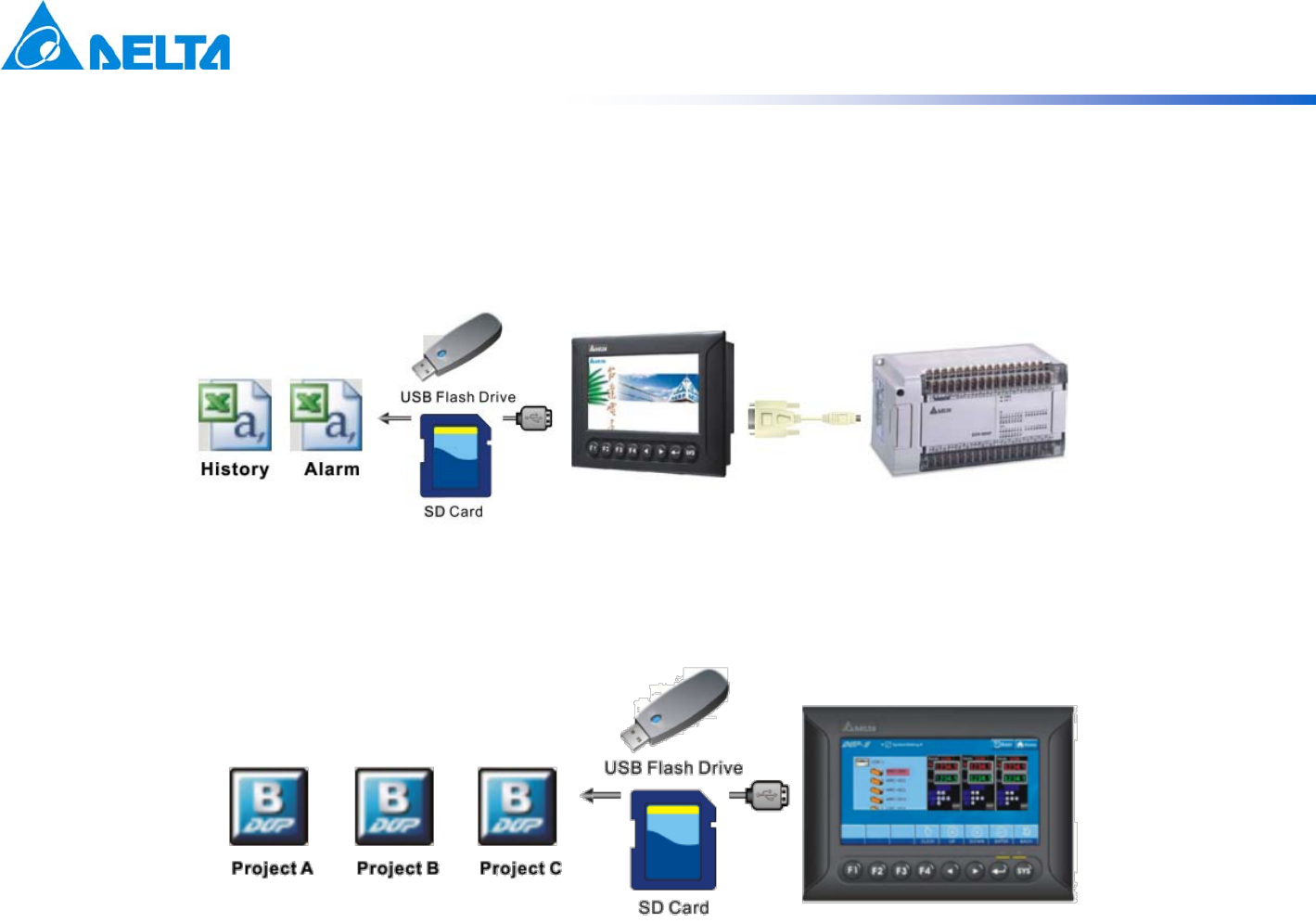

SD Card/USB Flash Drive (2)

•History and alarm information can be saved in CSV format and

stored on a USB flash drive.

•Much project screen data can be saved on the USB flash drive

simultaneously and transferred to the HMI.

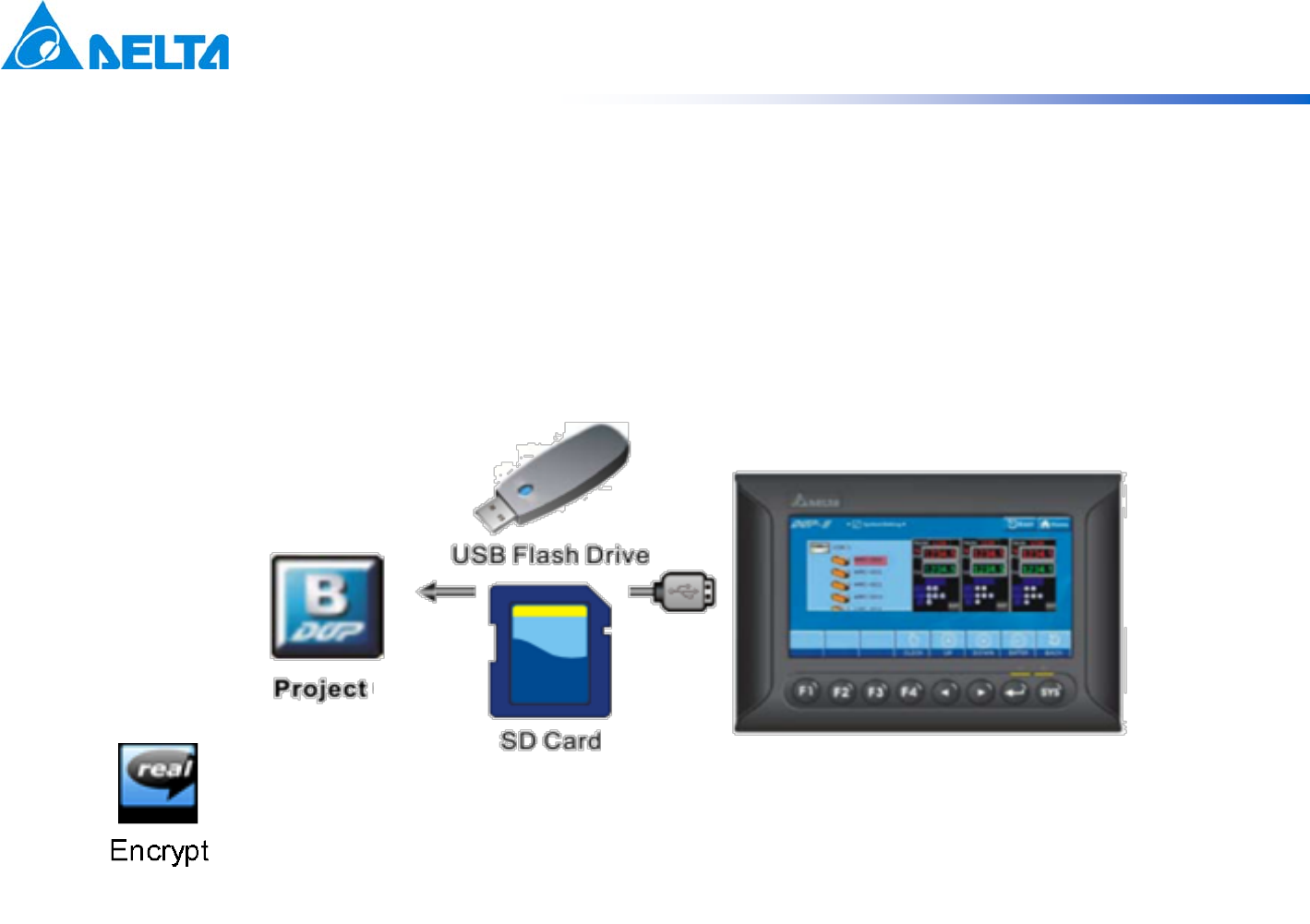

File Encryption

•“File Encryption” is a new function which allows users to encrypt

screen data. To protect screen data in a safer and more flexible way,

you can use this new function to set up the copy times of the screen

data.

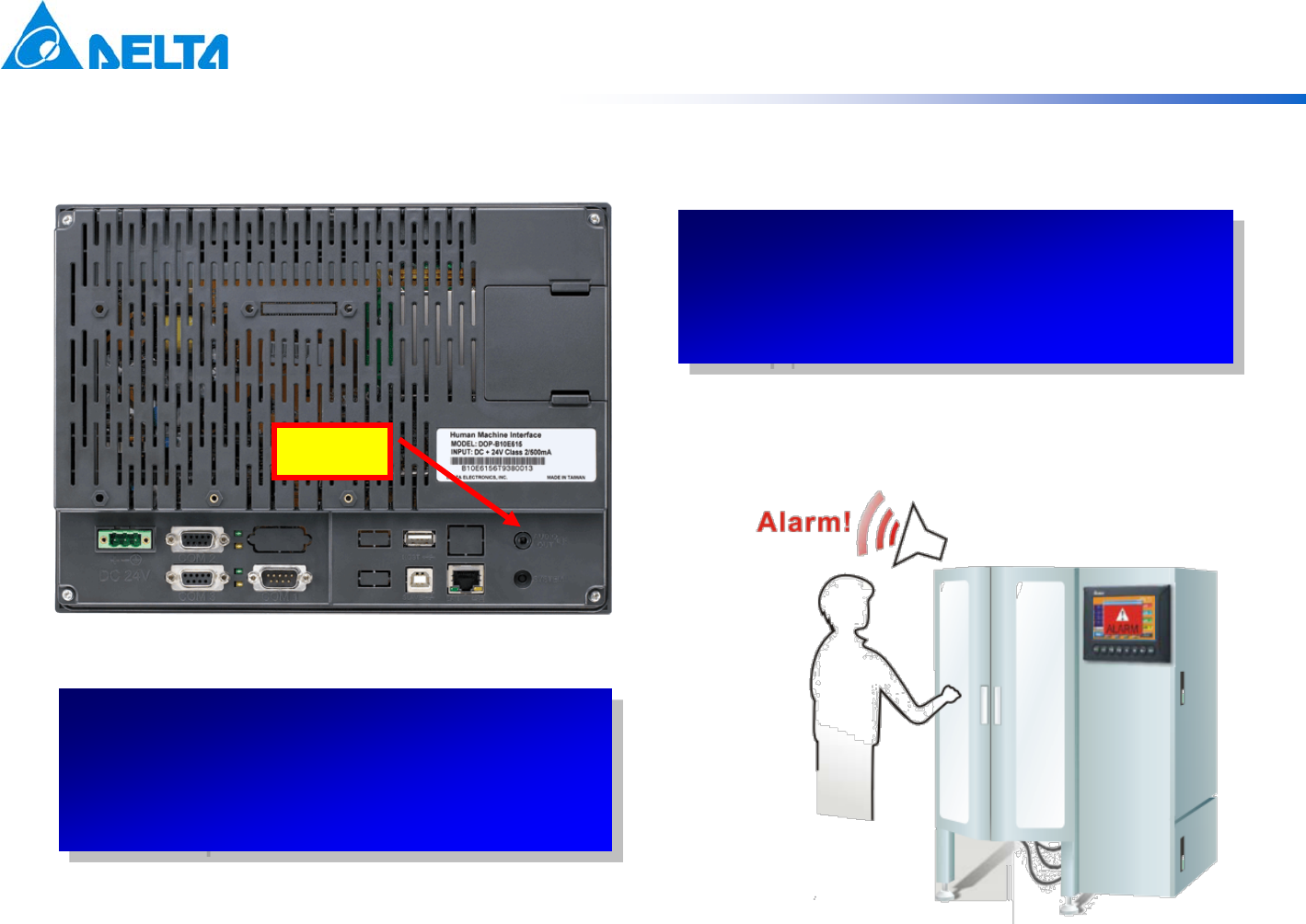

Audio Output (1)

Audio

•Supports MP3/WAV files for

alarms

•Supports 3.5mm socket

Applications:

Alarm notifications

Audio operation instructions

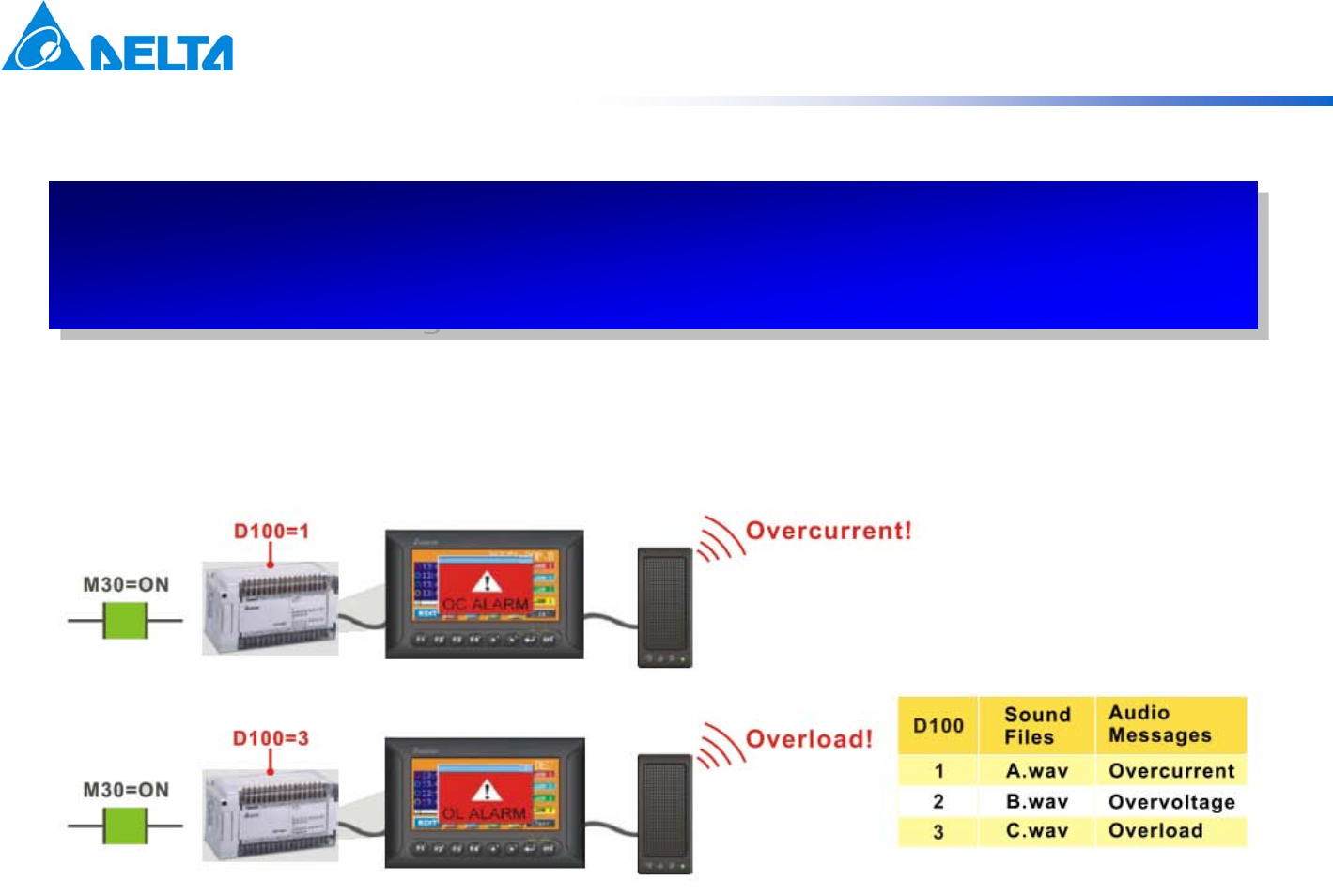

Audio Output (2)

Alarm broadcast is triggered by the corresponding bit. The alarm

messages can be played and output in different sound files through set

values in the word registers.

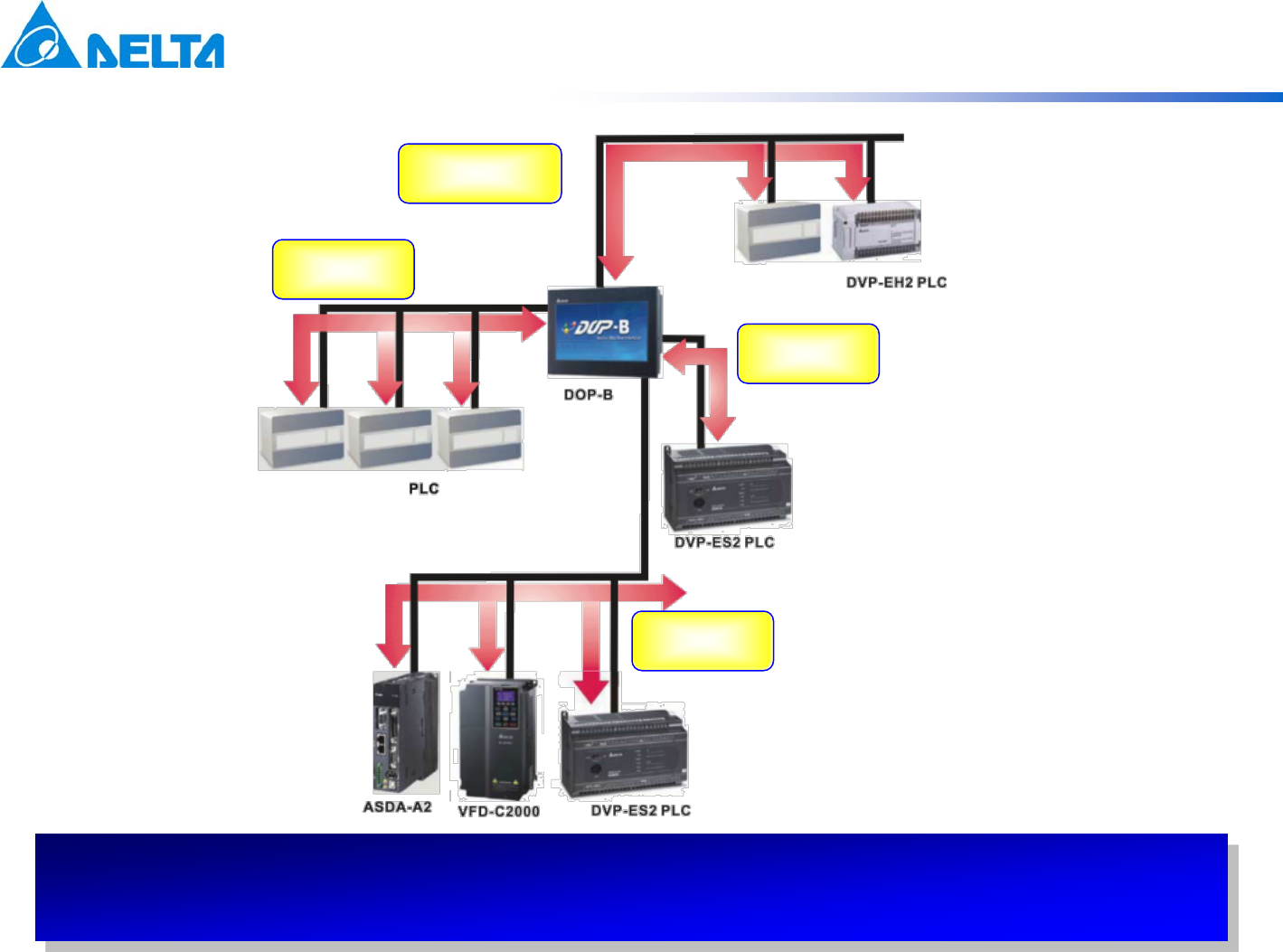

Communication

Ethernet

RS-422

RS-232

RS-485

Supports RS-232/RS-485/RS-422/Ethernet

The 4 communication interfaces can be used at the same time!

Drivers Supported

•The DOP Series supports not only Delta’s industrial automation

products (frequency inverters, servos, temperature controllers and

PLCs) but also PLCs of other brands, such as Mitsubishi, Siemens,

Omron, and more.

•New drivers supported

–Siemens S7-300 Direct MPI

–Siemens S7-1200

–Mitsubishi FX3U/3G, QnU, QnUDE (built-in Ethernet)

–Allen-Bradley EtherNet/IP

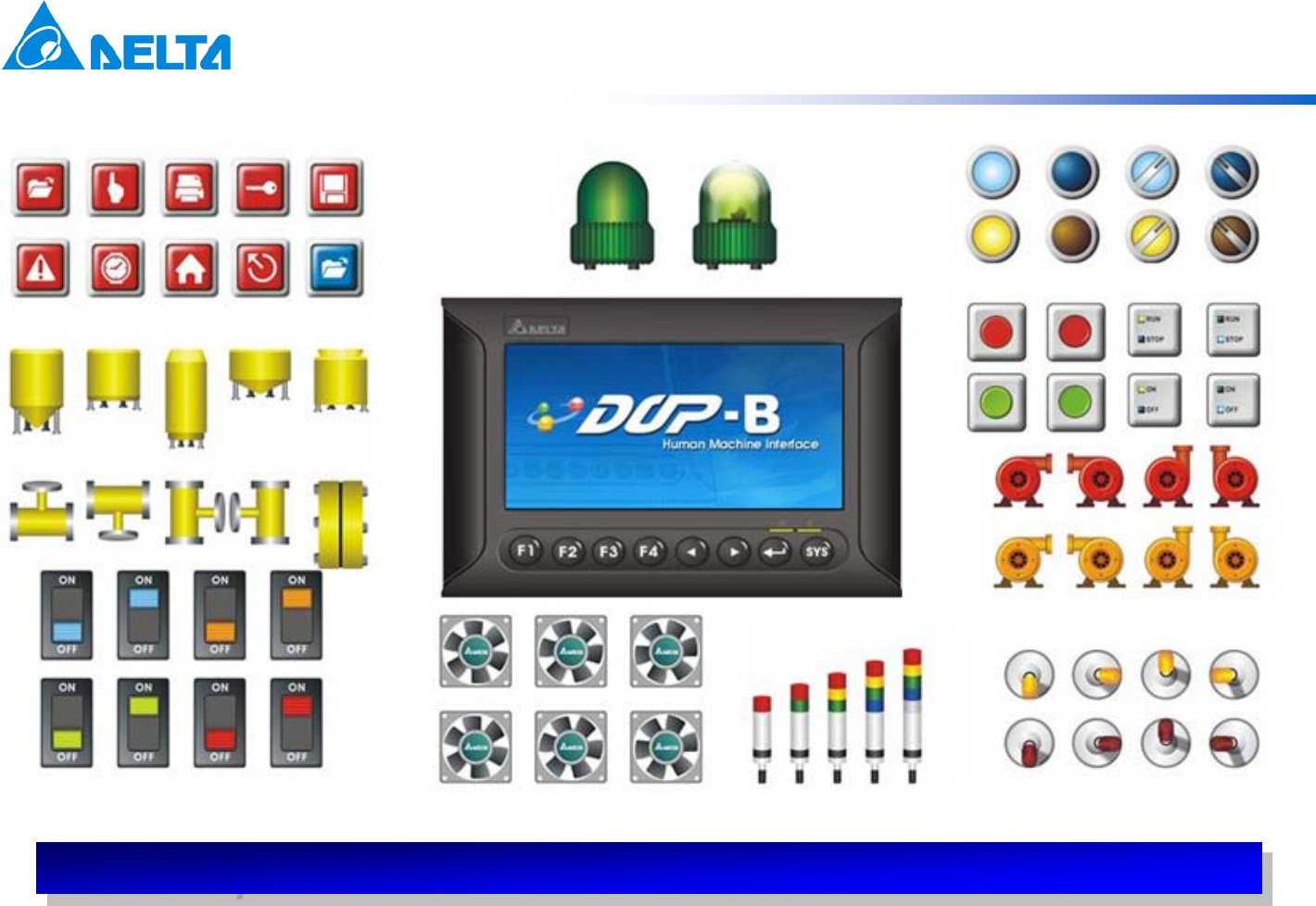

Picture Bank

The new picture bank offers even more colorful and useful elements!

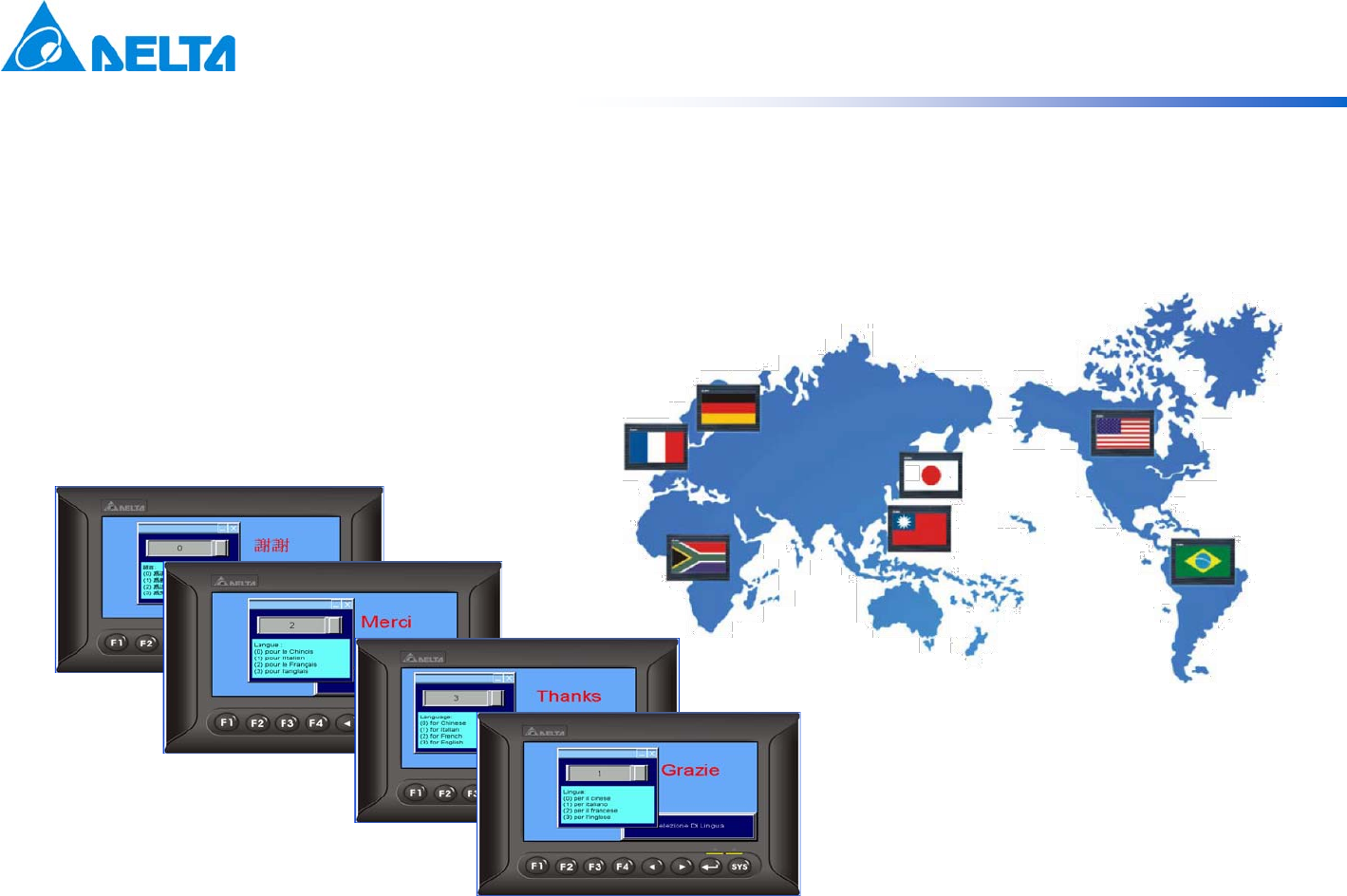

Multilingual Displays

•Max. 16 user-defined languages can be displayed on the HMI

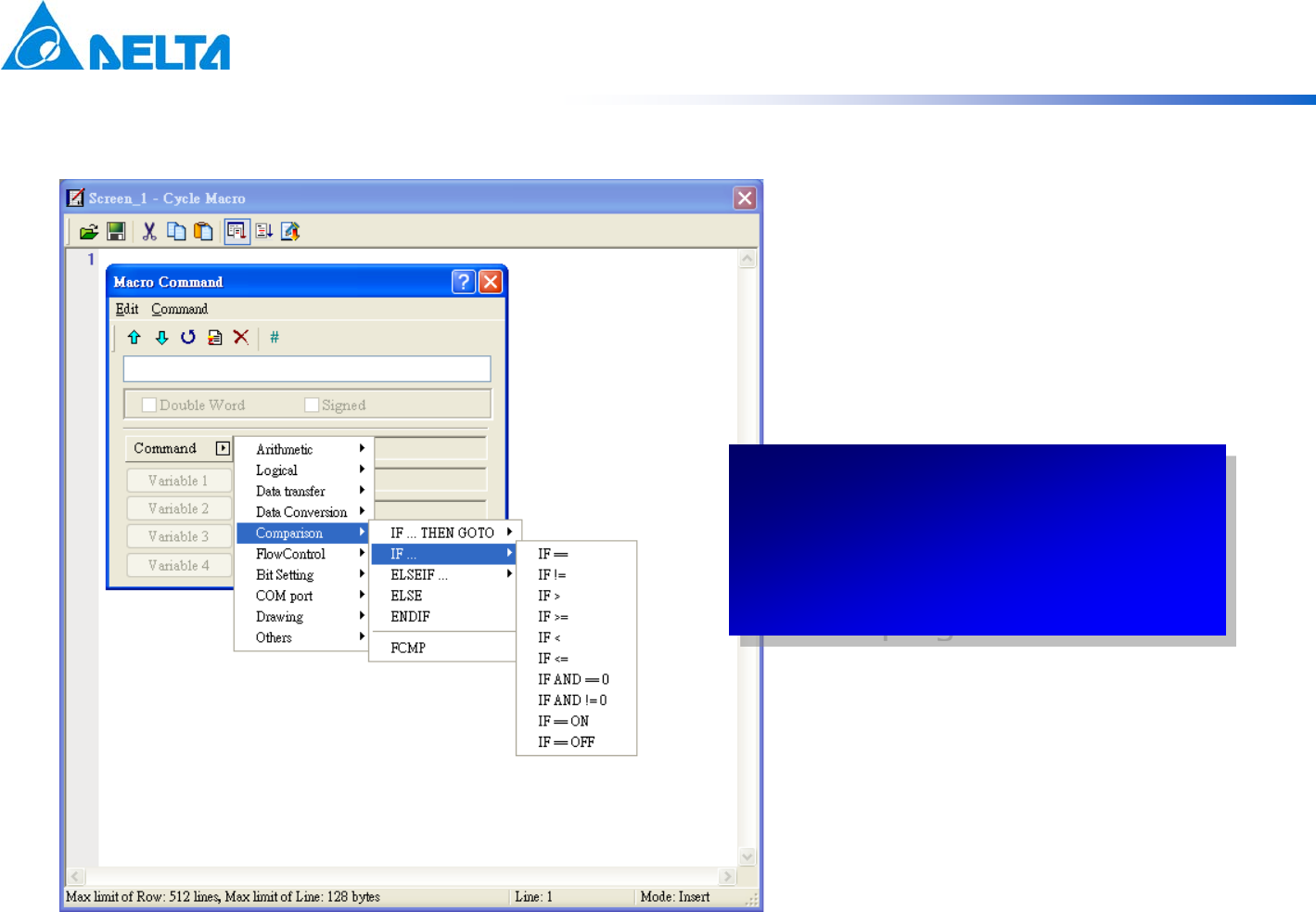

Macro Commands

Easy-to-learn macro

commands provide flexibility

and can reduce editing tasks

for PLC programs.

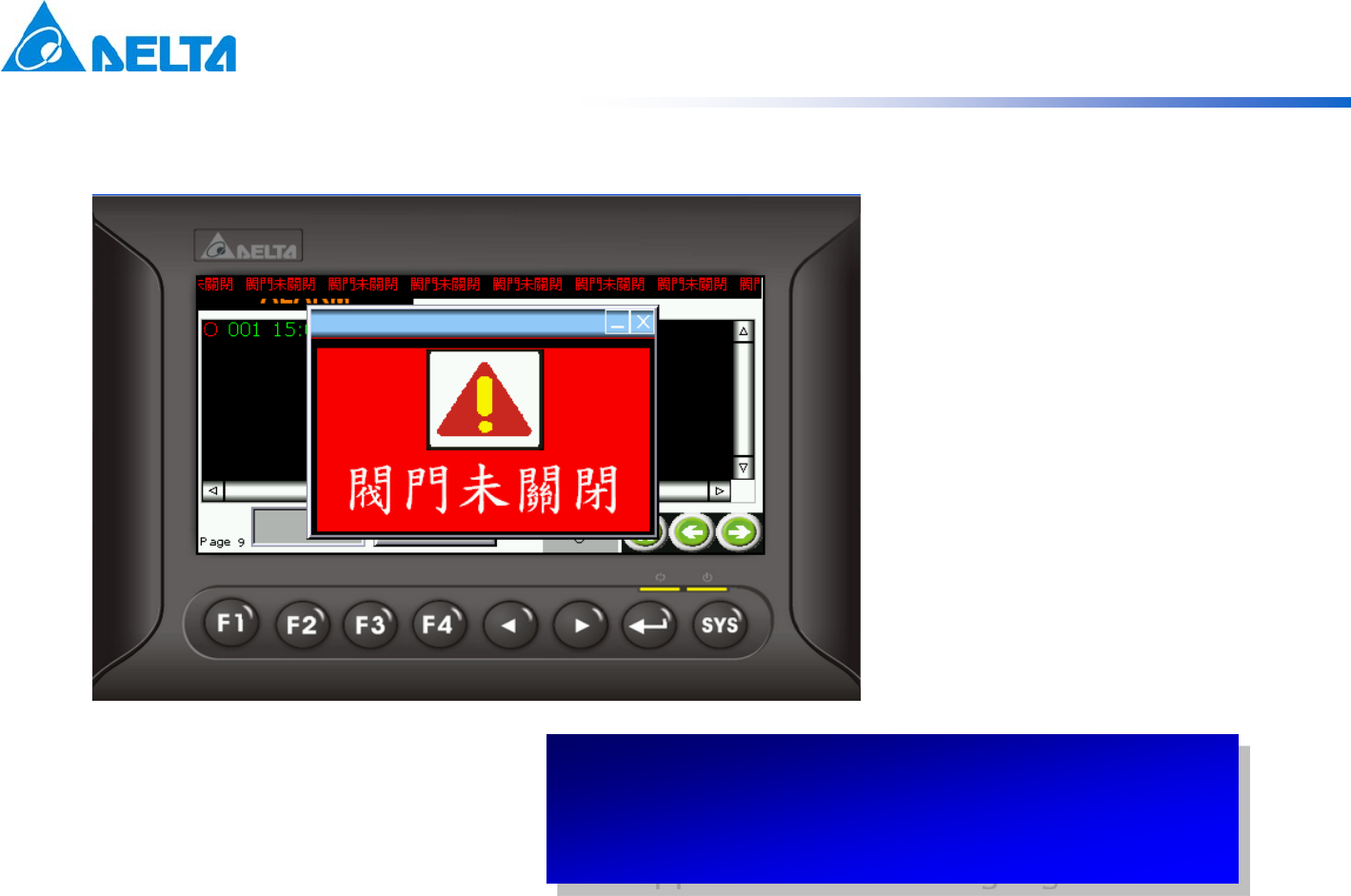

Alarm

•Supports 2,048 alarm messages

•Supports alarm sub-windows

•Supports alarm moving-signs

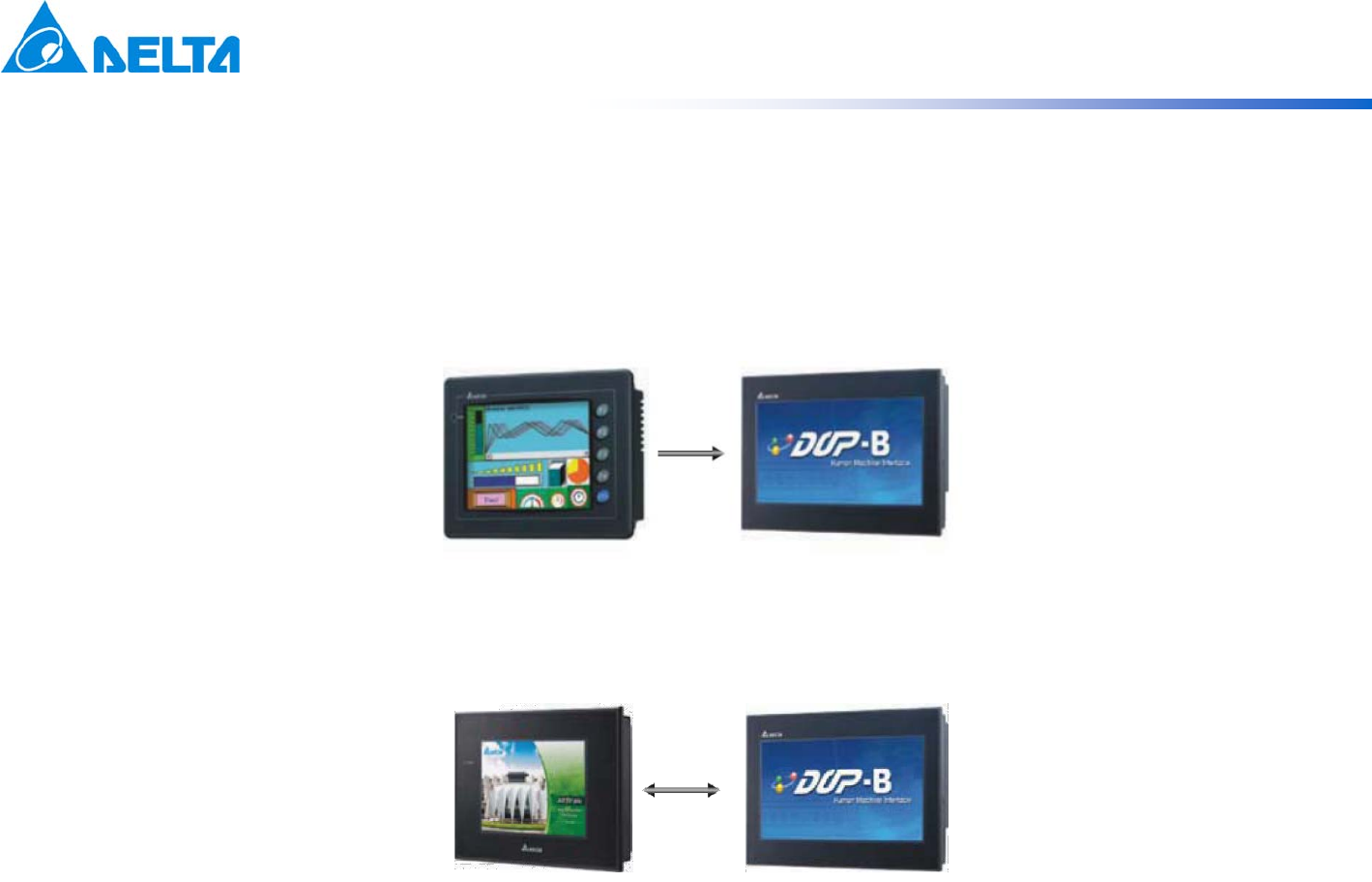

Screen Data Conversion

•Convenient screen data conversion

–Project files created by Screen Editor 1.05 can be opened with

Screen Editor 2.00.

–It’s easy to upgrade and convert projects from DOP-A to DOP-B.

DOP-A DOP-B

B05 B10

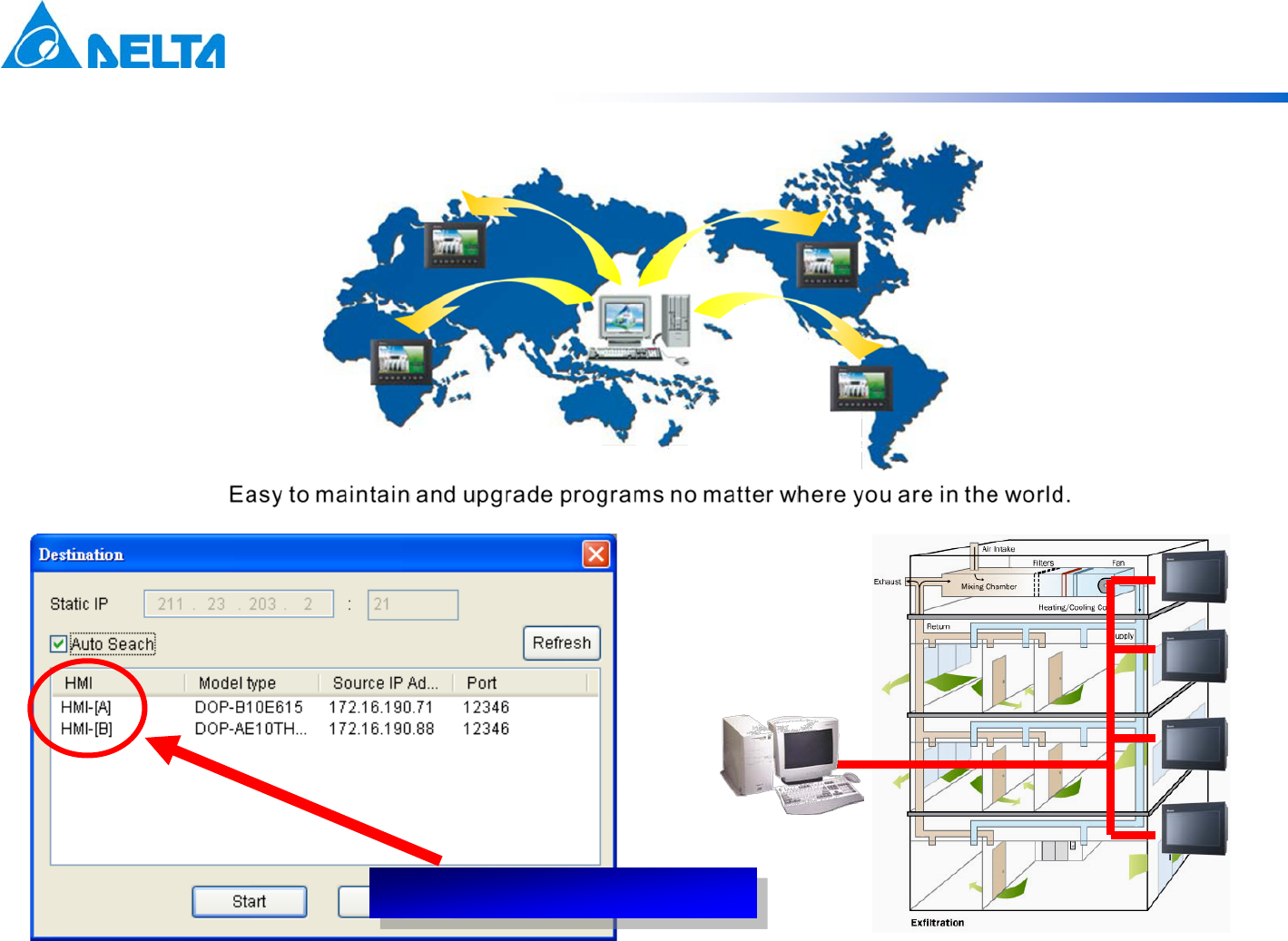

Ethernet Download

User-defined HMI name

Delta Ethernet Solutions

Delta’s DOP series Ethernet solutions make your systems

more Efficient, Environmentally-friendly and Excellent.

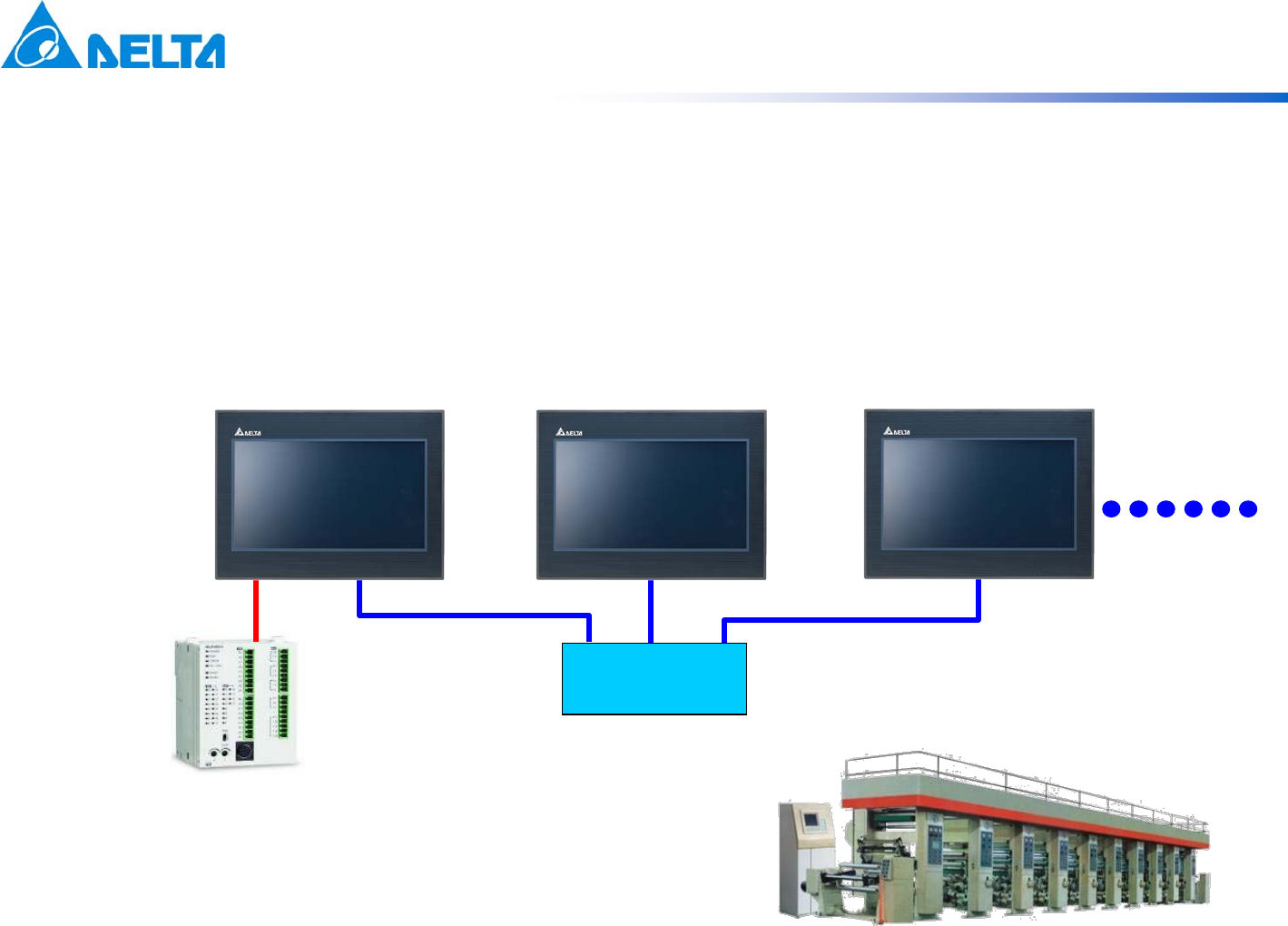

Ethernet Multi-Link

•Multi-Link allows you to connect multiple display units to

a single external device via Ethernet communication

–Supports N:1/N:N communications

•Applications: printing machines

Ethernet

RS-232

Host Client 1 Client 2

Hub

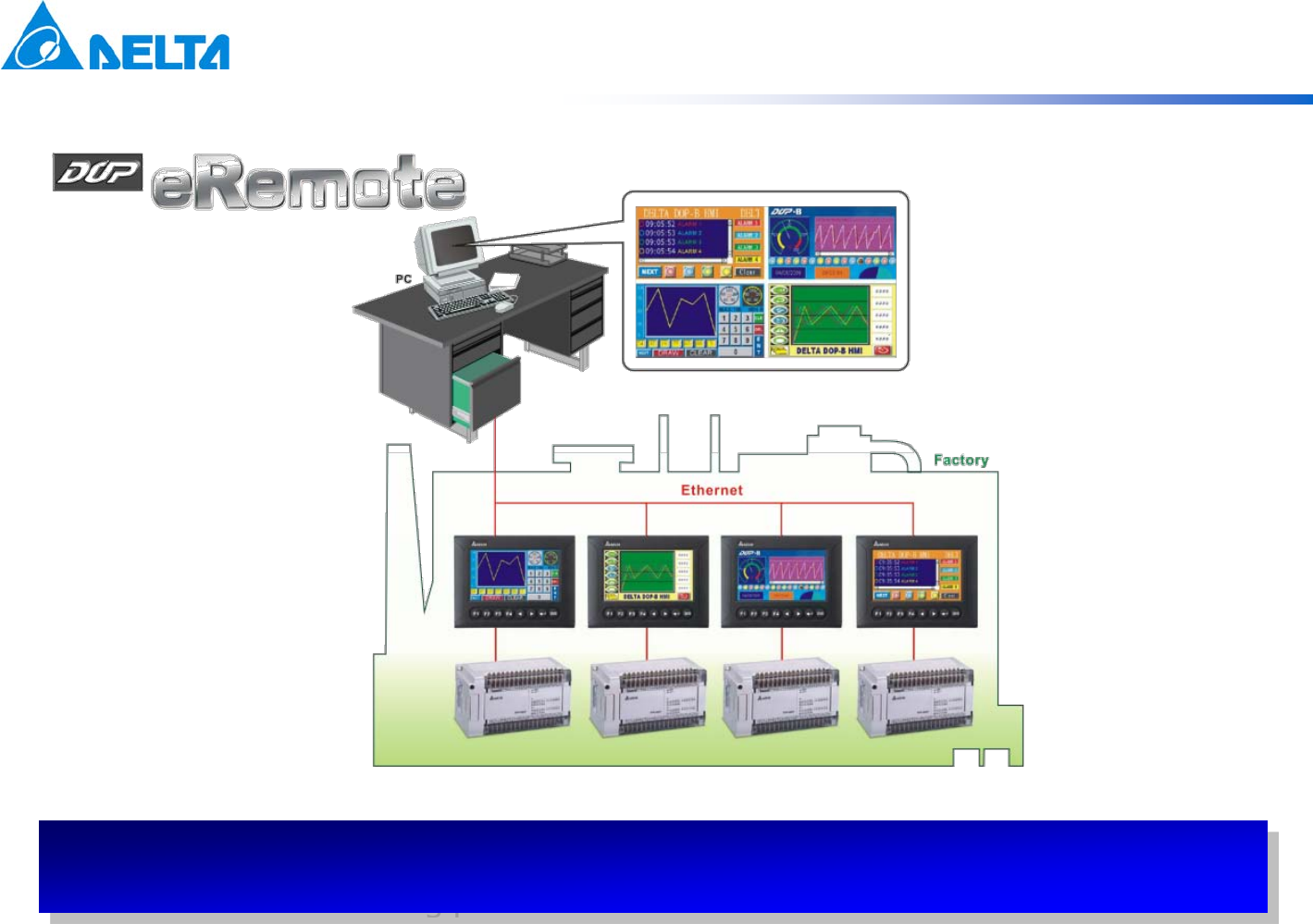

DOP-eRemote

DOP-eServer

eServer & eRemote

Remote Control

eRemote is used to view and check the HMI screen at the production site and to

control the manufacturing process via the Ethernet.

Data Collection (1)

•eServer is used to transfer production and history

data from the production site to a PC in the office via

the Ethernet.

•Production data can be saved in daily reports or

weekly reports automatically under different settings.

•Applications:

–FA: Used to calculate defect rates, average working hours

and capacity utilization rates…

–BA: Used to record the data of air-conditioner operation and

monitor the calculation of power consumption.

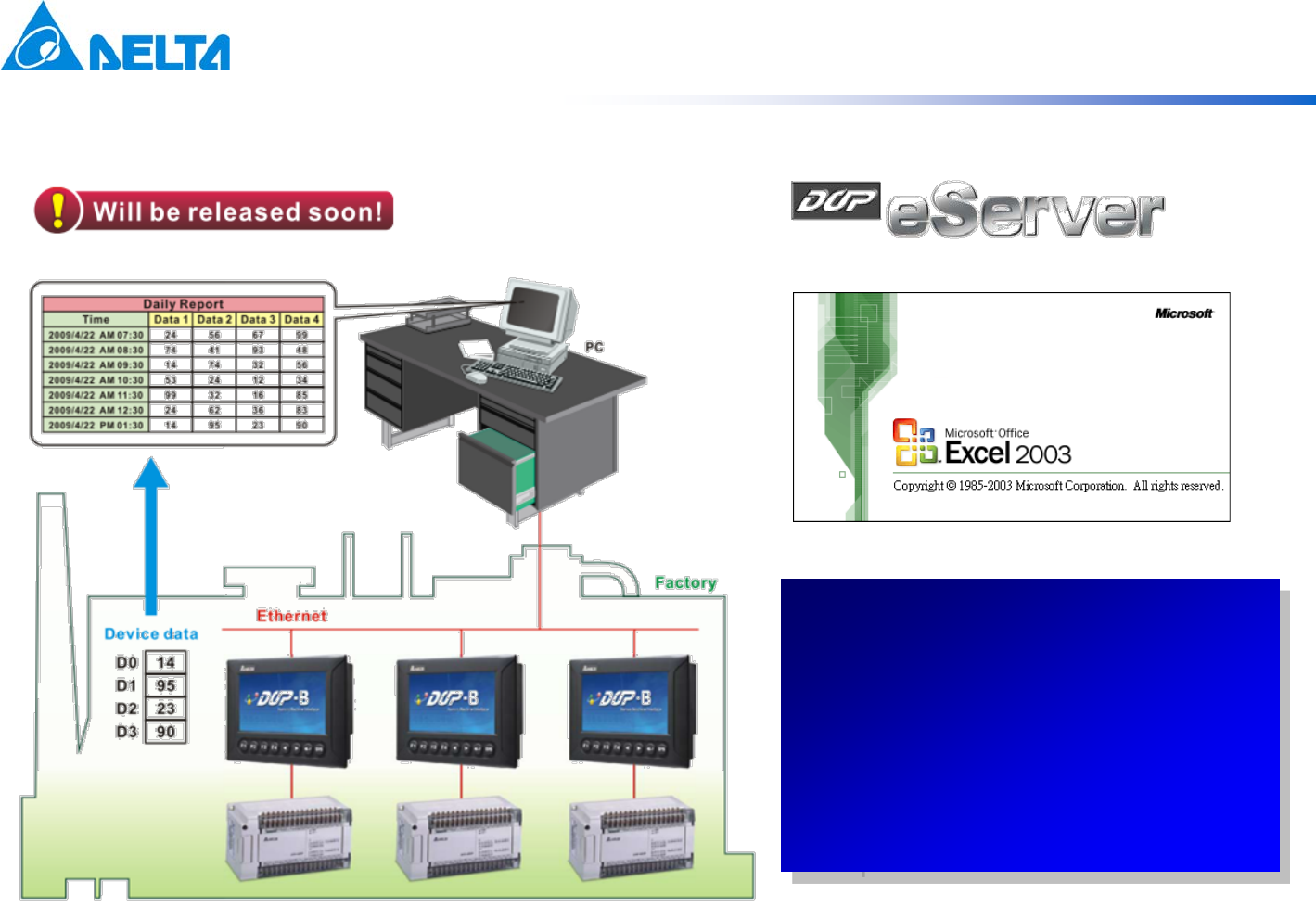

Data Collection (2)

•Excel 2000 / 2003 / 2007 /

2010

•The collected data are saved

in user-defined Excel files of

different purposes for you to

easily create a production

report.

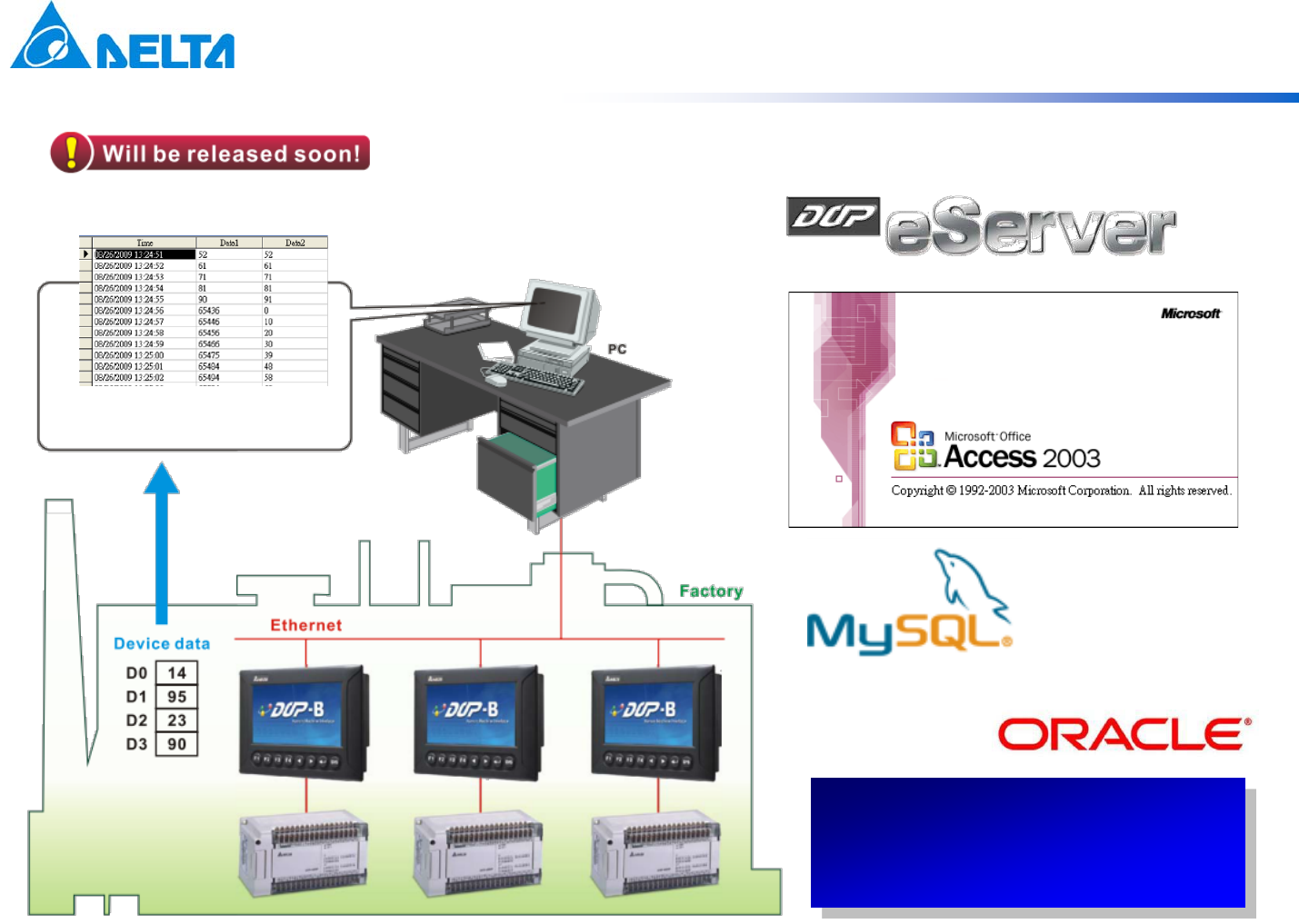

Data Collection (3)

Database

The collected data can be

saved in Database via the

ODBC interface.

Perfect Connections to DVP Series PLC

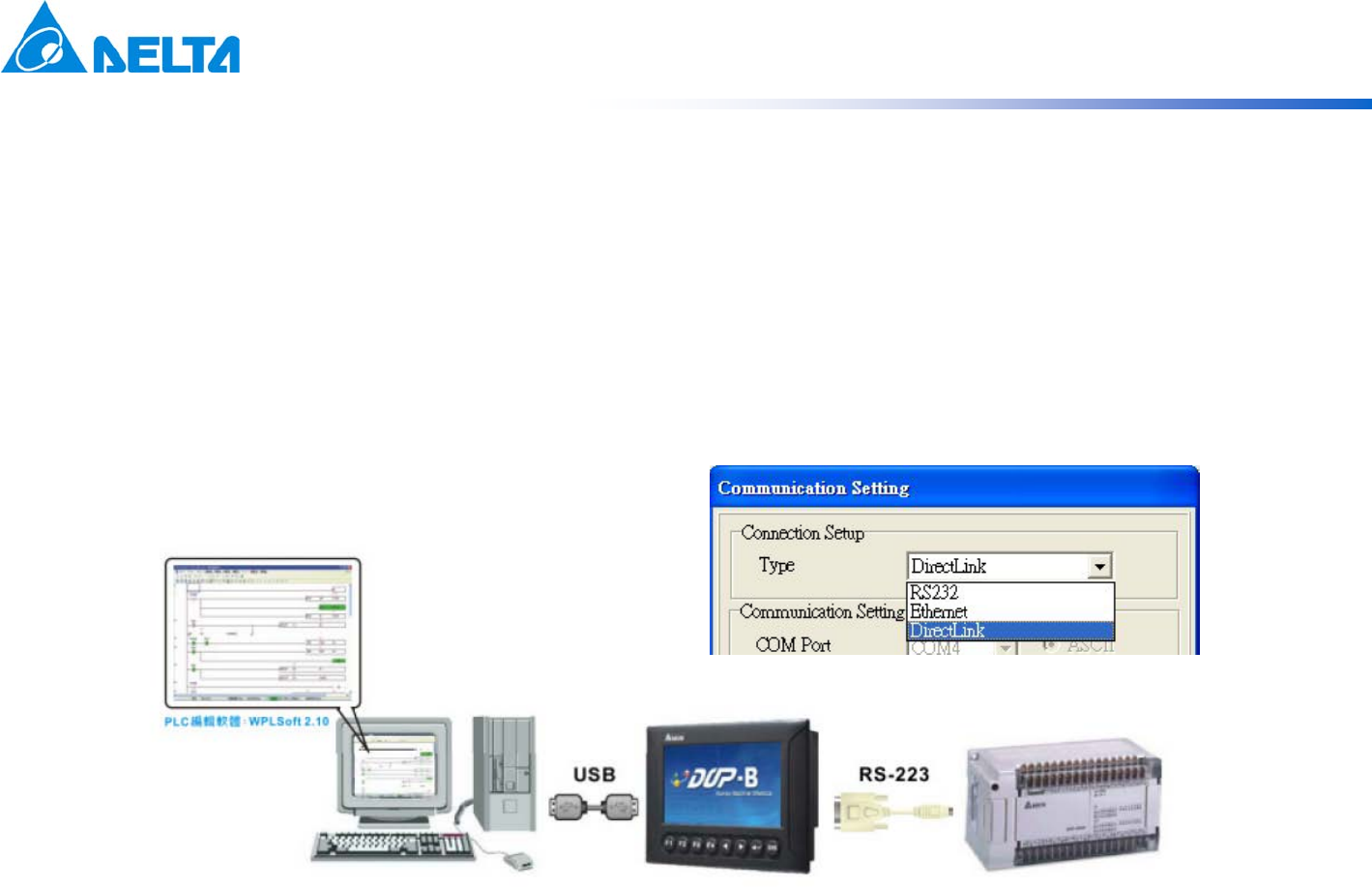

DirectLink

•Use the DirectLink function to monitor and modify the PLC

program through a USB cable.

•Operate the HMI and monitor the PLC at the same time!

PLC Ladder Transfer

•A PLC ladder can be transferred and backed up via SD cards or USB

flash drives.

•Even at a location where an external PC is not available!

•SD cards/USB flash drives are capable of storing many PLC ladders.

Q & A
