HN® Series Rear Suspension

SUBJECT: Service Instructions

LIT NO: 17730-227

DATE: August 2013 REVISION: C

TABLE OF CONTENTS

Section 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 2

Section 2 Product Description . . . . . . . . . . . . . . . . . . 2

Section 3 Important Safety Notice. . . . . . . . . . . . . . . 4

Section 4 Special Tools . . . . . . . . . . . . . . . . . . . . . . . . 7

Section 5 Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Section 6 Preventive Maintenance . . . . . . . . . . . . . 16

Hendrickson Recommended Preventive

Maintenance Intervals . . . . . . . . . . . . . . . 16

Component Inspection . . . . . . . . . . . . . . . . . 17

Axle Bracket . . . . . . . . . . . . . . . . . . . . . . . . . 18

Equalizing Beam End Connection . . . . . . . . . 18

Bar Pin End Bushing . . . . . . . . . . . . . . . . . . 20

Bar Pin Shim . . . . . . . . . . . . . . . . . . . . . . . . 20

Longitudinal and Transverse Torque Rod . . . . 21

Bolster Spring . . . . . . . . . . . . . . . . . . . . . . . . 21

Auxiliary Spring . . . . . . . . . . . . . . . . . . . . . . 22

Shock Absorber . . . . . . . . . . . . . . . . . . . . . . 23

Rebound Strap . . . . . . . . . . . . . . . . . . . . . . . 24

Section 7 Alignment & Adjustments . . . . . . . . . . . . 25

Drive Axle Alignment Inspection Procedure . . 25

Bar Pin Alignment . . . . . . . . . . . . . . . . . . . . . 26

Bar Pin Alignment Shim . . . . . . . . . . . . . . . . 28

Auxiliary Spring Shim Evaluation. . . . . . . . . . 29

Auxiliary Spring Shim Adjustment . . . . . . . . . 30

Section 8 Component Replacement . . . . . . . . . . . . 31

Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Saddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

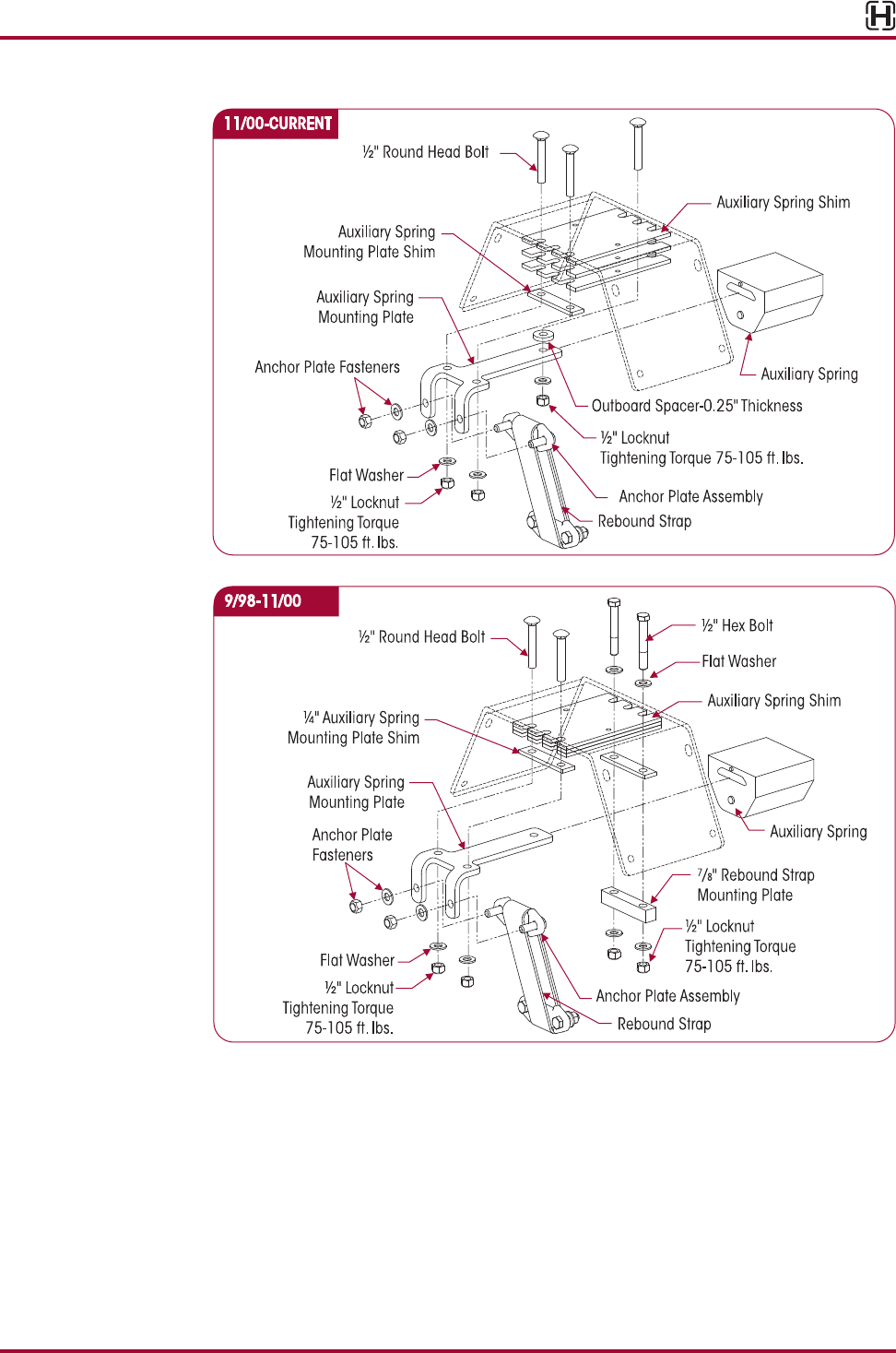

Auxiliary Spring . . . . . . . . . . . . . . . . . . . . . . 33

Rebound Strap . . . . . . . . . . . . . . . . . . . . . . . 34

Bolster Spring . . . . . . . . . . . . . . . . . . . . . . . . 35

Vee Bracket . . . . . . . . . . . . . . . . . . . . . . . . . 36

Shock Absorber . . . . . . . . . . . . . . . . . . . . . . 37

Equalizing Beam . . . . . . . . . . . . . . . . . . . . . 38

Bar Pin End Bushing . . . . . . . . . . . . . . . . . . . 43

Longitudinal Torque Rod . . . . . . . . . . . . . . . . 46

Transverse Torque Rod . . . . . . . . . . . . . . . . . 46

Torque Rod Bushing . . . . . . . . . . . . . . . . . . . 47

Section 9 Troubleshooting Guide . . . . . . . . . . . . . . 49

Section 10 Torque Speci cations . . . . . . . . . . . . . . . 50

HN® Series

Introduction 2 17730-227

SECTION 1

Introduction

This publication is intended to acquaint and assist maintenance personnel in the preven-

tive maintenance, service, repair and rebuild of the HN® Series suspension system. Refer to

Hendrickson Technical Publication 17730-285 for Fire/Rescue vehicles.

NOTE Use only Hendrickson parts for servicing this suspension system, see the Parts List Section of

this publication for component replacement parts.

It is important to read and understand the entire Technical Procedure publication prior to per-

forming any maintenance, service, repair, or rebuild of this product. The information in this

publication contains parts lists, safety information, product specifications, features, proper main-

tenance and rebuild instructions for the HN Series suspension system.

Hendrickson reserves the right to make changes and improvements to its products and

publications at any time. Contact Hendrickson Tech Services for information on the latest ver-

sion of this manual at 1-866-755-5968 (toll-free U.S. and Canada), 1-630-910-2800 (outside

U.S. and Canada) or e-mail: techservices@hendrickson-intl.com.

The latest revision of this publication is also available online

at www.hendrickson-intl.com.

SECTION 2

Product Description

The HN 402/462/522 suspension systems uses VariRate® spring system which delivers a com-

bination of superior stability, articulation and ride. Proven with extensive lab & vehicle durability

testing, suspension weight has been reduced through innovative suspension design.

The vehicle manufacturer determines the vehicle capacity. To help determine the vehicle capac-

ity, use the VIN number and contact the vehicle manufacturer. See the Parts List Section of this

publication to assist with identifying replacement parts.

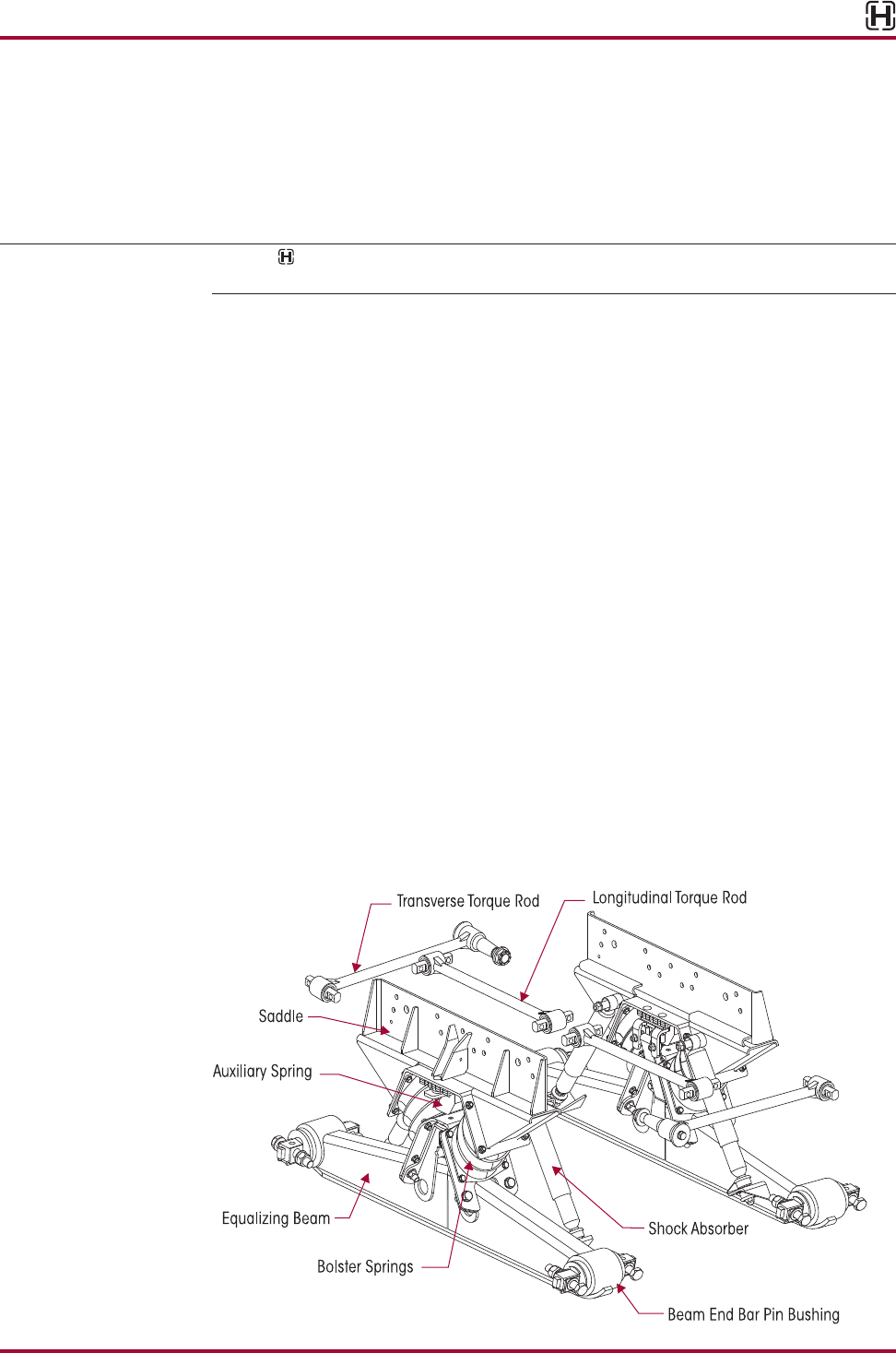

FIGURE 2-1 HN 462

HN® Series

17730-227 3 Product Description

■ Auxiliary springs — Engages while loaded to provide added stability when dumping or

maneuvering.

■ Bar pin end connection — Rugged axle connection extends bushing life and allows easy

axle alignment capability for accurate wheel tracking, improved tire life and serviceability.

■ Equalizing beam — Formed and robotically-welded equalizing beam design eliminates

center bushings and lubrication requirements — significantly reducing scheduled mainte-

nance. It provides a narrow profile for weight savings; distributes load equally between both

axles for improved traction; lowers the center of gravity to increase stability and establishes

a solid axle connection for improved handling.

■ Rubber bolster springs — Lightweight, diagonally mounted rubber bolster springs deliver

a smooth ride and outstanding articulation in empty or lightly loaded conditions. The wide

spring centers enhance stability and eliminate need for cross tube.

■ Saddle and frame brackets — Weight-saving, high-strength design increases carrying

capacity and durability.

■ Shock absorbers — Integrated design reduces axle hop and enhances ride quality.

■ ULTRA RODS® — Heavy duty forgings reduce weight; yet provide improved durability over

conventional rods. Transverse rods ensure maximum lateral axle control and straight line

suspension stability and Longitudinal rods are engineered to optimize resistance to wind

up during acceleration and braking hence improve cornering by controlling lateral forces.

ULTRA ROD’s unique bonded bushing greatly increases its service life. By eliminating the

outer metal sleeve, Hendrickson made re-bushing faster and easier.

■ VariRate® Spring System — Delivers a combination of superior stability, articulation and

ride. System can be tailored to meet the specific needs of unique vehicle applications

HN® SERIES SPECIFICATIONS

HN 402 HN 462 HN 522

Installed Weight1 935 lbs. 948 lbs. 955 lbs.

(54 inch axle spacing)

Suspension Rating 40,000 lbs. 46,000 lbs. 52,000 lbs.

GVW Approval2 73,000 lbs. 80,000 lbs. 80,000 lbs.

GCW Approval 160,000 lbs. 190,000 lbs. 245,000 lbs.

Site Travel Rating3 55,000 lbs. 60,000 lbs. 65,000 lbs.

Diagonal Articulation4 17" 17" 17"

Lift Axles3 Approved Approved Approved

Axle Spacing 52", 54", 60", 72.5" 54", 60", 72.5" 54", 60"

Wheel Base Restriction None None None

HN Series suspensions are intended for a wide range of applications*, including dump, refuse, mixer and logging . If you

have any questions, contact Hendrickson or your local truck dealer.

1 Installed weight includes complete suspension, torque rods, axle brackets, shock absorbers and frame brackets.

2 Contact Hendrickson for applications that may exceed GVW approval ratings.

3 Site Travel Rating — Operators using vehicles equipped with liftable pusher or tag axles must not exceed published rat-

ings. Ratings are limited to no more than 5 percent of vehicle operation at speed not to exceed 5 mph. Liftable pusher or

tag axles should only be raised (or unloaded) to improve vehicle maneuverability in off-road use or when vehicle is empty.

Site trave ratings are consistent with published axle manufacturer’s limitations. Axle and suspension site travel specifica-

tions must not be exceeded.

4 Suspension articulation may exceed vehicle’s capability and may be limited by vehicle manufacturer; vehicle manufac-

turer installed axle stops may restrict suspension’s articulation.

* Not approved for tractor applications.

HN® Series

Important Safety Notice 4 17730-227

SECTION 3

Important Safety Notice

Proper maintenance, service and repair is important to the reliable operation of the suspension.

The procedures recommended by Hendrickson and described in this technical publication are

methods of performing such maintenance, service and repair.

The warnings and cautions should be read carefully to help prevent personal injury and to

assure that proper methods are used. Improper maintenance, service or repair may damage

the vehicle, cause personal injury, render it unsafe in operation, or void manufacturer’s warranty.

Failure to follow the safety precautions in this manual can result in personal injury and/or

property damage. Carefully read and understand all safety related information within this pub-

lication, on all decals and that provided by the vehicle manufacturer before conducting any

maintenance, service or repair.

EXPLANATION OF SIGNAL WORDS

Hazard “Signal Words” (Danger-Warning-Caution) appear in various locations throughout this

publication. Information accented by one of these signal words must be observed to help mini-

mize the risk of personal injury to service personnel, or possibility of improper service methods

which may damage the vehicle or render it unsafe.

This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety messages that follow this symbol to avoid possible injury

or death.

Additional Notes or Service Hints are utilized to emphasize areas of procedural importance and

provide suggestions for ease of repair. The following definitions indicate the use of these signal

words as they appear throughout the publication.

INDICATES AN IMMINENTLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, WILL RESULT IN

SERIOUS INJURY OR DEATH.

INDICATES A POTENTIAL HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, CAN RESULT IN SERIOUS

INJURY OR DEATH.

INDICATES A POTENTIAL HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR

MODERATE INJURY.

NOTE An operating procedure, practice condition, etc. which is essential to emphasize.

SERVICE HINT A helpful suggestion that will make the servicing being performed a little easier and/or faster.

Also note that particular service operations may require the use of special tools designed for spe-

cific purposes. These special tools can be found in the Special Tools Section of this publication.

The torque symbol alerts you to tighten fasteners to a specified torque value. Refer to Torque

Specifications Section of this publication.

HN® Series

17730-227 5 Important Safety Notice

SAFETY PRECAUTIONS

FASTENERS

DISCARD USED FASTENERS. ALWAYS USE NEW FASTENERS TO COMPLETE A REPAIR. FAILURE TO DO

SO COULD RESULT IN FAILURE OF THE PART, OR MATING COMPONENTS, LOSS OF VEHICLE CONTROL,

PERSONAL INJURY, OR PROPERTY DAMAGE.

LOOSE OR OVER TORQUED FASTENERS CAN CAUSE COMPONENT DAMAGE, LOSS OF VEHICLE

CONTROL, PROPERTY DAMAGE, OR SEVERE PERSONAL INJURY. MAINTAIN CORRECT TORQUE

VALUES AT ALL TIMES. CHECK TORQUE VALUES ON A REGULAR BASIS AS SPECIFIED USING A

TORQUE WRENCH THAT IS REGULARLY CALIBRATED. TORQUE VALUES SPECIFIED IN THIS TECHNICAL

PUBLICATION ARE FOR HENDRICKSON SUPPLIED FASTENERS ONLY. IF NON-HENDRICKSON

FASTENERS ARE USED, FOLLOW TORQUE SPECIFICATION LISTED IN THE VEHICLE MANUFACTURER’S

SERVICE MANUAL.

LOAD CAPACITY

ADHERE TO THE PUBLISHED CAPACITY RATINGS FOR THE SUSPENSION. ADD-ON AXLE ATTACHMENTS

AND OTHER LOAD TRANSFERRING DEVICES CAN INCREASE THE SUSPENSION LOAD ABOVE ITS

RATED AND APPROVED CAPACITIES, WHICH CAN RESULT IN COMPONENT DAMAGE AND LOSS OF

VEHICLE CONTROL, POSSIBLY CAUSING PERSONAL INJURY OR PROPERTY DAMAGE.

MODIFYING COMPONENTS

DO NOT MODIFY OR REWORK PARTS WITHOUT AUTHORIZATION FROM HENDRICKSON. DO NOT

SUBSTITUTE REPLACEMENT COMPONENTS NOT AUTHORIZED BY HENDRICKSON. USE OF MODIFIED,

REWORKED, SUBSTITUTE OR REPLACEMENT PARTS NOT AUTHORIZED BY HENDRICKSON MAY NOT

MEET HENDRICKSON’S SPECIFICATIONS, AND CAN RESULT IN FAILURE OF THE PART, LOSS OF

VEHICLE CONTROL, POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE, AND WILL VOID ANY

APPLICABLE WARRANTIES. USE ONLY HENDRICKSON AUTHORIZED REPLACEMENT PARTS.

TORCH/WELDING

DO NOT USE A CUTTING TORCH TO REMOVE ANY FASTENERS. THE USE OF HEAT ON SUSPENSION

COMPONENTS WILL ADVERSELY AFFECT THE STRENGTH OF THESE PARTS. A COMPONENT DAMAGED

IN THIS MANNER CAN RESULT IN THE LOSS OF VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY

OR PROPERTY DAMAGE.

EXERCISE EXTREME CARE WHEN HANDLING OR PERFORMING MAINTENANCE IN THE AREA OF THE

EQUALIZING BEAM. DO NOT CONNECT ARC WELDING GROUND LINE TO THE EQUALIZING BEAM. DO

NOT STRIKE AN ARC WITH THE ELECTRODE ON THE EQUALIZING BEAM AND AXLE. DO NOT USE HEAT

NEAR THE EQUALIZING BEAM ASSEMBLY. DO NOT NICK OR GOUGE THE EQUALIZING BEAM. SUCH

IMPROPER ACTIONS CAN DAMAGE THE EQUALIZING BEAM ASSEMBLY, AND CAN CAUSE LOSS OF

VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE.

PERSONAL PROTECTIVE EQUIPMENT

ALWAYS WEAR PROPER EYE PROTECTION AND OTHER REQUIRED PERSONAL PROTECTIVE

EQUIPMENT TO HELP PREVENT PERSONAL INJURY WHEN PERFORMING VEHICLE MAINTENANCE,

REPAIR OR SERVICE.

PROCEDURES AND TOOLS

A TECHNICIAN USING A SERVICE PROCEDURE OR TOOL WHICH HAS NOT BEEN RECOMMENDED

BY HENDRICKSON MUST FIRST SATISFY HIMSELF THAT NEITHER HIS SAFETY NOR THE VEHICLE’S

SAFETY WILL BE JEOPARDIZED BY THE METHOD OR TOOL SELECTED. INDIVIDUALS DEVIATING IN

ANY MANNER FROM THE INSTRUCTIONS PROVIDED WILL ASSUME ALL RISKS OF CONSEQUENTIAL

PERSONAL INJURY OR DAMAGE TO EQUIPMENT INVOLVED.

SUPPORT THE VEHICLE PRIOR TO SERVICING

DO NOT AT ANY TIME WORK AROUND OR UNDER A VEHICLE SUPPORTED ONLY ON LIFTING DEVICES.

THE VEHICLE MUST BE SECURELY CHOCKED AND SUPPORTED ON RIGID STANDS OF SUFFICIENT

STRENGTH BEFORE WORK MAY COMMENCE.

HN® Series

Important Safety Notice 6 17730-227

TRANSVERSE RODS

THE HN 402/462/522 SUSPENSION INCORPORATE TRANSVERSE RODS FOR VEHICLE STABILITY. IF

THESE COMPONENTS ARE DISCONNECTED OR ARE NON-FUNCTIONAL, THE VEHICLE SHOULD NOT

BE OPERATED. FAILURE TO DO SO CAN RESULT IN ADVERSE VEHICLE HANDLING, LOSS OF VEHICLE

CONTROL, POSSIBLE TIRE CONTACT WITH THE FRAME, PREMATURE COMPONENT DAMAGE, OR

SEVERE PERSONAL INJURY.

PARTS CLEANING

SOLVENT CLEANERS CAN BE FLAMMABLE, POISONOUS, AND CAUSE BURNS. TO HELP AVOID

SERIOUS PERSONAL INJURY, CAREFULLY FOLLOW THE MANUFACTURER’S PRODUCT INSTRUCTIONS

AND GUIDELINES AND THE FOLLOWING PROCEDURES:

1. WEAR PROPER EYE PROTECTION.

2. WEAR CLOTHING THAT PROTECTS YOUR SKIN.

3. WORK IN A WELL-VENTILATED AREA.

4. DO NOT USE GASOLINE OR SOLVENTS THAT CONTAIN GASOLINE. GASOLINE CAN EXPLODE.

5. HOT SOLUTION TANKS OR ALKALINE SOLUTIONS MUST BE USED CORRECTLY. FOLLOW THE

MANUFACTURER’S RECOMMENDED INSTRUCTIONS AND GUIDELINES CAREFULLY TO HELP

PREVENT PERSONAL ACCIDENT OR INJURY.

DO NOT USE HOT SOLUTION TANKS OR WATER AND ALKALINE SOLUTIONS TO CLEAN GROUND OR

POLISHED PARTS. DOING SO WILL CAUSE DAMAGE TO THE PARTS AND VOID WARRANTY.

HN® Series

17730-227 7 Special Tools

SECTION 4

Special Tools

These shop made tools are designed to remove and install rubber mounted torque rod bushings. The shop made tool set will

service both the straddle mount and the tapered stud bushings. Bushing tools are made from cold rolled steel or equivalent.

Drawings are for reference only. Hendrickson does not supply these tools.

BAR PIN END BUSHING TOOL TORQUE ROD BUSHING TOOLS

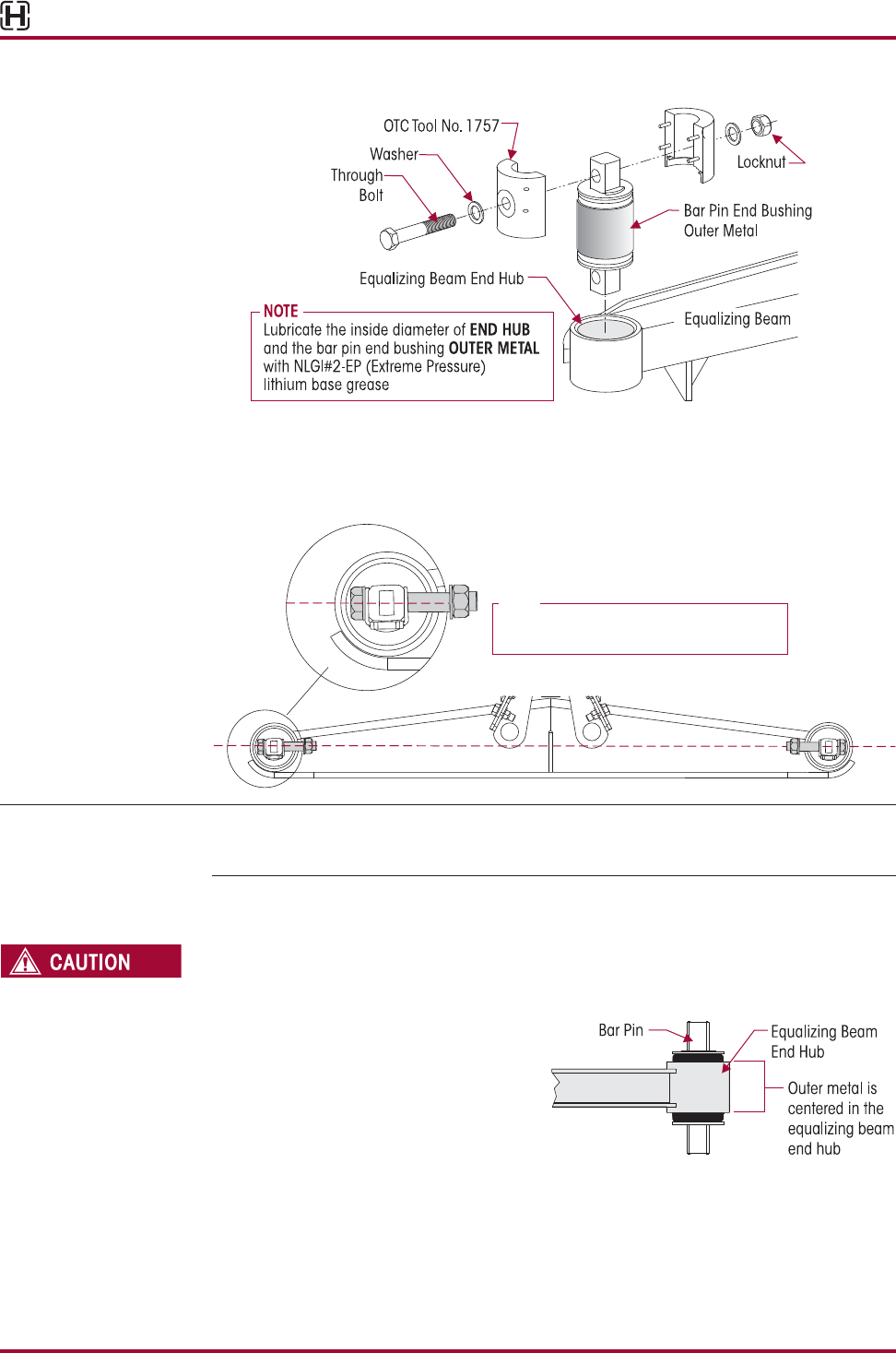

BAR PIN ADAPTER SET TOOL

OTC Tool No. 1757

Servicing bar pin end bushings used on Hendrickson HN

equalizing beam suspensions requires the use of special

tooling.

OTC’s No. 1757 adapter set is used with the equalizing beam

removed from the truck, and in conjunction with OTC No.

51100 press plate and a 100 ton hydraulic shop press.

To order, contact OTC, 507.455.7000 or

visit: www.otctools.com for an OTC distributor.

Parts Lists 8 17730-227

SECTION 5

Parts Lists

HN® 402/462/522 – Vehicles built after 11/00

38 37

34 39

18 54

26c

26a,b

23 25 24

22 22

13,14

35a,b

36a,b

29 30

32 27

17730-227 9 Parts Lists

KEY NO. PART NO. DESCRIPTION NO.REQ. KEY NO. PART NO. DESCRIPTION NO.REQ.

HN® 402/462/522 – Vehicles built after 11/00

1 HN 402/462/522 Saddle Assembly, 2

See Figure 1 below, Includes Key Nos. 2-18

60686-0XX 16½",17½", or 18½"

58650-0XX 20¼" or 22½"

60879-000L Bolster Spring Kit, One Set, (2 pc)

Includes Key No. 3

2 *Bolster Spring 4

3 25114-011

"-20 UNF 1.25" Bolt 32

4 48949-000

"-20 UNF-2B Locknut 32

5 22962-027

" Washer 64

6 60314-000 Auxiliary Spring 2

7 58960-003 Auxiliary Spring Shim 6

8 58196-005 ½"-13 UNC Round Head Square Neck 3.25" Bolt 6

9 22962-011 ½" Washer 6

10 49846-000 ½"-13 UNC-2A Locknut 6

11 57878-003 Rebound Strap 2

60639-000 Anchor Plate Assembly, Includes Key Nos. 12-14 4

12 *Anchor Plate 4

13 *½" Washer 8

14 *½"-13 UNC-2A Locknut 8

15 58948-001 Auxiliary Spring Mounting Plate 2

16 58949-000 Auxiliary Spring Mounting Plate Shim 2

(Inboard - ¼" thick)

17 22962-020 Outboard Spacer (¼" thick) 2

18 58343-001 Saddle Vee Bracket 2

58440-001 Vee Bracket Fastener Kit, One Side,

Includes Key Nos. 19-21

19 50764-006 ¾"-10 UNC-2A Hex Head Bolt 8

20 22962-001 ¾" Washer 16

21 49842-000 ¾"-10 UNC-2B Locknut 8

22 60680-003L Shock Absorber 4

23 22962-001 ¾" Washer 4

24 30585-000

" Upper Shock Locknut 4

25 22962-004

" Upper Shock Washer 4

26 a Equalizing Beam Assembly 2

58494-001 HN 462, 54" Non-Shim Type

58494-002 HN 462, 54" Shim Type

58494-005 HN 402/462, 60" Non-Shim Type

58494-006 HN 402/462, 60" Shim Type

58494-009 HN 402/462, 72.5" Non-Shim Type

58494-010 HN 402/462, 72.5" Shim Type

b 59973-003 HN 522, 54" Shim Type

c Equalizing Beam Assembly 2

57889-004 HN 402, 52" Non-Shim Type

57889-005 HN 402, 52" Shim Type

57889-001 HN 402, 54" Non-Shim Type

57889-002 HN 402, 54" Shim Type

27 Bar Pin End Bushing Service Kit, One Wheel End,

Includes Key Nos. 28-32

34013-088L Shim Type

34013-188L Rotating, Shim Type

28 *Bar Pin End Bushing 4

29 Bar Pin Shim 8

50130-000 0.19" /0.19"

50131-000 0.25"/0.12" (Not shown)

30 48941-000 1"-8 UNC 6.0" Hex Bolt 4

31 22962-008 1" Hardened Washer 8

32 48942-000 1"-8 UNC Locknut 4

33 Longitudinal Torque Rod Assembly

**One-piece Straddle/Straddle

• ULTRA ROD®, Includes Key No. 35a

62000-XXX Front, Specify Length in mm 1

62001-XXX Rear, Specify Length in mm 1

• ULTRA ROD® PLUS™, Includes Key No. 35b

72000-XXX Front, Specify Length in mm 1

72001-XXX Rear, Specify Length in mm 1

**Two-Piece Straddle/Straddle Kit

60218-000 • ULTRA ROD, Includes Key No. 35a

34 ***Transverse Torque Rod Assembly 2

**One-piece Straddle/Taper, Specify Length in mm

62350-XXX • ULTRA ROD, Includes Key No. 35a-36a

72350-XXX • ULTRA ROD PLUS, Includes Key No. 35b-36b

**Two-Piece Straddle/Taper Kit,

60215-000 • ULTRA ROD, Includes Key No. 35a-36a

65781-000 • ULTRA ROD PLUS, Includes Key No. 35b-36b

35 Straddle Bushing 4

a 47691-000 ULTRA ROD

b 64400-002L ULTRA ROD PLUS

36 Taper Bushing 2

a 64697-000H ULTRA ROD

b 64400-004L ULTRA ROD PLUS

37 22186-000 Torque Rod Frame Bracket 4

38 45045-003 Backup Plate 2

39 ****Torque Rod Axle Bracket 2

40 49689-000 Torque Rod Shim (As Required)

Not Shown 70867-001 Torque Rod Bushing P-80 Lubricant -10 ml.

(per each bushing)

NOTE: Equalizing beam axle brackets for drive axles are supplied by the axle manufacturer.

* Item included in assembly/kit only, part not sold separately.

** Hendrickson’s part number is stamped on the torque rod for identi cation. Be sure to include the suf x number when ordering, this number indicates torque

rod length. The Hendrickson 2-piece torque rods can be used to create the desired length, see Torque Rod Selection Guide Literature No. 45745-148.

*** Transverse torque rods are mandatory for HN Suspension regardless of axle spacing, see Literature No. 59310-004 for more information.

**** Not supplied by Hendrickson, used for reference only, refer to the vehicle manufacturer for more information. Hendrickson is not responsible for

components supplied by the vehicle manufacturer.

Bottom of Frame

of End Hub

Saddle Height

SIDE VIEW

Location of

Saddle Assembly

Part Number

FIGURE 1 SADDLE ASSEMBLY (KEY NO. 1) Locate the part number on the saddle assembly have the VIN number and saddle height (for part verification)OR

if the saddle assembly number is not legible or available and contact vehicle manufacturer for part number. Questions? Contact Hendrickson Truck Parts

Parts Lists 10 17730-227

HN® 402/462/522

Vehicles built between 9/98 and 11/00

1514 12

19 54

27a,b

27c

14,15

36a,b

39 38

35 40

36a,b

37a,b

24 26 25

30 31

33 28

41 38

36a,b

17730-227 11 Parts Lists

KEY NO. PART NO. DESCRIPTION NO.REQ. KEY NO. PART NO. DESCRIPTION NO.REQ.

HN® 402/462/522 – Vehicles built between 9/98 and 11/00

1 HN 402/462/522 Saddle Assembly, See 2

Figure 1 on page 9, Includes Key Nos. 2-19

60686-0XX 16½", 17½", or 18½"

58650-0XX 20¼" or 22½"

2 60879-000L Bolster Spring Kit, One Set (2 pc)

3 25114-011

"-20 UNF 1.25" Bolt 32

4 48949-000

"-20 UNF-2B Locknut 32

5 22962-027

" Washer 64

57974-012 Auxiliary Spring Service Kit, Axle Set

Includes Key Nos. 6, 9-11

6 58947-000 Auxiliary Spring 2

7 58960-001 Auxiliary Spring Shim 6

8 58196-004 ½"-13 UNC Round Head 2.25" Bolt 4

9 24531-016 ½"-13 UNC 3.50" Bolt 4

10 22962-011 ½" Washer 12

11 49846-000 ½"-13 UNC-2A Locknut 8

12 57878-003 Rebound Strap 2

13 60639-000 Anchor Plate Assembly, Includes Key Nos. 14-15 4

Replaces 59779-000

14 *½" Washer 8

15 *½"-13 UNC-2A Locknut 8

16 58948-001 Auxiliary Spring Mounting Plate 2

Replaces 58948-000

17 58949-000 ¼" Auxiliary Spring Mounting Plate Shim 4

18 58524-000

" Rebound Strap Mounting Plate 2

19 58343-001 Saddle Vee Bracket 2

Replaces 58343-000

58440-001 Vee Bracket Fastener Kit, One Side,

Includes Key Nos. 20-22

20 50764-006 ¾"-10 UNC-2A Hex Head Bolt 8

21 22962-001 ¾" Washer 16

22 49842-000 ¾"-10 UNC-2B Locknut 8

23 60680-003L Shock Absorber 4

24 22962-001 ¾" Washer 4

25 30585-000

" Upper Shock Locknut 4

26 22962-004

" Upper Shock Washer 4

27 a Equalizing Beam Assembly 2

58494-001 HN 462, 54" Non-Shim Type

58494-002 HN 462, 54" Shim Type

58494-005 HN 402/462, 60" Non-Shim Type

58494-006 HN 402/462, 60" Shim Type

58494-009 HN 402/462, 72.5" Non-Shim Type

58494-010 HN 402/462, 72.5" Shim Type

b 59973-003 HN 522, 54" Shim Type

c Equalizing Beam Assembly 2

57889-004 HN 402, 52" Non-Shim Type

57889-005 HN 402, 52" Shim Type

57889-001 HN 402/462, 54" Non-Shim Type

57889-002 HN 402/462, 54" Shim Type

28 Bar Pin End Bushing Service Kit, One Wheel End,

Includes Key Nos. 29-33

34013-088L Shim Type

34013-188L Rotating, Shim Type

29 *Bar Pin End Bushing 4

30 Bar Pin Shim 8

50130-000 0.19"/0.19"

50131-000 0.25"/0.12"

31 48941-000 1"-8 UNC 6.0" Hex Bolt 4

32 22962-008 1" Hardened Washer 8

33 48942-000 1

-8 UNC Locknut 4

34 Longitudinal Torque Rod Assembly

**One-piece Straddle/Straddle

• ULTRA ROD®, Includes Key No. 36a

62000-XXX Front, Specify Length in mm 1

62001-XXX Rear, Specify Length in mm 1

• ULTRA ROD® PLUS™, Includes Key No. 36b

72000-XXX Front, Specify Length in mm 1

72001-XXX Rear, Specify Length in mm 1

**Two-Piece Straddle/Straddle Kit

60218-000 • ULTRA ROD, Includes Key No. 36a

35 ***Transverse Torque Rod Assembly 2

**One-piece Straddle/Taper, Specify Length in mm

62350-XXX • ULTRA ROD, Includes Key No. 36a-37a

72350-XXX • ULTRA ROD PLUS, Includes Key No. 36b-37b

**Two-Piece Straddle/Taper Kit,

60215-000 • ULTRA ROD, Includes Key No. 36a-37a

65781-000 • ULTRA ROD PLUS, Includes Key No. 36b-37b

36 Straddle Bushing 4

a 47691-000 ULTRA ROD

b 64400-002L ULTRA ROD PLUS

37 Taper Bushing 2

a 64697-000H ULTRA ROD

b 64400-004L ULTRA ROD PLUS

38 22186-000 Torque Rod Frame Bracket 4

39 45045-003 Backup Plate 2

40 ****Torque Rod Axle Bracket 2

41 49689-000 Torque Rod Shim (As Required)

Not Shown 70867-001 Torque Rod Bushing P-80 Lubricant -10 ml.

(per each bushing)

NOTE: Equalizing beam axle brackets for drive axles are supplied by the axle manufacturer.

* Item included in assembly/kit only, part not sold separately.

** Hendrickson’s part number is stamped on the torque rod for identi cation. Be sure to include the suf x number when ordering, this number indicates torque

rod length. The Hendrickson 2-piece torque rods can be used to create the desired length, see Torque Rod Selection Guide Literature No. 45745-148.

*** Transverse torque rods are mandatory for HN Suspension regardless of axle spacing, see Literature No. 59310-004 for more information.

**** Not supplied by Hendrickson, used for reference only, refer to the vehicle manufacturer for more information. Hendrickson is not responsible for

components supplied by the vehicle manufacturer.

Parts Lists 12 17730-227

HN® 402/462/522

Vehicles built between 4/96 and 8/98

19c

17 16 17 16

19a,b

32a,b

35 34

31 36

32a,b

33a,b

20 20

21 23 22

26 27

29 24

10,11

17730-227 13 Parts Lists

KEY NO. PART NO. DESCRIPTION NO.REQ. KEY NO. PART NO. DESCRIPTION NO.REQ.

HN® 402/462/522 – Vehicles built between 4/96 and 8/98

1 HN 402/462/522 Saddle Assembly, See 2

Figure 1 on Page 9, Includes Key Nos. 2-15

60686-0XX 16½",17½", or 18½"

58650-0XX 20¼" or 22½"

2 60879-000L Bolster Spring, One Set (2 pc)

3 25114-011

"-20 UNF 1.25" Bolt 32

4 48949-000

"-20 UNF-2B Locknut 32

5 22962-027

" Washer 64

6 Auxiliary Spring (58189-000 no longer 2

available, see conversion kit 57974-011 below)

7 57993-002 Auxiliary Spring Shim 6

8 58196-002 ½"-13 UNC-2A Round Head Square Neck Bolt 4

9 24531-017 ½"-13 UNC-2A Hex Head Bolt 4

10 22962-011 ½" Washer 16

11 49846-000 ½"-13 UNC-2A Locknut 12

12 57878-003 Rebound Strap 2

13 58524-000 Rebound Strap Mounting Plate 2

14 60639-000 Anchor Plate Assembly, Includes Fasteners 2

Replaces 59779-000

15 58343-001 Saddle Vee Bracket 2

58440-001 Vee Bracket Fastener Kit, One Side,

Includes Key Nos. 16-18

16 50764-006 ¾"-10 UNC-2A Hex Head Bolt 8

17 22962-001 ¾" Washer 16

18 49842-000 ¾"-10 UNC-2B Locknut 8

19 a Equalizing Beam Assembly 2

58494-001 HN 462, 54" Non-Shim Type

58494-002 HN 462, 54" Shim Type

58494-005 HN 402/462, 60" Non-Shim Type

58494-006 HN 402/462, 60" Shim Type

58494-009 HN 402/462, 72.5" Non-Shim Type

58494-010 HN 402/462, 72.5" Shim Type

b 59973-003 HN 522, 54" Shim Type

c 57889-004 HN 402, 52" Non-Shim Type

57889-005 HN 402, 52" Shim Type

57889-001 HN 402/462, 54" Non-Shim Type

57889-002 HN 402/462, 54" Shim Type

20 60680-003L Shock Absorber 4

21 22962-001 ¾" Washer 4

22 30585-000

" Locknut 4

23 22962-004

" Washer 4

24 Bar Pin End Bushing Service Kit, One Wheel End,

Includes Key Nos. 25-29

34013-088L Shim Type

34013-188L Rotating, Shim Type

25 *Bar Pin End Bushing 4

26 Bar Pin Shim 8

50130-000 0.19" /0.19"

50131-000 0.25"/0.12"

27 48941-000 1"-8 UNC 6.0" Hex Bolt 4

28 22962-008 1" Hardened Washer 8

29 48942-000 1"-8 UNC Locknut 4

30 Longitudinal Torque Rod Assembly

**One-piece Straddle/Straddle

• ULTRA ROD®, Includes Key No. 32a

62000-XXX Front, Specify Length in mm 1

62001-XXX Rear, Specify Length in mm 1

• ULTRA ROD® PLUS™, Includes Key No. 32b

72000-XXX Front, Specify Length in mm 1

72001-XXX Rear, Specify Length in mm 1

**Two-Piece Straddle/Straddle Kit

60218-000 • ULTRA ROD, Includes Key No. 32a

31 ***Transverse Torque Rod Assembly 2

**One-piece Straddle/Taper, Specify Length in mm

62350-XXX • ULTRA ROD, Includes Key No. 32a-33a

72350-XXX • ULTRA ROD PLUS, Includes Key No. 32b-33b

**Two-Piece Straddle/Taper Kit,

60215-000 • ULTRA ROD, Includes Key No. 32a-33a

65781-000 • ULTRA ROD PLUS, Includes Key No. 32b-33b

32 Straddle Bushing 4

a 47691-000 ULTRA ROD

b 64400-002L ULTRA ROD PLUS

33 Taper Bushing 2

a 64697-000H ULTRA ROD

b 64400-004L ULTRA ROD PLUS

34 22186-000 Torque Rod Frame Bracket 4

35 45045-003 Backup Plate 2

36 ****Torque Rod Axle Bracket 2

37 49689-000 Torque Rod Shim (As Required)

Not Shown 70867-001 Torque Rod Bushing P-80 Lubricant -10 ml.

(per each bushing)

NOTE: Equalizing beam axle brackets for drive axles are supplied by the axle manufacturer.

* Item included in assembly/kit only, part not sold separately.

** Hendrickson’s part number is stamped on the torque rod for identi cation. Be sure to include the suf x number when ordering, this number indicates torque

rod length. The Hendrickson 2-piece torque rods can be used to create the desired length, see Torque Rod Selection Guide Literature No. 45745-148.

*** Transverse torque rods are mandatory for HN Suspension regardless of axle spacing, see Literature No. 59310-004 for more information.

**** Not supplied by Hendrickson, used for reference only, refer to the vehicle manufacturer for more information. Hendrickson is not responsible for

components supplied by the vehicle manufacturer.

Key No. 6 Auxiliary Spring Conversion Kit No. 57974-011

Axle Set – Includes Part Nos. 1-11

1 60314-000 Auxiliary Spring 2

2 58960-003 Auxiliary Spring Shim 6

3 58196-006 ½"-13 UNC 2.75" Round Head Bolt 4

4 24531-016 ½"-13 UNC 3.50" Bolt 4

5 22962-011 ½" Hardened Washer 14

6 49846-000 ½"-13 UNC Locknut 14

7 57878-003 Rebound Strap 2

8 64700-000 Anchor Plate Assembly 4

9 58948-001 Auxiliary Spring Mounting Plate 2

10 58949-000 ¼" Auxiliary Spring Mounting Plate Shim 4

11 58524-000

7⁄8" Rebound Strap Mounting Plate 4

Parts Lists 14 17730-227

HN® 400/460

Vehicles built between 3/96 and 9/97

18 17

18 19

414 13

39a,b

42 38 43

39a,b

40a,b

21 23 22

32 33

35 30

17730-227 15 Parts Lists

KEY NO. PART NO. DESCRIPTION NO.REQ. KEY NO. PART NO. DESCRIPTION NO.REQ.

HN® 400/460 – Vehicles built between 3/96 and 9/97

1 58223-0XX Saddle Assembly, See Figure 1 on Page 9 2

Includes Key Nos. 2-9

2 60879-000L Bolster Spring Kit, One Set (2 pc) 2

3 25114-011

"-20 UNF 1.25" Bolt 32

4 22962-027

" Hardened Washer 64

5 48949-000

"-20 UNF Locknut 32

6 57962-000 Auxiliary Spring 2

7 57993-002 Auxiliary Spring Shim 4

8 57993-003 Auxiliary Spring Shim 6

9 24531-018 ½"-13 UNC 1.75" Bolt 4

10 24531-019 ½"-13 UNC 2.75" Bolt 8

11 22962-014 ½" Hardened Washer 40

12 49846-000 ½"-13 UNC Locknut 16

13 57878-003 Rebound Strap 2

14 57787-000 Anchor Plate 2

15 24531-017 ½"-13 UNC 2.25" Bolt 4

16 57461-000 Saddle Vee Bracket 2

58440-001 Vee Bracket Fastener Kit, One Side,

Includes Key Nos. 17-19

17 50764-006

"-10 UNC-2A Hex Head Bolt 8

18 22962-001

" Washer 16

19 49842-000

"-10 UNC-2B Locknut 8

20 60680-003L Shock Absorber 4

21 22962-001 ¾" Washer 4

22 30585-000

" Upper Shock Locknut 4

23 22962-004

" Upper Shock Washer 4

24 58227- Beam Assembly, Specify Length, 2

Includes Key Nos. 11-15, 25-31

25 22962-028 ¼" Washer 4

26 49972-000 Nylon Bushing 2

27 49983-000 ¼"-20 UNC Locknut 2

28 50698-000 ¼"-20 UNC 4.50" Bolt 2

29 56910-000 Center End Cap 2

30 Bar Pin End Bushing Service Kit, One Wheel End,

Includes Key Nos. 31-35

34013-088L Shim Type

34013-188L Rotating, Shim Type

31 *Bar Pin End Bushing 4

32 Bar Pin Shim 8

50130-000 0.19" /0.19"

50131-000 0.25"/0.12"

33 48941-000 1"-8 UNC 6.0" Hex Bolt 4

34 22962-008 1" Hardened Washer 8

35 48942-000 1"-8 UNC Locknut 4

36 44643-011 Cross Tube 1

37 Longitudinal Torque Rod Assembly

**One-piece Straddle/Straddle

• ULTRA ROD®, Includes Key No. 39a

62000-XXX Front, Specify Length in mm 1

62001-XXX Rear, Specify Length in mm 1

• ULTRA ROD® PLUS™, Includes Key No. 39b

72000-XXX Front, Specify Length in mm 1

72001-XXX Rear, Specify Length in mm 1

**Two-Piece Straddle/Straddle Kit

60218-000 • ULTRA ROD, Includes Key No. 39a

38 ***Transverse Torque Rod Assembly 2

**One-piece Straddle/Taper, Specify Length in mm

62350-XXX • ULTRA ROD, Includes Key No. 39a-40a

72350-XXX • ULTRA ROD PLUS, Includes Key No. 39b-40b

**Two-Piece Straddle/Taper Kit,

60215-000 • ULTRA ROD, Includes Key No. 39a-40a

65781-000 • ULTRA ROD PLUS, Includes Key No. 39b-40b

39 Straddle Bushing 4

a 47691-000 ULTRA ROD

b 64400-002L ULTRA ROD PLUS

40 Taper Bushing 2

a 64697-000H ULTRA ROD

b 64400-004L ULTRA ROD PLUS

41 22186-000 Torque Rod Frame Bracket 4

42 45045-003 Backup Plate 2

43 ****Torque Rod Axle Bracket 2

44 49689-000 Torque Rod Shim (As Required)

Not Shown 70867-001 Torque Rod Bushing P-80 Lubricant -10 ml.

(per each bushing)

NOTE: Equalizing beam axle brackets for drive axles are supplied by the axle manufacturer.

* Item included in assembly/kit only, part not sold separately.

** Hendrickson’s part number is stamped on the torque rod for identi cation. Be sure to include the suf x number when ordering, this number indicates

torque rod length. The Hendrickson 2-piece ULTRARODS® can be used to create the desired length, see Torque Rod Selection Guide Literature No.

45745-148.

*** Transverse torque rods are mandatory for HN Suspension regardless of axle spacing. See Literature No. 59310-004 for more information.

**** Not supplied by Hendrickson, used for reference only, refer to the vehicle manufacturer for more information. Hendrickson is not responsible for

components supplied by the vehicle manufacturer.

HN® Series

Preventive Maintenance 16 17730-227

SECTION 6

Preventive Maintenance

Hendrickson recommends that preventive maintenance be performed on a regular basis to

ensure all components function to their highest efficiency. Proper preventive maintenance pro-

grams will help control repair costs, reduce downtime, and provide safe and reliable operation.

All new equipment should be given an initial pre-service inspection.

HENDRICKSON RECOMMENDED PREVENTIVE MAINTENANCE INTERVALS

■ PRE-DELIVERY INSPECTION – First 100 Miles / 150 Kilometers

Total Suspension Miles / Kms.

1. Visually inspect suspension for proper assembly.

2. Check all fasteners for proper torque with special attention to the equalizing beam end

connections.

3. Set auxiliary spring shims to required specifications, the number of shims is dependent on

the following criteria:

■ Vehicle empty weight

■ Vehicle application

■ Roll stability versus ride requirements

4. Verify the lateral alignment of axles are within the vehicle manufacturer’s tolerances (con-

sult the applicable vehicle manufacturer’s instructions).

■ INSPECTION – First 1,000 Miles / 1,600 Kilometers of Pre-delivery or

Suspension Service

1. Visually inspect suspension components. Check for:

■ Proper suspension function

■ Signs of unusual movement, loose or missing components

■ Signs of abrasive or adverse contact with other components

■ Damaged, bent or cracked parts

2. Check all fasteners for proper torque with special attention to the equalizing beam end

connections.

■ PREVENTIVE MAINTENANCE

1. Every three months inspect auxiliary springs and bolster springs.

2. Every six months inspect equalizing beam end connections.

3. Every twelve months:

a. Visually inspect suspension for proper assembly

b. Check all fasteners for proper torque with special attention to the equalizing beam end

connections.

c. Verify the lateral alignment of axles are within the vehicle manufacturer’s tolerances

(consult the applicable vehicle manufacturer’s instructions).

d. Visually inspect suspension components. Check for all of the following and replace

components as necessary:

■ Proper suspension function

■ Signs of unusual movement, loose or missing components

■ Signs of abrasive or adverse contact with other components

■ Damaged, bent or cracked parts

HN® Series

17730-227 17 Preventive Maintenance

COMPONENT INSPECTION

The following inspections should be performed at vehicle pre-delivery and other intervals as

may be specified. Visually inspect all parts of the suspension for signs of wear, damage or move-

ment. Look for bent or cracked parts. Replace all worn or damaged parts.

IMPORTANT NOTE Replace all worn or damaged parts.

■ Auxiliary spring and Bolster spring — See auxiliary spring and bolster spring inspection

in this section.

■ Equalizing beam assembly — Check the overall condition of the equalizing beam for

cracks, dents, dings, or other damage on the outer edges of the beam. Check the beam end

connections every six months for tearing or extreme bulging. Check for any metal-to-metal

contact in the bushed joints. Replace all worn or damaged parts.

■ Fasteners — All fasteners must be inspected at vehicle pre-delivery, first 1,000 miles, and

every twelve months thereafter. Look for any loose or damaged fasteners on the entire sus-

pension. Make sure all fasteners are tightened to a torque value within the specified torque

range. See Torque Specification Chart in this publication for Hendrickson recommended

torque requirements. Use a calibrated torque wrench to check torque in the tightening

direction. As soon as the fastener starts to move, record the torque. Correct the torque if

necessary. Replace any worn or damaged fasteners.

NOTE Hendrickson recommends the use of Grade 8 bolts, Grade C locknuts and hardened washers for

all suspension component attachments.

■ Saddle assembly — Check all attaching fasteners for proper torque. Visually inspect the

saddle for signs of movement on the frame rail or damage. Inspect the area around the

saddle gussets for cracks. Saddles with a single center gusset may have the center gusset

weld repaired and a center reinforcing bracket installed. Refer to Hendrickson Literature

Number 59310-006 for specific details.

■ Shock absorber — Look for any signs of dents or leakage. Misting is not considered a leak.

See Shock Absorber Inspection in this section.

■ Torque rod — All torque rods must be inspected every six months for looseness, torn or

shredded rubber, bushing walk-out, and for proper fastener torque. Inspect for bent, cracked

or broken torque rods and also for end hubs that have an elongated “oval” shape. If there is

metal-to-metal contact in the bushing joint, this is a sign of excessive bushing wear and the

bushing needs to be replaced. Replace all worn or damaged parts.

■ Vee Bracket — Raise the vehicle frame and visually inspect the Vee bracket for wear or

damage. Look for excessive wear or cracks on the Vee bracket’s auxiliary spring contact

surface. Replace all worn or damaged parts.

■ Wear and Damage — Inspect all parts of the suspension for wear and damage. Look for

bent or cracked parts. Replace all worn or damaged parts.

See vehicle manufacturer’s applicable publications for other preventive maintenance

requirements.

HN® Series

Preventive Maintenance 18 17730-227

AXLE BRACKET

The axle brackets are furnished and welded into position by the vehicle or axle manufacturer.

FIGURE 6-1 FIGURE 6-2

■ When inspecting the equalizing beam end connection also inspect the axle brackets for

damage or cracks, see Figure 6-1. Measure the dimension as shown in Figure 6-1, any axle

bracket that is found damaged or cracked must be repaired or replaced. Consult the vehicle

manufacturer for inspection, component repair and replacement instructions.

■ When an equalizing beam is removed for repair, or an inspection of the equalizing

beam end connection reveals movement, measure the distance between the axle bracket

legs for correct width. Refer to Figure 6-2 for measurement location and dimensions. An

axle bracket outside of the measurement range must be repaired or replaced. Consult the

vehicle manufacturer for inspection, component repair and replacement instructions.

EQUALIZING BEAM END CONNECTION

An inspection of the beam end connection is necessary when a vehicle is in the shop for major

repair work or every six months, whichever comes first. Periodic visual inspection by the driver

and service personnel is also recommended. Off-highway and severe service operating condi-

tions require more frequent inspections than on-highway service operation.

NOTE The equalizing beam end connection requires that the fasteners are tightened to torque

specifications to maintain the clamp load of the axle bracket legs to the bar pin. All bushing

motion is accommodated by rubber deflection.

VISUAL INSPECTION

1. Chock the wheels.

2. Visually inspect suspension components for signs of movement or excessive wear.

■ Inspect alignment shims in equalizing beam end for looseness. Lightly tap on the

alignment shims to see if they can be moved. If the movement is detected, refer to the

bar pin fastener re-torque in the Equalizing Beam Component Replacement Section.

■ Inspect equalizing beam end connection for signs of excessive wear or looseness.

SERVICE HINT An equalizing beam end connection, which is visibly cleaner than the other connections, may

indicate a loose connection.

■ Look for worn, frayed or distorted rubber in the beam end bushing, see Figure 6-3.

■ Look for the equalizing beam to be lower in the beam hanger, see Figure 6-3.

Axle Bracket* Leg Dimensions Axle Bracket* Leg

Axle

Typical Crack

Look for cracks

in these locations

2.313" (58.74 mm)

2.263" (57.48 mm)

8.5"

216 mm *Typical axle bracket shown

HN® Series

17730-227 19 Preventive Maintenance

FIGURE 6-3

■ If it is visually offset a jack test should be performed. Place a jack under each beam

end as shown. Raise the jack to check for movement in the connection or rubber

components, see Figure 6-4.

FIGURE 6-4

NOTE The gap at each side of the visible rubber on the lower

part of the end bushing is normal, see Figure 6-4, and

is not an indication to replace the bushing. Because all

rubber end bushings are in compression, with the load

bearing on the top side, the lower side of the rubber is

slightly relieved, allowing the rubber to move inward, and

a gap appears.

PHYSICAL INSPECTION

IF BAR PIN MOVEMENT OR LOOSENESS IS NOTED IN

THE EQUALIZING BEAM END HUB, DO NOT OPERATE THE

VEHICLE. REPLACE THE RUBBER END BUSHINGS AND ALL

CONNECTING PARTS. THE ABOVE CONDITION CAN RESULT

IN COSTLY REPAIR, DOWNTIME, POSSIBLE SEPARATION OF COMPONENTS, LOSS OF VEHICLE

CONTROL, PROPERTY DAMAGE, OR PERSONAL INJURY.

1. If bar pin movement or looseness is detected in the equalizing beam end hub, DO NOT

operate vehicle. Replace the equalizing beam end bushings and all connecting parts. Refer

to the Component Replacement Section of this publication.

2. Check and record torque values, as received, for each 1" bar pin fastener, see Figure 6-5.

Correct torque values as required making sure all fasteners are tightened to:

■ At the locknuts tighten to 450-600 foot pounds torque or

■ At the bolt head tighten to 500-650 foot pounds torque

3. Recheck equalizing beam end connections for signs of looseness.

■ Inspect alignment shims in equalizing beam end for looseness. Lightly tap on the

alignment shims to see if they can be moved. If the movement is detected, refer to the

bar pin fastener re-torque in the Equalizing Beam Component Replacement Section.

■ Inspect equalizing beam end connection for signs of excessive wear or looseness.

NOTE An equalizing beam end connection, which is visibly cleaner than the other connections, may

indicate a loose connection.

4. If bar pin looseness is still detected in the equalizing beam end hub, DO NOT operate the

vehicle. One or more components will require replacement, see Component Replacement

Section of this publication.

HN® Series

Preventive Maintenance 20 17730-227

FIGURE 6-5

BAR PIN END BUSHING

FIGURE 6-6

An indication that the bar pin end bushing requires

replacement is when one or more of the following

conditions apply:

■ Visual inspection of contact areas (the flat face

areas where bar pin contacts the axle bracket)

on the bar pin reveals signs of excessive wear. If

the thickness between the bar pin contact areas

measures less than 1.874", bar pin end bushing

requires replacement, see Figure 6-6.

■ Visual inspection of the bolt holes in the bar pin

reveals signs of elongation or wear, see Figure 6-6.

BAR PIN SHIM

An indication that the bar pin shims require replacement is when one or more of the following

conditions apply:

■ Visual inspection of contact areas, see Figure 6-7, on the shim reveals signs of excessive

wear.

■ The thickness of any single leg on the shim, is less than the measurement shown in Figure

6-7, replacement of bar pin shim is required.

FIGURE 6-7

Thickness

of the

Shim Leg

Contact Areas Part No. 50130-000 shown

Original

Thickness

of Shim Leg

Minimum

Thickness

Required

Part Number

1⁄8" 0.123" (3.1 mm) 50131-000

3⁄16" 0.186" (4.7 mm) 50130-000

¼" 0.248" (6.3 mm) 50131-000

3⁄8" 0.371" (9.4 mm) 57026-000

HN® Series

17730-227 21 Preventive Maintenance

LONGITUDINAL AND TRANSVERSE TORQUE ROD

HN SUSPENSIONS INCORPORATE LONGITUDINAL AND TRANSVERSE RODS FOR VEHICLE STABILITY.

IF THESE COMPONENTS ARE DISCONNECTED OR ARE NON-FUNCTIONAL, THE VEHICLE SHOULD NOT

BE OPERATED. FAILURE TO DO SO CAN RESULT IN ADVERSE VEHICLE HANDLING, LOSS OF VEHICLE

CONTROL, POSSIBLE TIRE CONTACT WITH THE FRAME, PREMATURE COMPONENT DAMAGE, OR

SEVERE PERSONAL INJURY.

All torque rods need to be inspected for looseness by one of the following methods.

■ Method 1 — For Tractor applications only with brakes applied, slowly rock the empty

vehicle with power while a mechanic visually checks the action at both ends.

■ Method 2 — with the vehicle shut down, a lever check can be made with a long pry bar

placed under each rod end and pressure applied.

Visually inspect torque rod bushings for torn or shredded rubber, inspect for bent, cracked, or

broken torque rods and also for end hubs that have an elongated “oval” shape. Any of these

conditions require component replacement.

NOTE Refer to vehicle manufacturer’s service instructions for proper torque rod length.

The length of the torque rods is determined by the truck manufacturer for optimum drive line

angles. The longitudinal torque rods control these angles and also absorb acceleration and

braking forces. The mounting brackets at the axle ends of the torque rods are furnished and

welded into position on the axle housings by vehicle manufacturer or the axle manufacturer. A

two-piece torque rod is also available to cut and weld to the desired length, see Hendrickson

publication 45745-148.

Straddle mount torque rod end attaching fasteners are furnished by the vehicle manufacturer.

It is important that the tightening torque of the locknuts be checked during preventive mainte-

nance service. Follow the vehicle manufacturer’s specifications for torque values.

NOTE Hendrickson Suspension recommends Grade 8 bolts, hardened flat washer and Grade C

locknuts be used for all straddle mount torque rod attachments.

The longitudinal rod is straddle/straddle mount, and the transverse rod is straddle mount / taper

pin mount, as shown in Figure 6-8.

FIGURE 6-8

Whether the bushings are

straddle mount or taper pin

mount, (see Figure 6-8) they

can be replaced by press-

ing out the worn bushing

and installing a new genuine

Hendrickson bushing. Refer to

the Component Replacement

Section of this publication.

BOLSTER SPRING

Inspect all four bolster springs on a periodic basis. Actual bolster spring service condition and

performance may vary depending upon suspension and vehicle configuration, operation,

service and other factors. The following inspection guidelines are intended to assist vehicle

operators and maintenance personnel in examining the bolster springs and determining when

replacements may be needed. In the event one bolster spring on one equalizing beam assem-

bly shows signs of damage or excessive wear, Hendrickson recommends that both bolster

springs installed on that equalizing beam assembly be replaced. When the bolster springs are

replaced on one side only, the vehicle may lean slightly. The new bolster springs will tend to

settle to some degree, and return the vehicle to its original condition. The following procedure is

recommended for proper inspection.

HN® Series

Preventive Maintenance 22 17730-227

1. Chock the front wheels to prevent movement of the vehicle during inspection of the

suspension.

2. Raise rear of vehicle approximately 4.0" - 5.0", (102 mm - 127 mm) just prior to lifting

wheels off ground, and support with stands.

3. Inspect all bolster springs using the following criteria. If cuts, splits, or bonding separa-

tion are detected in the rubber, measure the depth of the damaged area using a six-inch

machinist scale to determine if replacement is required.

■ Bent, burred or overhanging edges of the bolster spring metal plates may occur due

to mishandling in service. If the rubber is not trapped, and there are no sharp metal

edges in contact with the free surface of the rubber, this condition is acceptable.

■ Creases formed by folding of the rubber surface under load are acceptable. These creas-

es appear as stripes on the surface, polished by wear or covered with tacky rubber.

■ Minor oil and grease contamination in the rubber due to vehicle operation is accept-

able. A slight change in shape of the rubber due to permanent set should not be

mistaken for oil and grease contamination. Certain softening of the rubber surface

is acceptable. However, unacceptable swelling due to contamination will require bol-

ster spring replacement. Measure bolster springs in the unloaded state. If the rubber

diameter of the bolster spring exceeds 8¾" (222.25 mm), see Figure 6-9, then bolster

spring replacement is necessary.

■ Cuts or Splits in the rubber of over 3.0" (76 mm) in length and an average depth of

1.0" (25.4 mm) are not acceptable and require bolster spring replacement. In par-

ticular, look for signs of cuts or splits in the rubber at points indicated in Figure 6-9 as

“///////”.

■ Bonding separation of the rubber from a bonded metal surface to a depth of up to

1½" (38 mm) is acceptable. If any bonding separation is more than 1½" (38 mm)

deep, both bolster springs should be replaced on the affected side of the vehicle (see

Figure 6-9). An unloaded bolster spring may be inspected for any bonding separa-

tion by measuring at points indicated in Figure 6-9 as “///////”. Any thin film or other

residual rubber material on the metal plates resulting from the molding process may

be ignored during inspection.

FIGURE 6-9

8¾" (222.25 mm) Maximum

1½"

(38 mm)

AUXILIARY SPRING

A visual inspection of the auxiliary spring is required every three months. It is acceptable to have

some scuffing on the bottom edges of the auxiliary spring due to contact with the bolster springs

and/or Vee bracket. If the auxiliary spring is damaged, replace the auxiliary spring as outlined in

the Component Replacement Section of this publication.

See Table 6-1 for the normal and minimum unloaded auxiliary spring height. If the unloaded

height decreases below the minimum unloaded height as shown in the Table 6-1, replacement is

required, see Figure 6-10.

HN® Series

17730-227 23 Preventive Maintenance

FIGURE 6-10

Table 6-1

Auxiliary Spring Unloaded Height

Vehicles built between Part No. NORMAL MINIMUM

November 2000-Current 60314-000 33⁄8" (85.7 mm) 3" (76 mm)

65902-003 21⁄8" (53.9 mm) 115⁄16" (49.2 mm)

September 1998-November 2000 58947-000 4" (101.6 mm) 3½" (88.9 mm)

April 1996-September 1998 58189-000 2¾" (70.1 mm) 2" (50.8 mm)

SHOCK ABSORBER

Hendrickson uses a long service life, premium shock absorber on all HN suspensions. If shock

absorber replacement is necessary, Hendrickson recommends that the shock absorbers be

replaced with identical Hendrickson Genuine parts for servicing. Failure to do so will affect

the suspension performance, durability, and will void the warranty. Inspection of the shock

absorber can be performed by doing a heat test, and a visual inspection. For instructions on

shock absorber replacement see the Component Replacement Section of this publication. (It is

not necessary to replace shock absorbers in pairs if one shock absorber requires

replacement.)

FIGURE 6-11

HEAT TEST

1. Drive the vehicle at moderate speeds on rough

road for minimum of fifteen minutes.

DO NOT GRAB THE SHOCK AS IT COULD POSSIBLY

CAUSE PERSONAL INJURY.

2. Lightly touch the shock body carefully below the

dust cover, see Figure 6-11.

3. Touch the frame to get an ambient reference.

A warm shock absorber is acceptable, a cold

shock absorber should be replaced.

4. To inspect for an internal failure, remove and

shake the suspected shock. Listen for the sound

of metal parts rattling inside. Rattling of metal

parts can indicate that the shock has an internal

failure.

VISUAL INSPECTION

Look for these potential problems when doing a visual inspection. Inspect the shock absorbers

fully extended. Replace as necessary.

HN® Series

Preventive Maintenance 24 17730-227

FIGURE 6-12

LEAKING VS. MISTING SHOCK VISUAL INSPECTION

The inspection must not be conducted after driving in wet weather or a vehicle wash; shocks

need to be free from water. Many shocks are often misdiagnosed as failures. Misting is the

process whereby very small amounts of shock fluid evaporate at a high operating tempera-

ture through the upper seal of the shock. When the “mist” reaches the cooler outside air, it

condenses and forms a film on the outside of the shock body. Misting is perfectly normal and

necessary function of the shock. The fluid which evaporates through the seal area helps to lubri-

cate and prolong the life of the seal.

FIGURE 6-13

A shock that is truly leaking and needs to be

replaced will show signs of fluid leaking in streams

from the upper seal. These streams can easily be

seen when the shock is fully extended, under-

neath the main body (dust cover) of the shock.

Look for these potential problems when doing a

visual inspection. Inspect the shock absorbers fully

extended. Replace as necessary.

NOTE The HN suspension is equipped with a premium

seal on the shock, however this seal will allow for

misting to appear on the shock body (misting is

not a leak and is considered acceptable).

If the shock is damaged, install a new shock

absorber as detailed in the Component Replace-

ment Section of this publication.

REBOUND STRAP

The rebound strap, see Figure 6-14, helps prevent the overextension of the bolster springs during

normal vehicle operation. Periodic visual inspection of the rebound strap is required every six

months. If the rebound strap is torn, frayed or not intact, replace as outlined in the Component

Replacement Section of this publication.

FIGURE 6-14

Rebound

Strap

Anchor

Plate

Assembly

Rebound Strap

Mounting Plate

Anchor Plate

Assembly

Rebound

Strap

4/96 – 9/989/98 – 11/0011/00 – Current

Rebound

Strap

Anchor

Plate

Assembly

HN® Series

17730-227 25 Alignment & Adjustments

SECTION 7

Alignment & Adjustments

DRIVE AXLE ALIGNMENT INSPECTION PROCEDURE

Proper alignment is essential for maximum ride quality, performance, and tire service life. The

following recommended alignment procedure as described below, should be performed if

excessive or irregular tire wear is observed.

NOTE Proper vehicle alignment can only be achieved when all axles are aligned to the vehicle’s

centerline and the steering axle’s caster, camber and toe-in settings are within specifications.

If, however, axle alignment equipment is not available the alignment of the drive axles may be

checked by performing the following steps.

1. Use a work bay with a level, flat surface.

2. Relax the suspension by slowly moving the vehicle back and forth several times in a straight

line without using the brakes. This will slacken or loosen the suspension as the vehicle is

positioned. End with all wheels positioned straight ahead.

3. DO NOT set the parking brake. Chock the front wheels of the vehicle.

4. Verify all suspension components are in good condition. Repair or replace any worn or

damaged suspension components before proceeding with the alignment process.

5. Ensure all drive axle tires are the same size.

FIGURE 7-1

6. Securely clamp a six-foot piece of

STRAIGHT bar stock or angle iron

across the lower frame flange as

shown in Figure 7-1. Select a loca-

tion for the bar stock or angle iron

as far forward of the drive axle as

possible where components will not

interfere.

7. Accurately square the bar stock or

angle iron to the frame using a car-

penter’s square.

8. Using a measuring tape, measure

from the straight edge to the forward

face of the front drive axle arms on

both sides of the vehicle as shown

in Figure 7-1, A and B.

9. Calculate the difference between measurements A and B.

a. If the front drive axle is within vehicle manufacturer’s specifications, proceed to check

the rear drive axle (Step 11).

b. If alignment of the front drive axle IS NOT within the vehicle manufacturer’s specifica-

tions, then the alignment of this axle MUST be corrected BEFORE measuring the rear

drive axle alignment (Step 11). Correct the alignment of this axle by following the bar

pin alignment instructions.

NOTE Since the remaining drive axle will be aligned relative to the front drive axle, it is essential

that the front drive axle is aligned within the vehicle manufacturer’s specifications prior to the

alignment of the remaining drive axle.

10. Using a trammel bar, measure the distance from the spindle center of the front drive axle to

the spindle center of the rear drive axle on both sides of the vehicle; see Figure 7-1, Cand D.

FRONT

Trammel Bar

HN® Series

Alignment & Adjustments 26 17730-227

11. Calculate the difference between measurements Cand D.

a. If the measurements are within the vehicle manufacturer’s specifications, then the rear

drive axle alignment is acceptable.

b. If alignment of the rear drive axle IS NOT within the vehicle manufacturer’s specifica-

tions, then the alignment of this axle MUST be corrected. Correct the alignment of this

axle by following the bar pin alignment instructions.

12. Recheck measurements to confirm adjustments. Repeat Steps 9 through 12 until the cor-

rect alignment is achieved.

13. When all drive axle alignments are within the vehicle manufacturer’s specifications then

the alignment procedure is complete.

BAR PIN ALIGNMENT

FIGURE 7-2

The alignment feature consists of

specially designed, tightly tolerance

steel shims which fill the 3⁄8" (9.5

mm) total gap between the bushing’s

bar pin and the axle bracket legs. The

gap must be filled by placing the

shims on the bushing assembly in

one of the positions shown in Figures

7-2 or 7-3. Hendrickson has three

shim designs options for alignment,

part number 50130-000 (provided),

50131-000 and 57026-000, see

Figure 7-5.

A BAR PIN SHIM MUST BE INSTALLED

AT EACH BOLT LOCATION. THE SAME

PART NUMBER SHIM IN THE SAME

ORIENTATION MUST BE USED AT BOTH

BOLT LOCATIONS ON ANY ONE END

BUSHING. DO NOT INSTALL OR STACK

MORE THAN ONE SHIM AT EACH BOLT LOCATION. USE GENUINE HENDRICKSON BAR PIN SHIMS, DO

NOT USE STANDARD WASHERS. FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN IMPROPER

VEHICLE ALIGNMENT, FRACTURE OF THE AXLE BRACKET OR BAR PIN WHICH COULD RESULT IN THE

LOSS OF VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE.

ALIGNMENT ADJUSTMENT

If alignment of the drive axles is required, as determined by an alignment inspection procedure,

the following steps will need to be performed.

1. Determine direction of axle thrust angle. Figure 7-4 illustrates the forward drive axle with a

thrust angle to the left (-negative thrust).

SERVICE HINT Axle movement is in the same direction as whichever side of the bar pin receives an increase in

shim thickness, see Figure 7-3.

2. To determine where to adjust shim thickness use measurement A and B for front drive axle

or C and D for rear drive axle, see Figure 7-1.

Axle Bracket

Supplied by vehicle

manufacturer

1" Locknut

Tightening Torque

450-600 ft. lbs.

1" Washer

1" Bolt

Tightening Torque

500-650 ft. lbs.

Bar Pin

Alignment

Shim

Bar Pin

HN® Series

17730-227 27 Alignment & Adjustments

FIGURE 7-3

FIGURE 7-4

SERVICE HINT Axle movement will be on the

side of the bar pin where shim

thickness is increased. For

example, to correct the axle

thrust angle illustrated in Figure

7-4, shim thickness will need to

be increased at the front of the

bar pin (Location X) and/or the

rear of the bar pin (Location Y).

NOTE Computerized alignment

equipment, such as a Hunter

WT100 series, is the preferred method of alignment. Laser alignment equipment may be used,

however, to calculate the shim thickness required the target offset must be converted to thrust

angle, see alignment equipment manufacturer for procedures.

3. Chock the wheels of the front axles to prevent vehicle movement during service.

4. Raise the frame of the vehicle to remove the load from the suspension. Support the frame

at this height with frame stands.

5. Support the equalizing beam and remove the fasteners from the end bushing where the

bar pin alignment shim adjustment is being made.

Nominal Axle Moves

Axle

Bracket

*Alignment Shim *Alignment Shim

*Alignment Shim

Axle Moves

Bar

Axle

Bracket

Axle

Bracket

Bar

/ (9.5 mm)

316/" (4.8 mm)

Equalizing

Beam

Center

Equalizing

Beam

Center

Equalizing

Beam

Center

/ (9.5 mm)

"38

/ (9.5 mm)

316

/" (4.8 mm) 316/" (4.8 mm)

Toward Rear Toward Front

* Alignment shim P/N 50130-000 is shown. Refer to Figure 7-5 for leg and back dimensions on shim P/Ns 50131-000 and 57026-000

HN® Series

Alignment & Adjustments 28 17730-227

6. Adjust shim thickness to move the axle in the desired direction, see Figure 7-3.

EACH BAR PIN END BUSHING HAS ONE INBOARD AND ONE OUTBOARD ALIGNMENT SHIM, FOR

A TOTAL OF FOUR SETS OF TWO ALIGNMENT SHIMS PER SUSPENSION. EACH SET OF ALIGNMENT

SHIMS ON A BAR PIN END BUSHING MUST BE INSTALLED IN THE SAME ORIENTATION. EACH OF

THE FOUR BAR PIN END BUSHING SHIM LOCATIONS CAN DIFFER IN ORIENTATION. SEE FIGURE 7-2.

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN THE FRACTURE OF EITHER THE AXLE BRACKET

OR BAR PIN WHICH COULD RESULT IN THE LOSS OF VEHICLE CONTROL AND POSSIBLE PERSONAL

INJURY OR PROPERTY DAMAGE.

THE BAR PIN ALIGNMENT SHIM (P/N 50130-000) MUST BE INSTALLED WITH THE FOLDED EDGE

FACING AWAY FROM THE BUSHING, SEE FIGURE 7-5. FAILURE TO DO SO MAY RESULT IN SHIM DAMAGE,

IMPROPER ALIGNMENT, DAMAGE OR FRACTURE OF THE AXLE BRACKET OR BAR PIN WHICH COULD

RESULT IN THE LOSS OF VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE.

7. Install new end bushing fasteners and tighten to:

■ At the locknut to 450-600 foot pounds torque, or

■ At the bolt head to 500-650 foot pounds

8. Remove support and lower the vehicle.

9. Verify the axle’s alignments are within the vehicle manufactures tolerance.

10. Set brakes and remove wheel chocks.

BAR PIN ALIGNMENT SHIM

The following service notes will help when performing Hendrickson equalizing beam bar pin alignment

■ The standard alignment shims supplied with each sus-

pension (P/N 50130-000) have two 3⁄16" legs and a 3⁄8"

back, see Figure 7-5. Rotating the shim pairs 90° will

change the axle alignment in ± 3⁄16" increments.

■ If finer adjustments are required use an optional align-

ment shim (P/N 50131-000). This alignment shim has

one 1⁄8" leg, one ¼" leg, and a 3⁄8" back, see Figure 7-5. A

total of ¾" adjustment is achievable to the axle.

■ An optional 3⁄8" flat shim is also available (P/N

57026-000), see Figure 7-5.

FIGURE 7-5

■ Shim thickness of 1⁄16" increases 0.10° of thrust angle.

■ To accomplish a thrust angle adjustment rotate the

alignment shims on the bar pin of the end bushing.

Axle movement will be in the same direction as which-

ever side of the bar pin receives a shim thickness

increase.

■ Axle thrust angle may be adjusted at either wheel end

on an axle. If insufficient adjustment is available at

one wheel end, the opposing wheel end will also need

to be adjusted, but in the opposite direction.

Part Number

50130-000

Part Number

50131-000

Part Number

57026-000

316

/ " Leg

NOTE:

Folded edge

in 50130-000

shim must be

positioned away

from bushing

/ " Leg

¼" Leg

HN® Series

17730-227 29 Alignment & Adjustments

AUXILIARY SPRING SHIM EVALUATION

FIGURE 7-6

The HN suspension uses a dual spring

design to achieve a good empty ride while

maintaining a stable ride when loaded.

When empty, the vehicle rides on the bol-

ster springs and there is an air gap between

the auxiliary springs and the vee brackets.

When loaded, the weight of the vehicle

compresses the bolster springs so the auxil-

iary spring engages the vee bracket thereby

increasing roll stability. Vehicles with a low

unladen tandem weight or a high center of

gravity may require increased roll stability.

On these vehicles, auxiliary spring shims

can be added above the auxiliary spring

so the auxiliary spring and the vee bracket

engage sooner. This may eliminate any gap

between the auxiliary springs and the vee bracket.

Production vehicles specified with the HN suspension are typically equipped with three (3)

auxiliary spring shims, see Figure 7-6. Some vehicles are manufactured with less shims to

minimize the need for adjustment after the body equipment is installed.

To achieve optimal ride quality and stability the unladen tandem weight of some vehicles will

dictate the auxiliary spring shim arrangement, see Table 7-1.

TABLE 7-1

RECOMMENDED NUMBER OF AUXILIARY SPRING SHIMS FOR THE FOLLOWING APPLICATIONS

**Vehicle / Application

*Unladen Tandem Weight With Body / Equipment Installed

Normal

10,000-18,000 lbs.

Medium

18,001-23,000 lbs.

Heavy

23,001-28,000 lbs.

Dump Truck 3 Shims 2 Shims 2 Shims

Refuse Front Load Dump 3 Shims 5 Shims 5 Shims

Refuse Front Load Eject 3 Shims 2 Shims 1 Shim

Refuse Rear Load Eject 3 Shims 2 Shims 1 Shim

Refuse Side Loader 3 Shims 2 Shims 1 Shim

Refuse Side Loader Dump 3 Shims 5 Shims 5 Shims

Refuse Recycler Dump 3 Shims 5 Shims 5 Shims

Refuse Recycler Eject 3 Shims 2 Shims 1 Shim

Transit Mixer 3 Shims 3 Shims 1 Shim

Crane Carrier 3 Shims 5 Shims 5 Shims

* Matrix based on extensive  eld testing under varying conditions.

** Contact Hendrickson Tech Services for applications not listed.

ADJUSTMENT NOTES

1. Both sides of the HN suspension MUST have an equal number of auxiliary spring shims, in

place or a vehicle lean may result.

2. A maximum of five (5) and a minimum of one (1) auxiliary shim(s) may be installed per

side above the auxiliary spring.

3. After determining the proper amount of shims required, install or remove the shims as

needed, see Auxiliary Spring Shim Adjustment in this Section.

HN® Series

Alignment & Adjustments 30 17730-227

AUXILIARY SPRING SHIM ADJUSTMENT

DISASSEMBLY

1. Chock the front wheels of the vehicle.

2. Remove the fasteners that attach the auxiliary spring shims to the auxiliary spring mounting

plate, see Figure 7-7.

SERVICE HINT If the auxiliary spring is in contact with the auxiliary spring shims, it will be necessary to raise the

frame of the vehicle to service the auxiliary spring shims.

3. Remove or install additional shims as per the guidelines detailed in Table 7-1.

ASSEMBLY

NOTE The bolt length varies with the amount of shims installed. Ensure there is at least three (3)

threads exposed past the locknut.

1. Install the fasteners that attach the auxiliary spring shims to the auxiliary spring mounting

plate and tighten to 75-105 foot pounds torque, see Figure 7-7.

2. Remove wheel chocks.

FIGURE 7-7

11/00-CURRENT 9/98-11/00

½" Round Head Bolt

Outboard

¼" Thick

Spacer

Auxiliary Spring

Mounting Plate

¼" Thick Shim

Auxiliary

Spring

Auxiliary Spring

Mounting Plate

½" Locknut

Tightening Torque

75-105 ft. lbs.

½" Washer

Saddle Assembly

Auxiliary Spring Shims

(as required)

½" Round Head Bolt

Saddle Assembly

Auxiliary Spring Shims

(as required)

Auxiliary Spring

Mounting Plate

¼" Thick Shim

Auxiliary Spring

Mounting Plate

½" Locknut

Tightening Torque

75-105 ft. lbs.

½" Washer

½" Bolt

½" Washer

Auxiliary Spring

Mounting Plate

¼" Thick Shim

Auxiliary Spring

/ " Rebound

Strap Mounting

Plate

HN® Series

17730-227 31 Component Replacement

SECTION 8

Component Replacement

FASTENERS

When servicing a vehicle Hendrickson recommends replacing all removed fasteners with new

equivalent fasteners. Maintain correct torque values at all times. Check torque values as specified,

see Hendrickson’s Torque Specifications Section of this publication. If non-Hendrickson fasteners

are used, follow torque specifications listed in the vehicle manufacturer’s service manual.

SERVICE HINT When replacing components on the HN suspension, work one side of the vehicle at a time

and only lift the vehicle enough to remove load and component. This will help maintain axle

orientation and help reduce labor time and effort.

SADDLE

DISASSEMBLY

FIGURE 8-1

1. Chock the front wheels of the

vehicle.

2. Remove the fasteners from

the upper anchor plate

assembly and auxiliary

spring mounting plate, see

Figure 8-1.

3. Remove the fasteners con-

necting the auxiliary spring

to the saddle and the auxil-

iary spring outboard spacer,

see Figure 8-2. Remove the

auxiliary spring.

FIGURE 8-2

4. Loosen, DO NOT remove,

the eight (8) 7⁄16" fas-

teners connecting the

bolster springs to the sad-

dle assembly.

5. Remove the eight (8) 7⁄16"

fasteners connecting the

bolster springs to the vee

bracket.

6. Remove the four (4) ¾" fas-

teners from the vee bracket

and the equalizing beam.

Remove the vee bracket.

7. Remove the upper shock

absorber fasteners, from the

upper shock brackets. Push

the shock absorbers down

and clear of the upper shock

brackets.

Auxiliary Spring

Rebound Strap

Upper Anchor Plate Assembly

Auxiliary Spring

Mounting Plate

½" Anchor Plate

Fasteners

Tightening Torque

75-105 ft. lbs.

11/00-CURRENT

HN® Series

Component Replacement 32 17730-227

8. Raise the rear of the vehicle to clear the bolster springs from the equalizing beam. Support

the vehicle at this height.

9. Remove the eight (8) 7⁄16" fasteners that connect the bolster springs to the saddle, and

remove the bolster springs, see Figure 8-3.

THE WEIGHT OF THE SADDLE IS APPROXIMATELY 175 POUNDS. CARE SHOULD BE TAKEN AT REMOVAL

AND INSTALLATION TO PREVENT PERSONAL INJURY OR DAMAGE TO COMPONENTS.

10. Remove saddle to frame fasteners per the vehicle manufacturer’s specifications.

11. Remove the saddle.

FIGURE 8-3

ASSEMBLY

1. Mount the saddle to frame and tighten fasteners per the vehicle manufacture’s

specifications.

THE BOLSTER SPRING BOLT HEADS MUST BE POSITIONED AT THE RUBBER SIDE OF THE BOLSTER

SPRINGS TO PREVENT THE BOLSTER SPRINGS FROM BEING DAMAGED BY THE THREADED ENDS

OF BOLTS.

2. Mount the bolster springs to the saddle and loosely install the eight (8) 7⁄16" fasteners on the

bolster spring. Ensure the bolt heads are positioned to at the rubber side of the bolster springs.

DO NOT tighten at this time.

IF THE VEE BRACKET LOCATED BETWEEN THE EQUALIZING BEAM AND THE BOLSTER SPRINGS IS

DAMAGED, IT MUST BE REPLACED. FAILURE TO DO SO CAN CAUSE DAMAGE TO MATING COMPONENTS.

3. Remove the frame supports and lower the vehicle, guide the eight (8) lower bolster spring

studs into the vee brackets. Ensure the vee bracket sits at the bottom of the mounting slots

on the beam, see Figure 8-3.

4. Install the eight (8) lower 7⁄16" fasteners on the bolster spring.

5. Tighten all sixteen bolster spring fasteners to 33-45 foot pounds torque.

6. Mount the lower anchor plate assembly on the equalizing beam. Tighten to 75-105 foot

pounds torque, see Figure 8-3.

Saddle Assembly

716

/ " Locknut

Tightening Torque 33-45 ft. lbs.

Bolster Spring

Bolster Spring Stud

Vee Bracket

Equalizing Beam Mounting Slots

¾" Locknut

Tightening Torque 220-300 ft. lbs.

Equalizing Beam

716

/ " Locknut

Tightening Torque 33-45 ft. lbs.

HN® Series

17730-227 33 Component Replacement

7. Install the shock absorber fasteners, tighten to 70-90 foot pounds torque.

8. Mount auxiliary spring and auxiliary spring shims to saddle by installing the ½" bolts and

fasteners, see Figure 8-2.

9. Tighten to auxiliary spring fasteners to 90-105 foot pounds torque.

10. Mount the upper anchor plate assembly to auxiliary spring mounting plate by installing the

two (2) ½" bolts and fasteners and tighten to 75-105 foot pounds torque, see Figure 8-1.

11. Remove wheel chocks.

AUXILIARY SPRING

FIGURE 8-4

NOTE Tire removal is not necessary to

service the auxiliary spring.

DISASSEMBLY

1. Chock the front wheels of the

vehicle.

2. Raise the frame of the vehicle

just enough to remove the

load from the bolster springs.

Support the frame at this

height.

3. Remove the fasteners secur-

ing the auxiliary spring

mounting plate to the saddle, see Figure 8-4.

4. Slide the auxiliary spring off the auxiliary spring mounting plate.

ASSEMBLY

1. Slide the auxiliary spring onto the auxiliary spring mounting plate.

2. Install the auxiliary spring mounting plate to the saddle.

a. Auxiliary Spring (11/00-Current)

i. Install the auxiliary spring shim(s) if removed, auxiliary spring mounting plate and

auxiliary spring mounting plate shim onto the inboard fasteners. Loosely install

the washers and locknuts, see Figure 8-5.

ii. Install the outboard fasteners through the saddle, auxiliary spring shim(s), 0.25"

thick outboard spacer, and auxiliary spring mounting plate.

b. Auxiliary Spring (9/98-11/00)

i. Install the auxiliary spring shim(s) if removed; one of the auxiliary spring mounting

plate shims, and the auxiliary spring mounting plate onto the inboard fasteners.

Loosely install the washers and locknuts, see Figure 8-6.

ii. Install the outboard fasteners through the saddle, the auxiliary spring shim(s), the

other auxiliary spring mounting plate shim, and the rebound strap mounting plate.

Loosely install the washers and locknuts on the outboard fasteners, see Figure 8-6.

c. Auxiliary Spring (4/96-8/98)

i. Auxiliary spring is no longer available. Use conversion kit no. 57974-011, see Parts

Lists Section of this publication, or contact Hendrickson Tech Services.

3. Tighten the fasteners to 75-105 foot pounds torque.

4. Remove the frame supports and lower the vehicle completely.

5. Remove the wheel chocks.

Auxiliary Spring

Mounting Plate

Auxiliary Spring

Assembly

Part No. 60314-000

½" Locknuts

and Washers

11/00-CURRENT

HN® Series

Component Replacement 34 17730-227

FIGURE 8-5

FIGURE 8-6

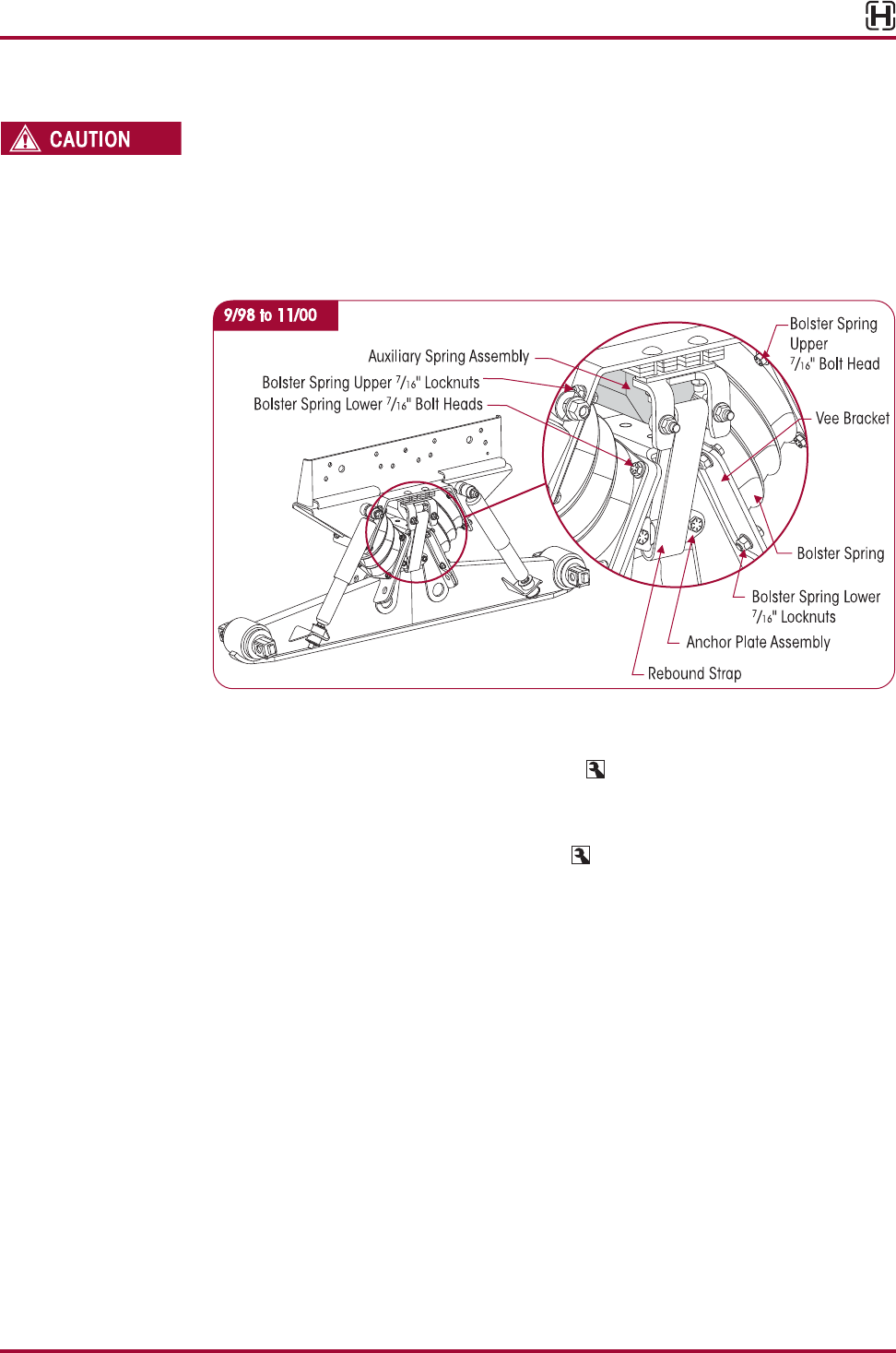

REBOUND STRAP

DISASSEMBLY

1. Chock the front wheels.

2. Vehicle should be in the loaded condition for the rebound strap to be slack enough for

removal.

3. From the inboard side of the saddle remove the ½" locknuts and ½" flat washers from the

top of the rebound strap anchor plate assembly (11/00-current and 9/98-11/00) or the

rebound strap mounting plate (4/96-9/98).

HN® Series

17730-227 35 Component Replacement

4. From the outboard side remove the ½" locknuts and ½" flat washers from the anchor plate

assembly of the rebound strap. This will free the rebound strap, anchor plate assembly and

if applicable (4/96-9/98) rebound strap mounting plate. Slide off and free both ends of

rebound strap from the anchor plate assembly and if applicable (4/96-9/98) the rebound

strap mounting plate, see Figure 8-7.

SERVICE HINT The anchor plate assembly welds of bolt heads do not need to be cut or separated to replace

rebound strap.

FIGURE 8-7

ASSEMBLY

1. Replace rebound strap by reversing procedure.

■ Vehicles built AFTER 9/98: Slide one strap end loop over each end of anchor plate

assembly, see Figure 8-7.

■ Vehicles built PRIOR TO 9/98: Slide one strap end loop over the mounting plate and

the other over the anchor plate assembly, see Figure 8-7.

2. From the inboard side of the saddle, place the rebound strap back to its original position.

3. From the inboard side reinstall ½" flat washers and locknuts to 75-105 foot pounds.

4. From the outboard side reinstall the ½" flat washers and locknuts of the anchor plate

assembly to the equalizing beam and torque the ½" locknuts to 75-105 foot pounds.

5. Remove the wheel chocks.

BOLSTER SPRING

NOTE Replacement of bolster springs is possible from under the vehicle without the removal of the

tires, rims or wheels. Hendrickson recommends that both bolster springs on one side of vehicle

be replaced even if only one shows wear.

DISASSEMBLY

1. Chock the front wheels of the vehicle.

2. From the outboard side, remove the fasteners securing the anchor plate assembly to the

auxiliary spring mounting plate. Remove the anchor plate.

3. Remove the fasteners securing the bolster springs to the saddle and vee bracket (8 per

bolster).

4. Raise the frame of the vehicle just enough to remove the load from the bolster springs.

Support the frame at this height.

5. Remove the bolster springs.

Rebound

Strap

Anchor

Plate

Assembly

Rebound Strap

Mounting Plate

Anchor Plate

Assembly

Rebound

Strap

4/96 – 9/989/98 – 11/00

11/00 – Current

Rebound

Strap

Anchor

Plate

Assembly

HN® Series

Component Replacement 36 17730-227

ASSEMBLY

THE BOLSTER SPRING MOUNTING BOLT HEADS MUST BE POSITIONED AT THE RUBBER SIDE OF THE

BOLSTER SPRINGS TO PREVENT THE BOLSTER SPRINGS FROM BEING DAMAGED BY THE THREADED

ENDS OF BOLTS.

1. Install the bolster springs between the vee bracket and saddle.

2. Loosely install the fasteners securing the bolsters to the saddle and the vee bracket assem-

bly making sure the fastener heads are on the rubber side of the bolsters, see Figure 8-8.

FIGURE 8-8

3. Once all fasteners have been loosely installed remove the frame supports and lower the

vehicle to place the full load of the vehicle on the suspension.

4. Tighten the bolsters spring fastener locknuts to 33-45 foot pounds.

5. Install the anchor plate through the rebound strap loop.

6. Install the anchor plate and fasteners to the auxiliary spring mounting plate.

7. Tighten the anchor plate fastener locknuts to 75-105 foot pounds.

VEE BRACKET

DISASSEMBLY

1. Chock the wheels.

2. Remove the

" locknut, retainer washer, and rubber bushing from the bottom of both shock

absorbers.

3. To remove the lower anchor plate fasteners, gain access from the outboard side through

the opening of the vee-plate, see Figure 8-9. Remove the rebound strap anchor plate

assembly and free the lower section of the rebound strap and anchor plate assembly from

the equalizing beam.

4. Remove the lower bolster spring fasteners on the side being serviced (4 fasteners per

bolster).

5. Raise the frame enough to clear the vee bracket from the equalizing beam aligning pins,

see Figure 8-9.

6. Remove the four vee bracket ¾" fasteners.

7. Remove the vee bracket from the equalizing beam.

HN® Series

17730-227 37 Component Replacement

FIGURE 8-9

ASSEMBLY

1. Mount vee bracket over aligning pins on equalizing beam, see Figure 8-9.

2. Install the four vee bracket fasteners. DO NOT tighten at this time.

3. Lower the frame enough to align the four lower bolster spring holes to the vee bracket.

4. Install the

" lower bolster spring fasteners.

5. Completely lower the vehicle.

6. Torque all loosened or removed bolster spring fasteners to 33-45 foot pounds torque.

7. Torque vee bracket ¾" fasteners to 220-300 foot pounds torque.

8. Reattach the lower end of the rebound strap and anchor plate to the equalizing beam.

9. Install the lower anchor plate assembly fasteners, gain access from the outboard side

through the opening of the vee-plate, see Figure 8-9. Tighten fasteners to 75-105 foot

pounds torque.

10. Reinstall the rubber bushing,

" retainer washer, and locknut at the bottom of both shock

absorbers to the equalizing beam.

11. Tighten shock absorber fasteners to 70-90 foot pounds torque.

SHOCK ABSORBER

DISASSEMBLY

1. Remove the shock absorbers by loosening and removing the

" locknuts, retainer washers,

flat washers, and rubber bushings from the bottom and top of both shock absorbers, see

Figure 8-10.

FIGURE 8-10

Equalizing Beam

Bolster Spring with

Vee Bracket Assembly

¾" Hex Head Bolt

¾" Vee Bracket Locknut

Tightening Torque 220-300 ft. lbs.

Equalizing Beam Aligning Pins

¾" Washer

Rebound Strap

Anchor Plate Assembly

Vee-Plate

½" Anchor Plate

Fasteners

Tighening Torque

75-205 ft. lbs.

Larger Washer 0.81 I.D.

Smaller Washer 0.66 I.D.

HN® Series

Component Replacement 38 17730-227

ASSEMBLY

1. Replace the shock absorbers by installing the

" UNF locknuts, retainer washers, flat wash-

ers and rubber bushings from the bottom and top of both shock absorbers as shown in

Figures 8-11 and 8-12.

FIGURE 8-11 FIGURE 8-12

2. The larger 0.81" I.D. flat washers fit over the shoulder of the upper mount shock stud, and

the smaller 0.66" I.D. flat washers are then installed over the threaded end of the upper

mount shock stud, see Figure 8-11.

3. Install on lower shock a retainer washer, rubber bushing above shock mount, then install a

rubber bushing, retainer washer and

" locknut below the shock mount, see Figure 8-12.

Tighten fasteners to 70-90 foot pounds torque.

EQUALIZING BEAM

DISASSEMBLY

IF THE VEE BRACKET LOCATED BETWEEN THE EQUALIZING BEAM AND THE BOLSTER SPRINGS IS

DAMAGED, IT MUST BE REPLACED. FAILURE TO DO SO CAN CAUSE DAMAGE TO MATING COMPONENTS.

IF REPLACEMENT IS NEEDED, REFER TO VEE BRACKET REPLACEMENT IN THIS SECTION.

1. Chock the FRONT wheels of the vehicle.

2. If both equalizing beams need replacement repeat Steps 3 through 9 for removal of the

opposing equalizing beam AFTER the first equalizing beam is reassembled.

SERVICE HINT Access to the lower anchor plate assembly fasteners can be gained from the outboard side of

the equalizing beam.

3. Remove the lower end of the rebound strap from the equalizing beam by removing the

lower anchor plate and fasteners, see Figure 8-13.

FIGURE 8-13

Larger

Flat Washer

0.81 I.D.

Small Flat Washer

0.66 I.D.

Upper Mount

Shock Stud

/ "-18 UNF

Locknut

Tightening

Torque

70-90 ft.lbs.

Retainer Washer

Rubber

Bushing

Lower

Mount

Shock

Bracket

/ "-18 UNF

Locknut

Tightening

Torque

70-90 ft.lbs.

UPPER SHOCK LOWER SHOCK

Lower Anchor Plate Assembly

Rebound Strap

HN® Series

17730-227 39 Component Replacement

FIGURE 8-14

Equalizing Beam

Bolster Spring with

Vee Bracket Assembly

¾" Hex Head Bolt

¾" Vee Bracket Locknut

Tightening Torque 220-300 ft. lbs.

Equalizing Beam Aligning Pins

¾" Washer

Rebound Strap

Anchor Plate Assembly

Vee-Plate

½" Anchor Plate

Fasteners

Tighening Torque

75-205 ft. lbs.

4. Remove the (4) fasteners that connect the Vee bracket to the equalizing beam, see

Figure 8-14.

5. Raise the frame of the vehicle until the Vee bracket is 2"-3" above the equalizing beam.

Support the frame at this height with frame stands.

FIGURE 8-15

NOTE Prior to disassembly of the equal-

izing beam bar pin fasteners, note

the orientation of the bar pin align-

ment shims, see Figure 8-15. It is

required that the bar pin alignment

shims are installed in the same ori-

entation and location as removed to

preserve the existing vehicle align-

ment. Improper vehicle alignment

can increase tire wear.

6. Note the orientation and loca-

tion of the bar pin shims, see

Figure 8-15.

THE WEIGHT OF THE EQUALIZING

BEAM ASSEMBLY IS APPROXIMATELY

155 POUNDS. PRIOR TO REMOVING

THE BAR PIN BOLTS FROM THE

EQUALIZING BEAM, SUPPORT THE END

OF THE EQUALIZING BEAM TO PREVENT FROM DROPPING. CARE SHOULD BE TAKEN AT REMOVAL

AND INSTALLATION TO PREVENT PERSONAL INJURY OR DAMAGE TO COMPONENTS.

7. Support the center of the equalizing beam being serviced.

8. Remove and discard bar pin fasteners that connect the end bushing bar pin to the axle

bracket.

NOTE Prior to removing both equalizing beams, support the pinion of each drive axle. Failure to do so

can result in personal injury or allow the axles to shift making reassembly more difficult.

9. Lower the beam support and remove the equalizing beam from the axle brackets.

Axle Bracket

Supplied by vehicle

manufacturer

1" Locknut

Tightening Torque

450-600 ft. lbs.

1" Washer

1" Bolt

Tightening Torque

500-650 ft. lbs.

Bar Pin

Alignment

Shim

Bar Pin

HN® Series

Component Replacement 40 17730-227

ASSEMBLY

NOTE All equalizing beams are manufactured with the bar pin flats perpendicular to the equalizing

beam’s axis. It is not necessary to adjust the bar pins to the same pinion angle as prior to

disassembly. The rubber in the bushings will gradually allow the bar pins to adapt to the pinion

angles of the drive axles. This is a normal function of the bar pin bushings.

SERVICE HINT Installing the front bar pins prior to the rear bar pins will ease in the installation of the

equalizing beam.

THE WEIGHT OF THE EQUALIZING BEAM ASSEMBLY IS APPROXIMATELY 155 POUNDS. CARE

SHOULD BE TAKEN AT REMOVAL AND INSTALLATION TO PREVENT PERSONAL INJURY OR DAMAGE TO

COMPONENTS.

FIGURE 8-16

1. Mount the equalizing

beam into the FRONT

drive axle brackets. DO

NOT install the alignment

shims at this time.

2. Slide a ¾" bolt through

both front axle brackets

and the bar pin holes to

temporarily support the

beams.

3. Lift the REAR of the beam

until the front bar pin flats

are parallel to the front

drive axle bracket legs,

see Figure 8-16.

A BAR PIN SHIM MUST BE INSTALLED AT EACH BOLT LOCATION. THE SAME PART NUMBER SHIM IN THE

SAME ORIENTATION MUST BE USED AT BOTH BOLT LOCATIONS ON ANY ONE END BUSHING. DO NOT

INSTALL OR STACK MORE THAN ONE SHIM AT EACH BOLT LOCATION. USE GENUINE HENDRICKSON BAR

PIN SHIMS, DO NOT USE STANDARD WASHERS. FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN

IMPROPER VEHICLE ALIGNMENT, FRACTURE OF THE AXLE BRACKET OR BAR PIN WHICH COULD RESULT

IN THE LOSS OF VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE.

FIGURE 8-17

THE BAR PIN ALIGNMENT SHIM

(PART NO. 50130-000) MUST BE

INSTALLED WITH THE FOLDED EDGE

FACING AWAY FROM THE BUSHING,

SEE FIGURE 8-17. FAILURE TO DO

SO MAY RESULT IN SHIM DAMAGE,

IMPROPER ALIGNMENT, DAMAGE OR

FRACTURE OF THE AXLE BRACKET OR

BAR PIN WHICH COULD RESULT IN

THE LOSS OF VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE.

4. Partially install the FRONT INBOARD bar pin alignment shim and verify that the shim is in

the same orientation as prior to disassembly, see Figure 8-15.

5. To complete installation of the alignment shim, remove the temporary ¾" bolt from the

inboard bar pin hole and complete installation of the inboard alignment shim.

6. Install the NEW 1" inboard bar pin fasteners. DO NOT tighten at this time.

7. Repeat Steps 4 through 6 for the FRONT OUTBOARD alignment shim.

Rear

Axle Bracket

Equalizing Beam Bar Pin

Lower Pinion

Part Number

50130-000

Part Number

50131-000

Part Number

57026-000

316

/ " Leg

NOTE:

Folded edge

in 50130-000

shim must be

positioned away

from bushing

/ " Leg

¼" Leg

HN® Series

17730-227 41 Component Replacement

8. Chock the REAR drive axle wheels to prevent movement while installing the rear bar pin

into the axle bracket.

9. Support the current axle position of the rear axle pinion with a jack to assist with the instal-

lation of the rear bar pin.

NOTE Prior to disassembly of the longitudinal torque rod, note the quantity and orientation of the

longitudinal torque rod shims. It is required that the longitudinal torque rod shims are installed in the

same orientation and location as removed to preserve the existing pinion angle.

10. Disconnect the longitudinal torque rod from the axle bracket, see vehicle manufacturer’s

specifications.

11. Release the rear parking brakes, this will allow the rear axle to rotate without rotating the tires.

12. Lower the rear drive pinion until the rear drive axle bracket legs are parallel to the rear bar

pin flats, see Figure 8-18.

FIGURE 8-18

13. Mount the equalizing beam into the REAR drive axle brackets. DO NOT install the bar pin

alignment shims at this time.

14. Slide a ¾" bolt through all rear axle bracket and the bar pin holes to temporarily support

the beams.

15. Partially install the REAR INBOARD bar pin alignment shim and verify that the shim is in the

same orientation as prior to disassembly, see Figure 8-15.

16. To complete installation of the alignment shim, remove the temporary ¾" bolt from the

inboard bar pin hole and complete installation of the inboard alignment shim.

17. Install NEW 1" inboard bar pin fasteners. DO NOT tighten at this time.

18. Repeat Steps 15 through 17 for the REAR OUTBOARD bar pin alignment shim.

19. Install the longitudinal torque rod as per the vehicle manufacturer’s specifications.

20. Re-apply rear parking brake.

NOTE Prior to assembly of the longitudinal torque rod, note the quantity and orientation of the

longitudinal torque rod shims. It is required that the longitudinal torque rod shims are installed

in the same orientation and location as removed to preserve the existing alignment.

21. Install the longitudinal torque rod and any longitudinal torque rod shims in the same orienta-

tion as prior to disassembly. Tighten the fasteners to the vehicle manufacturer’s specifications.

22. Re-apply rear parking brake.

NOTE Prior to assembly of the rear fasteners, ensure that all the bar pin shims are installed in the same

orientation as prior to disassembly.

Parallel

Raise or lower the rear of

the equalizing beam until

the front bar pin and axle

bracket legs are parallel

Front Axle Bracket

Equalizing Beam

Bar Pin

HN® Series

Component Replacement 42 17730-227

23. Tighten the bar pin locknuts to 450-600 foot pounds torque, or if tightening on the bolt

head, tighten to 500-650 foot pounds torque.

24. Remove the frame supports and lower the frame until the Vee bracket lightly touches the

equalizing beam.

25. Slowly lower the frame while ensuring the alignment pins on the top of the equalizing

beam engage the hole in the Vee bracket. Lower the frame until the weight of the vehicle is

supported by the suspension.

26. Ensure the Vee bracket is fully seated on the equalizing beam and the alignment pins on

the top of the equalizing beam are fully engaged in the Vee bracket holes, see Figure 8-19.

27. Install the fasteners that attach the Vee bracket to the equalizing beam. Tighten the fasten-

ers to 220-300 foot pounds torque.

SERVICE HINT Access to the lower anchor plate assembly fasteners can be gained from the outboard side of

the equalizing beam.

FIGURE 8-19

Equalizing Beam

Bolster Spring with

Vee Bracket Assembly

¾" Hex Head Bolt

¾" Vee Bracket Locknut

Tightening Torque 220-300 ft. lbs.

Equalizing Beam Aligning Pins

¾" Washer

Rebound Strap

Anchor Plate Assembly

Vee-Plate

½" Anchor Plate

Fasteners

Tighening Torque

75-205 ft. lbs.

28. Install the lower anchor plate assembly through the rebound strap and attach it to the

equalizing beam, see Figure 8-20. Tighten the fasteners to 90-105 foot pounds torque.

29. Remove the wheel chocks

FIGURE 8-20

HN® Series

17730-227 43 Component Replacement

BAR PIN END BUSHING

NOTE Hendrickson bar pin service kits containing alignment shims, (Kit No. 34013-088L) or (Rotating

Bar Pin Bushing Kit No. 34013-188) contain all the components required for one equalizing

beam end, see Parts List Section of this publication.

YOU WILL NEED:

■ A shop press with a capacity of at least 100 tons

■ Bar pin adapter set tool – Refer to Special Tools Section of this publication for the tools to

remove and install the bar pin style rubber end bushings

■ Receiving tool – The receiving tool is a shop made tool which completely supports the

beam hub being serviced and is tall enough to receive the bushing as it is being pressed in

or out, see Special Tools Section of this publication

WHEN REMOVING AND INSTALLING BUSHINGS IN THE EQUALIZING BEAMS, FOLLOW THE

PROCEDURES OUTLINED IN THIS PUBLICATION. DO NOT USE A CUTTING TORCH TO REMOVE THE

BUSHING OUTER METALS PRESSED IN THE EQUALIZING BEAM BORES. WELDING, TORCHING OR

ATTACHING MATERIAL TO THE EQUALIZING BEAM MUST NEVER BE PERFORMED. THE USE OF HEAT

CAN ADVERSELY AFFECT THE STRENGTH OF THE EQUALIZING BEAMS AND CAN CAUSE DAMAGE TO

THE EQUALIZING BEAM ASSEMBLY, LOSS OF VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY

OR PROPERTY DAMAGE.

DISCARD USED FASTENERS. ALWAYS USE NEW FASTENERS TO COMPLETE A REPAIR. FAILURE TO

DO SO COULD RESULT IN FAILURE OF THE PART OR MATING PARTS, LOSS OF VEHICLE CONTROL,

PERSONAL INJURY, OR PROPERTY DAMAGE.

NOTE Hendrickson recommends the use of Grade 8 bolts and Grade C locknuts. If flange head bolts

and locknuts are not used then hardened structural washers must be used under bolt heads

and locknuts.

BAR PIN END BUSHING REMOVAL

NOTE Whenever an equalizing beam is removed for repair, or inspection of the equalizing beam

end connection reveals movement, measure the distance between the axle bracket legs for

correct width. Refer to Axle Bracket in Preventive Maintenance Section of this publication for

measurement location and dimensions. An axle bracket outside of the measurement range

must be repaired or replaced. Consult the vehicle manufacturer for inspection, component

repair and replacement instructions.

1. Remove equalizing beam assembly from vehicle as detailed in the equalizing beam disas-

sembly instructions in this section.

FIGURE 8-21

2. Place the equalizing beam in the shop press with the

beam end hub squarely supported on the press bed.

3. If possible, mark the bar pin angle on the equaliz-

ing beam using a paint pen or marker. This will ease

installation.

4. Press on the end bushing inner metal, see Figure 8-21,

of the end bushing until the inner metal is flush with the

top of the equalizing beam end hub. This will dislodge

the confinement washer and move the bushing rubber

away from the outer metal of the bushing so the push

out tool can be installed, see Special Tools Section of this

publication.

HN® Series

Component Replacement 44 17730-227

5. Center the bushing push out tool directly on the bushing’s outer metal and press the bush-

ing out of the equalizing beam end hub.

6. After removing the bar pin end bushings, thoroughly inspect each end hub bore.

INSPECTION

After removing the bar pin end bushings, thoroughly inspect the beam bores. If the equalizing

beam is damaged from end bushing removal, replacement of the equalizing beam is required,

replace with a new equalizing beam. DO NOT re-bush or otherwise use an equalizing beam that

has been damaged.

FAILURE TO REPLACE AN EQUALIZING BEAM THAT HAS BEEN DAMAGED FROM BUSHING REMOVAL

CAN RESULT IN THE FAILURE OF THAT BEAM, LEADING TO LOSS OF VEHICLE CONTROL AND POSSIBLE

PERSONAL INJURY OR PROPERTY DAMAGE.

When installing bar pin end bushings the following steps will minimize the chance of damaging

a new bushing:

FIGURE 8-22

1. Clean the end hub bores with emery

cloth or hone, removing any nicks or

metal buildup from bushing removal.

2. Measure the equalizing beam end hub

bore inner diameter and the bushing

outer diameter. The Hendrickson speci-

fication for the equalizing beam end

hub bore diameter of equalizing beam

is 4.369" / 4.361", see Figure 8-22. If components are NOT within the specified range,

replacement is required.

3. The end hub bore may have a more substantial leading chamfer at one end of the bore

than the other. Take advantage of the larger chamfer by pressing in the new bushing from

this end.

NOTE Always use the bushing’s outer metal for pressing operations, unless otherwise instructed.

Pressing on the bushings inner metal may damage the bushing requiring bushing replacement.

BAR PIN END BUSHING INSTALLATION

1. Place the equalizing beam in a shop press with the end hub (see Figure 8-23) squarely

supported on the press bed or receiving tool, see Special Tools Section of this publication.

2. Install OTC 1757 end bushing installation tool (refer to Special Tools Section of this publica-

tion) on the new end bushing as shown in Figure 8-23.

3. Tighten the through bolt until the two halves of the tool close.

NOTE The installation tool compresses the rubber between the inner and outer metal of the bushing

to allow press force to be transmitted only to the outer metal of the bushing.

4. Lubricate the equalizing beam end hub inside diameter AND the bar pin end bushing’s

outer metal with a heavy layer of NLGI #2 – EP (Extreme Pressure) lithium base grease, see

Figure 8-23.

HN® Series

17730-227 45 Component Replacement

FIGURE 8-23

5. Position the equalizing beam end bushing and installation tool on the end hub. Verify the

new bushing lines up with the alignment marks made earlier or if no marks were made,

make sure the bolt holes in the end bushing are in line with the beam axis, see Figure 8-24.

FIGURE 8-24

NOTE

Press in bar pin bushing with bar pin holes

in line with the centerline of beam.

NOTE The end bushing must be square with the equalizing beam end hub before pressing the end

bushing into the equalizing beam. End bushings pressed in at an angle will damage the end

bushing and the equalizing beam.

6. Verify the end bushing’s outer metal is square with the end hub. Equalizing beam and end

bushing damage will result if the bushings are pressed in at an angle.

CARE MUST BE TAKEN DURING THE INSTALLATION OF THE BUSHING. DO NOT PUSH ON THE INNER

METAL OF THE BUSHING, DOING SO WILL CAUSE DAMAGE TO THE BUSHING AND VOID WARRANTY.

FIGURE 8-25

7. Install the end bushing into the end hub

by pressing on the installation tool until

the installation tool contacts the end

hub. This will center the bushing in the

end hub, see Figure 8-25.

8. Install the equalizing beam assembly

into vehicle as detailed in Equalizing Beam Assembly in this Section.

HN® Series

Component Replacement 46 17730-227

LONGITUDINAL TORQUE ROD

DISASSEMBLY

NOTE Prior to disassembly of the longitudinal torque rod, note the quantity and orientation of the

longitudinal torque rod shims. It is required that the longitudinal torque rod shims are installed

in the same orientation and location as removed to preserve the existing alignment.

1. Chock the front wheels of the vehicle.

2. Support the pinion on the axle being serviced.

SERVICE HINT To remove all the load from the longitudinal torque rod, raise or lower the pinion as needed. This

will ease the removal of the longitudinal torque rod.

3. Remove and discard the fasteners that connect the longitudinal torque rod to the cross

member and torque rod axle brackets.

4. Remove longitudinal torque rod, see Figure 8-26.

FIGURE 8-26

ASSEMBLY

NOTE Hendrickson recommends the

use of grade 8 bolts and grade

C locknuts. If flange head bolts

and locknuts are not used then

hardened structural washers must

be used under bolt heads and

locknuts.

1. Install longitudinal torque rod

by attaching the fasteners to the cross member and torque rod axle brackets, see manufac-

turer’s specification’s for tightening torque requirements.

2. Verify proper pinion angle, and correct with drop in shims between the torque rod bar pin

and the cross member or torque rod axle bracket depending on the direction of adjustment

needed. Contact the vehicle manufacturer for proper pinion angle specifications.

TRANSVERSE TORQUE ROD

HN SUSPENSIONS INCORPORATE TRANSVERSE RODS FOR VEHICLE STABILITY. IF THESE

COMPONENTS ARE DISCONNECTED OR ARE NON-FUNCTIONAL, THE VEHICLE SHOULD NOT BE

OPERATED. FAILURE TO DO SO CAN RESULT IN ADVERSE VEHICLE HANDLING, LOSS OF VEHICLE

CONTROL, POSSIBLE TIRE CONTACT WITH THE FRAME, PREMATURE COMPONENT DAMAGE, OR

SEVERE PERSONAL INJURY.

FIGURE 8-27

DISASSEMBLY

1. Chock the front wheels of

the vehicle.

2. Remove the fasteners that

connect the transverse

torque rod to the frame

bracket, and the 1¼"

nylon locknut and washer

from the tapered stud and

torque rod axle bracket.

3. Remove the transverse torque rod, see Figure 8-27.

Straddle

Bushing

Longitudinal

Torque Rod

Shim

(if equipped)

Torque Rod

Frame Bracket

Backup Plate

Torque Rod Axle Bracket

Taper

Bushing

Transverse

Torque Rod

Torque Rod Shim (if equipped)

Torque Rod Frame Bracket

Backup Plate

Torque Rod Axle Bracket

1 / " Taper Stud Locknut

118

Tightening Torque 175-225 ft. lbs.

Straddle Bushing

HN® Series

17730-227 47 Component Replacement

ASSEMBLY

NOTE Hendrickson recommends the use of grade 8 bolts and grade C locknuts. If flange head bolts

and locknuts are not used then hardened structural washers must be used under bolt heads

and locknuts.

1. Install the transverse torque rod to the frame bracket and the torque rod axle bracket. See

manufacturer specifications for torque requirements of the frame fasteners. Tighten the 1¼"

nylon locknut to 175–225 foot pounds torque.

2. Verify the vehicle’s lateral axle alignment is correct (centered ± ¼"). Correct as needed with

drop in shims between the torque rod bar pin and the frame bracket, see Figure 8-27.

3. Remove the wheel chocks.

TORQUE ROD BUSHING

■ TAPERED AND STRADDLE MOUNT

You will need

■ A vertical press with a capacity of at least 10 tons, a receiving tool, and a push out tool, see

the Special Tools Section of this publication for more information.

1. Remove torque rods as detailed in Torque Rod Disassembly instructions in this section.

DO NOT USE HEAT OR USE A CUTTING TORCH TO REMOVE THE BUSHINGS FROM THE TORQUE ROD.

THE USE OF HEAT WILL ADVERSELY AFFECT THE STRENGTH OF THE TORQUE ROD, HEAT CAN CHANGE

THE MATERIAL PROPERTIES. A COMPONENT DAMAGED IN THIS MANNER CAN RESULT IN THE LOSS

OF VEHICLE CONTROL AND POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE.

FIGURE 8-28

Taper Pin and Straddle Bushing

BUSHING REMOVAL

1. Support the torque rod end tube centered on the

receiving tool. Be sure the torque rod is squarely

supported on the press bed for safe ty.

2. Push directly on the straddle mount bar pin, see

Figure 8-28, until the top of the pin is level with the

top of torque rod end tube. Place the push out tool

directly on top of the bar pin and press until the bushing clears the torque rod end tube.

3. Remove the fasteners from the tapered bar pin bushing, and support the torque rod end on

the receiving tool with the tapered stud pointing up and the end tube centered on the tool.

Be sure the torque rod is squarely supported on the press bed for safety.

4. Push directly on the tapered stud until the bushing clears the torque rod end tube.

BUSHING INSTALLATION

1. Clean and inspect the inner diameter of the torque rod end tubes.

FIGURE 8-29

NOTE DO NOT use a paraffinic oil, or soap base lubricant.

Such lubricants can cause adverse reactions with

the bushing, such as deterioration of the rubber,

causing premature failure.

HN® Series

Component Replacement 48 17730-227

2. Lubricate the inner diameter of the torque rod end hub and the new rubber bushing with

P-80 Lubricant (refer to Parts List Section of this publication) or light Naphthenic Base Oil,

such as 60 SUS at 100°F, see Figure 8-29.

3. Support the torque rod end tube centered on the receiving tool. Be sure the torque rod is

squarely supported on the press bed for safety. The straddle mount bar pin bushings must

have the mounting flats positioned at zero degrees to the shank of the torque rod, see

Figure 8-30.

FIGURE 8-30

4. Push directly on the straddle mount bar pin, or the tapered stud. The bushing must be cen-

tered within the end tubes of the torque rod.

■ When pushing in the new bushings, overshoot the desired final position by approxi-

mately 3/16", see Figure 8-31.

■ Push the bushing again from the opposite side to center the bar pin, or tapered stud

within the end tube, see Figure 8-32.

FIGURE 8-31 FIGURE 8-32

IF THE TORQUE ROD ASSEMBLY IS NOT ALLOWED THE ALLOTTED TIME FOR THE LUBRICANT TO

DISSIPATE, THE BUSHING MAY SLIDE FROM THE TORQUE ROD END TUBE CAUSING THE BUSHING TO

BE REMOVED AND A NEW BUSHING RE-INSTALLED.

5. Wipe off the excess lubricant. Allow the lubricant four hours to dissipate prior to operating

the vehicle.

6. Replace torque rod assembly as detailed in the Transverse Torque Rod Assembly in this

section.

Torque Rod Bar Pin

NOTE

The bar pin must have the mounting flats positioned

at 0º to the shank of the torque rod.

HN® Series

17730-227 49 Troubleshooting Guide

SECTION 9

Troubleshooting Guide

HN SERIES

TROUBLESHOOTING GUIDE

CONDITION POSSIBLE CAUSE CORRECTION

Vehicle bouncing excessively

No shock absorber installed Install shock absorbers. See Component

Replacement Section of this publication.

Leaking shock absorber Replace shock absorber.

Damaged shock absorber Replace shock absorber.

Suspension has harsh or

bumpy ride

Incorrect auxiliary spring adjustment

Adjust auxiliary spring to proper setting. See

Auxiliary Spring Adjustment in the Alignment &

Adjustments Section of this publication.

Damaged auxiliary spring Replace auxiliary spring.

Damaged bolster spring assembly Replace bolster spring assembly.

Vehicle leans

Incorrect auxiliary spring adjustment

Adjust auxiliary spring to proper setting. See

Auxiliary Spring Adjustment in the Alignment &

Adjustments Section of this publication.

Damaged auxiliary spring(s) assembly Replace auxiliary spring(s) assembly.

Damaged bolster spring(s) assembly Replace bolster spring(s) assembly.

Irregular tire wear Incorrect axle alignment Align axles. Refer to vehicle manufacturer’s

specifications.

Bolster springs rubbing beam Incorrect lateral axle alignment Align axles. Refer to vehicle manufacturer’s

specifications.

HN® Series

Torque Speci cations 50 17730-227

SECTION 10

Torque Specifications

HN® 402/462/522 – Vehicles built after 11/00

33-45

75-105

70-90

7b.

500-650

7a.

450-600

220-300

33-45

75-105

175-225

75-105

HN® Series

17730-227 51 Torque Speci cations

HN® 402/462/522 – Vehicles built after 11/00

HENDRICKSON RECOMMENDED TORQUE SPECIFICATIONS

NO. COMPONENT QUANTITY SIZE *TORQUE VALUE

in foot pounds

Frame fasteners are furnished and installed by the vehicle manufacturer.

1 Shock Absorber Upper and Lower Locknut 4

"-18 UNF-2B Grade C 70-90

2 Bolster Spring Locknut 32

"-20 UNF-2B Grade C 33-45

3 Saddle Assembly to Auxiliary Spring Mounting Plate 6 ½"-13 UNC-2B Grade C 75-105

4 Auxiliary Spring Mounting Plate to Anchor Plate 4 ½"-13 UNC-2B Grade C 75-105

5 Anchor Plate to Equalizing Beam Assembly 4 ½"-13 UNC-2B Grade C 75-105

6Vee Bracket Locknut 8 ¾"-10 UNC-2B Grade C 220-300

7a Bar Pin Bushing at the Locknut 4 1"-8 UNC Grade C 450-600

7b at the Bolt Head 4 1"-8 UNC-2A Grade 8 500-650

8 Transverse Torque Rod Tapered Stud Locknut 2 1¼"-12 UNC-2B Grade 5 175-225

NOTE: * If non Hendrickson fasteners are used, follow torque speci cation listed in vehicle manufacturer’s service manual. Torque

values listed above apply only if Hendrickson supplied fasteners are used.

HN® Series

Torque Speci cations 52 17730-227

HN® 402/462/522 – Vehicles built between 9/98-11/00

33-45

75-105

70-90

7b.

500-650

7a.

450-600

220-300

33-45

75-105

175-225

75-105

HN® Series

17730-227 53 Torque Speci cations

HN® 402/462/522 – Vehicles built between 9/98-11/00

HENDRICKSON RECOMMENDED TORQUE SPECIFICATIONS

NO. COMPONENT QUANTITY SIZE *TORQUE VALUE

in foot pounds

Frame fasteners are furnished and installed by the vehicle manufacturer.

1 Shock Absorber Upper and Lower Locknut 4

"-18 UNF-2B Grade C 70-90

2 Bolster Spring Locknut 32

"-20 UNF-2B Grade C 33-45

3 Saddle Assembly to Auxiliary Spring Mounting Plate 4 ½"-13 UNC-2B Grade C 75-105

4 Auxiliary Spring Mounting Plate to Anchor Plate 4 ½"-13 UNC-2B Grade C 75-105

5 Anchor Plate to Equalizing Beam Assembly 4 ½"-13 UNC-2B Grade C 75-105

6Vee Bracket Locknut 8 ¾"-10 UNC-2B Grade C 220-300

7a Bar Pin Bushing at the Locknut 4 1"-8 UNC Grade C 450-600

7b at the Bolt Head 4 1"-8 UNC-2A Grade 8 500-650

8 Transverse Torque Rod Tapered Stud Locknut 2 1¼"-12 UNC-2B Grade 5 175-225

NOTE: * If non Hendrickson fasteners are used, follow torque speci cation listed in vehicle manufacturer’s service manual. Torque

values listed above apply only if Hendrickson supplied fasteners are used.

HN® Series

Torque Speci cations 54 17730-227

HN® 402/462/522 – Vehicles built between 4/96-8/98

33-45

75-105 1.

70-90

7b.

500-650

7a.

450-600

220-300

33-45

75-105

175-225

75-105

HN® Series

17730-227 55 Torque Speci cations

HN® 402/462/522 – Vehicles built between 4/96-8/98

HENDRICKSON RECOMMENDED TORQUE SPECIFICATIONS

NO. COMPONENT QUANTITY SIZE *TORQUE VALUE

in foot pounds

Frame fasteners are furnished and installed by the vehicle manufacturer.

1 Shock Absorber Upper and Lower Locknut 4

"-18 UNF-2B Grade C 70-90

2 Bolster Spring Locknut 32

"-20 UNF-2B Grade C 33-45

3 Saddle Assembly to Auxiliary Spring 2 ½"-13 UNC-2B Grade C 75-105

4Auxiliary Spring to Rebound Strap Mounting Plate 2 ½"-13 UNC-2B Grade C 75-105

5Anchor Plate to Equalizing Beam 2 ½"-13 UNC-2B Grade C 75-105

6 Vee Bracket to Equalizing Beam Locknut 8 ¾"-10 UNC-2B Grade C 220-300

7a Bar Pin End Bushing at the Locknut 4 1"-8 UNC Grade C 450-600

7b at the Bolt Head 4 1"-8 UNC-2A Grade 8 500-650

8 Transverse Torque Rod Taper Stud Locknut 2 1¼"-12 UNC-2B Grade 5 175-225

NOTE: * If non Hendrickson fasteners are used, follow torque speci cation listed in vehicle manufacturer’s service manual. Torque

values listed above apply only if Hendrickson supplied fasteners are used.

www.hendrickson-intl.com

Information contained in this literature was accurate at the time of publication. Product changes may have been made after the copyright date that are not re ected.

Truck Commercial Vehicle Systems 1.866.755.5968 (Toll-free U.S. and Canada)

800 South Frontage Road 1.630.910.2800 (Outside U.S. and Canada)

Woodridge, IL 60517-4904 USA Fax 1.630.910.2899

HN Series Technical Procedure, Lit. No. 17730 227 Rev. C 4490 Procedure.aspx,

Navigation menu

Versions of this User Manual:

Views

Navigation
