HPE Security Fortify Audit Workbench User Guide AWB 17.10

HPE_AWB_Guide_17.10

User Manual:

Open the PDF directly: View PDF .
Page Count: 131 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Title Page
Contents
Preface
Change Log
Chapter 1: Introduction
Chapter 2: Getting Started
Chapter 3: Scanning Source Code
Chapter 4: Scan Results
Chapter 5: Auditing Analysis Results
Chapter 6: Audit Workbench Reports
Chapter 7: Using the Functions View
Chapter 8: Troubleshooting
Appendix A: Sample Files
- Basic Samples
- Advanced Samples
Appendix B: Static Analysis Results Prioritization
Appendix C: Legacy Report Components
Send Documentation Feedback

HPE Security Fortify Audit

Workbench

Software Version: 17.10

UserGuide

Document Release Date: April 2017

Software Release Date: April 2017

Legal Notices

Warranty

The only warranties for Hewlett Packard Enterprise Development products and services are set forth in the express warranty

statements accompanying such products and services. Nothing herein should be construed as constituting an additional

warranty. HPE shall not be liable for technical or editorial errors or omissions contained herein.

The information contained herein is subject to change without notice.

Restricted Rights Legend

Confidential computer software. Valid license from HPE required for possession, use or copying. Consistent with FAR 12.211

and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items

are licensed to the U.S. Government under vendor's standard commercial license.

The software is restricted to use solely for the purpose of scanning software for security vulnerabilities that is (i) owned by

you; (ii) for which you have a valid license to use; or (iii) with the explicit consent of the owner of the software to be scanned,

and may not be used for any other purpose.

You shall not install or use the software on any third party or shared (hosted) server without explicit consent from the third

party.

Trademark Notices

Adobe™ is a trademark of Adobe Systems Incorporated.

Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.

Documentation Updates

The title page of this document contains the following identifying information:

lSoftware Version number

lDocument Release Date, which changes each time the document is updated

lSoftware Release Date, which indicates the release date of this version of the software

To check for recent updates or to verify that you are using the most recent edition of a document, go to:

https://www.protect724.hpe.com/community/fortify/fortify-product-documentation

You will receive updated or new editions if you subscribe to the appropriate product support service. Contact your HPE sales

representative for details.

UserGuide

HPE Security Fortify Audit Workbench (17.10) Page 2 of 131

Contents

Preface 8

Contacting HPESecurity Fortify Support 8

For More Information 8

About the Documentation Set 8

Change Log 9

Chapter 1: Introduction 11

About HPESecurity FortifyAudit Workbench 11

Audit Projects and Issue Templates 11

Hybrid 2.0 Technology 11

Integration with Fortify Software Security Center 12

Related Documents

This topic describes documents that provide information about HPE Security Fortify Audit Workbench.

Note: The Protect724 site location is https://www.protect724.hpe.com/community/fortify/fortify-

product-documentation.

All Products

The following documents provide general information for all products.

Document / File Name Description Location

HPE Security Fortify Software

System Requirements

HPE_Sys_Reqs_<version>.pdf

This document provides the

details about the environments

and products supported for this

version of HPE Security Fortify

Software.

Included with product

download and on the

Protect724 site

HPE Security Fortify Software

Release Notes

HPE_FortifySW_RN_

<version>.txt

This document provides an

overview of the changes made

to HPE Security Fortify

Software for this release and

important information not

included elsewhere in the

Included on the Protect724 site

UserGuide

Chapter 1: Introduction

HPE Security Fortify Audit Workbench (17.10) Page 12 of 131

Document / File Name Description Location

product documentation.

What’s New in HPE Security

Fortify Software <version>

HPE_Whats_New_

<version>.pdf

This document describes the

new features in HPE Security

Fortify Software products.

Included on the Protect724 site

HPE Security Fortify Open

Source and Third-Party

License Agreements

HPE_OpenSrc_<version>.pdf

This document provides open

source and third-party software

license agreements for software

components used in HPE

Security Fortify Software.

Included with product

download and on the

Protect724 site

HPE Security Fortify Glossary

HPE_Glossary.pdf

This document provides

definitions for HPE Security

Fortify Software terms.

Included with product

download and on the

Protect724 site

HPE Security Fortify Software Security Center

The following documents provide information about HPE Security Fortify Software Security Center.

Document / File Name Description Location

HPE Security Fortify Software

Security Center User Guide

HPE_SSC_Guide_

<version>.pdf

HPE_SSC_Help_<version>

This document provides Fortify

Software Security Center users

with detailed information about

how to deploy and use Fortify

Software Security Center. It

provides all of the information

you need to acquire, install,

configure, and use Fortify

Software Security Center.

It is intended for use by system

and instance administrators,

database administrators (DBAs),

enterprise security leads,

development team managers,

and developers. Fortify Software

Security Center provides security

team leads with a high-level

overview of the history and

current status of a project.

Included with product

download and on the

Protect724 site

HP Fortify Software Security

Center User Guide: Legacy

User Interface

This document is the user guide

for HP Software Security Center

version 4.30. The legacy (4.30)

Included with product

download and on the

Protect724 site

UserGuide

Chapter 1: Introduction

HPE Security Fortify Audit Workbench (17.10) Page 13 of 131

Document / File Name Description Location

HP_Fortify_SSC_User_Guide_

Legacy.pdf

PDFonly; no help file

user interface is available from

the Fortify Software Security

Center version 16.20 user

interface. Specific areas of

functionality are available only in

the 4.30 interface.

HPE Security Fortify Software

Security Center Process

Designer Guide: Legacy User

Interface

HPE_SSC_Proc_Design_

Guide_Legacy_<version>.pdf

HPE_SSC_Proc_Design_Help_

This document provides

information about how to start

the Process Designer, configure

its connection to your Fortify

Software Security Center

instance, and then use it to work

with Fortify Software Security

Center process templates, which

are used only in the Fortify

Software Security Center legacy

(version 4.30) user interface.

Included with product

download and on the

Protect724 site

HP Fortify Software Security

Center Installation and

Configuration Guide: Legacy

User Interface

HP_Fortify_SSC_Install_and_

Config_Guide_Legacy.pdf

PDFonly; no help file

This document provides system

and database administrators with

complete instructions on how to

configure Fortify Software

Security Center server software

using the legacy (v4.30) user

interface.

Included with product

download and on the

Protect724 site

HPE Security Fortify Software

Security Center Process

Designer Guide: Legacy User

Interface

HPE_SSC_Proc_Design_

Guide_Legacy_<version>.pdf

HPE_SSC_Proc_Design_Help_

This legacy document provides

information about how to start

the Process Designer, configure

its connection to your Fortify

Software Security Center

instance, and then use it to work

with Fortify Software Security

Center process templates.

Included with product

download and on the

Protect724 site

UserGuide

Chapter 1: Introduction

HPE Security Fortify Audit Workbench (17.10) Page 14 of 131

HPE Security Fortify Static Code Analyzer

The following documents provide information about Static Code Analyzer.

Document / File Name Description Location

HPE Security Fortify Static

Code Analyzer User Guide

HPE_SCA_Guide_

<version>.pdf

HPE_SCA_Help_<version>

This document describes how

to use Fortify Static Code

Analyzer to scan code on many

of the major programming

platforms. It is intended for

people responsible for security

audits and secure coding.

Included with product

download and on the

Protect724 site

HPE Security Fortify Static

Code Analyzer Installation

Guide

HPE_SCA_Install_

<version>.pdf

HPE_SCA_Install_Help_

This document contains

installation instructions for

Fortify Static Code Analyzer

and Applications.

Included with product

download and on the

Protect724 site

HPE Security Fortify Static

Code Analyzer Performance

Guide

HPE_SCA_Perf_Guide_

<version>.pdf

PDF only; no help file

This document provides

guidelines for selecting

hardware to scan different

types of codebases and offers

tips for optimizing memory

usage and performance.

Included with product

download and on the

Protect724 site

HPE Security Fortify Static

Code Analyzer Custom Rules

Guide

HPE_SCA_Cust_Rules_Guide_

<version>.zip

PDF only; no help file

This document provides the

information that you need to

create custom rules for Fortify

Static Code Analyzer. This

guide includes examples that

apply rule-writing concepts to

real-world security issues.

Included with product

download

UserGuide

Chapter 1: Introduction

HPE Security Fortify Audit Workbench (17.10) Page 15 of 131

Chapter 2: Getting Started

The following topics provide an overview of HPESecurity FortifyAudit Workbench, instructions on how

to start the tool, and instructions on how to upgrade the Static Code Analyzer and Applications (Fortify

Static Code Analyzer, Audit Workbench, and any plugins or packages you have installed) as new

versions of the products become available.

This section contains the following topics:

About Upgrades 16

Renewing Expired Licenses 18

About Starting Audit Workbench 19

About HPE Security Fortify Software Security Content 19

Logging in to Fortify Software Security Center 22

About Upgrades

You can check on the availability of new Fortify SCAand Applications (including Audit Workbench)

versions from the Audit Workbench user interface. If a version newer than the one you have installed is

available, you can download it and upgrade your instance.

You can also configure Audit Workbench to check for, download, and install new versions automatically

at startup. Whether you upgrade your Fortify SCAand Applications manually or automatically, your

data is preserved.

To enable upgrades from Audit Workbench, a Fortify Software Security Center administrator must first

set up the auto upgrade capability on the server host. The following topics address how to set up auto

upgrades (as a Fortify Software Security Center administrator) for Audit Workbench and how to

perform the upgrades from Audit Workbench.

Enabling Fortify SCAand Applications Updates from Audit

Workbench

To make a new Fortify SCAand Applications installer available to Audit Workbench users for upgrades:

1. On the Fortify Software Security Center host, navigate to the <appserver_deployment_

location>/ssc/WEB-INF/internal directory and open the securityContext.xml file in a

text editor.

2. Locate the following line:

<!-- <security:intercept-url pattern="/update-site/**" access="PERM_

ANONYMOUS"/> -->

HPE Security Fortify Audit Workbench (17.10) Page 16 of 131

3. Remove the comment tags from the line of text so that it looks like the following:

<security:intercept-url pattern="/update-site/**" access="PERM_

ANONYMOUS"/>

4. Save and close the securityContext.xml file.

5. Navigate to the <appserver_deployment_location>/ssc/update-site/installers

directory.

6. Open and read the readme.txt file.

7. From the readme.txt file, copy the sample update.xml file content (between and including the

<installerInformation> and

</installerInformation> tags, and then paste it into a new text file with the file name

update.xml.

8. Name the new file update.xml and save it to the <appserver_deployment_

location>/ssc/update-site/installers directory.

9. Any time a new Fortify SCAand Applications installer file (HPE_Security_Fortify_SCA_and_

Apps_<version>_<OS>.exe) becomes available, place it in the <appserver_deployment_

location>/ssc/update-site/installers directory.

10. Open the update.xml file in a text editor, and then do the following:

a. In the versionId element, type the version ID for the new installer.

The version ID is the version number without the periods.

Make sure that the value you type matches the Fortify SCAand Applications version in the

installer.

b. In the <version> element, type the version number for the new installer.

11. Save and close your edited update.xml file.

Upgrading Manually

You can check for newer Fortify SCAand Applications versions manually, either from the Audit

Workbench Help menu, or from the Options dialog box.

To check for, and (potentially) install, a newer Fortify SCAand Applications version, do one of the

following:

lSelect Help > Check for Upgrades.

Alternatively,

1. Select Options > Options.

The Options dialog box opens to the Server Configuration settings.

2. Under Audit Workbench Upgrade Configuration on the right, do the following:

a. In the Server URL box, type the URL for your Fortify Software Security Center server.

b. Click Check Now.

UserGuide

Chapter 2: Getting Started

HPE Security Fortify Audit Workbench (17.10) Page 17 of 131

The Audit Workbench polls the upgrade server for information about the Fortify SCAand Applications

versions available for the platform on which it is running. If a newer version is available, Audit

Workbench prompts you to indicate whether you want to proceed to download and install it.

Important: If you have an HPESecurityFortify Plugin for Eclipse installed, after you upgrade your

Fortify SCAand Applications from Audit Workbench, you must uninstall, and then reinstall the

Eclipse Plugin.

Configuring Automatic Upgrades

To configure upgrade checks at Audit Workbench startup:

1. From Audit Workbench, select Options > Options.

2. In the left pane, leave Server Configuration selected.

3. Under Audit Workbench Upgrade Configuration on the right, do the following:

a. In the Server URL box, type the URL for the installers folder on your Fortify Software

Security Center server.

b. Select the Check for upgrades at startup check box.

4. Click OK.

After this, each time you start Audit Workbench, it checks the server to determine whether a newer

Fortify SCAand Applications version is available and then, if a newer version is available, downloads

and installs it.

Important: If you have an HPESecurityFortify Plugin for Eclipse installed, after you upgrade your

Fortify SCAand Applications from Audit Workbench, you must uninstall, and then reinstall the

Eclipse Plugin.

Renewing Expired Licenses

The license for Fortify Static Code Analyzer and its tools, including Audit Workbench, expires annually.

You can get an updated license from the Fortify Customer Portal.

To update an expired license:

1. Log on to the Fortify Customer Portal (https://support.fortify.com).

If you do not have an account, contact HPESecurityFortify Technical Support

(fortifytechsupport@hpe.com).

If you encounter a problem logging into your account, send an email to HPESecurityFortify

Technical Support (fortifytechsupport@hpe.com) with “Portal Access” as the subject.

2. After you log onto the Fortify Customer Portal, at the top of the page, click the My Licenses tab.

The Download Licenses page lists all licenses with current maintenance agreements. If you do not

see your license, email HPESecurityFortify Technical Support (fortifytechsupport@hpe.com) with

“Maintenance Renewal Verification” as the subject. If your maintenance agreement was recently

renewed, the Download Licenses page might not yet reflect this.

UserGuide

Chapter 2: Getting Started

HPE Security Fortify Audit Workbench (17.10) Page 18 of 131

3. Click the link for the license you want to use.

The license is downloaded automatically to your machine.

4. Start Audit Workbench, and check to make sure that you can log on.

About Starting Audit Workbench

You can start Audit Workbench from the start menu on a Windows system. You can start it from the

command line on any supported operating system.

Starting Audit Workbench on Windows Systems

To start Audit Workbench on a Windows system, do one of the following:

lSelect Start > All Programs > HPE Security Fortify SCA and Applications <version> > Audit

Workbench

where <version> is the version you have installed.

Alternatively,

1. Open a Command window, and then change to the <sca_install_dir>\bin directory.

2. At the prompt, type auditworkbench.cmd.

Starting Audit Workbench on Non-Windows Systems

To start Audit Workbench on a non-Windows system:

1. Open a command prompt window, and then change to the <sca_install_dir>/bin directory.

2. At the prompt, type auditworkbench.

About HPE Security Fortify Software Security

Content

Audit Workbench uses a knowledgebase of rules to enforce secure coding standards applicable to the

codebase for static analysis. HPE Security Fortify Software Security Content(security content) consists

of Secure Coding Rulepacks and external metadata:

lSecure Coding Rulepacks describe general secure coding idioms for popular languages and public

APIs.

lExternal metadata include mappings from the HPE Security categories to alternative categories (such

as CWE, OWASP Top 10, and PCIDSS). You can modify the existing mapping in the external

metadata document (externalmetadata.xml) or create your own files to map HPE Security issues

to different taxonomies, such as internal application security standards or additional compliance

obligations (recommended). For instructions on how to create your own custom external metadata,

see the HPESecurity Fortify Static Code Analyzer Custom Rules Guide.

UserGuide

Chapter 2: Getting Started

HPE Security Fortify Audit Workbench (17.10) Page 19 of 131

You can update your security content in English, Spanish, Brazilian Portuguese, Japanese, Korean,

Simplified Chinese, or Traditional Chinese. HPE recommends that you periodically update the security

content.

Configuring Security Content Updates

You can specify the server information to use to update security content.

To configure security content updates:

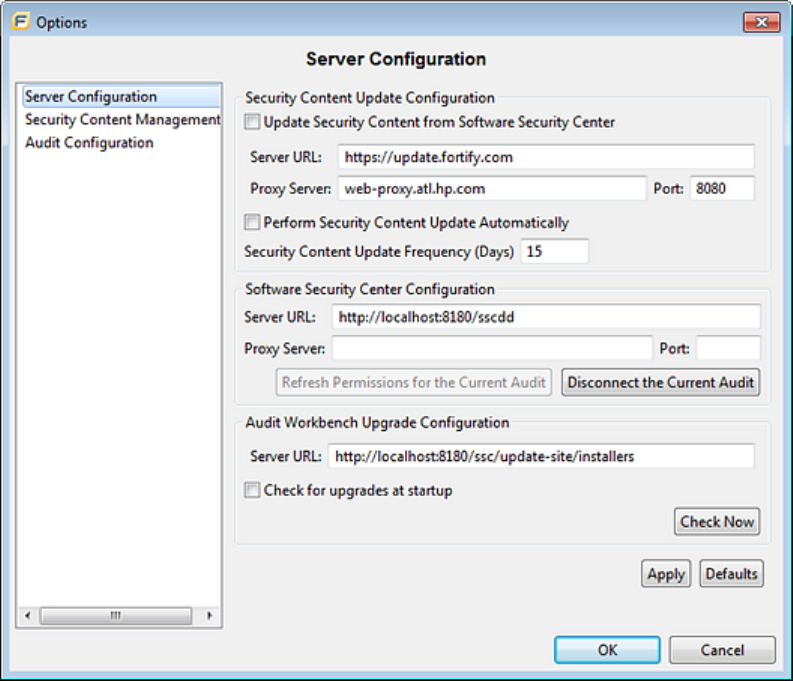

1. Select Options > Options.

2. In the left panel, select Server Configuration.

3. To update security content from your Fortify Software Security Center server:

a. Under Security Content Update Configuration, select the Update Security Content from

Software Security Center check box.

b. Under Software Security Center Configuration, specify the Fortify Software Security Center

server URL and if necessary, the proxy server and port number.

4. To specify an update server from which to update security content, in the Security Content

Update Configuration section, do the following:

UserGuide

Chapter 2: Getting Started

HPE Security Fortify Audit Workbench (17.10) Page 20 of 131

a. In the Server URL box, type the URL for the update server.

b. If required, specify the proxy server and port.

5. To update security content automatically and with a specific frequency:

a. Select the Perform Security Content Update Automatically check box.

b. In the Security Content Update Frequency (Days) box, specify how often (type the number

of days) you want the security content automatically updated.

6. Click Apply, and then click OK.

Updating Security Content

You can download security content in English, Spanish, Brazilian Portuguese, Japanese, Korean,

Simplified Chinese, or Traditional Chinese. Issue descriptions and recommendations are available in the

selected language and categories are in English.

To update your security content:

1. Select Options > Options.

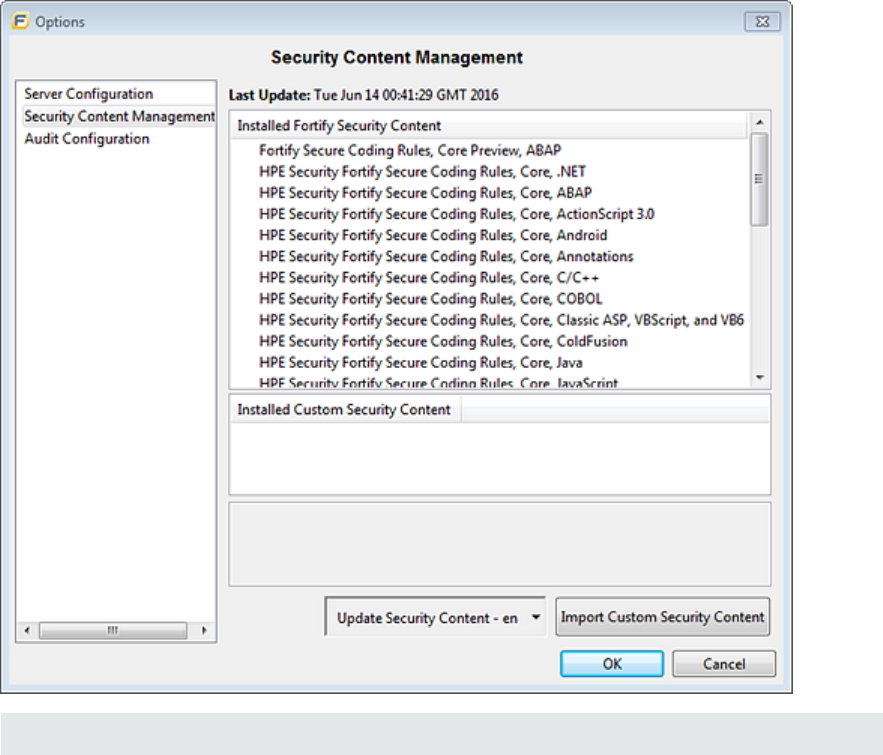

2. In the left panel, select Security Content Management.

Note: Scroll to the bottom of the Installed Fortify Security Content list to see the external

UserGuide

Chapter 2: Getting Started

HPE Security Fortify Audit Workbench (17.10) Page 21 of 131

mappings.

Any custom rules and custom external mappings appear in the Installed Custom Security

Content list.

3. In the Update Security Content list, select the security content in the language you want.

The Security Content Update window displays the results of the security content update.

4. Click OK to close the Security Content Update window.

Importing Custom Security Content

To import custom rules, do the following:

1. Select Options > Options.

2. In the left panel, select Security Content Management.

3. Click Import Custom Security Content.

4. Select the custom rules file you want to import, and then click Open.

Logging in to Fortify Software Security Center

The first time you perform an operation that requires a connection to Fortify Software Security Center,

you are prompted to log in.

To log in to Fortify Software Security Center:

1. From the Login Method menu, select the login method set up for you on Fortify Software Security

Center.

2. Depending on the selected login method, do one of the following:

Username/Password lType your Fortify Software Security Center user name and password.

X.509 SSO a. Click the Browse button to the right of Certificate.

b. In the Browser for Certificate dialog box, locate the p12 package

with the certificate, and then click Open.

c. Type the password if required.

Kerberos SSO No additional information is required.

3. Click OK to connect to Fortify Software Security Center.

UserGuide

Chapter 2: Getting Started

HPE Security Fortify Audit Workbench (17.10) Page 22 of 131

Chapter 3: Scanning Source Code

The following topics describe how to scan source code and view the scan and analysis results in the

Audit Workbench auditing interface.

This section contains the following topics:

Scanning Java Projects 23

Quick Scan Mode 24

Scanning Large and Complex Projects 25

Scanning Visual Studio Solutions and Projects 30

Re-scanning Projects 32

Scanning Java Projects

The Audit Guide wizard combines the translation and analysis phases of the scanning process into a

single step. Use this wizard to scan small Java projects that have source code in a single directory.

To scan a new Java project:

1. Start Audit Workbench.

2. Under Start New Project, click Scan Java Project.

The Browse for Folder dialog box opens.

3. Select the folder that contains all the source code you want to analyze, and then click OK.

Note: Fortify Static Code Analyzer sets the build ID to the folder name.

4. Select the Java version used for your project, and then click OK.

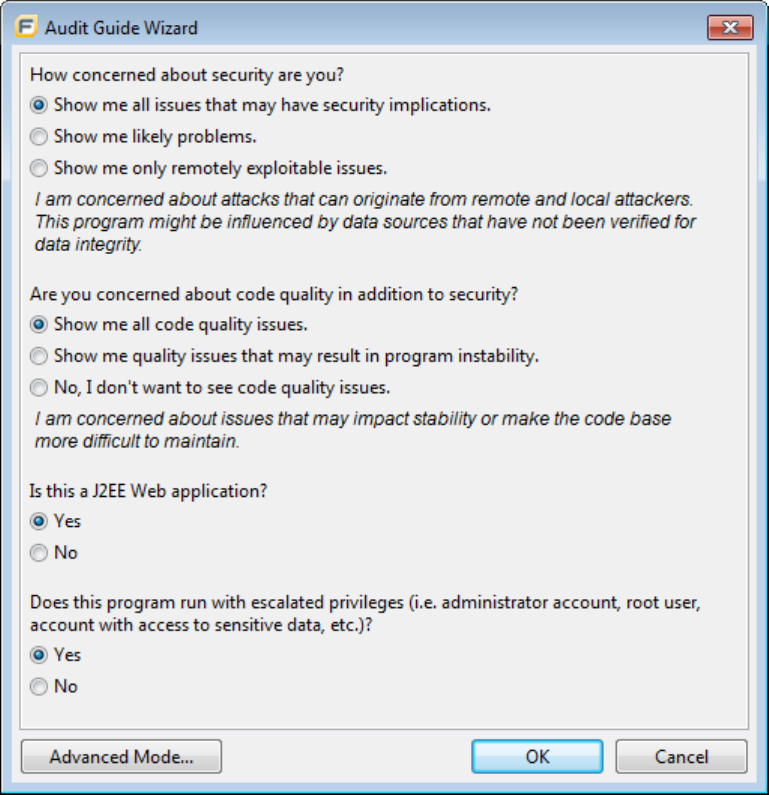

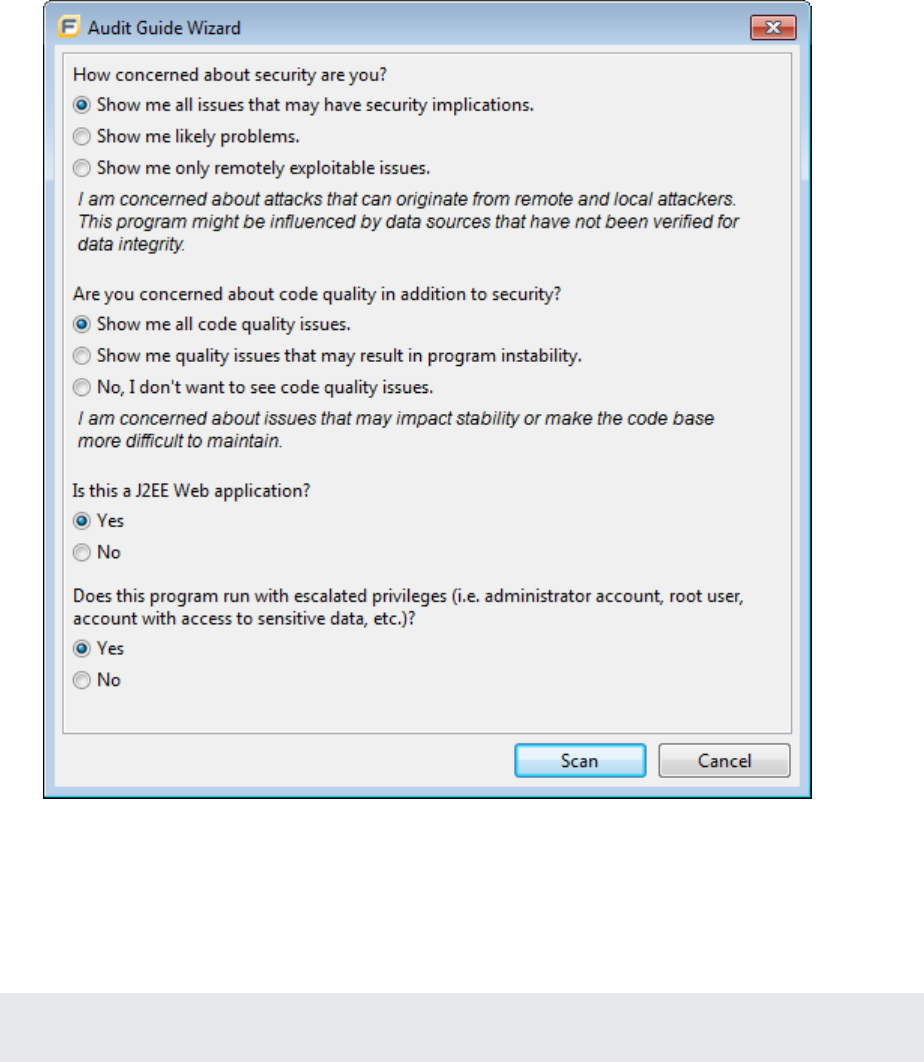

The Audit Guide Wizard opens.

HPE Security Fortify Audit Workbench (17.10) Page 23 of 131

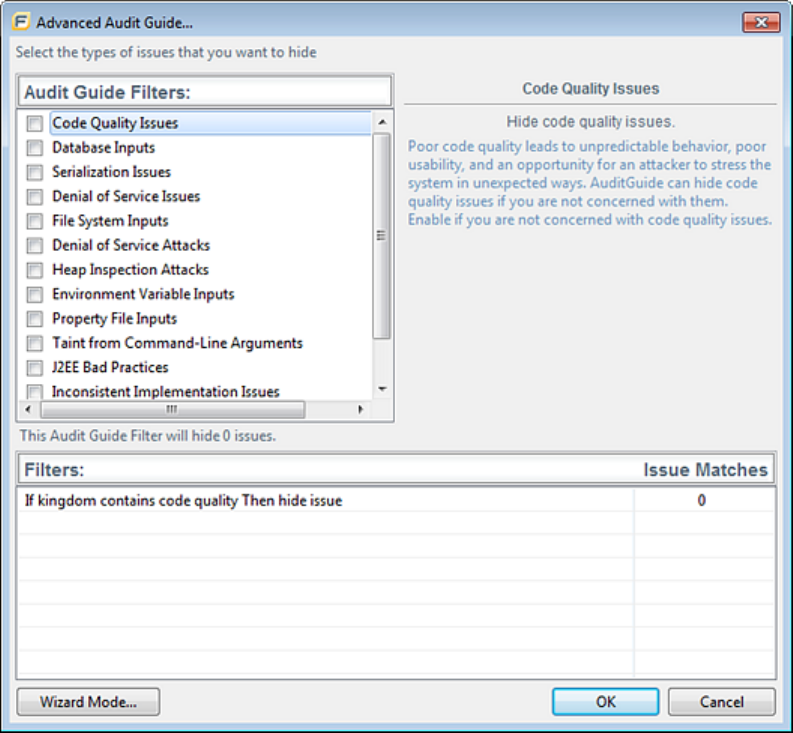

5. Select the settings for the types of issues you want to display in the results, and then click Scan.

Fortify Static Code Analyzer analyzes the source code. If Fortify Static Code Analyzer encounters

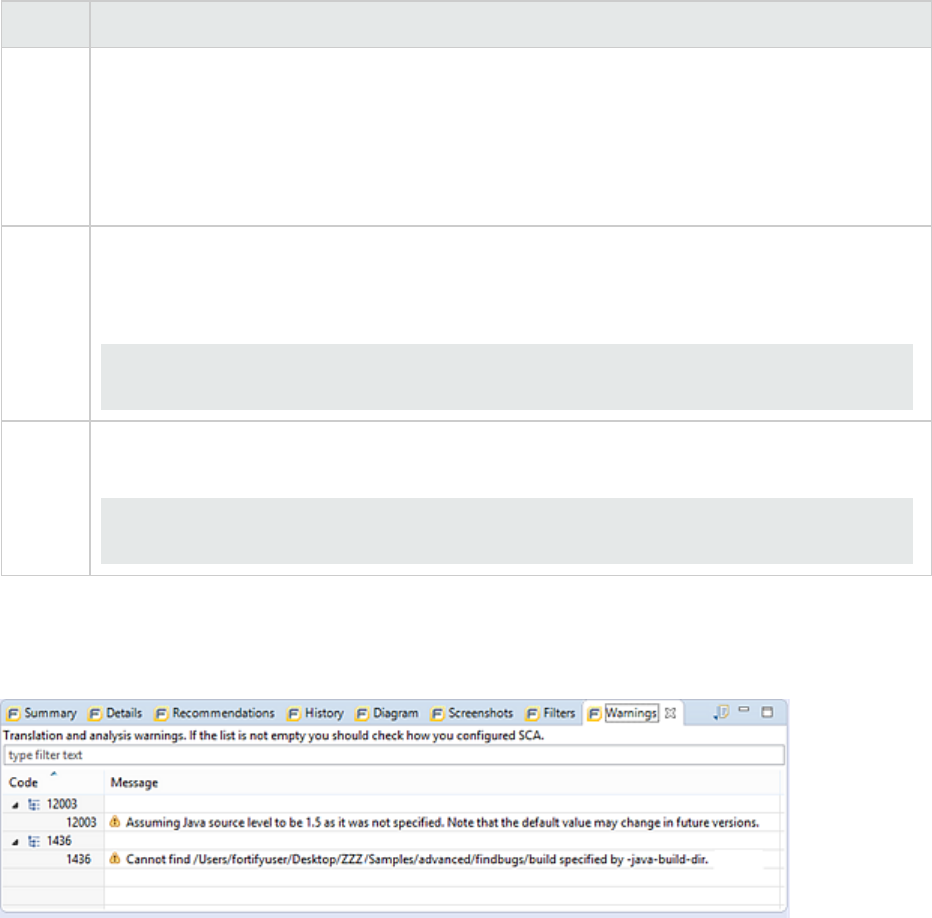

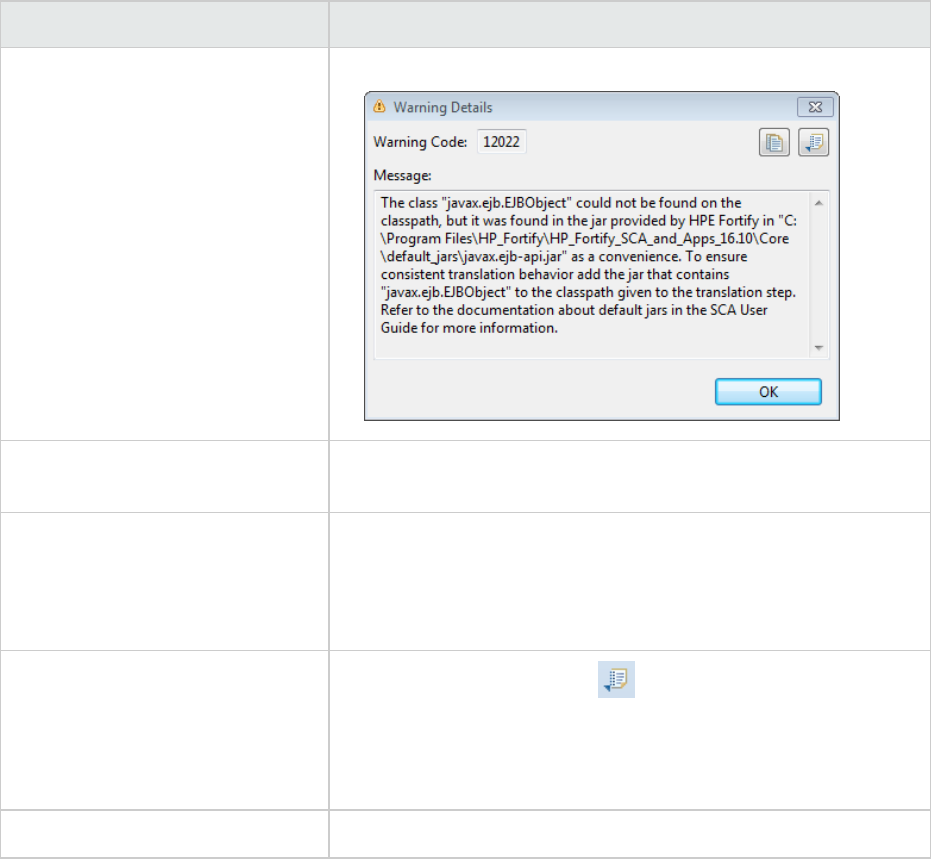

any problems as it scans the source code, Audit Workbench displays a warning.

6. If a warning is displayed, click OK.

After the scan is completed, Audit Workbench displays the analysis results.

Note: Fortify Static Code Analyzer scans invoked from Audit Workbench are invoked with the

server Java Virtual Machine.

Quick Scan Mode

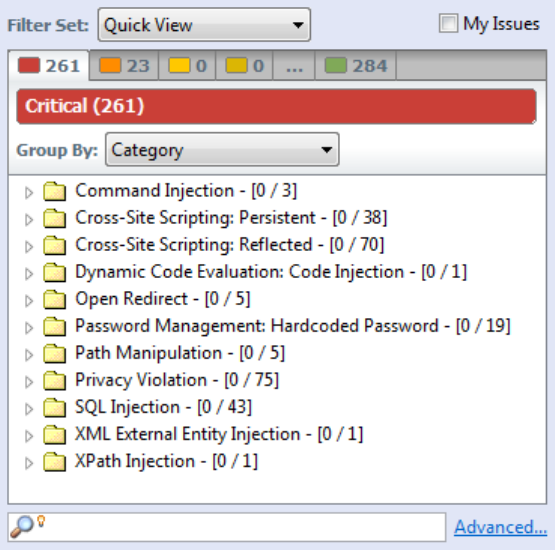

With quick scan mode, you can quickly scan projects for major issues. For example, a quick scan of the

WebGoat sample application uncovers 284 possible issues. By contrast, a full scan of the WebGoat

sample application uncovers 1,150 possible issues.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 24 of 131

In quick scan mode, Fortify Static Code Analyzer searches for high-confidence, high-severity issues.

Quick scans are a great way to get many applications through an assessment so that you can quickly

find issues and begin remediation. Although the scan is faster than a full scan, it does not provide as

robust a result set. Critical and other issues that a quick scan cannot detect may exist in your application.

HPE recommends that you run full scans whenever possible.

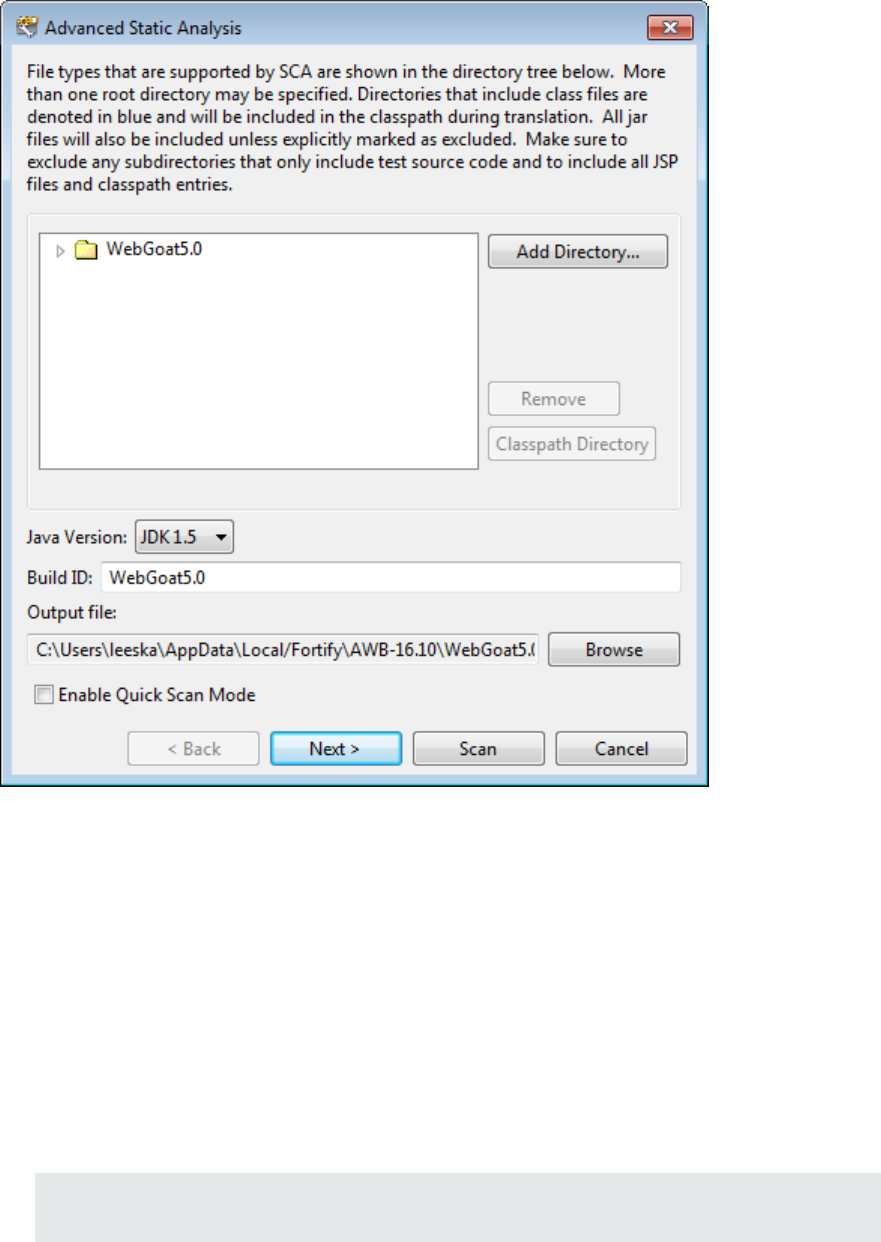

To perform a quick scan, follow the steps described in "Scanning Large and Complex Projects" below

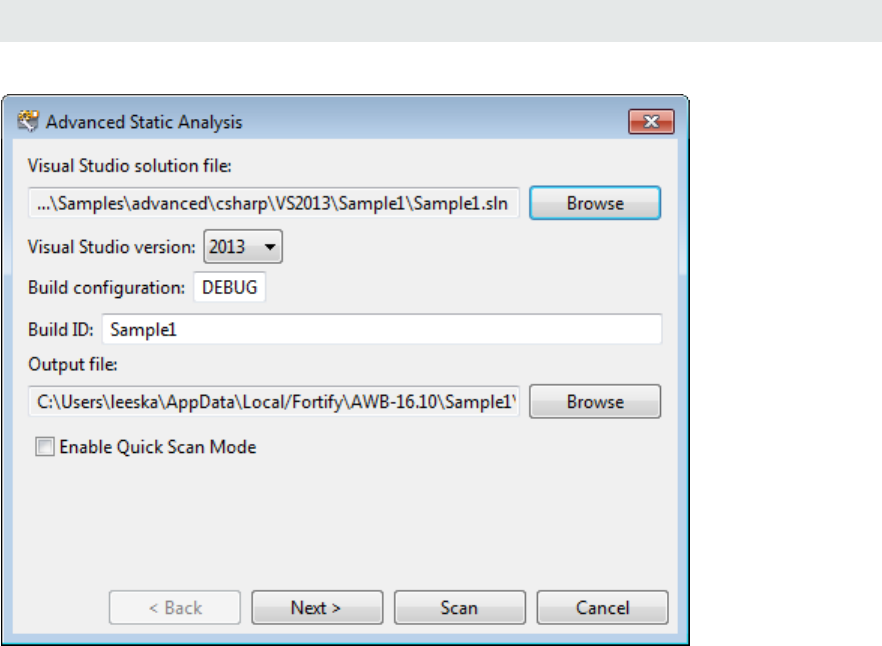

and select the Enable Quick Scan Mode check box. Quick scan is also available when you scan Visual

Studio solutions (see "Scanning Visual Studio Solutions and Projects" on page30). Audit Workbench

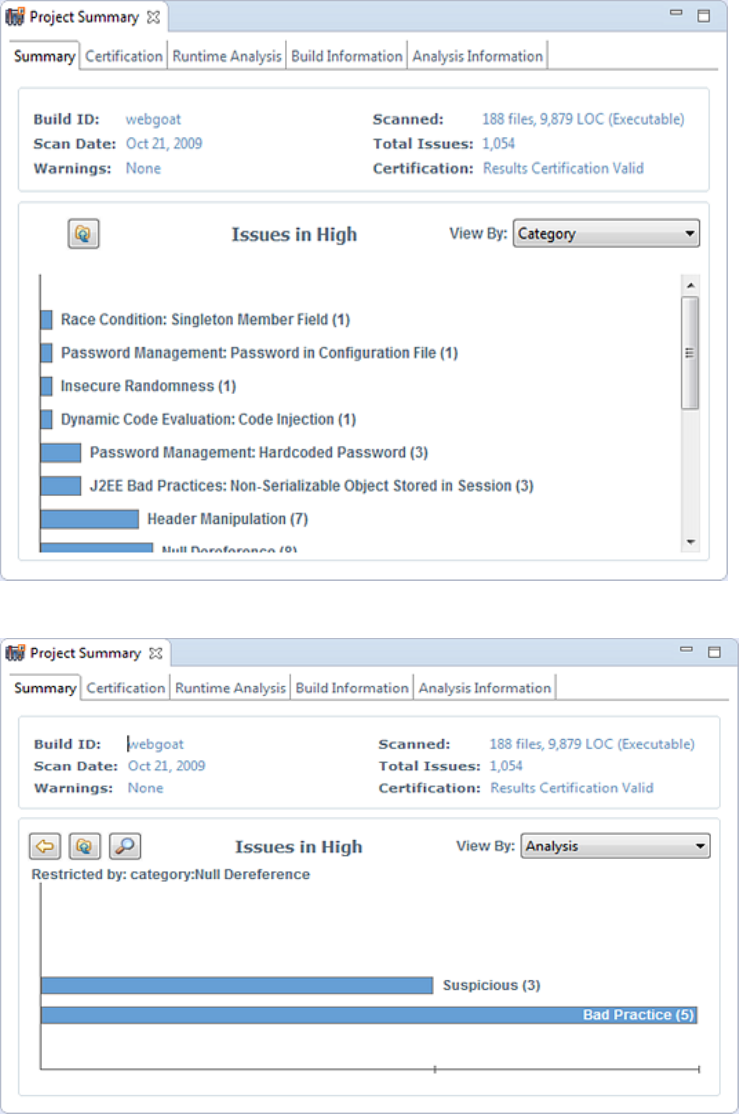

displays the scan results in its Project Summary view. You audit quick scan results just as you audit full

scan results.

Scanning Large and Complex Projects

Exceptionally large codebases may require distinct measures to ensure a complete scan, including using

Fortify Static Code Analyzer to scan the code in smaller sections. While Audit Workbench enables you to

edit Fortify Static Code Analyzer command parameters, you can handle large, complex scans more

successfully directly through the command console. In addition, if a system has memory constraints,

Fortify Static Code Analyzer must compete with the HPE SecurityFortify Audit Workbench for

resources, possibly resulting is slow or failed scans.

Use the Advanced Static Analysis wizard to translate and analyze JavaScript, PHP, ASP, .NET, and SQL

projects. You can use the wizard for Java projects that have source code in multiple directories, special

translation or build conditions, or that have files that you want to exclude from the project.

Note: Audit Workbench filters out unsupported files within the selected source code directories.

To scan a new project:

1. Start Audit Workbench.

2. Under Start New Project, click Advanced Scan.

The Browse for Folder dialog box opens.

3. Select the root directory of the project, and then click OK.

The Advanced Static Analysis wizard opens.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 25 of 131

The wizard automatically includes all supported files in the scan.

4. (Optional) To add files from another directory:

a. Click Add Directory.

The Browse to Folder dialog box opens.

b. Select the folder that contains the files you want to add to the scan, and then click OK.

The navigation panel displays the directory and Audit Workbench adds all supported files to

the scan. (To remove the directory, right-click the folder, and then select Remove Root.)

5. (Optional) To exclude files or directories that contain, for example, test source code, right-click the

file or directory, and then select Exclude.

6. For Java projects, set the following:

a. Select the build directories and jar files and then click Classpath Directory.

Note: If you do not select the classpath directory, Fortify Static Code Analyzer uses the

CLASSPATH environment variable value.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 26 of 131

The folder turns blue and the files are added to the classpath.

b. From the Java Version list, select the Java version of the project.

7. In the Build ID box, type the build ID.

The root directory is the default build ID.

8. To specify a different output file path than the default, in the Output file box, type the path and

file name for the FPR file that Fortify Static Code Analyzer is to generate.

9. To perform a quick scan, select the Enable Quick Scan Mode check box.

For information about quick scans, see "Quick Scan Mode" on page24.

10. Click Next.

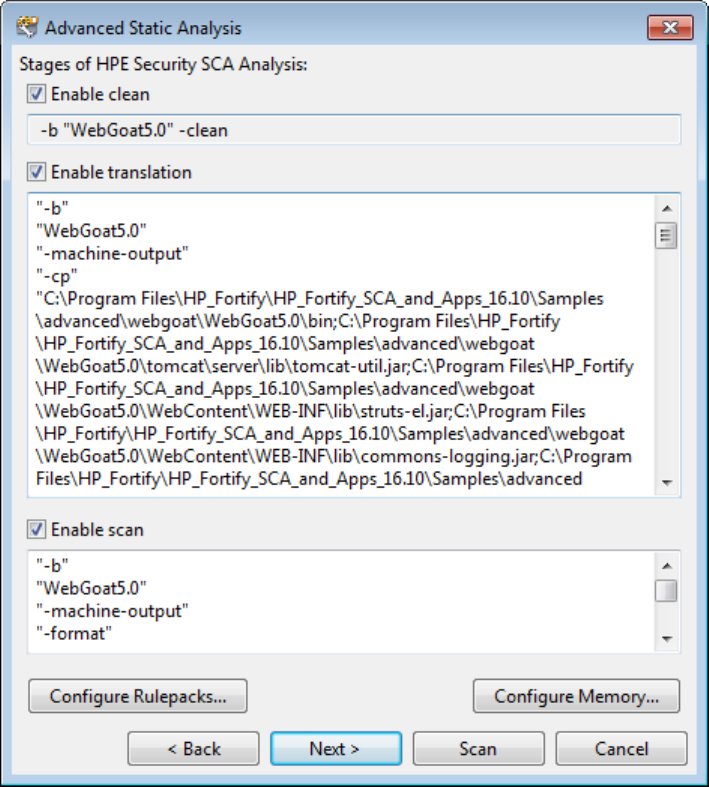

The scan process includes the following phases:

lDuring the clean phase, Fortify Static Code Analyzer removes files from previous translation of

the project.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 27 of 131

lDuring the translation phase, Fortify Static Code Analyzer translates source code identified in

the previous screen into an intermediate format that is associated with a build ID. The build ID is

typically the project.

lDuring the scan phase, Fortify Static Code Analyzer scans source files identified during the

translation phase and generates analysis results, in the Fortify Project Results (FPR) format.

11. (Optional) To skip a scanning phase, clear the Enable clean,Enable translation, or Enable scan

check box.

For example, if the security content has changed but the project has not changed, you might want

to disable both the clean and the translation phases so that Fortify Static Code Analyzer scans the

project without retranslating.

12. Modify the command-line options for each Fortify Static Code Analyzer scan phase as required.

13. (Optional) To specify the amount of memory Fortify Static Code Analyzer uses for scanning:

a. Click Configure Memory.

b. Adjust the slider to the amount of memory required.

c. Click OK.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 28 of 131

14. (Optional) To analyze the source code using an installed custom Rulepack, or to disable a Rulepack,

do the following:

a. Click Configure Rulepacks.

The Additional Options dialog box opens.

b. In the Installed Fortify Security Content list, clear the check boxes that correspond to any

Rulepacks you want to disable during the scan.

Note: For instructions on how to add custom security content, see "Importing Custom

Security Content" on page22.

c. Click OK.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 29 of 131

15. From the Advanced Static Analysis wizard, click Next.

16. Select your scan settings, and then click Scan.

Fortify Static Code Analyzer starts the scan and displays progress information throughout the process.

If Fortify Static Code Analyzer encounters any problems scanning the source code, it displays a

warning.

After the scan is completed, Audit Workbench loads the audit project and displays the analysis results.

Scanning Visual Studio Solutions and Projects

If you have Visual Studio and the HPESecurityFortify Package for Visual Studio installed on the same

machine as Audit Workbench, you can analyze Visual Studio solutions and projects.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 30 of 131

The source code analysis supports the following languages in Visual Studio solutions:

lC/C++

lC#

lVB .NET

lASP .NET

To scan a Visual Studio solution:

1. Start Audit Workbench.

2. Under Start New Project, click Visual Studio Build Integration.

3. Select the folder that contains the solution you want to analyze, and then click OK.

Note: Fortify Static Code Analyzer uses the selected folder name as the build ID.

The Advanced Static Analysis wizard opens.

4. Configure the solution settings, as follows:

a. (Optional) Next to the Visual Studio solution file box, click Browse.

b. Navigate to and select the file for your Visual Studio solution.

c. From the Visual Studio version list, select the Visual Studio version used for the solution.

d. In the Build configuration box, leave the default value DEBUG.

e. (Optional) In the Build ID box, type a different build ID.

f. (Optional) Select a different path and name for the Output file.

g. To run the scan in quick scan mode, select the Quick Scan Mode check box.

h. Click Next.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 31 of 131

The Advanced Static Analysis wizard displays details about the Fortify Static Code Analyzer

analysis phases for the scan.

lDuring the clean phase, Fortify Static Code Analyzer removes files from previous translation of

the project.

lDuring the translation phase, Fortify Static Code Analyzer translates source code identified in

the previous screen into an intermediate format that is associated with a build ID. The build ID is

typically the project.

lDuring the scan phase, Fortify Static Code Analyzer scans source files identified during the

translation phase and generates analysis results, in the Fortify Project Results (FPR) format.

5. (Optional) To skip a scanning phase, clear the Enable clean,Enable translation, or Enable scan

check box.

For example, if the Rulepacks have changed but the project has not changed, you might want to

disable the both the clean and the translation phases so that Fortify Static Code Analyzer scans the

project without retranslating the source code.

6. Modify the command-line options for each Fortify Static Code Analyzer phase, if necessary.

7. (Optional) To specify the amount of memory Fortify Static Code Analyzer uses for scanning:

a. Click Configure Memory.

b. Adjust the slider to the amount of memory required.

c. Click OK.

8. (Optional) To analyze the source code using an installed custom Rulepack, or to disable a Rulepack,

do the following:

a. Click Configure Rulepacks.

b. In the Installed Fortify Security Content list, clear the check boxes that correspond to any

Rulepacks you want to disable during the scan.

Note: For instructions on how to add custom security content, see "Importing Custom

Security Content" on page22.

c. Click OK.

9. From the Advanced Static Analysis wizard, click Next.

10. Select your scan settings, and then click Scan.

Fortify Static Code Analyzer starts the scan and displays progress information throughout the process.

If Fortify Static Code Analyzer encounters any problems scanning the source code, it displays a

warning.

After the scan is completed, Audit Workbench loads the audit project and displays the analysis results.

Re-scanning Projects

This section describes how to re-scan a project that was translated locally with new or updated rules.

Audit Workbench automatically loads the FPR project settings such as the build ID and source code

path, and allows you to change the command-line scanning options.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 32 of 131

After Fortify Static Code Analyzer completes the scan, Audit Workbench merges the analysis results

with those from the previous scan to determine which issues are new, which have been removed, and

which were uncovered in both scans.

To re-scan a project:

1. Open an FPR file.

2. Click Scan.

Note: You can only re-scan a project on the same machine where the project was originally

scanned.

The Rescan Build ID dialog box opens.

3. If the source code has changed since the most recent scan, click Update Project Translation to

retranslate the project.

Note: If the FPR file that you opened was generated by a Fortify Static Code Analyzer scan

that was not initiated from Audit Workbench, the Update Project Translation button is

unavailable.

Note: If the source code has changed since the most recent scan, you must update the

translation before you re-scan the code. Otherwise, a new scan cannot uncover the issues in

the updated source code.

4. (Optional) Modify the Fortify Static Code Analyzer scan phase command-line options, as

necessary.

5. (Optional) To change the Rulepacks used to analyze the project:

a. Click Configure Rulepacks.

b. To add and remove Rulepacks, select or clear the check boxes, as necessary.

Note: For instructions on how to add custom security content, see "Importing Custom

Security Content" on page22.

c. Click OK.

6. Click Scan.

After the scan is complete, Audit Workbench displays the results. Compare the new results with the

issues uncovered in the previous scan as follows:

lTo display all new issues, click the All tab (green), and then, in the Group by list, select New

Issue.

lTo display removed issues, click the All tab, and then select Options > Show Removed Issues.

lTo review issues found in both the previous scan and the new scan, click the All tab, expand the

Issue Updated group, and then, from the Group by list, select New Issue.

UserGuide

Chapter 3: Scanning Source Code

HPE Security Fortify Audit Workbench (17.10) Page 33 of 131

Chapter 4: Scan Results

After a scan is completed, Audit Workbench displays the results in the auditing interface.

This section contains the following topics:

About Viewing Scan Results 34

Working with Issues 53

Searching for Issues 60

About Issue Templates 66

Configuring Custom Filter Sets and Filters 67

Managing Folders 70

Configuring Custom Tags for Auditing 73

Issue Template Sharing 77

Advanced Configuration 79

About Viewing Scan Results

After the scan is completed (or, after you open an existing audit project), summary results are displayed

in the Issues view and in the Project Summary view of the auditing interface. The Analysis Evidence

and Issue Auditing views are open, but do not contain any information until you select an issue from

the Issues view.

View For more information, see...

Issues (top left) "Issues View" below

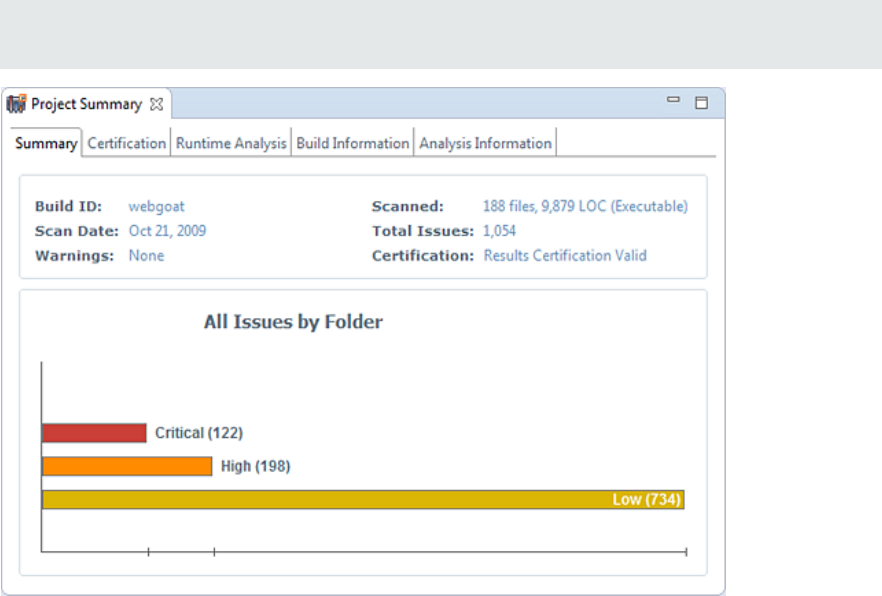

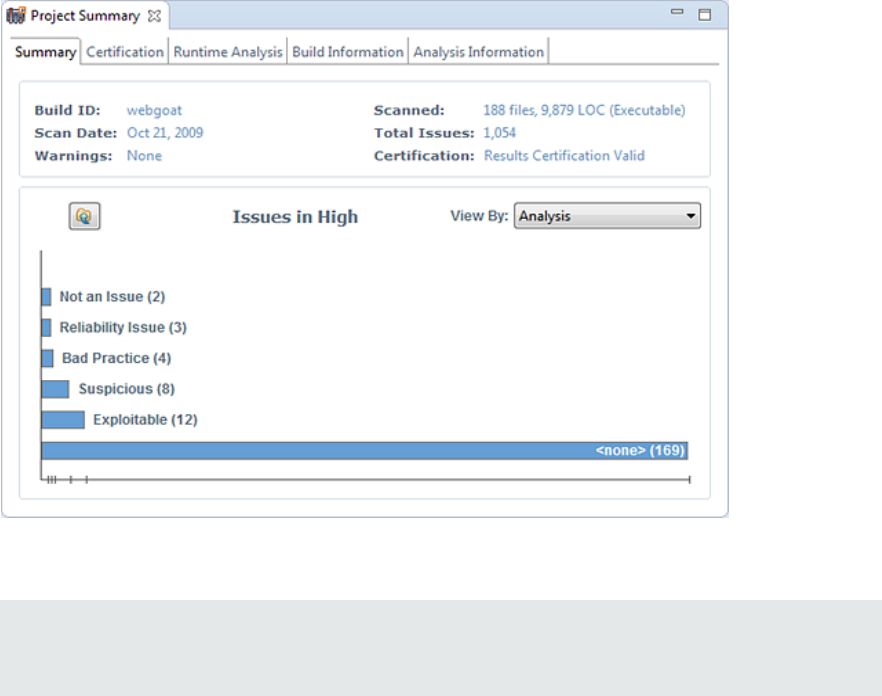

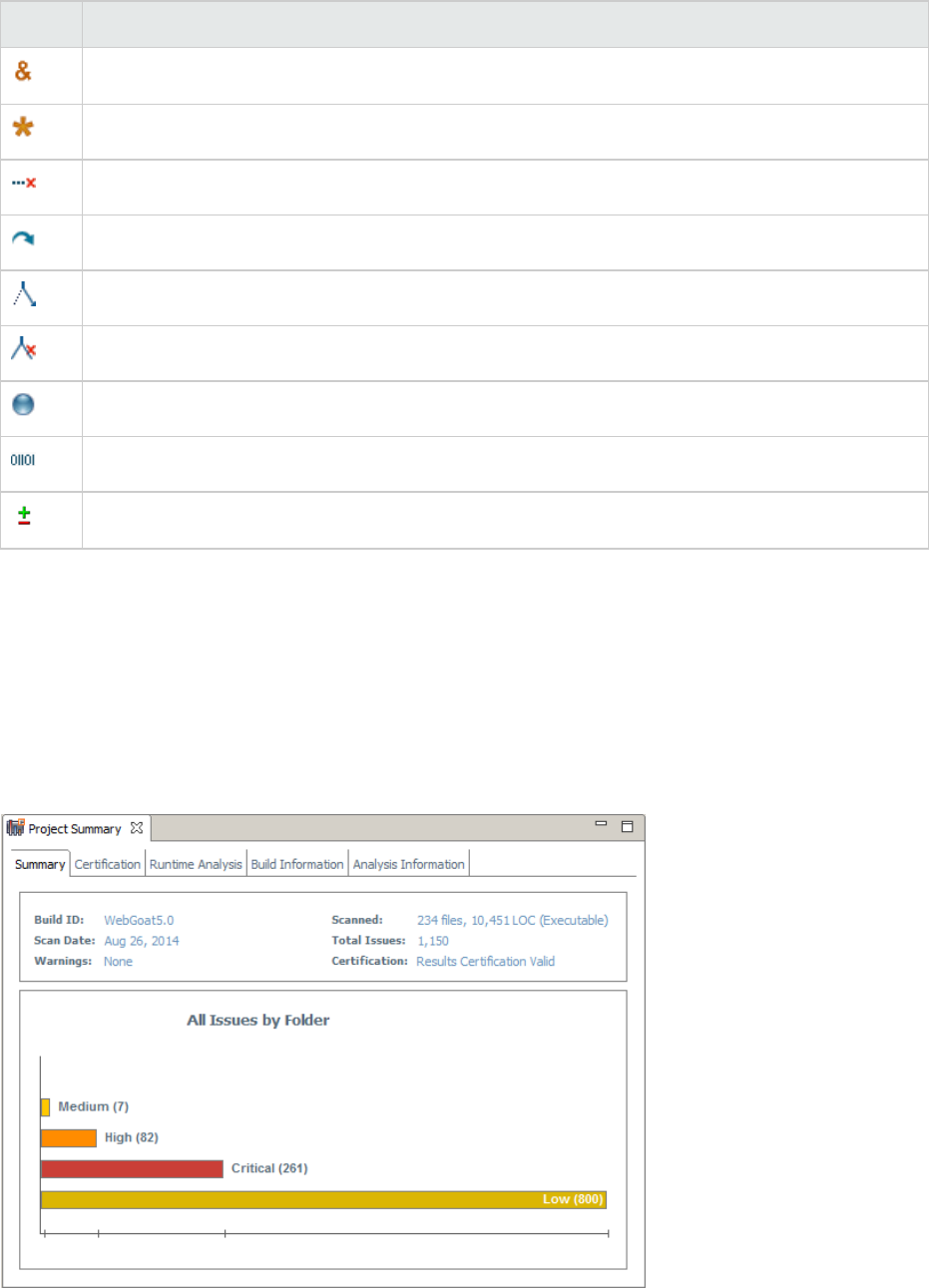

Project Summary (top center) "Project Summary View" on page39

Analysis Evidence (bottom left) "Analysis Evidence View" on page38

Issue Auditing (bottom center) "Issue Auditing View" on page45

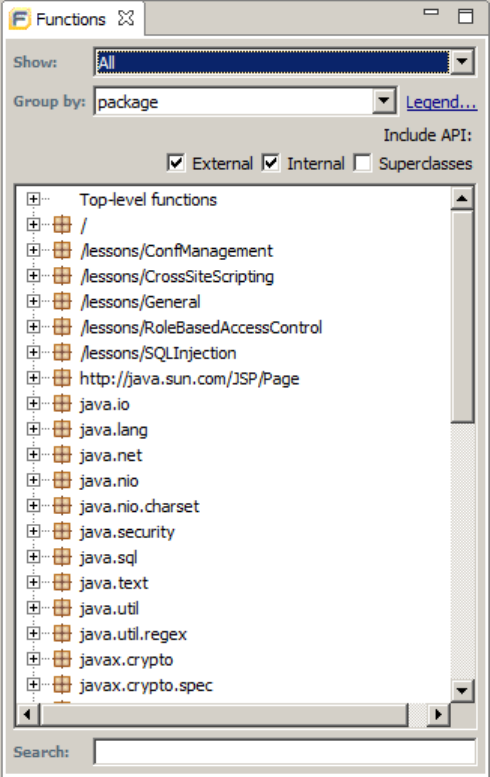

Functions (right) "Functions View" on page51

Issues View

The Issues view provides a way to group and select the issues to audit. The view contains the Filter Set

list, folders (tabs), the Group By list, the My Issues check box, and a search box.

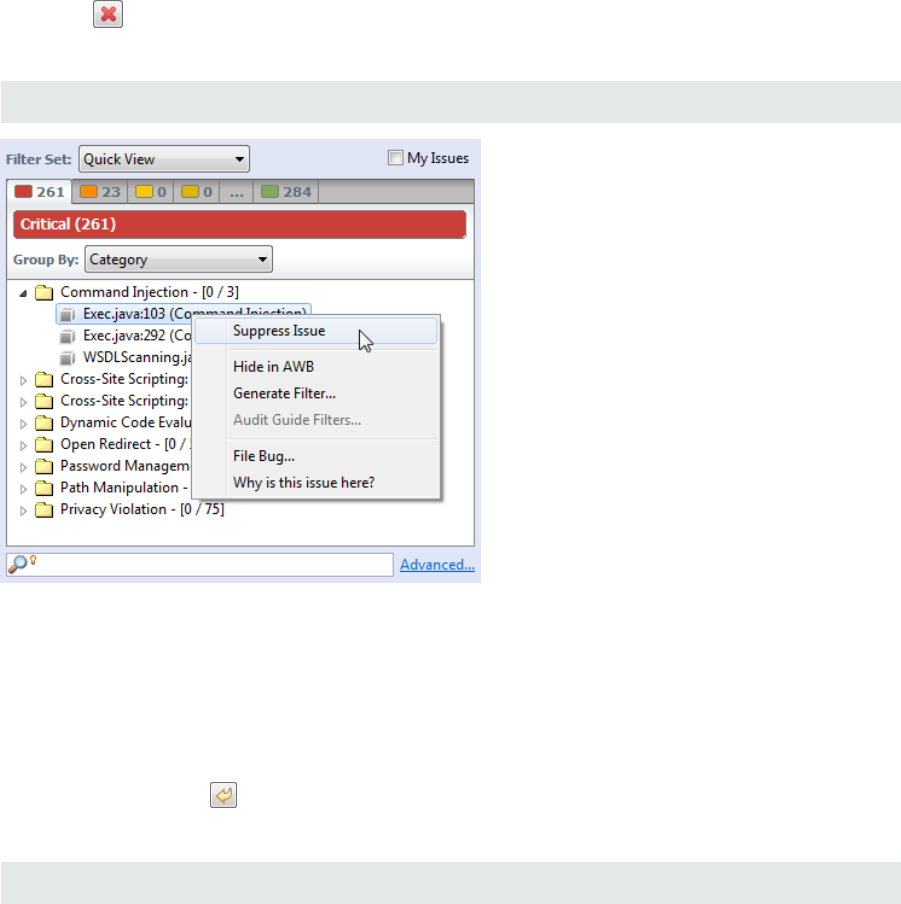

Note: In this view, you can right-click an issue and select Issue Attributes to see all the attributes

associated with the issue such as Analysis tag, analyzer that detected the issue, severity, and more.

HPE Security Fortify Audit Workbench (17.10) Page 34 of 131

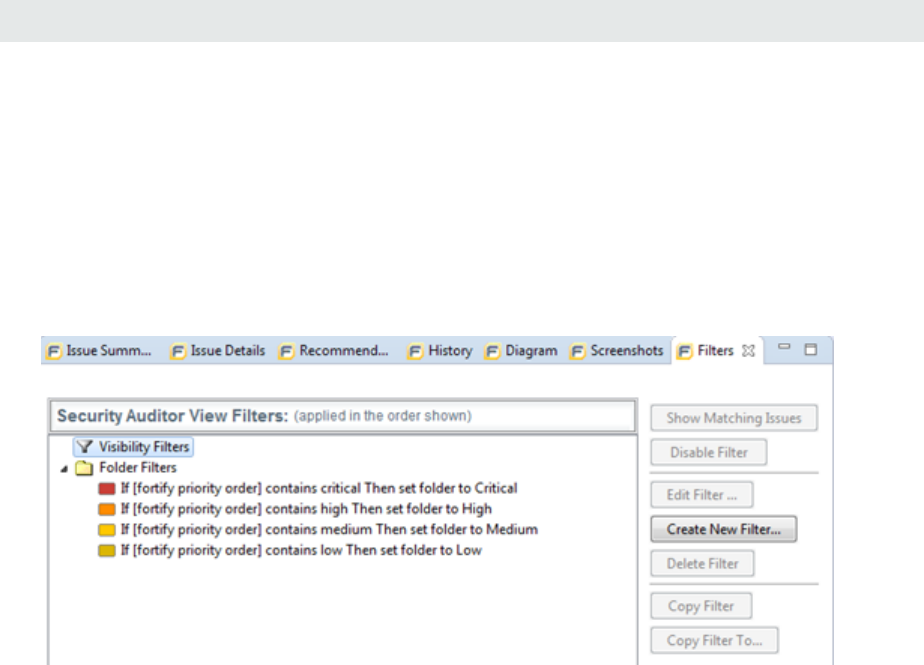

Filter Sets

Audit Workbench applies filters to sort and display the issues that Static Code Analyzer uncovers. Audit

Workbench organizes filters into distinct filter sets.

The selected filter set controls which issues are listed in the Issues view. The filter set determines the

number and types of containers (folders) that are shown and how and where to display issues. The

default filter sets sort the issues by severity into the Critical,High,Medium,Low, and All folders.

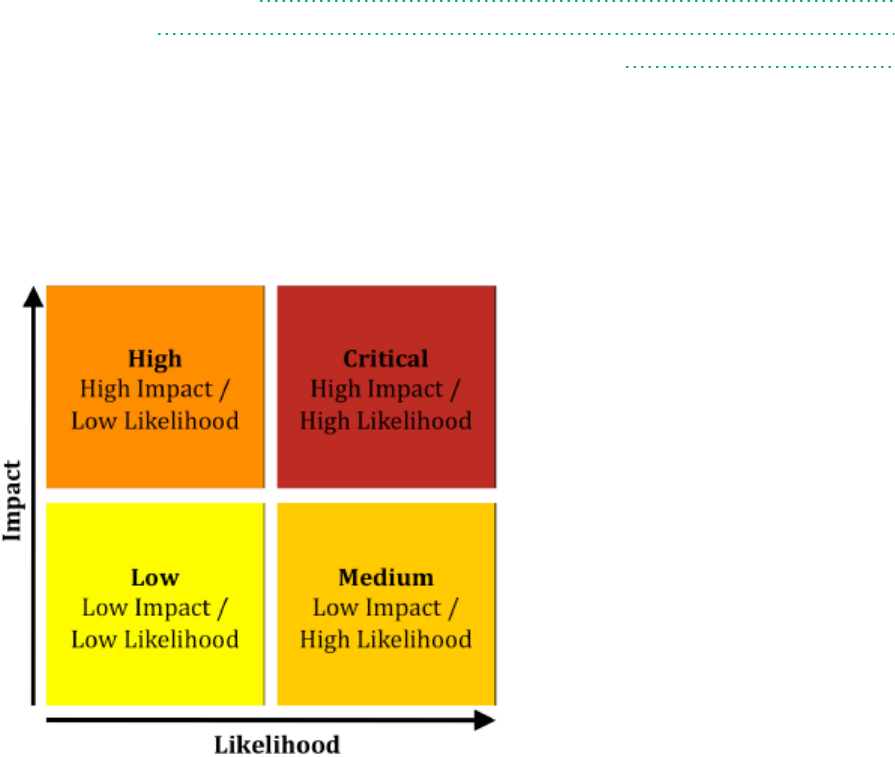

Because filter sets are saved to audit project files, each audit project can have unique filter sets.

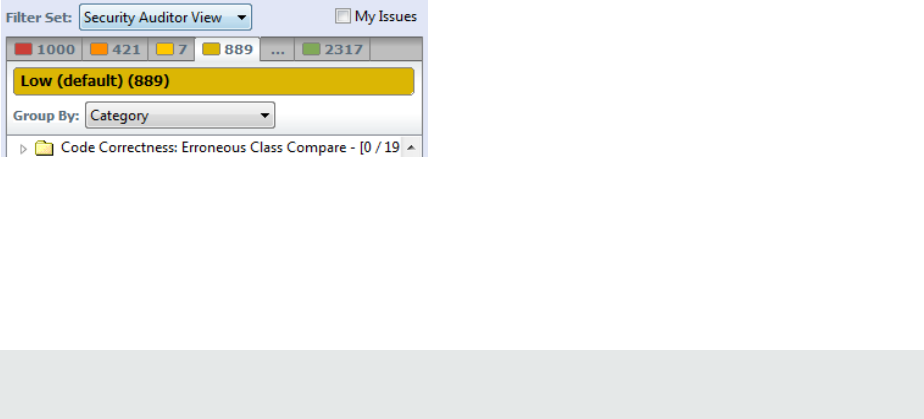

Audit Workbench provides the following filter sets for new projects:

lQuick View: This is the default initial filter set for new projects. The Quick View filter set provides a

view only of issues in the Critical folder (these have a potentially high impact and a high likelihood of

occurring) and the High folder (these have a potentially high impact and a low likelihood of

occurring). The Quick View filter set provides a useful first look at results that enables you to quickly

address the most pressing issues.

lSecurity Auditor View: This is the default filter set for projects scanned in earlier product versions.

This view reveals a broad set of security issues to be audited. The Security Auditor View filter

contains no visibility filters, so all issues are shown.

For instructions on how to create custom filter sets, see "Configuring Custom Filter Sets and Filters" on

page67.

If you open an FPR file that contains no custom filtertemplate.xml file or if you open an FVDL file

or a webinspect.xml file, the audit project opens with the Quick View filter set selected.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 35 of 131

Specifying the Default Filter Set

You can change the initial filter set to use for new or opened projects. You can also disable the default

filter set so that the filter set last enabled in the issue template is used to display scan results for new

projects.

To select the filter set for new or opened projects:

1. Select Options > Options.

2. In the left panel, select Audit Configuration, and then click the Configuration tab on the right.

3. Under Audit Project Load Mode, leave the Default Filter Set check box selected.

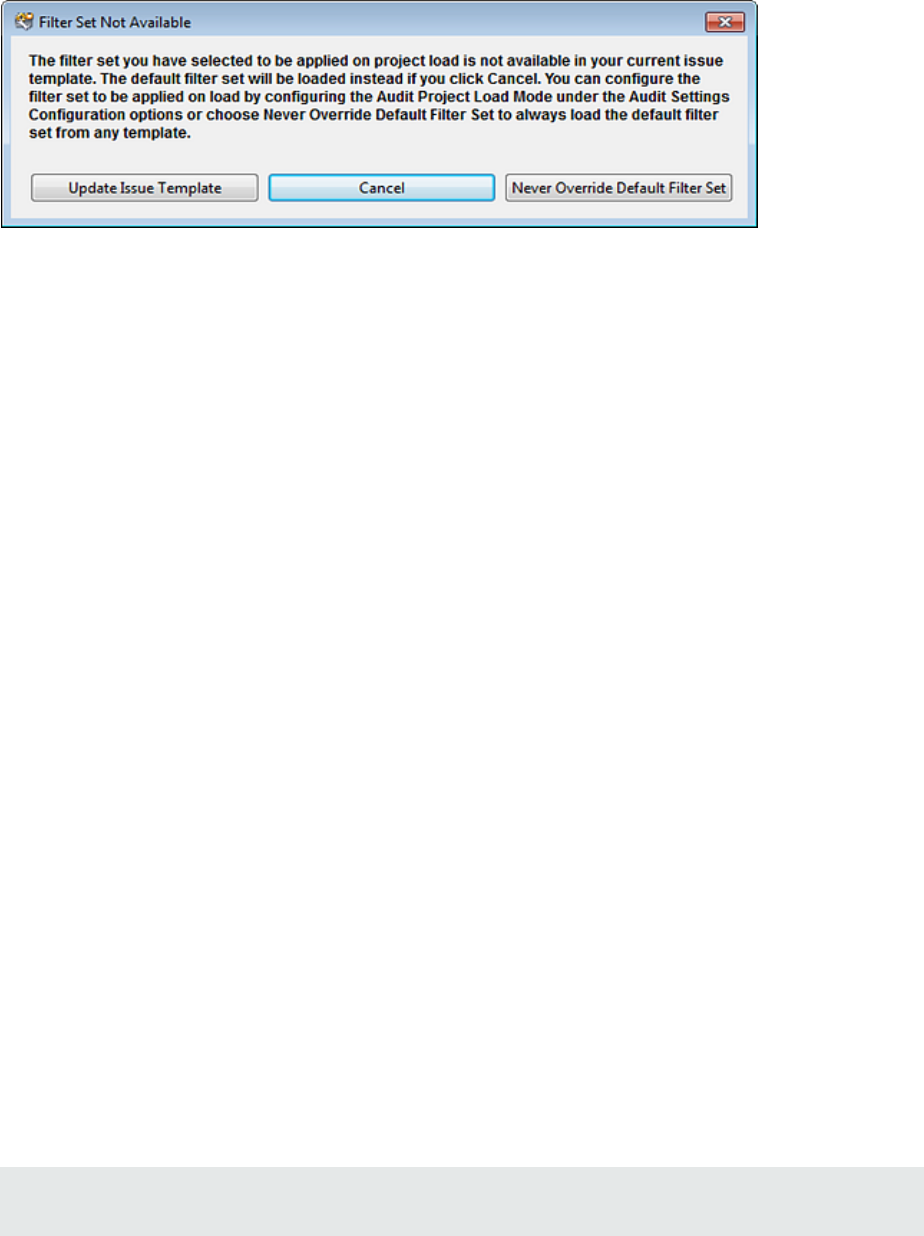

If you clear the check box, the default filter is loaded. For newly-opened projects, the default filter

for FPRs that have no embedded template or the default filter from the embedded template is the

Security Auditor View filter set.

4. From the list to the right of the Default Filter Set check box, select the filter set to use to display

scan results for new projects.

5. Click OK.

Folders (Tabs)

The color-coded Critical,High,Medium,Low, and All tabs on the Issues view are called folders. You

can customize the folders and their settings. The number of folders, names, colors, and the issue list can

vary between filter sets and projects.

Note: In Audit Workbench, the term folder does not refer to the folder icons in the issues list.

The filter set you select from the Filter Set list determines which folders are visible in the Issues view.

The following folders are visible while the Security Auditor View filter set is selected:

lThe Critical folder contains issues that have a high impact and a high likelihood of occurring. Issues

at this risk level are easy to discover and to exploit, and represent the highest security risk to a

program. Remediate critical issues immediately.

Example: SQL Injection

lThe High folder contains issues that have a high impact and a low likelihood of occurring.

High-priority issues are often difficult to discover and exploit, but can result in much asset damage.

They represent a significant security risk to a program. Remediate these issues with the next patch

release.

Example: Password Management: Hardcoded Password

lThe Medium folder contains issues that a have low impact and a high likelihood of exploitation.

Medium-priority issues are easy to discover and exploit, but often result in little asset damage. These

issues represent a moderate security risk to a program. Remediate these issues as time permits.

Example: ASP.NET Misconfiguration: Missing Error Handling

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 36 of 131

lThe Low folder contains issues that have a low impact and a low likelihood of exploitation. Remediate

these issues as time permits. Low-priority issues can be difficult to discover and to exploit and

typically result in little asset damage. These issues represent a minor security risk to the program.

Example: Poor Error Handling: Empty Catch Block

lThe All folder contains the issues from all of the other folders.

An issue is listed in a folder if the folder filter conditions match the issue attributes. Each filter set has a

default folder, indicated by (default) next to the folder name. If an issue does not match any of the

folder filters, the issue is listed in the default folder.

You can create your own folders as you need them. For example, you might group all hot issues for a

project into a Hot folder and group all warning issues for the same project into a Warning folder. For

instructions on how to create your own folders, see "Creating a Folder" on page70.

Each folder contains a list of all of the issues with attributes that match the folder filter conditions. One

folder in each filter set is the default folder, indicated by (default) in the folder name.

Note: To show or hide suppressed, hidden, and removed issues, set the user interface preferences

from the Options dialog box (see "Customizing the Issues View" on page51).

Group By List

The Group By list options sort the issues into sub folders. The option you select is applied to all visible

folders. To list all issues in the folder without any grouping, select <none>.

To customize the existing groups, you can specify which attributes to sort by, add or remove the

attributes to create sub-groupings, and add your own grouping options.

The Group By settings apply to the application instance. You can apply the Group By option to any

project opened with that instance of the application.

For more information, see "Grouping Issues" on page55.

Specifying the Default Issue Grouping

You can change the initial Group By setting to use for new or opened projects.

To select the default Group By setting:

1. Select Options > Options.

2. In the left panel, select Audit Configuration, and then click the Configuration tab on the right.

3. Under Audit Project Load Mode, select the Default Issue Grouping check box.

If you clear the check box, the default Group By setting is set to Category.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 37 of 131

4. From the list to the right of the Default Issue Grouping check box, select the grouping you want

to use to sort issues.

5. Click OK.

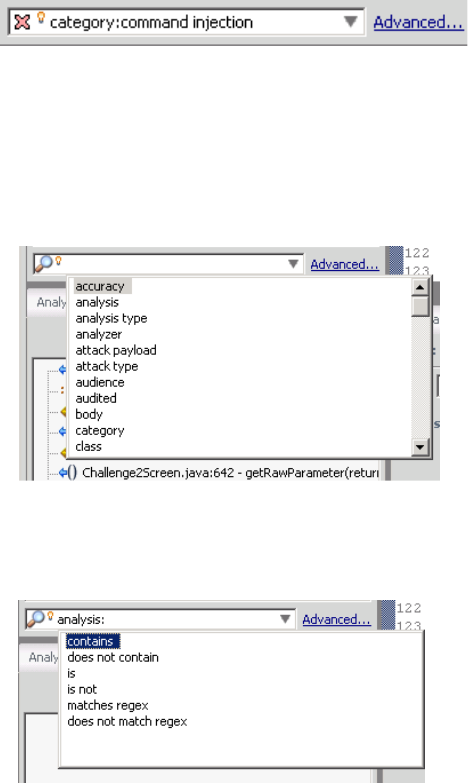

Search Box

The search box enables you to limit the issues displayed in the folder and to search for specific issues.

For detailed information about how to use the search box, see "Searching for Issues" on page60.

Analysis Evidence View

When you select an issue, the Analysis Evidence view displays the relevant trace output. This is a set of

program points that show how the analyzer found the issue. For dataflow and control flow issues, the

set is presented in the order executed. For dataflow issues, this evidence is a presentation of the path

that the tainted data follows from the source function to the sink function.

For example, when you select an issue that is related to potentially tainted dataflow, the Analysis

Evidence view shows the direction the dataflow moves in this section of the source code.

The Analysis Evidence view uses the icons listed in the following table to show how the dataflow moves

in this section of the source code or execution order.

Icon Description

Data is assigned to a field or variable

Information is read from a source external to the code such as an HTMLform or a URL

Data is assigned to a globally scoped field or variable

A comparison is made

The function call receives tainted data

The function call returns tainted data

Passthrough, tainted data passes from one parameter to another in a function call

An alias is created for a memory location

Data is read from a variable

Data is read from a global variable

Tainted data is returned from a function

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 38 of 131

Icon Description

A pointer is created

A pointer is dereferenced

The scope of a variable ends

The execution jumps

A branch is taken in the code execution

A branch is not taken in the code execution

Generic

A runtime source, sink, or validation step

Taint change

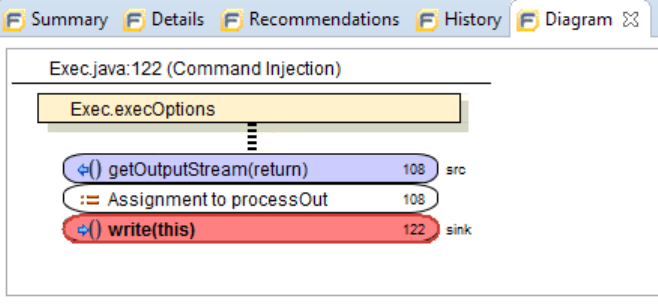

The Analysis Evidence view can display inductions. Inductions provide supporting evidence for their

parent nodes. Inductions consist of a text node, displayed in italics as a child of the trace node, and an

induction trace, displayed as a child of the text node (a box surrounds the induction trace). The italics

and the box distinguish the induction from a standard sub trace.

Project Summary View

The Project Summary view provides detailed information about the scan.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 39 of 131

To open this view, select > Tools > Project Summary.

Summary Tab

The Summary tab shows high-level information about the project. For more information, see "Viewing

Summary Graph Information" on the next page.

Certification Tab

The Certification tab displays the result certification status and indicates whether the code analysis for

a scan was complete. Results certification is a check to ensure that the analysis results have not been

altered after HPESecurityFortify Static Code Analyzer or HPESecurityFortify Runtime Application

Protection produced them. Results certification shows specific information about the scanned code,

including:

lFPR certification

lCertification details such as the results and rules signatures

Runtime Analysis Tab

If Runtime analysis data is available, the Runtime Analysis tab displays the following run information:

lNumber of issues found by Runtime Application Protection

lBuild ID

lEngine version

lDates and times the run started and ended

lMachine on which the scan was performed

Build Information Tab

The Build Information tab displays the following information:

lBuild details such as the build ID, number of files scanned, source last-modified date, and the date of

the scan, which might be different than the date the files were translated

lExecutable lines of code (LOC) scanned - Ignore this metric. It is no longer used.

lTotal lines of code (LOC) scanned

This metric provides the approximate number of lines that contain code constructs (comments are

excluded). The process to determine the LOC varies for the different supported languages.

lList of files scanned with file sizes and timestamps

lLibraries referenced for the scan

lJava classpath used for the translation

Analysis Information Tab

The Analysis Information tab shows the Fortify Static Code Analyzer version that performed the

scan, details about the computer on which the scan was run, the user who started the scan, scan date,

and the time required to scan the code.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 40 of 131

The Analysis Information tab includes the following subtabs:

lSecurity Content: Lists information about the Rulepacks used to scan the source code

lProperties: Displays the Fortify Static Code Analyzer properties files settings

lCommandline Arguments: Displays the command-line options used to analyze the project

Viewing Summary Graph Information

The summary graph displayed in the Project Summary view provides multiple perspectives on the sets

of issues, grouped by priority (Critical, High, Medium, and Low) uncovered in a scan. You can drill down

in the graph to see detailed information about each issue set, and create various bar charts for issues

based on a selected issue attribute.

The following procedure uses the WebGoat sample Java application to demonstrate how to access

information about sets of issues graphically depicted in the summary graph.

To access details about issue sets in an audit project:

1. Scan your project source code or open an existing audit project.

After the results are loaded, the Project Summary view displays the Summary tab, which includes

the summary graph. The summary graph initially displays issues sorted into the Critical,High,

Medium, and Low folders.

Note: If you change the selection in the Filter Set list (Issues), the summary graph changes

accordingly.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 41 of 131

2. To see a different view of the high priority issues, click the High bar.

By default, the graph displays high priority issues based on the analysis attribute (assigned analysis

values).

Note: The example here shows information for scan results that have been partially audited. If

these results were from a fresh, unaudited scan, no analysis information would be available.

The graph would just display a single bar that represents all (unaudited) high priority issues.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 42 of 131

3. To view the high priority issues based on a different attribute, select an item from the View By list.

4. On the Issues in High bar graph, select a bar for a category that contains multiple issues.

In the example shown here, the Null Dereference bar is selected. You can see that, of eight issues,

three were marked as Suspicious and five were marked as Bad Practice.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 43 of 131

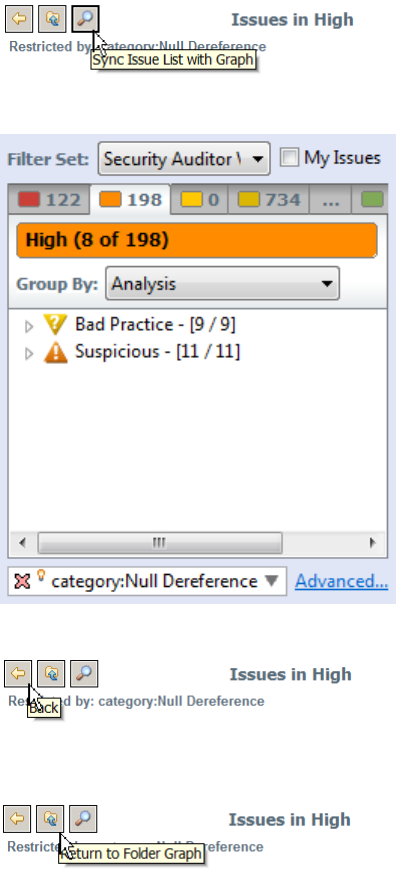

5. To synchronize the issues list with the displayed graphical view, click Sync Issue List with Graph.

The issues list in the Issues view now reflects the selections in the summary graph.

6. To return to the previous view in the summary graph, click Back.

7. To return to the original summary graph view (issues based on priority), click Return to Folder

Graph.

Source Code View

After you open a project in Audit Workbench, the top center view displays the Project Summary tab.

After you select an issue in the Issues view to the left, Audit Workbench adds the source code tab to

the top center view. This source code tab shows the code related to the issue selected in the Issues

view.

If multiple nodes represent an issue in the Analysis Evidence view (below the Issues view), the source

code tab shows the code associated with the selected node. From the source code view, you can use the

code assist feature to create custom rules and new issues. For information about how to create a new

issue from Audit Workbench, see "Creating Issues for Undetected Vulnerabilities" on page87.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 44 of 131

About Displayed Source Code

After you open an FPR file in Audit Workbench, the source code tab displays source code that is stored

locally. If that source code was updated since the last scan, Audit Workbench displays the updated

source code, even if the latest scan did not use that updated source code.

However, if that source code is updated after you open the FPR file and Audit Workbench has already

started and searched for the source code (even if you close the FPR in Audit Workbench and then re-

open it) Audit Workbench does not look for or display the updated source code. It displays the updated

source code only after you quit, and then restart Audit Workbench.

Issue Auditing View

The Issue Auditing view at the bottom center of the auditing interface provides detailed information

about each issue on the tabs described in the following topics.

Note: If any of the tabs are not visible, select Options >Show View to open them.

Summary Tab

The Summary tab displays information about the selected issue and enables auditors to add comments

and custom tag values. The following table describes the tab elements.

Element Description

Issue Displays the issue location, including the file name and line number.

User Displays the name of the user assigned to the issue if the results were

uploaded to Fortify Software Security Center and a user was assigned in

Fortify Software Security Center.

Analysis List of values that the auditor can use to assess the issue. Valid values for

Analysis are Not an Issue, Reliability Issue, Bad Practice, Suspicious, and

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 45 of 131

Element Description

Exploitable.

<custom_tags> Displays any custom tags if defined for the audit project.

If the audit results have been submitted to Audit Assistant in Fortify

Software Security Center, then in addition to any other custom tags, the tab

displays the following tags:

lAA_Prediction—Exploitability level that Audit Assistant assigned to the

issue. You cannot modify this tag value.

lAA_Confidence—Confidence level from Audit Assistant for the accuracy

of its AA_Prediction value. This is a percentage, expressed in values that

range from 0.000 to 1.000. For example, a value of 0.982 indicates a

confidence level of 98.2 percent. You cannot modify this tag value.

lAA_Training—Whether to include or exclude the issue from Audit

Assistant training. You can modify this value.

For more information about Audit Assistant, see the HPE SecurityFortify

Software Security Center User Guide.

Suppress Suppresses the issue

Unsuppress Unsuppresses the issue (only visible if the issue is suppressed).

File Bug Provides access to a supported bug tracking system.

Comment Appends additional information about the issue to the comment field.

Rule Information Shows information, such as the category and kingdom that describes the

issue.

More Information Opens the Details tab.

Recommendations Opens the Recommendations tab.

Showmergeconflicts Shows merge conflicts in the Comments box that might exist after a merge

of audit projects. This check box is available only if merge conflicts exist.

Details Tab

The Details tab provides a detailed description of the selected issue and guidelines on how to resolve it.

The following table describes the tab elements.

Element Description

Abstract/Custom

Abstract

Summary description of the issue, including custom abstracts that your

organization defined.

Explanation/Custom Description of the conditions in which this type of issue occurs. This includes a

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 46 of 131

Element Description

Explanation discussion of the vulnerability, the constructs typically associated with it, how

it can be exploited, and the potential consequences of an attack. This element

also provides custom explanations that your organization defined.

Instance ID Unique identifier for the issue.

Priority Metadata

Values

Includes impact and likelihood.

Legacy Priority

Metadata Values

Includes severity and confidence.

Remediation Effort The relative amount of effort required to fix and verify an issue.

Note: For more information about metadata values and remediation effort, see "Estimating Impact

and Likelihood with Input from RulesandAnalysis" on page122.

WebInspect Agent Details Tab

The WebInspect Agent Details tab displays the following information about runtime issues found by

HPESecurityFortify Runtime Application Protection. The following table describes the tab elements.

Element Description

Request Shows the path of the request, the referrer address, and the method.

StackTrace Shows the order of methods called during execution and line number information.

Blue, clickable code links are only displayed for Fortify Static Code Analyzer-scanned

code.

Recommendations Tab

The Recommendations tab displays suggestions and examples of how to secure the vulnerability or

remedy the bad practice. The following table lists the elements on the tab.

Element Description

Recommendations/Custom

Recommendations

Recommendations for this type of issue, including examples, as well as

custom recommendations that your organization defined.

Tips/Custom Tips Tips for this type of issue, including any custom tips that your

organization defined.

References/Custom

References

Reference information, including any custom reference that your

organization defined.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 47 of 131

History Tab

The History tab displays a complete list of audit actions, including details such as the time and date, and

the name of the user who modified the issue.

Diagram Tab

The Diagram tab displays a graphical representation of the node execution order, call depth, and

expression type of the issue selected in the Issues view. This tab displays information that is relevant to

the rule type. The vertical axis represents the execution order.

For dataflow issues, the trace starts with the first function to call the taint source, then traces the calls to

the source (blue node), and ends the trace at the sink (red node). In the diagram, the source (src) and

sink nodes are also labeled. A red X on a vertical axis indicates that the called function finished

executing.

The horizontal axis shows the call depth. A line shows the direction that control is passed. If control

passes with tainted data through a variable then the line is red. If it control passes without tainted data,

the line is black.

The icons used for the expression type of each node in the diagram are the same icons used in the

Analysis Evidence view. To view the icons and the descriptions, see "Analysis Evidence View" on

page38.

Filters Tab

The Filters tab displays all the filters in the selected filter set. The following table describes the Filters

tab options to create new filters.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 48 of 131

Option Description

Filters Displays a list of the visibility and folder filters configured in the selected filter set.

lVisibility filters show or hide issues

lFolder filters sort the issues into the folder tabs in the Issues view

Right-click a filter to show issues that match the filter or to enable, disable, copy, or delete

it.

If Displays the filters conditions.

The first list displays a list of issue attributes, the second list specifies how to match the

attribute, and third is the value the filter matches.

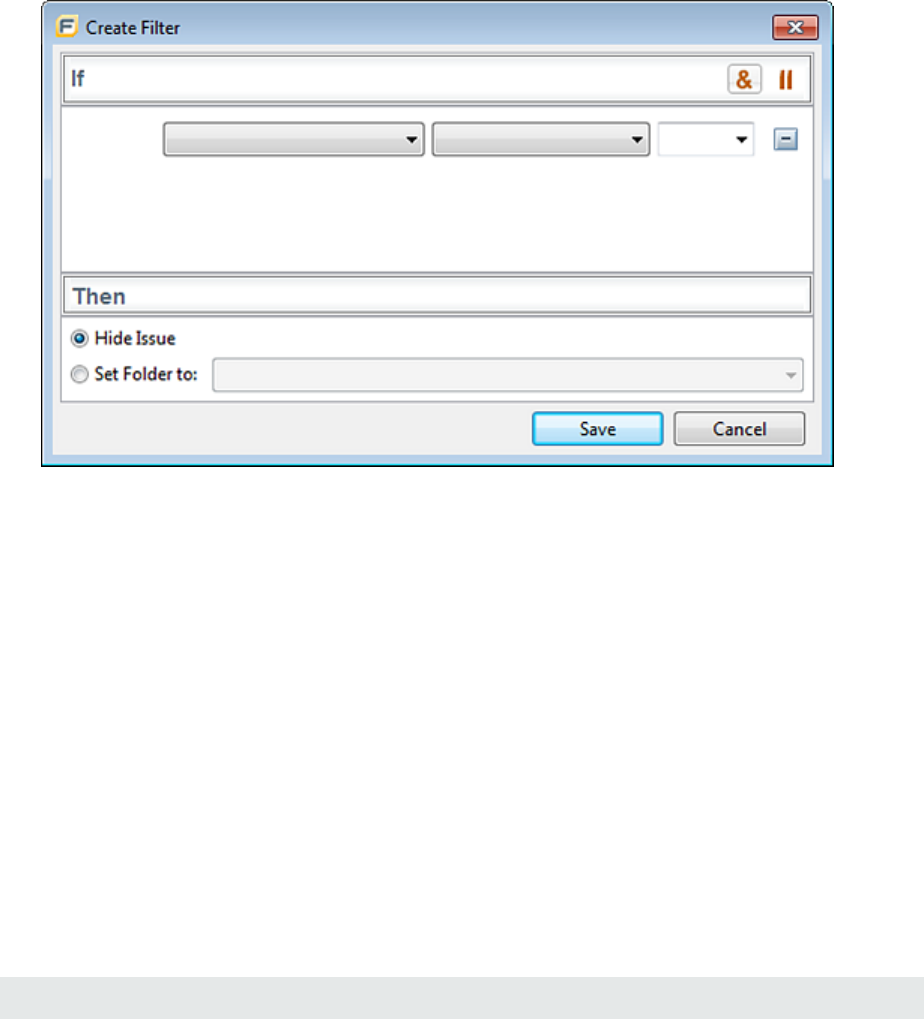

Note: This option is visible when you create a new filter or edit an existing filter. In this

case, a dialog box displays the If section.

Then Indicates the filter type, where Hide Issue is a visibility filter and Set Folder to is a folder

filter.

Note: This option is visible when you create a new filter or edit an existing filter. In this

case, a dialog box displays the Then section.

Warnings Tab

The Warnings tab lists any warnings that occurred during the analysis.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 49 of 131

A common source of warnings are missing references. To resolve this type of warning, make sure that

the reference files are either within the project directory structure or in a location known to Fortify

Static Code Analyzer. The scan can also issue a warning if a particular class has no functional content. In

this case, the warning is not an issue because an empty class has no impact on a scan.

The following table describes the Warnings tab options.

Task Procedure

See the complete message that is

truncated on the tab.

lDouble-click the message.

Copy a warning message to the

clipboard.

lRight-click a message, and then select Copy.

Save a warning message to a file. 1. Right-click a message, and then select Export Entry.

2. Type a name for the file, and then click Save.

The file includes the audit project name, FPR file location, the

warning code, and the warning message.

Save all the warning messages to

a file. 1. Click Export Warnings .

2. Type a name for the file, and then click Save.

The file includes the project name, FPR file location, the warning

codes, and the warning messages.

Search the warning message Type the search text in the filter text box.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 50 of 131

Task Procedure

Modify the text message at the

top of the tab.

1. Edit the <fortify_working_

dir>/config/tools/warnings-view.properties file

where <fortify_working_dir>is:

lWindows:

C:\Users\<username>\AppData\Local\Fortify

lNon-windows: /home/<username>/.fortify

2. Edit the text following message= to the text you want to

display in the Warning tab.

Close and reopen the Warnings tab to see the updated text.

Functions View

The Functions view in the top right shows how and where a function occurs in the source code,

whether or not the function was covered by a security rule, and which rule IDs match the function. The

Functions view can also list the functions that Fortify Static Code Analyzer identified as tainted source,

and the functions that were not covered by rules in the last scan. For detailed information about the

Functions view, see "Using the Functions View" on page106.

Customizing the Issues View

You can customize the Issues view to determine which issues it displays.

To change the Issues view:

1. Select Options > Options.

2. In the left panel, select Audit Configuration.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 51 of 131

3. To change your preferences on the Appearance tab, select or clear the check boxes described in

the following table.

Preference Description

ShowSuppressedIssues Displays all suppressed issues (disabled by default).

Show Removed Issues Displays all issues that were uncovered in the previous analysis, but

are no longer evident in the new Issues view. When multiple scans

are run on a project over time, vulnerabilities are often remediated or

become obsolete. Fortify Static Code Analyzer marks these

vulnerabilities as Removed Issues.

Show Hidden Issues Displays all hidden issues.

Collapse Issues Shows similar issues based on certain attributes under a shared

parent node in the Issues view.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 52 of 131

Preference Description

UseShortFileNames References the issues in the Issues view by file name only, instead of

by relative path.

Show Category of Issue Displays the category of an issue in the Issues and Issue Summary

views.

Show Only My Issues Displays only issues assigned to you.

Right justify ‘All’ Folder Displays the All folder aligned on the right.

Display Name in Folder

Tabs

Displays the name text in the folder tabs.

Show Abstract in Issue

Summary

Displays the abstract text in the summary.

Show Comments in

Issue Summary

Displays comments in the summary.

Show ‘All’ Folder in

Issue Summary Graph

Displays another bar in the chart on the Project Summary tab.

Include Comments Displays the history items for comments on the History tab.

Note: To restore the default settings at any time, click Reset Interface.

4. To save your preferences, click OK.

Working with Issues

This section provides information about how to use Audit Workbench to review issues.

Filtering Issues with Audit Guide

You can use the Audit Guide wizard to filter vulnerability issues in your audit project based on a set of

security-related questions.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 53 of 131

To use the Audit Guide:

1. Select Tools >Audit Guide.

2. Make your selections for the types of issues you want to display.

3. To use the advanced filter options, click Advanced Mode.

The Advanced Audit Guide dialog box opens.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 54 of 131

a. In the Audit Guide Filters list, select the types of issues you want to filter out and ignore.

As you select items in the Audit Guide Filters list, the Audit Guide wizard also displays the

filter details for the selected filter type in the Filters table, including the number of issues that

match each filter.

b. To see a description of an issue type, click its name in the Audit Guide Filters list.

The Audit Guide wizard displays a description to the right of the list.

4. Click OK to apply your filter selections.

Grouping Issues

The items visible in the navigation tree vary depending on the selected grouping option in the Issues

view. The value you select from the Group By list sorts issues in all visible folders into subfolders.

To list all issues in a folder without any grouping, select <none>.

You can view issues with any of the Group By options, and you can create and edit customized groups.

The Group By options enable you to group and view the issues in different ways. In practice, you will

probably switch frequently between different groupings. The following table lists descriptions of the

standard Group By options.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 55 of 131

Option Description

Analysis Groups issues by the audit analysis, such as suspicious and exploitable.

Analysis Type Groups issues by analyzer product.

Analyzer Groups issues by analyzer group.

AppDefenderProtected Groups issues by whether or not Application Defender can protect the

vulnerability category.

Category Groups issues by vulnerability category. This is the default setting.

Category Analyzer A sample custom group that groups issues by category and then

analyzer.

File Name Groups issues by file name.

FortifyPriorityOrder Groups issues as Critical, High, Medium, and Low based on the combined

values of Fortify Static Code Analyzer impact and likelihood.

New Issue Shows which issues are new since the last scan. For example, if you run a

new scan, any issues that are new display in the tree under the New

Issues group and the others are displayed in the Issue Updated group.

Issues not found in the latest scan are displayed in the Removed list.

<metadata_listname> Groups issues by the alternative metadata external list names (for

example, OWASP Top 10 <year>, CWE, PCI <version>, STIG <version>,

and so on).

Package Groups issues by package or namespace. Does not appear for projects to

which this option does not apply, such as C projects.

Sink Groups issues that share the same dataflow sink function.

Source Groups issues that share the same dataflow source functions.

Source File Type Groups issues by source file types Fortify Static Code Analyzer

recognizes.

Note: Issues in files with different file extensions that are the same

source file type are grouped together(for example, issues in files with

the extensions:html,htm, and xhtml are grouped under html).

Taint Flag Groups issues by the taint flags that they contain.

<none> Displays a flat view without grouping.

Edit Select Edit to create a custom Group By option.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 56 of 131

Creating a Custom Group By Option

You can create a custom Group By option that groups issues in a hierarchical format in sequential order

based on specific attributes.

To create a new grouping option:

1. In the Group By list, select Edit.

The Edit Custom Groupings dialog box opens.

2. To create a custom group by option, do the following:

a. Select Create New from the Custom Group Name list.

b. In the Enter Value dialog box, type a name for the new custom group.

c. Click OK.

3. From the Grouping Types list on the left, select a grouping type, and then click the right arrow to

move the option to the Grouping Order column.

For example, selecting Category and then Analyzer creates a list that has top-level nodes that

contain the category of the issue, such as Buffer Overflow, with the issues grouped below by

analyzer (such as semantic, or dataflow), followed by the issues.

-Buffer Overflow [0/2]

--DataFlow [0/1]

----Main.cs:234

-+Semantic [0/1]

4. Repeat step 3 to select additional grouping types.

5. To change the order of the grouping types:

a. In the Grouping Order list, select the grouping type that you want to move up or down in the

grouping order.

b. Right-click the selected grouping type, and then select Move Up or Move Down from the

shortcut menu.

6. To delete a custom grouping, click Delete .

Selectively Displaying Issues Assigned to You

To view display only issues assigned to you in the Issues view, do one of the following:

lSelect the My Issues check box.

lSelect Options > Show Only My Issues.

About Suppressed, Removed, and Hidden Issues

You can control whether the Issues view lists the following types of issues:

lSuppressed issues. As you assess successive scans of an application version, you might want to

completely suppress some exposed issues. It is useful to mark an issue as suppressed if you are sure

that the specific vulnerability is not, and will never be, an issue of concern. You might also want to

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 57 of 131

suppress warnings for specific types of issues that might not be high priority or of immediate

concern. For example, you can suppress issues that are fixed, or issues that you plan not to fix.

Suppressed issues are not included in the group totals shown in the Issues view.

lRemoved issues. As multiple scans are run on a project over time, issues are often remediated or

become obsolete. As it merges scan results, Fortify Static Code Analyzer marks issues that were

uncovered in a previous scan, but are no longer evident in the most recent Fortify Static Code

Analyzer analysis results as Removed. Removed issues are not included in the group totals shown in

the Issues view.

lHidden issues. You typically hide a group of issues temporarily so that you can focus on other issues.

For example, you could hide all issues except those assigned to you. The individuals assigned to

address the issues you have hidden in your view can still access them. The group totals displayed in

the Issues view include hidden issues.

To hide or show suppressed, removed, or hidden issues in the Issues view:

lFrom the Options menu, select (or deselect) one or more of the following:

lShow Suppressed Issues

lShow Removed Issues

lShow Hidden Issues

Creating Attribute Summary Tables for Multiple Issues

You can create a summary table of attributes (for example, in spreadsheet software such as Excel or

Google Sheets) for any number of issues that you select from the Issues view. You specify the format

options, select the issues, and then paste the comma delimited data into a spreadsheet program to

create the summary table.

The table can contain an attributes column followed by a single values column for every issue selected

or, the table can display one row per attribute and its corresponding values. Alternatively, you can

specify a customized table layout for the values that you copy to your spreadsheet program.

To create a spreadsheet table that contains an attributes column followed by a single values column for

each selected issue:

1. Select Options > Options.

2. In the left panel, select Audit Configuration, and then select the Configuration tab.

3. Under Multiple Issues Copy Format, leave the [h] List issues in columns option selected.

4. Select the attributes you want to include from the Include immutable attributes,Include

mutable attributes, and Include custom tags check boxes.

5. Click OK.

6. From the Issues view, use the Ctrl or Shift key and select all of the issues you want to include in a

table.

7. With the issues selected, press Ctrl +Alt +Shift +C.

8. Start the spreadsheet software, and then paste (Ctrl +V) the copied data into a single column.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 58 of 131

To create a spreadsheet table that displays one row per attribute and its values:

1. Select Options > Options.

2. In the left panel, select Audit Configuration, and then select the Configuration tab.

3. Under Multiple Issues Copy Format, select the [v] List issues in rows option.

4. Select the attributes you want to include from the Include immutable attributes,Include

mutable attributes, and Include custom tags check boxes.

5. Click OK.

6. From the Issues view, use the Ctrl or Shift key and select all of the issues you want to include in a

table.

7. With the issues selected, press Ctrl +Alt +Shift +C.

8. Start the spreadsheet software, and then paste (Ctrl +V) the copied data into a single column.

To create a customized table layout for the values that you copy to a spreadsheet program:

1. Select Options > Options.

2. In the left panel, select Audit Configuration, and then select the Configuration tab.

3. Under Multiple Issues Copy Format, select the Format manually option.

4. In the Attribute value format box, use the string described in the following table to specify the

data layout, format, and separators for the values you want to copy.

String Function

[h] Columnar format - Attributes are inserted in a single column and the spreadsheet table

expands to the right (horizontally) with a new column added for each issue copied in.

[v] Row format - Attributes are inserted in a single row (table header) and a new row

populated with values is added for each issue added (table expands vertically).

%s Textual data (you can use the complete java.util.Formatter syntax). See the

java.util.Formatter documentation at

http://docs.oracle.com/javase/8/docs/api/java/util/Formatter.html.

;or

tab

Separator symbol - To import the copied value into most spreadsheet programs, you

have to specify the separator to use in the format field.

'…' Apply the preceding format string to all elements in the selection. This is only valid if

the format specification starts with [h] or [v].

%n Line separator (platform independent), whether it is the last value for an issue in a row

formatted table [v] or it is the last value of a given attribute in a columnar formatted

table [h].

For example, to specify which specific attributes you want to copy with the row format ([v]), use

[v]%file$s,%category$s,%fortify priority order$s%n. This copies the three attributes

for each selected issue.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 59 of 131

5. To see the result of your syntax, look under Result example.

The example shown changes as you change the value in the Attribute Value Format box.

Note: Examples are not available for complex manual formats.

6. Select the attributes you want to include from the Include immutable attributes,Include

mutable attributes, and Include custom tags check boxes.

7. Click OK.

Searching for Issues

You can use the search box below the issues list to search for issues. After you enter a search term, the

label next to the folder name changes to indicate the number of issues that match the search as a subset

of the total.

You can wrap search terms with delimiters to indicate the type of comparison to be performed. The

following table shows the syntax to use in the search string field.

Comparison Description

contains Searches for a term without any special qualifying delimiters

equals Searches for an exact match when the term is wrapped in quotation marks ("")

regex Searches for values that match a Java-style regular expression delimited by a forward

slash (/)

Example: /eas.+?/

number

range

Searches for a range of numbers using the standard mathematical interval notation of

parentheses and/or brackets to indicate whether the endpoints are excluded or

included respectively.

Example: (2,4] means greater than two and less than or equal to four

not equal Excludes issues specified by the string when you precede the string with the

exclamation character (!)

Example: file:!Main.java returns all issues that are not in Main.java

You can further qualify search terms with modifiers. The syntax for using a modifier is

modifier:<search_term>. For more information, see "Search Modifiers" on the next page.

A search string can contain multiple modifiers and search terms. If you specify more than one modifier,

the search returns only issues that match all the modified search terms. For example,

file:ApplicationContext.java category:SQL Injection returns only SQL injection issues

found in ApplicationContext.java.

If you use the same modifier more than once in a search string, then the search terms qualified by those

modifiers are treated as an OR comparison. For example, file:ApplicationContext.java

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 60 of 131

category:SQL Injection category:Cross-Site Scripting returns SQL injection issues and

cross-site scripting issues found in ApplicationContext.java.

For complex searches, you can also insert the AND or the OR keyword between your search queries.

Note that AND and OR operations have the same priority in searches.

For more information, see "Search Modifiers" below.

Search Modifiers

You can use a search modifier to specify which attribute of an issue the search term applies to. To use a

modifier that contains a space in the name, such as the name of the custom tag, you must enclose the

modifier in brackets. For example, to search for issues that are new, enter [issue age]:new.

A search that is not qualified by a modifier tries to match the search string on the following attributes:

kingdom, primary rule id, analyzer, filename, severity, class name, function name, instance id, package,

confidence, type, subtype, taint flags, category, sink, and source.

lTo apply the search to all modifiers, enter a string such as control flow. This searches all of the

modifiers and returns any result that contains the specified string.

lTo apply the search to a specific modifier, type the modifier name and the string as follows:

analyzer:control flow. This returns all results whose analyzer is control flow.

The following table describes the search modifiers. A few modifiers have a shortened modifier name

indicated in parentheses. You can use either modifier string.

Modifier Description

analysis Searches for issues that have the specified audit analysis value

(such as exploitable,not an issue, and so on).

analyzer Searches the issues for the specified analyzer.

audience Searches for issues based on intended audience. Valid values are

targeted,medium, and broad.

audited Searches the issues to find true if the primary custom tag is set

and false if the primary custom tag is not set. The default

primary tag is the Analysis tag.

category(cat) Searches for the given category or category substring.

comments

(comment, com)

Searches for issues that contain the search term in the comments

that have been submitted on the issue.

commentuser Searches for issues with comments from a specified user.

confidence (con) Searches for issues that have the specified confidence value.

Fortify Static Code Analyzer calculates the confidence value based

on the number of assumptions made in code analysis. The more

assumptions made, the lower the confidence value.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 61 of 131

Modifier Description

dynamic Searches for issues that have the specified dynamic hot spot

ranking value.

file Searches for issues where the primary location or sink node

function call occurs in the specified file.

[fortifypriorityorder] Searches for issues that have a priority level that matches the

specified priority determined by Fortify Static Code Analyzer.

Valid values are critical,high,medium, and low, based on the

expected impact and likelihood of exploitation.

The impact value indicates the potential damage that might result

if an issue is successfully exploited. The likelihood value is a

combination of confidence, accuracy of the rule, and probability

that the issue can be exploited.

historyuser Searches for issues that have audit data modified by the specified

user.

[issue age] Searches for the issue age, which is new,updated,

reintroduced, or removed.

kingdom Searches for all issues in the specified kingdom.

maxconf Searches for all issues that have a confidence value equal to or less

than the number specified as the search term.

minconf Searches for all issues that have a confidence value equal to or

greater than the number specified as the search term.

package Searches for issues where the primary location occurs in the

specified package or namespace. For dataflow issues, the primary

location is the sink function.

[primary context] Searches for issues where the primary location or sink node

function call occurs in the specified code context. Also see sink and

[source context].

primaryrule (rule) Searches for all issues related to the specified sink rule.

ruleid Searches for all issues reported by the specified rule IDs used to

generate the issue source, sink and all passthroughs.

sink Searches for issues that have the specified sink function name.

Also see [primary context].

source Searches for dataflow issues that have the specified source

function name. Also see [source context].

[source context] Searches for dataflow issues that have the source function call

contained in the specified code context.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 62 of 131

Modifier Description

Also see source and [primary context].

sourcefile Searches for dataflow issues with the source function call that the

specified file contains.

Also see file.

status Searches issues that have the status reviewed, not reviewed, or

under review.

suppressed Searches for suppressed issues.

taint Searches for issues that have the specified taint flag.

trace Searches for issues that have the specified string in the dataflow

trace.

tracenode Enables you to search on the nodes within an issue’s analysis

trace. Each tracenode search value is a concatenation of the

tracenode’s file path, line number, and additional information.

<custom_tagname>Searches the specified custom tag.

You can search a list-type custom tag using a range of values. The

values of a list-type custom tag are an enumerated list where the

first value is 0, the second is 1, and so on. You can use the search

syntax for a range of numbers to search for ranges of list-type

custom tag values. For example, analysis:[0,2] returns the

issues that have the values of the first three Analysis values, 0, 1,

and 2 (Not an Issue, Reliability Issue, and Bad Practice).

To search a date-type custom tag, specify the date in the format:

yyyy-MM-dd.

<metadata_listname>Searches the specified metadata external list. Metadata external

lists include [owasp top 10 2013],[sans top 25 2011],

[PCI 3.2], and others.

Search Query Examples

The following are search query examples that use search modifiers.

lTo search for all privacy violations in file names that contain jsp with getSSN() as a source, type:

category:"privacy violation" source:getssn file:jsp

lTo search for all file names that contain com/fortify/awb, type:

file:com/fortify/awb

lTo search for all paths that contain traces with mydbcode.sqlcleanse as part of the name, type:

trace:mydbcode.sqlcleanse

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 63 of 131

lTo search for all paths that contain traces with cleanse as part of the name, type:

trace:cleanse

lTo search for all issues that contain cleanse as part of any modifier, type:

cleanse

lTo search for all suppressed vulnerabilities with asdf in the comments, type:

suppressed:true comments:asdf

lTo search for all categories except for SQL Injection, type:

category:!SQL Injection

Performing Simple Searches

To use the search box to perform a simple search, do one of the following:

lType a search string in the box and press Enter.

Alternatively,

lTo select a search term you used previously, click the arrow in the search box, and then select a

search term from the list.

To get assistance to compose the comparison for your search string, do the following:

1. Click your cursor in the search box, and then press Ctrl +Space.

2. From the displayed list, double-click an issue attribute to begin your search string.

3. To get assistance to specify the comparison, with your cursor placed after the modifier in the

search box, press Ctrl +Space.

4. From the displayed list, double-click the comparison to add to your search string.

5. Type the rest of the search term.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 64 of 131

The Issues view lists all of the issues that match your search string.

Audit Workbench saves all of the search terms you enter for the current session. To select a search term

you used previously, click the arrow in the search box, and then select a search term. (After you close

Audit Workbench, the saved search terms are discarded.)

To create complex search strings can involve several steps. If you enter an invalid search string, the

magnifying glass icon in the text field changes to a warning icon to notify you of the error. Click the

warning sign to view information about the search term error.

The advanced search feature makes it easier to build complex search strings. For a description of this

feature and instructions on how to use it, see "Performing Advanced Searches" below.

Performing Advanced Searches

You can use the advanced search feature to build complex search strings.

To use the advanced search feature:

1. To the right of the search box, click Advanced.

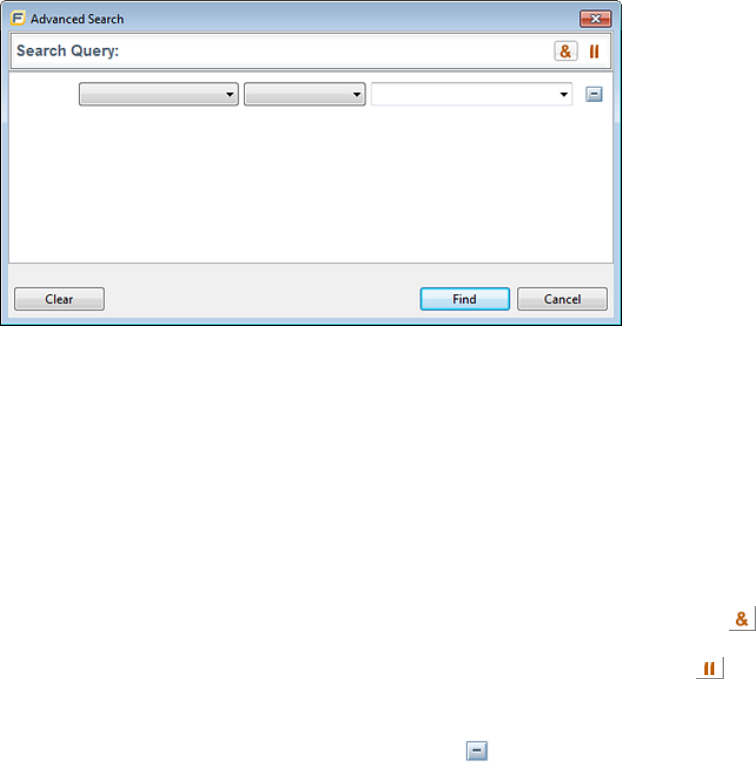

2. To create your search query:

a. From the list of the left, select the modifier.

b. From the middle list, select the comparison and type.

c. From the list on the right, select the search term.

The list for the search term includes the known values in the current scan for the specified

attribute. However, you can type any value into this field. To specify an unqualified search term,

select Any Attribute from the bottom of the modifier list.

3. To add another query row, do one of the following:

lTo add an AND query row, in the top right corner of the dialog box, click AND .

lTo add an OR query row, in the top right corner of the dialog box, click OR .

4. Add as many query rows as you need for the search.

5. To delete a row, to the right of the row, click Delete . To remove all rows, click Clear.

6. Click Find.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 65 of 131

Note: As you build your search string, the Advanced Search dialog box displays any errors in the

status below the search string builder. The Find button is only enabled after you resolve all errors.

About Issue Templates

Fortify Static Code Analyzer produces comprehensive results for source code analysis. On large

codebases, these results can be overwhelming. The issue template assigned to your projects enables

you to sort and filter the results to best suit your needs. The filtering and sorting mechanisms

appropriate during a given phase in the development process can change depending on the phase of

development. Similarly, the filtering and sorting mechanisms might vary depending on the role of the

user.

You can sort issues by grouping them into folders, which are logically defined sets of issues presented in

the tabs on the Issues. You can further customize the sorting to provide custom definitions for the

folders into which the issues are sorted. You can provide definitions for any number of folders, whose

contents are then defined by filters. Filters can either alter the visibility of an issue or place it into a

folder. When used to sort issues into folders, you define the nature of the issues that appear in the

customized folders.

You group filters into filter sets and then use the filter sets to sort and filter the issues displayed. An

issue template can contain definitions for multiple filter sets. Using multiple filter sets in an audit project

enables you to quickly change the sorting and visibility of the issues you are auditing. For example, the

default issue template used in the interface provides two filter sets. These filter sets provide an

increasingly restrictive view of security-related issues. Defining multiple filter sets for an audit project

enables different users different views, and a customized view does not affect any other views.

In addition to providing sorting and filtering mechanisms, you can also customize the auditing process

by defining custom tags in the issue template. Auditors associate custom tags with issues during

auditing. For example, custom tags can be used to track impact, severity, or priority of an issue using the

same names and values used to track these attributes in other systems, such as a defect tracking system.

Issue templates contain the following settings:

lFolder filters—Control how issues are sorted into the folders

lVisibility filters—Control which issues are shown and hidden

lFilter sets—Group folder and/or visibility filters

lFolder properties—Name, color, and the filter set in which it is active

lCustom tags—Specify which audit fields are displayed and the values for each

The issue template applied to an audit project is determined using the following preference order:

1. Template that exists in the audit project

2. Template in <sca_install_dir>/Core/config/filters/defaulttemplate.xml

3. Template in <sca_install_dir>/Core/config/rules/defaulttemplate.xml or

projecttemplate.xml

4. Embedded HPE Security Fortify default template

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 66 of 131

Configuring Custom Filter Sets and Filters

If the filter sets available in Audit Workbench do not exactly suit your needs, you can create your own,

either by using the filter wizard, or by copying and then modifying an existing filter set.

If you are performing collaborative audits on Fortify Software Security Center, you can synchronize

your custom filters with Fortify Software Security Center. For more information, see "Committing Filter

Sets and Folders" on page79 and "Synchronizing Filter Sets and Folders" on page78.

This section provides instructions on how to:

lCreate a new filter set

lCreate filters from the Issues view and add them to a filter set

lCreate filters on the Filters tab and add them to a filter set

lCopy a filter to a different filter set

Creating a New Filter Set

To create a new filter set, copy an existing set and modify the settings.

To create a new filter set:

1. Select Tools >Project Configuration.

2. Click the Filter Sets tab.

3. Next to Filter Sets, click Add Filter Set .

The Add New Filter Set dialog box opens.

4. Type a name for the new filter set.

5. Select an existing filter set to copy.

6. Click OK.

A new filter set with the same folders, visibility filters, and folder filters as the copied filter set is created.

Creating a Filter from the Issues View

When a folder list includes an issue that you want to hide or direct to another folder, you can create a

new filter using the filter wizard. The wizard displays all the attributes that match the conditions in the

filter.

Note: To find the filter that directed the issue to the folder, right-click the issue, and then select

Why is this issue here? To find the filter that hid an issue, right-click the issue, and then select

Why is this issue hidden?

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 67 of 131

To create a new filter from an issue:

1. In the Issues view, select a filter set from the Filter Set list.

2. Right-click an issue, and then select CreateFilter.

The Create Filter dialog box lists suggested conditions.

3. To see all of the conditions, select the Show all conditions check box.

4. Select the conditions you want to use in the filter.

You can fine tune the filter later by modifying it on the Filter tab.

5. Select the type of filter you want to create, as follows:

lTo create a visibility filter, select Hide Issue.

lTo create a folder filter, select Set Folder to, and then select the folder name or select Other

Folder to add an existing folder or create a new one.

A new folder is displayed in this filter set only.

6. Click Create Filter.

The wizard places the new filter at the end of the filter list. For folder filters, this gives the new filter

the highest priority. Issues that match the new folder filter appear in the targeted folder.

7. (Optional) For folder filters, drag the filter higher in the folder filter list to change the priority.

The issues are sorted with the new filter.

Note: The filter is created only in the selected filter set.

Creating a Filter from the Issue Auditing View

Use the Filters tab in the Issue Auditing view to create visibility filters and folder filters.

Folder filters are applied in order and the issue is directed to the last folder filter it matches in the list.

To create a new filter on the Filters tab:

1. From the Filter Set list, select a filter set.

2. Click the Filters tab in the Issue Auditing view.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 68 of 131

3. Right-click Visibility Filters or Folder Filters, and then select Create New Filter.

The Create Filter dialog box opens.

4. From the first list, select an issue attribute.

The second list is automatically populated.

5. From the second list, select how to match the value.

The third list contains the possible values for the attribute.

6. Select a value or specify a range as instructed in the If line.

7. Set Then to one of the following options:

lTo create a visibility filter, select Hide Issue.

lTo create a folder filter, select Set Folder to, and then select the folder name or select Other

Folder to add a folder from another filter set or create a new folder.

8. Click Save.

The new filter is displayed at the end of the list. For folder filters, this gives the new filter the

highest priority. Issues that match the new folder filter appear in the targeted folder.

9. (Optional) For folder filters, drag the filter higher in the folder filter list to change the priority.

The issues are sorted with the new filter.

Note: The filter is created in the selected filter set only.

Copying a Filter from One Filter Set to Another

Filter settings are local to a filter set. However, you can copy the filter to another filter set in the audit

project. If you copy a folder filter to another set and that folder is not already active in the set, the folder

is automatically added.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 69 of 131

To copy a filter:

1. In the Issues view, select a filter set from the Filter Set list.

2. Click the Filters tab in the Issue Auditing view.

3. Right-click a filter, and then select Copy Filter To from the shortcut menu.

The Select a Filter Set dialog box opens with a list off all the filter sets.

4. Select a filter set, and then click OK.

The filter is added to the filter set in the last position.

5. (Optional) For folder filters, you can adjust the order of the filter list by dragging and dropping the

filter to a different location in the list.

Setting the Default Filter Set

To specify the default filter set used to view scan findings:

1. In the Issues view, click the Filter Set list, and then select Edit.

The Project Configuration dialog box opens to the Filter Sets tab.

2. In the Filter Sets list, select the filter set you want to use as the default for the issue template.

3. Select the Default filter set check box, and then click OK.

Managing Folders

Folders are logical sets of issues that are defined by the filters in the active filter set. Even though a

folder can appear in more than one filter set, the contents might differ depending on the filters in that

filter set that target the folder. To accommodate filter sets intend to provide sorting mechanisms that

result in little overlap, you can have filter sets with different folders. Folders are defined independent of

the filter sets they may appear in. For example, a filter set might place low priority issues into a red folder

that is labeled "Hot."

Creating a Folder

You can create a new folder so that you can display a group of issues you have filtered to the folder.

Folders must have unique names.

Note: If this functionality is restricted to administrator users, and you are not an administrator, you

cannot create folders.

To create a new folder:

1. Select Tools >Project Configuration.

2. Click the Folders tab.

The Folders panel on the left lists the folders for the filter set selected in the Folder for Filter Set

list. Fields on the right show the name, color, and description of the selected folder.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 70 of 131

3. To associate the folder with an existing filter set, select the filter set from the Filter Set list.

Select (All Folders) to create a new folder in the issue template without associating the folder to a

specific filter set. You can associate the folder with an existing filter set later.

Note: Selecting a filter set updates the Folders list to display the folders that are associated

with the selected filter set.

4. To add a folder:

a. Next to Folders, click Add Folder .

The Add Folder dialog box opens.

Note: If you have created folders in other filter sets, the Add New Folder to Filter Set

dialog box opens. Click Create New.

b. Type a unique name for the new folder, and then select a folder color.

c. Click OK.

The folder is added to the bottom of the folder list.

5. In the Description box, type a description for the new folder.

6. To change the tab position of the folder on the Issues view, drag the folder up or down in the

Folders list.

The top position is on the left and the bottom position is on the right.

7. To put all issues that do not match a folder filter into this folder, select the Default Folder check

box.

8. Click OK.

The folder is displayed as a tab with the other folders. If you selected default, all issues that do not

match a folder filter are displayed. The new folder is added to the issue template for the audit project.

Note: To display issues in this folder, create a folder filter that targets the new folder. For more

information, see "Creating a Filter from the Issues View" on page67 and "Creating a Filter from the

Issue Auditing View" on page68.

Adding a Folder to a Filter Set

This section describes how to enable an existing folder in a filter set. Create a new folder that appears

only in the selected filter set using the instructions in "Creating a Folder" on the previous page. To

display issues in this folder, create a folder filter that targets the new folder.

To add a folder to a filter set:

1. Select Tools >Project Configuration.

The Project Configuration dialog box opens.

2. Click the Folders tab.

3. Click the Filter Set list to select the filter set to which you want to add a folder.

The Folders list displays the folders in the selected filter set.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 71 of 131

4. Next to Folders, click Add Folder .

The Add New Folder to Filter Set dialog box opens.

Note: If the selected filter set already includes all existing folders, the Create Folder dialog box

opens and you can create a new folder for the selected filter set.

5. Select the folder to add to the selected filter set, and then click Select.

6. Click OK.

The folder is displayed as a tab along with the other folders.

Renaming a Folder

You can rename a folder. Modifying the name of a folder is a global change reflected in all filter sets.

To rename a folder:

1. Select Tools >Project Configuration.

2. Click the Folders tab.

3. In the Filter Set list, select (All Folders).

4. Select the folder in the Folders list.

The folder properties are displayed on the right.

5. Type the new name for the folder.

The folder name changes in the Folders list as you type.

6. Click OK.

The new folder name displays on the tabs.

Removing a Folder

You can remove a folder from a filter set without removing it from other filter sets.

To remove a folder:

1. Select Tools >Project Configuration.

2. Click the Folders tab.

3. Select a filter set from the Filter Set list.

The Folders list displays the folders in the selected filter set.

4. Select the folder, and then next to Folders, click Delete Folder .

Note: The folder is removed only from the selected filter set.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 72 of 131

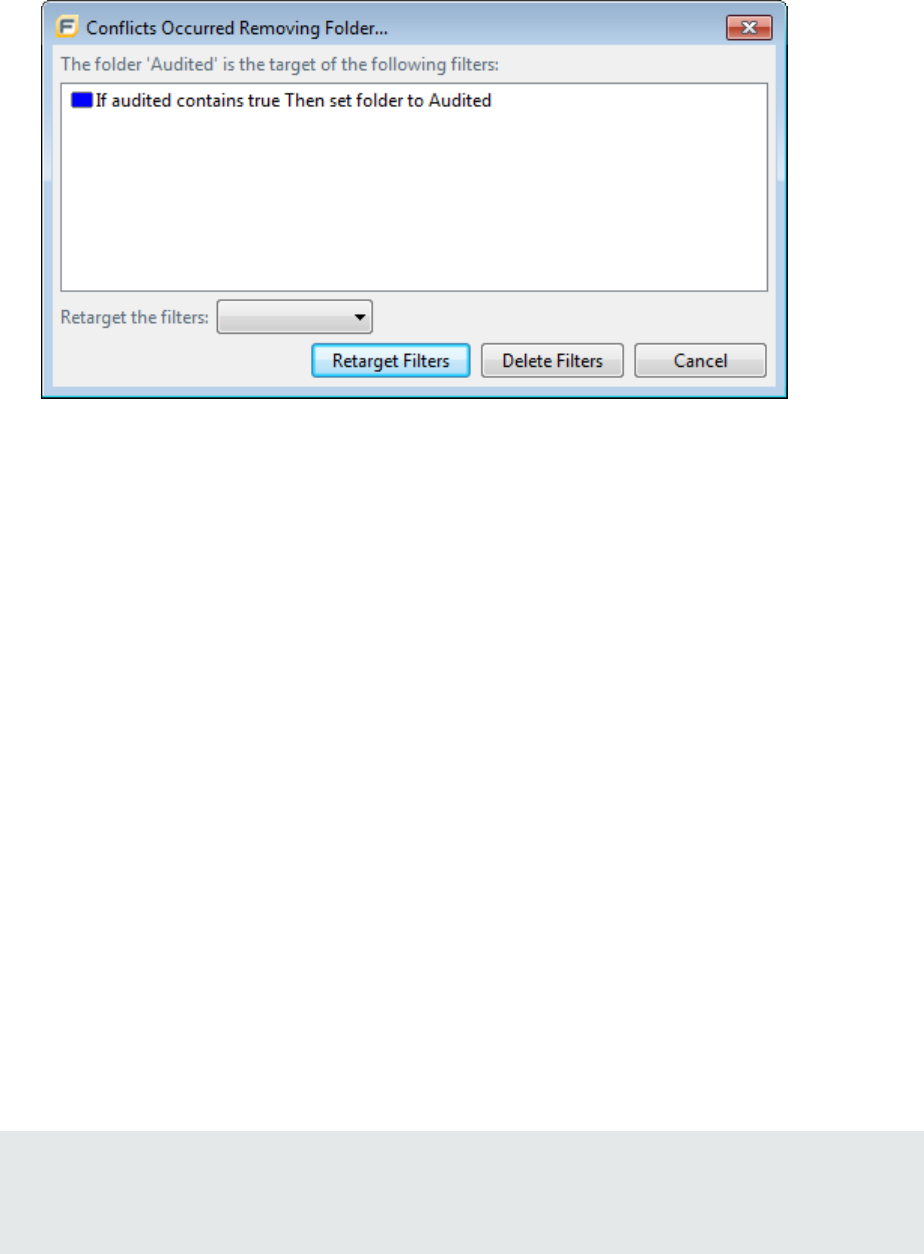

If the folder is a target of a folder filter, the Conflicts Occurred Removing Folder dialog box opens.

Do one of the following:

a. To target the filter to a different folder, select a folder from the Retarget the filters list, and

then click Retarget Filters.

b. To delete the filter, click Delete Filters, and then click Yes to confirm the deletion.

5. Click OK to close the Project Configuration dialog box.

The folder is no longer displayed as a tab in the Issues view.

Configuring Custom Tags for Auditing

To audit code in Fortify Software Security Center, the security team examines project scan results (FPR)

and assigns values to custom tags associated with application version issues. The development team

can then use these tag values to determine which issues to address and in what order.

The Analysis tag is provided by default. The Analysis tag is a list-type tag and has the following valid

values: Not an Issue, Reliability Issue, Bad Practice, Suspicious, and Exploitable. You can modify the

Analysis tag attributes, change the tag values, or add new values based on your auditing needs.

To refine your auditing process, you can define your own custom tags. You can create the following

types of custom tags: list, decimal, string, and date. For example, you could create a list-type custom tag

to track the sign-off process for an issue. After a developer audits his own issues, a security expert can

review those same issues and mark each as “approved” or “not approved.”

You can also define custom tags from Fortify Software Security Center, either directly with issue

template uploads through Fortify Software Security Center, or from Audit Workbench through issue

templates in FPR files.

Note: Although you can add new custom tags from Audit Workbench as you audit a project, if

these custom tags are not defined in Fortify Software Security Center for the issue template

associated with the application version, then the new tags are lost if you upload the FPR file to

Fortify Software Security Center.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 73 of 131

You can add the following attributes to your custom tags:

lExtensible—This enables users to create a new value while auditing, even without the permission to

manage custom tags.

lRestricted—This restricts who can set the tag value on an issue. Administrators, security leads, and

managers have permission to audit restricted tags.

lHidden (Fortify Software Security Center only)—Use this setting to hide a tag from an application

version or issue template.

After you define a custom tag, it is displayed below the Analysis tag, which enables you to specify

values as they relate to specific issues. Custom tags are also available in other areas of the interface,

such as in the Group By list as a way to group issues in a folder, in the search field as a search modifier

(similarly available as a modifier for filters), and in the project summary graph as an attribute by which to

graphically sort issues.

Adding a Custom Tag

You can create custom tags to use in auditing results. Custom tags are project-wide and are saved as

part of an issue template.

To add a custom tag:

1. Select Tools >Project Configuration.

2. Select the Custom Tags tab.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 74 of 131

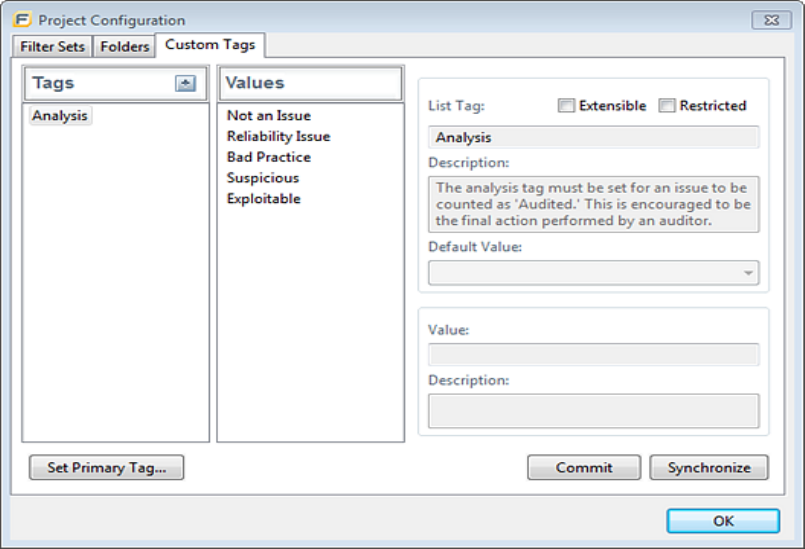

3. Next to Tags, click Add Tag .

Note: If you previously deleted tags, these are listed and you can re-enable them. To create a

new tag, click Create New.

The Add New Tag dialog box opens.

4. In the Name box, type a name for the new tag.

Important: Make sure that the name you specify for a custom tag is not a database reserved

word.

5. From the Type list, select one of the following tag types:

lList—Accepts selection from a list of values that you specify for the tag

lDate—Accepts a calendar date

lDecimal—Accepts a number with a precision of up to 18 (up to 9 decimal places)

lText—Accepts a string with up to 500 characters (HTML/XML tags and newlines are not

allowed)

6. Click OK.

The Tags list now includes the new tag.

7. Configure any or all of the following optional tag settings:

lTo allow users to add new values for a list-type tag in an audit, leave the Extensible check box

selected.

lTo allow only administrators, security leads, and managers to set this tag on an issue, select the

Restricted check box.

lEnter a description of the custom tag in the Description box.

lFor a list-type tag, from the Default Value list, select the default value for the tag.

If you do not specify a default value, the default is null.

8. To add a value for a list-type tag, do the following:

a. From the Tags list, select the tag name.

b. Next to Values, click Add Value .

c. In the Enter Value dialog box, type a value, and then click OK.

d. Enter a description of the value in the Description box.

e. Repeat steps a through d for each additional value required for the new tag.

9. To make this custom tag the primary tag:

Note: You can only set a list-type tag as a primary tag.

a. Click Set Primary Tag.

b. Select the custom tag from the Primary Tag list, and then click OK.

The primary tag determines the audit status for each issue as well as the audit icon in the Issues

view. By default the primary tag is Analysis.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 75 of 131

The Summary tab in the Issue Auditing view now displays the new tag and its default value (if you

assigned one).

Deleting a Custom Tag

If you delete a custom tag, it is no longer available on the Issue Auditing view's Summary tab or as a

search or filter option.

To delete a custom tag:

1. Select Tools >Project Configuration.

The Project Configuration dialog box opens.

2. Click the Custom Tags tab.

3. Select the tag from the Tags list.

4. Next to Tags, click Delete Tag .

5. Click OK.

If you delete a tag that has an associated filter, you are prompted to delete the filter.

Committing Custom Tags to Fortify Software Security Center

To commit custom tags to Fortify Software Security Center:

1. With an audit project open, select Tools > Project Configuration.

2. Select the Custom Tags tab.

3. Click Commit.

4. If prompted, enter your Fortify Software Security Center credentials.

The Custom Tag Upload dialog box opens.

5. Do one of the following:

lIf the issue template and the application version already exist on Fortify Software Security

Center:

oTo upload the custom tags to the global pool and assign them to the application version,

click Yes.

oTo upload the custom tags to the global pool without assigning them to the application

version, click No.

oTo prevent uploading the custom tags to Fortify Software Security Center, click Cancel.

lIf the issue template does not exist on Fortify Software Security Center:

oTo upload the custom tags to the global pool only on Fortify Software Security Center, click

Yes.

oTo prevent uploading the custom tags to Fortify Software Security Center, click No.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 76 of 131

Synchronizing Custom Tags with Fortify Software Security Center

To synchronize custom tags for an audit project that has been uploaded to Fortify Software Security

Center.

1. Select Tools > Project Configuration.

2. Select the Custom Tags tab.

3. Select the custom tag.

4. Click Synchronize.

5. If required, enter your Fortify Software Security Center credentials.

The Custom Tag Download dialog box opens.

6. If the application version and the issue template both exist on Fortify Software Security Center,

select either Application Version or Issue Template to specify from where to download the

custom tags.

7. To download custom tags from the issue template, click Yes.

Issue Template Sharing

Once an issue template is associated with an audit project, all changes made to that template, such as

the addition of folders, custom tags, filter sets, or filters, apply to the audit project. The issue template is

stored in the FPR when the audit project is saved. For information about how to associate the issue

template with an audit project, see "Importing an Issue Template" on the next page. With issue

templates, you can use the same project settings for another project.

Exporting an Issue Template

Exporting an issue template creates a file that contains the filter sets, folders, and custom tags for the

current project. After you export an issue template, you can import it into another audit project file.

To export an issue template:

1. Select Tools >Project Configuration.

2. Click the Filter Sets tab.

3. Click Export.

The Select a Template File Location dialog box opens.

4. Browse to the location where you want to save the file.

5. Type a file name without an extension.

6. Click Save.

The current template settings are saved to an XML file.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 77 of 131

Importing an Issue Template

Importing an issue template overwrites the audit project configuration settings. The local filter sets and

custom tags are replaced with the filter sets and custom tags in the issue template.

To import an issue template:

1. Select Tools >Project Configuration.

2. Click the Filter Sets tab.

3. Click Import.

The Locate Template File dialog box opens.

4. Select the issue template file to import.

5. Click Open.

The filter sets, custom folders, and custom tags are updated.

Note: You can also click Reset to Default to return the settings to the default issue template.

Synchronizing Filter Sets and Folders

To download filter sets and folders configured from Fortify Software Security Center:

1. Select Tools >Project Configuration.

2. Click the Filter Sets tab.

3. Click Synchronize.

A message advises you that downloading filter sets and folders from Fortify Software Security

Center overwrites your local filter sets and folders.

4. To proceed with the synchronization, click Yes.

5. If required, provide your Fortify Software Security Center credentials, and then click OK.

6. If the current issue template does not exist on Fortify Software Security Center, do the following:

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 78 of 131

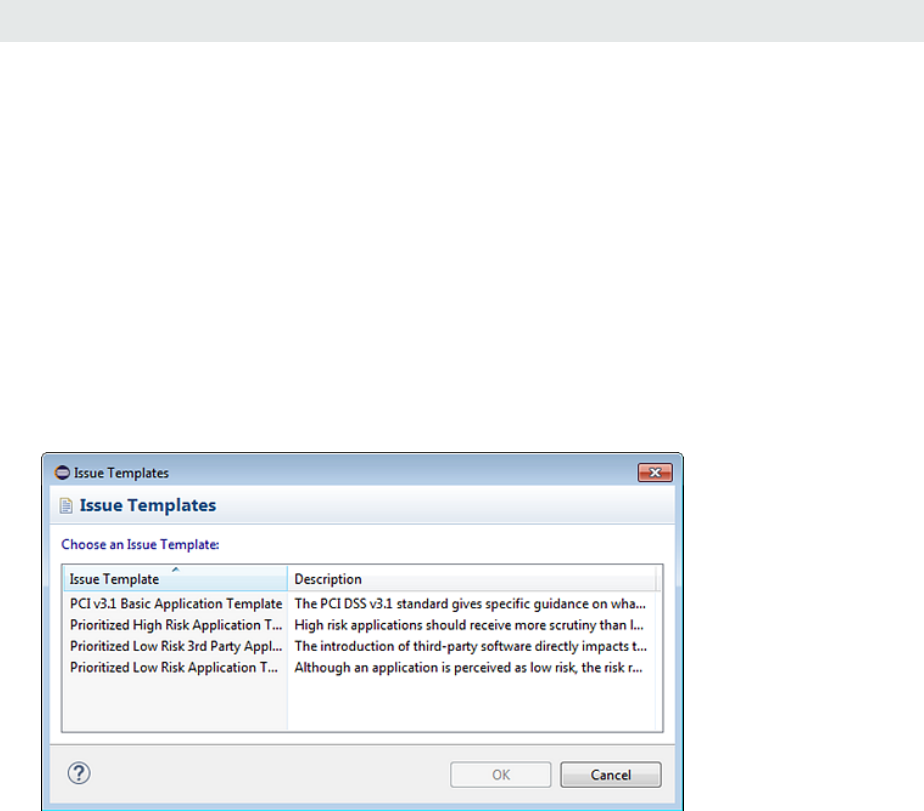

a. In the Issue Template column, select an issue template name.

b. Click OK.

Audit Workbench downloads the filter sets and folders from the selected issue template on Fortify

Software Security Center, and overwrites your current issue template.

Committing Filter Sets and Folders

If you want to upload filter sets and folders to an issue template on Fortify Software Security Center, do

the following:

1. Select Tools >Project Configuration.

2. Click the Filter Setstab.

3. Select the filter setfrom the list.

4. Click Commit.

5. If required, provide your Fortify Software Security Center credentials.

The Update Existing Issue Template or Add Issue Template dialog box opens, depending on

whether the issue template already exists in Fortify Software Security Center.

6. Do one of the following:

a. To upload filter sets and folders to the issue template, click Yes.

b. To add the issue template that contains the current set of custom tags to Fortify Software

Security Center, click Yes.

Advanced Configuration

This section contains the following topics:

l"Bug-Tracking System Integration" below

l"Public APIs" on the next page

l"Penetration Test Schema" on the next page

Bug-Tracking System Integration

Audit Workbench provides a plugin interface to integrate with bug-tracking systems. This enables you

to file bugs directly from Audit Workbench. For a list of supported bug-tracking systems, see the

HPESecurity Fortify Software System Requirements document.

To select the plugin to use:

1. Open an audit project.

2. Select Tools >Select Bugtracker.

Example source code for the bug tracking plugins is available in <sca_install_

dir>/Samples/advanced/BugTrackerPlugin<bugtracker>, where <bugtracker> is the name of

the bug-tracking system.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 79 of 131

To write your own plugin, see the instructions in the README text file, which is located in each bug

tracker directory. Information about the APIs is included in the JavaDoc located in <sca_install_

dir>/Samples/advanced/JavaDoc/public-api/index.html.

Important: If your custom bug-tracker accesses supporting JAR files, you must add them to the

Bundle-ClassPath attribute in your bug-tracker’s MANIFEST.MF OSGI bundle descriptor file.

Public APIs

HPE Security publishes public APIs so that you can create custom third-party parsers for pentest tools

and services that are not included in the default distribution. The APIs are located in

(fortify-public-*.jar), and you can use them to compile your custom parser.

Penetration Test Schema

HPE Security Fortify also provides a generic penetration test schema (pentestimport.xsd) that you

can view in <sca_install_dir>/Core/config/schemas. This provides another option for importing

additional pentest results. Instead of creating a custom parser for your tool or service, you can translate

the results into the HPE Security Fortify generic format (using XSLT or a similar technology). You can

then open or merge these translated results automatically, similar to the built-in parsers. See "Third-

Party Penetration Results" on page92 for more information.

UserGuide

Chapter 4: Scan Results

HPE Security Fortify Audit Workbench (17.10) Page 80 of 131

Chapter 5: Auditing Analysis Results

When Fortify Static Code Analyzer scans application source code, its discoveries are presented as

potential vulnerabilities rather than actual vulnerabilities. Every application is unique, and all

functionality runs within a particular context understood best by the development team. No technology

can fully determine whether a suspect behavior can be considered a vulnerability without direct

developer confirmation.

For example, Fortify Static Code Analyzer might discover that a web page designed to display data to

the user (for example, a financial transaction record page) appears to allow any authenticated user to

request any data with no check of viewing permission. Whether or not this behavior is considered a

vulnerability depends entirely on the intended design of the application. If the application is supposed

to allow any user to see all data, then the auditor can mark the discovery as a non-issue; otherwise, the

auditor can mark the issue as a vulnerability for the team to address.

The topics in this section provide information about how to audit scan results opened in Audit

Workbench.

This section contains the following topics:

Working with Audit Projects 81

Evaluating Issues 85

Submitting an Issue as a Bug 88

Correlation Justification 89

Third-Party Penetration Results 92

Working with Audit Projects

After you scan a project, you can audit the analysis results. You can also audit the results of a

collaborative audit from Fortify Software Security Center.

Opening an Audit Project

To open an audit project:

1. Start Audit Workbench.

2. Select File >Open Project.

The Select Audit Project dialog box opens.

3. Browse to and select the FPR file, and then click Open.

Opening Audit Projects Without the Default Filter Set

If you open an audit project that does not contain the filter set specified as the default filter set for new

projects (by default this is the Quick View filter set), a message is displayed to inform you that the filter

HPE Security Fortify Audit Workbench (17.10) Page 81 of 131

set is not available in the audit project’s issue template.

The default filter set from the template is loaded at startup, regardless of the setting. This would also

happen, for example, with any FPR files downloaded from the Fortify on Demand Server.

To resolve this, do one of the following:

lTo apply the default filter set from the current issue template, click Cancel.

lTo update the issue template for the project, click Update Issue Template.

After you select Update Issue Template, some of the filter sets that were available before the

update, for example Developer View and Critical Exposure, are no longer available.

A warning is displayed to let you know that the update cannot be undone.

lTo ensure that the default filter set for the project is never overridden, click Never Override Default

Filter Set.

Performing a Collaborative Audit

You can audit a project on Fortify Software Security Center collaboratively with other Fortify Software

Security Center users.

To start a collaborative audit:

1. Start Audit Workbench.

If you already have an audit project open, close it.

2. Under Open Collaborative Audit, click Sign In.

3. Type your Fortify Software Security Center logon credentials.

Audit Workbench displays a list of applications you have permission to access.

4. Select an application version to audit.

If necessary, click Refresh to update the list of applications on Fortify Software Security Center.

The audit project file is downloaded from Fortify Software Security Center and opened in Audit

Workbench.

5. Audit the project as described in "Evaluating Issues" on page85.

6. When you have completed the audit, select Tools > Upload Audit Project.

Note: If necessary, you can refresh your Fortify Software Security Center audit permission settings.

See "Refreshing Permissions From Fortify Software Security Center" on the next page.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 82 of 131

Refreshing Permissions From Fortify Software Security Center

The Security Content administrator assigns roles to users that determine the actions they can perform

in Fortify Software Security Center. When you work on a collaborative audit and the administrator

changes your auditing permissions, you might need to refresh the permissions in Audit Workbench.

To refresh your permissions from Fortify Software Security Center:

1. Select Options >Options.

2. In the left panel, select Server Configuration.

3. Click Refresh Permissions for the Current Audit.

4. Click OK.

Merging Audit Data

Audit data are the custom tags and comments that were added to an issue. You can merge the audit

data for your project with audit data from another results file. Comments are merged into a

chronological list and custom tag values are updated. If custom tag values conflict (if the same tag is set

to different values for a given issue), Audit Workbench prompts you to resolve the conflict.

Note: Issues are not merged. Merged results include only the issues found in the latest scan. Issues

uncovered in the older scan that were not uncovered in the latest scan are marked as Removed and

are hidden by default.

Make sure that the projects you merge contain the same analysis information. That is, make sure that

the scans were performed on the same source code (no missing libraries or files), the Fortify Static Code

Analyzer settings were the same, and the scan was performed using the same security content.

To merge projects:

1. Open a project in Audit Workbench.

2. Select Tools > Merge Audit Projects.

3. Select an audit project (FPR file), and then click Open.

The Progress Information dialog box opens. When complete, the Merge dialog box opens.

Note: After you select an FPR, Audit Workbench might prompt you to choose between the

issue template in the current FPR and the issue template in the FPR you are merging in.

4. Click Yes to confirm the number of issues added or removed from the file.

Note: If the scan is identical, no issues are added or removed.

The project now contains all audit data from both result files.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 83 of 131

Merging Audit Data Using the Command-line Utility

You can also use the FPRUtility command-line utility to merge audit data. This utility enables you to

merge an audited project, verify the signature of the FPR, or migrate earlier FPR files to the current

format. For more information about how to use this utility, see the HPE SecurityFortify Source Code

Analyzer User Guide.

Migration for Fortify Static Code Analyzer version 5.x projects occurs automatically with the merge

action. Merging combines all analysis information resolving conflicts using the values set in the primary

project. The merge produces an output project file that contains the analysis information from the

primary project.

The signature action prints the full signature information. Exit codes are used to relay the validity of the

signature.

Additional Metadata

Each issue in Audit Workbench contains additional metadata that is not produced by HPE’s internal

analyzers. Examples include alternative categories (for example, OWASP, CWE, WASC), and

prioritization values that are used in the default filters (for example, impact, accuracy, probability). You

can view the metadata attributes through the standard grouping and search mechanisms.

If you open an older FPR that does not contain metadata values, the metadata values for the issues are

retrieved from legacy mapping files. These legacy mapping files exist in the <sca_install_

dir>/Core/Config/LegacyMappings directory, and are indexed by either issue category, or issue

category and analyzer. The legacy mapping files are accessed as needed, so each issue in your project

must always have metadata values, whether those values come from the FPR, the legacy mapping files,

or a combination of the two.

Uploading Audit Results to Fortify Software Security Center

When you work on a collaborative audit and the project was downloaded from Fortify Software Security

Center, Audit Workbench retains the application version for the audit project. If you want to upload the

audit project to a different application version, you need to disconnect the audit project from Fortify

Software Security Center before you upload the results. To disconnect the current audit project from

Fortify Software Security Center, select Options > Options, click Server Configuration, and then click

Disconnect the Current Audit.

To upload results to Fortify Software Security Center:

1. Select Tools > Upload Audit Project.

2. If prompted, enter your Fortify Software Security Center credentials.

3. If the audit project is not already associated with an application version, select an application

version, and then click OK.

Note: If you see a message that the application version is not committed or does not exist, this

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 84 of 131

indicates that you opened an audit project that was previously associated with an application

version that does not exist on the Fortify Software Security Center to which Fortify Audit

Workbench is currently connected. Disconnect the audit project from Fortify Software Security

Center as described previously in this section.

A message notifies you when the upload is complete.

4. Click OK.

Updates you made to issues including comments and tag values (for tags that already exist for the

application version on Fortify Software Security Center) are uploaded.

Note: If you created any custom tags or filter sets for your project's issue template, you must first

commit them to Fortify Software Security Center before you upload the project so that information

is also uploaded. See "Committing Custom Tags to Fortify Software Security Center" on page76

and "Committing Filter Sets and Folders" on page79 for more information.

Evaluating Issues

To evaluate and assign audit values to an issue or group of issues:

1. Select the issue or group of issues in the Issues view.

For information about the Issues view, see "About Viewing Scan Results" on page34.

2. In the Issue Auditing view, read the abstract on the Summary tab. This abstract provides high-

level information about the issue, such as the analyzer that found the issue.

For example, Command Injection (Input Validation and Representation,

dataflow) indicates that this issue, detected by the dataflow analyzer, is a Command Injection

issue in the Input Validation and Representation kingdom.

3. Click the More Information link to get more details about the issue.

4. On the Summary tab, specify an Analysis value for the issue to represent your evaluation.

5. Specify values for any custom tags as required by your organization.

For text-type custom tags, you can click Edit Text to see and edit long text strings. This tag

accepts up to 500 characters (HTML/XML tags and newlines are not allowed).

For date-type custom tags, you can clickto select a date from a calendar.

6. If the audit results have been submitted to Audit Assistant in Fortify Software Security Center,

then you can specify whether to include or exclude the issue from Audit Assistant training from the

AA_Training list.

Note: If you select a different value for Analysis than the AA_Prediction value set by Audit

Assistant, and you select Include from the AA_Training list, then the next time the data is

submitted to Audit Assistant, it updates the information used to predict whether or not an

issue represents a true vulnerability. For more information about Audit Assistant, see the HPE

SecurityFortify Software Security Center User Guide.

7. (Optional) In the Comments box, type comments relevant to the issue and your evaluation.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 85 of 131

Performing Quick Audits

As you audit issues, you can use a keyboard combination to assign an analysis value to multiple selected

issues.

To assign an analysis value to multiple issues simultaneously:

1. In the Issues view, select the issues to which you want to assign the same analysis value.

2. Press Ctrl +Shift +A(Cmd +Shift +Aon Mac OS).

Note: Do not hold this keyboard combination in the next step.

3. Press one of the following number keys:

lTo assign Not an Issue, press 1

lTo assign Reliability Issue, press 2

lTo assign Bad Practice, press 3

lTo assign Suspicious, press 4

lTo assign Exploitable, press 5

lTo assign a custom analysis value configured for your organization, press the number that

corresponds to its position in the Analysis list on the Summary tab.

Shortcuts are provided for only the first ten values in the Analysis list. (To assign the tenth value in the

list, you press Ctrl +Shift +A, and then press 0). If no value is listed for the key you press, no value is

assigned.

Performing Quick Audits for Custom Tags

Instead of using the Analysis tag for quick audits, you can use a custom tag your organization has

created.

To use a custom tag for quick audits:

1. Select Options > Options.

2. In the left panel, select Audit Configuration, and then click the Configuration tab on the right.

3. Under Quick Audit Preference, from the Attribute to use for quick action audit list, select a

custom tag.

Note: Only list-type tags are available to use for quick audits.

If no custom tags have been created, the list only includes the Analysis tag.

4. Click OK.

The keyboard shortcut functions just as it does for the Analysis tag values. Shortcuts are provided for

only the first ten values in the list of custom tag values. (To assign the tenth value in the list, you press

Ctrl +Shift +A, and then press 0). If there is no value in the list for the key you press, no value is

assigned.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 86 of 131

For information about custom tags, see "Configuring Custom Tags for Auditing" on page73.

Adding Screen Captures to Issues

You can attach a screen shot or other image to an issue. Attached images are stored in the FPR file and

can be accessed from Fortify Software Security Center. The following image formats are supported:

lGIF

lJPG

lPNG

To add an image to an issue:

1. Select the issue.

2. In the Issue Auditing panel, click the Screenshots tab.

3. Click Add.

The New Screenshot dialog box opens.

4. Browse to and select the image file.

5. (Optional) In the Description box, type a description.

6. Click Add.

Viewing Images

After you add an image to an issue, the image is displayed on the right side of the Screenshots tab.

To view a full-size version and complete description of an image added to an issue:

1. In the Issue Auditing Panel, click the Screenshots tab.

2. In the list, click an image to view.

3. Click Preview.

Creating Issues for Undetected Vulnerabilities

Add undetected issues that you want to identify as issues to the issues list. You can audit manually

configured issues on the Summary tab, just as you do other issues.

To create an issue:

1. Select the object in the line of code in the source code view.

2. Right-click the line that contains the issue, and then select Create New Issue.

The Create New Issue dialog box opens.

3. Select the issue category, and then click OK.

The issues list displays the file name and source code line number for the new issue next to a blue icon.

The rule information in the Summary tab includes Custom Issue. You can edit the issue to include

audit information, just as you can other issues.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 87 of 131

Suppressing Issues

You can suppress issues that are either fixed or that you do not plan to fix.

To suppress an issue, do one of the following:

lIn the Issues view, select the issue, and then, on the Summary tab in the Issue Auditing view, click

Suppress .

lIn the Issues view, right-click the issue, and then click Suppress Issue.

Note: You can select and suppress multiple issues at the same time.

Suppression marks the issue and all future discoveries of this issue as suppressed. As such, it is a semi-

permanent marking of a vulnerability.

To display issues that have been suppressed, select Options > Show Suppressed Issues.

To unsuppress an issue, first display the suppressed issues and then do one of the following:

lIn the Issues view, select the suppressed issue, and then, on the Summary tab in the Issue Auditing

view, click Unsuppress .

lRight-click the issue in the Issues view, and then select Unsuppress Issue.

Note: You can select and unsuppress multiple issues at the same time.

Submitting an Issue as a Bug

You can submit issues to your bug tracking application if integration between the applications has been

configured.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 88 of 131

To submit an issue as a bug:

1. Select the issue in the Issues view, and then, on the Summary tab, click File Bug .

When you submit a bug for first time, the Configure Bugtracker Integration dialog box opens. (For

information about configuring the plugin with bug tracking systems, see "Bug-Tracking System

Integration" on page79.) Select a bug-tracking application, and then click Select

The File Bug dialog box opens.

2. Specify all required values and review the issue description. Depending on the integration and your

bug tracking application, the values include items such as the bug tracking application URL,

product name, severity level, summary, and version.

3. Click Submit.

You must already be logged on before you can file a bug through the user interface for bug-tracking

systems that require a logon. The issue is submitted as a bug in the bug-tracking application.

If you use Fortify Software Security Center, you can submit an issue as a bug using a bug-tracking

system configured through Fortify Software Security Center.

To submit an issue as a bug through the Fortify Software Security Center:

1. Select the issue in the Issues view, and then, on the Issue Summary tab, click the File Bug icon.

When you submit a bug for first time, the Configure Bugtracker Integration dialog box opens.

Select Fortify Software Security Center, and then click OK.

2. Specify the values if changes are needed and review the issue description. Depending on the

integration and your bug-tracking application, the values include items such as the bug-tracking

application URL, product name, severity level, summary, and version.

3. Click Submit.

If your bug-tracking system requires you to log on, you must do so before you can file a bug through

that interface.

Correlation Justification

A correlation occurs when an issue uncovered by one analyzer (HPESecurityFortify WebInspect Agent,

Fortify Static Code Analyzer, or HPESecurityFortify WebInspect) is related directly or indirectly to an

issue uncovered by another analyzer.

Correlated events help you identify issues that have a higher probability of being exploited. A

vulnerability that is linked to other vulnerabilities might represent an issue that has multiple points of

entry. For example, if HPESecurityFortify WebInspect scan results are correlated with Fortify Static

Code Analyzer scan results, this increases the likelihood that the associated Fortify Static Code

Analyzer issues are exploitable.

Audit Workbench provides additional information to help you resolve these correlated issues and

mitigate the risks they present. In Audit Workbench, this additional information is presented as

Correlation Justification.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 89 of 131

Using Correlation Justification

To use correlation justification:

1. In the Issues view, select a correlated issue.

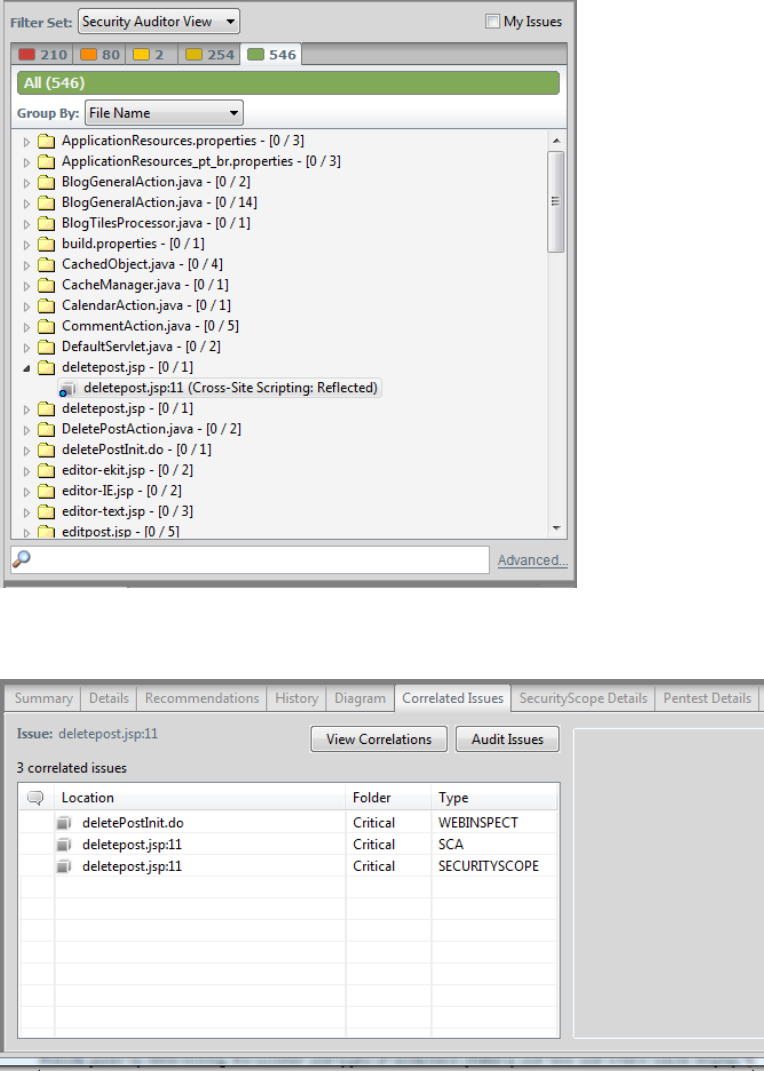

A correlated issue is identified in the issues list by a blue sphere on the issue icon, as shown below.

2. In the Issues Auditing view, click the Correlated Issues tab.

The Issues Auditing view lists the other issues that are correlated with the issue you first selected.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 90 of 131

Because you first selected a correlated issue, the View Correlations button is available.

3. Click View Correlations.

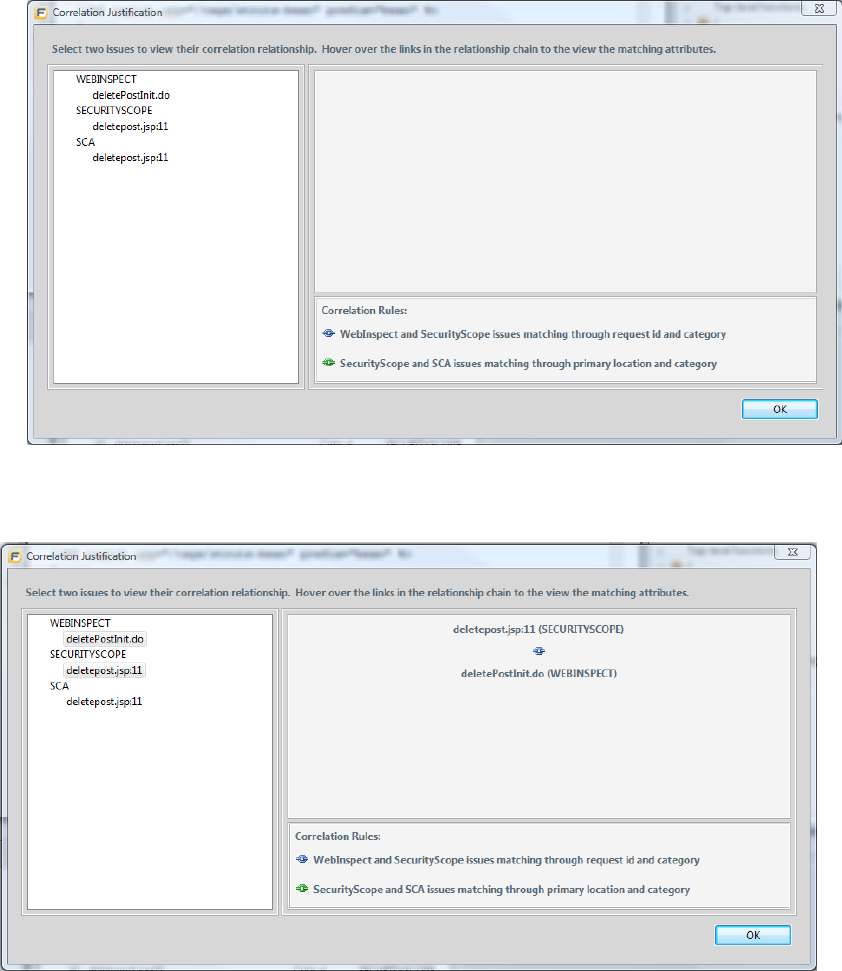

The Correlation Justification dialog box opens and displays the following three panels:

lThe correlated issues tree on the left displays all correlated issues within a correlated group,

sorted based on analyzers.

lThe relationship panel at the top right displays the correlation chain between issues. The chain

describes any indirect or direct relationships between the two selected issues.

lThe panel at the bottom right describes each correlation rule in the correlation chain displayed

in the relationship panel.

4. To select two issues, press Ctrl, and then click each issue.

The relationship panel displays the two issues and their relationships.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 91 of 131

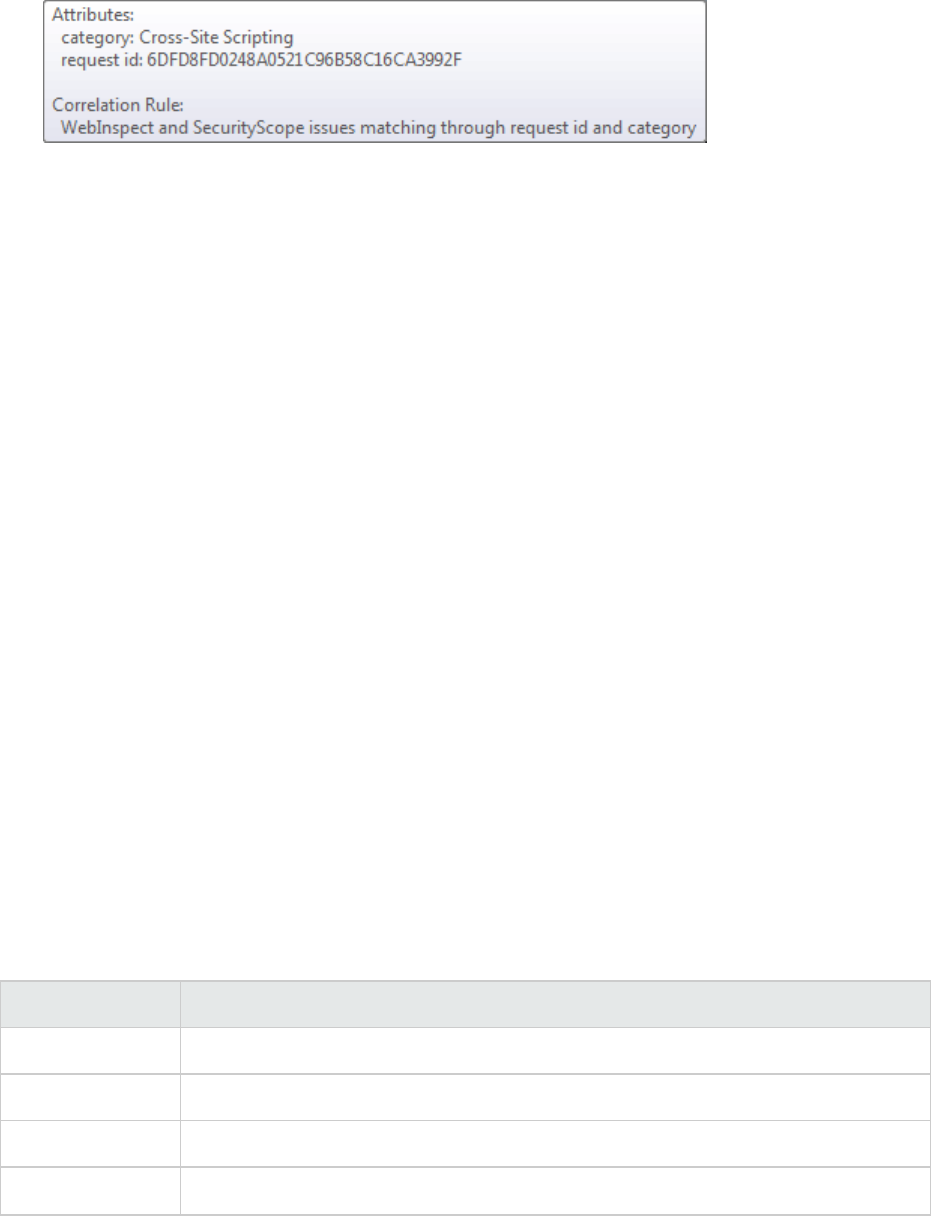

5. To inspect the attributes that correlate the issues, move your cursor to each link in the relationship

panel.

6. Click OK.

Use correlation justification to gain insight into code vulnerabilities and understand why certain issues

are correlated. This can help to reduce the time it takes to remediate the issues.

Third-Party Penetration Results

HPE Security Fortify software includes built-in parsers for the following penetration test (pentest) tools

and services:

lHPESecurityFortify WebInspect

lIBM AppScan

lApplication Security Inc. AppDetective

lWhite Hat

Each of these tools and services produces results in an XML file format. The built-in parsers take in a

pentest results file as input and dynamically create HPE Security Fortify issues.

The parsers are automatically invoked when you open up a pentest results file on its own, or in the

context of an FPR file. When you merge a pentest results file into an FPR, the pentest results are

persisted in the FPR file during a save.

Viewing Penetration Test Results

Pentest issues have an analyzer attribute equal to pentest, and an analysis type attribute that

reflects the tool or service (for instance, Fortify WebInspect issues have the WEBINSPECT analysis type.

You can view these attributes through the standard grouping and search mechanisms.

After you select a pentest issue, Audit Workbench displays the penetration test details on the Pentest

Details tab. The following table lists the penetration test details.

Pentest Detail Description

Path URL minus the context and parameters.

Referer Referrer header in the request.

Method Either GET or POST.

Parameters Parameters included in the HTTP query.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 92 of 131

Pentest Detail Description

Cookies Cookies included in the HTTP query.

Attack Type Type of pentest attack conducted (URL, parameter, header, or cookie).

Attack Payload Part of the request that causes the vulnerability.

Trigger Part of the response that shows that a vulnerability occurred.

To view the full response, click the question mark icon next to the trigger.

UserGuide

Chapter 5: Auditing Analysis Results

HPE Security Fortify Audit Workbench (17.10) Page 93 of 131

Chapter 6: Audit Workbench Reports

Audit Workbench provides two types of reports:

lReports based on the Business Intelligence and Reporting Technology (BIRT) system

lLegacy reports based on user-configurable report templates

This section contains the following topics:

BIRT Reports 94

Generating BIRT Reports 95

Legacy Reports and Templates 96

BIRT Reports

The following table describes the BIRT reports available.

Report Template Description

CWE/SANS Top25 This report details findings related to the CWE/SANS Top 25 most dangerous

programming errors uncovered and provides information about where and

how to address the findings.

Developer

Workbook

This report, which is targeted at project managers and developers, contains all

of the information needed to understand and fix issues discovered during an

audit.

DISA STIG This report addresses DISA compliance STIG violations It includes information

about where and how to fix the issues, and describes the technical risks posed

by unremediated violations. The report also includes an estimate of the effort

required to fix, verify, and test the findings.

FISMACompliance:

FIPS200

This report addresses FISMA compliance through FIPS-200 violations

detected. It provides information about where and how to fix the issues and

describes the technical risks posed by unremediated violations. The report also

includes an estimate of the effort required to fix, verify, and test the findings.

OWASP Mobile

Top10

This report details the top ten OWASP mobile-related findings. It provides

information on where and how to fix specific issues and describes the technical

risk posed by the unremediated findings. The reports also provide estimates of

the effort required to fix, verify, and test the findings.

OWASP Top 10 This report details the top ten OWASP-related findings. It provides

information about where and how to fix the issues and describes the technical

risks posed by unremediated violations. The reports also provides estimates of

the effort required to fix, verify, and test the findings.

HPE Security Fortify Audit Workbench (17.10) Page 94 of 131

Report Template Description

PCI DSS

Compliance:

Application

Security

Requirements

This report summarizes the application security portions of PCI DSS. It

includes tests for 21application security-related requirements across sections

3, 4, 6, 7, 8, and 10 of PCI DSS and reports whether each requirement is either

“In Place” or “Not In Place.”

Generating BIRT Reports

To generate a BIRTreport:

1. Select Tools > Generate BIRT Report.

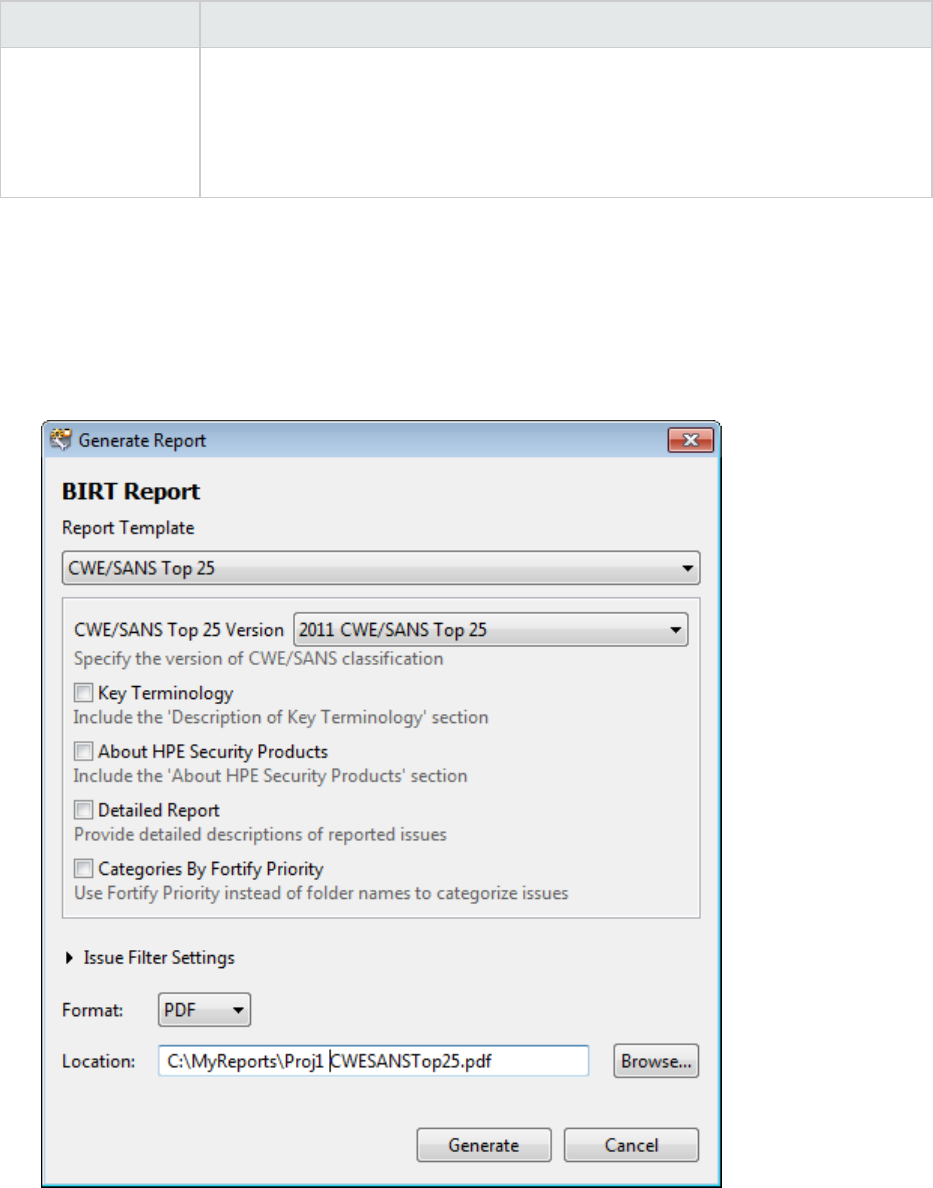

The Generate Report dialog box opens.

2. From the Report Template menu, select the type of report you want.

3. If available for the template, select the template version.

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 95 of 131

4. Select the information to include in the report.

Note: Not all options are available for all report types.

a. To include Description of Key Terminology in the report, select the Key Terminology check

box.

b. To include the About HPE Security Products section in the report, select the About

HPESecurity Products check box.

c. To include detailed descriptions of reported issues, select the Detailed Report check box.

d. To categorize issues by Fortify Priority instead of folder names, select the Categories By

Fortify Priority check box.

5. To filter information from the report, click Issue Filter Settings.

You can filter the issues as follows:

lClick Removed to include removed issues in the report.

lClick Suppressed to include suppressed issues in the report.

lClick Hidden to include hidden issues in the report.

lClick Collapse Issues to collapse issues of the same sink and type into a single issue.

lClick Only My Issues to include only issues assigned to your user name.

lClick Advanced to build a search query to further filter the issues to include in the report. For

more information about the search modifiers, see "Search Modifiers" on page61.

6. Click the Format menu to specify the format for the report (PDF, HTML, DOC, or XLS).

Note: When you open the XLS file in Excel, you might get a warning that the file format and

the file extension do not match. You can safely open the file in Excel.

7. To specify an alternate location to save the report, click Browse and select a directory.

8. Click Generate.

9. If a report with the same file name already exists, you are prompted to either:

lClick Overwrite to overwrite the existing report.

lClick Append Version Number to have the report saved to a file with a sequential number

appended to the file name (for example: buildABC CWESANSTop25(1).pdf).

Legacy Reports and Templates

There are several report templates, which you can either modify to suit your needs, or use as they are.

Each report template includes several sections and subsections. The subsections provide charting and

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 96 of 131

other data collection and presentation options. For detailed descriptions of the report templates, see

"Legacy Report Components" on page125.

Opening Legacy Report Templates

To open a report template:

1. Select Tools > Generate Legacy Report.

The Generate Reports dialog box opens.

2. Select a report template from the Report list.

The Generate Report dialog box displays the report template settings.

Generating Legacy Reports

After you select a report template and specify report settings, you generate the report to view the

results. You can save report results as PDF, RTF, and XML files.

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 97 of 131

To run a report:

1. Select Tools > Generate Legacy Report.

2. Select a report template from the Report list.

3. (Optional) Make changes to the report section settings.

4. Click Save Report.

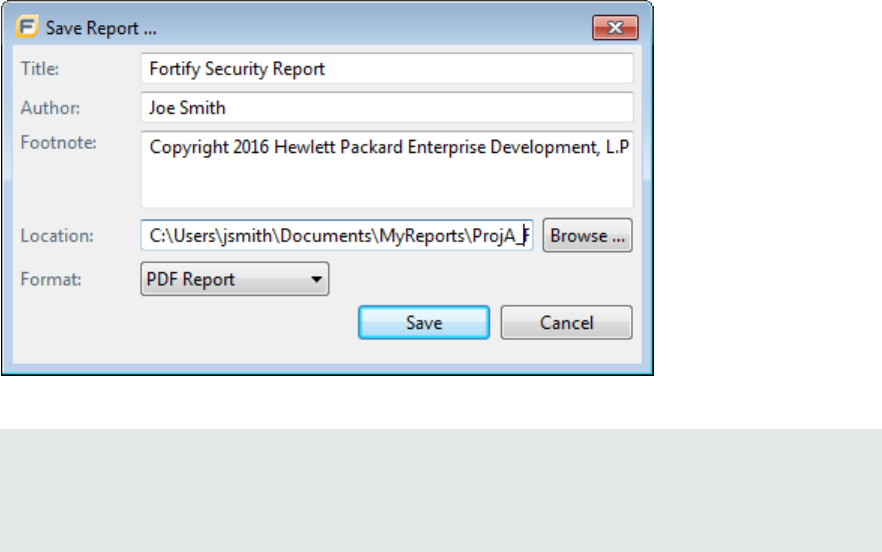

The Save Report dialog box opens.

5. Make any necessary changes to the report details, including its location and format.

Note: If you save the report in rich text format (RTF), you can open the report in an associated

application based on the setting of the com.fortify.model.report.targetEnv property

in the fortify.properties configuration file. See the HPESecurityFortify Static Code

Analyzer Tools Properties Reference Guide for more information.

6. Click Save.

The report is generated and saved as a file in the format you selected.

Legacy Report Templates

This section describes how to select and edit a legacy report template. If you or another user have

edited or created other default report templates, you might not see the default report templates

described in this section.

The legacy report templates include:

lFortify Developer Workbook—A comprehensive list of all categories of issues found and multiple

examples of each issue. This report also gives a high-level summary of the number of issues in each

category.

lFortify Scan Summary—High-level information based on the category of issues that Fortify Static

Code Analyzer found as well as a project summary and a detailed project summary.

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 98 of 131

lFortify Security Report—A mid-level report that provides comprehensive information on the

analysis performed and the high-level details of the audit that was performed. It also provides a high-

level description and examples of categories that are of the highest priority.

lOWASP Top Ten <year>—High-level summaries of uncovered vulnerabilities organized based on

the top ten issues identified by the Open Web Security Project (OWASP).

You can modify legacy report templates from the Generate Legacy Report dialog box, or you can edit

report templates directly in XML (see "Report Template XML Files" on page102). The following sections

provide information about how to view report templates and customize them to address your reporting

needs.

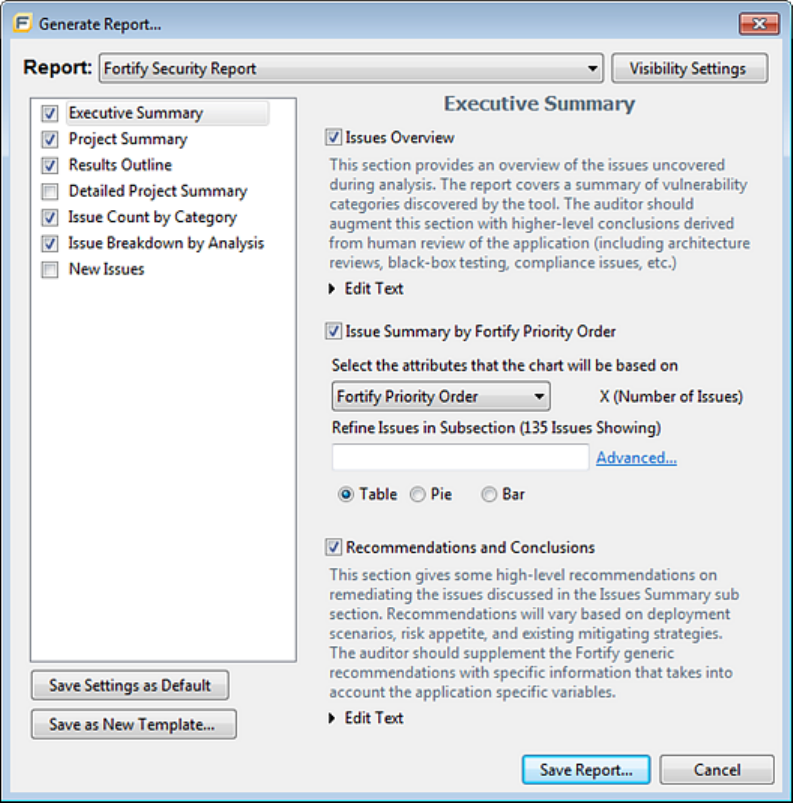

Selecting Report Sections

You can choose sections to include in the report, and you can edit the content displayed in each section.

To select sections to include in the report:

1. Select each section title check box in the list on the left side.

2. Click a section title to view the contents of the section.

The section details are displayed to the right of the dialog box. For instructions on how to edit each

section, see "Saving Legacy Report Templates" on page102.

To remove a section from the report, clear the check box next to the section title.

Editing Report Subsections

When you select a section title, you can edit the contents that display in the report. You can edit text,

add or change text variables, or customize the issues shown in a chart or results list.

Editing Text Subsections

To edit a text subsection:

Select the check box next to the subsection title to include this text in the report. A description of the

text displays below the subsection title.

1. Click Edit Text.

The text box displays the text and variables to be included in the report.

2. Edit the text and text variables.

3. When you edit text subsections, you can insert variables that are defined when you run the report.

The following table lists the report variables.

Variable Description

$AUDIT_GUIDE_

SUMMARY$

List of filters created by answering Audit Guide questions

$CLASSPATH_

LISTING$

JAR files used in the scan, one relative path per line

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 99 of 131

Variable Description

$COMMANDLINE_

ARGS$

Complete list of command-line options (same format as project summary)

$FILE_LISTING$ List of files scanned, each file in format <relative file path> #

Lines # kb <timestamp>

$FILTERSET_

DETAILS$

List of filters in use by current filter set

$FILTERSET_NAME$ Name of current filter set

$FORTIFY_SCA_

VERSION$

Fortify Static Code Analyzer version

$LIBDIR_LISTING$ Libdirs specified for the scan, one relative path per line

$TLOC$ Total lines of code

$NUMBER_OF_FILES$ Total number of files scanned

$PROJECT_BUILD_

LABEL$

Build label of project

$PROJECT_NAME$ Build ID

$PROPERTIES$ Complete list of properties set for the analysis phase (same format as

project summary)

$RESULTS_

CERTIFICATION$

Complete certification detail with a list of validity on a per file basis (see

project summary)

$RESULTS_

CERTIFICATION_

SUMMARY$

Short description of certification (same format as project summary)

$RULEPACKS$ Complete list of Rulepacks used for the analysis (same format as project

summary)

$RUN_INFO$ Content from the Project Summary Runtime Analysis tab

$SCAN_COMPUTER_

ID$

Hostname of machine on which the scan was performed

$SCAN_DATE$ Date of analysis with the default format style for the locale

$SCAN_SUMMARY$ Summary of codebase scanned in format # files, # lines of code

$SCAN_TIME$ Time of analysis phase

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 100 of 131

Variable Description

$SCAN_USER$ Username for the user who performed the scan

$SOURCE_BASE_

PATH$

Source base path of codebase

$TOTAL_FINDINGS$ Number of findings, not including suppressed or removed issues

$WARNINGS$ Complete list of warnings that occurred (same format as the project

summary)

$WARNING_SUMMARY$ Number of warnings found in scan

Editing Results List Subsections

To edit a result list subsection:

1. Select the check box next to the subsection title to include this text in the report.

A description of the results list displays below the subsection title.

2. Click the issues list heading to expand the options.

3. Select the attributes that the results list will be grouped by.

For the list of attributes to group by, see "Working with Issues" on page53. If you group by

category, the recommendations, abstract, and explanation for the category are also included in the

report.

4. You can refine the issues shown in this subsection with the search functions.

For more details on the search syntax, see "Searching for Issues" on page60.

The Refine Issues in Subsection field displays the query.

5. Select or clear the Limit number of Issues in each group check box.

6. If you selected the check box, type the number of issues to display per group.

Editing Charts Subsections

To edit a chart subsection:

1. Select the check box next to the subsection title to include this text in the report.

A chart description is displayed below the subsection title.

2. Select the attributes that the chart data will be grouped by.

For the list of attributes to group by, see "Working with Issues" on page53.

3. You can refine the issues shown in this subsection by using the search functions.

For more details on the search syntax, see "Searching for Issues" on page60.

The query is displayed in the Refine Issues in Subsection field.

4. Select the chart type (table, bar, or pie) to display.

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 101 of 131

Saving Legacy Report Templates

You can save the current report settings as a new template that you can select later to run more reports.

To save settings as a report template:

1. Select Tools > Generate Legacy Report.

The Generate Report dialog box opens.

2. Select the report template from the Report list.

3. Make changes to the report section and subsection settings.

4. Click Save as New Template.

The new report template is saved. When you select the report template name from the Report list, the

report settings are displayed in the Generate Report dialog box.

Saving Changes to Report Templates

You can save changes to a report template so that your new settings are displayed as the defaults for

that template.

To save changes a report template:

1. Select Tools > Generate Legacy Report.

The Generate Report dialog box opens.

2. Select the report template to save as the default report template from the Report list.

3. (Optional) Make changes to the report section and subsection settings.

4. Click Save Settings as Default.

Report Template XML Files

Report templates are saved as XML files. You can edit the XML files to make changes or to create new

report template files. When you edit the XML files, you can choose the sections and the contents of

each section to include in the report template.

The default location for report template XML files is:

<sca_install_dir>/Core/config/reports

You can also customize the logos used in the reports by specifying paths or replacing header.png and

footer.png in this directory.

Adding Report Sections

You can add report sections by editing the XML files. In the structure of the XML, the ReportSection

tag defines a new section. It includes a Title tag for the section name, and it must include at least one

Subsection tag to define the contents of the section in the report. The following XML is the Results

Outline section of the Fortify Security Report:

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 102 of 131

<Title>Results Outline</Title>

<Title>Overall number of results</Title>

<Description>Results count</Description>

<Text>The scan found $TOTAL_FINDINGS$issues.</Text>

</SubSection>

<Title>Vulnerability Examples by Category</Title>

<Description>Results summary of the highest severity issues.

Vulnerability examples are provided by category.</Description>

<Refinement>severity:(3.0,5.0] confidence:[4.0,5.0]</Refinement>

<Axis>Category</Axis>

</Chart>

</IssueListing>

</SubSection>

</ReportSection>

In the previous example, the Results Outline section contains two subsections. The first subsection

is a text subsection named Overall number of results. The section subsection is a results list

named Vulnerability Examples by Category. A section can contain any combination of

subsections as its contents.

Adding Text Subsections

In a text subsection, you can include the Title tag, the Description tag, and the Text tag. In the

Text tag, you can provide the default content, although you can edit the content before you generate

a report. For a description of the text variables available to use in text subsections, see "Editing Report

Subsections" on page99. The following XML is the Overall number of results subsection in the

Results Outline section:

<Title>Overall number of results</Title>

<Description>Results count</Description>

<Text>The scan found $TOTAL_FINDINGS$issues.</Text>

</SubSection>

In this example, the text subsection is titled Overall number of results. The description text to

describe the purpose of the text is Results count. The text in the text field that the user can edit

before running a report uses one variable named $TOTAL_FINDINGS$.

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 103 of 131

Adding Results List Subsections

In a results list subsection, you can include the Title tag, the Description tag, and the

IssueListing tag. In the IssueListing tag, you can define the default content for the limit and set

listing to true. You can include the Refinement tag either with or without a default statement,

although you can edit the content before you generate a report. To generate a results list, the Chart

tag attribute chartType is set to list. You can also define the Axis tag. The following XML is the

Vulnerabilities Examples by Category subsection in the Results Outline section:

<Title>Vulnerability Examples by Category</Title>

<Description>Results summary of the highest severity issues.

Vulnerability examples are provided by category.

</Description>

<Refinement>severity:(3.0,5.0] confidence:[4.0,5.0]</Refinement>

<Axis>Category</Axis>

</Chart>

</IssueListing>

</SubSection>

In this example, the results list subsection is titled Vulnerability Examples by Category. The

description text to describe the purpose of the subsection is Results summary of the highest

severity issues. Vulnerability examples are provided by category. This subsection

lists (listing=true) one issue (limit="1") per Category (the Axis tag value) where there are issues

that match the statement severity:(3.0,5.0] confidence:[4.0,5.0] (the value of the

Refinement tag).

Adding Charts Subsections

In a chart subsection, you can include the Title tag, the Description tag, and the IssueListing

tag. In the IssueListing tag, you can define the default content for the limit and set listing to

false. You can include the Refinement tag either with or without a default statement, although you

can edit the content before generating a report. To generate a pie chart, the Chart tag attribute

chartType is set to pie. The options are table,pie, and bar. You can change this setting before you

generate the report. You can also define the Axis tag.

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 104 of 131

The following code shows an example of a charts subsection:

<Title>New Issues</Title>

<Description>A list of issues discovered since the previous

analysis</Description>

<Text>The following issues have been discovered since the

last scan:</Text>

<Axis>New Issue</Axis>

</Chart>

</IssueListing>

</SubSection>

In this subsection, a chart (limit="-1" listing="false") has the title New Issues and a text

section that contains the text The following issues have been discovered since the

last scan. This chart includes all issues (the Refinement tag is empty) and groups the issues on the

value of New Issues (the value of the Axis tag). This chart is displayed as a pie chart

(chartType="pie").

UserGuide

Chapter 6: Audit Workbench Reports

HPE Security Fortify Audit Workbench (17.10) Page 105 of 131

Chapter 7: Using the Functions View

Fortify Static Code Analyzer identifies all functions declared or called in your source code. You can use

the Functions view in Audit Workbench to determine where a function is located in the source code,

whether the function was covered by a security rule, and which rule IDs matched the function. You can

also list the functions that Fortify Static Code Analyzer identified as tainted source and view only the

functions not covered by rules applied in the most recent scan.

This section contains the following topics:

Opening the Functions View 107

Sorting and Viewing Functions 108

Locating Functions in Source Code 108

Synchronizing the Functions View with the Analysis Evidence View 108

Locating Classes in Source Code 109

Determining Which Rules Matched a Function 109

Writing Rules for Functions 109

Creating Custom Cleanse Rules 110

HPE Security Fortify Audit Workbench (17.10) Page 106 of 131

Opening the Functions View

To open the Functions view:

1. Select Options > Show View > Functions.

Audit Workbench displays the Functions view in the top-right.

2. To view coverage information about top-level (global) functions, expand the Top-level functions

node.

3. To view descriptions of the icons displayed to the left of each function, click Legend.

UserGuide

Chapter 7: Using the Functions View

HPE Security Fortify Audit Workbench (17.10) Page 107 of 131

Sorting and Viewing Functions

To change the order of, or to hide or show functions:

1. Open the Functions view.

2. From the Show list, select one of the following:

lTo display all functions, select All.

lTo display functions not covered by rules, select Not Covered by Rules.

lTo display functions that are identified as a source of tainted data by the Rulepack used in the

most recent scan, select Taint Sources.

3. From the Group By list, select one of the following sorting methods:

lTo sort functions based on package, select package.

lTo sort listed functions by class, select class.

lTo sort listed functions alphabetically, select function.

Audit Workbench updates the Functions view.

Locating Functions in Source Code

From the Functions view, you can list the file name and line number where the function appears in the

source code.

To show where a function is located in code:

1. In the Functions view, right-click a function, and then select Find Usages.

The Search view (at center bottom) lists the file locations and line numbers in which the function is

used.

2. To jump to a line of code where the function is used, click the corresponding row in the Search

view.

Synchronizing the Functions View with the Analysis

Evidence View

You can synchronize the Functions view with the Analysis Evidence view so that, after you select an

issue or a trace node from the Analysis Evidence view, the Functions view automatically displays the

class that contains the selected item of evidence. This makes it easy for you to inspect other methods in

that class, other classes in that package, and so on.

To synchronize the Functions view with the Analysis Evidence view:

1. In the Functions view, from the Group by list, select class.

2. In the top-right corner of the Analysis Evidence view, click the Synchronize with Functions

UserGuide

Chapter 7: Using the Functions View

HPE Security Fortify Audit Workbench (17.10) Page 108 of 131

View icon.

The Functions view displays the class that contains the item you selected in the Analysis Evidence

view.

The Synchronize with Function View toggles synchronization. To turn off synchronization, click

Synchronize with Functions View again.

Locating Classes in Source Code

To see where classes are used in the source code:

1. In the Functions view, right-click a class , and then select Find Usages.

The Search view (at center bottom) lists the file locations and line numbers in which the class is

used.

2. To jump to a line of code where the class is used, click the corresponding row in the Search view.

For functions defined in the source code, you can open the declaration in the Source view by right-

clicking on a function and selecting Open Declaration. The source code is displayed with the line

highlighted. Alternatively, you can double-click functions to display the declaration.

Determining Which Rules Matched a Function

You can display the Rule ID for all the rules that matched a function. When rules match a function, a

green circle icon displays next to it.

Fortify Static Code Analyzer can match a rule to functions without finding an issue related to the rule.

For example, a tainted data source rule matches the source function but the tainted data entering at

that function does not reach a sink.

Note: To use the rule ID to locate related issues, see "Searching for Issues" on page60, or create

visibility or folder filters.

To display the rule IDs:

1. Open a project in Audit Workbench.

2. Open the Functions view.

3. Right-click a function, and then select Show Matched Rules.

The Search view (at center bottom) lists the rule IDs with the vulnerability category name (if applicable)

and the Rulepack file name.

Writing Rules for Functions

You can launch the Custom Rules Wizard from the Functions view.

UserGuide

Chapter 7: Using the Functions View

HPE Security Fortify Audit Workbench (17.10) Page 109 of 131

To write a rule for a function:

1. Open a project in Audit Workbench.

2. Open the Functions view.

3. To create a rule:

a. Right-click a function, and then select Generate Rule for Function.

The Custom Rule Wizard opens.

b. Select the rule that best matches the behavior or vulnerability category.

c. Enter the information as directed by the wizard, and save the new rule to a custom Rulepack.

4. To re-scan the translated files with the custom Rulepack:

a. Select Options >Options.

b. In the left panel, select Security Content Management.

c. Click Import Custom Security Content.

d. Browse to and select the custom Rulepack, and then click Open.

e. Click OK to close the Options dialog box.

f. Click Scan.

After the scan is completed, the project is updated.

5. Click OK.

6. To verify that the rule matched the function:

a. Right-click the function, and then select Show Matched Rules.

b. Verify that at least one rule ID matches the ID of the rule you created.

The function is now covered by a custom Rulepack and is displayed with a green circle next to it.

Creating Custom Cleanse Rules

You can create custom cleanse rules for specific functions from Audit Workbench.

To create a cleanse rule for a function:

1. Right-click the function, and then select Generate Rule for Function.

The Custom Rule Wizard opens.

2. In the templates list, expand the DataflowCleanseRule folder, and then select Generic Validation

Rule.

3. Click Next.

4. On the Rule Language step, select the source code language, and then click Next.

5. On the Validation Function Information step, type the regular expressions for the package, class,

and function.

6. Verify that the information is correct, and then click Next.

7. Select the argument to cleanse, and then click Next.

8. Select the Rulepack to which you want to add the rule, and then click Finish.

UserGuide

Chapter 7: Using the Functions View

HPE Security Fortify Audit Workbench (17.10) Page 110 of 131

Chapter 8: Troubleshooting

The following topics provide information on how to troubleshoot problems you might encounter

working with Audit Workbench and how to report issue to HPESecurity Fortify Technical Support.

This section contains the following topics:

Creating Archive Logs for HPESecurity Fortify Technical Support 111

Using the Debugging Option 111

Addressing the org.eclipse.swt.SWTError Error 112

Out of Memory Errors 112

Specifying the Amount of Memory Used by External Processes 114

Saving a Project That Exceeds the Maximum Removed Issues Limit 114

Resetting the Default Views 115

Creating Archive Logs for HPESecurity Fortify

Technical Support

You can have Audit Workbench create an archive file that you can later send to HPESecurity Fortify

Technical Support to help resolve any support issues that might arise. The file includes your Audit

Workbench logs and system properties.

To create an archive of your Audit Workbench logs and system properties:

1. In the Audit Workbench menu bar, select Help > Contact HPESecurity Fortify Support.

2. In the Create HPESecurity Fortify support archive? dialog box, click Yes.

3. Navigate to the folder where you want to save the archive file.

4. Accept the default file name displayed in the File name box, or change it.

5. Click Save.

The Save Successful dialog box opens.

6. To contact HPESecurity Fortify Technical Support and supply the archive file, follow the

instructions provided in the Save Successful dialog box.

7. Click OK.

Using the Debugging Option

If you encounter errors, you can enable the debugging option to help troubleshoot.

To enable debugging:

1. Navigate to the <sca_install_dir>/Core/config directory and open the

fortify.properties file.

HPE Security Fortify Audit Workbench (17.10) Page 111 of 131

2. You can either enable debug mode for all Fortify Software Security Center components or for

specific components. Remove the comment tag (#) from in front of the property and set the value

to true.

Property Description

com.fortify.Debug If set to true, all the Fortify Software Security Center

components run in debug mode.

com.fortify.awb.Debug If set to true, Audit Workbench runs in debug mode.

com.fortify.eclipse.Debug If set to true, the Eclipse Complete Plugin runs in debug

mode.

com.fortify.VS.Debug If set to true, HPESecurityFortify Package for Visual

Studio runs in debug mode.

For help diagnosing the problem, send the log files to HPESecurity Fortify Technical Support. On

Windows systems, log files are located in the following directories:

lC:\Users\<username>\AppData\Local\Fortify\sca<version>\log

lC:\Users\<username>\AppData\Local\Fortify\AWB-<version>\log

lC:\Users\<username>\AppData\Local\Fortify\AWB-<version>\.metadata

On Linux and Unix systems, log files are located in one of the following directories:

l<userhome>/.fortify/sca<version>/log

l<userhome>/.fortify/AWB-<version>/log

l<userhome>/.fortify/AWB-<version>/.metadata

Addressing the org.eclipse.swt.SWTError Error

On Unix systems, Audit Workbench can fail to start, resulting in the following error:

org.eclipse.swt.SWTError: No more handles [gtk_init_check() failed]

If you see this error, check to make sure that X11 is configured correctly and that your DISPLAY

variable is set.

Out of Memory Errors

The following two scenarios can trigger out-of-memory errors in Audit Workbench.

Scenario For more information...

Opening or auditing a large and complex

FPR file

"Allocating More Memory for Audit Workbench" on the

UserGuide

Chapter 8: Troubleshooting

HPE Security Fortify Audit Workbench (17.10) Page 112 of 131

Scenario For more information...

Running a scan on a very large and

complex project

"Allocating More Memory for Fortify Static Code

Analyzer" below

As a guideline, assuming no other memory-intensive processes are running, do not allocate more than

two thirds of the available system memory.

Allocating More Memory for Audit Workbench

To increase the memory allocated for Audit Workbench, set the environment variable AWB_VM_OPTS.

(For example, set AWB_VM_OPTS=-Xmx700M to allocate 700 MB to Audit Workbench.) If you choose to

set AWB_VM_OPTS, do not allocate more memory than is physically available. Overallocation degrades

performance.

If you are using Mac OS, edit the eclipse.ini file (<sca_install_

dir>/Auditworkbench.app/contents/MacOS/eclipse.ini) to change the -Xmx500m argument

to -Xmx700m or higher.

In Audit Workbench, issue information is persisted to disk. This persisted information is reloaded on

demand and thereby decreases the required memory footprint of Audit Workbench. To prevent

out-of-memory errors, you can set a value in the fortify.properties file to take advantage of the

information persisted to disk functionality. Set the value as follows:

com.fortify.model.PersistDataToDisk = true

Allocating More Memory for Fortify Static Code Analyzer

To increase the memory allocated for Fortify Static Code Analyzer, do one of the following:

lIn the Advanced Static Analysis wizard, increase the amount of memory Fortify Static Code Analyzer

uses for scanning. This passes the memory allocation option to Fortify Static Code Analyzer. This

method does not require restarting Audit Workbench. See "Scanning Large and Complex Projects"

on page25.

lBefore your start Audit Workbench, set the environment variable SCA_VM_OPTS. For example, to

allocate 32 GB to Fortify Static Code Analyzer, set the variable to -Xmx32G.

Note: If you choose to set SCA_VM_OPTS, do not allocate more memory than is physically

available. Overallocation degrades performance.

UserGuide

Chapter 8: Troubleshooting

HPE Security Fortify Audit Workbench (17.10) Page 113 of 131

Specifying the Amount of Memory Used by External

Processes

You can specify how much memory external processes such as the Instance ID Migrator (iidmigrator)

use by specifying the com.fortify.model.ExecMemorySetting setting in the

fortify.properties file. The default setting is as follows:

com.fortify.model.ExecMemorySetting=600

The value for this setting, which is expressed in MB, is used to specify the maximum heap size. In this

case, 600 equates to -Xmx600M.

Saving a Project That Exceeds the Maximum

Removed Issues Limit

When you save a project that has more than the maximum number of removed issues, Audit Workbench

displays following warning message:

Your project contains more than <RemovedIssuesLimit> removed issues.

Would you like to persist them all, or limit the number to

<RemovedIssuesLimit>?

If you limit the number, audited removed issues will take precedence of

unaudited ones.

Choose Limit to limit the number of issues to the maximum or Save All to save all the removed issues.

The maximum number of removed issues <RemovedIssuesLimit> is controlled by the

com.fortify.RemovedIssuePersistanceLimit property. See HPESecurityFortify Static Code

Analyzer Tools Properties Reference Guide for more information.

To configure how Audit Workbench handles this issue for future occurrences:

1. Select Options > Options.

2. In the left panel, select Audit Configuration.

3. Under Save Audit Project Options, specify one of the following configuration settings:

lLimit removed issues to the maximum number

lSave all removed issues every time

lPrompt me next time

4. Click OK.

UserGuide

Chapter 8: Troubleshooting

HPE Security Fortify Audit Workbench (17.10) Page 114 of 131

Resetting the Default Views

If you have closed or moved views, such as the Issues view or the Summary tab, you can reset the user

interface to restore the views to the default state.

To reset the user interface to the default state:

1. Select Options > Options.

2. In the left panel, click Audit Configuration.

3. On the Appearance tab, click Reset Interface.

UserGuide

Chapter 8: Troubleshooting

HPE Security Fortify Audit Workbench (17.10) Page 115 of 131

Appendix A: Sample Files

Your Fortify SCAand Applications installation includes a number of sample files that you can use when

testing or learning to use Fortify Static Code Analyzer. The sample files are located in the following

directory:

<sca_install_dir>/Samples

The Samples directory contains two subdirectories: basic and advanced. Each code sample includes a

README.txt file that provides instructions on how to scan the code in Fortify Static Code Analyzer and

view the output in Audit Workbench.

The basic subdirectory includes an assortment of simple language-specific samples. The advanced

subdirectory contains more advanced code samples and samples that enable you to integrate Fortify

Static Code Analyzer with your bug tracking and build systems.

This section contains the following topics:

Basic Samples 116

Advanced Samples 117

Basic Samples

The following table describes the sample files in the <sca_install_dir>/Samples/basic directory

and provides a list of the vulnerabilities that the samples demonstrate. Many of the samples includes a

README.txt file that provides details and instructions on its use.

Folder Name Description Vulnerabilities

cpp A C++ sample file and instructions to analyze code that has a

simple dataflow vulnerability. It requires a gcc or cl compiler.

Command

Injection

Memory Leak

database Adatabase.pks sample file. This SQL sample includes issues in

SQL code.

Access Control:

Database

eightball A Java application (EightBall.java) that exhibits bad error

handling. It requires an integer as an argument. If you supply a file

name instead of an integer, it displays the file contents.

Path

Manipulation

Unreleased

Resource:

Streams

J2EE Bad

Practices:

Leftover

Debug Code

HPE Security Fortify Audit Workbench (17.10) Page 116 of 131

Folder Name Description Vulnerabilities

formatstring The formatstring.c file. It requires a gcc or cl compiler. Format String

javascript The sample.js JavaScript file. Cross Site

Scripting (XSS)

Open Redirect

nullpointer The NullPointerSample.java file. Null

Dereference

php Two PHPfiles:sink.php and source.php. Analyzing

source.php reveals simple dataflow vulnerabilities and a

dangerous function.

Cross Site

Scripting

SQL Injection

sampleOutput A sample output file (WebGoat5.0.fpr) from the WebGoat

project located in the Samples/advanced/webgoat directory.

stackbuffer The stackbuffer.c file. It requires a gcc or cl compiler. Buffer

Overflow

toctou The toctou.c file. Time-of-

Check/Time-of-

Use (Race

Condition)

vb6 The command-injection.bas file. Command

Injection

SQL Injection

vbscript The source.asp and sink.asp files. SQL Injection

Advanced Samples

The following table describes the sample files in the <sca_install_dir>/Samples/advanced

directory. Many of the samples include a README.txt file that provides further details and instructions

on its use.

Folder Name Description

BugTrackerPlugin<

bugtracker>

Includes source code for the supported bug tracking plugin.

c++ A sample solution for different supported versions of Visual Studio.

To use this sample, you must have the following installed:

lA supported version of Visual Studio Visual C/C++

lFortify Static Code Analyzer and the package for your Visual Studio version

UserGuide

Appendix A: Sample Files

HPE Security Fortify Audit Workbench (17.10) Page 117 of 131

Folder Name Description

The code includes a Command Injection issue and an Unchecked Return Value

issue.

configuration A sample Java EEapplication that has vulnerabilities in its web module

deployment descriptor web.xml.

crosstier A sample that has vulnerabilities that span multiple application technologies

(Java, PL/SQL, JSP, struts).

The output contains several issues of different types, including two Access

Control vulnerabilities. One of these is a cross-tier result. It has a dataflow trace

from user input in Java code that can affect a SELECT statement in PL/SQL.

csharp A simple C# program that has SQL Injection vulnerabilities. Versions are

included for different supported versions of Visual Studio. After successful

completion of the scan, you should see the SQL Injection vulnerabilities and

one Unreleased Resource vulnerability. Other categories might also be present,

depending on the Rulepacks used in the scan.

customrules Several simple source code samples and Rulepack files that illustrate how four

different analyzers: Semantic, Dataflow, Control Flow, and Configuration

interpret rules. This folder also includes several miscellaneous samples of real-

world rules that you can use to scan real applications.

ejb A sample Java EEcross-tier application with Servlets and EJBs.

filters A sample that uses the Fortify Software Security Center -filter option.

findbugs A sample that demonstrates how to run the FindBugs static analysis tool

(http://findbugs.sourceforge.net) together with Fortify Static Code Analyzer

and filter out results that overlap.

java1.5 A sample Java file: ResourceInjection.java. The result file should include

a Path Manipulation and a J2EE Bad Practices vulnerability.

javaAnnotations A sample application that illustrates problems that might arise from its use and

how to fix the problems using the Fortify Java Annotations.

This example illustrates how the use of Fortify Annotations can result in

increased accuracy in the reported vulnerabilities. The accompanying Java

Annotations Sample.txt file describes the potential problems and

solutions associated with vulnerability results.

JavaDoc JavaDoc directory for the public-api and WSClient.

riches.java A Java EE 1.4 sample web application with various known security

vulnerabilities including Cross-Site Scripting, SQL Injection, and Command

Injection.

UserGuide

Appendix A: Sample Files

HPE Security Fortify Audit Workbench (17.10) Page 118 of 131

Folder Name Description

riches.net A .NET 4.0 sample web application with various known security vulnerabilities

including Cross-Site Scripting, SQL Injection, and Command Injection.

webgoat The WebGoat test Java EEweb application provided by the Open Web

Application Security Project (https://www.owasp.org). This directory contains

the WebGoat 5.0 source code.

UserGuide

Appendix A: Sample Files

HPE Security Fortify Audit Workbench (17.10) Page 119 of 131

Appendix B: Static Analysis Results

Prioritization

The following topics describe how HPE SecurityFortify Static Code Analyzer automatically prioritizes

the scan results displayed in Audit Workbench.

This section contains the following topics:

About Results Prioritization 120

Quantifying Risk 121

Estimating Impact and Likelihood with Input from RulesandAnalysis 122

About Results Prioritization

Fortify Static Code Analyzer divides static analysis findings into four risk quadrants: critical, high,

medium, and low. Membership in each quadrant depends on whether the finding has a high or low

impact and high or low likelihood of occurring.

When Fortify Static Code Analyzer produces a results file, automated processing and human review can

convert issues into findings. Findings, which represent specific problems with the codebase, sometimes

map one-to-one with issues. However, in other cases, multiple related issues might be combined into a

single finding. For example, every form that submits a request without including a unique token might

produce an issue related to Cross-Site Request Forgery (CSRF), but these issues are more useful when

they are combined into a single finding that indicates the application as a whole is vulnerable to CSRF

attacks.

HPE Security Fortify Audit Workbench (17.10) Page 120 of 131

On occasion, the static analysis process goes wrong. Depending on the rules and the analysis algorithms

used, a static analysis can produce false positives (reported vulnerabilities where no vulnerabilities exist)

or false negatives (unreported vulnerabilities) or both.

Quantifying Risk

Because it is not possible to determine if or when an organization will suffer consequences related to a

particular vulnerability, Fortify Static Code Analyzer takes a probabilistic approach to prioritizing

vulnerabilities. Risk is defined quantitatively, as follows:

risk = impact x likelihood

The risk that a vulnerability poses is equal to the impact of the vulnerability multiplied by the likelihood

that the impact will occur. Impact is defined as the negative outcome resulting from a vulnerability and

likelihood as the probability that the impact will happen.

Impact can come in many forms. For example, an organization might lose money or reputation because

of a successful attack, or it might lose business opportunity because the presence of a vulnerability

causes a system to fail a regulatory compliance check.

Two factors contribute to the likelihood that a particular vulnerability will cause harm:

lThe probability that the vulnerability will be discovered (by an attacker or an auditor)

lThe conditional probability that, once found, the vulnerability will be exploited

These probabilities change as the computer security field advances. New vulnerability assessment

techniques make it easier to find vulnerabilities, and new attack techniques increase the set of

vulnerabilities that can be exploited. Progressively better vulnerability prevention, mitigation, and

recovery strategies help counterbalance these advances.

For example, consider Race Condition: Singleton Member Field vulnerabilities, which occur when code

assigns a value associated with a particular user session to a member variable of a singleton object in a

web application. Since, under the singleton model, the same class instance is used to service all requests,

values from one user session can spill over into another user’s session. The following code

demonstrates a singleton member field race condition:

public class GuestBook extends HttpServlet {

String name, password;

protected void doPost (HttpServletRequest request,

HttpServletResponse response) {

name = request.getParameter("username");

password = request.getParameter("password");

if (DBUtils.lookupUser(username, password)) {

accessSensitiveResources();

}

UserGuide

Appendix B: Static Analysis Results Prioritization

HPE Security Fortify Audit Workbench (17.10) Page 121 of 131

Although this vulnerability is fairly simple to exploit after it is found, finding race conditions can be

difficult because successful attacks often depend on very precise timing. Therefore, this class of

vulnerability has a low likelihood of occurring, which primarily reflects the difficulty involved in finding

the vulnerability.

For an example of a vulnerability whose likelihood is primarily governed by how difficult it is to exploit,

consider HTTP Header Manipulation, which occurs when unvalidated user input is included in an HTTP

response header and can enable cross-site scripting, HTTP response splitting, and cache poisoning,

among other attacks. The following code demonstrates a header manipulation vulnerability:

String author = request.getParameter(AUTHOR_PARAM);

Cookie cookie = new Cookie("author", author);

cookie.setMaxAge(cookieExpiration);

response.addCookie(cookie);

In this case, identifying a vulnerable application is often quite simple because the vulnerability is evident

in web traffic returned from the server. Crafting a meaningful exploit, however, typically involves a deep

understanding of the application’s business logic, ready access to a pool of legitimate users, and in some

cases, a working knowledge of the network topography between the server and the users. Therefore,

this class of vulnerability has a low likelihood because it is difficult to exploit.

Estimating Impact and Likelihood with Input from

RulesandAnalysis

HPE SecurityFortify Static Code Analyzer estimates the impact of a discovered vulnerability based on

its type. The impact value is associated with the static analysis rule that defines the vulnerability. In this

way, results can indicate that a category such as cross-site scripting has a higher impact than a category

such as null pointer dereference.

To compute the likelihood portion of the risk equation, Fortify Static Code Analyzer draws on values

from the rules used for analysis, the analysis process itself, and from a human auditor (if an individual

has reviewed the results.) The likelihood of a finding is computed by combining the accuracy of the rule

and the confidence in the analysis with the probability that the vulnerability will be discovered and acted

upon, as follows:

likelihood = accuracy x confidence x probability

For the purpose of weighing static analysis results, an accuracy measure is associated with each rule

applied by the analysis engine. This number represents the possibility that the rule will correctly identify

a vulnerability.

For example, the rule that Fortify Static Code Analyzer uses to identify the member field race condition

has a high accuracy because it precisely identifies assignments to a member field of a singleton object.

Conversely, the rule used to identify cross-site request forgery has a low accuracy because it identifies

potentially vulnerable form submissions and relies on a human auditor to determine whether the form

submissions are susceptible to cross-site request forgery.

UserGuide

Appendix B: Static Analysis Results Prioritization

HPE Security Fortify Audit Workbench (17.10) Page 122 of 131

During static analysis, Fortify Static Code Analyzer might have to make assumptions about the way the

code behaves at runtime. The more assumptions Fortify Static Code Analyzer makes, the more likely it is

that a result is incorrect.

The term confidence is used to estimate the possibility that Fortify Static Code Analyzer correctly

applies the rule. For example, Fortify Static Code Analyzer reports reflected cross-site scripting

vulnerabilities in a JSP where data from a request parameter is echoed directly to the page with high

confidence. Conversely, Fortify Static Code Analyzer reports a persistent cross-site scripting issue

where data read from a database into a class selected at runtime using dependency injection is rendered

in the presentation tier with low confidence.

To represent the probability that the vulnerability is discovered and acted upon (with action potentially

coming the form of an exploit), Fortify Static Code Analyzer associates a probability measure with each

category of vulnerability identified by the rules. For example, cross-site scripting vulnerabilities carry a

higher probability than member field race conditions because they are more likely to be discovered and

exploited.

From a programmer’s perspective, some bugs are harder to fix than others. Modifying a single line of

code in a self-contained method is easier than modifying the result of a sequence of calls that span the

program. The term remediation effort describes the relative amount of effort required to fix and verify a

finding.

Fortify Static Code Analyzer provides a remediation effort with each finding it reports. For example,

member field race conditions have a small remediation effort, while cross-site request forgery, which

often involves major changes to a website, has a high remediation effort.

To avoid implying too much precision where little exists, Fortify Static Code Analyzer limits values of

impact, accuracy, confidence, and probability to a decimal range of from 0.1 to 5.0 and scales the

calculated likelihood value to the same range. It then defines high values for impact and likelihood as

those at 2.5 and above [2.5,5.0] and low values as those below 2.5 (0,2.5).

Fortify Static Code Analyzer does not provide units for remediation effort because the absolute cost of

remediating different vulnerabilities differs from one organization to another. Instead, remediation

effort estimates the relative cost to remediate one kind of finding versus another, thereby enabling a

comparison of the effort required to remediate different vulnerabilities or vulnerabilities across more

than one project.

The following table provides sample impact, accuracy, confidence, and probability values for the four

vulnerabilities mentioned in this section along with the resulting risk calculations and corresponding

remediation effort for each vulnerability category.

Category Impact Accuracy Confidence Probability Risk

Race Condition:

Singleton Member

Field

4 5 5 3 Impact = 4 (High)

Likelihood = (5 · 5 · 3)/25 =

3 (High)

Risk = Critical

Estimated remediation

effort = 5

Cross-Site Request

Forgery

2 1 5 2 Impact = 2 (Low)

Likelihood = (1 · 5 · 2)/25 =

UserGuide

Appendix B: Static Analysis Results Prioritization

HPE Security Fortify Audit Workbench (17.10) Page 123 of 131

Category Impact Accuracy Confidence Probability Risk

<1 (Low)

Risk = Low

Estimated remediation

effort = 12

Cross-Site Scripting:

Reflected

5 5 5 5 Impact = 5 (High)

Likelihood = (5 · 5 · 5)/25 =

5 (High)

Risk = Critical

Estimated remediation

effort = 1

Cross-Site Scripting:

Persistent

5 5 1 5 Impact = 5 (High)

Likelihood = (5 · 1 · 5)/25 =

1 (Low)

Risk = Medium

Estimated remediation

effort= 1

UserGuide

Appendix B: Static Analysis Results Prioritization

HPE Security Fortify Audit Workbench (17.10) Page 124 of 131

Appendix C: Legacy Report Components

The following sections provide information about the content and organization of the legacy report

templates, which you can either modify or use as provided. Each report template includes several

sections and subsections. The subsections provide charting and other data collection and presentation

options.

This section contains the following topics:

Fortify Security Report 125

Fortify Developer Workbook Report 128

OWASP Top Ten Reports 129

Fortify Scan Summary Report 129

Fortify Security Report

The Fortify Security Report is a high-level report that includes comprehensive analysis information and

high-level details of the corresponding audit. This report also includes a high-level description and

examples of the categories that have the highest priority. The following table lists Fortify Security

Report sections and their corresponding subsections.

Section Subsection

Executive Summary

Presents an overview of the scan. This includes an

overview of issues, an overview of issues by Fortify

Priority Order, and recommendations for issue

remediation. This section is designed for management and

project managers.

Issues Overview

Editable overview of the issues,

including the date of the scan, number

of issues, name of the project, scan

summary and total number of findings.

Issue Summary by Fortify Priority

Order

Issues are categorized into the

following four risk quadrants based on

whether they have a high or low impact,

and high or low likelihood of being

exploited:

lCritical - High impact and high

likelihood. Critical issues are easy for

the attacker to discover and exploit

to result in extensive asset damage.

lHigh - High impact but low likelihood.

High priority issues are often difficult

to discover and exploit, but can result

in extensive asset damage.

HPE Security Fortify Audit Workbench (17.10) Page 125 of 131

Section Subsection

lMedium - Low impact but high

likelihood. Medium priority issues are

easy to discover and exploit, but

often result in little asset damage.

lLow - Low impact and low likelihood.

Low priority issues are difficult to

discover and exploit and typically

result in little asset damage.

You can present this information in a

table or in a pie or bar chart.

Recommendations and Conclusions

High-level recommendation on

remediating the issues listed in the

Issues Summary subsection. You can

edit the text in this subsection.

Project Summary

Provides project summary information such as the

codebase, scan information, results certifications, and so

on.

Code-Base Summary

Summary of the analyzed codebase.

You can edit the text element of this

subsection.

Scan Information

Analysis details. You can edit the text

element of this subsection.

Results Certification

Results certifications summary. You can

edit the text element of this subsection.

Attack Surface

Attack surface summary. You can edit

the text element of this subsection.

Filter Set Summary

Summary of the filter set used in the

report. You can edit the text element of

this subsection.

Audit Guide Summary

Summary of the audit guide. You can

edit the text element of this subsection.

Results Outline Overall Number of Results

UserGuide

Appendix C: Legacy Report Components

HPE Security Fortify Audit Workbench (17.10) Page 126 of 131

Section Subsection

Provides an outline of the results that Fortify Static Code

Analyzer produced during the scan.

Total number of results that Fortify

Static Code Analyzer produced during

the scan. You can edit the text element

of this subsection.

Vulnerability Examples by Category

Results summary of highest-level issues

by category.

Detailed Project Summary

Provides a detailed project summary.

Files Scanned

List of all scanned files. You can edit the

text element of this subsection.

Reference Elements

List of all libraries that Fortify Static

Code Analyzer used during the

translation phase of analysis. You can

edit the text element of this subsection.

Rulepacks

List of Rulepacks that Fortify Static

Code Analyzer used in the analysis. You

can edit the text element of this

subsection.

Properties

List of properties that Fortify Static

Code Analyzer set during the analysis

phase. You can edit the text element of

this subsection.

Commandline Arguments

List of all options that Fortify Static

Code Analyzer uses during the

translation phase of analysis. You can

edit the text element of this subsection.

Warnings

List of all warnings issued during both

translation and analysis phases of the

scan. You can edit the text element of

this subsection.

Issue Count by Category

Provides a chart of Issues by category. This chart is

Issues By Category

Chart of issues by category. You can

UserGuide

Appendix C: Legacy Report Components

HPE Security Fortify Audit Workbench (17.10) Page 127 of 131

Section Subsection

configurable. present the information in a table or as

a pie or bar chart.

Issue Breakdown by Analysis

Provides a chart of issues by analysis. This chart is

configurable.

Issue By Analysis

Chart of issues by analysis. You can

present the information in a table or as

a pie or bar chart.

New Issues

Provides a chart of all new issues. This chart is

configurable.

New Issue

Chart of new issues. You can present

the information in a table or as a pie or

bar chart.

Fortify Developer Workbook Report

The Fortify Developer Workbook report provides a high-level summary of the vulnerabilities detected

during a scan. This includes a report summary and an issue summary by Fortify Priority Order. This

report is designed for developers. The following table lists Fortify Developer Workbook report sections

and their corresponding subsections.

Section Subsection

Report Overview

Provides a high-level overview of report

findings.

Report Summary

Editable overview of vulnerability. This includes the date

of the scan, the project name, and the total number of

vulnerabilities.

Issue Summary by Fortify Priority Order

Issues charted based on Fortify Priority Order. You can

present the information in a table or as a pie or bar chart.

Issue Summary

Provides the number and categories of

vulnerabilities.

Overall number of results

Total number of vulnerabilities. You can edit the text

element of this subsection.

Issues by category

Chart of issues based on category. You can present the

information in a table or as a pie or bar chart.

Results Outline

Provides an outline of the results that

Fortify Static Code Analyzer produced

during the scan.

Vulnerability Examples by Category

Results summary of highest-level issues by category.

UserGuide

Appendix C: Legacy Report Components

HPE Security Fortify Audit Workbench (17.10) Page 128 of 131

OWASP Top Ten Reports

The OWASP top ten reports provide high-level summaries of uncovered vulnerabilities organized based

on the top ten issues identified by the Open Web Security Project (OWASP) for years 2004, 2007,

2010, and 2013. These reports include the sections and subsections described in the following table.

Section Subsection

Report Overview

Provides a high-level overview of

report findings.

Report Summary

Editable overview of vulnerabilities, including the date of the

scan, the project name, and the total number of vulnerabilities.

Issue Summary

Chart of issues grouped by a selected attribute such as category,

kingdom, or analysis type. You can present the information in a

table or as a pie chart or bar chart.

Issue Breakdown by OWASP

Top Ten

Provides a chart of issues

organized by OWASP top ten

security risks.

Issue Breakdown by OWASP Top Ten

Chart of issues grouped by a selected attribute such as category,

kingdom, or analysis type. You can present the information in a

table or as a pie chart or bar chart.

Results Outline

Provides an outline of the results

that Fortify Static Code Analyzer

produced during the scan.

Vulnerability Examples by OWASP Top Ten

Lists the vulnerabilities organized by the OWASP top ten. You

can use select listing to further refine and organize the

vulnerabilities that Audit Workbench provides in the report.

Fortify Scan Summary Report

The Fortify scan summary report type provides high-level information based on the category of issues

that Fortify Static Code Analyzer found as well as a project summary and a detailed project summary.

The following table provides descriptions of the report sections and subsections.

Section Subsection

Issue Count by Category

Provides a chart of issues by

category.

Issues By Category

Chart of issues grouped by a selected attribute such as category,

kingdom, or analysis type. You can present the information in a

table or as a pie chart or bar chart.

Project Summary Code Base Summary

Summary of the codebase that Fortify Static Code Analyzer

UserGuide

Appendix C: Legacy Report Components

HPE Security Fortify Audit Workbench (17.10) Page 129 of 131

Section Subsection

Provides project summary

information, including codebase

summary and general scan

information.

scanned, including the location of the code, the number of files,

lines of code, and the build label. You can edit the text element of

this subsection.

Scan Information

Scan information, including the Fortify Static Code Analyzer

version, machine name, and the name of the user who ran the

scan. You can edit the text element of this subsection.

Results Certification

Results certifications information, including the results

certification summary and the details of the results certification.

You can edit the text element of this subsection.

Detailed Project Summary

Provides detailed project

summary information including

the files scanned, reference

elements, and so on.

Files Scanned

Lists all files Fortify Static Code Analyzer scanned. You can edit

the text element of this subsection.

Reference Elements

List of libraries that Fortify Static Code Analyzer used during the

translation phase. You can edit the text element of this

subsection.

Rulepacks

List of Rulepacks that Fortify Static Code Analyzer used during

the analysis. You can edit the text element of this subsection.

Properties

Lists the properties that Fortify Static Code Analyzer set during

the analysis. You can edit the text element of this subsection.

Commandline Arguments

Lists the arguments that the program passed to Fortify Static

Code Analyzer during analysis. You can edit the text element of

this subsection.

Warnings

Lists the warnings that occurred during analysis. You can edit the

text element of this subsection.

UserGuide

Appendix C: Legacy Report Components

HPE Security Fortify Audit Workbench (17.10) Page 130 of 131

Send Documentation Feedback

If you have comments about this document, you can contact the documentation team by email. If an

email client is configured on this computer, click the link above and an email window opens with the

following information in the subject line:

Feedback on UserGuide (HPE Security Fortify Audit Workbench 17.10)

Just add your feedback to the email and click send.

If no email client is available, copy the information above to a new message in a web mail client, and send

your feedback to HPFortifyTechPubs@hpe.com.

We appreciate your feedback!

HPE Security Fortify Audit Workbench (17.10) Page 131 of 131

HPE Security Fortify Audit Workbench User Guide AWB 17.10

HPE_AWB_Guide_17.10

Navigation menu

Versions of this User Manual:

Views

Navigation
