VOX MB MV 3 SCHEMATIC 0820 HP Elite Book 8530W 8530P
HP EliteBook 8530W-8530P
User Manual:
Open the PDF directly: View PDF
.
Page Count: 53
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
VOX
A3
153Wednesday, August 20, 2008
BOM1
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
VOX
A3
153Wednesday, August 20, 2008
BOM1
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
VOX
A3
153Wednesday, August 20, 2008
BOM1
Wistron Confidential
MV-3
2008/08/20 REV :MV-03
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Block Diagram
A3
253Wednesday, August 20, 2008
BOM1
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Block Diagram
A3
253Wednesday, August 20, 2008
BOM1
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Block Diagram
A3
253Wednesday, August 20, 2008
BOM1
Project code :
91.4V801.001
PCB P/N : 48.4V801.031
Revision : MV-3
DOCK
VGALINE IN/OutUSB*2 RJ45/RJ11
FSB
667/800/1066MHz
ICH9-M
DMI x4
SPEAKER
PCI/LCI
RJ45
CONN
Intel BOAZ 82567
SD/MMC
MS/XD
PCI
KBC
Int.
KB
LPC Bus
SMSC KBC1091
Intel CPU
SLG8SP553
Penryn
FSB:667,800 or 1066 MHz
DDRII
667/800
CLK GEN
Slot 0
Ricoh
5C835
Slot 1
DDRII 667/800 Channel A
Cantiga PM
CardReader
DDRII 667/800 Channel B

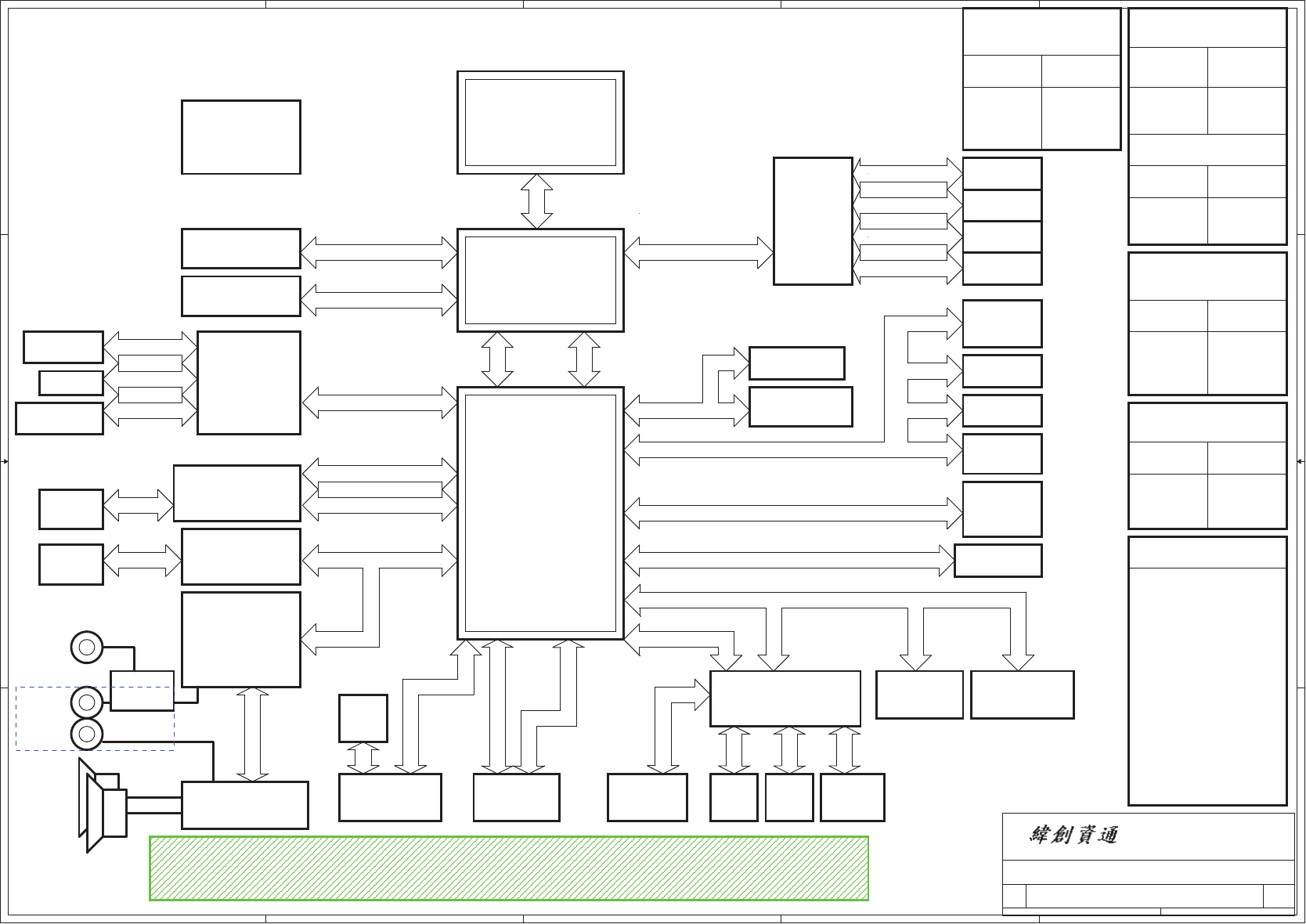

Artemis Block Diagram
PCIE+USB 2.0
OP AMP
RJ11
CONN
HD Audio
TI 6041A Express Card 54
Power
SW
TPS2231
USB x 5
Blue Tooth
CAMERA
Fingerprinter
INTERNAL MIC
MIC IN
Headphone
AUDIO CODEC
C-LINK0
HOST BUS
1394
MODEM
MDC V1.5
ADI 1984A
AES2810B
(10/100/1000Mb)
12 USB 2.0/1.1 ports
ETHERNET
High Definition Audio
4 SATA
ACPI 1.1
LPC I/F
PCI/PCI BRIDGE
AGTL+ CPU I/F
DDR Memory I/F
INTEL
Capacitive
Button
32Mb x 1(AMT)
Flash ROM
PRE-AMP
TLV2462
PCIE/GLCI
TPM
SLB9635TT
SPI
Tauch
Pad
ISL6260C
OUTPUTS
+1.05M 13A
+3VALW 6A
OUTPUTS
+5VALW 6A
TPS51124
PCB LAYER
SYSTEM DC/DC
GND
Signal 3
Signal 1
INPUTS
L3:
B+
L2:
L5:
TPS51120
L4:
L6:
INPUTS
L1:
SYSTEM DC/DC
5V 100mA
OUTPUTS
OUTPUTS
BATT
0.844~1.3V
65A
18V 3.0A
+VCC_CORE
INPUTS
B+
CHARGER
INPUTS
CPU DC/DC
BQ27470
BATT_A
L7:
L8:
B+
BATT_B
16 5,6,7
14,15
14,15
8,9,10,11,12,13
20,21,22,23,24
10/100/1000
34
423535
DVI-D
33
32,45
45
42
42
3325
25
34
29
26
28
27
30
36
40,41
41
41
47
51
48
49
Serial Peripheral I/F
PCIE x 2
C-LINK1
USB 2.0
25
HDD Bay
SATA
2.5" SATA
SMSC Super I/O
LPC47N217
Accelerometer
STMicro
LIS302DL
EMC2103
Thermal Sensor
SMBus
ODD Bay
SATA
Smart Card
ISO7816
25
PCIE*1 PS2 SATA*1 Serial Port Parallel Port
Signal 2
GND
VCC
Signal 4
Signal 5
SPI
PCI EXPRESS GRAPHIC
CRT
15.4" LCD
MXMII
Module
LVDS 2CH
RGB CRT
DVI
HDMI
DOCK
DVI-D 2CH
PCIE GRAPHIC
17
18
18
19
25
31
35
43
44
49
0.9V 2A
OUTPUTS
1.8V 10A
SYSTEM DC/DC
INPUTS
TPS51124
B+
DB
31
802.11abg/n
WWAN
Mini-Card*2
DDRII
667/800
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Change Notes List
A3
353Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Change Notes List
A3
353Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Change Notes List
A3
353Wednesday, August 20, 2008
VOX
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Artemis List
A3
453Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Artemis List
A3
453Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Artemis List
A3
453Wednesday, August 20, 2008
VOX
System Timer
Keyboard
N/A
Serial port (COM1)
Audio/VGA
Floppy
Parallel port
System CMOS/Real-time clock
Microsoft ACPI
N/A,Modem,LAN
Mass storage control/PCI simple communication control
synactic PS2 port GlidePAD
Numeric Data Process
Primary IDE interface ,HDD
Secondary IDE interface ,CD-ROM
Mobile Intel Crestline Express Chipset Family
Microsoft UAA Bus Drive for High Definition Audio
Intel 82801H (ICH8 Family) PCI Express Root Port -27D0
SDA Standard Compliant SD Host Control
Intel 82801I (ICH9 Family) PCI Express Root Port -27D2
Intel 82801I (ICH9 Family) USB Universal Host Control
Intel 82801I (ICH9 Family) USB Universal Host Control
Richo R5C835 Integrates FlashMedia Control
Richo R5C835 Gemcore based SmartCard Control
HP Mobile Data Protection Sensor
Intel 82801I (ICH9 Family) USB Universal Host Control
Intel 82801I (ICH9 Family) USB2 Enhanced Host Control
Intel 82801I (ICH9 Family) USB Universal Host Control
Intel 82801I (ICH9 Family) PCI Express Root Port -27D6
Intel 82801I (ICH9 Family) USB Universal Host Control
IRQ Device
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Serial port (COM2) ,LAN/Modem
Voltage Rails
power
State
S0
S3/M1
S5 S4/Battery only
S3
S5 S4/AC
S5 S4/AC & Battery
don't exist
o
x
plane +B
+3VL
LDO5
+3VM CLOCK
o MEANS ON x MEANS OFF
+5VALW
+3VALW
+1.5V
+5V
+0.75V
+5VS
+3VS
+1.5VS
+CPU_CORE
+VCCP
+1.05VM
oo o o o
oo
oo
o
o
o
o
o
ooo
oo
o
x
x
x
x
x
x
x
x
x
x
x
x
x
x
PCI Devices
EETERNAL
Cardreader & 1394
IDSEL#
AD22
REQ/GNT#
2
PIRQ
G,E
DMA Channel
Modem/LANDMA0
Audio
Device
ECP
DMA1
DMA2
DMA3
DMA4
DMA5
DMA6
DMA7
(Cascade)
Floppy Disk
Unused
Unused
Unused
DY/DUMMY No install
1KR2J Resistor 1K ohm ,Size 0402 ,5%
1KR3F Resistor 1K ohm ,Size 0603 ,1%
GP ROHS parts
DescriptionSymbols
NC Pin no connect to anything
USB PORT#
0
2
3
4
5
6
7
8
9
Destination
Fingerprint
EXPRESS SLOT
Camera
USB1
Bluetooth
Dock 1
WWAN
USB2
Dock 2
1
10
11
USB3
USB4
USB5
Accelerometer LIS302DL
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_A#[35..3]
XDP_BPM#0
XDP_BPM#1
XDP_BPM#2
XDP_BPM#3
XDP_BPM#4
XDP_TCK
XDP_TDI
XDP_TMS
XDP_TRST#
XDP_TDO
XDP_DBRESET#
XDP_BPM#5
H_STPCLK#_R
RSVD_CPU_4
RSVD_CPU_1
RSVD_CPU_8
RSVD_CPU_5
RSVD_CPU_6
RSVD_CPU_7
RSVD_CPU_2
RSVD_CPU_3
H_A#35
H_A#33
RSVD_CPU_9
RSVD_CPU_10
H_A#18
H_A#20
H_A#21
H_A#22
H_A#17
H_A#19
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_RS#1
H_RS#0
H_RS#2
RSVD_CPU_11
H_A#34
H_A#32
H_THERMTRIP#
+5VS
FAN_PWM
FAN_TACH
H_THERMDC
H_THERMDA
H_IERR#
H_PROCHOT#
H_CPURST#
XDP_TRST#
XDP_TCK
XDP_DBRESET#
XDP_TDI
XDP_TDO
XDP_BPM#5
XDP_TMS
H_IERR#
RSVD_CPU_8
RSVD_CPU_4
RSVD_CPU_3
RSVD_CPU_10
RSVD_CPU_9
RSVD_CPU_2
RSVD_CPU_1
RSVD_CPU_5
XDP_BPM#0
XDP_BPM#3
XDP_BPM#1
XDP_BPM#2
BPM_2#3
XDP_TCK
XDP_BPM#5
XDP_TMS
H_RESET#_RH_CPURST#
XDP_TRST#
XDP_TCK
XDP_TDO_R
XDP_TDI
XDP_TDO
XDP_BPM#1
XDP_BPM#4
XDP_DBRESET#_R XDP_DBRESET#
XDP_BPM#3
XDP_BPM#2
XDP_BPM#0
XDP_BPM#2
XDP_BPM#1
XDP_BPM#3
XDP_BPM#0
CLK_CPU_XDP#
CLK_CPU_XDP
+VCCP
+5VS
+VCCP
+3VS
+VCCP
CPU_GTLREF1
+VCCP
+VCCP
+VCCP
+VCCP
+VCCP
+3VS 1D5V_PCIE_S0
+VCC_CORE
B+
H_RS#[2..0] [8]
H_ADSTB#1[8]
H_FERR#[21] H_IGNNE#[21]
H_A20M#[21]
H_LOCK# [8]
H_INIT# [21]
H_ADS# [8]
H_BNR# [8]
H_DRDY# [8]
H_DBSY# [8]
H_BREQ#0 [8]
H_BPRI# [8]
H_DEFER# [8]
CLK_CPU_BCLK [16]
CLK_CPU_BCLK# [16]
H_STPCLK#[21] H_INTR[21] H_NMI[21] H_SMI#[21]
H_HIT# [8]
H_HITM# [8]
H_TRDY# [8]
H_ADSTB#0[8] H_REQ#[4..0][8]
H_A#[35..3][8]
H_THERMDC [43]
H_THERMDA [43]
FAN_TACH[43]
FAN_PWM[43]
XDP_DBRESET# [22]
H_CPURST# [8]
CPU_PROCHOT#_R [47]
PM_THRMTRIP-A# [9,21,43]
H_THERMDC_2[43] H_THERMDA_2[43]
BPM_2#3[7]
MCH_CLKSEL2 [9,16]
MCH_CLKSEL1 [9,16]
CLK_CPU_XDP#[16] CLK_CPU_XDP [16]
MCH_CLKSEL0 [9,16]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.

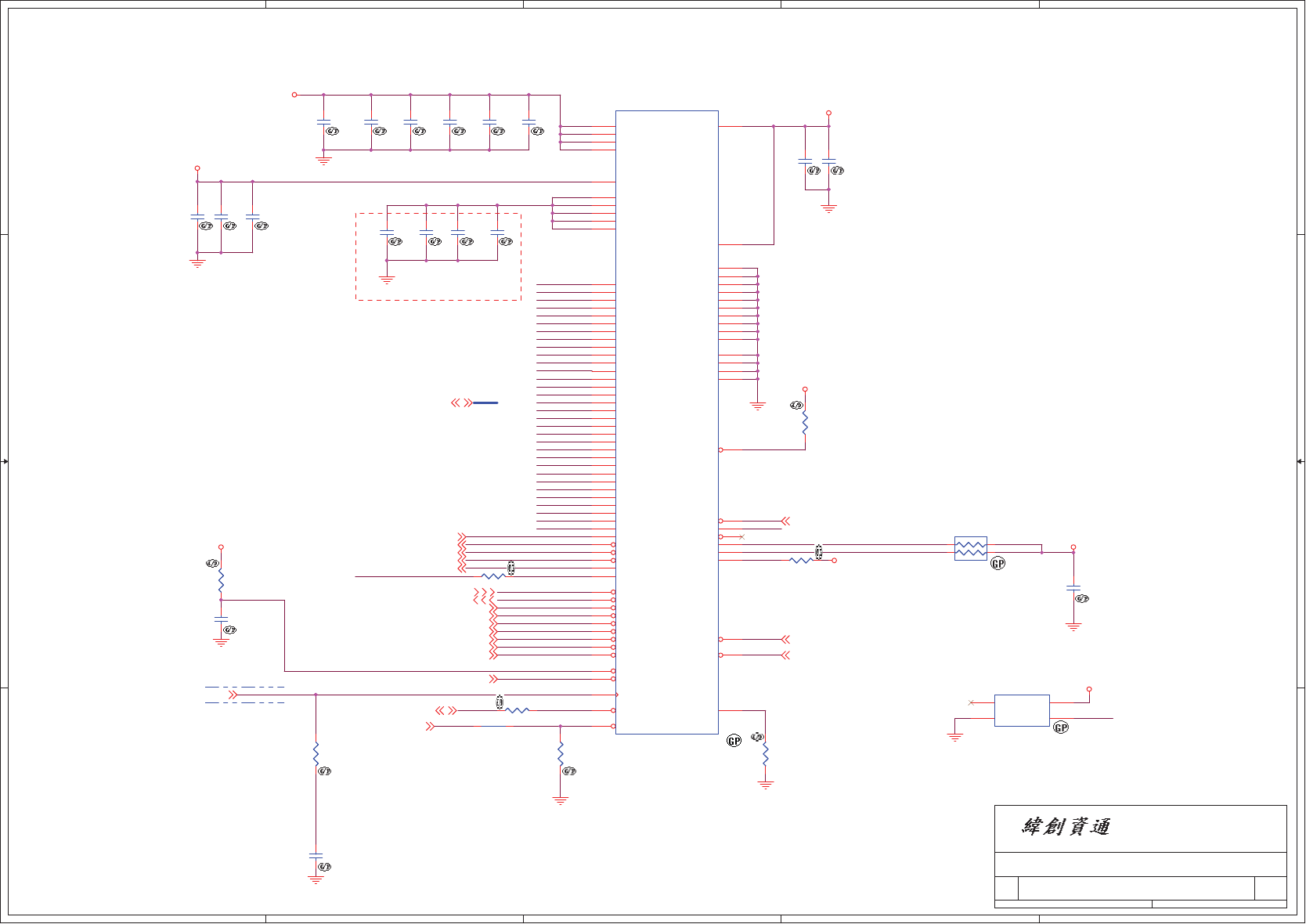

CPU (1 of 3)
553Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (1 of 3)
553Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (1 of 3)
553Wednesday, August 20, 2008
Artemis
3
VOX
( No stub)
should connect to
PM_THRMTRIP#
without T-ing
ICH9 and MCH
H_THERMDA, H_THERMDC routing together,
Trace width / Spacing = 10 / 10 mil
Connect to V Core
4 WIRE PWM Fan Control circuit
TEST7
Reserve for ITP
CPU ( 1 of 3 )
layout note : R5,R11 Pull near cpu
Quad Core supportDB2
SI1 RF
DB3
SI2-RF
SI2-RF for CPUCLK
SI2
SI2R
SI2R
1 2
R894 1KR2J-1-GPR894 1KR2J-1-GP
12
C991
Do Not Stuff
DY
C991
Do Not Stuff
DY
1 2
R505 1KR2J-1-GPR505 1KR2J-1-GP
1 2
C997 Do Not Stuff
DY
C997 Do Not Stuff
DY
1
PAD34 Do Not StuffPAD34 Do Not Stuff
1 2
R835 Do Not Stuff
DY
R835 Do Not Stuff
DY
1 2
R838 Do Not Stuff
DY
R838 Do Not Stuff
DY
1
TP35Do Not StuffTP35Do Not Stuff
12
R502
Do Not Stuff
R502
Do Not Stuff
1 2
R833 Do Not Stuff
DY
R833 Do Not Stuff
DY
1 2
R895 Do Not StuffR895 Do Not Stuff
1
TP40Do Not StuffTP40Do Not Stuff
1 2
R454 54D9R2F-L1-GPR454 54D9R2F-L1-GP
1
TP44Do Not StuffTP44Do Not Stuff
12
C536
SCD1U16V2ZY-2GP
C536
SCD1U16V2ZY-2GP
1 2
R891 Do Not Stuff
DY
R891 Do Not Stuff
DY
1 2
R831 Do Not Stuff
DY
R831 Do Not Stuff
DY
1
TP37Do Not StuffTP37Do Not Stuff
KA
D56
1SS355PT-GP
D56
1SS355PT-GP
1 2
R482 54D9R2F-L1-GPR482 54D9R2F-L1-GP
1 2
R936 Do Not Stuff
RF
R936 Do Not Stuff
RF
1 2
C999 Do Not Stuff
DY
C999 Do Not Stuff
DY
1 2
R506 49D9R2F-GPR506 49D9R2F-GP
1
3
5
7
9
11
13
15
17
19
21
23
25
27
2
4
6
8
10
12
14
16
18
20
22
24
26
28
29 30
31 32
ITP1
Do Not Stuff
DY
ITP1
Do Not Stuff
DY
1 2
R893 Do Not Stuff
DY
R893 Do Not Stuff
DY
1 2
R459 51R2F-2-GPR459 51R2F-2-GP
1 2
R837 Do Not Stuff
DY
R837 Do Not Stuff
DY
1 2
R834 Do Not Stuff
DY
R834 Do Not Stuff
DY
1 2
C993 Do Not Stuff
DY
C993 Do Not Stuff
DY
12
C904
SCD1U16V2KX-3GP
C904
SCD1U16V2KX-3GP
1
PAD35 Do Not StuffPAD35 Do Not Stuff
1 2
R460 54D9R2F-L1-GPR460 54D9R2F-L1-GP
1 2
R507 68R2-GPR507 68R2-GP
1 2
R890 Do Not StuffR890 Do Not Stuff
1
TP36Do Not StuffTP36Do Not Stuff
1 2
C998 Do Not Stuff
DY
C998 Do Not Stuff
DY
1
TP41Do Not StuffTP41Do Not Stuff
12
R503
51R2J-2-GP
R503
51R2J-2-GP
1
TP45Do Not StuffTP45Do Not Stuff
1 2
R830 Do Not Stuff
DY
R830 Do Not Stuff
DY
1 2
R458 54D9R2F-L1-GPR458 54D9R2F-L1-GP
1 2
C995 Do Not Stuff
DY
C995 Do Not Stuff
DY
1
TP38Do Not StuffTP38Do Not Stuff
1 2
R836 Do Not Stuff
DY
R836 Do Not Stuff
DY
1 2
R839 Do Not Stuff
DY
R839 Do Not Stuff
DY
1 2
R832 Do Not Stuff
DY
R832 Do Not Stuff
DY
1
PAD33 Do Not StuffPAD33 Do Not Stuff
1
PAD9 Do Not StuffPAD9 Do Not Stuff
1 2
R892 Do Not Stuff
DY
R892 Do Not Stuff
DY
1
TP39Do Not StuffTP39Do Not Stuff
1
TP42Do Not StuffTP42Do Not Stuff
1 2
R481 54D9R2F-L1-GPR481 54D9R2F-L1-GP
12
C537
Do Not Stuff
C537
Do Not Stuff
6
1
2
3
4
5
FAN1
ETY-CON4-15-GP-U
FAN1
ETY-CON4-15-GP-U
1
TP43Do Not StuffTP43Do Not Stuff
A3#
J4
A4#
L5
A5#
L4
A6#
K5
A7#
M3
A8#
N2
A9#
J1
A10#
N3
A11#
P5
A12#
P2
A13#
L2
A14#
P4
A15#
P1
A16#
R1
A20M#
A6
ADS# H1
ADSTB0#
M1
REQ0#
K3
REQ1#
H2
REQ2#
K2
REQ3#
J3
REQ4#
L1
A17#
Y2
A18#
U5
A19#
R3
A20#
W6
A21#
U4
A22#
Y5
A30#
U2
A24#
R4
A25#
T5
A26#
T3
A32#
W3
A28#
W5
A29#
Y4
A27#
W2
A31#
V4
A33#
AA4
A34#
AB2
A35#
AA3
FERR#
A5
IGNNE#
C4
RSVD#M4
M4
RSVD#N5
N5
RSVD#T2
T2
RSVD#V3
V3
RSVD#B2
B2
RSVD#C3
C3
BNR# E2
BPRI# G5
DEFER# H5
DBSY# E1
DRDY# F21
BR0# F1
IERR# D20
INIT# B3
LOCK# H4
RS0# F3
RS1# F4
RS2# G3
TRDY# G2
HIT# G6
HITM# E4
BPM0# AD4
BPM1# AD3
BPM2# AD1
BPM3# AC4
PRDY# AC2
PREQ# AC1
TCK AC5
TDI AA6
TDO AB3
TMS AB5
TRST# AB6
DBR# C20
PROCHOT# D21
THRMDA A24
THERMTRIP# C7
BCLK0 A22
BCLK1 A21
RSVD#D2
D2
RSVD#F6
F6 RSVD#D3
D3 RSVD#D22
D22
STPCLK#
D5
LINT0
C6
LINT1
B4
SMI#
A3
A23#
U1
ADSTB1#
V1
RESET# C1
KEY_NC
B1
THRMDC B25
1 OF 4
RESERVED
HCLK
THERMAL
ADDR GROUP 1
XDP/ITP SIGNALS CONTROL
ADDR GROUP 0
ICH
U1A
BGA479-SKT-8-GP-U3
62.10053.401
1 OF 4
RESERVED
HCLK
THERMAL
ADDR GROUP 1
XDP/ITP SIGNALS CONTROL
ADDR GROUP 0
ICH
U1A
BGA479-SKT-8-GP-U3
62.10053.401
1 2
R935 Do Not Stuff
RF
R935 Do Not Stuff
RF
http://laptop-motherboard-schematic.blogspot.com/

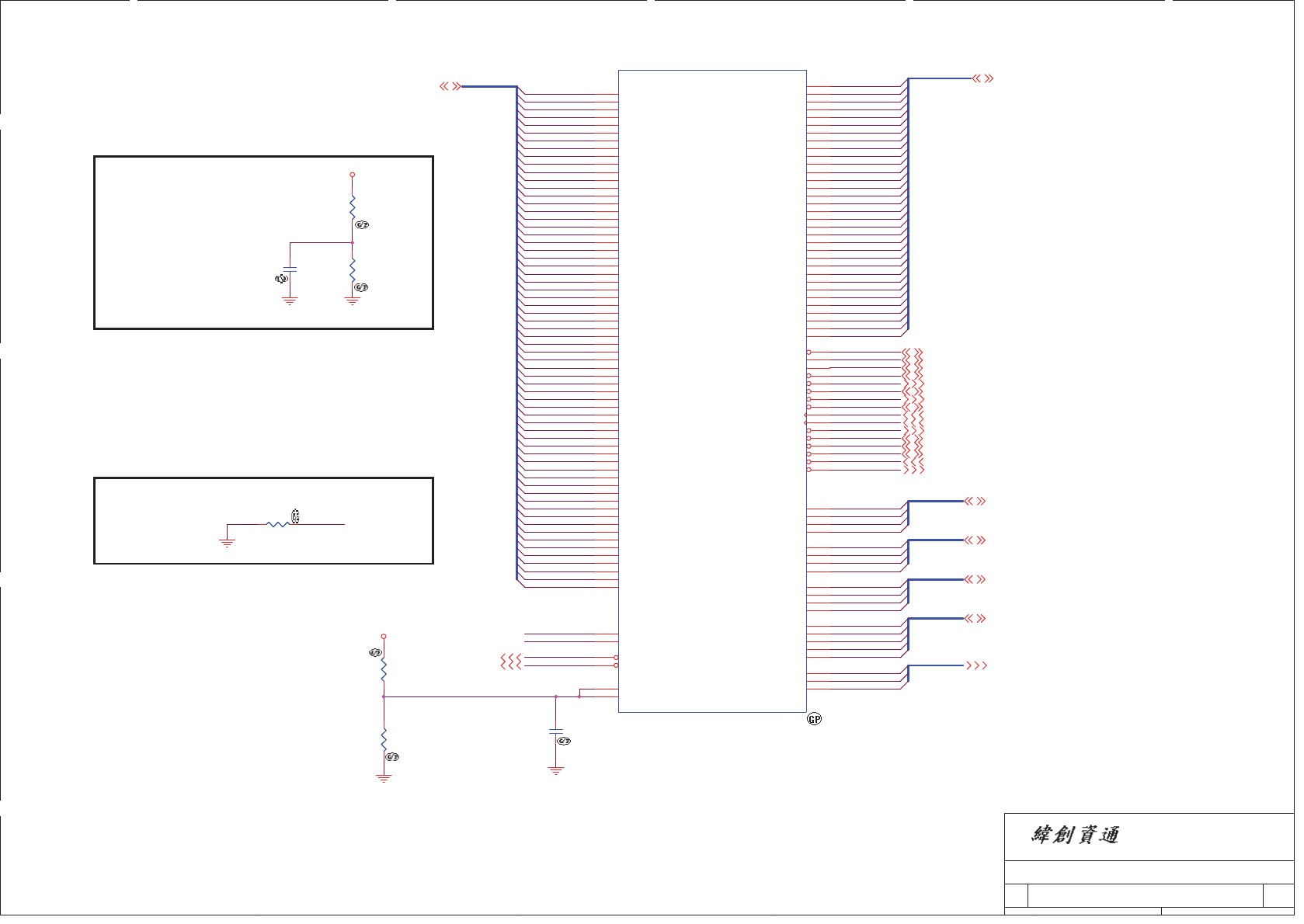

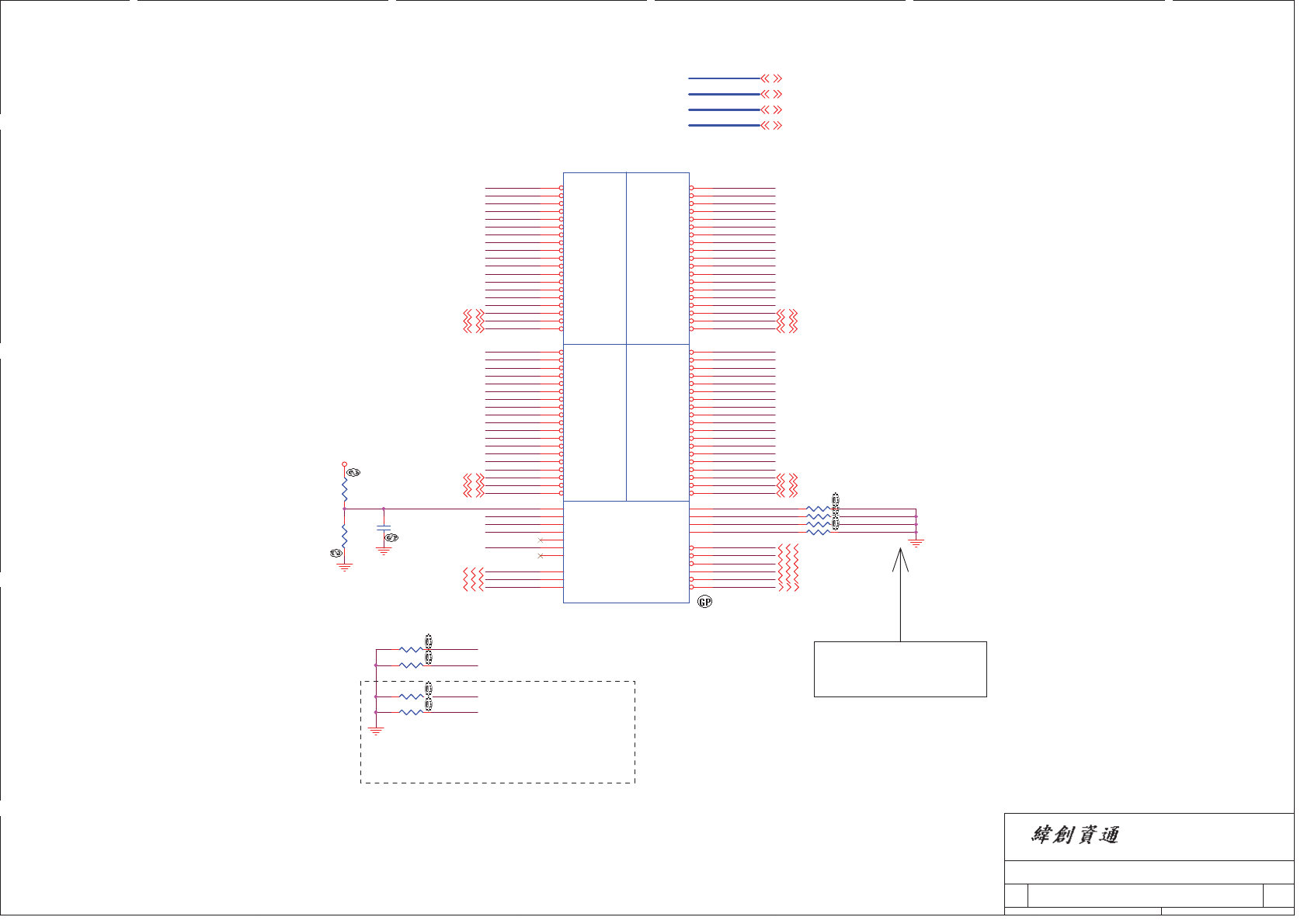

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#41
H_D#40
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
TEST1
TEST2
COMP0
COMP1
COMP2
COMP3
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
CPU_GTLREF0
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#48
H_D#49
H_D#51
H_D#50
H_D#52
H_D#53
H_D#54
H_D#55
H_D#57
H_D#56
H_D#58
H_D#59
H_D#60
H_D#61
H_D#63
H_D#62
TEST1
TEST2
H_D#[63..0]
H_DSTBN#[3..0]
H_DSTBP#[3..0]
H_DINV#[3..0]
TEST3
TEST5
TEST3
TEST5
+VCCP
H_DSTBN#2 [8]
H_DSTBP#2 [8]
H_DINV#2 [8]
H_DSTBN#3 [8]
H_DSTBP#3 [8]
H_DINV#3 [8]
H_DPRSTP# [9,21,47]
H_DPSLP# [21]
H_DPWR# [8]
H_PWRGD [21]
H_CPUSLP# [8]
PSI# [47]
H_D#[63..0] [8]
H_DINV#[3..0] [8]
H_DSTBN#[3..0] [8]
H_DSTBP#[3..0] [8]
H_DSTBN#0[8] H_DSTBP#0[8] H_DINV#0[8]
H_DSTBN#1[8] H_DSTBP#1[8] H_DINV#1[8]
CPU_BSEL2[16]
CPU_BSEL0[16] CPU_BSEL1[16]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (2 of 3 )
653Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (2 of 3 )
653Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (2 of 3 )
653Wednesday, August 20, 2008
Artemis
3
Layout Note:
Comp0, 2 connect with Zo=27.4 ohm, make
Comp1, 3 connect with Zo=55 ohm, make
trace length shorter than 0.5" .
trace length shorter than 0.5" .
Layout notes
Z= 55 Ohm 0.5" MAX for GTLREF
Route the TEST3 and TEST5 signals through
a ground referenced Zo = 55-ohm trace
that ends in a via that is near a GND via
and is accessible through an oscilloscope connection.
CPU ( 2 of 3 )
SI2R
1 2
R508 Do Not Stuff
DY
R508 Do Not Stuff
DY
1 2
R509 Do Not Stuff
DY
R509 Do Not Stuff
DY
1 2
R130
1KR2F-3-GP
R130
1KR2F-3-GP
1 2
R477 24D9R2F-L-GPR477 24D9R2F-L-GP
12
R134
2KR2F-3-GP
R134
2KR2F-3-GP
1 2
R148 49D9R2F-GPR148 49D9R2F-GP
1 2
R478 49D9R2F-GPR478 49D9R2F-GP
1 2
R201 Do Not Stuff
DY
R201 Do Not Stuff
DY
1 2
R155 24D9R2F-L-GPR155 24D9R2F-L-GP
D16#
N22
D17#
K25
D18#
P26
D19#
R23
D20#
L23
D21#
M24
D22#
L22
D23#
M23
D24#
P25
D25#
P23
D26#
P22
D27#
T24
D28#
R24
D29#
L25
D30#
T25
D31#
N25
DINV0#
H25
DINV1#
N24
DSTBN0#
J26
DSTBN1#
L26
DSTBP0#
H26
DSTBP1#
M26
D0#
E22
D1#
F24
D2#
E26
D3#
G22
D4#
F23
D5#
G25
D6#
E25
D7#
E23
D8#
K24
D9#
G24
D10#
J24
D11#
J23
D12#
H22
D13#
F26
D14#
K22
D15#
H23
D53# AC26
D60# AC22
D63# AC23
GTLREF
AD26
TEST2
D25
BSEL0
B22
BSEL1
B23
BSEL2
C21
DINV2# U22
D32# Y22
D33# AB24
D34# V24
D35# V26
D36# V23
D38# U25
D39# U23
D40# Y25
D41# W22
D42# Y23
D43# W24
D44# W25
D45# AA23
D46# AA24
D47# AB25
DSTBP2# AA26
DSTBN2# Y26
D48# AE24
D49# AD24
D52# AB21
D54# AD20
D55# AE22
D56# AF23
D57# AC25
D58# AE21
D59# AD21
D61# AD23
DINV3# AC20
DSTBN3# AE25
D51# AB22
D50# AA21
D62# AF22
COMP0 R26
COMP1 U26
DPRSTP# E5
DPSLP# B5
DPWR# D24
PWRGOOD D6
SLP# D7
PSI# AE6
TEST1
C23
TEST6
A26
TEST3
C24
TEST5
AF1 TEST4
AF26
D37# T22
DSTBP3# AF24
COMP2 AA1
COMP3 Y1
2 OF 4
DATA GRP0 DATA GRP1
DATA GRP2DATA GRP3
MISC
U1B
BGA479-SKT-8-GP-U3
2 OF 4
DATA GRP0 DATA GRP1
DATA GRP2DATA GRP3
MISC
U1B
BGA479-SKT-8-GP-U3
12
C124
SC1U10V2KX-1GP
C124
SC1U10V2KX-1GP
1 2
R461 Do Not Stuff
DY
R461 Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/

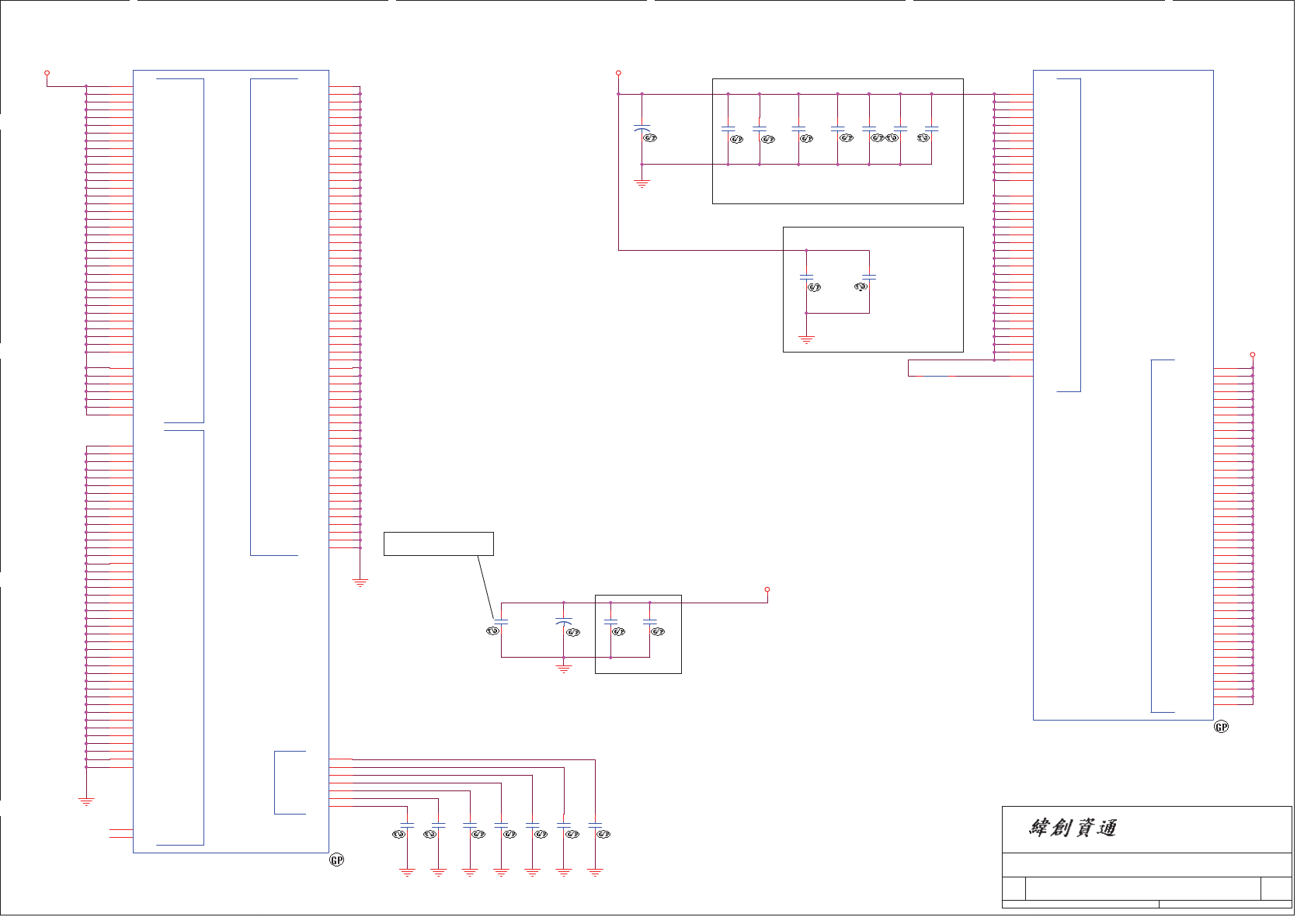

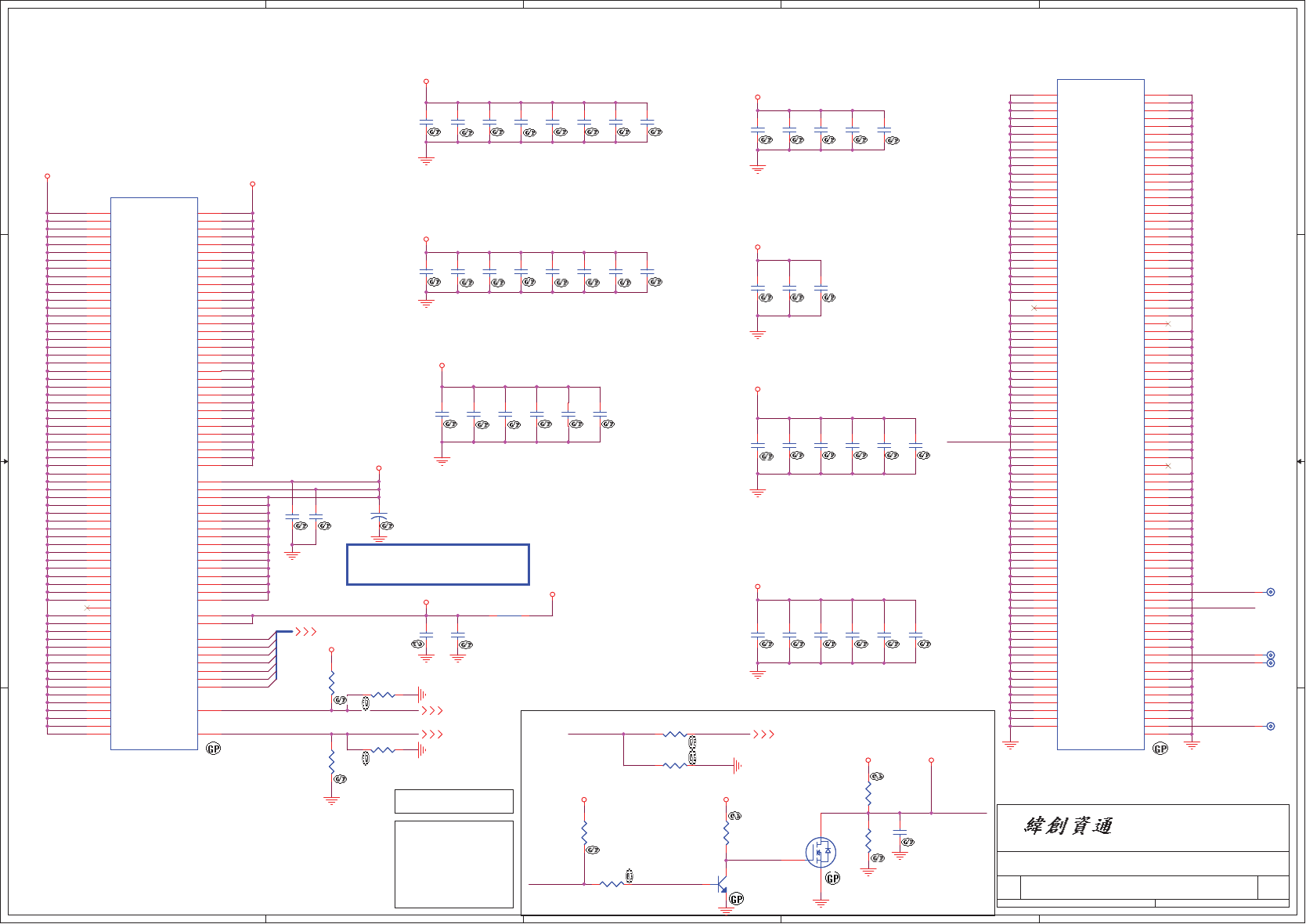

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CPU_G21
H_VID6
CPU_V6
H_VID0
H_VID1
H_VID2
H_VID3
H_VID4
H_VID5
CPU_NCTF3
CPU_NCTF1
CPU_NCTF4
CPU_NCTF2
GTLREF_CON
CPU_AE8
GTLREF_CON_1
CPU_GTLREF1
GTLREF_CON GTLREF_CON_0
CPU_AE8
+VCC_CORE
+1.5VS
+1D5V_VCCA_S0
+VCCP
+VCC_CORE
+VCC_CORE
+VCC_CORE
+VCC_CORE
+VCC_CORE
+VCC_CORE
+VCC_CORE
+VCC_CORE
+VCCP
+VCCP
+3VS
+VCCP
CPU_GTLREF1
H_VID[6..0] [47]
VCC_SENSE [47]
VSS_SENSE [47] BPM_2#3 [5]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (3 of 3 )
753Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (3 of 3 )
753Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CPU (3 of 3 )
753Wednesday, August 20, 2008
Artemis
3
layout note: "1D5V_VCCA_S0"
as short as possible
Layout Note:
Place as close as possible to the CPU VCCA pin.
CPU ( 3 of 3 )
Connect to V Core
Layout Note:
Provide a test point (with
no stub) to connect a
differential probe
between VCCSENSE and
VSSSENSE at the location
where the two 54.9ohm
resistors terminate the
55 ohm transmission line.
Layout Note:
should be of equal length.
VCCSENSE and VSSSENSE lines
Please these inside socket
cavity on L8(North side Secondary)
Please these inside socket cavity on
L8(South side Secondary)
Please these inside socket
cavity on L8(North side Secondary)
Please these inside socket
cavity on L8(North side Primary)
Please these inside socket
cavity on L8(South side Primary)
Please these outside socket
cavity on L8(North side Secondary)
Please these outside socket
cavity on L8(South side Secondary)
Quad Core support
DB2
SI1
SI1
SI1
SI1
SI1
12
C597
SC47P50V2JN-3GP
C597
SC47P50V2JN-3GP
12
C587
SC22U6D3V5MX-2GP
C587
SC22U6D3V5MX-2GP
12
C545
Do Not Stuff
DY
C545
Do Not Stuff
DY
12
C620
SCD1U10V2KX-4GP
C620
SCD1U10V2KX-4GP
12
C581
SC47P50V2JN-3GP
C581
SC47P50V2JN-3GP
1
TP11
Do Not Stuff
TP11
Do Not Stuff
12
C177
SC22U6D3V5MX-2GP
C177
SC22U6D3V5MX-2GP
1 2
R226
Do Not Stuff
DY
R226
Do Not Stuff
DY
12
C143
SC22U6D3V5MX-2GP
C143
SC22U6D3V5MX-2GP
1
TP34
Do Not Stuff
TP34
Do Not Stuff
12
C584
SCD1U10V2KX-4GP
C584
SCD1U10V2KX-4GP
12
R866 Do Not StuffR866 Do Not Stuff
12
C588
SC22U6D3V5MX-2GP
C588
SC22U6D3V5MX-2GP
12
C657
SC22U6D3V5MX-2GP
C657
SC22U6D3V5MX-2GP
12
C648
SC22U6D3V5MX-2GP
C648
SC22U6D3V5MX-2GP
VCC
A7
VCC
A9
VCC
AC10
VCC
A10
VCC
A12
VCC
A13
VCC
A15
VCC
A17
VCC
A18
VCC
A20
VCC
B7
VCC
B9
VCC
B10
VCC
B12
VCC
B14
VCC
B15
VCC
B17
VCC
B18
VCC
B20
VCC
C9
VCC
C10
VCC
C12
VCC
C13
VCC
C15
VCC
C17
VCC
C18
VCC
D9
VCC
D10
VCC
D12
VCC
D14
VCC
D15
VCC
D17
VCC
D18
VCC
E7
VCC
E9
VCC
E10
VCC
E12
VCC
E13
VCC
E15
VCC
AA7
VCC
AA9
VCC
AA10
VCC
AA12
VCC
AA13
VCC
AA15
VCC
AA17
VCC
AA18
VCC
AA20
VCC
AB9
VCC
AB12
VCC
AB14
VCC
AB15
VCC
AB17
VCC
AB18
VCC
E17
VCC
E18
VCC
E20
VCC
F7
VCC
F9
VCC
F10
VCC
F12
VCC
F14
VCC
F15
VCC
F17
VCC
F18
VCC
F20
VCC AB20
VCC AB7
VCC AC7
VCC AC9
VCC AC12
VCC AC13
VCC AC15
VCC AC17
VCC AC18
VCC AD7
VCC AD9
VCC AD10
VCC AD12
VCC AD14
VCC AD15
VCC AD17
VCC AD18
VCC AE9
VCC AE10
VCC AE12
VCC AE13
VCC AE15
VCC AE17
VCC AE18
VCC AE20
VCC AF9
VCC AF10
VCC AF12
VCC AF14
VCC AF15
VCC AF17
VCC AF18
VCC AF20
VCCP G21
VCCP J6
VCCP J21
VCCP K6
VCCP K21
VCCP M6
VCCP M21
VCCP N6
VCCP N21
VCCP R6
VCCP R21
VCCP T6
VCCP T21
VCCP V6
VCCP V21
VCCP W21
VCCA B26
VCCA C26
VID0 AD6
VID6 AE2
VID4 AE3
VID2 AE5
VID5 AF3
VID3 AF4
VID1 AF5
VSSSENSE AE7
VCCSENSE AF7
VCC
AB10
3 OF 4
U1C
BGA479-SKT-8-GP-U3
3 OF 4
U1C
BGA479-SKT-8-GP-U3
12
C538
Do Not Stuff
DY
C538
Do Not Stuff
DY
1
TP14
Do Not Stuff
TP14
Do Not Stuff
12
C184
SCD01U16V2KX-3GP
C184
SCD01U16V2KX-3GP
12
C575
SC22U6D3V5MX-2GP
C575
SC22U6D3V5MX-2GP
12
C144
SC22U6D3V5MX-2GP
C144
SC22U6D3V5MX-2GP
1
TP7
Do Not Stuff
TP7
Do Not Stuff
VSS
AF2
VSS
A4
VSS
A8
VSS
A11
VSS
A14
VSS
A16
VSS
A19
VSS
A23
VSS
B6
VSS
B8
VSS
B11
VSS
B13
VSS
B16
VSS
B19
VSS
B21
VSS
B24
VSS
C5
VSS
C8
VSS
C11
VSS
C14
VSS
C16
VSS
C19
VSS
C2
VSS
C22
VSS
C25
VSS
D1
VSS
D4
VSS
D8
VSS
D11
VSS
D13
VSS
D16
VSS
D19
VSS
D23
VSS
D26
VSS
E3
VSS
E6
VSS
E8
VSS
E11
VSS
E14
VSS
E16
VSS
E19
VSS
E21
VSS
E24
VSS
F5
VSS
F8
VSS
F11
VSS
F13
VSS
F16
VSS
F19
VSS
F2
VSS
F22
VSS
F25
VSS
G4
VSS
G1
VSS
G23
VSS
G26
VSS
H3
VSS
H6
VSS
H21
VSS
H24
VSS
J2
VSS
J5
VSS
J22
VSS
J25
VSS
K1
VSS
K4
VSS
K23
VSS
K26
VSS
L3
VSS
L6
VSS
L21
VSS
L24
VSS
M2
VSS
M5
VSS
M22
VSS
M25
VSS
N1
VSS
N4
VSS
N23
VSS
N26
VSS
P3
VSS P6
VSS P21
VSS P24
VSS R2
VSS R5
VSS R22
VSS R25
VSS T1
VSS T4
VSS T23
VSS T26
VSS U3
VSS U6
VSS U21
VSS U24
VSS V2
VSS V5
VSS V22
VSS V25
VSS W1
VSS W4
VSS W23
VSS W26
VSS Y3
VSS Y6
VSS Y21
VSS Y24
VSS AA2
VSS AA5
VSS AA8
VSS AA11
VSS AA14
VSS AA16
VSS AA19
VSS AA22
VSS AA25
VSS AB1
VSS AB4
VSS AB8
VSS AB11
VSS AB13
VSS AB16
VSS AB19
VSS AB23
VSS AB26
VSS AC3
VSS AC6
VSS AC8
VSS AC11
VSS AC14
VSS AC16
VSS AC19
VSS AC21
VSS AC24
VSS AD2
VSS AD5
VSS AD8
VSS AD11
VSS AD13
VSS AD16
VSS AD19
VSS AD22
VSS AD25
VSS AE1
VSS AE4
VSS AE8
VSS AE11
VSS AE14
VSS AE16
VSS AE19
VSS AE23
VSS AE26
VSS A2
VSS AF6
VSS AF8
VSS AF11
VSS AF13
VSS AF16
VSS AF19
VSS AF21
VSS A25
VSS AF25
4 OF 4
U1D
BGA479-SKT-8-GP-U3
4 OF 4
U1D
BGA479-SKT-8-GP-U3
12
C656
SC22U6D3V5MX-2GP
C656
SC22U6D3V5MX-2GP
12
TC21
SE220U2VDM-8GP
TC21
SE220U2VDM-8GP
12
C610
SC22U6D3V5MX-2GP
C610
SC22U6D3V5MX-2GP
12
C187
SC10U10V5KX-2GP
C187
SC10U10V5KX-2GP
12
R116
100R2F-L1-GP-U
R116
100R2F-L1-GP-U
12
C549
Do Not Stuff
DY
C549
Do Not Stuff
DY
12
C544
SC47P50V2JN-3GP
C544
SC47P50V2JN-3GP
12
R228
Do Not Stuff
DY
R228
Do Not Stuff
DY
12
C576
SC22U6D3V5MX-2GP
C576
SC22U6D3V5MX-2GP
12
C622
SC22U6D3V5MX-2GP
C622
SC22U6D3V5MX-2GP
12
C547
Do Not Stuff
DY
C547
Do Not Stuff
DY
1 2
R230 Do Not Stuff
DY
R230 Do Not Stuff
DY
12
C607
SCD1U10V2KX-4GP
C607
SCD1U10V2KX-4GP
12
C649
SC22U6D3V5MX-2GP
C649
SC22U6D3V5MX-2GP
12
C621
SC22U6D3V5MX-2GP
C621
SC22U6D3V5MX-2GP
12
C546
SC47P50V2JN-3GP
C546
SC47P50V2JN-3GP
1 2
R528
Do Not Stuff
DY
R528
Do Not Stuff
DY
12
C548
SC47P50V2JN-3GP
C548
SC47P50V2JN-3GP
12
R549 Do Not Stuff
DY
R549 Do Not Stuff
DY
12
C539
SC47P50V2JN-3GP
C539
SC47P50V2JN-3GP
12
C591
SCD1U10V2KX-4GP
C591
SCD1U10V2KX-4GP
12
C176
SC22U6D3V5MX-2GP
C176
SC22U6D3V5MX-2GP
1 2
R541 0R2J-2-GPR541 0R2J-2-GP
12
C579
SCD1U10V2KX-4GP
C579
SCD1U10V2KX-4GP
G
S D
Q75
Do Not Stuff
DY
Q75
Do Not Stuff
DY
12
C542
SC47P50V2JN-3GP
C542
SC47P50V2JN-3GP
12
C602
SC47P50V2JN-3GP
C602
SC47P50V2JN-3GP
12
R568 Do Not Stuff
DY
R568 Do Not Stuff
DY
12
C600
SCD1U10V2KX-4GP
C600
SCD1U10V2KX-4GP
12
C207
Do Not Stuff
DY
C207
Do Not Stuff
DY
12
R527
Do Not Stuff
DY
R527
Do Not Stuff
DY
12
C603
SC47P50V2JN-3GP
C603
SC47P50V2JN-3GP
12
C175
SC22U6D3V5MX-2GP
C175
SC22U6D3V5MX-2GP
12
C145
SC22U6D3V5MX-2GP
C145
SC22U6D3V5MX-2GP
12
C617
SC47P50V2JN-3GP
C617
SC47P50V2JN-3GP
12
C573
SCD1U10V2KX-4GP
C573
SCD1U10V2KX-4GP
12
C541
Do Not Stuff
DY
C541
Do Not Stuff
DY
C
B
E
Q74
Do Not Stuff
DY
Q74
Do Not Stuff
DY
1 2
R227
Do Not Stuff
DY
R227
Do Not Stuff
DY
12
C596
SC22U6D3V5MX-2GP
C596
SC22U6D3V5MX-2GP
12
C618
SC47P50V2JN-3GP
C618
SC47P50V2JN-3GP
12
C625
SCD1U10V2KX-4GP
C625
SCD1U10V2KX-4GP
12
C543
Do Not Stuff
DY
C543
Do Not Stuff
DY
12
R117
100R2F-L1-GP-U
R117
100R2F-L1-GP-U
12
C611
SC22U6D3V5MX-2GP
C611
SC22U6D3V5MX-2GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
H_D#[63..0]
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
H_AVREF
H_RCOMP
H_SWING
H_SWING
H_RCOMP
H_DINV#0
H_RS#1
H_DSTBN#0
H_REQ#2
H_DSTBP#0
H_REQ#4
H_REQ#3
H_RS#0
H_DINV#3
H_DSTBN#3
H_DSTBP#3
H_REQ#1
H_DINV#2
H_DSTBN#2
H_DSTBP#2
H_REQ#0
H_DINV#1
H_RS#2
H_DSTBN#[3..0]
H_DSTBN#1
H_DSTBP#[3..0]
H_DSTBP#1
H_DINV#[3..0]
H_A#6
H_A#16
H_A#34
H_A#32
H_A#22
H_A#20
H_A#26
H_A#11
H_A#5
H_A#31
H_A#3
H_A#9
H_A#15
H_A#21
H_A#19
H_A#25
H_A#4
H_A#30
H_A#29
H_A#8
H_A#14
H_A#18
H_A#24
H_A#28
H_A#7
H_A#13
H_A#17
H_A#12
H_A#35
H_A#33
H_A#23
H_A#27
H_A#10
H_A#[35..3]
+VCCP
+VCCP
H_D#[63..0][6]
H_CPURST#[5] H_CPUSLP#[6]
H_DINV#[3..0] [6]
H_DSTBN#[3..0] [6]
H_DSTBP#[3..0] [6]
H_REQ#[4..0] [5]
H_RS#[2..0] [5]
H_BNR# [5]
H_BREQ#0 [5]
H_ADS# [5]
H_ADSTB#0 [5]
H_ADSTB#1 [5]
H_DBSY# [5]
H_DRDY# [5]
H_HIT# [5]
H_HITM# [5]
CLK_MCH_BCLK [16]
CLK_MCH_BCLK# [16]
H_LOCK# [5]
H_BPRI# [5]
H_DEFER# [5]
H_DPWR# [6]
H_TRDY# [5]
H_A#[35..3] [5]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (1 of 6)
853Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (1 of 6)
853Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (1 of 6)
853Wednesday, August 20, 2008
Artemis
3
VOX
Place them near to the chip ( < 0.5")
H_RCOMP routing Trace width and
Spacing use 10 / 20 mil
H_SWING routing Trace width and
Spacing use 10 / 20 mil
H_SWING Resistors and
Capacitors close MCH
500 mil ( MAX )
NB ( 1 of 6 ) HOST
SI2R
SI2R
1 2
R190
1KR2F-3-GP
R190
1KR2F-3-GP
H_A#_10 P16
H_A#_11 R16
H_A#_12 N17
H_A#_13 M13
H_A#_14 E17
H_A#_15 P17
H_A#_16 F17
H_A#_17 G20
H_A#_18 B19
H_A#_19 J16
H_A#_20 E20
H_A#_21 H16
H_A#_22 J20
H_A#_23 L17
H_A#_24 A17
H_A#_25 B17
H_A#_26 L16
H_A#_27 C21
H_A#_28 J17
H_A#_29 H20
H_A#_3 A14
H_A#_30 B18
H_A#_31 K17
H_A#_4 C15
H_A#_5 F16
H_A#_6 H13
H_A#_7 C18
H_A#_8 M16
H_A#_9 J13
H_ADS# H12
H_ADSTB#_0 B16
H_ADSTB#_1 G17
H_BNR# A9
H_BPRI# F11
H_BREQ# G12
HPLL_CLK# AH6
H_CPURST#
C12
HPLL_CLK AH7
H_D#_0
F2
H_REQ#_2 F13
H_REQ#_3 B13
H_D#_1
G8
H_D#_10
M9
H_D#_20
L6
H_D#_30
N10
H_D#_40
AA8
H_D#_50
AA2
H_D#_60
AE11
H_D#_8
D4
H_D#_9
H3
H_DBSY# B10
H_D#_11
M11
H_D#_12
J1
H_D#_13
J2
H_D#_14
N12
H_D#_15
J6
H_D#_16
P2
H_D#_17
L2
H_D#_18
R2
H_D#_19
N9
H_D#_2
F8
H_D#_21
M5
H_D#_22
J3
H_D#_23
N2
H_D#_24
R1
H_D#_25
N5
H_D#_26
N6
H_D#_27
P13
H_D#_28
N8
H_D#_29
L7
H_D#_3
E6
H_D#_31
M3
H_D#_32
Y3
H_D#_33
AD14
H_D#_34
Y6
H_D#_35
Y10
H_D#_36
Y12
H_D#_37
Y14
H_D#_38
Y7
H_D#_39
W2
H_D#_4
G2
H_D#_41
Y9
H_D#_42
AA13
H_D#_43
AA9
H_D#_44
AA11
H_D#_45
AD11
H_D#_46
AD10
H_D#_47
AD13
H_D#_48
AE12
H_D#_49
AE9
H_D#_5
H6
H_D#_51
AD8
H_D#_52
AA3
H_D#_53
AD3
H_D#_54
AD7
H_D#_55
AE14
H_D#_56
AF3
H_D#_57
AC1
H_D#_58
AE3
H_D#_59
AC3
H_D#_6
H2
H_D#_61
AE8
H_D#_62
AG2
H_D#_63
AD6
H_D#_7
F6
H_DEFER# E9
H_DINV#_0 J8
H_DINV#_1 L3
H_DINV#_2 Y13
H_DINV#_3 Y1
H_DPWR# J11
H_DRDY# F9
H_DSTBN#_0 L10
H_DSTBN#_1 M7
H_DSTBN#_2 AA5
H_DSTBN#_3 AE6
H_DSTBP#_0 L9
H_DSTBP#_1 M8
H_DSTBP#_2 AA6
H_DSTBP#_3 AE5
H_AVREF
A11
H_DVREF
B11
H_TRDY# C9
H_HIT# H9
H_HITM# E12
H_LOCK# H11
H_REQ#_0 B15
H_REQ#_1 K13
H_REQ#_4 B14
H_A#_32 B20
H_A#_33 F21
H_A#_34 K21
H_A#_35 L20
H_SWING
C5
H_CPUSLP#
E11
H_RCOMP
E3
H_RS#_0 B6
H_RS#_1 F12
H_RS#_2 C8
HOST
1 OF 10
U2A
CANTIGA-GM-GP-U-NF
HOST
1 OF 10
U2A
CANTIGA-GM-GP-U-NF
1 2
R207 16D9R2F-1-GPR207 16D9R2F-1-GP
12
C633
SC1U10V2KX-1GP
C633
SC1U10V2KX-1GP
12
R199
75R2F-2-GP
R199
75R2F-2-GP
12
C188
SCD1U10V2KX-4GP
C188
SCD1U10V2KX-4GP
12
R198
221R2F-2-GP
R198
221R2F-2-GP
12
R188
2KR2F-3-GP
R188
2KR2F-3-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TSATN#
SM_RCOMP_VOH
SM_RCOMP_VOL
CFG5
CFG6
CFG7
CFG8
CFG9
CFG10
CFG11
CFG12
CFG13
CFG16
CFG18
CFG20
CFG19
SM_RCOMP_VOH
SM_RCOMP_VOL
M_RCOMPP
M_RCOMPN
PEG_CMP
MCH_CLVREF
SM_REXT
PM_EXTTS#1
PM_EXTTS#0
RSTIN#
PM_THRMTRIP-AR#
PWROK_R
H_DPRSTP#_MCH
CFG13
CFG20
CFG19
CFG18
M_RCOMPP
M_RCOMPN
CFG7
CFG9
CFG8
CFG5
CFG16
CFG11
CFG10
CFG12
PEGTXN0
PEGTXN6
PEG_TXN2
PEG_TXN3
PEG_TXN6
PEG_TXN0
PEG_TXN7
PEG_TXN4
PEG_TXN5
PEG_TXN1
PEG_TXN10
PEG_TXN11
PEG_TXN8
PEG_TXN14
PEG_TXN15
PEG_TXN12
PEG_TXN13
PEG_TXN9
PEG_TXP2
PEG_TXP3
PEG_TXP0
PEG_TXP6
PEG_TXP7
PEG_TXP4
PEG_TXP5
PEG_TXP10
PEG_TXP11
PEG_TXP8
PEG_TXP14
PEG_TXP1
PEG_TXP12
PEG_TXP13
PEG_TXP9
PEGTXN3
PEGTXP15 PEG_TXP15
PEGTXN7
PEGTXN1
PEGTXP7
PEGTXP1
PEGTXP4
PEGTXP8
PEGTXP5
PEGTXP9
PEGTXP12
PEGTXP13
PEGTXP10
PEGTXP14
PEGTXP11
PEGTXP2
PEGTXP6
PEGTXP3
PEGTXN4
PEGTXN8
PEGTXN5
PEGTXN15
PEGTXN9
PEGTXN12
PEGTXP0
PEGTXN13
PEGTXN10
PEGTXN14
PEGTXN11
PEGTXN2
M_VREF_MCH
CFG6
PEGTXN7
PEGTXN1
PEGTXP7
PEGTXP1
PEGTXP4
PEGTXP8
PEGTXP5
PEGTXP15
PEGTXP9
PEGTXP12
PEGTXP13
PEGTXP10
PEGTXP14
PEGTXP11
PEGTXP2
PEGTXP6
PEGTXP3
PEGTXN4
PEGTXN8
PEGTXN5
PEGTXN15
PEGTXN9
PEGTXN12
PEGTXP0
PEGTXN13
PEGTXN10
PEGTXN14
PEGTXN11
PEGTXN2
PEGTXN0
PEGTXN6
PEGTXN3
PEG_RXN2
PEG_RXP2
PEG_RXP3
PEG_RXP0
PEG_RXP6
PEG_RXP7
PEG_RXP4
PEG_RXP5
PEG_RXP1
PEG_RXP10
PEG_RXP11
PEG_RXP8
PEG_RXP14
PEG_RXP15
PEG_RXP12
PEG_RXP13
PEG_RXP9
PEG_RXN3
PEG_RXN6
PEG_RXN0
PEG_RXN7
PEG_RXN4
PEG_RXN5
PEG_RXN1
PEG_RXN10
PEG_RXN11
PEG_RXN8
PEG_RXN14
PEG_RXN15
PEG_RXN12
PEG_RXN13
PEG_RXN9
DMI_TXP3
DMI_RXN3
DMI_TXN2
DMI_TXN1
DMI_TXN3
DMI_RXP3
DMI_RXP2
DMI_RXP1
DMI_TXN0
DMI_RXP0
DMI_TXP2
DMI_TXP1
DMI_TXP0
DMI_RXN2
DMI_RXN1
DMI_RXN0
PM_EXTTS#1
PM_EXTTS#0
+3VS
+V_DDR_VREF_M
+1.8V
+1.05VM
+1.8V
+1.8V
+1.05VM
+3VS
+VCCP
MCH_CLKSEL1[5,16] MCH_CLKSEL2[5,16]
MCH_CLKSEL0[5,16]
M_CLK_DDR#2 [14]
M_CLK_DDR#3 [14]
M_CLK_DDR0 [14]
M_CLK_DDR1 [14]
M_CKE0 [14,15]
M_CKE1 [14,15]
M_CKE2 [14,15]
M_CKE3 [14,15]
M_CLK_DDR2 [14]
M_CLK_DDR3 [14]
M_CS1# [14,15]
M_CS2# [14,15]
M_CS3# [14,15]
M_CS0# [14,15]
M_CLK_DDR#0 [14]
M_CLK_DDR#1 [14]
M_ODT0 [14,15]
M_ODT1 [14,15]
M_ODT2 [14,15]
M_ODT3 [14,15]
CL_CLK0 [22]
CL_DATA0 [22]
CLK_MCH_3GPLL [16]
CLK_MCH_3GPLL# [16]
H_DPRSTP#[6,21,47]PM_SYNC#[22]
PLT_RST#
[
17,20,25,31,33,44,45] PM_PWROK[17,18,22,34,37]
PM_DPRSLPVR[22,47]
PM_THRMTRIP-A#[5,21,43]
MCH_ICH_SYNC# [22]
PM_EXTTS#0[14] PM_EXTTS#1[14]
MCH_CLK_REQ#7 [16]
PEG_TXP[15..0][17]
PEG_TXN[15..0][17]
PEG_RXP[15..0][17]
PEG_RXN[15..0][17]
M_PWROK [22,37]
CL_RST#0 [22]
DMI_RXN0 [22]
DMI_TXN0 [22]
DMI_TXN1 [22]
DMI_TXP1 [22]
DMI_TXN2 [22]
DMI_TXN3 [22]
DMI_TXP0 [22]
DMI_TXP2 [22]
DMI_TXP3 [22]
DMI_RXN1 [22]
DMI_RXN2 [22]
DMI_RXN3 [22]
DMI_RXP0 [22]
DMI_RXP2 [22]
DMI_RXP3 [22]
DMI_RXP1 [22]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (2 of 6)
953Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (2 of 6)
953Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (2 of 6)
953Wednesday, August 20, 2008
Artemis
3
Connect to V Core
FSB setting
+1.8V
Place the 49D9 Ohm resistor
within 500 mils (1.27 mm)
of the (G)MCH.
connect to Dock
SM_VREF use
TPS 51116 VTTREF Pin (5)
NB ( 2 of 6 ) PEG/DMI
Strapping
Close to MXM connector
0622 for routing requirement
SI2
1 2
C95 SCD1U10V2KX-4GPC95 SCD1U10V2KX-4GP
1 2
R463 Do Not Stuff
R463 Do Not Stuff
12
R498
100R2J-2-GP
R498
100R2J-2-GP
SA_CK_0 AP24
SA_CK_1 AT21
SB_CK_0 AV24
SA_CK#_0 AR24
SA_CK#_1 AR21
SB_CK#_0 AU24
SA_CKE_0 BC28
SA_CKE_1 AY28
SB_CKE_0 AY36
SB_CKE_1 BB36
SA_CS#_0 BA17
SA_CS#_1 AY16
SB_CS#_0 AV16
SB_CS#_1 AR13
SM_DRAMRST# BC36
SA_ODT_0 BD17
SA_ODT_1 AY17
SB_ODT_0 BF15
SB_ODT_1 AY13
SM_RCOMP BG22
SM_RCOMP# BH21
CFG_18
P29
CFG_19
R28
CFG_2
P25
CFG_0
T25
CFG_1
R25
CFG_20
T28
CFG_3
P20
CFG_4
P24
CFG_5
C25
CFG_6
N24
CFG_7
M24
CFG_8
E21
CFG_9
C23
CFG_10
C24
CFG_11
N21
CFG_12
P21
CFG_13
T21
CFG_14
R20
CFG_15
M20
CFG_16
L21
CFG_17
H21
PM_SYNC#
R29
PM_EXT_TS#_0
N33
PM_EXT_TS#_1
P32
PWROK
AT40
RSTIN#
AT11
DPLL_REF_CLK B38
DPLL_REF_CLK# A38
DPLL_REF_SSCLK E41
DPLL_REF_SSCLK# F41
DMI_RXN_0 AE41
DMI_RXN_1 AE37
DMI_RXN_2 AE47
DMI_RXN_3 AH39
DMI_RXP_0 AE40
DMI_RXP_1 AE38
DMI_RXP_2 AE48
DMI_RXP_3 AH40
DMI_TXN_0 AE35
DMI_TXN_1 AE43
DMI_TXN_2 AE46
DMI_TXN_3 AH42
DMI_TXP_0 AD35
DMI_TXP_1 AE44
DMI_TXP_2 AF46
DMI_TXP_3 AH43
RESERVED#AL34
AL34
RESERVED#AN35
AN35 RESERVED#AK34
AK34
RESERVED#AM35
AM35
RESERVED#BG23
BG23
RESERVED#BF23
BF23
RESERVED#BH18
BH18
RESERVED#BF18
BF18
PM_DPRSTP#
B7
SB_CK_1 AU20
SB_CK#_1 AV20
RESERVED#AY21
AY21
RESERVED#AH9
AH9
RESERVED#AH10
AH10
RESERVED#AH12
AH12
RESERVED#AH13
AH13
RESERVED#M36
M36
RESERVED#N36
N36
RESERVED#R33
R33
RESERVED#T33
T33
GFX_VID_0 B33
GFX_VID_1 B32
GFX_VID_2 G33
GFX_VID_3 F33
GFX_VR_EN C34
SM_RCOMP_VOH BF28
SM_RCOMP_VOL BH28
THERMTRIP#
T20
DPRSLPVR
R32
RESERVED#K12
K12
CL_CLK AH37
CL_DATA AH36
CL_PWROK AN36
CL_RST# AJ35
CL_VREF AH34
NC#A47
A47
NC#BG48
BG48
NC#BF48
BF48
NC#BD48
BD48
NC#BC48
BC48
NC#BH47
BH47
NC#BG47
BG47
NC#BE47
BE47
NC#BH46
BH46
NC#BF46
BF46
NC#BG45
BG45
NC#BH44
BH44
NC#BH43
BH43
NC#BH6
BH6
NC#BH5
BH5
NC#BG4
BG4
SDVO_CTRLCLK G36
SDVO_CTRLDATA E36
CLKREQ# K36
RESERVED#T24
T24
ICH_SYNC# H36
TSATN# B12
PEG_CLK# E43
PEG_CLK F43
NC#BH3
BH3
GFX_VID_4 E33
RESERVED#B31
B31
DDPC_CTRLCLK N28
NC#BF3
BF3
NC#BH2
BH2
NC#BG2
BG2
NC#BE2
BE2
NC#BG1
BG1
NC#BF1
BF1
NC#BD1
BD1
NC#BC1
BC1
NC#F1
F1
SM_VREF AV42
SM_PWROK AR36
SM_REXT BF17
RESERVED#M1
M1
HDA_BCLK B28
HDA_RST# B30
HDA_SDI B29
HDA_SDO C29
HDA_SYNC A28
DDPC_CTRLDATA M28
RESERVED#B2
B2
PM
MISC
NC
DDR CLK/ CONTROL/COMPENSATION
CLK
DMI
CFG
RSVD
GRAPHICS VID
MEHDA
2 OF 10
U2B
CANTIGA-GM-GP-U-NF
PM
MISC
NC
DDR CLK/ CONTROL/COMPENSATION
CLK
DMI
CFG
RSVD
GRAPHICS VID
MEHDA
2 OF 10
U2B
CANTIGA-GM-GP-U-NF
1 2
C91 SCD1U10V2KX-4GPC91 SCD1U10V2KX-4GP
1 2
R168 Do Not Stuff
DY
R168 Do Not Stuff
DY
1 2
R189 56R2F-1-GPR189 56R2F-1-GP
1 2
C96 SCD1U10V2KX-4GPC96 SCD1U10V2KX-4GP
12
R162
3K01R2F-3-GP
R162
3K01R2F-3-GP
1 2
C98 SCD1U10V2KX-4GPC98 SCD1U10V2KX-4GP
12
C166
SC2D2U6D3V3MX-1-GP
C166
SC2D2U6D3V3MX-1-GP
1 2
R185
499R2F-2-GP
R185
499R2F-2-GP
1 2
C93 SCD1U10V2KX-4GPC93 SCD1U10V2KX-4GP
1 2
C514 SCD1U10V2KX-4GPC514 SCD1U10V2KX-4GP
1 2
R496 Do Not Stuff
R496 Do Not Stuff
1 2
C71 SCD1U10V2KX-4GPC71 SCD1U10V2KX-4GP
1 2
R172 2K21R2F-GPR172 2K21R2F-GP
1 2
C508 SCD1U10V2KX-4GPC508 SCD1U10V2KX-4GP
12
C152
SC2D2U6D3V3MX-1-GP
C152
SC2D2U6D3V3MX-1-GP
1 2
R492 Do Not Stuff
DY
R492 Do Not Stuff
DY
1 2
C520 SCD1U10V2KX-4GPC520 SCD1U10V2KX-4GP 1 2
C517 SCD1U10V2KX-4GPC517 SCD1U10V2KX-4GP
1 2
C75 SCD1U10V2KX-4GPC75 SCD1U10V2KX-4GP
12
R167 1KR2F-3-GPR167 1KR2F-3-GP
1 2
R493 Do Not Stuff
DY
R493 Do Not Stuff
DY
12
R175
80D6R2F-L-GP
R175
80D6R2F-L-GP
1 2
C518 SCD1U10V2KX-4GPC518 SCD1U10V2KX-4GP
12
R464
Do Not Stuff
DY
R464
Do Not Stuff
DY
1 2
C79 SCD1U10V2KX-4GPC79 SCD1U10V2KX-4GP
12
R467
Do Not Stuff
DY
R467
Do Not Stuff
DY
1 2
R159
1KR2F-3-GP
R159
1KR2F-3-GP
1 2
C76 SCD1U10V2KX-4GPC76 SCD1U10V2KX-4GP
12
R173
80D6R2F-L-GP
R173
80D6R2F-L-GP
1 2
R489 Do Not Stuff
DY
R489 Do Not Stuff
DY
1 2
R491 Do Not Stuff
DY
R491 Do Not Stuff
DY
12
C593
SCD01U16V2KX-3GP
C593
SCD01U16V2KX-3GP
1 2
C81 SCD1U10V2KX-4GPC81 SCD1U10V2KX-4GP
1 2
C519 SCD1U10V2KX-4GPC519 SCD1U10V2KX-4GP
1 2
C521 SCD1U10V2KX-4GPC521 SCD1U10V2KX-4GP
1 2
C74 SCD1U10V2KX-4GPC74 SCD1U10V2KX-4GP
1 2
R494 Do Not Stuff
DY
R494 Do Not Stuff
DY
1 2
R484 4K02R2F-GPR484 4K02R2F-GP
1 2
R488 Do Not Stuff
DY
R488 Do Not Stuff
DY
1 2
C83 SCD1U10V2KX-4GPC83 SCD1U10V2KX-4GP
1 2
R495 Do Not Stuff
DY
R495 Do Not Stuff
DY
1 2
C80 SCD1U10V2KX-4GPC80 SCD1U10V2KX-4GP
1 2
C522 SCD1U10V2KX-4GPC522 SCD1U10V2KX-4GP
1
2 3
4
RN15
SRN10KJ-11-GP-U
RN15
SRN10KJ-11-GP-U
1 2
C86 SCD1U10V2KX-4GPC86 SCD1U10V2KX-4GP
12
C577
SCD1U10V2KX-4GP
C577
SCD1U10V2KX-4GP
1 2
C82 SCD1U10V2KX-4GPC82 SCD1U10V2KX-4GP
1 2
C66 SCD1U10V2KX-4GPC66 SCD1U10V2KX-4GP
1 2
C88 SCD1U10V2KX-4GPC88 SCD1U10V2KX-4GP
12
C159
SCD01U16V2KX-3GP
C159
SCD01U16V2KX-3GP
1 2
R476 49D9R2F-GPR476 49D9R2F-GP
1 2
C84 SCD1U10V2KX-4GPC84 SCD1U10V2KX-4GP
1 2
C69 SCD1U10V2KX-4GPC69 SCD1U10V2KX-4GP
1 2
C70 SCD1U10V2KX-4GPC70 SCD1U10V2KX-4GP
1 2
R485 Do Not Stuff
DY
R485 Do Not Stuff
DY
12
R480
511R2F-2-GP
R480
511R2F-2-GP
12
C631
Do Not Stuff
DY
C631
Do Not Stuff
DY
1 2
R479
1KR2F-3-GP
R479
1KR2F-3-GP
1 2
C87 SCD1U10V2KX-4GPC87 SCD1U10V2KX-4GP
1 2
R191 Do Not Stuff
R191 Do Not Stuff
PEG_COMPI T37
PEG_COMPO T36
PEG_RX#_0 H44
PEG_RX#_1 J46
PEG_RX#_2 L44
PEG_RX#_3 L40
PEG_RX#_4 N41
PEG_RX#_5 P48
PEG_RX#_6 N44
PEG_RX#_7 T43
PEG_RX#_8 U43
PEG_RX#_9 Y43
PEG_RX#_10 Y48
PEG_RX#_11 Y36
PEG_RX#_12 AA43
PEG_RX#_13 AD37
PEG_RX#_14 AC47
PEG_RX#_15 AD39
PEG_RX_0 H43
PEG_RX_1 J44
PEG_RX_2 L43
PEG_RX_3 L41
PEG_RX_4 N40
PEG_RX_5 P47
PEG_RX_6 N43
PEG_RX_7 T42
PEG_RX_8 U42
PEG_RX_9 Y42
PEG_RX_10 W47
PEG_RX_11 Y37
PEG_RX_12 AA42
PEG_RX_13 AD36
PEG_RX_14 AC48
PEG_RX_15 AD40
PEG_TX#_0 J41
PEG_TX#_10 Y40
PEG_TX#_3 M40
PEG_TX#_4 M42
PEG_TX#_5 R48
PEG_TX#_6 N38
PEG_TX#_7 T40
PEG_TX#_8 U37
PEG_TX#_9 U40
PEG_TX#_1 M46
PEG_TX#_11 AA46
PEG_TX#_12 AA37
PEG_TX#_13 AA40
PEG_TX#_14 AD43
PEG_TX#_15 AC46
PEG_TX#_2 M47
PEG_TX_0 J42
PEG_TX_1 L46
PEG_TX_2 M48
PEG_TX_3 M39
PEG_TX_4 M43
PEG_TX_5 R47
PEG_TX_6 N37
PEG_TX_7 T39
PEG_TX_8 U36
PEG_TX_9 U39
PEG_TX_10 Y39
PEG_TX_11 Y46
PEG_TX_12 AA36
PEG_TX_13 AA39
PEG_TX_14 AD42
PEG_TX_15 AD46
L_CTRL_CLK
M32
L_CTRL_DATA
M33
L_DDC_CLK
K33
L_DDC_DATA
J33
L_VDD_EN
M29
LVDS_IBG
C44
LVDS_VBG
B43
LVDS_VREFH
E37
LVDS_VREFL
E38
LVDSA_CLK#
C41
LVDSA_CLK
C40
LVDSA_DATA#_0
H47
LVDSA_DATA#_1
E46
LVDSA_DATA#_2
G40
LVDSA_DATA_1
D45
LVDSA_DATA_2
F40
LVDSB_CLK#
B37
LVDSB_CLK
A37
LVDSB_DATA#_0
A41
LVDSB_DATA#_1
H38
LVDSB_DATA#_2
G37
LVDSB_DATA_1
G38
LVDSB_DATA_2
F37
L_BKLT_EN
G32
TVA_DAC
F25
TVB_DAC
H25
TVC_DAC
K25
TV_RTN
H24
CRT_BLUE
E28
CRT_DDC_CLK
H32
CRT_DDC_DATA
J32
CRT_GREEN
G28
CRT_HSYNC
J29
CRT_TVO_IREF
E29
CRT_RED
J28
CRT_IRTN
G29
CRT_VSYNC
L29
LVDSA_DATA_0
H48
LVDSB_DATA_0
B42
L_BKLT_CTRL
L32
TV_DCONSEL_0
C31
TV_DCONSEL_1
E32
LVDSA_DATA#_3
A40
LVDSA_DATA_3
B40
LVDSB_DATA#_3
J37
LVDSB_DATA_3
K37
LVDS
PCI-EXPRESS GRAPHICS
TV VGA
3 OF 10
U2C
CANTIGA-GM-GP-U-NF
LVDS
PCI-EXPRESS GRAPHICS
TV VGA
3 OF 10
U2C
CANTIGA-GM-GP-U-NF
1 2
C92 SCD1U10V2KX-4GPC92 SCD1U10V2KX-4GP
1 2
C90 SCD1U10V2KX-4GPC90 SCD1U10V2KX-4GP
1 2
R486 Do Not Stuff
DY
R486 Do Not Stuff
DY
1 2
R487 Do Not Stuff
DY
R487 Do Not Stuff
DY
1 2
C89 SCD1U10V2KX-4GPC89 SCD1U10V2KX-4GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
M_A_DQS#3
M_A_DQS#0
M_A_DQS#6
M_A_DQS#4
M_A_DQS#1
M_A_DQS#2
M_A_DQS#5
M_A_DQS#7
M_A_A0
M_A_A6
M_A_A3
M_A_A5
M_A_A7
M_A_A1
M_A_A2
M_A_A4
M_A_A10
M_A_A8
M_A_A13
M_A_A11
M_A_A9
M_A_A12
M_A_DQS#[7..0]
M_A_A[14..0]
M_A_DM[7..0]
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7 M_A_DQS[7..0]
M_A_DQS5
M_A_DQS7
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS0
M_A_DQS1
M_A_DQS6
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ15
M_B_DQ13
M_B_DQ12
M_B_DQ14
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ23
M_B_DQ21
M_B_DQ20
M_B_DQ22
M_B_DQ28
M_B_DQ26
M_B_DQ29
M_B_DQ25
M_B_DQ31
M_B_DQ24
M_B_DQ27
M_B_DQ30
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ39
M_B_DQ37
M_B_DQ36
M_B_DQ38
M_B_DQ44
M_B_DQ42
M_B_DQ45
M_B_DQ41
M_B_DQ47
M_B_DQ40
M_B_DQ43
M_B_DQ46
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ55
M_B_DQ53
M_B_DQ52
M_B_DQ54
M_B_DQ60
M_B_DQ58
M_B_DQ61
M_B_DQ57
M_B_DQ63
M_B_DQ56
M_B_DQ59
M_B_DQ62
M_B_DQ[63..0]
M_A_DQ44
M_A_DQ36
M_A_DQ47
M_A_DQ40
M_A_DQ39
M_A_DQ37
M_A_DQ35
M_A_DQ34
M_A_DQ59
M_A_DQ54
M_A_DQ53
M_A_DQ63
M_A_DQ60
M_A_DQ61
M_A_DQ58
M_A_DQ51
M_A_DQ48
M_A_DQ57
M_A_DQ55
M_A_DQ49
M_A_DQ50
M_A_DQ62
M_A_DQ52
M_A_DQ56
M_A_DQ[63..0]
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ7
M_A_DQ5
M_A_DQ4
M_A_DQ6
M_A_DQ12
M_A_DQ10
M_A_DQ13
M_A_DQ9
M_A_DQ8
M_A_DQ11
M_A_DQ15
M_A_DQ14
M_A_DQ27
M_A_DQ25
M_A_DQ20
M_A_DQ19
M_A_DQ30
M_A_DQ18
M_A_DQ16
M_A_DQ28
M_A_DQ17
M_A_DQ26
M_A_DQ31
M_A_DQ29
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ21
M_A_DQ46
M_A_DQ42
M_A_DQ38
M_A_DQ32
M_A_DQ45
M_A_DQ33
M_A_DQ43
M_A_DQ41
M_B_DQS#[7..0]
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_DQS[7..0]
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_A12
M_B_A9
M_B_A11
M_B_A13
M_B_A8
M_B_A10
M_B_A[14..0]
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_DM[7..0]
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_A_A14 M_B_A14
M_A_DQS#[7..0] [14]
M_A_DQS[7..0] [14]
M_A_A[14..0] [14,15]
M_A_DM[7..0] [14]
M_B_BS#0 [14,15]
M_B_BS#1 [14,15]
M_B_BS#2 [14,15]
M_B_CAS# [14,15]
M_B_RAS# [14,15]
M_A_BS#0 [14,15]
M_A_BS#1 [14,15]
M_A_BS#2 [14,15]
M_A_CAS# [14,15]
M_B_DQ[63..0][14]
M_A_RAS# [14,15]
M_B_WE# [14,15]
M_A_DQ[63..0][14]
M_A_WE# [14,15]
M_B_DQS#[7..0] [14]
M_B_DQS[7..0] [14]
M_B_A[14..0] [14,15]
M_B_DM[7..0] [14]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (3 of 6)
10 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (3 of 6)
10 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (3 of 6)
10 53Wednesday, August 20, 2008
Artemis
3

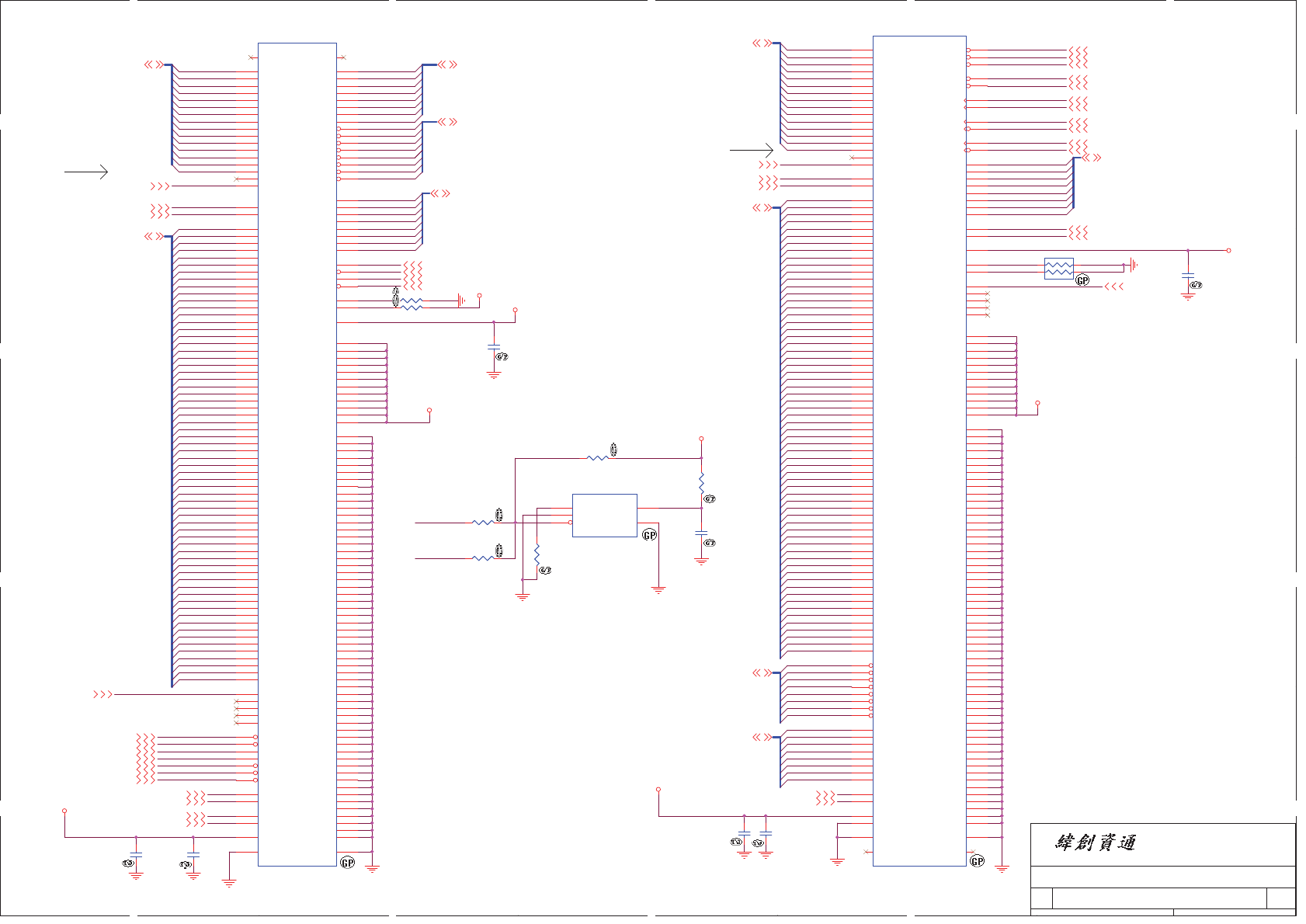

NB ( 3 of 6 ) DDRIII
SA_DQ_0
AJ38
SA_DQ_1
AJ41
SA_DQ_10
AU40
SA_DQ_11
AT38
SA_DQ_12
AN41
SA_DQ_13
AN39
SA_DQ_14
AU44
SA_DQ_15
AU42
SA_DQ_16
AV39
SA_DQ_17
AY44
SA_DQ_18
BA40
SA_DQ_19
BD43
SA_DQ_2
AN38
SA_DQ_20
AV41
SA_DQ_21
AY43
SA_DQ_22
BB41
SA_DQ_23
BC40
SA_DQ_24
AY37
SA_DQ_25
BD38
SA_DQ_26
AV37
SA_DQ_27
AT36
SA_DQ_28
AY38
SA_DQ_29
BB38
SA_DQ_3
AM38
SA_DQ_30
AV36
SA_DQ_31
AW36
SA_DQ_32
BD13
SA_DQ_33
AU11
SA_DQ_34
BC11
SA_DQ_35
BA12
SA_DQ_36
AU13
SA_DQ_37
AV13
SA_DQ_38
BD12
SA_DQ_39
BC12
SA_DQ_4
AJ36
SA_DQ_40
BB9
SA_DQ_41
BA9
SA_DQ_42
AU10
SA_DQ_43
AV9
SA_DQ_44
BA11
SA_DQ_45
BD9
SA_DQ_46
AY8
SA_DQ_47
BA6
SA_DQ_48
AV5
SA_DQ_49
AV7
SA_DQ_5
AJ40
SA_DQ_50
AT9
SA_DQ_51
AN8
SA_DQ_52
AU5
SA_DQ_53
AU6
SA_DQ_54
AT5
SA_DQ_55
AN10
SA_DQ_56
AM11
SA_DQ_57
AM5
SA_DQ_58
AJ9
SA_DQ_59
AJ8
SA_DQ_6
AM44
SA_DQ_60
AN12
SA_DQ_61
AM13
SA_DQ_62
AJ11
SA_DQ_63
AJ12
SA_DQ_7
AM42
SA_DQ_8
AN43
SA_DQ_9
AN44
SA_BS_0 BD21
SA_BS_1 BG18
SA_BS_2 AT25
SA_CAS# BD20
SA_DM_0 AM37
SA_DM_1 AT41
SA_DM_2 AY41
SA_DM_3 AU39
SA_DM_4 BB12
SA_DM_5 AY6
SA_DM_6 AT7
SA_DQS_0 AJ44
SA_DQS_1 AT44
SA_DQS_2 BA43
SA_DQS_3 BC37
SA_DQS_4 AW12
SA_DQS_5 BC8
SA_DQS_6 AU8
SA_DQS_7 AM7
SA_DM_7 AJ5
SA_DQS#_0 AJ43
SA_DQS#_1 AT43
SA_DQS#_2 BA44
SA_DQS#_3 BD37
SA_DQS#_4 AY12
SA_DQS#_5 BD8
SA_DQS#_6 AU9
SA_DQS#_7 AM8
SA_MA_0 BA21
SA_MA_1 BC24
SA_MA_10 BC21
SA_MA_11 BG26
SA_MA_12 BH26
SA_MA_13 BH17
SA_MA_2 BG24
SA_MA_3 BH24
SA_MA_4 BG25
SA_MA_5 BA24
SA_MA_6 BD24
SA_MA_7 BG27
SA_MA_8 BF25
SA_MA_9 AW24
SA_RAS# BB20
SA_WE# AY20
SA_MA_14 AY25
DDR SYSTEM MEMORY A
4 OF 10
U2D
CANTIGA-GM-GP-U-NF
DDR SYSTEM MEMORY A
4 OF 10
U2D
CANTIGA-GM-GP-U-NF
SB_DQ_0
AK47
SB_DQ_1
AH46
SB_DQ_10
BA48
SB_DQ_11
AY48
SB_DQ_12
AT47
SB_DQ_13
AR47
SB_DQ_14
BA47
SB_DQ_15
BC47
SB_DQ_16
BC46
SB_DQ_17
BC44
SB_DQ_18
BG43
SB_DQ_19
BF43
SB_DQ_2
AP47
SB_DQ_20
BE45
SB_DQ_21
BC41
SB_DQ_22
BF40
SB_DQ_23
BF41
SB_DQ_24
BG38
SB_DQ_25
BF38
SB_DQ_26
BH35
SB_DQ_27
BG35
SB_DQ_28
BH40
SB_DQ_29
BG39
SB_DQ_3
AP46
SB_DQ_30
BG34
SB_DQ_31
BH34
SB_DQ_32
BH14
SB_DQ_33
BG12
SB_DQ_34
BH11
SB_DQ_35
BG8
SB_DQ_36
BH12
SB_DQ_37
BF11
SB_DQ_38
BF8
SB_DQ_39
BG7
SB_DQ_4
AJ46
SB_DQ_40
BC5
SB_DQ_41
BC6
SB_DQ_42
AY3
SB_DQ_43
AY1
SB_DQ_44
BF6
SB_DQ_45
BF5
SB_DQ_46
BA1
SB_DQ_47
BD3
SB_DQ_48
AV2
SB_DQ_49
AU3
SB_DQ_5
AJ48
SB_DQ_50
AR3
SB_DQ_51
AN2
SB_DQ_52
AY2
SB_DQ_53
AV1
SB_DQ_54
AP3
SB_DQ_55
AR1
SB_DQ_56
AL1
SB_DQ_57
AL2
SB_DQ_58
AJ1
SB_DQ_59
AH1
SB_DQ_6
AM48
SB_DQ_60
AM2
SB_DQ_61
AM3
SB_DQ_62
AH3
SB_DQ_63
AJ3
SB_DQ_7
AP48
SB_DQ_8
AU47
SB_DQ_9
AU46
SB_BS_0 BC16
SB_BS_1 BB17
SB_BS_2 BB33
SB_CAS# BG16
SB_DM_0 AM47
SB_DM_1 AY47
SB_DM_2 BD40
SB_DM_3 BF35
SB_DM_4 BG11
SB_DM_5 BA3
SB_DM_6 AP1
SB_DM_7 AK2
SB_DQS_0 AL47
SB_DQS_1 AV48
SB_DQS_2 BG41
SB_DQS_3 BG37
SB_DQS_4 BH9
SB_DQS_5 BB2
SB_DQS_6 AU1
SB_DQS_7 AN6
SB_DQS#_0 AL46
SB_DQS#_1 AV47
SB_DQS#_2 BH41
SB_DQS#_3 BH37
SB_DQS#_4 BG9
SB_DQS#_5 BC2
SB_DQS#_6 AT2
SB_DQS#_7 AN5
SB_MA_0 AV17
SB_MA_1 BA25
SB_MA_10 BB16
SB_MA_11 AW33
SB_MA_12 AY33
SB_MA_13 BH15
SB_MA_2 BC25
SB_MA_3 AU25
SB_MA_4 AW25
SB_MA_5 BB28
SB_MA_6 AU28
SB_MA_7 AW28
SB_MA_8 AT33
SB_MA_9 BD33
SB_MA_14 AU33
SB_RAS# AU17
SB_WE# BF14
DDR SYSTEM MEMORY B
5 OF 10
U2E
CANTIGA-GM-GP-U-NF
DDR SYSTEM MEMORY B
5 OF 10
U2E
CANTIGA-GM-GP-U-NF
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SM_LF7_GMCH
SM_LF6_GMCH
SM_LF3_GMCH
SM_LF2_GMCH
SM_LF1_GMCH
SM_LF5_GMCH
SM_LF4_GMCH
VCC_GMCH_35
+1.8V
+1.8V
+1.05VM
+1.05VM
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (4 of 6)
11 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (4 of 6)
11 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (4 of 6)
11 53Wednesday, August 20, 2008
Artemis
3

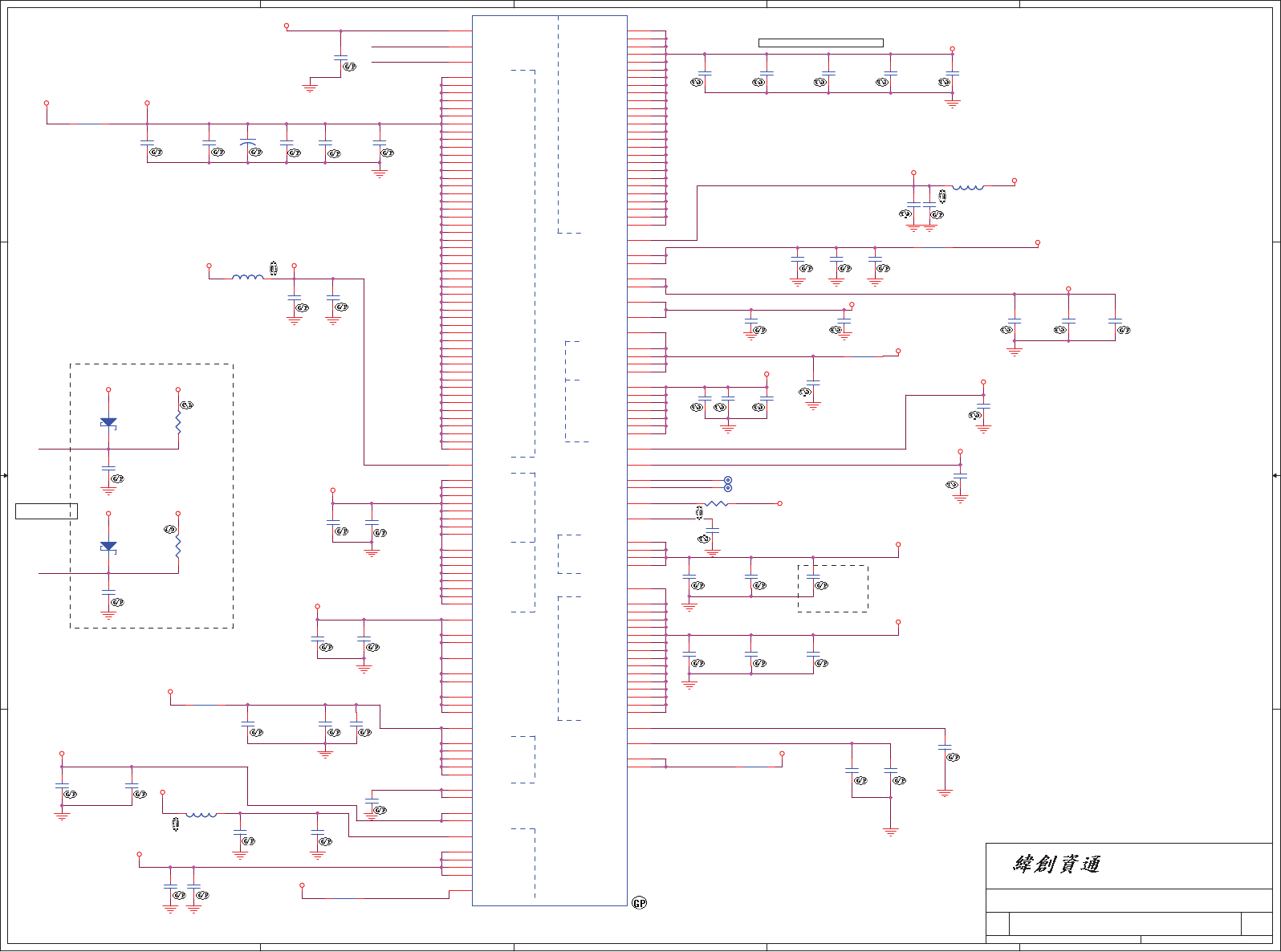

NB ( 4 of 6 ) PWR
FOR VCC SM
Place on the Edge
Place CAP where
LVDS and DDR3 taps
FOR VCC CORE
Coupling CAP 370 mils from the Edge
Coupling CAP
12
C635
SCD22U10V2KX-1GP
C635
SCD22U10V2KX-1GP
VCC_SM
AY32
VCC_SM
BF31
VCC_SM
AW29
VCC_SM
BD32
VCC_SM
BC32
VCC_SM
BB32
VCC_SM
BA32
VCC_SM
AW32
VCC_SM
AV32
VCC_SM
AU32
VCC_SM
AT32
VCC_SM
AR32
VCC_SM
AP32
VCC_SM
AN32
VCC_SM
BH31
VCC_SM
BG31
VCC_SM
AN33
VCC_SM
BG30
VCC_SM
BH29
VCC_SM
BG29
VCC_SM
BF29
VCC_SM
BD29
VCC_SM
BC29
VCC_SM
BB29
VCC_SM
BA29
VCC_SM
AY29
VCC_SM
BH32
VCC_SM
AV29
VCC_SM
AU29
VCC_SM
AT29
VCC_SM
AR29
VCC_AXG_NCTF V23
VCC_AXG_NCTF AM21
VCC_AXG_NCTF AL21
VCC_AXG_NCTF AK21
VCC_AXG_NCTF W21
VCC_AXG_NCTF V21
VCC_AXG_NCTF U21
VCC_AXG_NCTF AM20
VCC_AXG_NCTF AK20
VCC_AXG_NCTF W20
VCC_AXG_NCTF V28
VCC_AXG_NCTF U20
VCC_AXG_NCTF AM19
VCC_AXG_NCTF AL19
VCC_AXG_NCTF AK19
VCC_AXG_NCTF AJ19
VCC_AXG_NCTF AH19
VCC_AXG_NCTF AG19
VCC_AXG_NCTF AF19
VCC_AXG_NCTF AE19
VCC_AXG_NCTF AB19
VCC_AXG_NCTF W26
VCC_AXG_NCTF AA19
VCC_AXG_NCTF Y19
VCC_AXG_NCTF W19
VCC_AXG_NCTF V19
VCC_AXG_NCTF U19
VCC_AXG_NCTF AM17
VCC_AXG_NCTF AK17
VCC_AXG_NCTF AH17
VCC_AXG_NCTF AG17
VCC_AXG_NCTF AF17
VCC_AXG_NCTF V26
VCC_AXG_NCTF AE17
VCC_AXG_NCTF AC17
VCC_AXG_NCTF AB17
VCC_AXG_NCTF Y17
VCC_AXG_NCTF W17
VCC_AXG_NCTF V17
VCC_AXG_NCTF AM16
VCC_AXG_NCTF AL16
VCC_AXG_NCTF AK16
VCC_AXG_NCTF AJ16
VCC_AXG_NCTF W25
VCC_AXG_NCTF AH16
VCC_AXG_NCTF AG16
VCC_AXG_NCTF AF16
VCC_AXG_NCTF AE16
VCC_AXG_NCTF AC16
VCC_AXG_NCTF AB16
VCC_AXG_NCTF AA16
VCC_AXG_NCTF V25
VCC_AXG_NCTF W24
VCC_AXG_NCTF V24
VCC_AXG_NCTF W23
VCC_SM
AP29
VCC_SM
BG32
VCC_SM
BF32
VCC_AXG_NCTF W28
VCC_SM
AP33
VCC_AXG
Y26
VCC_AXG
AE25
VCC_AXG
AB25
VCC_AXG
AA25
VCC_AXG
AE24
VCC_AXG
AC24
VCC_AXG
AA24
VCC_AXG
Y24
VCC_AXG
AE23
VCC_AXG
AC23
VCC_AXG
AB23
VCC_AXG
AA23
VCC_AXG
AJ21
VCC_AXG
AG21
VCC_AXG
AE21
VCC_AXG
AC21
VCC_AXG
AA21
VCC_AXG
Y21
VCC_AXG
AH20
VCC_AXG
AF20
VCC_AXG
AE20
VCC_AXG
AC20
VCC_AXG
AB20
VCC_AXG
AA20
VCC_AXG
T17
VCC_AXG
AM15
VCC_AXG
AL15
VCC_AXG
AJ15
VCC_AXG
AH15
VCC_AXG
AF15
VCC_AXG
AB15
VCC_SM_LF AV44
VCC_SM_LF BA37
VCC_SM_LF AM40
VCC_SM_LF AV21
VCC_SM_LF AY5
VCC_SM_LF AM10
VCC_SM_LF BB13
VCC_AXG
T16
VCC_AXG
AG15
VCC_AXG
AA15
VCC_AXG
Y15
VCC_AXG
V15
VCC_AXG
U15
VCC_AXG
AN14
VCC_AXG
AM14
VCC_AXG
U14
VCC_AXG
T14
VCC_AXG_SENSE
AJ14
VSS_AXG_SENSE
AH14
VCC_AXG_NCTF Y16
VCC_AXG_NCTF W16
VCC_AXG_NCTF V16
VCC_AXG_NCTF U16
VCC_SM/NC
BA36
VCC_SM/NC
BB24
VCC_SM/NC
BD16
VCC_SM/NC
BB21
VCC_SM/NC
AW16
VCC_SM/NC
AW13
VCC_SM/NC
AT13
VCC_AXG
AE15
POWER
VCC SMVCC GFX
VCC GFX NCTF
VCC SM LF
7 OF 10
U2G
CANTIGA-GM-GP-U-NF
POWER
VCC SMVCC GFX
VCC GFX NCTF
VCC SM LF
7 OF 10
U2G
CANTIGA-GM-GP-U-NF
VCC_NCTF AM32
VCC_NCTF AC30
VCC_NCTF AJ29
VCC_NCTF AK25
VCC_NCTF AA32
VCC_NCTF Y32
VCC_NCTF W32
VCC_NCTF U32
VCC_NCTF AM30
VCC_NCTF AL30
VCC_NCTF AK30
VCC_NCTF AG30
VCC_NCTF AF30
VCC_NCTF AE30
VCC_NCTF AL32
VCC_NCTF W30
VCC_NCTF V30
VCC_NCTF AK32
VCC_NCTF AH29
VCC_NCTF AG29
VCC_NCTF AE29
VCC_NCTF AL28
VCC_NCTF AK28
VCC_NCTF AL26
VCC_NCTF AK26
VCC_NCTF AJ32
VCC_NCTF AK24
VCC_NCTF AH32
VCC_NCTF AG32
VCC_NCTF AE32
VCC_NCTF AC32
VCC_NCTF AC29
VCC_NCTF AA29
VCC_NCTF Y29
VCC_NCTF W29
VCC_NCTF V29
VCC_NCTF U30
VCC_NCTF AL29
VCC_NCTF AK29
VCC_NCTF AH30
VCC_NCTF AB30
VCC_NCTF AA30
VCC_NCTF Y30
VCC
AG34
VCC
AC34
VCC
AB34
VCC
AA34
VCC
Y34
VCC
V34
VCC
U34
VCC
AM33
VCC
AK33
VCC
AJ33
VCC
AG33
VCC
AF33
VCC
AE33
VCC
AC33
VCC
AA33
VCC
Y33
VCC
W33
VCC
V33
VCC
U33
VCC
AH28
VCC
AF28
VCC
AC28
VCC
AA28
VCC
AJ26
VCC
AG26
VCC
AE26
VCC
AC26
VCC
AH25
VCC
AG25
VCC
AF25
VCC
AG24
VCC
AJ23
VCC
AH23
VCC
AF23
VCC
T32
VCC_NCTF AK23
POWER
VCC NCTF
VCC CORE
6 OF 10
U2F
CANTIGA-GM-GP-U-NF
POWER
VCC NCTF
VCC CORE
6 OF 10
U2F
CANTIGA-GM-GP-U-NF
12
C630
SCD1U10V2KX-4GP
C630
SCD1U10V2KX-4GP
1 2
R483 Do Not StuffR483 Do Not Stuff
12
C585
SCD1U10V2KX-4GP
C585
SCD1U10V2KX-4GP
12
C566
SCD47U16V3ZY-3GP
C566
SCD47U16V3ZY-3GP
12
C558
SC1U10V3ZY-6GP
C558
SC1U10V3ZY-6GP
12
C615
SCD22U10V2KX-1GP
C615
SCD22U10V2KX-1GP
12
C570
SCD22U10V2KX-1GP
C570
SCD22U10V2KX-1GP
12
TC22
SE220U2VDM-8GP
TC22
SE220U2VDM-8GP
12
C592
SCD1U10V2KX-4GP
C592
SCD1U10V2KX-4GP
12
C632
SCD1U10V2KX-4GP
C632
SCD1U10V2KX-4GP
12
C586
SCD1U16V2ZY-2GP
C586
SCD1U16V2ZY-2GP
12
TC4
ST330U2D5VDM-13GP
TC4
ST330U2D5VDM-13GP
12
C590
SC10U10V5KX-2GP
C590
SC10U10V5KX-2GP
12
C138
Do Not Stuff
DY
C138
Do Not Stuff
DY
12
C147
SC22U6D3V5MX-2GP
C147
SC22U6D3V5MX-2GP
12
C595
SCD1U10V2KX-4GP
C595
SCD1U10V2KX-4GP
12
C601
SCD22U10V2KX-1GP
C601
SCD22U10V2KX-1GP
12
C569
SC1U10V3ZY-6GP
C569
SC1U10V3ZY-6GP
12
C612
SCD1U16V2ZY-2GP
C612
SCD1U16V2ZY-2GP
12
C582
SC22U6D3V5MX-2GP
C582
SC22U6D3V5MX-2GP
12
C574
SCD1U10V2KX-4GP
C574
SCD1U10V2KX-4GP

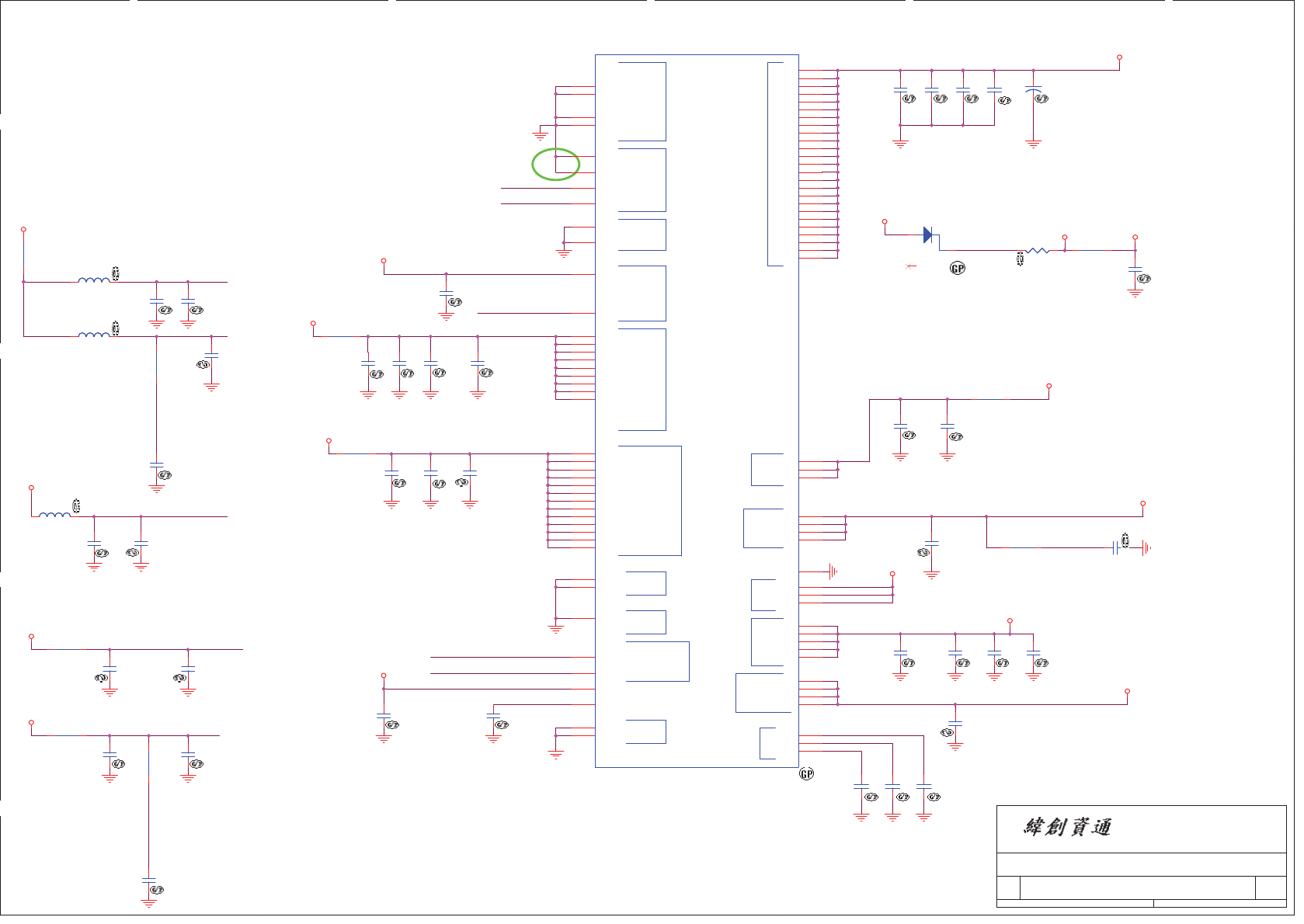

http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VCC_PEG
1D05V_HV_S0
VCC_PEG
1D5VRUN_TVDAC
1D05V_RUN_PEGPLL
1D8V_SM_CK_R
1D05V_RUN_PEGPLL
M_VCCA M_VCCA_MPLL
M_VCCA_HPLL
1D05V_SM_CK
1D5VRUN_TVDAC
1D05V_SM
1D05V_RUN_PEGPLL
VCCA_PEG_BG
M_VCCA_HPLL
M_VCCA_MPLL
1.25VS_AXF
VTTLF1
VTTLF2
VTTLF3
1D5VRUN_TVDAC_R
1D8V_SM_CK
M_VCCA_MPLL_R
1D5VRUN_QDAC
1D5VRUN_QDAC
+1.05VM
+1.05VM
+1.05VM
+1.05VM
+1.05VM
+1.8V
+1.05VM
+VCCP
+3VS +3VS_HV
+3VS_HV
+1.05VM
+1.05VM
+VCCP
+1.5VS
+1.5VS
+1.5VS
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (5 of 6)
12 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (5 of 6)
12 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (5 of 6)
12 53Wednesday, August 20, 2008
Artemis
3
200mA
852mA
456mA
-1
106mA
1782mA
220ohm 100MHz
120ohm 100MHz
120ohm 100MHz
350mA
1.5VS=1.5V_S0
NB ( 5 of 6 ) PWR
DB3
MV1
12
C642
SCD1U10V2KX-4GP
C642
SCD1U10V2KX-4GP
12
R161 Do Not StuffR161 Do Not Stuff
2
1
C196
SCD47U6D3V2KX-GP
2
1
C196
SCD47U6D3V2KX-GP
12
R475
10R2J-2-GP
R475
10R2J-2-GP
12
C639
SC4D7U10V5ZY-3GP
C639
SC4D7U10V5ZY-3GP
12
C636
SCD1U10V2KX-4GP
C636
SCD1U10V2KX-4GP
12
C644
SC22U6D3V5MX-2GP
C644
SC22U6D3V5MX-2GP
1 2
L39 FCM1608KF-1-GP
L39 FCM1608KF-1-GP
1 2
L6
FCM1608CF-221T02-GP
L6
FCM1608CF-221T02-GP
12
R178 Do Not StuffR178 Do Not Stuff
12
R913
Do Not Stuff
R913
Do Not Stuff
12
R513
Do Not Stuff
R513
Do Not Stuff
12
C913
Do Not Stuff
C913
Do Not Stuff
12
C638
SCD1U10V2KX-4GP
C638
SCD1U10V2KX-4GP
12
C198
SC4D7U10V5ZY-3GP
C198
SC4D7U10V5ZY-3GP
1 2
R176 Do Not StuffR176 Do Not Stuff
12
C628
SC1U10V3ZY-6GP
C628
SC1U10V3ZY-6GP
12
C199
SC2D2U6D3V3MX-1-GP
C199
SC2D2U6D3V3MX-1-GP
2
1
C634
SCD47U6D3V2KX-GP
2
1
C634
SCD47U6D3V2KX-GP
12
C629
SC22U6D3V5MX-2GP
C629
SC22U6D3V5MX-2GP
12
C173
SC1U10V3ZY-6GP
C173
SC1U10V3ZY-6GP
1 2
L40 FCM1608KF-1-GP
L40 FCM1608KF-1-GP
1
2
3
D13
BAT54-5-GP
D13
BAT54-5-GP
1 2
C179 SC10U10V5KX-2GP
C179 SC10U10V5KX-2GP
12
C568
SCD1U10V2KX-4GP
C568
SCD1U10V2KX-4GP
12
C605
SCD022U16V2KX-3GP
C605
SCD022U16V2KX-3GP
12
C552
SCD1U10V2KX-4GP
C552
SCD1U10V2KX-4GP
12
C637
SC22U6D3V5MX-2GP
C637
SC22U6D3V5MX-2GP
1 2
R164
Do Not Stuff
R164
Do Not Stuff
12
C643
SC4D7U10V5ZY-3GP
C643
SC4D7U10V5ZY-3GP
2
1
C193
SCD47U6D3V2KX-GP
2
1
C193
SCD47U6D3V2KX-GP
12
C160
SCD1U10V2KX-4GP
C160
SCD1U10V2KX-4GP
12
C616
SC1U10V3ZY-6GP
C616
SC1U10V3ZY-6GP
12
C561
SC22U6D3V5MX-2GP
C561
SC22U6D3V5MX-2GP
12
C627
SC47P50V2JN-3GP
C627
SC47P50V2JN-3GP
12
C604
SCD1U10V2KX-4GP
C604
SCD1U10V2KX-4GP
12
C609
SC47P50V2JN-3GP
C609
SC47P50V2JN-3GP
12
C560
SCD1U10V2KX-4GP
C560
SCD1U10V2KX-4GP
12
R474
Do Not Stuff
R474
Do Not Stuff
1 2
R490 Do Not StuffR490 Do Not Stuff
12
C594
SC47P50V2JN-3GP
C594
SC47P50V2JN-3GP
1 2
R497 Do Not StuffR497 Do Not Stuff
12
C162
SC10U10V5KX-2GP
C162
SC10U10V5KX-2GP
12
C624
SC22U6D3V5MX-2GP
C624
SC22U6D3V5MX-2GP
1 2
R511
Do Not Stuff
R511
Do Not Stuff
12
C912
SCD01U16V2KX-3GP
C912
SCD01U16V2KX-3GP
12
C564
SC2D2U10V3KX-1GP
C564
SC2D2U10V3KX-1GP
12
C583
SCD1U10V2KX-4GP
C583
SCD1U10V2KX-4GP
12
C606
SC22U6D3V5MX-2GP
C606
SC22U6D3V5MX-2GP
12
C116
SC10U10V5KX-2GP
C116
SC10U10V5KX-2GP
VTT V3
VTT U3
VTT V2
VTT U2
VCCA_PEG_BG
AD48
VCCA_PEG_PLL
AA48
VCCA_CRT_DAC
B27
VCCA_CRT_DAC
A26
VCCA_DPLLA
F47
VCCA_DPLLB
L48
VCCA_HPLL
AD1
VCCA_LVDS
J48
VCCA_MPLL
AE1
VCCA_TV_DAC
B24
VCCA_TV_DAC
A24
VCCD_PEG_PLL
AA47
VTT U6
VTT T6
VTT U5
VTT T5
VTT T8
VTT U7
VTT T7
VCCD_HPLL
AF1
VTT U13
VTT T13
VTT T12
VTT U11
VTT T11
VTT U10
VTT T10
VTT U9
VTT T9
VTT U8
VTT U12
VCCA_SM_CK
AP28
VCCA_SM_CK
AN28
VCCA_DAC_BG
A25
VCCD_TVDAC
M25
VTTLF A8
VTTLF L1
VTTLF AB2
VCC_DMI AH48
VCC_DMI AF48
VCC_SM_CK BF21
VCC_SM_CK BH20
VCC_SM_CK BG20
VCC_SM_CK BF20
VCCD_LVDS
M38
VCCD_QDAC
L28
VCC_AXF B22
VCC_AXF B21
VCC_AXF A21
VCCA_SM
AR20
VCCA_SM
AP20
VCCA_SM
AN20
VCCA_SM
AR17
VCCA_SM
AP17
VCCA_SM
AT16
VCCA_SM
AR16
VCCA_SM
AP16
VCC_TX_LVDS K47
VSSA_LVDS
J47
VCC_HV C35
VCC_HV B35
VCC_PEG V48
VCCD_LVDS
L37
VCC_PEG U48
VCC_PEG V47
VCC_PEG U47
VCC_PEG U46
VCCA_SM
AN17
VCCA_SM_CK
AP25
VCCA_SM_CK
AN25
VCCA_SM_CK
AN24
VCCA_SM_CK_NCTF
AM28
VCCA_SM_CK_NCTF
AM26
VCCA_SM_CK_NCTF
AM25
VCCA_SM_CK_NCTF
AL25
VCCA_SM_CK_NCTF
AM24
VCCA_SM_CK_NCTF
AL24
VCCA_SM_CK_NCTF
AM23
VTT T2
VTT V1
VTT U1
VCC_HV A35
VCC_DMI AH47
VCC_DMI AG47
VSSA_DAC_BG
B25
VCCA_SM_CK_NCTF
AL23
VCC_HDA
A32
POWER
CRTPLLA PEGA SM
TV
D TV/CRT
LVDS
VTTLF PEG SM CK AXF
VTT
DMI
HV
A CK
A LVDS
HDA
8 OF 10
U2H
CANTIGA-GM-GP-U-NF
POWER
CRTPLLA PEGA SM
TV
D TV/CRT
LVDS
VTTLF PEG SM CK AXF
VTT
DMI
HV
A CK
A LVDS
HDA
8 OF 10
U2H
CANTIGA-GM-GP-U-NF
12
C117
SCD1U10V2KX-4GP
C117
SCD1U10V2KX-4GP
2
1
C185
SCD47U6D3V2KX-GP
2
1
C185
SCD47U6D3V2KX-GP
12
C559
SCD1U10V2KX-4GP
C559
SCD1U10V2KX-4GP
12
TC9
SE220U2VDM-8GP
TC9
SE220U2VDM-8GP
http://laptop-motherboard-schematic.blogspot.com/

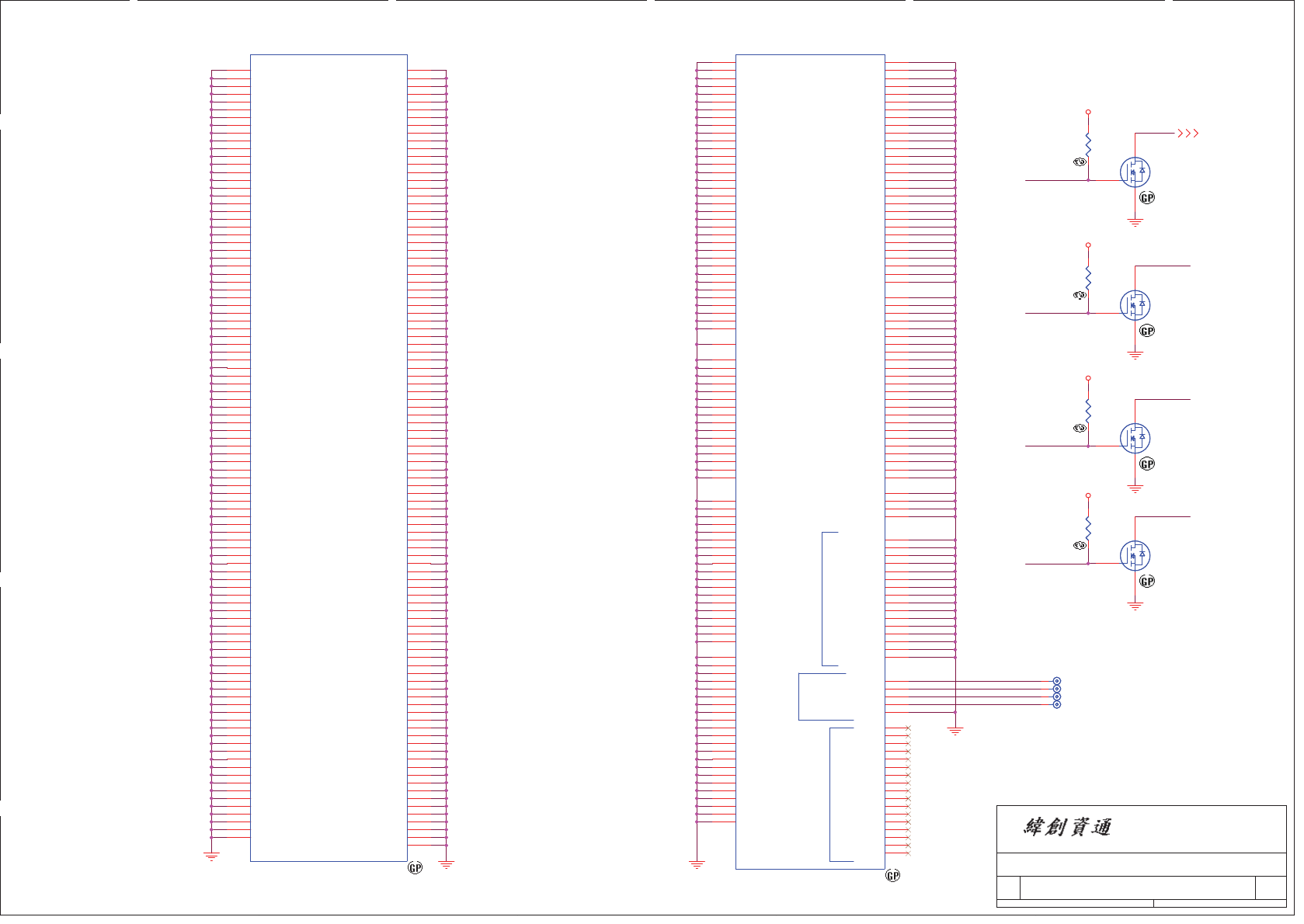

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MCH_GND4
MCH_GND3
MCH_GND2
MCH_GND1
MCH_GND2
BGA_CRACK
MCH_GND3
MCH_GND1
MCH_GND4
BGA_CRACK
BGA_CRACK
+3VS
+3VS
+3VS
+3VS
BGA_CRACK [24,34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (6 of 6)
13 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (6 of 6)
13 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Cantiga (6 of 6)
13 53Wednesday, August 20, 2008
Artemis
3

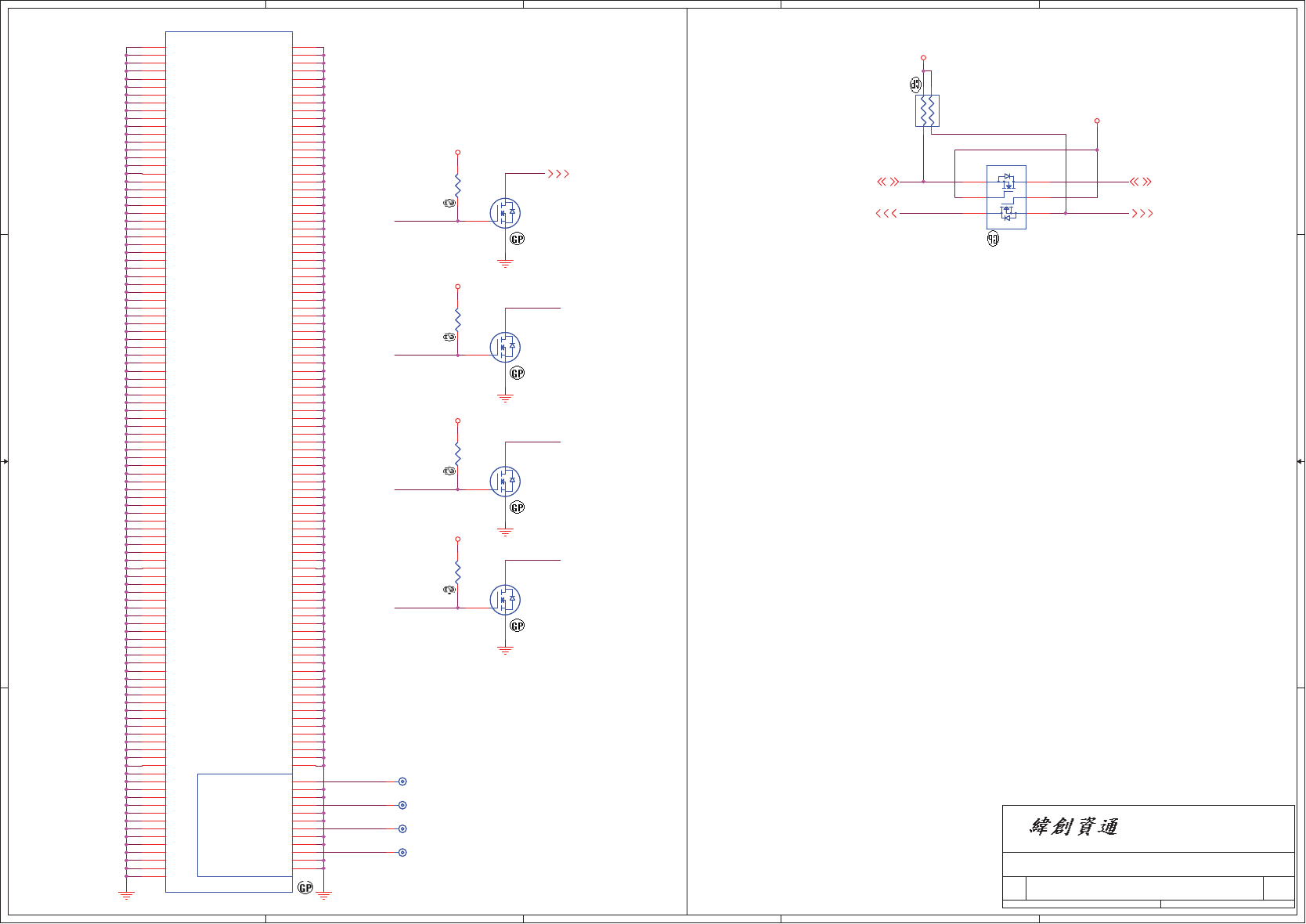

NB ( 6 of 6 ) GND
NCTF PIN
07/20 BGA CRACK CIRCUIT
1
TP8 Do Not StuffTP8 Do Not Stuff
VSS
AU48
VSS A23
VSS
AR48
VSS
AL48
VSS
BB47
VSS
AW47
VSS
AN47
VSS
AJ47
VSS
AF47
VSS
AD47
VSS
AB47
VSS
Y47
VSS
T47
VSS
N47
VSS
L47
VSS
G47
VSS
BD46
VSS
BA46
VSS
AV46
VSS
AR46
VSS
AM46
VSS
V46
VSS
R46
VSS
P46
VSS
H46
VSS
F46
VSS
BF44
VSS
AH44
VSS
AD44
VSS
AA44
VSS
Y44
VSS
U44
VSS
T44
VSS
M44
VSS
F44
VSS
BC43
VSS
AV43
VSS
AU43
VSS
AM43
VSS
J43
VSS
C43
VSS
BG42
VSS
AY42
VSS
AT42
VSS
AN42
VSS
AJ42
VSS
AE42
VSS
N42
VSS
L42
VSS
BD41
VSS
AU41
VSS
AM41
VSS
AH41
VSS
AD41
VSS
AA41
VSS
Y41
VSS
U41
VSS
T41
VSS
M41
VSS
G41
VSS
B41
VSS
BG40
VSS
BB40
VSS
AV40
VSS
AN40
VSS
H40
VSS
E40
VSS
AT39
VSS
AM39
VSS
AJ39
VSS
AE39
VSS
N39
VSS
L39
VSS
B39
VSS
BH38
VSS
BC38
VSS
BA38
VSS
AU38
VSS
AH38
VSS
AD38
VSS
AA38
VSS
Y38
VSS
U38
VSS
T38
VSS
J38
VSS
F38
VSS
C38
VSS
BD36
VSS AM36
VSS AE36
VSS P36
VSS L36
VSS J36
VSS F36
VSS B36
VSS AH35
VSS AA35
VSS Y35
VSS U35
VSS T35
VSS BF34
VSS AM34
VSS AJ34
VSS AF34
VSS AE34
VSS W34
VSS B34
VSS A34
VSS BG33
VSS BC33
VSS BA33
VSS AV33
VSS AR33
VSS AL33
VSS AH33
VSS AB33
VSS P33
VSS L33
VSS H33
VSS N32
VSS K32
VSS F32
VSS C32
VSS A31
VSS AN29
VSS T29
VSS N29
VSS K29
VSS H29
VSS F29
VSS A29
VSS BG28
VSS BD28
VSS BA28
VSS AV28
VSS AT28
VSS AR28
VSS AJ28
VSS AG28
VSS AE28
VSS AB28
VSS Y28
VSS P28
VSS K28
VSS H28
VSS F28
VSS C28
VSS BF26
VSS AH26
VSS AF26
VSS AB26
VSS AA26
VSS C26
VSS B26
VSS BH25
VSS BD25
VSS BB25
VSS AV25
VSS AR25
VSS AJ25
VSS AC25
VSS Y25
VSS N25
VSS L25
VSS J25
VSS G25
VSS E25
VSS BF24
VSS
BF37
VSS
BB37
VSS
AW37
VSS
AT37
VSS
AN37
VSS
AJ37
VSS
H37
VSS
C37
VSS
BG36
VSS
AU36
VSS AT24
VSS AH24
VSS AB24
VSS L24
VSS
AY46
VSS G24
VSS E24
VSS AG23
VSS B23
VSS AY24
VSS AJ24
VSS AF24
VSS R24
VSS K24
VSS J24
VSS F24
VSS BH23
VSS Y23
VSS
AK15
VSS AD12
VSS AJ6
VSS
9 OF 10
U2I
CANTIGA-GM-GP-U-NF
VSS
9 OF 10
U2I
CANTIGA-GM-GP-U-NF
12
R203
100KR2J-1-GP
DY
R203
100KR2J-1-GP
DY
G
S D
Q19
Do Not Stuff
DY
Q19
Do Not Stuff
DY
G
S D
Q22
Do Not Stuff
DY
Q22
Do Not Stuff
DY
12
R202
Do Not Stuff
DY
R202
Do Not Stuff
DY
VSS
BG21
VSS
AW21
VSS
AU21
VSS
AP21
VSS
AN21
VSS
AH21
VSS
AF21
VSS
AB21
VSS
R21
VSS
M21
VSS
J21
VSS
G21
VSS
BC20
VSS
BA20
VSS
AW20
VSS
AT20
VSS
AJ20
VSS
AG20
VSS
Y20
VSS
N20
VSS
K20
VSS
F20
VSS
C20
VSS
A20
VSS
BG19
VSS
A18
VSS
BG17
VSS
BC17
VSS
AW17
VSS
AT17
VSS
R17
VSS
M17
VSS
H17
VSS
C17
VSS
BA16
VSS
AU16
VSS
AN16
VSS
N16
VSS
K16
VSS
G16
VSS
E16
VSS
BG15
VSS
W15
VSS
A15
VSS
BG14
VSS
AA14
VSS
C14
VSS
BG13
VSS
BC13
VSS
BA13
VSS
AN13
VSS
AJ13
VSS
AE13
VSS
N13
VSS
L13
VSS
G13
VSS
E13
VSS
BF12
VSS
AV12
VSS
AT12
VSS
AM12
VSS
AA12
VSS
J12
VSS
A12
VSS
BD11
VSS
BB11
VSS
AY11
VSS
AN11
VSS
AH11
VSS
Y11
VSS
N11
VSS
G11
VSS
C11
VSS
BG10
VSS
AV10
VSS
AT10
VSS
AJ10
VSS
AE10
VSS
AA10
VSS
BH8 VSS
B9 VSS
G9 VSS
AD9 VSS
AM9 VSS
AN9 VSS
BC9
VSS
M10
VSS
BF9
VSS AH8
VSS Y8
VSS L8
VSS E8
VSS B8
VSS AY7
VSS AU7
VSS AN7
VSS AJ7
VSS AE7
VSS AA7
VSS N7
VSS J7
VSS BG6
VSS BD6
VSS AV6
VSS AT6
VSS
AC15
VSS AM6
VSS M6
VSS C6
VSS BA5
VSS AH5
VSS AD5
VSS Y5
VSS L5
VSS J5
VSS H5
VSS F5
VSS BE4
VSS BC3
VSS AV3
VSS AL3
VSS_NCTF AF32
VSS_NCTF AB32
VSS_NCTF V32
VSS_NCTF AJ30
VSS_NCTF AM29
VSS_NCTF AF29
VSS_NCTF AB29
VSS_NCTF U26
VSS_NCTF U23
VSS_NCTF AL20
VSS_NCTF V20
VSS_NCTF AC19
VSS_NCTF AL17
VSS_NCTF AJ17
VSS_NCTF AA17
VSS_NCTF U17
NCTF_VSS_SCB#BH48 BH48
NCTF_VSS_SCB#BH1 BH1
NCTF_VSS_SCB#A48 A48
NCTF_VSS_SCB#C1 C1
NCTF_VSS_SCB#A3 A3
NC#E1 E1
NC#D2 D2
NC#C3 C3
NC#B4 B4
NC#A5 A5
NC#A6 A6
NC#A43 A43
NC#A44 A44
NC#B45 B45
NC#C46 C46
NC#D47 D47
NC#B47 B47
NC#A46 A46
NC#F48 F48
NC#E48 E48
NC#C48 C48
NC#B48 B48
VSS R3
VSS P3
VSS BA2
VSS AR2
VSS AU2
VSS AP2
VSS F3
VSS AW2
VSS AE2
VSS AF2
VSS AH2
VSS AJ2
VSS AD2
VSS AC2
VSS Y2
VSS M2
VSS K2
VSS AM1
VSS AA1
VSS P1
VSS H1
VSS
BB8
VSS
AV8
VSS
AT8
VSS U24
VSS U28
VSS U25
VSS U29
VSS
L12
VSS
VSS NCTF
VSS SCB
NC
10 OF 10
NCTF TEST PIN:
A3,C1,A48,BH1,BH48
U2J
CANTIGA-GM-GP-U-NF
VSS
VSS NCTF
VSS SCB
NC
10 OF 10
NCTF TEST PIN:
A3,C1,A48,BH1,BH48
U2J
CANTIGA-GM-GP-U-NF
12
R122
Do Not Stuff
DY
R122
Do Not Stuff
DY
G
S D
Q23
Do Not Stuff
DY
Q23
Do Not Stuff
DY
1
TP9 Do Not StuffTP9 Do Not Stuff
1
TP12 Do Not StuffTP12 Do Not Stuff
G
S D
Q18
Do Not Stuff
DY
Q18
Do Not Stuff
DY
12
R137
Do Not Stuff
DY
R137
Do Not Stuff
DY
1
TP13 Do Not StuffTP13 Do Not Stuff
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
M_A_DQS2
M_A_DQS4
M_A_DQS1
M_A_DQS6
M_A_DQS5
M_A_DQS3
M_A_DQS7
M_A_DQS0
DM2_SA1
DM2_SA0
M_A_DM5M_A_DM5
M_A_DM3M_A_DM3
M_A_DM4M_A_DM4
M_A_DM2M_A_DM2
M_A_DM7M_A_DM7
M_A_DM1M_A_DM1
M_A_DM6M_A_DM6
M_A_DM0
M_A_A14
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ7
M_A_DQ6
M_A_DQ8
M_A_DQ9
M_A_DQ11
M_A_DQ10
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ12
M_A_DQ16
M_A_DQ17
M_A_DQ19
M_A_DQ18
M_A_DQ21
M_A_DQ22
M_A_DQ20
M_A_DQ23
M_A_DQ28
M_A_DQ31
M_A_DQ30
M_A_DQ27
M_A_DQ25
M_A_DQ24
M_A_DQ26
M_A_DQ29
M_A_DQ32
M_A_DQ33
M_A_DQ35
M_A_DQ34
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ36
M_A_DQ44
M_A_DQ47
M_A_DQ60
M_A_DQ49
M_A_DQ51
M_A_DQ50
M_A_DQ63
M_A_DQ53
M_A_DQ54
M_A_DQ46
M_A_DQ43
M_A_DQ41
M_A_DQ40
M_A_DQ42
M_A_DQ45
M_A_DQ55
M_A_DQ48
M_A_DQ52
M_A_DQ58
M_A_DQ62
M_A_DQ61
M_A_DQ57
M_A_DQ59
M_A_DQ56
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_DQS#6
M_A_DQS#4
M_A_DQS#5
M_A_DQS#3
M_A_DQS#2
M_A_DQS#0
M_A_DQS#7
M_A_DQS#1
PM_EXTTS#1
PM_EXTTS#0
M_B_DQ0
M_B_DQ8
M_B_DQ3
M_B_DQ10
M_B_DQ1
M_B_DQ9
M_B_DQ4
M_B_DQ6
M_B_DQ2
M_B_DQ11
M_B_DQ5
M_B_DQ19
M_B_DQ14
M_B_DQ30
M_B_DQ22
M_B_DQ16
M_B_DQ28
M_B_DQ18
M_B_DQ27
M_B_DQ15
M_B_DQ23
M_B_DQ17
M_B_DQ31
M_B_DQ13
M_B_DQ21
M_B_DQ12
M_B_DQ20
M_B_DQ35
M_B_DQ24
M_B_DQ46
M_B_DQ38
M_B_DQ32
M_B_DQ44
M_B_DQ34
M_B_DQ43
M_B_DQ26
M_B_DQ39
M_B_DQ33
M_B_DQ47
M_B_DQ25
M_B_DQ37
M_B_DQ29
M_B_DQ36
M_B_DQ53
M_B_DQ45
M_B_DQ52
M_B_DQ51
M_B_DQ40
M_B_DQ62
M_B_DQ54
M_B_DQ48
M_B_DQ60
M_B_DQ50
M_B_DQ59
M_B_DQ42
M_B_DQ55
M_B_DQ49
M_B_DQ63
M_B_DQ41
M_B_DQ57
M_B_DQ61
M_B_DQ56
M_B_DQ58
M_B_DQ7
M_B_DM0
M_B_DM1
M_B_DM7
M_B_DM6
M_B_DM5
M_B_DM4
M_B_DM3
M_B_DM2
M_B_A10
M_B_A7
M_B_A1
M_B_A8
M_B_A5
M_B_A2
M_B_A11
M_B_A6
M_B_A3
M_B_A12
M_B_A9
M_B_A0
M_B_A4
M_B_A13
M_B_A14
DDM1_SA1
DDM1_SA0
M_B_DQS1
M_B_DQS0
M_B_DQS7
M_B_DQS5
M_B_DQS4
M_B_DQS2
M_B_DQS6
M_B_DQS3
M_B_DQS#4
M_B_DQS#2
M_B_DQS#7
M_B_DQS#3
M_B_DQS#6
M_B_DQS#0
M_B_DQS#5
M_B_DQS#1
+3VM
+1.8V
+V_DDR_VREF_M
+3VM
+3VM
+1.8V
+3VM
+V_DDR_VREF_M
ICH_SMBCLK [16,24]
ICH_SMBDATA [16,24]
M_A_DQS[7..0][10]
M_A_RAS# [10,15]
M_A_CAS# [10,15]
M_A_WE# [10,15]
M_CLK_DDR1 [9]
M_CLK_DDR#1 [9]
M_CLK_DDR0 [9]
M_CLK_DDR#0 [9]
M_A_DM[7..0] [10]
PM_EXTTS#1 [9]
M_ODT0[9,15] M_ODT1[9,15]
M_A_DQ[63..0][10]
M_A_BS#0[10,15] M_A_BS#1[10,15]
M_A_BS#2[10,15]
M_A_A[14..0][10,15]
M_CS0# [9,15]
M_CS1# [9,15]
M_CKE0 [9,15]
M_CKE1 [9,15]
M_A_DQS#[7..0][10]
M_ODT2[9,15] M_ODT3[9,15]
M_B_DQ[63..0][10]
M_B_DQS#[7..0] [10]
M_B_DM[7..0] [10]
ICH_SMBCLK[16,24]
M_B_BS#2[10,15]
M_B_A[14..0][10,15]
M_CLK_DDR2 [9]
M_CLK_DDR#2 [9]
PM_EXTTS#0[9]
ICH_SMBDATA[16,24]
M_B_DQS[7..0] [10]
M_CLK_DDR3 [9]
M_CLK_DDR#3 [9]
M_B_BS#0[10,15] M_B_BS#1[10,15]
M_B_RAS#[10,15]
M_CS2#[9,15] M_CS3#[9,15]
M_B_CAS#[10,15]
M_CKE2[9,15] M_CKE3[9,15]
M_B_WE#[10,15]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DDR2 Socket
14 53Wednesday, August 20, 2008
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DDR2 Socket
14 53Wednesday, August 20, 2008
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DDR2 Socket
14 53Wednesday, August 20, 2008
DDR SOCKET
High 4.0 mm
Follow Intel circuity
NORMAL TYPE
M POWER PLAN
Place near DM2
High 5.2mm
0722
Rset =30 Ohm Temp = 80 degree C
RSET = 0.0012T2 — 0.9308T + 96.147
Rset
Follow Intel circuity
REVERSE TYPE
M POWER PLAN
12
R315
10KR2J-3-GP R315
10KR2J-3-GP
A0
102
A1
101
A2
100
A3
99
A4
98
A5
97
A6
94
A7
92
A8
93
A9
91
A10/AP
105
A11
90
A12
89
A13
116
A14
86
A15
84
A16_BA2
85
BA0
107
BA1
106
DQ0
5
DQ1
7
DQ2
17
DQ3
19
DQ4
4
DQ5
6
DQ6
14
DQ7
16
DQ8
23
DQ9
25
DQ10
35
DQ11
37
DQ12
20
DQ13
22
DQ14
36
DQ15
38
DQ16
43
DQ17
45
DQ18
55
DQ19
57
DQ20
44
DQ21
46
DQ22
56
DQ23
58
DQ24
61
DQ25
63
DQ26
73
DQ27
75
DQ28
62
DQ29
64
DQ30
74
DQ31
76
DQ32
123
DQ33
125
DQ34
135
DQ35
137
DQ36
124
DQ37
126
DQ38
134
DQ39
136
DQ40
141
DQ41
143
DQ42
151
DQ43
153
DQ44
140
DQ45
142
DQ46
152
DQ47
154
DQ48
157
DQ49
159
DQ50
173
DQ51
175
DQ52
158
DQ53
160
DQ54
174
DQ55
176
DQ56
179
DQ57
181
DQ58
189
DQ59
191
DQ60
180
DQ61
182
DQ62
192
DQ63
194
NC#50
50
NC#69
69
NC#83
83
NC#120
120
NC#163/TEST
163
CS0#
110
CS1#
115
CKE0
79
CKE1
80
RAS#
108
CAS#
113
WE#
109
SCL
197
SDA
195
ODT0
114
ODT1
119
VREF
1
GND
201
DQS0 13
DQS1 31
DQS2 51
DQS3 70
DQS4 131
DQS5 148
DQS6 169
DQS7 188
DQS0# 11
DQS1# 29
DQS2# 49
DQS3# 68
DQS4# 129
DQS5# 146
DQS6# 167
DQS7# 186
DM0 10
DM1 26
DM2 52
DM3 67
DM4 130
DM5 147
DM6 170
DM7 185
CK0 30
CK0# 32
CK1 164
CK1# 166
SA0 198
SA1 200
VDD_SPD 199
VDD 81
VDD 82
VDD 87
VDD 88
VDD 95
VDD 96
VDD 103
VDD 104
VDD 111
VDD 112
VDD 117
VDD 118
VSS 2
VSS 3
VSS 8
VSS 9
VSS 12
VSS 15
VSS 18
VSS 21
VSS 24
VSS 27
VSS 28
VSS 33
VSS 34
VSS 39
VSS 40
VSS 41
VSS 42
VSS 47
VSS 48
VSS 53
VSS 54
VSS 59
VSS 60
VSS 65
VSS 66
VSS 71
VSS 72
VSS 77
VSS 78
VSS 121
VSS 122
VSS 127
VSS 128
VSS 132
VSS 133
VSS 138
VSS 139
VSS 144
VSS 145
VSS 149
VSS 150
VSS 155
VSS 156
VSS 161
VSS 162
VSS 165
VSS 168
VSS 171
VSS 172
VSS 177
VSS 178
VSS 183
VSS 184
VSS 187
VSS 190
VSS 193
VSS 196
GND 202
MH1
MH1 MH2 MH2
DM2
SKT-SODIMM200-39GP
DM2
SKT-SODIMM200-39GP
1 2
R920
Do Not Stuff
DY
R920
Do Not Stuff
DY
A0
102
A1
101
A2
100
A3
99
A4
98
A5
97
A6
94
A7
92
A8
93
A9
91
A10/AP
105
A11
90
A12
89
A13
116
A14
86
A15
84
A16/BA2
85
BA0
107
BA1
106
DQ0
5
DQ1
7
DQ2
17
DQ3
19
DQ4
4
DQ5
6
DQ6
14
DQ7
16
DQ8
23
DQ9
25
DQ10
35
DQ11
37
DQ12
20
DQ13
22
DQ14
36
DQ15
38
DQ16
43
DQ17
45
DQ18
55
DQ19
57
DQ20
44
DQ21
46
DQ22
56
DQ23
58
DQ24
61
DQ25
63
DQ26
73
DQ27
75
DQ28
62
DQ29
64
DQ30
74
DQ31
76
DQ32
123
DQ33
125
DQ34
135
DQ35
137
DQ36
124
DQ37
126
DQ38
134
DQ39
136
DQ40
141
DQ41
143
DQ42
151
DQ43
153
DQ44
140
DQ45
142
DQ46
152
DQ47
154
DQ48
157
DQ49
159
DQ50
173
DQ51
175
DQ52
158
DQ53
160
DQ54
174
DQ55
176
DQ56
179
DQ57
181
DQ58
189
DQ59
191
DQ60
180
DQ61
182
DQ62
192
DQ63
194
DQS0#
11
DQS1#
29
DQS2#
49
DQS3#
68
DQS4#
129
DQS5#
146
DQS6#
167
DQS7#
186
DQS0
13
DQS1
31
DQS2
51
DQS3
70
DQS4
131
DQS5
148
DQS6
169
DQS7
188
ODT0
114
ODT1
119
VREF
1
VSS
2
GND
202
RAS# 108
WE# 109
CAS# 113
CS0# 110
CS1# 115
CKE0 79
CKE1 80
CK0 30
CK0# 32
CK1 164
CK1# 166
DM0 10
DM1 26
DM2 52
DM3 67
DM4 130
DM5 147
DM6 170
DM7 185
SDA 195
SCL 197
VDDSPD 199
SA0 198
SA1 200
NC#50 50
NC#69 69
NC#83 83
NC#120 120
NC#163/TEST 163
VDD 81
VDD 82
VDD 87
VDD 88
VDD 95
VDD 96
VDD 103
VDD 104
VDD 111
VDD 112
VDD 117
VDD 118
VSS 3
VSS 8
VSS 9
VSS 12
VSS 15
VSS 18
VSS 21
VSS 24
VSS 27
VSS 28
VSS 33
VSS 34
VSS 39
VSS 40
VSS 41
VSS 42
VSS 47
VSS 48
VSS 53
VSS 54
VSS 59
VSS 60
VSS 65
VSS 66
VSS 71
VSS 72
VSS 77
VSS 78
VSS 121
VSS 122
VSS 127
VSS 128
VSS 132
VSS 133
VSS 138
VSS 139
VSS 144
VSS 145
VSS 149
VSS 150
VSS 155
VSS 156
VSS 161
VSS 162
VSS 165
VSS 168
VSS 171
VSS 172
VSS 177
VSS 178
VSS 183
VSS 184
VSS 187
VSS 190
VSS 193
VSS 196
GND 201
NP1
NP1 NP2 NP2
DM1
DDR2-200P-26-GP-U
DM1
DDR2-200P-26-GP-U
1 2
R922
Do Not Stuff
DY
R922
Do Not Stuff
DY
SET
1
GND
2
OUT#
3HYST 4
VCC 5
U140
Do Not Stuff
DY
U140
Do Not Stuff
DY
12
R924
Do Not Stuff
DY
R924
Do Not Stuff
DY
12
C462
Do Not Stuff
DY
C462
Do Not Stuff
DY
12
C329
SCD1U16V2ZY-2GP
C329
SCD1U16V2ZY-2GP
1
2 3
4
RN33
SRN10KJ-5-GP
RN33
SRN10KJ-5-GP
12
C128
Do Not Stuff
DY
C128
Do Not Stuff
DY
12
C464
SCD1U16V2ZY-2GP
C464
SCD1U16V2ZY-2GP
12
C127
SCD1U16V2ZY-2GP
C127
SCD1U16V2ZY-2GP
1 2
R923
Do Not Stuff
DY
R923
Do Not Stuff
DY
12
R31410KR2J-3-GP R31410KR2J-3-GP
12
C917
Do Not Stuff
DY
C917
Do Not Stuff
DY
12
C339
SCD1U16V2ZY-2GP
C339
SCD1U16V2ZY-2GP
12
R777
Do Not Stuff
DY
R777
Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
M_A_A[14..0]
M_B_A[14..0]
M_B_A4
M_B_A14
M_B_A10
M_B_A1
M_A_A3
M_A_A5
M_B_A0
M_B_A3
M_B_A6
M_A_A9
M_B_A7
M_A_A0
M_B_A8
M_B_A11
M_B_A12
M_B_A13
M_A_A13
M_A_A11
M_A_A4
M_B_A5
M_A_A14
M_A_A10
M_A_A7
M_A_A8
M_A_A1
M_B_A2
M_A_A2
M_A_A12
M_B_A9
M_A_A6
+1.8V
+1.8V
+0.9V
+0.9V
M_A_A[14..0] [10,14]
M_B_A[14..0] [10,14]
M_B_RAS# [10,14]
M_B_BS#0 [10,14]
M_B_WE# [10,14]
M_A_RAS# [10,14]
M_ODT3 [9,14]
M_CKE2 [9,14]
M_CS0# [9,14]
M_A_BS#2 [10,14]
M_B_BS#1 [10,14]
M_B_CAS# [10,14]
M_A_BS#1 [10,14]
M_A_WE# [10,14]
M_A_CAS# [10,14]
M_A_BS#0 [10,14]
M_B_BS#2 [10,14]
M_CS3# [9,14]
M_CS2# [9,14]
M_ODT0 [9,14]
M_ODT2 [9,14]
M_CKE1 [9,14]
M_CKE0 [9,14]
M_CKE3 [9,14]
M_CS1# [9,14]
M_ODT1 [9,14]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ARTEMIS
3

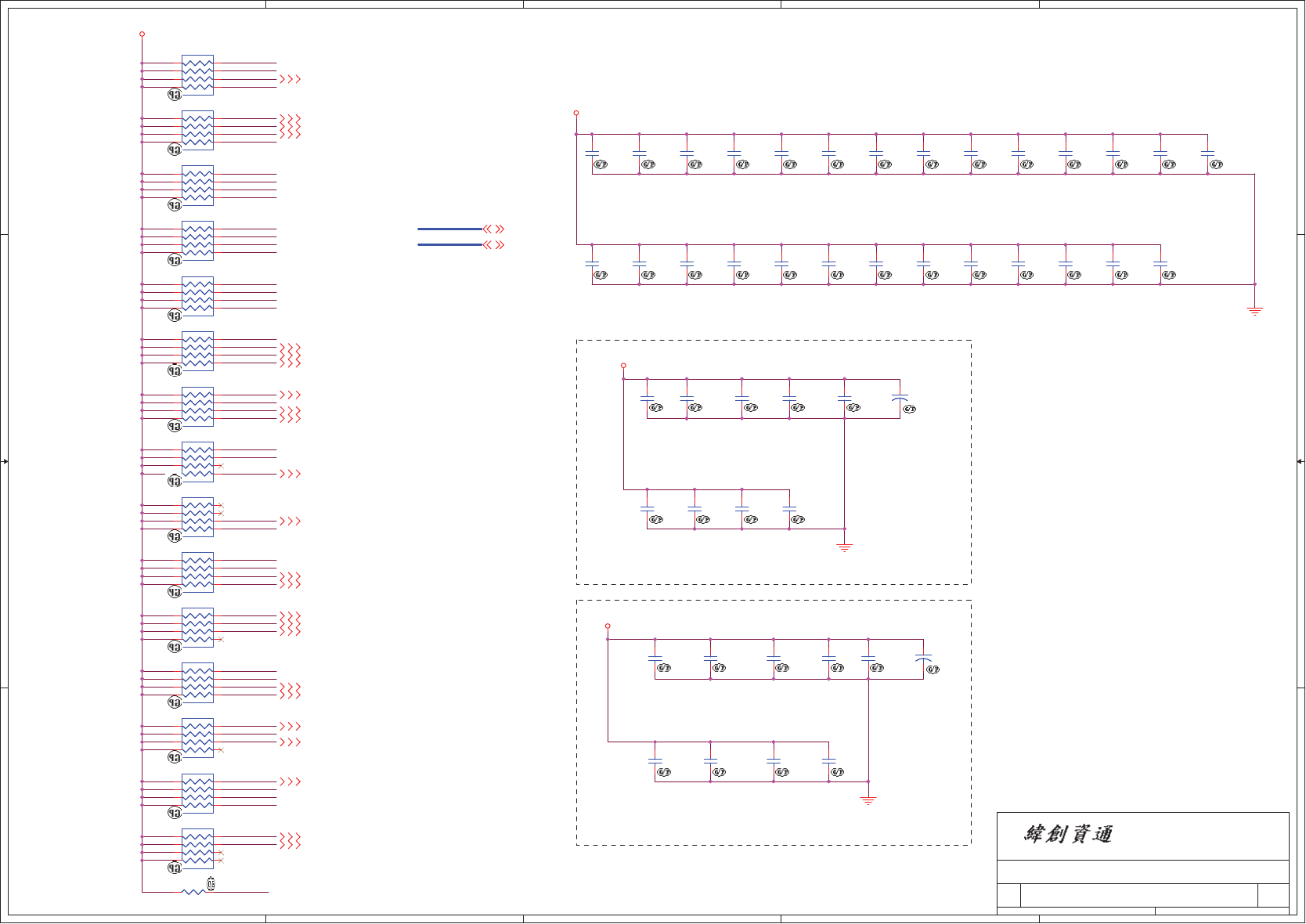

DDR2 Termination Resistor
15 53Wednesday, August 20, 2008
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ARTEMIS
3
DDR2 Termination Resistor
15 53Wednesday, August 20, 2008
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ARTEMIS
3
DDR2 Termination Resistor
15 53Wednesday, August 20, 2008
Decoupling Capacitor
Place these Caps near DM1
Put decap near power(0.9V) and pull-up resistor
Place these Caps near DM2
Put decap near power(0.9V)
and pull-up resistor
PARALLEL TERMINATION
12
C927
SCD1U16V2ZY-2GP
C927
SCD1U16V2ZY-2GP
1 2
R927
56R2J-4-GP
R927
56R2J-4-GP
12
C932
SCD1U16V2ZY-2GP
C932
SCD1U16V2ZY-2GP
12
C924
SCD1U16V2ZY-2GP
C924
SCD1U16V2ZY-2GP
1
2
3
45
6
7
8
RN69
SRN56J-5-GP
RN69
SRN56J-5-GP
1
2
3
45
6
7
8
RN70
SRN56J-5-GP
RN70
SRN56J-5-GP
1
2
3
45
6
7
8
RN60
SRN56J-5-GP
RN60
SRN56J-5-GP
12
C951
SC2D2U6D3V3MX-1-GP
C951
SC2D2U6D3V3MX-1-GP
12
C954
Do Not Stuff
DY
C954
Do Not Stuff
DY
12
C965
Do Not Stuff
DY
C965
Do Not Stuff
DY
12
C944
Do Not Stuff
DY
C944
Do Not Stuff
DY
12
C958
SC2D2U6D3V3MX-1-GP
C958
SC2D2U6D3V3MX-1-GP
12
C937
SCD1U16V2ZY-2GP
C937
SCD1U16V2ZY-2GP
1
2
3
45
6
7
8
RN66
SRN56J-5-GP
RN66
SRN56J-5-GP
12
C935
SCD1U16V2ZY-2GP
C935
SCD1U16V2ZY-2GP
12
C957
SCD1U16V2ZY-2GP
C957
SCD1U16V2ZY-2GP
12
C922
Do Not Stuff
DY
C922
Do Not Stuff
DY
1
2
3
45
6
7
8
RN74
SRN56J-5-GP
RN74
SRN56J-5-GP
12
C956
Do Not Stuff
DY
C956
Do Not Stuff
DY
12
C941
SCD1U16V2ZY-2GP
C941
SCD1U16V2ZY-2GP
1
2
3
45
6
7
8
RN62
SRN56J-5-GP
RN62
SRN56J-5-GP
12
C934
SCD1U16V2ZY-2GP
C934
SCD1U16V2ZY-2GP
12
C940
SCD1U16V2ZY-2GP
C940
SCD1U16V2ZY-2GP
12
C964
Do Not Stuff
DY
C964
Do Not Stuff
DY
1
2
3
45
6
7
8
RN65
SRN56J-5-GP
RN65
SRN56J-5-GP
12
C942
SCD1U16V2ZY-2GP
C942
SCD1U16V2ZY-2GP
12
C959
SC2D2U6D3V3MX-1-GP
C959
SC2D2U6D3V3MX-1-GP
12
C952
SC2D2U6D3V3MX-1-GP
C952
SC2D2U6D3V3MX-1-GP
12
C950
SC2D2U6D3V3MX-1-GP
C950
SC2D2U6D3V3MX-1-GP
12
C936
SCD1U16V2ZY-2GP
C936
SCD1U16V2ZY-2GP
12
C946
SCD1U16V2ZY-2GP
C946
SCD1U16V2ZY-2GP
12
C939
SCD1U16V2ZY-2GP
C939
SCD1U16V2ZY-2GP
12
C963
Do Not Stuff
DY
C963
Do Not Stuff
DY
1
2
3
45
6
7
8
RN72
SRN56J-5-GP
RN72
SRN56J-5-GP
1
2
3
45
6
7
8
RN64
SRN56J-5-GP
RN64
SRN56J-5-GP
12
C928
SCD1U16V2ZY-2GP
C928
SCD1U16V2ZY-2GP
12
C949
SC2D2U6D3V3MX-1-GP
C949
SC2D2U6D3V3MX-1-GP
12
C953
SC2D2U6D3V3MX-1-GP
C953
SC2D2U6D3V3MX-1-GP
12
C945
SCD1U16V2ZY-2GP
C945
SCD1U16V2ZY-2GP
12
C923
Do Not Stuff
DY
C923
Do Not Stuff
DY
12
C961
SC2D2U6D3V3MX-1-GP
C961
SC2D2U6D3V3MX-1-GP
12
C938
Do Not Stuff
DY
C938
Do Not Stuff
DY
12
C962
SC2D2U6D3V3MX-1-GP
C962
SC2D2U6D3V3MX-1-GP
12
C931
SCD1U16V2ZY-2GP
C931
SCD1U16V2ZY-2GP
12
C955
Do Not Stuff
DY
C955
Do Not Stuff
DY
12
C947
SCD1U16V2ZY-2GP
C947
SCD1U16V2ZY-2GP
1
2
3
45
6
7
8
RN68
SRN56J-5-GP
RN68
SRN56J-5-GP
1
2
3
45
6
7
8
RN67
SRN56J-5-GP
RN67
SRN56J-5-GP
1
2
3
45
6
7
8
RN71
SRN56J-5-GP
RN71
SRN56J-5-GP
12
TC19
ST330U2D5VDM-13GP
TC19
ST330U2D5VDM-13GP
12
C948
SCD1U16V2ZY-2GP
C948
SCD1U16V2ZY-2GP
12
C929
SCD1U16V2ZY-2GP
C929
SCD1U16V2ZY-2GP
12
C925
SCD1U16V2ZY-2GP
C925
SCD1U16V2ZY-2GP
12
C930
Do Not Stuff
DY
C930
Do Not Stuff
DY
12
C926
SCD1U16V2ZY-2GP
C926
SCD1U16V2ZY-2GP
12
TC24
ST330U2D5VDM-13GP
TC24
ST330U2D5VDM-13GP
12
C933
SCD1U16V2ZY-2GP
C933
SCD1U16V2ZY-2GP
1
2
3
45
6
7
8
RN73
SRN56J-5-GP
RN73
SRN56J-5-GP
12
C966
Do Not Stuff
DY
C966
Do Not Stuff
DY
12
C943
Do Not Stuff
DY
C943
Do Not Stuff
DY
1
2
3
45
6
7
8
RN61
SRN56J-5-GP
RN61
SRN56J-5-GP
1
2
3
45
6
7
8
RN63
SRN56J-5-GP
RN63
SRN56J-5-GP
12
C960
SC2D2U6D3V3MX-1-GP
C960
SC2D2U6D3V3MX-1-GP

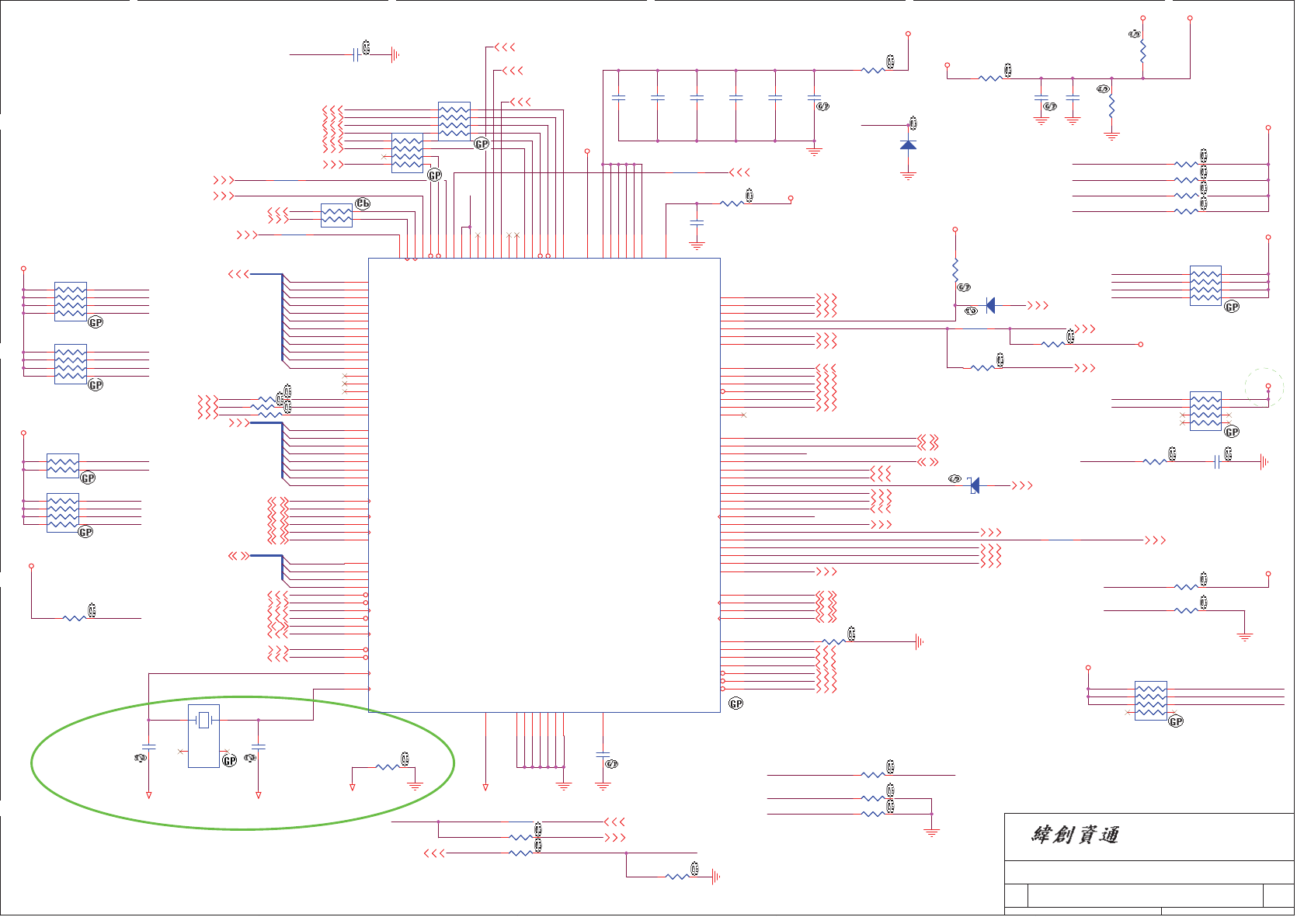

http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLK_DEBUG_PORT
PCLK_ICH
3D3V_CLKGEN_S0
CLKREQ#_6
3D3V_CLKPLL_S0
CLKREQ#_10
3D3V_48MPWR_S0 3D3V_CLKGEN_S0
3D3V_CLKPLL_S0
GEN_XTAL_OUT
GEN_XTAL_IN
PCLKCLK3
PCLKCLK5
3D3V_48MPWR_S0
PCLKCLK4
STP_PCI#
PCLKCLK2
PCLKCLK5
PCLKCLK4
PCLKCLK3
CLKREQ#_9
CLK_CPU_BCLK_1#
CLK_CPU_BCLK_1
FSC
FSA
STP_CPU#
CPU_BSEL1_R
FSC
FSB
CPU_BSEL2_R
CPU_BSEL0_R
GEN_XTAL_OUT
GEN_XTAL_IN
CLK48_ICH
CLKREQ#_7
CLK_MCH_BCLK_1
CLK_MCH_BCLK_1#
FSB
CLK_SATA_OE#_R
CLKREQ#_7
NEWCARDCLKREQ
CLKREQ#_6
CLKREQ#_11
PCLKCLK2
PCLKCLK3
CLK_PCI_TCG
CLK_PCI_EC
CLK_PCI_RIC
CLK_PCI_LPC
CLKREQ#_11
CLKREQ#_9
CLKREQ#_10
NEWCARDCLKREQ
CLK_CPU_XDP_R
CLK_CPU_XDP#_R
CLK_CPU_BCLKCLK_CPU_BCLK#
+3VS
+VCCP+VCCP+VCCP
+3VS
+1.05VM
+3VM
+3VM +3VM
+3VS
+1.05VM
MCH_CLK_REQ#7 [9]
CLKREQ#_10 [31]
CLK_PCI_TCG[33]
CLK_PCI_EC[34]
PM_STPPCI# [22]
PM_STPCPU# [22]
CLK_DEBUG_PORT[33]
CLK_CPU_BCLK [5]
CLK_CPU_BCLK# [5]
CPU_BSEL1[6]
CPU_BSEL2[6]
CPU_BSEL0[6]
MCH_CLKSEL1 [5,9]
MCH_CLKSEL0 [5,9]
MCH_CLKSEL2 [5,9]
CLK_ICH14 [22]
CLKREQ#_6 [36]
CK_PWRGD [22]
CLK48_ICH [22]
CLK_UWB_SCR9_D[45]
CLK_PCIE_MINI2#[31] CLK_PCIE_MINI2[31]
CLK_PCIE_SATA#[21] CLK_PCIE_SATA[21]
CLK_PCIE_DOCK[36]
CLK_PCIE_NEW#[25] CLK_PCIE_NEW[25]
CLK_PCIE_DOCK#[36]
CLK_MCH_3GPLL#[9] CLK_MCH_3GPLL[9]
CLK_UWB_SCR9#_D[45]
CLK_PCIE_ICH[22]
CLK_PCIE_MINI1#[31] CLK_PCIE_MINI1[31]
CLK_PCIE_ICH#[22]
CLK 14M SIO [44]
CLK_MCH_BCLK# [8]
CLK_MCH_BCLK [8]
CLKREQ#_11 [31]
ICH_SMBCLK [14,24]
ICH_SMBDATA [14,24]
CLK_14M_KBC [34]
NEWCARD_CLKREQ# [25]
CLK_SATA_OE# [22]
PCLK_ICH[20]
CLK_PCIE_PEG[17] CLK_PCIE_PEG#[17]
CLK_PCI_RIC[40]
CLK_PCI_LPC[44]
CLK_CPU_XDP#[5] CLK_CPU_XDP[5]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.

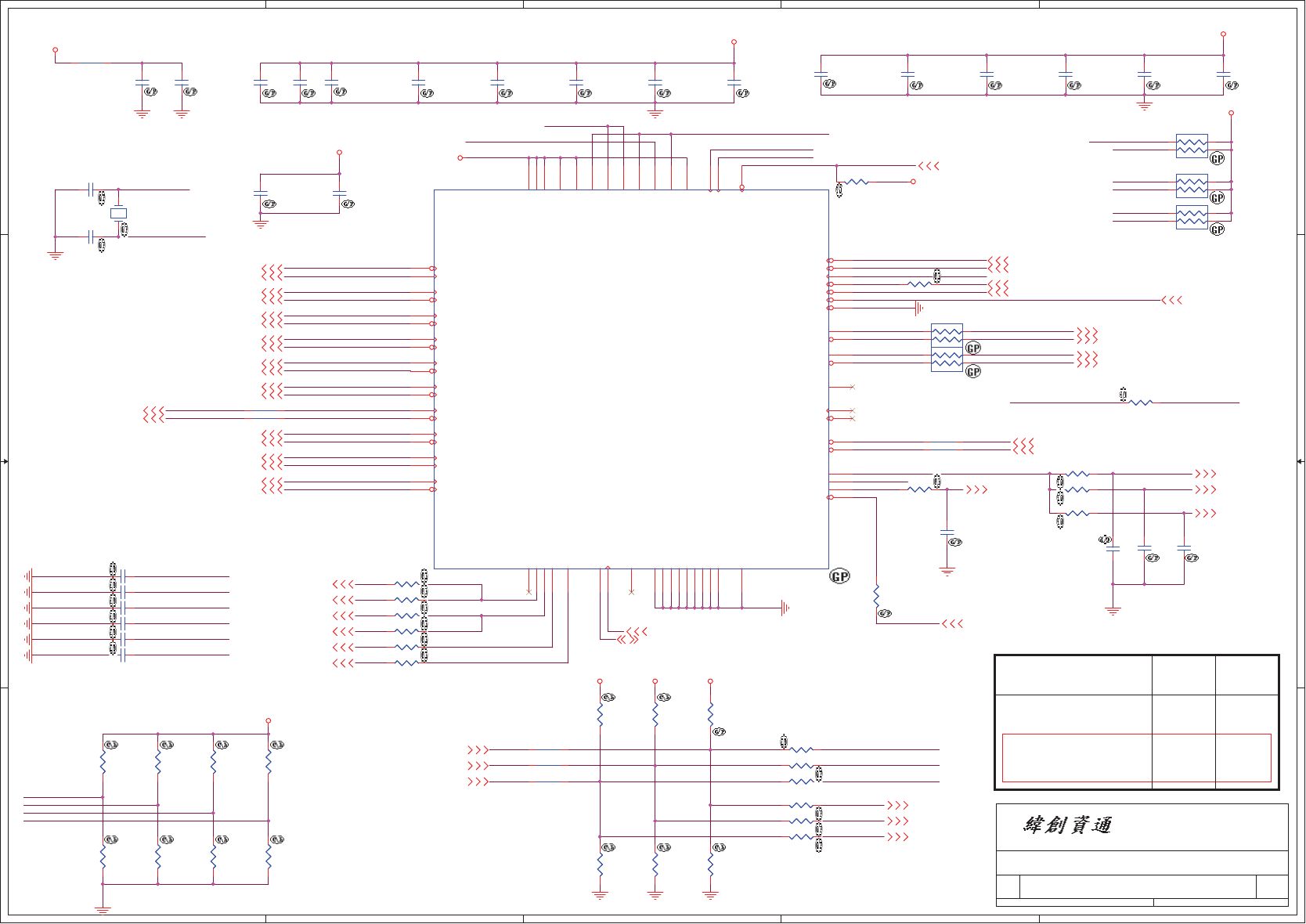

Clock Generator
16 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Clock Generator
16 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Clock Generator
16 53Wednesday, August 20, 2008
Artemis
3
VOX
CLK GEN
266M
FSA
1067M
Reference 14.318 CLK
CL=20pF±0.2pF
Folow Intel CK505
0
PCI1/REQ_B#USE for Discrete
0
166M
100M
133M
SEL0
FSA
SEL1
FSB
X
10
800M200M
667M
X
1
0
FSB
SEL2
FSC CPU
10
0
1
0
10
1
0
07/23 correct connection
SI1-RF
SI2R
1 2
R689
1KR2J-1-GP
R689
1KR2J-1-GP
12
R657
Do Not Stuff
DY
R657
Do Not Stuff
DY
12
C798 Do Not Stuff
DY
C798 Do Not Stuff
DY
1
2 3
4
RN35 SRN10KJ-5-GPRN35 SRN10KJ-5-GP
1 2
R652 33R2J-2-GPR652 33R2J-2-GP
1 2
R673
10KR2J-3-GP
R673
10KR2J-3-GP
12
R685 10R2J-2-GPR685 10R2J-2-GP
12
C371
SC1U10V3ZY-6GP
C371
SC1U10V3ZY-6GP
1 2
R713 Do Not StuffR713 Do Not Stuff
1
2 3
4
RN42 SRN10KJ-5-GPRN42 SRN10KJ-5-GP
12
C325
SCD1U16V2ZY-2GP
C325
SCD1U16V2ZY-2GP
12
C373
SCD1U16V2ZY-2GP
C373
SCD1U16V2ZY-2GP
12
C1034
Do Not Stuff
DY
C1034
Do Not Stuff
DY
12
C736 Do Not Stuff
DY
C736 Do Not Stuff
DY
1 2
R680
Do Not Stuff
DY
R680
Do Not Stuff
DY
12
C773
SC4D7P50V2CN-1GP
C773
SC4D7P50V2CN-1GP
1 2
R682 22R2J-2-GPR682 22R2J-2-GP
12
C1035
Do Not Stuff
DY
C1035
Do Not Stuff
DY
12
C317
SC4D7U10V5ZY-3GP
C317
SC4D7U10V5ZY-3GP
12
C346
SCD1U16V2ZY-2GP
C346
SCD1U16V2ZY-2GP
1
2 3
4
RN6
SRN0J-6-GP
RN6
SRN0J-6-GP
1 2
R651 1KR2J-1-GPR651 1KR2J-1-GP
1 2
R720 Do Not StuffR720 Do Not Stuff
12
R684 10R2J-2-GPR684 10R2J-2-GP
12
X6
X-14D31818M-44GP
X6
X-14D31818M-44GP
12
R683 10R2J-2-GPR683 10R2J-2-GP
1 2
R703 10KR2J-3-GPR703 10KR2J-3-GP
12
C338
Do Not Stuff
DY
C338
Do Not Stuff
DY
1 2
R292 Do Not StuffR292 Do Not Stuff
1
2 3
4
RN38 SRN10KJ-5-GPRN38 SRN10KJ-5-GP
1 2
R634
Do Not Stuff
DY
R634
Do Not Stuff
DY
12
C359
SCD1U16V2ZY-2GP
C359
SCD1U16V2ZY-2GP
1 2
R705 22R2J-2-GPR705 22R2J-2-GP
1 2
R610 Do Not StuffR610 Do Not Stuff
1 2
R678
Do Not Stuff
DY
R678
Do Not Stuff
DY
12
R663 2K2R2J-2-GPR663 2K2R2J-2-GP
1 2
R688 0R2J-2-GPR688 0R2J-2-GP
1 2
R725
1KR2J-1-GP
R725
1KR2J-1-GP
1 2
R681 2D2R2J-GPR681 2D2R2J-GP
1 2
R624 33R2J-2-GPR624 33R2J-2-GP
12
C324
Do Not Stuff
DY
C324
Do Not Stuff
DY
12
C757 Do Not Stuff
DY
C757 Do Not Stuff
DY
CKPWRGD/PD# 1
FS_B/TEST_MODE 2
VSS_REF
3
XTAL_OUT 4
XTAL_IN 5
VDD_REF 6
REF_0/FS_C/TEST_SEL 7
REF_1 8
SDA
9
SCL
10
NC#11
11
VDD_PCI 12
PCI_1
13
PCI_2
14
PCI_3
15
PCI_4/SEL_LCDCL
16
PCIF_5/ITP_EN
17
VSS_PCI
18 VDD_48 19
USB_0/FS_A 20
USB_1/CLKREQ_A# 21
VSS_48
22
VDD_IO 23
SRC_0/DOT_96
24 SRC_0#/DOT_96#
25
VSS_IO
26
VDD_PLL3 27
LCDCLK/27M 28
LCDCLK#/27M_SS 29
VSS_PLL3
30
VDD_PLL3_IO 31
SRC_2
32
SRC_2#
33
VSS_SRC
34
SRC_3
35
SRC_3#
36
CLKREQ_3# 37
VDD_SRC_IO 38
SRC_4
39
SRC_4#
40
CLKREQ_4# 41
VSS_SRC
42
CLKREQ_9# 43
SRC_9
44
SRC_9#
45
CLKREQ_11# 46
SRC_11#
47 SRC_11
48
CLKREQ_10# 49
SRC_10
50
SRC_10#
51
VDD_SRC_IO 52
CPU_STOP# 53
PCI_STOP# 54
VDD_SRC 55
SRC_6#
56 SRC_6
57
CLKREQ_6# 58
VSS_SRC
59
SRC_7#
60 SRC_7
61
VDD_SRC_IO 62
SRC_8#/CPU_ITP#
63 SRC_8/CPU_ITP
64
CLKREQ_7# 65
VDD_CPU_IO 66
CPU_1# 67
CPU_1 68
VSS_CPU
69
CPU_0# 70
CPU_0 71
VDD_CPU 72
GND
73
U68
SLG8SP553VTR-GP
U68
SLG8SP553VTR-GP
1 2
R637
10KR2J-3-GP
R637
10KR2J-3-GP
1 2
R658
Do Not Stuff
DY
R658
Do Not Stuff
DY
1 2
C379
SC33P50V2JN-3GP
C379
SC33P50V2JN-3GP
1 2
R641
475R2F-L1-GP
R641
475R2F-L1-GP
1 2
R677
10KR2J-3-GP
R677
10KR2J-3-GP
12
C318
Do Not Stuff
DY
C318
Do Not Stuff
DY
12
EC4
Do Not Stuff
DY
EC4
Do Not Stuff
DY
12
C768
SC4D7P50V2CN-1GP
C768
SC4D7P50V2CN-1GP
1 2
R697 22R2J-2-GPR697 22R2J-2-GP
12
C789 Do Not Stuff
DY
C789 Do Not Stuff
DY
1 2
R679 Do Not StuffR679 Do Not Stuff
1 2
C769
SC4D7P50V2CN-1GP
C769
SC4D7P50V2CN-1GP
12
C375
SCD1U16V2ZY-2GP
C375
SCD1U16V2ZY-2GP
1 2
R909 Do Not StuffR909 Do Not Stuff
1
2 3
4
RN5
SRN0J-6-GP
RN5
SRN0J-6-GP
1 2
R690
10KR2J-3-GP
R690
10KR2J-3-GP
12
R660
475R2F-L1-GP
R660
475R2F-L1-GP
12
C366
Do Not Stuff
DY
C366
Do Not Stuff
DY
12
C799 Do Not Stuff
DY
C799 Do Not Stuff
DY
1 2
R908 Do Not StuffR908 Do Not Stuff
12
C326
SC4D7U10V5ZY-3GP
C326
SC4D7U10V5ZY-3GP
1 2
R708
Do Not Stuff
DY
R708
Do Not Stuff
DY
1 2
R698 1KR2J-1-GPR698 1KR2J-1-GP
12
C355
SC4D7P50V2CN-1GP
C355
SC4D7P50V2CN-1GP
1 2
R724
Do Not Stuff
DY
R724
Do Not Stuff
DY
1 2
C380
SC33P50V2JN-3GP
C380
SC33P50V2JN-3GP
1 2
R716 1KR2J-1-GPR716 1KR2J-1-GP
1 2
R286 30R2J-1-GPR286 30R2J-1-GP
12
R950
100R2J-2-GP
R950
100R2J-2-GP
12
C328
Do Not Stuff
DY
C328
Do Not Stuff
DY
12
C382
Do Not Stuff
DY
C382
Do Not Stuff
DY
12
R687
Do Not Stuff
DY
R687
Do Not Stuff
DY
12
C795 Do Not Stuff
DY
C795 Do Not Stuff
DY
1 2
R672
1KR2J-1-GP
R672
1KR2J-1-GP
12
C342
Do Not Stuff
DY
C342
Do Not Stuff
DY
1 2
R609 Do Not StuffR609 Do Not Stuff
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PLT_RST1#_MXM
PEG_RXN15
PEG_RXP15
PEG_RXN14
PEG_RXP14
PEG_RXP11
PEG_RXP12
PEG_RXP10
PEG_RXN12
PEG_RXN13
PEG_RXP8
PEG_RXP9
PEG_RXN10
PEG_RXN8
PEG_RXN11
PEG_RXP13
PEG_RXN4
PEG_RXP4
PEG_RXN9
PEG_RXN7
PEG_RXP7
PEG_RXP6
PEG_RXP5
PEG_RXN6
PEG_RXN2
PEG_RXN5
PEG_RXN0
PEG_RXP3
PEG_RXN3
PEG_RXP2
PEG_RXP0
PEG_RXP1
PEG_RXN1
SMBD_MXM
SMBC_MXM
MXM_RED
MXM_BLUE
MXM_GREEN
MXM_RED M_RED_M
M_BLUE_M
MXM_GREEN
MXM_BLUE
M_GREEN_M
THER_MXM
RUNPWROK
NV_SPDIF
PEG_TXN14
PEG_TXN0
PEG_TXP0
PEG_TXN4
PEG_TXP4
PEG_TXP3
PEG_TXN3
PEG_TXN2
PEG_TXP2
PEG_TXN1
PEG_TXP1
PEG_TXP7
PEG_TXP8
PEG_TXP6
PEG_TXN6
PEG_TXP5
PEG_TXN7
PEG_TXN5
PEG_TXN8
PEG_TXN10
PEG_TXP10
PEG_TXN11
PEG_TXN12
PEG_TXP11
PEG_TXP12
PEG_TXP9
PEG_TXN9
PEG_TXP15
PEG_TXP13
PEG_TXN13
PEG_TXP14
PEG_TXN15
MXM_GREEN
MXM_RED
MXM_BLUE
NV_SPDIF
THER_MXM MXM_THRMTRIP#
RUNPWROK
RUNPWROK_R
MXM_PWROK
B+
+3VS
+2.5VS
+5VS
+3VS
+NV1V8
+3VS
+3VS
MXM_HSYNC[18] MXM_VSYNC[18]
PLT_RST#[9,20,25,31,33,44,45]
CLK_PCIE_PEG#[16] CLK_PCIE_PEG[16]
DVI_HPD [36]
MXM_DDCCLK[18] MXM_DDCDAT[18]
RED [36]
GREEN [36]
BLUE [36]
DVI_CLK- [36]
DVI_CLK+ [36]
DVI_TX0- [36]
DVI_TX0+ [36]
DVI_TX1- [36]
DVI_TX1+ [36]
DVI_TX2+ [36]
DVI_TX2- [36]
MXM_DVI_TX3- [19]
MXM_DVI_TX3+ [19]
MXM_DVI_TX4- [19]
MXM_DVI_TX4+ [19]
MXM_DVI_TX5+ [19]
MXM_DVI_TX5- [19]
MXM_DVI_CLK2- [19]
MXM_DVI_CLK2+ [19]
ICH_SM_CLK[22,31,43]
ICH_SM_DA[22,31,43]
DVI_DDC_CLK [19]
LCD_LCDVDD_ON [18]
LCD_BKLT_EN [18]
TXCLKA_L+ [18]
TXOUTA_L2- [18]
TXOUTA_L2+ [18]
TXOUTA_L1- [18]
TXOUTA_L1+ [18]
TXOUTA_L0- [18]
TXOUTA_L0+ [18]
LCD_EDID_DAT [18,19]
LCD_EDID_CLK [18,19]
PEG_TXP[15..0][9]
PEG_TXN[15..0][9]
PEG_RXP[15..0][9]
PEG_RXN[15..0][9]
LCD_BKLT_CTL [18]
TXOUTB_L0-[18] TXOUTB_L1+[18] TXOUTB_L1-[18] TXOUTB_L2+[18] TXOUTB_L2-[18]
TXOUTB_L0+[18]
TXCLKB_L-[18] TXCLKB_L+[18]
TXCLKA_L- [18]
DVI_DDC_DAT [19]
SPDIF_OUT[26]
HDMI_HPD_MXM [19]
MXM_THRMTRIP# [43]
PM_PWROK[9,18,22,34,37]
SLP_S3#
2
2,25,28,29,34,36,37,46,50,51,52]
PWR_GD[34,37,47,50]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.

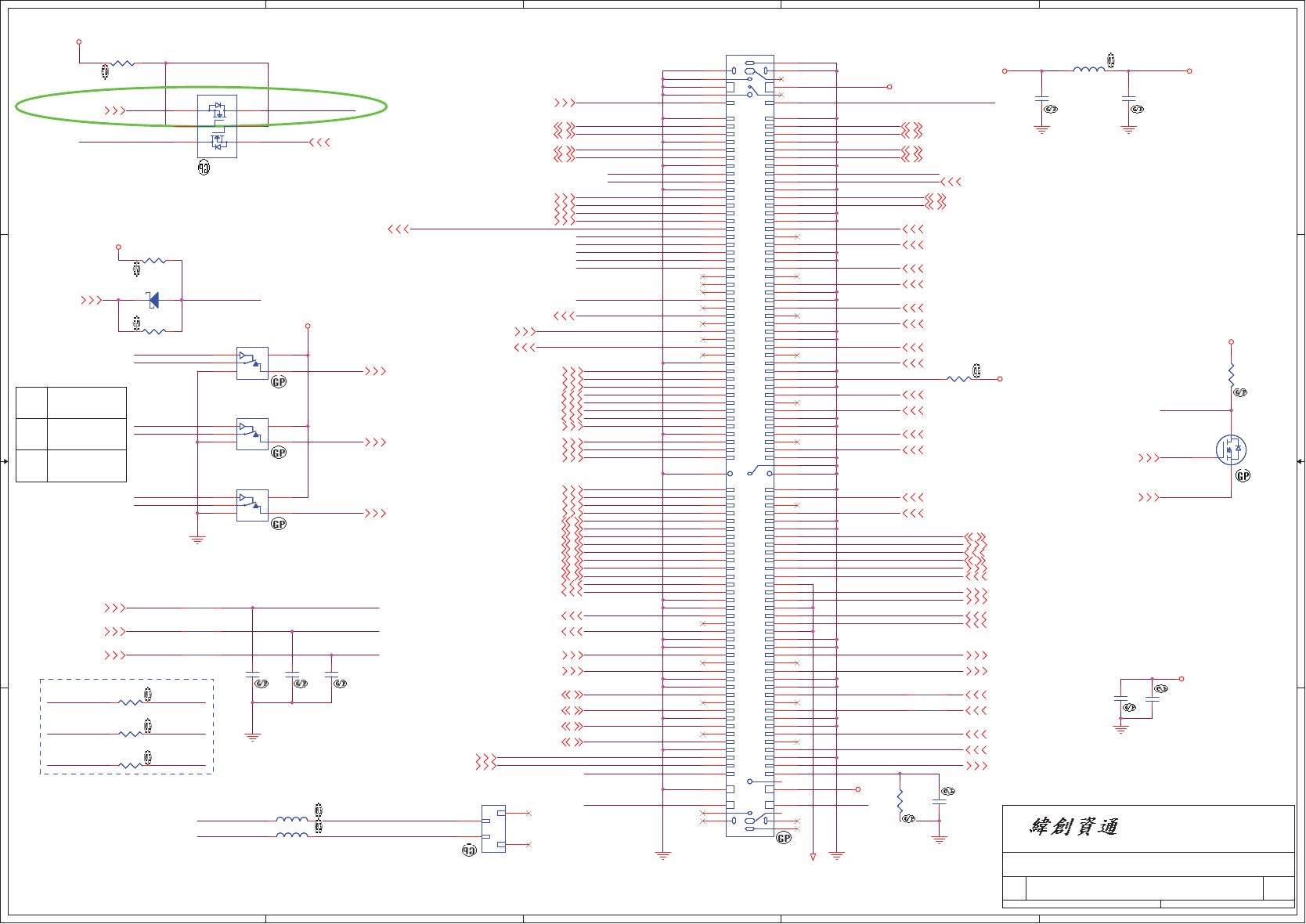

MXMII SOCKET
17 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
MXMII SOCKET
17 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
MXMII SOCKET
17 53Wednesday, August 20, 2008
Artemis
3
VOX
SB
MXM SMBus
A(pin143&145) : VGA(CRT) / DOCK
B(pin218&220) : DVI / HDMI
C(pin208&210) : LVDS
CRT Termination/EMI Filter
Place Close MXM Connector
MXM II SOCKET
07/23
07/23
DB3
SI1
DB3
DB3
SI2
PV1-RF
PV1-RF
12
C54
Do Not Stuff
DY
C54
Do Not Stuff
DY
1 2
L29 IND-39NH-3-GPL29 IND-39NH-3-GP
12
R92 Do Not StuffR92 Do Not Stuff
1 2
L32
IND-39NH-3-GP
L32
IND-39NH-3-GP
12
R911
10KR2J-3-GP
R911
10KR2J-3-GP
12
C35
SC47P50V2JN-3GP
C35
SC47P50V2JN-3GP
1 2
L28 IND-39NH-3-GPL28 IND-39NH-3-GP
1 2
R931 Do Not StuffR931 Do Not Stuff
12
C99
SC47P50V2JN-3GP
C99
SC47P50V2JN-3GP
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
202
204
206
208
210
212
214
216
218
220
222
224
226
228
230
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
97
99
101
103
105
107
109
111
113
115
117
119
121
123
125
127
129
131
133
135
137
139
141
143
145
147
149
151
153
155
157
159
161
163
165
167
169
171
173
175
177
179
181
183
185
187
189
191
193
195
197
199
201
203
205
207
209
211
213
215
217
219
221
223
225
227
229
232
NP2
NP1
231
MXM1
FOX-CONN230A-GP-U
MXM1
FOX-CONN230A-GP-U
12
R59
Do Not Stuff
R59
Do Not Stuff
G
S D
Q72
2N7002-11-GP
Q72
2N7002-11-GP
12
C112
SC47P50V2JN-3GP
C112
SC47P50V2JN-3GP
12
R442
10KR2J-3-GP
R442
10KR2J-3-GP
12
R93 Do Not StuffR93 Do Not Stuff
1 2
L31
IND-39NH-3-GP
L31
IND-39NH-3-GP
12
C471
SC10P50V2JN-4GP
C471
SC10P50V2JN-4GP
1 2
R929 Do Not Stuff
DY
R929 Do Not Stuff
DY
12
R910
100KR2J-1-GP
R910
100KR2J-1-GP
12
C458
SC10P50V2JN-4GP
C458
SC10P50V2JN-4GP
12
C111
SC47P50V2JN-3GP
C111
SC47P50V2JN-3GP
12
C460
SC10P50V2JN-4GP
C460
SC10P50V2JN-4GP
1 2
R387
Do Not Stuff
DY
R387
Do Not Stuff
DY
12
C533
Do Not Stuff
DY
C533
Do Not Stuff
DY
1 2
L27
IND-39NH-3-GP
L27
IND-39NH-3-GP
1
2
34
5
6
U138
2N7002DW-1-GP
U138
2N7002DW-1-GP
12
R945 100KR2J-1-GPR945 100KR2J-1-GP
1 2
R930 Do Not Stuff
DY
R930 Do Not Stuff
DY
1 2
R388
Do Not Stuff
DY
R388
Do Not Stuff
DY
1 2
R408
Do Not Stuff
DY
R408
Do Not Stuff
DY
12
C33
Do Not Stuff
C33
Do Not Stuff
1 2
L30 IND-39NH-3-GPL30 IND-39NH-3-GP
12
R94 Do Not StuffR94 Do Not Stuff
12
C532
SCD1U25V3ZY-1GP
C532
SCD1U25V3ZY-1GP

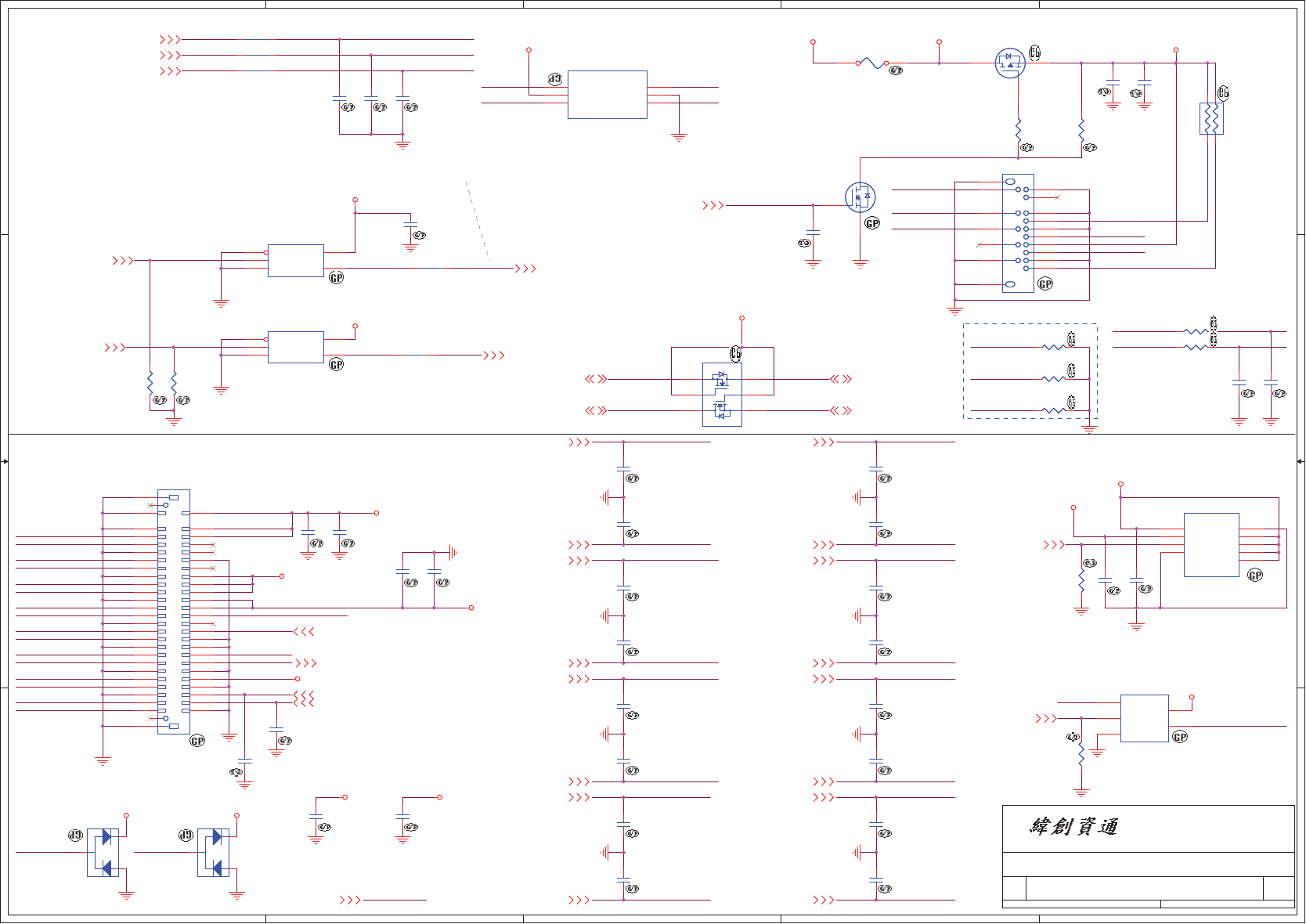

http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
RED_R
GREEN_R
BLUE_R
LCD_BKLT_EN
RED_R
HSYNC
GREEN_R
BLUE_R
D_DDCDATA
GREEN_R
D_VSYNC_R
BLUE_R
RED_R
D_HSYNC_R
D_DDCCLK
LID_SW#
TXOUTA_L0+_L
TXCLKA_L-_L
TXOUTA_L1-_L
TXOUTA_L0-_L
TXOUTA_L2+_L
TXOUTA_L2-_L
TXOUTA_L1+_L
TXCLKA_L+_L TXCLKB_L+_L
TXCLKB_L-_L
TXOUTB_L0-_L
TXOUTB_L0+_L
TXOUTB_L1+_L
TXOUTB_L1-_L
TXOUTB_L2-_L
TXOUTB_L2+_L
TXCLKB_L-_L
TXCLKB_L+_L
TXCLKA_L-_L
TXCLKA_L+_L
TXOUTA_L0+_L
TXOUTA_L0-_L
TXOUTB_L0+_L
TXOUTB_L0-_L
TXOUTA_L1+_L
TXOUTA_L1-_L
TXOUTB_L1+_L
TXOUTB_L1-_L
TXOUTB_L2-_L
TXOUTB_L2+_L
TXOUTA_L2+_L
TXOUTA_L2-_L
LCD_BL_EN
ALS_EN
ALS_EN
LCD_BL_EN
LID_SW#
CRTVDD_EN#
VSYNCR_VSYNC
R_HSYNC HSYNC
D_DDCDATA
D_DDCCLK
VSYNC
D_HSYNC_RHSYNC
D_VSYNC_R
BLUE_R
RED_R
GREEN_R
+3VS
+RCRT_VCC
+3VS
+CRTVDD +CRTVDD
+5VS
+LCDVDD
+3VS
B+
+LCDVDD
+3VS
+5VS
+3VS
+5VS
+5VS
+5VS
+3VS
B+
L_RED[36]
L_GREEN[36]
L_BLUE[36]
LCD_LCDVDD_ON[17]
TXCLKA_L+[17]
TXCLKA_L-[17]
TXOUTA_L1-[17]
TXOUTA_L0+[17]
TXOUTA_L2+[17]
TXOUTA_L2-[17]
TXOUTA_L1+[17]
TXOUTA_L0-[17]
TXCLKB_L-[17]
TXCLKB_L+[17]
TXOUTB_L0-[17]
TXOUTB_L0+[17]
TXOUTB_L1+[17]
TXOUTB_L1-[17]
TXOUTB_L2+[17]
TXOUTB_L2-[17]
LCD_EDID_CLK [17,19]
LCD_EDID_DAT [17,19]
LCD_BKLT_CTL [17]
LID_SW# [22,34]
ALS_EN#[22]
PM_PWROK[9,17,22,34,37]
LCD_BKLT_EN[17]
MXM_HSYNC[17]
MXM_VSYNC[17]
MXM_DDCDAT[17] D_DDCDATA [36]
D_DDCCLK[36] MXM_DDCCLK [17]
D_HSYNC [36]
D_VSYNC [36]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
CRT/LCD CONNECTOR
A3
18 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
CRT/LCD CONNECTOR
A3
18 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
CRT/LCD CONNECTOR
A3
18 53Wednesday, August 20, 2008
VOX
Layout Note : HSYNC & VSYNC SHOULD BE ROUTED TO DOCK CRT CONN. ,THEN TO SYSTEM CRT CONN.
CRT & LCD
Layout 40 mil
LCD POWER CIRCUIT
07/03
07/03 NV suggest
07/03 NV
suggest
07/28
DB2
DB2
SI1
SI1 RF
SI1 RF
SI2 RF SI2 RF
SI2 RF SI2 RF
SI2 RF SI2 RF
SI2 RF SI2 RF
SI2 RF
SI2 RF
PLACE CLOSE TO DOCKING CONN
07/03
SI2 RF
PV1
1 2
R49 Do Not StuffR49 Do Not Stuff
12
C968
SC47P50V2JN-3GP
C968
SC47P50V2JN-3GP
1 2
F1
FUSE-1D1A6V-4GP-U
F1
FUSE-1D1A6V-4GP-U
12
C1006SC5P50V2CN-2GP C1006SC5P50V2CN-2GP
12
EC2
SCD1U16V2ZY-2GP
EC2
SCD1U16V2ZY-2GP
1 2
R48 Do Not StuffR48 Do Not Stuff
12
C3
Do Not Stuff
DY
C3
Do Not Stuff
DY
1
2 3
4
RN12
SRN4K7J-8-GP
RN12
SRN4K7J-8-GP
12
C1008SC5P50V2CN-2GP C1008SC5P50V2CN-2GP
12
C9
Do Not Stuff
DY
C9
Do Not Stuff
DY
12
C1011SC5P50V2CN-2GP C1011SC5P50V2CN-2GP
12
C406
SCD1U25V2ZY-1GP
C406
SCD1U25V2ZY-1GP
12
C6
Do Not Stuff
DY
C6
Do Not Stuff
DY
12
C15
SCD1U16V2ZY-2GP
C15
SCD1U16V2ZY-2GP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
16
CRT1
VIDEO-15-102-GP
CRT1
VIDEO-15-102-GP
12
C1001SC5P50V2CN-2GP C1001SC5P50V2CN-2GP
12
C1024
Do Not Stuff
RF
C1024
Do Not Stuff
RF
12
C967
Do Not Stuff
RF
C967
Do Not Stuff
RF
12
C1012SC5P50V2CN-2GP C1012SC5P50V2CN-2GP
IN#1
1
IN#5 5
IN#6 6
IN#7 7
IN#8 8
OUT
2
EN
3
GND
4
GND 9
U6
G5281RC1U-GP
U6
G5281RC1U-GP
12
C1018SC5P50V2CN-2GP C1018SC5P50V2CN-2GP
OE#
1
A
2
GND
3Y4
VCC 5
U10
74LVC1G125GW-GP
U10
74LVC1G125GW-GP
12
C404
SCD1U25V2ZY-1GP
C404
SCD1U25V2ZY-1GP
12
EC1
SCD1U16V2ZY-2GP
EC1
SCD1U16V2ZY-2GP
12
C1000SC5P50V2CN-2GP C1000SC5P50V2CN-2GP
12
C1019SC5P50V2CN-2GP C1019SC5P50V2CN-2GP
12
C2
SC4D7U10V5ZY-3GP
C2
SC4D7U10V5ZY-3GP
1
2
3
D2
BAV99-5-GP
D2
BAV99-5-GP
OE#
1
A
2
GND
3Y4
VCC 5
U11
74LVC1G125GW-GP
U11
74LVC1G125GW-GP
12
C1003SC5P50V2CN-2GP C1003SC5P50V2CN-2GP
12
C1020SC5P50V2CN-2GP C1020SC5P50V2CN-2GP
12
BC2
SC1U10V3ZY-6GP
BC2
SC1U10V3ZY-6GP
12
C1029SC5P50V2CN-2GP C1029SC5P50V2CN-2GP
ESD I/O1 1
GND 2
ESD I/O2 3
VP
5ESD I/O3
4
ESD I/O4
6
U4
Do Not Stuff
DY
U4
Do Not Stuff
DY
1 2
R768
100KR2J-1-GP
R768
100KR2J-1-GP
12
C1005SC5P50V2CN-2GP C1005SC5P50V2CN-2GP
12
C1
SC47P50V2JN-3GP
C1
SC47P50V2JN-3GP
G
D S
Q1
AO3413-GP
Q1
AO3413-GP
1 2
R11
100KR2J-1-GP
R11
100KR2J-1-GP
12
R4
10KR2J-3-GP
R4
10KR2J-3-GP
1
2
34
5
6
U3
2N7002DW-1-GP
U3
2N7002DW-1-GP
12
C5
SCD1U16V2ZY-2GP
C5
SCD1U16V2ZY-2GP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
51
52
NP1
NP2
LVDS1
ETY-CONN50E-GP
LVDS1
ETY-CONN50E-GP
12
C1010
Do Not Stuff
RF
C1010
Do Not Stuff
RF
12
C1007SC5P50V2CN-2GP C1007SC5P50V2CN-2GP
12
R89
51KR2-GP
R89
51KR2-GP
1 2
R1
33R2J-2-GP
R1
33R2J-2-GP
12
C1013
Do Not Stuff
RF
C1013
Do Not Stuff
RF
1 2
R5 Do Not StuffR5 Do Not Stuff
12
C401
Do Not Stuff
DY
C401
Do Not Stuff
DY
12
C1009SC5P50V2CN-2GP C1009SC5P50V2CN-2GP
1 2
R2
33R2J-2-GP
R2
33R2J-2-GP
1 2
R3 Do Not StuffR3 Do Not Stuff
G
S D
Q45
2N7002-11-GP
Q45
2N7002-11-GP
1 2
R9 Do Not StuffR9 Do Not Stuff
1 2
R954
150R2F-1-GP
R954
150R2F-1-GP
12
C1002SC5P50V2CN-2GP C1002SC5P50V2CN-2GP
1
2
3
D1
BAV99-5-GP
D1
BAV99-5-GP
1 2
R955
150R2F-1-GP
R955
150R2F-1-GP
B
1
A
2
GND
3Y4
VCC 5
U128
74LVC1G08GW-1-GP
U128
74LVC1G08GW-1-GP
12
C1004SC5P50V2CN-2GP C1004SC5P50V2CN-2GP
12
R91
51KR2-GP
R91
51KR2-GP
12
R856
10KR2J-3-GP
R856
10KR2J-3-GP
1 2
R956
150R2F-1-GP
R956
150R2F-1-GP
12
C4
SC47P50V2JN-3GP
C4
SC47P50V2JN-3GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DVI_DDC_CLK
HDMI_DDC_DAT
HDMI_DDC_CLK
DVI_DDC_DAT
HDMI_EN
DVI_EN
HDMI_EN IO2
IO1
IO0
DVI_HDMI_SEL_G
DVI_D_DDCDAT
DVI_D_DDCCLKDVI_DDC_CLK
DVI_EN
DVI_DDC_DAT
DVI_EN
RESET#
RESET#
HDMI_DDC_CLK_R_R
HDMI_HPD_MXM
HDMI_DDC_CLK_R
HDMI_DDC_DAT_R_R
HDMI_HPD
HDMI_DDC_DAT_R
DDC_EN
OE#
RX_SENSE
DVI_HDMI_SEL
DVI_HDMI_SEL_R
DVI_HDMI_SEL_G
DVI_DDC_DAT
DVI_DDC_CLK
HDMI_ENHDMI_EN
HDMI_CLK-_R
HDMI_CLK+_R
HDMI_TX0-_R
HDMI_TX1+_R
HDMI_TX1-_R
HDMI_TX2+_R
HDMI_TX2-_R
HDMI_TX0+_R
EQ_S1
EQ_S0
OC_S3
OC_S1
OC_S0
OC_S2
OE#
IADJ
HDMI_TX0+
HDMI_TX0-
HDMI_TX1+
HDMI_TX1-
HDMI_TX2+
HDMI_TX2-
HDMI_CLK-
HDMI_CLK+
RX_SENSE
DDC_EN
HDMI_DDC_DAT
HDMI_DDC_CLK
DVI_HDMI_SEL_R DVI_HDMI_SEL
DVI_ENHDMI_EN
EQ_S1
OC_S2
EQ_S0
OC_S1
IADJ
OC_S3
OC_S0
IADJ
HDMI_HPD
OE#
DDC_EN
DVI_HDMI_SEL_R
MXM_DVI_CLK2-
MXM_DVI_TX4-
MXM_DVI_TX3+
MXM_DVI_TX5+
MXM_DVI_TX3-
MXM_DVI_TX5-
MXM_DVI_CLK2+
MXM_DVI_TX4+
SWIC_VDD
HDMI_TX0-
HDMI_TX0+
HDMI_TX1+
HDMI_TX1-
HDMI_TX2-
HDMI_TX2+
HDMI_CLK+
HDMI_CLK-
HDMI_DDC_DAT_R_R
HDMI_CLK-_R
HDMI_TX0-_R
HDMI_TX1+_R
HDMI_HPD
HDMI_TX1-_R
HDMI_TX2+_R
HDMI_DDC_CLK_R_R
HDMI_CLK+_R
HDMI_TX0+_R
HDMI_TX2-_R
HDMI_DDC_CLK_PHDMI_DDC_CLK_R_R
HDMI_DDC_DAT_R_R HDMI_DDC_DAT_P
HDMI_DDC_CLK
HDMI_DDC_DAT
HDMI_DDC_CLK_R
HDMI_DDC_DAT_R
+5VS +5VS
+5VS
+3VS+3VS
+3VS
+3VS
+5VS +3VS
+5VS
+3VS
+3VS
+3VS
+3VS
+3VS
+1.5VS +CRTVDD
+RCRT_VCC
DVI_DDC_DAT [17]
DVI_DDC_CLK[17] DVI_D_DDCCLK [36]
DVI_D_DDCDAT[36]
LCD_EDID_DAT [17,18]
LCD_EDID_CLK [17,18]
HDMI_HPD_MXM [17]
MXM_DVI_CLK2-[17]
MXM_DVI_TX3+[17] MXM_DVI_TX3-[17]
MXM_DVI_TX4+[17] MXM_DVI_TX4-[17]
MXM_DVI_TX5+[17] MXM_DVI_TX5-[17]
MXM_DVI_CLK2+[17]
DVI_TX4- [36]
DVI_TX4+ [36]
DVI_TX3- [36]
DVI_TX3+ [36]
DVI_TX5- [36]
DVI_TX5+ [36]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3

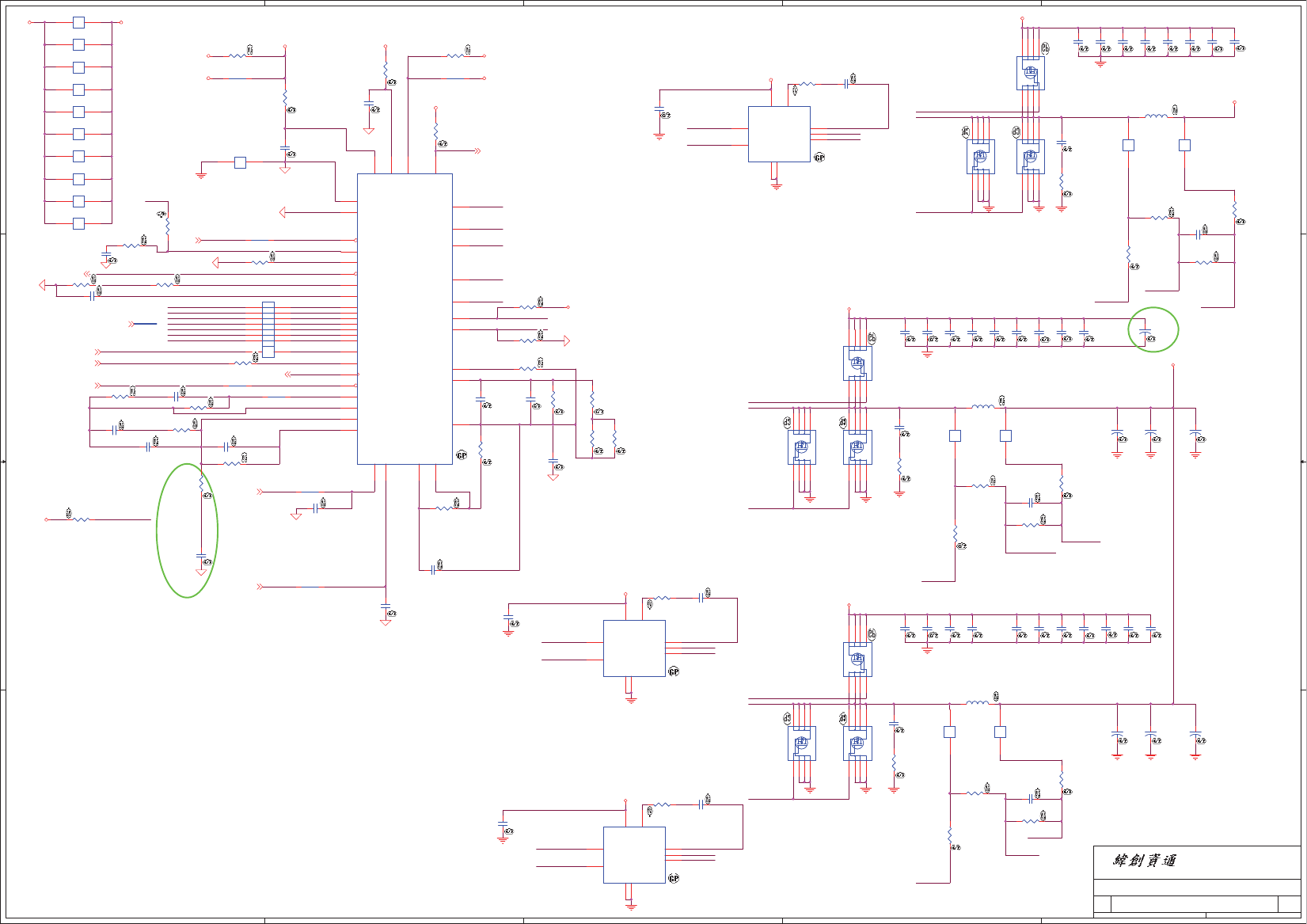

HDMI CONN.
A3
19 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
HDMI CONN.
A3
19 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
HDMI CONN.
A3
19 53Wednesday, August 20, 2008
VOX
07/04 NV request
07/1107/23
07/23
07/28
Function option, reserve
SI1-NV
DB3
SI1 SI1
MV1
SI2
07/03 NV request
MV1
MV1
MV1
MV1
MV1
MV2
21
D55
SSM5818SLPT-GP
D55
SSM5818SLPT-GP
1
2
3 4
5
6
U30 2N7002DW-1-GPU30 2N7002DW-1-GP
12
R45210KR2J-3-GP R45210KR2J-3-GP
12
C525
SCD1U16V2ZY-2GP
C525
SCD1U16V2ZY-2GP
12
C528
SCD1U16V2ZY-2GP
C528
SCD1U16V2ZY-2GP
1 2
R466
10KR2J-3-GP
R466
10KR2J-3-GP
12
R45110KR2J-3-GP R45110KR2J-3-GP
I/O0
1
I/O1
2
I/O2
3
I/O3
4VSS 5
RESET# 6
INT# 7
SCL 8
SDA 9
VDD
10
U35
PCA9537DP-GP
U35
PCA9537DP-GP
12
R43910KR2J-3-GP R43910KR2J-3-GP
12
C562
SC12P50V2JN-3GP
C562
SC12P50V2JN-3GP
1
2
3
D11
BAT54A-5-GP
D11
BAT54A-5-GP
12
R163
10KR2J-3-GP
R163
10KR2J-3-GP
1 2
R469
10KR2J-3-GP
R469
10KR2J-3-GP
GND 3
IN_CLK-
4
IN_CLK+
5
IN_D0-
7
IN_D0+
8
GND 9
GND 15
GND 24
GND 30
GND 36
GND 43
VCC3
6
VCC3
23
VCC3
27
VCC3
33
VCC3
12
VCC3
37
IN_D1-
10
IN_D2-
13 IN_D1+
11
IN_D2+
14
OC_S0
19
OC_S1
20
OC_S2
21
OC_S3
22
OUT_D2+ 25
OUT_D2- 26
OUT_D1+ 28
OUT_D1- 29
OUT_D0+ 31
OUT_D0- 32
OUT_CLK+ 34
OUT_CLK- 35
SCL_T 38
SDA_T 39
SDA_R 40
SCL_R 41
EQ_S0 1
EQ_S1 2
RX_SENSE
16
DCC_EN
17
OE#
18
IADJ
42
U111
PI3HDMI101ZHE-GP
U111
PI3HDMI101ZHE-GP
12
R468 Do Not StuffR468 Do Not Stuff
1 2
R472
Do Not Stuff
DY
R472
Do Not Stuff
DY
1
23
4
RN1
SRN2K7J-3-GP
RN1
SRN2K7J-3-GP
12
R444 10KR2J-3-GPR444 10KR2J-3-GP
12
R448 10KR2J-3-GPR448 10KR2J-3-GP
12
R447 2K2R2J-2-GPR447 2K2R2J-2-GP
VSS 1
VDD
2
D0+
3
D0-
4
VSS 5
D1+
6
D1-
7
VDD
8
SEL
9
VSS 10
D2+
11
D2-
12
VSS 13
D3+
14
D3-
15
VDD
16
VSS 17
VDD
18
VSS 19
VDD
20
VSS 21
D3-B 22
D3+B 23
D2-B 24
D2+B 25
D1-B 26
D1+B 27
D0-B 28
D0+B 29
VDD
30
D3-A 31
D3+A 32
D2-A 33
D2+A 34
D1-A 35
D1+A 36
D0-A 37
D0+A 38
VSS 39
VDD
40
VSS 41
VDD
42
VSS 43
U112
PI3HDMI412FT-BZHE-1-GP
U112
PI3HDMI412FT-BZHE-1-GP
12
C529
SCD1U16V2ZY-2GP
C529
SCD1U16V2ZY-2GP
12
R846Do Not Stuff
DY
R846Do Not Stuff
DY
12
C540
SC12P50V2JN-3GP
C540
SC12P50V2JN-3GP
12
R136 1K8R2F-GPR136 1K8R2F-GP
1
23
4
RN14 Do Not Stuff
DY
RN14 Do Not Stuff
DY
12
R154 Do Not Stuff
DY
R154 Do Not Stuff
DY
1 2
C553
SC220P50V2KX-3GP
C553
SC220P50V2KX-3GP
12
R443 10KR2J-3-GPR443 10KR2J-3-GP
12
R449Do Not Stuff
DY
R449Do Not Stuff
DY
1 2
R445
Do Not Stuff
DY
R445
Do Not Stuff
DY
1 2
R465
Do Not Stuff
DY
R465
Do Not Stuff
DY
12
R146 Do Not StuffR146 Do Not Stuff
NC#1 1
A2
GND 3
Y
4
VCC
5
U32
74LVC1G14GW-GP
U32
74LVC1G14GW-GP
12
R45010KR2J-3-GP R45010KR2J-3-GP
1 2
R446
Do Not Stuff
DY
R446
Do Not Stuff
DY
1
2
3 4
5
6
U29 2N7002DW-1-GPU29 2N7002DW-1-GP
12
C530
SCD1U16V2ZY-2GP
C530
SCD1U16V2ZY-2GP
12
R129 1K8R2F-GPR129 1K8R2F-GP
1 2
L37
FCM1608CF-221T02-GP
L37
FCM1608CF-221T02-GP
1 2
R470
Do Not Stuff
DY
R470
Do Not Stuff
DY
12
C526
SCD1U16V2ZY-2GP
C526
SCD1U16V2ZY-2GP
1 2
L36
FCM1608CF-221T02-GP
L36
FCM1608CF-221T02-GP
12
R44110KR2J-3-GP R44110KR2J-3-GP
1 2
L38
FCM1608CF-221T02-GP
L38
FCM1608CF-221T02-GP
1
2
34
5
6
U442N7002DW-1-GP U442N7002DW-1-GP
12
R147 Do Not StuffR147 Do Not Stuff
1 2
R473
Do Not Stuff
DY
R473
Do Not Stuff
DY
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
21
22
23
HDMI1
SKT-HDMI19P-24-GP
HDMI1
SKT-HDMI19P-24-GP
12
C1037
SC22U6D3V5MX-2GP
C1037
SC22U6D3V5MX-2GP
12
C531
SCD1U16V2ZY-2GP
C531
SCD1U16V2ZY-2GP
12
R440Do Not Stuff
DY
R440Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PCI_GNT3#
PCI_GNT0#
SPI_CS1#
PCI_GNT3#
INT_PIRQF#
PCI_PME#PCI_PME#
INT_PIRQB#
INT_PIRQC#
INT_PIRQD#
INT_PIRQA#
PCI_PLOCK#
PCI_AD24
PCI_AD18
PCI_AD3
PCI_AD31
PCI_AD28
PCI_AD7
PCI_AD19
PCI_AD4
PCI_AD0
PCI_AD8
PCI_AD5
PCI_AD9
PCI_AD12
PCI_AD17
PCI_AD14
PCI_AD22
PCI_AD1
PCI_AD25
PCI_AD10
PCI_AD15
PCI_AD11
PCI_AD2
PCI_AD13
PCI_AD27
PCI_AD21
PCI_AD29
PCI_AD23
PCI_AD20
PCI_AD16
PCI_AD30
PCI_AD26
PCI_AD6
INT_PIRQG#
INT_PIRQE#
INT_PIRQH#
PCI_PLTRST#
PCI_GNT0#
PCI_REQ0#
PCI_REQ2#
PCI_REQ1#
PCI_GNT1#
PCI_GNT2#
PCI_REQ3#
INT_PIRQH#
PCI_DEVSEL#
PCI_STOP#
PCI_PERR#
PCI_FRAME#
PCI_IRDY#
PCI_TRDY#
INT_PIRQE#
INT_PIRQG#
PCI_REQ2#
PCI_REQ0#
PCI_REQ1#
PCI_REQ3#
INT_PIRQD#
PCI_PLOCK#
PCI_SERR#
INT_PIRQF#
INT_PIRQB#
INT_PIRQC#
INT_PIRQA#
PCI_PLTRST# PLT_RST#
+3VS
+3VALW
+3VALW
+3VS
SPI_CS1#[22,33,34]
PCLK_ICH [16]
PCI_PME# [40]
PCI_CBE#0 [40]
PCI_CBE#1 [40]
PCI_CBE#2 [40]
PCI_CBE#3 [40]
PCI_IRDY# [40]
PCI_PAR [40]
PCI_REQ#2 [40]
PCI_RST# [40]
PCI_PERR# [40]
PCI_FRAME# [40]
PCI_SERR# [34,40]
PCI_STOP# [40]
PCI_TRDY# [40]
PCI_DEVSEL# [40]
PCI_AD[31..0][40]
ACCEL_INT [31]
PCI_PIRQG# [40]
PCI_PIRQE# [40]
PLT_RST# [9,17,25,31,33,44,45]
PCI_GNT#2 [40]
MODEM_DISABLE# [35]
ODD_DET# [25]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (1 of 5)
20 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (1 of 5)
20 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (1 of 5)
20 53Wednesday, August 20, 2008
Artemis
3
VOX
ICH9-M (1 of 5) PCI
01 11
A16 swap override strap
BOOT BIOS Strap
SPI_CS#1 BOOT BIOS LocationPCI_GNT#0
PCI_GNT#3 low = A16 swap override enable
high = default
0 1 SPI
LPC(Default)
PCI
CONNECT TO Richo 5C835
DB3
DB3
B
1
A
2
GND
3Y4
VCC 5
U74
Do Not Stuff
DY
U74
Do Not Stuff
DY
1 2
R730 8K2R2J-3-GP
R730 8K2R2J-3-GP
1
2
3
4 5
6
7
8
RN55 SRN8K2J-4-GP
RN55 SRN8K2J-4-GP
1 2
R719 Do Not StuffR719 Do Not Stuff
1 2
R695 1KR2J-1-GPR695 1KR2J-1-GP
1
TP58 Do Not StuffTP58 Do Not Stuff
1
2
3
4 5
6
7
8
RN51 SRN8K2J-4-GP
RN51 SRN8K2J-4-GP
1
2
3
4 5
6
7
8
RN53 SRN8K2J-4-GP
RN53 SRN8K2J-4-GP
1 2
R656 Do Not Stuff
DY
R656 Do Not Stuff
DY
1 2
R696 Do Not Stuff
DY
R696 Do Not Stuff
DY
12
R723
100KR2J-1-GP
R723
100KR2J-1-GP
1
TP67 Do Not StuffTP67 Do Not Stuff
1 2
R897
Do Not Stuff
DY
R897
Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN49 SRN8K2J-4-GP
RN49 SRN8K2J-4-GP
1
TP65 Do Not StuffTP65 Do Not Stuff
12
R896
Do Not Stuff
DY
R896
Do Not Stuff
DY
AD0
D11
AD1
C8
AD2
D9
AD3
E12
AD4
E9
AD5
C9
AD6
E10
AD7
B7
AD8
C7
AD9
C5
AD10
G11
AD11
F8
AD12
F11
AD13
E7
AD14
A3
AD15
D2
AD16
F10
AD17
D5
AD18
D10
AD19
B3
AD20
F7
AD21
C3
AD22
F3
AD23
F4
AD24
C1
AD25
G7
AD26
H7
AD27
D1
AD28
G5
AD29
H6
AD30
G1
AD31
H3
REQ0# F1
GNT0# G4
REQ1#/GPIO50 B6
GNT1#/GPIO51 A7
REQ2#/GPIO52 F13
GNT2#/GPIO53 F12
REQ3#/GPIO54 E6
GNT3#/GPIO55 F6
C/BE0# D8
C/BE1# B4
C/BE2# D6
C/BE3# A5
IRDY# D3
PAR E3
PCIRST# R1
DEVSEL# C6
PERR# E4
PLOCK# C2
SERR# J4
STOP# A4
TRDY# F5
FRAME# D7
PLTRST# C14
PCICLK D4
PME# R2
PIRQA#
J5
PIRQB#
E1
PIRQC#
J6
PIRQD#
C4 PIRQH#/GPIO5 G2
PIRQG#/GPIO4 F2
PIRQF#/GPIO3 K6
PIRQE#/GPIO2 H4
PCI
Interrupt I/F
2 OF 6
U14B
ICH9M-GP-NF
PCI
Interrupt I/F
2 OF 6
U14B
ICH9M-GP-NF
12
R898
Do Not Stuff
DY
R898
Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN46 SRN8K2J-4-GP
RN46 SRN8K2J-4-GP
http://laptop-motherboard-schematic.blogspot.com/

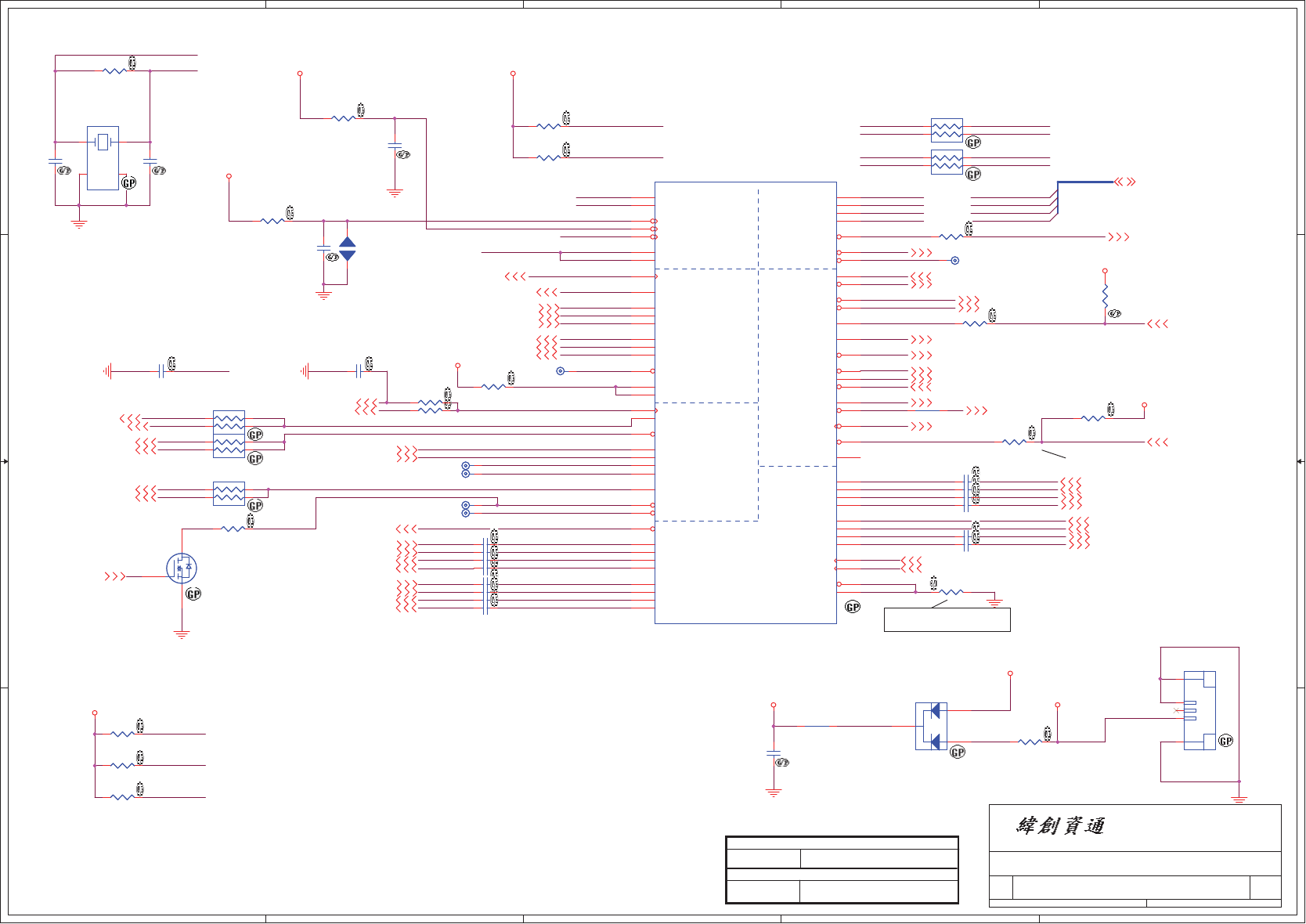

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ICH_RTCX2
LAN100_SLP
SM_INTRUDER#
RTC_PWR_L
RTC_PWR
ICH_RTCX2
ICH_RTCX1
SRTCRST#
ICH_RTCRST#
ACZ_RST#_R
ICH_INTVRMEN
ICH_INTVRMEN
SM_INTRUDER#
LAN_RSTYNC
SATA_LED#
H_FERR#_R
3D3V_LDRQ1_S0
H_DPRSTP#
H_THERMTRIP_R
SATARBIAS
SATA_LED#
SATA_RXN0_C
SATA_RXP0_C
SATA_TXN0_C
SATA_TXP0_C
SATA_RXN1_C
SATA_RXP1_C
SATA_TXN1_C
SATA_TXP1_C
ACZ_SDIN3
HDA_DOCK_RST#
GLAN_COMP
HDA_DOCK_EN#
ACZ_BIT_CLK
ACZ_SDIN2
ACZ_SDATAOUT_R
H_SMI#_R
ACZ_SYNC_R
ICH_RTCX1
SATA_RXP4_C
SATA_TXN4_C
SATA_RXN4_C
SATA_TXP4_C
SATA_TXN5_C
SATA_TXP5_C
GATEA20
KB_RST#
ACZ_BITCLK
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_AD[0..3]
LAD0
LAD1
LAD2
LAD3
LFRAME#
LPC_AD1
LPC_AD3
LPC_AD0
LPC_AD2
LAD1
LAD0
LAD3
LAD2
+RTCVCC
+3VL
BATT1.1
+RTCVCC
+VCCP
+VCCP
+1.5VS
+3VS
+RTCVCC
+RTCVCC
LAN_TXD2[29]
SATA_TXN5 [36]
SATA_RXN5 [36]
SATA_RXP5 [36]
SATA_TXP5 [36]
GLANCLK[29]
ACZ_SYNC[26]
CLK_PCIE_SATA# [16]
CLK_PCIE_SATA [16]
HDA_SYNC_MDC[35]
HDA_SDOUT_CODEC[26]
KB_RST# [34]
H_IGNNE# [5]
H_INIT# [5]
H_INTR [5]
H_STPCLK# [5]
H_NMI [5] H_SMI# [5]
GATEA20 [34]
H_FERR# [5]
H_A20M# [5]
H_DPRSTP# [6,9,47]
H_DPSLP# [6]
H_PWRGD [6]
LDRQ0# [44]
SATA_TXN1[25] SATA_TXP1[25]
SATA_RXN1[25] SATA_RXP1[25]
ACZ_RST#[26]
HDA_SDOUT_MDC[35]
HDA_SDIN0_CODEC[26] HDA_SDIN1_MDC[35]
SATA_LED#[36,43]
SATA_TXN0[25] SATA_TXP0[25]
SATA_RXN0[25] SATA_RXP0[25]
ACZ_BITCLK[26]
ACZ_BTCLK_MDC[35]
PM_THRMTRIP-A# [5,9,43]
LAN_RXD0[29] LAN_RXD1[29] LAN_RXD2[29]
LAN_RSTSYNC[29]
LAN_TXD0[29] LAN_TXD1[29]
SATA_TXN4 [25]
SATA_RXN4 [25]
SATA_RXP4 [25]
SATA_TXP4 [25]
GREEN_BATLED#[34,43]
HDA_RST#_MDC[35]
LPC_AD[0..3] [33,34,44]
LPC_FRAME# [33,34,44]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (2 of 5)
21 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (2 of 5)
21 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (2 of 5)
21 53Wednesday, August 20, 2008
Artemis
3
VOX
ICH9-M (2 of 5) SATA/LAN/HDA
W=20mils
W=20mils
W=20mils
W=20mils
SRTCRST# new signal Pin
integrated VccSus1_05,VccSus1_5,VccCL1_5
integrated VccLan1_05VccCL1_05
INTVRMEN
LAN100_SLP
High=Enable Low=Disable
High=Enable Low=Disable
GLAN_COMP place within 500 mil of ICH9M
Place within 500 mils of
ICH9 ball
HDD
ODD
Placed Within 2" from ICH9
3V_S5
20.F0735.003
E-SATA
DOCK
07/25
DB2
DB2
DB3
SI2R
SI2R
1
2 3
4
RN76 SRN33J-5-GP-URN76 SRN33J-5-GP-U
1 2
R599 330KR2F-L-GPR599 330KR2F-L-GP
1 2
EC6
Do Not Stuff
DY
EC6
Do Not Stuff
DY
1 2
R598 1MR2J-1-GP
R598 1MR2J-1-GP
1 2
C756 SCD01U50V2KX-1GPC756 SCD01U50V2KX-1GP
1
2 3
4
X2
X-32D768KHZ-34GPU
X2
X-32D768KHZ-34GPU
1 2
C747 SCD01U16V2KX-3GPC747 SCD01U16V2KX-3GP
1 2
R579 49D9R2F-GPR579 49D9R2F-GP
1 2
C746 SCD01U50V2KX-1GPC746 SCD01U50V2KX-1GP
1 2
R710 33R2J-2-GPR710 33R2J-2-GP
1
TP64Do Not Stuff TP64Do Not Stuff
1
TP53Do Not Stuff TP53Do Not Stuff
12
C314
SC1U10V3KX-3GP
C314
SC1U10V3KX-3GP
1 2
C744 SCD01U16V2KX-3GPC744 SCD01U16V2KX-3GP
1 2
R271 10MR2J-L-GPR271 10MR2J-L-GP
1
2 3
4
RN48
SRN33J-5-GP-U
RN48
SRN33J-5-GP-U
1 2
R737
10KR2J-3-GP
R737
10KR2J-3-GP
1 2
C754 SCD01U16V2KX-3GPC754 SCD01U16V2KX-3GP
1 2
C348 SCD01U50V2KX-1GPC348 SCD01U50V2KX-1GP
12
R564
49D9R2F-GP
R564
49D9R2F-GP
12
C299
SC5P50V2CN-2GP
C299
SC5P50V2CN-2GP
1 2
C778 SCD01U50V2KX-1GPC778 SCD01U50V2KX-1GP
1 2
R949 33R2J-2-GPR949 33R2J-2-GP
1 2
C336 SCD01U50V2KX-1GPC336 SCD01U50V2KX-1GP
12
R289
24D9R2F-L-GP
R289
24D9R2F-L-GP
1 2
C752 SCD01U50V2KX-1GPC752 SCD01U50V2KX-1GP
1 2
C750 SCD01U16V2KX-3GPC750 SCD01U16V2KX-3GP
1
TP30 Do Not StuffTP30 Do Not Stuff
1
2 3
4
RN45
SRN33J-5-GP-U
RN45
SRN33J-5-GP-U
1 2
R557 24D9R2F-L-GP
R557 24D9R2F-L-GP
12
C290
SC5P50V2CN-2GP
C290
SC5P50V2CN-2GP
1 2
R512 1KR2J-1-GP
R512 1KR2J-1-GP
RTCX1
C23
RTCX2
C24
INTVRMEN
B22
INTRUDER#
C22
GLAN_CLK
E25
LAN_RSTSYNC
C13
LAN_RXD0
F14
LAN_RXD1
G13
LAN_RXD2
D14
LAN_TXD0
D13
LAN_TXD1
D12
LAN_TXD2
E13
HDA_BIT_CLK
AF6
HDA_SYNC
AH4
HDA_RST#
AE7
HDA_SDIN0
AF4
HDA_SDIN1
AG4
HDA_SDIN2
AH3
HDA_SDOUT
AG5
SATALED#
AG8
SATA0RXN
AJ16
SATA0RXP
AH16
SATA0TXN
AF17
SATA0TXP
AG17
SATA1RXN
AH13
SATA1RXP
AJ13
SATA1TXN
AG14
SATA1TXP
AF14
SATA_CLKN AH18
SATA_CLKP AJ18
SATARBIAS# AJ7
SATARBIAS AH7
FWH0/LAD0 K5
FWH1/LAD1 K4
FWH2/LAD2 L6
FWH3/LAD3 K2
LDRQ0# J3
LDRQ1#/GPIO23 J1
FWH4/LFRAME# K3
A20GATE N7
A20M# AJ27
DPRSTP# AJ25
DPSLP# AE23
FERR# AJ26
CPUPWRGD AD22
IGNNE# AF25
INIT# AE22
INTR AG25
RCIN# L3
SMI# AF24
NMI AF23
STPCLK# AH27
THRMTRIP# AG26
RTCRST#
A25
GLAN_DOCK#/GPIO56
B10
GLAN_COMPO
B27 GLAN_COMPI
B28
HDA_SDIN3
AE5
SATA4TXN AG12
SATA4RXN AH11
SATA4TXP AF12
SATA4RXP AJ11
PECI AG27
HDA_DOCK_EN#/GPIO33
AG7
HDA_DOCK_RST#/GPIO34
AE8
LAN100_SLP
A22
SATA5RXN AH9
SATA5RXP AJ9
SATA5TXN AE10
SATA5TXP AF10
SRTCRST#
F20
RTCLAN / GLAN
IHDA
SATA
LPCCPU
1 OF 6
U14A
ICH9M-GP-NF
RTCLAN / GLAN
IHDA
SATA
LPCCPU
1 OF 6
U14A
ICH9M-GP-NF
1 2
C749 SCD01U50V2KX-1GPC749 SCD01U50V2KX-1GP
1 2
R674
10KR2J-3-GP
R674
10KR2J-3-GP
1 2
R515 Do Not StuffR515 Do Not Stuff
1 2
R574 56R2J-4-GPR574 56R2J-4-GP
1 2
C327 SCD01U50V2KX-1GPC327 SCD01U50V2KX-1GP
1 2
R625 20KR2J-L2-GP
R625 20KR2J-L2-GP
12
C275
SC1U10V3KX-3GP
C275
SC1U10V3KX-3GP
1 2
C771 SCD01U50V2KX-1GPC771 SCD01U50V2KX-1GP
12
C655
SC1U10V3ZY-6GP
C655
SC1U10V3ZY-6GP
1 2
EC3
SC12P50V2JN-3GP
EC3
SC12P50V2JN-3GP
21
G75
Do Not Stuff
G75
Do Not Stuff
1 2
R565 49D9R2F-GPR565 49D9R2F-GP
G
S D
Q76
2N7002-11-GP
Q76
2N7002-11-GP
2
1
3
U113
CH715FPT-GP
U113
CH715FPT-GP
1
TP27Do Not Stuff TP27Do Not Stuff
1 2
R596 20KR2J-L2-GP
R596 20KR2J-L2-GP
1
TP62Do Not Stuff TP62Do Not Stuff
1 2
C345 SCD01U50V2KX-1GPC345 SCD01U50V2KX-1GP
1 2
R694
10KR2J-3-GP
R694
10KR2J-3-GP
1 2
R545 1KR2J-1-GP
R545 1KR2J-1-GP
1
2 3
4
RN75 SRN33J-5-GP-URN75 SRN33J-5-GP-U
1
2
3
4
5
RTC1
ETY-CON3-4-GP
RTC1
ETY-CON3-4-GP
1
TP61Do Not Stuff TP61Do Not Stuff
1 2
R699 33R2J-2-GPR699 33R2J-2-GP
1 2
R570 Do Not StuffR570 Do Not Stuff
1
2 3
4
RN50
SRN33J-5-GP-U
RN50
SRN33J-5-GP-U
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLK_EN VRMPWRGD
GLAN_TXN_C
GLAN_TXP_C
GLAN_RXN
GLAN_RXP
GPIO21
GPIO18
ACZ_SPKR
USB_OC#0
PM_BATLOW#_R
SMB_ALERT#
ICH_PCIE_WAKE#
SUS_PWR_ACK
ICH_RI#
USB_OC#5
USB_OC#7
USB_OC#6
SPI_CS1#
LAN_PHYPC_R
RSMRST#_SB PM_RSMRST#
TXP2
TXN2
PCIE_RXN2
PCIE_RXP2
ICH_SUSCLK
GPIO49
USB_OC#11
USB_OC#7
USB_OC#9
USB_OC#8
USB_OC#2
USB_OC#0
USB_OC4#
USB_OC#5
USB_OC#6
DMI_IRCOMP_R
GPIO48
USB_RBIAS_PN
USB_OC#10
TXP3
TXN3
GPIO22
SPI_CLK_R
SPI_CS0#_R
SPI_CS1#_R
SPI_SO_R
SPI_SI_R
UWB_DISABLE
WXMIT_OFF#
GPIO20
GPIO24
HDD_HALTLED
ISO_PREP#
QRT_STATE0
QRT_STATE1
GPIO57
RSMRST#_SB
PM_BATLOW#_R
LAN_RST#
ICH_TP3
ICH_TP7
VRMPWRGD
SMB_ALERT#
SIRQ
DBRESET#
LINKALERT#
CL_VREF1_ICH
ICH_SMB_DATA
ICH_SMB_CLK
CL_VREF0_ICH
SUS_PWR_ACK
USB_OC#11
ICH_RI#
GPIO37
NPCI_RST#
GPIO39
TXP1
TXN1
PCIE_RXN1
PCIE_RXP1
GPIO22
NPCI_RST#
GPIO37
PM_SLP_M#
ME_EC_CLK1
ME_EC_DATA1
GPIO38
TXP4
PCIE_RXP4
PCIE_RXN4
TXN4
TXP5
ICH_SMB_DATA
ICH_SMB_CLK
OCP#_ICHOCP#
ALS_EN#
USB_OC4#
LINKALERT#
GPIO38
PM_CLKRUN#
SIRQ
GPIO18
PM_PWROK
WXMIT_OFF#
XMIT_OFF
ISO_PREP#
TXN5
USB_OC#2
UWB_DISABLE
LAN_PHYPC_R
DBRESET#
+3VS
+3VS
+3VS
+5VS
+3VS
+3VALW+3VALW
+3VL
+3VS
+3VALW
+3VALW
+3VALW
+3VALW
+1.5VS
+3VALW
+3VM
+3VS
+3VS+3VALW
+3VS
+3VS
+3VALW
UWB_OFF#[45]
CLK_EN#[47]
GLAN_TXN[29] GLAN_TXP[29]
GLAN_RXP[29] GLAN_RXN[29]
USB20_P10 [42]
USB20_N10 [42]
S4_STATE# [32,45,52]
ICH_SMB_DATA[24]
BT_OFF[45]
CAMERA_OFF#[42]
LAN_PHYPC[29,30,34]
ICH_SMB_CLK[24]
PM_RSMRST# [34]
CL_CLK1 [31]
PCIE_TXN2[31] PCIE_TXP2[31]
PCIE_RXP2[31] PCIE_RXN2[31]
ACZ_SPKR[26]
XMIT_OFF[31] USB20_P9 [36]
USB20_N9 [36]
CLK_PCIE_ICH# [16]
CLK_PCIE_ICH [16]
DMI_RXN3 [9]
DMI_RXP3 [9]
DMI_RXN2 [9]
DMI_RXP2 [9]
DMI_RXN1 [9]
DMI_RXP1 [9]
DMI_RXN0 [9]
DMI_RXP0 [9]
DMI_TXN0 [9]
DMI_TXP0 [9]
DMI_TXN1 [9]
DMI_TXP1 [9]
DMI_TXN2 [9]
DMI_TXP2 [9]
DMI_TXN3 [9]
DMI_TXP3 [9]
PCIE_RXN3[25] PCIE_RXP3[25] PCIE_TXN3[25] PCIE_TXP3[25]
LID_SW#[18,34]
SPI_CLK[33,34] SPI_CS0#[33,34] SPI_CS1#[20,33,34]
SPI_SO[33,34] SPI_SI[33,34]
USB20_P2 [25]
USB20_N2 [25]
USB20_P8 [42]
USB20_N8 [42]
USB20_P6 [45]
USB20_N6 [45]
USB20_P4 [32]
USB20_N4 [32]
USB20_P7 [31]
USB20_N7 [31]
USB20_P0 [45]
USB20_N0 [45]
WXMIT_OFF#[31]
CL_DATA1 [31]
USB20_P11 [36]
USB20_N11 [36]
CL_RST#1 [31]
PREP#[30,36]
SLP_S5# [36]
PM_STPPCI#[16]
PM_SYNC#[9]
PM_STPCPU#[16]
THERM_SCI#[43]
PM_CLKRUN#[33,34,40,44]
ICH_PCIE_WAKE#[25,31,45]
MCH_ICH_SYNC#[9]
PM_DPRSLPVR [9,47]
SLP_S4# [46,49]
CLK_ICH14 [16]
CLK48_ICH [16]
SLP_S3# [17,25,28,29,34,36,37,46,50,51,52]
ICH_SM_CLK [17,31,43]
ICH_SM_DA[17,31,43]
PM_PWROK [9,17,18,34,37]
CL_DATA0 [9]
CL_CLK0 [9]
CK_PWRGD [16]
CLK_SATA_OE#[16]
LPC_PD#[33]
XDP_DBRESET#[5]
PCIE_TXN1[45] PCIE_TXP1[45]
PCIE_RXP1[45] PCIE_RXN1[45]
ON/OFFBTN# [35]
SIRQ[33,34,40,44]
USB20_N5 [32]
PM_SLP_M# [34,46,49]
UWB_DISABLE [45]
HDD_HALTLED#[43]
AC_PRESENT [34]
PCIE_RXN4[31] PCIE_RXP4[31] PCIE_TXN4[31] PCIE_TXP4[31]
LAN_RST# [34]
PCIE_RXN5[36] PCIE_RXP5[36] PCIE_TXN5[36] PCIE_TXP5[36]
RUNSCI_EC#[34]
LOW_BAT# [34]
USB20_P5 [32]
OCP#[50]
USB20_P1 [45]
USB20_N1 [45]
SUS_PWR_ACK [34]
CL_RST#0 [9]
M_PWROK [9,37]
ALS_EN#[18]
RSMRST#_SB [48]
FPR_OFF[42]
LAN_WOL_EN [34,46]
NPCI_RST# [34,44]
ISO_PREP#[36]
LED_LINK_LAN_R#[29]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (3 of 5)
22 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (3 of 5)
22 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (3 of 5)
22 53Wednesday, August 20, 2008
Artemis
3
VOX
ICH9-M (3 of 5) USB/PCIE/DMI
GPIO11 Reserved for future
GLAN
10
Norn connect to charger
11
WLAN
Dock1
NEW CARD
EX-P
CAM
DOCK2
Layout Note:
PCIE AC coupling caps
need to be within 250 mils of the driver.
USB5
UWB
USB2
FignerPrint
USB3
BT
WEBCAM
WWAN
USB5/WLAN
USB2
EX-P
USB1
Pair
4
USB3
USB
5
0
2
3
1
Device
BLUETOOTH6
7
8
9
WWAN
FP
USB4
DK1
FPR
DK2
WWAN
DOCK
USB4
06/26
06/26
07/17
07/17
07/27
DB2
DB2
DB2
For iTPM option
DB3
SI2
SI2R
MV1
12
C708Do Not Stuff
DY
C708Do Not Stuff
DY
1
TP50Do Not Stuff TP50Do Not Stuff
12
C697SCD1U10V2KX-5GP C697SCD1U10V2KX-5GP
1 2
R692
Do Not Stuff
DY
R692
Do Not Stuff
DY
1
2
3
4
5 6
7
8
9
10
RP2
SRN10KJ-L3-GP
RP2
SRN10KJ-L3-GP
12
C703SCD1U10V2KX-5GP C703SCD1U10V2KX-5GP
1
23
4
RN41
SRN2K2J-1-GP
RN41
SRN2K2J-1-GP
SATA0GP/GPIO21 AH23
SATA1GP/GPIO19 AF19
SATA4GP/GPIO36 AE21
SATA5GP/GPIO37 AD20
SMBCLK
G16
SMBDATA
A13
LINKALERT#/GPIO60/CLGPIO4
E17
SMLINK0
C17
SMLINK1
B18
SUS_STAT#/LPCPD#
R4
SYS_RESET#
G19
PMSYNC#/GPIO0
M6
TACH1/GPIO1
AG19
TACH2/GPIO6
AH21
TACH3/GPIO7
AG21
GPIO8
A21
LAN_PHY_PWR_CTRL/GPIO12
C12
SMBALERT#/GPIO11
A17
TACH0/GPIO17
AE18
GPIO18
K1
SCLOCK/GPIO22
AJ22
SATACLKREQ#/GPIO35
L1
STP_PCI#
A14
STP_CPU#
E19
SLOAD/GPIO38
AE19
SDATAOUT0/GPIO39
AG22
CLKRUN#
L4
SDATAOUT1/GPIO48
AF21
WAKE#
E20
SERIRQ
M5
THRM#
AJ23
VRMPWRGD
D21
CLK14 H1
CLK48 AF3
SUSCLK P1
SLP_S3# C16
SLP_S4# E16
SLP_S5# G17
PWROK G20
DPRSLPVR/GPIO16 M2
BATLOW# B13
PWRBTN# R3
LAN_RST# D20
RSMRST# D22
RI#
F19
S4_STATE#/GPIO26 C10
GPIO27
A9
GPIO28
D19
SST
A20
CK_PWRGD R5
CLPWROK R6
SLP_M# B16
GPIO20
AF8
CL_CLK0 F24
CL_CLK1 B19
CL_DATA0 F22
CL_DATA1 C19
CL_VREF0 C25
CL_VREF1 A19
CL_RST0# F21
GPIO10/SUS_PWR_ACK C18
GPIO9/WOL_EN C20
GPIO14/AC_PRESENT C11
GPIO24/MEM_LED A16
SPKR
M7
TP3
B21
CL_RST1# D18
GPIO49
AH24
ENERGY_DETECT/GPIO13
C21
GPIO57/CLGPIO5
A8
PWM2
AJ21
PWM0
AH20
MCH_SYNC#
AJ24
PWM1
AJ20
SATA
SMB
SYS GPIO
GPIO
GPIO
Clocks
Power MGTController Link
MISC
3 OF 6
U14C
ICH9M-GP-NF
SATA
SMB
SYS GPIO
GPIO
GPIO
Clocks
Power MGTController Link
MISC
3 OF 6
U14C
ICH9M-GP-NF
1
TP59Do Not Stuff TP59Do Not Stuff
1 2
R592 15R2J-GPR592 15R2J-GP
12
C702SCD1U16V2KX-3GP C702SCD1U16V2KX-3GP
G
S D
Q29
2N7002-11-GP
Q29
2N7002-11-GP
1 2
R899
Do Not Stuff
DY
R899
Do Not Stuff
DY
1
TP26Do Not Stuff TP26Do Not Stuff
1 2
R718 100KR2J-1-GPR718 100KR2J-1-GP
1 2
R903 10KR2J-3-GPR903 10KR2J-3-GP
1 2
R732 Do Not StuffR732 Do Not Stuff
12
C698SCD1U10V2KX-5GP C698SCD1U10V2KX-5GP
12
C705SCD1U10V2KX-5GP C705SCD1U10V2KX-5GP
1 2
R591 15R2J-GPR591 15R2J-GP
1
TP51Do Not Stuff TP51Do Not Stuff
1 2
R659 Do Not StuffR659 Do Not Stuff
1
2
3 4
5
6
U107 2N7002DW-1-GPU107 2N7002DW-1-GP
12
C704SCD1U10V2KX-5GP C704SCD1U10V2KX-5GP
1 2
R943 Do Not Stuff
DY
R943 Do Not Stuff
DY
12
C701SCD1U16V2KX-3GP C701SCD1U16V2KX-3GP
1 2
R584 15R2J-GPR584 15R2J-GP
1
TP49Do Not Stuff TP49Do Not Stuff
1
23
4
RN54 SRN10KJ-5-GP
RN54 SRN10KJ-5-GP
1 2
R900
Do Not Stuff
DY
R900
Do Not Stuff
DY
12
C699SCD1U10V2KX-5GP C699SCD1U10V2KX-5GP
2 1
D32
CH751H-40PT
D32
CH751H-40PT
12
R559
24D9R2F-L-GP
R559
24D9R2F-L-GP
1 2
R671 Do Not Stuff
DY
R671 Do Not Stuff
DY
1
TP54Do Not Stuff TP54Do Not Stuff
1
23
4
RN39 SRN10KJ-5-GP
RN39 SRN10KJ-5-GP
PERN1
N29
PERP1
N28
PETN1
P27
PETP1
P26
PERN2
L29
PERP2
L28
PETN2
M27
PETP2
M26
PERN3
J29
PERP3
J28
PETN3
K27
PETP3
K26
PERN4
G29
PERP4
G28
PETN4
H27
PETP4
H26
PERN5
E29
PERP5
E28
PETN5
F27
PETP5
F26
PERN6/GLAN_RXN
C29
PERP6/GLAN_RXP
C28
PETN6/GLAN_TXN
D27
PETP6/GLAN_TXP
D26
DMI0RXN V27
DMI0RXP V26
DMI0TXN U29
DMI0TXP U28
DMI1RXN Y27
DMI1RXP Y26
DMI1TXN W29
DMI1TXP W28
DMI2RXN AB27
DMI2RXP AB26
DMI2TXN AA29
DMI2TXP AA28
DMI3RXN AD27
DMI3RXP AD26
DMI3TXN AC29
DMI3TXP AC28
DMI_CLKN T26
DMI_CLKP T25
DMI_ZCOMP AF29
DMI_IRCOMP AF28
OC0#/GPIO59
N4
OC1#/GPIO40
N5
OC2#/GPIO41
N6
OC3#/GPIO42
P6
OC4#/GPIO43
M1
OC5#/GPIO29
N2
OC6#/GPIO30
M4
OC7#/GPIO31
M3
USBP0N AC5
USBP0P AC4
USBP1N AD3
USBP1P AD2
USBP2N AC1
USBP2P AC2
USBP3N AA5
USBP3P AA4
USBP4N AB2
USBP4P AB3
USBP5N AA1
USBP5P AA2
USBP6N W5
USBP6P W4
USBP7N Y3
USBP7P Y2
USBRBIAS#
AG1 USBRBIAS
AG2
SPI_CLK
D23
SPI_CS0#
D24
SPI_CS1#/GPIO58/CLGPIO6
F23
SPI_MOSI
D25
SPI_MISO
E23
OC8#/GPIO44
N3
OC9#/GPIO45
N1
USBP8P W2
USBP8N W1
USBP9N V2
USBP9P V3
USBP10N U5
USBP11N U1
USBP10P U4
USBP11P U2
OC10#/GPIO46
P5
OC11#/GPIO47
P3
PCI-Express
Direct Media Interface
USB
SPI
4 OF 6
U14D
ICH9M-GP-NF
PCI-Express
Direct Media Interface
USB
SPI
4 OF 6
U14D
ICH9M-GP-NF
12
R709
Do Not Stuff
DY
R709
Do Not Stuff
DY
1
TP48Do Not Stuff TP48Do Not Stuff
1 2
R612
Do Not Stuff
R612
Do Not Stuff
21
D59
CH751H-40PT
D59
CH751H-40PT
1 2
R644 10KR2J-3-GPR644 10KR2J-3-GP
1 2
R960
10KR2J-3-GP
R960
10KR2J-3-GP
12
R562
3K24R2F-GP
R562
3K24R2F-GP
12
C694SCD1U10V2KX-5GP C694SCD1U10V2KX-5GP
1
TP60Do Not Stuff TP60Do Not Stuff
12
R563
453R2F-1-GP
R563
453R2F-1-GP
1 2
R726 Do Not Stuff
DY
R726 Do Not Stuff
DY
1
TP22 Do Not StuffTP22 Do Not Stuff
1
TP31Do Not Stuff TP31Do Not Stuff
1 2
R636 Do Not StuffR636 Do Not Stuff
1
2
3
4 5
6
7
8
RN37
SRN8K2J-4-GP
RN37
SRN8K2J-4-GP
1
2 3
4
RN2
SRN2K2J-1-GP
RN2
SRN2K2J-1-GP
1 2
R614 Do Not Stuff
DY
R614 Do Not Stuff
DY
1 2
R655 Do Not Stuff
DY
R655 Do Not Stuff
DY
1 2
R573 15R2J-GPR573 15R2J-GP
12
C693SCD1U10V2KX-5GP C693SCD1U10V2KX-5GP
1
TP46Do Not Stuff TP46Do Not Stuff
12
R735
10KR2J-3-GP
R735
10KR2J-3-GP
12
R608
10KR2J-3-GP
R608
10KR2J-3-GP
1 2
R124
Do Not Stuff
DY
R124
Do Not Stuff
DY
1 2
R733 10KR2J-3-GPR733 10KR2J-3-GP
1
TP19Do Not Stuff TP19Do Not Stuff
1 2
R734 Do Not StuffR734 Do Not Stuff
1
2 3
4
RN40
SRN10KJ-5-GP
RN40
SRN10KJ-5-GP
12
R707
10KR2J-3-GP
R707
10KR2J-3-GP
1 2
R731 22R2J-2-GP
R731 22R2J-2-GP
1
TP56Do Not Stuff TP56Do Not Stuff
12
R630
453R2F-1-GP
R630
453R2F-1-GP
1
TP47 Do Not StuffTP47 Do Not Stuff
1
2
3
4
5 6
7
8
9
10
RP1
SRN10KJ-L3-GP
RP1
SRN10KJ-L3-GP
1 2
R711 Do Not StuffR711 Do Not Stuff
1 2
R583 15R2J-GPR583 15R2J-GP
12
C737
SCD1U10V2KX-4GP
C737
SCD1U10V2KX-4GP
1
TP57Do Not Stuff TP57Do Not Stuff
12
C709Do Not Stuff
DY
C709Do Not Stuff
DY
1
TP20 Do Not StuffTP20 Do Not Stuff
1
TP63
Do Not Stuff
TP63
Do Not Stuff
1
23
4
RN43 SRN10KJ-5-GP
RN43 SRN10KJ-5-GP
12
R649
10KR2J-3-GP
R649
10KR2J-3-GP
G
S D
Q38
2N7002-11-GP
Q38
2N7002-11-GP
12
R627
3K24R2F-GP
R627
3K24R2F-GP
1
TP66 Do Not StuffTP66 Do Not Stuff
1 2
R578
10KR2J-3-GP
R578
10KR2J-3-GP
12
R616
Do Not Stuff
R616
Do Not Stuff
1 2
R635 Do Not StuffR635 Do Not Stuff
12
C706
SCD1U10V2KX-4GP
C706
SCD1U10V2KX-4GP
1
TP21Do Not Stuff TP21Do Not Stuff
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VccSus1_05[3]
VccSus1_5[2]
VccSus1_5[1]
V5REF_S0
V5REF_S5
3D3V_VCCPCORE_ICH_S03D3V_VCCPCORE_ICH_S0
VccLan1D05
3D3V_GLAN_S0
3D3V_ICH_CL_S5
Vcc Sus 1_05[1]
1D5V_USB_S0
VCC_GLAN_PLL
VccSus1_5[3]
3D3V_ICH_CL_S5
VCCDMI
Vcc Sus 1_05[2]
V5REF_S5
V5REF_S0
+VCCP
+1.5VS 1D5V_PCIE_S0
+1.5VS
+1.5VS
+3VS
+5VALW+3VALW
+5VS
+3VM_WOL
+RTCVCC
+3VS
+1.5VS
+3VM_WOL
+1.5VS
+3VS
+1.5VS
+3VS
+3VS
+3VALW
+3VALW
+1.5VS
1D5V_DMIPLL_ICH_S0
+1.5VS
+VCCP
+3VALW
1D5V_APLL_S0+1.5VS
+3VS
+VCCP
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9M (4/5)
23 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9M (4/5)
23 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9M (4/5)
23 53Wednesday, August 20, 2008
Artemis
3
177mA
657mA
VCC3_3=278mA
SATA+USB=1.56A
*Within a given well, 5VREF needs to be up before the
corresponding 3.3V rail
Layout Note:
Place near ICH8
1mA
1mA
6uA in G3
18mA in S0;50mA in S3/S4/S5
23mA
80mA
1mA
USBPLL=10mA
32mA
18mA
32mA
23mA
Place near ICH9MLayout Note:
1.13A
47mA
1mA
50mA
07/16
07/16
PV1-RF
12
C743
SCD1U10V2KX-4GP
C743
SCD1U10V2KX-4GP
12
C720
SCD1U10V2KX-4GP
C720
SCD1U10V2KX-4GP
12
C788
SCD1U10V2KX-4GP
C788
SCD1U10V2KX-4GP
21
D33
CH751H-40PT
D33
CH751H-40PT
12
C763
SCD1U10V2KX-4GP
C763
SCD1U10V2KX-4GP
12
C377
SC1U10V3ZY-6GP
C377
SC1U10V3ZY-6GP
12
C782
SCD1U16V2KX-3GP
C782
SCD1U16V2KX-3GP
12
TC13
SE220U2D5VDM-3GP
TC13
SE220U2D5VDM-3GP
1 2
R247 Do Not StuffR247 Do Not Stuff
12
C713 SCD1U10V2KX-4GP
C713 SCD1U10V2KX-4GP
1 2
R738
100R2J-2-GP
R738
100R2J-2-GP
12
C722
Do Not Stuff
DY
C722
Do Not Stuff
DY
12
C261
SCD01U16V2KX-3GP
C261
SCD01U16V2KX-3GP
12
C312
SC10U10V5KX-2GP
C312
SC10U10V5KX-2GP
12
C700
SCD1U10V2KX-4GP
C700
SCD1U10V2KX-4GP
12
C767
SCD1U10V2KX-4GP
C767
SCD1U10V2KX-4GP
12
C341
SC1U10V3KX-3GP
C341
SC1U10V3KX-3GP
12
C733
SCD1U10V2KX-4GP
C733
SCD1U10V2KX-4GP
12
C735
SCD1U10V2KX-4GP
C735
SCD1U10V2KX-4GP
12
C794
SCD1U10V2KX-4GP
C794
SCD1U10V2KX-4GP
1TP52 Do Not StuffTP52 Do Not Stuff
12
C248
SC47P50V2JN-3GP
C248
SC47P50V2JN-3GP
12
C802
SC1U6D3V2ZY-GP
C802
SC1U6D3V2ZY-GP
12
C779
Do Not Stuff
DY
C779
Do Not Stuff
DY
12
C784
SCD1U10V2KX-4GP
C784
SCD1U10V2KX-4GP
12
C731
SCD1U10V2KX-4GP
C731
SCD1U10V2KX-4GP
12
R647 Do Not StuffR647 Do Not Stuff
1 2
R706
100R2J-2-GP
R706
100R2J-2-GP
12
C723
SCD1U10V2KX-4GP
C723
SCD1U10V2KX-4GP
12
C801
SCD1U10V2KX-4GP
C801
SCD1U10V2KX-4GP
12
C378
SC47P50V2JN-3GP
C378
SC47P50V2JN-3GP
12
C727
SCD1U10V2KX-4GP
C727
SCD1U10V2KX-4GP
12
C247
SC22U6D3V5MX-2GP
C247
SC22U6D3V5MX-2GP
12
C718
Do Not Stuff
DY
C718
Do Not Stuff
DY
1 2
L17
IND-1D2UH-10-GP
L17
IND-1D2UH-10-GP
12
C330
SC4D7U10V5ZY-3GP
C330
SC4D7U10V5ZY-3GP
12
R662 Do Not StuffR662 Do Not Stuff
12
C307
SC1U10V3ZY-6GP
C307
SC1U10V3ZY-6GP
21
D29
CH751H-40PT
D29
CH751H-40PT
12 L15 IND-1D2UH-10-GP
L15 IND-1D2UH-10-GP
12
C726
SCD1U10V2KX-5GP
C726
SCD1U10V2KX-5GP
12
C253
SC4D7U10V5ZY-3GP
C253
SC4D7U10V5ZY-3GP
12
C334
SC4D7U10V5ZY-3GP
C334
SC4D7U10V5ZY-3GP
12
C256
Do Not Stuff
DY
C256
Do Not Stuff
DY
12
C751
Do Not Stuff
DY
C751
Do Not Stuff
DY
12
C254
SC2D2U6D3V3MX-1-GP
C254
SC2D2U6D3V3MX-1-GP
12
C774 SCD1U10V2KX-4GP
C774 SCD1U10V2KX-4GP
1TP55 Do Not StuffTP55 Do Not Stuff
12 L14 IND-1D2UH-10-GP
L14 IND-1D2UH-10-GP
12
C758
SCD1U10V2KX-4GP
C758
SCD1U10V2KX-4GP
V5REF
A6
V5REF_SUS
AE1
VCC1_5_B
AA24
VCC1_5_B
AA25
VCC1_5_B
AB24
VCC1_5_B
AB25
VCC1_5_B
AC24
VCC1_5_B
AC25
VCC1_5_B
AD24
VCC1_5_B
AD25
VCC1_5_B
AE25
VCC1_5_B
AE26
VCC1_5_B
AE27
VCC1_5_B
AE28
VCC1_5_B
AE29
VCC1_5_B
F25
VCC1_5_B
G25
VCC1_5_B
H24
VCC1_5_B
H25
VCC1_5_B
J24
VCC1_5_B
J25
VCC1_5_B
K24
VCC1_5_B
K25
VCC1_5_B
L23
VCC1_5_B
L24
VCC1_5_B
L25
VCC1_5_B
M24
VCC1_5_B
M25
VCC1_5_B
N23
VCC1_5_B
N24
VCC1_5_B
N25
VCC1_5_B
P24
VCC1_5_B
P25
VCC1_5_B
R24
VCC1_5_B
R25
VCC1_5_B
R26
VCC1_5_B
R27
VCC1_5_B
T24
VCC1_5_B
T27
VCC1_5_B
T28
VCC1_5_B
T29
VCC1_5_B
U24
VCC3_3 AG29
VCCDMIPLL R29
VCC1_5_A
AC16
VCC1_5_A
AD15
VCC1_5_A
AD16
VCC1_5_A
AE15
VCC1_5_A
AF15
VCCSATAPLL
AJ19
VCC3_3 AJ6
VCC1_5_A
AC11
VCC1_5_A
AD11
VCCUSBPLL
AJ5
VCCLAN1_05
A10
VCCLAN1_05
A11
VCC1_05 A15
VCC1_05 B15
VCC1_05 C15
VCC1_05 D15
VCC1_05 E15
VCC1_05 F15
VCC1_05 L11
VCC1_05 L12
VCC1_05 L14
VCC1_05 L16
VCC1_05 L17
VCC1_05 L18
VCC1_05 M11
VCC1_05 M18
VCC1_05 P11
VCC1_05 P18
VCC1_05 T11
VCC1_05 T18
VCC1_05 U11
VCC1_05 U18
VCCLAN3_3
A12
VCCLAN3_3
B12
VCCHDA AJ4
VCCSUSHDA AJ3
V_CPU_IO AB23
V_CPU_IO AC23
VCC3_3 F9
VCC3_3 G3
VCC3_3 G6
VCC3_3 J2
VCC3_3 J7
VCC3_3 K7
VCCRTC
A23
VCCSUS3_3 A18
VCCSUS3_3 D16
VCCSUS3_3 D17
VCCSUS3_3 E22
VCCSUS3_3 T1
VCCSUS3_3 T2
VCCSUS3_3 T3
VCCSUS3_3 T4
VCCSUS3_3 T5
VCCSUS3_3 T6
VCCSUS3_3 U6
VCCSUS3_3 U7
VCCSUS3_3 V6
VCCSUS3_3 V7
VCCSUS3_3 W6
VCCSUS3_3 W7
VCC1_5_A
AG10
VCCSUS1_05 AC8
VCCSUS1_05 F17
VCC1_5_A
G9
VCC1_5_A
AC12
VCC1_5_A
AC13
VCC1_5_A
AC14
VCC1_5_A
AA7
VCCSUS3_3 AF1
VCC3_3 B9
VCC1_5_A
AB6
VCC1_05 V12
VCC1_05 V17
VCC1_05 V14
VCC1_05 V11
VCC1_05 V18
VCC1_05 V16
VCCGLAN1_5
E27
VCCGLAN1_5
D29
VCCGLAN1_5
E26
VCCGLAN1_5
D28
VCCGLAN3_3
A26
VCCGLANPLL
A27
VCC3_3 AD19
VCCSUS3_3 Y6
VCCSUS1_5 AD8
VCCSUS1_5 F18
VCCDMI Y23
VCCDMI W23
VCCCL1_05 G22
VCCCL3_3 B24
VCCCL3_3 A24
VCCCL1_5 G23
VCC1_5_B
W24
VCC1_5_B
V25
VCC1_5_B
U25
VCC1_5_B
W25
VCC1_5_B
U23
VCC1_5_B
V24
VCC1_5_B
K23
VCC1_5_B
Y24
VCC1_5_B
Y25
VCC1_5_A
AG15
VCC1_5_A
AH15
VCC1_5_A
AJ15
VCC1_5_A
AE11
VCC1_5_A
AF11
VCCSUS3_3 Y7
VCC3_3 AF20
VCC3_3 AG24
VCC3_3 AC20
VCC3_3 AC10
VCC1_5_A
AC21
VCC1_5_A
G10
VCC1_5_A
AC19 VCC1_5_A
AC18
VCC1_5_A
AC9
VCC1_5_A
AJ10 VCC1_5_A
AH10 VCC1_5_A
AG11
VCC1_5_A
AB7
VCC1_5_A
AC6
VCC1_5_A
AC7
VCCSUS3_3 T7
CORE
VCCA3GP ATXARX USB CORE
PCI
GLAN POWER
VCCP_CORE
VCCPSUSVCCPUSB
6 OF 6
U14F
ICH9M-GP-NF
CORE
VCCA3GP ATXARX USB CORE
PCI
GLAN POWER
VCCP_CORE
VCCPSUSVCCPUSB
6 OF 6
U14F
ICH9M-GP-NF
12
C255
SC10U10V5KX-2GP
C255
SC10U10V5KX-2GP
12
C810
SC1U6D3V2ZY-GP
C810
SC1U6D3V2ZY-GP
12
C724
SCD1U10V2KX-4GP
C724
SCD1U10V2KX-4GP
12
C252
SC10U10V5KX-2GP
C252
SC10U10V5KX-2GP
12
C332
Do Not Stuff
DY
C332
Do Not Stuff
DY
12
R254 Do Not StuffR254 Do Not Stuff
12
C734
Do Not Stuff
DY
C734
Do Not Stuff
DY
12
C739
SCD1U10V2KX-4GP
C739
SCD1U10V2KX-4GP
12
C753
SCD1U10V2KX-4GP
C753
SCD1U10V2KX-4GP
12
C386
SCD1U10V2KX-4GP
C386
SCD1U10V2KX-4GP
12
C807
SCD1U10V2KX-4GP
C807
SCD1U10V2KX-4GP
12 R277 Do Not Stuff
R277 Do Not Stuff
12
C777
SCD1U10V2KX-4GP
C777
SCD1U10V2KX-4GP
12 R288 Do Not Stuff
DY
R288 Do Not Stuff
DY
12
C721
SCD1U10V2KX-4GP
C721
SCD1U10V2KX-4GP
12
C388
SCD1U10V2KX-4GP
C388
SCD1U10V2KX-4GP
12 R587 Do Not Stuff
R587 Do Not Stuff
12
C762
Do Not Stuff
DY
C762
Do Not Stuff
DY
12
C780
SCD1U10V2KX-4GP
C780
SCD1U10V2KX-4GP
12
C781
SCD022U16V2KX-3GP
C781
SCD022U16V2KX-3GP
12
C260
SC2D2U10V3KX-1GP
C260
SC2D2U10V3KX-1GP
12
C745
SCD1U10V2KX-4GP
C745
SCD1U10V2KX-4GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ICH_SMB_DATA
ICH_SMB_CLK
ICH_GND1
ICH_GND2
ICH_GND4
ICH_GND3
ICH_GND1
ICH_GND4
ICH_GND2
ICH_GND3
BGA_CRACK
BGA_CRACK
BGA_CRACK
+3VM
+3VM
+3VS
+3VS
+3VS
+3VS
ICH_SMB_DATA [22]
ICH_SMBCLK [14,16]
ICH_SMBDATA[14,16]
ICH_SMB_CLK[22]
BGA_CRACK [13,34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (5 of 5)
24 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (5 of 5)
24 53Wednesday, August 20, 2008
Artemis
3
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ICH9-M (5 of 5)
24 53Wednesday, August 20, 2008
Artemis
3
Q13 & Q14 connect SMLINK and
SMBUS in S) for SMBus 2.0
compliance
SMBUS
NCTF PIN
07/20 BGA CRACK CIRCUIT
12
R303
Do Not Stuff
DY
R303
Do Not Stuff
DY
1
2
3 4
5
6
U73 2N7002DW-1-GPU73 2N7002DW-1-GP
G
S D
Q35
Do Not Stuff
DY
Q35
Do Not Stuff
DY
12
R253
Do Not Stuff
DY
R253
Do Not Stuff
DY
G
S D
Q26
Do Not Stuff
DY
Q26
Do Not Stuff
DY
1
TP17 Do Not StuffTP17 Do Not Stuff
1
TP18 Do Not StuffTP18 Do Not Stuff
12
R260
Do Not Stuff
DY
R260
Do Not Stuff
DY
1
TP29 Do Not StuffTP29 Do Not Stuff
12
R296
Do Not Stuff
DY
R296
Do Not Stuff
DY
G
S D
Q25
Do Not Stuff
DY
Q25
Do Not Stuff
DY
1
TP28 Do Not StuffTP28 Do Not Stuff
G
S D
Q37
Do Not Stuff
DY
Q37
Do Not Stuff
DY
VSS
AA26
VSS
AA27
VSS
AA3
VSS
AA6
VSS
AB1
VSS
AA23
VSS
AB28
VSS
AB29
VSS
AB4
VSS
AB5
VSS
AC17
VSS
AC26
VSS
AC27
VSS
AC3
VSS
AD1
VSS
AD10
VSS
AD12
VSS
AD13
VSS
AD14
VSS
AD17
VSS
AD18
VSS
AD21
VSS
AD28
VSS
AD29
VSS
AD4
VSS
AD5
VSS
AD6
VSS
AD7
VSS
AD9
VSS
AE12
VSS
AE13
VSS
AE14
VSS
AE16
VSS
AE17
VSS
AE2
VSS
AE20
VSS
AE24
VSS
AE3
VSS
AE4
VSS
AE6
VSS
AE9
VSS
AF13
VSS
AF16
VSS
AF18
VSS
AF22
VSS
AH26
VSS
AF26
VSS
AF27
VSS
AF5
VSS
AF7
VSS
AF9
VSS
AG13
VSS
AG16
VSS
AG18
VSS
AG20
VSS
AG23
VSS
AG3
VSS
AG6
VSS
AG9
VSS
AH12
VSS
AH14
VSS
AH17
VSS
AH19
VSS
AH2
VSS
AH22
VSS
AH25
VSS
AH28
VSS
AH5
VSS
AH8
VSS
AJ12
VSS
AJ14
VSS
AJ17
VSS
AJ8
VSS
B11
VSS
B14
VSS
B17
VSS
B2
VSS
B20
VSS
B23
VSS
B5
VSS
B8
VSS
C26
VSS
C27
VSS
E11
VSS
E14
VSS
E18
VSS
E2
VSS
E21
VSS
E24
VSS
E5
VSS
E8
VSS
F16
VSS
F28
VSS
F29
VSS
G12
VSS
G14
VSS
G18
VSS
G24
VSS
G26
VSS
G27
VSS
G8
VSS
H2
VSS
H23
VSS
H28
VSS
H29
VSS H5
VSS J23
VSS J26
VSS J27
VSS AC22
VSS K28
VSS K29
VSS L13
VSS L15
VSS L2
VSS L26
VSS L27
VSS L5
VSS L7
VSS M12
VSS M13
VSS M14
VSS M15
VSS M16
VSS M17
VSS M23
VSS M28
VSS M29
VSS N11
VSS N12
VSS N13
VSS N14
VSS N15
VSS N16
VSS N17
VSS N18
VSS N26
VSS N27
VSS P12
VSS P13
VSS P14
VSS P15
VSS P16
VSS P17
VSS P2
VSS P23
VSS P28
VSS P29
VSS P4
VSS P7
VSS R11
VSS R12
VSS R13
VSS R14
VSS R15
VSS R16
VSS R17
VSS R18
VSS R28
VSS T12
VSS T13
VSS T14
VSS T15
VSS T16
VSS T17
VSS T23
VSS U12
VSS U13
VSS U14
VSS U15
VSS U16
VSS U17
VSS AD23
VSS U26
VSS U27
VSS U3
NCTF_VSS#A1 A1
NCTF_VSS#A2 A2
NCTF_VSS#A28 A28
NCTF_VSS#A29 A29
NCTF_VSS#AH1 AH1
NCTF_VSS#AH29 AH29
NCTF_VSS#AJ1 AJ1
NCTF_VSS#AJ2 AJ2
NCTF_VSS#AJ28 AJ28
NCTF_VSS#AJ29 AJ29
NCTF_VSS#B1 B1
NCTF_VSS#B29 B29
VSS V1
VSS V13
VSS V15
VSS V23
VSS V28
VSS
G21
VSS V29
VSS V4
VSS V5
VSS W26
VSS W27
VSS W3
VSS Y1
VSS Y28
VSS Y29
VSS Y4
VSS Y5
VSS AG28
VSS AH6
VSS AF2
VSS B26
VSS B25
5 OF 6
NCTF TEST PIN:
A1,A2,B1,A28,A29,B29
AH1,AJ1,AJ2,AH29,AJ28,AJ29
U14E
ICH9M-GP-NF
5 OF 6
NCTF TEST PIN:
A1,A2,B1,A28,A29,B29
AH1,AJ1,AJ2,AH29,AJ28,AJ29
U14E
ICH9M-GP-NF
1
2 3
4
RN47
SRN2K2J-1-GP
RN47
SRN2K2J-1-GP
http://laptop-motherboard-schematic.blogspot.com/

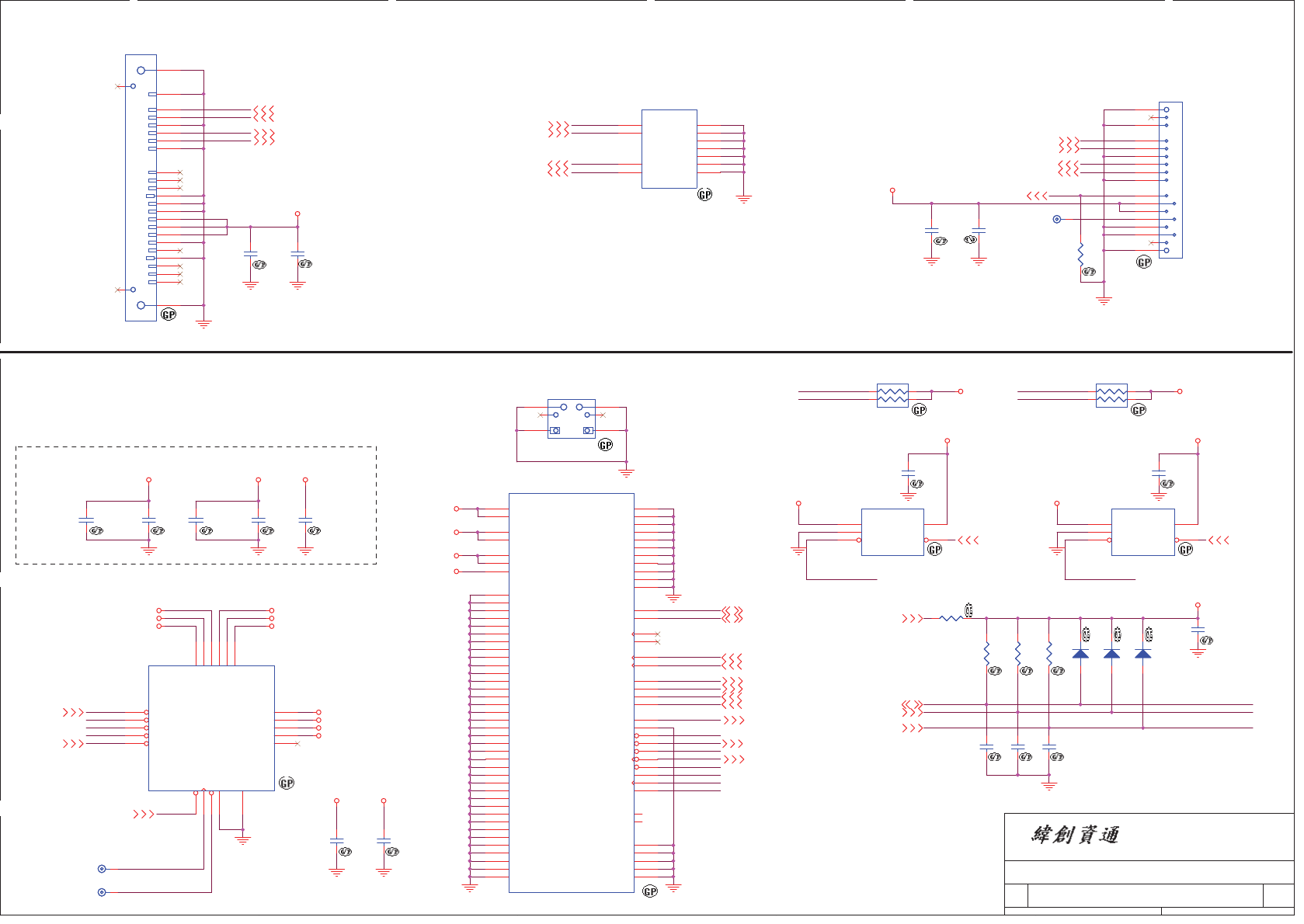

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ODD_DP
ODD_MD
NEWCARD_RST#
CPUSB#
NEWCARD_OC#
CPPE#
PERST#
FLAG#_3VSFLAG#_5VS
FLAG#_3VS
FLAG#_5VS +5VSCEN#
+3VSCEN#
CPUSB#
CPPE#
PERST#
SM_SCRST
SM_SCIO
SM_SCCLK
SM_SCCLK
SM_SCRST
SM_SCIO
+5VS
+5VS
+3VALW +1.5VS
+3VS_NEW +3VALW_NEW_LAN+1.5VS_NEW
+3VS
+1.5VS +3VALW
+3VALW_NEW_LAN
+3VS_NEW
+1.5VS_NEW
+1.5VS_NEW
+3VS_NEW
+3VS
+1.5VS
+VCC_SC
+3VS
+VCC_SC
+5VS
+3VS +3VS_PHY
+3VALW_NEW_LAN
+3VS_NEW
+1.5VS_NEW
+VCC_SC
+VCC_SC
SATA_RXN1[21] SATA_RXP1[21]
SATA_TXP1[21] SATA_TXN1[21]
SATA_TXP0 [21]
SATA_TXN0 [21]
SATA_RXN0 [21]
SATA_RXP0 [21]
SLP_S3#
0
,51,52]
PLT_RST#
4
,45]
SLP_S3#
2
8,29,34,36,37,46,50,51,52]
+5VSCEN# [41] +3VSCEN# [41]
ODD_DET#[20]
USB20_P2 [22]
USB20_N2 [22]
ICH_PCIE_WAKE# [22,31,45]
PCIE_TXP3 [22]
PCIE_TXN3 [22]
PCIE_RXP3 [22]
PCIE_RXN3 [22]
CLK_PCIE_NEW [16]
CLK_PCIE_NEW# [16]
SM_SCCD# [41]
NEWCARD_CLKREQ# [16]
SM_SCIO[41]
SM_SCSENSE[41]
SM_SCCLK[41]
SM_SCRST[41]
SATA_TXP4[21] SATA_TXN4[21]
SATA_RXN4[21] SATA_RXP4[21]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
HDD /NEW CARD CONN.
A3
25 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
HDD /NEW CARD CONN.
A3
25 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
HDD /NEW CARD CONN.
A3
25 53Wednesday, August 20, 2008
VOX
SATA HDD Connector ODD Connector
NEWCARD/SMART CARD Connector
Place them Near to Chip
Place them Near to Connector
For Newcard socket
07/03
DB3
SI2
SI2
ESATA Connector
12
C259
SCD1U16V2ZY-2GP
C259
SCD1U16V2ZY-2GP
1
2 3
4
RN10 SRN100KJ-9-GP-U
RN10 SRN100KJ-9-GP-U
12
C394
SCD1U16V2ZY-2GP
C394
SCD1U16V2ZY-2GP
12
C272
SC10U6D3V5ZY-2GP
C272
SC10U6D3V5ZY-2GP
12
C400
SC12P50V2JN-3GP
C400
SC12P50V2JN-3GP
S1
S2
S3
S4
S5
S6
S7
NP1
NP2
8
9
P1
P2
P3
P4
P5
P6
ODD1
SKT-SATA7P+6P-35-GP
ODD1
SKT-SATA7P+6P-35-GP
3.3VIN 2
3.3VOUT 3
SYSRST#
6
GND
7
PERST#
8CPUSB#
9CPPE#
10
1.5VOUT 11
1.5VIN 12
AUXOUT 15
AUXIN 17
SHDN#
20
NC#4 4
NC#5 5
NC#13 13
NC#14 14
NC#16 16
STBY#
1
RCLKEN
18
OC#
19
THERMAL_PAD
21
U60
TPS2231RGP-GP-U
U60
TPS2231RGP-GP-U
12
C824
SC1U10V2KX-1GP
C824
SC1U10V2KX-1GP
1
TP15Do Not Stuff TP15Do Not Stuff
12
C398
SCD1U16V2ZY-2GP
C398
SCD1U16V2ZY-2GP
12
C267
Do Not Stuff
DY
C267
Do Not Stuff
DY
1
TP16Do Not Stuff TP16Do Not Stuff
KA
D37
1N4148W-1-GP
D37
1N4148W-1-GP
12
C285
SCD1U16V2ZY-2GP
C285
SCD1U16V2ZY-2GP
VOUT
1
GND
2
FLAG#
3ON/ON# 4
VIN 5
U76
G552A1TA1U-GP
U76
G552A1TA1U-GP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NP1
NP2
HDD1
SKT-SATA22P-14-GP
HDD1
SKT-SATA22P-14-GP
12
C281
Do Not Stuff
DY
C281
Do Not Stuff
DY
1 2
3 4
NP1 NP2
SKT1
CARD-SKT25-GP
SKT1
CARD-SKT25-GP
12
TC5
SC10U10V5ZY-1GP
TC5
SC10U10V5ZY-1GP
KA
D36
1N4148W-1-GP
D36
1N4148W-1-GP
1
2 3
4
RN52 SRN10KJ-11-GP-U
RN52 SRN10KJ-11-GP-U
1 2
R310
10KR2J-3-GP
R310
10KR2J-3-GP
GND 1
A+
2A-
3
GND 4
B-
5
B+
6
GND 7
GND 8
GND 9
GND 10
GND 11
ESATA1
SKT-USB+ESATA-3-GP-U
ESATA1
SKT-USB+ESATA-3-GP-U
12
C132
SCD1U16V2ZY-2GP
C132
SCD1U16V2ZY-2GP
12
R312
15KR2J-1-GP
R312
15KR2J-1-GP
12
C393
SCD1U16V2ZY-2GP
C393
SCD1U16V2ZY-2GP
VOUT
1
GND
2
FLAG#
3ON/ON# 4
VIN 5
U78
G552A1TA1U-GP
U78
G552A1TA1U-GP
12
C399
SC12P50V2JN-3GP
C399
SC12P50V2JN-3GP
12
R309
15KR2J-1-GP
R309
15KR2J-1-GP
12
C280
SCD1U16V2ZY-2GP
C280
SCD1U16V2ZY-2GP
RESERVED#1
1
RESERVED#2
2
RESERVED#3
3
RESERVED#4
4
RESERVED#5
5
RESERVED#6
6
RESERVED#7
7
RESERVED#8
8
RESERVED#9
9
RESERVED#10
10
RESERVED#11
11
RESERVED#12
12
RESERVED#13
13
RESERVED#14
14
RESERVED#15
15
RESERVED#16
16
RESERVED#17
17
RESERVED#18
18
RESERVED#19
19
RESERVED#20
20
RESERVED#21
21
RESERVED#22
22
RESERVED#23
23
RESERVED#24
24
RESERVED#25
25
RESERVED#26
26
RESERVED#27
27
RESERVED#28
28
RESERVED#29
29
RESERVED#30
30
RESERVED#31
31
RESERVED#32
32
RESERVED#33
33
USBD- 44
USBD+ 45
CPUSB# 46
SMBDATA 50
WAKE# 53
PERST# 55
CPPE# 59
SWITCH#69 69
SWITCH#70 70
I/O 72
RESET 77
+1.5V
51
+1.5V
52
+3.3VAUX
54
+3.3V
56
+3.3V
57
VPP
73 VCC
78
GND 43
GND 62
GND 65
GND 68
GND 74
SMBCLK 49
CLKREQ# 58
REFCLK- 60
REFCLK+ 61
CLK 76
RESERVED#36
36
RESERVED#37
37
RESERVED#38 38
RESERVED#39 39
RESERVED#40 40
RESERVED#41 41
RESERVED#42 42
RESERVED#47 47
RESERVED#48 48
RESERVED#71 71
RESERVED#75 75
RESERVED#79 79
RESERVED#80 80
RESERVED#34
34
RESERVED#35
35
NP1 NP1
NP2 NP2
PERN0 63
PERP0 64
PETN0 66
PETP0 67
NEW1
TYCO-CONN80-GP
NEW1
TYCO-CONN80-GP
12
R311
15KR2J-1-GP
R311
15KR2J-1-GP
12
C298
SC10U6D3V5ZY-2GP
C298
SC10U6D3V5ZY-2GP
12
R151
Do Not Stuff
DY
R151
Do Not Stuff
DY
12
C714
SCD1U16V2ZY-2GP
C714
SCD1U16V2ZY-2GP
12
C397
SC12P50V2JN-3GP
C397
SC12P50V2JN-3GP
1
TP10Do Not Stuff TP10Do Not Stuff
KA
D38
1N4148W-1-GP
D38
1N4148W-1-GP
http://laptop-motherboard-schematic.blogspot.com/

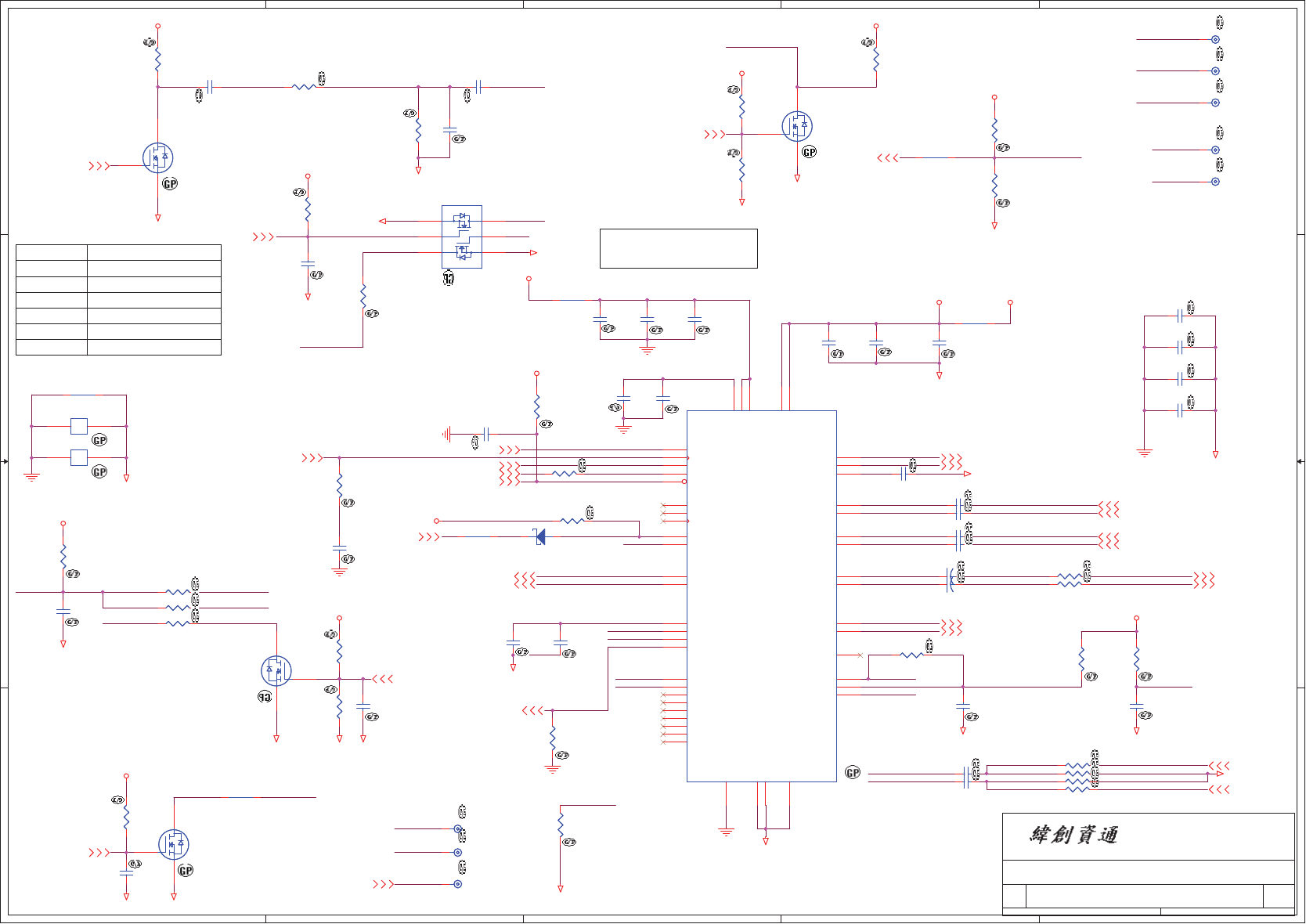

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MIC_BIAS_C
SENSE_A_A
MONO_L
DLINE_OUT_L_1
DLINE_OUT_R_1
D_IN_R0
D_IN_L0
D_IN_R1
D_IN_L1
SENSE_A_D
D_IN_L1
INT_MIC_L0
INT_MIC_R0
DLINE_OUT_L_0
PCBEEP
D_IN_R1
SENSE_A
SENSE_B
DVCORE
DLINE_OUT_R_0
SENSE1
SENSE_A
MIC_JS_R
SENSE1
+3VS_CODEC
PCBEEP
MIC1_B
MIC2_B
L_HP
R_HP
VDDA_CODEC
ACZ_RST#
HDA_SDIN_CODEC CD_GND
MIC_BIAS_B
CODEC_VREF
ACZ
MIC_BIAS_src
MIC_BIAS_src
SENSE_A
SENSE_B_E
EAPD
SENSE_B
+3VS
SENSE_A_A
MONO_L_1MONO_L_0
EAPD
SPDIF_OUT
MIC_JS_1 MIC_JS_R
GPIO0_EAPD
GPIO0_EAPD
MIC2
MIC1
MIC_JS
GPIO_2
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND AUD_AGND
AUD_AGND
AUD_AGND
+5VSVDDA_CODEC
+5VS
VDDA_CODEC
VDDA_CODEC
+3VS
V_CODECVDDA_CODEC
+3VS
+5VS
VDDA_CODEC
VDDA_CODEC
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
+5VS
AUD_AGND
AUD_AGND
VDDA_CODEC
HP_JS[28,45]
MIC_BIAS_C[27]
DLINE_IN_R [36]
DLINE_IN_L [36]
INT_MIC_L [27]
INT_MIC_R [27]
LINE_OUTL [28]
LINE_OUTR [28]
DOCK_HPSENSE#[36]
L_HP [28]
R_HP [28]
MIC1 [45]
MIC2 [45]
ACZ_SYNC[21]
ACZ_BITCLK[21]
MIC_BIAS_B[45]
HDA_SDOUT_CODEC[21] HDA_SDIN0_CODEC[21] ACZ_RST#[21]
DLINE_OUT_L [36]
LINE_IN_SENSE [36]
DLINE_OUT_R [36]
ACZ_SPKR[22] A_EAPD[34]
SPDIF_OUT[17]
MIC_JS[45]
MIC_JS[45]
A_SD[28,34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CODEC AD1984A
A3
26 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CODEC AD1984A
A3
26 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
CODEC AD1984A
A3
26 53Wednesday, August 20, 2008
Artemis
3
VOX
PLACE TOPORT
PORT A
MONO_OUT X
PORT C
PORT B
HP
PORT F
PORT D DLINE OUT
INT MIC
MIC
LINE OUT
Place close to CODEC
24.000MHz
C6 close to CODEC pin3
C5 close to CODEC pin9
Note:
07/26
DB2
Place under the CODEC
SI2R
SI2R
12
R951
4K7R2J-2-GP
R951
4K7R2J-2-GP
1 2
R301 60D4R3F-GPR301 60D4R3F-GP
12
C755
SCD01U16V2KX-3GP
C755
SCD01U16V2KX-3GP
G
S D
U77
2N7002-11-GP
U77
2N7002-11-GP
1 2
C389 SC1U10V3KX-3GPC389 SC1U10V3KX-3GP
1
PAD43 Do Not StuffPAD43 Do Not Stuff
1 2
C358
SC1U10V3KX-3GP
C358
SC1U10V3KX-3GP
1 2
R712 39K2R2F-L-GPR712 39K2R2F-L-GP
12
R721 Do Not StuffR721 Do Not Stuff
12
C1028
SCD1U16V2ZY-2GP
C1028
SCD1U16V2ZY-2GP
1 2
C793 Do Not Stuff
DY
C793 Do Not Stuff
DY
12
R299
10KR2J-3-GP
R299
10KR2J-3-GP
1 2
C367
SC1U10V3KX-3GP
C367
SC1U10V3KX-3GP
1 2
C383 SC2D2U10V3KX-1GPC383 SC2D2U10V3KX-1GP
1 2
R717 20KR2F-L-GPR717 20KR2F-L-GP
1 2
R668 33R2J-2-GP
R668 33R2J-2-GP
1 2
C391 SC1U10V3KX-3GPC391 SC1U10V3KX-3GP
1
PAD46 Do Not StuffPAD46 Do Not Stuff
12
R739
Do Not Stuff
DY
R739
Do Not Stuff
DY
1 2
R736
100KR2J-1-GP
R736
100KR2J-1-GP
G
S D
Q30
2N7002-11-GP
Q30
2N7002-11-GP
1 2
R640
100KR2J-1-GP
R640
100KR2J-1-GP
12
C770
SCD1U16V2ZY-2GP
C770
SCD1U16V2ZY-2GP
1 2
R661 6K04R2F-GPR661 6K04R2F-GP
1 2
R729 Do Not Stuff
DY
R729 Do Not Stuff
DY
1 2
R665 Do Not StuffR665 Do Not Stuff
12
R669
4K7R2J-2-GP
R669
4K7R2J-2-GP
12
C374
SC10U10V5ZY-1GP
C374
SC10U10V5ZY-1GP
12
R740
Do Not Stuff
R740
Do Not Stuff
1 2
R667
10KR2J-3-GP
R667
10KR2J-3-GP
12
R298
2K67R3F-GP
R298
2K67R3F-GP
1 2
R670 6K04R2F-GPR670 6K04R2F-GP
G
S D
Q31
2N7002-11-GP
Q31
2N7002-11-GP
1 2
R646
Do Not Stuff
DY
R646
Do Not Stuff
DY
12
C760
SCD1U16V2ZY-2GP
C760
SCD1U16V2ZY-2GP
1 2
G100 Do Not StuffG100 Do Not Stuff
12
C787
SCD1U16V2ZY-2GP
C787
SCD1U16V2ZY-2GP
1 2
C804
DY
C804
DY
1 2
R675 2KR2-GPR675 2KR2-GP
12
R285
Do Not Stuff
DY
R285
Do Not Stuff
DY
12
C812
SCD1U16V2ZY-2GP
C812
SCD1U16V2ZY-2GP
12
C392
SC1U10V3KX-3GP
C392
SC1U10V3KX-3GP
12
C786
SCD1U16V2ZY-2GP
C786
SCD1U16V2ZY-2GP
1
PAD47 Do Not StuffPAD47 Do Not Stuff
1 2
G101 Do Not StuffG101 Do Not Stuff
1
PAD45 Do Not StuffPAD45 Do Not Stuff
1 2
R728 39K2R2F-L-GPR728 39K2R2F-L-GP
21
D23 CH751H-40PTD23 CH751H-40PT
1 2
R686 2KR2-GPR686 2KR2-GP
12
C783
SC1KP50V2KX-1GP
C783
SC1KP50V2KX-1GP
1 2
C387 SC2D2U10V3KX-1GPC387 SC2D2U10V3KX-1GP
1 2
R229 15KR2J-1-GPR229 15KR2J-1-GP
12
R691
47R2J-2-GP
R691
47R2J-2-GP
1 2
R283 Do Not StuffR283 Do Not Stuff
12
C809
SCD1U16V2ZY-2GP
C809
SCD1U16V2ZY-2GP
12
C785
SCD1U16V2ZY-2GP
C785
SCD1U16V2ZY-2GP
1 2
TC17 ST47U10VBK-GPTC17 ST47U10VBK-GP
1 2
C376
SC1U10V3KX-3GP
C376
SC1U10V3KX-3GP
12
C353
SC10U10V5ZY-1GP
C353
SC10U10V5ZY-1GP
12
R297
20R3J-4-GP
R297
20R3J-4-GP
1 2
R650 150KR2F-L-GP
R650 150KR2F-L-GP
1 2
R642
100KR2J-1-GP
R642
100KR2J-1-GP
12
C808
SCD1U16V2ZY-2GP
C808
SCD1U16V2ZY-2GP
1 2
R741
100KR2F-L1-GP
R741
100KR2F-L1-GP
12
R693
5K1R2F-2-GP
R693
5K1R2F-2-GP
1
PAD17 Do Not StuffPAD17 Do Not Stuff
1 2
TC18 ST47U10VBK-GPTC18 ST47U10VBK-GP
1
2
3 4
5
6
U70
2N7002DW-1-GP
U70
2N7002DW-1-GP
1 2
R645
100KR2J-1-GP
R645
100KR2J-1-GP
1
PAD44 Do Not StuffPAD44 Do Not Stuff
1
PAD48 Do Not StuffPAD48 Do Not Stuff
DVCORE 1
DM_1/2
2
DVI/O 3
DM_3/4
4
SDATA_OUT
5BIT_CLK
6
DVSS
7
SDATA_IN
8
DVDD 9
SYNC
10
RESET#
11
PCBEEP 12
SENSE_A/SRC_B 13
RESERVED#14
14
RESERVED#15
15
PORT-F_L 16
PORT-F_R 17
RESERVED#18
18
CD_GND 19
RESERVED#20
20
PORT-B_L 21
PORT-B_R 22
PORT-C_L 23
PORT-C_R 24
AVDD 25
AVSS
26
VREF_FILT
27
MIC_BIAS-B
28
MIC_BIAS-C
29
GPIO_2
30
GPIO_1/MIC_BIAS-E
31
MONO_OUT 32
MIC_BIAS_IN
33
SENSE_B/SRC_A 34
PORT-D_L 35
PORT-D_R 36
RESERVED#37
37
AVDD 38
PORT-A_L 39
RESERVED#40
40
PORT-A_R 41
AVSS
42
RESERVED#43
43
RESERVED#44
44
RESERVED#45
45
DM_CLK
46
GPIO_0/EAPD
47
S/PDIF-OUT
48
GND
49
U72
AD1984AJCPZ-RL-2GP
U72
AD1984AJCPZ-RL-2GP
12
R293
Do Not Stuff
R293
Do Not Stuff
1 2
C772 SCD1U16V2ZY-2GPC772 SCD1U16V2ZY-2GP
12
R704
2K67R2F-2-GP
R704
2K67R2F-2-GP
12
R763
Do Not Stuff
R763
Do Not Stuff
12
C765
SCD1U16V2ZY-2GP
C765
SCD1U16V2ZY-2GP
12
C361
SC4D7U10V5ZY-3GP
C361
SC4D7U10V5ZY-3GP
1 2
R742
20KR2F-L-GP
R742
20KR2F-L-GP
12
C811
SCD1U16V2ZY-2GP
C811
SCD1U16V2ZY-2GP
12
C797
SC1KP50V2KX-1GP
C797
SC1KP50V2KX-1GP
G
S D
Q36
2N7002-11-GP
Q36
2N7002-11-GP
12
C803
SCD1U16V2ZY-2GP
C803
SCD1U16V2ZY-2GP
1 2
R654
10KR2J-3-GP
R654
10KR2J-3-GP
1 2
R300 60D4R3F-GPR300 60D4R3F-GP
1 2
C759 SCD1U16V2ZY-2GPC759 SCD1U16V2ZY-2GP
12
C354
SC4D7U10V5ZY-3GP
C354
SC4D7U10V5ZY-3GP
1
PAD18 Do Not StuffPAD18 Do Not Stuff
1 2
C712 Do Not Stuff
DY
C712 Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/

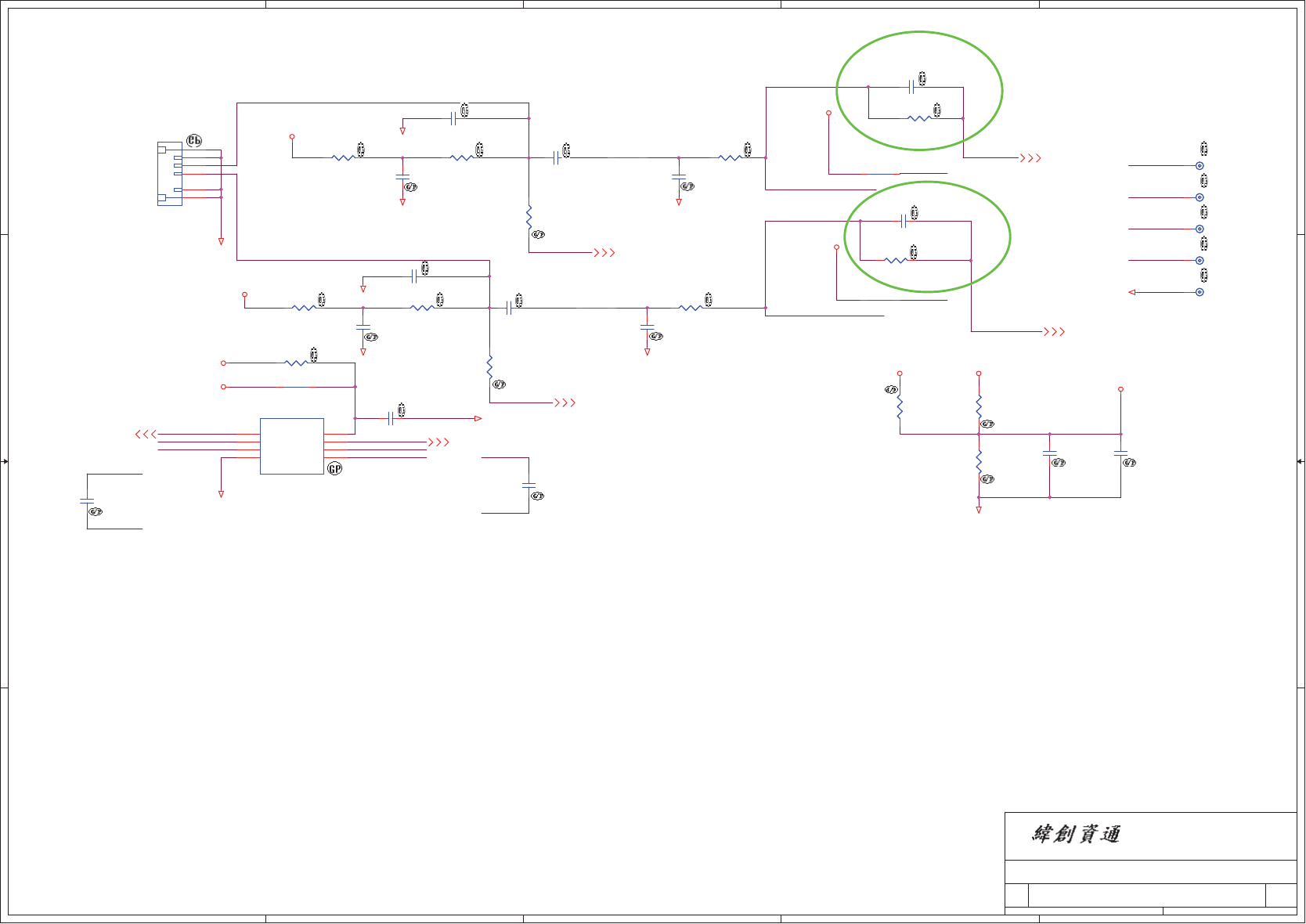

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
INT_MIC_L
INT_MIC_RINT_MIC_R1
INT_MIC_L1
INT_L2
INT_MIC_4-
INT_R2 INT_MIC_5-
INT_MIC_R
MIC_BIAS_C
INT_R1 INT_R3
INT_MIC_L
INT_MIC_L1
INT_L1 INT_L3
INT_MIC_R1
INT_MIC_4+
INT_MIC_4-
INT_MIC_5+
INT_MIC_5-
INT_MIC_L INT_MIC_R
VDD+
MIC_BIAS_C
INT_MIC_4+
INT_MIC_5+
INT_MIC_4+
INT_MIC_4-
INT_MIC_5+
INT_MIC_5-
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND AUD_AGND
AUD_AGND AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
VDDA_CODEC
MIC_REF
VDDA_CODEC
MIC_REF
VDDA_CODEC
+5VS
AUD_AGND
VDDA_CODEC+5VS
MIC_REF
MIC_BIAS_C [26]
INT_MIC_R [26]
INT_MIC_L [26]
INT_MIC_R [26]
MIC_BIAS_C [26]
INT_MIC_L[26]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
INT MIC
A3
27 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
INT MIC
A3
27 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
INT MIC
A3
27 53Wednesday, August 20, 2008
Artemis
3
VOX
AMP. FOR INTERNAL ARRAY MICROPHONE
C136 and C164 close to the U33
MV1
MV1
1 2
C168 SC100P50V2JN-3GPC168 SC100P50V2JN-3GP
12
C114
Do Not Stuff
DY
C114
Do Not Stuff
DY
12
R138
33KR2J-3-GP
R138
33KR2J-3-GP
12
C134
SCD01U50V2KX-1GP
C134
SCD01U50V2KX-1GP
12
C136
SC100P50V2JN-3GP
C136
SC100P50V2JN-3GP
1 2
C121 SCD1U16V3KX-3GPC121 SCD1U16V3KX-3GP
1 2
R166 200KR2J-L1-GPR166 200KR2J-L1-GP
1
PAD49 Do Not StuffPAD49 Do Not Stuff
1
PAD7 Do Not StuffPAD7 Do Not Stuff
12
R118
3K9R3F-GP
R118
3K9R3F-GP
1 2
R131 Do Not Stuff
DY
R131 Do Not Stuff
DY
1 2
R169 10KR2J-3-GP
R169 10KR2J-3-GP
1 2
C155 SCD1U16V2ZY-2GPC155 SCD1U16V2ZY-2GP
1
PAD10 Do Not StuffPAD10 Do Not Stuff
1 2
R158 Do Not StuffR158 Do Not Stuff
12
C156
SC68P50V2JN-1GP
C156
SC68P50V2JN-1GP
1 2
R152 Do Not StuffR152 Do Not Stuff
1 2
C125
SC4700P50V2KX-1GP
C125
SC4700P50V2KX-1GP
12
C165
SC68P50V2JN-1GP
C165
SC68P50V2JN-1GP
1 2
R128 Do Not Stuff
DY
R128 Do Not Stuff
DY
1 2
C135 SC100P50V2JN-3GPC135 SC100P50V2JN-3GP
1 2
C113
SC4700P50V2KX-1GP
C113
SC4700P50V2KX-1GP
1 2
R141 Do Not StuffR141 Do Not Stuff
1
PAD50 Do Not StuffPAD50 Do Not Stuff
12
R132
3K9R3F-GP
R132
3K9R3F-GP
12
C129
SC4D7U10V5ZY-3GP
C129
SC4D7U10V5ZY-3GP
1 2
R140
Do Not Stuff
DY
R140
Do Not Stuff
DY
1 2
R133 Do Not StuffR133 Do Not Stuff
12
R139
33KR2J-3-GP
R139
33KR2J-3-GP
1 2
R135 Do Not Stuff
DY
R135 Do Not Stuff
DY
1 2
C115 SCD1U16V3KX-3GPC115 SCD1U16V3KX-3GP
6
1
2
3
4
5
MIC1
ETY-CON4-15-GP-U
MIC1
ETY-CON4-15-GP-U
1 2
R153 Do Not Stuff
DY
R153 Do Not Stuff
DY
1 2
R119 Do Not StuffR119 Do Not Stuff
12
C126
Do Not Stuff
DY
C126
Do Not Stuff
DY
1
PAD8 Do Not StuffPAD8 Do Not Stuff
1OUT
1
1IN-
2
1IN+
3
GND
42IN+ 5
2IN- 6
2OUT 7
VDD+ 8
U33
TLV2462CDGK-GP
U33
TLV2462CDGK-GP
1 2
R156 10KR2J-3-GP
R156 10KR2J-3-GP
12
C164
SC100P50V2JN-3GP
C164
SC100P50V2JN-3GP
1 2
R144 200KR2J-L1-GPR144 200KR2J-L1-GP
1 2
R125 Do Not Stuff
DY
R125 Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LINE_OUTL_0
HP_INR
C1N
AUD_GAIN1
AUD_GAIN0HP_ENABLE
BYPASSAUD_GAIN0
AUD_GAIN1
CPVSS
SPKR_R-
SPKR_L+
SPKR_L-
SLP_S3#
SPKR_RIN-
SPKR_R+
LINE_OUTR_0
HP_INL
SPKR_LIN-
C1P
SPKR_R+
SPKR_L-
SPKR_R+
SPKR_R-
SPKR_L-
SPKR_L+
SPKR_R-
SPKR_L-
SPKR_L+
SPKR_R+
SPKR_R-
SPKR_L+
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
AUD_AGND
V_CODEC
+5VAMP+5VS
+5VS +5VAMP
HP_JS [26,45]
LINE_OUTL[26]
LINE_OUTR[26]
R_HP_OUT [45]
L_HP_OUT [45]
R_HP [26]
L_HP [26]
A_SD [26,34]
SLP_S3# [17,22,25,29,34,36,37,46,50,51,52]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
AMP & SPEAKER
A3
28 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
AMP & SPEAKER
A3
28 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
AMP & SPEAKER
A3
28 53Wednesday, August 20, 2008
Artemis
3
VOX
Note:
pin8, pin9 and pin17, pin18
are in opposite corners of U3010
pin17, pin18 together and C26, C27
very close to the pins
pin8, pin9 together and C28, C29
very close to the pins
C32 close to the pin30
Speaker CONN.
DB2
DB2
SI2R
12
C306
SC1U10V3ZY-6GP
C306
SC1U10V3ZY-6GP
12
C351
SC1U10V3ZY-6GP
C351
SC1U10V3ZY-6GP
12
C305
SC10U10V5ZY-1GP
C305
SC10U10V5ZY-1GP
12
C315
SC1U10V3KX-3GP
C315
SC1U10V3KX-3GP
12
C337
SC1U10V3KX-3GP
C337
SC1U10V3KX-3GP
CPVDD
9
C1P
10
CPGND 11
C1N
12
CPVSS 13
HPVSS 14
HPVDD
17
HP_EN 22
SPKR_EN# 23
BYPASS 24
REG_EN 25
SGND 28
REG_OUT 29
VDD
30
GND 33
SPVDD
8
SPVDD
18
SPKR_RIN-
1
SPKR_RIN+
2
SPKR_LIN+
3
SPKR_LIN-
4
SPGND 5
SPGND 21
GAIN0
31
GAIN1
32
HP_INR 26
HP_INL 27
HP_OUTR 15
HP_OUTL 16
ROUT-
19
ROUT+
20
LOUT+
6
LOUT-
7
U66
TPA6041A4RHBR-GP
U66
TPA6041A4RHBR-GP
1 2
R291 0R5J-5-GP
R291 0R5J-5-GP
12
R282
Do Not Stuff
DY
R282
Do Not Stuff
DY
1 2
C875 SC2D2U10V5KX-2GPC875 SC2D2U10V5KX-2GP
1 2
C874 SC2D2U10V5KX-2GPC874 SC2D2U10V5KX-2GP
1
PAD40 Do Not StuffPAD40 Do Not Stuff
1
PAD15 Do Not StuffPAD15 Do Not Stuff
1
PAD42 Do Not StuffPAD42 Do Not Stuff
1
2
3
4
8
7
6
5
RC5
SRC47P50V-U1
RC5
SRC47P50V-U1
12
C309
SCD1U16V2ZY-2GP
C309
SCD1U16V2ZY-2GP
1 2
R281 Do Not StuffR281 Do Not Stuff
1 2
C320SC1U10V3KX-3GP C320SC1U10V3KX-3GP
12
C321
SC10U10V5ZY-1GP
C321
SC10U10V5ZY-1GP
12
R611
Do Not Stuff
DY
R611
Do Not Stuff
DY
1 2
C304 SCD022U50V3KX-GPC304 SCD022U50V3KX-GP
1 2
C343
SCD47U25V3KX-1GP
C343
SCD47U25V3KX-1GP
12
C352
SC1U10V3ZY-6GP
C352
SC1U10V3ZY-6GP
1 2
C303 SCD022U50V3KX-GPC303 SCD022U50V3KX-GP
1 2
C302
SCD022U50V3KX-GP
C302
SCD022U50V3KX-GP
12
R623
Do Not Stuff
DY
R623
Do Not Stuff
DY
1
PAD39 Do Not StuffPAD39 Do Not Stuff
12
R613
10KR2J-3-GP
R613
10KR2J-3-GP
1
PAD41 Do Not StuffPAD41 Do Not Stuff
12
C364
SC10U10V5ZY-1GP
C364
SC10U10V5ZY-1GP
6
1
2
3
4
5
SPK1
ETY-CON4-15-GP-U
SPK1
ETY-CON4-15-GP-U
1 2
C301
SCD022U50V3KX-GP
C301
SCD022U50V3KX-GP
12
R626
10KR2J-3-GP
R626
10KR2J-3-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LAN_RXD1
LAN_PY3
LAN_PY2 LAN_PY1
XTAL2
GLAN_RXP_R
GLAN_RXN_R
LAN_CTRL_18
LAN_RSET
MTAG4
XTAL1
MTAG0
VCCP3P3
JKCLK
MTAG1
TEST_EN
LED_LINK_LAN#
LAN_LED_1000#
GLAN_TXN
GLAN_TXP
LAN_RXD2
LAN_TXD0
IEEE_TEST_N
LAN_TXD1
IEEE_TEST_P
LAN_TXD2
LAN_RXD0
DIS_REG10
LED_LINK_LAN#
MTAG3
MTAG2
LAN_CTRL_18
LAN_PY1
+1.8VM_LAN_M
+3VM_LAN +1.8VM_LAN
+V1.0M_LAN_M
+V1.0M_LAN_M
+1.8VM_LAN_M
+3VM_WOL +3VM_LAN
+3VM_LAN
+3VM_LAN
+3VM_LAN
+3VM_LAN
+1.8VM_LAN
+3VM_LAN
+1.8VM_LAN_M
+3VALW
+3VM_LAN
+V1.0M_LAN_M
LAN_MDI3P [30]
LAN_RXD0[21]
LAN_RSTSYNC[21]
LAN_TXD0[21] LAN_TXD1[21] LAN_TXD2[21]
LAN_RXD1[21] LAN_RXD2[21]
LED_LINK_LAN#[30,34,36] LED_ACT_LAN#[30,36]
LAN_PHYPC[22,30,34]
ADP_PRES [34,39,50,51]SLP_S3#17,22,25,28,34,36,37,46,50,51,52]
GLAN_RXP[22] GLAN_RXN[22]
LAN_MDI1N [30]
LAN_MDI0N [30]
GLANCLK[21]
LAN_MDI0P [30]
LAN_MDI1P [30]
LAN_MDI2N [30]
GLAN_TXP[22] GLAN_TXN[22]
LAN_MDI2P [30]
LAN_MDI3N [30]
SLP_S3#[17,22,25,28,34,36,37,46,50,51,52]
LED_LINK_LAN_R# [22]
LAN_PHYPC[22,30,34] LAN_DISABLE#[34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Intel 82567 Boaz
A3
29 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Intel 82567 Boaz
A3
29 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Intel 82567 Boaz
A3
29 53Wednesday, August 20, 2008
Artemis
3
VOX
Layout Note
Keep this R406 on top side
and route differentially
GLCI
40 mils
20 mils
20 mils
LCI
JTAG
MDI
DB2
DB2
DB2
DB3
SI2R
1 2
C498
SCD1U16V2ZY-2GP
C498
SCD1U16V2ZY-2GP
12
C476
SC15P50V2JN-2-GP
C476
SC15P50V2JN-2-GP
1 2
C488
SCD1U16V2ZY-2GP
C488
SCD1U16V2ZY-2GP
1 2
R429
Do Not Stuff
DY
R429
Do Not Stuff
DY
B
1
A
2
GND
3Y4
VCC 5
U129
74LVC1G08GW-1-GP
U129
74LVC1G08GW-1-GP
G
S D
Q64
2N7002-11-GP
Q64
2N7002-11-GP
1 2
C494
SCD1U16V2ZY-2GP
C494
SCD1U16V2ZY-2GP
1 2
C512
SCD1U16V2ZY-2GP
C512
SCD1U16V2ZY-2GP
1
TP5Do Not Stuff TP5Do Not Stuff
12
C509
SC10U6D3V5ZY-2GP
C509
SC10U6D3V5ZY-2GP
1
TP32Do Not Stuff TP32Do Not Stuff
1 2
R418
Do Not Stuff
DY
R418
Do Not Stuff
DY
G
S D
Q83
2N7002-11-GP
Q83
2N7002-11-GP
1 2
C472
SCD1U16V2ZY-2GP
C472
SCD1U16V2ZY-2GP
1 2
R421 33R2J-2-GP
R421 33R2J-2-GP
1 2
C466
SCD1U16V2ZY-2GP
C466
SCD1U16V2ZY-2GP
1 2
R946
470R2J-2-GP
R946
470R2J-2-GP
1 2
R403 4K99R2F-L-GP
R403 4K99R2F-L-GP
1 2
R422 Do Not StuffR422 Do Not Stuff
12
C492
SCD1U16V2ZY-2GP
C492
SCD1U16V2ZY-2GP
1 2
R414 1KR2J-1-GP
R414 1KR2J-1-GP
12
R410
1KR2J-1-GP
R410
1KR2J-1-GP
1 2
R424
100KR2J-1-GP
R424
100KR2J-1-GP
G
DS
Q61
BSS138-7F-GP
Q61
BSS138-7F-GP
1 2
C505
SCD1U16V2ZY-2GP
C505
SCD1U16V2ZY-2GP
1 2
C465
Do Not Stuff
DY
C465
Do Not Stuff
DY
1 2
R423
1MR2J-1-GP
R423
1MR2J-1-GP
12
R433
5K1R3J-GP
R433
5K1R3J-GP
1
2
3 4
5
6
U101 Do Not Stuff
DY
U101 Do Not Stuff
DY
12
R409
Do Not Stuff
DY
R409
Do Not Stuff
DY
1 2
R434
Do Not Stuff
DY
R434
Do Not Stuff
DY
1 2
C497 SCD1U16V2KX-3GP
C497 SCD1U16V2KX-3GP
LED_0
4
LED_2
1LED_1
2
GND_PAD 57
RESERVED_NC#51 51
CTRL18 29
CTRL10 31
JTXD_0
42
JRSTSYNC
50 JKCLK
45
JTXD_1
43
JTXD_2
44
JRXD_0
47
JRXD_1
48
JRXD_2
49
RSET
15
IEEE_TEST_P
12
IEEE_TEST_N
13
DIS_REG10
34
LAN_DISABLE#
37
GLAN_RXN
56
GLAN_TXN
53 GLAN_TXP
52
XTAL1
10 XTAL2
9
TEST_EN
36
JTAG_TMS
39 JTAG_TCK
40 JTAG_TRST
35
JTAG_TDI
7
JTAG_TDO
6
GLAN_RXP
55
MDI_N_3 16
MDI_P_3 17
MDI_P_2 21
MDI_N_2 20
MDI_P_1 23
MDI_N_1 22
MDI_P_0 27
AVDD_33_28 28
AVDD_18_30 30
AVDD_18_32 32
AVDD_18_54 54
AVDD_18_25 25
AVDD_18_24 24
AVDD_18_18 18
AVDD_18_19 19
AVDD_18_14 14
AVDD_18_11 11
DVDD_10_38 38
DVDD_10_33 33
DVDD_10_8 8
DVDD_10_5 5
VDDO_33_3 3
VDDO_33_46 46
MDI_N_0 26
AVDD_18_41 41
U102
WG82567LM-Q036-GP
U102
WG82567LM-Q036-GP
1 2
C475
SC470P50V2KX-3GP
C475
SC470P50V2KX-3GP
1 2
R415
Do Not Stuff
DY
R415
Do Not Stuff
DY
12
C499
SC1000P50V3JN-GP
C499
SC1000P50V3JN-GP
1
TP33Do Not Stuff TP33Do Not Stuff
12
C483
SC18P50V2JN-1-GP
C483
SC18P50V2JN-1-GP
1
TP3
Do Not Stuff
TP3
Do Not Stuff
12
R411
Do Not Stuff
DY
R411
Do Not Stuff
DY
1 2
C496
SCD1U16V2KX-3GP
C496
SCD1U16V2KX-3GP
1 2
X7
XTAL-25MHZ-102-GP
X7
XTAL-25MHZ-102-GP
1 2
C486
SCD1U16V2ZY-2GP
C486
SCD1U16V2ZY-2GP
2
1
3
Q65
2SB772PT-1-GP
Q65
2SB772PT-1-GP
1
TP4Do Not Stuff TP4Do Not Stuff
1 2
C478
SCD1U16V2ZY-2GP
C478
SCD1U16V2ZY-2GP
12
C502
SC10U6D3V5ZY-2GP
C502
SC10U6D3V5ZY-2GP
1 2
R406 Do Not Stuff
DY
R406 Do Not Stuff
DY
12
C501
SC10U6D3V5ZY-2GP
C501
SC10U6D3V5ZY-2GP
1 2
R901 Do Not StuffR901 Do Not Stuff
1 2
R390 Do Not StuffR390 Do Not Stuff
12
C491
SC4D7U10V5ZY-3GP
C491
SC4D7U10V5ZY-3GP
12
C513
SC4D7U10V5ZY-3GP
C513
SC4D7U10V5ZY-3GP
12
C495
SC4D7U10V5ZY-3GP
C495
SC4D7U10V5ZY-3GP
1 2
R426 Do Not StuffR426 Do Not Stuff
1 2
C467
SCD1U16V2ZY-2GP
C467
SCD1U16V2ZY-2GP
G
DS
Q63
AO3413-GP
Q63
AO3413-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
MDO3-
MDO3+
MDO2-
MDO2+
MDO1-
MDO1+
MDO0-
MDO0+
PREP#_G
R_MDO0+
R_MDO0-
R_MDO1+
R_MDO1-
R_MDO2+
R_MDO2-
R_MDO3+
R_MDO3-
MDO1+
MDO1-
MDO3-
MDO3+
MDO0-
MDO0+
MDO2-
MDO2+
LAN_LED_Y
LAN_LED_G
LED_ACT_LAN#
LED_LINK_LAN#
CABLE_DETECT#_R
MCT1_R
MCT3_R
MCT2
MCT0
MCT3
MCT1
MCT
MCT0_R
MCT2_R
LAN_LED_Y
LED_ACT_LAN#
LAN_LED_G
CABLE_DETECT#_R
LED_LINK_LAN#
+1.8VM_LAN_M
+3VM_LAN+3VM_LAN_LED
+3VM_LAN_LED
+3VM_LAN_LED
PREP#[22,36]
LAN_MDI0P[29]
LAN_MDI0N[29]
LAN_MDI1N[29]
LAN_MDI2P[29]
LAN_MDI2N[29]
LAN_MDI1P[29]
LAN_MDI3P[29]
LAN_MDI3N[29]
D_MDO0+ [36]
D_MDO0- [36]
D_MDO1+ [36]
D_MDO1- [36]
D_MDO2+ [36]
D_MDO2- [36]
D_MDO3+ [36]
D_MDO3- [36]
LED_ACT_LAN#[29,36]
LED_LINK_LAN#[29,34,36]
LAN_PHYPC[22,29,34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Magnetic & RJ45
A3
30 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Magnetic & RJ45
A3
30 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Magnetic & RJ45
A3
30 53Wednesday, August 20, 2008
Artemis
3
VOX
Note : MDO[3..0]+- signals should route to RJ45 first then to DOCK CONN .
LAN ENERGY DET
07/10
07/10
DB2
DB3
DB3
SI2-EMI
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
XF1
XFORM-270-GP-U
XF1
XFORM-270-GP-U
12
C427
SC1KP2KV8KX-GP
C427
SC1KP2KV8KX-GP
12
R28 300R2J-4-GPR28 300R2J-4-GP
12
R29
100KR2J-1-GP
R29
100KR2J-1-GP
1 2
C832 SC1KP50V2KX-1GPC832 SC1KP50V2KX-1GP
1 2
C986 SCD1U16V2KX-3GPC986 SCD1U16V2KX-3GP
12
R25 300R2J-4-GPR25 300R2J-4-GP
1 2
C834 SC1KP50V2KX-1GPC834 SC1KP50V2KX-1GP
G
S D
Q5
2N7002-11-GP
Q5
2N7002-11-GP
1 2
C982 SCD1U16V2KX-3GPC982 SCD1U16V2KX-3GP
1 2
C983 SCD1U16V2KX-3GPC983 SCD1U16V2KX-3GP
12
C449
SCD1U16V2KX-3GP
C449
SCD1U16V2KX-3GP
12
R857
10KR2J-3-GP
R857
10KR2J-3-GP
12
C450
SCD1U16V2KX-3GP
C450
SCD1U16V2KX-3GP
1 2
C985 SCD1U16V2KX-3GPC985 SCD1U16V2KX-3GP
1
2
3
45
6
7
8
RN13
SRN75J-1-GP
RN13
SRN75J-1-GP
1 2
C448
SC1KP50V2KX-1GP
C448
SC1KP50V2KX-1GP
12
C452
SCD1U16V2KX-3GP
C452
SCD1U16V2KX-3GP
1 2
C796 SC1KP50V2KX-1GPC796 SC1KP50V2KX-1GP
G
SD
Q6
NDS0610-NL-GP
Q6
NDS0610-NL-GP
1 2
R32 Do Not Stuff
DY
R32 Do Not Stuff
DY
1 2
C833 SC1KP50V2KX-1GPC833 SC1KP50V2KX-1GP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RJ1
RJ45-13P-7-GP-U
RJ1
RJ45-13P-7-GP-U
1 2
C984 SCD1U16V2KX-3GPC984 SCD1U16V2KX-3GP
12
C451
SCD1U16V2KX-3GP
C451
SCD1U16V2KX-3GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ACCEL_INT
ICH_SM_CLK
XMIT_OFF_R
WL_LED#
ACMT_CS
XMIT_OFF_R
WW_LED#_MINI1
WW_LED#
WWAN39
UIM_PWR
CLKREQD#_MC
CLK_PCIE_MINI1#
CLK_PCIE_MINI1
PCIE_RXN2
ICH_PCIE_WAKE#
PCIE_RXP2
UIM_CLK
+1.5VS_MINI
CLKREQ#_11_R
UIM_VPP
WWAN_3D3V
M_WXMIT_OFF#
WWAN41
ICH_SM_DA
UIM_DATA BT_COMBO#_R
UIM_RST
ICH_PCIE_WAKE#
WP_LED#_MINI2
RES#3
RES#11
+1.5VS_MINI
UIM_CLK
UIM_RST
UIM_VPP
UIM_PWR
UIM_DATA
M_WXMIT_OFF#
+3VALW
+3VS_ACL_IO
+3VS_ACL_IO
+3VS_ACL
+3VALW
+3VS_ACL_IO +3VS_ACL_IO
+3VS_ACL
+3VS_WLAN
+3VS_ACL
+3VS +3VS_ACL +3VS_ACL_IO
+3VS_WWAN
+3VS_WWAN
+3VS_WLAN
+3VS_WWAN
+3VS_WWAN
+3VS_WWAN
+3VS_WLAN
+3VS_WLAN
+3VS_WLAN
+3VS_WLAN
+3VS_ACL
+3VS_ACL_IO
+3VS_ACL
+1.5VS
+3VS_WWAN
+3VS_WWAN
MC2_DISABLE[34]
XMIT_OFF[22]
WL_LED# [33]
ICH_SM_DA[17,22,43]
ICH_SM_CLK[17,22,43]
PLT_RST# [9,17,20,25,33,44,45]
WW_LED# [33]
WL_LED# [33]
CLK_PCIE_MINI2[16]
CLK_PCIE_MINI2#[16] CLKREQ#_10[16]
PCIE_RXN4[22]
PCIE_RXP4[22]
PCIE_TXP4[22]
ICH_PCIE_WAKE#[22,25,45]
PCIE_RXN2[22]
CLK_PCIE_MINI1[16]
CLK_PCIE_MINI1#[16]
PCIE_TXP2[22]
PCIE_TXN2[22]
PCIE_RXP2[22]
USB20_N7 [22]
USB20_P7 [22]
WW_LED# [33]
PCIE_TXN4[22]
MC1_DISABLE[34]
CLKREQ#_11[16]
ICH_PCIE_WAKE#[22,25,45]
WP_LED# [33]
ACCEL_INT [20]
PLT_RST# [9,17,20,25,33,44,45]
WXMIT_OFF#[22]
CL_CLK1[22]
CL_DATA1[22]
CL_RST#1[22]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Mini-Card/Accelerometer
A3
31 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Mini-Card/Accelerometer
A3
31 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Mini-Card/Accelerometer
A3
31 53Wednesday, August 20, 2008
Artemis
3
VOX
07/12
07/26
07/26
H= 5.2 mm
Mini-Card--WWAN BOTTOM
ACCELEROMETER
Mini-Card--WLAN TOP
06/26
H= 4.0 mm
2.7A 150mV ripple
Must be placed in the center of the system
DB2
DB2
DB2
DB2
DB3
MV1
SI2
SIM-CARD
DB2
DB2
PV1
12
C148
SCD1U16V2ZY-2GP
C148
SCD1U16V2ZY-2GP
VCC
1
RST
2
CLK
3
GND
5
VPP
6
I/O
7
GND
8
GND
9
CD
10
NP1
NP1
NP2
NP2
SIM1
CARD-PUSH-7P-GP-U2
SIM1
CARD-PUSH-7P-GP-U2
1 2
R858 10KR2J-3-GPR858 10KR2J-3-GP
1 2
C119
SCD1U16V2ZY-2GP
C119
SCD1U16V2ZY-2GP
1 2
R382 Do Not StuffR382 Do Not Stuff
1 2
R126 Do Not StuffR126 Do Not Stuff
21
D12
CH751H-40PT
D12
CH751H-40PT
1
2
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53
54
NP1
NP2
MINI1
PTW O-CONN52A-5-GP
MINI1
PTW O-CONN52A-5-GP
1 2
R859 10KR2J-3-GPR859 10KR2J-3-GP
12
C39
Do Not Stuff
DY
C39
Do Not Stuff
DY
2
1
C146
SC10U6D3V3MX-GP
2
1
C146
SC10U6D3V3MX-GP
12
C1025
Do Not Stuff
DY
C1025
Do Not Stuff
DY
1 2
C447
Do Not Stuff
DY
C447
Do Not Stuff
DY
G
DS
Q59
AO3401A-GP
Q59
AO3401A-GP
1
2
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
51 52
53
54
NP1
NP2
MINI2
PTWO-CONN52A-3-GP
MINI2
PTWO-CONN52A-3-GP
12
R407
Do Not Stuff
DY
R407
Do Not Stuff
DY
12
C527
SC4D7U10V5ZY-3GP
C527
SC4D7U10V5ZY-3GP
1 2
R438 Do Not Stuff
DY
R438 Do Not Stuff
DY
1 2
R143 Do Not StuffR143 Do Not Stuff
12
C140
SCD1U16V2ZY-2GP
C140
SCD1U16V2ZY-2GP
G
DS
Q20
AO3401A-GP
Q20
AO3401A-GP
12
C456
SCD1U16V2ZY-2GP
C456
SCD1U16V2ZY-2GP
1 2
R142
10KR2J-3-GP
R142
10KR2J-3-GP
SCL/SPC
14
SDA/SDI/SDO
13
SDO
12
CS
7
RESERVED#3
3
VDD 6
VDD_IO 1
INT1 8
INT2 9
GND 2
GND 4
GND 5
GND 10
RESERVED#11
11
U45
HP302DLTR8-GP
U45
HP302DLTR8-GP
12
C163
SC4D7U10V5ZY-3GP
C163
SC4D7U10V5ZY-3GP
12
C170
SCD1U16V2ZY-2GP
C170
SCD1U16V2ZY-2GP
12
C490
SCD1U16V2ZY-2GP
C490
SCD1U16V2ZY-2GP
12
C122
SCD1U16V2ZY-2GP
C122
SCD1U16V2ZY-2GP
2 1
D14
CH751H-40PT
D14
CH751H-40PT
12
C482
SCD01U16V2KX-3GP
C482
SCD01U16V2KX-3GP
21
D54
CH751H-40PT
D54
CH751H-40PT
12
C131
SCD1U16V2ZY-2GP
C131
SCD1U16V2ZY-2GP
12
C970
Do Not Stuff
DY
C970
Do Not Stuff
DY
12
R181
Do Not Stuff
DY
R181
Do Not Stuff
DY
12
R377
Do Not Stuff
DY
R377
Do Not Stuff
DY
1 2
R171 Do Not Stuff
DY
R171 Do Not Stuff
DY
1 2
R902
0R3-0-U-GP
R902
0R3-0-U-GP
12
C489
SC4D7U10V5ZY-3GP
C489
SC4D7U10V5ZY-3GP
12
C149
SCD01U16V2KX-3GP
C149
SCD01U16V2KX-3GP
12
R375
Do Not Stuff
DY
R375
Do Not Stuff
DY
12
R847 100KR2J-1-GPR847 100KR2J-1-GP
12
C971
Do Not Stuff
DY
C971
Do Not Stuff
DY
ESD I/O1 1
GND 2
ESD I/O2 3
VP
5ESD I/O3
4
ESD I/O4
6
U95 Do Not Stuff
DY
U95 Do Not Stuff
DY
12
R145
Do Not Stuff
DY
R145
Do Not Stuff
DY
VDD
2
VDDIO
9
GND 3
SDI
8
SDO
7
SCK 6
INT 4
CSB 5
RESERVED#1
1
RESERVED#10
10 GND 11
GND 12
U31
Do Not Stuff
DY
U31
Do Not Stuff
DY
1 2
R157 Do Not Stuff
DY
R157 Do Not Stuff
DY
12
C981
SC1U10V2KX-1GP
C981
SC1U10V2KX-1GP
12
C139
Do Not Stuff
DY
C139
Do Not Stuff
DY
12
C50
Do Not Stuff
DY
C50
Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USB_4+
USB_5-
USB_5+
USB_5+
USB_5-USB_4-
USB_4-
USB_5-USB_5+
USB_4+
USB_VCCA
USB_VCCA+5VALW
+5VALW
USB20_N4[22] USB20_P4[22]
S4_STATE#[22,45,52]
USB20_N5[22]
USB20_P5[22]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
USB Connector
A3
32 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
USB Connector
A3
32 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
USB Connector
A3
32 53Wednesday, August 20, 2008
VOX
100 mil
07/17 For Safety
SI2
74.05240.A7F
74.02231.073-->74.00577.A73,74.05538.073
2462--G1224
1 2
R19 Do Not StuffR19 Do Not Stuff
12
C402
SC1U10V3ZY-6GP
C402
SC1U10V3ZY-6GP
1
2
3
4
5
6
7
8
9
10
11
12
USB1
SKT-USB-191-GP
USB1
SKT-USB-191-GP
ESD I/O1 1
GND 2
ESD I/O2 3
VP
5
ESD I/O3
4
ESD I/O4
6
U82
Do Not Stuff
DY
U82
Do Not Stuff
DY
1 2
R20 Do Not StuffR20 Do Not Stuff
1 2
R16 Do Not StuffR16 Do Not Stuff
12
C403
SCD1U16V2ZY-2GP
C403
SCD1U16V2ZY-2GP
12
TC1
ST150U6D3VBM-1-GP
TC1
ST150U6D3VBM-1-GP
12
C10
SCD22U16V3ZY-GP
C10
SCD22U16V3ZY-GP
1 2
R17 Do Not StuffR17 Do Not Stuff
GND
1VIN
2VIN
3EN/EN#
4FLG# 5
VOUT 6
VOUT 7
VOUT 8
U81
RT9711APF-GP
U81
RT9711APF-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SPI_CLK_0
KBC_SPI_SI_0
SPI_HOLD#_0KBC_SPI_SO_L0
SPI_WP#
SPI_HOLD#_0
SPI_WP#
9636GPIO
9636GPIO2
TPM_TESTB1
TPM_TEST1
TPM_XTALO
TPM_XTALO
TPM_XTALI
TPM_XTALI
TPM_PP
TPM_PP
W_LED#_C
TPM_XTALI
SPI_CLK_0
SPI_HOLD#_0
KBC_SPI_SI_0
SPI_CS1#
KBC_SPI_SO_L0
KBC_SPI_CS0#
LPC_AD2
LPC_AD0
LPC_FRAME#
LPC_AD1
+3VS
+3VS
+3VS
+3VALW
+3VS
+3VS
+3VS
B+
+3V_SPI
+3VL
+3V_SPI
+3V_SPI
KBC_SPI_CS0#[34]
KBC_SPI_CLK [34]
KBC_SPI_SI [34]
KBC_SPI_SO[34]
LPC_AD0[21,34,44]
LPC_AD2[21,34,44] LPC_AD1[21,34,44]
LPC_AD3[21,34,44]
CLK_PCI_TCG[16] LPC_PD#[22] LPC_FRAME#[21,34,44] PLT_RST#[9,17,20,25,31,44,45]
PM_CLKRUN# [22,34,40,44]
SIRQ [22,34,40,44]
WW_LED# [31]
WL_LED# [31]
WP_LED# [31]
TPM_32K_CLK[34]
BT_LED[45]
WL_BLUE_LED# [42,43]
LPC_AD1[21,34,44] LPC_AD2[21,34,44] LPC_AD3[21,34,44]
LPC_AD0[21,34,44]
LPC_FRAME#[21,34,44]
PLT_RST#[9,17,20,25,31,44,45]
CLK_DEBUG_PORT[16]
VCC1_POR#_3[34,37,48]
8051RX[34]
8051_RECOVER#[34]
8051TX[34]
SPI_CS0#[22,34] SPI_SO[22,34] SPI_SI[22,34]
SPI_CLK[22,34]
KBC_SPI_CS0# [34]
KBC_SPI_CLK [34]
KBC_SPI_SI [34]
KBC_SPI_SO [34]
SIRQ[22,34,40,44]
KBC_SPI_CS0#[34]
SPI_CS1#[20,22,34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
TPM/BIOS/24 DEBUG PORT
A3
33 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
TPM/BIOS/24 DEBUG PORT
A3
33 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
TPM/BIOS/24 DEBUG PORT
A3
33 53Wednesday, August 20, 2008
VOX
TPM 1.2
Debug port
Mini-PCIE Card LED
control circuit
32M SPI
> 72.25X16.001 W25X16VSSIG
32M SPI
> 72.25165.001 MX25L1605AM2C-15G
32Mb x 1
62.10076.011& 62.10089.001 is SPI
Socket part number
1. Keep traces of SPI as short as possible and keep trace
spacing close to 7mils to any other signal (basically follow specs).
2. AMT designs need 2x2MB SPI parts in addition to
connecting to a debug connector. Keep stuffing options
from 2nd SPI part to debug connector very close to
2nd part so stub effect can be eliminated during testing as needed.
07/13 For KBC1091
reserve
07/25 For KBC1091
reserve
DB3
DB3
SI2R
GROUND
1
LPC_PCI_CLK
2
GROUND
3
LPC_FRAME#
4
+V3S
5
LPC_RESET#
6
+V3S
7
LPC_AD0
8
LPC_AD1
9
LPC_AD2
10
LPC_AD3
11
VCC_3VA
12
PWR_LED#
13
CAPS_LED#
14
NUM_LED#
15
VCC1_PWRGD
16
SPI_CLK
17
SPI_CS#
18
SPI_SI
19
SPI_SO
20
SPI_HOLD#
21
RESERVED#22
22
RESERVED#23
23
RESERVED#24
24
GND
25
GND
26
NP1
NP1
NP2
NP2
DEBUG1
ETY-CONN24A-GP
DEBUG1
ETY-CONN24A-GP
1
TP69Do Not Stuff TP69Do Not Stuff
12
R276
10MR2J-L-GP
R276
10MR2J-L-GP
12
R241 Do Not StuffR241 Do Not Stuff
1
2
3 4
5
6
U108 2N7002DW-1-GPU108 2N7002DW-1-GP
12
R621
4K7R2J-2-GP
R621
4K7R2J-2-GP
12
C249
SCD1U16V2ZY-2GP
C249
SCD1U16V2ZY-2GP
1
23
4
X4
X-32D768KHZ-40GPU
X4
X-32D768KHZ-40GPU
1
TP24 Do Not StuffTP24 Do Not Stuff
1 2
R606 Do Not StuffR606 Do Not Stuff
1 2
R274 Do Not Stuff
DY
R274 Do Not Stuff
DY
1 2
R536 15R2J-GPR536 15R2J-GP
1 2
R436
100KR2J-1-GP
R436
100KR2J-1-GP
NC#1 1
GPIO2 2
NC#3 3
GND 4
VSB
5GPIO 6
PP 7
TESTI 8
TESTBI/BADD 9
VDD
10
GND 11
NC#12 12
XTALI/32K_IN
13
XTALO
14 CLKRUN# 15
LRESET#
16
LAD3
17 GND 18
VDD
19
LAD2
20
LCLK
21
LFRAME#
22
LAD1
23
VDD
24
GND 25
LAD0
26
SERIRQ 27
LPCPD#
28
U64
SLB9635TT1D2-1-GP
U64
SLB9635TT1D2-1-GP
1
TP23 Do Not StuffTP23 Do Not Stuff
12
C716
SCD1U16V2ZY-2GP
C716
SCD1U16V2ZY-2GP
1
2
3
4
8
7
6
5
RC6
SRC47P50V-U1
RC6
SRC47P50V-U1
12
R605
Do Not Stuff
DY
R605
Do Not Stuff
DY
1 2
R622 Do Not Stuff
DY
R622 Do Not Stuff
DY
1 2
R534 0R2J-2-GPR534 0R2J-2-GP
12
C730
SCD1U16V2ZY-2GP
C730
SCD1U16V2ZY-2GP
12
C717
SCD1U16V2ZY-2GP
C717
SCD1U16V2ZY-2GP
1 2
R554 15R2J-GPR554 15R2J-GP
1 2
R607
Do Not Stuff
R607
Do Not Stuff
1 2
R267
3K3R3J-L-GP
R267
3K3R3J-L-GP
EB
C
R1
R2
Q71
DDTA114YCA-7-F-GP
R1
R2
Q71
DDTA114YCA-7-F-GP
1 2
C323 SC18P50V2JN-1-GPC323 SC18P50V2JN-1-GP
1 2
C313
SC22P50V2JN-4GP
C313
SC22P50V2JN-4GP
EB
C
R1
R2
Q70
DDTA114YCA-7-F-GP
R1
R2
Q70
DDTA114YCA-7-F-GP
1
2
3
4 5
6
7
8
RN27
Do Not Stuff
DY
RN27
Do Not Stuff
DY
12
C742
SCD1U16V2ZY-2GP
C742
SCD1U16V2ZY-2GP
1 2
R269
Do Not Stuff
DY
R269
Do Not Stuff
DY
EB
C
R1
R2
Q69
Do Not Stuff
DY
R1
R2
Q69
Do Not Stuff
DY
1
2
3
4 5
6
7
8
U59
SKT-SPI8P-GP-U
U59
SKT-SPI8P-GP-U
1 2
R238 3K3R3J-L-GP
R238 3K3R3J-L-GP
1 2
R435
100KR2J-1-GP
R435
100KR2J-1-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PM_POK
A_SD_R
KSO0
KSO1
KSO2
KSO3
KSO4
KSO5
KSO6
KSO7
KSO8
KSO9
KSO10
KSO11
KSI0
PM_POK
KSI1
KSI2
KSI3
KSI4
KSI5
KSI6
KSI7
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
32K_CLK
CELLSELECT_R
32K_CLK
CAP_SENS_INT
AMT_SLP_M#
1070_TEST
RUNSCI_EC#
EC_GPIO27
1070_KB_RST#
1070_GATEA20
PS2_CLK
PS2_DATA
1070_VCC2
1070_GATEA20
1070_XTAL2
1070_GPIO30
1070_XTAL1
14M_CCLK_14M_KBC
1070_VCC1
A_SD_R
CELLSELECT_R
CAP2
CAP2
AB1A_DATA
AB1B_DATA
AB1B_CLK
AB1A_CLK
CAP_SENS_INT
TP_CLK
PS2_DATA
KBD_CLK
KBD_DATA
KSI3
KSI2
KSI4
KSI5
KSI6
KSI7
KSI1
KSI0
TP_DATA
PS2_CLK
BGA_CRACK
THM_MAIN#
ADP_PS1
EC_GPIO27
KBC_GPIO40
GATEA201070_GATEA20
8051_RECOVER#
8051TX
8051RX
PM_RSMRST#
KBC_PWR_ON
LAN_RST#_R
1070_VCC1
+3VALW
+3VALW_KBC
+3VS
+3VL
+3VS
+3VL
+RTCVCC
+3VL
+3VALW_KBC
+3VALW
+3VL
+5VS
+3VL
+3VL
+3VL
+3VM_WOL
KBC_AGND KBC_AGND KBC_AGNDKBC_AGND
SPI_CLK[22,33] KBC_SPI_CLK[33]
KBD_CLK[36]
LPC_FRAME#[21,33,44]
KBC_PWR_ON [48]
GREEN_BATLED# [21,43]
BATSELB_A# [39]
CHGCTRL [39,51]
KB_RST# [21]
ON/OFFBTN_KBC# [35]
LOW_BAT# [22]
PM_RSMRST# [22]
GATEA20 [21]
ADP_PS0 [50]
8051_RECOVER# [33]
ADP_PRES [29,39,50,51]
KBD_DATA[36]
PCI_SERR# [20,40]
TPM_32K_CLK [33]
8051RX [33]
PM_PWROK[9,17,18,22,37]
8051TX [33]
Charge_AM_LED# [43]
CLK_PCI_EC[16] PM_CLKRUN#[22,33,40,44]
CLK_14M_KBC[16]
THM_MBAY# [38]
A_SD [26,28]
BATCON [39]
THM_MAIN# [38]
SLP_S3# [17,22,25,28,29,36,37,46,50,51,52]
AB1A_CLK [38]
AB1A_DATA [38]
AB1B_CLK [38]
AB1B_DATA [38]
PWR_GD [17,37,47,50]
VCC1_POR#_3 [33,37,48]
ADP_ID [50]
TP_CLK[35] TP_DATA[35]
NPCI_RST#[22,44]
SIRQ[22,33,40,44]
RUNSCI_EC#[22]
KSI[0..7][35]
KSO[0..11][35]
ADP_EN [50]
LED_LINK_LAN# [29,30,36]
PM_SLP_M# [22,46,49]
SPI_CS1#[20,22,33]
CAP_SENS_INT [42]
SPI_CS0#[22,33]
A_EAPD [26]
PS2_CLK[36]
KBC_SPI_CS0#[33]
LID_SW# [18,22]
CAP_DATA [42]
PM_POK [37]
CAP_CLK [42]
PS2_DATA[36]
ADP_PS1[50]
LPC_AD[0..3][21,33,44] SUS_PWR_ACK [22]
AC_PRESENT [22]
SPI_SI[22,33] KBC_SPI_SI[33]
SPI_SO[22,33] KBC_SPI_SO[33]
CAP_SENS_RST [42]
BGA_CRACK [13,24]
MC1_DISABLE[31]
MC2_DISABLE[31]
LAN_WOL_EN [22,46]
LAN_WOL_EN[22,46]
MC1_DISABLE[31] MC2_DISABLE[31]
LAN_PHYPC[22,29,30]
BAT_PWM_OUT [51] LAN_RST# [22]
LAN_DISABLE# [29]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
KBC_SMSC 1091
A3
34 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
KBC_SMSC 1091
A3
34 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
KBC_SMSC 1091
A3
34 53Wednesday, August 20, 2008
VOX
Num _LED change to Cap Bottom
Change R525 from 300ohm to 1K ohm
Change to SMSC 1091
Place capacitor near pin 43.44
07/20 EMI
DB2
DB2
DB2
DB3
DB3
DB3
DB3
SI2
SI2
SI2R
MV1MV1
12
C263
Do Not Stuff
DY
C263
Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN18 SRN47KJ-1-GP
RN18 SRN47KJ-1-GP
1 2
R887
0R3-0-U-GP
R887
0R3-0-U-GP
1
2
3
4 5
6
7
8
RN28
SRN4K7J-10-GP
RN28
SRN4K7J-10-GP
12
C210
SC10U10V5ZY-1GP
C210
SC10U10V5ZY-1GP
12
C273
Do Not Stuff
DY
C273
Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN21
SRN47KJ-1-GP
RN21
SRN47KJ-1-GP
1 2
C686
SC10P50V2JN-4GP
C686
SC10P50V2JN-4GP
1 2
R543 10R2J-2-GP
R543 10R2J-2-GP
12
C246
SCD1U16V
C246
SCD1U16V
1 2
R535 10KR2J-3-GPR535 10KR2J-3-GP
1 2
R877 Do Not StuffR877 Do Not Stuff
1
2
3
4 5
6
7
8
RN17
SRN0J-7-GP
RN17
SRN0J-7-GP
1
2 3
4
RN19 SRN10KJ-5-GP
RN19 SRN10KJ-5-GP
12
C251
SC4D7U10V5ZY-3GP
C251
SC4D7U10V5ZY-3GP
12
C678
SCD1U16V
C678
SCD1U16V
1 2
R567 Do Not StuffR567 Do Not Stuff
1 2
R533 10KR2J-3-GPR533 10KR2J-3-GP
1 2
R572 Do Not Stuff
DY
R572 Do Not Stuff
DY
1 2
R794 Do Not Stuff
DY
R794 Do Not Stuff
DY
1 2
R904 Do Not StuffR904 Do Not Stuff
1 2
R701 Do Not StuffR701 Do Not Stuff
1 2
R552 Do Not Stuff
DY
R552 Do Not Stuff
DY
1 2
R121
Do Not Stuff
DY
R121
Do Not Stuff
DY
1 2
R550 1KR2J-1-GPR550 1KR2J-1-GP
1 2
R666 Do Not StuffR666 Do Not Stuff
LFRAME#
52
LRESET#
53
LAD3
51
LAD1
48
VCC1 119
LAD0
46
LAD2
50
KSO13
5KSO12
6KSO11
7KSO10
8KSO09
9KSO08
10 KSO07
12 KSO06
13 KSO05
16 KSO04
17 KSO03
18 KSO02
19 KSO01
20 KSO00
21
XTAL1
70
XTAL2
71
GPIO04
81
GPIO05
83
PCI_CLK
54
CLKRUN#
55
SER_IRQ
57
VCC0 68
VCC1 58
VCC1 106
VCC2 49
VCC1 39
VSS
117 VSS
104 VSS
82 VSS
56 VSS
47 VSS
37 VSS
11
AGND
72
VCC1 14
VCC1 84
GPIO40 1
HSTCLK 2
FLCLK 3
GPIO39 30
HSTCS1# 31
FLCS1# 32
GPIO38 33
GPIO37 34
GPIO36 62
GPIO35 63
GPIO34 64
GPIO33 65
NC#66 66
NC#67 67
HSTDATAIN 94
FLDATAIN 95
HSTCS0# 96
FLCS0# 97
HSTDATAOUT 127
FLDATAOUT 128
CAP
15
PCAPA 43
PCAPB 44
CLOCKI
59
GPIO26
108 GPIO24
4
KSI0
29
KSI1
28
KSI2
27
KSI3
26
KSI4
25
KSI5
24
KSI6
23
KSI7
22
IMCLK
35
IMDAT
36
KCLK
38
KDAT
40
EMCLK
41
EMDAT
42
LPCPD#
45
EC_SCI#
76
OUT0 124
OUT1 125
OUT7 123
OUT8 122
OUT9 121
OUT10 120
OUT11 118
GPIO01 107
GPIO02 79
GPIO03 80
RESET_OUT# 60
GPIO07 85
GPIO08 86
GPIO09 87
GPIO11 88
GPIO12 89
GPIO13 90
GPIO14 91
GPIO15 92
GPIO16 101
GPIO17 102
GPIO19 61
GPIO20 103
GPIO21 105
32KHZ_OUT 75
GPIO25 73
GPIO27 74
GPIO28 93
GPIO29 98
GPIO30 99
GPIO31 100
GPIO32 126
AB1A_DATA 111
AB1A_CLK 112
AB1B_DATA 109
AB1B_CLK 110
TEST_PIN 69
PWRGD 78
VCC1_PWRGD 77
GPIO10 116
BAT_LED# 113
PWR_LED# 115
FDD_LED# 114
General Purpose I/O Interface
Keyboard/Mouse Interface
LPC Bus
U55
.%&18*38
General Purpose I/O Interface
Keyboard/Mouse Interface
LPC Bus
U55
.%&18*38
1 2
R244 10KR2J-3-GP
R244 10KR2J-3-GP
A K
D70
Do Not Stuff
DY
D70
Do Not Stuff
DY
1 2
R257 0R2J-2-GP
R257 0R2J-2-GP
12
C278
SC33P50V2JN-3GP
C278
SC33P50V2JN-3GP
1 2
R532 10KR2J-3-GP
R532 10KR2J-3-GP
12
C682
SCD1U16V
C682
SCD1U16V
1 2
R240 0R2J-2-GP
R240 0R2J-2-GP
1 2
R575 10KR2J-3-GP
R575 10KR2J-3-GP
12
C218
SCD1U16V
C218
SCD1U16V
1
2 3
4
X1
X-32D768KHZ-40GPU
X1
X-32D768KHZ-40GPU
1 2
C240
SC10U10V5KX-2GP
C240
SC10U10V5KX-2GP
1 2
R553 100KR2J-1-GPR553 100KR2J-1-GP
1 2
R966 0R2J-2-GPR966 0R2J-2-GP
1 2
R551
Do Not Stuff
DY
R551
Do Not Stuff
DY
12
C269
SC33P50V2JN-3GP
C269
SC33P50V2JN-3GP
12
C681
SCD1U16V
C681
SCD1U16V
2 1
D61
SSM5818SLPT-GP
D61
SSM5818SLPT-GP
1 2
R906 Do Not Stuff
DY
R906 Do Not Stuff
DY
1 2
R798 Do Not Stuff
DY
R798 Do Not Stuff
DY
K A
D22
1N4148W-1-GP
D22
1N4148W-1-GP
1
2 3
4
RN20 SRN0J-6-GPRN20 SRN0J-6-GP
12
C696
SCD1U16V
C696
SCD1U16V
1 2
R540 210KR2F-GPR540 210KR2F-GP
1 2
R905 Do Not Stuff
DY
R905 Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN22 SRN10KJ-6-GP
RN22 SRN10KJ-6-GP
1 2
R907 Do Not Stuff
DY
R907 Do Not Stuff
DY
1 2
R561 Do Not StuffR561 Do Not Stuff
1 2
R248 Do Not Stuff
DY
R248 Do Not Stuff
DY
1 2
R801 Do Not Stuff
DY
R801 Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN26
SRN0J-7-GP
RN26
SRN0J-7-GP
1
2
3
4 5
6
7
8
RN16 SRN47KJ-1-GP
RN16 SRN47KJ-1-GP
1 2
R256
Do Not Stuff
DY
R256
Do Not Stuff
DY
12
R526
Do Not Stuff
DY
R526
Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN23
SRN4K7J-10-GP
RN23
SRN4K7J-10-GP
1 2
R127 Do Not Stuff
DY
R127 Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
KSI[0..7]
KSO[0..11]
SP_DATA
ON/OFF#
SP_CLK
ON/OFF#
PWR_1
U31_Y1
HDA_SDIN1_MDC_R
+5VS
PWR_2
SP_CLK
U31_Y2
SP_DATA
HDA_SYNC_MDC
ON/PV
HDA_SDOUT_MDC
HDA_BITCLK_MDC
MODEM_DIS#
KSI_D_0
KSO8
KSI_D_6
KSO3
KSI_D_8
KSO10
KSO2
KSO5
KSO0
KSO11
KSI_D_11
KSO4
KSI7
KSI_D_12
KSO1
KSI_D_9
KSI_D_4
KSI_D_1
KSO7
KSI_D_14
KSI_D_13
KSI_D_10
KSI_D_5
KSI_D_2
KSO9
KSI_D_3
KSO6
KSO8
KSI_D_4
KSI_D_8
KSI_D_9
KSI_D_12
KSI_D_1
KSI_D_13
KSI_D_3
KSI_D_5
KSI_D_2
KSI_D_11
KSI_D_0
KSI_D_10
KSI_D_6
KSI_D_14
ON/PV
SP_DATA SP_CLK
KSO4
KSO5
KSO2
KSO0
KSO1
KSO11
KSO3
KSO10
KSO9
KSO6
KSO7
ACZ_MDC
MODEM_DIS#HDA_BITCLK_MDC
HDA_SDIN1_MDC
HDA_SYNC_MDC
HDA_SDOUT_MDC
ON/PV
TP_DATA
TP_CLK
+5VS
SP_CLK
SP_DATA
SP_DATA
SP_CLK
TP_DATA
TP_CLK
SP_DATA
SP_CLK
+3VL
+3VALW
+3VL
+3VALW
+3VS
+5VS
+5VS
+3VALW
+5VS
+5VS+5VS
+5VS+5VS
KSO[0..11][34]
KSI[0..7][34]
LED_STANDBY#[36,42,43]
ON/OFF#[36]
HDA_SDIN1_MDC[21] HDA_SDOUT_MDC[21] HDA_SYNC_MDC[21]
ON/OFFBTN_KBC# [34]
ON/OFFBTN# [22]
ACZ_BTCLK_MDC[21]
KSI4[34]
KSI0[34]
KSI2[34]
KSI5[34]
KSI3[34]
KSI1[34]
KSI6[34]
MODEM_DISABLE#[20]
HDA_RST#_MDC[21]
TP_DATA [34]
TP_CLK [34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
MDC/KBD/ON OFF/T.P.
A3
35 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
MDC/KBD/ON OFF/T.P.
A3
35 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
MDC/KBD/ON OFF/T.P.
A3
35 53Wednesday, August 20, 2008
Artemis
3
VOX
TrackPoint CONN.
INT_KBD CONN.
POWRER ON LED
Power Button & LED
Connector for MDC Rev1.5
MDC 1.5 Conn.
07/25 EMI
SI1 RF
Montevina platform design
new define for GPIO51
Touch PAD CONN.
SI2R EMI
PV1 EMI
1
2
3
4
8
7
6
5
RC2
SRC47P50V-U1
RC2
SRC47P50V-U1
1
2
3
4
8
7
6
5
RC3
SRC47P50V-U1
RC3
SRC47P50V-U1
12
R107
47R2J-2-GP
R107
47R2J-2-GP
12
R326
100KR2J-1-GP
R326
100KR2J-1-GP
1 2
C973 Do Not Stuff
RF
C973 Do Not Stuff
RF
1
2
3
D18
BAW 56W-7-F-GP
D18
BAW 56W-7-F-GP
1 2
C975 SC33P50V2JN-3GPC975 SC33P50V2JN-3GP
1
PAD14 Do Not StuffPAD14 Do Not Stuff
12
C104
SC1KP50V2KX-1GP
C104
SC1KP50V2KX-1GP
1 2
R334
100KR2J-1-GP
R334
100KR2J-1-GP
G
S D
Q48
2N7002-11-GP
Q48
2N7002-11-GP
1
PAD56 Do Not StuffPAD56 Do Not Stuff
1
PAD13 Do Not StuffPAD13 Do Not Stuff
1
2
3
D15
BAW 56W-7-F-GP
D15
BAW 56W-7-F-GP
21
D40
CH751H-40PT
D40
CH751H-40PT
1
2
34
56
78
910
1112
TRP1
ETY-CONN8A-GP-U
TRP1
ETY-CONN8A-GP-U
12
C407
SC1U10V3ZY-6GP
C407
SC1U10V3ZY-6GP
1A
2A
3A
4A
5A
6A
7A
8A
9A
10A
11A
12A
13A
14A
15A
16A
17A
18A
19A
20A
21A
22A
23A
24A
25A
26A
27A
28A
29A
30A
1B
2B
3B
4B
5B
6B
7B
8B
9B
10B
11B
12B
13B
14B
15B
16B
17B
18B
19B
20B
21B
22B
23B
24B
25B
26B
27B
28B
29B
30B
3132 3334
3536 3738
KB1
FOX-CONN30-1-GP-U
KB1
FOX-CONN30-1-GP-U
1
PAD63 Do Not StuffPAD63 Do Not Stuff
1
PAD12 Do Not StuffPAD12 Do Not Stuff
A K
LED1
LED-W-18-GP
LED1
LED-W-18-GP
1 2
R881 Do Not StuffR881 Do Not Stuff
1
2
3
D19
BAW 56W-7-F-GP
D19
BAW 56W-7-F-GP
1
PAD11 Do Not StuffPAD11 Do Not Stuff
ESD I/O1
1
GND
2
ESD I/O2
3VP 5
ESD I/O3 4
ESD I/O4 6
U39
Do Not Stuff
DY
U39
Do Not Stuff
DY
1
PAD64 Do Not StuffPAD64 Do Not Stuff
1
2
3 4
5
6
D65
BAV99DPT-GP
D65
BAV99DPT-GP
B
1
A
2
GND
3Y4
VCC 5
U136
Do Not Stuff
DY
U136
Do Not Stuff
DY
1
2
3
D16
BAW 56W-7-F-GP
D16
BAW 56W-7-F-GP
12
C182
SCD1U16V2ZY-2GP
C182
SCD1U16V2ZY-2GP
1
2
3
D20
BAW56W-7-F-GP
D20
BAW56W-7-F-GP
NC#1
1
A
2
GND
3Y4
VCC 5
U84
74LVC1G14GW-GP
U84
74LVC1G14GW-GP
1
2
3
4
8
7
6
5
RC1
SRC47P50V-U1
RC1
SRC47P50V-U1
1 2
R109 33R2J-2-GPR109 33R2J-2-GP
1 2
C972 Do Not Stuff
RF
C972 Do Not Stuff
RF
1
2
3
D17
BAW 56W-7-F-GP
D17
BAW 56W-7-F-GP
12
R322
100KR2J-1-GP
R322
100KR2J-1-GP
GND 1
NC#2
2
ACZ_SDOUT_MDC
3
NC#4
4
GND 5
VCC
6
ACZ_SYNC_MDC
7
GND 8
ACZ_SDIN1
9GND 10
VCC
11
ACZ_BCLK_MDC
12
GND 13
GND 14
GND 15
GND 16
GND 17
GND 18
MDC1
TYCO-CONN12A-1-GP-U
MDC1
TYCO-CONN12A-1-GP-U
1A
2A
3A
4A
5A
6A
1B
2B
3B
4B
5B
6B
TPAD1
ETY-CONN12G-GP
TPAD1
ETY-CONN12G-GP
12
C181
SCD1U16V2ZY-2GP
C181
SCD1U16V2ZY-2GP
12
C1032
SCD1U16V2ZY-2GP
C1032
SCD1U16V2ZY-2GP
E
BC
R1
R2
Q3
DDTA124EUA-7-F-GP
R1
R2
Q3
DDTA124EUA-7-F-GP
1
2
3
D21
BAW 56W-7-F-GP
D21
BAW 56W-7-F-GP
1 2
R327
100KR2J-1-GP
R327
100KR2J-1-GP
1
2
3
D39
BAV99-5-GP
D39
BAV99-5-GP
1
PAD53 Do Not StuffPAD53 Do Not Stuff
1 2
R880 Do Not StuffR880 Do Not Stuff
12
C94
SCD1U16V2ZY-2GP
C94
SCD1U16V2ZY-2GP
12
C410
SC1U10V3ZY-6GP
C410
SC1U10V3ZY-6GP
1 2
C974 Do Not Stuff
RF
C974 Do Not Stuff
RF
1 2
43
5
PWR1
SW-TACT-95-GP-U1
PWR1
SW-TACT-95-GP-U1
1
2
3 4
5
6
D66
BAV99DPT-GP
D66
BAV99DPT-GP
1
PAD54 Do Not StuffPAD54 Do Not Stuff
1 2
R21
100R2J-2-GP
R21
100R2J-2-GP
1
PAD55 Do Not StuffPAD55 Do Not Stuff
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LED_LINK_LAN#_DOCK
MDO0-
MDO0+
MDO2+
MDO2-
DVI_CLK-
USB20_P9
DVI_TX1-
DVI_TX1+
DVI_CLK+
SATA_RXN5
USB20_P11
LPTERR#
LPTALF#
LPTSTB#
CLKREQ#_6
DVI_TX0-
USB20_N11
PCIERXP5
PCIERXN5
DOCK_DETECT2#
LINE_IN_SENSE
DVI_TX0+
DLINK_IN_L
PWR_LED
RXD1
TXD1
DCD#1
DSR#1
RTS#1
CTS#1
DTR#1
RI#1
RING
DLINK_IN_R
DOCK_RED
DOCK_GREEN
DOCK_BLUE
PREP#_RGB
DOCK_DETECT2#
DLINK_OUT_L
PREP#
ACOCP_EN#
DLINK_OUT_R
CLK_PCIE_DOCK#
CLK_PCIE_DOCK
LED_LINK_LAN#_DOCK
LAN_LINK_EN
SATA_RXP5
DOCK_BLUE
DOCK_RED
DOCK_GREEN
SER_SHD
SATA_TXN5
SATA_TXP5
EXPCRD_RST#
LED_ACT_LAN#_DOCK
PCIE_TXN5
LPTSLCT
LPTPE
LPTBUSY
LPD0
LPD1
LPTACK#
LPD2
LPD3
LPD4
LPD5
LPD6
LPTINIT#
LPD7
LPTSLCTIN#
D_VSYNC
PCIE_TXP5
DOCK_ADP_SIGNAL
DOCK_GREEN
BLUE
DOCK_RED
DOCK_BLUE
GREEN
RED
D_DDCCLK
TIP_MDC
RING_MDC
DOCK_HPSENSE#
RING
TIP
D_HSYNC
DVI_HPD
D_DDCDATA
MDO1+
MDO1-
MDO3+
MDO3-
DVI_D_DDCCLK
DVI_D_DDCDAT
USB20_N9
PS2_CLK
PS2_DATA
TIP
VA_ON#
DVI_TX2-
DVI_TX2+
DVI_TX4-
DVI_TX4+
DVI_TX5-
DVI_TX5+
DVI_TX3+
DVI_TX3-
PWR_LED
RGND
KBD_CLK
KBD_DATA
PREP#_RGB
PREP#_RGB
PREP#_RGB
BGNDDOCK_BLUE
DOCK_GREEN GGND
DOCK_RED RGND
GGND
BGND
LED_ACT_LAN#_DOCK
AUD_AGND
+5VS
LIMIT_SIGNAL
+5VS
+3VM_LAN
DOCKVIN
VIN DOCKVIN
+3VALW
+3VS
+3VS
PCIE_TXN5 [22]
USB20_P11[22]
DLINE_IN_R [26]
SATA_RXN5[21]
LPD0[44]
SER_SHD[44]
SATA_RXP5[21]
LPD1[44] LPD2[44]
ON/OFF#[35]
LPD3[44]
DVI_TX2- [17]
D_MDO0-[30] D_MDO0+[30]
D_MDO2-[30] D_MDO2+[30]
LPD4[44]
RI#1[44]
DVI_TX2+ [17]
DOCK_HPSENSE# [26]
LPD5[44]
DTR#1[44]
DVI_TX1- [17]
D_VSYNC[18]
DLINE_OUT_L [26]
SATA_TXP5[21]
LPD6[44]
RXD1[44]
DVI_TX1+ [17]
D_HSYNC[18]
DLINE_OUT_R [26]
SATA_TXN5[21]
LPD7[44]
LPTSTB#[44]
DCD#1[44]
DVI_CLK- [17]
CTS#1[44]
PCIE_RXP5 [22]
LPTALF#[44]
CLKREQ#_6 [16]
DVI_CLK+ [17]
RTS#1[44]
SATA_LED#[21,43]
PCIE_RXN5 [22]
LPTERR#[44]
DVI_TX0- [17]
DSR#1[44]
LPTSLCTIN#[44]
CLK_PCIE_DOCK [16]
LPTACK#[44]
DVI_TX0+ [17]
TXD1[44]
LPTINIT#[44]
CLK_PCIE_DOCK# [16]
LPTBUSY[44] LPTPE[44] LPTSLCT[44]
PS2_DATA [34]
DVI_HPD[17]
LED_LINK_LAN# [29,30,34]
RED[17]
GREEN[17]
BLUE[17]
D_MDO3+ [30]
D_MDO3- [30]
D_MDO1- [30]
D_MDO1+ [30]
D_DDCDATA[18]
USB20_N9[22]
PS2_CLK [34]
LINE_IN_SENSE[26]
D_DDCCLK[18]
EXPCRD_RST#[44]
DVI_D_DDCCLK [19]
USB20_P9[22]
SLP_S5# [22]
DVI_D_DDCDAT [19]
PCIE_TXP5 [22]
USB20_N11[22]
DLINE_IN_L [26]
PREP# [22,30]
DVI_TX4- [19]
DVI_TX4+ [19]
DVI_TX3- [19]
DVI_TX3+ [19]
DVI_TX5- [19]
DVI_TX5+ [19]
ACOCP_EN#[50]
ISO_PREP#[22]
LED_STANDBY#[35,42,43]
SLP_S3#[17,22,25,28,29,34,37,46,50,51,52]
KBD_DATA [34]
KBD_CLK [34]
L_RED [18]
L_GREEN [18]
L_BLUE [18]
LED_ACT_LAN#[29,30]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Docking CONN
A3
36 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Docking CONN
A3
36 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Docking CONN
A3
36 53Wednesday, August 20, 2008
Artemis
3
VOX
For TIP and Ring cut all layers
Connect to Daughter BD
GPIO pin 23,47 ?
Close to DOCKING CONN.
IN NO TO COM
COM TO NO
L OFF
ON
MAX4596
H
Docking CONN. 164 PIN
Layout Notes :
Place MODEM1 & BEAD near Docking connector
current rating 6A
DB3
MV1
SI2R
SI2R
PV1
1 2
R36 Do Not StuffR36 Do Not Stuff
1
2
3 4
5
U9
TS5A4596DCKR-GP
U9
TS5A4596DCKR-GP
1
2
3 4
5
U16
TS5A4596DCKR-GP
U16
TS5A4596DCKR-GP
1 2
R958
150R2F-1-GP
R958
150R2F-1-GP
12
C22
SC1U10V3ZY-6GP
C22
SC1U10V3ZY-6GP
1 2
L1 HCB1608KF-601T10-GPL1 HCB1608KF-601T10-GP
1 2
R959
150R2F-1-GP
R959
150R2F-1-GP
12
C17
SC1KP50V2KX-1GP
C17
SC1KP50V2KX-1GP
G
S D
Q8
2N7002-11-GP
Q8
2N7002-11-GP
12
C16
SC1KP50V2KX-1GP
C16
SC1KP50V2KX-1GP
1 2
C425
SCD1U16V2ZY-2GP
C425
SCD1U16V2ZY-2GP
12
R46
10KR2J-3-GP
R46
10KR2J-3-GP
12
R357
1KR2J-1-GP
R357
1KR2J-1-GP
1 2
L2 HCB1608KF-601T10-GPL2 HCB1608KF-601T10-GP
3
4
1
2
MODEM1
ETY-CON2-5-GP-U
MODEM1
ETY-CON2-5-GP-U
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
168
169
170
171
176 P1G1 NP1
NP3
165
166
167
NP2
P2G2
TR
173
174
175 172
NP4
DOCK1
FOX-CONN164-GP-U2
DOCK1
FOX-CONN164-GP-U2
21
D64 CH751H-40PTD64 CH751H-40PT
1 2
R250 Do Not StuffR250 Do Not Stuff
1 2
L3
PBY201209T-221Y-N-GP
L3
PBY201209T-221Y-N-GP
1 2
R24 Do Not StuffR24 Do Not Stuff
1 2
C24
SCD1U16V2ZY-2GP
C24
SCD1U16V2ZY-2GP
12
C14
Do Not Stuff
DY
C14
Do Not Stuff
DY
1
2
3 4
5
U12
TS5A4596DCKR-GP
U12
TS5A4596DCKR-GP
1 2
R249 Do Not StuffR249 Do Not Stuff
12
C18
Do Not Stuff
DY
C18
Do Not Stuff
DY
12
R47
10KR2J-3-GP
R47
10KR2J-3-GP
1 2
R33 Do Not StuffR33 Do Not Stuff
12
R947
10KR2J-3-GP
R947
10KR2J-3-GP
12
C12
Do Not Stuff
DY
C12
Do Not Stuff
DY
1 2
R53
1KR2J-1-GP
R53
1KR2J-1-GP
12
R948 Do Not Stuff
DY
R948 Do Not Stuff
DY
1
2
3 4
5
6
U18 2N7002DW-1-GPU18 2N7002DW-1-GP
1 2
R957
150R2F-1-GP
R957
150R2F-1-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VCC1_POR#_3
51120_VREF2_U130
M_PROK_RM_PROK_R_R
SLP_S3#_R
M_PWROK_1
51120_VREF2_U79
U79_PP1
M_PWROK
U79_PP2_1 U79_PP2
U79_PP1_1
VL
VL
+3VL
VL
51120_VREF2
+3VL
+3VL
51120_VREF2
+0.9V
+3VM
+3VALW
+5VS
51120_VREF2
+3VS
+5VALW
+1.5VS
+3VS
+VCCP
VGATE[47]
VCC1_POR#_3[33,34,48]
PM_POK[34] PM_PWROK [9,17,18,22,34]
1.8PGOOD [49]
M_PROK [49]
M_PWROK [9,22]
SLP_S3#[17,22,25,28,29,34,36,46,50,51,52]
PWR_GD [17,34,47,50]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
POK CKT
A3
37 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
POK CKT
A3
37 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
POK CKT
A3
37 53Wednesday, August 20, 2008
VOX
Detects When
VCC1 is below 2.9V
DB2
DB2
DB3
SI2
SI2
MV1
1 2
R747 1MR2J-1-GP
R747 1MR2J-1-GP
12
R784
23K7R2F-GP
R784
23K7R2F-GP
12
C395
SCD1U16V2ZY-2GP
C395
SCD1U16V2ZY-2GP
1 2
R753 38K3R2F-GPR753 38K3R2F-GP
12
C815
SC3300P50V2KX-1GP
C815
SC3300P50V2KX-1GP
12
R231
1MR2J-1-GP
R231
1MR2J-1-GP
21
D71
CH751H-40PT
D71
CH751H-40PT
12
R932 3K3R2-GPR932 3K3R2-GP
1 2
R940
1MR2J-1-GP
R940
1MR2J-1-GP
12
R28012K7R2F-GP R28012K7R2F-GP
12
R829
NTC-100K-3-GP
R829
NTC-100K-3-GP
12
C813
SC1KP50V2KX-1GP
C813
SC1KP50V2KX-1GP
12
R827
57K6R3F-2-GP
R827
57K6R3F-2-GP
12
C980
SC1KP50V2KX-1GP
C980
SC1KP50V2KX-1GP
1 2
R232
10KR2J-3-GP
R232
10KR2J-3-GP
12
R759
Do Not Stuff
DY
R759
Do Not Stuff
DY
1 2
R746
10KR2J-3-GP
R746
10KR2J-3-GP
1 2
R744 20KR2F-L-GPR744 20KR2F-L-GP
1 2
C1036 SCD047U10V2KX-2GPC1036 SCD047U10V2KX-2GP
12
R828
4K7R2J-2-GP
R828
4K7R2J-2-GP
1 2
R233
10KR2J-3-GP
R233
10KR2J-3-GP
12
R7523K3R2-GP R7523K3R2-GP
12
C835
SC3300P50V2KX-1GP
C835
SC3300P50V2KX-1GP
12
R942
71K5R2F-1-GP
R942
71K5R2F-1-GP
1 2
R754 57K6R3F-2-GPR754 57K6R3F-2-GP
12
R826
115KR2F-GP
R826
115KR2F-GP
12
R94141K2R2F-GP R94141K2R2F-GP
12
R743
71K5R2F-1-GP
R743
71K5R2F-1-GP
1 2
R7483K3R2-GP R7483K3R2-GP
1 2
R755 17K4R2F-GPR755 17K4R2F-GP
1IN+
31IN-
21OUT
1
GND
42IN+ 5
2IN- 6
2OUT 7
VCC+ 8
U130
LMV393IDR-GP
U130
LMV393IDR-GP
21
D34 CH751H-40PTD34 CH751H-40PT
1 2
R412 Do Not Stuff
R412 Do Not Stuff
1 2
R727
3K3R2-GP
R727
3K3R2-GP
12
C816
SC3300P50V2KX-1GP
C816
SC3300P50V2KX-1GP
1 2
R939 10KR2J-3-GPR939 10KR2J-3-GP
2
1
3
D58
DAN202U-1GP
D58
DAN202U-1GP
1 2
R243
10KR2J-3-GP
R243
10KR2J-3-GP
12
R790
51K1R2F-GP
R790
51K1R2F-GP
12
R938
63K4R2F-2-GP
R938
63K4R2F-2-GP
12
R965
1KR2J-1-GP
R965
1KR2J-1-GP
1 2
R757 12K1R2F-L1-GPR757 12K1R2F-L1-GP
12
R255
100KR2F-L1-GP
R255
100KR2F-L1-GP
21
D62 CH751H-40PTD62 CH751H-40PT
1 2
R783
23K7R2F-GP
R783
23K7R2F-GP
1 2
R750 10KR2J-3-GPR750 10KR2J-3-GP
12
C277
SCD1U16V2ZY-2GP
C277
SCD1U16V2ZY-2GP
12
R75846K4R3F-1-GP R75846K4R3F-1-GP
G
S D
Q77
2N7002-11-GP
Q77
2N7002-11-GP
1 2
R745 1MR2J-1-GP
R745 1MR2J-1-GP
12
R751 10KR2J-3-GPR751 10KR2J-3-GP
1 2
R756 3K3R2-GPR756 3K3R2-GP
1 2
R933 Do Not Stuff
R933 Do Not Stuff
12
C761
SC2200P50V2KX-2GP
C761
SC2200P50V2KX-2GP
12
R749
Do Not Stuff
DY
R749
Do Not Stuff
DY
1OUT
1
1IN-
2
1IN+
3
GND
42IN+ 5
2IN- 6
2OUT 7
VCC 8
U79
LM393DR-GP
U79
LM393DR-GP
1 2
R964
1MR2J-1-GP
R964
1MR2J-1-GP
1 2
R246
1MR2J-1-GP
R246
1MR2J-1-GP
21
D60
CH751H-40PT
D60
CH751H-40PT
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ADPIN
AB1A_CLK_C
AB1A_DATA_C
BATT_A
AB1A_CLK_C
AB1A_DATA_C
AB1B_CLK_C
AB1B_DATA_C
AB1B_DATA_C
AB1B_CLK_C
BATT_B
THM_MBAY#_C
THM_MAIN#_R_R
AB1A_CLK
AB1A_DATA
THM_MAIN#_R_R
THM_MBAY#
AB1B_DATA
AB1B_CLK
THM_MAIN#_R
THM_MBAY#_C
THM_MAIN#_R
LIMIT_SIGNAL
VIN
BATT_A
+3VL
BATT_B
VL
+3VL
VL
+3VL
+3VL
+3VL+3VL
AB1A_DATA [34]
AB1A_CLK [34]
AB1B_DATA [34]
AB1B_CLK [34]
THM_MAIN# [34]
OCP_ADJ[50]
THM_MBAY# [34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DC & BATTERT CONN.
A3
38 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DC & BATTERT CONN.
A3
38 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DC & BATTERT CONN.
A3
38 53Wednesday, August 20, 2008
VOX
Adaptor in to generate DCBATOUT
MAIN BATTERY CONNECTOR
BAY BATTERY CONNECTOR
Current Rating 6 A
Current Rating 6 A
Current Rating 6 A
06/29
06/29
06/29
06/29
Close to DCIN1
DB2
DB3
DB3
DB3
DB3
G
S D
Q56
2N7002-11-GP
Q56
2N7002-11-GP
A K
D57
Do Not Stuff
DY
D57
Do Not Stuff
DY
12
C23
Do Not Stuff
DY
C23
Do Not Stuff
DY
1
PAD30 Do Not StuffPAD30 Do Not Stuff
12
R363
220KR2F-GP
R363
220KR2F-GP
1
PAD6 Do Not StuffPAD6 Do Not Stuff
12
C45
Do Not Stuff
DY
C45
Do Not Stuff
DY
1
2
3 4
5
6
D9
BAV99DPT-GP
D9
BAV99DPT-GP
12
R40
150KR2F-L-GP
R40
150KR2F-L-GP
1
PAD22 Do Not StuffPAD22 Do Not Stuff
1
PAD25 Do Not StuffPAD25 Do Not Stuff
POWER_PIN 1
POWER_PIN 2
GND 3
GND 4
DETECT_PIN 5
GND 6
GND 7
GND 8
GND 9
NP2 10
NP1 11
DCIN1
SKT-JACK-192-GP
DCIN1
SKT-JACK-192-GP
12
C20
Do Not Stuff
DY
C20
Do Not Stuff
DY
12
C46
Do Not Stuff
DY
C46
Do Not Stuff
DY
1 2
R374 210KR2F-GPR374 210KR2F-GP
12
BC1
Do Not Stuff
DY
BC1
Do Not Stuff
DY
12
C906
SC100P50V2JN-3GP
C906
SC100P50V2JN-3GP
1
PAD29 Do Not StuffPAD29 Do Not Stuff
1
2
3
4
5
6
NP1
NP2
BAT2
SYN-CON6-8-GP
BAT2
SYN-CON6-8-GP
1 2
R376 1KR2J-1-GPR376 1KR2J-1-GP
1
2
3 4
5
6
D5
BAV99DPT-GP
D5
BAV99DPT-GP
12
R351
100KR2F-L1-GP
R351
100KR2F-L1-GP
1
PAD32 Do Not StuffPAD32 Do Not Stuff
12
C21
SC1KP50V2KX-1GP
C21
SC1KP50V2KX-1GP
1
PAD24 Do Not StuffPAD24 Do Not Stuff
1 2
R349
294KR3F-1-GP
R349
294KR3F-1-GP
1 2
C910 SC47P50V2JN-3GPC910 SC47P50V2JN-3GP
1 2
R75 100R2J-2-GP
R75 100R2J-2-GP
12
R37
1KR2J-1-GP
R37
1KR2J-1-GP
12
C454
SC47P50V2JN-3GP
C454
SC47P50V2JN-3GP
12
C455
SCD01U50V2ZY-1GP
C455
SCD01U50V2ZY-1GP
1
2
3
4
5
6
7
8
NP1
NP2
BAT1
SYN-CON8-6-GP-U1
BAT1
SYN-CON8-6-GP-U1
1 2
C911
SC100P50V2JN-3GP
C911
SC100P50V2JN-3GP
12
R347
69K8R2F-GP
R347
69K8R2F-GP
1
2
3
D50
BAV99-5-GP
D50
BAV99-5-GP
1
PAD57 Do Not StuffPAD57 Do Not Stuff
1 2
R34 100R2J-2-GPR34 100R2J-2-GP
12
C908
SC47P50V2JN-3GP
C908
SC47P50V2JN-3GP
KA
D69
MM3Z20VC-GP
D69
MM3Z20VC-GP
1
PAD31 Do Not StuffPAD31 Do Not Stuff
C
B
E
Q7
MMBT3906-3-GP
Q7
MMBT3906-3-GP
1
PAD23 Do Not StuffPAD23 Do Not Stuff
1
2
3
D43
BAV99-5-GP
D43
BAV99-5-GP
1 2
R38 100R2J-2-GPR38 100R2J-2-GP
12
R7
15KR2J-1-GP
R7
15KR2J-1-GP
1 2
R74 100R2J-2-GP
R74 100R2J-2-GP
12
C7
SC1KP50V2KX-1GP
C7
SC1KP50V2KX-1GP
1 2
C909 SC47P50V2JN-3GPC909 SC47P50V2JN-3GP
12
C907
SC47P50V2JN-3GP
C907
SC47P50V2JN-3GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
BATSELB_A
CFET_A_L
BATSELB_A#
BAB_0BATT_IN
BATSELB_A
BATSELB_A#
BATSELB_A_0
BATSELB_A#_0
ACDET_A
BA_1
U71_Y
BAB_G_1
BA_2
BATT_G1
ADP_PRES
BAA_G_0
BATT_IN
BATT_IN_G
CFET_B
U62_A
CFET_B_C
BAA_G_1
BA_0
CFET_B#C
BAB_G_0
BATT_IN
U62_Y
BATT_IN
CFET_A
BATT_IN
U58_Y
CFET_BCFET_B
BAB_1
U71_A
BAA_1BAA_1
CFET_SLE
BAA_3
CHGCTRL_GG
CFET_ACFET_A
CHGCTRL_G
+3VL
+3VL
BT+
BATT_B
+3VL
+3VL
+3VL
+3VL
+3VL
BT+
BATT_A
BATT_B
BATT_A
+3VL
+3VL
BT+
AC_CHG[51]
CHGCTRL[34,51]
ADP_PRES [29,34,50,51]
BATSELB_A#[34]
ALARM[51]
BATCON [34]
CFET_A[50]
CFET_B[51]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Battery Selector
A2
39 53
Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Battery Selector
A2
39 53
Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Battery Selector
A2
39 53
Wednesday, August 20, 2008
VOX
06/29
06/29
12
R44
470KR2J-2-GP
R44
470KR2J-2-GP
B
1
A
2
GND
3Y4
VCC 5
U89
74LVC1G02GW-1-GP
U89
74LVC1G02GW-1-GP
KA
D42
1SS355PT-GP
D42
1SS355PT-GP
12
R50
470KR2J-2-GP
R50
470KR2J-2-GP
K A
IND-1UH
1SS355PT-GP
IND-1UH
1SS355PT-GP
KA
D44
1SS355PT-GP
D44
1SS355PT-GP
1 2
R42 10KR2J-3-GP
R42 10KR2J-3-GP
12
R62
470KR2J-2-GP
R62
470KR2J-2-GP
12
R58
470KR2J-2-GP
R58
470KR2J-2-GP
1 2
C31
SC1KP50V2KX-1GP
C31
SC1KP50V2KX-1GP
K A
D46
1SS355PT-GP
D46
1SS355PT-GP
1
2
8
7
6
5
3
4
D1
D1
D2
D2
S1
G1
S2
G2
U92
AO4813-1-GP
D1
D1
D2
D2
S1
G1
S2
G2
U92
AO4813-1-GP
12
C413
SC220P50V2KX-3GP
C413
SC220P50V2KX-3GP
1 2
C32
SC1KP50V2KX-1GP
C32
SC1KP50V2KX-1GP
NC#1
1
A
2
GND
3Y4
VCC 5
U99
74LVC1G14GW-GP
U99
74LVC1G14GW-GP
C
B
E
Q58
MMBT2222A-3-GP
Q58
MMBT2222A-3-GP
1
2
34
5
6
U15
2N7002DW -1-GP
U15
2N7002DW -1-GP
1 2
R356
220KR2J-L2-GP
R356
220KR2J-L2-GP
B
1
A
2
GND
3Y4
VCC 5
U85
74LVC1G08GW-1-GP
U85
74LVC1G08GW-1-GP
1
2
34
5
6
U22
2N7002DW -1-GP
U22
2N7002DW -1-GP
1
2 3
G
S
D
Q55
2N7002W-7-GP
G
S
D
Q55
2N7002W-7-GP
12
R373
100KR2J-1-GP
R373
100KR2J-1-GP
NC#1
1
A
2
GND
3Y4
VCC 5
U100
74LVC1G14GW-GP
U100
74LVC1G14GW-GP
1
2
34
5
6
U88
2N7002DW -1-GP
U88
2N7002DW -1-GP
1
2
34
5
6
U87
2N7002DW -1-GP
U87
2N7002DW -1-GP
1 2
R345
100R2J-2-GP
R345
100R2J-2-GP
12
R346
1M5R2F-1-GP
R346
1M5R2F-1-GP
G
SD
Q52
2N7002W-GP
Q52
2N7002W-GP
12
R358
47KR2J-2-GP
R358
47KR2J-2-GP
12
R57
470KR2J-2-GP
R57
470KR2J-2-GP
12
R45
4K7R2J-2-GP
R45
4K7R2J-2-GP
A K
D45
MMSZ5234BS-7-F-GP
D45
MMSZ5234BS-7-F-GP
NC#1
1
A
2
GND
3Y4
VCC 5
U90
74LVC1G14GW-GP
U90
74LVC1G14GW-GP
12
C423
SCD047U10V2KX-2GP
C423
SCD047U10V2KX-2GP
K A
D49
1SS355PT-GP
D49
1SS355PT-GP
B
1
A
2
GND
3Y4
VCC 5
U17
74LVC1G08GW-1-GP
U17
74LVC1G08GW-1-GP
AK
D51 SX34-GPD51 SX34-GP
C
B
E
Q57
MMBT2222A-3-GP
Q57
MMBT2222A-3-GP
AK
D47 SX34-GPD47 SX34-GP
1 2
R63
10KR2J-3-GP
R63
10KR2J-3-GP
1
2
8
7
6
5
3
4
D1
D1
D2
D2
S1
G1
S2
G2
U97
AO4813-1-GP
D1
D1
D2
D2
S1
G1
S2
G2
U97
AO4813-1-GP
12
C426
SCD1U16V2ZY-2GP
C426
SCD1U16V2ZY-2GP
1
2
34
5
6
U13
2N7002DW -1-GP
U13
2N7002DW -1-GP
12
R60
470KR2J-2-GP
R60
470KR2J-2-GP
12
C25
SCD1U50V3ZY-GP
C25
SCD1U50V3ZY-GP
1 2
R56
10KR2J-3-GP
R56
10KR2J-3-GP
NC#1
1
A
2
GND
3Y4
VCC 5
U98
SNLVC1G17GW-GP
U98
SNLVC1G17GW-GP
12
R41
1KR2J-1-GP
R41
1KR2J-1-GP
2
1
3
U19
CH715FPT-GP
U19
CH715FPT-GP
12
R65
470KR2J-2-GP
R65
470KR2J-2-GP
G
S D
Q54
2N7002W-GP
Q54
2N7002W-GP
12
R64
4K7R2J-2-GP
R64
4K7R2J-2-GP
12
R54
22KR2J-GP
R54
22KR2J-GP
1 2
R43
10KR2J-3-GP
R43
10KR2J-3-GP
G
S D
Q11
2N7002W-GP
Q11
2N7002W-GP
KA
D41
1SS355PT-GP
D41
1SS355PT-GP
1 2
R353
Do Not Stuff
R353
Do Not Stuff
12
R61
470KR2J-2-GP
R61
470KR2J-2-GP
G
S D
Q10
2N7002W-GP
Q10
2N7002W-GP
12
C37
SCD1U16V2ZY-2GP
C37
SCD1U16V2ZY-2GP
12
R55
22KR2J-GP
R55
22KR2J-GP
1 2
R352
10KR2F-2-GP
R352
10KR2F-2-GP
1 2
C27
SC1KP50V2KX-1GP
C27
SC1KP50V2KX-1GP
B
1
A
2
GND
3Y4
VCC 5
U21
74LVC1G02GW-1-GP
U21
74LVC1G02GW-1-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
UDIO5
R5C832_PME#
CLK_PCI_TCG_C
R5C832_CLKRUN#
PCI_AD25 R5C834_IDSEL
GBRST#
PCI_AD20
PCI_AD21
PCI_AD2
PCI_AD10
PCI_AD24
PCI_AD5
PCI_AD4
PCI_AD6
PCI_AD22
PCI_AD31
PCI_AD0
PCI_AD7
PCI_AD26
PCI_AD13
PCI_AD16
PCI_AD23
PCI_AD30
PCI_AD27
PCI_AD8
PCI_AD19
PCI_AD14
PCI_AD29
PCI_AD9
PCI_AD1
PCI_AD3
PCI_AD11
PCI_AD12
PCI_AD15
PCI_AD28
PCI_AD25
PCI_AD17
PCI_AD18
HWSPND#
UDIO3
UDIO4
VCC_ROUT
PCI_CBE#3
PCI_CBE#0
PCI_CBE#2
PCI_CBE#1
832_TEST
UDIO1
UDIO1
+3VS
+3VS
+3VS
+3VS +3VS
+3VS
+3VS
+3VS
PCI_PME#[20]
PCI_AD[31..0][20]
PCI_REQ#2[20] PCI_GNT#2[20]
PM_CLKRUN#[22,33,34,44]
CLK_PCI_RIC[16]
SIRQ [22,33,34,44]
PCI_RST#[20]
PCI_PAR[20]
PCI_PIRQE# [20]
PCI_PIRQG# [20]
PCI_FRAME#[20]
PCI_TRDY#[20] PCI_IRDY#[20]
PCI_STOP#[20]
PCI_DEVSEL#[20]
PCI_PERR#[20] PCI_SERR#[20,34]
PCI_CBE#2[20] PCI_CBE#3[20]
PCI_CBE#0[20] PCI_CBE#1[20]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
R5C835/PCI
A3
40 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
R5C835/PCI
A3
40 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
R5C835/PCI
A3
40 53Wednesday, August 20, 2008
VOX
SHIELD
GND
RICOH R5C835 (1 OF 2) PCI
06/26 Vendor suggestion
for smart card EMV
DB3
1 2
R279
100KR2J-1-GP
R279
100KR2J-1-GP
1 2
R629 10R2J-2-GP
R629 10R2J-2-GP
OE
1
GND
2OUTPUT 3
VDD 4
X5
Do Not Stuff
DY
X5
Do Not Stuff
DY
VCC_PCI3V
6
VCC_PCI3V
23
VCC_PCI3V
38
VCC_PCI3V
118
VCC_RIN
92
VCC_ROUT
11
VCC_ROUT
33
VCC_ROUT
59
VCC_ROUT
91
VCC_ROUT
111
AD31
121
AD30
122
AD29
123
AD28
124
AD27
125
AD26
126
AD25
127
AD24
1
AD23
4
AD22
5
AD21
7
AD20
9
AD19
10
AD18
12
AD17
13
AD16
14
AD15
27
AD14
28
AD13
29
AD12
30
AD11
31
AD10
32
AD9
34
AD8
36
AD7
39
AD6
40
AD5
41
AD4
42
AD3
43
AD2
44
AD1
45
AD0
46
PAR
25
C/BE3#
2
C/BE2#
15
C/BE1#
26
C/BE0
37
IDSEL
3
REQ#
120
GNT#
119
FRAME#
16
IRDY#
17
TRDY#
18
DEVSEL#
19
STOP#
21
PERR#
22
SERR#
24
GBRST#
82
PCIRST#
116
PCICLK
117
PME#
78
CLKRUN#
114
VCC_3V 79
VCC_MD 54
GND 8
GND 20
GND 35
GND 47
GND 61
GND 80
GND 93
GND 94
GND 115
GND 128
AGND 98
AGND 101
AGND 105
AGND 109
HWSPND# 77
UDIO0/SRIRQ# 76
UDIO1 75
UDIO2# 74
UDIO3 73
UDIO4 72
UDIO5 71
INTA# 112
INTB# 113
TEST 81
U67A
R5C835-GP
U67A
R5C835-GP
12
C360
SC10U10V5ZY-1GP
C360
SC10U10V5ZY-1GP
12
C381
SCD01U16V2KX-3GP
C381
SCD01U16V2KX-3GP
12
C385
SCD01U16V2KX-3GP
C385
SCD01U16V2KX-3GP
12
C292
SCD01U16V2KX-3GP
C292
SCD01U16V2KX-3GP
12
C297
SCD01U16V2KX-3GP
C297
SCD01U16V2KX-3GP
12
C357
SC10U10V5ZY-1GP
C357
SC10U10V5ZY-1GP
12
EC5
Do Not Stuff
DY
EC5
Do Not Stuff
DY
12
C384
SCD01U16V2KX-3GP
C384
SCD01U16V2KX-3GP
12
R600
Do Not Stuff
DY
R600
Do Not Stuff
DY
1 2
R619 Do Not StuffR619 Do Not Stuff
12
C316
Do Not Stuff
DY
C316
Do Not Stuff
DY
12
C331
SC1U10V3ZY-6GP
C331
SC1U10V3ZY-6GP
12
C347
SCD1U16V2ZY-2GP
C347
SCD1U16V2ZY-2GP
12
C349
SC10U10V5ZY-1GP
C349
SC10U10V5ZY-1GP
12
R620
Do Not Stuff
DY
R620
Do Not Stuff
DY
1 2
R284
10KR2F-2-GP
R284
10KR2F-2-GP
1 2
R639
100KR2J-1-GP
R639
100KR2J-1-GP
12
C350
SCD01U16V2KX-3GP
C350
SCD01U16V2KX-3GP
12
C322
SCD01U16V2KX-3GP
C322
SCD01U16V2KX-3GP
12
C729
Do Not Stuff
DY
C729
Do Not Stuff
DY
12
C748
SCD01U16V2KX-3GP
C748
SCD01U16V2KX-3GP
12
C335
SC1U10V3ZY-6GP
C335
SC1U10V3ZY-6GP
12
C764
SCD01U16V2KX-3GP
C764
SCD01U16V2KX-3GP
12
R648 Do Not Stuff
DY
R648 Do Not Stuff
DY
1
2 3
4
RN44 SRN10KJ-11-GP-U
RN44 SRN10KJ-11-GP-U
1 2
R676 100KR2J-1-GP
R676 100KR2J-1-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TPB0-
TPB0+
TPA0-
TPA0+
TPA0N
+VCC_SC
TPA0N
CLK/XD_RE#
SD_CMD/MSBS/XD_WE#
TPB0N
TPBIAS0
1394_TPB1_R
TPB0P
PWR_EN
SD_WP#/XD_R/B#
MDIO06
SD_CD#/XD_CD0#
TPA0P
RICHO_REXT
RICHO_VREF
1394_XO
1394_XI
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7
XDCLE
XDALE
XD_WP#
MS_CD#/XD_CD1#
XD_CE#
PWR_EN
SD_WP#
DATA3_1
MS_DATA1_1
DATA0_1
MS_DATA2_1
DATA3_1
DATA1_1
DATA0_1
DATA2_1
DATA7_1
DATA5_1
DATA4_1
DATA6_1
DATA3_1
DATA1_1
DATA0_1
DATA2_1
DATA7_1
DATA5_1
DATA4_1
DATA6_1
XDALE_1
XDCLE_1
XD_CD#
SD_WP#/XD_R/B#_1
XD_CE#_1
XD_CE#_1
XD_WP#_1
SD_CMD/MSBS/XD_WE#_1
CLK/XD_RE#_1
CLK/XD_RE#_1
SD_CMD/MSBS/XD_WE#_1
SD_CMD/MSBS/XD_WE#_1
XD_CD#SD_CD#/XD_CD0#
SD_CD#/XD_CD0#
XD_CD#MS_CD#/XD_CD1#
MS_CD#/XD_CD1#
CLK/XD_RE#_1
XD_CE#
TPB0P TPB0+
TPB0-TPB0N
TPA0+TPA0P
TPA0-
DATA2_1
DATA1_1
SD_WP#/XD_R/B#_1
CLK/XD_RE#_1
XDCLE_1
XDALE_1
SD_CMD/MSBS/XD_WE#_1
XD_WP#_1
DATA3_1
DATA0_1
DATA4_1
DATA5_1
DATA6_1
DATA7_1
XDALE
DATA6
XDCLE
DATA7
CLK/XD_RE#
SD_CMD/MSBS/XD_WE#
DATA0
DATA1
DATA4
DATA5
DATA3
DATA2
XD_WP#
SD_WP#/XD_R/B#
SCCLK
MS_CD#/XD_CD1#
MS_CD#/XD_CD1#
DATA2_1
DATA1_1
MS_DATA2_1
MS_DATA1_1
SD_WP#/XD_R/B#_1
SD_WP#
+3VS
+3VS_CARD
+3VS +3VS_PHY
+3VS_PHY
+3VS_CARD
+VCC_SC
+3VS_CARD
+3VS_CARD
+3VS
SM_SCRST[25]
+5VSCEN#[25] +3VSCEN#[25] SM_SCSENSE[25] SM_SCCD#[25] SM_SCIO[25]
SM_SCCLK[25]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
R5C835/1394/SD/Smart
A3
41 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
R5C835/1394/SD/Smart
A3
41 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
R5C835/1394/SD/Smart
A3
41 53Wednesday, August 20, 2008
VOX
=========================================GND
------------------------------------------ TPB0-
------------------------------------------ TPB0+
=========================================GND
------------------------------------------ TPA0-
------------------------------------------ TPA0+
==========================================GND
Layout notes :
1394
SD/MS/XD CARD Connector
For Card Power
40mil
RICOH R5C835 (2 OF 2)
CLOSE TO CHIP R5C835
GUARD GND
GUARD GND
Layout notes :
external parts for
VREF, REXT and FIL0 as
close as possible to R5C835. 06/28 vendor suggest
06/28 vendor suggest
PIN3 PIN28
PIN21
06/28 vendor suggest
DB2
DB3
12
R601
56R2J-4-GP
R601
56R2J-4-GP
1 2
R216 Do Not StuffR216 Do Not Stuff
1 2
R272 10KR2F-2-GP
R272 10KR2F-2-GP
1 2
C390
Do Not Stuff
DY
C390
Do Not Stuff
DY
1
2
3
4
5 6
7 8
1394
SKT-1394-4P-25-GP
1394
SKT-1394-4P-25-GP
1
2
3
4 5
6
7
8
RN9
SRN33J-7-GP
RN9
SRN33J-7-GP
1
2
3
4 5
6
7
8
RN7
SRN33J-7-GP
RN7
SRN33J-7-GP
1 2
C738 SC270P50V2JN-2GPC738 SC270P50V2JN-2GP
12
C356
SCD01U16V2KX-3GP
C356
SCD01U16V2KX-3GP
1 2
C311 SC15P50V2JN-2-GPC311 SC15P50V2JN-2-GP
1 2
L16
FCM1608KF-3-GP
L16
FCM1608KF-3-GP
1 2
C740
SC1KP50V2KX-1GP
C740
SC1KP50V2KX-1GP
XI
95
XO
96
REXT
100
VREF
99
VCC_SC
90
SCVCC5EN#
83
SCVCC3EN#
84
SCSENSE
85
SCCD#
86
SCIO
87
SCCLK
88
SCRST
89
AVCC_PHY3V 97
AVCC_PHY3V 104
AVCC_PHY3V 108
TPBIAS0 110
TPBN0 102
TPBP0 103
TPAN0 106
TPAP0 107
MDIO19 48
MDIO18 49
MDIO17 50
MDIO16 51
MDIO15 52
MDIO14 53
MDIO13 55
MDIO12 56
MDIO11 57
MDIO10 58
MDIO09 60
MDIO08 62
MDIO06 65
MDIO05 66
MDIO04 67
MDIO03 68
MDIO02 63
MDIO01 69
MDIO00 70
MDIO07 64
U67B
R5C835-GP
U67B
R5C835-GP
1 2
R617 5K11R2F-L1-GPR617 5K11R2F-L1-GP
12
X3
X-24D576MHZ-63GP
X3
X-24D576MHZ-63GP
12
C276
SC2D2U10V3KX-1GP
C276
SC2D2U10V3KX-1GP
12
C368
Do Not Stuff
DY
C368
Do Not Stuff
DY
12
R643
150KR2J-GP
R643
150KR2J-GP
SD-CD
1SD-WP
2
XD-VCC
3
XD-D7 4
XD-D6 5
XD-D5 6
XD-D4 7
XD-D3 8
XD-D2 9
XD-D1 10
7IN1-GND 11
SD-DAT1
12
MS-BS
13
SD-DAT0
14
MS-DATA1
15
SD-DAT7
16
MS-DATA0
17
SD-DAT6
18
MS-DATA2
19
SD-CLK
20
SD-VCC
21
MS-INS
22
SD-DAT5
23
MS-DATA3
24
SD-CMD
25
MS-SCLK
26
SD-DAT4
27
MS-VCC
28
SD-DAT3
29 SD-DAT2
30
7IN1-GND 31
XD-D0 32
XD-WP 33
XD-WE 34
XD-ALE 35
XD-CLE 36
XD-CE 37
XD-RE 38
XD-R/B 39
XD-CD 40
7IN1-GND 41
7IN1-GND 42
NP1 NP1
NP2 NP2
CARD1
CARD-PUSH-40P-1-GP-U3
CARD1
CARD-PUSH-40P-1-GP-U3
12
C289
SC10U6D3V5ZY-2GP
C289
SC10U6D3V5ZY-2GP
1OE# 1
1A
2
1B
3
2OE# 4
2A
5
2B
6
GND 7
VCC 14
4OE# 13
4A
12
4B
11
3OE# 10
3A
9
3B
8
U80
SOCBTLV3125-1GP
U80
SOCBTLV3125-1GP
1 2
R604
56R2J-4-GP
R604
56R2J-4-GP
12
R602
56R2J-4-GP
R602
56R2J-4-GP
12
C288
SCD01U16V2KX-3GP
C288
SCD01U16V2KX-3GP
1 2
R223 Do Not StuffR223 Do Not Stuff
12
C287
Do Not Stuff
DY
C287
Do Not Stuff
DY
1 2
R222 Do Not StuffR222 Do Not Stuff
G
S D
Q80
Do Not Stuff
DY
Q80
Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN8
SRN33J-7-GP
RN8
SRN33J-7-GP
12
R603
56R2J-4-GP
R603
56R2J-4-GP
KA
D30
1SS355PT-GP
D30
1SS355PT-GP
1 2
R912 Do Not StuffR912 Do Not Stuff
12
C741
SCD01U16V2KX-3GP
C741
SCD01U16V2KX-3GP
12
R702
100KR2J-1-GP
R702
100KR2J-1-GP
1 2
C295
SCD01U16V2KX-3GP
C295
SCD01U16V2KX-3GP
1
TP25
Do Not Stuff
TP25
Do Not Stuff
1 2
R215 Do Not StuffR215 Do Not Stuff
VOUT
1
GND
2
NC#3
3EN/EN# 4
VIN 5
U75
RT9711CPBG-GP
U75
RT9711CPBG-GP
1 2
C300 SC15P50V2JN-2-GPC300 SC15P50V2JN-2-GP
12
R304
10KR2J-3-GP
R304
10KR2J-3-GP
12
R882
Do Not Stuff
DY
R882
Do Not Stuff
DY
12
C340
SC1U10V3ZY-6GP
C340
SC1U10V3ZY-6GP
12
C296
SCD1U16V2ZY-2GP
C296
SCD1U16V2ZY-2GP
12
C396
SC1U10V3ZY-6GP
C396
SC1U10V3ZY-6GP
1
2
3
4 5
6
7
8
RN11
SRN33J-7-GP
RN11
SRN33J-7-GP
1 2
C291
SCD33U10V3KX-3GP
C291
SCD33U10V3KX-3GP
1 2
C293 SCD01U16V2KX-3GPC293 SCD01U16V2KX-3GP
12
C344
Do Not Stuff
DY
C344
Do Not Stuff
DY
1 2
R632 33R2J-2-GPR632 33R2J-2-GP
KA
D31
1SS355PT-GP
D31
1SS355PT-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USB_8-
USB_8+
USB_8-
USB_8+
USB_10+
USB_10-
+3FP
USB_10-
+5VS_CAM
USB_10+
USB_10+
USB_10-
FPSOF
CAM_PWR_GCAMERA_OFF
USB_10+
USB_8-
USB_8+
USB_8+
USB_10-
USB_8-
RST
CAP_SENS_INT_R
CAP_CLK
CAP_SENS_INT
CAP_DATA
CAP_SENS_INT
CAP_DATA
+3VL
CAP_CLK
+3FP
RST
WL_BLUE_LED#
+3VS
LED_STANDBY#
CAP_SENS_INT_R
CAP_DATA
CAP_SENS_INT
CAP_CLK
CAP_SENS_INT
CAP_DATA
CAP_CLK
+5VS_CAM
+5VALW +5VS_CAM
+3VALW
+5VS
+3VALW
+3VALW
+3VS+3VL
+3VL
+3VL
USB20_N10[22]
USB20_P10[22]
CAMERA_OFF#[22]
USB20_N8[22]
USB20_P8[22]
FPR_OFF[22]
LED_STANDBY# [35,36,43]
WL_BLUE_LED# [33,43]
CAP_SENS_RST[34]
CAP_DATA[34] CAP_CLK [34]
CAP_SENS_INT [34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Camera/W-COM
A3
42 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Camera/W-COM
A3
42 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
Camera/W-COM
A3
42 53Wednesday, August 20, 2008
VOX
SYSTEM CAPACITY BOARD
Vol up , Vol down , Mute ,Presentation
CAMERA
FingerPrint Conn.
3VALW FOR XP , 3VS FOR Vista
PIN 3 reserved for GPIO
FingerPrint
CAMERA Conn.
PIN 3 reserved for GPIO
06/29
07/10
07/23
07/27
07/27
For EMI
SI2R-EMI
PV1 EMI
MV1
1 2
R953
499R2F-2-GP
R953
499R2F-2-GP
G
DS
Q21
AO3413-GP
Q21
AO3413-GP
1
PAD58 Do Not StuffPAD58 Do Not Stuff
1
PAD28 Do Not StuffPAD28 Do Not Stuff
5 6
7 8
12
34
FIG1
ETY-CONN4A-1-GP-U1
FIG1
ETY-CONN4A-1-GP-U1
1
PAD52 Do Not StuffPAD52 Do Not Stuff
12
C172
SCD1U16V2ZY-2GP
C172
SCD1U16V2ZY-2GP
ESD I/O1
1
GND
2
ESD I/O2
3VP 5
ESD I/O3 4
ESD I/O4 6
U143
IP4220CZ6-GP
U143
IP4220CZ6-GP
1 2
R26
100KR2J-1-GP
R26
100KR2J-1-GP
1
PAD36 Do Not StuffPAD36 Do Not Stuff
G
S D
Q4
2N7002-11-GP
Q4
2N7002-11-GP
1 2
L44 MLVG0402220NV09BP-GPL44 MLVG0402220NV09BP-GP
12
C29
SCD1U16V2ZY-2GP
C29
SCD1U16V2ZY-2GP
1 2
R187 Do Not StuffR187 Do Not Stuff
1
2
34
56
78
910
11 12
13 14
CAP1
ETY-CONN10A-2-GP
CAP1
ETY-CONN10A-2-GP
1
PAD27 Do Not StuffPAD27 Do Not Stuff
1
PAD4 Do Not StuffPAD4 Do Not Stuff
12
C13
SCD1U16V2ZY-2GP
C13
SCD1U16V2ZY-2GP
1
PAD1 Do Not StuffPAD1 Do Not Stuff
1 2
R196
10KR2J-3-GP
R196
10KR2J-3-GP
1
2
3
4
5
6
7
CAM1
ETY-CON5-13-GP
CAM1
ETY-CON5-13-GP
12
R722
10KR2J-3-GP
R722
10KR2J-3-GP
12
C411
SCD1U16V2ZY-2GP
C411
SCD1U16V2ZY-2GP
1 2
R31 Do Not StuffR31 Do Not Stuff
1 2
R27 47KR2J-2-GP
R27 47KR2J-2-GP
1
PAD60 Do Not StuffPAD60 Do Not Stuff
1
PAD26 Do Not StuffPAD26 Do Not Stuff
1
PAD2 Do Not StuffPAD2 Do Not Stuff
12
C414
SCD1U16V2ZY-2GP
C414
SCD1U16V2ZY-2GP
1
PAD38 Do Not StuffPAD38 Do Not Stuff
1
2
3
4
8
7
6
5
RC4
Do Not Stuff
DY
RC4
Do Not Stuff
DY
12
R192
220KR2J-L2-GP
R192
220KR2J-L2-GP
12
C1033
Do Not Stuff
DY
C1033
Do Not Stuff
DY
ESD I/O1
1
GND
2
ESD I/O2
3VP 5
ESD I/O3 4
ESD I/O4 6
U37
Do Not Stuff
DY
U37
Do Not Stuff
DY
1
PAD51 Do Not StuffPAD51 Do Not Stuff
1
PAD5 Do Not StuffPAD5 Do Not Stuff
G
DS
Q9
AO3413-GP
Q9
AO3413-GP
12
C424
SC4D7U10V5ZY-3GP
C424
SC4D7U10V5ZY-3GP
12
C19
SC1U10V3ZY-6GP
C19
SC1U10V3ZY-6GP
1 2
L45 MLVG0402220NV09BP-GPL45 MLVG0402220NV09BP-GP
12
R343 Do Not Stuff
DY
R343 Do Not Stuff
DY
12
C186
SC4D7U10V5ZY-3GP
C186
SC4D7U10V5ZY-3GP
1
PAD59 Do Not StuffPAD59 Do Not Stuff
12
R341 5K1R2-GPR341 5K1R2-GP
12
C26
SCD1U16V2ZY-2GP
C26
SCD1U16V2ZY-2GP
1 2
L46 MLVG0402220NV09BP-GPL46 MLVG0402220NV09BP-GP
1
PAD37 Do Not StuffPAD37 Do Not Stuff
12
C30
SCD01U16V2KX-3GP
C30
SCD01U16V2KX-3GP
ESD I/O1
1
GND
2
ESD I/O2
3VP 5
ESD I/O3 4
ESD I/O4 6
U20
Do Not Stuff
DY
U20
Do Not Stuff
DY
1
PAD61 Do Not StuffPAD61 Do Not Stuff
1
PAD3 Do Not StuffPAD3 Do Not Stuff
1 2
R186 Do Not StuffR186 Do Not Stuff
1 2
R30 Do Not StuffR30 Do Not Stuff
12
R340 5K1R2-GPR340 5K1R2-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
H_THERMDC
H_THERMDA
NLED1
WL_B#
WL_A#
SHDN_SEL
SHDN_SEL
H_THERMDC_2
H_THERMDC
H_THERMDA_2
H_THERMDA
D2-
D2+
D1-
D1+
THERM_SCI#_R
TRIP_SEL
TRIP_SEL
D1-
D1+
D2-
D2+
H_THERMDC_2
H_THERMDA_2
SYS_SHDN#
SYS_SHDN#
Charge_Amber_1#_0
Charge_Amber_1#
Charge_Aqua_1#
Charge_Amber_1#
Charge_Aqua_1#_0
Charge_Aqua_1#
HDD_Act_1#
HDD_Safe_1#HDD_Safe_1#_1
Charge_Amber_1#_1
HDD_Act_1#_1
Charge_Aqua_1#_1
HDD_Act_1#
HDD_Safe_1#_0
HDD_Act_1#_0
HDD_Safe_1#
Charge_Aqua_1#
Charge_Amber_1#
Charge_Aqua_1#_0
Charge_Amber_1#_0 HDD_Act_1#_0
HDD_Safe_1#_0
HDD_Act_1#
HDD_Safe_1#
WL_B#_1
WL_A#_1
WL_B#_0
WL_B#
WL_B#_0 WL_A#
WL_A#
WL_B#
HDD_HALTLED#
WL_BLUE_LED#Charge_AM_LED#
+3VALW
+3VS
+3VS
+3VS
+3VS
+3VL
+3VS
+3VL +3VS
+3VS
+3VS
+3VS
+3VS
+3VS
H_THERMDC[5]
H_THERMDA[5]
LED_STANDBY# [35,36,42]
THERM_SCI#[22]
FAN_TACH [5]
ICH_SM_CLK[17,22,31] ICH_SM_DA[17,22,31]
FAN_PWM [5]
H_THERMDC_2[5]
H_THERMDA_2[5]
PM_THRMTRIP-A#[5,9,21]
MXM_THRMTRIP#[17]
Charge_AM_LED#[34]
GREEN_BATLED#[21,34]
HDD_HALTLED#[22]
SATA_LED#[21,36]
WL_BLUE_LED#[33,42]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
ADT7473 Thermal Sensor
A3
43 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
ADT7473 Thermal Sensor
A3
43 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
ADT7473 Thermal Sensor
A3
43 53Wednesday, August 20, 2008
VOX
CPU TEMP:
H_THERMDA and H_THERMDC routing 10mil trace width
and spacing. Locate Capacity near ADT7473.
Thermal Sensor
LED
PIN1 Amber
PIN3 Aqua White
PIN2 Amber
PIN3 Blue
07/02
07/10
CPU TEMP:
H_THERMDA and H_THERMDC routing 10mil trace width
and spacing. Locate Capacity near ADT7473.
PIN1 Amber
PIN3 Aqua White
DB2
DB2
DB2
DB2
DB3
Change Power to 3VS for A009 issue
DB3
DB3
SI2
SI2
MV1
MV1
12
R848 68R2-GP
R848 68R2-GP
1
2
34
5
6
U142
Do Not Stuff
DY
U142
Do Not Stuff
DY
12
R851 68R2-GP
R851 68R2-GP
1
3
2
LED4
LED-WA-2-GP
LED4
LED-WA-2-GP
1
2
3 4
5
6
U135
2N7002DW-1-GP
U135
2N7002DW-1-GP
1
2
3
4 5
6
7
8
RN58 SRN10KJ-6-GPRN58 SRN10KJ-6-GP
1
2
3 4
5
6
U132
2N7002DW-1-GP
U132
2N7002DW-1-GP
12
R849 68R2-GP
R849 68R2-GP
12
C174
SC2200P50V2KX-2GP
C174
SC2200P50V2KX-2GP
1
2
3 4
5
6
U134
2N7002DW-1-GP
U134
2N7002DW-1-GP
1 2
R160 15KR2J-1-GPR160 15KR2J-1-GP
1 2
R177 Do Not StuffR177 Do Not Stuff
1 2
R251
0R2J-2-GP
R251
0R2J-2-GP
12
R174Do Not Stuff
DY
R174Do Not Stuff
DY
1
2
3 4
5
6
U133
2N7002DW-1-GP
U133
2N7002DW-1-GP
VDD
3
GND 12
SMCLK
9
TACH 10
GPIO2 5
ND2/DP3
15 DP2/DN3
16 DN1
1DP1
2
ALERT#
6SYS_SHDN#
7
PWM 11
SHDN_SEL 13
TRIP_SET 14
GPIO1 4
SMDATA
8GND 17
U36
EMC2103-2-AP-GP
U36
EMC2103-2-AP-GP
1 2
R937 10KR2J-3-GPR937 10KR2J-3-GP
1 2
R961
10KR2J-3-GP
R961
10KR2J-3-GP
12
R170Do Not Stuff
DY
R170Do Not Stuff
DY
1 2
R313
68R2-GP
R313
68R2-GP
12
C169
Do Not Stuff
DY
C169
Do Not Stuff
DY
12
R180100R2J-2-GP R180100R2J-2-GP
1
3
2
LED2
LED-WA-2-GP
LED2
LED-WA-2-GP
1
2
3 4
5
6
U131
2N7002DW-1-GP
U131
2N7002DW-1-GP
1 2
R962
0R2J-2-GP
R962
0R2J-2-GP
1
23
4
RN56 SRN10KJ-5-GP
RN56 SRN10KJ-5-GP
12
R179100R2J-2-GP R179100R2J-2-GP
12
R239
Do Not Stuff
DY
R239
Do Not Stuff
DY
1
3
2
LED5
LED-BO-9-GP-U
LED5
LED-BO-9-GP-U
12
C178
SC1KP50V2KX-1GP
C178
SC1KP50V2KX-1GP
1 2
C153 SCD1U16V2ZY-2GPC153 SCD1U16V2ZY-2GP
1 2
3
LED3
LED-W-21-GP
LED3
LED-W-21-GP
12
R854 68R2-GP
R854 68R2-GP
1
2
3
4 5
6
7
8
RN57
SRN10KJ-6-GP
RN57
SRN10KJ-6-GP
1 2
R234
0R2J-2-GP
R234
0R2J-2-GP
1 2
R150
10KR2J-3-GP
R150
10KR2J-3-GP
1 2
R165 953R2F-GPR165 953R2F-GP
1
23
4
RN59 SRN10KJ-5-GPRN59 SRN10KJ-5-GP
12
R237
Do Not Stuff
DY
R237
Do Not Stuff
DY
12
R853 68R2-GP
R853 68R2-GP
1 2
C1030
Do Not Stuff
RF
C1030
Do Not Stuff
RF
12
R852 68R2-GP
R852 68R2-GP
1 2
R850 Do Not StuffR850 Do Not Stuff
1 2
R149
10KR2J-3-GP
R149
10KR2J-3-GP
12
C209
SC1KP50V2KX-1GP
C209
SC1KP50V2KX-1GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLK 14M SIO_C
CLK_PCI_EC_C
CLK_PCI_LPC CLK 14M SIO
LPD0
LPD7
LPD6
LPD5
LPD4
LPTACK#
LPTBUSY
LPTPE
LPTSLCT
DCD#1
RI#1
CTS#1
DSR#1
LPTALF#
LPTSLCTIN#
LPTINIT#
LPD3
LPD2
LPD1
SIO IRQ
RXD1
TXD1
CLK 14M SIO
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC FRAM#
LPC DRQ#0
SIO RST#
SIO PD#
CLK_PCI_LPC
SIRQ
IRRX
SIO PME#
PM_CLKRUN#
SIO GPIO12
SIO GPIO11
SIO GPIO10
SIO GPIO40
PID0
PID1
SIO GPIO43
SIO GPIO44
SIO GPIO45
SER_SHD
SIO GPIO46
LPTSLCT
LPTPE
LPTBUSY
LPD0
LPD1
LPTACK#
LPD2
LPD3
LPD4
LPD5
LPD6
LPTINIT#
LPD7
LPTSLCTIN#
LPTERR#
LPTALF#
LPTSTB#
GPIO23
SIO IRQ DCD#1
DSR#1
RTS#1
CTS#1
DTR#1
RI#1
SIO PME#
SIO PD#
SIO GPIO40
PID0
PID1
SIO GPIO43
SIO GPIO44
SIO GPIO45
SIO GPIO46
SIO GPIO11
SIO GPIO12
SIO GPIO10
LPTERR#
LPTSTB#
+3VS
+5VS
+5VS_PRN
+3VS
+3VS
+3VS
CLK_PCI_LPC[16]
LPTSLCT [36]
PLT_RST#17,20,25,31,33,45]
LPTPE [36]
DSR#1 [36]
LPTBUSY [36]
LPTSTB# [36]
LPTACK# [36]
RTS#1 [36]
LPD7 [36]
RI#1 [36]
LPD6 [36]
PM_CLKRUN#[22,33,34,40]
LPD5 [36]
LPD4 [36]
SIRQ[22,33,34,40]
LPD3 [36]
LPD2 [36]
SER_SHD[36]
LPD1 [36]
LPD0 [36]
LPTSLCTIN# [36]
LPTALF# [36]
CTS#1 [36]
LPTINIT# [36]
RXD1 [36]
TXD1 [36]
LPC_FRAME#[21,33,34] LDRQ0#[21]
LPC_AD[0..3][21,33,34]
CLK 14M SIO[16]
EXPCRD_RST# [36]
NPCI_RST#[22,34]
DCD#1 [36]
LPTERR# [36]
DTR#1 [36]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
LPC47N217
A3
44 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
LPC47N217
A3
44 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
LPC47N217
A3
44 53Wednesday, August 20, 2008
VOX
SIO
LPC I/F
GPIO
SERIAL I/F PARALLEL IF
FIR
12
C719
Do Not Stuff
DY
C719
Do Not Stuff
DY
12
R595
Do Not Stuff
DY
R595
Do Not Stuff
DY
1
2
3
4 5
6
7
8
RN29
SRN4K7J-10-GP
RN29
SRN4K7J-10-GP
1
2
3
4 5
6
7
8
RN30
SRN4K7J-10-GP
RN30
SRN4K7J-10-GP
1
2
3
4 5
6
7
8
RN4
SRN10KJ-6-GP
RN4
SRN10KJ-6-GP
1
2
3
4 5
6
7
8
RN31
SRN4K7J-10-GP
RN31
SRN4K7J-10-GP
1
2
3
4 5
6
7
8
RN34
SRN10KJ-6-GP
RN34
SRN10KJ-6-GP
VSS
8
IO_PME#
6
VTR 7
CLOCKI
9
LAD0
10
LAD1
12
LAD2
13
LAD3
14
LFRAME#
15
LDRQ#
16
PCI_RESET#
17
LPCPD#
18
GP23 40
PCI_CLK
20
SER_IRQ
21
VSS
22
GP10
32
CLKRUN#
19
IRRX2 37
GP11/SYSOPT
33
GP13/IRQIN1
35
GP14/IRQIN2
36
GP12/IO_SMI#
34
nACK 58
BUSY 57
PE 56
SLCT 55
VSS
52
PD7 53
PD6 51
PD5 50
PD4 49
PD3 48
PD2 47
PD1 46
PD0 44
nSLCTIN 42
nINIT 41
VCC 26
IRMODE/IRRX3 39
GP47
31
VSS
43
GP46
30 GP45
29
IRTX2 38
GP44
28 GP43
27
GP40
23
VCC 45
GP42
25 GP41
24
VCC 11
nDCD1 5
nRI1 4
nDTR1 3
nCTS1 2
nRTS1 1
nDSR1 64
TXD1 63
RXD1 62
nSTROBE 61
nALF 60
nERROR 59
VCC 54
U61
LPC47N217-JV-GP
U61
LPC47N217-JV-GP
1 2
R566 4K7R2F-GP
R566 4K7R2F-GP
1
2
3
4 5
6
7
8
RN32
SRN4K7J-10-GP
RN32
SRN4K7J-10-GP
1 2
R571 4K7R2F-GP
R571 4K7R2F-GP
1 2
R589 10KR2J-3-GP
R589 10KR2J-3-GP
12
R547
1KR2J-1-GP
R547
1KR2J-1-GP
1 2
C707
SCD1U16V
C707
SCD1U16V
1
2
3
4 5
6
7
8
RN24
SRN4K7J-10-GP
RN24
SRN4K7J-10-GP
12
C710
Do Not Stuff
DY
C710
Do Not Stuff
DY
1 2
C695
SCD1U16V
C695
SCD1U16V
1 2
R577
Do Not Stuff
DY
R577
Do Not Stuff
DY
1 2
R582 1KR2J-1-GP
R582 1KR2J-1-GP
1
2
3
4 5
6
7
8
RN36
SRN10KJ-6-GP
RN36
SRN10KJ-6-GP
21
D24
CH751H-40PT
D24
CH751H-40PT
12
R580
Do Not Stuff
DY
R580
Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USB20_N6
USB20_P6
+3VAUX_BT
USB20_N6
BT_OFF_G_1
BT_LED_R
UWB_LED
UWB_LED
BT_LED_R
USB20_P6
BT_OFF_G
BT_OFF_G_1
BT_LED_R
VDDA_CODEC
AUD_AGNDAUD_AGND
+3VAUX_BT
+3VALW
+5VALW
+3VAUX_BT
+5VALW
+3VS
+1.5VS +5VALW
USB20_P6 [22]
USB20_N6 [22]
BT_OFF[22]
S4_STATE#[22,32,52] USB20_N1 [22]
USB20_P1 [22]
USB20_N0 [22]
USB20_P0 [22]
R_HP_OUT [28]
L_HP_OUT [28]
MIC2[26]
MIC_BIAS_B[26]
MIC1[26] HP_JS [26,28]
ICH_PCIE_WAKE# [22,25,31]
CLK_UWB_SCR9#_D [16]
CLK_UWB_SCR9_D [16]
PCIE_RXP1 [22]
PCIE_RXN1 [22]
PCIE_TXN1 [22]
PCIE_TXP1 [22]
UWB_OFF# [22]
UWB_DISABLE [22]
PLT_RST# [9,17,20,25,31,33,44]
BT_LED [33]
MIC_JS[26]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
BT/UWB/Audio board Connector
A3
45 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
BT/UWB/Audio board Connector
A3
45 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
BT/UWB/Audio board Connector
A3
45 53Wednesday, August 20, 2008
VOX
BT Connector
UWB Connector AUDIO Daughter Board Connector
Bluetooth Connector
DIGITAL
ANALOG
06/26
07/26
07/26
07/27
DB3
EMI SI1
1
2
3
4
5
6
8
7
9
10
BT1
ETY-CON8-11-GP
BT1
ETY-CON8-11-GP
1
PAD62 Do Not StuffPAD62 Do Not Stuff
1
3
5
7
9
11
13
15 17
19
31
2
4
6
8
10
12
14 16
18
20
30
29
28
27
26
25
24
23
22
21
32
NP1
NP2
DB1
ETY-CONN30E-2-GP-U
DB1
ETY-CONN30E-2-GP-U
1
PAD21 Do Not StuffPAD21 Do Not Stuff
1 2
R266 Do Not StuffR266 Do Not Stuff
1
PAD19 Do Not StuffPAD19 Do Not Stuff
G
DS
Q34
AO3413-GP
Q34
AO3413-GP
12
C362
SC1U10V3ZY-6GP
C362
SC1U10V3ZY-6GP
ESD I/O1
1
GND
2
ESD I/O2
3VP 5
ESD I/O3 4
ESD I/O4 6
U69
Do Not Stuff
DY
U69
Do Not Stuff
DY
12
C914
SCD1U16V2ZY-2GP
C914
SCD1U16V2ZY-2GP
1 2
R714 Do Not StuffR714 Do Not Stuff
1
PAD16 Do Not StuffPAD16 Do Not Stuff
1
PAD20 Do Not StuffPAD20 Do Not Stuff
1 2
R715
100KR2J-1-GP
R715
100KR2J-1-GP
12
C800
SCD047U10V2KX-2GP
C800
SCD047U10V2KX-2GP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
UWB1
Do Not Stuff
DY
UWB1
Do Not Stuff
DY
12
C363
SC4D7U10V5ZY-3GP
C363
SC4D7U10V5ZY-3GP
1
2
3
D27
Do Not Stuff
DY
D27
Do Not Stuff
DY
12
C792
Do Not Stuff
DY
C792
Do Not Stuff
DY
12
C791
SCD1U16V2ZY-2GP
C791
SCD1U16V2ZY-2GP
1 2
R862
47KR2J-2-GP
R862
47KR2J-2-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SLP_S4
U41_P6
U41_P3
SLP_S3
RUNON
PM_SLP_M
PM_SLP_M#0
SLP_S3
SLPS3_DIS#
PM_SLP_M
SLP_S4
SLP_S3
SLP_S3
PM_SLP_M
U38_P3
RUNON
SLP_S4#SLP_S3#
3VM_EN
U43_P3
SLP_S4
U43_P6
SLP_S3
RUNON
SLP_M_WOL_EN
3VM_WOL_EN
SLP_M_WOL_EN
RUNON_3VS
RUNON_R
RUNON_3VS
SLP_M_WOL_EN
+5VS
+1.8V
+1.5VS
B+
+1.05VM
+3VALW +3VSB+
+5VALW +5VS
B+ +3VALW +3VM
+3VM
+3VL
+3VL
+1.05VM +VCCP
+3VS
+0.9V
+1.8V +NV1V8
B+ B+ +3VALW +3VM_WOL
+3VALW
+3VM_WOL
SLP_S4# [22,49]SLP_S3#[17,22,25,28,29,34,36,37,50,51,52]
PM_SLP_M# [22,34,49]
PM_SLP_M# [22,34,49]
LAN_WOL_EN [22,34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DC/DC Circuit
A3
46 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DC/DC Circuit
A3
46 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
DC/DC Circuit
A3
46 53Wednesday, August 20, 2008
VOX
+3VALW to +3VM / +3VM_WOL Transfer
+3VALW to +3VS Transfer Discharge circuit-2 for V-M
+5VALW to +5VS Transfer
+1.05VM to +VCCP Transfer
Discharge circuit-1
+1.8V to +1.8VS Transfer
07/16
07/16
07/16
PM_SLP_M# LAN_WOL_EN+3VM_WOL +3VM SYSTEM STATE
0
0
0
1
1
1
1
0V
3.3V
3.3V
3.3V 3.3V
3.3V
0V
0V
M1
M1
Moff / No WOL
Legacy WOL/ Moff
0
DB3
SI2-EMI
SI2
SI2
PV1-RF PV1-RF
MV1
12
R428
100KR2J-1-GP
R428
100KR2J-1-GP
12
R106
Do Not Stuff
DY
R106
Do Not Stuff
DY
G
S D
Q24
2N7002-11-GP
Q24
2N7002-11-GP
12
R427
470R2J-2-GP
R427
470R2J-2-GP
12
R431
100KR2J-1-GP
R431
100KR2J-1-GP
1
2
3
45
6
7
8
S
S
S
GD
D
D
D
U26
AO4468-GP
S
S
S
GD
D
D
D
U26
AO4468-GP
1 2
R213
470R2J-2-GP
R213
470R2J-2-GP
12
C100
SCD1U16V2ZY-2GP
C100
SCD1U16V2ZY-2GP
12
R432
470R2J-2-GP
R432
470R2J-2-GP
1 2
R218 100KR2J-1-GP
R218 100KR2J-1-GP
G
D S
Q66
AO3404-1-GP
Q66
AO3404-1-GP
1
2
3
45
6
7
8
S
S
S
GD
D
D
D
U114
AO4468-GP
S
S
S
GD
D
D
D
U114
AO4468-GP
12
R204
470R2J-2-GP
R204
470R2J-2-GP
1 2
R597
470R2J-2-GP
R597
470R2J-2-GP
12
C102
Do Not Stuff
DY
C102
Do Not Stuff
DY
12
C500
Do Not Stuff
DY
C500
Do Not Stuff
DY
12
C101
SC47P50V2JN-3GP
C101
SC47P50V2JN-3GP
G
S D
Q67
2N7002-11-GP
Q67
2N7002-11-GP
12
C516
SC10U6D3V5ZY-2GP
C516
SC10U6D3V5ZY-2GP
G
D S
Q68
AO3404-1-GP
Q68
AO3404-1-GP
1
2
3
45
6
7
8
S
S
S
GD
D
D
D
U56
Do Not Stuff
DY
S
S
S
GD
D
D
D
U56
Do Not Stuff
DY
1
2
34
5
6
U110
2N7002DW-1-GP
U110
2N7002DW-1-GP
12
R437
100KR2J-1-GP
R437
100KR2J-1-GP
12
C515
Do Not Stuff
DY
C515
Do Not Stuff
DY
1 2
R590
470R2J-2-GP
R590
470R2J-2-GP
12
C641
SCD1U16V2ZY-2GP
C641
SCD1U16V2ZY-2GP
1
2
3 4
5
6
U63
2N7002DW-1-GP
U63
2N7002DW-1-GP
12
R963 470R2J-2-GPR963 470R2J-2-GP
21
D63
CH751H-40PT
D63
CH751H-40PT
12
C987
SC47P50V2JN-3GP
C987
SC47P50V2JN-3GP
1
2
3 4
5
6
U46
2N7002DW-1-GP
U46
2N7002DW-1-GP
1
2
34
5
6
U109
2N7002DW-1-GP
U109
2N7002DW-1-GP
12
C510
SCD01U25V2KX-3GP
C510
SCD01U25V2KX-3GP
12
C653
Do Not Stuff
DY
C653
Do Not Stuff
DY
12
C264
Do Not Stuff
DY
C264
Do Not Stuff
DY
12
C85
SC47P50V2JN-3GP
C85
SC47P50V2JN-3GP
12
R884
10KR2J-3-GP
R884
10KR2J-3-GP
12
C308
Do Not Stuff
DY
C308
Do Not Stuff
DY
1
2
3 4
5
6
U43
2N7002DW-1-GP
U43
2N7002DW-1-GP
1
2
3
45
6
7
8
S
S
S
GD
D
D
D
U25
AO4468-GP
S
S
S
GD
D
D
D
U25
AO4468-GP
1
2
3 4
5
6
U41
2N7002DW-1-GP
U41
2N7002DW-1-GP
12
C319
Do Not Stuff
DY
C319
Do Not Stuff
DY
1 2
R193 100KR2J-1-GPR193 100KR2J-1-GP
12
C103
SCD1U16V2ZY-2GP
C103
SCD1U16V2ZY-2GP
12
C242
Do Not Stuff
DY
C242
Do Not Stuff
DY
12
C640
Do Not Stuff
DY
C640
Do Not Stuff
DY
12
C1027
SCD01U16V2KX-3GP
C1027
SCD01U16V2KX-3GP
12
C506
SCD01U25V2KX-3GP
C506
SCD01U25V2KX-3GP
12
R220
470R2J-2-GP
R220
470R2J-2-GP
1 2
R194
470R2J-2-GP
R194
470R2J-2-GP
1 2
R855 121KR2F-L-GPR855 121KR2F-L-GP
12
R105
330KR2J-L1-GP
R105
330KR2J-L1-GP
12
R430
100KR2J-1-GP
R430
100KR2J-1-GP
12
C266
Do Not Stuff
DY
C266
Do Not Stuff
DY
G
S D
Q17
2N7002-11-GP
Q17
2N7002-11-GP
12
R210
470R2J-2-GP
R210
470R2J-2-GP
12
C97
Do Not Stuff
DY
C97
Do Not Stuff
DY
12
C523
SC10U6D3V5ZY-2GP
C523
SC10U6D3V5ZY-2GP
12
C106
Do Not Stuff
DY
C106
Do Not Stuff
DY
G
S D
Q28
2N7002-11-GP
Q28
2N7002-11-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
6208_PH26260_PWM2
6260_FCCM6260_FCCM
6208_UG2
6208_LG2
6208_PH36260_PWM36260_PWM3
6260_FCCM6260_FCCM
6208_UG3
6208_LG3
6208_LG3
6208_UG2
6260_ISEN3_G1
6208_UG3
6260_ISEN2_G1
6260_VO
6260_ISEN2
6208_LG2
6260_ISEN3_G2
6260_ISEN2_G2
6208_PH3
6208_PH2
6260_ISEN3
6260_VO
6260_COMP_1
6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT6260_SOFT
+3.3V_6260
6260_DROOP
6260_OCSET
6260_VR_ON
6260_PWM2
6260_VR_ON
6260_VIN
6260_DPRSLPVR
6260_PWM3
CLK_EN#
6260_ISEN3
6260_DPRSTP#
6260_PSI#
6260_VO
6260_RBIAS
6260_NTC6260_NTC6260_NTC6260_NTC6260_NTC6260_NTC6260_NTC6260_NTC6260_NTC6260_NTC
6260_VSUM
6260_VID0
6260_VID1
6260_FCCM
6260_VID2
6260_DFB
6260_VID3
6260_VID4
6260_VID5
6260_VID6
6260_VDD
6260_PWM1
6260_ISEN1
6260_ISEN2
6260_AGND
6260_PMON
6260_COMP
6260_VW
6260_VDIFF
6260_VSEN
VDIFF_C
6260_FB1
6260_COMP_R
6260_FB6260_FB6260_FB6260_FB6260_FB6260_FB6260_FB6260_FB
6260_RTN
6260_VSUM_R
6260_VO6260_VO
VDIFF_VSEN
H_VID2
H_VID1
H_VID4
H_VID0
H_VID6
H_VID3
H_VID5
6260_ISEN1_G1
6260_ISEN1_G2
6208_PH1
6208_LG1
6208_UG1
6260_VSUM
6260_ISEN1
6260_VO
6208_PH16260_PWM1
6260_FCCM
6208_UG1
6208_LG1
6260_VSUM
6260_VSUM
CPU_PROCHOT#_R
+5V_6260
+5V_6260
DCBATOUT_6260
+VCC_CORE
DCBATOUT_6260
B+
DCBATOUT_6260
6260_AGND
6260_AGND
6260_AGND
6260_AGND
6260_AGND
6260_AGND
6260_AGND
6260_AGND
6260_AGND
+5V_6260
+3VS
+5VS
+5VALW
6260_AGND
DCBATOUT_6260
+3VS
+3VALW
+VCC_CORE
DCBATOUT_6260
+5V_6260
+VCCP
+5V_6260
6260_AGND
H_VID[6..0][7]
PSI#[6]
PM_DPRSLPVR[9,22]
H_DPRSTP#[6,9,21]
CPU_PROCHOT#_R[5]
VGATE [37]
PWR_GD[17,34,37,50]
VSS_SENSE[7]
VCC_SENSE[7]
CLK_EN#[22]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
ISL6260C_CPU_CORE
A2
47 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
ISL6260C_CPU_CORE
A2
47 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
ISL6260C_CPU_CORE
A2
47 53Wednesday, August 20, 2008
VOX
CPU_CORE
SI4386DY
Panasonic 7343*2.0mm size
2V/ESR=7mohm
Iripple=3.4A
FDS7088SN3-GP
FDS7088SN3-GP
FDS7088SN3-GP
FDS7088SN3-GP
Panasonic 7343*2.0mm size
2V/ESR=6mohm
Iripple=3A
SI4386DY
FDS7088SN3-GP
FDS7088SN3-GP
SI4386DY
SI1SI1
84.00365.036
Renesas RJK0365DPA
Renesas RJK0351DPA-02
84.00351.036
84.00365.036
Renesas RJK0365DPA
Renesas RJK0351DPA-02
84.00351.036
84.00365.036
Renesas RJK0365DPA
Renesas RJK0351DPA-02
84.00351.036
PV1-RF
For C4 noise issue.
For C4 noise issue.
1 2
R775
10KR2F-2-GP
R775
10KR2F-2-GP
12
R797
NTC-6K8-3-GP
R797
NTC-6K8-3-GP
1 2
G85 Do Not StuffG85 Do Not Stuff
1 2
R765 Do Not StuffR765 Do Not Stuff
1 2
C855 SC330P50V2KX-3GPC855 SC330P50V2KX-3GP
1 2
G84
Do Not Stuff
G84
Do Not Stuff
1
2
3
4 5
6
7
8
S
S
GD
D
D
D S
U121
POWERPAK-8P-GP
S
S
GD
D
D
D S
U121
POWERPAK-8P-GP
12
C230
SC4D7U25V5MX-L-GP
C230
SC4D7U25V5MX-L-GP
1 2
G89
Do Not Stuff G89
Do Not Stuff
1 2
G93
Do Not Stuff G93
Do Not Stuff
1 2
C823
SCD22U10V3KX-2GP
C823
SCD22U10V3KX-2GP
12
C828
Do Not Stuff
DY
C828
Do Not Stuff
DY
1 2
R779 Do Not Stuff
DY
R779 Do Not Stuff
DY
1
2
3
4 5
6
7
8
S
S
GD
D
D
D S
U122
POWERPAK-8P-GP
S
S
GD
D
D
D S
U122
POWERPAK-8P-GP
12
C229
SC4D7U25V5MX-L-GP
C229
SC4D7U25V5MX-L-GP
1
2
3
4 5
6
7
8
S
S
GD
D
D
DS
U118
POWERPAK-8P-GP
S
S
GD
D
D
DS
U118
POWERPAK-8P-GP
1 2
R819
Do Not Stuff
DY
R819
Do Not Stuff
DY
1 2
R787 Do Not StuffR787 Do Not Stuff
12
C226
SC4D7U25V5MX-L-GP
C226
SC4D7U25V5MX-L-GP
12
C216
SC4D7U25V5MX-L-GP
C216
SC4D7U25V5MX-L-GP
1 2
G88
Do Not Stuff G88
Do Not Stuff
1 2
R926 0R2J-2-GPR926 0R2J-2-GP
1 2
R914
Do Not Stuff
DY
R914
Do Not Stuff
DY
1 2
G95
Do Not Stuff G95
Do Not Stuff
PSI#
1
PMON
2
RBIAS
3
VR_TT#
4
NTC
5
SOFT
6
OCSET 7
VW
8
COMP
9
FB
10
VDIFF
11
VSEN
12
RTN
13
DROOP
14
DFB
15
VO 16
VSUM 17
VIN 18
VSS
19
VDD 20
ISEN3 21
ISEN2 22
ISEN1 23
FCCM 24
PWM3 25
PWM2 26
PWM1 27
VID0
28
VID1
29
VID6
34
VR_ON
35
DPRSLPVR
36
DPRSTP#
37
CLK_EN#
38
3V3 39
PGOOD 40
GND
41
VID2
30
VID3
31
VID4
32
VID5
33
U117
ISL6260CCRZ-T-GP
U117
ISL6260CCRZ-T-GP
1 2
R773
Do Not Stuff
DY
R773
Do Not Stuff
DY
12
C841
SCD033U50V3KX-1GP
C841
SCD033U50V3KX-1GP
1
2
3
4 5
6
7
8
S
S
GD
D
D
DS
U120
POWERPAK-8P-GP
S
S
GD
D
D
DS
U120
POWERPAK-8P-GP
12
TC29
SE330U2VDM-L-GP
TC29
SE330U2VDM-L-GP
1 2
G77 Do Not StuffG77 Do Not Stuff
1
2
3
4 5
6
7
8
S
S
GD
D
D
D
S
U115
POWERPAK-8P-GP
S
S
GD
D
D
D
S
U115
POWERPAK-8P-GP
12
C222
SC4D7U25V5MX-L-GP
C222
SC4D7U25V5MX-L-GP
12
C217
SC4D7U25V5MX-L-GP
C217
SC4D7U25V5MX-L-GP
1 2
G94
Do Not Stuff G94
Do Not Stuff
12
R823
5K11R2F-L1-GP
R823
5K11R2F-L1-GP
1 2
C846 SC100P50V2JN-3GPC846 SC100P50V2JN-3GP
12
C817
SC2200P50V2KX-2GP
C817
SC2200P50V2KX-2GP
1 2
G83 Do Not StuffG83 Do Not Stuff
1 2
G98
Do Not Stuff
G98
Do Not Stuff
12
C221
SC4D7U25V5MX-L-GP
C221
SC4D7U25V5MX-L-GP
12
R767
10R3J-3-GP
R767
10R3J-3-GP
1 2
R785 499R2F-2-GPR785 499R2F-2-GP
12
C825
SCD01U50V2KX-1GP
C825
SCD01U50V2KX-1GP
1 2
R760
Do Not Stuff
DY
R760
Do Not Stuff
DY
12
C820
SC2200P50V2KX-2GP
C820
SC2200P50V2KX-2GP
1 2
R802 6K34R2F-GPR802 6K34R2F-GP
12
C854
SCD01U50V2KX-1GP
DY
C854
SCD01U50V2KX-1GP
DY
1 2
G102 Do Not StuffG102 Do Not Stuff
1 2
L43
Do Not Stuff
DY
L43
Do Not Stuff
DY
1 2
R791 1K69R2F-2-GPR791 1K69R2F-2-GP
12
R824
5K11R2F-L1-GP
R824
5K11R2F-L1-GP
1 2
C867
Do Not Stuff
DY
C867
Do Not Stuff
DY
1 2
L41
IND-D41UH-GP
L41
IND-D41UH-GP
1 2
C831 SCD015U25V2KX-GPC831 SCD015U25V2KX-GP
1 2
G92
Do Not Stuff G92
Do Not Stuff
12
R800
Do Not Stuff
DY
R800
Do Not Stuff
DY
12
C858
SC1KP50V2KX-1GP
C858
SC1KP50V2KX-1GP
12
R818
Do Not Stuff
DY
R818
Do Not Stuff
DY
12
C869
SC47P50V2JN-3GP
C869
SC47P50V2JN-3GP
12
R792
4K53R2F-1-GP
R792
4K53R2F-1-GP
12
C271
SC4D7U25V5MX-L-GP
C271
SC4D7U25V5MX-L-GP
1 2
R925 0R2J-2-GPR925 0R2J-2-GP
BOOT 1
PWM
2
GND
3
LGATE 4
VCC 5
FCCM
6
PHASE 7
UGATE 8
GND
9
U123
ISL6208CRZ-TGP-U
U123
ISL6208CRZ-TGP-U
1 2
G76 Do Not StuffG76 Do Not Stuff
12
R766
2D2R3-1-U-GP
R766
2D2R3-1-U-GP
12
TC28
SE330U2VDM-L-GP
TC28
SE330U2VDM-L-GP
1 2
R799
115KR2F-GP
R799
115KR2F-GP
1 2
R814 Do Not StuffR814 Do Not Stuff
BOOT 1
PWM
2
GND
3
LGATE 4
VCC 5
FCCM
6
PHASE 7
UGATE 8
GND
9
U127
Do Not Stuff
DY
U127
Do Not Stuff
DY
BOOT 1
PWM
2
GND
3
LGATE 4
VCC 5
FCCM
6
PHASE 7
UGATE 8
GND
9
U116
ISL6208CRZ-TGP-U
U116
ISL6208CRZ-TGP-U
12
R772
10R2F-L-GP
R772
10R2F-L-GP
12
C842
SCD33U10V3KX-3GP
C842
SCD33U10V3KX-3GP
1 2
G80 Do Not StuffG80 Do Not Stuff
12
R771
Do Not Stuff
DY
R771
Do Not Stuff
DY
1 2
C851
SC1KP50V2KX-1GP
C851
SC1KP50V2KX-1GP
12
TC32
SE330U2VDM-L-GP
TC32
SE330U2VDM-L-GP
12
R795
10KR2F-2-GP
R795
10KR2F-2-GP
1 2
G87 Do Not StuffG87 Do Not Stuff
12
C870
SC4D7U25V5MX-L-GP
C870
SC4D7U25V5MX-L-GP
12
R825
Do Not Stuff
DY
R825
Do Not Stuff
DY
1 2
G90
Do Not Stuff G90
Do Not Stuff
1 2
C840 SC680P50V2KX-2GPC840 SC680P50V2KX-2GP
1 2
R764 Do Not StuffR764 Do Not Stuff
12
R761
10R3J-3-GP
R761
10R3J-3-GP
12
C274
SC4D7U25V5MX-L-GP
C274
SC4D7U25V5MX-L-GP
12
R817
10R2F-L-GP
R817
10R2F-L-GP
1 2
R917
Do Not Stuff
DY
R917
Do Not Stuff
DY
1 2
R786 11K5R2F-GPR786 11K5R2F-GP
12
C826
SC1U10V3KX-3GP
C826
SC1U10V3KX-3GP
1 2
C849 SC1KP50V2KX-1GPC849 SC1KP50V2KX-1GP
12
R793
2K43R2F-GP
R793
2K43R2F-GP
12
C873
SC4D7U25V5MX-L-GP
C873
SC4D7U25V5MX-L-GP
1 2
R807 Do Not StuffR807 Do Not Stuff
12
C872
SC4D7U25V5MX-L-GP
C872
SC4D7U25V5MX-L-GP
1 2
R774
10KR2F-2-GP
R774
10KR2F-2-GP
1 2
G97
Do Not Stuff
G97
Do Not Stuff
12
C258
SC4D7U25V5MX-L-GP
C258
SC4D7U25V5MX-L-GP
12
R816
Do Not Stuff
DY
R816
Do Not Stuff
DY
1 2
R780
Do Not Stuff
DY
R780
Do Not Stuff
DY
1 2
G81
Do Not Stuff
G81
Do Not Stuff
1 2
R770 Do Not StuffR770 Do Not Stuff
12
TC27
SE330U2VDM-L-GP
TC27
SE330U2VDM-L-GP
1 2
C845
SC1500P50V2KX-2GP
C845
SC1500P50V2KX-2GP
12
TC31
SE330U2VDM-L-GP
TC31
SE330U2VDM-L-GP
1 2
G99
Do Not Stuff
G99
Do Not Stuff
1 2
C856
SCD22U10V3KX-2GP
C856
SCD22U10V3KX-2GP
1
2
3
4 5
6
7
8
S
S
GD
D
D
D S
U119
POWERPAK-8P-GP
S
S
GD
D
D
D S
U119
POWERPAK-8P-GP
12
C257
SC4D7U25V5MX-L-GP
C257
SC4D7U25V5MX-L-GP
12
R796
1KR2F-3-GP
R796
1KR2F-3-GP
12
R769
Do Not Stuff
DY
R769
Do Not Stuff
DY
1 2
G79 Do Not StuffG79 Do Not Stuff
12
C268
SC4D7U25V5MX-L-GP
C268
SC4D7U25V5MX-L-GP
1 2
R916
Do Not Stuff
DY
R916
Do Not Stuff
DY
1 2
G91
Do Not Stuff G91
Do Not Stuff
12
C265
SC4D7U25V5MX-L-GP
C265
SC4D7U25V5MX-L-GP
12
C847
SCD1U10V2KX-4GP
C847
SCD1U10V2KX-4GP
12
C818
SCD1U25V3ZY-1GP
C818
SCD1U25V3ZY-1GP
12
C237
SC4D7U25V5MX-L-GP
C237
SC4D7U25V5MX-L-GP
1 2
L42
IND-D41UH-GP
L42
IND-D41UH-GP
12
R805
1KR2F-3-GP
DY
R805
1KR2F-3-GP
DY
1 2
G96
Do Not Stuff
G96
Do Not Stuff
1 2
G86 Do Not StuffG86 Do Not Stuff
1 2
R788
332R2F-1-GP
R788
332R2F-1-GP
1 2
R778 147KR2F-GP
R778 147KR2F-GP
12
C830
SC1U10V3KX-3GP
C830
SC1U10V3KX-3GP
12
C821
SCD1U25V3ZY-1GP
C821
SCD1U25V3ZY-1GP
1 2
R762
Do Not Stuff
DY
R762
Do Not Stuff
DY
12
R539 68R2-GPR539 68R2-GP
12
C866
Do Not Stuff
DY
C866
Do Not Stuff
DY
12
C827
SC1U10V3KX-3GP
C827
SC1U10V3KX-3GP
12
C262
SC4D7U25V5MX-L-GP
C262
SC4D7U25V5MX-L-GP
1 2
C850
SCD22U10V3KX-2GP
C850
SCD22U10V3KX-2GP
1 2
R789 Do Not StuffR789 Do Not Stuff
12
C234
SC4D7U25V5MX-L-GP
C234
SC4D7U25V5MX-L-GP
1
2
3
4 5
6
7
8
S
S
GD
D
D
DS
U124
Do Not Stuff
DY
S
S
GD
D
D
DS
U124
Do Not Stuff
DY
12
C819
SCD1U25V3ZY-1GP
C819
SCD1U25V3ZY-1GP
12
C232
SC4D7U25V5MX-L-GP
C232
SC4D7U25V5MX-L-GP
1 2
R803
10KR2F-2-GP
R803
10KR2F-2-GP
12
TC33
SE100U25VM-10GP
TC33
SE100U25VM-10GP
12
C857
SC1U10V3KX-3GP
C857
SC1U10V3KX-3GP
12
C245
SC4D7U25V5MX-L-GP
C245
SC4D7U25V5MX-L-GP
1 2
C829
SCD22U10V3KX-2GP
C829
SCD22U10V3KX-2GP
1 2
C868
Do Not Stuff
DY
C868
Do Not Stuff
DY
12
C822
SC2200P50V2KX-2GP
C822
SC2200P50V2KX-2GP
1
2
3
4 5
6
7
8
S
S
GD
D
D
D S
U125
Do Not Stuff
DY
S
S
GD
D
D
D S
U125
Do Not Stuff
DY
1 2
R809
5K76R2F-2-GP
R809
5K76R2F-2-GP
1 2
G82
Do Not Stuff
G82
Do Not Stuff
12
R813
2D2R3-1-U-GP
R813
2D2R3-1-U-GP
12
C844
Do Not Stuff
DY
C844
Do Not Stuff
DY
1 2
G78 Do Not StuffG78 Do Not Stuff
12
R804
10R2F-L-GP
R804
10R2F-L-GP
1
2
3
4 5
6
7
8
S
S
GD
D
D
D S
U126
Do Not Stuff
DY
S
S
GD
D
D
D S
U126
Do Not Stuff
DY
12
C241
SC4D7U25V5MX-L-GP
C241
SC4D7U25V5MX-L-GP
12
TC30
Do Not Stuff
DY
TC30
Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
51120_LL1
51120_VFB1_1
51120_LL2
51120_DRVH2
51120_DRVL2
51120_DRVL1
51120_DRVH1
51120_VFB2_1
51120_VFB2
51120_VFB1
51120_TONSEL
51120_COMP1
51120_DRVH1
51120_DRVL2
51120_SKIPSEL
VL
51120_COMP2
51120_DRVH2
51120_VREF2
51120_VFB2 51120_PGOOD2
3D3V_PWR
5V_PWR
51120_VFB1
51120_CS1
51120_CS2
51120_LL2 51120_VBST2_1
51120_VBST1_151120_LL1
51120_VBST2
TPS51120_EN3
51120_VREF2
51120_VBST1
51120_LL1
51120_LL2
51120_DRVL1
51120_VREG3
51120_VREG5
TPS51120_EN5
51120_COMP1
51120_COMP1_151120_COMP2_1
51120_COMP2
3D3V_PWR
TPS51120_EN1
EN_TPS51120
TPS51120_EN2
TPS51120_EN2
TPS51120_EN1
EN_TPS51120 EN_TPS51120_R
EN_TPS51120_R
5V_PWR
VCC1_POR#_3
KBC_PWR_ON TPS51120_EN1
51120_PGOOD1
+5VALW
+3VALW
DCBATOUT_51120_2
DCBATOUT_51120_1
51120_VREF2
VL
51120_V5FILT
51120_V5FILT
51120_V5FILT
DCBATOUT_51120_1
51120_V5FILT
+3VL
DCBATOUT_51120_1
B+
DCBATOUT_51120_2
B+
VL
VL
RSMRST#_SB [22]
VCC1_POR#_3[33,34,37] KBC_PWR_ON [34]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
3
TPA51120 +5VALW +3VALW
A3
48 53Wednesday, August 20, 2008
Artemis
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
3
TPA51120 +5VALW +3VALW
A3
48 53Wednesday, August 20, 2008
Artemis
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
3
TPA51120 +5VALW +3VALW
A3
48 53Wednesday, August 20, 2008
Artemis
VOX
3VALW/5VALW
SANYO 220
ȝ
F 6.3V
ESR: 25m
ȍ
Iripple: 2.4A
Iomax: 5.84A
OCP > 9A
Iomax: 7.403A
OCP > 9A
77.22271.27L
For TPS51120,
Vout=5V
1. If you use a 6.8uH inductor, the minimum ESR is 70m ohm.
2. If you use a 4.7uH inductor, the minimum ESR is 48m ohm.
3. If you use a 3.3uH inductor, the minimum ESR is 34m ohm.
Vout=3.3V
1. If you use a 4.7uH inductor, the minimum ESR is 51m ohm.
2. If you use a 3.3uH inductor, the minimum ESR is 36m ohm.
3. If you use a 2.5uH inductor, the minimum ESR is 27m ohm.
FLOAT
280k/CH1
Adjustable output
(connect to the resistor divider) 3.3V
Fixed Output
VREF2
VREG3 on
(EN3 only)
not useEN3,EN5
330k/CH2
PWM
LDO ON
Swithchr ON
N/A D-Cap
MODE
VFB2
430k/CH2580k/CH2
CURRENT
MODE
380k/CH1
Switcher OFF
220k/CH1
N/A
/FAULTS
OFF
5V
Fixed Output
VFB1
180k/CH1
PWM
V5FILT
AUTOSKIP
GND
COMP
SKIPSEL
Switcher ON
LDO OFF
AUTOSKIP
EN1,EN2
280k/CH2
TONSEL
74.51120.073
68.2R210.20B
CYNTEC 2.2
ȝ
H
Idc: 8A, 6.5×6.9×3mm
Rdc: 18 ~ 20m
ȍ
78.47512.L1L
77.22271.27L
SANYO 220
ȝ
F 6.3V
ESR: 25m
ȍ
Iripple: 2.4A
06/26 Close to U23
Close to U23
Fairchild FET MOS
FDS8884 NC SO-8 Id:
8.5A Qg: 5 ~ 7nC
Rdson: 23 ~ 30m
ȍ
84.08884.037
Fairchild FET MOS
FDS8880_NL NC SO-8 Id:
10.7A Qg: 12 ~ 16nC
Rdson: 9.6 ~ 12m
ȍ
84.08880.037
Fairchild FET MOS
FDS8884 NC SO-8 Id:
8.5A Qg: 5 ~ 7nC
Rdson: 23 ~ 30m
ȍ
84.08884.037
Fairchild FET MOS
FDS8880_NL NC SO-8 Id:
10.7A Qg: 12 ~ 16nC
Rdson: 9.6 ~ 12m
ȍ
84.08880.037
68.2R210.20B
CYNTEC 2.2
ȝ
H
Idc: 8A, 6.5×6.9×3mm
Rdc: 18 ~ 20m
ȍ
DB3
DB3 SI1 RF
R1=(VOUT
-1)*
R2
R1=(VOUT
-1)*
R2
SI2R
78.47512.L1L
1 2
R73 Do Not Stuff
DY
R73 Do Not Stuff
DY
12
C48
SC1KP50V2KX-1GP
C48
SC1KP50V2KX-1GP
1 2
G13 Do Not StuffG13 Do Not Stuff
12
R915
Do Not Stuff
DY
R915
Do Not Stuff
DY
1 2
R85 Do Not StuffR85 Do Not Stuff
1 2
R393
8K06R3F-AS-GP
R393
8K06R3F-AS-GP
1 2
R87 Do Not StuffR87 Do Not Stuff
12
C469
SC4D7U25V5MX-L-GP
C469
SC4D7U25V5MX-L-GP
12
C77
SC680P50V2KX-2GP
C77
SC680P50V2KX-2GP
12
R69
47K5R2F-GP
R69
47K5R2F-GP
12
R84
0R2J-2-GP
R84
0R2J-2-GP
12
C474
SC4D7U25V5MX-L-GP
C474
SC4D7U25V5MX-L-GP
12
R101
2D2R5J-1-GP
R101
2D2R5J-1-GP
12
C484
SCD1U25V3ZY-1GP
C484
SCD1U25V3ZY-1GP
1 2
R98 0R3-0-U-GP
R98 0R3-0-U-GP
1 2
G50 Do Not StuffG50 Do Not Stuff
1 2
G17 Do Not StuffG17 Do Not Stuff
1 2
G15 Do Not StuffG15 Do Not Stuff
12
C62
SC4D7U25V5MX-L-GP
C62
SC4D7U25V5MX-L-GP
12
C67
SC4D7U25V5MX-L-GP
C67
SC4D7U25V5MX-L-GP
1 2
G49 Do Not StuffG49 Do Not Stuff
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U104
FDS8880-NL-GP
S
S
S
GD
D
D
D
U104
FDS8880-NL-GP
12
C44
SC33P50V2JN-3GP
C44
SC33P50V2JN-3GP
12
C58
SC1U10V3KX-3GP
C58
SC1U10V3KX-3GP
12
C49
Do Not Stuff
DY
C49
Do Not Stuff
DY
1 2
G52 Do Not StuffG52 Do Not Stuff
12
R76
Do Not Stuff
DY
R76
Do Not Stuff
DY
12
C468
SC4D7U25V5MX-L-GP
C468
SC4D7U25V5MX-L-GP
1 2
G51 Do Not StuffG51 Do Not Stuff
12
C40
SC33P50V2JN-3GP
C40
SC33P50V2JN-3GP
1 2
G7 Do Not StuffG7 Do Not Stuff
12
R71
82KR2F-1-GP
R71
82KR2F-1-GP
1 2
R81 Do Not Stuff
DY
R81 Do Not Stuff
DY
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U105
FDS8880-NL-GP
S
S
S
GD
D
D
D
U105
FDS8880-NL-GP
1
TP2 Do Not StuffTP2 Do Not Stuff
A
1
B
2
GND
3
VCC 5
Y4
U141
74AHCT1G08DCKR-1GP
U141
74AHCT1G08DCKR-1GP
1 2
G3 Do Not StuffG3 Do Not Stuff
1 2
G6 Do Not StuffG6 Do Not Stuff
1 2
G10 Do Not StuffG10 Do Not Stuff
12
C59
SC10U10V5KX-2GP
C59
SC10U10V5KX-2GP
1 2
R80
Do Not Stuff
R80
Do Not Stuff
1 2
R90 0R0603-PADR90 0R0603-PAD
1 2
R95 0R3-0-U-GP
R95 0R3-0-U-GP
1 2
L34
IND-2D2UH-46-GP-U
L34
IND-2D2UH-46-GP-U
1 2
C53
SCD1U25V3ZY-1GP
C53
SCD1U25V3ZY-1GP
1 2
C52
SCD1U25V3ZY-1GP
C52
SCD1U25V3ZY-1GP
1 2
G8 Do Not StuffG8 Do Not Stuff
1 2
G16 Do Not StuffG16 Do Not Stuff
1 2
G14 Do Not StuffG14 Do Not Stuff
1 2
R79 Do Not Stuff
DY
R79 Do Not Stuff
DY
1 2
R405
5D1R3F-GP
R405
5D1R3F-GP
1 2
G12 Do Not StuffG12 Do Not Stuff
12
TC3
ST220U6D3VDM-20GP
TC3
ST220U6D3VDM-20GP
1
TP1 Do Not StuffTP1 Do Not Stuff
1 2
G1 Do Not StuffG1 Do Not Stuff
12
R102
2D2R5J-1-GP
R102
2D2R5J-1-GP
1 2
G9 Do Not StuffG9 Do Not Stuff
12
C63
SC4D7U25V5MX-L-GP
C63
SC4D7U25V5MX-L-GP
12
R68
20KR2F-L-GP
R68
20KR2F-L-GP
12
C42
Do Not Stuff
DY
C42
Do Not Stuff
DY
12
C68
SC4D7U25V5MX-L-GP
C68
SC4D7U25V5MX-L-GP
1 2
R78 Do Not StuffR78 Do Not Stuff
1 2
G4 Do Not StuffG4 Do Not Stuff
1 2
C479
Do Not Stuff
DY
C479
Do Not Stuff
DY
1 2
C477
Do Not Stuff
DY
C477
Do Not Stuff
DY
12
C78
SC680P50V2KX-2GP
C78
SC680P50V2KX-2GP
12
TC2
ST220U6D3VDM-20GP
TC2
ST220U6D3VDM-20GP
12
C57
SC4D7U25V5MX-L-GP
C57
SC4D7U25V5MX-L-GP
12
C55
SC10U10V5KX-2GP
C55
SC10U10V5KX-2GP
1 2
R394
9K1R3F-1-GP
R394
9K1R3F-1-GP
1 2
R77 Do Not StuffR77 Do Not Stuff
12
C72
SC4D7U25V5MX-L-GP
C72
SC4D7U25V5MX-L-GP
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U103
FDS8880-NL-GP
S
S
S
GD
D
D
D
U103
FDS8880-NL-GP
12
C47
Do Not Stuff
DY
C47
Do Not Stuff
DY
1 2
R82
Do Not Stuff
DY
R82
Do Not Stuff
DY
12
C976
Do Not Stuff
RF
C976
Do Not Stuff
RF
12
C481
SCD1U25V3ZY-1GP
C481
SCD1U25V3ZY-1GP
1 2
G11 Do Not StuffG11 Do Not Stuff
12
C73
SC4D7U25V5MX-L-GP
C73
SC4D7U25V5MX-L-GP
1 2
G5 Do Not StuffG5 Do Not Stuff
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U106
FDS8880-NL-GP
S
S
S
GD
D
D
D
U106
FDS8880-NL-GP
1
2
34
5
6
U139
Do Not Stuff
DY
U139
Do Not Stuff
DY
12
C473
SC4D7U25V5MX-L-GP
C473
SC4D7U25V5MX-L-GP
1 2
L35
IND-2D2UH-46-GP-U
L35
IND-2D2UH-46-GP-U
12
C56
SCD1U25V3ZY-1GP
C56
SCD1U25V3ZY-1GP
12
R70
20KR2F-L-GP
R70
20KR2F-L-GP
1 2
G2 Do Not StuffG2 Do Not Stuff
12
C480
SC4D7U25V5MX-L-GP
C480
SC4D7U25V5MX-L-GP
G
S D
Q81
Do Not Stuff
DY
Q81
Do Not Stuff
DY
VO1
1
COMP1 2
VFB1
3
VREF2
4
GND
5
VFB2
6
COMP2 7
VO2
8
EN5
9EN3
10
PGOOD2 11
EN2
12
VBST2 13
DRVH2 14
LL2 15
DRVL2 16
PGND2
17
CS2
18
VREG3 19
V5FILT 20
VREG5 21
VIN 22
CS1
23
PGND1
24
DRVL1 25
LL1 26
DRVH1 27
VBST1 28
EN1
29
PGOOD1 30
TONSEL
31 SKIPSEL
32
GND
33
U23
TPS51120RHBR-GPU1
74.51120.073
U23
TPS51120RHBR-GPU1
74.51120.073
12
C41
Do Not Stuff
DY
C41
Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
51124_LL2 1D05V_PWR
51124_VFB2
51124_VFB1
51124_LL1
51124_DRVL1
51124_DRVH1
51124_DRVH2
1D8V_PWR
51124_VBST2
51124_LL1
51124_VBST151124_LL1
51124_LL2_151124_LL2
51124_LL2
51124_LL1_1
51124_V5FILT51124_V5FILT
1D8V_PWR
51124_PGD1
51124_PGD2
51124_DRVL2
1D05V_PWR
51124_DRVH1
51124_TRIP1
51124_DRVL1
51124_EN1_1 51124_DRVH2
51124_TRIP2
51124_VFB1
51124_VFB2
51124_DRVL2
5110_PMSLPS4#
+1.05VM
DCBATOUT_51124_2
B+ DCBATOUT_51124_1
DCBATOUT_51124_1
+1.8V
+5VALW
+3VS
+1.8V 0D9V_PWR
+V_DDR_VREF_M
+5VALW
+0.9V
0D9V_PWR
+3VS
B+ DCBATOUT_51124_2
PM_SLP_M#[22,34,46] SLP_S4#[22,46]
M_PROK [37]
PM_SLP_M#[22,34,46]
SLP_S4#[22,46]
1.8PGOOD [37]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis 3
TPS51124 1D5V/1D05V
A3
49 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis 3
TPS51124 1D5V/1D05V
A3
49 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis 3
TPS51124 1D5V/1D05V
A3
49 53Wednesday, August 20, 2008
VOX
CYNTEC 0.82
ȝ
H
Idc: 13A, 6.5×6.9×3mm
Rdc: 6.7 ~ 8m
ȍ
+1.8V_PWR
Iomax: 10A
OCP < 15A
R1
R2
Vout=0.758V*(R1+R2)/R2
FBV1 1.8V: 29.4 k / 41.2K
+1.05V_PWR
Iomax: 12.286A
OCP < 18A
68.R8210.10V
68.1R01A.20B
78.47512.L1L
Panasonic 330
ȝ
F 2V
ESR: 15m
ȍ
Iripple: 2.7A
R1
R2
Vout=0.758V*(R1+R2)/R2
FBV2 1.05V: 11.5 k / 29.4K
79.33719.20C
CYNTEC 1.0
ȝ
H
Idc: 11A, 6.5×6.9×3mm
Rdc: 9 ~ 10m
ȍ
1.5V OCP: 12A, Trip1: 12K7
1.05V OCP: 15A, Trip2: 7k5
360kHz/CH1
420kHz/CH2
74.51124.073
SC
0D9V
Iomax: 1.2A
1D8V & 1D05V
Close to U116
Close to U116
79.33719.20D
Panasonic 330
ȝ
F 2V
ESR: 15m
ȍ
Iripple: 2.7A
07/20 EMI
07/20 EMI
07/20 EMI
07/20 EMI
07/20 POWER
360kHz/CH1
420kHz/CH2
283k/CH2 283k/CH1230k/CH1
GND
TONSEL
OPEN
346k/CH2
V5FILT
84.00351.036
Renesas RJK0351DPA-02
84.00365.036
Renesas RJK0365DPA
84.00365.036
Renesas RJK0365DPA
Renesas RJK0351DPA-02
84.00351.036
PV1-RF
78.47512.L1L
1 2
C223
SCD1U50V3ZY-GP
C223
SCD1U50V3ZY-GP
12
C244
Do Not Stuff
DY
C244
Do Not Stuff
DY
12
C194
SC4D7U25V5MX-L-GP
C194
SC4D7U25V5MX-L-GP
1 2
G24 Do Not StuffG24 Do Not Stuff
1 2
G74 Do Not StuffG74 Do Not Stuff
12
R517
11K8R2F-GP
R517
11K8R2F-GP
1 2
G20 Do Not StuffG20 Do Not Stuff
1 2
G36 Do Not StuffG36 Do Not Stuff
12
C225
SCD1U50V3ZY-GP
C225
SCD1U50V3ZY-GP
12
R209
3D3R3J-L-GP
R209
3D3R3J-L-GP
1 2
G61 Do Not StuffG61 Do Not Stuff
12
C202
SC4D7U25V5MX-L-GP
C202
SC4D7U25V5MX-L-GP
1 2
G38 Do Not StuffG38 Do Not Stuff
12
C200
SC4D7U25V5MX-L-GP
C200
SC4D7U25V5MX-L-GP
1 2
G57 Do Not StuffG57 Do Not Stuff
12
C219
SC1U10V3ZY-6GP
C219
SC1U10V3ZY-6GP
12
R522
29K4R2F-GP
R522
29K4R2F-GP
12
C231
SC4D7U10V5ZY-3GP
C231
SC4D7U10V5ZY-3GP
1 2
G70 Do Not StuffG70 Do Not Stuff
1 2
G21 Do Not StuffG21 Do Not Stuff
1 2
G63 Do Not StuffG63 Do Not Stuff
1 2
G31 Do Not StuffG31 Do Not Stuff
12
C191
SC4D7U25V5MX-L-GP
C191
SC4D7U25V5MX-L-GP
1
2
3
4 5
6
7
8
S
S
GD
D
D
DS
U47
POWERPAK-8P-GP
S
S
GD
D
D
DS
U47
POWERPAK-8P-GP
1 2
G59 Do Not StuffG59 Do Not Stuff
12
R235
Do Not Stuff
DY
R235
Do Not Stuff
DY
1 2
G35 Do Not StuffG35 Do Not Stuff
1 2
G53 Do Not StuffG53 Do Not Stuff
12
C211
SC4D7U25V5MX-L-GP
C211
SC4D7U25V5MX-L-GP
12
C239
SC10U6D3V5ZY-2GP
C239
SC10U6D3V5ZY-2GP
1 2
G60 Do Not StuffG60 Do Not Stuff
12
R236
Do Not Stuff
DY
R236
Do Not Stuff
DY
12
C243
Do Not Stuff
DY
C243
Do Not Stuff
DY
12
C215
Do Not Stuff
DY
C215
Do Not Stuff
DY
12
C233
SC1U10V3ZY-6GP
C233
SC1U10V3ZY-6GP
1 2
R212 Do Not StuffR212 Do Not Stuff
12
TC10
ST330U2D5VDM-13GP
TC10
ST330U2D5VDM-13GP
1 2
C208
SCD1U50V3ZY-GP
C208
SCD1U50V3ZY-GP
1 2
G58 Do Not StuffG58 Do Not Stuff
12
C235
SCD1U16V2ZY-2GP
C235
SCD1U16V2ZY-2GP
1 2
G34 Do Not StuffG34 Do Not Stuff
1 2
G56 Do Not StuffG56 Do Not Stuff
12
C192
SC4D7U25V5MX-L-GP
C192
SC4D7U25V5MX-L-GP
12
C206
SC4D7U25V5MX-L-GP
C206
SC4D7U25V5MX-L-GP
12
C665
Do Not Stuff
DY
C665
Do Not Stuff
DY
1 2
G23 Do Not StuffG23 Do Not Stuff
12
R225
8K2R2F-1-GP
R225
8K2R2F-1-GP
1 2
G19 Do Not StuffG19 Do Not Stuff
1 2
R211 Do Not StuffR211 Do Not Stuff
12
R219 Do Not StuffR219 Do Not Stuff
1 2
C224
Do Not Stuff
DY
C224
Do Not Stuff
DY
12
R514
29K4R2F-GP
R514
29K4R2F-GP
12
R217
0R2J-2-GP
R217
0R2J-2-GP
12
C651
Do Not Stuff
DY
C651
Do Not Stuff
DY
1 2
G66 Do Not StuffG66 Do Not Stuff
1 2
G25 Do Not StuffG25 Do Not Stuff
12
C195
SC4D7U25V5MX-L-GP
C195
SC4D7U25V5MX-L-GP
1 2
G33 Do Not StuffG33 Do Not Stuff
1 2
G22 Do Not StuffG22 Do Not Stuff
1 2
G55 Do Not StuffG55 Do Not Stuff
1
2
3
4 5
6
7
8
S
S
GD
D
D
DS
U54
POWERPAK-8P-GP
S
S
GD
D
D
DS
U54
POWERPAK-8P-GP
1 2
L11
COIL-D82UH-2-GP
L11
COIL-D82UH-2-GP
1 2
G37 Do Not StuffG37 Do Not Stuff
12
R208
Do Not Stuff
DY
R208
Do Not Stuff
DY
VDDQSNS 1
VLDOIN 2
VTT 3
PGND 4
VTTSNS 5
VIN
10
S5
9
GND
8
S3
7
VTTREF
6
GND
11
U52
TPS51100DGQ-1-GP
U52
TPS51100DGQ-1-GP
12
C667
SC47P50V2JN-3GP
C667
SC47P50V2JN-3GP
12
R516
41K2R2F-GP
R516
41K2R2F-GP
1 2
G64 Do Not StuffG64 Do Not Stuff
1 2
C228
Do Not Stuff
DY
C228
Do Not Stuff
DY
1 2
G65 Do Not StuffG65 Do Not Stuff
1 2
G32 Do Not StuffG32 Do Not Stuff
1 2
R224
6K2R2J-1-GP
R224
6K2R2J-1-GP
12
TC11
ST330U2VDM-3GP
TC11
ST330U2VDM-3GP
1 2
G54 Do Not StuffG54 Do Not Stuff
12
C201
SC4D7U25V5MX-L-GP
C201
SC4D7U25V5MX-L-GP
12
C212
SC4D7U25V5MX-L-GP
C212
SC4D7U25V5MX-L-GP
VO1 1
VFB1 2
TONSEL 4
VFB2 5
VO2 6
PGOOD2 7
EN2
8
VBST2
9
DRVH2 10
LL2
11
TRIP1
17
V5IN
16 V5FILT
15
TRIP2
14
PGOOD1 24
EN1
23
VBST1
22
DRVH1 21
LL1
20
GND 3
PGND1 18
PGND2 13
GND 25
DRVL1
19
DRVL2
12
U49
TPS51124RGER-GPU1
U49
TPS51124RGER-GPU1
12
R206
Do Not Stuff
DY
R206
Do Not Stuff
DY
12
C220
SC10U6D3V5ZY-2GP
C220
SC10U6D3V5ZY-2GP
12
C658
SC4D7U25V5MX-L-GP
C658
SC4D7U25V5MX-L-GP
1 2
G28 Do Not StuffG28 Do Not Stuff
1 2
G39 Do Not StuffG39 Do Not Stuff
12
C236
SC10U6D3V5ZY-2GP
C236
SC10U6D3V5ZY-2GP
12
C227
SCD1U50V3ZY-GP
C227
SCD1U50V3ZY-GP
1 2
G62 Do Not StuffG62 Do Not Stuff
1
2
3
4 5
6
7
8
S
S
GD
D
D
DS
U53
POWERPAK-8P-GP
S
S
GD
D
D
DS
U53
POWERPAK-8P-GP
12
R214 Do Not StuffR214 Do Not Stuff
1
2
3
4 5
6
7
8
S
S
GD
D
D
DS
U48
POWERPAK-8P-GP
S
S
GD
D
D
DS
U48
POWERPAK-8P-GP
12
TC12
ST330U2VDM-3GP
TC12
ST330U2VDM-3GP
1 2
G18 Do Not StuffG18 Do Not Stuff
12
C203
SC4D7U25V5MX-L-GP
C203
SC4D7U25V5MX-L-GP
1 2
L13 COIL-1UH-34-GP-UL13 COIL-1UH-34-GP-U
12
R221
0R2J-2-GP
R221
0R2J-2-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
24740_VREF
+5VS
LIMIT_SIGNAL
VIN
VIN
VIN_R
+3VLVIN_R
+3VS +5VS
+5VS
+3VS
+5VS
+5VS
+3VS
+3VS
VIN
+3VS
VIN VIN_R
SLP_S3#[17,22,25,28,29,34,36,37,46,51,52]
BATCAL# [51]
ADP_EN# [51]
ADP_EN [34]
ADP_ID [34] SRSET[51]
OCP# [22]
PWR_GD[17,34,37,47]
ADP_PS0 [34]
ADP_PS1 [34]
ICS[51]
ACOCP_EN#[36]
OCP_ADJ [38]
CFET_A[39]
ADP_PRES[29,34,39,51]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ADP OCP
A2
50 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ADP OCP
A2
50 53Wednesday, August 20, 2008
Artemis
3
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
ADP OCP
A2
50 53Wednesday, August 20, 2008
Artemis
3
VOX
ADP/OCP
ACN norn control from charger
IC pin 8
06/29
DB2
DB2
DB2
SI2R
DB2
DB2
DB2
SI2R
G
S D
Q53
2N7002-11-GP
Q53
2N7002-11-GP
1 2
R586
470KR2J-2-GP
R586
470KR2J-2-GP
1 2
R861
1R5J-2-GP
R861
1R5J-2-GP
12
R383
47KR2J-2-GP
R383
47KR2J-2-GP
1 2
C428 SC2200P50V2KX-2GP
C428 SC2200P50V2KX-2GP
1 2
R384
1MR2J-1-GP
R384
1MR2J-1-GP
3
21
84
+
-
U24A
LM393DR2G-GP
+
-
U24A
LM393DR2G-GP
12
R368
105KR2F-1-GP
R368
105KR2F-1-GP
1 2
R273
Do Not Stuff
R273
Do Not Stuff
1 2
R72
100KR2J-1-GP
R72
100KR2J-1-GP
C
B
E
Q14
CH3904PT-1-GP
Q14
CH3904PT-1-GP
1 2
R39
2KR2F-3-GP
R39
2KR2F-3-GP
K A
D10
1SS355PT-GP
D10
1SS355PT-GP
G
S D
Q16
2N7002-11-GP
Q16
2N7002-11-GP
12
R588
47KR2J-2-GP
R588
47KR2J-2-GP
12
R378
40K2R2F-GP
R378
40K2R2F-GP
12
R348
150KR2F-L-GP
R348
150KR2F-L-GP
G
S D
Q12
2N7002W-GP
Q12
2N7002W-GP
12
R51
511KR2F-GP
R51
511KR2F-GP
12
C333
SCD027U25V3KX-GP
C333
SCD027U25V3KX-GP
12
R576
470KR2J-2-GP
R576
470KR2J-2-GP
K A
D7
1SS355PT-GP
D7
1SS355PT-GP
12
R615
10KR2J-3-GP
R615
10KR2J-3-GP
12
R66
220KR2F-GP
R66
220KR2F-GP
1 2
R275
604KR3F-GP
R275
604KR3F-GP
1 2
R519
1MR2J-1-GP
R519
1MR2J-1-GP
12
R524
71K5R2F-1-GP
R524
71K5R2F-1-GP
12
R380
10K2R2F-GP
R380
10K2R2F-GP
12
R52
150KR2F-L-GP
R52
150KR2F-L-GP
12
R83
210KR2F-GP
R83
210KR2F-GP
12
R585
10KR2J-3-GP
R585
10KR2J-3-GP
12
C28
SC1U10V3ZY-6GP
C28
SC1U10V3ZY-6GP
12
R631
80K6R2F-GP
R631
80K6R2F-GP
12
R581
3K9R2J-1-GP
R581
3K9R2J-1-GP
12
C422
SCD1U16V2KX-3GP
C422
SCD1U16V2KX-3GP
3
21
84
+
-
U42A
LM393DR2G-GP
+
-
U42A
LM393DR2G-GP
12
R97
220KR2J-L2-GP
R97
220KR2J-L2-GP
12
C711
SCD1U16V2KX-3GP
C711
SCD1U16V2KX-3GP
12
R381
22K6R2F-1-GP
R381
22K6R2F-1-GP
1 2
R628
100KR2J-1-GP
R628
100KR2J-1-GP
12
R67
100KR2F-L1-GP
R67
100KR2F-L1-GP
12
R385
100KR2F-L1-GP
R385
100KR2F-L1-GP
21
D26
Do Not Stuff
DY
D26
Do Not Stuff
DY
12
R525
3K48R2F-GP
R525
3K48R2F-GP
1 2
R361
6K81R2F-1-GP
R361
6K81R2F-1-GP
1 2
R391
1MR2J-1-GP
R391
1MR2J-1-GP
5
67
84
+
-
U42B
LM393DR2G-GP
+
-
U42B
LM393DR2G-GP
E
BC
R1
R2
Q13
DDTA144VCA-7-F-GP
R1
R2
Q13
DDTA144VCA-7-F-GP
KA
D8
1SS355PT-GP
D8
1SS355PT-GP
12
R392
47KR2J-2-GP
R392
47KR2J-2-GP
12
R653
10KR2J-3-GP
R653
10KR2J-3-GP
1 2
R350
165KR2F-GP
R350
165KR2F-GP
12
R594
3K9R2J-1-GP
R594
3K9R2J-1-GP
5
67
84
+
-
U62B
LM393DR2G-GP
+
-
U62B
LM393DR2G-GP
G
S D
Q27
2N7002-11-GP
Q27
2N7002-11-GP
1 2
R197
1MR2J-1-GP
R197
1MR2J-1-GP
12
R100
220KR2J-L2-GP
R100
220KR2J-L2-GP
12
C715
SC3900P50V2KX-2GP
C715
SC3900P50V2KX-2GP
12
R379
10K2R2F-GP
R379
10K2R2F-GP
1IN-
3GND
21IN+
1
OUT 4
VCC+ 5
U91
LMV321IDBVR-GP
U91
LMV321IDBVR-GP
12
R593
330KR2J-L1-GP
R593
330KR2J-L1-GP
12
R386
10K2R2F-GP
R386
10K2R2F-GP
G
S D
Q62
2N7002-11-GP
Q62
2N7002-11-GP
12
C310
SC1U10V3KX-3GP
C310
SC1U10V3KX-3GP
12
R389
10KR2J-3-GP
R389
10KR2J-3-GP
G
DS
Q51
BSS138-7F-GP
Q51
BSS138-7F-GP
1 2
R270 Do Not StuffR270 Do Not Stuff
1 2
R195
21KR3F-GP
R195
21KR3F-GP
5
67
84
+
-
U24B
LM393DR2G-GP
+
-
U24B
LM393DR2G-GP
KA
D6
1SS355PT-GP
D6
1SS355PT-GP
G
S D
Q60
NDS0610-NL-GP
Q60
NDS0610-NL-GP
12
R618
133KR2F-GP
R618
133KR2F-GP
G
D S
Q50
BSS138-7F-GP
Q50
BSS138-7F-GP
12
R521
10KR2J-3-GP
R521
10KR2J-3-GP
3
21
84
+
-
U62A
LM393DR2G-GP
+
-
U62A
LM393DR2G-GP
12
R523
21KR3F-GP
R523
21KR3F-GP
12
C457
SC1U25V5KX-1GP
C457
SC1U25V5KX-1GP
1 2
R520
10KR2J-3-GP
R520
10KR2J-3-GP
12
R205
10KR2J-3-GP
R205
10KR2J-3-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ADPDRV#
ADP_PRES
BT+
ADP_PRES 24740_ACDET
BTT_1
ADP_PRES
24740_BTST
ADP_EN#_0
ADP_EN#_11
24740_ACSET
24740_SRP
DCBAT
24740_CELL
24740_SRN
24740_ACDET
24740_PH
24740_IADSLP
ACP_L
24740_CHGEN
24740_CHGEN
VADJ
VADJ 24740_BAT
24740_SRSET
24740_REGN
24740_ACSET
ADPDRV#
24740_HIDRV
24740_LODRV
ACN_L
51120_VREF2
VL
P2
+3VL
BT+
VIN
P2
+3VL
+3VL
+3VL
+3VL
B+
P2 P2
BT+
VL
+3VL
51120_VREF2
24740_VREF
B+
+3VL
ALARM[39]
SRSET[50]
ADP_PRES [29,34,39,50]
BATCAL# [50]
ADP_EN# [50]
BAT_PWM_OUT[34]
ICS[50]
AC_CHG[39]
SLP_S3#[17,22,25,28,29,34,36,37,46,50,52]
CHGCTRL[34,39]
CFET_B[39] Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
3
CHARGER BQ24740
C
51 53Wednesday, August 20, 2008
VOX
Artemis
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
3
CHARGER BQ24740
C
51 53Wednesday, August 20, 2008
VOX
Artemis
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
3
CHARGER BQ24740
C
51 53Wednesday, August 20, 2008
VOX
Artemis
CHARGER
06/29
06/29
06/29
06/29
06/29
06/29
Fairchild FET MOS
FDS8880_NL NC SO-8 Id:
10.7A Qg: 12 ~ 16nC
Rdson: 9.6 ~ 12mȍ
84.08880.037
SI2
SI2
SI2
SI2-EMI
SI2
SI2
SI2
SI2
SI2R
12
R12
15KR2J-1-GP
R12
15KR2J-1-GP
12
C434
SC10U10V5KX-2GP
C434
SC10U10V5KX-2GP
12
R333
33K2R2F-GP
R333
33K2R2F-GP
12
C444
SC4D7U25V5MX-L-GP
C444
SC4D7U25V5MX-L-GP
1 2
R18 100KR2F-L1-GPR18 100KR2F-L1-GP
12
C408
SCD1U25V2ZY-1GP
C408
SCD1U25V2ZY-1GP
12
R321
47KR2J-2-GP
R321
47KR2J-2-GP
12
C431
SCD033U50V3KX-1GP
C431
SCD033U50V3KX-1GP
1 2
G48
Do Not Stuff
G48
Do Not Stuff
12
R354
Do Not Stuff
R354
Do Not Stuff
G
S D
Q2
2N7002-11-GP
Q2
2N7002-11-GP
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U5
P2003EVG-GP
S
S
S
GD
D
D
D
U5
P2003EVG-GP
1IN+
31IN-
21OUT
1
GND
42IN+ 5
2IN- 6
2OUT 7
VCC+ 8
U83
LMV393IDR-GP
U83
LMV393IDR-GP
1
2
3
D48
BAT54-5-GP
D48
BAT54-5-GP
12
C417
SC4D7U25V5MX-L-GP
C417
SC4D7U25V5MX-L-GP
12
C440
SCD1U25V2ZY-1GP
C440
SCD1U25V2ZY-1GP
1 2
R371
47KR2J-2-GP
R371
47KR2J-2-GP
1 2
R367
422KR2F-1-GP
R367
422KR2F-1-GP
21
D3
CH521S-30-GP-U1
D3
CH521S-30-GP-U1
12
C442
SC4D7U25V5MX-L-GP
C442
SC4D7U25V5MX-L-GP
12
C437
SC4D7U25V5MX-L-GP
C437
SC4D7U25V5MX-L-GP
12
R364
33KR2J-3-GP
R364
33KR2J-3-GP
12
C432
SC1U10V3ZY-6GP
C432
SC1U10V3ZY-6GP
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U86
P2003EVG-GP
S
S
S
GD
D
D
D
U86
P2003EVG-GP
12
C429
SC10P50V2JN-4GP
C429
SC10P50V2JN-4GP
12
G46
Do Not Stuff
G46
Do Not Stuff
12
R365
1MR2F-GP
R365
1MR2F-GP
1 2
R6
220KR2J-L2-GP
R6
220KR2J-L2-GP
12
R338
100KR2F-L1-GP
R338
100KR2F-L1-GP
12
C409
SCD022U16V2KX-3GP
C409
SCD022U16V2KX-3GP
12
C420
SC4D7U25V5MX-L-GP
C420
SC4D7U25V5MX-L-GP
12
R370
300KR2J-GP
R370
300KR2J-GP
12
C430
SC1U10V3KX-3GP
C430
SC1U10V3KX-3GP
12
R324
100KR2F-L1-GP
R324
100KR2F-L1-GP
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U96
FDS8884-GP
S
S
S
GD
D
D
D
U96
FDS8884-GP
12
R328
270KR2F-L-GP
R328
270KR2F-L-GP
1
2
3
45
6
7
8
S
S
S
GD
D
D
D
U7
P2003EVG-GP
S
S
S
GD
D
D
D
U7
P2003EVG-GP
12
G47
Do Not Stuff
G47
Do Not Stuff
12
R372
78K7R2F-GP
R372
78K7R2F-GP
1 2
R360
200KR2F-L-GP
R360
200KR2F-L-GP
12
R320
4K7R2J-2-GP
R320
4K7R2J-2-GP
12
R934
8K06R2F-GP
R934
8K06R2F-GP
1 2
R13 100KR2J-1-GPR13 100KR2J-1-GP
1
2
3
D4
BAT54-5-GP
D4
BAT54-5-GP
1 2
L26
IND-10UH-147-GP
L26
IND-10UH-147-GP
12
R331
47KR2J-2-GP
R331
47KR2J-2-GP
12
C418
SC4D7U25V5MX-L-GP
C418
SC4D7U25V5MX-L-GP
VREF
10
SRSET
16
ACDET
5
PGND 22
IADSLP#
8
DPMDET#
21
EXTPW R#
13
LPMD
4
CHGEN#
1
ACSET
6
AGND
9
VDAC
11
VADJ
12
IADAPT
15
ACP 3
ACN 2
LPREF
7
HIDRV 26
PH 25
BTST 27
REGN 24
LODRV 23
PWRPAD
29
SRN 18
BAT 17
CELLS
20
PVCC 28
SRP 19
ISYNSET 14
U94
BQ24740RHDR-GP
U94
BQ24740RHDR-GP
1 2
R342
D01R2512F-4-GP
R342
D01R2512F-4-GP
12
R332
13K3R2F-L1-GP
R332
13K3R2F-L1-GP
12
C989
SCD1U25V2ZY-1GP
C989
SCD1U25V2ZY-1GP
12
C8
SCD1U25V3ZY-1GP
C8
SCD1U25V3ZY-1GP
1 2
R362
10KR2J-3-GP
R362
10KR2J-3-GP
12
R337
23K7R2F-GP
R337
23K7R2F-GP
1IN+
31IN-
21OUT
1
GND
42IN+ 5
2IN- 6
2OUT 7
VCC+ 8
U8
LMV393IDR-GP
U8
LMV393IDR-GP
12
C443
SC4D7U25V5MX-L-GP
C443
SC4D7U25V5MX-L-GP
12
R10
150KR2J-GP
R10
150KR2J-GP
G
S D
Q82
2N7002-11-GP
Q82
2N7002-11-GP
12
R366
453KR2F-1-GP
R366
453KR2F-1-GP
12
C11
SCD1U25V2ZY-1GP
C11
SCD1U25V2ZY-1GP
12
R369
Do Not Stuff
DY
R369
Do Not Stuff
DY
12
C988
SCD1U25V2ZY-1GP
C988
SCD1U25V2ZY-1GP
12
R336
100KR2J-1-GP
R336
100KR2J-1-GP
1 2
R344
D01R2512F-4-GP
R344
D01R2512F-4-GP
12
C1031
Do Not Stuff
DY
C1031
Do Not Stuff
DY
G
S D
Q49
2N7002-11-GP
Q49
2N7002-11-GP
12
C441
SCD1U25V2ZY-1GP
C441
SCD1U25V2ZY-1GP
1
2
3
4 5
6
7
8
S
S
S
GD
D
D
D
U93
FDS8884-GP
S
S
S
GD
D
D
D
U93
FDS8884-GP
12
R23
1MR2J-L2-GP
R23
1MR2J-L2-GP
2 1
D53
CH521S-30-GP-U1
D53
CH521S-30-GP-U1
12
R8
200KR2J-L1-GP
R8
200KR2J-L1-GP
12
C439
SCD1U25V3ZY-1GP
C439
SCD1U25V3ZY-1GP
12
C438
SC4D7U25V5MX-L-GP
C438
SC4D7U25V5MX-L-GP
12
C421
SC4D7U25V5MX-L-GP
C421
SC4D7U25V5MX-L-GP
12
R15
20KR2J-L2-GP R15
20KR2J-L2-GP
12
C990
SCD1U25V2ZY-1GP
C990
SCD1U25V2ZY-1GP
12
R323
1MR2F-GP
R323
1MR2F-GP
12
R329
22KR2J-GP
R329
22KR2J-GP
12
C453
SC1U25V5KX-1GP
C453
SC1U25V5KX-1GP
1 2
R359
287KR2F-GP
R359
287KR2F-GP
12
C446
SC1U10V3ZY-6GP
C446
SC1U10V3ZY-6GP
12
R22
93K1R2F-L-GP
R22
93K1R2F-L-GP
12
C416
SC4D7U25V5MX-L-GP
C416
SC4D7U25V5MX-L-GP
G
S D
Q47
2N7002-11-GP
Q47
2N7002-11-GP
1 2
C433SCD1U25V3KX-GP
C433SCD1U25V3KX-GP
12
R330
147KR2F-GP
R330
147KR2F-GP
12
R355
Do Not Stuff
R355
Do Not Stuff
12
C436
SCD1U25V3KX-GP
C436
SCD1U25V3KX-GP
12
R335
1MR2J-L2-GP
R335
1MR2J-L2-GP
12
C419
SC4D7U25V5MX-L-GP
C419
SC4D7U25V5MX-L-GP
12
R339
10KR2J-3-GP
R339
10KR2J-3-GP
12
R14
24KR2F-GP
R14
24KR2F-GP
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
B+
+3VS +5VS
+1.8V +VCC_CORE
AUD_AGND
AUD_AGND
+5VS
VIN
BATT_A BATT_B
+1.8V
+1.5VS
+5VS
B+
S4_STATE# [22,32,45]
SLP_S3#[17,22,25,28,29,34,36,37,46,50,51]
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
RESERVE
A3
52 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
RESERVE
A3
52 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
RESERVE
A3
52 53Wednesday, August 20, 2008
VOX
07/25 EMI 09/28 EMI
07/18 ME add.
** Default
30.9K 1.5V 27.2K
Vout RT
Vout = 0.80*[1+(RT/RB)]
RB
+1.5VS
RT
RB
RF SPRINGEMI SPRING
SI1
EM1 SI1
SI1-EMI
SI2
0227 SI2-EMI
0227 SI2-EMI
0227 SI2-EMI
0227 SI2-EMI
0227 SI2-EMI
0227 SI2-RF
0227 SI2-RF
12
C978
SC47P50V2JN-3GP
C978
SC47P50V2JN-3GP
1
GND4
SPRING-U3
GND4
SPRING-U3
1 2
C766 Do Not Stuff
DY
C766 Do Not Stuff
DY
12
C123
SCD1U25V2ZY-1GP
C123
SCD1U25V2ZY-1GP
12
C897
Do Not Stuff
DY
C897
Do Not Stuff
DY
1 2
C676 SCD1U16V2ZY-2GPC676 SCD1U16V2ZY-2GP
1 2
C900
SCD1U16V2KX-3GP
C900
SCD1U16V2KX-3GP
12
C882
Do Not Stuff
DY
C882
Do Not Stuff
DY
1 2
C286 SCD1U16V2ZY-2GPC286 SCD1U16V2ZY-2GP
12
C683
SCD1U25V2ZY-1GP
C683
SCD1U25V2ZY-1GP
12
C619
SC47P50V2JN-3GP
C619
SC47P50V2JN-3GP
1 2
C692 SCD1U16V2ZY-2GPC692 SCD1U16V2ZY-2GP
1
H27
Do Not Stuff
H27
Do Not Stuff
12
C896
SCD1U25V2ZY-1GP
C896
SCD1U25V2ZY-1GP
12
C899
SC68P50V2JN-1GP
C899
SC68P50V2JN-1GP
1 2
C898 SC1U16V3KX-2GPC898 SC1U16V3KX-2GP
12
C728
Do Not Stuff
DY
C728
Do Not Stuff
DY
1 2
C614 SCD1U16V2ZY-2GPC614 SCD1U16V2ZY-2GP
1
H18
Do Not Stuff
H18
Do Not Stuff
12
C885
SCD1U25V2ZY-1GP
C885
SCD1U25V2ZY-1GP
1
H28
Do Not Stuff
H28
Do Not Stuff
12
C405
Do Not Stuff
DY
C405
Do Not Stuff
DY
1
GND10
Do Not Stuff
DY
GND10
Do Not Stuff
DY
1
GND6
Do Not Stuff
DY
GND6
Do Not Stuff
DY
1 2
C883 SCD1U16V2ZY-2GPC883 SCD1U16V2ZY-2GP
12
C880
Do Not Stuff
DY
C880
Do Not Stuff
DY
12
C890
SCD1U25V2ZY-1GP
C890
SCD1U25V2ZY-1GP
1
H19
Do Not Stuff
H19
Do Not Stuff
1
H1
Do Not Stuff
H1
Do Not Stuff
1
H21
Do Not Stuff
H21
Do Not Stuff
12
R885
28KR2F-GP
R885
28KR2F-GP
12
C1023
SC47P50V2JN-3GP
C1023
SC47P50V2JN-3GP
1
GND11
Do Not Stuff
DY
GND11
Do Not Stuff
DY
1
GND1
Do Not Stuff
DY
GND1
Do Not Stuff
DY
12
C684
SCD1U25V2ZY-1GP
C684
SCD1U25V2ZY-1GP
12
C550
SC47P50V2JN-3GP
C550
SC47P50V2JN-3GP
12
C294
SCD1U16V2ZY-2GP
C294
SCD1U16V2ZY-2GP
12
C902
SC22U6D3V5MX-2GP
C902
SC22U6D3V5MX-2GP
12
C879
Do Not Stuff
DY
C879
Do Not Stuff
DY
1
H20
Do Not Stuff
H20
Do Not Stuff
12
C894
SCD1U25V2ZY-1GP
C894
SCD1U25V2ZY-1GP
1
H2
Do Not Stuff
H2
Do Not Stuff
1
H23
Do Not Stuff
H23
Do Not Stuff
12
C814
Do Not Stuff
DY
C814
Do Not Stuff
DY
1
H17
Do Not Stuff
H17
Do Not Stuff
12
C668
SCD1U25V2ZY-1GP
C668
SCD1U25V2ZY-1GP
12
C1021
SC47P50V2JN-3GP
C1021
SC47P50V2JN-3GP
12
C412
SCD1U16V2ZY-2GP
C412
SCD1U16V2ZY-2GP
12
C238
Do Not Stuff
DY
C238
Do Not Stuff
DY
1
H29
Do Not Stuff
H29
Do Not Stuff
12
C979
SC47P50V2JN-3GP
C979
SC47P50V2JN-3GP
1
H3
Do Not Stuff
H3
Do Not Stuff
1
H26
Do Not Stuff
H26
Do Not Stuff
12
C732
SCD1U16V2ZY-2GP
C732
SCD1U16V2ZY-2GP
12
C889
SCD1U25V2ZY-1GP
C889
SCD1U25V2ZY-1GP
1
GND5
Do Not Stuff
DY
GND5
Do Not Stuff
DY
12
C666
SC47P50V2JN-3GP
C666
SC47P50V2JN-3GP
12
C674
SCD1U25V2ZY-1GP
C674
SCD1U25V2ZY-1GP
12
C205
Do Not Stuff
DY
C205
Do Not Stuff
DY
1
H4
Do Not Stuff
H4
Do Not Stuff
1 2
C805 Do Not Stuff
DY
C805 Do Not Stuff
DY
1
H25
Do Not Stuff
H25
Do Not Stuff
1
H22
Do Not Stuff
H22
Do Not Stuff
12
C685
SCD1U16V2ZY-2GP
C685
SCD1U16V2ZY-2GP
12
C977
Do Not Stuff
DY
C977
Do Not Stuff
DY
12
C893
SCD1U25V2ZY-1GP
C893
SCD1U25V2ZY-1GP
1 2
C524 SCD1U16V2ZY-2GPC524 SCD1U16V2ZY-2GP
12
C43
SCD1U16V2ZY-2GP
C43
SCD1U16V2ZY-2GP
12
C204
SCD1U25V2ZY-1GP
C204
SCD1U25V2ZY-1GP
12
C120
Do Not Stuff
DY
C120
Do Not Stuff
DY
1
H6
Do Not Stuff
H6
Do Not Stuff
1
H11
HOLE
H11
HOLE
1 2
C876 Do Not Stuff
DY
C876 Do Not Stuff
DY
12
C171
SCD1U16V2ZY-2GP
C171
SCD1U16V2ZY-2GP
1
H24
Do Not Stuff
H24
Do Not Stuff
1 2
C806 Do Not Stuff
DY
C806 Do Not Stuff
DY
12
C580
SC47P50V2JN-3GP
C580
SC47P50V2JN-3GP
12
C888
SCD1U25V2ZY-1GP
C888
SCD1U25V2ZY-1GP
1
GND7
SPRING-U3
GND7
SPRING-U3
1 2
C435 SCD1U16V2ZY-2GPC435 SCD1U16V2ZY-2GP
GND
1
FB 2
VOUT 3
VOUT 4
VIN
5
VCNTL
6
POK
7
EN
8
VIN
9
U137
APL5913-KAC-1-GP
U137
APL5913-KAC-1-GP
1
H12
HOLE
H12
HOLE
1
H7
Do Not Stuff
H7
Do Not Stuff
1
H30
Do Not Stuff
H30
Do Not Stuff
12
C154
Do Not Stuff
DY
C154
Do Not Stuff
DY
1
GND8
Do Not Stuff
DY
GND8
Do Not Stuff
DY
1
H14
Do Not Stuff
H14
Do Not Stuff
12
C884
SCD1U16V2ZY-2GP
C884
SCD1U16V2ZY-2GP
1
H9
Do Not Stuff
H9
Do Not Stuff
1
H13
HOLE
H13
HOLE
12
C167
SCD1U25V2ZY-1GP
C167
SCD1U25V2ZY-1GP
12
C892
SCD1U25V2ZY-1GP
C892
SCD1U25V2ZY-1GP
1
H32
Do Not Stuff
H32
Do Not Stuff
1
GND9
Do Not Stuff
DY
GND9
Do Not Stuff
DY
12
C34
SCD1U16V2ZY-2GP
C34
SCD1U16V2ZY-2GP
1
GND12
SPRING-12-GP-U
GND12
SPRING-12-GP-U
12
C881
Do Not Stuff
DY
C881
Do Not Stuff
DY
1
H10
Do Not Stuff
H10
Do Not Stuff
1
H15
HOLE
H15
HOLE
12
C886
Do Not Stuff
DY
C886
Do Not Stuff
DY
12
C887
SCD1U25V2ZY-1GP
C887
SCD1U25V2ZY-1GP
12
C691
Do Not Stuff
DY
C691
Do Not Stuff
DY
12
C903
SC4D7U6D3V3KX-GP
C903
SC4D7U6D3V3KX-GP
1
H31
Do Not Stuff
H31
Do Not Stuff
12
C901
SC22U6D3V5MX-2GP
C901
SC22U6D3V5MX-2GP
12
C470
SCD1U25V2ZY-1GP
C470
SCD1U25V2ZY-1GP
12
C1022
SC47P50V2JN-3GP
C1022
SC47P50V2JN-3GP
1
H5
HOLE
H5
HOLE
1
GND2
Do Not Stuff
DY
GND2
Do Not Stuff
DY
12
C38
SCD1U25V2ZY-1GP
C38
SCD1U25V2ZY-1GP
12
C36
SCD1U25V2ZY-1GP
C36
SCD1U25V2ZY-1GP
12
R886
30K9R2F-GP
R886
30K9R2F-GP
1
H8
HOLE
H8
HOLE
12
C891
SCD1U25V2ZY-1GP
C891
SCD1U25V2ZY-1GP
12
C415
SCD1U25V2ZY-1GP
C415
SCD1U25V2ZY-1GP
12
C671
SCD1U16V2ZY-2GP
C671
SCD1U16V2ZY-2GP
12
C141
Do Not Stuff
DY
C141
Do Not Stuff
DY
12
C459
Do Not Stuff
DY
C459
Do Not Stuff
DY
http://laptop-motherboard-schematic.blogspot.com/
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
POWER BLOCK DIAGRAM
A3
53 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
POWER BLOCK DIAGRAM
A3
53 53Wednesday, August 20, 2008
VOX
Title
Size Document Number Rev
Date: Sheet of
Wistron Corporation
21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,
Taipei Hsien 221, Taiwan, R.O.C.
Artemis
3
POWER BLOCK DIAGRAM
A3
53 53Wednesday, August 20, 2008
VOX
AC
SWITCH
Adapter in
Page37
Battery
ACOK
Selector
Circuit
VIN
Charger
BQ24740
VIN
(3V/5V)
8 Cell
Connector A
Battery A
TPS51120
Page51
Page39
BATT A
Page38
ON3/ON5
Page48
BATSELB_A
VS
VS
VMB
B+
+3VL 0.1A
BATSELB_A#
SWITCH SWITCH SWITCH
BATT
Battery
BATT B
VMB_A VMB_B
VMB
Battery
Connector B
Page38
Battery B
8 Cell
TPS51124
(1.05V)
Page49
EN2
+5VALW
PM_SLP_M#
+1.05VM
+VCCP
B+
Page49
TPS51124
(1.8V) +1.8V
ISL6260C
DC/DC
(CPU_CORE)
Page47
DC/DC
DC/DC
KBC_PWR_ON
+5VALW
+3ALW 6A
+5VALW 7A VDD
VR_ON
PM_SLP_S4# EN1
(1.05V)
SWITCH
RUNON
+1.5VS
LDO
SLP_S3#
B+
B+
+5VS
SWITCH
RUNON
+3VS
SWITCH
RUNON
TPS51100
Page49
EN2
+5VALW
PM_SLP_S4#
DC/DC
+1.8V
+VCC_CORE(64A)
B+
+5ALW
PWR_GD
+0.9V
PM_SLP_M#
+1.8V
+NV1V8
SWITCH
RUNON
Page52
Page46
Page46
Page46
Page46
http://laptop-motherboard-schematic.blogspot.com/
