HP ProLiant DL380p Gen8 Server Maintenance And Service Guide Pro Liant

User Manual: HP ProLiant DL380p Gen8 shared.swissparts.ch - /Manuals/HP/Server/

Open the PDF directly: View PDF PDF.
Page Count: 118 [warning: Documents this large are best viewed by clicking the View PDF Link!]

HP ProLiant DL380p Gen8 Server
Maintenance and Service Guide
Abstract
This guide describes identification and maintenance procedures, diagnostic tools, specifications, and requirements for hardwa
re components and
software. This guide is for an experienced service technician. HP assumes you are qualified in the servicing of computer equipment, trained in
recognizing hazards in products, and are familiar with weight and stability precautions.
September 2013
Edition: 6
Part Number: 661847-006a
© Copyright 2012, 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of Microsoft Corporation.
Intel® Xeon® is a trademark of Intel Corporation in the U.S. and other countries.
Contents 3
Contents
Customer self repair ...................................................................................................................... 6
Parts only warranty service ............................................................................................................................ 6
Illustrated parts catalog ............................................................................................................... 16
Mechanical components ............................................................................................................................. 16
System components .................................................................................................................................... 20
Removal and replacement procedures ........................................................................................... 28
Required tools ............................................................................................................................................ 28
Preparation procedures ............................................................................................................................... 28
Power down the server ..................................................................................................................... 28
Extend the server from the rack .......................................................................................................... 29
Remove the server from the rack ........................................................................................................ 30
Access the product rear panel ........................................................................................................... 30
Access the Systems Insight Display ..................................................................................................... 31
Release the full-length expansion board retainer .................................................................................. 32
Safety considerations .................................................................................................................................. 33
Preventing electrostatic discharge ...................................................................................................... 33
Symbols on equipment ...................................................................................................................... 33
Server warnings and cautions ............................................................................................................ 34
Access panel ............................................................................................................................................. 34
Air baffle ................................................................................................................................................... 35
2U rack bezel ............................................................................................................................................ 36
PCIe riser blank.......................................................................................................................................... 36
PCIe riser cage (primary) ............................................................................................................................ 37
PCIe riser cage (secondary) ......................................................................................................................... 38
PCIe riser board ......................................................................................................................................... 39
Drive blank ................................................................................................................................................ 40
Hot-plug drive ............................................................................................................................................ 40
Power supply blank .................................................................................................................................... 41
AC power supply ....................................................................................................................................... 41
48V DC power supply option ...................................................................................................................... 42
Optical drive ............................................................................................................................................. 49
Power supply backplane ............................................................................................................................. 51
Hot-plug fan............................................................................................................................................... 52
Fan cage ................................................................................................................................................... 54
FlexibleLOM .............................................................................................................................................. 54
SFF hard drive cage ................................................................................................................................... 56
Systems Insight Display ............................................................................................................................... 57
Front panel assembly .................................................................................................................................. 58
Flash-backed write cache procedures ........................................................................................................... 60
Flash-backed write cache module ....................................................................................................... 60
Flash-backed write cache capacitor pack ............................................................................................ 61
Recovering data from the flash-backed write cache .............................................................................. 64
Expansion slot blanks ................................................................................................................................. 65
Expansion boards ...................................................................................................................................... 65
Half-length expansion board ............................................................................................................. 65
Contents 4
Full length expansion board .............................................................................................................. 66
Heatsink .................................................................................................................................................... 67
Processor................................................................................................................................................... 69
DIMMs ...................................................................................................................................................... 73
System battery ........................................................................................................................................... 74
System board ............................................................................................................................................ 75
150W PCIe power cable option .................................................................................................................. 81
Chipset SATA cable option ......................................................................................................................... 81
HP Trusted Platform Module......................................................................................................................... 82
Cabling ..................................................................................................................................... 83
SAS hard drive cabling ............................................................................................................................... 83
Optical drive cabling .................................................................................................................................. 84
FBWC cabling ........................................................................................................................................... 85
Diagnostic tools .......................................................................................................................... 87
Troubleshooting resources ........................................................................................................................... 87
HP Insight Diagnostics ................................................................................................................................ 87
HP Insight Diagnostics survey functionality .......................................................................................... 88
HP ROM-Based Setup Utility ........................................................................................................................ 88
Integrated Management Log ........................................................................................................................ 88
USB support and functionality ...................................................................................................................... 89
USB support .................................................................................................................................... 89
Internal USB functionality .................................................................................................................. 89
External USB functionality ................................................................................................................. 89
Component identification ............................................................................................................. 90
Front panel components .............................................................................................................................. 90
Front panel LEDs and buttons ....................................................................................................................... 92
Systems Insight Display LEDs ....................................................................................................................... 93
Systems Insight Display LED combinations ..................................................................................................... 94
Rear panel components .............................................................................................................................. 95
Rear panel LEDs and buttons ....................................................................................................................... 96
Non-hot-plug PCI riser board slot definitions .................................................................................................. 96
System board components .......................................................................................................................... 98
System maintenance switch ............................................................................................................... 99
NMI functionality ............................................................................................................................. 99
DIMM slot locations ........................................................................................................................ 100
SAS and SATA device numbers ................................................................................................................. 100
Hot-plug drive LED definitions .................................................................................................................... 102
PCI riser cage LED .................................................................................................................................... 102
FBWC module LEDs (P222, P420, P421) ................................................................................................... 103
Hot-plug fans ........................................................................................................................................... 104
Storage and expansion diagram ............................................................................................................... 105
Specifications ........................................................................................................................... 106
Environmental specifications ...................................................................................................................... 106
Mechanical specifications ......................................................................................................................... 106
Power supply specifications ....................................................................................................................... 106
HP 460W Common Slot Gold Hot Plug Power Supply (92% efficiency) ............................................... 107
HP 460W Common Slot Platinum Plus Hot Plug Power Supply (94% efficiency) .................................... 107
HP 500W Common Slot 277VAC Hot Plug Power Supply (94% efficiency) .......................................... 108
HP 750W Common Slot 277VAC Hot Plug Power Supply (94% efficiency) .......................................... 108
HP 750W Common Slot Titanium Hot Plug Power Supply (96% efficiency) .......................................... 109
HP 750W Common Slot Gold Hot Plug Power Supply (92% efficiency) ............................................... 109
Contents 5
HP 750W Common Slot Platinum Plus Hot Plug Power Supply (94% efficiency) .................................... 110
HP 750W Common Slot -48VDC Hot Plug Power Supply (94% efficiency) ........................................... 110
HP 1200W Common Slot 277VAC Hot Plug Power Supply (94% efficiency) ....................................... 111
HP 1200W Common Slot 380VDC Hot Plug Power Supply (94% efficiency) ........................................ 111
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply (94% efficiency) .................................. 112
Acronyms and abbreviations ...................................................................................................... 113
Documentation feedback ........................................................................................................... 115
Index ....................................................................................................................................... 116
Customer self repair 6
Customer self repair
HP products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for
greater flexibility in performing defective parts replacement. If during the diagnosis period HP (or HP service
providers or service partners) identifies that the repair can be accomplished by the use of a CSR part, HP will
ship that part directly to you for replacement. There are two categories of CSR parts:
• Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these parts,
you will be charged for the travel and labor costs of this service.
• Optional—Parts for which customer self repair is optional. These parts are also designed for customer
self repair. If, however, you require that HP replace them for you, there may or may not be additional
charges, depending on the type of warranty service designated for your product.
NOTE: Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty,
HP requires that an authorized service provider replace the part. These parts are identified as "No" in the
Illustrated Parts Catalog.
Based on availability and where geography permits, CSR parts will be shipped for next business day
delivery. Same day or four-hour delivery may be offered at an additional charge where geography permits.
If assistance is required, you can call the HP Technical Support Center and a technician will help you over the
telephone. HP specifies in the materials shipped with a replacement CSR part whether a defective part must
be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective
part back to HP within a defined period of time, normally five (5) business days. The defective part must be
returned with the associated documentation in the provided shipping material. Failure to return the defective
part may result in HP billing you for the replacement. With a customer self repair, HP will pay all shipping
and part return costs and determine the courier/carrier to be used.
For more information about HP's Customer Self Repair program, contact your local service provider. For the
North American program, refer to the HP website (http://www.hp.com/go/selfrepair).
Parts only warranty service
Your HP Limited Warranty may include a parts only warranty service. Under the terms of parts only warranty
service, HP will provide replacement parts free of charge.
For parts only warranty service, CSR part replacement is mandatory. If you request HP to replace these parts,
you will be charged for the travel and labor costs of this service.

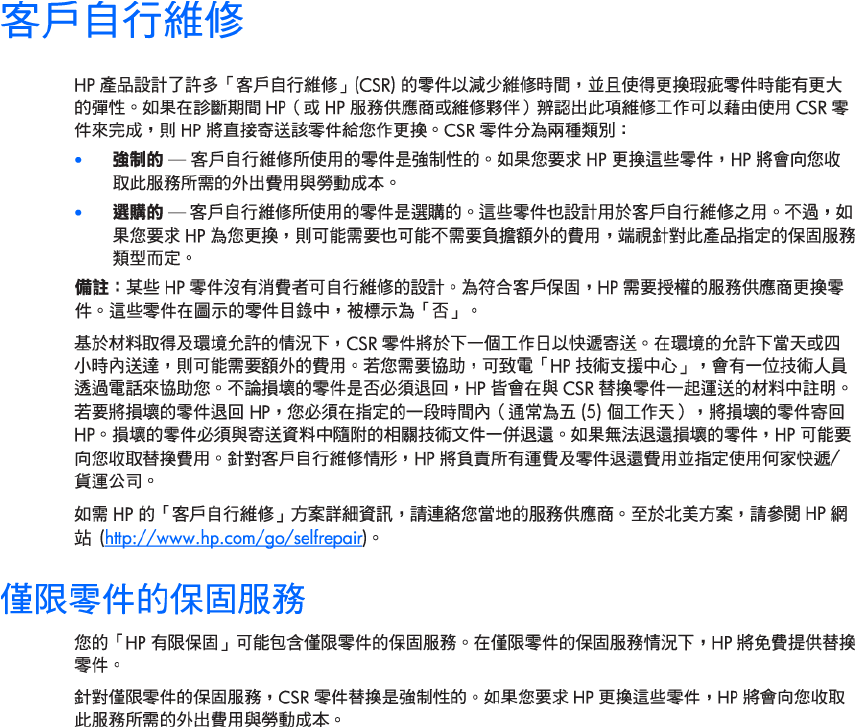

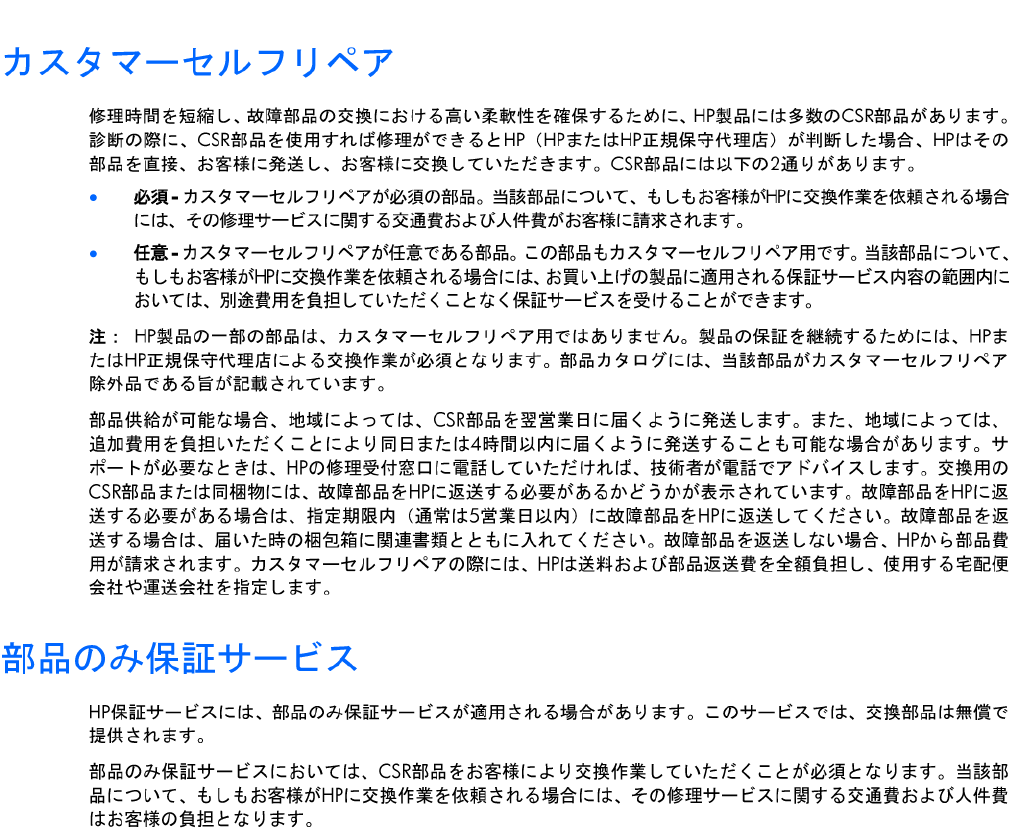

Réparation par le client (CSR)
Les produits HP comportent de nombreuses pièces CSR (Customer Self Repair = réparation par le client) afin
de minimiser les délais de réparation et faciliter le remplacement des pièces défectueuses. Si pendant la
période de diagnostic, HP (ou ses partenaires ou mainteneurs agréés) détermine que la réparation peut être
effectuée à l'aide d'une pièce CSR, HP vous l'envoie directement. Il existe deux catégories de pièces CSR:
Customer self repair 7
Obligatoire - Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de
remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.
Facultatif - Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également
conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à HP de
remplacer ces pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à
votre produit.
REMARQUE: Certaines pièces HP ne sont pas conçues pour permettre au client d'effectuer lui-même la
réparation. Pour que la garantie puisse s'appliquer, HP exige que le remplacement de la pièce soit effectué
par un Mainteneur Agréé. Ces pièces sont identifiées par la mention "Non" dans le Catalogue illustré.
Les pièces CSR sont livrées le jour ouvré suivant, dans la limite des stocks disponibles et selon votre situation
géographique. Si votre situation géographique le permet et que vous demandez une livraison le jour même
ou dans les 4 heures, celle-ci vous sera facturée. Pour bénéficier d'une assistance téléphonique, appelez le
Centre d'assistance technique HP. Dans les documents envoyés avec la pièce de rechange CSR, HP précise
s'il est nécessaire de lui retourner la pièce défectueuse. Si c'est le cas, vous devez le faire dans le délai
indiqué, généralement cinq (5) jours ouvrés. La pièce et sa documentation doivent être retournées dans
l'emballage fourni. Si vous ne retournez pas la pièce défectueuse, HP se réserve le droit de vous facturer les
coûts de remplacement. Dans le cas d'une pièce CSR, HP supporte l'ensemble des frais d'expédition et de
retour, et détermine la société de courses ou le transporteur à utiliser.
Pour plus d'informations sur le programme CSR de HP, contactez votre Mainteneur Agrée local. Pour plus
d'informations sur ce programme en Amérique du Nord, consultez le site Web HP
(http://www.hp.com/go/selfrepair).
Service de garantie "pièces seules"
Votre garantie limitée HP peut inclure un service de garantie "pièces seules". Dans ce cas, les pièces de
rechange fournies par HP ne sont pas facturées.
Dans le cadre de ce service, la réparation des pièces CSR par le client est obligatoire. Si vous demandez à
HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.
Riparazione da parte del cliente
Per abbreviare i tempi di riparazione e garantire una maggiore flessibilità nella sostituzione di parti
difettose, i prodotti HP sono realizzati con numerosi componenti che possono essere riparati direttamente
dal cliente (CSR, Customer Self Repair). Se in fase di diagnostica HP (o un centro di servizi o di assistenza
HP) identifica il guasto come riparabile mediante un ricambio CSR, HP lo spedirà direttamente al cliente per
la sostituzione. Vi sono due categorie di parti CSR:
Obbligatorie – Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne affida la
riparazione ad HP, deve sostenere le spese di spedizione e di manodopera per il servizio.
Opzionali – Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di componenti
progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad HP, potrebbe dover sostenere
spese addizionali a seconda del tipo di garanzia previsto per il prodotto.
NOTA: alcuni componenti HP non sono progettati per la riparazione da parte del cliente. Per rispettare la
garanzia, HP richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti sono
identificate da un "No" nel Catalogo illustrato dei componenti.
Customer self repair 8
In base alla disponibilità e alla località geografica, le parti CSR vengono spedite con consegna entro il
giorno lavorativo seguente. La consegna nel giorno stesso o entro quattro ore è offerta con un supplemento
di costo solo in alcune zone. In caso di necessità si può richiedere l'assistenza telefonica di un addetto del
centro di supporto tecnico HP. Nel materiale fornito con una parte di ricambio CSR, HP specifica se il cliente
deve restituire dei componenti. Qualora sia richiesta la resa ad HP del componente difettoso, lo si deve
spedire ad HP entro un determinato periodo di tempo, generalmente cinque (5) giorni lavorativi. Il
componente difettoso deve essere restituito con la documentazione associata nell'imballo di spedizione
fornito. La mancata restituzione del componente può comportare la fatturazione del ricambio da parte di HP.
Nel caso di riparazione da parte del cliente, HP sostiene tutte le spese di spedizione e resa e sceglie il
corriere/vettore da utilizzare.
Per ulteriori informazioni sul programma CSR di HP contattare il centro di assistenza di zona. Per il
programma in Nord America fare riferimento al sito Web HP (http://www.hp.com/go/selfrepair).
Servizio di garanzia per i soli componenti
La garanzia limitata HP può includere un servizio di garanzia per i soli componenti. Nei termini di garanzia
del servizio per i soli componenti, HP fornirà gratuitamente le parti di ricambio.
Per il servizio di garanzia per i soli componenti è obbligatoria la formula CSR che prevede la riparazione da
parte del cliente. Se il cliente invece richiede la sostituzione ad HP, dovrà sostenere le spese di spedizione
e di manodopera per il servizio.
Customer Self Repair
HP Produkte enthalten viele CSR-Teile (Customer Self Repair), um Reparaturzeiten zu minimieren und höhere
Flexibilität beim Austausch defekter Bauteile zu ermöglichen. Wenn HP (oder ein HP Servicepartner) bei der
Diagnose feststellt, dass das Produkt mithilfe eines CSR-Teils repariert werden kann, sendet Ihnen HP dieses
Bauteil zum Austausch direkt zu. CSR-Teile werden in zwei Kategorien unterteilt:
Zwingend – Teile, für die das Customer Self Repair-Verfahren zwingend vorgegeben ist. Wenn Sie den
Austausch dieser Teile von HP vornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen
Service berechnet.
Optional – Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer
Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP vornehmen lassen möchten,
können bei diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche
Kosten anfallen.
HINWEIS: Einige Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des
Kunden zu erfüllen, muss das Teil von einem HP Servicepartner ersetzt werden. Im illustrierten Teilekatalog
sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.
CSR-Teile werden abhängig von der Verfügbarkeit und vom Lieferziel am folgenden Geschäftstag geliefert.
Für bestimmte Standorte ist eine Lieferung am selben Tag oder innerhalb von vier Stunden gegen einen
Aufpreis verfügbar. Wenn Sie Hilfe benötigen, können Sie das HP technische Support Center anrufen und
sich von einem Mitarbeiter per Telefon helfen lassen. Den Materialien, die mit einem CSR-Ersatzteil geliefert
werden, können Sie entnehmen, ob das defekte Teil an HP zurückgeschickt werden muss. Wenn es
erforderlich ist, das defekte Teil an HP zurückzuschicken, müssen Sie dies innerhalb eines vorgegebenen
Zeitraums tun, in der Regel innerhalb von fünf (5) Geschäftstagen. Das defekte Teil muss mit der zugehörigen
Dokumentation in der Verpackung zurückgeschickt werden, die im Lieferumfang enthalten ist. Wenn Sie das
Customer self repair 9
defekte Teil nicht zurückschicken, kann HP Ihnen das Ersatzteil in Rechnung stellen. Im Falle von Customer
Self Repair kommt HP für alle Kosten für die Lieferung und Rücksendung auf und bestimmt den
Kurier-/Frachtdienst.
Weitere Informationen über das HP Customer Self Repair Programm erhalten Sie von Ihrem Servicepartner
vor Ort. Informationen über das CSR-Programm in Nordamerika finden Sie auf der HP Website unter
(http://www.hp.com/go/selfrepair).
Parts-only Warranty Service (Garantieservice
ausschließlich für Teile)
Ihre HP Garantie umfasst möglicherweise einen Parts-only Warranty Service (Garantieservice ausschließlich
für Teile). Gemäß den Bestimmungen des Parts-only Warranty Service stellt HP Ersatzteile kostenlos zur
Verfügung.
Für den Parts-only Warranty Service ist das CSR-Verfahren zwingend vorgegeben. Wenn Sie den Austausch
dieser Teile von HP vornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten für diesen Service
berechnet.
Reparaciones del propio cliente
Los productos de HP incluyen muchos componentes que el propio usuario puede reemplazar (Customer Self
Repair, CSR) para minimizar el tiempo de reparación y ofrecer una mayor flexibilidad a la hora de realizar
sustituciones de componentes defectuosos. Si, durante la fase de diagnóstico, HP (o los proveedores o socios
de servicio de HP) identifica que una reparación puede llevarse a cabo mediante el uso de un componente
CSR, HP le enviará dicho componente directamente para que realice su sustitución. Los componentes CSR se
clasifican en dos categorías:
• Obligatorio: componentes para los que la reparación por parte del usuario es obligatoria. Si solicita a
HP que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de
desplazamiento y de mano de obra de dicho servicio.
• Opcional: componentes para los que la reparación por parte del usuario es opcional. Estos
componentes también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si
precisa que HP realice su sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de
servicio de garantía correspondiente al producto.
NOTA: Algunos componentes no están diseñados para que puedan ser reparados por el usuario. Para que
el usuario haga valer su garantía, HP pone como condición que un proveedor de servicios autorizado
realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra "No" en el
catálogo ilustrado de componentes.
Según la disponibilidad y la situación geográfica, los componentes CSR se enviarán para que lleguen a su
destino al siguiente día laborable. Si la situación geográfica lo permite, se puede solicitar la entrega en el
mismo día o en cuatro horas con un coste adicional. Si precisa asistencia técnica, puede llamar al Centro de
asistencia técnica de HP y recibirá ayuda telefónica por parte de un técnico. Con el envío de materiales
para la sustitución de componentes CSR, HP especificará si los componentes defectuosos deberán
devolverse a HP. En aquellos casos en los que sea necesario devolver algún componente a HP, deberá
hacerlo en el periodo de tiempo especificado, normalmente cinco días laborables. Los componentes
defectuosos deberán devolverse con toda la documentación relacionada y con el embalaje de envío. Si no
Customer self repair 10
enviara el componente defectuoso requerido, HP podrá cobrarle por el de sustitución. En el caso de todas
sustituciones que lleve a cabo el cliente, HP se hará cargo de todos los gastos de envío y devolución de
componentes y escogerá la empresa de transporte que se utilice para dicho servicio.
Para obtener más información acerca del programa de Reparaciones del propio cliente de HP, póngase en
contacto con su proveedor de servicios local. Si está interesado en el programa para Norteamérica, visite
la página web de HP siguiente (http://www.hp.com/go/selfrepair).
Servicio de garantía exclusivo de componentes
La garantía limitada de HP puede que incluya un servicio de garantía exclusivo de componentes. Según las
condiciones de este servicio exclusivo de componentes, HP le facilitará los componentes de repuesto sin
cargo adicional alguno.
Para este servicio de garantía exclusivo de componentes, es obligatoria la sustitución de componentes por
parte del usuario (CSR). Si solicita a HP que realice la sustitución de estos componentes, tendrá que hacerse
cargo de los gastos de desplazamiento y de mano de obra de dicho servicio.
Customer Self Repair
Veel onderdelen in HP producten zijn door de klant zelf te repareren, waardoor de reparatieduur tot een
minimum beperkt kan blijven en de flexibiliteit in het vervangen van defecte onderdelen groter is. Deze
onderdelen worden CSR-onderdelen (Customer Self Repair) genoemd. Als HP (of een HP Service Partner) bij
de diagnose vaststelt dat de reparatie kan worden uitgevoerd met een CSR-onderdeel, verzendt HP dat
onderdeel rechtstreeks naar u, zodat u het defecte onderdeel daarmee kunt vervangen. Er zijn twee
categorieën CSR-onderdelen:
Verplicht: Onderdelen waarvoor reparatie door de klant verplicht is. Als u HP verzoekt deze onderdelen
voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening gebracht.
Optioneel: Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn ontworpen
voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te vervangen, kunnen
daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het
product.
OPMERKING: Sommige HP onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met
de garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen.
Deze onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".
Afhankelijk van de leverbaarheid en de locatie worden CSR-onderdelen verzonden voor levering op de
eerstvolgende werkdag. Levering op dezelfde dag of binnen vier uur kan tegen meerkosten worden
aangeboden, indien dit mogelijk is gezien de locatie. Indien assistentie gewenst is, belt u een HP Service
Partner om via de telefoon technische ondersteuning te ontvangen. HP vermeldt in de documentatie bij het
vervangende CSR-onderdeel of het defecte onderdeel aan HP moet worden geretourneerd. Als het defecte
onderdeel aan HP moet worden teruggezonden, moet u het defecte onderdeel binnen een bepaalde
periode, gewoonlijk vijf (5) werkdagen, retourneren aan HP. Het defecte onderdeel moet met de
bijbehorende documentatie worden geretourneerd in het meegeleverde verpakkingsmateriaal. Als u het
defecte onderdeel niet terugzendt, kan HP u voor het vervangende onderdeel kosten in rekening brengen. Bij
reparatie door de klant betaalt HP alle verzendkosten voor het vervangende en geretourneerde onderdeel en
kiest HP zelf welke koerier/transportonderneming hiervoor wordt gebruikt.
Customer self repair 11
Neem contact op met een Service Partner voor meer informatie over het Customer Self Repair programma
van HP. Informatie over Service Partners vindt u op de HP website (http://www.hp.com/go/selfrepair).
Garantieservice "Parts Only"
Het is mogelijk dat de HP garantie alleen de garantieservice "Parts Only" omvat. Volgens de bepalingen van
de Parts Only garantieservice zal HP kosteloos vervangende onderdelen ter beschikking stellen.
Voor de Parts Only garantieservice is vervanging door CSR-onderdelen verplicht. Als u HP verzoekt deze
onderdelen voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening
gebracht.
Reparo feito pelo cliente
Os produtos da HP são projetados com muitas peças para reparo feito pelo cliente (CSR) de modo a
minimizar o tempo de reparo e permitir maior flexibilidade na substituição de peças com defeito. Se,
durante o período de diagnóstico, a HP (ou fornecedores/parceiros de serviço da HP) concluir que o reparo
pode ser efetuado pelo uso de uma peça CSR, a peça de reposição será enviada diretamente ao cliente.
Existem duas categorias de peças CSR:
Obrigatória – Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua essas peças,
serão cobradas as despesas de transporte e mão-de-obra do serviço.
Opcional – Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o
reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de
taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
OBSERVAÇÃO: Algumas peças da HP não são projetadas para o reparo feito pelo cliente. A fim de
cumprir a garantia do cliente, a HP exige que um técnico autorizado substitua a peça. Essas peças estão
identificadas com a marca "No" (Não), no catálogo de peças ilustrado.
Conforme a disponibilidade e o local geográfico, as peças CSR serão enviadas no primeiro dia útil após o
pedido. Onde as condições geográficas permitirem, a entrega no mesmo dia ou em quatro horas pode ser
feita mediante uma taxa adicional. Se precisar de auxílio, entre em contato com o Centro de suporte técnico
da HP para que um técnico o ajude por telefone. A HP especifica nos materiais fornecidos com a peça CSR
de reposição se a peça com defeito deve ser devolvida à HP. Nos casos em que isso for necessário, é
preciso enviar a peça com defeito à HP dentro do período determinado, normalmente cinco (5) dias úteis.
A peça com defeito deve ser enviada com a documentação correspondente no material de transporte
fornecido. Caso não o faça, a HP poderá cobrar a reposição. Para as peças de reparo feito pelo cliente, a
HP paga todas as despesas de transporte e de devolução da peça e determina a transportadora/serviço
postal a ser utilizado.
Para obter mais informações sobre o programa de reparo feito pelo cliente da HP, entre em contato com o
fornecedor de serviços local. Para o programa norte-americano, visite o site da HP
(http://www.hp.com/go/selfrepair).
Serviço de garantia apenas para peças
A garantia limitada da HP pode incluir um serviço de garantia apenas para peças. Segundo os termos do
serviço de garantia apenas para peças, a HP fornece as peças de reposição sem cobrar nenhuma taxa.
Customer self repair 12
No caso desse serviço, a substituição de peças CSR é obrigatória. Se desejar que a HP substitua essas
peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.
Customer self repair 13
Customer self repair 14
Customer self repair 15
Illustrated parts catalog 16

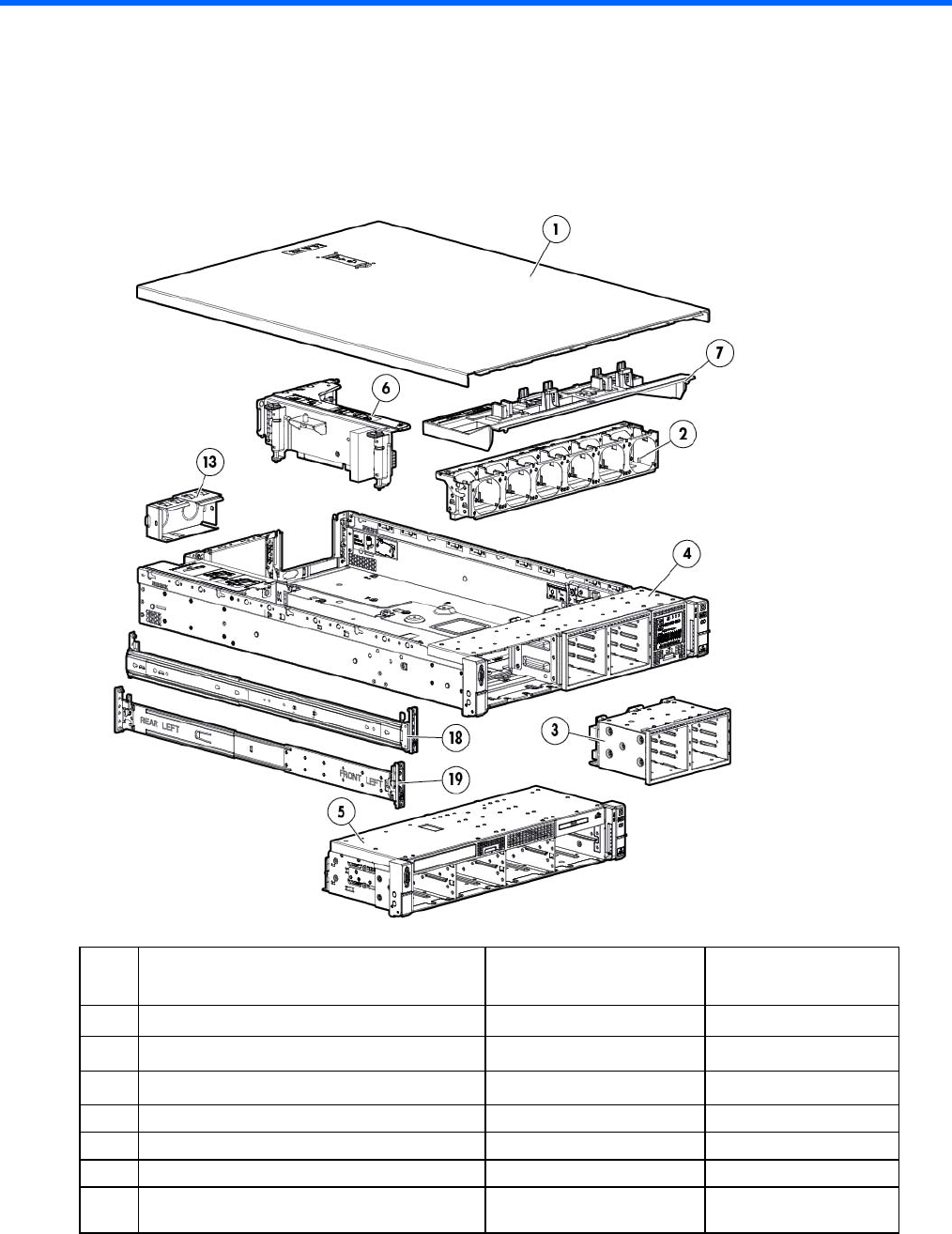

Illustrated parts catalog
Mechanical components
Item Description Spare part number Customer self repair
(on page
)
1 Access panel — —
a) Access panel, 8 bay SFF, LFF 662534-001 Mandatory1
b) Access panel, 12 bay LFF, 25 bay SFF* 696959-001 Mandatory1
2 Fan cage 662518-001 Mandatory1
3 SFF hard drive cage, 8 bay, with backplane 670943-001 Optional2
4 SFF front panel assembly — —
a) 8 bay, with cables, left and right ears, no
backplane
675602-001 Optional2
Illustrated parts catalog 17
Item Description Spare part number Customer self repair
(on page
)
b) 25 bay, with cables, left and right ears, with
backplane*
696958-001 Optional2
5 LFF front panel assembly — —
a) 8 bay, with cables, left and right ears, with
backplane
675603-001 Optional2
b) 12 bay, with cables, left and right ears, with
backplane*
670944-001 Optional2
6 PCI riser cage — —
a) PCI riser cage, standard 662526-001 Mandatory1
b) PCI riser cage, double-wide* 709860-001 Mandatory1
c) PCI riser cage, NEBS* 709859-001 Mandatory1
7 Air baffle 662527-001 Mandatory1
8 Hard drive blank* — —
a) Hard drive blank, SFF 667276-001 Mandatory1
b) Hard drive blank, LFF 667279-001 Mandatory1
9 Heatsink blank* 662522-001 Mandatory1
10 DIMM blank* 716110-001 Mandatory1
11 Processor cage* 662537-001 Optional2
12 Hardware blank kit* 662519-001 Mandatory1
a) Optical device blank — —
b) Fan blank — —
c) FlexibleLOM blank — —
d) PCI riser cage blank — —
e) Expansion slot blank — —
13 Power supply blank 699833-001 Mandatory1
14 2U rack bezel* 662529-001 Mandatory1
15
Plastic battery holder (12 LFF/25 SFF)* 687957-001 Mandatory1
16 Miscellaneous hardware kit* 662523-001 Mandatory1
a) Fan bracket, left — —
b) Fan bracket, right — —
c) DVD cable routing guide — —
d) DIMM guard — —
e) Basepan cable retention clip — —
17 Miscellaneous hardware kit 2* 700383-001 Mandatory1
a) Processor blank air deflector assembly — —
b) Fan bracket, left (12 LFF/25 SFF) — —
c) PCIe riser cage divider — —
Rack mounting hardware — —
18 Ball bearing rail kit, SFF 662535-001 Mandatory1
Illustrated parts catalog 18
Item Description Spare part number Customer self repair
(on page
)
19 Ball bearing rail kit, LFF 692480-001 Mandatory1
20 Friction rail kit* 662536-001 Mandatory1
21 Cable management arm (not supported with
the friction rail kit)*
675606-001 Mandatory1
* Not shown
1Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be
charged for the travel and labor costs of this service.
2Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If,
however, you require that HP replace them for you, there may or may not be additional charges, depending on the type
of warranty service designated for your product.
3No—Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty, HP requires that
an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.
1Mandatory: Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de
remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.
2Optional: Facultatif—Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également
conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à HP de remplacer ces
pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à votre produit.
3No: Non—Certaines pièces HP ne sont pas conçues pour permettre au client d'effectuer lui-même la réparation. Pour
que la garantie puisse s'appliquer, HP exige que le remplacement de la pièce soit effectué par un Mainteneur Agréé. Ces
pièces sont identifiées par la mention “Non” dans le Catalogue illustré.
1Mandatory: Obbligatorie—Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne affida la
riparazione ad HP, deve sostenere le spese di spedizione e di manodopera per il servizio.
2Optional: Opzionali—Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di componenti
progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad HP, potrebbe dover sostenere spese
addizionali a seconda del tipo di garanzia previsto per il prodotto.
3No: Non CSR—Alcuni componenti HP non sono progettati per la riparazione da parte del cliente. Per rispettare la
garanzia, HP richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti sono identificate
da un “No” nel Catalogo illustrato dei componenti.
1Mandatory: Zwingend—Teile, die im Rahmen des Customer Self Repair Programms ersetzt werden müssen. Wenn Sie
diese Teile von HP ersetzen lassen, werden Ihnen die Versand- und Arbeitskosten für diesen Service berechnet.
2Optional: Optional—Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer
Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP vornehmen lassen möchten, können bei
diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.
3No: Kein—Einige Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des Kunden zu erfüllen,
muss das Teil von einem HP Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw.
„Nein“ gekennzeichnet.
1Mandatory: Obligatorio—componentes para los que la reparación por parte del usuario es obligatoria. Si solicita a HP
que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano
de obra de dicho servicio.
2Optional: Opcional— componentes para los que la reparación por parte del usuario es opcional. Estos componentes
también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que HP realice su
sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al
producto.
3No: No—Algunos componentes no están diseñados para que puedan ser reparados por el usuario. Para que el usuario
haga valer su garantía, HP pone como condición que un proveedor de servicios autorizado realice la sustitución de estos
componentes. Dichos componentes se identifican con la palabra “No” en el catálogo ilustrado de componentes.
1Mandatory: Verplicht—Onderdelen waarvoor Customer Self Repair verplicht is. Als u HP verzoekt deze onderdelen te
vervangen, komen de reiskosten en het arbeidsloon voor uw rekening.
Illustrated parts catalog 19
2Optional: Optioneel—Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn
ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te vervangen, kunnen
daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.
3No: Nee—Sommige HP onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met de
garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen. Deze
onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".
1Mandatory: Obrigatória—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua essas peças,
serão cobradas as despesas de transporte e mão-de-obra do serviço.
2Optional: Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o
reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa
adicional, dependendo do tipo de serviço de garantia destinado ao produto.
3No: Nenhuma—Algumas peças da HP não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia
do cliente, a HP exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca “No”
(Não), no catálogo de peças ilustrado.
Illustrated parts catalog 20

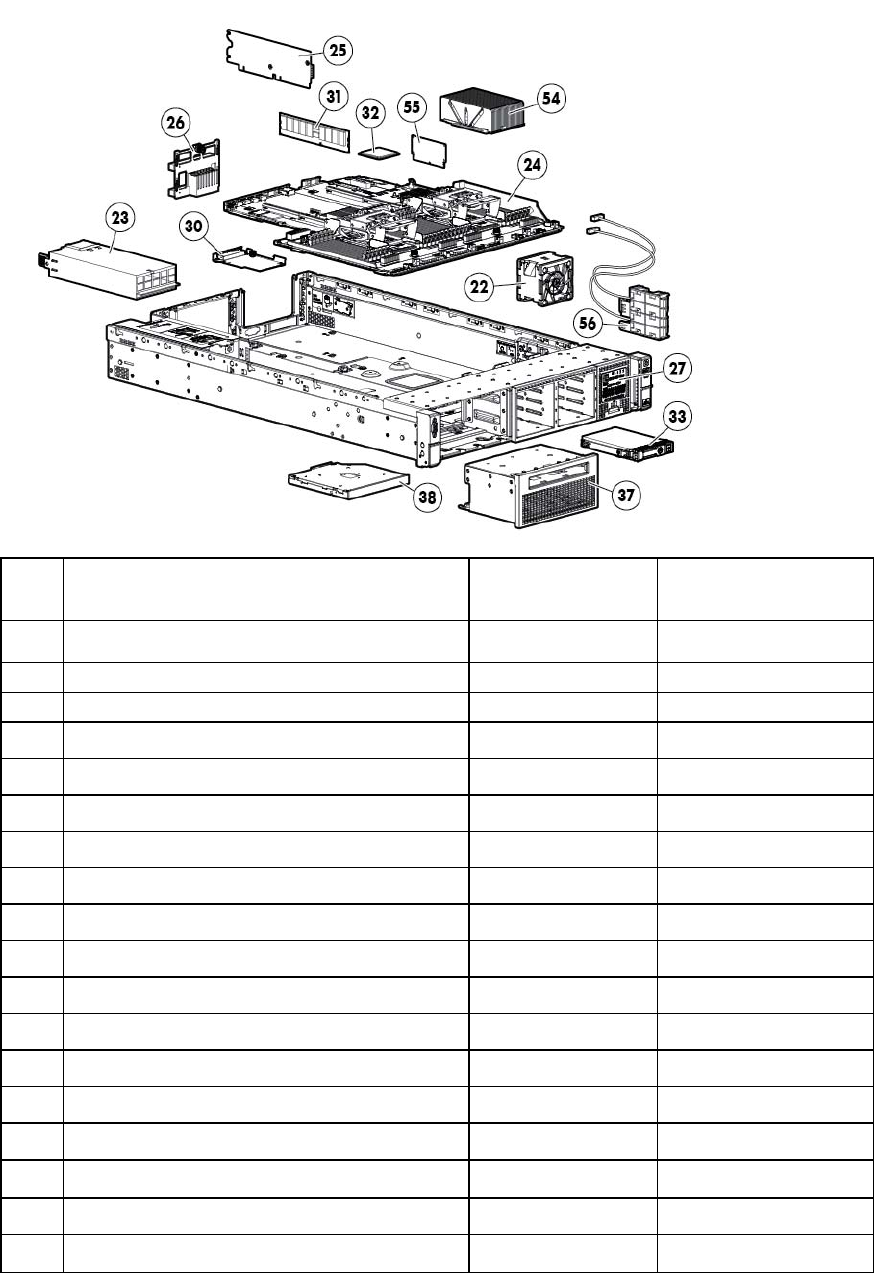

System components
Item Description Spare part number Customer self repair (on
page
6
)
System components

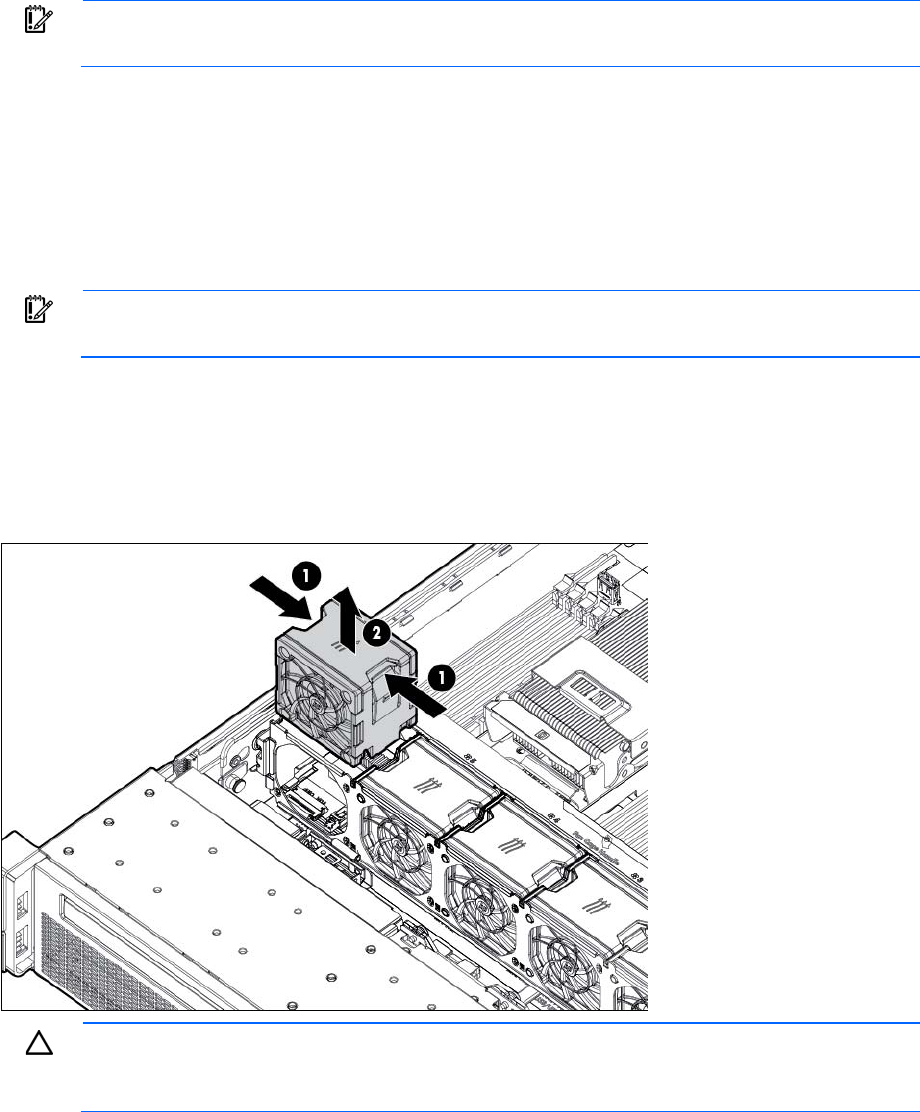

22 Hot-plug fan 662520-001 Mandatory1

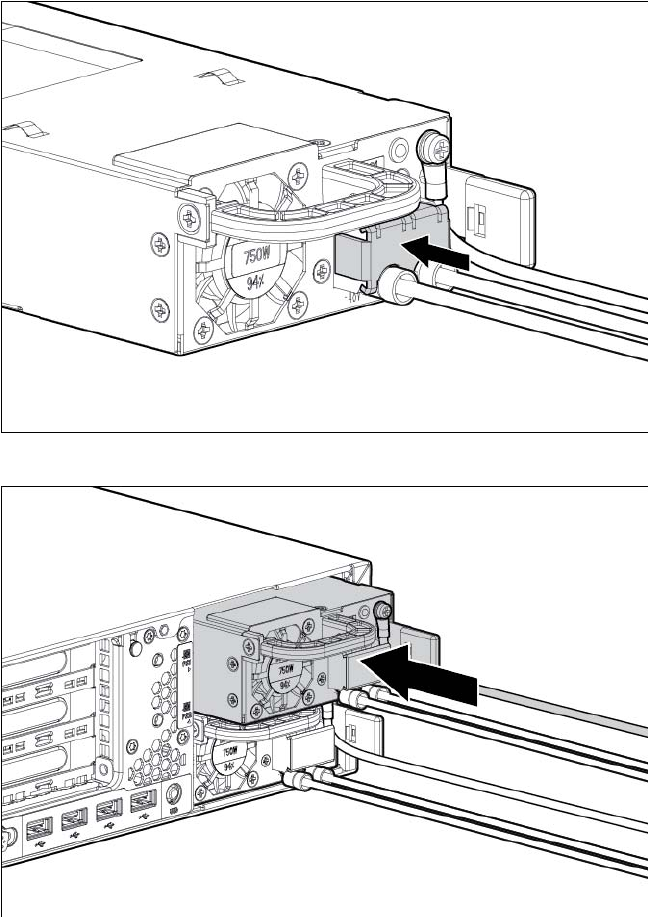

23 Power supplies, hot-plug — —
a) 460 W, 92% 511777-001 Mandatory1
b) 460 W, Platinum Plus, 94%* 660184-001 Mandatory1
c) 500 W, 94%* 638549-001 Mandatory1
d) 750 W, 94%* 674890-001 Mandatory1
e) 750 W, Titanium, 96%* 700287-001 Mandatory1
f) 750 W, 92%* 511778-001 Mandatory1
g) 750 W, Platinum Plus, 94%* 660183-001 Mandatory1
h) 750 W 48V DC, 92%* 639173-001 Mandatory1
i) 1200 W, 91%* 714349-001 Mandatory1
j) 1200 W, 92%* 704603-001 Mandatory1
k) 1200 W, Platinum Plus, 94%* 660185-001 Mandatory1
Boards
24 System board assemblies — —
System board assembly 662530-001 Optional2
System board assembly-IVB 732143-001 Optional2
Illustrated parts catalog 21
Item Description Spare part number Customer self repair (on
page
6
)
25 Riser boards — —
a) PCIe riser board, standard 3-slot 662524-001 Optional2
b) PCIe riser board, optional 2-slot* 662525-001 Optional2
26
Power supply backplane 662528-001 Mandatory1
27 Systems Insight Display subassembly, LFF, with
cables
662515-001 Optional2
28 Systems Insight Display subassembly, SFF, with
cables*
662516-001 Optional2
29 HP Trusted Platform Module* 505836-001 No3
30
FlexibleLOM — —
a) HP 1GbE 4-port, 331FLR Adapter FIO Kit 634025-001 Mandatory1
b) HP 10GbE 2-port, 530FLR Adapter FIO Kit* 649869-001 Mandatory1
c) HP Ff 10Gb 2-port, 554FLR-SFP+ Adapter FIO
Kit*
634026-001 Mandatory1
d) HP InfiniBand FDR/EN 10/40Gb 2-port,
544FLR-QSFP Adapter*
656090-001 Mandatory1
e) HP InfiniBand QDR/EN 10Gb 2-port,
544FLR-QSFP Adapter*
656091-001 Mandatory1
Memory
31
DIMMs — —
a) 2-GB, PC3L-10600E-9, single-rank x8 664694-001 Mandatory1
b) 2-GB, PC3-14900E, single-rank x8* 715269-001 Mandatory1
c) 2-GB, PC3L-12800E, single-rank x8* 715279-001 Mandatory1
d) 4-GB, PC3-12800R-11, single-rank x4* 664689-001 Mandatory1
e) 4-GB, PC3L-10600R-9, single-rank x4* 664688-001 Mandatory1
f) 4-GB, PC3-14900E, single-rank x8* 715270-001 Mandatory1
g) 4-GB, PC3L-10600E-9, dual-rank x8* 664695-001 Mandatory1
h) 4-GB, PC3-14900R, dual-rank x4* 715272-001 Mandatory1
i) 4-GB, PC3L-12800E, single-rank x8* 715280-001 Mandatory1
j) 4-GB, PC3L 12800R, dual-rank x4* 715282-001 Mandatory1
k) 8-GB, PC3-12800R-1, single-rank x4* 664691-001 Mandatory1
l) 8-GB, PC3L-10600R-9, dual-rank x4* 664690-001 Mandatory1
m) 8-GB, PC3L-10600E-9, dual-rank x8* 664696-001 Mandatory1
n) 8-GB, PC3-14900E, dual-rank x8* 715271-001 Mandatory1
o) 8-GB, PC3-14900R, dual-rank x4* 715273-001 Mandatory1
p) 8-GB, PC3L-12800E, dual-rank x8* 715281-001 Mandatory1
q) 8-GB, PC3L-12800R, dual-rank x4* 715283-001 Mandatory1
r) 8-GB, PC3L-12800R, single-rank x4* 735302-001 Mandatory1
s) 8-GB, PC3L-14900R, single-rank x4* 735303-001 Mandatory1
Illustrated parts catalog 22
Item Description Spare part number Customer self repair (on
page
6
)
t) 16-GB, PC3-12800R-11, dual-rank x4* 684031-001 Mandatory1
u) 16-GB, PC3L-10600R-9, dual-rank x4* 664692-001 Mandatory1
v) 16-GB, PC3-14900R, quad-rank x4* 715274-001 Mandatory1
w) 16-GB, PC3L-12800R, quad-rank x4* 715284-001 Mandatory1
x) 16-GB 2Rx4 PC3-10600H-9 HC FIO kit* 684032-001 Mandatory1
y) 24-GB, PC3L-12800R, quad-rank x4* 718689-001 Mandatory1
z) 32-GB, PC3L-10600L-9, quad-rank x4* 664693-001 Mandatory1
32 Processors** — —
a) 1.80-GHz Intel Xeon processor E5-2603, 80W 670533-001 Optional2
b) 1.80-GHz Intel Xeon processor E5-2603v2,
80W*
730243-001 Optional2
c) 2.40-GHz Intel Xeon processor E5-2609, 80W* 670530-001 Optional2
d) 2.5-GHz Intel Xeon processor E5-2609v2,
80W*
730242-001 Optional2
e) 2.00-GHz Intel Xeon processor E5-2620, 95W* 670529-001 Optional2
f) 2.1-GHz Intel Xeon processor E5-2620v2,
80W*
730241-001 Optional2
g) 2.00-GHz Intel Xeon processor E5-2630L,
60W*
670535-001 Optional2
h) 2.40-GHz Intel Xeon processor E5-2630Lv2,
60W*
730244-001 Optional2
i) 2.30-GHz Intel Xeon processor E5-2630, 95W* 670528-001 Optional2
j) 2.6-GHz Intel Xeon processor E5-2630v2,
80W*
730240-001 Optional2
k) 3.00-GHz Intel Xeon processor E5-2637, 80W* 670539-001 Optional2
l) 3.5-GHz Intel Xeon processor E5-2637v2,
130W*
730249-001 Optional2
m) 2.50-GHz Intel Xeon processor E5-2640,
95W*
670527-001 Optional2
n) 2.0-GHz Intel Xeon processor E5-2640v2,
95W*
730239-001 Optional2
o) 3.30-GHz Intel Xeon processor E5-2643,
130W*
670538-001 Optional2
p) 3.3-GHz Intel Xeon processor E5-2643v2,
130W*
730248-001 Optional2
q) 1.8-GHz Intel Xeon processor E5-2648L, 70W* 672335-001 Optional2
r) 1.80-GHz Intel Xeon processor E5-2650L,
70W*
670534-001 Optional2
s) 1.7-GHz Intel Xeon processor E5-2650Lv2,
70W*
730250-001 Optional2
t) 2.00-GHz Intel Xeon processor E5-2650, 95W* 670526-001 Optional2
u) 2.6-GHz Intel Xeon processor E5-2650v2,
95W*
730238-001 Optional2
v) 2.1-GHz Intel Xeon processor E5-2658, 95W* 672336-001 Optional2
Illustrated parts catalog 23
Item Description Spare part number Customer self repair (on
page
6
)
w) 2.20-GHz Intel Xeon processor E5-2660,
95W*
670525-001 Optional2
x) 2.2-GHz Intel Xeon processor E5-2660v2,
95W*
730237-001 Optional2
y) 2.40-GHz Intel Xeon processor E5-2665,
115W*
670524-001 Optional2
z) 2.90-GHz Intel Xeon processor E5-2667,
130W*
670537-001 Optional2
aa) 3.0-GHz Intel Xeon processor E5-2667v2,
130W*
730247-001 Optional2
bb) 2.60-GHz Intel Xeon processor E5-2670,
115W*
670523-001 Optional2
cc) 2.5-GHz Intel Xeon processor E5-2670v2,
115W*
730236-001 Optional2
dd) 2.70-GHz Intel Xeon processor E5-2680,
130W*
670522-001 Optional2
ee) 2.8-GHz Intel Xeon processor E5-2680v2,
115W*
730235-001 Optional2
ff) 2.90-GHz Intel Xeon processor E5-2690,
135W*
670521-001 Optional2
gg) 3.0-GHz Intel Xeon processor E5-2690v2,
130W*
730234-001 Optional2
hh) 2.4-GHz Intel Xeon processor E52695v2,
115W*
730246-001 Optional2
ii) 2.7-GHz Intel Xeon processor E5-2697v2,
130W*
730245-001 Optional2
Drives
33 Hot-plug SATA — —
a) 500-GB, 7,200-rpm, LFF, 6G 658103-001 Mandatory1
b) 1-TB, 7,200-rpm, LFF, 6G* 657739-001 Mandatory1
c) 2-TB, 7,200-rpm, LFF, 6G* 658102-001 Mandatory1
d) 3-TB, 7,200-rpm, LFF, 6G* 628182-001 Mandatory1
e) 500-GB, 7,200-rpm, SFF, 6G* 656107-001 Mandatory1
f) 1-TB, 7,200-rpm, SFF, 6G* 656108-001 Mandatory1
34
Hot-plug SAS* — —
a) 2-TB, 7,200-rpm, LFF, 6G, dual port 653948-001 Mandatory1
b) 3-TB, 7,200-rpm, LFF, 6G, dual port 653959-001 Mandatory1
c) 300-GB, 10,000-rpm, SFF, 6G, dual port 653955-001 Mandatory1
d) 450-GB, 10,000-rpm, SFF, 6G, dual port 653956-001 Mandatory1
e) 600-GB, 10,000-rpm, SFF, 6G, dual port 653957-001 Mandatory1
f) 900-GB, 10,000-rpm, SFF, 6G, dual port 653971-001 Mandatory1
g) 72-GB, 15,000-rpm, SFF, 6G, dual port 653949-001 Mandatory1
h) 146-GB, 15,000-rpm, SFF, 6G, dual port 653950-001 Mandatory1
i) 300-GB, 15,000-rpm, SFF, 6G, dual port 653960-001 Mandatory1
Illustrated parts catalog 24
Item Description Spare part number Customer self repair (on
page
6
)
j) 450-GB, 15,000-rpm, LFF, 6G, dual port 653951-001 Mandatory1
k) 600-GB, 15,000-rpm, LFF, 6G, dual port 653952-001 Mandatory1
l) 500-GB, 7,200-rpm, SFF, 6G, dual port 653953-001 Mandatory1
m) 1-TB, 7,200-rpm, SFF, 6G, dual port 653954-001 Mandatory1
n) 1-TB, 7,200-rpm, LFF, 6G, dual port 653947-001 Mandatory1
35 Hot-plug solid state SATA* — —
a) 100-GB, SFF, MLC, 3G 653965-001 Mandatory1
b) 200-GB, SFF, MLC, 3G 653966-001 Mandatory1
c) 400-GB, SFF, MLC, 3G 653967-001 Mandatory1
d) 100-GB, LFF, MLC, 3G 653968-001 Mandatory1
e) 200-GB, LFF, MLC, 3G 653969-001 Mandatory1
f) 400-GB, LFF, MLC, 3G 653970-001 Mandatory1
36
Hot-plug solid state SAS* — —
a) 200-GB, SFF, SLC 653961-001 Mandatory1
b) 400-GB, SFF, SLC 653962-001 Mandatory1
c) 400-GB, SFF, MLC 653963-001 Mandatory1
d) 800-GB, SFF, MLC 653964-001 Mandatory1

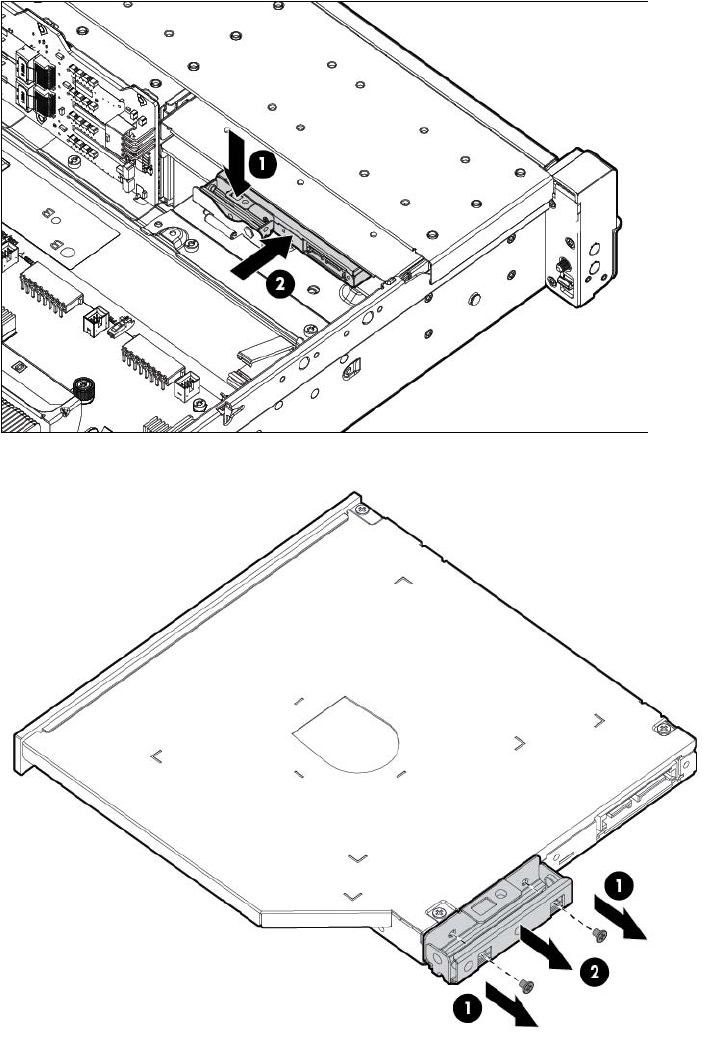

Optical drives
37 Optical drive module 675601-001 Mandatory1
38 Slimline 8x/24x DVD-ROM drive 652294-001 Mandatory1
39 Slimline 8x DVD+R/RW drive* 652295-001 Mandatory1
40 Optical drive bracket 532475-001 Mandatory1
Cables
41 8 LFF ribbon Mini-SAS storage cable* 675609-001 Mandatory1
42 8 or 16 SFF ribbon Mini-SAS storage cable* 675610-001 Mandatory1
43 Miscellaneous cable kit* 725768-001 Mandatory1
a) 25 SFF Mini-SAS SR cable — —
b) 12 LFF Mini-SAS SR cable — —
c) 12 LFF/25 SFF power cable — —
44 8 or 16 SFF Mini-SAS hard drive backplane to
storage card*
675611-001 Mandatory1
45 8 LFF drive cage data cable* 733716-001 Mandatory1
46 12 LFF drive cage data cable* 733717-001 Mandatory1
47 25 SFF drive cage data cable* 733718-001 Mandatory1
48 8 or 16 SFF drive cage data cable kit* 733719-001 Mandatory1
49 8 LFF power cable* 675612-001 Mandatory1
50
8 SFF power cable* 675613-001 Mandatory1
51 Slim SATA cable* 675614-001 Mandatory1
Illustrated parts catalog 25
Item Description Spare part number Customer self repair (on
page
6
)
52 FBWC cable* 681908-001 Mandatory1
Battery — —
53 System battery, 3.3-V, lithium* 153099-001 Mandatory1

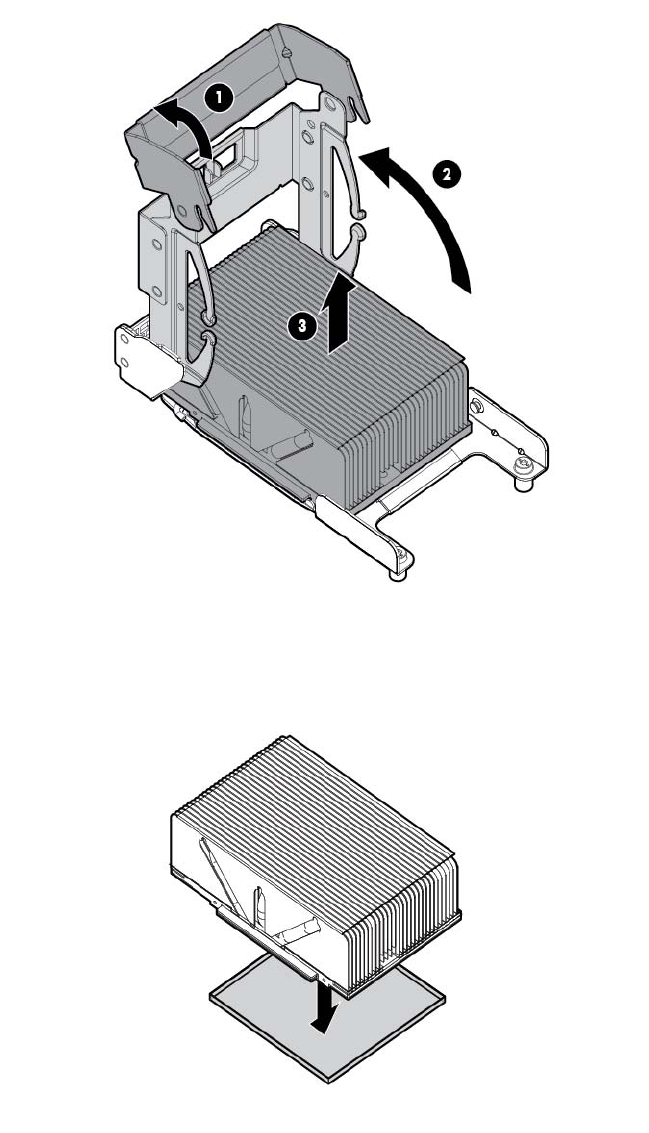

Heatsink — —
54 Standard efficiency heatsink 662522-001 Optional2
Controller option — —
55 FBWC cache module — —
a) 512-MB cache 633540-001 Optional2
b) 1-GB cache* 633542-001 Optional2
c) 2-GB cache* 633543-001 Optional2
56 FBWC capacitor pack, with cable 660093-001 Optional2
*Not shown
**All processors in this HP ProLiant server must have the same cache size, speed, number of cores, and rated maximum
power consumption.
1Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be
charged for the travel and labor costs of this service.
2Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If,
however, you require that HP replace them for you, there may or may not be additional charges, depending on the type
of warranty service designated for your product.
3No—Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty, HP requires that
an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.
1Mandatory: Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à HP de
remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés.
2Optional: Facultatif—Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également
conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à HP de remplacer ces
pièces, l'intervention peut ou non vous être facturée, selon le type de garantie applicable à votre produit.
3No: Non—Certaines pièces HP ne sont pas conçues pour permettre au client d'effectuer lui-même la réparation. Pour
que la garantie puisse s'appliquer, HP exige que le remplacement de la pièce soit effectué par un Mainteneur Agréé. Ces
pièces sont identifiées par la mention “Non” dans le Catalogue illustré.
1Mandatory: Obbligatorie—Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne affida la
riparazione ad HP, deve sostenere le spese di spedizione e di manodopera per il servizio.
2Optional: Opzionali—Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di componenti
progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad HP, potrebbe dover sostenere spese
addizionali a seconda del tipo di garanzia previsto per il prodotto.
3No: Non CSR—Alcuni componenti HP non sono progettati per la riparazione da parte del cliente. Per rispettare la
garanzia, HP richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti sono identificate
da un “No” nel Catalogo illustrato dei componenti.
1Mandatory: Zwingend—Teile, die im Rahmen des Customer Self Repair Programms ersetzt werden müssen. Wenn Sie
diese Teile von HP ersetzen lassen, werden Ihnen die Versand- und Arbeitskosten für diesen Service berechnet.
2Optional: Optional—Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für Customer
Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP vornehmen lassen möchten, können bei
diesem Service je nach den für Ihr Produkt vorgesehenen Garantiebedingungen zusätzliche Kosten anfallen.
3No: Kein—Einige Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des Kunden zu erfüllen,
muss das Teil von einem HP Servicepartner ersetzt werden. Im illustrierten Teilekatalog sind diese Teile mit „No“ bzw.
„Nein“ gekennzeichnet.
Illustrated parts catalog 26
1Mandatory: Obligatorio—componentes para los que la reparación por parte del usuario es obligatoria. Si solicita a HP
que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano
de obra de dicho servicio.
2Optional: Opcional— componentes para los que la reparación por parte del usuario es opcional. Estos componentes
también están diseñados para que puedan ser reparados por el usuario. Sin embargo, si precisa que HP realice su
sustitución, puede o no conllevar costes adicionales, dependiendo del tipo de servicio de garantía correspondiente al
producto.
3No: No—Algunos componentes no están diseñados para que puedan ser reparados por el usuario. Para que el usuario
haga valer su garantía, HP pone como condición que un proveedor de servicios autorizado realice la sustitución de estos
componentes. Dichos componentes se identifican con la palabra “No” en el catálogo ilustrado de componentes.
1Mandatory: Verplicht—Onderdelen waarvoor Customer Self Repair verplicht is. Als u HP verzoekt deze onderdelen te
vervangen, komen de reiskosten en het arbeidsloon voor uw rekening.
2Optional: Optioneel—Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn
ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te vervangen, kunnen
daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type garantieservice voor het product.
3No: Nee—Sommige HP onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met de
garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen. Deze
onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".
1Mandatory: Obrigatória—Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua essas peças,
serão cobradas as despesas de transporte e mão-de-obra do serviço.
2Optional: Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o
reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa
adicional, dependendo do tipo de serviço de garantia destinado ao produto.
3No: Nenhuma—Algumas peças da HP não são projetadas para o reparo feito pelo cliente. A fim de cumprir a garantia
do cliente, a HP exige que um técnico autorizado substitua a peça. Essas peças estão identificadas com a marca “No”
(Não), no catálogo de peças ilustrado.
Illustrated parts catalog 27
Removal and replacement procedures 28
Removal and replacement procedures
Required tools
You need the following items for some procedures:
• T-10/T-15 Torx screwdriver
• HP Insight Diagnostics software ("HP Insight Diagnostics" on page 87)
Preparation procedures
To access some components and perform certain service procedures, you must perform one or more of the
following procedures:

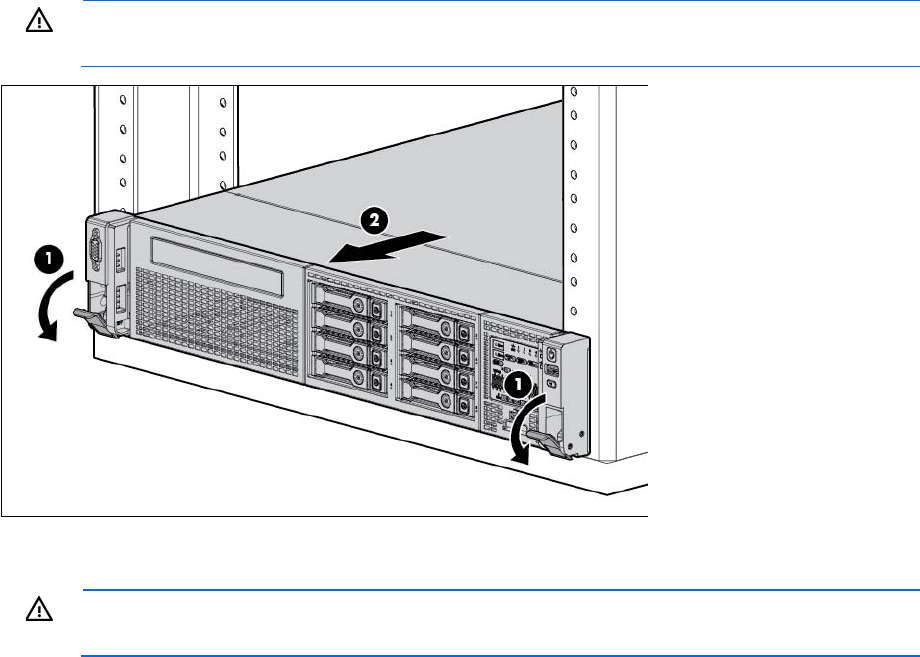

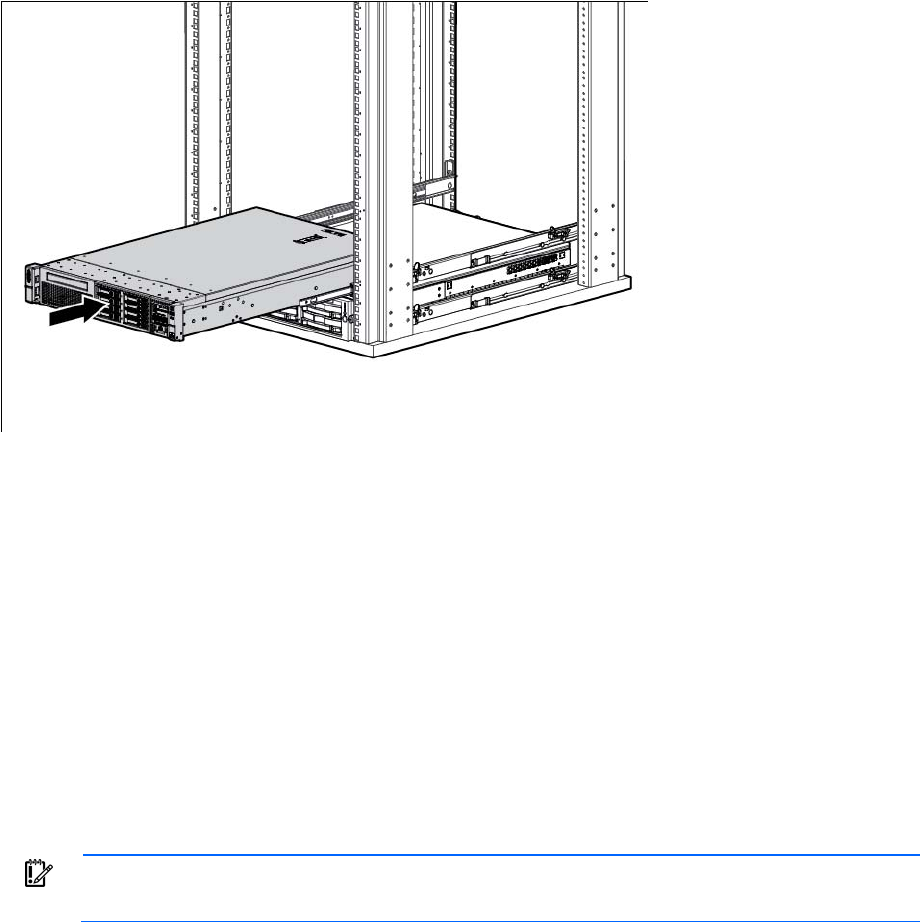

• Extend the server from the rack (on page 29).
If you are performing service procedures in an HP, Compaq branded, telco, or third-party rack cabinet,
you can use the locking feature of the rack rails to support the server and gain access to internal
components.
For more information about telco rack solutions, refer to the RackSolutions.com website
(http://www.racksolutions.com/hp).
• Power down the server (on page 28).
If you must remove a server from a rack or a non-hot-plug component from a server, power down the
server.
• Remove the server from the rack (on page 30).
If the rack environment, cabling configuration, or the server location in the rack creates awkward
conditions, remove the server from the rack.

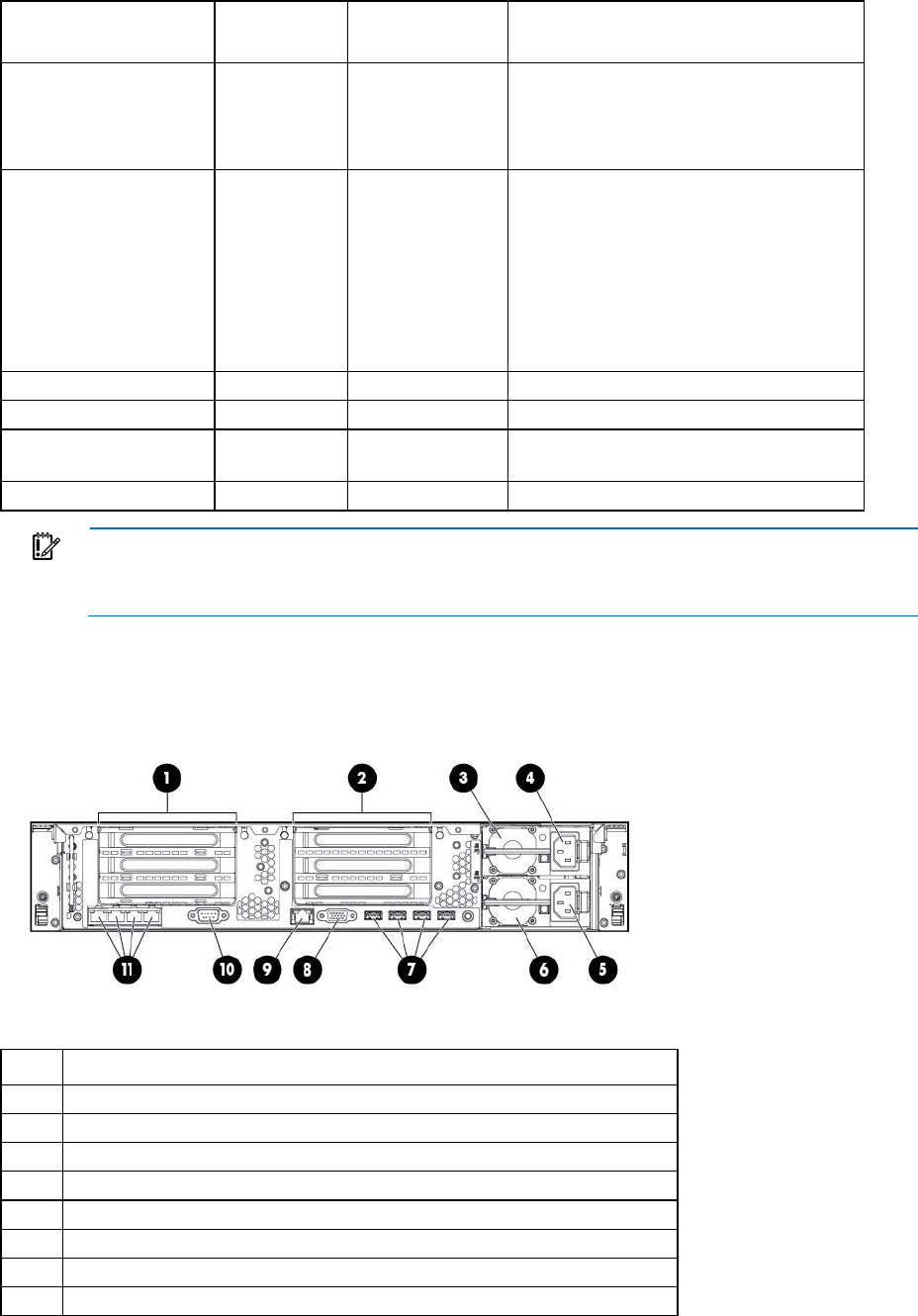

• Access the product rear panel (on page 30).
• Access the Systems Insight Display (on page 31).
• Release the full-length expansion board retainer (on page 32).
Power down the server
Before powering down the server for any upgrade or maintenance procedures, perform a backup of critical
server data and programs.
IMPORTANT: When the server is in standby mode, auxiliary power is still being provided to the
system.
To power down the server, use one of the following methods:
• Press and release the Power On/Standby button.
This method initiates a controlled shutdown of applications and the OS before the server enters standby
mode.
Removal and replacement procedures 29
• Press and hold the Power On/Standby button for more than 4 seconds to force the server to enter
standby mode.
This method forces the server to enter standby mode without properly exiting applications and the OS.
If an application stops responding, you can use this method to force a shutdown.
• Use a virtual power button selection through HP iLO.
This method initiates a controlled remote shutdown of applications and the OS before the server enters
standby mode.
Before proceeding, verify the server is in standby mode by observing that the system power LED is amber.
Extend the server from the rack
1. Pull down the quick release levers on each side of the server.
2. Extend the server from the rack.
WARNING: To reduce the risk of personal injury or equipment damage, be sure that the rack is
adequately stabilized before extending a component from the rack.
3. After performing the installation or maintenance procedure, slide the server back into the rack, and then
press the server firmly into the rack to secure it in place.
WARNING: To reduce the risk of personal injury, be careful when pressing the server rail-release
latches and sliding the server into the rack. The sliding rails could pinch your fingers.
Removal and replacement procedures 30
Remove the server from the rack
To remove the server from an HP, Compaq branded, telco, or third-party rack:
1. Power down the server (on page 28).
2. Extend the server from the rack (on page 29).
3. Disconnect the cabling and remove the server from the rack. For more information, refer to the
documentation that ships with the rack mounting option.
4. Place the server on a sturdy, level surface.
Access the product rear panel
Opening the cable management arm
IMPORTANT: The cable management arm is not supported with the friction rail kit.
Removal and replacement procedures 31
To access the server rear panel:
1. Release the cable management arm.
2. Open the cable management arm. Note that the cable management arm can be right-mounted or
left-mounted.
Access the Systems Insight Display
To access the HP Systems Insight Display in a server with a LFF configuration:
1. Press and release the panel.
Removal and replacement procedures 32
2. After the display fully ejects, rotate the display downward to view the LEDs.
Release the full-length expansion board retainer
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Release the full-length expansion board retainer.
To replace the component, reverse the removal procedure.
Removal and replacement procedures 33
Safety considerations
Before performing service procedures, review all the safety information.
Preventing electrostatic discharge
To prevent damaging the system, be aware of the precautions you need to follow when setting up the system
or handling parts. A discharge of static electricity from a finger or other conductor may damage system
boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.
To prevent electrostatic damage:
• Avoid hand contact by transporting and storing products in static-safe containers.
• Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
• Place parts on a grounded surface before removing them from their containers.
• Avoid touching pins, leads, or circuitry.
• Always be properly grounded when touching a static-sensitive component or assembly.
Symbols on equipment
The following symbols may be placed on equipment to indicate the presence of potentially hazardous
conditions.
This symbol indicates the presence of hazardous energy circuits or electric shock
hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not open this
enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.
This symbol indicates the presence of electric shock hazards. The area contains no user
or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not open this
enclosure.
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do
not plug telephone or telecommunications connectors into this receptacle.
This symbol indicates the presence of a hot surface or hot component. If this surface is
contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the surface to cool
before touching.
27.66 kg
61.0 lb
This symbol indicates that the component exceeds the recommended weight for one
individual to handle safely.
WARNING: To reduce the risk of personal injury or damage to the equipment, observe
local occupational health and safety requirements and guidelines for manual material
handling.
Removal and replacement procedures 34
These symbols, on power supplies or systems, indicate that the equipment is supplied
by multiple sources of power.
WARNING:
To reduce the risk of injury from electric shock, remove all power cords to
completely disconnect power from the system.
Server warnings and cautions
Before installing a server, be sure that you understand the following warnings and cautions.
WARNING: To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
• Unplug the power cord from the power supply to disconnect power to the equipment.
• Do not route the power cord where it can be walked on or pinched by items placed against it.
Pay particular attention to the plug, electrical outlet, and the point where the cord extends from
the server.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can
lead to thermal damage.
Access panel
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can
lead to thermal damage.
To remove the component:
1. Power down the server (on page 28).
2. Extend the server from the rack (on page 29).
Open or unlock the locking latch, slide the access panel to the rear of the chassis, and remove the
access panel.
To replace the component:
1. Place the access panel on top of the server with the hood latch open. Allow the panel to extend past the
rear of the server approximately 1.25 cm (0.5 in).
2. Push down on the hood latch. The access panel slides to a closed position.
3. Tighten the security screw on the hood latch.
Removal and replacement procedures 35

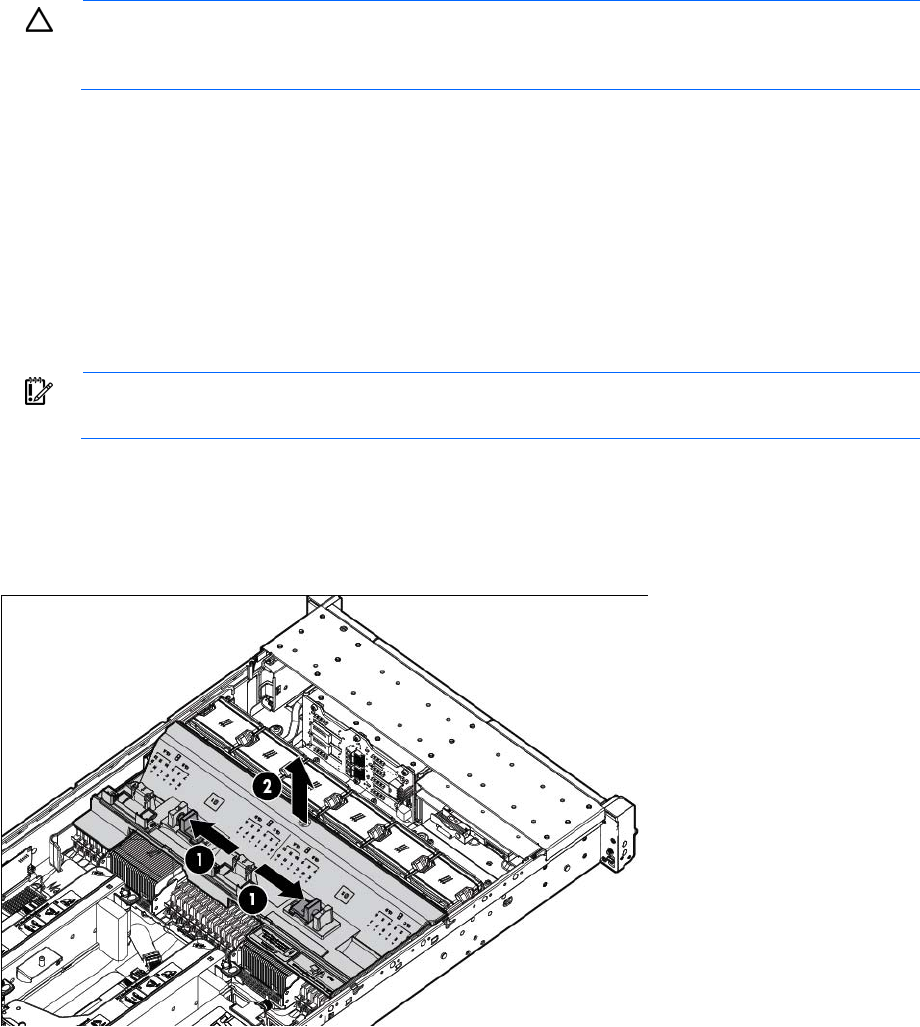

Air baffle
CAUTION: For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
IMPORTANT: It is necessary to remove the PCI riser cage only if there is a full-length expansion
board installed.
5. If any full-length expansion boards are installed, do one of the following:
o Remove the primary PCIe riser cage ("PCIe riser cage (primary)" on page 37)
o Remove the secondary PCIe riser cage ("PCIe riser cage (secondary)" on page 38)
6. Remove the air baffle.
To replace the component, reverse the removal procedure.
Removal and replacement procedures 36
2U rack bezel
To remove the component:
Unlock the 2U rack bezel, press the latch on the 2U rack bezel, and then remove the 2U rack bezel.
To replace the component, reverse the removal procedure.
PCIe riser blank
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all PCI slots have either an expansion slot cover or an expansion board installed.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
Removal and replacement procedures 37
5. Remove the PCIe riser blank.
To replace the component, reverse the removal procedure.
PCIe riser cage (primary)
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Disconnect any external cables that are connected to the expansion board.
6. Disconnect any internal cables that are connected to the expansion board.
7. If any full-length expansion boards are installed, release the full-length expansion board retainer (on
page 32).
Removal and replacement procedures 38
8. Remove the PCIe riser cage.
To replace the component, reverse the removal procedure.
PCIe riser cage (secondary)
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Disconnect any external cables that are connected to the expansion board.
6. Disconnect any internal cables that are connected to the expansion board.
7. If any full-length expansion boards are installed, release the full-length expansion board retainer (on
page 32).
Removal and replacement procedures 39
8. Remove the secondary PCIe riser cage.
To replace the component, reverse the removal procedure.

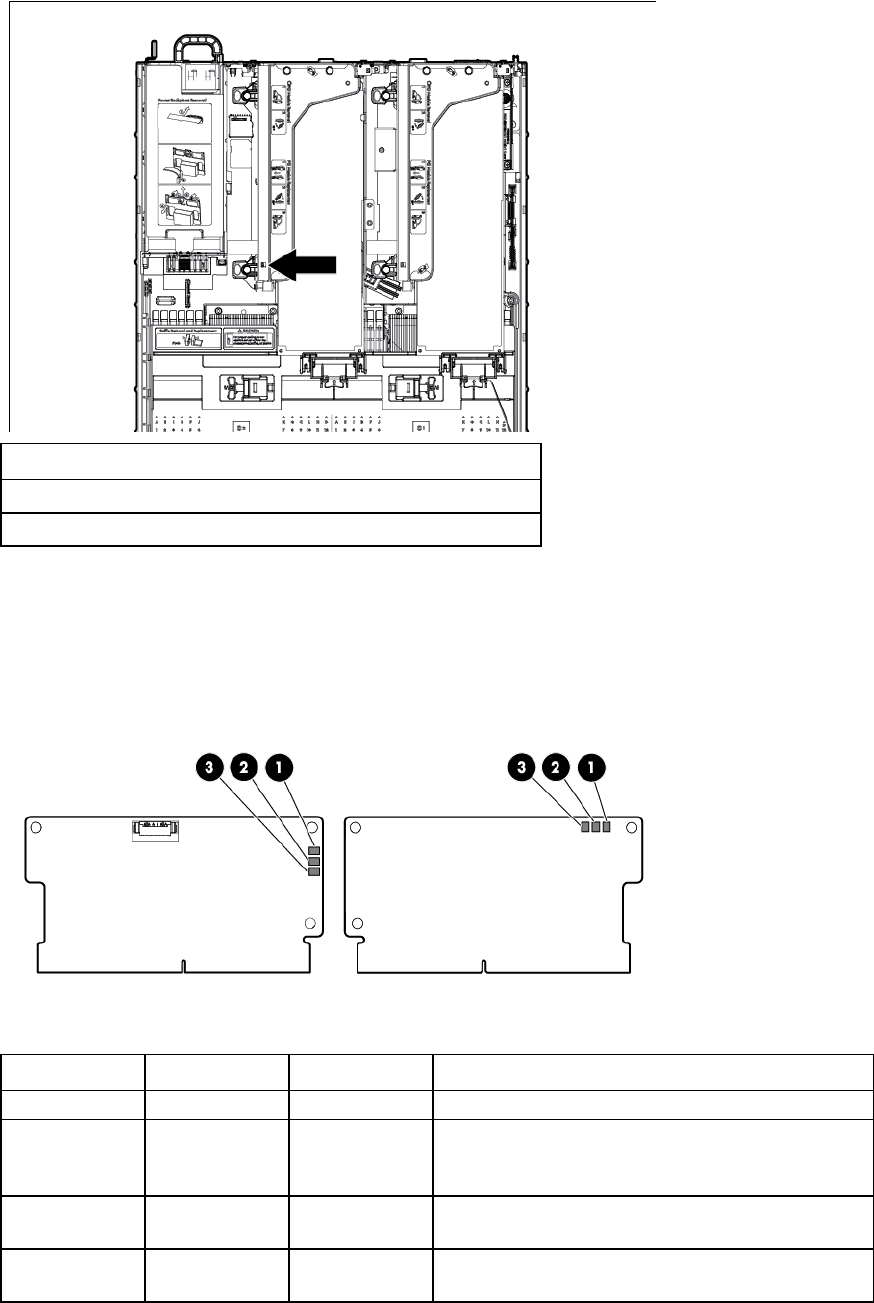

PCIe riser board
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. If any full-length expansion boards are installed, release the full-length expansion board retainer (on
page 32).
6. Remove the PCIe riser cage ("PCIe riser cage (primary)" on page 37).
7. Remove any expansion boards from the PCIe riser cage ("Expansion boards" on page 65).
Removal and replacement procedures 40
8. Remove the PCIe riser board.
To replace the component, reverse the removal procedure.

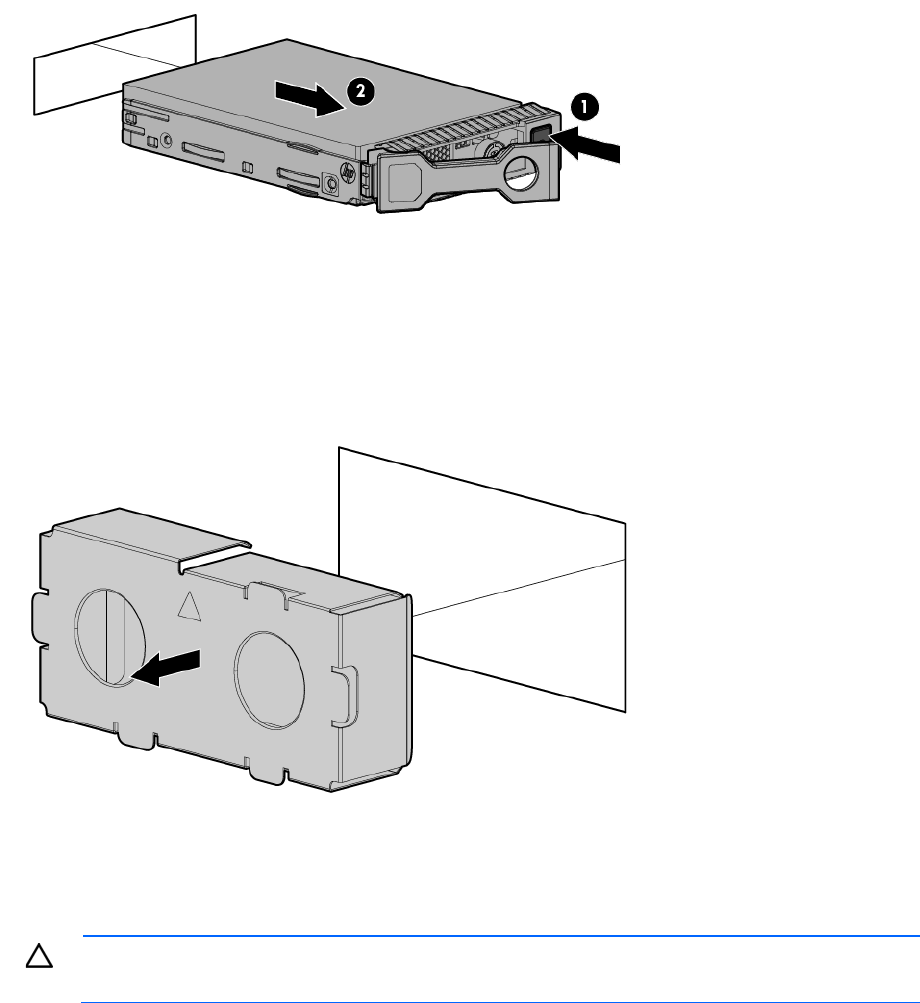

Drive blank
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all bays are populated with either a component or a blank.
Remove the drive blank.
To replace the component, slide the component into the bay until it clicks.
Hot-plug drive
CAUTION: For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.
1. Determine the status of the drive from the hot-plug drive LED definitions (on page 102).
2. Back up all server data on the drive.
Removal and replacement procedures 41
3. Remove the drive.
To replace the component, reverse the removal procedure.
Power supply blank
Remove the blank.
To replace the component, reverse the removal procedure.
AC power supply
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all bays are populated with either a component or a blank.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Access the product rear panel (on page 30).
4. Remove the power supply.
Removal and replacement procedures 42
WARNING: To reduce the risk of personal injury from hot surfaces, allow the power supply or
power supply blank to cool before touching it.
To replace the component, reverse the removal procedure.
48V DC power supply option
One of the following optional HP input cables with pre-fastened ring tongues may be purchased from HP or
an authorized reseller:
• A5S97A—1.3-m (7.55-ft) 48V DC Power Cable Kit
• A5S98A—2.5-m (3.94-ft) 48V DC Power Cable Kit
If you are not using an optional HP input cable, use an HP-approved 10 or 12 AWG green and yellow
ground cable, no shorter than 150 cm (59.06 in), and 10 or 12 AWG power cables.
CAUTION: Use only the ring terminals provided with the power supply for customer-built power
connections. Be sure no wire protrudes from the bottom of the ring terminal barrels.
To remove the component:
1. Make sure the 48V DC power source is off or the PDU breaker is in the off position, and then disconnect
the power cord from the 48V DC power source or PDU.
2. Remove the power cord from the cable management arm, if installed.
Removal and replacement procedures 43
3. Remove the safety cover.

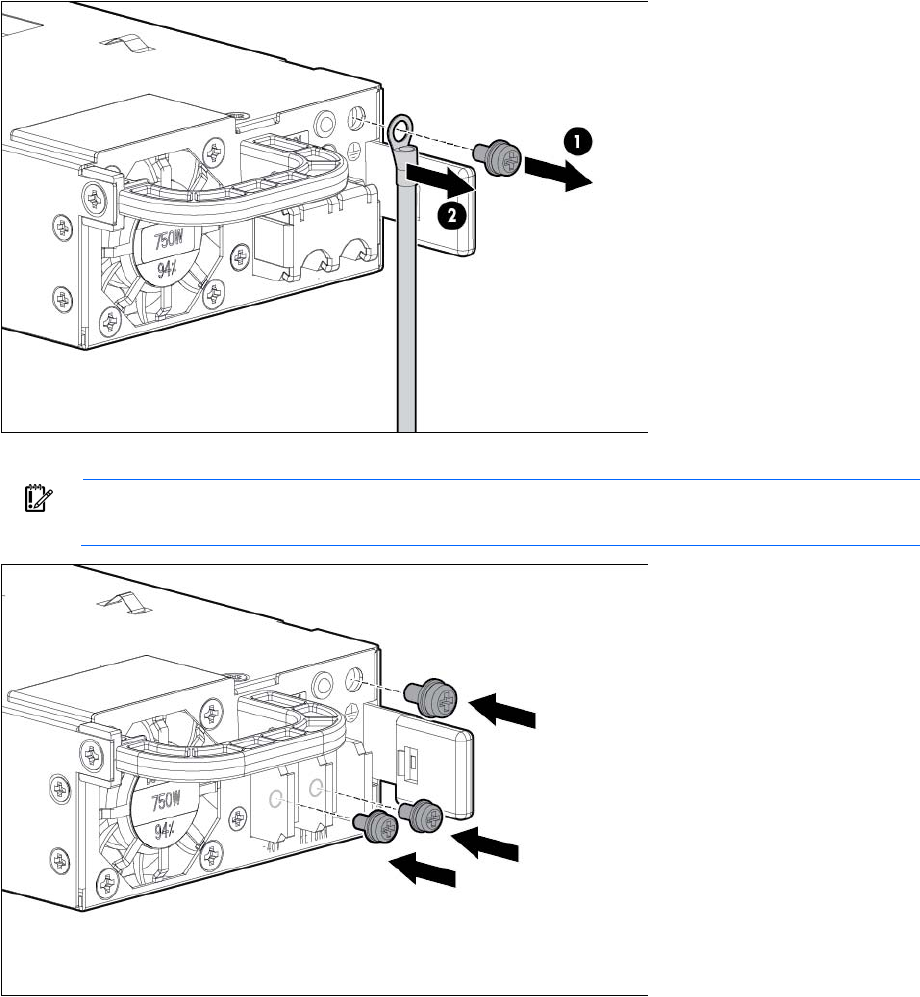

4. Remove the power ring tongues from the terminal block.
Removal and replacement procedures 44
5. Remove the ground (earthed) wire from the ground screw and washer.
6. Attach the screws to the terminal block.
IMPORTANT: The minimum nominal thread diameter of a pillar or stud type terminal must be 3.5
mm (0.138 in); the diameter of a screw type terminal must be 4.0 mm (0.157 in).
Removal and replacement procedures 45
7. Remove the power supply from the power supply bay.
8. If you are not immediately replacing the power supply, install the safety cover.
To replace the component:
1. If you are not using an optional HP input cable or the ring tongues you crimped previously, with the
ground cable disconnected from the 48V power source, crimp the ring tongues to the power and
ground cables coming from the 48V source.
IMPORTANT: The power supply uses two power ring tongues and one ground ring tongue. They
are not interchangeable.
Removal and replacement procedures 46
2. Remove the safety cover from the terminal block on the front of the power supply.
3. Remove the screws from the terminal block.
IMPORTANT: The minimum nominal thread diameter of a pillar or stud type terminal must be 3.5
mm (0.138 in); the diameter of a screw type terminal must be 4.0 mm (0.157 in).
Removal and replacement procedures 47
4. Attach the ground (earthed) wire to the ground screw and washer and tighten to 1.47 N m (13 lb-in) of
torque. The ground wire must be connected before the positive or negative lead wires.
5. Attach the power ring tongues to the terminal block, following the polarity label below the terminal
block, and then tighten the screws to 1.47 N m (13 lb-in) of torque.
Removal and replacement procedures 48
6. Replace the safety cover.
7. Insert the power supply into the power supply bay until it clicks into place.
8. Route the power cord. Use best practices when routing power cords and other cables. A cable
management arm is available to help with routing. To obtain a cable management arm, contact an HP
authorized reseller.
9. Make sure the 48V DC power source is off or the PDU breaker is in the off position, and then connect
the power cord to the 48V DC power source or PDU.
10. Turn on the 48V power source or switch the PDU breaker to the on position to supply 48V to the power
supply.
11. Be sure that the green power supply LED is on.
Removal and replacement procedures 49
Optical drive
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Remove the air baffle ("Air baffle" on page 35).
6. Remove the fan cage ("Fan cage" on page 54).
7. Disconnect the optical drive cable.
Removal and replacement procedures 50
8. Remove the optical drive.

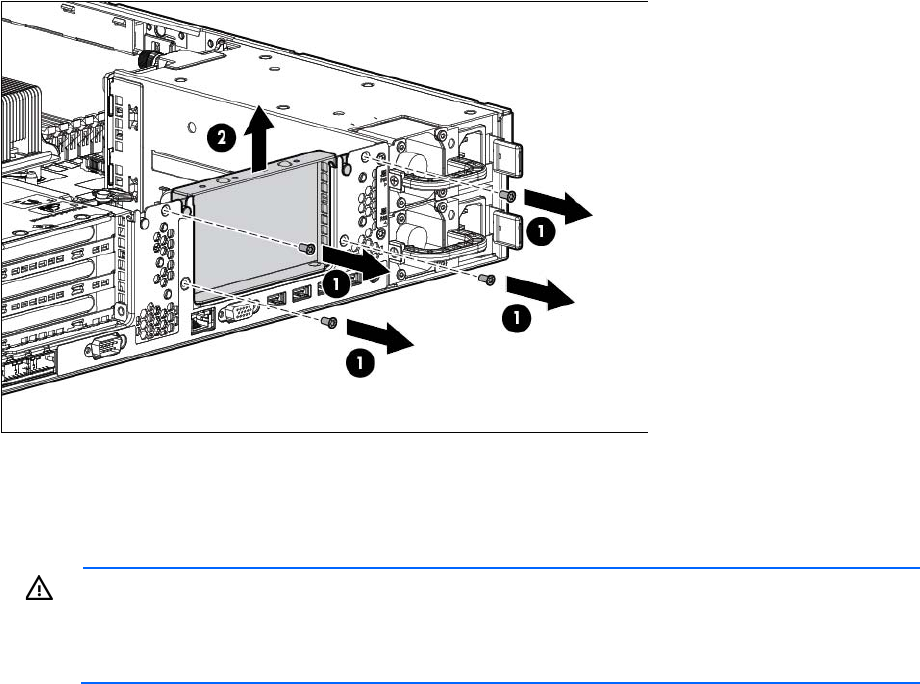

9. Remove the optical drive bracket, for use with the replacement optical drive.
Removal and replacement procedures 51
10. Before replacing the component, install the optical drive bracket, retained from the optical drive you are
replacing.
To replace the component, reverse the removal procedure.
Power supply backplane
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove all power supplies ("AC power supply" on page 41).
4. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
5. Remove the access panel ("Access panel" on page 34).
Removal and replacement procedures 52

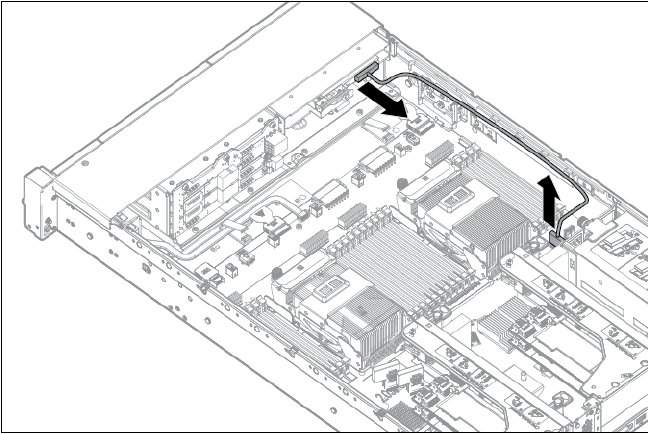

6. Disconnect the SATA cable.
7. Remove the power supply backplane.
To replace the component, reverse the removal procedure.
Hot-plug fan
The server supports variable fan speeds. The fans operate at minimum speed until a temperature change
requires a fan speed increase to cool the server.
The server shuts down in the following temperature-related scenarios:
• At POST:
o The BIOS suspends the server for 5 minutes if it detects a cautionary temperature level. If the
cautionary temperature level is still detected after 5 minutes, the BIOS performs an orderly shutdown
and enters Standby mode.
Removal and replacement procedures 53
o The BIOS performs an orderly shutdown if two or more fans have failed.
o The server performs an immediate shutdown if it detects a critical temperature level.
IMPORTANT: An immediate shutdown is a hardware-controlled function and it overrides any
firmware or software actions.
• In the operating system:
o The Health Driver performs an orderly shutdown if it detects a cautionary temperature level. If the
server detects a critical temperature level before the orderly shutdown occurs, the server performs an
immediate shutdown. Additionally, the Health Driver performs an orderly shutdown if more than
one fan is failed or removed.
o When Thermal Shutdown is disabled in RBSU, the server performs an immediate shutdown if it
detects a critical temperature level.
IMPORTANT: An immediate shutdown is a hardware-controlled function and it overrides any
firmware or software actions.
To remove the component:
1. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
2. Remove the access panel ("Access panel" on page 34).
3. Remove the fan.
CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can
lead to thermal damage.
To replace the component, reverse the removal procedure.
Removal and replacement procedures 54
Fan cage
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Remove the air baffle ("Air baffle" on page 35).
6. Remove the fan cage.
CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can
lead to thermal damage.

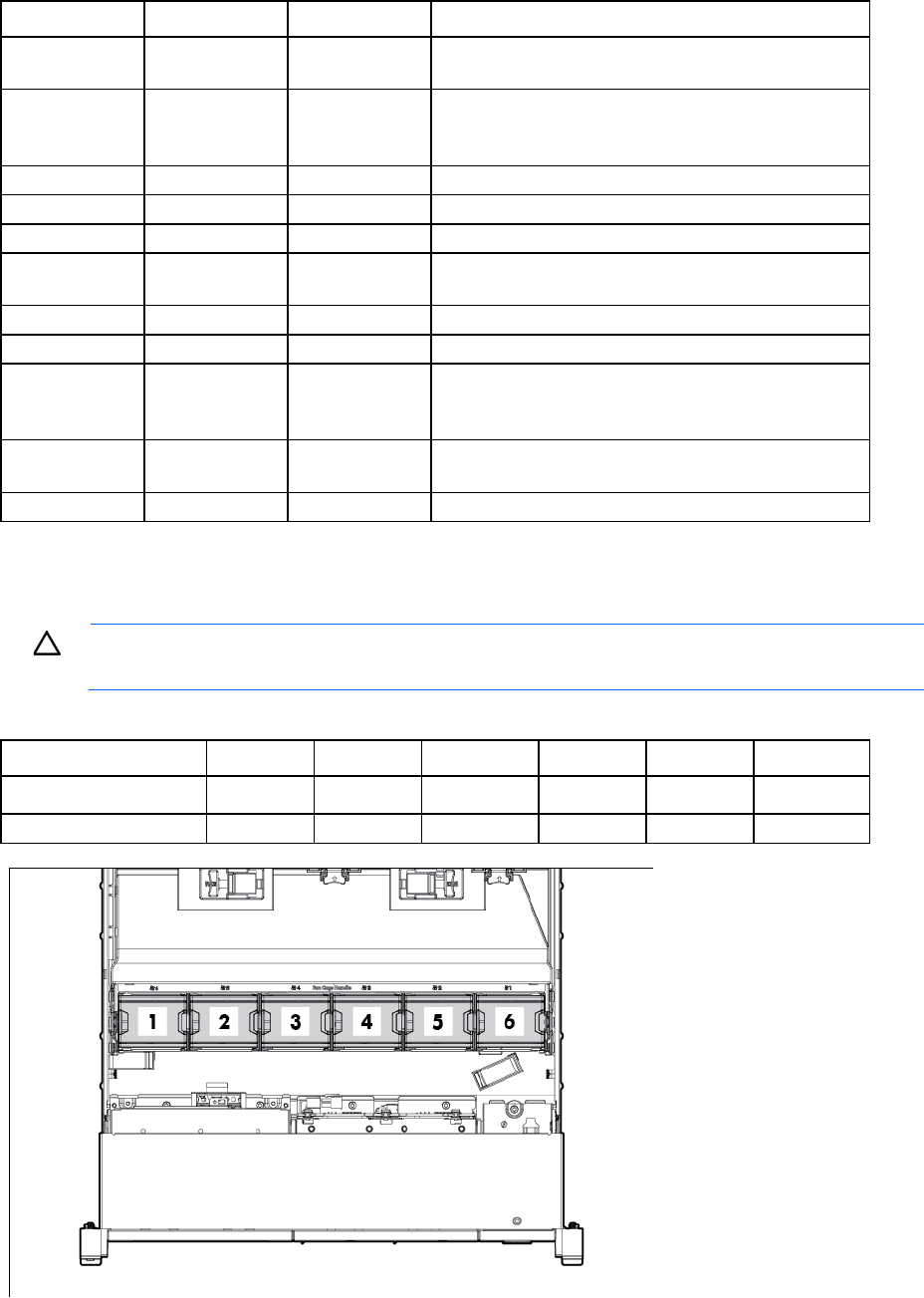

IMPORTANT: For optimum cooling, install fans in all primary fan locations. For more
information, refer to the fan locations table ("Hot-plug fans" on page 104).
To replace the component, reverse the removal procedure.
FlexibleLOM
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
1. Power down the server (on page 28).
Removal and replacement procedures 55
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove any attached network cables.
4. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
5. Remove the access panel ("Access panel" on page 34).
6. Remove the primary PCIe riser cage ("PCIe riser cage (primary)" on page 37).
7. Loosen the thumbscrew.
8. Remove the existing FlexibleLOM.
Pull the FlexibleLOM toward the front of the server while removing it, to avoid catching it on the rear
chassis.
Removal and replacement procedures 56
To replace the component:
1. Firmly seat the FlexibleLOM in the slot, and then tighten the thumbscrew.
2. Install the PCIe riser cage ("PCIe riser cage (primary)" on page 37).
3. Install the access panel ("Access panel" on page 34).
4. Slide the server into the rack.
5. Connect the LAN segment cables.
6. Connect each power cord to the server.
7. Connect each power cord to the power source.
8. Power up the server.
SFF hard drive cage
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Remove all hot-plug hard drives ("Hot-plug drive" on page 40).
6. Remove the air baffle ("Air baffle" on page 35).
7. Remove the fan cage ("Fan cage" on page 54).
8. Disconnect all cables from the hard drive backplane.
Removal and replacement procedures 57
9. Remove the hard drive cage.
To replace the component, reverse the removal procedure.
Systems Insight Display
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Remove the air baffle ("Air baffle" on page 35).
6. Remove the fan cage ("Fan cage" on page 54).
7. Remove the Systems Insight Display:
a. Remove the screw from the rear of the Systems Insight Display.
b. Disconnect the Systems Insight Display cable and the USB cable from the system board, and
disconnect the USB cable from the front of the Systems Insight Display.
Removal and replacement procedures 58
c. Remove the Systems Insight Display.
To replace the component, reverse the removal procedure.
Front panel assembly
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the server from the rack (on page 30).
4. Remove the access panel ("Access panel" on page 34).
Removal and replacement procedures 59
5. Remove the serial label pull tab (if it is an 8 LFF, 8 SFF, or 16 SFF configuration), and retain it for the new
front panel assembly.
6. Remove the air baffle ("Air baffle" on page 35).
7. Remove all drives ("Hot-plug drive" on page 40).
8. If installed, remove the optical drive ("Optical drive" on page 49).
9. Remove the fan cage ("Fan cage" on page 54).
10. Disconnect all cables from the front panel assembly.
IMPORTANT: If any cables in the front panel assembly need replacing, the entire front panel
assembly must be replaced.
11. Remove the four T-10 Torx screws from each side, and then remove the front panel assembly.
To replace the component, reverse the removal procedure.
Removal and replacement procedures 60
Flash-backed write cache procedures
Two types of procedures are provided for the FBWC option:
• Removal and replacement of failed components:
o Removing the cache module ("Flash-backed write cache module" on page 60)
o Removing the capacitor pack ("Flash-backed write cache capacitor pack" on page 61)
• Recovery of cached data from a failed server ("Recovering data from the flash-backed write cache" on
page 64)
CAUTION: Do not detach the cable that connects the battery pack or capacitor pack to the cache
module. Detaching the cable causes all data in the cache module to be lost.
Flash-backed write cache module
To remove the component:
CAUTION: The cache module connector does not use the industry-standard DDR3 mini-DIMMs.
Do not use the controller with cache modules designed for other controller models, because the
controller can malfunction and you can lose data. Also, do not transfer this cache module to an
unsupported controller model, because you can lose data.
1. Back up all data.
2. Close all applications.
3. Power down the server (on page 28).
4. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
CAUTION: In systems that use external data storage, be sure that the server is the first unit to be
powered down and the last to be powered back up. Taking this precaution ensures that the system
does not erroneously mark the drives as failed when the server is powered up.
5. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
6. Remove the access panel ("Access panel" on page 34).
7. If it is populated with expansion boards, remove the PCIe riser cage for better access ("PCIe riser cage
(primary)" on page 37).
8. If the existing cache module is connected to a capacitor pack, observe the FBWC module LEDs:
o If the amber LED is flashing, data is trapped in the cache. Restore system power, and restart this
procedure from step 1.
o If the amber LED is not illuminated, remove the controller from the server, and then continue with the
next step.
Removal and replacement procedures 61
9. Open the ejector latches on each side of the cache module connector. Normally, the cache module is
ejected from the cache module connector. If the module is not ejected automatically, remove the cache
module.
10. If the cache module is connected to a capacitor pack, disconnect the capacitor pack cable from the
connector on the top of the cache module.
To replace the component, reverse the removal procedure.
CAUTION: To prevent damage to the cache module during installation, be sure the cache
module is fully inserted before pressing down.
Flash-backed write cache capacitor pack
To remove the component:
1. Back up all data.
Removal and replacement procedures 62
2. Close all applications.
3. Power down the server (on page 28).
4. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
CAUTION: In systems that use external data storage, be sure that the server is the first unit to be
powered down and the last to be powered back up. Taking this precaution ensures that the system
does not erroneously mark the drives as failed when the server is powered up.
5. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
6. Remove the access panel ("Access panel" on page 34).
7. If it is populated with expansion boards, remove the PCIe riser cage for better access ("PCIe riser cage
(primary)" on page 37).
8. If the capacitor pack is connected to the cache module, disconnect the capacitor pack cable from the
connector on the top of the cache module.

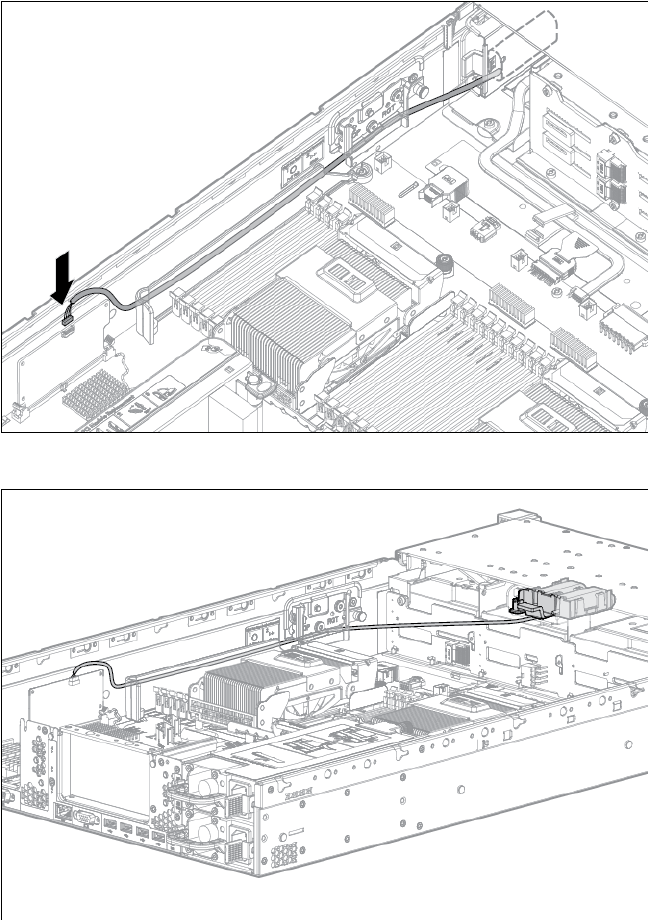

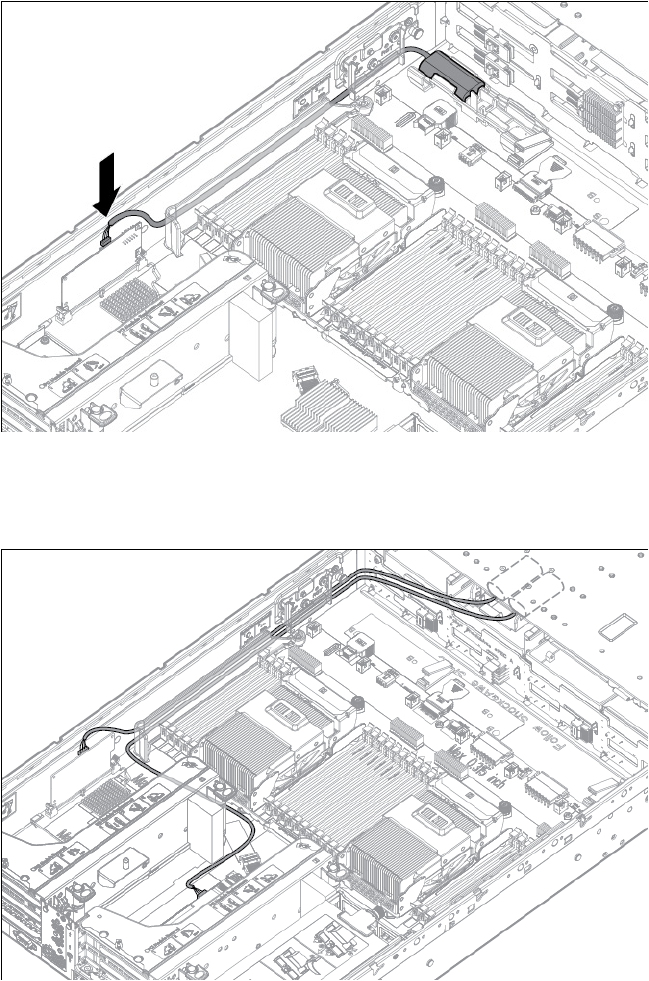

9. Disconnect the SAS hard drive backplane ribbon cable, and then remove the right fan bracket.
10. Remove the capacitor pack
Removal and replacement procedures 63
o 8 or 16 drive SFF
o 12 drive LFF, 25 drive SFF, or secondary location for 8 or 16 drive SFF or 8 drive LFF
Removal and replacement procedures 64
o Secondary location for 12 drive LFF or 25 drive SFF
To replace the component, reverse the removal procedure.
Recovering data from the flash-backed write cache
If the server fails, use the following procedure to recover data temporarily stored in the FBWC.
CAUTION: Before starting this procedure, read the information about protecting against
electrostatic discharge ("Preventing electrostatic discharge" on page 33).
1. Perform one of the following:
o Set up a recovery server using an identical server model. Do not install any internal drives or FBWC
in this server. (HP recommends this option.)
o Find a server that has enough empty drive bays to accommodate all the drives from the failed server
and that meets all the other requirements for drive and array migration.
2. Power down the failed server ("Power down the server" on page 28).
3. Transfer the drives from the failed server to the recovery server.
4. Perform one of the following:
o If the array controller has failed, remove the cache module and capacitor pack from the failed array
controller, and install the cache module and capacitor pack on an identical array controller model
in the recovery server.
o If the server has failed, remove the controller ("Half-length expansion board" on page 65), cache
module, and capacitor pack from the failed server, and install the controller, cache module, and
capacitor pack in the recovery server.
5. Power up the recovery server. If there was data in the cache at the time of the controller or server failure,
a 1792 POST message appears, stating that valid data was flushed from the cache. This data is now
stored on the drives in the recovery server. You can now transfer the drives (and controller, if one is
used) to another server.
If the drives are migrated to different drive positions or there are volumes present in the recovery server,
a 1724 POST message appears, stating that logical drive configuration has been updated
automatically.
Removal and replacement procedures 65
Expansion slot blanks
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
CAUTION: For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Disconnect any external cables that are connected to the expansion board.
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the PCIe riser cage ("PCIe riser cage (primary)" on page 37).
8. Remove the expansion slot blank.
To replace the component, reverse the removal procedure.
Expansion boards
Half-length expansion board
Removal and replacement procedures 66
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Disconnect any external cables that are connected to the expansion board.
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the PCIe riser cage ("PCIe riser cage (primary)" on page 37).
8. Remove the expansion board.
To replace the component, reverse the removal procedure.
Full length expansion board
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
Removal and replacement procedures 67
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Disconnect any external cables that are connected to the expansion board.
6. Disconnect any internal cables that are connected to the expansion board.
7. Release the full-length expansion board retainer, and then remove the PCIe riser cage.
8. Remove the full-length expansion board.
To replace the component, reverse the removal procedure.
Heatsink
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: The heatsink thermal interface media is not reusable and must be replaced if the
heatsink is removed from the processor after it has been installed.
CAUTION: To avoid thermal shutdown, all fans must be installed in a dual processor
configuration.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
Removal and replacement procedures 68
4. Remove the access panel ("Access panel" on page 34).
5. Remove the air baffle ("Air baffle" on page 35).

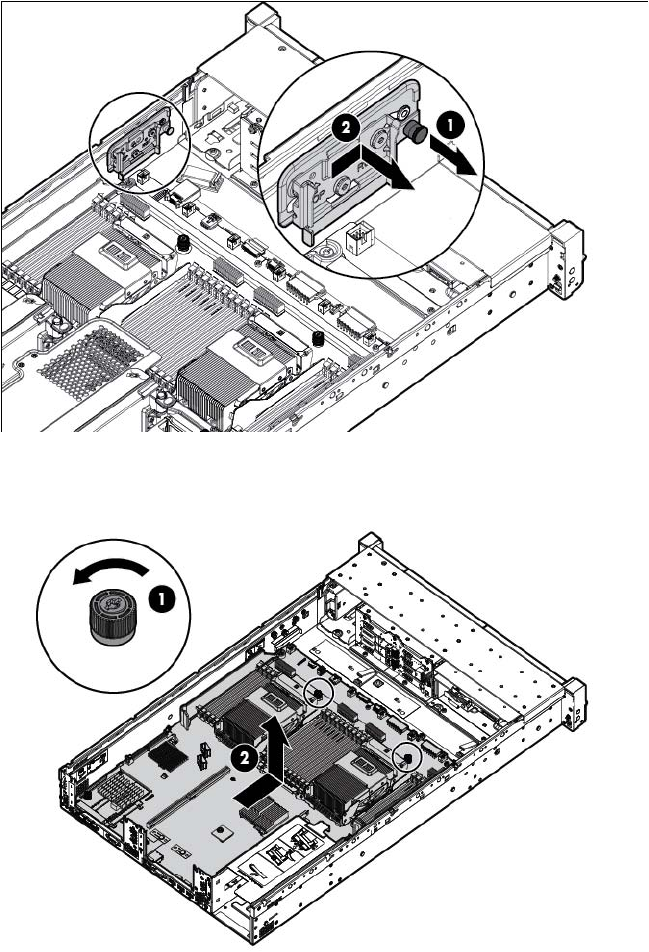

6. Remove the heatsink.
To replace the component:
1. Remove the thermal interface protective cover from the heatsink.
Removal and replacement procedures 69
2. Install the heatsink.
3. Install the air baffle ("Air baffle" on page 35).
4. Install the access panel ("Access panel" on page 34).
5. Slide the server into the rack.
6. Connect each power cord to the server.
7. Connect each power cord to the power source.
8. Power up the server.
Processor
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent possible server malfunction and damage to the equipment, multiprocessor
configurations must contain processors with the same part number.
CAUTION: The heatsink thermal interface media is not reusable and must be replaced if the
heatsink is removed from the processor after it has been installed.
CAUTION: To prevent possible server overheating, always populate processor socket 2 with a
processor and a heatsink or a processor socket cover and a heatsink blank.
CAUTION: To avoid thermal shutdown, all fans must be installed in a dual processor
configuration.
Removal and replacement procedures 70
IMPORTANT: Processor socket 1 must be populated at all times or the server does not function.
To remove the processor:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Remove the air baffle ("Air baffle" on page 35).
6. Remove the heatsink ("Heatsink" on page 67).
7. Open each of the processor locking levers in the order indicated, and then open the processor retaining
bracket.
Removal and replacement procedures 71
8. Remove the processor from the processor retaining bracket.
CAUTION: To avoid damage to the processor, do not touch the bottom of the processor,
especially the contact area.
To replace the component:
1. Install the processor. Verify that the processor is fully seated in the processor retaining bracket by
visually inspecting the processor installation guides on either side of the processor. THE PINS ON THE
SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED.
Removal and replacement procedures 72
CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED. To
avoid damage to the system board, do not touch the processor or the processor socket contacts.
2. Close the processor retaining bracket. When the processor is installed properly inside the processor
retaining bracket, the processor retaining bracket clears the flange on the front of the socket.
CAUTION: Do not press down on the processor. Pressing down on the processor may cause
damage to the processor socket and the system board. Press only in the area indicated on the
processor retaining bracket.
3. Press and hold the processor retaining bracket in place, and then close each processor locking lever.
Press only in the area indicated on the processor retaining bracket.
4. Clean the old thermal grease from the heatsink with the alcohol swab. Allow the alcohol to evaporate
before continuing.
5. Apply all the grease to the top of the processor in the following pattern to ensure even distribution.
Removal and replacement procedures 73
6. Install the heatsink.
7. Install the air baffle ("Air baffle" on page 35).
8. Install the access panel ("Access panel" on page 34).
9. Slide the server into the rack.
10. Connect each power cord to the server.
11. Connect each power cord to the power source.
12. Power up the server.
DIMMs
IMPORTANT: This server does not support mixing RDIMMs and UDIMMs. Attempting to mix
these two types causes the server to halt during BIOS initialization.
To identify the DIMMs installed in the server, see "DIMM slot locations (on page 100)."
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
Removal and replacement procedures 74
5. Remove the air baffle ("Air baffle" on page 35).

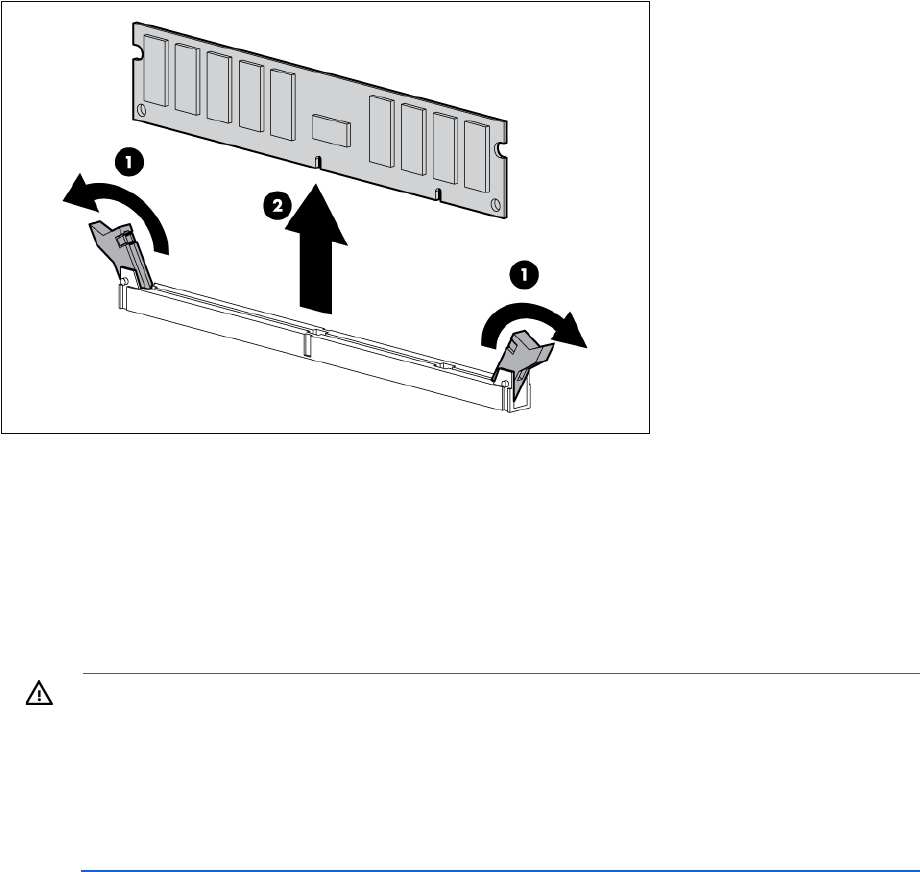

6. Remove the DIMM.
To replace the component, reverse the removal procedure.
For DIMM configuration information, see the server user guide.
System battery
If the server no longer automatically displays the correct date and time, you may need to replace the battery
that provides power to the real-time clock.
WARNING: The computer contains an internal lithium manganese dioxide, a vanadium
pentoxide, or an alkaline battery pack. A risk of fire and burns exists if the battery pack is not
properly handled. To reduce the risk of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60°C (140°F).
• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
• Replace only with the spare designated for this product.
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. If installed, remove the secondary PCIe riser cage ("PCIe riser cage (secondary)" on page 38).
6. Locate the battery ("System board components" on page 98).
Removal and replacement procedures 75
7. Remove the battery.
To replace the component, reverse the removal procedure.
For more information about battery replacement or proper disposal, contact an authorized reseller or an
authorized service provider.
System board
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the server from the rack (on page 30).
4. Remove all power supplies ("AC power supply" on page 41).
5. Remove the access panel ("Access panel" on page 34).
6. Remove the air baffle ("Air baffle" on page 35).
7. Remove the PCIe riser cage ("PCIe riser cage (primary)" on page 37).
8. If installed, remove the secondary PCIe riser cage ("PCIe riser cage (secondary)" on page 38).
9. If installed, remove the FBWC capacitor pack ("Flash-backed write cache capacitor pack" on page
61).
10. If installed, remove the cache module ("Flash-backed write cache module" on page 60).
11. Remove the FlexibleLOM ("FlexibleLOM" on page 54).
12. Remove all DIMMs ("DIMMs" on page 73).
13. Remove the fan cage ("Fan cage" on page 54).
14. Remove the power supply backplane ("Power supply backplane" on page 51).
15. Disconnect all cables connected to the system board.
Removal and replacement procedures 76
16. Remove the heatsink ("Heatsink" on page 67).
17. Remove the processor ("Processor" on page 69).
18. Remove left and right fan cage brackets.
19. Loosen the system board thumbscrews.
20. Remove the system board, using the handle to lift it out of the chassis.
Removal and replacement procedures 77
To replace the component:
1. Install the spare system board.
2. Open each of the processor locking levers in the order indicated, and then open the processor retaining
bracket.
Removal and replacement procedures 78
3. Remove the clear processor socket cover. Retain the processor socket cover for future use.
4. Install the processor. Verify that the processor is fully seated in the processor retaining bracket by
visually inspecting the processor installation guides on either side of the processor. THE PINS ON THE
SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED.
CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED. To
avoid damage to the system board, do not touch the processor or the processor socket contacts.
5. Close the processor retaining bracket. When the processor is installed properly inside the processor
retaining bracket, the processor retaining bracket clears the flange on the front of the socket.
Removal and replacement procedures 79
CAUTION: Do not press down on the processor. Pressing down on the processor may cause
damage to the processor socket and the system board. Press only in the area indicated on the
processor retaining bracket.
6. Press and hold the processor retaining bracket in place, and then close each processor locking lever.
Press only in the area indicated on the processor retaining bracket.
7. Install the processor socket cover onto the processor socket of the failed system board.
8. Clean the old thermal grease from the heatsink and the top of the processor with the alcohol swab.
Allow the alcohol to evaporate before continuing.
9. Apply all the grease to the top of the processor in the following pattern to ensure even distribution.
Removal and replacement procedures 80

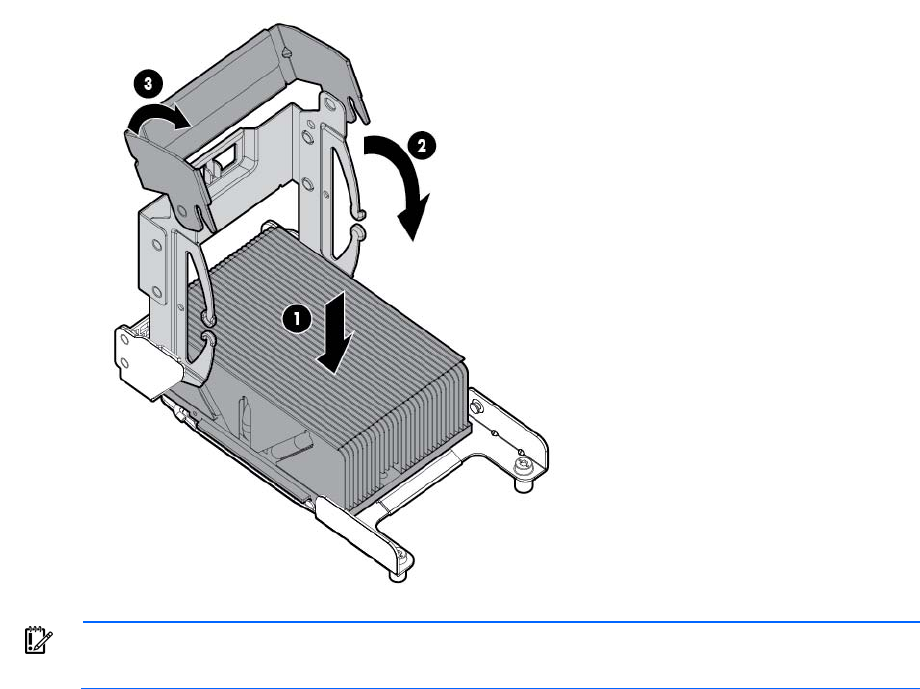

10. Install the heatsink.
IMPORTANT: Install all components with the same configuration that was used on the failed
system board.
11. Install all components removed from the failed system board.
12. Install the access panel.
13. Install the power supplies ("AC power supply" on page 41).
14. Power up the server.
After you replace the system board, you must re-enter the server serial number and the product ID.
1. During the server startup sequence, press the F9 key to access RBSU.
2. Select the Advanced Options menu.
3. Select Service Options.
4. Select Serial Number. The following warning appears:
Warning: The serial number should ONLY be modified by qualified service
personnel. This value should always match the serial number located on the
chassis.
5. Press the Enter key to clear the warning.
6. Enter the serial number and press the Enter key.
7. Select Product ID. The following warning appears:
Warning: The Product ID should ONLY be modified by qualified service
personnel. This value should always match the Product ID located on the
chassis.
8. Enter the product ID and press the Enter key.
Removal and replacement procedures 81
9. Press the Esc key to close the menu.
10. Press the Esc key to exit RBSU.
11. Press the F10 key to confirm exiting RBSU. The server automatically reboots.
150W PCIe power cable option
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
Disconnect the cable as indicated.
To replace the component, reverse the removal procedure.
Chipset SATA cable option
To remove the component:
1. Power down the server (on page 28).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend ("Extend the server from the rack" on page 29) or remove ("Remove the server from the rack" on
page 30) the server from the rack.
4. Remove the access panel ("Access panel" on page 34).
5. Remove the air baffle ("Air baffle" on page 35).
6. Remove the fan cage ("Fan cage" on page 54).
Removal and replacement procedures 82
7. Disconnect the Chipset SATA cable from the system board and the hard drive backplane and remove
from the cable guide.
To replace the component, reverse the removal procedure.
HP Trusted Platform Module
The TPM is not a customer-removable part.
CAUTION:
Any attempt to remove an installed TPM from the system board breaks or disfigures
the TPM security rivet. Upon locating a broken or disfigured rivet on an installed TPM,
administrators should consider the system compromised and take appropriate measures to ensure
the integrity of the system data.
If you suspect a TPM board failure, leave the TPM installed and remove the system board. Contact an HP
authorized service provider for a replacement system board and TPM board.
Cabling 83
Cabling

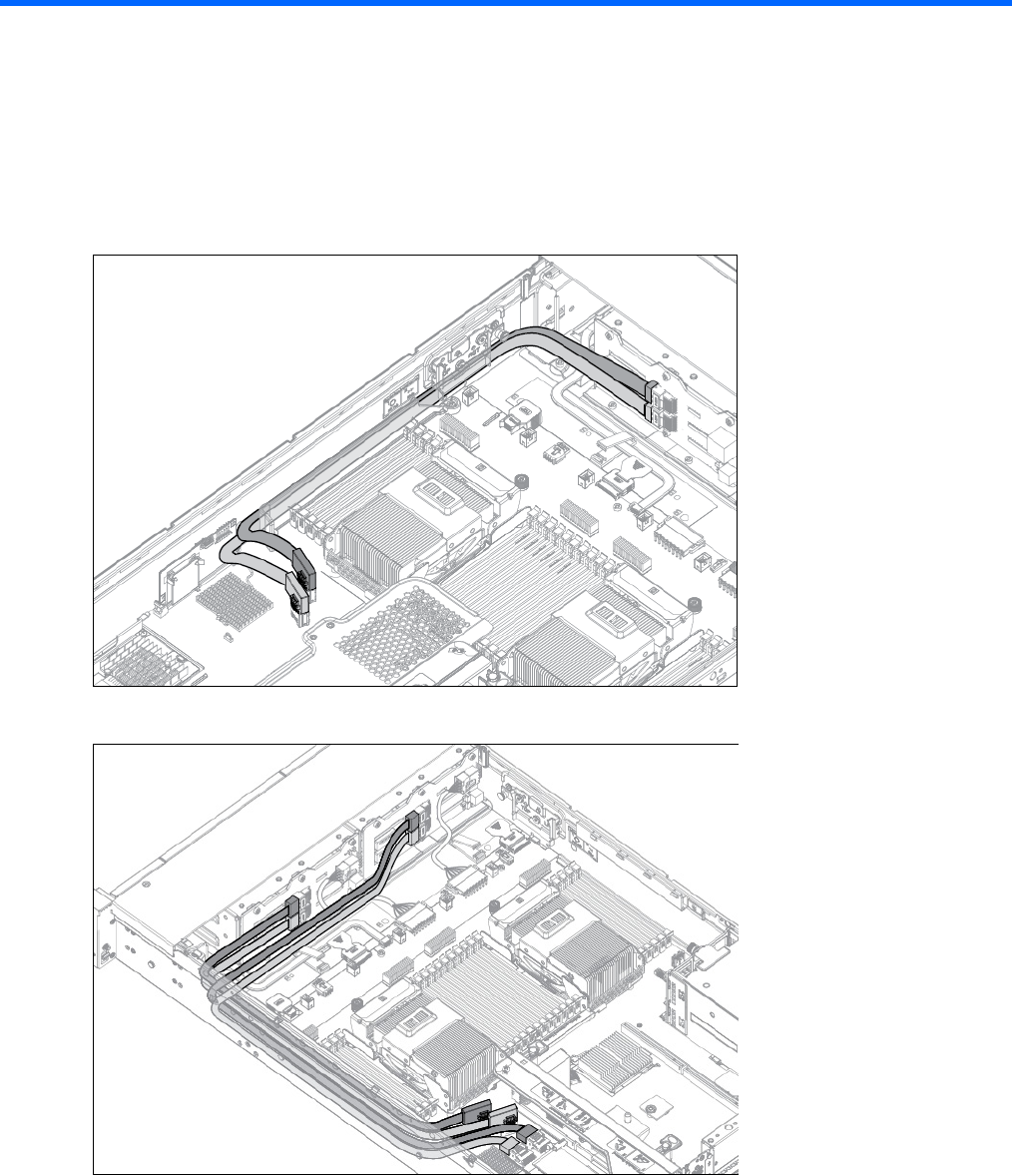

SAS hard drive cabling
• Hard drive cabling: 8 SFF, 25 SFF, 12 LFF
• Hard drive cabling: 16 SFF (8 SFF, with optional drive cage)

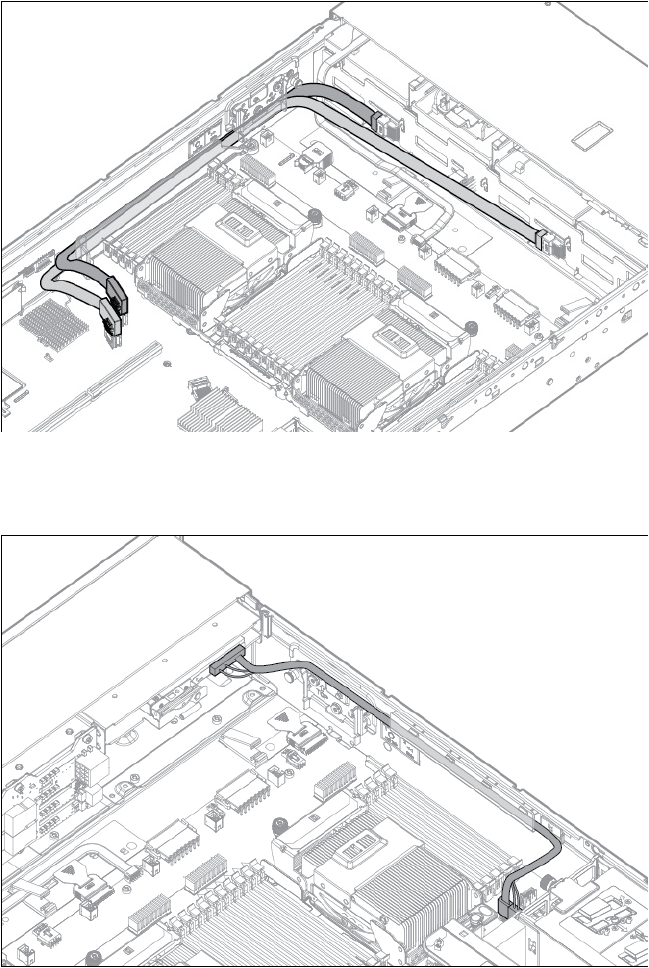

Cabling 84
• Hard drive cabling: 8 LFF
Optical drive cabling
Cabling 85
FBWC cabling
• 8 or 16 drive SFF
• 8 drive LFF
Cabling 86
• 12 drive LFF or 25 drive SFF
• PCIe option
Depending on the server configuration, you may need to remove the primary PCI riser cage ("PCIe riser
cage (primary)" on page 37) before cabling to a PCIe expansion board.
Diagnostic tools 87
Diagnostic tools
Troubleshooting resources
The HP ProLiant Gen8 Troubleshooting Guide, Volume I: Troubleshooting provides procedures for resolving
common problems and comprehensive courses of action for fault isolation and identification, issue resolution,
and software maintenance on ProLiant servers and server blades. To view the guide, select a language:
• English (http://www.hp.com/support/ProLiant_TSG_v1_en)
• French (http://www.hp.com/support/ProLiant_TSG_v1_fr)
• Spanish (http://www.hp.com/support/ProLiant_TSG_v1_sp)
• German (http://www.hp.com/support/ProLiant_TSG_v1_gr)
• Japanese (http://www.hp.com/support/ProLiant_TSG_v1_jp)
• Simplified Chinese (http://www.hp.com/support/ProLiant_TSG_v1_sc)
The HP ProLiant Gen8 Troubleshooting Guide, Volume II: Error Messages provides a list of error messages
and information to assist with interpreting and resolving error messages on ProLiant servers and server
blades. To view the guide, select a language:
• English (http://www.hp.com/support/ProLiant_EMG_v1_en)
• French (http://www.hp.com/support/ProLiant_EMG_v1_fr)
• Spanish (http://www.hp.com/support/ProLiant_EMG_v1_sp)
• German (http://www.hp.com/support/ProLiant_EMG_v1_gr)
• Japanese (http://www.hp.com/support/ProLiant_EMG_v1_jp)
• Simplified Chinese (http://www.hp.com/support/ProLiant_EMG_v1_sc)
HP Insight Diagnostics
HP Insight Diagnostics is a proactive server management tool, available in both offline and online versions,
that provides diagnostics and troubleshooting capabilities to assist IT administrators who verify server
installations, troubleshoot problems, and perform repair validation.
HP Insight Diagnostics Offline Edition performs various in-depth system and component testing while the OS
is not running. To run this utility, boot the server using Intelligent Provisioning.
HP Insight Diagnostics Online Edition is a web-based application that captures system configuration and
other related data needed for effective server management. Available in Microsoft Windows and Linux
versions, the utility helps to ensure proper system operation.
For more information or to download the utility, see the HP website (http://www.hp.com/servers/diags). HP
Insight Diagnostics Online Edition is also available in the SPP. For more information, see the HP website
(http://www.hp.com/go/spp/download).
Diagnostic tools 88
HP Insight Diagnostics survey functionality
HP Insight Diagnostics (on page 87) provides survey functionality that gathers critical hardware and software
information on ProLiant servers.
This functionality supports operating systems that are supported by the server. For operating systems
supported by the server, see the HP website (http://www.hp.com/go/supportos).
If a significant change occurs between data-gathering intervals, the survey function marks the previous
information and overwrites the survey data files to reflect the latest changes in the configuration.
Survey functionality is installed with every Intelligent Provisioning-assisted HP Insight Diagnostics installation,
or it can be installed through the SPP.
HP ROM-Based Setup Utility
RBSU is a configuration utility embedded in HP ProLiant servers that performs a wide range of configuration
activities that can include the following:
• Configuring system devices and installed options
• Enabling and disabling system features
• Displaying system information
• Selecting the primary boot controller
• Configuring memory options
• Language selection
For more information on RBSU, see the HP ROM-Based Setup Utility User Guide on the Documentation CD or
the HP website (http://www.hp.com/support/rbsu).
Integrated Management Log
The IML records hundreds of events and stores them in an easy-to-view form. The IML timestamps each event
with 1-minute granularity.
You can view recorded events in the IML in several ways, including the following:
• From within HP SIM
• From within operating system-specific IML viewers
o For Windows: IML Viewer
o For Linux: IML Viewer Application
• From within the HP iLO user interface
• From within HP Insight Diagnostics (on page 87)
Diagnostic tools 89
USB support and functionality
USB support
HP provides both standard USB 2.0 support and legacy USB 2.0 support. Standard support is provided by
the OS through the appropriate USB device drivers. Before the OS loads, HP provides support for USB
devices through legacy USB support, which is enabled by default in the system ROM.
Legacy USB support provides USB functionality in environments where USB support is not available normally.
Specifically, HP provides legacy USB functionality for the following:
• POST
• RBSU
• Diagnostics
• DOS
• Operating environments which do not provide native USB support
Internal USB functionality
An internal USB connector is available for use with security key devices and USB drive keys. This solution
provides for use of a permanent USB key installed in the internal connector, avoiding issues of clearance on
the front of the rack and physical access to secure data.
External USB functionality
HP provides external USB support to enable local connection of USB devices for server administration,
configuration, and diagnostic procedures.
For additional security, external USB functionality can be disabled through RBSU.
Component identification 90
Component identification
Front panel components
• SFF model (8-drive)
Item Description
1
Video connector
2 SATA optical drive bay
3 Drive bays
4 Systems Insight Display
5 USB connectors (2)
• SFF model with optional hard drive cage (16-drive)
Item Description
1 Video connector
2
Drive bays (box 1)
3 Drive bays (box 2)
4 Systems Insight Display
5 USB connectors (2)
Component identification 91
• SFF model (25-drive)
Item Description
1 Video connector
2 Quick release levers (2)
3 Drive bays
4 USB connector
• LFF model (8-drive)
Item Description
1 Video connector
2
SATA optical drive bay
3 Drive bays
4 Systems Insight Display
5 USB connectors (2)
Component identification 92
• LFF model (12-drive)
Item Description
1 Video connector
2 Quick-release levers (2)
3 Drive bays
4 USB connector
Front panel LEDs and buttons
Item Description Status
1 Power On/Standby button
and system power LED
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing power on sequence
Solid amber = System in standby
Off = No power present*
Component identification 93
Item Description Status
2 Health LED Solid green = Normal
Flashing amber = System degraded
Flashing red (1 Hz/cycle per sec) = System critical
Fast-flashing red (4 Hz/cycles per sec) = Power fault**
3 NIC status LED Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
4 UID button/LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote management or
firmware upgrade in progress
Off = Deactivated
*Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the power button cable is disconnected.
**To identify components in a degraded or critical state, see the Systems Insight Display LEDs ("Systems Insight Display"
on page 57), check iLO/BIOS logs, and reference the server troubleshooting guide.
Systems Insight Display LEDs
The HP Systems Insight Display LEDs represent the system board layout. The display enables diagnosis with
the access panel installed.
Item Description Status
1 Power cap Off = System is in standby, or no cap is set.
Solid green = Power cap applied
Component identification 94
Item Description Status
2 NIC link/activity Off = No link to network. If the power is off,
view the rear panel RJ-45 LEDs for status
("Rear panel LEDs and buttons" on page
96).
Flashing green = Network link and activity
Solid green = Network link
3 AMP status Off = AMP modes disabled
Solid green = AMP mode enabled
Solid amber = Failover
Flashing amber = Invalid configuration
4 Over temp Off = Normal
Solid amber = High system temperature
detected
— All other LEDs Off = Normal
Amber = Failure
For more information on the activation of
these LEDs, see "Systems Insight Display
LED combinations (on page 94)."
Systems Insight Display LED combinations
When the health LED on the front panel illuminates either amber or red, the server is experiencing a health
event. Combinations of illuminated Systems Insight Display LEDs, the system power LED, and the health LED
indicate system status.
Systems Insight Display
LED and color
Health LED System power
LED
Status
Processor (amber) Red Amber One or more of the following conditions may
exist:
•
Processor in socket X has failed.
•
Processor X is not installed in the socket.
•
Processor X is unsupported.
•
ROM detects a failed processor during
POST
Processor (amber) Amber Green Processor in socket X is in a pre-failure
condition.
DIMM (amber) Red Green One or more DIMMs have failed.
DIMM (amber)
Amber Green DIMM in slot X is in a pre-failure condition.
Overtemperature (amber) Amber Green The Health Driver has detected a cautionary
temperature level.
Overtemperature (amber) Red Amber The server has detected a hardware critical
temperature level.
Fan (amber) Amber Green One fan has failed or has been removed.
Fan (amber) Red Green Two or more fans have failed or been
removed.
Component identification 95
Systems Insight Display
LED and color
Health LED System power
LED
Status
Power supply (amber) Red Amber
•
Only one power supply is installed and
that power supply is in standby.
•
Power supply fault
•
System board fault
Power supply (amber) Amber Green
•
Redundant power supply is installed and
only one power supply is functional.
•
AC power cord is not plugged into
redundant power supply.
•
Redundant power supply fault
•
Power supply mismatch at POST or
power supply mismatch through hot-plug
addition.
Power cap (off)
— Amber Standby
Power cap (green) — Flashing green Waiting for power
Power cap (flashing
amber)
— Amber Power cap has been exceeded
Power cap (green) — Green Power is available
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required.
Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing
each DIMM in a bank with a known working DIMM.
Rear panel components
Item Description
1 PCIe slots 1–3 (top to bottom)
2 PCIe slots 4–6 (top to bottom)
3 Power supply 1 (PS1)
4 PS1 power connector
5 PS2 power connector
6 Power supply 2 (PS2)
7 USB connectors (4)
8 Video connector
Component identification 96
9 iLO connector
10 Serial connector
11 FlexibleLOM ports (Shown: 4x1Gb/Optional: 2x10Gb); port 1 on right side
Rear panel LEDs and buttons
Item Description Status
1 UID LED/button Off = Deactivated
Solid blue = Activated
Flashing blue = System being managed remotely
2 Power supply 2
LED
Off = System is off or power supply has failed.
Solid green = Normal
3 Power supply 1
LED
Off = System is off or power supply has failed.
Solid green = Normal
4 NIC link LED Off = No network link
Green = Network link
5 NIC activity LED Off = No network activity
Solid green = Link to network
Flashing green = Network activity
Non-hot-plug PCI riser board slot definitions
• Primary riser cage connector, connected to processor 1 or the southbridge
PCIe 3-slot riser cage* PCIe 2-slot x16 riser cage
1 - FL/FH PCIe3 x16 (16,8,4,2,1) —
2 - HL/FH PCIe3 x8 (8,4,2,1) —
3 - HL/FH
PCIe2 x8 (4,2,1)† —
• Secondary riser cage connector, connected to processor 2 (Processor 2 must be installed)
Component identification 97
PCIe 3-slot riser cage* PCIe 2-slot x16 riser cage
4 - FL/FH PCIe3 x16 (16,8,4,2,1) PCIe3 x16 (16,8,4,2,1)
5 - HL/FH PCIe3 x8 (8,4,2,1) PCIe3 x16 (16,8,4,2,1)
6 - HL/FH
PCIe3 x8 (8,4,2,1) —
*The server ships with one PCIe3 riser cage installed in the primary riser cage connector.
†PCIe slot 3 is connected to the southbridge and runs at the Gen2 signaling rate.
Notes:
• "Primary" denotes the riser cage is installed in the primary riser connector.
• "Secondary" denotes the riser cage is installed in the secondary riser connector.
• Installing the riser cages listed in the table above in either the primary or secondary riser connectors
determines the form factor of the PCI cards supported by those riser cages.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
• The PCIe2 x16 riser cage supports a maximum power of 150 W with an HP power cable. This cable
must be used for PCIe card wattages greater than 75 W.
Component identification 98
System board components
Item Description
1 Fan connector 6
2
Systems Insight Display connector
3 Fan connector 5
4 Processor 1 DIMM slots
5 Fan connector 4
6 Front I/O connector
7 Front USB connector
8 Fan connector 3
9
First drive cage, box 2 power connector
10 Fan connector 2
11 Processor 2 DIMM slots
12 Second drive cage, box 1 power connector
13 Fan connector 1
14
Discovery services connector
15 Front video connector
16 USB connector
17 Power supply backplane connector
18 SATA optical drive connector
19 NMI jumper
20 System battery
21 SD card slot
22 Secondary (processor 2) PCI riser connector
Component identification 99
Item Description
23 System maintenance switch
24
Processor 2 socket
25 TPM connector
26 Primary (processor 1) PCI riser connector
27 FlexibleLOM
28 SAS connector 1
29
SAS connector 2
30 Cache module connector
31 Processor 1 socket
32 RDX power connector
System maintenance switch
Position Default Function
S1 Off Off = HP iLO security is enabled.
On = HP iLO security is disabled.
S2 Off Off = System configuration can be
changed.
On = System configuration is locked.
S3 Off Reserved
S4 Off Reserved
S5 Off Off = Power-on password is enabled.
On = Power-on password is disabled.
S6 Off Off = No function
On = ROM reads system configuration
as invalid.
S7 — Reserved
S8 — Reserved
S9 — Reserved
S10 — Reserved
S11 — Reserved
S12 — Reserved
To access the redundant ROM, set S1, S5, and S6 to on.
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all
system configuration settings from both CMOS and NVRAM.
CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to
properly configure the server or data loss could occur.
NMI functionality
An NMI crash dump enables administrators to create crash dump files when a system is hung and not
responding to traditional debug mechanisms.
Component identification 100
Crash dump log analysis is an essential part of diagnosing reliability problems, such as hangs in operating
systems, device drivers, and applications. Many crashes freeze a system, and the only available action for
administrators is to cycle the system power. Resetting the system erases any information that could support
problem analysis, but the NMI feature preserves that information by performing a memory dump before a
hard reset.
To force the OS to invoke the NMI handler and generate a crash dump log, the administrator can use the iLO
Virtual NMI feature.
For more information, see the white paper on the HP website
(http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00797875/c00797875.pdf).
DIMM slot locations
DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use the
letter assignments for population guidelines.
SAS and SATA device numbers
• SFF 8-device bay numbering
Component identification 101
• Optional SFF 16-device bay numbering
• SFF 25-device bay numbering
• LFF 8-device bay numbering
• LFF 12-device bay numbering
Component identification 102
Hot-plug drive LED definitions
Item LED Status Definition
1 Locate Solid blue The drive is being identified by a host application.
Flashing blue The drive carrier firmware is being updated or requires an update.
2 Activity ring Rotating green Drive activity
Off No drive activity
3 Do not remove Solid white Do not remove the drive. Removing the drive causes one or more of
the logical drives to fail.
Off Removing the drive does not cause a logical drive to fail.
4
Drive status Solid green The drive is a member of one or more logical drives.
Flashing green
The drive is rebuilding or performing a RAID migration, strip size
migration, capacity expansion, or logical drive extension, or is
erasing.
Flashing
amber/green
The drive is a member of one or more logical drives and predicts
the drive will fail.
Flashing amber The drive is not configured and predicts the drive will fail.
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller.
PCI riser cage LED
CAUTION: To prevent damage to the server or expansion boards, power down the server and
remove all AC power cords before removing or installing the PCI riser cage.
Component identification 103
Status
On = AC power is connected.
Off = AC power is disconnected.
FBWC module LEDs (P222, P420, P421)
The FBWC module has three single-color LEDs (one amber and two green). The LEDs are duplicated on the
reverse side of the cache module to facilitate status viewing.
1 - Amber 2 - Green 3 - Green Interpretation
Off Off Off The cache module is not powered.
Off Flashing 0.5 Hz Flashing 0.5 Hz The cache microcontroller is executing from within its
boot loader and receiving new flash code from the host
controller.
Off Flashing 1 Hz Flashing 1 Hz The cache module is powering up, and the capacitor
pack is charging.
Off Off Flashing 1 Hz The cache module is idle, and the capacitor pack is
charging.
Component identification 104
1 - Amber 2 - Green 3 - Green Interpretation
Off Off On The cache module is idle, and the capacitor pack is
charged.
Off On On The cache module is idle, the capacitor pack is charged,
and the cache contains data that has not yet been
written to the drives.
Off Flashing 1 Hz Off A backup is in progress.
Off On Off The current backup is complete with no errors.
Flashing 1 Hz Flashing 1 Hz Off The current backup failed, and data has been lost.
Flashing 1 Hz Flashing 1 Hz On A power error occurred during the previous or current
boot. Data may be corrupt.
Flashing 1 Hz On Off An overtemperature condition exists.
Flashing 2 Hz Flashing 2 Hz Off The capacitor pack is not attached.
Flashing 2 Hz Flashing 2 Hz On The capacitor has been charging for 10 minutes, but
has not reached sufficient charge to perform a full
backup.
On On Off The current backup is complete, but power fluctuations
occurred during the backup.
On On On The cache module microcontroller has failed.
Hot-plug fans
CAUTION: To avoid damage to server components, fan blanks must be installed in fan bays 1
and 2 in a single-processor configuration.
The only two valid fan configurations are listed in the following table.
Configuration Fan bay 1 Fan bay 2 Fan bay 3 Fan bay 4 Fan bay 5 Fan bay 6
1 processor Fan blank Fan blank Fan Fan Fan Fan
2 processors Fan Fan Fan Fan Fan Fan
Component identification 105
For a single-processor configuration, four fans and two blanks are required in specific fan bays for
redundancy. A fan failure or missing fan causes a loss of redundancy. A second fan failure or missing fan
causes an orderly shutdown of the server.
Installing more than the required number of fans in a single-processor configuration is not a supported
configuration.
For a dual-processor configuration, six fans are required for redundancy. A fan failure or missing fan causes
a loss of redundancy. A second fan failure or missing fan causes an orderly shutdown of the server.
The server supports variable fan speeds. The fans operate at minimum speed until a temperature change
requires a fan speed increase to cool the server. The server shuts down during the following
temperature-related scenarios:
• At POST and in the OS, HP iLO performs an orderly shutdown if a cautionary temperature level is
detected. If the server hardware detects a critical temperature level before an orderly shutdown occurs,
the server performs an immediate shutdown.
• When the Thermal Shutdown feature is disabled in RBSU, HP iLO does not perform an orderly shutdown
when a cautionary temperature level is detected. Disabling this feature does not disable the server
hardware from performing an immediate shutdown when a critical temperature level is detected.
CAUTION: A thermal event can damage server components when the Thermal Shutdown feature
is disabled in RBSU.
Storage and expansion diagram
Specifications 106
Specifications
Environmental specifications
Specification Value
Temperature range* —
Operating 10°C to 35°C (50°F to 95°F)
Non-operating -30°C to 60°C (-22°F to 140°F)
Relative humidity
(noncondensing)
—
Operating 10% to 90%
28°C (82.4°F), maximum wet bulb
temperature
Non-operating 5% to 95%
38.7°C (101.7°F), maximum wet
bulb temperature
* All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048
m (10,000 ft) is applicable. No direct sunlight allowed.
Mechanical specifications
Specification Value
Height 8.73 cm (3.44 in)
Depth, SFF 69.85 cm (27.54 in)
Depth, LFF 74.93 cm (29.5 in)
Width 44.54 cm (17.54 in)
Weight (maximum—all LFF
drives)
27.66 kg (61.0 lb)
Weight (minimum—one SFF
drive)
18.59 kg (41 lb)
Power supply specifications
Depending on installed options, the server is configured with one of the following power supplies:
• HP 460W Common Slot Gold Hot Plug Power Supply (92% efficiency) (on page 107)
• HP 460W Common Slot Platinum Plus Hot Plug Power Supply (94% efficiency) (on page 107)
• HP 500W Common Slot 277VAC Hot Plug Power Supply (94% efficiency) (on page 108)
• HP 750W Common Slot 277VAC Hot Plug Power Supply (94% efficiency) (on page 108)
• HP 750W Common Slot Titanium Hot Plug Power Supply (96% efficiency) (on page 109)
• HP 750W Common Slot Gold Hot Plug Power Supply (92% efficiency) (on page 109)
Specifications 107
• HP 750W Common Slot Platinum Plus Hot Plug Power Supply (94% efficiency) (on page 110)
• HP 750W Common Slot -48VDC Hot Plug Power Supply (94% efficiency) (on page 110)
• HP 1200W Common Slot 277VAC Hot Plug Power Supply (94% efficiency) (on page 111)
• HP 1200W Common Slot 380VDC Hot Plug Power Supply (94% efficiency) (on page 111)
• HP 1200W Common Slot Platinum Plus Hot Plug Power Supply (94% efficiency) (on page 112)
For detailed power supply specifications, see the server QuickSpecs on the HP website
(http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html).
HP 460W Common Slot Gold Hot Plug Power Supply (92%
efficiency)
Specification Value
Input requirements
Rated input voltage 100 to 120 VAC, 200 to
240 VAC
Rated input frequency 50 Hz to 60 Hz
Rated input current 5.5 A at 100 VAC
2.6 A at 200 VAC
Rated input power 526 W at 100V AC input
505 W at 200V AC input
BTUs per hour 1794 at 100V AC input
1725 at 200V AC input
Power supply output
Rated steady-state power 460 W at 100V to 120V AC input
460 W at 200V to 240V AC input
Maximum peak power 460 W at 100V to 120V AC input
460 W at 200V to 240V AC input
HP 460W Common Slot Platinum Plus Hot Plug Power Supply
(94% efficiency)
Specification Value
Input requirements
Rated input voltage 100 to 120 VAC, 200 to
240 VAC
Rated input frequency 50 Hz to 60 Hz
Rated input current 5.2 A at 100 VAC
2.5 A at 200 VAC
Rated input power 517 W at 100V AC input
496 W at 200V AC input
Btus per hour 1764 at 100V AC input
1694 at 200V AC input
Specifications 108
Power supply output
Rated steady-state power 460 W at 100V to 120V AC input
460 W at 200V to 240V AC input
Maximum peak power 460 W at 100V to 120V AC input
460 W at 200V to 240V AC input
HP 500W Common Slot 277VAC Hot Plug Power Supply (94%
efficiency)
Specification Value
Input requirements —
Rated input voltage 200 V to 277 V AC
Rated input frequency 50 Hz–60 Hz
Rated input current 3.0 A at 200 V AC
2.0 A at 277 V AC
Rated input power 600 W at 200 V AC input
554 W at 277 V AC input
Btus per hour 1843 at 200 V AC input
1831 at 277 V AC input
Power supply output —
Rated steady-state power 500 W at 200 V AC to 277 V AC
input
Maximum peak power 500 W at 200 V AC to 277 V AC
input
HP 750W Common Slot 277VAC Hot Plug Power Supply (94%
efficiency)
Specification Value
Input requirements —
Rated input voltage 200 V to 277 V AC
Rated input frequency 50 Hz–60 Hz
Rated input current 4.5 A at 200 V AC
3.0 A at 277 V AC
Rated input power 900 W at 200 V AC input
831 W at 277 V AC input
Btus per hour 2796 at 200 V AC input
2767 at 277 V AC input
Power supply output —
Rated steady-state power 750 W at 200 V AC to 277 V AC
input
Maximum peak power 750 W at 200 V AC to 277 V AC
input
Specifications 109
HP 750W Common Slot Titanium Hot Plug Power Supply (96%
efficiency)
Specification Value
Input requirements —
Rated input voltage 200 to 240 V AC
Rated input frequency 50 Hz to 60 Hz
Rated input current 4.1 A at 200 V AC
3.3 A at 240 V AC
Maximum rated input power 820 W at 200 V AC
792 W at 240 V AC
Btus per hour 2739 at 200 V AC
2724 at 240 V AC
Power supply output —
Rated steady-state power 750 W at 200 V AC to 240 V AC
input
Maximum peak power 750 W at 200 V AC to 240 V AC
input
HP 750W Common Slot Gold Hot Plug Power Supply (92%
efficiency)
Specification Value
Input requirements
Rated input voltage 100 to 120 VAC, 200 to
240 VAC
Rated input frequency 50 Hz to 60 Hz
Rated input current 8.9 A at 100 VAC
4.3 A at 200 VAC
Rated input power
857 W at 100V AC input
824 W at 200V AC input
BTUs per hour 2925 at 100V AC input
2812 at 200V AC input
Power supply output
Rated steady-state power 750 W at 100V to 120V AC input
750 W at 200V to 240V AC input
Maximum peak power 750 W at 100V to 120V AC input
750 W at 200V to 240V AC input
Specifications 110
HP 750W Common Slot Platinum Plus Hot Plug Power Supply
(94% efficiency)
Specification Value
Input requirements
Rated input voltage 100 to 120 VAC, 200 to
240 VAC
Rated input frequency 50 Hz to 60 Hz
Rated input current 8.5 A at 100 VAC
4.1 A at 200 VAC
Maximum rated input power 843 W at 100V AC input
811 W at 200V AC input
Btus per hour 2878 at 100V AC input
2769 at 200V AC input
Power supply output
Rated steady-state power 750 W at 100V to 120V AC input
750 W at 200V to 240V AC input
Maximum peak power 750 W at 100V to 120V AC input
750 W at 200V to 240V AC input
HP 750W Common Slot -48VDC Hot Plug Power Supply (94%
efficiency)
Specification Value
Input requirements —
Rated input voltage -36 V DC to -72 V DC
-48 V DC nominal input
Rated input current 23 A at -36 V DC input
17 A at -48 V DC input, nominal
input
11 A at -72 V DC input
Rated input power (W) 815 W at -36 V DC input
805 W at -48 V DC input, nominal
input
795 W at -72 V DC input
Rated input power (Btus per
hour)
2780 at -36 V DC input
2740 at -48 V DC input, nominal
input
2720 at -72 V DC input
Power supply output —
Rated steady-state power (W)
750 W
Maximum peak power (W) 750 W
CAUTION: This equipment is designed to permit the connection of the earthed conductor of the
DC supply circuit to the earthing conductor at the equipment.
Specifications 111
If this connection is made, all of the following must be met:
• This equipment must be connected directly to the DC supply system earthing electrode
conductor or to a bonding jumper from an earthing terminal bar or bus to which the DC supply
system earthing electrode conductor is connected.
• This equipment must be located in the same immediate area (such as adjacent cabinets) as any
other equipment that has a connection between the earthed conductor of the same DC supply
circuit and the earthing conductor, and also the point of earthing of the DC system. The DC
system must be earthed elsewhere.
• The DC supply source is to be located within the same premises as the equipment.
• Switching or disconnecting devices must not be in the earthed circuit conductor between the
DC source and the point of connection of the earthing electrode conductor.
CAUTION: To reduce the risk of electric shock or energy hazards:
• This equipment must be installed by trained service personnel, as defined by the NEC and IEC
60950-1, Second Edition, the standard for Safety of Information Technology Equipment.
• Connect the equipment to a reliably grounded SELV source. An SELV source is a secondary
circuit that is designed so normal and single fault conditions do not cause the voltages to
exceed a safe level (60 V DC).
• The branch circuit overcurrent protection must be rated 24 A.
HP 1200W Common Slot 277VAC Hot Plug Power Supply (94%
efficiency)
Specification Value
Input requirements —
Rated input voltage 200 V to 277 V AC
Rated input frequency 50 Hz–60 Hz
Rated input current 6.7 A at 200 V AC
4.8 A at 277 V AC
Rated input power 1328 W at 200 V AC input
1314 W at 277 V AC input
Btus per hour 4532 at 200 V AC input
4484 at 277 V AC input
Power supply output —
Rated steady-state power 1200 W at 200 V AC to 277 V
AC input
Maximum peak power 1200 W at 200 V AC to 277 V
AC input
HP 1200W Common Slot 380VDC Hot Plug Power Supply (94%
efficiency)
Specification Value
Input requirements
—
Rated input voltage 240 V to 380 V DC
Rated input frequency 50 Hz–60 Hz
Specifications 112
Rated input current 5.6 A at 240 V DC
3.5 A at 380 V DC
Rated input power 1320 W at 240 V DC input
1302 W at 380 V DC input
Btus per hour 4505 at 240 V DC input
4444 at 380 V DC input
Power supply output —
Rated steady-state power 1200 W at 240 V AC to 380 V
DC input
Maximum peak power 1200 W at 240 V AC to 380 V
DC input
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply
(94% efficiency)
Specification Value
Input requirements
Rated input voltage 100 to 120 VAC, 200 to
240 VAC
Rated input frequency 50 Hz to 60 Hz
Rated input current 9.1 A at 100 VAC
6.7 A at 200 VAC
Maximum rated input power 897 W at 100V AC input
1321 W at 200V AC input
Btus per hour 3408 at 120V AC input
4433 at 200V to 240V AC input
Power supply output
Rated steady-state power 800 W at 100V AC input
900 W at 120V AC input
1200 W at 200V to 240V AC
input
Maximum peak power 800 W at 100V AC input
900 W at 120V AC input
1200 W at 200V to 240V AC
input
Acronyms and abbreviations 113
Acronyms and abbreviations
AMP
Advanced Memory Protection
FBWC
flash-backed write cache
FDR
fourteen data rate
FIO
Factory Integrated Option
FLR
FlexibleLOM for rack servers
FLR-SFP
FlexibleLOM for rack servers with an SFP+ connector
HP SIM
HP Systems Insight Manager
iLO
Integrated Lights-Out
IML
Integrated Management Log
LFF
large form factor
NEBS
Network Equipment-Building System
NMI
nonmaskable interrupt
Acronyms and abbreviations 114
NVRAM
nonvolatile memory
PCIe
Peripheral Component Interconnect Express
POST
Power-On Self Test
QDR
quad data rate
RBSU
ROM-Based Setup Utility
SAS
serial attached SCSI
SATA
serial ATA
SFF
small form factor
SFP
small form-factor pluggable
TPM
Trusted Platform Module
UID
unit identification
USB
universal serial bus
Documentation feedback 115
Documentation feedback
HP is committed to providing documentation that meets your needs. To help us improve the documentation,
send any errors, suggestions, or comments to Documentation Feedback (mailto:docsfeedback@hp.com).
Include the document title and part number, version number, or the URL when submitting your feedback.
Index 116
1
150W PCIe power cable 80
A
AC power supply 41, 106, 107, 108, 109, 110,
111
access panel 34
air baffle 35
B
battery 73
blue screen event 98
buttons 28, 89
C
cable management arm 30
cables 82
cabling 82, 83
cautions 34
chipset SATA cable 80
components 16, 89
components, identification 16, 89
connectors 89
crash dump analysis 98
CSR (customer self repair) 6, 16
customer self repair (CSR) 6, 16
D
data recovery 63
DC power supply 42
diagnostic tools 86
diagnostics utility 86
diagram, storage and expansion 104
DIMM slot locations 99
DIMMs 72, 99
drive LEDs 100
drives 40, 100
E
electrostatic discharge 33
environmental specifications 105
error messages 86
expansion board retainers 32
expansion boards 64, 65
expansion slot blanks 64
extending server from rack 29
external USB functionality 88
F
fan cage 53
fans 52
FBWC cabling 84
FBWC module 102
FBWC procedures 59, 63
features 89
flash-backed write cache capacitor pack 60
flash-backed write cache module 59
flash-backed write cache procedures 59, 63
FlexibleLOM 54
front panel assembly 57
front panel buttons 91
front panel components 89
front panel LEDs 91
full-length expansion board 32, 65
H
hard drive bays 89
hard drive blanks 40
hard drive cage 56
hard drive LEDs 100
hard drives, determining status of 100
health LEDs 91
heatsink 66
hot-plug fans 30, 102
HP Insight Diagnostics 86, 87
HP technical support 6
I
illustrated parts catalog 16
iLO (Integrated Lights-Out) 87
IML (Integrated Management Log) 87
Insight Diagnostics 86, 87
Integrated Lights-Out (iLO) 87
Index
Index 117
Integrated Management Log (IML) 87
internal USB functionality 88
L
LEDs 93, 100
LEDs, front panel 100
LEDs, hard drive 100
LEDs, SAS hard drive 100
LEDs, troubleshooting 101
M
maintenance 28
management tools 86
mechanical components 16
mechanical specifications 105
memory dump 98
N
NMI header 98
non-hot-plug PCI riser board slot definitions 95
O
operating system crash 98
optical drive 49, 89
optical drive cable 83
P
part numbers 16
PCI riser board definitions 95
PCIe riser blank 36
PCIe riser board 39
PCIe riser cage 37, 38
plastics kit 16
POST error messages 86
power cables 80
power supply 41, 42
power supply backplane 51
power supply blank 41
power supply LEDs 95
power supply specifications 105, 106, 108, 109,
110, 111
powering down 28
preparation procedures 28
processors 68
R
rack bezel 36
RBSU (ROM-Based Setup Utility) 87
rear panel buttons 95
rear panel components 94
rear panel LEDs 95
rear panel, accessing 30
recovering the data from the cache 63
removal and replacement procedures 28
removing server from rack 30
S
safety considerations 33
SAS and SATA device numbers 99
spare part numbers 16, 20
specifications 105, 106, 107, 108, 109, 110, 111
specifications, environmental 105
specifications, mechanical 105
specifications, power 105, 106, 107, 108, 109,
110, 111
specifications, server 105
static electricity 33
storage overview 104
switches 98
symbols on equipment 33
system battery 73
system board components 97
system board replacement 74
system components 20, 89
system maintenance switch 98
system power LED 91
Systems Insight Display 56, 92, 93
Systems Insight Display LEDs 92, 93
T
technical support 6
tools 28
TPM (Trusted Platform Module) 81
troubleshooting 86
U
UID LED 98
USB connector 89
USB support 88
utilities 86
utilities, deployment 87
V
video connector 89
Index 118
W
warnings 34
