Heartland Integrator’s Guide
Release Notes
Table of Contents
List of Tables
List of Figures
Chapter 1: Overview
Chapter 2: General POS Requirements
Chapter 3: Card Brand Information
Chapter 4: E3 Processing Overview
Chapter 5: EMV Processing Overview
Chapter 6: EMV Development Overview
Chapter 7: EMV Terminal Interface
Chapter 8: EMV Parameter Interface
Appendices

Heartland Integrator’s Guide

Version 16.1.1

June 2016

Notice HPS Integrator’s Guide V 16.1.1

Notice

THE INFORMATION CONTAINED HEREIN IS PROVIDED TO RECIPIENT “AS IS” WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, OR WARRANTY OF TITLE OR NON-INFRINGEMENT. ALL SUCH WARRANTIES

ARE EXPRESSLY DISCLAIMED.

HEARTLAND PAYMENT SYSTEMS SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF

ANY INFORMATION CONTAINED HEREIN, WHETHER RESULTING FROM BREACH OF

CONTRACT, BREACH OF WARRANTY, NEGLIGENCE, OR OTHERWISE, EVEN IF

HEARTLAND PAYMENT SYSTEMS HAS BEEN AISED OF THE POSSIBILITY OF SUCH

DAMAGES. HEARTLAND PAYMENT SYSTEMS RESERVES THE RIGHT TO MAKE

CHANGES TO THE INFORMATION CONTAINED HEREIN AT ANY TIME WITHOUT NOTICE.

THIS DOCUMENT AND ALL INFORMATION CONTAINED HEREIN IS PROPRIETARY

HEARTLAND PAYMENT SYSTEMS INFORMATION. UNDER ANY CIRCUMSTANCES,

RECIPIENT SHALL NOT DISCLOSE THIS DOCUMENT OR THE SYSTEM DESCRIBED

HEREIN TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF A DULY

AUTHORIZED REPRESENTATIVE OF HEARTLAND PAYMENT SYSTEMS. IN ORDER TO

PROTECT THE CONFIDENTIAL NATURE OF THIS PROPRIETARY INFORMATION,

RECIPIENT AGREES:

(A) TO IMPOSE IN WRITING SIMILAR OBLIGATIONS OF CONFIDENTIALITY AND

NONDISCLOSURE AS CONTAINED HEREIN ON RECIPIENT’S EMPLOYEES AND

AUTHORIZED THIRD PARTIES TO WHOM RECIPIENT DISCLOSES THIS

INFORMATION (SUCH DISCLOSURE TO BE MADE ON A STRICTLY NEED-TO-KNOW

BASIS) PRIOR TO SHARING THIS DOCUMENT AND

(B) TO BE RESPONSIBLE FOR ANY BREACH OF CONFIDENTIALITY BY THOSE

EMPLOYEES AND THIRD PARTIES TO WHOM RECIPIENT DISCLOSES THIS

INFORMATION.

RECIPIENT ACKNOWLEDGES AND AGREES THAT USE OF THE INFORMATION

CONTAINED HEREIN SIGNIFIES ACKNOWLEDGEMENT AND ACCEPTANCE OF THESE

TERMS. ANY SUCH USE IS CONDITIONED UPON THE TERMS, CONDITIONS AND

OBLIGATIONS CONTAINED WITHIN THIS NOTICE.

THE TRADEMARKS AND SERVICE MARKS RELATING TO PRODUCTS OR SERVICES OF

HEARTLAND PAYMENT SYSTEMS OR OF THIRD PARTIES ARE OWNED BY HEARTLAND

PAYMENT SYSTEMS OR THE RESPECTIVE THIRD PARTY OWNERS OF THOSE MARKS,

AS THE CASE MAY BE, AND NO LICENSE WITH RESPECT TO ANY SUCH MARK IS EITHER

GRANTED OR IMPLIED.

To verify existing content or to obtain additional information, please call or email your assigned

Heartland Payment Systems contact.

HPS Integrator’s Guide V 16.1.1 Release Notes

Release Notes

Version 16.1.1 Release Notes

Version Release Date Revisions

16.1.1 June-2016 General release clarification updates:

• Correction to the PRIMARY ACCOUNT NUMBER - minimum length is 16

digits:

– Table 3-20 MasterCard Track 1 Format, pg. 49

– Table 3-21 MasterCard Track 2 Format, pg. 49

– Table 3-22 MasterCard Fleet Track 1 Format, pg. 51

– Table 3-23 MasterCard Fleet Track 2 Format, pg. 52

– Table 3-24 MasterCard Purchasing Track 1 Format, pg. 53

– Table 3-25 MasterCard Purchasing Track 2 Format, pg. 54

• Added clarification that EMV Void request should contain the ‘final’ chip data

from the original authorization:

– Table 5-11 Full vs. Partial Credit Transactions, pg. 98

– Table 5-12 Full vs. Partial Debit Transactions, pg. 99

• Table A-15 Multi Service BIN Ranges, pg. 246: Updated bin ranges.

Removed Multi Service Government Air card bin ranges, as this card is no

longer used.

Release Notes HPS Integrator’s Guide V 16.1.1

HPS Integrator’s Guide V 16.1.1 Table of Contents

Table of Contents

Chapter 1: Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1.2 Document Purpose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1.3 Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1.4 Payment Application Data Security Standards (PA-DSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 2: General POS Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.1 Address Verification Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

AVS Data Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

AVS Result Code Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.2 Chargeback Protected Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.3 No Signature Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.4 Binary to ASCII Hex Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Chapter 3: Card Brand Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.2 American Express . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

American Express Track 1 Format X4.16 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

American Express Track 1 Format ISO 7813 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

American Express Track 2 Format X4.16 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

American Express Track 2 Format ISO 7813 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.3 AVcard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

AVcard Track 1 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

AVcard Track 2 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.4 Centego Prepaid Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Centego Prepaid Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Centego Prepaid Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3.5 Discover Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Discover Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Discover Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

3.6 Diner’s Club International Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Diner’s Club International Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Diner’s Club International Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

3.7 Drop Tank Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Drop Tank Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Drop Tank Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

3.8 Heartland Gift Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Heartland Gift Card Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table of Contents HPS Integrator’s Guide V 16.1.1

3.9 EBT Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

EBT Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

3.10 Fleet One Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Fleet One Track 2 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

3.11 FleetCor Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

FleetCor Track 2 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

3.12 JCB Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

JCB IIN Ranges on Discover Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

3.13 MasterCard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

MasterCard Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

MasterCard Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3.14 MasterCard Fleet Card Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

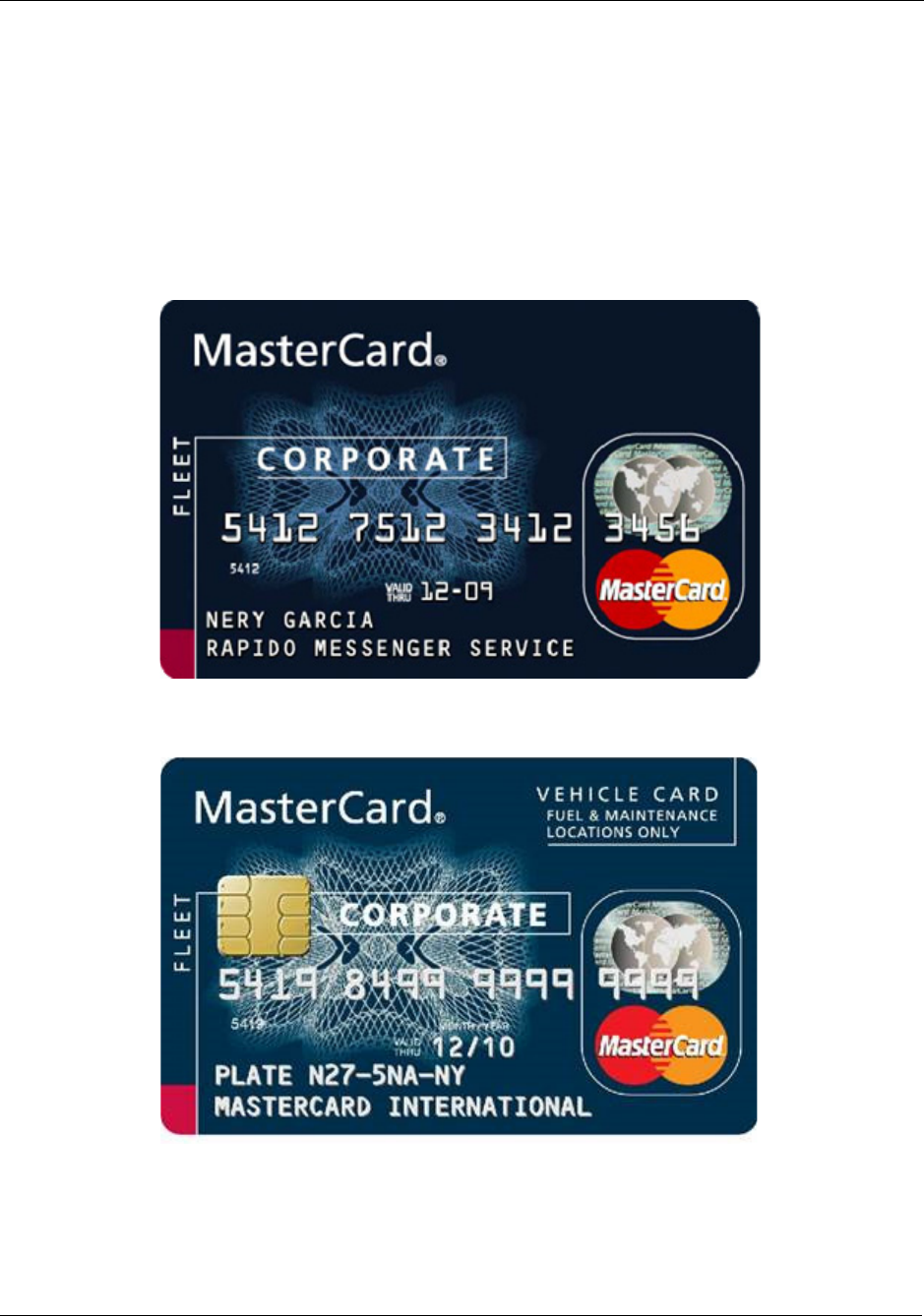

MasterCard Fleet Card Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

MasterCard Fleet Track 1 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

MasterCard Fleet Track 2 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

3.15 MasterCard Purchasing Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

MasterCard Purchasing Card Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

MasterCard Purchasing Track 1 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

MasterCard Purchasing Track 2 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

3.16 Multi Service Track Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Multi Service Swiped Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

3.17 PayPal Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

3.18 Stored Value Solutions (SVS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

SVS Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

SVS Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

3.19 UnionPay Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

3.20 ValueLink Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

ValueLink Track 1 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

ValueLink Track 2 Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

3.21 VISA Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

VISA Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

VISA Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

3.22 VISA Corporate or Business. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

3.23 VISA Purchasing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

3.24 VISA Fleet Card Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

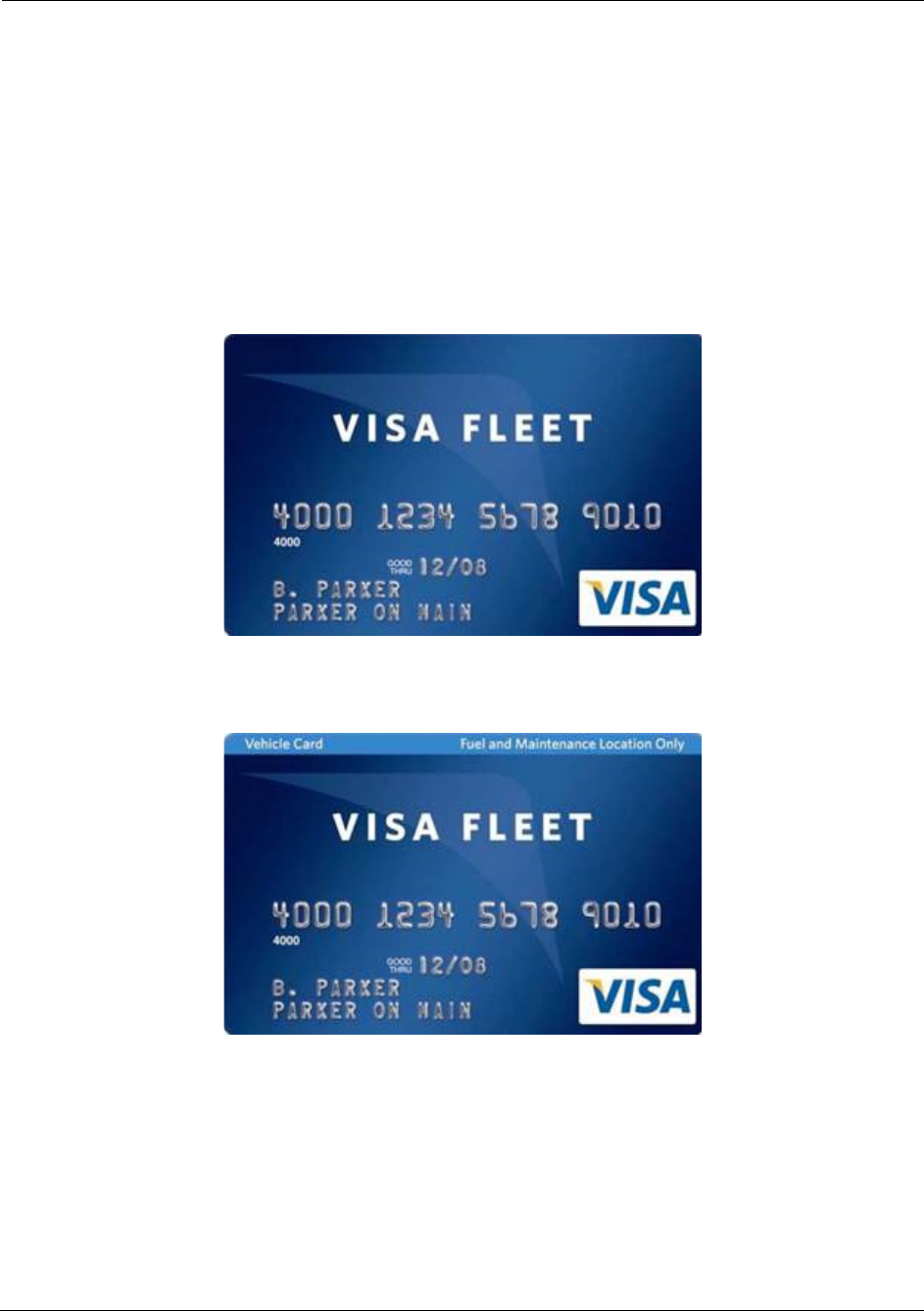

VISA Fleet Card Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

VISA Fleet Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

VISA Fleet Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

3.25 Voyager Fleet Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Voyager Fleet Track 1 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Voyager Fleet Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

3.26 WEX Fleet Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

HPS Integrator’s Guide V 16.1.1 Table of Contents

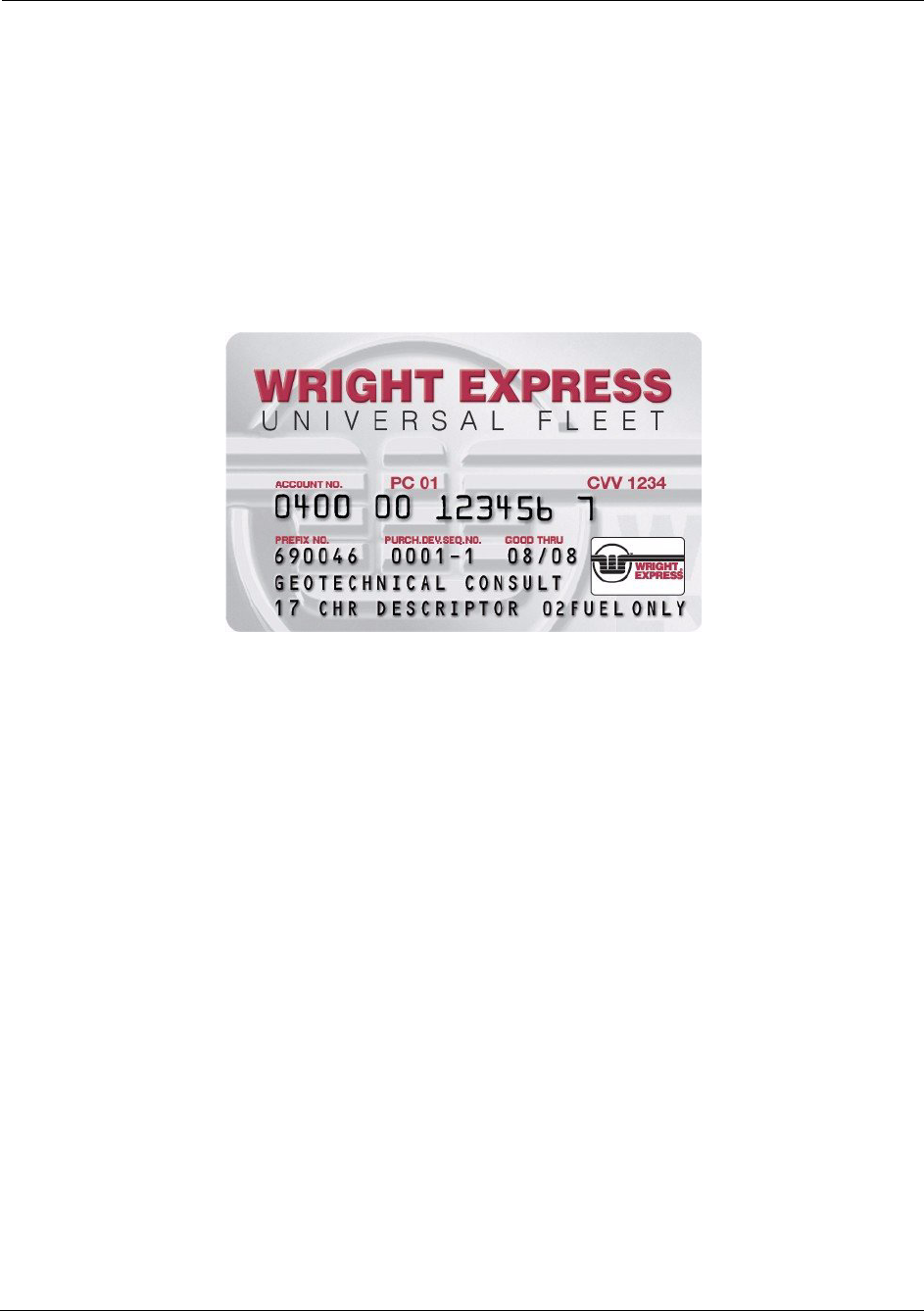

WEX Fleet Card Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

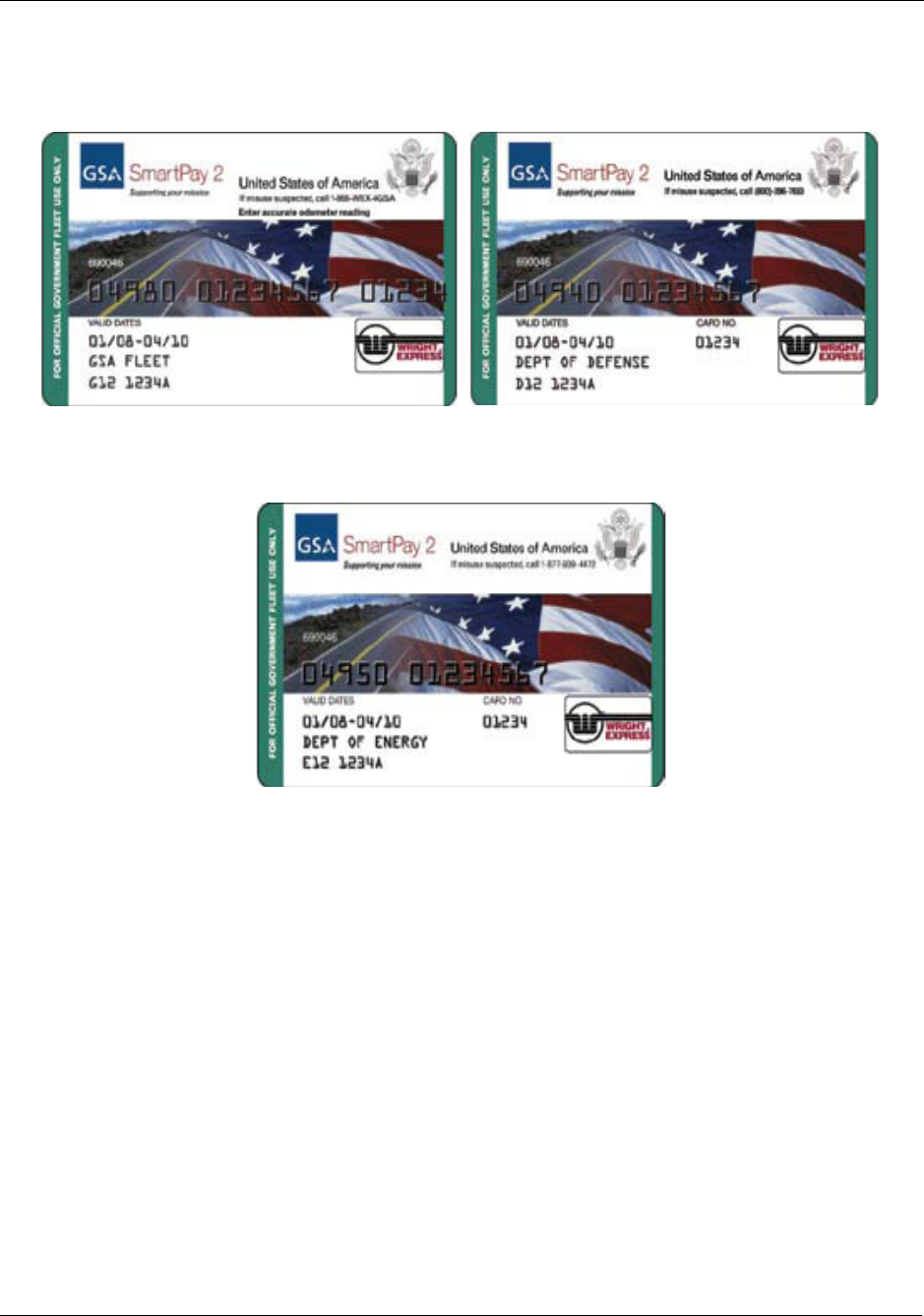

WEX GSA Fleet Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

WEX Fleet Track 2 Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

WEX MOD 10 Calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Chapter 4: E3 Processing Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

4.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

4.2 The E3® Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

4.3 Encryption Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Encrypted Track and PAN Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Encrypted Card Security Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Encryption Transmission Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

4.4 E3 Specific Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Heartland Exchange. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Unique Transaction ID (UID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Merchant ID Number (MID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Account Data Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Customer Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Retrieval Reference Number (RRN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Transaction Identifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Authorization Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Void/Incremental Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Settlements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Header Record Field Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Detail Record Fields Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Settlement Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

POS 8583. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

NTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Z01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

4.5 E3 Hardware Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

E3 MSR Wedge (HPS-E3-M1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

E3 MSR Wedge Device Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

E3 MSR Wedge Example Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

4.6 E3 PIN Pad (HPS-E3-P1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

E3 PIN Pad Device Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

E3 PIN Pad Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

E3 PIN Pad Responses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Ingenico iPP300 and iSC Touch Series PIN Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Equinox L4000 and L5000 Series PIN Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Chapter 5: EMV Processing Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

5.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

5.2 EMV Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Table of Contents HPS Integrator’s Guide V 16.1.1

Enhanced Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Card Brand Mandates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Fraud Liability Shifts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

PCI Audit Waivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

5.3 EMV Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Contact Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Contactless Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Heartland Host Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

5.4 EMV Online vs. Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Card Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Cardholder Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Authorization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

5.5 Full vs. Partial EMV Transactions and Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Full vs. Partial Transaction Flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Full vs. Partial Credit Transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Full vs. Partial Debit Transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Chapter 6: EMV Development Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

6.1 EMV Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Contact Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Contactless Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Letters of Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

6.2 EMV Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Standalone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

6.3 EMV Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Test Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Test Plans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

VISA Smart Debit/Credit (VSDC) Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

MasterCard Terminal Integration Process (M-TIP) Testing . . . . . . . . . . . . . . . . . . . . . . . . . . 104

American Express Integrated Circuit Card Payment Specification (AEIPS) Testing . . . . . . . 105

Discover D-Payment Application Specification (D-PAS) Testing . . . . . . . . . . . . . . . . . . . . . . 105

Test Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Test Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Test Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

6.4 EMV Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Chapter 7: EMV Terminal Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

7.1 EMV Terminal to Card Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Application Protocol Data Units (APDUs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Tag, Length, Value (TLV) Data Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Kernel Application Programming Interface (API) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

7.2 EMV Data Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

HPS Integrator’s Guide V 16.1.1 Table of Contents

Data Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Terminal Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Card Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Issuer Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

7.3 Contact Transaction Flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Tender Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Card Acquisition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Card Swipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Fallback Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Application Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Available AIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Debit AIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Initiate Application Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Read Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Offline Data Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Processing Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Cardholder Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

PIN Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Terminal Risk Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Terminal Action Analysis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Card Action Analysis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Online Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Offline Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Deferred Authorization (Store-and-Forward). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Forced Acceptance (Stand-In). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Issuer Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Issuer-to-Card Script Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Completion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Card Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

7.4 Contactless Transaction Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Pre-Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Discovery Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Application Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Initiate Application Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Path Determination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Terminal Risk Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Terminal Action Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Card Action Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Read Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Card Read Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Processing Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Offline Data Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Cardholder Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Online Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Table of Contents HPS Integrator’s Guide V 16.1.1

Completion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Issuer Update Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

7.5 EMV Receipts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Approval Receipts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Decline Receipts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Chapter 8: EMV Parameter Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

8.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

8.2 Exchange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

8.3 POS 8583 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

8.4 NTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

8.5 Z01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

8.6 Portico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

8.7 SpiDr. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Appendices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

A: Card Association BIN Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

VISA BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

VISA Purchasing BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

VISA Fleet BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

VISA Corporate or Business BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

VISA ReadyLink BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

MasterCard BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

MasterCard Purchasing BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

MasterCard Corporate BIN Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

MasterCard Fleet BIN Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

American Express BIN Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

Discover IIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

PayPal IIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Fleet Card BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

Stored Value Solutions (SVS) BIN Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

Centego Prepaid BIN Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Drop Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Debit BIN Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

EBT BIN Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

B: Industry Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Conexxus Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

MasterCard Purchasing Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

MasterCard Purchasing Fuel Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

MasterCard Purchasing Non-Fuel Product Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

MasterCard Fleet Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

MasterCard Fleet Fuel Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

HPS Integrator’s Guide V 16.1.1 Table of Contents

MasterCard Fleet Non-Fuel Product Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Heartland Product Codes for VISA Fleet Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

Fuel Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

Non-Fuel Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272

Voyager Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

Voyager Fuel Product Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

Voyager Non-Fuel Product Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274

WEX Supported Conexxus Product Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

C: Receipt Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289

General Receipt Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289

Additional Receipt Requirements by Card Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290

D: State Codes / Region Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

E: EMV Field Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Additional Terminal Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296

Amount, Authorised (Numeric) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296

Amount, Other (Numeric) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297

Application Cryptogram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297

Application Dedicated File (ADF) Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

Application Identifier (AID) – Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

Application Interchange Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

Application Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300

Application Preferred Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300

Application Primary Account Number (PAN) Sequence Number . . . . . . . . . . . . . . . . . . . . . . . . . 301

Application Transaction Counter (ATC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Application Usage Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

Application Version Number (ICC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

Application Version Number (Terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

Authorisation Response Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303

Cardholder Verification Method (CVM) Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304

Cryptogram Information Data (CID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304

Customer Exclusive Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

Dedicated File Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

Form Factor Indicator (FFI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

ICC Dynamic Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

Interface Device (IFD) Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

Issuer Action Code – Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

Issuer Action Code – Denial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Issuer Action Code – Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Issuer Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

Issuer Authentication Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

Issuer Country Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

Issuer Script Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

Issuer Script Template 1 & 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

Table of Contents HPS Integrator’s Guide V 16.1.1

POS Entry Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

Terminal Action Code – Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312

Terminal Action Code – Denial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312

Terminal Action Code – Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

Terminal Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313

Terminal Country Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Terminal Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

Terminal Verification Results (TVR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

Third Party Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315

Transaction Currency Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

Transaction Date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

Transaction Sequence Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

Transaction Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

Transaction Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318

Transaction Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318

Unpredictable Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319

F: EMV PDL Data Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

G: Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364

H: Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388

HPS Integrator’s Guide V 16.1.1 List of Tables

List of Tables

2-1 Address Verification Service .......................................................................................................21

2-2 Chargeback Protected Limits......................................................................................................23

2-3 Binary to ASCII Hex Conversion.................................................................................................25

2-4 Binary ASCII Hex Conversion Example......................................................................................26

3-1 Card Brand References to BIN Ranges and Track Data ............................................................27

3-2 American Express Track 1 Format X4.16 Standard ...................................................................30

3-3 American Express Track 1 Format ISO 7813 Standard..............................................................31

3-4 American Express Track 2 Format X4.16 Standard ...................................................................33

3-5 American Express Track 2 Format ISO 7813 Standard..............................................................34

3-6 AVcard Track 1 Format...............................................................................................................36

3-7 AVcard Track 2 Format...............................................................................................................36

3-8 Centego Prepaid Track 1 Format................................................................................................37

3-9 Centego Prepaid Track 2 Format................................................................................................38

3-10 Discover Track 1 Format.............................................................................................................39

3-11 Discover Track 2 Format.............................................................................................................40

3-12 Diner’s Club International Track 1 Format ..................................................................................41

3-13 Diner’s Club International Track 2 Format ..................................................................................42

3-14 Drop Tank Track 1 Format..........................................................................................................43

3-15 Drop Tank Track 2 Format..........................................................................................................43

3-16 Heartland Gift Card Track 2 Format............................................................................................44

3-17 EBT Track 2 Format....................................................................................................................45

3-18 Fleet One Track 2 Format...........................................................................................................46

3-19 FleetCor Track 2 Format.............................................................................................................47

3-20 MasterCard Track 1 Format........................................................................................................49

3-21 MasterCard Track 2 Format........................................................................................................49

3-22 MasterCard Fleet Track 1 Format...............................................................................................51

3-23 MasterCard Fleet Track 2 Format...............................................................................................52

3-24 MasterCard Purchasing Track 1 Format.....................................................................................53

3-25 MasterCard Purchasing Track 2 Format.....................................................................................54

3-26 Multi Service Swiped Track 2 Format .........................................................................................55

3-27 SVS Track 1 Format ...................................................................................................................56

3-28 SVS Track 2 Format ...................................................................................................................56

3-29 ValueLink Track 1 Format...........................................................................................................57

3-30 ValueLink Track 2 Format...........................................................................................................58

3-31 VISA Track 1 Format ..................................................................................................................59

3-32 VISA Track 2 Format ..................................................................................................................60

3-33 VISA Fleet Track 1 Format .........................................................................................................62

3-34 VISA Fleet Track 2 Format .........................................................................................................63

3-35 Voyager Fleet Track 1 Format ....................................................................................................65

3-36 Voyager Fleet Track 2 Format ....................................................................................................66

3-37 WEX Fleet Track 2 Format .........................................................................................................69

List of Tables HPS Integrator’s Guide V 16.1.1

4-1 PAN Encryption...........................................................................................................................72

4-2 Track 1 Encryption ......................................................................................................................72

4-3 Track 2 Encryption ......................................................................................................................72

4-4 Encrypted CSC Steps .................................................................................................................73

4-5 Authorization Examples ..............................................................................................................76

4-6 POS 8583 Data Fields ................................................................................................................79

4-7 NTS Data Fields..........................................................................................................................81

4-8 Z01 Data Fields...........................................................................................................................83

4-9 E3 MSR Wedge Operation Modes..............................................................................................85

4-10 E3 MSR Wedge Operation Modes..............................................................................................87

5-1 Key Security Features.................................................................................................................92

5-2 Liability Shifts ..............................................................................................................................93

5-3 Contact Specifications ................................................................................................................94

5-4 Contactless Specifications ..........................................................................................................95

5-5 Heartland Host Specifications.....................................................................................................95

5-6 Card Authentication ....................................................................................................................96

5-7 Cardholder Verification ...............................................................................................................96

5-8 Authorization ...............................................................................................................................96

5-9 Full vs. Partial EMV Transactions and Flow ...............................................................................97

5-10 Full vs. Partial Transaction Flow .................................................................................................97

5-11 Full vs. Partial Credit Transactions .............................................................................................98

5-12 Full vs. Partial Debit Transactions ..............................................................................................99

6-1 Integrated Solutions ..................................................................................................................102

6-2 VSDC Testing ...........................................................................................................................104

6-3 M-TIP Testing ...........................................................................................................................104

6-4 AEIPS Testing...........................................................................................................................105

6-5 D-PAS Testing ..........................................................................................................................105

6-6 Test Environments ....................................................................................................................107

6-7 Test Process .............................................................................................................................107

7-1 Command APDU Format ..........................................................................................................109

7-2 Response APDU Format ..........................................................................................................109

7-3 Data Conventions .....................................................................................................................111

7-4 Terminal Data ...........................................................................................................................112

7-5 Card Data..................................................................................................................................121

7-6 Issuer Data................................................................................................................................129

7-7 Tender Processing....................................................................................................................131

7-8 Fallback Processing..................................................................................................................132

7-9 Application Selection.................................................................................................................133

7-10 Supported Application Methods ................................................................................................134

7-11 Offline Data Authentication .......................................................................................................137

7-12 Processing Restrictions ............................................................................................................138

7-13 Cardholder Verification .............................................................................................................138

7-14 PIN Support ..............................................................................................................................139

7-15 Terminal Risk Management ......................................................................................................140

HPS Integrator’s Guide V 16.1.1 List of Tables

7-16 Terminal Action Analysis...........................................................................................................140

7-17 Online or Offline Disposition .....................................................................................................145

7-18 Contact EMV Flow Differences .................................................................................................148

7-19 Card Verification .......................................................................................................................150

7-20 Receipt Requirements ..............................................................................................................151

8-1 EMV PDL Tables ......................................................................................................................153

A-1 VISA Purchasing BIN Ranges ..................................................................................................158

A-2 VISA Fleet BIN Ranges ............................................................................................................161

A-3 VISA Corporate or Business BIN Ranges.................................................................................162

A-4 VISA ReadyLink BIN Ranges ...................................................................................................229

A-5 MasterCard Purchasing BIN Ranges........................................................................................235

A-6 MasterCard Corporate BIN Ranges..........................................................................................237

A-7 MasterCard Fleet BIN Ranges..................................................................................................243

A-8 American Express BIN Ranges ................................................................................................243

A-9 Discover IIN Ranges .................................................................................................................244

A-10 PayPal IIN Ranges....................................................................................................................244

A-11 Voyager BIN Ranges ................................................................................................................245

A-12 WEX BIN Ranges .....................................................................................................................245

A-13 FleetCor BIN Ranges................................................................................................................245

A-14 Fleet One BIN Range................................................................................................................245

A-15 Multi Service BIN Ranges .........................................................................................................246

A-16 AVCard BIN Range...................................................................................................................246

A-17 SVS BIN Ranges ......................................................................................................................246

A-18 Centego Prepaid BIN Range ....................................................................................................247

A-19 Drop Tank BIN Range...............................................................................................................247

A-20 EBT BIN Ranges.......................................................................................................................247

B-1 Conexxus Product Codes .........................................................................................................251

B-2 MasterCard Purchasing Fuel Product Codes ...........................................................................264

B-3 MasterCard Purchasing Non-Fuel Product Codes....................................................................266

B-4 MasterCard Fleet Fuel Product Codes .....................................................................................268

B-5 MasterCard Fleet Non-Fuel Product Codes..............................................................................269

B-6 Fuel Product Codes ..................................................................................................................270

B-7 Non-Fuel Product Codes ..........................................................................................................272

B-8 WEX Supported Conexxus Product Codes ..............................................................................280

C-1 Additional Receipt Requirements by Card Types .....................................................................290

D-1 State Codes ..............................................................................................................................292

D-2 Region Codes: Canada (Province Codes)................................................................................294

E-1 POS 8583: Binary Example ......................................................................................................295

E-2 Exchange, Portico, NTS, Z01, SpiDr: ASCII Hex Example.......................................................295

E-3 Additional Terminal Capabilities................................................................................................296

E-4 Amount, Authorised (Numeric)..................................................................................................296

E-5 Amount, Other (Numeric)..........................................................................................................297

E-6 Application Cryptogram.............................................................................................................297

E-7 Application Dedicated File (ADF) Name ...................................................................................298

List of Tables HPS Integrator’s Guide V 16.1.1

E-8 Application Identifier (AID) – Terminal ......................................................................................299

E-9 Application Interchange Profile .................................................................................................299

E-10 Application Label.......................................................................................................................300

E-11 Application Preferred Name......................................................................................................300

E-12 Application Primary Account Number Sequence Number ........................................................301

E-13 Application Transaction Counter (ATC) ....................................................................................301

E-14 Application Usage Control ........................................................................................................302

E-15 Application Version Number (ICC)............................................................................................302

E-16 Application Version Number (Terminal) ....................................................................................303

E-17 Authorisation Response Code ..................................................................................................303

E-18 Cardholder Verification Method (CVM) Results ........................................................................304

E-19 Cryptogram Information Data (CID) ..........................................................................................304

E-20 Customer Exclusive Data..........................................................................................................305

E-21 Dedicated File Name ................................................................................................................305

E-22 Form Factor Indicator................................................................................................................306

E-23 ICC Dynamic Number ...............................................................................................................306

E-24 Interface Device (IFD) Serial Number.......................................................................................307

E-25 Issuer Action Code – Default ....................................................................................................307

E-26 Issuer Action Code – Denial .....................................................................................................308

E-27 Issuer Action Code – Online .....................................................................................................308

E-28 Issuer Application Data .............................................................................................................309

E-29 Issuer Authentication Data........................................................................................................309

E-30 Issuer Country Code .................................................................................................................310

E-31 Issuer Script Results .................................................................................................................310

E-32 Issuer Script Template 1 & 2.....................................................................................................311

E-33 POS Entry Mode .......................................................................................................................311

E-34 Terminal Action Code – Default ................................................................................................312

E-35 Terminal Action Code – Denial .................................................................................................312

E-36 Terminal Action Code – Online .................................................................................................313

E-37 Terminal Capabilities ................................................................................................................313

E-38 Terminal Country Code.............................................................................................................314

E-39 Terminal Type ...........................................................................................................................314

E-40 Terminal Verification Results (TVR)..........................................................................................315

E-41 Third Party Data........................................................................................................................315

E-42 Transaction Currency Code ......................................................................................................316

E-43 Transaction Data.......................................................................................................................316

E-44 Transaction Sequence Counter ................................................................................................317

E-45 Transaction Status Information .................................................................................................317

E-46 Transaction Time ......................................................................................................................318

E-47 Transaction Type ......................................................................................................................318

E-48 Unpredictable Number ..............................................................................................................319

F-1 EMV PDL Data Examples .........................................................................................................320

G-1 Glossary....................................................................................................................................364

HPS Integrator’s Guide V 16.1.1 List of Figures

List of Figures

3-1 MasterCard Fleet Card: Driver Assigned Example .....................................................................50

3-2 MasterCard Fleet Card: Vehicle Assigned Example...................................................................50

3-3 VISA Fleet Card: Driver Assigned Example................................................................................61

3-4 VISA Fleet Card: Vehicle Assigned Example .............................................................................61

3-5 WEX Fleet Card Example ...........................................................................................................67

3-6 WEX GSA Fleet ..........................................................................................................................68

3-7 WEX Dept. of Defence Fleet.......................................................................................................68

3-8 WEX Dept. of Energy Fleet.........................................................................................................68

4-1 E3 MSR Wedge ..........................................................................................................................84

4-2 E3 PIN Pad .................................................................................................................................86

7-1 Contact Transaction Flow .........................................................................................................130

7-2 Contactless Transaction Flow...................................................................................................147

7-3 EMV Receipt Example ..............................................................................................................152

List of Figures HPS Integrator’s Guide V 16.1.1

HPS Integrator’s Guide V 16.1.1 1: Overview

Chapter 1: Overview

1.1 Introduction

Heartland Payment Systems, Inc. (Heartland) is a leading third-party provider of payment card

transaction processing, providing the following services:

• Host Network transaction services

• Bank Card, Fleet, Debit and Private Label card processing

• Mobile and e-commerce solutions

• Settlement processing

1.2 Document Purpose

The purpose of this document is to provide information in order to integrate a POS system to

Heartland. Topics include:

1.3 Audience

The primary audience for this document consists of third-party vendors responsible for

developing POS payment systems to interface with Heartland network. The secondary audience

consists of Heartland internal staff responsible for certifying or supporting POS payment

applications. All users of this document are assumed to have a basic understanding of POS

applications.

•General POS Requirements •Card Association BIN Ranges

•Card Brand Information •Industry Codes

•E3 Processing Overview •Receipt Requirements

•EMV Processing Overview •State Codes / Region Codes

•EMV Development Overview •EMV Field Definitions

•EMV Terminal Interface •EMV PDL Data Examples

•EMV Parameter Interface •Glossary

REQUIREMENT

This document is to be used along with Heartland’s Network platform specifications

(Exchange, POS 8583, NTS, Z01, Portico, SpiDr). Information found in the Network

specifications could override content within this document.

1: Overview HPS Integrator’s Guide V 16.1.1

1.4 Payment Application Data Security

Standards (PA-DSS)

The Payment Card Industry (PCI) Security Standards Council (SSC) has released the Payment

Application Data Security Standards (PA-DSS) for payment applications running at merchant

locations. The PA-DSS assist software vendors to ensure their payment applications support

compliance with the mandates set by the Bank Card Companies (VISA, MasterCard, Discover,

American Express, and JCB).

In order to comply with the mandates set by the bank card companies, Heartland Payment

Systems:

• Requires that the account number cannot be stored as plain, unencrypted data to meet PCI

and PA-DSS regulations. It must be encrypted while stored using strong cryptography with

associated key management processes and procedures.

Note: Refer to PCI DSS Requirements 3.4–3.6* for detailed requirements regarding

account number storage. The retention period for the Account Number in the

shadow file and open batch must be defined and at the end of that period or when

the batch is closed and successfully transmitted, the account number and all other

information must be securely deleted. This is a required process regardless of the

method of transmission for the POS.

• Requires that, with the exception of the Account Number as described above and the

Expiration Date, no other Track Data is to be stored on the POS if the Card Type is a:

VISA, including VISA Fleet; MasterCard, including MasterCard Fleet; Discover, including

JCB, UnionPay, Carte Blanche, Diner's Club, and PayPal; American Express; Debit or

EBT. This requirement does not apply to WEX, FleetCor, Fleet One, Voyager, or Aviation

cards; Stored Value cards; Proprietary or Private Label cards.

• Recommends that software vendors to have their applications validated by an approved

third party for PA-DSS compliance.

• Requires all software vendors to sign a Non-Disclosure Agreement / Development

Agreement.

• Requires all software vendors to provide evidence of the application version listed on the

PCI Council’s website as a PA-DSS validated Payment Application, or a written certification

to HPS testing to Developer's compliance with PA-DSS.

• Requires that all methods of cryptography provided or used by the payment application

meet PCI SSC’s current definition of ‘Strong Cryptography’.

*Refer to www.pcisecuritystandards.org for the PCI DSS Requirements document and further

details about PA-DSS.

HPS Integrator’s Guide V 16.1.1 2: General POS Requirements

Chapter 2: General POS Requirements

2.1 Address Verification Service

Visa, MasterCard, AMEX and Discover offer an Address Verification Service (AVS) as a

risk-management tool for merchants accepting transactions in which:

• neither the card nor the cardholder are present (e.g., mail, telephone order, Internet

transactions), or

• the card is present but its magnetic stripe cannot be read by a terminal at the point of sale.

AVS helps reduce the risk of accepting fraudulent transactions by issuer verification of the

cardholder’s billing address. The AVS Result Code helps the merchant determine whether to

accept a particular transaction or to take further follow-up action.

When a merchant accepts a card-not-present transaction, financial liability is also accepted by

the merchant in the event the transaction proves to be fraudulent. If the transaction is fraudulent,

the dollar value of the transaction may be “charged back” to the merchant. In addition to the

“charge back,” there are additional costs to process these exception items, plus the loss of

merchandise.

Table 2-1 Address Verification Service

AVS Request Description

Address Verification

Request

Address verification may be requested in one of two ways:

• by itself, or

• as part of an authorization request.

AVS By Itself (AVS Only) An AVS only request may be used under the following circumstances:

• a merchant wants to verify the customer’s billing address before requesting an

authorization, or

• the merchant sent an AVS and an authorization request earlier and received

an authorization approval but an AVS “try again later” response.

2: General POS Requirements HPS Integrator’s Guide V 16.1.1

2.1.1 AVS Data Flow

2.1.2 AVS Result Code Guidelines

Not all Heartland POS message specifications support AVS Result Codes. See your specific

POS message specification for details.

For some industries, if the AVS Result Code is not a match, the payment engine automatically

declines and voids the transaction to the issuer.

For other industries, the merchant makes the decision on whether to proceed when the AVS

information is not an exact match, but the issuer approves the authorization request. See you

Heartland Representative for more information.

AVS Authorization

Request

You may process AVS requests the same way you process authorizations simply

by including the AVS information in the authorization request. The authorization

and address verification process is as follows:

• Customer contacts the merchant to place an order.

• The merchant confirms the usual order information including the merchandise

description, price, the customer’s account number, card expiration date, and

shipping address.

• The merchant requests the cardholder’s billing address (street address and/or

ZIP Code) for the card being used. (The billing address is where the

cardholder’s monthly statement is sent for the card being used.)

• The POS system includes the address information with the authorization

request to Heartland.

• The issuer makes an authorization decision separately from the AVS request.

The issuer compares the cardholder billing address with the billing address it

has for that account. The issuer returns both the authorization response and a

code indicating the address verification results. Like any other transaction, if

the issuer declines the authorization request do not complete the transaction

for that account. This rule holds true even if you receive an “exact match” on

the address verification request.

Table 2-1 Address Verification Service (Continued)

AVS Request Description

CARDHOLDER MERCHANT HEARTLAND CARD BRAND

NETWORK ISSUER

HPS Integrator’s Guide V 16.1.1 2: General POS Requirements

2.2 Chargeback Protected Limits

The following amounts are the ICR-initiated chargeback protected amounts for approved

transactions by the bank card associations.

The merchant may choose to override these amounts. Any amount above the limits listed will not

include Chargeback Protection.

The merchant is at risk for any amount above these limits.

Table 2-2 Chargeback Protected Limits

Card Type Description

VISA • VISA Consumer (including VISA Signature and Sign Preferred), VISA

Business (including VISA Signature Business), VISA Corporate, and

VISA Purchasing cards offer Chargeback Protection to $100 if the card

has been authorized for $1.00.

• VISA Fleet cards offer Chargeback Protection to $150 if the card has

been authorized for $1.00.

MasterCard • MasterCard Consumer cards offer Chargeback Protection to $100 if the

card has been authorized for $1.00.

• MasterCard Corporate, MasterCard Corporate Fleet, and MasterCard

Purchasing cards offer Chargeback Protection to $150 if the card has

been authorized for $1.00.

Discover Card • Discover Card offers Chargeback Protection to $100 if the card has been

authorized for $1.00. If the merchant has a custom agreement with

Discover to authorize for a different amount, chargeback protection is the

approved amount.

American Express • American Express does not offer Chargeback Protection.

2: General POS Requirements HPS Integrator’s Guide V 16.1.1

2.3 No Signature Required

No Signature Required is a program offered by Visa, MasterCard, AMEX and Discover for

consumer and commercial cards. The No Signature Required program allows merchants within

certain MCC codes to process transactions without having to obtain the cardholders signature or

provide the cardholder with a receipt unless the cardholder requests it.

In order to be eligible for No Signature Required, the following conditions must be met:

• The cardholder must be present at the time of the transaction in a face-to-face

environment.

• The merchant name and location must be included in the authorization request.

• The total amount of the transaction must be less than the No Signature Required threshold

for the merchant’s MCC. Refer to the individual card associations for current information

about amounts, MCCs allowed, etc.

• Online authorization must be obtained and the full track data must be included in the

authorization message. The track data can be obtained from the chip for EMV transactions

or from the magnetic stripe for swiped transactions.

To process a No Signature Required transaction with a chip card (on a chip-card-capable POS

terminal), the terminal application must set the Terminal Capabilities field to enable only the No

CVM Required card verification method (CVM). This action will cause the chip card not to require

a CVM.

HPS Integrator’s Guide V 16.1.1 2: General POS Requirements

2.4 Binary to ASCII Hex Conversion

Since some the Host message formats allow for only printable characters to appear in

transaction data fields. Binary fields must be expanded to ensure that no values less than

hexadecimal 20 are transmitted.

To convert a binary field to its corresponding ASCII equivalent, remove 4 bits at a time and

convert them to the ASCII characters defined below. Performing this conversion procedure will

result in a doubling of the field size, i.e., a 20-digit binary field will yield a 40-character ASCII

result. After performing the conversion, the resulting ASCII data may then be populated within

the transaction data field.

Table 2-3 Binary to ASCII Hex Conversion

BIT Data ASCII Hex Characters

0000 0

0001 1

0010 2

0011 3

0100 4

0101 5

0110 6

0111 7

1000 8

1001 9

1010 A

1011 B

1100 C

1101 D

1110 E

1111 F

2: General POS Requirements HPS Integrator’s Guide V 16.1.1

The table below shows examples of data before conversion as well as after the ASCII conversion

as the data moves from the POS to the Host.

The order of the fields is arbitrary and the values used below are only provided as an example.

Table 2-4 Binary ASCII Hex Conversion Example

Field Name RED is Before Conversion BLUE is after conversion

UNPREDICTABLE

NUMBER

Tag 9F 37 Tag 39463337

Length 04 Length 3034

Value 00010203 Value 3030303130323033

ISSUER APPLICATION

DATA

Tag 9F 10 Tag 39463130

Length 20 Length 3230

Value 00010203040506070809

0A0B0C0D0E0F1011121

31415161718191A1B1C

1D1E1F

Value 303030313032303330343035303

630373038303930413042304330

443045304631303131313231333

134313531363137313831393141

31423143314431453146

APPLICATION

CRYPTOGRAM

Tag 9F 26 Tag 39463236

Length 08 Length 3038

Value 0001020304050607 Value 303030313032303330343035303

63037

APPLICATION

TRANSACTION

COUNTER

Tag 9F 36 Tag 39463336

Length 02 Length 3032

Value 0001 Value 30303031

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

Chapter 3: Card Brand Information

3.1 Introduction

This chapter gives an overview of payment cards, embossing information, including Track 1 and

Track 2 layouts.

The maximum length of Track 1 is 79 characters. This length includes the START SENTINEL,

FIELD SEPARATORS, END SENTINEL and LONGITUDINAL REDUNDANCY CHECK (LRC)

fields. The Track 1 overall length will vary by card after the CARDHOLDER NAME field.

The maximum length of Track 2 is 40 characters. This length includes the START SENTINEL,

FIELD SEPARATOR, END SENTINEL, and LONGITUDINAL REDUNDANCY CHECK (LRC)

fields.

Track Data is sent unaltered.

Track data is defined by a number of International Organization for Standardization standards.

ISO/IEC 7810,ISO/IEC 7811, ISO/IEC 7812,ISO/IEC 7813,ISO 8583, and ISO/IEC 4909, now

define the physical properties of the card, including size, flexibility, location of the magstripe,

magnetic characteristics, and data formats. They also provide the standards for financial cards,

including the allocation of card number ranges to different card issuing institutions. The

standards should be referenced for details on track data.

Refer to the specific POS message specifications (Exchange, POS 8583, NTS, Z01, Portico,

SpiDr) to determine cards supported, transactions supported and data requirements.

Table 3-1 Card Brand References to BIN Ranges and Track Data

Card Type Track Preference

when Swiped BIN Ranges Track Data

American Express Track 1 Table A-8 American Express

BIN Ranges, pg. 243

•3.2.1 American Express Track 1

Format X4.16 Standard, pg. 30

•3.2.2 American Express Track 1

Format ISO 7813 Standard, pg. 31

•3.2.3 American Express Track 2

Format X4.16 Standard, pg. 33

•3.2.4 American Express Track 2

Format ISO 7813 Standard, pg. 34

AVcard No preference Tabl e A-1 6 AVCard BIN Range,

pg. 246

•3.3.1 AVcard Track 1 Format, pg.

•3.3.2 AVcard Track 2 Format, pg.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

Centego Track 2 Table A-18 Centego Prepaid

BIN Range, pg. 247

•3.4.1 Centego Prepaid Track 1

Format, pg. 37

•3.4.2 Centego Prepaid Track 2

Format, pg. 38

Diner’s Club (Now

processed as

Discover)

No preference Tab le A- 9 Discover IIN Ranges,

pg. 244

•3.6.1 Diner’s Club International

Track 1 Format, pg. 41

•3.6.2 Diner’s Club International

Track 2 Format, pg. 42

Discover No preference Tab le A- 9 Discover IIN Ranges,

pg. 244

•3.5.1 Discover Track 1 Format, pg.

•3.5.2 Discover Track 2 Format, pg.

Drop Tank No preference Table A-19 Drop Tank BIN

Range, pg. 247

•3.7.1 Drop Tank Track 1 Format,

pg. 43

•3.7.2 Drop Tank Track 2 Format,

pg. 43

EBT Track 2 only Table A-20 EBT BIN Ranges,

pg. 247

•3.9.1 EBT Track 2 Format, pg. 45

Fleet One Track 2 only Table A-14 Fleet One BIN

Range, pg. 245

•3.10.1 Fleet One Track 2 Format,

pg. 46

FleetCor Track 2 only Table A-13 FleetCor BIN

Ranges, pg. 245

•3.11.1 FleetCor Track 2 Format,

pg. 47

Heartland Gift

Card

Track 2 only Table A-17 SVS BIN Ranges,

pg. 246

•3.8.1 Heartland Gift Card Track 2

Format, pg. 44

MasterCard No preference A.2 MasterCard BIN Ranges,

pg. 235

•3.13.1 MasterCard Track 1 Format,

pg. 49

•3.13.2 MasterCard Track 2 Format,

pg. 49

MasterCard

Corporate

No preference Table A-6 MasterCard

Corporate BIN Ranges, pg.

237

•3.13.1 MasterCard Track 1 Format,

pg. 49

•3.13.2 MasterCard Track 2 Format,

pg. 49

MasterCard Fleet No preference Table A-7 MasterCard Fleet

BIN Ranges, pg. 243

•3.14.2 MasterCard Fleet Track 1

Format, pg. 51

•3.14.3 MasterCard Fleet Track 2

Format, pg. 52

MasterCard

Purchasing

No preference Table A-5 MasterCard

Purchasing BIN Ranges, pg.

235

•3.15.2 MasterCard Purchasing

Track 1 Format, pg. 53

•3.15.3 MasterCard Purchasing

Track 2 Format, pg. 54

Multi Service Track 2 only Table A-15 Multi Service BIN

Ranges, pg. 246

•3.16.1 Multi Service Swiped Track

2 Format, pg. 55

Table 3-1 Card Brand References to BIN Ranges and Track Data (Continued)

Card Type Track Preference

when Swiped BIN Ranges Track Data

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

PayPal No preference Table A-10 PayPal IIN Ranges,

pg. 244

•3.5.1 Discover Track 1 Format, pg.

•3.5.2 Discover Track 2 Format, pg.

PIN Debit Track 2 only A.10 Debit BIN Ranges, pg.

247

Issuer dependent.

Stored Value Track 2 Table A-17 SVS BIN Ranges,

pg. 246

•3.18.1 SVS Track 1 Format, pg. 56

•3.18.2 SVS Track 2 Format, pg. 56

ValueLink Track 2 Table A-17 SVS BIN Ranges,

pg. 246

•3.20.1 ValueLink Track 1 Format,

pg. 57

•3.20.2 ValueLink Track 2 Format,

pg. 58

VISA No preference A.1 VISA BIN Ranges, pg. 158 •3.21.1 VISA Track 1 Format, pg. 59

•3.21.2 VISA Track 2 Format, pg. 60

VISA Corporate or

Business

No preference Table A-3 VISA Corporate or

Business BIN Ranges, pg. 162

•3.21.1 VISA Track 1 Format, pg. 59

•3.21.2 VISA Track 2 Format, pg. 60

Use VISA Track layouts for VISA

Corporate or Business.

VISA Fleet Track 1 Table A-2 VISA Fleet BIN

Ranges, pg. 161

•3.24.2 VISA Fleet Track 1 Format,

pg. 62

•3.24.3 VISA Fleet Track 2 Format,

pg. 63

VISA Purchasing No preference Table A-1 VISA Purchasing BIN

Ranges, pg. 158

•3.21.1 VISA Track 1 Format, pg. 59

•3.21.2 VISA Track 2 Format, pg. 60

Use VISA Track layouts for VISA

Purchasing.

VISA ReadyLink Track 2 Table A-4 VISA ReadyLink BIN

Ranges, pg. 229

•3.21.1 VISA Track 1 Format, pg. 59

•3.21.2 VISA Track 2 Format, pg. 60

Use VISA Track layouts for VISA

ReadyLink.

Voyager Fleet No preference Table A-11 Voyager BIN

Ranges, pg. 245

•3.25.1 Voyager Fleet Track 1

Format, pg. 65

•3.25.2 Voyager Fleet Track 2

Format, pg. 66

WEX Fleet Track 2 only Table A-12 WEX BIN Ranges,

pg. 245

•3.26.3 WEX Fleet Track 2 Format,

pg. 69

Table 3-1 Card Brand References to BIN Ranges and Track Data (Continued)

Card Type Track Preference

when Swiped BIN Ranges Track Data

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.2 American Express

American Express issues cards in either of following track formats.

• ANSI X4.16

• ISO 7813

Note: If sending the Primary Account Number (PAN), it must not contain any spaces.

3.2.1 American Express Track 1 Format X4.16

Standard

Table 3-2 American Express Track 1 Format X4.16 Standard

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 15–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (caret)

CARD MEMBER NAME varies 26 A/N Field identifies the name of the cardholder and

contains a maximum of 26 characters. The

format of the field is last name followed by first

name and initial. Each cardholder name

component is separated as follows:

•/ (forward slash) = Separates the first and

last name.

• (space) = Separates first name from the

middle name or middle initial. Use only

when the cardholder names qualify for

separation.

•. (period) = Separates the first name and

title.

Example: Last Name/First Name Initial

Embossing JOHN P. JONES JR.

Mag Stripe JONES/JOHN P.JR

FIELD SEPARATOR varies 1 A/N ^ (caret)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format. The

card expires on the last day of the month.

EFFECTIVE DATE varies 4 N The date in YYMM format. The card becomes

valid on the first day of the month.

DISCRETIONARY DATA varies 5 N

END SENTINEL varies 1 A/N ? (question mark)

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.2.2 American Express Track 1 Format ISO 7813

Standard

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment. LRC may

or may not be present.

UNUSED varies 17 A/N Reserved for future use.

Table 3-3 American Express Track 1 Format ISO 7813 Standard

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 15–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (carat)

CARD MEMBER NAME varies 26 A/N Field identifies the name of the cardholder and

contains a maximum of 26 characters. The

format of the field is last name followed by first

name and initial. Each cardholder name

component is separated as follows:

•/ (forward slash) = Separates the first and

last name.

• (space) = Separates first name from the

middle name or middle initial. Use only

when the cardholder names qualify for

separation.

•. (period) = Separates the first name and

title.

Example: Last Name/First Name Initial

Embossing JOHN P. JONES JR.

Mag Stripe JONES/JOHN P.JR

FIELD SEPARATOR varies 1 A/N ^ (carat)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

The card expires on the last day of the month.

Table 3-2 American Express Track 1 Format X4.16 Standard (Continued)

Field Name Position Length Format Value/Description

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

INTERCHANGE DESIGNATOR varies 1 N Code indicating whether the American

Express card is valid outside the country of

issue.

• 1 = Available for international interchange

• 2 = Chip card

• 5 = Available for interchange only in

country of issue

• 6 = Chip card, available for interchange

only in country of issue

• 7 = Not available for general interchange

• 9 = System test card

SERVICE CODE varies 2 N Code indicating whether the American

Express card is valid for ATM/Cash Access or

if a positive authorization is required.

• 01 = No restrictions

• 02 = No ATM service

• 03 = ATM Service only

• 06 = No restrictions; prompt for PIN, if PIN

pad is present

• 10 = No cash advance

• 11 = No cash advance or ATM service

• 20 = Requires positive authorization by

issuer or issuer’s agent

• 21 = Authorization by issuer only

• 22 = Authorization by issuer only; Goods &

Services

• 23 = Authorization by issuer only; ATM

only, PIN required

• 26 = Authorization by issuer only; prompt

for PIN, if PIN pad is present

EFFECTIVE DATE varies 4 N The date in YYMM format. The card becomes

valid on the first day of the month.

DISCRETIONARY DATA varies 5 N

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

UNUSED varies 17 A/N Reserved for future use.

Table 3-3 American Express Track 1 Format ISO 7813 Standard (Continued)

Field Name Position Length Format Value/Description

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.2.3 American Express Track 2 Format X4.16

Standard

Table 3-4 American Express Track 2 Format X4.16 Standard

Field Name Position Length Format Value/Description

START SENTINEL 1 1 N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 15–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

The card expires on the last day of the month.

EFFECTIVE DATE varies 4 N The date in YYMM format. The card becomes

valid on the first day of the month.

DISCRETIONARY DATA varies 5 N

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment. LRC

may or may not be present.

UNUSED varies 8 N Reserved for future use.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.2.4 American Express Track 2 Format ISO 7813

Standard

Table 3-5 American Express Track 2 Format ISO 7813 Standard

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 15–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

The card expires on the last day of the month.

INTERCHANGE DESIGNATOR varies 1 N Code indicating whether the American

Express card can be used outside the country

of issue.

• 1 = Available for international interchange

• 2 = Chip card

• 5 = Available for interchange only in

country of issue

• 6 = Chip card, available for interchange

only in country of issue

• 7 = Not available for general interchange

• 9 = System test card

SERVICE CODE varies 2 N Code indicating whether the American

Express card is valid for ATM/Cash Access or

if a positive authorization is required.

• 01 = No restrictions

• 02 = No ATM service

• 03 = ATM Service only

• 06 = No restrictions; prompt for PIN, if PIN

pad is present

• 10 = No cash advance

• 11 = No cash advance or ATM service

• 20 = Requires positive authorization by

issuer or issuer’s agent

• 21 = Authorization by issuer only

• 22 = Authorization by issuer only; Goods

& Services

• 23 = Authorization by issuer only; ATM

only, PIN required

• 26 = Authorization by issuer only; prompt

for PIN, if PIN pad is present

EFFECTIVE DATE varies 4 N The date in YYMM format. The card becomes

valid on the first day of the month.

DISCRETIONARY DATA varies 8 N

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

LANGUAGE CODE varies 2 N Code indicating non-Canadian versus

Canadian cardholders and when a Canadian,

whether English or French is the spoken

language of the cardholder.

• 00 = Non-Canadian Card member

• 01 = Canadian Card members (English

Language)

• 02 = Canadian Card members (French

Language)

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 N Created by the encoding equipment.

Table 3-5 American Express Track 2 Format ISO 7813 Standard (Continued)

Field Name Position Length Format Value/Description

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.3 AVcard

• The AVcard requires a date check and a MOD-10 check.

3.3.1 AVcard Track 1 Format

3.3.2 AVcard Track 2 Format

Table 3-6 AVcard Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N ^ (caret)

ISO PREFIX 3 6 N 601029

ACCOUNT NUMBER 9 13max N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (caret)

CREDIT CARD NAME varies 26max A/N Customer or company name.

FIELD SEPARATOR varies 1 A/N ^ (caret)

EXPIRATION DATE varies 4 N The date the card expires in YYMM

format.

SERVICE CODE INDICATOR varies 3 N Constant, 701

DISCRETIONARY DATA varies 15 A/N Miscellaneous Cardholder Info.

END SENTINEL varies 1 A/N ? (question mark)

Table 3-7 AVcard Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

ISO PREFIX 2 6 N 601029

ACCOUNT NUMBER 8 13max N AVcard Account Number.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N YYMM

SERVICE CODE

INDICATOR

varies 3 N Constant, 701

DISCRETIONARY DATA varies 15 Miscellaneous Cardholder Info.

END SENTINEL varies 1 A/N ? (question mark)

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.4 Centego Prepaid Card

• PAN must pass MOD 10 check-digit test. (MOD 10 check on first 18 digits, 19th digit is the

check digit.)

• Cards are embossed with the Account Number.

3.4.1 Centego Prepaid Track 1 Format

Note: Track data must be sent excluding the START SENTINEL, END SENTINEL, and LRC.

Note: The position ranges are valid for a 26-character cardholder name. The cardholder name is

a variable length field delimited by field separators. As a result, position ranges following

the CARDHOLDER field will change with varying CARDHOLDER field lengths.

Table 3-8 Centego Prepaid Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3–21 19 N Cardholder’s PAN.

FIELD SEPARATOR 22 1 A/N ^ (caret)

CARDHOLDER NAME 23–48 26max A/N Contains a maximum of 26 characters.

FIELD SEPARATOR 49 1 A/N ^ (caret)

EXPIRATION DATE 50–53 4 N The date the card expires in YYMM format.

SECURITY DATA 54–63 10 N Card verification value.

MEMBER NUMBER 64–74 11 A/N Club member number.

END SENTINEL 75 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

76 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.4.2 Centego Prepaid Track 2 Format

Table 3-9 Centego Prepaid Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2–20 19 N Cardholder’s PAN.

FIELD SEPARATOR 21 1 A/N = (equal sign)

EXPIRATION DATE 22–25 4 N The date the card expires in YYMM format.

SECURITY DATA 26–35 10 N Card verification value.

END SENTINEL 36 1 A/N ? (question mark)

LONGITUDINAL REDUNDANCY

CHECK (LRC)

37 1 A/N Created by the encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.5 Discover Card

Discover Network (now known as DFS Services, LLC) allocates Issuer Identification Number

(IIN) ranges to authorized Issuers using the Discover Network. Discover Card recognition

includes the following Account Number field structures:

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number and the Expiration Date.

3.5.1 Discover Track 1 Format

Table 3-10 Discover Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (carat)

CARDHOLDER NAME varies varies A/N Field identifies the name of the cardholder

and contains a maximum of 26 characters.

The format of this field is last name followed

by first name and initial. A / (forward slash)

separates the first and last name.

Example: Last Name/First Name Initial

Embossing John P. Jones III

Mag Stripe Jones III/John P

FIELD SEPARATOR varies 1 A/N ^ (carat)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which the

card can be used.

SECURITY CODE varies 13 A/N

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.5.2 Discover Track 2 Format

Table 3-11 Discover Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which

the card can be used.

SECURITY CODE varies 13 A/N

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.6 Diner’s Club International Card

The Diner’s Club International card must also be processed as a Discover Card.

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number and the Expiration Date.

3.6.1 Diner’s Club International Track 1 Format

Table 3-12 Diner’s Club International Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 14–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (carat)

CARDHOLDER NAME varies varies A/N Field identifies the name of the cardholder and

contains a maximum of 26 characters. The

format of the field is last name followed by first

name and initial. Each cardholder name

component is separated as follows:

• / (forward slash) = Separates the first and

last name.

• (space) = Separates first name from the

middle name or middle initial. It is also used

to separate a title from the first name or

middle name or initial. Used to separate a

title only when the cardholder names qualify

for separation.

Example: Last Name/First Name Initial

Embossing JOHN P. JONES JR.

Mag Stripe JONES/JOHN P JR

FIELD SEPARATOR varies 1 A/N ^ (carat)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

INTERCHANGE

QUALIFICATION CODE

varies 3 N Code indicating the type of interchange that is

available on the card. Valid codes are as follows:

• 101 = Card is valid for unrestricted

international interchange.

• 587 = Card is valid only in territory of

issuance.

EFFECTIVE DATE varies 4 A/N The data in YYMM format.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.6.2 Diner’s Club International Track 2 Format

Table 3-13 Diner’s Club International Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 14–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

INTERCHANGE

QUALIFICATION CODE

varies 3 N Code indicating the type of interchange that

is available on the card. Valid codes are as

follows:

• 101 = Card is valid for unrestricted

international interchange.

• 587 = Card is valid only in territory of

issuance.

EFFECTIVE DATE varies 4 N The data in YYMM format.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.7 Drop Tank Card

3.7.1 Drop Tank Track 1 Format

3.7.2 Drop Tank Track 2 Format

Table 3-14 Drop Tank Track 1 Format

Field Name Position Length Format Value Description

START SENTINEL 1 1 Hex % (percent sign)

FORMAT CODE 2 1 A/N b

ACCOUNT NUMBER 3–20 18N Cardholder’s PAN (token).

FIELD SEPARATOR 21 1 A/N ^ (caret)

FILLER 22 1 A/N Space

FIELD SEPARATOR 23 1 A/N ^ (caret)

FILLER 24 1 A/N Space

END SENTINEL 25 1 A/N ? (question mark)

LRC 26 1 A/N Created by the encoding equipment.

LRC may or may not be present.

Table 3-15 Drop Tank Track 2 Format

Field Name Position Length Format Value Description

START SENTINEL 1 1 Hex ; (semicolon)

ACCOUNT NUMBER 2–19 18 N Cardholder’s PAN (token).

FIELD SEPARATOR 20 1 A/N = (equal sign)

DATE 21-24 4 N Expiration date in MMYY format.

END SENTINEL 25 1 A/N ? (question mark)

LRC 26 1 A/N Created by the encoding equipment.

LRC may or may not be present.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.8 Heartland Gift Card

• PAN must pass a MOD 10 check-digit test. The 19th position is the check-digit for the

proceeding 18 digits).

• Cards are embossed with the Account Number and the printed Access Code on the back.

3.8.1 Heartland Gift Card Track 2 Format

Table 3-16 Heartland Gift Card Track 2 Format

Field Name Position Length Format Value Description

START SENTINEL 1 1 3B Hex ; (semicolon)

PRIMARY ACCOUNT NUMBER 2–20 19 N Cardholder’s PAN.

FIELD SEPARATOR 21 1 A/N = (equal sign)

DATE 22–25 4 N Expiration date in MMYY format.

Default expiration is 9999.

SECURITY DATA 26–38 13 N

END SENTINEL 39 1 A/N ? (question mark)

LRC 40 1 OF Hex Longitudinal Redundancy Check.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.9 EBT Card

• The POS application must perform a MOD 10 check.

• No Specific ISO – No information in the account number or track data identifies the card as

a Food Stamp or Cash Benefit card. This identification must come from POS prompts.

3.9.1 EBT Track 2 Format

Table 3-17 EBT Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2–20 19 N Cardholder’s PAN.

FIELD SEPARATOR 21 1 A/N = (equal sign)

EXPIRATION DATE 22–25 4 N The date the card expires in YYMM format.

SERVICE CODE 26–28 3 N 120

DISCRETIONARY DATA 29 varies A/N

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.10 Fleet One Card

• Cards are embossed with the Account Number, Company Name and Vehicle Name /

Customer Name.

3.10.1 Fleet One Track 2 Format

Table 3-18 Fleet One Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

CARD ISO/ABA PREFIX 2 6 A/N 501486

See A.6 Fleet Card BIN Ranges, pg. 245.

PROMPT CODE 8 2 NValid options are 10–19 and 99.

ACCOUNT NUMBER 10 6 NFleet company number.

CARD NUMBER 16 4 N

CHECK DIGIT 20 1 N0–9

FIELD SEPARATOR 21 1 A/N = (equal sign)

EXPIRATION DATE 22 4 N The date the card expires in YYMM format.

9912 or 4912 indicates “does not expire.”

MEMBER NUMBER 26 1 N 0–9

PIN OFFSET 27 6 N Not used.

END SENTINEL 33 1A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

34 1 A/N Created by the encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.11 FleetCor Card

• Cards are embossed with the Account Number, Expiration Date, Company Name and

Vehicle Name/Customer Name.

3.11.1 FleetCor Track 2 Format

Table 3-19 FleetCor Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

CARD ISO/ABA PREFIX 2 6 A/N See A.6 Fleet Card BIN Ranges, pg. 245.

ISSUER IDENTIFIER 8 5 N

CARD NUMBER 13 6 N

FIELD SEPARATOR 19 1A/N = (equal sign)

EXPIRATION DATE 20 4 N The date the card expires in YYMM format.

9912 is a valid value and indicates card does

not expire.

DISCRETIONARY DATA 24 0–13 N Reserved for Future Use.

Value is either 0 or NULL.

END SENTINEL 24–37 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

25–38 1 A/N b

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.12 JCB Card

All JCB cards follow the same track format as Discover. See 3.5 Discover Card, pg. 39.

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number and the Expiration Date.

3.12.1 JCB IIN Ranges on Discover Network

The JCB IIN Ranges are effective only for the domestic United States, and to the extent that

other Territories and Protectorates may be included, we will provide you with further information.

All other international markets are out of scope at this time. Additionally, ATM transactions will not

be enabled for the IIN ranges assigned to JCB. See A.4 Discover IIN Ranges, pg. 244.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.13 MasterCard

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number and the Expiration Date.

3.13.1 MasterCard Track 1 Format

3.13.2 MasterCard Track 2 Format

Table 3-20 MasterCard Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (carat)

CARDHOLDER NAME varies 2–26 A/N Contains a maximum of 26 characters.

FIELD SEPARATOR varies 1 A/N ^ (carat)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which

the card can be used.

DISCRETIONARY DATA varies varies A/N Contains the CVC.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

Table 3-21 MasterCard Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which

the card can be used.

DISCRETIONARY DATA varies varies A/N Contains the CVC.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.14 MasterCard Fleet Card Type

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number, Expiration Date and Cardholder

Name.

3.14.1 MasterCard Fleet Card Example

Figure 3-1 MasterCard Fleet Card: Driver Assigned Example

Figure 3-2 MasterCard Fleet Card: Vehicle Assigned Example

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.14.2 MasterCard Fleet Track 1 Format

Note: All MasterCard Fleet cards use the entire allocated length of the track. Therefore,

space-fill any variable length fields as necessary.

Table 3-22 MasterCard Fleet Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (carat)

CARDHOLDER NAME varies 26 A/N Contains a maximum of 26 characters.

FIELD SEPARATOR varies 1 A/N ^ (carat)

EXPIRATION DATE varies 4 N The date the card expires in YYMM

format.

SERVICE CODE varies 3 A/N Identifies the circumstances under which

the card can be used.

DISCRETIONARY DATA varies 22 A/N

PRODUCT RESTRICTION CODE varies 1 N 1 to 2 required.

PRODUCT TYPE CODE varies 1 N 1 to 5 required.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL REDUNDANCY

CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.14.3 MasterCard Fleet Track 2 Format

Table 3-23 MasterCard Fleet Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM

format.

SERVICE CODE varies 3 A/N Identifies the circumstances under which

the card can be used.

DISCRETIONARY DATA varies 11 A/N

PRODUCT RESTRICTION CODE varies 1 N 1 to 2 required.

PRODUCT TYPE CODE varies 1 N 1 to 5 required.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL REDUNDANCY

CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.15 MasterCard Purchasing Card

• PAN must pass a MOD 10 check-digit test.

• Card are embossed with the Primary Account Number and the Expiration Date.

3.15.1 MasterCard Purchasing Card Example

3.15.2 MasterCard Purchasing Track 1 Format

Table 3-24 MasterCard Purchasing Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (caret)

CARDHOLDER NAME varies varies A/N Contains a maximum of 26 characters.

FIELD SEPARATOR varies 1 A/N ^ (caret)

EXPIRATION DATE varies 4 N The date the card expires in YYMM

format.

SERVICE CODE varies 3 A/N Identifies the circumstances under which

the card can be used.

DISCRETIONARY DATA varies 22 A/N Optional field.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.15.3 MasterCard Purchasing Track 2 Format

Table 3-25 MasterCard Purchasing Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 16–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 A/N Identifies the circumstances under which the

card can be used.

DISCRETIONARY DATA varies varies A/N Optional field.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.16 Multi Service Track Data

3.16.1 Multi Service Swiped Track 2 Format

3.17 PayPal Card

PayPal cards are now part of the Discover Network and follow the same track format as

Discover. See 3.5 Discover Card, pg. 39.

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number and the Expiration Date.

Table 3-26 Multi Service Swiped Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

ISO PREFIX 2 6 N Refer to the Heartland POS Integrator’s

Guide for BIN Ranges.

ACCOUNT NUMBER 8 8 N Cardholder’s PAN.

FIELD SEPARATOR 16 1 A/N = (equal)

CASH FLAG 17 1 N

PO REQUIRED FLAG 18 1 N

TWO DIGIT DAY OF ISSUANCE 19 2 N

FIELD SEPARATOR 21 1 A/N = (equal)

DATE OF ISSUANCE 22 4 N YYMM

SERVICE RESTRICTIONS 26 1 N

FUEL FLAG 27 1 N

OIL FLAG 28 1 N

PLUS AMOUNT ON CARD 29 3 N

TYPE FLAG 32 1 N

FILLER SPACE 33 5

STRIPE VERSION NUMBER 38 1 N

END SENTINEL 39 1 A/N ? (question mark)

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.18 Stored Value Solutions (SVS)

• PAN must pass MOD 10 check-digit test. (MOD 10 check on first 18 digits, 19th digit is the

check digit.)

• Cards are embossed with the Account Number.

3.18.1 SVS Track 1 Format

3.18.2 SVS Track 2 Format

Table 3-27 SVS Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 5–21 19 NCardholder’s PAN.

FIELD SEPARATOR 22 1A/N ^ (caret)

CARDHOLDER NAME 23–48 26max A/N Contains a maximum of 26 characters.

FIELD SEPARATOR 49 1A/N ^ (caret)

EXPIRATION DATE 50–53 4 N The date the card expires in YYMM format.

SERVICE CODE 54–56 3 N 110

CVV DATA 57–59 3A/N Card Verification Value.

END SENTINEL 60 1A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

61 1A/N Created by the encoding equipment.

Table 3-28 SVS Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1–1 1A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2–20 19 NCardholder’s PAN.

FIELD SEPARATOR 21–21 1A/N = (equal sign)

EXPIRATION DATE 22–25 4 N The date the card expires in YYMM format.

SERVICE CODE 26–28 3 N 110

CVV DATA 29–36 8 N Card Verification Value.

END SENTINEL 37–37 1A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

38–38 1A/N Created by encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.19 UnionPay Card

All UnionPay issued cards follow the same track format as Discover. See 3.5 Discover Card, pg.

39.

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number and the Expiration Date.

3.20 ValueLink Card

• PAN must pass MOD 10 check digit test. (MOD 10 check on first 18 digits, 19th digit is the

check digit.)

• Card are embossed with the Account Number. CLGC cards (Closed Loop Gift Cards) are

embossed with 16 digits.

3.20.1 ValueLink Track 1 Format

Table 3-29 ValueLink Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3–20 13–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (caret)

CARDHOLDER NAME varies 2–26 A/N Contains a maximum of 26 characters.

SEPARATOR varies 1 A/N ^ (caret)

CARD EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N

PVKI 1 N PIN Verification Key Index.

PVV 4 N PIN Verification Value.

DISCRETIONARY DATA varies varies A/N

VISA RESERVED varies 11 A/N

END SENTINEL varies 1 A/N

LRC varies 1 A/N Longitudinal Redundancy Check.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.20.2 ValueLink Track 2 Format

Table 3-30 ValueLink Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N

PRIMARY ACCOUNT NUMBER 3–20 13–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N Usually = (equal)

CARD EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N

PVKI 1 N PIN Verification Key Index.

PVV 4 N PIN Verification Value.

DISCRETIONARY DATA varies 8 A/N

END SENTINEL varies 1 A/N

LRC varies 1 A/N Longitudinal Redundancy Check.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.21 VISA Card

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number and the Expiration Date.

3.21.1 VISA Track 1 Format

Table 3-31 VISA Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3varies 13–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (carat)

CARDHOLDER NAME varies 2–26 A/N Contains a maximum of 26 characters.

FIELD SEPARATOR varies 1 A/N ^ (carat)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which the

card can be used.

PIN VERIFICATION varies 0 or 5 N If used, this field is composed of two

components.

PVKI 1 PIN Verification Key Index.

PVV 4 PIN Verification Value.

DISCRETIONARY DATA varies varies A/N

VISA RESERVED varies 111

1. The length is always the last 11 positions of Track 1, excluding the END SENTINEL and LONGITUDINAL REDUNDANCY

CHECK.

A/N PIN Verification. All 11 positions are required.

Filler 1–2 Zero-fill

CVV 3–5 Card Verification Value.

Filler 6–7 Zero-fill

ACI 8 Authorization Control Indicator.

Filler 9–11 Zero-fill

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.21.2 VISA Track 2 Format

3.22 VISA Corporate or Business

• For Track 1, see Table 3-31 VISA Track 1 Format, pg. 59.

• For Track 2, see Table 3-32 VISA Track 2 Format, pg. 60.

3.23 VISA Purchasing

• For Track 1, see Table 3-31 VISA Track 1 Format, pg. 59.

• For Track 2, see Table 3-32 VISA Track 2 Format, pg. 60.

Table 3-32 VISA Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 13–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which

the card can be used.

PIN VERIFICATION varies 0 or 5 N If used, this field is composed of two

components.

PVKI 1 N PIN Verification Key Index (PVKI).

PVV 4 N PIN Verification Value (PVV).

DISCRETIONARY DATA varies varies A/N Contains the Card Verification Value.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL REDUNDANCY

CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.24 VISA Fleet Card Type

• PAN must pass a MOD 10 check-digit test.

• Cards are embossed with the Primary Account Number, Expiration Date, Company Name

or generic Cardholder ID.

3.24.1 VISA Fleet Card Example

Figure 3-3 VISA Fleet Card: Driver Assigned Example

Figure 3-4 VISA Fleet Card: Vehicle Assigned Example

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.24.2 VISA Fleet Track 1 Format

Table 3-33 VISA Fleet Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N B

PRIMARY ACCOUNT NUMBER 3–20 13–19 N Cardholder’s PAN.

FIELD SEPARATOR varies 1 A/N ^ (caret)

CARDHOLDER NAME varies 2–26 A/N Contains a maximum of 26 characters.

SEPARATOR varies 1 A/N ^ (caret)

CARD EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which

the card can be used.

PIN VERIFICATION varies 0 or 5 N If used, this field is composed of two

components.

PVKI 1 N PIN Verification Key Index.

PVV 4 N PIN Verification Value.

DISCRETIONARY DATA varies varies A/N

VISA RESERVED varies 11 A/N

FILLER 2 A/N Zero-filled.

CVV 3 A/N Card Verification Value.

FILLER 2 A/N Zero-filled.

AUTHORIZATION

CONTROL INDICATOR

(ACI)

1 A/N Zero or A to Z required.

RESERVED 1 A/N 0 (zero)

SERVICE ENHANCEMENT

INDICATOR

1A/N

• 0 = Fleet, No restriction (fuel,

maintenance and non-fuel purchases)

• 1 = Fleet (fuel and maintenance

purchases only)

• 2 = Fleet (fuel only)

• 3–9 = Reserved

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.24.3 VISA Fleet Track 2 Format

SERVICE PROMPT 1 A/N • 0 = Reserved (no prompt)

• 1 = Generic Identification Number and

ODOMETER1

• 2 = VEHICLE ID and ODOMETER

• 3 = DRIVER ID and ODOMETER

• 4 = ODOMETER

• 5 = No Prompt

• 6 = Generic Identification Number2

• 7–9 = Reserved (no prompt)

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by the encoding equipment.

1. SERVICE PROMPT 1: After prompt for an ID, cardholder enters 6-digit VEHICLE ID, DRIVER ID, or a generic identification

number followed by Odometer.

2. SERVICE PROMPT 6: After prompt for an ID, cardholder enters 6-digit VEHICLE ID, DRIVER ID, or generic identification number.

Table 3-34 VISA Fleet Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2varies 13–19 N Cardholder’s PAN.

SEPARATOR varies 1 A/N = (equal sign)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

SERVICE CODE varies 3 N Identifies the circumstances under which the

card can be used.

PIN VERIFICATION 26

varies

if used

0 or 5 N If used, this field is composed of two

components.

PVKI 1 N PIN Verification Key Index.

PVV 4 N PIN Verification Value.

DISCRETIONARY DATA varies varies N

CARD VERIFICATION

VALUE (CVV)

3 N Identifies the Card Verification Value.

Table 3-33 VISA Fleet Track 1 Format (Continued)

Field Name Position Length Format Value/Description

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

ISSUER INFORMATION varies N The length of this field depends on the

length of PIN Verification and must occupy

the third last position of the field. VISA Fleet

cards are required to use the last three

positions of this field to provide instructions

for customized prompts. For valid BIN

ranges, see A.1.2 VISA Fleet BIN Ranges,

pg. 161.

FLEET SERVICES 2 N The third to last position from the END

SENTINEL, valid value is zero.

Service Enhancement Indicator. The value

entered in this field must occupy the second

last position of the field.

• 0 = Fleet, No restriction (fuel,

maintenance and non-fuel purchases)

• 1 = Fleet (fuel and maintenance

purchases only)

• 2 = Fleet (fuel only)

Note: The position of this field varies

depending on the length of PIN

Verification.

1 N Indicate the SERVICE PROMPT.

• 0 = Reserved (no prompt)

• 1 = Generic Identification Number and

ODOMETER1

• 2 = VEHICLE ID and ODOMETER

• 3 = DRIVER ID and ODOMETER

• 4 = ODOMETER

• 5 = No Prompt

• 6 = Generic Identification Number2

• 7–9 = Reserved (no prompt)

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL REDUNDANCY

CHECK (LRC)

varies 1 A/N Value of 0 (zero) to F.

1. SERVICE PROMPT 1: After prompt for an ID, cardholder enters six-digit VEHICLE ID, DRIVER ID, or a generic identification

number followed by Odometer.

2. SERVICE PROMPT 6: After prompt for an ID, cardholder enters six-digit VEHICLE ID, DRIVER ID, or generic identification

number.

Table 3-34 VISA Fleet Track 2 Format (Continued)

Field Name Position Length Format Value/Description

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.25 Voyager Fleet Card

• PAN must pass two MOD 10 check-digit tests. The 13th position is the check-digit for the

previous eight digits. The 19th position is the check-digit for the previous 18 digits.

• Cards are embossed with the Account Number, ID Number, Restriction Code and

Expiration Date.

3.25.1 Voyager Fleet Track 1 Format

Table 3-35 Voyager Fleet Track 1 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N % (percent sign)

FORMAT CODE 2 1 A/N 0 (zero)

PRIMARY ACCOUNT NUMBER 3–21 19 N Cardholder’s PAN.

FIELD SEPARATOR 22 1 A/N ^ (carat)

CARDHOLDER NAME 23–47 varies A/N Contains a maximum of 25 characters.

FIELD SEPARATOR varies 1 A/N ^ (carat)

EXPIRATION DATE varies 4 N The date the card expires in YYMM format.

RESTRICTION CODE varies 2 N Code indicating the type of prompts that display

for a customer transaction.

• 00 = Do not prompt for ID Number or

odometer. All items allowed.

• 01 = Do not prompt for ID Number or

odometer. Fuel only.

• 10 = Prompt for ID Number. All items

allowed.

• 11 = Prompt for ID Number. Fuel only.

• 20 = Prompt for odometer. All items allowed.

• 21 = Prompt for odometer. Fuel only.

• 30 = Prompt for ID Number and odometer.

All items allowed.

• 31 = Prompt for ID Number and odometer.

Fuel only.

DISCRETIONARY DATA varies 13 N Contains a valid numeric value or be zero-filled.

END SENTINEL varies 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

varies 1 A/N Created by encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.25.2 Voyager Fleet Track 2 Format

Table 3-36 Voyager Fleet Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 A/N ; (semicolon)

PRIMARY ACCOUNT NUMBER 2–20 19 N Cardholder’s PAN.

FIELD SEPARATOR 21 1 A/N = (equal sign)

EXPIRATION DATE 22–25 4 N The date the card expires in YYMM format.

RESTRICTION CODE 26–27 2 N Code indicating the type of prompts that

display for a customer transaction.

• 00 = Do not prompt for ID Number or

odometer. All items allowed.

• 01 = Do not prompt for ID Number or

odometer. Fuel only.

• 10 = Prompt for ID Number. All items

allowed.

• 11 = Prompt for ID Number. Fuel only.

• 20 = Prompt for odometer. All items

allowed.

• 21 = Prompt for odometer. Fuel only.

• 30 = Prompt for ID Number and

odometer. All items allowed.

• 31 = Prompt for ID Number and

odometer. Fuel only.

DISCRETIONARY DATA 28–38 11 N Will contain a valid numeric value or be

zero-filled.

END SENTINEL 39 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

40 1 A/N Created by encoding equipment.

HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.26 WEX Fleet Card

• Account Number is seven positions in length where the first six digits must pass MOD 10

check-digit test. The seventh digit is the check-digit.

• Cards are embossed with the Account Number, ISO Number, Purchase Device Sequence

Number, Expiration Date, Cardholder Name, Description and Restriction.

3.26.1 WEX Fleet Card Example

Figure 3-5 WEX Fleet Card Example

3.26.2 WEX GSA Fleet Cards

The following WEX GSA cards are to be treated just like any other WEX Fleet card.

• WEX Universal cards and WEX GSA cards have the same Track 2 layout.

• The card front for WEX Universal cards and WEX GSA cards differs, as the placement of

the six-digit ISO of 690046, the 13-digit Account Number, and five-digit value for the

Purchase Device Sequence Number varies by card type.

• WEX Universal cards display the 690046 ISO below the 13-digit Account Number, and

label the five-digits Purchase Device Sequence Number as the PURCH. DEV. SEQ. NO.

• WEX GSA Fleet cards display the 690046 ISO above the 13-digit Account Number and

place the five-digit Purchase Device Sequence Number after the 13-digit Account Number,

with no distinct label.

• WEX Dept of Defense cards and Dept of Energy cards display the 690046 ISO above the

13-digit Account Number and label the five-digit Purchase Device Sequence Number as

CARD NO.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

Figure 3-8 WEX Dept. of Energy Fleet

Figure 3-6 WEX GSA Fleet Figure 3-7 WEX Dept. of Defence Fleet



HPS Integrator’s Guide V 16.1.1 3: Card Brand Information

3.26.3 WEX Fleet Track 2 Format

Table 3-37 WEX Fleet Track 2 Format

Field Name Position Length Format Value/Description

START SENTINEL 1 1 A/N ; (semicolon)

ISO PREFIX 2 6 N See A.6 Fleet Card BIN Ranges, pg. 245.

PRIMARY ACCOUNT NUMBER 3–20 19 N Cardholder’s PAN.

FIELD SEPERATOR 21 1 A/N = (equal sign)

EXPIRATION DATE 22–25 4 N The date the card expires in YYMM format.

PROMPT TABLE KEY 26 1 N Values are 0, 1, 2, 3, 4 or 5.

PURCHASE RESTRICTION 27–28 2 N • 00 = Fuel Only

• 01 = Unrestricted

• 02 = Fuel and Auto (Includes Car Wash)

•04

= Fuel and Oil

Note: Product restriction or validation is

only performed by the POS when

processing in offline mode. Product

restriction or validation is never

performed by the Host.

PURCHASE DEVICE

SEQUENCE NUMBER

29–33 5 N Distinct from the prompt Vehicle ID.

CAV1 34–37 4 N Card Authentication Value.

POS PROMPTS 38 1 N Refer to the Heartland POS Integrator’s

Guide for WEX Fleet Prompting Values.

END SENTINEL 39 1 A/N ? (question mark)

LONGITUDINAL

REDUNDANCY CHECK (LRC)

40 1 A/N Created by encoding equipment.

3: Card Brand Information HPS Integrator’s Guide V 16.1.1

3.26.4 WEX MOD 10 Calculation

WEX defines their Fleet number as:

• ISO – six numeric

• Client Id – four numeric

• Zeros – two numeric

• Account Number – six numeric

• Check Digit – one numeric

To calculate the Check Digit, follow these steps:

• Examine the six-digit Account Number, one digit at a time

• Result 1 = Multiply digit 1 by 1

• Result 2 = Multiply digit 2 by 2

• Result 3 = Multiply digit 3 by 1

• Result 4 = Multiply digit 4 by 2

• Result 5 = Multiply digit 5 by 1

• Result 6 = Multiply digit 6 by 2

If any of these Results (1 through 6) are > 9, then subtract 9 from that Result

The sum of all Results (1 through 6) = the Dividend

Divide the Dividend by 10 resulting in a Quotient and a Remainder

The Remainder = the MOD10-Value

If the MOD10-Value is not equal to 0, compute MOD10-Value = 10 minus MOD10-Value

Move MOD10-Value to Check Digit

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

Chapter 4: E3 Processing Overview

4.1 Introduction

Heartland Secure™ is a comprehensive credit/debit card data security solution that combines

three powerful technologies working in tandem to provide merchants with the highest level of

protection available against card-present data fraud.

Offered to Heartland customers for no additional processing fees as part of Heartland's

comprehensive solutions, Heartland Secure combines:

• EMV electronic chip card technology to prove that a consumer's card is genuine.

• Heartland's E3® end-to-end encryption technology, which immediately encrypts card data

as it is acquired so that no one else can read it.

• Tokenization technology, which replaces card data with “tokens” that can be used for

returns and repeat purchases, but are unusable by outsiders because they have no value.

This guide focuses on Heartland's E3 end-to-end encryption solution and contains integration

information for POS systems. It serves as a companion to Heartland's host network

specifications and the E3 device programmer's manuals. These documents should be referred to

for more detailed information.

4.2 The E3® Solution

E3, an end-to-end encryption product by Heartland Payment Systems, is designed to protect

credit and debit card data from the moment of card swipe and through the Heartland network —

not just at certain points of the transaction flow.

E3 is based on Voltage Security's SecureData Payments product which provides a complete

payment transaction protection framework, built on two breakthrough technologies

encompassing encryption and key management: Voltage Format-Preserving Encryption (FPE)

and Voltage Identity-Based Encryption (IBE).

With Voltage Format-Preserving Encryption (FPE), credit card numbers and other sensitive data

are protected without the need to change the data format or structure. In addition, data properties

are maintained, such as a checksum, and portions of the data can remain in the clear.

With Voltage Identity-Based Encryption (IBE), the complexity of key management through

traditional Public Key Infrastructure (PKI) systems and symmetric key systems is eliminated —

because encryption keys are securely generated on demand and not stored, POS devices are

not subject to key injection and key rotation.

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.3 Encryption Data

4.3.1 Encrypted Track and PAN Data

Depending on the configuration of your E3-capable card acceptance device, the E3 encrypted

Track and PAN data will be formatted using one of two Track Encryption Protocol (TEP)

algorithms, TEP1 or TEP2. TEP1 is whole track encryption, while TEP2 is structure preserving

encryption.

Example: The following data was produced by an E3-capable device using Heartland's VISA

test card:

For TEP2, the following is guaranteed:

• The leading six digits of the original PAN are maintained in the clear.

• The trailing four digits of the original PAN are maintained in the clear.

• The middle digits are used for the ciphertext value, which is guaranteed to consist solely of

digits.

• The Luhn check value is preserved so that a PAN with a valid zero (0) result, creates

ciphertext that also checks as valid.

For TEP1, the device will provide a separate masked or obfuscated representation of the track

data for processing that requires the first six or last four digits of the PAN, cardholder name,

expiration date, Luhn check results, etc.

Table 4-1 PAN Encryption

Cleartext 4012002000060016

TEP2 4012002650330016

TEP1 +++++++BWmfv/HUA

Table 4-2 Track 1 Encryption

Cleartext %B4012002000060016^VI TEST CREDIT^251210118039000000000396?

TEP2 B4012007060016^VI TEST CREDIT^2512101XlwD91O5qOg+7Ftv+nLu

TEP1 3FLr83Ed5tiHN3r2CpT3kIndkhtiHRt3mtKQsozJ2rFQM8GE0ha2X7K6t

Table 4-3 Track 2 Encryption

Cleartext ;4012002000060016=25121011803939600000?

TEP2 4012007060016=2512101e3vdC5QhAEZa7UAN

TEP1 AsbjXkDWaRqLV0o5U33jffZqiPg

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

4.3.2 Encrypted Card Security Code

The Card Security Code (CSC) printed on the back of the card, referred to as CAV2, CVC2,

CVV2, or CID depending on the card brand, can be optionally encrypted.

The value to be encrypted is constructed as follows:

• Length [1 digit]

• Random Filler [x digits]

• CSC [3 or 4 digits]

Note: The total length of the encrypted CSC will always be seven digits. Typically, the device will

randomly generate two or three digits of filler to ensure the CSC is seven digits.

4.3.3 Encryption Transmission Block

The Encryption Transmission Block (ETB), sometimes referred to as a Key Transmission Block

(KTB), contains the IBE encrypted version of the device's randomly generated FPE key that was

used to encrypt the card data. The ETB must be sent in the authorization requests so that the

host can decrypt the card data.

Heartland's ETB must be Base64 encoded, and for TEP1 and TEP2 it must be 276 bytes.

For example:

Table 4-4 Encrypted CSC Steps

Step Example Data

1. Obtain the CSC value (either 3 or 4 digits) 572

2. Generate a random 3-digit number 413

3. Construct the value to be encrypted 3413572

4. Encrypt the value 9037662

/wECAQEEAoFGAgEH3gcOTDT6jRZwb3NAc2VjdXJlZXhjaGFuZ2UubmV0tmpl5zBEIeyea

DRWB0IlbnWdMjK32V4QIJRoRIpu1Fm9w8fdoJt1gLt2jkkliD+0kvFOrhspWh4dsDYvSH

GgdgetU3pfAx+iBS38Wq2KvTOOlueGvXcGe0y4G/DFVgT7zBHm1YS7cseYLEtADtoSnhB

UjasCciO5ul9GhesvQo8Ah7NM8geDZdKN0QZZiLH8cmYhgHp8kamxSciDJHARUO9tFb+h

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.4 E3 Specific Requirements

4.4.1 Heartland Exchange

This section addresses specific requirements for E3 terminals using the Heartland Exchange

Message Specification. All card types may be sent using E3 encryption.

4.4.1.1 Unique Transaction ID (UID)

Heartland's Unique Transaction ID (UID) is a software solution that eliminates the need for a

POS application to store the account number or track data for subsequent processing such as

Voids/Incrementals, and Batch Settlement. The UID is returned by the Heartland Exchange Host

in the Authorization response messages. This application is not available on other Heartland

Host platforms.

•Voids/Incrementals: The Account Data Source field will be 'Z' or 'z' to indicate that the UID

is being used instead of track or Primary Account Number (PAN) data. The Customer Data

field will contain the UID which is the Retrieval Reference Number (RRN) from the

Authorization.

•Batch Settlement: The Primary Account Number field in the Batch Settlement Detail

Record will be filled with all spaces to indicate that the UID is being used instead of PAN

data. The Transaction Identifier field in the Batch Settlement Detail Record is the

Transaction Identifier from the Authorization and it contains the UID.

4.4.1.2 Merchant ID Number (MID)

Merchant ID Number is a 12 character field that contains a unique number assigned by

Heartland. If your E3 implementation encrypts the MID, then the E3 sub-encryption indicator in

the Key Block Data field must indicate the MID is encrypted (01 or 02 as appropriate).

4.4.1.3 Account Data Source

The Account Data Source field is used to indicate the source and format of the data contained in

the Customer Data field. Refer to the Exchange Host Specification for a complete list of Account

Data Source codes.

4.4.1.4 Customer Data

The Customer Data field contains the Key Block data and either the Cardholder Account data or

the Unique Transaction ID. The Cardholder Account data may be either the encrypted Track 1,

encrypted Track 2, or encrypted primary account number. The unique transaction ID is never

encrypted. Refer to the Exchange Host Specification for the Customer Data format.

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

4.4.1.5 Retrieval Reference Number (RRN)

The Retrieval Reference Number field contains a value that uniquely identifies a transaction. The

Retrieval Reference Number is sent in an authorization response. The POS then uses the RRN

in voids and incrementals to identify the original transaction.

4.4.1.6 Transaction Identifier

The Transaction Identifier field contains the UID. The Transaction Identifier is sent in an

authorization response.

4.4.1.7 Authorization Example

The following examples shows highlighted fields that are used in the POS message to Heartland

messaging:

• Encrypted Track 1 Data

• Encrypted Track 2 Data

• KTB (Key Transmission Block)

• PAN (Primary Account Number)

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

Table 4-5 Authorization Examples

Request Response

For Encrypted Card Swipes:

The following request fields require specific handling:

•MID (Merchant ID Number) – This field will be either the

unencrypted, cleartext MID or the encrypted MID if supported.

•Account Data Source – This field will indicate that either encrypted

Track 1 or Track 2 data is being sent:

– “h” = Encrypted Track 1

– “d” = Encrypted Track 2

•Customer Data – This field will be <Key Block

Data><FS><Encrypted Track 1 or Track 2 Data>, where <Key Block

Data> is “v” (Voltage encryption)+ “01”, “02”, or “03” as appropriate +

KTB.

Example: v03/wECAQECAoFGAgEH2ggJTHLeIBZwb3NAc2

VjdXJlZXhjaGFuZ2UubmV0aFLxu2XTNLs6jIk3Bakt

bFZrdJ26dX85BjkkngQnmk+3tOhXRVILvASHnfmao0y

l5z7KNBx6Na7ekL+hryGQ3oPOcOVkEzei83Clsc

9QSfQJWB9ysAynGc6btccnrfjwyJn70KJ1cqQrw

623ASSWm57Hov2fMtWmPpYpQRr54oAoXZY

jUajd0sRXCn5XeD5BhpE/Wzd4Ayn+342BGUL

0N7hWKm<FS>V2uvVFzWkBTNzcX7vcrWTi4

jV9AtG2bLYJkCOi+OA2aY2OiRmw/0ZSQcH

The following response fields require

specific handling:

• RRN (Retrieval Reference Number)

– This field will be used as the UID

(Unique Transaction ID) for

subsequent messages such as

voids.

• Transaction Identifier – This field will

be used as the UID in the batch

settlement detail record.

For Encrypted Manual Entry from E3 PIN Pad:

The following request fields require specific handling:

• Merchant ID Number – This field will be the unencrypted, cleartext

MID.

• Account Data Source – This field will indicate that an encrypted PAN

is being sent:

– n “x” = Encrypted, manually keyed PAN, Track 1 capable

– n “t” = Encrypted, manually keyed PAN, Track 2 capable

• Customer Data – This field will be <Key Block Data><FS><Encrypted

Primary Acct Num><FS><Exp Date><FS>, where <Key Block Data>

is “v” (Voltage encryption) + “03” (sub-encryption indicator that only

PAN is encrypted, not MID) + KTB from the E3 PIN Pad.

Example: v03/wECAQECAoFGAgEH2ggJTHLeIBZwb3NAc

2VjdXJlZXhjaGFuZ 2UubmV0aFLxu2XTNLs6jIk3Ba

ktbFZrdJ26dX85BjkkngQnm

k+3 tOhXRVILvASHnfmao0yl5z7

KNBx6Na7ekL+hryGQ3oPOcOVkE

zei83Clsc9QSf QJWB9ysAynGc6btccnfrfjwyJn70KJ1

cqQrw623ASSWm57Hov2fMtWmPpYpQRr

54oAoXZYjUajd0sRXCOn5XeD5BhpE/Wzd4Ayn+3

42BGUL0N7hWKm<FS>+++++++X8zr5YaCZ<FS>1012

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

Note:

• Refer to section Authorization Chapter in the Heartland Exchange specification for all other

fields.

• UIDs are used to retrieve a transaction’s account data for Voids, Incrementals, and Batch

Settlement. This eliminates the need to store or send encrypted or unencrypted track, PAN,

or KTB data once authorization has occurred.

• For refunds/returns, Purchase Return (Transaction Code CR) must be utilized so that the

returned UID can be used for settlement.

• For voice authorizations, Online Forced Purchase (Transaction Code 5S) must be utilized

so that the returned UID can be used for settlement.

4.4.1.8 Void/Incremental Example

A Void is required to cancel a previously authorized transaction. Online Auth Void (Transaction

Code 59), PIN Debit: Purchase Void (Transaction Code A3), or PIN Debit: Purchase Return Void

(Transaction Code A4) should be used depending on the type of the original authorization.

An Incremental Authorization is required in certain industries such as Hotel/Lodging when the

final amount due is more than 15% higher than the originally authorized amount.

For Voids/Incremental Requests the fields below require specific handling:

• Merchant ID Number – This field will be the unencrypted, cleartext MID.

• Account Data Source – This field will indicate that the UID is being sent instead of track or

PAN data:

– “z” = Original authorization request contained encrypted track or PAN data.

• Customer Data – This field will be <Key Block Data><FS><UID>, where <Key Block Data>

is just “v03” – the KTB is not required in this case since no encrypted data is being sent,

and <UID> is the RRN from the original authorization response.

Note: Refer to the Heartland Exchange Specification for all other fields.

Void/Incremental Responses – No specific fields in the Exchange Host response require specific

handling.

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.4.2 Settlements

Batch transactions consist of a number of record types and require both request and responses.

4.4.2.1 Header Record Field Requirements

• Merchant ID Number – This field will be the unencrypted, cleartext MID.

• Key Block – This field will be just “v03” – the KTB is not required in this case since no

encrypted data is being sent.

4.4.2.2 Detail Record Fields Requirements

• Account Data Source – This field will be the same value as was used in the original

authorization request.

• Primary Account Number – This field will be filled with 22 spaces to indicate that the UID

will be used.

• Transaction Identifier – This field will be the Transaction Identifier from the original

authorization response (it contains the UID).

4.4.2.3 Settlement Notes

UIDs must be used for settlement, all other record fields in both the request and responses follow

those defined in the Exchange Host Specifications.

Note: The only alternative supported on Exchange for settling E3 encrypted transactions is to

send the encrypted PANs in the detail records, but that option requires that all transactions

in the batch share the same KTB.

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

4.4.3 POS 8583

This section addresses specific requirements for E3 terminals using the POS 8583 message

specification. All card types may be sent using E3 encryption. All transactions utilizing E3

processing will include E3 data in DE 127: Forwarding Data.

These transactions require the following:

• E3 data must always appear in DE 127: Forwarding Data (using an Entry Tag value of

E3E.)

Note: Then encrypted CVV and ETB are attached to the E3 Data Block, while the encrypted

track data and/or encrypted PAN are placed in their normal position in the authorization

message.

• An account number must be more than 13 characters, the encrypted account number data

cannot exceed 19 characters.

• Encrypted Track 1 data will not exceed 79 bytes.

• Encrypted Track 2 data will not exceed 40 bytes.

Response codes specific to E3 transactions are:

• DE 39 = 952 (Failure for E3 terminals only – encryption error)

• DE 39 = 953 (Failure for E3 terminals only – too many queued / no connection)

Table 4-6 POS 8583 Data Fields

Field Name Length Value/Description

RECORD ID 2 E3

RECORD TYPE 3 001

KEY BLOCK DATA TYPE 1 v = Voltage

ENCRYPTED FIELD

MATRIX

2• 03 = CustomerData

• 04 = CustomerData, Card Security Code

TEP TYPE 1 • 1 = TEP 1

• 2 = TEP 2

RESERVED 18 Blank-fill

CARD SECURITY CODE 7 Encrypted CVV data. Unencrypted bytes defined as:

• 1 = Length of actual CVV data

•2

–7 = CVV data, right-justified, random fill, numeric

only

RESERVED 45 Blank-fill

ETB LLL 3 Length of ETB Block.

ETB BLOCK Varies ETB cannot exceed 276 bytes.

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.4.4 NTS

This section addresses specific requirements for E3 terminals processing on the NTS network

platform. All card types may be sent via E3 encryption. All transactions using E3 processing

append additional data items at the end of the record, which signals to the host that the

transaction is E3 encrypted.

These transactions require the following:

• E3 data must always appear at the end of a transaction. The POS terminal will append a

0x1D at the end of the transaction followed by the E3 data. Refer to Table 4-7 NTS Data

Fields, pg. 81.

Note: Then encrypted CVV and ETB are attached to the E3 Data Block, while the encrypted

track data and/or encrypted PAN are placed in their normal position in the authorization

message.

• POS must send spaces in the CVN field. This encrypted CVN value will be in the E3 Data

Block.

• An account number must not be less than 13 characters and the encrypted account

number data will not exceed 19 characters.

• Encrypted Track 1 data will not exceed 79 bytes.

• Encrypted Track 2 data will not exceed 40 bytes.

Response codes specific to E3 transactions are:

• 52 (Failure for E3 terminals only – encryption error)

• 53 (Failure for E3 terminals only – too many queued / no connection)

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

Table below shows the data items that must be appended to the end of an E3 transaction.

Table 4-7 NTS Data Fields

Field Name Length Value/Description

FIELD SEPARATOR 1 0x1D

Indicator for E3 transaction (Hex: Constant ASCII).

Must be appended at end of E3 transaction.

RECORD ID 2 E3

RECORD TYPE 3 001

KEY BLOCK DATA TYPE 1 v = Voltage

ENCRYPTED FIELD

MATRIX

2• 03 = Customer Data

• 04 = Customer Data, Card Security Code

TEP TYPE 1 •1 = TEP 1

•2 = TEP 2

RESERVED 18 Blank-fill

CARD SECURITY CODE 7 Encrypted CVV data. Unencrypted bytes defined as:

• 1 = Length of actual CVV data

• 2–7 = CVV data, right-justified, random fill numeric only

RESERVED 45 Blank-fill

ETB LLL 3 Length of ETB Block.

EBT BLOCK Varies ETB should not exceed 276 bytes.

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.4.5 Z01

This section addresses specific requirements for E3 terminals processing on the Z01 network

platform. All card types may be sent via E3 encryption. All transactions using E3 processing will

append additional data items at the end of the record, which will signal to the Host that the

transaction is E3 encrypted.

These transactions require the following:

• E3 data must always appear at the end of a transaction. The POS terminal will append a

0x1D at the end of the transaction followed by the E3 data as specified in Table 4-8 Z01

Data Fields, pg. 83.

Note: The encrypted CVV and ETB are attached to the E3 Data Block, while the encrypted track

data and/or encrypted PAN are placed in their normal position in the authorization

message.

• POS must send spaces in AVS RESULT AND CID RESULT. The encrypted values are in

the E3 Data Block.

• An account number must not be less than 13 characters and the encrypted account

number data will not exceed 19 characters.

• Encrypted Track 1 data will not include the field separator 0x1C.

• Encrypted Track 2 data will not exceed 37 bytes.

Response codes specific to E3 transactions are:

• URC = EG, SRC = 8 (Failure for E3 terminals only – encryption error)

• URC = EH, SRC = 8 (Failure for E3 terminals only – too many queued / no connection)

Note: E3 transactions are not supported for TDC batch uploads.

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

Table 4-8 Z01 Data Fields

Field Name Length Value/Description

FIELD SEPARATOR 1 0x1D.

Indicator for E3 transaction (Hex: Constant ASCII).

Must be appended at end of E3 transaction.

RECORD ID 2 E3

RECORD TYPE 3 001

KEY BLOCK DATA TYPE 1 v = Voltage

ENCRYPTED FIELD

MATRIX

2• 03 = Customer Data

• 04 = Customer Data, Card Security Code

TEP TYPE 1 •1 = TEP 1

•2 = TEP 2

RESERVED 18 Blank-fill

CARD SECURITY CODE 7 Encrypted CVV data. Unencrypted bytes defined as:

• 1 = Length of actual CVV data

• 2–7 = CVV data, right-justified, random fill, numeric only

RESERVED 45 Blank-fill

ETB LLL 3 Length of ETB Block.

EBT BLOCK Varies ETB should not exceed 276 bytes.

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.5 E3 Hardware Devices

The following section describes two hardware devices that use E3 encryption technology that

integrates with Heartland Hosts:

• E3 MSR Wedge (HPS-E3-M1)

• E3 PIN Pad (HPS-E3-P1)

4.5.1 E3 MSR Wedge (HPS-E3-M1)

• Hardware-encrypts card data upon swipe.

• Incorporates a Tamper-Resistant Security Module (TRSM) to physically protect data and

encryption keys.

• Available with USB and RS232 connectors.

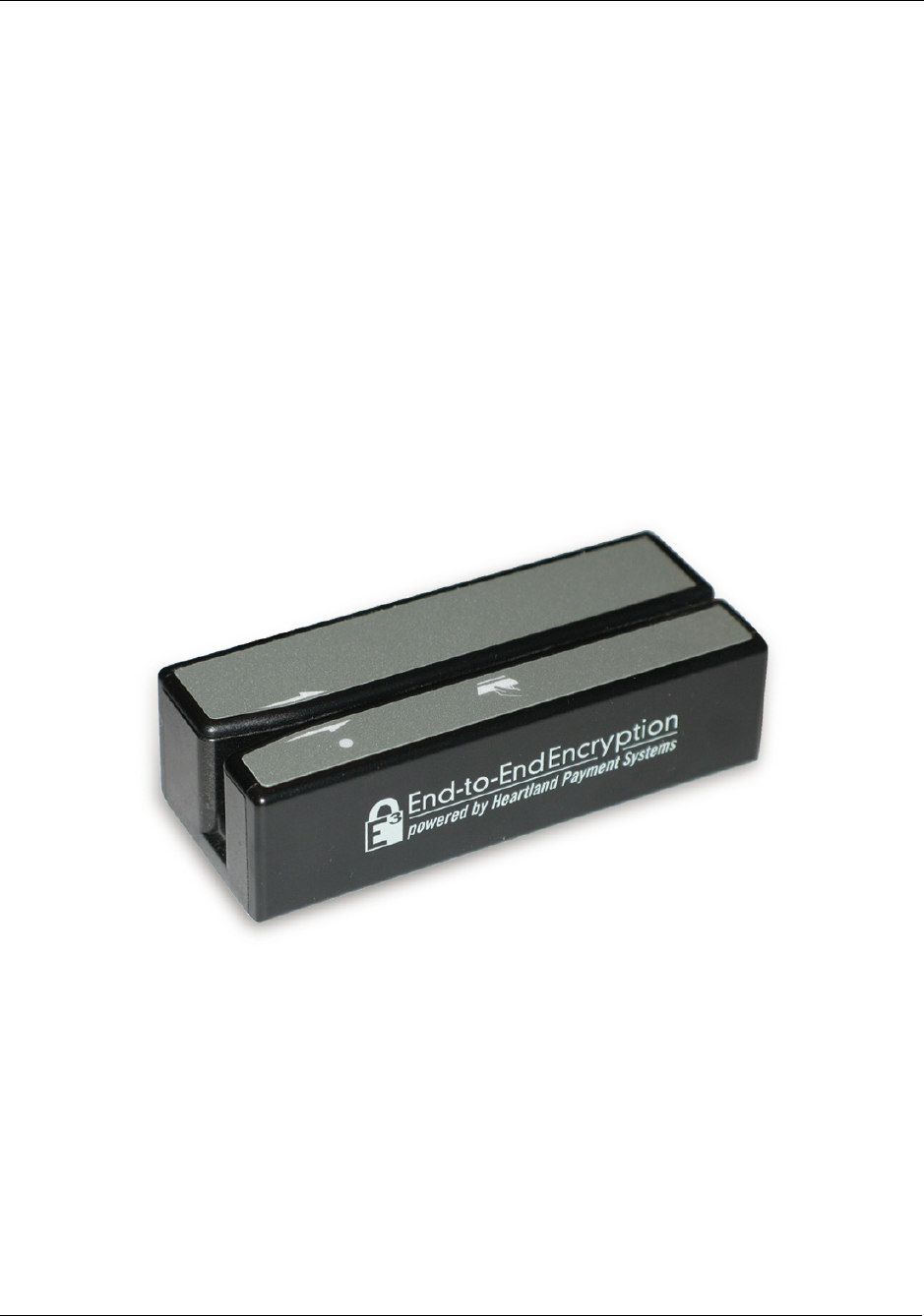

Figure 4-1 E3 MSR Wedge

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

4.5.2 E3 MSR Wedge Device Interface

4.5.3 E3 MSR Wedge Example Output

See the following Format 2 example output from the E3 MSR Wedge:

<E1050711%B4012001000000016^VI TEST

CREDIT^251200000000000000000000?|

ycO0LNhgiu4XH7J1Lqg8BY6Vc25F3ft3qoTEeqk3wrx7KGh8JSrEUfAAW

|+++++++8q0sLWCB5|11;4012001000000016=25120000000000000000?|

7YIC67MkijZle6TL5Tdw90jCQ3F|+++++++8q0sLWCB5|00|||

/wECAQECAoFGAgEH1AESTDT6jRZwb3NAc2VjdXJlZXhjaGFuZ2UubmV0aXGRuQf68kvJ3Sb

fATjjdctZlBnX2gFQ3chN7Fq2s22bTq/rTVzl7fLQ/j1CGGohcyB

vmmYxGs6ZLDyYL+8EWZFhhjQC7tIKaYMsdua4SxeYAg9wQGHczVI+tTKFXClWEQ8kCKZ6

zHkG5+jJZhjGpO2EWSe18DH3HiKMsDwM8DcA5l5b3GT+pc7XwwK8oEdU3gjOiRo4/fdPm

F/PPBxAET1zlPUq|>

Table 4-9 E3 MSR Wedge Operation Modes

Mode Description

USB HID-KB The POS system receives data from the E3 MSR Wedge as if sent

from a standard USB keyboard. In this mode, you can see the output

by opening a text editor such as Notepad and swiping a card. The

output is in Format 2 per the programmer’s manual.

USB HID-MSR The POS system receives data from the E3 MSR Wedge via its

native USB HID interface in Format 1. For this mode, an ActiveX

control is available for web applications running on Internet Explorer

and provides commands for obtaining the desired output

components.

Also, a command-line application is available that acquires and

reformats the output as Format 2.

USB Virtual-COM or RS232 The POS system receives data from the E3 MSR Wedge via its

native serial COM port interface, which outputs in Form 2.

A virtual COM port driver is available for Windows. The RS232

wedge has a standard 9-PIN serial connector.

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.6 E3 PIN Pad (HPS-E3-P1)

The E3 PIN Pad is compatible with standard PIN entry/encryption operations, but is also capable

of functioning with MSR, Europay, MasterCard, and VISA (EMV) smart cards.

• Built-in MSR encrypts at the swipe and TRSM protects the data and keys.

• Hardware-encrypt manually-entered card numbers.

• Available with USB and RS232 connectors.

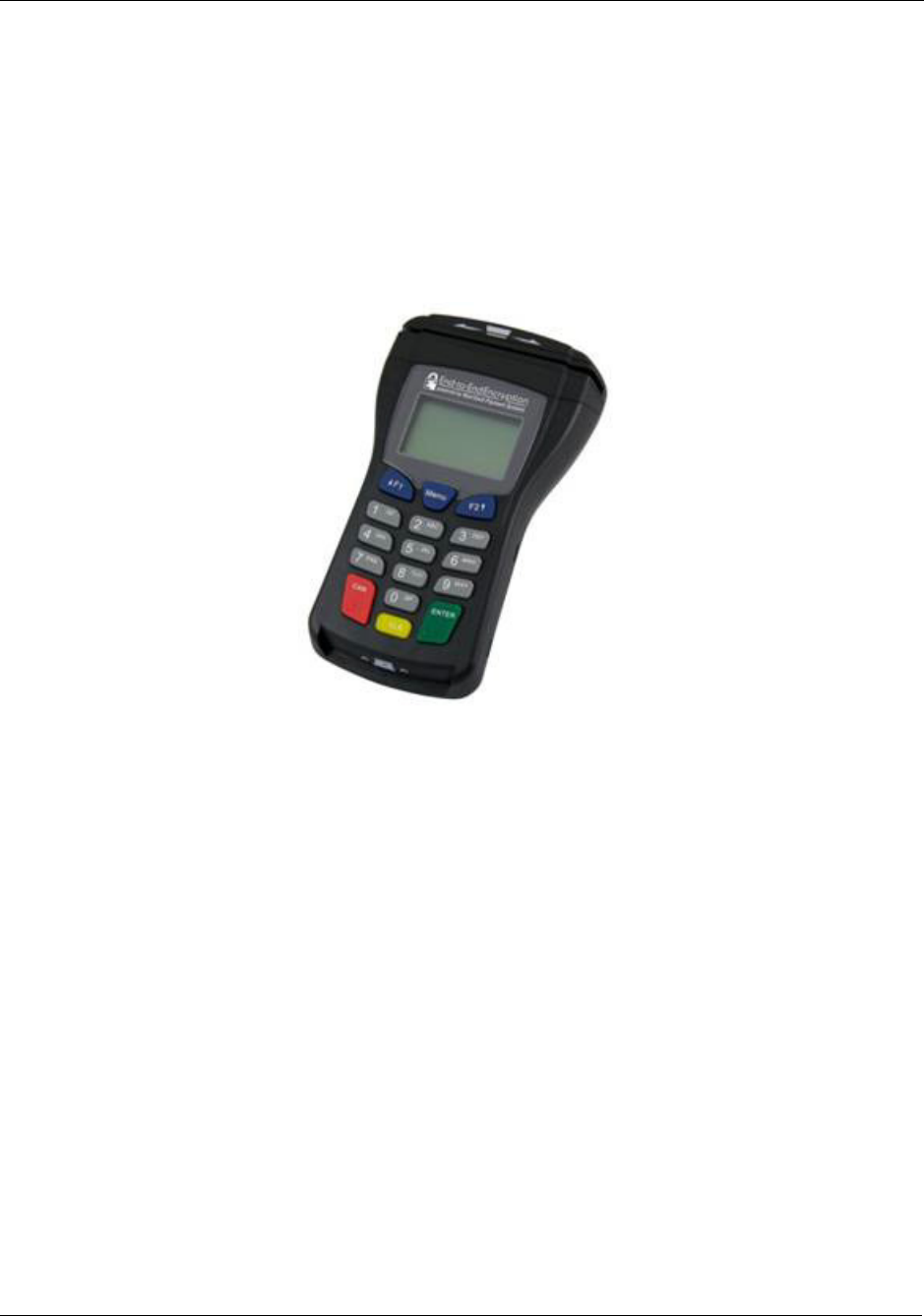

Figure 4-2 E3 PIN Pad

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

Table 4-10 E3 MSR Wedge Operation Modes

POS System Direction E3 PIN Pad

<STX>E1.3111219098025<ETX>[LRC] → “SWIPE CARD OR ENTER ACCOUNT #” is

displayed on LCD.

← <ACK>

<STX>E2.030<ETX>[LRC] →

← <ACK>

←If card is swiped...

<STX>E3.11%B401200000000001

6^VI TEST CREDIT^25120000000

0000000000000?|V2uvVFzWkBT

NzcX7vcrWTi4jV9AtG2bLYJkCO

i+OA2aY2OiRmw/0ZSQcH|++++

+++X8zr5YaCZ<FS>11;4012000

000000016= 251 20000000000

000000?|7QjTe2v1Qy1L84Q+n6

zudfNOXf|+++++++X8zr5YaCZ

<FS>00||<FS>/wECAQ

ECAoFGAgEH2ggJTHLeIBZwb3N

Ac2VjdXJlZXhjaGFuZ2

UubmV0aFLxu2XTNLs6jIk3Baktb

FZrdJ26dX85Bjkkng Qnmk+3tOhX

RVILvASHnfmao0yl5z7KNBx6Na

7ekL+hry GQ3oPOcOVkEzei8

3Clsc9QSfQJWB9ysAynGc6btccn

fr fjwyJn70KJ1cqQrw623ASSWm

57Hov2fMtWmPpYpQRr54

oAoXZYjUajd0sRXCOn5XeD5Bhp

E/Wzd4Ayn+3 42BGUL0N7hWKm

<ETX>[LRC]

If card number is manually entered...

<STX>E4.114012000000000016

<FS>

+++++++X8zr5YCZ

<FS>/wECAQECAoFGAgEH2g

gJTHLeIBZwb3NA2VjdXJlZXhj

aGFuZ2UubmV0aFLxu2XTNLs6

jIk3Baktb FZrdJ26dX85Bjkkng

Qnmk+3tOhXRVILvASHnfma

o0yl5 z7KNBx6Na7ekL+hryGQ3

oPOcOVkEzei83Clsc9QSfQJW

B9ysAynGc6btccnfrfjwyJn70KJ

1cqQrw623ASSWm57H ov2fM

tWmPYpQRr54oAoXZYjUajd0

sRXCOn5XeD5BhpE /Wzd4Ayn

+342BGUL0N7hWKm<ETX>[LRC]

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

4.6.1 E3 PIN Pad Device Interface

The POS system transmits and receives data to/from the E3 PIN Pad via its native serial COM

port interface. For the USB PIN pad, a virtual COM port driver is available for Windows. The

RS232 PIN pad has a standard 9-PIN serial connector.

All messages are framed using standard VISA protocols:

• <STX>Message<ETX>[LRC]

• <SI>Message<SO>[LRC]

4.6.1.1 E3 PIN Pad Requests

The following messages are sent to the PIN pad to request E3 encrypted card data via card

swipe and/or manual entry:

• <STX>E1.[entry_flag] [disp_flag] [mask_flag] [min len] [max len] [prompt1] [prompt2]<FS>

[prossing_prompt]<ETX>[LRC]

• <STX>E2.[timeout]<ETX>[LRC]

4.6.1.2 E3 PIN Pad Responses

The following messages are returned from the PIN pad with E3 encrypted card data via card

swipe or manual entry:

• Card Swipe: <STX>E3.[trk1]<FS>[trk2]<FS>[trk3]<FS>[ktb]<ETX>[LRC]

• Manual Entry: <STX>E4.[result] [luhn] [obf]<FS>[enc]<FS>[ktb]<ETX>[LRC]

HPS Integrator’s Guide V 16.1.1 4: E3 Processing Overview

4.6.2 Ingenico iPP300 and iSC Touch Series PIN Pads

You must sign up for an account at the Ingenico Developer Portal and mention that you are

working with Heartland. Retail Base Application (RBA) Integration Kits, Software Development

Kits (SDKs), and integration documentation for these devices can be downloaded from their

portal.

The E3 encryption settings are contained in a digitally signed SECURITY.PGZ files. Work with

Heartland to ensure that the appropriate file is loaded to your devices prior to certification testing

or production deployment.

4.6.3 Equinox L4000 and L5000 Series PIN Pads

You must sign up for an account at the Equinox Developer Portal and mention that you are

working with Heartland. Software Development Kits (SDKs) and integration documentation for

these devices can be downloaded from their portal.

The E3 encryption settings are contained in XML files which must be specified for all forms

(screens) from which card data is obtained, and the forms must be digitally signed. Equinox can

provide a development key to sign the forms for use on a development device, but for production

devices the forms will either need to be signed by Heartland, Equinox, or another entity that has

the appropriate signing tools. Work with Heartland to ensure that the appropriate forms have

been signed and loaded to your devices prior to certification testing or production deployment.

4: E3 Processing Overview HPS Integrator’s Guide V 16.1.1

HPS Integrator’s Guide V 16.1.1 5: EMV Processing Overview

Chapter 5: EMV Processing Overview

5.1 Introduction

In 1996, Europay, MasterCard, and VISA first published the “EMV” specifications for the use of

chip cards for payment. EMV® is now a registered trademark of EMVCo, LLC, an organization

jointly owned and operated by American Express, Discover, JCB, MasterCard, UnionPay, and

VISA.

EMVCo manages, maintains, and enhances the EMV Integrated Circuit Card Specifications to

help facilitate global interoperability and compatibility of payment system integrated circuit cards

and acceptance devices. EMVCo maintains and extends specifications, provides testing

methodology, and oversees the testing and approval process.

The EMV Specifications provide a global standard for credit and debit payment cards based on

chip card technology. Payment chip cards contain an embedded microprocessor, a type of small

computer that provides strong security features and other capabilities not possible with traditional

magnetic stripe cards.

Chip cards are available in two forms, contact and contactless.

• For contact, the chip must come into physical contact with the chip reader for the payment

transaction to occur.

• For contactless, the chip must come within sufficient proximity of the reader (less than 4

cm) for the payment transaction to occur. Some cards may support both contact and

contactless interfaces, and non-card form factors such as mobile phones may also be used

for contactless payment.

Heartland recommends that vendors become familiar with general EMV processing prior to initial

implementation at Heartland. A good overview of EMV is available from EMVCo at:

http://www.emvco.com/best_practices.aspx?id=217.

5: EMV Processing Overview HPS Integrator’s Guide V 16.1.1

5.2 EMV Migration

5.2.1 Enhanced Security

EMV is designed to significantly improve consumer card payment security by providing features

for reducing fraudulent transactions that result from counterfeit and lost and stolen cards. Due to

increased credit card breaches, this enhanced security has become a significant necessity.

The key security features are:

5.2.2 Card Brand Mandates

Effective April 2013, acquirer processors and sub-processor service providers are required to

support merchant acceptance of EMV chip transactions.

Table 5-1 Key Security Features

Key Security Feature Description

Card Authentication The terminal can authenticate the legitimacy of the card by using a

public-key infrastructure (PKI) and Rivest, Shamir, and Adleman (RSA)

cryptography to validate signed data from the card. The issuer can

authenticate the legitimacy of the card by validating a unique cryptogram

generated by the card for each payment transaction. These features will

help protect against counterfeit fraud.

Risk Management EMV introduces localized parameters to define the conditions under which

the issuer will permit the chip card to be used and force transactions online

for authorization under certain conditions such as offline limits being

exceeded.

Transaction Integrity Payment data such as purchase and cashback amounts are part of the

cryptogram generation and authentication processing, which will help

ensure the integrity of this data across authorization, settlement, and

clearing.

Cardholder Verification More robust cardholder verification processes and methods such as online

PIN (verified online by issuer) and offline PIN (verified offline by card) will

help protect against lost and stolen fraud.

HPS Integrator’s Guide V 16.1.1 5: EMV Processing Overview

5.2.3 Fraud Liability Shifts

Effective October 2015 (or October 2017 for automated fuel dispensers), a merchant that does

not support EMV assumes liability for counterfeit card transactions.

There are two types of liability shifts:

5.2.4 PCI Audit Waivers

Effective October 2012, the card brands will waive PCI DSS compliance validation requirements

if the merchant invests in contact and contactless chip payment terminals. For example, VISA’s

Technology Innovation Program (TIP) provides PCI audit relief to qualifying merchants (Level 1

and Level 2 merchants that process more than 1 million VISA transactions annually) when 75

percent of the merchant’s VISA transactions originate at a dual-interface EMV chip-enabled

terminal. MasterCard offers a similar program.

Table 5-2 Liability Shifts

Liability Shift Description

Chip Liability Shift An issuer may charge back a counterfeit fraud transaction that occurred at a

non-EMV POS terminal if the valid card issued was a chip card.

Chip/PIN Liability Shift An issuer may charge back a lost or stolen fraud transaction that occurred at

an EMV POS terminal that was not PIN-capable if the card involved was a

PIN-preferring chip card. A PIN-preferring chip card is defined as an EMV chip

card that has been personalized so that a PIN CVM option (online PIN or

offline PIN) appears in the card’s CVM list with a higher priority than the

signature option.

5: EMV Processing Overview HPS Integrator’s Guide V 16.1.1

5.3 EMV Specifications

This document provides guidelines for EMV integration, but it does not contain all the EMV

requirements. It should be used in conjunction with the following documents:

5.3.1 Contact Specifications

For EMV contact card acceptance, device manufacturers and payment application developers

must adhere to the following specifications:

Table 5-3 Contact Specifications

Source Specification

EMVCo • EMV Specifications v4.3 (Nov 2011) –

http://www.emvco.com/specifications.aspx?id=223

– Book 1: Application Independent ICC to Terminal Interface Requirements

– Book 2: Security and Key Management

– Book 3: Application Specification

– Book 4: Cardholder, Attendant, and Acquirer Interface Requirements

VISA • Transaction Acceptance Device Guide v3.0 (May 2015)

• Integrated Circuit Card Specification v1.5 (May 2009)

MasterCard • U.S. Market Terminal Requirements (April 2014)

American Express • AEIPS Terminal Implementation Guide v4.3 (April 2015)

• AEIPS Terminal Technical Manual v4.3 (April 2015)

Discover • Contact D-PAS Acquirer Implementation Guide v3.0 (Jan 2015)

• D-PAS Terminal Specification v1.0 (Jun 2009)

HPS Integrator’s Guide V 16.1.1 5: EMV Processing Overview

5.3.2 Contactless Specifications

For EMV contactless card acceptance, device manufacturers and payment application

developers must adhere to the following specifications:

5.3.3 Heartland Host Specifications

Information given in this document for each network platform is meant to be an overview only.

The latest version of these Heartland platform specifications should be used for complete

message requirements and formats:

Table 5-4 Contactless Specifications

Source Specification

EMVCo • EMV Contactless Specifications v2.5 (Mar 2015) –

http://www.emvco.com/specifications.aspx?id=21

– Book A: Architecture and General Requirements

– Book B: Entry Point

– Books C [C-1, C-2, C-3, C-4, C-5, C-6, C-7]: Kernel Specifications

– Book D: Contactless Communication Protocol

VISA • Transaction Acceptance Device Guide v3.0 (May 2015)

• Contactless Payment Specification v2.1 (May 2009)

MasterCard • U.S. Market Terminal Requirements (Apr 2014)

• Contactless Reader Specification v3.1 (Jun 2015)

American Express • Contactless NFC Terminal Implementation Guide v1.0 (Mar 2014)

• Expresspay Terminal Specification v3.0 (Feb 2012)

Discover • Contactless D-PAS Acquirer Implementation Guide v1.0

• Contactless D-PAS Terminal Application Specification v1.0

Table 5-5 Heartland Host Specifications

Platform Specification

Exchange • Exchange Host Specifications

Portico • Portico Developer Guide

NWS • Z01 Specifications

• POS 8583 Specifications

• SpiDr Specifications Developer’s Guide

VAPS • Network Terminal Specifications (NTS)

• POS 8583 Specifications

• SpiDr Specifications Developer’s Guide

5: EMV Processing Overview HPS Integrator’s Guide V 16.1.1

5.4 EMV Online vs. Offline

In the magstripe world, the term “offline” is often associated with certain types of transactions that

may occur when host communications are down, such as voice authorization, deferred

authorization (i.e. store and forward), and forced acceptance (i.e. merchant/acquirer stand-in).

Those same transactions can still occur in the EMV world as well, but there are several additional

uses of the term “offline” for EMV.

5.4.1 Card Authentication

5.4.2 Cardholder Verification

5.4.3 Authorization

Table 5-6 Card Authentication

Online Card Authentication vs. Offline Card Authentication

The transaction is sent online to an issuer who

authenticates the CVV in the track data for swiped

transactions, or CVV2 on the back of the card for

manually entered transactions.

The card may be authenticated offline by the terminal

using a PKI and RSA cryptography to verify that

certain static and/or dynamic data elements have been

digitally signed by the legitimate card issuer.

Table 5-7 Cardholder Verification

Online Cardholder Verification vs. Offline Cardholder Verification

The transaction is sent online to an issuer who

verifies that the online PIN or AVS data is correct.

An offline PIN may be securely stored on the card, so

the PIN entered on the PIN entry device may be sent

to the card in plaintext or enciphered format to be

validated by the card.

Table 5-8 Authorization

Online Authorization vs. Offline Authorization

The transaction is sent online to an issuer who

approves or declines the transaction.

Based on the amount of the transaction, and the risk

management criteria established by the card and the

terminal, a transaction may be approved or declined by

the card on behalf of the issuer, either with or without

attempt to go online to the issuer.

HPS Integrator’s Guide V 16.1.1 5: EMV Processing Overview

5.5 Full vs. Partial EMV Transactions and Flow

EMV POS solutions typically support both “full” EMV transactions and “partial” EMV transactions

as follows:

5.5.1 Full vs. Partial Transaction Flow

Table 5-9 Full vs. Partial EMV Transactions and Flow

EMV Transaction Description

Full EMV Transactions Transactions such as Purchases and Pre-Authorizations where the full EMV

transaction flow (i.e. the interaction between the card and terminal) is

performed and the card participates in the authorization decision, whether

online or offline.

Partial EMV Transactions Transactions such as Returns and Reversals where the EMV transaction

flow is only partially performed to the extent necessary to get the card data

from the chip and the card does not participate in the authorization decision.

Table 5-10 Full vs. Partial Transaction Flow

EMV Transaction Step Full

EMV

Partial

EMV Notes

Card Acquisition 

Card is inserted or tapped.

Application Selection 

Initiate Application Processing 

Read Application Data 

Offline Data Authentication 

Processing Restrictions 

Cardholder Verification 

Terminal Risk Management 

Terminal Action Analysis 

For partial EMV transactions, the terminal requests an AAC

at 1st GENERATE AC to terminate card usage.

Card Action Analysis 

For partial EMV transactions, the card always returns an

AAC.

Online Processing 

Issuer Authentication 

Completion 

Issuer Script Processing 

Card Removal 

Prompt to remove card if it was inserted.

5: EMV Processing Overview HPS Integrator’s Guide V 16.1.1

5.5.2 Full vs. Partial Credit Transactions

Table 5-11 Full vs. Partial Credit Transactions

EMV Transactions Full

EMV

Partial

EMV Notes

Bill Payment 

Card Verify 

Cash Advance 

Incremental Authorization No chip data should be sent.

Offline Decline Advice AAC received at 1st GENERATE AC or due to failed Issuer

Authentication at 2nd GENERATE AC.

Offline Purchase Advice



Full for EMV offline approvals where TC received at 1st

GENERATE AC or after failed host communications at 2nd

GENERATE AC.

Partial for voice authorizations if PAN obtained from chip.

Online Purchase ARQC received at 1st GENERATE AC.

Pre-Authorization 

Pre-Auth Completion No chip data should be sent.

Purchase Return To obtain PAN from chip if needed.

Reversal on Timeout PAN and chip data from original authorization should be sent

unless otherwise stated in the network specifications. (This is

currently not applicable for the NTS platform.)

Note: No EMV data will be returned in the response.

Void PAN and chip data from original authorization should be sent.

This should be the final chip data available from the original

authorization. Typically, this would be from the 2nd GEN AC

for contact and from the 1st GEN AC for contactless.

Note: No EMV data will be returned in the response.

HPS Integrator’s Guide V 16.1.1 5: EMV Processing Overview

5.5.3 Full vs. Partial Debit Transactions

Table 5-12 Full vs. Partial Debit Transactions

EMV Transactions Full

EMV

Partial

EMV Notes

Offline Decline Advice AAC received at 1st GENERATE AC or due to failed Issuer

Authentication at 2nd GENERATE AC.

Online Purchase ARQC received at 1st GENERATE AC.

Pre-Authorization 

Pre-Auth Completion No chip data should be sent.

Purchase Return ARQC received at 1st GENERATE AC.

Reversal on Timeout PAN and chip data from original authorization should be sent.

Note: No EMV data will be returned in the response.

Void PAN and chip data from original authorization should be sent.

This should be the final chip data available from the original

authorization. Typically, this would be from the 2nd GEN AC for

contact and from the 1st GEN AC for contactless.

Note: No EMV data will be returned in the response for Void.

5: EMV Processing Overview HPS Integrator’s Guide V 16.1.1

HPS Integrator’s Guide V 16.1.1 6: EMV Development Overview

Chapter 6: EMV Development Overview

6.1 EMV Terminals

In order to develop an EMV POS solution, an approved EMV transaction acceptance device

must be used. In this document all such devices, whether they are a countertop terminal,

multi-function PIN pad, multi-lane signature capture device, automated fuel dispenser module,

etc., will be referred as a 'terminal'.

6.1.1 Contact Devices

For EMV contact card acceptance, use any terminal if all of the following criteria apply:

• Contains an EMVCo Level 1 Contact approved Interface Module (IFM) evaluated against

the EMV ICC Specifications, Book 1 v4.0 or later.

• Contains a MasterCard Terminal Quality Management (TQM) approved IFM.

• Is running an EMVCo Level 2 Contact approved application kernel evaluated against the

EMV ICC Specifications v4.3 or later.

• Contains a PCI PTS 2.x, 3.x or 4.x approved PIN Entry Device (PED) or Encrypting PIN

Pad (EPP), if you plan to support PIN.

6.1.2 Contactless Devices

For EMV contactless card acceptance, use any terminal if all of the following criteria apply:

• Contains an EMVCo Level 1 Contactless approved Proximity Coupling Device (PCD)

evaluated against the EMV Contactless Specifications, Book D v2.2 or later.

• Contains a MasterCard TQM approved PCD.

• Is running a VISA approved payWave application kernel evaluated against the VISA

Contactless Payment Specification v2.1.1 or later.

• Is running a MasterCard approved MasterCard Contactless application kernel approved

against the MasterCard Contactless Reader Specification v3.0.1 or later.

• Is running an American Express approved Expresspay application kernel evaluated

against the Expresspay Terminal Specification v3.0 or later.

• Is running a Discover approved D-PAS application kernel evaluated against the

Contactless D-PAS Terminal Payment Application v1.0 or later.

• Contains a PCI PTS 2.x, 3.x or 4.x approved PED or EPP, if you plan to support PIN.

REQUIREMENT An EMV POS Solution cannot be certified unless the EMVCo Level 1 and Level 2 Letters of

Approval for your terminal(s) of choice are current and not about to expire.

6: EMV Development Overview HPS Integrator’s Guide V 16.1.1

6.1.3 Letters of Approval

The EMVCo and PCI approval numbers and/or Letters of Approval (LoAs) can be obtained from

their respective websites:

•http://www.emvco.com/approvals.aspx?id=83

•https://www.pcisecuritystandards.org/approved_companies_providers/approved_pin_trans

action_security.php

The other approval numbers and/or LoAs can be obtained from the device supplier or

manufacturer.

6.2 EMV Solutions

The type of EMV POS solution to be developed is an important consideration as this will

determine the level of expertise needed, the amount of time it will take and whether a full EMV

certification will be required.

6.2.1 Integrated

Integrated solutions typically involve an Electronic Cash Register (ECR) that is connected to a

terminal containing the EMV kernel and providing all EMV functionality including card acquisition

and PIN entry.

6.2.2 Standalone

Standalone solutions consist of a terminal that runs the POS software, contains the EMV kernel

and provides all EMV functionality. PIN entry occurs on an internal or external PIN pad and if

contactless is supported, the reader may be integrated into the terminal or be a separate device.

A standalone solution is in scope for PCI and full EMV certification.

Table 6-1 Integrated Solutions

Integrated Solution Description

Fully Integrated The terminal provides the EMV functionality, but the ECR still handles

card data and host communication. Therefore, it is in scope for PCI and

full EMV certification.

Semi-Integrated The terminal not only provides the EMV functionality, but also handles the

host communication, so the ECR does not see the card data. Therefore,

the ECR is not in scope for PCI or full EMV certification. Only a minimal

EMV validation script must be run for semi-integrated solutions.

HPS Integrator’s Guide V 16.1.1 6: EMV Development Overview

6.3 EMV Certifications

Magstripe swiped and key entered transactions will continue to be certified directly through

Heartland per the existing processes already in place. However, EMV requires additional

certifications. Each card brand has its own proprietary chip applications that run on EMV cards

bearing their brand. For that reason, each card brand has its own certification requirements that

must be met and submitted for approval.

6.3.1 Test Requirements

The card brand certification requirements must be met for each distinct POS configuration that

will be deployed, which is defined by a unique combination of:

• The kernel software, which includes the Level 2 Contact Application Kernel and/or Level 2

Contactless Application Kernel (payWave, MasterCard Contactless, Expresspay, etc.).

• The terminal application software, which includes the payment application software and

the terminal-to-acquirer communication software.

• The specific terminal configuration, which includes use of a particular EMVCo Level 2

approved kernel configuration for the specific Terminal Type, Terminal Capabilities and

other relevant terminal parameter settings.

• The complete connection path from the terminal to the card brand.

The card brand certification requirements must be met when any of the following occurs:

• A particular POS configuration is deployed for the first time.

• A major upgrade is made to an already deployed POS configuration.

• The terminal hardware and software is upgraded and the change is major according to the

EMVCo Type Approval Bulletin No. 11 (http://www.emvco.com/approvals.aspx?id=108).

Note: Replacing the IFM with another approved IFM is not considered a major change.

• A contact terminal is upgraded to support contactless transactions.

• The terminal application software is upgraded to support additional payment related

functionality such as the partial approval, purchase with cash back, purchase with gratuity,

cardholder application selection, etc.

• The Level 2 kernel configuration is modified.

• The terminal is upgraded to support an additional AID.

• The acquirer modifies its network in such a way that it affects the transaction message

mapping between the POS and the acquirer host that interfaces with the card brand

networks.

• The card brand requests it, for instance, in the scope of the ad-hoc resolution of a field

interoperability issue.

REQUIREMENT If an EMV POS Solution supports multiple kernel configurations, multiple certifications

will be required, one for each kernel configuration that will be used in production.

6: EMV Development Overview HPS Integrator’s Guide V 16.1.1

6.3.2 Test Plans

The following card brand test plans must be executed for full EMV certifications:

•VISA Smart Debit/Credit (VSDC) Testing

•MasterCard Terminal Integration Process (M-TIP) Testing

•American Express Integrated Circuit Card Payment Specification (AEIPS) Testing

•Discover D-Payment Application Specification (D-PAS) Testing

6.3.2.1 VISA Smart Debit/Credit (VSDC) Testing

6.3.2.2 MasterCard Terminal Integration Process (M-TIP)

Testing

Table 6-2 VSDC Testing

Test Plan Description

Acquirer Device Validation Toolkit (AT) User Guide

v6.1.1

Up to 32 test cases for EMV contact card acceptance.

qVSDC Device Module Test Cases v2.1 Up to 89 test cases for EMV contactless card acceptance.

Required for stand-alone contactless readers.

Optional for dual-interface (contact and contactless)

integrated readers.

Contactless Device Evaluation Toolkit (CDET) User

Guide v2.2

Up to 15 test cases for general contactless card acceptance.

Table 6-3 M-TIP Testing

Test Plan Description

M-TIP 2.0 Build 215 – M-TIP Subset Up to 175 test cases for EMV contact card acceptance.

M-TIP 2.0 Build 215 – Field Interoperability Subset Up to 89 test cases for EMV contact card acceptance.

M-TIP 2.0 Build 215 – Contactless Subset 6 Up to 23 test cases for EMV contactless card acceptance.

M-TIP 2.0 Build 215 – Contactless Subset 8 Up to 268 test cases for EMV contactless card acceptance.

HPS Integrator’s Guide V 16.1.1 6: EMV Development Overview

6.3.2.3 American Express Integrated Circuit Card Payment

Specification (AEIPS) Testing

6.3.2.4 Discover D-Payment Application Specification

(D-PAS) Testing

Table 6-4 AEIPS Testing

Test Plan Description

Global AEIPS Terminal Test Plan v6.2 Up to 34 test cases for EMV contact card acceptance.

Global Expresspay EMV Terminal End-to-End Test

Plan v1.5

Up to 25 test cases for EMV contactless card acceptance.

Table 6-5 D-PAS Testing

Test Plan Description

Contact D-PAS Acquirer-Terminal End-to-End Test Plan

v1.3

Up to 52 test cases for EMV contact card acceptance.

Contactless D-PAS Acquirer-Terminal End-to-End Test

Plan v1.2

Up to 33 test cases for EMV contactless card

acceptance.

6: EMV Development Overview HPS Integrator’s Guide V 16.1.1

6.3.3 Test Tools

To successfully execute the test plans, you need the following:

1. The appropriate test cards.

2. A means of capturing, logging and validating the interaction between the terminal and

cards.

One method to accomplish this is to order all of the required physical test cards from a company

such as FIME, along with their Smartspy tools for logging the interaction. However, because

there are hundreds of different test cases and test cards and the requirements often change for

both, this approach is prohibitively impractical and expensive. Heartland recommends

purchasing test tools instead.

Many EMV test tools are available on the market today that remove the need for physical test

cards and rudimentary card spies. These tools emulate all the required test cards, facilitate

execution of the test cases, capture the interaction between the terminal and the cards in a

readable format, clearly indicate pass/fail results of the test cases and log the results in the

format required for submission to the card brands.

You may use any test tool if it has been approved for use by a card brand for the purpose of

meeting that brand’s certification requirements. Each card brand maintains a list of approved test

tools that have been verified to properly emulate the test cards and execute the test cases

required for certification.

The following tools are approved by all four card brands for both contact and contactless EMV

testing:

• ICC Solutions’ ICCSimTmat Test Manager

• UL Transaction Security’s Collis Brand Test Tool

You may choose to purchase either of these tools or any other tools approved for use by one or

more card brands. Heartland uses the Collis Brand Test Tool for testing our internally developed

applications. If you choose to purchase Collis, Heartland can apply knowledge and expertise of

that tool toward facilitating your testing.

HPS Integrator’s Guide V 16.1.1 6: EMV Development Overview

6.3.4 Test Environments

Heartland currently has two EMV test environments:

It is essential that you work with POS Integrations to insure you are pointed to the correct test

environment based on the type of testing you are executing.

6.3.5 Test Process

You will need to work with our POS Integrations team to understand and follow their current

certification procedures. The following is only a high-level overview of the process:

Table 6-6 Test Environments

Test Environment Description

Pre-certification This environment is used for executing the card brand test cases to

ensure a 100% pass rate prior to moving to certification. This

environment can also be used for generic EMV and non-EMV testing

where certain dollar amounts trigger fixed responses from the host.

Certification This environment is used for executing the card brand test cases for

submission to the card brands for formal certification.

Table 6-7 Test Process

Test Process Description

Certification Setup A certification analyst will provide you with the appropriate certification request

forms. Once those are returned and processed, the POS Integrations team will set

up the required test accounts, point them to the appropriate environments, provide

you with the corresponding credentials and provide test scripts as follows:

•VISA – No script available. You must configure your test tool according to

configuration being certified and it will specify test case applicability.

•MasterCard – We provide a TSE file that contains your script and must be

imported into your test tool.

•American Express – We provide access to the AMEX Test System (ATS) which

contains your script.

•Discover – We provide a spreadsheet from UL that contains your script.

Card Brand Pre-Certification Execute all card brand test cases in our pre-certification environment to ensure a

100% pass rate prior to moving to certification. Our certification analyst may request

your terminal logs and transaction receipts if needed to help resolve issues.

Class B Certification Execute the non-EMV test script provided by our certification analyst. The analysts

will review the results and provide their analysis. Errors are corrected and test

cases re-executed if necessary.

6: EMV Development Overview HPS Integrator’s Guide V 16.1.1

6.4 EMV Support

Our POS Integrations team is available from 9:00 AM to 5:00 PM Eastern to support EMV testing

and can be reached at EMVDevSupport@e-hps.com.

Card Brand Certification Execute all card brand test cases in our certification environment. The following

actions must be completed depending on card brand:

•VISA – Export XML file for upload to Chip Compliance Reporting Tool (CCRT).

•MasterCard – Export TSEZ file containing terminal logs and validation, host

logs and validation and receipts.

•American Express – Complete user validations and upload terminal logs in

ATS.

•Discover – Indicate results and add comments as needed in provided

spreadsheet.

Card Brand Submission A certification analyst will ensure that all test cases have been completed then

submit the results to the card brands for approval. The turnaround time for the card

brands to review, approve and return a Letter of Approval is typically 10-15

business days.

REQUIREMENT Your terminal(s) of choice must have EMVCo Level 2 approved kernel configurations that

match each of the configurations specified in your certification request forms.

Table 6-7 Test Process (Continued)

Test Process Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

Chapter 7: EMV Terminal Interface

7.1 EMV Terminal to Card Communication

7.1.1 Application Protocol Data Units (APDUs)

The terminal talks to the Integrated Circuit Card (ICC) using Application Protocol Data Unit

(APDU) command-response pairs, which have the following formats:

• Command APDU Format

• Response APDU Format

Where...

•SW1 SW2 = ‘9000’ (Success)

•SW1 SW2 = ‘6xxx’ (Failure)

Table 7-1 Command APDU Format

Code Description Length

CLA Class of instruction 1

INS Instruction code 1

P1 Instruction parameter 1 1

P2 Instruction parameter 2 1

Lc Number of bytes present in command data field 0 or 1

Data String of data bytes send in command (= Lc) var.

Le Maximum number of data bytes expected in data field of

response

0 or 1

Table 7-2 Response APDU Format

Code Description Length

Data String of data bytes received in response var. (= Lr)

SW1 Command processing status 1

SW2 Command processing qualifier 1

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.1.2 Tag, Length, Value (TLV) Data Objects

Data objects are BER-TLV coded, as defined in ISO/IEC 8825:

• The Tag field consists of one or more consecutive bytes. It indicates a class, a type, and a

number. EMV tags are coded on one or two bytes.

• The Length field consists of one or more consecutive bytes that indicate the length of the

following value field.

– If bit 8 of the most significant byte of the length field is set to 0, the length field consists

of only one byte. Bits 7 to 1 code the number of bytes of the value field, for lengths from

1 to 127.

– If bit 8 of the most significant byte of the length field is set to 1, the subsequent bits 7 to

1 code the number of subsequent bytes in the length field. The subsequent bytes code

an integer representing the number of bytes in the value field. Two bytes are necessary

to express lengths from 128 to 255.

• The Value field indicates the value of the data object. If L = 00, the value field is not

present.

7.1.3 Kernel Application Programming Interface (API)

Your terminal will come with a Software Development Kit (SDK) that provides an extraction

layer/library built on top of the EMVCo Level 2 contact approved kernel application that allows

your payment application to run EMV transactions. Discussion of the specific functions/methods

that are part of the SDKs provided by the device manufacturers is outside of the scope of this

document, although the intent of this document is to provide the background needed to

successfully utilize any API.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.2 EMV Data Elements

7.2.1 Data Conventions

The following sections describe the TLV data objects that come from the terminal, card, and

issuer. The Value column uses the following format conventions:

Table 7-3 Data Conventions

Value Description

a Alphabetic data elements contain a single character per byte. The permitted characters are alphabetic

only (a to z and A to Z, upper and lower case).

an Alphanumeric data elements contain a single character per byte. The permitted characters are

alphabetic (a to z and A to Z, upper and lower case) and numeric (0 to 9).

ans Alphanumeric Special data elements contain a single character per byte. The permitted characters and

their coding are shown in the Common Character Set table in Annex B of Book 4.

There is one exception: The permitted characters for Application Preferred Name are the non-control

characters defined in the ISO/IEC 8859 part designated in the Issuer Code Table Index associated with

the Application Preferred Name.

b These data elements consist of either unsigned binary numbers or bit combinations that are defined

elsewhere in the specification.

Binary example: The Application Transaction Counter (ATC) is defined as “b” with a length of two

bytes. An ATC value of 19 is stored as Hex '00 13'.

Bit combination example: Processing Options Data Object List (PDOL) is defined as “b” with the

format shown in Book 3, section 5.4.

cn Compressed numeric data elements consist of two numeric digits (having values in the range Hex '0'–

'9') per byte. These data elements are left justified and padded with trailing hexadecimal 'F's.

Example: The Application Primary Account Number (PAN) is defined as “cn” with a length of up to ten

bytes. A value of 1234567890123 may be stored in the Application PAN as Hex '12 34 56 78 90 12 3F

FF' with a length of 8.

n Numeric data elements consist of two numeric digits (having values in the range Hex '0'–'9') per byte.

These digits are right justified and padded with leading hexadecimal zeroes. Other specifications

sometimes refer to this data format as Binary Coded Decimal (“BCD”) or unsigned packed.

Example: Amount, Authorised (Numeric) is defined as “n 12” with a length of six bytes. A value of

12345 is stored in Amount, Authorised (Numeric) as Hex '00 00 00 01 23 45'.

var. Variable data elements are variable length and may contain any bit combination. Additional information

on the formats of specific variable data elements is available elsewhere.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.2.2 Terminal Data

The following data comes from the terminal, payment application, or parameter management

system:

Table 7-4 Terminal Data

Name Tag Length Value Description

ADDITIONAL

TERMINAL

CAPABILITIES

‘9F40’ 5 b Indicates the data input and output capabilities of the terminal.

Byte 1 – Transaction Type Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1xxxxxx xCash

x 1 x x x x x x Goods

xx1xxxx xServices

x x x 1 x x x x Cashback

x x x x 1 x x x Inquiry

x x x x x 1 x x Transfer

x x x x x x 1 x Payment

x x x x x x x 1 Administrative

Byte 2 – Transaction Type Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Cash Deposit

x0xxxxx xRFU

xx0xxxx xRFU

xxx0xxx xRFU

xxxx0xx xRFU

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

Byte 3 – Terminal Data Input Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Numeric keys

x 1 x x x x x x Alphabetic and

special character

keys

x x 1 x x x x x Command keys

x x x 1 x x x x Function keys

xxxx0xx xRFU

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

Byte 4 – Terminal Data Output Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Print, attendant

x 1 x x x x x x Print, cardholder

x x 1 x x x x x Display, attendant

x x x 1 x x x x Display, cardholder

xxxx0xx xRFU

xxxxx0x xRFU

x x x x x x 1 x Code table 10

x x x x x x x 1 Code table 9

Byte 5 – Terminal Data Output Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Code table 8

x 1 x x x x x x Code table 7

x x 1 x x x x x Code table 6

x x x 1 x x x x Code table 5

x x x x 1 x x x Code table 4

x x x x x 1 x x Code table 3

x x x x x x 1 x Code table 2

xxxxxxx 1

Code table 1

AMOUNT,

AUTHORIZED

(NUMERIC)

‘9F02’ 6 n 12 Authorized amount of the transaction (excluding adjustments).

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

AMOUNT, OTHER

(NUMERIC)

‘9F03’ 6 n 12 Secondary amount associated with the transaction representing

a cashback amount.

APPLICATION

IDENTIFIER (AID) -

TERMINAL

‘9F33’ 3 b Identifies the application as described in ISO/IEC 7816-5.

Consists of the Registered Application Provider Identifier (RID)

+ a Proprietary Application Identifier Extension (PIX).

APPLICATION

SELECTION

INDICATOR

— At the

discretion of

the terminal.

The data is

not sent

across the

interface

See

length

For an application in the ICC to be supported by an application

in the terminal, the Application Selection Indicator indicates

whether the associated AID in the terminal must match the AID

in the card exactly, including the length of the AID, or only up to

the length of the AID in the terminal.

There is only one Application Selection Indicator per AID

supported by the terminal.

APPLICATION

VERSION NUMBER

‘9F09’ 2 b Version number assigned by the payment system for the

application.

AUTHORISATION

RESPONSE CODE

(ARC)

‘8A’ 2 an 2 Code that defines the disposition of a message.

For online transactions, the terminal should generate the value

as follows:

CARDHOLDER

VERIFICATION

METHOD (CVM)

RESULTS

‘9F34’ 3 b Indicates the results of the last CVM performed.

Byte 1 CVM Performed Last CVM of the CVM List actually performed

by the terminal: One-byte CVM Code of the

CVM List as defined in Book 3 ('3F' if no

CVM is performed).

Byte 2 CVM Condition One-byte CVM Condition Code of the CVM

List as defined in Book 3 or ‘00’ if no actual

CVM was performed.

Byte 3 CVM Result Result of the (last) CVM performed as known

by the terminal:

0 = Unknown (for example, for signature)

1 = Failed (for example, for offline PIN)

2 = Successful (for example, for offline PIN)

or set to ‘1’ if no CVM Condition Code was

satisfied or if the CVM Code was not

recognized or not supported.

CERTIFICATION

AUTHORITY PUBLIC

KEY CHECK SUM

— 20 b A check value calculated on the concatenation of all parts of the

Certification Authority Public Key (RID, Certification Authority

Public Key Index, Certification Authority Public Key Modulus,

Certification Authority Public Key Exponent) using SHA-1.

CERTIFICATION

AUTHORITY PUBLIC

KEY EXPONENT

— 1 or 3 b Value of the exponent part of the Certification Authority Public

Key.

CERTIFICATION

AUTHORITY PUBLIC

KEY INDEX

‘9F22’ 1 b Identifies the certification authority’s public key in conjunction

with the RID.

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

CERTIFICATION

AUTHORITY PUBLIC

KEY MODULUS

—N

(up to 248)

b Value of the modulus part of the Certification Authority Public

Key.

DEFAULT DYNAMIC

DATA

AUTHENTICATION

DATA OBJECT LIST

(DDOL)

— var. b DDOL to be used for constructing the INTERNAL

AUTHENTICATE command if the DDOL in the card is not

present.

DEFAULT

TRANSACTION

CERTIFICATE DATA

OBJECT LIST (TDOL)

— var. b TDOL to be used for generating the TC Hash Value if the TDOL

in the card is not present.

ENCIPHERED

PERSONAL

IDENTIFICATION

NUMBER (PIN) DATA

— 8 b Transaction PIN enciphered at the PIN pad for online

verification or for offline verification if the PIN pad and IFD are

not a single integrated device.

INTERFACE DEVICE

(IFD) SERIAL

NUMBER

‘9F1E’ 8 an 8 Unique and permanent serial number assigned to the IFD by the

manufacturer.

ISSUER SCRIPT

RESULTS

‘9F5B’ var.

(up to 20)

b Indicates the result of the terminal script processing.

Byte 1 SCRIPT

RESULT

Most significant nibble: Result of the Issuer

Script processing performed by the terminal:

0 = Script not performed

1 = Script processing failed

2 = Script processing successful

Least significant nibble: Sequence number of

the Script Command

0 = Not specified

1 to E = Sequence number from 1 to 14

F = Sequence number of 15 or above

Byte 2–5 SCRIPT

IDENTIFIER

Script Identifier of the Issuer Script received

by the terminal, if available, zero filled if not.

Mandatory if more than one Issuer Script

was received by the terminal.

MAXIMUM TARGET

PERCENTAGE TO BE

USED FOR BIASED

RANDOM

SELECTION

— 1 n 2 Value used in terminal risk management for random transaction

selection.

This is the desired percentage of transactions “just below” the

floor limit that will be selected to go online.

POINT-OF-SERVICE

(POS) ENTRY MODE

‘9F39’ 1 n 2 Indicates the method by which the PAN was entered, according

to the first two digits of the ISO 8583:1987 POS Entry Mode.

TARGET

PERCENTAGE TO BE

USED FOR RANDOM

SELECTION

— 1 n 2 Value used in terminal risk management for random transaction

selection.

For transactions with amounts less than the Threshold Value for

Biased Random Selection, the terminal shall generate a random

number from 1 to 99, and if this number is less than or equal to

this value, the transaction shall be selected to go online.

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

TERMINAL ACTION

CODE (TAC) –

DEFAULT

‘FFC6’ 5 b Specifies the acquirer’s conditions that cause a transaction to

be rejected if it might have been approved online, but the

terminal is unable to process the transaction online.

TERMINAL ACTION

CODE (TAC) –

DENIAL

‘FFC7’ 5 b Specifies the acquirer’s conditions that cause the denial of a

transaction without attempt to go online.

TERMINAL ACTION

CODE (TAC) –

ONLINE

‘FFC8’ 5 b Specifies the acquirer’s conditions that cause a transaction to

be transmitted online.

TERMINAL

CAPABILITIES

‘9F40’ 3 b Indicates the data input and output capabilities of the terminal.

Byte 1 – Card Data Input Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Manual key entry

x 1 x x x x x x Magnetic stripe

x x 1 x x x x x IC with contacts

xxx0xxx xRFU

xxxx0xx xRFU

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

Byte 2 – CVM Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Plaintext PIN for ICC

verification

x 1 x x x x x x Enciphered PIN for

online verification

x x 1 x x x x x Signature (paper)

x x x 1 x x x x Enciphered PIN for

offline verification

x x x x 1 x x x No CVM Required

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

Byte 3 – Security Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1xxxxxx xSDA

x 1 x x x x x x DDA

x x 1 x x x x x Card capture

xxx0xxx xRFU

x x x x 1 x x x CDA

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

TERMINAL

COUNTRY CODE

‘9F1A’ 2 n 3 Indicates the country of the terminal, represented according to

ISO 3166.

TERMINAL FLOOR

LIMIT

‘9F1B’ 4 b Indicates the floor limit in the terminal in conjunction with the

AID.

Indicates the amount above which an online authorization is

required for contact transactions.

TERMINAL RISK

MANAGEMENT DATA

‘9F1D’ 1–8 b Application-specific value used by the card for risk management

purposes.

TERMINAL TYPE ‘9F35’ 1 n 2 Indicates the environment of the terminal, its communications

capability, and its operational control.

Environment Operational Control Provided by:

Financial

Institution

Merchant Cardholder

Attended

Online only 11 21

Online with offline

capability

12 22

Offline only 13 23

Unattended

Online only 14 24 34

Online with offline

capability

15 25 35

Offline only 16 26 36

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

TERMINAL

VERIFICATION

RESULTS (TVR)

‘95’ 5 b Status of the different functions as seen from the terminal.

Byte 1

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Offline data

authentication was

not performed

x 1 x x x x x x SDA failed

x x 1 x x x x x ICC data missing

x x x 1 x x x x Card appears on

terminal exception

file

x x x x 1 x x x DDA failed

x x x x x 1 x x CDA failed

x x x x x x 1 x SDA selected

xxxxxxx 0RFU

Byte 2

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x ICC and terminal

have different

application versions

x 1 x x x x x x Expired application

x x 1 x x x x x Application not yet

effective

x x x 1 x x x x Requested service

not allowed for card

product

xxxx1xx xNew card

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

Byte 3

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1xxxxxx x

Cardholder

verification was not

successful

x1xxxxx x

Unrecognized CVM

xx1xxxx x

PIN Try Limit

exceeded

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

xxx1xxx x

PIN entry required

and PIN pad not

present or not

working

xxxx1xx x

PIN entry required,

PIN pad present, but

PIN was not entered

xxxxx1x x

Online PIN entered

xxxxxx0 x

RFU

xxxxxxx 0

RFU

Byte 4

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Transaction exceeds

floor limit

x 1 x x x x x x Lower consecutive

offline limit exceeded

x x 1 x x x x x Upper consecutive

offline limit exceeded

x x x 1 x x x x Transaction selected

randomly for online

processing

x x x x 1 x x x Merchant forced

transaction online

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

Byte 5 – Terminal Data Output Capability

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1 x x x x x x x Default TDOL used

x 1 x x x x x x Issuer authentication

failed

x x 1 x x x x x Script processing

failed

x x x 1 x x x x Code table 5

x x x x 1 x x x Code table 4

x x x x x 1 x x Code table 3

x x x x x x 1 x Code table 2

x x x x x x x 1 Code table 1

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

THRESHOLD VALUE

FOR BIASED

RANDOM

SELECTION

— 4 b Value used in terminal risk management for random transaction

selection.

Transactions with amounts less than this value will be subject to

selection at random without further regard for the value of the

transaction. Transactions with amounts equal to or greater than

this value but less than the floor limit will be subject to selection

with bias toward sending higher value transaction online more

frequently (biased random selection).

TRANSACTION

CURRENCY CODE

‘5F2A’ 2 n 3 Indicates the currency code of the transaction according to ISO

4217.

TRANSACTION

CURRENCY

EXPONENT

‘5F36’ 1 n 1 Indicates the implied position of the decimal point from the right

of the transaction amount represented according to ISO 4217.

TRANSACTION DATE ‘9A’ 3 n 6

YYMMDD

Local date that the transaction was authorized.

TRANSACTION

REFERENCE

CURRENCY CODE

‘9F3C’ 2 n 3 Code defining the common currency used by the terminal in

case the Transaction Currency Code is different from the

Application Currency Code.

TRANSACTION

REFERENCE

CURRENCY

CONVERSION

— 4 n 8 Factor used in the conversion from the Transaction Currency

Code to the Transaction Reference Currency Code.

TRANSACTION

REFERENCE

CURRENCY

EXPONENT

‘9F3D’ 1 n 1 Indicates the implied position of the decimal point from the right

of the transaction amount, with the Transaction Reference

Currency Code represented according to ISO 4217.

TRANSACTION TYPE ‘9C’ 1 n 2 Indicates the type of financial transaction, represented by the

first two digits of the ISO 8583:1987 Processing Code.

• 00’ = Purchase or Card Verify

• 09 = Purchase with Cashback

• 20 = Purchase Return

• 30 = Balance Inquiry

UNPREDICTABLE

NUMBER

‘9F37’ 1 b Value to provide variability and uniqueness to the generation of

a cryptogram.

Table 7-4 Terminal Data (Continued)

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.2.3 Card Data

The following data comes from the ICC:

Table 7-5 Card Data

Name Tag Length Value Description

APPLICATION

CRYPTOGRAM

‘9F26’ 8 b Cryptogram returned by the ICC in response of the

GENERATE AC command.

Application

Currency Code

‘9F42’ 2 n 3 Indicates the currency in which the account is managed

according to ISO 4217.

Application

Currency Exponent

‘9F44’ 1 n 1 Indicates the implied position of the decimal point from the

right of the amount represented according to ISO 4217.

APPLICATION

DISCRETIONARY

DATA

‘9F05’ 1–32 bIssuer or payment system specified data relating to the

application.

APPLICATION

EFFECTIVE DATE

‘5F25’ 3n6

YYMMDD

Date from which the application may be used.

Application

Expiration Date

‘5F24’ 3n6

YYMMDD

Date after which application expires.

Application File

Locator (AFL)

‘94’ var. up to

252

var. Indicates the location (SFI, range of records) of the AEFs

related to a given application.

Application

Dedicated File

(ADF) Name

‘4F’ 5–16 b Identifies the application as described in ISO/IEC 7816-5.

Application

Interchange Profile

‘82’ 2 b Indicates the capabilities of the card to support specific

functions in the application.

Byte 1

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

0xxxxxx x

RFU

x1xxxxx x

SDA supported

xx1xxxx x

DDA supported

xxx1xxx x

Cardholder verification

is supported

xxxx1xx x

Terminal risk

management is to be

performed

xxxxx1x x

Issuer authentication is

supported

xxxxxx0 x

RFU

xxxxxxx 1

CDA supported

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

Byte 2

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

0xxxxxx x

Reserved for use by

the EMV Contactless

Specifications

x0xxxxx x

RFU

xx0xxxx x

RFU

xxx0xxx x

RFU

xxxx0xx x

RFU

xxxxx0x x

RFU

xxxxxx0 x

RFU

xxxxxxx 0

RFU

Application Label ‘50’ 1–16 ans

with the

special

character

limited to

space

Mnemonic associated with the AID according to ISO/IEC

7816-5.

Application

Preferred Name

‘9F12’ 1–16 ans Preferred mnemonic associated with the AID.

Application Primary

Account Number

(PAN)

‘5A’ var. up to 10 cn

var. up to

Valid cardholder account number.

Application Primary

Account Number

(PAN) Sequence

Number

‘5F34’ 1 n 2 Identifies and differentiates cards with the same PAN.

Application Priority

Indicator

‘87’ 1 b Indicates the priority of a given application or group of

applications in a directory.

Application

Reference

Currency

‘9F3B’ 2–8 n 3 1-4 currency codes used between the terminal and the ICC

when the Transaction Currency Code is different from the

Application Currency Code; each code is 3 digits according

to ISO 4217.

Application

Reference

Currency Exponent

‘9F43’ 1–4 n 1 Indicates the implied position of the decimal point from the

right of the amount, for each of the 1-4 reference currencies

represented according to ISO 4217.

Application

Transaction

Counter (ATC)

‘9F36’ 2 b Counter maintained by the application in the ICC

(incrementing the ATC is managed by the ICC).

Application Usage

Control

‘9F07’ 2 b Indicates issuer’s specified restrictions on the geographic

usage and services allowed for the application.

Table 7-5 Card Data

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

Byte 1

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1xxxxxx xValid for domestic

cash transactions

x 1 x x x x x x Valid for international

cash transactions

x x 1 x x x x x Valid for domestic

goods

x x x 1 x x x x Valid for international

goods

xxxx1xx xValid for domestic

services

xxxxx1x xValid for international

services

xxxxxx1 xValid at ATMs

xxxxxxx 1Valid at terminals

other than ATMs

Byte 2

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

1xxxxxx xDomestic cashback

allowed

x 1 x x x x x x International cashback

allowed

xx0xxxx xRFU

xxx0xxx xRFU

xxxx0xx xRFU

xxxxx0x xRFU

xxxxxx0 xRFU

xxxxxxx 0RFU

APPLICATION

VERSION

NUMBER

‘9F08’ 2 b Version number assigned by the payment system for the

application.

CARD RISK

MANAGEMENT

DATA OBJECT

LIST 1 (CDOL1)

‘8C’ var. up to

252

b List of data objects (tag and length) to be passed to the ICC

in the first GENERATE AC command.

CARD RISK

MANAGEMENT

DATA OBJECT

LIST 2 (CDOL2)

‘8D’ var. up to

252

b List of data objects (tag and length) to be passed to the ICC

in the second GENERATE AC command.

CARDHOLDER

NAME

‘5F20’ 2–26 ans Indicates cardholder name according to ISO 7813.

Table 7-5 Card Data

Name Tag Length Value Description

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

CARDHOLDER

NAME EXTENDED

‘9F0B’ 27–45 ans Indicates the whole cardholder name when greater than 26

characters using the same coding convention as in ISO

7813.

CARDHOLDER

VERIFICATION

METHOD (CVM)

LIST

‘8E’ 10–252 b Identifies a method of verification of the cardholder

supported by the application.

CV Rule Byte 1

b8 b7 b6 b5 b4 b3 b2 b1 Meaning

0RFU

Fail cardholder

verification if this CVM

is unsuccessful

Apply succeeding CV

Rule if this CVM is

unsuccessful

00000 0

Fail CVM processing

00000 1

Plaintext PIN

verification performed

by ICC

00001 0

Enciphered PIN

verified online

00001 1

Plaintext PIN

verification performed

by ICC and signature

(paper)

00010 0

Enciphered PIN

verification performed

by ICC

00010 1

Enciphered PIN

verification performed

by ICC and signature

(paper)

0xxx x x

Values in the range

000110-011101

reserved for future use

by this specification

01111 0

Signature (paper)

01111 1

No CVM required

10xx x x

Values in the range

100000-101111

reserved for use by the

individual payment

systems

11xx x x

Values in the range

110000-111110

reserved for use by the

issuer

11111 1

This value is not

available for use

Table 7-5 Card Data

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

CV Rule Byte 2

Value Message

00 Always

01 If unattended cash

02 If not unattended cash and not manual cash and not purchase

with cashback

03 If terminal supports the CVM

04 If manual cash

05 If purchase with cashback

06 If transaction is in the application currency and is under X value

07 If transaction is in the application currency and is over X value

08 If transaction is in the application currency and is under Y value

09 If transaction is in the application currency and is over Y value

0A–7F RFU

80–FF Reserved for card brands

CERTIFICATION

AUTHORITY

PUBLIC KEY

INDEX

‘8F’ 1 b Identifies the certification authority’s public key in

conjunction with the RID.

CRYPTOGRAM

INFORMATION

DATA

‘9F27’ 1 b Indicates the type of cryptogram and the actions to be

performed by the terminal.

DEDICATED FILE

(DF) NAME

‘84’ 5–16 b Identifies the name of the DF as described in ISO/IEC

7816-4.

DIRECTORY

DEFINITION FILE

(DDF) NAME

‘9D’ 5–16 b Identifies the name of a DF associated with a directory.

DYNAMIC DATA

AUTHENTICATION

DATA OBJECT

LIST (DDOL)

‘9F49’ var. up to

252

b List of data objects (tag and length) to be passed to the ICC

in the INTERNAL AUTHENTICATE command.

FILE CONTROL

INFORMATION

(FCI) TEMPLATE

‘6F’ var. up to

252

var. Identifies the FCI template according to ISO/IEC 7816-4.

ICC DYNAMIC

NUMBER

‘9F4C’ 2–8 b Time-variant number generated by the ICC, to be captured

by the terminal.

Table 7-5 Card Data

Name Tag Length Value Description

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

INTEGRATED

CIRCUIT CARD

(ICC) PIN

ENCIPHERMENT

PUBLIC KEY

CERTIFICATE

‘9F2D’ NIb ICC PIN Encipherment Public Key certified by the issuer.

INTEGRATED

CIRCUIT CARD

(ICC) PIN

ENCIPHERMENT

PUBLIC KEY

EXPONENT

‘9F2E’ 1 or 3 b ICC PIN Encipherment Public Key Exponent used for PIN

Encipherment.

INTEGRATED

CIRCUIT CARD

(ICC) PIN

ENCIPHERMENT

PUBLIC KEY

REMAINDER

‘9F2F’ NPE – NI +

b Remaining digits of the ICC PIN Encipherment Public Key

Modulus.

INTEGRATED

CIRCUIT CARD

(ICC) PUBLIC KEY

CERTIFICATE

‘9F46’ NIb ICC Public Key certified by the issuer.

INTEGRATED

CIRCUIT CARD

(ICC) PUBLIC KEY

EXPONENT

‘9F47’ 1 to 3 b ICC Public Key Exponent used for the verification of the

Signed Dynamic Application Data.

INTEGRATED

CIRCUIT CARD

(ICC) PUBLIC KEY

REMAINDER

‘9F48’ NIC – NI +

b Remaining digits of the ICC Public Key Modulus.

ISSUER ACTION

CODE (IAC) –

DEFAULT

‘9F0D’ 5 b Specifies the issuer’s conditions that cause a transaction to

be rejected if it might have been approved online, but the

terminal is unable to process the transaction online.

ISSUER ACTION

CODE (IAC) –

DENIAL

‘9F0E’ 5 b Specifies the issuer’s conditions that cause the denial of a

transaction without attempt to go online.

ISSUER ACTION

CODE (IAC) –

ONLINE

‘9F0F’ 5 b Specifies the issuer’s conditions that cause a transaction to

be transmitted online.

ISSUER

APPLICATION

DATA

‘9F10’ var. up to 32 b Contains proprietary application data for transmission to the

issuer in an online transaction.

ISSUER CODE

TABLE INDEX

‘9F11’ 1 n 2 Indicates the code table according to ISO/IEC 8859 for

displaying the Application Preferred Name.

ISSUER

COUNTRY CODE

‘5F28’ 2 n 3 Indicates the country of the issuer according to ISO 3166.

Table 7-5 Card Data

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

ISSUER PUBLIC

KEY CERTIFICATE

‘90’ NCA b Issuer public key certified by a certification authority.

ISSUER PUBLIC

KEY EXPONENT

‘9F32’ 1 to 3 b Issuer public key exponent used for the verification of the

Signed Static Application Data and the ICC Public Key

Certificate.

ISSUER PUBLIC

KEY REMAINDER

‘92’ NI – NCA +

b Remaining digits of the Issuer Public Key Modulus.

LANGUAGE

PREFERENCE

‘5F2D’ 2–8 an 2 1-4 languages stored in order of preference, each

represented by 2 alphabetical characters according to ISO

639.

LAST ONLINE

APPLICATION

TRANSACTION

COUNTER (ATC)

‘9F13’ 2 b ATC value of the last transaction that went online.

LOWER

CONSECUTIVE

OFFLINE LIMIT

‘9F14’ 1 b Issuer-specified preference for the maximum number of

consecutive offline transactions for this ICC application

allowed in a terminal with online capability.

PERSONAL

IDENTIFICATION

NUMBER (PIN)

TRY COUNTER

‘9F17’ 1 b Number of PIN tries remaining.

PROCESSING

OPTIONS DATA

OBJECT LIST

(PDOL)

‘9F38’ var. b Contains a list of terminal resident data objects (tags and

lengths) needed by the ICC in processing the GET

PROCESSING OPTIONS command.

SERVICE CODE ‘5F30’ 2 n 3 Service code as defined in ISO/IEC 7813 for Track 1 and

Track 2.

SHORT FILE

IDENTIFIER (SFI)

‘88’ 1 b Identifies the AEF referenced in commands related to a

given ADF or DDF. It is a binary data object having a value

in the range 1 to 30 and with the three high order bits set to

zero.

SIGNED DYNAMIC

APPLICATION

DATA

‘9F4B’ NIC b Digital signature on critical application parameters for DDA

or CDA.

SIGNED STATIC

APPLICATION

DATA

‘93’ NIb Digital signature on critical application parameters for SDA.

STATIC DATA

AUTHENTICATION

TAG LIST

‘9F4A’ var. — List of tags of primitive data objects defined in this

specification whose value fields are to be included in the

Signed Static or Dynamic Application Data.

TRACK 1

DISCRETIONARY

DATA

‘9F1F’ var. ans Discretionary part of Track 1 according to ISO/IEC 7813.

Table 7-5 Card Data

Name Tag Length Value Description

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

TRACK 2

DISCRETIONARY

DATA

‘9F20’ var. cn Discretionary part of Track 2 according to ISO/IEC 7813.

TRACK 2

EQUIVALENT

DATA

‘57’ var. up to 19 b

n, var. up

to 19

n 4

n 3

n, var.

Contains the data elements of Track 2 according to

ISO/IEC 7813, excluding start sentinel, end sentinel, and

Longitudinal Redundancy Check (LRC), as follows:

• Primary Account Number

• Field Separator (Hex ‘D’)

• Expiration Date (YYMM)

• Service Code

• Discretionary Data (defined by individual payment

systems)

• Pad with one Hex ‘F’ if needed to unsure whole bytes

TRANSACTION

CERTIFICATION

DATA OBJECT

LIST (TDOL)

‘97’ var. up to

252

b List of data objects (tag and length) to be used by the

terminal in generating the TC Hash Value.

UPPER

CONSECUTIVE

OFFLINE LIMIT

‘9F23’ 1 b Issuer-specified preference for the maximum number of

consecutive offline transactions for this ICC application

allowed in a terminal without online capability.

Table 7-5 Card Data

Name Tag Length Value Description

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.2.4 Issuer Data

The following data comes from the issuer:

7.3 Contact Transaction Flow

The EMV transaction flow for contact EMV cards consists of up to 13 steps, each of which

consist of a set of interactions between the card, terminal, and/or issuer. See Figure 7-1.

Table 7-6 Issuer Data

Name Tag Length Value Description

AUTHORIZATION

RESPONSE

CRYPTOGRAM

(ARPC)

— 4 or 8 b Cryptogram generated by the issuer and used by the card

to verify that the response came from the issuer.

CARD STATUS

UPDATE (CSU)

— 4 b Contains data sent to the ICC to indicate whether the

issuer approves or declines the transaction, and to initiate

actions specified by the issuer. Transmitted to the card in

Issuer Authentication Data.

ISSUER

AUTHENTICATION

DATA

‘91’ 8-16 b Data sent to the ICC for online issuer authentication.

ISSUER SCRIPT

COMMAND

‘86’ var. up

to 261

b Contains a command for transmission to the ICC.

ISSUER SCRIPT

IDENTIFIER

‘9F18’ 4 b Identification of the Issuer Script.

ISSUER SCRIPT

TEMPLATE 1

‘71’ var. b Contains proprietary issuer data for transmission to the ICC

before the second GENERATE AC command.

ISSUER SCRIPT

TEMPLATE 2

‘72’ var. b Contains proprietary issuer data for transmission to the ICC

after the second GENERATE AC command.

PROPRIETARY

AUTHENTICATION

DATA

— var. up

to 8

b Contains issuer data for transmission to the card in the

Issuer Authentication Data of an online transaction.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

Figure 7-1 Contact Transaction Flow

Terminal initiates transaction

Chip card provides application

capabilities and location of data

If SDA or DDA: terminal validates chip

card

If DDA: chip card generates security

data

Terminal validates cardholder

If offline PIN: chip card provides PIN –

related details and validation

Terminal recommends the transaction

to be declined, sent online, or

approved

If CDA: terminal validates chip card

Terminal recommends the transaction

to be declined or approved

If CDA: chip card generates security

data

Chip card determines if the

transaction is to be declined or

approved

2. Initiate Application

Processing

4. Offline Data Authentication

6. Cardholder Verification

8. Terminal Action Analysis

10. Online Transaction

Authorization

11. Completion and

Issuer Script Processing

Terminal executes approval or decline

If present: terminal sends scripts to

chip card Chip card processes scripts

Conclusion of Processing Chip

Card Deactivation and

Removal

Terminal prints receipt and

deactivates chip card

If offline PIN: terminal sends PIN to

chip card

Terminal executes authorization

If CDA: terminal validates chip card

Chip card is inserted Terminal powers up chip card and

establishes communication

Chip Card Chip Card Terminal

Chip Card Insertion

Answer to Reset

Pre

Transaction

Processing

Post

Transaction

Processing

If approved

or declined

Transaction

Execution

Terminal identifies and selects an

application

Chip card provides supported

applications

1. Application Selection

3. Read Application Data Chip card provides application data Terminal requests and stores

application data

Terminal performs a series of risk

checks

Chip card determines if the

transaction is declined, sent online, or

approved

If CDA: chip card generates security

data

If requested: chip card provides risk

management counters

9. Card Action Analysis

7. Terminal Risk

Management

5. Processing Restrictions Terminal identifies transaction

restrictions

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.3.1 Tender Processing

For EMV transactions, the transaction amount requiring authorization must be known prior to

card entry and the Amount, Authorised (Tag ‘9F02’) that is used for cryptogram generation must

be set to this amount. This amount would include the base amount plus any of the following

additional amounts:

There are circumstances where the final amount requiring authorization may be adjusted after

setting Amount, Authorised (Tag ‘9F02’) and after the cryptogram has been generated, such as

subtracting items from the sale amount that are not allowed for purchase with certain types of

cards. In this case, it is acceptable that the final authorization amount specified elsewhere in the

host messaging does not match the amount specified in Tag ‘9F02’.

Table 7-7 Tender Processing

Additional

Amounts Description

Cashback If cashback is allowed and entered, Amount, Other (Tag ‘9F03’) must be set to the

cashback amount and this amount must be included in Amount, Authorised (Tag ‘9F02’).

Surcharges Any surcharges (e.g. taxes, fees, etc.) that are applied must be included in Amount,

Authorized (Tag ‘9F02’).

Tips For pay-at-the-counter and pay-at-the-table environments, where the cardholder has

access to the PIN pad, it is recommended that the tip amount be specified prior to card

entry and be included in Amount, Authorized (Tag ‘9F02’). The cardholder would be

handed the PIN pad and they would enter their tip, confirm the total, insert/tap their card,

enter their PIN if prompted, and wait for transaction completion before removing their

card and handing back the PIN pad.

For table service environments, the cardholder may still write in their tip later on the

receipt and sign for authorization, in which case the Amount, Authorized (Tag ‘9F02’)

would not include the tip amount.

REQUIREMENT

The Amount, Authorised (Tag ‘9F02’) must be set to the transaction amount known at

the time of card acquisition and is used for cryptogram generation. This amount must

not be changed even if the final amount submitted for authorization is different due to

adjustments that may have been applied after cryptogram generation.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.3.2 Card Acquisition

7.3.2.1 Card Swipe

Merchants have not been mandated to accept EMV cards nor have issuers been mandated to

issue EMV cards, so the full migration to EMV may not be completed for several years or

decades. Therefore, EMV chip cards will continue to have magnetic stripes into the foreseeable

future so that they can continue to be used at magstripe only terminals.

If a card is swiped on an EMV terminal, the terminal software must parse the three-digit service

code from the Track 1 or Track 2 data and examine the first digit. If the first digit of the service

code is a 2 or a 6 indicating that the card is a chip card, the terminal must not normally allow the

transaction to be processed using the magstripe data, but rather must prompt the merchant or

customer to insert or tap the card instead.

An appropriate message such as “SWIPE NOT ALLOWED FOR CHIP CARD – INSERT CARD”

should be displayed on the terminal.

7.3.2.2 Fallback Processing

When a chip card is presented, the card should normally be inserted or tapped and if swiped, the

terminal should prompt to insert the card as described above. However, there are circumstances

where the chip cannot be used and the magnetic stripe may be used instead. This is referred to

as “fallback” and there are two scenarios under which it is allowed:

Fallback is not allowed in the following scenarios:

• The transaction is declined by the card or the issuer.

• The fallback transaction cannot be online-authorized.

• The card is blocked.

• All applicable AIDs on the chip are blocked.

• The card is withdrawn before the transaction is completed.

• The transaction is canceled or times out before completion.

REQUIREMENT EMV solutions must continue to support magnetic stripe transactions, but must force

chip usage if the service code in the Track 2 data is ‘2xx’ or ‘6xx’.

Table 7-8 Fallback Processing

Fallback Scenario Description

Technical Fallback Unable to read chip card due to chip or chip reader failure.

Non-Technical Fallback Empty application selection candidate list due to no mutually supported AIDs.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

When waiting for a fallback card swipe:

• If an EMV card is inserted or tapped, fallback processing must be canceled and the

transaction must be processed as an EMV transaction.

• If the swiped card does not have a service code of ‘2xx’ or ‘6xx’, fallback processing must

be canceled and the transaction must be processed as a regular magstripe transaction.

7.3.3 Application Selection

EMV chip cards are capable of running multiple payment applications. For example, a single

EMV card could be used to make payments from three different credit accounts, two different

debit accounts, two different gift card accounts, and one loyalty account.

Application Identifiers (AIDs) are used to identify and select the application to use, and the

terminal must be loaded with a list of supported AIDs. AIDs consist of three components:

REQUIREMENT

For fallback transactions, EMV solutions must set the appropriate fallback indicators

in the authorization request message and must otherwise process the transaction as

a standard magnetic stripe transaction.

Table 7-9 Application Selection

Component Description

Registered Application Identifier (RID) Each card brand has one or more RIDs

Example: A000000003 is VISA’s RID.

Proprietary Application Identifier

Extension (PIX)

Each card brand has one or more PIXs to represent a

particular payment application type.

Example: 1010 is VISA’s PIX for their global credit/debit

application.

Issuer Suffix Trailing digits that may be added by the issuer, and must be

added if there are multiple applications on the card that

share the same RID and PIX.

Example: A000000003101001 for a VISA credit account

and A000000003101002 for a VISA debit account

on the same card.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

The terminal selects the appropriate application to use for the current transaction as follows:

1. The terminal builds a candidate list of mutually supported applications using one of two

methods:

2. If there is more than one mutually supported application in the candidate list, the terminal

either automatically selects an application from the list based on predetermined preference

or displays the list to the cardholder for selection. If displaying the candidate list:

• Display the list in the order specified by the issuer in the Application Priority Indicator

(Tag ‘87’) if present, otherwise display in the order received from the card.

• Display the Application Preferred Name (Tag ‘9F12’) if present and if the Issuer Code

Table Index (Tag ‘9F11’) is present and supported by the terminal.

• Display the Application Label (Tag ‘50’) if present and the Application Preferred Name is

not present or cannot be displayed.

• Display a default application name assigned by the EMV POS Solution if the Application

Preferred Name and Application Label are not present or cannot be displayed.

3. If the terminal automatically selects an application, or if there is only one mutually

supported application in the candidate list, and the Application Priority Indicator (Tag ‘87’)

returned by the card indicates that use of the application must be confirmed, the terminal

must prompt the cardholder for confirmation.

4. The terminal sends a final SELECT command to the card to indicate the selected

application.

5. The card returns the Processing Options Data Object List (PDOL) for the selected

application.

Table 7-10 Supported Application Methods

Method Description

Payment System Environment

(PSE) Method

The terminal sends a SELECT command to the card

requesting a file name of “1PAY.SYS.DDF01”, and if the card

supports PSE it will return a directory of supported

applications.

List of AIDs Method It is recommended that the terminal always try the PSE

method first to increase transaction speed. If the card does

not support PSE, the terminal sends a SELECT command to

the card for each AID supported by the terminal to determine if

the card also supports the AID.

REQUIREMENT

Partial selection must be supported for all AIDs. This ensures that all supported

applications are available for selection even if they contain an issuer assigned suffix at the

end of the AID.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.3.3.1 Available AIDs

The AIDs that may be available for selection on U.S.-issued cards include the following:

Name AID Description

Global Credit/Debit

American Express A00000002501 Used for global credit transactions routed to American

Express on the credit rails.

Discover/Diners A0000001523010 Used for global credit and signature debit transactions

routed to Discover on the credit rails.

Discover Zip A0000003241010 Used for global legacy contactless magnetic stripe mode

credit transactions routed to Discover on the credit rails.

JCB A0000000651010 Used for global credit transactions routed to Discover on the

credit rails.

MasterCard A0000000041010 Used for global credit and signature debit transactions

routed to MasterCard on the credit rails.

VISA A0000000031010 Used for global credit and signature debit transactions

routed to VISA on the credit rails.

VISA Electron A0000000032010 Used for global credit and signature debit transactions

routed to VISA on the credit rails.

Global

PIN Debit

MasterCard Maestro A0000000043060 Used for global PIN debit transactions routed to MasterCard

on the PIN debit rails.

VISA Interlink A0000000033010 Used for global PIN debit transactions routed to VISA on the

PIN debit rails.

U.S. Common Debit

Debit Network Alliance

(DNA) Shared Debit

A0000006200620 Used for U.S. PIN debit transactions routed to any

participating U.S. debit network on the PIN debit rails.

Note: Not supported at this time.

Discover U.S. Common

Debit

A0000001524010 Used for U.S. PIN debit transactions routed to any

participating U.S. debit network on the PIN debit rails.

Can also be used for signature debit transactions routed to

Discover on the credit rails.

Note: Not supported for PIN debit at this time.

MasterCard U.S. Maestro A0000000042203 Used for U.S. PIN debit transactions routed to any

participating U.S. debit network on the PIN debit rails.

Can also be used for signature debit transactions routed to

MasterCard on the credit rails.

VISA U.S. Common

Debit

A0000000980840 Used for U.S. PIN debit transactions routed to any

participating U.S. debit network on the PIN debit rails.

Can also be used for signature debit transactions routed to

VISA on the credit rails.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.3.3.2 Debit AIDs

The presence of both of the following data elements identifies the AID as relating to a debit or

prepaid program:

• ISSUER COUNTRY CODE (two digit alpha) (Tag ‘5F55’) with a value ‘5553’ (“US”)

• ISSUER IDENTIFICATION NUMBER (IIN) (Tag ‘42’)

If two or more AIDs have the same IIN, the terminal may assume they access the underlying

funding account and can eliminate all but one of the AIDs with the same IIN from the candidate

list. Which AIDs are eliminated in this case should be configurable. For example, a merchant

might specify their preference such that U.S. Common Debit AIDs will always remain in the

candidate list if present.

If two or more AIDs with different IINs or no specified IINs still remain in the candidate list after

eliminating AIDs with duplicate IINs, the EMV POS Solution must display the list the cardholder

for selection as described in the Application Selection section above.

7.3.4 Initiate Application Processing

Once an application has been selected, the terminal begins processing an EMV transaction with

the card as follows:

1. The terminal sets all the bits in the Transaction Status Information (TSI) and Terminal

Verification Results (TVR) to 0.

2. The terminal sends a GET PROCESSING OPTIONS command to the card to let it know

that the processing of a new transaction is beginning and to provide the card with the

terminal-related data requested by the card in the PDOL.

3. The card returns the Application Interchange Profile (AIP) and the Application File Locator

(AFL).

• The AIP specifies the functions supported by the card, such as offline data

authentication, cardholder verification, issuer authentication, etc.

• The AFL specifies the location of all the data that is relevant to the current transaction

that should be read by the terminal.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.3.5 Read Application Data

Once the application processing has begun and the terminal has received the AFL from the card,

it sends READ RECORD commands to the card to retrieve all of the TLV data objects specified in

the AFL.

If the following sensitive cardholder data is read from the card, it must not be included in

authorization request messages sent to the host:

• 57 – Track 2 Equivalent Data

• 5A – Application PAN

• 5F20 – Cardholder Name

• 5F24 – Application Expiration Date

• 99 – Transaction PIN Data

• 9F0B – Cardholder Name Extended

• 9F1F – Track 1 Discretionary Data

• 9F20 – Track 2 Discretionary Data

7.3.6 Offline Data Authentication

Once all of the application data has been read, if both the card and the terminal support Offline

Data Authentication, the terminal authenticates the legitimacy of the card.

Based on the AIP received from the card and the capabilities of the terminal, the most secure

mutually supported card authentication method is performed. The available methods from least

to most secure are as follows:

Bits in the Terminal Verification Results (TVR) are set based on the outcome of the Offline Data

Authentication step.

REQUIREMENT Sensitive cardholder data objects must not be sent to the host in authorization or

settlement messages even if received from the card and terminal.

Table 7-11 Offline Data Authentication

Authentication Method Description

Static Data Authentication (SDA) The terminal uses a PKI and public key cryptography to authenticate

the digital signature of static data retrieved from the card.

Dynamic Data Authentication (DDA) The terminal uses a PKI and public key cryptography to authenticate

the digital signature of dynamic data retrieved from the card.

Combined DDA / Application

Cryptogram Generation (CDA)

The terminal uses a PKI and public key cryptography to authenticate

the digital signature of dynamic data retrieved from the card which

includes the application cryptogram.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.3.7 Processing Restrictions

Once the card has been legitimized, the terminal determines the degree of compatibility with the

card by performing the following checks:

Bits in the TVR are set based on the outcome of the Processing Restrictions step.

7.3.8 Cardholder Verification

Once the processing restrictions have been analyzed, the terminal processes the Cardholder

Verification Method (CVM) list returned by the card and attempts to perform the first CVM in the

list that is also supported by the terminal. The following CVMs are supported by EMV cards:

Table 7-12 Processing Restrictions

Restriction Description

Application Version Number Is the version of the card application supported by terminal?

Application Usage Control Is the card allowed for the transaction, e.g. is a domestic,

international, or cashback transaction allowed?

Application Effective/Expiration Dates Is the card application not yet effective or already expired?

Table 7-13 Cardholder Verification

Verification Method Description

Signature This method prompts the cardholder to provide a signature that

must match the signature on the back of the card.

Online Enciphered PIN This method requires the cardholder to enter a PIN that is

encrypted at the PIN entry device before being sent to Heartland

(and subsequently out to the issuer) for validation.

Offline Enciphered PIN This method requires the cardholder to enter a PIN that is

encrypted at the PIN entry device before being sent to the chip

card for validation.

Offline Enciphered PIN and Signature This method requires the cardholder to enter a PIN that is

encrypted at the PIN entry device before being sent to the chip

card for validation, and that the cardholder provide a signature

that must match the signature on the back of the card.

Offline Plaintext PIN This method requires the cardholder to enter a PIN that is not

encrypted before being sent to the chip card for validation.

Offline Plaintext PIN and Signature This method requires the cardholder to enter a PIN that is not

encrypted before being sent to the chip card for validation, and

that the cardholder provide a signature that must match the

signature on the back of the card.

No CVM Required This method requires no checks to verify the cardholder.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

Bits in the TVR are set based on the outcome of the Cardholder Verification step.

7.3.8.1 PIN Support

From a security and fraud liability standpoint, it is typically in the best interest of the merchant

and cardholder that PIN be prompted and entered if the card is a PIN-preferring card, but there

are circumstances under which PIN entry may be avoided or skipped:

REQUIREMENT

The U.S. Common Debit AIDs support Online PIN and No CVM. If Online PIN is obtained,

the transaction must be sent as a PIN debit transaction. If the CVM result is No CVM due

to PIN bypass, the transaction must be sent as a credit (i.e. signature debit) transaction,

and a signature must be obtained unless the transaction qualifies as a no signature

required transaction.

Table 7-14 PIN Support

PIN Support Description

PIN Disablement If PIN entry is not feasible because the merchant does not have a customer

facing PIN pad, then all the PIN CVMs should be disabled on the terminal so

that it does not prompt for PIN. In order to deploy this “No PIN” kernel

configuration, it would need to have EMVCo Level 2 approval, and it would

have to be certified with the card brands. If this functionality is supported, PIN

entry is typically enabled/disabled via parameter setting.

PIN Entry Bypass This is the EMVCo defined process where the terminal prompts for PIN, but at

the direction of the merchant or cardholder the PIN is bypassed and not

entered. In this case, the ‘PIN entry required, PIN pad present, but PIN was not

entered’ bit in the TVR is set to 1, which the Issuer may consider when making

its authorization decision. If this functionality is supported, PIN bypass is

typically enabled/disabled via parameter setting.

PIN Prompt Bypass This is typically used for small ticket VEPS/QPS transactions where no CVM is

required. The terminal must have a selectable kernel where it can automatically

switch to a “No CVM” configuration if the amount is under the limit. If this

functionality is supported, the CVM required limit is typically specified per card

brand or AID via parameter settings. PIN Prompt Bypass could also be invoked

at the direction of the merchant or cardholder by pressing a “Credit” or

“Signature” button on the terminal.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.3.9 Terminal Risk Management

Once the cardholder has been verified, the terminal performs the following steps to protect the

acquirer, issuer, and system from fraud:

Bits in the TVR are set based on the outcome of the Terminal Risk Management step.

7.3.10 Terminal Action Analysis

Once the terminal has completed the previous 4 steps and has set the appropriate bits in the

TVR accordingly, the terminal makes the initial decision as to the disposition of the transaction

based on a bit-by-bit comparison of the TVR with the Terminal Action Codes (TACs) and Issuer

Action Codes (IACs), and sends a GENERATE APPLICATION CRYPTOGRAM (AC) command

to card accordingly:

Table 7-15 Terminal Risk Management

Risk Management Description

Floor limit Checking Transactions over the floor limit should be sent to host for online

authorization.

Random transaction Selection A certain percentage of transactions under the floor limit (which are

normally eligible for offline authorization by terminal and card) should

be randomly selected to go online.

Velocity Checking After a certain number of consecutive offline transactions are

performed using a particular card, the next transaction using that card

should go online.

Table 7-16 Terminal Action Analysis

Scenario Terminal Action

For each bit in the TVR set to 1,

If the corresponding bit in the

IAC-Denial or TAC-Denial is set to 1,

It indicates that the issuer or acquirer wishes the transaction to be

rejected offline without attempt to go online.

The terminal requests an Application Authorization Cryptogram

(AAC) in this case.

If the corresponding bit in the

IAC-Online or TAC-Online is set to 1,

It indicates that the issuer or acquirer wishes the transaction to be

completed online.

The terminal requests an Authorization Request Cryptogram

(ARQC) in this case.

If the corresponding bit in the

IAC-Default or TAC-Default is set to 1,

It indicates that the issuer or acquirer wishes the transaction to be

rejected offline if it might have been approved online but the

terminal is for any reason unable to process the transaction online.

The terminal requests an AAC in this case.

If there are no corresponding bits in

the TVR set to 1,

The terminal may request an ARQC or Transaction Certificate (TC)

depending on the other circumstances of the transaction.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.3.11 Card Action Analysis

Once the terminal has made its initial decision, the card makes the final decision as to the

disposition of the transaction based on the issuer’s proprietary card risk management criteria and

responds to the GENERATE AC command accordingly:

• Returns a TC to approve the transaction offline. This option is not available to the card if

the terminal has made a preliminary decision to reject the transaction or complete it online.

• Returns an ARQC to complete the transaction online. This option is not available to the

card if the terminal has made a preliminary decision to reject the transaction.

• Returns an AAC to reject the transaction.

Note: If the card returns a TC or AAC cryptogram, the transaction is complete and the remaining

steps are not performed. If the card returns a TC to approve the transaction offline, the

terminal must ensure that the offline approval is sent to the host for settlement.

7.3.12 Online Processing

Once the card has made its final decision, the terminal goes online for processing if the card

returns an ARQC cryptogram in response to the first GENERATE AC command.

Online processing is performed to ensure that the issuer can review and authorize or reject

transactions that are outside acceptable limits of risk defined by the issuer, the payment system,

or the acquirer.

In general, online processing of EMV transactions is the same as online processing of magstripe

transactions except for the addition of the ARQC cryptogram and other chip card data sent in the

request, and the Authorization Response Cryptogram (ARPC), issuer scripts, and other chip card

data that may be received in the response.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.3.12.1 Offline Authorization

If the card returns an ARQC to go online but the issuer cannot be reached, the merchant may

elect to inform that card that it cannot go online and ask for an offline approval. This is typically

accomplished by setting the Authorisation Response Code to Y3, although there may some other

way to indicate this desire based on your terminal’s specific API/SDK. The terminal will perform

the Completion step below.

If the card returns a TC cryptogram, the transaction is offline approved and the terminal must

ensure that the offline approval is sent to the host for settlement. No additional store-and-forward

or stand-in processing is required. If the card returns an AAC cryptogram, the transaction is not

offline approved and the merchant may elect to proceed with the store-and forward or stand-in

processing as described below.

7.3.12.2 Deferred Authorization (Store-and-Forward)

If the card returns an ARQC to go online but the issuer cannot be reached, the merchant may

elect to store the transaction and submit it later for authorization. The merchant does so at their

own risk as the transaction may be later declined, ask your merchants if they want to support this

functionality.

It is recommended that the Offline Authorization step above be performed first to see if the card

will approve offline. However, if the merchant does not support offline authorizations or if the card

returns an AAC cryptogram indicating that it is unwilling to approve offline, the following

store-and-forward process may be followed:

1. The terminal stores the transaction details including the original ARQC cryptogram and

associated chip data.

2. Later, the terminal uploads its batch of authorization requests that include the ARQCs.

3. The acquirer submits the authorization requests, most of which are approved online.

4. Repeated attempts at authorization for declined transactions are permitted, but declined

transactions must eventually be discarded.

5. The acquirer submits a clearing record for each approved transaction, using the ARQC for

online approved transactions and the authorization response code returned in the

authorization response.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.3.12.3 Forced Acceptance (Stand-In)

If the card returns an ARQC to go online but the issuer cannot be reached, the merchant may

elect to stand-in for the transaction and submit it for settlement. The merchant does so at their

own risk as the transaction may not clear or may incur a chargeback due to no authorization, ask

your merchants if they want to support this functionality.

It is recommended that the Offline Authorization step above be performed first to see if the card

will approve offline. However, if the merchant does not support offline authorizations or if the card

returns an AAC cryptogram indicating that it is unwilling to approve offline, the following stand-in

process may be followed:

1. Check if the transaction amount is below the Stand-in Floor Limit for this card type.

Proceed if the transaction amount is below the Stand-in Floor Limit; otherwise, do not

stand-in.

2. Check if the card is domestic (i.e., U.S.-issued). This can be determined by ensuring that

the Issuer Country Code (Tag 5F28) = “840”. International cards pose a higher risk and

should not be approved via stand-in authorization. Proceed if card is domestic; otherwise,

do not stand-in.

3. Apply the TVR Mask to the transaction’s Terminal Verification Results (Tag 95) value. If

any of the bits in the TVR match the corresponding bits in the TVR Mask, then a condition

exists that indicates the transaction should not be approved via stand-in authorization. The

recommended TVR Mask is “FC 50 FC 20 00” which means that if any of the following

conditions exists, the transaction should not be approved via stand-in authorization:

Byte Bit Value

1 8 Offline data authentication was not performed

1 7 SDA failed

1 6 ICC data missing

1 5 Card appears on terminal exception file

1 4 DDA failed

1 3 CDA failed

2 7 Expired application

2 5 Application not yet effective

3 8 Requested service not allowed for card product

3 7 Unrecognized CVM

3 6 PIN Try Limit exceeded

3 5 PIN entry required and PIN pad not present or not working

3 4 PIN entry required, PIN pad present, but PIN was not entered

3 3 Online PIN entered

4 6 Upper consecutive offline limit exceeded

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

Proceed if a bitwise AND of the TVR and TVR Mask bits are all zero; otherwise, do not

approve the transaction.

4. Use the TSI Mask and the transaction’s Transaction Status Indicator (Tag ‘9B’) value to

check that the required EMV transaction steps were performed. If any of the bits in the TSI

are zero in the corresponding bits of the TSI Mask, then a required EMV transaction step

was not performed. The recommended TSI Mask is “E8 00” which means that the following

transaction steps were performed:

Proceed if a bitwise AND of the TSI and TSI Mask equals the TSI Mask; otherwise, do not

approve the transaction.

5. If all of the above steps pass, approve the transaction and submit it for settlement;

otherwise, decline the transaction and/or proceed with Voice Authorization.

7.3.13 Issuer Authentication

The authorization response message from the issuer may contain Issuer Authentication Data

(Tag ‘91’), which contains the ARPC.

If the Issuer Authentication Data is received in the authorization response message and the AIP

indicates that card supports issuer authentication, the Issuer Authentication Data is sent to card

in the EXTERNAL AUTHENTICATE command.

Bits in the TVR are set based on outcome of issuer authentication.

Byte Bit Value

1 8 Offline data authentication was performed

1 7 Cardholder verification was performed

1 6 Card risk management was performed

1 4 Terminal risk management was performed

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.3.14 Issuer-to-Card Script Processing

The issuer may provide command scripts to be delivered to the card by the terminal to perform

functions that are not necessarily relevant to the current transaction but are important for

continued functioning of the card application.

Multiple scripts may be provided with an authorization response and each may contain any

number of Issuer Script Commands.

Two separate script tags are available for use by the issuer.

• Issuer scripts with Tag ‘71’ are processed prior to issuing the final GENERATE AC

command.

• Issuer scripts with Tag ‘72’ are processed after issuing the final GENERATE AC command.

Bits in the TVR are set based on outcome of issuer-to-card script processing and Issuer Script

Results are made available for sending for reversals or settlement.

7.3.15 Completion

Whether the terminal receives an authorization response message as a result of online

processing or whether it receives an approval or rejection for a transaction that was unable to go

online based on TAC/IAC-Default, it completes the transaction by requesting either a TC (if an

approval was obtained), or an AAC (if the issuer’s instruction is to reject the transaction) from the

card by a second GENERATE AC command.

The Authorization Response Code (Tag ‘8A’) should be set by the terminal based on the online or

offline disposition as follows:

REQUIREMENT If issuer scripts are received in the host response, they must be processed whether the

transaction was approved or declined.

Table 7-17 Online or Offline Disposition

Disposition ASCII Hex Notes

Online

approved

“00” ‘3030’ Should be sent to card at 2nd GENERATE AC if the host response code

indicates any approval, including partial approvals or card verifications.

Online declined “05” ‘3035’ Should be sent to card at 2nd GENERATE AC if the host response code

indicates any decline, i.e. anything that is not an approval. Also used if a

partial approval from the host is rejected at the terminal.

Offline

approved

“Y1” ‘5931’ Should be sent to host in offline approval advice if the card approves

offline at 1st GENERATE AC before attempt to go online.

Offline declined “Z1” ‘5A31’ Should be sent to host in offline decline advice if card declines offline at

1st GENERATE AC before attempt to go online, or at 2nd GENERATE

AC due to bad ARPC cryptogram.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

The card will respond to the 2nd GENERATE AC command as follows:

• If a TC was requested, the card returns either a TC or an AAC.

• If an AAC was requested, the card returns an AAC.

7.3.16 Card Removal

When the transaction flow is complete, the cardholder should be prompted to remove their card

before receipts are printed. It is recommended that the terminal also beep at regular intervals

until the card is removed as an audible reminder to the cardholder to remove their card.

7.4 Contactless Transaction Flow

The major difference between EMV contactless transactions and EMV contact transactions is

transaction speed. The information transmitted between the chip card and POS terminal is done

in a more succinct manner and many of the transaction flow steps are performed either before or

after the card leaves the proximity of the reader. See Figure 7-2.

Unable to go

online, offline

approved

“Y3” ‘5933’ Should be sent to card at 2nd GENERATE AC to request offline approval

after failed attempt to go online. Should be sent to host in offline

approval advice if the card approves offline at 2nd GENERATE AC.

Unable to go

online, offline

declined

“Z3” ‘5A33’ Should be sent to host in offline decline advice if the card declines offline

at 2nd GENERATE AC after failed attempt to go online and the

transaction is not eligible for store-and-forward or stand-in processing.

REQUIREMENT

The Authorisation Response Code (Tag ‘8A’) is not returned by the issuer or card brands,

and thus is not included in the authorization response message from the host. The terminal

must set Tag ‘8A’ based on the disposition of the transaction, whether online or offline.

REQUIREMENT If the card is removed prematurely before transaction flow completion, the transaction

must be canceled, and if the transaction was approved online a reversal must be sent.

Table 7-17 Online or Offline Disposition (Continued)

Disposition ASCII Hex Notes

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

Figure 7-2 Contactless Transaction Flow

SELECT PPSE

Command Response,

SELECT AID

Command Response

List of Supported Applications

Provide Application Records

Processing Restrictions

Cardholder Verification

Completion

EXTERNAL AUTHENTICATE

Command Response,

ISSUER CARD SCRIPT

Command Response

Application Selection

Read Application Data

Issuer Update Processing Validate ARPC Cryptogram and/or

Apply Issuer Script

Terminal prints receipt

Read Application Data

Online Processing

Card May Be Removed From RF Field

Preprocessing Prior to Enabling the

Contactless Interface

Contactless Card Contactless Reader

Card Presented for POS Payment

Card in

RF Field

Contactless Interface Enabled,

Discovery Processing

Determine Path,

Perform Card Action,

Analysis,

Perform Cryptography,

Return Application Data

Card Read Complete

Offline Data Authentication

Initiate Application

Processing

GET PROCESSING OPTIONS

Command Response

Card Represented for Issuer Update Processing (Optional)

Card in

RF Field

(Optional)

Transaction Processing

Pre-Transaction Processing

Post-Transaction Processing

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

The focus of the following sections is to highlight some of the specific differences from the

contact EMV flow. A summary of the differences is as follows:

7.4.1 Pre-Processing

To minimize the duration in which the card must remain within the reader’s radio frequency (RF)

field, the reader may obtain the transaction amount and perform some risk management checks

prior to prompting for card presentment. This pre-processing is performed prior to powering on

the contactless interface.

7.4.2 Discovery Processing

Discovery Processing is performed by the reader to poll for the presence of contactless cards

that may have entered the reader’s Radio Frequency (RF) field.

7.4.3 Application Selection

Similar to contact EMV, but the terminal builds a candidate list of mutually supported applications

using the mandatory Proximity Payment System Environment (PPSE) method, whereby the

terminal sends a SELECT command to the card and the card returns a directory of supported

applications. The List of AIDs method is not used for contactless.

If there is more than one mutually supported application in the candidate list, the terminal

automatically selects an application from the list based on predetermined preference, which may

be to choose the application of highest priority according the Application Priority Indicator (Tag

‘87’) returned by the card.

Table 7-18 Contact EMV Flow Differences

Step Name Description

Application Selection The highest priority mutually supported application is automatically

selected by the contactless card reader.

Initiate Application Processing This step includes the Terminal Risk Management, Terminal Action

Analysis, and Card Action Analysis processing.

Read Application Data The chip card may be removed from the proximity of the reader

after this step.

Cardholder Verification The offline enciphered/plaintext PIN CVMs are not supported for

contactless transactions.

Issuer Update Processing This is an optional step that encompasses the Issuer

Authentication and Issuer-to-Card Script processing, and would

require re-presentment of the card into the proximity of the reader.

This is currently not supported.

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.4.4 Initiate Application Processing

This step includes:

•Path Determination

•Terminal Risk Management

•Terminal Action Analysis

•Card Action Analysis

7.4.4.1 Path Determination

The contactless path(s) that are mutually supported by the card and reader are determined and a

contactless path (EMV mode or magstripe mode) is chosen to process the transaction.

Subsequent transaction processing is performed according to the requirements of the

contactless path chosen.

7.4.4.2 Terminal Risk Management

Similar to contact EMV, but only floor limit checking is performed for contactless transactions.

Random transaction selection and velocity checking is not performed for contactless

transactions.

7.4.4.3 Terminal Action Analysis

Same as contact EMV, except that the TACs and IACs may be different for contactless.

7.4.4.4 Card Action Analysis

Same as contact EMV.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

7.4.5 Read Application Data

Same as contact EMV.

7.4.6 Card Read Complete

The card may be removed from the reader’s RF field at this point. The reader determines

whether all mandatory data elements for the transaction were returned by the card, and

terminates the transaction if they were not.

All of the remaining steps are performed after the card has left the proximity of the reader.

7.4.7 Processing Restrictions

Same as contact EMV.

7.4.8 Offline Data Authentication

Similar to contact EMV, but with some variances. For example, Visa uses Fast Dynamic Data

Authentication (fDDA) and MasterCard does not support SDA or DDA for contactless.

7.4.9 Cardholder Verification

Similar to contact EMV, but the offline enciphered/plaintext CVMs are not supported for

contactless. In addition, contactless includes support for a new CVM which occurs on a separate

device such as a mobile phone that is used to emulate a contactless card.

Each card brand has a different term for this new CVM:

Table 7-19 Card Verification

Card Brand Description

VISA Consumer Device CVM

MasterCard On Device CVM

American Express Mobile CVM

Discover Confirmation Code (Mobile) CVM

HPS Integrator’s Guide V 16.1.1 7: EMV Terminal Interface

7.4.10 Online Processing

Same as contact EMV.

7.4.11 Completion

Similar to contact EMV, except that there is no request for a TC or AAC after online processing

since the card has already been removed from the proximity of the reader.

7.4.12 Issuer Update Processing

This optional step to validate the ARPC cryptogram and apply issuer scripts to the card would

require re-presentment of the card into the proximity of the reader and is not currently supported

by most cards or readers.

7.5 EMV Receipts

7.5.1 Approval Receipts

In addition to the magstripe receipt requirements, the following additional items must be included

on EMV receipts:

Table 7-20 Receipt Requirements

Receipt Item Description

APPLICATION NAME Use Application Preferred Name (Tag ‘9F12’) if available and printer supports

the corresponding character set as specified in Issuer Code Table Index (Tag

‘9F11’), else use Application Label (Tag ‘50’).

APPLICATION IDENTIFIER

(AID)

Use Tag ‘4F’ if available, else Tag ‘84’ if available, else Tag ‘9F06’.

APPLICATION CRYPTOGRAM

TYPE

Use “ARQC”, “TC”, or “AAC” based on the final cryptogram generated for the

transaction.

APPLICATION CRYPTOGRAM Contents of Tag ‘9F26’ for the final cryptogram generated for the transaction.

CARDHOLDER VERIFICATION

METHOD (CVM)

Based on the CVM Results (Tag ‘9F34’), either print a signature line, “PIN

VERIFIED”, and/or “NO SIGNATURE REQUIRED”. If the CVM Results indicate

a failure, or “No CVM Required” when that was not the expected result, a

signature line should be printed.

CARD ENTRY METHOD Use “INSERT”, “TAP”, “SWIPE”, “MANUAL”, or equivalent text based on the

source of the card data.

7: EMV Terminal Interface HPS Integrator’s Guide V 16.1.1

Figure 7-3 EMV Receipt Example

7.5.2 Decline Receipts

There are no card brand requirements to print decline receipts and no requirements for EMV

information that should be included on such receipts. Heartland has an Offline Decline Advice

message for capturing EMV decline data, so a detailed decline receipt is unnecessary.

If you choose to print decline receipts, then, in addition to the information required on approval

receipts, it is recommended that the following tags be printed if available:

• TERMINAL VERIFICATION RESULTS (Tag ‘95’)

• CVM RESULTS (Tag ‘9F34’)

• ISSUER ACTION CODE (IAC) – DENIAL (Tag ‘9F0E’)

• ISSUER APPLICATION DATA (Tag ‘9F10’)

HPS Integrator’s Guide V 16.1.1 8: EMV Parameter Interface

Chapter 8: EMV Parameter Interface

8.1 Introduction

A table-driven EMV Parameter Data Load (EMV PDL) is available and required for all terminals

processing EMV transactions. These tables consist of various terminal capabilities, supported

applications and keys used for processing EMV. The Heartland network will maintain five Tables

of EMV PDL information:

The network will relay to the POS which table data it needs to download by sending Table

Versions and Flags to it in Table-ID 10.

Note: A Table Version of ### and Flag of @ indicate that the table is not applicable to the POS

terminal and that the table must not be requested by the POS terminal.

The EMV PDL system was designed to maintain a specific set of data for each EMV card

acceptance device based on the particular certified configuration of that device being utilized by

the merchant. The data set is linked to the following identifiers:

In practice, a merchant location could have multiple devices that are the same and are using the

same certified configuration, so it is not necessary to request an EMV PDL for each of these

devices.

For example, a site may be able to set up one PDL for the inside terminals and one PDL for the

outside terminals and the POS controller/aggregator could pull those two PDLs from the host and

subsequently push the data out to all the devices as appropriate.

Table 8-1 EMV PDL Tables

Table-ID Description

Table-ID 10 EMV Table-ID Versions and Flags for Data Tables

Table-ID 30 Terminal Data

Table-ID 40 Contact Card Data

Table-ID 50 Contactless Card Data

Table-ID 60 Public Key Data

Platform Merchant/Company ID Location/Unit ID Terminal/Device ID

Exchange/Portico 12-digit Merchant ID Number N/A 4-digit Terminal Number

NWS 4-char Company ID 15-char Terminal Location ID 4-char Unique Device ID

VAPS 4-digit Company Number 11-digit Unit Number 2-digit Terminal ID

8: EMV Parameter Interface HPS Integrator’s Guide V 16.1.1

The approach for sending EMV PDLs to each device or groups of devices must be managed by

the customer working with Heartland.

8.2 Exchange

EMV Parameter Download Notification is indicated when Group III Version 090 contains a value

of Y. After the EMV Parameter Download Notification is received by the POS Terminal, an EMV

Parameter Download request should be sent after the current batch is closed. The EMV

Parameter Download Notification Request (Transaction Code = EP) with Group III Version 091

containing the following values:

• PDL-EMV Parameter Type = 06

• PDL-EMV Table ID field = 10

• PDL-EMV Card Type = space-filled

• PDL-EMV Parameter Version = 001

• PDL-EMV Block Sequence Number = 00

The response for Table-ID 10 will contain the latest version number and the download flag for

Table-ID 30, 40, 50 and 60.

8.3 POS 8583

The EMV Parameter Download Notification is sent in a response message in DE 48.12

(Administratively Directed Task) with a value of 3. After the EMV Parameter Download

Notification is received by the POS Terminal, an EMV Parameter Download request should be

sent after the current batch is closed. The EMV Parameter Download Request (MTI = 1300, DE

24 = 304, DE 25 = 3718, DE 72.1 = EPDL) including the following values:

• PDL-EMV Parameter Type = 06

• PDL-EMV Table ID field = 10

• PDL-EMV Card Type = space-filled

• PDL-EMV Parameter Version = 001

• PDL-EMV Block Sequence Number = 00

The response for Table-ID 10 will contain the latest version number and the download flag for

Table-ID 30, 40, 50 and 60.

HPS Integrator’s Guide V 16.1.1 8: EMV Parameter Interface

8.4 NTS

• Terminal will receive notification of a pending EMV PDL via a value of 3 in the PENDING

REQUEST INDICATOR field of a Host authorization response.

• Terminal must send a MESSAGE CODE 21, with an EMV PDL PARAMETER TYPE of 06

to request EMV download information.

• Terminal must send a MESSAGE CODE 21, with an EMV PDL PARAMETER TYPE of 07

to confirm receipt of each complete EMV table.

8.5 Z01

• Terminal will receive notification of a pending EMV PDL via a value of E in the MULTIPLE

INQUIRY FLAG of a Host authorization response (Z01 06 and Z01 14 response maps

only).

• Terminal must send an EMV PDL Request format with RESPONSE FORMAT CODE of E1,

REQUEST FORMAT CODE of E1, TRANSACTION TYPE 80 and EMV PDL PARAMETER

TYPE of 06 to request EMV download information.

• Terminal must send an EMV PDL Request format with RESPONSE FORMAT CODE of E1,

REQUEST FORMAT CODE of E1, TRANSACTION TYPE 80 and EMV PDL PARAMETER

TYPE of 07 to confirm receipt of each complete EMV table.

8.6 Portico

EMV Parameter Download Notification is indicated in the response Header of the following

Portico Transaction Services. The notification will be included in the response Header once per

day until the download is confirmed or the download flag is reset in the parameter download

system.

• CreditAdditionalAuth

• CreditAccountVerify

• CreditIncrementalAuth

• DebitSale

• CreditAuth

• CreditSale

Parameter Downloads may be retrieved and confirmed through the Portico

“ParameterDownload” service. See the Portico SDK for additional information.

8: EMV Parameter Interface HPS Integrator’s Guide V 16.1.1

8.7 SpiDr

A POS terminal performs an EMV Parameter Data Load after receiving notification, DE 48~12

Administratively Directed Task, in a response message.

The EMV Parameter Data Load request is sent after a batch close in a file download request

message (MTI = 1300, DE 24 = 304, DE 25 = 3718) with the following values:

• PDL-EMV Parameter Type = 06

• PDL-EMV Table ID field = 10

• PDL-EMV Card Type = space-filled

• PDL-EMV Parameter Version = space-filled

• PDL-EMV Block Sequence Number = 00

The response for table 10 will contain the latest version number and the download flag for tables

30, 40, 50 and 60.

• A PDL-EMV Table ID Flag value of Y will direct the POS to request the data for that table in

a subsequent PDL request.

• A PDL-EMV Table ID Flag value of N indicates that the table is utilized by the POS

terminal, but there is no new data to download at this time.

The POS terminal sends a request for each Table-ID with a Flag value of Y using the indicated

PDL-EMV Table Version and PDL-EMV Card Type values.

Some of the tables must be downloaded in multiple blocks, and the POS must keep track of the

Block Sequence Number it needs and increment it appropriately until all blocks are successfully

received. When the POS receives a PDL-EMV End-Of-Table Flag of Y, it sends a PDL-EMV

Parameter Type of 07 to confirm receipt of that table.

Use the SpiDr transaction type PDL.

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

Appendices

This Appendix contains the following:

•Appendix A: Card Association BIN Ranges, pg. 157

•Appendix B: Industry Codes, pg. 250

•Appendix C: Receipt Requirements, pg. 289

•Appendix D: State Codes / Region Codes, pg. 292

•Appendix E: EMV Field Definitions, pg. 295

•Appendix F: EMV PDL Data Examples, pg. 320

•Appendix G: Glossary, pg. 364

•Appendix H: Revision History, pg. 388

Appendix A: Card Association BIN Ranges

Note: BIN ranges are subject to change without notice. The following lists represent the ranges

available at publication time.

•A.1 VISA BIN Ranges, pg. 158

•A.2 MasterCard BIN Ranges, pg. 235

•A.3 American Express BIN Ranges, pg. 243

•A.4 Discover IIN Ranges, pg. 244

•A.5 PayPal IIN Ranges, pg. 244

•A.6 Fleet Card BIN Ranges, pg. 245

•A.7 Stored Value Solutions (SVS) BIN Ranges, pg. 246

•A.8 Centego Prepaid BIN Ranges, pg. 247

•A.9 Drop Tank, pg. 247

•A.10 Debit BIN Ranges, pg. 247

•A.11 EBT BIN Ranges, pg. 247

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

A.1 VISA BIN Ranges

All VISA cards fall in BIN ranges 4XXXXX–4XXXXX.

The following VISA Purchasing, VISA Fleet, VISA Corporate or Business, and VISA Readylink

BIN ranges are subsets of the VISA card BIN range.

•A.1.1 VISA Purchasing BIN Ranges, pg. 158

•A.1.2 VISA Fleet BIN Ranges, pg. 161

•A.1.3 VISA Corporate or Business BIN Ranges, pg. 162

•A.1.4 VISA ReadyLink BIN Ranges, pg. 229

A.1.1 VISA Purchasing BIN Ranges

Table A-1 VISA Purchasing BIN Ranges

Account Length up to 19

405607

415928

418308

424604

427533

430736

433085

434868–434873

443085

448410

448419

448421

448452

448461–448462

448469

448483

448485–448486

448489

448491

448499–448501

448506–448507

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

448515

448517

448524

448535

448546

448548

448557

448559–448560

448562

448564–448565

448569

448598

448600–448604

448606–448607

448609

448620–448622

448626

448672–448673

448676–448679

448692–448693

452072

461422

461426–461429

461431

461437

461470–461471

461481

461487–461488

461490

471500

471503

471508

471511

471515–471516

Table A-1 VISA Purchasing BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

471522

471524–471526

471529

471539

471545–471546

471552–471553

471556

471563–471564

471569

471573

471575

471578

471586

471592

471596

471630

471640

480406–480408

480411–480413

480420–480421

480423–480424

480439

480452

480455

480458

480470

480722–480723

480725

480824

485901

485910

485915

485948

485983

Table A-1 VISA Purchasing BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

A.1.2 VISA Fleet BIN Ranges

485986

485997

485999

486509

486511–486512

486516–486517

486521–486523

486524–486528

486535

486550–486552

486554–486555

486560

486576

486580

486583

486588–486591

486640

486670

486690

489629

Table A-2 VISA Fleet BIN Ranges

Account Length up to 19

448460–448611

448613–448615

448617–448674

448676–448686

448688-448699

461400–461499

480700–480899

Table A-1 VISA Purchasing BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

A.1.3 VISA Corporate or Business BIN Ranges

Table A-3 VISA Corporate or Business BIN Ranges

Account Length up to 19

400137

400157

400180

400229

400255

400266

400275

400294

400337–400338

400345

400365–400368

400371

400374–40375

400379–40038

400382–40383

400387

400390

400398

400611

400664

400755–400756

400759

400772

400774

400776–400778

400781

400783–400784

400786–400787

400813

400824

400848

400872–400873

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

400930–400931

400983

400988

401138

401156

401315–401316

401338

401340

401376

401386–401388

401600

401617

401620–401621

401633–401634

401747–401748

401806

401854

401867

401903

401906

401922

401925

401943

401947

401958

401962–401963

401966

401991

401994

402019

402053

402082

402085

402089

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

402099

402102

402309

402416

402441–402452

402463

402465–402467

402469

402471

402480

402492

402495

402819

402834

402879

402884

403146

403154

403270

403289

403298

403300

403302

403411

403424

403486–403497

403574

403607

403622–403623

403634

403639

403646–403647

403684

403706

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

403716

403939

404043

404061–404062

404063

404076

404079–404080

404085

404092

404223

404300

404514

404544

404570

404601–404602

404658

404669

404687

404697

404804

404956

404958

404975

404982

404984

404993

404996

405034

405046

405048

405075

405079

405219

405301

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

405304

405322

405336

405345

405351

405383–405384

405403

405426

405429

405432

405467

405469

405589

405593

405616

405710

405716

405718

405723

405729–405730

405800

405983

406031

406044

406050

406064

406066

406085

406630

406640

406875–406876

406879

406885

406888

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

406890

406892–406893

407070

407109

407201

407207

407210

407226

407239

407250

407335

407818

407821

407918

407922

407936–407937

407946–407948

407950

408014

408044

408058

408081

408083–408084

408090

408094

408097

408116

408119

408141–408143

408175

408184

408190

408508

408525–408528

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

408537

408540

408555

408564

408592

408600

409116

409158–409159

409198

409214

409379

409479

409759

409914

409938

409951

409955

409982

410103

410108

410117

410119

410252

410257–410258

410260

410267

410270–410274

410277

410281

410294

410400–410401

410447

410450

410460

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

410474

410601

410878

410880

410882

410893

410899

411103

411110

411113

411115–411116

411122

411125–411126

411129

411204

411248

411280

411352

411373

411376

411381

411389–411390

411408

411414

411458

411474–411475

411503

411507

411564

411803

411917

411920

412001

412056–412057

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

412064

412107

412120

412154

412167

412173

412178

412190

412192

412228–412229

412236

412248

412253

412271–412273

412297

412299

412418

412448

412628

412631

412635

412645

412662

412664–412665

412672

412677

412687

412694–412695

412698

412713

412900

412914

412935

413083

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

413111

413120

413122

413124

413127

413136

413138–413139

413149

413158

413247–413248

413372

413433

413485

413497

413556

413571–413580

413731

413765

413783

413905

413933

413954

414008

414016

414058

414062

414066

414096

414117

414121–414123

414131–414132

414200

414245

414248

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

414311

414317–414318

414324

414428–414430

414437–414439

414460

414472

414512

414519

414527

414540

414548

414552

414569

414573

414576–414578

414589

414597

414898

414981

415089

415093

415101

415110

415222

415228

415245

415251

415284–415285

415392

415411

415417

415424

415443

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

415453

415456

415459

415487–415488

415538

415542–415545

415587

415685

415782

415785

415835

415850–415851

415892

415911

415933

415980

415983

416058

416440

416459

416485

416504

416617–416618

416619

416625

416728

416760

416766

416769

416775

416780–416781

416783

416785

416789

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

416805

416823

416830

416840

416905–416907

416947

417008

417305

417707

417709

417804–417805

417813

417903

417908

417911

417931

417934

418000–418001

418010

418013

418017

418025

418027

418032

418035

418185

418187

418192

418198

418200–418202

418208–418209

418271–418273

418283

418289

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

418291

418301

418303–418304

418309

418406

418435

418447

418465

418524

418581

418623

418627

418630

418633

418640–418641

418644–418645

418648–418649

418656

418659

418663

418700–418701

418704

418707

418709

419051–419053

419056

419061

419069

419071–419074

419081

419094

419099

419200

419303

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

419310

419481

420007

420011

420039

420089

420655

420712

420738

420740–420741

420747

420749

420752

420754

420765

420781–420782

420936

420975

421032

421063

421071

421709

421713

421754

421786

422307

422322

422341

422383

422439

422493

422504

422510

422512

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

422514

422517

422519

422536

422547

422550

422558

422564

422569

422573

422625

422649

422740

422886

423100

423103–423104

423119

423130

423182–423183

423239

423242

423252

423254–423257

423259

423289

423343

423348

423352

423380

423399

423509

423542

423611

423655

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

423680

423694–423695

423778

423793

423825

423835

423842

423869

423884

423959

424162

424164

424253–424255

424506

424631

424636

424650

424662

424673

424690

424698

425001

425013

425017

425022

425029

425037

425115

425123–425124

425136

425204

425250

425253

425324

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

425351

425429

425637–425653

425702

425801

425809

425829

425831

425839

425907–425909

425909

425914

425925

425959

425962–425963

425964

425973

425988

426246

426266–426267

426270

426279

426407

426435

426497

426516

426520

426603

426627

426654

426691

426707

426715–426716

426719

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

426722

426751

426758

426771

426775–426777

426780

426783

426788–426789

426792

426950

427021

427026

427032

427048

427084

427152

427176

427186

427518

427524

427531–427532

427535

427545

427555–427556

427565

427580

427586

427722

427748

428045–428046

428048

428715

428731

428940

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

428974

428987

429120

429129

429131

429202–429206

429208–429211

429213

429215–429223

429228–429230

429234–429235

429237–429243

429249–429251

429253–429254

429256

429260–429262

429264–429265

429267

429272

429275–429277

429281–429283

429285

429287–429289

429291–429293

429295–429299

429374

429423

429456

429475

429537

429541

429546

429548

429822

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

429841

429844

429847

429856–429857

429859–429860

429862

429867

429884

429888–429889

429911

429975

429977–429978

429982

429984

429988

429997–429998

430055

430099

430211

430213–430214

430224

430331

430412

430649

430738

430741

430743

430750

430752

430755–430757

430780–430781

430784

430828

430847

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

430854

430862

430926

431011

431180

431183

431231

431241

431247

431447

431470

431536

431575

431577–431578

431598

431645

431656

431747

431779

431796

431805–431808

432016

432027

432426

432590

432615

432664

432693

432702

432723–432724

432732–432736

432771

432815

432841

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

432890

432894

432946

432953

432964

433040

433043

433050–433051

433053

433056

433069

433074

433076

433078

433080–433081

433093–433094

433099

433119

433127

433156–433158

433166

433202

433217

433225

433229–433230

433439

433522

433526

433681

433694

433818

433904

433993

433999

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

434012–434014

434016

434020

434025

434028

434030–434032

434034–434036

434042

434048

434124

434139

434142

434144

434171

434203

434228

434233

434248

434255

434271

434274–434275

434277

434280

434282

434313–434314

434329

434367

434378

434392–434393

434398

434628

434642

434801

434803

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

434809

434821–434822

434829

434853

434862

434875

434893

434898

435111

435123

435129

435131

435134

435145

435170–435171

435189

435194–435195

435200

435255

435266

435510–435518

435520–435529

435536–435540

435573–435575

435579

435582

435585–435588

435592

435596

435622

435632

435642

435656

435694

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

435760

435817

435823

435830

435843–435844

435851

435853

435856

435860

435873

435882

435893

435896

435898

435914

435940

435942

435944–435947

435948

435950

435962–435963

435964–435966

435968

435971

435986

435990

435992

435995

436104

436134

436155

436188

436190

436628–436629

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

436644

436647

436651–436655

436674

436691

436703

436707

436709

436721–436722

436725

436727

436756

436765

436864

436866–436868

436870–436871

436876

436880

436892–436894

437820

437824

437827

438441–438442

438683

438689

438699

438714

438732

438765–438766

438802

438831

438839

438842

438850

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

438863

438889

438950–438954

438974

439119

439337

439348

439366

439455–439456

439459

439790–439792

439794–439795

439799

439870

439882

439898

439914–433915

439917–439919

439966–439968

439977

439979

439982

439984

440021

440027

440101–440107

440109–440113

440115–440120

440134

440165–440168

440181

440186

440196

440249

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

440266

440442–440443

440497

440670

440702

440779

440887

441131

441137–441138

441201–441202

441205

441207

441212–441213

441215

441218

441222–441225

441229

441234

441245

441248–441249

441265

441268

441276

441291

441294

441300

441434

441499

441526

441603

441634–441635

441668

441673

441675

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

441688

441720

441822

441836

441859

441886

441893

441989

442033–442034

442047

442212

442256

442284

442313

442377

442405

442504

442514–442515

442627–442628

442632

442683

442704

442707–442709

442723

442732

442741–442742

442746

442754

442763

442776

442833

442852–442853

442865

442872–442873

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

442879

443016

443095

443109

443603

443692

443696

443831–443832

443836

443838

443850

443860

443902–443904

444203

444205–444206

444294

444324

444358

444389

444395

444526–444528

444540

444547

444549

444554

444557

444561

444600

444704

444712

444714–444715

444723

444725

444731

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

444736

444738

444740

444745

444751

444756–444757

444777

444791–444792

444794–444795

444809–444814

444928

444943

444959

444991

445116–445117

445166

445200

445313–445314

445318

445321

445323

445335

445352

445357

445363–445364

445371

445385

445389–445391

445394

445396

445422

445441

445450

445463

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

445603

445607

445643

445647

445713

445725

445750

445755

445758

445767

445963

446001

446056

446063

446084

446089

446108

446175

446400–446401

446409–446410

446413–446414

446461

446466–446467

446474–446475

446492

446495

446545

446547

446558

446736

446848

446871

447011

447017

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

447034

447092

447207

447241

447250

447256

447261

447428

447448

447619–447620

447716

447825

447827

447863–447864

448039

448049

448159

448179

448238

448734

448736

448779

448813–448814

448848

448854–448855

448864

448880

448897–448898

448908

449010

449078

449082

449084

449089–449090

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

449092

449094–449097

449135

449143

449186

449207

449405

449446

449450

449453

449457

449493

449740

449829

449923

449926

450004–450005

450107

450281–450282

450289–450292

450298

450870

450941

450982

451003

451035–451036

451038–451039

451086

451088

451310

451336–451338

451405

451506

451604–451607

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

451646

451650

451652

451656

451659

451663–451664

451666

451669

451672–451673

451675

451679–451680

451684–451685

451691

451695

451704

451706

452070–452071

452073

452102–452103

452107–452109

452179

452197

452221–452222

452284–452286

452289

452513

452553

452559

452564

452566

452570–452572

452924

452928–452929

452931

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

452933

452939

452942

452944–452945

452948–452949

452989

453048

453080

453092

453298

453533–453541

453543

453545–453548

453550–453551

453660–453661

453673

453711

453713–453715

453717–453726

453728

453730

453750

453806

453809

453818

453825

453828

453846

454032

454407

454566

454568

454592

454608

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

454694

454698

454763

454823

454909

454967

455069–455070

455106

455142

455190

455354

455406

455595

455616

455624

455799

456331–456333

456521

456531

456569–456570

456574

456892

458144

458150

458156–458157

458874

458883

458887

458889

458895

458899

459103

459109

459112

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

459117

459119

460103–460104

460124–460127

460130

460137

460148–460149

460163

460350–460369

460390

460445

460493

460515

460601–460606

460609–460620

460641–460642

460650

460652

460691

460693

460695

460729–460730

460752

460769

460774

460793

460847–460848

460852–460854

460856–460857

460859

460861

460863

460868–460872

460874

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

460876–460877

460881

460886

460891–460895

460898

461026

461057

461075

461081

461223–461228

461270

461324

461381

461633

461641

461644

461646

461656

461691–461692

461698

462123

462133

462138

462142

462155

462158–462159

462166–462167

462190

462194

462501

462510

462557

462590

462596

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

462668

462701

462788

462805

462905–462906

462912–462913

462915

462917

463026

463038

463103

463105

463107–463108

463110

463113

463116

463119

463124

463132–463133

463135–463137

463145

463156

463272–463290

463440–463455

463457–463459

463508

463550–463552

463555

463570

463572–463589

463592

463837

463902

463942

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

463945–463946

463950–463952

463957

463964

463971

463976

463992

463996

463998–463999

464011

464046

464048

464206–464207

464320

464330–464338

464340–464349

464371

464399

464509

464704

464738

464745

464747

464764

464771

464773

464801

464807

464860

464862

464865

464871–464890

464919

464921

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

465003

465009

465108

465232

465287–465298

465301–465302

465304–465305

465307–465309

465338–465339

465344

465346–465353

465357–465358

465381

465390

465393

465398–465399

465500

465532

465539

465548

465550

465615

465652

465703

465707

466108

466110

466134

466172

466185

466191

466194

466202

466205

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

466208

466215

466392

466528

467001

467003

467147

467160

467162–467166

467173

467175

467194

467201

467204–467205

467208

467251

467253

467261

467266

467271

467283

467285–467287

467289

467400

467470

467472

467482

467531

467542

467555

467559

467992

468092

468094

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

468232

468239

468263

468274

468299

468406

468408

468413

468419

468422

468430

468433

468436

468441

468452

468455

468462–468463

468468

468477

468479

468489

468491

468493

468700

468704

468718

468721

468810–468811

468859

469044

469055

469059

469061–469063

469065

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

469068

469074

469080

469083

469094

469224

469301

469305–469306

469309

469313–469314

469316

469318–469319

469321–469322

469324

469326

469328

469401

469410

469419

469425

469429

469433

469436

469440

469444

469448

469453

469457

469462

469469

469475

469477–469478

469480–469482

469484

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

469487–469488

469493–469494

469506

469513

469517

469560

469569

469604–469606

470010

470012–470013

470016

470021

470038

470043–470044

470412

470420

470423

470508

470516

470527

470706

470708

470712

470745–470746

470764–470765

470768

470789–470790

471536

471719–471721

471726–471728

471752

471755

471760

471773

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

471777–471778

471781–471783

471785

471787–471792

471796–471797

471808

471811–471813

471833

471844

471853

471855

471866

471870

471873–471874

471877

471879

471894

471915

471917

471982

471985

471987

471989

471991–471992

471995

472000–472001

472003–472005

472012–472013

472015

472017

472022

472024

472026

472028

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

472030

472059

472175

472181

472350

472352

472358–472359

472364–472365

472368–472370

472374

472376

472378

472383

472385

472387–472388

472391

472396

472527

472715

472722

472724

472732

472742–472743

472745–472747

472749

472752

472754

472757

472766

472775

472780

472783

472787

472790

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

472961

472975

472977

472990

472993

472995

472997–472999

473073

473075

473077

473090

473132

473141

473150

473162

473341–473342

473349

473353

473367

473412

473499

473511

473550

473555

473583

473698–473699

473731

473804

473902–473903

473906

473908

473911

473913–473914

473916

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

473918–473919

473922

473924–473925

473926–473928

473934

473937–473938

473942–473945

473949

473951

473954–473955

473957

473959–473961

473963–473965

473966–473968

473970–473971

473973

473975–473976

473978

473982

473984

473988–473991

473992

473994–473996

474304–474305

474363

474378

474384–474385

474396–474397

474398

474596

474599–474600

474603

474622

474656

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

474662

474692–474693

474725

474871

474877

475026

475040

475044

475047–475048

475063

475074

475409

475413

475416

475426

475439

475442

475450

475452–475453

475457

475497–475499

475555

475570

475605

475658

475660

475672

475690

475700

475702

475704–475705

475707

475816

475832

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

475834

475857

476081–476082

476153

476435–476436

476447

476455

476466–476467

476490–476491

476497

476511

476514

476552

476595

476598

476706

476708

476710

476726

476734

476743

476753–476755

476757

476760

476765 476766

476771

476774

476778

476785

476799

476889

476900

477326–477328

477330–477332

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

477334–477337

477340–477341

477343–477344

477348

477401

477404

477406–477407

477410

477412–477415

477417

477419

477421

477424–477427

477431

477434

477436

477438

477440–477441

477446

477450–477451

477453–477455

477461–477463

477466–477467

477470

477474

477481

477486

477489

477493

477496–477498

477500

477536

477559

477724

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

477735

477757

477763

477769

477780–477781

477792

477800

477813

477848

477856

477865

477877

477879

477970

478251

478258

478315–478316

478319

478322

478326

478352–478353

478362

478364

478408

478417

478442

478453

478484–478485

478809

478816

478818

478821–478825

478842

478853

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

478860

478874

478917

478958

478988

479085

479124

479162

479425

479453

479456

479467

479516

479525–479526

479528–479529

479774

479804

479807–479810

479812

479815

479817

479819

479821

479826

479835

479845–479846

479849

479851

479853–479854

479859–479861

479879–479880

479921

480117

480119–480120

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

480132

480141

480169

480176–480195

480200

480203

480205–480206

480207

480209

480211

480213

480217–480219

480222–480223

480227–480228

480235–480236

480239

480243–480244

480245

480247

480251–480252

480255

480260–480263

480265–480271

480278–480285

480287–480288

480294

480298

480319

480328

480362

480384

480393

480437

480605

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

480615

480644

480673

480693

480933

480970–480971

480997

481112–481113

481165

481258

481260

481554

481558

481598

481600

481683

481756

481968

481975

481979

482097

482126

482151–482156

482871

482877

482879–482880

482882

482925

483321

483341

483349

483353

483368

483379

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

483391

483395

483397

483721

483724

483726

483728

483826

483912–483913

484008

484016

484022–484024

484026–484027

484103

484114

484213–484214

484220–484221

484227–484229

484235

484238

484272–484273

484275

484287

484317

484372

484386

484483

484615

484626

484724

484728

484738

485002

485022

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

485030

485083

485086

485088

485099

485106

485216

485218

485224

485228

485232

485240

485250

485252

485259

485261

485273–485276

485282–485284

485286

485291

485293–485297

485327

485336

485339

485345

485348

485354

485363

485412

485418

485423

485425

485427

485565

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

485573–485574

485580

485586–485588

485590

485592

485596

485602–485603

485604–485605

485611

485620–485622

485631

485637–485638

485644–485646

485653

485655–485656

485673

485705–485707

485712

485726

485729

485731

486003–486004

486154

486156

486158–486160

486162

486170

486172–486173

486176

486179

486181

486184

486192

486194–486197

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

486237–486239

486302

486304

486317

486462

486464

486734–486735

486737

486740

486743

486745

486795

486801–486802

486809

486815

486837

486871–486872

486900

486911

486920

486937

486946

486980

486985

486990–486993

486998–486999

487091

487283

487285

487292

487297

487299

487301

487311

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

487320

487323

487330–487331

487337

487342

487409

487449

487451–487452

487459

487496

488801–488802

488813

488815–488816

488823

488828

488831

488844–488845

488847

488849–488850

488853

488869

488879–488880

488882–488883

489208

489219

489225

489229–489230

489240

489293

489554

489556–489559

489609–489613

489618

489626

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

489634–489635

489637

489645

489651–489652

489655

489695–489696

489722

489738

489745

489748

489772

489780

489793

489909

489910

489960

490159

490202–490209

490217

490410

490425

490429

490434

490442–490445

490464

490482

490485–490487

490490

490494

490499

490607

490756

490787

490789

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

490802

490851

490854

490861

490871–490887

490894

490895

491229

491231

491239–491252

491303

491319

491379

491392

491419

491421

491435

491453

491468

491470

491479

491488

491496

491528

491535

491581

491645

491690

491723

491729

491766

491893

491895

491970

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

491980–491993

492302

493021–493022

493024–493039

493041–493045

493047–493058

493060

493121

493153

493167

493177

493187

493196

493426

493442

493445–493446

493450

493471

493784

493786

493819

493820–493821

493854

493855

494135–494140

494145–494177

494179

494315

494371

494397

496003

496007–496008

496647

496677

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

497984

498438

498481

498486

498812

498817

498865

498882

498893

499100

499104–499105

499106

499107

499109

499111–499115

499117

499123–499124

499126–499127

499130–499132

499134

499136–499139

499141–499142

499143–499146

499148

499152

499160–499161

499164–499165

499170

499174–499175

499185–499187

499190–499191

499937

Table A-3 VISA Corporate or Business BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

A.1.4 VISA ReadyLink BIN Ranges

Table A-4 VISA ReadyLink BIN Ranges

Account Length up to 19

400029

400041

400046–400047

400123

400341

400403

400414

400421

400528

400540

400542

400544

400548

400564

400908

401128

401200 (TEST only)

401658

401707

401710

402188

402644

403169

403448

403544

403743

404051

404070

404094

404918

405397

405505

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

406497

407635

407640

407904

407909

407911

407970

407991

408535

408594

408954

409920

410282

410489

410848

411064–411066

411449

411461

412407

414002

414830

416420

416422

417013

417014

418654

420592

420706

420719

420728

420775

420790

422311

422797

Table A-4 VISA ReadyLink BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

423138

423145

424758

424793

425060

425062

425064

425312

427090

429375

430221

430223

430763–430764

432650

433701

434249

434470

435196–435197

435541–435542

435555–435556

435568

435581

435833

435877

436199

436733

436744

437317

437712

437817–437818

439331

439334

441820–441821

442029

Table A-4 VISA ReadyLink BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

442044

442059

442744

442816

443021

443157

446053

447029

447470

447472

448093

449274

449733

452263

452561

453911

454801

454810

455918

455921

456436

456527

456534

456537

458424

458432

461235

461239

463497

465387

465391

466178

467321

467339

Table A-4 VISA ReadyLink BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

467378–467379

468004

468292

468442–468443

469069

469201

469208

469498

470028

470198

471807

471867

471869

473618

473657

473807

475003–475005

475015

475019

475425

475429

475431

476046–476047

476084

476323

476334

477805

478491

478499

478655

479145

479269–479270

479349

481170

Table A-4 VISA ReadyLink BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

481591

481663

481687

482163

483304

484056

484379

485214

485221

485237

487093

487300

487490

488885

489221–489222

489233

489614

490718

491072

491215

491244

491274

491349

493146–493147

Table A-4 VISA ReadyLink BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

A.2 MasterCard BIN Ranges

MasterCard transactions must be submitted to the Heartland for authorization. Bin ranges

include:

•222100-272099

• 510000-559999

The following MasterCard Purchasing, MasterCard Corporate, and MasterCard Fleet BIN ranges

are subsets of the MasterCard BIN range.

•A.2.1 MasterCard Purchasing BIN Ranges, pg. 235

•A.2.2 MasterCard Corporate BIN Ranges, pg. 237

•A.2.3 MasterCard Fleet BIN Ranges, pg. 243

A.2.1 MasterCard Purchasing BIN Ranges

Table A-5 MasterCard Purchasing BIN Ranges

Account Length up to 19

513359–513360

513721–513722

513764

530249

540500–540501

540505–540511

540514–540515

540517

540520–540524

540526–540529

540531–540539

540542–540543

540546–540549

540554

540556–540558

540561–540562

540568–540580

540582–540583

540586–540590

540592–540596

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

540598

549297

552039

552587

552807

552902–552906

552908–552910

552913–552914

552916–552917

552924–552927

552929–552931

552934

552936

552936–552937

552941–552942

552950

553424

553447

555000–555001

555003

555005–555006

555008–555011

555013–555014

555016

555018–555021

555024–555025

555027

555029

555033

555039–555042

555078

555109

555225

Table A-5 MasterCard Purchasing BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

A.2.2 MasterCard Corporate BIN Ranges

555951–555953

555957–555958

555962

556024

558301

Table A-6 MasterCard Corporate BIN Ranges

Account Length up to 19

222100–272099

513285

513351–513357

513365–513366

513614

516315

516325

516328

516335

516345

516349

516355

516365

516369

516375

517794

517796

518718

520806

522118

522142

525016

525060

525880–525881

Table A-5 MasterCard Purchasing BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

525892

527500

528307

528311

528316

528360

528790

529602

530241–530242

530253

531210

531212

531214

531216

531218–531225

531228–531229

531291

531357

531454–531455

531712

531714–531717

531723–531727

532450

532458

532612

533501–533502

533509

535317

535319

541253

541306

541309

543793

547260

Table A-6 MasterCard Corporate BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

547354–547355

547380

547407

547426–547428

547480

547512

547514

547562

547596

547629

547693

547735–547736

547817

547846

547876

547899

549296

549724

552501–552502

552503

552504

552506

552507

552508

552512–552522

552525

552527

552529–552534

552536–552542

552544–552547

552549–552553

552554

552556–552559

552561

Table A-6 MasterCard Corporate BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

552563

552566

552569–552580

552583–552587

552587

552587–552588

552590

552592–552598

552659

552739–552740

552750–552762

552765–552767

552769–552770

552772–552774

552777

552780–552786

552788

552790

552793–552806

552810–552814

552816–552828

552830–552842

552844

552846–552849

552920

552936

552943

553108

553166

553381–553382

553384–553386

553388–553391

553396

553400–553401

Table A-6 MasterCard Corporate BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

553403–553406

553408–553414

553416–553422

553422–553423

553425–553426

553428–553430

553432

553435

553438–553439

553440

553441

553442

553443–553446

553449–553450

553452

553454–553458

553460

553465

553471–553473

553475–553476

553478

553480

555004

555007

556101

556600–556601

556603

556605

556607–556608

556610–556617

556619–556620

556622–556626

556628

556630

Table A-6 MasterCard Corporate BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

556633–556638

556641–556644

556646–556647

556650–556651

556653

556655–556659

556661–556666

556670–556673

556675–556676

556678–556682

556688–556689

558303

558308

558458

558469

558484

558685

558701–558703

558708

558710–558712

558717

558720–558722

558725

558729–558732

558735

558737–558740

558747

558749

558751–558752

558756–558757

558759

558761–558763

558767–558769

558771–558774

Table A-6 MasterCard Corporate BIN Ranges (Continued)

Account Length up to 19

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

A.2.3 MasterCard Fleet BIN Ranges

A.3 American Express BIN Ranges

558775

558778–558779

558781–558785

558787–558788

558791–558799

558872

558877

Table A-7 MasterCard Fleet BIN Ranges

Account Length up to 19

553231–553380

556083–556099

556100–556599

556700–556999

Table A-8 American Express BIN Ranges

Account Length up to 19

34XX

37XX

Table A-6 MasterCard Corporate BIN Ranges (Continued)

Account Length up to 19

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

A.4 Discover IIN Ranges

A.5 PayPal IIN Ranges

Table A-9 Discover IIN Ranges

Account Length up to 19

Description IIN

Diner’s Club

International

30000000–30599999

30950000–30959999

36000000–36999999

(Length 14)

38000000–39999999

Discover Network

60110000–60110399

60110500–60110999

60112000–60114999

60117400–60117499

60117700–60117999

60118600–60119999

64400000–65059999

65060100–65060999

65061100–65999999

JCB Bank 35280000–35899999

UnionPay

62212600–62292599

62400000–62699999

62820000–62889999

Table A-10 PayPal IIN Ranges

Account Length 16

Description IIN

PayPal

60110400–60110499

65060000–65060099

65061000–65061099

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

A.6 Fleet Card BIN Ranges

Table A-11 Voyager BIN Ranges

Account Length 19

Description BIN

Voyager 708885–708889

Table A-12 WEX BIN Ranges

Account Length 19

Description BIN

WEX

690046

707138

Table A-13 FleetCor BIN Ranges

Account Length 17

Description BIN

FleetCor Fuelman Plus Card 707649

FleetCor GasCard 707685

FleetCor FleetWide Card 70768598

FleetCor Client-Specific only

556780

556274

Table A-14 Fleet One BIN Range

Account Length 19

Description BIN

Fleet One 501486

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

A.7 Stored Value Solutions (SVS) BIN Ranges

Table A-15 Multi Service BIN Ranges

Account Length 19

Description BIN

Multi Service

70000 – 700000982

70000099 – 700009

708880 – 708884

Table A-16 AVCard BIN Range

Account Length 19max

Description BIN

AVCard 601029

Table A-17 SVS BIN Ranges

Account Length 19

Description BIN

Stored Value

600649

603261

603571

627600

639470

Chockstone

502244

627720

Heartland Gift Card 708355

ValueLink

601056

603225

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

A.8 Centego Prepaid BIN Ranges

A.9 Drop Tank

A.10 Debit BIN Ranges

There are no defined BIN ranges for Debit.

A.11 EBT BIN Ranges

Table A-18 Centego Prepaid BIN Range

Account Length 19

Description BIN

Centego Prepaid Card 627921

Table A-19 Drop Tank BIN Range

Account Length 18

Description BIN

Drop Tank 636497

Table A-20 EBT BIN Ranges

Account Length up to 19

State BIN

AK 507695

AL 507680

AR 610093

AZ 507706

CA 507719

CO 507681

CT 600890

D.C. 507707

DE 507713

FL 508139

A: Card Association BIN Ranges HPS Integrator’s Guide V 16.1.1

GA 508148

GUAM 578036

HI 507698

IA 627485

ID 507692

IL 601453

IN 507704

KS 601413

KY 507709

LA 504476

MA 600875

MD 600528

ME 507703

MI 507711

MN 610423

MO 507683

MS 507718

MT 507714

NC 508161

ND 508132

NE 507716

NH 507701

NJ 610434

NM 586616

NV 507715

NY 600486

OH 507700

OK 508147

OR 507693

PA 600760

RI 507682

SC 610470

SD 508132

Table A-20 EBT BIN Ranges (Continued)

Account Length up to 19

State BIN

HPS Integrator’s Guide V 16.1.1 A: Card Association BIN Ranges

TN 507702

TX 610098

UT 601036

VA 622044

VIRGIN ISLANDS 507721

VT 507705

WA 507710

WI 507708

WV 507720

WY 505349

Table A-20 EBT BIN Ranges (Continued)

Account Length up to 19

State BIN

B: Industry Codes HPS Integrator’s Guide V 16.1.1

Appendix B: Industry Codes

•B.1 Conexxus Product Codes

•B.2 MasterCard Purchasing Product Codes

•B.3 MasterCard Fleet Product Codes

•B.4 Heartland Product Codes for VISA Fleet Processing

•B.5 Voyager Product Codes

•B.6 WEX Supported Conexxus Product Codes

B.1 Conexxus Product Codes

Note: While this section lists all of the available Conexxus Product Codes, specific Fleet cards

may only use a subset. Refer to the specific fleet provider's section for their accepted

Product Code list. These codes are subject to change without notice.

Conexxus Product Codes have the following ranges:

• 001–099 apply to purchases of dispensed motor fuels and additives.

• 100–149 apply to purchases of vehicle products / services.

• 150–174 apply to purchases of aviation fuels.

• 175–224 apply to purchases of aviation products and services.

• 225–249 apply to purchases of marine fuels.

• 250–299 apply to purchases of marine products and services.

• 300–399 apply to purchases of other dispensed fuel and metered products.

• 400–599 apply to purchases of merchandise.

• 600–624 apply to purchase of packaged fuels.

• 625–649 are reserved for Conexxus future use.

• 650–699 apply to purchase of vehicle products/services (continued).

• 800–899 are reserved for proprietary use.

• 700–799 are reserved for Conexxus future use.

• 800–899 are reserved for proprietary use.

• 900–949 apply to negative transactions.

• 950–999 apply to administrative.

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

Table B-1 Conexxus Product Codes

Product Code Description

000 Not Used

001–099 Dispensed Motor Fuels and Additives

001 Unleaded Regular

002 Unleaded Plus

003 Unleaded Super

004 Unleaded 4

005 Unleaded 5

006 <Deprecated> Unleaded Methanol (5.7% blend)

007 <Deprecated> Unleaded Plus Methanol (5.7% blend)

008 <Deprecated> Super Unleaded Methanol (5.7% blend)

009 <Deprecated> Unleaded Methanol (7.7% blend)

010 <Deprecated> Unleaded Plus Methanol (7.7% blend)

011 Unleaded Ethanol (5.7% blend)

012 Unleaded Plus Ethanol (5.7% blend)

013 Unleaded Super Ethanol (5.7% blend)

014 Unleaded Ethanol (7.7% blend)

015 Unleaded Plus Ethanol (7.7% blend)

016 <Deprecated> Methanol / Leaded

017 <Deprecated> Ethanol / Leaded

018 <Deprecated> Leaded

019 Regular Diesel #2

020 Premium Diesel #2

021 Regular Diesel #1

022 Compressed Natural Gas

023 Liquid Propane Gas

024 Liquid Natural Gas

025 <Deprecated> M-85

026 E-85

027 Unleaded - Reformulated 1

028 Unleaded - Reformulated 2

029 Unleaded - Reformulated 3

030 Unleaded - Reformulated 4

031 Unleaded - Reformulated 5

B: Industry Codes HPS Integrator’s Guide V 16.1.1

032 <Deprecated> Diesel Off-Road (#1 and #2 Non-Taxable)

033 <Deprecated> Diesel Off-Road (Non-Taxable)

034 Biodiesel Blend Off-Road (Non-Taxable)

035 <Deprecated> Biodiesel Blend Off-Road (Non-Taxable)

036 Racing Fuel

037 <Deprecated> Super Unleaded Methanol (7.7% Blend)

038 <Deprecated> Unleaded Methanol (10% Blend)

039 <Deprecated> Unleaded Plus Methanol (10% Blend)

040 <Deprecated> Super Unleaded Methanol (10% Blend)

041 Super Unleaded Ethanol (7.7% Blend)

042 Unleaded Ethanol (10% Blend)

043 Unleaded Plus Ethanol (10% Blend)

044 Super Unleaded Ethanol (10% Blend)

045 B2 Diesel Blend 2% Biodiesel

046 B5 Diesel Blend 5% Biodiesel

047 B10 Diesel Blend 10% Biodiesel

048 B11 Diesel Blend 11% Biodiesel

049 B15 Diesel Blend 15% Biodiesel

050 B20 Diesel Blend 20% Biodiesel

051 B100 Diesel Blend 100% Biodiesel

052 <Deprecated> Ultra Low Sulfur #1

053 <Deprecated> Ultra Low Sulfur #2

054 <Deprecated> Ultra Low Sulfur Premium Diesel #2

055 <Deprecated> Ultra Low Sulfur Biodiesel Blend 2%

056 <Deprecated> Ultra Low Sulfur Biodiesel Blend 5%

057 <Deprecated> Ultra Low Sulfur Biodiesel Blend 10%

058 <Deprecated> Ultra Low Sulfur Biodiesel Blend 11%

059 <Deprecated> Ultra Low Sulfur Biodiesel Blend 15%

060 <Deprecated> Ultra Low Sulfur Biodiesel Blend 20%

061 <Deprecated> Ultra Low Sulfur Biodiesel Blend 100%

062 DEF (Diesel Exhaust Fluid)

063 Premium Diesel #1

064 Unleaded Ethanol (15% Blend)

065 Unleaded Plus Ethanol (15% Blend)

Table B-1 Conexxus Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

066 Super Unleaded Ethanol (15% Blend)

067 Premium Diesel Blend <20% Biodiesel

068 Premium Diesel Blend >= 20% Biodiesel

069 B75 Diesel Blend 75% Biodiesel

070 B99 Diesel Blend 99% Biodiesel

071–098 Undefined Fuel–Reserved for Proprietary Use

099 Miscellaneous Fuel

100–149 Vehicle Products / Services

100 General Automotive Merchandise

101 Motor Oil

102 Car Wash

103 Oil Change

104 Oil Filter

105 Work Order

106 Anti-Freeze

107 Washer Fluid

108 Brake Fluid

109 Tires

110 Federal Excise Tax (Tires)

111 Tire Rotation

112 Batteries

113 Lube

114 Inspection

115 Labor

116 Towing

117 Road Service

118 Vehicle Accessories

119 Vehicle Parts

120 Preventative Maintenance

121 Air Conditioning Service

122 Engine Service

123 Transmission Service

124 Brake Service

125 Exhaust Service

Table B-1 Conexxus Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

126 Body Work

127 Vehicle Glass

128 Synthetic Oil

129 Lamps

130 Wipers

131 Hoses

132 Tire-related (Wheel Balance Valve Stem)

133 Repairs

134 Service Package

135 Vehicle Parking

136 Truck Tank Cleaning

137 Other Lubricants

138 Vehicle Fuel Additives/Treatment (Injected)

139 Vehicle Rental

140 Air Filter

141 Vehicle Prep

142 Fuel System

143–148 Undefined Vehicle Product/Services–Reserved for Proprietary Use

149 Miscellaneous Vehicle Products / Services

150–174 Aviation Fuels

150 Jet Fuel

151 Aviation Fuel Regular

152 Aviation Fuel Premium

153 Aviation Fuel JP8

154 Aviation Fuel 4

155 Aviation Fuel 5

156–167 Undefined Aviation Fuel–Reserved for Conexxus Future Use

168–173 Undefined Aviation Fuel–Reserved for Proprietary Use

174 Miscellaneous Aviation Fuel

Table B-1 Conexxus Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

175–224 Aviation Products / Services

175 Storage

176 Aircraft Ground Handling

177 Aircraft Ground Power Unit

178 Aircraft Labor

179 Aircraft Work Order

180 Aircraft Maintenance

181 Aircraft Service

182 Transportation

183 De-icing

184 Ramp Fees

185 Catering

186 Hangar Fee

187 Landing Fee

188 Call Out Fee

189 Aircraft Rental

190 Instruction Fee

191 Flight Plans / Weather Brief

192 Charter Fee

193 Communication Fee

194 Aircraft Cleaning

195 Cargo Handling

196 Aircraft Accessories

197 Pilot Supplies

198 Aircraft Parking Fees

199 Aircraft Tie Down Fees

200 Aircraft Sanitation Fees

201 Aircraft Fuel Additive

202 AC Parts

203 Oxygen

204 De-fuel

205 Re-service

206 Static Dissipater Additive

207 Corrosion Inhibitor

Table B-1 Conexxus Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

208 Airport Fees

209 Overtime Fees

210 IT/Bladder

211 Ground Equipment Service Fees

212 Secure Fees

213 Flow Fee

214–215 Undefined Aviation–Reserved for Conexxus Future Use

216–223 Undefined Aviation–Reserved for Proprietary Use

224 Miscellaneous Aviation Products/Services

225–249 Marine Fuels

225 Marine Fuel 1

226 Marine Fuel 2

227 Marine Fuel 3

228 Marine Fuel 4

229 Marine Fuel 5

230 Marine - Other

231–242 Undefined Marine Fuel–Reserved for Conexxus Future Use

243–248 Undefined Marine Fuel–Reserved for Proprietary Use

249 Miscellaneous Marine Fuel

250–299 Marine Products / Services

250 Marine Service

251 Marine Labor

252 Marine Work Order

253 Launch Fee

254 Slip Rental

255–280 Undefined Marine Services–Reserved for Conexxus Future Use

281–298 Undefined Marine Services–Reserved for Proprietary Use

299 Miscellaneous Marine Products/Services

300–399 Other Dispensed Fuels and Metered Products

300 Kerosene–Low Sulfur

301 White Gas

302 Heating Oil

303 <Deprecated> Bottled Propane

304 Other Fuel (Non-Taxable)

Table B-1 Conexxus Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

305 Kerosene–Ultra Low Sulfur

306 Kerosene–Low Sulfur (Non-Taxable)

307 Kerosene–Ultra Low Sulfur (Non-Taxable)

308 EVC-1–Level 1 charge = 110v 15 amp

309 EVC-2–Level 2 charge = 240v 15-40 amp

310 EVC-3–Level 3 charge = 480v 3 phase charge

311 Biodiesel Blend 2% Off-Road

312 Biodiesel Blend 5% Off-Road

313 Biodiesel Blend 10% Off-Road

314 Biodiesel Blend 11% Off-Road

315 Biodiesel Blend 15% Off-Road

316 Biodiesel Blend 20% Off-Road

317 Diesel #1 Off-Road

318 Diesel #2 Off-Road

319 Diesel #1 Premium Off-Road

320 Diesel #2 Premium Off-Road

321 Additive Dosage

322 Unleaded Ethanol Blends E16-E84

323 Low Octane Unleaded

324 Blended Diesel (#1 and #2)

325 Off-Road Unleaded Regular (Non-Taxable)

326 Off-Road Unleaded Plus (Non-Taxable)

327 Off-Road Unleaded Super (Non-Taxable)

328 Off-Road Unleaded 4 (Non-Taxable)

329 Off-Road Unleaded 5 (Non-Taxable)

330 Recreational Fuel (90 Octane)

331 Hydrogen H35

332 Hydrogen H70

333–380 Undefined Other Fuel–Reserved for Conexxus Future Use

381–398 Undefined Other Fuel–Reserved for Proprietary Use

399 Miscellaneous Other Fuel

Table B-1 Conexxus Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

400–599 Merchandise

400 General Merchandise

401 General Ice

402–409 General Undefined–Reserved for Conexxus Future Use

410 General Tobacco

411 Cigarettes

412 Tobacco - Other

413–417 Undefined Tobacco–Reserved for Conexxus Future Use

418–419 Undefined Tobacco–Reserved for Proprietary Use

420 General Packaged Beverage

421 Packaged Beverages (non-alcoholic)

422 Packaged Juice

423 Other Packaged Beverages

424–427 Undefined Packaged Beverages–Reserved for Conexxus Future Use

428–429 Undefined Packaged Beverages–Reserved for Proprietary Use

430 General Dispensed Beverage

431 Hot Dispensed Beverages

432 Cold Dispensed Beverages

433 Frozen Dispensed Beverages

434 Other Dispensed Beverages

435–437 Undefined Dispensed Beverages–Reserved for Conexxus Future Use

438–439 Undefined Dispensed Beverages–Reserved for Proprietary Future

440 General Snacks

441 Salty Snacks

442 Alternative Snacks

443 Sweet Snacks - Packaged

444–447 Undefined Snacks–Reserved for Conexxus Future Use

448–449 Undefined Snacks–Reserved for Proprietary Use

450 General Candy

451–457 Undefined Candy–Reserved for Conexxus Future Use

458–459 Undefined Candy–Reserved for Proprietary Use

Table B-1 Conexxus Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

460 General Dairy

461 Fluid Milk Products

462 Packaged Ice Cream/Novelties

463 Other Dairy

464–467 Undefined Dairy–Reserved for Conexxus Future Use

468–469 Undefined Dairy–Reserved for Proprietary Use

470 General Grocery

471 Groceries - Edible

472 Groceries - Non-Edible

473 Groceries - Perishable

474 Bread - Packaged

475 Frozen Foods

476–477 Undefined Grocery–Reserved for Conexxus Future Use

478–479 Undefined Grocery–Reserved for Proprietary Use

480 General Alcohol

481 Beer - Alcoholic

482 Beer - Non-Alcoholic

483 Wine

484 Liquor

485–487 Undefined Alcohol–Reserved for Conexxus Future Use

488–489 Undefined Alcohol–Reserved for Proprietary Use

490 General Deli

491 Packaged Sandwiches/Deli Products

492 Prepared Foods

493 Deli Items

494–497 Undefined Deli–Reserved for Conexxus Future Use

498–499 Undefined Deli–Reserved for Proprietary Use

500 General Foodservice

501–507 Undefined Foodservice–Reserved for Conexxus Future Use

08–509 Undefined Foodservice–Reserved for Proprietary Use

Table B-1 Conexxus Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

510 General Lottery

511 Lottery - Instant

512 Lottery - Online

513 Lottery - Other

514–517 Undefined Lottery–Reserved for Conexxus Future Use

518–519 Undefined Lottery–Reserved for Proprietary Use

520 General Money Order

521 Money Order - Vendor Payment

522 Money Order - Payroll Check

523 Money Order - Gift Certificate

524 Money Order - Refund Check

525 Money Order - Official Check

526 Money Order - Rebate Check

527 Money Order - Dividend Check

528 Money Order - Utility Check

529 Undefined Money Order–Reserved for Conexxus Future Use

530 General Store Service

531 Home Delivery

532 Prepaid Cards - Purchase

533 Prepaid Cards - Activation/Recharge

534 Membership/Loyalty

535–537 Undefined Store Services–Reserved for Conexxus Future Use

538–539 Undefined Store Services–Reserved for Proprietary Use

540 General Health & Beauty Care

541–547 Undefined Health & Beauty Care–Reserved for Conexxus Future Use

548–549 Undefined Health & Beauty Care–Proprietary Use

550 General Publications

551–557 Undefined General Publications– Reserved for Conexxus Future Use

558–559 Undefined General Publications Reserved for Proprietary Use

Table B-1 Conexxus Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

560–590 Prepaid and Bill Pay (Secondary Network)

560 PIN Activate Prepaid Card

561 PIN Return Prepaid Card

562 Enable Device/Handset Unlock

563 Disable Device/Handset Lock

564 3rd Party Prepaid Card Activate

565 3rd Party Prepaid Card Reload

566 Financial Prepaid Card Activate

567 Financial Prepaid Card Reload

568 Proprietary Prepaid Card Activate

569 Proprietary Prepaid Card Reload

570 General Purpose Activate

71 General Purpose Reload

572 Real Time Recharge

573 Wireless Real Time Recharge

574 Single Payee Bill Pay

575 Multiple Payee Bill Pay

576–583 Undefined Prepaid and Bill Pay–Reserved for Conexxus Future Use

584–590 Undefined Prepaid and Bill Pay–Reserved for Proprietary Use

591–599 Undefined Merchandise–Reserved Proprietary Use

600–624 Packaged Fuels

600 DEF (Diesel Exhaust Fluid)

601 B99

602 B100

603 Additive

604 Kerosene

605 Propane

606–612 Undefined Packaged Fuels–Reserved for Conexxus Future Use

613–623 Undefined Packaged Fuels–Reserved for Proprietary Use

624 Miscellaneous Packaged Fuels

Table B-1 Conexxus Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

625–649 Reserved for Conexxus Future Use

650–699 Vehicle Products/Services (Continued)

650 Scales

651 Shower

652 Tire Repair

653 Lodging

654 Wash Out

655 Trailer Wash

656 RV Dump Fee

657 EV Charging Fee

658–689 Undefined Vehicle Product/Services–Reserved for Conexxus Use

690–699 Undefined Vehicle Product/Services–Reserved for Proprietary Use

700–799 Reserved for Conexxus Future Use

800–899 Reserved for Proprietary Use

900–949 Negative Transactions

900 Discount 1

901 Discount 2

902 Discount 3

903 Discount 4

904 Discount 5

905 Coupon 1

906 Coupon 2

907 Coupon 3

908 Coupon 4

909 Coupon 5

910 Lottery Pay Out - Instant

911 Lottery Pay Out - Online

912 Lottery Pay Out - Other

913 Split Tender

914 Tax Discount/Forgiven

915–940 Undefined Negative–Reserved for Conexxus Future Use

941–948 Undefined Negative–Reserved for Proprietary Use

949 Miscellaneous Negative Administrative

Table B-1 Conexxus Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

950–999 Administrative

950 Tax 1

951 Tax 2

952 Tax 3

953 Tax 4

954 Tax 5

955 Cash Back

956 Cash Back Fee

957 Fee 1

958 Fee 2

959 Fee 3

960 Fee 4

961 Fee 5

962 Miscellaneous Aviation Tax

963 GST/HST (Canadian)/VAT 1

964 PST/QST (Canadian) VAT 2

965 SWT Rate (Canadian)

966 Tax 6

967 Tax 7

968 Tax 8

969 Jet Federal Excise Tax

970 AvGas Federal Excise Tax

971–990 Undefined Administrative–Reserved for Conexxus Future Use

991–998 Undefined Administrative–Reserved for Proprietary Use

999 Miscellaneous Administrative

Table B-1 Conexxus Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

B.2 MasterCard Purchasing Product Codes

MasterCard Purchasing Product Codes have the following ranges:

•001

–029 apply to purchases for motor fuels for cars, trucks, and vans.

•030

–099 apply to purchases for automotive repairs, goods purchased from convenience

stores, and other miscellaneous purchases.

•100

–149 apply to purchase aviation fuels.

•150

–199 apply to purchase marine fuels.

•200

–299 apply to purchases other fuels.

•300

–349 apply to purchases aviation repairs and services.

•350

–399 apply to purchase marine and boat repair/other.

•400

–999 undefined.

This section includes the following product codes:

•B.2.1 MasterCard Purchasing Fuel Product Codes, pg. 264

•B.2.2 MasterCard Purchasing Non-Fuel Product Codes, pg. 266

B.2.1 MasterCard Purchasing Fuel Product Codes

Table B-2 MasterCard Purchasing Fuel Product Codes

Product Codes Description

000 Not Used

001 Unleaded Regular (86 or 87 Octane)

002 Unleaded Mid Grade (88 or 89 Octane)

003 Unleaded Premium (90 or 91 Octane)

004 Unleaded Super (92–94 Octane)

005 Methanol Unleaded Regular (86 or 87 Octane)

006 Methanol Unleaded Mid Grade (88 or 89 Octane)

007 Methanol Unleaded Premium (90 or 91 Octane)

008 Methanol Unleaded Super (92 or 94 Octane)

009 Methanol Regular Leaded

011 Regular Leaded Gasoline

012 Diesel

013 Diesel Premium

014 Kerosene

015 LPG

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

016 Compressed Natural Gas

017 M85 (Methanol 85%)

018 E85 (Ethanol 85%)

019 Ethanol Unleaded Regular (86 or 87 Octane)

020 Ethanol Unleaded Mid Grade (88 or 89 Octane)

021 Ethanol Unleaded Premium (90 or 91 Octane)

022 Ethanol Unleaded Super (92 or 94 Octane)

023 Ethanol Regular Leaded

024 Unleaded Reformulated (86 or 87 Octane)

025 Unleaded Mid Grade Reformulated (88 or 89 Octane)

026 Dyed Diesel

027 Gasohol

028 Biodiesel

029 Ultralow Sulfer Diesel (ULSD)

100 Aviation 100 Octane

101 Jet Fuel

102 Aviation Fuel

150 Marine Fuel

200 Miscellaneous Fuel

201 Liquid Natural Gas

202 White Gas

203 Racing Fuel

Table B-2 MasterCard Purchasing Fuel Product Codes (Continued)

Product Codes Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

B.2.2 MasterCard Purchasing Non-Fuel Product Codes

Table B-3 MasterCard Purchasing Non-Fuel Product Codes

Product Codes Description

030 Motor Oil

031 Oil Change

032 Engine Service

033 Transmission Service

034 Brake Service

035 Solvent

036 Brake Fluid

037 Miscellaneous Parts

038 Miscellaneous Labor

039 Miscellaneous Repairs

040 TBA (Tires, Batteries, Accessories)

041 Tires

042 Batteries

043 Automotive Accessories

044 Automotive Glass

045 Car Wash

046 Towing

070 Cigarettes/Tobacco

078 Health/Beauty Aid

079 Miscellaneous Food/Grocery

080 Soda

081 Beer/Wine

082 Milk/Juice

083 Restaurant

089 Miscellaneous Beverage

099 Miscellaneous Other

300 Aviation Maintenance

301 De-icing

302 APU or Aircraft Jump Start

303 Aviation Catering

304 Tie down or Hangar

305 Landing Fee

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

306 Ramp Fee

307 Call Out Fee

308 Plane Rental

309 Instruction Fee

310 Miscellaneous Aviation

311 Flight Planning/Weather Fees

312 Charter Fees

313 Ground Handling

314 Communications Fees

315 Aircraft Cleaning

316 Cargo Handling

317 Aviation Accessories

350 Boat Service

Table B-3 MasterCard Purchasing Non-Fuel Product Codes (Continued)

Product Codes Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

B.3 MasterCard Fleet Product Codes

This section includes the following product codes:

•B.3.1 MasterCard Fleet Fuel Product Codes, pg. 268

•B.3.2 MasterCard Fleet Non-Fuel Product Codes, pg. 269

B.3.1 MasterCard Fleet Fuel Product Codes

Table B-4 MasterCard Fleet Fuel Product Codes

Product Code Description

00 Not Used

01 Unleaded Regular (86 or 87 Octane)

02 Unleaded Mid Grade (88 or 89 Octane)

03 Unleaded Premium (90 or 91 Octane)

04 Unleaded Super (92–94 Octane)

05 Methanol Unleaded Regular (86 or 87 Octane)

06 Methanol Unleaded Mid Grade (88 or 89 Octane)

07 Methanol Unleaded Premium (90 or 91 Octane)

08 Methanol Unleaded Super (92 or 94 Octane)

09 Methanol Regular Leaded

11 Regular Leaded Gasoline

12 Diesel

13 Diesel Premium

14 Kerosene

15 LPG

16 Compressed Natural Gas

17 M85 (Methanol 85%)

18 E85 (Ethanol 85%)

19 Ethanol Unleaded Regular (86 or 87 Octane)

20 Ethanol Unleaded Mid Grade (88 or 89 Octane)

21 Ethanol Unleaded Premium (90 or 91 Octane)

22 Ethanol Unleaded Super (92 or 94 Octane)

23 Ethanol Regular Leaded

24 Unleaded Reformulated (86 or 87 Octane)

25 Unleaded Mid Grade Reformulated (88 or 89 Octane)

26 Dyed Diesel

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

B.3.2 MasterCard Fleet Non-Fuel Product Codes

27 Gasohol

28 Biodiesel

29 Ultralow Sulfer Diesel (ULSD)

Table B-5 MasterCard Fleet Non-Fuel Product Codes

Product Code Description

30 Motor Oil

31 Oil Change

32 Engine Service

33 Transmission Service

34 Brake Service

35 Solvent

36 Brake Fluid

37 Miscellaneous Parts

38 Miscellaneous Labor

39 Miscellaneous Repairs

40 TBA (Tires, Batteries, Accessories)

41 Tires

42 Batteries

43 Automotive Accessories

44 Automotive Glass

45 Car Wash

46 Towing

70 Cigarettes/Tobacco

78 Health/Beauty Aid

79 Miscellaneous Food/Grocery

80 Soda

81 Beer/Wine

82 Milk/Juice

83 Restaurant

89 Miscellaneous Beverage

99 Miscellaneous Other

Table B-4 MasterCard Fleet Fuel Product Codes (Continued)

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

B.4 Heartland Product Codes for VISA Fleet Processing

The following Heartland product codes are to be used when processing VISA Fleet transactions

for NTS, Z01 and POS 8583. These codes are converted by Heartland to the VISA Fleet product

codes contained in VISA’s Implementation Guide.

• Codes numbered 00–29 apply to fuel purchases for motor vehicles.

• Codes numbered 30–99 apply to purchases for automotive repairs, goods purchased from

convenience stores, and other miscellaneous purchases.

This section includes the following product codes:

•B.4.1 Fuel Product Codes, pg. 270

•B.4.2 Non-Fuel Product Codes, pg. 272

B.4.1 Fuel Product Codes

Table B-6 Fuel Product Codes

Fuel Product Code Description

00 Other

01 Unleaded Regular – 86

02 Unleaded Regular – 87

03 Unleaded Mid Grade – 88

04 Unleaded Mid Grade – 89

05 Unleaded Premium – 90

06 Unleaded Premium – 91

07 Unleaded Super – 92

08 Unleaded Super – 93

09 Unleaded Super – 94

10 RESERVED

11 Regular Leaded

12 Diesel

13 Diesel Premium

14 Kerosene

15 LPG

16 Gasohol

17 CNG

18 Methanol – 85

19 Methanol – 10

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

20 Methanol – 7

21 Methanol – 5

22 Ethanol – 85

23 Ethanol – 10

24 Ethanol – 7

25 Ethanol – 5

26 Jet Fuel

27 Aviation Fuel

28 Off-Road diesel

29 Marine

Table B-6 Fuel Product Codes

Fuel Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

B.4.2 Non-Fuel Product Codes

Table B-7 Non-Fuel Product Codes

Non-Fuel Product Code Description

30 Motor Oil

31 Oil Change

32 Engine Service

33 Transmission Service

34 Brake Service

35–38 Unassigned Repair Values

39 Miscellaneous Repairs

40 Tires, Batteries, and Accessories

41 Tires

42 Batteries

43 Automotive Accessories

44 Automotive Glass

45 Car Wash

46–69 Unassigned Automotive Products and Services

70 Cigarettes and Tobacco

71–77 Unassigned Food and Grocery Items

78 Health and Beauty Aids

79 Miscellaneous Grocery

80 Soda

81 Beer and Wine

82 Milk and Juice

83–89 Unassigned Beverage Items

90 Miscellaneous

91–99 Unassigned

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

B.5 Voyager Product Codes

This section includes the following product codes:

•B.5.1 Voyager Fuel Product Codes, pg. 273

•B.5.2 Voyager Non-Fuel Product Codes, pg. 274

B.5.1 Voyager Fuel Product Codes

Voyager Fuel Product Codes

Product Code Description

01 UNLEADED

02 UNLEADED PLUS

03 FUTURE USE

04 SUPER UNLEADED

05 DIESEL

06 AVIATION

07 JET FUEL

08 MARINE

50 PROPANE

51 NATURAL GAS

52 METHANOL

53 ETHANOL

54 KEROSENE

55 10% GASOHOL

56 7.7% GASOHOL

57 5.7% GASOHOL

58 WHITE GAS

59 COMPR NAT GAS(CNG)

60 DUAL PROPANE/UNLDED

61 WIDE NOZZLE UNLEADED

62 SPECIAL MTR FUEL LPG

63 OTHER FUEL

64 M 85

65 DIESEL WITHOUT TAX

66 E 85

67 LIQUIFIED NATURAL GAS

B: Industry Codes HPS Integrator’s Guide V 16.1.1

B.5.2 Voyager Non-Fuel Product Codes

68 UNLEADED WITHOUT TAX

D0 (zero) BIO DIESEL

D1 5.7% UNLEADED BLEND

D2 7.7% UNLEADED BLEND

D3 10% UNLEADED BLEND

D4 5.7% UNLD PLUS BLEND

D5 7.7% UNLD PLUS BLEND

D6 10% UNLD PLUS BLEND

D7 5.7% UNLD SUPER BLND

D8 7.7% UNLD SUPER BLND

D9 10% UNLD SUPER BLND

Voyager Non-Fuel Product Codes

Product Code Description

09 OIL

10 ACCESSORIES

11 COOLING SYSTEM

12 CHARGING SYSTEM

13 FLUIDS

14 FOOD

15 TIRE AND TUBE

16 TUBES

17 AVIONICS

18 OIL FILTER AND SERV

19 PARTS

20 REPAIRS

21 SERVICE

22 STORAGE

23 TIRES

24 TIRES AND TUBE REPAIR

25 LABOR

26 FEDERAL EX TAX TIRE

Voyager Fuel Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

27 WASH JOB

28 WASH AND LUBE

29 WASH AND POLISH

30 MAINTENANCE

31 LUBE

32 STATE INSPECTION

33 MISCELLANEOUS

34 SALES TAX

35 LOCATION DISCOUNT

36 PARTICIPANT DISCOUNT

37 AIR FILTERS

38 AUTO/MAN TRANS SERV

39 AIR CONDITION SERV

40 FUEL INJECT CLEAN SV

41 RADIATOR SERVICE

42 TIRE ROTATION

43 WIPER BLADE

44 BELTS-SERVICE&REPLACEMENT

45 FULL SERVICE OIL CHANGE

46 FRONT/REAR DIFF SERVICE

47 BREATHERS/PCV VALVES

48 AUTOMOTIVE GLASS

49 FUEL ADDITIVES

70 TOW

71 FLAT

72 NON-CONTRACTED SERV

73 BATTERY

74 GAS/ROADSIDE SERVICE

75 STALLED

76 LOCKOUT

77 NO SERVICE RENDERED

78 AMBULANCE

79 OTHER

80 AVIATION MAINTENANCE

Voyager Non-Fuel Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

81 DE-ICING

82 APU OR AIRCRAFT JUMP SEAT

83 AVIATION CATERING

84 TIEDOWN OR HANGER

85 LANDING FEE

86 RAMP FEE

87 CALL OUT FEE

88 PLANE RENTAL

89 INSTRUCTIONAL FEE

90 MISCELLANEOUS AVIATION

91 FLIGHT PLANNING FEE

92 WEATHER FEE

93 CHARTER FEES

94 GROUND HANDLING

95 COMMUNICATION FEES

96 AIRCRAFT CLEANING

97 CARGO HANDLING

98 AVIATION ACCESSORIES

99 FUTURE USE

M0 CAB, CLIMATE CNTL & AERO

M1 AIR COND, HEATING & VENTI

M2 CAR & SHEET METAL

M3 INSTRUMENTS, GAUGE, WARNI

M4 AERODYNAMIC DEVICES

M5 CHASSIS GROUP

M6 AXLES - NON DRIVEN, FRONT

M7 AXLES - NON DRIVEN, REAR

M8 BRAKES

M9 FRAME

N0 STEERING

N1 SUSPENSION

N2 WHEELS RIMS HUBS & BEARIN

N3 AUTO/MANU CHASSIS LUBRICA

N4 DRIVE TRAIN GROUP

Voyager Non-Fuel Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

N5 AXLES-DRIVEN, FRONT STEER

N6 AXLES-DRIVEN, REAR

N7 CLUTCH

N8 DRIVE SHAFTS

N9 TRANSFER CASE

O0 TRANSMISSION-MAIN, MANUAL

O1 TRANSMISSION-MAIN, AUTO

O2 AUXILIARY TRANSMISSION

O3 AUX SEC-MAIN TRANS, MANU

O4 ELECTRICAL GROUP

O5 CRANKING SYSTEM

O6 IGNITION SYSTEM

O7 LIGHTING SYSTEM

O8 MULTI-FUNC ELECT DEVICES

O9 ENGINE/MOTOR SYSTEMS

P0 AIR INTAKE SYSTEM

P1 EXHAUST SYSTEM

P2 FUEL SYSTEM

P3 POWER PLANT

P4 ELECTRIC PROPULSION SYSTE

P5 MUL SYS(40-46) FILTER KIT

P6 EXPANDABLE ITEMS

P7 HORNS & SIGNAL ALARMS

P8 CARGO HANDLING RESTRAINT

P9 POWER TAKE OFF

Q0 SPARE WHEEL MOUNTING

Q1 WINCH

Q2 VEHICLE COUPLING SYSTEM

Q3 SPECIAL APPLICATIONS GRP

Q4 TERMINAL EQUIPMNT-SYS & A

Q5 CONSTRU EQUIP-CHASSIS MOU

Q6 SATELLITE COMM SYSTEM

Q7 HYDRAULIC SYSTEMS - S APP

Q8 BODIES AND VESSELS GROUP

Voyager Non-Fuel Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

Q9 BODY

R0 REAL WALL & DOOR

R1 TANK VESSEL-INNER SHELL

R2 TANK VESSEL-OUTER JACKET

R3 MANHOLES

R4 RINGS & BOLSTERS

R5 TRAILER FRAME & SUPPORT

R6 TRIM & MISC HARDWARE

R7 SAFTY DEVICES

R8 HEATING & REFRIGERATION G

R9 HEATING UNIT

S0 MECHANICAL REFRIG UNIT

S1 NITROGEN REFRIG UNIT

S2 HOLDOVER PLATE REFRIGERAT

S3 BULK PRODUCT TRANSFER SYS

S4 BLOWERS, CONVEYORS & VIBR

S5 COMPRESSOR-BULK PROD SYS

S6 ENGINE (AUXILIARY)

S7 LINES TUBES HOSES & ATTIN

S8 MANIFOLD

S9 POWER SHAFT-POWER TAKE OF

T0 PUMP-PRODUCT TRANSFER

T1 VALVES & CONTROLS-BULK PR

T2 SAFETY DEVICES,INSTRU & G

T3 RE-REFINED OIL

T4 DISPOSAL/WASTE FEE

T5 EMISSION TEST FEE

T6 TRANSMISSION

T7 DO NOT USE – REVERSE TRANS

T8 AUTO PAINT

T9 RADIO MAINT

U1 ALIGNMENT

U2 PREV MAINT

V1 KEY CHAINS

Voyager Non-Fuel Product Codes

Product Code Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

V2 ACCOUNT SET UP

V3 ELECTRONIC FILE

V4 OVERNIGHT CARD

V5 CUSTOMIZED REPORT

V6 FLEET COMMANDER

V7 CUSTOMIZED QUERY

V8 MEDIA FEE

V9 BILLING REPRINT

VA CARD REISSUE

VB MOCHA ONLINE

W2 AUTO SIDE GLASS

W3 AUTO BACK GLASS

WI AUTO WINDSHIELD GLASS

Voyager Non-Fuel Product Codes

Product Code Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

B.6 WEX Supported Conexxus Product Codes

Table B-8 WEX Supported Conexxus Product Codes

Product Code Conexxus Description WEX Description

001 Unleaded Regular Unleaded

002 Unleaded Plus Unleaded Plus

003 Unleaded Super Super Unleaded

004 Unleaded 4 N/A

005 Unleaded 5 N/A

006 Gas / Methanol 1 Unleaded 5.7 methanol blend

007 Gas / Methanol 2 Unleaded Plus 5.7% methanol blend

008 Gas / Methanol 3 Super Unleaded 5.7% methanol blend

009 Gas / Methanol 4 Unleaded 7.7% methanol blend

010 Gas / Methanol 5 Unleaded Plus 7.7% methanol blend

011 Gas / Ethanol 1 Unleaded 5.7 ethanol blend

012 Gas / Ethanol 2 Unleaded Plus 5.7% ethanol blend

013 Gas / Ethanol 3 Super Unleaded 5.7% ethanol blend

014 Gas / Ethanol 4 Unleaded 7.7% ethanol blend

015 Gas / Ethanol 5 Unleaded Plus 7.7% ethanol blend

016 Methanol / Leaded Methanol / Leaded

017 Ethanol / Leaded Ethanol / Leaded

018 Leaded Leaded

019 Regular Diesel #2 Regular Diesel (Taxed)

020 Premium Diesel #2 Premium Diesel (Taxed)

021 Diesel #1 N/A

022 Compressed Natural Gas Compressed Natural Gas

023 Liquid Propane Gas Liquid Propane Gas

024 Liquid Natural Gas Liquid Natural Gas

025 M-85 M-85

026 E-85 E-85

027 Unleaded - Reformulated 1 N/A

028 Unleaded - Reformulated 2 N/A

029 Unleaded - Reformulated 3 N/A

030 Unleaded - Reformulated 4 N/A

031 Unleaded - Reformulated 5 N/A

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

032 Diesel 1 Off-Road (#1 and #2 Non-Taxable) Diesel Off Road / Farm Fuel

033 Ultra Low Sulfur Diesel Off-Road (Non-Taxable) Diesel Refrigerator Fuel

034 Biodiesel Blend Off-Road (Non-Taxable) N/A

035 Ultra Low Sulfur Biodiesel Blend Off-Road

(Non-Taxable)

Other Farm Fuel or Refrigerator Fuel

036 Racing Fuel Racing Fuel

037 Super Unleaded Methanol Super Unleaded 7.7% methanol blend

038 Unleaded Methanol Unleaded 10% methanol blend

039 Undefined Plus Methanol Unleaded Plus 10% methanol blend

040 Super Unleaded Methanol Super Unleaded 10% methanol blend

041 Super Unleaded Ethanol Super Unleaded 7.7% ethanol blend

042 Unleaded Ethanol Unleaded 10% ethanol blend

043 Unleaded Plus Ethanol Unleaded Plus 10% ethanol blend

044 Super Unleaded Ethanol Super Unleaded 10% ethanol blend

045 B2 Diesel Blend 2% Biodiesel

046 B5 Diesel Blend 5% Biodiesel

047 B10 Diesel Blend 10% Biodiesel

048 B11 Diesel Blend 11% Biodiesel

049 B15 Diesel Blend 15% Biodiesel

050 B20 Diesel Blend 20% Biodiesel

051 B100 Diesel Blend 100% Biodiesel

052 Ultra Low Sulfur #1

053 Ultra Low Sulfur #2

054 Ultra Low Sulfur Premium Diesel #2

055 Ultra Low Sulfur Biodiesel Blend 2%

056 Ultra Low Sulfur Biodiesel Blend 5%

057 Ultra Low Sulfur Biodiesel Blend 10%

058 Ultra Low Sulfur Biodiesel Blend 11%

059 Ultra Low Sulfur Biodiesel Blend 15%

060 Ultra Low Sulfur Biodiesel Blend 20%

061 Ultra Low Sulfur Biodiesel Blend 100%

062 Diesel Exhaust Fluid

063–070 Undefined Fuel – Reserved for Conexxus

Future Use

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

071 Auth Only Fuel, grade unknown at Auth

072 Auth Only Diesel, grade unknown at Auth

073 Auth Only Alt. Fuel grade unknown at Auth

074 Auth Only Multi Fuel, grade unknown at Auth

075 Auth Only Multi Product, product unknown at Auth

076–098 Undefined Fuel, reserved for Proprietary Undefined Fuel, reserved for Proprietary

099 Miscellaneous Fuel Miscellaneous Fuel

100 General Automotive Merchandise General Automotive Merchandise

101 Motor Oil Motor Oil

102 Car Wash Car Wash

103 Oil Change Oil Change

104 Oil Filter Oil Filter

105 Work Order Work Order

106 Anti-Freeze Anti-Freeze

107 Washer Fluid Washer Fluid

108 Brake Fluid Brake Fluid

109 Tires Tires

110 Federal Excise Tax (Tires) Federal Excise Tax (Tires)

111 Tire Rotation Tire Rotation

112 Batteries Batteries

113 Lube Lube

114 Inspection Inspection

115 Labor Labor

116 Towing Towing

117 Road Service Road Service

118 Auto Accessories Auto Accessories

119 Auto Parts Auto Parts

120 Preventive Maintenance Preventive Maintenance

121 Air Conditioning Service Air Conditioning Service

122 Engine Service Engine Service

123 Transmission Service Transmission Service

124 Brake Service Brake Service

125 Exhaust Service Exhaust Service

126 Body Work Body Work

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

127 Automotive Glass Automotive Glass

128 Synthetic Motor Oil

129 Undefined Parts / Service Lamps

130 Undefined Parts / Service Wipers

131 Undefined Parts / Service Hoses

132 Undefined Parts / Service Tire related, Wheel Balance, Valve Stem

133 Undefined Parts / Service Repairs or Service

134 Undefined Parts / Service Service Package

135 Automotive Parking Automotive Parking

136 Truck Tank Cleaning Truck Tank Cleaning

137 Other Lubricants Other Lubricants

138 Automotive Fuel Additives / Treatment

(injected)

139 Vehicle Rental Car Rental

140 Air Filter Filters

141 Vehicle Prep Auto Detail

142 Fuel System Service Package

143–148 Undefined Parts / Service

149 Misc. Parts and Service Front End, Shocks & Springs, Flush & Fill, or

Automotive Detailing

150 Jet Fuel Regular Jet Fuel A

151 Jet Fuel Premium Jet Fuel A with Additives

152 Jet Fuel JP8 Jet Fuel B turbo

153 Aviation Fuel 3 Jet Fuel JP8

154 Aviation Fuel 4 Aviation Gas 100LL

155 Aviation Fuel 5 Aviation Gas 80LL

156–173 Undefined Aviation Fuel

174 Miscellaneous Aviation Fuel Miscellaneous Aviation Fuel

175 Storage Storage

176 Aircraft Ground Handling Aircraft Ground Handling

177 Aircraft Ground Power Unit Aircraft Ground Power Unit

178 Aircraft Labor Aircraft Labor

179 Aircraft Work Order Aircraft Work Order

180 Aircraft Maintenance Aircraft Maintenance

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

181 Aircraft Service Aircraft Service

182 Transportation Transportation

183 De-icing De-icing

184 Ramp Fees Ramp Fees

185 Catering Catering

186 Hangar Fee Hangar Fee

187 Landing Fee Landing Fee

188 Call Out Fee Call Out Fee

189 Aircraft Rental Aircraft Rental

190 Instruction Fee Instruction Fee

191 Flight Plans / Weather Brief Flight Plans / Weather Brief

192 Charter Fee Charter Fee

193 Communication Fee Communication Fee

194 Aircraft Cleaning Aircraft Cleaning

195 Cargo Handling Cargo Handling

196 Aircraft Accessories Aircraft Accessories

197 Undefined Aviation Pilot Supplies

198 Undefined Aviation Aircraft Parking Fees

199 Undefined Aviation Aircraft Tie down Fees

200 Undefined Aviation Aircraft Sanitation Fees

201 Undefined Aviation Aviation Fuel Additive

202–223 Undefined Aviation Undefined Aviation

224 Miscellaneous Aviation Airline Fee, APT Airport Fees, or

Miscellaneous Aviation

225 Marine Fuel 1 Marine Fuel 1

226 Marine Fuel 2 Marine Fuel 2

227 Marine Fuel 3 Marine Fuel 3

228 Marine Fuel 4 Marine Fuel 4

229 Marine Fuel 5 Marine Fuel 5

230 Marine - Other Marine - Other

231–248 Undefended Marine Fuel Unidentified Marine Fuel

249 Miscellaneous Marine Fuel Miscellaneous Marine Fuel

250 Marine Service Marine Service

251 Marine Labor Marine Labor

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

252 Marine Work Order Marine Work Order

253 Launch Fee Launch Fee

254 Slip Rental Slip Rental

255–298 Undefined Marine Services Undefined Marine Services

299 Miscellaneous Marine Service Miscellaneous Marine Service

300 Kerosene – Low Sulfur Kerosene

301 White Gas White Gas

302 Heating Oil Heating Oil

303 Bottled Propane Bottled Propane

304 Other Fuel (Non-Taxable) Other Fuel (Non-Taxable)

305 Kerosene – Ultra Low Sulfur

306 Kerosene – Low Sulfur (non-taxable)

307 Kerosene – Ultra Low Sulfur (non-taxable)

308–398 Undefined Other Fuel Undefined Other Fuel

399 Miscellaneous Other Fuel Miscellaneous Other Fuel

400 General Merchandise General Merchandise

401 General Ice General Ice

402–409 General Undefined General Unidentified

410 General Tobacco General Tobacco

411 Cigarettes Cigarettes

412 Tobacco - Other Tobacco - Other

413–419 Undefined Tobacco Unidentified Tobacco

420 General Packaged Beverage General Packaged Beverage

421 Packaged Beverages (non-alcoholic) Packaged Beverages (non-alcoholic)

422 Juice Juice

423 Other Packaged Beverages Other Packaged Beverages

424–429 Undefended Packaged Beverage Undefended Packaged Beverage

430 General Dispensed Beverage General Dispensed Beverage

431 Hot Dispensed Beverage Hot Dispensed Beverage

432 Cold Dispensed Beverage Cold Dispensed Beverage

433 Frozen Dispensed Beverage Frozen Dispensed Beverage

434 Other Dispensed Beverage Other Dispensed Beverage

435–439 Undefined Dispensed Beverage Undefined Dispensed Beverage

440 General Snacks General Snacks

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

441 Salty Snacks Salty Snacks

442 Alternative Snacks Alternative Snacks

443 Sweet Snacks - Packaged Sweet Snacks - Packaged

444–449 Undefined Snacks Undefined Snacks

450 General Candy General Candy

451–459 Undefined Candy Undefined Candy

460 General Dairy General Dairy

461 Fluid Milk Products Fluid Milk Products

462 Packaged Ice Cream/Novelties Packaged Ice Cream/Novelties

463 Other Dairy Other Dairy

464–469 Undefined Dairy Undefined Dairy

470 General Grocery General Grocery

471 Groceries - Edible Groceries - Edible

472 Groceries - Non-Edible Groceries - Non-Edible

473 Groceries - Perishable Groceries - Perishable

474 Bread - Packaged Bread - Packaged

475 Frozen Foods Frozen Foods

476–479 Undefined Grocery Undefined Grocery

480 General Alcohol General Alcohol

481 Beer - Alcohol Beer - Alcohol

482 Beer - Non-Alcoholic Beer - Non-Alcoholic

483 Wine Wine

484 Liquor Liquor

485–489 Undefined Alcohol Undefined Alcohol

490 General Deli General Deli

491 Packaged Sandwiches/Deli Products Packaged Sandwiches/Deli Products

492 Prepared Foods Prepared Foods

493 Deli Items Deli Items

494–499 Undefined Deli Undefined Deli

500 General Food Service General Food Service

501–509 Undefined Food Service

510 General Lottery General Lottery

511 Lottery - Instant Lottery - Instant

512 Lottery - Online Lottery - Online

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

HPS Integrator’s Guide V 16.1.1 B: Industry Codes

513 Lottery - Other Lottery - Other

514–519 Undefined Lottery Undefined Lottery

520 General Money Order General Money Order

521 Money Order - Vendor Payment Money Order - Vendor Payment

522 Money Order - Payroll Check Money Order - Payroll Check

523 Money Order - Gift Certificate Money Order - Gift Certificate

524 Money Order - Refund Check Money Order - Refund Check

525 Money Order - Official Check Money Order - Official Check

526 Money Order - Rebate Check Money Order - Rebate Check

527 Money Order - Dividend Check Money Order - Dividend Check

528 Money Order - Utility Check Money Order - Utility Check

529 Undefined Money Order Undefined Money Order

530 General Store Services General Store Services

531 Home Delivery Home Delivery

532 Prepaid Cards - Purchase Prepaid Cards - Purchase

533 Prepaid Cards - Activation/Recharge Prepaid Cards - Activation/Recharge

534–539 Undefined Store Services

540 General Health & Beauty Care General Health & Beauty Care

541–549 Undefined Health & Beauty Care

550 General Publications General Publications

551–559 Undefined Publications

560–599 Undefined Merchandise Undefined Merchandise

600–799 Reserved for Future Use

800 Reserved for Proprietary Use WEX use only. Management Control Card

Approved

801 Reserved for Proprietary Use WEX use only. Replacement Card Fee (WEX

generated; used for some Partner Billed

Cobrands)

802 Reserved for Proprietary Use WEX use only. Tax Exempt (WEX generated;

used to populate OFFIS Trnx Detail).

803 Reserved for Proprietary Use Environmental Disposal Fee

804 Reserved for Proprietary Use Car Rental

805–899 Reserved - Proprietary Use Reserved - Proprietary Use

900 Discount 1 Discount Fuel

901 Discount 2 Discount Non-Fuel

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

B: Industry Codes HPS Integrator’s Guide V 16.1.1

902 Discount 3 Discount 3

903 Discount 4 Discount 4

904 Discount 5 Discount 5

905 Coupon 1 Coupon Fuel

906 Coupon 2 Coupon Non-Fuel

907 Coupon 3 Coupon 3

908 Coupon 4 Coupon 4

909 Coupon 5 Coupon 5

910 Lottery Pay Out - Instant Lottery Pay Out - Instant

911 Lottery Pay Out - Online Lottery Pay Out - Online

912 Lottery Pay Out - Other Lottery Pay Out - Other

913 Auth Only Split Tender

914–948 Undefined Negative Undefined Negative

949 Miscellaneous Negative Administration Miscellaneous Negative Administration

950 Tax 1 Sales Tax Non-Fuel

951 Tax 2 Federal Excise Tax (Non-Fuel)

952 Tax 3 StateTax (Aviation Only)

953 Tax 4 Federal Excise Tax (Aviation Only)

954 Tax 5 Miscellaneous Fuel Tax (Aviation Only)

957 Fee 1 Fee 1

958 Fee 2 Fee 2

959 Fee 3 Fee 3

960 Fee 4 Fee 4

961 Fee 5 Fee 5

962 Miscellaneous Aviation Tax Miscellaneous Aviation Tax (Aviation Only)

963 GST/HST (Canadian) / VAT 1 GST/HST (Canadian) VAT 1

964 PST/QST (Canadian) / VAT 2 PST/QST (Canadian) VAT 2

965 SWT Rate (Canadian) SWT Rate (Canadian)

966–998 Unidentified Administrative Unidentified Administrative

999 Miscellaneous Administrative Miscellaneous Administrative

Table B-8 WEX Supported Conexxus Product Codes (Continued)

Product Code Conexxus Description WEX Description

HPS Integrator’s Guide V 16.1.1 C: Receipt Requirements

Appendix C: Receipt Requirements

C.1 General Receipt Requirements

The following are industry requirements for all cards:

• Merchant Name and Location (city, state, and zip)

• Transaction Date and Time

• Account Number must be masked (no spaces), print last four digits

• Total Transaction Amount

• Surcharge or Fee, if charged

• Transaction Payment Type (VISA, MasterCard, AMEX, etc.)

• Transaction Receipt Type (Sale, Refund, Cash disbursement, etc.)

• Quantity and Description of goods or service returned or refunded.

• Authorization Code (same as Approval Number, Authorization Number, Authorization ID

Response, and Approval Code)

• Signature line on the merchant copy, including return receipts (unless eligible for the No

Signature Required Program or from an unattended terminal)

• Language to be printed under the signature line, such as “I agree to pay above amount

according to card issuer agreement.”

• Store Return Policy (near to the signature line)

• Remaining Balance (must be printed for face-to-face transactions when present in the

authorization response)

• Wording indicating: Merchant Copy or Cardholder Copy

Note: The Expiration Date must never be printed.

C: Receipt Requirements HPS Integrator’s Guide V 16.1.1

C.2 Additional Receipt Requirements by Card Types

The following table lists additional requirements for specific card types. There may be other

notations within the spec regarding receipts for these card types, for cards not listed in this

section, or for private label cards. Additional receipt requirements may also be client-specified.

Table C-1 Additional Receipt Requirements by Card Types

Card Type Additional Receipt Requirements

Centego • System Trace Audit Number (STAN)

• Activation receipt must indicate that the card has been activated and include the card

balance.

Contact and

Contactless Chip Card

• See section 7.5 EMV Receipts, pg. 151.

Discover • Cash Over Amount

• Cardholder Name as it appears on the card, if present, and signature required

EBT • System Trace Audit Number (STAN)

• Purchase Type (Food Stamp or Cash Benefit)

• Debit Authorizer

• Cash Back Amount

• Product Description

• Ledger Balance (only if not zero)

Note: If multiple balances are returned to the POS, they should be printed.

eCommerce • Merchant Online Address

• Unique Transaction Identification Number

• Purchaser Name

• Description of merchandise or service

FleetCor •Odometer

• Vehicle Card Number (last four or six digits)

• Items purchased, including: quantity, gallons, product description, price-per-gallon

• Receipt text if returned in the response message (must be printed at the bottom of the

receipt)

Note: The Identification Number, Driver Number and Driver ID must never be printed.

Fleet One •Odometer

• Items purchased, including: quantity, gallons, product description

• Price-per-gallon is optional

Note: The Driver ID and PIN Number must never be printed.

Heartland Gift Card • For an inside sale, the remaining balance sent back to the terminal (in the

HOST-RESP-AREA) must be printed on the receipt, as well as being displayed at the

terminal.

• For an outside sale, the remaining balance printed on the receipt is calculated by

subtracting the completed purchase from the balance sent back in the

HOST-RESP-AREA.

• The format of the receipt must follow guidelines set forth by the customer.

HPS Integrator’s Guide V 16.1.1 C: Receipt Requirements

MasterCard Fleet • Customer Name, if available

• Items purchased, including: quantity, gallons, product description, price-per-gallon

Note: The Driver Number and ID Number must never be printed.

PayPal • Print “PayPal” on the receipt.

PIN Debit • Account Type

• Cash Back Amount

• Network Name/Network Verbiage

Stored Value Systems

(SVS)

• System Trace Audit Number (STAN)

• Activation receipt must indicate that the card has been activated and include the card

balance

ValueLink • System Trace Audit Number (STAN)

• Activation receipt must indicate that the card has been activated and include the card

balance

VISA Fleet • Items purchased, including: quantity, gallons, product description, price-per-gallon

•Odometer

Note: The Driver ID, Driver Number and Vehicle ID must never be printed.

VISA ReadyLink • Load amount authorized

• Load card service fee, if applicable

Note: If a Load transaction is unsuccessful, must indicate the reason the transaction

failed. No response from the Host is a valid reason.

Voyager Fleet • Expiration Date

• Invoice Number

• Odometer must be printed on the receipt if prompted

Note: The Driver/Vehicle Identification Number or PIN Number must never be printed.

WEX Fleet • Account Number (masked with the first six digits and last four digits)

• Approval Code

• Expiration Date is optional

• Fuel or Product Description (for non-fuel items, tax may be required)

•Site Name

• Physical Site Address, including: city, state/province and zip/postal code

• Heartland Unit/Store Number

• Heartland Terminal ID

• Product Description (tax may be required for non-fuel items)

• Price per unit of measure by Product Code

• Quantity for each Product Code

• Total amount by Product Code

• Retrieval Reference Number

• Vehicle Card Number / Purchase Device Sequence Number

• Odometer (do not print any other prompt values)

Table C-1 Additional Receipt Requirements by Card Types (Continued)

Card Type Additional Receipt Requirements

D: State Codes / Region Codes HPS Integrator’s Guide V 16.1.1

Appendix D: State Codes / Region Codes

Non-alpha terminals use the numeric state code value.

Table D-1 State Codes

State Numeric

Value

Alpha

Value

Alabama 01 AL

Alaska 02 AK

Arizona 04 AZ

Arkansas 05 AR

California 06 CA

Colorado 08 CO

Connecticut 09 CT

Delaware 10 DE

District of Columbia 11 DC

Florida 12 FL

Georgia 13 GA

Hawaii 15 HI

Idaho 16 ID

Illinois 17 IL

Indiana 18 IN

Iowa 19 IA

Kansas 20 KS

Kentucky 21 KY

Louisiana 22 LA

Maine 23 ME

Maryland 24 MD

Massachusetts 25 MA

Michigan 26 MI

Minnesota 27 MN

Mississippi 28 MS

Missouri 29 MO

Montana 30 MT

Nebraska 31 NE

Nevada 32 NV

HPS Integrator’s Guide V 16.1.1 D: State Codes / Region Codes

New Hampshire 33 NH

New Jersey 34 NJ

New Mexico 35 NM

New York 36 NY

North Carolina 37 NC

North Dakota 38 ND

Ohio 39 OH

Oklahoma 40 OK

Oregon 41 OR

Pennsylvania 42 PA

Rhode Island 44 RI

South Carolina 45 SC

South Dakota 46 SD

Tennessee 47 TN

Texa s 48 TX

Utah 49 UT

Vermont 50 VT

Virginia 51 VA

Washington 53 WA

West Virginia 54 WV

Wisconsin 55 WI

Wyoming 56 WY

Other US Related Codes

American Samoa 60 AS

Guam 66 GU

Military 99 MM

Northern Mariana Island 80 MP

Puerto Rico 72 PR

Virgin Islands 78 VI

Table D-1 State Codes (Continued)

State Numeric

Value

Alpha

Value

D: State Codes / Region Codes HPS Integrator’s Guide V 16.1.1

FIPS 10-4 is the source for the numeric code (n2). ISO 3166-2:1998 is the source for the

alphabetic code (a2) and the description.

Table D-2 Region Codes: Canada (Province Codes)

Alpha Value

(a2)

Numeric Value

(n2) Description

AB 01 Alberta

BC 02 British Columbia

MB 03 Manitoba

NB 04 New Brunswick

NF 05 Newfoundland

NS 07 Nova Scotia

NT 06 Northwest Territories

NU 13 Nunavut

ON 08 Ontario

PE 09 Prince Edward Island

QC 10 Quebec

SK 11 Saskatchewan

YT 12 Yukon Territory

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

Appendix E: EMV Field Definitions

This section provides a detailed definition of EMV Data fields passed between the terminal and

the host when processing EMV transactions. The components of each field consist of the tag,

length, and value (TLV) subfields and a field separator. The TLV fields may be in any order.

Note: Usage conditions are provided for each field (conditional, mandatory, etc.).

For all fields: If the field is received from the reader, the POS must send it to

Heartland even if its usage is notated as conditional.

Differences in TLV Transmission to Host

The format of these fields is dependent upon the network platform you use (8583, Exchange, Portico, NTS, Z01,

SpiDr).

Example: How do you send Amount, Authorised of $1234.56 to the host?

The TLV would be 9F0206000000123456 (hex). See the binary and ASCII Hex

examples below:

Binary Example

ASCII Hex Example

Table E-1 POS 8583: Binary Example

Format Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9

hex

decimal

binary

159

10011111

00000010

00000110

00000000

00010010

00110100

01010110

Table E-2 Exchange, Portico, NTS, Z01, SpiDr: ASCII Hex Example

Format Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Byte 9

char

hex

decimal

‘9’

‘F’

‘0’

‘2’

‘0’

‘6’

‘0’

Format Byte 10 Byte 11 Byte 12 Byte 13 Byte 14 Byte 15 Byte 16 Byte 17 Byte 18

char

hex

decimal

‘0’

‘1’

‘2’

‘3’

‘4’

‘5’

‘6’

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

These are general definitions only. Refer to the network platform specifications for full usage

requirements of these fields.

E.1 Additional Terminal Capabilities

E.2 Amount, Authorised (Numeric)

Table E-3 Additional Terminal Capabilities

Tag: 9F40

Description: This field contains the POS terminal input and output capabilities.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 0111 0000 0000 0000 1111 0000 1011 0000 0000 0001 (binary)

Example TLV: 9F40057000F0B001 (hex)

Table E-4 Amount, Authorised (Numeric)

Tag 9F02

Description: The Amount, Authorised (Numeric) contains the authorized amount of the transaction. In

the Authorization request message this is the amount known and sent to the card when

calculating the Application Cryptogram. This amount may not always match the

authorization amount specified elsewhere in the messaging outside of the DE55 EMV tag

data if the amount was adjusted after cryptogram generation.

It must contain numeric right-justified data with leading zeros. If the transaction includes a

cashback amount, this field includes the purchase amount plus the cashback amount.

Source: POS Terminal

Usage: Mandatory for EMV contact, EMV contactless, and MSD contactless transactions.

Format: n 12

Binary Length: 6

ASCII Hex Length: 12

Example Value: 12345 (decimal)

Example TLV: 9F0206000000012345 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.3 Amount, Other (Numeric)

E.4 Application Cryptogram

Table E-5 Amount, Other (Numeric)

Tag: 9F03

Description: This field contains the cashback amount used by the chip card when calculating the

Application Cryptogram. It must contain numeric right-justified data with leading zeros. If

the transaction does not include a cashback amount, the Amount, Other (Numeric) field

must be all zeros.

Source: POS Terminal

Usage: Mandatory for EMV contact, EMV contactless, and MSD contactless transactions.

Format: n 12

Binary Length: 6

ASCII Hex Length: 12

Example Value: 123456 (numeric)

Example TLV: 9F03060000004000 (hex)

Table E-6 Application Cryptogram

Tag: 9F26

Description: This field contains the cryptogram returned by the chip card in response to the Generate

AC command.

There are four types of Application Cryptogram:

•ARQC (Authorization Request Cryptogram): Used in Online processing. This is a

cryptogram requested by the POS and generated by the Chip Card at the end of the first

round of Card Action Analysis step for transactions requiring online authorization. It is

included in the authorization request or full financial request sent to the Issuer and it

allows the Issuer to verify the validity of the Chip Card and message. When validated by

the Issuer, the ARQC confirms that the Chip Card has not been copied or changed.

•TC (Transaction Certificate): A type of cryptogram generated by the card for online and

offline transactions to indicate that the transaction was completed and approved by the

chip card.

•AAC (Application Authentication Cryptogram): A type of cryptogram generated by

the Chip Card when a transaction is declined (at the end of offline or online declined

transaction) to indicate the card declined the transaction.

•ARPC (Authorization Response Cryptogram): Used in Online processing. A

cryptogram generated by the Issuer in response to an ARQC. It is sent in the

authorization response back to the acquirer Host to the POS. The POS sends this

cryptogram back to the Chip Card with a response code accepting or declining the

transaction. The Chip Card’s receipt and validation of the ARPC confirms approval

response from the Issuer and ensures that it is communicating with the valid Issuer. This

cryptogram is also typically used to allow the Chip Card to reset counters.

Source: Chip Card

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.5 Application Dedicated File (ADF) Name

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 8

ASCII Hex Length: 16

Example Value: 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 0001

(binary)

Example TLV: 9F2608123456789ABCDEF1 (hex)

Table E-7 Application Dedicated File (ADF) Name

Tag: 4F

Description: This field is used to address an application in the chip card. An ADF Name consists of a

registered application provider identifier (RID) of five bytes, which is issued by the

ISO/IEC 7816-5 registration authority. This is followed by a proprietary application

identifier extension (PIX), which enables the application provider to differentiate between

the different applications offered.

The ADF Name is obtained during the application selection process. Previous versions of

the EMVCo specifications refer to this tag as Application Identifier (AID) – ICC.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 5 to 16

ASCII Hex Length: 10 to 32

Example Value: 1010 0000 0000 0000 0000 0000 0000 0000 0000 0011 0001 0000 0001 0000 (binary)

Example TLV: 4F07A0000000031010 (hex)

Table E-6 Application Cryptogram

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.6 Application Identifier (AID) – Terminal

E.7 Application Interchange Profile

Table E-8 Application Identifier (AID) – Terminal

Tag: 9F06

Description: This field is used to address an application in the chip card. An AID consists of a registered

application provider identifier (RID) of five bytes, which is issued by the ISO/IEC 7816-5

registration authority. This is followed by a proprietary application identifier extension (PIX)

which enables the application provider to differentiate between the different applications

offered. The AID is obtained during the application selection process.

Source: POS Terminal

Usage: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 5 to 16

ASCII Hex Length: 10 to 32

Example Value: 1010 0000 0000 0000 0000 0000 0000 0000 0000 0011 0001 0000 0001 0000 (binary)

Example TLV: 9F0607A0000000031010 (hex)

Table E-9 Application Interchange Profile

Tag: 82

Description: This field indicates the capabilities of the chip card to support specific functions in the

application.

Source: Chip Card

Usage: Mandatory for EMV contact and EMV contactless transactions. Mandatory for MSD

contactless transactions when available.

Format: b

Binary Length: 2

ASCII Hex Length: 4

Example Value: 0111 1100 0000 0000 (binary)

Example TLV: 82027C00 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.8 Application Label

E.9 Application Preferred Name

Table E-10 Application Label

Tag: 50

Description: The Application Label is the mnemonic associated with the AID according to ISO/IEC

7816-5.

Source: Chip Card

Usage: Conditional

Format: ans

Binary Length: 1 to 16

ASCII Hex Length: 2 to 32

Example Value: Credit

Example TLV: 5006437265646974 (hex)

Table E-11 Application Preferred Name

Tag: 9F12

Description: The Application Preferred Name is the mnemonic associated with the AID.

Source: Chip Card

Usage: Conditional

Format: ans

Binary Length: 1 to 16

ASCII Hex Length: 2 to 32

Example Value: Credit

Example TLV: 9F1206437265646974 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.10 Application Primary Account Number (PAN) Sequence

Number

E.11 Application Transaction Counter (ATC)

Table E-12 Application Primary Account Number Sequence Number

Tag: 5F34

Description: This field contains a counter maintained and supplied by the chip card. This field identifies

the card when multiple chip cards are associated with a single account number. If the chip

card does not contain an Application PAN Sequence Number, then the Application PAN

Sequence Number value subfield must be set to 00.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions. Mandatory for

MSD contactless transactions when available.

Format: n 2

Binary Length: 1

ASCII Hex Length: 2

Example Value: 2 (numeric)

Example TLV: 5F340102 (hex)

Table E-13 Application Transaction Counter (ATC)

Tag: 9F36

Description: This field contains the counter value maintained by the chip card. The chip card

increments this value for each transaction (including failed transactions).

Source: Chip Card

Usage: Mandatory for EMV contact and EMV contactless transactions.

Mandatory for MSD contactless transactions when available.

Format: b

Binary Length: 2

ASCII Hex Length: 4

Example Value: 0001 0010 0011 0100 (binary)

Example TLV: 9F36021234 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.12 Application Usage Control

E.13 Application Version Number (ICC)

Table E-14 Application Usage Control

Tag: 9F07

Description: This field indicates the Issuer’s specified restrictions on the geographic usage and

services allowed for the chip card application.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 2

ASCII Hex Length: 4

Example Value: 1111 1111 0000 0000 (binary)

Example TLV: 9F0702FF00 (hex)

Table E-15 Application Version Number (ICC)

Tag: 9F08

Description: This field is the version number of the chip card application.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 2

ASCII Hex Length: 4

Example Value: 0000 1000 1010 0001 (binary)

Example TLV: 9F080208C1 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.14 Application Version Number (Terminal)

E.15 Authorisation Response Code

Table E-16 Application Version Number (Terminal)

Tag: 9F09

Description: The four-character numeric Application Version Number (Terminal) is the version number

of the POS terminal payment application.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 2

ASCII Hex Length: 4

Example Value: 0001 0000 0000 0001 (binary)

Example TLV: 9F09021001 (hex)

Table E-17 Authorisation Response Code

Tag: 8A

Description: The two-character Authorisation Response Code (Tag 8A) defines the disposition of an

authorization request.

For online transactions, the terminal should generate the value as follows:

•00 = Online approved. Should be sent to card at 2nd GENERATE AC if the host

response code indicates any approval, including partial approvals or card verifications.

• 05 = Online declined. Should be sent to card at 2nd GENERATE AC if the host response

code indicates any decline, i.e. anything that is not an approval. Also used if a partial

approval from the host is rejected at the terminal.

For offline transactions, the terminal should generate the value as follows:

• Y1 = Offline approved. Should be sent to host in offline approval advice if the card

approves offline at 1st GENERATE AC before attempt to go online.

• Z1 = Offline declined. Should be sent to host in offline decline advice if card declines

offline at 1st GENERATE AC before attempt to go online, or at 2nd GENERATE AC due

to bad ARPC cryptogram.

• Y3 = Unable to go online, offline approved. Should be sent to card at 2nd GENERATE

AC to request offline approval after failed attempt to go online. Should be sent to host in

offline approval advice if the card approves offline at 2nd GENERATE AC.

• Z3 = Unable to go online, offline declined. Should be sent to host in offline decline

advice if the card declines offline at 2nd GENERATE AC and the transaction is not

eligible for store-and-forward or stand-in processing.

Source: POS Terminal

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.16 Cardholder Verification Method (CVM) Results

E.17 Cryptogram Information Data (CID)

Usage: Optional field. Mandatory for offline decline advice transactions and offline approvals.

Format: an 2

Binary Length: 2

ASCII Hex Length: 4

Example Value: 00 (alphanumeric)

Example TLV: 8A023030 (hex)

Table E-18 Cardholder Verification Method (CVM) Results

Tag: 9F34

Description: This field indicates the results of the last CVM performed.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions when the result

of the last CVM performed is available.

Format: b

Binary Length: 3

ASCII Hex Length: 6

Example Value: 1010 0100 0000 0000 0000 0010 (binary)

Example TLV: 9F3403A40002 (hex)

Table E-19 Cryptogram Information Data (CID)

Tag: 9F27

Description: This field indicates the type of cryptogram generated (TC, ARQC, or AAC), why the

cryptogram was generated, and actions that the chip card instructed the POS terminal to

perform.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 1

ASCII Hex Length: 2

Example Value: 1000 0000 (binary)

Example TLV: 9F270180 (hex)

Table E-17 Authorisation Response Code

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.18 Customer Exclusive Data

E.19 Dedicated File Name

Table E-20 Customer Exclusive Data

Tag: 9F7C

Description: This field contains issuer proprietary data for transmission to the issuer.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contactless transactions if available.

Format: b

Binary Length: 1 to 32

ASCII Hex Length: 2 to 64

Example Value: 0001 0010 0011 0100 0101 0110 0111 1000 (binary)

Example TLV: 9F7C0412345678 (hex)

Table E-21 Dedicated File Name

Tag: 84

Description: This field identifies the name of the Dedicated File as described in ISO/IEC 7816-4.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions. Mandatory for

MSD contactless transactions when available.

Format: b

Binary Length: 5 to 16

ASCII Hex Length: 10 to 32

Example Value: 1010 0000 0000 0000 0000 0000 0000 0000 0000 0011 0001 0000 0001 0000 (binary)

Example TLV: 8407A0000000031010 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.20 Form Factor Indicator (FFI)

E.21 ICC Dynamic Number

Table E-22 Form Factor Indicator

Tag: 9F6E

Description: This field indicates the form factor of the consumer payment device and the type of

contactless interface over which the transaction was conducted. The Form Factor Indicator

is both an implementation and issuer option.

Source: Chip Card

Usage: Conditional: Mandatory for VISA contactless transactions when available.

Format: b

Binary Length: 4

ASCII Hex Length: 8

Example Value: 0000 0001 0000 0010 0000 0011 0000 0100 (binary)

Example TLV: 9F6E0401020304 (hex)

Table E-23 ICC Dynamic Number

Tag: 9F4C

Description: This field is a time-variant numerical value generated by the chip card.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contactless transactions.

Format: b

Binary Length: 2 to 8

ASCII Hex Length: 4 to 16

Example Value: 0001 0010 0011 0100 0101 0110 0111 0100 (binary)

Example TLV: 9F4C0412345678 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.22 Interface Device (IFD) Serial Number

E.23 Issuer Action Code – Default

Table E-24 Interface Device (IFD) Serial Number

Tag: 9F1E

Description: This field contains a unique and permanent identification number assigned to the IFD by

the manufacturer.

Source: POS Terminal (from the chip card reader)

Usage: Conditional: Mandatory for EMV contact transactions if available.

Format: an 8

Binary Length: 8

ASCII Hex Length: 16

Example Value: SERIAL12 (alphanumeric)

Example TLV: 9F1E0853455249414C3132 (hex)

Table E-25 Issuer Action Code – Default

Tag: 9F0D

Description: This field specifies the issuer’s conditions that cause a transaction to be rejected when the

POS terminal is unable to process the transaction online (even when the transaction has

already been approved online).

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact transactions.

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 1111 0000 0100 0000 0000 0000 1000 1000 0000 0000 (binary)

Example TLV: 9F0D05F040008800 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.24 Issuer Action Code – Denial

E.25 Issuer Action Code – Online

Table E-26 Issuer Action Code – Denial

Tag: 9F0E

Description: This field specifies the issuer’s conditions that cause the denial of a transaction without an

attempt to go online.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact transactions.

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 1111 1100 1111 1000 1111 1100 1111 1000 1111 0000 (binary)

Example TLV: 9F0E05FCF8FCF8F0 (hex)

Table E-27 Issuer Action Code – Online

Tag: 9F0F

Description: This field specifies the issuer’s conditions that cause a transaction to be transmitted

online.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact transactions.

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 1111 1100 1111 1000 1111 1100 1111 1000 1111 0000 (binary)

Example TLV: 9F0F05FCF8FCF8F0 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.26 Issuer Application Data

E.27 Issuer Authentication Data

Table E-28 Issuer Application Data

Tag: 9F10

Description: This field contains proprietary application data for transmission to the issuer.

Source: Chip Card

Usage: Mandatory for EMV contact and EMV contactless transactions. Mandatory for MSD

contactless transactions when available.

Format: b

Binary Length: 1 to 32

ASCII Hex Length: up to 64

Example Value: 0000 0001 0000 1010 0000 0011 0110 0000 0000 0000 0000 0000 (binary)

Example TLV: 9F1006010A03600000 (hex)

Table E-29 Issuer Authentication Data

Tag: 91

Description: This field contains data delivered to the chip card including the ARPC cryptogram for

online issuer authentication. The data is in the format required by the card.

Source: Issuer

Usage: Optional - may be returned in the authorization response message.

Format: b

Binary Length: 8 to 16

ASCII Hex Length: 16 to 32

Example Value: 0010 0010 0110 0011 1100 1100 0001 1100 0010 1110 1001 1100 0100 0100 0010 0000

0000 0001 0011 (binary)

Example TLV: 91102263BCC1C2D9C4420013 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.28 Issuer Country Code

E.29 Issuer Script Results

Table E-30 Issuer Country Code

Tag: 5F28

Description: This field indicates the country of the issuer according to ISO 3166.

Source: Chip Card

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions. Mandatory

for MSD contactless transactions when available.

Format: n 3

Binary Length: 2

ASCII Hex Length: 4

Example Value: 840 (numeric)

Example TLV: 5F28020840 (hex)

Table E-31 Issuer Script Results

Tag: 9F5B

Description: This field contains the results of the card issuer script update to the chip card.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact transactions when an issuer script was returned

in the authorization response message.

Format: b

Binary Length: varies

ASCII Hex Length: up to 40

Example Value: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 (binary)

Example TLV: 9F5B052000000000 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.30 Issuer Script Template 1 & 2

E.31 POS Entry Mode

Table E-32 Issuer Script Template 1 & 2

Tag: 71 or 72

Description: The Issuer Script Template 1 contains proprietary issuer data for transmission to the chip

card before the second GENERATE AC command. The Issuer Script Template 2 contains

proprietary issuer data for transmission to the chip card after the second GENERATE AC

command.

Source: Issuer

Usage: Conditional: Mandatory for EMV contact transactions when received in the response

message.

Format: b

Binary Length: 1 to 127

ASCII Hex Length: 2 to 254

Example Value: 1001 1111 0001 1000 0000 0100 0001 0000 0000 0000 0000 0000 0000 0000 1000 0110

0000 1101 1000 0100 0001 1000 0000 0000 0000 0000 0000 1000 0001 0110 0010 1100

11110 0001 0111 1000 0101 1111 1100 1111 0001 1010 0110 1000 (binary)

Example TLV: 72169F180410000000860D8418000008162CE1785FCF1A68 (hex)

Table E-33 POS Entry Mode

Tag: 9F39

Description: This field indicates the method by which the PAN was entered, according to the first two

digits of the ISO 8583:1987 POS Entry Mode.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contactless transactions and MSD contactless

transactions.

Format: n 2

Binary Length: 1

ASCII Hex Length: 2

Example Value: 00 (numeric)

Example TLV: 9F390100 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.32 Terminal Action Code – Default

E.33 Terminal Action Code – Denial

Table E-34 Terminal Action Code – Default

Tag: FFC6 (HPS proprietary tag identifier)

Description: This field specifies the acquirer’s conditions that cause a transaction to be rejected when

the POS terminal is unable to process the transaction online (even when the transaction

has already been approved online).

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact transactions declined offline.

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 0000 0101 1111 1110 0101 0000 1011 1100 1010 0000 0000 0000 (binary)

Example TLV: FFC605FE50BCA000 (hex)

Table E-35 Terminal Action Code – Denial

Tag: FFC7 (HPS proprietary tag identifier)

Description: This field specifies the acquirer’s conditions that cause the denial of a transaction without

an attempt to go online.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact transactions declined offline.

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 0000 0101 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 (binary)

Example TLV: FFC7050000000000 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.34 Terminal Action Code – Online

E.35 Terminal Capabilities

Table E-36 Terminal Action Code – Online

Tag: FFC8 (HPS proprietary tag identifier)

Description: This field specifies the acquirer’s conditions that cause a transaction to be transmitted

online.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact transactions declined offline.

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 0000 0101 1111 1110 0101 0000 1011 1100 1111 1000 0000 0000 (binary)

Example TLV: FFC805FE50BCF800 (hex)

Table E-37 Terminal Capabilities

Tag: 9F33

Description: This field indicates the card data input, the cardholder verification method (CVM), and the

security capabilities supported by the POS terminal.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions. Mandatory for

MSD contactless transactions if available.

Format: b

Binary Length: 3

ASCII Hex Length: 6

Example Value: 0000 0001 0000 0001 0000 0001 (binary)

Example TLV: 9F3303010101 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.36 Terminal Country Code

E.37 Terminal Type

Table E-38 Terminal Country Code

Tag: 9F1A

Description: This field indicates the country of the terminal, represented according to ISO 3166.

Source: POS Terminal

Usage: Mandatory for EMV contact, EMV contactless transactions. Mandatory for MSD

contactless transactions if available.

Format: n 3

Binary Length: 2

ASCII Hex Length: 3

Example Value: 840 (numeric)

Example TLV: 9F1A020840 (hex)

Table E-39 Terminal Type

Tag: 9F35

Description: The two-character numeric Terminal Type indicates the environment of the POS terminal,

its communications capability, and its operational control.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: n 2

Binary Length: 1

ASCII Hex Length: 2

Example Value: 22 (numeric)

Example TLV: 9F350122 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.38 Terminal Verification Results (TVR)

E.39 Third Party Data

Table E-40 Terminal Verification Results (TVR)

Tag: 95

Description: This field contains a series of indicators set by the POS terminal recording both offline and

online processing results.

Source: POS Terminal

Usage: Mandatory for chip card transactions (contact and contactless)

Format: b

Binary Length: 5

ASCII Hex Length: 10

Example Value: 0000 0000 0000 0000 0000 0100 1000 0000 0000 0000 (binary)

Example TLV: 95050000048000 (hex)

Table E-41 Third Party Data

Tag: 9F6E

Description: The Third Party Data contains proprietary data from a third party.

Source: Issuer

Usage: Mandatory for MasterCard contactless transactions when available.

Format: b

Binary Length: 5 to 32

ASCII Hex Length: 10 to 64

Example Value: 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 (binary)

Example TLV: 9F6E05123456789A (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.40 Transaction Currency Code

E.41 Transaction Date

Table E-42 Transaction Currency Code

Tag: 5F2A

Description: This field contains the currency code of the transaction according to ISO 4217.

Source: POS Terminal

Usage: Mandatory for EMV contact and EMV contactless transactions.

Format: n 3

Binary Length: 2

ASCII Hex Length: 4

Example Value: 840 (numeric)

Example TLV: 5F2A020840 (hex)

Table E-43 Transaction Data

Tag: 9A

Description: This field contains the local date used to generate the cryptogram.

Source: POS Terminal

Usage: Mandatory for EMV contact and EMV contactless transactions.

Format: n 6 (YYMMDD)

Binary Length: 3

ASCII Hex Length: 6

Example Value: 121231 (numeric)

Example TLV: 9A03121231 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.42 Transaction Sequence Counter

E.43 Transaction Status Information

Table E-44 Transaction Sequence Counter

Tag: 9F41

Description: This field uniquely identifies each transaction on a POS terminal. The Transaction

Sequence Counter value subfield is right-justified with leading zeros.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: n 4 to 8

Binary Length: 2 to 4

ASCII Hex Length: 4 to 8

Example Value: 435 (numeric)

Example TLV: 9F410400000435 (hex)

Table E-45 Transaction Status Information

Tag: 9B

Description: This field contains the functions performed in the transaction.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 2

ASCII Hex Length: 4

Example Value: 0100 1000 0000 0000 (binary)

Example TLV: 9B024800 (hex)

E: EMV Field Definitions HPS Integrator’s Guide V 16.1.1

E.44 Transaction Time

E.45 Transaction Type

Table E-46 Transaction Time

Tag: 9F21

Description: This subfield contains the local time that the transaction was authorized.

Source: POS Terminal

Usage: Conditional: Mandatory for EMV contact and EMV contactless transactions.

Format: n 6 (HHMMSS)

Binary Length: 3

ASCII Hex Length: 6

Example Value: 123456 (numeric)

Example TLV: 9F2103123456 (hex)

Table E-47 Transaction Type

Tag: 9C

Description: This field indicates the type of financial transaction as represented by the first two digits of

the ISO 8583:1987 Processing Code.

Source: POS Terminal

Usage: Mandatory for EMV contact and EMV contactless transactions.

Format: n 2

Binary Length: 1

ASCII Hex Length: 2

Example Value: 00 (numeric)

Example TLV: 9C0100 (hex)

HPS Integrator’s Guide V 16.1.1 E: EMV Field Definitions

E.46 Unpredictable Number

Table E-48 Unpredictable Number

Tag: 9F37

Description: This field is randomly generated by the POS Terminal and is used to provide variability and

uniqueness to the cryptogram.

Source: POS Terminal

Usage: Mandatory for EMV contact and EMV contactless transactions.

Format: b

Binary Length: 4

ASCII Hex Length: 8

Example Value: 0001 0010 0011 0100 0101 0110 0111 1000 (binary)

Example TLV: 9F370412345678 (hex)

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Appendix F: EMV PDL Data Examples

The following example does not include any host specific “wrapper”, but rather only depicts the

exchange of the actual EMV PDL data between the POS and the host.

Note: This is example data only that should not be used for certification or in production.

Table F-1 EMV PDL Data Examples

POS Host

Table 10 Request (Versions and Flags) 

Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 10

EMV PDL CARD TYPE <2 spaces>

EMV PDL PARAMETER VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 10 Response

(Versions and Flags)

Field Value

EMV PDL PARAMETER VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 10

EMV PDL CARD TYPE <2 spaces>

EMV PDL END-OF-TABLE FLAG Y

EMV PDL ENABLED Y

EMV PDL TABLE ID 30 VERSION 001

EMV PDL TABLE ID 30 FLAG Y

EMV PDL NUMBER OF CARD TYPES 04

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

VISA

EMV PDL CARD TYPE 01

EMV PDL TABLE ID 40 VERSION 001

EMV PDL TABLE ID 40 FLAG Y

EMV PDL TABLE ID 50 VERSION 001

EMV PDL TABLE ID 50 FLAG Y

EMV PDL TABLE ID 60 VERSION 001

EMV PDL TABLE ID 60 FLAG Y

MasterCard

EMV PDL CARD TYPE 02

EMV PDL TABLE ID 40 VERSION 001

EMV PDL TABLE ID 40 FLAG Y

EMV PDL TABLE ID 50 VERSION 001

EMV PDL TABLE ID 50 FLAG Y

EMV PDL TABLE ID 60 VERSION 001

EMV PDL TABLE ID 60 FLAG Y

American Express

EMV PDL CARD TYPE 03

EMV PDL TABLE ID 40 VERSION 001

EMV PDL TABLE ID 40 FLAG Y

EMV PDL TABLE ID 50 VERSION 001

EMV PDL TABLE ID 50 FLAG Y

EMV PDL TABLE ID 60 VERSION 001

EMV PDL TABLE ID 60 FLAG Y

Discover

EMV PDL CARD TYPE 04

EMV PDL TABLE ID 40 VERSION 001

EMV PDL TABLE ID 40 FLAG Y

EMV PDL TABLE ID 50 VERSION 001

EMV PDL TABLE ID 50 FLAG Y

EMV PDL TABLE ID 60 VERSION 001

EMV PDL TABLE ID 60 FLAG Y

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Table 10 Confirmation Request

(Versions and Flags)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 10

EMV PDL CARD TYPE <2 spaces>

EMV PDL PARAMETER VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 10 Confirmation Response

(Versions and Flags)

Field Value

EMV PDL PARAMETER VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 10

EMV PDL CARD TYPE <2 spaces>

EMV PDL CONFIRMATION FLAG Y

Table 30 Request

(Terminal Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 30

EMV PDL CARD TYPE <2 spaces>

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 30 Response

(Terminal Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 30

EMV PDL CARD TYPE <2 spaces>

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

023

EMV PDL TERMINAL TYPE 22

EMV PDL ADDITIONAL TERMINAL

CAPABILITIES

F000F0A001

EMV PDL TERMINAL COUNTRY CODE 840

EMV PDL TRANSACTION CURRENCY

CODE

840

EMV PDL TRANSACTION CURRENCY

EXPONENT

EMV PDL TRANSACTION REFERENCE

CURRENCY CODE

840

EMV PDL TRANSACTION REFERENCE

CURRENCY EXPONENT

Table 30 Confirmation Request

(Terminal Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 30

EMV PDL CARD TYPE <2 spaces>

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Table 30 Confirmation Response

(Terminal Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 30

EMV PDL CARD TYPE <2 spaces>

EMV PDL CONFIRMATION FLAG Y

Table 40 Request

(VISA Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Response

(VISA Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 01

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

374

EMV PDL AID COUNT 02

VISA Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000000031010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0096

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E0B8C8

EMV PDL TERMINAL FLOOR LIMIT 000000000000

EMV PDL THRESHOLD VALUE FOR

BIASED RANDOM SELECTION

000000000000

EMV PDL TARGET PERCENTAGE TO

BE USED FOR RANDOM SELECTION

EMV PDL MAXIMUM TARGET

PERCENTAGE TO BE USED FOR

BIASED RANDOM SELECTION

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0010000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

DC4004F800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

DC4000A800

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

EMV PDL DEFAULT DYNAMIC DATA

AUTHENTICATION DATA OBJECT LIST

(DDOL)

9F3704

+ <26 spaces>

VISA Electron

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000000032010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0096

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E0B8C8

EMV PDL TERMINAL FLOOR LIMIT 000000000000

EMV PDL THRESHOLD VALUE FOR

BIASED RANDOM SELECTION

000000000000

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL TARGET PERCENTAGE TO

BE USED FOR RANDOM SELECTION

EMV PDL MAXIMUM TARGET

PERCENTAGE TO BE USED FOR

BIASED RANDOM SELECTION

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0010000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

DC4004F800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

DC4000A800

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

EMV PDL DEFAULT DYNAMIC DATA

AUTHENTICATION DATA OBJECT LIST

(DDOL)

9F3704

+ <26 spaces>

Table 40 Confirmation Request

(VISA Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Confirmation Response

(VISA Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 01

EMV PDL CONFIRMATION FLAG Y

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 40 Request

(MasterCard Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 02

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Response

(MasterCard Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 02

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

188

EMV PDL AID COUNT 01

MasterCard Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000000041010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0002

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E0F8C8

EMV PDL TERMINAL FLOOR LIMIT 000000020000

EMV PDL THRESHOLD VALUE FOR

BIASED RANDOM SELECTION

000000000000

EMV PDL TARGET PERCENTAGE TO

BE USED FOR RANDOM SELECTION

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL MAXIMUM TARGET

PERCENTAGE TO BE USED FOR

BIASED RANDOM SELECTION

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0000000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

FC50BCF800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

FC50BCA000

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

EMV PDL DEFAULT DYNAMIC DATA

AUTHENTICATION DATA OBJECT LIST

(DDOL)

9F3704

+ <26 spaces>

Table 40 Confirmation Request

(MasterCard Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 02

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Confirmation Response

(MasterCard Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 02

EMV PDL CONFIRMATION FLAG Y

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 40 Request

(American Express Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 03

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Response

(American Express Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 03

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

188

EMV PDL AID COUNT 01

American Express Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A00000002501

+ <20 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0001

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E0B8C8

EMV PDL TERMINAL FLOOR LIMIT 000000000000

EMV PDL THRESHOLD VALUE FOR

BIASED RANDOM SELECTION

000000000000

EMV PDL TARGET PERCENTAGE TO

BE USED FOR RANDOM SELECTION

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL MAXIMUM TARGET

PERCENTAGE TO BE USED FOR

BIASED RANDOM SELECTION

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0000000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

C800000000

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

C800000000

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

EMV PDL DEFAULT DYNAMIC DATA

AUTHENTICATION DATA OBJECT LIST

(DDOL)

9F3704

+ <26 spaces>

Table 40 Confirmation Request

(American Express Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 03

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Confirmation Response

(American Express Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 03

EMV PDL CONFIRMATION FLAG Y

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 40 Request

(Discover Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 04

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Response

(Discover Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 04

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

188

EMV PDL AID COUNT 01

Discover Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000001523010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0001

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E0F8C8

EMV PDL TERMINAL FLOOR LIMIT 000000030000

EMV PDL THRESHOLD VALUE FOR

BIASED RANDOM SELECTION

000000000000

EMV PDL TARGET PERCENTAGE TO

BE USED FOR RANDOM SELECTION

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL MAXIMUM TARGET

PERCENTAGE TO BE USED FOR

BIASED RANDOM SELECTION

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0010000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

FCE09CF800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

DC00002000

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

EMV PDL DEFAULT DYNAMIC DATA

AUTHENTICATION DATA OBJECT LIST

(DDOL)

9F3704

+ <26 spaces>

Table 40 Confirmation Request

(Discover Contact Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 04

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 40 Confirmation Response

(Discover Contact Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 40

EMV PDL CARD TYPE 04

EMV PDL CONFIRMATION FLAG Y

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 50 Request

(VISA Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 50 Response

(VISA Contactless Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 01

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

350

EMV PDL AID COUNT 02

VISA Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000000031010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0096

EMV PDL CONTACTLESS MAGSTRIPE

APPLICATION VERSION NUMBER

0001

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E028C8

EMV PDL TERMINAL CONTACTLESS

FLOOR LIMIT

000000000000

EMV PDL TERMINAL CVM REQUIRED

LIMIT

000000005000

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL TERMINAL CONTACTLESS

TRANSACTION LIMIT

999999999999

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0010000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

DC4004F800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

DC4000A800

EMV PDL TERMINAL TRANSACTION

QUALIFIERS (TTQ)

B2004000

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

VISA Electron

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000000031010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0096

EMV PDL CONTACTLESS MAGSTRIPE

APPLICATION VERSION NUMBER

0001

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E028C8

EMV PDL TERMINAL CONTACTLESS

FLOOR LIMIT

000000000000

EMV PDL TERMINAL CVM REQUIRED

LIMIT

000000005000

EMV PDL TERMINAL CONTACTLESS

TRANSACTION LIMIT

999999999999

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0010000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

DC4004F800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

DC4000A800

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL TERMINAL TRANSACTION

QUALIFIERS (TTQ)

B2004000

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

Table 50 Confirmation Request

(VISA Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 50 Confirmation Response

(VISA Contactless Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 01

EMV PDL CONFIRMATION FLAG Y

Table 50 Request

(MasterCard Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 02

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Table 50 Response

(MasterCard Contactless Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 02

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

176

EMV PDL AID COUNT 01

MasterCard Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000000041010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0002

EMV PDL CONTACTLESS MAGSTRIPE

APPLICATION VERSION NUMBER

0001

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E068C8

EMV PDL TERMINAL CONTACTLESS

FLOOR LIMIT

000000020000

EMV PDL TERMINAL CVM REQUIRED

LIMIT

000000005000

EMV PDL TERMINAL CONTACTLESS

TRANSACTION LIMIT

999999999999

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0000000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

FC509C8800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

FC509C8800

EMV PDL TERMINAL TRANSACTION

QUALIFIERS (TTQ)

B6000000

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL TERMINAL RISK

MANAGEMENT DATA

6CF800000000000

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

Table 50 Confirmation Request

(MasterCard Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 02

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 50 Confirmation Response

(MasterCard Contactless Card Data)

Field Value

EMV PDL PARAMETER VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 02

EMV PDL CONFIRMATION FLAG Y

Table 50 Request

(American Express Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 03

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Table 50 Response

(American Express Contactless Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 03

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

176

EMV PDL AID COUNT 01

American Express Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A00000002501

+ <20 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0001

EMV PDL CONTACTLESS MAGSTRIPE

APPLICATION VERSION NUMBER

0001

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E0E8C8

EMV PDL TERMINAL CONTACTLESS

FLOOR LIMIT

000000000000

EMV PDL TERMINAL CVM REQUIRED

LIMIT

000000005000

EMV PDL TERMINAL CONTACTLESS

TRANSACTION LIMIT

999999999999

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0000000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

C400000000

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

DC50840000

EMV PDL TERMINAL TRANSACTION

CAPABILIITES

D8F00000

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

Table 50 Confirmation Request

(American Express Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 03

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 50 Confirmation Response

(American Express Contactless Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 03

EMV PDL CONFIRMATION FLAG Y

Table 50 Request

(Discover Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 04

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Table 50 Response

(Discover Contactless Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 04

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

176

EMV PDL AID COUNT 01

Discover Credit/Debit

EMV PDL APPLICATION IDENTIFIER

(AID)

A0000003241010

+ <18 spaces>

EMV PDL APPLICATION SELECTION

INDICATOR

EMV PDL APPLICATION VERSION

NUMBER

0001

EMV PDL CONTACTLESS MAGSTRIPE

APPLICATION VERSION NUMBER

0001

EMV PDL APPLICATION COUNTRY

CODE

<3 spaces>

EMV PDL TRANSACTION TYPES 8000

EMV PDL TERMINAL CAPABILIITES E068C8

EMV PDL TERMINAL CONTACTLESS

FLOOR LIMIT

000000000000

EMV PDL TERMINAL CVM REQUIRED

LIMIT

000000005000

EMV PDL TERMINAL CONTACTLESS

TRANSACTION LIMIT

999999999999

EMV PDL TERMINAL ACTION CODE

(TAC) - DENIAL

0010000000

EMV PDL TERMINAL ACTION CODE

(TAC) - ONLINE

FCE09CF800

EMV PDL TERMINAL ACTION CODE

(TAC) - DEFAULT

DC00002000

EMV PDL TERMINAL TRANSACTION

QUALIFIERS (TTQ)

96000000

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL TERMINAL RISK

MANAGEMENT DATA

<16 spaces>

EMV PDL DEFAULT TRANSACTION

CERTIFICATE DATA OBJECT LIST

(TDOL)

<32 spaces>

Table 50 Confirmation Request

(Discover Contactless Card Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 04

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 50 Confirmation Response

(Discover Contactless Card Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 50

EMV PDL CARD TYPE 04

EMV PDL CONFIRMATION FLAG Y

Table 60 Request

(VISA Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Table 60 Response

(VISA Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL END-OF-TABLE FLAG N

EMV PDL TABLE DATA BLOCK

LENGTH

875

EMV PDL KEY COUNT 04

VISA 1024-Bit Key (Expired)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000003

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS E

VISA 1152-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000003

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0288

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

A89F25A56FA6DA

258C8CA8B40427

D927B4A1EB4D7

EA326BBB12F97D

ED70AE5E4480F

C9C5E8A9721771

10A1CC318D06D2

F8F5C4844AC5FA

79A4DC470BB11E

D635699C17081B

90F1B984F12E92

C1C529276D8AF8

EC7F28492097D8

CD5BECEA16FE4

088F6CFAB4A1B4

2328A1B996F927

8B0B7E3311CA5E

F856C2F888474B

83612A82E4E00D

0CD4069A678314

0433D50725F

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

B4BC56CC4E883

24932CBC643D68

98F6FE593B172

VISA 1408-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000003

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0352

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

D9FD6ED75D51D

0E30664BD15702

3EAA1FFA871E4D

A65672B863D255

E81E137A51DE4F

72BCC9E44ACE1

2127F87E263D3A

F9DD9CF35CA4A

7B01E907000BA8

5D24954C2FCA30

74825DDD4C0C8

F186CB020F683E

02F2DEAD396913

3F06F7845166AC

EB57CA0FC26034

45469811D293BF

EFBAFAB57631B3

DD91E796BF850A

25012F1AE38F05

AA5C4D6D03B1D

C2E56861278593

8BBC9B3CD3A91

0C1DA55A5A9218

ACE0F7A2128775

2682F15832A678

D6E1ED0B

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

20D213126955DE

205ADC2FD2822B

D22DE21CF9A8

VISA 1984-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000003

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0496

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

9D912248DE0A4E

39C1A7DDE3F6D

2588992C1A4095

AFBD1824D1BA7

4847F2BC4926D2

EFD904B4B54954

CD1

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 60 Request

(VISA Public Key Data Continued)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 60 Response

(VISA Public Key Data Continued)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

453

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

89A54C5D117965

4F8F9B0D2AB5F0

357EB642FEDA95

D3912C6576945F

AB897E7062CAA4

4A4AA06B8FE6E3

DBA18AF6AE3738

E30429EE9BE034

27C9D64F695FA8

CAB4BFE376853E

A34AD1D76BFCA

D15908C077FFE6

DC5521ECEF5D2

78A96E26F57359

FFAEDA19434B93

7F1AD999DC5C4

1EB11935B44C18

100E857F431A4A

5A6BB65114F174

C2D7B59FDF237

D6BB1DD0916E6

44D709DED56481

477C75D95CDD6

8254615F7740EC

07F330AC5D67BC

D75BF23D28A140

826C026DBDE971

A37CD3EF9B8DF

644AC385010501

EFC6509D7A41

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

1FF80A40173F52

D7D27E0F26A146

A1C8CCB29046

Table 60 Confirmation Request

(VISA Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 60 Confirmation Response

(VISA Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL CONFIRMATION FLAG Y

Table 60 Request

(MasterCard Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 02

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 60 Response

(MasterCard Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 02

EMV PDL END-OF-TABLE FLAG N

EMV PDL TABLE DATA BLOCK

LENGTH

875

EMV PDL KEY COUNT 03

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

MasterCard 1152-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000003

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0288

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

A6DA428387A502

D7DDFB7A74D3F

412BE762627197

B25435B7A81716

A700157DDD06F7

CC99D6CA28C24

70527E2C03616B

9C59217357C267

4F583B3BA5C7D

CF2838692D023E

3562420B4615C4

39CA97C44DC9A

249CFCE7B3BFB

22F68228C3AF13

329AA4A613CF8D

D853502373D62E

49AB256D2BC171

20E54AEDCED6D

96A4287ACC5C04

677D4A5A320DB8

BEE2F775E5FEC

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

381A035DA58B48

2EE2AF75F4C3F2

CA469BA4AA6C

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

MasterCard 1408-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000004

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0352

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

B8048ABC30C90

D976336543E3FD

7091C8FE4800DF

820ED55E7E9481

3ED00555B573FE

CA3D84AF6131A6

51D66CFF4284FB

13B635EDD0EE40

176D8BF04B7FD1

C7BACF9AC7327

DFAA8AA72D10D

B3B8E70B2DDD8

11CB4196525EA3

86ACC33C0D9D4

575916469C4E4F

53E8E1C912CC61

8CB22DDE7C356

8E90022E6BBA77

0202E4522A2DD6

23D180E215BD1D

1507FE3DC90CA3

10D27B3EFCCD8

F83DE3052CAD1

E48938C68D095A

AC91B5F37E28BB

49EC7ED597

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

EBFA0D5D06D8C

E702DA3EAE8907

01D45E274C845

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

MasterCard 1984-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000004

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0496

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

CB26FC830B4378

5B2BCE37C81ED

334622F9622F4C

89AAE641046B23

53433883F307FB7

C974162DA72F7A

4EC75D9D657336

Table 60 Request

(MasterCard Public Key Data Continued)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 60 Response

(MasterCard Public Key Data Continued)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 01

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

440

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

865B8D3023D3D6

45667625C9A07A

6B7A137CF0C641

98AE38FC238006

FB2603F41F4F3B

B9DA1347270F2F

5D8C606E420958

C5F7D50A71DE30

142F70DE468889

B5E3A08695B938

A50FC980393A9C

BCE44AD2D64F6

30BB33AD3F5F5F

D495D31F37818C

1D94071342E07F

1BEC2194F6035B

A5DED3936500EB

82DFDA6E8AFB6

55B1EF3D0D7EB

F86B66DD9F29F6

B1D324FE8B26C

E38AB2013DD13F

611E7A594D675C

4432350EA244CC

34F3873CBA0659

2987A1D7E852AD

C22EF5A2EE2813

2031E48F74037E

3B34AB747F

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

F910A1504D5FFB

793D94F3B50076

5E1ABCAD72D9

Table 60 Confirmation Request

(MasterCard Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 02

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Table 60 Confirmation Response

(MasterCard Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 02

EMV PDL CONFIRMATION FLAG Y

Table 60 Request

(American Express Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 03

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 60 Response

(American Express Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 03

EMV PDL END-OF-TABLE FLAG N

EMV PDL TABLE DATA BLOCK

LENGTH

875

EMV PDL KEY COUNT 04

American Express 1024-Bit Key (Expired)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000025

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS E

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

American Express 1152-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000025

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0288

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

AA94A8C6DAD24

F9BA56A27C09B0

1020819568B81A0

26BE9FD0A3416C

A9A71166ED5084

ED91CED47DD45

7DB7E6CBCD53E

560BC5DF48ABC

380993B6D549F5

196CFA77DFB20A

0296188E969A277

2E8C4141665F8B

B2516BA2C7B5F

C91F8DA04E8D51

2EB0F6411516FB

86FC021CE7E969

DA94D33937909A

53A57F907C40C2

2009DA7532CB3B

E509AE173B39AD

6A01BA5BB85

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

A7266ABAE64B42

A3668851191D498

56E17F8FBCD

American Express 1408-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000025

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0352

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

C8D5AC27A5E1F

B89978C7C6479A

F993AB3800EB24

3996FBB2AE26B6

7B23AC482C4B74

6005A51AFA7D2D

83E894F591A235

7B30F85B85627F

F15DA12290F70F

05766552BA11AD

34B7109FA49DE2

9DCB0109670875

A17EA95549E923

47B948AA1F0457

56DE56B707E386

3E59A6CBE99C12

72EF65FB66CBB4

CFF070F36029DD

76218B21242645B

51CA752AF37E70

BE1A84FF31079D

C0048E928883EC

4FADD497A71938

5C2BBBEBC5A66

AA5E5655D18034

EC5

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

A73472B3AB5574

93A9BC2179CC80

14053B12BAB4

American Express 1984-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000025

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0496

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

CF98DFEDB3D37

27965EE77977233

55E0751C81D2D3

DF4D18EBAB9FB

9D49F38C8C4A82

6B99DC9DEA3F0

104

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 60 Request

(American Express Public Key Data Continued)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 03

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 60 Response

(American Express Public Key Data Continued)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 03

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

453

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

3D4BF22AC3550E

2962A59639B1332

156422F788B9C1

6D40135EFD1BA9

4147750575E636B

6EBC618734C91C

1D1BF3EDC2A46

A43901668E0FFC

136774080E88804

4F6A1E65DC9AA

A8928DACBEB0D

B55EA3514686C6

A732CEF55EE27

CF877F110652694

A0E3484C855D88

2AE191674E25C2

96205BBB599455

176FDD7BBC549

F27BA5FE35336F

7E29E68D783973

199436633C67EE

5A680F05160ED1

2D1665EC83D199

7F10FD05BBDBF

9433E8F797AEE3

E9F02A34228ACE

927ABE62B8B928

1AD08D3DF5C73

79685045D7BA5F

CDE58637

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

C729CF2FD26239

4ABC4CC1735065

02446AA9B9FD

Table 60 Confirmation Request

(American Express Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 03

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 60 Confirmation Response

(American Express Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 03

EMV PDL CONFIRMATION FLAG Y

Table 60 Request

(Discover Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 04

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 60 Response

(Discover Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 04

EMV PDL END-OF-TABLE FLAG N

EMV PDL TABLE DATA BLOCK

LENGTH

875

EMV PDL KEY COUNT 04

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Discover 1024-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000152

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0256

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

8D1727AB9DC852

453193EA0810B1

10F2A3FD304BE2

58338AC2650FA2

A040FA10301EA5

3DF18FD9F40F55

C44FE0EE7C7223

BC649B8F932892

5707776CB86F3A

C37D1B22300D00

83B49350E09ABB

4B62A96363B01E

4180E158EADDD

6878E85A6C9D56

509BF68F0400AF

FBC441DDCCDAF

9163C4AACEB2C

3E1EC13699D23C

DA9D3AD

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

E0C2C1EA411DB

24EC3E76A9403F

0B7B6F406F398

Discover 1152-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000152

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0288

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

BF321241BDBF35

85FFF2ACB89772

EBD18F2C872159

EAA4BC179FB03

A1B850A1A758FA

2C6849F48D4C4F

F47E02A575FC13

E8EB77AC371350

30C5600369B556

7D3A7AAF020151

15E987E6BE566B

4B4CC03A4E2B16

CD9051667C2CD

0EEF4D76D27A6F

745E8BBEB45498

ED8C30E2616DB

4DBDA4BAF8D71

990CDC22A8A387

ACB21DD88E2CC

27962B31FBD786

BBB55F9E0B041

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

CA1E9099327F0B

786D8583EC2F27

E57189503A57

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Discover 1408-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000152

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0352

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

8EEEC0D6D3857

FD558285E49B62

3B109E6774E06E

9476FE1B2FB273

685B5A235E9558

10ADDB5CDCC2

CB6E1A97A07089

D7FDE0A548BDC

622145CA2DE3C7

3D6B14F284B3DC

1FA056FC0FB281

8BCD7C852F0C9

7963169F01483C

E1A63F0BF899D4

12A

Table 60 Request

(Discover Public Key Data Continued)



Field Value

EMV PDL PARAMETER TYPE 06

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 04

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

Table 60 Response

(Discover Public Key Data Continued)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 04

EMV PDL END-OF-TABLE FLAG Y

EMV PDL TABLE DATA BLOCK

LENGTH

755

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

B67C5BBDC8B4F

6FB9ABB57E9512

5363DBD8F5EBA

A9B74ADB932020

50341833DEE8E3

8D28BD175C83A6

EA720C262682BE

ABEA8E955FE67

BD9C2EFF7CB9A

9F45DD5BDA4A1

EEFB148BC44FF

F68D9329FD

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

17F971CAF6B708

E5B9165331FBA9

1593D0C0BF66

Table F-1 EMV PDL Data Examples (Continued)

POS Host

F: EMV PDL Data Examples HPS Integrator’s Guide V 16.1.1

Discover 1984-Bit Key (Active)

EMV PDL REGISTERED APPLICATION

PROVIDER IDENTIFIER (RID)

A000000152

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY INDEX

EMV PDL KEY STATUS A

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS LENGTH

0496

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY MODULUS

E1200E9F4428EB

71A526D6BB44C9

57F18F27B20BAC

E978061CCEF235

32DBEBFAF654A1

49701C14E6A2A7

C2ECAC4C92135

BE3E9258331DDB

0967C3D1D375B9

96F25B77811CCC

C06A153B4CE699

0A51A0258EA843

7EDBEB701CB1F

335993E3F48458

BC1194BAD29BF6

83D5F3ECB984E3

1B7B9D2F6D947B

39DEDE0279EE45

B47F2F3D4EEEF9

3F9261F8F5A571

AFBFB569C15037

0A78F6683D687C

B677777B2E7ABE

FCFC8F5F935017

36997E8310EE0F

D87AFAC5DA772

BA277F88B44459

FCA563555017CD

0D66771437F8B6

608AA1A665F88D

846403E4C41AFE

EDB9729C2B2511

CFE228B50C1B15

2B2A60BBF61D89

13E086210023A3

AA499E423

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY EXPONENT

Table F-1 EMV PDL Data Examples (Continued)

POS Host

HPS Integrator’s Guide V 16.1.1 F: EMV PDL Data Examples

EMV PDL CERTIFICATION AUTHORITY

PUBLIC KEY CHECKSUM

12BCD407B6E627

A750FDF629EE8C

2C9CC7BA636A

Table 60 Confirmation Request

(Discover Public Key Data)



Field Value

EMV PDL PARAMETER TYPE 07

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 04

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

Table 60 Confirmation Response

(Discover Public Key Data)

Field Value

EMV PDL TABLE VERSION 001

EMV PDL BLOCK SEQUENCE

NUMBER

EMV PDL TABLE ID 60

EMV PDL CARD TYPE 04

EMV PDL CONFIRMATION FLAG Y

Table F-1 EMV PDL Data Examples (Continued)

POS Host

G: Glossary HPS Integrator’s Guide V 16.1.1

Appendix G: Glossary

Note: Shaded glossary terms are EMV related.

Table G-1 Glossary

Term Definition

AVS See Address Verification System.

3-D Secure™ Three-Domain Secure™ (merchant, acquirer, issuer). A VISA-approved

Authentication Method that is the global authentication standard for Electronic

Commerce Transactions.

AAC (Application

Authentication

Cryptogram)

A type of cryptogram generated by the Chip Card when a transaction is declined

(at the end of offline or online declined transaction) to indicate the card declined

the transaction.

Other types of cryptograms are ARQC, TC, ARPC, AAR.

ABA Transit Number The ABA Transit Number, known as the routing transit number (RTN), is a

nine-digit bank code, used in the United States. It appears on the bottom of

negotiable instruments, such as checks, identifying the financial institution on

which it was drawn.

AC (Application

Cryptogram)

This is a generic term to describe an application cryptogram. It is generated from

data elements contained in either the online authorization request to the Issuer, or

the final financial transaction required for clearing and settlement. There are four

types of Application Cryptograms (ARQC, TC, AAC, ARPC).

ACH See Automated Clearing House.

ACI See Authorization Characteristics Indicator.

Acquirer A company that enters into contractual relationships with merchants, therefore

allowing the merchant to accept credit/debit cards. Heartland Payment Systems is

an acquirer.

Acquiring Financial

Institution

An acquiring financial institution (or “acquirer”) contracts with the bank and the

merchants to enable credit card transaction.

Acquiring Host The processing system which communicates with the card acceptor or a

communications network processor and is responsible for receiving the data

relating to a transaction and obtaining an approval or denial for the transaction.

The system maintains reconciliation totals for all financial transactions.

Action Codes There are 2 sets of action codes:

•TACs (Terminal Actions Codes held in the POS terminal) and

•IACs (Issuer Action Codes read from the Chip Card).

Each of these sets of action codes contain 3 codes which are compared to the

TVR:

•Denial action codes are used to determine if the transaction should be declined.

•Online action codes are used to determine if the transaction required online

authorization, and in the event that the terminal is unable to go online.

•Default action codes are used to determine if the transaction should be

declined.

HPS Integrator’s Guide V 16.1.1 G: Glossary

Activation Changing the state of a fixed denomination account from “inactive” to “active”,

enabling the prepaid card for use.

Activation and Initial Load Changing the state of a stored value/prepaid account from “inactive” to “active”,

enabling the card for use, and requesting the loading of a variable amount to the

account.

Address Verification

System

A service supported by Visa, MasterCard, Discover and American Express that

verifies the cardholder's billing address against the address on file with the issuer.

AVS is designed to minimize fraud in non-face-to-face transactions (card not

present, internet, mail/phone order).

Advice Message A message that notifies a party of an action that has been taken and does not

require further approval, but does require a response from the receiver.

AFD See Automated Fuel Dispenser.

Age Verification A security process used to verify a consumer’s age. Age verification is typically

used by liquor and tobacco outlets, bars and casinos.

Agents Those who sell bankcard services to merchants on behalf of ISOs, acquirers and

processors. Also known as merchant level salespeople (MLSs) and independent

sales agents (ISAs), most agents are independent contractors. Others are paid

employees of ISOs, acquirers and processors.

AID (Application Identifier) Names of applications supported by the POS. The POS obtains the DF names

from the Card by issuing SELECT and READ RECORD commands. The POS

AIDs are compared with the Chip Card DF Names to find a mutually supported

application. *POS and Chip Card can support multiple AIDs.

The AID structure is an ISO entity defined in the ISO7816 standard and is made

up of two elements:

• The RID (Registered Identification Provider Identifier) is five (5) bytes and

identifies the scheme. (See RID for more detailed explanation).

• The PIX (Proprietary Application Identification Extension) is a variable length

field from 0 to 11 bytes long and is used to identify the different applications

offered. Each brand under a specific scheme normally have a unique PIX.

Example of two AID’s for VISA:

• RID: A000000003

PIX: 1010

AID: A0000000031010

PRODUCT: Visa Credit or Debit

• RID: A000000003

PIX: 1020

AID: A0000000032010

PRODUCT: Visa Electron

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

AIP (Application

Interchange Profile)

List of security functions that reside on the Chip Card. The AIP indicates which

functions are supported by the Card and which should be applied to the current

transaction.

Types of security functions residing on the card may include:

•SDA

• DDA

• CDA

• Terminal Risk Management

• Cardholder Verification

• Issuer Authentication.

See SDA, DDA, CDA, and other functions for further details.

American Banks

Association Transit

Number

See ABA Transit Number.

American National

Standards Institute

Governing institute that establishes guidelines for business practices.

American Standard Code

for Information Interchange

ASCII is a character-encoding scheme based on the ordering of the English

alphabet. ASCII codes represent text for computers, communications equipment,

and other devices that use text.

Annual Percentage Rate The percentage rate charged for a credit card (or other loan) for a whole year. It is

the finance charge, expressed as an annual rate.

ANSI See American National Standards Institute.

Application Version

Number (ICC)

This data element indicates the version of the application on the Chip Card. It is

specified by the Payment System and used in Application Version Number

checking by the POS.

Application Version

Number (Terminal)

This data element indicates the version of the application on the POS device. It is

specified by the Payment System and used in Application Version Number

checking by the POS.

Approved Scanning Vendor

(ASV)

The PCI Security Standards Council maintains a structured process for security

solution providers to become Approved Scanning Vendors (ASVs), as well as to

be re-approved each year. The five founding members of the Council recognize

the ASVs certified by the PCI Security Standards Council as being qualified to

validate adherence to the PCI DSS by performing vulnerability scans of Internet

facing environments of merchants and service providers. The major requirement

of the process is a rigorous remote test conducted by each vendor on the PCI

Security Standards Council's test infrastructure, which simulates the network of a

typical security scan customer. The Council has set up the test infrastructure in

such a way as to deliberately introduce vulnerabilities and misconfigurations for

the vendor to identify and report as part of the compliance testing process.

APR See Annual Percentage Rate.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

ARPC (Authorization

Response Cryptogram)

Used in Online processing. A cryptogram generated by the Issuer in response to

an ARQC. It is sent in the authorization response back to the acquirer Host to the

POS. The POS sends this cryptogram back to the Chip Card with a response code

accepting or declining the transaction. The Chip Card’s receipt and validation of

the ARPC confirms approval response from the Issuer and ensures that it is

communicating with the valid Issuer. This cryptogram is also typically used to

allow the Chip Card to reset counters.

ARQC (Authorization

Request Cryptogram)

Used in Online processing. This is a cryptogram requested by the POS and

generated by the Chip Card at the end of the first round of Card Action Analysis

step for transactions requiring online authorization. It is included in the

authorization request or full financial request (B2) sent to the Issuer and it allows

the Issuer to verify the validity of the Chip Card and message. When validated by

the Issuer, the ARQC confirms that the Chip Card has not been copied or

changed.

ASCII See American Standard Code for Information Interchange.

Attended POS An attended POS device, meaning a person representing the merchant, accepts

the payment. This can also be called a MAT, attended POS, and face-to-face

transaction.

Auth Only Authorization Only. Host Processing Mode whereby a POS utilizes the Heartland

network to obtain online authorizations only. It then captures offline transactions

such as sales captures, returns, and voids and settles with an acquirer other than

Heartland.

Authorization A process where a merchant issues a request to an authorization center to obtain

an approval for a cardholder transaction for a specific amount. This process

verifies that a credit or debit card has sufficient funds available to cover the

amount of the transaction. This process also reserves the specified amount and

ensures the card is authentic and not reported lost or stolen. This authorization

request is usually submitted through a point-of-sale device. The merchant may

also obtain authorizations by telephoning the authorization center.

Authorization

Characteristics Indicator

A value determined by VISA based on the data included with the authorization

request. It is returned with the electronic authorization response.

Authorization Code A code that a credit card issuing bank returns to the POS indicating an approval of

the request transaction.

Authorization Request If the cardholder account has sufficient funds to cover the amount of the

transaction.

Authorization Response A response to an authorization request indicating a financial institution’s approval

or disapproval of a transaction.

Auto-Substantiation This transaction is applied to either a Credit Authorization or Credit Sale

Transaction. Amount types included in this transaction are healthcare,

prescription, vision/optical, clinic or other qualified medical and dental amounts.

Automated Clearing House An electronic payment network most commonly associated with payroll direct

deposit and recurring payments. The ACH can be used also to clear electronic

checks and other demand deposit account (DDA) transactions.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

Automated Fuel Dispenser A pump at a service station or truck stop that is operated by the cardholder to

obtain credit for pumping fuel. The pump contains a card reader. Also called an

ICR, CRIND, or CAT.

Balance Inquiry Requesting the balance of an account to provide to the cardholder at the POS.

Bank Card In general, a bank card refers to a plastic card issued by a bank and used to

access funds from an account.

Bank Card Direct (BCD) A service offered by Heartland Prepaid Services.

Bank Identification Number

(BIN)

The primary account number found on credit cards and bank cards. It is a six-digit

number, maintained by the American Bankers Association that identifies the bank

and type of card. The first number identifies the card type (i.e., Amex = 3, VISA =

4, MasterCard = 5, Discover = 6). Also known as Issuer Identification Number

(IIN).

Bank Routing Number See Transit Routing Number.

Batch Based on pre-determined criteria, the terminal will submit the batch transaction

that has taken place since the last successful batch.

Batch Close The process of sending batch information to the Host processor for clearing and

settlement (the cardholders are charged and the merchant is paid).

BER-TLV Format TLV is a data format that uses a label (tag) to uniquely identify the field. The tag is

followed by the length, then the actual value of the field.

BIN See Bank Identification Number.

CA (Certificate Authority) Trusted third party that establishes a proof that links a public key (used by a

merchant) and other relevant information to its owner. The CA issues, revokes and

expires certificates. It is responsible for ensuring that the identity of the user

requesting the certificate is legitimate.

Card Acceptance

Processing Network

(CAPN)

A set of requirements mandated by American Express to ensure processing of

AMEX transactions according to their security standards. CAPN enhances POS

security, supports expanded amounts, and adds a transaction life cycle identifier

for all AMEX transactions.

Card Acceptor The facility at which a purchase is made and a payment transaction is initiated.

Also known as a merchant.

Card Acceptor Business

(CAB) Program Code

Formerly MCC (Merchant Category Code) is a numerical representation of the

type of business in which the card acceptor (merchant) engages. MasterCard

assigns these codes.

Card Authentication Chip Cards are authenticated during the payment transaction, protecting against

counterfeit cards.

Transactions require an authentic card validated either online by the Issuer using a

dynamic cryptogram or offline with the Terminal using one of the following

authentication methods:

•SDA (Static Data Authentication)

•DDA (Dynamic Data Authentication)

•CDA (Combined DDA with application cryptogram generation)

Card Identifier (CID) See Card Verification Number.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

Card Issuing Bank A financial institution that issues payment cards such as credit/debit cards.

Card Not Present Card transactions (Internet or MOTO/eCommerce purchases, for example) for

which the customer's card is not physically handled by the merchant. Interchange

is set higher on these transactions because there is a higher risk of fraud.

Card Reader IN Dispenser

(CRIND)

A term used primarily by Gilbarco referring to their brand of ICR.

Card Validation Code (CVC) Three digit code value. See Card Verification Number.

Card Verification Number

(CVN)

This is a three or four digit number that appears on either the front or back of a

credit card. It is not included in the magnetic stripe data. It is provided as a fraud

deterrent to ensure the card is physically present when a POS transaction is

initiated. These codes are only required at authorization time. The following terms

are used by various card issuers: CVV2 and CVC2 (three digits) used by VISA and

MasterCard account numbers. CID (three digits) used by Discover account

numbers. CID (four digits) used by American Express account numbers.

Card Verification Value

(CVV)

An authentication procedure established by credit card companies to reduce fraud

for internet transactions. It consists of requiring a card holder to enter the CVV

number in at transaction time to verify that the card is on hand. The CVV code is a

security feature for “card not present” transactions (e.g., Internet transactions),

and now appears on most (but not all) major credit and debit cards. This new

feature is a three- or four-digit code which provides a cryptographic check of the

information embossed on the card. The CVV code is not part of the card number

itself.

Cardholder A customer doing business with a merchant using a payment card.

Cardholder Authentication

Verification Value

A unique value transmitted by an issuer (or VISA on behalf of an issuer) in

response to an authorization request message.

Cardholder Verification This verification validates that the person using the Chip Card is the true

cardholder and the Card has not been lost or stolen.

The Chip Card contains a list of cardholder verification methods (CVM) it supports,

and the conditions under which they should be applied. The POS must navigate

through this list and attempt the first method it finds for which the condition is

met. If a method fails, the POS must check whether additional methods are

allowed. For example, a list might contain the following:

•Signature

• Online enciphered PIN

• Offline enciphered PIN

• Offline enciphered PIN and signature

• Offline plaintext PIN

• Offline plaintext PIN and signature

• No CVM required

Cash Advance A transaction that dispenses cash against a cardholder’s account using rules

specific to a client/merchant.

Cash Back This is a service offered to retail customers whereby an amount is added to the

total purchase price of a transaction the customer receives that amount in cash

along with the purchase.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

Cash Out To remove the remaining cash funds available on the stored value card leaving the

card with a balance of zero for the cash account.

CAT See Customer Activated Terminal.

CAVV See Cardholder Authentication Verification Value.

CDA (Combined

DDA/Application

Cryptogram Generation)

Used in Offline processing. One of the three methods of Offline Data

Authentication. This applies the same requirements of DDA with an additional step

during Chip Card analysis so it is the most secure option. It offers protection

against counterfeit and skimming and protects against man-in-the-middle attacks.

The Chip Card generates a dynamic signature using card private key, in addition

to the application cryptogram, to prove that the Chip Card authenticated during

DDA was the same card that provided the application cryptogram.

CDOL1 (Card Data Object

List)

A list of data objects (tags and lengths) that are personalized on the Chip Card to

make a decision on whether to approve or decline a transaction. They are read

from the Card by the POS and used for the generation of the first cryptogram. The

POS will send the values of these data objects together with the first Generate AC

Command.

CDOL2 (Card Data Object

List)

A list of data objects (tags and lengths) that are personalized on the Chip Card to

make a decision on whether to approve or decline a transaction. They are read

from the Card by the POS and used for the generation of the final cryptogram. The

POS will send the values of these data objects together with the second Generate

AC Command.

Certificate The public key and identity of an entity together with some other information,

rendered unforgeable by signing with the private key of the certification authority

which issued that certificate.

Chargeback A procedure where a cardholder or card issuer is disputing all or part of the

amount of a credit or debit card transaction. A chargeback is therefore the act of

taking back funds from a merchant for a disputed or improper transaction.

Check Reader A device used to scan images of checks, according to legal specifications, for

electronic clearing and settlement. Also known as check scanner.

Chip Card A Chip Card (also known as a Smart Card or ICC) is simply a plastic card

containing an integrated circuit. It is used to perform EMV transactions on a POS

and is instrumental in reducing fraud. It is usually powered by a reader and relies

on a reader to function. Chip cards may be contact or contactless.

A reader recognizes a Chip Card by the first digit of its Service Code, with one of

the following values:

• “2” for international cards

• “6” for domestic cards

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

CID (Cryptogram

Information Data)

A bit that is set by the Chip Card after Card Risk Management. It indicates the

action to be performed by the POS.

There are 3 types of actions indicated by the CID:

•AAC is generated whenever a card declines a transaction

•ARQC is generated whenever a card requests online authorization

•TC is generated whenever a card approves a transaction.

In addition, the card may also return a reason or advice code (e.g. service not

allowed, or issuer authentication failed) to allow the terminal to perform any

additional processing that may be required.

Client A company that has contracted to use the services provided by Heartland

Payment Services.

Commercial Cards Credit cards issued to businesses for travel, entertainment and other business

expenses.

Consumer See Cardholder.

Contact Chip Card With a contact Chip Card, the embedded chip must come into physical contact

with the chip reader for the payment transaction to occur. The Chip Card must

remain in contact with the reader for the duration of the transaction. The terminal

provides power to the chip to enable the chip to process.

Contactless Card These cards are also known as Proximity cards or NFC cards. These cards

communicate with a reader through a RFID (radio frequency interface device) by

waving or tapping the card on the designated area on the terminal. With a

contactless Chip Card, the embedded chip must come within sufficient proximity of

the reader (a maximum of 4cm) for information to flow between the chip and the

acceptance terminal.

The terminal provides power to the chip to enable the chip to process but the card

does not have to remain in the device through the end of the transaction. This

minimizes the amount of time the card must be held within proximity of a reader.

Transmission of information is faster between the Card and the Terminal with

contactless. And, additional steps may be performed after the card has left the

proximity of the reader.

The contactless card has an embedded RF antenna. It has longer life and higher

reliability than a contact card.

This contactless card method is the foundation for acceptance of mobile

payments.

Coordinated Universal

Time

The time scale used as the basis of a coordinated dissemination of standard

frequencies and time signals. UTC is formerly known as Greenwich Mean Time

(GMT).

Corporate Cards See Commercial Cards.

Counter-top POS A category of POS devices that typically fits on a counter for use.

CPS See Custom Payment Services.

CRIND See Card Reader IN Dispenser.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

Cryptogram A numeric value that is the result of data elements entered into an algorithm. The

result of this operation ‘hides’ the data and produces a ‘digital signature’ that can

be used to verify the origin and integrity of the data by either a Chip Card or an

Issuer.

For EMV, a cryptogram is generated by the Chip Card in response to a Generate

AC command and by the Issuer in the authorization response message.

Customer See Cardholder.

Customer Activated

Terminal

An unattended POS, which includes kiosks and fuel dispensers. Similar to AFD,

ICR, & CRIND. Also known as Cardholder Activated Terminal.

Customer Payment

Services

VISA’s regulations for the information that must be submitted with each

transaction. Transactions must meet CPS criteria in order to qualify for lowest

transaction-processing fees available. This is similar to MasterCard’s Merit

system.

CVC2 See Card Validation Code or Card Verification Number.

CVN See Card Verification Number.

CVV See Card Verification Value.

CVV2 Three digit code used by Visa. See CVN.

Data Element The identification of a data element based on the relative position of the data

element within the message.

DDA (Dynamic

Authentication Data)

An authentication technique used in offline chip transactions. This technique

calculates a cryptogram for each transaction that is unique to the card and

transaction. DDA protects against modification counterfeiting, cloning, and

skimming.

DE See Data Element.

Demand Deposit Account

(DDA)

A merchant’s checking account that is credited or debited with their deposits, fees

and adjustments (also referred to as Direct Deposit Account).

Derived Unique Key Per

Transaction

Reference standard X9.24, Retail Key Management for this definition. It is a key

management technique in which for every transaction a unique key is used, which

is derived from a fixed key. If a derived key is compromised, future and past

transaction data are still protected since the next or prior keys cannot be easily

determined.

Discover Common name for DFS Services LLC.

Discretionary Data An optional field where client data can be included within a transaction.

DSS Data Security Standard. See PCI-DSS.

Dual Interface Card A chip card that has contact and contactless interfaces. The card can be tapped or

inserted into the POS device to initiate a transaction.

DUKPT See Derived Unique Key Per Transaction.

E-PIN Electronic PIN.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

E3™ Heartland End-to-End Encryption. New technology offered by Heartland to allow

encryption of card data from initial swipe or input at the POS through arrival at the

Issuer. This system not only removes intrusion threats but it also greatly reduces

the scope for PCI audits on the associated merchant POS software.

EBT See Electronic Benefits Transfer.

EFT Electronic Funds Transfer. A way of performing financial transactions

electronically. The Pulse and Star networks are examples of EFT systems.

Electronic Benefits

Transfer

EBT is an electronic system in the United States that allows state governments to

provide financial and material benefits to authorized recipients via a plastic debit

card. Common benefits provided via EBT are typically sorted into two general

categories: Food Stamp and Cash Benefits.

Electronic PIN E-PIN.

Electronic PIN Delivery A service provided by Heartland Prepaid Services.

EMV Terminal or Reader Also known as a Chip device. This is any point of sale device that is able to

process chip transactions.

EMVCo Europay International, MasterCard International and VISA International. EMVCo

manages, maintains and enhances the EMV® Integrated Circuit Card

Specifications for chip-based payment cards and acceptance devices, including

POS terminals and ATMs. EMVCo establishes and administers testing and

approval processes to evaluate compliance with the EMV Specifications. EMVCo

is currently owned by American Express, JCB, MasterCard and VISA.

Encryption A method of protecting data. Encryption transforms readable information using an

algorithm (called a cipher) and makes it unintelligible to anyone except those who

possess a key that converts the information back into readable form. See also

end-to-end data encryption.

End-to-End Encryption E3™.

Refers to the Heartland Payment System process of converting card data to

seemingly unreadable text from the moment it gets entered at the POS and

through to the final authorization.

EPD See Electronic PIN Delivery.

Face-to-Face Transactions Transactions in which both the cardholder and the card are present at the point of

sale.

Fallback If a Chip-Card-capable POS is unable to read the data from the Chip Card, or if

there are no mutually supported applications between the Card and the POS, the

POS will ‘fallback’ to a magnetic stripe or manually keyed transaction.

The resulting magnetic stripe or manually keyed transaction must be submitted to

the Issuer for authorization online.

Financial Transaction A message that either notifies the Host of the completion of a previously

authorized payment transaction or that requests the approval and completion of

the payment transaction by the Host causing the reconciliation totals to be

increased.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

Flexible Spending

Accounts

A tax-advantaged financial account that can be set up through an employer in the

United States. An FSA allows an employee to set aside a portion of his or her

earnings to pay for qualified expenses as established in the cafeteria plan, most

commonly for medical expenses or purchases.

Floor Limit The payment amount above which credit and debit card transactions must be

authorized. This amount is specified in each merchant's processing agreement.

FSA See Flexible Spending Accounts.

General Services

Administration

VISA Purchasing Card that is issued to federal government agencies by an Issuer

contracted with the General Services Administration.

Global Trade Identification

Number

The GTIN is an umbrella term used to describe the entire family of EAN/UCC data

structures for trade item (products and services) identification. GTIN is a term only.

It does not change existing standards. The UCC-12 code does not go away.

The definition and information obtained from the Uniform Code Council, Inc. Refer

to the organization's website at www.uc-council.org for more information.

Gratuity This is an adjustment to a transaction for a tip.

GSA See General Services Administration.

GTIN See Global Trade Identification Number.

HDC See Host Data Capture.

Health Reimbursement

Arrangement

HRAs are Internal Revenue Service sanctioned programs that allow an employer

to set aside funds to reimburse medical expenses paid by participating employees.

Using an HRA yields tax advantages to offset health care costs for both

employees as well as an employer.

Host Data Capture Host Processing Mode whereby a POS utilizes the Heartland network to

authorize, capture and adjust transactions. The POS maintains a batch which it

reconciles with the Host. The Host will settle the batch on behalf of the POS.

HRA See Health Reimbursement Arrangement.

IAC (Issuer Action Code) Issuer-configured conditions or rules stored on the Chip Card. As a result of

previous Chip & POS processing steps, the IACs are used by the POS, along with

analysis of the TVR (Terminal Verification Results), to determine the action to be

taken.

Three types of codes are:

•IAC Default: Specifies the Issuer's conditions (or rules) that cause a transaction

to be rejected if it might have been approved online, but the terminal is unable to

process the transaction online.

•IAC DenialB Specifies the Issuer's conditions (or rules) that cause the denial of

a transaction without attempt to go online.

•IAC Online: Specifies the Issuer's conditions (or rules) that cause a transaction

to be transmitted online.

ICC Another name for a Chip Card or Chip application.

ICR See Island Card Reader.

IEEE See Institute of Electrical and Electronics Engineers.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

IIAS See Inventory Information Approval System.

IIN See Bank Identification Number (BIN).

Incremental Authorization Unique authorization for the Lodging Industry. Occurs when an authorization is

adjusted above a threshold amount.

Information Security and

Compliance (ISC)

ISC program used by Discover to implement and maintain efficient data security

requirements and procedures. PCI is now used as a standard.

Inside POS See Attended POS.

Institute of Electrical and

Electronics Engineers

The IEEE is a non-profit professional association dedicated to advancing

technological innovation related to electricity.

Integrated POS A category of POS devices that typically combine several Point of Service

locations in such industries as Retail, Parking, and Petroleum.

Integrated Services Digital

Network

A set of standards for digital transmission over ordinary telephone copper wire as

well as over other media. ISDN requires adapters at both ends of the transmission

so an access provider also needs an ISDN adapter.

Interchange The process by which all parties involved in a credit card transaction (processors,

acquirers, and issuers) manages the processing, clearing and settlement of credit

card transactions.

Interchange Fees Fees paid by the acquirer (Heartland) to the card issuing bank to compensate for

transaction-related costs.

International Organization

for Standardization

See ISO.

International

Telecommunication Union

An international organization within which governments and the private sector

coordinate global telecom networks and services.

Inventory Information

Approval System

This system identifies the qualified healthcare products being purchased by the

cardholder at the point of sale. This system must be used for merchants utilizing

auto-substantiation.

IP Address Internet Protocol Address. A unique number assigned to any computer or printer

that uses internet protocol.

ISA Independent Sales Agent. See Agents.

ISC See Information Security and Compliance.

ISDN See Integrated Services Digital Network.

Island Card Reader An ICR is an unattended device that accepts payment cards, typically used with

fuel pumps at gasoline stations. Also known as AFD, CAT, CRINDS, DCR, and

pay-at-the-pump.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

ISO International Organization for Standardization. Founded in 1946, ISO is an

international organization composed of national standards bodies from over 75

countries. ANSI is a member of ISO. ISO has defined a number of important

computer standards. Also an organization registered with VISA and sponsored by

an acquiring bank to sell VISA card acceptance services. Can refer to an

organization that works with and does business under the name of such a

registered ISO. ISOs may also service merchant accounts once they are

registered, dependent upon the contract with the acquirer. MasterCard uses the

term “member service provider” to describe ISOs. However, it is common within

the payments industry to use the term “ISO” when referring to independent sales

organizations registered with either or both card brands.

Issuer A company that enters into contractual relationships with consumers and/or

businesses through the issuance of plastic credit/debit cards. An issuer is also

known as a “card issuing center.” Examples of issuers are Bank of America and

Citi-Bank.

Issuer Authentication EMVCO: Validation of the issuer by the Chip Card to ensure the integrity of the

authorization response.

If the auth response contains an ARPC (Authorization Response Cryptogram), the

Terminal sends the cryptogram to the Chip Card. The Card then performs Issuer

Authentication by validating the response cryptogram to verify that the response

came from the genuine Issuer.

This process prevents criminals from circumventing the Chip Card’s security

features by simulating online processing and fraudulently approving a transaction

to reset counters and indicators.

If this step fails, subsequent transactions for the Chip Card will be sent online for

authorization until Issuer Authentication is successful.

Issuer Script This is a string of commands sent to the chip card from an issuer in a transaction

response. The issuer can update securely the contents that are stored on chip

cards without reissuing the cards, such as changing the cardholder’s PIN,

disabling the card, enabling a card, or changing authorization controls for the card.

The terminal must send each of these commands unaltered to the Card.

Issuing Bank A federally insured financial institution that issues credit and debit cards. This is

the cardholder's financial institution.

Issuing Host The processing system that acts under the authority of the card issuer to receive a

transaction and to approve funds to be given to the card acceptor or to guarantee

checks.

ITU See International Telecommunication Union.

JCB Japan Credit Bureau. An independent card company originally established in

Japan. JCB International Credit Card Company, Ltd. was established in Los

Angeles in 1988 to issue credit cards as well.

Key Data Data related to a security key. Reference standard X9.24, Retail Key

Management.

Key Serial Number (KSN) Used in PIN encryption/decryption.

Level of Issuance (LOI) Series Number.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

LLVAR L is for length (LLL = 3 bytes). The field is parsed as three bytes of length and

remaining of bytes as text content.

Load Amount The amount of value that is added to the account. See Activation and Reload.

Load Value To deposit funds into a cash account. See Activation and Replenish.

Local Pump Limit This is the dollar amount that the POS has set for an ICR. The Pump will not

exceed this amount regardless of the approved amount of the transaction. The

customer can initiate another transaction if more fuel is desired.

Longitudinal Redundancy

Character

The LRC is used as an error checking method by both Host and terminal to

validate that the data was received without error.

LRC See Longitudinal Redundancy Character.

LUHN Formula The LUHN formula, also known as the MOD-10 Checksum, is used to generate

and/or validate and verify the accuracy of account numbers.

Maestro Maestro is a multi-national debit card service owned by MasterCard.

Magnetic Ink Character

Recognition

Used on checks and includes the ABA number, account number, check sequence

number, and special characters.

Magnetic Strip Reader The device that a payment card is swiped through as the Track Data is read.

Magnetic Stripe A strip of magnetic material on the back of credit cards which contains data

identifying the cardholder, such as account number and cardholder name.

Manual Entry (Key Entered) Card information is entered manually, or key-entered into a terminal, usually

because the magnetic stripe could not be read or the card is not present at the

time of sale (i.e., a mail/phone order merchant).

MAT Manually Attended Terminal. See Inside POS.

MCC See Merchant Category Code.

Member Service Provider See ISO.

Merchant Describes the business relationship where a cardholder interacts with the client.

Merchant Bank A banking or financial institution that provides merchant services.

Merchant Category Code Usually a four digit number that identifies the type of business in which a merchant

is engaged by the type of goods or services it provides. VISA and MasterCard

have specific numbers for each type of merchant business.

Merchant Discount Fee A fee charged to a merchant for card processing services. This fee is usually

represented in a percent format (example 2.25%). This merchant discount fee is

used to determine part of a merchant’s monthly processing charge.

Merchant Identification

Number

A number assigned by an acquirer to identify each merchant for the purpose of

reporting, processing and billing. All Heartland Payment Systems merchant

numbers begin with a 65. All Heartland Payment Systems merchant numbers are

15 digits in length.

Merchant Service Fee A fee assessed to a merchant for Heartland’s value-add services such as the

Merchant Center, 24/7 customer support and local servicing by Heartland

Payment Systems Relationship Managers.

Merchant Services Provider Handles the setup with the Front-End and Back-End Processors by Heartland.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

Message A set of data elements used to exchange information between a POS application

and the Heartland system.

MICR See Magnetic Ink Character Recognition.

MID See Merchant Identification Number.

MIME See Multipurpose Internet Mail Extensions.

MOD-10 Checksum Modulus 10 Checksum. The “modulus 10” or mod 10” algorithm, also known as

the Luhn formula, is a simple checksum formula used to validate a variety of

identification numbers, such as credit card numbers.

MOTO/eCommerce Mail Order/Telephone Order. A category of card-not-present transactions involving

purchases made through mail order or telesales companies. In this type of

transaction, the merchant typically has a card terminal and manually keys in

required card information for transmission to the appropriate authorization

network. Interchange rates for these transactions are among the highest.

MPLS See Multi protocol Label Switching.

MSP See Merchant Services Provider.

MSR See Magnetic Strip Reader.

Multiprotocol Label

Switching

A mechanism in high-performance telecommunications networks which directs

and carries data from one network node to the next. It can encapsulate packets of

various network protocols. MPLS is a highly scalable, protocol agnostic,

data-carrying mechanism. Packet-forwarding decisions are made solely on the

contents of the MPLS label, without the need to examine the packet itself. This

allows creation of end-to-end circuits across any type of transport medium, using

any protocol.

Multipurpose Internet Mail

Extensions

An Internet standard that extends the format of email to support: Text in character

sets other than ASCII Non-text attachments Message bodies with multiple parts

Header information in non-ASCII character sets.

NACS National Association of Convenience Stores. See PCATS.

NDA Non-Disclosure Agreement. A confidentiality agreement signed by a customer and

delivered to Heartland Payment Systems. Completion of NDA is required before

receiving Heartland SDK, documentation and specifications.

NFC (Near Field

Communication)

Wireless communication that allows data to be exchanged between devices (such

as smart phones or mobile phones) that are centimeters apart. NFC-enabled

mobile phones incorporate smart chips (called secure elements) that allow the

phones to securely store payment and consumer account information.

NTS Network Terminal Specification. Heartland proprietary transaction format (VAPS).

NWS Heartland Host processing system supporting the Z01 and the POS 8583

specifications.

Offline Approval A transaction that is approved at the point of transaction between the Chip Card

and POS only, without an authorization response from the Issuer.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

Offline Data Authentication This is a method the POS uses to authenticate a Chip Card using public-key

cryptography. This authentication check protects against counterfeit and

skimming.

There are three methods of authentication that may be used:

•SDA

• DDA

• CDA

The method chosen is determined by the Issuer depending upon Chip Card

capability. Only one method of offline data authentication is performed during a

transaction.

Offline Decline A transaction that is declined at the point of transaction between the Chip Card

and POS only without interaction with the Host and Issuer (no authorization

response from the Issuer).

Offline Enciphered PIN A card verification method (CVM). In this method, the PIN is entered at the POS

device. The POS encrypts the entered PIN before sending it to the Chip Card

(using public key encryption). The Chip Card decrypts PIN and compares with the

reference PIN in its memory.

This method assists with prevention of counterfeit and skimming through the use

of cryptography.

Terminals that support Offline Enciphered PIN must also support the less secure

Offline Plaintext PIN method.

Offline PIN Verification The process whereby a cardholder-entered PIN is passed to the Chip Card for

comparison to a PIN value stored secretly on the Card.

This method assists with detection of a lost or stolen card.

Offline Plaintext PIN A card verification method (CVM). The cardholder enters a PIN at the entry

device. The entry device does not encrypt the PIN before sending it to the Chip

Card

This is commonly used by cards that cannot support the more secure Offline

Enciphered PIN method.

Terminals that support Offline Plaintext PIN must also support Offline Enciphered

PIN method.

Online Card Authentication Used in Online processing. When Chip Card and Terminal agree to send a

transaction online, the Chip Card generates a cryptogram, the ARQC

(Authorization Request Cryptogram). The Issuer may respond with an ARPC

(Authorization Response Cryptogram).

Open-to-Buy (OTB) An inquiry transaction used to request the unused credit amount available for the

account at the time of the transaction. The OTB is the amount of credit left on an

account. For example, before a purchase, a customer has $500.00 OTB. The

customer purchases $200.00 worth of products. After the sale, the OTB returned

in the response will be $300.00.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

Owning Host Owning Host refers to one of several instances of the VAPS application suite that

“owns” a particular terminal. These instances are geographically separated across

the country. Any of these Hosts can initiate the authorization of a financial request

(1200) with the issuer, but the Owning Host is the only Host that can process the

capture or collect for that transaction.

PA-DSS See Payment Application Data Security Standard.

PAN See Primary Account Number.

PAPB See Payment Application Best Practices.

Partial Authorization A process to complete a transaction if the full amount requested is not approved

but a partial portion of the requested amount is approved. A merchant must be set

up for this capability. If a merchant is set up for this capability, the Issuer response

will contain the full amount requested or a lesser or partial amount authorized.

Pay at the Pump (PATP) The ability to use a payment card at a self-service island for the petroleum

industry. See ICR, AFD, CAT, or CRIND.

Payment Application Best

Practices

PCI SSC took over management of PABP and renamed to PA-DSS. See PA-DSS.

Payment Application Data

Security Standard

Established to help software vendors and others develop secure payment

applications that do not store prohibited data and to ensure their compliance with

the PCI DSS. Payment applications that are sold, distributed or licensed to third

parties are subject to PA DSS requirements.

Payment Card Industry

(PCI)

The PCI denotes the debit, credit, prepaid, and POS cards and associated

businesses. The term is sometimes more specifically used to refer to the Payment

Card Industry Security Standards Council (PCI SSC) an independent council

originally formed with the goal of managing the ongoing evolution of the Payment

Card Industry Data Security Standards.

Payment Card Industry

Compliance Acceleration

Program

Under the CAP plan, acquirers are required to validate Level 1 and Level 2

merchant compliance with PIN security. This means that Level 1 and Level 2

merchants must not use payment devices such as PIN pads, and encourages the

use of unique encryption keys for every device. For Level 3 and Level 4

merchants, acquirers must establish a thorough compliance program for those

merchants. According to VISA, as of November 1, 2007, acquirers whose

transactions qualify for lower interchange rates available in the VISA and Interlink

tiers must ensure that the merchants generating the transactions are PCI

compliant in order to receive this benefit.

Payment Card Industry

Data Security Standard

(PCI-DSS)

The Payment Card Industry Data Security Standard is a worldwide information

security standards assembled by the Payment Card Industry Security Standards

Council (PCI SSC). The standard was created to help organizations that process

card payments prevent credit card fraud through increased controls around data

and its exposure to compromise. The standard applies to all organizations which

hold, process, or pass cardholder information from any card branded with the logo

of one of the card brands.

PCATS See Petroleum Convenience Alliance for Technology Standards.

PCI See Payment Card Industry.

PCI CAP See Payment Card Industry Compliance Acceleration Program.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

PCI-DSS See Payment Card Industry Data Security Standard.

PED See PIN Entry Device.

Peripheral Any device that attaches to a computer and is controlled by its processor.

Personal Identification

Number (PIN)

A PIN is used to help ensure that the cardholder is really the cardholder. It is

typically a four digit number that is not found anywhere on the card or in track data.

Petroleum Convenience

Alliance for Technology

Standards

PCATS is an organization devoted to the development, maintenance, and

implementation of standards for the convenience store and petroleum industries.

Piggyback Transaction A Piggyback transaction allows the Capture from a previous Pre-authorization to

be sent when the next transaction is sent to the Host. This helps to reduce the

number of transactions sent reducing the cost to the merchant. Some transactions

cannot be piggybacked.

Fleet cards are not supported as part of a Piggyback transaction.

PIN See Personal Identification Number.

PIN (Personal Identification

Number)

For EMV, a secret number between 4 and 12 digits, known only by the

Cardholder. It may be used during Cardholder Verification to confirm that the user

of the card is the cardholder.

The methods of PIN verification supported by EMV are:

• Offline Plaintext PIN

• Offline Enciphered PIN

• Online Enciphered PIN

For EMV processing, when either online or offline PIN is changed, they must be

synchronized.

PIN Debit A debit card transaction authorized by the cardholder using a PIN.

PIN Entry Device PCI PED requirements were established to protect against fraud by ensuring the

security of devices that process financial data. Approval is granted for devices that

have been evaluated by an approved laboratory and determined to be compliant

with PCI Security Requirements.

PIN Pad Numeric key pad a consumer uses to enter a PIN when paying with a debit card.

PL See Private Label.

PLR See Private Label Retail.

Point of Purchase (POP) See POS.

POS Point of Sale or Point of Service. The hardware and software used to collect and

transmit non-cash payments for goods and/or services. The device where retail

sales occur and payment transactions are initiated.

POS 8583 A Heartland transaction format based on ISO 8583.

POS System Point of Sale System or Point of Service System. The system that processes the

transaction messages at a point of service. The system may handle other

non-transaction functions also.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

PPSE (Proximity Payment

System Environment)

This contains a directory of all the contactless payment applications that exist on

the ICC. PPSE is mandatory in all contactless implementations.

Pre-Authorization A pre-authorization is a request for approval of an estimated purchase amount

before the exact amount is known.

Prepaid Card A card representing a proxy for a stored value/prepaid account where value

resides that the consumer can use for the purchase of specific goods or services

provided by a prepaid product’s service provider.

Primary Account Number The account number that appears on the face of payment cards.

Private Key That key of an entity’s asymmetric key pair that should only be used by that entity.

In the case of a digital signature scheme, the private key defines the signature

function.

Private Label Cards Private Label products or services are typically those manufactured or provided by

one company for offer under another company’s brand. Private Label Payment

Cards tend to be exclusive to one merchant or company and can include special

features, such as a loyalty program.

Private Label Retail Acronym for Heartland Retail's Private Label system.

Processor An acquirer (such as Heartland Payment Systems) or an acquirer’s agent that

provides authorization, clearing or settlement services for merchants.

PROM Programmable Read-Only Memory. A form of digital memory where the setting of

each bit is locked. Such PROMs are used to store programs permanently. The key

difference from a strict ROM is that the programming is applied after the device is

constructed.

Proprietary Cards See Private Label Cards.

Proximity Entry This transaction occurs when a card is read by a proximity reader to capture the

card information stored on the magnetic strip or chip.

PSE (Payment System

Environment)

This is a method that could be used by the Terminal for application selection. PSE

is optional but highly recommended to enhance the performance of the

transaction.

HPS recommends this method if it is supported by the Chip Card.

Public Key This is the public component of an asymmetric key pair. The public key is usually

publicly exposed and available to users (not secret). A certificate to prove its origin

often accompanies it. All card brands utilize public keys and it is used for contact

and contactless.

It is used to counter act any cryptographic operation that is done by the Private

Key. The Public Key has a mathematical link to the Private Key which makes them

a key pair.

Purchase This term represents both a sale transaction and an Authorization/Force Draft

Capture transaction pair.

QRG Quick-Reference Guide. A document or chart, used as a guide, to give a merchant

quick reference to terminal operation procedures, such as batch settlement,

offline/force entries, returns, etc.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

QSR Quick Service Restaurant. A specific type of restaurant characterized by fast-food

cuisine and by mini-meal table service.

Random Selection An EMV online-capable POS function that allows for the selection of transactions

for online processing. Part of the Terminal Risk Management function.

RDC See Remote Deposit Capture.

Real Time Clearing RTC is used only with VISA transactions, and is an online transaction based

clearing system for Petroleum Merchant Codes 5541 and 5542 only.

Recharge See Replenish.

Reconciliation The process of confirming the accuracy of partial or final totals by comparing totals

from different systems.

Reference Account The account is part of an application transaction as one criterion for assessing the

suitability for granting the application for a new account.

Referral Messages A “call” or “call center” response for an authorization. See also Voice Authorization

Center.

Reload To load an amount of funds into a stored value/prepaid account.

Remote Deposit Capture A check deposit process whereby paper checks are converted into digital images

for electronic clearing and settlement, through either electronic check or ACH

systems.

Replenish To deposit funds into either the cash or credit account.

Request A message directing or instructing the receiver to perform a specified action and

respond with the results of the action.

Response A message that provides the results of an action requested by the sender.

Response Codes Codes returned from the Issuer down to the POS. Codes verify that a particular

transaction was accepted or reflect why it was declined.

Retransmits Message A message that retransmits the same information as a prior message.

Retrieval A request for a legible copy of a sales slip and/or other documentation relating to a

credit or debit card transaction. This is the process or stage before a disputed

transaction becomes a chargeback.

Reversal A system initiated transaction request to cancel or reverse a recently completed

transaction.

Reversal Transaction A message that cancels the specified financial transaction that was previously

reported as complete, causing the reconciliation totals to be decreased.

RFID Radio Frequency Identification or Radio Frequency Input Device. Radio-frequency

identification (RFID) is the use of an RFID tag applied to or incorporated into a

product for the purpose of identification using radio waves. Some tags can be read

from several meters away and beyond the line of sight of the reader.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

RID (Registered

Application Provider

Identifier)

This is part of the AID, 5 bytes in length, used to identify the scheme (e.g. Visa,

MasterCard, etc). Functions of this field:

• Identifies the payment brand/application

• Certification Authority Public Key Index (1 byte) – unique per RID

•It is received from the Chip Card and is a pointer to the offline Public keys

required for the transaction.

Routing Transit Number A routing transit number is a nine-digit bank code, used in the United States, which

appears on the bottom of negotiable instruments such as checks identifying the

financial institution on which is was drawn.

RTC See Real Time Clearing.

RTN See Routing Transit Number.

Script Commands (Issuer

Scripts)

Issuers can return script commands to Chip Cards in online responses.

Scripts can block chips, and change Chip Card offline limits. Scripts may not be

relevant to the current transaction but are important for the continued functioning

of the ICC.

A script may contain commands not known to the terminal, but the terminal must

deliver each command to the ICC individually.

SDA (Static Data

Authentication)

One of the three methods of Offline Data Authentication. SDA authenticates SAD

(static data) put on the card by the Issuer has not changed since the original

personalization of the card. This is a Terminal function.

Each Chip Card is personalized with an Issuer public key certificate and static

signed application data composed of data elements personalized onto the card

and signed with Issuer private key. The POS validates this cryptographic

signature/value.

During SDA processing, the Chip Card is passive and the Terminal is active. The

Chip Card provides the data to be validated but the POS carries out all the

computation.

This protects against some types of counterfeit fraud, ensuring that the data has

not been fraudulently altered since original chip card personalization. This does

not protect against skimming.

Each terminal should be able to store 6 certification authority public keys per

Registered Application Provider Identifier (RID).

Service Code The 3-digit code that follows the expiration date on the card’s Track 2 magnetic

stripe. In EMV it is used to identify the technology supported of the payment card

being swiped. Values supported by HPS are as follows for the first digit:

• 2 = International (EMV Chip, debit or credit)

• 6 = National use only (EMV Chip, debit or credit)

Service Fee See Merchant Service Fee.

Session A series of messages exchanged between the POS application and the Heartland

system during a single communication connection.

Settlement The process of transferring funds for sales and credits between acquirers and

issuers, including the final debiting of a cardholder’s account and the crediting of a

merchant’s account.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

SIC See Merchant Category Code.

Signature Debit A VISA Debit or Debit MasterCard transaction authorized by a cardholder's

signature.

Spectrum A Heartland proprietary POS Transaction Format.

Split Tender Split tender processing allows the total amount of a particular transaction to be

split over two different methods of payment (electronic or non-electronic).

SSL Secure Sockets Layer. A protocol for transmitting data over the internet. SSL uses

a cryptographic system to provide safety and privacy of data.

STAN System Trace Audit Number. Also known as the transaction sequence number.

Stand-In The process of providing authorization services on behalf of an Issuer. If allowed,

a processing network or POS may act as a stand-in for the authorizer to approve

transactions.

State Withholding Tax Rate

(SWT Rate)

The state withholding tax rate that is imposed for this transaction. The rates can

vary by state.

SVS Stored Value Solutions.

Swiped Entry A transaction where a card is swiped (or passed) through a magnetic card reader

or chip reader to capture card information stored on the magnetic strip or chip.

System/Device A single hardware unit (device) or a group of units (system) that present messages

to a Host processing system.

TAC (Terminal Action

Codes)

A set of action codes stored on the POS terminal for AIDs it supports. As a result

of previous Chip & POS processing steps, these are used by the POS, along with

analysis of the TVR, to determine the action to be taken.

Three types of codes are:

•TAC Default: Specifies the acquirer’s conditions that cause a transaction to be

rejected if it might have been approved online, but the terminal is unable to

process the transaction online.

•TAC Denial: Specifies the acquirer’s conditions that cause the denial of a

transaction without an attempt to go online.

•TAC Online: Specifies the acquirer’s conditions that cause a transaction to be

transmitted online.

TAG Format This is the format method used to exchange information with the EMV Chip and

the POS Terminal. Each Tag is assigned a Tag Number denoting the type of

information it contains.

Tamper Resistant Security

Module

Key encryption.

Taxpayer Identification

Number

An identification number assigned to taxpayers by the IRS. The TIN for individuals

is their social security number. The TIN for businesses is the employer

identification number.

Table G-1 Glossary

Term Definition

G: Glossary HPS Integrator’s Guide V 16.1.1

TC (Transaction Certificate) Indicates the data input and output capabilities of the POS, such as:

• methods supported for entering information from the card into the POS

• methods (CVM) for verifying the identity of the cardholder

• methods for authenticating the card and whether or not the POS has the ability

to capture a card

TDC See Terminal Data Capture.

TDES See Triple Data Encryption System.

Terminal See POS system.

Terminal Based Terminal A system where the merchant’s transactions are stored within the terminals

memory. The terminal stores the transactions until the merchant closes the batch.

Terminal Data Capture The terminal captures all transactions and forwards transaction detail to the

Heartland Host via a batch upload transaction. The terminal captures all other

credit card transactions offline without contacting the Host.

Terminal Identification

Number

A number assigned to the physical terminal device to identify its attributes to the

processor. Each terminal within a merchant location has a separate TID.

Terminal Risk Management This step performs various checks to protect the Issuer, acquirer, and system from

fraud. Checks include the following:

• Floor Limit

• Random Selection

• Velocity Checking

The results of these checks are stored by the Terminal in the TVR for later use.

Note: The terminal may randomly select some transactions for online processing.

Third Party Processors An independent processor that is contracted with by a Bank or Processor to

conduct a part of transaction processing.

TID See Terminal Identification Number.

TIN See Taxpayer Identification Number.

TPP See Third-Party Processors.

Track Data Track Data is the information encoded within the magnetic strip on the back of a

credit card which is read by the electronic reader within the terminal or

point-of-sale (POS) system.

Transaction A set of messages to complete a processing action.

Transaction Fee A fee charged to a merchant each time a transaction is processed, which dials into

the authorization system, such as a sale or authorization only.

Triple Data Encryption

System

In cryptography, Triple DES is the common name for the Triple Data Encryption

Algorithm. It is so named because it applies the Data Encryption Standard (DES)

cipher algorithm three times to each data block. Triple DES provides a relatively

simple method of increasing the key size of DES to protect against brute force

attacks, without requiring a completely new block cipher algorithm.

TRSM See Tamper Resistant Security Module.

TSYS Total System Services. Vital. Back-end processor.

Table G-1 Glossary

Term Definition

HPS Integrator’s Guide V 16.1.1 G: Glossary

TVR (Terminal Verification

Result)

The TVR is an EMV Tag containing the status of several different EMV checks and

functions performed by the PINPad, Kernel, or the POS.

It consists of a series of indicators used to record the results of offline processing

between the Chip and the POS (e.g. card is expired, cardholder verification has

failed, or online floor limits have been exceeded).

The POS compares the TVR values with the IACs (on the Card) and TACs (on the

POS) to determine if the transaction should be approved, declined, or sent online

to the Issuer. Upon that determination the POS requests a cryptogram from the

Chip Card (TC, ARQC or AAC).

UAT See User Acceptance Test.

Unload Value See cash out.

User Acceptance Test

(UAT)

Testing for business users to attempt to make a system fail, taking into account the

type of organization it will functioning in. It is checking and verifying the system in

the context of the business environment it will operate in.

UTC See Coordinated Universal Time.

Value Added Reseller A company that adds features or services to an existing product and resells it

(usually to end-users) as an integrated product or complete turn-key solution.

ValueLink ValueLink is a prepaid or stored value card and is a funds-valued card issued to a

cardholder by a merchant.

VAPS Value Added Payment System. Proprietary Heartland Host processing system

supporting the NTS and the POS 8583 specifications.

VAR See Value Added Reseller.

VDDF Variable Discretionary Data Field. See Discretionary Data.

Version May refer to a document version or software version. Each time a new document

or software revision is released, a revision version number is incremented.

VIP VISANet Integrated Payment System. VISA's main transaction processing

system.

VNP VISANet Processors. An entity that is directly connected to VISA through a

VISANet Extended Access Server (VEAS).

Voice Authorization An authorization center operated either by issuers or by processors on behalf of

issuers. It is used to respond to requests for authorizations for purchases from

merchants who do not have terminals, or whose terminals are not functioning

properly, or for transactions for which special assistance is required.

Void An attendant initiated transaction request to cancel a recently completed

transaction.

VSAT Very Small Aperture Terminal.

The hardware and software located at a merchant’s location that allows POS

communications via satellite.

Z01A Heartland Proprietary POS Transaction Format.

Zero Balance See cash out.

Table G-1 Glossary

Term Definition

H: Revision History HPS Integrator’s Guide V 16.1.1

Appendix H: Revision History

Revision History

Version Release Date Revisions

15.1 Mar-2015 New document.

15.1.1 May-2015 General release clarification updates:

• Identified corrections and clarification updates.

• Added new BIN ranges.

• Added missing requirement for PayPal card type.

15.2 Oct-2015 General release clarification updates:

• 1.4 Payment Application Data Security Standards (PA-DSS), pg. 20: Added

requirement for strong cryptography.

• New section 2.1 Address Verification Service, pg. 21.

• New section 2.2 Chargeback Protected Limits, pg. 23: Moved from specifications.

• New section 2.3 No Signature Required, pg. 24: Moved from specifications.

• Separated the previous Chapter 5: EMV Processing Overview, pg. 91 into the

following chapters and restructured and applied updates:

– Chapter 6: EMV Development Overview, pg. 101

– Chapter 7: EMV Terminal Interface, pg. 109

– Chapter 8: EMV Parameter Interface, pg. 153

• A.2 MasterCard BIN Ranges, pg. 235: MasterCard mandate that new bin range

222100–272099 be supported.

• Table B-1 Conexxus Product Codes, pg. 251: Added the following codes:

– Added off-road (non-taxable) gasoline (3 specific grades, 2 generic grades)

codes 325–329)

– Added 90 Octane Recreational Fuel (330)

– Added Hydrogen H35 (331) and Hydrogen H70 (332)

• New section B.2 MasterCard Purchasing Product Codes, pg. 264.

• Table C-1 Additional Receipt Requirements by Card Types, pg. 290: Clarification

for offline decline receipts. Deleted replicated information regarding Expiration

Date.

• New Appendix E: EMV Field Definitions, pg. 295: Moved from specifications and

modified format and content for clarification.

• New Appendix F: EMV PDL Data Examples, pg. 320.

• Table E-31 Issuer Script Results, pg. 310: Correction from alphanumeric to binary.

PIF 1124 – Drop Tank:

• Table 3-1 Card Brand References to BIN Ranges and Track Data, pg. 27: Added

card type for Drop Tank.

• New section 3.7 Drop Tank Card, pg. 43 with Track Format subsections.

• New section A.9 Drop Tank, pg. 247.

HPS Integrator’s Guide V 16.1.1 H: Revision History

16.1 Mar-2015 General release clarification updates:

• Global change: Removed GSB reference throughout.

• Global change: Replaced () with Heartland Gift Card.

• Table 5-11 Full vs. Partial Credit Transactions, pg. 98: Clarification from vendor

inquiry.

• Table 5-12 Full vs. Partial Debit Transactions, pg. 99: Clarification from vendor

inquiry.

• 6.1.2 Contactless Devices, pg. 101: MasterCard has replaced the reference to

contactless from ‘PayPass’ to ‘MasterCard Contactless’. Updated version

numbers.

• 6.3.1 Test Requirements, pg. 103: MasterCard has replaced the reference to

contactless from ‘PayPass’ to ‘MasterCard Contacless’.

• Table 6-2 VSDC Testing, pg. 104: Updated version numbers.

• Table 6-4 AEIPS Testing, pg. 105: Updated version numbers.

• B.4 Heartland Product Codes for VISA Fleet Processing, pg. 270: Correction,

Heartland product codes for VISA Fleet processing have been reinstated and new

comment added.

• Table E-22 Form Factor Indicator, pg. 306: Tag 9F6E. Deleted reference to MSD

contactless. MasterCard contactless utilizes the reference to this 9F6E field as

MasterCard Contactless in Table E-41 Third Party Data, pg. 315.

• Correction of examples for FFC6, FFC7, and FFC8. Labeling these field identifiers

as Heartland-defined.

– Table E-34 Terminal Action Code – Default, pg. 312

– Table E-35 Terminal Action Code – Denial, pg. 312

– Table E-36 Terminal Action Code – Online, pg. 313

• Table E-41 Third Party Data, pg. 315: Tag 9F6E. MasterCard has changed the

reference to contactless from ‘PayPass’ to ‘MasterCard Contactless’.

Revision History

Version Release Date Revisions

HPS Integrator's Guide V 16.1.1 Jun 2016
