HTP70
User Manual: HTP70
Open the PDF directly: View PDF
.
Page Count: 66
DVD RECEIVER AMP
BASIC MODEL: HT-P70
SERVICE Manual
DVD RECEIVER AMP SYSTEM Features
* Multi-Disc Playback & FM Tuner
* Dolby Pro Logic II
* DTS (Digital Theater Systems)
* TV Screen Saver Function
* Customized TV Screen Display
- Confidential -
MODEL : HT-P70
* Application Model:
HT
HT-P70, HT
-P70, HT-P70K
-P70K
HT
HT-TP75, HT
-TP75, HT-TKP75
-TKP75
HT
HT-KP70
-KP70
© Samsung Electronics Co.,Ltd. AUG. 2005
Printed in Korea
Code no. AH68-01771K
ELECTRONICS
Ch1 Precautions
1-1. Safety Precautions 1-1
1-2. Servicing Precautions 1-2
1-3. Precautions for Electrostatically
Sensitive Device (ESDs) 1-3
1-4. Special Precautions and Warning
Lables for Laser Products 1-4
1-5. Special Precautions for HDD 1-5
INDEX
Ch2 Product Descriptions
1. Product Feature 2-1
2. Specifications 2-2

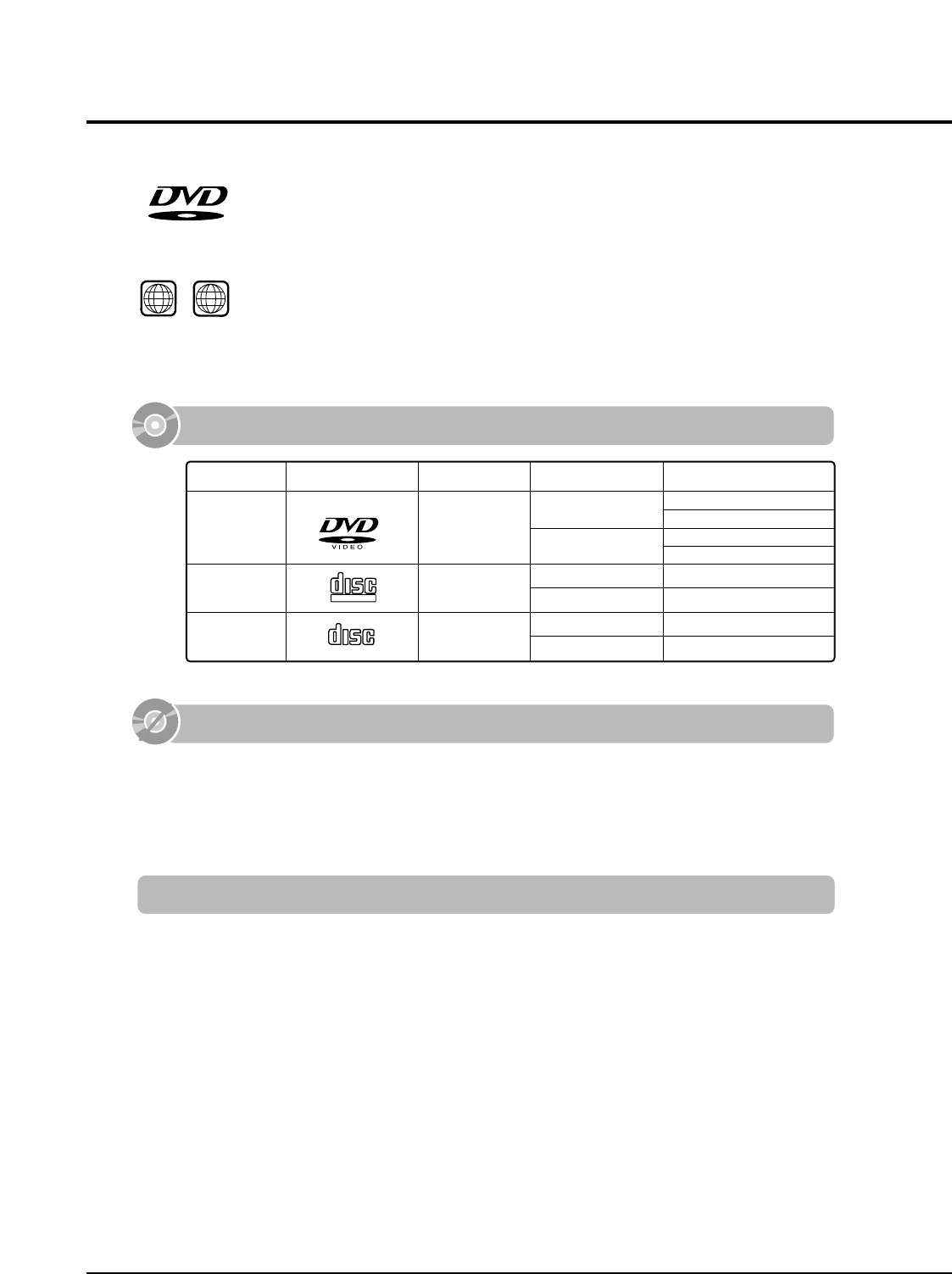

3. Notes on Discs 2-3
4. Accessories 2-4
Ch3 Product Functions

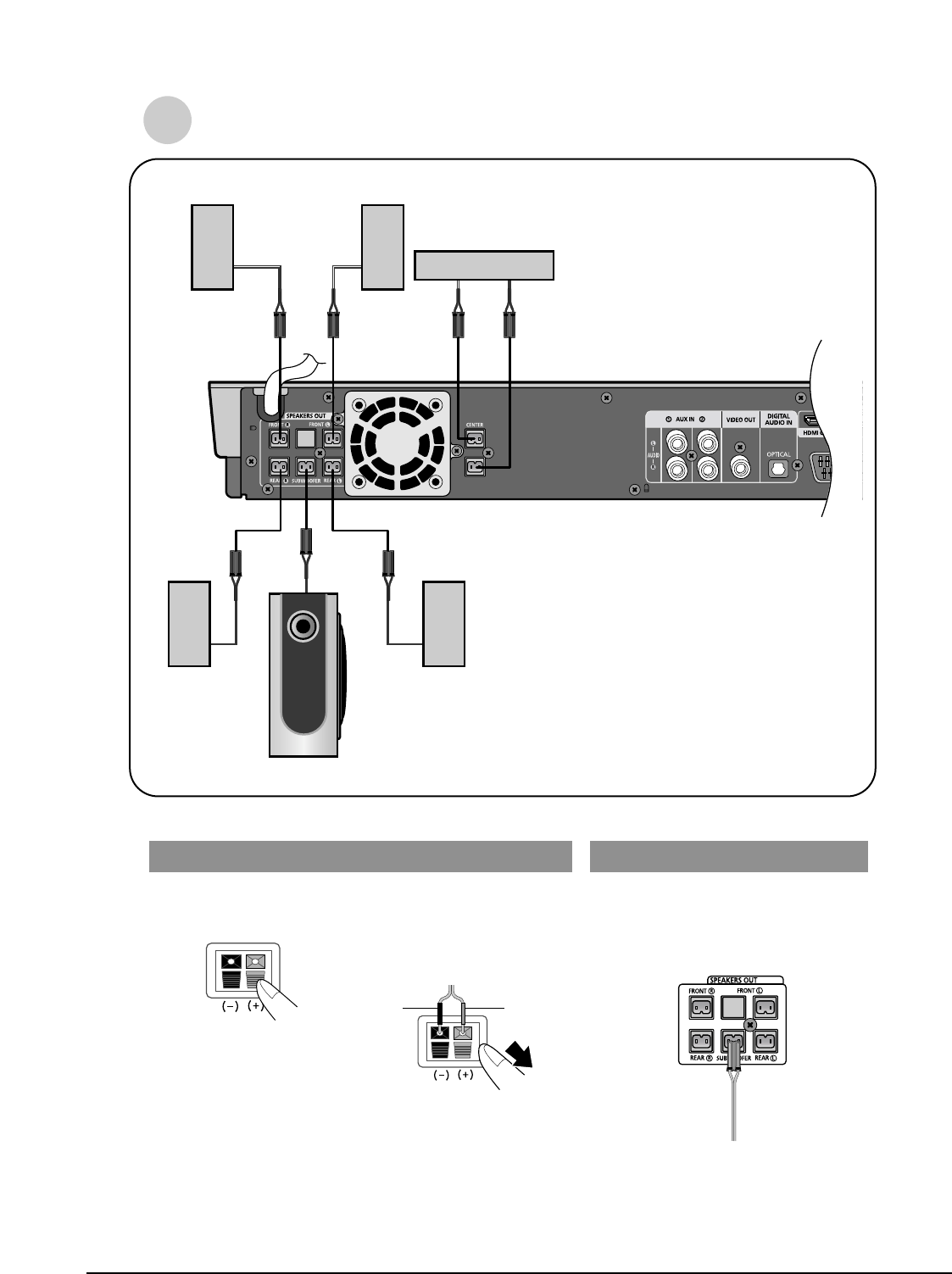

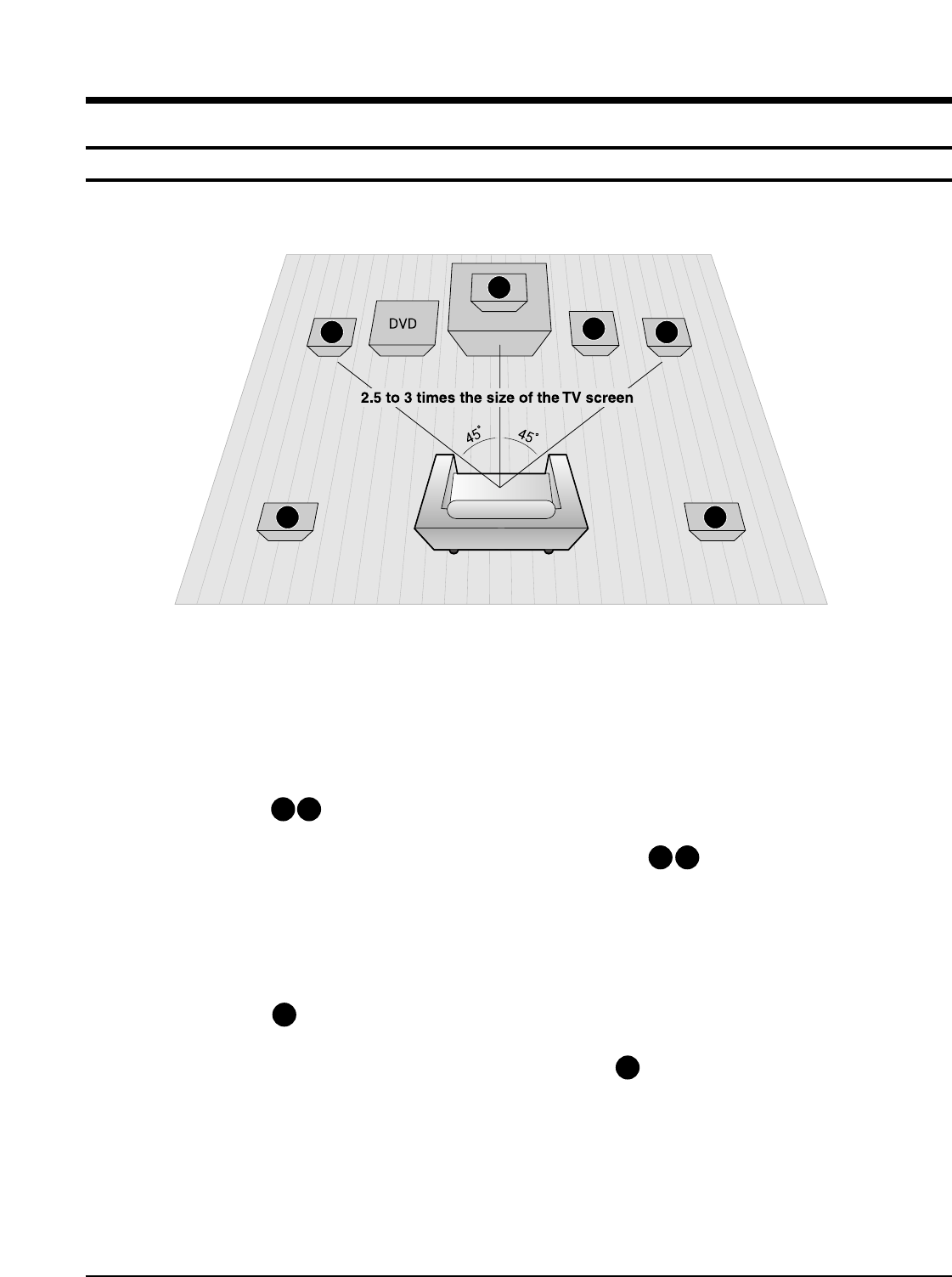

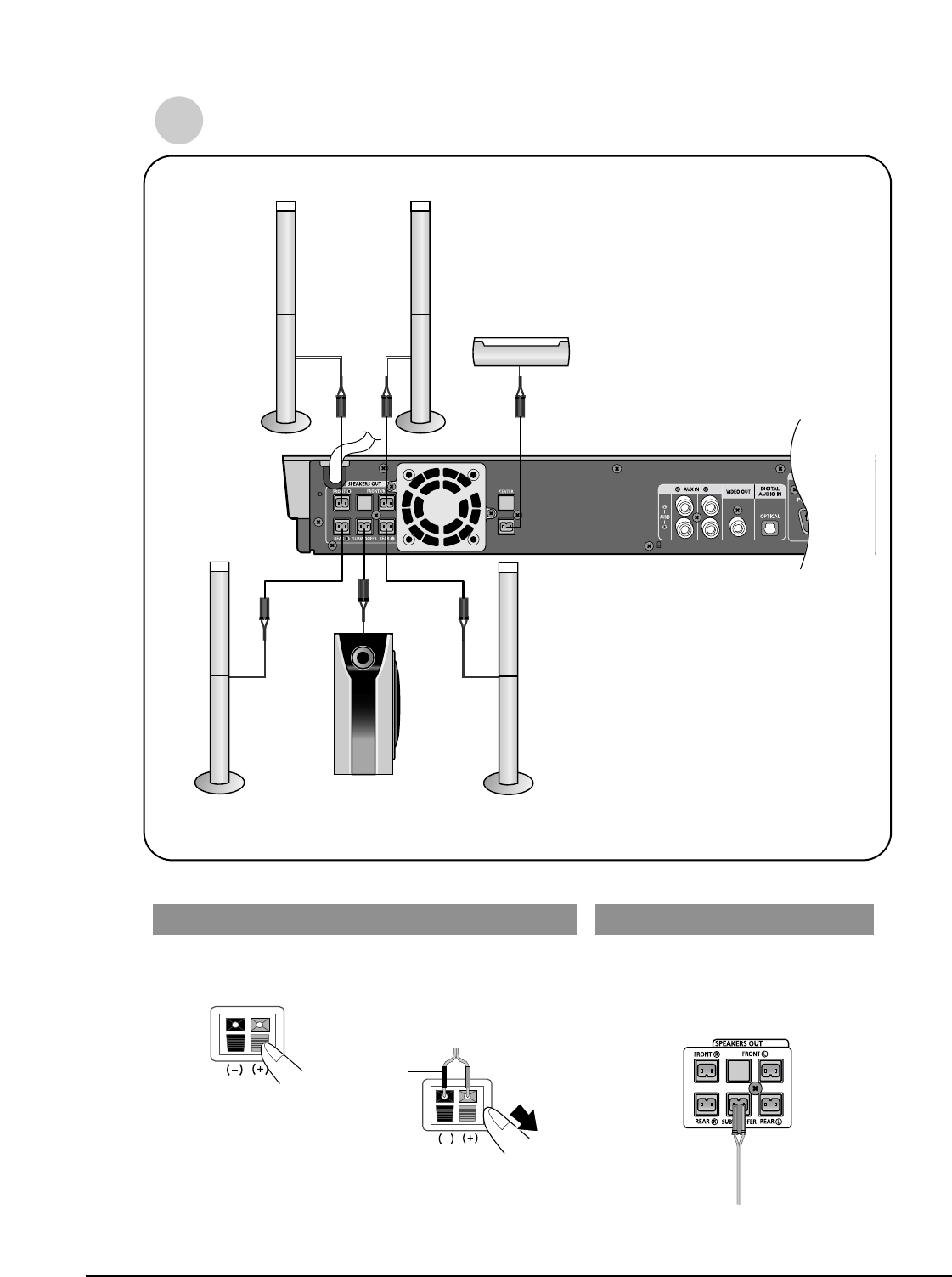

1. SPK Connection & Setup 3-1

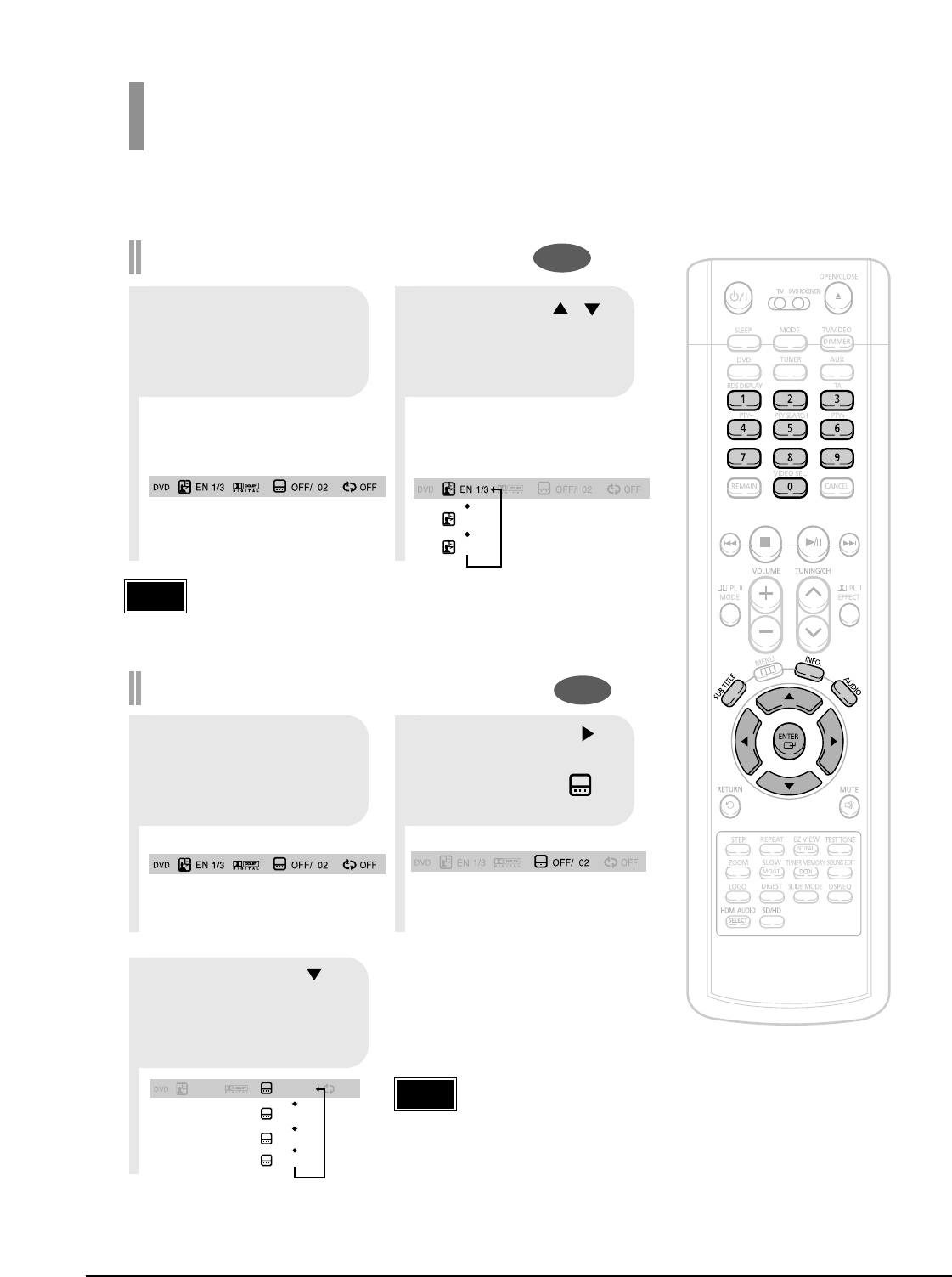

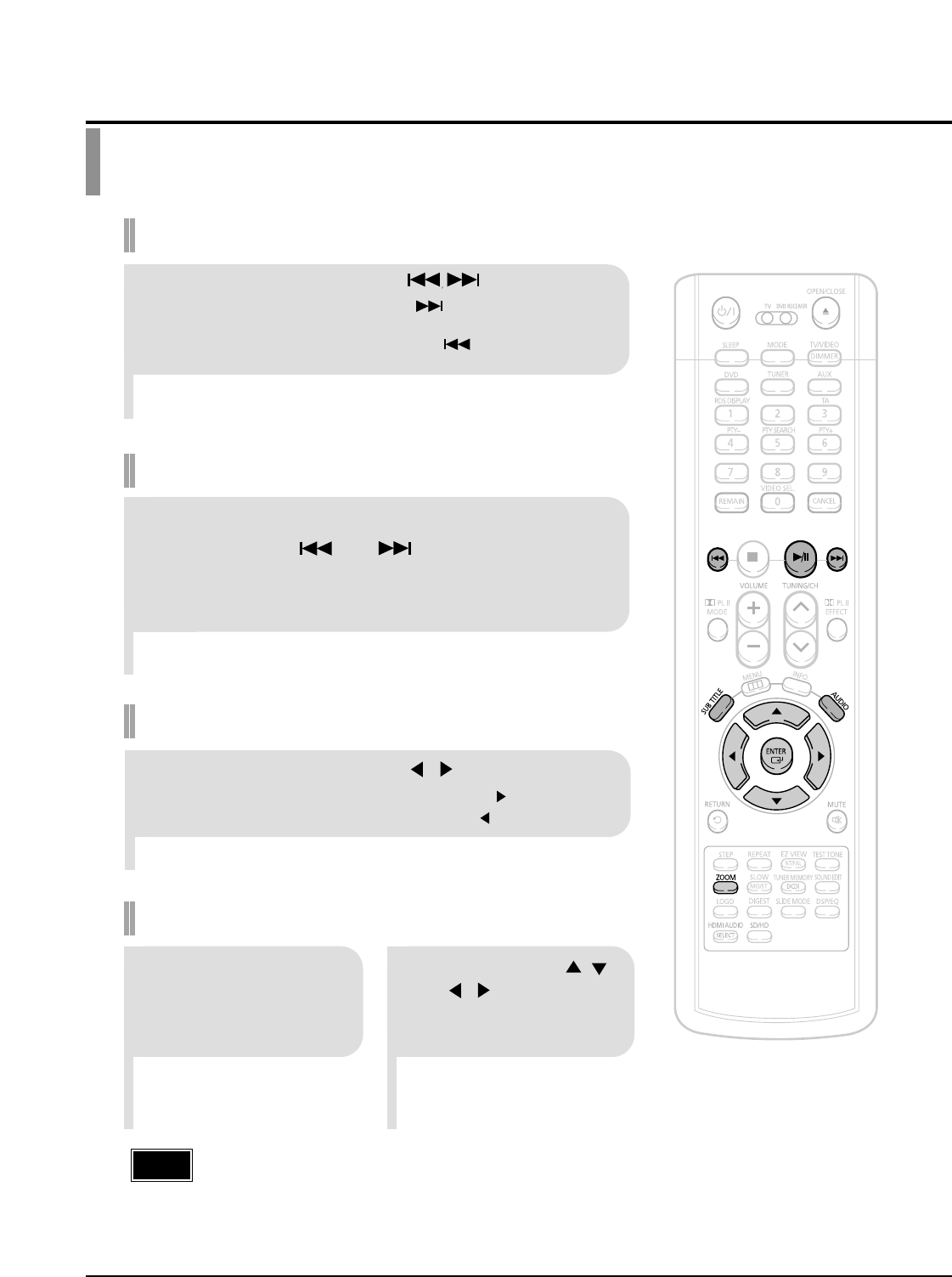

2. Main Functions 3-2
3. New Functions 3-3
Ch4 Adjustments
Protection Mode Explanation 4-1

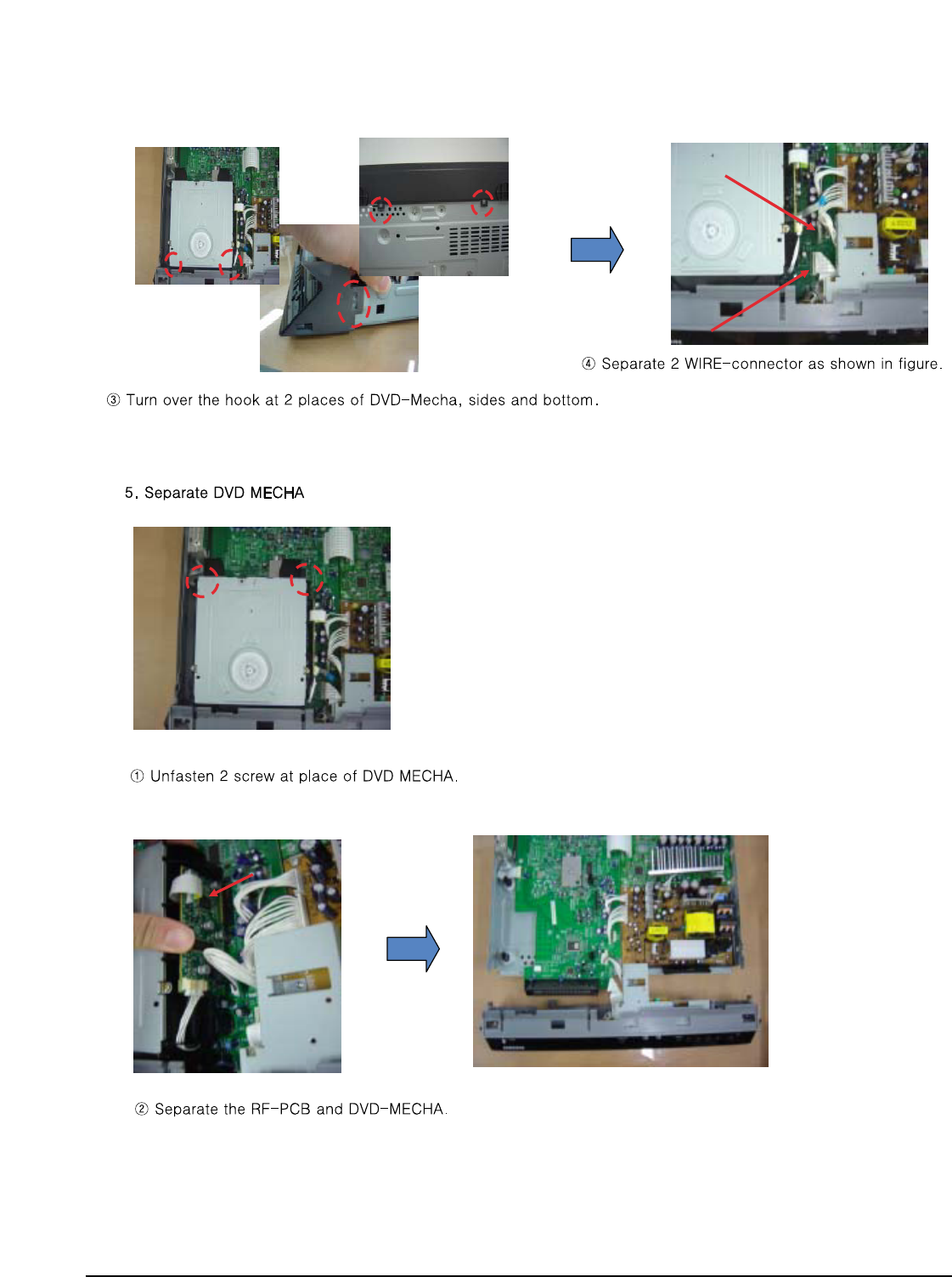

Ch5 How to disassemble
How to disassemble 5-1
Ch6 Troubleshooting

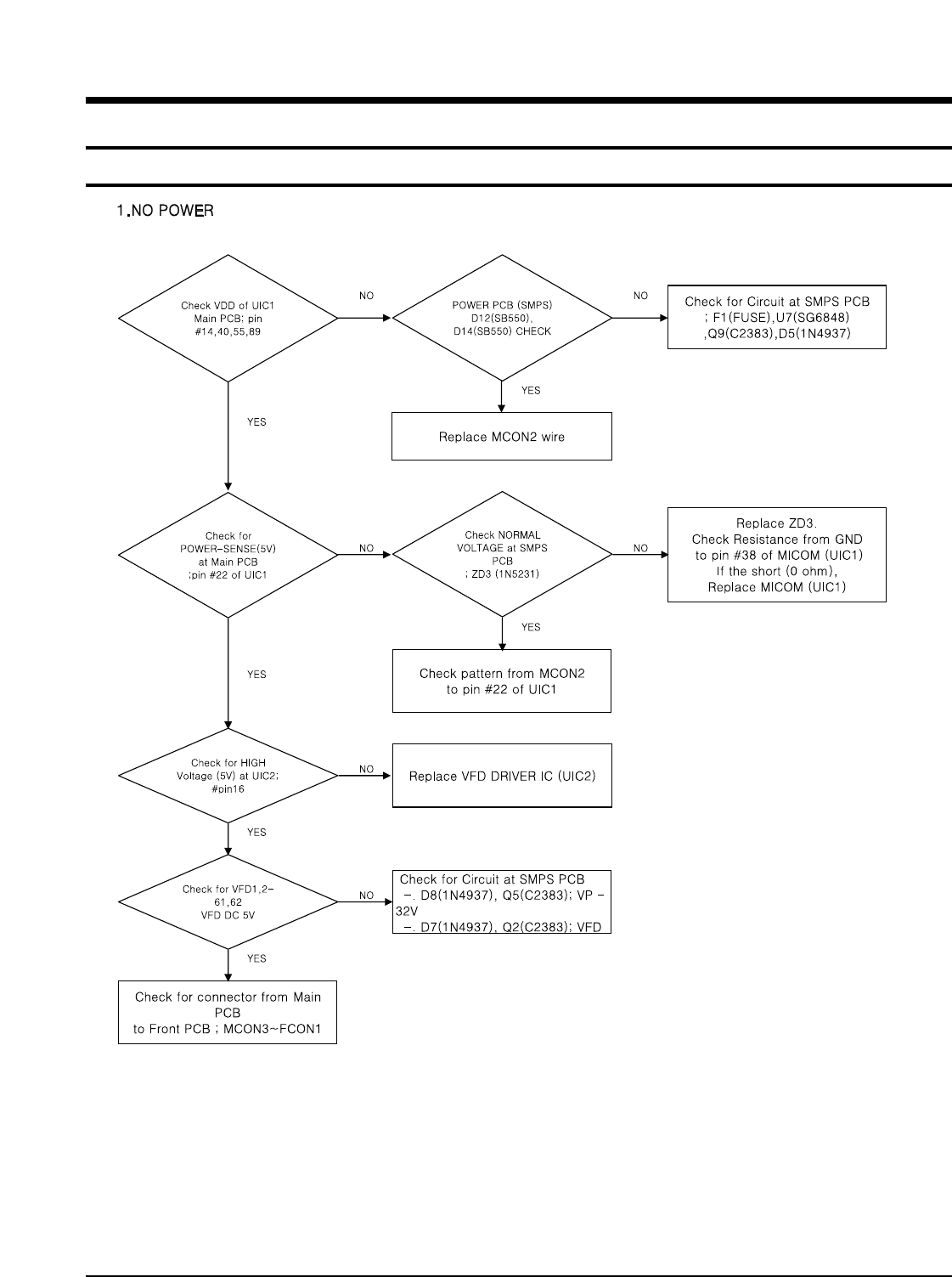

1. No Power 6-1

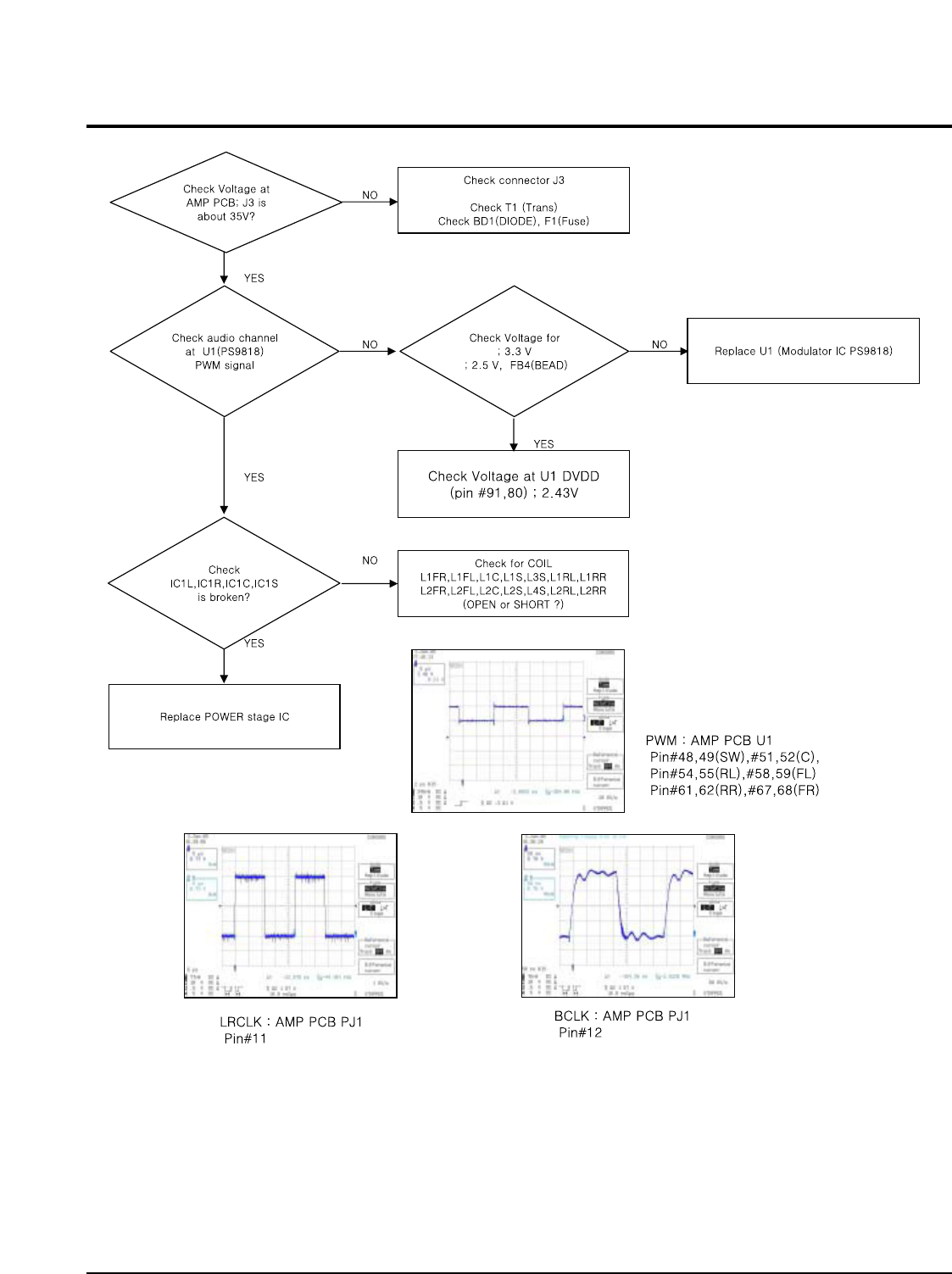

2. No Output 6-2

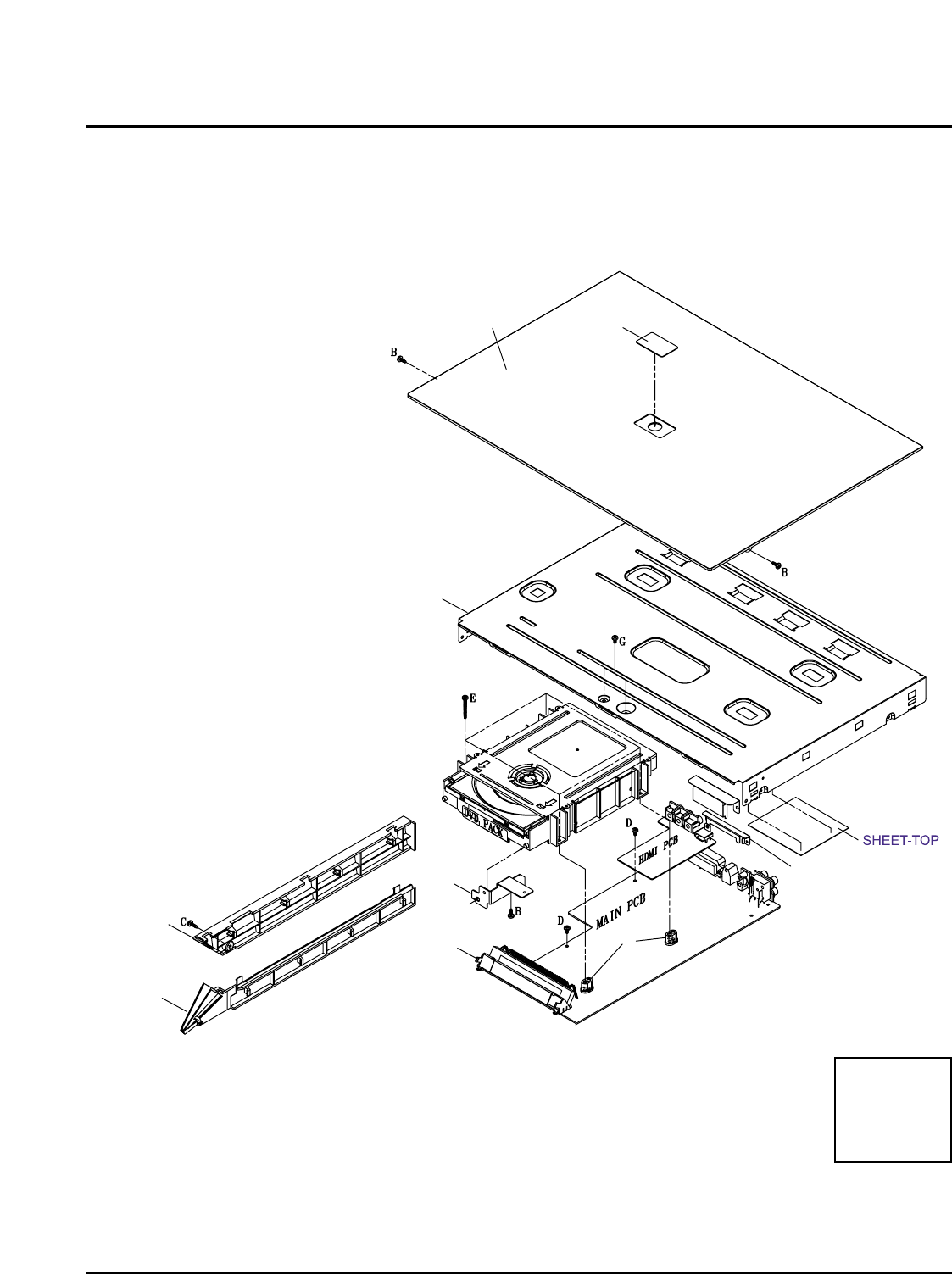

Ch7 Exploded View & Parts List

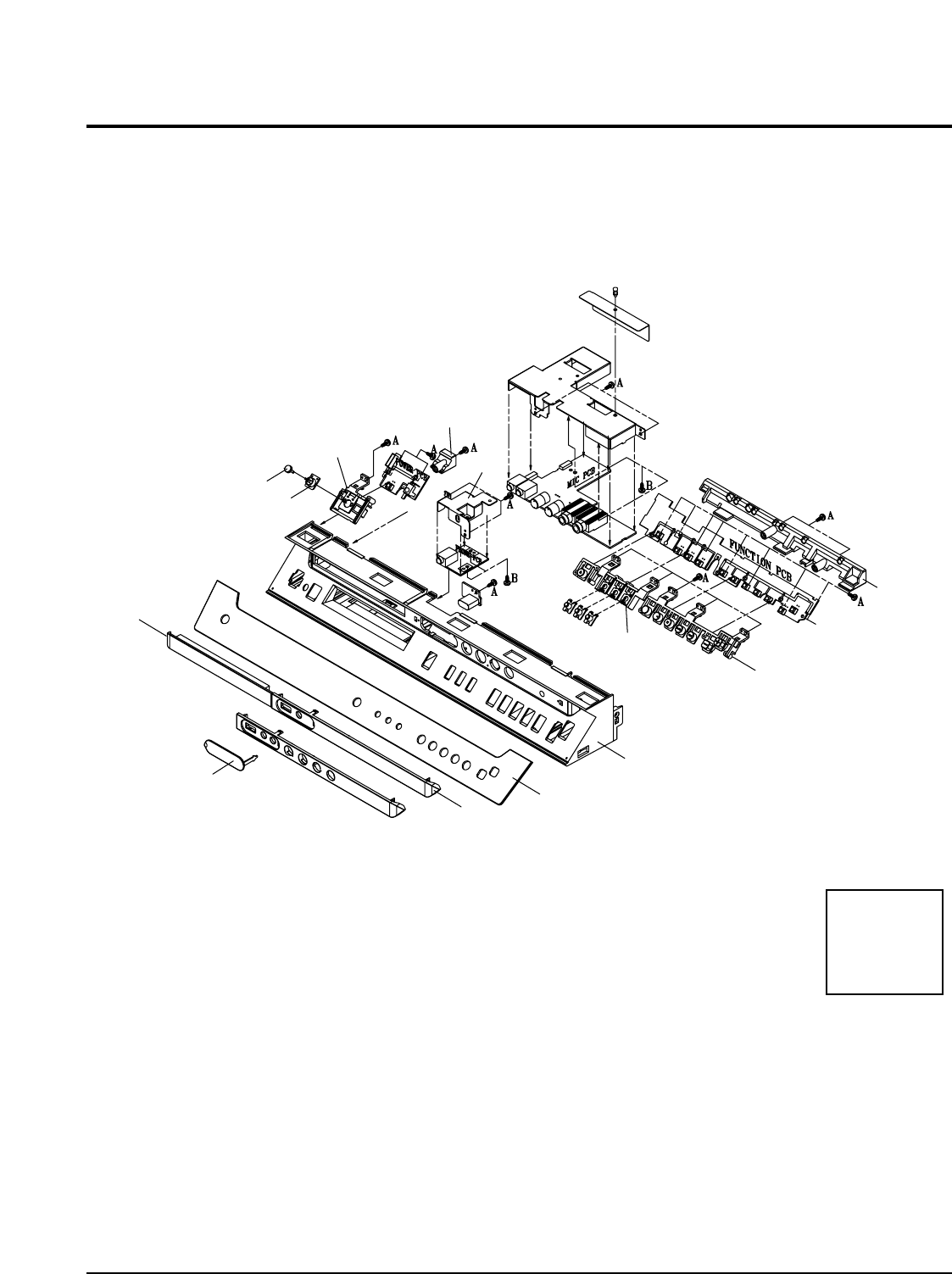

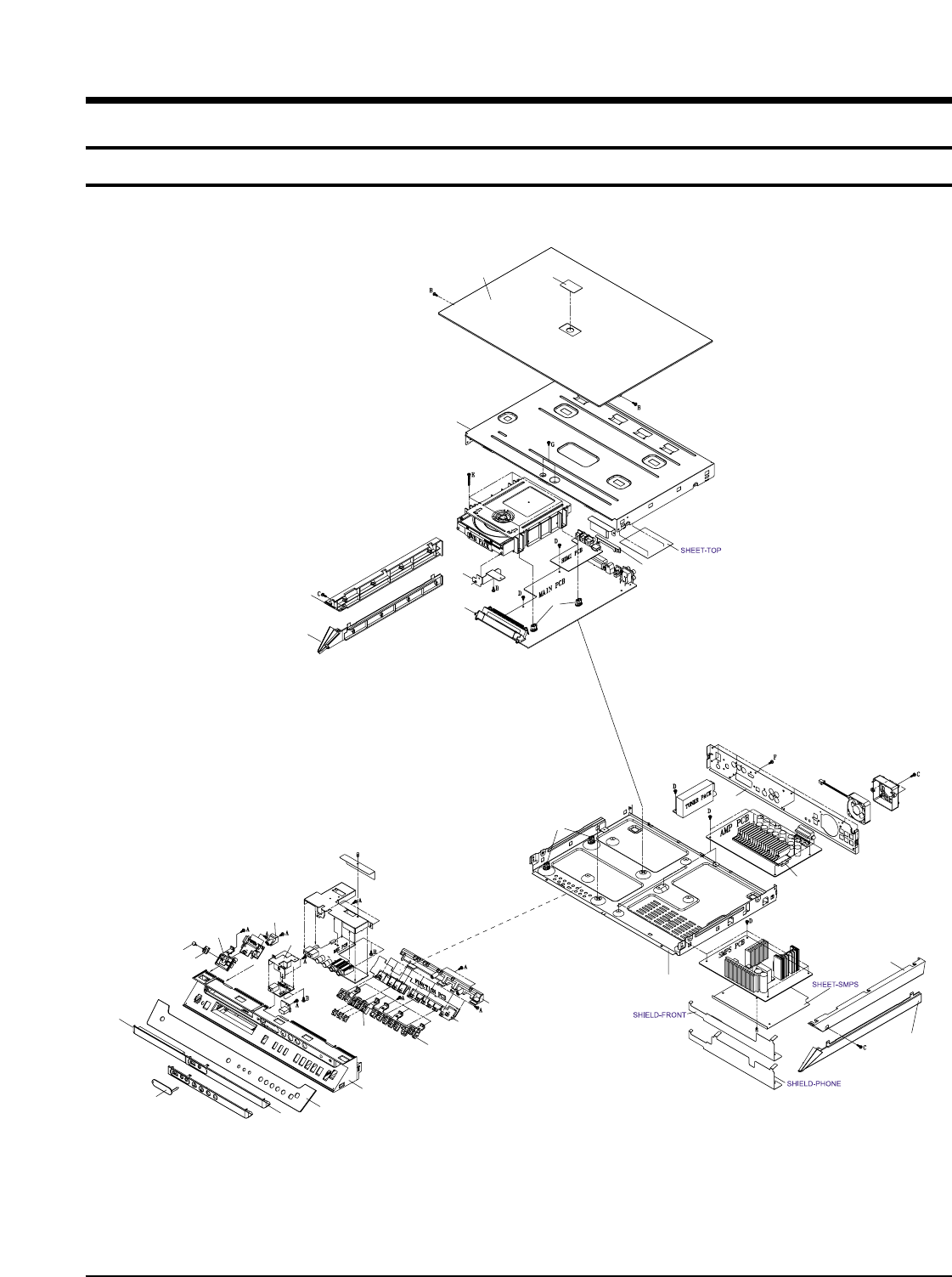

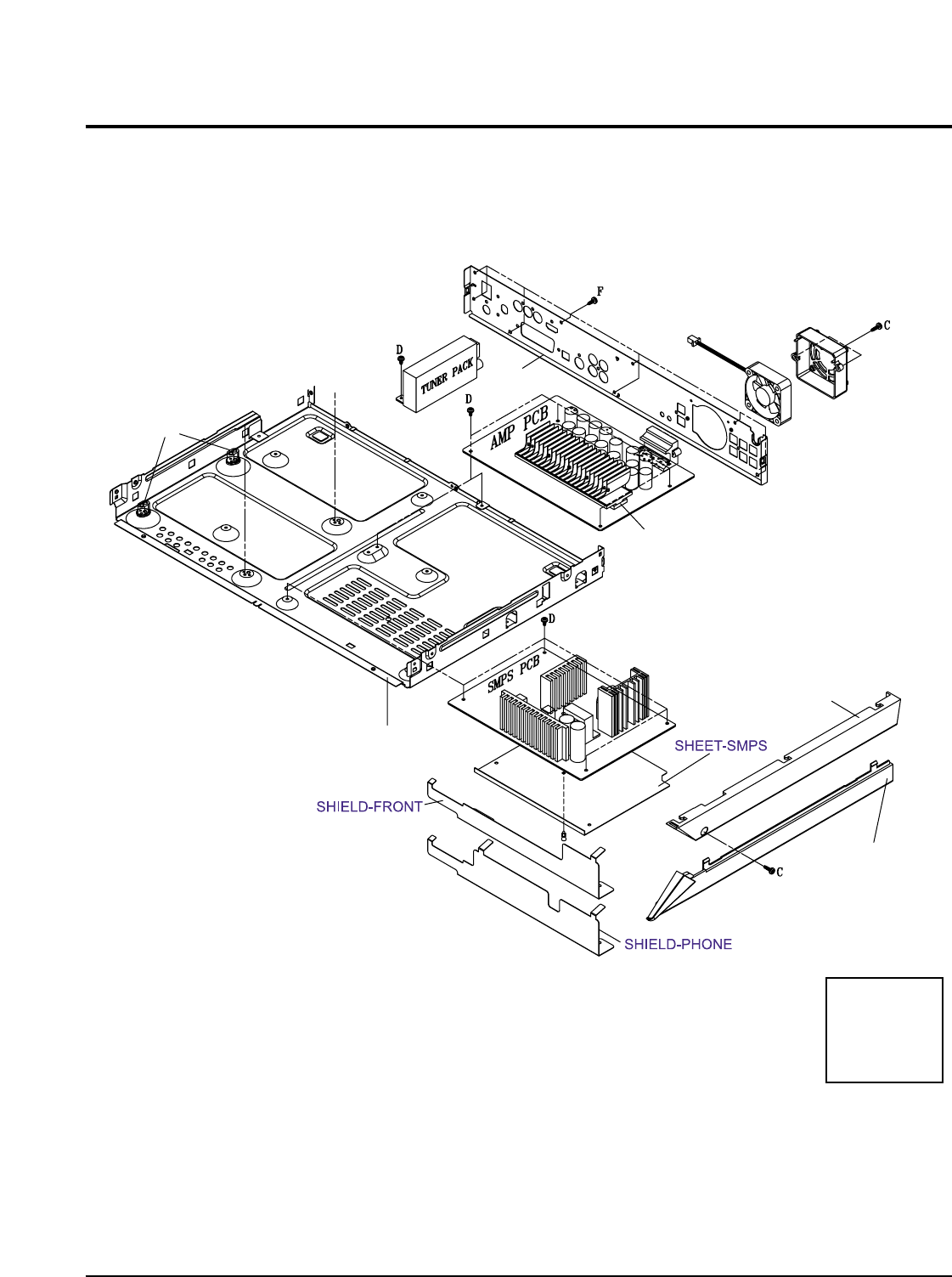

1. Total Exploded View 7-1
2. Parts List 7-5
Ch8 Electrical Parts List
Electrical Parts List 8-1
Ch9 Block Diagram

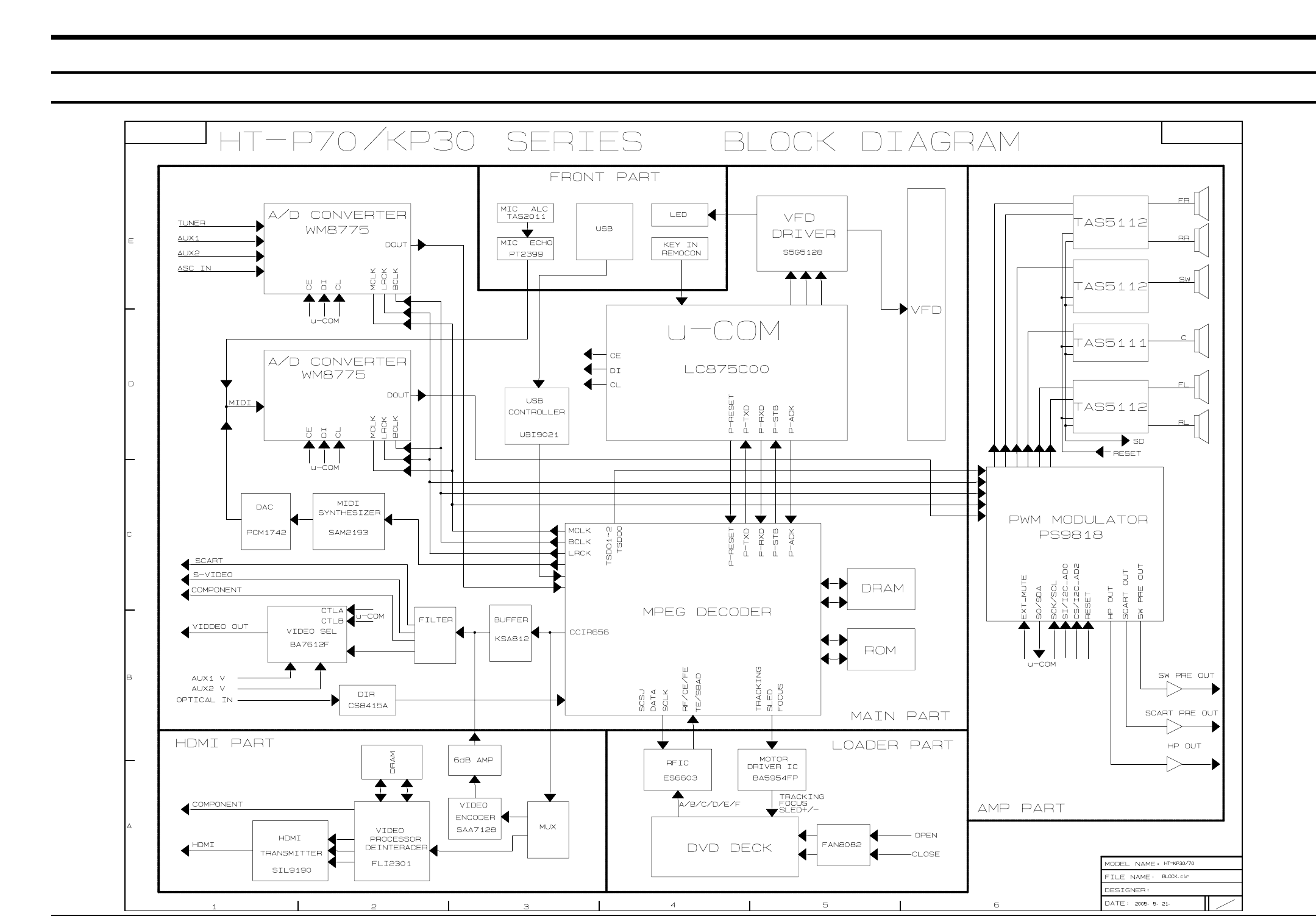

MAIN 9-1

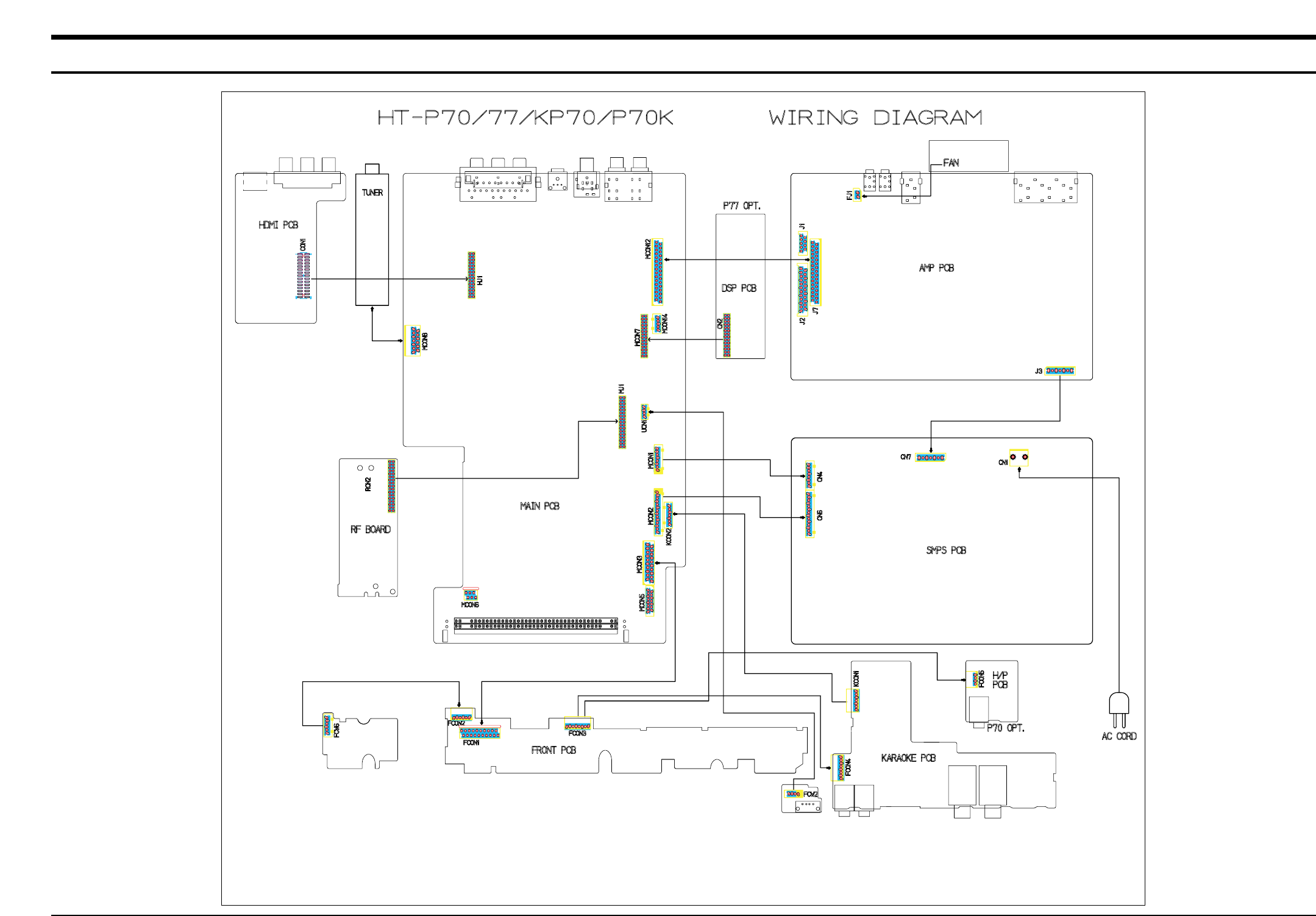

Ch10 Wiring Diagram
Wiring Diagram 10-1

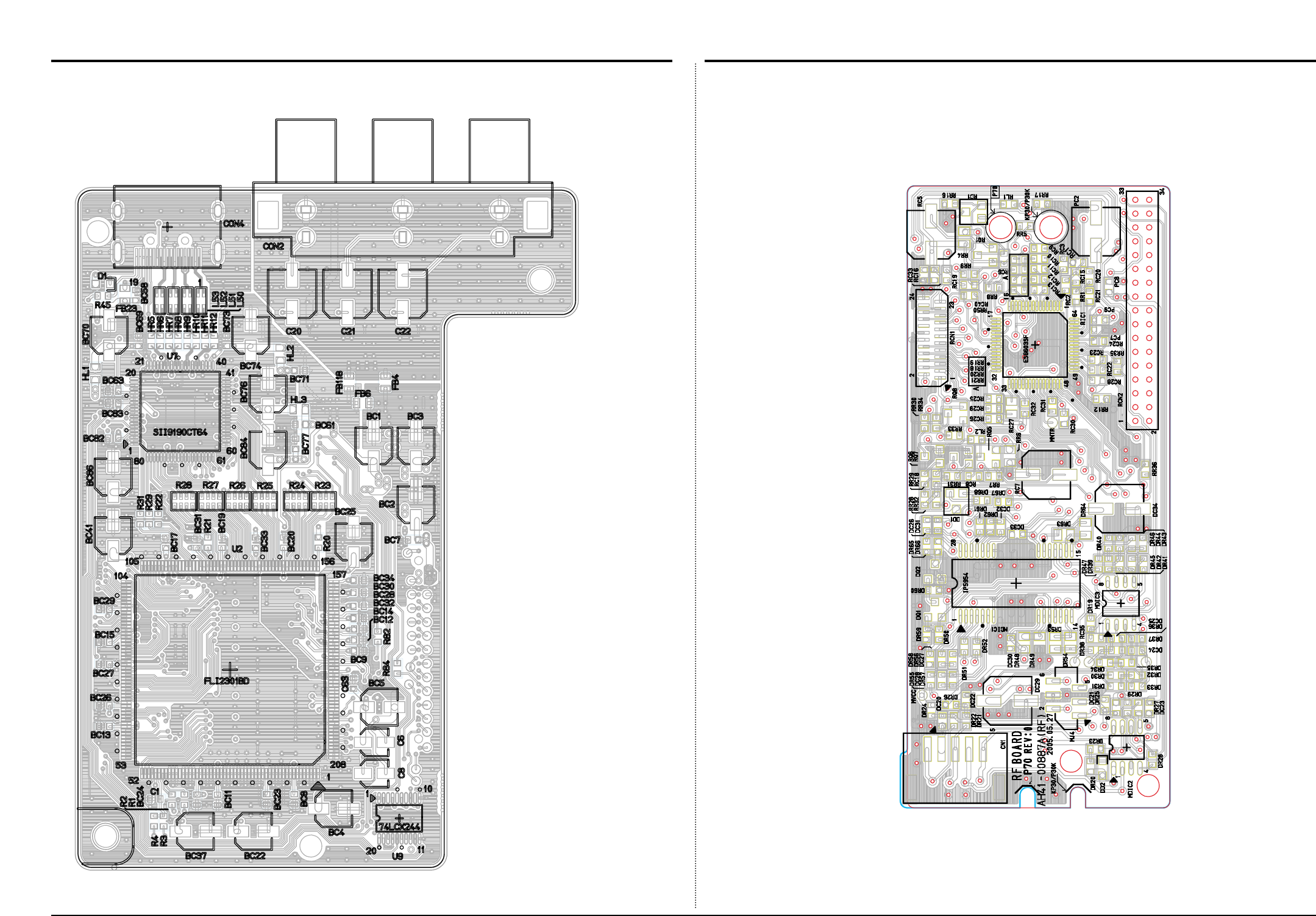

Ch11 PCB Diagram

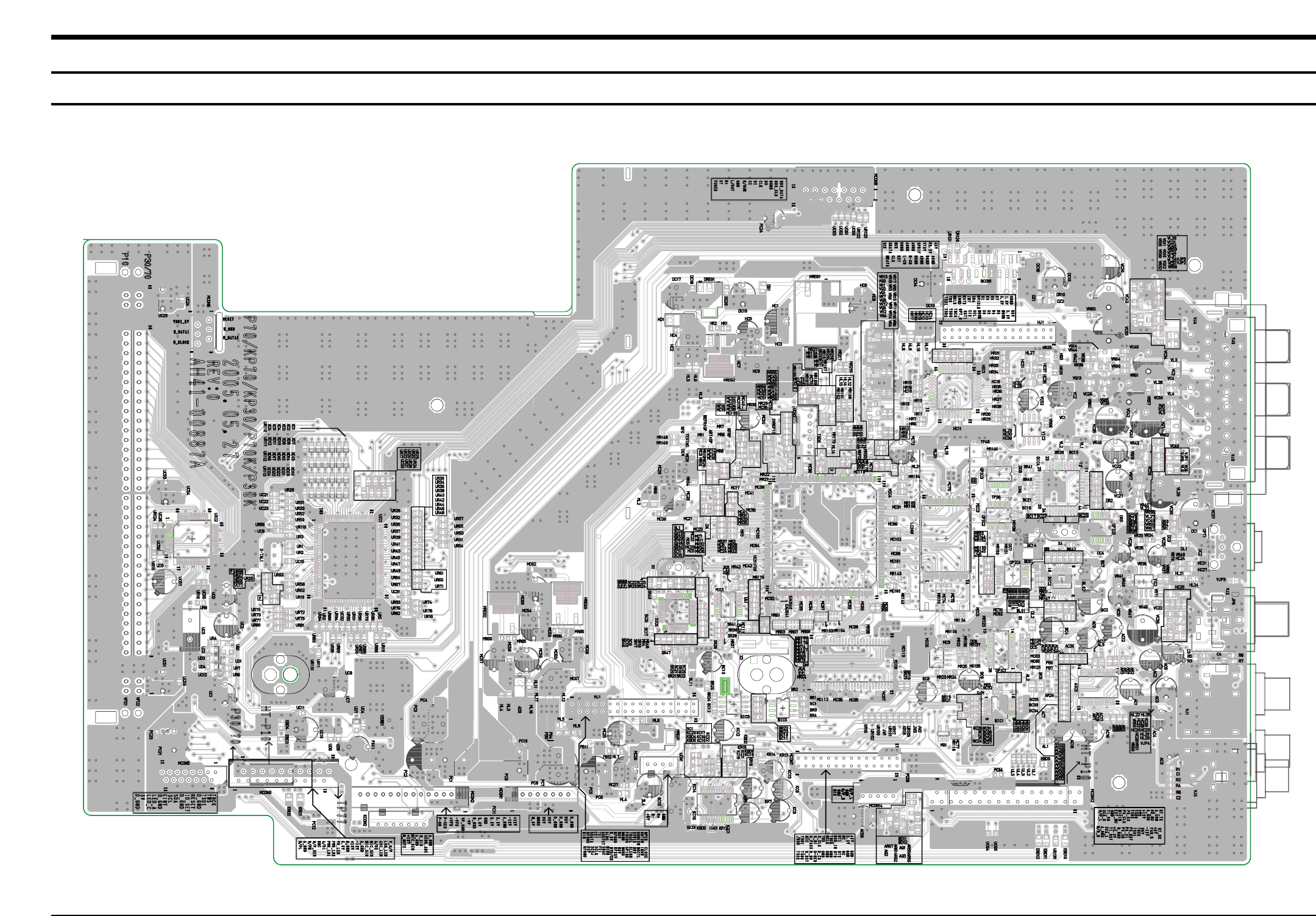

1. MAIN 11-1

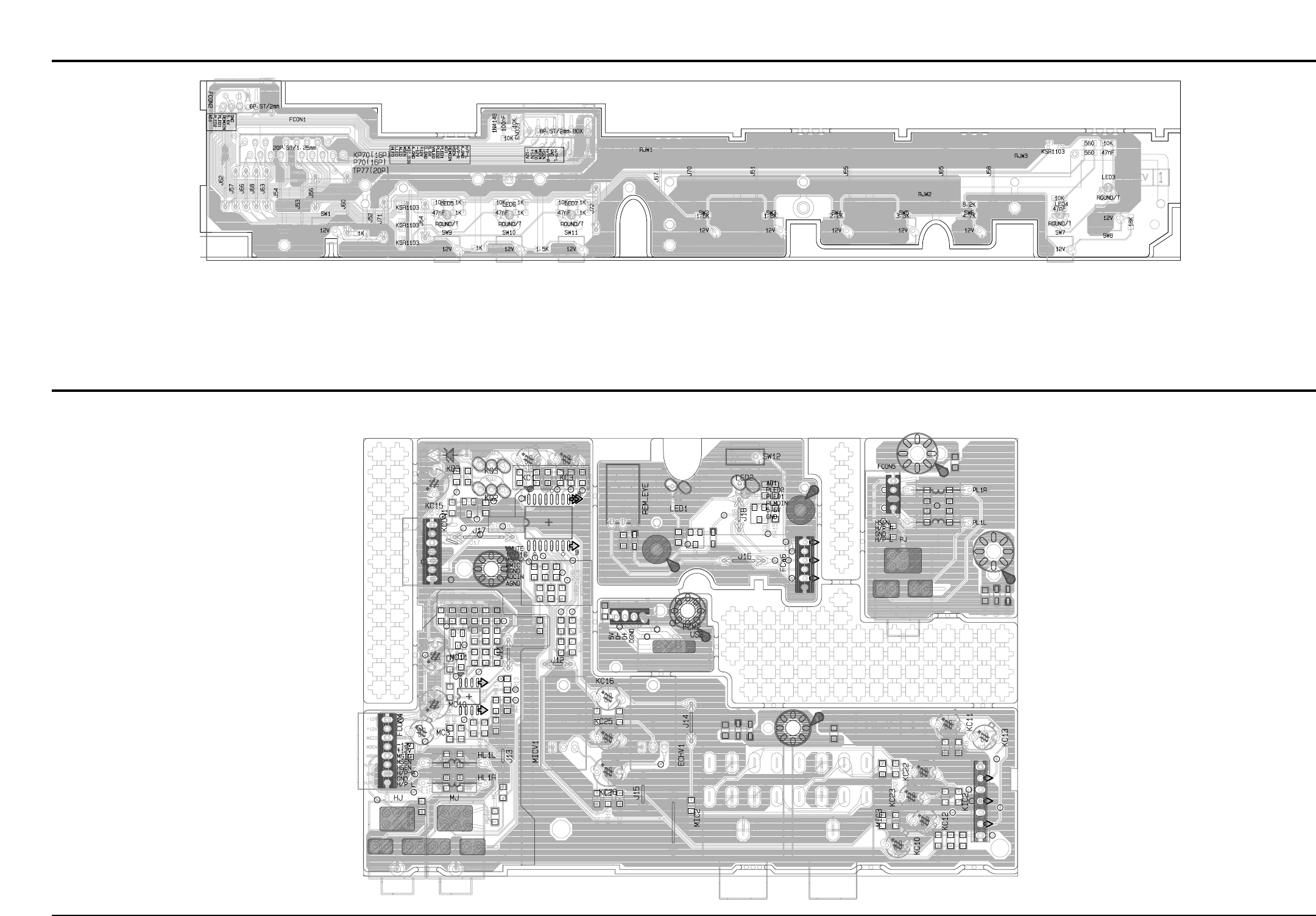

2. FRONT KEY 11-2
3. FRONT MIC 11-2
4. HDMI, SERVO 11-3
Ch12 Schematic Diagram

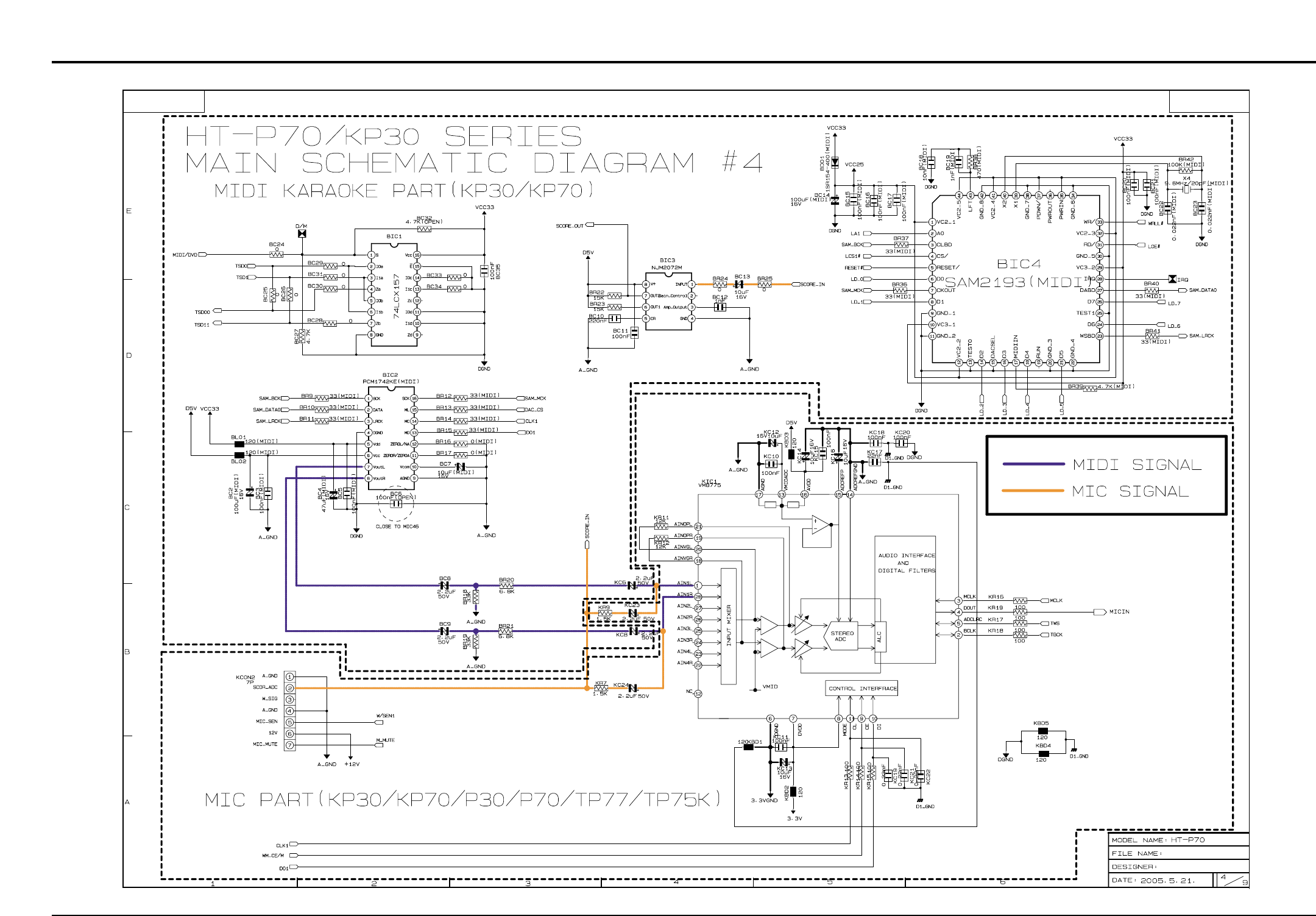

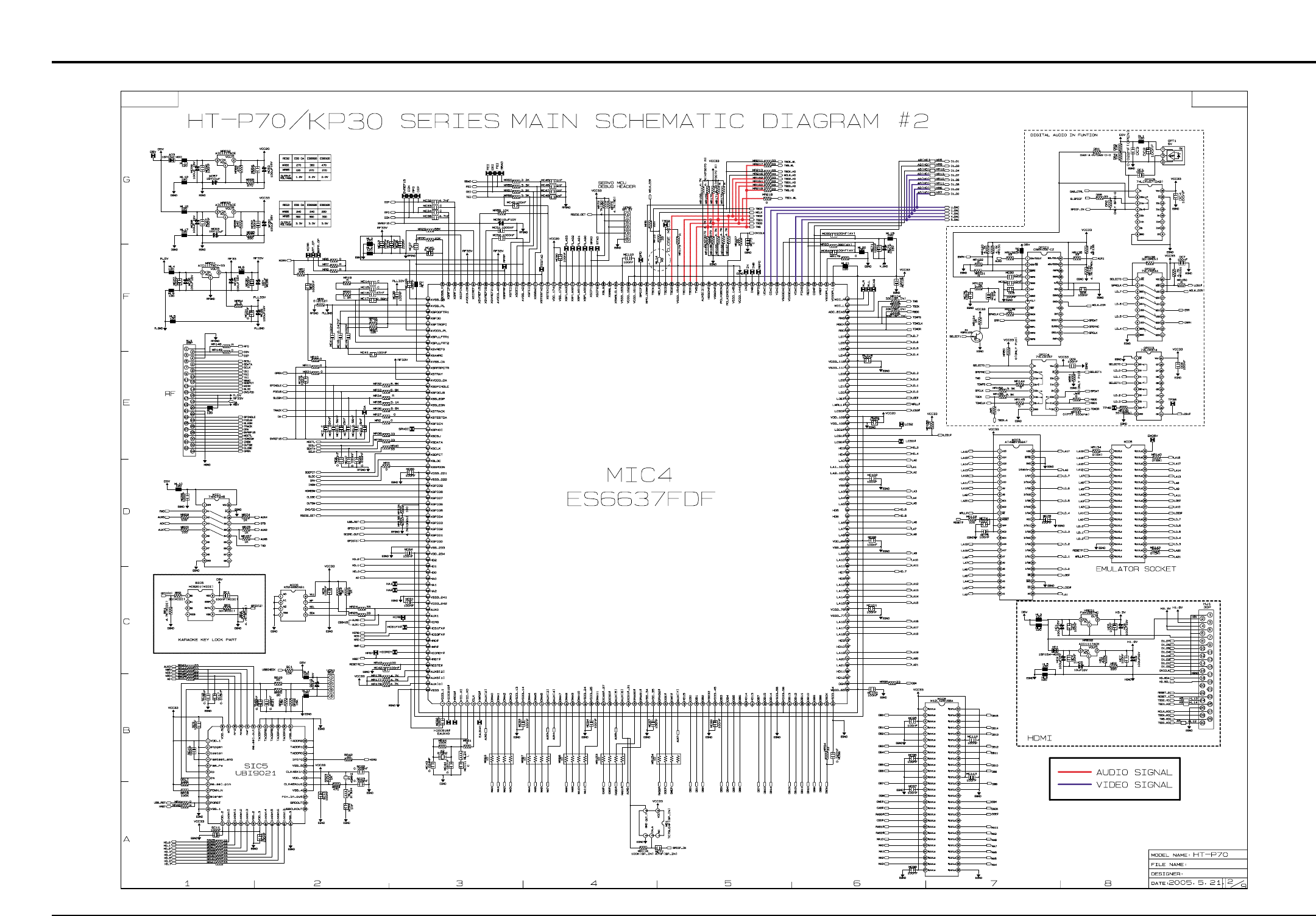

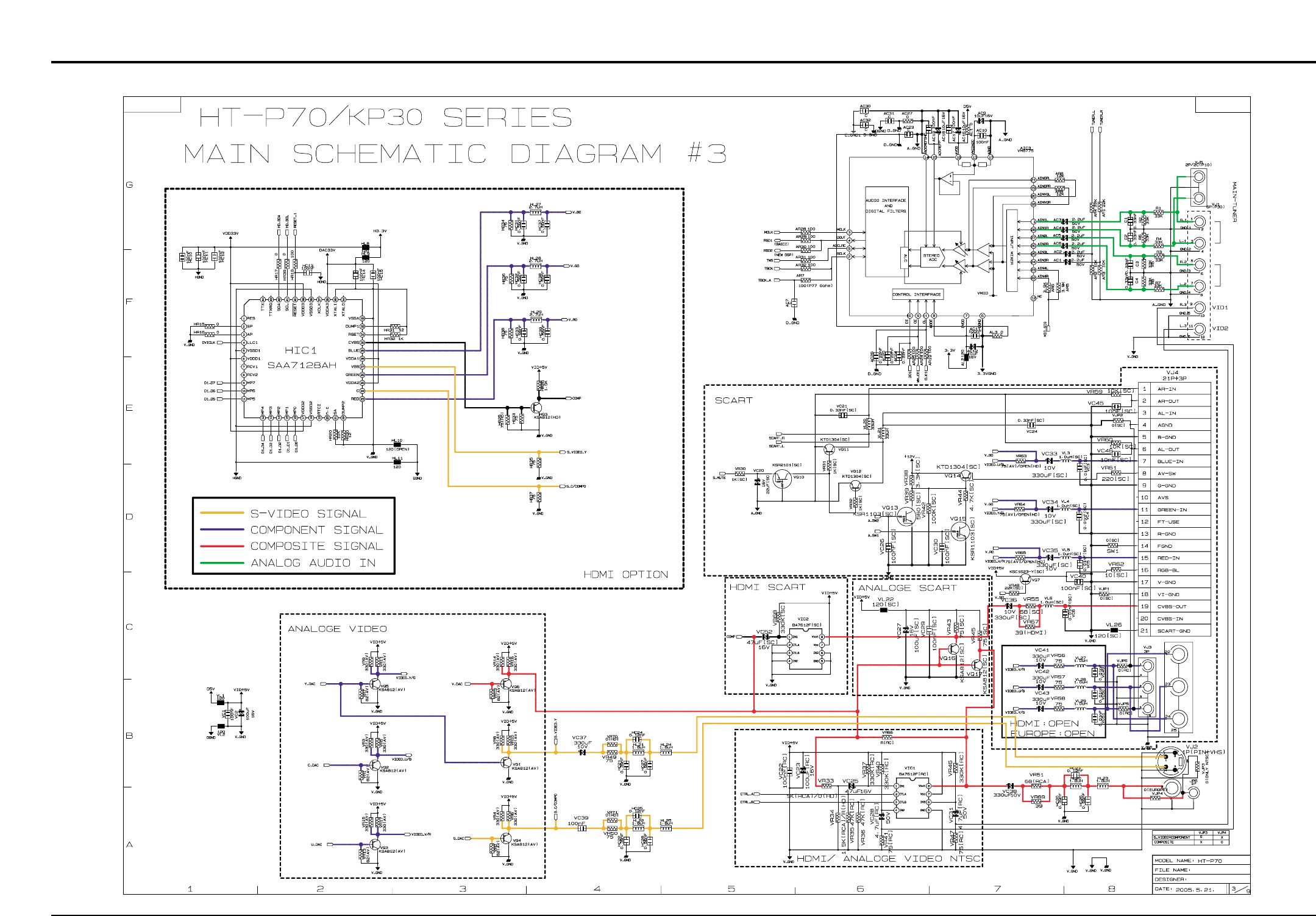

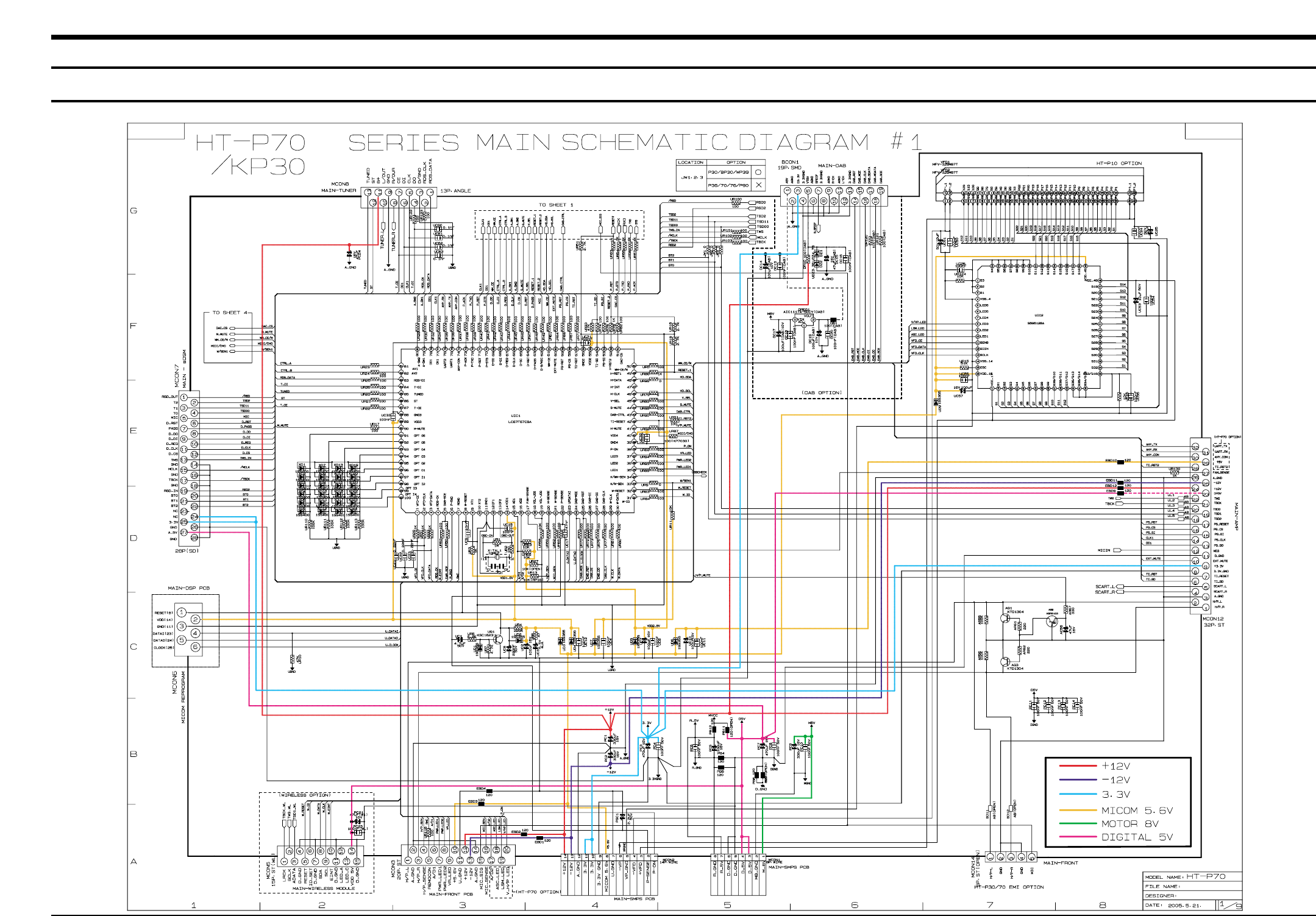

1. MAIN 12-1

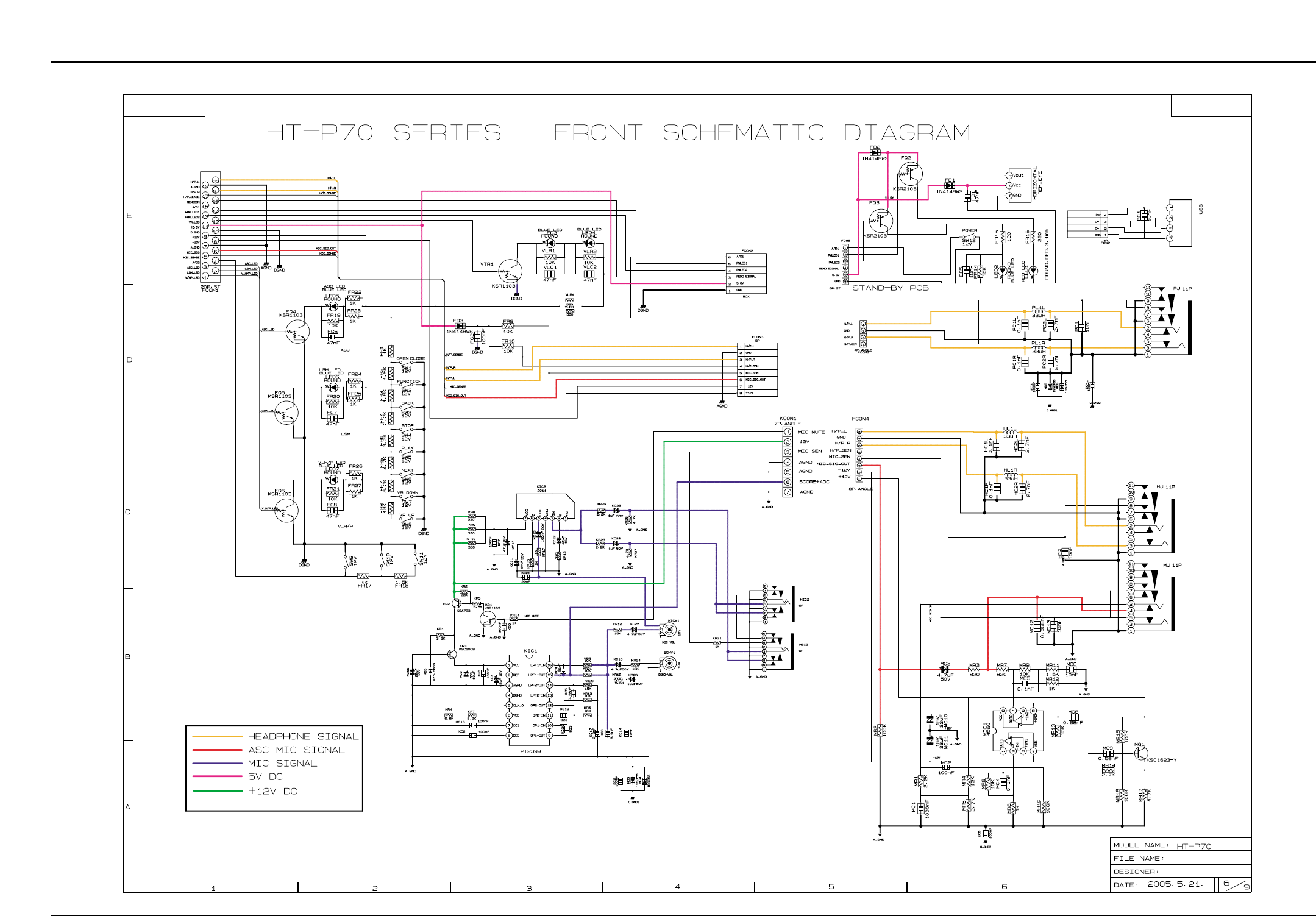

2. FRONT 12-5

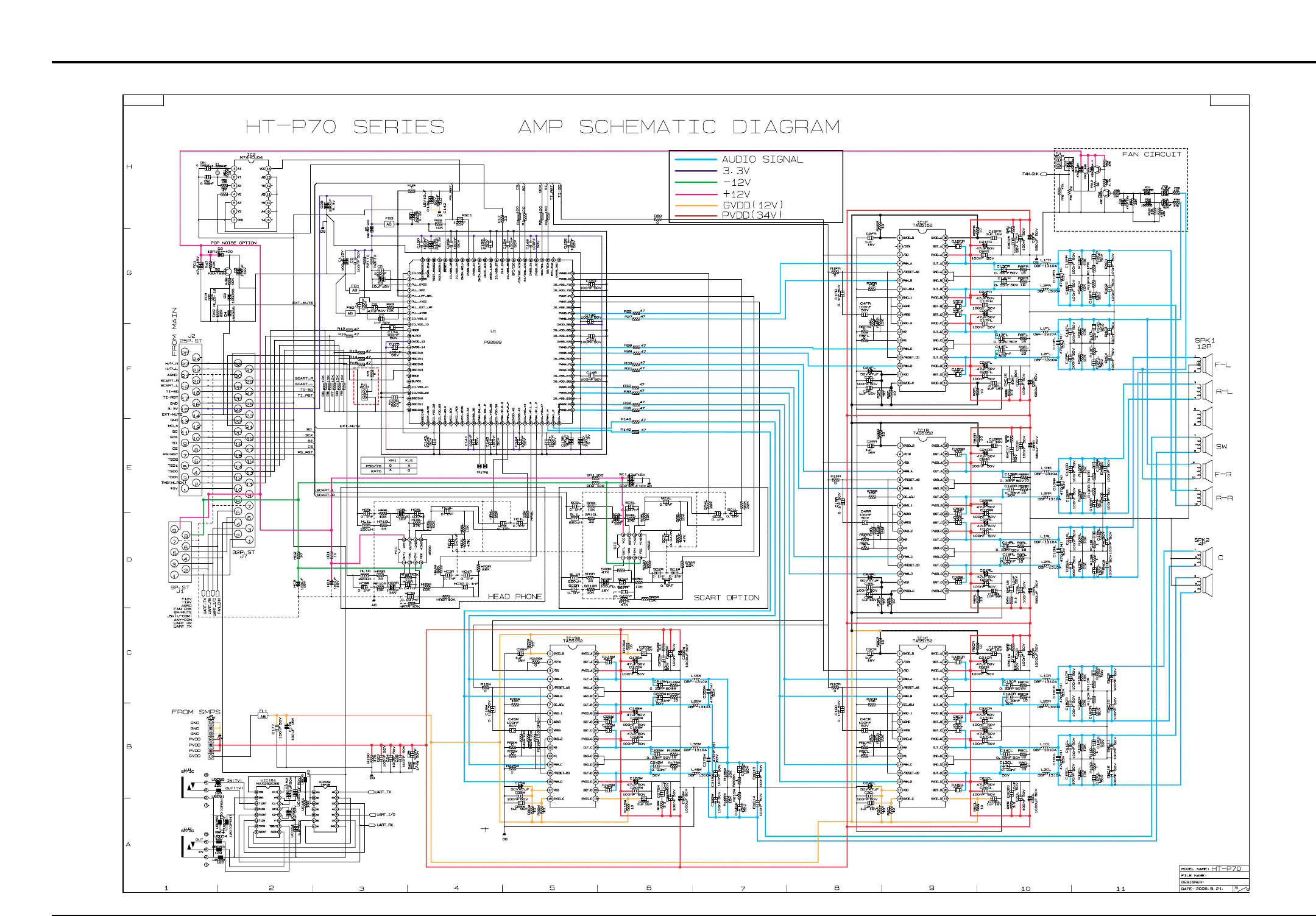

3. AMP 12-6

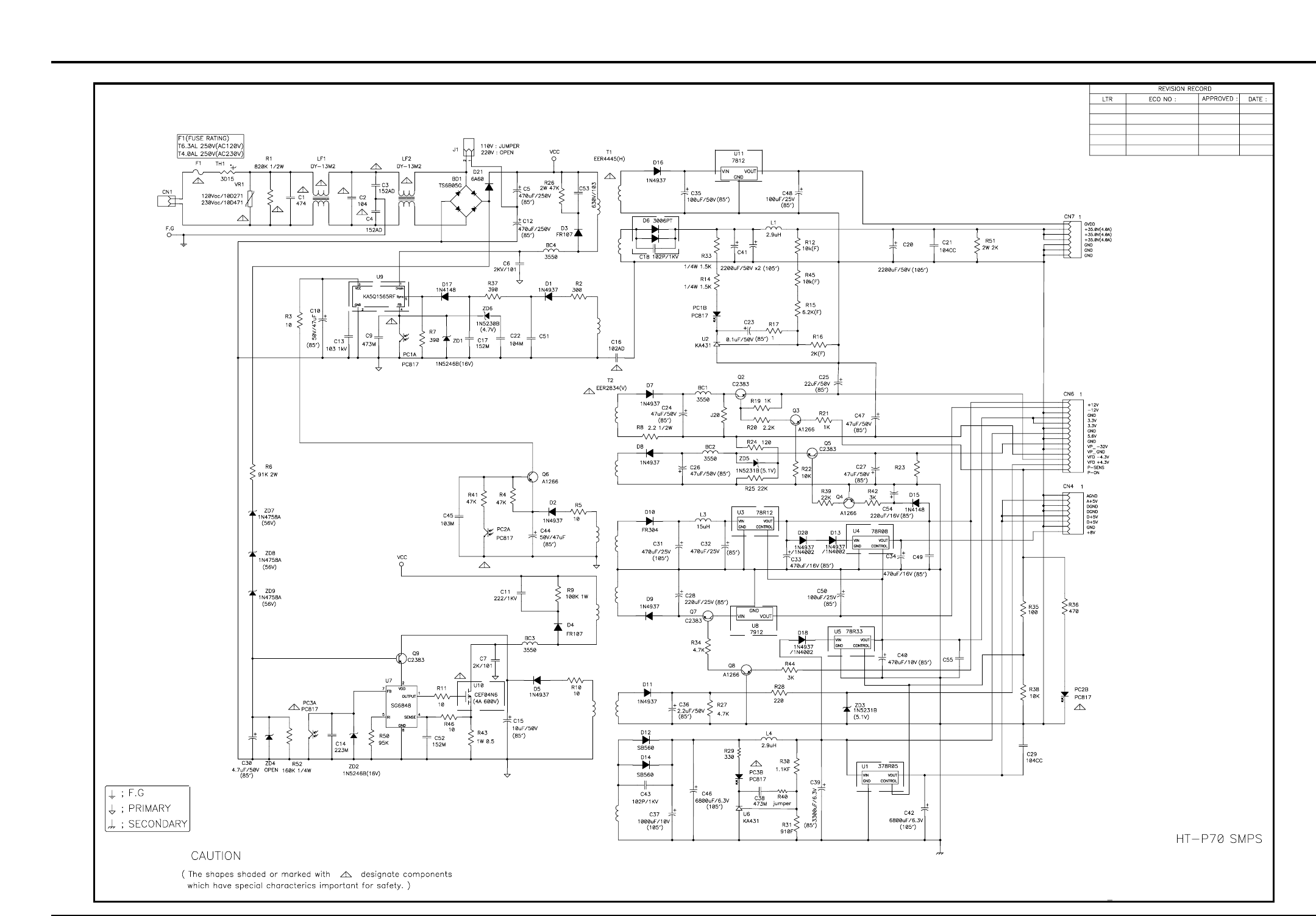

4. SMPS 12-7

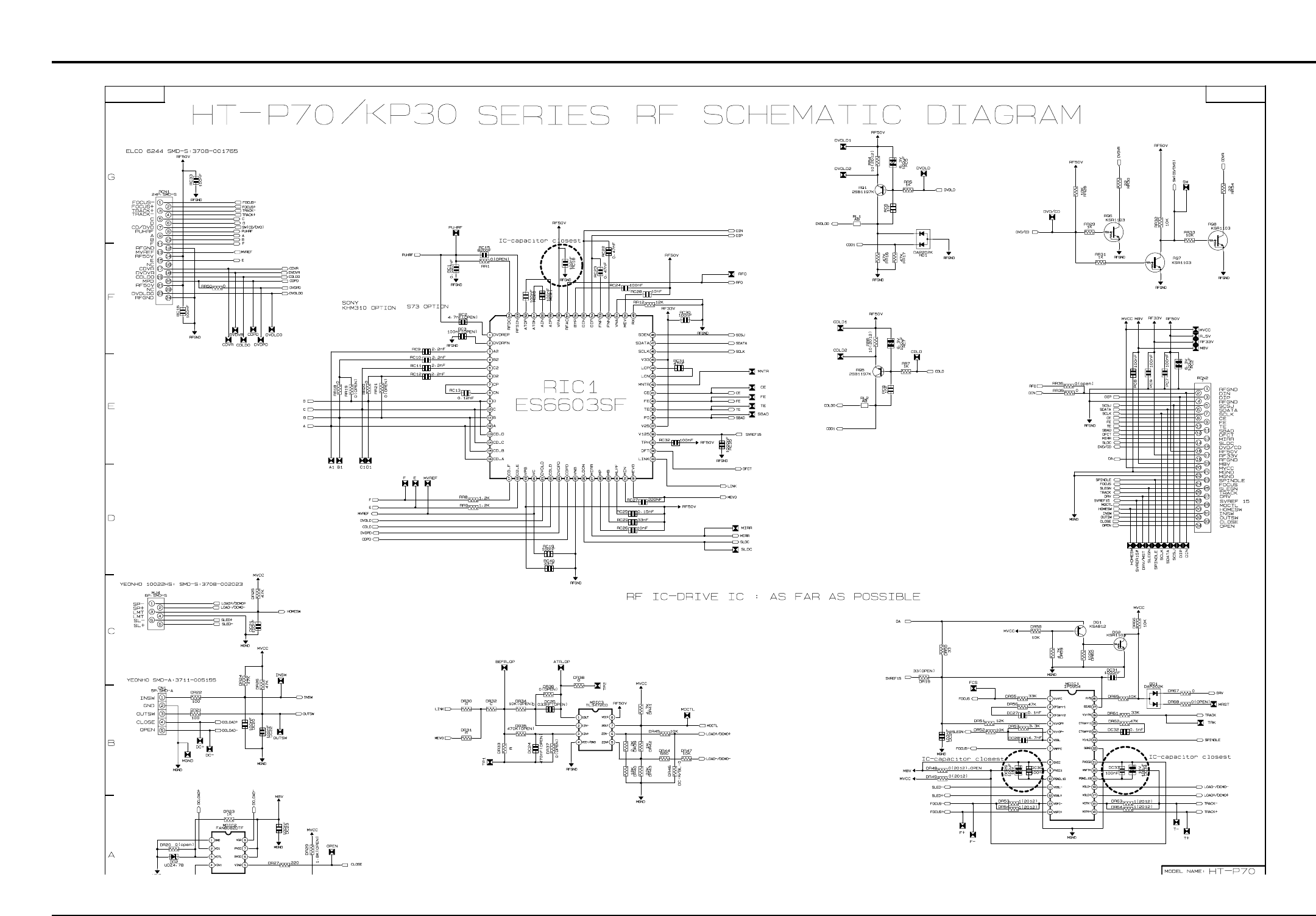

5. RF 12-8
Ch13 Circuit Description

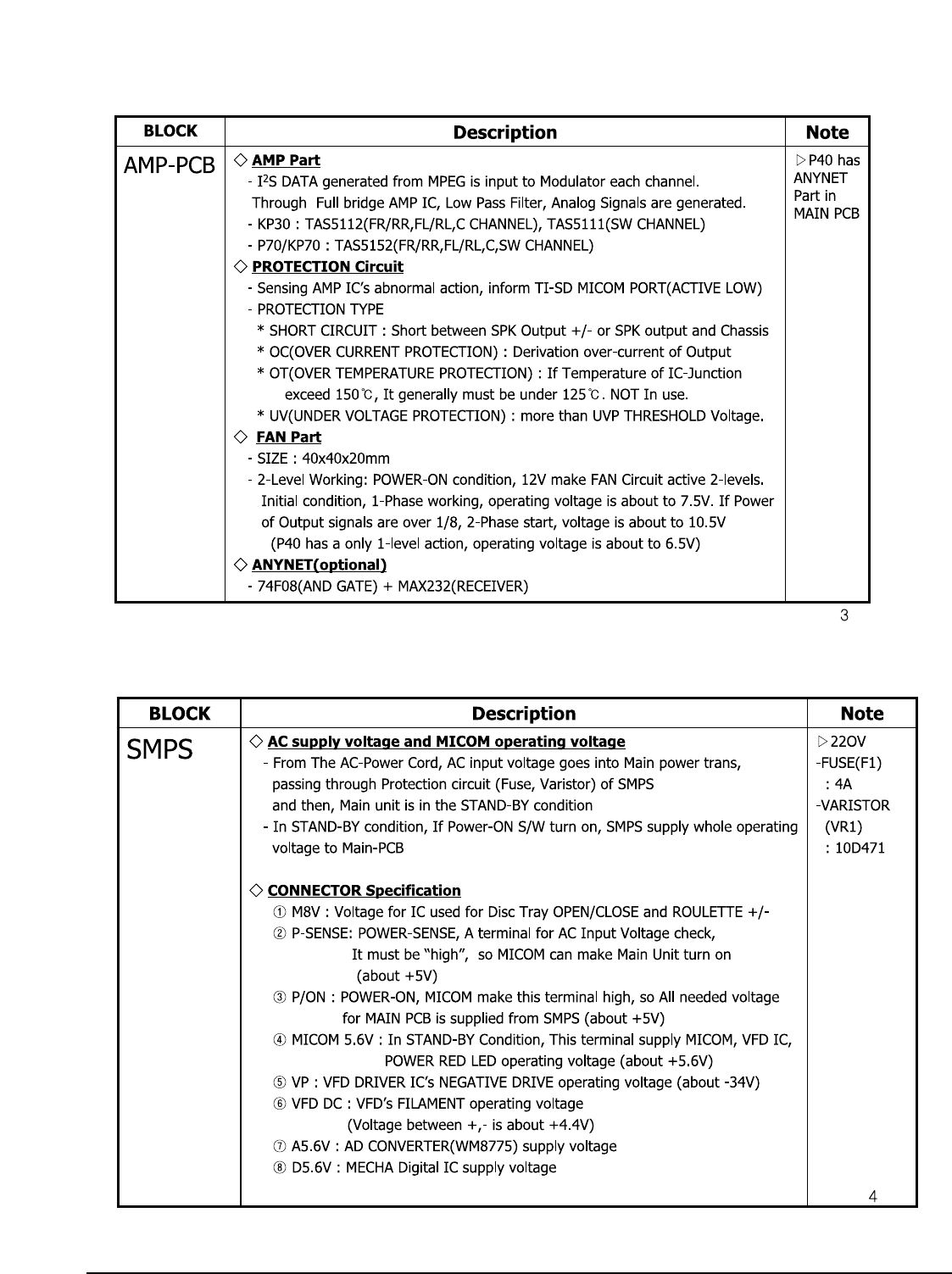

Circuit Board Description 13-1
Ch14 HTS Reference

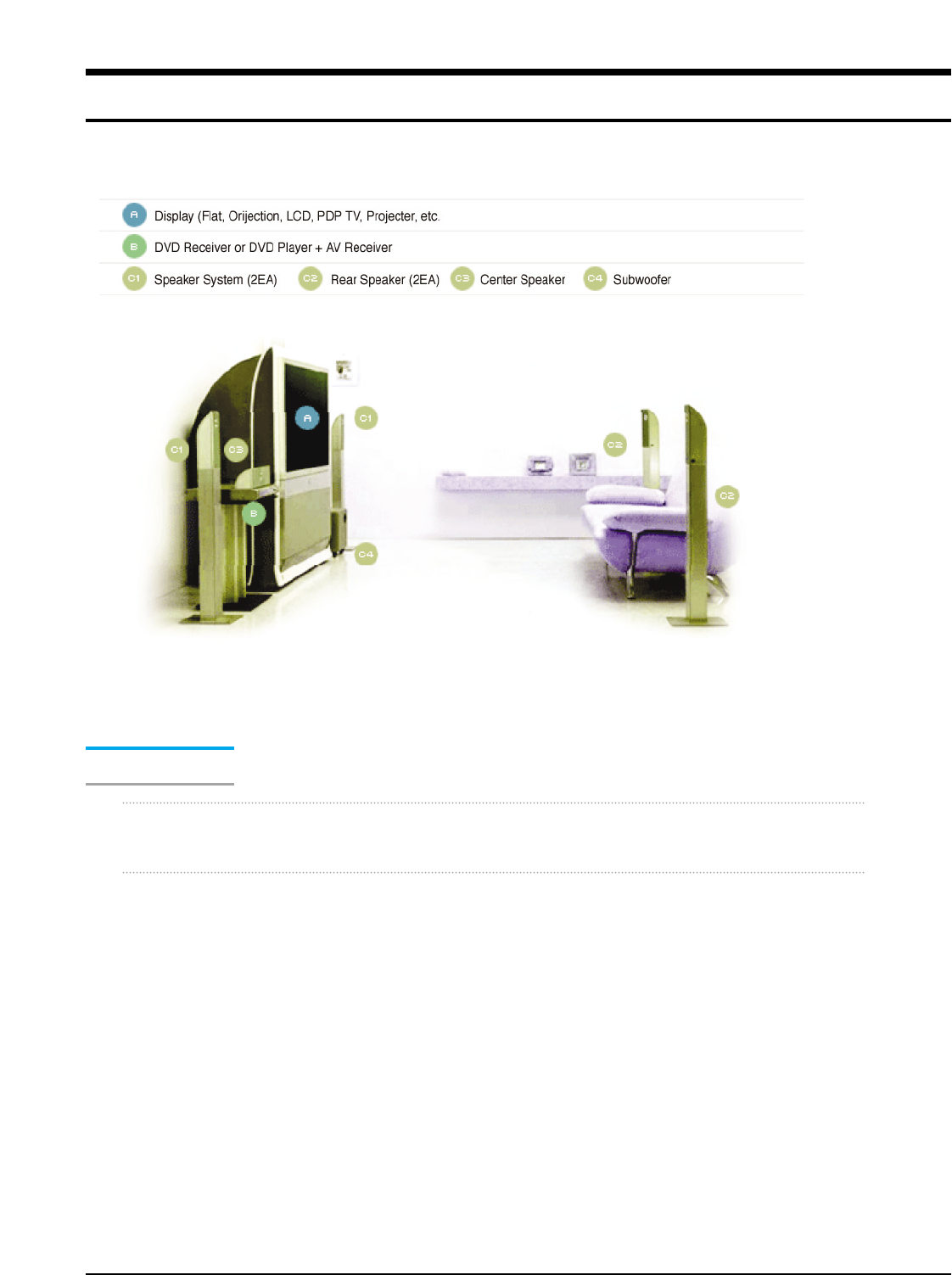

1. HTS (Home Theater Sytsem) 14-1

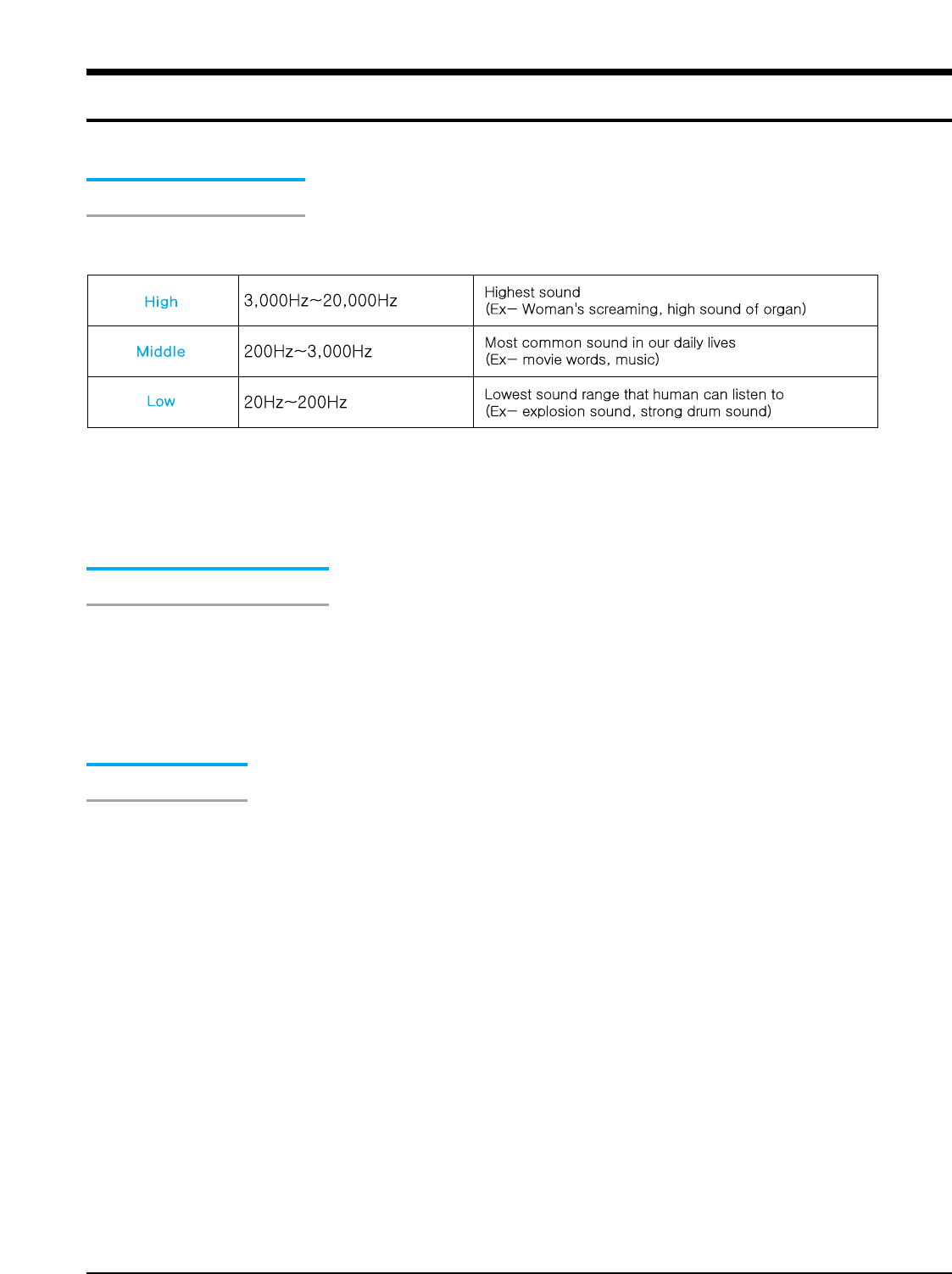

2. About “Sound” 14-2

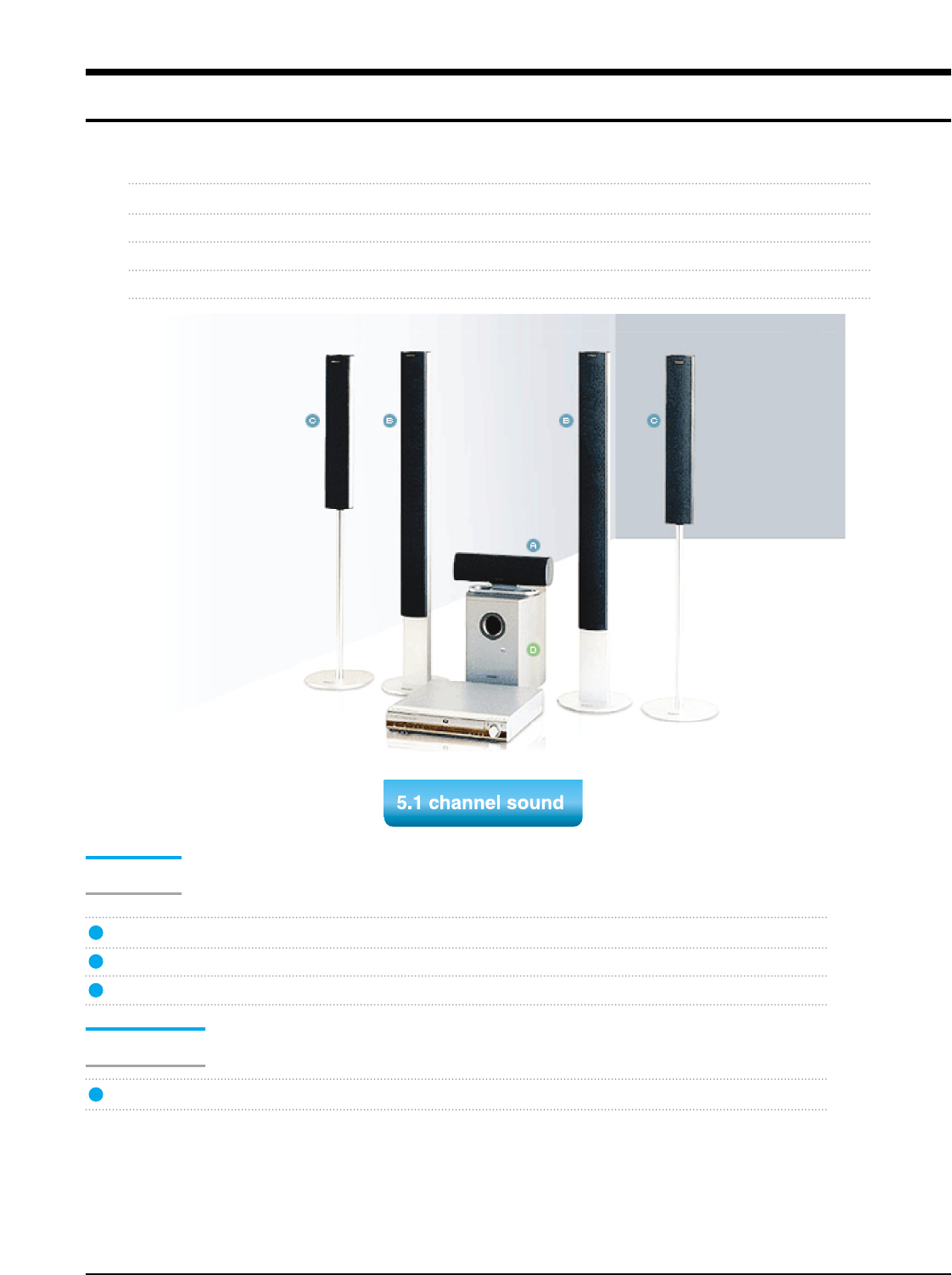

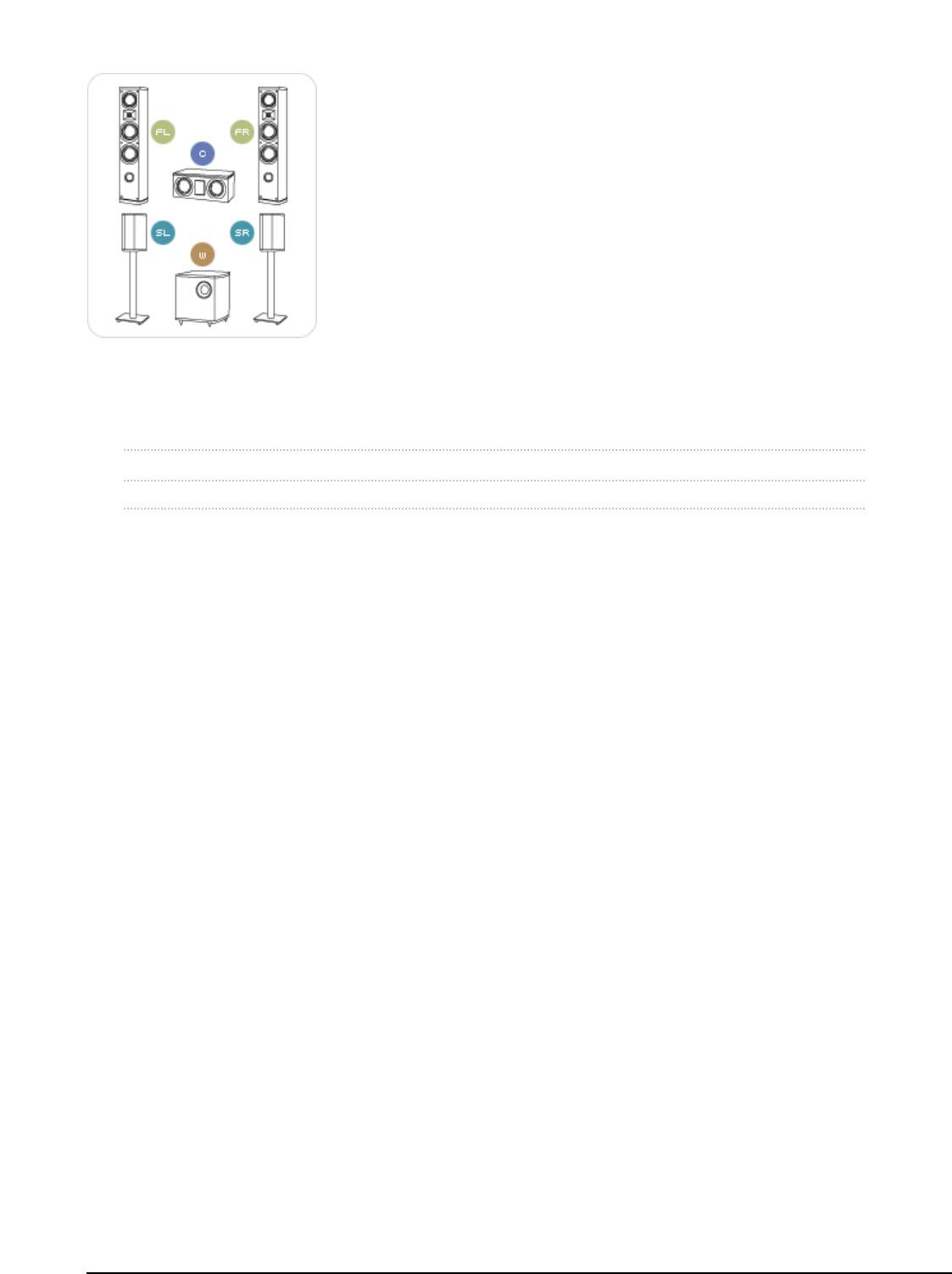

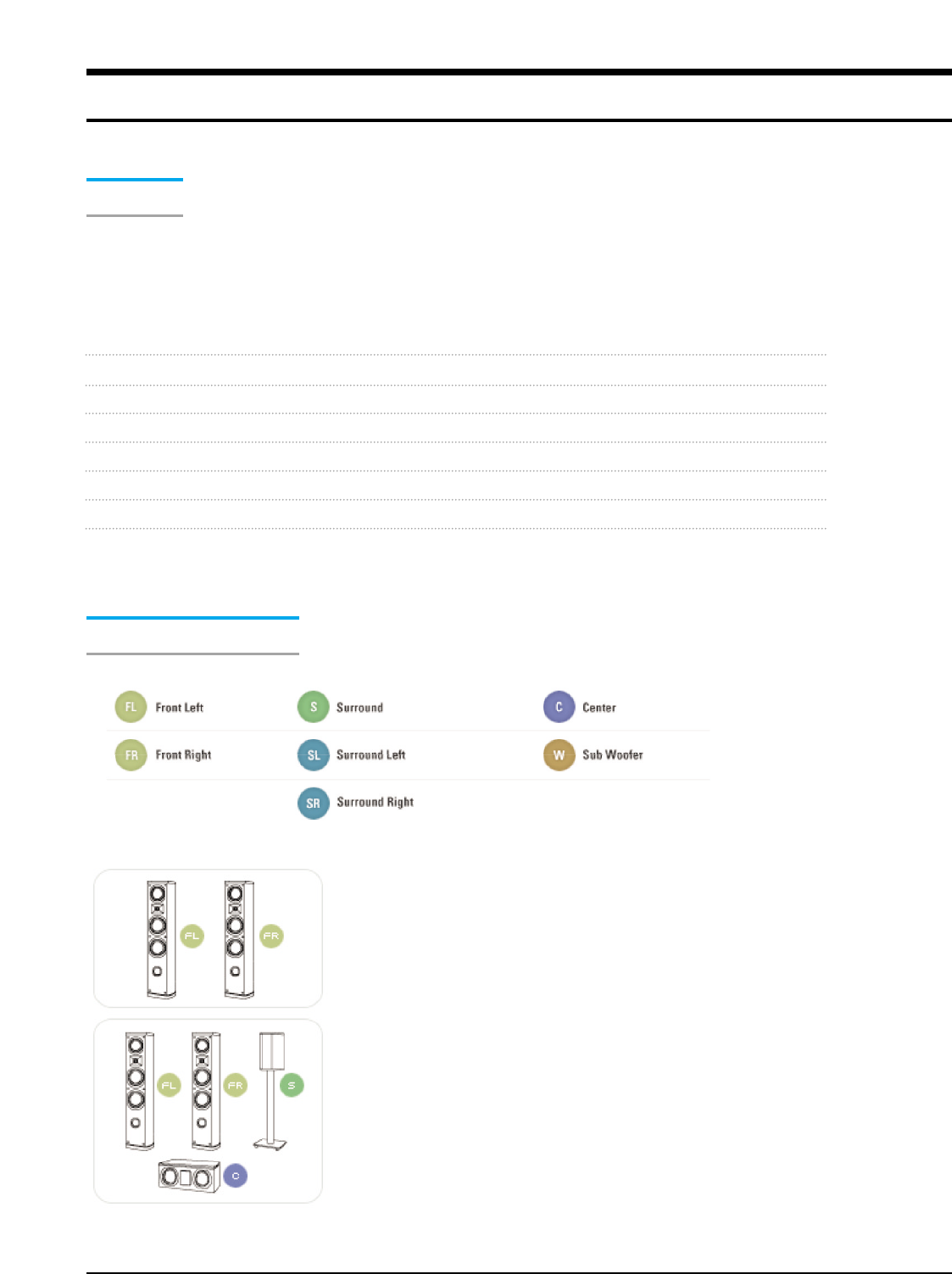

3. 5.1 Channel Sound 14-3

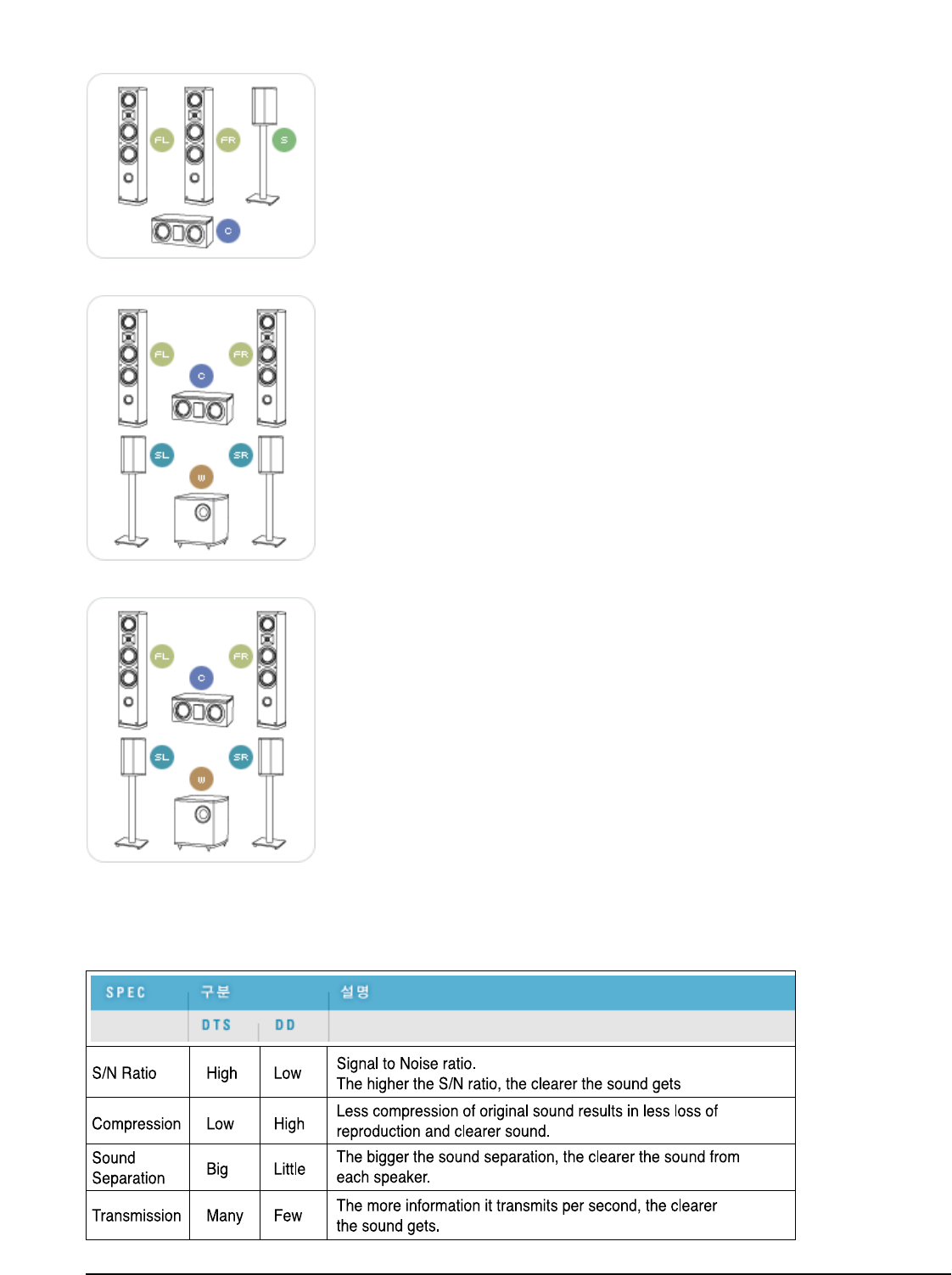

4. HTS Sound Format 14-4

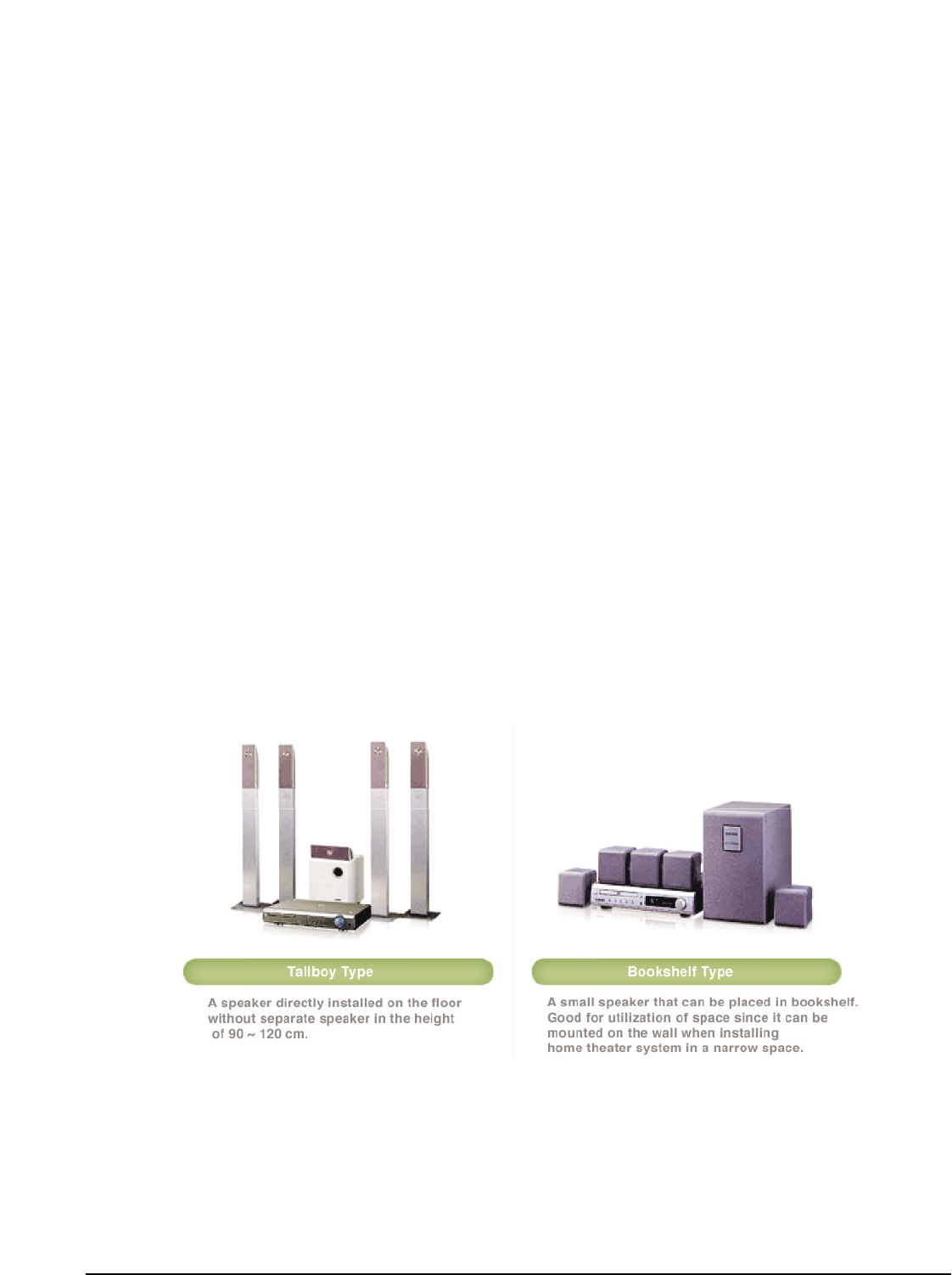

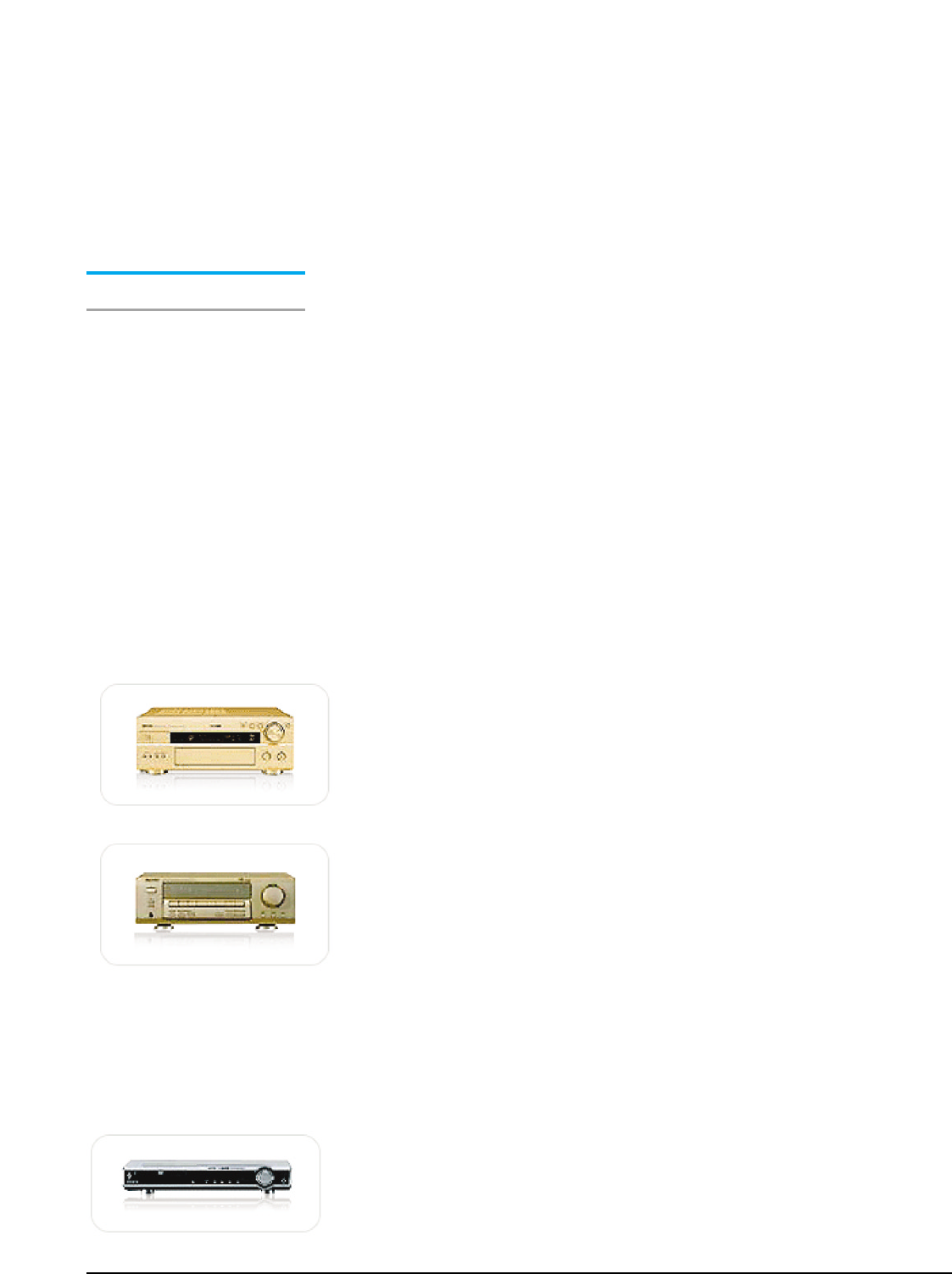

5. HTS Devices 14-5
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential hazards
such as electrical shock and X-rays.
Samsung Electronics 1-1
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including control knobs and
compartment covers.
3. Make sure that there are no cabinet
openings through which people--
particularly children--might insert fingers
and contact dangerous voltages. Such
openings include the spacing between the
picture tube and the cabinet mask,
excessively wide cabinet ventilation slots,
and improperly fitted back covers.
4. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of the unit. Example: Do
not add auxiliary audio or video connec-
tors. Such alterations might create a safety
hazard. Also, any design changes or addi-
tions will void the manufacturer's warran-
ty.
5. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakage-
current tester or a metering system that
complies with American National Standards
Institute (ANSI C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
With the unit completely reassembled, plug
the AC line cord directly into a 120V AC
outlet. With the unit's AC switch first in
the ON position and then OFF, measure the
current between a known earth ground
(metal water pipe, etc.) and all exposed
metal parts. Examples: Handle brackets,
metal cabinets, screwheads and control
shafts. The current measured should not
exceed 0.5 milliamp. Reverse the power-
plug prongs in the AC outlet and repeat.
6. Insulation Resistance Cold Check:
(1) With the unit's AC plug disconnected
from the AC source, connect an electrical
jumper across the two AC prongs. (2) Set
the power switch to ON. (3) Measure the
resistance between the shorted AC plug and
any exposed metallic parts. Example:
Screwheads, antenna, control shafts or
handle brackets.
If any of the exposed metallic parts has a
return path to the chassis, the measured
resistance should be between 1 and 5.2
megohms. If there is no return path, the
measured resistance should be "infinite." If
the resistance is outside these limits, a shock
hazard might exist. See Figure 1-2
Device
Under
Test
(Reading should
not be above
0.5mA)
Leakage
Currant
Tester
Earth
Ground
Test all
exposed metal
surfaces
Also test with
plug reversed
(using AC adapter
plug as required)
2-Wire Cord
Antenna
Terminal
Exposed
Metal Part
ohm Ohmmeter

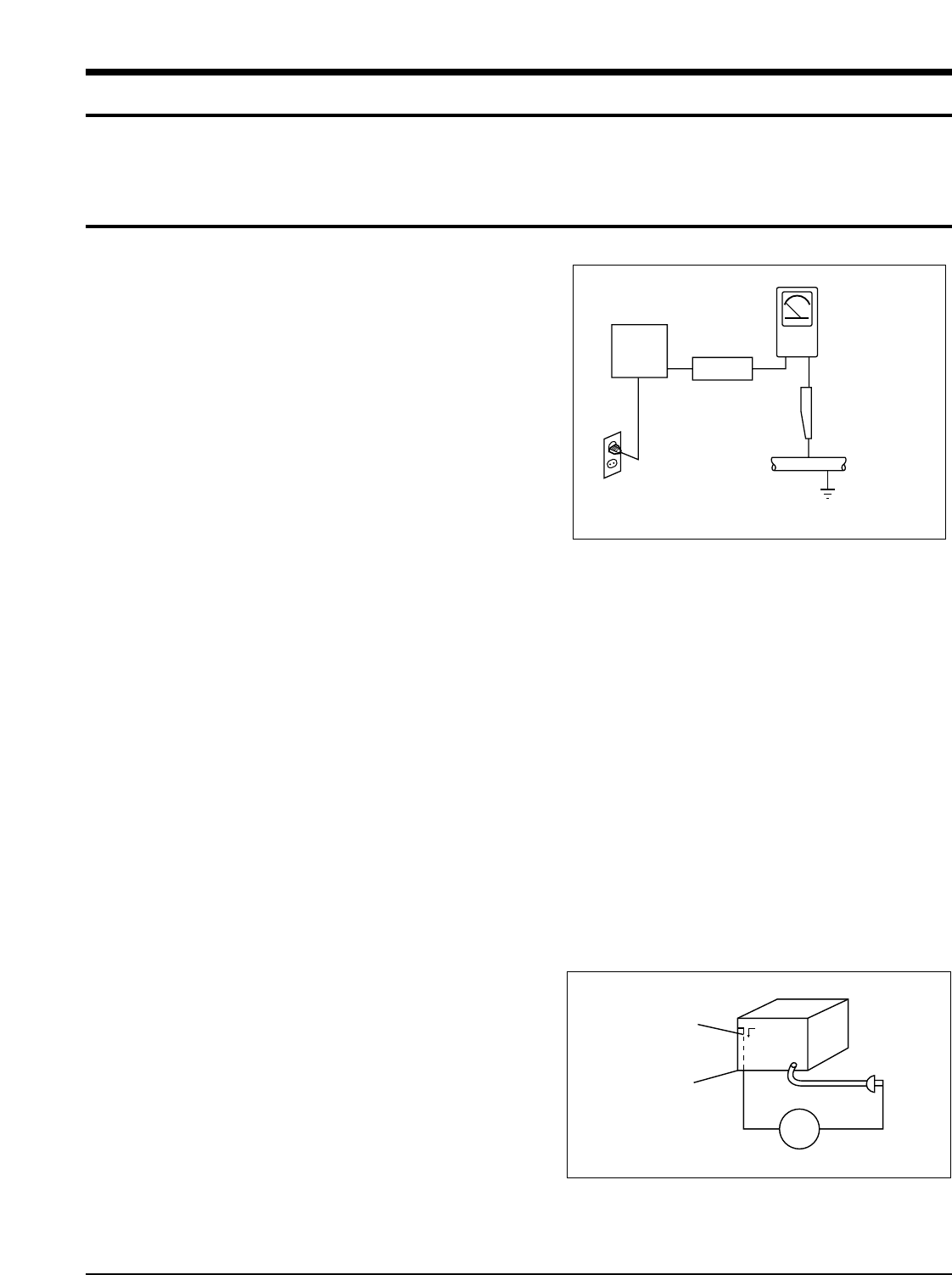

Fig. 1-1 AC Leakage Test
Fig. 1-2 Insulation Resistance Test
Samsung Electronics1-2
1-1 Safety Precautions (Continued)
7. Components, parts and wiring that appear
to have overheated or that are otherwise
damaged should be replaced with parts
that meet the original specifications.
Always determine the cause of damage or
overheating, and correct any potential
hazards
8. Observe the original lead dress, especially
near the following areas: Antenna
wiring, sharp edges, and especially the
AC and high voltage power supplies.
Always inspect for pinched, out-of-place,
or frayed wiring. Do not change the
spacing between components and the
printed circuit board. Check the AC
power cord for damage. Make sure that
no wires or components touch thermally
hot parts.
9. Product Safety Notice:
Some electrical and mechanical parts
have special safety-related characteristics
which might not be obvious from visual
inspection. These safety features and the
protection they give might be lost if the
replacement component differs from the
original--even if the replacement is rated
for higher voltage, wattage, etc.
10 Components that are critical for safety are
indicated in the circuit diagram by
shading, or . Use replacement
components that have the same ratings,
especially for flame resistance and
dielectric strength specifications. A
replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
1-2 Servicing Precautions
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit's AC power cord
from the AC power source before
attempting to: (a) Remove or reinstall any
component or assembly, (b) Disconnect an
electrical plug or connector, (c) Connect a
test component in parallel with an
electrolytic capacitor.
3. Some components are raised above the
printed circuit board for safety. An
insulation tube or tape is sometimes used.
The internal wiring may be clamped to
prevent contact with thermally hot
components. Reinstall all such elements to
their original position.
4. After servicing, always check that the
screws, components and wiring have been
correctly reinstalled. Make sure that the
portion around the serviced part has not
been damaged.
5. Check the insulation between the blades of
the AC plug and accessible conductive parts
(examples: metal panels, input terminals
and earphone jacks).
6. Insulation Checking Procedure: Disconnect
the power cord from the AC source and
turn the power switch ON. Connect an
insulation resistance meter (500V) to the
blades of the AC plug.
The insulation resistance between each
blade of the AC plug and accessible
conductive parts (see above) should be
greater than 1 megohm.
7. Never defeat any of the B+ voltage
interlocks. Do not apply AC power to the
unit (or any of its assemblies) unless all
solid-state heat sinks are correctly installed.
8. Always connect a test instrument's ground
lead to the instrument chassis ground
before connecting the positive lead; always
remove the instrument's ground lead last.
Precautions
Warning1: First read the "Safety Precautions" section of this manual. If some unforeseen circumstance creates a conflict
between the servicing and safety precautions, always follow the safety precautions.
Samsung Electronics 1-3
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1-4 Special Precautions and Warning Labels for Laser Products
1. Some semiconductor ("solid state") devices
are easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs). Examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component
damage caused by static electricity.
2. Immediately before handling any
semiconductor components or assemblies,
drain the electrostatic charge from your
body by touching a known earth ground.
Alternatively, wear a discharging
wrist-strap device. (Be sure to remove it
prior to applying power--this is an electric
shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals.
These can generate electrical charges that
damage ESDs.
5. Use only a grounded-tip soldering iron
when soldering or unsoldering ESDs.
6. Use only an anti-static solder removal
device. Many solder removal devices are
not rated as "anti-static" (these can
accumulate sufficient electrical charge to
damage ESDs).
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive
materials.
8. Immediately before removing the protective
material from the leads of a replacement
ESD, touch the protective material to the
chassis or circuit assembly into which the
device will be installed.
9. Minimize body motions when handing
unpackaged replacement ESDs. Motions
such as brushing clothes together, or lifting
a foot from a carpeted floor can generate
enough static electricity to damage an ESD.
Precautions
UL : Manufactured for U.S.A. Market.
CSA : Manufactured for Canadian Market.
EU : Manufactured for European Market.
SCAN : Manufactured for Scandinavian
Market.
This Product Complies with
DHHS Rules 21CFR, Sub
chapter J.At date of Manu-
facture
(UL)
(UL,CSA,SCAN)
(EU)
CERTIFIED ONLY TO CANADIAN
ELECTRICAL CODE.
CERTIFIE EN VERTU DU CODE
CANADIAN DE LELETRICITE
SEULEMENT
(CSA)
CLASS 1
LASER PRODUCT
(UL,CSA,EU)
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATEO AVOIDEXPOSURE TO BEAM
ADVARSEL: USYNLIG LASERSTRÅLING VED ABNING
NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION
UNDGA UDSAETTELSE FOR STRALING
VARO:AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTINA NAKYMATTÖMALLE LASERSATEILYLLE ALA
KATSO SATEESEEN!
VARNING:OSYNLIG LASERSTRÅLNING NAR DENNA DEL
AR OPPNAD OCH SPARREN AR URKOPPLAD BETRAKTA
EJSTRÅLEN!
Samsung Electronics1-4

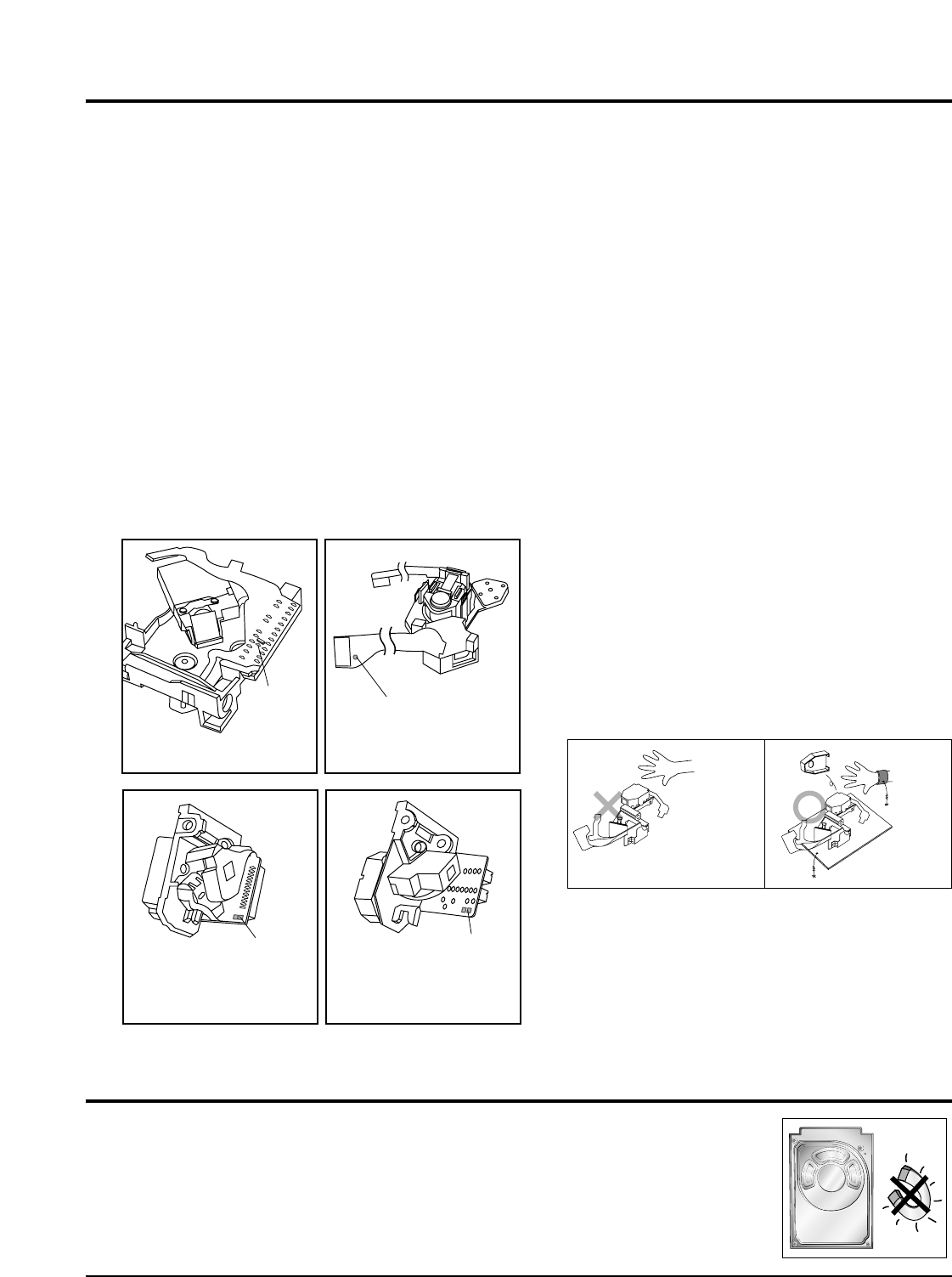

1-4 Special Precautions and Warning Labels for Laser Products (Continued)
1-4-1 Warnings
1. When servicing, do not approach the LASER
exit with the eye too closely. In case it is
necessary to confirm LASER beam emission,
be sure to observe from a distance of more
than 30 cm from the surface of the objective
lens on the optical pick-up block.
2. Do not attempt to handle the objective lens
when the DISC is not on the tray.
1-4-2 Laser Diode Specifications
Material: GaAs+ GaAlAs
Wavelength: 760-800 nm
Emission Duration: Continuous
Laser Output: 0.2 mw (measured at a
1.6 mm distance from the objective lens
surface on the optical pick-up block.)
1-4-3 Handling the Optical Pick-up
1. Static electricity from clothing or the body
may cause electrostatic breakdown of the
laser diode in the Optical Pickup. Follow
this procedure:
2. Place a conductive sheet on the work bench
(i.e., the black sheet used for wrapping
repair parts.) Note: The surface of the work
bench should be covered by a copper
ground plane, which is grounded.
3. The repair technician must wear a wrist
strap which is grounded to the copper sheet.
4. To remove the Optical Pickup block:
Place the set on the conductive sheet, and
momentarily touch the conductive sheet
with both hands. (While working, do not
allow any electrostatic sources--such as
clothes--to touch the unit.)
5. Ground the "Short Terminal" (located on the
PCB, inside the Pickup Assembly) before
replacing the Pickup. This terminal should
be shorted whenever the Pickup Assembly
is lifted or moved.
6. After replacing the Pickup, reopen the Short
Terminal. See diagrams below:
Precautions
THE UNIT
(1) WRIST-STRAP
FOR GROUNDING
1M
1M
CONDUCTIVE SHEET
short
terminal short terminal
short
terminal short
terminal
SOH91VI(LDP) SOH91CI(CAR,walkman)
SOH94T4N
(CMS-V10,CMS-V30)
SOH-A1
(CMS-V10,CMS-V30)
1-5 Special Precautions for HDD
* HDD Data Maintenance Step
1. Since the data on the HDD is weak to mechanical shock, place the HDD in a safe
location that is free from mechanical shock once it is removed from the main unit.
2. In order to safe keep the data on the HDD, back up the data before the repair or
make sure not to place the HDD near any electrical appliance that generates a strong
magnetic field.
Samsung Electronics 14-1
1. Definition of Home Theater
What is Home Theater?
Home theater system is the proper combination of audio and video system at home which enable
you to enjoy more dynamic sound and vivid image in a wide screen of movie theater.
This effect can be implemented with wide screen, high quality projector, Dolby digital and DTS
sound effects.
Now you can enjoy surround sound field wieh realistic presence and Dolby digital at your home as if
you are in a movie theater.
As time goes by, home theater system has become recognized as a system that helps listen sound
closer to the original sound rather than video. In this 21st century, most movie and animation films
will be produced for home theater and reproduce sound closer to original sound.
14-2 Samsung Electronics
2. Concept of Sound
What is Sound Range?
People can listen to the sounds with frequency between 200Hz~20.000Hz
As time goes by, home theater system has become recognized as a system that helps listen sound
closer to the original sound rather than video. In this 21st century, most movie and animation films
will be produced for home theater and reproduce sound closer to original sound.
What is Sound Pressure?
* A measure of how well speaker converts electric signal it receives to sound
* Unit of sound pressure is decibel and mainly measures the size of sound at 1 m away after
sending 1 W power from speaker.
❋High sound pressure doesn't necessary mean good performance
What is Timbre?
* How well the unique sound of musical instrument is expressed
* Better if violin and cello sound are accurately distinguished. Good timbre means high quality.
Samsung Electronics 14-3
2. Concept of Sound
By reproducing standard channels used during soundtrack recording of movie,
it outputs 3 sounds of movie (words / music / sound effects) from 6 different
speakers and provides surround dynamic sound effects so that you can even
feel the direction of sound.
5 channel
0.1 channel
* Power amp is embedded in active sub woofer
* Require separate amp since there is no amp in passive sub woofer
❋No difference in performance of active sub woofer and passive sub woofer
Center Speaker : Voice ( over 95%)
Front Speaker (L/R) : Music Sound
Rear Speaker (L/R) : Sound Effect
A
B
C
Subwoofer : Low Sound Effect
D
14-4 Samsung Electronics
4. Home Theater Sound Format
Overview
* As home theater has recently penetrated deep into consumer's market in Korea, Dolby digital and
DTS, the sound format for 5.1 channel home theater, are the mainstream in the market.
* Expanded type of 6.1 channel or 7.1 channel are recently released in the market, but there are
not much DVD title that can support expanded type.
Home theater format...
Stereo
Is used in general audio and analog TV and and consists of 2
channels, at front left/right
Dolby Surround
In this sound format, 4 audio channels (Front left / right / center /
surround) are entered in 2 channel and reproduce in 4 channels
through device with Dolby decoder.
Center channel is not completely separated so that it forms virtual
center channel with help of front left / right channel.
1958 1Ch Mono/ 2Ch Stereo
1982 Matrix 3Ch Dolby Surround
1987 Matrix 4Ch Dolby Pro Logic
1995 5.1Ch Dolby Digital
1997 DTS (Digital Theater System)
1999 Matrix 6.1Ch Dolby Digital Sourround EX
Dolby Prologic
– Provide 4 channels (Front Left/Right/Center/Surround)
– Reinforced from Dolby Surround
① Center channel is completely separated
➁ Separation between channels gets higher
Dolby Digital
– Provide completely separate 5.1 channel
(Front Left/Right, Center, Rear Left/Right, Sub Woofer)
– Main sound format of home theater
– Reinforced from Dolby Prologic
– Rear surround left/right channels give different sound
– Support sub woofer reinforcing Bass
❋Dolby Digital is also called AC-301
AC-3(Audo-Coding-3) : 3rd digital audio coding Dolby Research Center has
developed.
DTS(Digital Theater System)
– Technology of providing 5.1 channel sound, higher quality than
Dolby Digital
– Home appliance produced to apply system installed at 1,800 the-
aters throughout the world.
✪ Comparison of DTS and Dolby Digital(DD)
Samsung Electronics 14-5
14-6 Samsung Electronics
Dolby Prologic
– Latest technology reproducing music CD recorded in 2 channel,
cassette tape and video tape made in Dolby Prologic into 5.1
channel.
– Surround speaker that makes you feel more natural, deeper and
wider than existing Dolby Prologic.
(Ex-Profound sound adds more realistic presence from 5 speakers
and sub woofer when you watch soccer match.)
DTS (Digital Theater System)
THX (Abbreviation of Tomlison Holman's Experiment)
– THX is not a sound format like a Dolby or DTS, but is a standard of sound. Like standard KS
mark in Korea, THX means good certification in sound effects.
– THX issues certificate when a movie, theater or home theater system satisfy proper standards.
Samsung Electronics 14-7
5. Home Theater Components
Amp / Receiver
Amp: Device of raising output after tuning signal of CD player or DVD into
unique sound timbre
Various Types and Usages of Amplifier
- For Listening to Music ¡æ For Music+ Movie
- ① AV Receiver (Dedicated Lamp for Home Theater) : Preferred by Home Theater mania.
➁ DVD Receiver (DVD Player+ Amp+ Radio Tuner) : Suitable for beginner of Home Theater
- Many A/V companies adopt DVD receiver type for expansion of easy and economic Home Theater
system.
Popular Korean Products
- Popular for those who pursue relatively good sound quality at low price
- Product priced between 400,000 won~600,000 won are popular.
14-8 Samsung Electronics
Popular Foreign Products
– Popular for those who prefer profound sound volume/output(Hi-fi mania, Home Theater mania)
– Products in the range of middle and low price such as Denon, Yamaha, Onkyo (900,000~1.1 mil-
lion won) are popular.
– There is very expensive product over 10 million won among foreign audio markers such as
Merdian, Mcintosh, Krell.
Type of Amp/Receiver
* Pre Amp
A device that receives, adjusts and sends signal from source devices (tape deck, CD player, radio
tuner, etc.) to power amplifier.
* Power Amp
A device that amplifies the signal from Pre Amp into big sound so that speaker can vibrate.
* Integrated Amp
A device that combines pre-amp and power amp into one.
* Receiver
A device that contains tuner for radio broadcasting and integrated amp.
A/V Receiver General Amplifier
– Support 2 channels (Left, Right Speaker)
– Mainly reproduce music
– No decoder : cannot cope with various sound formats
A/V Receiver
– Support multi-channel (support 5.1 channel)
Launch products supporting 6.1 channel and 7.1 channel recent-
ly.
– Reproduce music and movie sound realistically
– Has decoder
Can cope with various sound formats such as Dolby Digital.
DTS
– Rich input/output
– Use digital signal type and has no sound
A/V Receiver
A device of implementing home theater more conveniently with
radio and A/V receiver embeded in DVD player.
Samsung Electronics 14-9
How to Select Amp/Receiver
- Select the products that can support both Dolby Digital and DTS since they require both for vivid
sound
- Performance of amp gets better in output(W) but high output is a burden in narrow house.
- Important to match output(W) and capacity(§Ù) of amp and speaker.
- It is advantageous for beginners to purchase DVD receiver type that has amp and radio tuner in
DVD player
- If the budget is tight, it is recommended to continue to upgrade after purchasing a low-priced sys-
tem.
* Computer will be of no use when it is outdated.
* But, home theater system can be utilized in various ways due to feature of A/V device.
Speaker
Speaker system consists of speaker unit and enclosure.
The type and price range are diverse from expensive big speaker to miniature thin speaker.
Difference between famous speaker and big A/V speaker
- Speaker units are similar(there are a few several speaker unit makers in the world)
- Design, finishing, assembling and tuning process of enclosure are different.
(Prestige speakers are made manually in whole processes of manufacturing)
Famous speaker brands: B&W, JBL, BOSE, Definitve, B&O, etc.
14-10 Samsung Electronics

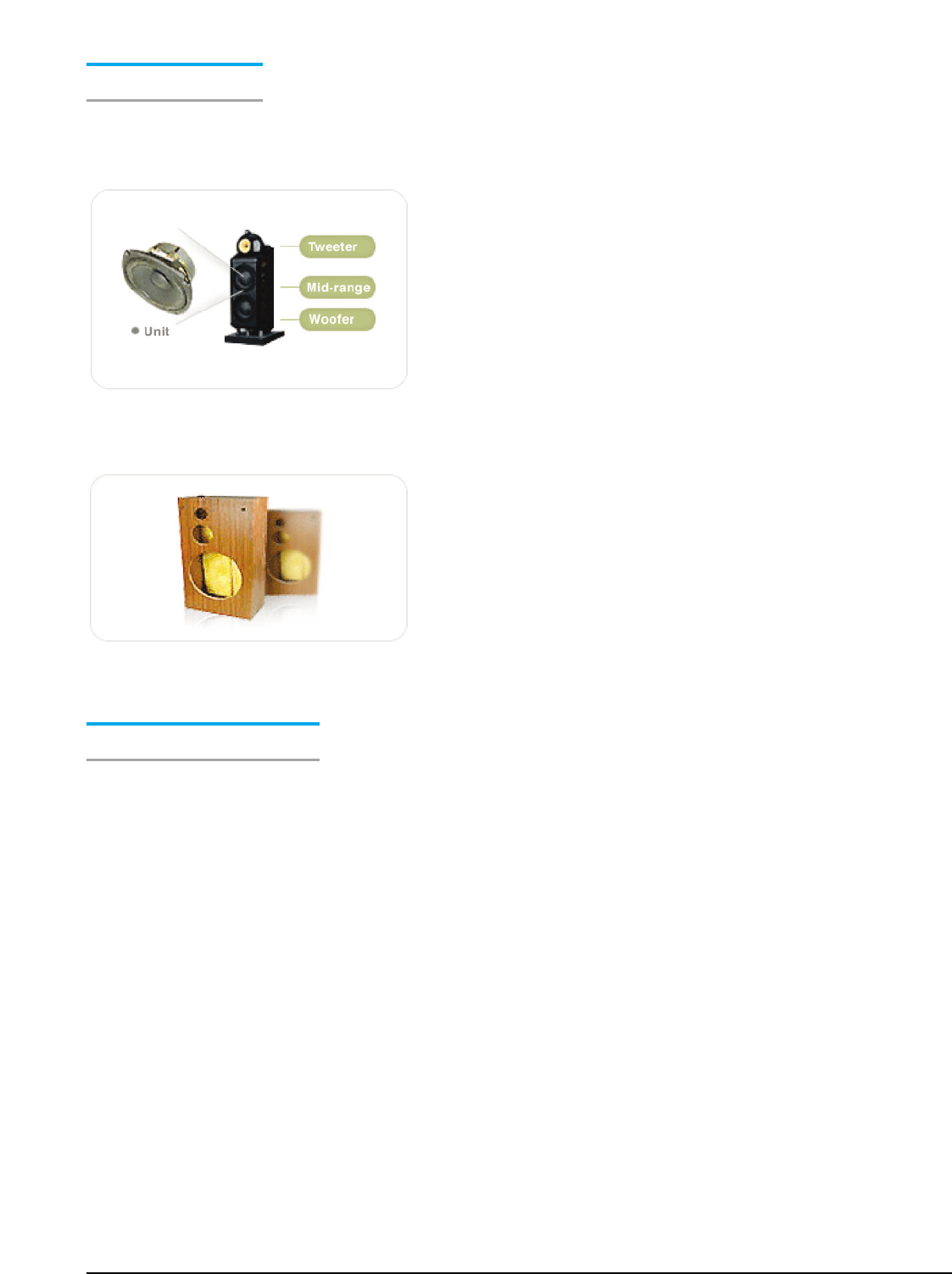

Speaker Structure
Speaker Unit
- Divided into for high tone, middle tone and low tong
- Tweeter : for high pitch
Smallest unit suitable for feature of high tone reproduction
- Mid-Range : for middle tone
Mid sound reproduction ability is the most critical standard
of speaker evaluation
- Woofer : for low tone
Much bigger size than other speaker unit
Enclosure
- Case of speaker unit
- Enclosure sways sound quality of reproduction
- Low tone is almost acattered without enclosure, and only
high sound tone is heard.
Type of Speaker System
Full Range Speaker
A speaker system producing sound with one speaker unit.
2 Way Type
A speaker system designed using units of 2 woofers for bass and tweeter for high tone.
3 Way Type
Difference between foreign prestige speaker and big A/V maker's speaker.
Samsung Electronics 2-1
2. Product Description
1. Specifications
Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Usable Sensitivity
S/N Ratio
Distortion
Composite Video
Scart Jack
Component Video
HDMI
Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity
G
E
N
E
R
A
L
T
U
N
E
R
F
M
T
U
N
E
R
A
M
V
I
D
E
O
O
U
T
P
U
T
A
M
P
L
I
F
I
E
R
80W
3.5Kg
430 x 60 x 340 mm
+5°C~+35°C
10%~75%
10dB
60dB
0.5%
55dB
40dB
2%
1.0Vp-p(75Ωload)
Compositive Video : 1.0Vp-p(75Ωload)
RGB Signal : 0.714Vp-p(75Ωload)
Y:1.0Vp-p(75Ωload)
Pr:0.70Vp-p(75Ωload)
Pb:0.70Vp-p(75Ωload)
Impedance: 85~115Ω
HT-P70 HT-TP75
125W(3Ω)/CH 130W(3Ω)/CH
125W(3Ω)/CH 130W(3Ω)
125W(3Ω)/CH 130W(3Ω)/CH
150W(3Ω)
20Hz~20kHz
70dB
60dB
(AUX)500mV
2-2 Samsung Electronics
2. Notes on discs
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital sur-
round sound and MPEG-2 video compression technology. Now you can enjoy these realistic
effects in the home, as if you were in a movie theater or concert hall.
V I D E O
DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
1 6
~
•
LD, CD-G, CD-I, CD-ROM and DVD-ROM cannot be played on this player.
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.
•
DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.
Do not use the following types of disc!
•
Many DVD discs are encoded with copy protection. Because of this, you should only connect
your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted pic-
ture from copy-protected DVD discs.
•
This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
Copy Protection
COMPACT
DIGITAL VIDEO
COMPACT
DIGITAL AUDIO
Mark (Logo)
Audio + Video
DVD
VIDEO-CD
AUDIO-CD
12cm
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
74 min.
20 min.
74 min.
20 min.
8cm
12cm
8cm
12cm
8cm
Audio + Video
Audio
Recorded Signals
Disc Type Disc Size Max. Playing Time
Playable Discs
Samsung Electronics 2-3
CD-R Discs
•
Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
•
Use a 650MB/74 minute CD-R disc.
Do not use CD-R disk over 700MB/80 minute as much as possible since it may not be played back.
•
Some CD-RW (Rewritable) media, may not be playable.
•
Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
CD-R JPEG Discs
•
Only files with the ".jpeg" and ".JPEG" extensions can be played.
•
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
•
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
•
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
•
A maximum of 9,999 images can be stored on a single CD.
•
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
•
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
Disc Recording Format
CD-R MP3 Discs
•
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
•
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
•
Only files with the ".mp3" and ".MP3" extensions can be played.
•
Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
•
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
•
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
•
A maximum of 500 tracks can be played per CD.
•
A maximum of 300 folders can be played per CD.
2-4 Samsung Electronics
3. Accessories
AH39-40001V CABLE-AUDIO CABLE 1P-1P,3000MM
AH42-00018A ANTENNA-FM t150S1F-1,1500##50m
AH42-00019A ANT LOOP S0160BL-16,9uH,-,1KH
AH59-01527A REMOCON-ASSY HT-P70,EUR,57KEY
Code no. Description & Specification Remarks
Samsung Electronics 3-1
3. Product Functions
1. SPK connection
RSLS
C
L
SW
R
Rear Speakers
•
Place these speakers behind your listening position.
•
If there isn't enough room, place these speakers to face each other.
•
Place them about 60 to 90cm (2 to 3feet) above your ear, facing
slightly downward.
*Unlike the front and center speakers, the rear speakers are used
to handle mainly sound effects and sound will not come from
them all the time.
Subwoofer
•
The position of the subwoofer is not so critical.
Place it anywhere you like.
•
Usually, it is placed by a corner near the front speakers.
Front Speakers
•
Place these speakers in front of your listening posi-
tion, facing inwards (about 45°) toward you.
•
Place the speakers so that their tweeters will be at
the same height as your ear.
•
Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.
Center Speaker
•
It is best to install it at the same height as the front
speakers.
•
You can also install it directly over or under the TV.
Position of the DVD Player
•
Place it on a stand or cabinet shelf, or under
the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
R
L
C
RS
LS
SW
3-2 Samsung Electronics
•
Make sure the colors of the speaker terminals
match the colors of the connecting plugs.
Black
Press down the terminal
tab on the back of the
speaker.
1Insert the black wire into
the black terminal (–) and
the gray wire into the gray
(+) terminal, and then
release the tab.
2Connect the connecting plugs to
the back of the DVD player.
3
Gray
Back of the Speakers Back of the Main Unit
Rear Speaker (R)
Front Speaker (R) Front Speaker (L)
Subwoofer
Center Speaker
Rear Speaker (L)
Blue
Gray
Purple
White
Red Green
HT-P70
Samsung Electronics 3-3
•
Make sure the colors of the speaker terminals
match the colors of the connecting plugs.
Black
Press down the terminal
tab on the back of the
speaker.
1Insert the black wire into
the black terminal (–) and
the gray wire into the gray
(+) terminal, and then
release the tab.
2Connect the connecting plugs to
the back of the DVD player.
3
Gray
Back of the Speakers Back of the Main Unit
Rear Speaker (R)
Front Speaker (R)
Subwoofer
Center Speaker
Rear Speaker (L)
Front Speaker (L)
Blue
Gray
Purple
White
Red Green
HT-TP75
3-4 Samsung Electronics
2. Main Functions
2
Load a disc.
•
Depending on the content of the disc, the initial screen may appear different.
1
Press OPEN/
CLOSE button to
open the disc tray.
3
Press OPEN/
CLOSE button to
close the disc tray.
•
Place a disc gently into the
tray with the disc’s label fac-
ing up.
Note
To stop playback, press STOP during playback.
• If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in memory.
If PLAY/PAUSE ( ) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
• If pressed twice, “STOP” is displayed, and if PLAY/PAUSE ( ) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press PLAY/PAUSE during playback.
•
To resume playback, press PLAY/PAUSE ( ) button again.
DVD SACDVCD CD
•
Playback starts automatically.
Disc Playback
Selecting the Video Format
Press and hold NT/PAL button on the remote controller for over 5 seconds while the power is turned off.
•
By default, the video format is set to "PAL".
•
"NTSC" or "PAL" will appear in the display.
At this time, press the NT/PAL button shortly to select between "NTSC" and "PAL".
•
Each country has a different video format standard.
•
For normal playback, the video format of the disc must be the same as the video format of your TV.
Samsung Electronics 3-5
•
Depending on the number of languages on a
DVD disc, a different audio language (ENG-
LISH, SPANISH, FRENCH, etc.) is selected
each time the button is pressed.
2Press Cursor ,
buttons or numeric but-
tons to select the
desired audio language.
1
Press INFO button
twice.
SP 2/3
FR 3/3
EN 1/3 EN 01/ 03
OFF
SP 02/ 03
FR 03/ 03
OFF / 03
•
To operate this function, you can also press the Select AUDIO
or Select SUBTITLE buttons on the remote control.
•
You can use the SUBTITLE button on the remote control to
select a subtitle language.
•
Depending on the disc, the Subtitle and Audio Language func-
tions may not work.
Audio Language Selection Function
DVD
Subtitle Language Selection Function
DVD
2
Press Cursor
button to move to
SUBTITLE ( )
display.
1
Press INFO button
twice.
3
Press Cursor
button or numeric
buttons to select
the desired subtitle.
Note
•
You can use the AUDIO button on the remote control to
select a audio language.
Note
Selecting Audio/Subtitle Language
3-6 Samsung Electronics

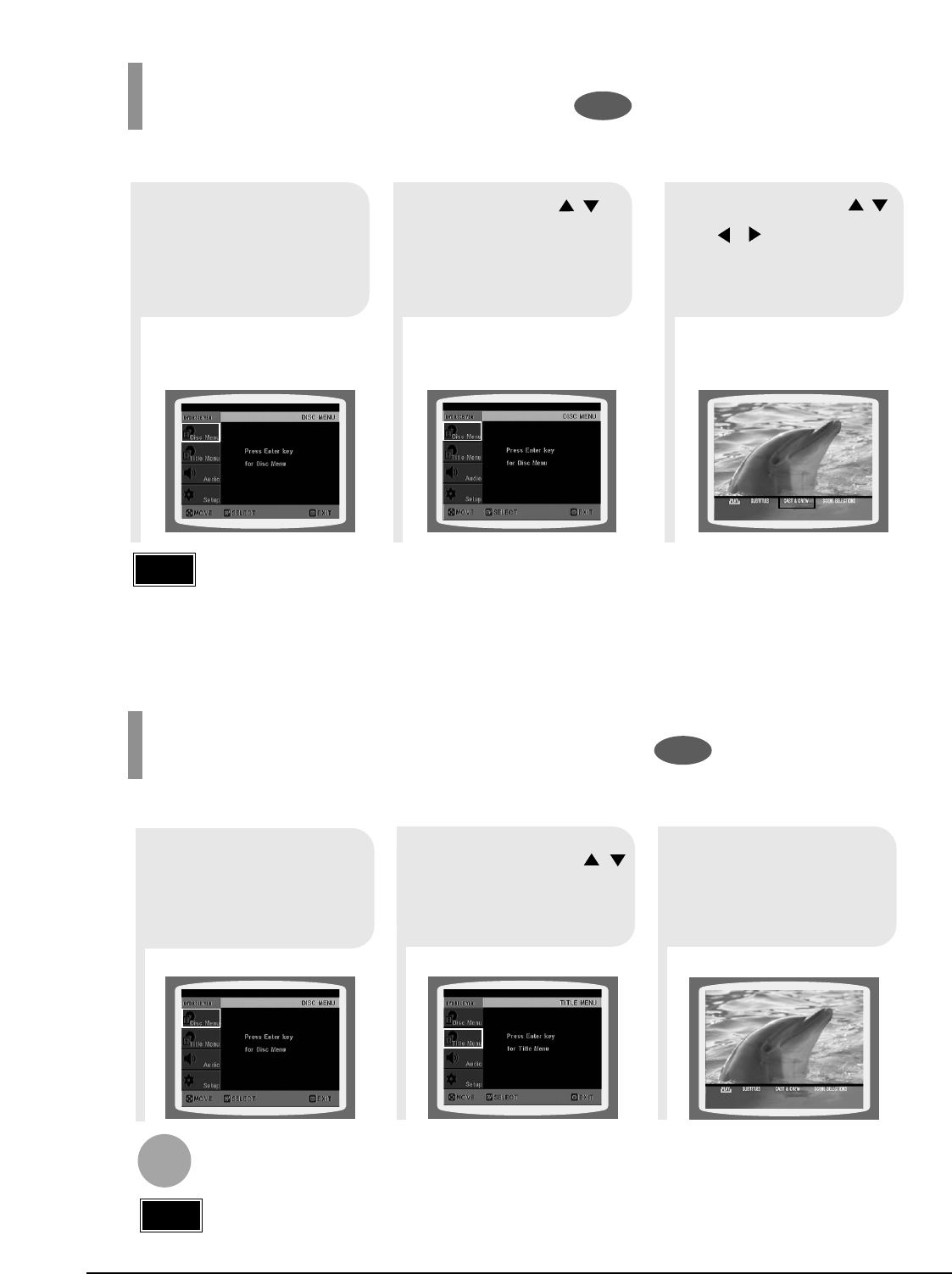

2
Press Cursor ,
button to move to
‘Title Menu’.
DVD
1
In Stop mode,
press MENU but-
ton.
3
Press ENTER but-
ton.
•
The title menu appears.
Press MENU button to exit the setup screen.
DVD
2
•
When you select the disc menu that is not support-
ed by the disc, the "This menu is not supported"
message appears on the screen.
•
When playing a VCD (version
2.), this toggles between PBC
ON and OFF.
1
In Stop mode,
press MENU
button.
Press Cursor ,
buttons to move to
‘DISC MENU’and then
press ENTER button.
3
•
Press ENTER button.
Press Cursor ,
, buttons to
select the desired
item.
PBC (Playback Control) Function
When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.
PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions
may be disabled. When some functions are disabled, select "PBC OFF" to enable them.
PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.
•
Disc menu display may be different depending on the disc.
Note
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
Using Disc Menu
For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, the availability of this feature may vary.
Using the Title Menu
•
Title menu display may be different depending on the disc.
Note
Samsung Electronics 3-7
3. New Functions
Fast playback
Skip Forward/Back
During playback, press the button.
•
Goes to the next file whenever you press button, if there are over
2 files in the disk.
•
Goes to the previous file whenever you press button, if there are
over 2 files in the disk.
To play back the disc at a faster speed,
press and hold or during playback.
•
Each time you press and hold either button, the playback speed will
change as follows:
2x ➞4x ➞8x ➞32x ➞Normal.
•
DIVX file can be zoomed only in ZOOM X2 mode.
•
Zoom function is not available when playing a MPEG1 video file.
Note
Zoom Function
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
1
Press ZOOM
button.
•
Each time you press the button,
your selection will toggle between
“ZOOM X2” and “ZOOM OFF”.
DivX Playback
5 Minute Skip function
During playback, press the , button.
•
Playback skips 5 minutes forward whenever you press button.
•
Playback skips 5 minutes back whenever you press button.
3-8 Samsung Electronics
•
" " is displayed when there is one supported language in the disc.
Note
Press the SUBTITLE button.
•
Each time you press the button, your selection will toggle between “SUBTITLE ON” (1/1, 1/2 ...) and
“SUBTITLE OFF”.
•
If the disc has only one subtitle file, it will be played automatically.
Subtitle Display
Press the AUDIO button.
•
Each time you press the button, your selection will toggle between “AUDIO ON” (1/1, 1/2 ...) and “”.
Audio Display
Format AVI WMV
Supported Versions DivX3.11 ~ 5.1 V1/V2/V3/V7
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology
to provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie
at near DVD-quality video and audio.
1. Supported Formats
•
This product only provides the following media formats. If both video and audio formats are not sup-
ported, the user may experience problems such as broken images or no sound.
2. Caption Function
•
You must have some experience with video extraction and editing in order to use this feature properly.
•
To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. Root Samsung_Bluetek_007CD1.avi
Samsung_Bluetek_007CD1.smi
•
Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and
Chinese) for the file name.
●
Supported Video Formats
Format MP3 WMA AC3 DTS
Bit Rate 80~384kbps 56~128kbps 128~384kbps 1.5Mbps
Sampling Frequency
44.1khz 44.1/48khz 44.1khz
•
DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
•
Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to
720*480 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
•
When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experi-
ence shaking on the screen during playback.
●
Supported Audio Formats
Samsung Electronics 4-1
4. Adjustments
* Protection Mode Explanation
Samsung Electronics 5-1
5. How to disassemble
5-2 Samsung Electronics
Samsung Electronics 5-3
Samsung Electronics 6-1
6. TroubleShooting
1. NO Power
6-2 Samsung Electronics
2. NO Output
Samsung Electronics 7-1
7.Exploded Views and Parts List
1. Total Exploded View
AC320
AC320
AD502
AW140
AC010
AK170
AK323
AB263
AH340
AK290
AD280
AL140
AH340
AH320
AC020
AH290
AC050
AH320
AB288
AC080
AB100
AD332
AD333
AH410
AS070
AD360
AD343
AD342
7-2 Samsung Electronics
AC320
AC320
AD502
AW140
AC010
AK170
AK323
AB263
AH340
AK290
AD280
AL140
AH340
1-1. Exploded View (PART1)
A
Samsung Electronics 7-3
AH320
AC020
AH290
AC050
AD343
AD342
1-2. Exploded View (PART2)
B
7-4 Samsung Electronics
AH320
AB288
AC080
AB100
AD332
AD333
AH410
AS070
AD360
1-2. Exploded View (PART2)
C
Samsung Electronics 7-5
2. Parts List
AB100 AH61-01882B BRKT-DECK SECC 1.0T 1
AB263 AH61-02017A BRKT-PHONE SECC 0.8T 1
AB288 AH61-01963A BRKT-SCART SECC 0.8T 1
AH64-03493A CABINET-FRONT HIPS 1
AH64-03493B CABINET-FRONT HIPS 1
AC020 AH64-03260A CABINET-BOTTOM SECC 0.6T 1
AH64-03509A CABINET-REAR SECC 0.5T BASIC 1
AH64-03509C CABINET-REAR SECC 0.5T EUROPE 1
AH64-03509D CABINET-REAR SECC 0.5T NO EUROPE 1
AC080 AH64-03508A CABINET-TOP SECC 0.6T 1
AC320 AH63-00969A COVER-USB ABS+ELASTOMER 1
AH64-03496A DECO-FRONT ABS GRY 1
AH64-03496B DECO-FRONT ABS GRY 1
AD280 AH64-03266B DECO-POWER ABS NATURAL 1
AH64-03497A DECO-SIDE UP L ABS GRY 1
AH64-03497B DECO-SIDE UP L ABS GRY 1
AH64-03499A DECO-SIDE DOWN L ABS GRY 1
AH64-03499B DECO-SIDE DOWN L ABS GRY 1
AH64-03498A DECO-SIDE UP R ABS GRY 1
AH64-03498B DECO-SIDE UP R ABS GRY 1
AH64-03500A DECO-SIDE DOWN R ABS GRY 1
AH64-03500B DECO-SIDE DOWN R ABS GRY 1
AH64-03494A DECO-TOP ABS GRY BASIC 1
AH64-03494B DECO-TOP ABS GRY HT-P70(EUR) 1
AH64-03494C DECO-TOP ABS GRY HT-KP70(CIS) 1
AH64-03494E DECO-TOP ABS GRY HT-P70K(CIS) 1
AH64-03494F DECO-TOP ABS GRY HT-TKP75(CIS) 1
AH64-03494G DECO-TOP ABS GRY HT-TP75(EUR) 1
AH64-03494H DECO-TOP ABS GRY HT-P70(NO EUR) 1
AH64-03494J DECO-TOP ABS GRY HT-TP75(NO EUR) 1
AH64-03494L DECO-TOP ABS GRY HT-P70N 1
AH64-03501A DOOR-DVD ABS GRY 1
AH64-03501B DOOR-DVD ABS GRY 1
AH260 AH61-01869A HOLDER-HEATSINK ABS+GF30% 1
AH320 AH61-01967A HOLDER-MECHA ABS BLK 4
AH340 AH61-02051A HOLDER-PCB ABS GRY 1
AH410 AH61-01962A HOLDER-VFD ABS BLK 1
AH64-03503A KNOB-FUCTION ABS GRY 1
AH64-03503B KNOB-FUCTION ABS GRY 1
AK290 AH64-03505A KNOB-POWER ABS WHT 1
AK323 AH64-03506A KNOB-SDSM ABS WHT 1
AL140 AH67-00332A LENS-POWER PMMA MILKY 1
AS070 AH63-00995A SHEET-DECO AL 0.8T 1
AH64-03502A WINDOW-VFD ACRYL 2.0T BASIC 1
AH64-03502B WINDOW-VFD ACRYL 2.0T EUROPE 1
AH64-03502C WINDOW-VFD ACRYL 2.0T NO EUROPE 1
A6001-001744 TAPPING SCREW BH 2.6*8 23
B6003-001375 TAPTITE SCREW BH 3 * 8 YEL 7
C6003-000275 TAPTITE SCREW BH 3 * 10 SILVER 4
D6002-000264 TAPTITE SCREW BH 3 * 6 YEL 11
E6003-000280 TAPTITE SCREW BH 3 * 25 YEL 4
F6003-001304 TAPTITE SCREW PH 2 * 8 BLK 10
G6003-001561 TAPTITE SCREW BH 3 * 6 SILVER 2
AD502
AK170
AW140
AD333
AD342
AD343
AD360
AC010
AC050
AD150
AD332
Samsung Electronics 8-1
AH92-02366A ASSY PCB-MAIN P70(MAIN+RF)
AC1 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
AC10 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
AC11 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
AC12 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5
AC16 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5
AC17 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
AC18 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5
AC19 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
AC2 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
AC24 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,-,1608
AC25 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,-,1608
AC26 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,-,1608
AC27 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
AC3 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
AC4 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
AC5 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
AC56 2401-001975 C-AL 47uF,20%,16V,GP,TP,5x11mm,5mm
AC6 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
AC9 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5
AD3 0402-000309 DIODE-RECTIFIER 1SR154-400,400V,1A,SOD-1
AIC3 1002-001392 IC-A/D CONVERTER WM8775EDS,24BIT,SSOP,28
AL1 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
AL2 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
AL3 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
AQ1 0501-002184 TR-SMALL SIGNAL KTD1304,NPN,200mW,SOT-23
AQ2 0504-000156 TR-DIGITAL KSR2103,PNP,200MW,22K/22K,SOT
AQ3 0501-002184 TR-SMALL SIGNAL KTD1304,NPN,200mW,SOT-23
AR1 2007-000130 R-CHIP 39Kohm,5%,1/10W,TP,1608
AR19 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
AR2 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
AR24 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
AR25 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
AR28 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
AR29 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
AR3 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
AR31 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
AR32 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
AR4 2007-000130 R-CHIP 39Kohm,5%,1/10W,TP,1608
AR5 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608
AR55 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
AR56 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
AR6 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608
AR61 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
AR62 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
AR67 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608
AR8 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608
AR9 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608
BC25 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
BC26 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
BC9 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
C1 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608
C2 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608
C3 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608
C4 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608
CN1 3711-005155 CONNECTOR-HEADER BOX,5P,1R,2MM,SMD-A,SN+
DC1 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
DC2 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
DC20 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
DC21 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
DC22 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
DC23 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
DC26 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
DC27 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
DC28 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,TP,1608
DC29 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
DC30 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
DC31 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
DC32 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
DC33 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
DC34 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
DC5 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
DC6 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
DC7 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
DC8 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
DC9 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
DD1 0407-000116 DIODE-ARRAY DAP202K,80V,100mA,CK2-3,SOT-
DD2 0403-001062 DIODE-ZENER UDZ4.7B,4.55-4.75V,200MW,SOD
DL1 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
DL2 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
DQ1 0501-000002 TR-SMALL SIGNAL KSA812,PNP,150MW,SOT-23,
DQ2 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
DR1 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
DR21 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
DR22 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
DR23 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
DR24 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
DR25 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
DR26 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
DR27 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
DR28 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
DR3 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR38 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
DR39 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608
DR4 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR40 2007-000458 R-CHIP 18Kohm,5%,1/10W,TP,1608
DR41 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
DR42 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608
DR43 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
DR44 2007-000120 R-CHIP 680ohm,5%,1/10W,TP,1608
DR45 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR47 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR49 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
DR50 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
DR51 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608
DR52 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR53 2007-000483 R-CHIP 1ohm,5%,1/8W,TP,2012
DR54 2007-000483 R-CHIP 1ohm,5%,1/8W,TP,2012
DR55 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
DR56 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
DR57 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608
DR58 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR59 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
DR60 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
DR61 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
DR62 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
DR63 2007-000483 R-CHIP 1ohm,5%,1/8W,TP,2012
DR64 2007-000483 R-CHIP 1ohm,5%,1/8W,TP,2012
DR65 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR66 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
DR67 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
EBD1 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
EBD10 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
EBD11 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
EBD12 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
EBD2 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
EBD3 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
EBD4 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
EBD9 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HC1 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
HC10 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC11 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC12 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC13 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC14 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC15 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC2 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
HC20 2203-001640 C-CER,CHIP 0.39nF,10%,50V,X7R,TP,1608
HC23 2203-000315 C-CER,CHIP 0.12NF,5%,50V,C0G,TP,1608
HC26 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
HC3 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC31 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
HC32 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
HC33 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
HC37 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
HC38 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
HC39 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
8. Electrical Parts List
*S.N.A. : Service Not Available
HC4 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC5 2401-000414 C-AL 10uF,20%,16V,GP,TP,4x7,5
HC6 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC7 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HC8 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
HC9 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
HD1 0402-000309 DIODE-RECTIFIER 1SR154-400,400V,1A,SOD-1
HIC1 1204-002421 IC-VIDEO ENCODER SAA7128AH/V1,QFP,44P,10
HJ1 3711-005882 CONNECTOR-HEADER NOWALL,30P,2R,2mm,STRAI
HL11 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL12 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HL13 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HL14 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HL20 2703-001254 INDUCTOR-SMD 1.8uH,10%,2012
HL23 2703-001254 INDUCTOR-SMD 1.8uH,10%,2012
HL27 2703-000165 INDUCTOR-SMD 2.7uH,10%,2012
HL28 2703-000165 INDUCTOR-SMD 2.7uH,10%,2012
HL29 2703-000165 INDUCTOR-SMD 2.7uH,10%,2012
HL3 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL4 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL5 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL6 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL8 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL9 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HQ3 0501-000002 TR-SMALL SIGNAL KSA812,PNP,150MW,SOT-23,
HR1 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608
HR10 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HR11 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HR12 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HR13 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HR15 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
HR16 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
HR17 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
HR19 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
HR2 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
HR20 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
HR25 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
HR26 2007-000123 R-CHIP 1.5Kohm,5%,1/10W,TP,1608
HR30 2007-000362 R-CHIP 12ohm,5%,1/10W,TP,1608
HR31 2007-000362 R-CHIP 12ohm,5%,1/10W,TP,1608
HR32 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
HR33 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
HR34 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
HR35 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
HR36 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
HR37 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
HR38 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
HR39 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
HR5 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HR6 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HR7 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HR9 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
HREG1 1203-003091 IC-POSI.FIXED REG. FAN1587AMC33X,TO-263,
HREG2 1203-002935 IC-POSI.ADJUST REG. AIC1117ACE,TO-252,3P
JP6 AH37-00005A JACK-RCA 1P,S-440B,YELLOW,-,SHIELD PLAT
JW1 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
JW2 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
JW3 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
JW4 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
JW5 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MC10 2203-000815 C-CER,CHIP 0.033NF,5%,50V,C0G,TP,1608
MC100 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC101 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC102 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC104 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC105 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC106 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC110 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC112 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC113 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC13 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC16 2203-000972 C-CER,CHIP 47nF,10%,16V,X7R,TP,1608
MC17 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
MC18 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
MC19 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC20 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
MC21 2203-001052 C-CER,CHIP 0.56nF,10%,50V,X7R,TP,1608
MC22 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC23 2203-005221 C-CER,CHIP 15nF,10%,50V,X7R,TP,1608,-
MC24 2203-000815 C-CER,CHIP 0.033NF,5%,50V,C0G,TP,1608
MC25 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC26 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC27 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC28 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC29 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC3 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
MC30 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
MC31 2203-001656 C-CER,CHIP 0.47nF,5%,50V,NP0,TP,1608
MC32 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,TP,1608
MC35 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC36 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC38 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,TP,1608
MC39 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC4 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC40 2203-001103 C-CER,CHIP 6.8nF,10%,50V,X7R,TP,1608,-
MC41 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC42 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC43 2203-000646 C-CER,CHIP 0.024NF,5%,50V,C0G,TP,1608
MC44 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608
MC45 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
MC46 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
MC47 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
MC48 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
MC49 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC5 2203-005221 C-CER,CHIP 15nF,10%,50V,X7R,TP,1608,-
MC50 2401-000414 C-AL 10uF,20%,16V,GP,TP,4x7,5
MC51 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
MC52 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
MC53 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC54 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC56 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC57 2401-000414 C-AL 10uF,20%,16V,GP,TP,4x7,5
MC58 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC59 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC6 2203-000560 C-CER,CHIP 220nF,+80-20%,25V,Y5V,TP,1608
MC60 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC62 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC63 2401-000414 C-AL 10uF,20%,16V,GP,TP,4x7,5
MC66 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608
MC67 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC68 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC71 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC72 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
MC74 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC75 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC76 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC79 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC8 2203-000815 C-CER,CHIP 0.033NF,5%,50V,C0G,TP,1608
MC80 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
MC82 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,TP,1608
MC83 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
MC84 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC85 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC87 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC88 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC89 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC9 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC90 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC91 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC92 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC93 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC94 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC95 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC96 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC97 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC98 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MC99 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
MCON1 AH39-00736A LEAD CONNECTOR HT-P30,-,-,8P,60mm,-,-,PH
MCON12 3708-000266 CONNECTOR-FPC/FFC/PIC 32P,1.25MM,STRAIGH
MCON2 AH39-00737A LEAD CONNECTOR HT-P30,-,-,14P,60mm,-,-,5
MCON3 3708-000181 CONNECTOR-FPC/FFC/PIC 16P,1.25MM,STRAIGH
MCON6 3708-000448 CONNECTOR-FPC/FFC/PIC 6P,1.25MM,STRAIGHT
MCON8 3708-001051 CONNECTOR-FPC/FFC/PIC 13P,1.25MM,ANGLE,S
MDIC1 1003-001764 IC-MOTOR DRIVER IP5954,SSOPH,28P,10x18.4
MDIC2 1003-001508 IC-MOTOR DRIVER FAN8082DTF,SOP,8P,200MIL
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
8-2 Samsung Electronics
MDIC3 1201-001842 IC-OP AMP TL3472CD,SO,TP,8P,-,DUAL,-,PAL
MIC1 0801-002683 IC-CMOS LOGIC 74HCT245,TRANSCEIVER,TSSOP
MIC3 1107-001505 IC-FLASH MEMORY 49BV162AT,1Mx16/2Mx8Bit,
MIC4 1204-002449 IC-PAL/NTSC DECODER ES6637FDF,PQFP,256P,
MIC6 1103-001334 IC-EEPROM K524A60X81,1KX8BIT,SOP,8P,5X4M
MIC8 1105-001535 IC-DRAM M12L128168A-7T,4X2MX16BIT,TSOP
MJ1 3710-002203 CONNECTOR-SOCKET 34P,2R,2mm,STRAIGHT,AUF
MJ4 3708-002023 CONNECTOR-FPC/FFC/PIC 6P,1mm,SMD-S,Tin,N
ML1 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML10 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML11 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML12 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
ML14 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
ML16 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML17 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
ML19 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML2 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML20 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML21 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML3 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML4 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML5 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML6 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML7 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
ML9 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
MR1 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
MR10 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR107 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR11 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR119 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
MR12 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
MR120 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR123 2007-000122 R-CHIP 1.2Kohm,5%,1/10W,TP,1608
MR124 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
MR131 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR132 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR135 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR136 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR139 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR13A 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
MR144 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR145 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR147 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR149 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR15 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR151 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR152 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608
MR153 2011-000651 R-NET 10ohm,5%,1/16W,L,CHIP,8P,TP,32
MR154 2011-000651 R-NET 10ohm,5%,1/16W,L,CHIP,8P,TP,32
MR155 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608
MR156 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR160 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR161 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR162 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR163 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR164 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR165 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR166 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR167 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR168 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR176 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR177 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR178 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
MR179 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR2 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR20 2007-000122 R-CHIP 1.2Kohm,5%,1/10W,TP,1608
MR21 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
MR213 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR216 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR219 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR22 2007-000962 R-CHIP 5.1Kohm,1%,1/10W,TP,1608
MR23 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
MR24 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR25 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR29 2007-000100 R-CHIP 68Kohm,5%,1/10W,TP,1608
MR3 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR30 2007-000093 R-CHIP 20Kohm,5%,1/10W,TP,1608
MR31 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR32 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608
MR33 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608
MR35 2007-000962 R-CHIP 5.1Kohm,1%,1/10W,TP,1608
MR36 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608
MR37 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR38 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR39 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR4 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR40 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR42 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
MR44 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
MR5 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR54 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
MR55 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608
MR56 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608
MR57 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608
MR58 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608
MR59 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
MR6 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
MR63 2011-000651 R-NET 10ohm,5%,1/16W,L,CHIP,8P,TP,32
MR65 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608
MR66 2007-000799 R-CHIP 360ohm,5%,1/10W,TP,1608
MR67 2011-000651 R-NET 10ohm,5%,1/16W,L,CHIP,8P,TP,32
MR68 2011-000651 R-NET 10ohm,5%,1/16W,L,CHIP,8P,TP,32
MR69 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
MR70 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
MR74 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
MR75 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
MR85 2007-000118 R-CHIP 390ohm,5%,1/10W,TP,1608
MR86 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
MR9 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
MR94 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MR98 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
MREG1 1203-002425 IC-POSI.FIXED REG. AP1117,SOT-223,3P,138
MREG2 1203-002935 IC-POSI.ADJUST REG. AIC1117ACE,TO-252,3P
MREG3 1203-002935 IC-POSI.ADJUST REG. AIC1117ACE,TO-252,3P
OPIC1 1001-001170 IC-AUDIO SWITCH CS8415A-CZ,RECEIVER&DECO
OPIC2 0802-001007 IC-CMOS LOGIC 74LCX244,BUFFER/LINE DRIVE
OPIC3 0802-001025 IC-CMOS LOGIC 74LCX374,D FILP-FLOP,TSSOP
OPIC4 0801-002518 IC-CMOS LOGIC 74LCX157,2-INPUT MULTIPLEX
OPT1 0603-001164 OPTIC TRANSMITTER 5V,16Mb/s,-,-,650nm,40
PB12 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
PB4 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
PB5 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
PB6 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
PC1 2401-001102 C-AL 330uF,20%,16V,GP,TP,8x11.5mm,5
PC10 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC11 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC12 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC13 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC14 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC2 2402-001009 C-AL,SMD 100uF,20%,6.3V,GP,TP,5.3x5.3x5
PC2_1 2401-001102 C-AL 330uF,20%,16V,GP,TP,8x11.5mm,5
PC24 2401-001975 C-AL 47uF,20%,16V,GP,TP,5x11mm,5mm
PC3 2401-001364 C-AL 470uF,20%,16V,GP,TP,10x12.5,5
PC4 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC5 2401-001102 C-AL 330uF,20%,16V,GP,TP,8x11.5mm,5
PC6 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC7 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
PC7_1 2401-001364 C-AL 470uF,20%,16V,GP,TP,10x12.5,5
PC8 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
PC8_1 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
PC9 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
PC9_1 2401-001102 C-AL 330uF,20%,16V,GP,TP,8x11.5mm,5
PSC1 2401-000651 C-AL 2.2uF,20%,50V,GP,TP,4x7,5
Q1 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
R1 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
R2 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
R3 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
R4 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
R5 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
R6 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
R7 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
R8 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
RC1 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608
RC10 2203-000491 C-CER,CHIP 2.2nF,10%,50V,X7R,TP,1608,-
RC11 2203-000491 C-CER,CHIP 2.2nF,10%,50V,X7R,TP,1608,-
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
Samsung Electronics 8-3
RC12 2203-000491 C-CER,CHIP 2.2nF,10%,50V,X7R,TP,1608,-
RC13 2203-000315 C-CER,CHIP 0.12NF,5%,50V,C0G,TP,1608
RC15 2203-001222 C-CER,CHIP 0.82NF,10%,50V,X7R,TP,1608
RC16 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC18 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC19 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC20 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC21 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC22 2203-001656 C-CER,CHIP 0.47nF,5%,50V,NP0,TP,1608
RC23 2203-001656 C-CER,CHIP 0.47nF,5%,50V,NP0,TP,1608
RC24 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC25 2203-000357 C-CER,CHIP 0.15NF,5%,50V,C0G,TP,1608
RC26 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
RC27 2203-000575 C-CER,CHIP 220nF,10%,25V,X7R,2012
RC28 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
RC29 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
RC30 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC31 2203-000975 C-CER,CHIP 47nF,10%,25V,X7R,TP,1608,-
RC32 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC33 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
RC35 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
RC40 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
RC5 2402-001009 C-AL,SMD 100uF,20%,6.3V,GP,TP,5.3x5.3x5
RC6 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
RC7 2402-001009 C-AL,SMD 100uF,20%,6.3V,GP,TP,5.3x5.3x5
RC8 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
RC9 2203-000491 C-CER,CHIP 2.2nF,10%,50V,X7R,TP,1608,-
RCN1 3708-001765 CONNECTOR-FPC/FFC/PIC 24P,0.5MM,SMD-S,SN
RCN2 3711-004442 CONNECTOR-HEADER NOWALL,34P,2R,2mm,ANGLE
RD1 0407-000116 DIODE-ARRAY DAP202K,80V,100mA,CK2-3,SOT-
RIC1 1201-002059 IC-RF AMP ES6603SF,LQFP,64P,10X10MM,SING
RL1 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
RL2 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
RQ1 0501-000632 TR-SMALL SIGNAL 2SB1197K,PNP,200mW,SOT-2
RQ5 0501-000632 TR-SMALL SIGNAL 2SB1197K,PNP,200mW,SOT-2
RQ6 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
RQ7 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
RQ8 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
RR12 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608
RR16 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
RR17 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
RR18 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
RR20 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
RR28 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
RR29 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
RR30 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608
RR31 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
RR32 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
RR33 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
RR34 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608
RR35 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
RR4 2007-000308 R-CHIP 10ohm,5%,1/8W,TP,2012
RR5 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
RR50 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
RR6 2007-000308 R-CHIP 10ohm,5%,1/8W,TP,2012
RR7 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
RR8 2007-000122 R-CHIP 1.2Kohm,5%,1/10W,TP,1608
RR9 2007-000122 R-CHIP 1.2Kohm,5%,1/10W,TP,1608
SC1 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
SC10 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
SC11 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
SC12 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
SC13 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
SC16 2203-000384 C-CER,CHIP 0.015NF,5%,50V,C0G,TP,1608
SC17 2203-000384 C-CER,CHIP 0.015NF,5%,50V,C0G,TP,1608
SC19 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
SC20 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
SC21 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
SC22 2203-001083 C-CER,CHIP 0.005nF,0.1pF,50V,NP0,TP,1608
SC23 2203-001083 C-CER,CHIP 0.005nF,0.1pF,50V,NP0,TP,1608
SC24 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
SC9 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
SIC5 0904-001922 IC-USC ubi9021,8Bit,QFP,48P,9.0x9.0mm
SL1 2703-000185 INDUCTOR-SMD 3.3uH,10%,2012
SL11 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
SL4 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
SR17 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
SR18 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
SR19 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608
SR20 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608
SR21 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608
SR22 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608
SR23 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608
SR24 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608
SR25 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR26 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR27 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR28 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR29 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR30 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR40 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR41 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR42 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR43 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR44 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR45 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR46 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR47 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SW1 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
UC1 2401-001952 C-AL 4.7uF,20%,50V,GP,TP,5x7mm,5mm
UC10 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
UC11 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC12 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC15 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC17 2203-000972 C-CER,CHIP 47nF,10%,16V,X7R,TP,1608
UC2 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
UC21 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,-,1608
UC22 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,-,1608
UC23 2203-001607 C-CER,CHIP 0.22nF,5%,50V,NP0,-,1608
UC24 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
UC25 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5
UC26 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
UC3 2409-000123 C-EDL 47000uF,4uA,5.5V,-,BK,-,5mm
UC31 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC32 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC33 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC4 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC50 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
UC51 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5
UC53 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5
UC54 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
UC55 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
UC56 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
UC57 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
UC6 2401-000759 C-AL 220nF,20%,50V,GP,TP,5x11mm,5mm
UC60 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
UC61 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
UC62 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
UC63 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
UC7 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
UC8 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
UC9 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
UCN1 3711-000471 CONNECTOR-HEADER 3WALL,4P,1R,2mm,STRAIGH
UD1 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UD2 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UD3 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UD4 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UD5 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UD6 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UD7 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UD9 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
UIC1 0903-001405 IC-MICROCONTROLLER LC87F5CC8A,8Bit,QFP,1
UIC2 1003-001708 IC-VFD S5G5128A,LQFP,64P,1063MIL,-,-,
UL1 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
UL2 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
UL3 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
UL4 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
UL5 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
UQ1 0501-000341 TR-SMALL SIGNAL KSC1623-L,NPN,200mW,SOT-
UR1 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608
UR10 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
UR100 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR101 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR102 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR103 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
8-4 Samsung Electronics
UR110 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
UR111 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
UR112 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
UR113 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
UR118 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR122 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR123 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR124 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
UR130 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR131 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
UR15 2007-001010 R-CHIP 51Kohm,5%,1/10W,TP,1608
UR16 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
UR17 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR18 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608
UR19 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608
UR2 2007-000402 R-CHIP 150ohm,5%,1/10W,TP,1608
UR20 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR21 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR22 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR23 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR24 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR25 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR26 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR28 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR29 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR3 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR30 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR31 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR32 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR33 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR34 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR35 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR36 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR37 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR38 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR39 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR4 2007-000106 R-CHIP 220Kohm,5%,1/10W,TP,1608
UR40 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR41 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR42 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR43 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR44 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR45 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR46 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR47 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR48 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR49 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR5 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR50 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR51 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608
UR52 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR53 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR54 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR55 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR56 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR57 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR58 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
UR59 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR6 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608
UR61 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR62 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR63 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
UR64 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR65 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR66 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR67 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR68 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
UR69 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR7 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
UR70 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR71 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR72 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR73 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR74 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR75 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR76 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR77 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR78 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR79 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
UR8 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
UR80 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR81 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR82 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR83 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR84 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR86 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
UR88 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR89 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR9 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
UR90 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR91 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR92 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR93 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
UR94 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR95 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
UR96 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
UR98 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
VC1 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
VC2 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
VC20 2401-000918 C-AL 22uF,20%,16V,GP,-,6.3x7,5
VC21 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608
VC22 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608
VC23 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
VC24 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608
VC25 2401-001975 C-AL 47uF,20%,16V,GP,TP,5x11mm,5mm
VC26 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
VC28 2401-001952 C-AL 4.7uF,20%,50V,GP,TP,5x7mm,5mm
VC3 2203-000280 C-CER,CHIP 0.01NF,0.5PF,50V,C0G,TP,1608
VC30 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
VC31 2401-001952 C-AL 4.7uF,20%,50V,GP,TP,5x7mm,5mm
VC33 2401-001092 C-AL 330uF,20%,10V,GP,-,8x11.5,2.5m
VC34 2401-001092 C-AL 330uF,20%,10V,GP,-,8x11.5,2.5m
VC35 2401-001092 C-AL 330uF,20%,10V,GP,-,8x11.5,2.5m
VC36 2401-001092 C-AL 330uF,20%,10V,GP,-,8x11.5,2.5m
VC38 2401-001092 C-AL 330uF,20%,10V,GP,-,8x11.5,2.5m
VC4 2203-000280 C-CER,CHIP 0.01NF,0.5PF,50V,C0G,TP,1608
VC40 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
VC45 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
VC46 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
VC5 2203-000280 C-CER,CHIP 0.01NF,0.5PF,50V,C0G,TP,1608
VC52 2401-001975 C-AL 47uF,20%,16V,GP,TP,5x11mm,5mm
VC6 2203-000280 C-CER,CHIP 0.01NF,0.5PF,50V,C0G,TP,1608
VFD AH07-00153A VF DISPLAY HNV-12SM87T,HT-P30,118.2 x 16
VIC1 1001-001173 IC-AUDIO SWITCH BA7612F,-,SOIC,8P,173MIL
VIC2 1001-001173 IC-AUDIO SWITCH BA7612F,-,SOIC,8P,173MIL
VJ1 3722-002299 JACK-PIN 4P,SN-PLATING,WHT/REDx2,ANGLE
VJ4 3722-001682 JACK-SCART 21P,-,SN,BLK,-
VJP1 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
VJP2 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
VJP4 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
VL1 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
VL2 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
VL20 2703-000275 INDUCTOR-SMD 33UH,10%,2012
VL21 2703-000275 INDUCTOR-SMD 33UH,10%,2012
VL26 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
VL3 2703-002238 INDUCTOR-SMD 1.0uH,5%,2012
VL4 2703-002238 INDUCTOR-SMD 1.0uH,5%,2012
VL5 2703-002238 INDUCTOR-SMD 1.0uH,5%,2012
VL6 2703-002238 INDUCTOR-SMD 1.0uH,5%,2012
VQ10 0504-000152 TR-DIGITAL KSR2101,PNP,200mW,4.7K/4.7K,S
VQ11 0501-002184 TR-SMALL SIGNAL KTD1304,NPN,200mW,SOT-23
VQ12 0501-002184 TR-SMALL SIGNAL KTD1304,NPN,200mW,SOT-23
VQ13 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
VQ14 0501-002184 TR-SMALL SIGNAL KTD1304,NPN,200mW,SOT-23
VQ15 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
VQ7 0501-000341 TR-SMALL SIGNAL KSC1623-L,NPN,200mW,SOT-
VR30 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
VR31 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
VR32 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608
VR33 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
VR35 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
VR36 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
VR37 2007-000133 R-CHIP 330Kohm,5%,1/10W,TP,1608
VR38 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608
VR39 2007-000119 R-CHIP 560ohm,5%,1/10W,TP,1608
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
Samsung Electronics 8-5
VR40 2007-000133 R-CHIP 330Kohm,5%,1/10W,TP,1608
VR41 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
VR42 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608
VR44 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
VR46 2007-000133 R-CHIP 330Kohm,5%,1/10W,TP,1608
VR47 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608
VR48 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
VR59 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
VR60 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
VR61 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
VR62 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608
VR67 2007-000839 R-CHIP 39ohm,5%,1/10W,TP,1608
VR68 2007-000133 R-CHIP 330Kohm,5%,1/10W,TP,1608
VR69 2007-000839 R-CHIP 39ohm,5%,1/10W,TP,1608
VR71 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
X_TAL1 2802-001198 RESONATOR-CERAMIC 10MHZ,0.5%,BK,8X3X5.5M
X1 2801-003863 CRYSTAL-UNIT 48MHz,30ppm,28-AAA,18pF,80o
X2 2801-004284 CRYSTAL-SMD 27MHZ,10PPM,28-AAN,20PF,30OH
XD1 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
XD18 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
XD19 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
XD21 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
XD23 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
XD4 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
XD6 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
XD8 0401-001110 DIODE-SWITCHING -,80V,100MA,SOD-523,TP
AH61-01962A HOLDER-VFD HT-P70,ABS 94HB,-,-,-,BLK,-
AH62-00062G HEAT SINK-TR HT-DS400,AL EXTR,-,-,-,-,-,
AH81-01818M A/S-MAIN PCB HT-P70,-,-,-,-,-,-
AH81-01818N A/S-RF-PCB HT-P70,-,-,-,-,-,-
AH92-02370A ASSY PCB-AMP P70,BASIC
C1 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
C10CL 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C10CR 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C10FL 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C10FR 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C10RL 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C10RR 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C10SW 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C11CL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C11CR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C11FL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C11FR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C11RL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C11RR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C11SW 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C12CL 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C12CR 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C12FL 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C12FR 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C12RL 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C12RR 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C12SW 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C135 2402-001198 C-AL,SMD 330UF,20%,6.3V,GP,TP,6.6X6.6X7
C136 2402-001198 C-AL,SMD 330UF,20%,6.3V,GP,TP,6.6X6.6X7
C137 2402-001198 C-AL,SMD 330UF,20%,6.3V,GP,TP,6.6X6.6X7
C138 2402-001198 C-AL,SMD 330UF,20%,6.3V,GP,TP,6.6X6.6X7
C139 2402-001049 C-AL,CHIP 10uF,20%,16V,GP,TP,3.3x3.3x5.4
C13CL 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C13CR 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C13FL 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C13FR 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C13RL 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C13RR 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C13SW 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C140 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C141 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C142 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C143 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C144 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C145 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C146 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C147 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C148 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C149 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C14CL 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C14CR 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C14FL 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C14FR 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C14RL 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C14RR 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C14SW 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C150 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C151 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C152 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C153 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C154 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C155 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C156 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C15CL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C15CR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C15FL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C15FR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C15RL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C15RR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C15SW 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C16CL 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C16CR 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C16FL 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C16FR 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C16RL 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C16RR 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C16SW 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C174 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C175 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C177 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C178 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
C17CL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C17CR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C17FL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C17FR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C17RL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C17RR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C17SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C18CL 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C18CR 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C18FL 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C18FR 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C18RL 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C18RR 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C18SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C19CL 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C19CR 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C19FL 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C19FR 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C19RL 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C19RR 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C19SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C1FR 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
C1RC 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
C1RR 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
C1SW 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
C2 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C20CL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C20FL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C20RL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C20SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C21CL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C21CR 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C21FL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C21FR 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C21RL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C21RR 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C21SW 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C22CL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C22CR 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C22FL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C22FR 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C22RL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C22RR 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C22SW 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C23 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C23SW 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C24 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
8-6 Samsung Electronics
C24CL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C24FL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C24RL 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C24SW 2203-000787 C-CER,CHIP 0.33NF,5%,50V,C0G,TP,2012
C25 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C25SW 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C26 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C26SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C27SW 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C28 2402-001059 C-AL,SMD 220UF,20%,6.3V,-,TP,6X6.6X6.6
C28SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C29SW 2401-004040 C-AL 1000uF,20%,50V,WB,TP,16X25mm,7
C2CL 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C2CR 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C2FL 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C2FR 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C2RL 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C2RR 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C2SW 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C3 2402-001049 C-AL,CHIP 10uF,20%,16V,GP,TP,3.3x3.3x5.4
C30SW 2401-004040 C-AL 1000uF,20%,50V,WB,TP,16X25mm,7
C31SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C32SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C33SW 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C34SW 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
C35SW 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C36SW 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C37SW 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm
C3CL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C3FL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C3RL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C4 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C4CR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C4FR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C4RR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C4SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C5 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C51 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608
C52 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608
C5CL 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C5CR 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C5FL 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C5FR 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C5RL 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C5RR 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
C5SW 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C6 2203-000062 C-CER,CHIP 47nF,+80-20%,50V,Y5V,TP,1608
C6CR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C6FR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C6RR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C6SW 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C7 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608
C7CL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C7CR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C7FL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C7FR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C7RL 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C7RR 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
C7SW 2401-002300 C-AL 47uF,20%,50V,GP,TP,6.3x11,5
C8 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
C8CL 2401-004040 C-AL 1000uF,20%,50V,WB,TP,16X25mm,7
C8CR 2401-004040 C-AL 1000uF,20%,50V,WB,TP,16X25mm,7
C8FL 2401-004106 C-AL 680uF,20%,50V,-,BK,12.5 x 35,5
C8FR 2401-004106 C-AL 680uF,20%,50V,-,BK,12.5 x 35,5
C8RL 2401-004106 C-AL 680uF,20%,50V,-,BK,12.5 x 35,5
C8RR 2401-004106 C-AL 680uF,20%,50V,-,BK,12.5 x 35,5
C8SW 2203-005171 C-CER,CHIP 1000nF,10%,16V,X7R,2012
C9SW 2203-001634 C-CER,CHIP 33nF,10%,50V,X7R,TP,1608,1.6m
D2 0402-000309 DIODE-RECTIFIER 1SR154-400,400V,1A,SOD-1
D3 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
D4 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
D5 0402-000309 DIODE-RECTIFIER 1SR154-400,400V,1A,SOD-1
EL1 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
EMC1 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC10 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC11 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC12 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC13 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC14 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC15 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
EMC16 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
EMC17 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
EMC18 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
EMC19 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
EMC2 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC20 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608
EMC3 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC4 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC5 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC6 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC7 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC8 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMC9 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
EMR1 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
EMR2 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
EMR3 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
EMR4 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
EMR5 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
EMR6 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
FB1 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
FB2 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
FB3 3301-001069 BEAD-SMD 120ohm,1.6x0.8x0.8mm,200mA,TP,
FC1 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
FC2 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
FC3 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
FC4 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
FC5 2402-000130 C-AL,SMD 2.2uF,20%,50V,GP,TP,4.3x4.3x5.
FC6 2402-000130 C-AL,SMD 2.2uF,20%,50V,GP,TP,4.3x4.3x5.
FD1 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
FD2 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
FJ1 3711-000820 CONNECTOR-HEADER BOX,2P,1R,2.5MM,STRAIGH
FQ1 0501-000422 TR-SMALL SIGNAL KTA1273,PNP,-30V,-30V,-2
FQ2 0501-000341 TR-SMALL SIGNAL KSC1623-L,NPN,200mW,SOT-
FR1 2003-000468 R-METAL OXIDE(S) 10ohm,5%,1W,AA,TP,3.3x9
FR10 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
FR11 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
FR12 2003-000674 R-METAL OXIDE(S) 39ohm,5%,1W,AA,TP,3.3x9
FR2 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
FR3 2003-000744 R-METAL OXIDE(S) 56ohm,5%,2W,AA,TP,4x12m
FR4 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
FR5 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
FR6 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
FR7 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608
FR8 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
FR9 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
HC1 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
HC1L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HC1R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HC2 2401-000042 C-AL 100uF,20%,16V,GP,TP,6.3x7,5
HC2L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HC2R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HC3L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HC3R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HC6L 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
HC6R 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
HC7L 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
HC7R 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
HC8L 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
HC8R 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
HC9L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HC9R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
HIC 1201-000163 IC-OP AMP 4560,SOP,8P,173MIL,DUAL,100V/m
HL1L 2703-000404 INDUCTOR-SMD 220uH,10%,3225
HL1R 2703-000404 INDUCTOR-SMD 220uH,10%,3225
HR1 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608
HR10L 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
HR10R 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
HR2 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608
HR2L 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
HR2R 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
HR4L 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
HR4R 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
HR5L 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
HR5R 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
HR6L 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
Samsung Electronics 8-7
HR6R 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
HR7L 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
HR7R 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
HR8L 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
HR8R 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
HR9L 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
HR9R 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
IC1C 1201-002236 IC-AUDIO AMP TAS5152,PSOP3,36P,15.9x11mm
IC1F 1201-002236 IC-AUDIO AMP TAS5152,PSOP3,36P,15.9x11mm
IC1R 1201-002236 IC-AUDIO AMP TAS5152,PSOP3,36P,15.9x11mm
IC1SW 1201-002236 IC-AUDIO AMP TAS5152,PSOP3,36P,15.9x11mm
IC2 AH14-10004R IC M74HCU04,SOP,TAPE 14P
J3 AH39-00777A LEAD CONNECTOR-ASSY HT-P70,-,-,7,140mm,-
J7 3708-000266 CONNECTOR-FPC/FFC/PIC 32P,1.25MM,STRAIGH
L1CL AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L1CR AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L1FL AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L1FR AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L1RL AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L1RR AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L1SW 2702-001130 INDUCTOR-RADIAL 10uH,10%,19x15.8mm
L2CL AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L2CR AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L2FL AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L2FR AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L2RL AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L2RR AH27-00055A COIL CHOKE DBF-1310A,HT-DS600,10uH,-,-,2
L2SW 2702-001130 INDUCTOR-RADIAL 10uH,10%,19x15.8mm
L3SW 2702-001130 INDUCTOR-RADIAL 10uH,10%,19x15.8mm
L4SW 2702-001130 INDUCTOR-RADIAL 10uH,10%,19x15.8mm
Q2 0501-000303 TR-SMALL SIGNAL KSA733,PNP,250mW,TO-92,T
R1 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R10CL 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R10CR 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R10FL 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R10FR 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R10RL 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R10RR 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R10SW 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R11CL 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R11CR 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R11FL 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R11FR 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R11RL 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R11RR 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R11SW 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R12 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R124 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R12CL 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R12CR 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R12FL 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R12FR 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R12RL 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R12RR 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R12SW 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
R13 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R13CL 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R13CR 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R13FL 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R13FR 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R13RL 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R13RR 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R13SW 2007-000694 R-CHIP 3.3ohm,5%,1/8W,TP,2012
R14 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R148 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R149 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R14SW 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R15 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R150 2007-000941 R-CHIP 47Kohm,5%,1/8W,TP,2012
R15SW 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R16 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R16SW 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R17 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
R17SW 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R18SW 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R19SW 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R1CR 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R1FR 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R1RR 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R1SW 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R2 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R20 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608
R20SW 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R21 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608
R21SW 2007-002425 R-CHIP 1ohm,5%,1/10W,TP,1608
R22 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R22SW 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R23 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R24SW 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R26 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R27 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R28 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R29 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R2CL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R2CR 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R2FL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R2FR 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R2RL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R2RR 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R2SW 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R3 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R30 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R31 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R32 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R33 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R34 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R35 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R3CL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R3CR 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608
R3FL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R3FR 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608
R3RL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R3RR 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608
R3SW 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608
R4 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R46 2007-000253 R-CHIP 1.5ohm,5%,1/4W,TP,3216
R47 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R48 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R49 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
R4CL 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R4CR 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R4FL 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R4FR 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R4RL 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R4RR 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R4SW 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R5 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R50 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R51 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608
R52 2007-000116 R-CHIP 120ohm,5%,1/10W,TP,1608
R53 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608
R5CL 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R5CR 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R5FL 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R5FR 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R5RL 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R5RR 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R5SW 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R6 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R6CL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R6CR 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R6FL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R6FR 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R6RL 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R6RR 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R6SW 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R7 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R7SW 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R8 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R8CL 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R8CR 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R8FL 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R8FR 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R8RL 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R8RR 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
8-8 Samsung Electronics
R8SW 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
R9 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
R9CL 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R9CR 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R9FL 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R9FR 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R9RL 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R9RR 2007-000462 R-CHIP 18ohm,5%,1/8W,TP,2012
R9SW 2007-000312 R-CHIP 10ohm,5%,1/4W,TP,3216
RSC1 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,TP,1608,-
SC1 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
SC1L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SC1R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SC2 2402-000008 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4
SC2L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SC2R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SC3L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SC3R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SC6L 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
SC6R 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
SC7L 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
SC7R 2203-000998 C-CER,CHIP 0.047NF,5%,50V,C0G,TP,1608
SC8L 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
SC8R 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.
SC9L 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SC9R 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608
SIC 1201-000163 IC-OP AMP 4560,SOP,8P,173MIL,DUAL,100V/m
SL1L 2703-000404 INDUCTOR-SMD 220uH,10%,3225
SL1R 2703-000404 INDUCTOR-SMD 220uH,10%,3225
SPK1 3716-001243 TERMINAL-BLOCK -,12P,14mm,-,-
SPK2 3716-001242 TERMINAL-BLOCK -,4P,4.5mm,0V,0A
SR1 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
SR10L 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
SR10R 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
SR2 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
SR2L 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
SR2R 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
SR4L 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
SR4R 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608
SR5L 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
SR5R 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
SR6L 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
SR6R 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
SR7L 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
SR7R 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
SR8L 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
SR8R 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
SR9L 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608
SR9R 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
U1 1204-002226 IC-MODULATOR PS9818,QFP,100P,14X14MM,PLA
X1 2801-004354 CRYSTAL-UNIT 12.288MHZ,30PPM,ATS-49/U,18
ZD3 0403-001064 DIODE-ZENER RLZ5.1B,4.94-5.2V,500MW,LL-3
6003-000276 SCREW-TAPTITE BH,+,B,M3,L10,ZPC(YEL),SWC
AH61-01869A HOLDER-HEATSINK HT-P50,ABS+GF30%,-,-,-,-
AH62-00150A HEAT SINK-MAIN HT-P70,AL EXTRA,-,-,-,-,-
AH92-02372A ASSY PCB-FRONT P70,BASIC
LED4 0601-001432 LED ROUND,BLUE,3mm,455nm
LED3 0601-001432 LED ROUND,BLUE,3mm,455nm
LED2 0601-001432 LED ROUND,BLUE,3mm,455nm
REM_EYE 0609-001187 MODULE REMOCON HORIZONTAL,12.4mm,TR
FCON1 3708-000451 CONNECTOR-FPC/FFC/PIC 16P,1.25MM,STRAIGH
FCON5 3711-000967 CONNECTOR-HEADER BOX,4P,1R,2mm,ANGLE,SN
FCW6 3711-002807 CONNECTOR-HEADER BOX,6P,1R,2mm,STRAIGHT,
PJ 3722-000143 JACK-PHONE 1P(VER),3.4PI,AG,BLK,NO
USB 3722-002313 JACK-USB 4P/1C,AU30U,BLK,STRAIGHT,A TYP
FCW2 AH39-00739A LEAD CONNECTOR HT-P30,-,-,4P,440mm,-,-,P
FCON2 AH39-00758A LEAD CONNECTOR HT-P70,-,-,6P,260mm,-,-,5
FCON3 AH39-00799A LEAD CONNECTOR -,-,-,-,-,-,-,-,-,-,-,-,-
MD6 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
MD5 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
FD1 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3
FD2 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3
FD3 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3
VTR1 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
FQ2 0504-000156 TR-DIGITAL KSR2103,PNP,200MW,22K/22K,SOT
FQ3 0504-000156 TR-DIGITAL KSR2103,PNP,200MW,22K/22K,SOT
LED1 0601-001238 LED ROUND,RED,3.1mm,697nm,3.8x5.2m
FR15 2007-000023 R-CHIP 120ohm,5%,1/8W,TP,2012
EC4 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012
VLR3 2007-000030 R-CHIP 560ohm,5%,1/8W,TP,2012
VLR4 2007-000030 R-CHIP 560ohm,5%,1/8W,TP,2012
FR2 2007-000241 R-CHIP 1.5Kohm,5%,1/8W,TP,2012
FR3 2007-000267 R-CHIP 1.8Kohm,5%,1/8W,TP,2012
VLR2 2007-000300 R-CHIP 10Kohm,5%,1/8W,TP,2012
VLR1 2007-000300 R-CHIP 10Kohm,5%,1/8W,TP,2012
FR9 2007-000300 R-CHIP 10Kohm,5%,1/8W,TP,2012
FR14 2007-000300 R-CHIP 10Kohm,5%,1/8W,TP,2012
FR10 2007-000300 R-CHIP 10Kohm,5%,1/8W,TP,2012
FR8 2007-000457 R-CHIP 18Kohm,5%,1/8W,TP,2012
FR1 2007-000468 R-CHIP 1Kohm,5%,1/8W,TP,2012
FR4 2007-000493 R-CHIP 2.2Kohm,5%,1/8W,TP,2012
FR16 2007-000572 R-CHIP 220ohm,5%,1/8W,TP,2012
FR5 2007-000686 R-CHIP 3.3Kohm,5%,1/8W,TP,2012
FR6 2007-000872 R-CHIP 4.7Kohm,5%,1/8W,TP,2012
FR7 2007-001177 R-CHIP 8.2Kohm,5%,1/8W,TP,2012
EC3 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,TP,2012
FC2 2203-000203 C-CER,CHIP 100nF,10%,16V,X7R,TP,2012,2mm
PC1L 2203-000239 C-CER,CHIP 0.1NF,5%,50V,C0G,TP,2012
PC1R 2203-000239 C-CER,CHIP 0.1NF,5%,50V,C0G,TP,2012
PC1 2203-000260 C-CER,CHIP 10nF,10%,50V,X7R,TP,2012
FC5 2203-000260 C-CER,CHIP 10nF,10%,50V,X7R,TP,2012
BC1 2203-000260 C-CER,CHIP 10nF,10%,50V,X7R,TP,2012
PC2L 2203-000533 C-CER,CHIP 2.7nF,10%,50V,X7R,TP,2012,-
PC2R 2203-000533 C-CER,CHIP 2.7nF,10%,50V,X7R,TP,2012,-
VLC2 2203-000979 C-CER,CHIP 47nF,10%,50V,X7R,TP,2012
VLC1 2203-000979 C-CER,CHIP 47nF,10%,50V,X7R,TP,2012
FC1 2203-000979 C-CER,CHIP 47nF,10%,50V,X7R,TP,2012
PL1R 2701-000179 INDUCTOR-AXIAL 33UH,10%,4298
PL1L 2701-000179 INDUCTOR-AXIAL 33UH,10%,4298
SW5 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW6 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW7 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW8 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW4 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW1 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW12 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW2 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
SW3 3404-000165 SWITCH-TACT 12V,50mA,160gf,6x6mm,SPST
AH92-02378A ASSY PCB-HDMI JACK PCB HT-P70,HDMI JACK
BC1 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC10 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC11 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC12 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC13 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC14 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC15 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC17 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC19 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC2 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC20 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC22 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC23 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC24 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC25 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC26 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC27 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC28 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC29 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC3 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC30 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC31 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC32 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC33 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC34 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC35 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC37 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC38 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC39 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC4 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC41 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC42 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC43 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC44 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
Samsung Electronics 8-9
BC45 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC5 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC58 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC59 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC6 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC60 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC61 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
BC62 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC63 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
BC64 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC65 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC66 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC67 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC68 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC69 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC7 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC70 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC71 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC72 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
BC73 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC74 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC75 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC76 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC77 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC78 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
BC79 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC8 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC80 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608
BC81 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC82 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC83 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC84 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC85 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
BC86 2402-000009 C-AL,SMD 47uF,20%,6.3V,GP,TP,5.3x5.3x5.
BC9 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
C1 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
C10 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
C11 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
C12 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
C13 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
C14 2203-000405 C-CER,CHIP 0.18NF,5%,50V,C0G,TP,1608
C15 2203-000405 C-CER,CHIP 0.18NF,5%,50V,C0G,TP,1608
C16 2203-000405 C-CER,CHIP 0.18NF,5%,50V,C0G,TP,1608
C17 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
C18 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
C19 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608
C20 2402-001198 C-AL,SMD 330UF,20%,6.3V,GP,TP,6.6X6.6X7
C21 2402-001198 C-AL,SMD 330UF,20%,6.3V,GP,TP,6.6X6.6X7
C22 2402-001198 C-AL,SMD 330UF,20%,6.3V,GP,TP,6.6X6.6X7
C3 2203-000815 C-CER,CHIP 0.033NF,5%,50V,C0G,TP,1608
C5 2203-000815 C-CER,CHIP 0.033NF,5%,50V,C0G,TP,1608
C6 2402-001049 C-AL,CHIP 10uF,20%,16V,GP,TP,3.3x3.3x5.4
C63 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
C7 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
C70 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
C8 2402-001049 C-AL,CHIP 10uF,20%,16V,GP,TP,3.3x3.3x5.4
C9 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
CON1 3710-002223 CONNECTOR-SOCKET 30P,2R,2mm,SMD-S,AUF,BL
CON2 3722-002147 JACK-PIN 3P,NI,RED/BLU/GRN,ANGLE
CON4 3701-001314 CONNECTOR-HDMI 19P,2R,FEMALE,SMD-A,AU
D1 0401-001090 DIODE-SWITCHING 1SS355,80V,100MA,SOD-323
FB1 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB118 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB13 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB14 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB15 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB17 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB18 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB19 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB2 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB23 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB3 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB30 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB4 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB6 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB7 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
FB8 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HC19 2203-005148 C-CER,CHIP 100nF,10%,16V,X7R,TP,1608
HL1 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL2 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HL3 3301-001495 BEAD-SMD 120ohm,2012,2500mA,TP,115ohm/1
HR1 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
HR10 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
HR11 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
HR12 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
HR13 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
HR14 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
HR15 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
HR2 2007-000729 R-CHIP 300ohm,5%,1/10W,TP,1608
HR3 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
HR4 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608
HR5 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
HR6 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
HR7 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
HR8 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
HR9 2007-002899 R-CHIP 10ohm,1%,1/10W,TP,1608
L50 2901-001302 FILTER-EMI SMD 20V,0.3A,-,-,2.0x1.2x1.3m
L51 2901-001302 FILTER-EMI SMD 20V,0.3A,-,-,2.0x1.2x1.3m
L52 2901-001302 FILTER-EMI SMD 20V,0.3A,-,-,2.0x1.2x1.3m
L53 2901-001302 FILTER-EMI SMD 20V,0.3A,-,-,2.0x1.2x1.3m
Q1 0504-000128 TR-DIGITAL -,NPN,200MW,22K/22K,SOT-23,TP
R1 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R11 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
R12 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
R13 2007-001166 R-CHIP 75ohm,5%,1/8W,TP,2012
R14 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
R15 2011-000475 R-NET 33OHM,5%,1/16W,L,CHIP,8P,TP,32
R18 2011-000475 R-NET 33OHM,5%,1/16W,L,CHIP,8P,TP,32
R2 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R20 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
R21 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R22 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608
R23 2011-000816 R-NET 100OHM,5%,1/16W,L,CHIP,8P,TP
R24 2011-000816 R-NET 100OHM,5%,1/16W,L,CHIP,8P,TP
R25 2011-000816 R-NET 100OHM,5%,1/16W,L,CHIP,8P,TP
R26 2011-000816 R-NET 100OHM,5%,1/16W,L,CHIP,8P,TP
R27 2011-000816 R-NET 100OHM,5%,1/16W,L,CHIP,8P,TP
R28 2011-000816 R-NET 100OHM,5%,1/16W,L,CHIP,8P,TP
R29 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R3 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608
R30 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R31 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608
R34 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608
R35 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608
R37 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608
R4 2007-000101 R-CHIP 82Kohm,5%,1/10W,TP,1608
R44 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R45 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608
R47 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
R48 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
R51 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
R52 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608
R58 2007-000449 R-CHIP 180ohm,5%,1/8W,TP,2012
R59 2007-000308 R-CHIP 10ohm,5%,1/8W,TP,2012
R6 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608
R7 2007-001166 R-CHIP 75ohm,5%,1/8W,TP,2012
R71 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R72 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R73 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R74 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R75 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R76 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R77 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R78 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R79 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R8 2007-001166 R-CHIP 75ohm,5%,1/8W,TP,2012
R80 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R81 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R84 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R85 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608
R87 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
R88 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
R89 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
R90 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
R91 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
8-10 Samsung Electronics
R92 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
R93 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
R94 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608
U2 1003-001684 IC-DISPLAY DRIVER FLI2301BD,PQFP,208P,28
U4 1105-001376 IC-DRAM W986432DH-7,4X512KX32BIT,TSOP(
U6 1205-002522 IC-BUS SWITCH PCA9540,TSSOP,8P,3x3mm,PLA
U7 1205-002671 IC-TRANSMITTER SII9030CTU80,TQFP,80P,12x
X1 2801-004182 CRYSTAL-SMD 13.5MHZ,10PPM,28-AAN,24PF,60
3809-001226 CABLE-FLAT 30V,80C,100mm,16P,1.25mm,UL28
3809-001393 CABLE-FLAT 30V,80C,100MM,13P,1.25MM,UL28
3809-001658 CABLE-FLAT 30V,80C,70mm,32P,1.25mm,UL289
AH39-00257F CBF-POWER CORD MAX980,-,CP2,250V,2.5A,18
AH39-00721A CBF MODULE CABLE HT-DS1000,19,3000,19,7.
AH39-40001V CABLE-AUDIO CABLE -,-,1P-1P,3000MM,-,-,-
AH40-00076C TUNER-PACK 4496 PE01 FM/AM RDS,-,-,-,-,-
AH42-00018A ANTENNA-FM T150S1F-1,-,-,-,-,-,1500##50m
AH42-00019A ANT LOOP S0160BL-16,HT-DS665T,9uH,-,1KH
AH44-00096A SMPS HT-P70,-,AC/DC,900W,220V,50Hz
AH59-01527A REMOCON-ASSY HT-P70,EUR,-,-,57KEY,-,-,-,
AH59-01436C DECK 1 DISC,DVD DECK,P70,KP30,-,CMS
3101-001300 MOTOR-DC 2670RPM,9G.CM,3.9V,160MA
AH59-01421A DECK-DVD -,CMS-S73,-,25mm,-,-,-,SLIM
AH30-00068A PICK UP CMS-S73SS6,3.36(DVD),0.6(DVD),
AH92-02320B ASSY PCB HT-P70,KP70,P70K,HT-KP30,P30K,
AH97-01341A ASSY DVD DECK-EMPTY MECHA DVD-K100,-,-
0205-001106 GREASE-HARD G-99004X,40~150,1KG
0205-001109 GREASE-HARD DM5231,HARD,1KG/CAN
3301-001760 CORE-FERRITE -,33x12x8mm,-,-
3409-001138 SWITCH-DETECTOR 5V DC,1A,DPST,30GF,-
3809-001627 CABLE-FLAT 30V,80C,90mm,6P,1mm,UL20696
3809-001630 CABLE-FLAT 30V,80C,175mm,24P,0.5mm,UL206
6001-001257 SCREW-MACHINE PWH,+,M1.7,L3,ZPC(YEL),SWR
6003-000152 SCREW-TAPTITE PH,+,B,M2,L10,ZPC(YEL),SWR
6003-001375 SCREW-TAPTITE BH,+,B,M3,L8,ZPC(YEL),SWRC
6003-001446 SCREW-TAPTITE BH,+,,M2,L5,NI PLT
6003-001476 SCREW-TAPTITE PWH,+,B,M2,L5,ZPC(YEL)
AH39-00708A WIRE HARNESS DVD-K100,L/W,-,5,90,WHT,-,-
AH41-00560B PCB-SWITCH SDM-D11,-,-,-,-,-,-,-,-,MOTOR
AH61-01474A SPRING ETC-DECK CMS-SD100,SUS304,-,-,-,1
AH61-01741A BASE-MAIN K100,ABS,-,-,-,-,-
AH61-01742A BODY CLAMPER-UPPER -,POM,0.8,-,-,-,WHT,-
AH61-01743A BODY CLAMPER-LOWER -,POM,0.8,-,-,-,WHT,-
AH61-01795A BRACKET-HOLDER SDM-D12,SECC,0.6,-,-,-,-
AH63-00695A TRAY-DISK SDM-D11,ABS,-,-,-,-,GRAY,-
AH66-00215A PULLEY MOTOR CMS-SD100,POM,-,WHITE,-,-,-
AH66-00216A GEAR-PULLEY CMS-SD100,TPE,-,-,-,BLACK,-,
AH66-00217A GEAR-TRAY CMS-SD100,POM,-,-,-,BLACK,-,-,
AH66-00219A PULLEY-BELT CMS-SD100,CR 1.5,-,-,-,-,-,-
AH66-00261A CAM-SLIDE K100,POM,-,-,WHT,-,-,-,-
AH66-00262A LEVER-LIFT -,ABS,-,-,-,-,BLK,-
AH73-00058A SILICON/RUBBER-DECK CMS-SD100,SILICON,D1
AH59-01586A SPEAKER SYSTEM PS-P70,-,-,-,-,-,-,ELS,5.
AH81-01783B A/S PART-FRONT SPK SYSTEM PS-FP70E,-,PS-
AH81-01783F A/S PART-NET FRAME PS-FP70E,-,NET FRAME,
AH81-01783G A/S PART-FRONT PANEL PS-FP70E,-,FRONT PA
AH81-01783H A/S PART-REAR CASE PS-FP70E,-,REAR CASE,
AH81-01783J A/S PART-FOOT PS-FP70E,-,FOOT,FOOT,for F
AH81-01783Q SPEAKER PS-P70,SPK WOOFER UNIT,56MM,8
AH81-01783R SPEAKER PS-P70,SPK TWEETER UNIT,11 MM,
AH81-01783C A/S PART-REAR SPK SYSTEM PS-RP70E,-,PS-R
AH81-01783F A/S PART-NET FRAME PS-FP70E,-,NET FRAME,
AH81-01783G A/S PART-FRONT PANEL PS-FP70E,-,FRONT PA
AH81-01783H A/S PART-REAR CASE PS-FP70E,-,REAR CASE,
AH81-01783J A/S PART-FOOT PS-FP70E,-,FOOT,FOOT,for F
AH81-01783Q SPEAKER PS-P70,SPK WOOFER UNIT,56MM,8
AH81-01783R SPEAKER PS-P70,SPK TWEETER UNIT,11 MM,
AH81-01783D A/S PART-CENTER SPK SYSTEM PS-CP70E,-,PS
AH81-01783K A/S PART-NET FRAME PS-CP70E,-,NET FRAME,
AH81-01783L A/S PART-FRONT PANEL PS-CP70E,-,FRONT PA
AH81-01783M A/S PART-REAR CASE PS-CP70E,-,REAR CASE,
AH81-01783N A/S PART-FOOT PS-CP70E,-,FOOT,FOOT,for C
AH81-01783P A/S PART-GUIDE PLATE PS-CP70E,-,GUIDE PL
AH81-01783Q SPEAKER PS-P70,SPK WOOFER UNIT,56MM,8
AH81-01783R SPEAKER PS-P70,SPK TWEETER UNIT,11 MM,
AH81-01783E A/S PART-SUBWOOFER SPK SYSTEM PS-WP70E,-
AH81-01782Z A/S PART-FRONT PANEL PS-WP50E,HIPS,FRONT
AH81-01788A A/S PART-FRONT GUIDE PS-WP50E,ABS,FRONT
AH81-01788B A/S PART-DUCT PS-WP50E,ABS,DUCT,DUCT,for
AH81-01814H SPEAKER PS-WP50 S/W UNIT,-,-,-,-,-,-
AH81-01814J SPEAKER PS-WP50 CABINET,-,-,-,-,-,-
AH81-01783S SPEAKER SPK ACCESSORY,-,-,-,-,-,FOR PS
AH81-01783T SPEAKER CARTON BOX,-,DW-1,-,-,-,FOR PS
AH81-01788E A/S PART PS-P70,EPS,-,CUSHION-SATELLITE
AH81-01814B SPEAKER P50 SPK CORD,no hook,4m*5+10m*
AH81-01814C SPEAKER P50 SUB W/F CUSHION,-,-,-,-,-,
AH68-00093D LABEL CAUTION-DVD -,-,T.PAPER,-,-,-,-,-,
AH68-00093G LABEL CAUTION-DVD -,T.PAPER,-,-,-,-,-,-,
AH68-00093H LABEL CAUTION-DVD -,T.PAPER,-,-,-,-,-,-,
AH68-00410K LABEL RATING MAX-B420,T.PAPER,-,-,-,ELS,
AH68-00411A LABEL CAUTION T.PAPER,MAX-N25,-,-,-,-,-,
AH68-00416C CARD-SERVICE -,-,-,L230,W200,200g,MOJO,E
AH68-00650A WARRANTY CARD-EUROPE YP-NDU,EUROPE,PAPER
AH68-01579E LABEL CAUTION HT-P38,-,PASCAL 400R,-,-,-
AH68-01689B MANUAL USERS HT-P70/P90,SEUK_IND_EUE_ERP
AH68-01689C MANUAL USERS HT-P70/P90,ELS,FRN/GER/NL,-
AH68-01724A MANUAL USERS HTDB300,EDC,ACCORDING TO BU
AH68-01729A LABEL-POP HT-P70,EUR,T.PAPER,-,-,-,-,-,-
AH68-50080A LABEL-SERIAL ART-PAPER,-,L135,W42,WHT,-,
AH68-50119B LABEL-EAN(B) ART-PAPER,T0.05,L29,W47,WHT
AH68-50275D LABEL-CAUTION FASCAL,T0.15,-,-,-,-,RCD13
AH68-50285J LABEL-ORIGN SEHZ,-,KRAFT-PAPER,T0.3,20,7
AH68-50309D LABEL-ORIGN -,-,T0.05,L5,BLK,W45,-,-,-,-
AH69-01488A MASTER CARTON HT-P70/EUR,DW1,439,502,417
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
Samsung Electronics 8-11
Samsung Electronics 9-1
9. Block Diagram
1 MAIN Part
Samsung Electronics 10-1
10. Wiring Diagram
Samsung Electronics 11-1
11. PCB Diagram
1. MAIN
11-2 Samsung Electronics
2. FRONT KEY
3. FRONT MIC
Samsung Electronics 11-3
4. HDMI 5. SERVO
Samsung Electronics 12-1
- This Document can not be used without Samsung’s authorization -
12. Schematic Diagram
1-1. MAIN (PART1)
12-2 Samsung Electronics
- This Document can not be used without Samsung’s authorization -
1-2. MAIN (PART2)
Samsung Electronics 12-3
- This Document can not be used without Samsung’s authorization -
1-3. MAIN (PART3)
12-4 Samsung Electronics
- This Document can not be used without Samsung’s authorization -
1-4. MAIN (PART4)
Samsung Electronics 12-5
- This Document can not be used without Samsung’s authorization -
2. FRONT
12-6 Samsung Electronics
- This Document can not be used without Samsung’s authorization -
3. AMP
Samsung Electronics 12-7
- This Document can not be used without Samsung’s authorization -
4. SMPS
12-8 Samsung Electronics
- This Document can not be used without Samsung’s authorization -
5. RF
Samsung Electronics 13-1
13. Circuit Board Description
13-2 Samsung Electronics
