1 Product Overview
2 Features
3 Technical Specifications
4 Services and Applications
5 System Structure
- 5.1 System Architecture Diagram
- 5.2 Functional Modules
6 Packing List

HUAWEI B612s-25d LTE CPE

V100R001

Product Description

Issue

Date

2017-07-20

HUAWEI TECHNOLOGIES CO., LTD.

Issue02 (2017-07-26) Huawei

Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://consumer.huawei.com/en/

Email: mobile@huawei.com

HUAWEI B612s-25d LTE CPE

Product Description

About This Document

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

About This Document

Summary

This document provides information for product features, main functions and services,

technical specifications and technical references.

This document includes:

Chapter Details

1 Product Overview Describes the appearance and main services of product

2 Features Describes the product features

3 Technical Specifications Describes the specifications of product hardware,

software and user interface

4 Services and Applications Describes the main functions and applications

5 System Structure Describes the product system structure

6 Packing List Describes the devices and accessories of the product

The document is an invitation to offer but not an offer. It is intended to describe the general features and

functions of products. The features and functions of certain products vary with requirements of

customers.

History

Issue Date Details

01 2017-04-12 Initial official release.

02 2017-07-20 • Updated the OS information

• Updated the indicator

• Updated the weight

HUAWEI B612s-25d LTE CPE

Product Description

Contents

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

iii

Contents

About This Document .................................................................................................................... ii

1 Product Overview ......................................................................................................................... 1

2 Features ........................................................................................................................................... 3

3 Technical Specifications .............................................................................................................. 4

3.1 Hardware Specifications ............................................................................................................................................... 4

3.2 Antenna and Radio Frequency Specifications .............................................................................................................. 6

3.3 Software Specifications ................................................................................................................................................ 8

4 Services and Applications ......................................................................................................... 11

4.1 Data Services .............................................................................................................................................................. 11

4.1.1 Accessing the Internet Through a Mobile Network (LTE/UMTS/GSM) ................................................................. 11

4.1.2 Accessing the Internet Through an Ethernet Network ............................................................................................. 12

4.2 Voice Services ............................................................................................................................................................. 12

4.3 SMS ............................................................................................................................................................................ 13

4.4 Security Service .......................................................................................................................................................... 13

4.5 Local management and maintenance .......................................................................................................................... 13

5 System Structure ......................................................................................................................... 14

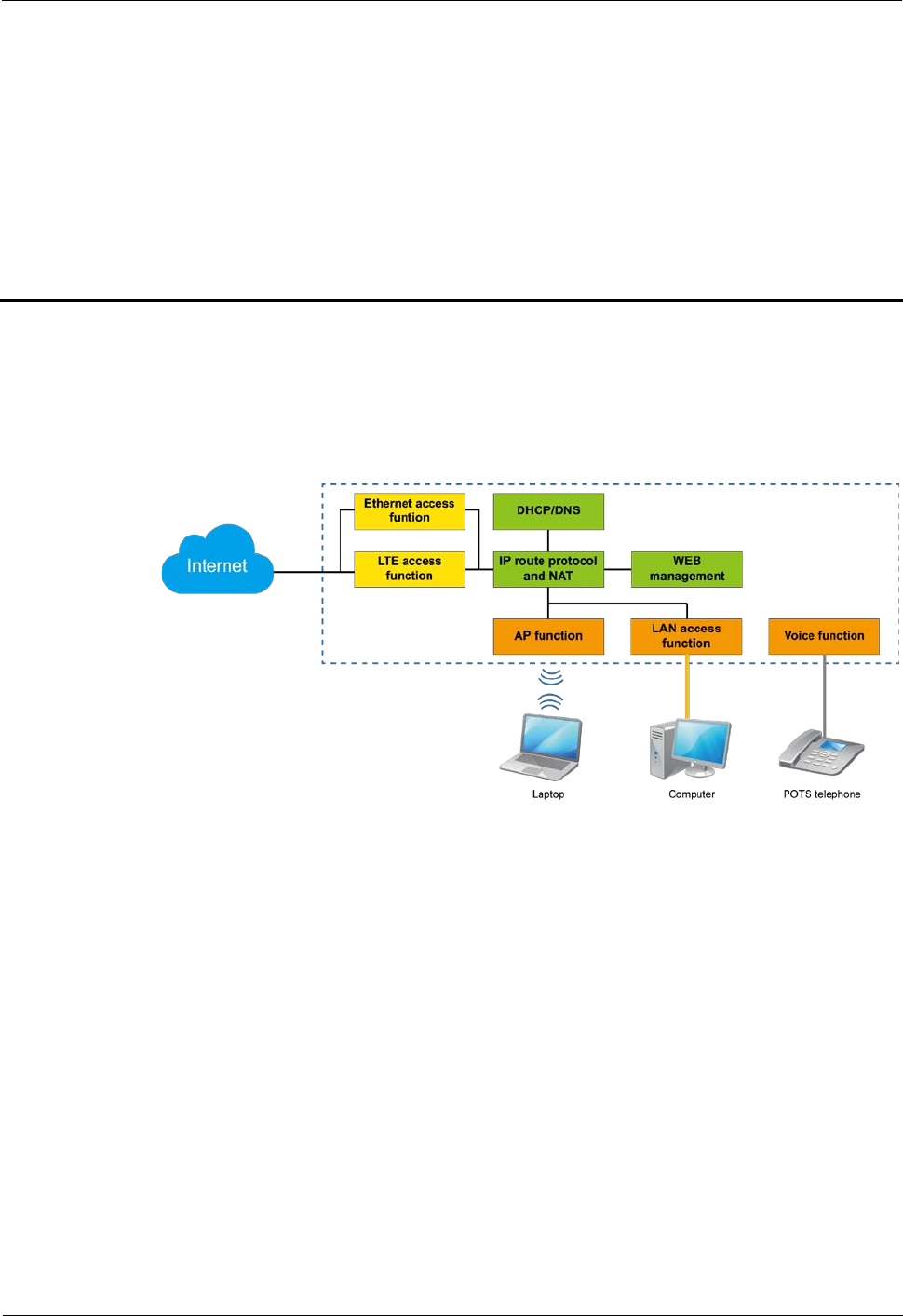

5.1 System Architecture Diagram ..................................................................................................................................... 14

5.2 Functional Modules .................................................................................................................................................... 14

6 Packing List .................................................................................................................................. 15

A Acronyms and Abbreviations .................................................................................................. 16

HUAWEI B612s-25d LTE CPE

Product Description

Product Overview

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

1 Product Overview

The HUAWEI B612s-25d LTE CPE (B612s-25d for short) is a wireless gateway that

integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and

diversified data access and voice services.

The frequency bands of the product are as follows.

B612s-25d support:

- LTE: B1/B3/B7/B8/B20/B38/B40/B41(2545~2655MHz)/B42/B43

- DC-HSPA+/HSPA+/HSPA/WCDMA: B1/B8

- EDGE/GPRS/GSM: B2/B3/B5/B8

- 4*4 MIMO：B3/B7/B20/B38/B40/B41/B42/B43

The B612s-25d supports the following standards:

- LTE（Long Term Evolution）

- DC-HSPA+（Dual Carrier High Speed Packet Access Plus）

- HSPA+（High Speed Packet Access Plus）

- HSUPA（High Speed Uplink Packet Access）

- HSDPA（High Speed Downlink Packet Access）

- UMTS（Universal Mobile Telecommunications System）

- EDGE（Enhanced Data Rates for Global Evolution）

- GPRS（General Packet Radio Service）

- GSM（Global System for Mobile Communications）

The B612s-25d supports wired and wireless network access, and provides data routing

service.

The B612s-25d provides the following services:

- Data service

- Voice service

- SMS

- Security service

- Local maintenance management function

HUAWEI B612s-25d LTE CPE

Product Description

Product Overview

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

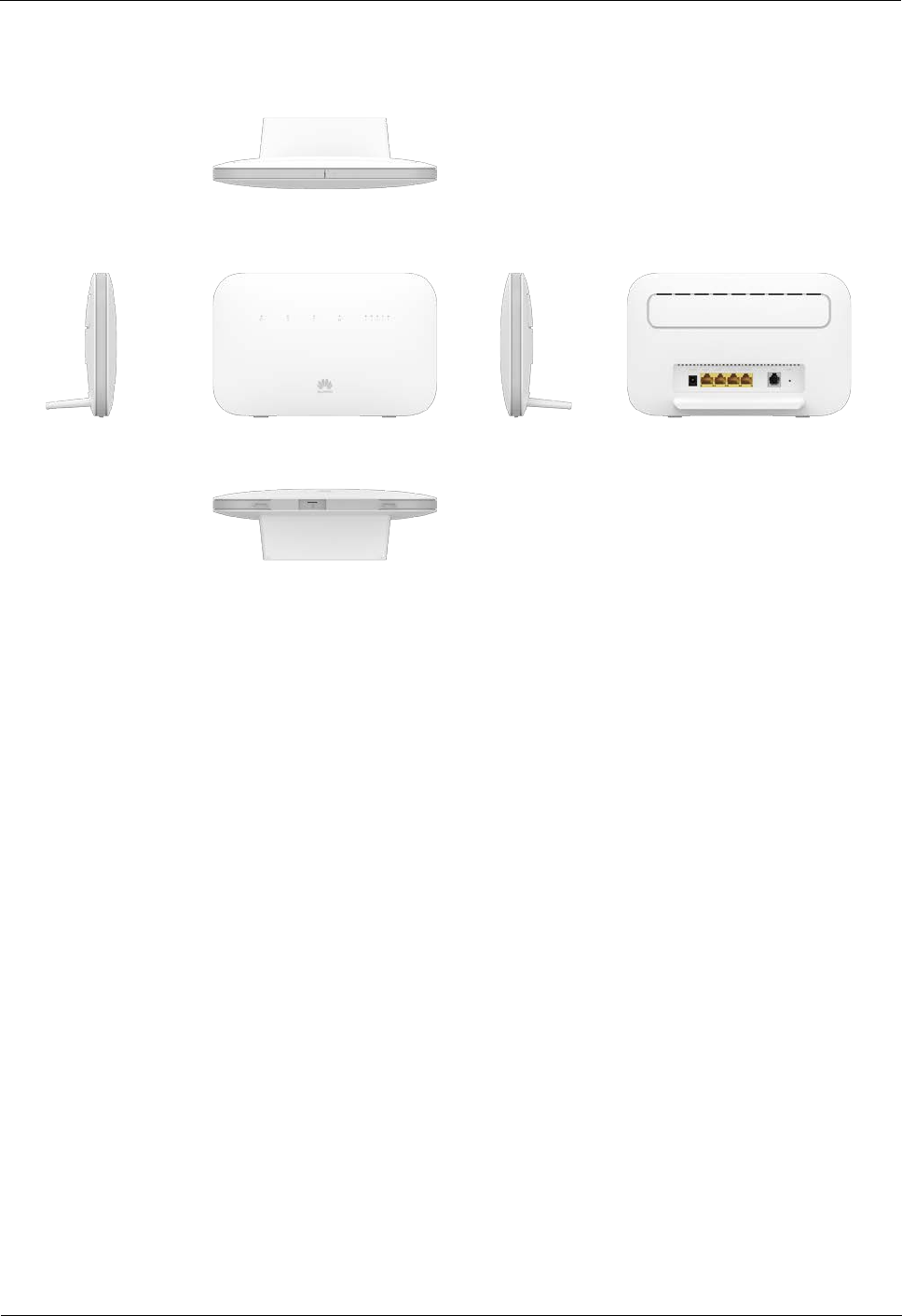

Figure 1-1 B612s-25d appearance

HUAWEI B612s-25d LTE CPE

Product Description

Features

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

2 Features

The B612s-25d mainly supports the following features:

- Access to LTE wireless networks

- Access to Gigabit Ethernet networks

- High-speed data access

− LTE FDD: DL 300 Mbit/s, UL 50 Mbit/s

− LTE TDD: DL 210 Mbit/s, UL 10 Mbit/s

− DC-HSPA+: DL 42 Mbit/s, UL 5.76 Mbit/s

− HSPA+: DL 21 Mbit/s (64QAM) / 28 Mbit/s (MIMO), UL 5.76 Mbit/s

− HSPA: DL 14.4 Mbit/s, UL 5.76 Mbit/s

− WCDMA PS: 384 kbit/s

− EDGE: DL 296 kbit/s, UL 236.8 kbit/s

− GPRS: 85.6 kbit/s

- Complies with wireless 802.11b/g/n standards with data rates up to 300 Mbit/s

- SMS

- IPv4 /IPv6 dual stack

- Compatibility with RJ11 telephone ports; support VoLTE voice(customizable function),

can be set to Voice over Internet Protocol (VoIP) voice mode or Circuit Switch (CS)

voice mode

- External LTE antenna port

- Support for Huawei HiLink App

- WPS 2.0

- HOTA updates

- Built-in DHCP Server, DNS RELAY and NAT

- Security services. Provides instant protection to block potential security risks and

intrusion attempts

- Windows 7, Windows 8, Windows 8.1, Windows 10 (does not support Windows RT),

MAC OS X 10.9, 10.10, 10.11 and 10.12 with latest upgrades

- User-friendly design of LED indicator. Easy to observe the status of equipment.

HUAWEI B612s-25d LTE CPE

Product Description

Technical Specifications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

3 Technical Specifications

3.1 Hardware Specifications

Table 3-1 Technical specifications of the B612s-25d main unit

Item Description

Technical

standard WAN 3GPP Release 11

LAN IEEE 802.3/802.3u

WLAN IEEE 802.11b/g/n

Working

frequency band LTE B1/B3/B7/B8/B20/B38/B40/B41(2545~2655M

Hz)/B42/B43

DC-HSPA+/HSPA+/

HSPA/UMTS B1/B8

EDGE/GPRS/GSM B2/B3/B5/B8

4*4 MIMO B3/B7/B20/B38/B40/B41/B42/B43

WLAN 2.4GHz 2.422 GHz～2.472GHz

External port - One power adapter port

- Three LAN port (RJ45)

- One LAN/WAN port (RJ45)

- One phone port (RJ11)

- Two external LTE antenna ports (SMA)

- One micro-SIM card slot

Antenna - Built-in LTE/UMTS/GSM primary antenna

- Built-in LTE /UMTS secondary antenna

- Built-in WLAN 2.4G antenna

HUAWEI B612s-25d LTE CPE

Product Description

Technical Specifications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

Item Description

Indicator - One Power indicator

- One Internet status indicator

- One Wi-Fi/WPS indicator

- One LAN/WAN indicator

- One group of signal strength indicators

Button - One Power button

- One WPS button

- One Reset button

Maximum

transmit power LTE Conform to 3GPP Power Class 3 Definition

WLAN 2.4G 802.11b 16 dBm

802.11g 16 dBm

802.11n 16 dBm

Receiving

sensitivity LTE Conform to 3GPP Definition

UMTS Conform to 3GPP Definition

GSM -104 dBm

WLAN 802.11b：-83 dBm（11 Mbit/s）

802.11g：-69 dBm（54 Mbit/s）

802.11n：-67 dBm（65 Mbit/s）

Power

consumption < 12W

AC/DC

power supply

- AC: 100 V - 240 V

- DC: 12 V/1 A

Dimensions

(Maximum)

240mm × 155mm × 78mm

Weight About 430g (excluding the power adapter)

Temperature - Working temperature: 0°C to 40°C

- Storage temperature: -20°C to +70°C

Humidity 5% - 95%( Non-condensing)

HUAWEI B612s-25d LTE CPE

Product Description

Technical Specifications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

3.2 Antenna and Radio Frequency Specifications

Table 3-2 LTE main diversity antenna specifications

Item Description

Frequency - 703 MHz~960 MHz

- 1452 MHz~1496 MHz

- 1710 MHz~2690 MHz

- 3400 MHz~3800 MHz

Input impedance 50 Ω

Standing wave ratio < 3

Efficiency ≥ -4 dB@703 MHz~960 MHz

≥-3.5dB@1452 MHz~1496 MHz

≥-3.5dB@1710 MHz~2690 MHz

≥-3.5dB@3400 MHz~3800 MHz

Gain Band 42/43: 4-5 dBi

Band 1/3/7/38/40/41: 3-4 dBi

Band 8/20: 1-2 dBi

Polarization Linear polarization

Table 3-3 WLAN 2.4 GHz antenna specifications

Item Description

Frequency 2.401 GHz～2.495 GHz

Input impedance 50 Ω

Standing wave ratio < 2

Efficiency ≥ -3dB

Gain 3 dBi

Polarization Linear polarization

Table 3-4 External antenna specifications

- The external antenna is an optional accessory. Signals may be weak in some areas; thus, you can

choose whether to use the external antenna.

- The external antenna can be used indoor only. Put it near the window when using to get better signal.

- Avoid thunderstorms when using.

HUAWEI B612s-25d LTE CPE

Product Description

Technical Specifications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

Item Description

Frequency - 2300 MHz～2690 MHz

- 3400 MHz～3800 MHz

Input impedance 50 Ω

Standing wave ratio < 3

H side gain Band 42/43: 7-8 dBi

Band 7/38/40/41: 6-7 dBi

Polarization Linear polarization

Interface standard SMA

HUAWEI B612s-25d LTE CPE

Product Description

Technical Specifications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

3.3 Software Specifications

Table 3-5 Software specifications

Item Description

Gateway Supports the default route: 0.0.0.0.

Supports the default gateway address: 192.168.8.1.

Supports the Address Resolution Protocol (ARP).

Supports the Internet Control Message Protocol (ICMP).

Supports the domain name service (DNS).

NAT Supports NAT and Network Address and Port

Translation (NAPT), which complies with

RFC2663, RFC3022, and RFC3027.

Supports CONE NAT.

Supports fragmented message identification

during common NAT.

DHCP server Enables and disables the DHCP server.

Configures DHCP server address pools.

Sets the lease time.

VPN client Support L2TP VPN client (When L2TP VPN client function is

enabled, the throughput performance will slow down, the

maximum speed can up to 50Mbps (dependent on network

environment).)

SMS Writing/Sending/Receiving

Writing/Sending/Receiving extra-long messages

Voice VoIP Supports the Session Initiation Protocol (SIP).

Supports G.711a/G.711u/G.726

(-24/-32)/G.722/G.729 for encoding and

decoding.

CS voice Supports CS voice communication over UMTS

and GSM networks.

Supports the circuit switched fallback (CSFB).

VoLTE Customizable function

Security Enables and disables the firewall.

Filters LAN MAC addresses.

HUAWEI B612s-25d LTE CPE

Product Description

Technical Specifications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

Item Description

Filters LAN IP addresses.

Filters URLs.

Supports demilitarized zone (DMZ).

Supports Universal Plug and Play (UPnP).

Supports Application Level Gateway (ALG).

WLAN Broadcasts and hides service set identifiers (SSIDs).

Supports WPS

Authentication Supports Open System authentication.

Supports encryption using wired equivalent

privacy (WEP), Wi-Fi protected access

preshared key (WPA /WPA2-PSK), and

WPA2-PSK authentication.

Supports the Advanced Encryption Standard

(AES) encryption algorithm.

Supports the TKIP and AES hybrid encryption

algorithm.

MAC address

authentication Supports the MAC address authentication

whitelist.

Supports the MAC address authentication

blacklist.

Supports a maximum of 10 MAC address

entries.

Supports automatic transmission rate adjustment.

Station

management Supports station status queries.

Supports a maximum of 32 connected

stations.

IPv6/IPv4 dual

stack DHCPv6/v4 server and client

DNSv6/v4 server and client

Display IPv6/v4 WAN address

HUAWEI HiLink

App View the data traffic usage and SMS.

Manage the connected devices.

Change CPE's SSID and password.

System

requirements Operating system: Windows 7, Windows 8, Windows 8.1,

Windows 10 (does not support Windows RT), MAC OS X 10.9,

10.10, 10.11 and 10.12 with latest upgrades.

HUAWEI B612s-25d LTE CPE

Product Description

Technical Specifications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

Item Description

Hardware configuration: meets the configuration requirements

of the operating system.

HUAWEI B612s-25d LTE CPE

Product Description

Services and Applications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

4 Services and Applications

4.1 Data Services

The B612s-25d can access the Internet through mobile networks, and Ethernet networks. By

connecting to the B612s-25d using Wi-Fi or a network cable, users can get access to

high-speed Internet services and establish a local area network (LAN).

4.1.1 Accessing the Internet Through a Mobile Network

(LTE/UMTS/GSM)

The B612s-25d can access the Internet through mobile networks.

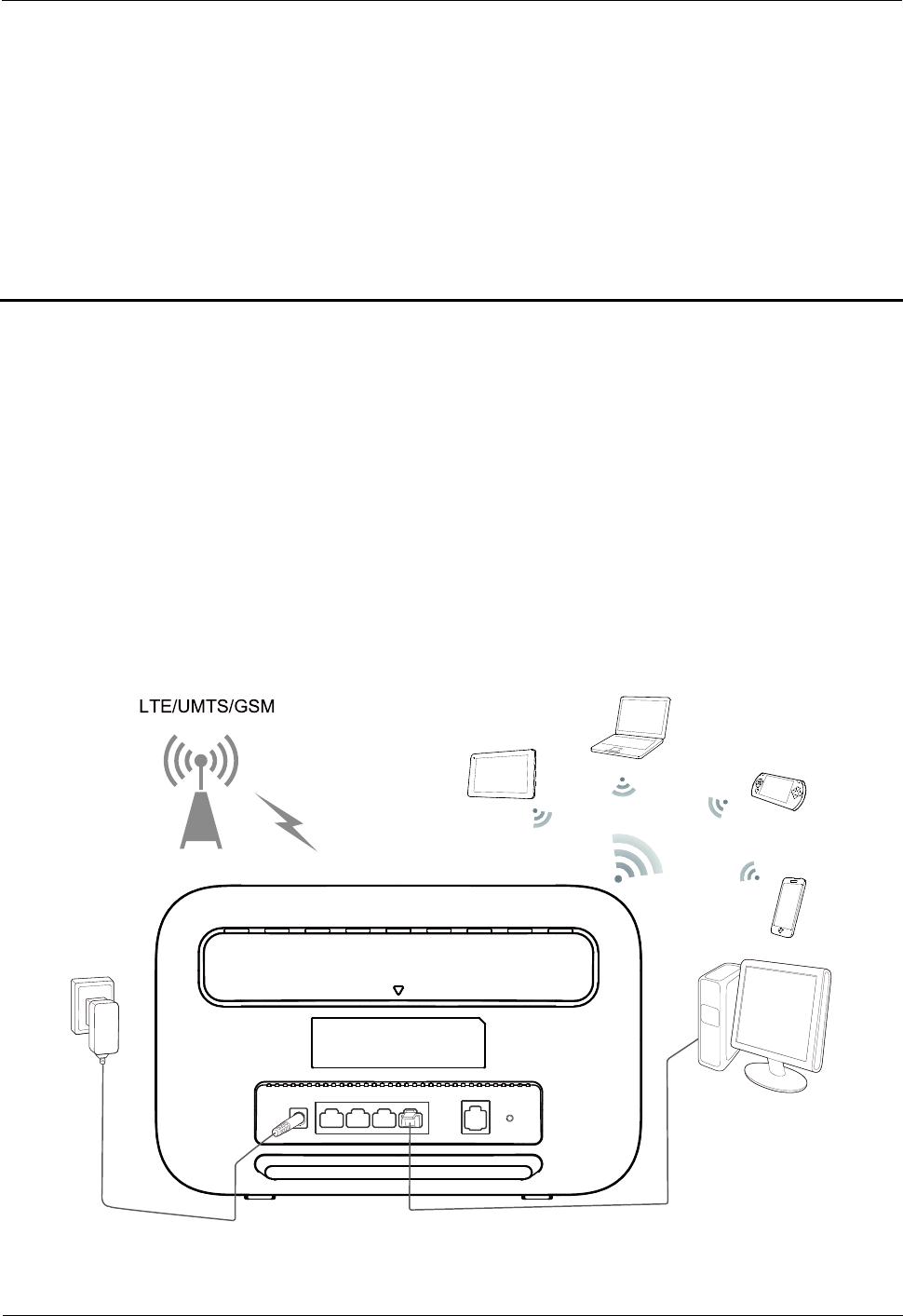

Figure 4-1 Accessing the Internet through a mobile network

HUAWEI B612s-25d LTE CPE

Product Description

Services and Applications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

4.1.2 Accessing the Internet Through an Ethernet Network

Connect the B612s-25d's LAN/WAN port to a wall-mounted Ethernet port using a network

cable.

Figure 4-2 Accessing the Internet through an Ethernet network

4.2 Voice Services

The B612s-25d provides one telephone port that can be connected to telephones for calling.

HUAWEI B612s-25d LTE CPE

Product Description

Services and Applications

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

Figure 4-3 Connecting telephones to the B612s-25d

4.3 SMS

The B612s-25d supports message writing/sending/receiving and group sending (up to 50

contacts at a time). You can manage messages through the Web page, such as inbox, outbox,

draft.

4.4 Security Service

The B612s-25d supports various security features, such as the firewall, user authentication,

and PIN protection, protect users against security threats from the Internet when users are

using network services.

4.5 Local management and maintenance

The B612s-25d supports local configuration through the Web page. You can accomplish

device management, network configuration and ensure normal and stable performance.

HUAWEI B612s-25d LTE CPE

Product Description

System Structure

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

5 System Structure

5.1 System Architecture Diagram

Figure 5-1 System architecture

5.2 Functional Modules

- Mobile network access: The B612s-25d adopts the LTE/UMTS/GSM access technology

at the WAN side, can access the wireless broadband packet-based.

- WLAN AP function: 802.11b/g/n compliant WLAN AP interface is provided, used for

wireless networking at home. The interface is compliant with the IEEE 802.11b/g/n

standard and the WPA/WPA2-PSK/WPA2-PSK/WEP security authentication.

- DHCP/DNS: The DHCP server dynamically allocates IP addresses to PCs. The DNS

parses domain names.

- Web management: You can configure, modify and query the configuration information of

the B612s-25d.

- Routing and NAT: High-speed routing capability. With the built-in NAT, the B612s-25d,

together with wireless broadband packet-based network devices, can provide flexible

broadband access solutions and networking schemes.

HUAWEI B612s-25d LTE CPE

Product Description

Packing List

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

6 Packing List

Table 6-1 Packing list

Description Quantity Remarks

Wireless Gateway 1 Standard

Power supply adapter 1 Standard

Quick Start 1 Standard

Ethernet cable 1 Standard

Warranty card 1 Optional

Phone cable 1 Optional

HUAWEI B612s-25d wireless gateway also provide external antenna as optional for you to

choose.

HUAWEI B612s-25d LTE CPE

Product Description

Acronyms and Abbreviations

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

A Acronyms and Abbreviations

AC Alternating Current

ARP Address Resolution Protocol

AP Access Point

APN Access Point Name

CPE Customer Premises Equipment

CS Circuit Switch

CSFB Circuit Switched Fallback

DHCP Dynamic Host Configuration Protocol

DL Downlink

DNS Domain Name Server

GE Gigabit Ethernet

HOTA Huawei Over The Air

HSPA High Speed Packet Access

HSPA+ High Speed Packet Access Plus

HSDPA High Speed Downlink Packet Access

HSUPA High Speed Uplink Packet Access

IP Internet Protocol

HUAWEI B612s-25d LTE CPE

Product Description

Acronyms and Abbreviations

Issue 02 (2017-07-26) Huawei

Proprietary and Confidential

ICMP Internet Control Message Protocol

LAN Local Area Network

LED Light Emitting Diode

LTE Long Term Evolution

MCS Modulation and Coding Scheme

NAT Network Address Translation

POTS Plain Old Telephone Service

TKIP Temporal Key Integrity Protocol

UMTS Universal Mobile Telecommunications System

UL Uplink

VoIP Voice over Internet Protocol

WAN Wide Area Network

WLAN Wireless Local Area Network

WCDMA Wideband Code Division Multiple Access

Wi-Fi Wireless Fidelity

Product Description HUAWEI B612s 25d V100R001 02English

Navigation menu

Versions of this User Manual:

Views

Navigation
