1
The Right Choice
Catalog
Worldwide Manufacturer
& Distributor of High Quality,
Innovative Replacement Parts
Since 1945
Edition 24, Volume 1
Divisions
A Division of SUPCO®
®
A Division of SUPCO®
Brands
BULLET®
PIERCING
VALVE
®
Authorized Master Distributor
®
2
®
®
A Division of SUPCO®
®
Founded in 1945 in the Bronx, NY by two naval engineers, Sealed Unit Parts Co.,Inc (SUPCO) originated as a service
company for refrigeration systems. These systems were “sealed”, so that, when service was needed, the repair was
done invasively. The desire to overcome this method was the impetus for the development of the patented “Bullet”
valve in the 1950’s.
As demand for the “Bullet” valve grew, Supco’s burgeoning manufacturing operation moved to Monmouth County, NJ.
SUPCO set its roots deep in Monmouth County, NJ during the decade of the 1960’s. Another important development
during that decade was a patent for utilizing “PTC” components as switches for control devices.
During the 1970’s, the utilization of PTC devices as switches led to the development of “The Original” two wire
refrigeration and air conditioning hard starts. “Super Boosts” and “3 N 1” hard starts revolutionized the aftermarket’s
method for installing hard starts on air conditioning and refrigeration systems.
The 1980’s brought with it an expansion into the test instrument market, with the addition of simple testing devices for

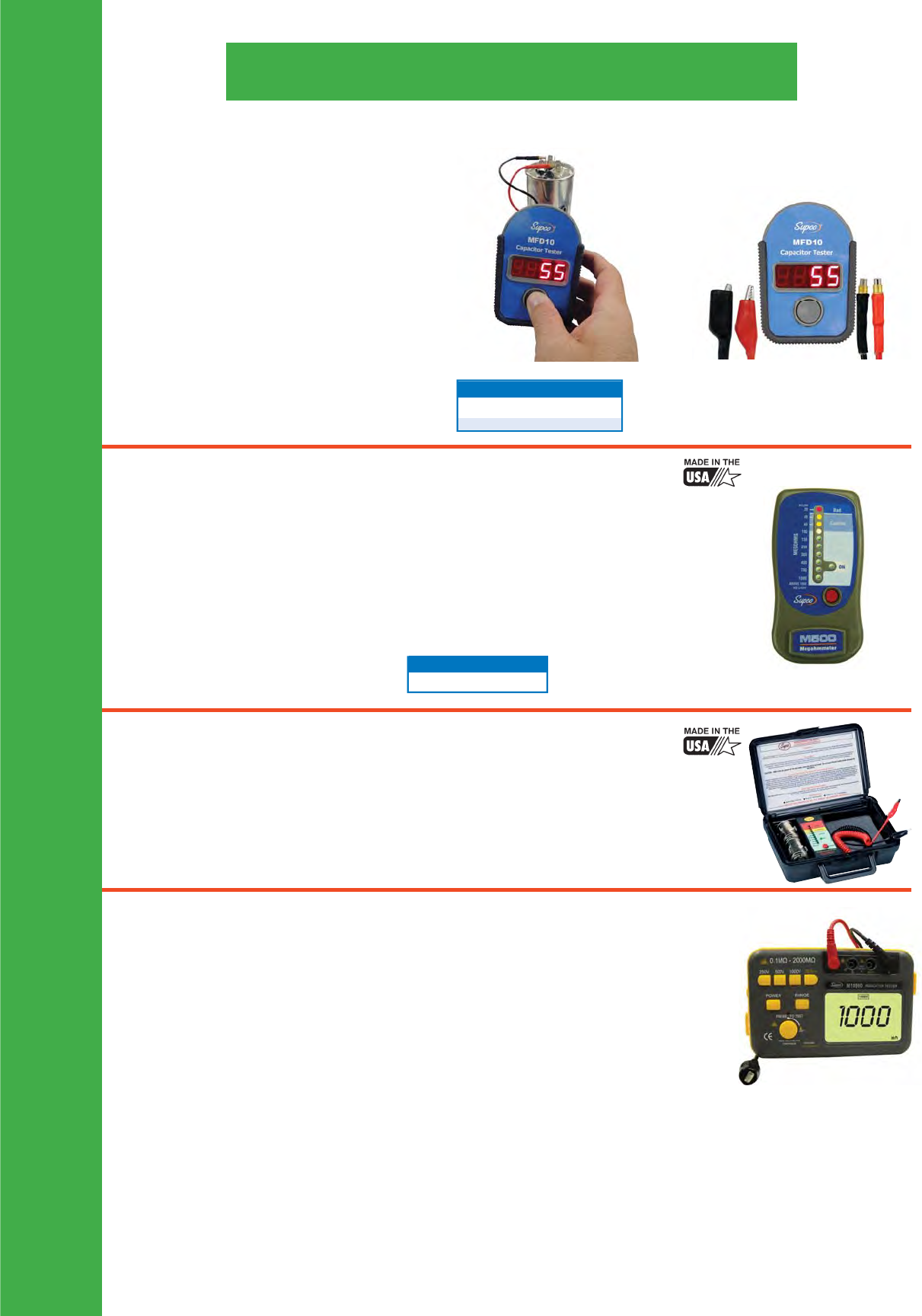

critical parameters in refrigeration and cooling systems. The MFD10 capacitor tester and M500 compressor insulation
tester laid the foundation for development of test instruments designed to make service professional’s tasks simple,
with reliable results.
SUPCO developed the first electronic vacuum gauge in 1990. The VG60 removed the uncertainty of analog technology
for the growing need to measure this key system characteristic. During the latter part of the decade, master distributor
partnerships for product lines, such as Therm-o-Disc components, bolstered SUPCO’s position as a key supplier to
HVAC and Appliance wholesale distributors.
As we entered a new millennium, continued strategic growth resulted in a need to expand existing facilities in NJ, and
later, the establishment of manufacturing facilities abroad. Additional product development in hard starts and vacuum
gauges was the catalyst for that growth. In 2007, SUPCO acquired Climate Technology Corporation (CTC), adding
thermostats to a broadening product line.
Another decade brings continued product line expansion through in-house development, master distributor relationships
and acquisition. This strengthens Supco’s position as a leader in the HVAC, Refrigeration and Appliance industries.
Proof of that is the acquisition of A-1 Components and Camstat in September of 2013.
About Us...
3
Table Of Contents
HVAC
AC Hard Starts
Relays
Capacitors
Contactors
Motor Protectors
Time Delays
Furnace Igniters
Duct Smoke Detectors
Duct Heaters
Duct Boosters
Mini-Split Condensate Pumps
Air Pressure Switches
Camstat®

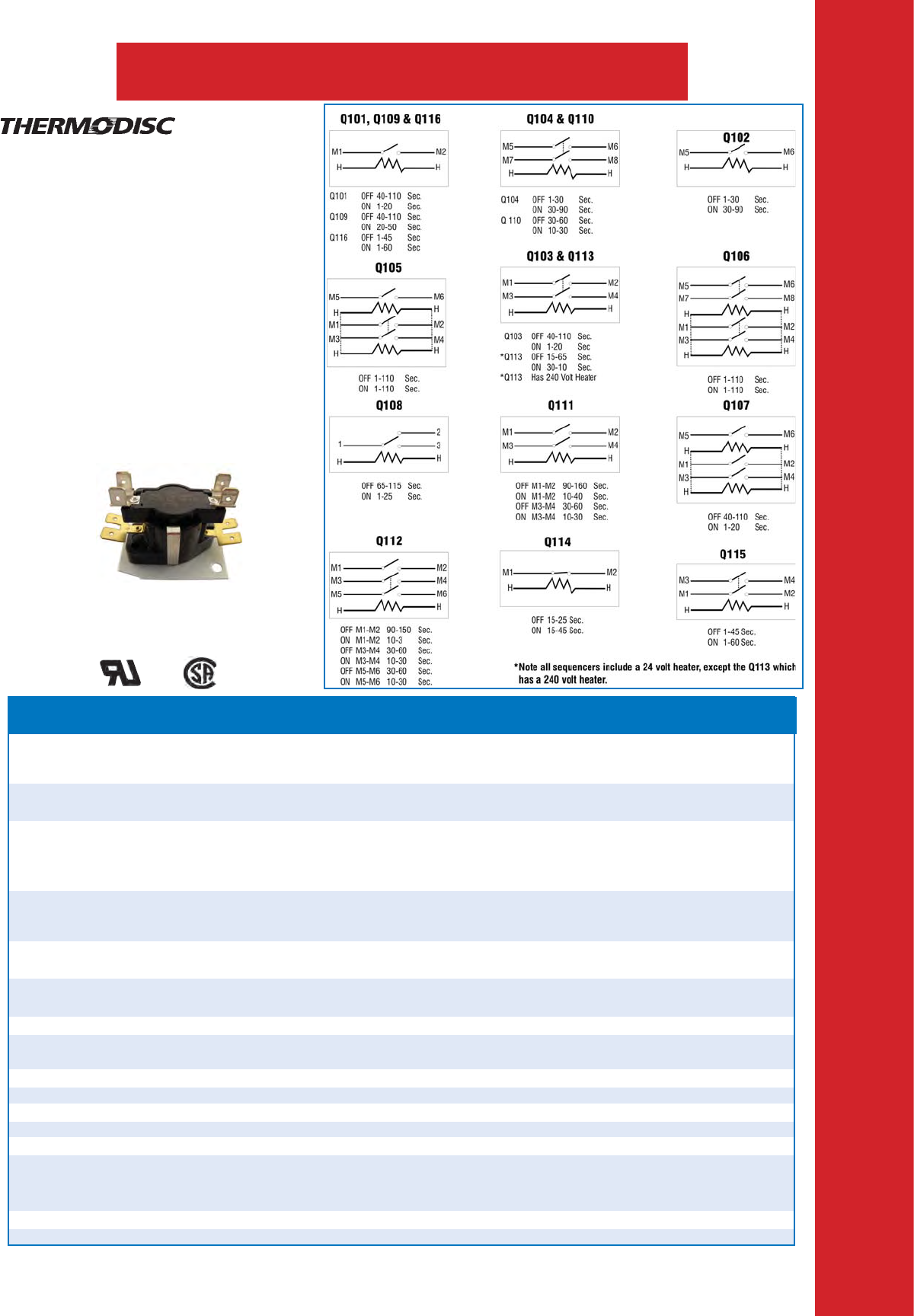

Sequencers

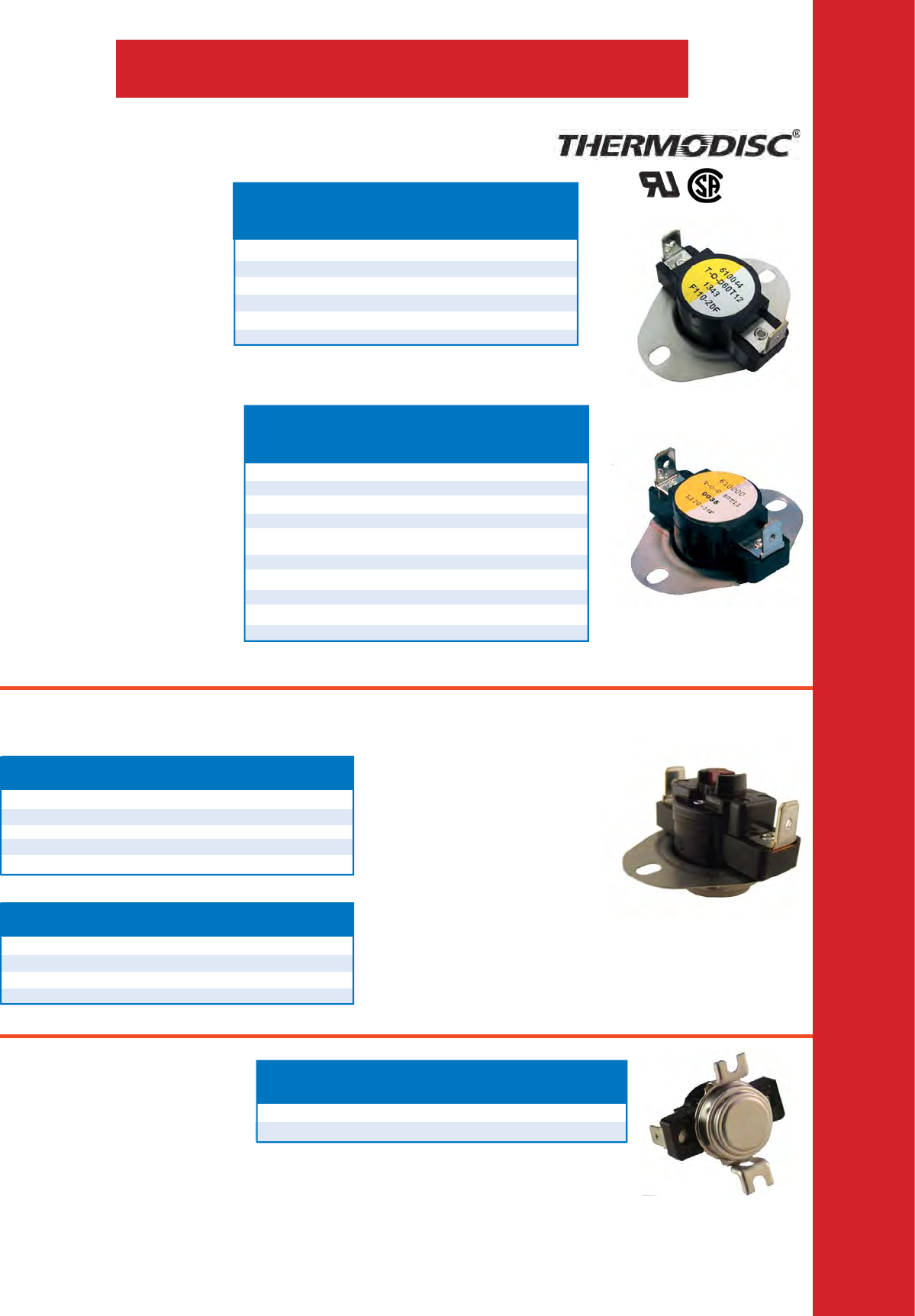

Thermodisc® Thermometers
Pressure Switches

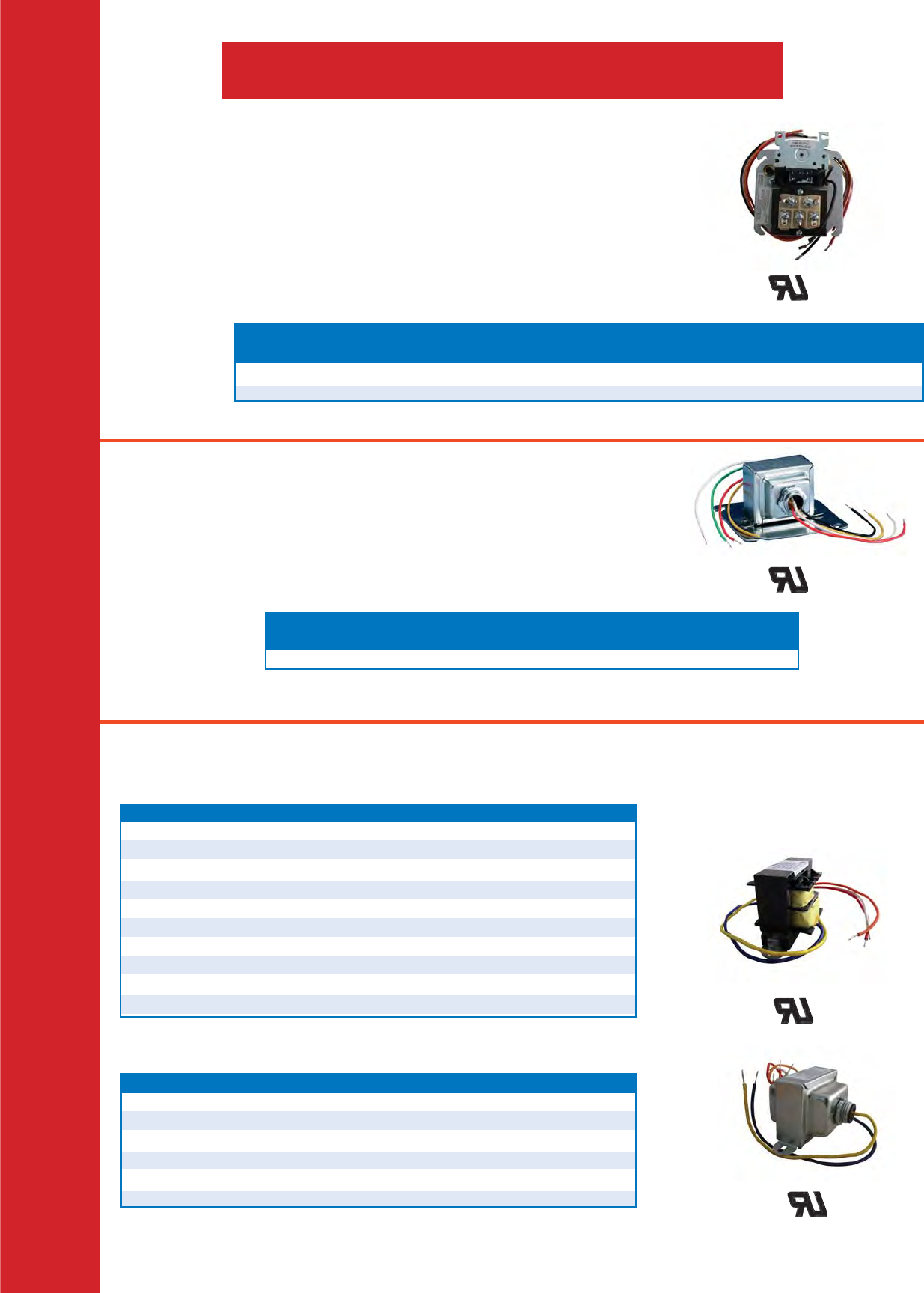

Transformers

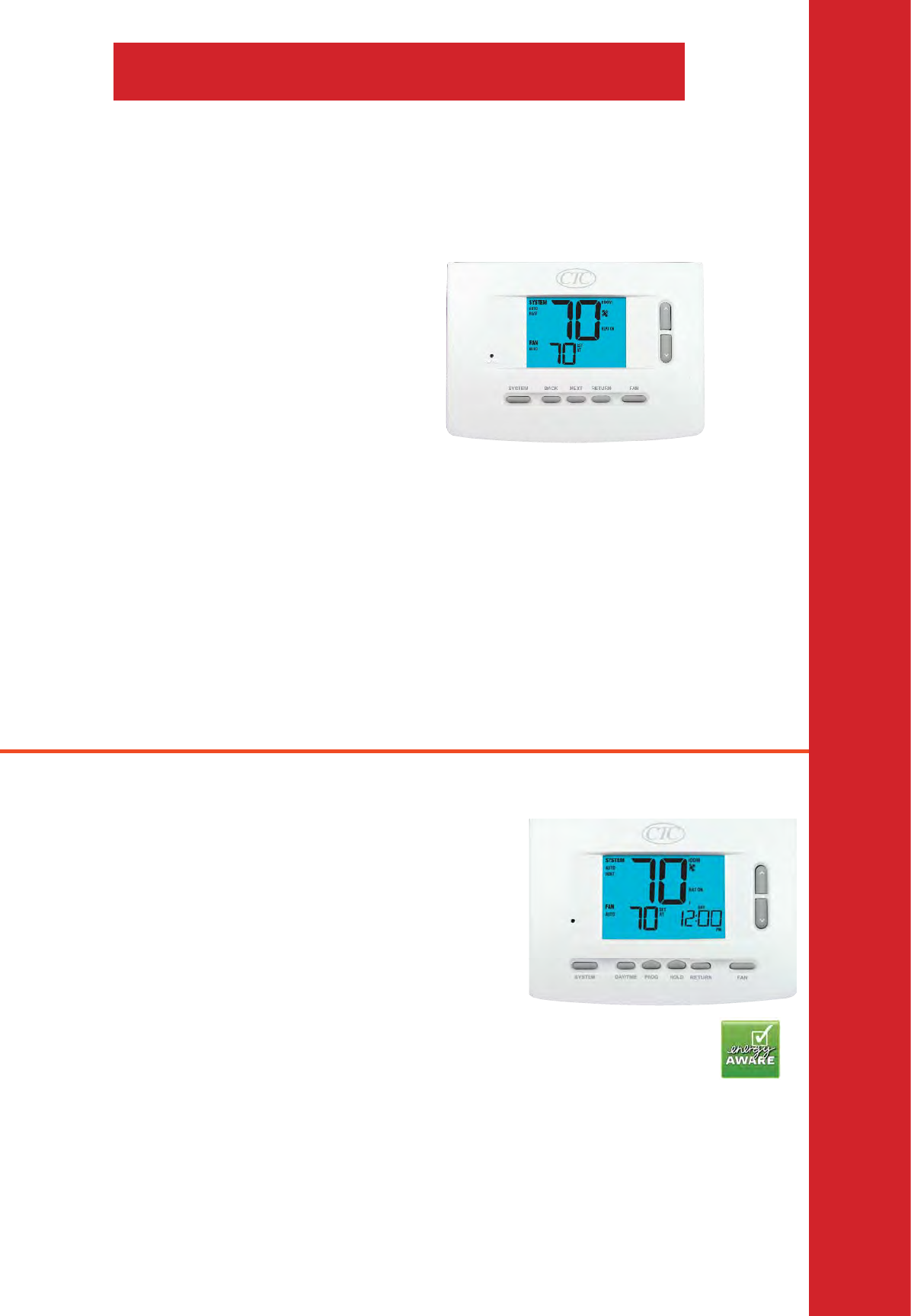

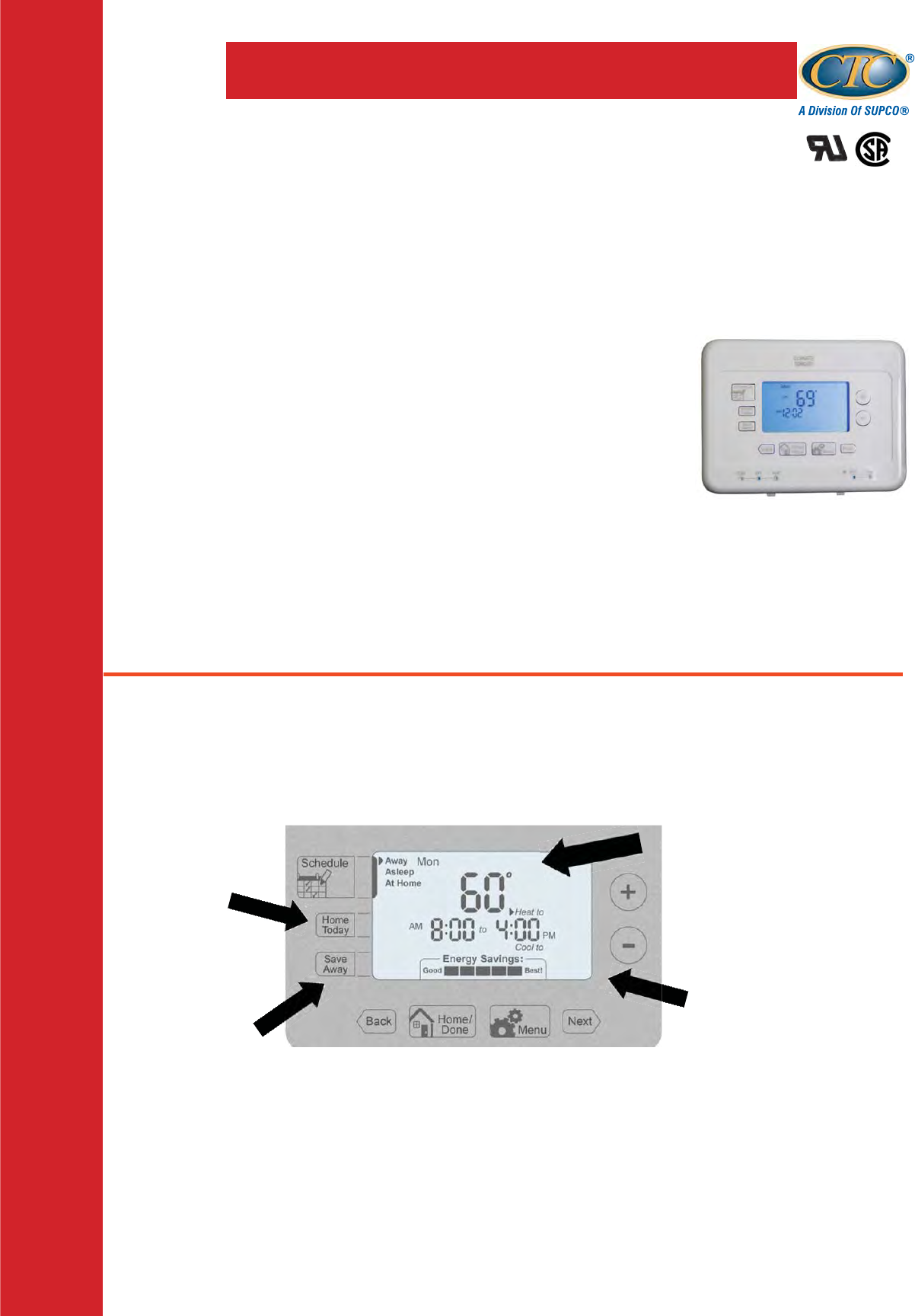

Wall Thermostats & Guards

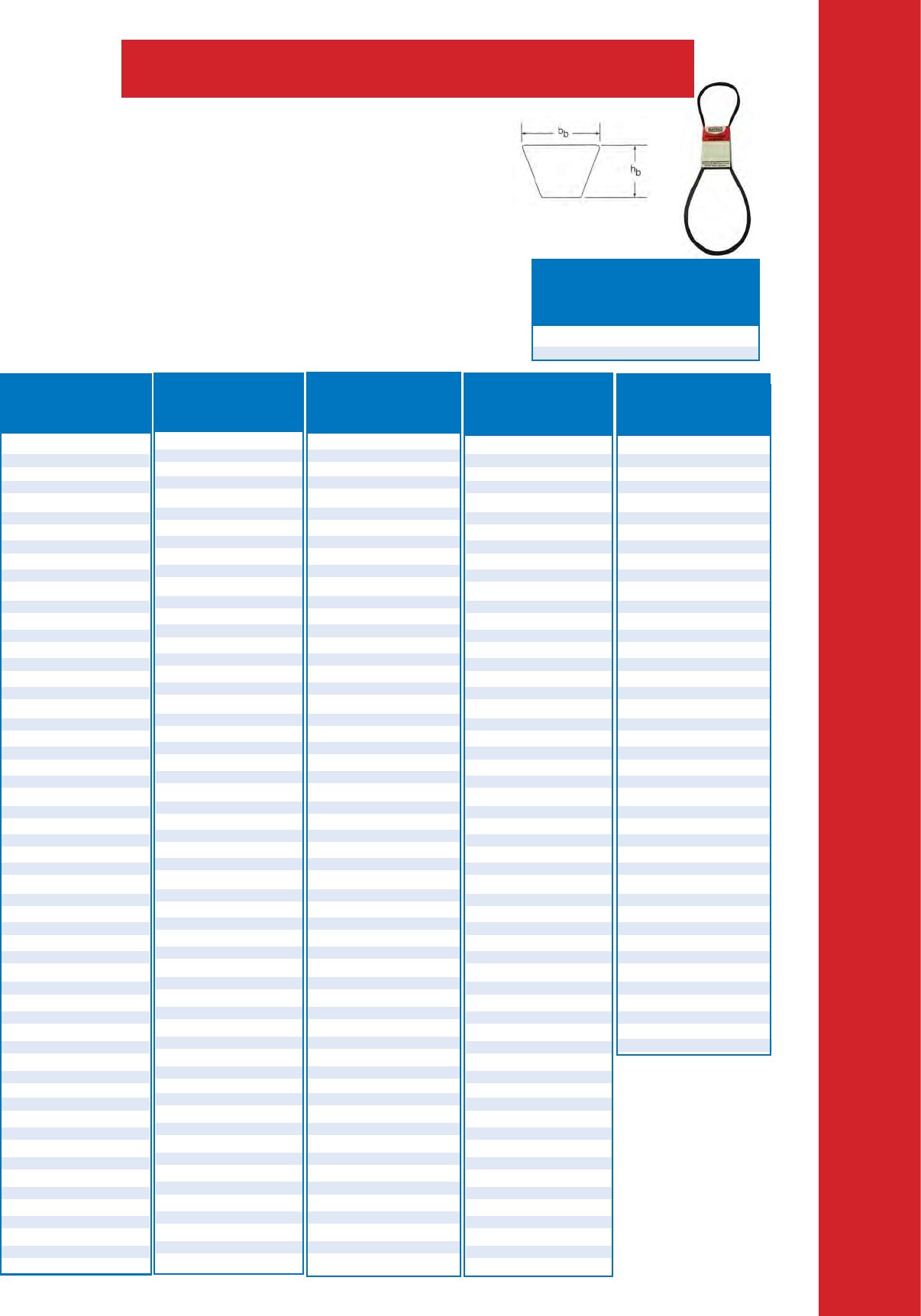

Belts
Installation & Service
REFRIGERATION
Relays,Overloads & Hard Starts
Capillary Tubing
Condensate Drain Pans
Condensate Pumps

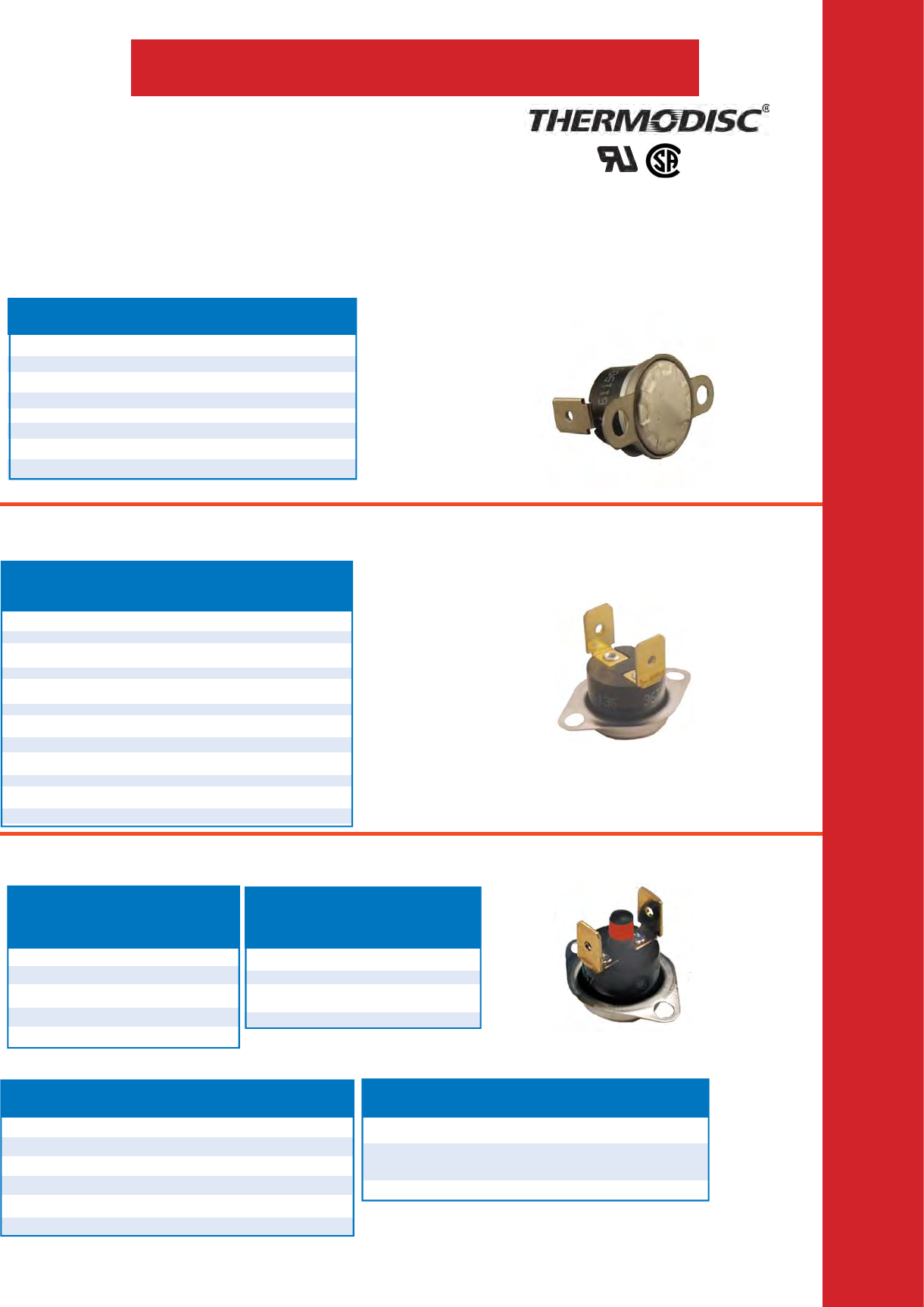

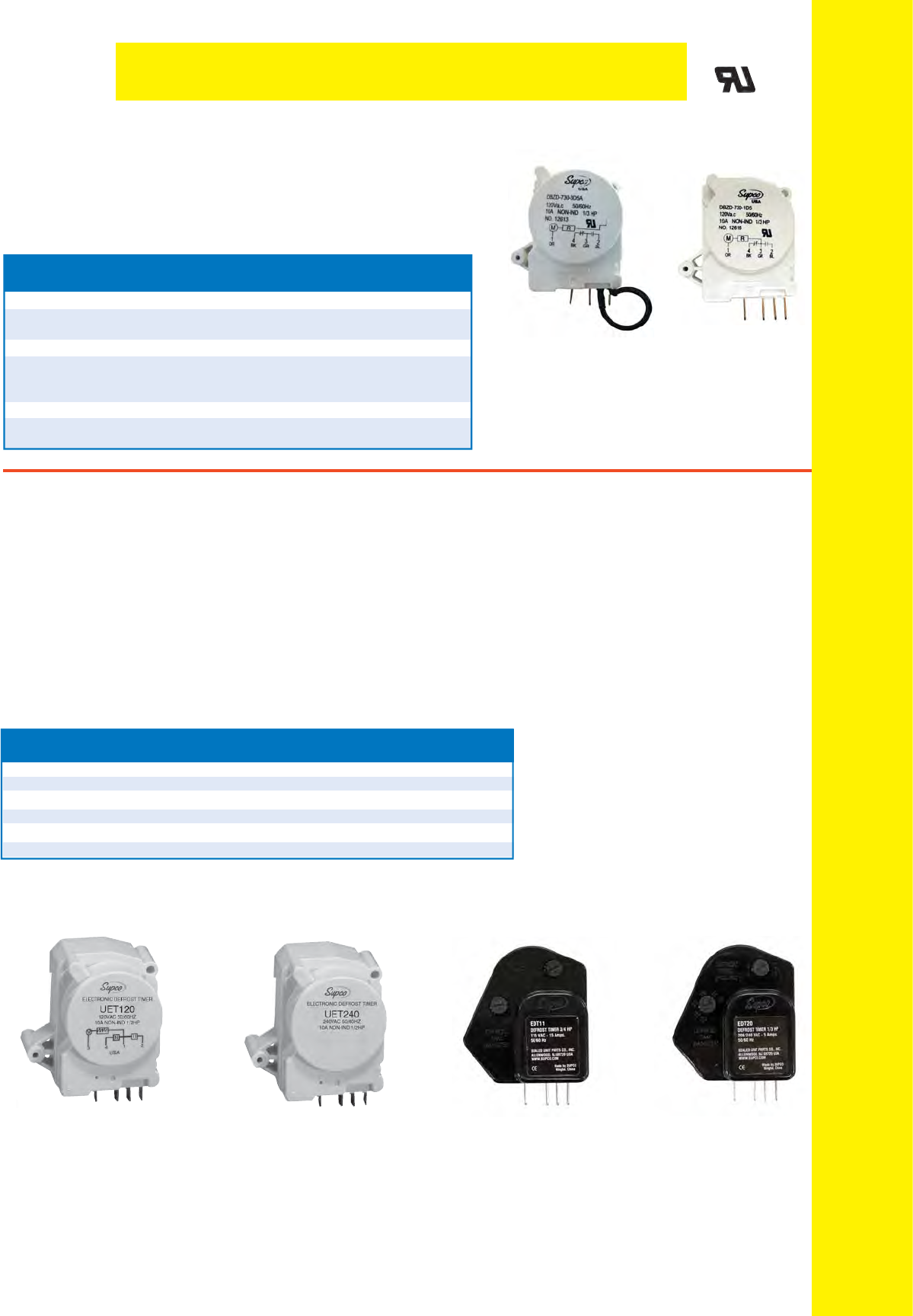

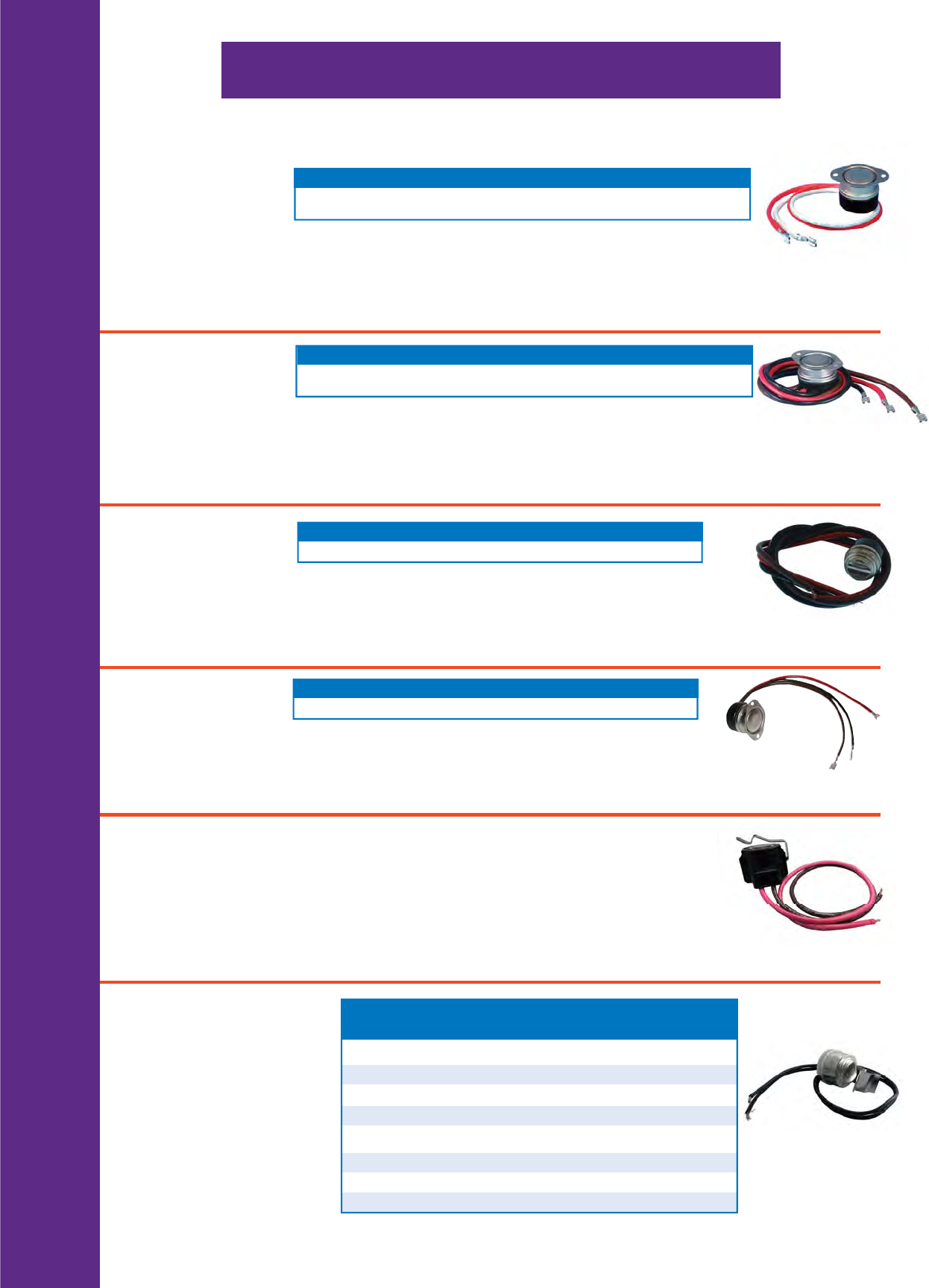

Defrost Thermostats

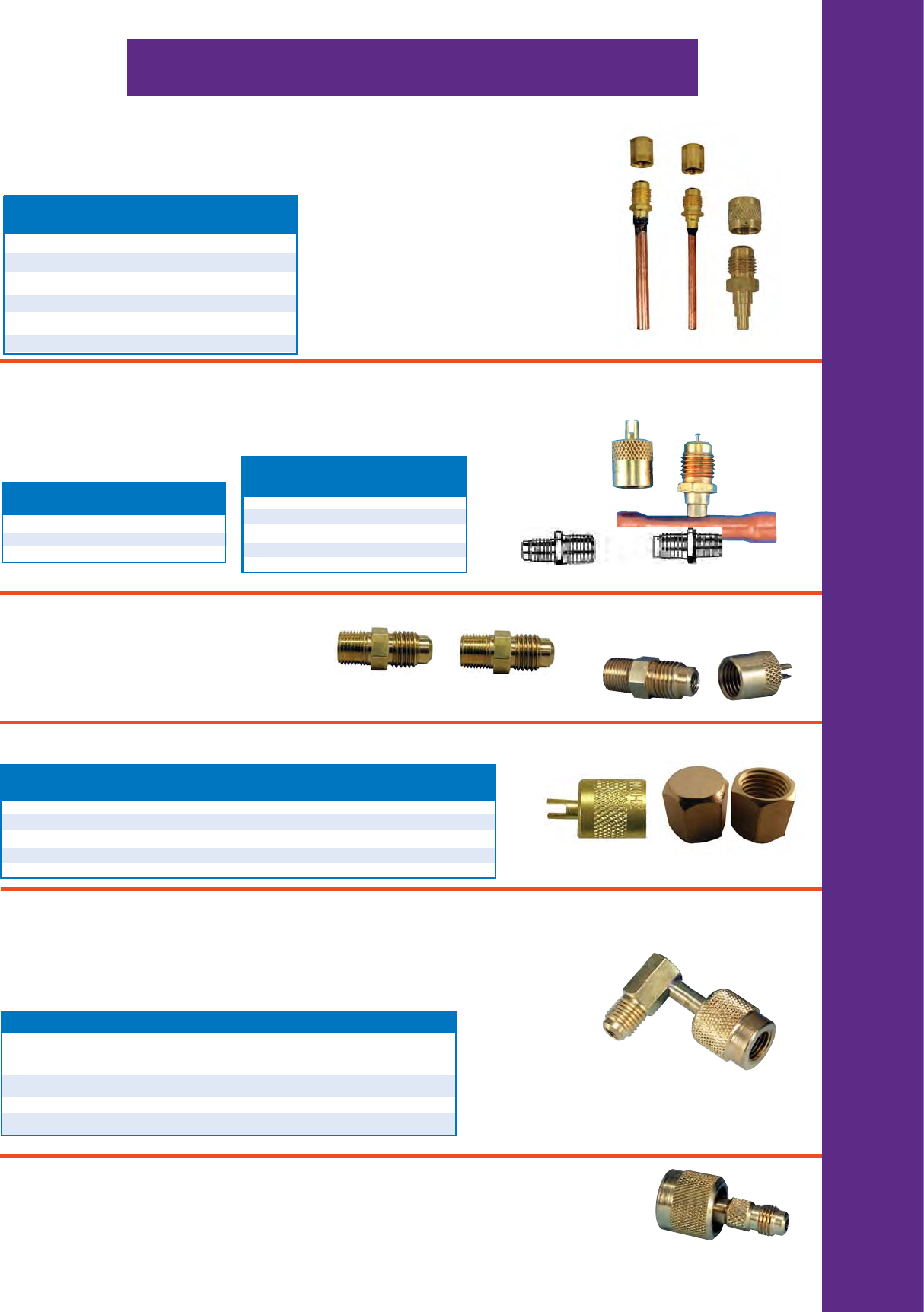

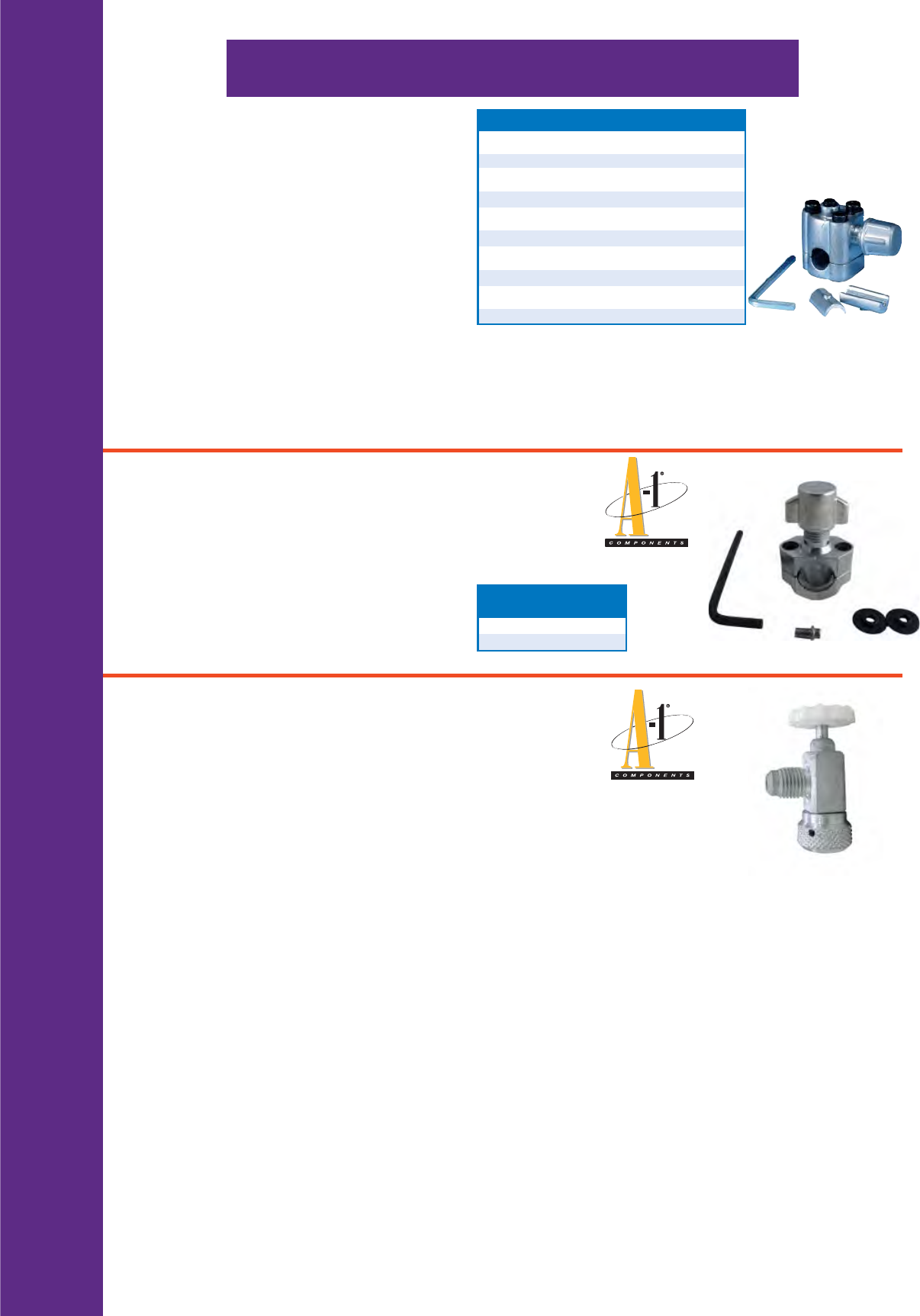

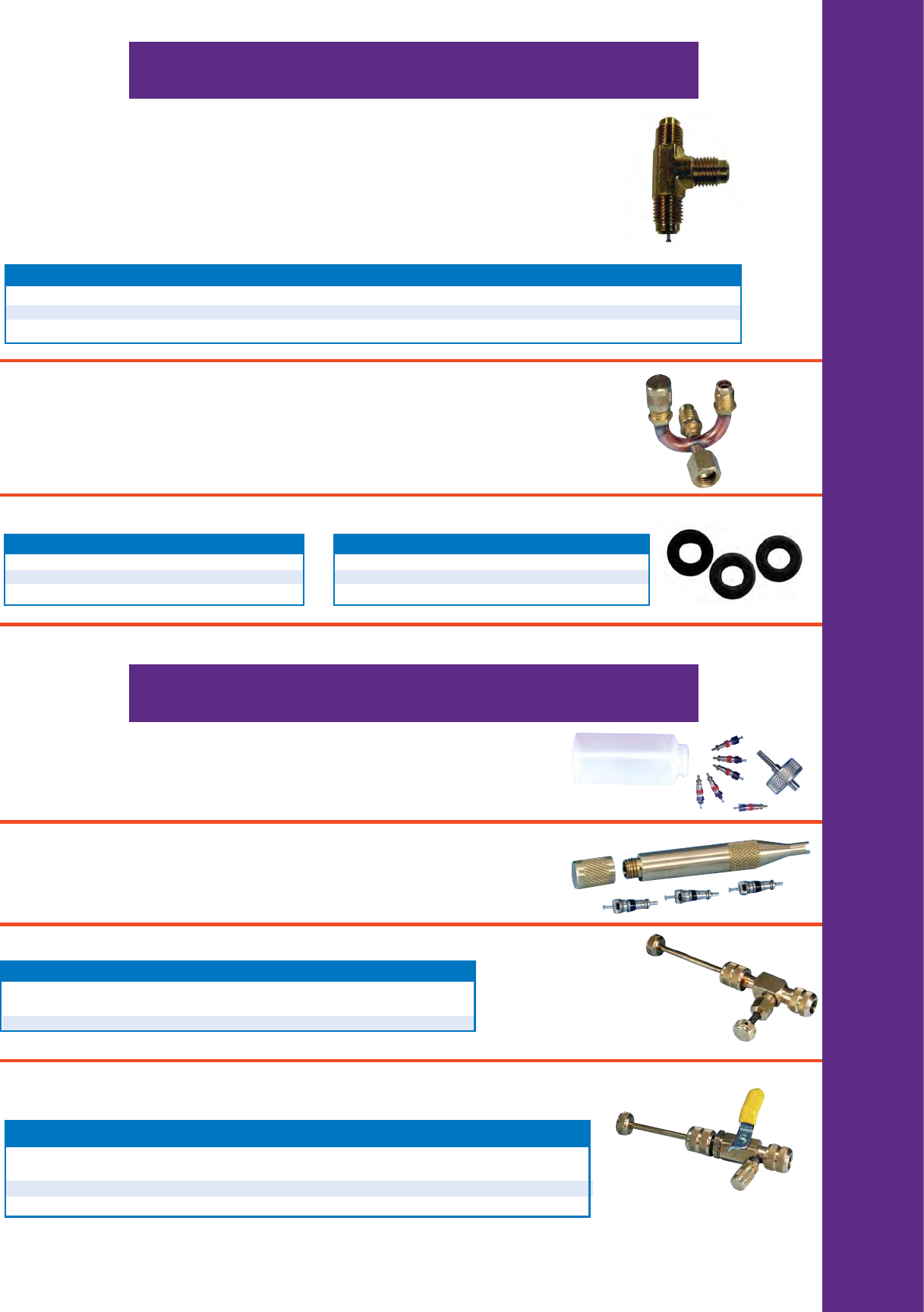

Valves & Fittings
Valve Tools

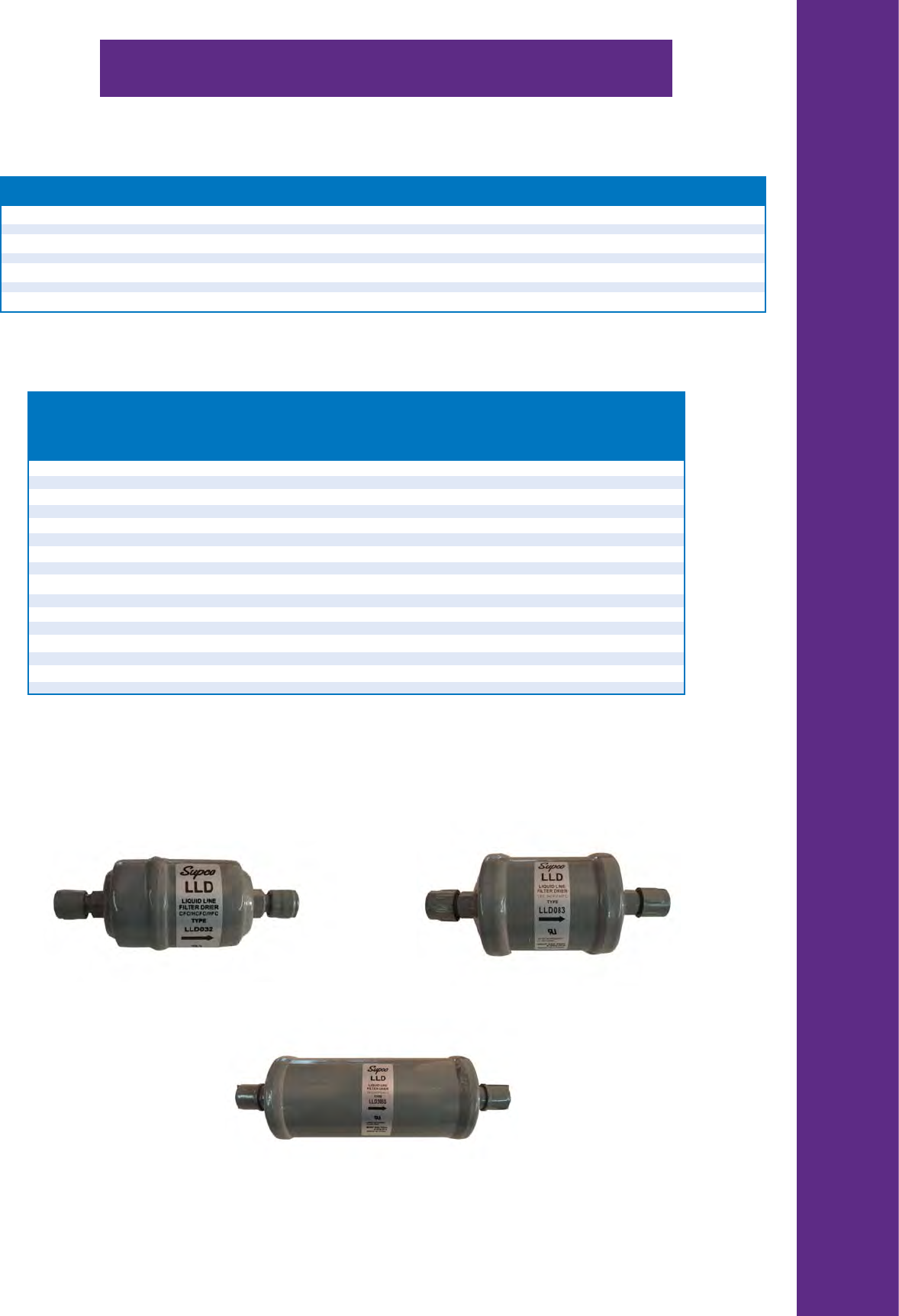

Driers
Drain Heaters

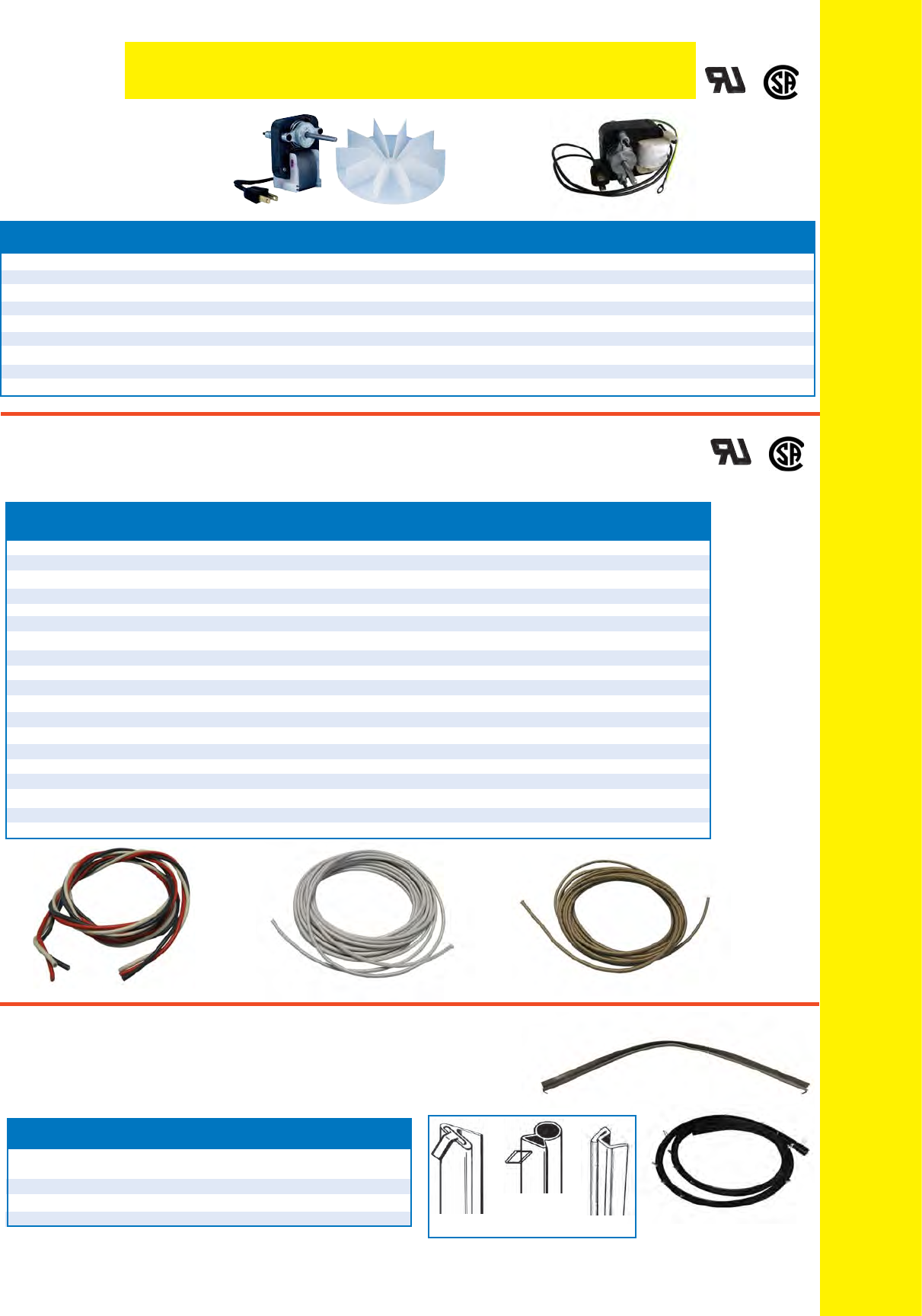

Motors

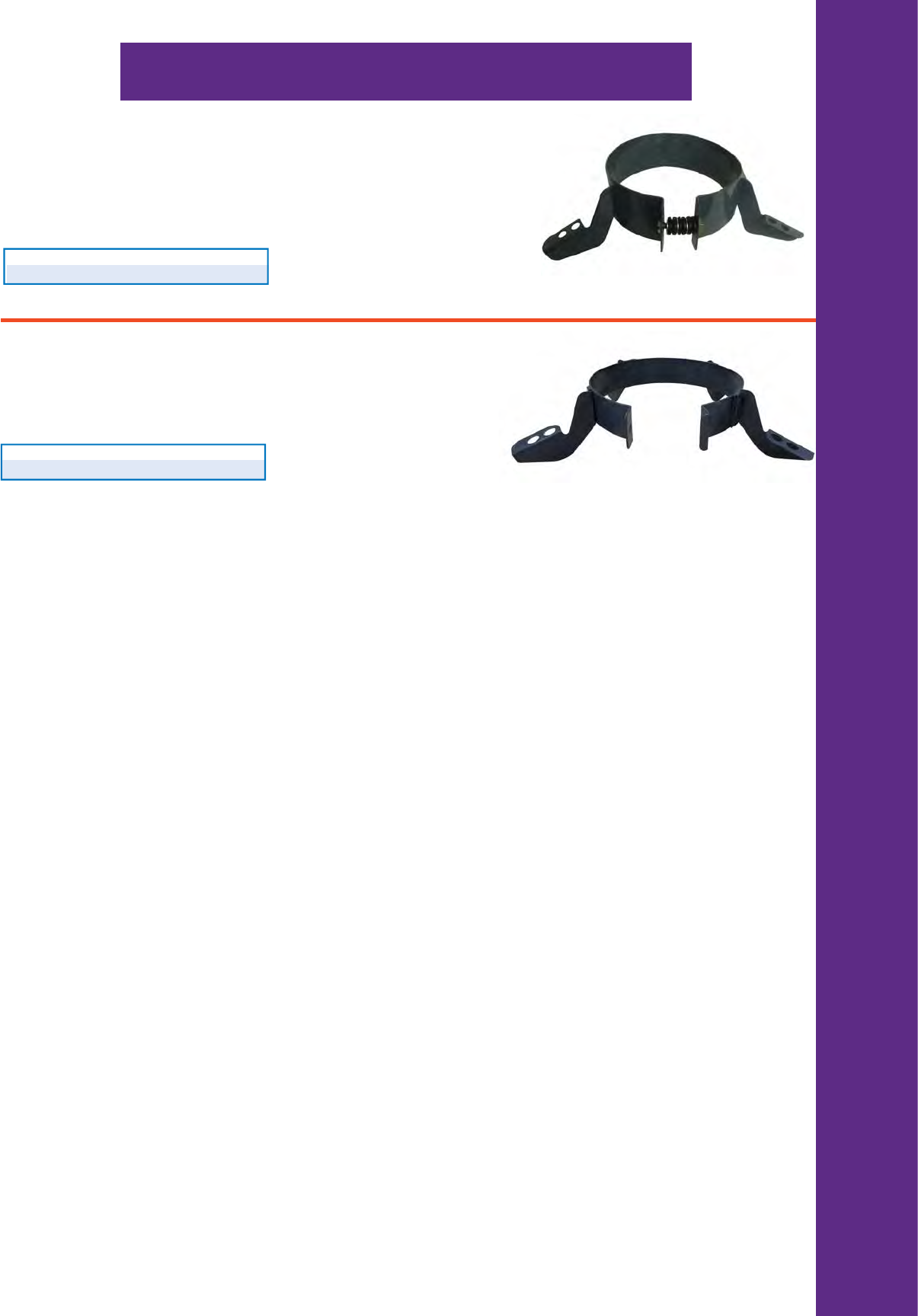

Motor Brackets
Commercial Controls

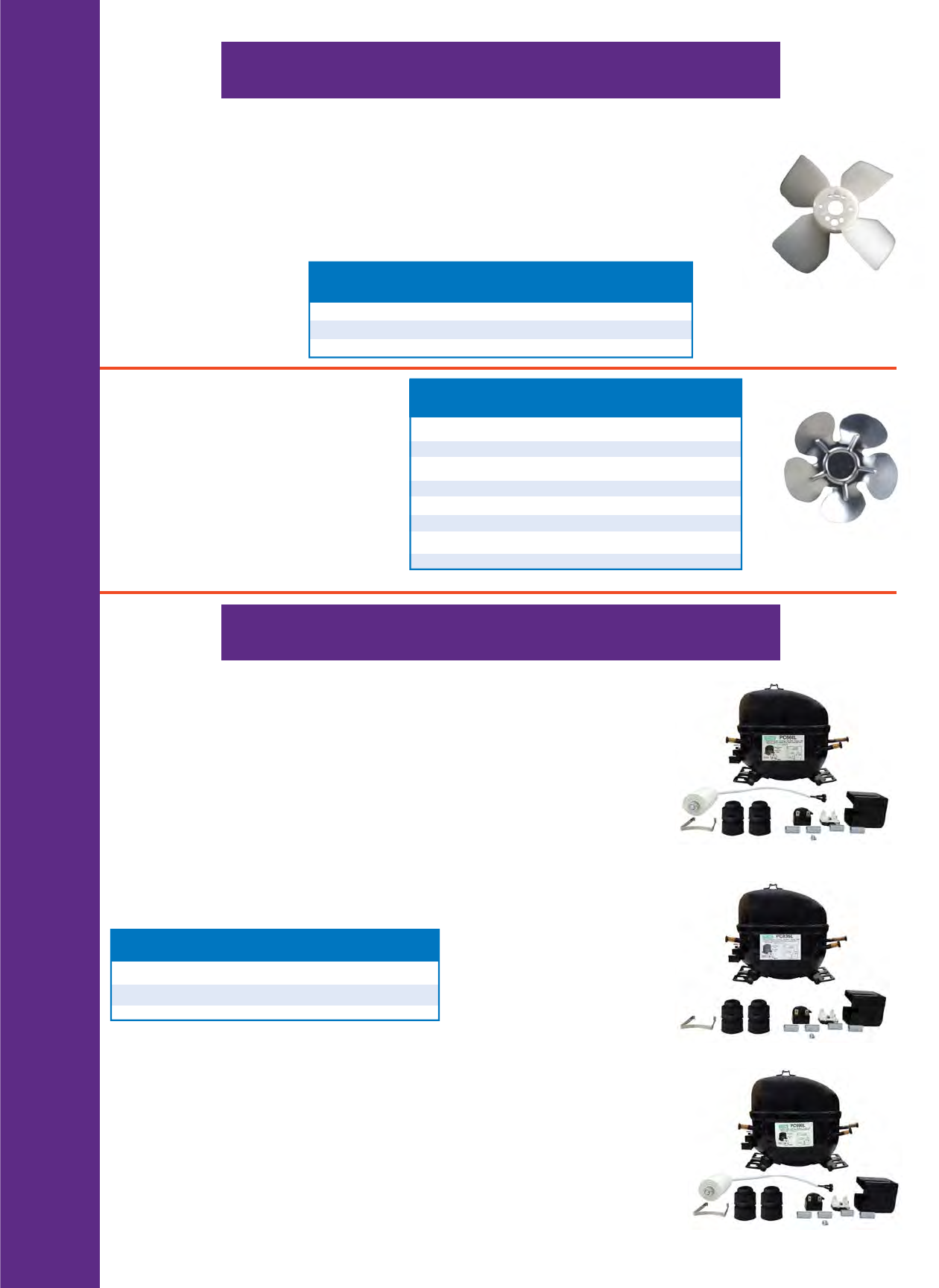

Fan Blades
Compressors
TEST INSTRUMENTS
Vacuum & Pressure Gauges

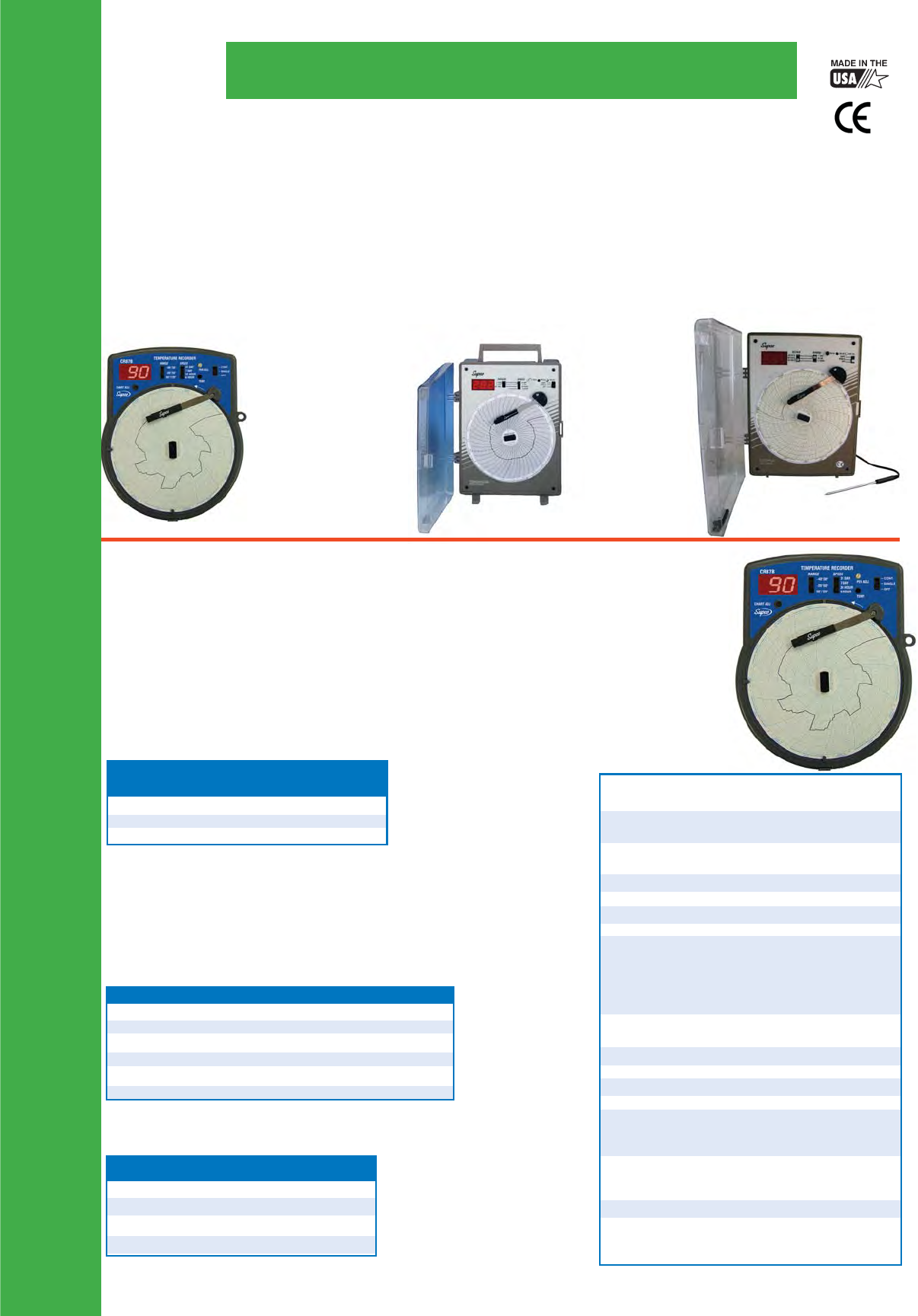

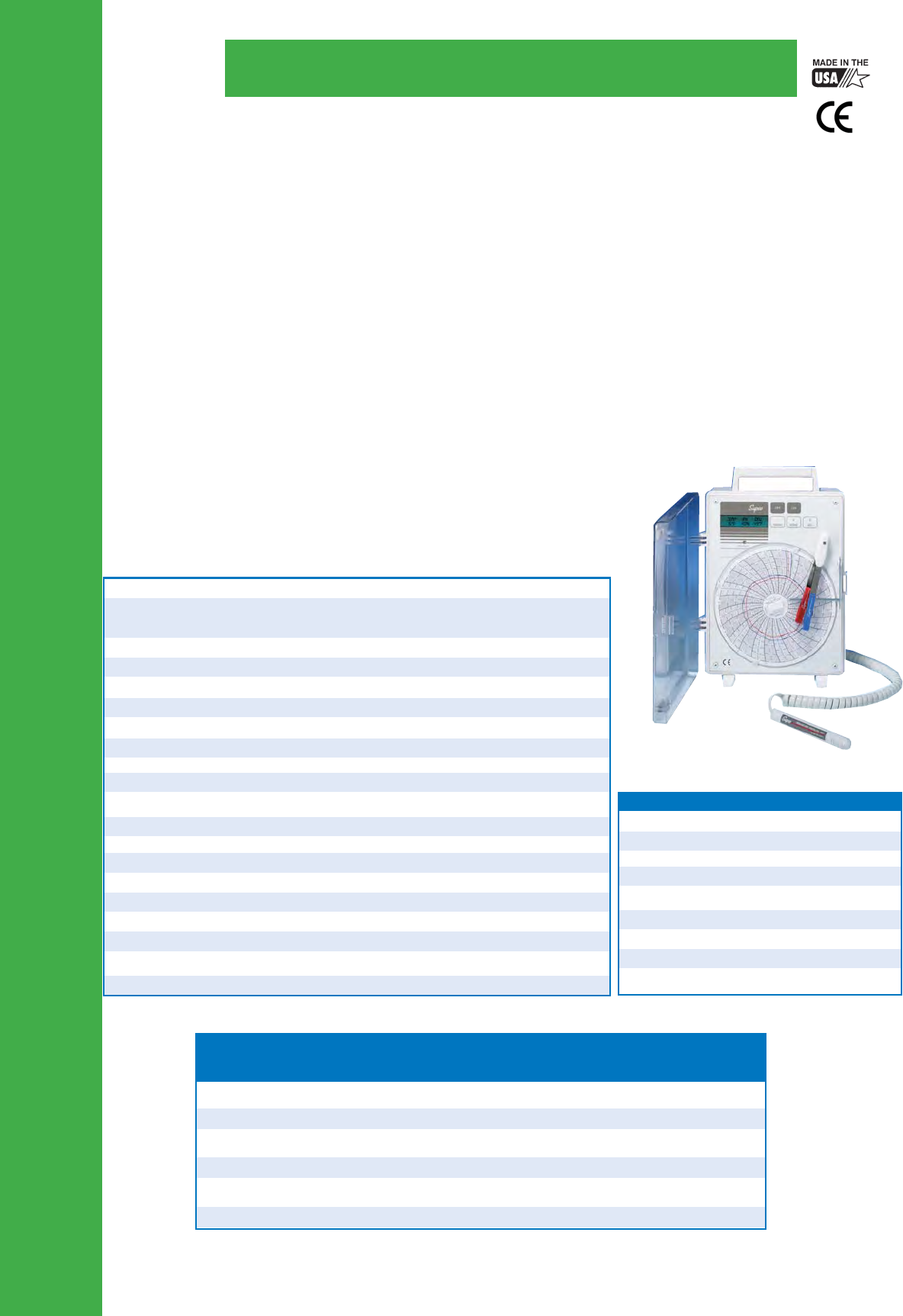

Chart Recorders

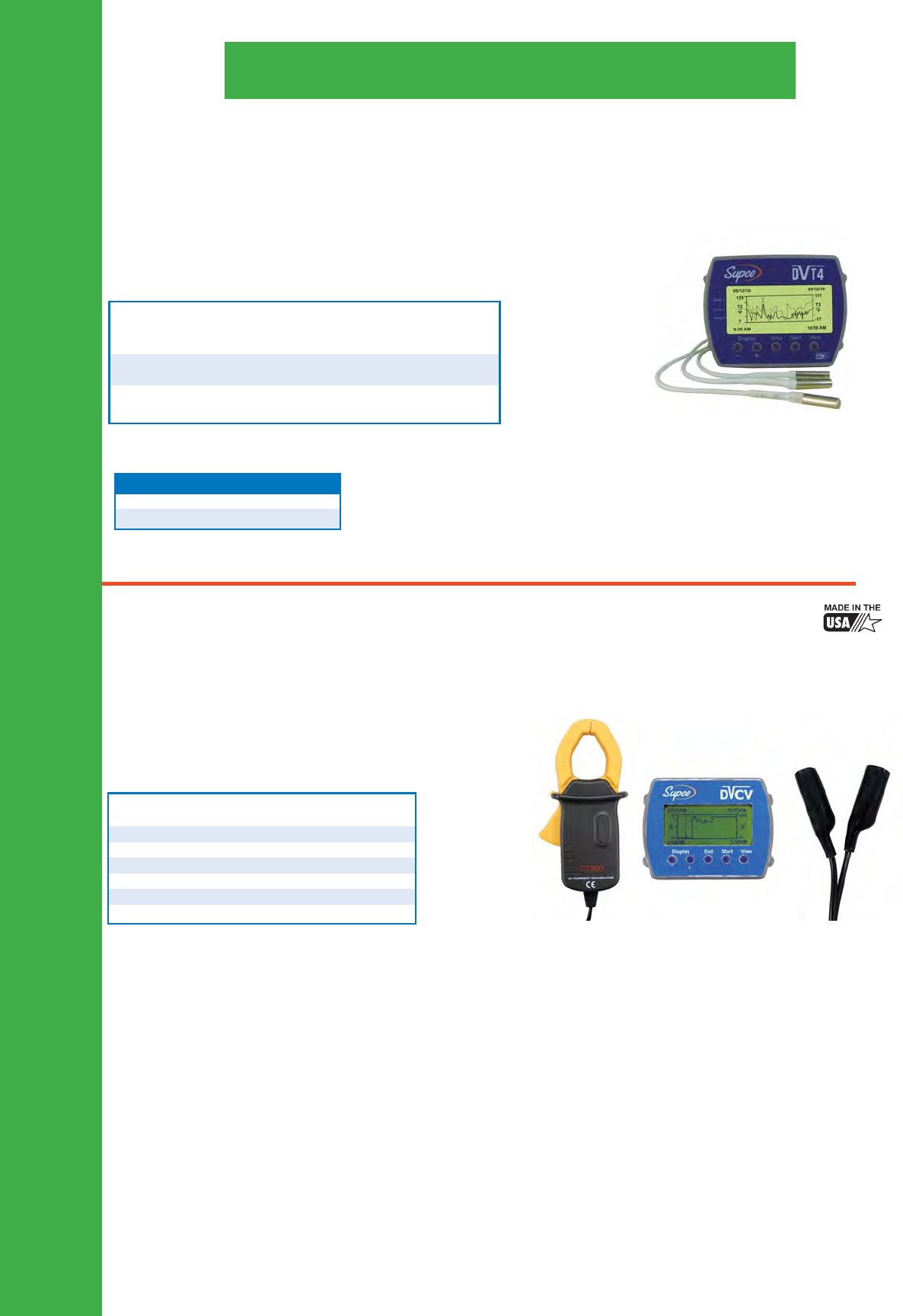

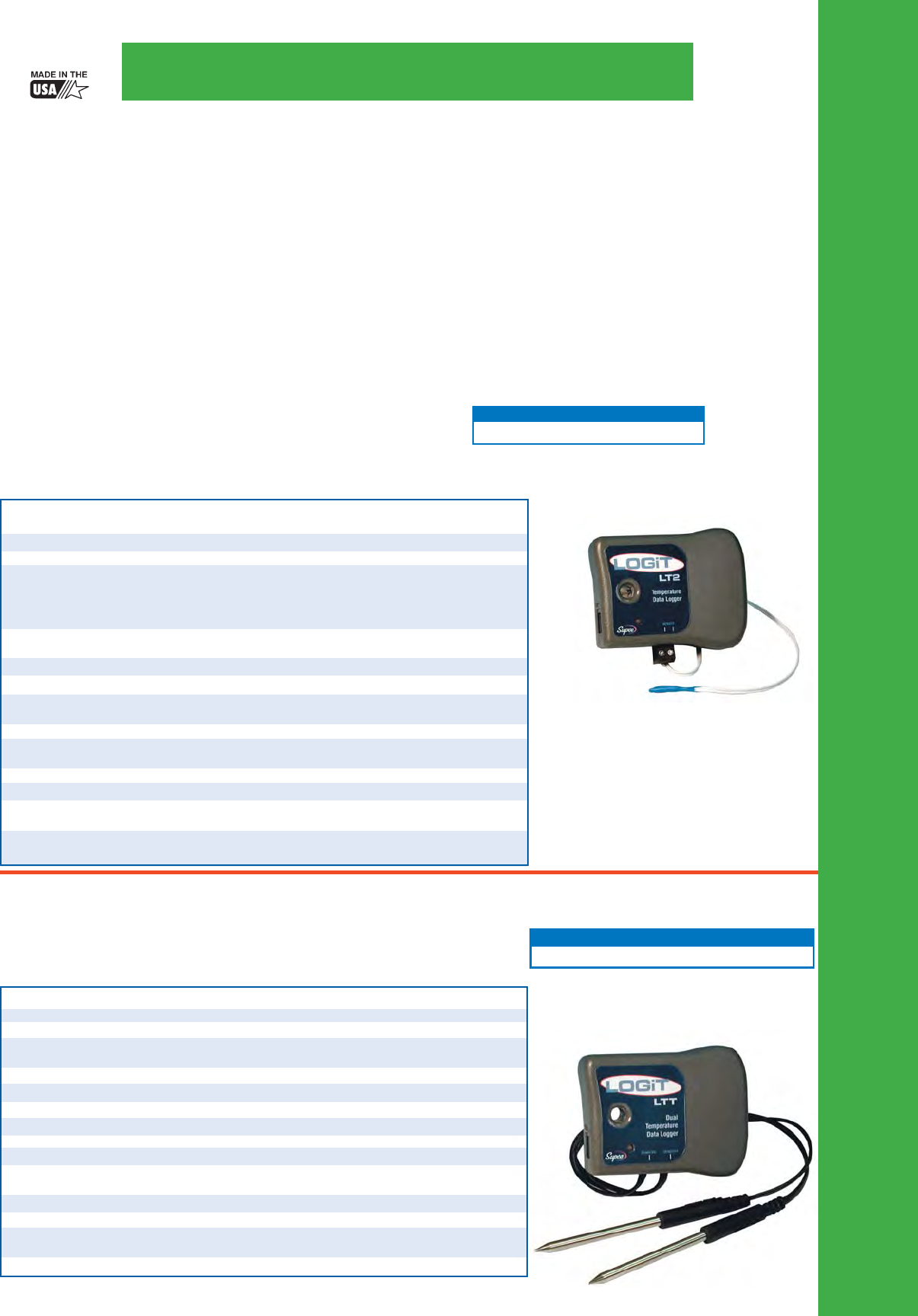

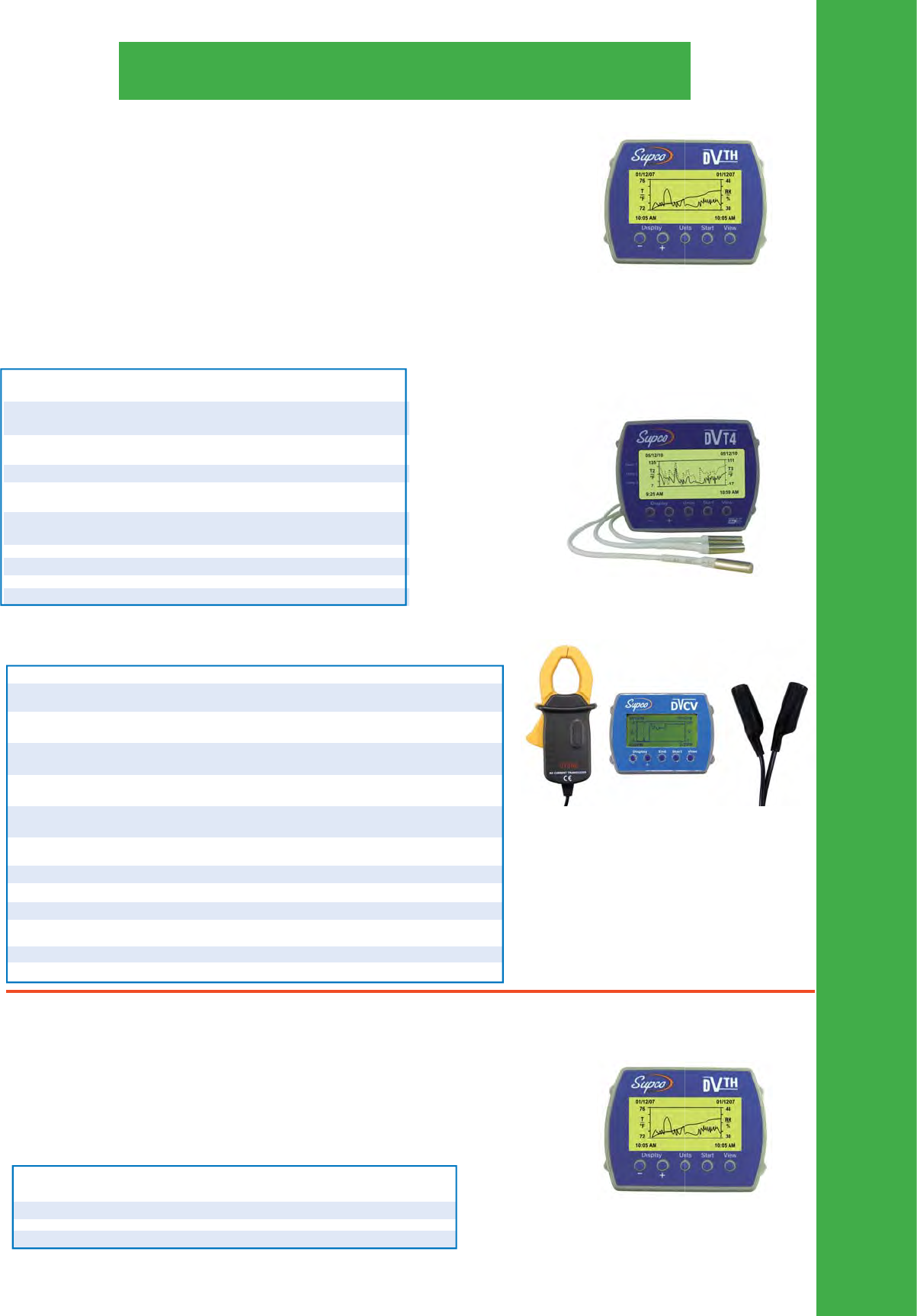

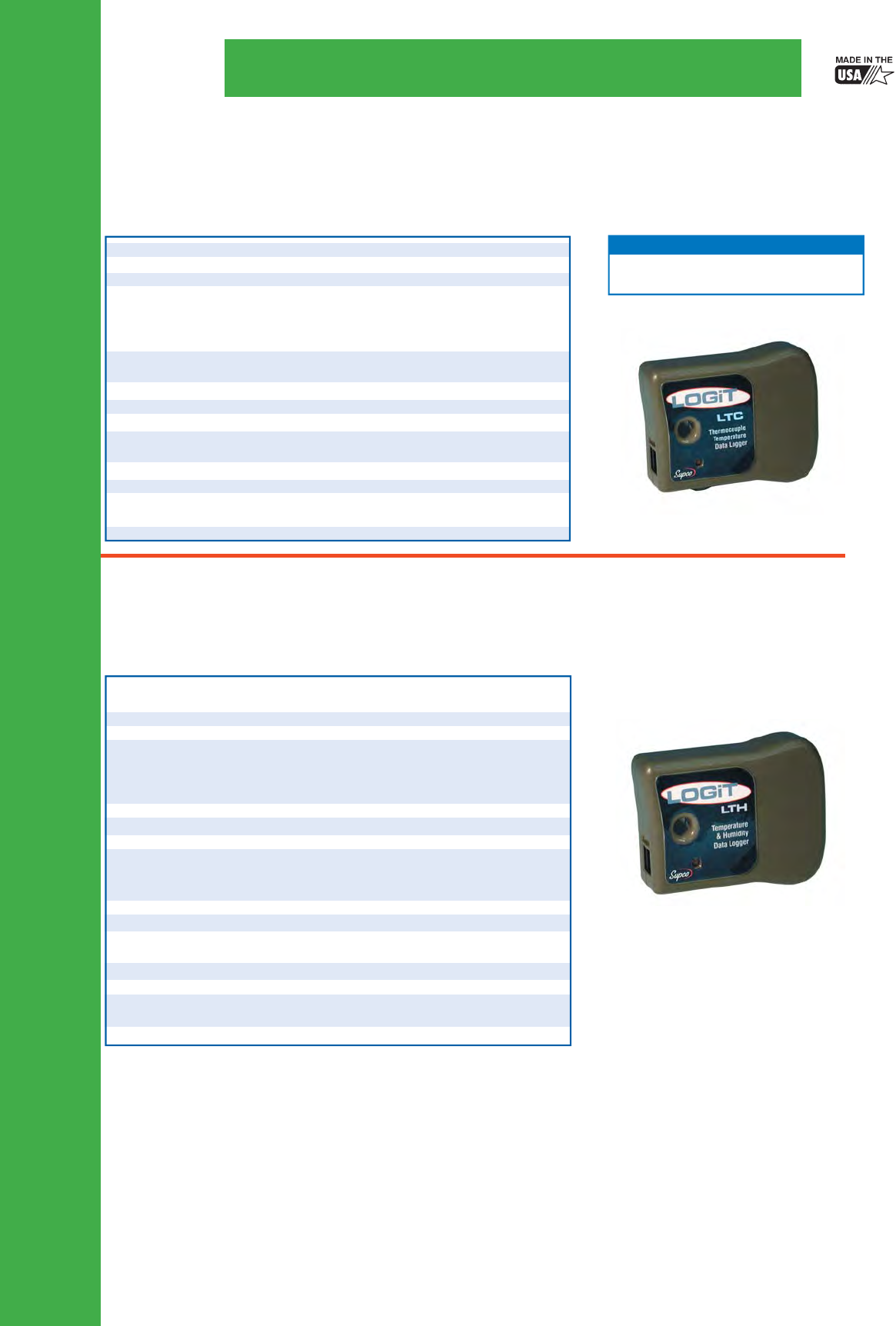

Data Loggers

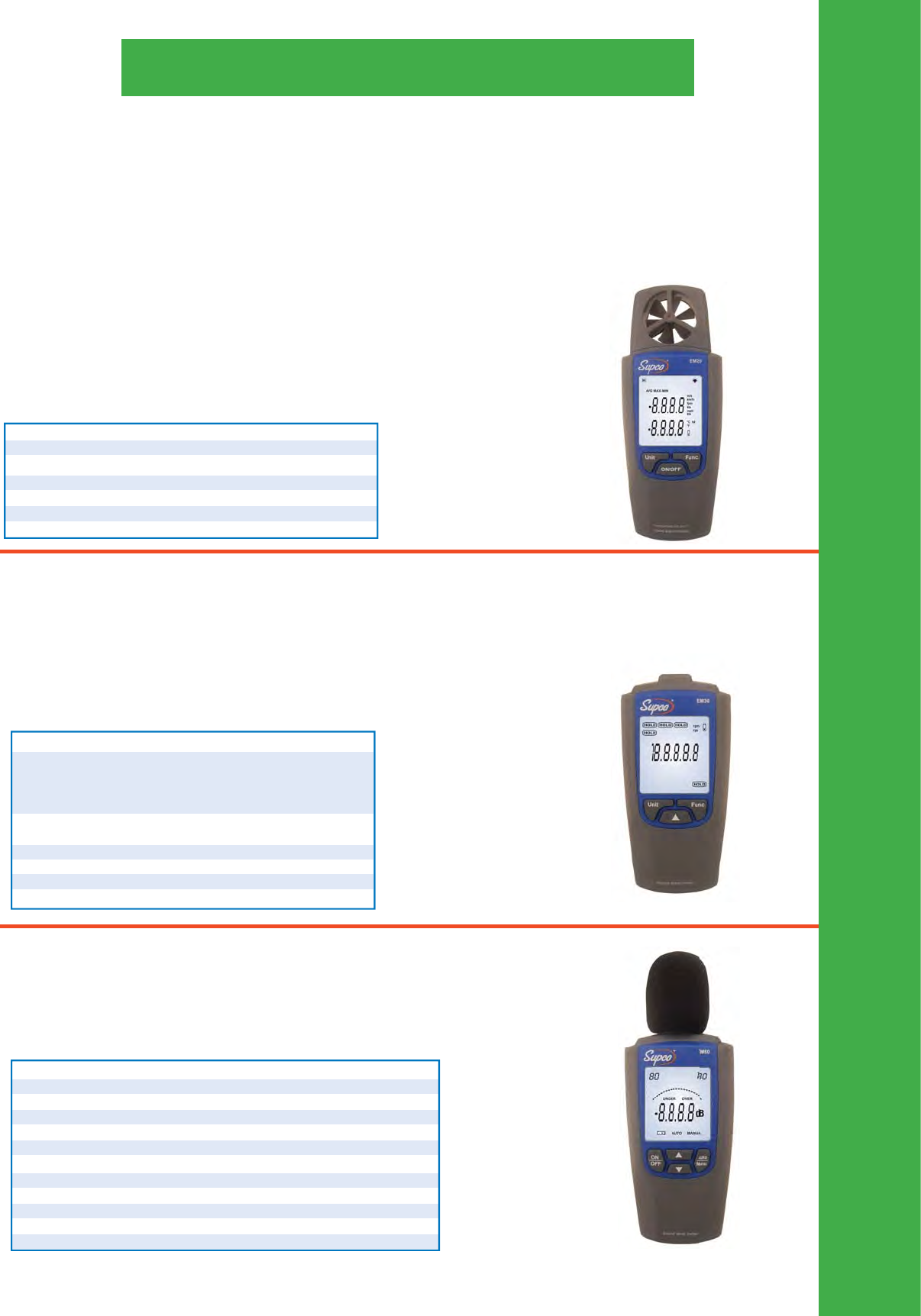

Indoor Air Quality Instruments

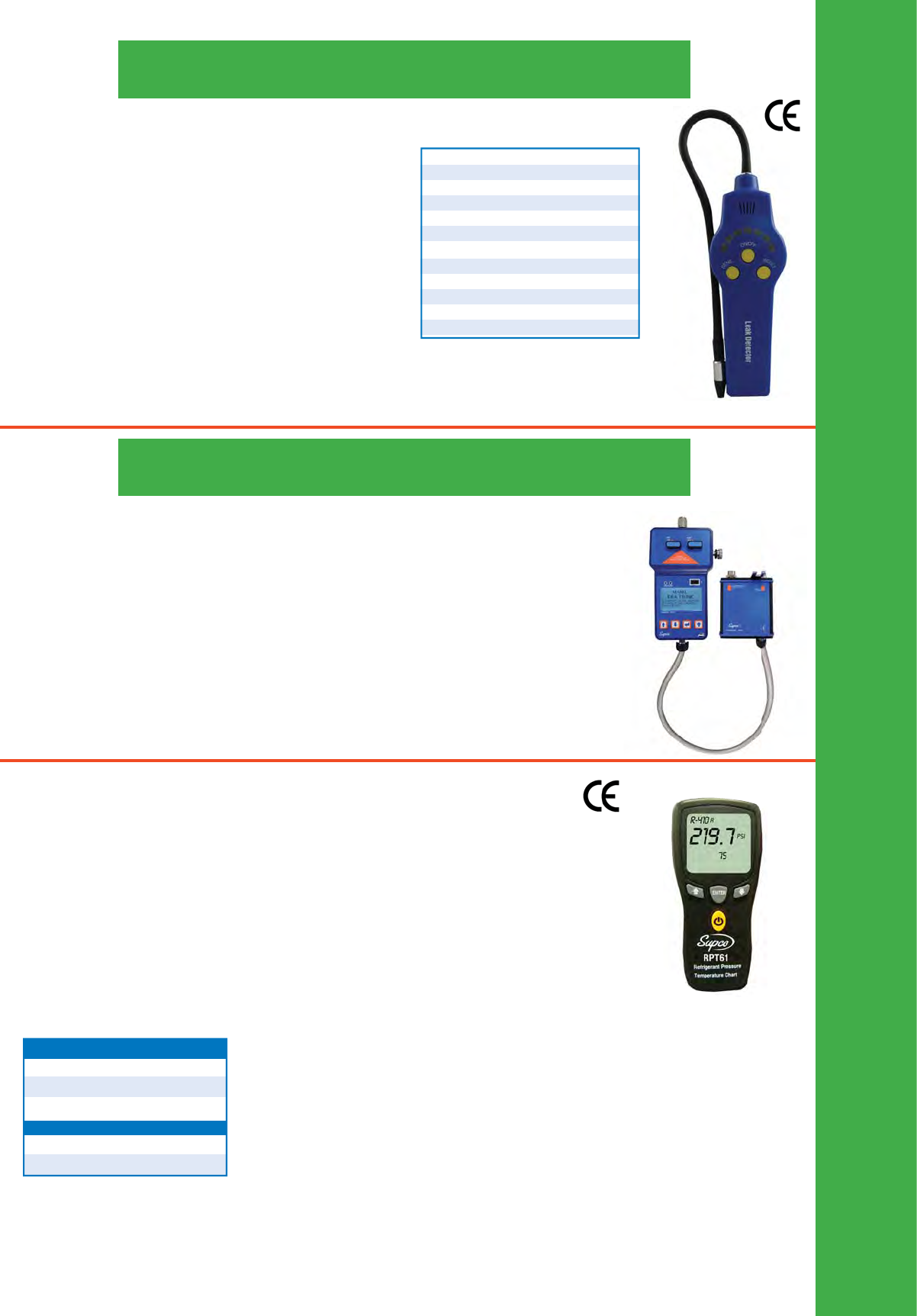

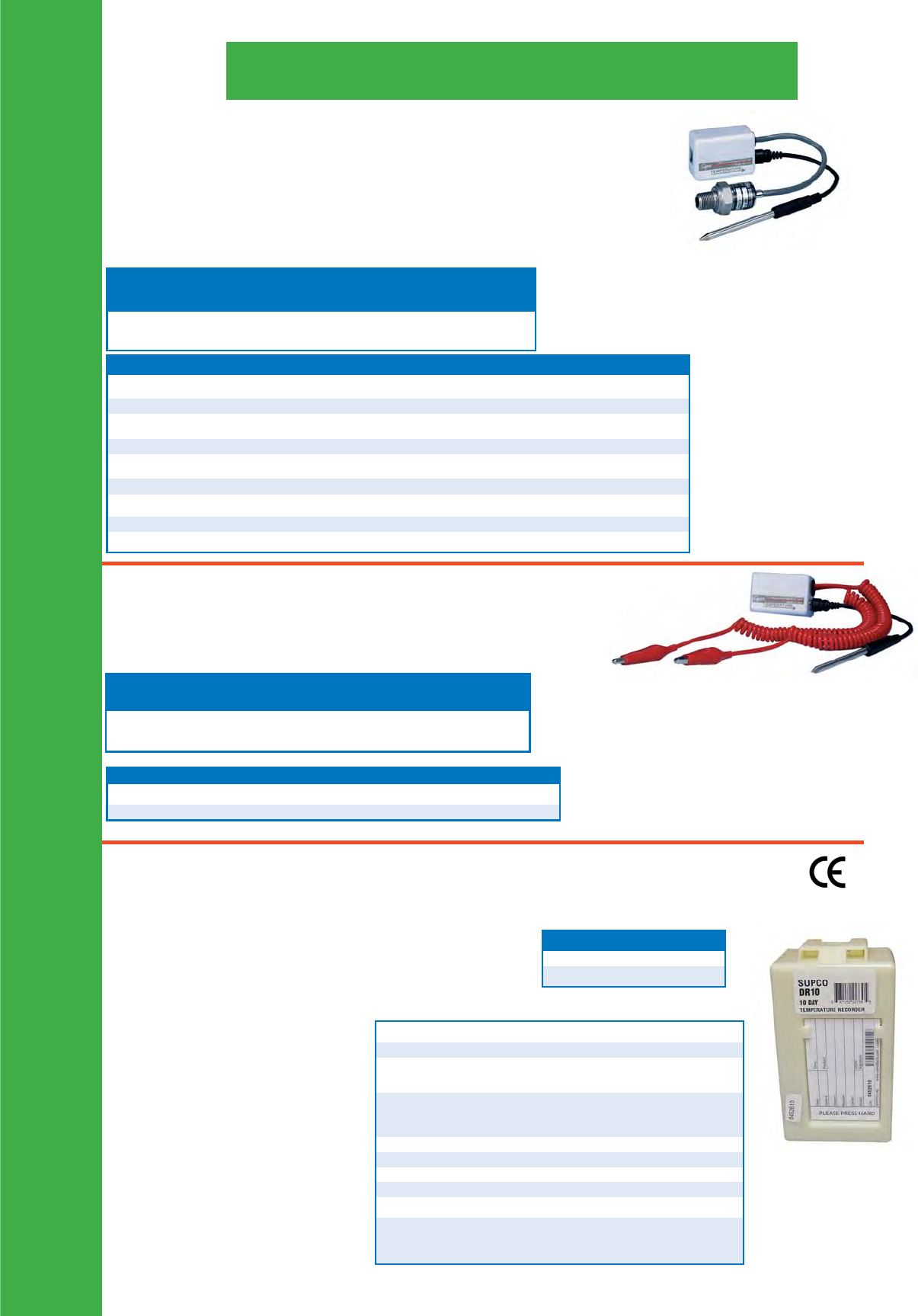

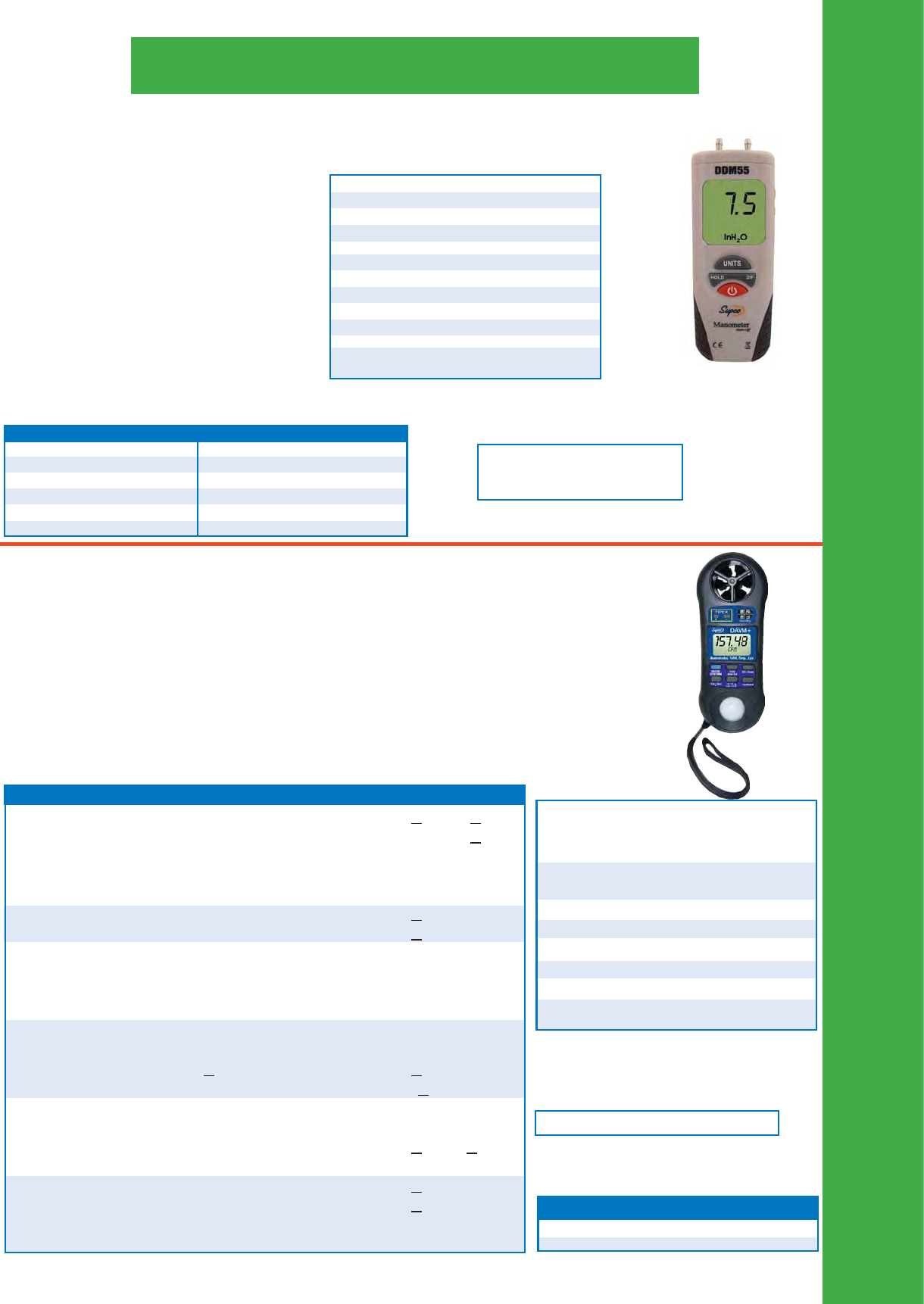

HVAC/R Instruments

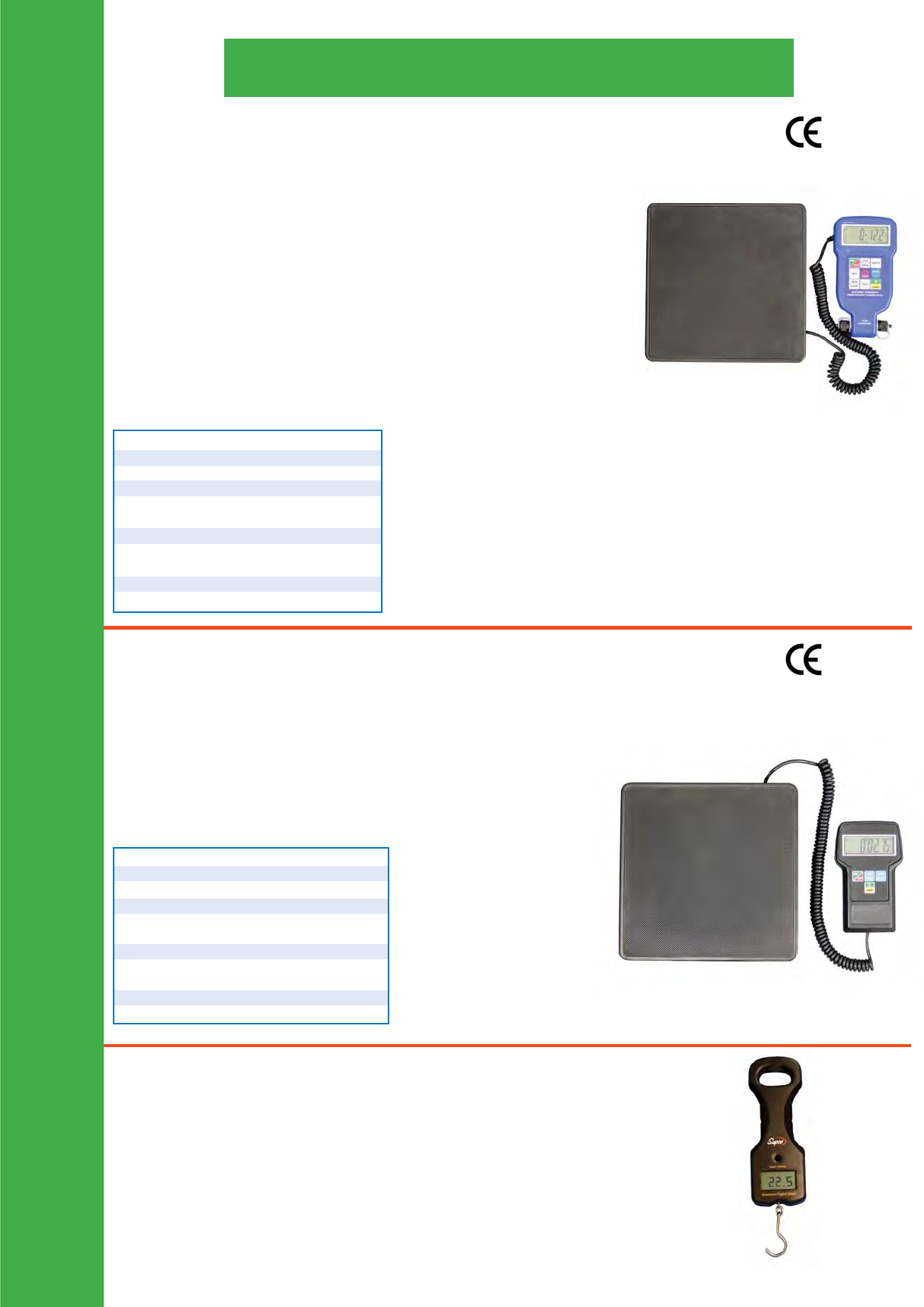

Refrigerant Scales
Multi-Meter & Current Probes

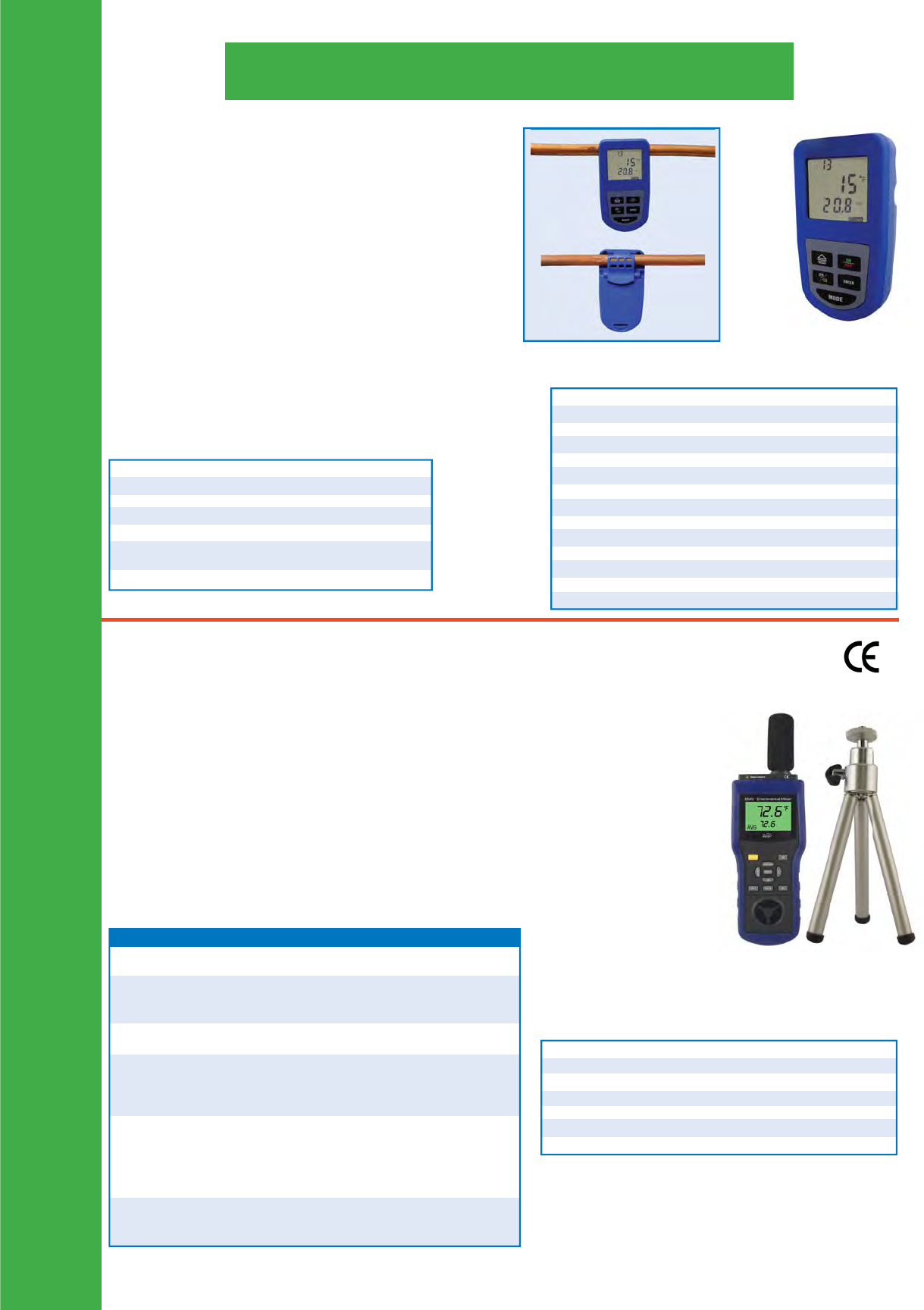

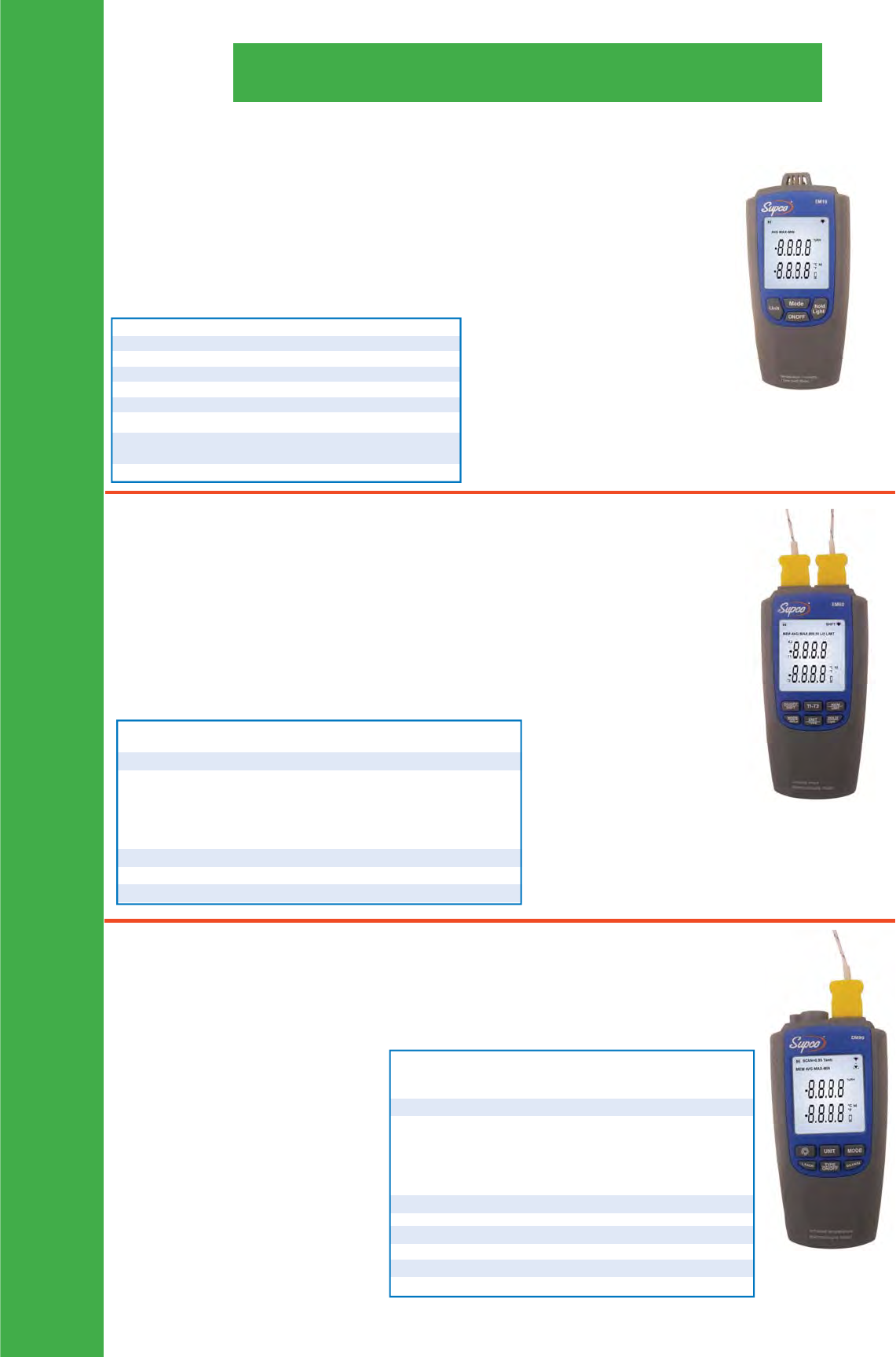

Temperature & Humidity Testers
Infrared Thermometers

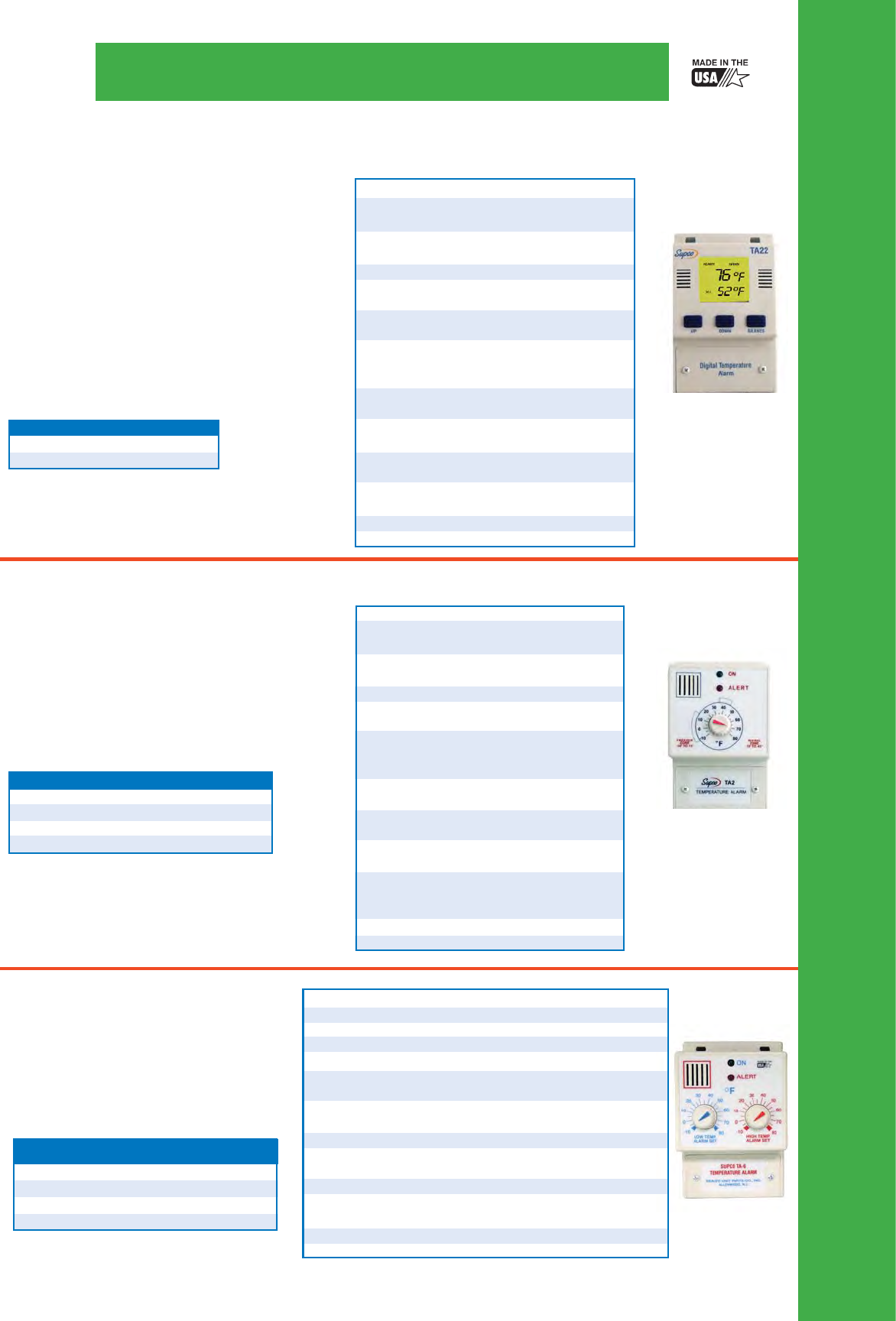

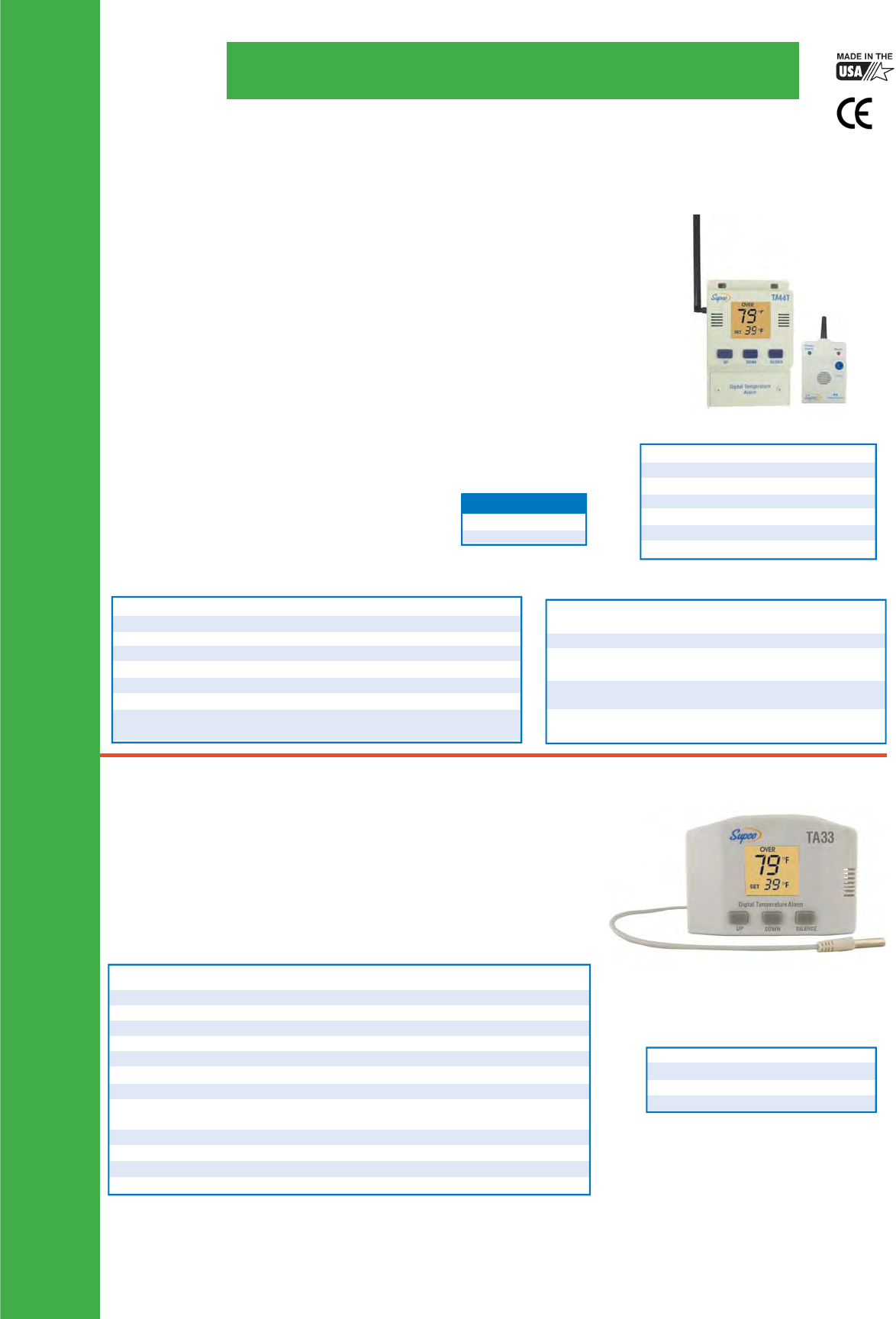

Temperature Alarms & Controls
Accessories
TOOLS 124-131
TERMINALS &
CONNECTORS

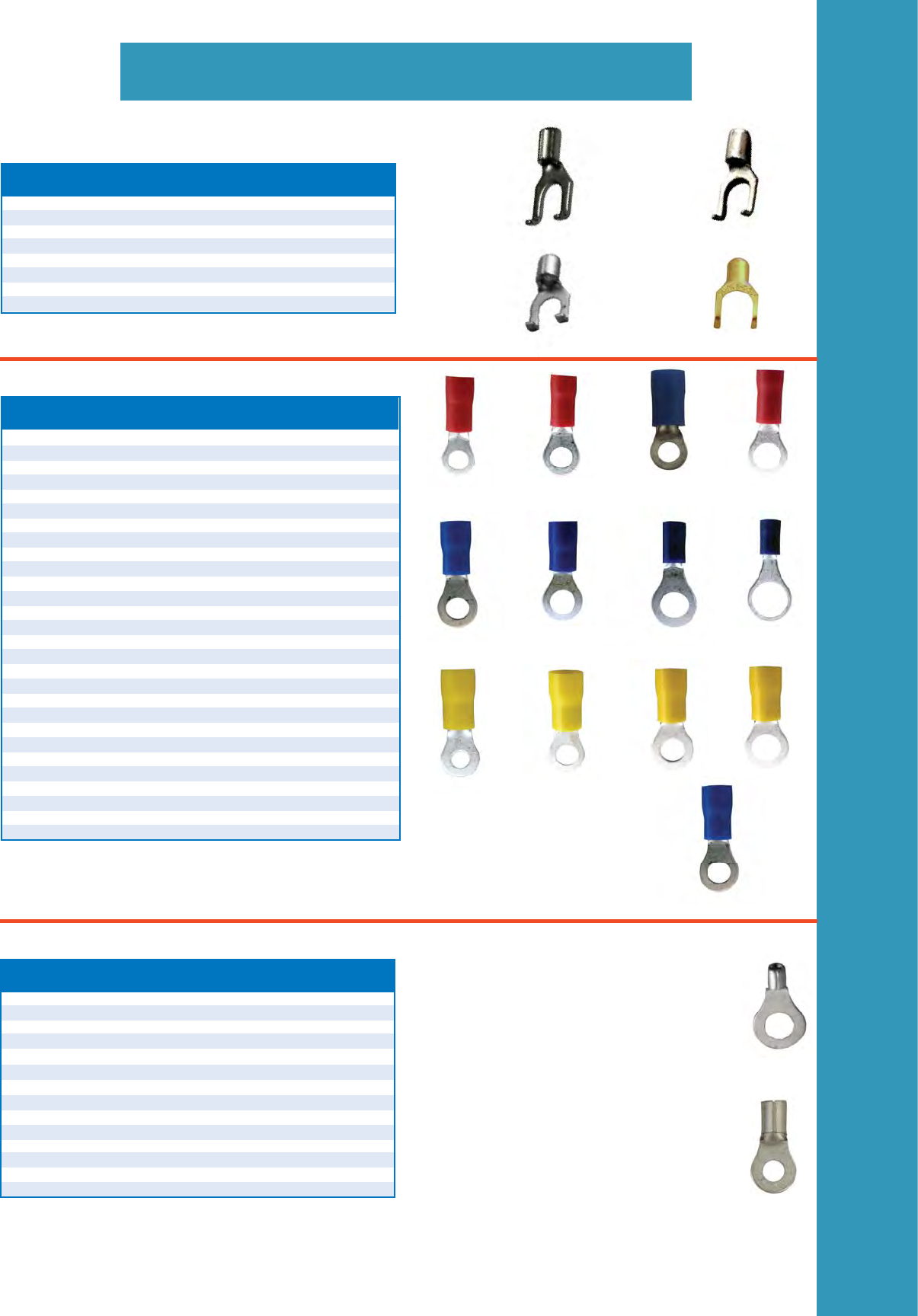

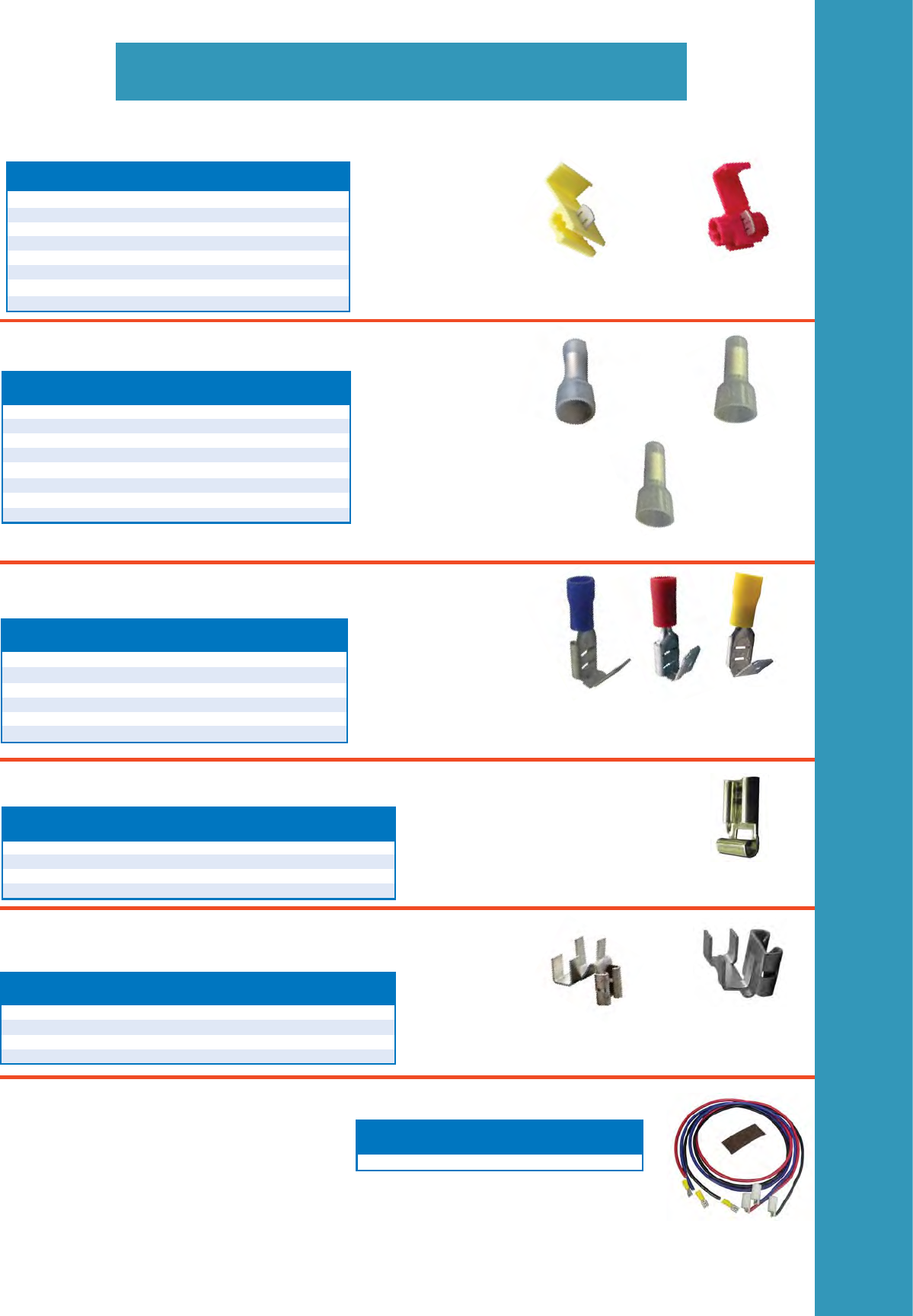

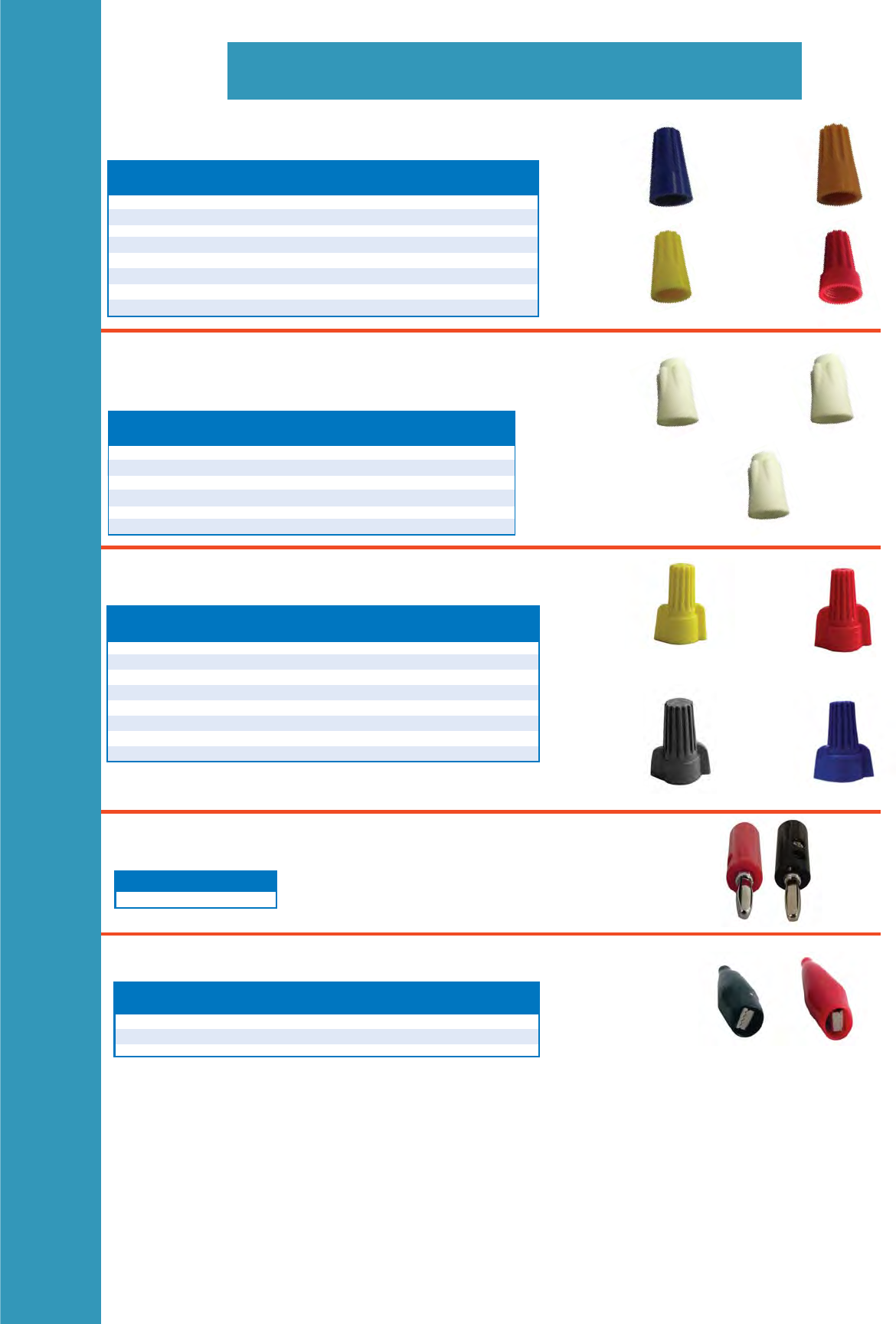

Terminals & Connectors
Cable Clamps, Grommets,
Heat Shrink Tubing,
Cable & Duct Ties

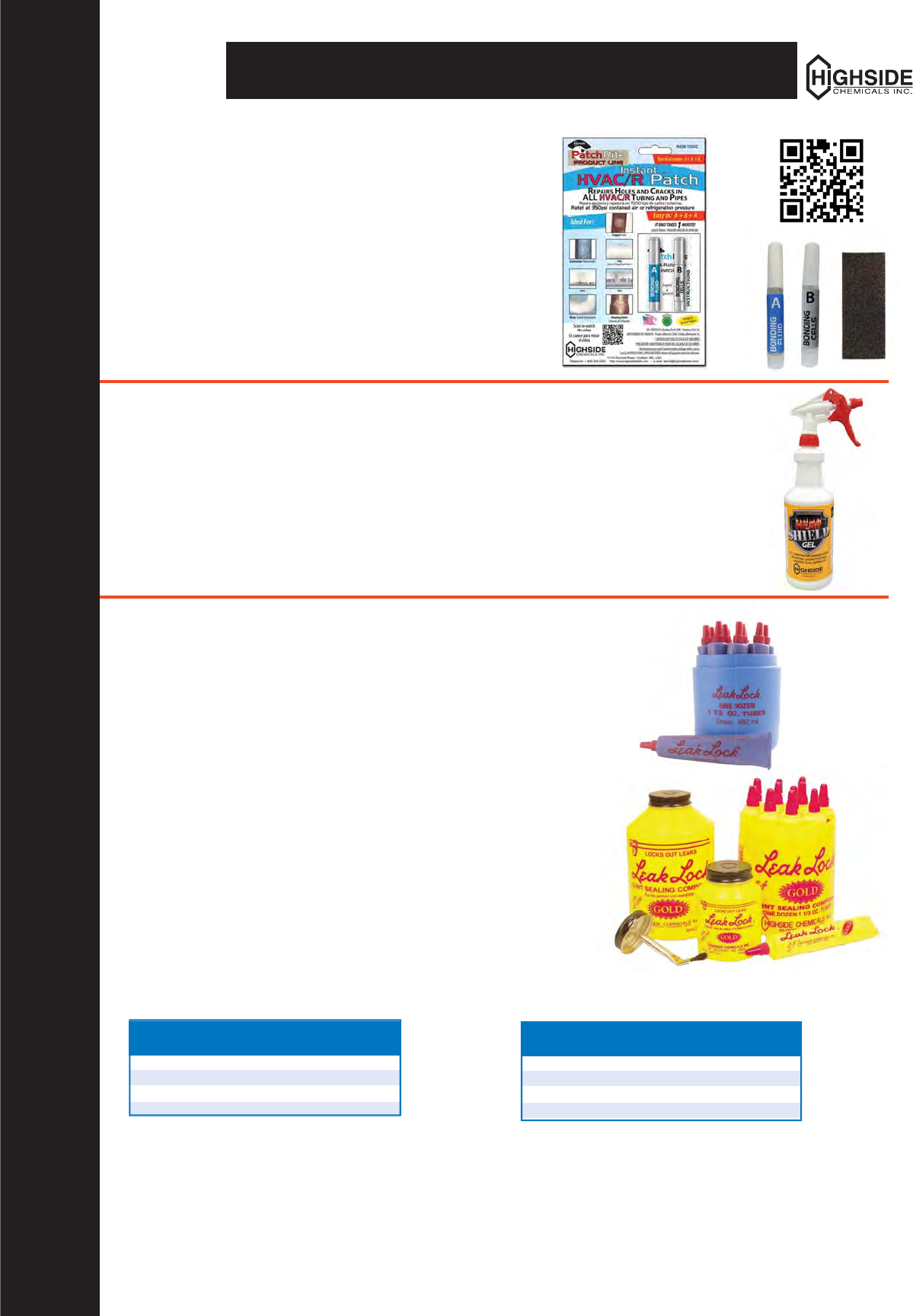

CHEMICALS 141-153
APPLIANCE

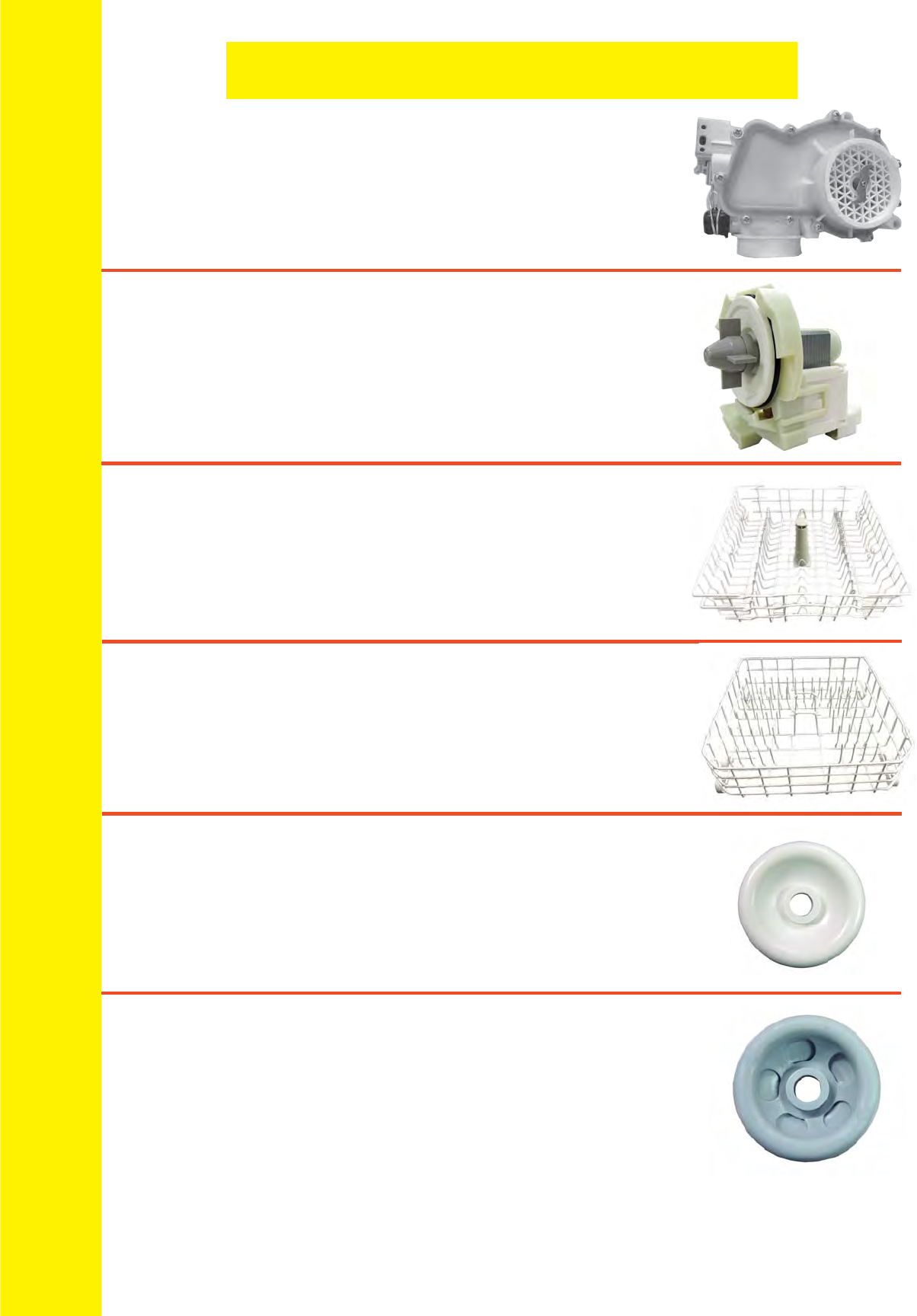

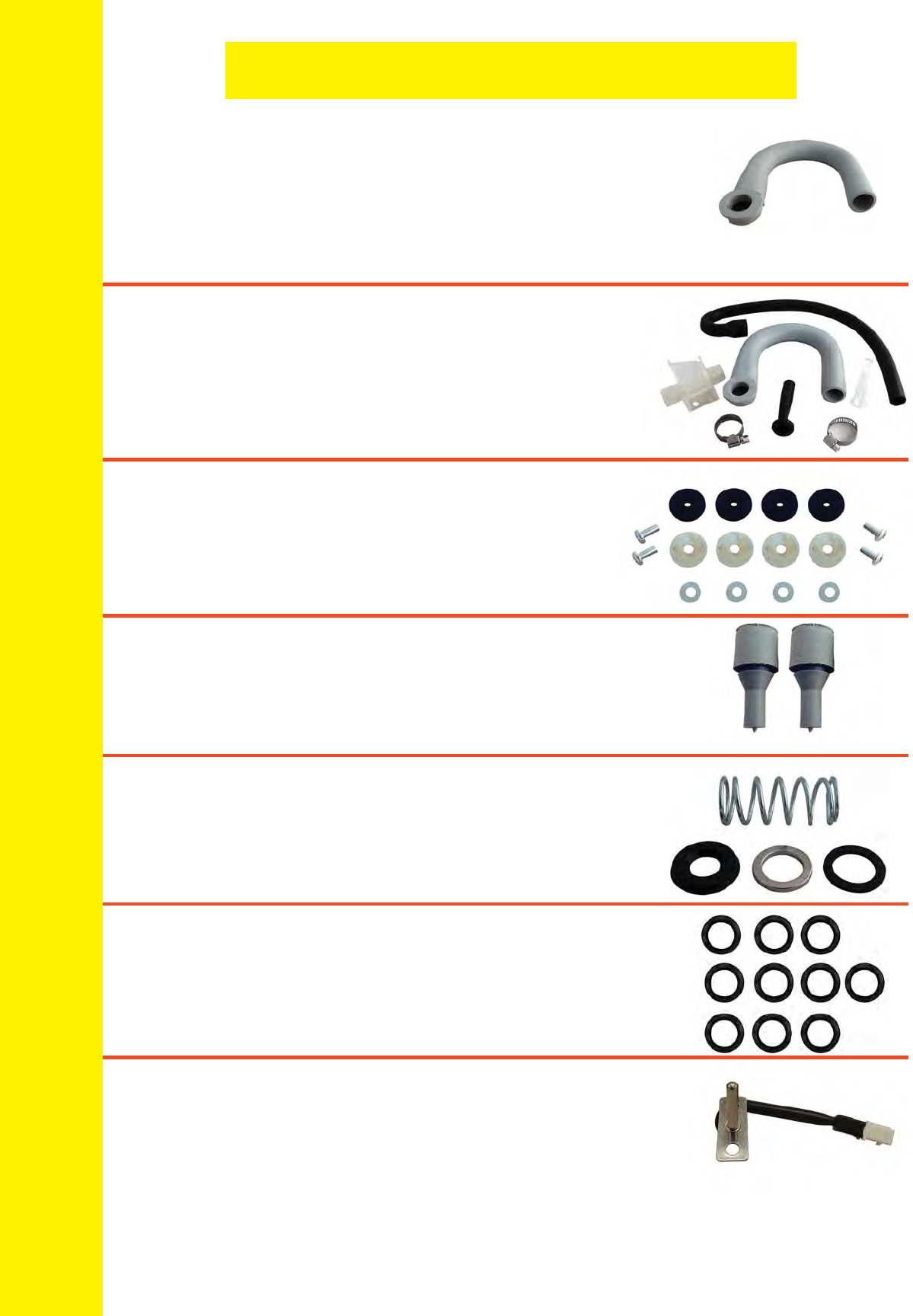

Dishwasher

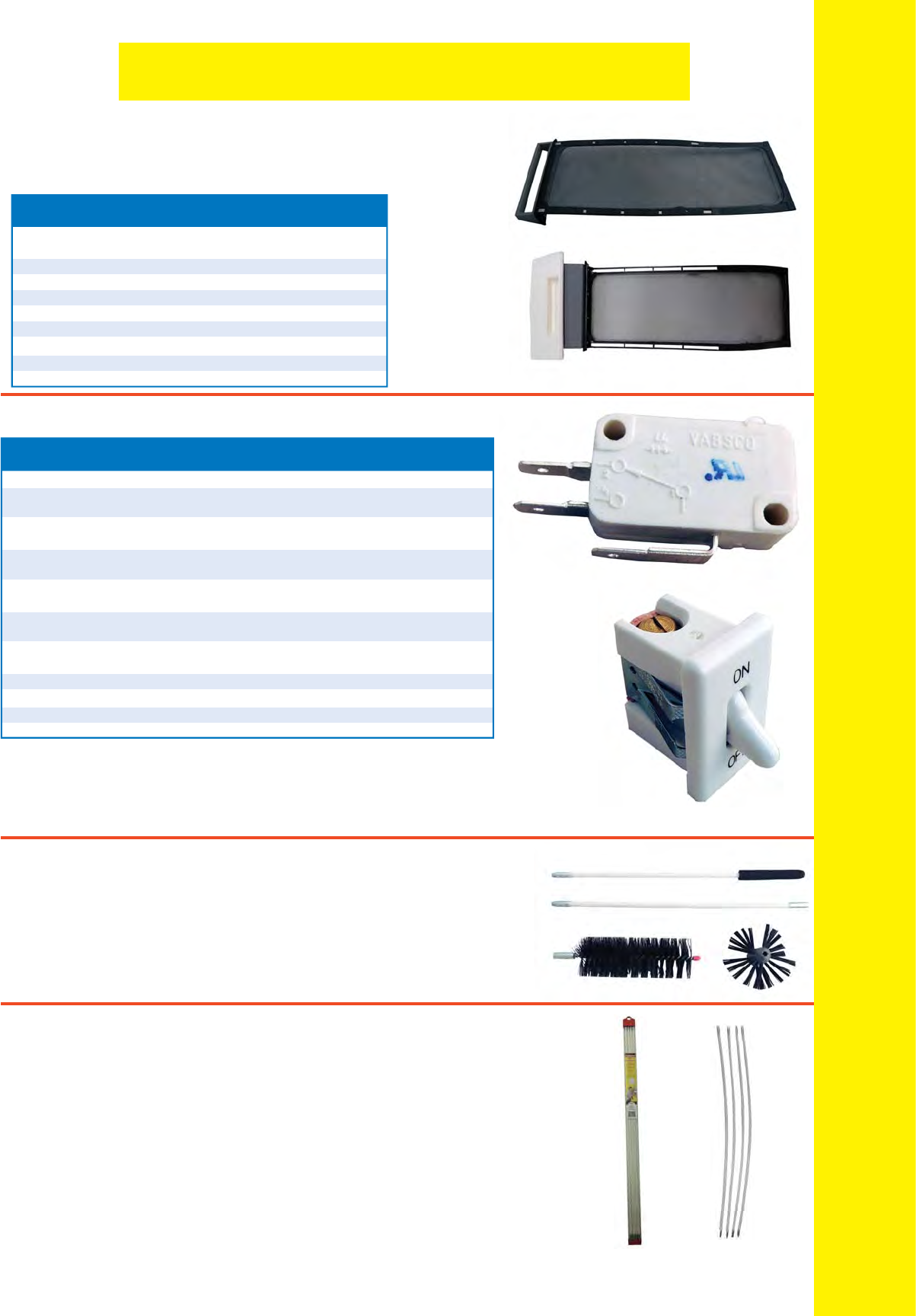

Dryer Parts

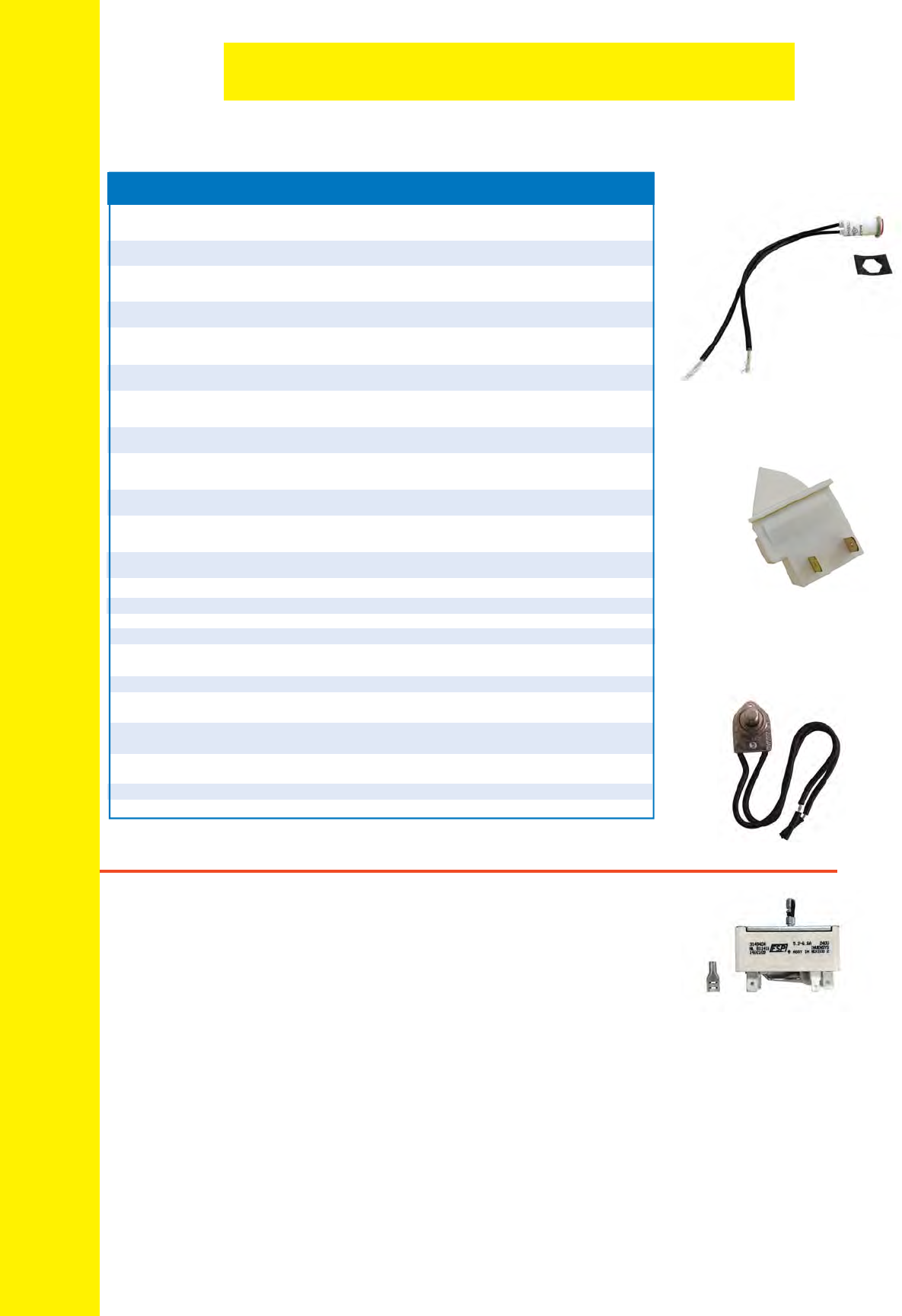

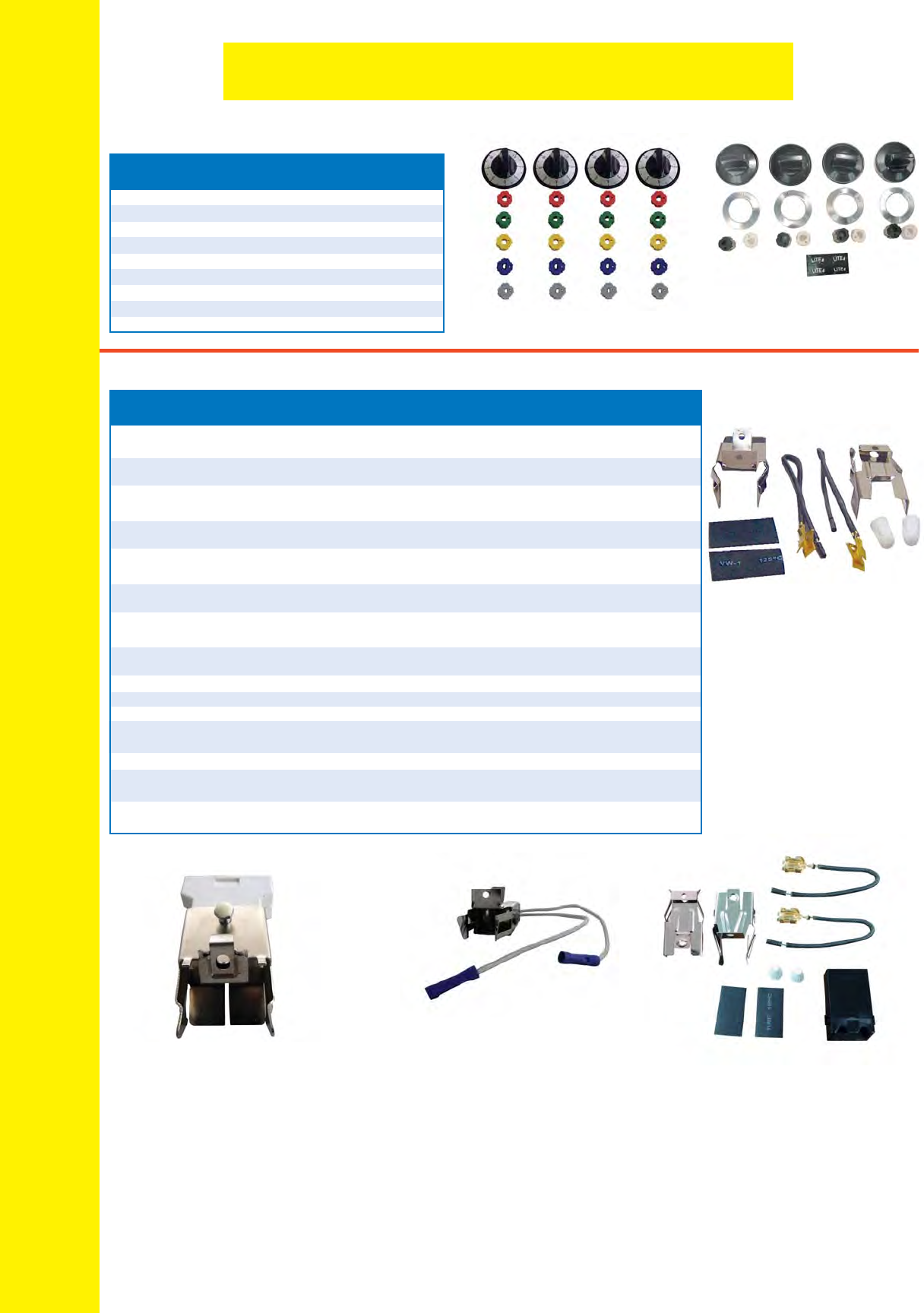

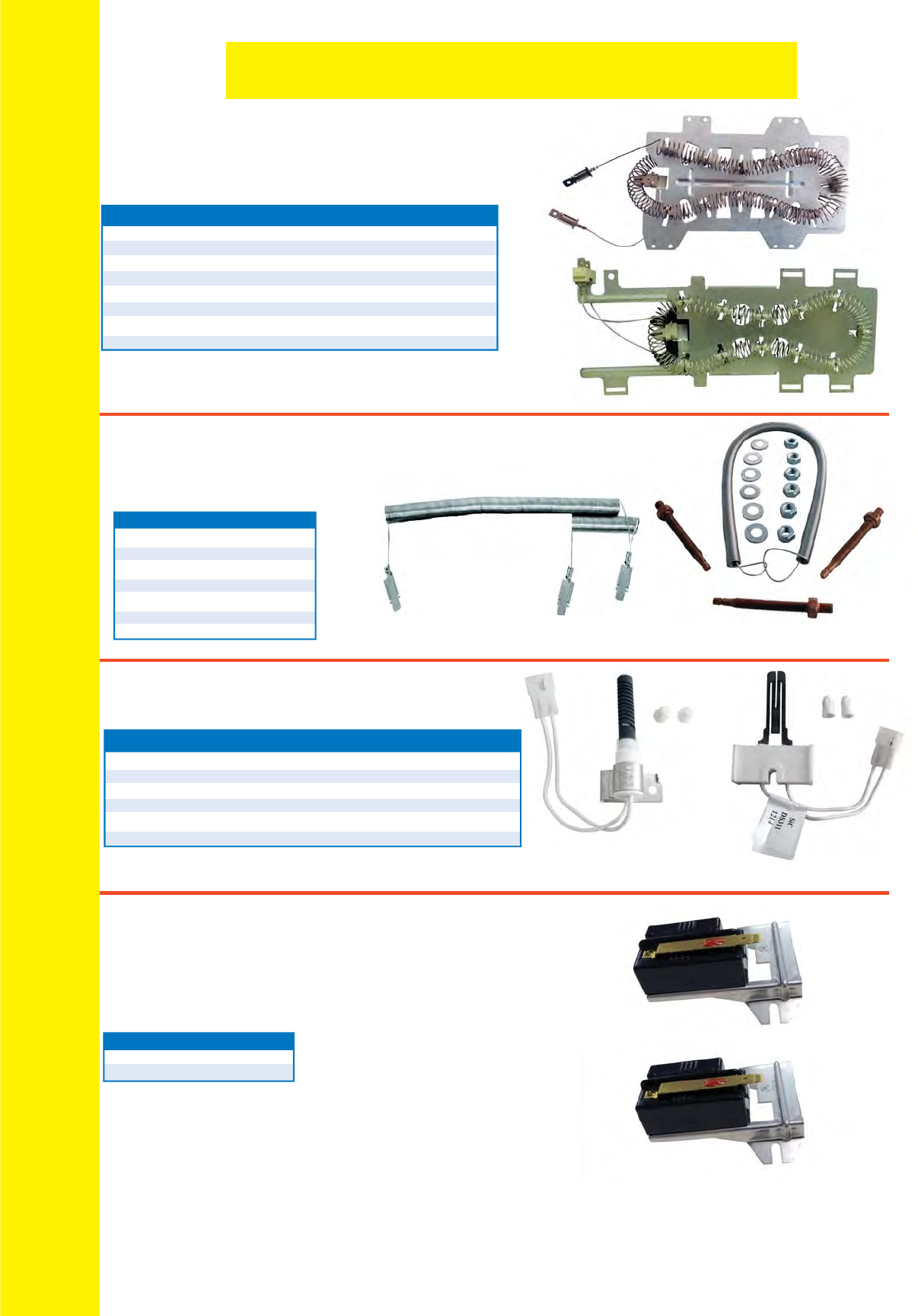

Range Parts
Refrigeration

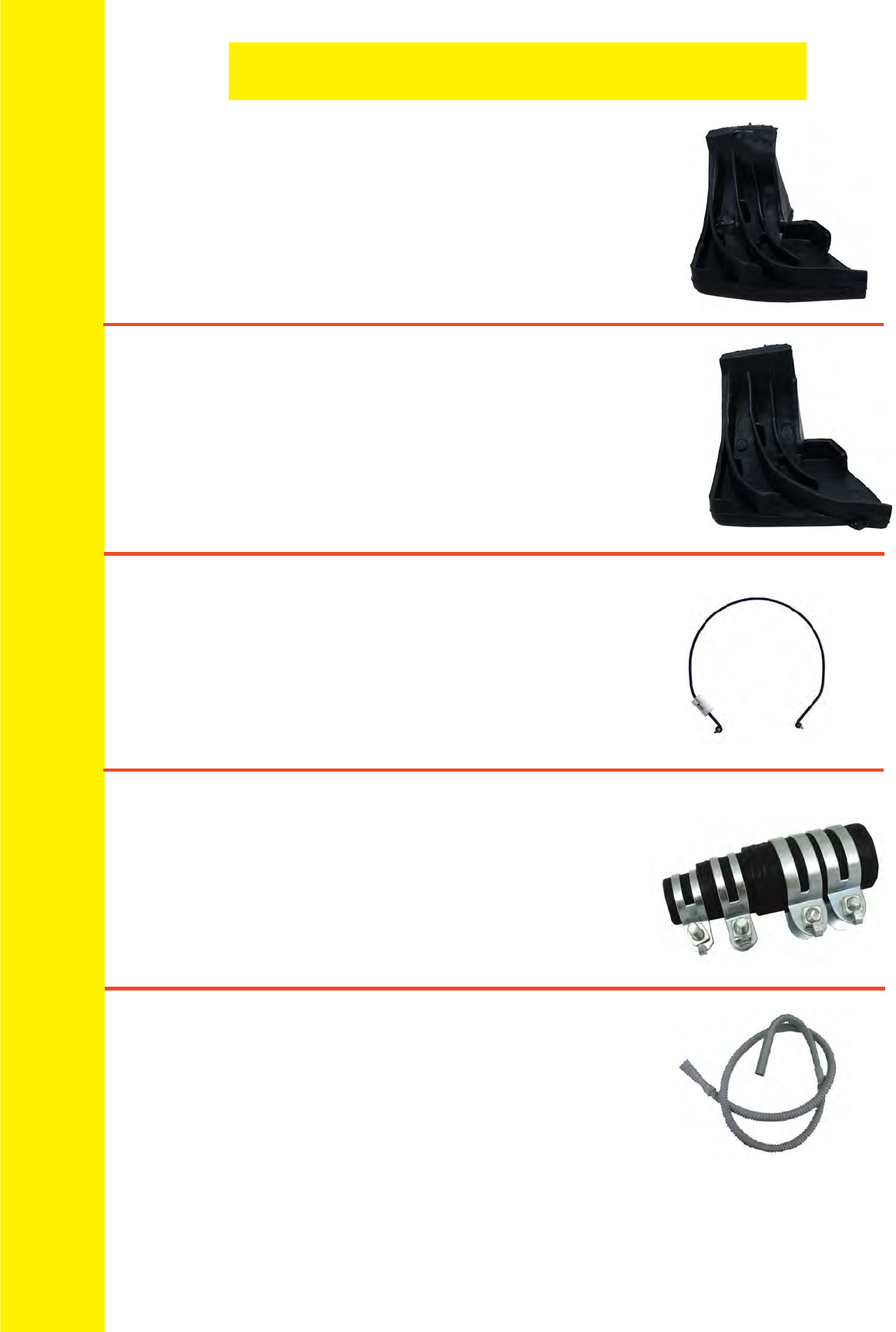

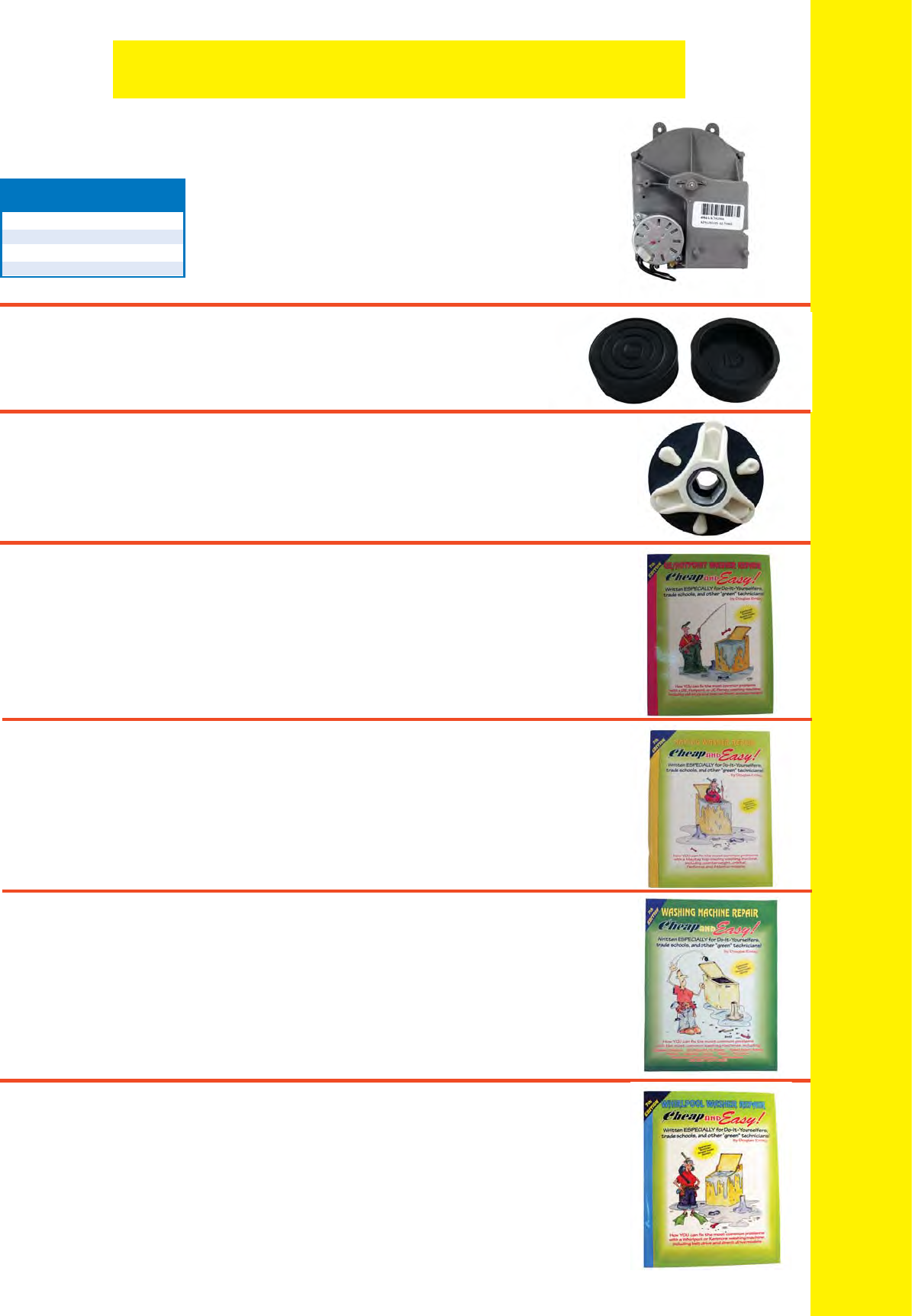

Washer
4
5
6
7-10
11,12
14
15
16-19
20
21
21
22
23
24
25
26-30
31
32,33
34-42
43
44-46
47-51
52-54
55,56
57
58,59
60-65
66
67-73
74
75,76
77
78
79-80
80
81-83
84-94
95-106
107
108-111
112,113
113,114
115-118
119
120-123
123
132-139
140
154-157
158-165
166-171
172-183
184-189
SEALED UNIT PARTS CO., INC.
PO Box 21, 2230 Landmark Place • Allenwood, NJ 08720 USA
1-800-333-9125 • www.supco.com • orders@supco.com
H
V
A
C

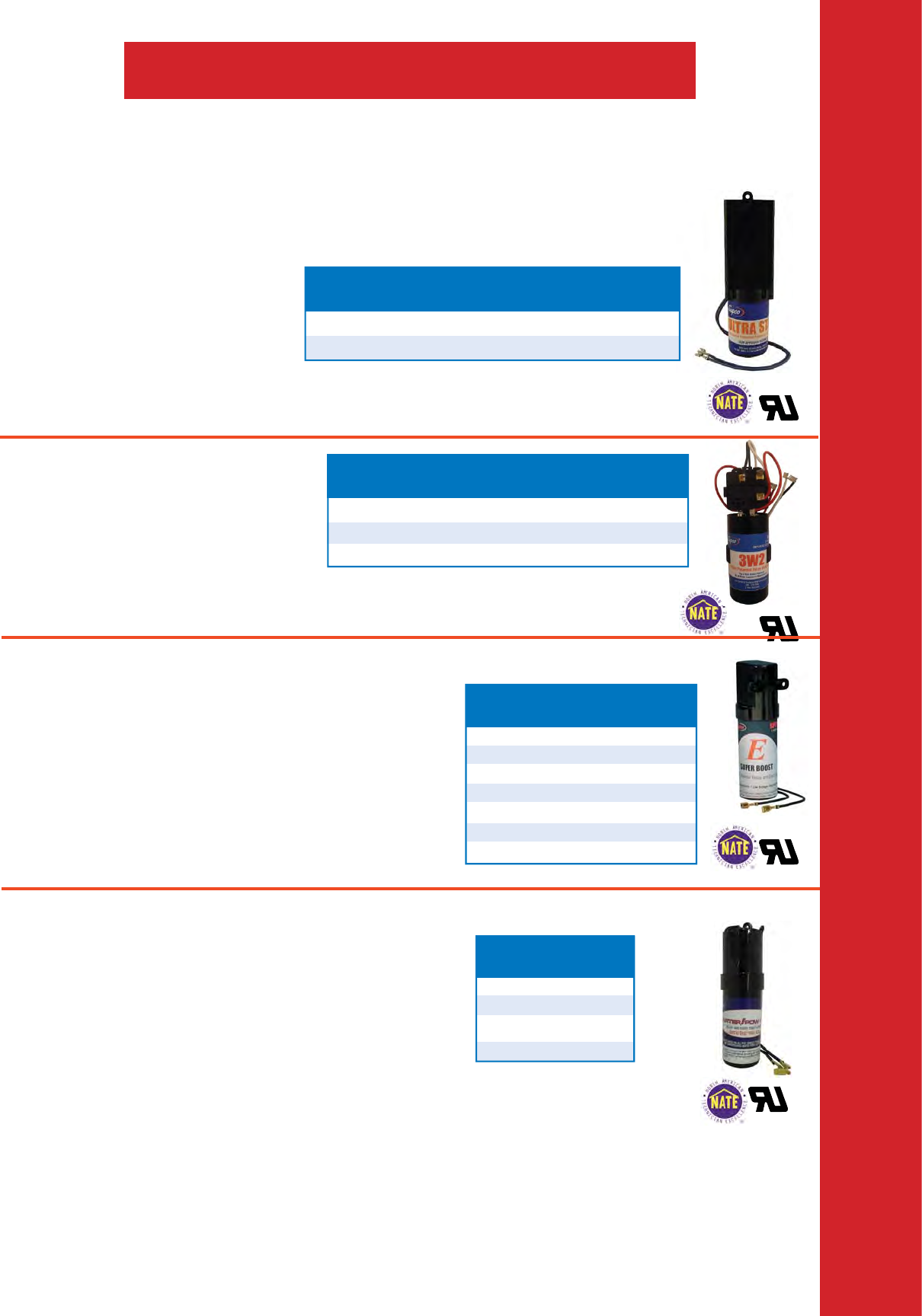

AC Hard Starts
The “True Original Hard Start”
ULTRA Series
2-wire Mechanical Potential Relay Hard Start
• OEM Approved Technology
• Voltage Sensing
• Instant Re-Start
• Easy 2-wire Installation
• 170-277 VAC
• 330 VAC Start Capacitor
• 2 Year Warranty
3 Series
3-wire Mechanical Potential Relay Hard Start
• Voltage Sensing
• Instant Re-Start
• 35 Amp Relay Contacts
• 170-277 VAC
• 330 VAC Start Capacitor
• Includes EZ Snap Bracket for Quick Installation
SPP E Class Series
Electronic Potential Relay Technology
Economical Potential Relay, with the comfort of a backup safety.
• Electronic Potential Relay
• Backup Electronic Timing Circuit to Protect the Compressor
• Voltage Sensing
• Instant Re-Start
• Easy 2-wire Installation
• Can be used on PSC and CSIR Type Compressors
• 170-277 VAC (except SPP4E, 90-130 VAC)
SPP Super Boost Series
PTC Technology
e “Original” 2-wire Hard Start.
• Positive Temperature Coe cient Relay Technology (PTC)
• Field Proven Reliability
• Easy 2-wire Installation
• Most Economic
• 90-277 VAC
®
®
PART CAPACITOR REPLACES
NO. APPLICATION SIZE Kickstart®
MPR5 1 to 3 hp 189-277μF TO-5
MPR1 3.5 to 5 hp 270-324 μF KS-1
PART CAPACITOR REPLACES
NO. APPLICATION SIZE 5-2-1®
3W1 1 – 3 hp 88 – 108 μF CSRU1
3W2 3.5 – 4.5 hp 189 – 227 μF CSRU2
3W3 4 – 5 hp 270 – 324 μF CSRU3
PART INCREASE
NO. IN TORQUE
SPP 250%
SPP5 300%
SPP6 500%
SPP7S 600%
PART CAPACITOR
NO. APPLICATION SIZE
SPP4E 1/8-1 hp 88-106 μF
SPP5E 1/3-2 hp 43-52 μF
SPP6E 1/2 – 3 hp 88–106 μF
SPP7E 1 – 4 hp 130–156 μF
SPP8E 1 hp and up 189–227 μF
SPP9E 1 hp and up 233-280 μF
SPP10E 3 hp and up 270-324 μF
®
®
5
*Kickstart® is a registered U.S. trademark of e Rectorseal Corporation.
*5-2-1® is a registered U.S. trademark of Five-Two-One, Inc.
6
Relays
H
V
A
C
APR5
Adjustable Potential Relay
• Adjustable, Voltage Sensitive Relay
• Set Pick-up Voltage
• Safety Time Out 1.0-1.5 Seconds
• Universal Mounting Bracket
SUPR
Universal Potential Relay
• Time Function Relay
• Start Time: 1.0-1.5 Seconds
• Universal Mounting Bracket
SEPR60
Universal 2 - Wire Potential Relay
• Voltage Sensitive Relay
• Instant Re-start
• Safety Time Delay
• Use With Any Size Suitable Start
Capacitor
90XX Series
Potential Relays
• Meets All Requirements of OEM Relays
• Universal Break-o Bracket
• 50/60 Cycle
• Contact Rating 35 Amp @ 277 VAC
• Non-positional
903X Series
General Purpose Switching Relays
• Double Pole-Double row (DPDT)
Fan Relays
®
®
®
®
APR5 / SUPR Common Specifications
Operating Voltage 110 – 270 VAC, Single Phase
Amperage 30 Amps
Motor Power Rating up to 5 hp
Operating Position Non-positional mounting.
Terminals Screw or push-on.
Dimensions 1.75W x 2.25L x 1.50H
SEPR60 Specifications
Operating Voltage 208 – 277 VAC, Single Phase
Amperage 40 Amps
Motor Power Rating 1 hp - 10 hp
Mounting Non Positional
Terminals Qty 3, 1/4” Male Spade
CONTINUOUS
PART COIL PICK-UP DROP
NO. VOLTAGE MIN. MAX. MAX.
9063 170 139 153 55
9064 395 260 275 120
9065 332 168 182 90
9066 395 215 225 120
9067 420 295 315 125
9068 502 325 345 135
9069 336 180 195 105
9070 332 285 305 77
9071 420 212 232 121
PART COIL TERMINAL TERMINAL CROSS REFERENCE
NO. VOLTAGE 1-2-3 4-5-6 ESSEX®/RBM® HONEYWELL®
90340 24 power power 90-340 R8222D1014
90341 120 power power 90-341 R4222D1013
90342 208/240 power power 90-342 R4222N1021
PART COIL
NO. DESCRIPTION AMPS VOLTAGE
90290 SPST 4 24V
90291 SPST 4 120V
90292 SPST 4 240V
90293 SPDT 1 24V
90294 SPDT 1 120V
90295 SPDT 1 240V
PART COIL
NO. DESCRIPTION AMPS VOLTAGE
90370 SPDT 12 24V
90372 SPDT 12 120V
90374 SPDT 12 240V
90380 NO/NC 13 24V
90382 NO/NC 13 120V
90384 NO/NC 13 240V
POWER PILOT
CONTACT RATINGS 208/240V 208/240V
120V 277V 120V 277V
Full Load Amps 12 6 - -
Resistive Amps* 15 15 3 3
Locked Rotor Amps 60 35 - -
Horsepower 3/4 3/4 1/10 1/10 *0.75 Power Factor
APR5
SUPR
Universal Potential Relays
7
Motor Run & Motor Start Capacitors
H
V
A
C
Motor Run Capacitors
• Type II Construction
• Non- PCB Biodegradable Synthetic Oil
• Physical Interrupter for Safety
• Drawn Steel Construction
• Quad Blade Quick Connect to Terminals
• Tolerance: +/- 5%
• Operating Temperature: -13°F to 185°F (-25°C to 85°C)
• Meets EIA 456 Standard
• Meets IEC 252 Standard
• Life Tested to 120% of Rated Voltage at 85°C for 1,000 Continuous Hours
• Cycle Tested at 140% of Rated Voltage at 85°C for 100,000 Cycles
• UL® Recognized
• CSA® Certi ed
• VDE® Approved
®®®
Motor Start Capacitors
• Type II Construction
• Non- PCB Biodegradable Synthetic Oil
• Moisture & Oil Resistant Molded Phenolic Resin or Plastic Case
• Industry Standard Case Sizes
• Standard Dual Blade Terminals
• Operating Temperature: -40°F to 149°F (-40°C to 65°C)
• Meets CSA RS463-B Standard
• Meets IEC 60252-2 Standard
• UL® Recognized
• CSA® Certi ed
• VDE® Approved
Capacitor
C R 1 0 0 X 3 7 0 R
R = Single Run, D = Dual Run
Value in μF
Voltage
“R” Indicates Round
Part Number Key
®®®
Capacitor
C S 1 4 5 - 1 7 5 X 3 3 0
Start
Range in μF
Voltage
Part Number Key
Our Capacitors are Manufactured with the Highest Quality Components.
ey are Manufactured and Tested under our High Standards and Speci cations.
8
Motor Run Capacitors
DUAL - ROUND
440 VOLT
®
DUAL - ROUND
®
PART DIMENSIONS (INCHES)
NO. μF X VOLTAGE STYLE D H W
CD30+4X440R 30+4 μF X 440V ROUND 2 4 3/16
CD30+5X370 30+5 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD30+5X370R 30+5 μF X 370V ROUND 1 15/16 3 12/16
CD30+5X440 30+5 μF X 440V OVAL 2 13/16 4 1/2 1 3/4
CD30+5X440R 30+5 μF X 440V ROUND 1 15/16 4 5/16
CD30+7.5X370 30+7.5 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD30+7.5X370R 30+7.5 μF X 370V ROUND 2 4 3/16
CD30+7.5X440 30+7.5 μF X 440V OVAL 2 13/16 4 3/16 1 3/4
CD30+7.5X440R 30+7.5 μF X 440V ROUND 1 15/16 4 12/16
CD35+10X370 35+10 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD35+10X370R 35+10 μF X 370V ROUND 2 4 3/16
CD35+10X440 35+10 μF X 440V OVAL 2 13/16 4 3/16 1 3/4
CD35+10X440R 35+10 μF X 440V ROUND 1 15/16 5 1/8
CD35+3X370 35+3 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD35+3X370R 35+3 μF X 370V ROUND 2 4 3/16
CD35+3X440 35+3 μF X 440V OVAL 2 13/16 4 3/16 1 3/4
CD35+3X440R 35+3 μF X 440V ROUND 1 15/16 4 1/8
CD35+4X370 35+4 μF X 370V OVAL 2 13/16 4 3/16 1 3/4
CD35+4X370R 35+4 μF X 370V ROUND 2 4 3/16
CD35+4X440 35+4 μF X 440V OVAL 2 13/16 4 3/16 1 3/4
CD35+4X440R 35+4 μF X 440V ROUND 2 4 12/16
CD35+5X370 35+5 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD35+5X370R 35+5 μF X 370V ROUND 1 15/16 4 1/8
CD35+5X440 35+5 μF X 440V OVAL 2 13/16 4 12/16 1 3/4
CD35+5X440R 35+5 μF X 440V ROUND 1 15/16 4 12/16
CD35+6X440R 35+6 μF X 440V ROUND 2 4 12/16
CD35+7.5X370 35+7.5 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD35+7.5X370R 35+7.5 μF X 370V ROUND 2 4 3/16
CD35+7.5X440 35+7.5 μF X 440V OVAL 2 13/16 4 12/16 1 3/4
CD35+7.5X440R 35+7.5 μF X 440V ROUND 13/16 4 12/16
CD35+8.5X440 35+8.5 μF X 440V OVAL 2 13/16 4 12/16 1 3/4
CD40+10X370 40+10 μF X 370V OVAL 2 13/16 4 3/16 1 3/4
CD40+10X370R 40+10 μF X 370V ROUND 2 4 12/16
CD40+10X440 40+10 μF X 440V OVAL 2 13/16 4 12/16 1 3/4
CD40+10X440R 40+10 μF X 440V ROUND 1 15/16 5 1/8
CD40+3X370 40+3 μF X 370V OVAL 2 13/16 4 3/16 1 3/4
CD40+3X370R 40+3 μF X 370V ROUND 2 4 3/16
CD40+3X440 40+3 μF X 440V OVAL 2 13/16 3 15/16 1 3/4
CD40+3X440R 40+3 μF X 440V ROUND 1 15/16 4 5/16
CD40+4X370 40+4 μF X 370V OVAL 2 13/16 4 3/16 1 3/4
CD40+4X370R 40+4 μF X 370V ROUND 2 4 3/16
CD40+4X440R 40+4 μF X 440V ROUND 2 3/8 4 3/16
CD40+5X370 40+5 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD40+5X370R 40+5 μF X 370V ROUND 1 15/16 4 5/16
CD40+5X440 40+5 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CD40+5X440R 40+5 μF X 440V ROUND 2 3/8 4 1/8
CD40+6X440R 40+6 μF X 440V ROUND 2 3/8 4 3/16
CD40+7.5X370 40+7.5 μF X 370V OVAL 2 13/16 4 3/16 1 3/4
CD40+7.5X370R 40+7.5 μF X 370V ROUND 2 4 3/16
CD40+7.5X440 40+7.5 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CD40+7.5X440R 40+7.5 μF X 440V ROUND 1 15/16 5 1/8
CD45+10X370 45+10 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD45+10X370R 45+10 μF X 370V ROUND 2 4 12/16
CD45+10X440R 45+10 μF X 370V ROUND 2 3/8 4 3/16
CD45+15X370 45+15 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD45+3X370 45+3 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD45+3X370R 45+3 μF X 370V ROUND 2 4 12/16
CD45+3X440R 45+3 μF X 370V ROUND 2 3/8 4 3/16
CD45+4X370R 45+4 μF X 370V ROUND 2 4 12/16
CD45+4X440R 45+4 μF X 440V ROUND 2 3/8 4 3/16
CD45+5X370 45+5 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD45+5X370R 45+5 μF X 370V ROUND 1 15/16 4 1/2
CD45+5X440 45+5 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CD45+5X440R 45+5 μF X 440V ROUND 2 3/8 4 5/16
PART DIMENSIONS (INCHES)
NO. μF X VOLTAGE STYLE D H W
CD10+10X370R 10+10 μF X 370V ROUND 2 3 3/8
CD10+5X440 10+5 μF X 440V OVAL 2 13/16 2 15/16 1 3/4
CD10+5X440R 10+5 μF X 440V ROUND 2 3 3/8
CD15+10X370 15+10 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD15+10X370R 15+10 μF X 370V ROUND 2 3 3/8
CD15+10X440 15+10 μF X 440V OVAL 2 13/16 2 15/16 1 3/4
CD15+3X370 15+3 μF X 440V OVAL 2 13/16 2 15/16 1 3/4
CD15+3X370R 15+3 μF X 370V ROUND 2 3 3/8
CD15+4X370 15+4 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD15+4X370R 15+4 μF X 370V ROUND 2 3 3/8
CD15+4X440 15+4 μF X 440V OVAL 2 13/16 2 15/16 1 3/4
CD15+5X370 15+5 μF X 370V OVAL 2 13/16 2 9/16 1 3/4
CD15+5X370R 15+5 μF X 370V ROUND 2 3 3/8
CD15+5X440 15+5 μF X 440V OVAL 2 13/16 2 15/16 1 3/4
CD15+5X440R 15+5 μF X 440V ROUND 2 3 3/8
CD17.5+4X370 17.5+4 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD17.5+4X370R 17.5+4 μF X 370V ROUND 2 3 3/8
CD17.5+5X370 17.5+5 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD17.5+5X370R 17.5+5 μF X 370V ROUND 2 3 3/8
CD20+10X370 20+10 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD20+10X370R 20+10 μF X 370V ROUND 2 3 3/8
CD20+15X370 20+15 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD20+15X370R 20+15 μF X 370V ROUND 2 3 3/8
CD20+15X440 20+15 μF X 440V OVAL 2 13/16 3 3/8 1 3/4
CD20+15X440R 20+15 μF X 440V ROUND 1 15/16 4 1/8
CD20+3X370 20+3 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD20+4X370 20+4 μF X370V OVAL 2 13/16 2 15/16 1 3/4
CD20+4X370R 20+4 μF X370V ROUND 2 3 3/8
CD20+5X370 20+5 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD20+5X370R 20+5 μF X 370V ROUND 1 15/16 3 9/16
CD20+5X440 20+5 μF X 440V OVAL 2 13/16 2 15/16 1 3/4
CD20+5X440R 20+5 μF X 440V ROUND 1 15/16 3 12/16
CD20+7.5X370R 20+7.5 μF X 370V ROUND 1 15/16 3 9/16
CD25+10X370 25+10 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD25+10X370R 25+10 μF X 370V ROUND 2 3 3/8
CD25+10X440 25+10 μF X 440V OVAL 2 13/16 3 15/16 1 3/4
CD25+10X440R 25+10 μF X 440V ROUND 2 4 3/16
CD25+15X370 25+15 μF X 370V OVAL 2 13/16 4 3/16 1 3/4
CD25+15X440 25+15 μF X 440V OVAL 2 13/16 4 12/16 1 3/4
CD25+15X440R 25+15 μF X 440V ROUND 2 4 3/16
CD25+3X370 25+3 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD25+3X370R 25+3 μF X 370V ROUND 1 15/16 3 9/16
CD25+4X370 25+4 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD25+4X370R 25+4 μF X 370V ROUND 1 15/16 3 9/16
CD25+5X370 25+5 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD25+5X370R 25+5 μF X 370V ROUND 1 15/16 3 9/16
CD25+5X440 25+5 μF X 440V OVAL 2 13/16 3 15/16 1 3/4
CD25+5X440R 25+5 μF X 440V ROUND 1 15/16 3 15/16
CD25+7.5X370 25+7.5 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD25+7.5X370R 25+7.5 μF X 370V ROUND 2 3 3/8
CD25+7.5X440 25+7.5 μF X 440V OVAL 2 13/16 3 15/16 1 3/4
CD25+7.5X440R 25+7.5 μF X 440V ROUND 1 15/16 4 5/16
CD25+8X370 25+8 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD27+5.5X370 27+5.5 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CD30+10X370 30+10 μF X 370V OVAL 2 13/16 4 3/16 1 3/4
CD30+10X370R 30+10 μF X 370V ROUND 2 4 3/16
CD30+10X440 30+10 μF X 440V OVAL 2 13/16 4 12/16 1 3/4
CD30+15X370R 30+15 μF X 370V ROUND 2 4 3/16
CD30+3X370 30+3 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CD30+3X370R 30+3 μF X 370V ROUND 1 15/16 3 12/16
CD30+3X440R 30+3 μF X 440V ROUND 2 4 3/16
CD30+4X370 30+4 μF X 370V OVAL 2 13/16 3 6/16 1 3/4
CD30+4X370R 30+4 μF X 370V ROUND 2 4 3/16
CD30+4X440 30+4 μF X 440V OVAL 2 13/16 4 3/16 1 3/4
Dual Motor Run Capacitors
H
V
A
C
9
Motor Run Capacitors
®®
PART DIMENSIONS (INCHES)
NO. μF X VOLTAGE STYLE D H W
CD45+6X440R 45+6 μF X 440V ROUND 2 3/8 4 3/16
CD45+7.5X370 45+7.5 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD45+7.5X370R 45+7.5 μF X 370V ROUND 2 4 12/16
CD45+7.5X440 45+7.5 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CD45+7.5X440R 45+7.5 μF X 440V ROUND 2 3/8 4 5/16
CD50+10X370R 50+10 μF X 370V ROUND 2 4 12/16
CD50+10X440R 50+10 μF X 440V ROUND 2 3/8 4 12/16
CD50+12.5X440R 50+12.5 μF X 440V ROUND 2 3/8 4 12/16
CD50+3X370R 50+3 μF X 370V ROUND 2 4 12/16
CD50+5X370 50+5 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD50+5X370R 50+5 μF X 370V ROUND 2 4 12/16
CD50+5X440 50+5 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CD50+5X440R 50+5 μF X 440V ROUND 2 3/8 4 1/2
CD50+7.5X370 50+7.5 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD50+7.5X370R 50+7.5 μF X 370V ROUND 2 4 12/16
CD50+7.5X440 50+5 μF X 440V OVAL 2 13/16 4 12/16 1 3/4
CD50+7.5X440R 50+7.5 μF X 440V ROUND 2 3/8 4 12/16
CD55+10X370R 55+10 μF X 370V ROUND 2 3/8 4 3/16
CD55+10X440 55+10 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CD55+10X440R 55+10 μF X 440V ROUND 2 3/8 4 12/16
CD55+5X370 55+5 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD55+5X370R 55+5 μF X 370V ROUND 2 3/8 4 3/16
CD55+5X440 55+5 μF X 440V OVAL 2 3/8 4 12/16
CD55+5X440R 55+5 μF X 440V ROUND 2 3/8 4 12/16
CD55+7.5X370 55+7.5 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CD55+7.5X370R 55+7.5 μFX370V ROUND 2 3/8 4 3/16
CD55+7.5X440R 55+7.5 μF X 440V ROUND 2 3/8 4 12/16
CD60+10X370 60+10 μF X 370V OVAL 2 13/16 4 15/16 1 3/4
CD60+10X370R 60+10 μF X 370V ROUND 2 3/8 4 3/16
CD60+10X440R 60+10 μF X 440V ROUND 2 3/8 4 15/16
CD60+12.5X440R 60+10 μF X 440V ROUND 2 3/8 4 12/16
CD60+15X440R 60+15 μF X 440V ROUND 2 3/8 4 15/16
CD60+3X370R 60+3 μF X 370V ROUND 2 3/8 4 3/16
CD60+3X440R 60+3 μF X 440V ROUND 2 3/8 4 3/16
CD60+5X370 60+5 μF X 370V OVAL 3 9/16 4 12/16 2 1/15
CD60+5X370R 60+5 μF X 370V ROUND 2 3/8 4 3/16
CD60+5X440 60+5 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CD60+5X440R 60+5 μF X 440V ROUND 2 3/8 4 15/16
CD60+7.5X370 60+7.5 μF X 370V OVAL 3 9/16 4 12/16 1 3/4
CD60+7.5X370R 60+7.5 μF X 370V ROUND 2 3/8 4 3/16
CD60+7.5X440 60+7.5 μF X 370V OVAL 3 9/16 4 12/16 2 1/15
CD60+7.5X440R 60+7.5 μF X 440V ROUND 2 3/8 4 15/16
CD65+10X440 65+10 μF X 440V OVAL 3 9/16 4 12/16 2 1/15
CD65+10X440R 65+10 μF X 440V ROUND 2 3/8 4 12/16
CD65+5X370 65+5 μF X 370V OVAL 3 9/16 4 12/16 1 3/4
CD65+5X370R 65+5 μF X 370V ROUND 2 3/8 4 3/16
CD65+5X440R 65+5 μF X 440V ROUND 2 3/8 4 15/16
CD65+7.5X440 65+7.5 μF X 440V OVAL 3 9/16 4 12/16 1 3/4
CD70+10X370R 70+10 μF X 370V ROUND 2 3/8 4 12/16
CD70+10X440R 70+10 μF X 440V ROUND 2 3/8 4 12/16
CD70+5X370R 70+5 μF X 370V ROUND 2 3/8 4 3/16
CD70+5X440R 70+5 μF X 440V ROUND 2 3/8 4 12/16
CD70+7.5X370R 70+7.5 μF X 370V ROUND 2 3/8 4 12/16
CD70+7.5X440R 70+7.5 μF X 440V ROUND 2 3/8 4 12/16
CD75+10X370R 75+10 μF X 370V ROUND 2 3/8 5 2/16
CD75+10X440R 75+10 μF X 440V ROUND 2 3/8 5 2/16
CD75+5X370R 75+3 μF X 370V ROUND 2 3/8 4 12/16
CD75+5X440R 75+5 μF X 440V ROUND 2 3/8 4 12/16
CD75+7.5X370R 75+7.5 μF X 370V ROUND 2 3/8 4 12/16
CD75+7.5X440R 75 + 7.5 μF X 440V ROUND 2 3/8 5 2/16
CD80+10X370R 80+10 μF X 370V ROUND 2 3/8 5 2/16
CD80+10X440R 80+10 μF X 440V ROUND 2 3/8 4 15/16
CD80+12.5X370R 80+12.5 μF X 370V ROUND 2 3/8 5 2/16
CD80+5X370 80+5 μF X 370V OVAL 3 9/16 4 12/16 1 3/4
PART DIMENSIONS (INCHES)
NO. μF X VOLTAGE STYLE D H W
CD80+5X370R 80+5 μF X 370V ROUND 2 3/8 4 15/16
CD80+5X440 80+5 μF X 440V OVAL 3 9/16 4 12/16 1 3/4
CD80+5X440R 80+5 μF X 440V ROUND 2 3/8 4 15/16
CD80+7.5X370 80+7.5 μF X 370V OVAL 3 9/16 4 12/16 1 3/4
CD80+7.5X370R 80+7.5 μF X 370V ROUND 2 3/8 4 15/16
CD80+7.5X440 80+7.5 μF X 440V OVAL 3 9/16 4 12/16 1 3/4
CD80+7.5X440R 80+7.5 μF X 440V ROUND 2 3/8 4 15/16
CD85+10X370R 85+10 μF X 370V ROUND 2 3/8 5 2/16
CD85+10X440R 85+10 μF X 440V ROUND 2 3/8 5 2/16
CD85+5X370R 85+5 μF X 370V ROUND 2 3/8 5 2/16
CD85+5X440R 85+5 μF X 440V ROUND 2 3/8 5 2/16
CD85+7.5X370R 85+7.5 μF X 370V ROUND 2 3/8 5 2/16
CD85+7.5X440R 85+7.5 μF X 440V ROUND 2 3/8 5 2/16
PART DIMENSIONS (INCHES)
NO. μF X VOLTAGE STYLE D H W
CR100X370 100 μF X 370V OVAL 3 9/16 5 2/16 2 1/15
CR100X370R 100 μF X 370V ROUND 2 3/8 4 15/16
CR10X370 10 μF X 370V OVAL 2 1/16 2 9/16 1 1/4
CR10X370R 10 μF X 370V ROUND 2 2 3/16
CR10X440 10 μF X 440V OVAL 2 1/16 2 15/16 1 1/4
CR10X440R 10 μF X 440V ROUND 1 15/16 2 3/16
CR12.5X370 12.5 μF X 370V OVAL 2 1/16 2 12/16 1 1/4
CR12.5X370R 12.5 μF X 370V ROUND 2 2 3/16
CR12.5X440 12.5 μF X 440V OVAL 2 1/16 3 3/8 1 1/4
CR12.5X440R 12.5 μF X 440V ROUND 1 3/4 2 13/16
CR15X370 15 μF X 370V OVAL 1 15/16 3 9/16 1 1/4
CR15X370R 15 μF X 370V ROUND 1 15/16 2 3/16
CR15X440 15 μF X 440V OVAL 2 1/16 3 15/16 1 1/4
CR15X440R 15 μF X 440V ROUND 1 12/16 2 9/16
CR16X370R 16 μF X 370V ROUND 1 3/4 2 13/16
CR17.5X370 17.5 μF X 370V OVAL 2 13/16 2 9/16 1 3/4
CR17.5X370R 17.5 μF X 370V ROUND 1 3/4 2 13/16
CR17.5X440 17.5 μF X 440V OVAL 2 13/16 2 12/16 1 3/4
CR17.5X440R 17.5 μF X 440V ROUND 1 3/4 2 13/16
CR2.5X440 2.5 μF X 440V OVAL 2 2 3/16 1 1/4
CR20X370 20 μF X 370V OVAL 2 13/16 2 9/16 1 3/4
CR20X370R 20 μF X 370V ROUND 1 3/4 2 12/16
CR20X440 20 μF X 440V OVAL 2 13/16 2 12/16 1 3/4
CR20X440R 20 μF X 440V ROUND 1 3/4 3 1/8
CR25X370 25 μF X 370V OVAL 2 13/16 2 9/16 1 3/4
CR25X370R 25 μF X 370V ROUND 1 3/4 2 12/16
CR25X440 25 μF X 440V OVAL 2 13/16 3 1/8 1 3/4
CR25X440R 25 μF X 440V ROUND 1 3/4 3 9/16
CR25X480 25 μF X 480V OVAL 2 13/16 3 1/8 1 3/4
CR2X370 2 μF X 370V OVAL 2 1/16 2 3/16 1 1/4
CR2X370R 2 μF X 370V ROUND 1 9/16 2 3/16
CR2X440 2 μF X 440V OVAL 2 1/16 2 3/16 1 1/4
CR2X440R 2 μF X 440V ROUND 1 9/16 2 3/16
CR30X370 30 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CR30X370R 30 μF X 370V ROUND 1 12/16 3 9/16
CR30X440 30 μF X 440V OVAL 2 13/16 3 9/16 1 3/4
CR30X440R 30 μF X 440V ROUND 1 15/16 3 12/16
CR35X370 35 μF X 370V OVAL 2 13/16 2 15/16 1 3/4
CR35X370R 35 μF X 370V ROUND 1 15/16 3 9/16
CR35X440 35 μF X 440V OVAL 2 13/16 3 15/16 1 3/4
CR35X440R 35 μF X 440V ROUND 1 15/16 3 12/16
CR3X370 3 μF X 370V OVAL 2 1/16 2 3/16 1 1/4
CR3X370R 3 μF X 370V ROUND 1 9/16 2 3/16
CR3X440 3 μF X 440V OVAL 2 1/16 2 3/16 1 1/4
CR3X440R 3 μF X 440V ROUND 1 9/16 2 3/16
CR40X370 40 μF X 370V OVAL 2 13/16 3 15/16 1 3/4
CR40X370R 40 μF X 370V ROUND 1 15/16 3 15/16
H
V
A
C
Dual Motor Run Capacitors
Single Motor Run Capacitors
10
Motor Run & Motor Start Capacitors
PART DIMENSIONS (INCHES)
NO. μF X VOLTAGE STYLE D H W
CR40X440 40 μF X 440V OVAL 2 13/16 4 5/16 1 3/4
CR40X440R 40 μF X 440V ROUND 1 15/16 3 15/16
CR45X370 45 μF X 370V OVAL 2 13/16 3 9/16 1 3/4
CR45X370R 45 μF X 370V ROUND 1 15/16 3 15/16
CR45X440 45 μF X 440V OVAL 2 13/16 4 1/2 1 3/4
CR45X440R 45 μF X 440V ROUND 1 15/16 4 5/16
CR4X370 4 μF X 370V OVAL 2 1/16 2 3/16 1 1/4
CR4X370R 4 μF X 370V ROUND 1 9/16 2 3/16
CR4X440 4 μF X 440V OVAL 2 1/16 2 3/16 1 1/4
CR4X440R 4 μF X 440V ROUND 1 9/16 2 3/16
CR50X370 50 μF X 370V OVAL 2 13/16 4 5/16 1 3/4
CR50X370R 50 μF X 370V ROUND 1 15/16 4 5/16
CR50X440 50 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CR50X440R 50 μF X 440V ROUND 1 15/16 4 12/16
CR55X370 55 μF X 370V OVAL 2 13/16 4 1/2 1 3/4
CR55X370R 55 μF X 370V ROUND 1 15/16 3 15/16
CR55X440 55 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CR55X440R 55 μF X 440V ROUND 1 15/16 4 15/16
CR5X370 5 μF X 370V OVAL 2 1/16 2 3/16 1 1/4
CR5X370R 5 μF X 370V ROUND 1 9/16 2 3/16
CR5X440 5 μF X 440V OVAL 2 1/16 2 3/16 1 1/4
CR5X440R 5 μF X 440V ROUND 1 15/16 2 3/16
CR60X370 60 μF X 370V OVAL 2 13/16 4 15/16 1 3/4
CR60X370R 60 μF X 370V ROUND 1 15/16 4 12/16
CR60X440 60 μF X 440V OVAL 2 13/16 4 15/16 1 3/4
CR60X440R 60 μF X 440V ROUND 1 15/16 4 15/16
CR65X370 65 μF X 370V OVAL 2 13/16 4 12/16 1 3/4
CR65X370R 65 μF X 370V ROUND 2 3/8 4 3/16
CR65X440 65 μF X 440V OVAL 1 15/16 4 12/16
CR6X370 6 μF X 370V OVAL 2 1/16 2 3/16 1 1/4
CR6X370R 6 μF X 370V ROUND 2 2 3/16
CR6X440 6 μF X 400V OVAL 2 1/16 2 3/16 1 1/4
CR6X440R 6 μF X 440V ROUND 2 2 3/16
CR7.5X370 7.5 μF X 370V OVAL 2 1/16 2 3/16 1 1/4
CR7.5X370R 7.5 μF X 370V ROUND 2 2 3/16
CR7.5X440 7.5 μF X 440V OVAL 2 1/16 2 9/16 1 1/4
CR7.5X440R 7.5 μF X 440V ROUND 2 2 3/16
CR70X370 70 μF X 370V OVAL 2 13/16 4 15/16 1 3/4
CR70X370R 70 μF X 370V ROUND 2 3/8 3 15/16
CR70X440 70 μF X 440V OVAL 2 13/16 5 2/16 1 3/4
CR70X440R 70 μF X 440V ROUND 2 3/8 4 15/16
CR75X440 75 μF X 440V OVAL 2 13/16 5 2/16 1 3/4
CR80X370 80 μF X 370V OVAL 2 13/16 5 2/16 1 3/4
CR80X370R 80 μF X 370V ROUND 2 3/8 4 5/16
CR80X440 80 μF X 440V OVAL 2 13/16 5 2/16 1 3/4
CR80X440R 80 μF X 440V ROUND 2 3/8 4 15/16
CR90X440R 90 μF X 440V ROUND 2 3/8 5 2/16
PART NO.
MOTOR START DIMENSIONS
CAPACITORS μF X Voltage (DIA x H) (INCHES)
CS1000-1200X110 1000-1200 μF X 110-125V 1-13/16 x 3-3/8
CS108-130X110 108-130 μF X 110-125V 1-7/16 x 2-3/4
CS108-130X220 108-130 μF X 220-240V 1-13/16 x 3-3/8
CS108-130X330 108-130 μF X 330V 2-1/16 x 4-3/8
CS124-156X110 124-156 μF X 110-125V 1-7/16 x 2-3/4
CS124-156X165 124-156 μF X 165V 1-7/16 x 2-3/4
CS124-156X220 124-156 μF X 220-240V 1-13/16 x 3-3/8
CS124-156X330 124-156 μF X 330V 2-1/16 x 4-3/8
CS130-156X110 130-156 μF X 110V 1-7/16 x 2-3/4
CS130-156X220 130-156 μF X 220V 1-13/16 x 3-3/8
CS130-156X330 130-156 μF X 330V 1-13/16 x 4-3/8
CS145-175X110 145-175 μF X 110-125V 1-7/16 x 2-3/4
CS145-175X165 145-175 μF X 165V 1-7/16 x 2-3/4
CS145-175X220 145-175 μF X 220-240V 1-13/16 x 4-3/8
PART NO.
MOTOR START DIMENSIONS
CAPACITORS μF X Voltage (DIA x H) (INCHES)
CS145-175X330 145-175 μF X 330V 2-9/16 x 4-3/8
CS161-193X110 161-193 μF X 110-125V 1-7/16 x 2-3/4
CS161-193X165 161-193 μF X 165V 1-7/16 x 2-3/4
CS161-193X220 161-193 μF X 220-240V 1-13/16 x 4-3/8
CS161-193X330 161-193 μF X 330V 2-9/16 x 4-3/8
CS189-227X110 189-227 μF X 110-125V 1-7/16 x 2-3/4
CS189-227X220 189-227 μF X 220-240V 2-1/16 x 4-3/8
CS189-227X330 189-227 μF X 330V 2-9/16 x 4-3/8
CS200-240X110 200-240 μF X 110-125V 1-7/16 x 2-3/4
CS21-25X110 21-25 μF X 110-125V 1-7/16 x 2-3/4
CS21-25X220 21-25 μF X 220-240V 1-7/16 x 2-3/4
CS21-25X330 21-25 μF X 330V 1-7/16 x 2-3/4
CS216-227X220 216-227 μF X 220-240V 2-1/16 x 4-3/8
CS216-259X110 216-259 μF X 110-125V 1-7/16 x 3-3/8
CS216-259X220 216-259 μF X 220-240V 2-1/16 x 4-3/8
CS216-259X330 216-259 μF X 330V 2-9/16 x 4-3/8
CS233-280X110 233-288 μF X 110V 1-7/16 x 3-3/8
CS233-280X220 233-288 μF X 220V 2-1/16 x 4-3/8
CS233-292X110 233-292 μF X 110-125V 1-7/16 x 3-3/8
CS233-292X165 233-292 X μF 165V 1-13/16 x 3-3/8
CS233-292X220 233-292 μF X 220-240V 2-1/16 x 4-3/8
CS25-30X110 25-30 μF X 110-125V 1-7/16 x 2-3/4
CS25-30X220 25-30 μF X 220-240V 1-7/16 x 2-3/4
CS25-30X330 25-30 μF X 330V 1-7/16 x 3-3/8
CS270-324X110 270-324 μF X 110-125V 1-7/16 x 3-3/8
CS270-324X165 270-324 μF X 165V 1-13/16 x 3-3/8
CS270-324X220 270-324 μF X 220-240V 2-1/16 x 4-3/8
CS270-324X330 270-330 μF X 330V 2-9/16 x 4-3/8
CS280-336X220 280-336 μF X 220V 2-1/16 x 4-3/8
CS300-360X110 300-360 μF X 110-125V 1-13/16 x 3-3/8
CS300-360X330 300-360 μF X 330V 2-9/16 x 4-3/8
CS30-36X110 30-36 μF X 110-125V 1-7/16 x 2-3/4
CS30-36X220 30-36 μF X 220-240V 1-7/16 x 2-3/4
CS30-36X330 30-36 μF X 330V 1-13/16 x 3-3/8
CS320-384X220 320-480 μF X 220V 2-1/16 x 4-3/8
CS324-388X110 324-388 μF X 110-125V 1-13/16 x 3-3/8
CS324-388X330 324-388 μF X 330V 2-9/16 x 4-3/8
CS340-408X110 340-408 μF X 110-125V 1-13/16 x 3-3/8
CS36-43X110 36-43 μF X 110-125V 1-7/16 x 2-3/4
CS36-43X220 36-43 μF X 220-240V 1-7/16 x 2-3/4
CS36-43X330 36-43 μF X 330V 1-7/16 x 3-3/8
CS378-440X110 378-440 μF X 110-125V 1-13/16 x 3-3/8
CS400-480X110 400-480 μF X 110-125V 1-13/16 x 3-3/8
CS400-480X220 400-480 μF X 220V 2-1/16 x 4-3/8
CS430-516X110 430-516 μF X 110V 1-13/16 x 3-3/8
CS43-56X110 43-56 μF X 110-125V 1-7/16 x 2-3/4
CS43-56X220 43-56 μF X 220-240V 1-7/16 x 2-3/4
CS43-56X330 43-56 μF X 330V 1-13/16 x 3-3/8
CS460-552X110 460-552 μF X 110-125V 1-13/16 x 3-3/8
CS53-70X330 53-70 μF X 330V 1-13/16 x 3-3/8
CS540-648X110 540-648 μF X 110-125V 1-13/16 x 3-3/8
CS56-72X110 56-72 μF X 110-125V 1-7/16 x 2-3/4
CS56-72X220 56-72 μF X 220-240V 1-7/16 x 3-3/8
CS56-72X330 56-72 μF X 330V 1-13/16 x 3-3/8
CS590-708X110 590-708 μF X 110-125V 1-13/16 x 3-3/8
CS64-77X110 64-77 μF X 110-125V 1-7/16 x 2-3/4
CS64-77X220 64-77 μF X 220-240V 1-7/16 x 2-3/4
CS64-77X330 64-77 μF X 330V 1-13/16 x 3-3/8
CS708-850X110 708-850 μF X 110-125V 1-13/16 x 3-3/8
CS72-88X110 72-88 μF X 110-125V 1-7/16 x 2-3/4
CS72-88X220 72-88 μF X 220-240V 1-7/16 x 2-3/4
CS72-88X330 72-88 μF X 330V 2-1/16 x 3-3/8
CS829-995X110 829-995 μF X 110-125V 1-13/16 x 3-3/8
CS88-108X110 88-108 μF X 110-125V 1-7/16 x 2-3/4
CS88-108X220 88-108 μF X 220-240V 1-13/16 x 3-3/8
CS88-108X330 88-108 μF X 330V 2-1/16 x 3-3/8
Single Motor Run Capacitors
Start Capacitors
Start Capacitors
®
®
H
V
A
C
11
Contactors
H
V
A
C

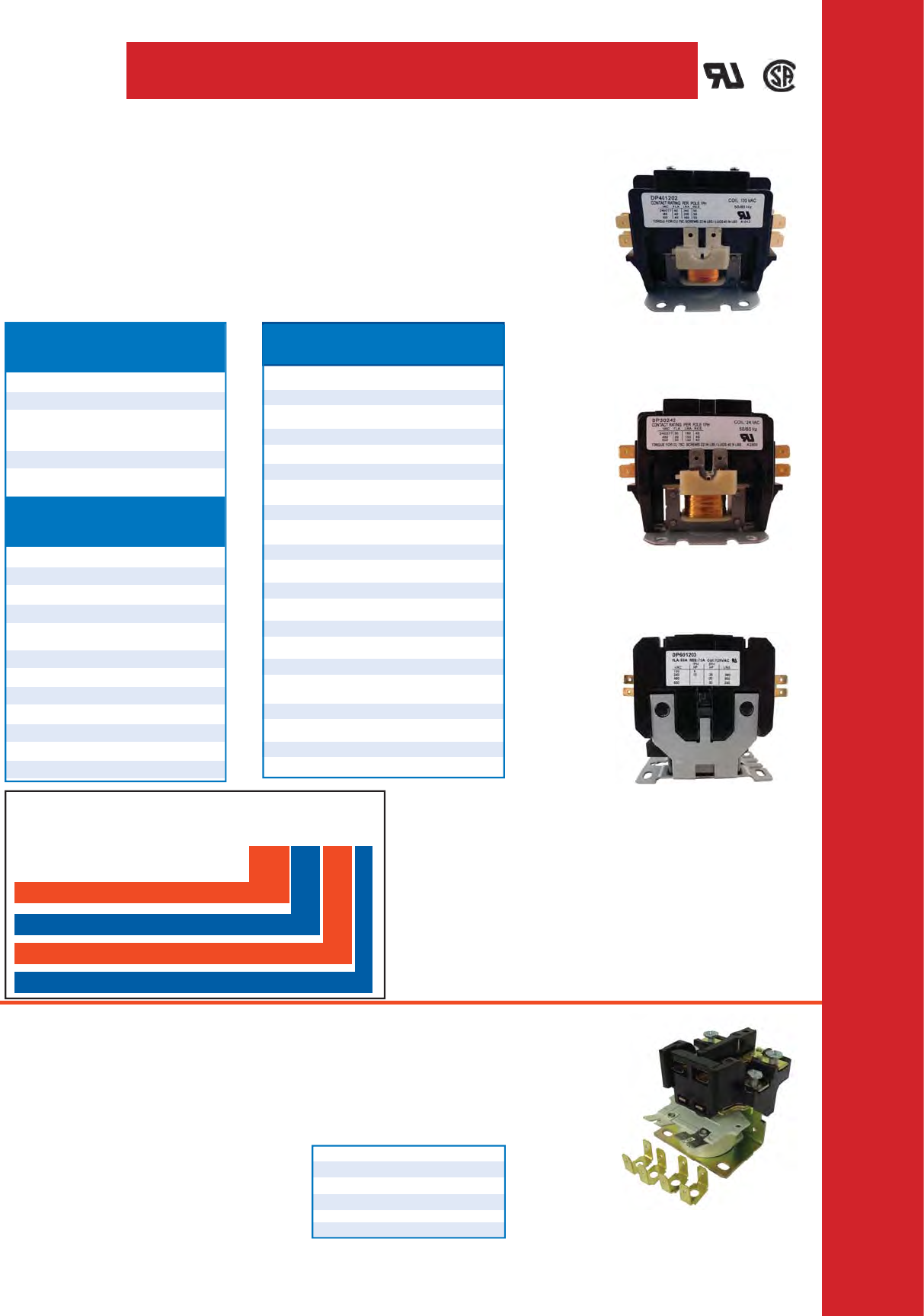

Definite Purpose contactors
• Silver Cadmium Oxide Contacts
• Ranges: 20-90 FLA
• Poles: 1.5, 2 & 3
• Coil Voltages: 24, 120 & 240 VAC
• Terminations: Box Lug
• Temperature Range: -40°F to 150°F (-40°C to 65°C)
• UL & CSA Approved
1.5 POLE FULL LOAD COIL
PART NO. AMPS VOLTAGE
DP25241 25 24
DP251201 25 120
DP252401 25 240
DP30241 30 24
DP301201 30 120
DP302401 30 240
2 POLE FULL LOAD COIL
PART NO. AMPS VOLTAGE
DP20242 20 24
DP201202 20 120
DP202402 20 240
DP25242 25 24
DP251202 25 120
DP252402 25 240
DP30242 30 24
DP301202 30 120
DP302402 30 240
DP40242 40 24
DP401202 40 120
DP402402 40 240
3 POLE FULL LOAD COIL
PART NO. AMPS VOLTAGE
DP25243 25 24
DP251203 25 120
DP252403 25 240
DP30243 30 24
DP301203 30 120
DP302403 30 240
DP40243 40 24
DP401203 40 120
DP402403 40 240
DP50243 50 24
DP501203 50 120
DP502403 50 240
DP60243 60 24
DP601203 60 120
DP602403 60 240
DP75243 75 24
DP751203 75 120
DP752403 75 240
DP90243 90 24
DP901203 90 120
DP902403 90 240
® ®
Denite Purpose
D P 3 0 2 4 2
Full Load Amps
Coil Voltage
# of Poles
Part Number Key
Compact, Universal Design Allows Replacement of Most Common Brands.
SMC11
2 Pole Magnetic Line Contactor
• Non-Positional
• Replaces Mars® 18001 (exact) and Honeywell®
R850B1146, Packard® C18001
• Includes 4 Terminals and 4 Screws
• UL File Number E328772 Contacts DPST
Coil Voltage 24 VAC
Full Load Amps 30 Amps
Locked Rotor Amps 120
Resistive Load Amps 30
Frequency 50/60 Hz
Specifications
12
Contactors
GLOBAL
PART ARROW CUTLER CUTLER
NO. GE® API® HART® HAMMER® DIVERSITECH® ELMWOOD® FURNAS® GE® GEMLINE® HAMMER®
DP25241 CR453CB3HAA *** C251NU10 C25CNB125T *** *** 45DG10AJD8A CR353CB3AH1 *** 4140
DP251201 CR453CB3AAA *** C251NU20 C25CNB125A *** *** 45DG10AFD8A CR353CB3AA1 *** 4141
DP252401 CR453CB3BAA *** C251NU30 C25CNB125B *** *** 45DG10AGA CR353CB3AB1 *** 4142
DP30241 CR453CC3HAA *** C301NU10 C25CNB130T *** *** 45EG10AJA CR353CD3AH1 *** 4143
DP301201 CR453CC3AAA *** C301NU20 C25CNB130A *** *** 45EG10AJA CR353CD3AA1 *** 4144
DP302401 CR453CC3BAA *** C301NU30 C25CNB130B *** *** 45EG10AGA CR353CD3AB1 *** 4145
DP20242 CR453CA2HAA *** C202U10 C25BNB220T *** 30BO20 45CG20AJ CR353CA2AH1 *** 4101
DP201202 CR453CA2AAA *** C202U20 C25BNB220A *** 30BO-20 45CG20AF CR353CA2AA1 *** 4102
DP202402 CR453CA2BAA *** C202U30 C25BNB220B *** *** 45CG20AG Same *** 4103
DP25242 CR453CB2HAA *** C252U10 C25BNB225T DP25224 30CO-20 45DG20AJ CR353CB2AH1 *** 4104
DP251202 CR453CB2AAA *** C252U20 C25BNB225A DP252120 30CO-20 45DG20AF CR353CB2AA1 *** 4105
DP252402 CR453CB2BAA *** C252U30 C25BNB225B DP252240 30CO-20 45DG20AG CR353CB2AB1 *** 4106
DP30242 CR453CC2HAA SA2S3024V C302U10 C25BNB230T DP30224 30EO-20 45EG20AJ CR353AC2AH1 *** 4107
DP301202 CR453CC2AAA SA2S30120V C302U20 C25BNB230A DP302120 30EO-20 45EG20AF CR353AC2AA1 *** 4108
DP302402 CR453CC2BAA SA2S30240V C302U30 C25BNB230B DP302240 30EO-20 45EG20AG CR353AC2AB1 *** 4109
DP40242 CR453CE2HBB SA2M4024V ACC420U10 C25DNF240T DP40224 30FO-20 45GG20AJ CR353AD2BH1 *** 4161
DP401202 CR453CE2ABB SA2M40120V ACC420U20 C25DNF240A DP402120 30FO-20 45GG20AF CR353AD2BA1 *** 4162
DP402402 CR453CE2BBB SA2M4024V ACC420U30 C25DNF240B DP402240 30FO-20 45GG20AG CR353AD2BB1 *** 4163
DP25243 CR453AB3HAA *** ACC220U10 C25DND325T *** 30DO-30 42AF35AJ CR353AB3AH1 DP2530 4110
DP251203 CR453AB3AAA *** ACC220U20 C25DND325A *** 30DO-30 42AF35AF CR353AB3AA1 DP2531 4111
DP252403 CR453AB3BAA *** ACC220U30 C25DND325B *** 30DO-30 42AF35AG CR353AB3AB1 DP2532 4112
DP30243 CR453AC3HAA SA3S3024V ACC330U10 C25DND330T DP30324 30EO-30 42BF35AJ CR353AC3AH1 DP3030 4113
DP301203 CR453AC3AAA SA3S30120V ACC330U20 C25DND330A DP303120 30EO-30 42BF35AF CR353AC3AA1 DP3031 4114
DP302403 CR453AC3BAA SA3S30240V ACC330U30 C25DND330B DP303240 30EO-30 42BF35AG CR353AC3AB1 DP3032 4115
DP40243 CR453AD3HBB SA3M4024V ACC430U10 C25DNF340T DP40324 30FO-30 42CF35AJ CR353AD3BH1 DP4030 4116
DP401203 CR453AD3ABB SA3M40120V ACC430U20 C25DNF340A DP403120 30FO-30 42CF35AF CR353AD3BA1 DP4031 4117
DP402403 CR453AD3BBB SA3M40240V ACC430U30 C25DNF340B DP403240 30FO-30 42CF35AG CR353AD3BB1 DP4032 4118
DP50243 CR353FE3BH1 SA3G5024V ACC530U10 C25FNF350T DP50324 30GO-30 42DF35AJ CR353FE3BH1 DP5030 4128
DP501203 CR353FE3BA1 SA3G50120V ACC530U20 C25FNF350A DP503120 30GO-30 42DF35AF CR353FE3BA1 DP5031 4129
DP502403 CR353FE3BB1 SA3G50240V ACC530U30 C25FNF350B DP503240 30GO-30 42DF35AG CR353FE3BB1 DP5032 4130
DP60243 CR353FF3BH1 SA3A6024V ACC530U10 C25FNF360T DP60324 30HO-30 42EF35AJ CR353FF3BH1 DP6030 4131
DP601203 CR353FF3BA1 SA3A60120V ACC530U20 C25FNF360A DP603120 30HO-30 42EF35AF CR353FF3BA1 DP6031 4132
DP602403 CR353FF3BB1 SA3A60240V ACC530U30 C25FNF360B DP603240 30HO-30 42EF35AG CR353FF3BB1 DP6032 4133
DP75243 CR353EG3BH1 *** ACC730U10 C25FNF375T DP75324 *** 42FE35AJ CR353EG3BH1 *** 4134
DP751203 CR353EG3BA1 *** ACC730U20 C25FNF375A DP753120 *** 42FE35AF CR353EG3BA1 DP7531 4135
DP752403 CR353EG3BB1 *** ACC730U30 C25FNF375B DP753240 *** 42FE35AG CR353EG3BB1 DP7532 4136
DP90243 CR353EH3BH1 *** *** C25GNF390T DP90324 *** 42GE35AJ CR353EH3BH1 *** 4137
DP901203 CR353EH3BA1 *** ACC930U20 C25GNF390A DP903120 *** 42GE35AF CR353EH3BA1 DP9031 4138
DP902403 CR353EH3BB1 *** ACC930U30 C25GNF390B DP903240 *** 42GE35AG CR353EH3BB1 DP9032 4139
PART JOSLYN MA LINE MARS PACKARD / PRODUCTS
NO. HONEYWELL® HONEYWELL® CLARK® POWER PRO® ECONOMY® FASCO® UNLIMITED® RBM/ESSEX® SQUARE D® STEVECO®
DP1025A5005 *** A77306654A3 *** *** 1S25A 310015QO1XXXA *** 8910DP21 94385
DP1025B5046 *** A77306654A1 *** *** 1S25B 310015T01XXXA *** *** 94386
DP1025C5045 *** A77306654A2 *** *** 1S25C 310015U01XXXA *** *** 94387
DP1030A5013 *** A77306653A3 *** 13067/13101 1S30A 310015Q02XXXA *** 8910DP12 94388
DP1030B5020 *** A77306653A1 *** 13068 1S30B 310015T02XXXA *** *** 94389
DP1030C5029 *** A7730665312 *** 13069 1S30C 310015U02XXXA *** *** 94390
DP2020A5021 *** A77306680A3 *** 13071 2S20A 310020Q03XXXA 143-1 DP12V14 90234
DP2020B5038 *** A77306680A1 *** 13072 2S20B 310020T03XXXA 143-1 DP12VO2 90235
DP2020C5037 *** A77306680A2 *** 13073 2S20C 310020U03XXXA *** *** 90236
*** *** A77306660A3 *** 13077 *** *** 143-6 DP22V14 ***
*** *** A77306660A1 *** 13078 *** *** 143-6 DP22VO2 ***
*** *** A77306660A2 *** 13079 *** *** 143-6 DP22VO9 ***
DP2030A5004 DP2030A1003 A77306657A3 8910DP32V14 14321/13104 C2S30A 310020Q06XXXA 143-7 DP32V14 90244
DP2030B5003 DP2030B1002 A77306657A1 *** 14322 C2S30B 310020T06XXXA 143-7 DP32VO2 90245
DP2030C5002 DP2030C1001 A77306657A2 *** 14323 C2S30C 310020U06XXXA 143-7 DP32VO9 90246
DP2040A5003 *** A77309045A3 8910DP42V14 14421 C2S40A 310020Q18XXXA 154-4 DPA42V14 ***
DP2040B5002 *** A77309045A1 *** 14422 C2S40B 310020T18XXXA 154-4 DPA42VO2 ***
DP2040C5001 *** A77309045A2 *** 14423 C2S40C 310020U18XXXA 154-4 DPA42VO9 ***
DP3025A5003 DP3025A1002 A77309040A3 *** 13001 3M25A 310030Q8XXXAH 154-2 8910DPA23 90160
DP3025B5002 DP3025B1001 A77309040A1 *** 13002 3M25B 310030T8XXXAH 154-2 DPA23VO2 90161
DP3025C5001 DP3025C1000 A77309040A2 *** 13003 3M25C 310030U8XXXAH 154-2 DPA23VO9 90162
DP3030A5003 DP3030A1002 A77309044A3 8910DPA33V14 14331/13007 C3M30A 310030Q9XXXAH 154-3 DPA33V14 90163
DP3030B5002 DP3030B1001 A77309044A1 8910DPA33V02 13008 C3M30B 310030T9XXXAH 154-3 DPA33V02 90164
DP3030B5001 DP3030C1000 A77309044A2 8910DPA33V09 13009 C3M30C 310030U9XXXAH 154-3 DPA33VO9 90165
DP3040A5002 DP3040A1001 A77309046A3 8910DPA43V14 14431/13013 C3M40A 310030Q10XXXAH 154-4 DPA43V14 90170
DP3040B5001 DP3040B1000 A77309046A1 8910DPA43V02 13014 C3M40B 310030T10XXXAH 154-4 DPA43VO2 90171
DP3040C5000 DP3040C1009 A77309046A2 8910DPA43V09 14433/13015 C3M40C 310030U10XXXAH 154-4 DPA43VO9 90172
DP3050A5001 DP3050A1000 A77288514A3 8910DPA53V14 13200 C3L50A 310030Q16XXXCG *** 8910MO3 92459
DP3050B5000 DP3050B1009 A77288514A1 8910DPA53V02 13201 C3L50B 310030T16XXXCG *** 8910MO3 92460
DP3050C5009 DP3050C1008 A77288514A2 8910DPA53V09 13202 C3L50C 310030U16XXXCG *** 8910MO3 92461
DP3060A5000 DP3060A1009 A77288517A3 8910DPA63V14 13220 C3L60A 310030Q17XXXCG *** 8910NO3 92463
DP3060B5009 DP3060B1008 A77288517A1 8910DPA63V02 13221 C3L60B 310030T17XXXCG *** 8910NO3 92464
DP3060C5008 DP3060C1007 A77288517A2 8910DPA63V09 13222 C3L60C 310030U17XXXCG *** 8910NO3 92465
DP3075A5008 DP3075A1007 A77288520A3 *** 13240 C3L75A 3100Y30Q75XXXCG *** *** 92467
DP3075B5007 DP3075B1006 A77288520A1 *** 13241 C3L75B 3100Y30T75XXXCG *** 8910PO3 92468
DP3075C5006 DP3075C1005 A77288520A2 *** 13242 C3L75C 3100Y30U75XXXCG *** *** 92469
*** DP3090A1006 *** *** 13260 C3L90A 3100Y30Q90XXXCG *** *** ***
*** DP3090B1005 *** *** 13261 C3L90B 3100Y30T90XXXCG *** 8910Q03 ***
*** DP3090C1004 *** *** 13262 C3L90C 3100Y30U90XXXCG *** *** ***
DP25241
DP251201
DP252401
DP30241
DP301201
DP302401
DP20242
DP201202
DP202402
DP25242
DP251202
DP252402
DP30242
DP301202
DP302402
DP40242
DP401202
DP402402
DP25243
DP251203
DP252403
DP30243
DP301203
DP302403
DP40243
DP401203
DP402403
DP50243
DP501203
DP502403
DP60243
DP601203
DP602403
DP75243
DP751203
DP752403
DP90243
DP901203
DP902403
H
V
A
C
Cross Reference
13
H
V
A
C
is page is intentionally le blank.
14
tpmpu

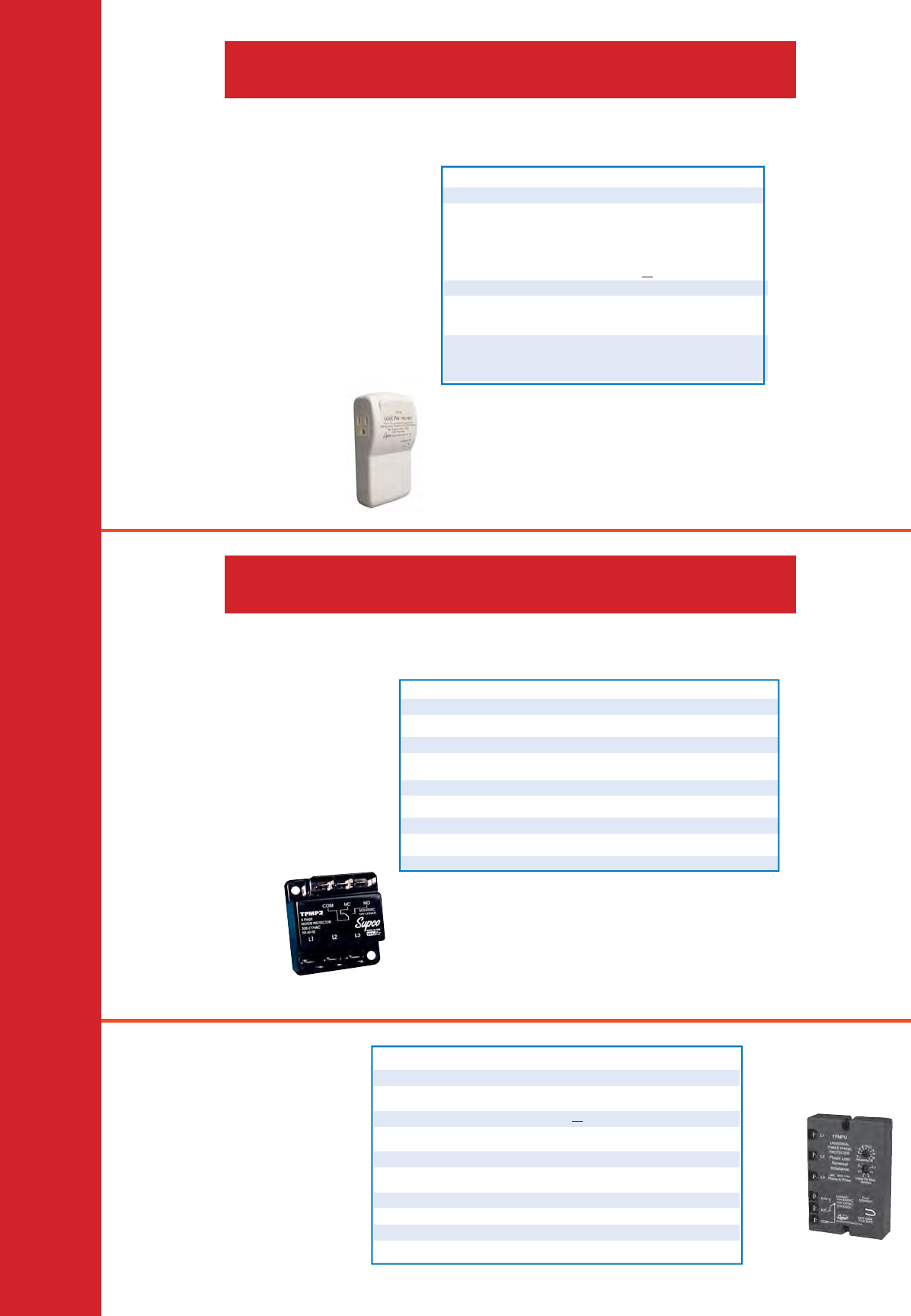

Universal 3-Phase Motor Protector
• Low Cost Universal ree Phase
Motor Protection
• Easy Installation
• Minimizes Inventory
• Monitors and Protects Against
Phase Loss, Reversal and Imbalance
• Response Time 80 Milliseconds
Maximum
• Bright LED For On and Fault
Indications
TPMP2
ree Phase Motor Protector
• Low Cost ree Phase Motor Protection
• Easy Installation
• Compact Design
• Monitors and Protects Against Phase
Loss and Imbalance Only
• Operating Temperature -40°F to 167°F
(-40°C to 75°C)
• 1/4” Male Spade Terminal Connections
H
V
A
C
Input Line Voltage 208 - 277 VAC
Control Voltage 18 - 240 VAC
Frequency 50/60 Hz
Imbalance Fixed 7%
Total Power Consumption 3 VA Maximum
Contact Type N.O. & N.C. Type C
Resistive 5 AMP 240 VAC/10 AMP 120 VAC
Fire Resistive Plastic UL-94 VO
Dimensions 2.35” x 2.43” x 1.1” (59.7 x 61.7 x 27.9 mm)
Weight 2 oz. (54 gr)
Input Line Voltage 180 - 600 VAC
Control Voltage 18 - 240 VAC
Frequency 50/60 Hz (cut wire for Hz)
Imbalance Adjustable +4 to 20%
Total Power Consumption 3 VA Maximum
Contact Ratings 10 AMP SPDT
Resistive 10 AMP 240 VAC, 12 AMP 120 VAC/24 VAC
Inductive 4.5 AMP 230 VAC- Cos. 0 0.6
Fire Resistive Plastic UL-94 VO
Dimensions 5.35” x 3.68” x 1.26” (136 x 93.5 x 32 mm)
Weight 6.35 oz. (180 gr)
APP120
All Purpose Protector
• Helps Prevent Blown Fuses
• Short Cycle Preparation
• Prevents Operation in Low Voltage Conditions
• Prevents False Starting Attempts
• Easy Installation
• LED to Indicate Proper Operation
• Automatic Restarts
Specifications
Specifications
Motor Protectors
Minimum Starting Volts 90 VAC single phase
Operating Volts 115 VAC single phase
Maximum Switching 1.0 HP @ 115 VAC (12,000 BTU)
General Specifications
Time Delay 4 minutes +1 minute
Power consumption 10 mA
Operating Temperature 14°F to 158°F
(-10°C to 70°C)
Size 9.055” X 4.72” X 3.15”
(230mm X 120mm X 80mm)
Specifications
15
Time Delays
TD Series Time Delays
• Fixed or Adjustable Delay Ranges • Operating Temperature Range 0°F to 160°F (-18°C to 71°C)
• Initiates Timer in 70 Milliseconds • Compact Size 2” x 2” x 0.75” (5.08 x 5.08 x 1.9 cm)
• Broad Input Voltage Range (Pilot Circuit) • Non Positional Single Hole Mounting
19 to 250 VAC/VDC, 50/60 Hz (TD60) • All Parameters are Subject to Change as per Special Requirements
19 to 250 VAC ONLY, 50/60 Hz (TD70) • By-pass a Control or Device During Start Up
• Maximum Load 1.0 Amp, 10 Amp Inrush • Helps to Reduce Power Surges in Multiple Compressor Applications
• Varying Models Work With or Without
Anticipator Type ermostats
• Terminal or Wire Connections Available
TD60 Series
Delay on Make Timers (DOM)
• Upon Application of Power the Time Delay Initiates. On Completion of Selected
Delay Period, the Load is Energized. Timer will Reset on Power Interruption or
When ermostat Disconnects.
DELAY RANGE DELAY RANGE
PART NO. ADJUSTABLE FIXED (min) CONNECTIONS REPLACES
TD68** 6 sec to 8 min n/a 2 1/4” male terminals Diversitech® AC-800-ADM1 /
ICM® 105 / A-1 706 / Mars® 32391
TD69* 6 sec to 8 min n/a 2 1/4” male terminals Diversitech® AC-800-ADM1 /
ICM 102 / A-1 701 / Mars 32391
TD70 Series
Delay on Break Timers (DOB)
• Upon Application of Power the Load is Energized Immediately. When the
ermostat Opens or on Power Interruption the Load is De-energized and
the Time Delay Initiates. e Load will be Energized Again A er the Delay
has Elapsed.
DELAY RANGE DELAY RANGE
PART NO. ADJUSTABLE FIXED (min) CONNECTIONS REPLACES
TD72** 6 sec to 5 min n/a 2 1/4” male terminals Diversitech® ASC500-ADB1 /
ICM® 203 / Mars® 32392 / A-1 EAC-501-ADJ
TD73* 6 sec to 5 min n/a 2 1/4” male terminals Diversitech® ASC500-ADB1 /
ICM® 203 / Mars® 32392 / A-1 EAC-501-ADJ
*Cut the jumper to use in 120/240 volts. **The TD72 is not for use with a cooling anticipator.
H
V
A
C
*Cut the jumper to use in 120/240 volts. **The TD68 is not for use with a cooling anticipator.
16

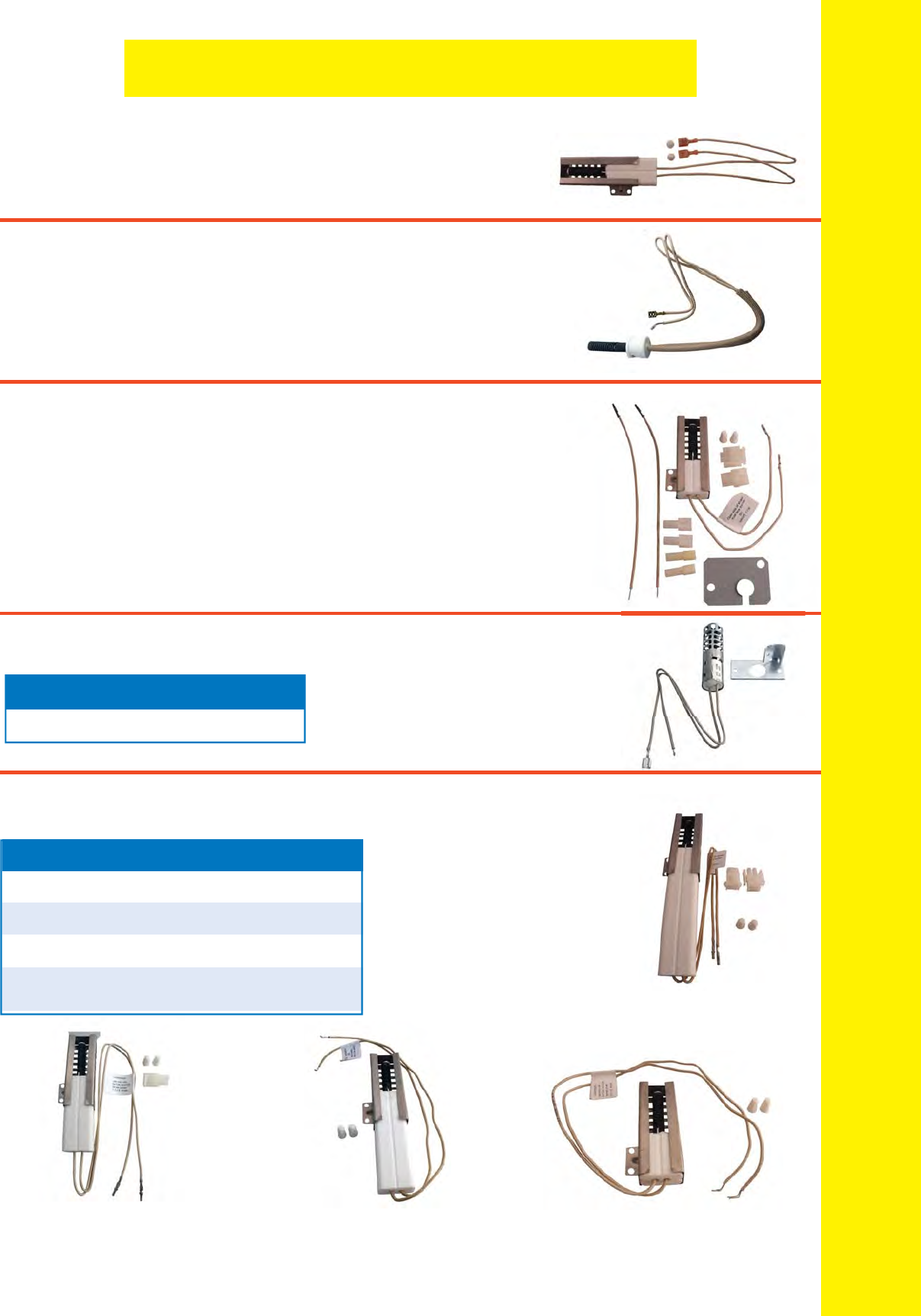

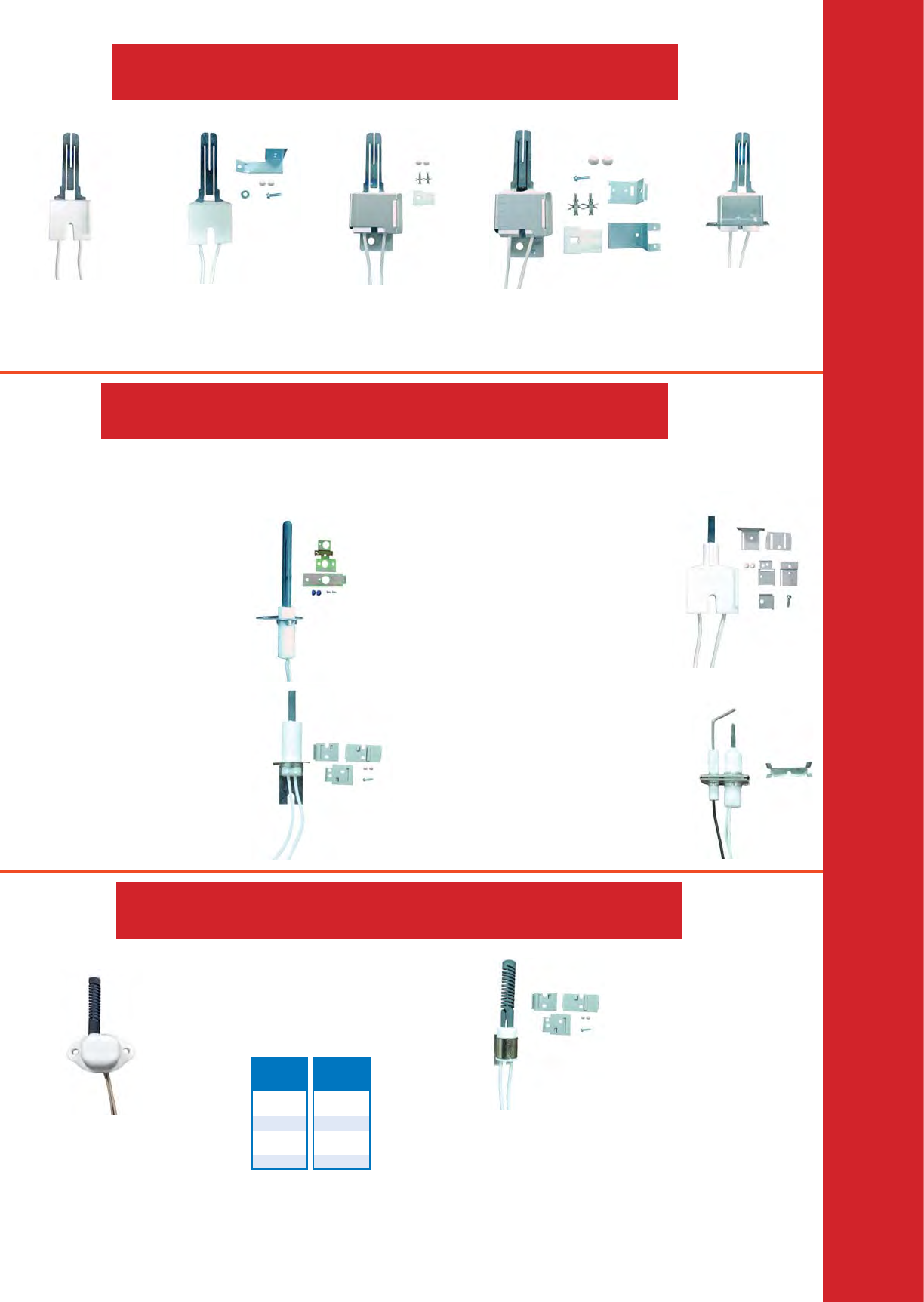

Direct Replacement Furnace Igniters
skit03033
Replaces Trane® KIT03033
• Steady Current: 4.25 Amps @ 115 VAC
• Max. Current: 5 Amps @ 132 VAC
• Time to Temp (1800°F): < 17 Seconds
splt3400
Replaces Lochinvar® PLT3400
• Steady Current: 4.25 Amps @ 115 VAC
• Max. Current: 5 Amps @ 132 VAC
• Time to Temp (1800°F): < 17 Seconds
S0230K00000S
Replaces Goodman® 0230K00000S
• Steady Current: 4.25 Amps @ 115 VAC
• Max. Current: 5 Amps @ 132 VAC
• Time to Temp (1800°F): < 17 Seconds
Flat Silicon Carbide Furnace Igniters
H
V
A
C
• Time to Temperature (1800°F): < 17 Seconds @ 102 VAC
• Voltage: 120 VAC
• Amperage: 3.5-5 AMPS @132 VAC Maximum
• Cold Resistance: 40-100 OHMS @ 75°F +/- 10°F
ig405
Replaces: 41-405
ig406
Replaces: 41-406
ig407
Replaces: 41-407
ig408
Replaces: 41-408
ig409
Replaces: 41-409
ig4000
Universal
Replacement
super kit
5 Brackets & Hardware Replaces:
41-402, 71-403, 41-404,
41-405, 41-407, 41-408,
41-409, 41-410, 41-412,
41-414, 41-1090, 41-238,
41-242
ig401
Replaces: 41-401
ig402K Kit
Replaces: 41-402,
41-408, 41-410,
41-411
ig403K Kit
Replaces: 41-403,
41-404, 41-407
41-409
ig404
Replaces: 41-404
17
Silicon Nitride Furnace Igniters
Choose from 3 Universal Igniter Kits!
SSN2000
• Economic Design
• < 17 Second Time to Temperature
• Replaces Over 100 OEM Igniters
• > 50,000 Cycles
• 1 Year Warranty
SSN4000
• Miniature Design
• < 10 Second Time to Temperature
• Replaces Over 150 OEM Igniters
• > 200,000 Cycles
• Replaces Honeywell® Glow y®
#Q3200U1004
• 3 Year Warranty
SSN3000
• Robust Design
• < 17 Second Time to Temperature
• Replaces Over 150 OEM Igniters
• > 50,000 Cycles
• 2 Year Warranty
SSN24
• Replaces Honeywell® Q3400A1024
• Compatible with Honeywell® 1st and
2nd Generation Smart Valve
• Includes Igniter and Flame Rod
Round Silicon Carbide Furnace Igniters
Sig100 Series
Exact Replacement Round Igniters
• Replaces Exact OEM Round Igniters
PART
NO.
SIG100
SIG101
SIG102
SIG104
PART
NO.
SIG106
SIG107
SIG108
SIG109
Sig1100
Universal Igniter Kit
• Replaces Over 170 Igniters
• Includes 3 Brackets
ig410
Replaces: 41-410
ig411
Replaces: 41-411
ig412
Replaces: 41-412
ig414
Replaces: 41-414
ig418
Replaces: Goodman®
B14010-18S
H
V
A
C
Flat Silicon Carbide Furnace Igniters
18
Igniter Cross Reference
Amana®
10735002
10755002
B138196P01
B144676P02
B340039P01
B144676P01
American Appliance®
271B
American Standard®
IGN0030
American Water
Heater®
6905032
Arcoaire®
See ICP
Armstrong®
383228001
38322B001
Barnett Brass®
661924
661927
661928
Carrier®
LH33ZS001A
LH33ZS002
LH33ZS003
LH33ZS004
Claire Bros
C238
C238-1
C242
Coleman/Evcon
14740511
14740512
Detroit®/Brant Radiant®
14740512
201D
DMO®/Olsen®/ECR
Ind®
26789
20834
Dornback®
271W
Ducane®
20015201
Enerco Tech®
10399
EZ Flow®
62374
GE®/Hot Point®
WG37X11
WG37X34
Giant PV®
526000125
526000025
GMO Industries®
20834
Goodman®/Janitrol®
B1172606
B1193939
B1401009
Grimsby Stove®
ZCO-350
John Woods®/
GSW PV®
86483
71082
HB Smith®
50018
9050
HB Smith®
101344
1148245
Hupp Ind®
9050
ICP®/Heil®/
Arcoaire®/
Keeprite®/
Comfortmaker®/
Tempstar®/
Snyder General®
1009980
1096048
1009604
1001344
1380680
1148145
1096047
1380654
1380672
1148245
Integra®
6905032
3260618
Johnstone®
L37-698
L37-699
L37-700
L37-812
L37-814
L37-816
LB White Co®
120-07549
Lennox®
33J3701
96P01
36N77
98P77
98P78
Majestic®
75-92-104
75-92-105
75-92-104
95-92-105
Mars®
67930
Metzger®
201N
201W
Mor-Flo®
3200618
Nordyne®/
Tappan®
Frigidaire®/
Philco®/
Intertherm®/
Miller®
903110
105141000
632-0880
902661
902694
903758
632-3811
Norton®
101M
201D
201K
Norton®
201L
201M
201P
201W
271M
271N
271P
271R
271RS
271W
201A
271A
201R
201
271
271NM
Olsen®
26789
Raypack®
600915
Rheem®/Rudd®
62-22868-93
62-22441-01
62-22868-82
Roberts Gordon®
90434300
90436600
Robertshaw®/
Uniline®
41-238
41-242
41-402
41-403
41-404
41-405
41-407
41-408
41-409
41-410
41-412
41-1090
41-402N
41-403N
41-404N
41-405N
41-407N
41-408N
41-409N
41-410N
41-412N
Surface
Igniter®
FC007
FC011
FC014
FC018
FC020
FC021
FC022
FC023
FC024
FC025
FC027
Surface Igniter®
FC028
FC029
FC030
FC032
FC034
FC035
FC037
FC040
FC041
FC045
FC046
FC048
FC050
FC051
Starlite®
11120-100-1402
11120-100-1403
11120-100-1405
11120-100-1407
11120-100-1408
11120-100-1409
Superior Fireplace®
94851
Temp Controls®
9302-094
Trane®
3400339P01
B340039P01
B12996P01
B144676P01
B144676P02
B138196P01
IGN21
IGN26
Trane®
IGN28
IGN30
IGN34
B144676P01
B144676P02
B138196P01
IGN21
IGN23
IGN26
IGN28
IGN30
IGN34
Trianco
Heatmaker®
2600-359
Viessmann®
9302-093
9302-094
Wayne Home
Equipment®
62821-001
62821-002
Weil McLain®
29074
511-330-139
511-330-193
511-330-190
Whirlpool®
99794323
99794328
White LB Co®
120-07549
White Rodgers®
767A-301
767A-303
767A-306
767A-309
767A-350
767A-352
767A-353
767A-354
767A-356
767A-364
767A-365
767A-366
767A-370
767A-371
767A-372
Williamson®
09050
York®
025-32626-000
473-12509-001
373-09154-700
025-27774-000
025-29043-000
025-29050-000
025-27766-000
025-30277-000
025-32638-002
025-32625-000
025-31801-000
373-05342-700
025-27766-000
SSN3000 Universal Silicon Nitride S0230K00000S
Goodman®
0230K00000S
SPLT3400
Lochinvar®
PLT3400
SKIT03033
Trane®
KIT03033
Direct Replacement
American Appliance® Comfortmaker® HB Smith® Mars® Norton® Robertshaw® Wayne Home Equip® White Rodgers® Williamson®
271B 1096048 50018 67930 201,201D,201J,201K,201L 41-410, 41-411, 41-412, 62-22441-01 767A-361 9050
American Road Equip® Comfort Zone® Heil® 67931 201M, 201N, 201R, 201W 41-413, 41-414, 41-801N 62-22441-02 767A-364 York Intl®
201W 150114-04-01 1096048 67932 201Y, 271, 271D, 271M Snyder General Tempstar® Weil Mclain® 767A-365 025-27766-000
Arcoaire® Detroit Radiator® Hupp Industries® Metzger® 271N, 271NM, 271P 380654 511-330-139 767A-366 025-27774-000
1096048 201D 9050 201W 271W, 271Y 1380672 511-330-190 767A-370 373-05342-700
Carrier Corp® 20015201 ICP® Mor Flo® Perfection Schwank® 1380680 511-330-193 767A-371 025-29043-000
1380680 DMO Industries® 1009604 3200618 108803-G1 Superior Fireplace® White LB Co® 767A-372 025-29050-000
Armstrong Air® 20834 1096048 3210401 Raypak® 94851 120-07549 767A-373 025-32625-000
38322B001 Dornback Furnace® 3200618 3200618 600915 Tempstar® White Rodgers® 767A-374 025-32626-000
Carlin® 271W Igniters Direct® Nordyne® Rheem® 1096048 21D64-2 767A-375 025-33241-000
87197S Ducane® HSIURK120V 105141000 62821-001 1148245 767A-301 767A-376 373-05342-700
LH33ZS001A 20015201 FC007 632-0770 62-22868-82 Trane® 767A-303 767A-377 473-12509-001
LH33ZS002 Enerco Tech® LB White® 632-0880 62-22868-93 340039P01, B138196P01 737A-306 767A-382
Claire Brothers® 10399 120-07549 902661 Roberts Gordon® B144676P01, B144676P02 767A-310 767A-383
C238 Evcon® Majestic® 902694 90434300 B340039P01, IGN21 767A-311 767A-384
C242 1474-051 75-92-104 903110 90436600 IGN23, IGN26, IGN30, IGN34 767A-350 F767A-357
Coleman® 1474-052 75-92-105 FC007 Robertshaw® Viessman® 767A-353 F767-A361
1474-051 Goodman® 41-402, 41-403, 41-404 9302-094 767A-354 F767-A365
SSN2000 Universal Silicon Nitride
H
V
A
C
Amana®
10735002
10755002
B138196P01
B144676P02
B340039P01
B144676P01
American Standard®
IGN0030
Arcoaire®
See ICP
Armstrong®
383322B001
Barnett Brass®
661924
661926
661927
661928
Carrier®
LH33ZS001A
LH33ZS002
LH33ZS003
LH33ZS004
Clare Bros®
C238
C238-1
C242
Coleman®/Evcon®
14740511
14740512
Detroit®/
Brant Radiant®
201D
DMO®/Olsen ECR
Ind®
26789
20834
Dornback®
271W
Ducane®
20015201
Enerco Tech®
10399
EZ Flow®
62374
GE/Hot Point®
WG37X11
WG37X34
Giant PV®
526000125
FC067
626000025
GMO®
20834
Goodman®/Janitrol®
B1193939
B11726-06
B1401009
Grimsby Stove®
ZCO-350
John Woods®/
GSW PV®
86483
71082
HB Smith®
50018
Honeywell®
Q3200U1004
Hupp Ind®
9050
Raypak®
600915
Snyder General®
1009980
1096048
1009604
1001344
1380680
1148145
1096047
1380654
1380672
1148245
Integra®
6905332
3260618
Johnstone®
L37-698
L37-699
L37-700
L37-812
L37-814
L37-815
L37-816
L40-765
Norton®
101M
201D
201K
201L
201M
201P
201W
271M
271N
271P
271R
271RS
271W
201A
271A
201R
201
271
271NM
Olsen®
26789
Raypack®
50015
600915
Rheem®
62-22441-01
62-22668-93
62-212868-82
62-22868-02
90434300
Roberts Gordon®
90436600
Robertshaw®/
Uniline®
41-402
41-403
41-404
41-405
41-407
41-408
41-409
41-410
41-1090
41-402N
41-403N
41-404N
41-405N
41-407N
41-408N
41-409N
41-410N
41-412N
41-802N
Starlite®
11120-100-1402
11120-100-1403
11120-100-1405
11120-100-1407
11120-100-1408
11120-100-1409
SSN4000 Universal Silicon Nitride
LB White Co®
120-07549
Lennox®
33J3701
96P01
36N77
98P77
98P78
Majestic®
75-92-104
75-92-105
Metzger®
201N
201W
Mor Flo®
3200618
Nordyne®/Tappan®
Frigidaire®/Philco®
Intertherm®/Miller®
903758
105141000
RH622286893
Nordyne®/Tappan®
Frigidaire®/Philco®
Intertherm®/Miller®
632-0770
632-0880
632245-0
902661
902694
903758
632-3811
632-3540
Surface Igniter®
FC007
FC024
FC035
FC046
FC050
FC051
FC055
Superior Fireplace®
94851
Temp Controls®
9302-094
Trane®
3400339P01
B340039P01
B12996P01
B144676P01
B144676P02
B138196P01
IGN21
IGN26
IGN28
IGN30
IGN34
B144676P01
B144676P02
B138196P01
IGN21
IGN23
IGN26
IGN28
IGN30
IGN34
Trianco Heatmaker®
2600-359
Viessmann®
9302-093
9302-094
Wayne Home Equip®
62821-001
62821-002
Weil McLain®
29074
511-330-139
511-330-193
511-330-190
Whirlpool®
99794323
99794328
Used In
Honeywell®
Smart Valves™
SV9500
SV9500M2603
SV9500M2674
SV9500M2682
SV9501M2528
SV9600
SV9600H
SV9401
Used In
Honeywell®
Smart Valves™
SV9402
SV9403
SV9501
SV9502
SV9503
SV9601
SV9602
Replaces Flame
Rod® Assemblies
1009524
1149856
42640001
Q3400A
Q3400A1016
Q3400A1024
Q3400A1040
Q3450
Q3480
Q3620
Mars®
68012
Igniters Direct®
AFN643
Packard®
IG9500
SSN24 Universal
Silicon Nitride (24V)
19
Igniter Cross Reference
H
V
A
C
Am. Road Equip®
201W
Armstrong Air®
38322B001
Claire Brothers®
C-238
C-242
Coleman®
1474-051
1474-052
DMO Industries®
20834
26789
Dornback Furnace®
271W
Enerco Tech®
10399
Evcon®
1474-051
1474-052
HUPP Industries®
9050
Majestic®
75-92-104
75-92-105
Mars®
67915
67919
68013
68016
97915
Metzger®
201N
201W
Mor Flo®
3200618
Nordyne®
105141000
632-0770
632-0880
201K, 201L
201R, 201W
271M, 271N
271W
Rheem®
62-22441-01
62-22868-02
62-22868-82
62-22868-93
Roberts Gordon®
90436600
Robertshaw®
41-402
41-402
41-408
41-410
41-411
Starlite®
1408, 1410
1056, 1066
1402, 1033
Superior
Fireplace®
94851
IG402K Flat Universal Silicon Carbide
Trane Company®
340039P01
B144676P01
B340039P01
IGN23
IGN34
Wayne Home
Equip.®
62821-001
62821-002
White LB
Company®
120-07549
White Rodgers®
767A-357
767A-371
767A-372
Williamson®
9050
Amana®
10735002
Arco Air®
See ICP
Armstrong®
38322B001
Clare Bros.®
C238
C238-1
Coleman®/Evcon®
14740511
14740512
Detroit/
Brant Radiant®
201D
DMO®/Olsen
ECR Ind.®
26789
20834
Dornback®
271W
Ducane®
20015201
Enerco Tech.®
10399
Goodman®/
Janitrol®
B1172606
B1193939
B1401009
B1401015
B1401018
John Woods®/
GSW P.V.®
86483
H.B. Smith®
50018
Hupp Ind®
9050
Raypak®
600915
Icp®/Heil®/
Arco Air®/
Comfortmaker®
Tempstar®
Keeprite®
1009604
1096047
1096048
1001344
1380680
1148245
Integra®
6905032
3260618
Johnstone®
L37-699
L37-700
L37-812
L37-814
L37-815
L37-816
L.B. White Co®
120-07549
IG4000 Flat Universal Silicon Carbide
Lennox®
33J3701
Majestic®
75-92-104
75-92-105
Metzger®
201N
201W
Mor-Flo®
3200618
Nordyne®/
Tappan®
Frigidaire®/
Philco®
Intertherm®/
Miller®
903110
105141000
RH622286893
632-0770
632-0880
902661
902694
903758
632-3811
632-3540
Rheem Rudd®
62-22868-93
62-22441-01
62-22868-82
Roberts-Gordon®
90434300
90436600
Superior
Fireplace®
94851
Trane
3400339P01
B340039P01
B12996P01
B144676P01
B144676P02
B138196P01
IGN21
IGN23
IGN26
IGN28
IGN30
IGN34
Viessmann®
9302-093
9302-094
Wayne Home
Equipment®
62821-001
62821-002
Weil McLain®
29074
511-330-139
511-330-193
511-330-190
Williamson®
09050
York®
025-32626-000
473-12509-001
373-09154-700
025-27774-000
025-29043-000
025-29050-000
025-27766-000
025-30277-000
025-32638-002
025-32625-000
025-31801-000
373-05342-700
Norton®
101M
201D
201K
201L
201M
201P
201W
271D
271M
271N
271P
271R
271RS
271W
271NM
Robertshw®/
Uniline®
41-238
41-242
41-402
41-403
41-404
41-405
41-407
41-408
41-409
41-410
41-412
41-414
41-1090
White
Rodgers®
767A-301
767A-303
767A-306
767A-310
767A-311
767A-350
767A-353
767A-354
767A-357
767A-361
767A-364
767A-365
767A-366
767A-370
767A-371
767A-372
Robertshaw®
41-412
EZ Flow®
62374
Goodman®
B1401009
B1401018
GSW®
71082
86483
Heil®/ Quaker®/
ICP®
1009604
1096048
1096047
Mars®
68014
Norton®
271NM
MB458902
MB478272
White Rodgers®
767A373
IG412 Flat Silicon
Carbide (Direct)
SIG1100 Round Universal Silicon Carbide
IG403K Flat Universal Silicon Carbide
Carrier Corp®
LH33ZS001A
LH33ZS002
LH33ZS003
LH33ZS004
Ducane®
20015201
Mars®
67916, 67918
67920
Norton®
201, 271
Raypak
600915
Roberts Gordon®
90434300
Robertshaw®
41-403
41-404
41-407
41-409
Snyder General®
1380654
1380672
1380680
Starlite®
1403, 1407, 1409
Trane Company®
B138196P01
B144676P02
IGN26, IGN30
Weil Mclain®
511-330-139
511-330-190
511-330-193
White
Rodgers®
767A-356
767A-357
767A-361
767A-365
767A-370
Robertshaw®
41-401
Amana®
B1336102
BD99182
10041601
Mars®
67914
Norton®
201A
271A
MB258909
Starlite®
1401
41-401
Trianco-Heatmaker®
2400-048
2400-286
2600-359
3079-100
9330-102
Johnstone®
L37-698
White Rodgers®
767A309
767A352
767A356
767A369
IG401 Flat Silicon
Carbide (Direct)
Robertshaw®
41-405
Detroit Radiant®
201D
Mars®
67917
Norton®
201D
271P
HB Smith®
50018
101344
1148245
Heil Quaker®
1001344
Johnstone®
L37-812
Norton®
201D
271D
271P
MB457026
MB478627
Starlite®
1405
Viessman®
9302094
White Rodgers®
767A361
York
International®
025-27766-000
025-27774-000
025-29043-000
025-29050-000
IG405 Flat Silicon
Carbide (Direct)
IG406 Flat Silicon
Carbide (Direct)
Robertshaw®
41-406
American Appliance®
271B
American Water
Heater®
6901800
6903767
6901800
6903767
6903768
Comfort Zone®
150114-04-01
Glowcore®
1950001
HSRK7
FY009
Johnstone®
L37-813
Lochinvar®
LCVT27021G
PLT2702
Mars®
67925
Mor Flo®
3200580
3210401
Norton®
201B
201J
201M
201N
201Y
271M
271Y
MB457027
MB478601
Perfection Swank®
108803-G1
Starlite®
1406
Weil McLain®
511-330-188
White Rodgers®
767A374
Robertshaw®
41-404
Norton®
271M
MB258912
MB478265
Weil McLain®
511-330-190
White Rodgers®
767A382
IG404 Flat Silicon
Carbide (Direct)
Robertshaw®
41-407
Amana®
B144676P02
Johnstone®
L37-814
Norton®
271M
MB457038
Startlite®
1407
Trane®
B144676P02
IGN30
White Rodgers®
767A376
IG407 Flat Silicon
Carbide (Direct)
RRobertshaw®
41-408
Amana®
B340039P01
Johnstone®
L37-815
Norton®
271N
MB457025
MB478266
Rheem®
62-22441-01
62-22668-93
Starlite®
1408
Trane®
IGN34
White Rodgers®
767A372
IG408 Flat Silicon
Carbide (Direct)
Robertshaw®
41-238
41-242
41-402
41-403
41-404
41-405
41-407
41-408
41-803
Superior
Fireplace®
94851
Surface
Igniter®
FC007
FC024
FC035
FC046
FC050
FC051
Trane®
3400339P01
B340039P01
B12996P01
B144676P01
B144676P02
B138196P01
IGN21
IGN23
IGN26
IGN28
IGN30
IGN34
Viessmann®
9302-093
9302-094
Wayne Home
Equip.®
62821-001
62821-002
Weil McLain®
29074
511-330-139
511-330-193
511-330-190
White Rodgers®
767A-301
767A-303
767A-306
767A-310
767A-311
767A-350
Amana®
10735002
Armstrong®
38322B001
Clare Bros.®
C238
C238-1
Coleman®/Evcon®
14740511
14740512
Detroit®/
Brant Radiant®
201D
DMO®/Olsen®/
ECR Ind.®
26789
20834
Dornback®
271W
Ducane®
20015201
Enerco Tech.®
10399
Giant P.V.®
526000125
526000025
Goodman®/Janitrol®
B1172606
B1193939
Grimsby Stove®
ZCO-350
John Woods®/ GSW P.V.®
86483
H.B. Smith®
50018
Hupp Ind®
9050
ICP®/Heil®/Arco Air ®
Comfortmaker®/
Tempstar®/Keeprite®
1096048
1009604
1001344
1380680
1148245
Integra®
6905032
3260618
Johnstone®
L37-699
L37-700
L37-812
L37-814
L37-815
L37-816
L.B. White Co®
120-07549
Lennox®
33J3701
Majestic®
75-92-104
75-92-105
Metzger®
201N
201W
Mor-Flo®
3200618
Nordyne®/
Tappan®/
Frigidaire®/
Philco®/
Intertherm®/
Miller®
903110
105141000
RH622286893
632-0770
632-0880
902661
902694
903758
632-3811
632-3540
Norton®
101M
201D
201K
201L
201M
201P
201W
271D
271M
271N
271P
271RS
271W
Raypak®
600915
Rheem Rudd®
62-22868-93
62-22441-01
62-22868-82
Roberts-
Gordon®
90434300
90436600
41-409
41-410
41-1090
White Rodgers®
767A-353
767A-354
767A-357
767A-361
767A-364
767A-365
767A-366
767A-370
767A-371
767A-372
Williamson®
09050
York®
025-32626-000
473-12509-001
373-09154-700
025-27774-000
025-29043-000
025-29050-000
025-27766-000
025-30277-000
025-32638-002
025-32625-000
025-31801-000
373-05342-700
Robertshaw®
41-409
Carrier®
LH33ZS001A
LH33ZS002
LH33ZS003
LH33ZS004
Ducane®
20015201
Johnstone®
L37-816
Norton®
201
271
MB457555
Raypak®
600915
Rheem®
90434300
Roberts Gordon®
90436600
Starlite®
1409
Snyder General®
1380654
1380672
1380680
Trane®
B138196P01
IGN26
IGN30
Weil McClain®
511-330-139
511-330-193
White Rodgers®
767A370
IG409 Flat Silicon
Carbide (Direct)
Robertshaw®
41-410
Amana®
B144676P01
Norton®
271N
MB457551
MB478270
Trane®
B144676P01
White Rodgers®
767A377
IG410 Flat Silicon
Carbide (Direct)
Robertshaw®
41-411
Norton®
271N
IG411 Flat Silicon
Carbide (Direct)
Robertshaw®
41-414
Arcoaire®/
Comfortmaker®/
Heil®/ICP®/Tempstar®
1096048, 1380680
Goodman® B14010-18
IG414 Flat Silicon
Carbide (Direct)
Mars®
68014
Norton®
271NM
White Rodgers®
767A384
Rheem®
62-22868-82
White
Rodgers®
767A383
Robertshaw®
41-418
Goodman®
B1401018S
IG418 Flat Silicon
Carbide (Direct)
Norton®
271NM
20
Duct Smoke Detection
H
V
A
C
duct smoke detection
InnovairFlex® combines an impressive collection of innovations designed to save you time and money and provide the
exibility you need in the eld. An adjustable housing overcomes mounting constraints. Plug-in, tool-free sampling tubes
speed installation. e front cover test/reset button simpli es test/maintenance. With these and many more, InnovairFlex is
reshaping duct smoke detection.
HVAC Systems Monitoring
D4120
Photoelectric Duct Smoke Detector
• 4-wire
• 100-4,000 ./min
• -4°F to 158°F (-20° to 70°C)
• 24 VAC/DC or 120 VAC
• 65mA max. at 24 VDC
• 2 Form C Auxiliary
D4120W
Watertight Photoelectric Duct Smoke Detector
• 4-wire
• 100-4,000 ./min
• -4°F to 158°F (-20° to 70°C)
• NEMA 4
• 24 VAC/DC or 120 VAC
• 65mA max. at 24 VDC
• 2 Form C Auxiliary
D4S
Photoelectric Sensor-only Component
• 4-wire
• 100-4,000 ./min
• -4°F to 158°F (-20° to 70°C)
• 24 VAC/DC or 120 VAC
• 65mA max. at 24 VDC
D4P120
Power-board-only Component
• 4-wire
• 100-4,000 ./min
• -4°F to 158°F (-20° to 70°C)
• 24 VAC/DC or 120 VAC
• 65mA max. at 24 VDC
• 2 Form C Auxiliary
2D51
Photoelectric No- ow/Low- ow Smoke Detector
• 4-wire
• 0-4,000 ./min
• -4°F to 158°F (-20° to 70°C)
• 24 VAC/DC or 120 VAC w/ B210LP
• 75mA max.
• 1 Form A & 1 Form C Auxiliary Relay
HVAC Accessories
RTS2
Multi-signaling Accessory
Without Strobe
• 20-29 VDC
• UL® S2522
RTS2-AOS
Multi-signaling Accessory
With Add-on Strobe
• 20-29 VDC
• UL® S2522
AOS
Add-on Strobe
RA100Z
Remote Annunciator
• 3.1-3.2 VDC
• UL® S2522
RTS151
Remote Test Station
• 2.8-32 VDC
• Alarm LED
• UL® S2522
RTS151KEY
Remote Test Station
With Key Test/Reset
• UL® S2522
APA151
Remote Annunciator With
Piezo Alert
• 16-33 VDC
• UL® S4011
®
®
P2W-P
2-Wire Horn Strobe
• Plug-in Design
• Tamper Resistant Construction
• Selectable 12V or 24V Operation
• Field Selectable Candela Settings
• Rotary Switch for Horn Tone & Volume
• Universal Mounting Plate
DST
Sampling Tubes
• DST1: Ducts Up to 1 Ft.
• DST1.5: Ducts 1 to 2 Ft.
• DST3: Ducts 2 to 4 Ft.
• DST5: Ducts 4 to 8 Ft.
• DST10: Ducts 8 to 12 Ft.
21
Duct Heaters
H
V
A
C
DH Series Duct Heater Coil Kits
• Nichrome Heavy Gauge Construction
• Welded Terminal Bolts for Low Resistance and Longer Life
• Complete Kits Contain Close Wound Coil to Fit Many
Applications, Two Male and Two Female Bushings,
Terminal Screws, Nuts and Washers to Make a Proper
Repair. e DH500 & DH500FC Kits Include the SUPCO
STC In Line Series ermal Cuto s.
®
®
DH500
(DH500 Series 3/8” O.D.)
DH500FC
(5/8” O.D,)
PART MARS® CLOSE WOUND WATTAGE WATTAGE
NO. PART NO. LENGTH AT VOLTS AT VOLTS
DH500* 34601 28” 5000@240 3750@208
DH500-3 23” 5000@480
DH500FC* 12” 5000@240 3750@208
DH501 34608 22” 3500@240 2600@208
DH502-4 18” 2000@277
DH506 34630 26 1/2” 4000@240
DH507 18 1/2” 3000@240 2250@208
DH520 34652 31 1/2” 6600@240 5000@208
DH534 34656 26” 6000@240 4500@208
DH560 28” 5600@240 4200@208
*Includes 306°F Thermal Cutoff SUPCO p/n STC4300
Duct Boosters
DB Series Duct Boosters
For Increased Air Flow in Both Hot and Cold Forced Air Systems,
the DB Series Duct Boosters Provide the Easy, Economical Solution.
• Easy Installation
• Energy Savings
• Fits in Round, Square or Rectangular Ducts
• Operates Only When You Want It
• 1 Year Warranty
• Motor is ermally Protected
• Motor ermal Fuse: 150°F (64°C)
• Maximum Operating Temperature: 140°F (60°C)
• Maximum Airstream Temperature: 135°F (58°C)
Conforms to UL Standard 507
PART NO. DIMENSIONS FAN BLADE VOLTAGE MOTOR RATINGS CFM
DB6 6” x 6” 5.25”, 1950 rpm 115V 60Hz .35 A, 30 Watts 250
DB6-220 6” x 6” 5.25”, 1950 rpm 220V 50Hz .25 A, 30 Watts 250
DB8 8” x 8” 7”, 1750 rpm 115V 60 Hz .75 A, 60 Watts 500
DB8-220 8” x 8” 7”, 1750 rpm 220V 50 Hz .45 A, 60 Watts 500
DB10 8” x 10” 8”, 1300 rpm 115V 60 Hz 1.5 A, 120 Watts 650
DB12 9” x 12” 10”, 1300 rpm 115V60 Hz 1.5 A, 120 Watts 800
22
H
V
A
C
MINI-SPLIT CONDENSATE PUMPS
• Removes Condensate for Systems up to 42,000 BTUs
• 4 GPH
• 24 Foot Maximum Li
• Vertical Suction: 6 Foot Maximum
• USA & Canada Agency A liations: ETL Listed 4000786/
CSA Certi ed C22.2 NO. 108/ Conforms to UL STD 778
• Noise Level: <21 dB @ 3.3’ Distance
• ermally Protected
• Alarm Level to Prevent Over ow
• Waterproof Connections Prevent Water Ingress
• Piston Pump Provides Long Life
• Optional Mounting Kit: #GC1KFX2010
• 2- Year Warranty GC1KFX2010
DE05LUA720
®
FLOWATCH® DESIGN
Mini-Split Condensate Pump with Plastic
Duct & Installation Kit
• Includes Mini FLOWATCH® 2 Pump
• Includes Over 2 1/2 Feet of Plastic Duct
• Includes All Mounting Hardware
• Pre-mounted and Wired in Plastic Duct
• 2- Year Warranty
Flowatch® Design
2-WIRE 115V 230V N.O. SAFETY N.O. / N.C. PUMP PUMP W/
SWITCH SAFETY SWITCH ONLY PLASTIC DUCT
DE05LUA520 X X X
DEO05LUA720 X X X
DE05LUA660 X X X
3-Wire
DE05LUB100 X X X
DE05LUB110 X X X
DE05LUB120 X X X
DE05LUB130 X X
SICCOM® Condensate Pump Line Up
Mini-Split Condensate Pumps
23

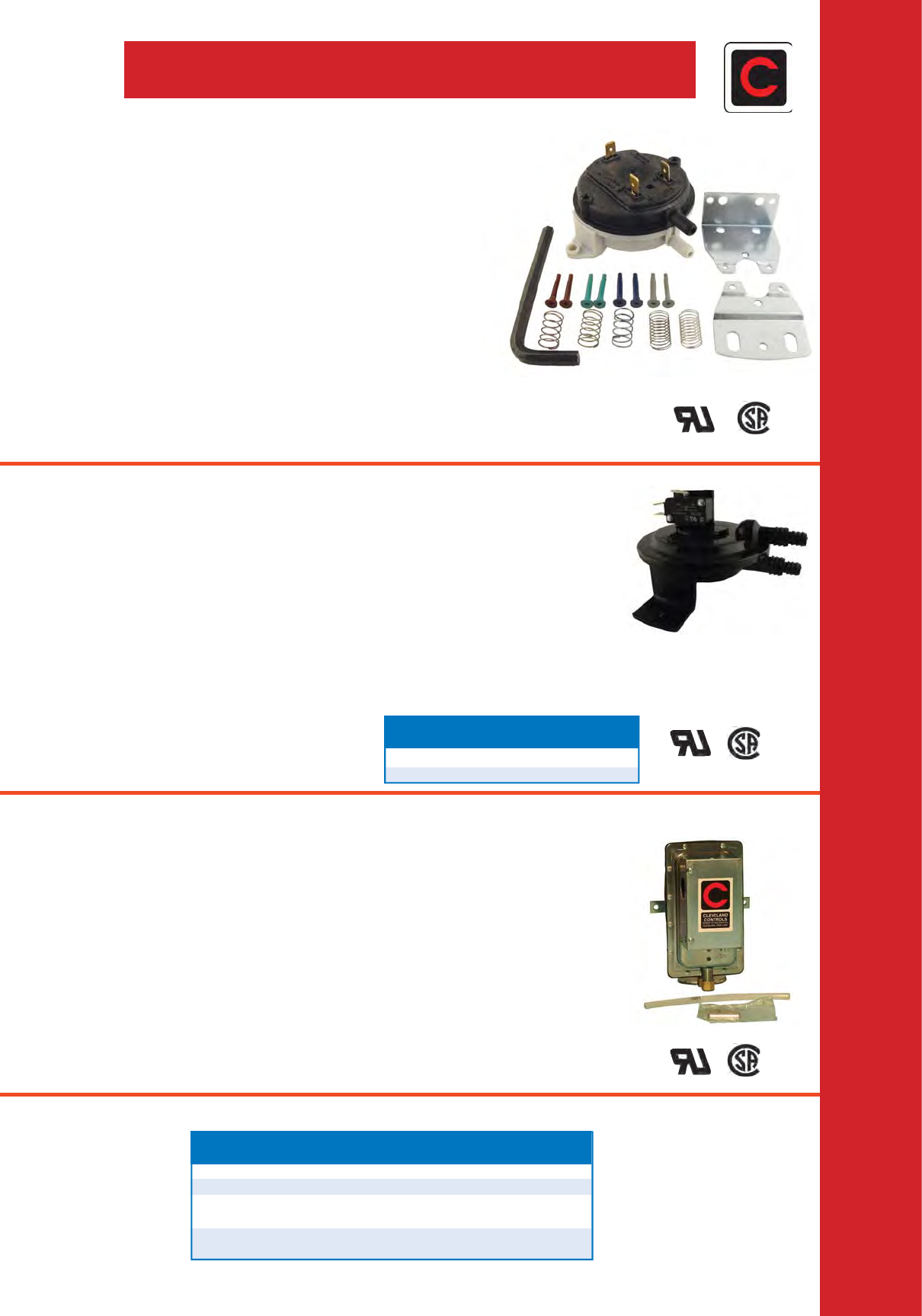

Air Pressure Sensing Switches
H
V
A
C
Adjustable Style RSS Series
Ideal for Residential and Light Commercial Furnace, Electronic
Air Cleaner and Humidi er Applications.
• Convenient Contractor Kits for A er-Market Installation
• Adjustable Set Points
• Factory Set to Activate on Pressure Rise
• Electrical Ratings: 5 Amp Non-inductive 120 to 277 VAC
1 Amp Pilot Duty (120 va) @ 120 VAC
• Contact Arrangement: SPDT
• Operating Temperature Range: 40°F to 190°F
(4.4°C to 87.8°C)
• UL & CSA Approved
• 2-Year Warranty
Adjustable Style AFS222121
General Purpose Switch for HVAC, Direct Digital Control
(DDC) and Energy Management Applications
• Senses Positive, Negative or Di erential Air Pressure
• Set Point Range: 0.05” to 12.0” w.c.
• Electrical Ratings: 300 VA Pilot Duty @ 115 to 277 VAC,
15 Amp Non-inductive to 277 VAC, 60 Hz.
• Contact Arrangement: SPDT
• Operating Temperature: -40°F to 180°F (-40°C to 82°C)
• UL & CSA Approved
• 2-Year Warranty
Universal Style NS2000031
Low Cost, High Accuracy and Reliable Universal Air Pressure
Switch that Replaces Many Small Footprint Type Switches
• Senses Positive, Negative or Di erential Air Pressure
• Set Point Range: 0.01” to 10” w.c.
• Electrical Ratings: 1/10 hp @ 120 to 277 VAC.
28 VA Pilot Duty @ 24 VAC, 125 VA Pilot Duty 120 VAC
• Contact Arrangement: SPDT
• Operating Temperature: 40°F to 190°F (4.4°C 87.8°C)
• UL & CSA Approved
• 2-Year Warranty
SUPCO COMPETITOR COMPETITOR
Part No. NAME Part No.
RSS495011 Robertshaw® 2374-495
RSS498013 Robertshaw® 2374-498
AFS222121 Robertshaw® 2374-410
White Rodgers® 770-1
NS2000031 Honeywell® IS2 Series
IS22010051F5052
Air Pressure Switch Cross Reference
Pressure Range
®
®®
®®
®
®
PART RANGE
No. (Inches of Water Column)
RSS495011 0.25” to 1.0”
RSS498013 1.0” to 4.0”
24

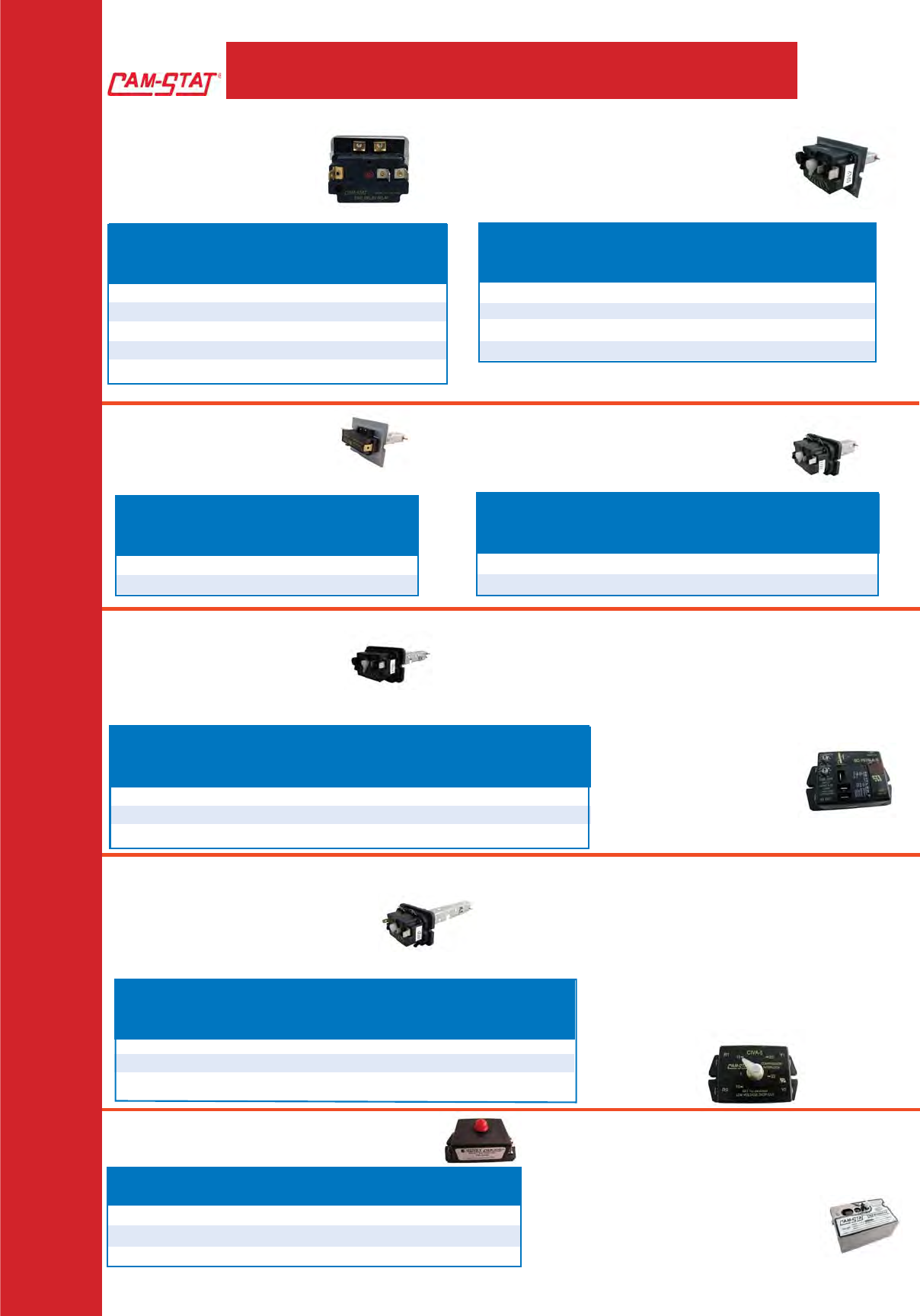

Camstat® Controls
S106 Series
Time Delay Relays
• SPST or SPDT
• Delay On/O Timing
F47 & F214 Series
Fan Controls
• Adjustable Temperature Dial
H
V
A
C
L59 Series
Limit Controls
• SPDT Switch
• User Temperature Adjustment
FA47TS Series
Fan Controls w/ Time Start
• Built in “Heat Assist” Time Delay
• Adjustable Fan OFF Temperature
FAL Series
Universal Fan and Limit Controls
• Adjustable Fan OFF Setting
• Adjustable Fan Di erential Setting
• Adjustable Limit Temperature
BC7070 (F7070)
Blower Control
• Increase Heating E ciency by Delaying
the ON and OFF Cycle of the Blower Fan
• Control Voltage: 24 VAC
• Relay Contacts: SPST
• Blower On Time: 0-240
Seconds Adjustable
• Blower O Time: 0-240
Seconds Adjustable
FALTS Series
Fan and Limit Controls w/ Time Delay
• SPST Switch
• Adjustable Limit Temperature
• Pilot Duty: 40 VA @ 30 VAC & 120 VAC
CIVA5 (FF534) Brown Out
Delay Timer
• Short Cycle & Brown Out Protection For
Compressors
• Interlock Time: 5 Minutes
• Under Voltage Protection: Adjustable
16-22 VAC
• Reset Time: 30 Milliseconds
PR Series Pilot Reigniters
• Prevents Pilot Flames From Extinguishing AFC01T110204 (FF535)
Attic Fan Control
• Adjustable Fan OFF Temperature 60°-110°F
• Firestat Circuit for Safety Shut O
• SPST
A-1® TIME DELAY TIME DELAY
PART PART SWITCH ON OFF
NO. NO. ACTION (seconds) (seconds)
S1061A4575C FF582 SPST 30 to 50 60 to 90
S1061A5040C FF583 SPST 45 to 55 30 to 50
S1061A40100C FF584 SPST 35 to 45 80 to 110
S1061A5560C FF585 SPST 50 to 60 45 to 75
S1061B6545C FF586 SPDT 60 to 70 45 to 75
A-1® FAN OFF FAN
PART PART WIDTH LENGTH TEMP. DIFFERENTIAL
NO. NO. (inches) (inches) (°F) (°F)
F473TD12025C FF564 7/16” 3” 90 to 120 25 to 50
F477TD12025C FF565 7/16” 7” 90 to 120 25 to 50
F21412A14025C FF562 1-1/16” 3” 60 to 140 25 to 50
F21413A14025C FF563 1-1/16” 7” 60 to 140 25 to 50
A-1® FIXED
PART PART LENGTH FAN OFF DIFFERENTIAL
NO. NO. (inches) TEMP. (°F)
L593BA FF568 3” 120 to 250 30
L597BA FF569 7” 120 to 250 30
A-1® FAN OFF FAN
PART PART LENGTH TEMP. DIFFERENTIAL TIME DELAY @
NO. NO. (inches) (°F) (°F) 24 VAC (sec.)
FA47TS3110 FF566 3” 80 to 110 60 (Fixed) 25 to 60
FA47TS7110 FF567 7” 80 to 110 60 (Fixed) 25 to 60
A-1® FAN OFF FAN LIMIT LIMIT
PART PART LENGTH TEMP DIFFERENTIAL TEMP. DIFFERENTIAL
NO. NO. (inches) (°F) (°F) (°F) (°F)
FAL3C05TD120A FF558 3” 90 to 120 25 to 50 150 to 250 30
FAL7C05TD120A FF559 7” 90 to 120 25 to 50 150 to 250 30
FAL7C20BT120AB FF594 7” 90 to 120 25 to 50 150 to 250 30
A-1® FAN OFF LIMIT LIMIT
PART PART LENGTH TEMP. TEMP. DIFFERENTIAL
NO. NO. (inches) (°F) (°F) (°F)
FALTS57C05T120A FF560 7” 90 to 120 150 to 250 30
FALTS57C65T120A FF561 7” w/ shield 90 to 120 150 to 250 30
FALTS57C13BT120A FF591 7” SPDT 90 to 120 150 to 250 30
PART A1 PART
NO NO DESCRIPTION
PR24120 FF541 24/120 VAC Hardware Kit , Spark Cable
PR2436W FF543 24 VAC Hardware Kit, Spark Cable, & PR-24 Module
PR2412036W FF536 24/120 VAC Hardware Kit, Spark Cable & Module
25
Sequencers
H
V
A
C
All Sequencers are OEM Approved
for Safety and Reliability
®
®
®
INTERSTATE
SUPCO® GEM® GLOBAL® MARS® WATSCO® KLIXON® W/R® ROBERTSHAW® ELECTRIC® I-9 ZETTLER® OEM
Q101 GS101 24CZ-1 33241 TDR10 6000AONI-98 24A34-1 611-241 IES24A34-1 ZC24A34-1 Goodman® B1290906
*** *** 33841 *** *** 24A34-7 *** *** *** Lennox® 12F20 & 58C9701
*** *** *** *** *** 24A34-13 *** *** *** York® 525-37322-000
Q102 GS102 24CZ-2 33242 TDR15 6000AONI-97 24A34-2 611-242 IES24A34-2 ZC24A34-2 Carrier® 40CF680020
*** *** 33842 *** *** *** *** *** ***
Q103 GS103 24CZ-3 33244 TDR20 6000AONI-87 24A34-3 611-244 IES24A34-3 ZC24A34-3
*** *** 33844 *** 60000EO-102 *** *** *** *** ICP® / Carrier® HN67QC005
*** *** *** *** *** *** *** *** *** ICP® / Carrier® HQ1056789
*** *** *** *** *** *** *** *** *** Goodman® BT1256504
Q104 GS104 24CZ-4 33245 TDR25 60000E049 24A34-4 611-245 IES24A34-4 ZC24A34-4 York® 525-37325-000
*** *** 33845 *** *** *** *** *** *** ICP® / Carrier® HN67QC006
*** *** *** *** *** *** *** *** ***
Q105 GS105 24CZ-5 33232 TDR30 51172-32 24A34-5 611-232 IES24A34-5 ZC24A34-5 York® 525-37327-000
*** *** 33832 *** *** 24A34-54 *** *** *** Coleman® 3120A357
Q106 GS106 24CZ-6 33233 TDR35 51172-33 24A34-6 611-233 IES24A34-6 ZC24A34-6 ICP® / Carrier® HN67QC008
*** *** 33833 *** *** *** *** *** *** ICP® / Carrier® P284-1313
Q107 GS107 24ZC-14 33848 *** 51172-35-1 24A34-14 611-007 IES24A34-14 ZC24A34-14 York® 525-37328-000
Q108 GS108 *** *** *** 60000C0-27 *** *** *** *** Goodman® B13707-38
*** *** *** *** *** *** *** *** *** ICP® / Carrier® HN67GJ002
Q109 *** *** *** *** *** *** *** *** *** Janitrol® BT1256500
Q110 *** *** *** *** *** *** *** *** *** Weatherking® 4223115608
Q111 *** *** *** *** *** *** *** *** *** Weatherking® 4223115606
Q112 *** *** *** *** *** *** *** *** *** Weatherking® 4223115607
Q113* *** *** 33265 *** 6000E4-40 *** *** *** *** ***
Q114 *** *** *** *** *** *** *** *** *** Coleman® 7670-307,
*** *** *** *** *** *** *** *** *** 7670-308 7670-130,
7670-913, 7670-101
Q115 *** *** 33246 *** 6000EOM 24A52-1 *** *** ** Coleman® 3120A3771
Q116 *** *** 33243 *** 6000AOM 24A51-1 *** *** *** Coleman® 3110-354
• Direct Replacement for Most Fan & Heat
Sequencing Functions
• 24 Volt Input Control
• Contacts Designated M1-M2 of a Multi-timing
Sequencer will Turn On First and Turn O
Last, as Required by UL and CSA for Electric
Heating Applications
• Five Second on Delay Between all Subsequent
Stages, Unless they Function Together
26

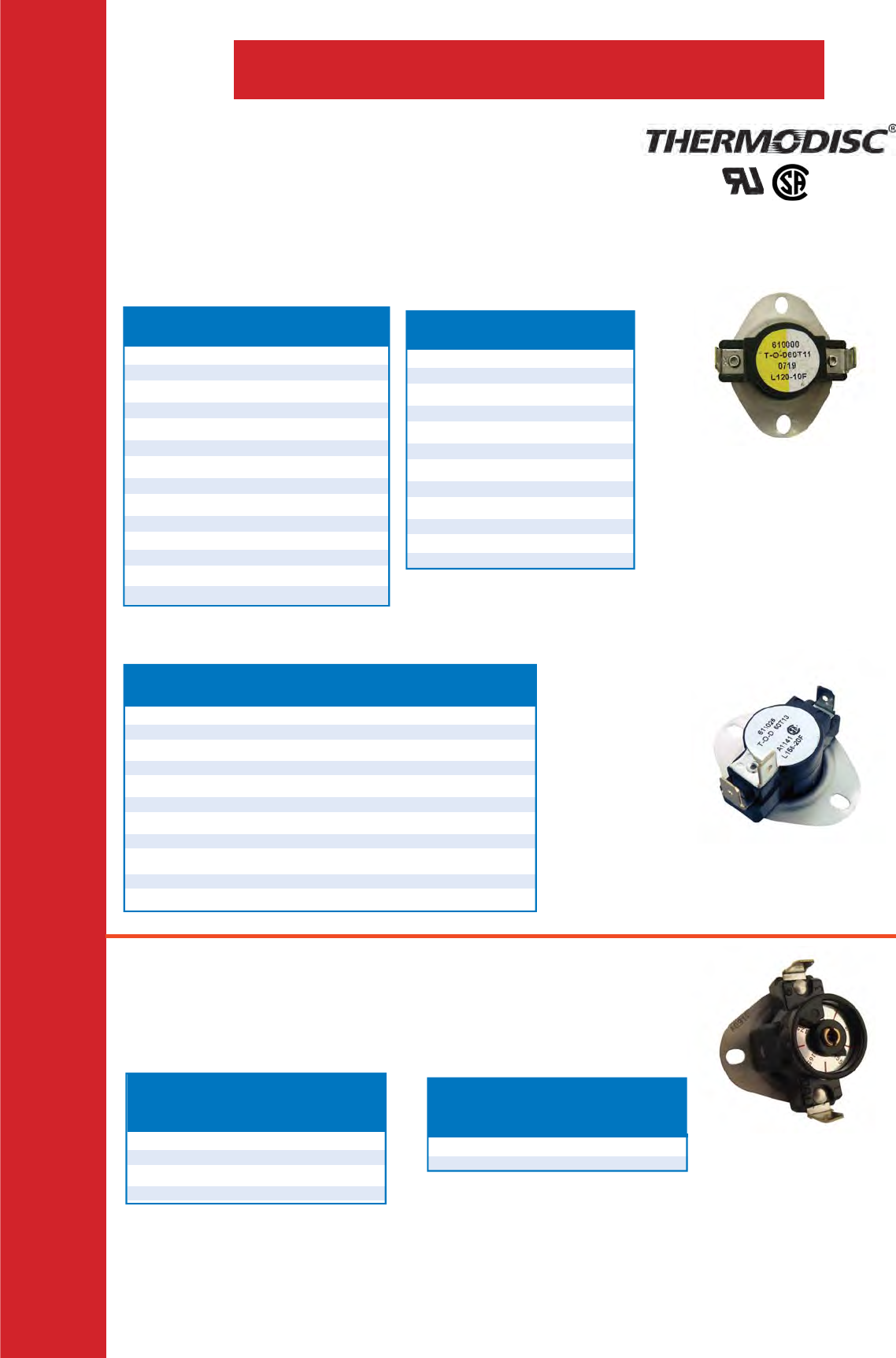

ermostats
General Purpose Limits
L & LD Series
• Open on Rise
• Close when Temperature Di erential
is Reached
• 1/4” Quick Disconnect Terminals
PART OPEN CLOSE
NO. °DIFF. (°F) (°F)
L120 10 120 110
L125 10 125 115
L130 15 130 115
L135 15 135 120
L140 20 140 120
L145 20 145 125
L150 20 150 130
L155 20 155 135
L160 20 160 140
L165 20 165 145
L170 20 170 150
L175 20 175 155
L180-20 20 180 160
L180-40 40 180 140
PART OPEN CLOSE
NO. °DIFF. (°F) (°F)
L190 40 190 150
L200 40 200 160
L205 40 205 165
L225 40 225 185
L240 40 240 200
L250 40 250 210
L260 40 260 220
L270 40 270 230
L290 40 290 250
L300 40 300 260
L320 40 320 280
L340 40 340 300
Use 60T Electrical Ratings on page
®
®
PART OPEN CLOSE
NO. DESCRIPTION (°F) (°F) DIFFERENTIAL
LD120 SPDT Thermostats 120 105 15
LD130 SPDT Thermostats 130 115 15
LD135 SPDT Thermostats 135 120 15
LD140 SPDT Thermostats 140 120 20
LD145 SPDT Thermostats 145 125 20
LD155 SPDT Thermostats 155 135 20
LD170 SPDT Thermostats 170 150 20
LD200 SPDT Thermostats 200 160 40
LD225 SPDT Thermostats 225 185 40
LD240 SPDT Thermostats 240 200 40
LD270 SPDT Thermostats 270 230 40
Use 60T Electrical Ratings on page
H
V
A
C
“LD” Series, Single Pole - Double Pole
“L” Series , Single Pole - Single Throw
ADJUSTABLE AT SERIES
• Series Covers Almost 95% of Heater
and Dryer Applications
• Dial Knob
Adjustable Thermostats
PART NO.
STANDARD ADJUSTABLE
MOUNT RANGE (°F) DIFFERENTIAL
AT012 135 175 20
AT013 175 215 40
AT014 210 250 40
AT015 250 290 40
Adjustable Airflow Thermostats
PART NO.
STANDARD ADJUSTABLE
MOUNT RANGE (°F) DIFFERENTIAL
AT021 90 130 20
AT022 140 180 20
• 40° Adjustable Range
• 1/4” Quick Connect Terminals
• Use 60T Electrical Ratings
Open on Temperature Rise
Close on Temperature Rise
27
ermostats
H
V
A
C
FAN CONTROL*
CLOSE ON RISE
LIMIT CONTROL*
OPEN ON RISE
PART CUT CUT
NO. DESCRIPTION OUT (°F) IN (°F) DIFFERENTIAL
SHF90 Fan 80 90 10
SHF110 Fan 90 110 20
SHF110DC Fan - Deep Cup 90 110 20
SHF120 Fan 110 120 10
SHF140 Fan 120 140 20
SHF250 Fan 220 250 30
*Adapter Flange Plate included with each thermostat.
*Use 60T Electrical Ratings on page
PART CUT CUT
NO. DESCRIPTION OUT (°F) IN (°F) DIFFERENTIAL
SHL120 Limit - Open on Rise 120 110 10
SHL140 Limit - Open on Rise 140 100 40
SHL150 Limit - Open on Rise 150 110 40
SHL160 Limit - Open on Rise 160 120 40
SHL170 Limit - Open on Rise 170 130 40
SHL180 Limit - Open on Rise 180 140 40
SHL190 Limit - Open on Rise 190 150 40
SHL200 Limit - Open on Rise 200 160 40
SHL230 Limit - Open on Rise 230 190 40
SHL250 Limit - Open on Rise 250 210 40
*Adapter Flange Plate included with each thermostat.
*Use 60T Electrical Ratings on page
Manual Reset Limit Control*
Open on Rise
OPEN
PART NO. DESCRIPTION (°F) CLOSE
SHM125 Limit - Open on Rise 125 Manual
SHM130 Limit - Open on Rise 130 Manual
SHM160 Limit - Open on Rise 160 Manual
SHM170 Limit - Open on Rise 170 Manual
SHM180 Limit - Open on Rise 180 Manual
PART NO. DESCRIPTION OPEN(°F) CLOSE
SHM200 Limit - Open on Rise 200 Manual
SHM210 Limit - Open on Rise 210 Manual
SHM290 Limit - Open on Rise 290 Manual
SHM350 Limit - Open on Rise 350 Manual
*Adapter Flange Plate included with each
thermostat.
*Use 60T Electrical Ratings on page
HVAC Flush Mount
Staging Thermostats
PART OPEN CLOSE
NO. DESCRIPTION (°F) (°F) DIFFERENTIAL
FL50 HVAC Staging Thermostat 50 35 15
FL60 HVAC Staging Thermostat 60 45 15
®
®
*Use 60T Electrical Ratings on page
28
ermostats
H
V
A
C
Gas Furnace Limits and Plenum Thermostats
• Direct OEM Replacements
• Economical
• Use 36T Electrical Ratings
Plenum Thermostats
LENNOX® YORK®,
CARRIER®, JANITROL®, AIR-EASE® CORSAIR®, BORG-WARNER®,
BRYANT®, BDP®, GOODMAN®, ARMSTRONG® RHEEM®, FRAZIER®,
PART OPEN CLOSE DIFFERENTIAL DAY & NIGHT®, AMANA ®, CONCORD® RUUD® JOHNSON®,
NO DESCRIPTION °F °F °F PAYNE® GMC® MAGIC CHEF® WEATHER KING® TRANE® LUXAIRE®
SHL501 L170-40 SPST 170° 130° 40° HH12ZA174A 47-21711-06 025-29041-007
HH127A176A
P331-2203
SHL502 L180-30 SPST 180° 150° 30° HH12ZA178A B1370001
SHL503 L190-40 SPST 190° 150° 40° HH12ZA189 47-21711-03 025-29041-012
HH12ZB190
HH12ZA193A
P331-2205
SHL504 L240-40 SPST 240° 200° 40° HH12ZA240
HH12ZA252A
P331-2217
SHL505 L140-40 SPST 140° 100° 40° HH12ZB140
SHL506 L170-40 SPST 170° 130° 40° HH12ZB170 SWT1258
SHL507 L140-30 SPST 140° 110° 30° HH12ZA140 87F16 025-29041-005
SHL508 L150-20 SPST 150° 130° 20° HH12ZB190 B1370913 SWT1260
HH12ZA193
HH12ZA189
P331-2005
SHL509 L240-30 SPST 240° 210° 30° HH12ZB240 B1370903
HH12ZA240
HH12ZA252
P331-2217
SHL510 L150-20 SPST 150° 130° 20° HH12ZB150
SHL511 L160-20 SPST 160° 140° 20° HH12ZB160 025-29041-004
SHL512 L170-20 SPST 170° 150° 20° HH12ZB170 26H66
SHL513 L170-40 SPST 170° 130° 40° 37H73
SHL514 L180-40 SPST 180° 140° 40° HH12ZB180 49L03 025-29031-711
SHL515 L200-40 SPST 200° 160° 40° HH12ZB200 025-29041-006
HH12ZA199
HH12ZA201
SHL516 L210-40 SPST 210° 170° 40° HH12ZB210 SWT1263
SHL517 L220-50 SPST 220° 170° 50° HH12ZB220 SWT1273
HH12ZA219
HH12ZA223
48NHT042
620BE
SHL518 L250-40 SPST 250° 210° 40° HH12ZB250 B1370012S SWT1261
HH12ZA251 SWT1272
P331-2208
SHL519 L155-30 SPST 155° 125° 30° B1370006
SHL520 L100-20 SPST 100° 80° 20° 47-21711-01 025-29041-002
SHL521 L200-20 SPST 200° 180° 20° 47-21711-04
SHL522 L160-20 SPST 160° 140° 20° B1370908S 47-21711-07
SHL523 L130-20 SPST 130° 110° 20° 47-21711-08
SHL524 L170-20 SPST 170° 150° 20° 47-21711-10
SHL525 L180-20 SPST 180° 160° 20° 47-21711-11
®
®
29
ermostats
H
V
A
C
Rollout Switches
• Auto and Manual Reset
• O ered in a Broad Temperature Range
to Cover Most Heating Applications
Small Flush Mount SPST Limit Thermostats
(Flush Mount Automatic Rollout)
PART CUT CUT
NO. TERMINALS OUT (°F) IN (°F) DIFFERENTIAL
SLF130VA Vertical 1/4” 130 115 15
SLF170VA Vertical 1/4” 170 130 40
SLF194HB Horizontal 3/16” 194 154 40
SLF210HA Horizontal 1/4” 210 170 40
SLF222VA Vertical 1/4” 222 182 40
SLF230HA Horizontal 1/4” 230 190 40
SLF250HA Horizontal 1/4” 250 200 50
SLF330VA Vertical 1/4” 330 280 50
Automatic Rollouts
SPST Limit Thermostats
PART CUT CUT
NO. TERMINALS OUT (°F) IN (°F) DIFFERENTIAL
SLS120 45° angle 1/4” 120 105 15
SLS140 45° angle 1/4” 140 100 40
SLS150 45° angle 1/4” 150 110 40
SLS160 45° angle 1/4” 160 120 40
SLS170 45° angle 1/4” 170 130 40
SLS180 45° angle 1/4” 180 140 40
SLS200 45° angle 1/4” 200 160 40
SLS265 45° angle 1/4” 265 215 50
SLS275 45° angle 1/4” 275 225 50
SLS285 45° angle 1/4” 285 235 50
SLS295 45° angle 1/4” 295 245 50
SLS300 45° angle 1/4” 300 250 50
Manual Rollouts
SPST Limit Thermostats
PART CUT CUT
NO. TERMINALS OUT (°F) IN (°F)
SRL130 Vertical 1/4” 130 Manual
SRL135 Vertical 1/4” 135 Manual
SRL220 Vertical 1/4” 220 Manual
SRL230 Vertical 1/4” 230 Manual
SRL240 Vertical 1/4” 240 Manual
PART CUT CUT
NO. TERMINALS OUT (°F) IN (°F)
SRL250 Vertical 1/4” 250 Manual
SRL260 Vertical 1/4” 260 Manual
SRL300 Vertical 1/4” 300 Manual
SRL350 Vertical 1/4” 350 Manual
SRL Series X Ref
PART
NO. REPLACES OEM OEM P/N
SRL130 Rheem®/Ruud Weatherking® 47-22453-01
SRL135 Rheem®/Ruud Weatherking® 47-22453-02
SRL220 Nordyne® 626354
SRL230 Nordyne® 626353
SRL240 Nordyne® 626355
SRL250 Nordyne® 626352
PART
NO. REPLACES OEM OEM P/N
SRL260 Nordyne® 626350
SRL300 Nordyne® 626343
Rheem®/Ruud Weatherking® 47-22861-02
SRL350 Goodman® B13701-54
®
®
*Use 36T Electrical Ratings on page
*Use 36T Electrical Ratings on page
*Use 36T Electrical Ratings on page
*Use 36T Electrical Ratings on page
30
ermostats
H
V
A
C

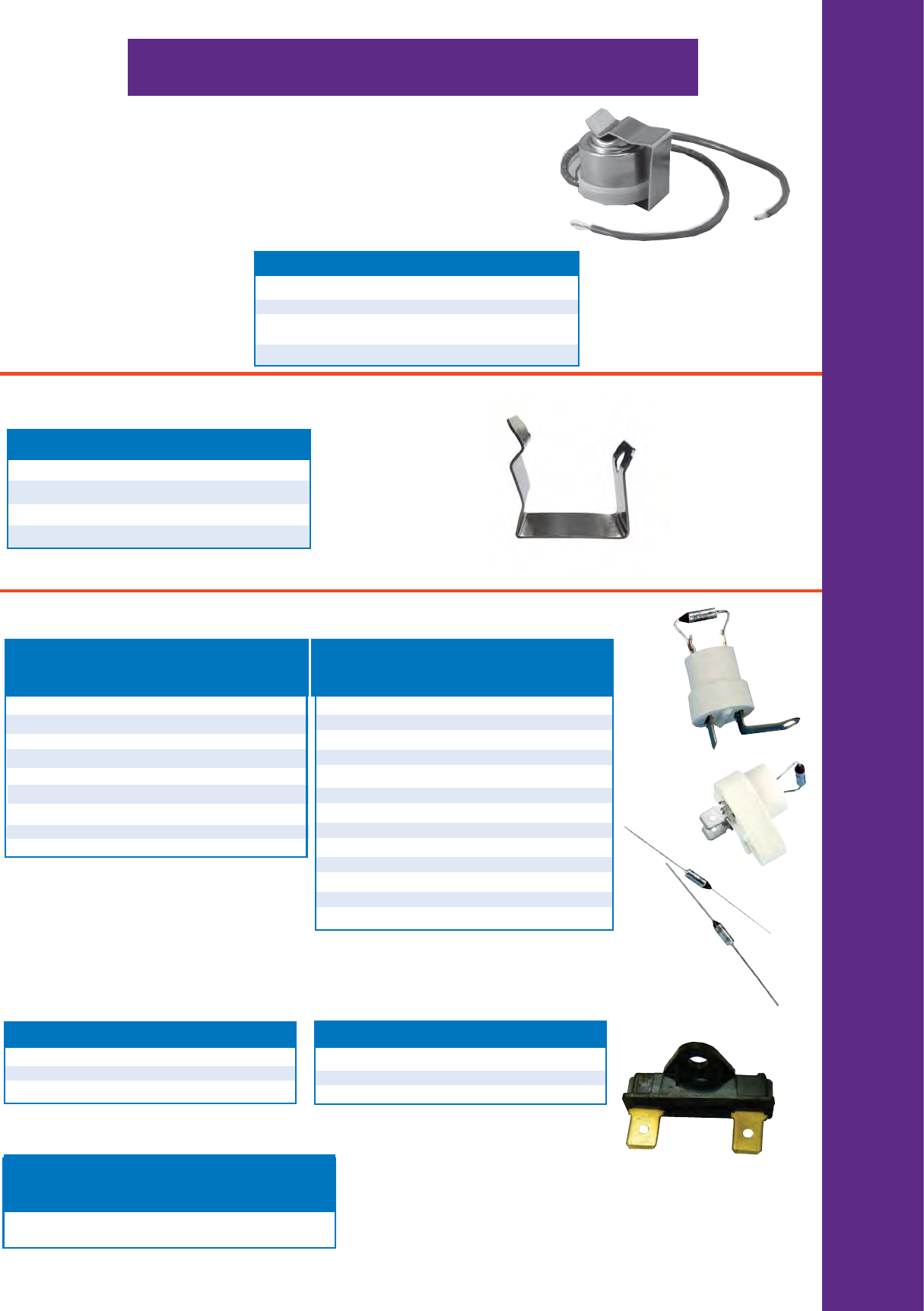

SFPC Freeze
Protection Control
• Protects Air Conditioning
Evaporator Coil from Freezing
• Opens 35°F/Close 50°F
• Fits 7/8” O.D. Tubing
• Replaces: Trol-A-Temp FPC
• Includes Clip to Fit 7/8”
O.D. Tubing
Thermal Cut Outs
PART NO. PART NO. OPEN OPEN
15 AMP 25 AMP TEMP. TEMP.
SERIES 1 SERIES 2 °C °F STYLE
STC8170 77 170 A
STC4183 84 183 A
STC4199 93 199 A
STC4228 109 228 A
STC8242 117 242 A
STC4257 STC8257 125 257 A
STC4283 STC8283 139 283 A
STC4300 149 300 A
STC4333 167 333 A
PART NO. PART NO. OPEN OPEN
15 AMP 25 Amp TEMP
. TEMP.
SERIES 1 SERIES 2 °C °F STYLE
STC4358 184 363 A
STC4438 226 438 A
STC4468 STC8468 242 468 A
STC5257 125 257 B
STC85283 139 283 B
STC5300 149 300 B
STC5333 167 333 B
STC5377 192 377 B
STC6257 STC86257 125 257 C
STC86283 139 283 C
STC6300 149 300 C
STC6333 167 333 C
STC6377 STC86377 192 377 C
Series 1 Maximum Wattage 1800W @ 120V/2400W @ 240
Series 2 Maximum Wattage 1800W @ 120V/6000W @ 240
PART NO. TERMINALS °C °F STYLE
STF4170 QC. 1/4” 77 170 36T
STF4183 QC. 1/4” 84 183 36T
STF4230 QC. 1/4” 110 230 36T
PART NO. TERMINALS °C °F STYLE
STF4249B QC. 3/16” 121 249 36T
STF4291B QC. 3/16” 144 291 36T
STF4305B QC. 3/16” 152 305 36T
Maximum Wattage 1800W @ 120V/2400W @ 240
Terminal Adapters
PART
NO. DESCRIPTION WHERE USED
T1121 2 to 1 Terminal Adapter 1/4” QC Female to 2 Male 1/4” QC Chair Terminal
T1122 2 to 1 Terminal Adapter 1/4” QC Female to 2 Male 1/4” QC Side by Side Terminal
T1123 Screw to Terminal Adapter 8 - 10 Stud to 1/4” QC Terminal
T1124 Terminal to Screw Adapter 1/4” QC Female to Screw Right Angle Terminal
T1125 2 to 1 Terminal Adapter 1/4” QC Female to 1/4” QC Male Piggyback Terminal
Typical Electrical Ratings
Motor Rating
Resistive (Inductive) Pilot
VAC (Non-Inductive) Full Load Locked Rotor Duty
120 25A 14A 72A 125 VA
240 25A 10A 60A 125 VA
350°F Max Ambient Temperature
Motor Rating
VOLTS Resistive (Inductive) Pilot
(VAC) (Non-Inductive) Full Load Locked Rotor Duty
120 15A 3A 12A 125 VA
240 1OA 1.5A 6A 125 VA
350°F Max Ambient Temperature
36T Electrical Ratings 60T Electrical Ratings
C
B
A
®
®
VOLTAGE RESISTIVE
(VAC) (NON-INDUCTIVE, AMPS)
120 10
240 5
31
Pressure Switches
®
H
V
A
C
PART NO. OPEN PSI CLOSE PSI TOLERANCE MARS® JOHNSON RANCO® ROBERTSHAW® R410A
(CUT-OUT) (CUT-IN) +/- PSI CONTROLS® APPLICATION
Low Pressure Open On Pressure Drop
SLP0520 5 20 5 33329 P100AC1C MPL7001 3101001
SLP0530 5 30 5 43342 N/A N/A 3100002/MG201132
SLP1025 10 25 5 33330 P100AP201C MPL7011 3100050
SLP1032 10 32 5 33330 P100AP201C MPL7011 3100050 X
SLP1535 15 35 5 43371 P100AC2 MPL7002 3100001/MG201026 X
SLP2045 20 45 5 43345 N/A N/A 3100003/MG201133
SLP2550 25 50 5 43372 N/A MPL7012 MG212033 X
SLP2565 25 65 5 33336/43347 N/A N/A 3101002
SLP2580 25 80 5 33363/43348 N/A MPL7003 3101003/3100051
SLP3560 35 60 5 43349 N/A MPL7004 3100004/MG201593
SLP4560 45 60 5 43351 P100AP2C MPL7005 N/A
SLP4080 40 80 5 33364/43350 N/A MPL7014 3101005/3100052
SLP5090 50 90 5 33339/43374 N/A N/A N/A X
SLP75100 75 100 5 33342/43353 N/A N/A N/A X
SLP90120 90 120 5 43375 N/A N/A N/A X
High Pressure Open On Pressure Rise
SHP200150 200 150 15 33353 N/A N/A N/A
SHP250150 250 150 15 33354/43322 N/A N/A N/A
SHP250180 250 180 15 N/A N/A N/A
SHP275195 275 195 15 33310/43324 P100CC9C MPH7102 3100-112
SHP300200 300 200 15 33355/43325 N/A MPH7103 N/A
SHP325225 325 225 15 43326 N/A MPH7104 N/A
SHP325230 325 230 15 33313 N/A N/A N/A
SHP350250 350 250 15 33356/33316/43327 N/A MPH71053101201/3100150
SHP375265 375 265 15 33319/43328 N/A MPH7106 3100111
SHP400200 400 200 15 33357/43329 N/A N/A 3100152
SHP400280 400 280 15 33322/43330 N/A N/A N/A
SHP400300 400 300 15 33358/33370 P100CA1C/P100CP1C MPH7107 3101202/3100151/MG21-112
SHP425300 425 300 15 33325/43332 N/A N/A N/A
SHP425325 425 325 15 43333 P100CA2C/P100CP2C MPH7108 3100100/3100203/MG211046
SHP450250 450 250 15 33359/43334 N/A N/A N/A
SHP480380 480 380 15 N/A N/A N/A N/A
SHP550450 550 450 15 N/A P100CE11D N/A N/A X
SHP600475 600 475 15 33361/43335 N/A N/A N/A
SHP610420 610 420 15 43366/43376 N/A N/A N/A
SHP665565 665 565 15 N/A P100CP85D N/A N/A X
Manual High Pressure Open On Pressure Rise
SMR375 375 Manual 15 43312 P100DC3C MPH7109 N/A
SMR410 410 Manual 15 33365/43313 P100DA1C MPH7110 3101301/3100103
SMR440 440 Manual 15 33352/43315 N/A N/A 3100104
SMR575 575 Manual 15 43368 P100DA86D N/A N/A X
SMR610 610 Manual 15 43369 N/A N/A N/A X
SMR630 630 Manual 15 N/A P100DA81C/D N/A N/A X
Fan Cycle Close On Pressure Rise
SFC75120 75 120 15 43301 N/A MPF7006 N/A
SFC110170 110 170 15 43302 N/A MPF7007 N/A
SFC125265 125 265 15 33340/43303 N/A N/A N/A
SFC210275 210 275 15 33341 N/A MPF7009 3101101/3100079
SFC150225 150 225 15 43304 P100AP3C MPF7008 N/A
SFC170250 170 250 15 N/A P100AP4C N/A N/A
SFC200240 200 240 15 N/A N/A N/A 3100080
SFC200365 200 365 15 N/A N/A N/A N/A X
SFC300400 300 400 15 43307 N/A MPF7010 N/A X
Manual Reset & Automatic Reset High, Low & Condenser Fan Cycling Pressure Switches
• Life Cycles @ RLA 100,000 Average • Maximum LRA 36 Amps
Temperatures
Ambient: 20°F to 176°F (-30°C to 80°C)
Fluid: 60°F to 250°F (-50°C to 120°C)
Pressure Ranges
Working: 0 to 650 PSI, Bursting: 5,000 PSI
Connection: 1/4” SAE Female Flare With Valve Core Depressor
Wire Leads: UL1015 18 AWG/18” Length
VOLTS RLA AMPS
12 to 28 VDC/VAC 10 Amps
48 VDC/VAC 5 Amps
110 to 120 VDC/VAC 5.8 Amps
208 to 240 VDC/VAC 2.9 Amps
Electrical Specifications
E200318
32
Transformers
H
V
A
CControl Transformers
Foot Mount Transformers Specifications
PART NO. PRIMARY V SECONDARY V OUTPUT VA BREAKER/FUSE MOUNT TYPE
SXT100R 120/208/240/480 24 100 Breaker Foot
SXT101 120/208/240 2.5/12/24 40 Fuse Foot
SXT103 277 24 40 No Foot
SXT104 208/240 24 40 No Foot
SXT105 120/208/240 24 40 No Foot
SXT114 120/208/240 24 20 No Foot
SXT115 120/208/240 24 40 No Foot
SXT116 120 24 40 No Foot
SXT160 208/240 24 60 Fuse Foot
SXT79R 120/208/240/480 24 75 Breaker Foot
* Includes Metal Shroud.
Multi-Mount Transformers Specifications
PART NO. PRIMARY V SECONDARY V OUTPUT VA BREAKER/FUSE MOUNT TYPE
SXT106 120/208/240 24 40 No Multi
SXT111 120/208/240 2.5/12/24 40 Fuse Multi
SXT112 120 24 40 No Multi
SXT113 208/240 24 40 No Multi
SXT148 120/208/240 2.5/12/24 48 No Multi
SXT150 120/208/240 24 50 Fuse Multi
SXT104
SXT113
®
®
T45 Universal Transformer
Accepts Input Voltages of 120, 208 and 240 VAC and
Provides Choice of Secondary Voltages of 2.5, 8, 12,
16 and 24 VAC.
• 50/60 Hz.
• Enclosed Frame - Plate, Foot
or Knock-out Mount
PART PRIMARY SECONDARY
NO. VAC VAC VA H W D MW
T45 120/208/240 2.5, 8, 12, 16 & 24 48 2 1/16” 3 1/4” 2 3/4” 2 13/16”
NOTE: Transformer is furnished with a 4” x 4” mounting plate, wire nuts, 1/2” conduit and 8” leads.
®
®
Universal Fan Centers
FC4011 & Universal FC4031
• DPDT Plug-in Style Relay (90340)
• 40 VA Transformer
• Mounts Directly to 4” x 4” Electrical Box
• Color Coded Wiring for Easy Installation
• Universal FC4031 Includes Multi-tap
Primary Voltages for All Applications,
Reduces Inventory
REPLACES REPLACES REPLACES
PART NO. VA PRIMARY VAC SECONDARY VAC hp CONTACTS JARD® MARS® STEVECO®
FC4011 40 120 24 3/4 DPDT 4011FC 24013 90-113
FC4031 40 120/208/240 24 3/4 DPDT 4031FC 24010 90-130
33
Transformers
H
V
A
C
PART NO. JARD® MARS® UEI® WHITE-RODGERS® HONEYWELL®
PART NO. PART NO. PART NO. PART NO. PART NO.
SXT101 4032F 50355 UET101 N/A N/A
SXT104 4021F 50353 N/A 90-T40F2 AT40A1139, AT40B1032
SXT105 4031F 50354 UET105 90-T40F3 AT40A1121, AT40A1139, AT40B1214
SXT114 2031F 50351 UET114 N/A AT20A1123
SXT115 4031F 50354 UET115 90-T40F3 AT40A1121, AT40A1139, AT40B1214
SXT116 4011F 50352 N/A 90-T40F1 AT40A1121, AT40B1206
SXT79R 7541C 50321 UET79R 90-T75C3 AT88A1005, AT88A1021, AT88A1047
SXT100R 10041C 50341
UET100R N/A N/A
PART NO. JARD® MARS® UEI® WHITE-RODGERS® HONEYWELL®
PART NO. PART NO. PART NO. PART NO. PART NO.
SXT106 4031M 50304 N/A 90-T40M3 AT40A1018, AT72D1683, AT72D1691, AT140A1018
SXT111 5032M 50333 UET111 N/A N/A
SXT113 4021M 50303 UET113 90-T40M2 AT72D1691, AT140A1026
SXT148 5032M 50333 N/A N/A N/A
SXT150 5031M 50314 UET150 90-T50M3 AT87A1106, AT87A1007,
AT87A1049, AT87A1056, AT150A1007
Multi-Mount
Foot Mount
Cross Reference
34
Wall ermostats
H
V
A
C
All models o er our “quiet switching” mechanical switch design and require no
additional sub-base for heating, cooling or heating/cooling installation.
Heating/Cooling Thermostats
43004 - Horizontal & 43005 - Vertical
• For Use with Most 4 or 5 Wire 24 VAC Systems
and Single-stage Heat Pumps
• Adjustable Heat Anticipator
• Terminations: RC, RH, W. Y, G, O, B
43004A - Horizontal 43005A - Vertical
Mechanical
Digital Non-Programmable
43054
For Conventional Systems and Single-Stage Heat
Pumps with Blue Back Light
Features
• Latching Relays For System Compatibility
• So Touch Keypad
• Low Battery Indicator
• Blue Backlight
• Easy, Front Load Battery Access
• 2 AA Batteries Included
• °F/°C Selector
• Electronic Digital Accuracy
• Large, Easy-to-Read LCD
• Filter Change Indicator
• No Programming Required
• No Leveling Required
• 3 Year Warranty
Specifications
• 20-30 VAC, 50/60 Hz.
• Current Draws 0.1 to 1.5 Amps
• Temperature Set Range:
45°F to 95°F (7°C to 35°C)
• Operating Di erential +/- 1°F
• Compressor Protection: 4 Min. Delay
on Break
• Bimetal Freeze Protection
• Terminations: RC/O, RH/B, Y, W, G, R
Compatible With
• 24 VAC Heat/Cool, Heat Only
or Cool Only Systems
• Gas, Electric or Oil Systems
• Millivolt Systems
• 2-wire Hydronic Systems
DIGITAL Programmable
43154
5 Day/2 Day Programming, 4 Periods Per Day, For
Conventional Heat/Cool or Single-Stage Heat Pump Systems
Features
• Latching Relays For System Compatibility
• So Touch Keypad
• Low Battery Indicator
• Blue Backlight
• Easy, Front Load Battery Access
• 2 AA Batteries Included
• °F/°C Selector
• Adjustable Cycle Rate
• Pre-programmed
• Easy “Front Load” Battery Access
• Mechanical Low Temperature Protection
• Filter Monitor
• Up-opening Door
• Two-stage Low Battery Warning with
Fail Safe Protection
• 3 Year Warranty
Specifications
• 20-30 VAC, 50/60 Hz.
• Current Draws 0.1 to 1.5 Amps
• Temperature Set Range:
45°F to 95°F (7°C to 35°C)
• Operating Di erential +/- 1°F
• Compressor Protection: 4 Min. Delay
on Break
• Terminations: G, RC, RH, Y/O, WB, Y1
Compatible With
• 24 VAC Heat/Cool, Heat Only
or Cool Only Systems
• Gas, Electric or Oil Systems
• Millivolt Systems
• 2-wire Hydronic Systems
• Most Single-stage Heat Pumps
35
Wall ermostats
H
V
A
C
E3 Series Universal Thermostats
53100
Non-programmable
Features
• Easy Install Features
• Color Coded Wire Terminals
• Built-in Level Bulb
• Break Away Guides for Less
Common Terminals
• Screwless Terminals
• Blue Backlight
• Permanent Memory
• Filter Monitor
• System Powered with Battery Backup,
or Battery Powered (2 AA Batteries Included)
• Freeze Protection
• 3-year Warranty
Specifications
• 20-30 VAC
• Current Draws .1 to 1.5 Amps
• Temperature Set and Control Range
45° to 95°F (6°to 35°C)
• Operating Di erential +/- 1°
• Compressor Protection: 3.5 min.
Delay on Break
• Terminations: Rh, RC/R, Y, G, W, L,
O, B, AE/W2, Y2, C, A
Compatible With
• 2 Heat/2 Cool Systems
• Gas Standing Pilot and Electric Ignition
• Gas and Oil Fired Boilers
• Electric Heat
• Millivolt
• Hot Water Gravity and Zoned
• Hot Water Motor Valves (3-wire)
• Hot Water Solenoid Valves (2-wire)
• Heat Pumps with Electric/Gas/Oil Auxiliary
• Air/Ground/Hydro Exchanger
53200
5/1/1 Day Programmable
Features
• Easy Install Features
• Color Coded Wire Terminals
• Built-in Level Bulb
• Break Away Guides for Less
Common Terminals
• Screwless Terminals
• 25% Fewer Programming Steps
• Save Away™ Override
• Blue Backlight
• Permanent Memory
• Filter Monitor
• System Powered with Battery Backup,
or Battery Powered (2 AA Batteries Included)
• Freeze Protection
• 3-year Warranty
Specifications
• 20-30 VAC
• Current Draws .1 to 1.5 Amps
• Temperature Set and Control Range
45° to 95°F (6° to 35°C)
• Operating Di erential +/- 1°
• Compressor Protection: 3.5 min.
Delay on Break
• Terminations: Rh, RC/R, Y, G, W, L,
O, B, AE/W2, Y2, C, A
Compatible With
• 2 Heat/2 Cool Systems
• Gas Standing Pilot and Electric Ignition
• Gas and Oil Fired Boilers
• Electric Heat
• Millivolt
• Hot Water Gravity and Zoned
• Hot Water Motor Valves (3-wire)
• Hot Water Solenoid Valves (2-wire)
• Heat Pumps with Electric/Gas/Oil Auxiliary
• Air/Ground/Hydro Exchanger
®
®
36
Wall ermostats
H
V
A
C
53300
7 Day Programmable
Features
• Easy Install Features
• Color Coded Wire Terminals
• Built-in Level Bulb
• Break Away Guides for Less
Common Terminals
• Screwless Terminals
• 25% Fewer Programming Steps
• Save Away™ Override
• Energy Guide™
• Home Today™ Override
• Keyboard Lock
• Blue Backlight
• Permanent Memory
• Filter Monitor
• System Powered with Battery Backup,
or Battery Powered (2 AA Batteries Included)
• Freeze Protection
• 3-year Warranty
Specifications
• 20-30 VAC
• Current Draws .1 to 1.5 Amps
• Temperature Set and Control Range
45° to 95°F (6° to 35°C)
• Operating Di erential +/- 1°
• Compressor Protection: 3.5 min.
Delay on Break
• Terminations: Rh, RC/R, Y, G, W, L,
O, B, AE/W2, Y2, C, A
Compatible With
• 2 Heat/2 Cool Systems
• Gas Standing Pilot and Electric Ignition
• Gas and Oil Fired Boilers
• Electric Heat
• Millivolt
• Hot Water Gravity and Zoned
• Hot Water Motor Valves (3-wire)
• Hot Water Solenoid Valves (2-wire)
• Heat Pumps with Electric/Gas/Oil Auxiliary
• Air/Ground/Hydro Exchanger
Easy to Program & Operate Features
Home Today Override keeps
comfort level on those odd
days when occupants are home
during “away” period
Away/Asleep/At Home
user interface simpli es
program periods
Energy Guide gives instant
feedback when programming
Save Away Override allows
for energy saving settings
when occupants are away
during “At Home” period
®
®
37
Wall ermostats
H
V
A
C

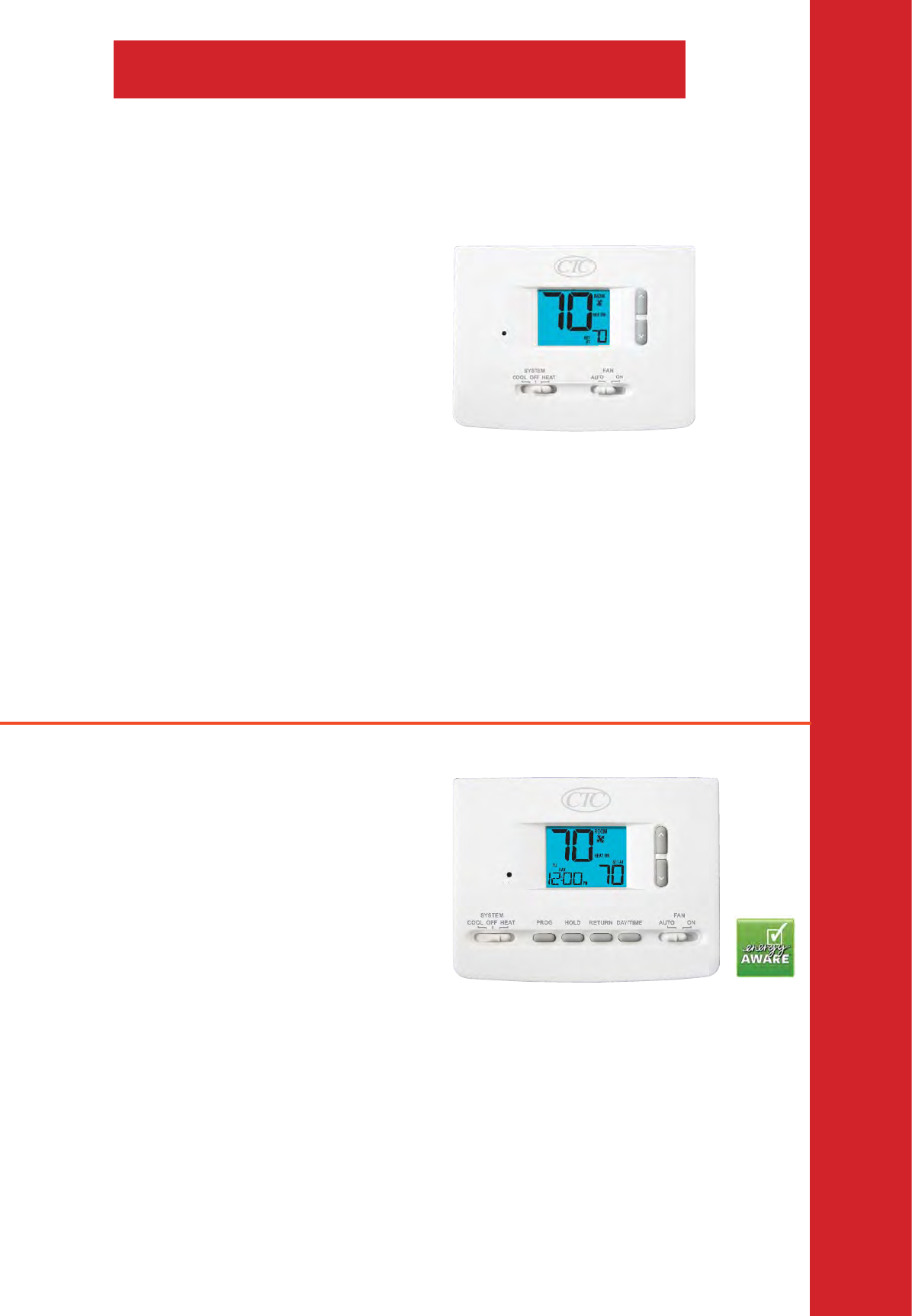

PROFESSIONAL SERIES
61100N
Non-Programmable
Features
• 1.5 Square Inch Display with Bright
Blue Backlight
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Compressor Short Cycle Protection
• Separate O & B Terminals
• Low Battery Indication
• Front Access Reset Button
• F° / C° Switch
• Gas/Electric Fan Switch
• English/Spanish Packaging and
Instruction Card
Specifications
• 3.62” x 4.72” x 1.38”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 3 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: Rc, Rh, B, O, Y1, W1, G, C
Compatible With
• 1 Heat/1 Cool Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Solenoid Valves (2-wire)
• Single Stage Heat Pumps
• Air/Ground/Hydronic Exchanger
61152P
5/2 Day Programmable
Features
• 1.5 Square Inch Display with Bright
Blue Backlight
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Filter Check Monitor
• Adjustable Temperature Di erential
• Adaptive Recovery Mode
• Temporary Program Override
• Programmable Extended Hold Mode
• Front Access Reset Button
• F° / C° Switch
• Gas/Electric Fan Switch
• English/Spanish Packaging and
Instruction Card
Compatible With
• 1 Heat/1 Cool Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Solenoid Valves (2-wire)
• Single Stage Heat Pumps
• Air/Ground/Hydronic Exchanger
Specifications
• 3.62” x 4.72” x 1.38”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 3 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: Rc, Rh, B, O, Y1, W1, G, C
38
Wall ermostats
H
V
A
C
62100N
Non-Programmable
Features
• 1.5 Square Inch Display with Bright
Blue Backlight
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Compressor Short Cycle Protection
• Separate O & B Terminals
• Auxiliary Heat Indicator
• Low Battery Indication
• Front Access Reset Button
• F° / C° Switch
• Gas/Electric Fan Switch
• English/Spanish Packaging and
Instruction Card
Compatible With
• Up to 2 Heat/1 Cool Conventional or
Heat Pump Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Solenoid Valves (2-wire)
• Single Stage Heat Pumps
• Air/Ground/Hydronic Exchanger
Specifications
• 3.62” x 4.72” x 1.38”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 3 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: Rh, Rc, O, B, Y, E/W1, G, C, W2
62152P
5/2 Day Programmable
Features
• 1.5 Square Inch Display with Bright
Blue Backlight
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Filter Check Monitor
• Adjustable Temperature Di erential
• Adaptive Recovery Mode
• Temporary Program Override
• Auxiliary Heat Status Indicator
• Compressor Short Cycle Protection
• Programmable Extended Hold Mode
• Front Access Reset Button
• F° / C° Switch
• English/Spanish Packaging and
Instruction Card
Compatible With
• Up to 2 Heat/1 Cool Conventional or
Heat Pump Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Solenoid Valves (2-wire)
• Air/Ground/Hydronic Exchanger
Specifications
• 3.62” x 4.72” x 1.38”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 4 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 “AA” Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: Rc, Rh, B, O, Y1, E/W1, G, C, W2
39
Wall ermostats
H
V
A
C
PERFORMANCE SERIES
71100N
Non-Programmable
Features
• 3 Square Inch Display with Bright
Blue Backlight
• Auto or Manual Changeover
• Adjustable Temperature Limits
• Indoor or Outdoor Remote Sensing
• Permanent Memory Retains Settings
• Separate User and Installer Reset
Buttons
• User Selectable Service Monitors
• Hardwire or Battery Powered
• Multi-Level Keypad Lockout
• Set Point Adjustment Limits
• Compressor Short Cycle Protection
• English/Spanish Packaging and
Instruction Card
Compatible With
• 1 Heat/1 Cool Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Motor Valves (3-wire)
• Hot Water Solenoid Valves (2-wire)
• Single Stage Heat Pumps
• Air/Ground/Hydronic Exchanger
Specifications
• 3.86” x 5.11” x 1.42”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 3 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: Rc, Rh, O/B/V3, Y1, W1, G, C, S1, S2
71157P
5/2, 7 Day or Non-Programmable
Features
• 4 Square Inch Display with Bright
Blue Backlight
• Auto or Manual Changeover
• Adjustable Temperature Limits
• Indoor or Outdoor Remote Sensing
• Separate User and Installer
Reset Buttons
• Programmable Fan with On or
Auto Modes
• Residential or Commercial Mode
• Adaptive Recovery Mode
• Temporary Override Limits
• Hardwire or Battery Powered
• Multi-Level Keypad Lockout
• English/Spanish Packaging and
Instruction Card
Compatible With
• 1 Heat/1 Cool Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Motor Valves (3-wire)
• Hot Water Solenoid Valves (2-wire)
• Single Stage Heat Pumps
• Air/Ground/Hydronic Exchanger
Specifications
• 3.86” x 5.11” x 1.42”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 3 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: Rc, Rh, O/B/V3, Y1, W1, G, C, S1, S2
40
Wall ermostats
H
V
A
C
73200N
Non-Programmable
Features
• 3 Square Inch Display with Bright
Blue Backlight
• Auto or Manual Changeover
• Adjustable Temperature Limits
• Indoor or Outdoor Remote Sensing
• Permanent Memory Retains Settings
• Separate User and Installer Reset
Buttons
• User Selectable Service Monitors
• Adjustable Balance Points
• Auxiliary Heat Fossil Fuel Option
• Hardwire or Battery Powered
• Multi-Level Keypad Lockout
• Set Point Adjustment Limits
• Compressor Short Cycle Protection
• English/Spanish Packaging and
Instruction Card
Compatible With
• Up to 3 Heat/2 Cool Heat Pump Systems
Up to 2 Heat/2 Cool Conventional Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Motor Valves (3-wire)
• Hot Water Solenoid Valves (2-wire)
• Single Stage Heat Pumps
• Air/Ground/Hydronic Exchanger
Specifications
• 3.86” x 5.11” x 1.42”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 5 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: G, Rc, Rh, W2, O/B/V3, Y1, Y2,
W1/E/W3, C, L, S1, S2
73257P
5/2, 7 Day or Non-Programmable
Features
• 4 Square Inch Display with Bright
Blue Backlight
• Auto or Manual Changeover
• Adjustable Temperature Limits
• Indoor or Outdoor Remote Sensing
• Separate User and Installer
Reset Buttons
• Programmable Fan with On or
Auto Modes
• Residential or Commercial Mode
• Auxiliary Heat Fossil Fuel Option
• Temporary Override Limits
• Hardwire or Battery Powered
• Multi-Level Keypad Lockout
• English/Spanish Packaging and
Instruction Card
Compatible With
• Up to 3 Heat/2 Cool Heat Pump Systems
Up to 2 Heat/2 Cool Conventional Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Motor Valves (3-wire)
• Hot Water Solenoid Valves (2-wire)
• Air/Ground/Hydronic Exchanger
Specifications
• 3.86” x 5.11” x 1.42”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 5 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: G, Rc, Rh, W2, O/B/V3, Y1, Y2,
W1/E/W3, C, L, S1, S2
41
Wall ermostats
H
V
A
C
ULTIMATE SERIES
84210T
5/2, 7 Day or Non-Programmable Touchscreen
Features
• 10 Square Inch Touchscreen Display
with Bright Blue Backlight
• Residential or Commercial Modes
• Indoor or Outdoor Remote Sensing
• Auto or Manual Changeover
• Adjustable Compressor Protection
• Hardwire or Battery Powered
• Adjustable Temperature Limits
• Separate User and Installer
Reset Buttons
• Auxiliary Heat Fossil Fuel Option
• Multi-Level Keypad Lockout
• Economizer Control
• Programmable Fan Mode
• English/Spanish Packaging and
Instruction Card
Compatible With
• Up to 4 Heat/2 Cool Heat Pump Systems
Up to 3 Heat/2 Cool Conventional Systems
• 24 VAC Gas, Oil or Electric Systems
• Millivolt
• Hot Water Gravity & Zoned
• Hot Water Solenoid Valves (2-wire)
• Air/Ground/Hydronic Exchanger
Specifications
• 4.13” x 6.13” x 1.38”
• 24 Volt AC (18-30 Volt AC), 1 Amp
Maximum Load Per Terminal, 7 Amp
Total Maximum Load (All Terminals)
• 3.0 Volts DC ( 2 AA Alkaline Batteries Included)
• Control Range 45° to 90°F (7° to 32°C)
• Display Range 40° to 99°F (5° to 37°C)
• Accuracy +/- 1°F (+/- .5°C)
• Storage Temperature 14° to 140°F (-10° to 60°C)
• Operating Humidity 5% to 95% Relative Humidity
• Terminations: A, G, Rc, Rh, W2/AUX2, W3/O/B,
Y1, Y2, W1/E/AUX1, C, L, S1, S2
ACCESSORIES
6390
Indoor Remote Sensor
• Simple 2-wire Installation
• For Indoor Use Only
• Mounting Hardware Included
• Accuracy +/- 1°F (+/- .5°C)
• Compatible with CTC™ ermostats:
71100N, 732N, 71157P, 73257P,
6490
Outdoor Remote Sensor
• Simple 2-wire Installation
• For Outdoor Use Only
• Mounting Bracket Included
• Accuracy +/- 1°F (+/- .5°C)
• Compatible with CTC® ermostats:
71100N, 732N, 71157P, 73257P,
42

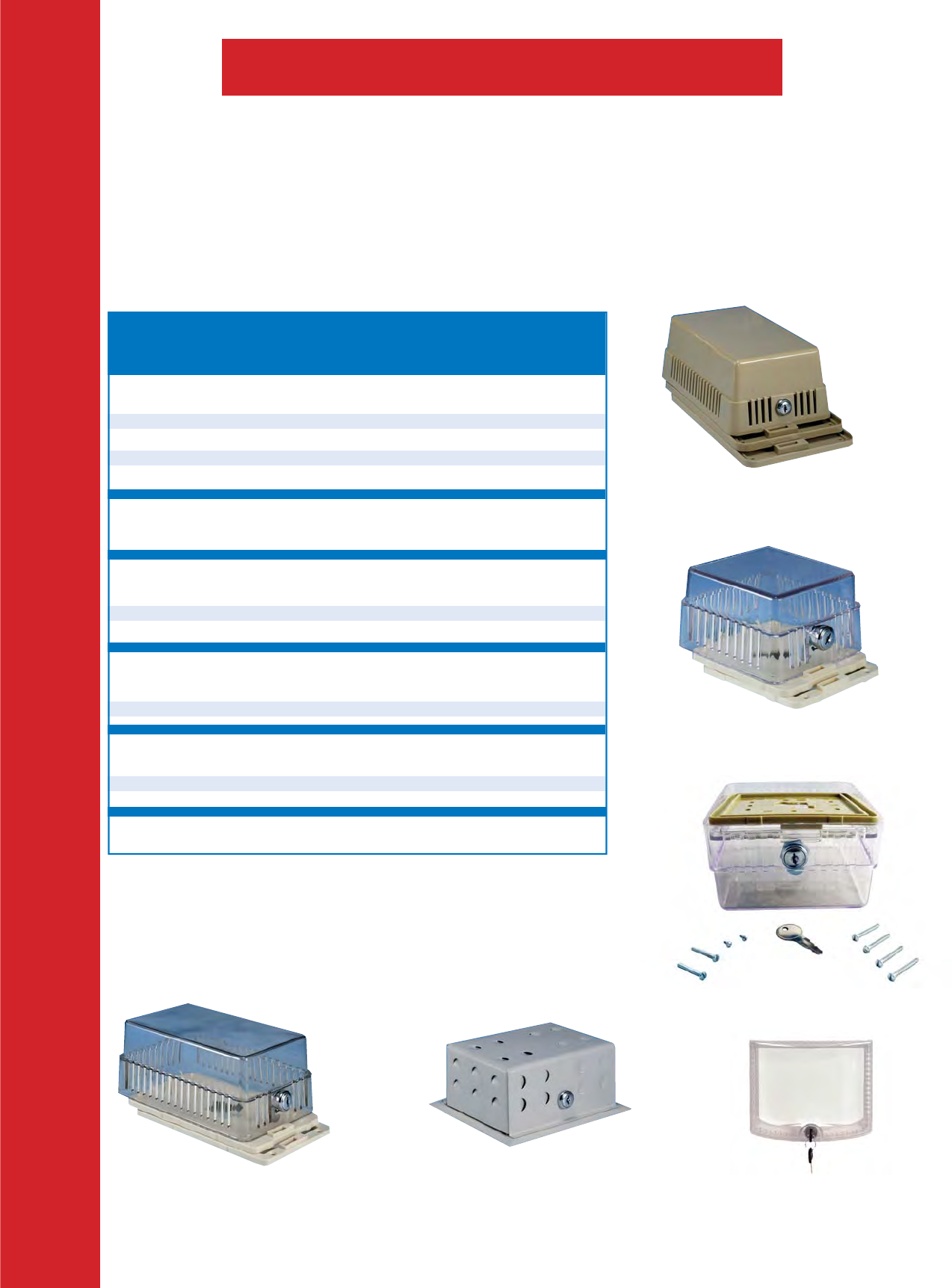

ermostat Guards
H
V
A
C
SUPCO® o ers a complete line of metal and plastic thermostat guards for the HVAC industry. Manufactured with the
highest quality materials and production standards to ensure rugged dependability and attractive appearance.
Metal Thermostat Guards
• 18-22 Gauge Steel
• Baked Enamel Finish
• Louvered Cover
• Maximum Protection
Plastic Thermostat Guards
• Hi-impact Plastic
• Clear
• Opaque
All Models
• Locking Key
• Mounting Hardware
• Vertical or Horizontal Mounting
DESCRIPTION INSIDE DIMENSIONS INSIDE DIMENSIONS
PART SOLID BASE RING BASE
NO. (H x W x D) (H x W x D)
Universal
BTG-UK2 Clear Plastic 8 1/4” x 5 3/8” x 3 1/2” 8 1/8” x 4 5/8” x 3-5/8”
BTG-UO2 Opaque Plastic 8 1/4” x 5 3/8” x 3 1/2” 8 1/8” x 4 5/8” x 3-5/8”
BTG-UM Metal 8 1/4” x 5 3/8” x 3 1/2” -
BTG-UWM Metal - 6 3/4” x 4 1/2” x 3 9/16”
BTG-UN Clear Plastic
Elite
BTG-EK Clear Plastic 3 7/8” x 3 1/2” x 2 1/2” -
Classic
BTG-K Clear Plastic 5 1/4” x 4 3/8” x 3” 5 1/4” x 4 5/8” x 3 1/4”
BTG-O Opaque Plastic 5 1/4” x 4 3/8” x 3” 5 1/4” x 4 5/8” x 3 1/4”
BTG-KWM Metal - 5 1/4” x 4 5/8” x 3 1/4”
Regal
BTG-RK Clear Plastic 6 3/8” x 3 1/2” x 3” 6 3/8” x 3 1/2” x 3 1/4”
BTG-RWM Metal - 6 3/8” x 3 1/2” x 3 1/4”
Sentinal
BTG-54VL Metal Hinged 6 1/4” x 4 1/4” x 3 1/8” -
BTG-54VLW Metal Hinged - 6” x 3 3/4” x 3 1/8”
F336 Replacement Key Fits All Models
Universal Series
Elite Series
Classic Series
Regal Series Sentinal Series BTG-UN
43
Belts
H
V
A
C
Multi-Plus Dual Brand V-BELTS
Clearly Identifying RMA Classic Part Number and Dimensionally
Equivalent FHP Number, the Multi-plus Belt is Designed to Reduce
Total V-Belt Investment.
• Consolidate Belts Sizes into a Single Belt Line
• Able to Handle Classic and FHP Drive Applications
“A” Section
Classical V Belts
• 1/2 inch top width
• 11/32 inch thick
• Dual brand A & 4L
“B” Section
Classical V Belts
• 21/32 inch top width
• 13/32 inch thick
• Dual brand B & 5L
“BX” Section
Cogged Multiple V Belts
• 21/32 inch top width
• 13/32 inch thick
BELT
SECTION B BB HB
(PITCH) (ANGLE) (WIDTH) (HEIGHT)
A 40° .50 in .31 in
B, BX 40° .66 in .41 in
A100 4L1020 102
A105 107
A110 112
A112 114
A116 118
A120 122
A124 126
A128 130
A136 138
A144 146
A158 160
A19 4L210 21
A20 4L220 22
A21 4L230 23
A22 4L240 24
A23 4L250 25
A24 4L260 26
A25 4L270 27
A26 4L280 28
A27 4L290 29
A28 4L300 30
A29 4L310 31
A30 4L320 32
A31 4L330 33
A32 4L340 34
A33 4L350 35
A34 4L360 36
A35 4L370 37
A36 4L380 38
A37 4L390 39
A38 4L400 40
A39 4L410 41
A40 4L420 42
A41 4L430 43
A42 4L440 44
A43 4L450 45
A44 4L460 46
A45 4L470 47
A46 4L480 48
A47 4L490 49
A48 4L500 50
A49 4L510 51
A50 4L520 52
A51 4L530 53
A52 4L540 54
A53 4L550 55
A54 4L560 56
A55 4L570 57
A56 4L580 58
A57 4L590 59
A58 4L600 60
A59 4L610 61
A60 4L620 62
A61 4L630 63
A62 4L640 64
A63 4L650 65
APPROX.
PART CROSS OUTSIDE
NO. to L’s LENGTH
A64 4L660 66
A65 4L670 67
A66 4L680 68
A67 4L690 69
A68 4L700 70
A69 4L710 71
A70 4L720 72
A71 4L730 73
A72 4L740 74
A73 4L750 75
A74 4L760 76
A75 4L770 77
A76 4L780 78
A77 4L790 79
A78 4L800 80
A79 4L810 81
A80 4L820 82
A81 4L830 83
A82 4L840 84
A83 4L850 85
A84 4L860 86
A85 4L870 87
A86 4L880 88
A87 4L890 89
A88 4L900 90
A89 4L910 91
A90 4L920 92
A91 4L930 93
A92 4L940 94
A93 4L950 95
A94 4L960 96
A95 4L970 97
A96 4L980 98
A97 4L990 99
A98 4L1000 100
A99 4L1010 101
B23 5L260 26
B24 5L270 27
B25 5L280 28
B26 5L290 29
B27 5L300 30
B28 5L310 31
B29 5L320 32
B30 5L330 33
B31 5L340 34
B32 5L350 35
B33 5L360 36
B34 5L370 37
B35 5L380 38
B36 5L390 39
B37 5L400 40
B38 5L410 41
B39 5L420 42
B40 5L430 43
B41 5L440 44
B42 5L450 45
B43 5L460 46
APPROX.
PART CROSS OUTSIDE
NO. to L’s LENGTH
B44 5L470 47
B45 5L480 48
B46 5L490 49
B47 5L500 50
B48 5L510 51
B49 5L520 52
B50 5L530 53
B51 5L540 54
B52 5L550 55
B53 5L560 56
B54 5L570 57
B55 5L580 58
B56 5L590 59
B57 5L600 60
B58 5L610 61
B59 5L620 62
B60 5L630 63
B61 5L640 64
B62 5L650 65
B63 5L660 66
B64 5L670 67
B65 5L680 68
B66 5L690 69
B67 5L700 70
B68 5L710 71
B69 5L720 72
B70 5L730 73
B71 5L740 74
B72 5L750 75
B73 5L760 76
B74 5L770 77
B75 5L780 78
B76 5L790 79
B77 5L800 80
B78 5L810 81
B79 5L820 82
B80 5L830 83
B81 5L840 84
B82 5L850 85
B83 5L860 86
B85 5L880 88
B86 5L890 89
B87 5L900 90
B88 5L910 91
B89 5L920 92
B90 5L930 93
B91 5L940 94
B92 5L950 95
B93 5L960 96
B94 5L970 97
B95 5L980 98
B96 5L990 99
B97 5L1000 100
B98 5L1010 101
B99 5L1020 102
B101 104
APPROX.
PART CROSS OUTSIDE
NO. to L’s LENGTH
B102 105
B104 107
B105 108
B106 109
B107 110
B110 113
B111 114
B112 115
B114 117
B115 118
B116 119
B118 121
B120 123
B124 127
B126 129
B128 131
B130 133
B133 136
B134 137
B135 138
B136 139
B140 143
B144 147
B152 155
B158 161
B162 165
B195 198
B210 213
B225 227
B240 242
B255 257
B270 272
B285 287
B300 302
B315 317
B330 332
B360 362
BX35 38
BX36 39
BX37 40
BX38 41
BX42 45
BX43 46
BX46 49
BX48 51
BX50 53
BX51 54
BX53 56
BX55 58
BX56 59
BX57 60
BX58 61
BX59 62
BX60 63
BX61 64
BX62 65
BX63 66
APPROX.
PART CROSS OUTSIDE
NO. to L’s LENGTH
BX65 68
BX66 69
BX67 70
BX70 73
BX71 74
BX75 78
BX77 80
BX78 81
BX80 83
BX81 84
BX82 85
BX83 86
BX90 93
BX93 96
BX95 98
BX96 99
BX97 100
BX99 102
BX100 103
BX103 106
BX105 108
BX112 115
BX116 119
BX120 123
BX124 127
BX128 131
BX133 135
BX136 139
BX144 147
BX150 153
BX158 161
BX162 163
BX173 176
BX180 183
BX195 198
BX210 213
BX225 226.5
BX240 241.5
BX255 256.5
BX270 271.5
BX300 301.5
AX56 58
APPROX.
PART CROSS OUTSIDE
NO. to L’s LENGTH
44
Installation and Service Products
H
V
A
C

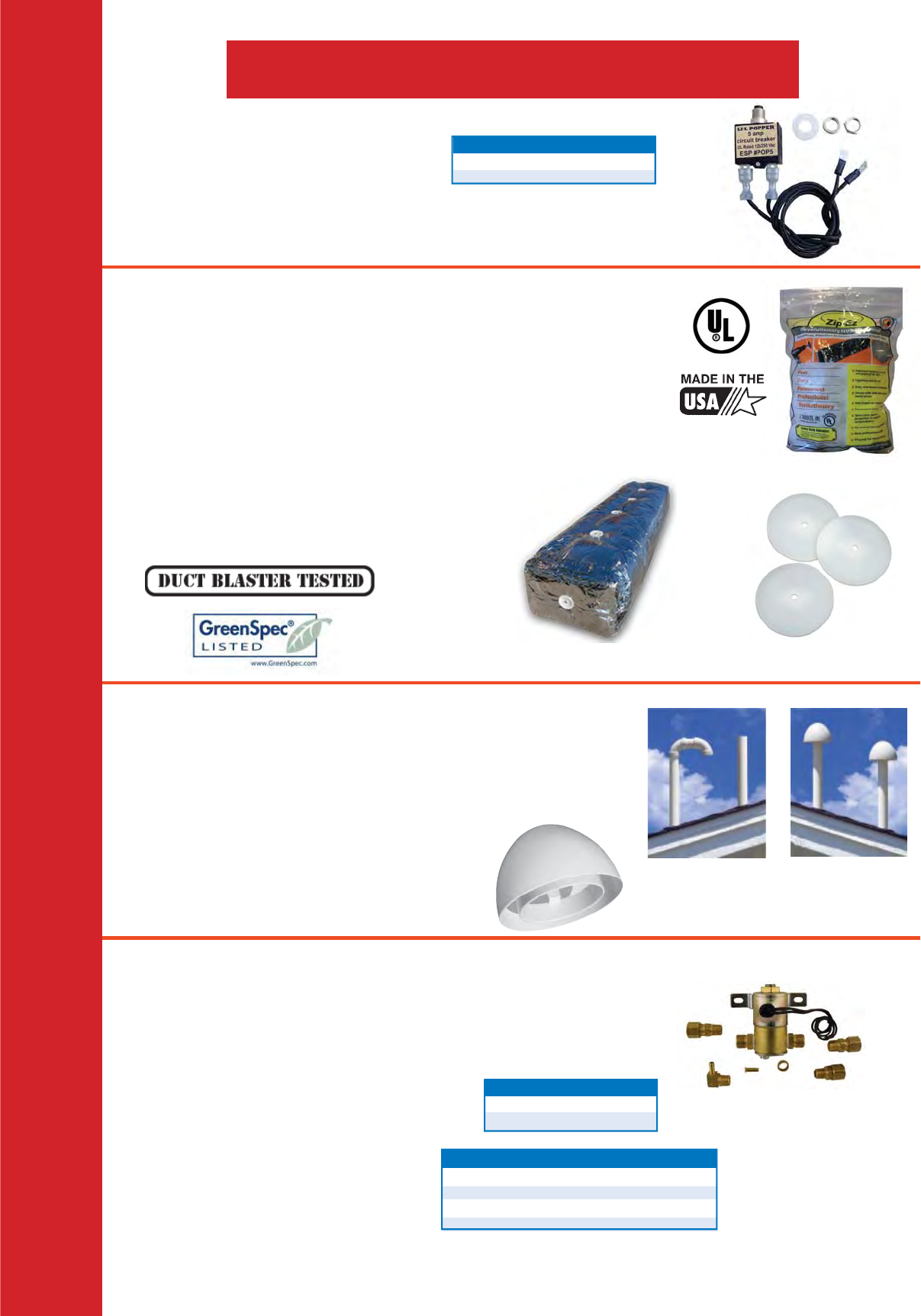

Lil Popper
Control Board Circuit Breaker
• Temporary Fix for Control Board Fuses
• Stay Up and Running While Servicing Unit
• Includes Quick Setting ermal Cutout
PART NO. DESCRIPTION
POP3 3 Amp Breaker
POP5 5 Amp Breaker
ECAP321 High Efficiency PVC Flue Cap
e A ordable Approach to Flue Pipe Problems Starts at the Top! e
ECAP321 PVC Flue Cap Protects Today’s High E ciency Furnaces from
Dirt, Moisture and Other Debris.
• Protection for High E ciency Furnaces
• Universal Flue Cap Fits 1.5”, 2” and 3” PVC Pipe
• Reduces Dra Inducer Motor Rust
• Helps to Eliminate Pressure Switch Service Calls
• Resistant to UV Radiation and Oxidative Degradation
UHS
Universal Humidi er Solenoid Valve Replacement Kits
• Each Kit Includes Solenoid Valve, Mounting Bracket and All
Fittings to Remove and Replace the Existing Solenoid Valve
• Easy “Wrench-in” Installation
• Adjustable Water Flow Valve
• Time Saving
• Universal Replacement Reduces Inventory
• Economically Priced Compared to OEM Versions
PART NO. VOLTAGE
UHS24 24 V
UHS120 120 V
UHS24 REPLACES
Aprilaire® 4040
General® 990-53
Honeywell® 320016939-002
Skuttle® A01-0814-148
UHS120 REPLACES
Aprilaire® 4005
General® 990-52
ZIPEZ
Insulation Fasteners
e Fast, Easy, Permanent, Professional, Revolutionary way to Attach Duct Wrap and
Re ective Insulation. ZIPEZ All-Purpose Fasteners’ Unique Design Provides Fast and
Easy One-Handed Installation.
• Fast & Easy-To-Use - No Special Tools Necessary
• Permanent Holding Power - Use Sheet Metal Screw
• Will Not Lose Holding Power - Even During Extreme
Hot or Cold Temperatures
• Plenum-Rated to UL Standard 2043, 2nd Edition
• Increase Productivity
• Professional Appearance
45

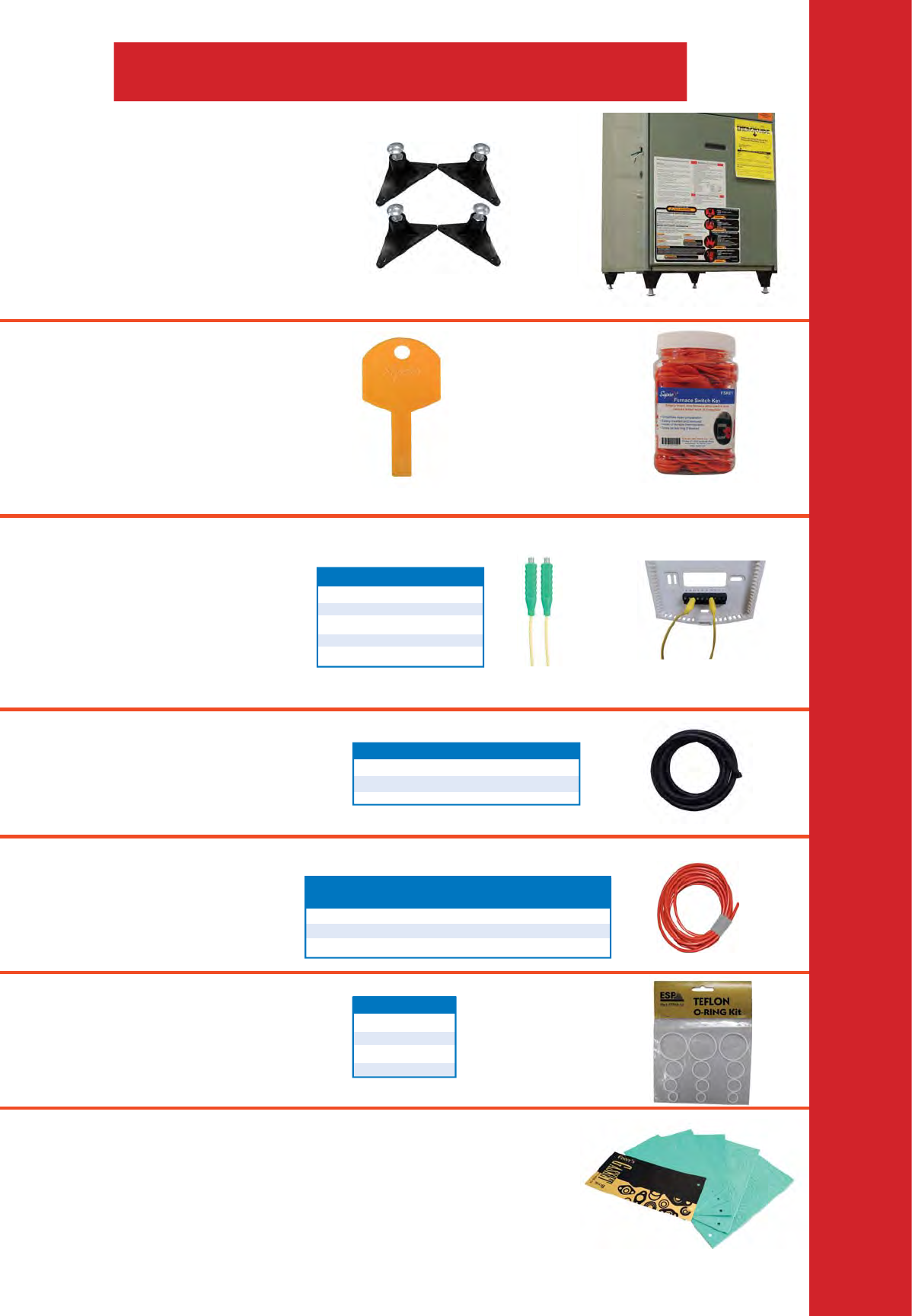

GB10
Finny’s Gasket Book
• Replacements for Gaskets in Expansion
and Solenoid Valves and Pumps
• 36 Di erent Gaskets Replace Most
Common Gaskets Used Today
• Garlock Material Replaces All Older
Materials
TR10
Te on O-Ring Kit
• Package of 12 O-Rings
• 3 of Each Size
OD SIZE ID SIZE
9/16” 7/16”
3/4” 5/8”
1” 7/8”
1 1/2” 1 3/8”
Neoprene Air Tubing
• Temperature Range: 0°F to 160°F (-17°C to 71°C)
• Pressure Range: -20 to 20 in. W.C.
PART NO. DIMENSIONS LENGTH
SNAT3165 3/16” ID 5 ft.
SNAT316100 3/16” ID 100 ft.
SNAT185 1/8” ID 5 ft.
Silicone Air Tubing
• NSF 51, So , Red
• Temperature Range: -100°F to 500°F
(-73°C to 260°C)
• 5 Foot Rolls
WORKING BURST
PART NO. DIMENSIONS PRESSURE PRESSURE
SSRT185 1/8” ID x 5/16” OD 25 psi 75 psi
SSRT3165 3/16” ID x 5/16” OD 20 psi 60 psi
SSRT145 1/4” ID x 3/8” OD 5 psi 15 psi
Installation and Service Products
H
V
A
C
EL10
Easy Leveler Furnace Legs
• Four Sturdy Bolt-adjusted Leg Extensions
• Mounting Hardware Included
• Adjustments Made with Standard Wrench
FSKEY
Furnace Switch Key
• Simpli es Repair Preparation
• Easily Inserted and Removed
• Made of Durable ermoplastic
• Store on Key Ring if Desired
MAGJUMPER®
• 30 VAC/VDC 5 Amps Maximum
• Ideal for Low Voltage Troubleshooting for
Recessed Terminals
• ermostats
• Control Boards
• Sensors
• Switches
Available in 5 Colors
PART NO. COLOR
MAG1YL Yellow
MAG1GR Green
MAG1BL Blue
MAG1BK Black
MAG1RD Red
*200/Jar
46
H
V
A
C

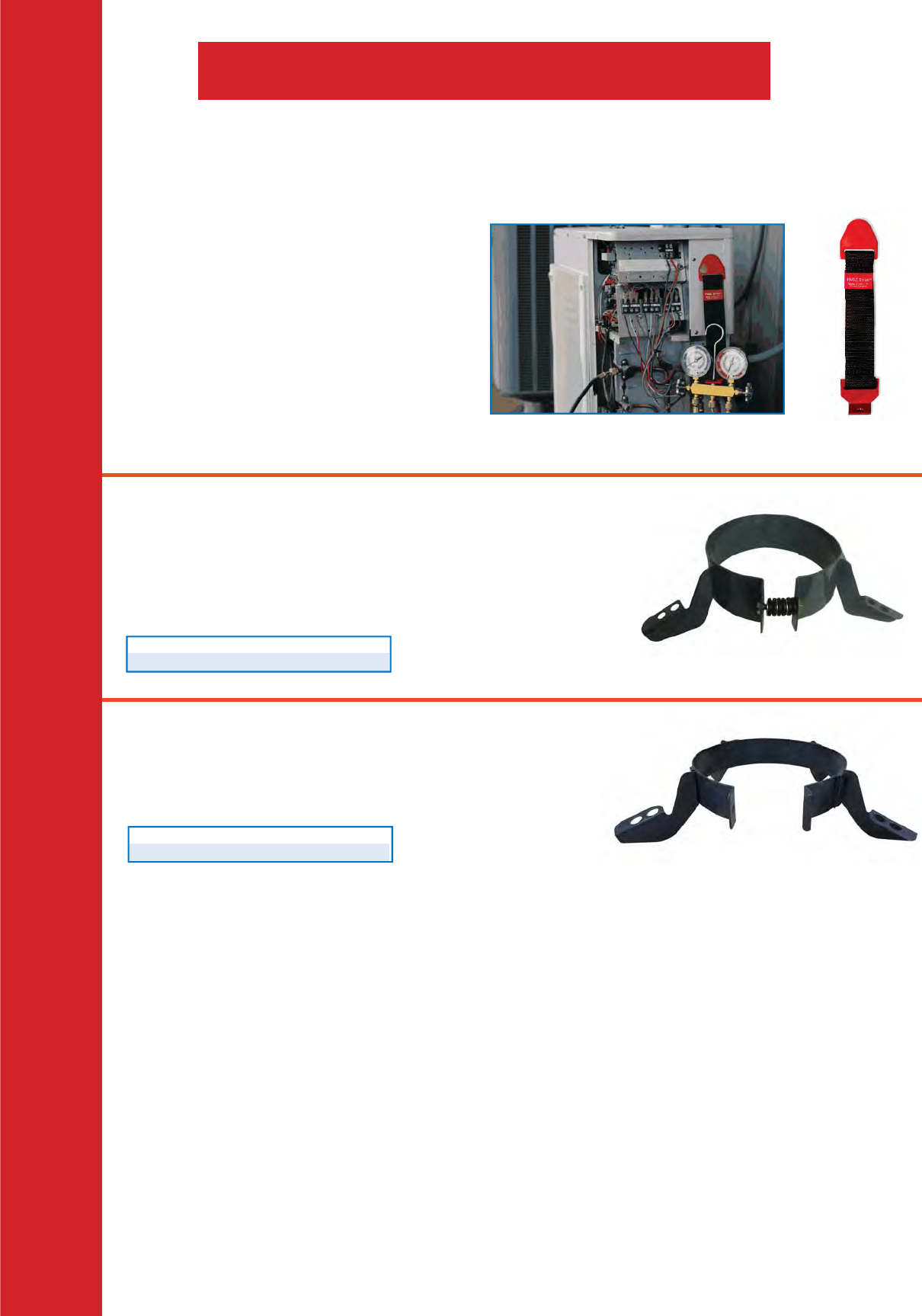

Installation and Service Products
HVAC STRAP™
HVAC Manifold Hanger
Attaches Quickly and Easily to the Manifold Gauge, and its
Magnet Allows the Technician to Hang the Gauge Almost
Anywhere. Constructed from Heavy-Duty Woven
Material, Coated, Metal Magnet.
• Safety (No High Voltage Near Gauges)
• Decreased Work Time (Put Gauges Where You
Want em)
• Non-Damaging to the Unit (Coated so it Won’t
Scratch or Damage)
• Increased Readability
MB55
Motor Bracket Mounting Kit - 3 Legs
• Designed For Direct Drive Blower Motors Using the Flexible
Bracket Mounting Arrangement
• Grommets & Eyelets Included
MB554
Motor Bracket Mounting kit - 4 Legs
• Flexible Bracket
• Grommets & Sleeves Included
Motor Diameter 5”, Bolt Circle 9” & 10.18”
Motor Diameter 5.5”, Bolt Circle 9” & 10.18”
Motor Diameter 5”, Bolt Circle 9” & 10.18”
Motor Diameter 5.5”, Bolt Circle 9” & 10.18”
Specifications
Specifications
47

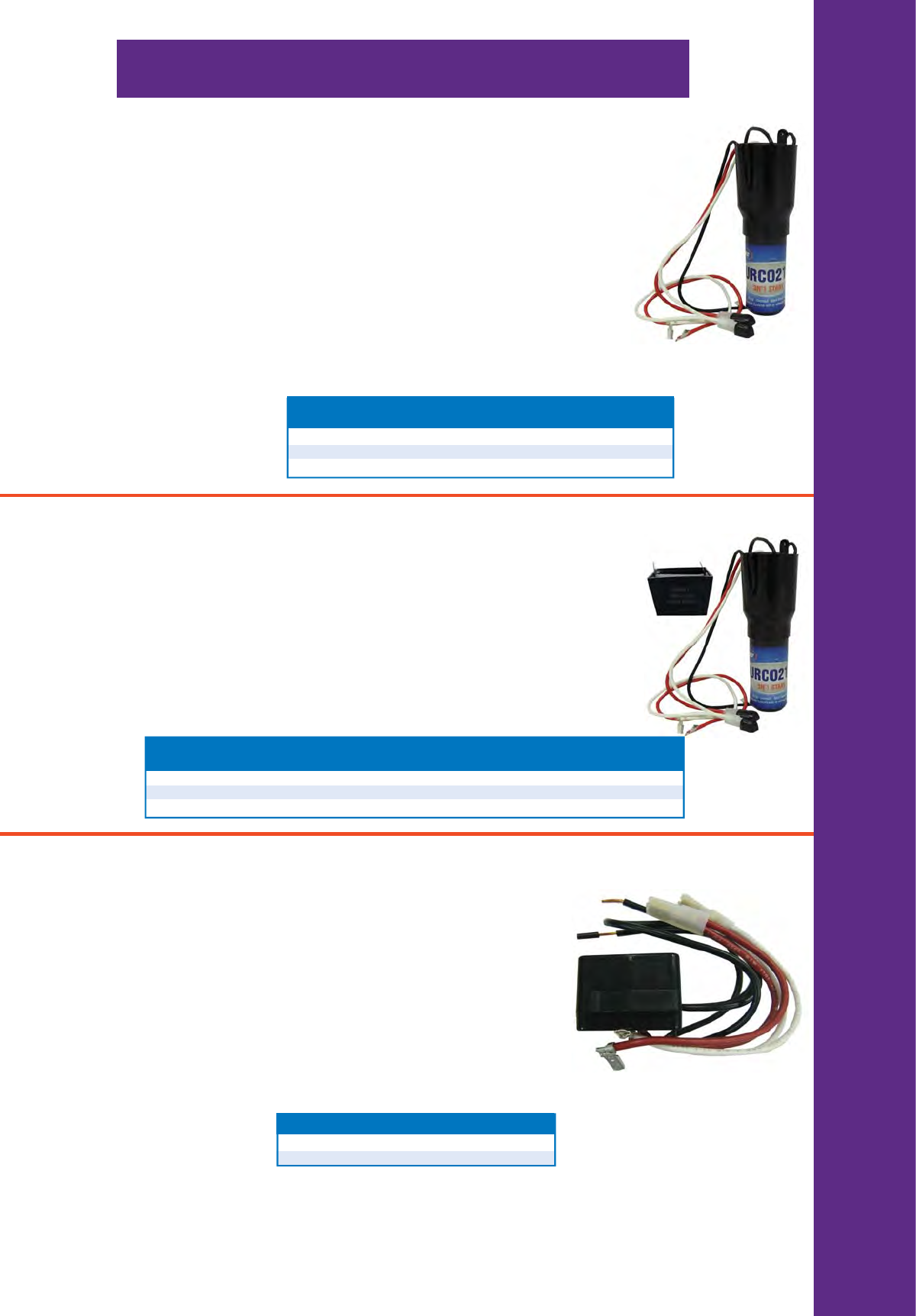

Refrigeration Relays, Overloads and Hard Starts
URCO Universal Series
Relay Capacitor Overload
For Refrigeration Systems With or Without Run
Capacitors. Maintain a High E ciency System or
Save an Old System.
• Replaces Relay, Capacitor and Overload
• Works on RSIR, CSIR, PSC & CSR
Compressors
• Available in Popular Sizes, Ranging from 1/12 hp
to 1/2 hp
• “Push-On” Compressor Terminals and 1/4”
Capacitor Terminals
• Designed for Modern High E ciency
Compressors
• Helps Older Compressors to Start and Run
Cooler
• Easy Mount Clip for Quick Installation
• Easy to Read Instructions
• Prevents Low Voltage Starting Problems
PART NO. HP RATING VOLTS CONTINUOUS
RUNNING AMPS
URCO210 1/3 to 1/2 115 13.3
URCO410 1/4 to 1/3 115 6.8
URCO810 1/12 to 1/5 115 4.05
URCORC Series
UNIVERSAL 4 ‘N 1
Relay Capacitor, Overload and
Run Capacitor
For Refrigeration Systems With or Without Run
Capacitors. Maintain a High E ciency System or Save
an Old System.
• Same Features and Bene ts of the Universal Series
• Adds a Closely Matched System Run Capacitor
RUN CAPACITOR CONTINUOUS
PART NO. HP RATING SIZE μFD VOLTS RUNNING AMPS
URCO210RC 1/3 to 1/2 20 115 13.3
URCO410RC 1/4 to 1/3 15 115 6.8
URCO810RC 1/12 to 1/5 12.5 115 4.05
URO Series
Universal Relay Overload
For Refrigeration Systems With or Without Run Capacitors. Maintain
a High E ciency System or Save an Old System.
• Replaces Relay and Overload
• Works on “RSIR”, “CSIR”, “PSC” & “CSR” Compressors
• Locked Rotor Protection, Eliminates Start Winding Overheating
• Available in Popular Sizes, Ranging from 1/12 hp to 1/2 hp
• “Snap-On” Bracket for Easy Mounting
• Quick and Easy Installation
• Wiring Instructions on the Package
• Instructions on Adding a Start Capacitor And/Or Run Capacitor
• Wire Leads for ose Odd Installations, Wire Nuts Included
PART NO. HP RATING VOLTS
URO41 1/4 to 1/3 115
URO81 1/12 to 1/5 115
R
E
F
R
I
G
E
R
A
T
I
O
N
48

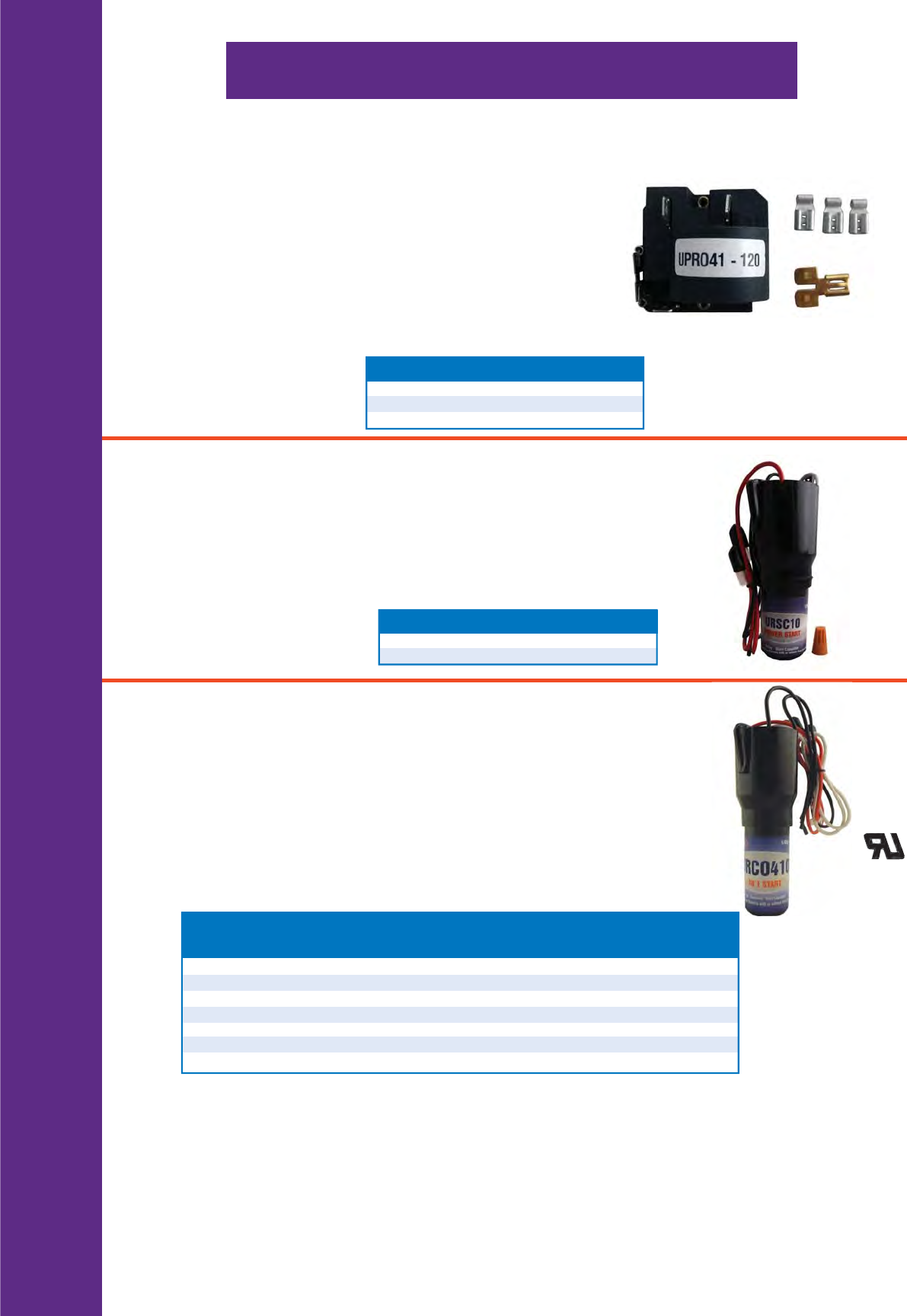

Refrigeration Relays, Overloads and Hard Starts
R
E
F
R
I
G
E
R
A
T
I
O
N
UPRO Series
Push-On Relay
For Refrigeration Systems With or Without Run Capacitors. Maintain
a High E ciency System or Save an Old System.
• Replaces Relay and Overload
• Works on RSIR, CSIR, PSC & CSR Compressors
• Available in Popular Sizes, Ranging from 1/12 hp to 1/2 hp
• “Push-On” Relay Overload
• Quick Connect Push-On Terminals for Run And/Or Start Capacitor
• Wiring Instructions on the Package
• Instructions for Adding a Start Capacitor And/Or Run Capacitor
PART NO. HP RATING VOLTS
UPRO21 1/3 to 1/2 115
UPRO41 1/4 to 1/3 115
UPRO81 1/12 to 1/5 115
URSC Series
Relay Start Capacitor
For Refrigeration Systems With or Without Run Capacitors. Maintain
a High E ciency System or Save an Old System.
• Replaces Current-Type Relays
• Works on RSIR, CSIR, PSC & CSR Compressors
• Provides a Boost for Hard Start and Unbalanced Systems
• No Additional Wires Required
PART NO. HP RATING VOLTS
URSC10 1/20 to 1/2 115
URSC20 1/20 to 1/2 220
RCO Series
3 ‘N 1 Relay, Overload and Start
Capacitor Combination
For Refrigeration Systems Without Run Capacitors.
• Replaces Relay, Overload and Provides a Boost for Hard Start and
Unbalanced Systems
• Prevents Low Voltage Starting Problems
CONTINUOUS TRIP IN
PART START VOLTAGE RUNNING CURRENT AFTER
NO MOUNTING HP RATING (VAC) AMPS 6-16 SEC. (AMPS)
RCO210 Quick Connect 1/2 115 13.3 12
RCO410 Quick Connect 1/4 to 1/3 115 6.8 22
RCO810 Quick Connect 1/12 to 1/5 115 4.05 12
RCO220 Quick Connect 1/2 230 7.5 22
RCO420 Quick Connect 1/4 to 1/3 230 4.05 12
RCO620 Quick Connect 1/6 to 1/5 230 1.66 6
RCO820 Quick Connect 1/12 to 1/8 230 1.66 6
®
49
Refrigeration Relays, Overloads and Hard Starts
R
E
F
R
I
G
E
R
A
T
I
O
N
RO & PRO Series
Relay and Overload Combinations
For Refrigeration Systems Without Run Capacitors.
• RO Series Features “Snap-On” Bracket
• PRO Series Installs on “Pin-Type” Terminal
• Locked Rotor Protection Eliminates Start Winding
Overheating
• Can be Used With and Without Start Capacitor
®
FULL TRIP IN
PART VOLTAGE LOAD CURRENT AFTER
NO MOUNTING HP RATING (VAC) AMPS 6-16 SEC. (AMPS)
RO41 Quick Connect 1/4 to 1/3 115 6.8 22
RO81 Quick Connect 1/12 to 1/5 115 4.05 12
PRO41 Push On 1/4 to 1/3 115 6.8 22
PRO81 Push On 1/12 to 1/5 115 4.05 12
RO42 Quick Connect 1/4 to 1/5 230 4.05 12
RO62 Quick Connect 1/6 to 1/5 230 1.66 6
RO82 Quick Connect 1/12 to 1/8 230 1.66 6
PRO22 Push-On 1/2 to 2/3 230 7.5 22
PRO42 Push-On 1/4 to 1/3 230 4.05 12
PRO62 Push-On 1/6 to 1/5 230 1.66 6
PRO82 Push-On 1/12 to 1/8 230 1.66 6
ICG & PO Series Relays
For Refrigeration Systems Without Run Capacitors.
• ICG Series Features a “Snap-On” Bracket
• PO Series Installs on Compressors with “Pin-Type” Terminals
• Fastest Cool Down Time of Any Solid State Relays
• Can be Used With or Without Start Capacitor
PART VOLTAGE
NO MOUNTING HP RATING (VAC)
ICG1 Quick Connect 1/12 to 1/2 115
ICG-220 Quick Connect 1/12 to 1/2 230
PO115 Push-On 1/12 to 1/2 115
PO230 Push-On 1/12 to 1/2 230
SS410 Super Start
Relay Overload Combination
For Refrigeration Systems Without Run Capacitors.
• Equipped with an Electro-Mechanical Relay, Locked
Rotor Protector and a 255 μF Start Capacitor
• Increases Torque to its Maximum Capacity
PART VOLTAGE
NO MOUNTING HP RATING (VAC)
SS410 Quick Connect 1/4 to 1/3 115
IC Series
IC100
For Refrigeration Systems With or Without Run Capacitors.
• 120 Volt PTC Relay Replaces Current Relays and Solid
State Relays From 1/20 to 1/3 HP
• Can Be Used in Any Position
• Used on Over 10,000 Models
IC102
For Refrigeration Systems With or Without Run Capacitors.
• 120 Volt PTC Relay Replaces Current Relays and Solid
State Relays From 1/20 to 1/3 HP
• Can Be Used in Any Position
• Used on Over 10,000 Models
50
Refrigeration Relays, Overloads and Hard Starts
R
E
F
R
I
G
E
R
A
T
I
O
N
OL Series
Direct Replacement Overloads
• Direct Replacements for Numerous OEM’s
• Use OL Series Overloads with IC Series, PO Series
and UR115
HORSEPOWER AT 120 VOLTS
HORSEPOWER AT 240 VOLTS
OLK1786
Compressor Start Device Kit
Relay and Overload Kit can Replace 8201786, also used on Kenmore®,
Whirlpool®, KitchenAid® and Roper® Refrigerators, Plus Other Brands
Manufactured by Whirlpool®.
OLK7535
Overload Relay Kit SXS
OLK Series Relay & Overload Kit Can Be Used as a Direct Replacement
on Several Whirlpool®, Roper®, Estate®, KitchenAid®, Maytag® and Magic
Chef® Models.
• Can Be Used With or Without a Run Capacitor
• Energy Saving Plastic Construction
• Domestic Refrigerators and Freezers
• 120 VAC Applications
• Replaces Over 2,300 Models
OLK7913
Overload Relay
• Direct Replacement for 2,400 Whirlpool® Models
• Universal Replacement on Over 10,000 Models, as a
Universal Relay Overload Kit
• Can Be Used With or Without a Capacitor
• 120 VAC
PART # OF COMPRESSOR
NO. RELAY OVERLOAD HORSEPOWER VAC TERMINALS CONNECTIONS CAPATIBLE REPLACES
IC100 * ---- 1/12 to 1/3 120 2 2 YES 2165943, WR7X194
IC102 * ---- 1/2 to 1/3 120 3 2 YES 5303007173, WR7X240
OL1 ---- * 1/5 to 1/4 120/240 1 1 ---- 5303299560, 216100110
OL2 ---- * 1/4 to 1/3+ 120/240 1 1 ---- 5303270406, WR8X122
OL3 ---- * 1/6 to 1/5 120/240 1 1 ---- 5303276514
OL4 ---- * 1/4 to 1/3 120/240 1 1 ---- 5303206885, 2154945
* IC100, IC102 replaces PON
51
Refrigeration Relays, Overloads and Hard Starts
R
E
F
R
I
G
E
R
A
T
I
O
N
OV Series
Universal Replacement Motor Protectors
• Built in Temperature Activated Disc Opens and Closes the Motor Overload
Protector’s Contacts
• Excessive Heat Generated by the Compressor, Motor or Crankcase Heater will
Open the Contacts to Help Protect the Equipment from Serious Damage or Burnout
• UL and CSA Approved
®®
OVKIT
Overload Kit
• Contains One of Each Overload (10 Total)
PART LOCKED ROTOR GEM® MARS®
NO. AMPS 1/20 1/1 1/10 1/8 1/6 1/5 1/4 1/3 1/2 3/4 NO. NO.
OV32 12.0 13.5 • • MP359 35004
OV34 14.0 15.5 • • • • • MP358 35007
OV36 16.0 18.0 • • • • MP357 35009
OV38 18.5 22.0 • • • • • MP354 35010
OV40 22.5 26.5 • • • MP360 35011
OV42 27.0 31.0 • • • MP355 35012
OV44 31.5 35.5 • • MP361 35017
OV46 36.0 40.0 • • • MP352 35018
OV48 40.5 44.5 • • • MP351 35019
OV50 45.0 49.0 • • MP362 35020
PART LOCKED ROTOR GEM® MARS®
NO. AMPS 1/10 1/8 1/6 1/5 1/4 1/4+ 1/3 1/3+ 1/2 1/2+ 3/4 1 NO. NO.
OV32 12.0 13.5 • • • • • • • MP359 35004
OV34 14.0 15.5 • • • • • • • MP358 35007
OV36 16.0 18.0 • • • • • MP357 35009
OV38 18.5 22.0 • • • • • • MP354 35010
OV40 22.5 26.5 • • • • • • • MP360 35011
OV42 27.0 31.0 • • • • • • • MP355 35012
OV44 31.5 35.5 • • • MP361 35017
OV46 36.0 40.0 • • • MP352 35018
OV48 40.5 44.5 • • • MP351 35019
OV50 45.0 49.0 • MP362 35020
This application guide is offered as a guide only when no other information is available.The application will vary with compressor manufacturer’s systems and condenser
applications (static, fan, and water cooled, etc.) Other factors include refrigerant, motor type, and efficiency.
52

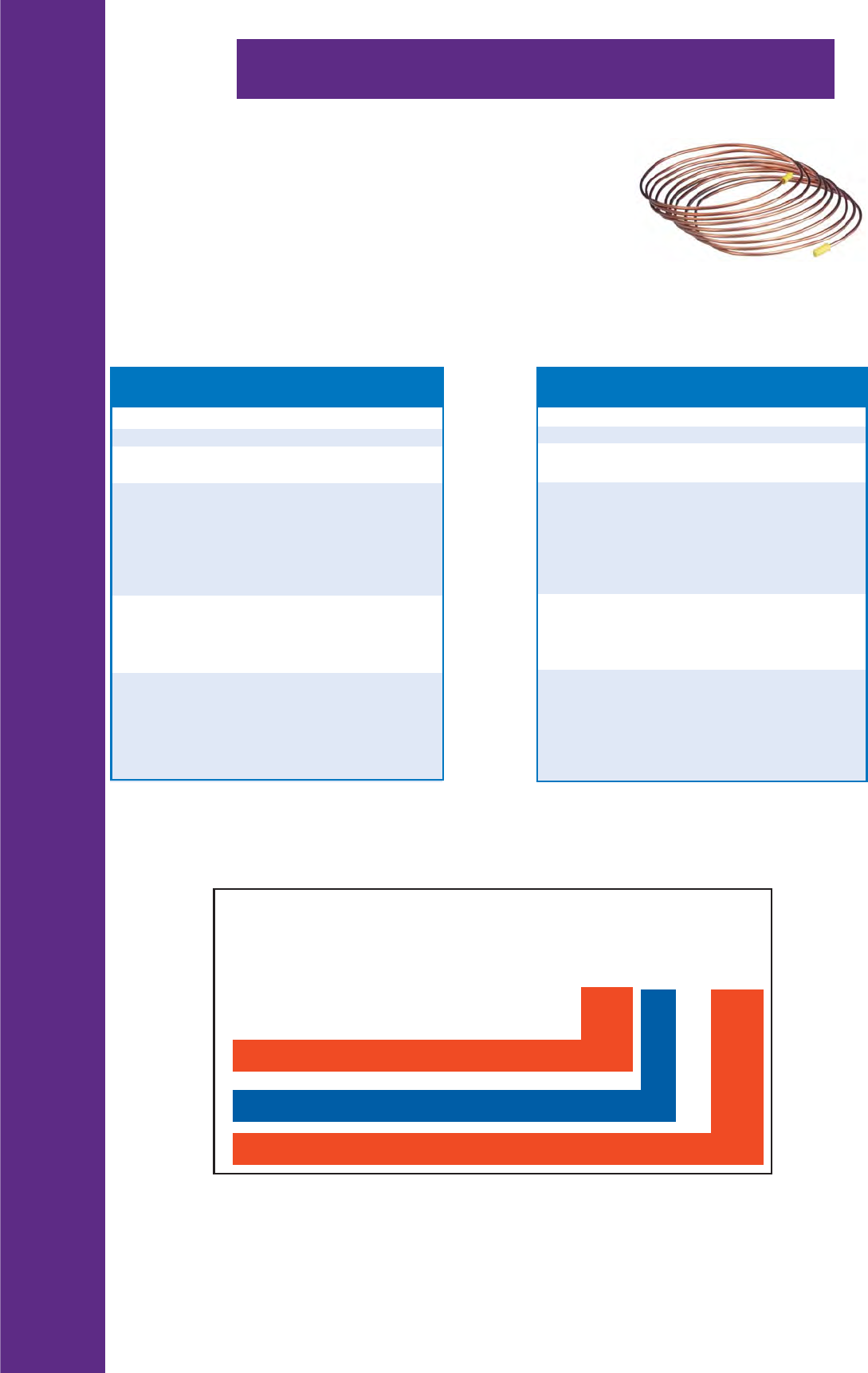

Capillary Tubing
R
E
F
R
I
G
E
R
A
T
I
O
N
BC Series Bullet® Restricto
Capillary Tubing
Fits ANY Domestic and Commercial Refrigerator,
Freezer or Application. Air Conditioner from
1/8 hp to 5 hp.
• Precision Bore, Plus or Minus .001”
• Speci cation: ASTMB360
• Terminations: RC, RH, W. Y, G, O, B
OLD NEW LENGTH
PART NO. PART NO. (FT.) DESCRIPTION
BC26X16 16 .026 ID X .071 OD
BC5 BC28X10 10 .028 ID X .071 OD
BC1 BC31X10 10 .031 ID X .081 OD
BC36X12 12 .036 ID X .086 OD
BC2 BC40X12 12 .040 ID X .093 OD
BC42X12 12 .042 ID X .093 OD
BC44X12 12 .044 ID X .093 OD
BC46X12 12 .046 ID X.093 OD
BC49X11 11 .049 ID X .093 OD
BC50X11 11 .050 ID X .093 OD
BC3 BC52X12 12 .052 ID X .093 OD
BC54X11 11 .054 ID X .106 OD
BC55X11 11 .055 ID X .112 OD
BC59X10 10 .059 ID X .112 OD
BC4 BC64X12 12 .064 ID X .125 OD
BC70X12 12 .070 ID X .125 OD
BC75X9 9 .075 ID X .125 OD
BC80X10 10 .080 ID X .145 OD
BC85X9 9 .085 ID X .145 OD
BC90X7 7 .090 ID X .145 OD
OLD NEW LENGTH
PART NO. PART NO. (FT.) DESCRIPTION PRICE
BC26X100 100 .026 ID X .071 OD
BC5-100 BC28X100 100 .028 ID X .071 OD
BC1-100 BC31X100 100 .031 ID X .081 OD
BC36X100 100 .036 ID X .086 OD
BC2-100 BC40X100 100 .040 ID X .093 OD
BC42X100 100 .042 ID X .093 OD
BC44X100 100 .044 ID X .093 OD
BC46X100 100 .046 ID X .093 OD
BC49X100 100 .049 ID X .093 OD
BC50X100 100 .050 ID X .093 OD
BC3-100 BC52X100 100 .052 ID X .093 OD
BC54X100 100 .054 ID X .106 OD
BC55X100 100 .055 ID X .112 OD
BC59X100 100 .059 ID X .112 OD
BC4-100 BC64X100 100 .064 ID X .125 OD
BC70X100 100 .070 ID X .125 OD
BC75X100 100 .075 ID X .125 OD
BC80X100 100 .080 ID X .145 OD
BC85X100 100 .085 ID X .145 OD
BC90X100 100 .090 ID X .145 OD
Standard Service Packs 100 Foot Bulk Packs
Bullet Capillary Tubing
B C 4 6 X 1 2
Inner Diameter (in.)
Length (.)
Part Number Key
53
Capillary Tubing
BC5 BC1 BC2 BC3 BC4
BC26 BC28 BC31 BC36 BC40 BC42 BC44 BC46 BC49 BC50 BC52 BC54 BC55 BC59 BC64 BC70 BC75 BC80 BC85 BC90
0.026 0.028 0.031 0.036 0.040 0.042 0.044 0.046 0.049 0.050 0.052 0.054 0.055 0.059 0.064 0.070 0.075 0.080 0.085 0.090
0.024 1.430 2.160 3.890
0.025 1.120 1.640 3.040
0.026 1.000 1.520 2.580
0.027 0.810 1.200 2.070
0.028 0.660 1.000 1.710 3.950
0.029 0.560 0.840 1.440 3.300
0.030 0.460 0.68 1.180 2.680
0.031 0.390 0.595 1.000 2.260
0.032 0.325 0.500 0.850 1.930 3.610
0.033 0.435 0.680 1.642 3.520
0.034 0.340 0.615 1.388 2.588
0.035 0.300 0.525 1.185 2.210 2.930 3.934
0.036 0.250 0.378 1.000 1.840 2.416 3.250 4.240
0.037 0.856 1.569 2.072 2.761 3.530
0.038 0.738 1.335 1.742 2.329 2.974
0.039 0.645 1.164 1.526 2.014 2.570 3.835
0.040 0.551 1.000 1.306 1.741 2.242 3.275 3.749
0.041 0.479 0.866 1.149 1.509 1.927 2.816 3.240
0.042 0.416 0.760 1.000 1.302 1.681 2.417 2.740 3.535
0.043 0.362 0.665 0.870 1.153 1.472 2.109 2.388 3.047
0.044 0.311 0.583 0.768 1.000 1.277 1.820 2.063 2.606 3.470
0.045 0.270 0.507 0.669 0.878 1.121 1.612 1.827 2.293 3.025
0.046 0.236 0.446 0.595 0.783 1.000 1.410 1.600 2.021 2.640 2.985
0.047 0.378 0.531 0.700 0.889 1.250 1.415 1.760 2.313 2.624 4.157
0.048 0.345 0.468 0.617 0.788 1.114 1.254 1.566 2.040 2.305 3.653
0.049 0.298 0.415 0.551 0.709 1.000 1.123 1.390 1.811 2.026 3.115
0.050 0.257 0.375 0.484 0.625 0.891 1.000 1.156 1.613 1.809 2.843
0.051 0.322 0.431 0.550 0.795 0.892 1.107 1.425 1.598 2.453
0.052 0.287 0.385 0.495 0.720 0.807 1.000 1.280 1.435 2.215 3.907
0.053 0.317 0.405 0.625 0.709 0.881 1.135 1.229 1.935 3.261
0.054 0.290 0.379 0.570 0.620 0.779 1.000 1.086 1.703 2.950
0.055 0.254 0.335 0.500 0.559 0.699 0.900 1.000 1.517 2.586
0.056 0.443 0.500 0.634 0.806 0.924 1.379 2.330
0.057 0.393 0.445 0.564 0.720 0.809 1.236 2.084
0.058 0.343 0.395 0.499 0.650 0.729 1.103 1.867
0.059 0.350 0.350 0.446 0.580 0.647 1.000 1.675 2.862
0.060 0.290 0.308 0.394 0.513 0.573 0.893 1.463 2.475
0.061 0.270 0.347 0.450 0.514 0.802 1.310 2.210
0.062 0.310 0.411 0.465 0.723 1.189 2.000 3.201
0.063 0.373 0.423 0.659 1.093 1.817 2.872
0.064 0.336 0.383 0.604 1.000 1.646 2.575
0.065 0.353 0.560 0.910 1.522 2.389
0.066 0.326 0.519 0.864 1.412 2.198
0.067 0.468 0.779 1.270 1.994
0.068 0.424 0.713 1.166 1.809
0.069 0.388 0.660 1.086 1.687
0.070 0.351 0.603 1.000 1.544 2.303 2.400 3.190
0.071 0.547 0.918 1.397 2.071 2.240 2.960
0.072 0.503 0.849 1.287 1.910 2.100 2.775
0.073 0.464 0.789 1.189 1.766 1.970 2.600
0.074 0.419 0.737 1.104 1.624 1.850 2.450
0.075 0.381 0.692 1.000 1.470 1.750 2.318
0.076 0.344 0.592 0.912 1.335 1.650 2.140
0.077 0.316 0.548 0.838 1.235 1.550 1.980
0.078 0.293 0.510 0.775 1.151 1.460 1.840
0.079 0.476 0.721 1.069 1.389 1.720
0.080 0.448 0.680 1.000 1.320 1.610
The recommended capillary tube is .046 X 120" Find 0.046 in the left
column read across to 0.595 [BC42] or 0.783 [BC44] or 1.410 [BC49].
Multiply 0.595 X 120" = 71.4"
Multiply 0.783 X 120" = 93.96"
More sizes and a metric chart
on other side of page
Good Choice
Part No.
3.) Multiply the recommended length by the conversion factor.
Conversion Chart ( 0.024 I.D. inches to 0.80 I.D inches )
For best results use conversion factors in the shaded areas.
EXAMPLE:
More charts available from
www.supco.com
4.) As a general rule you should use a capillary tube that is between 5 feet
and 16 feet long
Multiply 1.410 X 120" = 169.2"
Tube I.D.
Okay choice, too long for service pack.
Best Choice
1.) Locate the recommended capillary I.D. in the left hand column
Conversion Chart
2.) Reading across find the standard stock capillary tube.
R
E
F
R
I
G
E
R
A
T
I
O
N
54
Capillary Tubing
R
E
F
R
I
G
E
R
A
T
I
O
N
BC5 BC1 BC2 BC3 BC4
BC26 BC28 BC31 BC36 BC40 BC42 BC44 BC46 BC49 BC50 BC52 BC54 BC55 BC59 BC64 BC70 BC75 BC80 BC85 BC90
0.026 0.028 0.031 0.036 0.040 0.042 0.044 0.046 0.049 0.050 0.052 0.054 0.055 0.059 0.064 0.070 0.075 0.080 0.085 0.090
0.081 0.632 0.943 1.240 1.545
0.082 0.596 0.885 1.170 1.484
0.083 0.564 0.840 1.109 1.420
0.084 0.536 0.795 1.052 1.370
0.085 0.510 0.760 1.000 1.320
0.086 0.482 0.715 0.945 1.234
0.087 0.457 0.676 0.895 1.172
0.088 0.434 0.655 0.850 1.110
0.089 0.414 0.618 0.810 1.054
0.090 0.395 0.585 0.775 1.000
0.091 0.372 0.554 0.730 0.944
0.092 0.351 0.526 0.690 0.892
0.093 0.333 0.504 0.655 0.845
0.094 0.316 0.480 0.620 0.804
0.095 0.460 0.590 0.760
0.096 0.435 0.565 0.731
0.097 0.415 0.540 0.696
0.098 0.395 0.510 0.659
0.099 0.369 0.498 0.640
0.100 0.362 0.477 0.616
BC5 BC1 BC2 BC3 BC4
BC26 BC28 BC31 BC36 BC40 BC42 BC44 BC46 BC49 BC50 BC52 BC54 BC55 BC59 BC64 BC70 BC75 BC80 BC85 BC90
0.026 0.028 0.031 0.036 0.040 0.042 0.044 0.046 0.049 0.050 0.052 0.054 0.055 0.059 0.064 0.070 0.075 0.080 0.085 0.090
0.600 mm 1.450 2.200 3.990
0.610 mm 1.425 2.155 3.840
0.635 mm 1.120 1.640 3.040
0.660 mm 1.000 1.520 2.580
0.700 mm 0.680 1.082 1.860
0.780 mm 0.410 0.623 1.046 2.630
0.800 mm 0.364 0.545 0.951 2.110
0.900 mm 0.276 0.487 1.085 2.100 2.653 3.540
0.910 mm 0.265 0.455 1.029 2.000 2.600 3.337 4.261
1.000 mm 0.593 1.076 1.408 1.753 2.239 3.597
1.060 mm 0.435 0.815 1.036 1.410 1.801 2.497 2.840 3.651
1.100 mm 0.332 0.620 0.817 1.101 1.405 2.005 2.273 2.893 3.831
1.200 mm 0.359 0.496 0.675 0.862 1.215 1.372 1.707 2.239 2.538 4.019
1.240 mm 0.304 0.421 0.560 0.715 1.018 1.145 1.420 1.840 2.062 3.199
1.270 mm 0.257 0.375 0.484 0.618 0.891 1.000 1.156 1.613 1.809 2.843
1.300 mm 0.300 0.419 0.535 0.765 0.875 1.086 1.398 1.567 2.404 4.299
1.370 mm 0.300 0.383 0.580 0.625 0.785 1.005 1.094 1.716 2.955
1.400 mm 0.495 0.546 0.689 0.889 0.990 1.499 2.551
1.500 mm 0.330 0.343 0.439 0.570 0.638 0.990 1.662 2.836
1.600 mm 0.282 0.375 0.424 0.660 1.094 1.820 2.875
1.630 mm 0.374 0.593 0.985 1.623 2.568
1.700 mm 0.288 0.472 0.785 1.279 2.005
1.800 mm 0.554 0.928 1.415 2.105 2.251 3.000
1.900 mm 0.387 0.700 1.019 1.529 1.770 2.350
2.000 mm 0.485 0.734 1.090 1.400 1.750
2.100 mm 0.574 0.855 1.120 1.435
2.160 mm 0.508 0.755 0.987 1.296
2.200 mm 0.466 0.690 0.915 1.198
2.300 mm 0.382 0.585 0.760 0.986
2.400 mm 0.309 0.470 0.605 0.784
2.500 mm 0.385 0.505 0.649
2.540 mm 0.362 0.477 0.616
For best results use conversion factors in the shaded areas.
Horsepower and BTU charts available from
www.supco.com
Part No.
Part No.
All metric sizes are in millimeters, all replacement sizes are in inches.
Rev.04192013
For best results use conversion factors in the shaded areas.
Metric Conversion Chart ( 0.600 MM to 2.50 MM )
Conversion Chart Continued ( 0.81 to 0.100 inches )
Tube I.D.
Tube I.D.
55
Condensate Drain Pans
R
E
F
R
I
G
E
R
A
T
I
O
N

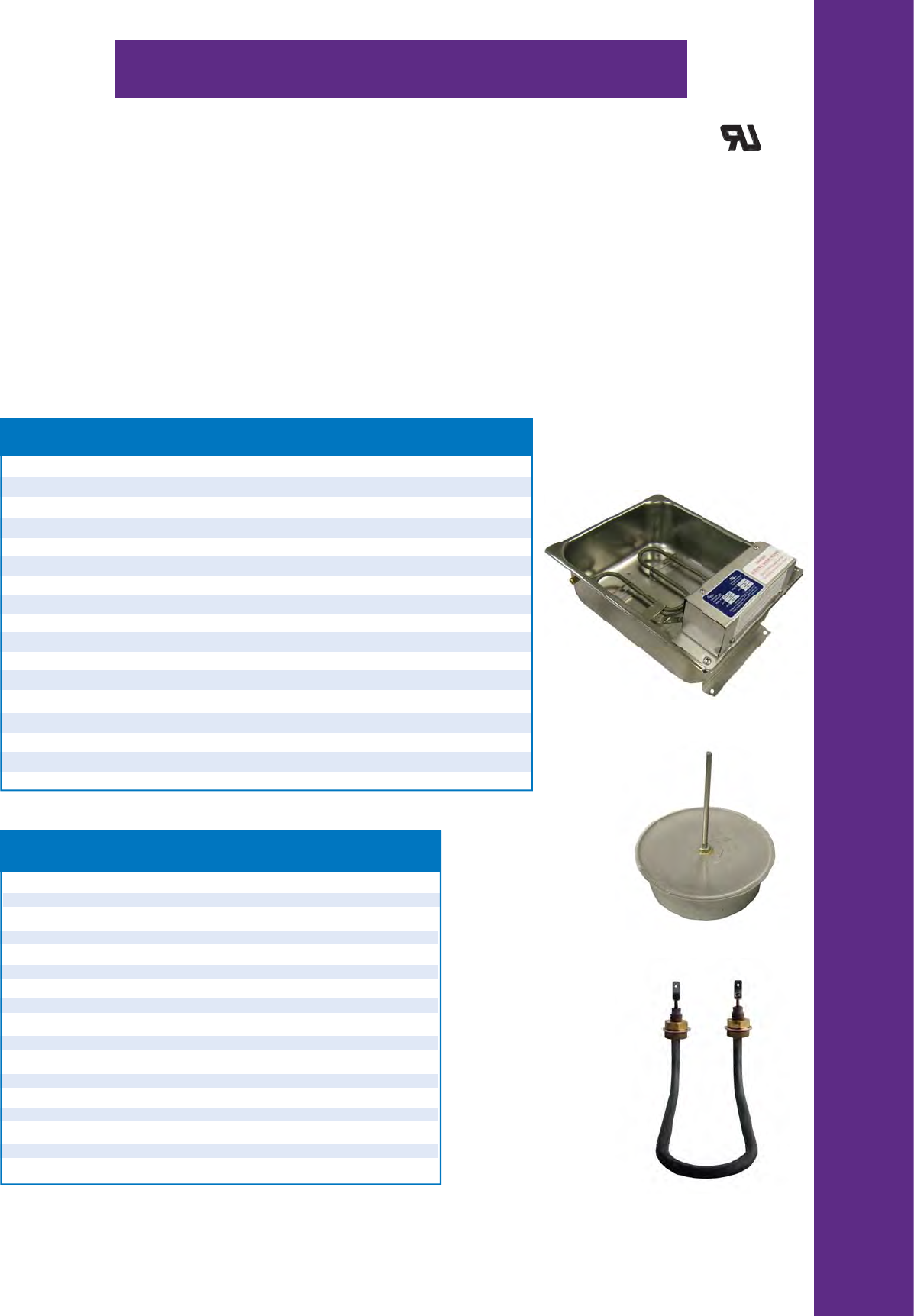

Commercial Condensate Evaporator Pans
For Condensate Applications where no Drain is Available. Choose from these Popular,
Large Capacity Sized Pans. SUPCO® Commercial Refrigeration Condensate Evaporator
Pans are Made from Top Quality Materials for Durable, Long Life.
• CP804-HD 20 Gauge Stainless Steel. All Others use 22 Gauge.
• Made with NSF Compliant Material
• Corrosion Resistant Stainless Steel Construction
• Positive Evaporation
• High Limit Safety and Float Switch Operation
• Available in 120 Volts, 208 Volts and 240 Volts
• 50/60 Hz
• Warranty - One Year from Date of Installation
• Space Saving
• Used in Supermarket Refrigeration
Systems and Elevators
• ese Pans are used for Water Dissipation
ONLY! Do Not Operate Dry
• Clean the Pan and Check the Float Every
30 Days for Optimum Performance and
Operation
®
PART DIMENSIONS DISSIPATION RATE
NO. CAPACITY VOLTS WATTS AMPS L x W X H PER DAY REPLACES
CP801 1 3/4 qt 120 400 3.3 10” x 7” x 2 1/2” 3 Gallon DM04T1S
CP802 2 1/2 qt 120 800 6.6 13” x 7” x 2 1/2” 6 Gallon DM08S1S
CP802-240 2 1/2 qt 240 800 3.3 13” x 7” x 2 1/2” 6 Gallon
CP804 4 1/2 qt 120 1000 8.34 13” x 7” x 4” 10 Gallon DM10MS1
CP804-240 4 1/2 qt 240 1000 4.17 13” x 7” x 4” 6 Gallon
CP804HD 7 1/2 qt 120 1000 8.34 13” x 10” x 4” 6 Gallon DM10W1D
CP804HD-240 7 1/2 qt 240 1000 4.17 13” x 10 “ x 4” 6 Gallon
CP807 7 1/2 qt 120 1000 8.34 13” x 10” x 4” 10 Gallon DM10W1S
CP807-240 7 1/2 qt 240 1000 4.8 13” x 10” x 4” 10 Gallon DM10W3
CP815 15 qt 120 1440 12 21” x 13” x 4” 12 Gallon DM15WW1D
CP815-240 15 qt 240 1500 6.28 21” x 13” x 4” 12 Gallon DM15WW3
CP816 7 qt 120 500 4.17 13 “ x 10” x 4” 4.5 Gallon DM05W1D
CP817 7 qt 208 1000 4.81 13” x 10” x 4” 8 Gallon DM10W2D
CP818 7 qt 208 1000 4.81 13” x 10” x 4” 8 Gallon DM10W2S
CP819 7 qt 120 1500 12.5 13” x 10” x 4” 12 Gallon DM15W1D
CP820 7 qt 208 1500 7.21 13 “ x 10” x 4” 12 Gallon DM15W2D
CP821 15 qt 208 1500 7.21 21” x 13” x 4” 12 Gallon DM15WW2D
Specifications
PART FLOAT HEATER MICROSWITCH THERMOSTAT
NO. PART NO. PART NO. PART NO. PART NO.
CP801 CPFLOAT CPH801 CPS800 CPT800
CP802 CPFLOAT CPH802 CPS800 CPT800
CP802-240 CPFLOAT CPH802-240 CPS800 CPT800
CP804 CPFLOAT4 CPH8047 CPS800 CPT800
CP804-240 CPFLOAT4 CPH804-240 CPS800 CPT800
CP804HD CPFLOAT4 CPH804HD CPS800 CPT800
CP804HD-240 CPFLOAT4 CPH804HD-240 CPS800 CPT800
CP807 CPFLOAT4 CPH8047 CPS800 CPT800
CP807-240 CPFLOAT4 CPH807-240 CPS800 CPT800
CP815 CPFLOAT4 CPH815 CPS800 CPT800
CP815-240 CPFLOAT4 CPH815-240 CPS800 CPT800
CP816 CPFLOAT4 CPH816 CPS800 CPT800
CP817 CPFLOAT4 CPH817 CPS800 CPT800
CP818 CPFLOAT4 CPH818 CPS800 CPT800
CP819 CPFLOAT4 CPH819 CPS800 CPT800
CP820 CPFLOAT4 CPH820 CPS800 CPT800
CP821 CPFLOAT4 CPH821 CPS800 CPT800
Replacement Parts
SA32471
56
Condensate Drain Pans
®
70 Condensate Drain
Authorized, Cost E ective Replacement Drain for Most Commercial Refrigerators and Freezers.
• PTC Control Supplies Only Required Heat to Evaporate Water • Die Cast Aluminum Eliminates Corrosion
• ermostat and Float NOT Required • Removable Cord Set for Easy Cleaning
• Self Regulating • Fast Evaporation Rate (6 oz./hour)
• Uniform Heating • Low Pro le (3”) to Fit Tight Spaces
• NSF, UL and CSA (where noted) Approved
30-OS, 31 & 75 Condensate Drains
• Standard Cast Aluminum Condensate Drains Complete
with Long Life Heating Element and Mounting Legs
• Designed for Continuous Use
Wall Mount Brackets
PART EVAPORATE
NO. CAPACITY VOLTS WATTS AMPS RATE SIZE
70 50 oz 115 300 2.61 4.5 oz/hr 12 1/4” x 4 3/4” x 3”
70-220 50 oz 220 300 1.36 6 oz/hr 12 1/4” x 4 3/4” x 3”
70CSA* 50 oz 115 190 1.65 6 oz/hr 12 1/4” x 4 3/4” x 3”
70CSA220* 50 oz 220 190 .86 6 oz/hr 12 1/4” x 4 3/4” x 3”
*CSA indicates CSA approval. ** All are 50/60 HZ
®
PART EVAPORATE
NO. CAPACITY VOLTS WATTS AMPS RATE SIZE
30-OS 38 oz 120 160 1.33 8 oz/hr 10” x 4” x 2 7/8”
30-220-OS 38 oz 220 160 .73 8 oz/hr 10” x 4” x 2 7/8”
31 50 oz 120 160 1.33 6 oz/hr 10” x 4 1/2” x 3 3/8”
31-220 50 oz 220 160 .73 6 oz/hr 10” x 4 1/2” x 3 3/8”
75 75 oz 120 320 2.67 14 oz/hr 10” x 9” x 2 3/4”
75-220 75 oz 220 320 1.45 14 oz/hr 10” x 9” x 2 3/4”
** All are 50/60 HZ
PART NO. CONDENSATE DRAIN NO.
30WM 30-OS Series, 75 Series
31WM 31 Series, 70 Series
R
E
F
R
I
G
E
R
A
T
I
O
N
57
Condensate Pumps
R
E
F
R
I
G
E
R
A
T
I
O
N
High Quality and Dependable Pump that is Designed to Remove Condensate Water from
AC Systems, Heating Systems, Ice Machines, Drinking Fountains and Coolers.
CP1A Series
• 22 Feet of Standard Li @ 10 GPH
• Independent N.C. Safety Switch & Motor Shuts Down
AC System to Prevent Condensate Over ow
• ree 1/4” Quick Connect Terminals are Provided for Easy Connection
• Independent N.O. Audible Alarm Switch Rated @ 80dB
• Specially Designed Leak Free Motor & Safety Float
• 3/8” Rubber Ball Check Valve
• Vibration Absorbing Feet
• Metal Side Mount Tabs, 11-1/2” on Center Between Tabs
• 3 Inlet Holes
• Includes 6’ Power Cord
n
®
CP1A CP1A-230V
hp 1/10hp 1/10hp
Voltage 120 VAC 230 VAC
Watts 80W 75W
Amps 1.45A 0.72A
Hertz 60Hz 60Hz
Motor Overload Protector Yes Yes
Whole Pump Height (In.) 7 1/4” 7 1/4”
Whole Pump Length (In.) 11 1/4” 11 1/4”
Whole Pump Width (In.) 5” 5”
Tank Size 1/2 Gal. 1/2 Gal.
Discharge 3/8” Barb 3/8” Barb
Tank Material ABS ABS
Impeller Material Glassfiber filled PP Glassfiber filled PP
Float Material Polypropylene Polypropylene
Shaft Material S.S.304 S.S.304
Max. Temp. (°F) 110 110
Alarm 80 dB 80 dB
Auto Off with Dry Contacts Yes Yes
Float Activated Yes Yes
Specifications
Lift Feet 1 5 10 15 20 22 24
GPH 99 87 69 48 20 10 0
Flow Rate Capacity
1. Pump Motor is Activated When More
an 2 1/4” of Water Collects in Tank
2. Pump Motor is O when Less an 1
1/4” of Water Collects in Tank
3. Pump Alarm on Safety Switch Opens
When More an 2 3/4” of Water
Collects in Tank
4. Each Pump Cycle Drives 1/4 Gallon of
Water Out of the Tank
Sequence of Operation
JV1
Jones Valve Condensate Drain
Blow Out Valve
• Attaches to a CO2 or Nitrogen Tank
• Durable, Schedule 40 PVC Material
• Condensate Line Size: 3/4”
• Hose Connection Size: 1/4” Male Flare (with Schrader)
• U.S. Patent No. 8,375,977
• 1 Year Warranty
• 6 Pack Counter Display
Be prepared for imminent changes to ICC
International Mechanical Code
307.2.5 cleanouts. Condensate drains shall be provided with a means to allow
cleaning of the drain and clearing of blockages without having to cut or
disassemble the piping.
58
Defrost ermostats
SL Series
Exact Replacement, Commercial Refrigeration ermostats
• Surface Mount
• 2-wire Heater Limit
• SPST
• Resistive Amps: 25
• Volts AC: 120/240
PART NO. OPEN (°F) CLOSE (°F) MOUNT REPLACES
SL5708 75 40 Surface Bohn®, Larkin®, Chandler®,
Climate Control® 5708L & 4752C
SL5708
SL5709
• Surface Mount
• 3-wire Fan and Defrost
Terminator 55°F-35°F
Range
• SPDT
• Resistive Amps: 25
• Volts AC: 120/240
PART NO. OPEN (°F) CLOSE (°F) MOUNT REPLACES
SL5709 55 35 Surface Bohn®, Larkin®, Chandler®,
Climate Control® 5709L & 4751C
SL79002
• Tube Mount (5/8”)
• 3-wire Defrost Control
• SPDT
• Resistive Amps: 25
• Volts AC: 120/240
PART NO. OPEN (°F) CLOSE (°F) MOUNT REPLACES
SL79002 55 35 Tube Russell® 103079002
SL79005
• Surface Mount
• 3-wire Defrost Control
• SPDT
• Resistive Amps: 25
• Volts AC: 120/240
PART NO. OPEN (°F) CLOSE (°F) MOUNT REPLACES
SL79005 65 30 Surface Russell® 103079005
ML Series Supco No. PART NO. OPEN CLOSE DIFF.
12” LEADS 24” LEADS °F °F °F MARS® UNILINE®
ML37 37 47 10 … … …
ML45 45 25 20 33008 31-001 17001
ML50 50 30 20 33009 31-002 17003
ML55 55 35 20 33010 31-003 17005
ML60 60 40 20 33011 31-004 17007
ML70 70 50 20 33012 31-005 17009
ML80 80 30 50 33020 31-006 17011
ML90 90 35 55 33021 31-007 17013
R
E
F
R
I
G
E
R
A
T
I
O
N
SL25581
• Tube Mount
• 2 Wire
• Open: 45°F (7.4°C)
Close: 18°F (-7.8°C)
• Can Be Used on Whirlpool®, Admiral®, Amana®, Crosley®,
Estate®, Jenn-Aire®, Kenmore®, Kitchen-Aide®, Magic Chef®,
Maytag® and Roper®
• Metal Case with Waterproof
Epoxy Potting
• Heavy Duty Rating 10 Amps @
120 Volts / 5 Amps @ 240 Volts
• Residential and Commercial
Applications
• Switching is SPST
• Up To 1200 Watts
59
R
E
F
R
I
G
E
R
A
T
I
O
N
PART NO. STYLE
SL243 Surface / Flush Mounting Clip
SL245 Push In Mounting Clip
SL247 5/16” or 3/8” Around Tube Clip
SL249 Side Push on Tube Clip
Defrost ermostats
SLT Series
• Metal Case with Waterproof Epoxy Potting
• Heavy Duty Rating 10 Amps @ 120 Volts / 5 Amps @ 240 Volts
• Residential and Commercial Applications
• Switching is SPST
• Rated Up To 1200 Watts
• Tube Mounting Clip Attached to ermostat
PART NO. OPEN °F CLOSE °F DIFF. °F
SLT45 22 45 23
SLT50 10 50 40
SLT55 25 55 30
SLT60 30 60 30
Mounting Clips
PART NO. TERMINALS °C °F STYLE
STF4170 QC. 1/4” 77 170 36T
STF4183 QC. 1/4” 84 183 36T
STF4230 QC. 1/4” 110 230 36T
Maximum Wattage 1800W @ 120V/2400W @ 240
Thermal Cut Offs
PART NO. PART NO. OPEN OPEN
15 AMP 25 AMP TEMP. TEMP.
SERIES 1 SERIES 2 °C °F STYLE
STC8170 77 170 A
STC4183 84 183 A
STC4199 93 199 A
STC4228 109 228 A
STC8242 117 242 A
STC4257 STC8257 125 257 A
STC4283 STC8283 139 283 A
STC4300 149 300 A
STC4333 167 333 A
PART NO. PART NO. OPEN OPEN
15 AMP 25 Amp TEMP
. TEMP.
SERIES 1 SERIES 2 °C °F STYLE
STC4358 184 363 A
STC4438 226 438 A
STC4468 STC8468 242 468 A
STC5257 125 257 B
STC85283 139 283 B
STC5300 149 300 B
STC5333 167 333 B
STC5377 192 377 B
STC6257 STC86257 125 257 C
STC86283 139 283 C
STC6300 149 300 C
STC6333 167 333 C
STC6377 STC86377 192 377 C
Series 1 Maximum Wattage 1800W @ 120V/2400W @ 240
Series 2 Maximum Wattage 1800W @ 120V/6000W @ 240
PART NO. TERMINALS °C °F STYLE
STF4249B QC. 3/16” 121 249 36T
STF4291B QC. 3/16” 144 291 36T
STF4305B QC. 3/16” 152 305 36T
C
B
A
Motor Rating
VOLTS Resistive (Inductive) Pilot
(VAC) (Non-Inductive) Full Load Locked Rotor Duty
120 15A 3A 12A 125 VA
240 1OA 1.5A 6A 125 VA
350°F Max Ambient Temperature
36T Electrical Ratings
60
Valves & Fittings
R
E
F
R
I
G
E
R
A
T
I
O
N
BPV Series Bullet®
Piercing Valves
e ONLY Valve with a Permanent Type,
Patented Gasket Application!
• Patented Valve Gasket Application Provides
50 Times More Sealing Area than Competitive
“O” Ring Types
• A Sealing Force of Over 180 Inch lbs., Torque
Tested with 500 lbs., Pressure Tested at 250°F
• Precision Piercing Needle is Engineered for
Concentricity and Hardness to Insure Perfect
Seating Every Time
• Nonpositional Mounting - No Adapter Valve Required
• Requires Only a 2” Clearance Area for Installation
and Operation
• Hex Key Wrench Included - No Additional Tools Required
• Corrosion Resistant Plated
PART NO. O.D. TUBING SIZE PACKAGING
BPV31* 1/4”, 5/16”, 3/8” 12/Box
BPV31D* 1/4”, 5/16”, 3/8” 48/Box
BPV21* 1/2”, 5/8” 8/Box
BPV36 3/16” 12/Box
BPV56 5/16” 12/Box
BPV38 3/8” 12/Box
BPV12 1/2” 8/Box
BPV58 5/8” 8/Box
BPV34 3/4” 1/Box
BPV78 7/8” 1/Box
*NOTE: BPV31 and BPV21 are furnished with adapter
sleeves for indicated multiple use applications.
A1 & A2
Adjustable Line Tap Valves
Signature Series of Clamp-On Line Tap Valves Provide Easy Access to
System Refrigerant Without Having to Evacuate System.
• Patent Depressor Valve Action
• Mounts in Any Position
• Retracting Needle for Maximum Flow
• Designed for Permanent Use on System
• Hex Wrench and Adapter Sleeves Included
PART TUBE SIZE
NO. OD (IN.)
A1 1/4, 5/16, 3/8
A2 1/2, 5/8
A Division of SUPCO®
CA1
Access Control Valve
Controls the Flow of All 1/4” SAE Male
Flare Depressor Type Valves.
• Purging Port for Air Removal and Safety
• Steel Construction
• Use with Standard Charging Hose
A Division of SUPCO®
61
STV2LL
self-tapping water valve
• Self Piercing on Copper Tubing or 0.035”
Wall Hard PVC
• Fits 3/8” O.D. rough 1 3/8” O.D. Tubing
or Pipe
• Can be Installed on Pipe with Existing Hole
• Stainless Steel Piercing Needle
• Low Lead
• Complies with the SDWA Section 1417 (d)
• Molded Gasket has a Two Stage Seal on Both
Tubing and Valve
• readed Bottom Bracket for Easy
Installation
• Includes all Fittings for Copper and Plastic
Tubing
• Maximum Water Temperature 180°F/82°C
PART
NO. FLOW RATE OUTLET PIERCING NEEDLE APPLICATION COMMENTS
STV2LL 1 GPM 1/4” Comp. 1/8” Dia. (Hollow) Ice Maker Kits Reversible lower bracket, Low Lead
Valves & Fittings
FTV12
self-tapping valves
• For Humidi ers, Oil Lines and
Steam Systems
• Maximum Operating Pressure 500 PSI
PART BRANCH
NO. TAP FITTING APPLICATION
FTV12 3/8” SAE Flare 1/2” Steel or Brass Pipe Approx. 7/8” O.D.
Not intended for gas applications.
R
E
F
R
I
G
E
R
A
T
I
O
N
STV2DLL
conventional “drill” type valve
• Must Pre-Drill 1/4” Hole in Pipe or Tubing
• Increased Water Flow from Standard Water Valve
• Fits Up to 1 3/8” O.D. Copper Tubing
• Fits 1/2” or 3/4” Galvanized Iron Water Pipe
• Flow Rate: 1 GPM
• Maximum Water Temperature 180°F/82°C
Includes All Fittings for 1/4” O.D. Copper and Plastic Tubing
• Low Lead
• Complies with the SDWA Section 1417 (d)
62

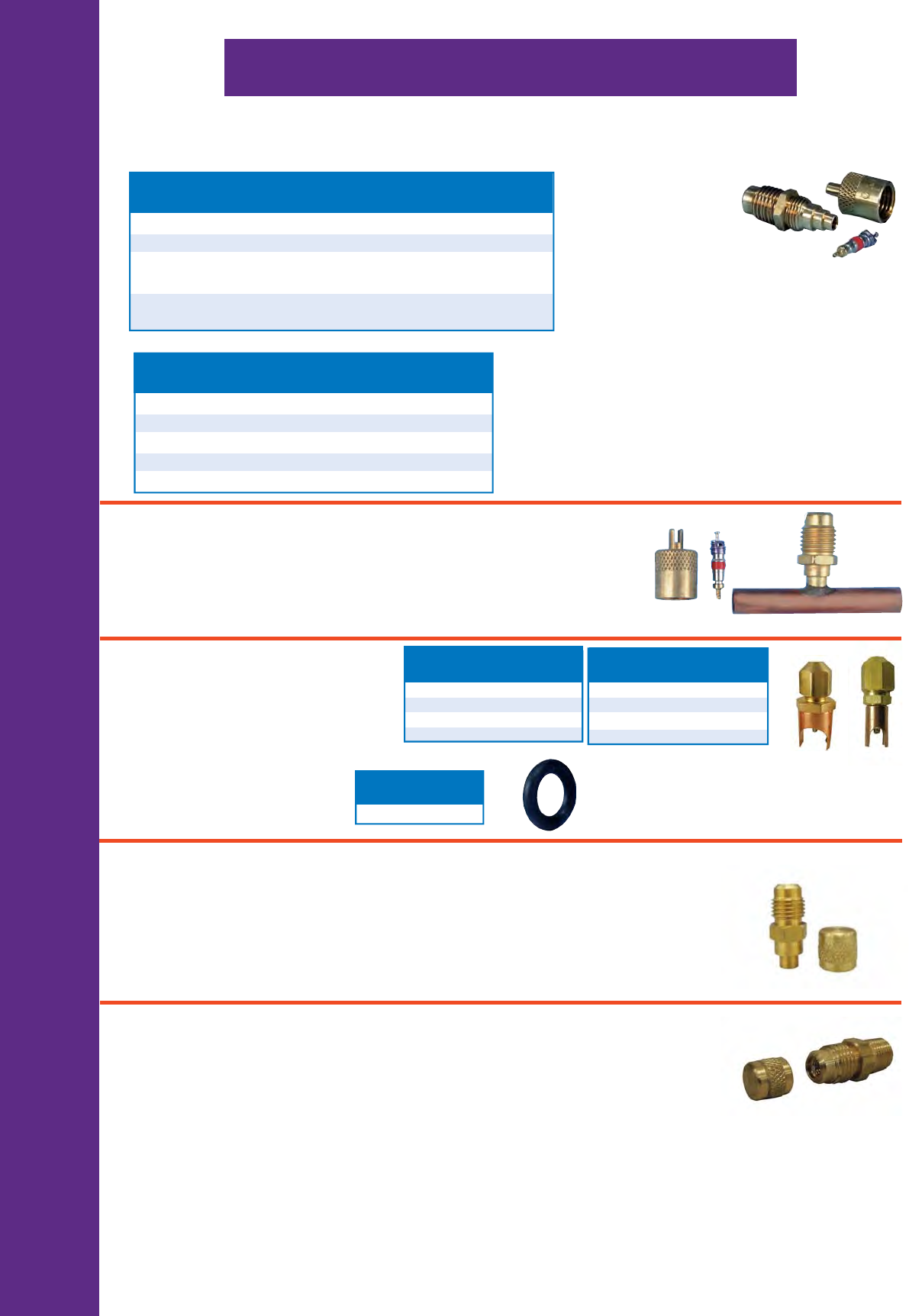

Line Service Valves
PART PIPE
NO. DESCRIPTION THREAD
SF1010 1/8” copper tubing, wrench cap and core —
SF2525 1/4” copper tubing, wrench cap and core —
SF3600 1/8” ID hole, 3/16”, 1/4”, 5/16” steps, 1/8” MPT —
below hex wrench cap and core
SF3602 1/4” copper tubing, 3/16” & 1/8” copper 1/8” m.
bushings, wrench cap and core
PART PIPE
NO. DESCRIPTION THREAD
SF3603 3/16”copper tubing, wrench cap and core 1/8” m.
SF3604 1/4” copper tubing, wrench cap and core 1/8” m.
SF3605 5/16”copper tubing, wrench cap and core —
SF3606 3/8” copper tubing, wrench cap and core —
SF3608 1/8” copper tubing, wrench cap and core 1/8” m.
SF5421 Tee Fitting Service Valve
Copper Tee with the Body Brazed on. Furnished Complete with
Core and Wrench Cap. e 1/4” I.D. x 5/16 O.D. Will Service
1/4”, 5/16”, and 3/8” Tubing.
SF5000 Series Saddle Valve
Copper to Copper
Completely Self Tapping. Steel Pin with
Core Penetrates Line and is Locked Into
Valve Body in One Operation, Simply by
Tightening the Cap.
PART
NO. TUBING
SF5512 1/2” O.D.
SF5514 1/4” O.D.
SF5516 5/16” O.D.
SF5518 1 1/8” O.D.
PART
NO. TUBING
SF5534 3/4” O.D.
SF5538 3/8” O.D.
SF5558 5/8” O.D.
SF5578 7/8” O.D.
Replacement Gasket
PART
NO.
SF5501 25 per pack
Valves & Fittings
R
E
F
R
I
G
E
R
A
T
I
O
N
SF3338
Access Valve
• Replaces A-1 F6290 (AV3-346)
• Standard 1/4” SAE Male Flare Connection
• Built in Valve Core and Brass Caps
• 3/16” OD or 1/4” & 3/8” Solder
• 100 Pack
AVU24
Access Valve
• 1/8” MPT x 1/4” SAE
63
Valves & Fittings
R
E
F
R
I
G
E
R
A
T
I
O
N
SF8400 Series
Economy Service Valves
SF8000 Series
Universal Line Valves
Available in Various Sizes. Copper Tee with the Body Brazed
on. Two Styles - a Flared or Straight End Copper Piece.
(See Chart Below for Exact Size)
PART
NO. LENGTH I.D. O.D.
SF8418 1 7/8” 1 1/8” 1 1/4”
SF8434 1 5/16” 3/4” 13/16”
SF8478 1 9/16” 7/8” 1”
PART
NO. LENGTH I.D. O.D.
SF8412 1 3/4” 1/2” 9/16”
SF8414 2 9/32” 1/4” 5/16”
SF8416 2” 5/16” 3/8”
SF8438 2” 3/8” 1/2”
SF8458 2” 5/8” 11/16”
SF1818 and SF1414
Brass Bodies
• Both Bodies Complete with Neoprene Seal,
Core and Cap
• Each is a Quarter Male Flare Above the Hex
Valve Replacement Parts
PART
NO. DESCRIPTION
SF2235 Heavy Duty Hex Brass Cap with Dual Neoprene or Metal Seal
SF2245 Heavy Duty Round Brass Cap with Neoprene Seal
SF2250 Heavy Duty Round Brass Cap with Handy Core Wrench Top and Neoprene Seal
SF4450 Valve Core with Neoprene Seal Compatible with Most Refrigerants (Replaces SF1515)
SF5161 5/16” OD Neoprene Hose Gasket for Charging Hoses
Adapters/Couplers
Quick Valve Depressors Complete with Leakproof Neoprene
Seal and Depressor Tips. Use to make Connection between
Equipment with Unlike reads. Made of CDA 360 Brass.
Available in Straight and 90° Con guration.
PART NO. DESCRIPTION
SF2010 1/4” female flare swivel x 1/4” male flare access, 90° configuration.
Depressor tip and seal, no valve core.
SF2012 1/4” female flare swivel x 1/2” Acme male, depressor tip and seal
SF2020 1/4” female flare hex x 1/2” Acme male
SF2028 1/4” male flare x 1/2” Acme female swivel, depressor tip seal
SF2035 Hose Gas Retaining Coupler
• 1/4” Female Flare Retainer Sure-Seal x 1/4” Male Flare
SF1414
(1/4” MPT-DRYSEAL)
SF1818
(1/8” NPT-DRYSEAL)
PART
NO. I.D. HOLE O.D.
SF8400 1/8” 3/16”, 1/4”, 5/16” Step
SF8408 1/8” Tube, 3/16”, 1/4”, 5/16” Step
SF8403 3/16” Tube, 1/4” Step
SF8404 1/4” Tube
SF8405 5/16” Tube
SF8406 3/8” Tube
• Braze Only
• Includes SF1515 Core
64
SF2595 & SF2597 Gauge Adapter
SF2595 A 1 1/4” Piece of 1/4” Copper Tubing, Double Flared on One End with a 1/4”
Female Flare Nut and a Depressor Tip. e End of the Copper Tube Opposite the Female
Flare has been Swagged to Allow 1/4” Copper Tube to Enter for Brazing.
SF2597 A 1 1/4” Piece of 1/4” Copper Tubing, Double Flared on One End with a 1/4”
Female Flare and a Depressor Tip. e Other End has a 1/4” Male Flare that has been Brazed
on. A Core May be Inserted in the 1/4” Male Flare, but it is not Provided.
Valves & Fittings
SF2060 & SF5050 Thumbscrew Core Depressors
For Use on a 1/4” Male Flare to Allow the Core to be Opened to the Degree of Flow
Desired. Solid Brass Construction. Compact Design Makes it Ideal in Close Quarters.
PART
NO. DESCRIPTION
SF2060 For 1/4” Male Flares
SF5050 For 1/4” Male Flares. Made Small for Use in Close Quarters
SF2070 Hose Gas Retainer and Core Depressor Tool
is Tool is Attached to a Charging Hose, then it is Coupled to an Access Fitting. umb
Screw the Depressor Tip Down to Depress the Core and Allow Gas to Flow rough the
Hose. umb Screw Back to Allow the Core to Shut O . e Depressor Tip Rod will Back
Seat in a Te on Gasket to Retain the Gas in the Hose. ere will be no Loss of the Gas in the
Hose When you Disconnect from the Access Fitting. Replaces Gasket SF1090.
SF2090 Hose Gas Retaining Coupler
• 90° 1/4” Female Flare Retainer x 1/4” Male Flare
SF5014 Gauge Adapter
• 1/4” Male Flare to 3/16” Fittings. Contains Depressor Pin.
SF8725 Connector
e SF8725 has a Gasket in the 1/4” Hex Nut. e Valve Body is Stationary. When reads
of Existing System Fittings are Stripped and a New Core won’t go in, use this. It has a Core
and no Depressor Tip.
Tee Connectors
PART DESCRIPTION
NO.
SF9601 1/4” M. Flare x 1/4” Flare Nut wth Depressor Tip x 1/4” M. Flare on the Branch with One Valve Core
SF9602 1/4” M. Flare with Valve Core x 1/4” M. Flare x 1/4” F. Flare Nut with Depressor Tip on the Branch
SF9603 All Brass Connector Tee. 1/4” M. Flare with Valve Core and Cap x 1/4” M. Flare x 1/4” F. Flare Nut
with Depressor Tip on the Branch
R
E
F
R
I
G
E
R
A
T
I
O
N
65
Valves & Fittings
SF9600 Series 1/4” Flare Forged Access Tees
• Forged Brass Tee
• All 1/4” Flares are readed for Valve Cores
PART NO. SIZE MPT END I.D.
SF9614 1/4” m. flare x 1/4” MPT x 1/4” m. flare access on branch, one cap 5/16” for brazing a copper tube and one valve core
SF9616 1/4” m. flare x 1/8” MPT x 1/4” m. flare access on branch, one cap and 1/4” for brazing a copper tube valve core
SF9620 1/4” m. flare x 1/4” m. flare x 1/8” MPT on branch, one cap and valve core 1/4” for brazing a copper tube
SF9644 Connector
2 1/4” Male Flares, One with Core and Cap, in a “U” Shape. At the Side is a
1/4” Female Depressor Tip and Opposite that is an Additional 1/4” Male Flare.
Valve Tools
R
E
F
R
I
G
E
R
A
T
I
O
N
SF3800 Chaser
• Two Tools, a Core Wrench and read Chaser, Complete with a Core Carrying
Case and Six Cores
• Length With Core Wrench Lid 3 1/2”
SF3813 Valve Core Remover/Container
• Heavy-Duty, All Brass
• Includes 3 Valve Cores
• Length is 3”
Core Removal Tools
PART NO. DESCRIPTION
SF3900 Designed for Removing and Replacing a “Schrader” Type Core, Without Losing the
Charge. All Brass Construction.
SF3910 Same as Above with an Additional Side Port (1/4” Male Flare) with Core.
Not Compatible with R-410A
Core Removal Tools (with ball valve)
PART NO. DESCRIPTION
SF3920 Removes a Valve Core from a 1/4” Male Flare Access Fitting Without Loss of Refrigerant. Because
it has a Ball Valve Inside Rather than a Stem-type Valve, the Tool Can be Closed with Just a Quarter Turn.
SF3930 Same as Above with an Additional Port
SF5555 CRT Repair Kit (O-Rings)
Not Compatible with R-410A
Gasket “O” Rings
PART NO. ID SIZE DESCRIPTION
SF0099 5/32” Used for SF5050 Valve
SF0101 1/4” -
SF0111 5/16” Black Rubber (Used for SF3900)
PART NO. ID SIZE DESCRIPTION
SF1060 3/16” Used in Brass Caps
SF1090 5/16” Black Rubber (Used for SF2070)
SF5501 1/4” White Teflon (Used for SF5500 Series
66

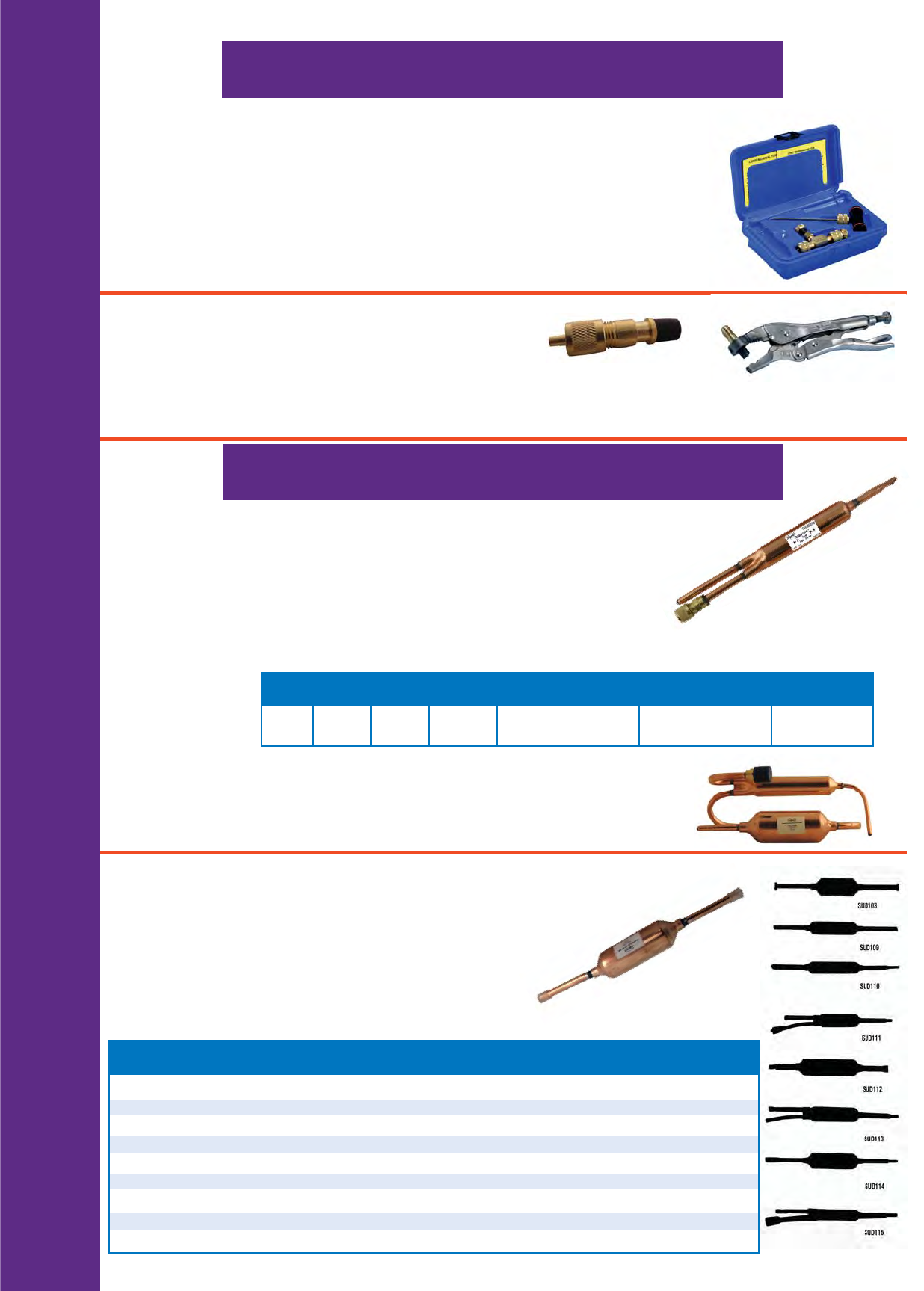

Valve Tools
R
E
F
R
I
G
E
R
A
T
I
O
N
SF3970 Internal Temperature Reading Tool
is Two-Piece Tool Provides a Better Way of Obtaining a
Temperature Reading Inside the System.
• Measures -58°F to 302°F
• Allows You to Insert the Digital ermometer
through an Access Fitting, Adjust for Superheat
while you’re Inside.
• Complete with Core Extractor Tool and
Digital ermometer
SF4311 “fastap” tube piercing pliers
Fast Refrigerant Recovery with Pliers that Clamp
on and Pierce Tube.
• Pliers Work on Copper Tubing Sizes Ranging
from 1/4” to 7/8” OD
• Simple to Use and Light Weight
• Piercing Tip is Self-Sharpening, but Easily Replaceable
Driers
SUD8358 - Magna-Clean®
• 100% XH-9 Beaded Desiccant, Compatible with All Refrigerants and Oils
• Hermetically Sealed, Directional Flow Drier with Access Valve
• 100% Spun Copper Shell and End Tubes, Pre-Scored Ends for Easy Break O
• 100 Micron Filter Sieve
• Reduces Clogged Capillary Tubes. Reduces Wear and Tear on Component Parts
• Use on Capillary or Expansion Valve Systems
• Maximum Working Pressure 500 PSI
TONNAGE TONNAGE R134A DROPS OF R22 DROPS OF
INLET OUTLET LENGTH DIAMETER R134A R22 WATER REMOVED WATER REMOVED
1/4” OD 1/4” OD 8 3/4” 1” 3/4 1 74 @ 75°F 68 @ 75°F
1/4” Flare or Cap 68 @ 125°F 64 @ 125°F
SUD Series Copper Driers
High Quality, High Capacity Original Equipment Components for use on
Domestic and Commercial Refrigerators, Freezers and Air Conditioners.
• 100% XH-9 Beaded Molecular Sieve
• Hermetically Sealed
• Copper Shells and End Tubes
• High Capacity
• Easy Break O Grooved Ends
• Maximum Working Pressure 500 PSI
R-22
RECOMMENDED TONNAGE
DESCRIPTION INLET OUTLET LENGTH R-134A R-22
1” Plugged Ends 1/4” O.D. 1/4” O.D. 8” 1/3 1/2
SUD109 3/4” Non-Directional 1/4” O.D. 1/4” O.D. 7 1/2” 1/3 1/2
SUD110 3/4” Fused Ends 1/4” O.D. 1/4” O.D. 8 7/8” 1/3 1/2
SUD111 1” Charging Drier 1/4” O.D. 1/4” Flare 1/4” O.D. or Cap 9 5/8” 3/4 1
SUD112 1” Step Down Drier 5/16” O.D. 5/16” O.D. or Cap 10 3/4” 1 2
SUD113 1” Double Inlet (2)1/4” O. D. 1/4” O.D. 8 3/4” 3/4 1
SUD114 1” Fused Ends 1/4” I.D. 1/4” O.D. 1/4” O.D. or Cap 8 3/4” 3/4 1
SUD115 3/4” Charging Drier 1/4” I.D. 1/4” O. D. 1/4” Flare 1/4” O.D. or Cap 9 5/8” 1/3 1/2
SUD116 1” Non-Directional 3/16”, 1/4”, 5/16” I.D. 5/16” I.D. or Cap 8 3/4” 3/4 1
PART
NO.
SUD103
SF4314
Tube Piercing
Pliers Replacement Tip
SUD8288
e SUD8288 is a Solid Core Cleanout Drier with
UV Dye and a Magnetic Filter.
• Can Replace Electrolux® 5303918288 and All Other Copper Driers
• Adds UV Dye and Processes through a Magnetic Filter to Remove
Microscopic Metal Particles from the System
• Instructions Included
• Replaces SF3940 and SF3960
• Not Compatible with R-410A
Specifications
67
R
E
F
R
I
G
E
R
A
T
I
O
N

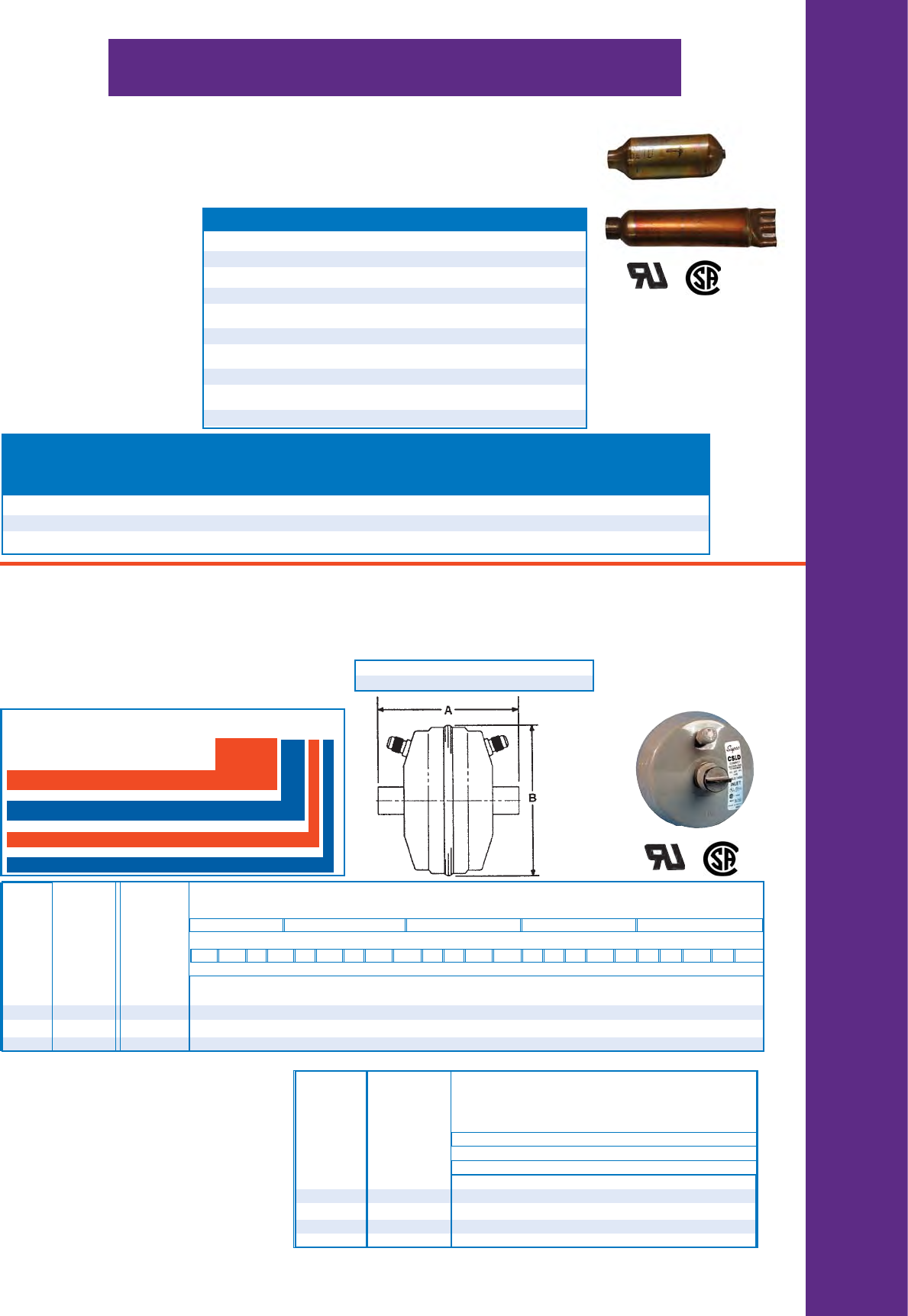

Driers
S200 Series Copper Strainers
Speci cally Designed for Reopened Systems. Each Strainer
Contains an Oversized Screen Area for Filtering Large
Quantities of burnt out Foreign Matter from System.
PART NO. INLET OUTLET O.A. LENGTH O.D. FEED
S210 1/4” .098 CAP 2 3/4” 3/4” 1
S211 1/4” .125 CAP 2 3/4” 3/4” 1
S212 1/4” 1/4” 2 3/4” 3/4” 1
S213 5/16” 5/16” 2 3/4” 3/4” 1
S214 3/8” Double Feed Cap .125 4 1/2” 5/8” 2
S215 3/8” Triple Feed Cap .125 4 1/2” 5/8” 3
S216 3/8” 3/8” 4 1/2” 5/8” 1
S218 3/8” .125 CAP 4 1/2” 5/8” 1
S219 3/8” .146 CAP 5” 7/8” 4
S220 3/8” .112 CAP 4 1/2” 7/8” 6
DROPS OF WATER REMOVED RECOMMENDED
PART TONNAGE
NO. DESCRIPTION INLET OUTLET 75° 125° 75° 125° R-12 R-22
MD5 1” Drier (No Tubes) 1/4” CAP 37.5 34 34 32 1/3 1/2
MD6 1” Drier (No Tubes) 3/8” CAP 37.5 34 34 32 1/3 1/2
MD7 1” Drier (No Tubes) 1/4” 1/4” 37.5 34 34 32 1/3 1/2
R-12 R-22
®®

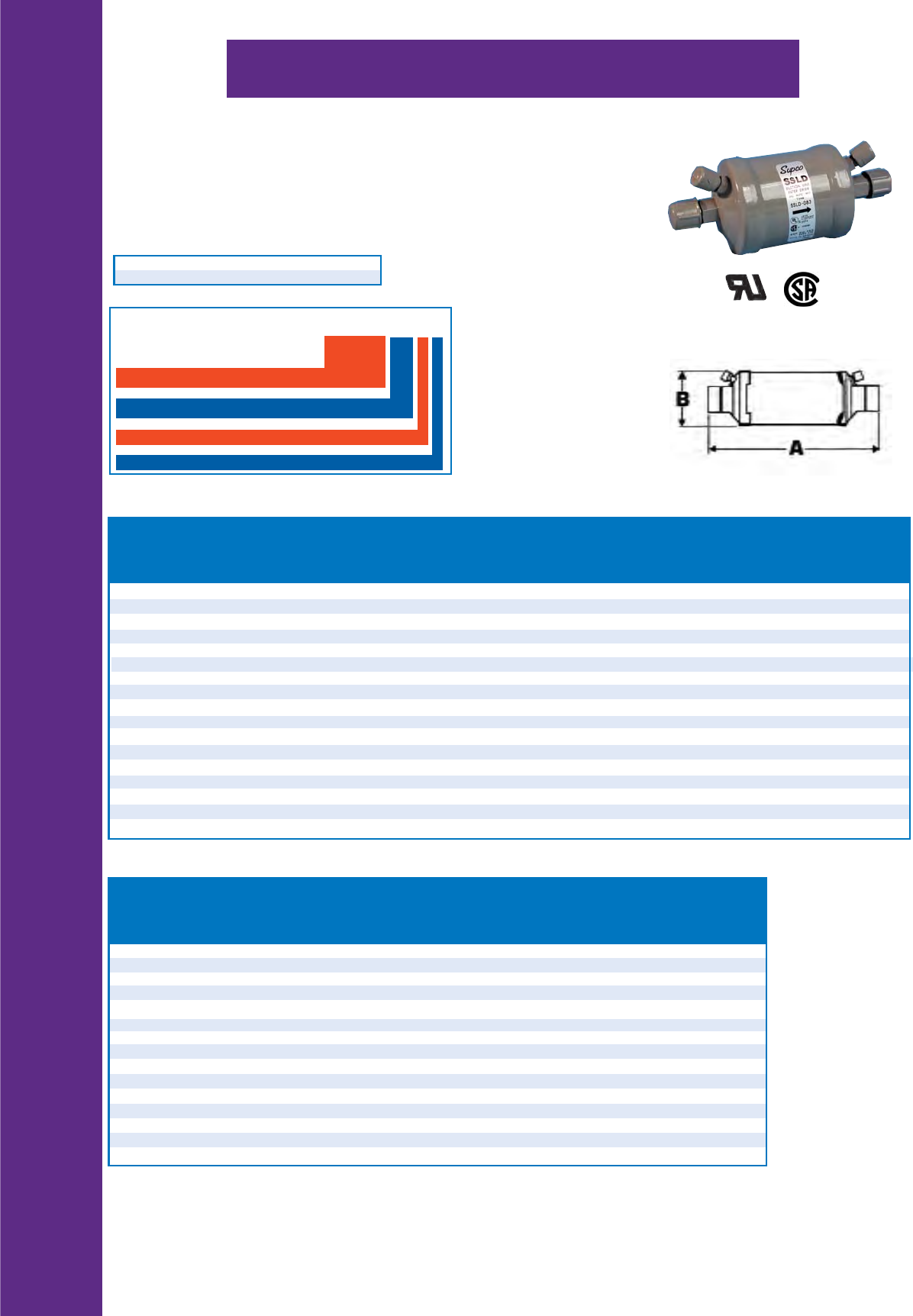

CSLD Series/Compact Suction
Line Driers
• Dual Access Valves
• High Acid Removal
• Solid Copper Fittings (Available in Solder Only)
• Corrosion Resistant Epoxy Powder Paint Finish
Specifications
Maximum Working Pressure (MWP): 500 PSIG
Filtration: 40 Microns
®®
Series
C S L D 1 4 S 5
Unit Size Cubic Inches
S = ODF Connection
Connection Size ( in 1/8)
Part Number Key
FLOW CAPACITY IN TONS REFRIGERANT (1)
(FOR KW MULTIPLY TONS BY 3.5 (2))
R-12 R-134a R-22 R-407C R-410A
EVAPORATOR TEMPERATURE (F)
DIMENSION 40 20 0 -20 40 20 0 -20 40 20 0 -20 -40 40 20 0 -20 -40 40 20 0 -20 -40
PART CONNECTIONS IN INCHES PRESSURE DROP (PSI)
NO. SIZE & TYPE A B 2 1.5 1 0.5 2 1.5 1 0.5 3 2 1.5 1 0.5 3 2 1.5 1 0.5 3 2 1.5 1 0.5
CSLD14S4 1/2 ODF 4 7/32 4 9/16 1.3 0.9 0.5 0.3 1.3 0.9 0.5 0.3 2 1.3 0.9 0.6 0.3 2.2 1.5 1.1 0.7 0.4 1.4 0.9 0.6 0.4 0.2
CSLD14S6 3/4 ODF 4 3/8 4 9/16 3 2.1 13.7 0.8 3.1 2.1 13 0.7 4.9 3.2 2.2 1.4 0.7 5.5 3.7 2.7 1.7 0.9 3.3 2.2 1.5 0.9 0.5
CSLD14S7 7/8 ODF 4 9/16 4 9/16 3.2 2.2 1.5 0.8 3.3 2.2 1.4 0.7 5.2 3.4 2.3 1.5 0.8 5.8 3.9 2.8 1.9 1.1 3.6 2.3 1.6 1 0.5
CSLD14S9 1 1/8 ODF 4 27/32 4 9/16 4.4 3.1 1.9 1.1 4.5 3 1.8 1 7 4.6 3.1 2 1 7.8 5.3 3.7 2.5 1.3 4.8 3.2 2.1 1.3 0.7
FLOW CAPACITY IN TONS REFRIGERANT
(FOR KW, MULTIPLY TONS BY 3.5)
R-502 R-404A/507
EVAPORATOR TEMPERATURE (F)
40 20 0 -20 -40 40 20 0 -20 -40
PART CONNECTIONS PRESSURE DROP (PSI)
NO. SIZE & TYPE 3 2 1.5 1 0.5 3 2 1.5 1 0.5
CSLD14S4 1/2 ODF 1.3 0.8 0.5 0.3 0.2 1.3 0.8 0.5 0.3 0.2
CSLD14S6 3/4 ODF 3.7 2.3 1.5 0.9 0.5 3.6 2.3 1.5 0.9 0.5
CSLD14S7 7/8 ODF 4 2.4 1.6 1 0.5 3.9 2.4 1.6 1 0.5
(1) All Ratings in Accordance with ARI Standard 730-86
(2) For 2 PSI P, Multiply Values by 1.4
Example: 1.0 Tons x 3.5 = 3.5 kw
Solder Connection Driers
• 500 PSI Maximum
• 200 Mesh Monel Screen
68
Driers
R
E
F
R
I
G
E
R
A
T
I
O
N
LLD Series Liquid Line Driers
• Solid Copper Fittings
• Shock Resistant Steel Construction
• High Acid and Moisture Removal
• Corrosion Resistant Epoxy Powder Paint Finish
Specifications
Desiccant Blend: Activated Alumina with Molecular Sieve
Filtration: 40 Microns
Maximum Working Pressure (MWP): Sizes 03-016 Cubic Inches = 680 PSIG
Sizes 30-75 Cubic Inches = 500 PSIG
Series
L L D 0 8 3 S
Unit Size Cubic Inches
Connection Size ( in 1/8)
S = ODF Connection (Omit for SAE)
Part Number Key
FLOW CAPACITY WATER CAPACITY /
TONS @ 1 PSI P (1)(4) DROPS OF WATER
Dimensions (FOR KW, MULTIPLY TONS BY 3.5)
PART Connection in Inches R-404A R-12 R-134a R-22 R-407C R-410A R-404/507 R-502
NO. SIZE & TYPE A B R-12 R-134a R-22 R-410AC R-407C /507 R- 502 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F
LLD032 1/4 SAE 4 5/16 1 5/8 1.6 1.9 2.1 2.1 2 1.4 1.3 64 46 44 37 34 31 31 21 27 17 47 37 43 34
LLD032S 1/4 ODF 3 3/4 1 5/8 1.9 2.3 2.5 2.5 2.4 1.7 1.6
LLD052 1/4 SAE 4 7/8 2 1/2 1.6 2 2.2 2.2 2.1 1.4 1.4
LLD052S 1/4 ODF 4 11/32 2 1/2 2.4 2.9 3.1 3.1 3.1 2.1 2 130 81 68 50 58 38 47 26 44 23 73 48 73 49
LLD053 3/8 SAE 5 3/16 2 1/2 3 3.7 4 4 3.9 2.7 2.6
LLD053S 3/8 ODF 4 17/32 2 1/2 3.7 4.5 4.9 4.9 4.8 3.3 3.2
LLD082 1/4 SAE 5 13/16 2 1/2 1.6 2 2.2 2.2 2.1 1.4 1.4
LLD082S 1/4 ODF 5 1/4 2 1/2 2.5 3.1 3.4 3.4 3.3 2.2 2.2
LLD083 3/8 SAE 6 3/32 2 1/2 3.5 4.3 4.7 4.7 4.6 3.1 3 188 117 101 76 87 57 68 39 63 34 109 73 105 71
LLD083S 3/8 ODF 5 7/16 2 1/2 3.4 4.2 4.6 4.6 4.5 3 3
LLD084 1/2 SAE 6 11/32 2 1/2 5.5 6.7 7.3 7.3 7.1 4.9 4.7
LLD084S 1/2 ODF 5 1/2 2 1/2 5.7 7 7.6 7.6 7.4 5.1 4.9
LLD162 1/4 SAE 6 19/32 2 1/2 1.6 2 2.2 2.2 2.1 1.4 1.4
LLD163 3/8 SAE 6 7/8 2 1/2 3.6 4.4 4.8 4.8 4.7 3.2 3.1
LLD163S 3/8 ODF 6 7/32 2 1/2 4 4.9 5.3 5.3 5.2 3.6 3.5
LLD164 1/2 SAE 7 1/8 2 1/2 6.8 8.3 9 9 8.8 6 5.8 295 204 169 140 151 117 134 86 115 67 180 143 193 145
LLD164S 1/2 ODF 6 9/32 2 1/2 7.1 8.6 9.3 9.3 9.1 6.2 6.1
LLD165 5/8 SAE 7 1/2 2 1/2 9.7 11.8 12.8 12.8 12.5 8.6 8.3
LLD165S 5/8 ODF 6 17/32 2 1/2 10.7 13.1 14.2 14.2 13.9 9.5 9.2
LLD303 3/8 SAE 9 9/16 3 3.9 4.7 5.1 5 3.4 3.3
LLD303S 3/8 ODF 8 29/32 3
LLD304 1/2 SAE 9 13/16 3 7.1 8.6 9.3 9.1 6.2 6.1
LLD304S 1/2 ODF 8 15/16 3 7.2 8.8 9.5 9.4 6.4 6.2
LLD305 5/8 SAE 10 3/16 3 11.3 13.8 15 14.7 10 9.7 615 444 359 278 314 218 309 212 385 272 427 335
LLD306S 3/4 ODF 9 5/8 3 13 15.8 17.1 16.8 11.5 11.1
LLD307S 7/8 ODF 9 13/16 3 14.3 17.4 18.9 18.5 12.6 12.3
LLD309S 1 1/8 ODF 9 13/16 3 20.4 24.9 27 26.5 18 17.5
(1) All Ratings in Accordance with ARI Standard 710-86.
86°F Liquid Refrigerant Temperature
5°F Saturated Vapor Temperature
3.1 lbs./min./ton for R-134A
2.9 lbs./min./ton for R-22 and R-407C
4.0 lbs./min./ton for R-404A/507 and R-12
4.4 lbs./min./ton for R/502
2.7 lbs./min./ton for R-410A
(2) Water Capacities are Based on:
Equilibrium Point Dryness (EPD) of:
50 Parts per Million for R-134A, R404-A/507,
R-410A and R-407C
60 Parts Per Million for R-22
30 Parts Per Million for R-502
15 Parts Per Million for R-12
(3) 20 Drops of Water = 1 gram = 1 cc
(4) For 2 PSI D P, Multiply Values by 1.4
69
Driers
R
E
F
R
I
G
E
R
A
T
I
O
N
UNIT R-12 R-134a R-22 R407C R-410A R-404A/507 R-502
SIZE 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F
03 2.4 2.2 2.2 2 2.2 2 2.1 1.9 2 1.7 1.9 1.7 2.2 2
05 5.9 6 5.5 5.5 5.4 5.4 5.2 5 4.8 4.5 4.7 4.5 5.5 5.4
08 8 7.4 7.4 6.7 7.3 6.6 7 6.2 6.5 5.5 6.4 5.5 7.5 6.6
16 14.5 12.5 13.4 11.4 13.2 11.2 12.6 10.4 11.7 9.4 11.6 9.3 13.5 11.2
30 21.8 19.9 20.1 18.1 19.8 17.8 18.9 16.6 17.4 14.7 20.2 17.7
41 29.3 26.8 26.9 24.4 26.6 23.9 25.4 22.3 23.3 19.7 27.2 23.8
75 52.8 48.3 48.6 43.9 48 43.1 45.8 40.2 42.1 35.6 49.1 43
LLD Liquid Refrigerant Holding Capacity - Ounces
R-410A The LLD Filter Drier is UL Listed for 680PSIG Maximum Working Pressure for All Sizes Through 16 Cubic Inches.
AIR CONDITIONING
REFRIGERATION, LOW TEMP. & FIELD REPLACEMENT & OEM SELF
FILTER COMMERCIAL INSTALLATIONS FIELD INSTALLATIONS CONTAINED EQUIPMENT
DRIER R-12/134a R-22/407C/410A R-404A/507A R-12/134a R-22/407C/410A R-12/134a R-22/407C
032,032S 1/4 1/4 1/4 1/2 3/4 3/4 1
052,052S 1/3
1/3 1/3 3/4 1 1 1 1/2
053,053S 1 1/2 2 2 3
082,082S 1/2 1/2 1/2 3/4 1 1/2 1 2
083,083S 1 1 1 2 3 3 4
084,084S 1.5 2 1 3 5 4 7
162,162S 1 1 1/2 3/4 1 2 2 2 1/2
163,163S 2 4 2 4 6 5 7 1/2
164,164S 2 4 2 4 6 5 7 1/2
165,165S 3 5 2 1/2 5 7 1/2 7 1/2 10
303S 3 3 2 3 4 1/2 4 5
304,304S 3 5 3 5 7 1/2 7 1/2 9
305,305S 5 7 1/2 5 8 10 10 14
306S 7 1/2 7 1/2 5 7 1/2 12 1/2 15 20
307S 7 1/2 7 1/2 5 7 1/2 12 1/2 15 20
309S 7 1/2 10 7 1/2 10 12 1/2 15 20
LLD Liquid Line Filter Driers
LLD032 LLD083
LLD306S
70
Driers
R
E
F
R
I
G
E
R
A
T
I
O
N
SSLD Series/Suction Line
Filter Driers
• Dual Access Valves
• Solid Copper Fittings
• Corrosion Resistant Epoxy Powder Paint Finish
®®
Specifications
Filtration: 40 Microns
Maximum Working Pressure (MWP): 500 PSIG
Series
S S L D 1 6 7 S
Unit Size Cubic Inches
Connection Size (in 1/8)
S = ODF Connection (omit for SAE)
Part Number Key
+40°F +20°F 0°F -20°F +40°F +20°F 0°F -20°F -40°F +40°F +20°F 0°F -20°F -40°F
DIMENSION R-134a R-22 R410A
PART CONNECTION IN INCHES PRESSURE DROP IN PSI
NO. SIZE & TYPE A B 2 1.5 1 0.5 3 2 1.5 1 0.5 3 2 1.5 1 0.5
SSLD83 3/8 SAE 6 3/32 2 1/2 0.6 0.4 0.2 0.1 0.9 0.6 0.4 0.3 0.1 1.1 0.8 0.5 0.4 0.1
SSLD83S 3/8 ODF 5 7/16 2 1/2 0.8 0.5 0.3 0.2 1.3 0.8 0.6 0.4 0.2 1.6 1 0.8 0.5 0.3
SSLD84 1/2 SAE 6 11/32 2 1/2 1.4 0.9 0.6 0.3 2.2 1.4 1 0.6 0.3 2.7 1.8 1.3 0.8 0.4
SSLD84S 1/2 ODF 5 1/2 2 1/2 1.7 1.2 0.7 0.4 2.7 1.8 1.2 0.8 0.4 3.4 2.3 1.6 1.1 0.5
SSLD85 5/8 SAE 6 3/16 2 1/2 2.2 1.5 0.9 0.5 3.4 2.2 1.5 1 0.5 4.2 2.8 2 1.3 0.7
SSLD85S 5/8 ODF 5 3/4 2 1/2 2.4 1.6 1 0.5 3.8 2.5 1.7 1.1 0.6 4.7 3.2 2.3 1.5 0.8
SSLD164 1/2 SAE 7 1/8 2 1/2 1.5 1 0.6 0.3 2.3 1.5 1 0.7 0.4 2.9 1.9 1.3 0.9 0.5
SSLD165S 5/8 ODF 6 9/16 2 1/2 2.2 1.5 0.9 0.5 3.4 2.2 1.5 1 0.5 4.2 2.8 2 1.3 0.7
SSLD166 3/4 SAE 6 31/32 2 1/2 2.6 1.8 1.1 0.6 4.1 2.7 1.8 1.2 0.6
SSLD166S 3/4 ODF 6 31/32 2 1/2 2.6 1.8 1.1 0.6 4.1 2.7 1.8 1.2 0.6 5.1 3.4 2.4 1.6 0.8
SSLD167S 7/8 ODF 7 1/8 2 1/2 2.7 1.8 1.1 0.6 4.6 2.8 1.9 1.1 0.6
SSLD305 5/8 SAE 10 3/16 3 3 2 1.2 0.6 4.7 3.1 2.1 1.3 0.7 5.8 3.9 2.8 1.7 0.9
SSLD305S 5/8 ODF 9 7/32 3 2.8 1.8 1.1 0.6 4.3 2.8 1.9 1.2 0.6 5.3 3.6 2.5 1.6 0.8
SSLD306S 3/4 ODF 9 5/8 3 3.4 2.3 1.4 0.7 5.4 3.5 2.4 1.5 0.8 6.7 4.5 3.2 2 1.1
SSLD307S 7/8 SAE 9 25/32 3 3.8 2.5 1.6 0.8 5.9 3.9 2.6 1.7 0.9 7.3 5 3.5 2.3 1.2
SSLD417S 9.4 6.2 4.5 2.8 1.5
SSLD419S 1 1/8 ODF 9 15/16 3 1/2 5.4 3.6 2.2 1.2 8.5 5.5 3.8 2.4 1.3 10.6 7 5.1 3.2 1.8
Flow Capacities in Refrigerant Tons at Selected Evaporator Temperatures
+40°F +20°F 0°F -20°F -40°F +40°F +20°F 0°F -20°F -40°F
DIMENSION R407C R-502/R404A/R507
PART CONNECTION IN INCHES PRESSURE DROP IN PSI
NO. SIZE & TYPE A B 3 2 1.5 1 0.5 3 2 1.5 1 0.5
SSLD83 3/8 SAE 6 3/32 2 1/2 1 0.6 0.4 0.3 0.1 0.7 0.5 0.3 0.2 0.1
SSLD83S 3/8 ODF 5 7/16 2 1/2 1.4 0.9 0.6 0.4 0.2 1 0.7 0.5 0.3 0.1
SSLD84 1/2 SAE 6 11/32 2 1/2 2.3 1.5 1.1 0.6 0.3 1.8 1.1 0.8 0.5 0.3
SSLD84S 1/2 ODF 5 1/2 2 1/2 2.9 1.9 1.3 0.8 0.4 2.2 1.4 1 0.6 0.3
SSLD85 5/8 SAE 6 3/16 2 1/2 3.6 2.3 1.6 1 0.5 2.8 1.8 1.2 0.8 0.4
SSLD85S 5/8 ODF 5 3/4 2 1/2 4.1 2.7 1.8 1.2 0.6 3.1 2 1.3 0.8 0.4
SSLD164 1/2 SAE 7 1/8 2 1/2 2.5 1.6 1.1 0.7 0.4 1.9 1.2 0.8 0.5 0.3
SSLD165S 5/8 ODF 6 9/16 2 1/2 3.6 2.3 1.6 1 0.5 2.8 1.8 1.2 0.8 0.4
SSLD166 3/4 SAE 6 31/32 2 1/2 3.4 2.2 1.5 0.9 0.5
SSLD166S 3/4 ODF 6 31/32 2 1/2 4.4 2.9 1.9 1.3 0.6 3.4 2.2 1.5 0.9 0.5
SSLD167S 7/8 ODF 7 1/8 2 1/2 4.3 2.6 1.7 1 0.6
SSLD305 5/8 SAE 10 3/16 3 5 3.3 2.2 1.4 0.7 3.8 2.5 1.7 1 0.5
SSLD305S 5/8 ODF 9 7/32 3 4.6 3 2 1.3 0.6 3.6 2.3 1.5 1 0.5
SSLD307S 7/8 SAE 9 25/32 3 6.3 4.1 2.7 1.8 0.9 4.9 3.1 2.1 1.3 0.7
SSLD419S 1 1/8 ODF 9 15/16 3 1/2 9.1 5.9 4 2.5 1.3 6.9 4.5 3 1.9 1
Flow Capacity Chart
All Ratings in Accordance with ARI Standard 710-86
71
Driers
R
E
F
R
I
G
E
R
A
T
I
O
N
HP Series/Liquid Line
Bi-Directional Heat
Pump Driers
• 16 Cubic Inch Drier in a 2 1/2”
Diameter Shell
• Internal Check Valves Allow Flow
and Filtration in Either Direction
• High Moisture and Acid Removal
• Corrosion Resistant Epoxy Powder
Paint Finish
• Copeland Approved for POE Oils
Specifications
Desiccant Blend: 75% Molecular Sieve and 25% Activated Alumina (Bead)
Filtration: 40 Microns
Maximum Working Pressure (MWP): Sizes 05-16, 600 PSIG
®®
Series
H P 1 6 5 S
Unit Size Cubic Inches (in 1/8)
Connection Size (omit for SAE)
S = ODF Connection
Part Number Key
FLOW CAPACITY WATER CAPACITY TONS (2)
TONS @ 1 PSI P(1)(4) DROPS OF WATER (3)
PART CONNECTION DIMENSIONS (FOR kW, MULTIPLY TONS BY 3.5) R-22 R-407C R-410A
No. SIZE & TYPE A B R-22 R-410A R-407C 75°F 125°F 75°F 125°F 75°F 125°F
HP083 3/8 SAE 5.94 2.63 4.5 4.5 4.4
HP083S 3/8 ODF 5.31 2.63 5.1 5.1 5
HP084 1/2 SAE 6.19 2.63 6.4 6.4 6.3 159 144 106 79 85 75
HP84S 1/2 ODF 5.38 2.63 6.7 6.7 6.6
HP163 3/8 SAE 6.75 3.15 4.6 4.6 4.5
HP163S 3/8 ODF 6.13 3.15 5.2 5.2 5.1
HP164 1/2 SAE 7.00 3.15 7.7 7.7 7.6 323 294 237 179 178 160
HP164S 1/2 ODF 6.13 3.15 8.1 8.1 7.9
HP165 5/8 SAE 7.44 3.15 8.3 8.3 8.1
HP165S 5/8 ODF 6.44 3.15 8.7 8.7 8.5
HP Capacity Tables
LIQUID REFRIGERANT WATER HOLDING CAPACITY
FLOW CAPACITY - HOLDING CAPACITY - Oz. DROPS
UNIT TONS @ 1 PSI R-22 R R-407 R-410A R-22 R-407C R-410A
SIZE R-22/R-410A R-407C 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F 75°F 125°F
163S 5.2 5.1
164 6.6 6.5
164S 7.4 7.3 10.1 9.1 9.6 8.5 9 7.6 161 141 125 87 91 55
165 8 7.8
165S 8.3 8.1
HP Capacity Tables
(1) All ratings in accordance with
ARI Standard 710-86.
86°F liquid refrigerant temperature.
5°F saturated vapor temperature
3.1 lbs./min./ton for R-134a
2.9 lbs./min./ton for R-22 and R-407C
4.0 lbs. min./ton for R-404A/507
and R-12
4.4 lbs./min./ton for R-502
2.7 lbs./min./ton for R-410A
(2) Water Capacities are based on:
Equilibrium Point Dryness (EPD) of:
50 parts per million for R-134a,
R404-A/507, R-410A and R-407C
60 parts per million for R-22
15 parts per million for R-12
30 parts per million for R-502
(3) 20 drops of water = 1 gram = 1 cc
(4) For 2 PSI D P, Multiply values by 1.4
72
Driers
R
E
F
R
I
G
E
R
A
T
I
O
N
AIR CONDITIONING
REFRIGERATION, LOW TEMP. & FIELD REPLACEMENT & OEM: SELF CONTAINED
UNIT COMMERCIAL INSTALLATIONS FIELD INSTALLATIONS EQUIPMENT
SIZE R-12/134A R-22/407C/410A R-404A/134A R-12/134A R-22/407C/410A R-12/13A R-22/407C
083, 083S 1 1 1 2 3 3 4
084,
084S 1.5 2 1 3 5 4 7
162, 162S 1 1.5 3/4 1 2 2 2 1/2
163, 163S 2 4 2 4 6 5 7 1/2
164, 164S 2 4 2 4 6 5 7 1/2
165, 165S 3 5 2 1/2 5 7 1/2 7 1/2 10
HP Series / Liquid Line Bi-Directional Heat Pump Driers

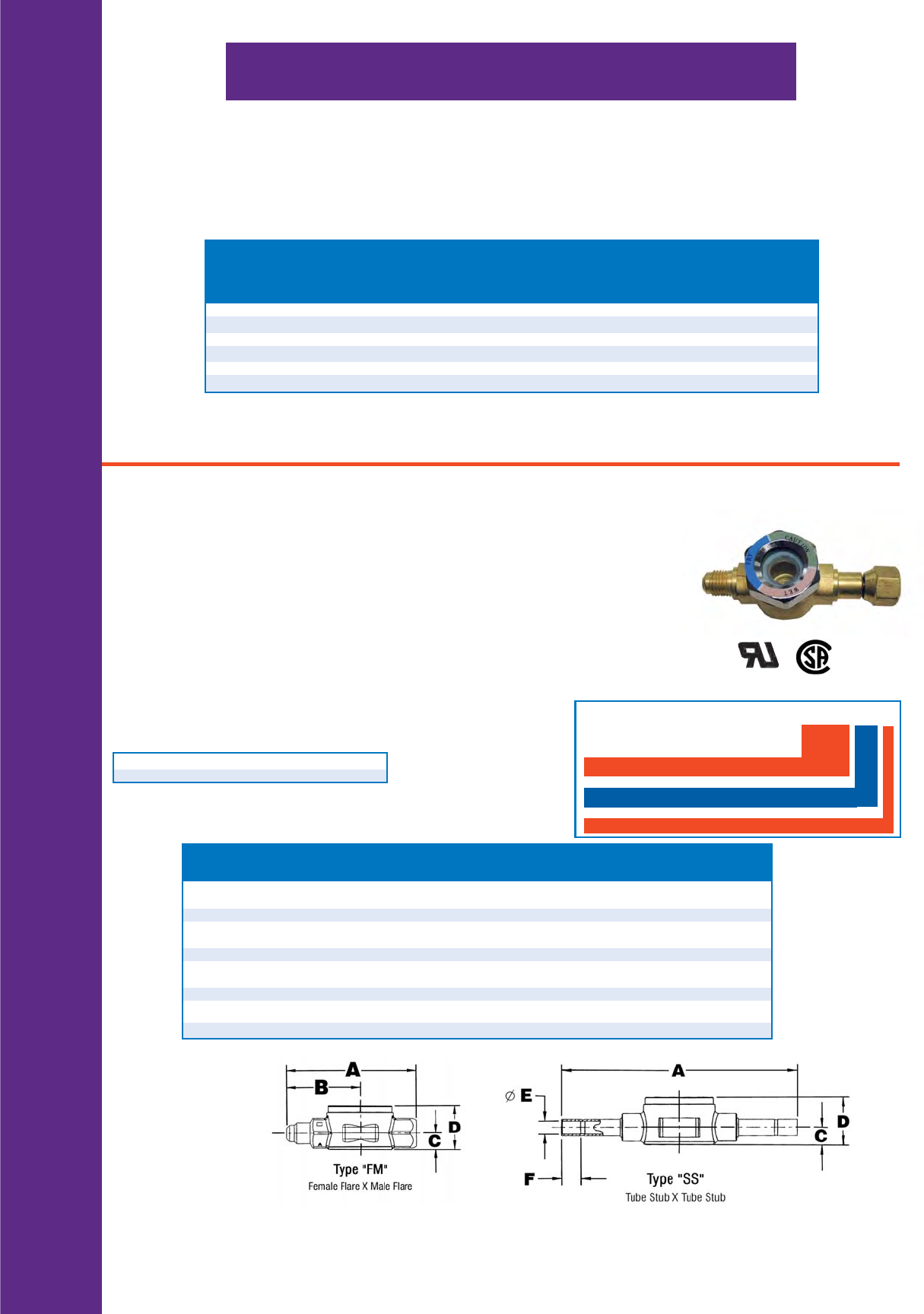

SSG Series Moisture Indicators
• Fully Hermetic Design
• 3% Relative Humidity Indication Compared to 10% Paper Indicators
• Single Indicator for All Common Refrigerants
• Accurate Color Calibration at Low PPM Levels and Higher
Temperatures
• Tri Color Coded
Blue = Dry Optimal Operation Conditions
Purple = Low Levels of Moisture Indicated
Pink = High Levels of Moisture Detected
• Wide Angle Viewing High Visibility Window for Ease of Monitoring
• All Brass Corrosion Resistant Body
• Solid Copper Fittings
®®
Specifications
3% Relative Humidity Sensitivity
Maximum Working Pressure (MWP): 680 PSIG SUPCO Sight Glass
S S G S S 3
Connection Style Solder X Solder
Connection Size (in 1/8)
Part Number Key
PART CONNECTION
NO. SIZE & TYPE A B C D E F
SSGFM2 1/4 SAE 2.75 ± .03 1.19 ± .03 .34 ± .06 .937 ± .06
SSGFM3 3/8 SAE 3.00 ± .03 1.31 ± .03 .47 ± .06 1.187 ± .06
SSGFM4 1/2 SAE 3.22 ± .03 1.41 ± .03 .47 ± .06 1.187 ± .06
SSGSS2 1/4 ODF 4.62 ± .10 .34 ± .06 .937 ± .06 .254 ± .002 .375
SSGSS3 3/8 ODF 4.62 ± .10 .34 ± .06 .937 ± .06 .379 ±.002 .402
SSGSS4 1/2 ODF 4.87 ± .10 .47 ± .06 1.187 ± .06 .504 ± .003 .500
SSGSS5 5/8 ODF 4.87 ± .10 .47 ± .06 1.187 ± .06 .629 ± .003 .625
SSGSS7 7/8 ODF 6.31 ± .10 .61 ± .06 1.500 ± .06 .879 ± .003 .750
73
Driers
R
E
F
R
I
G
E
R
A
T
I
O
N
Allin Liquid Eye®
Sight Glasses
e Allin Liquid Eye® has a Unique “See- ru” Feature that is more Readable
than Other Sight Glasses. e Dot on the Tube is Magni ed when the Tube is
full of Refrigerant to give a Quick, Easy Indication.
• Solid Brass Body
• Shock Resistant Glass
• Available in Flare or Solder
• Color Bar Designed for HFC Refrigerants
PART FLARE MALE/FEMALE A-1® PART
NO. (IN.) LENGTH (IN.) NO.
SG114 1/4 x 1/4 3-1/16 F5904
SG115 3/8 x 3/8 3-1/4 F5905
SG206 1/2 x 1/2 3-11/16 F5916
SG207 5/8 x 5/8 4 F5917
PART FLARE MALE/MALE A-1® PART
NO. (IN.) LENGTH (IN.) NO.
SG110 1/4 x 1/4 3-1/8 F5900
SG111 3/8 x 3/8 3-3/8 F5901
SG204 1/2 x 1/2 3-15/16 F5914
SG205 5/8 x 5/8 4-1/8 F5915
PART SWEAT SOLDER/TYPE A-1® PART
NO. (IN.) LENGTH (IN.) NO.
SG118 1/4 x 1/4 7-1/4 F5908
SG119 3/8 x 3/8 7-3/4 F5909
SG208 1/2 x 1/2 7-3/4 F5918
SG209 5/8 x 5/8 7-3/4 F5919
®
Empty Full
Allin Liquid Eye®
Moisture Reactors
e Allin Liquid Eye® Moisture Reactor is Easy to Read in Minimal Light. It
Provides a Quick Indication of Refrigerant in the Tube, as well as the Pressure of
the Moisture. When Moisture is Present, the Color Bars on the Band within the
Tube Change Color.
• Solid Brass Body
• Shock Resistant Glass
• Available in Flare or Solder
• Color Bar Designed for HFC Refrigerants
PART FLARE MALE/FEMALE A-1® PART
NO. (IN.) LENGTH (IN.) NO.
SG114R 1/4 x 1/4 3-1/16 F5924
SG115R 3/8 x 3/8 3-1/4 F5925
SG206R 1/2 x 1/2 3-11/16 F5936
SG207R 5/8 x 5/8 4 F5937
PART FLARE MALE/MALE A-1® PART
NO. (IN.) LENGTH (IN.) NO.
SG110R 1/4 x 1/4 3-1/8 F5920
SG111R 3/8 x 3/8 3-3/8 F5921
SG204R 1/2 x 1/2 3-15/16 F5934
SG205R 5/8 x 5/8 4-1/8 F5935
PART SWEAT SOLDER/TYPE A-1® PART
NO. (IN.) LENGTH (IN.) NO.
SG118R 1/4 x 1/4 7-1/4 F5928
SG119R 3/8 x 3/8 7-3/4 F5929
SG208R 1/2 x 1/2 7-3/4 F5938
SG209R 5/8 x 5/8 7-3/4 F5939
®
No Moisture Moisture
74
Drain Heaters
All SUPCO Drain and Door Heaters are Designed for Continuous Use to Protect Drains Against Ice Build
Up which Leads to Clogging. All of these Heaters Cannot be Cut, Spliced, Extended or Altered in Any Way.
SH200 Series
Flexible Braided
Aluminum Drain Heaters
• Aluminum Construction
• Variety of Lengths and Wattages Available
• Available in 220 Volts, Special Order
PART NO. VOLTS WATTS SIZE (in) LEADS (in)
SH201 115 15 18 23
SH202 115 45 29 23
SH203 115 55 44 23
SH204 115 75 48 23
SH206 115 80 70 23
SH207 115 110 86 23
SH250
Universal Drain Heater
• Used With Existing Heater or Where No
Heater Exists
• Available in 220 Volts, Special Order
• Designed for “Series Wiring Connection” Only
PART NO. VOLTS WATTS SIZE LEADS
SH250 120 3
SH500 Series
Drain Heaters
• Durable Metal Braid
• Available in 220 Volts, Special Order
• Heater Tip 7/16” Diameter
• Silicone Construction
• Designed for Waterproof Low
Wattage Heat
PART NO. VOLTS WATTS SIZE (in) LEADS (in)
SH500 120 11 9 18
SH502 120 15 13 18
SH503 240 15 13 18
SH504 120 25 21 18
SH505 240 25 21 18
SH220 Series
Aluminum Foil Heaters
• Pressure Sensitive Adhesive Backing
For Easy Installation
• Six Assorted Shapes and Wattages
• Available in 220 Volts, Special Order
PART NO. VOLTS WATTS SIZE (in) LEADS (in)
SH221 115 6 10 x 1 18
SH222 115 10 24 x 1 1/4 18
SH224 115 65 27 1/2 x 5 1/2 18
SH225 115 15 10 1/2 x 10 1/2 18
SH226 115 40 10 1/2 x 10 1/2 18
SH280 Series
Door Heaters
Mullion & Dew Point
• Prevents Moisture on Glass Display
Doors
• Eliminates Frost Build Up on Doors &
Cabinet Fronts
PART NO. VOLTS WATTS SIZE (ft)
SH281 120 3 36 1/2
SH282 120 3 18
SH283 220 3 36
SH284 220 3 18
R
E
F
R
I
G
E
R
A
T
I
O
N
75
Motors
R
E
F
R
I
G
E
R
A
T
I
O
N
Unit Bearing Watt Motors
For Commercial and Domestic Refrigeration Equipment, Room and Hood Ventilators,
Room Heaters, Evaporative Coolers and Various Other Equipment.
• Cast Aluminum Housing Up to 16 Watts
• Cast Iron Housing for 35 to 50 Watts
• Single Speed, 1550 RPM
• Single Rotation
• Rotation is Determined by Viewing
Opposite Sha End (OSE)
• 50/60 Hz
• Totally Enclosed
• Overload Protected
• Permanent Lubrication
• Sleeve Bearings
• Universal Mounting
• readed Mounting Holes
• Hardware Included
• UL® Approved
PART NO. WATTS VOLTS AMPS ROTATION SHAFT DIAM. (IN.) SHAFT LENGTH (IN.)
SM5109 2 120 0.28 CWOSE 1/4 Threaded 1/2
SM5211 4 120 0.36 CWOSE 1/4 Threaded 1/2
SM5212 4 120 0.32 CCWOSE 1/4 Threaded 1/2
SM5221 4 230 0.16 CWOSE 1/4 Threaded 1/2
SM5222 4 230 0.16 CCWOSE 1/4 Threaded 1/2
SM5311 6 120 0.52 CWOSE 1/4 Threaded 1/2
SM5312 6 120 0.43 CCWOSE 1/4 Threaded 1/2
SM5411 9 120 0.60 CWOSE 1/4 Threaded 1/2
SM5412 9 120 0.64 CCWOSE 1/4 Threaded 1/2
SM5421 9 230 0.32 CWOSE 1/4 Threaded 1/2
SM5422 9 230 0.32 CCWOSE 1/4 Threaded 1/2
SM5811 16 115 0.92 CWOSE 1/4 Threaded 1/2
SM5812 16 115 0.92 CCWOSE 1/4 Threaded 1/2
SM5821 16 230 0.48 CWOSE 1/4 Threaded 1/2
SM5822 16 230 0.48 CCWOSE 1/4 Threaded 1/2
Aluminum Unit Bearing
PART NO. WATTS VOLTS AMPS ROTATION SHAFT DIAM. (IN.) SHAFT LENGTH (IN.)
SM351 35 120 1.4 CWOSE 1/4 Threaded 1/2
SM352 35 120 1.4 CCWOSE 1/4 Threaded 1/2
SM353 35 230 0.7 CWOSE 1/4 Threaded 1/2
SM354 35 230 0.7 CCWOSE 1/4 Threaded 1/2
SM501 50 120 1.7 CWOSE 3/8 Smooth Flatted 1/2
SM502 50 120 1.7 CCWOSE 3/8 Smooth Flatted 1/2
SM503 50 230 0.85 CWOSE 3/8 Smooth Flatted 1/2
SM504 50 230 0.85 CCWOSE 3/8 Smooth Flatted 1/2
Cast Iron Unit Bearing
®
®
SUPCO Unit Bearing Motors are Manufactured with the Highest Quality Components. They are
Manufactured and Tested to Meet Our High Standards and Specifications.
76

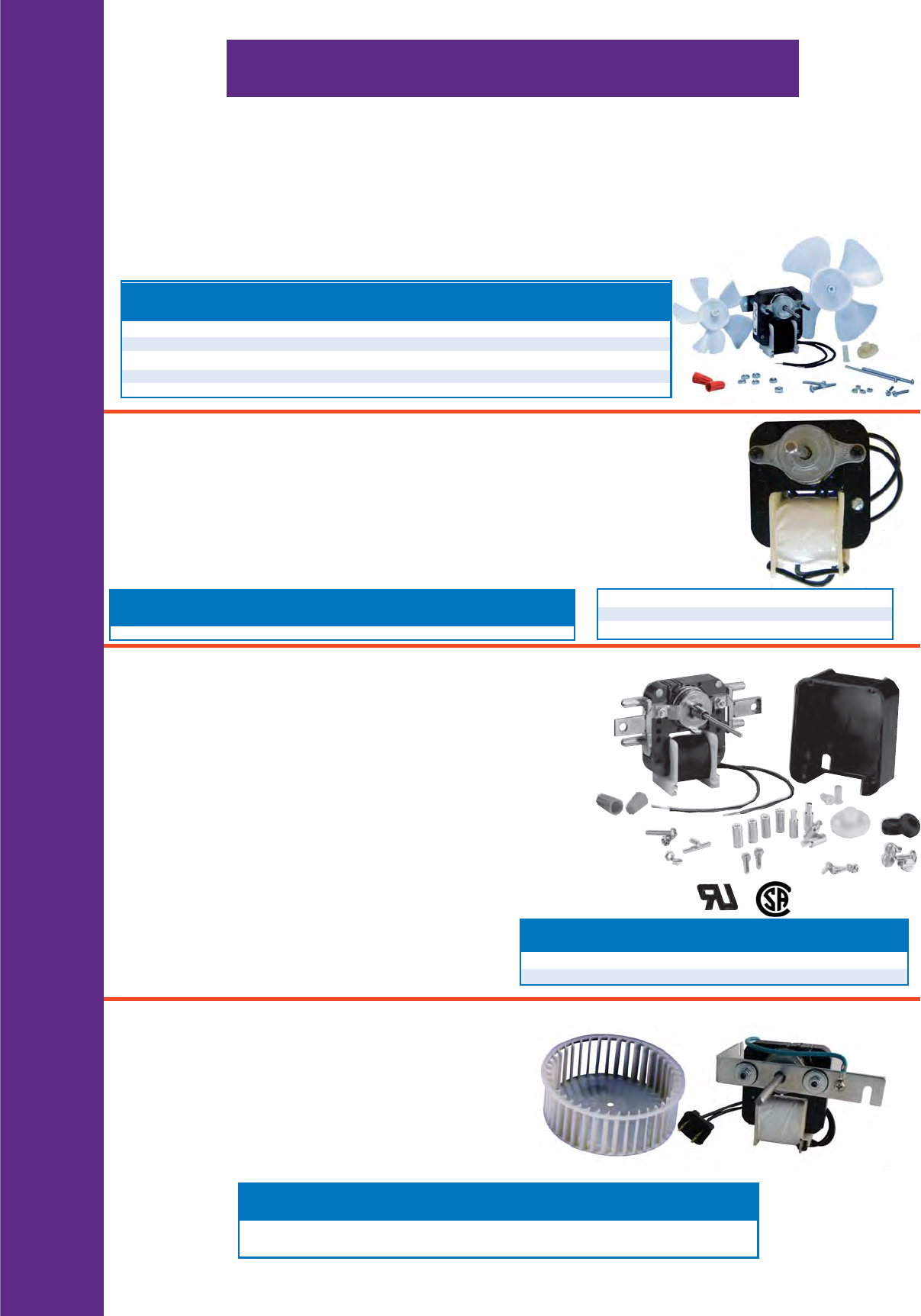

Motors
R
E
F
R
I
G
E
R
A
T
I
O
N
SM6700B
Motor Kit Assembly
• Replaces Acme Miami® 700
• OEM Replacement for Bohn®, Heatcra ®, Uppco®, Singer®,
GE® 33 Series
• Kit Includes Reversible Motor, ree Fan Blades, Hardware
Kit and Instructions
SHAFT STACK BEARING
VOLTS HERTZ AMPS RPM SIZE (IN.) SIZE (IN.) TYPE
120 60 .55 3000 3/16 x 1 1/4 5/8 Sleeve
Specifications
FB402 4”, CW, 5 Wing
FB455 (Bohn® 5101B) 5 9/16”, CCW, 5 Wing
FB550 5 1/2”, CCW, 4 Wing
SM6700B
Replacement Fan Blades
3/16” Hub
SM999
Universal Evaporator Fan Motor Kit - 120 VAC
• Replaces Over 450 Di erent Evaporator Type Motors
• Prefastened Multi Fit, Break O Mounting Bracket
• Break O 2” Motor Sha with Breakaways at 1/2” and 1 1/2”
• Includes All Mounting Accessories and Hardware
• Reversible Rotation
• Single Speed
• Sha Diameter 1/8”
SM998
Universal Evaporator Fan Motor Kit - 220 VAC
• Includes the Same Features, Bene ts, Applications and Speci cations as the SM999,
Except it Operates on 220 VAC 50/60 Hz.
• Direct Replacement for the Mars® 90998
®®
PART
NO. DESCRIPTION
SM999 120 VAC, 3000 RPM, 1/200 hp, .31 Amp Impedance Protected
SM998 220 VAC, 3000 RPM, 1/200 hp, .31 Amp Impedance Protected
SM140-40A
Blower Fan Assembly
• Direct Replacement Kit for Nutone® Bath Fans
• Replaces Nutone® Motor P/N K5895 and Kit P/N K5894
• Kit Includes Single Speed Motor, 3 3/4” x 2” Blower Wheel
and Mounting Bracket
• Motor Includes 6” Wire Leads with Molded Plug
PART
NO. SPEED RPM VOLTS AMPS ROTATION NUTONE®
SM140-40A 1 2400 115 0.9 CCWSE K5894 Motor Kit
K5895 Motor Only
SM600 Series
Exact Replacement & Utility Motor Kits
• Versatile Replacement for All “C” Frame and 3 1/2”
Round Style Motors
• Impedance Protected
• SM670, SM672 and SM673 Include Fan Blades
FB402 and FB550
• SM675 is ermal Protected
• SM675 Includes Fan Blade FB550 Only
• Motor Kits Include Complete Hardware
and Mounting Kits
PART CURRENT SHAFT STACK ROTATION
NO. TYPE VOLTS AC RPM (AMPS) DIMENSIONS (IN.) SIZE (IN.) (REVERSIBLE)
SM670 Sleeve 120 3000 0.55 3/16 x 1 1/4 5/8 CW/CCW
SM671 Sleeve 120 3000 0.55 3/16 x 1 1/4 5/8 CW/CCW
SM672 Sleeve 240 3000 0.32 3/16 x 1 1/4 5/8 CW/CCW
SM673 Sleeve 120 3000/1550 .55/.32 3/16 x 1 1/4 5/8 CW/CCW
SM675 Sleeve 120/240 3000 1.0/5.0 3/16 x 2 3/8 1 CW/CCW
77
Motor Brackets
R
E
F
R
I
G
E
R
A
T
I
O
N
MB55
Motor Bracket Mounting Kit - 3 Legs
• Designed For Direct Drive Blower Motors Using the Flexible
Bracket Mounting Arrangement
• Grommets & Eyelets Included
Motor Diameter 5”, Bolt Circle 9” & 10.18”
Motor Diameter 5.5”, Bolt Circle 9” & 10.18”
Specifications
MB554
Motor Bracket Mounting kit - 4 Legs
• Flexible Bracket
• Grommets & Sleeves Included
Motor Diameter 5”, Bolt Circle 9” & 10.18”
Motor Diameter 5.5”, Bolt Circle 9” & 10.18”
Specifications
78
Commercial Controls
R
E
F
R
I
G
E
R
A
T
I
O
N
ST100 Series
General Purpose Timer Switches
• Economical
• Electromechanical Switching • Single Pole or Double Pole
• Non-corrosive NEMA 1 Case • Switch Rating: 40A, Resistive
S8000 Series
Commercial Defrost Controls
• Heavy-duty Synchronous Motor
• Adjustable Defrost Frequency up to 6
Times Per Day
• Adjustable Cycle Duration from 4 to
110 Minutes
• Heavy-duty Steel Case
M814520 exact fit
COMMERCIAL DEFROST
MECHANISM
Exact Drop-in Replacement Mechanism for
Paragon® 8145-20 and SUPCO® S814520
Sold in Convenient 6-Pack
Counter Display!
PARAGON® INTERMATIC® PRECISION®
PART NO. VOLTS SWITCH CROSS REFERENCE CROSS REFERENCE CROSS REFERENCE
ST101 120 SPST 4001-00 T101 CD101
ST102 240 SPST 4002-71 T102 CD102
ST103 120 DPST 4003-00 T103 CD103
ST104 240 DPST 4004-71 T104 CD104
SWITCHING
NO NORMALLY TIME TIME INITIATED
OPEN INITIATED TEMPERATURE OR
PART NC NORMALLY TIME PRESSURE PARAGON®
NO. VOLTAGE CLOSED TERMINATED TERMINATED MODEL NO.
S804100 120/60 Hz 1 NO / 2 NC YES NO 8041-00
S804120 240/60 Hz 1 NO / 2 NC YES NO 8041-20
S804500 120/60 Hz 1 NO / 1 NC YES NO 8045-00
S804520 240/60 Hz 1 NO / 1 NC YES NO 8045-20
S814100 120/60 Hz 1 NO / 2 NC NO YES 8141-00
S814120 240/60 Hz 1 NO / 2 NC NO YES 8141-20
S814500 120/60 Hz 1 NO / 1 NC NO YES 8145-00
S814520 240/60 Hz 1 NO / 1 NC NO YES 8145-20
S814521 240/50 Hz 1 NO / 1 NC NO YES 8145-21
Specifications
Accessory
X3596 Dial Pins 5 Pins Per Pack
Operating Voltages 120 or 208/240 VAC, 60 Hz
Amperage 40-Amp Non-inductive @ 120, 208 or 240 VAC
Maximum hp 2 hp @ 120, 208 or 240 VAC
Pilot Duty 690 VA @ 120, 208 or 240 VAC
Operating Temperature Range -35°F to 175°F
Overall Case Dimensions 7.697” H x 4.4” W x 3.8” D
Shipping Weight S8040 Series 3.5 lbs. & S8141 Series 3.75 lbs.
Accessory
STPIN Dial Pins 2 Pins Per Pack
79

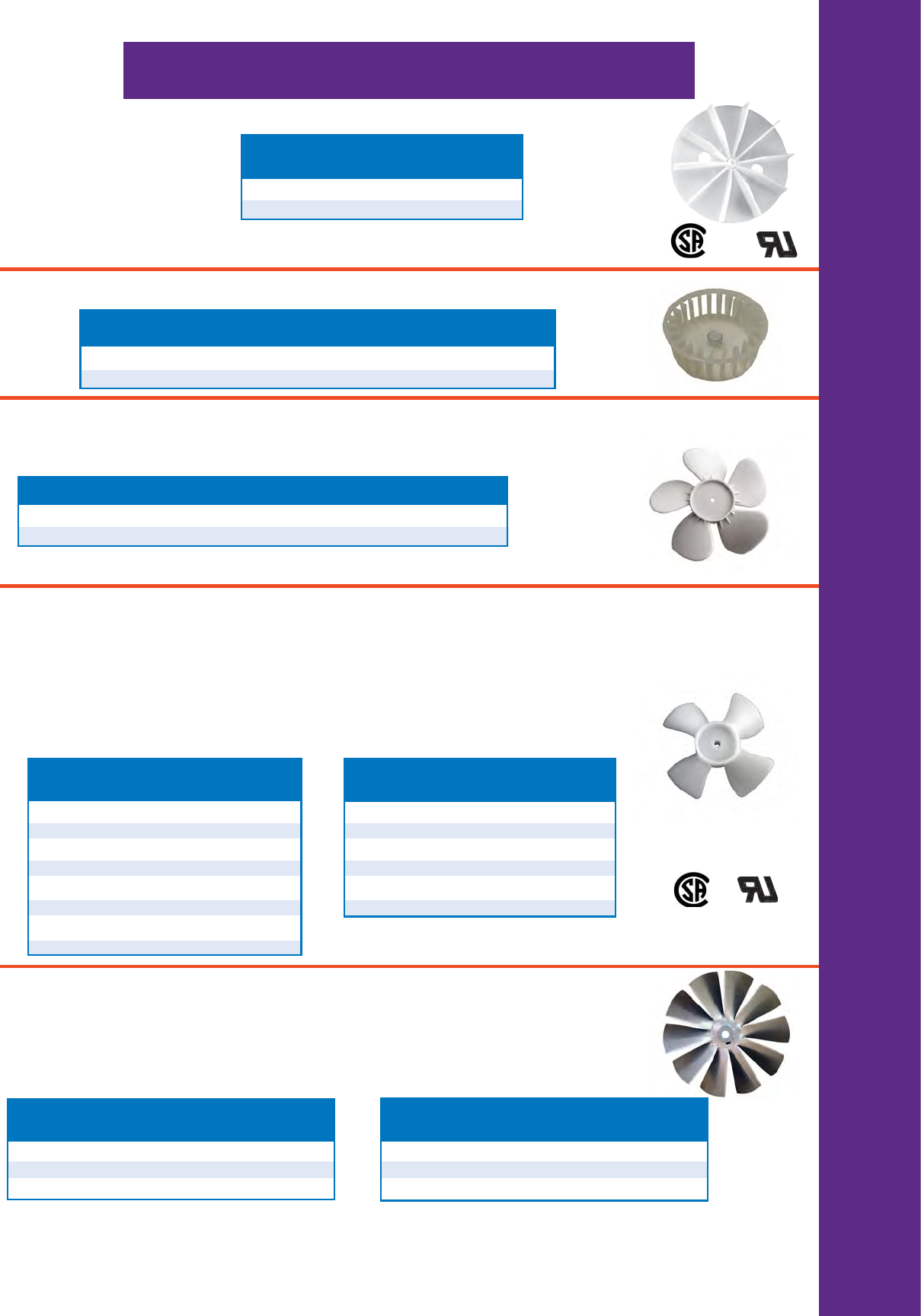

Fan Blades
Exact Replacement
Plastic Impellers
• Broan & Nutone Exact
Replacement Impellers
PART REPLACES BLADE HOLE
NO. MFG. NO. O.D. I.D.
SB001 Nutone® 68920 4 5/8” .181F
FB460 Broan® 9910379H 4 9/16” . 218
®
®
Plastic Blower Wheels
PART BOTTOM TOP OEM
NO. SHAFT ROTATION DIAMETER DEPTH DIAMETER PART NO.
FB250 1/8” CW 2 1/2” 1” 2 11/16”
FB590 1/4” CW 5 3/4” 2” 6 1/8” Nutone® 59000A
Plastic Vent Hood
Fan Blades
•Ducted & Non Ducted Vent Hoods
PART NO. SHAFT DIAMETER NO. BLADES ROTATION PITCH Volume
FB660 7/32” 6 5/8” 5 CW 25° High
FB665 7/32” 6 5/8” 5 CW 12° Standard
Use with SM500 series or SM700 series that have 7/32” w/ flat shaft.
Replaces Nutone 68929300 and many Broan blades.
Plastic Fan Blades - General Purpose
• Celcon Plastic Construction
• Light Weight Design Reduces Bearing Wear & Vibrations
• 2 1/2” to 7” Diameter Sizes Available (1/2” increments)
• Integral Hub Available in 1/8”, 3/16”, 1/4” & 5/16” Sizes
• Color Coded Rotation White = CW Gray = CCW
• Eliminates Bent or Misaligned Blades
• Low Air Noise
PART NO. OF
NO. SHAFT DIAMETER BLADES ROTATION
FB350 3/16” 3 1/2” 4 CW
FB401 1/8” 4” 5 CW
FB402 3/16” 4” 5 CW
FB403 1/8” 4” 5 CCW
FB404 3/16” 4” 5 CCW
FB501 3/16” 5” 5 CW
FB504 3/16” 5” 5 CCW
FB550 3/16” 5 1/2” 4 CCW
PART NO. OF
NO. SHAFT DIAMETER BLADES ROTATION
FB601 3/16” 6” 6 CW
FB604 3/16” 6” 4 CCW
FB650 3/16” 6 1/2” 5 CW
FB651 1/4” 6 1/2” 5 CW
FB702 5/16” 7” 5 CW
FB703 1/4” 7” 5 CCW
®®
Aluminum Fan Blades - General Purpose
• 22 Gauge Aluminum Alloy Construction
• Light Weight Design Reduces Bearing Wear & Vibration
• 4” to 6 1/2” Diameter Sizes Available (1/2” increments)
• Slotted Set Screw Hub Sizes 3/16”, 7/32” & 1/4”
• Clockwise or Counter Clockwise Rotations
PART NO.
NO. SHAFT DIAMETER BLADES ROTATION PITCH
FB152 3/16” 4” 10 CCW 35
FB157 1/4” 4 1/2” 10 CW 40
FB159 1/4” 4 1/2” 10 CCW 40
PART NO.
NO. SHAFT DIAMETER BLADES ROTATION PITCH
FB180 1/4” 6” 4 CW 20
FB182 7/32” 6” 4 CCW 20
FB190 7/32” 6 1/2” 4 CCW 20
R
E
F
R
I
G
E
R
A
T
I
O
N
80
Fan Blades
R
E
F
R
I
G
E
R
A
T
I
O
N
Plastic Fan Blades - Direct Replacement
and Hub Type
• Available in Hub or Sha Mount 1/8”, 3/16”
• Clockwise & Counter Clockwise Rotations
PART
NO. SHAFT DIAMETER BLADES ROTATION REPLACEMENT FOR
FB353 HUB 4” 4 CCW Whpl/Cldspt® 513543
FB450 1/8” 4 1/2” 5 CCW GE® WR60X114
FB455 3/16” 5 9/16” 5 CCW Bohn® 5101B
Aluminum Condenser
Fan Blades
• Aluminum Construction
• 6” to 10” Diameter
• Clockwise & Counter
Clockwise Rotations
• 5 Blades
PART NO. OF
NO. DIAMETER BLADES ROTATION PITCH
FB101 6” 5 CW 30°
FB103 7” 5 CCW 20°
FB104 7” 5 CW 20°
FB105 8” 5 CCW 20°
FB106 8” 5 CW 20°
FB107 8 3/4” 5 CW 20°
FB108 10” 5 CCW 29°
FB109 10” 5 CW 22°
Compressors
SPC660L, SPC836L, SPC990L
Compressors
Refrigeration Compressors Include Electrical Accessories, Grommets
and Sleeves.
• Compact 4” x 6” Footprint
• 60 Hz.
• 110V/120V
• Low Back Pressure
• Relay Start Capacitor Run (PTC)
• Relay Start Capacitor Run (RSCR)
PART
NO. HP BTU AMPS WATTS
SPC660L 1/5 660 1.2 126
SPC836L 1/4 990 2.5 181
SPC990L 1/4 836 2.2 196
SPC600L
SPC836L
SPC990L
81
Vacuum & Pressure Gauges
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
VG640D & VG640 Vacuum Sentry
Choose Between Single Port or NEW DUAL Port
• Multi-Point Sensor Technology
• BEST Resolution (0.5 Micron)
• Easy-to-Clean LIFETIME Sensor Never Needs Replacing
• Large, Backlit Display
• High & Low, Audible and Visual reshold Alarms
• Built-in Hanger
• 1/4” Male Flare Connection
• 2 Year Warranty
Sensor Type Thermistor
Connector Type Standard 1/4 Inch Male Flare Fitting
Vacuum Range 0-19,000 Micron (0-2,600 Pascal)
Resolution Measurement Range Resolution
0-140 0.5 Microns
140-400 1 Microns
400-800 2 Microns
800-2000 5 Microns
2000-6000 20 Microns
6000-9000 100 Microns
9000-16000 200 Microns
16000-19000 1000 Microns
Units Microns, milliBar, Pascal, Torr, milliTorr
Accuracy +/-10% or +/-10 Micron, whichever is larger (50 to 2000 Microns) at 75°F
Update Rate 0.5 sec.
Alarm Audible and Visual Alarm for High and Low Vacuum
Remote Alarm (R100) Up to 400 ft Remote Audible, Visual and Vibrating Alarm for High and Low Vacuum
Alarm Volume 87 dB for Both Unit and Remote
Op.Temp. Range 0°F to 150°F (-17°C to 65°C)
Overpressure 800 PSI max (55 Bar)
Power Source 3 AA Batteries
Battery Life 600 Hours Continuous Usage, with Battery Indicator
Auto Shutoff 8 Hours when Alarms are Active
When Alarms are Disabled:
• 10 Minutes when Vacuum Reading is above 19,000 Microns
• 1 Hour when Vacuum Reading is below 19,000 Microns
Weight 6 oz
Dimensions 5.5” H x 2.75” W x 1.5” D
Specifications
R100
Remote Alarm Receiver
• Audible, Visual and Vibrating Alarm
• Integrated Belt Clip
Distance Up to 400 ft.*
Alarm Audible
Alarm Volume 87 dB
Operating Temperature -20°F to 160°F
Range (-28°C to 70°C)
Power Source 9 V Battery
Battery Life 45 Hours
Continuous Usage,
with Low Battery
Audible Indicator.
Weight 3 oz
Dimensions 5.0” H x 2.5” W x 1.0” D
Specifications
VG640D
VG640
* Distance is measured when the remote receiver is
within a direct line of sight of the VG640/VG640T/
VG640D. Obstructions between the remote and the
VG640/VG640T/VG640D can reduce this distance.
VGC Vacuum Gauge Coupler
10475 120 Volt AC Adapter
10740 Vinyl Case
Accessories
VGC
Vacuum Gauge Coupler
VG640T Kit Includes:
• VG640
• R100
• VGC, Vacuum Gauge Coupler
• Soft Case
VG640T
VGC R100 Case
Scan for VG640 video
82

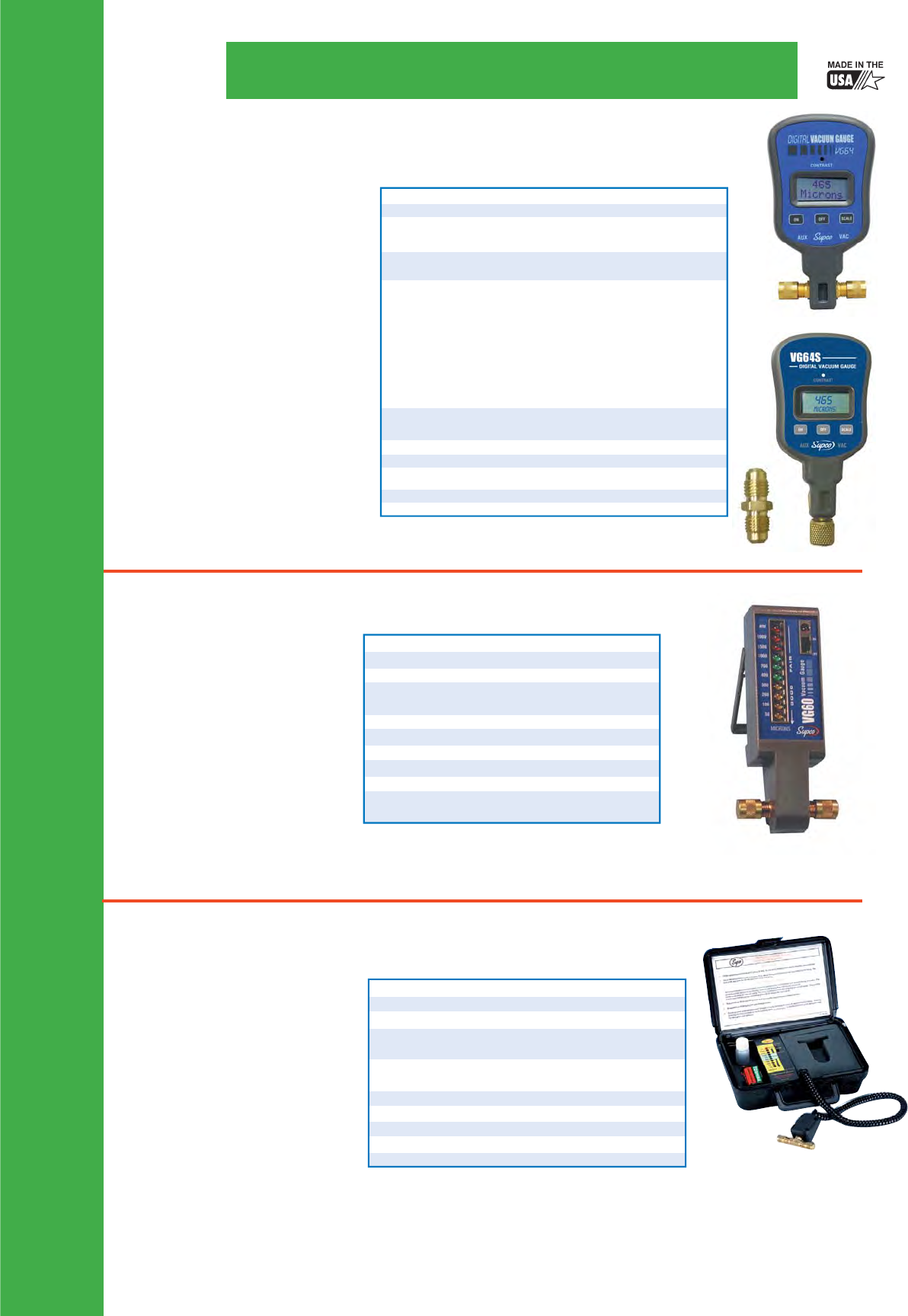

Vacuum & Pressure Gauges
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
VG64 & VG64S
Digital Vacuum Gauge
• Ultra Fine Resolution
• Reads Vacuum in 7 International Units
• Display Updates Every 1/2 Second
• Convenient Built in Hanger
• Cleaning Port Provides Quick Cleaning
and Drying of Sensor
• Low Battery Indicator
• VG64S has Single Port Connection
(includes tting)
Sensor Type Thermistor
Connector Type Standard 1/4” Male Flare Fitting
Vacuum Range 0-12,000 Microns
(0-1,600 Pascals)
Scale Microns, PSI, InHg, milliBars,
Pascals, Torr, milliTorr
Resolution Measurement Range Resolution
0-200 1 Microns
201-500 5 Microns
501-1,000 10 Microns
1,001-2,000 50 Microns
2,001-5,000 250 Microns
5,001-8,000 500 Microns
8,001-12,000 1,000 Microns
Operating Temperature
Range 35°F to 125°F (2°C to 52°C)
Overpressure 500 PSI Max (20 Bar)
Accuracy +/- 10% (100-1000 Micron)
Power Source 9 V Battery (not included)
Auto Shutoff Yes
Dimensions 5 1/2” x 3” x 1 1/4”
Specifications
VG60
Electronic Vacuum
Gauge
10 Segment Color Coded LED Readout
Provides Fast Response of Vacuum
Measurements
• Pocket Size - Only 5 1/2” x 1 3/4” x
1 1/2”
• Cleanable Sensor
• Single Switch Operation
• Low Battery Indication
• Color Coded LED Display
Sensor Type Thermistor
Connector Type Standard 1/4” Male Flare Fitting
Vacuum Range 50-5,000 Microns
Scale Microns, 10 LED Segments
Atmosphere to 50 Microns
Overpressure 500 PSI Max (20 Bar)
Power Source 9 V Battery (not included)
Auto Shutoff No
Dimensions 5 1/2” x 1 3/4” x 1 1/2”
Weight 6.8 oz.
Operating Temperaure
Range 35°F to 125°F (2°C to 52°C)
Specifications
VG61
Electronic Vacuum
Gauge
Enjoy the Same Features as the VG60
in a Durable Hard Case. Sensor Cord
Extends to 5 Feet
• Cleanable Sensor
• Single Switch Operation
• Low Battery Indication
• Color Coded LED Display
Sensor Type Thermistor
Connector Type Standard 1/4” Male Flare Fitting
Vacuum Range 50-5,000 Microns
Scale Microns, 10 LED Segments
Atmosphere to 50 Microns
Operating Temperature
Range 35°F to 125°F (2°C to 52°C)
Overpressure 500 PSI Max (20 Bar)
Power Source 9 V Battery (not included)
Auto Shutoff No
Dimensions 9 1/2” x 6 3/4” x 2 3/4”
Weight 1.8 lbs.
Specifications
VG64
VG64S
VG64S Fitting
83
VG65
Professional Series
Digital Vacuum Gauge
Same Great Speci cations as the VG64 in a
Rugged Service Case
• Extendable Service Card
Sensor Type Thermistor
Connector Type Standard 1/4” Male Flare Fitting
Vacuum Range 0-12,000 Microns
(0-1,600 Pascals)
Scale Microns, PSI, InHg, milliBars,
Pascals, Torr, milliTorr
Resolution Measurement Range Resolution
0-200 1 Microns
201-500 5 Microns
501-1,000 10 Microns
1,001-2,000 50 Microns
2,001-5,000 250 Microns
5,001-8,000 500 Microns
Overpressure 500 PSI Max (20 Bar)
Accuracy +/- 10% (100-1000 Microns)
Power Source 9 V Battery (not included)
Auto Shutoff Yes
Dimensions 5 1/2” x 3” x 1 1/4”
Weight 1 lb. 11 oz.
Vacuum & Pressure Gauges
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Specifications
VG66
Professional Series Analog
Vacuum Gauge
• 5 Inch Analog Display
• Cleanable Vacuum Sensor
• Low Battery Indicator
• Expandable Sensor Cord (Up to 6 .)
• Sensor Cord Extendable Using Standard
Telephone Cord
• Rugged Service Case
Sensor Type Thermistor
Connector Type Standard 1/4” Male Flare Fitting
Vacuum Range 10-5,000 Micron
Scale Microns, Torr
Overpressure 500 PSI Max (20 Bar)
Power Source 9 V Battery (not included)
Auto Shutoff N/A
Dimensions 9 1/4” x 7 1/2” x 2 3/4”
Weight 2 lbs. 6 oz.
Specifications
DPG25V/DPG100/DPG1000
Digital Pressure Gauges
e DPG Series Features Multiple Units, Selectable Zero Reference and Automatic Power O to
Conserve Battery Power. e DPG100/DPG1000 Can be Used with Any Media Compatible with
17-4PH Stainless Steel.
• High Accuracy
• Measurement Units PSI, Bar, kg/cm², ATM
• Easy to Use
• Stainless Steel Sensor
DPG25V DPG100 DPG1000
Pressure Range -14.7 to 25 PSI -14 to 100 PSI -14 to 1000 PSI
Measurement Units InHg, PSI, PSI, BAR, PSI, BAR,
Kg/cm², ATM Kg/cm², ATM
Resolution PSI 0.1 0.1 1.0
InHg 0.01 * *
BAR * 0.01 0.1
Kg/cm * 0.01 0.1
Atm * 0.01 0.1
Accuracy < ± 0.5% (includes Non-linearity,
Hysteresis and Non-repeatability)
• No Welds or “O” Rings
• 1/8 NPT Female Connection
• Long Battery Life
• 1 Hour Auto O
DPG SERIES COMMON SPECIFICATIONS
Stability (1 year) ±0.25% FS (typ)
Overange Protection 2X Rated Pressure
Burst Pressure 5X or 20,000 psi whichever
is less.
Pressure Cycles >100 Million
Operating Temperature Range 32°F to 130°F
(0°C to 55°C)
Storage Temperature Range -40°F to 150°F
(-40°C to 65°C)
Compensated Temperature Range 32°F to 130°F (0°C to 55°C)
Temperature Compensation Zero <±1.5% of FS
Temperature Compensation Span <±1.5% of FS
Pressure Sensor Connection 1/8 NPT Female
Update Rate 3 Samples per Second (typ)
Power 9 Volt Alkaline Battery
Automatic Power Off 1 Hour
Battery Life 100 Hours Continuous Operation (typ)
84
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
CRTH2
Temperature/Humidity/
Dew Point Recorder
Selectable Chart Speeds from 1 1/2 hours to 31 days.
• Measures Temperature, Humidity and Dew Point
• Advanced, Reliable Micro-controller Design
• Built-in “Last Setting” Memory
• Two (2) line LCD Display
• Easy-to-use Membrane Keypad
• All Functions User Selectable from Front Panel
• °F/°C Selectable
• Remote Combination Temperature/Humidity
Probe with 6 Foot Cable
• Field Calibration of Probe
• Combination of 24 Speed and Temperature Ranges
• 6” Circular Chart
• Chart Number Displayed when Time &
Temperature Ranges Selected
• Alarm with Delay for Over and Under
Temperature & Humidity
• Audible and Visual Alarm Indication
• Remote Alarm or Telephone Dialer
Connection
(Optional Auto-dialer - ADTA)
• Standard 120 VAC Operation
• Optional 12 VDC Operation for Auto
or Marine
• 48 Hour Battery Back-up
• Low Battery Warning on Display
• Durable Polycarbonate Case with
Full-view Cover
• Free Standing or Wall Mount
• Snap-on Extra Support Legs
• Fold Away Carrying Handle
• Single Turn or Continuous Chart
Rotation
• Two (2) Independent Pens
Temp Range/Accuracy -40°F to 130°F +/- 2°F (-40°C to 55°C +/- 1°C)
RH Range/ Accuracy 0 to 90% (non condensing) at 32°F to 130°F
+/- 2% (0°C to 55°C) ambient
Dew Point Range 32°F to 130°F (0° to 55°C)
Chart Diameter 6 inches
Chart Rotation Mode Continuous or Single turn
Chart Rotation Speed 1.5, 3, 6, 12 & 24 hrs, 7 & 31 days
Chart Speed Accuracy ±1%
Charts 60 assorted included
Display LCD 16 characters x 2 lines
Temperature Alarm Range -20°F to 120°F (-30°C to 50°C)
Relative Humidity Alarm Range 0 to 100%
Alarm Delay NO DELAY, 10 mins., 30 mins., 1 hr. or 2 hrs.
Remote Alarm Connection NO, 48 VAC/DC, 0.1 A resistive load
Ambient Operating Temperature 32°F to 120°F (0°C to 49°C)
Primary Power 120 VAC, 50/60 Hz (220 VAC, 50/60 Hz optional)
Alternate Power 12 V vehicle operation (need optional adapter)
Battery backup 8 AA alkaline batteries (not included)
Battery Life 48 hrs. continuous
Dimensions 9 1/4” x 7 1/4” x 2 3/4”
Weight 4 lbs. 15 oz.
Specifications
Accessories
TEMPERATURE HUMIDITY
RANGE 1 RANGE 2 12 HR 24 HR 7 DAY 31 DAY
-20°F to 120°F 0-100% Humidity E20120F12 E20120F24 E20120F7 E20120F31
-20°F to 50°F 0-100% Humidity E2050F12 E2050F24 E2050F7 E2050F31
40°F to 110°F 0-100% Humidity E40110F12 E40110F24 E40110F7 E40110F31
-30°C to 50°C 0-100% Humidity E3050C12 E3050C24 E3050C7 E3050C31
-30°C to 10°C 0-100% Humidity E3010C12 E3010C24 E3010C7 E3010C31
5°C to 45°C 0-100% Humidity E545C12 E545C24 E545C7 E545C31
Recorder Charts
PART NO. DESCRIPTION
KTH Temperature/ Humidity Probe
CABLE10H Extension cable for KTH (2 max)
CRPENR Red Recorder Pen
CRPENB Blue Recorder Pen
CRT 120 VAC Power Adapter
CRT220 220 VAC Power Adapter
CRTH2 120V 50/60 Hz
CRTH2-220 220V 50/60 Hz
ADTA Auto-Phone Dialer
85
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
SR Series Strip
Chart Recorders
e SR Series Strip Chart Recorders Provide Long
Length Recordings with Maximum Detail.
• LCD Alphanumeric Display
• Adjustable Chart Speed (1/4 inch per hour to 2
inches per minute)
• Recording Length: 2 hours to 40 Days
• Over/Under Alarm with 100ma N.O. Relay and
Audible Alarm
• Delay/No Delay Alarm
• Battery Backup
• 220V Operation (optional)
• RS-232C Port
• Use Inches or mm Charts
• Field Calibrated with User Adjustments
• Free Standing or Wall Mount
• Chart Length 20’ (2 Included)
SRB - Temperature Recorder
• Temperature Ranges: -40°F to 150°F (-40°C to 60°C)
• Remote Readings From up to 100 . (CABLE 10T Optional)
• Programmable Speed and Temperature Ranges
Specifications
Display Alphanumeric LCD
16 Characters 2 Line
Chart Strip Chart (20’ x 4 3/4”)
Chart Speeds 1/4 inch/hour 1/2 cm/hour
1 inch/hour 2 cm/hour
2 inches/hour 4 cm/hour
4 inches/hour 8 cm/hour
8 inches/hour 16 cm/hour
1/4 inch/minute 1/2 cm/minute
1/2 inch/minute 1 cm/minute
1 inch/minute 2 cm/minute
2 inches/minute 4 cm/minute
Chart Speed
Accuracy +/- 1%
Alarm Delay
Range No Delay, 10 min., 30 min., 1 hr., 90 min., or 2 hr.
Remote Alarm
Connection N.O. 48 VAC/DC, 0.1 Amp Dry Contacts
Operating Ambient 32°F to 125°F
Temperature Range (0° to 50°C)
Storage Temperature 0°F to 125°F
(-18°C to 50°C)
Primary Power 120 VAC, 50/60 Hz Adapter
(220-240 VAC, 50 Hz. Optional)
Backup Power 8 AA Alkaline Batteries (not supplied)
Alternative Power 12 Volt Vehicle Operation with
Optional Adapter
Power Consumption 3.5 Watts Max.
Mounting Vertical or Horizontal, Free Standing
or Wall Mounted
Dimensions 9.25” x 7.25” x 2”
(235mm x 184mm x 51mm)
Weight 2.5 lb. (1.3 kg)
Range -40°F to 150°F (-40°C to 60°C)
Chart Ranges -40°F to 60°F
-40°C to 60°C
50°F to 150°F
-30°C to 20°C
0°F to 100°F
0°C to 50°C
Accuracy +/-2°F
+/-1°C
Probe TP15 Temperature
prove with 15’ cable
(cable extension
is available)
Alarm Range -40°F to 150 °F
(-40°C to 60°C)
SR Series Common Specifications
ADTA Automatic Dialer
CABLE10T 10’ Cable
CRPEN Black Pen
CRPENB Blue Pen
CRPENR Red Pen
CRT Power Adapter
CRT220 Power Adapter
CRT220UK Power Adapter
SCR11 Strip Chart (American Scale) (20’)
SCR12 Strip Chart (Metric Scale) (20’)
TP15 15’ Wire with 4” Stainless Steel Sensor
12070-001 Pen Arm Short
Accessories
86
SRTH - Temperature/Humidity Recorder
• Temperature Ranges: -40°F to 150°F (-40°C to 60°C)
• Humidity Range: 5 to 90% RH
• Programmable Speed and Temperature Ranges
Chart Recorders
Range -40°F to 150°F (-40°C to 60°C)
5 to 90% RH
Chart Ranges -40°F to 60°F
-40°C to 60°C
50°F to 150°F
-30°C to 20°C
0°F to 100°F
0°C to 50°C
Accuracy +/-2°F
+/-1°C
(5 to 90% RH)
Probe KTH Temperature
Humidity with 6’ cable
90% RH (Non-condensing)
Alarm Range -40°F to 150 °F
(-40°C to 60°C)
5 to 90% RH
Specifications
SRJ - J-Type Thermocouple
Temperature Recorder
• Temperature Ranges: -40°F to 1000°F (-40°C to 500°C)
• Remote Readings from up to 2,000 . (Use TCW25,
TCW50, TCW75, TCW100)
• Programmable Speed and Temperature Ranges
Range -40°F to 1000°F (-40°C to 500°C)
Chart Ranges -40°F to 60°F
-40°C to 60°C
0°F to 250°F
-30°C to 20°C
50°F to 150°F
0°C to 50°C
0°F to 100°F
0°C to 100°C
0°F to 500°F
0°C to 500°C
0°F to 1000°F
Accuracy +/-2°F
+/-1°C
Probe 6’ High Temperature
Thermocouple Probe
Alarm Range -40°F to 1000 °F
(-40°C to 500°C)
Specifications
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
ADTA Automatic Dialer
CABLE10H Extension Cable for KTH
CABLE15 15’ Cable for Sensor Probes
CABLE25 25’ Cable for Sensor Probes
CABLE6 6’ Cable for Sensor Probes
CRPEN Black Pen
CRPENB Blue Pen
CRPENR Red Pen
CRT Power Adapter
CRT220 Power Adapter
CRT220UK Power Adapter
KTH Temperature Humidity Probe
SCR11 Strip Chart (American Scale) (20’)
SCR12 Strip Chart (Metric Scale) (20’)
Accessories
ADTA Automatic Dialer
CRPEN Black Pen
CRPENB Blue Pen
CRPENR Red Pen
CRT Power Adapter
CRT220 Power Adapter
CRT220UK Power Adapter
HTP5 6’ High Temperature Thermocouple Wire
HTP5100 100’ High Temperature Thermocouple Wire
HTP515 15’ High Temperature Thermocouple Wire
HTP525 25’ High Temperature Thermocouple Wire
HTP550 50’ High Temperature Thermocouple Wire
SCR11 Strip Chart (American Scale) (20’)
SCR12 Strip Chart (Metric Scale) (20’)
TCW100 Type J Thermocouple Wire - 100’ Wire Only
TCW25 Type J Thermocouple Wire - 25’ Wire Only
TCW50 Type J Thermocouple Wire - 50’ Wire Only
TCW75 Type J Thermocouple Wire - 75’ Wire Only
12070-001 Pen Arm Short
Accessories
87
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Chart Recorders
SR4-20
4 to 20ma and
dc voltage recorder
• Current Range: 0 to 20mA, 4 to 20mA
• Voltage Range: 0 to 5 VDC, 0 to 100 mV
• Programmable Speed and Current and Voltage Ranges
Range 0-5.0 Volts DC
0-20ma DC
4-20ma DC
Chart Ranges 0 to 5.00 Volts (+/-0.01 Volt)
0 to 100 mV (+/-1 mV)
0 to 20mA (+/-0.1mA)
4 to 20 mA (+/-0.1mA)
Accuracy 0 to 5.00 Volts (+/-0.01 Volt)
0 to 100mV (+/-1mV)
0 to 20mA (+/-0.1mA)
4 o 20mA (+/-0.1mA)
Alarm Range 0 to 20ma (DC)
0 to 5 Volts (DC)
0 to 100mV (DC)
Specifications
ADTA Automatic Dialer
CRPEN Black Pen
CRPENB Blue Pen
CRPENR Red Pen
CRT Power Adapter
CRT220 Power Adapter
CRT220UK Power Adapter
SCR11 Stip Chart (American Scale) (20’)
SCR12 Strip Chart (Metric Scale) (20’)
12070-001 Pen Arm Short
Accessories
88
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
CR87B
Temperature Recorder
• Temperature Range: -40°F to 120°F (-40°C to 50°C)
• Remote Readings from Up to 100 . (optional sensor wire
p/n CABLE10T)
• Programmable Speed and Temperature Ranges
• 12 Recorders in 1
CR87B Series Recording Charts
MODEL TEMP. OPERATING
NO. READING IN VOLTAGE
CR87B Fahrenheit 110-120V, 50/60 Hz
CR87BC Celsius 110-120V, 50/60 Hz
CR87B220C Celsius 220-240V, 50/60 Hz
PART NO. DESCRIPTION
TP15 15’ wire with 4” stainless steel sensor
CABLE10T 10’ Cable 100 ft. Max
11234 Pen Arm
CRPEN Replacement Pen Black
Ambient Operating 32°F to 140°F
Temperature Range (0°C to 60°C)
Ambient Operating
Relative Humidity 96% Maximum
CR87B Chart 6 Hours, 24 Hours,
Speed Selectable 7 Days, 31 Days
Chart Rotation Mode Single Turn or Continuous
Chart Speed Accuracy +/-1%
Chart Diameter 6 inches
Display 3 Digit LED 0.5”
Primary Power 120 VAC, 50/60 Hz.
Supply (220-240 VAC, 50/60 Hz.
Optional CR87B-220)
12 Volt Vehicle Operation
With Optional Adapter
Battery Backup (8) AA Alkaline Batteries
(not supplied)
Battery Life 48 Hours Continuous Use
Recording Pen Ink Type
Case Size 9 1/4” x 7 1/4” x 2 3/4”
Weight 4 lbs., 7 oz.
Temp. Scale -40°F to 30°F,
Selectable (°F) -20°F to 50°F,
50°F to 120°F
Temp. Scale -40°C to 0°C,
Selectable (°C) -30°C to 10°C,
10°C to 50°C
Temp. Accuracy +/-1°C or +/-2°F
Temp. Sensor 15’ Long Sensor Wire
with 4” Stainless Steel
Submersible Temp. Probe
Specifications
TEMP. RANGE 6 HRS. 24 HRS. 7 DAYS 31 DAYS
-40°F to 30°F CR87-4 CR87-1 CR87-7 CR87-19
-20°F to 50°F CR87-5 CR87-2 CR87-8 CR87-20
50°F to 120°F CR87-6 CR87-3 CR87-9 CR87-21
-40°C to 0°C CR87-13 CR87-10 CR87-16 CR87-22
-30°C to 10°C CR87-14 CR87-11 CR87-17 CR87-23
10°C to 50°C CR87-15 CR87-12 CR87-18 CR87-24
Accessories
Circular
Chart Recorders
e CR87 Six Inch Chart Recorder Series sets the
Standard for Reliable and Rugged Reporting.
• Micro-controller Design
• Large LED Display
• Front Panel Controls
• Single or Continuous Chart Rotation
• Choose from 120V or 220V Models
(see chart)
• Battery Backup
• Convenient Folding Handle
• Fold-out Support Stand
• Free Standing or Wall Mount
• 12 Volt Operation. Allows Use in Vehicular
or Marine Operations
• Comes with 2 Cartridge Pens
& 60 6” dia. assorted charts
89
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
CR87J
Temperature Recorder
• Type J ermocouple
• Temperature Range: -40°F to 120°F
(-40°C to 50°C)
• Remote Readings
• Programmable Speed and
Temperature Ranges
• Snap-on Support Legs
• Remote Readings from Up
to 200 . (see accessory table)
MODEL TEMP. OPERATING
NO. READING IN VOLTAGE
CR87J Fahrenheit 110-120V, 50/60 Hz
CR87JC Celsius 110-120V, 50/60 Hz
CR87J220C Celsius 220-240V, 50/60 Hz
CR87J Series Recording Charts
PART NO. DESCRIPTION
CR15B 15’ wire with 4” stainless steel temperature sensor
11234 Pen Arm
CRPEN Replacement Pen Black
Ambient Operating 32°F to 140°F
Temperature Range (0°C to 60°C)
Ambient Operating
Relative Humidity 96% Maximum
Chart 6 Hours, 24 Hours,
Speed Selectable 7 Days, 31 Days
Chart Rotation Mode Single Turn or Continuous
Chart Speed Accuracy +/-1%
Chart Diameter 6 inches
Display 3 Digit LED 0.5”
Primary Power 120 VAC, 50/60 Hz.
Supply (220-240 VAC, 50/60 Hz.
12 Volt Vehicle Operation
With Optional Adapter
Battery Backup (8) AA Alkaline Batteries
(not supplied)
Battery Life 48 Hours Continuous Use
Recording Pen Ink Type
Case Size 9 1/4” x 7 1/4” x 2 3/4”
Weight 4 lbs., 7 oz.
Temp. Scale -40°F to 30°F,
Selectable (°F) -20°F to 50°F,
50°F to 120°F
Temp. Scale -40°C to 0°C,
Selectable (°C) -30°C to 10°C,
10°C to 50°C
Temp. Accuracy +/-1°C or +/-2°F
Temp. Sensor 15’ Long Sensor Wire
with 4” Stainless Steel
Submersible Temp. Probe
Specifications
CR87HT
High Temperature Recorder
• Temperature Range: 0°F to 1000°F
(0°C to 500°C)
• Remote Readings from Up to 2000 .
• Programmable Speed and Temperature
Ranges
• Snap-on Support Legs
TEMP. RANGE 6 HRS. 24 HRS. 7 DAYS 31 DAYS
0°F to 250°F CR1000-4 CR1000-1 CR1000-7 CR1000-19
0°F to 500°F CR1000-5 CR1000-2 CR1000-8 CR1000-20
500° to 1000°F CR1000-6 CR1000-3
0°C to 120°C CR1000-13 CR1000-10 CR1000-16 CR1000-22
0°C to 250°C CR1000-14 CR1000-11 CR1000-17 CR1000-23
250° to 500°C CR1000-15 CR1000-12 CR1000-18 CR1000-24
CR87HT Series Recording Charts
MODEL TEMP. OPERATING
NO. READING VOLTAGE
CR87HT Fahrenheit 110-120V, 50/60 Hz.
CR87HT22C Celsius 220-240V, 50/60 Hz.
CR87HT220 Fahrenheit 220-240V, 50/60 Hz.
CR87HTC Celsius 110-120V, 50.60 Hz.
Accessories
Ambient Operating 32°F to 140°F
Temperature Range (0°C to 60°C)
Ambient Operating
Relative Humidity 96% Maximum
Chart 6 Hours, 24 Hours,
Speed Selectable 7 Days, 31 Days
Chart Rotation Mode Single Turn or Continuous
Chart Speed Accuracy +/-1%
Chart Diameter 6 inches
Display 3 Digit LED 0.5”
Primary Power 120 VAC, 50/60 Hz.
Supply (220-240 VAC, 50/60 Hz.
12 Volt Vehicle Operation
With Optional Adapter
Battery Backup (8) AA Alkaline Batteries
(not supplied)
Battery Life 48 Hours Continuous Use
Recording Pen Ink Type
Case Size 9 1/4” x 7 1/4” x 2 3/4”
Weight 4 lbs., 7 oz.
Temp. Scale 0°F to 250°F,
Selectable (°F) 0°F to 500°F,
500°F to 1000°F
Temp. Scale 0°C to 120°C,
Selectable (°C) 0°C to 250°C
250°C to 500°C
Temp. Accuracy +/-1°C or +/-2°F
Temp. Sensor 6’ Long High Temperature
Type “J” Thermocouple Wire
Probe. Can Not Be Used in
Liquid or Semi-Solid.
Specifications
TEMP. RANGE 6 HRS. 24 HRS. 7 DAYS
-40°F to 30°F CR87-4 CR87-1 CR87-7
-20°F to 50°F CR87-5 CR87-2 CR87-8
50°F to 120°F CR87-6 CR87-3 CR87-9
-40°C to 0°C CR87-13 CR87-10 CR87-16
-30°C to 10°C CR87-14 CR87-11 CR87-17
10°C to 50°C CR87-15 CR87-12 CR87-18
Accessories
Type J Thermocouple Wires
PART NO. DESCRIPTION
TCW25 25’ Wire Only
TCW50 50’ Wire Only
TCW75 75’ Wire Only
TCW100 100’ Wire Only
PART NO. DESCRIPTION
HTP5 6’ high temperature thermocouple wire
HTP515 15’ high temperature thermocouple wire
HTP525 25’ high temperature thermocouple wire
HTP550 50’ high temperature thermocouple wire
HTP5100 100’ high temperature thermocouple wire
11234 Pen Arm
CRPEN Replacement Pen Black
90
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
CR87P/CR87PB
Pressure Recorder
• Pressure Range 0 to 500 psi
(0 to 35 BAR)
• Stainless Steel 17-4 Pressure
Sensor with Port 1/4” NPT
• 2500 PSI Burst Pressure
• Rated for Any Gas or Fluid
Compatible with 17-4
Stainless Steel
• Programmable Speed and
Pressure Ranges
• Snap-on Support Legs
RANGE 6 HRS. 24 HRS. 7DAYS 31DAYS
0 - 500 PSI 6H500PSI 24H500PSI 7D500PSI 31D500PSI
0 - 150 PSI 6H150PSI 24H150PSI 7D150PSI 31D150PSI
0 - 50 PSI 6H50PSI 24H50PSI 7D50PSI 31D50PSI
CR87P Series Recording Charts
PRESSURE
RANGE 24 HRS. 7 DAYS
0 - 35 BAR 24H35BAR 7D35BAR
0 - 10 BAR 24H10BAR 7D10BAR
0 - 3.5 BAR 7D3.5BAR
CR87PB Series Recording Charts
MODEL TEMP OPERATING
NO. READING IN VOLTAGE
CR87P PSI 110-120V, 50/60Hz.
CR87P220 PSI 220-240V, 50/60Hz.
CR87PB BAR 110-120V, 50/60 Hz.
CR87PB220 BAR 220-240V, 50/60 Hz.
PART NO. DESCRIPTION
CR87PA Replacement pressure sensor and adapter
11234 Pen Arm
CRPEN Replacement Pen Black
Accessories
Ambient Operating 32°F to 140°F
Temperature Range (0°C to 60°C)
Ambient Operating
Relative Humidity 96% Maximum
Chart 6 Hours, 24 Hours,
Speed Selectable 7 Days, 31 Days
Chart Rotation Mode Single Turn or Continuous
Chart Speed Accuracy +/-1%
Chart Diameter 6 inches
Display 3 Digit LED 0.5”
Primary Power 120 VAC, 50/60 Hz.
Supply (220-240 VAC, 50/60 Hz.
12 Volt Vehicle Operation
With Optional Adapter
Battery Backup (8) AA Alkaline Batteries
(not supplied)
Battery Life 48 Hours Continuous Use
Recording Pen Ink Type
Case Size 9 1/4” x 7 1/4” x 2 3/4”
Weight 4 lbs., 7 oz.
Pressure Range 0 to 500 psi, 0 to 150 psi
PSI Model 0 to 50 psi
Pressure Range 0 to 35 BAR, 0 to 10 BAR
BAR Model 0 to 3.5 BAR
Pressure Accuracy +/- 1% F.S.
Temp. Sensor +/- 1% F.S.
Specifications
CR87E
Event Recorder
• Comes Complete with Probes for Voltage, Sound and Light
• Displays Length of Event, Time Between Events or Total Events
• Programmable Speed and Event Information
• Snap-on Support Legs
6 HRS. 24 HRS.
EVENT-6H EVENT-24H
7 DAYS 31 DAYS
EVENT-7D EVENT-31D
CR87E Series Recording Charts
PART NO. OPERATING VOLTAGE
CR87E 110-120 VAC, 50/60 Hz
CR87E220 220-240 VAC, 50/60 Hz
PART NO. DESCRIPTION
KEV Replacement voltage sensor with adapter
KEL Replacement light sensor with adapter
KES Replacement sound sensor with adapter
11234 Pen Arm
CRPEN Replacement Pen Black
Event Sensors for CR87E
Ambient Operating 32°F to 140°F
Temperature Range (0°C to 60°C)
Ambient Operating
Relative Humidity 96% Maximum
Chart 6 Hours, 24 Hours,
Speed Selectable 7 Days, 31 Days
Chart Rotation Mode Single Turn or Continuous
Chart Speed Accuracy +/-1%
Chart Diameter 6 inches
Display 3 Digit LED 0.5”
Primary Power 120 VAC, 50/60 Hz.
Supply (220-240 VAC, 50/60 Hz.
12 Volt Vehicle Operation
With Optional Adapter
Battery Backup (8) AA Alkaline Batteries
(not supplied)
Battery Life 48 Hours Continuous Use
Recording Pen Ink Type
Case Size 9 1/4” x 7 1/4” x 2 3/4”
Weight 4 lbs., 7 oz.
KEV Range 24 VAC to 270 VAC (50/60 Hz)
24 VDC to 180 VDC
KEL Range Illumination Threshold Range
18 LUX to 1900 LUX +/- 20
KES Range Sound Threshold Range
40 dB to 114 dB @
1Khz +/-20%
EVENT PROBES
KEV AC/DC Voltage Detecting with
Two Wire Clip Leads
KEL A Sensitive Photocell
KES A Sensitive Audio Transducer
Specifications
91
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Custom Series
Temperature Recorder
e Custom Series Temperature Recorders have the Same General
Features as the CR87 Series, with the Ability to Customize your
Temperature Measurement Range. e Custom Unit has an Internal
Temperature Sensor and can be Placed Directly in the Environment
that it will Monitor.
• Internal Bi-metal Sensor
• Custom Temperature and Speed Selection
• 9V Battery Operation (not included)
• AC Adapter
• Snap-on Support Legs
Chart Speed +/-1.5%
Accuracy
Chart Diameter 6”
Case Size 9 1/4” x 7” x 2 3/4”
Weight 5 lbs.
Battery Life One year
Temperature +/-2°F
Accuracy
Temperature Sensor Bi-metal
Specifications
SD MODELS
TEMP RANGE 7 DAYS 24 HOURS
-20°F to 120°F S20120F7 S20120F24
0°F to 100°F S0100F7 S0100F24
45°F to 90°F S4590F7 S4590F24
-30°C to 50°C S3050C7 S3050C24
0°C to 45°C S045C7 S045C24
Custom Series Recording Charts
MODEL NO.
WITH RECORD
DISPLAY TEMP. RANGE TIME
SD120F7 -20°F to 120°F 7 Days
SD120F24 -20°F to 120°F 24 Hrs
SD100F7 0°F to 100°F 7 Days
SD50C7 -30°C to 50°C 7 Days
Common Recorder Accessories
Note: Standard 6” diameter recording charts are available for Fahrenheit and
Celsius recorders, and are packaged in quantities of 60 per box.
Type J Thermocouple Wire with Sensor for CR87J
PART NO. DESCRIPTION
CR15B 15’ wire with 4” stainless steel sensor (included)
CR25B 25’ wire with 4” stainless steel sensor
CR50B 50’ wire with 4” stainless steel sensor
PART NO. DESCRIPTION
CR75B 75’ wire with 4” stainless steel sensor
CR100B 100’ wire with 4” stainless steel sensor
Power Adapters
(FOR CR87B, CR87E, CR87P, CR87HT, CR86,
CRTH2 & CRTT2)
PART NO. INPUT OUTPUT
CRT (USA) 120 VAC 12 VDC
CRT220 (Europe) 220 VAC 12 VDC
CRT220UK (England) 220 VAC 12 VDC
(FOR CUSTOM SERIES)
PART NO. INPUT OUTPUT
DPGT (USA) 120 VAC 9 VDC
DPGT220US (USA) 220 VAC 9 VDC
DPGT220UK (England) 220 VAC 9 VDC
DPGT220EU (Europe) 220 VAC 9 VDC
Extension Cable for Event Sensors (KEV, KEL, KES) and
CR87PA Pressure Sensor
PART NO. DESCRIPTION
CABLE6 6’ cable
CABLE15 15’ cable
CABLE25 25’ cable
Nonsubmersible Type Air Sensor for CRTH2 & CRTT2
PART NO. DESCRIPTION
THP5(CRTH2) 15’ with plug-in jack
TTP5(CRTT2) 15’ with plug-in jack
Replacement Pens
PART NO. DESCRIPTION
CRPEN Black pen
CRPENR Red pen
CRPENB Blue
pen
For All Recorders
PART NO. DESCRIPTION
12035 Battery Holder
92
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
CR4
Universal Recorder
e CR4 six (6) inch Universal Chart Recorder O ers the Ultimate in
Flexibility. Choose One of 5 Sensors for Your Application, Connect
it to the CR4 Universal Recorder, Make Desired Speed Selection and
Start Recording. When Your Application Calls for a Di erent Sensor,
just Change Probes for the Same Recorder.
• Automatic Probe Recognition
• Front Panel Touch Pad
• Real Time Data View
• Battery Backup
• Field Replaceable Probes
• Field Calibration of Probes
• Independent Channel Alarms
5 Interchangeable Probes
• KTH Temperature and Humidity Probe
• KTT Dual Temperature Probes
• KTP Temperature and Pressure Probes
• KPP Dual Pressure Probes
• KTE Temperature/Event Probes
Chart Diameter 6 inches
Chart Rotation Mode Continuous or Single turn
Memory
Chart Rotation Speed 1.5, 3, 6, 12 & 24 hrs, 7 & 31 days
Chart Speed Accuracy ±1%
Charts 60 assorted included
Display LCD (2 line)
Temperature Alarm Range -20°F to 120°F (-30°C to 50°C)
Relative Humidity Alarm Range 5 to 90% RH (Non-Condensing)
Pressure Alarm Range 0 to 500 PSI ( 0 to 35 Bar)
Alarm Delay NO DELAY, 10 mins., 30 mins., 1 hr. or 2 hrs.
Remote Alarm Connection NO, 48 VAC/DC, 0.1 A resistive load
Operating Temperature 32°F to 120°F (0°C to 49°C)
Primary Power 120 VAC, 50/60 Hz (220 VAC, 50/60 Hz optional)
Alternate Power 12 V vehicle operation (need optional adapter)
Battery backup 8 AA alkaline batteries
Battery Life 48 hrs. continuous
CR4 Specifications
PART NO. DESCRIPTION KTH KTT KTP KPP KTE
CABLE10H Extension cable for KTH (2 max) *
CABLE6 6 ft. cable for sensor probes * * * *
CABLE15 15 ft. cable for sensor probes * * * *
CABLE25 25 ft. cable for sensor probes * * * *
TP15 Temperature sensor with 15 ft. wire * *
CR4 Probe Accessories
PART NO. DESCRIPTION
CRPENR Red Recorder Pen
CRPENB Blue Recorder Pen
CRT 120 VAC Power Adapter
CRT220 220 VAC Power Adapter
12070-001 Pen Arm Short
12071-001 Pen Arm Long
CR4 Accessories
93
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Universal Recorder Probes
KTH - Temperature/Humidity Probe
Allows for Precision Measurement of Temperature, Humidity and Dew
Point, (Non-Condensing). Probe Can Be Extended up to 25 Feet, Use
p/n CABLE10H (2 max).
KTT - Dual Temperature Probes
Complete with Two Precision Temperature Probes. Allows for Two
Independent Temperature Measurements. Includes Adapter and
Connecting Cable. Perfect for Refrigerators, Freezers, Indoor/Outdoor
Recording, etc. Temperature Probe Can be Extended 20 Feet, Use p/n
CABLE10T (2 max/probe).
KPP - Dual Pressure Probes
Complete with Two Pressure Probes. Measures and Records Two Pressures
Simultaneously. Includes Connecting Cable and Adapter.
PROBE PART TEMP RANGE/ VOLTAGE RH RANGE/ PRESS RANGE/ DEW POINT
TYPE NO. ACCURACY RANGE ACCURACY ACCURACY RANGE
Temp/RH KTH -40°F to 130°F +/- 2°F — 5 to 90% RH at — 32° to 130°F
(-40° to 55°C +/- 1°C) 32° to 130°F +/- 5% (0° to 55°C)
(0° to 55°C) ambient
KTH RANGE 1 KTH RANGE 2 12 HR 24 HR 7 DAY 31 DAY
-20°F to 120°F 0-100% HUMIDITY E20120F12
E20120F24 E20120F7 E20120F31
-20°F to 50°F 0-100% HUMIDITY E2050F7 E2050F31
40°F to 110°F 0-100% HUMIDITY E40110F12 E40110F24 E40110F7 E40110F31
-30°C to 50°C 0-100% HUMIDITY E3050C12 E3050C24 E3050C7 E3050C31
-30°C to 10°C 0-100% HUMIDITY E3010C12 E3010C24 E3010C7 E3010C31
5°C to 45°C 0-100% HUMIDITY E545C12 E545C24 E545C7 E545C31
PROBE PART TEMP RANGE/ VOLTAGE RH RANGE/ PRESS RANGE/ DEW POINT
TYPE NO. ACCURACY RANGE ACCURACY ACCURACY RANGE
Temp/RH KTT -40°F to 130°F +/- 2°F — — — —
(-40° to 55°C +/- 1°C)
KTT RANGE 1 KTT RANGE 2 12 HR 24 HR 7 DAY 31 DAY
-20°F to 120°F -20°F to 50°F CRTT2-2 CRTT2-1 CRTT2-3 CRTT2-21
-20°F to 50°F 40°F to 110°F CRTT2-5 CRTT2-4 CRTT2-6 CRTT2-19
40°F to 110°F -20°F to 120°F CRTT2-8 CRTT2-7 CRTT2-9
-30°C to 50°C 5°C to 45°C CRTT2-11 CRTT2-10 CRTT2-12
5°C to 45°C -30°C to 10°C CRTT2-15 CRTT2-24
-30°C to 10°C -30°C to 50°C CRTT2-16 CRTT2-18 CRTT2-23
PROBE PART PRESS RANGE/
TYPE NO. ACCURACY
Temp/RH KPP 0-500 psi (0-35 BAR)
+/- 1% FS
KPP RANGE 1 KPP RANGE 2 12 HR 24 HR 7 DAY
0-50 PSI 0-150 PSI CRPP2-7
0-150 PSI 0-500 PSI CRPP2-3 CRPP2-9
0-10 BAr 0-35 BAR CRPP2-18
94
Chart Recorders
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
DR Series
e DR Disposable Temperature Recorder is an Inexpensive, One
Time Use Temperature Recorder - Indispensable for HVAC/R Uses.
It Gives an Accurate Strip Chart Recording of a Wide Ambient
Temperature Range. It can be Easily Changed on the Job!
• Pull TAB to Start
• Detachable ree Part Water Resistant
Job Information Form
• Unique Serial Number on Chart and
Recorder for Positive Identi cation
• HACCP Documentation
• NIS Traceable Calibration
• ABS Plastic Enclosure
PART NO.
DR10 10 Days
DR40 40 Days
Temperature Range -20°F to 100°F (-28°C to 38°C)
Temperature Accuracy +/-2°F (+/-1°C) or Better
Day Spans DR10 10 Day (°F & °C)
DR40 40 Day (°F & °C)
Chart Resolution 10 Day 2.50” Per Day
1.5 volt AA Battery
1 Year from date of Purchase
Calibration NIST Traceable
Tamper-Proof Pre-sealed at the Factory
Security Seal
Case Quantity 40 Instruments
Enclosure ABS Plastic
Weight/Dimensions 10.5 oz (297.7 gm)
6.50” L x 3.50” W x 2.56”H
16.51 cm x 6.50 cm x 8.89 cm
Specifications
KTP - Temperature/Pressure Probes
Complete with Independent Precision Pressure and Temperature Probes.
Measures and Records Temperature and Pressure Simultaneously. Ideal for
Solving Intermittent Problems. Includes a Connecting Cable and Adapter.
Perfect for Refrigerators, Freezers, Indoor/Outdoor Recording, etc.
Temperature Probe Can Be Extended 20 Feet, Use p/n CABLE10T
( 2 max/probe).
PROBE PART TEMP RANGE/ PRESS RANGE/
TYPE NO. ACCURACY ACCURACY
Temp/RH KTP -40°F to 130°F ±2°F 0-500 psi (0-35 BAR)
(-40° to 55°C ±1°C) +/-1%FS
KTP RANGE 1 KTP RANGE 2 12 HR 24 HR 7 DAY 31 DAY
-20°F to 120°F 0-150 PSI CRTP2-11 CRTP2-38
-20°F to 120°F 0-500 PSI CRTP2-3 CRTP2-12 CRTP2-39
-20°F to 50°F 0-50 PSI CRTP2-13
-20°F to 50°F 0-500 PSI CRTP2-15
-30°C to 50°C 0-3.5 BAR CRTP2-19
-30°C to 50°C 0-10 BAR CRTP2-47
-30°C to 50°C 0-35 BAR CRTP2-30
5°C to 45°C 0-3.5 BAR CRTP2-25
5°C to 45°C 0-10 BAR CRTP2-26 CRTP2-53
KTE - Temperature/Event Probes
Complete with Precision Temperature Probe, Event Probe, a Connecting
Cable and Adapter. Allows the Service Engineer to Analyze Various
Equipment Running Cycles.
PROBE PART TEMP RANGE/ VOLTAGE
TYPE NO. ACCURACY RANGE
Temp/RH KTE -40°F to 130°F ±2°F 24 VAC-270VAC
(-40° to 55°C ±1°C) (24VDC-180VDC)
KTE RANGE 1 KTE RANGE 2 24 HR 7 DAY
-20°F to 120°F ON/OFF V20120F7D
-30°C to 50°C ON/OFF V3050C24 V3050C7
95
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Data View Data Loggers
• Text Display: Logging Summary, Sample Rate,
Memory Used and Memory Le
• Graph Display: Shows Memory Trends Graphically,
with Scrolling Feature
• Visual Over and Under Alarm Indicators for
Temperature and Humidity
• USB Connection (Cable Included) DVTH
DVT4
DVCV
Calibration User Single Point Offset Calibration is Available Through
Software. Calibration can be Password Protected
Operating 15°F to 150°F
Temperature (-10°C to 65°C)
Storage -5°F to 160°F
Temperature (-20°C to 70°C)
Time Accuracy +/- 100ppm @ 75°F
Temperature +/-1°F
Accuracy (0.5°C)
Temperature 0.01°F
Resolution or 0.01°C
Dimensions 4” x 3.05” x 1.5” (10.2cm x 7.7cm x 3.8cm)
Weight 7 oz. (200 g)
Power Source Three AA Batteries
Battery Life 2 Years Average Use
Common Logger Specifications
PC Interface USB port. USB Cable is Included
Sampling Interval User Selectable from 1 Second to 9 Hours,
in 1 Second Increments
Data Security Unique Factory Set Logger ID. Recording Session Counter.
Password Protected Calibration
Operating System Windows® XP, Vista, 7 and 8 Compatible with 32
Compatibility and 64 bit systems. Not Compatible with Windows® NT or 95
Minimum System 5MB of Free Disk Space, 800 x 600 Screen Resolution,
Requirements 1 Free USB Port
Recording Start On Button Press, Immediate After Setup, or at a User Specified
Date and Time
Recording Mode Stop on Memory Full, or Continuous Recording with Memory
Rollover
Real Time Status Visual Indication Through the LED. Software Real Time Status
User Calibration Password Protected Calibration for Each Channel
User Information Up to 30 Characters
Logger Channels User Selectable. Disabling Channels Increases the Storage Capacity
of the Other Channels
Units US and Metric
Data Format Exportable to Text or Excel Files
Common Software Specifications
DVTH
Temperature Humidity Logger with display
Record and INSTANTLY Display Trends for Temperature, Humidity and Dew
Point with the DVTH. Monitor Real Time Measurements for Instant
Environmental Conditions. When You’re Ready, Download Over 40,000 Data
Points to Your PC for Further Analysis. Data Logging has Never Been this Visual!
Sample Point Capacity 43,344 Points for Temperature Only. 21,672 Points
for Temperature, Humidity and Dew Point
Relative Humidity Range 0% to 90% RH, Non-condensing
Relative Humidity Accuracy +/-2% RH, from 10% to 90% RH
Relative Humidity Resolution 0.01%RH
Specifications
96
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
DVT4
Four Channel temperature Data Logger with Display
INSTANTLY Record and View Up To 4 Temperatures Using 1 Internal and 3 External Sensors.
e Large, Clear Display Shows All Channels Simultaneously, as well as the Temperature
Di erence Between Channels. Up to 87,000 Data Points are Available for Download to Your
PC for Further Analysis.
Sample Storage 21,760 Points for 4 Temperatures. 29,013 Points for
Capacity 3 Temperatures. 43,520 Points for 2 Temperatures.
87,040 Points for Single Temperature
Internal Probe 15°F to 150°F
Temperature Range (-10°C to 65°C)
External Probe -40°F to 160°F
Temperature Range (-40°C to 70°C)
Specifications
PART NO. DESCRIPTION
14265 Replacement Sensor
21423 Replacement Probe Accessory
Accessories
DVCV
Data View Data Logger - Current & Voltage
• Displays Real Time Current, Voltage and Watts
• Displays Logging Summary, Sample Rate, Memory Used and Memory Le
• Sample Point Capacity: 43,344 Points for Voltage or Current Only. 21,672
Points When Both Current and Voltage are Logged
• ree AA Batteries Included
Operating Temperature
Range 15°F to 150°F (-10°C to 65°C)
Current Range 1A to 300A AC
Current Accuracy +/- 1A
Current Resolution 0.2A
Voltage Range 1V to 600V AC
Voltage Accuracy +/- 0.4V
Voltage Resolution 0.2V
Specifications
97
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Data Loggers
SL500 Series
Data Loggers with LCD Real Time Display
e SL500 Series of Temperature and Temperature/Humidity Data Loggers are
Simple to Use, Versatile Test Instruments Which Can Be Used in a Multitude of
Applications.
• LCD Real Time Display of Temperature (°F or °C), Relative Humidity
(SL500TH Only), Time, Date, Alarm Status, Logging Status and Battery Life
• Windows® So ware Included
• Sample Rate from 1 Second to 9 Hours
• User Selectable Stop on Memory Full or Memory Rollover for Continuous
Logging
• Delayed Start or Push Button Logging Control
• Read Data on Logger Display
• Displays Alarm Icon for High/Low Alarm Status
• Non-volatile EEPROM Memory Retains Data Even if Battery Fails
• USB Interface for Fast Data Transfer (3’ Cable Included)
• Compact, Light-weight, Simple to Use
• 1 Year Warranty
• Optional NIST (National Institute of Standards & Technology)
Calibration Available
Working the Data Graph
Clicking Anywhere Within the Graph Window
Activates the Graph Toolbar Buttons and the
Graph Window Features
MODEL
NO. DESCRIPTION
SL500T Temperature Data Logger
SL500TH Temperature & Humidity Data Logger
SL500XT External Probe Temperature Data Logger
SL500TC Thermocouple Temperature Data Logger
SL500T
SL500TH
SL500XT
SL500TC
Le Axis Legend Moveable Legend Box Right Axis Legend Graph Scroll Bar
Graph Point Markers Cursor Location Markers
98
Data Loggers
• Selectable Language (English/French/Spanish)
• So ware Compatibility: Windows® XP/Vista/7/8
• Minimum System Requirements: 800 x 600 Resolution, 1 Free USB Port
• Complete Data Summary to Read Statistics and Alarm Information in
a Simpli ed Format
• Tabular view of Data including Detailed Dates, Times and Values of Recorded Data
• Graph Function Displays Data in Graphical Format
• Cursor Displays Exact Data of Any Point in the Graphical Display
• Magnify Data with Powerful Zoom and Auto Scale Functions
• Auto Scale Function Fits Data to Screen or Allows User to Manually
Enter their Own Values
• Export Data in Excel or Text Format
• Print Graph or Text Data with Print Preview and Set Up Options
• Set Up and Launch Data Loggers with Immediate or Delayed Start, Preferred Sample Rate,
Alarm Set Up and Custom ID up to 30 Characters
• Password Protected Calibration Function. A Calibration Window is Included in the So ware
to Simplify the Calibration Procedure
• Convenient Status Displays ID of Logger, Battery Life, Memory Used, Sample Rate, Duration,
Alarm Condition and Logging Status
• Menu Bar Provides One Click Access to Most So ware Functions
SL500 Series Software Features
Data Listing Window
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Adjustable Column Width
99
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Sample Point Capacity 43,344 Temperature Points for the SL500T and SL500XT. 21,672 each
Temperature and Humidity Points for the SL500TH
Display Current Reading Time, Logging Status, Alarm Status, Recorded Sample History,
Battery Level. SL500TH Alternates the Display Between Temperature and Humidity Every Two Seconds
Alarms Visual Over and Under Alarm Indicator for Temperature and/or Humidity
Calibration User Single Point Offset Calibration is Available Through Software. Calibration can be Password Protected
Operating Temperature -5°F to 160°F (-20°C to 70°C)
External Probe Temperature -40°F to 176°F (-40°C to 80°C)
Measurement Range (SL500XT)
External Probe Length 6’ (1.8m)
(SL500XT)
Storage Temperature -20°F to 175°F (-30°C to 80°C)
Range
Time Accuracy +/- 100ppm @ 75°F (24°C)
Temperature Accuracy +/-0.9°F (0.5°C) for the Range 0°F to 120°F (-17°C to 50°C)
Temperature Resolution 0.05°F (0.03°C)
(PC Software)
Relative Humidity Accuracy +/-2% RH for the Range of 10% RH to 90% RH
(SL500TH)
Relative Humidity Resolution 0.05% RH
(SL500TH)
Dimensions 2.15” x 2.25” x 0.55” )5.5cm x 5.57cm x 1.4cm)
Power Source 3V CR2032 Lithium (Included)
Battery Life 3 Years Average Use
SL500T/SL500XT/SL500TH Specifications
Sample Point Capacity 32,638 Temperature Points
Includes: Type K Insulated Beaded Wire Thermocouple 40” (1m)
Other Supported Thermocouples: J, E, B, T, S, R, B, C
Display Current Reading and Time, Logging Status, Alarm Status, Recorded Sample
History, Battery Level, Thermocouple Type. Displays Temperature up to 1999°F or 1999°C
Alarms Visual Over and Under Temperature Alarms
Display Temperature 0.2°F (0.1°C) up to 199.9°F or °C. 1°F or 1°C Above 200°F or 200°C
Resolution
Logged Temperature 0.2°F (0.1°C)
Resolution
Thermocouple Impedance 50 Ohms Maximum for Specified Accuracy
Cold Junction Temperature +/-0.5°F (0.3°C)
Accuracy
Calibration User Single Point Offset Calibration is Available Through Software. Calibration can be Password Protected
Operating Temperature 0°F to 131°F (-18°C to 55°C)
Storage Temperature -20°F to 175°F (-30°C to 80°C)
Time Accuracy +/-100ppm @ 75°F (24°C)
Dimensions 2.15” x 2.25” x 1.2” (5.5cm x 5.7cm x 3.0cm)
Power Source 3 AAA Batteries (Alkaline or Lithium Recommended), Included
Battery Life 2 Years Average Use
SL500TC Specifications
THERMOCOUPLE ACCURACY SL500TC TEMPERATURE RANGE
K +/- 1.3°F (0.7°C) -418 to 2372°F (-250 to 1300°C)
J +/- 1.0°F (0.6°C) -274 to 1832°F (-170 to 1000°C)
E +/- 0.8°F (0.4°C) -328 to 1508°F (-200 to 820°C)
N +/- 1.5°F (0.8°C) -328 to 2372°F (-200 to 1300°C)
T +/- 1.3°F (0.7°C) -328 to 752°F (-200 to 400°C)
S +/- 5.0°F (2.8°C) -58 to 3200°F (-50 to 1760°C)
R +/- 5.0°F (2.8°C) -58 to 3200°F (-50 to 1760°C)
B +/- 6.0°F (3.3°C) 68 to 3308°F (20 to 1820°C)
C +/- 3.0°F (1.7°C) 32 to 4208°F (0 to 2320°C)
SL500TC Temperature Range
e accuracy stated is for the SL500TC only. Inaccurate readings increase based
on the thermocouple wire grade being used. e logger supported range is for
stored temperature.
100
Data Loggers
SL Series Miniature Data Loggers
Choose from Temperature, Humidity and Dew Point, or Temperature only Data
Logging in a Miniature, Self-contained Device. e SL Series Data Loggers Provide
Concise Measurements for Critical Environmental Conditions.
• Windows® XP, Vista and above Compatible So ware (included). Not Compatible
with Windows® 95/98 or NT
• PC, Delayed Start or Push Button Recording Control
• Temperature and Humidity Alarm with Visual Indication on Demand
• User Selectable Stop on Memory Full or Memory Rollover for Continuous
Recording
• Real Time Monitoring
• View Graph and Text Simultaneously
• Can Calibrate rough So ware
• Displays Temperature in °F or °C
• USB Interface Standard (Cable Included)
SL300T
Sample Rate 1 Second to 18 Hours
Alarms High and Low Temperature and Humidity
Alarms with Visual Indication on Demand
Temperature +/-1°F
Accuracy (+/-0.5°C)
Time +/-100ppm @ 75°F
Accuracy
Dimensions 3” x 1.6” x 0.6” (7.6cm x 4.0cm x 1.5cm)
Weight 1.0 oz. (28g)
Power Source 3 V (CR2032) Lithium Battery (Included)
Battery Life 6 Years Average Use
SL Series Miniature Logger Common Specifications
SL300TH
Measures Temperature, Humidity and Dew Point Simultaneously.
• Temperature and Humidity Alarm with Visual Indication on Demand
Sample Point 43,344 for Temperature only. 21,672
Capacity for Temperature, Humidity and Dew Point
Temperature -40°F to 160°F
Range (-40°C to 70°C)
Temperature 0.01°F or 0.01°C
Resolution
Relative Humidity 0% to 90% RH, Non-condensing
Range
Relative Humidity +/-2% RH from 10% to 90% RH
Accuracy
Relative Humidity 0.01% RH
Resolution
Calibration Single Point Offset Calibration Available Through Software
For both Temperature and Humidity. Can be Password Protected
SL300TH Specifications
SL300T
Measures Temperature Only.
• Temperature Alarm with Visual Indication on Demand
Sample Point 43,344 Temperature Samples
Capacity
Temperature -40°F to 185°F
Range (-40°C to 85°C)
Calibration Single Point Offset Calibration Available
Through Software for Temperature. Can be Password Protected
SL300T Specifications
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
101
Data Loggers
Logit Series
Select the Right Logger for your Application...
• Stores Over 10,000 Measurement Points
• 1 Second to 18 Hour Sample Rate; 1 Second
Increments
• Custom User Identi cation (30 Characters)
• Real Time Data Monitoring
• Over/Under Alarm reshold Settings
• Visual Alarm Indication
• User Selectable Recording Start
•Tamper Proof
• 20 Month Battery Life
(at 1 Minute Sample Rate)
• Data Rollover Option
• Unique Logger ID
• One PC So ware Operates with
all Loggers (LLSU not included)
• Graphic or Text Data
• Zoom Capability
• 1 Year Warranty
LT2 Temperature Logger
(Internal & External)
• One Internal and One External Temperature
Measurement, Simultaneously
Sample Point Capacity 21,500 points (single channel), 10,750 points and
differential (dual channel)
Sampling Rate 1 Second to 18 Hours
Alarms Over and Under Alarms for Each Probe
Temperature Range 32° to 140°F
(Internal Sensor) (0°C to 60°C) with Alkaline Battery
-40°F to 150°F
(-40°C to 65°C) with Lithium Battery
Temperature Range -40°F to 150°F
(External Sensor) (-40°C to 65°C)
Accuracy Resolution +/-1.0°F (0.5°C), 0.1°F (0.05°C)
Time Accuracy +/-100ppm @ 75°F
Operating Range 0% to 90% RH,
Humidity Non-condensing
Storate Temperature -40°F to 170°F (-40°C to 77°C)
Calibration Single Point Offset Calibration
Available Through Software
Dimensions 3” x 2.5” x 1.1” (7.6cm x 6.4cm x 2.8cm)
Weight 2.5 oz (71g)
Power Source 9V Alkaline or Lithium Battery
(not included)
Battery Life 18 Months using Alkaline, 36 Months
using Lithium
Specifications
LTT Dual Temperature Logger
• 2 Independent External Temperature Measurements
& Temperature Di erential
Sample Point Capacity 21,500 points (1 Probe), 10,750 points and differential (2 Probes)
Sampling Rate 1 Second to 18 Hours
Alarms Over and Under Alarms for Each Probe
Temperature Range -50°F to 300°F (-46°C to 150°C)
(External Sensor) (2) DLTP6
Accuracy Resolution +/-2°F (1°C) 0.1°F (0.05°C)
Time Accuracy +/-100ppm @ 75°F
Operating Range Humidity 0% to 90% RH, Non-condensing
Temperature Using Alkaline 32°F to 140°F (0°C to 60°C)
Temperature Using Lithium -40°F to 150°F (-40°C to 65°C)
Storate Temperature -40°F to 170°F (-40°C to 77°C)
Calibration Single Point Offset Calibration
Available Through Software
Dimensions 3” x 2.5” x 1.1” (7.6cm x 6.4cm x 2.8cm)
Weight 2.5 oz (71g)
Power Source 9V Alkaline or Lithium Battery
(not included)
Battery Life 20 Months using Alkaline, 40 Months using Lithium
• 2 DLTP6 Sensors (Included)
Specifications
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
PART NO. DESCRIPTION
14265-001 15’ Remote Temperature Sensor
Accessory
PART NO. DESCRIPTION
DLTP6 4” Stainless Steel 6’ Temperature Sensor
Accessory
102
LTC Thermocouple
Temperature Logger
• One Internal and One External (J, K, E, T, R, S
ermocouples) Temperature Measurement. Type K Included.
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Sample Point Capacity 10,750 Points for External and Internal Temperature
Sampling Rate 1 Second to 18 Hours
Alarms Over and Under Alarms for Each Probe
Temperature Range 32° to 140°F
(Internal Sensor) (0°C to 60°C) with Alkaline Battery
-40°F to 150°F
(-40°C to 65°C) with Lithium Battery
Temperature Range Depends on Thermocouple
(External Sensor)
Accuracy Resolution Depends on Thermocouple
Time Accuracy +/-100ppm @ 75°F
Storate Temperature -40°F to 170°F (-40°C to 77°C)
Calibration Single Point Offset Calibration
Available Through Software
Dimensions 3” x 2.5” x 1.1” (7.6cm x 6.4cm x 2.8cm)
Weight 2.5 oz (71g)
Power Source 9V Alkaline or Lithium Battery
(not included)
Battery Life 20 Months using Alkaline, 40 Months using Lithium
Specifications
LTH
Temperature & Humidity Logger
• Integral Temperature, Humidity and Dew Point Measurements
Sample Point Capacity 21,500 points for Temperature Only. 10,750 Points
for Temperature, Humidity and Dew Point
Sampling Rate 1 Second to 18 Hours
Alarms Over and Under Alarms for Each Probe
Temperature Range 32° to 140°F
(Internal Sensor) (0°C to 60°C) with Alkaline Battery
-40°F to 150°F
(-40°C to 65°C) with Lithium Battery
Accuracy Resolution +/-2°F (1°C), 0.1°F (0.05°C)
Time Accuracy +/-100ppm @ 75°F
Relative Humidity Range 0% to 90%, RH, Non-Condensing
Relative Humidity Accuracy +/-2% Full Scale, From 5% to 90% RH
For Temperatures Between 32°F to 140°F
(0°C to 60°C)
Relative Humidity Resolution 0.1% RH
Storate Temperature -40°F to 170°F (-40°C to 77°C)
Calibration Single Point Offset Calibration
Available Through Software
Dimensions 3” x 2.5” x 1.1” (7.6cm x 6.4cm x 2.8cm)
Weight 2.5 oz (71g)
Power Source 9V Alkaline or Lithium Battery
(not included)
Battery Life 20 Months using Alkaline, 40 Months using Lithium
Specifications
PART NO. DESCRIPTION
TPFDA K-Type Thermocouple with 4’ FDA
Approved Insulation
Accessory
103
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
LPT/LPT1000
Pressure & Temperature Logger
• External Pressure and Temperature Measurements
Sample Point Capacity 10,750 Points for Pressure & Temperaure. 21,500 Points for
Pressure OR Temperature
Sampling Rate 1 Second to 18 Hours
Alarms Over and Under Alarms for Pressure & Temperature
Temperature Range -40°F to 150°F
(External Sensor) (-40°C to 65°C)
Accuracy Resolution +/-1°F (0.5°C) 0.1°F ( 0.05°C)
Time Accuracy +/-100ppm @ 75°F
Pressure Range 0-500 psi (LPT), 0-1000 psi (LPT1000)
Pressure Sensor -4°F to 185°F
Temperature Range (-20°C to 85°C)
Compensated Temperature 32°F to 130°F
Range (0°C to 55°C)
Pressure Accuracy +/-3 psi
Pressure Resolution 0.15 psi
Pressure Connection 1/4” MPT Pressure Sensor Connection
Temperature Using Alkaline 32°F to 130°F (0°C to 54°C)
Temperature Using Lithium -40°F to 170°F (-40°C to 77°C)
Operating Range Humidity 0 to 90% RH Non-condensing
Storage Temperature -40°F to 170°F (-40°C to 77°C)
Calibration Single Point Offset Calibration Available Through Software.
Pressure is Factory Calibrated
Dimensions 3” x 2.5” x 1.1” (7.6cm x 6.4cm x 2.8cm)
Weight 2.5 oz ( 71g)
Power Source 9V Alkaline or Lithium Battery (not included)
Specifications
LCV
Current & Voltage Logger
• External Current Probe and Voltage Measurements
• AC Only, Single Phase
Sample Point Capacity 10,750 Points for Current & Voltage. 21,500 Points for
Current OR Voltage
Sampling Rate 1 Second to 18 Hours
Alarms Over and Under Alarms for Pressure & Temperature
Time Accuracy +/-100ppm @ 75°F
Input Current Range 0-300 Amps
Current Accuracy +/-5%
Current Resolution 0.1 Amp AC
Voltage Range 0-500 Volts AC
Voltage Accuracy +/- VAC
Voltage Resolution 0.1 VAC
Temperature Using Alkaline 32°F to 130°F (0°C to 54°C)
Temperature Using Lithium -40°F to 150°F (-40°C to 65°C)
Operating Range Humidity 0 to 90% RH, Non-condensing
Storage Temperature -40°F to 170°F (-40°C to 77°C)
Calibration Single Point Offset Calibration Available Through Software.
Current and Voltage are Factory Calibrated
Dimensions 3” x 2.5” x 1.1” (7.6cm x 6.4cm x 2.8cm)
Weight 2.5 oz ( 71g)
Power Source 9V Alkaline or Lithium Battery (not included)
Specifications
PART NO. DESCRIPTION
14265-001 15’ Remote Temperature Sensor
Accessory
PART NO. DESCRIPTION
12867 300A Current Probe
Accessory
104
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
L420 4-20 ma Logger
• Connection for 4-20 ma Loop Measurements
Sample Point Capacity 21,500 Points
Sampling Rate 1 Second to 18 Hours
Alarms Over and Under Alarm
Time Accuracy +/-100ppm @ 75°F
Input Current Range 0-40 ma
Current Accuracy +/-0.05 ma
Current Resolution 0.01 ma
Temperature Using Alkaline 32°F to 140°F (0°C to 60°C)
Temperature Using Lithium -40°F to 150°F (-40°C to 65°C)
Operating Range Humidity 0 to 90% RH, Non-condensing
Storage Temperature -40°F to 170°F (-40°C to 77°C)
Calibration Single Point Offset Calibration Available Through Software.
Current and Voltage are Factory Calibrated
Dimensions 3” x 2.5” x 1.1” (7.6cm x 6.4cm x 2.8cm)
Weight 2.5 oz ( 71g)
Power Source 9V Alkaline or Lithium Battery (not included)
Specifications
LLSU
Logit PC Software and Interface for
USB Connection
• PC So ware on CD ROM
• LINT Interface
• Cable From Logger to Interface (12283-001)
• Cable From Interface to USB (19449)
• Compatible with Windows® 95 through Windows® 8
• Graphic and Text Data
• 3 Memory Modes: Stop on Full, Record Continuously,
or Memory Rollover
• Real Time Monitoring
• Password Protected Calibration
• Data Exportable to Text or Excel
• Minimum System Requirements: 8MB RAM, 2MB Disc Space,
800 x 600 Resolution, COM Port or USB Port
Common Features
105
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
PART NO. DESCRIPTION LT2 LTH LTC LTT LPT LCV L420
USBS USB to Serial Interface * * * * * *
LLS LOGiT PC Software & Interface * * * * * * *
LLSU LOGiT PC Software & Interface * * * * * * *
SW25 25’ Temperature Sensor * *
Extension Wire
SW50 50’ Temperature Sensor * *
Extension Wire
SW75 75’ Temperature Sensor * *
Extension Wire
SW100 100’ Temperature Sensor * *
Extension
Wire
CABLE10T 10’ Sensor Extension Wire *
CABLE10H 10’ Sensor Extension Wire
(Max 3) *
LOGiT Optional Accessories
Super Vision Series
5 in 1 Temperature & Humidity Printer Logger
e VLT Loggers are Feature Packed, Strip Recorder/Alarm Devices. Models with 1 to
4 Channels to Monitor Temperature, Humidity or Switches with Programmability for
Each. e Large Digital Display, PC Interface without Additional So ware, 4 Models
of Printing and Remote Alarm Dialer Contacts Give these Devices Features Found on
Products Costing Much More.
• Monitoring, Logging, Alarms and Printing in Real Time
• Up to 4 Input Channels for Temperature, Humidity and Switches
• Reading Intervals from 1 to 120 Minutes, 1 Min. Increments
• Over and Under Alarms Plus Delay Setting for Each Channel
• Operating and Setting by Means of 6 Function Keys
• Printed Help and Instruction Messages on Request During Unit Setup
• 1 Channel Printing in Auto Scale Graph Mode, Including Alarms
• 1 to 4 Channel Printing Full Reports in 3 Text Modes, Including Alarms
• Online Display/Minimum or Maximum on Request
• Exporting Real Time Data rough RS-232 PC Port. No So ware Needed
• °F or °C, Date Format: dd/mm/yy or mm/dd/yy
• Battery Backup
• Low Battery, Chart End and Probe Error Indicators and Alarm Buzzer
• Remote Alarm Output Via Relay Contacts of 0.5A, 120V
• Remote Probes 33’ (10 Meters) Cable Length, Extendable up to 100’
• Data and Settings Retained a er Power Failure
• Base Unit Operating Humidity: 0 to 95% RH, Non-condensing
106
Data Loggers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
PART NO. INPUT MEASURING OPTIONS INCLUDED PROBES 33’ SAMPLE CAPACITY
VLT412 12 VAC/DC Any combination of 1 “VLT PROBE” 16,200 points
VLT4115 120 VAC temperature and (for temperature) of temperature
VLT4230 220 VAC switches up to 4 1 “VLS CABLE” and switches
channels (on/off indication) (4 probes)
VLTH12 12 VAC/DC Temp., humidity and 1 “VLTH PROBE” 16,200 points
VLTH115 120 VAC switch or 2 channels (temp./humidity) temperature,
VLTH230 220 VAC of temp. and humidity 1 “VLS CABLE” and humidity
(on/off indication) (4 channel)
Base Unit 32°F to 140°F (0°C to 60°C)
Operating with Alkaline Battery
Temperature 0°F to 150°F (-18°C to 65°C)
Range with Lithium Battery
Operating 0 to 95% RH
Humidity Non-condensing
Storage -40°F to 150°F
Temperature (-40°C to 65°C)
Battery Backup 9 Volt
Clock Battery 3.6 Volt Lithium
Dimensions 8.2”x 5.3” x 2.7”
(208.6mm x 135mm x 69mm)
Weight 2.6 lbs. (1.8 kg)
Super Vision Series Specifications
PROBE MODEL WORKING RANGE RESOLUTION ACCURACY REPEATABILITY RESPONSE
VLT PROBE -40°/130°C 0.1°C
+0, 3°C +0.1°C 5-30
Temperature -40°/266°F 0.2°F +0.6°F +0.2°F Sec.
VLTH PROBE -40°/85°C 0.1°C +0, 5°C +0.1°C 5-30
Temperature -40°/185°F 0.1°F +1, 0°F +0.2°F Sec.
and Humidity 10.0/89.9% RH 0.1°% RH +2% RH +0.1°% RH 6-10
0.1-9.9/90-100% 0.1°% RH +4% RH +0.5°% RH Sec.
VLS CABLE Recognized dry contacts - for On/Off indication switch 1 Sec.
VLPAPER 2” Thermal chart roll 131’
VLWPCASE Water proof case + lock
VLSK Remote alarm silencer
CABLE10H Sensor extension 10’
CABLE33H Sensor extension 33’
VPR Power reducer 24 to 12V
ADTA Auto phone dialer
VLCEL Cellular adaptor to internet
Accessories
107
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Indoor Air Quality Instruments
IAQ Series
IAQ Series Measures Carbon Dioxide, Temperature and Humidity
with Dew Point and Wet Bulb. Ideal for a Quality Diagnosis, they can
be used in Identifying Sick Building Syndrome due to High Levels of
CO2. Choose From a Hand Held Meter or Wall Mounted/Desktop
Monitor. Both Come Equipped with a Triple LCD Display and
Programmable Alarms.
• Non-Dispersive Infrared (NDIR) Sensor
• Visible/Audible (80db) CO2 Alarm
• Min./Max., Average Recall
IAQ50
Wall Mounted Indoor air
Quality Monitor
• Desktop or Wall Mounting
• Alarm Output Relay
• 12V Power Adapter (Included)
IAQ55
Handheld Indoor air
Quality Monitor
• Portable
• Backlight LCD Display Function
• Auto Shut-O
CO2 IAQ55 IAQ50
Range 0-2000ppm
2001-9999 (out of scale)
Resolution 1ppm
Accuracy +75ppm+5%rdg +50ppm+5%rdg
(0-2000 ppm) (0-2000 ppm)
Not specified Not specified
for out of scale for out of scale
Pressure +1.6% reading per kPa deviation from
Dependence normal pressure, 100kPa
TEMPERATURE
Range 14 to 140°F (-10.0 to 60.0°C)
Resolution 0.1°F (0.1°C)
Accuracy +- 0.9°F (± 0.6°C)
HUMIDITY
Range 0.0 to 99% Non-Condensing
Resolution 0.1%
Accuracy +-3% (10 to 90%) +-5% (others)
GENERAL
Warm Up 30 seconds
Operating 32°F to 122°F (0 to 50°C)
0-95% RH Non-Condensing
Storage 4°F to 140°F (-20 to 60°C)
0-99% RH Non-Condensing
Power 4 AA batteries 12V adapter
(Included) (Included)
Battery Life N/A 24 hours (Alkaline)
Specifications
r
ai
r
CO1000
Carbon Monoxide Meter
• Backlit LCD
• Automatic Calibration
• Max Hold and Data Hold
Specifications
Measurement Range 0 to 1000 PPM
Measurement Resolution 1 PPM
Accuracy 5% or ±10 PPM (0-100 PPM)
10% ± 10 PPM (>100PPM)
Warm Up Period < 2 Seconds
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -22°F to 140°F (-30° to 60°C)
Operating Humidity 0-99% Relative Humidity (non-condensing)
Battery 9V (included)
Auto Power Off After 15 minutes of inactivity
Sensor Type Stabilized electrochemical Gas-specific (CO)
Typical Sensor Life 3 years
• Auto Power O
• Audible Alarm
• From 35ppm to 200ppm, the Beeper Sounds Periodically
• Above 200ppm, the Beeper Sounds Continuously
• Alarm Output Relay
• Long Time Dri Compensation
• TWA (Time-Weighted Average) 8 Hours
• STEL (Short-Term-Exposure Limit) 15 Minutes
108
HVAC/R Instruments
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
MFD10
Digital Capacitor Tester
• New, Rugged Case
• Rubber Grips for Easy Handling
• Range 0.001 μF to 9999 μF
• Accuracy +/- 5%
• Auto-Ranging
• One Button Operation
• Magnetic Leads
• Includes Alligator Clips
• 12” Test Leads
• Sliding Door to Easily Store Test Leads & Clips
• Includes So Carrying Case
• Dimensions: 2 5/8” x 1 3/8” x 4 1/4”
• Operates on 3 AAA Batteries (not included)
PART NO. DESCRIPTION
MFDFUSE Replacement Fuse
22792 Soft Carrying Case
M500
Insulation Tester/
Electronic Megohmmeter
• Measure Insulation Values up to 1000 Megohms
@ 500VAC
• Range: 20 to 1000 Megohms
• Zone Scale to Indicate Insulation Condition
• Hand Held
• Test Leads Store in Case
• Operates on 2 C Batteries (Not Included)
• Impact Resistant
• So Carrying Case Included
PART NO. DESCRIPTION
MCASE Soft Case
Accessories
Accessory
M501
Insulation Tester/
Electronic Megohmmeter
• Enjoy the Same Great Features of the M500
in a Sturdy Service Case
M1000D
Digital Megohmmeter
e Versatile M1000D Provides the User Selectable Test Voltage Ranges of
250V/500V/1000V to Test Insulation Resistance and Can Also be Used to
Measure AC Voltage up to 750AC.
• User Selectable Resistance and Voltage Ranges
• Large Backlit LCD (3.25” x 2.00”)
• Data Hold Button
• Auto Power O A er 15 Minutes
• Low Battery Indicator
• 1 Year Warranty
109
DDM55
Dual Digital Manometer
• Dual Input
• Range: -55.0 to +55.0 Inches Water Column
• Resolution to 0.01”
• Provides Di erential Measurements
• 11 Units of Measure
• Data Hold
• LCD Display w/ Backlight
• Auto Power O
• 9V Battery Included
• So Carrying Case Included
FUNCTION RANGE RESOLUTION FUNCTION RANGE RESOLUTION
InH2O +/-55.40 0.01 ozin2 32.00 0.01
psi +/-2.000 0.001 FtH2O 4.612 0.001
Mbar +/-137.8 cmH2O 140.6 0.1
kPa +/-137.9 Kgcm2 0.140 0.001
inHg +/-0.407 0.001 Bar 0.137 0.001
mmHg +/-103.4
Specifications
Display Dual LCD
Accuracy +/-0.3% FSO
Repeatability +/-0.2% (Max. +/-0.5% FSO)
Linearity/Hysteresis +/-0.29% FSO
Maximum Pressure 10 psi
Response Time 0.5 Seconds Typical
Low Battery Indicator Yes
Over Range Indicator Err. 1
Under Range Indicator Err.2
Operating Conditions 32°F to 122°F (0 to 50°C)
Storage Conditions 14°F to 140°F (-1 to 60°C)
Power Supply 1 x 9V Battery (Included)
or External 9V DC
Soft Pouch
Flexible Tubing
1/8” MPT x 1/8” Barb Access Fitting
Accessories (Included)
HVAC/R Instruments
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
DAVM+
Digital Air Flow/Volume Meter
• Measures Feet Per Minute (FPM) and Cubic Feet
Per Minute (CFM)
• Easy CFM Set-Up Flow Chart with Grill Free Area
Chart (Included)
• Measures Temperature and Humidity
• °F/°C Selectable
MEASUREMENT RANGE RESOLUTION ACCURACY
Air Velocity ft/min 80 to 5,910 ft/min 1 ft/min < 20 m/s : + 3% F.S.
m/s 0.4 to 30.0 m/s 0.1 m/s > 20 m/s : + 4% F.S.
km/h 1.4 to 108.0 km/h 0.1 km/h
MPH 0.9 to 67.0 mile/h 0.1 MPH
knots 0.8 to 58.3 knots 0.1 knots
Temperature ° F 32° to 122 °F 0.1 °F + 2.5 °F
(thermistor) ° C 0° to 50 °C 0.1 °C + 1.2 °C
Air Flow CFM 1,908,400 CFM 0.001 to 100
(cube feet/min) CFM
CMM 54,000 CMM 0.001 to 1
(cube meter/min) CMM
Humidity % RH 10 to 95 % RH 0.1 % RH
10 to 95% RH < 70% RH :
+ 4% RH > 70% RH :
: + (4%rdg+1.2%RH)
Light Lux 0 to 2,200 Lux 1 Lux
1,800 to 20,000 Lux 10 Lux
0 to 20,000 Lux + 5% rdg + 8 dgt
0 to 2,000 Fc
Temperature (Type K) -148 to 2,372 °F +(1% rdg + 2°F)
-100 to 1,300 °C +(1% rdg + 1°C)
*auto range Ft-cd 0 to 204.0 Fc 1 Ft-cd
170 to 2,000 Fc 1 Ft-cd
Measurement Specifications
Measurement Anemometer, Humidity,
Temperature, Light, Air flow
(CFM/CMM).
Operating 80% RH Max
Humidity
Operating Temperature 32° to 122°F (0 to 50°C)
Over Input Display Indication of “- - - - “
Power Supply 9V battery (not included)
Power Consumption Approx. 6.2 mA DC
Weight 5.6 oz (160g)
Dimension 6.14” x 2.36” x 1.29”
156 x 60 x 33 mm
Specifications
TPFDA FDA Approved Thermocouple Probe
Optional Accessory
MEASUREMENT AREA SET
CFM 0.01 to 322.92 Feet Square
CMM 0.001 to 30.000 Meter Square
General Specifications
• Standard K-Type ermocouple Connector
• Measures Light Levels (LUX)
• Multi-Channel Display
• Data Hold
• One-Hand Operation
• Carrying Case (SCASE) Included
110
HVAC/R Instruments
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
TPC8000
Temperature Pressure Clamp
e Intelligent Pressure Clamp is 3 Tools in One! Great for
SUPERHEAT or SUBCOOL Temperatures, it Quickly and
Accurately Measures Temperature (pipe), Temperature
and Relative Pressure and has a PT Chart.
• Set Up and Change Refrigerant in Seconds
• PT Chart has 64 Refrigerants
• Durable Moisture Resistant Keypad
• LED BackLight
• Automatic Shut O
• Spring-Loaded Clamp Design. Easily Attaches
to Tubing from 3/8” to 1 1/8”
• Battery Operated (200 hr. run time, batteries included)
Temperature Range -20°F to 212°F (-28°C to 100°C)
Accuracy +/- 2% (typ.)
Resolution 0.1°F/°C
Operating Temperature 32° F to 120° (0°C to 48.8°C)
Auto Shut Off 15 Minutes
Dimensions 4 1/2” x 2 3/8” x 1 1/2”
(114.3 mm x 60.325 mm x 38.1 mm)
Weight 5 oz. (141.7 g.)
Specifications
R11, R12, R13, R14, R21, R22, R23, R32, R41,
R113, R114, R115, R116, R123, R124, R125, R134,
R134A, R141B,R142B, R143, R143A, R152A, R161,
R176, R218, R290, R401A, R401B,R401C, R402A,
R402B, R403A, R403B, R404A, R405A, R406A,
R407A, R407B, R407C, R407D, R408A, R409A,
R409B, R410A, R410B,R411A, R411B, R412A,
R413A, R414A, R414B, R415A, R415B, R416A,
R417A, R418A, R419A, R420A, R421A, R421B,
R422A, R422B, R422C, R422D, R423A, R424A, R425A,
R426A, R427A, R428A, R429A,R430A, R431A, R432A,
R433A, R434A, R435A, R436A, R436B, R437A, R438A,
R500, R501, R502, R503, R504, R507, R507A, R508A,
R508B, R509A, R510A, R600, R600A, R601, R601A, R717, R744
Refrigerants
EM5
Environmental Meter
Combining the Measurements of 5 Critical Environmental Parameters,
the EM5 Provides the User with Complete Information for Real Time
Environmental Conditions; SOUND, AIR VELOCITY (AND VOLUME),
TEMPERATURE, HUMIDITY AND LIGHT.
• Measures Air Velocity (fpm) and Air Volume (cfm)
• Measures Sound in dB
• Measures Temperature and Humidity
• Measures Light (Lux)
• Standard and Metric Units
• Backlit LCD Display
• Min/Max/Avg/DIF Modes
• Auto Power O
• Low Battery Indicator
• One-Hand Operation
• Air Measurement Set Up and Register
CFM Pocket Chart Included
• Carrying Case Included
• Instrument Tripod Included
• One Year Warranty
Display 4 1/2 Digit Backlit LCD
Response Time 2/Second (app.)
Operating Temperature 14°F to 140°F (-10°C to 60°C)
Storage Temperature 14°F to 122°F (-10°C to 50°C)
Power Requirements 9V Battery (Included)
Weight 15.5 oz. (430 g.)
Dimensions 11” x 3.5” x 2” (280 mm x 89 mm x 50mm)
Specifications
RANGE RESOLUTION ACCURACY
Temperature
14°F to 140°F (-10°C to 60°C) 0.1°F (0.1°C) +/- 2.7°F (+/ - 1.5°C)
Relative Humidity
20% RH to 80% RH 0.1% RH +/- 3% RH @ 75 °F
< 20% RH and > 80% RH 0.1% RH +/- 5% RH @ 75 °F
Sound Level
30 dB to 130 dB 0.1 dB +/- 1.5 dB
Light Level
0 to 2000 Lux 1 Lux +/- 5% of Rdg plus 10
2001 LUX to 20,000 Lux 10 Lux +/- 5% of Rdg plus 10
20,001 LUX to 50,000 Lux 100 Lux +/- 5% of Rdg plus 10
Air Flow
1.6 ft/s to 65.7 ft/s 0.1 ft/s +/- 3% of Rdg plus 10
0.5 m/s to 20 m/s 0.1 m/s +/- 3% of Rdg plus 10
0.9 knots to 38.9 knots 0.1 knots +/- 3% of Rdg plus 10
1.8 km/h to 72 km/h 0.1 km/h +/- 3% of Rdg plus 10
Air Volume
0 to 999,900 CFM 0.1 to 100 CFM +/- 3% of Rdg plus 10
0 to 999,900 CMM 0.1 to 1000 CMM +/- 3% of Rdg plus 10
Measurement Specifications
• Auto-Ranging
• Data Hold
111
HVAC/R Instruments
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
EM Series
Environmeters
Measure Critical HVAC/R Parameters to Maximize
Productivity and Performance. Choose the
Environmeter(s) for the Best Solution.
Velocity Range: 80 fpm to 4000 fpm, 0.4 m/s to 20 m/s
Temperature Range: 14°F to 122°F (-10°C to 50°C)
Velocity Resolution: 1 fpm (0.1 m/s)
Temperature Resolution: 0.1°F ( 0.1°C)
Battery: 1.5V AAA x 3 (included)
Dimensions: 6.2” X 2.4” X 1.2” (157mm X 60mm X 30mm)
Weight: 6.3 oz. (180g)
Specifications
EM20
Thermo-Anemometer
Diagnose and Solve Air Flow Problems
• Measures fpm, m/s, mph, km/h, kts, Beaufort Scale
• Measures °F/°C
• Velocity Range: 80 fpm to 4000 fpm
• Temperature Range: 14°F to 122°F
• Min/Max
• Data Hold
• Backlit LCD
• Auto Power O
• Hard Carrying Case Included
Range: 100 rpm to 30000 rpm / 1.7 rps to 500 rps
Resolution: 0.1 rpm for 100 rpm to 999.9 rpm
1 rpm for 1000 rpm to 30000 rpm
0.1 rps for 1.7rps to 100rps
1 rps for 100 rps to 500 rps
Accuracy: ±0.1% reading for 100.0 rpm to 9,999 rpm
±0.02% reading for 10,000 rpm to 30,000 rpm
Auto power off: 2 min.(app.)
Battery: 1.5V AAA x 3 (included)
Dimensions: 4.7” X 2.4” X 1.2” (121mm X 60mm X 30mm)
Weight: 6.3 oz (180g)
EM30
Tachometer
Analyze and Solve Motor Rotation Problems
• Measures rpm & rps
• Range: 100 rpm to 30,000 rpm
• Min/Max
• Data Hold
• Backlit LCD
• Auto Power O
• Hard Carrying Case Included
EM80
Sound Level Meter
Analyze and Solve Excessive Sound Level Problems
• Range: 30 dB to 120 dB
• Auto or Manual Range
• Auto Power O
• Hard Carrying Case Included
Frequency range: 31.5Hz to 8KHz
Measuring range: 30dB to 120dB
Frequency weighting: A
Resolution: 0.1 dB
Accuracy: 1.5 dB (under 94 dB)
Four ranges: 60dB / 80dB / 100dB / 120 dB
Time response: Analog bar: 0.25 sec / Digital: 0.75 sec
Operating temperature: -32°F to 104°F (0°C to 40°C)
Operating humidity: 10% to 80% RH
Battery: 1.5V AAA x 3 (included)
Dimensions: 6.1” X 2.4” X 1.2” (156mm X 60mm X 32 mm)
Weight: 5.2 oz (180g)
Specifications
• Analog Bar Indicator
• Field Calibratable
• Backlit LCD
Specifications
112
Refrigerant Scales
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
PCS220
Programmable Refrigerant
Charging Scale
Using the Latest Technology, the PCS220 Makes Charging a System
Fast and Reliable. Just Set the Desired Amount of Refrigerant to
Charge the System and the Built-In Solenoid Delivers the Precise
Weight, then Sounds the Alarm Signaling the Completed Job.
• Compatible with ALL Refrigerants
• Range: 0 to 220 lbs (0 to 100 kg)
• Solenoid Activated for Real-Time Charging
• User Programmable
• Audible Alarm
• Built-In Memory for All Settings
• Large LCD Display w/ Backlight
• Auto Power O (15 Mins)
• Field Calibration Available
• Hard Carrying Case Included
• 1 Year Warranty
Capacity 220 lbs (100 kg)
Accuracy 0.5% of Reading
Best Resolution 0.005 lbs/ 0.1 oz/ 2 g
Auto Shut Off 15 min
Operating
Temperature 50°F to 122°F (10°C to 50°C)
Weight 6.03 lbs (2.74 kg)
Dimensions 9.1 in x 9.1in x 2.4 in
(23 cm x 23 cm x 6 cm)
Power Source 5 X AA (included)
Battery Life 60 hrs
Specifications
• HVAC and Refrigeration Service
• Precise Measurement or Refrigerant Containers
• Automated Charging of Refrigerant Systems
Applications
RCS220
Refrigerant Charging Scale
For Fast and Accurate Measurements.
• Compatible with ALL Refrigerants
• Range: 0 to 220 lbs (0 to100 kg)
• Built-In Memory
• Measures Weight in lbs, ozs and kgs
• Large LCD Display w/ Backlight
• Auto Power O (15 Mins)
• Field Calibration Available
• Hard Carrying Case Included
• 1 Year Warranty
Capacity 220 lbs (100 kg)
Accuracy 0.5% of Reading
Best Resolution 0.01 lbs
Auto Shut Off 15 min
Operating
Temperature 50°F to 122°F (10°C to 50°C)
Weight 6.03 lbs (2.74 kg)
Dimensions 9.1 in x 9.1in x 2.4 in
(23 cm x 23 cm x 6 cm)
Power Source 5 X AA (included)
Battery Life 60 hrs
Specifications
DHS55
Digital Handheld Scale
is Compact Handheld Scale Provides Quick Measurements for
your Refrigeration Applications.
• 55 lbs Max Scale
• 2% Accuracy
• One Button Operation
• Lbs/Kgs Switchable
• 9V Battery
• Measurement/Function-Weight
• Range: 0 to 55 lbs.
Specialty Instrument Selection Guide
®
®
113
Refrigerant Scales
HLD200
Refrigerant Leak Detector
By Pinpointing a System Leak Quickly, the HLD200 Takes the
Time and Frustration Out of Leak Detection.
• Detects All Halogen Refrigerants and Blends
• Auto Zero When Powered On
• High E ciency Pump for Fast Response
• Audible Tick
• Seven Segment LED Indicators
• 12” Gooseneck
• Replaceable Sensor Tip
• Protective Sheath Included
• Hard Carrying Case Included
• Extra Sensor Tip (p/n HLDTIP) Included
• 1 Year Warranty
Sensor Type Negative Corona
Sensitivity 0.1 oz/ yr
Sensitivity Levels 5
Audio Indicator Variable Tick
Visual Indicator Flashing LED
Warm Up Time 6 sec
Response Time < 1 sec
Duty Cycle Continuous
Probe Length 12"
Operating Temp 32° to 125°F
Power Source 2 X AA (included)
Battery Life 30 hrs
Multi-Meter & Current Probe
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
®
PRESSURE UNITS RANGE
PSI 5.1 to 462.5
BAR 0.35 to 31.88
MPa 0.035 to 3.188
TEMPERATURE UNITS
Fahrenheit -40°F to 155°F
Celsius -40°C to 68°C
• Auto O (A er 5 Minutes)
• Pocket Size
• Battery Included Power: 3V (CR2032)
• So Carrying Case Included
• 1 Year Warranty
Specifications
CVPRO46
Chargepro Portable System Analyzer
Integrated Device Composed of a Base Unit and a Handheld Unit.
• Recover Refrigerant
• Make Vacuum
• Check for Possible Leaks
• Charge with Accuracy
• Hardware and Accessories Included
• Hard Carrying Case Included
RPT61
Pressure Temperature
Chart Master
For Instant Information, the PT Chart Master Eliminates the Need for Traditional Pres-
sure/Temperature Charts. Accurate and Easy to Use, the RPT61 Provides
Pressure and Temperature Correlation for 66 Di erent Refrigerants.
• Choose Pressure in PSI, BAR or Mpa
• Choose Temperature in °F or °C
• 66 Refrigerant Tables
• Large LCD
114
DM10T
Economy Digital Multimeter
with Temperature
• 1000 Volts DC
• Continuity
• 2MΩ Resistance
• 10 Amps DC
• 750 Volts AC
• Temperature
DM10T CP070 CPH100
Volts AC 750
Volts AC Best Resolution 1 V
Volts DC 1000
Volts DC Best Resolution 0.1 mV
Amps AC 10
Amps AC Best Resolution 0.1mA
Base Accuracy (DC Volts) ± 0.5%
Resistance max. (Ohms) 2 M
Continuity Yes
Temperature -4 °F to 2,498° F
(-20° C to 1370 °C)
Temperature Accuracy ±3°F (1.5°C)
Display (Counts) 2,000
Operating 32° F to 74° F
Temperature (0°C to 23°C)
Relative Humidity 0% to 75% RH
Fuse Protection mA: 0.2A/ 250V
Power 9 V Battery
(included)
Size 5.5”L x 3”W x 1.5”D
(140mm x 76mm
x 36mm)
Weight 8 oz (227 g)
Warranty 1 Year
Specifications
CPH100
HVAC Current Probe
• 400 Amps AC
• DC μAmps
• Temperature
• Frequency
• Includes Test Leads
• AC/DC Volts
DM10T CP070 CPH100
Volts AC 600
Volts AC Best Resolution 0.1mV
Volts DC 600
Volts DC Best Resolution 0.1mV
Amps AC 400A
Amps AC Best Resolution 0.1A
Frequency (Hz) 150.0KHz
Frequency Best Resolution 0.001Hz
Base Accuracy (DC Volts) ± (1.5% +3 dgts)
(AC Amps) ± (2.0% + 3 dgts)
Resistance max. (Ohms) 40M
Continuity Yes
Capacitance 100.0μF
Best Resolution 0.01nF
Temperature -50°F to 2372°F
-5°C to 1300°C
Temperature Accuracy ±3%
Display (Counts) 4,000
Data Hold Yes
Sleep Mode Auto Shut Off
Operating 14°F to 122°F
Temperature (-10°C to 50°C)
Storage -22°F to 140°F
Temperature (-30°C to 60°C)
Relative Humidity 0% to 90% RH
Power 2 1.5V AAA Batteries
(included)
Size 7.9”L X 2.0W” X 1.4”D
(200mm X 50mm
X 35mm)
Weight 7.1oz (200g)
Warranty 1 Year
• Resistance
• Capacitance
• Auto Shut O
• 1 Year Warranty
• Continuity
Specifications
TLA Test Leads
• 1000V AC or DC Max
• 10 Amps Max
• Includes Screw-On
Alligator Clips
TPFDA
FDA Approved
Temperature Probe
SCCP
Deluxe Soft Case
®
Multi-Meter & Current Probe
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
VDL1000
Voltage Detector w/ Light
Detects Voltage in Cables, Cords, Circuit Breakers,
Lighting Fixtures, Switches, Outlets and Wires.
• Detects 90 to 1000 VAC
• Beeps and Flashes RED when
Voltage is Detected
• Integrated LED Light
• 2 AAA Batteries Included
Optional Accessories
TLA Test Leads
• 1000V AC or DC Max
• 10 Amps Max
• Includes Screw-On
Alligator Clips
TPFDA
FDA Approved
Temperature Probe
SCCP
Deluxe Soft Case
Optional Accessories
115
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
Temperature & Humidity Testers
DSP1000
Digital Psychrometer
e DSP1000 Provides Fast, Accurate Measurements for Analysis
of Critical Environmental Conditions.
• Fast Response Time
• High Accuracy
• Temperature
RANGE
Humidity Range 0-100% RH (Non-Condensing)
Temperature -22°F to 212°F (-30°C to 100°C)
Dewpoint Temperature -22°F to 212°F (-30°C to 100°C)
Wet Bulb Temperature 32°F to 176°F (0°C to 80°C)
Humidity ±2% RH (20% RH to 80% RH)
Accuracy ±2.5% RH (all other ranges)
Temperature ±0.9°F/±0.5°C (at 77°F/25°C)
Accuracy ±1.5°F/±0.8°C (all other ranges)
Specifications
PT100
Digital Pocket
Surface Thermometer
• Ultra Sensitive Air and Surface Reading Probe
• Provides Fast Response - Within Seconds
• Temperature “HOLD” Switch - Keeps Readings Fixed
Specifications
PART NO. DESCRIPTION
PT100 Fahrenheit Model
PT100C Celsius Model
THP2
Thermo-Hygrometer Pen
• Measures Temperature
& Humidity, Simultaneously
• Dual Display
Battery Type 9V Battery NEDA 1604,
IEC 6F22 (included)
Operation Temperature 32°F to 104°F (0°C to
40°C) (<80%RH)
Storage Temperature 14°F to 140°F (-10°C to
60°C) (<70%RH)
Size (H X W X D) 8.86” X 1.77” X 1.34”
(225mm X 45mm X 34mm)
Weight 7.05oz (200g)
• Humidity
• Dewpoint Temperature
• Wet Bulb Temperature
• Dual Display Temperature & Humidity
• Auto Power O (Disable Sleep Mode)
• Backlight
• 1 Year Warranty
• Max Hold
• Data Hold Function
• Micro Processor-based Design
Resolution 0.01% RH, 0.01°F/0.01°C
Response Time 10 seconds
PART NO. DESCRIPTION
PT100H High Temp. Fahrenheit
PT100HC High Temp. Celsius
• Temperature in °F or °C
• Pocket Clip
• Battery Included
Specifications
TEMPERATURE
Range PT100/PT100C
-40°F to 199.9°F (-40°C to 93.28°C)
PT100H/PT100HC
-40°F to 250°F (-40°C to 120°C)
Resolution 0.1°F (-40°F to 199.9°F)
1.0°F (-40°F to 250°F)
Accuracy 0.2 Surface, 1.0 Air
TEMPERATURE HUMIDITY (% RH)
Range -4°F to 122°F 10% to 90%
(-20°C to 50°C)
Resolution 0.1°F 1%
Accuracy +/-2°F (+/-4°C) +/-5% (for 40% to 80%)
• Power: 9V Alkaline
• Size: 1.5” x 6.75” x 0.8”
• Weight: 7.2 oz.
• 1 Year Warranty
116
Temperature & Humidity Testers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
EM10
Temperature & Humidity Meter
Diagnose and Solve HVAC System Problems
• Measures Temperature, Humidity & Dew Point
• Temperature Range: 14°F to 122°F
• Humidity Range: 0% to 99.9% RH
• Min/Max/Avg
• Data Hold
• Backlit LCD
• Auto Power O
• Hard Carrying Case Included
Temperature range : 14°F to 122°F (-10°C to 50°C)
Humidity range: 0% to 99.9% RH
Temperature Resolution: 0.1°F (0.1°C)
Humidity Resolution: 0.1% RH
Temperature Accuracy: ±1.8°F (± 1.0°C)
Humidity Accuracy: 3% RH (5 to 95% RH)
Battery: 1.5V AAA x 3 (included)
Dimensions: 4.8" X 2.4" X 1.2"
(121mm X 60mm X 30mm)
Weight: 6.2 oz (180g)
Specifications
EM60
Dual Differential Thermometer
Make Fast Inlet/Outlet Temperature Comparisons
• Dual ermocouple (J, K) Inputs
• Temperature Range (K): -328°F to 2,372°F
• Measures T1, T2 & T1-T2
• High & Low Alarms
• Data Storage
• Min/Max/Avg for T1 & T2
• Backlit LCD
• Auto Power O
• Hard Carrying Case Included
• Includes two (2) K-Type ermocouples
Range: K-Thermocouple: -328°F to 2372°F (-200°C to1300°C)
J- Thermocouple:-328°F to 2192°F (-200°C to1200°C)
Resolution: 0.1°F ; (0.1°C)
Best Accuracy:
K-Thermocouple: ± 0.2% of Reading
± 2°F (± 0.1% of Reading ± 1.4°F)
J- Thermocouple: ± 0.2% of Reading ± 2°F
(± 0.1% of Reading ± 1.4°F)
Battery: 1.5V AAA x 3 (included)
Dimensions: 4.8” X 2.4” X 1.2” (121mm X 60mm X 30 mm)
Weight: 6.2 oz (180g)
Specifications
EM90
Dual Thermometer
(Infrared & Thermocouple)
Choose the Most Convenient Method for the Application
• IR Range: -58°F to 518°F
• ermocouple Range (K):
-328°F to 2,372°F
• Min/Max/Avg
• Data Hold
• Backlit LCD
• Auto Power O
• Hard Carrying Case Included
• Includes One (1) K-Type ermocouple
Temperature Range:
- Infrared: -58°F to 572°F (-50°C to 300°C)
- K-Thermocouple: -328°F to 2372°F (-200°C to 1300°C)
Resolution: 0.1°F (0.1°C)
Best Accuracy:
Infrared: ± 1.5% of reading ± 4°F F
(± 1.5% of Reading ± 2°C)
K-Thermocouple: ± 0.1% of Reading ± 1.4°F
(± 0.2% of Reading ± 1°C)
Emissivity: 0.95
Optical Ratio: 2:1
Laser power: less than 1 mw
Battery: 1.5V AAA x 3 (included)
Dimensions: 4.8” X 2.4” X 1.2” (121mm X 60mm X 30mm)
Weight: 6.2 oz (180g)
Specifications
117
Temperature & Humidity Testers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
ST09
Digital Pocket Thermometer
• Range: -40°F to 392°F (-40°C to 200°C)
• Accuracy: +/-2°F (+/-1°C) Full Scale
• Min/Max
• °F/°C Switch
• Updates Every Second
• Data Hold
• Battery Included
• Waterproof
• Auto O
• Stainless Steel Stem
• Stem Length: 2-1/2”
ST10
Digital Pocket Thermometer
• Range: -50°F to 392°F (-45°C to 200°C)
• Accuracy: +/-2°F (+/-1°C) Full Scale
• °F/°C Switch
• Updates Every Second
• Battery Included (Supco # STBAT)
Spare Included
• Auto O
• Stainless Steel Stem
• Stem Length: 4-23/32”
ST01
Dial Pocket Thermometer
• Range: -40°F to 160°F (-40°C to 71°C)
• Dial Size: 1”
• °F Scale Only
• Recalibration Adjust
• Stem Length: 5”
ST02
Dial Pocket Thermometer
• Range: 0°F to 220°F (-18°C to 104°C)
• Dial Size: 1”
• °F Scale Only
• Recalibration Adjust
• Stem Length: 5”
ST08
Dial Pocket Thermometer
• Range: -40°F to 160°F (-40°C to 71°C)
• Dial Size: 1-3/4”
• °F and °C Scales
• Recalibration Adjust
• Stem Length: 5”
ST03
Appliance Pocket Thermometer
• Range: -20°F to 80°F (-30°C to 27°C)
• Mounting: Hangs or Stands
• °F and °C Scales
• Unbreakable Lens
• For Refrigerators and Freezers
ST04
Appliance Pocket Thermometer
• Range: 100°F to 600°F (-38°C to 315°C)
• Mounting: Hands or Stands
• °F and °C Scales
• Unbreakable Lens
• For Ovens
ST06
Appliance Pocket Thermometer
• Range: -40°F to 80°F (-40°C to 27°C)
• Mounting: Hangs Horizontally
• °F and °C Scales
• Unbreakable Lens
• For Refrigerators and Freezers
118
Temperature & Humidity Testers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
SSDF20
Solar Powered
LCD Thermometer
• Stainless Steel Housing
• °F or °C Selectable
• Easy to Read LCD Display
• Temperature Update Every
10 Seconds
Mounting Surface front flange /
Back
connection
Range -60°F to 160°F (-51°C to 71°C)
Accuracy +/- 2°F
Dial Size 2”
LCD Display Size 3/8”
Sensor Length 60”
Update Time 10 seconds
On/Off Switch Yes
Remote Dial Vapor
Tension Thermometers
• Stainless Steel Housing
• Analog Dual Scale Dial °F or °C
• 48” Capillary
• Back Connection Mounting Points
• Temperature Range -40°F to 60°F (-40° to 16°C)
PART NO. DIAL SIZE FLANGE
S6020BB 2” Back
S6020FB 2” Front
S6025FB 2.5” Front
S6020HL 2” Front
S6025HL 2.5” Front
S6025FB
Specifications
S6020BB S6020FB
THC120
Indoor Digital Thermo-
Hygrometer With Clock
• Table Top or Wall Mount
• Measure Temperature & Humidity
Simultaneously
• Real Time Clock
• Large Triple Display
• Batteries Included (AAA)
• Min/Max Temperature and Humidity
Memory Function
• 1 Year Warranty
TEMPERATURE HUMIDITY (%RH)
Range 32°F to 120°F 10% to90%
0°C to 50°C
Resolution 0.1°F 1%
Accuracy +/-1.8°F or 1.0°C +/-5%
Specifications
S6020HL S6025HL
TPFDA
K-Type Thermocouple Probe
• Subminiature Connector with 4’ Bead Tip Probe
• FDA Approved Insulation
• Temperature Range -40°F to 550°F, -40°C to 288°C
TPFDA
ST1236-31
Sure Temp Thermometer
e Sure Temp ermometer is the Least Expensive Device Manufactured
Today to Show Exact Temperature in a Case, Reach-In, or Walk-In Cooler.
• Simulates Internal Temperature of a Refrigerated or Frozen Product
• Meets Food Service Criteria
• Includes Bracket and Screw for Easy Mounting
• Operating Temperature -40°F to 180°F
119
Infrared ermometers
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
LIT11TC
Infrared Thermometer
• 11:1 Optical Ratio
• Laser Pointer
• High & Low Temperature Range
• Backlight
• Carrying Case Included
• K-Type ermocouple (probe included)
Optical Ratio 11:1
Temperature Range -76°F to 932°F
(-60°C to 500°C)
Best Resolution .1°F (.1°C)
Accuracy +/-2°F (+/-1°C)
Emissivity 0.95 Adjustable
Automatic Shut Off Yes
Power Supply 2 AAA Batteries (Included)
Weight 6.3 oz. (179g)
Dimensions 6.9” x 1.5” x 2.8”
(175mm x 39mm x 71mm)
Specifications
LIT6P
Infrared Thermometer
With Probe Sensor
• 2 Measurement Modes: Infrared
& Probe Sensor
• 6:1 Optical Ratio
• Single Dot Laser Targeting
• °F/°C Selectable
Temperature Range -4°F to 518°F
(-20°C to 270°C)
Resolution 0.1°F (0.1°C)
Accuracy +/-9°F for -4°F to 32°F
(+/-5°C for -20°C to 0°C)
+/- 1.5% of Readings for
32°F to 518°F
(0°C to 270°C)
Emissivity 0.97
• Data Hold
• Low Battery Indication
• Carrying Case Included
Optical Ratio 1:1
Temperature Range -27°F to 428°F
(-33°C to 220°C)
Best Resolution .1°F (.1°C)
Accuracy +/-2% of Reading
or +/-4°F (2°C)
Temperature Range -58°F to 518°F
(-20°C to 270°C)
Resolution 0.2°F for -58°F to 392°F
(0.1°C for -50°C to 200°C)
2°F for 392°F to 518°F
(1°C for 200°C to 270°C)
Accuracy 1.5% of Reading for -58°F to -4°F
(-50°C to -20°C)
1% of Reading for -4°F to 392°F
(-20°C to 200°C)
2% of Reading for 392°F to 518°F
(200°C to 270°C)
Over Range Indication “OL” or “-OL”
Auto Power Off After 30 Seconds
Battery 1.5V x 3 (AAA)
Dimensions 7.1” x 1.9” x 1.7”
(182mm x 49mm x 43mm)
Weight 4.2oz. (120g)
Infrared Specifications
Probe Sensor Specifications
PIT6L
Mini Infrared
Thermometer
With Ambient Temp.
• 6:1 Optical Ratio
• Single Dot Laser Targeting
• Ambient Temperature
(Tamb) Measurement
• °F/°C Selectable
• Data Hold
• Back Light
• Low Battery Indication
Temperature Range -4°F to 518°F
(-20°C to 270°C)
Accuracy +/-9°F for -4°F to 32°F
(+/-5°C for -20°C to 0°C)
+/-1.5% of Reading +/-6°F for 32°F to 518°F
(+/-1.5% of Reading +/-3.0°C for 0°C to 270°C)
Tamb Range 32°F to 122°F
(0°C to 50°C)
Resolution 1°F (1°C)
Emissivity 0.95
Over Range Indication “OL” or “-OL”
Auto Power Off After 20 Seconds
Battery 1.5V x 3 (AAA)
Dimensions 3.9” x 2.3” x 0.9”
(98mm x 58mm x 22mm)
Weight 2.5oz. (72g)
Specifications
PIT1
Infrared Thermometer
• 1:1 Optical Ratio
• Pocket Size
• Min/Max Measurements
Emissivity 0.95 Adjustable
Automatic Shut Off Yes
Power Supply CR2032 (Included)
Weight 1.3 oz. (32g)
Dimensions .7” x 1.5” x 2.7”
(18mm x 37mm x 68mm)
Specifications
120
Temperature Alarms & Controls
TA44
Single Set Point Temperature Alarm
with Digital Display and Remote
Wireless Alarm
Multiple Transmitters and Receivers Can Be Used to Monitor
Temperature at Several Locations.
• Over and Under Temperature Modes
• Large LCD Digital Display
• FCC Compliant Class B Digital Device, Pursuant to
Part 15 of the FCC Rules
• 90 dB Audible Alarm TA44 INCLUDES
TA44T Transmitter
R10 Receiver
®
Alarm Adjustment Range -40°F to 160°F (-40°C to 71°C)
Temperature Accuracy +/- 2°F (+/- 1°C )
Operating Temperature Range -10°F to 130°F (-23°C to 54°C)
Dimensions 4.9” X 3.1” X 1.5” (12.4cm x 7.9cm x 3.8cm)
Temperature Units °F or °C, user selectable
Power 12V adapter 120 VAC with 6’ cable
Remote Connections Screw type, 120 VAC, 5 AMPS
Remote Wireless Alarm Up to 500’ (150m) line of sight remote
wireless operation
TA44 Specifications
Operating Temperature -20°F to 160°F (-28°C to 70°C)
Range
Audible Alarm 110 dB
Dimensions 5” X 2.5” X 1.25”
(12.7cm x 6.35cm x 3.175cm)
Power 12V adapter 120 VAC
with 6’ cable
Remote Wireless Alarm Up to 500’ (150m) line of
sight remote wireless operation
R10 Specifications
Alarm Adjustment Range -40°F to 160°F (-40° to 71°C)
Temperature Accuracy +/- 2°F (+/- 1°C)
Alarm Channels 1
Probe Precision Thermistor with 6 ft. cable (# 21301)
Sensor Type Thermistor
Maximum Probe Extension 200 ft.
Unit Operating Temperature Range -10°F to 130°F (-23°C to 54°C)
Remote Alarm Connections Screw type,120VAC, 10 Amps.
Power 12 V Adapter 120 VAC with 6 ft. cable included
(220V available). 24 Hrs 9V Battery backup.
Case Hi-impact thermoplastic
Mounting Flat Surface, external holes provided
Dimensions 4.8” x 3.2” x 1.4” (12.2cm x 8.1cm x 3.6cm)
Warranty 1 year
Specifications
TA Series
Complete Line of Temperature Alarms
Protect All Your Temperature Sensitive Areas.
• Adjustable Alarm Temperature Ranges
• Audible dB and Visual Alarm
• Switch for “No Delay” or “1 Hour Delay”
• Built-In Terminals for Remote Alarm or Telephone
Dialer Connection (Except TA7)
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
21301 Probe
21387 10’ Probe Extension
21392 50’ Probe Extension
ADTA Phone Dialer
TA33 Accessories
R10 Remote Receiver
20540 Temperature Sensor
SW25 25’ Extension Wire
SW50 50’ Extension Wire
SW75 75’ Extension Wire
SW100 100’ Extension Wire
ADTA Phone Dialer
TA44 Accessories
TA33
Temperature Alarm With
Display & Battery Backup
e Battery Backup Allows Continuous Monitoring Even During Power Outages.
• Adjustable Range From -40°F to 160°F
(-40°C to 71°C)
• Backlit Display
• 90 dB Audible Alarm
Temperature Alarms & Controls
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
TA22
Single Set Point Temperature
Alarm with Digital Display
Easy to Read Display Shows Current Temperature,
Alarm Status, Over/Under Mode Indicator, Alarm Set
Point and Temperature (°F or °C)
• Adjustable Range From -40°F to 160°F
(-40°C to 71°C)
• Back Lit Display
• 90 dB Audible Alarm
Alarm Channels 1
Alarm Adjustment -40°F to 160°F
Range (-40°C to 71°C)
Probe Encapsulated Sensor
with 6 ft. cord (# 20540)
Sensor Type Thermistor
Maximum Probe 200 ft.
Extension
Temperature +/-2°F (+/-1°C)
Accuracy
Remote Alarm Screw Type, 120 VAC
Connections 5 Amp max
(dry contacts)
Power 115 VAC
(220V optional)
Case Hi-impact
thermoplastic
Mounting Surface, external
holes provided
Dimensions 3” x 5” x 1 1/2”
(76.2mm x 127mm x 38.1mm)
Weight 13 oz.
Warranty 1 year
Specifications
TA2
Single Set Point
Temperature Alarm
A Reliable, Inexpensive Alarm for Refrigerators and
Freezers. Just Flip a Switch to Activate on a Rise or
Fall in Temperature.
• Adjustable Range From -10°F to 80°F
(-25°C to 30°C)
• 90 dB Audible Alarm
PART NO. DESCRIPTION
TA22 120 VAC
TA22-220EU 220 VAC Europe
PART NO. DESCRIPTION
TA2 120 VAC Fahrenheit Model
TA2C 120 VAC Celsius Model
TA2-220 220 VAC Fahrenheit Model
TA2-220C 220 VAC Celsius Model
Alarm Channels 1
Alarm Adjustment -10°F to 80°F
Range (-25°C to 30°C)
Probe Encapsulated Sensor
with 6 ft. cord (# 20540)
Sensor Type Thermistor
Maximum Probe 200 ft.
Extension
Remote Alarm Screw Type, 120 VAC
Connections 5 Amp max
(dry contacts)
Power 115 VAC
(220V optional)
Case Hi-impact
thermoplastic
Mounting Surface, external
holes provided
Dimensions 3” x 4 7/8” x 1 5/8”
(76.2mm x 101.6mm x
25.4mm)
Weight 13 oz.
Warranty 1 year
Specifications
TA6
Dual Set Point
Temperature Alarm
Alarms on a Rise and Fall in Temperature.
• Adjustable Range From -10°F to 80°F
(-25°C to 30°C)
• 90 dB Audible Alarm
PART NO. DESCRIPTION
TA6 120 VAC Fahrenheit Model
TA6C 120 VAC Celsius Model
TA6-220 220 VAC Fahrenheit Model
TA6-220C 220 VAC Celsius Model
Alarm Channels 1
Alarm Adjustment -10°F to 80°F
Range (-25°C to 30°C)
Probe Encapsulated Sensor with 15 ft. cord (# 20540)
Sensor Type Thermistor
Maximum Probe 200 ft.
Extension
Remote Alarm Screw Type, 120 VAC
Connections 5 Amp max (dry contacts)
Power 115 VAC (220V optional)
Case Hi-impact
thermoplastic
Mounting Surface, adhesive pads/key hole slot
Dimensions 3” x 4 7/8” x 1 5/8”
(76.2mm x 101.6mm x 25.4mm)
Weight 13 oz.
Warranty 1 year
Specifications
121
122
Temperature Alarms & Controls
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
TA7
Battery Operated
Temperature Alarm
• For Sensitive Temperature Applications
in Remote Areas
• Alarms on Rise in Temperature Only
• Adjustable Range From -10°F to 80°F
(-25°C to 30°C)
• Battery Operated (9V)
PART NO. DESCRIPTION
TA7 Fahrenheit Model
TA7C Celsius Model
Alarm Channels 1
Alarm Adjustment -10°F to 80°F
Range (-25°C to 30°C)
Probe Encapsulated Sensor
with 6 ft. cord (# TAPROBE)
Sensor Type Thermistor
Maximum Probe 100 ft.
Extension
Remote Alarm None
Connections
Power 9 VAC alkaline
battery (not included)
Case Hi-impact
thermoplastic
Mounting Surface, external
holes provided
Dimensions 5 3/4” x 1 1/2” x 1”
(127mm x 38.1mm x
25.4mm)
Weight 5 oz.
Warranty 1 year
Specifications
TAP4
Four (4) Probe
Temperature Alarm
Set Alarms for 4 Separate Temperature
Applications. Provides a Quick Alert for a
Multitude of Temperature Problems.
• Adjustable Range From -40°F to 100°F
(-40°C to 38°C)
• 90 dB Audible Alarm
PART NO. DESCRIPTION
TAP4 -40°F to 60°F, 0°F to 100°F, 120V
TAP4-220 -40°F to 60°F, 0°F to 100°F, 220V
TAP4C -18°C to 38°C, -40°C to 16°C, 120V
TAP4C-220 -18°C to 38°C, -40°C to 16°C, 220V
Alarm Channels 4
Alarm Adjustment -40°F to 60°F, 0°F to 100°F
Range (-18°C to 38°C, -40°C to 16°C)
Probe Encapsulated Sensor
with 15 ft. cord (4 included)
Sensor Type Thermistor
Maximum Probe 300 ft.
Extension
Remote Alarm Terminal stop screw, connection
Connections 120 VAC, 5 Amp max (dry contacts)
Power 120 VAC or 220 VAC
power adapter supplied
Battery Backup 9V alkaline (not included)
Case NEMA 3 type
Dimensions 6” x 7 1/2” x 3”
(152.4mm x 190.5mm x
127mm)
Weight 1.9 lbs. (0.86 kg)
Warranty 1 year
Specifications
ADTA
Auto Dialer For
Temperature Alarms
Operates with All SUPCO® Temperature Alarms, except TA7.
• Call Up to 4 Telephone Numbers
• 16 Second Message
• Non-Volatile Memory for Numbers and
Voice Messages
• Internal 9V Back up Battery (not included)
• LCD Display
• 120V Power Adapter (included)
123
Temperature Alarms & Controls
T
E
S
T
I
N
S
T
R
U
M
E
N
T
S
PART NO. DESCRIPTION TA22 TA2 TA6 TA7 TAP4
SW25 25’ Extension Wire * * * * *
SW50 50’ Extension Wire * * * * *
SW75 75’ Extension Wire * * * * *
SW100 100’ Extension Wire * * * * *
11093 Replacement Sensor Old Style (red tip) * *
Temperature Alarm Specifications
PART NO. DESCRIPTION TA22 TA2 TA6 TA7 TAP4
TA7PROBE Probe w/ 4’ extension wire *
14265 Replacement Sensor *
USBS USB to Serial Interface *
ADTA Auto Dialer * * * *
14263 120 V Power Adapter
(Supplied) * * * *
20540 Replacement Sensor * * *
6’ new style metal tip
(after serial #) 405-099
412-029
THA2
Temperature Humidity Alarm
with Logging Capability
• Measures and Logs Temperature, Humidity, Dew Point
• Audible and Visual Alarms
• Digital Display
• Log Up to 170 Days of Data
• Relay Contacts for Remote Alarm or Auto Dialer
(ADTA)
Sensor Probe
Operating Temperature Range -40°F to 140°F (-40°C to 60°C)
Operating Humidity Range 0 to 90% RH, non condensing
Temperature Accuracy +/- 2°F (+/- 1°C)
Temperature Resolution 0.1°F or °C
Humidity Accuracy +/-2% RH
Humidity Resolution 0.1% RH
Calibration User calibration for Temperature and Humidity
Dimensions 3.8 inches length with a diameter of 1.1 inches
Weight 0.9 oz.
Cable Length 300 ft. maximum
Base Unit
Operating Temperature Range 32°F to 130°F (0°C to 54°C)
Storage Temperature 0°F to 130°F (-18°C to 54°C)
Operating Humidity 0% RH to 90% RH, non condensing*
Power Source 12V to 24 VAC/VDC, 0.78W alarm active
Battery Backup 9V alkaline battery for 35 hours operation during power outage
Clock Battery CR2032, 10 years typical
Relay N.O and N.C dry contact 5A 250V, resistive load
Dimensions 5.5” x 4.5” x 1.6”
Weight (without battery backup) 8.6 oz.
Alarm Specifications
Temperature Alarm High and Low Temperature and Humidity alarms. Condensation alarm
Alarm Delay User selectable, up to 2 hours
Alarm Indication Audio, Visual and a relay for remote alarm and phone dialer
Logging Specifications
Sample Rate 1 second to 30 minutes
Data History Storage 2 hours to 170 days, depending on the sample rate
Memory Capacity 8150 samples for Temperature, Humidity and Dew Point
Specifications
* The sensor probe is not designed for con-
tinuous exposure to high humidity or caustic
and or corrosive chemicals such as, but not
limited to, concrete or chlorine.
SW50
TA7PROBE
11093
14265
14263 20543
Accessories
• PC So ware Included
• Serial Port Connection
(for USB Connection Use
Optional USBS Adapter)
• Remote Sensor Up to 300 .
124
Tools
T
O
O
L
S
ATP1 Attic Pro®
Utility Lift
• Adjustable from 14” to 24”
• 20 . Cable Length
• Integrated Locking Hook
• Li s Up To 250 lbs.
• Sturdy Steel Construction
• Equipment Strap Included
• Carrying Case Included
FIM20
Flexible Inspection Mirror
• 20” Mirror
• Flexible to 75° Angle
• Polycarbonate Material
• Integrated Flashlight
• Ergonomic Handle
• Carrying Pouch Included
• 6 Per Display Case
Telescoping Mirrors
• Double Ball Joint Head Adjustment
• Extendable/Retractable Design
• Carrying Pouch Included
• Glass Mirrors
PART EXTENDED
NO. DESCRIPTION LENGTH
IM1 1.25” Round Glass Mirror, Pocket Clip 27”
IM2 1” x 2” Oval Glass Mirror, Pocket Clip 28”
IM3 2.25” Round Glass Mirror, Vinyl Grip Handle 14.5”
IM4 2.25” Round Magnifying Glass Mirror, 14.5”
Vinyl Grip Handle
IM5 2.25” x 3.25” Rectangular Glass Mirror, 15.5”
Vinyl Grip Handle
IMK3 Combination Tool, Pocket Clip 27”
Includes: Match Clip, Magnet,
2” Round Mirror & PVC Pouch
UFC1
Fin Comb
• Cleans and Straightens Fins for Better
Operating E ciency
FPT10, FPT13 & FPT15
Fin Jack
• Straightens and Separates Bent
Fins Quickly and Easily. One Tool
Can Be Used For Up To 3 Sizes Of Fins
PART NO. DESCRIPTION COLOR
FPT10 9 & 10 Fins per inch Black
FPT13 11, 12 & 13 Fins per inch Orange
FPT15 14, 15 & 16 Fins per inch Red
FCR6/FCRH6
Handy Ring Fin Comb Set
• Six of the Most Popular Fin Combs Covering Twelve
Di erent Size Fins on a Convenient Ring. Includes
FC0810, FC0915, FC1113, FC1214, FC1617 and FC1820
• FCH6 Includes All Above, But “FCH” Instead of “FC”
IM4 IM2
IM1 IM5
IM3 IMK3
Scan for ATP1 video
125
Tools
Fin Combs
• Straighten and Clean Evaporator and Condenser Fins
FINS PER
PART NO. INCH COLOR
FC0810 8 and 10 Orange
FC0915 9 and 15 Yellow
FC1113 11 and 13 Blue
FC1214 12 and 14 Green
FC1617 16 and 17 Lime
FC1820 18 and 20 Red
FC2224 22 and 24 Purple
PART NO. FINS PER INCH COLOR
FCH0810 8 and 10 Orange
FCH0915 9 and 15 Yellow
FCH1113 11 and 13 Blue
FCH1214 12 and 14 Green
FCH1617 16 and 17 Lime
FCH1820 18 and 20 Red
FCH2224 22 and 24 Purple
FL6N1
6 in 1 Flashlight
• 6 Distinct Functions
• 18 Powerful Ultra Bright White LEDs
• Red Laser Pointer
• 6 Pack Counter Display
• 18 Bright White LEDs Emergency Flasher
• 6 Powerful UV LEDs Reveal the Invisible
• Directional Compass Directional Compass
PL6
Stick light
• 6 Super Bright LEDs
• Long Life
• Pocket Clip
• Sold in 12-pack Counter Display
FLT3M
Telescoping LED Flashlight
• Multi-Function LED Flashlight
• 3 Super Bright LEDs with Handy
On/O Button
• Powerful Magnet on Grip Handle
& Light Tip
• Flexible Sha for Hard to Reach Places
• Extendable to 21” (53cm)
• 1.5” (3.81cm) Round Inspection
Mirror Attachment
• Pocket Clip for Secure Storage
• Batteries: 4-LR44 Included &
Installed in Light Tip
18 Bright White
LEDs 216,000 MCD 18 Bright White
LEDs in Flash Mode 6 UV LEDs
Reveal the Invisible
6 Green LEDs Help
Maintain Night Vision
Laser Travels
Over 450 Yards
Standard High Efficiency
T
O
O
L
S
126
UVL200
UV Leak Detection
Light & Glasses
• 9 LED Bulbs for High Intensity
• Impact Resistant Glasses
FP18
Filter Puller
Makes Getting to Hard-To-Reach Filters Easy!
• 18” Extension
• Magnetic Tip
• Ergonomic Handle
Tools
ESPRO1
Static Pro Wrist Strap
Dissipates Static During Electronic Repair and Maintenance
• Current Limiting Resistor
• Adjustable
GFK1
Grease Kit
• One Time Installation
• Provides Easy Access to Hard-To-Reach
Lubrication Points
• Makes Preventative Maintenance
(PM’s) Routine
• Eliminates Need for Cover Removal
and Equipment Disassembly
• Complete with 10’ High Pressure Tubing
and Required Fittings
• Tubing Rated -60°F to 200°F
TB123A
Spanner Wrench
• Wrench for Removing and Installing
Washer Tub Retainer Nut
• Approximately 14” L x 2 1/2” W x 3/8” H
SCWG3
Water Guard
• Fits Around Inlet Hose
• Starts Operation Immediately A er Installation
• Prevents and Removes Limestone
• Saves Energy and Water
• 3 Magnets Per Side
T
O
O
L
S
127
Tools
447
KD® Replacement Tips
for 445 & 446
145
KD® Hose Pinch Off Plier
3975
KD® Corbin Hose Clamp Plier
FBP100
Fan Blade puller
• Sturdy, Heavy Duty Steel
• 5/8” Steel Center Sha
• 4 Pull Fingers
• Alignment Tool Included
• Has Flats for Wrench
• Fine read Version Provides Additional
Torque & Pulling Power
446
KD® External Snap Ring Plier
445
KD® Internal Snap Ring Plier
SCWG4
Super Water Guard
• Fits Around Inlet Hose
• Starts Operation Immediately A er Installation
• Prevents and Removes Limestone
• Saves Energy and Water
• 4 Magnets Per Side
T
O
O
L
S
3793
2.5” OD Hose Pinch-Off Pliers
• Extra Long Cushioned Hand Grips for Comfort and Control
• Patented Clamping Mechanism Locks Automatically. No Screws or
Levers to Set or Adjust
• Black Oxide Coated to Resist Rust and Corrosion
128
Tools
SF4314
Tube Piercing Pliers Replacement Tip
• Auto Shut O
• Lbs/Kgs Switchable
• Max Weight Memory
• 9V Battery Included
TC2
Heavy Duty Tube Cutter
• For Clean Cuts in Hard or So Copper,
Aluminum, Brass, in Wall Steel and
Stainless Steel
• Rollers have Flared Cut O Groove
• Complete with Foldaway Reamer Blade and
Spare Cutting Wheel
• Cuts Tubes from 1/8” ru 1 1/8” O.D.
• Replacement Cutting Wheel P/N: TC2W
SF3970
Internal Temperature Reading Tool
Take Internal Temperatures of Refrigerant Lines Digitally
• Accurately Adjust Superheat
• Simple Instructions
• Inserts rough Access Fitting (supplied)
• Includes Core Removal Tool and Digital ermometer
DHS55
Digital Handheld Scale
is Compact Handheld Scale Provides Quick
Measurements for your Refrigeration Applications
• 55 lbs Max Scale
• 2% Accuracy
• One Button Operation
SF4311
“FasTap” Tube Piercing Pliers
• Fast Refrigerant Recovery: Just Clamp and Recover
• Tubing Sizes 1/4” to 7/8” O.D.
• Replaceable Self-Sharpening Tip
• Simple To Use
• Light Weight
CTP1
Capillary Tube Cutter
• 5” Stripper and Cutter. Fast, E cient and All Purpose
T
O
O
L
S
FP1
Faucet Pro
• For Easy Installation
• Slots Fit Most Hose Fittings
• Integrated Torque Ampli er
129
Tools
BJ10
Belt-Jack Instant Belt Tightener
Designed to Set Belt Tension and to Help Align Pulleys on All
Belt Driven Units Including Blower Motors, Compressors, Transmissions
and Automotive Components
• Opens from 4 1/2” to 15” with Extender
• Heavy Duty 3/8-16 read
TC103
Test Cord
• 6’ Length, Heavy Duty, 16 Gauge Wire
• Male Plug to Medium Duty Spring Clips
• 2 Wire, Black/Red
UW1
Universal Wrench
• Sizes from 1/4”, 5/16”, 11/32” and 3/8”
Air Conditioning &
Refrigeration Wrenches
RW516
PART NO. DESCRIPTION
RW516 1/4”- 3/16” Sq. x 3/8” – 5/16” Hex
RW916 1/4” - 3/16” Sq. x 1/2”– 9/16” Hex
RWA10 Hex adapter for refrigeration wrenches
RCB1
Refrigeration Coil Brush
• 27 1/2” Long
• 12” Brush Length
• 1 1/2” and 3/4” Bristle Length
FWB1
Fin Wisk Brush
• Long Lasting, Sturdy Bristle Design
HVT2
Safe-T-Tester Screwdriver
• 110-220 VAC
• Light in Handle Indicates Power
T
O
O
L
S
130
SR6N1
6 in 1 Ratchet Screwdriver
• Ratchet Action
• 3-Settings: Forward, Manual, Reverse
• Bit Sizes: Slotted 3/16” and 1/4”, Phillips #1 and #2,
Nut Driver 1/4” and 5/16”
• 12 Pack Counter Display
SAB454
Security Multi-Driver
• Features Extra-Long 3” Nosepiece Reaches
Even Recessed Fasteners
• Includes 14 Security Tips Plus 2 Standard Tips
on Eight 3” Long, Double-Ended Bits
• Countertop Display of 12
Hex Security 1/8”, 9/64”, 5/32”, 3/16”
Spanner 4, 6, 8, 10
Roberts Security 1, 2
Torx Security 10, 15, 20, 25
Phillips 2
Slot 7/32”
Bits Included
Tools
SAB233
Classic Multi-Driver
• Standard Size Driver. Replaces 16 of the Most
Frequently Used Bits
Hex Security 3/32”, 1/8”, 5/32”, 3/16”
Roberts Security 2, 3
Torx Security 15, 20, 25, 30
Phillips 0, 1, 2, 3
Slot 1/4”, 3/16”
Bits Included
SAB710
Ratio Multi-Driver
• Multi-Driver Replaces 16 Screwdrivers
• 4 to 1 Ratio Nosepiece Turns Four Times
with Each Turn of the Handle
• 1 to 1 Ratio Nosepiece Turns with the Handle
• Reversible Ratchet Changes Direction Quickly
with One Hand, Even During Use
• 8 Extra-Long (3”) Double-Ended Bits. Bits Stored in
the Handle and a 1/4” Nut Driver in the Nose
Hex Security 3/32”, 1/8”, 5/32”, 3/16”
Roberts Security 2, 3
Torx Security 15, 20, 25, 30
Phillips 0, 1, 2, 3
Slot 1/4”, 3/16”
Bits Included
DA86420
4 in 1 Multi-Socket
• Replaces the Four Most Common Nut Drivers
• SAE Socket Sizes 1/4”, 3/8”, 5/16”, 7/16”
• Telescoping Action Provides Two Socket Sizes at Each End
• High-Torque Grip Textured, Non-Slip Surface
• 12/Display Box
SBIT
Small Phillips/Slotted Replacement Bit
• SR6N1 Replacement Bit
LBIT
Large Phillips/Slotted Replacement Bit
• SR6N1 Replacement Bit
T
O
O
L
S
131
Tools
ELB721
Mini Cable Tie Gun
• e Right Cable Tie Gun for Small Jobs
• Compact Size Accommodates Plastic Cable
Ties up to 0.25” in Width
• Twist Cable Gun to Cut and Trim O Excess
Cable Tie Length
ELB701-L
Cable Splicing Knife
• Coping-Type Blade is Machined From Fine Cutlery Steel
• Non-Slip, Textured Rubberized Handle
• Heavy-Duty Leather Carrying Sheath Included
RC2108 & RC2110
Precision Adjustable Wrenches
• Oversized Jaw Opens 18% Wider than
Standard Wrenches
• Dual Calibrated Jaw
• Oversized Grip has Superior Balance to
Reduce Hand Fatigue
• Constructed of Heavy-Gauge, Industrial-Quality
Steel Insuring Durability
RC2108
DA76190
Dual Snap Ring Pliers
• Lighten Your Toolbox
• All-In-One Tool Removes Both Internal
and External Snap Rings
• Spring-Loaded Oversized Handle, Cushioned
for Comfortable Use
ELB320
Heavy Duty Pliers - 11” Extended
• Specialty Pliers, 11” Reach
• Professional Quality
• Two-Color Textured Handles
DA76070
2 in 1 Cutter/Stripper
• Cuts Wire with One End, Grabs and Strips Wire
with the Other
• Stripper Self-Adjusts to Wire; No Stripping Holes
• Cutting Head is Full-Flush Cutting and Low Pro le
with Stainless Steel, Induction-Hardened Jaws
T
O
O
L
S
132
Terminals & Connectors
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
Insulated Male Slip-Ons
WIRE TAB
PART NO. DESCRIPTION RANGE SIZE UOM
T2003 Pack of 20 pc. 16-14 .187 PK
T2003C Pack of 100 pc. 16-14 .187 PK
T1003 Pack of 20 pc. 16-14 .250 PK
T1003C Pack of 100 pc. 16-14 .250 PK
T1004 Pack of 15 pc. 12-10 .250 PK
T1004C Pack of 100 pc. 12-10 .250 PK
T1003 T1004
Non-Insulated Male Slip-Ons
WIRE TAB
PART NO. DESCRIPTION RANGE SIZE UOM
T1103 Pack of 20 pc. 16-14 .250 PK
T1103C Pack of 100 pc. 16-14 .250 PK
T1103
Insulated Female Slip-Ons
WIRE TAB
PART NO. DESCRIPTION RANGE SIZE UOM
T2004 Pack of 20 pc. 22-18 .250 PK
T2004C Pack of 100 pc. 22-18 .250 PK
T2002 Pack of 20 pc. 16-14 .187 PK
T2002C Pack of 100 pc. 16-14 .187 PK
T1002 Pack of 20 pc. 16-14 .250 PK
T1002C Pack of 100 pc. 16-14 .250 PK
T1001 Pack of 15 pc. 12-10 .250 PK
T1001C Pack of 100 pc. 12-10 .250 PK
T2004 T2002
T1002 T1001
Non-Insulated Female Slip-Ons
WIRE TAB
PART NO. DESCRIPTION RANGE SIZE UOM
T2001 Pack of 20 pc. 22-18 .110 PK
T2001C Pack of 100 pc. 22-18 .110 PK
T1105 Pack of 20 pc. 16-14 .187 PK
T1105C Pack of 100 pc. 16-14 .187 PK
T1102 Pack of 20 pc. 16-14 .250 PK
T1102C Pack of 100 pc. 16-14 .250 PK
T1107 Pack of 20 pc. 22-18 .110 PK
T1107C Pack of 100 pc. 22-18 .110 PK
T2001 T1105
T1107
Fully Insulated Female Slip-Ons
WIRE TAB
PART NO. DESCRIPTION RANGE SIZE UOM
T1007 Pack of 10 pc. 22-18 .250 PK
T1007C Pack of 100 pc. 22-18 .250 PK
T1005 Pack of 10 pc. 16-14 .250 PK
T1005C Pack of 100 pc. 16-14 .250 PK
T1009 Pack of 10 pc. 12-10 .250 PK
T1009C Pack of 100 pc. 12-10 .250 PK
T1007 T1005 T1009
Fully Insulated Male Slip-Ons
WIRE TAB
PART NO. DESCRIPTION RANGE SIZE UOM
T1006 Pack of 10 pc. 16-14 .250 PK
T1006C Pack of 100 pc. 16-14 .250 PK
T1010 Pack of 10 pc. 12-10 .250 PK
T1010C Pack of 100 pc. 12-10 .250 PK
T1006 T1010
133
Terminals & Connectors
Tap Connectors
WIRE ORDER
PART NO. DESCRIPTION RANGE UOM MULTIPLE
T1062 Pack of 10 pc. 16-14 PK 1
T1062C Pack of 100 pc. 16-14 PK 1
T1061 Pack of 10 pc. 22-18 PK 1
T1061C Pack of 100 pc. 22-18 PK 1
T1064 Pack of 5 pc. 12-10 PK 1
T1064C Pack of 100 pc. 12-10 PK 1
T1065 Pack of 10 pc. 18-14 PK 1
T1065C Pack of 100 pc. 18-14 PK 1
T1061T1064
Insulated Closed End Connectors
WIRE ORDER
PART NO. DESCRIPTION RANGE UOM MULTIPLE
T1056 Pack of 20 pc. 22-14 PK 1
T1056C Pack of 100 pc. 22-14 PK 1
T1057 Pack of 15 pc. 16-14 PK 1
T1057C Pack of 100 pc. 16-14 PK 1
T1058 Pack of 15 pc. 18-10 PK 1
T1058C Pack of 100 pc. 18-10 PK 1
T1059 Pack of 15 pc. NA PK 1
T1059C Pack of 100 pc. 8 PK 1
T1056 T1057
T1058
Insulated Tab Adapters - Piggy Back Slip-Ons
WIRE ORDER
PART NO. DESCRIPTION RANGE UOM MULTIPLE
T1027 Pack of 10 pc. 16-14 PK 1
T1027C Pack of 100 pc. 16-14 PK 1
T1028 Pack of 10 pc. 22-18 PK 1
T1028C Pack of 100 pc. 22-18 PK 1
T1029 Pack of 10 pc. 12-10 PK 1
T1029C Pack of 100 pc. 12-10 PK 1
T1027 T1028 T1029
non-Insulated Flag Female Slip-Ons
WIRE TAB ORDER
PART NO. DESCRIPTION RANGE SIZE UOM MULTIPLE
T1106 Pack of 20 pc. 16-14 .187 PK 1
T1106C Pack of 100 pc. 16-14 .187 PK 1
T1104 Pack of 20 pc. 16-14 .250 PK 1
T1104C Pack of 100 pc. 16-14 .250 PK 1
T1104
Flag Female Compressor Terminals
WIRE TAB ORDER
PART NO. DESCRIPTION RANGE SIZE UOM MULTIPLE
T1129 Pack of 10 pc. 12-8 .250 PK 1
T1129C Pack of 100 pc. 12-8 .250 PK 1
T1130 Pack of 10 pc. 16-14 .250 PK 1
T1130C Pack of 100 pc. 16-14 .250 PK 1
T1129 T1130
EC10
Compressor Lead Kit ORDER
PART NO. DESCRIPTION UOM MULTIPLE
EC10 Kit with 12” Wire EA 1
Kit Includes ree Leads:
• ree - 23”, 10 AWG Wires
• Flag Female Compressor Terminal (.250 tab)
• Waterproof Butt Connector (12-10 Wire Range)
• Sandpaper
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
134
Terminals & Connectors
Insulated Butt Connectors
WIRE ORDER
PART NO. DESCRIPTION RANGE UOM MULTIPLE
T1051 Pack of 20 pc. 22-18 PK 1
T1051C Pack of 100 pc. 22-18 PK 1
T1052 Pack of 20 pc. 16-14 PK 1
T1052C Pack of 100 pc. 16-14 PK 1
T1053 Pack of 15 pc. 12-10 PK 1
T1053C Pack of 100 pc. 12-10 PK 1 T1051 T1052 T1053
Non-Insulated Butt Connectors
WIRE ORDER
PART NO. DESCRIPTION RANGE UOM MULTIPLE
T2112 Pack of 20 pc. 12-10 PK 1
T2112C Pack of 100 pc. 12-10 PK 1
T1119 Pack of 20 pc. 22-18 PK 1
T1119C Pack of 100 pc. 22-18 PK 1
T2111 Pack of 20 pc. 16-14 PK 1
T2111C Pack of 100 pc. 16-14 PK 1
T2067 Pack of 20 pc. #8 PK 1
T2067C Pack of 100 pc. #8 PK 1
T2068 Pack of 20 pc. #6 PK 1
T2068C Pack of 100 pc. #6 PK 1
T1119 T2111
T2067 T2068
Insulated Spades
WIRE ORDER
PART NO. DESCRIPTION RANGE STUD UOM MULTIPLE
T1047 Pack of 20 pc. 22-18 #8 PK 1
T1047C Pack of 100 pc. 22-18 #8 PK 1
T1048 Pack of 20 pc. 16-14 #10 PK 1
T1048C Pack of 100 pc. 16-14 #10 PK 1
T1049 Pack of 15 pc. 12-10 #10 PK 1
T1049C Pack of 100 pc. 12-10 #10 PK 1
T1050 Pack of 15 pc. 12-10 #8 PK 1
T1050C Pack of 100 pc. 12-10 #8 PK 1
T1048
T1050
Non-Insulated Spades
WIRE ORDER
PART NO. DESCRIPTION RANGE STUD UOM MULTIPLE
T1145 Pack of 10 pc. 22-18 #10 PK 1
T1145C Pack of 100 pc. 22-18 #10 PK 1
T1146 Pack of 10 pc. 16-14 #10 PK 1
T1146C Pack of 100 pc. 16-14 #10 PK 1
T1147 Pack of 10 pc. 12-10 #10 PK 1
T1147C Pack of 100 pc. 12-10 #10 PK 1
T1145 T1146 T1147
Insulated Flange Spades
WIRE ORDER
PART NO. DESCRIPTION RANGE STUD UOM MULTIPLE
T1042 Pack of 20 pc. 22-18 #8 PK 1
T1042C Pack of 100 pc. 22-18 #8 PK 1
T1043 Pack of 20 pc. 16-14 #8 PK 1
T1043C Pack of 100 pc. 16-14 #8 PK 1
T1044 Pack of 20 pc. 16-14 #10 PK 1
T1044C Pack of 100 pc. 16-14 #10 PK 1
T1046 Pack of 15 pc. 12-10 #10 PK 1
T1046C Pack of 100 pc. 12-10 #10 PK 1
T1042 T1043
T1044
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
135
Terminals & Connectors
Non-Insulated Flange Spades
WIRE ORDER
PART NO. DESCRIPTION RANGE STUD UOM MULTIPLE
T1141 Pack of 20 pc. 22-18 #8 PK 1
T1141C Pack of 100 pc. 22-18 #8 PK 1
T1142 Pack of 20 pc. 22-18 #10 PK 1
T1142C Pack of 100 pc. 22-18 #10 PK 1
T1143 Pack of 20 pc. 16-14 #8 PK 1
T1143C Pack of 100 pc. 16-14 #8 PK 1
T1144 Pack of 20 pc. 16-14 #10 PK 1
T1144C Pack of 100 pc. 16-14 #10 PK 1
T1141 T1142
T1143 T1144
Insulated Rings
WIRE ORDER
PART NO. DESCRIPTION RANGE STUD UOM MULTIPLE
T1030 Pack of 10 pc. 22-18 #6 PK 1
T1030C Pack of 100 pc. 22-18 #6 PK 1
T1031 Pack of 20 pc. 22-18 #8 PK 1
T1031C Pack of 100 pc. 22-18 #8 PK 1
T2033 Pack of 20 pc. 16-14 #6 PK 1
T2033C Pack of 100 pc. 16-14 #6 PK 1
T1032 Pack of 20 pc. 22-18 #10 PK 1
T1032C Pack of 100 pc. 22-18 #10 PK 1
T1033 Pack of 20 pc. 16-14 #8 PK 1
T1033C Pack of 100 pc. 16-14 #8 PK 1
T1034 Pack of 20 pc. 16-14 #10 PK 1
T1034C Pack of 100 pc. 16-14 #10 PK 1
T1035 Pack of 15 pc. 16-14 1/4” PK 1
T1035C Pack of 100 pc. 16-14 1/4” PK 1
T1039 Pack of 15 pc. 16-14 3/8” PK 1
T1039C Pack of 100 pc. 16-14 3/8” PK 1
T1036 Pack of 15 pc. 12-10 #8 PK 1
T1036C Pack of 100 pc. 12-10 #8 PK 1
T1037 Pack of 15 pc. 12-10 #10 PK 1
T1037C Pack of 100 pc. 12-10 #10 PK 1
T1038 Pack of 15 pc. 12-10 1/4” PK 1
T1038C Pack of 100 pc. 12-10 1/4” PK 1
T1040 Pack of 15 pc. 12-10 3/8” PK 1
T1040C Pack of 100 pc. 12-10 3/8” PK 1
T2065 Pack of 15 pc. 8 1/4” PK 1
T2065C Pack of 100 pc. 8 1/4” PK 1
T2066 Pack of 15 pc. 6 1/4” PK 1
T2066C Pack of 100 pc. 6 1/4” PK 1
T1030 T1031 T2033 T1032
T1033 T1034 T1035 T1039
T1036 T1037 T1038 T1040
T2066
Non-Insulated Rings
WIRE ORDER
PART NO. DESCRIPTION RANGE STUD UOM MULTIPLE
T1131 Pack of 10 pc. 22-18 #8 PK 1
T1131C Pack of 100 pc. 22-18 #8 PK 1
T1133 Pack of 20 pc. 16-14 #8 PK 1
T1133C Pack of 100 pc. 16-14 #8 PK 1
T1134 Pack of 20 pc. 16-14 #10 PK 1
T1134C Pack of 100 pc. 16-14 #10 PK 1
T1135 Pack of 20 pc. 16-14 1/4” PK 1
T1135C Pack of 100 pc. 16-14 1/4” PK 1
T1136 Pack of 20 pc. 12-10 #8 PK 1
T1136C Pack of 100 pc. 12-10 #8 PK 1
T1137 Pack of 20 pc. 12-10 #10 PK 1
T1137C Pack of 100 pc. 12-10 #10 PK 1
T1138 Pack of 15 pc. 12-10 1/4” PK 1
T1138C Pack of 100 pc. 12-10 1/4” PK 1
T1135
T1136
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
136
Terminals & Connectors
High Temperature Female Slip-Ons
WIRE TAB ORDER
PART NO. DESCRIPTION RANGE SIZE UOM MULTIPLE
T1111 Pack of 20 pc. 16-14 .250 PK 1
T1111C Pack of 100 pc. 16-14 .250 PK 1
T1112 Pack of 15 pc. 12-10 .250 PK 1
T1112C Pack of 100 pc. 12-10 .250 PK 1 T1111 T1112
High Temperature Flag Female Slip-Ons
WIRE TAB ORDER
PART NO. DESCRIPTION RANGE SIZE UOM MULTIPLE
T1113 Pack of 20 pc. 16-14 .250 PK 1
T1113C Pack of 100 pc. 16-14 .250 PK 1
T1114 Pack of 20 pc. 12-10 .250 PK 1
T1114C Pack of 100 pc. 12-10 .250 PK 1 T1113 T1114
High Temperature Rings
WIRE ORDER
PART NO. DESCRIPTION RANGE STUD UOM MULTIPLE
T1115 Pack of 20 pc. 16-14 #10 PK 1
T1115C Pack of 100 pc. 16-14 #10 PK 1
T1116 Pack of 20 pc. 16-14 1/4” PK 1
T1116C Pack of 100 pc. 16-14 1/4” PK 1
T1117 Pack of 20 pc. 12-10 #10 PK 1
T1117C Pack of 100 pc. 12-10 #10 PK 1
T1118 Pack of 15 pc. 12-10 1/4” PK 1
T1118C Pack of 100 pc. 12-10 1/4” PK 1
T1115 T1116
T1117 T1118
Non-Insulated Receptacles
WIRE ORDER
PART NO. DESCRIPTION RANGE UOM MULTIPLE
T1110 Pack of 20 pc. 16-14 PK 1
T1110C Pack of 100 pc. 16-14 PK 1
T1110
Tab Adapters - Single Female - Double Male
TAB ORDER
PART NO. DESCRIPTION SIZE UOM MULTIPLE
T1122 Pack of 10 pc. .250 PK 1
T1122C Pack of 100 pc. .250 PK 1
T1125 Pack of 10 pc. .250 PK 1
T1125C Pack of 100 pc. .250 PK 1 T1122 T1125
Tab Adapters - Male Tabs
TAB ORDER
PART NO. DESCRIPTION SIZE STUD UOM MULTIPLE
T1123 Pack of 10 pc. .250 #10 PK 1
T1123C Pack of 100 pc. .250 #10 PK 1
T1123
Tab Adapters - Quick Disconnect with Screw
TAB ORDER
PART NO. DESCRIPTION SIZE SCREW UOM MULTIPLE
T1124 Pack of 10 pc. .250 #6 PK 1
T1124C Pack of 100 pc. .250 #6 PK 1
T1124
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
137
Terminals & Connectors
Chair Terminals
TAB ORDER
PART NO. DESCRIPTION SIZE UOM MULTIPLE
T1121 Pack of 10 pc. .250, 2 Male x 1 Female QC PK 1
T1121C Pack of 100 pc. .250, 2 Male x 1 Female QC PK 1
T1121
Quick Disconnects - Insulated Round
TAB ORDER
PART NO. DESCRIPTION SIZE UOM MULTIPLE
T1021 Pack of 10 pc. .250, Double Male Tab PK 1
T1021C Pack of 100 pc. .250, Double Male Tab PK 1
T1021
Quick Disconnects - Insulated Square
TAB ORDER
PART NO. DESCRIPTION SIZE UOM MULTIPLE
T1022 Pack of 10 pc. .250, Double Male Tab PK 1
T1022C Pack of 100 pc. .250, Double Male Tab PK 1
T1022
Quick Disconnects - Insulated
TAB ORDER
PART NO. DESCRIPTION SIZE UOM MULTIPLE
T1023 Pack of 10 pc. .250, Triple Male Tab PK 1
T1023C Pack of 100 pc. .250, Triple Male Tab PK 1
T1023
Quick Disconnects - Non-Insulated
WIRE TAB ORDER
PART NO. DESCRIPTION RANGE SIZE UOM MULTIPLE
T1108 Pack of 20 pc. Bullet Male 16-14 .157 PK 1
T1108C Pack of 100 pc. Bullet Male 16-14 .157 PK 1
T1108
Quick Disconnects - Non-Insulated
WIRE TAB ORDER
PART NO. DESCRIPTION RANGE SIZE UOM MULTIPLE
T1109 Pack of 20 pc. Female Tab w/ Crimp 16-14 .250 PK 1
T1109C Pack of 100 pc. Female Tab w/ Crimp 16-14 .250 PK 1
T1109
Quick Disconnects - Non-Insulated
WIRE TAB ORDER
PART NO. DESCRIPTION RANGE SIZE UOM MULTIPLE
T1120 Pack of 10 pc. Female Tab w/ Crimp 16-14 .312 PK 1
T1120C Pack of 100 pc. Female Tab w/ Crimp 16-14 .312 PK 1
T1120
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
138
Terminals & Connectors
Wire Connectors - Plastic
ORDER
PART NO. DESCRIPTION UOM MULTIPLE
T1150 Pack of 20 pc., Small Blue w/ Spring Insert PK 1
T1150C Pack of 100 pc., Small Blue w/ Spring Insert PK 1
T1151 Pack of 15 pc., Medium Orange w/ Spring Insert PK 1
T1151C Pack of 100 pc., Medium Orange w/ Spring Insert PK 1
T1152 Pack of 15 pc., Large Yellow w/ Spring Insert PK 1
T1152C Pack of 100 pc., Large Yellow w/ Spring Insert PK 1
T1153 Pack of 10 pc., Extra Large Red w/ Spring Insert PK 1
T1153C Pack of 100 pc., Extra Large Red w/ Spring Insert PK 1
T1150 T1151
T1152 T1153
Wire Connectors - Porcelain High
Temperature (Up To 1800®F)
GAUGE ORDER
PART NO. DESCRIPTION (AWG) STUD UOM MULTIPLE
T1164 Pack of 15 pc. 18-14 #1 PK 1
T1164C Pack of 100 pc. 18-14 #1 PK 1
T1165 Pack of 15 pc. 12-10 #3 PK 1
T1165C Pack of 100 pc. 12-10 #3 PK 1
T2070 Pack of 10 pc. 10-8 #7 PK 1
T2070C Pack of 100 pc. 10-8 #7 PK 1
T1164 T1165
T2070
Wire Connectors - Scotchlok® Spring
ORDER
PART NO. DESCRIPTION UOM MULTIPLE
T1166 Pack of 15 pc., Small Yellow Spring PK 1
T1166C Pack of 100 pc., Small Yellow Spring PK 1
T1167 Pack of 10 pc., Medium Red Spring PK 1
T1167C Pack of 100 pc., Medium Red Spring PK 1
T1168 Pack of 5 pc., Large Grey Spring PK 1
T1168L Pack of 50 pc., Large Grey Spring PK 1
T1169 Pack of 5 pc., Extra Large Blue Spring PK 1
T1169L Pack of 50 pc., Extra Large Blue Spring PK 1
T1166 T1167
T1168 T1169
Banana Plug - Includes Black & Red Insulators
PART NO. DESCRIPTION
T1179 1 Pair
Heavy Duty Alligator Clips
ORDER
PART NO. DESCRIPTION UOM MULTIPLE
T1186 Small, Includes Black and Red Insulators PK 1
T1187 Medium, Includes Black and Red Insulators PK 1
T1188 Large, Includes Black and Red Insulators PK 1
T1186
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
139
Terminals & Connectors
Alligator Clips - Standard
ORDER
PART NO. DESCRIPTION UOM MULTIPLE
T1191 Small PK 1
T1192 Medium PK 1
T1193 Medium, For Use with Test Leads PK 1
T1196 Small, Includes Black and Red Insulators PK 1
T1197 Medium, Includes Black and Red Insulators PK 1
T1191
T1193 T1196
Cable Clamps, Grommets,
Heat Shrink Tubing, Cable & Duct Ties
Available in Two Convenient Packages:
• e Service Pack - Handy and Low Priced, Ideal for Small Jobs
• e C Pack (Bag) - Includes 100 Pieces
Nylon Cable Clamps
PART NO. DESCRIPTION SIZE
SWC02 Pack of 40 pc. .125”
SWC03 Pack of 40 pc. .187”
SWC04 Pack of 35 pc. .250”
SWC05 Pack of 35 pc. .3125”
SWC06 Pack of 30 pc. .375”
SWC08 Pack of 25 pc. .500”
SWC110 Pack of 20 pc. 5/8”
SWC112 Pack of 15 pc. 3/4”
SWC116 Pack of 14 pc. 1”
SWCA1 Pack of 26 pc. 1/8” to 1”
SWC03 SWC08 SWC110
Vinyl Grommets
PART NO. DESCRIPTION SIZE
SGV04 Pack of 18 pc. .250”
SGV05 Pack of 15 pc. .3125”
SGV06 Pack of 13 pc. .375”
SGV07 Pack of 12 pc. .437”
SGV08 Pack of 12 pc. .500”
SGV10 Pack of 7 pc. .625”
SGV14 Pack of 4 pc. 7/8”
SGV16 Pack of 4 pc. 1”
SGVA1 Pack of 15 pc. Assorted Small
SGVA2 Pack of 5 pc. Assorted Large
SGV05 SGV08 SGV14
SGV07
Heat Shrink Tubing - Polyolefin 50% Shrink
PART NO. DESCRIPTION SIZE
SHS03 Pack of 8 pc. 3/16” ID x 4”
SHS04 Pack of 7 pc. 1/4” ID x 4”
SHS06 Pack of 6 Pc. 3/8” ID x 4”
SHS08 Pack of 5 pc. 1/2” ID x 4”
SHS012 Pack of 4 pc. 3/4” ID x 4”
SHS16 Pack of 3 pc. 1” ID x 4”
SHSA1 Pack of 7 pc. 3/16”, 1/4”, 3/8” x 4”
SHSA2 Pack of 4 pc. 1/2”, 3/4”, 1” x 4”
SHS03 SHS16 SHSA1
T1192
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
140
Cable Clamps, Grommets,
Heat Shrink Tubing, Cable & Duct Ties
Nylon Cable Ties - White
PART NO. DESCRIPTION SIZE
SWT04 Pack of 40 pc. 3- 3/4” Max, Bundle Size 3/4”
SWT04C Pack of 100 pc. 3- 3/4” Max, Bundle Size 3/4”
SWT05 Pack of 35 pc. 5- 1/2” Max, Bundle Size 1- 1/4”
SWT05C Pack of 100 pc. 5- 1/2” Max, Bundle Size 1- 1/4”
SWT07 Pack of 30 pc. 7” Max, Bundle Size 2- 1/8”
SWT07C Pack of 100 pc. 7” Max, Bundle Size 2- 1/8”
SWT11 Pack of 15 pc. 11” Max, Bundle Size 3”
SWT11C Pack of 100 pc. 11” Max, Bundle Size 3”
SWT15 Pack of 12 pc. 14” Max, Bundle Size 3- 5/8”
SWT15C Pack of 100 pc. 14” Max, Bundle Size 3- 5/8’
SWTA1 Pack of 30 pc. 4”, 7” and 11” Assorted
Nylon Cable Ties - Screw Mount
PART NO. DESCRIPTION SIZE
SWTM05 Pack of 13 pc. 5- 1/2” Max, Bundle Size 1- 1/4”
SWTM05C Pack of 100 pc. 5- 1/2” Max, Bundle Size 1- 1/4”
SWTM07 Pack of 11 pc. 6- 3/4” Max, Bundle Size 2- 1/8”
SWTM07C Pack of 100 pc. 6- 3/4” Max, Bundle Size 2- 1/8”
SWTM11 Pack of 6 pc. 11” Max, Bundle Size 3”
SWTM11C Pack of 100 pc. 11” Max, Bundle Size 3”
SWTM14 Pack of 5 pc. 14” Max, Bundle Size 4”
SWTM14C Pack of 100 pc. 14” Max, Bundle Size 4”
Duct Ties
PART NO. DESCRIPTION
S7P24 Pack of 50 pc. Duct Tie 24”, Fits 6” Duct, 175 lb. Tensile
S7P36 Pack of 50 pc. Duct Tie 36”, Fits 10” Duct, 175 lb. Tensile
S7P48 Pack of 50 pc. Duct Tie 48”, Fits 14” Duct, 175 b. Tensile
T
E
R
M
I
N
A
L
S
&
C
O
N
N
E
C
T
O
R
S
141
Chemicals
MO98
Zoom Spout® Oiler
A Para n Based, Non-Gumming, High Quality Lubricating Oil
• All-Purpose Lubricating Oil
• Flexible Spout Extends and Retracts, Adjusts to Any
“In-Between” Length
• Withstands High Temperatures Without Breaking Down
• Viscosity 92-99 @ 140°F
• 4 oz. Bottle
• 12 Per Case
MO44
Rust Buster® Solvent
Dissolves Rust
• Telescoping Pullout Spout
• Loosens Rust in Seconds
• No Lingering Odor
• Counter Display Case
• 4 oz. Bottle
• 12 Per Case
S8
SUPCO88 Oil Additive
Introduced in 1954 and Valued Worldwide, this Super Lubricant is
a “Must Use” in Repair and Preventative Maintenance Programs
• Compatible with ALL Refrigerant Oils
• Dissolves Sludge Buildup on Bearing and Valve Surfaces
• Prevents Binding of High Speed Compressors
• Prevents Excess Wear in Motors and Compressors
• 8 oz. Bottle
• 24 Per Case To Prevent Excess Wear on Expansion Valves and Capillaries Mix 1 Part SUPCO88 to 9 Parts Refrigeration Oil.
• Prevents Excess Wear on Expansion Valve Needles and Seats
• Penetrates the Pores of ALL Moving Metal Parts of the Expansion Valve for Constant Lubrication
Extend the Life of ALL Motors (i.e, for blowers and air conditioners)
• A Few Drops Will Help Free a “Frozen” or Sticking Motor Shaft
• Mix 9 to One for Regular Bearing Maintenance
• Decreases “Bearing to Shaft” Friction and Sludge Accumulation when Mixed 9 to 1
More Efficiency for High Speed Compressors
• Increases the Lubricating Capability of Mineral Oils in High Speed Compressors
• Used in New Units to Reduce Current Draw by Reducing Friction and Preventing Overloading
• SUPCO88 Can be Left in the System Permanently
Application Notes
S132
Sil Glyde
Long Lasting, High Film Strength Lubricant for All Surfaces Including
Rubber, Metal, Wood and Glass.
• Weatherproof
• -20°F to 600°F Range
• 12-1.5 oz. Tubes/Case
C
H
E
M
I
C
A
L
S
142
Chemicals
HS52200
Green Pantabs
Economical Condensate Drain Pan Treatment
• Helps Eliminate Odors
• Prevent Over ows & Water Damage
• Non-Corrosive
• Easy to Install
• Cleans Scale & Sludge
• Non-Toxic
• Acceptable for Computer Room Use
• Suitable for Use in Humidi ers
• Ideal for Fan Coils and Window Units
• Great for Refrigerated Food Cases
• Use 2 to 4 Tablets Per Month for Every 1
Ton of Air Conditioning/Refrigeration
SO100/ST200
Slimeout® Condensate Pan
Conditioning Tablets
• Prevent Plugging of the Air Conditioning
Condensate Drip Pans and Drain Lines
• Does Not Release Any Chlorine or Other
Noxious Fumes
• Eliminates Odors
• Easily Solves Problems
PART NO. PART NO.
SO100 ST200
Description Slime Out Slime Tab
Tablets Per Jar 100 200
Tablet Size 35 grams 20 grams
Initial Application 2 tabs/3 tons 3 tabs/3 tons
Maintenance 2 per month 3 per month
HS60002
R3 AC Leak Repair
Quick Service Kit
• All-In-One
- Quick Sealing Small
Leak Repair
- Lubricator
- UV Dye to Reveal Larger Leaks
Needing Repair
• Extends System Life and
Quiets Noisy Compressor
• Seals Existing Leaks in Condensers,
Evaporators, Hoses, Gaskets and O-Rings
• Renews O-Ring and Seal Elasticity
• Lubricates Moving Metal Parts
• Prevents Future Leaks
• Re lls Available (HS60022)
• Includes 2 Preloaded Injectors
R3 Quantity Chart for System Injection
One injector unit contains 2 oz. (59ml) of R3
INJECTOR
TONS UNIT(S) (2 OZ.)
1-6 1
7-12 2
13-19 3
20-26 4
Residential AC
*For Automotive Use: Remove 1 oz. of oil from system and
replace with 1 oz. of R3. 1/2 injector unit.
Will R3-AC LEAK REPAIR fix my leak?
In general, R3 is designed to seal an AC system that has slow leaks and
loses refrigerant over time. Maximum leak size approximately 0.50 mm.
The system must be able to hold a vacuum on the low side for 15 minutes,
at a minimum. If the vacuum leaks out or changes, the hole is too large to
be sealed and mechanical repairs may be needed.
R3-AC Leak Repair® Extends system life and quiets a noisy
compressor. It improves system lubrication up to 1200% and reduces
energy consumption. It also improves the efficiency of older AC systems.
REPAIR • RESTORE • REVEAL
HS60022
C
H
E
M
I
C
A
L
S
143
Chemicals
HS17002
Thawzone® Quick Service Kit
Frees a Frozen System
• e Original Liquid Dehydrant for Control of
Moisture in Refrigeration Systems
• Compatible with All Refrigerants and Lubricants
• Aids with Oil Return in Low Temperature Systems
• Enhanced Moisture Control in Even the Most
Advanced Systems
• Helps Prevent the Formation of Acid
• Re lls Available (HS17022)
HS18002
Acid Neutralizer Quick Service Kit
Keeps the Acid Away
• No Solids or Solid Residuals
• Easy to Use, No Complicated Charts
• Compatible with ALL Refrigerants and Lubricants
• Neutralizes Acid in Recovery Equipment
• Safe, Will Not Harm System Components
• Re lls Available (HS18022)
HS21002
Trace 2® Quick Service Kit
Internal Refrigerant Leak Detector
• Works Under ALL Conditions
• Not A ected by Noise or Wind
• Visible in Bright Light
• Visible Under Ultraviolet Light
• For Refrigeration, Air Conditioning
and Hydraulic Systems
• Re lls Available (HS21022)
HS32098
HVAC Super Pro
Perfect Solution for Bonding Copper, Aluminum and
Brass in Any Combination
• Bonds Dissimilar Metals
• Compatible with ALL Refrigerants
• Formulated to Exceed all Requirements for R-410A
Refrigerant and POE Oils
• Vibration Tested for HVAC and Refrigeration Applications
• Maximum Pressure > 850 psi
• Bonds in 3-5 Minutes
• 1 Bottle = 200 Bonds (5/8” Tube)
• Non-toxic
• Sold in Display Case (12/case)
HS17022
HS18022
HS21022
Scan for the HS32098 video
C
H
E
M
I
C
A
L
S
144
Chemicals
HS32032
Instant HVAC/R Patch
A Space-Age Bonding System that Seals Holes, Cracks and Leaks
• Repairs are Made in a Minute
• Safe to Use with ALL Refrigerants
• Rated at 350 psi, 200°F
• Should Only be Used on the Low
Pressure Side of Systems
• Non-toxic
• Available 12/Case
HS31032
Heat Shield Gel
• Protects Heat-Sensitive Components
• Prevents Heat Damage with No Drip, No Clean up
• Non-corrosive, Non-toxic and Non-staining
• Evaporates Within 24-48 Hours
• For Use on All Surfaces, Including Wood, Insulation,
Valves, Piping and Drywall
• Available 12/Case
Leak Lock and
Leak Lock Gold with Teflon
Resin Based So Setting Brushable Paste Pipe Joint Compound
Resistant to All Refrigerants, Oils, Water and Most Chemicals,
Liquids and Gases.
• Use with Pressures to 10,000 psi to Full Vacuums
• Temperature Range -200°F to 400°F (-93°C to 204°C)
• It Never Hardens and it Never Becomes Brittle
• Ideal for Joining all Metals, Plastics and Other Materials
• Will Stick to All Clean Surfaces
• Guarantees a Perfect Seal Under All Conditions
• Prevent Vibration From Loosening Nuts, Bolts,
Plugs and Fittings
• Non-toxic
PART
NO. SIZE PKG
HS10001 1-1/3 oz. Tube 12/Case
HS10004 4 oz. Brush Top Plastic Jar 12/Case
HS10016 16 oz. Brush Top Plastic Jar 12/Case
HS10128 1 Gallon Can 1
PART
NO. SIZE PKG
HS11001 1-1/3 oz. Tube 12/Case
HS11004 4 oz. Brush Top Plastic Jar 12/Case
HS11016 16 oz. Brush Top Plastic Jar 12/Case
HS11128 1 Gallon Can 1
Leak Lock Leak Lock Gold with Teflon
Scan for the HS32032 video
C
H
E
M
I
C
A
L
S
145
Chemicals
HS12001
Red Epoxy
When You Need a Sealant You Can Count On. High Performance,
Heat Cured, Two Part Epoxy Kit
• Exhibits a Color Change When Cured (Turns Gold)
• May be Cured with a Hot Air Gun or Open Flame in Minutes
• -100°F to 300°F (-73°C to 149°C)
• Working Pressure in Excess of 3000 psi
• Tensile Strength: 6000 psi
• Works on Vertical Surfaces
• Pressure Tested to 3000 psi
• Simple, Quick Mixing Application
• Oil, Gas, Fuel & Solvent Resistant
• No Rush, No Wait, You Control Curing Time
• Kit Includes 2-1/2 oz. Tubes
• 12/Case
HS30004 & HS30016
Solderlene
High Quality, Paste Type, Non-Acid Soldering Flux
• Industrial Strength Wetting Agents to Promote
Solder Flow
• For Use with Low and Mid-Temp So Solders,
Both Lead and Lead-Free
• E ective on All Metals Except Aluminum
and Magnesium
• Brush Top Plastic Jars
PART
NO. SIZE PKG
HS30004 4 oz. 12/Case
HS30016 16 oz. 12/Case
Thawzone®
• Enhanced Moisture Control in Even
the Most Advanced Systems
• Aids with Oil Return in Low Temperature
Systems
• Compatible with ALL Refrigerants and
Refrigeration Lubricants
• Helps Prevent the Formation of Acid
• No Methanol
• Environmentally Sound
PART
NO. SIZE PKG
HS17001 1 oz. 24/Case
HS17004 4 oz. 12/Case
HS17016 16 oz. 6/Case
HS13001
Threadlocker
Prevents Loosening Nuts, Bolts, Brushings, Plugs and
Fittings From Shock and Vibration
• Use on All Metals and Rigid Plastics
• Disassembles with Standard Hand Tools
• Excellent for Use with Dissimilar Metals
and Materials
• Single Component - Easy To Use
• Helps Prevent Rust and Other Corrosion
• Use on a Wide Range of Fastener Types
and Sizes
• Non-toxic
• Lower Cost than Mechanical Fastener
C
H
E
M
I
C
A
L
S
146
Chemicals
HSUVB001
Spiro Lite UV Bulb
• 120 Volt Fluorescent UV Light Source For
Your Light Trouble
HSINJ001
Highside® System Injector
Use For Introducing Any Liquid Into the Low Side of a
Chemical Hermetic System
• Entirely Reusable
• Constructed of Rugged Aluminum for Long Life
• Designed For Use with Any Standard Manifold
Gauge and Requires No Extra Valves or Fittings
• Drip Proof, No Spill Design Takes the Mess Out
of the Atmosphere
Gas Leak Detector Low Temp
Leaks Appear as Large Strong Bubbles Which Cling to
the Surface and are Fluorescent Under a Black Light
• Non-freezing
• Fluorescent
• Rated to -30°F (-34°C)
• Non-toxic
• Non-hazardous
• Bubble-type Gas Leak Detector
• Use on Hot and Cold Piping, Natural Gas,
Most Gases, Air, All Refrigerants
Gas Leak Detector Mid Temp
Same as Above Except:
• Rated to 27°F (-3°C)
PART NO.
LOW TEMP SIZE TYPE PKG
HS22008 8 oz Plastic Bottle w/Dauber 24/Case
HS22032 32 oz Trigger Sprayer Bottle 12/Case
HS22128 1 Gal. Plastic Bottle 6/Case
MID TEMP
HS23008 8 oz Plastic bottle w/Dauber 24/Case
HS23032 32 oz Trigger Sprayer Bottle 12/Case
HS23128 1 Gal. Plastic Bottle 6/Case
Trace2
A Red Penetrant Dye in a Polyolester Base that is Completely
Compatible with All Refrigerants and Lubricants, Old and New.
Use to Locate the Hardest to Find Leaks Under the Toughest
Conditions in Low Light or Dark Areas
• Leaks Show as Bright Red Stains
• For Refrigeration and Hydraulic Systems
• Fluorescent with Any Ultraviolet Light Source
• Non-volatile and Will Not Sludge or Deposit Gum
• Clearly Visible, Even rough Ice and Frost
• Locates Leaks Exactly, No False Positives
• Use 1/8 Ounce Per Pound of Refrigerant
Trace
A Red Penetrant Dye in a Mineral Oil Base that is
Completely Harmless to Refrigeration, Air
Conditioning and Hydraulic Equipment
• Prevents the Introduction of Air Into
an Operating System
• Can be Used on Sealed Operating
Systems to Avoid Shutdowns
• Use with Trace, Trace 2, awzone
and Acid Neutralizer
• Compatible with All Refrigerants
WITH SUPERBRITE UV TRACER
PART NO.
TRACE2 SIZE PKG
HS21004 4 oz Plastic Bottle 12/Case
HS21016 16 oz Plastic Bottle 6/Case
HS21128 1 Gallon Can 4/Case
TRACE
HS20004 4 oz Plastic Bottle 12/Case
HS20016 16 oz Plastic Bottle 6/Case
HS20128 1 Gallon Can 4/Case
C
H
E
M
I
C
A
L
S
147
Chemicals
Hydro Trace
Locate Hard-To-Find Leaks in Any Closed System Containing
Water And/Or Antifreeze Compounds Such as Propylene Glycol
and Ethylene Glycol. When Added to a System Leaks are Easily
Visible as Bright Red Stains Under Normal Lighting Conditions
and as a Bright Orange Glow when Exposed to an Ultraviolet
Light Source
• Use 1 Ounce Per 2 Gallons of Water
• Refrigeration
• Hydronics
• Automotive
• Process Cooling
• Chemically Inert
• Will Not Harm Equipment or Seals
Applications
PART NO. SIZE PKG
HS26004 4 oz Plastic Bottle 12/Case
HS26016 16 oz Plastic Bottle 6/Case
HS26128 1 Gallon Can 4/Case
Trax
Bubble-type Liquid Leak Detector Formulated to Produce Long
Lasting Bubbles Under ‘Job-Site’ Conditions
• Clear
• No Cleanup
• Environmentally Friendly
• Evaporates Leaving No Residue
• Temp Range: 27°F to 200°F (-3°C to 93°C)
• Non-toxic
• Does Not Pit Surfaces
• Detects Leaks as Small as 1 Micron
• Oxygen Compatible
• Meets the Performance Requirements of
Military Speci cations: MIL 25567 Type
1 A, B & C
PART
NO. SIZE TYPE PKG
HS24001 1 1/3 oz Squeeze Bottle 24/Case
HS24010 10 oz Squeeze Bottle w/ 12/Case
Extendable Spout
HS24128 1 Gal. Bottle 6/Case
HS51032
Dye Wash
Removes Any Type of Leak Detecting Dye from Equipment
and Pipe Surfaces to Prevent False Readings During Future and
Follow-up Leak Detection
• Non-toxic
• Environmentally Friendly
• Non-corrosive
• Easy To Use
• 32 oz. Spray Bottle
• 12/Case
C
H
E
M
I
C
A
L
S
148
HS16501
Oil Checker
Easily Identify All Refrigeration, Air Conditioning and
Heat Pump Lubricants in Just Seconds
• Easy To Use Two Step Process that Identi es
All Types of Oils
• Test Results Within Seconds
• Each Kit Includes Two Complete Tests
• Should Be Used to Check the Type of Oil in
a System Before Adding Any Additional Oil
• Compatible with Mineral, Alkybenzene and
Polyolester Type Oils
• Saves Time and Money by Eliminating the Need
for a Refractometer or Expensive Laboratory Tests
• Avoids the Costly Mistake of Mixing POE and
Mineral Refrigeration Oils
• 12/Case
Chemicals
HS16001
The Acid Test
For Detecting the Presence and Formation of Acid in Air
Conditioning and Refrigeration Systems
• Easy to Use
• No Complicated Charts
• Results in Seconds
• Very Inexpensive
• Non-toxic
• Non-hazardous
• Accurate Results
• Eliminates Guess Work
• Safe Formula
• Biodegradable
• Non- ammable
• For Use With All Refrigerants
• 4 Complete Tests in Each Kit
• 12/Case
BLUE OR VIOLET .........No Acid Present
GREEN .........Moderately Acidic
YELLOW ........................Acidic
Color Change Indicators
HS18004
Acid Neutralizer
e BEST Acid Treatment Available, Neutralizes Residual
Acid Caused by Compressor Burnout
• Works Fast
• Circulates Quickly
• Compatible with ALL Lubricants
• Safe, Will Not Harm System
Components
• No Complicated Charts
• 4 oz. Bottle
• No Solids or Solid Residuals
• Compatible with ALL Refrigerants
• Neutralizes Acid in Recovery Equipment
• Easy To Use
• Can Prevent Compressor Burnout
• 12/Case
C
H
E
M
I
C
A
L
S
149
Chemicals
Super Flush AC/R
Internal System Cleaner
Neutralizes and Removes Acid Caused by
Compressor Burnout
• Biodegradable
• Easy To Use
• Cleans in a Single Treatment
• Compatible with All Refrigerants
and Refrigeration Oils
• Does Not Contain Halogenated Solvents
• Cleaning Agent for All A/C and Refrigeration
Parts
• Environmentally Safe
• Non- ammable
• Saves Time and Money
• Before a System Retro t
• A er a Compressor Burnout
• Recovery, Recycling and Reclamation Equipment
• On Automotive (Remove Immediately)
• Sludge
• Gum
• Debris
• Moisture
• Carbon Deposits
• Tar
• Grease
• Organic Acids
• Soot
• Mineral Acids
Use
One Treatment Cleans and Removes PART NO. SIZE PKG
HS55032 32 oz Plastic Bottle 12/Case
HS55128 1 Gal. Plastic Bottle 6/Case
HS58128
Pink Stuff
Heavy Duty, Foaming, Acid Based Concentrated Liquid
Coil Cleaner Foaming Action Pushes Dirt Out of Coils to
be Rinsed Away
• Non- ammable
• Easy To Use
• Non Oily
• Biodegradable
• Condenser Coils
• Evaporator Coils
• Equipment Surfaces
• Heavy Oxidation
• Mold
• Lint
• Oily Dirt
• Algae
• Mildew
• Grease
• Oils
•1 Gal. Plastic Bottle
• 4/Case
Cleans and Brightens: Effective On:
HS59128
Green Stuff
Concentrated Alkaline Based Liquid Coil Cleaner
• Non- ammable
• Fast Acting
• Non Oily
• Biodegradable
• Brightens
• Condenser Coils
• Permanent Filters
• Evaporator Coils
• Equipment Surfaces
• Fins
• Electronic Coils
For Heavy Duty Cleaning and Degreasing of:
• Grease
• Lint
• Tar
• Mold
• Dirt
• Mildew
• Oil
• Dust
• Algae
• Nicotine
Effective On:
• 1 Gal. Plastic Bottle
• 4/Case
C
H
E
M
I
C
A
L
S
150
Chemicals
HS56011
EV Coil Max
Powerful Coil Cleaner in Powder Form to Avoid
Dangerous Liquid Spills
• Environmentally Friendly
• Virtually Odorless
• Easy to Use and Clean Up
• Lowers Freight Costs
• Extra Long Shelf Life
• Its Powder Form is a Safer Alternative
to Liquid Coil Cleaners
• No Acidic Residue
• Fast Acting
• Prevents Corrosion
• Less Storage Space
• 16 oz. Plastic Jar
• 12/Case
HS57014
HL Coil Brite Coil Cleaner
Acid Based, Powder Coil Cleaner with Controlled
Foaming Action
• Clean the Toughest Coils
• Mild Odor
• Inde nite Shelf Life
• Non- ammable
• Lowers Freight Costs
• Less Storage Space
• Easy To Use
• No Dangerous Liquid Spills
• Makes Old Coils Look New
• Easy Rinse for Quick Cleaning
• 14 oz. Plastic Bottle
• 12/Case
HS58520
Coil Blaster Solvent
Solvent Based High Pressure Aerosol Coil Cleaner
• Pleasantly Scented
• Non- ammable
• Degreases
• Fast Drying
• Nonconductive
• Safe to Use on Equipment
While Running
• Blasting Aerosol Nozzle
• No Residue
• 18 oz. Aerosol Can
• 12/Case
• Evaporator Coils
• Electrical Equipment
• Condenser Coils
• Automotive Parts
• All HVAC/R Equipment
• Electrical Components
Use On:
• Dirt
• Grime
• Grease
• Oil
Effective On:
HS59520
HD Jet Foamer Coil Cleaner
Heavy Duty Foaming Coil Cleaner in an Aerosol Can
• Convenient
• Pleasant Scent
• Environmentally Safe
• No Ozone Depleters
• 360° Spray Nozzle
• No Chlorinated Solvents
• Easy to Store
• Water Based
• Corrosion Inhibitors
• 19 oz. Aerosol Can
• 12/Case
• Dirt
• Oil
• Deposits
• Grease
• Residues
Quickly and Easily Liquifies:
• Evaporator Coils
• Condenser Coils
Use On:
C
H
E
M
I
C
A
L
S
151
Chemicals
HS50004
ICEMAX Nickel Safe Ice
Machine Cleaner
Prevents Liquid Spills
• Inhibits Formation of Scale
• Prevents Corrosion
• Environmentally Friendly
• Will Not Separate or Chemically
Change Over Time
• Inde nite Shelf Life (When
Kept Sealed)
• Saves Freight Costs
• Maximum Scale Removing Power
• No Acidic Residue
• Makes 1 Gallon of Concentrated Cleaner
• 4.4 oz.
• 12/Case
Filter Fan & Vent Cleaner
Heavy Duty Cleaner Speci cally Formulated for
the Heating, Ventilation, Air Conditioning and
Refrigeration Industry
• Biodegradable
• Non-corrosive
• Easy To Use
• Environmentally Friendly
• Non-toxic
• Safe & E ective
• Dust
• Grease
• Tar Deposits
• Dirt
• Oil
Removes:
• Electronic Cells
• Permanent Air Filters
• All Vents & Vent Surfaces
• Equipment Surfaces
• Most Air Cleaning Equipment
• Permanent Pre-Filters
• Fan Blades, Plastic & Metal
Use On:
PART NO. SIZE PKG
HS52032 32oz Plastic Spray Bottle 12/Case
HS52128 1 Gal. Plastic Refill 6/Case
CDC Anti-Clog
Condensate Drainpan Conditioner
• EPA Registered
• Improved Chemical Formulation
• Water Activated Timed-Release
• 3 to 6 Months, 24 Hours/Day Service
• Works in Equipment of All Sizes
(Available in 2 Sizes)
• Filter Material Meters Biocide for
Consistent Chemical Release
• Sealed, Tamper Proof Housing Prevents
Skin Contact with Biocide
• Designed Not to Clog Drain Hole
• Can be Placed Vertically or Horizontally
• pH Neutralizers Help Protect Drainpan
Against Corrosion
• 40% More High E ciency Biocide (by weight)
PART NO. SIZE PKG
HS52105 Units up to 5 Tons 24/Case
HS52115 Units up to 15 Tons 12/Case
C
H
E
M
I
C
A
L
S
152
Chemicals
HS15128
ICE BLOCK Heat Transfer
& Anti-Freeze
Propylene Glycol Based Anti-Freeze and Heat Transfer Fluid
Capable of Providing Pipe Burst Protection to Temperatures as
Low as -100°F (-73°C). All Ingredients are Generally Regarded as
Safe by the FDA, Making ICE BLOCK the Recommended
Anti-Freeze Protection Where ere is Possible Contact with
Potable Water Sources
• Non-toxic
• Chemically Stable - Will Not Separate
• Maximum Heat Transfer
• Protects Pipes and Other System Components
From Freeze Damage
• Safe & Easy To Use
• Lubricates As It Works
• Safe For Use Where Contact with Potable
Water is Possible
• Maximum Corrosion Protection
• Will Not Leave Deposits
• 1 Gallon
• 6/Case
• Refrigeration Systems
• Chilled Water Systems
• Coil Defrosting
• Ice Making Machines
• Water Based Heat Extraction System
• Snow Melting Systems
• Winterization of Any Water Based Systems
• Hydronic Heating Systems
• Solar Heating & Hot Water Systems
• Cooling Systems & Chillers
• Immersion Freezing
• Air Hydronic, Heat Pumps & Furnaces
• Process Cooling
• Ground Water Coupled Heat Pumps
• Cooling Towers
• Industrial Heat Transfer Systems
• Fire Hydrant & Sprinkler System
Applications Include:
KA12
KLEEN-AIR Odor Absorber
• Simply Open the Spout to Absorb and Remove All Kinds of Odors
• One 8 Ounce Bottle Works for 1 Year in a 9’ x 12’ Room
• 12/Case
HS53001
Crystal Gel T-Sorb
Tea Tree Oil Odor Neutralizing Crystal Gel
• Highly E ective Deodorant
• Malodor Absorber Totally Eliminates
Odors on Contact
• Combines the Essential Oil of the Australian
Tea Tree with Environmentally Safe Super
Absorbant Polymer Crystals
• Absorbs Tough Odors in the Air, then Adds
a Fresh Tea Tree Fragrance for Up to 90 Days
• Easy To Use
• 1 lb. Jar
• 12/Case
• Pets
• Mold & Mildew
• Paint
• Cleaning Compounds
• Cigarettes
• Flood & Fire Damage
Eliminates Odor From:
Australian Tea Tree Oil is used in hospitals as an antiseptic. According to studies published in Ameri-
can Scientific Journals, Tea Tree Oil has proven effective against MRSA, the hospital killer bug,
Candida (a yeast), and Legionella (a bacteria). Tea Tree Oil is considered to be the most
powerful natural antiseptic known to man, while being 100% natural, biodegradable and
environmentally friendly.
Formulated with surfactants contained in the US E.P.A.’s DfE (Design for the Environment)
CleanGredients database. The vapors of the Australian Tea Tree Oil are not harmful to humans or pets
and the essential oil is classified as non-hazardous. All claims regarding antimicrobial and
disinfectant properties are presented for information use only. Tea Tree Oil cannot be marketed as
pesticide, fungicide or bactericide in the US as it has not been approved by the government for that
use.
C
H
E
M
I
C
A
L
S
153
Chemicals
R410A18 Refrigerant
R410A - 1.8 lbs.
• For Charging Small to Medium A/C Systems
• Perfect for Mini-Splits
• 1/4” SAE Connection
• Use R410AG Adapter & Gauge
• 12/Case
R410AG
R410A Adapter & Gauge
• Push Button Operation
• Reusable
• 5/16” Connection to System
R134A20 Refrigerant
R134A - 20.3 oz.
• For Charging Appliances
• Perfect for Small to Medium Refrigeration Systems
• Use R134AG Adapter & Gauge
• 12/Case
R134AG
R134A Adapter & Gauge
• Push Button Operation
• Re-Usable
• 1/4” Connection to System
UV12K
Universal UV Dye Kit
• Kit Includes UVCONN Adapter
• Adapter has Push Button Operation and
Standard 1/4” Connection
UV12
Universal Dye
• Convenient Aerosol
• Up to 12 Applications
FRESHAIR
Air Quality Kit
• Improves Air Quality
• Improves A/C E ciency
• Prevents Bacteria
• Prevents Unpleasant Odors
From Forming
• Compatible with All Refrigerants
• 12/Case
C
H
E
M
I
C
A
L
S
154
Dishwasher
A
P
P
L
I
A
N
C
E
DW157
Corner Door Gasket
Corner Door Ba e Fits Lower Le hand Corner of Dishwasher. It
is Recommended this Item be Replaced Along with the Right Side
Ba e (DW156).
• Black Rubber
• Fits Lower Le hand Corner of Tub
• Can Replace GE® WD8X228
DW156
Corner Door Gasket
Corner Door Ba e Fits Lower Righthand Corner of Dishwasher.
It is Recommended this Item be Replaced Along with the Le Side
Ba e (DW157).
• Black Rubber
• Fits Lower Righthand Corner of Tub
• Can Replace GE® WD8X227
DW3681
Dishwasher Element
Designed to Meet or Exceed OEM Speci cations.
• Used on Admiral®, Amana®, Crosley®, Jenn-Air®, Magic Chef®,
Maytag® and Samsung®
DW804
Dishwasher & Disposal Hose Adapter
Dishwasher to Garbage Disposal Drain Connector Kit.
• Will Fit 2 Sizes on Each End
• Used to Connect Mini-Split Drain Lines to PVC
• Connector Includes 4 Clamps
SSDW7
Universal Drain Hose
• Universal Drain Hose for 5/8”, 3/4” and 1 1/8” Cuto s
155
Dishwasher
A
P
P
L
I
A
N
C
E
DW132
Spray Arm Nozzle/Cap
• Used to Hold Spray Arm in Place
• Used on Whirlpool® and Sears® Models
• Can Replace Whirlpool® 3367910, 3367198, 3367446
DW307
Door Spring
• Kit Includes Spring, Wire Retainer and Red Plastic Tip
• 2 Kits Required
• Used on Whirlpool®, Sears®, Frigidaire® and D&M®
• Can Replace Whirlpool® 674744
DW144
Sump Cover
• Used on Most GE® Models
• Can Replace GE® WD12X5028
DW309
Door Cable
Connects to Door Spring to Help Close the Door and to Prevent
the Door from Falling Open. It is Recommended Both Sides be
Replaced Together.
® Can Replace GE® WD7X14, WD7X13,
Amana® R0905640,
Jenn-Air® 793133
Maytag® 3000108
VI3460
Dishwasher Elbow Fitting
• Improves Seal Quality and Accessibility
• Fitting is Easy to Align and Attach
LP0005A
Dishwasher Pump Assembly
• Can Replace Samsung® DD31-00005A
• Less Torque Required
• Can Replace Whirlpool® W10273460
156
Dishwasher
A
P
P
L
I
A
N
C
E
DW10013
Dishwasher Pump Assembly
• Ready to Install, Solenoid and Capacitor Pre-Mounted
• Hardware Kit Included
• Can Replace GE® WD26X10013, WD26X10011, WD26X10007,
WD26X77
DW995
Dishwasher Pump Replacement
• Can Replace Whirlpool® W10348269
DW10001
Dishwasher Lower Rack Replacement
• 20 1/4” x 22” x 5 1/2”
• Replaces Many GE®, Hotpoint®, Kenmore®, Montgomery
Ward® and RCA® Models
• Can Replace GE® WD28X10001
DW10230
Dishwasher Upper Rack Replacement
• 25” x 25 1/2”
• Replaces Many GE®, Hotpoint®, Kenmore®, Montgomery Ward®
and RCA® Models
• Can Replace GE® WD28X10230
DW10074
Lower Rack Roller
• Rack Roller or Wheel, Used on GE® Models and Brands
• Designed to Meet or Exceed OEM Speci cations
• Can Also Replace Hotpoint®, Kenmore®, RCA® and others
• Can Replace GE® WD12X10074, WD12X10082, WD12X10094,
WD12X10100
DW10136
Lower Rack Roller
• Rack Roller or Wheel, Used on GE® Models and Brands
• Designed to Meet or Exceed OEM Speci cations
• Can Also Replace Hotpoint®, Kenmore®, RCA® and Others
• Can Replace GE® WD12X10136
157
Dishwasher
A
P
P
L
I
A
N
C
E
DW10018
Piston & Nut Assembly
• Used for Check Valve on Several GE® Manufactured Dishwashers
• Designed to Meet or Exceed OEM Speci cations
• Can Replace GE® WD24X10018, WD24X220, WD24X199
DW10267
Stud & Roller Assembly
• Rack Roller and Axle Assembly for Most GE® Brands
• Designed to Meet or Exceed OEM Speci cations
• Can Replace GE® WD12X10267, WD12X272, WD12X427,
WD12X441
DW10277
Stud Roller Lower Rack
• Clip-On Style Dishrack Roller Axle Used on GE® Brands
• Snaps on to the Rack to Support the Wheel
• Designed to Meet or Exceed OEM Speci cations
• Can Replace GE® WD12X10277, WD12X10261, WD12X10126,
WD12X10075
DW10304
Rack slide End Cap
• Attaches to Rails for Upper Rack to Prevent the Dishrack from
Sliding All the Way Out
• Designed to Meet or Exceed OEM Speci cations
• Can Replace WD12X10304, WD12X0344, WD12X344,
WD30X0093
DW271
Rack Roller Assembly
• Rack Roller Used on Many GE® Brands
• Includes Clip-On Axle
• Designed to Meet or Exceed OEM Speci cations
• Can Replace GE® WD12X271, WD12X440, WD12X0271,
WD12X426
EBDW
Dishwasher Repair Manual
• Economical and User Friendly Repair Manual
DW5314
Roller Lower Rack
• Can Replace Bosch® 165314
158
Dryer Parts
A
P
P
L
I
A
N
C
E
BELTS
• Replacement Dryer Belts
PART NO. LENGTH (IN.) WIDTH (IN.) REPLACES
LB131 42 1/2 Maytag® 33-6104, Norge® 35-0465,
Gem
® 350425
LB151 41 1/2 3/8 Frigidaire® Q62149, Electrolux® 321155,
Maytag® 211451
LB161 47 1/2 3/4 Gem® 96388, Whirlpool® 352967,
Whirlpool® 96388
LB216 87 1/4 GE® WE12X82P, WE12X10014, WE12X42
LB230 47 3/8 Gem® 311012, Maytag® 311012
LB231 68 3/8 Gem® 310013, Maytag® 310013,
Alliance® 75098
LB232 31 5/32 Maytag® 312512, Maytag® 55060
LB234 100 3/8 Maytag® 312959
LB260 88 1/2 Gem® Q63807, Electrolux® 3204314,
Electrolux® 3281154, GE® WE12X88
LB276 91 5/8 3/8 Admiral® 53-2910, Whirlpool® 532910,
Maytag® 31001026
LB279 92 1/2 Whirlpool® 660997, Maytag® 3301777
LB295 54 5/8 Electrolux® 131276300, 134051000, 3203018
LB788 55 1/2 1/2 Maytag® 12001788, 22002040, 22002313
LB1655 92 5/16 Samsung® 6602001655
LB029 89 1/2 GE® WE12M29
LB161
LB216
DE602
Blower Wheel
• Can Replace Maytag® 303836
DE382BWR
Gas Valve Coil - 2 Terminal
• Used on “M” Series Valves
• 2 Terminal
• Can Replace Electrolux® Q622602,
GE® WE4X693, Whirlpool® 695397
DE382WR
Gas Valve Coil Kit - 25M Series
• Designed by White Rodgers® to Replace the “M” Series Valves
• Kit Contains Valves, 8 Ori ces, 2 Bushings and 2 Nuts
• Contains DE382AWR (3 Terminal) and DE382BWR (2 Terminal)
• Can Replace Electrolux® 5303931775, GE® WE04X10004,
Whirlpool® 279834, GE® WE04X10020
DE382AWR
Gas Valve Coil - 3 Terminal
• Used on “M” Series Valves
• 3 Terminal
• Can Replace Electrolux® Q622601,
GE® WE4X692, Whirlpool® 695398
159
Dryer Parts
A
P
P
L
I
A
N
C
E
DE692
Drum Roller Rear
• Used in LA1008 Kit
• Used on Whirlpool®, Kenmore®, Roper®, KitchenAid®, GE® and More
• Can Replace Maytag® 31001096
Drum Rollers
• Dryer Drum Roller and Sha Assembly Kit Includes: Roller, Sha and
Triangle Ring Clips
• DE2002A Can Replace LG® 4581EL2002A
DE7523 Can Replace Samsung® DC97-07523B
DE2002A DE7523
DE693
Drum Support Roller
• Drum Roller with Pre-Lubricated Bronze Bearing
• For Use on Maytag® Models
• Kit Contains Roller and 2 Washers
• Low Durometer Rubber Over Hub Produces Less Noise
• Less Slippage
• Can Replace Maytag® 303373, 3-3373, 12001541
DE702
Drum Support Roller
• Whirlpool® Kit Includes: Drum Roller, Tri-Ring and Pushnut
• Used with 339489 Right or 3399506 Le Sha
• Pre-Lubricated Bronze Bushing
• Low durometer Rubber Over Hub Produces Less Noise
• Less Spillage
• Can Replace Whirlpool® 349241
DE702T
349241T Drum Roller Set
• Whirlpool® Kit Includes: 2 Drum Rollers, Tri-Rings and Pushnuts
• Used with 339489 Right or 3399506 Le Sha
• Pre-Lubricated Bronze Bushing
• Low Durometer Rubber Over Hub Produces Less Noise
• Less Slippage
• Can Replace Whirlpool® 349241T, 661562, 337089, GE® WE3X82
DE696
LA1008 Roller Kit
• Drum Roller with Pre-Lubricated Bronze Bearing
• For Use on Maytag® Models
• Kit Contains 2 Rollers, 2 Support Sha s and Hardware
• Low Durometer Rubber Over Hub Produces Less Noise
• Less Slippage
• Can Replace Maytag® LA1008, Norge® 53-0312N
160
Dryer Parts
A
P
P
L
I
A
N
C
E
PART NO. WATTS VOLTS REPLACES
DE138 5300 240 Maytag® 303404
DE148 4750 240 Maytag® LA-1044
DE698 5200 240 Whirlpool® 4391960
DE838 5400 240 GE® WE11X10004, Whirlpool® 279838
DE0019A 5300 240 Samsung® DC47-00019A
DE1001 5400 240 LG® 6931EL1001
DE4771 5400 240 Whirlpool® 8544771
DE7747 5200 240 Whirlpool® 3387747
Dryer Elements
• Direct Replacement Elements
DE0019A
DE4771
Dryer Restring Kits
• Direct Replacement Restring Kits
PART NO. REPLACES
DE315 GE® WE11X60
DE333 GE® WE11X203
DE334 GE® WE11M21C
DE335 Electrolux® 5300622032
DE336 Electrolux® 5300622034
DE1746C Maytag® 31001746C
DE019AC LG® DC47-00019A DE315
DE1746C
Dryer Igniters
• Includes Mounting Hardware Where Necessary
PART NO. STYLE REPLACES
SDE350 Round GEM® DE350, ADC® 128910 and More
SDE358 Round Gem® DE359, GE® WE4X739 and More
SDE359 Round Gem® DE359, DE363, Amana® 40069801P and More
SDE365 Round LG® 5318EL3W1A
SDE364 Flat Whirlpool® 4391996, Glo Bar® 304970 and More
SDE366 Flat Maytag® 31001556 and More SDE358 SDE364
Flame Sensors
• Exact Replacement Dryer Flame Sensor for Many OEM Brands
• Senses Igniter for Heat and Opens Gas Valve for Burner
• Safety Device in Flame Out Condition
PART NO. REPLACES
DE353 Whirlpool® 338906
DE355 GE® WE4X448
DE353
DE355
161
Dryer Parts
A
P
P
L
I
A
N
C
E
Lint Screens
• Captures Lint as it Exits the Dryer Vent
• Made with Fine Mesh Metal Screen
PART LENGTH
NO. (IN.) REPLACES
DE520 12 5/8 Electrolux® 5300137504, GE® WE18X26,
Westinghouse® Q115071
DE522 18 3/4 Whirlpool® 339392, 690634, 337133 and More
DE524 20 3/4 Whirlpool® 348855, 341256, 689469
DE525 20 3/4 Whirlpool® 349639
DE526 22 1/4 Whirlpool® 8557882
DE534 12 1/4 Maytag® 33001808
DE0998 11 1/2 Whirlpool® W10120998
DE1002E 12 1/2 LG® 5231EL1002E
DE964 9 1/2 Whirlpool® 8531964 and More
DE522
DE526
Switches
PART
NO. DESCRIPTION AMPERAGE VOLTS MOUNT REPLACES
ES16802 Micro Switch 15 125-250 Bolt Gem® 16802, 168-2
ES15253 Micro Switch 10 125 Snap-In Micro® V3L1
10 250
ES15252 Micro Switch 1/2 125 Snap-In Micro® V3L107D8
1/4 250
ES15805 Toggle Switch 20 125 Snap-In Gem® 15805, 158-5
10 250
ES15806 Toggle Switch 20 125 Pal-Nut Gem® 15806, 158-6
10 250
ES15903 Panel Rocker Switch 7.5 125 Snap-In Gem® 15903, 159-3
10 250
ES15905 Panel Rocker Switch 7.5 125 Snap-In Gem® 15905-159-5
10 250
ES15907 Panel Rocker Switch 15 125-250 Snap-In Gem® 15907, 159-7
ES16806 Door Switch 10 125 Snap-In Gem® 16806
DE6105 Door Switch 11 120-240 Snap-In Whirlpool® 3406105
DE6107 Door Switch 11 120-240 Snap-In Whirlpool® 3406107
ES16802
ES15805
RJR601 Lint Eater®
3 ft. Dryer Vent Cleaning Kit
• E ective on All Types of Dryer Vents
• Includes (2) 18” Extension Rods, a 4” Self Feeding Auger
Brush and a 2 1/2” Lint Trap Brush
R3203612 Lint Eater®
12 ft. Vent Cleaner Extension Kit
• Add Length to Your Lint Eater® Rotary Dryer Vent Cleaning System
• For Vents Running Longer an 12 .
• Includes (4) 36” Extension Rods and Storage Tube
162
Dryer Parts
A
P
P
L
I
A
N
C
E
RLE202 Lint Eater®
12 Ft. Dryer Vent Cleaning Kit
• E ective On All Types of Dryer Vents
• (4) 36” Extension Rods
• 4” Self Feeding Auger Brush
• Blockage Removal Tool
• 2 1/2” Lint Trap Brush
• Vacuum Adapter
• Dryer Adapter
• Instruction Manual
“SET” Series Thermostats
• e “SET” Series O ers Proven Reliability in a
Versatile, Cost-E ective Design
• Can Handle Loads Up to 25 Amps at 240 VAC
PART
NO. DESCRIPTION OPEN (°F) CLOSE (°F) REPLACES
SET149 Direct Replacement Thermostat 290 250 279054
SET176 Thermostat 248 168 Maytag® 53-0771, 702548
Whirlpool® 3390291, 696397
SET196 Thermostat L145-25 Double Tab 250 Single Shot
SET198 Thermostat 250 190 Whirlpool® 3390291
SET404 High Limit Thermostat 240 200 Maytag® 53-1096
SET401 Thermal Fuse 196 Single Shot GE® WE4X857, Whirlpool® 3392519,
33886651
SET402 Thermal Fuse 196 Single Shot Whirlpool® 3390719, 690198
SET403 Thermal Fuse 300 Single Shot Maytag® 53-1182
SET407 Thermal Cutout 183 Single Shot Maytag® 33001762
SET409 Thermal Cutout 243 Single Shot Maytag® 307473
SET410 Thermal Cutout 196 Single Shot Whirlpool® 3399849
SET184 Thermal Cutoff Kit 352 Single Shot Whirlpool® 279769
SET194 Thermal Cutoff Kit 325 Single Shot Whirlpool® 279816
SET195 Thermostat Kit 120 110
SET197 Thermostat Kit 250 Single Shot Whirlpool® 3977767
SET149
SET195
“L” Series Thermostats
• Available with Automatic Reset SPST Switch Con gurations
PART DESCRIPTION OPEN (°F) CLOSE (°F)
NO.
L14625W Multi-Temp Thermostat 146 121
L15015W Multi-Temp Thermostat 150 135
L15525W SPST Limit Thermostat 155 130
w/
Heater
L15525W
163
Dryer Parts
A
P
P
L
I
A
N
C
E
DE902
Door Catch/Strike Package
• Used to Keep Dryer Door Closed on Several Brands and Models
• Plastic Strike/Plastic Catch
• Can Replace Whirlpool® 279570, 690082
DE902M
Door Catch Metal Strike Package
• Used to Keep Dryer Door Closed on Several Brands and Models
• Metal Strike/Plastic Catch
• Can Replace Whirlpool® 279570
DE766
Lower Front Seal
• Felt Drum Seal Used on Frigidaire®, Kenmore®,
Gibson®, Kelvinator® and Tappan® Models
• Does Not Include High Temperature Adhesive
• Can Replace Electrolux® 5303281049, Frigidaire® 5303212849
DE411
Idler Assembly
• Keeps Tension on the Dryer Drum Belt
and Aids in Rotating the Drum
• Heavy Duty Style
• Can Be Used on Whirlpool®, Kenmore®,
Roper®, Kitchen Aide® and GE® Models
• Can Replace Whirlpool® 691366, GE® WE12X95
DE726
Drum Bearing
• Helps Keep Dryer Running as Smoothly as Possible
with as Little Noise as Possible
• Can Replace GE® WE25X205, WE3X375, WE3X37, WE3X72
SM1008 & SM279827
Dryer Motor
• SM1008 Can Replace LG® 4681EL1008A
• SM279827 Can Replace Whirlpool® 279827
164
Dryer Parts
A
P
P
L
I
A
N
C
E
DE340
Bearing Idler Assembly
• Can Replace Whirlpool® 6-3700340
DE1067
Bearing Glide
Attaches to Outer-Most Sides of Bearing. Manufacturer Recommends
Replacing Both Glides Together. Sold Individually.
• Can Replace GE® WE1M1067
DE504
Bearing Glide
Attaches to Outer-Most Sides of Bearing. Manufacturer Recommends
Replacing Both Glides Together. Sold Individually.
• Can Replace GE® WE1M504
FCS003
Current Sensing Relay
is Unit Senses as Soon as your Dryer Draws more than 1 amp of
Current. It Will Automatically Turn on the Booster Fan, Eliminating
Additional Sensors, Switching or Speed Controls.
DE405
Idler Roller For Belt
• Replacement Idler Pulley for Maytag®
Large Capacity and Commercial Dryers
• 3/4” Diameter
DE3001A
Bearing Idler Assembly
• Can Replace LG® 4560EL3001A
• Pre-Lubricated Bronze Brushing
• Can Replace Maytag® 303705
TH9973 & TH7274
Thermistors
• TH9973 Can Replace Whirlpool® 279973
• TH7274 Can Replace Whirlpool® 8577274
TH2001B
Thermistor
Dryer ermistor with Temperature Sensor
• Designed to Meet or Exceed OEM Speci cations
• Can Replace LG® 6323EL2001B
165
Dryer Parts
A
P
P
L
I
A
N
C
E
DE724
Shaft & Bearing Package
• Includes Plate Bearing, Tub Bushing and Mounting Hardware
• Can Replace Electrolux® 5303281153, 5303281136 and GE®
WE13X10011
DE901
230131 Dryer Door Cable
• Used for Dryers with a “Drop-Down” Door
to Help Support the Door
• 25 Pack
• Can Replace Whirlpool® 230131, 230131D
DE905
342601 Metal Panel Clip (2 pc.)
• Used to Keep Dryer Panel Attached, on Several Brands and Models
• 2 Pack
• Can Replace Whirlpool® 342601, GE® WE01X10122
Drum Glides
PART DESCRIPTION REPLACES
NO.
DE729 Drum Glide GE® WE13X68K
DE775 Drum Glide (4 pc.) GE® WE1M481, WE1M316, WE1X333
DE790 Drum Glides/ Frigidaire® 5303937139, Electrolux® 5303937139
Top Front Seal
DE747 Drum Glide Package Maytag® 306508
DE729
EBHD
Dryer Repair Manual
• Economical and User Friendly Dryer Repair Manual
166
Range Parts
A
P
P
L
I
A
N
C
E
Switches
PART
NO. DESCRIPTION AMPS VOLTS MOUNT REPLACES
ES15100 Switch 5 125 Snap-In Gem® 18806, 188-6
2.5
250
ES15102 Switch 3 125 Threaded Gem® 15102, 151-2
1
250
ES15105 Switch 3 125 Threaded Gem® 15105, 151-5
1
250
ES15106 Switch 3 125 Threaded Gem® 15106, 151-6
1
250
ES15400 Switch 3 125 Snap-In Gem® 15400, 154
1
250
ES15805 Switch 20 125 Snap-In Gem® 15805, 158-5
10
250
ES15806 Switch 20 125 Pal-Nut Gem® 15806, 158-6
10
250
ES15903 Switch 7.5 125 Snap-In Gem® 15903, 159-3
10
250
ES15905 Switch 7.5 125 Snap-In Gem® 15905, 159-5
10
250
ES18200 Switch 10 125 Snap-In Gem® 18200, 182
5
250
ES18600 Switch 5 125 Snap-In Gem® 18814, 188-14
2.5
250
ES16100 Univ. Repl. Switch 15 125/250 Snap-In Sears® 793085, GE® WD21X557,
Maytag®
3135-0006 and More
ES16200 Univ. Repl. Switch 15 125/250 Snap-In Gem® 16200, 162
ES16300 Univ. Repl. Switch 15 125/250 Snap-In Gem® 16300, 163
ES16301 Univ. Repl. Switch 15 125/250 Snap-In Gem® 16301, 163-1
ES16600 Univ. Repl. Switch 15 125/250 Bolt GE® 303919, Gem® 16600, 166
ES18818 Compactor/Interlock 11 125 Snap-In Gem® 18806, 188-6
Switch
5.5 250
ES16802 Micro Switch 15 125/250 Bolt Gem® 16802, 168-2
ES15201 Pilot Light 1-3 Watts 125 Snap-In Whirlpool® 4157976, 4157870,
Gem®
15201, 152-1
ES15202 Pilot Light 1-3 Watts 250 Snap-In Maytag® 00886400088777,
Gem®
15202, 152-2
ES15205 Pilot Light 1-3 Watts 125 Snap-In GE® WB2X1608, Gem® 15205,
152-5
ES15501 Pilot Light 1-3 Watts 125 Snap-In Gem® 15501, 155-1
ES15601 Pilot Light 1-3 Watts 125 Snap-In Gem® 15601, 156-1
ES15100
ES15202
ES9400/ES9404
Infinite Switches
• ES9400 is a Large Surface Unit Switch for 8” Burner.
Can Replace Whirlpool® 314900
• ES9404 is a Small Surface Unit Switch for 6” Burner.
Can Replace Whirlpool® 3149404
ES9404
ES15903
167
Range Parts
A
P
P
L
I
A
N
C
E
Motor Ventilation
• Replacement Motors
PART ROTATION STACK
NO. DESCRIPTION (SHAFT END) (IN.) LEADS RPM SPEED REPLACES
SM550 Vent Hood Motor CCW 1/2 120V Plug 3000 1 Gem® EM550, EM750, Nutone® 65878000 and More
SM551 2 Speed Hood Motor CW 1/4 Molex 3 Pin 3000/1640 2 Gem® EM551, EM751, Nutone® 52637000 and More
SM552 Vent Fan Motor CCW 3/4 120V Plug 3000 1 Gem® EM552, Nutone® 63675000, C63675 and More
SM553 Vent/Heater Fan Motor CCW 3/7 Eyelet 3000 1 Gem® EM553, Nutone® 66582000, C66582 and More
SM554 2 Speed Hood Motor CCW 7/8 Molex 3 Pin 3000/1500 2 Gem® EM554, Nutone® 279870001,C27987 and More
SM555 Vent Hood Motor CCW 5/8 120V Plug 3000 1 Gem® EM555, K5895, Nutone® 68627000 and More
SM556 Vent Fan Motor CCW 5/8 120V Plug 3000 1 Gem® EM556, Nutone® 34484000, C34484
SM681 Utility Motor CW/CCW 5/8 Eyelet 3000/1550 2 Robertshaw® 14021
SM140-40A Blower Fan Assembly CCW 3/4 120V Plug 2400 1 Nutone® K5894, K5895
SM550 SM555
Wire
PART MAX AMPS MAX WATTAGE TEMP. RATING LENGTH GAUGE
NO. DESCRIPTION (@104°F/40°C) (@104°F/40°C) (°F/°C) (FT.) (AWG) PACKAGE
RP0512G 200C Triplex 45 10KW/5KW 392/200 5 12 Bag
RP0512NG 450C Single Cond 56 13KW/6.5KW 842/450 5 12 Bag
RP0514G 200C Triplex 36 8KW/4KW 392/200 5 14 Bag
RP0514NG 450C Single Cond 45 10KW/5KW 842/450 5 14 Bag
T301025 Nickel Hinge Wire 73 17KW/8.5KW 482/250 25 10 Bag
RP2512G 200C Triplex 45 10KW/5KW 392/200 25 12 Box
RP2512NG 450C Single Cond 56 13KW/6.5KW 842/450 25 12 Bag
RP2514G 200C Triplex 36 8KW/4KW 392/200 25 14 Box
RP2514NG 450C Single Cond 45 10KW/5KW 842/450 25 14 Box
T301225 Nickel Hinge Wire 54 12KW/6KW 482/250 25 12 Bag
RP5012G 200C Triplex 45 10KW/5KW 392/200 50 12 Box
RP5014G 200C Triplex 36 8KW/4KW 392/200 50 14 Box
RP0514G 200C Triplex 36 8KW/4KW 392/200 5 14 Bag
T301625 Nickel Hinge Wire 26 6KW/3KW 482/250 25 16 Bag
T301425 Nickel Hinge Wire 39 9KW/4.5KW 482/250 25 14 Bag
T301825 Nickel Hinge Wire 20 4KW/2KW 482/250 25 18 Bag
RP2512G 200C Triplex 45 10KW/5KW 392/200 25 12 Box
RP2516H HV Silicone Cable 31 7KW/3.5KW 482/250 25 16 Bag
RP5014GB 200C Triplex 36 8KW/4KW 392/200 50 14 Box
RP0514G T301425 RP2514NG
Door Gaskets
• High Temperature Silicon Rubber
• FDA Approved Material
• Exact OEM Replacement
• Stretch Gasket
PART LENGTH
NO. DESCRIPTION (IN.) STYLE REPLACES
DG1416 Stretch Gasket 13 13/16 A GE® WB2X7314
Whirlpool®
4364084
DG2224 Stretch Gasket 21 13/16 A Whirlpool® 4364083
DG5103 Extruded Gasket 44 F GE® WB2X5103
DG42 Extruded w/ Clips 54 D GE® WB32K3
DG1416
DG42
®®
®®
Style “A”
Style “D”
Style “F”
168
Range Parts
A
P
P
L
I
A
N
C
E
Emerson® Surface Elements
PART
NO. DESCRIPTION
CH30M1 Replaces WB30M1
CH30M2 Replaces WB30M2
CH30T10074 Replaces WB30T10074
CH30T10078 Replaces WB30T10078
CH30X341 Replaces WB30X341
CH30X342 Replaces WB30X342
CH30X354 Replaces WB30X354
CH30X356 Replaces WB30X356
MP15MA 4D6 1500W Surface Element
MP15YA 4T6 1500W Surface Element
MP21YA 5T8 2100W Surface Element
MP26YA 5T8 2600W Surface Element
MP21MA 5D8 2100W Surface Element
MP26MA 5D8 2600W Surface Element
SP12MA 3D6 1250W Surface Element
SP21MA 4D8 2100 Surface Element
Emerson® Bake & Broil
PART
NO. REPLACES
CH1011 RP743
CH2851 RP799
CH2858 RP777
CH2859 RP789
CH2860 RP841
CH2864 RP716
CH2866 RP2866
CH2867 RP2867
CH2891 RP774
CH4107 74004107
CH44K10002 WB44K10002
CH44K10005 WB44K10005
CH44K5009 WB44K5009
CH44K5012 WB44K5012
CH44T10009 WB44T10009
CH44T10010 WB44T10010
CH44T10011 WB44T10011
CH44T10014 WB44K10014
CH44T10018 WB44K10018
CH44X10009 WB44X10009
CH44X10016 WB44X10016
CH44X126 RP44X126
CH44X134 RP44X134
CH44X185 RP44X173
CH44X200 RP44X200
CH44X5019 RP980
CH44X5043 RP44X5043
CH44X5074 RP44X5074
CH44X5082 RP44X5082
CH44X5083 RP44X5083
CH44X5099 RP44X5099
CH4825 RP828
CH4836 RP790
CH4854 RP838
CH4874 RP829
CH4879 RP837
CH4896 RP832
CH5002 318255002
CH5104 316075104
CH528 RP528
CH550 RP550
PART
NO. REPLACES
CH556 RP556
CH5818 RP842
CH5828 RP795
CH5829 RP856
CH5830 RP798
CH5837 RP796
CH584 RP584
CH5841 RP5841
CH5853 RP5853
CH5855 RP5855
CH5862 RP5862/RP7019
CH587 RP587
CH613 RP613
CH620 RP620
CH624 RP624
CH625 RP625
CH628 RP628
CH629 RP629
CH641 RP641
CH643 RP643
CH653 RP653
CH664 RP664
CH671 RP671
CH672 RP672
CH673 RP673
CH679 RP679
CH687 RP687/RP778
CH691 RP691
CH700 RP700
CH7340 9757340
CH775 RP775
CH776 RP776
CH779 RP779
CH781 RP781
CH809 RP809
CH825 RP825
CH8541 9758541
CH978 RP978
CH979 RP979
CH987 RP987
CH30M1 MP15MA
CH1011
CH44X5074
CH625
169
Range Parts
A
P
P
L
I
A
N
C
E
SGR4001
Direct Replacement Igniter
• Can be Used on All Viking® Glow Bar Ignition
Systems Both Bake and Broil
• Can Replace Viking® PB04001
SGR414
Direct Replacement Igniter
• Can Replace Hundreds of OEM Part Numbers
• Hardware Included
• Can Replace SGR407-SGR412
SGR Series
Round Igniters
PART LENGTH
NO. (IN.) REPLACES
SGR403 5 1/2 Gem® GR403, GE® WB2X9154,
Electrolux®
5304401265
SGR Series
Flat Igniters
PART LENGTH
NO. (IN.) REPLACES
SGR407 7 1/2 Gem® GR407, GE® WB02X4827,
Electrolux® 08067970, Whirlpool® 4163781
SGR409 5 1/2 Gem® GR409, Electrolux® 3016211,
GE® WB02X4221, Whirlpool® 9751123
SGR410 6 1/4 Gem® GR410, Electrolux® 5303200508,
GE® WB2X4385, Whirlpool® 4371216
SGR412 4 1/2 Gem® GR412, Electrolux® 5303935066,
Maytag® 98005652, Whirlpool® 814269,
GE® WB02X4528 SGR407
SGR409 SGR410 SGR412
SGR429
Direct Replacement Igniter
• Meets or Exceeds OEM Speci cations
• Used with 2.8 to 3.0 Amp Rated Gas Safety Valves
• High Temperature Stainless Steel Shield & MGT Wire Leads
• UL® and CSA® Approved
• Can Replace Market Forge® 86350, Southbend® A93-00007 and More
170
Range Parts
A
P
P
L
I
A
N
C
E
Knobs
PART
NO. DESCRIPTION REPLACES
RK100 Range Knob Kit Universal
RK101 Range Knob Kit Universal
RK103 Electric Stove Knob Kit Universal
RK458 Contol Knob Whirlpool® 307458
RK200 Gas Burner Knob Kit Unviersal
RK201 Gas Burner Knob Kit Universal
RK203 Gas Stove Knob Kit Universal
RK362 Knob Kit Whirlpool® 814362
RK699 3 Knob Set GE® WB3X5699 RK100 RK200
Receptacles
PART
NO. DESCRIPTION INCLUDES REPLACES
RRUPR Receptacle 2 Brackets, Insulated Wire, GE® WB17X210, Whirlpool® 330031,
Wire
Nuts Electrolux® 5303935058
RRUPS Receptacle 2 Brackets, Insulated Wire, Universal
Wire
Nuts
RR105 R300 Receptacle Kit Horizontal Mounting Clip, Electrolux® 5300219245, GE® WB17X210
Block,
2 Terminals
RR109 Receptacle Kit Vertical Mounting Clip, Block, Electrolux® 5303912666
Hardware
RR110 Receptacle Kit Horizontal Mounting Clip, Block, Electrolux® 5301167733, GE® WB17X210,
Hardware
Whirlpool® 330031
RR117 Receptacle Kit Horizontal and Vertical Mounting Electrolux® 5303935058, GE® WB17X210,
Clip, Block and Hardware Whirlpool® 330031, Maytag® 89336
RR122 Receptacle Kit Horizontal and Vertical Mounting GE® WB17X5051
Clip, Block, 2 Wire Leads, Wire Nuts
RR123 Receptacle Kit Horizontal and Vertical Mounting Maytag® 12001676
Clips, Block, 2 Wire Leads, Wire Nuts
RR124 Receptacle Kit 2 Brackets, 2 Wire Leads, Wire Nuts Whirlpool® 33031
RR137L Receptacle GE® WB17M137LL
RR058L Receptacle Frigidaire® 5303935058L and More
RR500 Receptacle 28” Lead Wires, Single-Screw Frigidaire® 203363-903 and More
Mounting
RR031L Receptacle Kit Maytag® 330031L and More
RR146 Receptacle 24” Lead Wires, Spade-Style GE® WB17M146
Terminals
RR261 Receptacle 24” Lead Wires, Spade-Style GE® WB2M2261 and More
Terminals
RR117
RR122
RR109
RR124
171
Range Parts
A
P
P
L
I
A
N
C
E
OR102
Oven Rack
• Manufactured from Heavy Duty Steel Rods with Welded Frame Construction
• Heat Tested to 1200°F to Insure the Highest Quality Plating
• Replaces Regular, Self-Cleaning Gas or Electric
• Replacement Part Numbers by Brand or Measurements for Universal Applications
• Can Replace GE® WB48X5012, WB48X5026, WB48X5031
GA28
Appliance Outlet
• Range Accessory
• ree Wire Snap-In Plastic Outlet
• 15 Amp @ 115 Volts
HOT
Micro Surge Protector
• Helps Prevent Blown Fuses
• Short Cycle Protection
• Prevents False Starting Attempts
• Easy Installation
• Automatically Restarts
• LED to Indicate Proper Operation
EBOC
Oven and Cooktop Repair Manual
• Economical and User Friendly Range Repair Manual
172
Refrigerator
A
P
P
L
I
A
N
C
E
Direct Replacement
Cold Controls
PART NOMINAL NOMINAL CAP
NO. IN (°F) OUT (°F) (IN.) REPLACES
GC116 37.5 -10.5 39 GE® WR9X208
GC177 32 22 34.5 GE® WR9X411
GC192 38 23 AIR GE® WR9X499
GC116
SC1002
Universal Freezer Control
• Keeps Equipment Up and Running Until Permanent Replacement is Installed
• For Use on Freezers Only
• ree Mounting Options: Suction Cup, Velcro or Screw Mount
• Safe and Easy Installation
• Can Be Used as a Permanent Control
• Temperature Range is -6°F to 39°F
GC500 Series
Universal Cold Controls
• Universal Mounting Hardware Insures Controls Will Replace Wide Range of Controls
• Ideally Suited for “Frost-Free” Refrigerators and Conventional Units
PART NORMAL °F CALIBRATION °F DIFF CAPILLARY
NO. OFF ON WARM OFF COLD ON °F LENGTH (IN.)
GC503 9 26 42.5 -16 17 42
GC505 31 36 49 16 5 24
GC506 18 31 48.5 - 7 13 24
GC505
GC600 Series
Universal Cold Controls
• Universal Mounting Hardware Insures Controls Will Replace Wide Range of Controls
• Designed for Freezers, O ering the Most Popular Temperature and Capillary Lengths
GC607
GC707
Universal Cold Control
• Hardware Accessory Pack Covers Most Major
Brands for a Wide Range of Applications
PART RANGE °F DIFF CAPILLARY ELECTRICAL RATINGS 120/208/240 VAC
NO. COLD OFF WARM ON °F LENGTH (IN.) STYLE SWITCH F.I.A.L. R.A
GC707 52 93 6 36 Straight SPDT 25A 80A
GC707
Thermostats Rated 125VAC, 1/2 HP, 20 Amps F.L. - 80 Amps L.R., SPST Switch Action.
PART NORMAL °F CALIBRATION °F DIFF CAPILLARY
NO. OFF ON WARM OFF COLD ON °F LENGTH (IN.)
GC601 -5 4 22 -29 9 78
GC602 -13 0 12 -30 13 78
GC604 -12 6 20 -34 18 36
GC607 -8 1 13 -23 9 31
PART TEMPERATURE RANGE (°F) DIFF
NO. RANGE COLD MEDIUM WARM °F APPLICATION
SC1002 28 to 45 28 to 34 33 to 39 39 to 45 6 Refrigerator
173
Refrigerator
A
P
P
L
I
A
N
C
E
CS10398
Crisper Tray
• New Design is Stronger than the Old Shelf
• Can Replace GE® WR32X10398, WR32X1094,
WR32X1107, WR32X1122
Direct Replacement
Defrost Heaters
• Heavy Duty Vycor® Glass Construction
• Protective Oxide-Coated Element Wire for Longer
Lasting Heater Life
• High Temperature Molded Silicone End Caps
• Manufactured to Proper Lengths, Mountings and
Electrical OEM Speci cations
PART LENGTH (GLASS) LENGTH OVERALL
NO. VOLTS WATTS (IN.) (IN.) REPLACES
SH303LB 115 615 8 1/4 9 3/4 GE® WR49X249, WR49X391
SH307 115 425 22 1/8 23 7/16 GE® WR51X194, WR51X411
SH308 115 450 13 7/16 15 1/4 GE® WR51X413
SH309 115 600 8 1/4 9 1/2 GE® WR51X442
SH310 115 772 11 3/8 12 13/16 GE® WR51X443
SH319 115 400 17 1/8 17 7/8 Admiral® 60106-19
SH320 115 450 19 5/8 20 7/16 Admiral® 60106-20
SH323 115 725 10 1/2 12 GE® WR51X10055
SH324 115 575 8 9 1/2 GE® WR51X10053
SH325 115 575 8 9 1/2 GE® WR5X10101
SH307
SH323
SH419
Universal
Defrost Heaters
• Heavy Duty Vycor® Glass Construction
• Protective Oxide-Coated Element Wire for Longer
Lasting Heater Life
• High Temperature Molded Silicone End Caps
• Manufactured to Proper Lengths, Mountings and
Electrical OEM Speci cations
SH261 SH271
PART LENGTH (GLASS) LENGTH OVERALL
NO. VOLTS WATTS (IN.) (IN.)
SH261 115 550 21 3/16 21 15/16
SH264 115 550 8 1/2 9 1/4
SH267 115 500 22 13/16 23 13/16
SH271 115 600 8 8 3/4
PART DIMENSIONS
NO VOLTS WATTS (IN.) REPLACES
SH413 120 650 23 5/8 X 6 1/2 Whirlpool® 978331
SH414 120 650 26 5/8 x 6 1/4 Whirlpool® 978945
SH419 115 425 20 1/4 x 3 1/8 Electrolux® 5303001362
SH442 120 775 18 5/8 x 9 5/16 Whirlpool® 851363
SH400 Series
174
Refrigerator
A
P
P
L
I
A
N
C
E
Energy Saving Exact
Replacement Defrost Timers
• Exact OEM Features and Speci cations
• Energy Saving Plastic Construction
• Available in 120 or 220 Volts
• Available in Bulk (200) or 12 Pack
• Domestic Refrigerators & Freezers
PART CYCLE TIME DEFROST TIME GP GEM® OEM
NO. HOURS MINUTES SERIES NUMBER REPLACES
SPA1401AD 6 21 GP1 CC922 Admiral® 66128-1, Electrolux® 215846604
SPB1401F 8 20 GP4 CC925 Frigidaire® 5300628518, Maytag® 68233-2
SPD1401AM 8 32 GP19 CC926 Amana® D70041-4, Maytag® R0131577
Frigidaire® 5303321915
SPG1401GE 6 25 GP2 CC923 GE® WR9X330, Maytag® R0168026
SPK1401GE 10 30` GP18 CC907 GE® WR9X387, Maytag® R0168027,
Amana® D7004119, D7790403
SPM6823-3 10 23 GP9 CC924 Maytag® 68233-3, Amana® D7004112,
GE® WR9X388
K1401GEO 10 30 GP18 CC907 GE® WR9X387, Maytag® R0168027,
Amana® D7004119, D7790403
SPA1401AD
Flying Lead Timers
• Energy Saving Plastic Construction
• Direct Whirlpool® Replacement
• Hardware Kit Included
• Domestic Refrigerators & Freezers
PART CYCLE DEFROST GP GEM® MALLORY® PARAGON® UNI-LINE® REPLACES
NO. TIME TIME SERIES NO. NO. NO. NO. OEM NO.
SPA1403FL 8 21 GP4 CC904 34885 E769-00 3002-904 Whirlpool® 482493
GP6 CC920 B931-00 UX-2001-00 Electrolux® 5303917634
GP11 CC309 Maytag® 68233-2
GP21 CC320 Haier® 60938312
Sub-Zero® 3081180
Classic Style Defrost Timers
(Metal Top)
• Exact OEM Features and Speci cations
• Metal Construction
• Available in 120 or 220 Volts
• Available in Bulk (75) or 12 Pack
• Hardware Kit Included
• Domestic Refrigerators & Freezers
PART CYCLE DEFROST GP GEM® MALLORY® PARAGON® PARAGON® UNI-LINE® REPLACES
NO. TIME TIME SERIES NO. NO. NO. NO. NO. OEM NO.
SP931WP 8 21 GP11 CC904 34885 E769-00 E931-00 3002-904 Whirlpool® 876369, 482493
GP20 CC920 UX-2001-00 Sub-Zero® 3081180
CC928
SPG1111GE 6 25 GP2 CC900 34887 B769-00 D1111-00 3002-902 GE® WR9X330
SPF1111F 8 20 GP4 CC902 34890 F769-00 A1111-00 3002-906 Frigidaire® 5300628518
SPJ1111AM 8 32 GP19 CC905 34982 D769-00 K1111-00 3002-905 Amana® D700414,
CC925 Frigidaire® 5303321915
GE® WR9X396
SPL1111W 6 25 GP3 CC903 34891 G769-00 B1111-00 3002-903 Westinghouse® 5300900072
SPN1111AD 6 21 GP1 CC901 34886 A769-00 E1111-00 3002-901 Whirlpool® 4391974
CC922 Admiral® 66128-1
SP931WP SPF1111F
®®
®
175
Refrigerator
A
P
P
L
I
A
N
C
E
Universal
Defrost Timers
PART MAX. COMPRESSOR MAX RESISTIVE
NO. DESCRIPTION VOLTAGE RATING LOAD (AMPS)
UET120 Universal Electronic Timer 120 VAC 1/2 HP 10
UET240 Universal Electronic Timer 120 VAC 1/2 HP 5
EDT10 Electronic Defrost Timer 115 VAC 1/3 HP 10
EDT11 Electronic Defrost Timer 115 VAC 3/4 HP 20
EDT20 Electronic Defrost Timer 208/240 VAC 3/4 HP 5
EDT21 Electronic Defrost Timer 208/240 VAC 3/4 HP 20
Exact Energy Saving
Defrost Timers
• Exact OEM Features and Speci cations
• Energy Saving Plastic Construction
• Individually Boxed
• Domestic Refrigerators & Freezers
PART CYCLE DEFROST REPLACES
NO. INTERNAL TIME (HRS) TIME (MIN.) VOLTS OEM NO.
SC950 Resistor 6 25 120 GE® WR9X481
SC952 Capacitor 16 35 120 GE® WR9X489, WR9X10049
Electrolux®
5304406555
SC953 Resistor 6 25 120 GE® WR9X548
SC954 Resistor 10 30 120 GE® WR9X483, WR9X10041,
WR9X10075,
WR9X10101,
WR9X10111
SC955 Resistor 6 25 120 GE® WR9X502. WR9X387
SC959 Capacitor 8 30 120 GE® WR9X566,
Electrolux®
215846602
SC950 SC953
UET120 EDT11
UET240
• Universal Replacement
• Electronic Circuitry
• Adjustable Defrost Frequency 4
to 12 Hours
• Adjustable Defrost 10 to 35 Minutes
• Cycle Advance Button
• Standard Size and Mounting to Fit
Most Applications
• No Ground Wire
• Quiet Operation and Durability
• Standard Terminal Con guration to
Accommodate Most Connections
• Dust Proof Case
• Temperature Range 32°F to 135°F
(0°C to 57°C)
• Humidity Range 10-95% Non-Condensing
®
EDT20
176
Refrigerator
A
P
P
L
I
A
N
C
E
Four Piece Magnetic
Universal Door Gaskets
PART MAXIMUM
NO. COLOR DOOR SIZE (IN.) PROFILE
SU2001 White 20 x 30 J
SU2002 White 32 x 42 J
SU2003 White 32 x 55 J
SU2004 White 36 x 84 J
PART MAXIMUM
NO. COLOR DOOR SIZE (IN.) PROFILE
SU2301 White 20 x 30 G
SU2302 White 32 x 42 G
SU2303 White 32 x 55 G
SU2304 White 36 x 84 G
Direct Replacement Door
Gaskets for Electrolux®
PART NO. OEM NO. PROFILE DIMENSIONS (IN.) COLOR
SWC26 218730603 V 11 13/16 x 19 1/4 TN
Direct Replacement
Door Gaskets for GE®
PART NO. OEM NO. PROFILE DIMENSIONS (IN.) COLOR
SGE286 WR24X286 F 17 1/8 x 26 3/16 BR
SGE287 WR24X287 E 26 7/16 x 36 3/4 BR
SGE312 WR24X312 F 17 1/8 x 26 3/16 WH
SGE127 WR24X313 E 26 1/4 x 36 1/2 WH
SGE318 WR24X318 A 26 1/8 x 39 3/4 BR
SGE319 WR24X319 A 26 1/4 x 39 3/4 WH
SGE450 WR24X450 AJ 27 1/4 x 38 5/8 WH
SGE485 WR24X485 AJ 26 1/8 x 37 15/16 WH
SGE486 WR24X486 AJ 25 15/16 x 41 WH
Direct Replacement Door
Gaskets for Maytag®
PART NO. OEM NO. PROFILE DIMENSIONS (IN.) COLOR
SAM59 12550116Q AE 23 1/2 x 31 1/4 WH
SAD68 70048-1 AA 28 1/4 x 36 5/8 WH
SAD70 70048-2 AA 28 1/4 x 39 1/8 WH
SAD72 70048-3 AA 30 3/4 x 39 1/8 WH
Direct Replacement Door
Gaskets for Whirlpool®
PART NO. OEM NO. PROFILE DIMENSIONS (IN.) COLOR
SCS115 592945 AK 27 x 42 1/2 WH
SCS44 2188404A F 19 1/8 x 59 1/32 WH
SCS75 2188444A F 30 1/4 x 42 3/8 WH
SCS115 2188445A F 27 x 42 1/2 WH
SCS112 2188448A F 27 1/16 x 39 7/8 WH
SCS42 2188450A F 31 13/32 x 39 1/8 WH
SCS46 2188451A F 28 13/32 x 39 1/8 WH
SCS102 2188456A F 16 1/2 x 26 3/4 WH
Sub-Zero® Replacement
Door Gaskets
PART Sub-Zero® MAXIMUM
NO. NO. DOOR SIZE (IN.)
SZO573 7010573 67.5 x 27.5
SZO574 7010574 67.25 x 17.625
SZO575 7010575 47.75 x 33.75
SZO578 7010578 58.5 x 33.75
SZO583 7010583 59 x 34
SZO584 7010584 67.75 x 27.75
SZO592 7010592 33.75 x 18.25
PART Sub-Zero® MAXIMUM
NO. NO. DOOR SIZE (IN.)
SZO609 7010609 29.625 x 23.25
177
Refrigerator
A
P
P
L
I
A
N
C
E
RIM277
Icemaker replacement Kit
• Can Replace Electrolux® 5303918277, 5303291912, 218226700, 218699501
• Includes 2 Harnesses. is Unit can also Replace: Amana®/Maytag® D7824706Q
RIM300
Icemaker replacement Kit
• Can Replace GE® IM1, IM2, IM3, UKKIT, WR30X328
• O ering the Dependability of the Modular Design, this Icemaker Includes
Mounting Plate to Match the GE® Style Round Plug with Four Pin Connection
RIM313
Icemaker replacement Kit
• Can Replace Whirlpool® 1129313, ECKMF-64
• Used on many Whirlpool® brands
RIM316
Icemaker replacement Kit
• Can Replace Whirlpool® 1129316, ECKMF-60
• Used on many Whirlpool® brands
RIM469
Icemaker replacement Kit
• Can Replace Whirlpool® 2155469A, ECKMF-94, 2155468
• Unit can also be used on Amana®, Estate®, Maytag® and SubZero®
RIM500
Icemaker replacement Kit
• Can Replace Whirlpool®4211173, 4317943, W10122496, W10190952
178
Refrigerator
A
P
P
L
I
A
N
C
E
RIM501
Icemaker replacement Kit
• Can Replace Amana® D7824706, 1110702A Kit, D7567102
RIM597
Icemaker replacement Kit
• Can Replace Whirlpool® 2198597, 2198678, 626663,
W10122502, W10190960
RIM900
Icemaker replacement Kit
• Universal Replacement for all Modular Style Icemakers
Including 4317943, 626636, D7824706Q, W10122496
• Replaces Most of the 120 VAC Modular Icemakers
on the Market Today
RIM943
Icemaker replacement Kit
• Can Replace Whirlpool® 4317943, 625601, W10122496
and W10190952
RIM2000
Icemaker replacement Kit
• Universal Replacement for all Modular Style Icemakers
Including 4317943, 626636, D7824706Q, W10122496
• Replaces Most of the 120 VAC Modular Icemakers on
Tens of ousands of Refrigerators.
RIM961
Icemaker replacement Kit
• Can Replace W10190961, W10122503, 2212353 and 2212352
SZ4200520
Icemaker replacement Kit
• Can Replace SubZero® 501F, 522, 532, 561 and 221M
179
Refrigerator
A
P
P
L
I
A
N
C
E
Icemaker replacement Installation Kits
Each Kit Contains SUPCO®’s Unique “Self-Tapping Valve”
and All the Fittings Necessary for Installations with Copper
or Plastic Tubing.
• Includes Valve, 25’ of 1/4” Plastic Tubing and Fittings
• Installs Quickly and Easily
• Water Lines Do Not Have to be Drained
• Water Does Not Have to be Shut O
• Can be Installed Under Any Sink, or From Any Branch Line
PART NO. DESCRIPTION TUBING VALVE VALVE TYPE CONNECTION AT TAP CONNECTION AT APPL.
PT25 Valve, 25 ft., All Fittings Plastic STV2LL Self Tapping 1/4” Compression 1/4” Compression
PT25E Valve, 25 ft., 2 Fittings Plastic STV2LL Self Tapping 1/4” Compression 1/4” Compression
PT25
Copper Icemaker replacement Kits
Each Kit Contains SUPCO®’s Unique “Self-Tapping Valve”
and All the Fittings Necessary for Installations with Copper
or Plastic Tubing.
• Includes Valve, 15’ of Copper 1/4” OD, and Fittings
• Installs Quickly and Easily
• Water Lines Do Not Have to be Drained
• Water Does Not Have to be Shut O
• Can be Installed Under Any Sink, or From Any Branch Line
C15
GA31
Icemaker Gear
• Drive Gear for Mechanical Icemakers
• Can Replace Electrolux® 3206301, GE® WR29X5162,
Maytag® R0183094 and Whirlpool® 628210
VI2404
Brass Adapter
• All Brass - Will Not Rust
• Angled 90° Fitting to Reduce Stress on Tubing
• Connection 3/4” MHT to 1/4” Compression
• Washer Included
PART NO. DESCRIPTION TUBING VALVE VALVE TYPE CONNECTION AT TAP CONNECTION AT APPL.
C15 Valve, 15 ft., 1/4” OD Copper STV2LL Self Tapping 1/4” Compression 1/4” Compression
C25 Valve, 25 ft., 1/4” OD Copper STV2LL Self Tapping 1/4” Compression 1/4” Compression
Icemaker Heads
• Direct Replacement Icemaker Modular Head
PART NO. REPLACES
IMM1515 Whirlpool® 8201515, 626653, W10122535
IMM8366 Whirlpool®W10190935, 628366, W10122536
IMM1515 IMM8366
180
Refrigerator
A
P
P
L
I
A
N
C
E
Icemaker Control Boards
• Power Control Board Kit
• Emitter and Receiver
PART
NO. REPLACES
ADC9102 4389102
ADC5988 61005988
ADC8931 4388931
ADC8932 4388932
ADC4099 2304099
ADC9102
CB10942
Main Control Board
• Controls the Operation of the Unit
• Can Replace Several GE® Models
TH10025
Thermistor
Used to Sense the Temperature in Refrigerator
Cabinet, Connects to the Control Board.
• Designed to Meet or Exceed OEM Speci cations
• Can Replace GE® WR55X10025
SL7985
Harvest Thermostat
• Can Replace W10290336, 627985, 0056603 and 627808
• is Harvest ermostat Opens at 32°F and Closes at 17°F
SCWG3 & SCWG4
Water Guards
• Fits Around Inlet Hose
• Starts Operation Immediately
A er Installation
PART NO. OF
NO. MAGNETS
SCWG3 3
SCWG4 4 SCWG4
• Prevents and Removes Limestone
• Saves Energy and Water
TH4150
Thermistor
Used to Sense the Temperature in Refrigerator
Cabinet, Connects to the Control Board.
• Designed to Meet or Exceed OEM Speci cations
• Can Replace Sub-Zero® 4204150
Switches
ES18809 Switch 5 125 Snap-In Gem® 18809, 188-9
2.5 250
ES18811 Switch 5 125 Snap-In Gem® 18811, 188-11
2.5
250
ES18812 Switch 10 125 Snap-In Gem® 18812, 188-2
5
250
ES18814 Switch 5 125 Snap-In Gem® 18814, 188-4
2.5
250
ES18806 Light Switch 3 125
1
250 Threaded Gem® 15100, 151
ES18810 Light Switch 5 125 Snap-In Gem® 18810, 188-10
2.5
250
ES18805 Fan Switch 5 125 Snap-In Gem® 18805, 188-5
2.5
250 ES18809
ES18805
181
Refrigerator
Condenser Fan Motors
• Designed to Meet or Exceed OEM Speci cations
for Superb Performance and Reliability
PART
NO. REPLACES WATTS ROTATION
SM0740 Sub-Zero® 4200470 2.3 CWLE
SM5109 Whirlpool® 833697 2 CWLE
SM5113 Universal 2.5 CWLE
SM5211 Light Commercial, Display Coolers 4 CWLE
SM5311 Restaurant Units 6 CWLE
SM5411 Beer/Soda Coolers 9 CWLE
SM5109
Evaporator Fan Motors
• Designed to Meet or Exceed OEM Speci cations
for Superb Performance and Reliability
PART
NO. REPLACES
SM329 Whirlpool® 4318001
SM335 Maytag® 56488-2
SM336 Electrolux® 5300158289
SM10220 GE® WR60X10220
SM0020E Samsung® 0A31-00020E
SM0146B Samsung® 0A31-00146B SM336
SM329
Water Valves
PART
NO. REPLACES
WV8047 Whirlpool® 4318047
WV8046 Whirlpool® 4318046
WV10051 GE® 57X10051
WV10032 GE® WR57X10032
WV10033 GE® WR57X10033
WV8047
A
P
P
L
I
A
N
C
E
PART
NO. REPLACES
SM343 Whirlpool® 482731
SM338 GE® WR60X162
SM399 Whirlpool® 4389144
SM345 Whirlpool® 4389142
SM8549 Elexctrolux® 5303918549
SM4888 Maytag® 61004888
SM10172 GE® WR60X10172
SM2744 Maytag® 12002744
SM9703 Whirlpool® W01089703
SM10074 GE® WR60X10074
SM10141 GE® WR60X10141
SM10185 GE® WR60X10185
SM10257 GE® WR60X10257
SM998/SM999
universal Evaporator Fan Motor kit
• Prefastened Multi Fit, Break O
Mounting Bracket
• Break O 2” Motor Sha with
Breakaways at 1/2” and 1 1/2”
• Includes All Mounting Accessories
and Hardware
• Reversible Rotation
• Single Speed
• Sha Diameter 1/8”
• Replaces Over 450 Di erent
Evaporator Type Motors
• SM999 is Direct Replacement for the
Gem® 240 Series, Mars® 90999
and Robertshaw® 33-110, 33-112, 33-114
• SM998 is Direct Replacement for Mars® 90998
PART
NO. DESCRIPTION
SM999 120 VAC, 3000 RPM, 1/200 H.P., .31 AMP
Impedance Protected
SM998 220 VAC, 3000 RPM, 1/200 H.P., .31 AMP
Impendance
Protected
®®
SM1127
universal Evaporator Fan Motor
Universal 3.3” Commercial Refrigeration Motor Replaces Over 100 OEM
Shaded Pole Evaporator Fan Motors.
• ermal Protection
• Open Ventilation
• Sleeve Bearing
• Reversible Rotation
• 7.5 Microfarad, 370V Run Capacitor Included
PART
NO. REPLACES
WV8179 Whirlpool® W10408179
WV1450 Sub-Zero® 4201450
WV2790 Sub-Zero® 4202790
WV2 Universal
WV1460 Sub-Zero® 4201460
182
EFF-6007A
Can Replace Maytag®
UKF8001
Refrigerator
A
P
P
L
I
A
N
C
E
Water Filters
• Uses Advanced Filtering Technology to Turn Tap Water
into Great Tasting Water
• Removes the Turbidity (Taste and Odor), Sediment,
Lime Scale, Dirt, Rust and Chlorine From Water
• Operating Temperature is 33°to 100°F (0.6° to 37°C)
GE® is a registered trademark of General Electric.
Part Numbers and illustrations are intended solely for identification. Water filters offered are not represented to be manufactured by the original
equipment manufacturer. All trademarks and registered trademarks are the property of their respective owners.
EFF-6006A
Can Replace Samsung®
DA29-00012B, DA29-00012A,
DA2900012B
EFF-6002A
Can Replace Kenmore®/
Sears® 9010P, Whirlpool®
4396508, 4396510
EFF-6009A
Can Replace Whirlpool® 6010,
8171414, KitchenAid® 8171787,
8171788, Kenmore®/Sears® 9002
EFF-6013A
Can Replace GE® MWF,
Hotpoint® HWF,
Kenmore®/Sears® 9905
EFF-6014A
Can Replace Maytag®
UKF7003
EFF-6011
Can Replace Samsung®
DA29-00003A, DA29-
00003G, Whirlpool® /
Maytag® W10132126
EFF-6005A
Can Replace CUNO®
LT500P, 5231JA2002A-S
EFF-6001A
Can Replace Whirlpool®
4396701, 4396702
EFF-6010A
Can Replace Whirlpool®, Kenmore®,
KitchenAid® 817413, 8171413R,
8171413T
EFF 6010A
EFF-6017A
Can Replace
Fisher & Paykel® 836848
EFF-6003A
Can Replace
LG® 5231JA2006B
183
Refrigerator
A
P
P
L
I
A
N
C
E
Universal Inline
EFF-6036A EFF-6034A
WF1CB-EFF
Replacement Cartridge
Can Replace Frigidaire®/Electrolux®
WF1CB, WFCB, Kenmore® 9910P
EBHR
Refrigerator Repair
Manual
• Economical and User Friendly
Refrigerator Repair Manual
Part Numbers and illustrations are intended solely for identification. Water filters offered are not represented to be manufactured by the original
equipment manufacturer. All trademarks and registered trademarks are the property of their respective owners.
EFF-6026A
Can Replace
Bosch® 640565
EFF-6023A
Can Replace
GE®/Hotpoint® GSWF
EFF-6025A
Can Replace
Bosch® 644845
EFF-6032A
Can Replace LG® LT700P,
Sears®/Kenmore® 9690,
46-9690
EFF-6027A
Can Replace Samsung®
DA29-00020B
EFF-6022A
Can Replace GE® MSWF
EFF-6021A
Can Replace Amana®/
Maytag® WF401,
Kenmore® 9014
184
Washer
A
P
P
L
I
A
N
C
E
Agitator Parts
• Designed to Meet or Exceed OEM Speci cations
PART
NO. DESCRIPTION REPLACES
LP285 Agitator Cam Kit Whirlpool® 285811
LP301 Drive Spline GE® WH1X1944
LP319 T- Bearing Whirlpool® 350920
LP338 Agitator Dogs (4 pc.) Whirlpool® 285770
LP338D Agitator Dogs (12 pc.) Whirlpool® 285770D
LP630 Center Post Upper Seal Whirlpool® 356394
LP631 Spin Tube Seal Whirlpool® 91938
LP1586 Anit-Siphon Kit Alliance® 297P3, 386P3,
Maytag® 12001586 and More
LP5834 Calypso Anti-Siphon Kit Whirlpool® 285834
LP630
LP285
Washer Belts
• Consists of Rubber Core, Cord Members, Top Cushion and
Rubber Impregnated or Cloth Cover
PART LENGTH WIDTH
NO. (IN.) (IN.) REPLACES
LB131 42 1/2 Norge® 35-0465, Gem®350425
Maytag®
33-6104
LB151 41 1/2 3/8 Frigidaire® Q62149, Electrolux® 321155
Maytag®
211451 and More
LB161 47 1/2 3/4 Gem® 96388, Whirlpool® 352967,
96388
LB230 47 3/8 Gem® 311012, Maytag® 311012
LB231 68 3/8 Gem® 311013, Maytag® 311013,
Alliance® 75098
LB260 88 1/2 Gem® Q63807, Electrolux® 3204314,
3281154
and More
LB276 91 5/8 3/8 Admiral® 53-2910, Whirlpool® 532910,
Maytag®
31001026
LB279 92 1/2 Maytag® 3301777, Whirlpool® 660997
LB788 55 1/2 1/2 Maytag® 12001788, 22002040,
22002313
LB0024 48 5/8 GE® WHO3X10024
LB0101 48 1/2 Whirlpool® 8540101
LB6384 22 3/8 Whirlpool® W10006384
LB230 LB161
LB276 LB279
LP785
Clutch Kit
• Includes Blue Spring for Large Capacity Washers
• Includes Black Spring for Compact Washers
• Can Replace Whirlpool® 285785
LP790
Clutch Kit
• Can Replace Whirlpool® 285790
185
Washer
A
P
P
L
I
A
N
C
E
LP956
Pump to Drain Hose
• 15/16” Inside Diameter
• 15” Length
• Can Replace Maytag® 212989, 211107
GNB/GNBA
Gooseneck
• GNB is 1” OD Plastic Gooseneck
• GNBA is 1” OD Aluminum Gooseneck
GNB GNBA
SSD6/SSD6GE
No-Kink Drain Hose 6”
• 1” x 6”
• Universal Design
• Can Fit Hundreds of Models
• SSD6GE is GE® Style, Order LA188 Clip
• SSD6 Can Replace Whirlpool® 4391969
SSD8/SSD8GE
No-Kink Drain Hose 8”
• 1” x 8”
• Universal Design
• Can Fit Hundreds of Models
• SSD8GE is GE® Style, Order LA188 Clip
SSDW7
Drain Hose
• 5/8” Diameter
• 7’ Length
513P
LA172 Fill Hose Coupling
Used to Connect Fill Hose Sections on Most
Domestic Washers
HM101
Drain Hose Coupling
• Manufactured from High
Impact Polyethylene
• Straight Hose Mender
• 1” Diameter
186
Washer
A
P
P
L
I
A
N
C
E
Inlet Hoses
• Pressure Tested to 800 psi (Cold) and 600 psi (Hot)
• Double Crimped Fittings for Strength and Safety
• Ozone Resistant to Prevent Rubber Decay
PART LENGTH
NO. (FT.) FITTINGS REPLACES
3804FF 4 Female Electrolux® 5303271009, 5303280320,
ERP® ER804FF
3805FF 5 Female
3806FF 6 Female ERP® ER3806FF, GE® WX41X60DS
3808FF 8 Female ERP® ER3808FF
3810FF 10 Female ERP® 3810FF
3805FE 5 Female/Elbow
3810FF
LTK1
Washer Lint Screen Kit
Washer Pumps
• Designed to Meet or Exceed OEM Speci cations
PART # OF
NO. PORTS REPLACES
LP112 4 GE® WH23X42, WH1X1694,
WH1X1885
and More
LP115 3 Whirlpool® 285317, 358258,
370403
and More
LP116 2 Whirlpool® 3348015, 3363394,
3348014
and More
LP121 2 Whirlpool® 3363892, 3352496
LP123 2 Whirlpool® 3363892, 3352496
LP128 2 Maytag® 21001873, 21002240
LP397 2 Whirlpool® W10276397
LP280187 2 Whirlpool® 280187
SM285990 2 Whirlpool® 285990
LP1585L 2 Samsung® DC96-01585L
LP5974C 2 Samsung® DC97-15974C
LP2002H N/A LG® 4681EA2002H and More
LP36347 2 Whirlpool® W10536347
LP2001T N/A LG® 4681EA2001T
LP054D N/A Samsung® DC31-00054D
LP30913 N/A Samsung® W10130913
LP112 LP121
LP397
LP128
Switches
• Designed to Meet or Exceed OEM Speci cations
PART # OF
NO. DESCRIPTION TERMINALS REPLACES
LP210 Lid Switch and 3 GE® WE4X814, WE4X866,
Actuator
Package WE04X0866 and More
ES682 Lid Switch 2 Maytag® 22001682
ES247 Lid Switch 3 Round Whirlpool® 3949247
ES671 Lid Switch 3 Whirlpool® 285671
ES8084 Lid Switch 3 Flat Whirlpool® 8318084
ES9238 Lid Switch 3 Flat Whirlpool® 3949238
ES7166 Microswitch 3 Flat Whirlpool® 285671
ES682 ES8084
187
Washer
A
P
P
L
I
A
N
C
E
LP510
Tub Boot
• Can be Used on GE® Washers Pre-1995
• Can Replace GE® WH8X246
LA189
Tub Strap
• Made from High Quality Rubber
• 6” Length
• Not For Use on Compacts or Stackable Washers
• Can Be Used on GE® Washers From 1996 to Present
• Can Replace GE® WH1X2727
GVW151
Universal Replacement Valve
• 120V Water Valve, Replaces Most Washer
Valves with Side by Side Coils on Metal Bracket
• Can Replace Several Major Brands
• Can Replace Electrolux® 131208500, GE® WH13X81,
Maytag® 205614 and More
WV1
Universal Water Valve Kit
• Replaces 95% of the Valves in the Field
• Easy to Change Con guration, Allows One
Valve to Replace Most Modern 2 Coil Valves
• Can Replace Alliance® 33930, 34963,
Electrolux® 134190200 and More
LP580
Injector Nozzle
• Plastic Injector Nozzle Used on
Whirlpool® and Maytag® Models
• Can Replace Whirlpool® 213015
LP581
Maytag® Injector Valve
• Washer Air Gap Rubber Injector Valve
• Can Replace Whirlpool® 213016
Direct Replacement
Water Valves
PART
NO. REPLACES
WV0026 GE® WH13X10026
WV0027 GE® WH13X10027
WV0314K Samsung® DC62-30314K
WV0312J Samsung® DC62-30312J
WV0142G Samsung® DC62-00142G
WV0026
188
Washer
A
P
P
L
I
A
N
C
E
LP585
Injector Tube
• Rubber Side Mount
• 13” Length
• U- Shaped
• Can Replace Whirlpool® 206154
LP663
Washer Injector Kit
• Includes Hose, Injector Tube, Spout and 2 Clamps
• Can Replace Whirlpool® 204660
LP655
Tub Repair Kit
• Outer Tub Repair Kit, Used on Small Leaks
that May Develop Around the Tub Bolts
• Can Replace Whirlpool® 76673
LP617
Bumper
• Rubber Bumper for Whirlpool® Models
• 50 Per Pack
• Can Replace Whirlpool® 93770
LP925
Spring Seal Package
• For Use on Belt Drive Models
• Can Replace Whirlpool® 285672
LP939
Shaft Seal
• Transmission Sha Seal Used on
Whirlpool® Brands
• Can Replace Whirlpool® 91939
TH2046C
Thermistor
Used to Sense the Temperature in Refrigerator
Cabinet, Connects to the Control Board.
• Designed to Meet or Exceed OEM Speci cations
• Can Replace LG® 6322FR2046C
189
Washer
A
P
P
L
I
A
N
C
E
LP933
Foot Pad
• Leveling Leg Cap for GE® Models
• Can Replace GE® WH1X484
LP753
Motor Coupler
• Used on Direct Drive Washers with No Belt
• Reinforced with Metal Sleeves
• Can Replace Whirlpool® 285753A
EBGW
Repair Manual for GE® Washers
• Economical and User Friendly Washer Repair
Manual for GE® Models
EBMW
Repair Manual for Maytag® Washers
• Economical and User Friendly Washer Repair
Manual for Maytag® Models
EBWM
Washer Repair Manual
• Economical and User Friendly Washer
Repair Manual
EBWW
Repair Manual for Whirlpool® Washers
• Economical and User Friendly Washer Repair
Manual for Whirlpool® Models
Washer Timers
PART
NO. REPLACES
LP1000 GE® WH12X1000
LP10348 GE® WH12X10348
LP10350 GE® WH12X10350
LP10338 GE® WH12X10338 LP1000
190
Part Number Index
11234 88
11234 90
12070-001 86
12867 103
14265-001 101
145 127
22792 108
2D51 20
30-05 56
30-22-06 56
30WM 56
31 56
31-220 56
31WM 56
3793 127
3804FF 186
3805FE 186
3805FF 186
3806FF 186
3808FF 186
3810FF 186
3975 127
3W1 5
3W2 5
3W3 5
43004 34
43005 34
43054 34
43154 34
445 127
446 127
447 127
513P 185
53100 35
53200 35
53300 36
61100N 37
61152P 37
62100N 38
62152P 38
6390 41
6490 41
70 56
70-220 56
70CSA 56
70CSA220 56
71100N 39
71157P 39
73200N 40
73257P 40
75 56
75-220 56
84210T 41
90290 6
90291 6
90292 6
90293 6
90294 6
90295 6
90340 6
90341 6
90342 6
90370 6
90372 6
90374 6
90380 6
90382 6
90384 6
9063 6
9064 6
9065 6
9066 6
9067 6
9068 6
9069 6
9070 6
9071 6
A1 60
A100 43
A105 43
A110 43
A112 43
A116 43
A120 43
A124 43
A128 43
A136 43
A144 43
A158 43
A19 43
A2 60
A20 43
A21 43
A22 43
A23 43
A24 43
A25 43
A26 43
A27 43
A28 43
A29 43
A30 43
A31 43
A32 43
A33 43
A34 43
A35 43
A36 43
A37 43
A38 43
A39 43
A40 43
A41 43
A42 43
A43 43
A44 43
A45 43
A46 43
A47 43
A48 43
A49 43
A50 43
A51 43
A52 43
A53 43
A54 43
A55 43
A56 43
A57 43
A58 43
A59 43
A60 43
A61 43
A62 43
A63 43
A64 43
A65 43
A66 43
A67 43
A68 43
A69 43
A70 43
A71 43
A72 43
A73 43
A74 43
A75 43
A76 43
A77 43
A78 43
A79 43
A80 43
A81 43
A82 43
A83 43
A84 43
A85 43
A86 43
A87 43
A88 43
A89 43
A90 43
A91 43
A92 43
A93 43
A94 43
A95 43
A96 43
A97 43
A98 43
A99 43
ADC4099 180
ADC5988 180
ADC8931 180
ADC8932 180
ADC9102 180
ADTA 122
AFC01T110201 24
AFS222121 23
AOS 20
APA151 20
APP120 14
APR5 6
AT012 26
Part No. Page Part No. Part No. Part No.
Page Page Page
191
AT013 26
AT014 26
AT015 26
AT021 26
AT022 26
ATP1 124
AVU24 62
AX56 43
B101 43
B102 43
B104 43
B105 43
B106 43
B107 43
B110 43
B111 43
B112 43
B114 43
B115 43
B116 43
B118 43
B120 43
B124 43
B126 43
B128 43
B130 43
B133 43
B134 43
B135 43
B136 43
B140 43
B144 43
B152 43
B158 43
B162 43
B195 43
B210 43
B225 43
B23 43
B24 43
B240 43
B25 43
B255 43
B26 43
B27 43
B270 43
B28 43
B285 43
B29 43
B30 43
B300 43
B31 43
B315 43
B32 43
B33 43
B330 43
B34 43
B35 43
B36 43
B360 43
B37 43
B38 43
B39 43
B40 43
B41 43
B42 43
B43 43
B44 43
B45 43
B46 43
B47 43
B48 43
B49 43
B50 43
B51 43
B52 43
B53 43
B54 43
B55 43
B56 43
B57 43
B58 43
B59 43
B60 43
B61 43
B62 43
B63 43
B64 43
B65 43
B66 43
B67 43
B68 43
B69 43
B70 43
B71 43
B72 43
B73 43
B74 43
B75 43
B76 43
B77 43
B78 43
B79 43
B80 43
B81 43
B82 43
B83 43
B85 43
B86 43
B87 43
B88 43
B89 43
B90 43
B91 43
B92 43
B93 43
B94 43
B95 43
B96 43
B97 43
B98 43
B99 43
BC26X16 52
BC28X10 52
BC31X10 52
BC36X12 52
BC40X12 52
BC42X12 52
BC44X12 52
BC46X12 52
BC49X11 52
BC50X100 52
BC52X100 52
BC54X100 52
BC55X100 52
BC59X100 52
BC64X100 52
BC7070 24
BC70X100 52
BC75X100 52
BC80X100 52
BC85X100 52
BC90X100 52
BJ10 129
BPV12 60
BPV14 60
BPV21 60
BPV31 60
BPV31D 60
BPV34 60
BPV36 60
BPV38 60
BPV56 60
BPV58 60
BPV78 60
BTG-0 42
BTG-54VL 42
BTG-54VLW 42
BTG-EK 42
BTG-K 42
BTG-KWM 42
BTG-RK 42
BTG-RWM 42
BTG-U02 42
BTG-UK2 42
BTG-UM 42
BTG-UN 42
BTG-UWM 42
BX100 43
BX103 43
BX105 43
BX112 43
BX116 43
BX120 43
BX124 43
BX128 43
BX133 43
BX136 43
BX144 43
BX150 43
BX158 43
BX162 43
BX173 43
BX180 43
BX195 43
BX210 43
BX225 43
BX240 43
BX255 43
BX270 43
BX300 43
BX35 43
BX36 43
BX37 43
BX38 43
BX42 43
Part No. Page Page Page Page
Part No. Part No. Part No.
192
BX43 43
BX46 43
BX48 43
BX50 43
BX51 43
BX53 43
BX55 43
BX56 43
BX57 43
BX58 43
BX59 43
BX60 43
BX61 43
BX62 43
BX63 43
BX65 43
BX66 43
BX67 43
BX70 43
BX71 43
BX75 43
BX77 43
BX78 43
BX80 43
BX81 43
BX82 43
BX83 43
BX90 43
BX93 43
BX95 43
BX96 43
BX97 43
BX99 43
C15 179
C25 179
CA1 60
CABLE10H 84
CABLE15 86
CABLE25 86
CABLE6 86
CB10942 180
CD+10X370R
THROUGH
CD45+5X440R 8
CD45+6X440R
THROUGH
CR40X370R 9
CH1011 168
CH2851 168
CH2858 168
CH2859 168
CH2860 168
CH2864 168
CH2866 168
CH2867 168
CH2891 168
CH30M1 168
CH30M2 168
CH30T10074 168
CH30T10078 168
CH30X341 168
CH30X342 168
CH30X354 168
CH30X356 168
CH4107 168
CH44K10002 168
CH44K10005 168
CH44K5009 168
CH44K5012 168
CH44T10009 168
CH44T10010 168
CH44T10011 168
CH44T10014 168
CH44T10018 168
CH44X10009 168
CH44X10016 168
CH44X126 168
CH44X134 168
CH44X185 168
CH44X200 168
CH44X5019 168
CH44X5043 168
CH44X5074 168
CH44X5082 168
CH44X5083 168
CH44X5099 168
CH4825 168
CH4836 168
CH4854 168
CH4874 168
CH4879 168
CH4896 168
CH5002 168
CH5104 168
CH528 168
CH550 168
CH556 168
CH5818 168
CH5828 168
CH5829 168
CH5830 168
CH5837 168
CH584 168
CH5841 168
CH5853 168
CH5855 168
CH5862 168
CH587 168
CH613 168
CH620 168
CH624 168
CH625 168
CH628 168
CH629 168
CH641 168
CH643 168
CH653 168
CH664 168
CH671 168
CH672 168
CH673 168
CH679 168
CH687 168
CH691 168
CH700 168
CH7340 168
CH775 168
CH776 168
CH779 168
CH781 168
CH809 168
CH825 168
CH8541 168
CH978 168
CH979 168
CH987 168
CIVA5 24
CO1000 107
CP1A 57
CP801 55
CP802 55
CP802-240 55
CP804 55
CP804-240 55
CP804HD 55
CP804HD-240 55
CP807 55
CP807-240 55
CP815 55
CP815-240 55
CP816 55
CP817 55
CP818 55
CP819 55
CP820 55
CP821 55
CPH100 114
CPP3W1 13
CPP3W2 13
CPP3W3 13
CPP8E 13
CPPMPR1 13
CPPMPR5 13
CR4 92
CR40X440
THROUGH
CS88-108X330 10
CR87B 88
CR87B220C 88
CR87BC 88
CR87E 90
CR87E220 90
CR87HT 89
CR87HT220 89
CR87HT22C 89
CR87HTC 89
CR87J 89
CR87J220C 89
CR87JC 89
CR87P 90
CR87P220 90
CR87PA 90
CR87PB 90
CR87PB220 90
CRPENB 84
CRPENR 84
CRT 84
CRT220 84
CRTH2 84
CRTH2-220 84
CS10398 173
CSLD14S4 67
CSLD14S6 67
CSLD14S7 67
CSLD14S9 67
CTP1 128
CVPRO46 113
Part No. Part No. Part No. Part No.
Page Page Page Page
AC Hard Starts
193
D4120 20
D4120W 20
D4P120 20
D4S 20
DA76070 131
DA76190 131
DA86420 130
DAVM+ 109
DB10 21
DB12 21
DB6 21
DB6-220 21
DB8 21
DB8-220 21
DDM55 109
DE0019A 160
DE005LUA720 22
DE019AC 160
DE05LUA520 22
DE05LUA660 22
DE05LUB100 22
DE05LUB110 22
DE05LUB120 22
DE05LUB130 22
DE0998 161
DE1001 160
DE1002E 161
DE1067 164
DE138 160
DE148 160
DE1746C 160
DE2002A 159
DE3001A 164
DE315 160
DE333 160
DE334 160
DE335 160
DE336 160
DE340 164
DE353 160
DE355 160
DE382WR 158
DE405 164
DE411 163
DE4771 160
DE504 164
DE520 161
DE522 161
DE524 161
DE525 161
DE526 161
DE534 161
DE602 158
DE6105 161
DE6107 161
DE692 159
DE693 159
DE696 159
DE698 160
DE702 159
DE702T 159
DE724 165
DE726 163
DE729 165
DE747 165
DE7523 159
DE766 163
DE7747 160
DE775 165
DE790 165
DE82AWR 158
DE82BWR 158
DE838 160
DE901 165
DE902 163
DE902M 163
DE905 165
DE964 161
DG1416 167
DG2224 167
DG42 167
DG5103 167
DH500 21
DH500-3 21
DH500FC 21
DH501 21
DH502-4 21
DH506 21
DH507 21
DH520 21
DH534 21
DH560 21
DHS55 112,128
DLTP6 101
DM10T 114
DP201202 11,12
DP202402 11,12
DP20242 11,12
DP251201 11,12
DP251202 11,12
DP251203 11,12
DP252401 11,12
DP252402 11,12
DP252403 11,12
DP25241 11,12
DP25242 11,12
DP25243 11,12
DP301201 11,12
DP301202 11,12
DP301203 11,12
DP302401 11,12
DP302402 11,12
DP302403 11,12
DP30241 11,12
DP30242 11,12
DP30243 11,12
DP401202 11,12
DP401203 11,12
DP402402 11,12
DP402403 11,12
DP40242 11,12
DP40243 11,12
DP501203 11,12
DP502403 11,12
DP50243 11,12
DP601203 11,12
DP602403 11,12
DP60243 11,12
DP751203 11,12
DP752403 11,12
DP75243 11,12
DP901203 11,12
DP902403 11,12
DP90243 11,12
DPG100 83
DPG1000 83
DPG25V 83
DR10 94
DR40 94
DSP1000 115
DST 20
DVCV 96
DVT4 96
DVTH 95
DW10001 156
DW10013 156
DW10018 157
DW10074 156
DW10136 156
DW10230 156
DW10267 157
DW10277 157
DW10304 157
DW132 155
DW144 155
DW156 154
DW157 154
DW271 157
DW307 155
DW309 155
DW3681 154
DW5314 157
DW804 154
DW995 156
EBDW 157
EBGW 189
EBHD 165
EBHR 183
EBMW 189
EBOC 171
EBWM 189
EBWW 189
EC10 133
ECAP321 44
EDT10 175
EDT11 175
EDT20 175
EDT21 175
EF1CB-EFF 183
EFF-6001A 182
EFF-6002A 182
EFF-6003A 182
EFF-6005A 182
EFF-6006A 182
EFF-6007A 182
EFF-6009A 182
EFF-6010A 182
EFF-6011 182
EFF-6013A 182
EFF-6014A 182
EFF-6017A 182
EFF-6021A 183
EFF-6022A 183
EFF-6023A 183
EFF-6025A 183
EFF-6026A 183
Page Page Page Page
Part No. Part No. Part No. Part No.
AC Hard Starts
194
EFF-6027A 183
EFF-6032A 183
EFF-6034A 183
EFF-6036A 183
EL10 45
ELB320 131
ELB701-L 131
ELB721 131
EM10 116
EM20 111
EM30 111
EM5 110
EM60 116
EM80 111
EM90 116
ES15100 166
ES15102 166
ES15105 166
ES15106 166
ES15201 166
ES15202 166
ES15205 166
ES15252 161
ES15253 161
ES15400 166
ES15501 166
ES15601 166
ES15805 161
ES15805 166
ES15806 161
ES15806 166
ES15903 161
ES15903 166
ES15905 161
ES15905 166
ES15907 161
ES16100 166
ES16200 166
ES16300 166
ES16301 166
ES16600 166
ES16802 161
ES16802 166
ES16806 161
ES18200 166
ES18600 166
ES18805 180
ES18806 180
ES18809 180
ES18810 180
ES18811 180
ES18812 180
ES18814 180
ES18818 166
ES247 186
ES671 186
ES682 186
ES7166 186
ES8084 186
ES9238 186
ES9400 166
ES9404 166
ESPRO1 126
F21412A14025C 24
F21413A14025C 24
F336 42
F473TD12025C 24
F477TD12025C 24
FA47TS3110 24
FA47TS7110 24
FAL3C05TD120A 24
FAL7C05TD120A 24
FAL7C20BT120AB 24
FALTS57C05T120A 24
FALTS57C13B120A 24
FALTS57C65T120A 24
FB101 80
FB103 80
FB104 80
FB105 80
FB106 80
FB107 80
FB108 80
FB109 80
FB152 79
FB157 79
FB159 79
FB180 79
FB182 79
FB190 79
FB250 79
FB350 79
FB353 80
FB401 79
FB402 79
FB403 79
FB404 79
FB450 80
FB455 80
FB460 79
FB501 79
FB504 79
FB550 79
FB590 79
FB601 79
FB604 79
FB650 79
FB651 79
FB660 79
FB665 79
FB702 79
FB703 79
FBP100 127
FC0810 125
FC0915 125
FC1113 125
FC1214 125
FC1617 125
FC1820 125
FC2224 125
FC4011 32
FC4031 32
FCH0810 125
FCH0915 125
FCH1113 125
FCH1214 125
FCH1617 125
FCH1820 125
FCH2224 125
FCR6 124
FCRH6 124
FCS003 164
FIM20 124
FL50 27
FL60 27
FL6N1 125
FLT3M 125
FP18 126
FP18 128
FPT10 124
FPT13 124
FPT15 124
FRESHAIR 153
FSKEY 45
FTV12 61
FWB1 129
GA28 171
GA31 179
GB10 45
GC116 172
GC177 172
GC192 172
GC503 172
GC505 172
GC506 172
GC601 172
GC602 172
GC604 172
GC607 172
GC707 172
GFK1 126
GNB 185
GNBA 185
GVW151 187
HLD200 113
HM101 185
HOT 171
HP083 71
HP083S 71
HP084 71
HP084S 71
HP163 71
HP163S 71
HP164 71
HP164S 71
HP165 71
HP165S 71
HS10001 144
HS10004 144
HS10016 144
HS10128 144
HS11001 144
HS11004 144
HS11016 144
HS11128 144
HS12001 145
HS13001 145
HS15128 152
HS16001 148
HS16501 148
HS17001 145
HS17001 145
HS17002 143
HS17004 145
HS17004 145
HS17016 145
Part No. Part No. Part No. Part No.
Page Page Page Page
AC Hard Starts
195
HS17016 145
HS17022 143
HS18002 143
HS18004 148
HS18022 143
HS20004 146
HS20016 146
HS20128 146
HS21002 143
HS21004 146
HS21016 146
HS21022 143
HS21128 146
HS22008 146
HS22032 146
HS22128 146
HS23008 146
HS23032 146
HS23128 146
HS24001 147
HS24010 147
HS24128 147
HS26004 147
HS26016 147
HS26128 147
HS30004 145
HS30016 145
HS31032 144
HS32032 144
HS32098 143
HS50004 151
HS51032 147
HS52032 151
HS52105 151
HS52115 151
HS52128 151
HS52200 142
HS53001 152
HS55032 149
HS55128 149
HS56011 150
HS57014 150
HS58128 149
HS58520 150
HS59128 149
HS59520 150
HS60002 142
HS60022 142
HSINJ001 146
HSUVB001 146
HTP5 86
HTP5100 86
HTP525 86
HTP550 86
HVAC STRAP 46
HVT2 129
IAQ50 107
IAQ55 107
IC100 49
IC102 49
ICG1 49
ICG-220 49
IG4000 16
IG401 16
IG402K 16
IG403K 16
IG404 16
IG405 16
IG406 16
IG407 16
IG408 16
IG409 16
IG410 17
IG411 17
IG412 17
IG414 17
IG418 17
IM1 124
IM2 124
IM3 124
IM4 124
IM5 124
IMK3 124
IMM1515 179
IMM8366 179
JV1 57
K1401GE0 174
KA12 152
KEL 90
KES 90
KEV 90
KPP 93
KTE 94
KTH 93
KTP 94
KTT 93
L120 26
L125 26
L130 26
L135 26
L140 26
L145 26
L14625W 162
L150 26
L15015W 162
L155 26
L15525W 162
L160 26
L165 26
L170 26
L175 26
L180-20 26
L180-40 26
L190 26
L200 26
L205 26
L225 26
L240 26
L250 26
L260 26
L270 26
L290 26
L300 26
L320 26
L340 26
L420 104
L593BA 24
L597BA 24
LA189 187
LB0024 184
LB0101 184
LB029 158
LB131 158
LB131 184
LB151 158
LB151 184
LB161 158
LB161 184
LB1655 158
LB216 158
LB230 158
LB230 184
LB231 158
LB231 184
LB232 158
LB234 158
LB260 158
LB260 184
LB276 158
LB276 184
LB279 158
LB279 184
LB295 158
LB6384 184
LB788 158
LB788 184
LBIT 130
LCV 103
LD120 26
LD130 26
LD135 26
LD140 26
LD145 26
LD155 26
LD170 26
LD200 26
LD225 26
LD240 26
LD270 26
LIT11TC 119
LIT6P 119
LLD032 68
LLD032S 68
LLD052 68
LLD052S 68
LLD053 68
LLD053S 68
LLD082 68
LLD082S 68
LLD083 68
LLD083S 68
LLD084 68
LLD084S 68
LLD162 68
LLD163 68
LLD163S 68
LLD164 68
LLD164S 68
LLD165 68
LLD165S 68
LLD303 68
LLD303S 68
LLD304 68
LLD304S 68
LLD305 68
LLD306S 68
Page Page Page Page
Part No. Part No. Part No. Part No.
196
LLD307S 68
LLD309S 68
LLSU 104
LP0005A 155
LP054D 186
LP1000 189
LP10338 189
LP10348 189
LP10350 189
LP112 186
LP115 186
LP116 186
LP121 186
LP123 186
LP128 186
LP1585L 186
LP1586 184
LP2001T 186
LP2002H 186
LP210 186
LP280187 186
LP285 184
LP301 184
LP30913 186
LP319 184
LP338 184
LP338D 184
LP36347 186
LP397 186
LP510 187
LP580 187
LP581 187
LP5834 184
LP585 188
LP5974C 186
LP617 188
LP630 184
LP631 184
LP655 188
LP663 188
LP753 189
LP785 184
LP790 184
LP925 188
LP933 189
LP939 188
LP956 185
LPT 103
LPT1000 103
LT2 101
LTC 102
LTH 102
LTK 186
LTT 101
M1000D 108
M500 108
M501 108
M814520 78
MAG1BL 45
MAG1GR 45
MAG1RD 45
MAG1YL 45
MAGBK 45
MB55 46,77
MB554 46,77
MCASE 108
MD5 67
MD6 67
MD7 67
MFD10 108
MFDFUSE 108
ML37 58
ML45 58
ML50 58
ML55 58
ML60 58
ML70 58
ML80 58
ML90 58
MO44 141
MO98 141
MP15MA 168
MP15YA 168
MP21MA 168
MP21YA 168
MP26MA 168
MP26YA 168
MPR1 5
MPR5 5
NS2000031 23
OL1 50
OL2 50
OL3 50
OL4 50
OLK1786 50
OLK7535 50
OLK7913 50
OR102 171
OV32 51
OV34 51
OV36 51
OV38 51
OV40 51
OV42 51
OV44 51
OV46 51
OV48 51
OV50 51
OVKIT 51
P0115 49
P0230 49
P2W-P 20
PCS220 112
PIT1 119
PIT6L 119
PL6 125
POP3 44
POP5 44
PR022 49
PR041 49
PR042 49
PR062 49
PR081 49
PR082 49
PR24120 24
PR2412036W 24
PR2436W 24
PT100 115
PT100C 115
PT100H 115
PT100HC 115
PT25 179
PT25E 179
Q101 25
Q102 25
Q103 25
Q104 25
Q105 25
Q106 25
Q107 25
Q108 25
Q109 25
Q110 25
Q111 25
Q112 25
Q113 25
Q114 25
Q115 25
Q116 25
R041 49
R062 49
R081 49
R082 49
R100 81
R134A20 153
R134AG 153
R3203612 161
R410A18 153
R410AG 153
RA100Z 20
RC2108 131
RC2110 131
RCB1 129
RCO210 48
RCO220 48
RCO410 48
RCO420 48
RCO620 48
RCO810 48
RCO820 48
RCS220 112
RIM2000 178
RIM277 177
RIM300 177
RIM313 177
RIM316 177
RIM469 177
RIM500 177
RIM501 178
RIM597 178
RIM900 178
RIM943 178
RIM961 178
RJR601 161
RK100 170
RK101 170
RK103 170
RK200 170
RK201 170
RK203 170
RK362 170
RK458 170
RK699 170
RLE202 162
RO42 49
RP0512G 167
Part No. Part No. Part No. Part No.
Page Page Page Page
197
RP0512NG 167
RP0514G 167
RP0514G 167
RP0514NG 167
RP2512G 167
RP2512G 167
RP2512NG 167
RP2514G 167
RP2514NG 167
RP2516H 167
RP5012G 167
RP5014G 167
RP5014GB 167
RPT61 113
RR031L 170
RR058L 170
RR105 170
RR109 170
RR110 170
RR117 170
RR122 170
RR123 170
RR124 170
RR137L 170
RR146 170
RR261 170
RR500 170
RRUPR 170
RRUPS 170
RSS495011 23
RSS498013 23
RTS151 20
RTS151KEY 20
RTS2 20
RTS2-AOS 20
RW516 129
RW916 129
RWA10 129
S0230K00000S 16
S1061A40100C 24
S1061A4575C 24
S1061A5040C 24
S1061A5560C 24
S1061B6545C 24
S132 141
S210 67
S211 67
S212 67
S213 67
S214 67
S215 67
S216 67
S218 67
S219 67
S220 67
S6020BB 118
S6020FB 118
S6020HL 118
S6025FB 118
S6025HL 118
S7P24 140
S7P36 140
S7P48 140
S8 141
S804100 78
S804120 78
S804500 78
S804520 78
S814100 78
S814120 78
S814500 78
S814520 78
S814521 78
SAB233 130
SAB454 130
SAB710 130
SAD68 176
SAD70 176
SAD72 176
SAM59 176
SB001 79
SBIT 130
SC1002 172
SC950 175
SC952 175
SC953 175
SC954 175
SC955 175
SC959 175
SCM150 13
SCM60 13
SCR11 86
SCR12 86
SCS102 176
SCS112 176
SCS115 176
SCS42 176
SCS44 176
SCS46 176
SCS75 176
SCWG3 126
SCWG3 180
SCWG4 127
SCWG4 180
SD100F7 91
SD120F24 91
SD120F7 91
SD50C7 91
SDE350 160
SDE358 160
SDE359 160
SDE364 160
SDE365 160
SDE366 160
SEPR60 6
SET149 162
SET176 162
SET184 162
SET194 162
SET195 162
SET196 162
SET197 162
SET198 162
SET401 162
SET402 162
SET403 162
SET404 162
SET407 162
SET409 162
SET410 162
SF0099 65
SF0101 65
SF0111 65
SF1010 62
SF1060 65
SF1090 65
SF1414 63
SF1818 63
SF2010 63
SF2012 63
SF2020 63
SF2028 63
SF2035 63
SF2060 64
SF2070 64
SF2090 64
SF2235 63
SF2245 63
SF2250 63
SF2525 62
SF2595 64
SF2597 64
SF3338 62
SF3600 62
SF3602 62
SF3603 62
SF3604 62
SF3605 62
SF3606 62
SF3608 62
SF3800 65
SF3813 65
SF3900 65
SF3910 65
SF3920 65
SF3930 65
SF3970 66,128
SF4311 66,128
SF4314 128
SF4450 63
SF5014 64
SF5050 64
SF5161 63
SF5421 62
SF5501 62,65
SF5512 62
SF5514 62
SF5516 62
SF5518 62
SF5534 62
SF5538 62
SF5555 65
SF5558 62
SF5578 62
SF8400 63
SF8403 63
SF8404 63
SF8405 63
SF8406 63
SF8408 63
SF8412 63
SF8414 63
SF8416 63
SF8418 63
SF8434 63
SF8438 63
Page Page Page Page
Part No. Part No. Part No. Part No.
198
SF8458 63
SF8478 63
SF8725 64
SF9601 64
SF9602 64
SF9603 64
SF9614 65
SF9616 65
SF9620 65
SF9644 65
SFC110170 31
SFC125265 31
SFC150225 31
SFC170250 31
SFC200240 31
SFC200365 31
SFC210275 31
SFC300400 31
SFC75120 31
SFPC 30
SG110 73
SG110R 73
SG111 73
SG111R 73
SG114 73
SG114R 73
SG115 73
SG115R 73
SG118 73
SG118R 73
SG119 73
SG119R 73
SG204 73
SG204R 73
SG205 73
SG205R 73
SG206 73
SG206R 73
SG207 73
SG207R 73
SG208 73
SG208R 73
SG209 73
SG209R 73
SG429 169
SGE127 176
SGE286 176
SGE287 176
SGE312 176
SGE318 176
SGE319 176
SGE450 176
SGE485 176
SGE486 176
SGR4001 169
SGR403 169
SGR407 169
SGR409 169
SGR410 169
SGR412 169
SGR414 169
SGR429 169
SGV04 139
SGV05 139
SGV06 139
SGV07 139
SGV08 139
SGV10 139
SGV14 139
SGV16 139
SGVA1 139
SGVA2 139
SH201 74
SH202 74
SH203 74
SH204 74
SH206 74
SH207 74
SH221 74
SH222 74
SH224 74
SH225 74
SH226 74
SH250 74
SH261 173
SH264 173
SH267 173
SH271 173
SH281 74
SH282 74
SH283 74
SH284 74
SH303LB 173
SH307 173
SH308 173
SH309 173
SH310 173
SH319 173
SH320 173
SH323 173
SH324 173
SH325 173
SH413 173
SH414 173
SH419 173
SH442 173
SH500 74
SH502 74
SH503 74
SH504 74
SH505 74
SHF110 27
SHF110DC 27
SHF120 27
SHF140 27
SHF250 27
SHF90 27
SHL120 27
SHL140 27
SHL150 27
SHL160 27
SHL170 27
SHL180 27
SHL190 27
SHL200 27
SHL230 27
SHL250 27
SHL501 28
SHL502 28
SHL503 28
SHL504 28
SHL505 28
SHL506 28
SHL507 28
SHL508 28
SHL509 28
SHL510 28
SHL511 28
SHL512 28
SHL513 28
SHL514 28
SHL515 28
SHL516 28
SHL517 28
SHL518 28
SHL519 28
SHL520 28
SHL521 28
SHL522 28
SHL523 28
SHL524 28
SHL525 28
SHM125 27
SHM130 27
SHM160 27
SHM170 27
SHM180 27
SHM200 27
SHM210 27
SHM290 27
SHM350 27
SHP200150 31
SHP250150 31
SHP250180 31
SHP275195 31
SHP300200 31
SHP325225 31
SHP325230 31
SHP350250 31
SHP375265 31
SHP400200 31
SHP400280 31
SHP400300 31
SHP425300 31
SHP425325 31
SHP450250 31
SHP480380 31
SHP550450 31
SHP600475 31
SHP610420 31
SHP665565 31
SHS012 139
SHS03 139
SHS04 139
SHS06 139
SHS08 139
SHS16 139
SHSA1 139
SHSA2 139
SIG100 17
SIG101 17
SIG102 17
SIG104 17
SIG106 17
SIG107 17
SIG108 17
Part No. Part No. Part No. Part No.
Page Page Page Page
199
SIG109 17
SIG1100 17
SKIT03033 16
SL243 59
SL245 59
SL247 59
SL249 59
SL25581 58
SL300TH 100
SL300TH 100
SL500T 97
SL500TC 97
SL500TH 97
SL500XT 97
SL5708 58
SL5709 58
SL79002 58
SL79005 58
SL7985 180
SLF130VA 29
SLF170VA 29
SLF194HB 29
SLF210HA 29
SLF222VA 29
SLF230HA 29
SLF250HA 29
SLF330VA 29
SLP0520 31
SLP0530 31
SLP1025 31
SLP1032 31
SLP1535 31
SLP2045 31
SLP2550 31
SLP2565 31
SLP2580 31
SLP3560 31
SLP4080 31
SLP4560 31
SLP5090 31
SLP75100 31
SLP90120 31
SLS120 29
SLS140 29
SLS150 29
SLS160 29
SLS170 29
SLS180 29
SLS200 29
SLS265 29
SLS275 29
SLS285 29
SLS295 29
SLS300 29
SLT45 59
SLT50 59
SLT55 59
SLT60 59
SM0020E 181
SM0146B 181
SM0740 181
SM10074 181
SM1008 163
SM10141 181
SM10172 181
SM10185 181
SM10220 181
SM10257 181
SM1127 181
SM140-40A 76
SM140-40A 167
SM2744 181
SM279827 163
SM285990 186
SM329 181
SM335 181
SM336 181
SM338 181
SM343 181
SM345 181
SM351 75
SM352 75
SM353 75
SM354 75
SM399 181
SM4888 181
SM501 75
SM502 75
SM503 75
SM504 75
SM5109 75
SM5109 181
SM5113 181
SM5211 75
SM5211 181
SM5212 75
SM5221 75
SM5222 75
SM5311 75
SM5311 181
SM5312 75
SM5411 75
SM5411 181
SM5412 75
SM5421 75
SM5422 75
SM550 167
SM551 167
SM552 167
SM553 167
SM554 167
SM555 167
SM556 167
SM5811 75
SM5812 75
SM5821 75
SM5822 75
SM670 76
SM6700B 76
SM671 76
SM672 76
SM673 76
SM675 76
SM681 167
SM8549 181
SM9703 181
SM998 76
SM998 181
SM999 76
SM999 181
SMC11 11
SMR375 31
SMR410 31
SMR440 31
SMR575 31
SMR610 31
SMR630 31
SNAT185 45
SNAT316100 45
SNAT3165 45
SO100 142
SP12MA 168
SP21MA 168
SP931WP 174
SPA1401AD 174
SPA1403FL 174
SPB1401F 174
SPC660L 80
SPC836L 80
SPC990L 80
SPD1401AM 174
SPF1111F 174
SPG1111GE 174
SPG1401GE 174
SPJ1111AM 174
SPK1401GE 174
SPL1111W 174
SPLT3400 16
SPM6823-3 174
SPN1111AD 174
SPP 5
SPP10E 5
SPP4E 5
SPP5 5
SPP5E 5
SPP6 5
SPP6E 5
SPP7E 5
SPP7S 5
SPP8E 5
SPP9E 5
SR4-20 87
SR6N1 130
SRB 85
SRJ 86
SRL130 29
SRL135 29
SRL220 29
SRL230 29
SRL240 29
SRL250 29
SRL260 29
SRL300 29
SRL350 29
SRTH 86
SS410 49
SSD6 185
SSD6GE 185
SSD8 185
SSD8GE 185
SSDF20 118
SSDW7 154
SSFW7 185
SSGFM2 72
SSGFM3 72
SSGFM4 72
Page Page Page Page
Part No. Part No. Part No. Part No.
200
SSGSS2 72
SSGSS3 72
SSGSS4 72
SSGSS5 72
SSGSS7 72
SSLD164 70
SSLD165S 70
SSLD166 70
SSLD166S 70
SSLD167S 70
SSLD305 70
SSLD305S 70
SSLD306S 70
SSLD307S 70
SSLD417S 70
SSLD419S 70
SSLD83 70
SSLD83S 70
SSLD84 70
SSLD84S 70
SSLD85 70
SSLD85S 70
SSN2000 17
SSN24 17
SSN3000 17
SSN4000 17
SSRT145 45
SSRT185 45
SSRT3165 45
ST01 117
ST02 117
ST03 117
ST04 117
ST06 117
ST08 117
ST09 117
ST10 117
ST101 78
ST102 78
ST103 78
ST104 78
ST1236-31 118
ST200 142
STC4183 30
STC4183 59
STC4199 30
STC4199 59
STC4228 30
STC4228 59
STC4257 30
STC4257 59
STC4283 30
STC4283 59
STC4300 30
STC4300 59
STC4333 30
STC4333 59
STC4338 30
STC4358 30
STC4358 59
STC4438 59
STC4468 30
STC4468 59
STC5257 30
STC5257 59
STC5300 30
STC5300 59
STC5333 30
STC5333 59
STC5377 30
STC5377 59
STC6257 30
STC6257 59
STC6300 30
STC6300 59
STC6333 30
STC6333 59
STC6377 30
STC6377 59
STC8170 30
STC8170 59
STC8242 30
STC8242 59
STC8257 30
STC8257 59
STC8257 59
STC8283 30
STC8283 59
STC8468 30
STC8468 59
STC85283 30
STC85283 59
STC86257 30
STC86257 59
STC86283 30
STC86283 59
STC86377 30
STC86377 59
STF4170 30
STF4170 59
STF4183 30
STF4183 59
STF4230 30
STF4230 59
STF4249B 30
STF4249B 59
STF4291B 30
STF4291B 59
STF4305B 30
STF4305B 59
STV2DLL 61
STV2LL 61
SU2001 176
SU2002 176
SU2003 176
SU2004 176
SU2301 176
SU2302 176
SU2303 176
SU2304 176
SUD103 66
SUD109 66
SUD110 66
SUD111 66
SUD112 66
SUD113 66
SUD114 66
SUD115 66
SUD116 66
SUD8288 66
SUD8358 66
SUPR 6
SWC02 139
SWC03 139
SWC04 139
SWC05 139
SWC08 139
SWC110 139
SWC112 139
SWC116 139
SWC16 139
SWC26 176
SWCA1 139
SWT04 140
SWT04C 140
SWT05 140
SWT05C 140
SWT07 140
SWT07C 140
SWT11 140
SWT11C 140
SWT15 140
SWT15C 140
SWTA1 140
SWTM05 140
SWTM05C 140
SWTM07 140
SWTM07C 140
SWTM11 140
SWTM11C 140
SWTM14 140
SWTM14C 140
SXT100R 32,33
SXT101 32,33
SXT103 32,33
SXT104 32,33
SXT105 32,33
SXT106 32,33
SXT111 32,33
SXT112 32,33
SXT113 32,33
SXT114 32,33
SXT115 32,33
SXT116 32,33
SXT148 32,33
SXT150 32,33
SXT160 32,33
SXT179R 32,33
SYC2P27B 13
SYCTC2403D 14
SYCTC4803D 14
SZ0573 176
SZ0574 176
SZ0575 176
SZ0578 176
SZ0583 176
SZ0584 176
SZ0592 176
SZ0609 176
SZ4200520 178
T1001 132
T1001C 132
T1002 132
T1002C 132
T1003 132
T1003C 132
Part No. Part No. Part No. Part No.
Page Page Page Page
201
T1004 132
T1004C 132
T1005 132
T1005C 132
T1006 132
T1006C 132
T1007 132
T1007C 132
T1009 132
T1009C 132
T1010 132
T1010C 132
T1021 137
T1021C 137
T1022 137
T1022C 137
T1023 137
T1023C 137
T1027 133
T1027C 133
T1028 133
T1028C 133
T1029 133
T1029C 133
T1030 135
T1030C 135
T1031 135
T1031C 135
T1032 135
T1032C 135
T1033 135
T1033C 135
T1034 135
T1034C 135
T1035 135
T1035C 135
T1036 135
T1036C 135
T1037 135
T1037C 135
T1038 135
T1038C 135
T1039 135
T1039C 135
T1040 135
T1040C 135
T1042 134
T1042C 134
T1043 134
T1043C 134
T1044 134
T1044C 134
T1046 134
T1046C 134
T1047 134
T1047C 134
T1048 134
T1048C 134
T1049 134
T1049C 134
T1050 134
T1050C 134
T1051 134
T1051C 134
T1052 134
T1052C 134
T1053 134
T1053C 134
T1056 133
T1056C 133
T1057 133
T1057C 133
T1058 133
T1058C 133
T1059 133
T1059C 133
T1061 133
T1061C 133
T1062 133
T1062C 133
T1064 133
T1064C 133
T1065 133
T1065C 133
T1102 132
T1102C 132
T1103 132
T1103C 132
T1104 133
T1104C 133
T1105 132
T1105C 132
T1106 133
T1106C 133
T1107 132
T1107C 132
T1108 137
T1108C 137
T1109 137
T1109C 137
T1110 136
T1110C 136
T1111 136
T1111C 136
T1112 136
T1112C 136
T1113 136
T1113C 136
T1114 136
T1114C 136
T1115 136
T1115C 136
T1116 136
T1116C 136
T1117 136
T1117C 136
T1118 136
T1118C 136
T1119 134
T1119C 134
T1120 137
T1120C 137
T1121 30,137
T1121C 137
T1122 30,136
T1122C 136
T1123 30,136
T1123C 136
T1124 30,136
T1124C 136
T1125 30,136
T1125C 136
T1129 133
T1129C 133
T1130 133
T1130C 133
T1131 135
T1131C 135
T1133 135
T1133C 135
T1134 135
T1134C 135
T1135 135
T1135C 135
T1136 135
T1136C 135
T1137 135
T1137C 135
T1138 135
T1138C 135
T1141 135
T1141C 135
T1142 135
T1142C 135
T1143 135
T1143C 135
T1144 135
T1144C 135
T1145 134
T1145C 134
T1146 134
T1146C 134
T1147 134
T1147C 134
T1150 138
T1150C 138
T1151 138
T1151C 138
T1152 138
T1152C 138
T1153 138
T1153C 138
T1164 138
T1164C 138
T1165 138
T1165C 138
T1166 138
T1166C 138
T1167 138
T1167C 138
T1168 138
T1168L 138
T1169 138
T1169L 138
T1179 138
T1186 138
T1187 138
T1188 138
T1191 139
T1192 139
T1193 139
T1196 139
T1197 139
T2001 132
T2001C 132
T2002 132
Page Page Page Page
Part No. Part No. Part No. Part No.
202
T2002C 132
T2003 132
T2003C 132
T2004 132
T2004C 132
T2033 135
T2033C 135
T2065 135
T2065C 135
T2066 135
T2066C 135
T2067 134
T2067C 134
T2068 134
T2068C 134
T2070 138
T2070C 138
T2111 134
T2111C 134
T2112 134
T2112C 134
T301025 167
T301225 167
T301425 167
T301625 167
T301825 167
T45 32
TA2 121
TA22 121
TA2-220 121
TA2-220C 121
TA22-220EU 121
TA2C 121
TA33 120
TA44 120
TA6 121
TA6-220 121
TA6-220C 121
TA6C 121
TA7 122
TA7C 122
TAP4 122
TAP4-220 122
TAP4C-220 122
TB123A 126
TC103 129
TC2 128
TCW100 86
TCW25 86
TCW50 86
TCW75 86
TD68 15
TD69 15
TD72 15
TD73 15
TH10025 180
TH2001B 164
TH2046C 188
TH4150 180
TH7274 164
TH9973 164
THA2 123
THC120 118
THP2 115
TPC8000 110
TPFDA 118
TPMP2 14
TPMPU 14
TR10 45
UET120 175
UET240 175
UFC1 124
UHS120 44
UHS24 44
ULV200 126
UPRO21 48
UPRO41 48
UPRO81 48
UR041 47
UR081 47
URCO210 47
URCO210RC 47
URCO410 47
URCO410RC 47
URCO810 47
URO810RC 47
URSC10 48
URSC20 48
USBS 105
UV12K 153
UV12K 153
UW1 129
VDL1000 114
VG60 82
VG61 82
VG64 82
VG640 81
VG640D 81
VG640T 81
VG64S 82
VG65 83
VG66 83
VGC 81
VI2404 179
VI3460 155
VLCEL 106
VLPAPER 106
VLS CABLE 106
VLSK 106
VLT PROBE 106
VLT4115 106
VLT412 106
VLT4230 106
VLTH PROBE 106
VLTH115 106
VLTH12 106
VLTH230 106
VLWPCASE 106
VPR 106
WV0026 187
WV0027 187
WV0142G 187
WV0312J 187
WV0314K 187
WV1 187
WV10032 181
WV10033 181
WV10051 181
WV1450 181
WV1460 181
WV2790 181
WV2790 181
WV8046 181
WV8047 181
WV8179 181
ZIPEZ 44
Part No. Part No. Part No.
Page Page Page
203
This year we launched our brand new website at www.supco.com. This new site has a full search feature
which allows visitors to search any product we carry by part number, product category or name. For each
part you will find a detailed description, photo, specifications, applications, cross reference list, accessories
and have the ability to download any printed materials pertaining to that specific part. In addition to products,
visitors will also have the ability to search for distributors and sales reps near them, track their order, read
current press releases, download our product catalogs and get updated on upcoming tradeshows and events.
For any questions please feel free to contact us and we will be happy to assist you.
SEALED UNIT PARTS CO., INC.
PO Box 21, 2230 Landmark Place • Allenwood, NJ 08720 USA
1-800-333-9125 • www.supco.com • orders@supco.com
The Right Choice
Producing High Quality, Innovative
Products at Affordable Prices
204
The Right Choice
SEALED UNIT PARTS CO., INC.
PO Box 21, 2230 Landmark Place • Allenwood, NJ 08720 USA
1-800-333-9125 • www.supco.com • orders@supco.com F546
SEALED UNIT PARTS CO., INC.
PO Box 21, 2230 Landmark Place
Allenwood, NJ 08720 USA
www.supco.com
