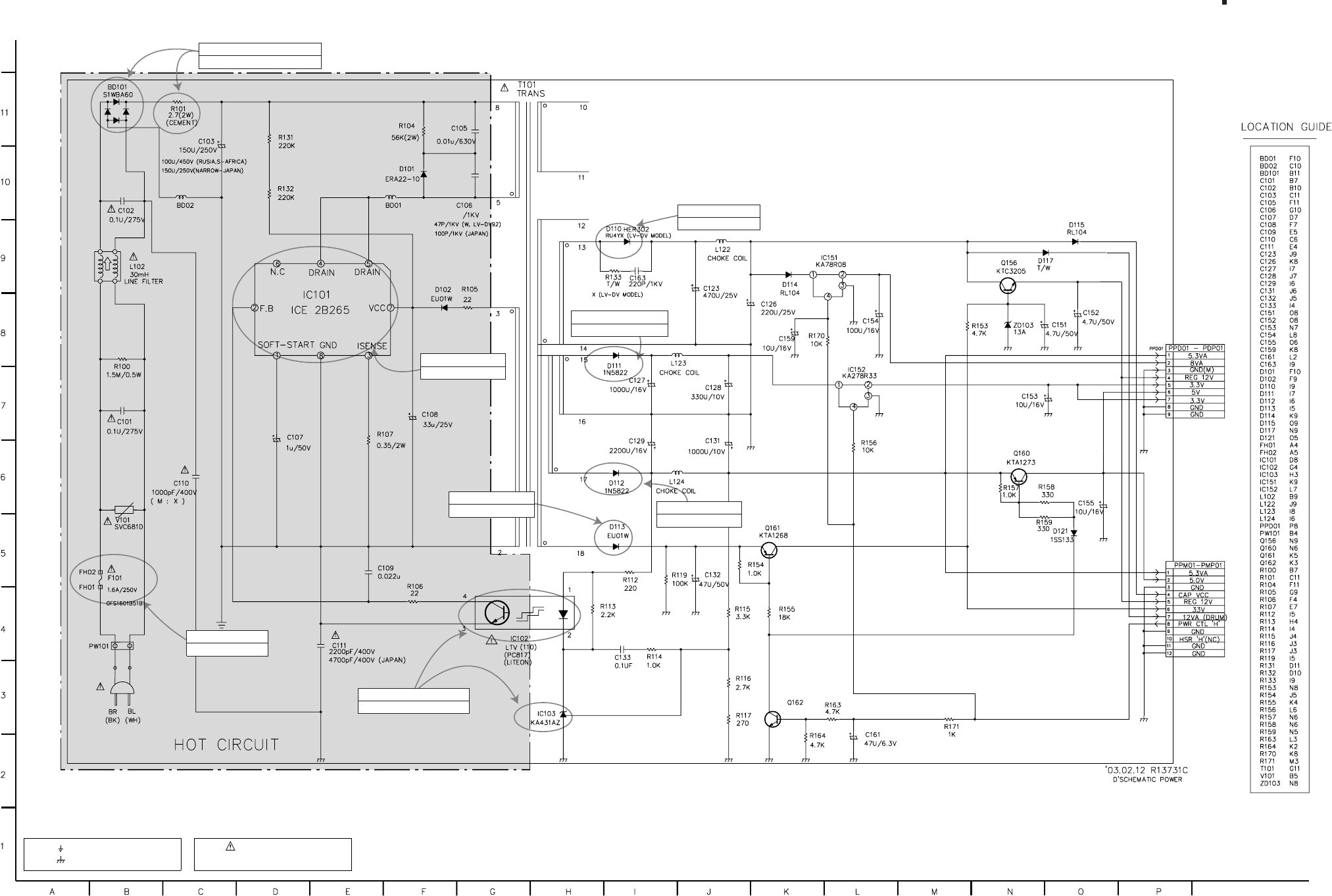

- 1. POWER(SMPS) CIRCUIT
- 2. SYSTEM/KEY CIRCUIT
- 3. SERVO CIRCUIT

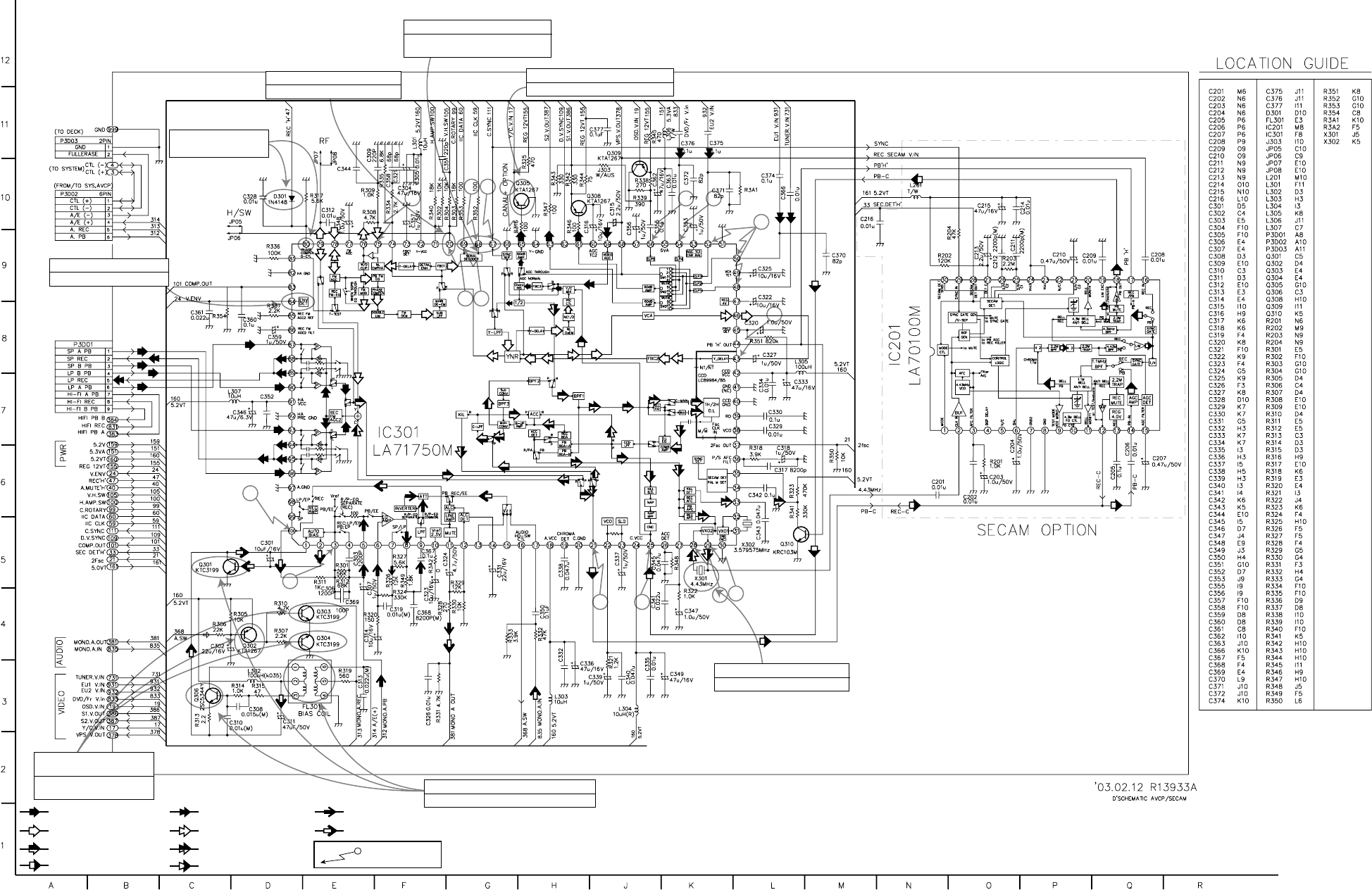

- 4. Y/C CIRCUIT
- 5. Hi-Fi CIRCUIT
- 6. Tuner/IF CIRCUIT

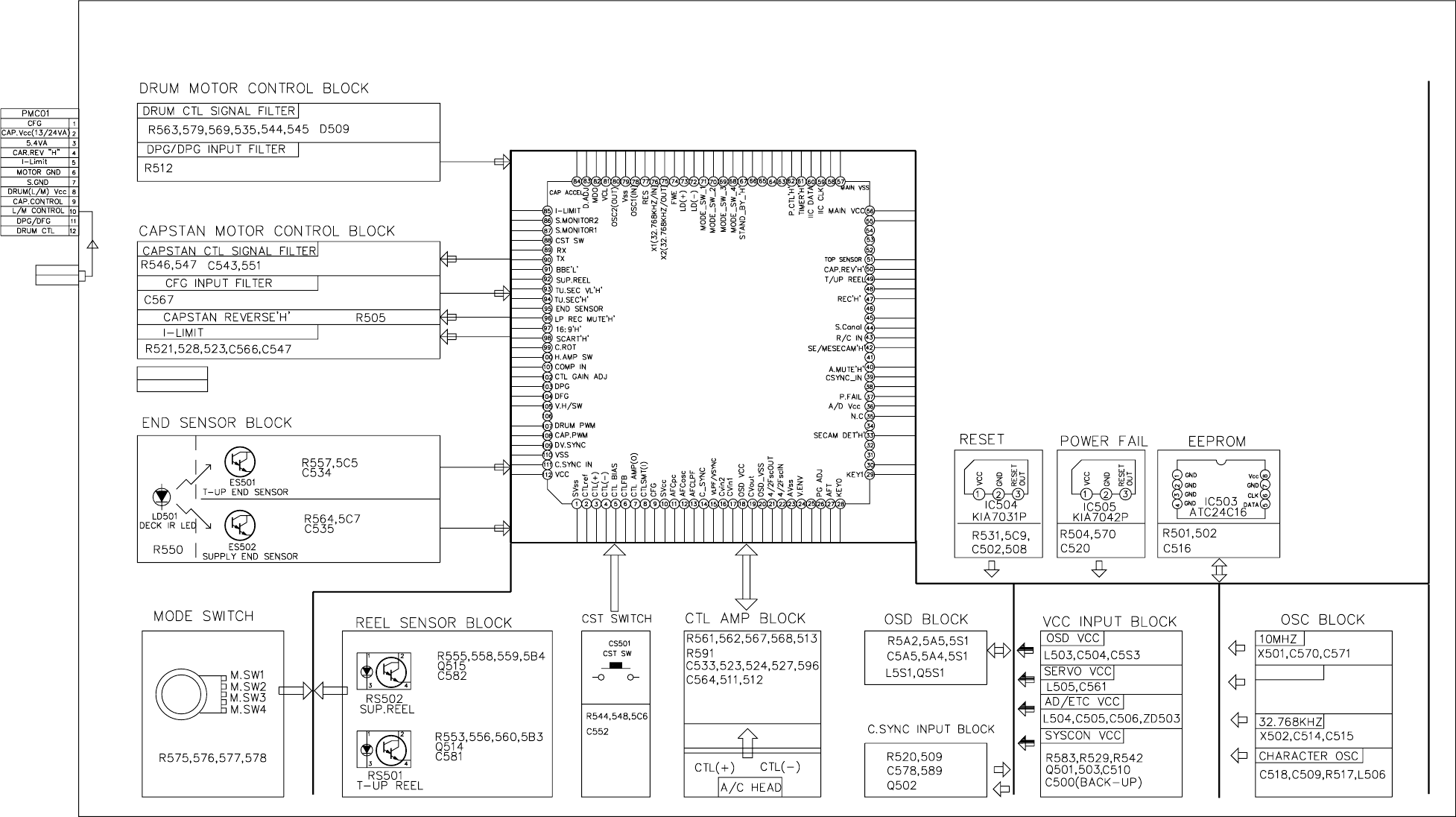

- BLOCK DIAGRAMS
- 1. Power(SMPS) BLOCK DIAGRAM

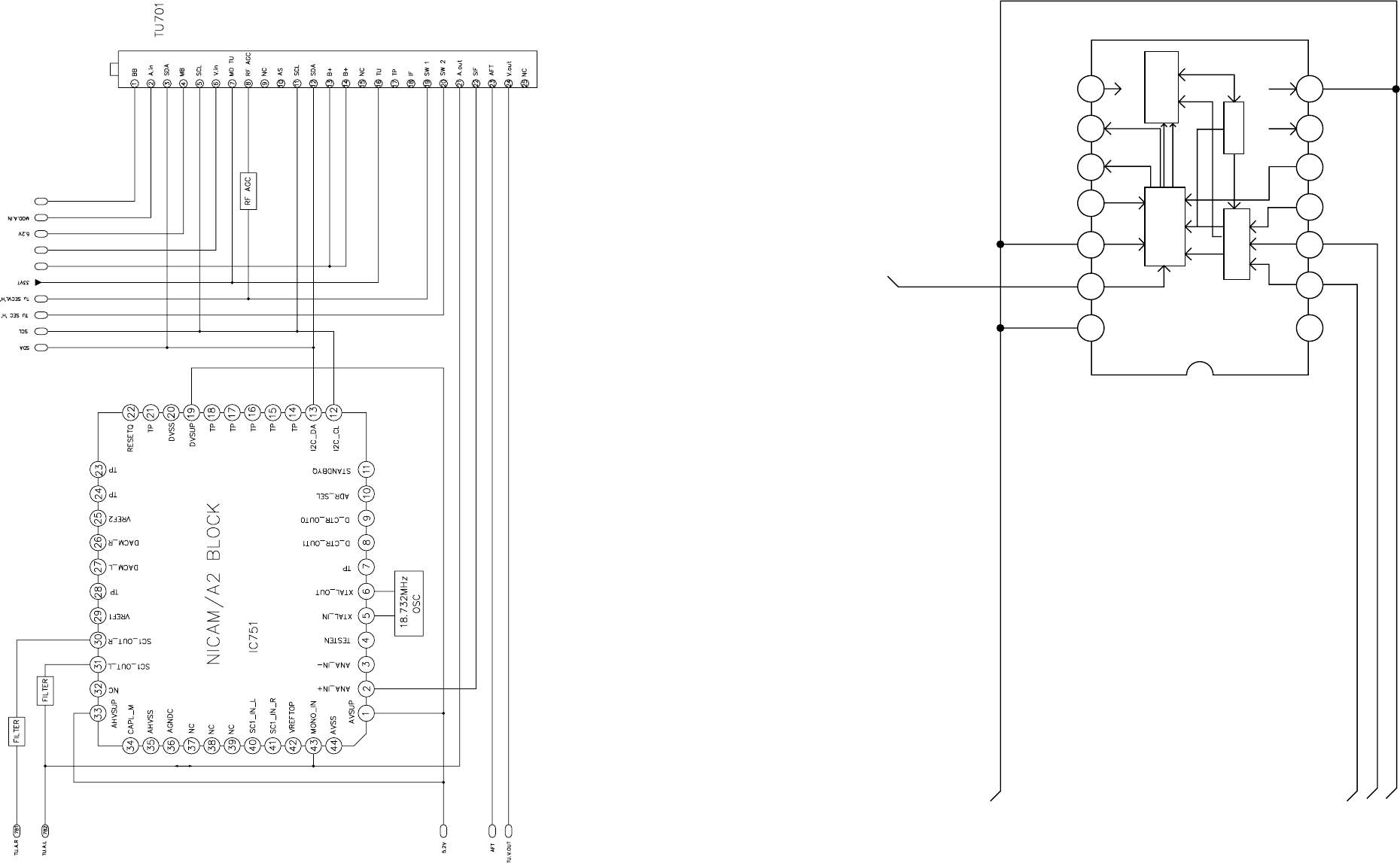

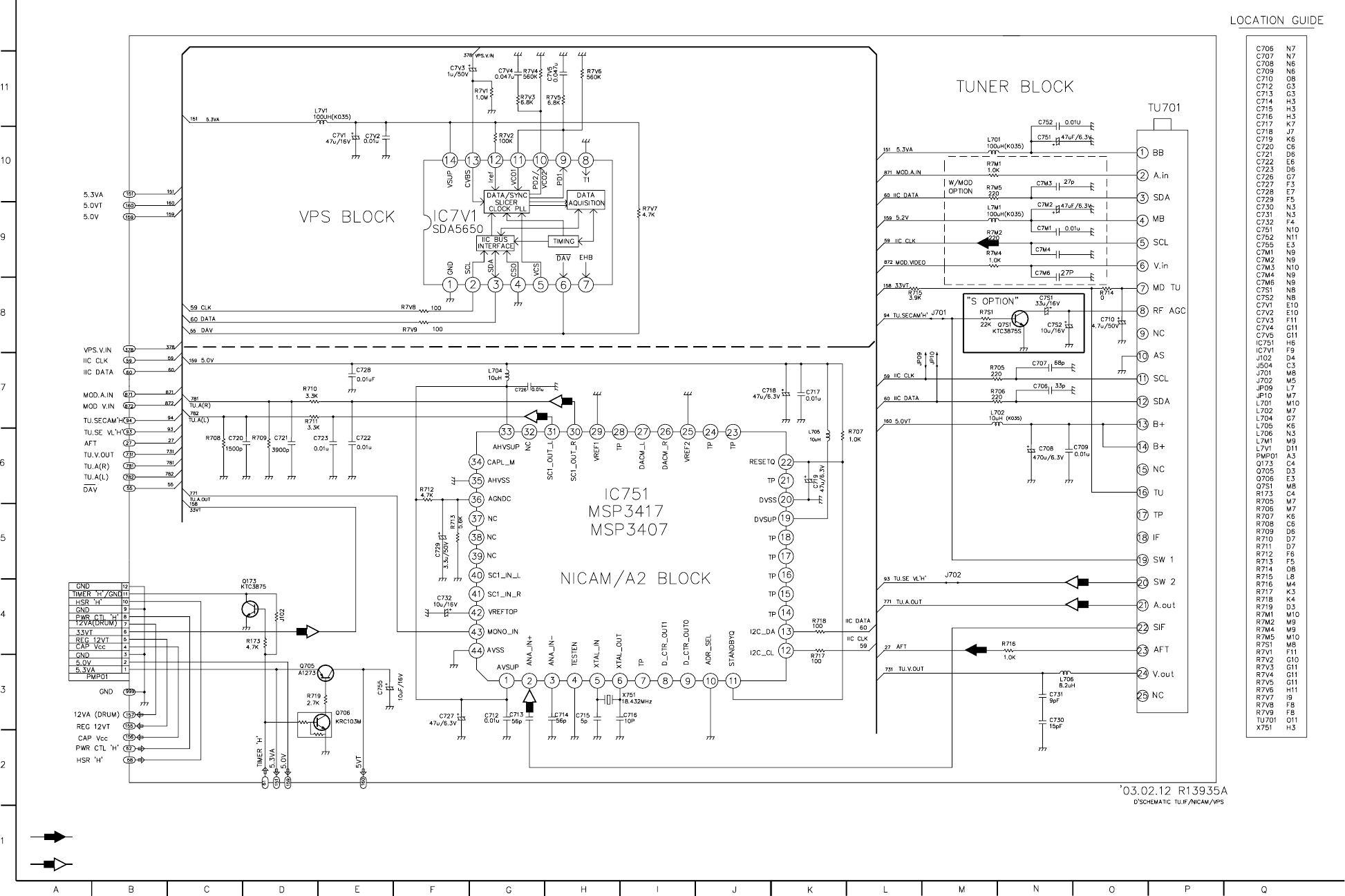

- 2. Tu/IF, NICAM & A2 BLOCK DIAGRAM
- 3. VPS BLOCK DIAGRAM
- 4. Y/C BLOCK DIAGRAM
- 5. Hi-Fi BLOCK DIAGRAM
- SM5310499-00_2K.pdf
- SM5310499-00_3K.pdf
- SM5310499-00_4K.pdf
- SM5310499-00_5K.pdf
- SM5310499-00_6K.pdf
- SM5310499-00_7K.pdf
- SM5310499-00_8K.pdf
- SM5310499-00_9K.pdf
- SM5310499-00_AK.pdf
- SM5310499-00_BK.pdf
- SM5310499-00_CK.pdf
- SM5310499-00_DK.pdf
- SM5310499-00_EK.pdf
- SM5310499-00_FK.pdf
- 9. Arm Assembly Cleaner
- 10.Head F/E
- 11. Base Assembly A/C Head
- 12.Brake Assembly T
- 13.Brake Assembly RS
- 14.Arm Assembly Tension
- 15.Reel S / Reel T
- 16.Base Assembly P4
- 17.Opener Lid
- 18.Arm Assembly Pinch
- 19.Lever T/up / Arm T/up
- 20.Belt Capstan/Motor Capstan
- 21.Lever F/R
- 22.Clutch Assembly D35
- 23. Brake Assembly Capstan
- 24.Gear Drive/Gear Cam
- 25.Gear Sector
- 26.Plate Slider
- 27.Lever Tension
- 28.Lever Spring
- SM5310499-00_GK.pdf
- 29.Gear Assembly P2/Gear Assembly P3
- 30.Base Assembly P2/Base Assembly P3
- 31.Base Loading
- 32.Base Tension
- 33.Arm Assembly Idler
- DECK MECHANISM ADJUSTMENT
- . Tools and Fixtures for Service
- 1. Mechanism Alignment Position Check
- 2. Preparation for Adjustment
- 3. Checking Torque
- 4. Guide Roller Height Adjustment
- 4-1. Preliminary Adjustment
- 4-2. Precise Adjustment
- 5. Audio/Control (A/C) Head Adjustment
- 5-1. Preliminary Adjustment
- 5-2. Confirmation of Tape Path between Pinch Roller and Take-up Guide
- 5-3. Precise Adjustment(Azimuth Adjustment)
- 6. X-Value Adjustment
- 7. Adjustment after Replacing Drum Assembly(Video Heads)
- 8. Check the Tape Travel after Reassembling Deck Mechanism
- 8-1. Checking Audio and RF Locking Time during Playback after CUE or REV
- 8-2. Checking for Tape Curling or Jamming
- MAINTENANCE/INSPECTION PROCEDURE
- SM5310499-00_HK.pdf
- SM5310499-00_IK.pdf
- SM5310499-00_JK.pdf
- SM5310499-00_KK.pdf
KW4HV/E2,EV2,SP2REFERENCE No.SM5310 499
SERVICE MANUAL
FILE NO.
DVD Play er + Video Cassette
Recorder HV-DX2E
(Product Code : 143 18 7 08)
(U .K .)
HV-DX2EV
(Product Code : 143 18 7 10)
( Europe)
HV-DX2SP
(Product Code : 143 18 7 09)
(Spain)
Hi-Fi
CAUTION
This product utilizes a laser.
The adjustment other than those specified herein may result in hazardous radiation exposure.
HV-DX2E
PA L
CONTENTS
SECTION 1 . . . . . SUMMARY
SECTION 2 . . . . . CABINET & MAIN CHASSIS
SECTION 3 . . . . . ELECTRICAL
SECTION 4 . . . . . MECHANISM OF VCR PART
SECTION 5 . . . . . MECHANISM OF DVD PART
SECTION 6 . . . . . REPLACEMENT PARTS LIST
HV-DX2E(PAGE 6-1)
HV-DX2EV(PAGE 6-25)
HV-DX2SP(PAGE 6-49)
REFERENCE
WITH SECAM : HV-DX2EV
WITHOUT SECAM : HV-DX2E/HV-DX2SP
WITH VCR+ : HV-DX2E
WITH SHOW VIEW : HV-DX2EV
WITHOUT CANAL+ : HV-DX2EV/HV-DX2SP
SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS ......... 1-3
SERVICING PRECAUTIONS .................................................................................. 1-4
SERVICE INFORMATION FOR EEPROM IC SETTING ........................................ 1-5
SPECIFICATIONS ................................................................................................... 1-6
1-3
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY,
NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC-
TURER’S APPROVAL. UNAUTHORIZED MODIFICATIONS WILL NOT ONLY
VOID THE WARRANTY, BUT MAY LEAD TO YOUR BEING LIABLE FOR ANY
RESULTING PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU ARE
THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING SAFETY
CHECKS AND SERVICING GUIDELINES. TO DO OTHERWISE,
INCREASES THE RISK OF POTENTIAL HAZARDS AND INJURY TO THE
USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR PROTEC-
TION FROM A.C. LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN CORRECTED. A
CHECK SHOULD BE MADE OF THE FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN SUCH A WAY
AS TO AVOID POSSIBILITY OF ADJACENT COMPONENT SHORTS.
THIS IS ESPECIALLY IMPORTANT ON THOSE MODULES WHICH ARE
TRANSPORTED TO AND FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE DEVICES
SUCH AS INSULATORS, BARRIERS, COVERS, SHIELDS, STRAIN
RELIEFS, POWER SUPPLY CORDS, AND OTHER HARDWARE HAVE
BEEN REINSTALLED PER ORIGINAL DESIGN. BE SURE THAT THE
SAFETY PURPOSE OF THE POLARIZED LINE PLUG HAS NOT BEEN
DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE COLD
SOLDER JOINTS, SOLDER SPLASHES OR SHARP SOLDER POINTS.
BE CERTAIN TO REMOVE ALL LOOSE FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR DETERIORATION
TO PARTS AND COMPONENTS. FOR FRAYED LEADS, DAMAGED
INSULATION (INCLUDING A.C. CORD). AND REPLACE IF NECESSARY
FOLLOW ORIGINAL LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECIVING TUBE OR
A RESISTOR RATED AT 1 WATT OR MORE. LEAD TENSION AROUND
PROTRUNING METAL SURFACES MUST BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES, FLAMEPROOF
RESISTORS, CAPACITORS, ETC. MUST BE REPLACED WITH EXACT
FACTORY TYPES, DO NOT USE REPLACEMENT COMPONENTS
OTHER THAN THOSE SPECIFIED OR MAKE UNRECOMMENDED CIR-
CUIT MODIFICATIONS.

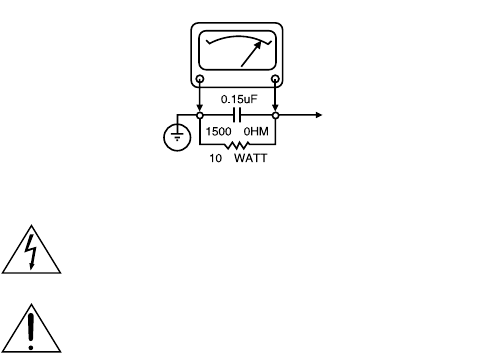

7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN A.C.
LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF THE CABI-
NET, (THE CHANNEL SELECTOR KNOB, ANTENNA TERMINALS. HAN-
DLE AND SCREWS) TO BE SURE THE SET IS SAFE TO OPERATE
WITHOUT DANGER OF ELECTRICAL SHOCK. DO NOT USE A LINE
ISOLATION TRANSFORMER DURING THIS TEST USE AN A.C. VOLT-
METER, HAVING 5000 OHMS PER VOLT OR MORE SENSITIVITY, IN
THE FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT RESIS-
TOR, PARALLELED BY A .15 MFD. 150.V A.C TYPE CAPACITOR
BETWEEN A KNOWN GOOD EARTH GROUND (WATER PIPE, CON-
DUIT, ETC.) AND THE EXPOSED METALLIC PARTS, ONE AT A TIME.
MEASURE THE A.C. VOLTAGE ACROSS THE COMBINATION OF 1500
OHM RESISTOR AND .15 MFD CAPACITOR. REVERSE THE A.C. PLUG
AND REPEAT A.C. VOLTAGE MEASUREMENTS FOR EACH EXPOSED
METALLIC PART. VOLTAGE MEASURED MUST NOT EXCEED 75
VOLTS R.M.S. THIS CORRESPONDS TO 0.5 MILLIAMP A.C ANY
VALUE EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL SHOCK
HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT: GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN
AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE
SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” THAT MAY BE OF SUFFICIENT MAG-
NITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIAN-
GLE IS INTENDED TO ALERT THE SERVICE PERSONNEL TO
THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN
SERVICE LITERATURE.
SUBJECT : X-RADIATION
1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER-
SONNEL COVER THE SUBJECT OF X-RADIATION. THE ONLY POTEN-
TIAL SOURCE OF X-RAYS IN CURRENT T.V. RECEIVERS IS THE PIC-
TURE TUBE. HOWEVER, THIS TUBE DOES NOT EMIT X-RAYS WHEN
THE HIGH VOLTAGE IS AT THE FACTORY SPECIFIED LEVEL. THE
PROPER VALUE IS GIVEN IN THE APPLICABLE SCHEMATIC. OPERA-
TION AT HIGHER VOLTAGES MAY CAUSE A FAILURE OF THE PIC-
TURE TUBE OR HIGH VOLTAGE SUPPLY AND, UNDER CERTAIN CIR-
CUMSTANCES, MAY PRODUCE RADIATION IN EXCESS OF DESIR-
ABLE LEVELS.
2. ONLY FACTORY SPECIFIED C.R.T. ANODE CONNECTORS MUST BE
USED. DEGAUSSING SHIELDS ALSO SERVE AS X-RAY SHIELD IN
COLOR SETS, ALWAYS RE-INSTALL THEM.
3. IT IS ESSNTIAL THAT SERVICE PERSONNEL HAVE AVAILABLE AN
ACCURATE AND RELIABLE HIGH VOLTAGE METER. THE CALIBRA
TION OF THE METER SHOULD BE CHECKED PERIODICALLY
AGAINST A REFERENCE STANDARD, SUCH AS THE ONE AVAILABLE
AT YOUR DISTRIBUTOR.
4. WHEN THE HIGH VOLTAGE CIRCUITRY IS OPERATING PROPERLY
THERE IS NO POSSIBILITY OF AN X-RADIATION PROBLEM. EVERY
TIME A COLOR CHASSIS IS SERVICED. THE BRIGHTNESS SHOULD
BE RUN UP AND DOWN WHILE MONITORING THE HIGH VOLTAGE
WITH A METER TO BE CERTAIN THAT THE HIGH VOLTAGE DOES
NOT EXCEED THE SPECIFIED VALUE AND THAT IT IS REGULATING
CORRECTLY, WE SUGGEST THAT YOU AND YOUR SERVICE ORGA-
NIZATION REVIEW TEST PROCEDURES SO THAT VOLTAGE REGU-
LATION IS ALWAYS CHECKED AS A STANDARD SERVICING PROCE-
DURE. AND THAT THE HIGH VOLTAGE READING BE RECORDER ON
EACH CUSTOMER’S INVOICE.
5. WHEN TROUBLESHOOTING AND MAKING TEST MEASUREMENTS IN
A PRODUCT WITH A PROBLEM OF EXCESSIVE HIGH VOLTAGE,
AVOID BEING UNNECESSARILY CLOSE TO THE PICTURE TUBE AND
THE HIGH VOLTAGE SUPPLY. DO NOT OPERATE THE PRODUCT
LONGER THAN IS NECESSARY TO LOCATE THE CAUSE OF EXCES
SIVE VOLTAGE.
6. REFER TO HV. B+ AND SHUTDOWN ADJUSTMENT PROCEDURES
DESCRIBED IN THE APPROPRIATE SCHEMATIC AND DIAGRAMS
(WHERE USED).
SUBJECT: IMPLOSION
1. ALL DIRECT VIEWED PICTURE TUBES ARE EQUIPPED WITH AN INTE
GRAL IMPLOSION PROTECTION SYSTEM, BUT CARE SHOULD BE
TAKEN TO AVOID DAMAGE DURING INSTALLATION, AVOID
SCRATCHING THE TUBE. IF SCRATCHED REPLACE IT.
2. USE ONLY RECOMMENDED FACTORY REPLACEMENT TUBES.
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS, CUBBY-
HOLE OR CLOSELY FITTING SHELF SPACE. OVER OR CLOSE TO
HEAT DUCT, OR IN THE PATH OF HEATED AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS: OUTDOOR PATIO
INSTALLATIONS WHERE DEW IS A FACTOR, NEAR STEAM RADIA-
TORS WHERE STEAM LEAKAGE IS A FACTOR, ETC.
3. AVOID PALCEMENT WHERE DRAPERIES MAY OBSTRUCT REAR
VENTING. THE CUSTOMER SHOULD ALSO AVOID THE USE OF DEC-
ORATIVE SCARVES OR OTHER COVERINGS WHICH MIGHT
OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A COMMER-
CIAL MOUNTING KIT. MUST FOLLOW THE FACTORY APPROVED
MOUNTING INSTRUCTIONS A PRODUCT MOUNTED TO A SHELF OR
PLATFORM MUST RETAIN ITS ORIGINAL FEET (OR THE EQUIVALENT
THICKNESS IN SPACERS) TO PROVIDE ADEQUATE AIR FLOW
ACROSS THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS
MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM LEAKAGE
TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A PRODUCT ON
SLOPING SHELF OR A TILTED POSITION, UNLESS THE PRODUCT IS
PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE ON ITS
MOUNTING TO THE CART. CAUTION THE CUSTOMER ON THE HAZ-
ARDS OF TRYING TO ROLL A CART WITH SMALL CASTERS ACROSS
THRESHOLDS OR DEEP PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR STAND
WHICH HAS NOT BEEN LISTED BY UNDERWRITERS LABORATORIES,
INC. FOR USE WITH THEIR SPECIFIC MODEL OF TELEVISION
RECEIVER OR GENERICALLY APPROVED FOR USE WITH T.V.’S OF
THE SAME OR LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION CORDS,
EXPLAIN THAT A FOREST OF EXTENSIONS SPROUTING FROM A SIN-
GLE OUTLET CAN LEAD TO DISASTROUS CONSEQUENCES TO
HOME AND FAMILY.
PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS
A.C. VOLTMETER
GOOD EARTH GROUND
SUCH AS THE WATER
PIPE. CONDUIT. ETC
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1-4
SERVICING PRECAUTIONS
CAUTION : Before servicing the VCR+DVD covered by this
service data and its supplements and addends, read and fol-
low the SAFETY PRECAUTIONS. NOTE : if unforeseen cir-
cumstances create conflict between the following servicing
precautions and any of the safety precautions in this publi-
cations, always follow the safety precautions.
Remembers Safety First:
General Servicing Precautions
1. Always unplug the VCR+DVD AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnection or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an elec-
trolytic capacitor.
Caution : A wrong part substitution or incorrect
polarity installation of electrolytic capacitors may result
in an explosion hazard.
2. Do not spray chemicals on or near this VCR+DVD or any
of its assemblies.
3. Unless specified otherwise in this service data, clean
electrical contacts by applying an appropriate contact
cleaning solution to the contacts with a pipe cleaner,
cotton-tipped swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication
of contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with
whitch instruments covered by this service manual might
be equipped.
5. Do not apply AC power to this VCR+DVD and/or any of its
electrical assemblies unless all solid-state device heat
sinks are cerrectly installed.
6. Always connect test instrument ground lead to the
appropriate ground before connection the test instrument
positive lead. Always remove the test instrument ground
lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn
the power on. Connect an insulation resistance meter(500V)
to the blades of the attachment plug. The insulation resis-
tance between each blade of the attachment plug and acces-
sible conductive parts (Note 1) should be more than 1M-
ohm.
Note 1 : Accessible Conductive Parts including Metal pan-
els, Input terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field
effect transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor compo-
nent or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known
earth ground. Alternatively, obtain and wear a commer-
cially available discharging wrist strap device, which
should be removed for potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such
as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grouned-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static solder removal device. Some
solder removal devices not classified a “anti-static” can
generate electrical charges sufficient to damage ES
devices.
5. Do not use freon-propelled chemicals. These can
generate electrical charge sufficient to damage ES
devices.
6. Do not remove a replacement ES device from its protec
tive package until immediately before you are ready to
install it. (Most replacement ES devices are packaged with
leads electrically shorted together by conductive foam,
aluminum foil, or comparable conductive material).
7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution : Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Normally harmless motion such
as the brushing together of your clothes fabric or the lifting
of your foot from a carpeted floor can generate static elec-
tricity sufficient to damage an ES device.)
1-5
SERVICE INFORMATION FOR EEPROM IC SETTING
MODEL NAME HEX BINARY
HV-DX2E OPT1 BC 00000000
OPT2 45 00000000
OPT3 8A 00000000
OPT4 E3 00000000
OPT5 00 00000000
OPT6 04 00000000
HV-DX2EV OPT1 FC 00000000
OPT2 45 00000000
OPT3 8A 00000000
OPT4 F1 00000000
OPT5 31 00000000
OPT6 04 00000000
HV-DX2SP OPT1 FC 00000000
OPT2 45 00000000
OPT3 82 00000000
OPT4 F1 00000000
OPT5 54 00000000
OPT6 04 00000000
WR : OK I : EXIT MOVE : F G
EDIT : DE
1. DETECT NEW EEPROM (OPTION EDIT
SCREEN)
- Eeprom EDIT screen automatically appears if
replacing Eeprom.
- Setup option data using the cursor Up/Down key
of a remote control.
(Setup upon BOM depending on OPT1~OPT6
model)
• Since an initial remote control is set to LG for LG
model, appropriately set option data using the
cursor Up/Down key.
• For SANYO model, change a remocon key by
using following JIG key.
SANYO MODEL : FRONT FF + FRONT CH UP
KEY(2ND)(LG/SANYO CODE)
2. EEPROM WRITED COMPLETE SCREEN
- Writes data on EEPROM by using REMOCON
"OK".
- If completing the option data screen with a menu
key, Powering Off is automatically done and the
option edit screen is arranged.
3. PG ADJUST
1) Payback the SP standard tape
2) Press the “1” key on the Remote controller and
the “PLAY” key on the Front Panel at the same
time, then it goes into Tracking initial mode.
3) Repeat the above step(No.2), then it finishes
the PG adjusting automatically.
4) Stop the playback, then it goes out to PG
adjusting mode after mony the PG data.
4. EEPROM INITIAL
- SETUP is displayed in the field if pressing the
FRONT REC KEY with the remocon number
"CLEAR" key pressed in the status of no tape.
- AUTO SEARCH is done since the initial screen
of ACMS is serviced if powering On.
- Check basic operation (PLAY/RECORD...)
EEPROM option code No. setting EEPROM option code No. setting procedure
NAME HEX BINARY
OPT1 00 00000000
OPT2 00 00000000
OPT3 00 00000000
OPT4 00 00000000
OPT5 00 00000000
OPT6 00 00000000
WR : OK I : EXIT MOVE : F G
EDIT : DE
MASKROM : R00
EEPROM : R00 LG CODE
1-6
SPECIFICATIONS
General
Power requirements AC 200-240 V , 50 Hz
Power consumption 23 W
Dimensions (approx.) 430 X 97.5 X 360 mm (w x h x d)
Mass (approx.) 5.3 kg (11.7 lbs)
Operating temperature 5˚C to 40˚C (41˚F to 104˚F)
Timer 24-hour display type
Operating humidity 5 % to 90 %
DVD Specifications
Laser Semiconductor laser, wavelength 650 nm
Signal system PAL
Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz
DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 100dB (ANALOG OUT connectors only)
Harmonic distortion Less than 0.008%
Dynamic range More than 100 dB (DVD)
More than 95 dB (CD)
Outputs
VIDEO OUT 1.0 V(P-P) 75 OHMS, SYNC NEGATIVE
AUDIO OUTPUT (DIGITAL AUDIO) 0.5 V(P-P), 75 OHMS, RCA JACK X 1
AUDIO OUTPUT (ANALOG AUDIO) 2.0 VRMS (1 KHZ, 0 DB), 330 OHMS,
RCA JACK (L, R) X 1/SCART(TO TV)
VCR SPECIFICATIONS
Head system 4 heads helical scan azimuth system
Television system PAL (B/G) colour system(HV-DX2EV/HV-DX2SP)
PAL I colour system(HV-DX2E)
Recording format PAL
RF OUT G (HV-DX2EV/HV-DX2SP)
I (HV-DX2E)
RF Modulator UHF 22-68 (Adjustable)
Tape speed PAL/MESECAM; 23.39 mm/s (SP), 16.69 mm/s (LP)
NTSC (Playback only); 35.35 mm/s (SP),
16.67 mm/s (LP),
11.12 mm/s (EP)
Maximum recording time SP: 4 h (E-240 tape), LP: 8 h (E-240 tape)
Rewind time About 180 min (E-180 tape)
Input level VIDEO: 1.0 V(p-p), 75 ohms, unbalanced
AUDIO: -6.0 dBm, more than 10 kohms (SCART)
-6.0 dBm, more than 47 kohms (RCA)
Output level VIDEO: 1.0 V(p-p), 75 ohms, unbalanced
AUDIO: -6.0 dBm, less than 1 kohm
Signal-to-noise ratio VIDEO: More than 43 dB
AUDIO: More than 70 dB
Dynamic range AUDIO: More than 85 dB
Accessory:
Video cable x 1, Audio cable x 1, RF cable x 1, Remote control x 1, Batteries x 2
• Design and specifications are subject to change without notice.
2-1
SECTION 2
CABINET & MAIN CHASSIS
CONTENTS
1. EXPLODED VIEWS ................................................................................................................2-2
1. Cabinet and Main Frame Section ...........................................................................................2-2
2. Packing Accessory Section....................................................................................................2-3
2-2
EXPLODED VIEWS
1. Cabinet and Main Frame Section
467
A43
A42
A49
280
465
250
467
467
467
284
283
LD601
330
276
260
A46
A46A
A48
A00
A26
285
457
457
457
457
467
467
467
452
274
452
330
323
300
A
5
4
3
2
1
BCD
2-3
2. Packing Accessory Section
BATTERY
808
BAG
804
PACKING
803
806
INSTRUCTION ASSEMBLY
CABLE, COAXIAL
810 CABLE ASS'Y, RF
801
REMOCON
900
COVER(BATTERY)
910
BOX CARTON
802
PACKING
803
812 PLUG ASS'Y 2WAY(RED/WHITE)
3-1
SECTION 3
ELECTRICAL
CONTENTS
OVERALL BLOCK DIAGRAM.............................3-2
VCR PART
ELECTRICAL ADJUSTMENT
PROCEDURES..........................................................3-3
ELECTRICAL TROUBLESHOOTING
GUIDE...........................................................................3-4
1. POWER(SMPS) CIRCUIT .......................................3-4
2. SYSTEM/KEY CIRCUIT ..........................................3-7
3. SERVO CIRCUIT.....................................................3-8
4. Y/C CIRCUIT..........................................................3-11
5. Hi-Fi CIRCUIT .......................................................3-15
6. Tuner/IF CIRCUIT .................................................3-18
BLOCK DIAGRAMS..............................................3-20
1. Power(SMPS) BLOCK DIAGRAM .......................3-20
2. Tu/IF, NICAM & A2 BLOCK DIAGRAM................3-22
3. VPS BLOCK DIAGRAM........................................3-23
4. Y/C BLOCK DIAGRAM.........................................3-24
5. Hi-Fi BLOCK DIAGRAM.......................................3-26
6. SYSTEM BLOCK DIAGRAM ................................3-28
CIRCUIT DIAGRAMS............................................3-30
1. Power(SMPS) CIRCUIT DIAGRAM......................3-30
2. TU/IF, NICAM & A2 CIRCUIT DIAGRAM .............3-32
3. A/V CIRCUIT DIAGRAM .......................................3-34
4. Hi-Fi CIRCUIT DIAGRAM .....................................3-36
5. SCART(JACK) CIRCUIT DIAGRAM ....................3-38
6. SYSTEM CIRCUIT DIAGRAM ..............................3-40
7. TIMER CIRCUIT DIAGRAM..................................3-42
• WAVEFORMS .........................................................3-44
• CIRCUIT VOLTAGE CHART...................................3-46
PRINTED CIRCUIT DIAGRAMS .......................3-50
1. MAIN P.C.BOARD .................................................3-50
2. SMPS P.C.BOARD ...............................................3-52
3. KEY(LEFT) P.C.BOARD ......................................3-53
4. KEY(RIGHT) P.C.BOARD ....................................3-53
DVD PART
ELECTRICAL TROUBLESHOOTING
GUIDE.........................................................................3-54
1. µ-COM CIRCUIT....................................................3-54
2. MPEG CIRCUIT.....................................................3-57
3. RF/Servo CIRCUIT................................................3-58
BLOCK DIAGRAMS..............................................3-62
1. DVD Overall Block Diagram................................3-62
2. RF/CD DSP/DVD DSP/DVD SERVO
Block Diagram......................................................3-63
3. Audio Block Diagram...........................................3-64
4. MPEG Block Diagram ..........................................3-65
CIRCUIT DIAGRAMS............................................3-66
1. DVD DSP Circuit Diagram ...................................3-66
2. DRIVE & RF Circuit Diagram ..............................3-68
3. MEMORY Circuit Diagram ...................................3-70
4. INTERFACE Circuit Diagram...............................3-72
5. µ-COM/Expander Circuit Diagram ......................3-74
6. Jack Circuit DIAGRAM ........................................3-76
• WAVEFORMS .........................................................3-78
• CIRCUIT VOLTAGE CHART...................................3-80
PRINTED CIRCUIT DIAGRAMS .......................3-86
1. MAIN P.C.BOARD (TOP VIEW) ............................3-86
2. MAIN P.C.BOARD (BOTTOM VIEW)....................3-88
OVERALL WIRING DIAGRAM
3-2
PMC01
CFG
12VA(CAP)
5.2VA
CAP REV'H'
I-limit
MOTOR GND
GND
12VA(DRUM)
CAP CTL
LD IN
DFG/FG
DRUM CTL
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
PMP01
5.3VA
5.0V
GND
12VA(DRUM)
REG 12V
33V
CAP Vcc
PWR CTL 'H'
GND
NC
TIMER 'H'
GND
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
5.3VA
8V
GND(M)
REG 12V
3.3V
5V
3.3V
GND
GND
PDP01PPD01
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
PMD03
Vcc(HF)
RF
DVD_LD
DVD_PD
VOL(DVD)
GND
VC_INPUT
Vcc(HF)
F
E
A
D
C
B
F(+)
T(-)
T(+)
F(-)
CD/DVD
GND
CD_LD
MPD
CD_VR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
PMD02
SPM +
SPM -
FM +
FM -
LM -
LM +
SW(OPEN)
SW(CLOSE)
GND
SW(LEAD IN)
GND
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
P3D02
CTL(+)
CTL(-)
A/E(+)
A/E(-)
A.REC
A.PB
1
2
3
4
5
6
1
2
3
4
5
6
GND
FULL ERASE
P3D03
1
2
1
2
S/COMPO SW
COAXIAL
OPTICAL
GND
GND
K.RTN 1
DVD RESET
DVD ENA
DVD CLK
DVD DATA IN
DVD DATA OUT
GND
PVD02PMD01
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
Y/G
GND
Pb/B
GND
Pr/R
GND
C_V_OUT(DVD)
GND
D_A_L_OUT
GND
D_A_R_OUT
6DAC_MUTE
A_MUTE_L
A_MUTE_R
GND
PDV03PMD02
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
DECK MD
MPEG
BOARD
SMPS
BOARD
VCR
3-3
ELECTRICAL ADJUSTMENT PROCEDURES
1. Servo Adjustment
1) PG Adjustment
• Test Equipment
• Adjustment And Specification
a) OSCILLOSCOPE b) PAL MODEL : PAL SP TEST TAPE
MODE
PLAY
•Adjustment Procedure
a) Insert the SP Test Tape and play.
Note - Adjust the distance of X, pressing the Tracking(+) or Tracking(-) when the “ATR” is blink after the
SP Test Tape is inserted.
b) Connect the CH1 of the oscilloscope to the H/SW(JP05, JP06) and CH2 to the Video Out for the VCR.
c) Trigger the mixed Combo Video Signal of CH2 to the CH1 H/SW(JP05, JP06), and then check the dis-
tance (time difference), which is from the selected A(B) Head point of the H/SW(JP05, JP06) signal to
the starting point of the vertical synchronized signal, to 6.5H ± 0.5H (412µs, 1H=63µs).
•PG Adjustment Method
a-1) Payback the SP standard tape
b-2) Press the “1” key on the Remote controller and the “PLAY” key on the Front Panel at the same time,
then it goes into Tracking initial mode.
c-3) Repeat the above step(No.b-2), then it finishes the PG adjusting automatically.
d-4) Stop the playback, then it goes out to PG adjusting mode after mony the PG data.
•CONNECTION
•WAVEFORM
V.Out
H/SW(JP05, JP06) R/C TRK JIG KEY 6.5 ± 0.5H
MEASUREMENT POINT ADJUSTMENT POINT SPECIFICATION
V.Out
H/SW(JP05, JP06)
OSCILLOSCOPE
CH1 CH2
V.outH/SW
R/C KEY
(JP05, JP06)
H/SW
Composite
VIDEO
6.5H(412us)
VCR PART
3-4
ELECTRICAL TROUBLESHOOTING GUIDE
1. Power(SMPS) CIRCUIT
NO 5.3VA.
Replace the F101.
(Use the same Fuse)
Is the F101 normal?
Is the R101
normal?
Is the BD101
normal?
NO
NO
NO
NO
NO
NO
Replace the
BD101.
Replace the R101.
Is the D102
normal?
Check or Replace
the D102.
Replace the D112.
Replace the IC103.
YES
YES
YES
YES
YES
YES
YES
Is Vcc(8.5~21V) sup-
plied to IC101 Pin7?
NO
Is the D112 normal?
Is there about 2.5V
at the IC103 Vref?
Check the Main PCB
5.3VA/5.0V Line short?
(1) No 5.3VA (SYS/Hi-Fi/TUNER)
NO 12VA.
Check or Replace
the D110.
Is the Vcc(13V) supplied
to (+) terminal in D115?
Check or Replace
the Motor Vcc.
Is the Vcc(12V) supplied
to (-) terminal in D115?
NO
NO Replace the D115.
YES
YES
YES
(2) No 12VA (TO CAP, DRUM MOTOR)
NO 5V.
5.3VA Line Check.
Is 5.3VA put into
the Q160 Emitter?
Is about 5V put into
the Q160 Base?
Is the Q162 Base
“H”?
NO
NO Check the Power
Control.
NO
Check or Replace the Q162,
R157, R158, R159, D121.
YES
YES
YES
Check or Replace
the Q162/Q160.
YES
(3) No 5V (SYS/Hi-Fi/TUNER)
3-5
NO 5V.
5.3VA Line Check.
Is 5.3VA put into
the Q160 Emitter?
Is about 5V put into
the Q160 Base?
Is the Q162 Base
“H”?
NO
NO
NO
Check the Power
Control.
Check or Replace the Q162,
R157, R158, R159, D121.
YES
YES
YES
YES
Check or Replace
the Q162/Q160
(4) No 5V (TO DVD)
No 33V.
Check Q173, R173
of the tuner part.
Is Timer “H”
Signal “L”?
Check or Replace
Q161, R154, R155.
NO
YES
YES
(5) No 33V (TUNER)
No REG 12V.
Check or Replace
D110.
Is 13V put into the
Q156 Collector?
Is 13V put into the
R153 Base?
NO
Check 33V Line.
NO
YES
YES
Check or Replace the Q156,
ZD103, R153, C151.
YES
(6) No REG 12V
3-6
NO 8V.
Check or Replace
the D110.
Is Vcc(13V) supplied to
(+) terminal in D114?
Is the Q162 Base
“H”?
Is Vcc(12V) supplied
to IC151 Pin1?
NO
NO Check or Replace
the D114.
NO Check the Power
Control.
YES
YES
YES
Check or Replace
IC151, R170, C154.
YES
(7) No 8V(TO DVD)
NO 3.3V.
Is Vcc(4V) supplied
to IC152 Pin1?
YES
Is the Q162 Base
“H”?
YES
Check or Replace
IC152, R156, C153.
YES
(8) No 3.3V(TO DVD)
Check or Replace
the D111.
NO
NO Check the Power
Control.
3-7
2. SYSTEM/KEY CIRCUIT
(1) AUTO STOP
(2) The unstable loading of a Cassette tape
Auto Stop
Does the SW25 waveform
appear at the IC501
Pin105?
Do the T-UP Reel Pulses
appear at the IC501 Pin49?
Is 12V applied to the
PMC01 Pin8?
Check the Drum Motor
signal.
Does 5.2V appear at the
RS501?
Check the Power Circuit.
Check the Power.
Is 5.3V applied to the
R544 ?
Refer to SMPS 5.3VA
troubleshooting.
Check the IC501
Pins68, 69, 70, 71.
Do T/UP Reel Pulses
appear at the Q514
Base terminal ?
Replace the T/UP Reel
Sensor (RS501).
Check the CST SW and
the peripheral circuitry.
Replace the IC501.
The unstable loading of a
Cassette tape
Does the “H” signal appear
at the IC501 Pin30 during
inserting the CST ?
Does the “L” signal appear
at the IC501 Pin72 during
inserting the CST?
Check the Deck
Mechanism.
Caution : Auto stop can occur because Grease or Oil is dried up
YES
YES
YES NO
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO NO
YES
YES YES
3-8
3. SERVO CIRCUIT
(1) Unstable Video in PB MODE
Unstable Video in
PB Mode.
Does the Noise level of the
screen change
periodically?
Do the CTL pulses appear
at the IC501 Pin8?
Is adjusting the height of
the CTL Head accurate?
Readjust the height of the
CTL Head.
Replace the IC501.
Refer to “When the Y signal
doesn’t appear on the
screen in PB Mode”.
Does the CFG waveform
appear at the IC501
Pin9?
On tracking do the CTL
pulses move?
Does the Video Envelope
waveform appear at the
IC501 Pin24?
Replace the IC501.
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
(2) When the Drum Motor
(2) doesn’t run. Do the DFG Pulses appear
at the PMC01 Pin11?
Replace the Cap M.
Aren’t the foil patterns and
the Components between
IC501 Pin104 and PMC01
Pin11 short?
Replace the IC501.
Refer to “(2)
No 12VA of Power section”
Do the Drum PWM Pulses
appear at the IC501
Pin107?
Aren’t the foil patterns and
the Components between
IC501 Pin107 and PMC01
Pin12 short?
Do the DFG Pulses appear
at the IC501 Pin104?
Do the Drum PWM Pulses
appear at the IC501
Pin107?
Aren’t the connecting patterns and the Components
between IC501 Pin107 and PMC01 Pin12 short?
When the Drum Motor
doesn’t run,
Does 12V appear at the
PMC01 Pin8?
Does 2.8V appear at the
PMC01 Pin12?
Check the connector
(PMC01) and the Drum
Motor Ass’y.
NO
YES
YES
YES
NO
NO
NO
NO
NO
YES
YES
YES
3-9
Does the CFG signal appear at the
PMC01 Pin1?
Does the PWM signal appear at the
IC501 Pin108?
Is “DRUM CTL” 2.8V at the PMC01?
Check the PMC01 and the Capstan
Motor Ass’y.
Does the Capstan PWM signal appear at
the IC501 Pin108?
Aren’t the foil patterns and Components
between IC501 Pin108 and PMC01
Pin9 short?
Does the CFG signal come into the
IC501 Pin9?
Aren’t the foil patterns and Components
between IC501 Pin108 and PMC01
Pin9 short?
2. SERVO CIRCUIT
(3) When the Capstan Motor doesn’t run,
NO
NO
NO
YES
YES
YES
When the Capstan Motor doesn’t run,
Does 12VA appear at the PMC01?
YES
Replace the IC501.
YES
NO
NO
YES
Refer to “SMPS(CAPSTAN/12Volt)
Trouble Shooting”.
Aren’t the foil patterns and component
between IC501 Pin9 and PMC01
Pin1 short?
Check the Capstan Motor Ass’y.
NO
3-10
(4) KEY doesn’t working
KEY doesn’t working.
Is 5V applied to the IC501
Pin36?
Does LED or FLD change
when a function button is
pressed?
Refer to “SMPS 5.3VA
Trouble Shooting”.
Replace the defective
switches.
YES
NO
NO
3-11
4. Y/C CIRCUIT
(1) No Video in EE Mode,
No Video in EE Mode
Check the 24Pin of Tuner.
Does the Video signal
appear at the IC301 Pin48?
Is 5V applied to the IC301
Pins18, 24, 42, 55, 72, 91?
Does the Video signal
appear at the IC301 Pin65?
Does the Video signal
appear at the IC501 Pin19?
Does the Video signal
appear at the Emitter termi-
nal of the Q305, Q309?
Check the 5.2VT, 5.3VA
Line. (Power Circuit)
Is I2C BUS signal applied to
the IC301 Pins68, 69?
Check C315.
Chck the path of the signal
between the IC301 Pin65
and IC501 Pin17.
Replace the IC301.
Does the REG 12VT, 5.4VA
appear at the Emitter termi-
nal of the Q804, Q308.
Replace the Q804, Q308. Check the 12VT, 5.4VA
Line. (Power Circuit)
Check the System Circuit.
(Refer to ‘SYSTEM I2C BUS
CHECK Trouble Shooting’)
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
NO
3-12
3. Y/C CIRCUIT
(2) When the Y(Luminance) signal doesn’t appear on the screen in PB Mode,
Is 5.2VT, 5.3VA applied to the
IC301 Pins24, 42, 55, 72, 91?
Is the I2C Bus siganl applied
to the IC301 Pins68, 69 ?
Does the normal RF signal
appear at the IC301 Pin78?
Check the line of the 5.2VT,
5.3VA Line. (Power Circuit)
Check the System Circuit.
(IC501 Pin105)
Check the V.H.S/W level.
(Check R303, R304)
Replace the IC301.
Refer to ‘SYSTEM I2C BUS
CHECK Trouble Shooting’.
Is the V.H.S/W signal
applied to the IC301 Pin70?
Is V.H.S/W “H” about 3.4V
at the IC301 Pin70?
Clean the Drum.
Check the path of the
Y(Luminance) RF signal.
(Check C327)
Check the path of the
Y(Luminance) RF signal.
(Check the C312)
Does the Y(Luminance) RF
signal appear at the IC301
Pin76?
Is the Y(Luminance) Video
waveform showed up at
theIC301 Pin43?
Replace the IC301.
NO
NO
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
3-13
3. Y/C CIRCUIT
(3) When the C(Color) signal doesn’t appear on the screen in PB Mode,
Is 5.2VT/5.3VA applied to the
IC301 Pins24, 42, 55, 72, 91.
Is the Color Rotary signal
applied to the IC301
Pin70?
Check the line of the 5.2VT/
5.3VA Line. (Power Circuit)
Replace the X301.
Check the Color Pass.
Check the Color Rotary
Circuit. (IC501 Pin99 )
Check the Color Rotary
level. (Check the R303)
Does the X301(4.43MHZ)
oscillate?
Replace the IC301.
Does the Color signal
appear at the IC301 Pin21?
Is Color Rotary “H”
about 3.4V?
Replace the IC301.
NO
NO
NO
YES
YES
YES
YES
NO NO
NO
YES
Does the Color signal
appear at the IC301
Pin25 ?
3-14
3. Y/C CIRCUIT
(4) When the Video signal doesn’t appear on the screen in REC Mode,
Is the EE signal normal?
Is 5.2VT/5.3VA applied to the
IC301 Pins24,42,55,72,91?
Does the RF signal appear
at the IC301 Pin78?
Check EE Mode.
Check the System of REC
‘H’. (the IC501 Pin47
/ the D301)
Replace the IC301.
Check the line of the 5.2VT/
5.3VA Line.(Power Circuit)
Check PB Mode.
Is the REC ‘H’signal
(about 4V) applied to the
IC301 Pin80?
Check the circuit of the
IC301 Pins85, 86.
Check REC Luminance
Pass & Color Pass.
Does PB Mdoe operate
normally?
Does the REC RF signal
appear at the IC301
Pins88,89,94,95?
Check the Drum &
Drum Connector
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
YES
YES
YES
3-15
5. Hi-Fi CIRCUIT
(A) No Sound(EE Mode)
YES
No Sound.
Check the TU Audio of IC801
Pins2, 3.
Check the DVD Audio of IC801
Pins4, 5.
Check the AV1 Audio of IC801
Pins6, 7.
Check the AV2 Audio of IC801
Pins8, 9.
Check the AV3 Audio of IC801
Pins10, 11.
Check the Vcc of IC801 Pins34, 40,
IC802 Pin4.
Check the IIC Clock and DATA at
IC801 Pins42, 43, IC802 Pins32, 33.
Check the Audio of IC801 Pins16, 17.
Check the Audio of IC802 Pins22, 26.
Check the JK902.
Check the SC901.
Check the IC751 Pins30, 31.
NO
Check the DVD MODULE.
(PMD02 Pins13, 15).
NO
Check the Scart1 Jack.
(SC901 Scart1 Audio in Pins2, 6).
NO
NO
Check the front Jack.
(JK602, JK603, PM603 Pins1, 3).
Check the Scart2 Jack.
(SC901 Scart2 Audio in Pins2, 6).
NO
Check the Power 5.2V, 12VT.
YES
NO
Check the IC501 Pins59, 60.
NO
Replace IC801.
Replace IC802.
NO
NO
YES
YES
YES
YES
YES
3-16
3. Y/C CIRCUIT
(B) Hi-Fi Playback
YES
YES
YES
YES
PB mode
No Sound.
Check the Vcc of IC801
(Pins34, 40)
Check the Hi-Fi Selection switch.
(IC801 Pin41) and the Tape quality.
Is the RF Envelope at
IC801 Pin44 over 2Vp-p?
YES
Check IC801 Pin42(Data),
Pin43(Clock)
YES
Do Audio Signals appear at
IC801 Pin16(L-CH), 17(R-CH)?
YES
Do Audio Signals appear at
IC802 Pin10(L-CH), 16(R-CH)?
YES
YES YES
Do Audio Signals appear at
IC802 Pins22, 26?
Do Audio Signals appear at
JK902?
Check Power 5.2V, 12VT.
NO
Check IC501 Pin106
(A.H/SW)
NO
NO
Check the parts of µ-COM
(IC501 Pins59, 60)
NO
Check the Connection at
P3D01 Pins7, 9.
NO
Check the A.IN line of
IC802(C808, C809)
NO
YES
Do Audio Signals appear at
SC901?
Check the SCART
JACK(SC901)
NO
Check the Vcc of IC802
Pin4.
Replace IC802.
Check the Jack(JK902)
NO
NO
Check Power.
NO
3-17
(C)
Hi-Fi REC.
It can’t be recorded Hi-Fi Audio
signal.
Check Vcc of IC801.(Pins34, 40)
YES
YES
Check IC801 Pin42(Data), Pin43(CLOCK).
Check IC801 Pin41(A.H/SW)
YES
Do Audio signals appear at IC801
Pins16, 17?
YES
YES
Do FM Audio signals appear at IC801
Pin36?
YES
Check the Contact Point of Drum
Connector if good then Replace the Drum.
YES
Check Power 5V, 12VT.
NO
Check ports of µ-COM.
(IC501 pins 59, 60)
Check Audio input signal of IC801
Pins2, 3(TU.A.), 4, 5(DVD.A.),
6, 7(AVI.A.), 8, 9(AV2.A.), 10, 11(AV3.A.).
NO
Replace IC801.
NO
NO
3-18
6. Tuner/IF CIRCUIT
(A) No Picture on the TV screen
No picture on the TV
screen
Does the Video signal at
the TU701 Pin24.
YES
YES YES
Is +33V applied to TU701
Pin16?
YES
Is +5V applied to TU701
Pin13?
NO
Does Sync appear at
IC501 Pin111.
NO
Does the Video signal at
the IC501 Pin19.
YES
NO
Does the Video signal at
the IC301 Pin61.
YES
NO
NO
Does the Video signal at
the IC802 Pin30.
Check the signal flow from IC802
Pin30 to SC901 Pin19.
YES
Check 33V line.
NO
Check 5V line.
NO
YES
Does the Clock signal
appear at TU701 Pin11?
Check the lIC Clock Signal
of µ-COM Pin59.
NO
YES
Does the data signal
appear at TU701 Pin12?
Replace Tuner.
Check the signal flow from
TU701 Pin24 to IC301 Pin48.
Check the signal from IC301
Pin65 to IC501 Pin17.
Check the signal from IC501
Pin19 to IC301 Pin56.
Check the signal from IC501
Pin61 to IC802 Pin1.
Check the lIC Data Signal
of µ-COM Pin60.
NO
3-19
(B) No Sound
No Sound.
Check the Vcc of IC751 Pins1, 11, 19,
22, 33.
YES
Check 5.2V Line.
NO
Check the Tuner SiF signal at IC751
Pin2.
YES
Check the oscillator of IC751 Pins5, 6.
YES
Check the Audio of IC751 Pins30, 31.
YES
Check the Audio of IC801 Pins2, 3.
YES
Check the Audio of IC801 Pins16, 17.
YES
Check the Audio of IC802 Pins22, 26.
YES
Check the Signal flow from IC802
Pins22, 26, SC901 Pins1, 3.
YES
Check the Tuner SIF of TU701 Pin22.
NO
Replace X751
NO
Check the IIC Clock and Data at IC751
Pins12, 13.
NO
Check the signal flow from IC751
Pins30, 31 to IC801 Pins2, 3.
NO
Check the IIC Clock and Data at IC801
Pins42, 43.
NO
Check the signal flow from IC801
Pins16, 17 to IC802 Pins10, 16.
NO
3-20 3-21
BLOCK DIAGRAMS
1. POWER(SMPS) BLOCK DIAGRAM
4
3
12
TO CAP MOT
12VA
TO DRUM MOT
12VA
TO DVD/Hi-Fi
REG 12V
TO DVD
8V
TO DVD
3.3V
TO TUNER
33V
TO SYS/Hi-Fi/Tu
5.0V
TO DVD
5V
FROM µ-COM
PWR CTL 'H'
TO SYS/Hi-Fi/Tu
5.3VA
DRIVE & S/W BLOCK
OVER CURRENT LIMIT
BLOCK
(IC101,BD01,D102,R105,
C108,R107,C107,C109)
FROM µ-COM
TIMER 'H'
LINE FILTER
BLOCK
(C101, L102, C102)
BD101
C103
V101
1
2
218
17
16
15
14
13
12
5
8
3
4
3IC102
D117
T/W
D115
IC103
PW101
BR
(BK) HOT CIRCUIT
BL
(WH)
F101
C111
HOT GND
R101 SNUBBER
BLOCK
(D101, R104,
C105, C106)
RECTIFIER &
SMOOTHING
(D110, C123, L122,
C126, C163)
RECTIFIER &
SMOOTHING
(D111, C127,
L123, C128)
RECTIFIER &
SMOOTHING
(D112, L124,
C129, C131)
FEED-BACK
BLOCK
(R112, R113, C133,
R114, R115, R116,
R117)
8VA REG
BLOCK
(D114, IC151, C154)
12VA REG
BLOCK
(Q156,ZD103,C151,
C152,R153)
3.3V REG
BLOCK
(IC152, C153)
RECTIFIER &
SMOOTHING
(D113, R119, C132)
33V S/W
BLOCK
(Q161, R154, R155)
PWR CTL
BLOCK
(Q162,R163,R164,
R171,C161)
5V BLOCK
(R157, Q160, R158,
R159, D121, C155)
!
!
C110
! !
!
!
NOTES : Symbol denotes AC ground.
Symbol denotes DC chassis ground. COMBI SCART
SANYO
3-22 3-23
3. VPS BLOCK DIAGRAM
14 11 10 9 8
1 4 5 6
DATA/SYNV
SLICER
CLOCK PLL
DATA
AQUISITION
IIC BUS
INTERFACE TIMING
VPS BLOCK
IC7V1
SDA5650
151 5.2VA
378 VPS V.out
59 CLK
60 DATA
55 DAV
VSUP
CVBS
Iref
VC01
VCS
CSO
SDA
SCL
GND
PD1
EHBDA VIN
T1
PD2/
VC02
2 3 7
13 12
COMBI SCART
SANYO
2. Tu/IF, NICAM & A2 BLOCK DIAGRAM
(From Power)
159
27
731
60
59
93
94
158
143
872
159
871
151 5.4VA
5.2VT
S.V.W
MSP3417
MSP3407
3-24 3-25
4. Y/C BLOCK DIAGRAM
(PB MODE)
90
93
96
84V.ENV
87
70
V.H.SW
C.ROTARY
DATA
CLOCK
C.SYNC
V.OUT
(MICOM)
S2 V.OUT
S1 V.OUT
SYNC IN
69 68 67
C-Delay
(1H/2H)
BPF
MAIN
CONV
ACCC LPF
CCD
LPF
ACC
DET
CNC
2521
IC201
LA70100M
IC301
LA71750M
29
18 14
PB FM EQ FM OEM
PB FM
AGC MAIN
DE EMP
Y-LPF
YNR
SUB LPF
60dB AMP
Y/C MIX
65 63 61
46
43
Y-Delay
79 78
SECAM
OPTION
(REC MODE)
80
REC'H'
V.H.SW
C.ROTARY
DATA
CLOCK
C SYNC
V.OUT
MICOM
V.IN4
FRONT
V.IN3
DEC
79 78 76 75 70 69 68 67 65 59 58 54 52
50 V.IN2 S1
V.IN1 TUNER
48
46
43
33
32
31
CLK-IN
2928
4.43MHz
2721
95
94
89
88
Killer C-LPF ACC
BPF
Main
Conv Main
Conv
DETAIL
ENH
NL
EMPHA
W/D
CLIP
IC301
LA71750M
UP REC
SP REC
(To Drum)
(To Drum)
W/D
CLIP
REC
FM EQ
Y-LPF FBC
AGC
SW
Y-DELAY
KILL DEC
REC APC
VX02 VX02
COMP
AMP
1H/2H
DELAY
YNR
29 16
2 12
IC201 LA70100M
COMBI SCART
SANYO
SECAM
OPTION
3-26 3-27
5. Hi-Fi BLOCK DIAGRAM
IC802
A
B
Hi-Fi/
REC
10 22
16
6
129
12
26
IC801
A.OUT
To JACK
37
Hi-Fi PB 'B'
Hi-Fi PB 'A'
Hi-Fi REC
1
2
3
4
5
6
7
10
11
21 22
36 35
16 A.OUT 'L'
A.OUT 'R'
17
8
9
AUDIO INPUT
BLOCK
VIDEO INPUT
BLOCK
AUDIO INPUT BLOCK
OSD V. IN
DVD/Fr V. IN
DVD A.IN 'L'
DVD A.IN 'R'
NORMAL AUDIO
OUT(To AVCP)
NORMAL AUDIO
IN(From AVCP)
Tu A.IN 'L'
Tu A.IN 'R'
DVD A.IN 'L'
DVD A.IN 'R'
EU1 A.IN 'L'
EU1 A.IN 'R'
EU2 A.IN 'L'
EU2 A.IN 'R'
F. A.IN 'L'
F. A.IN 'R'
MODULATOR
A.OUT
(To Tu)
COMBI SCART
SANYO
3-28 3-29
6. SYSTEM BLOCK DIAGRAM
2fsc
R524, R514, R518,
R516, R589, C577,
C576, L501, Q504
LD(+)
LD(-)
L/M CONTROL
R525, R526
IC501
HD6432197A
DVD
VCR DATA IN
VCR DATA OUT
DVD CLK
DAV
OTPB LED 'H'
R/C IN(2W)
NC
CST SW
A.ENV
CANAL DET 'H'
COMBI SCART
SANYO
3-30 3-31
NOTE S ) S ymbol denotes AC ground.
NOTE S ) S ymbol denotes DC chas sis ground.
NOTE ) Warning
NOTE) P arts that are shaded are critical
NOTE) With res pect to risk of fire or
NOTE) electricial shock.
COMBI S CAR T
SANYO
68P
2S C5343
CIRCUIT DIAGRAMS
1. POWER(SMPS) CIRCUIT DIAGRAM
Switching Error.
IC101 is defective.
Switching Error.
IC105, 102 are defective.
2.5V, 3.3V no power.
D111 is defective.
No Power.
F101 is defective.
5.3VA no power.
D112 is defective.
33V no power.
D113 is defective.
No power.
BD101, R 101 are defective.
12VA no power.
D110 is defective.
IMPOR TANT SAFETY NOTICE
WHEN SERVICING THIS CHASSIS , UNDER NO CIR -
CUMSTANCES SHOULD THE ORIGINAL DESIGN BE
MODIFIED OR ALTERED WITHOUT PERMISSION
FR OM THE SANYO ELECTRONICS CORPORATION.
ALL COMPONE NTS SHOULD BE REPLACED ONLY
WITH TYPE S IDENTICAL TO THOSE IN THE ORIGI-
NAL C IR CUIT. S PE CIAL COMPONE NTS AR E S HADE D
ON THE S CHE MATIC FOR E ASY IDENTIFICATION.
THIS CIRCUIT DIAGRAM MAY OCCASIONALLY DIF-
FER FROM THE ACTUAL CIRCUIT US E D. THIS WAY,
IMPLEMENTATION OF THE LATEST SAFETY AND
PERFOR MANCE IMPR OVEMENT CHANGES INTO
THE S E T IS NOT DE LAYE D UNTIL T HE NE W S E R V IC E
LITERATURE IS PR INTED.
NOTE :
1. Shaded( ) parts are critical for safety. R eplace only
with specified part number.
2. Voltages are DC-measured with a digital voltmeter
during Play mode.
3-32 3-33
2. TU/IF, NICAM & A2 CIRCUIT DIAGRAM
EE MODE(VIDEO)
TU MODE (AUDIO)
COMBI SCART
SANYO
3-34 3-35
3. A/V CIRCUIT DIAGRAM
1
4
5
2
7
813
11 12
2
39
1014
6
2
PB SECAM COLOR
REC AUDIO
PB Y+C
PB Y
PB C
REC Y+C
REC Y
REC C
REC SECAM COLOR
PB AUDIO(MONO)
WAVEFORM
COMBI SCART
SANYO
Audio Tracking is failed.
IC301 Pin 84 is defective.
EE, PB Screen doesn’t appear.
Q305 is defective.
PB COLOR Signal disappear.
IC301 Pin70 is defective.
PB COLOR Signal disappear.
IC301 is defective.
D301or IC301 Pin 80
REC is defective.
PB and Recording is failed.
(IC301 doesn’t operate.)
IC301 Pin 69, 68 are defective.
Normal Audio signal is not recorded.
FL301, Q301, Q306 are defective.
No mono Audio Signal
in PB MODE.
Q302, Q303, Q314
are defective.
3-36 3-37
4. Hi-Fi CIRCUIT DIAGRAM
PB
REC
COMBI SCART
SANYO
OPTIONAL PART
HV-DX2E
HV-DX2EV
/HV-DX2SP
44 Pin is defective.
Hi-Fi Audio is not appear.
IC801 Pins42, 43 are defective.
All Audio is not appear.
3-38 3-39
5. SCART(JACK) CIRCUIT DIAGRAM
COMBI SCART
SANYO
1SCART MODEL : WITHOUT
OPTIONAL PART
HV-DX2E HV-DX2EV/
HV-DX2SP
3-40 3-41
6. SYSTEM CIRCUIT DIAGRAM
8
76
34
5
5
1
2
9
WAVEFORM
Q501, Q503 are defective.
µ-COM is unstable.
IC505 is defective.
VCR will not operate.
X501 is defective.
CLOCK SETTING will not operate.
X502 is defective.
µ-COM will not operate.
ES501, ES502, LD501 are
defective.
Auto Rew will not working.
RS501,RS502,Q514,
Q515 are defective.
Auto stop occures.
R575, R576, R577,
R578 are defective.
Deck will not operate.
IC504 is defective.
Reset is defective.
Set dead.
3-42 3-43
7. TIMER CIRCUIT DIAGRAM
SRC1203
SRC1203
LD601
C6G1 C6G2
100M
100M
3-44 3-45
WAVEFORMS
IC301 Pin 20
PB mode
500mvp-p
IC301 Pins 38,32,31
38, 38
Video in 1Vp-p
IC301 Pin 28
PB/REC mode
4.0Vp-p
IC301 Pin 7
REC mode
1.1Vp-p
IC301 Pin 6
REC mode
2.0Vp-p
IC301 Pin 29
PB mode
2.02Vp-p
IC301 Pin 41
PB mode
400mVp-p
IC301 Pin 64
PB mode
400mVp-p
IC301 Pin 23
PB/REC mode
5Vp-p
IC301 Pin 24
PB/REC mode
5Vp-p
IC301 Pins 71 72
REC mode
340mVp-p
IC301 Pins 51 54
PB mode
300mVp-p
IC301 Pin 63
PB mode
400mVp-p
IC301 Pin 11
PB mode
3.6Vp-p
_IC301 Waveform _IC501 Waveform
V.HSW
(IC501 Pin 105)
1V/10mS
REC/PB MODE
DV.SYNC
(IC501 PIN 109)
1V/100uS
QUE/REV MODE
CTL(+)
(IC501 Pin 3)
1V/10mS
CTL(-)
(IC501 Pin4)
1V/10mS
DPG/DFG
(IC501 PIN 103,104)
1V/10mS
REC/PB MODE
CFG
(IC501 Pin9)
1V/10mS
V.IN
(IC501 Pin 17)
500mV/20uS
V.OUT
(IC501 Pin 19)
500mV/20uS
EE/PB MODE
C.SYNC
(IC501 Pin 111)
1.0V/100uS
EE/PB MODE
3-46 3-47
EE PB REC
MODE
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2.36 V
2.4 V
3.5 V
2.43 V
0.002 V
0.4 V
0.003 V
0.003 V
2.87 V
2.36 V
3.16 V
3 V
4 V
2.3 V
2.98 V
3.2 V
0.15 V
0.124 V
2.23 V
3 V
1.84 V
4.71 V
4.72 V
4.72 V
2.37 V
2.37 V
3 V
0.182 V
0.46 V
1.95 V
4.8 V
0.11 V
2.16 V
0.69 V
2.15 V
2.16 V
2.15 V
2.15 V
2.14 V
2.16 V
2.23 V
1.56 V
2.14 V
0.022 V
2.14 V
4.85 V
2.14 V
4.8 V
3.88 V
2.31 V
3 V
3.2 V
3.2 V
2.35 V
2.35 V
3.49 V
2.41 V
0.005 V
3.7 V
0.003 V
0.003 V
2.85 V
2.35V
3.13 V
1.7 V
4 V
2.3 V
1.78 V
3.2 V
3.86 V
3.38 V
2.23 V
3.3 V
2.34 V
0.002 V
4.69 V
4.69 V
2.26 V
2.25 V
2.86 V
0.187 V
0.62 V
1.94 V
4.84 V
0.014 V
2.16 V
0.63 V
2.15 V
2.15 V
2.15 V
2.15 V
2.14 V
2.16 V
2.27 V
0.002 V
2.14 V
0.022 V
2.14 V
0.146 V
2.14 V
4.86 V
3.92 V
0.003 V
1.68 V
2.62 V
2.55 V
2.32 V
2.4 V
3.5 V
2.38 V
0.006 V
0.39 V
0.003 V
0.003 V
2.81 V
2.32 V
3 V
3.03 V
4 V
2.25 V
2.93 V
3.2 V
0.017 V
0.127 V
2.23 V
3.3 V
2.35 V
0.007 V
4.64 V
4.63 V
2.37 V
2.36 V
3 V
0.182 V
0.85 V
1.91 V
0.99 V
0.81 V
2.03 V
1.73 V
2.26 V
2.06 V
2.1 V
2.1 V
2.73 V
2.66 V
2.8 V
2.0 V
0.095 V
2.05 V
2.08 V
4.68 V
2.09 V
4.73 V
2.72 V
0.006 V
3.02 V
3.2 V
3.2 V
IC201
IC301
EE PB REC
MODE
PIN NO.
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
4.85 V
0.121 V
1.65 V
2.16 V
3.75 V
2.43 V
0.002 V
4.76 V
4.68 V
2.88 V
0.061 V
3.02 V
3.5 V
1.7 V
2 V
8.65 V
0.002 V
0.002 V
4.8 V
2.4 V
13.8 mV
2.5 V
2.6 V
4.14 V
3.3 V
2.97 V
1.93 V
0.002 V
1.93 V
2.33 V
1.93 V
5.14 V
2.24 V
1.95 V
3 V
2.9 V
1.47 V
1.8 V
0.087 V
1.8 V
0.002 V
1.71 V
0.002 V
0.005 V
4.8 V
4.7 V
7.75 V
5.55 V
4.84 V
2.21 V
2.45 V
2.38 V
2.4 V
1.58 V
2.44 V
4.85 V
3.4 V
1.25 V
2.1 V
3.7 V
2.46 V
0.002 V
4.58 V
4.58 V
2.86 V
0.06 V
2.34 V
2.84 V
1.76V
2.05 V
8.6 V
0.003 V
0.003 V
4.8 V
2.67 V
3.86 V
2.52 V
2.78 V
4.14 V
3.09 V
2.93 V
1.92 V
0.003 V
1.93 V
2.33 V
1.92 V
5.14 V
2.57 V
2.28 V
2.55 V
2.93 V
1.54 V
2.44 V
0.09 V
2.55 V
0.003 V
0.002 V
0.003 V
0.07 V
4.8 V
4.7 V
2.55 V
0.008 V
4.8 V
2.2 V
2.6 V
0.72 V
0.81 V
1.6 V
3.35 V
4.75 V
0.19 V
1.6 V
2.14 V
3.66 V
2.34 V
0.005 V
4.72 V
4.71 V
2.8 V
0.061 V
2.99 V
3.4 V
1.61 V
1.94 V
8.38 V
0.006 V
0.006 V
4.68 V
2.17 V
0.03 V
2.55 V
2.64 V
4.14 V
3.30 V
3.69 V
1.92 V
0.005 V
1.92 V
2.34 V
1.92 V
5.13 V
2.22 V
0.006 V
3.01 V
2.92 V
1.48 V
1.79 V
0.088 V
1.78 V
0.006 V
1.69 V
0.006 V
0.44 V
4.78 V
4.7 V
5.55 V
0.008 V
4.72 V
2.24 V
2.43 V
2.38 V
2.39 V
1.48 V
2.33 V
IC5F1
IC751
EE PB REC
MODE
PIN NO.
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
1.73 V
0.98 V
1.1 V
0.003 V
1.65 V
0.258 V
0.002 V
0.251 V
0.77 V
0.77 V
0.77 V
0.77 V
4.85 V
2.1 mV
1.7 V
1.7 V
1.7 V
1.7 V
0.002 V
2.16 V
2.16V
2.16 V
2.33 V
4.98 V
5 V
4.96 V
4.89 V
0.64 V
0.64 V
0.64 V
0.73 V
1 V
0.72 V
1.83 V
0.73 V
1.26 V
1.26 V
1.65 V
1.58 V
4.89 V
0.002 V
1.75 V
1.7 V
1.78 V
1.73 V
0.002 V
5.1 V
1.5 V
1.5 V
0.002 V
2.5 V
2.44 V
1.84 V
1.67 V
0.98 V
1.13 V
0.004 V
1.03 V
2.5 V
0.003 V
0.014 V
0.78 V
0.78 V
0.78 V
0.78 V
4.83 V
0.004 V
1.72 V
1.71 V
1.71 V
1.71 V
0.005 V
2.16 V
2.16 V
2.16 V
2.31 V
4.9 V
5 V
4.9 V
4.85 V
0.59 V
0.59 V
0.61 V
0.93 V
0.92 V
0.63 V
1.84 V
0.75 V
1.22 V
1.23 V
1.63 V
1.58 V
4.8 V
0.003 V
1.63 V
1.7 V
1.71 V
1.6 V
0.003 V
5.1 V
1.5 V
1.5 V
0.003 V
2.46 V
2. 44 V
1.89 V
2.51 V
4.46 V
1.15 V
0.006 V
1.41 V
0.014 V
1.38 V
1.98 V
0.78 V
0.77 V
0.77 V
0.77 V
4.74 V
0.006 V
3.94 V
3.93 V
3.92 V
3.94 V
0.006 V
2.21 V
2.25 V
2.31 V
2.3 V
4.9 V
5 V
4.9 V
4.8 V
0.6 V
0.6 V
0.6 V
0.96 V
0.91 V
0.92 V
1.8 V
0.72 V
1.2 V
1.1 V
1.54 V
1.42 V
4.8 V
0.003 V
1.5 V
1.5 V
1.5 V
1.41 V
0.003 V
5.08 V
1.51 V
1.5 V
0.003 V
2.46 V
2.43 V
2.06 V
EE PB REC
MODE
PIN NO.
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1.86 V
1.86 V
0.002 V
5.12 V
4.8 V
4.7 V
1.75V
1.77 V
1.77 V
1.75 V
1.75 V
5 V
0.003 V
1.88 V
5.1 V
0.002 V
0.002 V
0.002 V
0.05 V
0.05 V
0.002 V
0.002 V
2.78 V
2.78 V
0.002 V
5.1 V
4.06 V
0.003 V
2.77 V
0.002 V
0.002 V
0.002 V
2.76 V
2.76 V
2.59 V
2.35 V
0.003 V
0.002 V
2.56 V
2.56 V
2.56 V
2.56 V
2.56 V
2.64 V
2.54 V
0.064 V
5.13 V
1.69 V
1.7 V
2.32 V
0.48 V
1.28 V
1.84 V
2.32 V
0.004 V
0.004 V
0.003 V
5.12 V
4.8 V
4.75 V
2.6 V
2.6 V
5 V
1.5 V
1.5 V
5 V
0.003 V
1.58 V
5.1 V
0.005 V
0.005 V
0.003 V
0.051 V
0.05 V
0.003 V
0.003 V
2.77 V
1.9 V
0.003 V
5.09 V
4.08 V
0.003 V
2.76 V
0.002 V
0.003 V
0.003 V
2.75 V
2.75 V
2.59 V
2.35 V
0.003 V
0.002 V
2.55 V
2.55 V
2.55 V
2.55 V
2.56 V
2.63 V
2.53 V
2.27 V
5.12 V
1.68 V
1.7 V
2 V
0.08 V
1.29 V
1.83 V
3 V
0.004 V
0.004 V
0.003 V
5.11 V
4.8 V
4.7 V
2.59 V
2.6 V
5 V
2.06 V
2 V
5 V
0.003 V
2 V
5.11 V
0.004 V
0.005 V
0.003 V
0.051 V
0.05 V
0.005 V
0.003 V
2.76 V
2.76 V
0.005 V
5.08 V
4.06 V
0.003 V
2.76 V
0.002 V
0.002 V
0.002 V
2.75 V
2.75 V
2.6 V
2.35 V
0.003 V
0.002 V
2.55 V
2.9 V
2 V
2.55 V
2.55 V
2.6 V
2.52 V
2.26 V
5.11 V
1.66 V
1.67 V
2.3 V
0.53 V
1.36 V
1,8 V
2.26 V
IC501
IC801
IC802
EE PB REC
MODE
PIN NO.
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
4.7 V
2.19 V
0.01 V
2.2 V
2.32 V
0.01 V
0.3 V
0.08 V
5.14 V
4.2 V
5.13 V
5.13 V
0.004 V
0.002 V
0.002 V
0.18 V
1.37 V
5.14 V
5.14 V
4.74 V
4.74 V
2.45 V
5 V
2.28 V
0.003 V
4.76 V
0.003 V
(-)0.001 V
0.003 V
0.003 V
0.003 V
5.14 V
5.1 V
4.38 V
0.031 V
0.003 V
5.1 V
5.1 V
5.1 V
0.002 V
0.003 V
4.8 V
4.7 V
4.7 V
5 V
1.8 V
5.1 V
1.78 V
5.1 V
0.004 V
0.001 V
0.001 V
5.14 V
5.14 V
0.028 V
4,7 V
3 V
0.009 V
2.2 V
2.3 V
0.009 V
2.84 V
3.4 V
5.13 V
4.16 v
5.13 V
5.13 V
0.002 V
0.002 V
0.002 V
0.18 V
1.3 V
5.13 V
5.13 V
4.73 V
4.75 V
4.9 V
0.003 V
1.55 V
0.003 V
4.75 V
0.003 V
(-)0.001 V
0.003 V
0.003 V
0.003 V
0~5 V
0.003 V
0.03 V
5.06 V
0.003 V
5 V
5.13 V
5,1 V
0.002 V
0.004 V
4.8 V
4.7 V
5 V
5 V
1.3 V
5 V
5.1 V
5.1 V
4.4 V
5.1 V
5.1 V
5.1 V
0.001 V
0.028 V
4.6 V
2.13 V
0.01 V
2.16 V
2.26 V
0.01 V
0.012 V
0.068 V
5.12 V
3.93 V
5.11 V
5.11 V
0.003 V
0.002 V
0.002 V
0.18 V
1.42 V
5.1 V
5.1 V
4.7 V
4.7 V
2.33V
4.96 V
1.42 V
0.004 V
4.73 V
0.004 V
(-)0.001 V
0.004 V
5 V
0.004 V
0.005~5 V
0.004 V
0.035 V
0.038 V
0.004 V
5 V
5.11 V
5.1 V
0.002 V
0.004 V
4.8 V
4.9 V
5 V
5 V
1.68 V
5 V
1.66 V
5.08 V
5.08 V
0.005 V
5.12 V
5.12 V
0.001 V
0.029 V
EE PB REC
MODE
PIN NO.
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
1
2
3
4
5
6
7
8
9
10
11
12
13
14
5 V
0.001 V
1.5 V
1.7 V
5.1 V
2.5 V
0.001 V
2.53 V
3.2 V
5.12 V
0.172 V
0.004 V
0.019 V
2.55 V
5.11 V
5.11 V
5.11 V
5.11 V
5.11 V
5.12 V
0.005 V
0.005 V
4.38 V
0.005 V
5.11 V
0.005 V
5.11 V
0.005 V
1.51 V
0.005 V
0.099 V
0.099 V
5.11 V
0.005 V
0.005 V
0.005 V
0.049 V
0.002 V
0.48 V
5.12 V
3.8 V
3.8 V
3.8 V
3.8 V
3.8 V
3.8 V
3.8 V
3.8 V
3.8 V
3.8 V
3.8 V
0.054 V
3.87 V
0.008 V
5.1 V
0.001 V
1.93 V
2.02 V
5.1 V
2.51 V
0.002 V
2.5 V
3.2 V
5.1 V
2.68 V
2.4 V
3.4 V
2.55 V
3.1 V
4.95 V
4.97 V
5 V
5.1 V
0.008~0.05 V
0.005 V
0.005 V
0.05 V
0.005 V
5.1 V
5.3 V
2.55 V
0.005 V
2.6 V
0.006 V
1.36 V
1.36 V
2.55 V
2.54 V
2.75 V
2.81 V
50.6 V
0.002 V
0.6 V
5.11 V
3.81 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
~
3.8 V
0.003 V
5.04 V
0.002 V
1.48 V
1.44 V
5.08 V
2.52 V
0.002 V
2.5 V
3.19 V
5.1 V
2.55 V
2.69 V
3.44 V
2.56 V
2.29 V
4.9 V
4.9 V
4.98 V
5.09 V
0.006 V
0.006 V
0.013 V
0.012 V
0.006 V
5.09 V
0.006 V
2.52 V
0.006 V
1.31 V
0.006 V
1.38 V
1.36 V
2.53 V
2.53 V
2.75 V
2.79 V
0.05 V
0.002 V
0.55 V
5.1 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
3.82 V
0.048 V
3.99 V
0.011 V
EE PB REC
MODE
PIN NO.
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
0.008 V
6 V
6 V
7 V
6 V
6 V
4.58 V
3.82 V
3.86 V
3.87 V
3.87 V
0.76 V
0.001 V
3.84 V
3.86 V
0.77 V
3.87 V
3.86 V
3.86 V
11.84 V
0.64 V
0.64 V
0.64 V
0.005 V
0.002 V
5 V
0.005 V
4.7 V
4.8 V
0.078 V
3 V
11.8 V
2.74 V
11.8 V
2.74 V
5.5V
5.6 V
5.5 V
5 V
5.5 V
11.23 V
5.5 V
0.008 V
5.54 V
0.008 V
5.5 V
0.002 V
0.002 V
(-)0.001 V
5.5 V
5.6 V
5.6 V
5.6 V
5.54 V
0.006 V
6.07 V
6.07 V
6.07 V
6.06 V
6.07 V
4.57 V
3.82 V
3.84 V
3.84 V
3.9 V
0.003 V
0.003 V
3.83 V
3.86 V
0.76V
3.87 V
3.87 V
3.86 V
11.76 V
0.44 V
0.62 V
0.63 V
0.008 V
0.005 V
5.07 V
0.92 V
4.7 V
4.8 V
3.3 V
2.93 V
11.76 V
2.74 V
11.75 V
2.75 V
5.5 V
5.56 V
5.5 V
0.006 V
5.5 V
11.15 V
5.5 V
0.01 V
5.5 V
0.009 V
5.5 V
0.003 V
0.005 V
0.001 V
5.5 V
5.59 V
5.59 V
5.51 V
5.5 V
0.01 V
6.07 V
6.08 V
0.11 V
0.028V
6.07 V
5.9 V
3.82 V
3.86 V
3.87 V
3.87 V
0.76 V
0.005 V
3.83 V
3.86 V
0.76 V
3.86 V
3.87 V
3.86 V
11.77 V
4.3 V
4.3 V
4.28 V
4.32 V
0.006 V
5.05 V
0.92 V
4.7 V
4.8 V
0.068 V
3.05 V
11.76 V
2.74 V
11.76 V
2.75 V
5.5 V
5.57 V
5.49 V
4.97 V
5.5 V
11.16 V
5.5 V
0.009 V
5.5 V
0.009 V
5.51 V
0.005 V
0.004 V
0.001 V
5.51 V
5.59 V
5.59 V
5.52 V
5.5 V
• CIRCUIT VOLTAGE CHART
3-48 3-49
EEPIN PB REC EEPIN PB REC
EE PB REC
MODE
PIN NO.
25
26
27
28
29
30
31
32
33
34
5.6 V
5.6 V
5.54 V
4.16 V
1.46 V
2.1 V
1.35 V
4.7 V
4.8 V
(-) 0.002 V
5.58 V
5.58 V
5.5 V
4.32 V
1.46 V
1.99 V
1.35 V
4.7 V
4.8 V
0.001 V
5.59 V
5.59 V
5.5 V
4.51 V
1.46 V
2.07 V
1.35 V
4.7 V
4.8 V
0.000 V
Q301
BASE 0.01 V 0.013 V 0.79 V
EMITER 0.003 V 0.004 V 0.005 V
COLECTOR 4.83 V 4.82 V 1.02 V
Q302
BASE 4.85 V 4.18 V 4.75 V
EMITER 0.002 V 4.85 V 4.75 V
COLECTOR (-)2.79 V 4.8 V (-)25.5 V
Q303
BASE (-)2.76 V 0.7 V (-)25.6 V
EMITER (-)0.8 V 0.007 V (-)19.13 V
COLECTOR 0.002 V 0.012 V 0.004 V
Q304
BASE (-)2.62 V 0.72 V (-)25.4 V
EMITER 0.002 V 0.002 V (-)19.4 V
COLECTOR 0.002 V 0.004 V 0.004 V
Q305
BASE 1.71 V 1.41 V 1.7 V
EMITER 2.41 V 2.1 V 2.39 V
COLECTOR 0.003 V 0.004 V 0.005 V
Q308
BASE 1.81 V 01.56 V 6.07 V
EMITER 2.47 V 6.06 V 6.07 V
COLECTOR 0.005 V 0.005 V 0.005 V
Q309
BASE 2.18 V 2.01 V 2.33 V
EMITER 2.87 V 2.7 V 3 V
COLECTOR 0.012 V 0.005 V 0.012 V
Q310
BASE 0.02 V 3.89 V 0.017 V
EMITER 0.005 V 0.004 V 0.005 V
COLECTOR 2.92 V 0.008 V 2.91 V
Q501
BASE 0.69 V 0.69 V 0.69 V
EMITER 0.002 V 0.003 V 0.003 V
COLECTOR 0.02 V 0.012 V 0.023 V
Q502
BASE 0.31 V 0.38 V 0.33 V
EMITER 0.004 V 0.004 V 0.004 V
COLECTOR 2.65 V 1.93 V 2.4 V
Q504
BASE 0.59 V 0.51 V 0.50 V
EMITER 0.03 V 0.03 V 0.03 V
COLECTOR 3.78 V 3.75 V 3.71 V
Q5S1
BASE 0.006 V 0.005 V 0.003 V
EMITER 1.77 V 1.8 V 1.89 V
COLECTOR 2.41 V 2.1 V 2.4 V
Q515
BASE 4.94 V 0.5~4.3 V 0.4~4.9 V
EMITER 0.002 V 0.003 V 0.005 V
COLECTOR 0.02 V 0.2~3.5 V 0.4~4.9 V
Q514
BASE 4.96 V 0.8~4.2 V 0.2~4.3 V
EMITER 0.002 V 0.002 V 0.003 V
COLECTOR 0.02 V 0.01~4.8V 0.011 V
Q7S1
BASE 0.007 V 0.007 V 0.008 V
EMITER 0.001 V 0.001 V 0.001 V
COLECTOR 3.7 V 3.5 V 0.057 V
Q801
BASE 0.7 V (-)0.1 V 0.01 V
EMITER 0.001 V 0.003 V 0.001 V
COLECTOR 0.004 V ~ 0.006 V
Q802
BASE 0.7 V (-)0.12 V 0.7 V
EMITER 0.001 V 0.001 V 0.001 V
COLECTOR 0.004 V 0.02 V 0.005 V
Q804
BASE 1.81 V 2.5 V 1.79 V
EMITER 2.5 V 3.20V 2.48 V
COLECTOR 0.002 V 0 V 0 V
Q901
BASE 0.005 V 0.005 V 0.006 V
EMITER 0.003 V 2.04 V 1.9 V
COLECTOR 0.003 V 0.004 V 0.005 V
Q902
BASE (-)1.64 V (-)1.69 V (-)1.79 V
EMITER 0.003 V 0.004 V 0.004 V
COLECTOR 0.004 V 0.004 V 0.005 V
Q903
BASE (-)1.74 V (-)1.63 V (-)1.8 V
EMITER 0.003 V 0.003 V 0.005 V
COLECTOR 0.003 V 0.004 V 0.005 V
3-50 3-51
PRINTED CIRCUIT DIAGRAMS
1. MAIN P.C.BOARD
LOCATION GUIDE
3-52 3-53
2. SMPS P.C.BOARD
LOCATION GUIDE
NOT ES ) Warning
NOT ES ) P arts that are shaded are critical
NOT ES ) With respect to risk of fire or
NOT ES ) electricial shock.
3. KEY(LEFT) P.C.BOARD
LOCATION GUIDE
4. TIMER P.C.BOARD
LOCATION GUIDE
3-54
ELECTRICAL TROUBLESHOOTING GUIDE
DVD PART
Replace IC301.
Refer to VCR Part
Check short
Reconnect it.
1. µ-COM Circuit
A. No Power
Does Logo appear
on the screen?
Is oscillation of
X501 normal?
Are IC501 normal?
Does no DISC appear?
Does Hello
appear at FLD?
Is PDV02
connected normally?
Is PDV02 Pins8, 9,
10, 11 normal?
The waveform
on AD(0~21) of IC501
normal?
Are IC301 Pins5, 26 normal?
Replace Main B/D.
Check the oscillation
Check short.
OK
Replace IC501
Check power.
(Refer to power)
If power is
normal
OK
POWER ON
1
1
YES
YES
YES
YES
NO
YES
YES
YES
YES
A
NO
NO
NO
NO
NO
NO
NO
NONO
YES
A
3-55
B. Audio abnormal
D. Open/Close abnormal
Check the
connection of PDV02.
Check PMD03 Pins 5, 6.
Check Audio jack.
YES (If OK)
YES
NO
NO
YES
YES (If OK)
YES
YES (If OK)
YES (If OK)
YES (If OK)
Check MPEG_CLK Signal
(IC501 Pin22) of MPEG part.
Refer to Audio part.
Refer to MPEG part.
Replace Main B/D.
Check Front.
Reconnect it.
Refer to SERVO part.
Check the connection of MD.
AUDIO ABNORMAL
OPEN/CLOSE ABNORMAL
C. Video abnormal
Check Video jack.
YES (If OK)
YES (If OK)
YES (If OK)
Refer to Video part.
Refer to MPEG part.
Replace Main B/D.
VIDEO ABNORMAL
3-56
E. Picture abnormal
Check the disc.
If OK
YES (If OK)
YES (If OK)
Refer to Servo part
Check MPEG_CLK Signal
(IC501 Pin22) of MPEG part
Check DSP
Check MPEG
YES (If OK)
Replace Main B/D
PICTURE ABNORMAL
F. Disc Error
Check Disc
YES (If OK)
YES (If OK)
Refer to Servo part
Replace main B/D
DISC ERROR
3-57
Power is on
Does Logo appear
on the screen?
Does the
moving picture of the DVD Disc
play on the screen
normally?
Is MPEG data signal normal?
Is error signal normal?
Is MPEG data signal normal?
Is Clock normal?
Does the audio
sound output from MPEG
decoder?
Does the
moving picture of the video
CD play on the screen
normally?
Does the audio sound
output normally?
END
Check power & clock.
Check CD/DVD DSP output
signal.
Check MPEG Decoder input
signal.
Check CD/DVD DSP output
signal.
Check MPEG Decoder input
signal.
Check CD/DVD DSP output
signal.
Check MPEG Decoder input
signal.
Check clock signal
Check clock signal
YES
YES
YES
YES YES
YES
YES
YES
YES
YES
NO
NO NO
OK OK
OK
OK
NO
NO
NO
NO
NO
2. MPEG Circuit
_OPTION
_ If included VCD function.
3-58
Does signal pulse
input to IC201 Pins53, 54 when
the power is on?
Does signal goes
"High" to IC201 Pin186 when the
power is on?
Does
33.8688MHz clock input to
IC201 Pin138?
Does
33.8688MHz clock input
to IC201 Pin59?
Is IC201
Pins79, 80, 84, 88 voltage
about 2.2V?
Replace IC201
(IC206 soldering or IC defect).
Check power circuit.
Check "2.µ-COM Part".
Replace X201 or IC206
(33MHz clock defect)
CHECK POINT(General)
3. RF/Servo Circuit
A.
END
NO
NO
NO NO
NO
YES
YES
YESYES
YES
3-59
Does tray open or close?
Does the pick-up
slide inner or outer
track?

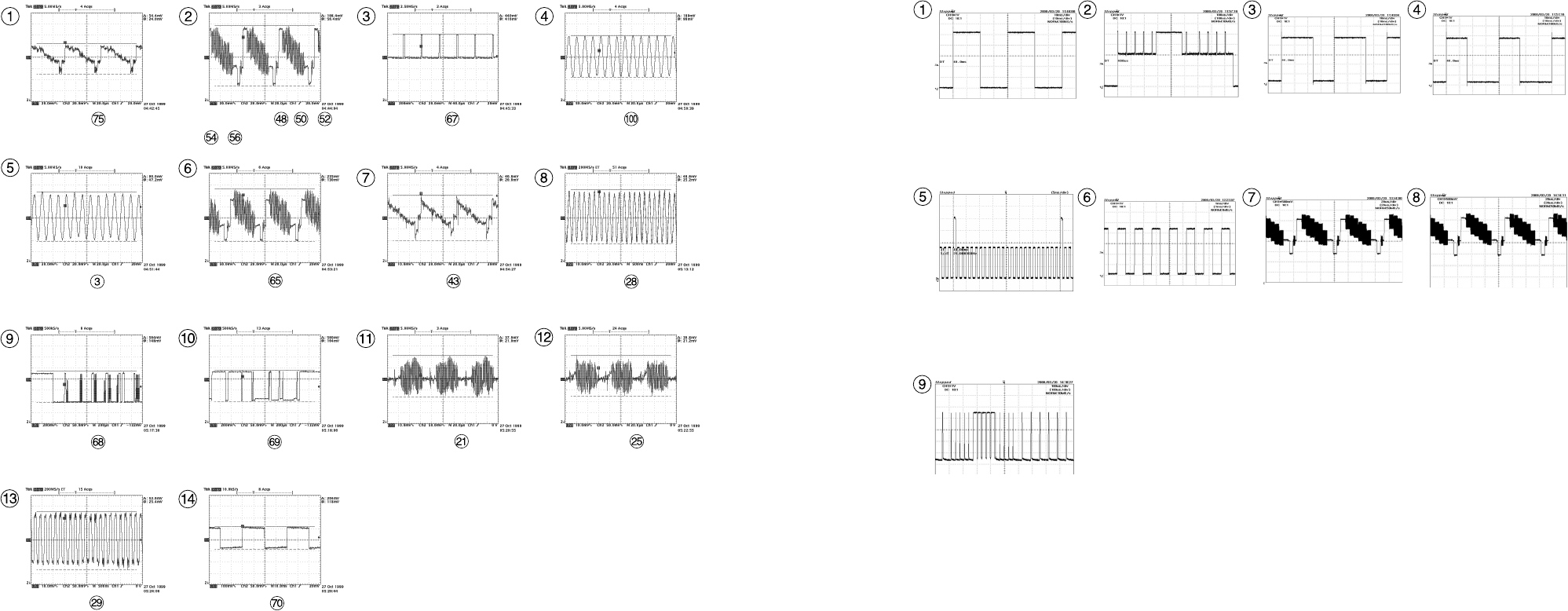

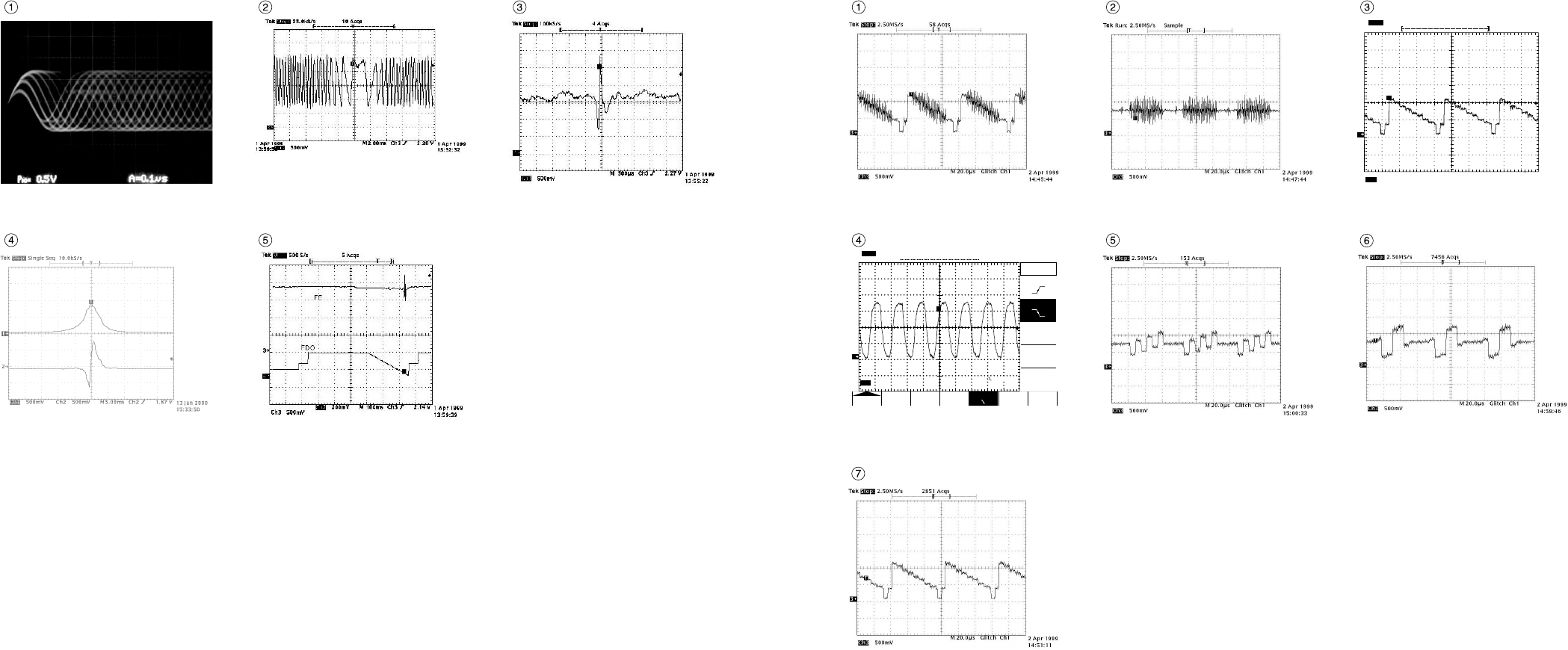

Fig.1. SLED Driver waveform
Fig.2. Focus Driver waveform
Does
the voltage change
at PMD03 Pins7, 8 more than
2V on the basis of
3.8V?
Pressing
the open/close key
repeatedly, check the voltage of IC2M1
Pins14, 15 change
0V to 5V
Does
PMD03 Pin10 change
high to low?
Does
the pick-up lens move up
and down?
Check Focus Driver output.
(IC201 Pin88, IC2M1 Pins37, 38)
Check SLED Driver output.
IC201 Pin80 IC2M1 Pins28, 29.
IC201 Pin80 no output : IC201 is defective
IC2M1 Pins26, 27 no output : IC2M1 is defective
IC201 Pin88 no output : IC201 is defective
IC2M1 Pins37, 38 no output : IC2M1 is defective
DECK assembly is defective.
Slide the pick-up to
inner track.
Power on. Check loading Part.
Push Pick-up to inner track to
the end by hand.
DECK assembly is defective.
(Limit sw)
check µ-COM Part.
Replace IC2M1.
No disc
B.
END
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
3-60
FOCUS ON?
Check
the focus error moving the
lens up and down.
(IC2A1 Pin39)
Does the
TTL level change at IC201
Pin121 and 152 moving
the lens?
Does the disc turn?
Is OK the track jump.
Does the signal
pulse appear at IC201
Pins150, 151?
Does the screen appear?
OPEN/CLOSE
Replace µ-COM or IC201.
Replace IC201.
Check IC2A1 Pins47,50,51,52
in DVD Mode
Fig.3. FOCUS ERROR waveform
IC201 no output : Pick-up is defective.
Check IC201 and IC2M1 when PMD03 Pins1, 2 are abnormal
Check IC2M1 Pin21, PMD03
Pin1, 2 turn when the IC2M1
Pin21 is less than 2.2V.
Video Part is defective.
Check "5.MPEG Circuit."
Check "7.OSD/Video Circuit."
Replace µ-COM part.
IC2A1 is defective.
DISC IN
C.
END
NO
NO
NO NO
NO
NO
NO
YES YES
YES
YES
YES YES
YES
3-61
Is the eye-pattern vivid?
Does the
sawtooth waveform emit
at IC2A1 Pin36? Does the 1.6V emit?
Check RF Eye-Pattern.
RF : 1.5-1.6V(TP2A0)
Fig.5. RF
waveform
Check IC2A1 Pin3. No signal: Pick-up is defective
Replace IC201. Check IC201 Pin84.
No signal at IC201 : IC201 is defective
• Check IC201 Pin165.
• Check the clock at the IC201 Pins37, 59.
• Both are normal : IC201 is defective
Replace IC2A1.
CHECK A
D.
END
NO
NO NO NO
YES
YES YES YES
BLOCK DIAGRAMS
1. DVD OVERALL BLOCK DIAGRAM
M
M
DISC
SPINDLE
MOTOR
LOADING
MOTOR
DECK M ECHANI SM
CD: A,B, E, F
DVD: A,B,C,D,
DVD; RF
PICK
UP
IC203
SDRAM
16bit
16M
IC201
HDC25D811
CD / DVD DSP
IC501
PANTERA
LE / PLUS
IC301
HS353106
CPLD
I/O PORT 72
IC305
SDRAM
16/32BIT
64M
IC502
93C56
EEPROM
IC2M 1
FAN8004
MOTOR
DRIVER
IC2A1
Hd153702TF
RF
ICDATA
[00:15]
ICADD
[0:8]
LOADING
FOCUS,TRACKI NG,SLED
SPINDLE
MIRR,TZC,PE,TE
FE,DFECT_IN
RFO
SCLK,SDAT A
;SCOR,SQCK,SQSO
XLAT , E_STI , E_ENB , E_DR
RF_XLA T , LDON
IC401
CS4391
XIO1,XIO
,XIO10
/SRST
F_CLK
F_OUT
PCMCLK
ALE
MSDATO
MDP1
FOK
DEFECT
DSP_SENSE
LOCK
E_SOUT
ZISENB
/XRST
DAC_RST
16
:
9
, PAL_SW , AUTO_SW , MIC_ON
Y_SEL
/A_MUTE
/DAC_CS1
/DAC_CS2
V_MUTE
DAC_CLK
DAC_OUT
ADCCLK
ACT_MUTE , LOAD_OPEN , LOAD_CLOSE
MIRR
AD[
04
:
21
]
PSENB
FLD
/FLD_CS
FLD_CLK
FLD_OUT
EE_CS , EE_CLK , EE _OUT
F_IN
IC3F1
FLA SH
ROM
/FLASH_CS , /RD
PWEO
LA0
LA1
LA2
LA3
LADD
[04:19]
MD[00:31]
MCLK2
CKE
MA[00:10]
MA12,13
/CS0
/RAS
/CAS
/WE
DQM0`3
REQP
SDCLKI , PSYNC
DVD[1:7]
DSP_INT
SENSE
/DSP_CS F_IN
DA_AI N
SPDIF
ACLK
LRCK
AOUT0~3
AM P
L/R
L/R
5.3VA
POWER
8VA
12V
3.3V
2.5V
A.GND, D.GND, M.GND
5V
AD[0:7]
LADD4~5 , LA0~3
AD[
00
:
15
]
MDP,FDO,TDO,FMO,MON
OPEN_SW
CLOSE_SW
LI MI T_SW
CPLD
27MHz
X-TAL
33.8688MHz
X-TA L
IC206
INVER
TER
COMBI SCART
SANYO
3-62
3-63
IC2A1
HD153702TF
RF Signal
Processdr
IC201
HDC25D811B
CD/DVD DSP
DVD SERVO
IC203
SDRAM
16M
IC2M1
FAN8004
SpindleMotor,LoadingMotor,
Actuator Driver
PICK
UP
DVD:A,B,C,D,
SENS,FOK,
MSDATO,DEFECT,DSP_SENSE
SQSO,SQCK,SCOR
XLAT,S_CLK,S_DATA
DSP_CS,/WR,/RD
DO[0:7]
AO[0:5]
DVD_DATA[0:7]
MCK
UCOM
I/F
MPEG
I/F
UCOM
I/F
M/D
DVD/CD RF
FE, TE, PI
MIRR,TZC
ICADDR[0:8]
ICDATA[00:15]
MON,MDP
FDO,TDO,FMO
Spindle
focus,tracking,loading,sled
Load open/close(loading control)
CD:A,B,C,D/E,F
4
4
5
3
3
3
8
6
8
8
2
4
9
16
COMBI SCART
SANYO
2. RF/CD DSP/DVD DSP/DVD SERVO BLOCK DIAGRAM
3. AUDIO BLOCK DIAGRAM
IC401
CS4932
Audio DAC
IC402
LPF & Buffer
KA5532
OP AMP
L
R
U-COM
I/F
DA_DATA0
DAC_RST
S_DATA
S_CLK
DAC_L0
DA_LRCK
DA_BCK
DA_XCK
L
R
TO VCR
MPEG
I/F
COMBI SCART
SANYO
3-64
3-65
4. MPEG BLOCK DIAGRAM
IC501
PANTERA-2
LE/PLUS
IC301
HC353106
IC305
SDRAM
16/32BIT
64M
IC502
93C46
EEPROM
IC3F1
FLASH
MEMORY
AD[0:7]
8
DSP
I/F
DVD[0:7]
8
LA[0:3]
4
SCLK,SDATA
SQCK,SQS0
REQP
SDCLK1,PSYNC
DSP_INT
SENSE
/DSP_CS
AD[04:21]
RF &
MOTOR
I/F
MIRR
LDON
SCLK,SDATA
EE_CS
F_IN
32
MD[00:31]
MCLK2
CKE
MA[00:10]
MA12,13
/CS0
/RAS/
/CAS
/WE
/DQM[0:3]
SPINDLE_FG
ALE
AD[04:19]
16
LADD[04:19]
16
LA[0:3]
4
AD[00:15]
16
AUDIO
DA_DATA[0:3}
DA_BCK,DA_LRCK,DA_XCK
4
DAC_L0,DAC_L1
DAC_RST
TO
VCR
C/R(B)
CVBS/G(R)
Y/B(G)
CVBS
V_MUTE,16:9
ZISENB
/RD
/PWED
IC301
COMBI SCART
SANYO
'02. 12. 04 R17147A
COMBI SCART
SANYO
5
TRACKING LOOP
FOCUS LOOP
SLED LOOP
SPINDLE LOOP
WAVEFORM
16M SDRAM
10µ/16V
22
DSP II
TO/FROM MPEG
3-66 3-67
CIRCUIT DIAGRAMS
1. DVD DSP CIRCUIT DIAGRAM
5
4
3
2
4
1
4
'02. 12. 04 R17145A
COMBI SCART
SANYO
TRACKING LOOP
FOCUS LOOP
SLED LOOP
SPINDLE LOOP
WAVEFORM
Q2A5, Q2A6
TO/FROM MEMORY
TO/FROM MEMORY
TO/FROM DSP
TO/FROM DSP
TO/FROM MPEG
TO/FROM MEMORY
TO/FROM DSP
TO/FROM DSP
3-68 3-69
2. DRIVE & RF CIRCUIT DIAGRAM
Tray not open/close
Digitron all not display
system not working
Tray not open/close
Digitron all not display
system not working
Digitron all not display
system not working
'02. 12. 04 R17148A
COMBI SCART
SANYO
Digitron all not display
system not workry
DRIVE & RF
3-70 3-71
3. MEMORY CIRCUIT DIAGRAM
'02. 12. 04 R17150A
COMBI SCART
SANYO
PDV01-PPD01
PDV02-PMD01
PDV03-PMD02
(TO/FROM VCR JACK)
(TO/FROM VCR SYSTEM)
(TO/FROM VCR POWER)
TO/FROM MPEG
TO/FROM MPEG
TO/FROM JACK
TO/FROM MEMORY
3-72 3-73
4. INTERFACE CIRCUIT DIAGRAM
Optical/Coaxial out
CVBS
Y/Pb/Pr(Componet)
Y/C(S-VHS) WAVEFORM
'02. 12. 04 R17146A
COMBI SCART
SANYO
HB-1S1608
MM74HCT244
3-74 3-75
5. µ-COM/EXPANDER CIRCUIT DIAGRAM
'02. 12. 04 R17149A
COMBI SCART
SANYO
DAP202K
3-76 3-77
6. JACK CIRCUIT DIAGRAM
3-78 3-79
• WAVEFORMS
IC2A1
TP2A0
IC2A1 Pin 36
Tracking Error
IC501 Pin 114
Component Y
IC2A1 Pin 36
VBR TRACKING Error
IC2A1 Pin 39, Focus Error
IC2A1 Pin 38, PE
IC2A1 Pin 39, Focus Error(in Focus Search)
IC201 Pin 48, Focus Drive(FDO)
IC501 Pin 118, Composite IC501 Pin 112, Chrominance
(Super video out Mode)
Tek Stop : 2.50MS/s 4 Acqs
M20.0µs2 Apr 1999
14:47:27
Glitch Ch1
Ch3 500mV
[T ]
T
3
IC501 Pin 114, Luminance
(Super video out Mode)
Tek Stop : 1 00kS/s 3290 Acqs
M 500µsCH1 280/mV
Edge Slope
Type
<Edge>
Source
Ch1
Coupling
DC
Level
280mV
Mode
&
Holdoff
3
Ch3 1.00V
[ T ][ T ]
Slope
T
IC501 Pin 98,
MPEG Clock(27MHz)
IC501 Pin 112
Component Pb
IC501 Pin 110
Component Pr
3-80 3-81
• CIRCUIT VOLTAGE CHART
IC2A2
IC2A4
IC2M1
STOP PLAY
MODE
PIN NO.
3.21
3.21
3.21
3.21
3.21
3.21
3.21
3.21
0.00
3.21
3.21
3.21
3.21
3.21
3.21
3.21
3.21
3.21
3.21
3.21
3.21
0.01
0.01
3.21
3.21
0.02
0.02
0.02
0.02
0.02
0.02
0.02
3.21
3.21
3.21
0.02
1.80
0.02
0.02
0.02
1.78
0.02
0.13
1.78
0.02
0.02
0.02
1.78
3.21
0.01
0.01
0.01
0.02
3.07
3.05
3.07
3.02
3.05
3.04
3.05
3.05
3.05
0.00
3.04
0.00
0.00
0.00
3.03
3.05
3.04
0.00
0.00
0.00
0.00
0.00
0.03
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.19
0.00
0.00
0.00
0.00
0.00
0.00
1.61
0.20
1.61
2.70
2.70
2.70
1.81
3.20
0.00
1.57
1.53
0.00
EE PLAY
MODE
PIN NO.
5.72
0.02
3.21
0.02
1.80
2.38
0.02
3.21
3.21
3.21
0.02
0.02
0.87
0.01
3.21
1.07
3.21
0.02
3.21
0.02
0.02
0.87
1.59
0.87
0.87
2.36
2.86
3.24
3.24
2.19
2.39
0.00
0.00
2.19
2.38
2.18
1.80
0.92
2.69
1.77
1.81
1.53
1.83
1.81
0.00
0.00
1.81
3.21
3.21
2.28
2.28
0.90
1.30
1.59
2.00
5.18
0.00
3.21
0.00
1.59
0.00
0.00
3.01
0.00
3.21
0.00
0.00
1.19
1.90
3.21
1.55
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.78
2.15
0.00
0.00
0.00
1.97
0.00
0.00
0.00
0.00
0.00
0.00
1.62
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
1.63
3.24
3.25
0.00
0.00
1.48
1.67
1.59
1.65
EE PLAY
MODE
PIN NO.
2.00
2.40
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
3.21
0.70
3.21
3.21
0.02
3.21
3.21
3.00
0.02
3.21
3.21
3.21
0.84
0.02
3.21
3.21
2.67
1.85
2.40
2.68
2.64
2.64
3.21
1.12
0.02
0.02
2.66
2.67
2.68
2.68
1.09
1.09
0.02
0.02
0.67
0.90
3.21
3.21
0.02
0.00
0.00
3.02
3.21
3.21
1.64
1.60
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.22
3.22
3.22
1.61
0.00
1.64
1.61
0.00
0.00
2.35
3.25
1.59
0.02
0.00
3.22
2.35
2.39
1.62
2.12
2.41
0.30
3.20
3.22
2.32
0.00
0.00
0.30
0.30
0.30
0.30
2.33
0.00
3.22
0.00
1.53
0.00
3.22
3.22
0.00
0.00
0.00
2.70
3.24
3.24
EE PLAY
MODE
PIN NO.
2.31
2.38
2.39
1.80
3.08
0.02
0.04
3.03
3.21
3.21
3.21
3.21
0.02
3.21
3.21
3.21
0.02
0.02
0.02
0.02
0.02
0.02
3.21
1.50
3.21
1.55
1.57
1.63
0.23
2.32
2.20
1.63
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
0.02
3.21
0.02
0.02
0.02
2.26
0.01
0.01
0.00
5.07
1.14
2.15
5.07
2.07
0.00
2.14
1.61
0.00
2.06
0.00
2.54
0.00
0.00
0.00
3.21
0.00
0.00
3.21
3.13
0.00
0.00
0.00
0.00
0.00
0.00
3.25
1.05
0.00
1.58
0.00
1.64
0.19
2.04
2.70
0.00
0.00
0.00
0.00
0.00
0.00
1.00
0.00
0.00
0.00
3.21
1.58
2.96
1.63
2.28
0.01
0.01
0.00
5.04
1.03
2.15
5.04
EE PLAY
MODE
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
0.00
3.24
3.24
1.85
3.35
2.63
1.10
1.10
0.00
1.24
2.54
3.38
3.34
2.52
2.64
0.01
0.02
0.01
0.01
0.01
5.41
5.41
0.02
0.01
0.01
0.03
0.01
3.51
5.58
0.02
0.03
0.04
0.03
5.44
2.45
3.40
0.78
0.53
2.40
0.00
5.44
0.00
0.00
5.45
2.47
2.47
2.47
0.02
0.01
2.47
2.47
2.48
2.47
0.00
3.02
3.01
1.99
3.17
2.43
0.30
0.30
0.80
1.18
2.27
3.13
3.09
2.70
1.95
0.14
0.00
0.00
0.00
0.00
5.01
5.01
0.00
0.00
0.00
0.00
0.00
3.24
5.16
0.00
0.00
0.00
0.00
5.01
2.27
2.51
2.37
0.00
2.17
0.22
3.66
0.00
0.00
5.01
2.29
2.29
2.42
2.42
2.27
2.43
2.44
2.38
2.29
EE PLAY
MODE
PIN NO.
2.47
2.47
2.47
2.47
2.47
2.47
2.47
0.80
0.80
5.60
0.00
1.64
1.64
1.64
0.01
1.63
1.63
1.63
5.1
0
0.46
0.53
0
2.27
2.28
0.29
5.09
2.30
2.32
2.31
2.28
2.32
0.00
0.00
2.32
2.25
2.32
2.32
2.30
2.45
2.82
2.82
0.01
2.38
0.00
0.00
2.07
2.07
0.01
0.04
0.01
8.70
0.00
2.51
2.50
2.29
2.28
2.28
2.28
0.96
0.86
5.01
0.00
0
1.64
1.64
0.01
2.19
2.19
2.19
5.07
0
0.93
0.97
0
2.26
2.27
2.37
5.05
0.00
0.00
0.00
2.15
2.15
0.00
0.00
2.15
2.83
2.15
2.15
2.20
2.24
0.00
0.00
0.00
1.54
0.00
0.00
1.92
1.91
0.00
0.00
0.00
7.96
EE PLAY
MODE
4.33
4.32
4.33
4.36
0.10
0.01
4.23
4.50
0.00
1.71
1.78
1.73
1.74
1.92
1.91
0.00
0.00
0.00
0.00
1.94
2.33
2.33
2.06
3.17
0.00
0.00
0.00
3.26
3.25
0.00
3.25
0.00
0.00
0.00
3.24
3.26
0.00
0.20
2.16
1.80
1.57
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.25
0.00
0.00
0.00
0.00
0.00
0.00
4.01
4.05
3.97
0.00
0.13
4.92
0.00
0.00
0.00
4.00
4.21
3.75
0.00
7.89
0.00
0.00
0.00
0.00
0.00
2.15
0.00
2.15
0.38
0.00
0.00
0.00
3.26
3.26
0.00
3.26
0.00
3.26
0.00
3.25
3.26
0.00
0.00
2.10
2.19
2.08
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.26
0.00
0.00
0.00
0.00
0.00
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
1
2
3
4
5
6
7
8
54
55
56
57
58
59
60
61
62
63
64
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
PIN NO.
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
SERVO
IC2A1
IC301
EE PLAY
MODE
0.00
0.00
0.00
0.00
0.00
0.00
3.26
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.26
3.25
2.39
0.00
0.00
0.00
3.26
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.12
0.00
3.25
3.12
0.00
0.00
3.12
0.00
0.00
0.00
2.62
2.49
0.00
0.00
3.26
0.00
0.00
5.06
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.26
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.26
1.32
2.82
0.00
0.00
0.00
3.27
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.26
0.00
3.26
3.23
0.00
0.00
3.23
0.00
0.00
0.00
3.60
2.76
0.00
0.00
3.26
0.00
0.00
5.04
0.00
PIN NO.
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
EE PLAY
MODE
0.00
3.26
3.18
3.25
0.00
3.26
3.26
0.00
1.69
0.00
3.26
3.26
5.05
0.00
3.23
0.63
0.53
1.76
3.23
0.00
0.00
0.48
0.40
3.23
0.00
0.05
0.08
0.00
1.61
0.00
0.00
1.61
3.23
0.99
1.68
2.75
0.00
3.23
1.60
1.54
3.23
1.86
0.04
0.05
0.00
2.43
0.84
1.76
2.90
3.23
3.18
0.32
3.21
0.00
3.26
3.31
3.26
2.26
3.26
3.26
0.00
1.68
0.00
3.26
3.26
5.04
0.00
3.21
0.00
0.00
1.76
0.68
0.00
0.00
0.64
0.63
3.21
0.00
0.13
0.14
0.00
1.75
1.57
0.00
1.76
3.21
1.48
1.64
2.83
1.35
3.21
1.75
1.33
3.21
0.38
0.35
0.09
0.80
2.00
0.84
1.76
2.89
7.21
0.50
0.30
3.22
PIN NO.
87
88
89
90
91
92
93
94
95
96
97
98
99
100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
MPEG
IC501
EE PLAY
MODE
0.00
0.00
0.06
2.94
3.23
1.14
0.69
0.00
0.60
0.00
0.74
0.50
0.49
3.23
0.42
1.30
0.48
0.00
0.55
0.67
1.11
0.58
3.23
0.50
0.30
0.00
0.48
0.00
0.00
0.00
0.45
0.00
0.00
0.00
3.23
3.23
1.56
1.76
1.61
1.62
3.23
2.92
0.00
0.39
0.00
0.00
0.00
3.23
3.23
1.76
0.07
3.23
0.00
3.23
0.09
0.00
0.00
0.00
0.00
3.23
0.05
0.04
0.00
0.28
0.00
0.79
0.67
0.80
3.23
0.90
0.64
0.45
0.00
0.62
0.60
0.69
0.18
3.22
0.24
0.73
0.00
1.68
0.40
1.56
0.00
0.59
1.21
1.23
1.21
1.22
3.22
1.56
1.76
1.61
1.62
3.21
2.92
0.00
0.50
1.25
0.00
0.00
3.20
3.22
1.75
0.40
3.21
0.00
3.22
0.36
PIN NO.
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
DSP
IC201
IC206
3-82 3-83
EE PLAY
MODE
0.16
3.23
0.00
0.92
0.98
0.00
1.76
3.23
0.00
0.00
0.00
0.00
3.23
1.76
0.00
0.19
0.83
3.21
0.91
0.00
0.00
1.28
1.10
0.45
1.28
1.97
0.00
0.00
0.53
0.57
3.23
1.83
0.00
3.22
0.00
1.75
0.00
0.00
0.00
3.23
1.76
0.00
0.00
0.00
0.00
3.27
0.00
0.00
0.00
0.00
3.23
0.00
0.00
0.00
0.00
0.37
3.21
0.00
0.92
0.96
0.00
1.75
3.21
0.00
0.00
0.00
0.00
3.21
1.76
0.00
1.32
0.90
3.21
3.20
0.59
0.00
1.28
0.31
0.24
1.28
0.00
0.00
0.00
0.72
0.72
3.23
0.72
3.23
0.00
0.00
1.41
0.00
0.00
3.21
0.00
1.75
0.00
0.00
0.00
0.00
3.21
0.00
0.00
0.00
0.00
3.21
0.00
0.00
0.00
0.00
PIN NO.
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
EE PLAY
MODE
0.00
0.00
0.00
0.00
3.23
0.00
3.23
0.00
1.75
1.76
1.84
3.23
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.23
3.23
0.00
0.00
1.00
0.99
0.19
0.94
0.00
0.98
0.98
0.97
3.23
3.23
0.00
0.00
3.23
3.23
0.00
0.00
1.83
0.00
1.74
1.76
3.23
3.29
3.30
3.23
3.12
0.00
0.00
0.18
0.00
0.17
0.13
0.00
0.00
0.00
0.00
0.00
3.22
0.00
3.21
0.00
0.00
1.76
1.84
3.21
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.21
3.21
0.00
1.00
1.12
1.14
0.19
1.71
0.00
1.77
1.79
1.04
3.22
3.22
0.00
0.72
0.22
2.44
0.00
0.00
3.22
0.00
0.00
0.36
3.23
0.00
0.00
0.11
0.00
3.23
3.22
3.22
0.00
3.22
3.22
0.00
PIN NO.
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
EE PLAY
MODE
0.10
0.00
0.18
0.14
0.18
3.23
0.18
1.76
0.11
0.18
0.10
0.10
0.10
0.00
0.05
0.39
0.00
0.18
0.10
3.23
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.06
3.23
0.06
0.06
0.07
0.00
0.06
0.06
0.06
3.25
3.25
0.00
1.57
1.58
1.54
0.00
3.23
0.75
3.26
4.79
2.27
0.27
2.32
2.30
0.00
4.88
3.23
0.00
3.22
0.00
3.22
3.21
3.22
1.24
3.22
2.85
1.61
3.22
3.22
0.00
0.00
3.10
3.09
3.10
0.00
3.21
0.13
0.14
0.73
0.00
0.49
0.00
0.67
0.62
3.22
0.80
0.58
0.45
0.00
0.83
1.47
1.44
3.26
3.26
0.00
1.57
1.58
1.55
0.00
3.26
0.00
3.26
0.03
0.03
4.66
2.29
2.27
0.00
4.82
PIN NO.
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
AUDIO
IC401
EE PLAY
MODE
2.30
2.33
0.27
5.40
5.41
5.40
0.00
5.40
5.41
5.42
11.39
3.27
3.25
3.25
0.00
0.05
0.05
0.00
0.05
0.05
0.00
0.05
0.05
0.00
0.00
0.05
0.05
0.05
0.00
0.05
0.05
0.05
0.05
0.05
0.05
0.00
0.00
0.05
0.05
0.05
0.05
0.05
0.00
0.00
0.00
0.05
0.05
0.00
0.00
0.05
0.05
0.00
2.28
2.29
4.66
5.40
5.40
5.40
0.00
5.40
0.00
0.00
11.96
3.05
3.01
3.02
0.00
3.02
3.02
3.25
3.02
3.06
0.00
3.08
3.01
3.23
0.00
3.19
3.19
3.18
0.00
0.00
3.17
0.00
0.00
0.00
0.03
3.25
0.00
0.03
0.03
0.03
0.03
0.03
0.03
0.00
3.25
1.62
0.01
0.00
3.25
3.05
3.05
0.00
PIN NO.
18
19
20
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
MEMORY
IC203
IC402
EE PLAY
MODE
0.05
0.00
0.00
0.00
0.00
0.00
0.00
0.05
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
2.38
0.00
0.00
3.26
3.26
0.00
0.00
3.26
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.23
3.26
0.00
3.23
1.98
0.00
1.91
0.00
1.45
0.00
1.45
0.00
3.26
0.19
0.00
2.09
0.00
1.19
0.00
1.95
0.00
3.05
3.04
3.25
3.05
3.04
0.00
3.04
3.04
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
2.78
0.00
3.23
3.26
3.26
0.00
0.00
1.40
0.00
0.00
0.00
0.00
0.00
0.00
0.00
1.76
3.15
3.26
0.00
3.22
1.76
0.00
1.90
0.00
1.65
0.00
1.90
0.00
3.26
0.19
0.00
2.16
0.00
2.19
0.00
2.11
0.00
PIN NO.
42
43
44
45
46
47
48
49
50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
IC3F1
EE PLAY
MODE
0.00
3.26
0.00
3.23
0.52
0.11
0.30
0.60
0.00
0.47
0.00
0.00
0.40
0.39
0.00
0.42
0.48
3.24
0.11
0.10
0.09
0.05
0.00
0.00
0.00
1.58
0.05
1.81
1.50
1.54
0.00
3.24
0.00
0.63
0.00
0.45
0.95
3.23
0.69
1.10
0.00
0.64
0.54
3.24
0.55
3.23
0.00
0.29
0.30
0.40
0.62
0.65
0.62
0.45
0.00
3.26
0.00
3.23
0.62
3.22
0.57
0.76
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.25
0.00
3.16
0.00
0.00
0.00
0.00
3.16
0.00
0.00
3.16
3.16
3.20
3.16
0.00
0.00
0.00
3.16
0.00
1.79
0.00
3.20
0.00
0.00
0.00
0.00
3.25
0.00
3.25
0.00
0.00
0.00
0.00
0.00
3.26
0.00
0.00
PIN NO.
46
47
48
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
IC305
EE PLAY
MODE
0.00
0.57
0.34
0.28
0.52
0.00
0.00
0.00
1.64
0.95
0.95
1.49
1.61
0.00
0.00
3.14
2.26
0.00
0.00
0.00
0.00
0.00
0.30
3.24
0.39
0.40
0.00
0.66
0.46
3.24
0.59
0.31
0.00
0.53
0.00
0.00
5.05
1.18
0.72
0.00
5.06
0.00
5.06
0.00
3.13
5.05
0.00
0.00
0.00
2.67
0.00
0.00
0.00
0.00
0.00
3.25
0.00
0.02
0.00
0.00
0.00
0.00
3.16
0.00
3.16
0.00
0.00
3.16
0.00
0.00
0.00
0.00
0.00
0.00
0.00
3.26
0.00
0.00
0.00
0.00
0.00
3.26
0.00
0.00
0.00
0.00
0.00
0.00
5.05
0.62
1.69
0.00
5.04
0.00
5.04
0.00
3.12
5.05
3.12
0.64
0.00
2.65
3.24
0.00
PIN NO.
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
ETC
IC502
IC503
EE PLAY
MODE
0.00
0.52
0.50
1.70
0.00
0.82
0.00
3.11
5.18
0.00
5.18
3.25
0.00
1.81
0.00
1.67
5.18
1.70
0.00
0.38
5.17
3.11
5.17
0.00
5.18
3.25
0.00
1.81
PIN NO.
10
11
12
13
14
15
16
17
18
19
20
1
2
3
IC506
STOP PLAY
MODE
0.00
0.00
1.55
0.00
0.00
0.00
4.92
5.20
5.06
0.00
1.12
0.00
0.87
0.00
1.44
0.00
1.28
0.00
0.43
0.00
0.00
0.00
0.00
0.00
0.00
0.75
0.26
5.10
1.37
0.00
0.00
0.00
0.00
2.28
5.10
2.28
2.28
2.29
2.29
2.29
2.29
3.96
4.00
3.97
3.99
5.10
0.00
0.00
0.00
0.00
0.00
0.00
1.55
0.00
0.00
0.00
4.92
5.20
5.06
0.00
1.16
0.00
0.65
0.00
0.00
0.00
1.32
0.00
0.28
0.00
0.32
2.52
0.00
0.00
0.00
1.38
0.47
5.07
2.20
0.00
0.00
0.00
0.00
2.27
5.07
2.49
2.50
2.39
2.40
2.39
2.40
4.22
4.01
3.97
3.82
5.07
0.00
1.82
0.23
0.00
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
STOP PLAY
MODE
1.21
1.21
4.01
3.97
3.97
3.97
0.00
5.10
0.00
5.10
0.00
5.04
3.00
4.06
3.93
4.02
4.02
5.07
0.00
0.00
5.07
0.00
PIN NO.
1
2
3
4
5
6
7
8
9
10
11
CONNECTOR
PDV02
PMD03
PDV03
PMD02
3-84 3-85
EE PLAY
MODE
3.25
3.25
3.25
1.60
2.14
2.07
3.25
2.71
2.13
3.25
5.02
3.23
2.07
2.06
5.02
3.24
1.62
0.82
3.25
2.42
2.15
3.25
3.25
3.25
3.25
2.26
5.02
2.27
5.02
3.19
3.19
5.04
3.25
3.24
3.24
1.79
4.86
3.25
2.22
4.78
5.40
5.39
5.40
5.41
5.40
5.40
5.39
11.97
7.94
5.04
5.02
PIN NO.
C3F3
C293
C262
C281
C279
C285
C297
C280
C278
C208
C240
C232
C231
C288
C2C9
C284
C211
C212
C274
C213
C272
C263
C264
C261
C321
C2D5
C2A4
C2C2
C2D1
C507
C539
C561
C504
C308
C317
C309
C409
C405
C408
C422
C404
C402
C401
C419
C420
C415
C403
C413
C2M1
C2D4
C2M8
CAPACITOR
STOP PLAY
MODE
5.09
5.09
0.00
5.07
5.07
0.00
2.83
3.21
5.09
2.29
3.11
2.70
0.00
0.00
3.26
5.17
4.48
5.17
1.55
0.00
0.75
1.56
0.00
0.75
5.05
5.24
0.00
0.00
0.00
1.82
2.36
3.12
3.84
2.43
3.20
3.66
0.00
0.00
3.23
5.17
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
PIN NO.
E
B
C
E
B
C
E
B
C
E
B
C
E
B
C
E
B
C
E
B
C
E
B
C
Q2A1
Q2A2
Q2A5
Q2A6
Q2M1
Q401
Q404
Q405
LOCATION GUIDE
3-86 3-87
PRINTED CIRCUIT DIAGRAMS
1. MAIN P.C.BOARD (TOP VIEW)
LOCATION GUIDE
3-88 3-89
2. MAIN P.C.BOARD (BOTTOM VIEW)
DECK MECHANISM PARTS
LOCATIONS
• Top View......................................................4-1
• Bottom View ...............................................4-1
DECK MECHANISM
DISASSEMBLY
1. Drum Assembly .........................................4-2
2. Plate Top ...................................................4-4
3. Holder Assembly CST ...............................4-4
4. Opener Door .............................................4-4
5. Bracket Assembly L/D Motor.....................4-4
6. Gear Assembly Rack F/L ..........................4-4
7. Arm Assembly F/L .....................................4-4
8. Lever Assembly S/W .................................4-4
9. Arm Assembly Cleaner..............................4-5
10.Head F/E ...................................................4-5
11. Base Assembly A/C Head .........................4-5
12.Brake Assembly T .....................................4-6
13.Brake Assembly RS ..................................4-6
14.Arm Assembly Tension..............................4-6
15.Reel S / Reel T..........................................4-6
16.Base Assembly P4 ....................................4-7
17.Opener Lid ................................................4-7
18.Arm Assembly Pinch .................................4-7
19.Lever T/up / Arm T/up ...............................4-7
20.Belt Capstan/Motor Capstan .....................4-8
21.Lever F/R ..................................................4-8
22.Clutch Assembly D35................................4-8
23. Brake Assembly Capstan .........................4-8
24.Gear Drive/Gear Cam ...............................4-9
25.Gear Sector...............................................4-9
26.Plate Slider................................................4-9
27.Lever Tension ............................................4-9
28.Lever Spring..............................................4-9
29.Gear Assembly P2/
Gear Assembly P3 ..................................4-10
30.Base Assembly P2/
Base Assembly P3 ..................................4-10
31.Base Loading ..........................................4-11
32.Base Tension ...........................................4-11
33.Arm Assembly Idler .................................4-11
DECK MECHANISM ADJUSTMENT
• Tools and Fixtures for Service ...............4-12
1. Mechanism Alignment Position Check....4-13
2. Preparation for Adjustment......................4-14
3. Checking Torque .....................................4-14
4. Guide Roller Height Adjustment..............4-15
4-1. Preliminary Adjustment ....................4-15
4-2. Precise Adjustment ..........................4-15
5. Audio/Control (A/C) Head Adjustment ....4-16
5-1. Preliminary Adjustment ....................4-16
5-2. Confirmation of Tape Path between
Pinch Roller and Take-up Guide ......4-17
5-3. Precise Adjustment(Azimuth Adjustment)
.........................................................4-17
6. X-Value Adjustment.................................4-17
7. Adjustment after Replacing Drum Assembly
(Video Heads) .........................................4-18
8. Check the Tape Travel after Reassembling
Deck Mechanism.....................................4-18
8-1. Checking Audio and RF Locking Time
during Playback after CUE or REV
.........................................................4-18
8-2. Checking for Tape Curling or
Jamming ..........................................4-18
MAINTENANCE/INSPECTION
PROCEDURE
1. Check before starting Repairs ................4-19
2. Required Maintenance ............................4-20
3. Scheduled Maintenance..........................4-20
4. Supplies Required for Inspection and
Maintenance............................................4-20
5. Maintenance Procedure ..........................4-20
5-1. Cleaning...........................................4-20
5-2. Greasing ..........................................4-21
MECHANISM TROUBLESHOOTING
GUIDE
1. Deck Mechanism.....................................4-23
2. Front Loading Mechanism.......................4-26
EXPLODED VIEWS
1. Front Loading Mechanism Section .........4-28
2. Moving Mechanism Section (1)...............4-29
3. Moving Mechanism Section (2)...............4-30
SECTION 4 MECHANISM OF VCR PART
CONTENTS
DECK MECHANISM PARTS LOCATIONS
4-1
4
6
3
2
7
9
5
11
18
16
19
17
19
12
13
15
10
1
31
14
8
15
33
• Top View
• Bottom View
20
24
23
20
24
22
21
29
30
29
30
25
32
27
26
28
NOTE : When reassembly perform the
procedure in the reverse order.
1 Drum Assembly 3 Screw A-1 T
2 Plate Top 2 Hook A-2 T
2 3 Holder Assembly CST Chassis Hole A-2 T
2 4 Opener Door Chassis Hole A-2 T
5 Bracket Assembly 3 Hook A-2 T
L/D Motor
2,3,4 6 Gear Assembly Rack F/L 1 Hook, Chassis Hole A-2 T
2,3,4,6 7 Arm Assembly F/L Chassis Hole A-2 T
8 Lever Assembly S/W 1 Hook A-2 T
9 Arm Assembly Cleaner Chassis Embossing A-3 T
10 Head F/E Chassis Embossing A-3 T
11 Base Assembly A/C Head 1 Screw A-3 T
2,3 12 Brake Assembly T 1 Hook A-4 T
2,3 13 Brake Assembly RS 1 Hook A-4 T
2,3 14 Arm Assembly Tension 2 Hook A-4 T
2,3,12,13, 15 Reel S/Reel T A-4 T
14
16 Base Assembly P4 Chassis Embossing A-5 T
17 Opener Lid Chassis Embossing A-5 T
17 18 Arm Assembly Pinch Shaft A-5 T
17 19 Lever T/Up / Arm T/Up 1 Hook A-5 T
17,18 20
Belt Capstan/Motor Capstan
3 Screw A-6 B
21 Lever F/R Locking Tab A-6 B
20, 21 22 Clutch Assembly D35 Washer A-6 B
23 Brake Assembly Capstan Locking Tab A-6 B
24 Gear Drive/Gear Cam Washer/Hook A-7 B
25 Gear Sector 1 Hook A-7 B
20,21,23, 26 Plate Slider Shaft Guide A-7 B
24,25
20,21,23, 27 Lever Tension 1 Hook A-7 B
24,25,26
2,3,14,20, 28 Lever Spring Locking Tab A7 B
21,25,23,
24,26
25 29
Gear Assembly P2/Gear Assembly P3
Boss A-8 B
2,3,14,25, 30
Base Assembly P2/Base Assembly P3
Chassis Slot A-8 B
29
2,3,14,25, 31 Base Loading 1 Screw A-9 T
29
2,3,14 32 Base Tension Chassis Embossing A-9 B
2,3,20,21, 33 Arm Assembly Idler Locking Tab A-9 T
22
Starting
No.
Procedure
Part Fixing Type
Fig-
ure
Vi-
ew
1) When reassembling, confirm Mechanism and Mode
Switch Alignment Position (Refer to Page 4-13)
2) When disassembling, the Parts for Starting No. Should
be removed first.
T:Top, B:Bottom
4-2
DECK MECHANISM DISASSEMBLY
(S3)
(S2)
(S2)
(S3)
(A)
Stator
Carbon Brush
Drum Motor
Rotor
Drum Sub Assembly
Drum FPC
(S1)
(S1)
(S1)
Holder FPC
H1
H2
1. Drum Assembly (Fig. A-1-1)
1) Unplug the Drum FPC Connector.
2) Remove three Screws(S1) on bottom side and separate
the Drum assembly.
3) Unhook (H1), (H2) and separate the Holder FPC and
Cap FPC.
1-1. Drum Motor
1) Remove two Screws(S2) and disassemble the Stator of
the Drum Motor.
2) Remove two Screws(S3) and separate the Rotor of the
Drum Motor from the Drum Sub assembly.
NOTE
When reassembling, confirm (A) portion of the Drum Sub
assembly whether the Carbon Brush is in there or not.
Fig. A-1
(Fig. B-1)
Holder FPC
Drum FPC
Cap FPC
Figure in the opposite direction
(Fig. A-1-1)
DECK MECHANISM DISASSEMBLY
4-3
(B)
(E)
(C1)
(C)
Plate Top
Arm Assembly F/L
Spring Lever S/W
Gear Assembly Rack F/L
Chassis
Opener Door
Bracket Assembly L/D Motor
Holder Assembly CST
(B')
(C')
(D) (E')
(H6)
(A) (B)
Lever Assembly S/W
(H8)
Fig. A-2
(Fig. A-2-1)
(Fig. A-2-2)
(Fig. A-2-6)
(Fig. A-2-7)
(Fig. A-2-5)
(Fig. A-2-3)
(Fig. A-2-4)
4-4
DECK MECHANISM DISASSEMBLY
2. Plate Top (Fig. A-2-1)
1) Pull the (B) portion of the Plate Top back in direction of
arrow and separate the right side of it.
2) pull the (B’) portion of the Plate Top back in direction of
arrow and separate the left side of it.
(Used tools : (-) type driver, anything tool with sharp
point or flat point.)
NOTE
(1) When reassembling, push the Plate Top after alignment
the two position(C), (C’) as below Fig.
3. Holder Assembly CST (Fig.A-2-2)
1) Move the Holder Assembly CST in direction of arrow and
separate the left side of it first through the (D) position of
the Chassis.
2) Disassemble the right side of the Holder Assembly CST
from each guided hole of the Chassis.
NOTE
When reassembling, insert the (E) part of the Holder
Assembly CST in the (E’) hole of the Chassis first and
assemble the left side of it.
4. Opener Door (Figure. A-2-3)
1) Turn the Opener Door clockwise and remove it through
the guide hole of the Chassis.
5. Bracket Assembly L/D Motor
(Fig. A-2-4)
1) Unplug the Connector(C1).
2) Unhook three Hooks(H3, H4, H5) on bottom side of the
Chassis, lift up the Bracket Assembly L/M and disassem-
ble the Bracket Assembly L/D Motor.
6. Gear Assembly Rack F/L (Fig. A-2-5)
1) Move the Gear Assembly Rack F/L in direction of
arrow(A) and unhook the Hook(H6) pulling back in front.
2) Separate the Gear Rack F/L in direction of arrow(B).
NOTE
When reassembling, align the gear part of the Gear
Assembly Rack F/L with the Gear Drive as below Fig.
7. Arm Assembly F/L (Fig. A-2-6)
1) Move the Arm Assembly F/L in direction of arrow and
separate the left side of it first.
2) Disassemble the Arm Assembly F/L from each guided
hole of the Chassis.
8. Lever Assembly S/W(Fig. A-2-7)
1) Unhook the Hook(H8) in the left side of the Chassis and
remove the Lever Assembly S/W.
(B')
(C')
(C)
(B)
(D)
Holder assembly CST Chassis
Gear Rack F/L
Gear Drive
(H8)
Chassis
(H3)
(H4)
(H5)
Bracket assembly L/M
DECK MECHANISM DISASSEMBLY
4-5
9. Arm Assembly Cleaner (Fig. A-3-1)
1) Breakaway the (A) portion as Fig. A-3-1 from the
embossing of the Chassis, turn the Arm assembly
Cleaner to clockwise direction and lift it up.
10. Head F/E (Fig. A-3-2)
1) Breakaway the (A) portion of the Head F/E from the
embossing of the Chassis, turn it to counterclockwise
direction and lift it up.
11. Base Assembly A/C Head (Fig. A-3-3)
1) Remove the Screw(S4) and lift the Base Assembly A/C
Head up.
(A)
Arm Assembly
Cleaner
Base Assembly A/C Head
(S4)
Head F/E
(A)
Chassis
Fig. A-3
(Fig. A-3-1)
(Fig. A-3-3)
(Fig. A-3-2)
4-6
DECK MECHANISM DISASSEMBLY
Brake Assembly T
Spring TB
(H9)
Reel T
Brake Assembly RS
Spring RS
Arm Assembly Tension
Spring Tension
Reel S
Base Tension
(H11)
(H12)
Chassis
(H10)
Fig. A-4
12. Brake Assembly T (Fig. A-4-1)
1) Unhook the Spring TB from the Hook(H9) of the Chassis.
2) Lift the Brake Assembly T up.
13. Brake Assembly RS (Fig. A-4-2)
1) Unhook the Spring RS from the Hook(H10) of the
Chassis.
2) Lift the Brake Assembly T up.
14. Arm Assembly Tension (Fig. A-4-3)
1) Unhook the Spring Tension from the Hook(H11) of the
Arm Assembly Tension.
2) Unhook the Hook(H12) of the Base Tension and lift the
Arm Assembly Tension up.
NOTE
Difference for Springs
15. Reel S / Reel T (Fig. A-4-4)
1) Difference for Reel S / Reel T
Spring TB
Spring RS Color (Black)
Spring Tension
Reel S Reel T
(Fig. A-4-1)
(Fig. A-4-3)
(Fig. A-4-4)
(Fig. A-4-4)
(Fig. A-4-2)
DECK MECHANISM DISASSEMBLY
4-7
Opener Lid
Arm
Assembly
Pinch
Base Assembly P4
Arm T/up
Lever T/up
(A)
(B)
(C)
(C)
(H13)
(B)
(H13)
Chassis
Fig. A-5
16. Base Assembly P4 (Fig. A-5-1)
1) Breakaway the (A) portion of the Base Assembly P4 from
the embossing of the Chassis.
2) Turn the Base Assembly P4 to counterclockwise direction
and lift it up.
17. Opener Lid (Fig. A-5-2)
1) Breakaway the (B) portion of the Opener Lid from the
embossing of the Chassis.
2) Turn the Opener Lid to clockwise direction and lift it up.
18. Arm Assembly Pinch (Fig. A-5-3)
1) Lift the Arm Assembly Pinch up.
NOTE
When reassembling, confirm the (C) portion of the Arm
Assembly Pinch is inserted to the Chassis hole correctly as
Fig.
19. Lever T/up (Fig. A-5-4)/
Arm T/up (Fig. A-5-5)
1) Unhook the Hook(H13) of the bottom Chassis and lift the
Lever T/up up.
2) Lift the Arm T/up up.
(Fig. A-5-2)
(Fig. A-5-1)
(Fig. A-5-3)
(Fig. A-5-5)
(Fig. A-5-4)
4-8
DECK MECHANISM DISASSEMBLY
Chassis
(S5)
Belt Capstan
Motor Capstan
Washer(W1)
Lever F/R
Clutch Assembly D35
Brake Assembly Capstan
(L1)
(L2)
(L1)
Fig. A-6
20. Belt Capstan (Fig. A-6-1)/
Motor Capstan (Fig. A-6-2)
1) Remove the Belt Capstan.
2) Remove the three Screws(S5) on bottom Chassis and lift
the Motor Capstan up.
21. Lever F/R (Fig. A-6-3)
1) Unlock the Locking Tab(L1) as Fig. A-6-3 and lift the
Lever F/R up.
22. Clutch Assembly D35 (Fig. A-6-4)
1) Remove the Washer(W1) and lift the Clutch Assembly
D35 up.
23. Brake Assembly Capstan
(Fig. A-6-5)
1) Pull the Locking Tab(L2) back in direction of arrow and lift
it up.
(Fig. A-6-1)
(Fig. A-6-2)
(Fig. A-6-3)
(Fig. A-6-5)
(Fig. A-6-4)
DECK MECHANISM DISASSEMBLY
4-9
Gear Drive
Washer (W2)
Gear Cam
Plate Slider
Lever Tension
Lever spring
Base Loading
Gear Sector
(L3)
(H15)
(H16)
(H14)
(A)
Chassis
Gear Drive Hole(C)
Gear Cam Hole(B)
Gear Drive Hole(A)
Fig. A-7
24. Gear Drive (Fig. A-7-1)/
Gear Cam (Fig. A-7-2)
1) Remove the Washer(W2) and lift the Gear Drive up.
2) Unhook the Hook(H14) of the Gear Cam and lift the Gear
Cam up.
NOTE
When reassembling, align the Gear Drive Hole(A) and the
Gear Cam Hole(B) in a straight line after the Gear Drive
Hole(C) is aligned with the Chassis Hole as Fig.
25. Gear Sector (Fig. A-7-3)
1) Unhook the Hook(H15) of the Base Loading on bottom
Chassis and lift the Gear Sector up.
26. Plate Slider (Fig. A-7-4)
1) Just lift the Plate Slider up.
27. Lever Tension (Fig. A-7-5)
1) Unhook the (A) portion of the Lever Tension from the
Hook(H16) of the Chassis.
2) Turn the Lever Tension to counterclockwise direction and
lift it up.
28. Lever Spring (Fig. A-7-6)
1) Unlock the Locking Tab(L3) of the bottom Chassis and lift
the Lever Spring up.
(Fig. A-7-4)
(Fig. A-7-5)
(Fig. A-7-6)
(Fig. A-7-1)
(Fig. A-7-2)
(Fig. A-7-3)
4-10
DECK MECHANISM DISASSEMBLY
Gear Assembly P3
Gear Assembly P2
Base Assembly P2
Base Assembly P3
(A)
(B)
Chassis
Gear Assembly P2 Hole
Gear Sector Hole(A)
Plate Slider Hole(B)
Lever Spring Boss
Gear Assembly P3 Hole
Fig. A-8
29. Gear Assembly P2 (Fig. A-8-1)/
Gear Assembly P3 (Fig. A-8-2)
1) Just lift the Gear Assembly P2 up.
2) Just lift the Gear Assembly P3 up.
NOTE
When reassembling, align the two holes of the Gear
Assembly P2 and P3 in a straight line after confirmation
whether the Gear Sector Hole(A) and the Plate Slider
Hole(B) are aligned or not as Fig.
30. Base Assembly P2 (Fig. A-8-3)/
Base Assembly P3 (Fig. A-8-4)
1) Move the Base Assembly P2 in direction of arrow(A)
along the guide hole of the Chassis and disassemble it
on bottom side.
2) Move the Base Assembly P3 in direction of arrow(B)
along the guide hole of the Chassis and disassemble it
on bottom side.
(Fig. A-8-1)
(Fig. A-8-2)
(Fig. A-8-3)
(Fig. A-8-4)
DECK MECHANISM DISASSEMBLY
4-11
(A)
(B) (C)
(S7)
Arm Assembly Idler
Base Loading
Base Tension
Chassis
(D)
Fig. A-9
31. Base Loading (Fig. A-9-1)
1) Remove the Screw(S7).
2) Lift the Base Loading up.
32. Base Tension (Fig. A-9-2)
1) Breakaway the (A) portion of the Base Tension from the
embossing of the Chassis.
2) Turn the Base Tension to counterclockwise direction and
lift it up.
33. Arm Assembly Idler (Fig. A-9-3)
1) Make narrower the two parts, (B) and (C), as Fig. A-9-3.
2) Lift the Arm assembly Idler up.
NOTE
When disassembling, be careful not to be caught the (D) part
by the Chassis as Fig.
(Fig. A-9-1)
(Fig. A-9-2)
(Fig. A-9-3)
DECK MECHANISM ADJUSTMENT
4-12
• Tools and Fixfures for Service
1. Cassette Torque Meter
1. SRK-VHT-303(Not SVC part)
1. Parts No: D00-D006
4. Torque Gauge Adaptor
Parts No:D09-R001
5. Post Height Adjusting Driver
Parts No:DTL-0005
6. + Type Driver (ø 5)
2. Alignment Tape
Parts No NTSC: DTN-001
PAL:DTN-0002
3. Torque Gauge
3. 600g.Cm ATG
3. Parts No:D00-D002
SRK
VIDEO
CASSETTE
TORQUE
METER
VHT-303
S
R
K
-
V
H
T
-S
S
R
K
-
V
H
T
-T
300
250
200
150
50
0
300
250
200
150
50
0
100
DECK MECHANISM ADJUSTMENT
4-13
Purpose:To determine if the Mechanism is in the correct position, when a Tape is ejected.
1. Mechanism Alignment Position Check
1) Turn the Power S/W on and eject the Cassette by press-
ing the Eject Button.
2) Remove the Top Cover and Plate Assembly Top, visual-
ly check if the Gear Cam Hole is aligned with the
Chassis Hole as below Fig. C-2.
3) IF not, rotate the Shaft of the Loading Motor to either
clockwise or counterclockwise until the alignment is as
below Fig. C-2.
4) Remove the Screw which fixes the Deck Mechanism and
Main Frame and confirm if the Gear Cam is aligned with
the Gear Drive as below Fig. C-1(A).
5) Confirm if the Mode S/W on the Main P.C.Board is
aligned as below Fig. C-1(B).
6) Remount the Deck Mechanism on the Main P.C.Board
and check each operation.
Gear Cam
Gear Drive
(A)
Mode S/W
(B)
L/D Motor Assembly
Gear Cam
Chassis Hole Gear Cam Hole
(A)
(B)
(A')
(B')
Gear Drive Hole
Test Equipment/ Fixture
• Blank tape
Test Conditions (Mechanism
Condition)
• Eject Mode (with Cassette ejected)
Check Point
• Mechanism and Mode Switch Position
Fig. C-1
Fig. C-2
CHECK DIAGRAM
BOTTOM VIEW
TOP VIEW
Gear Cam (o) and Gear Drive (o) groove alignment
4-14
DECK MECHANISM ADJUSTMENT
Purpose: To insure smooth transport of the tape during each mode of operation.
If the tape transport is abnormal, then check the torque as indicated by the chart below.
2. Preparation for Adjustment (To set the
Deck Mechanism of the loading state
without inserting a cassette tape).
1) Unplug the power cord from the AC outlet.
2) Disassemble the Top Cover and Plate Assembly Top.
3) Plug the power cord into the AC outlet.
4) Turn the power S/W on and push the Lever Stopper of
the Holder Assembly CST to the back for loading the
cassette without tape.
Cover the holes of the End Sensors at the both sides of
the Chassis to prevent a light leak.
Then the Deck Mechanism drives to the Stop Mode.
In this case, the Deck Mechanism can accept inputs of
each mode, however the Rewind and Review operation
can not be performed for more than a few seconds
because the Take-up Reel Table is in the Stop State
and can not be detected the Reel Pulses.
3. Checking Torque
NOTE:
The values are measured by using a Torque Gauge and
Torque Gauge Adaptor with the Torque Gauge affixed.
NOTE:
The torque reading to measure occurs when the tape
abruptly changes direction from Fast Forward to Rewind
Mode, when quick braking is applied to both Reels.
SRK
VIDEO
CASSETTE
TORQUE
METER
VHT-303
S
R
K
-
V
H
T
-S
S
R
K
-
V
H
T
-T
300
250
200
150
50
0
300
250
200
150
50
0
100
Test Equipment/ Fixture
• Torque Gauge(600g/cm ATG)
• Torque Gauge Adaptor
• Cassette Torque Meter
SRK-VHT-303
Checking Method
• Perform each Deck Mechanism mode without
inserting a cassette tape(Refer to above No.2
Preparation for Adjustment).
• Read the measurement of the Take-up or Supply
Reels on the Cassette Torque Meter(Fig. C-3-2).
• Attach the Torque Gauge Adaptor to the Torque
Gauge and then read the value of it(Fig. C-3-1).
Fig. C-3-2Fig. C-3-1
Torque Gauge
Torque Gauge
Adaptor
Reel Table
Item
Fast Forward Torque
Rewind Torque
Play Take-Up Torque
Review Torque
Mode
Fast Forward
Rewind
Play
Review
Test Equipment
Cassette Torque Gauge
Cassette Torque Gauge
Cassette Torque Meter
Cassette Torque Meter
Measurement Reel
Take-Up Reel
Supply Reel
Take-Up Reel
Supply Reel
Measurement Values
More than 400g/cm
More than 400g/cm
40~100g/cm
120~210g/cm
Test Conditions
(Mechanism Condition)
• Play (FF) or Review (REW) Mode
• Cassette Torque Meter (SRK-VHT-303)• Torque Gauge (600g.cm ATG)
DECK MECHANISM ADJUSTMENT
4-15
4.Guide Roller Height Adjustment
Adjustment Procedure
1) Confirm if the tape runs along the tape guide line of the
Lower Drum.
2) If the tape runs the bottom of the guide line, turn the
Guide Roller Height Adjustment Screw to clockwise
direction.
3) If it runs the top, turn to counterclockwise direction.
4) Adjust the height of the Guide Roller to be guided to the
guide line of the Lower Drum from the starting and end-
ing point of the Drum.
Purpose: To regulate the height of the tape so that the bottom of the tape runs along the
tape guide line on the Lower Drum.
Test Equipment/ Fixture
• Post Height Adjusting Driver
Test Conditions (Mechanism Condition)
• Play or Review Mode
Adjustment Point
• Guide Roller Height Adjustment
screws on the Supply and Take-Up
Guide Rollers.
Fig. C-4-1
Upper Flange
Guide Roller
Retaining Screw
Guide Roller Height
Adjustment screw
ADJUSTMENT DIAGRAM
Test Equipment/Fixture
• Oscilloscope
• Alignment Tape
• Post Height Adjusting
Driver
Test Equipment Connection Points
• CH-1:PB RF Envelope
• CH-2:NTSC: SW 30Hz
PAL: SW 25Hz
• Head Switching Output
Point
• RF Envelope Output
Point
Test Conditions VCR(VCP) State
• Play an Alignment Tape
Adjustment Point
• Guide Roller Height
Adjustment Screws
Fig. C-4-2
Fig. C-4-3
P3 POST
ADJUSTMENT
P2 POST
ADJUSTMENT
Turn the Roller Guide Height
Adjustment Screw slightly
to flatten the waveform.
Tracking Control at center
RF ENVELOPE OUTPUT TEST POINT
OSCILLOSCOPE
HEAD SWITCHING OUTPUT TEST
POINT
Turn(Move) the Tracking
Control to both directions
4-1. Preliminary Adjustment
4-2. Precise Adjustment
Adjustment Procedure
1) Play an Alignment Tape after connecting the probe of the
Oscilloscope to the RF Envelope Output Test Point and
Head Switching Output Test Point.
2) Tracking Control(in PB Mode) : Center Position(When
this adjustment is performed after the Drum Assembly
has been replaced, set the Tracking Control so that the
RF Output is Maximum).
3) Height Adjustment Screw : Flatten the RF waveform.
(Fig. C-4-2)
4) Turn(Move) the Tracking Control(in PB Mode) clockwise
and counterclockwise.(Fig. C-4-3)
5) Check that any drop of RF Output is uniform at the start
and end of the waveform.
NOTE
If the adjustment is excessive or insufficient the tape will
jam or fold.
Waveform Diagrams
Connection Diagram
4-16
DECK MECHANISM ADJUSTMENT
5. Audio/Control (A/C) Head Adjustment
10.9
Purpose: To insure that the tape passes accurately over the Audio and Control Tracks in
exact alignment of the both Record and Playback Modes.
Test Equipment/ Fixture
• Blank Tape
• Screw Driver(+) Type 5mm • Play the blank tape
Test Conditions (Mechanism Condition)
Adjustment Point
• Tilt Adjustment Screw(C)
• Height Adjustment Screw(B)
• Azimuth Adjustment Screw(A)
Fig. C-5-1
A/C Head Base
Fig. C-5-2
Height Adjustment
Screw(B)
Tilt Adjustment
Screw(C)
Azimuth Adjustment
Screw(A)
X-Value Adjustment
Hole
Fixed Screw
Fig. C-5-3
A/C Head Tape
Tape
0.2~0.25mm
P4
5-1. Preliminary Adjustment (Height and Tilt Adjustment)
Perform the Preliminary Adjustment, when there is no Audio Output Signal with the Alignment Tape.
1) Initially adjust the Base Assembly A/C Head as shown
Fig. C-5-1 by using the Height Adjustment Screw(B).
2) Play a blank tape and observe if the tape passes accu-
rately over the A/C Head without tape curling or folding.
3) If folding or curling is occured then adjust the Tilt
Adjustment Screw(C) while the tape is running to resem-
ble Fig. C-5-3.
4) Reconfirm the tape path after Playback about 4~5 sec-
onds.
NOTE
Ideal A/C head height occurs when the tape runs between
0.2~0.25mm above the bottom edge of the A/C Head core.
Adjustment Procedure/Diagrams
A/C Head Assembly
DECK MECHANISM ADJUSTMENT
4-17
Purpose: To obtain compatibility with the other VCR(VCP) Models.
5-2. Confirm that the tape passes smoothly
between the Take-up Guide and Pinch
Roller(using a mirror or the naked eye).
1) After completing Step 5-1.(Preliminary Adjustment), check
that the tape passes around the Take-up Guide and Pinch
Roller without folding or curling at the top or bottom.
(1) If folding or curling is observed at the bottom of the
Take-up Guide then slowly turn the Tilt Adjustment
Screw(C) in the clockwise direction.
(2) If folding or curling is observed at the top of it then
slowly turn the Tilt Adjustment Screw(C) in the
counterclockwise direction.
NOTE:
Check the RF envelope after adjusting the A/C Head, if the
RF waveform differs from Fig. C-5-4, performs Precise
Adjustment to flat the RF waveform.
Test Equipment/ Fixture
• Oscilloscope
• Alignment Tape(SP)
• Screw Driver(+) Type 5mm
Connection Point
• Audio output jack
Test Conditions
(Mechanism Condition)
• Play an Alignment Tape
1KHz, 7KHz Sections
Adjustment Point
• Azimuth Adjustment Screw(A)
• Height Adjustment Screw(B)
1) Connect the probe of the oscilloscope to Audio Output
Jack.
2) Alternately adjust the Azimuth Adjustment Screw(A) and
the Tilt Adjustment Screw(C) for maximum output of the
1KHz and 7KHz segments, while maintaining the flattest
envelope differential between the two frequencies.
Adjustment Procedure
5-3. Precise Adjustment (Azimuth adjustment)
6. X-Value Adjustment
Fig. C-5-4
1KHZ
• Oscilloscope
• Alignment Tape(SP only)
• Screw Driver(+) Type 5mm
• CH-1: PB RF Envelope
• CH-2: NTSC: SW 30Hz
PAL: SW 25Hz
• Head Switching Output
Test Point
• RF Envelope Output Test
Point
Test Conditions
(Mechanism Condition)
• Play an Alignment Tape
Adjustment PointConnection PointTest Equipment/ Fixture
Adjustment Procedure
1) Release the Automatic Tracking to run long enough for
tracking to complete it’s cycle.
2) Loosen the Fixed Mounting Screw and move the Base
Assembly A/C Head in the direction as shown in the dia-
gram to find the center of the peak that allows for the max-
imum waveform envelope.
This method should allow the 31µm Head to be centrally
located over the 58µm tape track.
3) Tighten the Base Assembly A/C Head mounting Screw.
7KHZ
A:Maximum B:Maximum
Left
Right
Groove at the
Base A/C
Height Adjustment Screw(B)
Tilt Adjustment Screw(C)
Azimuth Adjustment
Screw(A)
X-Value Adjustment Hole
Fixed Screw
RF ENVELOPE OUTPUT TEST POINT
OSCILLOSCOPE
HEAD SWITCHING OUTPUT TEST POINT
Connection Diagram
Adjustment Diagram
CH-1 CH-2
4-18
DECK MECHANISM ADJUSTMENT
Purpose: To correct for shift in the Roller Guide and X value after replacing the Drum.
8-2. Checking for tape curling or jamming
Test Equipment/ Fixture
• T-160 Tape
• T-120 Tape
Specification
• Be sure there is no tape jamming or curling at
the begining, middle or end of the tape.
VCR(VCP) State
•
Run the CUE, REV, Play mode at the
beginning and the end of the tape.
Test Conditions (Mechanism Condition)
1) Confirm that the tape runs smoothly around the roller
guides, Drum and A/C Head Assemblies while abruptly
changing operating modes from Play to CUE or REV.
This is to be checked at the begining, middle and end
sections of the tape.
2) Confirm that the tape passes over the A/C Head
Assembly as indicated by proper audio reproduction and
proper tape counter performance.
Checking Procedure
7. Adjustment after Replacing Drum Assembly (Video Heads)
Test Equipment/ Fixture
• Oscilloscope
• Alignment Tapes
• Blank Tape
• Post Height Adjusting Driver
• Screw Driver(+) Type 5mm
Connection Point
• CH-1: PB RF Envelope
• CH-2: NTSC: SW 30Hz
PAL: SW 25Hz
• Head Switching Output
Test Point
• RF Envelope Output Test Point
Test Conditions
(Mechanism Condition)
• Play the Blank Tape
• Play an Alignment Tape
Adjustment Points
• Guide Roller Precise
Adjustment
• Switching Point
• Tracking Preset
• X-Value
Checking/Adjustment Procedure
Play a blank tape and check for tape curling or creasing around
the Roller Guide. If there is a problem then follow the procedure
4. "Guide Roller Height" and 5. "Audio Control(A/C) Head
Adjustment".
RF ENVELOPE OUTPUT TEST POINT
OSCILLOSCOPE
HEAD SWITCHING OUTPUT TEST
POINT
Connection Diagram
Waveform
V1/V MAX EE0.7
V2/V MAX EE0.8
RF ENVELOPE OUTPUT
Fig. C-7
8. Check the Tape Travel after Reassembling Deck Assembly.
8-1. Checking Audio and RF Locking Time during playback and after CUE or REV (FF/REW)
Test Equipment/ Fixture
• Oscilloscope
• Alignment Tapes(with 6H
3KHz Color Bar Signal)
• Stop Watch
Specification
• RF Locking Time: Less than 5
sec.
• Audio Locking Time:Less than
10sec
Test Equipment
Connection Points
• CH-1: PB RF Envelope
• CH-2: Audio Output
• RF Envelope Output Point
• Audio Output Jack
Test Conditions
(Mechanism Condition)
• Play an Alignment Tape
(with 6H 3kHz Color Bar
Signal)
Checking Procedure
Play an Alignment Tape then change the operating mode to
CUE or REV and confirm if the unit meets the above listed
specifications.
NOTES:
1) CUE is the forward search mode
2) REV is the backward search mode
3) Refer to the Play mede
V1 VV2
CH1 CH2
Connection Points
MAINTENANCE/INSPECTION PROCEDURE
4-19
(3) F/E Head
(5) Drum Assembly
(Video Head)
(4) Base
Assembly P2
(2) Tension Post
(1) Supply Reel
(6) Base Assembly P3
1. Check before starting repairs
The following faults can be remedied by cleaning and oil-
ing. Check the needed lubrication and the conditions of
cleanliness in the unit.
Check with the customer to find out how often the unit is
used, and then determine that the unit is ready for inspec-
tion and maintenance. Check the following parts.
Phenomenon Inspection Replace-
ment
Color beats Dirt on Full-Erase Head o
Poor S/N, no color Dirt on Video Head
Vertical or
Horizontal jitter
Dirt on Audio/Control Head
Dirt on Pinch Roller
NOTE
If locations marked with odo not operate normally after
cleaning, check for wear and replace.
See the EXPLODED VIEWS at the end of this manual as
well as the above illustrations and see the Greasing (Page
4-21, 22) for the sections to be lubricated and greased.
o
o
o
o
Dirt on Video Head
Dirt on tape transport system
Low volume,
Sound distorted
Tape does not run.
Tape is slack
o
In Review and
Unloading (off mode),
the tape is rolled up
loosely.
Clutch Assembly D35
torque reduced
Cleaning Drum and
transport system Fig. C-9-3
(7) A/C Head
(8) P4 Post
(10) Pinch Roller
(11) Take-up Guide Post
(9) Capstan Shaft
(12) Take-up Reel
* No. (1)~(12) Indicates the Tape Path to be traveled from Supply Reel to Take-up Reel.
Fig. C-9-1 Top View
Fig. C-9-2 Bottom View
F/E Head
Video Head
A/C Head
Pinch Roller
Belt Capston
Clutch
Assembly D35
Fig. C-9-3 Tape Transport System
MAINTENANCE/INSPECTION PROCEDURE
4-20
2. Required Maintenance
The recording density of a VCR(VCP) is much higher than
that of an audio tape recorder. VCR(VCP) components must
be very precise, at tolerances of 1/1000mm, to ensure com-
patibility with the other VCRs. If any of these components are
worn or dirty, the symptoms will be the same as if the part is
defective. To ensure a good picture, periodic inspection and
maintenance, including replacement of worn out parts and
lubrication, is necessary.
3. Scheduled Maintenance
Schedules for maintenance and inspection are not fixed
because they vary greatly according to the way in which the
customer uses the VCR(VCP), and the environment in which
the VCR(VCP) is used.
But, in general home use, a good picture will be maintained
if inspection and maintenance is made every 1,000 hours.
The table below shows the relation between time used and
inspection period.
Table 1
4. Supplies Required for Inspection and
Maintence
(1) Grease : Kanto G-311G (Blue) or equivalent
(2) Isopropyl Alcohol or equivalent
(3) Cleaning Patches
(4) Grease : Kanto G-381(Yellow)
5. Maintenance Procedure
5-1) Cleaning
(1) Cleaning video head
First use a cleaning tape. If the dirt on the head is too
stubborn to remove by tape, use the cleaning patch. Coat
the cleaning patch with Isopropyl Alcohol. Touch the
cleaning patch to the head tip and gently turn the
head(rotating cylinder) right and left.
(Do not move the cleaning patch vertically. Make sure
that only the buckskin on the cleaning patch comes into
contact with the head. Otherwise, the head may be dam-
aged.)
Thoroughly dry the head. Then run the test tape. If lso-
propyl Alcohol remains on the video head, the tape may
be damaged when it comes into contact with the head
surface.
(2) Clean the tape transport system and drive system, etc, by
wiping with a cleaning patch wetted with Isopropyl
Alcohol.
NOTES:
1 It is the tape transport system which comes into contact
with the running tape. The drive system consists of those
parts which moves the tape.
2 Make sure that during cleaning you do not touch the tape
transport system with excessive force that would cause
deformation or damage to the system.
About 1
year
One hour
Two hours
Three hours
When
inspection is
necessary
Average
hours used
per day
About 18
months
About 3
years
Fig. C-9-4
Drum
(Rotating Cylinder)
Head Tip
Coat With Isopropyl Alcohol
Touch this section of cleaning
patch to the head tip and gently
turn the Drum (Rotating Cylinder)
Cleaning Patch
MAINTENANCE/INSPECTION PROCEDURE
4-21
5-2) Greasing
(1) Greasing guidelines
Apply grease, with a cleaning patch. Do not use exces-
sive grease. It may come into contact with the tape
transport or drive system. Wipe excessive grease and
clean with cleaning patch wetted in Isopropyl Alcohol.
(2) Periodic greasing
Grease specified locations every 5,000 hours.
NOTE:Greasing Points
3
5
7
6
1
7
2
4
1) Loading Path Inside & Top side
2) Base Assembly P2, P3 stopper
3) Shaft
4) L/D Motor Gear Wheel Part
5) Arm Take-up Rubbing Sections
6)Reel S,T shaft(G381:Yellow)
7) Arm Assembly F/L Rotating
Sections
Guide Rail
Base Loading Gear Drive
Gear Sector Gear Cam
Gear Part
Chassis (Left Side) Chassis (Right Side)
5
7
8
1
2
6
4
3
Slider Guide
Slider Guide
1) Loading Path Inside & Top side
2) Base Assembly P2,P3 stopper
3) Shaft
4) Shaft
5) Clutch Assembly D35 Shaft
6) Plate Slider Guide Sections
7) Plate Slider Guide Sections
8) Gear Assembly P2, P2 Rubbing
Sections
Chassis (Top)
Chassis (Bottom)
Gear Rack F/L
Plate Slider
MAINTENANCE/INSPECTION PROCEDURE
4-22
Lever, F/R, Base, Tension GEAR AY, P2 & P3
Lever, F/R Base, Tension
Arm Tension
Guide Hole
Clutch
(G-754. Yellow)
Boss Cam
MECHANISM TROUBLESHOOTING GUIDE
4-23
Auto REW doesn't work.
Is the output of END sensor of
supply side "H"?
“H”: more than 3.5V
“L”: less than 0.7V~1V
Is the voltage across IR LED
between 0.8~1.5V? Replace the IR LED.
Is the Vcc. voltage of End
sensor 5V? Check the syscon power.
Replace the End sensor.
Check the syscon circuit.
NO
YES
YES
YES
YES
NO
NO
1.Deck Mechanism
A.
NO
NO
NO
No F/R modes.
Is the present mode
F/R Mode?
Is the mode SW assembled
correctly? (refer to page 4-13.)
Is the normal voltage supplied to
the Capstan Motor Vcc1, Vcc2?
Does terminal voltage(Vctl) of
Capstan Motor supply side more
than 4V?
Check the servo, power
circuits.
Replace the Capstan Motor.
Does the Capstan Motor rotate?
Do the T/Up, Supply Reel
rotate?
Check the syscon circuit.
YES
YES
YES
YES
YES
YES
B.
4-24
MECHANISM TROUBLESHOOTING GUIDE
AUTO STOP.
(PLAY/CUE/REV)
Are there T/up and Supply Reel
pulses.
In Play/Cue/Rev, Is the Pinch
Roller in contact with the
Capstan Shaft?
Replace the Reel Sensor.
Is the output of DFG, DPG OK?
Check alignment positions
(page 4-13).
Replace the Drum Motor.
Check the Servo, Syscon.
Check the Syscon, µ-COM.
Cassette doesn’t load.
Insert the cassette.
Check Lever Assembly S/W.
Is there variation for CST IN S/W
Output?
(In Tape with REC Tab
“L”→“H”→“L”)
(In Tape without REC Tab
“L”→“H”→“L”→“H”)
Does the CST IN S/W work
normally?
Does the Lever Assembly S/W
work normally?
Check the Syscon Circuit. Check the Syscon Circuit.
Replace the CST IN S/W.
YES
YES
YES
YES YES
YES
NO
NO
NO
NO
NO NO
NO
YES
C.
D.
4-25
MECHANISM TROUBLESHOOTING GUIDE
In PB mode Tape Presence
not sensed.
Is the Pinch Roller attached
to the Capstan Motor Shaft?
Check Alignment positions
(page 4-13).
Does the T/Up Reel turn? Replace the Belt.
Is the Belt ok?
Does the Drum Motor turn?
Are there DPG, DFG pulses?
Are the T/Up and Supply Reel
Sensors ok?
Check the Syscon, Circuit.
Check the Syscon, Circuit.
Check the Servo, Syscon.
Does the Capstan Motor turn?
Is the terminal voltage(vctl) of the
Drum Motor more than 4V?
Replace the
Drum Motor.
Is the Vcc voltage of the Drum
Motor normal?
Check the Clutch and Idler
Assembly.
YES
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
Is the terminal voltage(vctl) of
Capstan Motor supplied more
than 4V?
Replace the Capstan Motor.
Is the voltage supplied to the
Capstan Motor Vcc1,Vcc2 each?
YES
YES
YES
Check the Servo, Power.
NO
NO
NO
E.
MECHANISM TROUBLESHOOTING GUIDE
4-26
Cassette cannot be inserted.
Does the Lever Assembly
Switch work?
Is the Lever Assembly Switch
Spring damaged or omitted?
Does the CST IN Switch work
normally?
Replace or add the Lever
Assembly Switch Spring.
Is the Vcc of Main P.C.Board
5V?
YES
YES
Check the syscon circuit.
YES
Check the power circuit.
NO
Is the voltage between cassette
switch and GND on Main
P.C.Board 5V??
YES
Is there a short circuit between cassette
switch and GND on main P.C.Board?
Remove the short circuit part or
Replace the main P.C.Board.
NO
Check the Mode switch location
and syscon circuit.
Replace the CST IN Switch.
YES
NO
YES
NO NO
Replace the CST IN Switch.
NO
NO
Cassette does not eject.
Does the L/D Motor rotate in reverse? Check the L/D Motor or Drive IC.
Replace the Lever Assembly Switch.
Does the Lever Assembly Switch work?
YES
NO
NO
Does the Arm Assembly F/L work normally?
YES
NO
Does the Opener Door work?
YES
Replace the Arm Assembly F/L.
Replace the Opener Door.
2. Front Loading Mechanism
A.
B.
MECHANISM TROUBLESHOOTING GUIDE
4-27
Cassette does not load.
Does the cassette insert?
Does the Opener Lid work?
Check the opener Door assembled
correctly.
Replace the Opener Lid.
Replace the Arm Assembly F/L.
Check the power of L/D Motor.
Check the Holder Assembly Cassette
assembled correctly.
Replace the Gear Rack F/L.
Does the Gear Assembly Rack F/L
work?
Does the Opener Door work?
Does the Arm Assembly F/L work?
Does the L/D Motor work?
Does the Holder Assembly Cassette
move the Arm Assembly F/L?
Replace the Front Loading
Mechanism Assembly.
YES
YES
YES
YES
NO
NO
NO
YES NO
YES NO
YES NO
C.
4-28
EXPLODED VIEWS
117
103
105 117
100
106
107
A21
114
113
112
110
115
A24
116
102
A23
032
A22
109
054
054A
100A
100B
1. Front Loading Mechanism Section
EXPLODED VIEWS
4-29
401
402
001
008
011
031
079
017
032
024
406
020
021
028
019
018
029
030
026
A03
A04
A01
002
002A
025
027
022
003
004
006
007
010
405
014
015
009
409
013
023 016
405
012
402
OPTIONAL PART
2. Moving Mechanism Section(1)
EXPLODED VIEWS
4-30
051
052
517
061
056
058
518 052A
055
060
410
070
069
076
032
077
068
064
066
065
067
A11
078
A12
OPTIONAL PART
3. Moving Mechanism Section(2)
DECK MECHANISM PARTS
LOCATIONS
• Top View..................................................5-1
• Top View(without Tray Disc) .................5-1
• Bottom View ...........................................5-1
DECK MECHANISM
DISASSEMBLY
1. Holder Clamp....................................5-2
1-1. Clamp Assembly Disc.......................5-2
1-1-1. Plate Clamp ..................................5-2
1-1-2. Magnet Clamp ..............................5-2
1-1-3. Clamp Upper.................................5-2
2. Tray Disc ...........................................5-2
3. Base Assembly Sled ........................5-3
3-1. Gear Assembly Feed ........................5-3
3-2. Gear Assembly Middle......................5-3
3-3. Gear Assembly Rack ........................5-3
4. Rubber Rear......................................5-3
5. Frame Assembly Up/Down..............5-4
6. Belt Loading......................................5-4
7. Gear Pulley .......................................5-4
8. Gear Loading ....................................5-4
9. Guide Up/Down.................................5-4
10. PWB Assembly Loading................5-4
11. Base Main........................................5-4
EXPLODED VIEW
1. Deck Mechanism Exploded View....5-5
CONTENTS
SECTION 5 MECHANISM OF DVD PART
5-1
DECK MECHANISM PARTS LOCATION
Starting No.
1
1, 2
1, 2, 3
1, 2, 3, 4
1
1, 6
1, 2, 6
1, 2, 6, 8
1, 2, 6, 8,
9
1, 2, 7
1, 2, 7
1, 2
1, 2 ,13
1, 2, 13, 14
1, 2, 7, 12, 13, 14
1, 2, 13
1, 2, 7, 12, 13,
14, 15, 16, 17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Holder
Clamp
Clamp Assembly
Disc
Plate Clamp
Magnet Clamp
Clamp Upper
Tray Disc
Base Assembly Sled
Gear Assembly
Feed
Gear
Middle
Gear Assembly
Rack
Rubber Rear
Frame Assembly
Up/Down
Belt Loading
Gear Pulley
Gear Loading
Guide Up/Down
PWB Assembly
Loading
Base Main
2 Screws,
2 Locking Tabs
4 Screws,
1 Connector
1 Locking Tabs
1 Screw
1 Screw
1 Locking Tab
1 Locking Tab
1 Locking Tab
1 Hook
2Screw
2 Locking Tabs
5-1
5-1
5-1
5-1
5-1
5-2
5-3
5-3
5-3
5-3
5-3
5-4
5-4
5-4
5-4
5-4
5-4
5-4
Bottom
Bottom
Procedure
Parts Fixing Type Fig-
ure
Disass
embly
Note
When reassembling, perform the procedure in
reverse order.
The “Bottom” on Disassembly column of above
Table indicates the part should be disassembled
at the Bottom side.
• Top View (Without Tray)
• Bottom View
• Top View (With Tray)
5-2
DECK MECHANISM DISASSEMBLY
1.Holder Clamp (Fig. 5-1)
1) Release 1 Screws(S1).
2) Unhook 2 Locking Tabs(L1).
3) Lift up the Holder Clamp and then separate it from the
Base Main.
1-1. Clamp Assembly Disc
1) Place the Clamp Assembly Disc as Fig. (A)
2) Lift up the Clamp Assembly Disc in direction of
arrow(A).
3) Separate the Clamp Assembly Disc from the Holder
Clamp.
1-1-1. Plate Clamp
1) Turn the Plate Clamp to counterclockwise direction and
then lift up the Plate Clamp.
1-1-2. Magnet Clamp
1-1-3. Clamp Upper
2. Tray Disc (Fig. 5-2)
1) Insert and push a Driver in the emergency eject
hole(A) at the right side, or put the Driver on the
Lever(B) of the Gear Emergency and pull the Lever(B)
in direction of arrow so that the Tray Disc is ejected
about 15~20mm.
2) Pull the Tray Disc until it is separated from the Base
Main completely.
HOLDER CLAMP
CLAMP ASSEMBLY DISC
PLATE CLAMP
MAGNET CLAMP
CLAMP UPPER
(S1)
(L1)
(L1)
HOLDER CLAMP
BASE MAIN
HOLDER CLAMP
(Fig. A)
(A)
TRAY DISC
EMERGENCY EJECT HOLE
LEVER
BASE MAIN
BASE MAIN
BOTTOM SIDE VIEW
(A)
(B)
Fig. 5-1 Fig. 5-2
5-3
DECK MECHANISM DISASSEMBLY
3.Base Assembly Sled (Fig. 5-3)
1) Release 4 Screw(S2).
2) Disconnect the FFC Connector(C1)
3-1. Gear Assembly Feed
1) Unhook the Locking Tab(L2) in direction of arrow.
3-2. Gear Middle
3-3. Gear Assembly Rack
1) Release the Scerw(S3)
4. Rubber Rear (Fig. 5-3)
GEAR MIDDLE
GEAR ASSEMBLY RACK
PICK UP
ASSEMBLY
GENERAL
GEAR ASSEMBLY FEED
GEAR MIDDLE
GAER ASSEMBLY RACK
MOTOR ASSEMBLY SPINDLE
RUBBER REAR
MOTOR ASSEMBLY
SPINDLE
PICK UP ASSEMBLY GENERAL
BASE PU(OUTSERT)
GEAR ASSEMBLY FEED
(L2)
(S2)
(S2)
(C1)
(S2)
(S2)
(BLACK)
(GREEN)
(S3)
(BLACK)
(GREEN)
Fig. 5-3
5-4
DECK MECHANISM DISASSEMBLY
5. Frame Assembly Up/Down (Fig. 5-4)
Put the Base Main face down(Bottom Side)
1) Release the Screw(S4)
2) Unlock the Locking Tab(L3) in direction of arrow and
then lift up the Frame Assembly Up/Down to separate
it from the Base Main.
• When reassembling move the Guide Up/Down in direction
of arrow(C) until it is positioned as Fig.(C).
• When reassembling insert (A) portion of the Frame
Assembly Up/Down in the (B) portion of the Guide
Up/Down as Fig.(B)
6. Belt Loading(Fig. 5-4)
Put the Base Main on original position(Top Side)
7. Gear pulley (Fig. 5-4)
1) Unlock the Locking Tab(L4) in direction of arrow(B) and
then separate the Gear Pulley from the Base Main.
8. Gear Loading (Fig. 5-4)
9. Guide Up/Down (Fig. 5-4)
1) Move the Guide Up/Down in direction of arrow(A) as
Fig.(A)
2) Push the Locking Tab(L5) down and then lift up the
Guide Up/Down to separate it from the Base Main.
When reassembling place the Guide Up/Down as Fig.(C)
and move it in direction arrow(B) until it is locked by the
Locking Tab(L5). And confirm the Guide Up/Down as Fig.(A)
10. PWB Assembly Loading (Fig. 5-4)
Put the Base Main face down(Bottom Side)
1) Release 2 Screws(S5)
2) Unlock the Loading Motor Connector (C2) from the
Hook (H1) on the Base Main.
3) Unlock 2 Locking Tabs(L6) and separate the PWB
Assembly Loading from the Base Main.
11. Base Main(Fig. 5-4)
Note
Note
Note
Note
Note
GEAR LOADING
GEAR PULLEY
(L4)
(L6)
(L5)
(A)
(B)
(B)
(A)
(A)
(B)
(C)
(S5) (C2)
(S4)
PWB ASSEMBLY LOADING
BELT LOADING
BASE MAIN
GUIDE UP/DOWN
FIG. (A)
FIG. (C)
GUIDE UP/DOWN
GUIDE UP/DOWN
FIG. (B)
FRAME ASSEMBLY UP/DOWN
(H1)
BASE MAIN
(L6)
(L6)
(L3)
GUIDE UP/DOWN
Fig. 5-4
EXPLODED VIEWS
1. Deck Mechanism Exploded View
A01
A26
008
009
016
A03
010
A02
014
017
015
431
431
011
011A
430
013
432
026
430
430
012A
430
012
430
012
429
004
001
003
002
012A
018
020
429
5-5 5-6
6-1
SECTION 6 REPLACEMENT PARTS LIST
SANYO MODEL : HV-DX2E NSP : Not avallable as service parts.
RUN DATE : 14-MAR-03
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
*** INDIVIDUAL PARTS ***
250 LG3110R-V004B CASE (COMBI-2) PRESS A288G-HOLE-7EA
260 LG3210R-V002B FRAME COMB-2 MOLD HIPS 60HR-BK
276 LG4930R-0298B HOLDER VCR - TIMER PWB(D+V-RIB CUTTIN
285 LG3581R-T046D DOOR ASSEMBLY VCR TRAY VYC600CI
300 LG6410RBHV02C POWER CORD MP5005SC/HO3VVH2-F VOLEX BSI 1
330 LG3140R-V001B CHASSIS COMBI-2 PRESS PAL TYPE
452 LG353-051A SCREW SPECIAL
457 LG353-051E SCREW SPECIAL (3X12)
465 LG353-046K SCREW SPECIAL (3X10 B.K)
467 LG353-051G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FN TB ROUN
*** PACKING ACCESSORY ***
801 LG3835RP0099A INSTRUCTION ASSEMBLY VCR VYC600CI.NA4USS
802 LG3890R-H540M BOX VYC600CI NA4USS SWW3-A 1.285 3
803 LG3920R-E080A PACKING,CASING VC6000_S 0.02 150 EPS 4 1 1
804 LG292-053B BAG SOFT(MIDI) NSP
808 LG534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA
*** REMOTE CONTROLLER ***
900 LG6711R1N108C REMOTE CONTROLLER ASSEMBLY N6 VYC600CI SANYO W/VIDEO PLU
910 LG3550R-0431A COVER BATTERY(N6 HIPS 60HR 89991)
*** PANEL ASSEMBLY , FRONT ***
A43 LG3721R-F262M PANEL ASSEMBLY,FRONT VCR VYC600CI NA4USS FRONT(DX2E
280 LG3720R-F200K PANEL,FRONT VCR VYC600 MOLD FRONT B589G NSP
283 LG3580R-V056D DOOR,CASE VCR VYC600CI NA4USS MOLD CST(B
284 LG442-681A SPRING DOOR
*** CABLE ASSEMBLY , RF ***
810 LG6851RP0003F CABLE ASSY,RF CABLE ASSY,RF/SCART/RCA USING
806 LG6850R-CAA26 CABLE,COAXIAL 1200M/M PAL-PAL DOUBLE SHIELD
812 LG6611R2G001A PLUG ASSY 2WAY RED/WHITE GLOBAL
*** DECK ASSEMBLY (DVD MD) ****
A26 LG6721RF0353B DECK ASSEMBLY,VIDEO DECK/MECHA DP5-4V(DVD+VCR) DI, NSP
A01 LG4861R-0015A CLAMP ASSEMBLY DISC(DP-5) DI
A02 LG3041R-M004A BASE ASSEMBLY MAIN (DP4) DI-IDECK
A03 LG3041R-M005A BASE ASSEMBLY SLED (DP5) DI
001 LG3300R-0547A PLATE CLAMP NSP
002 LG5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T) NSP
003 LG4860R-0006A CLAMP UPPER NSP
004 LG4930R-0171A HOLDER CLAMP
008 LG4470R-0047B GEAR ASSY RACK (DI)
009 LG4470R-0053A GEAR MIDDLE
010 LG6850R-GK22Z CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 11
011 LG3210R-0036A FRAME UP/D
011A LG6850R-JW14B CABLE,FLAT P=1.0 FFC UL2896(0.035X0.7) 23
012 LG5040R-0047A RUBBER REAR(E2,5040H-1054A),YAMAUCHI
012 LG5040R-0047B RUBBER DAMPER(E2,5040H-1054A),CHUNPOO ALTERNATE
012A LG5040R-0047C RUBBER DAMPER(HARDNESS=30),DARKGREEN
NOTES) Warning
NOTES) Parts that are shaded are critical
NOTES) With respect to risk of fire or
NOTES) electricial shock.
NOTES) If you want to purchase
Flash memory, you must order
"IC3F1A"
6-2
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
012A LG5040R-0047D RUBBER DAMPER(HARDNESS=30),DARKGREEN ALTERNATE
013 LG4400R-0006A BELT LOADING
014 LG4470R-0055A GEAR PULLEY
015 LG6871RZ5130A PWB(PCB) ASSEMBLY,OTHERS SUB,L/D (DP-4V,DVD+VCR) DI
016 LG4470R-0050B GEAR ASSY FEED (DI)
017 LG4470R-0056A GEAR LOADING
018 LG4974R-0023A GUIDE UP/DOWN
020 LG3040R-0024A BASE MAIN NSP
026 LG3390R-0005A TRAY DISC
026 LG3390RK0010A TRAY DISC + PACKING ALTERNATE
429 LG1SZZR-0012A SCREW, B-TITE
430 LG1SZZH-1003A SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
430 LG1SZZH-1003A SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
431 LG1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
432 LG1SZZR-0011A SCREW, MACHINE
*** SUB PWB(PCB)ASSEMBLY(DVD) ***
A46A LG6885R-5005B SUB PWB(PCB) ASSEMBLY 474200D2100500 FF 000101 VYC60
C201 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C202 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C203 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C204 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C205 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C206 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C207 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C208 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C209 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C210 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C211 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C212 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C213 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C214 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C215 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C216 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C224 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C225 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C226 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C229 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C230 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C231 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C232 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C238 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C239 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C240 LG0CH1222K562 CAPACITOR,CHIP[CERAMIC M/L HD 2200PF 50V K X7R(X) 1608 R/TP
C242 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C245 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C251 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C252 LG0CH4100K112 CHIP CAPA CERAMIC M/L T.C F/S 10P 50V D COG 1.6X0.8 R/TP
C253 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C254 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C255 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C258 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C261 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C262 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C263 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C264 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C265 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C272 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2E
6-3
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C273 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C274 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C277 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C278 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C279 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C280 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C281 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C282 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C284 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C285 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C286 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C287 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C288 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C289 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C290 LG0CH4180K412 CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C291 LG0CH4180K412 CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C292 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C293 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C294 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C295 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C296 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C297 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C298 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C299 LG0CH4220K412 CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C2A0 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2A3 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A4 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2A5 LG0CH1683F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2A6 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2A7 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A8 LG0CH1152K562 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2A9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2B3 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C2B4 LG0CH1683F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2B5 LG0CH1333K562 CAPACITOR,CHIP[CERAMIC M/L HD 0.033UF 50V K X7R(X) 1508 R/TP
C2B9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C1 LG0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C2C2 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2C4 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C5 LG0CH1332K562 CAPACITOR,CHIP[CERAMIC M/L HD 3300P 50V K X7R 1.6X0.8 R/TP
C2C6 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C8 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C9 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D0 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D1 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D2 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D3 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D4 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D5 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D6 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D7 LG0CH1152K562 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2D9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2E1 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E2 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E3 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E4 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2M1 LG0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
HV-DX2E
6-4
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C2M2 LG0CH1682K562 CAPACITOR,CHIP[CERAMIC M/L HD 6800P 50V K X7R 1.6X0.8 R/TP
C2M3 LG0CH1472K562 CAPACITOR,CHIP[CERAMIC M/L HD 4700PF 50V K X7R(X) 1608 R/TP
C2M4 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M5 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M6 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M7 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M8 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N1 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N3 LG0CH1223K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.022UF 50V Z Y5V(F) 1508 R/TP
C2N4 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C301 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C302 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C303 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C304 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C305 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C306 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C307 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C308 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C309 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C314 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C316 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C317 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C318 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C319 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C320 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C321 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C323 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C324 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F1 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C3F2 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F3 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C401 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C402 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C403 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C404 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C405 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C406 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C408 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C409 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C410 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C411 LG0CH1102K512 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C412 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C413 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C414 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C415 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C416 LG0CH1102K512 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C417 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C418 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C419 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C420 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C421 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C422 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C423 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C424 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C425 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C501 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2E
6-5
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C502 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C503 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C504 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C506 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C507 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C508 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C509 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C510 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C511 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C512 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C513 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C514 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C515 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C516 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C517 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C518 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C519 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C520 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C521 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C522 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C523 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C525 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C526 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C527 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C528 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C529 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C530 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C531 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C532 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C533 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C534 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C535 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C536 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C538 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C540 LG0CH4220K412 CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C541 LG0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C542 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C543 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C544 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C546 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C549 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C550 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C553 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C554 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C555 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C556 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C557 LG0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C558 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C559 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C560 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C561 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
R525 LG0LC0233002B INDUCTOR,CHIP HB-1S1608-800JT CERATECH R/TP
D201 LG0DR495009AA DIODE,RECTIFIER RB495D TP ROHM SMD 40V 400A 2A
D2A1 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A2 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A3 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D401 LG0DSRM00118A DIODE,SWITCHING DAP202K T146 ROHM R/TP SMD 80V
HV-DX2E
6-6
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
L201 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L206 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L207 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L208 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A1 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A2 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L301 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L302 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L3F1 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L501 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L502 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L503 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L504 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L505 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L506 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L507 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L508 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L509 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L510 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L511 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L603 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
IC201 LG0ILNRHY002B IC,LINEAR HDC25D811B HYUNDAI 208 QFP TRA
IC203 LG0IEB121616B IC,ELITE MEMORY TECHNOLOGY M12L16161A-7T-L 50PIN TSOP TRA
IC206 LGGITO704000F IC,TOSHIBA TC7W04FU
IC2A1 LG0ILNRHI003A IC,LINEAR HD153702TF HITACHI 64 TQFP TRA
IC2A2 LG0IJR341400C IC,JRC NJM3414AM-TE1,3K/REEL. JRC
IC2A4 LG0IKE393000G IC,KEC KIA393F-EL FLP-8 TP DUAL COMPA
IC2M1 LG0IFA303200A IC,FAIRCHILD KA3032 48QFP BK 5CH MOTOR DRIV ALTERNATE
IC2M1 LG0ILNRFA013A IC,LINEAR FAN8004 FAIRCHILD 48 QFP TRAY
IC301 LG0IXL957210C IC,XILINX XC9572XL-10TQ100C 100 QFP TRAY ALTERNATE
IC301 LG0ICTMHY011A IC,CUSTOMIZED HS353106 HYNIX 100 TQFP TRAY C
IC305 LG0IHY576532A IC,HYUNDAI HY57V653220CTC-7 86P TSOP BK S ALTERNATE
IC305 LG0IMMRHY025A IC,MEMORIES HY57V643220CT-7 HYUNDAI 86P TS
IC305 LG0IMMRWI004B IC,MEMORIES W986432DH-6 WINBOND 86PIN TSOP ALTERNATE
IC305 LG0IMMREB005A IC,MEMORIES M12L64322A-7T ELITE MEMORY TEC ALTERNATE
IC3F1 LG0IMMRFU001B IC,MEMORIES MBM29LV800BA-90PFTN FUJITSU 48
IC401 LG0IPRPCI003B IC,PERIPHERALS CS4391-KZR CIRRUS LOGIC 20 TSS
IC402 LG0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R
IC501 LG0INS860200A IC,NATIONAL SEMICONDUCTOR NDV8602 240 VQFP BK MICOM+MPEG
IC502 LG0IMMRCB001A IC,MEMORIES CAT93C56S-TE13 CRYSTAL SEMICON
IC502 LG0IMMRAL012A IC,MEMORIES AT93C56-10SC(SI)-2.7-8S1 ATMEL ALTERNATE
IC503 LG0IFA742440F IC,FAIRCHILD MM74HCT244SJ 20P SOIC TP 3-STA
IC506 LG0IPMGA7001A IC,POWER MANAGEMENT AMC1117-1.8SJ ADD MICROTECH 3P
IC3F1A LG6957R-509AB PROGRAM SANYO (NS) DVD PROG
Q2A1 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q2A2 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q2A5 LG0TR388209AA TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2A6 LG0TR388209AA TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2M1 LG0TR124009AP TRANSISTOR,BIPOLARS DTC124EK TP ROHM KOREA SOT23 3
Q401 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q404 LG0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
Q405 LG0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
R201 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R202 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R203 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R204 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R207 LG0RH1004C622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D
HV-DX2E
6-7
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R217 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R218 LG0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R219 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R220 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R230 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R231 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R232 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R233 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R234 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R235 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R236 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R237 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R239 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R240 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R241 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R242 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R243 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R252 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R269 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R273 LG0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R274 LG0RH6200C622 RESISTOR,METAL GLAZED(CHIP) 620 OHM 1 / 16 W 1608 5.00% D
R275 LG0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R276 LG0RH9100C622 RESISTOR,METAL GLAZED(CHIP) 910 OHM 1 / 16 W 1608 5.00% D
R277 LG0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R278 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R279 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R281 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R290 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R291 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R292 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2A1 LG0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
R2A2 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2A6 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2A9 LG0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R2B0 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B2 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B3 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B4 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2B5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B6 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B7 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B8 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2C0 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C4 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C6 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C7 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C8 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C9 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D0 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D1 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D2 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D3 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D4 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D5 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R2D6 LG0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
HV-DX2E
6-8
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R2E6 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E7 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E8 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2F1 LG0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F2 LG0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F3 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F4 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F5 LG0RH2202C422 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 1.00% D
R2F6 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F7 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F8 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2F9 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G1 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G2 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G3 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G4 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G7 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2G9 LG0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R2M1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M2 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M3 LG0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R2M5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M6 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M7 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M8 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M9 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N0 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N2 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2N3 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N4 LG0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R2N5 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N6 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N7 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N8 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N9 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P0 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2P1 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P2 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P3 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P7 LG0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R2P8 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R2P9 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2Q1 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2R1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2R2 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R303 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R306 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R307 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R308 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R309 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R310 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R315 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R317 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R318 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R319 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R320 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
HV-DX2E
6-9
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R321 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R322 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R323 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R364 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R365 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R366 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R367 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R368 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R369 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F1 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F2 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R3F3 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F4 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F5 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R401 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R403 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R404 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R405 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R406 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R407 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R409 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R410 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R411 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R412 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R413 LG0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R414 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R415 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R416 LG0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R417 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R418 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R419 LG0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R420 LG0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R428 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R429 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R430 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R431 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R432 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R433 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R434 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R435 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R436 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R437 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R438 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R439 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R440 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R441 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R501 LG0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R502 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R503 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R504 LG0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R505 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R506 LG0RH1001C422 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 1.00% D
R507 LG0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R508 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R509 LG0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R510 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R514 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
HV-DX2E
6-10
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R515 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R516 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R520 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R521 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R522 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R523 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R524 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R530 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R531 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R532 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R533 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R534 LG0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D
R535 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R541 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R588 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R589 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R590 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R591 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R592 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
X201 LG6202R-BM04C RESONATOR,CRYSTAL HC-49/S BUBANG 33-8688MHZ 5
X501 LG6202R-BL06C RESONATOR,CRYSTAL HC-49/S BUBANG 27MHZ 20PPM 1
X501 LG6212AA2271F RESONATOR,CRYSTAL HC-49S KITELCO 27MHZ +/- 20 PP ALTERNATE
*** BOARD ASSEMBLY , MAIN(VCR) ***
A46 LG3501R-8119N BOARD ASSEMBLY VCR VYC600CI.NA4USS
323 LG3111R-0089C CASE ASSEMBLY VCR - PRE-AMP (02-PAL)
C301 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C302 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C303 LG0CH1122K516 CHIP CAPA CERAMIC M/L H.D F/S 1200P 50V K B 2.0X1.25 R/TP
C304 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C305 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C306 LG0CH1122K516 CHIP CAPA CERAMIC M/L H.D F/S 1200P 50V K B 2.0X1.25 R/TP
C307 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C308 LG0CH1153K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.015U 50V K B 2.0X1.2 R/TP
C309 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C310 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C311 LG0CE4765K618 CAPACITOR,AL.ELECTROLYTIC 47UF SR,SV 50V M FL TP 5
C312 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C313 LG0CQ2232L559 CAPACITOR,POLYESTER 0.022UF S 63V K PP NI TP5
C314 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C315 LG0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C316 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C317 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C318 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C319 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C320 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C321 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C322 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C323 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C324 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C325 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C326 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C327 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C328 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C329 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C330 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C331 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C333 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2E
6-11
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C334 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C335 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C336 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C337 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C338 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C339 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C340 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C341 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C342 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C343 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C345 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C346 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C347 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C348 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C349 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C350 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C351 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C353 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C355 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C356 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C357 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C358 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C359 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C360 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C361 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C362 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C363 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C366 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C367 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C368 LG0CH1822K516 CHIP CAPA CERAMIC M/L H.D F/S 8200P 50V K B 2.0X1.2 R/TP
C369 LG0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP
C370 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C371 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C372 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C374 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C375 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C376 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C377 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C500 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C501 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C502 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C503 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C504 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C505 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C506 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C508 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C509 LG0CH4220K406 CHIP CAPA CERAMIC M/L T.C F/S 22P 50V J SL 2.0X1.2 R/TP
C511 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C512 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C513 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C514 LG0CH4120K406 CAPACITOR,FIXED CERAMIC(High d 12PF 50V 5% SL 2012 R/TP
C515 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C516 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C517 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C518 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C519 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C520 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
HV-DX2E
6-12
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C521 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C523 LG0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C524 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C526 LG0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5
C527 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C531 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C532 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C533 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C534 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C535 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C543 LG0CH1222K516 CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C544 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C545 LG0CH1333H516 CHIP CAPA CERAMIC M/L H.D F/S 0.033U 25V K B 2.0X1.25 R/TP
C546 LG0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5
C547 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C551 LG0CH1333H516 CHIP CAPA CERAMIC M/L H.D F/S 0.033U 25V K B 2.0X1.25 R/TP
C552 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C561 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C564 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C567 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C570 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C571 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C575 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C576 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C577 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C578 LG0CH1222K516 CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C581 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C582 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C583 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C595 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C596 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5A3 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5A4 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5A5 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C5K1 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5L1 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C5L6 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C5P1 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5P2 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5R2 LG0CH4681K416 CAPA,CHIP CERAMIC M/L T.C F/S 680PF 50V J NP0 2012 R/TP
C5S1 LG0CH4430K416 CAPACITOR,FIXED CERAMIC(High d 43PF 50V J NP0 2012 R/TP
C5S3 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C706 LG0CH4330K416 CAPA,CHIP CERAMIC M/L T.C F/S 33P 50V J C 2.0X1.2 R/TP
C707 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C708 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C709 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C710 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C712 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C713 LG0CH4560K416 CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C714 LG0CH4560K416 CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C715 LG0CH4050K016 CAPA,CHIP CERAMIC M/L T.C F/S 5P 50V C COG 2.0X1.2 R/TP
C716 LG0CH4100K416 CAPA,CHIP CERAMIC M/L T.C F/S 10PF 50V J NP0 2012 R/TP
C717 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C718 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C719 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C720 LG0CH1152K516 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% B(5YP) 2012 R/T
C721 LG0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP
HV-DX2E
6-13
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C722 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C723 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C726 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C727 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C728 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C729 LG0CE3354K638 CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C730 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C731 LG0CH4090K116 CAPACITOR,FIXED CERAMIC(High d 9PF 50V 0.5 pF NP0 2012 R/TP
C732 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C751 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C752 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C755 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C7M1 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C7M2 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C7M3 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C7M6 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C7V1 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C7V2 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C7V3 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C7V4 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C7V5 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C802 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C803 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C804 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C805 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C806 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C807 LG0CE4744K638 CAPACITOR,ELECTROLYTIC 0.47M SRA 50V M FM5 TP(5)
C808 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C809 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C810 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C811 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C812 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C813 LG0CH1682K516 CAPACITOR,FIXED CERAMIC(Temp.c 6800PF 50V 10% B(5YP) 2012 R/T
C814 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C815 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C816 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C817 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C818 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C819 LG0CH1682K516 CAPACITOR,FIXED CERAMIC(Temp.c 6800PF 50V 10% B(5YP) 2012 R/T
C820 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C821 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C822 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C823 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C824 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C825 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C826 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C828 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C829 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C834 LG0CE4774F638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 16V 20% FM5 TP 5
C855 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C856 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C857 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C859 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C860 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C861 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C863 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C864 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
HV-DX2E
6-14
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C869 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C870 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C871 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C884 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C885 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C886 LG0CE4774F638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 16V 20% FM5 TP 5
C889 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C890 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C908 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C910 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C911 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C912 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C915 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C916 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C921 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C924 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C925 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C931 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C932 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C933 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C938 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
FL301 LG633-032K COIL,IFT BIAC OSC,1CHIP 5V(KS-75M) KWAN
L301 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L301 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L301 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L302 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L303 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L303 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L303 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L304 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L304 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L304 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L305 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L307 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L307 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L307 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L501 LG0LA0122K018 INDUCTOR AXIAL LEAD 12M K 2.3X3.4 L5 TP
L503 LG0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5
L504 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L504 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L505 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L506 LG635-027C INDUCTOR,RADIAL LEAD EL0405RA SKI150G-3 K-TDK 15UH
L5S1 LG0LA0332K018 INDUCTOR AXIAL LEAD 33M K 2.3X3.4 L5 TP
L701 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L702 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L704 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L705 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L706 LG0LA0821K018 INDUCTOR AXIAL LEAD 8.2M K 2.3X3.4 L5 TP
L7M1 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L7V1 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L801 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L803 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L901 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L902 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L903 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L904 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L905 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
HV-DX2E
6-15
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
L906 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L907 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L910 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
D301 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D502 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D509 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D801 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D802 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D901 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D902 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
BC91 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BC92 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
F8A1 LG6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
IC301 LG0ILNRSA005B IC,LINEAR LA71750EM SANYO 100PIN QFP TRA
IC501 LG0IMCRHI030A IC,MICRO CONTROLLER HD6432197SA23F HITACHI 112PIN
IC503 LG0IAL241600B IC,ATMEL AT24C16 - - - - ALTERNATE
IC503 LG0ICS241600B IC,CATALYST CAT24W16P 8P DIP ST 16K SERIAL
IC504 LG0ISS753100A IC,SAMSUNG ELECTRONICS KA7531Z TO-92 TP 3.1V RESET ALTERNATE
IC504 LG0IKE703100A IC,KEC KIA7031P 3P 3.1V RESET(TAPING)
IC505 LG0IKE704200B IC,KEC KIA7042P 3P 4.2V RESET(TAPING)
IC751 LG0IIT341700B IC,ITT MSP3417D-QG QFP44 BK NICAM+A2 ALTERNATE
IC751 LG0IIT341700C IC,ITT MSP3417G-QG-B8-V3 44 QFP TRAY
IC7V1 LG0ILNRMN001A IC,LINEAR SDA5650 MICRONAS 14 DIP ST VPS
IC801 LG0IPH960500A IC,PHILIPS TDA9605H QFP44 BK HIFI AMP+HIF
IC802 LG0IMT144300A IC,MITSUMI MM1443XJ SSOP-34 TP CANAL S/W
JK902 LG6612J00025H JACK,RCA RCA-1302A-12(5PIN)SILVER YUQIU
LD501 LG4931R-0017C HOLDER ASSY LED(DI-CKD)LOCAL
Q173 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q301 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q302 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q303 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q304 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q305 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q306 LG0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA ALTERNATE
Q306 LG0TR534409AA TRANSISTOR 2SC5344Y TP
Q308 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q309 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q501 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q502 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q503 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q504 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q514 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q515 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q5S1 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q705 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q706 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q801 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q802 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q804 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q901 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q902 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q903 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
C216 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J803 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J805 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J902 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J903 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
HV-DX2E
6-16
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
J904 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J905 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R173 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R301 LG0RH5602D622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R302 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R303 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R304 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R305 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R306 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R307 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R308 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R309 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R310 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R311 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R312 LG0RH6802D622 RESISTOR,METAL GLAZED(CHIP) 68K OHM 1 / 10 W 2012 5.00% D
R313 LG0RH0221D622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 10 W 2012 5.00% D
R314 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R315 LG0RH0472D622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 10 W 2012 5.00% D
R316 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R317 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R318 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R319 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R320 LG0RH1500D622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 10 W 2012 5.00% D
R321 LG0RH1201D622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 10 W 2012 5.00% D
R322 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R324 LG0RH3303D622 RESISTOR,METAL GLAZED(CHIP) 330K OHM 1 / 10 W 2012 5.00% D
R325 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R326 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R327 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R328 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R329 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R330 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R331 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R332 LG0RH4702D622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R333 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R334 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R335 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R336 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R337 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R338 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R339 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R340 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R342 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R343 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R344 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R345 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R346 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R347 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R349 LG0RH1801D622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R350 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R351 LG0RH8203D622 RESISTOR,METAL GLAZED(CHIP) 820K OHM 1 / 10 W 2012 5.00% D
R352 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R353 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R3A2 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R501 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R502 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R503 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
HV-DX2E
6-17
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R504 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R505 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R506 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R508 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R509 LG0RH1801D622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R510 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R511 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R512 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R513 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R514 LG0RH1203D622 RESISTOR,METAL GLAZED(CHIP) 120K OHM 1 / 10 W 2012 5.00% D
R515 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R516 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R517 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R518 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R519 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R520 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R521 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R522 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R523 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R524 LG0RH0222D622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 10 W 2012 5.00% D
R525 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R526 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R527 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R528 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R529 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R530 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R531 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R535 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R542 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R543 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R544 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R545 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R546 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R547 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R548 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R550 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R553 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R554 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R555 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R556 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R557 LG0RH2702D622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R558 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R559 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R560 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R561 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R562 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R563 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R564 LG0RH2702D622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R566 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R567 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R568 LG0RH6802D622 RESISTOR,METAL GLAZED(CHIP) 68K OHM 1 / 10 W 2012 5.00% D
R569 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R570 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R575 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R576 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R577 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R578 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
HV-DX2E
6-18
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R579 LG0RH5602D622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R582 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R583 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R589 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R591 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R5A2 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5A3 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5A5 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R5B3 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5B4 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5B5 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5C1 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C5 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C6 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C7 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C9 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5K6 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5K7 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5K8 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5L1 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R5P2 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5P3 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5R8 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5S1 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R705 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R706 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R707 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R710 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R711 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R712 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R713 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R714 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R715 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R716 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R717 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R718 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R719 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R7M1 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R7M2 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R7M4 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R7M5 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R7V1 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R7V2 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R7V3 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R7V4 LG0RH5603D622 RESISTOR,METAL GLAZED(CHIP) 560K OHM 1 / 10 W 2012 5.00% D
R7V5 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R7V6 LG0RH5603D622 RESISTOR,METAL GLAZED(CHIP) 560K OHM 1 / 10 W 2012 5.00% D
R7V7 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R7V8 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R7V9 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R801 LG0RH3304D622 RESISTOR,METAL GLAZED(CHIP) 3.3M OHM 1 / 10 W 2012 5.00% D
R802 LG0RH3302D622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 10 W 2012 5.00% D
R803 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R804 LG0RH3902D622 RESISTOR,METAL GLAZED(CHIP) 39K OHM 1 / 10 W 2012 5.00% D
R805 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R806 LG0RH3302D622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 10 W 2012 5.00% D
R807 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
HV-DX2E
6-19
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R808 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R809 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R810 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R811 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R812 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R821 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R822 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R823 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R824 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R825 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R826 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R835 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R841 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R842 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R850 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R851 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R861 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R862 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R863 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R864 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R874 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R875 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R876 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R890 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R902 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R903 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R904 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R905 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R906 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R907 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R908 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R909 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R910 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R911 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R913 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R914 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R919 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R920 LG0RH6800D622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 10 W 2012 5.00% D
R927 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R928 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R929 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R930 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R931 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R932 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R933 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R934 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
CS501 LG6600M000002 SWITCH,PUSH MPU11810MLB0 MIC DC 5V 1MA D-3
MS501 LG6600JB8005B SWITCH,MODE NON 5V 1MA VERTICAL -G
MS501 LG6600JB8005C SWITCH,MODE MMS00721ZMB0 MIC 5VDC 1MA D-35 ALTERNATE
ES501 LG4931R-0050C HOLDER ASSEMBLY END (DI)
ES502 LG4931R-0050C HOLDER ASSEMBLY END (DI)
RS501 LG6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO
RS501 LG6500RAB007A SENSOR GP1S566V SHARP REEL SENSOR OF ALTERNATE
RS502 LG6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO
RS502 LG6500RAB007A SENSOR GP1S566V SHARP REEL SENSOR OF ALTERNATE
SC901 LG6620RM0002L JACK,SCART DSAM-0139 DOOWON 2F-21P(BK-BK)
TU701 LG6700PFPG04C TUNER TCMI0610PD23C(UK,SS) SS PAL FS ALTERNATE
HV-DX2E
6-20
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
TU701 LG6700PFPL06C TUNER TADC-U401D(UK,LGIT) LG INOTEK
X301 LG6202R2443AE RESONATOR,CRYSTAL HC49U SSANG TAE 4433709HZ 1 ALTERNATE
X301 LG6202R2443AC RESONATOR,CRYSTAL HC49U BUBANG 4-433709MHZ 15
X301 LG6202R2443AG RESONATOR,CRYSTAL HC49U SSANGTAE 4-433709MHZ ALTERNATE
X501 LG6202R31001F RESONATOR,CRYSTAL HC-49S KEUMSEOK 10-0000MHZ 30P ALTERNATE
X501 LG6212AA2100C RESONATOR,CRYSTAL HC-49S BUBANG 10MHZ +/- 30 PPM
X502 LG6202R-DA01B RESONATOR,CRYSTAL CFS-308 CITIZEN 32.768KHZ +/- ALTERNATE
X502 LG6212AC2327E RESONATOR,CRYSTAL C-001R SEIKO EPSON 32.768 KHZ
X751 LG529-021Q RESONATOR,CRYSTAL 49U BUBANG 18432000HZ 30PPM 16
X751 LG6212AA2184F RESONATOR,CRYSTAL HC-49U KYUNGIL 18.432MHZ +/- 3 ALTERNATE
*** PWB(PCB) ASSEMBLY , POWER ***
A48 LG6871R-7211C PWB(PCB) ASSEMBLY,TOTAL 2003 COMBI SCART POWER DI X120
C101 LG624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/275V
C102 LG624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/275V
C103 LG624-082C CAPACITOR,AL.ELECTROLYTIC 100MF/400V SHL SMPS S/Y
C105 LG0CQ1031Y519 CAPACITOR,POLYESTER 0.01UF D 630V K PE NI TP
C106 LG624-087G CAPACITOR HIGH-VOL 68PF/1KV SMPS SAMHWA
C107 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C108 LG0CE336BH638 CAPACITOR,ELECTROLYTIC 33UF KME 25V M FM5 TP5
C109 LG0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S
C110 LG0CG1020U630 CAPACITOR,SEMI CERAMIC 1000PF 400V M E(Z5U) R
C111 LG0CG2220U630 CAPACITOR,SEMI CERAMIC 2200 PF 400V M E R (NK,AD,SD)
C123 LG0CE477BH630 CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK
C126 LG0CE2276H638 CAPACITOR,FIXED ELECTROLYTIC 220UF SMS,SG 25V 20% FM5 TP 5
C127 LG0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK
C128 LG0CE3376D638 CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5
C129 LG0CE228BF630 CAPACITOR,FIXED ELECTROLYTIC 2200UF KME TYPE 16V 20% FM5 BU
C131 LG624-082H CAPACITOR CE 1000UF/10V SHL(10*12.5)T/P
C132 LG624-085D CAPACITOR CE 47UF/50V KME (SMPS)
C133 LG0CQ1042K409 CAPACITOR,FIXED FILM 0.1UF S 50V J PE TP
C151 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C152 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C153 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C154 LG0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C155 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C159 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C161 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C163 LG624-087H CAPACITOR HIGH-VOL 220PF/1KV CERAMIC
L122 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L123 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L124 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
BD101 LG0DD160000DA DIODE S1WBA60(1A 600V) SHIDENKEN
D101 LG0DD010009CA DIODE,RECTIFIER EG01CW(R-FORM 5MM) TP SANKEN ALTERNATE
D101 LG0DD221009AA DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI
D102 LG0DD010009AC DIODE EU01W(R-FORM) TP SANKEN
D102 LG0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A ALTERNATE
D110 LG0DR302000AB DIODE,RECTIFIER HER302 BK RECTRON DO201AD 100V
D111 LG0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D112 LG0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D113 LG0DD010009AC DIODE EU01W(R-FORM) TP SANKEN
D113 LG0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A ALTERNATE
D114 LG0DR104009AB DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D115 LG0DR104009AB DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D121 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
BD01 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BD02 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
L102 LG616-145P FILTER(CIRC),DRAWING LFSQ2215V4-04220B SAMWAH TECOM
HV-DX2E
6-21
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
F101 LG0FS1601B51D FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS/J
IC101 LG0IPMGFF001A IC,POWER MANAGEMENT ICE2B265 INFINEON 8 DIP ST SMP
IC103 LG0IKE431000A IC,KEC KIA431 3 PIN TP
IC151 LG0IPMGKE008B IC,POWER MANAGEMENT KIA78R08PI CU KEC 4P TO-220IS
IC152 LG0IPMGFA046A IC,POWER MANAGEMENT KA278R33TSTU FAIRCHILD 4PIN TO ALTERNATE
IC152 LG0IPMGKE022B IC,POWER MANAGEMENT KIA278R33PI-CU KEC 4PIN TO-220
Q156 LG0TR320509AB TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC
Q160 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q160 LG0TR928009AD TRANSISTOR KSA928A-Y,TO-92L TP SAMSUNG TO ALTERNATE
Q161 LG0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC
Q162 LG0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92
R100 LG0RD1504H632 RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10
R101 LG614-007A RESISTOR 2.7/2W CEMENT SMPS V
R104 LG0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR
R105 LG0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R106 LG0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R107 LG0RS0350K619 RESISTOR,FIXED METAL OXIDE FIL 0.35 OHM 2 W 5.00% TR
R112 LG0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26
R113 LG0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R114 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R115 LG0RN3301F408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26
R116 LG0RN2701F408 RESISTOR,FIXED METAL FILM 2.7K OHM 1/6 W 1% TA26
R117 LG0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26
R119 LG0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26
R131 LG0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R132 LG0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R153 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R154 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R155 LG0RD1802F608 RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26
R156 LG0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R157 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R158 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R159 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R163 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R164 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R170 LG0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R171 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
IC102 LG657-063A SENSOR LTV-817B,PHOTO COUPLER(LITEON)
T101 LG6170RNGW12A TRANSFORMER,SMPS[COIL] EER3530 SOOJUNG WIDE EER3530
V101 LG656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT
ZD103 LG0DZ130009AA DIODE,ZENER MTZ13A TP ROHM-K
*** BOARD ASSEMBLY , TIMER ***
A49 LG3501R-6413A BOARD ASSEMBLY VCR VYC601M TIMER
274 LG3300R-V033A PLATE VYC601 PRESS JACK GND SUS 0.2T
C601 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C613 LG0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
C614 LG0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
C6G1 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C6G2 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
L5G1 LG0LR4700K035 INDUCTOR RADIAL LEAD 470M K 6X6 L5 TP
L602 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L603 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
IC601 LG0ILNRPY001A IC,LINEAR PT6955 PTC 24P SOP ST LED DRIV
JK601 LG6612JH003AC JACK,RCA BJP-113D BAE EUN YELLOW
JK602 LG6612JH003AB JACK,RCA BJP-113C BAE EUN WHITE
JK603 LG6612JH003AA JACK,RCA BJP-113B BAE EUN RED
LD601 LG6301R2U008B LED ASSEMBLY TOS-3664AGMGMRMY-B OASIS UNIVE
HV-DX2E
6-22
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R604 LG0RD5602F608 RESISTOR,FIXED CARBON FILM 56K OHM 1/6 W 5% TA26
R605 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R611 LG0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R612 LG0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26
R613 LG0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26
R614 LG0RD6800F608 RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26
R615 LG0RD8200F608 RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26
R616 LG0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26
R641 LG0RD0752F608 RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26
RC601 LG6712R1638GA REMOTE CONTROLLER RECEIVER TSOP1838RF1 VISHAY(TEMIC) 37-
SW601 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW602 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW603 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW604 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW605 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW606 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW607 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
*** BOARD ASSEMBLY , KEY ***
A42 LG3501R-6414A BOARD ASSEMBLY VCR VYC601M KEY
LED601 LG0DL112000AJ DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
LED602 LG0DL112000AJ DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
Q601 LG0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K
Q602 LG0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K
R618 LG0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R619 LG0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R620 LG0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R621 LG0RD3301F608 RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26
R622 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R623 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R630 LG0RD1500F608 RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
R631 LG0RD1500F608 RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
SW608 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW609 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW610 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW611 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW612 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
*** DECK ASSEMBLY (VCR) ***
A00 LG6721RF0750B DECK ASSEMBLY,VIDEO D35(N) DI (4HF, PAL, AHC(O), B NSP
A01 LG6723R-0403C DRUM(CIRC) ASSEMBLY D35-6CH PAL (8P6C)
A03 LG4261R-0025A ARM ASSY CLEANER
A04 LG4811RF0038A BRACKET ASSEMBLY L/D(S)
A04 LG4811RF0038B BRACKET ASSEMBLY L/D(M) - DI ALTERNATE
A11 LG4471R-0005A GEAR ASSY P3
A12 LG4471R-0004A GEAR ASSY P2
A21 LG4931R-0047A HOLDER ASSY CST
A22 LG4471R-0006A GEAR ASSY RACK F/L
A23 LG4261R-0023A ARM ASSY F/L
A24 LG4510R-0046A LEVER ASSY SWITCH
001 LG6723R-0306C DRUM(CIRC) ASSEMBLY SUB D35-6CH (8P6C) NSP
002 LG4680R-B005A MOTOR(MECH) DRUM I2OAL05 SEJIN-SANKYO ICLE
002 LG4680R-B003B MOTOR(MECH) DRUM VH4301 KUMAGAYA DRUM MOTO ALTERNATE
002 LG4680R-B007A MOTOR(MECH) DRUM MDVC-035AA LGIT FOR D-35, ALTERNATE
002A LG5202R00002C BRUSH,CARBON ASSY D33 (TIP+2 SPRING) 1.4,
003 LG4930R-0284A HOLDER FPC(6CH)
004 LG5006R-0034A CAP FPC
006 LG4580R-0004A ROLLER CLEANER NSP
007 LG4260R-0039A ARM CLEANER NSP
HV-DX2E
6-23
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
008 LG6850R-HG18Z CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7
009 LG4260R-0038A ARM T/UP(D35)
010 LG4810R-0125A BRACKET CHASSIS
011 LG4261R-0022A ARM ASSY TENSION(D35)
012 LG3041R-0037A BASE ASSY P2
013 LG3041R-0038A BASE ASSY P3
014 LG3041R-0039A BASE ASSY P4
015 LG5870R-0005A OPENER LID(D35)
016 LG3041R-0036A BASE ASSEMBLY A/C HEAD (ALPS)
017 LG4408R-0003A REEL S
018 LG4970R-0140A SPRING COIL RS D35
019 LG4421R-0008A BRAKE ASSEMBLY RS
020 LG4970R-0128A SPRING COIL D35 (TB)
021 LG4421R-0006A BRAKE ASSY T
022 LG6520D00001A HEAD(CIRC) D35 FE TDK FE HEAD ALTERNATE
022 LG6520D00002A HEAD(CIRC) D35 FE ST FE HEAD
023 LG3040R-0057A BASE LOADING
024 LG4261R-0029A ARM ASSEMBLY IDLER (N)
025 LG4810R-0118A BRACKET L/D(S) NSP
026 LG4680R-D002A MOTOR(MECH) LOADING MDB2B66 SANKYO D35 ASP NSP
027 LG4470R-0093A GEAR WHEEL NSP
028 LG4408R-0004A REEL T
029 LG4261R-0019A ARM ASSEMBLY DECK/MECHA PINCH ALTERNATE
029 LG4261R-0019D ARM ASSEMBLY DECK/MECHA PINCH ALTERNATE
029 LG4261R-0019C ARM ASSEMBLY DECK/MECHA PINCH
029 LG4261R-0019B ARM ASSEMBLY PINCH ALTERNATE
030 LG4510R-0043A LEVER T/UP
031 LG4970R-0123A SPRING COIL TENSION(D35)
032 LG3141R-0040A CHASSIS ASSY D35 NSP
051 LG4400R-0005A BELT CAPSTAN
052 LG4680R-A006A MOTOR(MECH) CAPSTAN MCVC-035AA LGIT BLDC 3 ALTERNATE
052 LG4680R-A007A MOTOR(MECH) CAPSTAN F2QVB06 SANKYO D35 ASR
052 LG4680R-A008A MOTOR(MECH) CAPSTAN SAMSUNG DMVCMC09L D35 ALTERNATE
052A LG4980R-0023A SUPPORTER CAPSTAN(D35)
054 LG4470R-0100A GEAR RACK F/L
054A LG4970R-0124B SPRING COIL D35 (RACK F/L)
055 LG4470R-0097A GEAR DRIVE(D35)
056 LG4470R-0096A GEAR CAM(D35)
058 LG4421R-0007A BRAKE ASSY CAPSTAN
060 LG4510R-0040A LEVER F/R(D35)
061 LG4265R-0006A CLUTCH ASSEMBLY D35 (N)
064 LG4470R-0098A GEAR SECTOR(D35)
065 LG4261R-0021A ARM ASSY P3 NSP
066 LG4970R-0122A SPRING COIL D35 NSP
067 LG4470R-0095A GEAR P3 NSP
068 LG4470R-0094A GEAR P2 NSP
069 LG4970R-0122A SPRING COIL D35 NSP
070 LG4261R-0020A ARM ASSY P2 NSP
076 LG4510R-0047A LEVER SPRING
077 LG3300R-M116A PLATE SLIDER
078 LG4510R-0041A LEVER TENSION
079 LG3040R-0056A BASE TENSION(D35)
100 LG3301R-M022A PLATE ASSEMBLY TOP
100A LG3300R-0184A PLATE GND
100B LG3300R-M118A PLATE TOP(D35)
102 LG4970R-0130A SPRING COIL D35 (STOPPER)
103 LG4930R-0276A HOLDER SIDE(L) NSP
HV-DX2E
6-24
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
105 LG4930R-0274A HOLDER CST NSP
106 LG4930R-0275A HOLDER SIDE(R) NSP
107 LG4510R-0044A LEVER STOPPER NSP
109 LG5870R-0004A OPENER DOOR
110 LG4260R-0035A ARM F/L(L) NSP
112 LG3070R-0002A BODY F/L NSP
113 LG4970R-0127A SPRING COIL D35 (F/L(R)) NSP
114 LG4260R-0036A ARM F/L(R) NSP
115 LG4510R-0042A LEVER SWITCH
116 LG4970R-0138A SPRING COIL D35 SWITCH
117 LG3300R-M137A PLATE SPRING CST
401 LG1MEC0261518 SCREW MACHINE,PAN HEAD SPR W D2.6 L4.5 MSWR3/FZY
402 LG1MPC0261418 SCREW MACHINE,PAN HEAD D 2.6 L 4.0 MSWR3/FZY
405 LG1SZZR-0031B SCREW,DRAWING + 1 D2.6 L5.8 SWRCH16A/FZY TAP
406 LG1MEC0302018 PAN HEAD MACHINE SCREW S/W + D 3.0 L 6.0 MSWR3/FZY
409 LG1SZZR-0032B SCREW,DRAWING + 1 D2.6 L5.0 SWRCH18A/FZY TAP
410 LG1APF0262218 SCREW TAP TITE(B),PAN HEAD D2.6 L6.8 MSWR3/FZY
517 LG1WZZR-0004D WASHER STOPPER
518 LG1WZZR-0004A WASHER STOPPER
HV-DX2E
6-25
SECTION 6 REPLACEMENT PARTS LIST
SANYO MODEL : HV-DX2EV NSP : Not avallable as service parts.
RUN DATE : 14-MAR-03
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
*** INDIVIDUAL PARTS ***
250 LG3110R-V004B CASE (COMBI-2) PRESS A288G-HOLE-7EA
260 LG3210R-V002B FRAME COMB-2 MOLD HIPS 60HR-BK
276 LG4930R-0298B HOLDER VCR - TIMER PWB(D+V-RIB CUTTIN
285 LG3581R-T046C DOOR ASSEMBLY VCR TRAY VYC600NP,CP
300 LG6410RCHP02B POWER CORD HIT-102/H0VHH2-F(WITH CORE) HI
330 LG3140R-V001B CHASSIS COMBI-2 PRESS PAL TYPE
452 LG353-051A SCREW SPECIAL
457 LG353-051E SCREW SPECIAL (3X12)
465 LG353-046K SCREW SPECIAL (3X10 B.K)
467 LG353-051G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FN TB ROUN
*** PACKING ACCESSORY ***
801 LG3835RP0099B INSTRUCTION ASSEMBLY VCR VYC600CP.NA3GSS
802 LG3890R-H540N BOX VYC600CP NA3GSS SWW3-A 1.285 3
803 LG3920R-E080A PACKING,CASING VC6000_S 0.02 150 EPS 4 1 1
804 LG292-053B BAG SOFT(MIDI) NSP
808 LG534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA
*** REMOTE CONTROLLER ***
900 LG6711R1N108D REMOTE CONTROLLER ASSEMBLY N6 VYC600CP SANYO W/SHOWVIEW
910 LG3550R-0431A COVER BATTERY(N6 HIPS 60HR 89991)
*** PANEL ASSEMBLY , FRONT ***
A43 LG3721R-F262L PANEL ASSEMBLY,FRONT VCR VYC600CP NA3GSS FRONT(DX2E
280 LG3720R-F200K PANEL,FRONT VCR VYC600 MOLD FRONT B589G NSP
283 LG3580R-V056C DOOR,CASE VCR VYV600NP MOLD CST A6509G
284 LG442-681A SPRING DOOR
*** CABLE ASSEMBLY , RF ***
810 LG6851RP0003F CABLE ASSY,RF CABLE ASSY,RF/SCART/RCA USING
806 LG6850R-CAA26 CABLE,COAXIAL 1200M/M PAL-PAL DOUBLE SHIELD
812 LG PLUG ASSY 2WAY RED/WHITE GLOBAL
*** DECK ASSEMBLY(DVD MD) ****
A26 LG6721RF0353B DECK ASSEMBLY,VIDEO DECK/MECHA DP5-4V(DVD+VCR) DI, NSP
A01 LG4861R-0015A CLAMP ASSEMBLY DISC(DP-5) DI
A02 LG3041R-M004A BASE ASSEMBLY MAIN (DP4) DI-IDECK
A03 LG3041R-M005A BASE ASSEMBLY SLED (DP5) DI
001 LG3300R-0547A PLATE CLAMP NSP
002 LG5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T) NSP
003 LG4860R-0006A CLAMP UPPER NSP
004 LG4930R-0171A HOLDER CLAMP
008 LG4470R-0047B GEAR ASSY RACK (DI)
009 LG4470R-0053A GEAR MIDDLE
010 LG6850R-GK22Z CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 11
011 LG3210R-0036A FRAME UP/D
011A LG6850R-JW14B CABLE,FLAT P=1.0 FFC UL2896(0.035X0.7) 23
012 LG5040R-0047A RUBBER REAR(E2,5040H-1054A),YAMAUCHI
012 LG5040R-0047B RUBBER DAMPER(E2,5040H-1054A),CHUNPOO ALTERNATE
012A LG5040R-0047C RUBBER DAMPER(HARDNESS=30),DARKGREEN
NOTES) Warning
NOTES) Parts that are shaded are critical
NOTES) With respect to risk of fire or
NOTES) electricial shock.
NOTES) If you want to purchase
Flash memory, you must order
"IC3F1A"
6-26
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
012A LG5040R-0047D RUBBER DAMPER(HARDNESS=30),DARKGREEN ALTERNATE
013 LG4400R-0006A BELT LOADING
014 LG4470R-0055A GEAR PULLEY
015 LG6871RZ5130A PWB(PCB) ASSEMBLY,OTHERS SUB,L/D (DP-4V,DVD+VCR) DI
016 LG4470R-0050B GEAR ASSY FEED (DI)
017 LG4470R-0056A GEAR LOADING
018 LG4974R-0023A GUIDE UP/DOWN
020 LG3040R-0024A BASE MAIN NSP
026 LG3390R-0005A TRAY DISC
026 LG3390RK0010A TRAY DISC + PACKING ALTERNATE
429 LG1SZZR-0012A SCREW, B-TITE
430 LG1SZZH-1003A SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
430 LG1SZZH-1003A SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
431 LG1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
432 LG1SZZR-0011A SCREW, MACHINE
*** SUB PWB(PCB)ASSEMBLY(DVD) ***
A46A LG6885R-5006B SUB PWB(PCB) ASSEMBLY 444503D2100500 FF 000101 VYC60
C201 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C202 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C203 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C204 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C205 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C206 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C207 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C208 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C209 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C210 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C211 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C212 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C213 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C214 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C215 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C216 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C224 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C225 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C226 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C229 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C230 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C231 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C232 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C238 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C239 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C240 LG0CH1222K562 CAPACITOR,CHIP[CERAMIC M/L HD 2200PF 50V K X7R(X) 1608 R/TP
C242 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C245 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C251 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C252 LG0CH4100K112 CHIP CAPA CERAMIC M/L T.C F/S 10P 50V D COG 1.6X0.8 R/TP
C253 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C254 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C255 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C258 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C261 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C262 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C263 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C264 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C265 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C272 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2EV
6-27
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C273 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C274 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C277 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C278 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C279 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C280 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C281 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C282 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C284 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C285 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C286 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C287 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C288 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C289 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C290 LG0CH4180K412 CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C291 LG0CH4180K412 CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C292 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C293 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C294 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C295 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C296 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C297 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C298 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C299 LG0CH4220K412 CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C2A0 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2A3 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A4 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2A5 LG0CH1683F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2A6 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2A7 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A8 LG0CH1152K562 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2A9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2B3 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C2B4 LG0CH1683F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2B5 LG0CH1333K562 CAPACITOR,CHIP[CERAMIC M/L HD 0.033UF 50V K X7R(X) 1508 R/TP
C2B9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C1 LG0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C2C2 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2C4 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C5 LG0CH1332K562 CAPACITOR,CHIP[CERAMIC M/L HD 3300P 50V K X7R 1.6X0.8 R/TP
C2C6 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C8 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C9 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D0 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D1 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D2 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D3 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D4 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D5 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D6 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D7 LG0CH1152K562 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2D9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2E1 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E2 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E3 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E4 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2M1 LG0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
HV-DX2EV
6-28
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C2M2 LG0CH1682K562 CAPACITOR,CHIP[CERAMIC M/L HD 6800P 50V K X7R 1.6X0.8 R/TP
C2M3 LG0CH1472K562 CAPACITOR,CHIP[CERAMIC M/L HD 4700PF 50V K X7R(X) 1608 R/TP
C2M4 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M5 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M6 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M7 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M8 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N1 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N3 LG0CH1223K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.022UF 50V Z Y5V(F) 1508 R/TP
C2N4 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C301 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C302 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C303 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C304 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C305 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C306 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C307 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C308 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C309 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C314 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C316 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C317 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C318 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C319 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C320 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C321 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C323 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C324 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F1 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C3F2 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F3 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C401 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C402 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C403 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C404 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C405 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C406 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C408 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C409 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C410 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C411 LG0CH1102K512 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C412 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C413 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C414 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C415 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C416 LG0CH1102K512 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C417 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C418 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C419 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C420 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C421 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C422 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C423 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C424 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C425 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C501 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2EV
6-29
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C502 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C503 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C504 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C506 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C507 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C508 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C509 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C510 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C511 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C512 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C513 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C514 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C515 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C516 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C517 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C518 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C519 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C520 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C521 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C522 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C523 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C525 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C526 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C527 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C528 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C529 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C530 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C531 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C532 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C533 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C534 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C535 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C536 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C538 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C540 LG0CH4220K412 CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C541 LG0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C542 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C543 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C544 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C546 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C549 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C550 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C553 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C554 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C555 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C556 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C557 LG0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C558 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C559 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C560 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C561 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
R525 LG0LC0233002B INDUCTOR,CHIP HB-1S1608-800JT CERATECH R/TP
D201 LG0DR495009AA DIODE,RECTIFIER RB495D TP ROHM SMD 40V 400A 2A
D2A1 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A2 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A3 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D401 LG0DSRM00118A DIODE,SWITCHING DAP202K T146 ROHM R/TP SMD 80V
HV-DX2EV
6-30
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
L201 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L206 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L207 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L208 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A1 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A2 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L301 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L302 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L3F1 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L501 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L502 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L503 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L504 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L505 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L506 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L507 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L508 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L509 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L510 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L511 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L603 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
IC201 LG0ILNRHY002B IC,LINEAR HDC25D811B HYUNDAI 208 QFP TRA
IC203 LG0IEB121616B IC,ELITE MEMORY TECHNOLOGY M12L16161A-7T-L 50PIN TSOP TRA
IC206 LGGITO704000F IC,TOSHIBA TC7W04FU
IC2A1 LG0ILNRHI003A IC,LINEAR HD153702TF HITACHI 64 TQFP TRA
IC2A2 LG0IJR341400C IC,JRC NJM3414AM-TE1,3K/REEL. JRC
IC2A4 LG0IKE393000G IC,KEC KIA393F-EL FLP-8 TP DUAL COMPA
IC2M1 LG0IFA303200A IC,FAIRCHILD KA3032 48QFP BK 5CH MOTOR DRIV ALTERNATE
IC2M1 LG0ILNRFA013A IC,LINEAR FAN8004 FAIRCHILD 48 QFP TRAY
IC301 LG0IXL957210C IC,XILINX XC9572XL-10TQ100C 100 QFP TRAY ALTERNATE
IC301 LG0ICTMHY011A IC,CUSTOMIZED HS353106 HYNIX 100 TQFP TRAY C
IC305 LG0IHY576532A IC,HYUNDAI HY57V653220CTC-7 86P TSOP BK S ALTERNATE
IC305 LG0IMMRHY025A IC,MEMORIES HY57V643220CT-7 HYUNDAI 86P TS
IC305 LG0IMMRWI004B IC,MEMORIES W986432DH-6 WINBOND 86PIN TSOP ALTERNATE
IC305 LG0IMMREB005A IC,MEMORIES M12L64322A-7T ELITE MEMORY TEC ALTERNATE
IC3F1 LG0IMMRFU001B IC,MEMORIES MBM29LV800BA-90PFTN FUJITSU 48
IC401 LG0IPRPCI003B IC,PERIPHERALS CS4391-KZR CIRRUS LOGIC 20 TSS
IC402 LG0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R
IC501 LG0INS860200A IC,NATIONAL SEMICONDUCTOR NDV8602 240 VQFP BK MICOM+MPEG
IC502 LG0IMMRCB001A IC,MEMORIES CAT93C56S-TE13 CRYSTAL SEMICON
IC502 LG0IMMRAL012A IC,MEMORIES AT93C56-10SC(SI)-2.7-8S1 ATMEL ALTERNATE
IC503 LG0IFA742440F IC,FAIRCHILD MM74HCT244SJ 20P SOIC TP 3-STA
IC506 LG0IPMGA7001A IC,POWER MANAGEMENT AMC1117-1.8SJ ADD MICROTECH 3P
IC3F1A LG6957R-509AB PROGRAM SANYO (NS) DVD PROG
Q2A1 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q2A2 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q2A5 LG0TR388209AA TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2A6 LG0TR388209AA TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2M1 LG0TR124009AP TRANSISTOR,BIPOLARS DTC124EK TP ROHM KOREA SOT23 3
Q401 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q404 LG0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
Q405 LG0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
R201 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R202 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R203 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R204 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R207 LG0RH1004C622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D
HV-DX2EV
6-31
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R217 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R218 LG0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R219 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R220 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R230 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R231 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R232 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R233 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R234 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R235 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R236 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R237 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R239 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R240 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R241 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R242 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R243 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R252 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R269 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R273 LG0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R274 LG0RH6200C622 RESISTOR,METAL GLAZED(CHIP) 620 OHM 1 / 16 W 1608 5.00% D
R275 LG0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R276 LG0RH9100C622 RESISTOR,METAL GLAZED(CHIP) 910 OHM 1 / 16 W 1608 5.00% D
R277 LG0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R278 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R279 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R281 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R290 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R291 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R292 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2A1 LG0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
R2A2 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2A6 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2A9 LG0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R2B0 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B2 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B3 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B4 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2B5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B6 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B7 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B8 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2C0 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C4 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C6 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C7 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C8 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C9 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D0 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D1 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D2 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D3 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D4 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D5 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R2D6 LG0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
HV-DX2EV
6-32
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R2E6 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E7 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E8 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2F1 LG0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F2 LG0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F3 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F4 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F5 LG0RH2202C422 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 1.00% D
R2F6 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F7 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F8 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2F9 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G1 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G2 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G3 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G4 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G7 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2G9 LG0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R2M1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M2 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M3 LG0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R2M5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M6 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M7 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M8 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M9 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N0 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N2 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2N3 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N4 LG0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R2N5 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N6 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N7 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N8 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N9 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P0 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2P1 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P2 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P3 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P7 LG0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R2P8 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R2P9 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2Q1 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2R1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2R2 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R303 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R306 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R307 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R308 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R309 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R310 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R315 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R317 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R318 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R319 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R320 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
HV-DX2EV
6-33
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R321 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R322 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R323 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R364 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R365 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R366 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R367 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R368 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R369 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F1 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F2 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R3F3 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F4 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F5 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R401 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R403 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R404 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R405 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R406 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R407 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R409 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R410 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R411 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R412 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R413 LG0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R414 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R415 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R416 LG0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R417 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R418 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R419 LG0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R420 LG0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R428 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R429 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R430 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R431 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R432 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R433 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R434 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R435 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R436 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R437 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R438 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R439 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R440 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R441 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R501 LG0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R502 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R503 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R504 LG0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R505 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R506 LG0RH1001C422 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 1.00% D
R507 LG0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R508 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R509 LG0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R510 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R514 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
HV-DX2EV
6-34
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R515 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R516 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R520 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R521 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R522 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R523 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R524 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R530 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R531 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R532 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R533 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R534 LG0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D
R535 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R541 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R588 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R589 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R590 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R591 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R592 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
X201 LG6202R-BM04C RESONATOR,CRYSTAL HC-49/S BUBANG 33-8688MHZ 5
X501 LG6202R-BL06C RESONATOR,CRYSTAL HC-49/S BUBANG 27MHZ 20PPM 1 ALTERNATE
X501 LG6212AA2271F RESONATOR,CRYSTAL HC-49S KITELCO 27MHZ +/- 20 PP
*** BOARD ASSEMBLY , MAIN(VCR) ***
A46 LG3501R-8119C BOARD ASSEMBLY VCR 2003 COMBI SCART (DI)
323 LG3111R-0089C CASE ASSEMBLY VCR - PRE-AMP (02-PAL)
C301 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C302 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C303 LG0CH1122K516 CHIP CAPA CERAMIC M/L H.D F/S 1200P 50V K B 2.0X1.25 R/TP
C304 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C305 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C306 LG0CH1122K516 CHIP CAPA CERAMIC M/L H.D F/S 1200P 50V K B 2.0X1.25 R/TP
C307 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C308 LG0CH1153K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.015U 50V K B 2.0X1.2 R/TP
C309 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C310 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C311 LG0CE4765K618 CAPACITOR,AL.ELECTROLYTIC 47UF SR,SV 50V M FL TP 5
C312 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C313 LG0CQ2232L559 CAPACITOR,POLYESTER 0.022UF S 63V K PP NI TP5
C314 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C315 LG0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C316 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C317 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C318 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C319 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C320 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C321 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C322 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C323 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C324 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C325 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C326 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C327 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C328 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C329 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C330 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C331 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C333 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2EV
6-35
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C334 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C335 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C336 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C337 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C338 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C339 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C340 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C341 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C342 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C343 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C345 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C346 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C347 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C348 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C349 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C350 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C351 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C353 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C355 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C356 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C357 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C358 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C359 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C360 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C361 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C362 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C363 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C366 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C367 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C368 LG0CH1822K516 CHIP CAPA CERAMIC M/L H.D F/S 8200P 50V K B 2.0X1.2 R/TP
C369 LG0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP
C370 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C371 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C372 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C374 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C375 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C376 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C377 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C500 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C501 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C502 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C503 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C504 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C505 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C506 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C508 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C509 LG0CH4220K406 CHIP CAPA CERAMIC M/L T.C F/S 22P 50V J SL 2.0X1.2 R/TP
C511 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C512 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C513 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C514 LG0CH4120K406 CAPACITOR,FIXED CERAMIC(High d 12PF 50V 5% SL 2012 R/TP
C515 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C516 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C517 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C518 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C519 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C520 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
HV-DX2EV
6-36
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C521 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C523 LG0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C524 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C526 LG0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5
C527 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C531 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C532 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C533 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C534 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C535 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C543 LG0CH1222K516 CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C544 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C545 LG0CH1333H516 CHIP CAPA CERAMIC M/L H.D F/S 0.033U 25V K B 2.0X1.25 R/TP
C546 LG0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5
C547 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C551 LG0CH1333H516 CHIP CAPA CERAMIC M/L H.D F/S 0.033U 25V K B 2.0X1.25 R/TP
C552 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C561 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C564 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C567 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C570 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C571 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C575 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C576 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C577 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C578 LG0CH1222K516 CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C581 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C582 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C583 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C595 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C596 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5A3 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5A4 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5A5 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C5K1 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5L1 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C5L6 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C5P1 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5P2 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5R2 LG0CH4681K416 CAPA,CHIP CERAMIC M/L T.C F/S 680PF 50V J NP0 2012 R/TP
C5S1 LG0CH4430K416 CAPACITOR,FIXED CERAMIC(High d 43PF 50V J NP0 2012 R/TP
C5S3 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C706 LG0CH4330K416 CAPA,CHIP CERAMIC M/L T.C F/S 33P 50V J C 2.0X1.2 R/TP
C707 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C708 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C709 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C710 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C712 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C713 LG0CH4560K416 CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C714 LG0CH4560K416 CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C715 LG0CH4050K016 CAPA,CHIP CERAMIC M/L T.C F/S 5P 50V C COG 2.0X1.2 R/TP
C716 LG0CH4100K416 CAPA,CHIP CERAMIC M/L T.C F/S 10PF 50V J NP0 2012 R/TP
C717 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C718 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C719 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C720 LG0CH1152K516 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% B(5YP) 2012 R/T
C721 LG0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP
HV-DX2EV
6-37
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C722 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C723 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C726 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C727 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C728 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C729 LG0CE3354K638 CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C730 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C731 LG0CH4090K116 CAPACITOR,FIXED CERAMIC(High d 9PF 50V 0.5 pF NP0 2012 R/TP
C732 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C751 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C752 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C755 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C7M1 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C7M2 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C7M3 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C7M6 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C7V1 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C7V2 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C7V3 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C7V4 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C7V5 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C802 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C803 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C804 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C805 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C806 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C807 LG0CE4744K638 CAPACITOR,ELECTROLYTIC 0.47M SRA 50V M FM5 TP(5)
C808 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C809 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C810 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C811 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C812 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C813 LG0CH1682K516 CAPACITOR,FIXED CERAMIC(Temp.c 6800PF 50V 10% B(5YP) 2012 R/T
C814 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C815 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C816 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C817 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C818 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C819 LG0CH1682K516 CAPACITOR,FIXED CERAMIC(Temp.c 6800PF 50V 10% B(5YP) 2012 R/T
C820 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C821 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C822 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C823 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C824 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C825 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C826 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C828 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C829 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C834 LG0CE4774F638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 16V 20% FM5 TP 5
C855 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C856 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C857 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C859 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C860 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C861 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C863 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C864 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
HV-DX2EV
6-38
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C869 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C870 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C871 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C884 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C885 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C886 LG0CE4774F638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 16V 20% FM5 TP 5
C887 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C888 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C889 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C890 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C891 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C908 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C910 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C911 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C912 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C915 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C916 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C921 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C924 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C925 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C931 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C932 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C933 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C938 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
FL301 LG633-032K COIL,IFT BIAC OSC,1CHIP 5V(KS-75M) KWAN
L301 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L301 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L301 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L302 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L303 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L303 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L303 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L304 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L304 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L304 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L305 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L307 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L307 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L307 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L501 LG0LA0122K018 INDUCTOR AXIAL LEAD 12M K 2.3X3.4 L5 TP
L503 LG0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5
L504 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L504 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L505 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L506 LG635-027C INDUCTOR,RADIAL LEAD EL0405RA SKI150G-3 K-TDK 15UH
L5S1 LG0LA0332K018 INDUCTOR AXIAL LEAD 33M K 2.3X3.4 L5 TP
L701 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L702 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L704 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L705 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L706 LG0LA0821K018 INDUCTOR AXIAL LEAD 8.2M K 2.3X3.4 L5 TP
L7M1 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L7V1 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L801 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L803 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L901 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L902 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
HV-DX2EV
6-39
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
L903 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L904 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L905 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L906 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L907 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L910 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
D301 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D502 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D509 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D801 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D802 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D902 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
BC91 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BC92 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
F8A1 LG6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
IC301 LG0ILNRSA005B IC,LINEAR LA71750EM SANYO 100PIN QFP TRA
IC501 LG0IMCRHI030A IC,MICRO CONTROLLER HD6432197SA23F HITACHI 112PIN
IC503 LG0IAL241600B IC,ATMEL AT24C16 - - - - ALTERNATE
IC503 LG0ICS241600B IC,CATALYST CAT24W16P 8P DIP ST 16K SERIAL
IC504 LG0ISS753100A IC,SAMSUNG ELECTRONICS KA7531Z TO-92 TP 3.1V RESET ALTERNATE
IC504 LG0IKE703100A IC,KEC KIA7031P 3P 3.1V RESET(TAPING)
IC505 LG0IKE704200B IC,KEC KIA7042P 3P 4.2V RESET(TAPING)
IC751 LG0IIT341700B IC,ITT MSP3417D-QG QFP44 BK NICAM+A2 ALTERNATE
IC751 LG0IIT341700C IC,ITT MSP3417G-QG-B8-V3 44 QFP TRAY
IC7V1 LG0ILNRMN001A IC,LINEAR SDA5650 MICRONAS 14 DIP ST VPS
IC801 LG0IPH960500A IC,PHILIPS TDA9605H QFP44 BK HIFI AMP+HIF
IC802 LG0IMT144300A IC,MITSUMI MM1443XJ SSOP-34 TP CANAL S/W
JK902 LG6612J00025H JACK,RCA RCA-1302A-12(5PIN)SILVER YUQIU
SC901 LG6620RM0002J JACK,SCART DSAM-0121 DOOWON 2F-21P(BL-BK)
LD501 LG4931R-0017C HOLDER ASSY LED(DI-CKD)LOCAL
Q173 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q301 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q302 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q303 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q304 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q305 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q306 LG0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA ALTERNATE
Q306 LG0TR534409AA TRANSISTOR 2SC5344Y TP
Q308 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q309 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q501 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q502 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q503 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q504 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q514 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q515 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q5S1 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q705 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q706 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q801 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q802 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q804 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q901 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q902 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q903 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
C216 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J806 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
HV-DX2EV
6-40
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
J902 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J903 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J904 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J905 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R173 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R301 LG0RH5602D622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R302 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R303 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R304 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R305 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R306 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R307 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R308 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R309 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R310 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R311 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R312 LG0RH6802D622 RESISTOR,METAL GLAZED(CHIP) 68K OHM 1 / 10 W 2012 5.00% D
R313 LG0RH0221D622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 10 W 2012 5.00% D
R314 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R315 LG0RH0472D622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 10 W 2012 5.00% D
R316 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R317 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R318 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R319 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R320 LG0RH1500D622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 10 W 2012 5.00% D
R321 LG0RH1201D622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 10 W 2012 5.00% D
R322 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R324 LG0RH3303D622 RESISTOR,METAL GLAZED(CHIP) 330K OHM 1 / 10 W 2012 5.00% D
R325 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R326 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R327 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R328 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R329 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R330 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R331 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R332 LG0RH4702D622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R333 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R334 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R335 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R336 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R337 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R338 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R339 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R340 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R342 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R343 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R344 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R345 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R346 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R347 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R349 LG0RH1801D622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R350 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R351 LG0RH8203D622 RESISTOR,METAL GLAZED(CHIP) 820K OHM 1 / 10 W 2012 5.00% D
R352 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R353 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R3A2 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R501 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
HV-DX2EV
6-41
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R502 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R503 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R504 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R505 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R506 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R508 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R509 LG0RH1801D622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R510 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R511 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R512 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R513 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R514 LG0RH1203D622 RESISTOR,METAL GLAZED(CHIP) 120K OHM 1 / 10 W 2012 5.00% D
R515 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R516 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R517 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R518 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R519 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R520 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R521 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R522 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R523 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R524 LG0RH0222D622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 10 W 2012 5.00% D
R525 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R526 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R527 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R528 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R529 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R530 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R531 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R535 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R542 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R543 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R544 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R545 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R546 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R547 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R548 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R550 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R553 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R554 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R555 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R556 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R557 LG0RH2702D622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R558 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R559 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R560 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R561 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R562 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R563 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R564 LG0RH2702D622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R566 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R567 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R568 LG0RH6802D622 RESISTOR,METAL GLAZED(CHIP) 68K OHM 1 / 10 W 2012 5.00% D
R569 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R570 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R575 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R576 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
HV-DX2EV
6-42
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R577 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R578 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R579 LG0RH5602D622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R582 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R583 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R589 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R591 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R5A2 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5A3 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5A5 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R5B3 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5B4 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5B5 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5C1 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C5 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C6 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C7 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C9 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5K6 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5K7 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5K8 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5L1 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R5P2 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5P3 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5R8 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5S1 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R705 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R706 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R707 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R710 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R711 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R712 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R713 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R714 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R715 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R716 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R717 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R718 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R719 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R7M1 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R7M2 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R7M4 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R7M5 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R7V1 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R7V2 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R7V3 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R7V4 LG0RH5603D622 RESISTOR,METAL GLAZED(CHIP) 560K OHM 1 / 10 W 2012 5.00% D
R7V5 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R7V6 LG0RH5603D622 RESISTOR,METAL GLAZED(CHIP) 560K OHM 1 / 10 W 2012 5.00% D
R7V7 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R7V8 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R7V9 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R801 LG0RH3304D622 RESISTOR,METAL GLAZED(CHIP) 3.3M OHM 1 / 10 W 2012 5.00% D
R802 LG0RH3302D622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 10 W 2012 5.00% D
R803 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R804 LG0RH3902D622 RESISTOR,METAL GLAZED(CHIP) 39K OHM 1 / 10 W 2012 5.00% D
R805 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
HV-DX2EV
6-43
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R806 LG0RH3302D622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 10 W 2012 5.00% D
R807 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R808 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R809 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R810 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R811 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R812 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R821 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R822 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R823 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R824 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R825 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R826 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R835 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R841 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R842 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R850 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R851 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R861 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R862 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R863 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R864 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R874 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R875 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R876 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R890 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R901 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R902 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R903 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R904 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R905 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R906 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R907 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R908 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R909 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R910 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R911 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R913 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R914 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R919 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R920 LG0RH6800D622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 10 W 2012 5.00% D
R927 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R928 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R929 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R930 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R931 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R932 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R933 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R934 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
ES501 LG4931R-0050C HOLDER ASSEMBLY END (DI)
ES502 LG4931R-0050C HOLDER ASSEMBLY END (DI)
RS501 LG6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO
RS501 LG6500RAB007A SENSOR GP1S566V SHARP REEL SENSOR OF ALTERNATE
RS502 LG6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO
RS502 LG6500RAB007A SENSOR GP1S566V SHARP REEL SENSOR OF ALTERNATE
CS501 LG6600M000002 SWITCH,PUSH MPU11810MLB0 MIC DC 5V 1MA D-3
MS501 LG6600JB8005B SWITCH,MODE NON 5V 1MA VERTICAL -G
HV-DX2EV
6-44
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
MS501 LG6600JB8005C SWITCH,MODE MMS00721ZMB0 MIC 5VDC 1MA D-35 ALTERNATE
TU701 LG6700PFPG04F TUNER TCMK0601PD23C(GKI,SS) SS PAL F ALTERNATE
TU701 LG6700PFPL06F TUNER TADC-M401D(GKI,LGIT) LG INOTEK
X301 LG6202R2443AE RESONATOR,CRYSTAL HC49U SSANG TAE 4433709HZ 1 ALTERNATE
X301 LG6202R2443AC RESONATOR,CRYSTAL HC49U BUBANG 4-433709MHZ 15
X301 LG6202R2443AG RESONATOR,CRYSTAL HC49U SSANGTAE 4-433709MHZ ALTERNATE
X501 LG6202R31001F RESONATOR,CRYSTAL HC-49S KEUMSEOK 10-0000MHZ 30P ALTERNATE
X501 LG6212AA2100C RESONATOR,CRYSTAL HC-49S BUBANG 10MHZ +/- 30 PPM
X502 LG6202R-DA01B RESONATOR,CRYSTAL CFS-308 CITIZEN 32.768KHZ +/- ALTERNATE
X502 LG6212AC2327E RESONATOR,CRYSTAL C-001R SEIKO EPSON 32.768 KHZ
X751 LG529-021Q RESONATOR,CRYSTAL 49U BUBANG 18432000HZ 30PPM 16
X751 LG6212AA2184F RESONATOR,CRYSTAL HC-49U KYUNGIL 18.432MHZ +/- 3 ALTERNATE
*** PWB(PCB) ASSEMBLY , POWER ***
A48 LG6871R-7211C PWB(PCB) ASSEMBLY,TOTAL 2003 COMBI SCART POWER DI X120
C101 LG624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/275V
C102 LG624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/275V
C103 LG624-082C CAPACITOR,AL.ELECTROLYTIC 100MF/400V SHL SMPS S/Y
C105 LG0CQ1031Y519 CAPACITOR,POLYESTER 0.01UF D 630V K PE NI TP
C106 LG624-087G CAPACITOR HIGH-VOL 68PF/1KV SMPS SAMHWA
C107 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C108 LG0CE336BH638 CAPACITOR,ELECTROLYTIC 33UF KME 25V M FM5 TP5
C109 LG0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S
C110 LG0CG1020U630 CAPACITOR,SEMI CERAMIC 1000PF 400V M E(Z5U) R
C111 LG0CG2220U630 CAPACITOR,SEMI CERAMIC 2200 PF 400V M E R (NK,AD,SD)
C123 LG0CE477BH630 CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK
C126 LG0CE2276H638 CAPACITOR,FIXED ELECTROLYTIC 220UF SMS,SG 25V 20% FM5 TP 5
C127 LG0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK
C128 LG0CE3376D638 CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5
C129 LG0CE228BF630 CAPACITOR,FIXED ELECTROLYTIC 2200UF KME TYPE 16V 20% FM5 BU
C131 LG624-082H CAPACITOR CE 1000UF/10V SHL(10*12.5)T/P
C132 LG624-085D CAPACITOR CE 47UF/50V KME (SMPS)
C133 LG0CQ1042K409 CAPACITOR,FIXED FILM 0.1UF S 50V J PE TP
C151 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C152 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C153 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C154 LG0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C155 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C159 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C161 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C163 LG624-087H CAPACITOR HIGH-VOL 220PF/1KV CERAMIC
L122 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L123 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L124 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
BD101 LG0DD160000DA DIODE S1WBA60(1A 600V) SHIDENKEN
D101 LG0DD010009CA DIODE,RECTIFIER EG01CW(R-FORM 5MM) TP SANKEN ALTERNATE
D101 LG0DD221009AA DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI
D102 LG0DD010009AC DIODE EU01W(R-FORM) TP SANKEN
D102 LG0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A ALTERNATE
D110 LG0DR302000AB DIODE,RECTIFIER HER302 BK RECTRON DO201AD 100V
D111 LG0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D112 LG0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D113 LG0DD010009AC DIODE EU01W(R-FORM) TP SANKEN
D113 LG0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A ALTERNATE
D114 LG0DR104009AB DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D115 LG0DR104009AB DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D121 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
BD01 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
HV-DX2EV
6-45
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
BD02 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
L102 LG616-145P FILTER(CIRC),DRAWING LFSQ2215V4-04220B SAMWAH TECOM
F101 LG0FS1601B51D FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS/J
IC101 LG0IPMGFF001A IC,POWER MANAGEMENT ICE2B265 INFINEON 8 DIP ST SMP
IC103 LG0IKE431000A IC,KEC KIA431 3 PIN TP
IC151 LG0IPMGKE008B IC,POWER MANAGEMENT KIA78R08PI CU KEC 4P TO-220IS
IC152 LG0IPMGFA046A IC,POWER MANAGEMENT KA278R33TSTU FAIRCHILD 4PIN TO ALTERNATE
IC152 LG0IPMGKE022B IC,POWER MANAGEMENT KIA278R33PI-CU KEC 4PIN TO-220
Q156 LG0TR320509AB TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC
Q160 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q160 LG0TR928009AD TRANSISTOR KSA928A-Y,TO-92L TP SAMSUNG TO ALTERNATE
Q161 LG0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC
Q162 LG0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92
R100 LG0RD1504H632 RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10
R101 LG614-007A RESISTOR 2.7/2W CEMENT SMPS V
R104 LG0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR
R105 LG0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R106 LG0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R107 LG0RS0350K619 RESISTOR,FIXED METAL OXIDE FIL 0.35 OHM 2 W 5.00% TR
R112 LG0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26
R113 LG0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R114 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R115 LG0RN3301F408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26
R116 LG0RN2701F408 RESISTOR,FIXED METAL FILM 2.7K OHM 1/6 W 1% TA26
R117 LG0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26
R119 LG0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26
R131 LG0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R132 LG0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R153 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R154 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R155 LG0RD1802F608 RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26
R156 LG0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R157 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R158 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R159 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R163 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R164 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R170 LG0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R171 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
IC102 LG657-063A SENSOR LTV-817B,PHOTO COUPLER(LITEON)
T101 LG6170RNGW12A TRANSFORMER,SMPS[COIL] EER3530 SOOJUNG WIDE EER3530
V101 LG656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT
ZD103 LG0DZ130009AA DIODE,ZENER MTZ13A TP ROHM-K
*** BOARD ASSEMBLY , TIMER ***
A49 LG3501R-6413A BOARD ASSEMBLY VCR VYC601M TIMER
274 LG3300R-V033A PLATE VYC601 PRESS JACK GND SUS 0.2T
C601 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C613 LG0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
C614 LG0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
C6G1 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C6G2 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
L5G1 LG0LR4700K035 INDUCTOR RADIAL LEAD 470M K 6X6 L5 TP
L602 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L603 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
IC601 LG0ILNRPY001A IC,LINEAR PT6955 PTC 24P SOP ST LED DRIV
JK601 LG6612JH003AC JACK,RCA BJP-113D BAE EUN YELLOW
JK602 LG6612JH003AB JACK,RCA BJP-113C BAE EUN WHITE
HV-DX2EV
6-46
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
JK603 LG6612JH003AA JACK,RCA BJP-113B BAE EUN RED
LD601 LG6301R2U008B LED ASSEMBLY TOS-3664AGMGMRMY-B OASIS UNIVE
R604 LG0RD5602F608 RESISTOR,FIXED CARBON FILM 56K OHM 1/6 W 5% TA26
R605 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R611 LG0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R612 LG0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26
R613 LG0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26
R614 LG0RD6800F608 RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26
R615 LG0RD8200F608 RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26
R616 LG0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26
R641 LG0RD0752F608 RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26
RC601 LG6712R1638GA REMOTE CONTROLLER RECEIVER TSOP1838RF1 VISHAY(TEMIC) 37-
SW601 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW602 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW603 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW604 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW605 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW606 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW607 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
*** BOARD ASSEMBLY , KEY ***
A42 LG3501R-6414A BOARD ASSEMBLY VCR VYC601M KEY
LED601 LG0DL112000AJ DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
LED602 LG0DL112000AJ DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
Q601 LG0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K
Q602 LG0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K
R618 LG0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R619 LG0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R620 LG0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R621 LG0RD3301F608 RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26
R622 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R623 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R630 LG0RD1500F608 RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
R631 LG0RD1500F608 RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
SW608 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW609 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW610 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW611 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW612 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
*** DECK ASSEMBLY (VCR) ***
A00 LG6721RF0750B DECK ASSEMBLY,VIDEO D35(N) DI (4HF, PAL, AHC(O), B NSP
A01 LG6723R-0403C DRUM(CIRC) ASSEMBLY D35-6CH PAL (8P6C)
A03 LG4261R-0025A ARM ASSY CLEANER
A04 LG4811RF0038A BRACKET ASSEMBLY L/D(S)
A04 LG4811RF0038B BRACKET ASSEMBLY L/D(M) - DI ALTERNATE
A11 LG4471R-0005A GEAR ASSY P3
A12 LG4471R-0004A GEAR ASSY P2
A21 LG4931R-0047A HOLDER ASSY CST
A22 LG4471R-0006A GEAR ASSY RACK F/L
A23 LG4261R-0023A ARM ASSY F/L
A24 LG4510R-0046A LEVER ASSY SWITCH
001 LG6723R-0306C DRUM(CIRC) ASSEMBLY SUB D35-6CH (8P6C) NSP
002 LG4680R-B005A MOTOR(MECH) DRUM I2OAL05 SEJIN-SANKYO ICLE
002 LG4680R-B003B MOTOR(MECH) DRUM VH4301 KUMAGAYA DRUM MOTO ALTERNATE
002 LG4680R-B007A MOTOR(MECH) DRUM MDVC-035AA LGIT FOR D-35, ALTERNATE
002A LG5202R00002C BRUSH,CARBON ASSY D33 (TIP+2 SPRING) 1.4,
003 LG4930R-0284A HOLDER FPC(6CH)
004 LG5006R-0034A CAP FPC
HV-DX2EV
6-47
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
006 LG4580R-0004A ROLLER CLEANER NSP
007 LG4260R-0039A ARM CLEANER NSP
008 LG6850R-HG18Z CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7
009 LG4260R-0038A ARM T/UP(D35)
010 LG4810R-0125A BRACKET CHASSIS
011 LG4261R-0022A ARM ASSY TENSION(D35)
012 LG3041R-0037A BASE ASSY P2
013 LG3041R-0038A BASE ASSY P3
014 LG3041R-0039A BASE ASSY P4
015 LG5870R-0005A OPENER LID(D35)
016 LG3041R-0036A BASE ASSEMBLY A/C HEAD (ALPS)
017 LG4408R-0003A REEL S
018 LG4970R-0140A SPRING COIL RS D35
019 LG4421R-0008A BRAKE ASSEMBLY RS
020 LG4970R-0128A SPRING COIL D35 (TB)
021 LG4421R-0006A BRAKE ASSY T
022 LG6520D00001A HEAD(CIRC) D35 FE TDK FE HEAD ALTERNATE
022 LG6520D00002A HEAD(CIRC) D35 FE ST FE HEAD
023 LG3040R-0057A BASE LOADING
024 LG4261R-0029A ARM ASSEMBLY IDLER (N)
025 LG4810R-0118A BRACKET L/D(S) NSP
026 LG4680R-D002A MOTOR(MECH) LOADING MDB2B66 SANKYO D35 ASP NSP
027 LG4470R-0093A GEAR WHEEL NSP
028 LG4408R-0004A REEL T
029 LG4261R-0019A ARM ASSEMBLY DECK/MECHA PINCH ALTERNATE
029 LG4261R-0019D ARM ASSEMBLY DECK/MECHA PINCH ALTERNATE
029 LG4261R-0019C ARM ASSEMBLY DECK/MECHA PINCH
029 LG4261R-0019B ARM ASSEMBLY PINCH ALTERNATE
030 LG4510R-0043A LEVER T/UP
031 LG4970R-0123A SPRING COIL TENSION(D35)
032 LG3141R-0040A CHASSIS ASSY D35 NSP
051 LG4400R-0005A BELT CAPSTAN
052 LG4680R-A006A MOTOR(MECH) CAPSTAN MCVC-035AA LGIT BLDC 3 ALTERNATE
052 LG4680R-A007A MOTOR(MECH) CAPSTAN F2QVB06 SANKYO D35 ASR
052 LG4680R-A008A MOTOR(MECH) CAPSTAN SAMSUNG DMVCMC09L D35 ALTERNATE
052A LG4980R-0023A SUPPORTER CAPSTAN(D35)
054 LG4470R-0100A GEAR RACK F/L
054A LG4970R-0124B SPRING COIL D35 (RACK F/L)
055 LG4470R-0097A GEAR DRIVE(D35)
056 LG4470R-0096A GEAR CAM(D35)
058 LG4421R-0007A BRAKE ASSY CAPSTAN
060 LG4510R-0040A LEVER F/R(D35)
061 LG4265R-0006A CLUTCH ASSEMBLY D35 (N)
064 LG4470R-0098A GEAR SECTOR(D35)
065 LG4261R-0021A ARM ASSY P3 NSP
066 LG4970R-0122A SPRING COIL D35 NSP
067 LG4470R-0095A GEAR P3 NSP
068 LG4470R-0094A GEAR P2 NSP
069 LG4970R-0122A SPRING COIL D35 NSP
070 LG4261R-0020A ARM ASSY P2 NSP
076 LG4510R-0047A LEVER SPRING
077 LG3300R-M116A PLATE SLIDER
078 LG4510R-0041A LEVER TENSION
079 LG3040R-0056A BASE TENSION(D35)
100 LG3301R-M022A PLATE ASSEMBLY TOP
100A LG3300R-0184A PLATE GND
100B LG3300R-M118A PLATE TOP(D35)
HV-DX2EV
6-48
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
102 LG4970R-0130A SPRING COIL D35 (STOPPER)
103 LG4930R-0276A HOLDER SIDE(L) NSP
105 LG4930R-0274A HOLDER CST NSP
106 LG4930R-0275A HOLDER SIDE(R) NSP
107 LG4510R-0044A LEVER STOPPER NSP
109 LG5870R-0004A OPENER DOOR
110 LG4260R-0035A ARM F/L(L) NSP
112 LG3070R-0002A BODY F/L NSP
113 LG4970R-0127A SPRING COIL D35 (F/L(R)) NSP
114 LG4260R-0036A ARM F/L(R) NSP
115 LG4510R-0042A LEVER SWITCH
116 LG4970R-0138A SPRING COIL D35 SWITCH
117 LG3300R-M137A PLATE SPRING CST
401 LG1MEC0261518 SCREW MACHINE,PAN HEAD SPR W D2.6 L4.5 MSWR3/FZY
402 LG1MPC0261418 SCREW MACHINE,PAN HEAD D 2.6 L 4.0 MSWR3/FZY
405 LG1SZZR-0031B SCREW,DRAWING + 1 D2.6 L5.8 SWRCH16A/FZY TAP
406 LG1MEC0302018 PAN HEAD MACHINE SCREW S/W + D 3.0 L 6.0 MSWR3/FZY
409 LG1SZZR-0032B SCREW,DRAWING + 1 D2.6 L5.0 SWRCH18A/FZY TAP
410 LG1APF0262218 SCREW TAP TITE(B),PAN HEAD D2.6 L6.8 MSWR3/FZY
517 LG1WZZR-0004D WASHER STOPPER
518 LG1WZZR-0004A WASHER STOPPER
HV-DX2EV
6-49
SECTION 6 REPLACEMENT PARTS LIST
SANYO MODEL : HV-DX2SP NSP : Not avallable as service parts.
RUN DATE : 14-MAR-03
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
*** INDIVIDUAL PARTS ***
250 LG3110R-V004B CASE (COMBI-2) PRESS A288G-HOLE-7EA
260 LG3210R-V002B FRAME COMB-2 MOLD HIPS 60HR-BK
276 LG4930R-0298B HOLDER VCR - TIMER PWB(D+V-RIB CUTTIN
285 LG3581R-T046C DOOR ASSEMBLY VCR TRAY VYC600NP,CP
300 LG6410RCHP02B POWER CORD HIT-102/H0VHH2-F(WITH CORE) HI
330 LG3140R-V001B CHASSIS COMBI-2 PRESS PAL TYPE
452 LG353-051A SCREW SPECIAL
457 LG353-051E SCREW SPECIAL (3X12)
465 LG353-046K SCREW SPECIAL (3X10 B.K)
467 LG353-051G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FN TB ROUN
*** PACKING ACCESSORY ***
801 LG3835RP0099C INSTRUCTION ASSEMBLY VCR VYC600NP.NA6SSS
802 LG3890R-H540P BOX VYC600NP NA6SSS SWW3-A 1.285 3
803 LG3920R-E080A PACKING,CASING VC6000_S 0.02 150 EPS 4 1 1
804 LG292-053B BAG SOFT(MIDI) NSP
808 LG534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA
*** REMOTE CONTROLLER ***
900 LG6711R1N108E REMOTE CONTROLLER ASSEMBLY N6 VYC600NP SANYO W/O SHOWVIEW
910 LG3550R-0431A COVER BATTERY(N6 HIPS 60HR 89991)
*** PANEL ASSEMBLY , FRONT ***
A43 LG3721R-F262N PANEL ASSEMBLY,FRONT VCR VYC600NP NA6SSS FRONT(DX2S
280 LG3720R-F200K PANEL,FRONT VCR VYC600 MOLD FRONT B589G NSP
283 LG3580R-V056C DOOR,CASE VCR VYV600NP MOLD CST A6509G
284 LG442-681A SPRING DOOR
*** CABLE ASSEMBLY , RF ***
810 LG6851RP0003F CABLE ASSY,RF CABLE ASSY,RF/SCART/RCA USING
806 LG6850R-CAA26 CABLE,COAXIAL 1200M/M PAL-PAL DOUBLE SHIELD
812 LG6611R2G001A PLUG ASSY 2WAY RED/WHITE GLOBAL
*** DECK ASSEMBLY(DVD MD) ****
A26 LG6721RF0353B DECK ASSEMBLY,VIDEO DECK/MECHA DP5-4V(DVD+VCR) DI, NSP
A01 LG4861R-0015A CLAMP ASSEMBLY DISC(DP-5) DI
A02 LG3041R-M004A BASE ASSEMBLY MAIN (DP4) DI-IDECK
A03 LG3041R-M005A BASE ASSEMBLY SLED (DP5) DI
001 LG3300R-0547A PLATE CLAMP NSP
002 LG5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T) NSP
003 LG4860R-0006A CLAMP UPPER NSP
004 LG4930R-0171A HOLDER CLAMP
008 LG4470R-0047B GEAR ASSY RACK (DI)
009 LG4470R-0053A GEAR MIDDLE
010 LG6850R-GK22Z CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 11
011 LG3210R-0036A FRAME UP/D
011A LG6850R-JW14B CABLE,FLAT P=1.0 FFC UL2896(0.035X0.7) 23
012 LG5040R-0047A RUBBER REAR(E2,5040H-1054A),YAMAUCHI
012 LG5040R-0047B RUBBER DAMPER(E2,5040H-1054A),CHUNPOO ALTERNATE
012A LG5040R-0047C RUBBER DAMPER(HARDNESS=30),DARKGREEN
NOTES) Warning
NOTES) Parts that are shaded are critical
NOTES) With respect to risk of fire or
NOTES) electricial shock.
NOTES) If you want to purchase
Flash memory, you must order
"IC3F1A"
6-50
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
012A LG5040R-0047D RUBBER DAMPER(HARDNESS=30),DARKGREEN ALTERNATE
013 LG4400R-0006A BELT LOADING
014 LG4470R-0055A GEAR PULLEY
015 LG6871RZ5130A PWB(PCB) ASSEMBLY,OTHERS SUB,L/D (DP-4V,DVD+VCR) DI
016 LG4470R-0050B GEAR ASSY FEED (DI)
017 LG4470R-0056A GEAR LOADING
018 LG4974R-0023A GUIDE UP/DOWN
020 LG3040R-0024A BASE MAIN NSP
026 LG3390R-0005A TRAY DISC
026 LG3390RK0010A TRAY DISC + PACKING ALTERNATE
429 LG1SZZR-0012A SCREW, B-TITE
430 LG1SZZH-1003A SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
430 LG1SZZH-1003A SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
431 LG1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
432 LG1SZZR-0011A SCREW, MACHINE
*** SUB PWB(PCB)ASSEMBLY(DVD) ***
A46A LG6885R-5004B SUB PWB(PCB) ASSEMBLY 455301D2100500 FF 000101 VYC60
C201 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C202 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C203 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C204 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C205 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C206 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C207 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C208 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C209 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C210 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C211 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C212 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C213 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C214 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C215 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C216 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C224 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C225 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C226 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C229 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C230 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C231 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C232 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C238 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C239 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C240 LG0CH1222K562 CAPACITOR,CHIP[CERAMIC M/L HD 2200PF 50V K X7R(X) 1608 R/TP
C242 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C245 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C251 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C252 LG0CH4100K112 CHIP CAPA CERAMIC M/L T.C F/S 10P 50V D COG 1.6X0.8 R/TP
C253 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C254 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C255 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C258 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C261 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C262 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C263 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C264 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C265 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C272 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2SP
6-51
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C273 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C274 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C277 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C278 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C279 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C280 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C281 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C282 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C284 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C285 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C286 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C287 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C288 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C289 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C290 LG0CH4180K412 CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C291 LG0CH4180K412 CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C292 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C293 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C294 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C295 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C296 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C297 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C298 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C299 LG0CH4220K412 CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C2A0 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2A3 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A4 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2A5 LG0CH1683F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2A6 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2A7 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A8 LG0CH1152K562 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2A9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2B3 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C2B4 LG0CH1683F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2B5 LG0CH1333K562 CAPACITOR,CHIP[CERAMIC M/L HD 0.033UF 50V K X7R(X) 1508 R/TP
C2B9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C1 LG0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C2C2 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2C4 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C5 LG0CH1332K562 CAPACITOR,CHIP[CERAMIC M/L HD 3300P 50V K X7R 1.6X0.8 R/TP
C2C6 LG0CH1102K562 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C8 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C9 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D0 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D1 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D2 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D3 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D4 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D5 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D6 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D7 LG0CH1152K562 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2D9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2E1 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E2 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E3 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E4 LG0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2M1 LG0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
6-52
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C2M2 LG0CH1682K562 CAPACITOR,CHIP[CERAMIC M/L HD 6800P 50V K X7R 1.6X0.8 R/TP
C2M3 LG0CH1472K562 CAPACITOR,CHIP[CERAMIC M/L HD 4700PF 50V K X7R(X) 1608 R/TP
C2M4 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M5 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M6 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M7 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M8 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M9 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N1 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N3 LG0CH1223K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.022UF 50V Z Y5V(F) 1508 R/TP
C2N4 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C301 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C302 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C303 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C304 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C305 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C306 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C307 LG0CH1105D942 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C308 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C309 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C314 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C316 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C317 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C318 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C319 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C320 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C321 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C323 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C324 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F1 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C3F2 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F3 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C401 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C402 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C403 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C404 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C405 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C406 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C408 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C409 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C410 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C411 LG0CH1102K512 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C412 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C413 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C414 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C415 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C416 LG0CH1102K512 CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C417 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C418 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C419 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C420 LG0CH1392K562 CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C421 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C422 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C423 LG0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C424 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C425 LG0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C501 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2SP
6-53
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C502 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C503 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C504 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C506 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C507 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C508 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C509 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C510 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C511 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C512 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C513 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C514 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C515 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C516 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C517 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C518 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C519 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C520 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C521 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C522 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C523 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C525 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C526 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C527 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C528 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C529 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C530 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C531 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C532 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C533 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C534 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C535 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C536 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C538 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C540 LG0CH4220K412 CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C541 LG0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C542 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C543 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C544 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C546 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C549 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C550 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C553 LG0CH4221K412 CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C554 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C555 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C556 LG0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C557 LG0CH4270K412 CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C558 LG0CH1104F942 CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C559 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C560 LG0CH1225F944 CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C561 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
R525 LG0LC0233002B INDUCTOR,CHIP HB-1S1608-800JT CERATECH R/TP
D201 LG0DR495009AA DIODE,RECTIFIER RB495D TP ROHM SMD 40V 400A 2A
D2A1 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A2 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A3 LG0DS202009CA DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D401 LG0DSRM00118A DIODE,SWITCHING DAP202K T146 ROHM R/TP SMD 80V
6-54
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
L201 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L206 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L207 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L208 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A1 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A2 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L301 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L302 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L3F1 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L501 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L502 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L503 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L504 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L505 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L506 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L507 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L508 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L509 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L510 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L511 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L603 LG6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
IC201 LG0ILNRHY002B IC,LINEAR HDC25D811B HYUNDAI 208 QFP TRA
IC203 LG0IEB121616B IC,ELITE MEMORY TECHNOLOGY M12L16161A-7T-L 50PIN TSOP TRA
IC206 LGGITO704000F IC,TOSHIBA TC7W04FU
IC2A1 LG0ILNRHI003A IC,LINEAR HD153702TF HITACHI 64 TQFP TRA
IC2A2 LG0IJR341400C IC,JRC NJM3414AM-TE1,3K/REEL. JRC
IC2A4 LG0IKE393000G IC,KEC KIA393F-EL FLP-8 TP DUAL COMPA
IC2M1 LG0IFA303200A IC,FAIRCHILD KA3032 48QFP BK 5CH MOTOR DRIV ALTERNATE
IC2M1 LG0ILNRFA013A IC,LINEAR FAN8004 FAIRCHILD 48 QFP TRAY
IC301 LG0IXL957210C IC,XILINX XC9572XL-10TQ100C 100 QFP TRAY ALTERNATE
IC301 LG0ICTMHY011A IC,CUSTOMIZED HS353106 HYNIX 100 TQFP TRAY C
IC305 LG0IHY576532A IC,HYUNDAI HY57V653220CTC-7 86P TSOP BK S ALTERNATE
IC305 LG0IMMRHY025A IC,MEMORIES HY57V643220CT-7 HYUNDAI 86P TS
IC305 LG0IMMRWI004B IC,MEMORIES W986432DH-6 WINBOND 86PIN TSOP ALTERNATE
IC305 LG0IMMREB005A IC,MEMORIES M12L64322A-7T ELITE MEMORY TEC ALTERNATE
IC3F1 LG0IMMRFU001B IC,MEMORIES MBM29LV800BA-90PFTN FUJITSU 48
IC401 LG0IPRPCI003B IC,PERIPHERALS CS4391-KZR CIRRUS LOGIC 20 TSS
IC402 LG0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R
IC501 LG0INS860200A IC,NATIONAL SEMICONDUCTOR NDV8602 240 VQFP BK MICOM+MPEG
IC502 LG0IMMRCB001A IC,MEMORIES CAT93C56S-TE13 CRYSTAL SEMICON
IC502 LG0IMMRAL012A IC,MEMORIES AT93C56-10SC(SI)-2.7-8S1 ATMEL ALTERNATE
IC503 LG0IFA742440F IC,FAIRCHILD MM74HCT244SJ 20P SOIC TP 3-STA
IC506 LG0IPMGA7001A IC,POWER MANAGEMENT AMC1117-1.8SJ ADD MICROTECH 3P
IC3F1A LG6957R-509AB PROGRAM SANYO (NS) DVD PROG
Q2A1 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q2A2 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q2A5 LG0TR388209AA TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2A6 LG0TR388209AA TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2M1 LG0TR124009AP TRANSISTOR,BIPOLARS DTC124EK TP ROHM KOREA SOT23 3
Q401 LG0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q404 LG0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
Q405 LG0TR103009AC TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
R201 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R202 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R203 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R204 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R207 LG0RH1004C622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D
HV-DX2SP
6-55
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R217 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R218 LG0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R219 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R220 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R230 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R231 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R232 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R233 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R234 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R235 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R236 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R237 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R239 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R240 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R241 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R242 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R243 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R252 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R269 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R273 LG0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R274 LG0RH6200C622 RESISTOR,METAL GLAZED(CHIP) 620 OHM 1 / 16 W 1608 5.00% D
R275 LG0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R276 LG0RH9100C622 RESISTOR,METAL GLAZED(CHIP) 910 OHM 1 / 16 W 1608 5.00% D
R277 LG0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R278 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R279 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R281 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R290 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R291 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R292 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2A1 LG0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
R2A2 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2A6 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2A9 LG0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R2B0 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B2 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B3 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B4 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2B5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B6 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B7 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B8 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2C0 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C4 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C6 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C7 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C8 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C9 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D0 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D1 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D2 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D3 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D4 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D5 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R2D6 LG0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
6-56
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R2E6 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E7 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E8 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2F1 LG0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F2 LG0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F3 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F4 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F5 LG0RH2202C422 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 1.00% D
R2F6 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F7 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F8 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2F9 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G1 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G2 LG0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G3 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G4 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G7 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2G9 LG0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R2M1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M2 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M3 LG0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R2M5 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M6 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M7 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M8 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M9 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N0 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N2 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2N3 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N4 LG0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R2N5 LG0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N6 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N7 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N8 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N9 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P0 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2P1 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P2 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P3 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P7 LG0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R2P8 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R2P9 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2Q1 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2R1 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2R2 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R303 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R306 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R307 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R308 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R309 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R310 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R315 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R317 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R318 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R319 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R320 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
HV-DX2SP
6-57
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R321 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R322 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R323 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R364 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R365 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R366 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R367 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R368 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R369 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F1 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F2 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R3F3 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F4 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F5 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R401 LG0RH0182C622 RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R403 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R404 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R405 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R406 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R407 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R409 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R410 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R411 LG0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R412 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R413 LG0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R414 LG0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R415 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R416 LG0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R417 LG0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R418 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R419 LG0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R420 LG0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R428 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R429 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R430 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R431 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R432 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R433 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R434 LG0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R435 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R436 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R437 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R438 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R439 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R440 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R441 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R501 LG0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R502 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R503 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R504 LG0RH1500C422 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R505 LG0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R506 LG0RH1001C422 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 1.00% D
R507 LG0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R508 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R509 LG0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R510 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R514 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
6-58
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R515 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R516 LG0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R520 LG0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R521 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R522 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R523 LG0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R524 LG0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R530 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R531 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R532 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R533 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R534 LG0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D
R535 LG0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R541 LG0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R588 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R589 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R590 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R591 LG0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R592 LG0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
X201 LG6202R-BM04C RESONATOR,CRYSTAL HC-49/S BUBANG 33-8688MHZ 5
X501 LG6202R-BL06C RESONATOR,CRYSTAL HC-49/S BUBANG 27MHZ 20PPM 1 ALTERNATE
X501 LG6212AA2271F RESONATOR,CRYSTAL HC-49S KITELCO 27MHZ +/- 20 PP
*** BOARD ASSEMBLY , MAIN(VCR) ***
A46 LG3501R-8119R BOARD ASSEMBLY VCR VYC600NP NA6SSS
323 LG3111R-0089C CASE ASSEMBLY VCR - PRE-AMP (02-PAL)
C301 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C302 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C303 LG0CH1122K516 CHIP CAPA CERAMIC M/L H.D F/S 1200P 50V K B 2.0X1.25 R/TP
C304 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C305 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C306 LG0CH1122K516 CHIP CAPA CERAMIC M/L H.D F/S 1200P 50V K B 2.0X1.25 R/TP
C307 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C308 LG0CH1153K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.015U 50V K B 2.0X1.2 R/TP
C309 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C310 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C311 LG0CE4765K618 CAPACITOR,AL.ELECTROLYTIC 47UF SR,SV 50V M FL TP 5
C312 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C313 LG0CQ2232L559 CAPACITOR,POLYESTER 0.022UF S 63V K PP NI TP5
C314 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C315 LG0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C316 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C317 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C318 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C319 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C320 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C321 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C322 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C323 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C324 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C325 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C326 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C327 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C328 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C329 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C330 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C331 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C333 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
HV-DX2SP
6-59
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C334 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C335 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C336 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C337 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C338 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C339 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C340 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C341 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C342 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C343 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C345 LG0CH1473K516 CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C346 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C347 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C348 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C349 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C350 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C351 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C353 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C355 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C356 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C357 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C358 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C359 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C360 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C361 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C362 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C363 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C366 LG0CH1103K416 CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 5% B(5YP) 2012 R/TP
C367 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C368 LG0CH1822K516 CHIP CAPA CERAMIC M/L H.D F/S 8200P 50V K B 2.0X1.2 R/TP
C369 LG0CH4101K416 CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP
C370 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C371 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C372 LG0CH4820K416 CAPA,CHIP CERAMIC M/L T.C F/S 82P 50V J COG 2.0X1.2 R/TP
C374 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C375 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C376 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C377 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C500 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C501 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C502 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C503 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C504 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C505 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C506 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C508 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C509 LG0CH4220K406 CHIP CAPA CERAMIC M/L T.C F/S 22P 50V J SL 2.0X1.2 R/TP
C511 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C512 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C513 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C514 LG0CH4120K406 CAPACITOR,FIXED CERAMIC(High d 12PF 50V 5% SL 2012 R/TP
C515 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C516 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C517 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C518 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C519 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C520 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
6-60
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C521 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C523 LG0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C524 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C526 LG0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5
C527 LG0CH4221K416 CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C531 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C532 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C533 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C534 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C535 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C543 LG0CH1222K516 CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C544 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C545 LG0CH1333H516 CHIP CAPA CERAMIC M/L H.D F/S 0.033U 25V K B 2.0X1.25 R/TP
C546 LG0CE4764J638 CAPACITOR,AL.ELECTROLYTIC 47UF SRA,SS 35V M FM5 TP 5
C547 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C551 LG0CH1333H516 CHIP CAPA CERAMIC M/L H.D F/S 0.033U 25V K B 2.0X1.25 R/TP
C552 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C561 LG0CE2274C638 CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C564 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C567 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C570 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C571 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C575 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C576 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C577 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C578 LG0CH1222K516 CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C581 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C582 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C583 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C595 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C596 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5A3 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5A4 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5A5 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C5K1 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C5L1 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C5L6 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C5P1 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5P2 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C5R2 LG0CH4681K416 CAPA,CHIP CERAMIC M/L T.C F/S 680PF 50V J NP0 2012 R/TP
C5S1 LG0CH4430K416 CAPACITOR,FIXED CERAMIC(High d 43PF 50V J NP0 2012 R/TP
C5S3 LG0CH1223K516 CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C706 LG0CH4330K416 CAPA,CHIP CERAMIC M/L T.C F/S 33P 50V J C 2.0X1.2 R/TP
C707 LG0CH4680K416 CAPA,CHIP CERAMIC M/L T.C F/S 68P 50V J COG 2.0X1.2 R/TP
C708 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C709 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C710 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C712 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C713 LG0CH4560K416 CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C714 LG0CH4560K416 CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C715 LG0CH4050K016 CAPA,CHIP CERAMIC M/L T.C F/S 5P 50V C COG 2.0X1.2 R/TP
C716 LG0CH4100K416 CAPA,CHIP CERAMIC M/L T.C F/S 10PF 50V J NP0 2012 R/TP
C717 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C718 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C719 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C720 LG0CH1152K516 CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% B(5YP) 2012 R/T
C721 LG0CH1392K566 CAPACITOR,FIXED CERAMIC(Temp.c 3900P 50V K X7R 2.0X1.2 R/TP
HV-DX2SP
6-61
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C722 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C723 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C726 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C727 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C728 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C729 LG0CE3354K638 CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C730 LG0CH4150K416 CAPA,CHIP CERAMIC M/L T.C F/S 15P 50V J COG 2.0X1.2 R/TP
C731 LG0CH4090K116 CAPACITOR,FIXED CERAMIC(High d 9PF 50V 0.5 pF NP0 2012 R/TP
C732 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C751 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C752 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C755 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C7M1 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C7M2 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C7M3 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C7M6 LG0CH4270K416 CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C7V1 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C7V2 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C7V3 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C7V4 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C7V5 LG0CH1473K946 CHIP CAPA CERAMIC M/L H.D F/S 0.047UF 50V Z Y5V(F) 2012 R/TP
C802 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C803 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C804 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C805 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C806 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C807 LG0CE4744K638 CAPACITOR,ELECTROLYTIC 0.47M SRA 50V M FM5 TP(5)
C808 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C809 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C810 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C811 LG0CH1105F946 CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C812 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C813 LG0CH1682K516 CAPACITOR,FIXED CERAMIC(Temp.c 6800PF 50V 10% B(5YP) 2012 R/T
C814 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C815 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C816 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C817 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C818 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C819 LG0CH1682K516 CAPACITOR,FIXED CERAMIC(Temp.c 6800PF 50V 10% B(5YP) 2012 R/T
C820 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C821 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C822 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C823 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C824 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C825 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C826 LG0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C828 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C829 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C834 LG0CE4774F638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 16V 20% FM5 TP 5
C855 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C856 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C857 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C859 LG0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C860 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C861 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C863 LG0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C864 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
6-62
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C869 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C870 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C871 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C884 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C885 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C886 LG0CE4774F638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 16V 20% FM5 TP 5
C887 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C888 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C889 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C890 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C891 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C908 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C910 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C911 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C912 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C915 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C916 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C921 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C924 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C925 LG0CH1102K516 CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C931 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C932 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C933 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C938 LG0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
FL301 LG633-032K COIL,IFT BIAC OSC,1CHIP 5V(KS-75M) KWAN
L301 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L301 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L301 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L302 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L303 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L303 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L303 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L304 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L304 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L304 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L305 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L307 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L307 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L307 LGGLR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L501 LG0LA0122K018 INDUCTOR AXIAL LEAD 12M K 2.3X3.4 L5 TP
L503 LG0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5
L504 LG0LR0102J0N5 INDUCTOR,RADIAL LEAD 10UH 5% TP 3X5 TR5
L504 LG0LR0102K0P5 INDUCTOR,RADIAL LEAD LF7.5N OEL 10UH 10% TP 4.8X4.0 ALTERNATE
L505 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L506 LG635-027C INDUCTOR,RADIAL LEAD EL0405RA SKI150G-3 K-TDK 15UH
L5S1 LG0LA0332K018 INDUCTOR AXIAL LEAD 33M K 2.3X3.4 L5 TP
L701 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L702 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L704 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L705 LG0LR0102K035 INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L706 LG0LA0821K018 INDUCTOR AXIAL LEAD 8.2M K 2.3X3.4 L5 TP
L7M1 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L7V1 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L801 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L803 LG0LR1000K035 INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L901 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L902 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
HV-DX2SP
6-63
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
L903 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L904 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L905 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L906 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L907 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L910 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
D301 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D502 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D509 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D801 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D802 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
D902 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
BC91 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BC92 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
F8A1 LG6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
IC301 LG0ILNRSA005B IC,LINEAR LA71750EM SANYO 100PIN QFP TRA
IC501 LG0IMCRHI030A IC,MICRO CONTROLLER HD6432197SA23F HITACHI 112PIN
IC503 LG0IAL241600B IC,ATMEL AT24C16 - - - - ALTERNATE
IC503 LG0ICS241600B IC,CATALYST CAT24W16P 8P DIP ST 16K SERIAL
IC504 LG0ISS753100A IC,SAMSUNG ELECTRONICS KA7531Z TO-92 TP 3.1V RESET ALTERNATE
IC504 LG0IKE703100A IC,KEC KIA7031P 3P 3.1V RESET(TAPING)
IC505 LG0IKE704200B IC,KEC KIA7042P 3P 4.2V RESET(TAPING)
IC751 LG0IIT341700B IC,ITT MSP3417D-QG QFP44 BK NICAM+A2 ALTERNATE
IC751 LG0IIT341700C IC,ITT MSP3417G-QG-B8-V3 44 QFP TRAY
IC7V1 LG0ILNRMN001A IC,LINEAR SDA5650 MICRONAS 14 DIP ST VPS
IC801 LG0IPH960500A IC,PHILIPS TDA9605H QFP44 BK HIFI AMP+HIF
IC802 LG0IMT144300A IC,MITSUMI MM1443XJ SSOP-34 TP CANAL S/W
JK902 LG6612J00025H JACK,RCA RCA-1302A-12(5PIN)SILVER YUQIU
SC901 LG6620RM0002J JACK,SCART DSAM-0121 DOOWON 2F-21P(BL-BK)
LD501 LG4931R-0017C HOLDER ASSY LED(DI-CKD)LOCAL
CS501 LG6600M000002 SWITCH,PUSH MPU11810MLB0 MIC DC 5V 1MA D-3
MS501 LG6600JB8005B SWITCH,MODE NON 5V 1MA VERTICAL -G
MS501 LG6600JB8005C SWITCH,MODE MMS00721ZMB0 MIC 5VDC 1MA D-35 ALTERNATE
Q173 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q301 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q302 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q303 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q304 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q305 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q306 LG0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA ALTERNATE
Q306 LG0TR534409AA TRANSISTOR 2SC5344Y TP
Q308 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q309 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q501 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q502 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q503 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q504 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q514 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q515 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q5S1 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q705 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q706 LG0TR103009AA TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q801 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q802 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q804 LG0TR150409AC TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q901 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q902 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
6-64
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
Q903 LG0TR387509AC TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
C216 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J806 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J902 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J903 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J904 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J905 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R173 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R301 LG0RH5602D622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R302 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R303 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R304 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R305 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R306 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R307 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R308 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R309 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R310 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R311 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R312 LG0RH6802D622 RESISTOR,METAL GLAZED(CHIP) 68K OHM 1 / 10 W 2012 5.00% D
R313 LG0RH0221D622 RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 10 W 2012 5.00% D
R314 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R315 LG0RH0472D622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 10 W 2012 5.00% D
R316 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R317 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R318 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R319 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R320 LG0RH1500D622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 10 W 2012 5.00% D
R321 LG0RH1201D622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 10 W 2012 5.00% D
R322 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R324 LG0RH3303D622 RESISTOR,METAL GLAZED(CHIP) 330K OHM 1 / 10 W 2012 5.00% D
R325 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R326 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R327 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R328 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R329 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R330 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R331 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R332 LG0RH4702D622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R333 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R334 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R335 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R336 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R337 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R338 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R339 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R340 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R342 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R343 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R344 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R345 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R346 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R347 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R349 LG0RH1801D622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R350 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R351 LG0RH8203D622 RESISTOR,METAL GLAZED(CHIP) 820K OHM 1 / 10 W 2012 5.00% D
R352 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
HV-DX2SP
6-65
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R353 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R3A2 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R501 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R502 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R503 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R504 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R505 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R506 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R508 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R509 LG0RH1801D622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R510 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R511 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R512 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R513 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R514 LG0RH1203D622 RESISTOR,METAL GLAZED(CHIP) 120K OHM 1 / 10 W 2012 5.00% D
R515 LG0RH2700D622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R516 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R517 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R518 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R519 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R520 LG0RH3901D622 RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R521 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R522 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R523 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R524 LG0RH0222D622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 10 W 2012 5.00% D
R525 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R526 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R527 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R528 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R529 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R530 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R531 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R535 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R542 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R543 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R544 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R545 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R546 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R547 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R548 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R550 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R553 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R554 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R555 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R556 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R557 LG0RH2702D622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R558 LG0RH2202D622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R559 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R560 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R561 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R562 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R563 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R564 LG0RH2702D622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R566 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R567 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R568 LG0RH6802D622 RESISTOR,METAL GLAZED(CHIP) 68K OHM 1 / 10 W 2012 5.00% D
R569 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
6-66
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R570 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R575 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R576 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R577 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R578 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R579 LG0RH5602D622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R582 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R583 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R589 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R591 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R5A2 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5A3 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5A5 LG0RH4703D622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 10 W 2012 5.00% D
R5B3 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5B4 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5B5 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5C1 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C5 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C6 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C7 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5C9 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5K6 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5K7 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5K8 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R5L1 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R5P2 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5P3 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R5R8 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R5S1 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R705 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R706 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R707 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R710 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R711 LG0RH3301D622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R712 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R713 LG0RH5601D622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R714 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R715 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R716 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R717 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R718 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R719 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R7M1 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R7M2 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R7M4 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R7M5 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R7V1 LG0RH1004D622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R7V2 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R7V3 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R7V4 LG0RH5603D622 RESISTOR,METAL GLAZED(CHIP) 560K OHM 1 / 10 W 2012 5.00% D
R7V5 LG0RH6801D622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R7V6 LG0RH5603D622 RESISTOR,METAL GLAZED(CHIP) 560K OHM 1 / 10 W 2012 5.00% D
R7V7 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R7V8 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R7V9 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R801 LG0RH3304D622 RESISTOR,METAL GLAZED(CHIP) 3.3M OHM 1 / 10 W 2012 5.00% D
R802 LG0RH3302D622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 10 W 2012 5.00% D
HV-DX2SP
6-67
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R803 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R804 LG0RH3902D622 RESISTOR,METAL GLAZED(CHIP) 39K OHM 1 / 10 W 2012 5.00% D
R805 LG0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R806 LG0RH3302D622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 10 W 2012 5.00% D
R807 LG0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R808 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R809 LG0RH1802D622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R810 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R811 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R812 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R821 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R822 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R823 LG0RH2201D622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R824 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R825 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R826 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R835 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R841 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R842 LG0RH3300D622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 10 W 2012 5.00% D
R850 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R851 LG0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R861 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R862 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R863 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R864 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R874 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R875 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R876 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R890 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R901 LG0RH1202D622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R902 LG0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R903 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R904 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R905 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R906 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R907 LG0RH5600D622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R908 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R909 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R910 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R911 LG0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R913 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R914 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R919 LG0RH4701D622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R920 LG0RH6800D622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 10 W 2012 5.00% D
R927 LG0RH0752D622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R928 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R929 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R930 LG0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R931 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R932 LG0RH2200D622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R933 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R934 LG0RH1003D622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
ES501 LG4931R-0050C HOLDER ASSEMBLY END (DI)
ES502 LG4931R-0050C HOLDER ASSEMBLY END (DI)
RS501 LG6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO
RS501 LG6500RAB007A SENSOR GP1S566V SHARP REEL SENSOR OF ALTERNATE
RS502 LG6500RAB003A SENSOR SG-260 KODENSHI D33 REEL SENSO
6-68
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
RS502 LG6500RAB007A SENSOR GP1S566V SHARP REEL SENSOR OF ALTERNATE
TU701 LG6700PFPG04F TUNER TCMK0601PD23C(GKI,SS) SS PAL F ALTERNATE
TU701 LG6700PFPL06F TUNER TADC-M401D(GKI,LGIT) LG INOTEK
X301 LG6202R2443AE RESONATOR,CRYSTAL HC49U SSANG TAE 4433709HZ 1 ALTERNATE
X301 LG6202R2443AC RESONATOR,CRYSTAL HC49U BUBANG 4-433709MHZ 15
X301 LG6202R2443AG RESONATOR,CRYSTAL HC49U SSANGTAE 4-433709MHZ ALTERNATE
X501 LG6202R31001F RESONATOR,CRYSTAL HC-49S KEUMSEOK 10-0000MHZ 30P ALTERNATE
X501 LG6212AA2100C RESONATOR,CRYSTAL HC-49S BUBANG 10MHZ +/- 30 PPM
X502 LG6202R-DA01B RESONATOR,CRYSTAL CFS-308 CITIZEN 32.768KHZ +/- ALTERNATE
X502 LG6212AC2327E RESONATOR,CRYSTAL C-001R SEIKO EPSON 32.768 KHZ
X751 LG529-021Q RESONATOR,CRYSTAL 49U BUBANG 18432000HZ 30PPM 16
X751 LG6212AA2184F RESONATOR,CRYSTAL HC-49U KYUNGIL 18.432MHZ +/- 3 ALTERNATE
*** PWB(PCB) ASSEMBLY , POWER ***
A48 LG6871R-7211C PWB(PCB) ASSEMBLY,TOTAL 2003 COMBI SCART POWER DI X120
C101 LG624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/275V
C102 LG624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/275V
C103 LG624-082C CAPACITOR,AL.ELECTROLYTIC 100MF/400V SHL SMPS S/Y
C105 LG0CQ1031Y519 CAPACITOR,POLYESTER 0.01UF D 630V K PE NI TP
C106 LG624-087G CAPACITOR HIGH-VOL 68PF/1KV SMPS SAMHWA
C107 LG0CE1054K638 CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C108 LG0CE336BH638 CAPACITOR,ELECTROLYTIC 33UF KME 25V M FM5 TP5
C109 LG0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S
C110 LG0CG1020U630 CAPACITOR,SEMI CERAMIC 1000PF 400V M E(Z5U) R
C111 LG0CG2220U630 CAPACITOR,SEMI CERAMIC 2200 PF 400V M E R (NK,AD,SD)
C123 LG0CE477BH630 CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK
C126 LG0CE2276H638 CAPACITOR,FIXED ELECTROLYTIC 220UF SMS,SG 25V 20% FM5 TP 5
C127 LG0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK
C128 LG0CE3376D638 CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5
C129 LG0CE228BF630 CAPACITOR,FIXED ELECTROLYTIC 2200UF KME TYPE 16V 20% FM5 BU
C131 LG624-082H CAPACITOR CE 1000UF/10V SHL(10*12.5)T/P
C132 LG624-085D CAPACITOR CE 47UF/50V KME (SMPS)
C133 LG0CQ1042K409 CAPACITOR,FIXED FILM 0.1UF S 50V J PE TP
C151 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C152 LG0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C153 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C154 LG0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C155 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C159 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C161 LG0CE4764C638 CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C163 LG624-087H CAPACITOR HIGH-VOL 220PF/1KV CERAMIC
L122 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L123 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L124 LG633-088G COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
BD101 LG0DD160000DA DIODE S1WBA60(1A 600V) SHIDENKEN
D101 LG0DD010009CA DIODE,RECTIFIER EG01CW(R-FORM 5MM) TP SANKEN ALTERNATE
D101 LG0DD221009AA DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI
D102 LG0DD010009AC DIODE EU01W(R-FORM) TP SANKEN
D102 LG0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A ALTERNATE
D110 LG0DR302000AB DIODE,RECTIFIER HER302 BK RECTRON DO201AD 100V
D111 LG0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D112 LG0DR158220AA DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D113 LG0DD010009AC DIODE EU01W(R-FORM) TP SANKEN
D113 LG0DR104009BA DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A ALTERNATE
D114 LG0DR104009AB DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D115 LG0DR104009AB DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D121 LG0DD133009AA DIODE,SWITCHING 1SS133 DETECT,SW TP
BD01 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
HV-DX2SP
6-69
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
BD02 LG636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
L102 LG616-145P FILTER(CIRC),DRAWING LFSQ2215V4-04220B SAMWAH TECOM
F101 LG0FS1601B51D FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS/J
IC101 LG0IPMGFF001A IC,POWER MANAGEMENT ICE2B265 INFINEON 8 DIP ST SMP
IC103 LG0IKE431000A IC,KEC KIA431 3 PIN TP
IC151 LG0IPMGKE008B IC,POWER MANAGEMENT KIA78R08PI CU KEC 4P TO-220IS
IC152 LG0IPMGFA046A IC,POWER MANAGEMENT KA278R33TSTU FAIRCHILD 4PIN TO ALTERNATE
IC152 LG0IPMGKE022B IC,POWER MANAGEMENT KIA278R33PI-CU KEC 4PIN TO-220
Q156 LG0TR320509AB TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC
Q160 LG0TR127309AA TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q160 LG0TR928009AD TRANSISTOR KSA928A-Y,TO-92L TP SAMSUNG TO ALTERNATE
Q161 LG0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC
Q162 LG0TR534309BA TRANSISTOR 2SC5343-L TP AUK TO92
R100 LG0RD1504H632 RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10
R101 LG614-007A RESISTOR 2.7/2W CEMENT SMPS V
R104 LG0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR
R105 LG0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R106 LG0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R107 LG0RS0350K619 RESISTOR,FIXED METAL OXIDE FIL 0.35 OHM 2 W 5.00% TR
R112 LG0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26
R113 LG0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R114 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R115 LG0RN3301F408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26
R116 LG0RN2701F408 RESISTOR,FIXED METAL FILM 2.7K OHM 1/6 W 1% TA26
R117 LG0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26
R119 LG0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26
R131 LG0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R132 LG0RD2203F608 RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R153 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R154 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R155 LG0RD1802F608 RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26
R156 LG0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R157 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R158 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R159 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R163 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R164 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R170 LG0RD1002F608 RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R171 LG0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
IC102 LG657-063A SENSOR LTV-817B,PHOTO COUPLER(LITEON)
T101 LG6170RNGW12A TRANSFORMER,SMPS[COIL] EER3530 SOOJUNG WIDE EER3530
V101 LG656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT
ZD103 LG0DZ130009AA DIODE,ZENER MTZ13A TP ROHM-K
*** BOARD ASSEMBLY , TIMER ***
A49 LG3501R-6413A BOARD ASSEMBLY VCR VYC601M TIMER
274 LG3300R-V033A PLATE VYC601 PRESS JACK GND SUS 0.2T
C601 LG0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C613 LG0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
C614 LG0CN1020K518 CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
C6G1 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C6G2 LG0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
L5G1 LG0LR4700K035 INDUCTOR RADIAL LEAD 470M K 6X6 L5 TP
L602 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L603 LG0LA1000K018 INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
IC601 LG0ILNRPY001A IC,LINEAR PT6955 PTC 24P SOP ST LED DRIV
JK601 LG6612JH003AC JACK,RCA BJP-113D BAE EUN YELLOW
JK602 LG6612JH003AB JACK,RCA BJP-113C BAE EUN WHITE
6-70
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
JK603 LG6612JH003AA JACK,RCA BJP-113B BAE EUN RED
LD601 LG6301R2U008B LED ASSEMBLY TOS-3664AGMGMRMY-B OASIS UNIVE
R604 LG0RD5602F608 RESISTOR,FIXED CARBON FILM 56K OHM 1/6 W 5% TA26
R605 LG0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R611 LG0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R612 LG0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26
R613 LG0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26
R614 LG0RD6800F608 RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26
R615 LG0RD8200F608 RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26
R616 LG0RD2701F608 RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26
R641 LG0RD0752F608 RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26
RC601 LG6712R1638GA REMOTE CONTROLLER RECEIVER TSOP1838RF1 VISHAY(TEMIC) 37-
SW601 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW602 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW603 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW604 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW605 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW606 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW607 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
*** BOARD ASSEMBLY , KEY ***
A42 LG3501R-6414A BOARD ASSEMBLY VCR VYC601M KEY
LED601 LG0DL112000AJ DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
LED602 LG0DL112000AJ DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
Q601 LG0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K
Q602 LG0TR120309AE TRANSISTOR SRC1203 TP AUK TO92 22K,22K
R618 LG0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R619 LG0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R620 LG0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R621 LG0RD3301F608 RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26
R622 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R623 LG0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R630 LG0RD1500F608 RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
R631 LG0RD1500F608 RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
SW608 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW609 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW610 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW611 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW612 LG556-219B SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
*** DECK ASSEMBLY(VCR) ***
A00 LG6721RF0750B DECK ASSEMBLY,VIDEO D35(N) DI (4HF, PAL, AHC(O), B NSP
A01 LG6723R-0403C DRUM(CIRC) ASSEMBLY D35-6CH PAL (8P6C)
A03 LG4261R-0025A ARM ASSY CLEANER
A04 LG4811RF0038A BRACKET ASSEMBLY L/D(S)
A04 LG4811RF0038B BRACKET ASSEMBLY L/D(M) - DI ALTERNATE
A11 LG4471R-0005A GEAR ASSY P3
A12 LG4471R-0004A GEAR ASSY P2
A21 LG4931R-0047A HOLDER ASSY CST
A22 LG4471R-0006A GEAR ASSY RACK F/L
A23 LG4261R-0023A ARM ASSY F/L
A24 LG4510R-0046A LEVER ASSY SWITCH
001 LG6723R-0306C DRUM(CIRC) ASSEMBLY SUB D35-6CH (8P6C) NSP
002 LG4680R-B005A MOTOR(MECH) DRUM I2OAL05 SEJIN-SANKYO ICLE
002 LG4680R-B003B MOTOR(MECH) DRUM VH4301 KUMAGAYA DRUM MOTO ALTERNATE
002 LG4680R-B007A MOTOR(MECH) DRUM MDVC-035AA LGIT FOR D-35, ALTERNATE
002A LG5202R00002C BRUSH,CARBON ASSY D33 (TIP+2 SPRING) 1.4,
003 LG4930R-0284A HOLDER FPC(6CH)
004 LG5006R-0034A CAP FPC
HV-DX2SP
6-71
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
006 LG4580R-0004A ROLLER CLEANER NSP
007 LG4260R-0039A ARM CLEANER NSP
008 LG6850R-HG18Z CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7
009 LG4260R-0038A ARM T/UP(D35)
010 LG4810R-0125A BRACKET CHASSIS
011 LG4261R-0022A ARM ASSY TENSION(D35)
012 LG3041R-0037A BASE ASSY P2
013 LG3041R-0038A BASE ASSY P3
014 LG3041R-0039A BASE ASSY P4
015 LG5870R-0005A OPENER LID(D35)
016 LG3041R-0036A BASE ASSEMBLY A/C HEAD (ALPS)
017 LG4408R-0003A REEL S
018 LG4970R-0140A SPRING COIL RS D35
019 LG4421R-0008A BRAKE ASSEMBLY RS
020 LG4970R-0128A SPRING COIL D35 (TB)
021 LG4421R-0006A BRAKE ASSY T
022 LG6520D00001A HEAD(CIRC) D35 FE TDK FE HEAD ALTERNATE
022 LG6520D00002A HEAD(CIRC) D35 FE ST FE HEAD
023 LG3040R-0057A BASE LOADING
024 LG4261R-0029A ARM ASSEMBLY IDLER (N)
025 LG4810R-0118A BRACKET L/D(S) NSP
026 LG4680R-D002A MOTOR(MECH) LOADING MDB2B66 SANKYO D35 ASP NSP
027 LG4470R-0093A GEAR WHEEL NSP
028 LG4408R-0004A REEL T
029 LG4261R-0019A ARM ASSEMBLY DECK/MECHA PINCH ALTERNATE
029 LG4261R-0019D ARM ASSEMBLY DECK/MECHA PINCH ALTERNATE
029 LG4261R-0019C ARM ASSEMBLY DECK/MECHA PINCH
029 LG4261R-0019B ARM ASSEMBLY PINCH ALTERNATE
030 LG4510R-0043A LEVER T/UP
031 LG4970R-0123A SPRING COIL TENSION(D35)
032 LG3141R-0040A CHASSIS ASSY D35 NSP
051 LG4400R-0005A BELT CAPSTAN
052 LG4680R-A006A MOTOR(MECH) CAPSTAN MCVC-035AA LGIT BLDC 3 ALTERNATE
052 LG4680R-A007A MOTOR(MECH) CAPSTAN F2QVB06 SANKYO D35 ASR
052 LG4680R-A008A MOTOR(MECH) CAPSTAN SAMSUNG DMVCMC09L D35 ALTERNATE
052A LG4980R-0023A SUPPORTER CAPSTAN(D35)
054 LG4470R-0100A GEAR RACK F/L
054A LG4970R-0124B SPRING COIL D35 (RACK F/L)
055 LG4470R-0097A GEAR DRIVE(D35)
056 LG4470R-0096A GEAR CAM(D35)
058 LG4421R-0007A BRAKE ASSY CAPSTAN
060 LG4510R-0040A LEVER F/R(D35)
061 LG4265R-0006A CLUTCH ASSEMBLY D35 (N)
064 LG4470R-0098A GEAR SECTOR(D35)
065 LG4261R-0021A ARM ASSY P3 NSP
066 LG4970R-0122A SPRING COIL D35 NSP
067 LG4470R-0095A GEAR P3 NSP
068 LG4470R-0094A GEAR P2 NSP
069 LG4970R-0122A SPRING COIL D35 NSP
070 LG4261R-0020A ARM ASSY P2 NSP
076 LG4510R-0047A LEVER SPRING
077 LG3300R-M116A PLATE SLIDER
078 LG4510R-0041A LEVER TENSION
079 LG3040R-0056A BASE TENSION(D35)
100 LG3301R-M022A PLATE ASSEMBLY TOP
100A LG3300R-0184A PLATE GND
100B LG3300R-M118A PLATE TOP(D35)
6-72
HV-DX2SP
S AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
102 LG4970R-0130A SPRING COIL D35 (STOPPER)
103 LG4930R-0276A HOLDER SIDE(L) NSP
105 LG4930R-0274A HOLDER CST NSP
106 LG4930R-0275A HOLDER SIDE(R) NSP
107 LG4510R-0044A LEVER STOPPER NSP
109 LG5870R-0004A OPENER DOOR
110 LG4260R-0035A ARM F/L(L) NSP
112 LG3070R-0002A BODY F/L NSP
113 LG4970R-0127A SPRING COIL D35 (F/L(R)) NSP
114 LG4260R-0036A ARM F/L(R) NSP
115 LG4510R-0042A LEVER SWITCH
116 LG4970R-0138A SPRING COIL D35 SWITCH
117 LG3300R-M137A PLATE SPRING CST
401 LG1MEC0261518 SCREW MACHINE,PAN HEAD SPR W D2.6 L4.5 MSWR3/FZY
402 LG1MPC0261418 SCREW MACHINE,PAN HEAD D 2.6 L 4.0 MSWR3/FZY
405 LG1SZZR-0031B SCREW,DRAWING + 1 D2.6 L5.8 SWRCH16A/FZY TAP
406 LG1MEC0302018 PAN HEAD MACHINE SCREW S/W + D 3.0 L 6.0 MSWR3/FZY
409 LG1SZZR-0032B SCREW,DRAWING + 1 D2.6 L5.0 SWRCH18A/FZY TAP
410 LG1APF0262218 SCREW TAP TITE(B),PAN HEAD D2.6 L6.8 MSWR3/FZY
517 LG1WZZR-0004D WASHER STOPPER
518 LG1WZZR-0004A WASHER STOPPER
SANYO Electric Co.,Ltd.
Osaka, Japan
Apr./'03
