670 202/203 Hatsan BT65 SB Series

User Manual: 670-202/203

Open the PDF directly: View PDF .
Page Count: 3

501 510 508 507

502

503

505

509

506

504

655

603

657

658

608 656

612

610

608

611

614

639

616

641

613

609

615

632

636

637

642

659

631

634

308

332

333

334

335

336

337

338

665

664

663

662

413

661

618

630

629

660

633

677

669

670

202

203

201

210

206

209 208

207

206

204

205

162

161

160

159

158

179

156

155

181

152

151

169

180

167

166

165

164

178

448

447

449

446

445

444

443

442

441

440

437

641

438

437

436

435

439

639

434

433

432

431

664

430

429

428

703

427

426

339

316

340

331

308

307

306

330

329

328

302

327

342

341

305

706

707

708

721

720

718

716

717

719

715

728

727

726

702

704

711

712

710

711

721

720

725 724 718 723 722

304

323

324

321

343

344

667

666

668

672

673

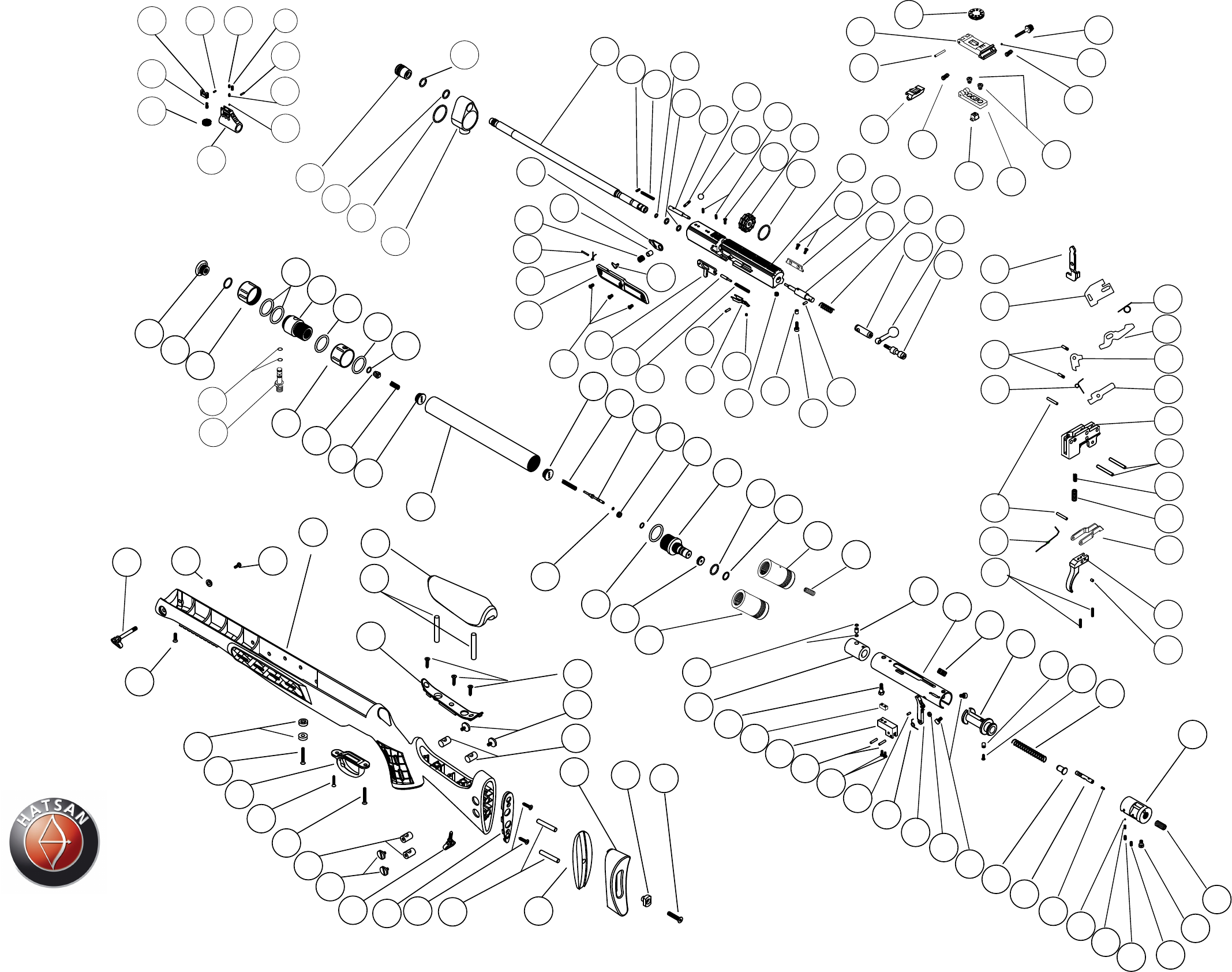

BT65-SB series (side bolt) Exploded View

revision : October.2011

Please indicate model name & caliber when ordering parts

BT65-SB serisi Parca Listesi (yandan bolt) BT65-SB Series Parts List (Side Bolt)

700 KUNDAK GRUBU 80-04-700 700 STOCK GROUP 80-04-700

702 KUNDAK BAĞLANTI VİDASI 80-00-702 702 STOCK CONNECTION SCREW 80-00-702

703 TÜP YATAĞI BAĞLANTI VİDASI 80-00-703 703 CYLINDER CHANNEL CONNECTION SCREW 80-00-703

704 KUNDAK RONDELASI 80-00-704 704 STOCK WASHER 80-00-704

706 BAKLALİT VİDASI 80-00-706 706 BUTT PLATE SCREW 80-00-706

707 BAKALİT BURCU 80-00-707 707 BUTT PLATE BUSH 80-00-707

708 AYARLANABİLİR BAKALİT 80-00-708 708 ADJUSTABLE BUTT PLATE 80-00-708

710 KORKULUK VİDASI 80-00-710 710 TRIGGER GUARD SCREW 80-00-710

711 KUNDAK ARKA BAĞLANTI VİDASI 80-00-711 711 STOCK BACK CONNECTION SCREW 80-00-711

712 KORKULUK 80-00-712 712 TRIGGER GUARD 80-00-712

715 KUNDAK 80-00-715 715 STOCK 80-00-715

716 YANAK 80-04-716 716 STOCK CHEEK 80-04-716

717 YANAK PİMİ80-04-717 717 STOCK CHEEK PIN 80-04-717

718 YANAK KAPAK VİDASI 80-04-718 718 STOCK CHEEK COVER SCREW 80-04-718

719 YANAK KAPAĞI 80-04-719 719 STOCK CHEEK COVER 80-04-719

720 YANAK SABİTLEME VİDASI 80-04-720 720 STOCK CHEEK FASTENING SCREW 80-04-720

721 YANAK BURCU 80-04-721 721 STOCK CHEEK BUSH 80-04-721

722 ARKA BAKALİT 80-04-722 722 BUTT PLATE 80-04-722

723 BAKALİT PİMİ80-04-723 723 BUTT PLATE PIN 80-04-723

724 ARKA KAPAK 80-04-724 724 BUTT PLATE COVER 80-04-724

725 KAYIŞLIK 80-04-725 725 BELTHING 80-04-725

726 KAYIŞLIK VİDASI 80-04-726 726 BELTHING SCREW 80-04-726

727 KAYIŞLIK VİDASI SOMUNU 80-04-727 727 BELTHING SCREW NUT 80-04-727

728 KAYIŞLIK KONTRASI 80-04-728 728 BELTHING SCREW ASTENING PART 80-04-728

150 TETİK GRUBU_QUATTRO 80-04-150 150 TRIGGER GROUP_QUATTRO 80-04-150

151 KONTRA PLASTİĞİ 80-00-151 151 FASTENING PLASTIC 80-00-151

152 TETİK 80-00-152 152 TRIGGER 80-00-152

155 SERTLİK AYAR VİDASI 80-00-155 155 TRIGGER PULL ADJUSTMENT SCREW 80-00-155

156 SERTLİK AYAR YAYI 80-00-156 156 TRIGGER PULL ADJUSTMENT SPRING 80-00-156

158 TETİK KASASI 80-00-158 158 TRIGGER CASE 80-00-158

159 TIRNAK_3 80-00-159 159 SEAR_3 80-00-159

160 TIRNAK_2 80-00-160 160 SEAR_2 80-00-160

161 TIRNAK_1 80-00-161 161 SEAR_1 80-00-161

162 TIRNAK_1 YAYI 80-00-162 162 SEAR_1 SPRING 80-00-162

164 EMNİYET SACI 80-00-164 164 SAFETY 80-00-164

165 TIRNAK PİMİ80-00-165 165 SEAR PIN 80-00-165

166 TIRNAK_2 YAYI 80-00-166 166 SEAR_2 SPRING 80-00-166

167 TETİK PİMİ80-00-167 167 TRIGGER PIN 80-00-167

169 İSTİNAT VİDASI 80-00-169 169 TRIGGER TRAVEL SCREW 80-00-169

178 EMNİYET KOLU 80-04-178 178 SAFETY LEVER 80-04-178

179 TETİK GRUBU BAĞLANTI PİMİ80-04-179 179 TRIGGER CONNECTION PIN 80-04-179

180 DÜŞME EMNİYET YAYI 80-04-180 180 DROP SAFETY SPRING 80-04-180

181 DÜŞME EMNİYETİ80-04-181 181 DROP SAFETY 80-00-180

200 GEZ GRUBU 45-00-200 200 REAR SIGHT GROUP 45-00-200

201 GEZ PİMİ45-00-201 201 REAR SIGHT PIN 45-00-201

202 GEZ GÖVDESİ45-00-202 202 REAR SIGHT BODY 45-00-202

203 GEZ TAMBURASI 45-00-203 203 REAR SIGHT ELEVATOR 45-00-203

204 GEZ BİLYASI 45-00-204 204 REAR SIGHT BALL 45-00-204

205 GEZ YAN TAMBURASI 45-00-205 205 REAR SIGHT SIDE ELEVATOR 45-00-205

206 GEZ YAYI 45-00-206 206 REAR SIGHT SPRING 45-00-206

207 GEZ BAĞLANTI VİDASI 45-00-207 207 REAR SIGHT CONNECTION SCREW 45-00-207

208 GEZ ALTI 45-00-208 208 REAR SIGHT SUB-PLASTIC 45-00-208

209 GEZ TAKOZU 45-00-209 209 REAR SIGHT CLEAT 45-00-209

210 GEZ FOSFOR PLASTİĞİ 45-00-209 210 REAR SIGHT FIBER PLASTIC 45-00-209

300 TÜP GRUBU 80-04-300 300 CYLINDER GROUP 80-04-300

302 MANOMETRE O-RİNGİ80-00-302 302 MANOMETER O-RING 80-00-302

304 5,28*1,78 ORİNG 80-00-304 304 5,28*1,78 O-RING 80-00-304

305 22*2,5 O-RİNG 80-00-305 305 22*2,5 O-RING 80-00-305

306 GİRİŞ SİBOBU 80-00-306 306 AIR INTAKE TAPPET 80-00-306

307 GİRİŞ SİBOB YAYI 80-00-307 307 AIR INTAKE TAPPET SPRING 80-00-307

308 GİRİŞ KAPAĞI 80-00-308 308 AIR INTAKE COVER 80-00-308

316 24*2,5 O-RİNG 80-00-316 316 24*2,5 ORING 80-00-316

321 HAVA BOŞALTMA APARATI VİDASI 80-00-321 321 AIR DISCHARGE FIXTURE SCREW 80-00-321

323 HAVA DOLDURMA APARATI 80-00-323 323 AIR CHARGE FIXTURE 80-00-323

324 HAVA DOLDURMA APARATI O-RİNGİ80-00-324 324 AIR CHARGE FIXTURE O-RING 80-00-324

327 MANOMETRE 80-04-327 327 MANOMETER 80-04-327

328 VALF KAPAĞI 80-04-328 328 VALVE COVER 80-04-328

329 GİRİŞ VALFİ80-04-329 329 AIR INTAKE VALVE 80-04-329

330 VALF BURCU 80-04-330 330 VALVE BUSH 80-04-330

331 TÜP BORUSU 80-04-331 331 CYLINDER 80-04-331

332 HAVA ÇIKIŞ VALFİ YAYI 80-04-332 332 AIR DISCHARGE VALVE SPRING 80-04-332

333 HAVA ÇIKIŞ VALFİ İĞNESİ80-04-333 333 AIR DISCHARGE VALVE PIN 80-04-333

334 HAVA ÇIKIŞ VALFİ SİBOBU 80-04-334 334 AIR DISCHARGE VALVE TAPPET 80-04-334

335 HAVA ÇIKIŞ VALFİ SİBOBU O-RİNGİ80-04-335 335 AIR DISCHARGE VALVE TAPPET O-RING 80-04-335

336 HAVA ÇIKIŞ VALFİ80-04-336 336 AIR DISCHARGE VALVE 80-04-336

337 18X2.5 O-RİNG 80-04-337 337 18X2.5 O-RING 80-04-337

338 13X2.5 O-RİNG 80-04-338 338 13X2.5 O-RING 80-04-338

339 VALF TAMBURASI 80-04-339 339 VALVE ELEVATOR 80-04-339

340 3X1 O-RİNG 80-04-340 340 3X1 O-RING 80-04-340

341 MERKEZLEME O-RİNGİ80-04-341 341 CENTERING O-RING 80-04-341

342 24X2 O-RİNG 80-04-342 342 24X2 O-RING 80-04-342

343 TÜP KAPAĞI 80-04-343 343 CYLINDER COVER 80-04-343

344 HAVA BOŞALTMA APARATI 80-04-344 344 AIR DISCHARGE FIXTURE 80-04-344

400 TETİK MEKANİZMASI GRUBU 80-04-400 400 TRIGGER MECHANISM GROUP 80-04-400

426 6X1 O-RİNG 80-04-426 426 6X1 O-RING 80-04-426

427 TÜP YATAĞI 80-04-427 427 CYLINDER CHANNEL 80-04-427

428 TAKOZ BAĞLANTI ELEMANI 80-04-428 428 CONNECTION PART 80-04-428

429 ARA KOL TAKOZU 80-04-429 429 LEVER CLEAT 80-04-429

430 ARA KOL PİMİ80-04-430 430 LEVER PIN 80-04-430

431 ARA KOL DİSK PİMİ80-04-431 431 LEVER DISK PIN 80-04-431

432 ARA KOL YAYI 80-04-432 432 LEVER SPRING 80-04-432

433 ARA KOL 80-04-433 433 LEVER 80-04-433

434 ARA KOL DİSKİ80-04-434 434 LEVER DISK 80-04-434

435 YAY KLAVUZU 80-04-435 435 SPRING FOLLOWER 80-04-435

436 EMNİYET MİLİ80-04-436 436 SAFETY PIN 80-04-436

437 M4X6 SETSKUR 80-04-437 437 M4*6 80-04-437

438 EMNİYET BİLYESİ80-04-438 438 SAFETY BALL 80-04-438

439 EMNİYET YAYI 80-04-439 439 SAFETY SPRING 80-04-439

440 M4X5 CİVATA 80-04-440 440 M4*5 SCREW 80-04-440

441 M12X16 SETSKUR 80-04-441 441 M12*16 80-04-441

442 TETİK YATAĞI 80-04-442 442 TRIGGER CHANNEL 80-04-442

443 ÇEKİÇ YAYI 80-04-443 443 HAMMER SPRING 80-04-443

444 ÇEKİÇ CİVATASI 80-04-444 444 HAMMER SCREW 80-04-444

445 ÇEKİÇ BURCU 80-04-445 445 HAMMER BUSH 80-04-445

446 ÇEKİÇ 80-04-446 446 HAMMER 80-04-446

447 MEKANİZMA BORUSU 80-04-447 447 MECHANISM 80-04-447

448 HAVA GEÇİŞ BURCU 80-04-448 448 AIR TRANSITION BUSH 80-04-448

449 EMNİYET 80-04-449 449 SAFETY 80-04-449

500 ARPACIK GRUBU 80-02-500 500 FRONT SIGHT GROUP 80-02-500

501 FOSFOR PLASTİĞİ 80-00-501 501 FIBER PLASTIC 80-00-501

502 FOSFOR PLASTİK VİDASI 80-00-502 502 FIBER PLASTIC SCREW 80-00-502

503 TAMBURA 80-00-503 503 ELEVATOR 80-00-503

504 GÖVDE 80-02-504 504 BODY 80-02-504

505 ARPACIK PİMİ80-00-505 505 FRONT SIGHT PIN 80-00-505

506 ARPACIK BİLYASI 80-00-506 506 FRONT SIGHT BALL 80-00-506

507 ARPACIK VİDASI 80-00-507 507 FRONT SIHGT SCREW 80-00-507

508 BİLYE VİDASI 80-00-508 508 BALL SCREW 80-00-508

509 BİLYA YAYI 80-00-509 509 BALL SPRING 80-00-509

510 FOSFOR PLASTİK PİMİ80-00-510 510 FIBER PLASTIC PIN 80-00-510

600 MEKANİZMA GRUBU 80-04-600 600 MECHANISM GROUP 80-04-600

603 14*1,5 O-RİNG 80-00-603 603 14*1,5 O-RING 80-00-603

608 7,66*1,78 O-RİNG 80-00-608 608 7,66*1,78 O-RING 80-00-608

609 NAMLU O-RİNGİ80-02-609 609 BARREL O-RING 80-02-609

610 MAGAZİN PİMİ YAYI 80-02-610 610 MAGAZINE PIN SPRING 80-02-610

611 MAGAZİN PİMİ80-02-611 611 MAGAZINE PIN 80-02-611

612 M3*12 VİDA 80-02-612 612 M3*12 SCREW 80-02-612

613 MAGAZİN PİMİ SAPLAMASI 80-02-613 613 MAGAZINE DOWEL PIN 80-02-613

614 SAPLAMA BİLYASI 80-02-614 614 DOWEL PIN BALL 80-02-614

615 MAGAZİN 80-02-615 615 MAGAZINE 80-02-615

616 MAGAZİN O-RİNGİ80-02-6165 616 MAGAZINE O-RING 80-02-616

618 ÇEKİÇ TIRNAĞI PİMİ80-00-618 618 HAMMER SEAR PIN 80-00-618

629 MANDAL PİMİ80-02-629 629 BOLT PIN 80-02-629

630 MANDAL YAYI 80-02-630 630 DETENT SPRING 80-02-630

631 MANDAL BURCU 80-02-631 631 DETENT BUSH 80-02-631

632 MAGAZİN HAREKET TIRNAĞI 80-02-632 632 MAGAZINE MOVEMENT SEAR 80-02-632

633 MAGAZİN STOBU 80-02-633 633 MAGAZINE STOP SEAR 80-02-633

634 KAPAK CİVATASI 80-00-634 634 COVER SCREW 80-00-634

636 MANDAL BASKI YAYI 80-02-636 636 DETENT PRESSURE SPRING 80-02-636

637 MAGAZİN STOP PİMİ80-02-637 637 MAGAZINE STOP PIN 80-02-637

639 MEKANİZMA BAĞLANTI VİDASI 80-00-639 639 MECHANISM CONNECTION SCREW 80-00-639

641 NAMLU BAĞLANTI VİDASI 80-00-641 641 BARREL CONNECTION SCREW 80-00-641

642 MAGAZİN STOP YAYI 80-02-642 642 MAGAZINE STOP SPRING 80-02-642

655 NAMLU KAPAĞI 80-04-655 655 BARREL COVER 80-04-655

656 NAMLU 80-04-656 656 BARREL 80-04-656

657 35x1.5 O-RİNG 80-04-657 657 35x1.5 O-RING 80-04-657

658 KELEPÇE 80-04-658 658 CLEAT 80-04-658

659 MEKANİZMA KAPAĞI 80-04-659 659 MECHANISM COVER 80-04-659

660 MAGAZİN DÖNDÜRME MANDALI 80-04-660 660 MECHANISM ROTATION PART 80-04-660

661 ÇEKİÇ TIRNAĞI 80-04-661 661 HAMMER SEAR 80-04-661

662 MEKANİZMA BAĞLANTI ELEMANI 80-04-662 662 MECHANISM CONNECTION PART 80-04-662

663 ÇEKİÇ HAREKET BURCU 80-04-663 663 HAMMER MOVEMENT BUSH 80-04-663

664 KOL TAKOZU CİVATASI 80-04-664 664 LEVER SCREW 80-04-664

665 SAÇMA İTİCİ PİMİ80-04-665 665 PELET MOVEMENT PIN 80-04-665

666 KOL BAĞLANTI VİDASI 80-04-666 666 COCKING LEVER CONNECTION SCREW 80-04-666

667 KOL 80-04-667 667 COCKING LEVER 80-04-667

668 SAÇMA İTİCİ KİLİDİ 80-04-668 668 PELET MOVEMENT LOCK 80-04-668

669 SAÇMA İTİCİ KİLİTLEME YAYI 80-04-669 669 PELET MOVEMENT LOCK SPRING 80-04-669

670 SAÇMA İTİCİ80-04-670 670 PELET MOVEMENT PART 80-04-670

672 KOL SACI 80-04-672 672 COCKING LEVER SHEET METAL 80-04-672

673 KOL SACI CİVATASI 80-04-673 673 COCKING LEVER SCREW 80-04-673

677 MEKANİZMA 80-04-677 677 MECHANISM 80-04-677
