Head First Android Development A Brain Friendly Guide, 2nd Edition

User Manual:

Open the PDF directly: View PDF .
Page Count: 930 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Copyright
Authors of Head First Android Development
Table of Contents (Summary)
Table of Contents (the real thing)
Intro
- Who is this book for?
- Who should probably back away from this
- We know what you’re thinking
- We know what your brain is thinking
- Metacognition: thinking about thinking
- Here’s what WE did
- Here’s what YOU can do to bend
- Read me
- The technical review team
- Acknowledgments
- O’Reilly Safari®
1: getting started
2: building interactive apps
3: multiple activities and intents
4: the activity lifecycle
5: views and view groups
6: constraint layouts
7: list views and adapters
8: support libraries and app bars
9: fragments
10: fragments for larger interfaces
11: dynamic fragments
12: design support library
13: recycler views and card views
14: navigation drawers
15: SQLite databases
16: basic cursors
17: cursors and asynctasks
18: started services
19: bound services and permissions
appendix i: relative and grid layouts
appendix ii: gradle
appendix iii: art
appendix iv: adb
appendix v: the android emulator
appendix vi: leftovers
Index

Elisabeth Robson & Eric Freeman

Head First

Android

Development

Dawn Grifﬁ ths & David Grifﬁ ths

A Brain-Friendly Guide

Dawn Grifﬁ ths & David Grifﬁ ths

Elisabeth Robson & Eric Freeman

Dawn Grifﬁ ths & David Grifﬁ ths

Elisabeth Robson & Eric Freeman

Dawn Grifﬁ ths & David Grifﬁ ths

Elisabeth Robson & Eric Freeman

A Brain-Friendly Guide

Development

A Brain-Friendly Guide

Dawn Grifﬁ ths & David Grifﬁ ths

Elisabeth Robson & Eric Freeman

Dawn Grifﬁ ths & David Grifﬁ ths

Elisabeth Robson & Eric Freeman

Dawn Grifﬁ ths & David Grifﬁ ths

Elisabeth Robson & Eric Freeman

A Brain-Friendly Guide

Learn how

Constraint

Layouts can

change your life

Fool around

in the Design

Support Library

Find your way

with Android's

Location Services

Put fragments

under the

microscope

Find your way

with Android's

Location Services

Avoid

embarrassing

activities

Avoid

embarrassing

activities

Create

out-of-this-world

services

out-of-this-world

2nd

Edition

Head First

Android Development

Wouldn’t it be dreamy if there

were a book on developing Android

apps that was easier to understand

than the space shuttle flight manual? I

guess it’s just a fantasy…

Dawn Grifths

David Grifths

Boston

Head First Android Development

by Dawn Griffiths and David Griffiths

Printed in the United States of America.

Published by O’Reilly Media, Inc., 1005 Gravenstein Highway North, Sebastopol, CA 95472.

O’Reilly Media books may be purchased for educational, business, or sales promotional use. Online editions are

also available for most titles (http://oreilly.com/safari). For more information, contact our corporate/institutional

sales department: (800) 998-9938 or corporate@oreilly.com.

Series Creators: Kathy Sierra, Bert Bates

Editor: Dawn Schanafelt

Cover Designer: Karen Montgomery

Production Editor: Kristen Brown

Proofreader: Rachel Monaghan

Indexer: Angela Howard

Page Viewers: Mum and Dad, Rob and Lorraine

Printing History:

June 2015: First Edition.

August 2017: Second Edition

The O’Reilly logo is a registered trademark of O’Reilly Media, Inc. The Head First series designations,

Head First Android Development, and related trade dress are trademarks of O’Reilly Media, Inc.

Many of the designations used by manufacturers and sellers to distinguish their products are claimed as

trademarks. Where those designations appear in this book, and O’Reilly Media, Inc., was aware of a trademark

claim, the designations have been printed in caps or initial caps.

While every precaution has been taken in the preparation of this book, the publisher and the authors assume no

responsibility for errors or omissions, or for damages resulting from the use of the information contained herein.

No kittens were harmed in the making of this book, but several pizzas were eaten.

ISBN: 978-1-491-97405-6

[M]

Mum and Dad

Rob and

Lorraine

To our friends and family. Thank you so

much for all your love and support.

the authors

Authors of Head First Android Development

David Griffiths

David Griffiths began programming at age 12,

when he saw a documentary on the work of Seymour

Papert. At age 15, he wrote an implementation of

Papert’s computer language LOGO. After studying

pure mathematics at university, he began writing code

for computers and magazine articles for humans. He’s

worked as an Agile coach, a developer, and a garage

attendant, but not in that order. He can write code

in over 10 languages and prose in just one, and when

not writing, coding, or coaching, he spends much

of his spare time traveling with his lovely wife—and

coauthor—Dawn.

Before writing Head First Android Development, David

wrote three other Head First books—Head First Rails,

Head First Programming, and Head First C—and created

The Agile Sketchpad video course with Dawn.

You can follow us on Twitter at https://twitter.com/

HeadFirstDroid and visit the book’s website at https://

tinyurl.com/HeadFirstAndroid.

Dawn Griffiths

Dawn Griffiths started life as a mathematician at

a top UK university, where she was awarded a first-

class honors degree in mathematics. She went on to

pursue a career in software development and has over

20 years’ experience working in the IT industry.

Before writing Head First Android Development, Dawn

wrote three other Head First books (Head First Statistics,

Head First 2D Geometry, and Head First C). She also

created the video course The Agile Sketchpad with her

husband, David, to teach key concepts and techniques

in a way that keeps your brain active and engaged.

When Dawn’s not working on Head First books or

creating videos, you’ll find her honing her Tai Chi skills,

reading, running, making bobbin lace, or cooking. She

particularly enjoys spending time with her wonderful

husband, David.

table of contents

Table of Contents (Summary)

Intro xxix

1 Getting Started: Diving in 1

2 Building Interactive Apps: Apps that do something 37

3 Multiple Activities and Intents: State your intent 77

4 The Activity Lifecycle: Being an activity 119

5 Views and View Groups Enjoy the view 169

6 Constraint Layouts: Put things in their place 221

7 List views and Adapters: Getting organized 247

8 Support Libraries and App Bars: Taking shortcuts 289

9 Fragments: Make it modular 339

10 Fragments for Larger Interfaces: Different size, different interface 393

11 Dynamic Fragments: Nesting fragments 433

12 Design Support Library: Swipe right 481

13 Recycler Views and Card Views: Get recycling 537

14 Navigation Drawers: Going places 579

15 SQLite Databases: Fire up the database 621

16 Basic cursors: Getting data out 657

17 Cursors and AsyncTasks: Staying in the background 693

18 Started Services: At your service 739

19 Bound Services and Permissions: Bound together 767

i Relative and Grid Layouts: Meet the relatives 817

ii Gradle: The Gradle build tool 833

iii ART: The Android Runtime 841

iv ADB: The Android debug bridge 849

v The Android Emulator: Speeding things up 857

vi Leftovers: The top ten things (we didn’t cover) 861

table of contents

Table of Contents (the real thing)

Your brain on Android. Here you are trying to learn something, while

here your brain is, doing you a favor by making sure the learning doesn’t stick. Your

brain’s thinking, “Better leave room for more important things, like which wild

animals to avoid and whether naked snowboarding is a bad idea.” So how do you

trick your brain into thinking that your life depends on knowing how to develop

Android apps?

Intro

Authors of Head First Android Development iv

Who is this book for? xxx

We know what you’re thinking xxxi

We know what your

brain

is thinking xxxi

Metacognition: thinking about thinking xxxiii

Here’s what WE did xxxiv

Read me xxxvi

The technical review team xxxviii

Acknowledgments xxxix

Safari® Books Online xl

I wonder how

I can trick my brain

into remembering

this stuff…

table of contents

vii

Welcome to Androidville 2

The Android platform dissected 3

Here’s what we’re going to do 4

Your development environment 5

Install Android Studio 6

Build a basic app 7

How to build the app 8

Activities and layouts from 50,000 feet 12

How to build the app (continued) 13

You’ve just created your first Android app 15

Android Studio creates a complete folder structure for you 16

Useful files in your project 17

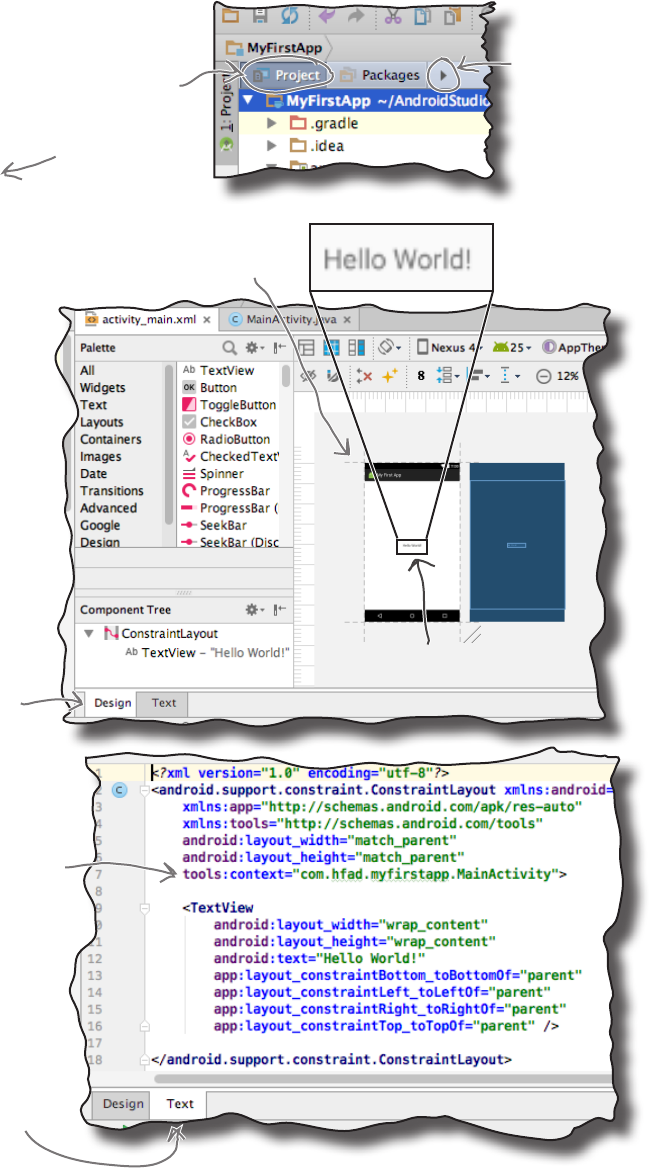

Edit code with the Android Studio editors 18

Run the app in the Android emulator 23

Creating an Android Virtual Device 24

Run the app in the emulator 27

You can watch progress in the console 28

What just happened? 30

Refining the app 31

What’s in the layout? 32

activity_main.xml has two elements 33

Update the text displayed in the layout 34

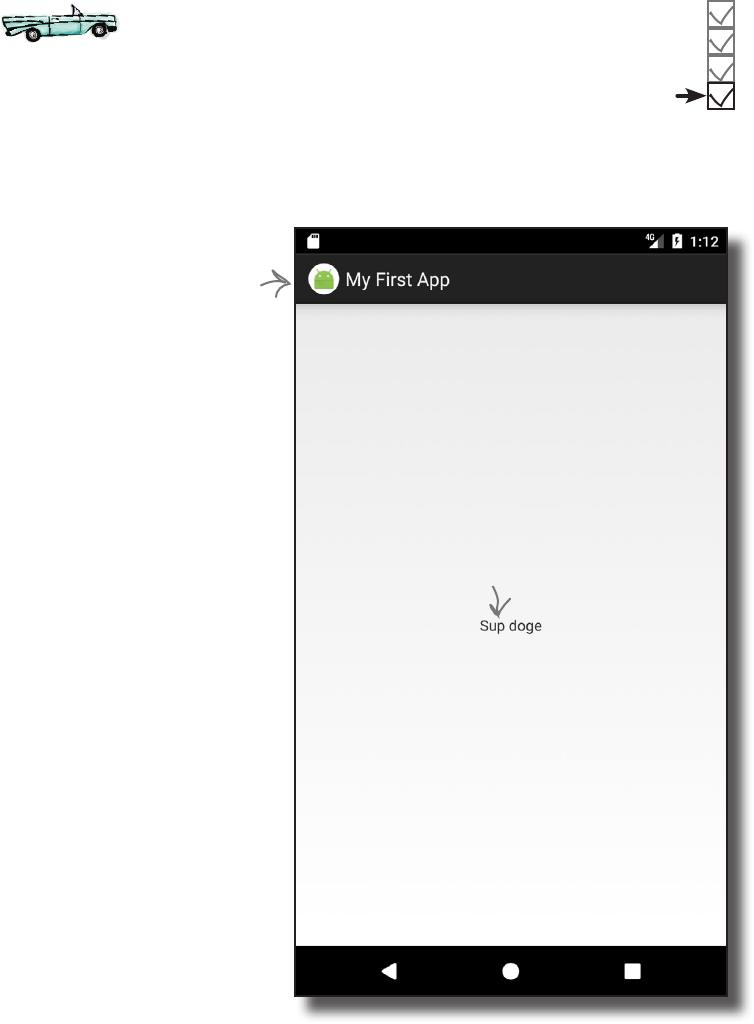

Take the app for a test drive 35

Your Android Toolbox 36

Diving In

1getting started

Android has taken the world by storm.

Everybody wants a smartphone or tablet, and Android devices are hugely popular. In

this book, we’ll teach you how to develop your own apps, and we’ll start by getting

you to build a basic app and run it on an Android Virtual Device. Along the way, you’ll

meet some of the basic components of all Android apps, such as activities and

layouts. All you need is a little Java know-how...

</Layout>

Activity

Device Layout

</Layout>

Android SDK

table of contents

viii

Apps That Do Something

Most apps need to respond to the user in some way.

In this chapter, you’ll see how you can make your apps a bit more interactive. You’ll

learn how to get your app to do something in response to the user, and how to get

your activity and layout talking to each other like best buddies. Along the way, we’ll

take you a bit deeper into how Android actually works by introducing you to R, the

hidden gem that glues everything together.

building interactive apps

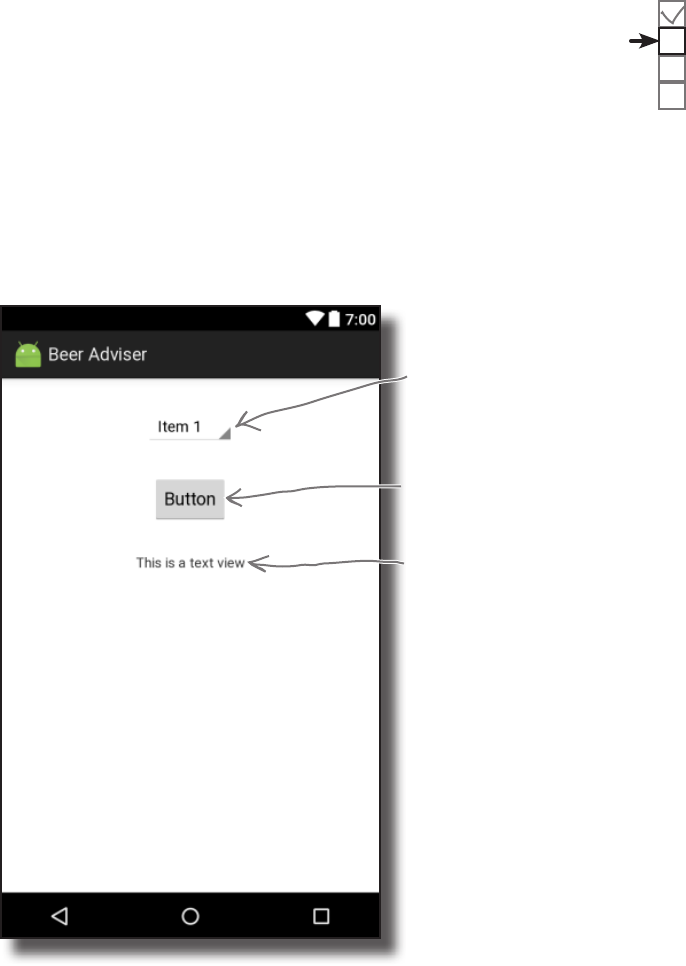

Let’s build a Beer Adviser app 38

Create the project 40

We’ve created a default activity and layout 41

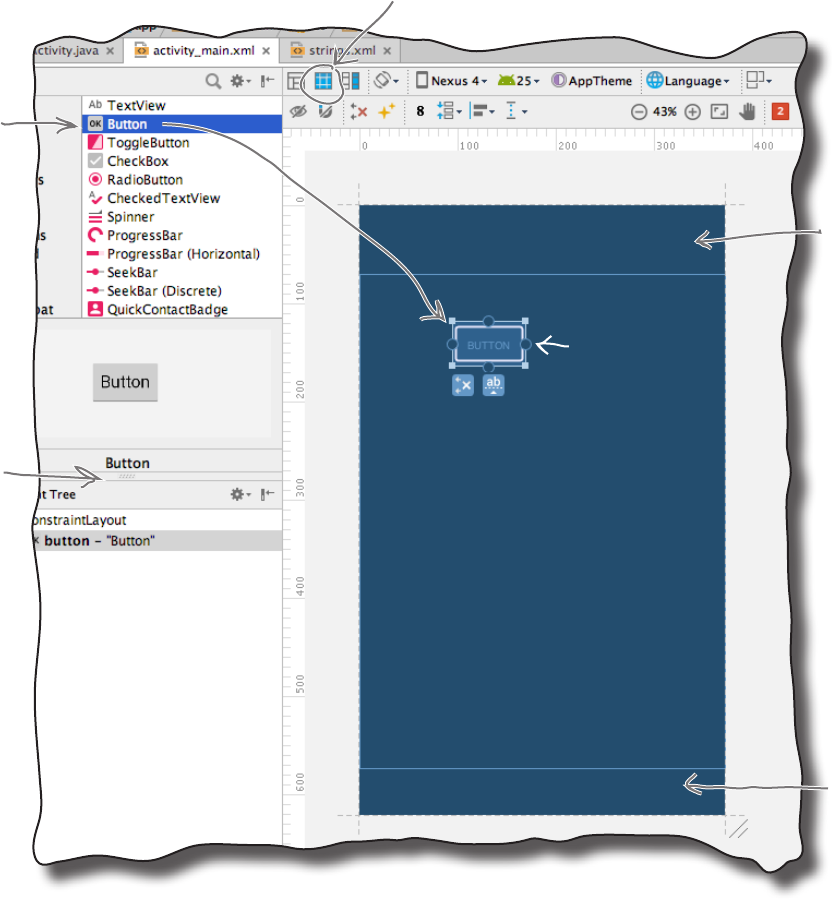

A closer look at the design editor 42

Add a button using the design editor 43

activity_find_beer.xml has a new button 44

A closer look at the layout code 45

Let’s take the app for a test drive 49

Hardcoding text makes localization hard 50

Create the String resource 51

Use the String resource in your layout 52

The code for activity_find_beer.xml 53

Add values to the spinner 56

Add the string-array to strings.xml 57

Test drive the spinner 58

We need to make the button do something 59

Make the button call a method 60

What activity code looks like 61

Add an onClickFindBeer() method to the activity 62

onClickFindBeer() needs to do something 63

Once you have a View, you can access its methods 64

Update the activity code 65

The first version of the activity 67

What the code does 68

Build the custom Java class 70

What happens when you run the code 74

Test drive your app 75

Your Android Toolbox 76

</Layout> <resources>

</resources>

BeerExpert

Activity

Layout

strings.xml

table of contents

State Your Intent

Most apps need more than one activity.

So far we’ve just looked at single-activity apps, which is fine for simple apps. But when

things get more complicated, just having the one activity won’t cut it. We’re going to

show you how to build apps with multiple activities, and how you can get your apps

talking to each other using intents. We’ll also look at how you can use intents to go

beyond the boundaries of your app and make activities in other apps on your

device perform actions. Things are about to get a whole lot more powerful...

multiple activities and intents

Apps can contain more than one activity 78

Here’s the app structure 79

Get started: create the project 79

Update the layout 80

Create the second activity and layout 82

Welcome to the Android manifest file 84

An intent is a type of message 86

What happens when you run the app 88

Pass text to a second activity 90

Update the text view properties 91

putExtra() puts extra info in an intent 92

Update the CreateMessageActivity code 95

Get ReceiveMessageActivity to use the information in the intent 96

What happens when the user clicks the Send Message button 97

We can change the app to send messages to other people 98

How Android apps work 99

Create an intent that specifies an action 101

Change the intent to use an action 102

How Android uses the intent filter 106

What if you ALWAYS want your users to choose an activity? 112

What happens when you call createChooser() 113

Change the code to create a chooser 115

Your Android Toolbox 118

User

Android

CreateMessageActivity

Hey, user. Which

activity do you want

to use this time?

To: AnotherActivity

Intent

table of contents

How do activities really work? 120

The Stopwatch app 122

Add String resources 123

How the activity code will work 125

Add code for the buttons 126

The runTimer() method 127

The full runTimer() code 129

The full StopwatchActivity code 130

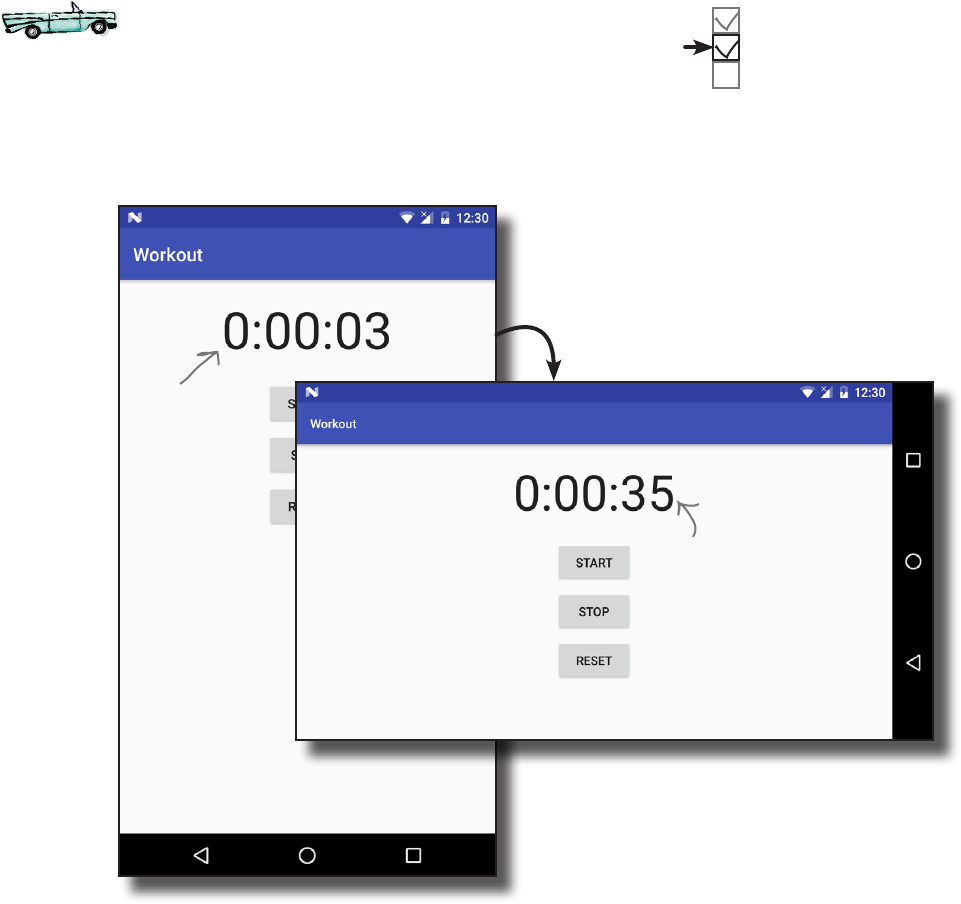

Rotating the screen changes the device configuration 136

The states of an activity 137

The activity lifecycle: from create to destroy 138

The updated StopwatchActivity code 142

What happens when you run the app 143

There’s more to an activity’s life than create and destroy 146

The updated StopwatchActivity code 151

What happens when you run the app 152

What if an app is only partially visible? 154

The activity lifecycle: the foreground lifetime 155

Stop the stopwatch if the activity’s paused 158

Implement the onPause() and onResume() methods 159

The complete StopwatchActivity code 160

What happens when you run the app 163

Your handy guide to the lifecycle methods 167

Your Android Toolbox 168

Being an Activity

4the activity lifecycle

Activities form the foundation of every Android app.

So far you’ve seen how to create activities, and made one activity start another

using an intent. But what’s really going on beneath the hood? In this chapter,

we’re going to dig a little deeper into the activity lifecycle. What happens when

an activity is created and destroyed? Which methods get called when an activity

is made visible and appears in the foreground, and which get called when the

activity loses the focus and is hidden? And how do you save and restore your

activity’s state? Read on to find out.

Activity

launched

Activity

destroyed

Activity

running

onCreate()

onDestroy()

onStart()

onStop()

onRestart()

onResume()

onPause()

table of contents

Enjoy the View

You’ve seen how to arrange GUI components using a linear

layout, but so far we’ve only scratched the surface.

In this chapter we’ll look a little deeper and show you how linear layouts really work.

We’ll introduce you to the frame layout, a simple layout used to stack views, and we’ll

also take a tour of the main GUI components and how you use them. By the end of

the chapter, you’ll see that even though they all look a little different, all layouts and GUI

components have more in common than you might think.

views and view groups

Your user interface is made up of layouts and GUI components 170

LinearLayout displays views in a single row or column 171

Add a dimension resource file for consistent padding across layouts 174

Use margins to add distance between views 176

Let’s change up a basic linear layout 177

Make a view streeeeetch by adding weight 179

Values you can use with the android:gravity attribute 183

The full linear layout code 186

Frame layouts stack their views 188

Add an image to your project 189

The full code to nest a layout 192

FrameLayout: a summary 193

Playing with views 201

Editable text view 202

Toggle button 204

Switch 205

Checkboxes 206

Radio buttons 208

Spinner 210

Image view 211

Adding images to buttons 213

Scroll views 215

Toasts 216

Your Android Toolbox 220

</Layout>

layout.xml ViewGroup

View View

The linear layout

The button The editable

text field

Frame layouts let your views overlap one

another. This is useful for displaying

text on top of images, for example.

table of contents

xii

Put Things in Their Place

Let’s face it, you need to know how to create great layouts.

If you’re building apps you want people to use, you need to make sure they look

exactly the way you want. So far you’ve seen how to use linear and frame layouts, but

what if your design is more complex? To deal with this, we’ll introduce you to Android’s

new constraint layout, a type of layout you build visually using a blueprint. We’ll

show you how constraints let you position and size your views, irrespective of screen

size and orientation. Finally, you’ll find out how to save time by making Android Studio

infer and add constraints on your behalf.

constraint layouts

Nested layouts can be inefficient 222

Introducing the Constraint Layout 223

Make sure your project includes the Constraint Layout Library 224

Add the String resources to strings.xml 225

Use the blueprint tool 226

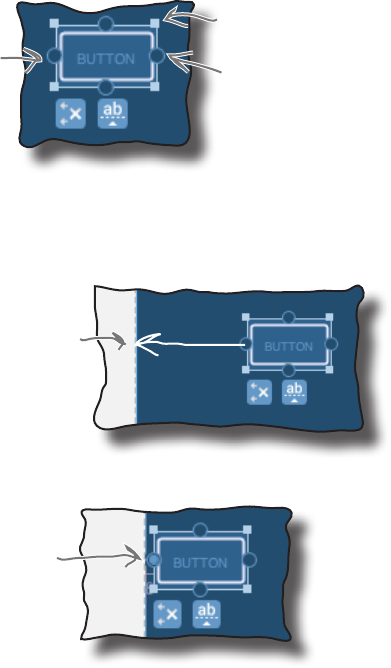

Position views using constraints 227

Add a vertical constraint 228

Changes to the blueprint are reflected in the XML 229

How to center views 230

Adjust a view’s position by updating its bias 231

How to change a view’s size 232

How to align views 238

Let’s build a real layout 239

First, add the top line of views 240

The Infer Constraints feature guesses which constraints to add 241

Add the next line to the blueprint... 242

Finally, add a view for the message 243

Test drive the app 244

Your Android Toolbox 245

This time, the Infer

Constraints button

added constraints to

our new EditText.

table of contents

xiii

Every app starts with ideas 248

Use list views to navigate to data 251

The drink detail activity 253

The Starbuzz app structure 254

The Drink class 256

The top-level layout contains an image and a list 258

The full top-level layout code 260

Get list views to respond to clicks with a listener 261

Set the listener to the list view 262

A category activity displays the data for a single category 267

Update activity_drink_category.xml 268

For nonstatic data, use an adapter 269

Connect list views to arrays with an array adapter 270

Add the array adapter to DrinkCategoryActivity 271

App review: where we are 274

How we handled clicks in TopLevelActivity 276

The full DrinkCategoryActivity code 278

Update the views with the data 281

The DrinkActivity code 283

What happens when you run the app 284

Your Android Toolbox 288

Getting Organized

7list views and adapters

Want to know how best to structure your Android app?

You’ve learned about some of the basic building blocks that are used to create apps,

and now it’s time to get organized. In this chapter, we’ll show you how you can take

a bunch of ideas and structure them into an awesome app. You’ll learn how lists

of data can form the core part of your app design, and how linking them together

can create a powerful and easy-to-use app. Along the way, you’ll get your first

glimpse of using event listeners and adapters to make your app more dynamic.

Display a

start screen

with a list of

options.

Display a list

of the drinks

we sell.

Show details

of each

drink.

Drink.

drinks

ListView

Array

Adapter

This is our array. This is our list view.

We’ll create an array adapter to

bind our list view to our array.

table of contents

xiv

Taking Shortcuts

Everybody likes a shortcut.

And in this chapter you’ll see how to add shortcuts to your apps using app bars. We’ll

show you how to start activities by adding actions to your app bar, how to share content

with other apps using the share action provider, and how to navigate up your app’s

hierarchy by implementing the app bar’s Up button. Along the way we’ll introduce you

to the powerful Android Support Libraries, which are key to making your apps look

fresh on older versions of Android.

support libraries and app bars

Great apps have a clear structure 290

Different types of navigation 291

Add an app bar by applying a theme 293

Create the Pizza app 295

Add the v7 AppCompat Support Library 296

AndroidManifest.xml can change your app bar’s appearance 299

How to apply a theme 300

Define styles in a style resource file 301

Customize the look of your app 303

Define colors in a color resource file 304

The code for activity_main.xml 305

ActionBar vs. Toolbar 306

Include the toolbar in the activity’s layout 312

Add actions to the app bar 315

Change the app bar text by adding a label 318

The code for AndroidManifest.xml 319

Control the action’s appearance 322

The full MainActivity.java code 325

Enable Up navigation 327

Share content on the app bar 331

Add a share action provider to menu_main.xml 332

Specify the content with an intent 333

The full MainActivity.java code 334

Your Android Toolbox 337

AppActivity

Intent

ShareActionProvider

ACTION_SEND

type: “text/plain”

messageText: ”Hi!”

YourActivity

onCreate(Bundle)

yourMethod()

Activity

onCreate(Bundle)

onStart()

onRestart()

onResume()

onPause()

onStop()

onDestroy()

onSaveInstanceState()

FragmentActivity

AppCompatActivity

table of contents

Make It Modular

You’ve seen how to create apps that work in the same way

no matter what device they’re running on.

But what if you want your app to look and behave differently depending on whether

it’s running on a phone or a tablet? In this case you need fragments, modular code

components that can be reused by different activities. We’ll show you how to create

basic fragments and list fragments, how to add them to your activities, and how to

get your fragments and activities to communicate with one another.

fragments

Your app needs to look great on ALL devices 340

Your app may need to behave differently too 341

Fragments allow you to reuse code 342

The phone version of the app 343

Create the project and activities 345

Add a button to MainActivity’s layout 346

How to add a fragment to your project 348

The fragment’s onCreateView() method 350

Add a fragment to an activity’s layout 352

Get the fragment and activity to interact 359

The Workout class 360

Pass the workout ID to the fragment 361

Get the activity to set the workout ID 363

The fragment lifecycle 365

Set the view’s values in the fragment’s onStart() method 367

How to create a list fragment 374

The updated WorkoutListFragment code 377

The code for activity_main.xml 381

Connect the list to the detail 384

The code for WorkoutListFragment.java 387

MainActivity needs to implement the interface 388

DetailActivity needs to pass the ID to WorkoutDetailFragment 389

Your Android Toolbox 392

MainActivity

WorkoutDetail

Fragment

onCreate()

Fragment Manager

</Layout>

activity_detail

Hmmm, a

<fragment> element.

I need to know what

goes here.

A list fragment

comes complete with

its own list view so

you don’t need to

add it yourself. You

just need to provide

the list fragment

with data.

table of contents

xvi

Different Size, Different Interface

So far we’ve only run our apps on devices with a small

screen. But what if your users have tablets? In this chapter you’ll see how to create

flexible user interfaces by making your app look and behave differently depending

on the device it’s running on. We’ll show you how to control the behavior of your app

when you press the Back button by introducing you to the back stack and fragment

transactions. Finally, you’ll find out how to save and restore the state of your

fragment.

fragments for larger interfaces

The Workout app looks the same on a phone and a tablet 394

Designing for larger interfaces 395

The phone version of the app 396

The tablet version of the app 397

Create a tablet AVD 399

Put screen-specific resources in screen-specific folders 402

The different folder options 403

Tablets use layouts in the layout-large folder 408

What the updated code does 410

We need to change the itemClicked() code 412

You want fragments to work with the Back button 413

Welcome to the back stack 414

Back stack transactions don’t have to be activities 415

Use a frame layout to replace fragments programmatically 416

Use layout differences to tell which layout the device is using 417

The revised MainActivity code 418

Using fragment transactions 419

The updated MainActivity code 423

Rotating the tablet breaks the app 427

Saving an activity’s state (revisited) 428

The updated code for WorkoutDetailFragment.java 430

Your Android Toolbox 432

MainActivity

FragmentTransaction

Tablet

I'm committed.

Make it so!

Android

<xml>

</xml>

activity_main.xml

layout-large

The device screen's

large, so I'll use the large

version of the layout.

table of contents

xvii

Adding dynamic fragments 434

The new version of the app 436

Create TempActivity 437

TempActivity needs to extend AppCompatActivity 438

The StopwatchFragment.java code 444

The StopwatchFragment layout 447

Add StopwatchFragment to TempActivity’s layout 449

The onClick attribute calls methods in the activity, not the fragment 452

Attach the OnClickListener to the buttons 457

The StopwatchFragment code 458

Rotating the device resets the stopwatch 462

Use <fragment> for static fragments... 463

Change activity_temp.xml to use a FrameLayout 464

The full code for TempActivity.java 467

Add the stopwatch to WorkoutDetailFragment 469

The full WorkoutDetailFragment.java code 476

Your Android Toolbox 480

Nesting Fragments

11 dynamic fragments

So far you’ve seen how to create and use static

fragments. But what if you want your fragments to be more dynamic?

Dynamic fragments have a lot in common with dynamic activities, but there are

crucial differences you need to be able to deal with. In this chapter you’ll see how

to convert dynamic activities into working dynamic fragments. You’ll find out

how to use fragment transactions to help maintain your fragment state. Finally,

you’ll discover how to nest one fragment inside another, and how the child

fragment manager helps you control unruly back stack behavior.

Activity

Whenever I see

android:onClick, I

assume it’s all about

me. My methods run,

not the fragment’s.

Workout Details Stopwatch

I display workout

details, and I also

display the stopwatch.

The transaction to add

StopwatchFragment is nested

inside the transaction to add

WorkoutDetailFragment.

table of contents

xviii

The Bits and Pizzas app revisited 482

The app structure 483

Use a view pager to swipe through fragments 489

Add a view pager to MainActivity’s layout 490

Tell a view pager about its pages using a fragment pager adapter 491

The code for our fragment pager adapter 492

The full code for MainActivity.java 494

Add tab navigation to MainActivity 498

How to add tabs to your layout 499

Link the tab layout to the view pager 501

The full code for MainActivity.java 502

The Design Support Library helps you implement material design 506

Make the toolbar respond to scrolls 508

Add a coordinator layout to MainActivity’s layout 509

How to coordinate scroll behavior 510

Add scrollable content to TopFragment 512

The full code for fragment_top.xml 515

Add a collapsing toolbar to OrderActivity 517

How to create a plain collapsing toolbar 518

How to add an image to a collapsing toolbar 523

The updated code for activity_order.xml 524

FABs and snackbars 526

The updated code for activity_order.xml 528

The full code for OrderActivity.java 533

Your Android Toolbox 535

Swipe Right

12 design support library

Ever wondered how to develop apps with a rich, slick UI?

With the release of the Android Design Support Library, it became much easier

to create apps with an intuitive UI. In this chapter, we’ll show you around some of

the highlights. You’ll see how to add tabs so that your users can navigate around

your app more easily. You’ll discover how to animate your toolbars so that

they can collapse or scroll on a whim. You’ll find out how to add floating action

buttons for common user actions. Finally, we’ll introduce you to snackbars, a way

of displaying short, informative messages to the user that they can interact with.

We’ll get the toolbar to scroll when the

user scrolls the content in TopFragment.

We’ll add this scrollable

content to TopFragment.

table of contents

xix

Get Recycling

You’ve already seen how the humble list view is a key part of

most apps. But compared to some of the material design components we’ve seen,

it’s somewhat plain. In this chapter, we’ll introduce you to the recycler view, a more

advanced type of list that gives you loads more flexibility and fits in with the material

design ethos. You’ll see how to create adapters tailored to your data, and how to

completely change the look of your list with just two lines of code. We’ll also show you

how to use card views to give your data a 3D material design appearance.

recycler views and card views

There’s still work to do on the Bits and Pizzas app 538

Recycler views from 10,000 feet 539

Add the pizza data 541

Display the pizza data in a card 542

How to create a card view 543

The full card_captioned_image.xml code 544

Add a recycler view adapter 546

Define the adapter’s view holder 548

Override the onCreateViewHolder() method 549

Add the data to the card views 550

The full code for CaptionedImagesAdapter.java 551

Create the recycler view 553

Add the RecyclerView to PizzaFragment’s layout 554

The full PizzaFragment.java code 555

A recycler view uses a layout manager to arrange its views 556

Specify the layout manager 557

The full PizzaFragment.java code 558

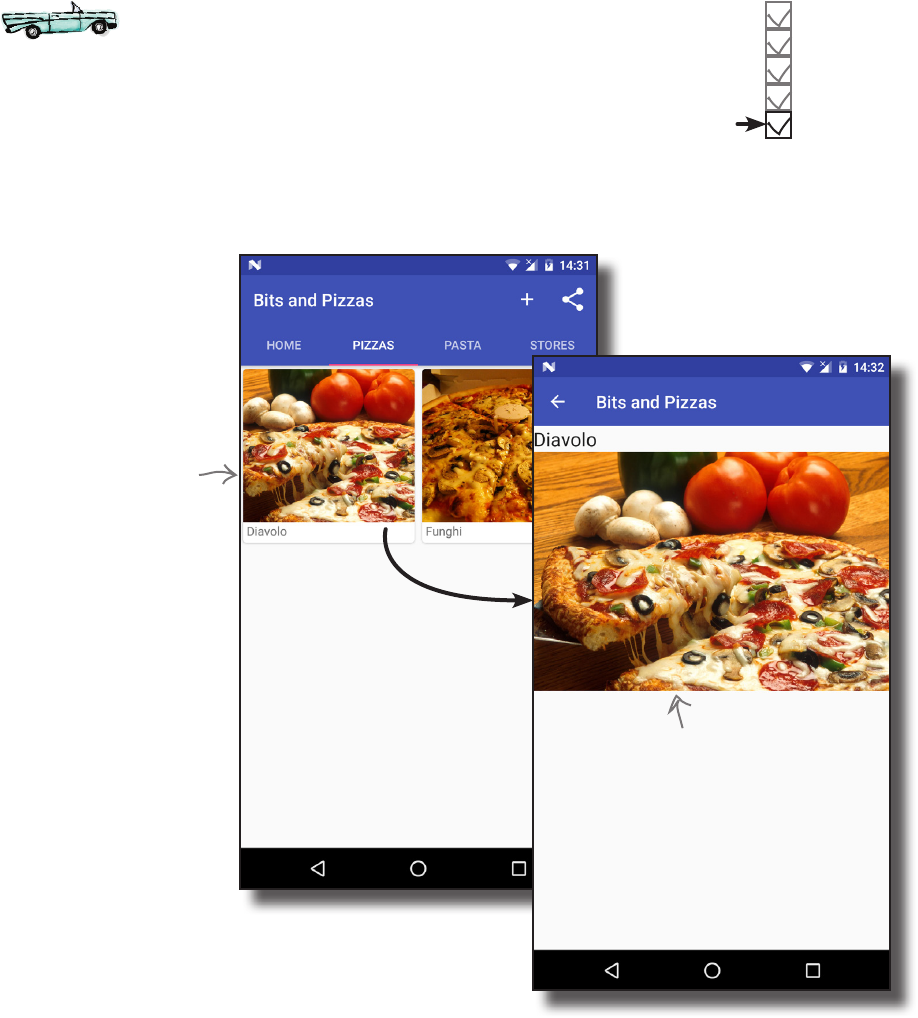

Make the recycler view respond to clicks 566

Create PizzaDetailActivity 567

The code for PizzaDetailActivity.java 569

Get a recycler view to respond to clicks 570

You can listen for view events from the adapter 571

Keep your adapters reusable 572

Add the interface to the adapter 573

Implement the listener in PizzaFragment.java 575

Your Android Toolbox 578

ViewHolder

CardView

Each of our ViewHolders will

contain a CardView. We created

the layout for this CardView

earlier in the chapter.

table of contents

Going Places

You’ve already seen how tabs help users navigate your apps.

But if you need a large number of them, or want to split them into sections, the navigation

drawer is your new BFF. In this chapter, we’ll show you how to create a navigation drawer

that slides out from the side of your activity at a single touch. You’ll learn how to give it a

header using a navigation view, and provide it with a structured set of menu items

to take the user to all the major hubs of your app. Finally, you’ll discover how to set up a

navigation view listener so that the drawer responds to the slightest touch and swipe.

navigation drawers

Tab layouts allow easy navigation... 580

We’re going to create a navigation drawer for a new email app 581

Navigation drawers deconstructed 582

Create the CatChat project 584

Create InboxFragment 585

Create DraftsFragment 586

Create SentItemsFragment 587

Create TrashFragment 588

Create a toolbar layout 589

Update the app’s theme 590

Create HelpActivity 591

Create FeedbackActivity 592

Create the navigation drawer’s header 594

The full nav_header.xml code 595

How to group items together 598

Add the support section as a submenu 600

The full menu_nav.xml code 601

How to create a navigation drawer 602

The full code for activity_main.xml 603

Add InboxFragment to MainActivity’s frame layout 604

Add a drawer toggle 607

Respond to the user clicking items in the drawer 608

Implement the onNavigationItemSelected() method 609

Close the drawer when the user presses the Back button 614

The full MainActivity.java code 615

Your Android Toolbox 619

This is the CatChat app.

table of contents

xxi

Fire Up the Database

If you’re recording high scores or saving tweets, your app

will need to store data. And on Android you usually keep your data safe

inside a SQLite database. In this chapter, we’ll show you how to create a database,

add tables to it, and prepopulate it with data, all with the help of the friendly SQLite

helper. You’ll then see how you can cleanly roll out upgrades to your database

structure, and how to downgrade it if you need to undo any changes.

SQLite databases

Back to Starbuzz 622

Android uses SQLite databases to persist data 623

Android comes with SQLite classes 624

The current Starbuzz app structure 625

Let’s change the app to use a database 626

The SQLite helper manages your database 627

Create the SQLite helper 628

Inside a SQLite database 630

You create tables using Structured Query Language (SQL) 631

Insert data using the insert() method 632

Insert multiple records 633

The StarbuzzDatabaseHelper code 634

What the SQLite helper code does 635

What if you need to make changes to the database? 636

SQLite databases have a version number 637

What happens when you change the version number 638

Upgrade your database with onUpgrade() 640

Downgrade your database with onDowngrade() 641

Let’s upgrade the database 642

Upgrade an existing database 645

Update records with the update() method 646

Apply conditions to multiple columns 647

Change the database structure 649

Delete tables by dropping them 650

The full SQLite helper code 651

Your Android Toolbox 656

Your database,

sir. Will that

be all?

SQLite helper

SQLite database

Name: “starbuzz”

Version: 1

DRINK

onCreate()

table of contents

xxii

Getting Data Out

So how do you connect your app to a SQLite database?

So far you’ve seen how to create a SQLite database using a SQLite helper. The

next step is to get your activities to access it. In this chapter, we’ll focus on how you

read data from a database. You’ll find out how to use cursors to get data from the

database. You’ll see how to navigate cursors, and how to get access to their data.

Finally, you’ll discover how to use cursor adapters to bind cursors to list views.

basic cursors

The story so far... 658

The new Starbuzz app structure 659

What we’ll do to change DrinkActivity to use the Starbuzz database 660

The current DrinkActivity code 661

Get a reference to the database 662

Get data from the database with a cursor 663

Return all the records from a table 664

Return records in a particular order 665

Return selected records 666

The DrinkActivity code so far 669

To read a record from a cursor, you first need to navigate to it 670

Navigate cursors 671

Get cursor values 672

The DrinkActivity code 673

What we’ve done so far 675

The current DrinkCategoryActivity code 677

Get a reference to the Starbuzz database... 678

How do we replace the array data in the list view? 679

A simple cursor adapter maps cursor data to views 680

How to use a simple cursor adapter 681

Close the cursor and database 682

The story continues 683

The revised code for DrinkCategoryActivity 688

The DrinkCategoryActivity code (continued) 689

Your Android Toolbox 691

CursorAdapter

Cursor

Hey, Cursor, I need

more... Cursor? Hey,

buddy, are you there?

If you close the cursor too

soon, the cursor adapter

won’t be able to get more

data from the cursor.

table of contents

xxiii

Staying in the Background

17cursors and asynctasks

In most apps, you’ll need your app to update its data.

So far you’ve seen how to create apps that read data from a SQLite database. But

what if you want to update the app’s data? In this chapter you’ll see how to get your

app to respond to user input and update values in the database. You’ll also find

out how to refresh the data that’s displayed once it’s been updated. Finally, you’ll

see how writing efficient multithreaded code with AsyncTasks will keep your app

speedy.

onPreExecute

doInBackground

onProgressUpdate

onPostExecute

We want our Starbuzz app to update database data 694

Add a checkbox to DrinkActivity’s layout 696

Display the value of the FAVORITE column 697

Respond to clicks to update the database 698

The full DrinkActivity.java code 701

Display favorites in TopLevelActivity 705

Refactor TopLevelActivity.java 707

The new TopLevelActivity.java code 710

Change the cursor with changeCursor() 715

What code goes on which thread? 723

AsyncTask performs asynchronous tasks 724

The onPreExecute() method 725

The doInBackground() method 726

The onProgressUpdate() method 727

The onPostExecute() method 728

The AsyncTask class parameters 729

The full UpdateDrinkTask class 730

The full DrinkActivity.java code 732

A summary of the AsyncTask steps 737

Your Android Toolbox 737

ListView CursorAdapter Database

Cursor

Latte

Cappuccino

Filter

table of contents

xxiv

At Your Service

There are some operations you want to keep on running,

irrespective of which app has the focus. If you start downloading a

file, for instance, you don’t want the download to stop when you switch to another app. In

this chapter we’ll introduce you to started services, components that run operations in the

background. You’ll see how to create a started service using the IntentService class,

and find out how its lifecycle fits in with that of an activity. Along the way, you’ll discover how

to log messages, and keep users informed using Android’s built-in notification service.

started services

MainActivity.java DelayedMessageService.java

1...2..3...4...5...6...7

...8...9...10... Here’s

the text.

</Layout>

activity_main.xml

The activity will pass

text to the service.

The service will

display the text

after 10 seconds.

MainActivity will use this layout.

Text

Services work in the background 740

We’ll create a STARTED service 741

Use the IntentService class to create a basic started service 742

How to log messages 743

The full DelayedMessageService code 744

You declare services in AndroidManifest.xml 745

Add a button to activity_main.xml 746

You start a service using startService() 747

The states of a started service 750

The started service lifecycle: from create to destroy 751

Your service inherits the lifecycle methods 752

Android has a built-in notification service 755

We’ll use notifications from the AppCompat Support Library 756

First create a notification builder 757

Issue the notification using the built-in notification service 759

The full code for DelayedMessageService.java 760

Your Android Toolbox 765

onCreate()

onDestroy()

Service created

Service destroyed

onStartCommand()

Service running

onHandleIntent()

table of contents

xxv

Bound Together

Started services are great for background operations, but

what if you need a service that’s more interactive? In this

chapter you’ll discover how to create a bound service, a type of service your activity

can interact with. You’ll see how to bind to the service when you need it, and how

to unbind from it when you’re done to save resources. You’ll find out how to use

Android’s Location Services to get location updates from your device GPS. Finally,

you’ll discover how to use Android’s permission model, including handling runtime

permission requests.

bound services and permissions

Bound services are bound to other components 768

Create a new service 770

Implement a binder 771

Add a getDistance() method to the service 772

Update MainActivity’s layout 773

Create a ServiceConnection 775

Use bindService() to bind the service 778

Use unbindService() to unbind from the service 779

Call OdometerService’s getDistance() method 780

The full MainActivity.java code 781

The states of a bound service 787

Add the AppCompat Support Library 790

Add a location listener to OdometerService 792

Here’s the updated OdometerService code 795

Calculate the distance traveled 796

The full OdometerService.java code 798

Get the app to request permission 802

Check the user’s response to the permission request 805

Add notification code to onRequestPermissionsResults() 809

The full code for MainActivity.java 811

Your Android Toolbox 815

It’s been great having you here in Androidville 816

OdometerService

Are we nearly

there yet?

Android

Intent

Odometer

Service

OdometerService

onBind()

table of contents

xxvi

Most Android apps are created using a build tool called

Gradle. Gradle works behind the scenes to find and download libraries, compile

and deploy your code, run tests, clean the grouting, and so on. Most of the time you

might not even realize it’s there because Android Studio provides a graphical interface

to it. Sometimes, however, it’s helpful to dive into Gradle and hack it manually. In this

appendix we’ll introduce you to some of Gradle’s many talents.

There are two more layouts you will often meet in

Androidville. In this book we’ve concentrated on using simple linear and frame

layouts, and introduced you to Android’s new constraint layout. But there are two more

layouts we’d like you to know about: relative layouts and grid layouts. They’ve largely

been superseded by the constraint layout, but we have a soft spot for them, and we

think they’ll stay around for a few more years.

Meet the Relatives

relative and grid layouts

The Gradle Build Tool

gradle

Each of

these

areas is

a cell.

table of contents

xxvii

The Android Runtime

Ever wonder how Android apps can run on so many kinds of

devices? Android apps run in a virtual machine called the Android runtime (ART),

not the Oracle Java Virtual Machine (JVM). This means that your apps are quicker to

start on small, low-powered devices and run more efficiently. In this appendix, we’ll look

at how ART works.

art

iii

The Android Debug Bridge

In this book, we’ve focused on using an IDE for all your

Android needs. But there are times when using a command-line tool can be plain

useful, like those times when Android Studio can’t see your Android device but you just

know it’s there. In this chapter, we’ll introduce you to the Android Debug Bridge (or

adb), a command-line tool you can use to communicate with the emulator or Android

devices.

adb

classes.dex

Resources

aapt

.apk

Device

adb adbd

adb command adb daemon

process

table of contents

xxviii

1. Distributing your app 862

2. Content providers 863

3. Loaders 864

4. Sync adapters 864

5. Broadcasts 865

6. The WebView class 866

7. Settings 867

8. Animation 868

9. App widgets 869

10. Automated testing 870

Speeding Things Up

Ever felt like you were spending all your time waiting for the

emulator? There’s no doubt that using the Android emulator is useful. It allows

you to see how your app will run on devices other than the physical ones you have

access to. But at times it can feel a little...sluggish. In this appendix, we’ll explain why

the emulator can seem slow. Even better, we’ll give you a few tips we’ve learned for

speeding it up.

the android emulator

The Top Ten Things (we didn’t cover)

Even after all that, there’s still a little more.

There are just a few more things we think you need to know. We wouldn’t feel right

about ignoring them, and we really wanted to give you a book you’d be able to lift

without extensive training at the local gym. Before you put down the book, read

through these tidbits.

leftovers

QEMU Emulator

AVD

All the Android Virtual Devices run

on an emulator called QEMU.

AVD AVD AVD AVD

The battery’s

running low, in case

anyone’s interested.

Android

you are here 4 xxix

the intro

how to use this book

Intro

In this section, we answer the burning question:

“So why DID they put that in a book on Android?”

I can’t believe

they put

that

in an

Android book.

xxx intro

how to use this book

Who is this book for?

Who should probably back away from this book?

If you can answer “yes” to all of these:

If you can answer “yes” to any of these:

this book is for you.

this book is not for you.

[Note from Marketing: this

book is for anyone with a credit

card or a PayPal account]

Do you prefer actually doing things and applying the stuff

you learn over listening to someone in a lecture rattle on

for hours on end?

Do you want to master Android app development, create

the next big thing in software, make a small fortune, and

retire to your own private island?

Are you looking for a quick introduction or reference book

to developing Android apps?

Do you already know how to program in Java?

Would you rather have your toenails pulled out by 15

screaming monkeys than learn something new? Do

you believe an Android book should cover everything,

especially all the obscure stuff you’ll never use, and if it

bores the reader to tears in the process, then so much

the better?

OK, maybe that one’s a little

far-fetched. But you gotta

start somewhere, right?

you are here 4 xxxi

the intro

“How can this be a serious book on developing Android apps?”

“What’s with all the graphics?”

“Can I actually learn it this way?”

Your brain craves novelty. It’s always searching, scanning, waiting for

something unusual. It was built that way, and it helps you stay alive.

So what does your brain do with all the routine, ordinary, normal things

you encounter? Everything it can to stop them from interfering with the

brain’s real job—recording things that matter. It doesn’t bother saving

the boring things; they never make it past the “this is obviously not

important” filter.

How does your brain know what’s important? Suppose you’re out for a day

hike and a tiger jumps in front of you—what happens inside your head and

body?

Neurons fire. Emotions crank up. Chemicals surge.

And that’s how your brain knows…

This must be important! Don’t forget it!

But imagine you’re at home or in a library. It’s a safe, warm, tiger-free zone.

You’re studying. Getting ready for an exam. Or trying to learn some tough

technical topic your boss thinks will take a week, ten days at the most.

Just one problem. Your brain’s trying to do you a big favor. It’s trying to

make sure that this obviously unimportant content doesn’t clutter up scarce

resources. Resources that are better spent storing the really big things.

Like tigers. Like the danger of fire. Like how you should never have

posted those party photos on your Facebook page. And there’s no

simple way to tell your brain, “Hey brain, thank you very much, but

no matter how dull this book is, and how little I’m registering on the

emotional Richter scale right now, I really do want you to keep this

stuff around.”

We know what you’re thinking

We know what your

brain

is thinking

Your brain thinks

THIS is important.

Your brain thinks

THIS isn’t worth

saving.

Great. Only 900

more dull, dry,

boring pages.

xxxii intro

how to use this book

We think of a “Head First” reader as a learner.

So what does it take to

learn

something? First, you have to

get

it, then make sure

you don’t

forget

it. It’s not about pushing facts into your head. Based on the latest

research in cognitive science, neurobiology, and educational psychology,

learning

takes a lot more than text on a page. We know what turns your brain on.

Some of the Head First learning principles:

Make it visual. Images are far more memorable than words alone, and make learning much

more effective (up to 89% improvement in recall and transfer studies). It also makes things more

understandable. Put the words within or near the graphics they relate to, rather than on

the bottom or on another page, and learners will be up to twice as likely to solve problems related to the

content.

Use a conversational and personalized style. In recent studies, students performed up

to 40% better on post-learning tests if the content spoke directly to the reader, using a first-person,

conversational style rather than taking a formal tone. Tell stories instead of lecturing. Use casual language.

Don’t take yourself too seriously. Which would you pay more attention to: a stimulating dinner-party

companion, or a lecture?

Get the learner to think more deeply. In other words, unless you actively flex your neurons,

nothing much happens in your head. A reader has to be motivated, engaged, curious, and inspired to

solve problems, draw conclusions, and generate new knowledge. And for that, you need challenges,

exercises, and thought-provoking questions, and activities that involve both sides of the brain and

multiple senses.

Get—and keep—the reader’s attention. We’ve all had the “I really want to learn this, but I can’t

stay awake past page one” experience. Your brain pays attention to things that are out of the ordinary,

interesting, strange, eye-catching, unexpected. Learning a new, tough, technical topic doesn’t have to be

boring. Your brain will learn much more quickly if it’s not.

Touch their emotions. We now know that your ability to remember something is largely dependent

on its emotional content. You remember what you care about. You remember when you feel something.

No, we’re not talking heart-wrenching stories about a boy and his dog. We’re talking emotions like

surprise, curiosity, fun, “what the…?” , and the feeling of “I rule!” that comes when you solve a puzzle, learn

something everybody else thinks is hard, or realize you know something that “I’m more technical than

thou” Bob from Engineering doesn’t.

you are here 4 xxxiii

the intro

Metacognition: thinking about thinking

I wonder how

I can trick my brain

into remembering

this stuff…

If you really want to learn, and you want to learn more quickly and more

deeply, pay attention to how you pay attention. Think about how you think.

Learn how you learn.

Most of us did not take courses on metacognition or learning theory when we

were growing up. We were expected to learn, but rarely taught to learn.

But we assume that if you’re holding this book, you really want to learn how

to develop Android apps. And you probably don’t want to spend a lot of time.

If you want to use what you read in this book, you need to remember what you

read. And for that, you’ve got to understand it. To get the most from this book,

or any book or learning experience, take responsibility for your brain. Your

brain on this content.

The trick is to get your brain to see the new material you’re learning as

Really Important. Crucial to your well-being. As important as a tiger.

Otherwise, you’re in for a constant battle, with your brain doing its best to

keep the new content from sticking.

So just how

you get your brain to treat Android

development like it was a hungry tiger?

There’s the slow, tedious way, or the faster, more effective way. The

slow way is about sheer repetition. You obviously know that you are able to learn

and remember even the dullest of topics if you keep pounding the same thing into your

brain. With enough repetition, your brain says, “This doesn’t feel important to him, but

he keeps looking at the same thing over and over and over, so I suppose it must be.”

The faster way is to do anything that increases brain activity, especially different

types of brain activity. The things on the previous page are a big part of the solution,

and they’re all things that have been proven to help your brain work in your favor. For

example, studies show that putting words within the pictures they describe (as opposed to

somewhere else in the page, like a caption or in the body text) causes your brain to try to

makes sense of how the words and picture relate, and this causes more neurons to fire.

More neurons firing = more chances for your brain to get that this is something worth

paying attention to, and possibly recording.

A conversational style helps because people tend to pay more attention when they

perceive that they’re in a conversation, since they’re expected to follow along and hold up

their end. The amazing thing is, your brain doesn’t necessarily care that the “conversation”

is between you and a book! On the other hand, if the writing style is formal and dry, your

brain perceives it the same way you experience being lectured to while sitting in a roomful

of passive attendees. No need to stay awake.

But pictures and conversational style are just the beginning…

xxxiv intro

how to use this book

Here’s what WE did

We used pictures, because your brain is tuned for visuals, not text. As far as your brain’s

concerned, a picture really is worth a thousand words. And when text and pictures work

together, we embedded the text in the pictures because your brain works more effectively

when the text is within the thing it refers to, as opposed to in a caption or buried in the body

text somewhere.

We used redundancy, saying the same thing in different ways and with different media types,

and multiple senses, to increase the chance that the content gets coded into more than one area

of your brain.

We used concepts and pictures in unexpected ways because your brain is tuned for novelty,

and we used pictures and ideas with at least some emotional content, because your brain

is tuned to pay attention to the biochemistry of emotions. That which causes you to feel

something is more likely to be remembered, even if that feeling is nothing more than a little

humor, surprise, or interest.

We used a personalized, conversational style, because your brain is tuned to pay more

attention when it believes you’re in a conversation than if it thinks you’re passively listening

to a presentation. Your brain does this even when you’re reading.

We included activities, because your brain is tuned to learn and remember more when

you do things than when you read about things. And we made the exercises challenging-yet-

doable, because that’s what most people prefer.

We used multiple learning styles, because you might prefer step-by-step procedures, while

someone else wants to understand the big picture first, and someone else just wants to see

an example. But regardless of your own learning preference, everyone benefits from seeing the

same content represented in multiple ways.

We include content for both sides of your brain, because the more of your brain you

engage, the more likely you are to learn and remember, and the longer you can stay focused.

Since working one side of the brain often means giving the other side a chance to rest, you

can be more productive at learning for a longer period of time.

And we included stories and exercises that present more than one point of view,

because your brain is tuned to learn more deeply when it’s forced to make evaluations and

judgments.

We included challenges, with exercises, and by asking questions that don’t always have

a straight answer, because your brain is tuned to learn and remember when it has to work at

something. Think about it—you can’t get your body in shape just by watching people at the

gym. But we did our best to make sure that when you’re working hard, it’s on the right things.

That you’re not spending one extra dendrite processing a hard-to-understand example,

or parsing difficult, jargon-laden, or overly terse text.

We used people. In stories, examples, pictures, and the like, because, well, you’re a person.

And your brain pays more attention to people than it does to things.

you are here 4 xxxv

the intro

So, we did our part. The rest is up to you. These tips are a

starting point; listen to your brain and figure out what works

for you and what doesn’t. Try new things.

6Drink water. Lots of it.

Your brain works best in a nice bath of fluid.

Dehydration (which can happen before you ever

feel thirsty) decreases cognitive function.

9Write a lot of code!

There’s only one way to learn to develop Android

apps: write a lot of code. And that’s what you’re

going to do throughout this book. Coding is a skill,

and the only way to get good at it is to practice.

We’re going to give you a lot of practice: every

chapter has exercises that pose a problem for you

to solve. Don’t just skip over them—a lot of the

learning happens when you solve the exercises. We

included a solution to each exercise—don’t be afraid

to peek at the solution if you get stuck! (It’s easy

to get snagged on something small.) But try to solve

the problem before you look at the solution. And

definitely get it working before you move on to the

next part of the book.

8Feel something.

Your brain needs to know that this matters. Get

involved with the stories. Make up your own

captions for the photos. Groaning over a bad joke

is still better than feeling nothing at all.

7Listen to your brain.

Pay attention to whether your brain is getting

overloaded. If you find yourself starting to skim

the surface or forget what you just read, it’s time

for a break. Once you go past a certain point, you

won’t learn faster by trying to shove more in, and

you might even hurt the process.

5Talk about it. Out loud.

Speaking activates a different part of the brain. If

you’re trying to understand something, or increase

your chance of remembering it later, say it out loud.

Better still, try to explain it out loud to someone else.

You’ll learn more quickly, and you might uncover

ideas you hadn’t known were there when you were

reading about it.

4Make this the last thing you read before bed.

Or at least the last challenging thing.

Part of the learning (especially the transfer to

long-term memory) happens

after

you put the book

down. Your brain needs time on its own, to do more

processing. If you put in something new during that

processing time, some of what you just learned will

be lost.

3Read “There Are No Dumb Questions.”

That means all of them. They’re not optional

sidebars, they’re part of the core content!

Don’t skip them.

Cut this out and stick it

on your refrigerator.

Here’s what YOU can do to bend

your brain into submission

2Do the exercises. Write your own notes.

We put them in, but if we did them for you, that

would be like having someone else do your workouts

for you. And don’t just look at the exercises. Use a

pencil. There’s plenty of evidence that physical

activity

while

learning can increase the learning.

Don’t just read. Stop and think. When the book asks

you a question, don’t just skip to the answer. Imagine

that someone really is asking the question. The

more deeply you force your brain to think, the better

chance you have of learning and remembering.

Slow down. The more you understand, the

less you have to memorize.

xxxvi intro

how to use this book

Read me

This is a learning experience, not a reference book. We deliberately stripped out everything

that might get in the way of learning whatever it is we’re working on at that point in the

book. And the first time through, you need to begin at the beginning, because the book

makes assumptions about what you’ve already seen and learned.

We assume you’re new to Android, but not to Java.

We’re going to be building Android apps using a combination of Java and XML. We

assume that you’re familiar with the Java prorgamming language. If you’ve never done any

Java programming at all, then you might want to read Head First Java before you start on

this one.

We start off by building an app in the very first chapter.

Believe it or not, even if you’ve never developed for Android before, you can jump right

in and start building apps. You’ll also learn your way around Android Studio, the official

IDE for Android development.

The examples are designed for learning.

As you work through the book, you’ll build a number of different apps. Some of these are

very small so you can focus on a specific part of Android. Other apps are larger so you can

see how different components fit together. We won’t complete every part of every app, but

feel free to experiment and finish them yourself. It’s all part of the learning experience. The

source code for all the apps is here: https://tinyurl.com/HeadFirstAndroid.

The activities are NOT optional.

The exercises and activities are not add-ons; they’re part of the core content of the book.

Some of them are to help with memory, some are for understanding, and some will help

you apply what you’ve learned. Don’t skip the exercises.

you are here 4 xxxvii

the intro

The redundancy is intentional and important.

One distinct difference in a Head First book is that we want you to really get it. And we

want you to finish the book remembering what you’ve learned. Most reference books

don’t have retention and recall as a goal, but this book is about learning, so you’ll see

some of the same concepts come up more than once.

The Brain Power exercises don’t have answers.

For some of them, there is no right answer, and for others, part of the learning

experience of the Brain Power activities is for you to decide if and when your answers

are right. In some of the Brain Power exercises, you will find hints to point you in the

right direction.

xxxviii intro

the review teamthe review team

The technical review team

Jacqui Cope started coding to avoid school netball

practice. Since then she has gathered 30 years’

experience working with a variety of ﬁnancial software

systems, from coding in COBOL to test management.

Recently she has gained her MSc in Computer

Security and has moved into software Quality

Assurance in the higher education sector.

In her spare time, Jacqui likes to cook, walk in the

countryside, and watch Doctor Who from behind the

sofa.

Jacqui

Technical reviewers:

Andy Parker is currently working as a development

manager, but has been a research physicist, teacher,

designer, reviewer, and team leader at various points

in his career. Through all of his roles, he has never lost

his passion for creating top quality, well-designed, and

well-engineered software. Nowadays, he spends most

of his time managing great Agile teams and passing on

his wide range of experience to the next generation of

developers.

Andy

you are here 4 xxxix

the intro

Our editor:

Heartfelt thanks to our wonderful editor Dawn Schanafelt for

picking up the reins on the second edition. She has truly been

amazing, and a delight to work with. She made us feel valued

and supported every step of the way, and gave us invaluable

feedback and insight exactly when we needed it. We’ve

appreciated all the many times she told us our sentences had all

the right words, but not necessarily in the right order.

Thanks also to Bert Bates for teaching us to throw away the

Acknowledgments

Dawn Schanafelt

old rulebook and for letting us into his brain.

The O’Reilly team:

A big thank you goes to Mike Hendrickson for having conﬁdence in us and

asking us to write the ﬁrst edition of the book; Heather Scherer for her behind-

the-scenes organization skills and herding; the early release team for making

early versions of the book available for download; and the design team for all

their extra help. Finally, thanks go to the production team for expertly steering

the book through the production process and for working so hard behind the

scenes.

Family, friends, and colleagues:

Writing a Head First book is a rollercoaster of a ride, even when it’s a second

edition, and this one’s been no exception. We’ve truly valued the kindness and

support of our family and friends along the way. Special thanks go to Ian, Steve,

Colin, Angela, Paul B, Chris, Michael, Mum, Dad, Carl, Rob, and

Lorraine.

The without-whom list:

Our technical review team did a great job of keeping us straight, and making sure

that what we covered was spot on. We’re also grateful to Ingo Krotzky for his

valuable feedback on the early release of this book, and all the people who gave us

feedback on the first edition. We think the book’s much, much better as a result.

Finally, our thanks to Kathy Sierra and Bert Bates for creating this

extraordinary series of books.

xl intro

o’reilly safari

O’Reilly Safari®

Safari (formerly Safari Books Online) is a membership-based training and

reference platform for enterprise, government, educators, and individuals.

Members have access to thousands of books, training videos, Learning Paths,

interactive tutorials, and curated playlists from over 250 publishers, including

O’Reilly Media, Harvard Business Review, Prentice Hall Professional, Addison-

Wesley Professional, Microsoft Press, Sams, Que, Peachpit Press, Adobe, Focal

Press, Cisco Press, John Wiley & Sons, Syngress, Morgan Kaufmann, IBM

Redbooks, Packt, Adobe Press, FT Press, Apress, Manning, New Riders, McGraw-

Hill, Jones & Bartlett, and Course Technology, among others.

For more information, please visit http://oreilly.com/safari.

this is a new chapter 1

getting started

Diving In

Android has taken the world by storm.

Everybody wants a smartphone or tablet, and Android devices are hugely popular. In this

book, we’ll teach you how to develop your own apps, and we’ll start by getting you to

build a basic app and run it on an Android Virtual Device. Along the way, you’ll meet some

of the basic components of all Android apps, such as activities and layouts. All you

need is a little Java know-how...

2 Chapter 1

android overview

Welcome to Androidville

Android is the world’s most popular mobile platform. At the

last count, there were over two billion active Android devices

worldwide, and that number is growing rapidly.

Android is a comprehensive open source platform based

on Linux and championed by Google. It’s a powerful

development framework that includes everything you need

to build great apps using a mix of Java and XML. What’s

more, it enables you to deploy those apps to a wide variety of

devices—phones, tablets, and more.

So what makes up a typical Android app?

Layouts

tell Android

what the

screens in

your app

look like.

Layouts define what each screen

looks like

A typical Android app is composed of one

or more screens. You define what each

screen looks like using a layout to define its

appearance. Layouts are usually defined in

XML, and can include GUI components such

as buttons, text fields, and labels.

Activities define what the app

does

Layouts only define the appearance of the app.

You define what the app does using one or

more activities. An activity is a special Java

class that decides which layout to use and

tells the app how to respond to the user. As

an example, if a layout includes a button, you

need to write Java code in the activity to define

what the button should do when you press it.

Sometimes extra resources are needed too

In addition to activities and layouts, Android apps often need

extra resources such as image files and application data. You

can add any extra files you need to the app.

Android apps are really just a bunch of files in particular

directories. When you build your app, all of these files get

bundled together, giving you an app you can run on your

device.

We’re going to build our

Android apps using a mixture

of Java and XML. We’ll

explain things along the way,

but you’ll need to have a fair

understanding of Java to get

the most out of this book.

Activities define

what the app

should do.

Resources

can include

sound and

image files.

you are here 4 3

getting started

Applications

Home Contacts Phone Browser ...

Application Framework

Activity

Manager

Window

Manager

Content

Providers

View

System

Package

Manager

Telephony

Manager

Resource

Manager

Location

Manager

Notification

Manager

Libraries

OpenGL |

ES FreeType WebKit

Surface

Manager

Media

Framework SQLite

SGL SSL libc

Android Runtime

Core

Libraries

Linux Kernel

Flash Memory

Driver

Camera

Driver

Binder (IPC)

Driver

Display

Driver

Audio

Drivers

WiFi

Driver

Power

Management

Keypad

Driver

Android comes with a

set of core applications

such as Contacts, Phone,

Calendar, and a browser.

When you build apps, you

have access to the same

APIs used by the core

applications. You use

these APIs to control

what your app looks like

and how it behaves.

Underneath the

application framework

lies a set of C and C++

libraries. These libraries

get exposed to you

through the framework

APIs.

Underneath everything

else lies the Linux kernel.

Android relies on the

kernel for drivers, and

also core services such

as security and memory

management.

The Android

runtime

comes with a

set of core

libraries that

implement

most of

the Java

programming

language.

Each Android

app runs

in its own

process.

The Android platform dissected

The Android platform is made up of a number of

different components. It includes core applications such

as Contacts, a set of APIs to help you control what your

app looks like and how it behaves, and a whole load of

supporting files and libraries. Here’s a quick look at how

they all fit together:

Don’t worry if this seems

like a lot to take in.

We’re just giving you an

overview of what’s included in

the Android platform. We’ll explain the different

components in more detail as and when we

need to.

The great news is that all of the powerful Android libraries

are exposed through the APIs in the application framework,

and it’s these APIs that you use to create great Android

apps. All you need to begin is some Java knowledge and a

great idea for an app.

4 Chapter 1

steps

Here’s what we’re going to do

So let’s dive in and create a basic Android app. There are just

a few things we need to do:

Set up a development environment.

We need to install Android Studio, which

includes all the tools you need to develop

Android apps.

Build a basic app.

We’ll build a simple app using Android

Studio that will display some sample text on

the screen.

Change the app.

Finally, we’ll make a few tweaks to the app we

created in step 2, and run it again.

Run the app in the Android emulator.

We’ll use the built-in emulator to see the app

up and running.

Q: Are all Android apps developed

in Java?

A: You can develop Android apps in

other languages, too. Most developers use

Java, so that’s what we’re covering in this

book.

Q: How much Java do I need to know

for Android app development?

A: You really need experience with Java

SE (Standard Edition). If you’re feeling

rusty, we suggest getting a copy of Head

First Java by Kathy Sierra and Bert Bates.

Q: Do I need to know about Swing

and AWT?

A: Android doesn’t use Swing or AWT,

so don’t worry if you don’t have Java

desktop GUI experience.

you are here 4 5

getting started

Your development environment

Java is the most popular language used to develop Android applications.

Android devices don’t run .class and .jar files. Instead, to improve speed

and battery performance, Android devices use their own optimized

formats for compiled code. That means that you can’t use an ordinary

Java development environment—you also need special tools to convert

your compiled code into an Android format, to deploy them to an

Android device, and to let you debug the app once it’s running.

All of these come as part of the Android SDK. Let’s take a look at

what’s included.

The Android SDK

The Android Software Development Kit contains the libraries and tools

you need to develop Android apps. Here are some of the main points:

Android Studio is a special version of IntelliJ IDEA

IntelliJ IDEA is one of the most popular IDEs for Java development.

Android Studio is a version of IDEA that includes a version of

the Android SDK and extra GUI tools to help you with your app

development.

In addition to providing you with an editor and access to the tools and

libraries in the Android SDK, Android Studio gives you templates you

can use to help you create new apps and classes, and it makes it easy to

do things such as package your apps and run them.

Set up environment

Build app

Run app

Change app

Android SDK

SDK Tools

Tools for debugging and testing,

plus other useful utilities. The

SDK also features a set of

platform dependent tools.

Documentation

So you can access the latest

API documentation offline.

SDK Platform

There’s one of these for each

version of Android.

Sample apps

If you want practical code

examples to help you understand

how to use some of the APIs, the

sample apps might help you.

Android support

Extra APIs that aren’t available

in the standard platform.

Google Play Billing

Allows you to integrate billing

services in your app.

You are here.

6 Chapter 1

installation

Install Android Studio

Before we go any further, you need to install Android Studio on

your machine. We’re not including the installation instructions

in this book as they can get out of date pretty quickly, but you’ll

be fine if you follow the online instructions.

First, check the Android Studio system requirements here:

https://developer.android.com/sdk/installing/index.html?pkg=studio

Once you’ve installed Android Studio, open it and follow the

instructions to add the latest SDK tools and Support Libraries.

When you’re done, you should see the Android Studio welcome

screen. You’re now ready to build your first Android app.

http://developer.android.com/sdk/index.html#Requirements

Google sometimes changes their

URLs. If these URLs don’t

work, search for Android Studio

and you should find them.

Set up environment

Build app

Run app

Change app

This is the Android

Studio welcome

screen. It includes a

set of options for

things you can do.

Then follow the Android Studio installation instructions here:

We’re using Android Studio version 2.3.

You’ll need to use this version or above

to get the most out of this book.

you are here 4 7

getting started

Q: You say we’re going to use

Android Studio to build the Android

apps. Do I have to?

A: Strictly speaking, you don’t have to

use Android Studio to build Android apps.

All you need is a tool that will let you write

and compile Java code, plus a few other

tools to convert the compiled code into a

form that Android devices can run.

Android Studio is the official Android IDE,

and the Android team recommends using

it. But quite a lot of people use IntelliJ IDEA

instead.

Q: Can I write Android apps without

using an IDE?

A: It’s possible, but it’s more work. Most

Android apps are now created using a build

tool called Gradle. Gradle projects can be

created and built using a text editor and a

command line.

Q: A build tool? So is gradle like

ANT?

A: It’s similar, but Gradle is much more

powerful than ANT. Gradle can compile and

deploy code, just like ANT, but it also uses

Maven to download any third-party libraries

your code needs. Gradle also uses Groovy as

a scripting language, which means you can

easily create quite complex builds with Gradle.

Q: Most apps are built using Gradle?

I thought you said most developers use

Android Studio.

A: Android Studio provides a graphical

interface to Gradle, and also to other tools

for creating layouts, reading logs, and

debugging.

You can find out more about Gradle in

Appendix II.

Build a basic app

Now that you’ve set up your development environment, you’re

ready to create your first Android app. Here’s what the app will look

like:

This is the name

of the application.

There’ll be a small piece

of sample text right here

that Android Studio will

put in for us.

This is a very simple

app, but that’s all you

need for your very

first Android app.

8 Chapter 1

create project

How to build the app

Whenever you create a new app, you need to create a

new project for it. Make sure you have Android Studio

open, and follow along with us.

Set up environment

Build app

Run app

Change app

You’ve completed this step

now, so we’ve checked it off.

Click on this option to start

a new Android Studio project.

1. Create a new project

The Android Studio welcome screen gives you a number of options.

We want to create a new project, so click on the option for “Start a

new Android Studio project.”

Any projects you create

will appear here. This is our

first project, so this area is

currently empty.

you are here 4 9

getting started

Set up environment

Build app

Run app

Change app

How to build the app (continued)

2. Configure the project

You now need to configure the app by telling Android Studio what

you want to call it, what company domain to use, and where you

would like to store the files.

Android Studio uses the company domain and application name to

form the name of the package that will be used for your app. As an

example, if you give your app a name of “My First App” and use

a company domain of “hfad.com”, Android Studio will derive a

package name of com.hfad.myfirstapp. The package name

is really important in Android, as it’s used by Android devices to

uniquely identify your app.

Enter an application name of “My First App”, enter a company

domain of “hfad.com”, uncheck the option to include C++ support,

and accept the default project location. Then click on the Next

button.

The package

name must

stay the same

for the lifetime

of your app.

It’s a unique identifier for your

app and used to manage

multiple versions of the same

app.

The application name is shown

in the Google Play Store and

various other places, too.

All of the files for your project will be stored here.

The wizard forms the

package name by combining

the application name and

the company domain.

Use a company domain

of hfad.com.

Uncheck the option to include C++

support. If prompted, also uncheck

the option to include Kotlin support.

Some versions of Android

Studio may have an extra

option asking if you want

to include Kotlin support.

Uncheck this option if it’s

there.

10 Chapter 1

api level

How to build the app (continued)

The minimum required SDK

is the lowest version your

app will support. Your app

will run on devices with

this level API or higher. It

won’t run on devices with

a lower API.

There’s more about the

different API levels on

the next page.

Set up environment

Build app

Run app

Change app

3. Specify the minimum SDK

You now need to indicate the minimum SDK of Android your app will use.

API levels increase with every new version of Android. Unless you only want

your app to run on the very newest devices, you’ll probably want to specify one

of the older APIs.

Here, we’re choosing a minimum SDK of API level 19, which means it will be

able to run on most devices. Also, we’re only going to create a version of our

app to run on phones and tablets, so we’ll leave the other options unchecked.

When you’ve done this, click on the Next button.

you are here 4 11

getting started

You’ve probably heard a lot of things about Android that sound

tasty, like Jelly Bean, KitKat, Lollipop, and Nougat. So what’s

with all the confectionary?

Android versions have a version number and a codename. The

version number gives the precise version of Android (e.g., 7.0),

while the codename is a more generic “friendly” name that may

cover several versions of Android (e.g., Nougat). The API level

refers to the version of the APIs used by applications. As an

example, the equivalent API level for Android version 7.1.1 is 25.

When you develop Android apps, you really need to consider

which versions of Android you want your app to be compatible

with. If you specify that your app is only compatible with the

very latest version of the SDK, you might find that it can’t be

run on many devices. You can find out the percentage of devices

running particular versions here: https://developer.android.com/

about/dashboards/index.html.

Android Versions Up Close

Most devices use

one of these APIs.

Hardly anyone uses

these versions anymore.

Version Codename API level

1.0 1

1.1 2

1.5 Cupcake 3

1.6 Donut 4

2.0–2.1 Eclair 5–7

2.2.x Froyo 8

2.3–2.3.7 Gingerbread 9–10

3.0 - 3.2 Honeycomb 11–13

4.0–4.0.4 Ice Cream Sandwich 14–15

4.1 - 4.3 Jelly Bean 16–18

4.4 KitKat 19–20

5.0–5.1 Lollipop 21–22

6.0 Marshmallow 23

7.0 Nougat 24

7.1–7.1.2 Nougat 25

12 Chapter 1

50,000 feet

Layouts define how

the user interface is

presented.

Activities define

actions.

Activities and layouts from 50,000 feet

The next thing you’ll be prompted to do is add an activity to your project.

Every Android app is a collection of screens, and each screen is composed

of an activity and a layout.

An activity is a single, defined thing that your user can do. You

might have an activity to compose an email, take a photo, or find a contact.

Activities are usually associated with one screen, and they’re written in Java.

A layout describes the appearance of the screen. Layouts are written

as XML files and they tell Android how the different screen elements are

arranged.

Let’s look in more detail at how activities and layouts work together to

create a user interface:

</Layout>

The device launches

your app and creates

an activity object.

The user interacts

with the layout that’s

displayed on the device.

Now that you know a bit more about what activities and layouts are,

let’s go through the last couple of steps in the Create New Project

wizard and get it to create an activity and layout.

Activity

Device Layout

The activity object

specifies a layout.

The activity tells

Android to display the

layout onscreen.

</Layout>

The activity responds

to these interactions by

running application code.

The activity updates

the display...

DeviceUser

Activity

...which the user sees

on the device.

Set up environment

Build app

Run app

Change app

you are here 4 13

getting started

Set up environment

Build app

Run app

Change app

How to build the app (continued)

4. Add an activity

The next screen lets you choose among a series of templates you

can use to create an activity and layout. We’re going to create

an app with an empty activity and layout, so choose the Empty

Activity option and click the Next button.

There are other types

of activity you can

choose from, but for

this exercise make sure

you select the Empty

Activity option.

14 Chapter 1

customize activity

5. Customize the activity

You will now be asked what you want to call the screen’s activity and layout.

Enter an activity name of “MainActivity”, make sure the option to generate a

layout file is checked, enter a layout name of “activity_main”, and then uncheck

the Backwards Compatibility (AppCompat) option. The activity is a Java class,

and the layout is an XML file, so the names we’ve given here will create a Java

class file called MainActivity.java and an XML file called activity_main.xml.

When you click on the Finish button, Android Studio will build your app.

Name the activity

“MainActivity”

and the layout

“activity_main”.

Also make sure the

option to generate

the layout is

checked.

How to build the app (continued)

Set up environment

Build app

Run app

Change app

Uncheck the Backwards

Compatibility (AppCompat) option.

You’ll find out more about this

setting later in the book.

you are here 4 15

getting started

You’ve just created your first Android app

So what just happened?

Set up environment

Build app

Run app

Change app

The Create New Project wizard created a project for your app,

configured to your specifications.

You defined which versions of Android the app should be compatible with, and

the wizard created all of the files and folders needed for a basic valid app.

The wizard created an activity and layout with template code.

The template code includes layout XML and activity Java code, with sample

“Hello World!” text in the layout.

When you finish creating your project by going through the

wizard, Android Studio automatically displays the project for

you.

Here’s what our project looks like (don’t worry if it looks

complicated—we’ll break it down over the next few pages):

This is the project in Android Studio.

16 Chapter 1

folder structure

Android Studio creates

a complete folder structure for you

An Android app is really just a bunch of valid files in a particular folder structure,

and Android Studio sets all of this up for you when you create a new app. The

easiest way of looking at this folder structure is with the explorer in the leftmost

column of Android Studio.

The explorer contains all of the projects that you currently have open. To expand

or collapse folders, just click on the arrows to the left of the folder icons.

The folder structure includes

different types of files

If you browse through the folder structure, you’ll

see that the wizard has created various types of

files and folders for you:

Java and XML source files

These are the activity and layout files for

your app.

Configuration files

The configuration files tell Android what’s

actually in the app and how it should run.

Resource files

These include default image files for

icons, styles your app might use, and any

common String values your app might

want to look up.

Android libraries

In the wizard, you specified the minimum

SDK version you want your app to be

compatible with. Android Studio makes

sure your app includes the relevant

Android libraries for that version.

Let’s take a closer look at some of the key files and

folders in Androidville.

Android-generated Java files

There are some extra Java files you

don’t need to touch that Android Studio

generates for you automatically.

Click on the arrow

here and choose

the Project option

to see the files and

folders that make

up your project.

This is the

name of

the project.

These files and

folders are all

included in your

project.

Click on

these

arrows

expand

collapse

the

folders.

Set up environment

Build app

Run app

Change app

you are here 4 17

getting started

app

src

MainActivity.java

main

java

com/hfad/myfirstapp

build

R.java

generated/source

r/debug

com/hfad/myfirstapp

<xml>

</xml>

AndroidManifest.xml

Useful files in your project

Android Studio projects use the Gradle build system to compile and

deploy apps. Gradle projects have a standard structure. Here are

some of the key files and folders you’ll be working with:

Every Android app must include a

file called

AndroidManifest.xml

at its root. The manifest file

contains essential information

about the app, such as what

components it contains, required

libraries, and other declarations.

You can find app resources in the

res

folder. For example, the

layout

subfolder contains layouts, and the

values

subfolder contains resource

files for values such as Strings. You

can get other types of resources

too.

MainActivity.java

defines

an activity. An activity tells

Android how the app should

interact with the user.

activity_main.xml

defines a

layout. A layout tells Android

how your app should look.

Every Android project needs a file

called

R.java

, which is created for

you and which lives in the generated/

source folder. Android uses this file

to keep track of resources in the app.

strings.xml

is a String resource

file. It includes Strings such as

the app’s name and any default

text values. Other files such as

layouts and activities can look up

text values from here.

The root folder

is the name of

your project. All

the files for your

project go in here.

The

src

folder contains

source code you write

and edit.

The

build

folder contains files that

Android Studio creates for you. You

don’t usually edit anything in this folder.

MyFirstApp

res

<xml>

</xml>

layout

activity_main.xml

<xml>

</xml>

values

strings.xml

The

java

folder contains any

Java code you write. Any

activities you create live here.

Set up environment

Build app

Run app

Change app

The

app

folder is a

module in your project.

18 Chapter 1

meet the editors

Edit code with the Android Studio editors

Set up environment

Build app

Run app

Change app

The code editor

Most files get displayed in

the code editor, which is

just like a text editor, but

with extra features such

as color coding and code

checking.

Double-click on the file

in the explorer and the

file contents appear in

the editor panel.

The design editor

If you’re editing a

layout, you have an

extra option. Rather

than edit the XML

(such as that shown on

the next page), you can

use the design editor,

which allows you to

drag GUI components

onto your layout, and

arrange them how you

want. The code editor

and design editor give

different views of the

same file, so you can

switch back and forth

between the two.

You dictate

which editor

you’re using with

these tabs.

You view and edit files using the Android Studio editors. Double-click

on the file you want to work with, and the file’s contents will appear in

the middle of the Android Studio window.

You can edit layouts using the

visual editor by dragging and

dropping components.

you are here 4 19

getting started

Here’s the code from an example layout file (not the one Android Studio

generated for us). We know you’ve not seen layout code before, but just

see if you can match each of the descriptions at the bottom of the page to the

correct lines of code. We’ve done one to get you started.

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingLeft="16dp"

android:paddingRight="16dp"

android:paddingTop="16dp"

android:paddingBottom="16dp"

android:orientation="vertical"

tools:context="com.hfad.myfirstapp.MainActivity">

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!" />

</LinearLayout>

Make the layout the same

width and height as the

screen size on the device.

Include a <TextView> GUI

component for displaying

text.

Display the String “Hello

World!”

Make the GUI component just

large enough for its content.

Add padding to the screen

margins.

20 Chapter 1

Make the layout the same

width and height as the

screen size on the device.

Include a <TextView> GUI

component for displaying

text.

Display the String “Hello

World!”

Make the GUI component just

large enough for its content.

Add padding to the screen

margins.

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingLeft="16dp"

android:paddingRight="16dp"

android:paddingTop="16dp"

android:paddingBottom="16dp"

android:orientation="vertical"

tools:context="com.hfad.myfirstapp.MainActivity">

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!" />

</LinearLayout>

Here’s the code from an example layout file (not the one Android Studio

generated for us). We know you’ve not seen layout code before, but just

see if you can match each of the descriptions at the bottom of the page to the

correct lines of code. We’ve done one to get you started.

solution

SOLUTION

you are here 4 21

getting started

Now let’s see if you can do the same thing for some activity code. This

is example code, and not necessarily the code that Android

Studio will have generated for you. Match the descriptions below

to the correct lines of code.

MainActivity.java

package com.hfad.myfirstapp;

import android.os.Bundle;

import android.app.Activity;

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

MainActivity extends the

Android class

android.app.Activity.

These are Android classes

used in MainActivity.

This is the package name. Implement the onCreate()

method from the Activity

class. This method is called

when the activity is first

created.

Specify which layout to use.

22 Chapter 1

another solution

Now let’s see if you can do the same thing for some activity code. This

is example code, and not necessarily the code that Android

Studio will have generated for you. Match the descriptions below

to the correct lines of code.

SOLUTION

MainActivity.java

package com.hfad.myfirstapp;

import android.os.Bundle;

import android.app.Activity;

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

)

MainActivity extends the

Android class

android.app.Activity.

These are Android classes

used in MainActivity.

This is the package name. Implement the onCreate()

method from the Activity

class. This method is called

when the activity is first

created.

Specify which layout to use.

you are here 4 23

getting started

Run the app in the Android emulator

So far you’ve seen what your Android app looks like in Android

Studio and got a feel for how it hangs together. But what you

really want to do is see it running, right?

You have a couple of options when it comes to running your

apps. The first option is to run them on a physical device. But

what if you don’t have one with you, or you want to see how

your app looks on a type of device you don’t have?

In that case, you can use the Android emulator that’s built

into the Android SDK. The emulator enables you to set up one

or more Android virtual devices (AVDs) and then run your

app in the emulator as though it’s running on a physical device.

So what does the emulator look like?

Here’s an AVD running in the Android emulator. It looks just

like a phone running on your computer.

Set up environment

Build app

Run app

Change app

The Android emulator allows

you to run your app on an

Android virtual device (AVD),

which behaves just like a

physical Android device. You

can set up numerous AVDs,

each emulating a different

type of device.

The emulator recreates the

exact hardware environment

of an Android device: from its

CPU and memory through to

the sound chips and the video

display. The emulator is built

on an existing emulator called

QEMU (pronounced “queue em

you”), which is similar to other

virtual machine applications you

may have used, like VirtualBox or

VMWare.

The exact appearance and

behavior of the AVD depends on

how you’ve set up the AVD in the

first place. The AVD here is set

up to mimic a Nexus 5X, so it will

look and behave just like a Nexus

5X on your computer.

Let’s set up an AVD so that you

can see your app running in the

emulator.

Once you’ve set up an

AVD, you'll be able to

see your app running

on it. Android Studio

launches the emulator

for you.

24 Chapter 1

create avd

Set up environment

Build app

Run app

Change app

There are a few steps you need to go through in order to set up an AVD

within Android Studio. We’ll set up a Nexus 5X AVD running API level

25 so that you can see how your app looks and behaves running on this

type of device. The steps are pretty much identical no matter what type

of virtual device you want to set up.

Open the Android Virtual Device Manager

The AVD Manager allows you to set up new AVDs, and

view and edit ones you’ve already created. Open it by

selecting Android on the Tools menu and choosing AVD

Manager.

If you have no AVDs set up already, you’ll be presented

with a screen prompting you to create one. Click on the

“Create Virtual Device” button.

Click on this button

to create an AVD.

Create an Android Virtual Device

Select the

hardware

On the next screen,

you’ll be prompted

to choose a device

definition. This is

the type of device

your AVD will

emulate. You can

choose a variety of

phone, tablet, wear,

or TV devices.

We’re going to see

what our app looks

like running on a

Nexus 5X phone.

Choose Phone from

the Category menu

and Nexus 5X from

the list. Then click

the Next button.

When you

select a

device, its

details

appear

here.

you are here 4 25

getting started

Select a system image

Next, you need to select a system image. The system image gives you an

installed version of the Android operating system. You can choose the

version of Android you want to be on your AVD.

You need to choose a system image for an API level that’s compatible with

the app you’re building. As an example, if you want your app to work on

a minimum of API level 19, choose a system image for at least API level 19.

We want our AVD to run API level 25, so choose the system image with a

release name of Nougat and a target of Android 7.1.1 (API level 25). Then

click on the Next button.

If you don’t

have this system

image installed,

you’ll be given

the option to

download it.

We’ll continue setting up the AVD on the next page.

Set up environment

Build app

Run app

Change app

Creating an AVD (continued)

26 Chapter 1

check configuration

Verify the AVD configuration

On the next screen, you’ll be asked to verify the AVD configuration. This screen

summarizes the options you chose over the last few screens, and gives you the

option of changing them. Accept the options, and click on the Finish button.

These are the options

you chose over the

past few pages.

Your Nexus 5X AVD has been created.

The AVD Manager will create the AVD for you, and when it’s done, display it in

the AVD Manager list of devices. You may now close the AVD Manager.

Set up environment

Build app

Run app

Change app

Creating an AVD (continued)

you are here 4 27

getting started

Run the app in the emulator

Now that you’ve set up your AVD, let’s run the app on it. To do

this, choose the “Run ‘app’” command from the Run menu. When

you’re asked to choose a device, select the Nexus 5X AVD you just

created. Then click OK.

The AVD can take a few minutes to appear, so while we wait, let’s

take a look at what happens when you choose Run.

Compile, package, deploy, and run

The Run command doesn’t just run your app. It also handles all the

preliminary tasks that are needed for the app to run:

The Java source files get compiled to

bytecode.

An Android application package, or APK

file, gets created.

The APK file includes the compiled Java files,

along with any libraries and resources needed

by your app.

Assuming there’s not one already

running, the emulator gets launched

and then runs the AVD.

Once the emulator has been launched

and the AVD is active, the APK file is

uploaded to the AVD and installed.

The AVD starts the main activity

associated with the app.

Your app gets displayed on the AVD screen,

and it’s all ready for you to test out.

Run

APK

An APK file is an

Android application

package. It’s

basically a JAR

or ZIP file for

Android applications.

Java file Bytecode

Libraries Resources

APK file

Emulator

This is the AVD we just created.

Set up environment

Build app

Run app

Change app

28 Chapter 1

be patient

03/13 10:45:41: Launching app

$ adb install-multiple -r /Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/intermediates/

split-apk/debug/dep/dependencies.apk /Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/

intermediates/split-apk/debug/slices/slice_1.apk /Users/dawng/AndroidStudioProjects/MyFirstApp/

app/build/intermediates/split-apk/debug/slices/slice_2.apk /Users/dawng/AndroidStudioProjects/

MyFirstApp/app/build/intermediates/split-apk/debug/slices/slice_0.apk /Users/dawng/

AndroidStudioProjects/MyFirstApp/app/build/intermediates/split-apk/debug/slices/slice_3.apk /Users/

dawng/AndroidStudioProjects/MyFirstApp/app/build/intermediates/split-apk/debug/slices/slice_6.apk /

Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/intermediates/split-apk/debug/slices/slice_4.

apk /Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/intermediates/split-apk/debug/slices/

slice_5.apk /Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/intermediates/split-apk/debug/

slices/slice_7.apk /Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/intermediates/split-apk/

debug/slices/slice_8.apk /Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/intermediates/

split-apk/debug/slices/slice_9.apk /Users/dawng/AndroidStudioProjects/MyFirstApp/app/build/outputs/

apk/app-debug.apk

Split APKs installed

$ adb shell am startservice com.hfad.myfirstapp/com.android.tools.fd.runtime.InstantRunService

$ adb shell am start -n "com.hfad.myfirstapp/com.hfad.myfirstapp.MainActivity" -a android.intent.

action.MAIN -c android.intent.category.LAUNCHER

Connected to process 2685 on device Nexus_5X_API_25 [emulator-5554]

You can watch progress in the console

It can sometimes take quite a while for the emulator to launch with your

AVD—often several minutes. If you like, you can watch what’s happening

using the Android Studio console. The console gives you a blow-by-blow

account of what the build system is doing, and if it encounters any errors,

you’ll see them highlighted in the text.

You can find the console at the bottom of the Android Studio screen

(click on the Run option at the bottom of the screen if it doesn’t appear

automatically):

Here’s the output from our console window when we ran our app:

Install the app.

The emulator launches our app by starting the main activity

for it. This is the activity the wizard created for us.

We suggest finding something else to do

while waiting for the emulator to start.

Like quilting, or cooking a small meal.

Set up environment

Build app

Run app

Change app

Android Studio has finished

launching the AVD we just set up.

you are here 4 29

getting started

Wait a bit longer, and you’ll see the app you

just created. The application name appears

at the top of the screen, and the default

sample text “Hello World!” is displayed in

the middle of the screen.

Test drive

So let’s look at what actually happens onscreen when you run

your app.

First, the emulator fires up in a separate window. The

emulator takes a while to load the AVD, but then you see

what looks like an actual Android device.

Here’s the app

running on the AVD.

The emulator

launches...

...and here’s the AVD home

screen. It looks and behaves

just like a real Nexus 5X device.

Android Studio created the

sample text “Hello World!”

without us telling it to.

This is the name of the app.

The wizard created

sample text for us.

Set up environment

Build app

Run app

Change app

30 Chapter 1

what happened

What just happened?

Let’s break down what happens when you run the app:

Q: You mentioned that when you create an APK file, the

Java source code gets compiled into bytecode and added to

the APK. Presumably you mean it gets compiled into Java

bytecode, right?

A: It does, but that’s not the end of the story. Things work a little

differently on Android.

The big difference with Android is that your code doesn’t actually

run inside an ordinary Java VM. It runs on the Android runtime

(ART) instead, and on older devices it runs in a predecessor to ART

called Dalvik. This means that you write your Java source code and

compile it into .class files using the Java compiler, and then the

.class files get stitched into one or more files in DEX format, which is

smaller, more efficient bytecode. ART then runs the DEX code. You

can find more details about this in Appendix III.

Q: That sounds complicated. Why not just use the normal

Java VM?

A: ART can convert the DEX bytecode into native code that can

run directly on the CPU of the Android device. This makes the app

run a lot faster, and use a lot less battery power.

Q: Is a Java virtual machine really that much overhead?

A: Yes. Because on Android, each app runs inside its own

process. If it used ordinary JVMs, it would need a lot more memory.

Q: Do I need to create a new AVD every time I create a new

app?

A: No, once you’ve created the AVD you can use it for any of

your apps. You may find it useful to create multiple AVDs in order to

test your apps in different situations. As an example, in addition to

a phone AVD you might want to create a tablet AVD so you can see

how your app looks and behaves on larger devices.

</Layout>

When the app gets

launched, an activity

object is created from

MainActivity.java.

Activity

Device Layout

The activity specifies

that it uses the layout

activity_main.xml.

The activity tells Android to

display the layout on the screen.

The text “Hello World!” gets displayed.

</Layout> 4

Android Studio launches the emulator,

loads the AVD, and installs the app.

In this particular

instance, we’re using

a virtual device.

Set up environment

Build app

Run app

Change app

you are here 4 31

getting started

Set up environment

Build app

Run app

Change app

Refine the app

Over the past several pages, you’ve built a basic Android app

and seen it running in the emulator. Next, we’re going to refine

the app.

At the moment, the app displays the sample text “Hello World!”

that the wizard put in as a placeholder. You’re going to change

that text to say something else instead. So what do we need to

change in order to achieve that? To answer that, let’s take a

step back and look at how the app is currently built.

Your app currently says

“Hello World!” but we're

going to change it to

something else instead.

</Layout>

MainActivity.java

activity_main.xml

The app has one activity and one layout

When we built the app, we told Android Studio how to

configure it, and the wizard did the rest. The wizard created an

activity for us, and also a default layout.

The activity controls what the app does

Android Studio created an activity for us called

MainActivity.java. The activity specifies what the app

does and how it should respond to the user.

The layout controls the app's appearance

MainActivity.java specifies that it uses the layout Android

Studio created for us called activity_main.xml. The layout

specifies what the app looks like.

We want to change the appearance of the app by changing the

text that’s displayed. This means that we need to deal with the

Android component that controls what the app looks like, so we

need to take a closer look at the layout.

Our activity

specifies what the

app does and how

it should interact

with the user.

Our layout specifies

what the app looks

like.

32 Chapter 1

The code editor

When you choose the code editor

option, the content of activity_main.xml

is displayed. Let’s take a closer look

at it.

the layout

What’s in the layout?

We want to change the sample “Hello World!”

text that Android Studio created for us, so let’s

start with the layout file activity_main.xml. If it

isn’t already open in an editor, open it now by

finding the file in the app/src/main/res/layout

folder in the explorer and double-clicking on it.

The design editor

As you learned earlier, there are two ways of

viewing and editing layout files in Android

Studio: through the design editor and

through the code editor.

When you choose the design option, you

can see that the sample text “Hello World!”

appears in the layout as you might expect.

But what’s in the underlying XML?

Let’s see by switching to the code editor.

You can see the design editor

by choosing “Design” here.

Here’s the sample text.

The design editor

To see the code editor, click

on “Text” in the bottom tab.

The code

editor

If you can’t

see the folder

structure in the

explorer, try

switching to

Project view.

Click on

this arrow

to change

how the

files and

folders are

shown.

you are here 4 33

getting started

<?xml version="1.0" encoding="utf-8"?>

<android.support.constraint.ConstraintLayout

... >

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!"

... />

</android.support.constraint.ConstraintLayout>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!"

... />

The <TextView> element

describes the text in

the layout.

activity_main.xml has two elements

Below is the code from activity_main.xml that Android Studio

generated for us. We’ve left out some of the details you don’t

need to think about just yet; we’ll cover them in more detail

through the rest of the book.

Here’s our code:

As you can see, the code contains two elements.

The first is an <android.support.constraint.

ConstraintLayout> element. This is a type of layout

element that tells Android how to display components on

the device screen. There are various types of layout element

available for you to use, and you’ll find out more about these

later in the book.

The most important element for now is the second element,

the <TextView>. This element is used to display text to the

user, in our case the sample text “Hello World!”

The key part of the code within the <TextView> element

is the line starting with android:text. This is a text

property describing the text that should be displayed:

This element

determines

how

components

should be

displayed, in

this case the

“Hello World!”

text.

This is the <TextView> element.

This is the text that's being displayed.

Set up environment

Build app

Run app

Change app

Android Studio gave us more XML here, but

you don’t need to think about that yet.

This is the full path

of activity_main.xml.

<xml>

</xml>

app/src/main

activity_main.xml

MyFirstApp

res

layout

Don’t worry if your

layout code looks

different from ours.

Android Studio

may give you slightly different XML

depending on which version you’re using.

You don’t need to worry about this,

because from the next chapter onward

you’ll learn how to roll your own layout

code, and replace a lot of what Android

Studio gives you.

Let’s change the text to something else.

We’ve left out some of the

<TextView> XML too.

34 Chapter 1

...

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!Sup doge"

... />

...

update text

Change the text here from

“Hello World!” to “Sup doge”.

Once you’ve updated the file, go to the File menu and choose the

Save All option to save your change.

The key part of the <TextView> element is this line:

android:text="Hello World!" />

android:text means that this is the text property of

the <TextView> element, so it specifies what text should be

displayed in the layout. In this case, the text that’s being displayed

is “Hello World!”

android:text="Hello World!" />

Display the text...

...“Hello World!”

Update the text displayed in the layout

To update the text that’s displayed in the layout, simply change

the value of the text property from "Hello World!" to

"Sup doge". The new code for the <TextView> should look

like this:

<xml>

</xml>

app/src/main

activity_main.xml

MyFirstApp

res

layout

Set up environment

Build app

Run app

Change app

Q: My layout code looks different from yours. Is that OK?

A: Yes, that’s fine. Android Studio may generate slightly different

code if you’re using a different version than us, but that doesn’t

really matter. From now on you’ll be learning how to create your

own layout code, and you’ll replace a lot of what Android Studio

gives you.

Q: Am I right in thinking we’re hardcoding the text that's

displayed?

A: Yes, purely so that you can see how to update text in

the layout. There’s a better way of displaying text values than

hardcoding them in your layouts, but you’ll have to wait for the next

chapter to learn what it is.

Q: The folders in my project explorer pane look different

from yours. Why’s that?

A: Android Studio lets you choose alternate views for how to

display the folder hierarchy, and it defaults to the “Android” view.

We prefer the “Project” view, as it reflects the underlying folder

structure. You can change your explorer to the “Project” view by

clicking on the arrow at the top of the explorer pane, and selecting

the “Project” option.

We’ve left out some

of the code, as all

we’re doing for now

is changing the text

that’s displayed.

We’re

using the

Project

view.

Click on

this arrow

to change

the explorer

view.

you are here 4 35

getting started

Take the app for a test drive

Once you’ve edited the file, try running your app in the

emulator again by choosing the “Run ‘app’” command from

the Run menu. You should see that your app now says “Sup

doge” instead of “Hello World!”

Here’s the

updated version

of our app.

The sample text now

says “Sup doge” instead

of “Hello World!”

Set up environment

Build app

Run app

Change app

You’ve now built and updated your first Android app.

36 Chapter 1

toolbox

Versions of Android have a version

number, API level, and code name.

Android Studio is a special version of

IntelliJ IDEA that interfaces with the

Android Software Development Kit

(SDK) and the Gradle build system.

A typical Android app is composed of

activities, layouts, and resource files.

Layouts describe what your app

looks like. They’re held in the app/

src/main/res/layout folder.

Activities describe what your app

does, and how it interacts with the

user. The activities you write are held

in the app/src/main/java folder.

AndroidManifest.xml contains

information about the app itself. It

lives in the app/src/main folder.

An AVD is an Android Virtual Device.

It runs in the Android emulator and

mimics a physical Android device.

An APK is an Android application

package. It’s like a JAR file for

Android apps, and contains your

app’s bytecode, libraries, and

resources. You install an app on a

device by installing the APK.

Android apps run in separate

processes using the Android runtime

(ART).

The <TextView> element is used

for displaying text.

Your Android Toolbox

You’ve got Chapter 1 under

your belt and now you’ve

added Android basic concepts

to your toolbox.

CHAPTER 1

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

this is a new chapter 37

I wonder what

happens if I press

the button marked

“ejector seat”?

building interactive apps

Apps That Do Something

Most apps need to respond to the user in some way.

In this chapter, you’ll see how you can make your apps a bit more interactive. You’ll

learn how to get your app to do something in response to the user, and how to get your

activity and layout talking to each other like best buddies. Along the way, we’ll take you

a bit deeper into how Android actually works by introducing you to R, the hidden gem

that glues everything together.

38 Chapter 2

beer adviser

In Chapter 1, you saw how to create an app using the Android

Studio New Project wizard, and how to change the text

displayed in the layout. But when you create an Android app,

you’re usually going to want the app to do something.

In this chapter, we’re going to show you how to create an app

that the user can interact with: a Beer Adviser app. In the app,

users can select the types of beer they enjoy, click a button, and

get back a list of tasty beers to try out.

Here’s how the app will be structured:

Let’s build a Beer Adviser app

The layout specifies what the app will

look like.

It includes three GUI components:

• A drop-down list of values called a spinner,

which allows the user to choose which type of

beer they want.

• A button that when pressed will return a

selection of beer types.

• A text field that displays the types of beer.

The file strings.xml includes any String

resources needed by the layout—for

example, the label of the button

specified in the layout and the types of

beer.

The custom Java class contains the

application logic for the app.

It includes a method that takes a type of beer as a

parameter, and returns a list of beers of this type.

The activity calls the method, passes it the type of

beer, and uses the response.

The activity specifies how the app

should interact with the user.

It takes the type of beer the user chooses, and

uses this to display a list of beers the user might

be interested in. It achieves this with the help of a

custom Java class.

</Layout> <resources>

</resources>

Custom Java

Activity

Layout

strings.xml

Choose your

beer type, click

the button...

...and the

app comes

up with a

list of beer

suggestions.

This is what the

layout looks like.

you are here 4 39

building interactive apps

Here’s what we’re going to do

So let’s get to work. There are a few steps you need to go

through to build the Beer Adviser app (we’ll tackle these

throughout the rest of the chapter):

Create a project.

You’re creating a brand-new app, so you’ll need to create a

new project. Just like before, you’ll need to create an empty

activity with a layout.

Update the layout.

Once you have the app set up, you need to amend the layout so

that it includes all the GUI components your app needs.

Connect the layout to the activity.

The layout only creates the visuals. To add smarts to your

app, you need to connect the layout to the Java code in your

activity.

Write the application logic.

You’ll add a Java custom class to the app, and use it to make

sure users get the right beer based on their selection.

</Layout>

We’ll show you the

details of how to do

this on the next page.

Layout Activity

Layout

40 Chapter 2

create project

Create the project

Let’s begin by creating the new app (the steps are similar to

those we used in the previous chapter):

Create project

Update layout

Connect activity

Write logic

The wizard will take you through these steps,

just like before. Call your application “Beer

Adviser,” make sure it uses a minimum SDK of

API 19, and then tell it to create an empty

activity called “FindBeerActivity” and a layout

called “activity_find_beer”.

Open Android Studio and choose “Start a new Android Studio project” from

the welcome screen. This starts the wizard you saw in Chapter 1.

When prompted, enter an application name of “Beer Adviser” and a

company domain of “hfad.com”, making your package name com.hfad.

beeradviser. Make sure you uncheck the option to include C++ support.

We want the app to work on most phones and tablets, so choose a minimum

SDK of API 19, and make sure the option for “Phone and Tablet” is selected.

This means that any phone or tablet that runs the app must have API 19

installed on it as a minimum. Most Android devices meet this criterion.

Choose an empty activity for your default activity. Call the activity

“FindBeerActivity” and the accompanying layout “activity_find_beer”.

Make sure the option to generate the layout is selected and you uncheck the

Backwards Compatibility (AppCompat) option.

Make sure you

UNCHECK the

Backwards

Compatibility

(AppCompat)

option.

Make

sure you

choose

the

Empty

Activity

option.

If your version of

Android Studio

has an option to

include Kotlin

support, uncheck

this option too.

you are here 4 41

building interactive apps

We’ve created a default activity and layout

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.beeradviser.FindBeerActivity">

<TextView

android:id="@+id/textView"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="This is a text view" />

</LinearLayout>

This is used to display text.

These elements relate to the layout as a whole. They

determine the layout width and height, any padding

in the layout margins, and whether components

should be laid out vertically or horizontally.

<xml>

</xml>

app/src/main

activity_

find_beer.xml

BeerAdviser

res

layout

When you click on the Finish button, Android Studio creates a

new project containing an activity called FindBeerActivity.java and a

layout called activity_find_beer.xml.

Let’s start by changing the layout file. To do this, switch to the

Project view of Android Studio’s explorer, go to the app/src/main/

res/layout folder, and open the file activity_find_beer.xml. Then switch

to the text version of the code to open the code editor, and replace

the code in activity_find_beer.xml with the following (we’ve bolded all

the new code):

We’ve just changed the code Android Studio gave us so that

it uses a <LinearLayout>. This is used to display GUI

components next to each other, either vertically or horizontally.

If it’s vertically, they’re displayed in a single column, and if it’s

horizontally, they’re displayed in a single row. You’ll find out

more about how this works as we go through the chapter.

Any changes you make to a layout’s XML are reflected in

Android Studio’s design editor, which you can see by clicking on

the Design tab. We’ll look at this in more detail on the next page.

Click on the Text

tab to open the

code editor.

Click on the

Design tab to open

the design editor.

We’re replacing the code Android

Studio generated for us.

42 Chapter 2

design editor

A closer look at the design editor

The design editor presents you with a more visual way of editing

your layout code than editing XML. It features two different

views of the layouts design. One shows you how the layout will

look on an actual device, and the other shows you a blueprint of

its structure:

Create project

Update layout

Connect activity

Write logic

To the left of the design editor, there’s a palette that

contains components you can drag to your layout.

We’ll use this next.

These

are the

components

You'll find

out more

about them

later in the

book.

This list shows you the different

categories of component you can

add to your layout. You can click

on them to filter the components

displayed in the palette.

This view of the

design gives you an

idea of how your

layout will look on

an actual device.

This is the

blueprint

view, which

focuses more

on the layout's

structure.

The text view in our

layout's XML code

appears in both views

of the design editor.

You can increase the size of the

palette by clicking on this area

and dragging it downward.

If Android Studio doesn’t show

you both views of the layout, click

on the “Show Design + Blueprint”

icon in the design editor’s toolbar.

you are here 4 43

building interactive apps

Connect activity Add a button using the design editor

We’re going to add a button to our layout using the design editor. Find the

Button component in the palette, click on it, and then drag it into the

design editor so that it’s positioned above the text view. The button appears

in the layout’s design:

Changes in the design editor are reflected in the XML

Dragging GUI components to the layout like this is a convenient way of

updating the layout. If you switch to the code editor, you’ll see that adding

the button via the design editor has added some lines of code to the file:

Here’s the

Button

component.

Drag it into

the design

editor.

...

<Button

android:id="@+id/button"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:text="Button" />

<TextView

android:id="@+id/textView"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="This is a text view" />

...

There’s a new <Button>

element that describes

the new button you’ve

dragged to the layout.

We’ll look at this in

more detail over the

next few pages.

The code the design editor adds depends on

where you place the button, so don't worry if

your code looks different from ours.

Put the button above

the text. You can add

it to either view of

the design.

<xml>

</xml>

app/src/main

activity_find_beer.xml

BeerAdviser

res

layout

Create project

Update layout

Connect activity

Write logic

44 Chapter 2

gui components are views

A button in Androidville is a pushbutton that the user can press to trigger

an action. The <Button> element includes properties controlling its

size and appearance. These properties aren’t unique to buttons—other

GUI components including text views have them too.

activity_find_beer.xml has a new button

The editor added a new <Button> element to activity_find_beer.xml:

<Button

android:id="@+id/button"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:text="Button" />

android:id="@+id/button"

android:text="Button"

android:layout_width="match_parent"

android:layout_height="wrap_content"

Buttons and text views are subclasses of the same Android View class

android:id

This gives the component an identifying name. The id property

enables you to control what components do via activity code:

android:layout_width, android:layout_height

These properties specify the width and height of the component.

"wrap_content" means it should be just big enough for the

content, and "match_parent" means it should be as wide as the

layout containing it:

android:text

This tells Android what text the component should display. In the

case of <Button>, it’s the text that appears on the button:

There’s a very good reason why buttons and text views have

properties in common—they both inherit from the same Android

View class. You’ll find out more about this later in the book, but for

now, here are some of the more common properties.

android.view.View

setId(int)

...

android.widget.TextView

setText(CharSequence,

TextView.BufferType)

...

android.widget.Button

...

The View class includes lots of

different methods. We’ll look

at this later in the book.

TextView is a

type of View...

...and Button is a type

of TextView, which means

it’s also a type of View.

you are here 4 45

building interactive apps

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.beeradviser.FindBeerActivity">

<Button

android:id="@+id/button"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:text="Button" />

<TextView

android:id="@+id/textView"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="This is a text view" />

</LinearLayout>

A closer look at the layout code

Let’s take a closer look at the layout code, and break it down so that

you can see what it’s actually doing (don’t worry if your code looks a

little different, just follow along with us):

The LinearLayout element

The first element in the layout code is <LinearLayout>. The

<LinearLayout> element tells Android that the different GUI

components in the layout should be displayed next to each other in a

single row or column.

You specify the orientation using the android:orientation

attribute. In this example we’re using:

The

element

This is the

button.

This is the

text view.

There are other ways of laying

out your GUI components too.

You’ll find out more about

these later in the book.

<xml>

</xml>

app/src/main

activity_find_beer.xml

BeerAdviser

res

layout

This closes the <LinearLayout> element.

Create project

Update layout

Connect activity

Write logic

so the GUI components are displayed in a single vertical column.

android:orientation="vertical"

46 Chapter 2

look close

Create project

Update layout

Connect activity

Write logic

The Button element

The first element is the <Button>:

...

<Button

android:id="@+id/button"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:text="Button" />

...

As this is the first element inside the <LinearLayout>, it appears

first in the layout at the top of the screen. It has a layout_width

of "match_parent", which means that it should be as wide as

its parent element, the <LinearLayout>. Its layout_height

has been set to"wrap_content", which means it should be tall

enough to display its text.

The TextView element

The final element inside the <LinearLayout> is the

<TextView>:

...

<TextView

android:id="@+id/textView"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="This is a text view" />

...

The button is displayed at

the top as it's the first

element in the XML.

The text view is displayed

underneath the button as it

comes after it in the XML.

Using a linear layout

means that GUI

components are

displayed in a single

row or column.

As this is the second element and we’ve set the linear layout’s

orientation to "vertical", it’s displayed underneath the button

(the first element). Its layout_width and layout_height are

set to "wrap_content" so that it takes up just enough space to

contain its text.

A closer look at the layout code (continued)

The <LinearLayout> contains two elements: a <Button> and

a <TextView>.

you are here 4 47

building interactive apps

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.beeradviser.FindBeerActivity">

<Spinner

android:id="@+id/color"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginTop="40dp"

android:layout_gravity="center"

android:layout_margin="16dp" />

<Button

android:id="@+id/button find_beer"

android:layout_width="match_parent wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center"

android:layout_margin="16dp"

android:text="Button" />

<TextView

android:id="@+id/textView brands"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center"

android:layout_margin="16dp"

android:text="This is a text view" />

</LinearLayout>

Connect activity Changes to the XML...

You’ve seen how adding components to the design editor adds them

to the layout XML. The opposite applies too—any changes you make

to the layout XML are applied to the design.

Try this now. Update your activity_find_beer.xml code with the

following changes (highlighted in bold):

This element

displays a

spinner in the

layout.

A spinner is the

Android name for

a drop-down list

of values. It allows

you to choose a

single value from a

selection.

Update the contents of

activity_find_beer.xml

with the changes

shown here.

Do this!

Center the button

horizontally and

give it a margin.

Center the

text view and

apply a margin.

<xml>

</xml>

app/src/main

activity_

find_beer.xml

BeerAdviser

res

layout

Change the button's ID to

“find_beer”. We’ll use this later.

Change the button’s

width so it’s as wide

as its content.

Change the text view’s ID to “brands”.

48 Chapter 2

design editor

...are reflected in the design editor

This is the spinner.

This will let the

user choose a type

of beer.

A spinner provides

a drop-down list of

values. It allows you to

choose a single value

from a set of values.

GUI components such

as buttons, spinners,

and text views have

very similar attributes,

as they are all types

of View. Behind the

scenes, they all inherit

from the same Android

View class.

We’ve shown you how to add GUI components to the layout with the

aid of the design editor, and also by adding them through XML. In

general, you’re more likely to hack the XML for simple layouts to get

the results you want without using the design editor. This is because

editing the XML directly gives you more direct control over the

layout.

The user will click

on this button...

...and relevant beers

will be displayed in

the text view.

Once you’ve changed the layout XML, switch to the design

editor. Instead of a layout containing a button with a text view

underneath it, you should now see a spinner, button, and text

view centered in a single column.

A spinner is the Android term for a drop-down list of values.

When you press it, it expands to show you the list so that you

can pick a single value.

Create project

Update layout

Connect activity

Write logic

you are here 4 49

building interactive apps

Connect activity Let’s take the app for a test drive

We still have more work to do on the app, but let’s see how

it’s looking so far. Save the changes you’ve made by choosing

File→Save All, then choose the “Run ‘app’” command from

the Run menu. When prompted, select the option to launch

the emulator.

Wait patiently for the app to load, and eventually it should

appear.

Try pressing the spinner. It’s not immediately obvious, but

when you press it, the spinner presents you with a drop-down

list of values—it’s just at this point we haven’t added any

values to it.

Q: My layout looks slightly different in the

AVD compared with how it looks in the design

editor. Why’s that?

A: The design editor does its best to show you

how the layout will look on a device, but it’s not

always accurate depending on what version of

Android Studio you’re using. How the layout looks

in the AVD reflects how the layout will look on a

physical device.

This is the spinner,

but it has no

values in it.

The button and text field

are underneath the spinner,

and centered horizontally.

Here’s what we’ve done so far

Here’s a quick recap of what we’ve done so far:

</Layout>

Activity

Layout

We’ve created a layout that specifies

what the app looks like.

It includes a spinner, a button, and a text view.

The activity specifies how the app

should interact with the user.

Android Studio has created an activity for us, but

we haven’t done anything with it yet.

Create project

Update layout

Connect activity

Write logic

The next thing we’ll do is look at replacing the hardcoded

String values for the text view and button text.

50 Chapter 2

dealing with strings

android:text="Hello World!" />

Display the text...

...“Hello World!”

While this is fine when you’re just learning, hardcoding text isn’t the

best approach.

Suppose you’ve created an app that’s a big hit on your local Google

Play Store. You don’t want to limit yourself to just one country or

language—you want to make it available internationally and for

different languages. But if you’ve hardcoded all of the text in your

layout files, sending your app international will be difficult.

It also makes it much harder to make global changes to the text.

Imagine your boss asks you to change the wording in the app

because the company’s changed its name. If you’ve hardcoded all

of the text, this means that you need to edit a whole host of files in

order to change the text.

Hardcoding text makes localization hard

Put the text in a String resource file

A better approach is to put your text values into a String resource file

called strings.xml.

Having a String resource file makes it much easier to internationalize

your app. Rather than having to change hardcoded text values in a

whole host of different activity and layout files, you can simply replace

the strings.xml file with an internationalized version.

This approach also makes it much easier to make global changes to

text across your whole application as you only need to edit one file. If

you need to make changes to the text in your app, you only need to

edit strings.xml.

How do you use String resources?

In order to use a String resource in your layout, there are two things

you need to do:

Create the String resource by adding it to strings.xml.

Use the String resource in your layout.

Let’s see how this is done.

Put String values

in strings.xml

rather than

hardcoding them.

strings.xml is a

resource file used

to hold name/value

pairs of Strings.

Layouts and

activities can look

up String values

using their names.

Create project

Update layout

Connect activity

Write logic

So far, we’ve hardcoded the text we want to appear in our text views

and buttons using the android:text property:

you are here 4 51

building interactive apps

Create the String resource

We’re going to create two String resources, one for the text that

appears on the button, and another for the default text that appears

in the text view.

To do this, use Android Studio’s explorer to find the file strings.

xml in the app/src/main/res/values folder. Then open it by double-

clicking on it.

The file should look something like this:

<string name="app_name">Beer Adviser</string>

</resources>

strings.xml contains one string resource named "app_name", which

has a value of Beer Adviser. Android Studio created this String

resource for us automatically when we created the project.

<string name="app_name">Beer Adviser</string>

This indicates that this is a String resource.

This String resource has a name of “app_name”,

and a value of “Beer Adviser”.

We’re first going to add a new resource called "find_beer" that

has a value of Find Beer! To do this, edit strings.xml so that you

add it as a new line like this:

<string name="app_name">Beer Adviser</string>

</resources>

Then add a new resource named "brands" with a value of No

beers selected:

<string name="app_name">Beer Adviser</string>

<string name="brands">No beers selected</string>

</resources>

Once you’ve updated the file, go to the File menu and choose the

Save All option to save your changes. Next, we’ll use the String

resources in our layout.

This adds a new String

resource called “find_beer”.

This will be the default

text in the text view.

Create project

Update layout

Connect activity

Write logic

<xml>

</xml>

app/src/main

strings.xml

BeerAdviser

res

values

Connect activity

52 Chapter 2

use strings

android:text="@string/find_beer" />

You’ve seen the android:text part of the code before; it

specifies what text should be displayed. But what does

"@string/find_beer" mean?

Let’s start with the first part, @string. This is just a way of

telling Android to look up a text value from a String resource file.

In our case, this is the file strings.xml that you just edited.

The second part, find_beer, tells Android to look up the

value of a resource with the name find_beer. So

"@string/find_beer" means “look up the String resource

with the name find_beer, and use the associated text value.”

android:text="@string/find_beer" />

Display the text...

...for the String resource find_beer.

Use the String resource in your layout

You use String resources in your layout using code like this:

Change the line:

android:text="Button"

to:

android:text="@string/find_beer"

Change the line:

android:text="TextView"

to:

android:text="@string/brands"

We want to change the button and text view elements in our

layout XML so that they use the two String resources we’ve just

added.

Go back to the layout file activity_find_beer.xml file, and make the

following code changes:

You can see the code on the next page.

Create project

Update layout

Connect activity

Write logic

Android

Studio

sometimes

displays the

values of

references in the code

editor in place of actual

code.

As an example, it may display

the text "Find Beer!"

instead of the real code

"@string/find_beer". Any

such substitutions should be

highlighted in the code editor.

If you click on them, or hover

over them with your mouse,

the true code will be revealed.

you are here 4 53

building interactive apps

...

<Spinner

android:id="@+id/color"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginTop="40dp"

android:layout_gravity="center"

android:layout_margin="16dp" />

<Button

android:id="@+id/find_beer"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center"

android:layout_margin="16dp"

android:text="Button@string/find_beer" />

<TextView

android:id="@+id/brands"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center"

android:layout_margin="16dp"

android:text="This is a text view@string/brands" />

</LinearLayout>

This will display the value

of the find_beer String

resource on the button.

This will display the value

of the brands String

resource in the text view.

<xml>

</xml>

app/src/main

activity_find_beer.xml

BeerAdviser

res

layout

The code for activity_find_beer.xml

Here’s the updated code for activity_find_beer.xml (changes are in

bold); update your version of the file to match ours.

We didn't need to

change the spinner.

We'll look at how you

add values to it over

the next few pages.

Delete the hardcoded text.

Delete this hardcoded text too.

When you’re done, save your changes.

We’ve put a summary of adding and using String resources on

the next page.

Connect activity

54 Chapter 2

up close

String Resource Files Up Close

<string name="app_name">Beer Adviser</string>

<string name="brands">No beer selected</string>

</resources>

strings.xml is the default resource file used to hold name/value pairs

of Strings so that they can be referenced throughout your app. It has

the following format:

<string name="string_name">string_value</string>

where string_name is the identifier of the String, and

string_value is the String value itself.

A layout can retrieve the value of the String using:

There are two things that allow Android to recognize strings.xml as

being a String resource file:

The file is held in the folder

app/src/main/res/values

XML files held in this folder contain simple values, such as Strings and

colors.

The file has a <resources> element, which contains one or

more <string> elements.

The format of the file itself indicates that it’s a resource file containing

Strings. The <resources> element tells Android that the file contains

resources, and the <string> element identifies each String resource.

The <resources>

element

identifies the

contents of

the file as

resources.

The <string> element

identifies the name/value

pairs as Strings.

This means that you don’t need to call your String resource file

strings.xml; if you want, you can call it something else, or split your

Strings into multiple files.

Each name/value pair takes the form:

"@string/string_name"

This is the name of the

String whose value we

want to return.

“@string” tells Android to look for a

String resource of this name.

you are here 4 55

building interactive apps

Q: Do I absolutely have to put my text

values in a String resource file such as

strings.xml?

A: It’s not mandatory, but Android gives

you warning messages if you hardcode text

values. Using a String resource file might

seem like a lot of effort at first, but it makes

things like localization much easier. It’s also

easier to use String resources to start off

with, rather than patching them in afterward.

Q: How does separating out the

String values help with localization?

A: Suppose you want your application to

be in English by default, but in French if the

device language is set to French. Rather

than hardcode different languages into your

app, you can have one String resource file

for English text, and another resource file

for French text.

Q: How does the app know which

String resource file to use?

A: Put your default English Strings

resource file in the app/src/main/res/

values folder as normal, and your French

resource file in a new folder called app/src/

main/res/values-fr. If the device is set to

French, it will use the Strings in the app/

src/main/res/values-fr folder. If the device

is set to any other language, it will use the

Strings in app/src/main/res/values.

Here’s what we’ve done so far

Here’s a quick recap of where we’ve got to:

</Layout> <resources>

</resources>

Activity

Layout

strings.xml

We’ve created a layout that specifies what the app

looks like.

It includes a spinner, a button, and a text view.

The file strings.xml includes the String resources we

need.

We’ve added a label for the button, and default text for the list of

suggested beer brands to try.

The activity specifies how the app should interact with

the user.

Android Studio has created an activity for us, but we haven’t done

anything with it yet.

Next we’ll look at how you add a list of beers to the spinner.

Time for a test drive

Let’s see how the app’s looking now. Save the changes you’ve

made, then choose the “Run ‘app’” command from the

Run menu. When prompted, select the option to launch the

emulator.

This time when we run the app, the text for the button and

the text view has changed to the String values we added to

strings.xml. The button says “Find Beer!” and the text view says

“No beers selected.”

The text on the button and the

text view has been changed.

56 Chapter 2

array resources

Create project

Update layout

Connect activity

Write logic

At the moment, the layout includes a spinner, but it doesn’t have

anything in it. Whenever you use a spinner, you need to get it to

display a list of values so that the user can choose the value they want.

We can give the spinner a list of values in pretty much the same

way that we set the text on the button and the text view: by using a

resource. So far, we’ve used strings.xml to specify individual String

values. For the spinner, all we need to do is specify an array of String

values, and get the spinner to reference it.

Add values to the spinner

Adding an array resource is similar to adding a String

As you already know, you can add a String resource to strings.xml using:

<string name="string_name">string_value</string>

where string_name is the identifier of the String, and string_

value is the String value itself.

To add an array of Strings, you use the following syntax:

<string-array name="string_array_name">

<item>string_value1</item>

<item>string_value2</item>

<item>string_value3</item>

...

</string-array>

where string_array_name is the name of the array, and

string_value1, string_value2, string_value3 are the

individual String values that make up the array.

Let’s add a string-array resource to our app that can be used by

the spinner.

This is the name of the array.

These are the values in the array. You

can add as many as you need.

Resources are

noncode assets, such

as images or Strings,

used by your app.

you are here 4 57

building interactive apps

Create project

Update layout

Connect activity

Write logic

...

<Spinner

android:id="@+id/color"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginTop="40dp"

android:layout_gravity="center"

android:layout_margin="16dp"

android:entries="@array/beer_colors" />

...

Get the spinner to reference a string-array

A layout can reference a string-array using similar syntax to how

it would retrieve the value of a String. Rather than use:

Use @string to reference a String, and

@array to reference an array.

"@string/string_name"

you use the syntax:

"@array/array_name"

where array_name is the name of the array.

Let’s use this in the layout. Go to the layout file activity_find_beer.xml

and add an entries attribute to the spinner like this:

This means “the entries for the

spinner come from array beer_colors”.

<xml>

</xml>

app/src/main

activity_find_beer.xml

BeerAdviser

res

layout

Add the string-array to strings.xml

To add the string-array, open up strings.xml, and add the

array like this:

...

<string name="brands">No beer selected </string>

<string-array name="beer_colors">

<item>light</item>

<item>amber</item>

<item>brown</item>

</string-array>

</resources>

Add this string-array to strings.xml.

It defines an array of Strings called

beer_colors with array items of light,

amber, brown, and dark.

<xml>

</xml>

app/src/main

strings.xml

BeerAdviser

res

values

Those are all the changes you need in order to get the spinner to

display a list of values. Let’s see what it looks like.

Connect activity

58 Chapter 2

test drive

Test drive the spinner

So let’s see what impact these changes have had on our app. Save

your changes, then run the app. You should get something like this:

By default

the top item

in the spinner

is selected.

Click on

the spinner

to see its

entries.

When you click

on a value, it

gets selected.

Create project

Update layout

Connect activity

Write logic

Where we've got to

Here’s a reminder of what we’ve done so far:

</Layout> <resources>

</resources>

Activity

Layout

strings.xml

We’ve created a layout that specifies what

the app looks like.

It includes a spinner, a button, and a text view.

The file strings.xml includes the String

resources we need.

We’ve added a label for the button, default text for the

suggested beer brands, and an array of values for the

spinner.

The activity specifies how the app should

interact with the user.

Android Studio has created an activity for us, but we

haven’t done anything with it yet.

So what’s next?

you are here 4 59

building interactive apps

We need to make the button do something

The user chooses a type of beer

from the spinner.

The user clicks the Find Beer

button, and the layout specifies

which method to call in the

activity.

BeerExpert’s getBrands() method

finds matching brands for the type

of beer and returns them to the

activity as an ArrayList of Strings.

The activity gets a reference to

the layout text view and sets its

text value to the list of matching

beers.

</Layout>

BeerExpert

Activity

Layout

Device

The method in the activity

retrieves the value of the selected

beer in the spinner and passes

it to the getBrands() method

in a Java custom class called

BeerExpert.

getBrands("amber")

"Jack Amber"

"Red Moose"

Create project

Update layout

Connect activity

Write logic

Let’s start by getting the button to call a method.

What we need to do next is make the app react to the value

we select in the spinner when the Find Beer button is clicked.

We want our app to behave something like this:

Connect activity

After all those steps are completed, the list

is displayed on the device.

60 Chapter 2

onClick attribute

Once you’ve made these changes, save the file.

Now that the layout knows which method to call in the activity,

we need to write the method. Let’s take a look at the activity.

When the button is

clicked, call the method

onClickFindBeer() in the

activity. We’ll create the

method in the activity over

the next few pages.

...

<Button

android:id="@+id/find_beer"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center"

android:layout_margin="16dp"

android:text="@string/find_beer"

android:onClick="onClickFindBeer" />

...

Make the button call a method

Whenever you add a button to a layout, it’s likely you’ll want it to do

something when the user clicks on it. To make this happen, you need

to get the button to call a method in your activity.

To get our button to call a method in the activity when it’s clicked,

we need to make changes to two files:

android:onClick="method_name"

Change the layout file activity_find_beer.xml.

We’ll specify which method in the activity will get called

when the button is clicked.

Change the activity file FindBeerActivity.java.

We need to write the method that gets called.

Let’s start with the layout.

Use onClick to say which method the button calls

It only takes one line of XML to tell Android which method a

button should call when it’s clicked. All you need to do is add an

android:onClick attribute to the <button> element, and tell

it the name of the method you want to call:

This means “when the component is clicked, call

the method in the activity called method_name”.

Let’s try this now. Go to the layout file activity_find_beer.xml, and add a

new line of XML to the <button> element to say that the method

onClickFindBeer() should be called when the button is clicked:

Create project

Update layout

Connect activity

Write logic

<xml>

</xml>

app/src/main

activity_find_beer.xml

BeerAdviser

res

layout

you are here 4 61

building interactive apps

package com.hfad.beeradviser;

import android.app.Activity;

import android.os.Bundle;

public class FindBeerActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_find_beer);

}

What activity code looks like

When we first created a project for our app, we asked the wizard to create

an empty activity called FindBeerActivity. The code for this activity

is held in a file called FindBeerActivity.java. Open this file by going to the app/

src/main/java folder and double-clicking on it.

When you open the file, you’ll see that Android Studio has generated

some Java code for you. Rather than taking you through all the code that

Android Studio may (or may not) have created, we want you to replace the

code that’s currently in FindBeerActivity.java with the code shown here:

app/src/main

FindBeerActivity.java

BeerAdviser

java

com.hfad.beeradviser

Make sure class extends

the Android Activity class.

This is the onCreate() method. It’s called

when the activity is first created.

setContentView() tells Android

which layout the activity uses. In

this case, it’s activity_find_beer.

Replace the code

in your version of

FindBeerActivity.java

with the code shown

on this page.

Do this!

The above code is all you need to create a basic activity. As you can see, it’s a

class that extends the android.app.Activity class, and implements an

onCreate() method.

All activities (not just this one) have to extend the Activity class or one

of its subclasses. The Activity class contains a bunch of methods that

transform your Java class from a plain old Java class into a full-fledged, card-

carrying Android activity.

All activities also need to implement the onCreate() method. This

method gets called when the activity object gets created, and it’s used to

perform basic setup such as what layout the activity is associated with. This

is done via the setContentView() method. In the example above,

setContentView(R.layout.activity_find_beer) tells Android

that this activity uses activity_find_beer as its layout.

On the previous page, we added an onClick attribute to the button in our

layout and gave it a value of onClickFindBeer. We need to add this

method to our activity so it will be called when the button gets clicked. This

will enable the activity to respond when the user touches the button in the

user interface.

Connect activity

62 Chapter 2

onClickFindBeer()

...

import android.view.View;

public class FindBeerActivity extends Activity {

...

//Called when the user clicks the button

public void onClickFindBeer(View view){

}

The method must be

public. The method must have a

void return value. The method must have a single

parameter of type View.

public void onClickFindBeer(View view) {

}

Add an onClickFindBeer() method

to the activity

The onClickFindBeer() method needs to have a particular

signature, or otherwise it won’t get called when the button specified in

the layout gets clicked. The method needs to take the following form:

Add the

onClickFindBeer()

method to

FindBeerActivity.java.

activity_find_beer.xml

</Layout>

FindBeerActivity.java

onClickFindBeer()

If the method doesn’t take this form, then it won’t respond when

the user presses the button. This is because behind the scenes,

Android looks for a public method with a void return value, with

a method name that matches the method specified in the layout

XML.

The View parameter in the method may seem unusual at first

glance, but there’s a good reason for it being there. The parameter

refers to the GUI component that triggers the method (in this case,

the button). As we mentioned earlier, GUI components such as

buttons and text views are all types of View.

So let’s update our activity code. Add the onClickFindBeer()

method below to your activity code (FindBeerActivity.java):

If you want a method

to respond to a button

click, it must be public,

have a void return

type, and take a single

View parameter.

Create project

Update layout

Connect activity

Write logic

app/src/main

FindBeerActivity.java

BeerAdviser

java

com.hfad.beeradviser

We're using this

class, so we need

to import it.

you are here 4 63

building interactive apps

onClickFindBeer() needs to do something

Now that we’ve created the onClickFindBeer() method in our

activity, the next thing we need to do is get the method to do something

when it runs. Specifically, we need to get our app to display a selection of

different beers that match the beer type the user has selected.

In order to achieve this, we first need to get a reference to both the spinner

and text view GUI components in the layout. This will allow us to retrieve

the value of the chosen beer type from the spinner, and display text in the

text view.

Use findViewById() to get a reference to a view

We can get references for our two GUI components using a method called

findViewById(). This method takes the ID of the GUI component as

a parameter, and returns a View object. You then cast the return value

to the correct type of GUI component (for example, a TextView or a

Button).

Here’s how you’d use findViewById() to get a reference to the text

view with an ID of brands:

TextView brands = (TextView) findViewById(R.id.brands);

brands is a TextView, so we

have to cast it as one.

We want the view with

an ID of brands.

Create project

Update layout

Connect activity

Write logic

Take a closer look at how we specified the ID of the text view. Rather

than pass in the name of the text view, we passed in an ID of the form

R.id.brands. So what does this mean? What’s R?

R.java is a special Java file that gets generated by Android Studio

whenever you create or build your app. It lives within the app/build/

generated/source/r/debug folder in your project in a package with the same

name as the package of your app. Android uses R.java to keep track of

the resources used within the app, and among other things it enables

you to get references to GUI components from within your activity code.

If you open up R.java, you’ll see that it contains a series of inner classes,

one for each type of resource. Each resource of that type is referenced

within the inner class. As an example, R.java includes an inner class

called id, and the inner class includes a static final brands

value. Android added this code to R.java when we used the code

"@+id/brands" in our layout. The line of code:

R is a special Java class

that enables you to

retrieve references to

resources in your app.

(TextView) findViewById(R.id.brands);

uses the value of brands to get a reference to the brands text view.

R.java gets

generated

for you.

You never

change any of the code within

this file, but it’s useful to know

it’s there.

Connect activity

64 Chapter 2

view methods

When this line of code gets called, it creates a TextView object called

brands. You are then able to call methods on this TextView object.

Let’s say you wanted to set the text displayed in the brands text view

to “Gottle of geer”. The TextView class includes a method called

setText() that you can use to change the text property. You use it like

this:

Once you have a view, you can access its

methods

The findViewById() method provides you with a Java version of your

GUI component. This means that you can get and set properties in the

GUI component using the methods exposed by the Java class. Let’s take a

closer look.

brands.setText("Gottle of geer");

Set the text on the brands

TextView to “Gottle of geer”.

This gives you a Spinner object whose methods you can now access.

As an example, here’s how you retrieve the currently selected item in the

spinner, and convert it to a String:

The code:

String.valueOf(color.getSelectedItem())

This gets the selected item in the

spinner and converts it to a String.

Create project

Update layout

Connect activity

Write logic

Setting the text in a text view

As you’ve seen, you can get a reference to a text view in Java using:

TextView brands = (TextView) findViewById(R.id.brands);

Retrieving the selected value in a spinner

You can get a reference to a spinner in a similar way to how you get a

reference to a text view. You use the findViewById() method as

before, but this time you cast the result as a spinner:

Spinner color = (Spinner) findViewById(R.id.color);

color.getSelectedItem()

actually returns a generic Java object. This is because spinner values

can be something other than Strings, such as images. In our case, we

know the values are all Strings, so we can use String.valueOf() to

convert the selected item from an Object to a String.

you are here 4 65

building interactive apps

Activity Magnets

Somebody used fridge magnets to write a new onClickFindBeer()

method for us to slot into our activity. Unfortunately, a freak kitchen whirlwind

has dislodged the magnets. Can you piece the code back together again?

The code needs to retrieve the type of beer selected in the spinner, and then

display the type of beer in the text view.

TextView

(TextView)

findViewById

R.id.brands

color

(Spinner)

findViewById

R.id.color

View

beerType

getSelectedItem()

//Called when the button gets clicked

public void onClickFindBeer( view) {

//Get a reference to the TextView

brands = ( );

//Get a reference to the Spinner

Spinner = ( );

//Get the selected item in the Spinner

String = String.valueOf(color. );

//Display the selected item

brands. (beerType);

}

setText

Button

findView

R.view.brands

R.view.color

You won’t

need to use

all of the

magnets.

Update the activity code

You now know enough to write some code in the onClickFindBeer()

method. Rather than write all the code we need in one go, let’s start by

reading the selected value from the spinner, and displaying it in the text view.

Connect activity

66 Chapter 2

magnets solution

//Called when the button gets clicked

public void onClickFindBeer( view) {

//Get a reference to the TextView

brands = ( );

//Get a reference to the Spinner

Spinner = ( );

//Get the selected item in the Spinner

String = String.valueOf(color. );

//Display the selected item

brands. (beerType);

}

Activity Magnets Solution

Somebody used fridge magnets to write a new

onClickFindBeer() method for us to slot into our activity.

Unfortunately, a freak kitchen whirlwind has dislodged the magnets.

Can you piece the code back together again?

The code needs to retrieve the type of beer selected in the spinner,

and then display the type of beer in the text view.

TextView

(TextView)

findViewById

R.id.brands

color

(Spinner)

findViewById

R.id.color

View

beerType

getSelectedItem()

setText

Button

findView

R.view.brands

R.view.color

You didn’t need to use

these magnets.

you are here 4 67

building interactive apps

The first version of the activity

Our cunning plan is to build the activity in stages and test it as we go

along. In the end, the activity will take the selected value from the

spinner, call a method in a custom Java class, and then display matching

types of beer. For this first version, our goal is just to make sure that we

correctly retrieve the selected item from the spinner.

Here is our activity code, including the method you pieced together on

the previous page. Apply these changes to FindBeerActivity.java, then save

them:

package com.hfad.beeradviser;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import android.widget.Spinner;

import android.widget.TextView;

public class FindBeerActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_find_beer);

}

//Called when the button gets clicked

public void onClickFindBeer(View view) {

//Get a reference to the TextView

TextView brands = (TextView) findViewById(R.id.brands);

//Get a reference to the Spinner

Spinner color = (Spinner) findViewById(R.id.color);

//Get the selected item in the Spinner

String beerType = String.valueOf(color.getSelectedItem());

//Display the selected item

brands.setText(beerType);

}

findViewById returns a

View. You need to cast it

to the right type of View.

getSelectedItem returns

an Object. You need to

turn it into a String.

Create project

Update layout

Connect activity

Write logic

app/src/main

FindBeerActivity.java

BeerAdviser

java

com.hfad.beeradviser

We're using these

extra classes so we

need to import them.

We've not changed this method.

68 Chapter 2

what happens

What the code does

Before we take the app for a test drive, let’s look at what the code

actually does.

The layout specifies which method in the activity should be called when the button is clicked via the

button’s android:onClick property.

The activity gets references to the Spinner and TextView GUI components using calls

to the findViewById() method.

The activity retrieves the currently selected value of the spinner (in this case amber),

and converts it to a String.

The activity then sets the text property of the TextView to reflect the currently

selected item in the spinner.

</Layout>

FindBeerActivity

Layout

Spinner

TextView

FindBeerActivity

Spinner

FindBeerActivity

amber

TextView

FindBeerActivity

"amber"

Create project

Update layout

Connect activity

Write logic

The user chooses a type of beer from the spinner and clicks on the Find Beer button.

This calls the public void onClickFindBeer(View) method in the activity.

you are here 4 69

building interactive apps

Test drive the changes

Make the changes to the activity file, save it, and then run

your app. This time when we click on the Find Beer button, it

displays the value of the selected item in the spinner.

Q: I added a String to my strings.xml file, but I can’t see it

in R.java. Why isn’t it there?

A: Android Studio, generates R.java when you save any

changes you’ve made. If you’ve added a resource but can’t see it in

R.java, check that your changes have been saved.

R.java also gets updated when the app gets built. The app builds

when you run the app, so running the app will also update R.java.

Q: The values in the spinner look like they’re static as

they’re set to the values in the string-array. Can I

change these values programmatically?

A: You can, but that approach is more complicated than just

using static values. We’ll show you later in the book how you can

have complete control over the values displayed in components

such as spinners.

Q: What type of object is returned by

getSelectedItem()?

A: It’s declared as type Object. Because we used a

string-array for the values, the actual value returned in

this case is a String.

Q: What do you mean “in this case”—isn’t it always?

A: You can do more complicated things with spinners than just

display text. As an example, the spinner might display an icon next

to each value. As getSelectedItem() returns an object,

it gives you a bit more flexibility than just returning a String.

Q: Does the name of onClickFindBeer matter?

A: All that matters is that the name of the method in the activity

code matches the name used in the button’s onClick attribute

in the layout.

Q: Why did we have to replace the activity code that

Android Studio created for us?

A: IDEs such as Android Studio include functions and utilities

that can save you a lot of time. They generate a lot of code for

you, and sometimes this can be useful. But when you’re learning a

new language or development area such as Android, we think it’s

best to learn about the fundamentals of the language rather than

what the IDE generates for you. This way you’ll develop a greater

understanding of the language.

The type of

beer selected

is displayed in

the text view.

Connect activity

70 Chapter 2

BeerExpert

Build the custom Java class

As we said at the beginning of the chapter, the Beer Adviser app

decides which beers to recommend with the help of a custom

Java class. This Java class is written in plain old Java, with no

knowledge of the fact it’s being used by an Android app.

package com.hfad.beeradviser;

import java.util.ArrayList;

import java.util.List;

public class BeerExpert {

List<String> getBrands(String color) {

List<String> brands = new ArrayList<>();

if (color.equals("amber")) {

brands.add("Jack Amber");

brands.add("Red Moose");

} else {

brands.add("Jail Pale Ale");

brands.add("Gout Stout");

}

return brands;

}

Custom Java class spec

The custom Java class should meet the following requirements:

Build and test the Java class

Java classes can be extremely complicated and involve calls to complex

application logic. You can either build and test your own version of the

class, or use our sophisticated version of the class shown here:

The package name should be com.hfad.beeradviser.

The class should be called BeerExpert.

It should expose one method, getBrands(), that takes a

preferred beer color (as a String), and return a List<String> of

recommended beers.

This is pure Java code;

nothing Androidy about it.

</Layout> <resources>

</resources>

BeerExpert

Activity

Layout

strings.xml

We need to create

a Java class that

the activity can

use to find out

which beer brands

to suggest.

Add the BeerExpert class to your

project. Select the com.hfad.beeradviser

package in the app/src/main/java folder,

go to File→New...→Java Class, name the

file “BeerExpert”, and make sure the

package name is “com.hfad.beeradviser”.

This creates the BeerExpert.java file.

Do this!

app/src/main

BeerExpert.java

BeerAdviser

java

com.hfad.beeradviser

you are here 4 71

building interactive apps

Enhance the activity to call the custom

Java class so that we can get REAL advice

Enhance the activity so that it calls the BeerExpert

getBrands() method and displays the results in the text view.

In version two of the activity we need to enhance the onClickFindBeer() method

to call the BeerExpert class for beer recommendations. The code changes needed

are plain old Java. You can try to write the code and run the app on your own, or you

can follow along with us. But before we show you the code changes, try the exercise

below; it’ll help you create some of the activity code you’ll need.

package com.hfad.beeradviser;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import android.widget.Spinner;

import android.widget.TextView;

import java.util.List;

public class FindBeerActivity extends Activity {

private BeerExpert expert = new BeerExpert();

...

//Called when the button gets clicked

public void onClickFindBeer(View view) {

//Get a reference to the TextView

TextView brands = (TextView) findViewById(R.id.brands);

//Get a reference to the Spinner

Spinner color = (Spinner) findViewById(R.id.color);

//Get the selected item in the Spinner

String beerType = String.valueOf(color.getSelectedItem());

//Get recommendations from the BeerExpert class

}

We added this line for you.

You’ll need to use the BeerExpert

class to get the beer recommendations,

so we added this line for you too.

You need to update the onClickFindBeer() method.

Create project

Update layout

Connect activity

Write logic

72 Chapter 2

sharpen solution

Enhance the activity so that it calls the BeerExpert

getBrands() method and displays the results in the text view.

package com.hfad.beeradviser;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import android.widget.Spinner;

import android.widget.TextView;

import java.util.List;

public class FindBeerActivity extends Activity {

private BeerExpert expert = new BeerExpert();

...

//Called when the button gets clicked

public void onClickFindBeer(View view) {

//Get a reference to the TextView

TextView brands = (TextView) findViewById(R.id.brands);

//Get a reference to the Spinner

Spinner color = (Spinner) findViewById(R.id.color);

//Get the selected item in the Spinner

String beerType = String.valueOf(color.getSelectedItem());

//Get recommendations from the BeerExpert class

}

List<String> brandsList = expert.getBrands(beerType);

StringBuilder brandsFormatted = new StringBuilder();

for (String brand : brandsList) {

brandsFormatted.append(brand).append('\n');

}

//Display the beers

brands.setText(brandsFormatted);

Using the BeerExpert requires pure Java code, so don’t

worry if your code looks a little different than ours.

Get a List of brands.

Build a String using

the values in the List.

Display each brand

on a new line.

Display the results in

the text view.

you are here 4 73

building interactive apps

Activity code version 2

Here’s our full version of the activity code. Apply the changes shown

here to your version of FindBeerActivity.java, make sure you’ve added

the BeerExpert class to your project, and then save your changes:

package com.hfad.beeradviser;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import android.widget.Spinner;

import android.widget.TextView;

import java.util.List;

public class FindBeerActivity extends Activity {

private BeerExpert expert = new BeerExpert();

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_find_beer);

}

//Called when the button gets clicked

public void onClickFindBeer(View view) {

//Get a reference to the TextView

TextView brands = (TextView) findViewById(R.id.brands);

//Get a reference to the Spinner

Spinner color = (Spinner) findViewById(R.id.color);

//Get the selected item in the Spinner

String beerType = String.valueOf(color.getSelectedItem());

//Get recommendations from the BeerExpert class

List<String> brandsList = expert.getBrands(beerType);

StringBuilder brandsFormatted = new StringBuilder();

for (String brand : brandsList) {

brandsFormatted.append(brand).append('\n');

}

//Display the beers

brands.setText(brandsFormatted);

brands.setText(beerType);

}

Create project

Update layout

Connect activity

Write logic

app/src/main

FindBeerActivity.java

BeerAdviser

java

com.hfad.beeradviser

We're using this extra class so we need to import it.

Add an instance of BeerExpert as a private variable.

Use the BeerExpert class

to get a List of brands.

Build a String, displaying

each brand on a new line.

Display the String in the TextView.

Delete this line.

74 Chapter 2

what happens

When the user clicks on the Find Beer button, the

onClickFindBeer() method in the activity gets called.

The method creates a reference to the spinner and text view, and gets the

currently selected value from the spinner.

What happens when you run the code

onClickFindBeer() calls the getBrands() method in the

BeerExpert class, passing in the type of beer selected in the

spinner.

The getBrands() method returns a list of brands.

The onClickFindBeer() method formats the list of brands and

uses it to set the text property in the text view.

</Layout>

FindBeerActivity

Layout

Spinner

FindBeerActivity BeerExpert

getBrands("amber")

"Jack Amber"

"Red Moose"

FindBeerActivity TextView

"Jack Amber

Red Moose"

amber

TextView

onClickFindBeer()

you are here 4 75

building interactive apps

This is what you get

when you select light.

Test drive your app

Once you’ve made the changes to your app, go ahead

and run it. Try selecting different types of beer and

clicking on the Find Beer button.

Create project

Update layout

Connect activity

Write logic

This is what you get

when you select amber.

When you choose different types of beer and

click on the Find Beer button, the app uses the

BeerExpert class to provide you with a selection

of suitable beers.

76 Chapter 2

toolbox

The <Button> element is used to add a button.

The <Spinner> element is used to add a spinner,

which is a drop-down list of values.

All GUI components are types of view. They inherit from

the Android View class.

strings.xml is a String resource file. It’s used to separate

out text values from the layouts and activities, and

supports localization.

Add a String to strings.xml using:

<string name="name">Value</string>

Reference a String in the layout using:

"@string/name"

Add an array of String values to strings.xml using:

<string-array name="array">

<item>string1</item>

...

</string-array>

Reference a string-array in the layout using:

"@array/array_name"

Make a button call a method when clicked by adding the

following to the layout:

android:onClick="clickMethod"

There needs to be a corresponding method in the

activity:

public void clickMethod(View view){

}

R.java is generated for you. It enables you to get

references for layouts, GUI components, Strings, and

other resources in your Java code.

Use findViewById() to get a reference to a view.

Use setText() to set the text in a view.

Use getSelectedItem() to get the selected item

in a spinner.

Add a custom class to an Android project by going to

File menu→New...→Java Class.

Your Android Toolbox

You’ve got Chapter 2 under

your belt and now you’ve

added building interactive

Android apps to your toolbox.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 2

this is a new chapter 77

I sent an intent asking who

could handle my ACTION_CALL,

and was offered all sorts of

activities to choose from.

multiple activities and intents

State Your Intent

Most apps need more than one activity.

So far we’ve just looked at single-activity apps, which is fine for simple apps. But when

things get more complicated, just having the one activity won’t cut it. We’re going to show

you how to build apps with multiple activities, and how you can get your activities

talking to each other using intents. We’ll also look at how you can use intents to go

beyond the boundaries of your app and make activities in other apps on your

device perform actions. Things are about to get a whole lot more powerful...

78 Chapter 3

tasks

Create an app with a single activity and layout.

Add a second activity and layout.

Get the first activity to call the second activity.

Get the first activity to pass data to the second activity.

Here’s what we’re going to do in this chapter

Apps can contain more than one activity

Earlier in the book, we said that an activity is a single, defined thing

that your user can do, such as displaying a list of recipes. If your

app is simple, this may be all that’s needed.

But a lot of the time, you’ll want users to do more than just one

thing—for example, adding recipes as well as displaying a list of

them. If this is the case, you’ll need to use multiple activities: one for

displaying the list of recipes and another for adding a single recipe.

The best way of understanding how this works is to see it in action.

You’re going to build an app containing two activities. The first

activity will allow you to type a message. When you click on a button

in the first activity, it will launch the second activity and pass it the

message. The second activity will then display the message.

An activity is a single

focused thing your user

can do. If you chain

multiple activities together

to do something more

complex, it’s called a task.

The first activity lets

you enter a message.

When you click on the Send

button in the first activity,

it passes the message to the

second activity. The second

activity is launched and

displays the message.

you are here 4 79

multiple activities and intents

</Layout>

activity_create_message.xml

CreateMessageActivity.java

Device

</Layout>

activity_receive_message.xml

ReceiveMessageActivity.java

Get started: create the project

You create a project for the app in exactly the same way you did

in previous chapters. Create a new Android Studio project for an

application named “My Messenger” with a company domain of

“hfad.com”, making the package name com.hfad.mymessenger.

The minimum SDK should be API 19 so that it will work on most

devices. You’ll need an empty activity named “CreateMessageActivity”

with a layout named “activity_create_message” so that your code

matches ours. Make sure that you untick the Backwards

Compatibility (AppCompat) option when you create the

activity.

On the next page, we’ll update the activity’s layout.

Here’s the app structure

The app contains two activities and two layouts.

Text entered via

CreateMessageActivity

is transferred to

ReceiveMessageActivity.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

When the app gets launched, it starts activity

CreateMessageActivity.

This activity uses the layout activity_create_message.xml.

When the user clicks a button in CreateMessageActivity,

ReceiveMessageActivity is launched.

This activity uses layout activity_receive_message.xml.

80 Chapter 3

update layout

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.mymessenger.CreateMessageActivity">

<EditText

android:id="@+id/message"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginTop="20dp"

android:hint="@string/hint"

android:ems="10" />

<Button

android:id="@+id/send"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginTop="20dp"

android:onClick="onSendMessage"

android:text="@string/send" />

</LinearLayout>

Update the layout

Here’s the XML for the activity_create_message.xml file. We’re using a

<LinearLayout> to display components in a single column, and we’ve

added <Button> and <EditText> elements to it. The <EditText>

element gives you an editable text field you can use to enter data.

Change your activity_create_message.xml file to match the XML here:

The <EditText> element

defines an editable text

field for entering text. It

inherits from the same

Android View class as the

other GUI components

we’ve seen so far.

Clicking on the

button runs the

onSendMessage()

method in the

activity.

This is a String

resource we

need to create.

<xml>

</xml>

app/src/main

activity_create_

message.xml

MyMessenger

res

layout

This describes how wide the <EditText> should be. It

should be wide enough to accommodate 10 letter Ms.

This creates an editable text field.

This is the editable text field. If it's

empty, it gives the user a hint about

what text they should enter in it.

The hint attribute gives the user a hint of

what text they should type into the text

field. We need to add it as a String resource.

We're using a linear layout

with a vertical orientation.

you are here 4 81

multiple activities and intents

Update strings.xml...

We used two String resources in our layout on the previous page. The

button has a text value of @string/send that appears on the button,

and the editable text field has a hint value of @string/hint that tells

the user what to enter in the field. This means we need to add Strings called

"send" and "hint" to strings.xml and give them values. Do this now:

...and add the method to the activity

This line in the <Button> element:

...

<string name="send">Send Message</string>

<string name="hint">Enter a message</string>

</resources>

The text “Send Message”

will appear on the button.

android:onClick="onSendMessage"

means that the onSendMessage() method in the activity will fire when

the button is clicked. Let’s add this method to the activity now.

Open up the CreateMessageActivity.java file and replace the code Android

Studio created for you with the following:

package com.hfad.mymessenger;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

public class CreateMessageActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_create_message);

}

//Call onSendMessage() when the button is clicked

public void onSendMessage(View view) {

}

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

This method will get called

when the button's clicked.

We'll complete the method

body as we work our way

through the rest of the

chapter.

Now that you’ve created the first activity, let’s move on to the

second.

<xml>

</xml>

app/src/main

strings.xml

MyMessenger

res

values

app/src/main

CreateMessage

Activity.java

MyMessenger

java

com.hfad.mymessenger

The onCreate() method gets called

when the activity is created.

The text “Enter a message”

will appear as a hint in the

text field if it’s empty.

Make sure your activity

extends the Activity class.

82 Chapter 3

create activity

Create the second activity and layout

Android Studio has a wizard that lets you add extra activities and layouts to your

apps. It’s like a scaled-down version of the wizard you use to create an app, and

you use it whenever you want to create a new activity.

To create the new activity, switch to the Project view of Android Studio’s explorer,

click on the com.hfad.mymessenger package in the app/src/main/java folder, choose

File → New → Activity, and choose the option for Empty Activity. You will be

presented with a new screen where you can choose options for your new activity.

Every time you create a new activity and layout, you need to name them. Name

the new activity “ReceiveMessageActivity” and the layout “activity_receive_

message”. Make sure that the option to generate a layout is checked, and the

Launcher Activity and Backwards Compatibility (AppCompat) options are

unchecked. Finally, confirm that the package name is com.hfad.mymessenger,

and when you’re done, click on the Finish button.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

Name the activity “ReceiveMessageActivity”,

and the layout “activity_receive_message.”

Make sure

the option

to generate

the layout is

checked.

Uncheck the

Launcher

Activity and

Backwards

Compatibility

(AppCompat)

options.

Some versions of

Android Studio may

ask you what the

source language of

your activity should

be. If prompted,

select the option for

Java.

you are here 4 83

multiple activities and intents

What just happened?

When you clicked on the Finish button, Android Studio

created a shiny new activity file for you, along with a new

layout. If you look in the explorer, you should see that a new

file called ReceiveMessageActivity.java has appeared in the app/

src/main/java folder, and a file called activity_receive_message.

xml has appeared under app/src/main/res/layout.

</Layout>

activity_create_message.xml

CreateMessageActivity.java

</Layout>

activity_receive_message.xml

ReceiveMessageActivity.java

Behind the scenes, Android Studio also made a configuration

change to the app in a file called AndroidManifest.xml. Let’s

take a closer look.

Android Studio

added Receive

MessageActivity.

It added its

layout file too.

Your explorer

window may look

different than

ours because we’ve

switched to the

Project view.

Each activity uses a different layout.

CreateMessageActivity uses the

layout activity_create_message.xml, and

ReceiveMessageActivity uses

the layout activity_receive_message.xml:

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

84 Chapter 3

AndroidManifest.xml

Welcome to the Android manifest file

Every Android app must include a file called AndroidManifest.xml. You can

find it in the app/src/main folder of your project. The AndroidManifest.xml

file contains essential information about your app, such as what activities it

contains, required libraries, and other declarations. Android creates the file for

you when you create the app. If you think back to the settings you chose when

you created the project, some of the file contents should look familiar.

Here’s what our copy of AndroidManifest.xml looks like:

You can find

AndroidManifest.xml

in this folder.

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.mymessenger">

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/AppTheme">

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

If you

develop

Android

apps

without

an IDE, you’ll

need to create

this file manually.

This is the package

name we specified.

Android Studio gave our

app default icons.

The theme affects the

appearance of the app.

We’ll look at this later.

This bit specifies

that it’s the main

activity of the app.

This says the activity can

be used to launch the app.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

This is

the first

activity,

Create

Message

Activity.

This is the second activity,

ReceiveMessageActivity. Android

Studio added this code when we

added the second activity.

<xml>

</xml>

app/src/main

AndroidManifest.xml

MyMessenger

you are here 4 85

multiple activities and intents

Every activity needs to be declared

All activities need to be declared in AndroidManifest.xml. If an

activity isn’t declared in the file, the system won’t know it exists.

And if the system doesn’t know it exists, the activity will never run.

You declare an activity in the manifest by including an

<activity> element inside the <application> element.

In fact, every activity in your app needs a corresponding

<activity> element. Here’s the general format:

Activity

If I’m not included in

AndroidManifest.xml, then

as far as the system’s

concerned, I don’t exist

and will never run.

<application

...

...>

<activity

android:name=".MyActivityClassName"

...

...>

...

</activity>

...

</application>

Each activity needs to be declared

inside the <application> element.

The following line is mandatory and is used to specify the class name

of the activity, in this example "MyActivityClassName":

android:name=".MyActivityClassName"

MyActivityClassName is the name of the class. It’s prefixed

with a “.” because Android combines the class name with the

name of the package to derive the fully qualified class name.

The activity declaration may include other properties too, such as

security permissions, and whether it can be used by activities in

other apps.

This line is mandatory; just

replace MyActivityClassName

with the name of your

activity.

The activity may have

other properties too.

The second

activity in our

app was

automatically

declared

because we added it using

the Android Studio wizard.

If you add extra activities

manually, you’ll need to edit

AndroidManifest.xml yourself.

The same may be true if you use

another IDE besides Android

Studio.

86 Chapter 3

intents

An intent is a type of message

So far we’ve created an app with two activities in it, and each activity

has its own layout. When the app is launched, our first activity,

CreateMessageActivity, will run. What we need to do next is get

CreateMessageActivity to call ReceiveMessageActivity

when the user clicks the Send Message button.

Whenever you want an activity to start a second activity, you use an intent.

You can think of an intent as an “intent to do something.” It’s a type of

message that allows you to bind separate objects (such as activities) together

at runtime. If one activity wants to start a second activity, it does it by

sending an intent to Android. Android will then start the second activity

and pass it the intent.

You can create and send an intent using just a couple of lines of code. You

start by creating the intent like this:

Intent intent = new Intent(this, Target.class);

The first parameter tells Android which object the intent is from: you can

use the word this to refer to the current activity. The second parameter is

the class name of the activity that needs to receive the intent.

Once you’ve created the intent, you pass it to Android like this:

Activity1 Activity2

“Dear Android, Please can

you tell Activity2 to start

now? Sincerely, Your old

pal, Activity1.”

Ooh, a message, I’ll

start right away.

startActivity(intent);

This tells Android to start the activity specified by the intent.

Once Android receives the intent, it checks that everything’s OK

and tells the activity to start. If it can’t find the activity, it throws an

ActivityNotFoundException.

You start an activity

by creating an

intent and using it

in the startActivity()

method.

The intent specifies the activity

you want to receive it. It’s like

putting an address on an envelope.

Android

startActivity() starts the

activity specified in the intent..

Let me see... Yep, that

seems legit. I’ll tell

Activity2 to get started.

Intent

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

To: AnotherActivity

Intent

To: Activity2

Intent

To: Activity2

you are here 4 87

multiple activities and intents

Use an intent to start the second activity

Let’s put this into practice and use an intent to call

ReceiveMessageActivity. We want to launch the activity

when the user clicks on the Send Message button, so we’ll add

the two lines of code we discussed on the previous page to our

onSendMessage() method.

Make the changes highlighted below:

package com.hfad.mymessenger;

import android.app.Activity;

import android.content.Intent;

import android.os.Bundle;

import android.view.View;

public class CreateMessageActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_create_message);

}

//Call onSendMessage() when the button is clicked

public void onSendMessage(View view) {

Intent intent = new Intent(this, ReceiveMessageActivity.class);

startActivity(intent);

}

We need to import the Intent class

android.content.Intent as we’re using

it in onSendMessage().

Start activity ReceiveMessageActivity.

So what happens now when we run the app?

app/src/main

CreateMessage

Activity.java

MyMessenger

java

com.hfad.mymessenger

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

88 Chapter 3

what happens

</Layout>

activity_create_message.xml

CreateMessageActivity.java

Device

What happens when you run the app

CreateMessageActivity

Device

CreateMessageActivity

Android

ReceiveMessageActivity

Before we take the app out for a test drive, let’s go over how the

app we’ve developed so far will function:

When the app gets

launched, the main activity,

CreateMessageActivity, starts.

When it starts, the activity specifies

that it uses layout activity_create_

message.xml. This layout gets

displayed in a new window.

The user types in a message

and then clicks on the button.

The onSendMessage() method

in CreateMessageActivity

responds to the click.

The onSendMessage()

method uses an intent to

tell Android to start activity

ReceiveMessageActivity.

Android checks that the

intent is valid, and then it tells

ReceiveMessageActivity to

start.

onSendMessage()

To: Receive

Message

Activity

Intent

To: ReceiveMessageActivity

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

you are here 4 89

multiple activities and intents

</Layout>

activity_receive_message

CreateMessageActivity

Device Android

ReceiveMessageActivity

When ReceiveMessageActivity

starts, it specifies that it

uses layout

activity_receive_

message.xml

and this layout

gets displayed in a new window.

Test drive the app

Save your changes, and then run the app. CreateMessageActivity

starts, and when you click on the Send Message button, it launches

ReceiveMessageActivity.

The story continues...

Enter a message,

and then click on

the Send Message

button.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

When you click on the Send

Message button, the activity

ReceiveMessageActivity starts, and

its activity fills the screen. This

activity is currently blank because

this is the default layout Android

Studio gave us.

90 Chapter 3

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.mymessenger.ReceiveMessageActivity">

</LinearLayout>

pass text

Pass text to a second activity

So far we’ve coded CreateMessageActivity to start

ReceiveMessageActivity when the Send Message button is

pressed. Next, we’ll get CreateMessageActivity to pass text to

ReceiveMessageActivity so that ReceiveMessageActivity

can display it. In order to accomplish this, we’ll do three things:

Update CreateMessageActivity.java so that it gets the text

the user inputs, and then adds the text to the intent

before it sends it.

Tweak the layout activity_receive_message.xml so that it can

display the text. At the moment it’s simply the default

layout the wizard gave us.

Update ReceiveMessageActivity.java so that it displays the

text sent in the intent.

Let’s start with the layout

We’ll begin by changing the activity_receive_message.xml code Android

Studio created for us so that it uses a <LinearLayout>. Update

your version of the code so that it matches ours:

We need to change the layout so that it includes a text view. The text view needs to have an ID

of “message” so that we can reference it in our activity code. How should we change the layout’s

code? Think about this before looking at the next page.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

</Layout>

activity_create_

message.xml

CreateMessage

Activity.java

activity_receive_

message.xml

ReceiveMessage

Activity.java

</Layout>

Intent

<xml>

</xml>

app/src/main

activity_receive_

message.xml

MyMessenger

res

layout

We're going to use a linear layout with a vertical

orientation as we did in activity_create_message.xml.

you are here 4 91

multiple activities and intents

Q: Do I have to use intents? Can’t I just construct an

instance of the second activity in the code for my first

activity?

A: That’s a good question, but no, that’s not the “Android

way” of doing things. One of the reasons is that passing intents

to Android tells Android the sequence in which activities are

started. This means that when you click on the Back button on

your device, Android knows exactly where to take you back to.

Update the text view properties

We need to add a <TextView> element to the layout, and give

it an ID of “message.” This is because you have to add an ID to

any GUI components you need to reference in your activity code,

and we need to reference the text view so that we can update the

text it displays.

We’ve updated our code so that it includes a new text view.

Update your activity_receive_message.xml code so that it reflects ours

(we’ve bolded our changes):

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.mymessenger.ReceiveMessageActivity">

<TextView

android:id="@+id/message"

android:layout_width="wrap_content"

android:layout_height="wrap_content" />

</LinearLayout>

This line gives the text view

an ID of “message”.

We’ve not specified default text for the text

view, as the only text we’ll ever want to display

in the text view is the message passed to it by

CreateMessageActivity.

Now that we’ve updated the layout, we can get

to work on the activities. Let’s start by looking at

how we can use an intent to pass a message to

ReceiveMessageActivity.

activity_receive_

message.xml

ReceiveMessage

Activity.java

<xml>

</xml>

app/src/main

activity_receive_

message.xml

MyMessenger

res

layout

This adds the text view.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

92 Chapter 3

extra extra

putExtra() puts extra info in an intent

You’ve seen how you can create a new intent using:

Intent intent = new Intent(this, Target.class);

You can add extra information to this intent that can be picked up by

the activity you’re targeting so it can react in some way. To do this, you

use the putExtra() method like so:

intent.putExtra("message", value);

where message is a String name for the value you’re passing in, and

value is the value. The putExtra() method is overloaded so

value has many possible types. As an example, it can be a primitive

such as a boolean or int, an array of primitives, or a String. You can

use putExtra() repeatedly to add numerous extra data to the intent.

If you do this, make sure you give each one a unique name.

There are many different options

for the type of value. You

can see them all in the Google

Android documentation. Android

Studio will also give you a list as

you type code in.

How to retrieve extra information from an intent

The story doesn’t end there. When Android

tells ReceiveMessageActivity to start,

ReceiveMessageActivity needs some way of retrieving the

extra information that CreateMessageActivity sent to Android

in the intent.

There are a couple of useful methods that can help with this. The first

of these is:

getIntent();

getIntent() returns the intent that started the activity, and you

can use this to retrieve any extra information that was sent along with

it. How you do this depends on the type of information that was sent.

As an example, if you know the intent includes a String value named

"message", you would use the following:

Intent intent = getIntent();

String string = intent.getStringExtra("message");

Get the intent.

You’re not just limited to retrieving String values. As an example, you

can use:

to retrieve an int with a name of name. default_value specifies

what int value you should use as a default.

int intNum = intent.getIntExtra("name", default_value);

Get the String passed along

with the intent that has a

name of “message”.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

To: ReceiveMessageActivity

message: “Hello!”

putExtra() lets

you put extra

information in

the message

you’re sending.

To: ReceiveMessageActivity

message: “Hello!”

Intent

you are here 4 93

multiple activities and intents

Pool Puzzle

Your job is to take code snippets from

the pool and place them into the

blank lines in CreateMessageActivity.

java. You may not use the same

code snippet more than once,

and you won’t need to use all

the code snippets. Your goal is to

make the activity retrieve text from

the message <EditText> and add it

to the intent.

import

android.widget.EditText

;

EditText

messageView

EditText

(

)

findViewById

()

R.id.message

String

messageText

messageView

getText()

toString()

intent

putExtra

(

)

messageText

“message”

putExtraString

package com.hfad.mymessenger;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.view.View;

public class CreateMessageActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_create_message);

}

//Call onSendMessage() when the button is clicked

public void onSendMessage(View view) {

Intent intent = new Intent(this, ReceiveMessageActivity.class);

startActivity(intent);

}

Note: each thing from

the pool can only be

used once!

94 Chapter 3

pool solution

package com.hfad.mymessenger;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.view.View;

public class CreateMessageActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_create_message);

}

//Call onSendMessage() when the button is clicked

public void onSendMessage(View view) {

Intent intent = new Intent(this, ReceiveMessageActivity.class);

startActivity(intent);

}

import android.widget.EditText;

EditText messageView = (EditText) findViewById(R.id.message);

String messageText = messageView.getText().toString();

intent.putExtra(“message”, messageText);

Pool Puzzle Solution

Your job is to take code snippets from

the pool and place them into the

blank lines in CreateMessageActivity.

java. You may not use the same

code snippet more than once,

and you won’t need to use all

the code snippets. Your goal is to

make the activity retrieve text from

the message <EditText> and add it

to the intent.

putExtraString

You need to import

the EditText class.

Get the text

from the editable

text field with an

ID of “message.”

Add the text to the intent,

giving it a name of “message”.

This code snippet

wasn't needed.

you are here 4 95

multiple activities and intents

Pool Puzzle Solution Update the CreateMessageActivity code

We updated our code for CreateMessageActivity.java so that it

takes the text the user enters on the screen and adds it to

the intent. Here’s the full code (make sure you update your

code to include these changes, shown in bold):

package com.hfad.mymessenger;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.view.View;

import android.widget.EditText;

public class CreateMessageActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_create_message);

}

//Call onSendMessage() when the button is clicked

public void onSendMessage(View view) {

EditText messageView = (EditText)findViewById(R.id.message);

String messageText = messageView.getText().toString();

Intent intent = new Intent(this, ReceiveMessageActivity.class);

intent.putExtra(ReceiveMessageActivity.EXTRA_MESSAGE, messageText);

startActivity(intent);

}

Create an intent, then add the text

to the intent. We’re using a constant

for the name of the extra information

so that we know CreateMessageActivity

and ReceiveMessageActivity are using the

same String. We’ll add this constant to

ReceiveMessageActivity on the next page,

so don't worry if Android Studio says it

doesn't exist.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

You need to import the EditText

class android.widget.EditText as

you're using it in your activity code.

Get the text that’s in

the EditText.

Start ReceiveMessageActivity

with the intent.

app/src/main

CreateMessage

Activity.java

MyMessenger

java

com.hfad.mymessenger

Now that CreateMessageActivity has added

extra information to the intent, we need to retrieve that

information and use it.

96 Chapter 3

getStringExtra()

package com.hfad.mymessenger;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.widget.TextView;

public class ReceiveMessageActivity extends Activity {

public static final String EXTRA_MESSAGE = "message";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_receive_message);

Intent intent = getIntent();

String messageText = intent.getStringExtra(EXTRA_MESSAGE);

TextView messageView = (TextView)findViewById(R.id.message);

messageView.setText(messageText);

}

We need to import

these classes.

Get the intent, and get

the message from it using

getStringExtra().

Add the text to the message text view.

Get ReceiveMessageActivity to use

the information in the intent

Now that we’ve changed CreateMessageActivity to add

text to the intent, we’ll update ReceiveMessageActivity

so that it uses that text.

We’re going to get ReceiveMessageActivity to display the

message in its text view when the activity gets created. Because

the activity’s onCreate() method gets called as soon as the

activity is created, we’ll add the code to this method.

To get the message from the intent, we’ll first get the intent using

the getIntent() method, then get the value of the message

using getStringExtra().

Here’s the full code for ReceiveMessageActivity.java (replace the code

that Android Studio generated for you with this code, and then

save all your changes):

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

CreateMessage

Activity.java

ReceiveMessage

Activity.java

Intent

We need to make

ReceiveMessageActivity

deal with the intent it

receives.

Before we take the app for a test drive, let’s run through what the

current code does.

app/src/main

ReceiveMessage

Activity.java

MyMessenger

java

com.hfad.mymessenger

This is the name of the extra value we’re passing in the intent.

Make sure your

activity extends

the Activity class.

you are here 4 97

multiple activities and intents

What happens when the user clicks the Send Message button

CreateMessageActivity

When the user clicks on the

button, the onSendMessage()

method is called.

Code within the onSendMessage()

method creates an intent to start activity

ReceiveMessageActivity, adds

a message to the intent, and passes it to

Android with an instruction to start the

activity.

CreateMessageActivity

Android

ReceiveMessageActivity

Android checks that the

intent is OK, and then tells

ReceiveMessageActivity to start.

Android

CreateMessageActivity

Device

ReceiveMessageActivity

When ReceiveMessageActivity

starts, it specifies that it uses

layout activity_receive_message.

xml, and this gets displayed on

the device.

The activity also updates the layout so

that it displays the extra text included in

the intent.

</Layout>

activity_receive_message

onSendMessage()

ReceiveMessage

Activity.java

Intent

To: ReceiveMessage

Activity

message: ”Hi!”

Intent

To: ReceiveMessage

Activity

message: ”Hi!”

Hi!

98 Chapter 3

test drive

We can change the app to send messages to other people

Now that we have an app that sends a message to another activity, we

can change it so that it can send messages to other people. We can do

this by integrating with the message sending apps already on the device.

Depending on what apps the user has, we can get our app to send messages

via Gmail, Google+, Facebook, Twitter...

Hey, hold it right there! That sounds

like a freaky amount of work to

get our app working with all those

other apps. And how the heck do I

know what apps people have on their

devices anyway?

It’s not as hard as it sounds thanks to the way Android

is designed to work.

Remember right at the beginning of the chapter when we said that tasks

are multiple activities chained together? Well, you’re not just limited

to using the activities within your app. You can go beyond the

boundaries of your app to use activities within other apps as well.

Test drive the app

Make sure you’ve updated the two activities, save your changes, and

then run the app. CreateMessageActivity starts, and when you

enter some text and then click on the Send Message button, it launches

ReceiveMessageActivity. The text you entered is displayed in the

text view.

Here’s the text we entered, successfully

passed via the intent to the second activity.

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

These are both full-screen, but we’ve

snipped away some of the blank space.

you are here 4 99

multiple activities and intents

How Android apps work

As you’ve seen, all Android apps are composed of one or more

activities, along with other components such as layouts. Each

activity is a single defined focused thing the user can do. As an

example, apps such as Gmail, Google+, Facebook, and Twitter all

have activities that enable you to send messages, even though they

may achieve this in different ways.

Gmail Google+ Twitter

Device

Each app is composed of a

bunch of activities. (There

are other components too,

but we’re just focusing on

the activities right now.)

Intents can start activities in other apps

You’ve already seen how you can use an intent to start a second

activity within the same app. The first activity passes an intent

to Android, Android checks it, and then Android tells the second

activity to start.

The same principle applies to activities in other apps. You get an

activity in your app to pass an intent to Android, Android checks it,

and then Android tells the second activity to start even though it’s in

another app. As an example, we can use an intent to start the activity

in Gmail that sends messages, and pass it the text we want to send.

That means that instead of writing our own activities to send emails,

we can use the existing Gmail app.

GmailMy Messenger

This means that you can build apps that perform powerful tasks by

chaining together activities across the device.

You can create an intent to start

another activity even if the

activity is within another app.

This is

the app

you’ve been

working on

throughout

the chapter.

Intent Intent

Android

Create 1st activity

Create 2nd activity

Call 2nd activity

Pass data

100 Chapter 3

use actions

Create an intent that specifies an action.

The intent will tell Android you want to use an activity that can send a message. The intent

will include the text of the message.

Allow the user to choose which app to use.

Chances are, there’ll be more than one app on the user’s device capable of sending

messages, so the user will need to pick one. We want the user to be able to choose one every

time they click on the Send Message button.

But we don’t know what apps are on the user’s device

There are three questions we need answers to before we can call activities

in other apps:

How do we know which activities are available on the user’s device?

How do we know which of these activities are appropriate for what we want to do?

How do we know how to use these activities?

The great news is that we can solve all of these problems using actions.

Actions are a way of telling Android what standard operations activities

can perfom. As an example, Android knows that all activities registered for

a send action are capable of sending messages.

Let’s explore how to create intents that use actions to return a set of

activities that you can use in a standard way—for example, to send

messages.

Here’s what you’re going to do

you are here 4 101

multiple activities and intents

Create an intent that specifies an action

So far you’ve seen how to create an intent that launches a specific activity using:

Intent intent = new Intent(this, ReceiveMessageActivity.class);

This intent is an example of an explicit intent; you explicitly tell Android

which class you want it to run.

If there’s an action you want done but you don’t care which activity does it, you

create an implicit intent. You tell Android what sort of action you want it to

perform, and you leave the details of which activity performs it to Android.

Intent intent = new Intent(action);

How to create the intent

You create an intent that specifies an action using the following syntax:

where action is the type of activity action you want to perform. Android

provides you with a number of standard actions you can use. As an example,

you can use Intent.ACTION_DIAL to dial a number,

Intent.ACTION_WEB_SEARCH to perform a web search, and

Intent.ACTION_SEND to send a message. So, if you want to create an

intent that specifies you want to send a message, you use:

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, messageText);

where messageText is the text you want to send. This tells Android that

you want the activity to be able to handle data with a MIME data-type of

text/plain, and also tells it what the text is.

You can make extra calls to the putExtra() method if there’s additional

information you want to add. As an example, if you want to specify the subject

of the message, you can use:

Adding extra information

Once you’ve specified the action you want to use, you can add extra

information to it. We want to pass some text with the intent that will form the

body of the message we’re sending. To do this, you use the following lines of

code:

intent.putExtra(Intent.EXTRA_SUBJECT, subject);

where subject is the subject of the message.

You can find out

more about the

sorts of activity

actions you can

use and the extra

information they

support in the

Android developer

reference material:

http://tinyurl.com/

n57qb5.

These attributes relate

to Intent.ACTION_SEND.

They’re not relevant for

all actions.

If subject isn’t relevant to a

particular app, it will just ignore

this information. Any apps that

know how to use it will do so.

Specify action

Create chooser

We’ve told the intent which

class it’s intended for, but

what if we don’t know?

102 Chapter 3

use an action

package com.hfad.mymessenger;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.view.View;

import android.widget.EditText;

public class CreateMessageActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_create_message);

}

//Call onSendMessage() when the button is clicked

public void onSendMessage(View view) {

EditText messageView = (EditText)findViewById(R.id.message);

String messageText = messageView.getText().toString();

Intent intent = new Intent(this, ReceiveMessageActivity.class);

intent.putExtra(ReceiveMessageActivity.EXTRA_MESSAGE, messageText);

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, messageText);

startActivity(intent);

}

Change the intent to use an action

We’ll update CreateMessageActivity.java so that we create an implicit

intent that uses a send action. Make the changes highlighted below,

and save your work:

Instead of creating an intent that’s

explicitly for ReceiveMessageActivity, we’re

creating an intent that uses a send action.

app/src/main

CreateMessage

Activity.java

MyMessenger

java

com.hfad.mymessenger

Specify action

Create chooser

Remove these

two lines.

Now that you’ve updated your code, let’s break down

what happens when the user clicks on the Send

Message button.

you are here 4 103

multiple activities and intents

What happens when the code runs

When the onSendMessage() method

is called, an intent gets created.

The startActivity() method passes

this intent to Android.

The intent specifies an action of

ACTION_SEND, and a MIME type of

text/plain.

Android sees that the intent can only

be passed to activities able to handle

ACTION_SEND and text/plain data.

Android checks all the activities on the

user’s device, looking for ones that are

able to receive the intent.

If no actions are able to handle the intent, an

ActivityNotFoundException is thrown.

CreateMessageActivity Android

Intent

CreateMessageActivity Android

Aha, an implicit intent. I need

to find all the activities that

can handle ACTION_SEND, and

data of type text/plain, and

have a category of DEFAULT.

onSendMessage()

ACTION_SEND

type: “text/plain”

messageText: ”Hi!”

If just one activity is able to receive

the intent, Android tells that activity

to start and passes it the intent.

3a CreateMessageActivity

Android

Activity

Intent

To: Activity

messageText: ”Hi!”

Specify action

Create chooser

104 Chapter 3

what happens

If more than one

activity is able to

receive the intent,

Android displays an

activity chooser dialog

and asks the user

which one to use.

When the user

chooses the activity

she wants to use,

Android tells the

activity to start and

passes it the intent.

The activity displays the

extra text contained in

the intent in the body of

a new message.

CreateMessageActivity

Android

CreateMessageActivity

Android

ChosenActivity

Hey, user. All

of these activities can

send a message for you.

Which one do you want?

User

Intent

To: ChosenActivity

messageText: ”Hi!”

The story continues...

In order to pass the intent to an activity, Android must

first know which activities are capable of receiving the

intent. On the next couple of pages we’ll look at how it

does this.

Specify action

Create chooser

you are here 4 105

multiple activities and intents

<intent-filter>

</intent-filter>

</activity>

This tells Android the

activity can handle

ACTION_SEND.

The intent filter

must include

a category of

DEFAULT or it

won’t be able to

receive implicit

intents.

These are the types

of data the activity

can handle.

The intent filter tells Android which

activities can handle which actions

When Android is given an intent, it has to figure out which activity, or

activities, can handle it. This process is known as intent resolution.

When you use an explicit intent, intent resolution is straightforward.

The intent explicitly says which component the intent is directed

at, so Android has clear instructions about what to do. As an

example, the following code explicitly tells Android to start

ReceiveMessageActivity:

When you use an implicit intent, Android uses the information in the

intent to figure out which components are able to receive it. It does this

by checking the intent filters in every app’s copy of AndroidManifest.xml.

An intent filter specifies what types of intent each component can

receive. As an example, here’s the entry for an activity that can handle

an action of ACTION_SEND. The activity is able to accept data with

MIME types of text/plain or image:

Intent intent = new Intent(this, ReceiveMessageActivity.class);

startActivity(intent);

The intent filter also specifies a category. The category supplies extra

information about the activity such as whether it can be started by a

web browser, or whether it’s the main entry point of the app. An intent

filter must include a category of android.intent.category.

DEFAULT if it’s to receive implicit intents. If an activity has no intent

filter, or it doesn’t include a category name of android.intent.

category.DEFAULT, it means that the activity can’t be started with

an implicit intent. It can only be started with an explicit intent using the

full name (including the package) of the component.

Specify action

Create chooser

This is just an example;

there’s no activity

called “ShareActivity”

in our project.

106 Chapter 3

intent filters

Intent filters without this category will be omitted, as they can’t receive

implicit intents.

Android then matches intents to intent filters by comparing the action and

MIME type contained in the intent with those of the intent filters. As an

example, if an intent specifies an action of Intent.ACTION_SEND using:

If the MIME type is left out of the intent, Android tries to infer the type

based on the data the intent contains.

Once Android has finished comparing the intent to the component’s intent

filters, it sees how many matches it finds. If Android finds a single match, it

starts the component (in our case, the activity) and passes it the intent. If it

finds multiple matches, it asks the user to pick one.

It will also look at the category of

the intent filter if one is supplied by

the intent. However, this feature isn’t

used very often, so we don't cover

how to add categories to intents.

How Android uses the intent filter

When you use an implicit intent, Android compares the information given

in the intent with the information given in the intent filters specified in every

app’s AndroidManifest.xml file.

Android first considers intent filters that include a category of android.

intent.category.DEFAULT:

Intent intent = new Intent(Intent.ACTION_SEND);

Android will only consider activities that specify an intent filter with an action

of android.intent.action.SEND like this:

Similarly, if the intent MIME type is set to text/plain using:

<intent-filter>

...

</intent-filter>

<intent-filter>

...

</intent-filter>

intent.setType("text/plain");

Android will only consider activities that can accommodate this type of data:

<intent-filter>

...

</intent-filter>

Specify action

Create chooser

you are here 4 107

multiple activities and intents

BE the Intent

Your job is to play like you’re

the intent on the right and say

which of the activities described

below are compatible

with your action and

data. Say why, or why

not, for each one.

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, "Hello");

<intent-filter>

</intent-filter>

</activity>

<intent-filter>

</intent-filter>

</activity>

<intent-filter>

</intent-filter>

</activity>

Here’s the intent.

108 Chapter 3

solution

BE the Intent Solution

Your job is to play like you’re the

intent on the right and say which

of the activities described below

are compatible with

your action and

data. Say why, or

why not, for each

one.

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, "Hello");

<intent-filter>

</intent-filter>

</activity>

<intent-filter>

</intent-filter>

</activity>

<intent-filter>

</intent-filter>

</activity>

This activity accepts ACTION_SEND and

can handle data of any MIME type, so it can

respond to the intent.

This activity doesn’t have a category of

DEFAULT so can’t receive the intent.

This activity can’t accept ACTION_SEND intents, only

ACTION_SENDTO (which allows you to send a message to

someone specified in the intent’s data).

you are here 4 109

multiple activities and intents

Specify action

Create chooser

You need to run your app on a REAL device

1. Enable USB debugging on your device

On your device, open “Developer options” (in Android 4.0

onward, this is hidden by default). To enable “Developer

options,” go to Settings → About Phone and tap the build

number seven times. When you return to the previous

screen, you should now be able to see “Developer options.”

Within “Developer options,” turn on USB debugging.

2. Set up your system to detect your device

If you’re using a Mac, you can skip this step.

If you’re using Windows, you need to install a USB driver. You can

find the latest instructions here:

http://developer.android.com/tools/extras/oem-usb.html

If you’re using Ubuntu Linux, you need to create a udev rules file.

You can find the latest instructions on how to do this here:

http://developer.android.com/tools/device.html#setting-up

Yep,

seriously.

3. Plug your device into your computer with a USB cable

Your device may ask you if you want to accept an RSA key that allows USB

debugging with your computer. If it does, you can check the “Always allow

from this computer” option and choose OK to enable this.

You need to enable USB debugging.

So far we’ve been running our apps using the emulator. The emulator only

includes a small number of apps, and there may well be just one app that

can handle ACTION_SEND. In order to test our app properly, we need to

run it on a physical device where we know there’ll be more than one app

that can support our action—for example, an app that can send emails

and an app that can send text messages.

Here’s how you go about getting your app to run on a physical device.

110 Chapter 3

running on real devices

5. Run your app on the physical device

Run the app by choosing Run → “Run ‘app’”. Android Studio will ask you to

choose which device you want to run your app on, so select your device from

the list of available devices and click OK. Android Studio will install the app

on your device and launch it.

Here's our virtual device.

Here’s our physical device.

And here’s the app running

on the physical device

You should find that your app looks about the

same as when you ran it through the emulator.

You’ll probably find that your app installs and runs

quicker too.

Now that you know how to run the apps you create

on your own device, you’re all set to test the latest

changes to your app.

Running your app on a real device (continued)

Specify action

Create chooser

4. Stop your app running on the emulator

Before you can run your app on a different device, you need to stop

it running on the current one (in this case the emulator). To do this,

choose Run → “Stop ‘app’”, or click on the “Stop ‘app’” button in the

toolbar.

Click on this button in

Android Studio’s toolbar

to stop the app running

on the current device.

you are here 4 111

multiple activities and intents

Test drive the app

Try running the app using the emulator, and then using your own

device. The results you get will depend on how many activities you have

on each that support using the Send action with text data.

If you have one activity

Clicking on the Send Message button will take

you straight to that app.

We only have one activity available

on the emulator that can send

messages with text data, so when we

click on the Send Message button,

Android starts that activity.

We have lots of suitable activities available

on our physical device. We decided to use

the built-in Messages app. We selected the

“always” option—great if we always want to

use the same app, not so great if we want

to use a different one each time.

If you have more than one activity

Android displays a chooser and asks you to pick which one you want

to use. It also asks you whether you want to use this activity just once

or always. If you choose always, the next time you click on the Send

Message button it uses the same activity by default.

Here’s the message.

112 Chapter 3

let the user choose

What if you ALWAYS want your users to choose an activity?

You’ve just seen that if there’s more than one activity on

your device that’s capable of receiving your intent, Android

automatically asks you to choose which activity you want to use. It

even asks you whether you want to use this activity all the time or

just on this occasion.

There’s just one problem with this default behavior: what if you

want to guarantee that users can choose an activity every time they

click on the Send Message button? If they’ve chosen the option to

always use Gmail, for instance, they won’t be asked if they want to

use Twitter next time.

Fortunately, there’s a way around this. You can create a chooser

that asks users to pick an activity without giving them the option to

always use that activity.

Intent chosenIntent = Intent.createChooser(intent, "Send message via...");

This is the intent you created earlier.

You can pass in a title for the

chooser that gets displayed at the

top of the screen.

Intent.createChooser() displays a chooser dialog

You can achieve this using the Intent.createChooser()

method, which takes the intent you’ve already created and wraps it

in a chooser dialog. When you use this method, the user isn’t given

the option of choosing a default activity—they get asked to choose

one every time.

You call the createChooser() method like this:

The method takes two parameters: an intent and an optional

String title for the chooser dialog window. The Intent

parameter needs to describe the types of activity you want the

chooser to display. You can use the same intent we created earlier,

as this specifies that we want to use ACTION_SEND with textual

data.

The createChooser() method returns a brand-new Intent.

This is a new explicit intent that’s targeted at the activity chosen by

the user. It includes any extra information supplied by the original

intent, including any text.

To start the activity the user chose, you need to call:

startActivity(chosenIntent);

createChooser() allows

you to specify a title for

the chooser dialog, and

doesn’t give the user

the option of selecting

an activity to use by

default. It also lets the

user know if there are

no matching activities

by displaying a message.

Over the next couple of pages we’ll take a closer look at what

happens when you call the createChooser() method.

you are here 4 113

multiple activities and intents

What happens when you call createChooser()

Intent chosenIntent = Intent.createChooser(intent, "Send message via...");

startActivity(chosenIntent);

Here’s what happens when you run the following two lines of code:

The createChooser() method

gets called.

The method includes an intent that

specifies the action and MIME type

that’s required.

CreateMessageActivity Android

createChooser()

Android checks which activities

are able to receive the intent

by looking at their intent

filters.

It matches on the actions, type of data,

and categories they can support.

CreateMessageActivity Android

I need to

create a chooser

for activities that

support the SEND

action and text/plain

data.

If more than one activity is

able to receive the intent,

Android displays an activity

chooser dialog and asks the

user which one to use.

It doesn’t give the user the option

of always using a particular activity,

and it displays “Send message via...”

in the title.

If no activities are found, Android

still displays the chooser but shows a

message telling the user there are no

apps that can perform the action.

Android User

CreateMessageActivity

Hey, user. Which

activity do you want

to use this time?

Specify action

Create chooser

Intent

ACTION_SEND

type: “text/plain”

message: ”Hi!”

114 Chapter 3

what happens

The story continues...

The activity asks

Android to start the

activity specified in

the intent.

Android starts the

activity specified by

the intent, and then

passes it the intent.

When the user chooses

which activity she wants to

use, Android returns a new

explicit intent describing

the chosen activity.

The new intent includes any

extra information that was

included in the original intent,

such as any text.

Android User

CreateMessageActivity

She wants to use

ChosenActivity.

Here’s the intent.

Android

CreateMessageActivity

Thanks for the intent,

Android. Can you start

the activity now, bud?

Android

CreateMessageActivity

ChosenActivity

Intent

ChosenActivity

message: ”Hi!”

Intent

To: ChosenActivity

message: ”Hi!”

Intent

To: ChosenActivity

message: ”Hi!”

Specify action

Create chooser

Sure thing! Here you

go, ChosenActivity.

you are here 4 115

multiple activities and intents

Change the code to create a chooser

Let’s change the code so that the user gets asked which activity they want to

use to send a message every time they click on the Send Message button. We’ll

add a String resource to strings.xml for the chooser dialog title, and we’ll update

the onSendMessage() method in CreateMessageActivity.java so that it calls the

createChooser() method.

...and update the onSendMessage() method

We need to change the onSendMessage() method so that it

retrieves the value of the chooser String resource in strings.xml, calls

the createChooser() method, and then starts the activity the

user chooses. Update your code as follows:

Update strings.xml...

We want the chooser dialog to have a title of “Send message via...”.

Add a String called "chooser" to strings.xml, and give it the value

Send message via... (make sure to save your changes):

...

<string name="chooser">Send message via...</string>

...

//Call onSendMessage() when the button is clicked

public void onSendMessage(View view) {

EditText messageView = (EditText)findViewById(R.id.message);

String messageText = messageView.getText().toString();

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, messageText);

String chooserTitle = getString(R.string.chooser);

Intent chosenIntent = Intent.createChooser(intent, chooserTitle);

startActivity(intent);

startActivity(chosenIntent);

}

...

The getString() method is used to get the value of a String resource. It takes

one parameter, the ID of the resource (in our case, this is R.string.chooser):

getString(R.string.chooser);

Get the

chooser title.

Display the chooser dialog.

Start the activity

that the user selected.

If you look in R.java, you’ll find chooser

in the inner class called string.

Now that we’ve updated the app, let’s run the app to see our chooser in action.

<xml>

</xml>

app/src/main

strings.xml

MyMessenger

res

values

app/src/main

CreateMessage

Activity.java

MyMessenger

java

com.hfad.mymessenger

This will be displayed in the chooser dialog.

Delete

this line.

Specify action

Create chooser

116 Chapter 3

test drive

Test drive the app

Save your changes, then try running the app again on the device

or the emulator.

If you have more than one activity

Android displays a chooser, but this time it doesn’t ask us if we always

want to use the same activity. It also displays the value of the chooser

String resource in the title.

If you have one activity

Clicking on the Send Message button will take

you straight to that activity just like before.

Here’s the chooser we created

with createChooser(). It no longer

gives us the option of using a

particular activity every time.

There’s no change here—

Android continues to take

you straight to the activity.

Specify action

Create chooser

you are here 4 117

multiple activities and intents

If you have NO matching activities

If you have no activities on your device that are capable of sending

messages, the createChooser() method lets you know by

displaying a message.

If you want to replicate this for yourself, try

running the app in the emulator, and disable

the built-in Messenger app that’s on there.

Q: So I can run my apps in the emulator or on a physical

device. Which is best?

A: Each one has its pros and cons.

If you run apps on your physical device, they tend to load a lot

quicker than using the emulator. This approach is also useful if

you’re writing code that interacts with the device hardware.

The emulator allows you to run apps against many different versions

of Android, screen resolutions, and device specifications. It saves you

from buying lots of different devices. The key thing is to make sure

you test your apps thoroughly using a mixture of the emulator and

physical devices before releasing them to a wider audience.

Q: Should I use implicit or explicit intents?

A: It comes down to whether you need Android to use a specific

activity to perform your action, or whether you just want the action

done. As an example, suppose you wanted to send an email. If you

don’t care which email app the user uses to send it, just as long as

the email gets sent, you’d use an implicit intent. On the other hand,

if you needed to pass an intent to a particular activity in your app,

you’d need to use an explicit intent to explicitly say which activity

needs to receive the intent.

Q: You mentioned that an activity’s intent filter can specify

a category as well as an action. What’s the difference between

the two?

A: An action specifies what an activity can do, and the category

gives extra detail. We’ve not gone into details about adding

categories because you don’t often need to specify a category

when you create an intent.

Q: You say that the createChooser() method

displays a message in the chooser if there are no activities

that can handle the intent. What if I’d instead used the

default Android chooser and passed an implicit intent to

startActivity()?

A: If the startActivity() method is given

an intent where there are no matching activities, an

ActivityNotFoundException is thrown. You can

check whether any activities on the device are able to receive the

intent by calling the intent’s resolveActivity() method

and checking its return value. If its return value is null, no activities

on the device are able to receive the intent, so you shouldn’t call

startActivity().

Specify action

Create chooser

118 Chapter 3

toolbox

Your Android Toolbox

You’ve got Chapter 3 under

your belt and now you’ve

added multi-activity apps and

intents to your toolbox.

 A task is two or more activities chained together.

The <EditText> element defines an editable text field for entering text. It inherits from the Android View class.

You can add a new activity in Android Studio by choosing File → New... → Activity.

Each activity you create must have an entry in AndroidManifest.xml.

An intent is a type of message that Android components use to communicate with one another.

An explicit intent specifies the component the intent is targeted at. You create an explicit intent using

Intent intent = new Intent(this, Target.class);.

To start an activity, call startActivity(intent). If no activities are found, it throws an

ActivityNotFoundException.

Use the putExtra() method to add extra information to an intent.

Use the getIntent() method to retrieve the intent that started the activity.

Use the get*Extra() methods to retrieve extra information associated with the intent.

getStringExtra() retrieves a String, getIntExtra() retrieves an int, and so on.

An activity action describes a standard operational action an activity can perform. For example, to send a message,

use Intent.ACTION_SEND.

To create an implicit intent that specifies an action, use Intent intent = new Intent(action);.

To describe the type of data in an intent, use the setType() method.

Android resolves intents based on the named component, action, type of data, and categories specified in the

intent. It compares the contents of the intent with the intent filters in each app’s AndroidManifest.xml. An activity

must have a category of DEFAULT if it is to receive an implicit intent.

The createChooser() method allows you to override the default Android activity chooser dialog. It lets you

specify a title for the dialog, and doesn’t give the user the option of setting a default activity. If no activities can

receive the intent it is passed, it displays a message. The createChooser() method returns an Intent.

You retrieve the value of a String resource using getString(R.string.stringname);.

CHAPTER 3

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

this is a new chapter 119

...so I told him that

if he didn’t onStop() soon,

I’d onDestroy() him with

a cattle prod.

the activity lifecycle

Being an Activity

Activities form the foundation of every Android app.

So far you’ve seen how to create activities, and made one activity start another using an

intent. But what’s really going on beneath the hood? In this chapter, we’re going to dig

a little deeper into the activity lifecycle. What happens when an activity is created and

destroyed? Which methods get called when an activity is made visible and appears in

the foreground, and which get called when the activity loses the focus and is hidden?

And how do you save and restore your activity’s state? Read on to find out.

120 Chapter 4

how activities work

How do activities really work?

So far you’ve seen how to create apps that interact with the user,

and apps that use multiple activities to perform tasks. Now that

you have these core skills under your belt, it’s time to take a deeper

look at how activities actually work. Here’s a recap of what you

know so far, with a few extra details thrown in.

An app is a collection of activities, layouts, and other resources.

One of these activities is the main activity for the app.

By default, each app runs within its own process.

This helps keep your apps safe and secure. You can read more about this in Appendix

III (which covers the Android runtime, a.k.a. ART) at the back of this book.

App

Main Activity

Activity

Each app has a main activity,

as specified in the file

AndroidManifest.xml.

App 1

Activity

Process 1

App 2

Activity

Process 2

you are here 4 121

the activity lifecycle

But there are still lots of things we don’t yet know about how activities

function. How long does an activity live for? What happens when

your activity disappears from the screen? Is it still running? Is it still

in memory? And what happens if your app gets interrupted by an

incoming phone call? We want to be able to control the behavior of

our activities in a whole range of different circumstances, but how?

Your app can start an activity in another application by passing an

intent with startActivity().

The Android system knows about all the device’s installed apps and their activities,

and uses the intent to start the correct activity.

When Android starts an activity, it calls its onCreate() method.

onCreate() is always run whenever an activity gets created.

When an activity needs to start, Android checks whether there’s

already a process for that app.

If one exists, Android runs the activity in that process. If one doesn’t exist,

Android creates one.

Android

Intent

App 1

Process 1

Android

I’m already

running activities for

this app in process 1. I’ll

run this one there too.

Activity

Android

onCreate()

Intent

App 1

Activity

App 2

Activity

startActivity()

122 Chapter 4

stopwatch

The Stopwatch app

In this chapter, we’re going to take a closer look at how activities

work under the hood, common ways in which your apps can break,

and how you can fix them using the activity lifecycle methods.

We’re going to explore the lifecycle methods using a simple

Stopwatch app as an example.

The Stopwatch app consists of a single activity and a single layout.

The layout includes a text view showing you how much time has

passed, a Start button that starts the stopwatch, a Stop button that

stops it, and a Reset button that resets the timer value to 0.

Create a new project for the Stopwatch app

You have enough experience under your belt to build the app

without much guidance from us. We’re going to give you just enough

code so you can build the app yourself, and then you can see what

happens when you try to run it.

Start off by creating a new Android project for an application

named “Stopwatch” with a company domain of “hfad.com”, making

the package name com.hfad.stopwatch. The minimum

SDK should be API 19 so it can run on most devices. You’ll need

an empty activity called “StopwatchActivity” and a layout called

“activity_stopwatch”. Make sure you uncheck the Backwards

Compatibility (AppCompat) checkbox.

</Layout>

activity_stopwatch.xml

StopwatchActivity.java

The app is composed

of one activity and

one layout.

When you click this button,

the seconds begin to increment.

This is the number

of seconds.

When you click this button,

the seconds stop incrementing.

When you click this button, the

seconds tally goes back to 0.

you are here 4 123

the activity lifecycle

Update the stopwatch layout code

Here’s the XML for the layout. It describes a single text view

that’s used to display the timer, and three buttons to control the

stopwatch. Replace the XML currently in activity_stopwatch.xml

with the XML shown here:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:padding="16dp"

tools:context=".StopwatchActivity">

<TextView

android:id="@+id/time_view"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:textAppearance="@android:style/TextAppearance.Large"

android:textSize="56sp" />

These attributes make the

stopwatch timer nice and big.

We’ll use this text view to

display the number of seconds.

The layout

code continues

over the page.

<xml>

</xml>

app/src/main

activity_

stopwatch.xml

Stopwatch

res

layout

Add String resources

We’re going to use three String values in our stopwatch layout, one

for the text value of each button. These values are String resources,

so they need to be added to strings.xml. Add the String values below

to your version of strings.xml:

...

<string name="start">Start</string>

<string name="reset">Reset</string>

...

We’ll use these

String resources

in our layout.

<xml>

</xml>

app/src/main

strings.xml

Stopwatch

res

values

Next, let’s update the code for our layout.

124 Chapter 4

activity_stopwatch.xml

The layout code (continued)

<Button

android:id="@+id/start_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="20dp"

android:onClick="onClickStart"

android:text="@string/start" />

<Button

android:id="@+id/stop_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickStop"

android:text="@string/stop" />

<Button

android:id="@+id/reset_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickReset"

android:text="@string/reset" />

</LinearLayout>

Make sure you update

the layout and strings.

xml in your app before

continuing.

Do this!

<xml>

</xml>

app/src/main

activity_

stopwatch.xml

Stopwatch

res

layout

The layout is now done! Next, let’s move on to the activity.

This is for the Stop button.

When it gets clicked, the

Stop button calls the

onClickStop() method.

This is for the Reset button.

When it gets clicked, the

Reset button calls the

onClickReset() method.

This code is for the Start button.

When it gets clicked, the

Start button calls the

onClickStart() method.

you are here 4 125

the activity lifecycle

How the activity code will work

The layout defines three buttons that we’ll use to control

the stopwatch. Each button uses its onClick attribute

to specify which method in the activity should run when

the button is clicked. When the Start button is clicked, the

onClickStart() method gets called, when the Stop

button is clicked the onClickStop() method gets called,

and when the Reset button is clicked the onClickReset()

method gets called. We’ll use these methods to start, stop, and

reset the stopwatch.

When you click this button, the

onClickStart() method is called.

When you click this button, the

onClickStop() method is called.

When you click this button, the

onClickReset() method is called.

We’ll update the stopwatch using a method we’ll create

called runTimer(). The runTimer() method will run

code every second to check whether the stopwatch is running,

and, if it is, increment the number of seconds and display the

number of seconds in the text view.

To help us with this, we’ll use two private variables to record

the state of the stopwatch. We’ll use an int called seconds

to track how many seconds have passed since the stopwatch

started running, and a boolean called running to record

whether the stopwatch is currently running.

We’ll start by writing the code for the buttons, and then we’ll

look at the runTimer() method.

Activity

runTimer()

126 Chapter 4

buttons

running=true

running=false

seconds=0

package com.hfad.stopwatch;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

public class StopwatchActivity extends Activity {

private int seconds = 0;

private boolean running;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

}

//Start the stopwatch running when the Start button is clicked.

public void onClickStart(View view) {

running = true;

}

//Stop the stopwatch running when the Stop button is clicked.

public void onClickStop(View view) {

running = false;

}

//Reset the stopwatch when the Reset button is clicked.

public void onClickReset(View view) {

running = false;

seconds = 0;

}

Add code for the buttons

When the user clicks on the Start button, we’ll set the running

variable to true so that the stopwatch will start. When the

user clicks on the Stop button, we’ll set running to false so

that the stopwatch stops running. If the user clicks on the Reset

button, we’ll set running to false and seconds to 0 so that

the stopwatch is reset and stops running.

To do all that, replace the contents of StopwatchActivity.java with

the code below:

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

Use the seconds and running

variables to record the number of

seconds passed and whether the

stopwatch is running.

This gets called when the

Start button is clicked.

Start the stopwatch.

This gets called when the

Stop button is clicked.

Stop the stopwatch.

This gets called

when the Reset

button is clicked.

Stop the stopwatch and

set the seconds to 0.

Make sure your activity

extends the Activity class.

you are here 4 127

the activity lifecycle

The runTimer() method

The next thing we need to do is create the runTimer() method.

This method will get a reference to the text view in the layout; format

the contents of the seconds variable into hours, minutes, and

seconds; and then display the results in the text view. If the running

variable is set to true, it will increment the seconds variable.

The code for the runTimer() method is below. We’ll add it to

StopwatchActivity.java in a few pages:

private void runTimer() {

final TextView timeView = (TextView)findViewById(R.id.time_view);

...

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

...

}

We need this code to keep looping so that it increments the seconds

variable and updates the text view every second. We need to do this in

such a way that we don’t block the main Android thread.

In non-Android Java programs, you can perform tasks like this

using a background thread. In Androidville, that approach

won’t work—only the main Android thread can update the

user interface, and if any other thread tries to do so, you get a

CalledFromWrongThreadException.

The solution is to use a Handler. We’ll look at this technique on the

next page.

We’ve left

out a bit of

code here.

We’ll look at

it on the

next page.

Get the text view.

Format the seconds into

hours, minutes, and seconds.

This is plain Java code.

If running is true, increment

the seconds variable.

Set the text view text.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

128 Chapter 4

handlers

Handlers allow you to schedule code

A Handler is an Android class you can use to schedule code that

should be run at some point in the future. You can also use it to post

code that needs to run on a different thread than the main Android

thread. In our case, we’re going to use a Handler to schedule the

stopwatch code to run every second.

To use the Handler, you wrap the code you wish to schedule in

a Runnable object, and then use the Handler post() and

postDelayed() methods to specify when you want the code to run.

Let’s take a closer look at these mehods.

final Handler handler = new Handler();

handler.post(Runnable);

On the next page, we’ll use these methods to update the stopwatch

every second.

The post() method

The post() method posts code that needs to be run as soon as

possible (which is usually almost immediately). This method takes

one parameter, an object of type Runnable. A Runnable object in

Androidville is just like a Runnable in plain old Java: a job you want

to run. You put the code you want to run in the Runnable’s run()

method, and the Handler will make sure the code is run as soon as

possible. Here’s what the method looks like:

You put the code you want to run in the Runnable’s run() method.

The postDelayed() method

The postDelayed() method works in a similar way to the post()

method except that you use it to post code that should be run in

the future. The postDelayed() method takes two parameters: a

Runnable and a long. The Runnable contains the code you want

to run in its run() method, and the long specifies the number of

milliseconds you wish to delay the code by. The code will run as soon

as possible after the delay. Here’s what the method looks like:

final Handler handler = new Handler();

handler.postDelayed(Runnable, long);

Use this method to delay running code

by a specified number of milliseconds.

you are here 4 129

the activity lifecycle

The full runTimer() code

To update the stopwatch, we’re going to repeatedly schedule code using

the Handler with a delay of 1 second each time. Each time the code runs,

we’ll increment the seconds variable and update the text view.

Here’s the full code for the runTimer() method, which we’ll add to

StopwatchActivity.java in a couple of pages:

private void runTimer() {

final TextView timeView = (TextView)findViewById(R.id.time_view);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

handler.postDelayed(this, 1000);

}

});

}

Create a new Handler.

Call the post() method, passing in a new Runnable. The post()

method processes code without a delay, so the code in the

Runnable will run almost immediately.

The Runnable run()

method contains the code

you want to run—in our

case, the code to update

the text view.

Post the code in the Runnable to be run again

after a delay of 1,000 milliseconds. As this line

of code is included in the Runnable run() method,

it will keep getting called.

Using the post() and postDelayed() methods in this way means

that the code will run as soon as possible after the required delay, which

in practice means almost immediately. While this means the code will lag

slightly over time, it’s accurate enough for the purposes of exploring the

lifecycle methods in this chapter.

We want the runTimer() method to start running when

StopwatchActivity gets created, so we’ll call it in the activity

onCreate() method:

protected void onCreate(Bundle savedInstanceState) {

...

runTimer();

}

We’ll show you the full code for StopwatchActivity on the next page.

130 Chapter 4

StopwatchActivity code

The full StopwatchActivity code

Here’s the full code for StopwatchActivity.java. Update your code to match

our changes below.

package com.hfad.stopwatch;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import java.util.Locale;

import android.os.Handler;

import android.widget.TextView;

public class StopwatchActivity extends Activity {

//Number of seconds displayed on the stopwatch.

private int seconds = 0;

//Is the stopwatch running?

private boolean running;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

runTimer();

}

//Start the stopwatch running when the Start button is clicked.

public void onClickStart(View view) {

running = true;

}

//Stop the stopwatch running when the Stop button is clicked.

public void onClickStop(View view) {

running = false;

}

Use the seconds and running

variables to record the number of

seconds passed and whether the

stopwatch is running.

We’re using a separate method to

update the stopwatch. We’re starting it

when the activity is created.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

This gets called when the

Start button is clicked.

Start the stopwatch.

This gets called when the

Stop button is clicked.

Stop the stopwatch.

We’re using these extra classes

so we need to import them.

you are here 4 131

the activity lifecycle

//Reset the stopwatch when the Reset button is clicked.

public void onClickReset(View view) {

running = false;

seconds = 0;

}

//Sets the number of seconds on the timer.

private void runTimer() {

final TextView timeView = (TextView)findViewById(R.id.time_view);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

handler.postDelayed(this, 1000);

}

});

}

The activity code (continued)

Do this!

Make sure you update

your activity code to

reflect these changes.

This gets called

when the Reset

button is clicked.

Stop the

stopwatch and set

the seconds to 0.

Let’s look at what happens when the code runs.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

Use a Handler to post code.

Post the code again with a delay of 1 second.

Get the text view.

Format the seconds

into hours, minutes,

and seconds.

If running is true, increment

the seconds variable.

Set the text view text.

132 Chapter 4

what happens

What happens when you run the app

The user decides she wants to run the app.

On her device, she clicks on the app’s icon.

Android

Device

User

An intent is constructed to start this activity using startActivity(intent).

The AndroidManifest.xml file for the app specifies which activity to use as the launch

activity.

Android checks to see whether there’s already a process running

for the app, and if not, creates a new process.

It then creates a new activity object—in this case, for StopwatchActivity.

<xml>

</xml>

AndroidManifest.xml

App 1

Process 1

Android

you are here 4 133

the activity lifecycle

The onCreate() method in the activity gets called.

The method includes a call to setContentView(), specifying a layout, and then

starts the stopwatch with runTimer().

When the onCreate() method finishes, the layout gets displayed on the

device.

The runTimer() method uses the seconds variable to determine what text to display in

the text view, and uses the running variable to determine whether to increment the number

of seconds. As running is initially false, the number of seconds isn’t incremented.

The story continues

StopwatchActivity

<xml>

</xml>

Layout

runTimer()

Device

StopwatchActivity

seconds=0

running=false

Q: Why does Android run each app inside a separate

process?

A: For security and stability. This approach prevents one app

from accessing the data of another. It also means if one app

crashes, it won’t take others down with it.

Q: Why have an onCreate() method in our activity?

Why not just put that code inside a constructor?

A: Android needs to set up the environment for the activity after

it’s constructed. Once the environment is ready, Android calls

onCreate(). That’s why code to set up the screen goes

inside onCreate() instead of a constructor.

Q: Couldn’t I just write a loop in onCreate() to keep

updating the timer?

A: No, onCreate() needs to finish before the screen will

appear. An endless loop would prevent that from happening.

Q: runTimer() looks really complicated. Do I really

need to do all this?

A: It’s a little complex, but whenever you need to post code that

runs in a loop, the code will look similar to runTimer().

134 Chapter 4

test drive

Test drive the app

When we run the app in the emulator, the app works great. We

can start, stop, and reset the stopwatch without any problems at

all—the app works just as you’d expect.

But there’s just one problem...

When we ran the app on a physical device, the app worked OK

until someone rotated the device. When the device was rotated,

the stopwatch set itself back to 0.

These buttons work as you’d expect. The

Start button starts the stopwatch, the

Stop button stops it, and the Reset

button sets the stopwatch back to 0.

The stopwatch was running, but reset to

0 when the device was rotated.

In Androidville, it’s surprisingly common for apps to break when

you rotate the device. Before we fix the problem, let’s take a closer

look at what caused it.

you are here 4 135

the activity lifecycle

What just happened?

So why did the app break when the user rotated the screen?

Let’s take a closer look at what really happened.

The user starts the app, and clicks on the Start button to set the

stopwatch going.

The runTimer() method starts incrementing the number of seconds displayed in

the time_view text view using the seconds and running variables.

The user rotates the device.

Android sees that the screen orientation and screen size has changed, and it destroys

the activity, including any variables used by the runTimer() method.

StopwatchActivity is then recreated.

The onCreate() method runs again, and the runTimer() method gets called.

As the activity has been recreated, the seconds and running variables are set to

their default values.

Device

StopwatchActivity

seconds=14

running=true

Device

StopwatchActivity

seconds=0

running=false

Device

seconds is set to 0 and

running is set to false. This

is because the activity was

destroyed and recreated

when the device was rotated.

136 Chapter 4

device configurations

Rotating the screen changes the device configuration

When Android runs your app and starts an activity, it takes

into account the device configuration. By this we mean the

configuration of the physical device (such as the screen size, screen

orientation, and whether there’s a keyboard attached) and also

configuration options specified by the user (such as the locale).

Android needs to know what the device configuration is when

it starts an activity because the configuration can impact what

resources are needed for the application. A different layout might

need to be used if the device screen is landscape rather than portrait,

for instance, and a different set of String values might need to be

used if the locale is France.

When the device configuration changes, anything that displays a user

interface needs to be updated to match the new configuration. If you

rotate your device, Android spots that the screen orientation and

screen size have changed, and classes this as a change to the device

configuration. It destroys the current activity, and then recreates it so

that resources appropriate to the new configuration get picked up.

The device

configuration includes

options specified

by the user (such

as the locale), and

options relating to the

physical device (such

as the orientation and

screen size). A change

to any of these options

results in the activity

being destroyed and

then recreated.

Android apps can

contain multiple

resource files in the

app/src/main/res

folder. For instance, if

the device locale is set

to France, Android

will use the strings.xml

file in the values-fr

folder.

you are here 4 137

the activity lifecycle

The states of an activity

Activity launched

Activity destroyed

Activity running

An activity is running

when it’s in the

foreground of the screen.

onCreate() gets called

when the activity is first

created, and it’s where

you do your normal

activity setup.

onDestroy() gets called

just before your activity

gets destroyed.

Your activity spends

most of its life here.

At this point, your

activity no longer

exists.

When an activity moves from being launched to being destroyed,

it triggers key activity lifecycle methods: the onCreate() and

onDestroy() methods. These are lifecycle methods that your

activity inherits, and which you can override if necessary.

The onCreate() method gets called immediately after your

activity is launched. This method is where you do all your normal

activity setup such as calling setContentView(). You should

always override this method. If you don’t override it, you won’t be

able to tell Android what layout your activity should use.

The onDestroy() method is the final call you get before the

activity is destroyed. There are a number of situations in which

an activity can get destroyed—for example, if it’s been told to

finish, if the activity is being recreated due to a change in device

configuration, or if Android has decided to destroy the activity in

order to save space.

We’ll take a closer look at how these methods fit into the activity

states on the next page.

When Android creates and destroys an activity, the activity moves

from being launched to running to being destroyed.

The main state of an activity is when it’s running or active. An

activity is running when it’s in the foreground of the screen, it has

the focus, and the user can interact with it. The activity spends most

of its life in this state. An activity starts running after it has been

launched, and at the end of its life, the activity is destroyed.

The activity object has been

created but it’s not yet running.

138 Chapter 4

birth to death

The activity lifecycle: from create to destroy

Activity launched

Activity destroyed

Activity running

onCreate()

onDestroy()

The activity gets launched.

The activity object is created and its constructor

is run.

The onCreate() method runs immediately

after the activity is launched.

The onCreate() method is where any

initialization code should go, as this method

always gets called after the activity has launched

but before it starts running.

An activity is running when it’s visible in

the foreground and the user can interact

with it.

This is where an activity spends most of its life.

The onDestroy() method runs immediately

before the activity is destroyed.

The onDestroy() method enables you to

perform any final cleanup such as freeing up

resources.

After the onDestroy() method has run,

the activity is destroyed.

The activity ceases to exist.

Here’s an overview of the activity lifecycle from birth to death. As

you’ll see later in the chapter, we’ve left out some of the details,

but at this point we’re just focusing on the onCreate() and

onDestroy() methods.

The onCreate() and onDestroy() methods are two of the

activity lifecycle methods. So where do these methods come from?

If your device is extremely low on

memory, onDestroy() might not get

called before the activity is destroyed.

you are here 4 139

the activity lifecycle

Your activity inherits the lifecycle methods

YourActivity

onCreate(Bundle)

yourMethod()

Activity

onCreate(Bundle)

onStart()

onRestart()

onResume()

onPause()

onStop()

onDestroy()

onSaveInstanceState()

startActivity(Intent)

findViewById(Int)

setContentView(View)

ContextThemeWrapper

startActivity(Intent)

ContextWrapper

startActivity(Intent)

Context

startActivity(Intent)

Context abstract class

(android.content.Context)

An interface to global information about the application environment.

Allows access to application resources, classes, and operations.

ContextWrapper class

(android.content.ContextWrapper)

A proxy implementation for the Context.

ContextThemeWrapper class

(android.view.ContextThemeWrapper)

Allows you to modify the theme from what’s in the

ContextWrapper.

Activity class

(android.app.Activity)

The Activity class implements default versions of the lifecycle

methods. It also defines methods such as findViewById(Int)

and setContentView(View).

YourActivity class

(com.hfad.foo)

Most of the behavior of your activity is handled by superclass methods

your activity inherits. All you do is override the methods you need.

As you saw earlier in the book, your activity extends the android.

app.Activity class. It’s this class that gives your activity access to the

Android lifecycle methods. Here’s a diagram showing the class hierarchy:

Now that you know more about the activity lifecycle methods,

let’s see how you deal with device configuration changes.

These are the activity lifecycle methods.

You’ll find out more about them through

the rest of the chapter.

These aren’t lifecycle methods, but

they’re still very useful. You’ve already

used most of them in earlier chapters.

140 Chapter 4

saving state

Save the current state...

As you saw, our app went wrong when the user rotated the screen. The activity

was destroyed and recreated, which meant that local variables used by the activity

were lost. So how do we get around this issue?

The best way of dealing with configuration changes is to save the current state of

the activity, and then reinstate it in the onCreate() method of the activity.

To save the activity’s current state, you need to implement the

onSaveInstanceState() method. This method gets called before the

activity gets destroyed, which means you get an opportunity to save any values

you want to retain before they get lost.

The onSaveInstanceState() method takes one parameter, a Bundle. A

Bundle allows you to gather together different types of data into a single object:

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

}

public void onSaveInstanceState(Bundle savedInstanceState) {

}

The onCreate() method gets passed the Bundle as a

parameter. This means that if you add the values of the running

and seconds variables to the Bundle, the onCreate()

method will be able to pick them up when the activity gets

recreated. To do this, you use Bundle methods to add name/

value pairs to the Bundle. These methods take the form:

bundle.put*("name", value)

where bundle is the name of the Bundle, * is the type of value you want to

save, and name and value are the name and value of the data. As an example,

to add the seconds int value to the Bundle, you’d use:

bundle.putInt("seconds", seconds);

You can save multiple name/value pairs of data to the Bundle.

Here’s our onSaveInstanceState() method in full (we’ll add it to

StopwatchActivity.java a couple of pages ahead):

Once you’ve saved variable values to the Bundle, you can use them

in our onCreate() method.

The onSaveInstanceState()

method gets called

before onDestroy().

It gives you a

chance to save your

activity’s state

before the activity

is destroyed.

Save the values of the

seconds and running

variables to the Bundle.

Activity launched

Activity destroyed

Activity running

onCreate()

onSaveInstanceState()

onDestroy()

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

you are here 4 141

the activity lifecycle

...then restore the state in onCreate()

As we said earlier, the onCreate() method takes one parameter, a

Bundle. If the activity’s being created from scratch, this parameter

will be null. If, however, the activity’s being recreated and there’s been

a prior call to onSaveInstanceState(), the Bundle object

used by onSaveInstanceState() will get passed to the activity:

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

}

runTimer();

}

You can get values from Bundle by using methods of the form:

protected void onCreate(Bundle savedInstanceState) {

...

}

bundle.get*("name");

where bundle is the name of the Bundle, * is the type of value

you want to get, and name is the name of the name/value pair you

specified on the previous page. As an example, to get the seconds

value from the Bundle, you’d use:

int seconds = bundle.getInt("seconds");

Putting all of this together, here’s what our onCreate() method

now looks like (we’ll add this to StopwatchActivity.java on the next page):

We’ll look at the full code to save and restore

StopwatchActivity’s state on the next page.

Retrieve the values of

the seconds and running

variables from the Bundle.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

Instead of *, use Int, String, and so on, to

specify the type of data you want to get.

142 Chapter 4

StopwatchActivity code

...

public class StopwatchActivity extends Activity {

//Number of seconds displayed on the stopwatch.

private int seconds = 0;

//Is the stopwatch running?

private boolean running;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

}

runTimer();

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

}

...

The updated StopwatchActivity code

We’ve updated our StopwatchActivity code so that

if the user rotates the device, its state gets saved via the

onSaveInstanceState() method, and restored via the

onCreate() method. Update your version of StopwatchActivity.java

to include our changes (below in bold):

Save the state of the

variables in the activity’s

onSaveInstanceState() method.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

So how does this work in practice?

Restore the activity’s

state by getting values

from the Bundle.

We’ve left out some of the activity

code, as we don’t need to change it.

you are here 4 143

the activity lifecycle

What happens when you run the app

The user starts the app, and clicks on the Start button to set the

stopwatch going.

The runTimer() method starts incrementing the number of seconds displayed in

the time_view text view.

The user rotates the device.

Android views this as a configuration change, and gets ready to destroy the activity.

Before the activity is destroyed, onSaveInstanceState() gets called. The

onSaveInstanceState() method saves the seconds and running values to

a Bundle.

Device

seconds=8

running=true

Device

seconds=8

running=true

bundle

“seconds”=8

“running”=true

I’m going to

be destroyed; I

must save you...

StopwatchActivity

144 Chapter 4

what happens, continued

Android destroys the activity, and then recreates it.

The onCreate() method gets called, and the Bundle gets passed to it.

The runTimer() method gets called, and the timer picks up where it

left off.

The running stopwatch gets displayed on the device

and continues to increment.

Device

seconds=8

running=true

bundle

“seconds”=8

“running”=true

seconds=0

running=false

bundle

“seconds”=8

“running”=true

The Bundle contains the values of the seconds and running variables as

they were before the activity was destroyed.

Code in the onCreate() method sets the current variables to the values in the Bundle.

StopwatchActivity

The story continues

you are here 4 145

the activity lifecycle

Test drive the app

Make the changes to your activity code, then run the app. When

you click on the Start button, the timer starts, and it continues

when you rotate the device.

When we rotate our device,

the stopwatch keeps on going.

Q: Why does Android want to

recreate an activity just because I

rotated the screen?

A: The onCreate() method is

normally used to set up the screen. If your

code in onCreate() depended upon

the screen configuration (for example, if

you had different layouts for landscape

and portrait), then you would want

onCreate() to be called every time

the configuration changed. Also, if the user

changed their locale, you might want to

recreate the UI in the local language.

Q: Why doesn’t Android

automatically store every instance

variable automatically? Why do I have

to write all of that code myself?

A: You might not want every instance

variable stored. For example, you might

have a variable that stores the current

screen width. You would want that

variable to be recalculated the next time

onCreate() is called.

Q: Is a Bundle some sort of Java

map?

A: No, but it’s designed to work like

a java.util.Map. A Bundle

has additional abilities compared to a

Map. Bundles can be sent between

processes, for example. That’s really

useful, because it allows the Android OS to

stay in touch with the state of an activity.

146 Chapter 4

stop and start

There’s more to an activity’s life than create and destroy

So far we’ve looked at the create and destroy parts of the activity

lifecycle (and a little bit in between), and you’ve seen how to deal

with configuration changes such as screen orientation. But there

are other events in an activity’s life that you might want to deal

with to get the app to behave in the way you want.

As an example, suppose the stopwatch is running and you get a

phone call. Even though the stopwatch isn’t visible, it will continue

running. But what if you want the stopwatch to stop while it’s

hidden, and resume once the app is visible again?

Start, stop, and restart

Fortunately, it’s easy to handle actions that relate to an activity’s

visibility if you use the right lifecycle methods. In addition to the

onCreate() and onDestroy() methods, which deal with the

overall lifecycle of the activity, there are other lifecycle methods

that deal with an activity’s visibility.

Specifically, there are three key lifecycle methods that deal

with when an activity becomes visible or invisible to the user:

onStart(), onStop(), and onRestart(). Just as with

onCreate() and onDestroy(), your activity inherits them

from the Android Activity class.

onStart() gets called when your activity becomes visible to the

user.

onStop() gets called when your activity has stopped being

visible to the user. This might be because it’s completely hidden

by another activity that’s appeared on top of it, or because the

activity is going to be destroyed. If onStop() is called because the

activity’s going to be destroyed, onSaveInstanceState() gets

called before onStop().

onRestart() gets called after your activity has been made

invisible, before it gets made visible again.

We’ll take a closer look at how these fit in with the onCreate()

and onDestroy() methods on the next page.

An activity has a state of

stopped if it’s completely

hidden by another activity

and isn’t visible to the

user. The activity still

exists in the background

and maintains all state

information.

Even if you don’t really want your

stopwatch to behave like this, just

play along with us. It’s a great excuse

to look at more lifecycle methods.

you are here 4 147

the activity lifecycle

The activity lifecycle: the visible lifetime

Let’s build on the lifecycle diagram you saw earlier in the chapter, this

time including the onStart(), onStop(), and onRestart()

methods (the bits you need to focus on are in bold):

The activity gets launched, and the

onCreate() method runs.

Any activity initialization code in the

onCreate() method runs. At this point, the

activity isn’t yet visible, as no call to onStart()

has been made.

The onStop() method runs when the

activity stops being visible to the user.

After the onStop() method has run, the activity

is no longer visible.

Finally, the activity is destroyed.

The onStop() method will get called before

onDestroy().

The onStart() method runs. It gets

called when the activity is about to

become visible.

After the onStart() method has run, the user

can see the activity on the screen.

If the activity becomes visible to the

user again, the onRestart() method gets

called followed by onStart().

The activity may go through this cycle many

times if the activity repeatedly becomes invisible

and then visible again.

Activity launched

Activity destroyed

Activity running

onCreate()

onDestroy()

onStart()

onStop()

onRestart()

148 Chapter 4

onStop()

We need to implement two more lifecycle methods

There are two things we need to do to update our Stopwatch app. First, we

need to implement the activity’s onStop() method so that the stopwatch

stops running when the app isn’t visible. Once we’ve done that, we need

to implement the onStart() method so that the stopwatch starts again

when the app is visible. Let’s start with the onStop() method.

Implement onStop() to stop the timer

You override the onStop() method in the Android Activity class by

adding the following method to your activity:

@Override

protected void onStop() {

super.onStop();

...

}

@Override

protected void onStop() {

super.onStop();

running = false;

}

The line of code:

super.onStop();

calls the onStop() method in the Activity superclass. You need

to add this line of code whenever you override the onStop() method

to make sure that the activity gets to perform any other actions in the

superclass onStop() method. If you bypass this step, Android will

generate an exception. This applies to all of the lifecycle methods. If you

override any of the Activity lifecycle methods in your activity, you

must call the superclass method or Android will give you an exception.

We need to get the stopwatch to stop when the onStop() method is

called. To do this, we need to set the value of the running boolean to

false. Here’s the complete method:

When you override

any activity

lifecycle method in

your activity, you

need to call the

Activity superclass

method. If you

don’t, you’ll get an

exception.

So now the stopwatch stops when the activity is no longer visible. The next

thing we need to do is get the stopwatch to start again when the activity

becomes visible.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

This calls the onStop() method

in the activity’s superclass,

android.app.Activity.

you are here 4 149

the activity lifecycle

Now it’s your turn. Change the activity code so that if the

stopwatch was running before onStop() was called, it starts

running again when the activity regains the focus. Hint: you may

need to add a new variable.

public class StopwatchActivity extends Activity {

private int seconds = 0;

private boolean running;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

}

runTimer();

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

}

@Override

protected void onStop() {

super.onStop();

running = false;

}

Here’s the first part of the activity code.

You’ll need to implement the onStart() method

and change other methods slightly too.

150 Chapter 4

sharpen solution

Now it’s your turn. Change the activity code so that if the

stopwatch was running before onStop() was called, it starts

running again when the activity regains the focus. Hint: you may

need to add a new variable.

public class StopwatchActivity extends Activity {

private int seconds = 0;

private boolean running;

private boolean wasRunning;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

wasRunning = savedInstanceState.getBoolean(“wasRunning”);

}

runTimer();

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

savedInstanceState.putBoolean(“wasRunning”, wasRunning);

}

@Override

protected void onStop() {

super.onStop();

wasRunning = running;

running = false;

}

@Override

protected void onStart() {

super.onStart();

if (wasRunning) {

running = true;

}

We added a new variable, wasRunning, to record whether

the stopwatch was running before the onStop() method

was called so that we know whether to set it running

again when the activity becomes visible again.

We’ll restore the state of the wasRunning

variable if the activity is recreated.

Save the state of the

wasRunning variable.

Record whether the stopwatch was running

when the onStop() method was called.

Implement the onStart()

method. If the stopwatch was

running, set it running again.

you are here 4 151

the activity lifecycle

public class StopwatchActivity extends Activity {

private int seconds = 0;

private boolean running;

private boolean wasRunning;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

wasRunning = savedInstanceState.getBoolean("wasRunning");

}

runTimer();

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

savedInstanceState.putBoolean("wasRunning", wasRunning);

}

@Override

protected void onStop() {

super.onStop();

wasRunning = running;

running = false;

}

@Override

protected void onStart() {

super.onStart();

if (wasRunning) {

running = true;

}

...

A new variable, wasRunning, records

whether the stopwatch was running before

the onStop() method was called.

Record whether the stopwatch was running

when the onStop() method was called.

Implement the onStart() method.

If the stopwatch was running,

we’ll set it running again.

The updated StopwatchActivity code

We’ve updated our activity code so that if the stopwatch was running before

it lost the focus, it starts running again when it gets the focus back. Make

the following changes (in bold) to your version of StopwatchActivity.java:

Restore the state of the wasRunning

variable if the activity is recreated.

Save the state of the

wasRunning variable.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

We’ve left out some of the activity

code as we don’t need to change it.

152 Chapter 4

what happens

What happens when you run the app

The user starts the app, and clicks the Start button to set the stopwatch going.

The runTimer() method starts incrementing the number of seconds displayed in the time_view

text view.

The user navigates back to the Stopwatch app.

The onStart() method gets called, running is set to true, and the number of seconds starts

incrementing again.

The user navigates to the device’s home screen so the Stopwatch app is no longer

visible.

The onStop() method gets called, wasRunning is set to true, running is set to false, and the

number of seconds stops incrementing.

Device

seconds=16

Device

The activity still

exists even though

it’s not visible.

Device

running is set

to false in the

onStop() method.

running is set

to true in the

onStart() method.

running=true

wasRunning=false

seconds=16

running=false

wasRunning=true

seconds=16

running=true

wasRunning=true

Stopwatch

Activity

Stopwatch

Activity

Stopwatch

Activity

running is set to true in

the onClickStart() method.

you are here 4 153

the activity lifecycle

Test drive the app

Save the changes to your activity code, then run the app. When

you click on the Start button the timer starts: it stops when the

app is no longer visible, and it starts again when the app becomes

visible again.

We set our stopwatch

going, then switched to

the device’s home screen.

Q:Could we have used the onRestart() method

instead of onStart() to set the stopwatch running again?

A: onRestart() is used when you only want code to

run when an app becomes visible after having previously been

invisible. It doesn’t run when the activity becomes visible for the

first time. In our case, we wanted the app to still work when we

rotated the device.

Q: Why should that make a difference?

A: When you rotate the device, the activity is destroyed and

a new one is created in its place. If we’d put code to set the

stopwatch running again in the onRestart() method

instead of onStart(), it wouldn’t have run when the activity

was recreated. The onStart() method gets called in both

situations.

The stopwatch started again

when we went back to it.

The stopwatch

paused while the

app wasn’t visible.

154 Chapter 4

foreground lifecycle

What if an app is only partially visible?

So far you’ve seen what happens when an activity gets created and

destroyed, and you’ve also seen what happens when an activity

becomes visible, and when it becomes invisible. But there’s one more

situation we need to consider: when an activity is visible but doesn’t

have the focus.

When an activity is visible but doesn’t have the focus, the activity is

paused. This can happen if another activity appears on top of your

activity that isn’t full-size or that’s transparent. The activity on top has

the focus, but the one underneath is still visible and is therefore paused.

There are two lifecycle methods that handle when the activity is paused

and when it becomes active again: onPause() and onResume().

onPause() gets called when your activity is visible but another

activity has the focus. onResume() is called immediately before your

activity is about to start interacting with the user. If you need your

app to react in some way when your activity is paused, you need to

implement these methods.

You’ll see on the next page how these methods fit in with the rest of the

lifecycle methods you’ve seen so far.

The stopwatch activity

is still visible, but it’s

partially obscured

and no longer has

the focus. When this

happens, it pauses.

This is an

activity from

another app

that’s appeared

on top of the

stopwatch.

An activity has a

state of paused if it’s

lost the focus but is

still visible to the

user. The activity

is still alive and

maintains all its state

information.

you are here 4 155

the activity lifecycle

Activity launched

Activity destroyed

Activity running

onCreate()

onDestroy()

onStart()

onStop()

onRestart()

onResume()

onPause()

The activity lifecycle: the foreground lifetime

Let’s build on the lifecycle diagram you saw earlier in the chapter, this

time including the onResume() and onPause() methods (the new

bits are in bold):

The activity gets launched, and the

onCreate() and onStart() methods run.

At this point, the activity is visible, but it doesn’t

have the focus.

The onPause() method runs when the

activity stops being in the foreground.

After the onPause() method has run, the

activity is still visible but doesn’t have the focus.

Finally, the activity is destroyed.

As the activity moves from running to destroyed,

the onPause() and onStop() methods get

called before the activity is destroyed.

The onResume() method runs. It gets

called when the activity is about to move

into the foreground.

After the onResume() method has run, the

activity has the focus and the user can interact

with it.

If the activity moves into the

foreground again, the onResume()

method gets called.

The activity may go through this cycle many

times if the activity repeatedly loses and then

regains the focus.

If the activity stops being visible to the

user, the onStop() method gets called.

After the onStop() method has run, the activity

is no longer visible.

If the activity becomes visible to the

user again, the onRestart() method

gets called, followed by onStart() and

onResume().

The activity may go through this cycle many times.

156 Chapter 4

rotation

Earlier on you talked about how

the activity is destroyed and a new one is

created when the user rotates the device.

What happens if the activity is paused when

the device is rotated? Does the activity go

through the same lifecycle methods?

That’s a great question, so let’s look at this in more detail

before getting back to the Stopwatch app.

The original activity goes through all its lifecycle methods, from onCreate()

to onDestroy(). A new activity is created when the original is destroyed.

As this new activity isn’t in the foreground, only the onCreate() and

onStart() lifecycle methods get called. Here’s what happens when the user

rotates the device when the activity doesn’t have the focus::

Activity launched

Activity destroyed

Activity running

onCreate()

onDestroy()

onStart()

onStop()

onResume()

onPause()

Activity launched

onCreate()

onStart()

Original Activity

Replacement Activity

The user launches the activity.

The activity lifecycle methods onCreate(),

onStart(), and onResume() get called.

Another activity appears in front of it.

The activity’s onPause() method gets called.

The user rotates the device.

Android sees this as a configuration change.

The onStop() and onDestroy()

methods get called, and Android destroys the

activity. A new activity is created in its place.

The activity is visible but not in the

foreground.

The onCreate() and onStart()

methods get called. As the activity is visible

but doesn’t have the focus, onResume() isn’t

called.

you are here 4 157

the activity lifecycle

I see, the replacement activity doesn’t reach

a state of “running” because it’s not in the

foreground. But what if you navigate away from

the activity completely so it’s not even visible?

If the activity’s stopped, do onResume() and

onPause() get called before onStop()?

Activities can go

straight from onStart()

to onStop() and

bypass onPause() and

onResume().

If you have an activity that’s

visible, but never in the

foreground and never has the

focus, the onPause() and

onResume() methods never

get called.

The onResume() method gets

called when the activity appears

in the foreground and has the

focus. If the activity is only

visible behind other activities,

the onResume() method

doesn’t get called.

Similarly, the onPause()

method gets called only when

the activity is no longer in the

foreground. If the activity is

never in the foreground, this

method won’t get called.

Activity launched

Activity destroyed

Activity running

onCreate()

onDestroy()

onStart()

onStop()

onRestart()

onResume()

onPause()

If an activity stops or gets destroyed before

it appears in the foreground, the onStart()

method is followed by the onStop() method.

onResume() and onPause() are bypassed.

158 Chapter 4

replace methods

Stop the stopwatch if the activity’s paused

Let’s get back to the Stopwatch app.

So far we’ve made the stopwatch stop if the Stopwatch app

isn’t visible, and made it start again when the app becomes

visible again. We did this by overriding the onStop() and

onStart() methods like this:

@Override

protected void onStop() {

super.onStop();

wasRunning = running;

running = false;

}

@Override

protected void onStart() {

super.onStart();

if (wasRunning) {

running = true;

}

Let’s get the app to have the same behavior if the app is only

partially visible. We’ll get the stopwatch to stop if the activity is

paused, and start again when the activity is resumed. So what

changes do we need to make to the lifecycle methods?

We want the Stopwatch app to stop running when the activity

is paused, and start it again (if it was running) when the activity

is resumed. In other words, we want it to behave the same as

when the activity is stopped or started. This means that instead

of repeating the code we already have in multiple methods, we

can use one method when the activity is paused or stopped,

and another method when the activity is resumed or started.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

you are here 4 159

the activity lifecycle

Implement the onPause() and onResume() methods

@Override

protected void onStop() {

super.onStop();

wasRunning = running;

running = false;

}

@Override

protected void onPause() {

super.onPause();

wasRunning = running;

running = false;

}

We can do something similar when the activity is paused or stopped.

When the activity is paused, the activity’s onPause() lifecycle method

is called. If the activity is stopped, the activity’s onPause() method is

called prior to calling onStop(). The onPause() method is called

irrespective of whether the activity is paused or stopped, which means we

can move our onStop() code to the onPause() method:

We’ll start with when the activity is resumed or started.

When the activity is resumed, the activity’s onResume() lifecycle

method is called. If the activity is started, the activity’s onResume()

method is called after calling onStart(). The onResume() method

is called irrespective of whether the activity is resumed or started, which

means that if we move our onStart() code to the onResume()

method, our app will behave the same irrespective of whether the activity

is resumed or started. This means we can remove our onStart()

method, and replace it with the onResume() method like this:

@Override

protected void onStart() {

super.onStart();

if (wasRunning) {

running = true;

}

@Override

protected void onResume() {

super.onResume();

if (wasRunning) {

running = true;

}

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch Activity running

onStart()

onStop()

onResume()

onPause()

Delete the

onStart()

method.

Delete the

onStop()

method.

Add the

onResume()

method.

Add the

onPause()

method.

The onResume() method is called

when the activity is started or

resumed. As we want the app to

do the same thing irrespective of

whether it’s started or resumed,

we only need to implement the

onResume() method.

The onPause() method is

called when the activity

is paused or stopped.

This means we only

need to implement the

onPause() method.

160 Chapter 4

StopwatchActivity code

The complete StopwatchActivity code

Here’s the full StopwatchActivity.java code for the finished app (with changes in bold):

package com.hfad.stopwatch;

import android.app.Activity;

import android.os.Bundle;

import android.view.View;

import java.util.Locale;

import android.os.Handler;

import android.widget.TextView;

public class StopwatchActivity extends Activity {

//Number of seconds displayed on the stopwatch.

private int seconds = 0;

//Is the stopwatch running?

private boolean running;

private boolean wasRunning;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

wasRunning = savedInstanceState.getBoolean("wasRunning");

}

runTimer();

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

savedInstanceState.putBoolean("wasRunning", wasRunning);

}

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

Use seconds, running, and wasRunning respectively to

record the number of seconds passed, whether the

stopwatch is running, and whether the stopwatch was

running before the activity was paused.

Get the previous state of the

stopwatch if the activity’s been

destroyed and recreated.

Save the state of the stopwatch if

it’s about to be destroyed.

The activity

code continues

over the page.

you are here 4 161

the activity lifecycle

@Override

protected void onStop() {

super.onStop();

wasRunning = running;

running = false;

}

@Override

protected void onStart() {

super.onStart();

if (wasRunning) {

running = true;

}

@Override

protected void onPause() {

super.onPause();

wasRunning = running;

running = false;

}

@Override

protected void onResume() {

super.onResume();

if (wasRunning) {

running = true;

}

//Start the stopwatch running when the Start button is clicked.

public void onClickStart(View view) {

running = true;

}

The activity code (continued)

This gets called when the

Start button is clicked.

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

If the activity’s paused, stop the stopwatch.

If the activity’s resumed, start

the stopwatch again if it was

running previously.

Delete these two methods.

The activity

code continues

over the page.

162 Chapter 4

StopwatchActivity, continued

//Stop the stopwatch running when the Stop button is clicked.

public void onClickStop(View view) {

running = false;

}

//Reset the stopwatch when the Reset button is clicked.

public void onClickReset(View view) {

running = false;

seconds = 0;

}

//Sets the number of seconds on the timer.

private void runTimer() {

final TextView timeView = (TextView)findViewById(R.id.time_view);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

handler.postDelayed(this, 1000);

}

});

}

This gets called when the Stop button is clicked.

This gets called when the Reset button is clicked.

The runTimer() method uses a Handler to increment

the seconds and update the text view.

The activity code (continued)

app/src/main

Stopwatch

Activity.java

Stopwatch

java

com.hfad.stopwatch

Let’s go through what happens when the code runs.

you are here 4 163

the activity lifecycle

What happens when you run the app

The user starts the app, and clicks on the Start button to set the stopwatch going.

The runTimer() method starts incrementing the number of seconds displayed in the time_view

text view.

Another activity appears in the foreground, leaving StopwatchActivity partially visible.

The onPause() method gets called, wasRunning is set to true, running is set to false, and the

number of seconds stops incrementing.

When StopwatchActivity returns to the foreground, the onResume() method gets

called, running is set to true, and the number of seconds starts incrementing

again.

Device

The activity is paused,

as it’s visible but not

in the foreground.

Device

running is set

to false in the

onPause() method.

running is set

to true in the

onResume() method.

seconds=15

running=true

wasRunning=false

seconds=15

running=false

wasRunning=true

seconds=15

running=true

wasRunning=true

Stopwatch

Activity

Stopwatch

Activity

Stopwatch

Activity

164 Chapter 4

test drive

Test drive the app

Save the changes to your activity code, then run the app. When

you click on the Start button, the timer starts; it stops when the

app is partially obscured by another activity; and it starts again

when the app is back in the foreground.

We started our stopwatch.

The stopwatch started again

when the activity came back

into the foreground.

The stopwatch paused

when the activity was

partially obscured.

you are here 4 165

the activity lifecycle

...

class MyActivity extends Activity{

protected void onCreate(

Bundle savedInstanceState) {

//Run code A

...

}

protected void onPause() {

//Run code B

...

}

protected void onRestart() {

//Run code C

...

}

protected void onResume() {

//Run code D

...

}

protected void onStop() {

//Run code E

...

}

protected void onRecreate() {

//Run code F

...

}

protected void onStart() {

//Run code G

...

}

protected void onDestroy() {

//Run code H

...

}

BE the Activity

On the right, you’ll see some activity

code. Your job is to play like you’re

the activity and say which

code will run in each

of the situations below.

We’ve labeled the code

we want you to consider.

We’ve done the first one to

start you off.

User starts the activity and starts using it.

Code segments A, G, D. The activity is created,

then made visible, then receives the focus.

User starts the activity, starts using it,

then switches to another app.

User starts the activity, starts using it,

rotates the device, switches to another

app, then goes back to the activity.

This one’s tough.

166 Chapter 4

solution

...

class MyActivity extends Activity{

protected void onCreate(

Bundle savedInstanceState) {

//Run code A

...

}

protected void onPause() {

//Run code B

...

}

protected void onRestart() {

//Run code C

...

}

protected void onResume() {

//Run code D

...

}

protected void onStop() {

//Run code E

...

}

protected void onRecreate() {

//Run code F

...

}

protected void onStart() {

//Run code G

...

}

protected void onDestroy() {

//Run code H

...

}

BE the Activity Solution

On the right, you’ll see some activity

code. Your job is to play like you’re

the activity and say which

code will run in each

of the situations below.

We’ve labeled the code

we want you to consider.

We’ve done the first one to

start you off.

User starts the activity and starts using it.

Code segments A, G, D. The activity is created,

then made visible, then receives the focus.

User starts the activity, starts using it,

then switches to another app.

Code segments A, G, D, B, E. The activity is

created, then made visible, then receives the

focus. When the user switches to another app,

it loses the focus and is no longer visible to the

user.

User starts the activity, starts using it,

rotates the device, switches to another

app, then goes back to the activity.

Code segments A, G, D, B, E, H, A, G, D, B, E,

C, G, D. First, the activity is created, made

visible, and receives the focus. When the device

is rotated, the activity loses the focus, stops

being visible, and is destroyed. It’s then created

again, made visible, and receives the focus. When

the user switches to another app and back

again, the activity loses the focus, loses visibility,

becomes visible again, and regains the focus.

There’s no lifecycle

method called

onRecreate().

you are here 4 167

the activity lifecycle

Method When it’s called Next method

onCreate() When the activity is first created. Use it for normal

static setup, such as creating views. It also gives

you a Bundle that contains the previously saved

state of the activity.

onStart()

onRestart() When your activity has been stopped but just

before it gets started again.

onStart()

onStart() When your activity is becoming visible. It’s

followed by onResume() if the activity comes

into the foreground, or onStop() if the activity

is made invisible.

onResume() or

onStop()

onResume() When your activity is in the foreground. onPause()

onPause() When your activity is no longer in the foreground

because another activity is resuming. The next

activity isn’t resumed until this method finishes,

so any code in this method needs to be quick. It’s

followed by onResume() if the activity returns

to the foreground, or onStop() if it becomes

invisible.

onResume() or

onStop()

onStop() When the activity is no longer visible. This can be

because another activity is covering it, or because

this activity is being destroyed. It’s followed by

onRestart() if the activity becomes visible

again, or onDestroy() if the activity is being

destroyed.

onRestart() or

onDestroy()

onDestroy() When your activity is about to be destroyed or

because the activity is finishing.

None

Your handy guide to the lifecycle methods

168 Chapter 4

toolbox

Activity launched

Activity destroyed

Activity running

onCreate()

onDestroy()

onStart()

onStop()

onRestart()

onResume()

onPause()

Each app runs in its own process by default.

Only the main thread can update the user

interface.

Use a Handler to schedule code or post code

to a different thread.

A device configuration change results in the

activity being destroyed and recreated.

Your activity inherits the lifecycle methods from

the android.app.Activity class. If you

override any of these methods, you need to call up

to the method in the superclass.

onSaveInstanceState(Bundle)

enables your activity to save its state before the

activity gets destroyed. You can use the Bundle

to restore state in onCreate().

You add values to a Bundle using

bundle.put*("name", value).

You retrieve values from the bundle using

bundle.get*("name").

onCreate() and onDestroy() deal with

the birth and death of the activity.

onRestart(), onStart(), and

onStop() deal with the visibility of the activity.

onResume() and onPause() handle when

the activity gains and loses the focus.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 4

Your Android Toolbox

You’ve got Chapter 4 under

your belt and now you’ve

added the activity lifecycle to

your toolbox.

this is a new chapter 169

views and view groups

Enjoy the View

You’ve seen how to arrange GUI components using a linear

layout, but so far we’ve only scratched the surface.

In this chapter we’ll look a little deeper and show you how linear layouts really work.

We’ll introduce you to the frame layout, a simple layout used to stack views, and we’ll

also take a tour of the main GUI components and how you use them. By the end of

the chapter, you’ll see that even though they all look a little different, all layouts and GUI

components have more in common than you might think.

...and here′s a layout

I prepared earlier.

170 Chapter 5

the ui

Your user interface is made up of

layouts and GUI components

As you already know, a layout defines what a screen looks like, and

you define it using XML. Layouts usually contain GUI components

such as buttons and text fields. Your user interacts with these to make

your app do something.

All the apps you’ve seen in the book so far have used linear layouts,

where GUI components are arranged in a single column or row. In

order to make the most out of them, however, we need to spend a bit

of time looking at how they work, and how to use them effectively.

In this chapter, we’re going to take a closer look at linear layouts,

introduce you to their close relative the frame layout, and show

you other GUI components you can use to make your app more

interactive.

Let’s start with linear layouts.

These are all examples

of linear layouts.

you are here 4 171

views and view groups

LinearLayout displays views

in a single row or column

As you already know, a linear layout displays its views next to each other,

either vertically or horizontally. If it’s vertically, the views are displayed in

a single column. If it’s horizontally, the views are displayed in a single row.

You define a linear layout using the <LinearLayout> element like this:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

...>

...

</LinearLayout>

You use

to define a linear

layout.

The orientation specifies

whether you want to display

views vertically or horizontally.

The layout_width and layout_height specify

what size you want the layout to be.

There may be other

attributes too.

You MUST set the layout’s width and height

The android:layout_width and

android:layout_height attributes specify how wide

and high you want the layout to be. These attributes are

mandatory for all types of layout and view.

You can set android:layout_width and

android:layout_height to "wrap_content",

"match_parent" or a specific size such as 8dp—that’s 8

density-independent pixels. "wrap_content" means that

you want the layout to be just big enough to hold all of the

views inside it, and "match_parent" means that you want

the layout to be as big as its parent—in this case, as big as the

device screen minus any padding (there’s more about padding

in a couple of pages). You will usually set the layout width

and height to "match_parent".

You may sometimes see android:layout_width and

android:layout_height set to "fill_parent".

"fill_parent" was used in older versions of Android, and

it’s now replaced by "match_parent". "fill_parent"

is deprecated.

The xmlns:android attribute is used to specify the Android

namespace, and you must always set it to "http://schemas.

android.com/apk/res/android".

Geek Bits

What are density-independent pixels?

Some devices create very sharp images

by using very tiny pixels. Other devices

are cheaper to produce because they

have fewer, larger pixels. You use

density-independent pixels (dp) to

avoid creating interfaces that are overly

small on some devices, and overly large

on others. A measurement in density-

independent pixels is roughly the same

size across all devices.

LinearLayout

FrameLayout

172 Chapter 5

orientation

android:orientation="vertical"

This displays the views in a single column.

You arrange views horizontally in a single row using:

android:orientation="horizontal"

You specify the direction in which you wish to arrange views using

the android:orientation attribute.

As you’ve seen in earlier chapters, you arrange views vertically

using:

In vertical orientation,

the views are arranged

in a single column.

This is a horizontal orientation where the

language is read from left to right.

Orientation is vertical or horizontal

When the orientation is horizontal, views are displayed from left to

right by default. This is great for languages that are read from left to

right, but what if the user has set the language on their device to one

that’s read from right to left?

For apps where the minimum SDK is at least API 17, you can get

views to rearrange themselves depending on the language setting on

the device. If the user’s language is read from right to left, you can get

the views to arrange themselves starting from the right.

To do this, you declare that your app supports languages that are read

from right to left in your AndroidManifest.xml file like this:

<application

...

android:supportsRtl="true">

...

</application>

</manifest>

supportsRtl means “supports right-to-left languages.”

Android Studio may add this

line of code for you. It must go

inside the <application> tag.

<xml>

</xml>

app/src/main

AndroidManifest.xml

MyApp

This is a horizontal orientation where the

language is read from right to left.

LinearLayout

FrameLayout

you are here 4 173

views and view groups

paddingTop

paddingLeft

paddingRight

paddingBottom

Layout

<LinearLayout ...

android:paddingBottom="16dp"

android:paddingLeft="16dp"

android:paddingRight="16dp"

android:paddingTop="32dp" >

...

</LinearLayout>

If your app supports right-to-left languages, you can use:

Add padding to the individual edges.

Padding adds space

If you want there to be a bit of space around the edge of the layout,

you can set padding attributes. These attributes tell Android how

much padding you want between each of the layout’s sides and its

parent. Here’s how you would tell Android you want to add padding

of 16dp to all edges of the layout:

You can

only use

start and

end

properties

with API 17 or above.

If you want your app to

work on older versions of

Android, you must use the

left and right properties

instead.

<LinearLayout ...

android:padding="16dp" >

...

</LinearLayout>

padding

Layout

This adds the same padding

to all edges of the layout.

If you want to add different amounts of padding to different edges,

you can specify the edges individually. Here’s how you would add

padding of 32dp to the top of the layout, and 16dp to the other

edges:

android:paddingStart="16dp"

android:paddingEnd="16dp"

and:

to add padding to the start and end edges of the layout instead of

their left and right edges.

android:PaddingStart adds padding to the start edge of the

layout. The start edge is on the left for languages that are read from

left to right, and the right edge for languages that are read from right

to left.

android:PaddingEnd adds padding to the end edge of the layout.

The end edge is on the right for languages that are read from left to

right, and the left edge for languages that are read from right to left.

LinearLayout

FrameLayout

174 Chapter 5

dimension resources

You use the dimensions you create by setting the padding

attributes in your layout file to the name of a dimension resource

like this:

Add a dimension resource file for

consistent padding across layouts

In the example on the previous page, we hardcoded the padding

and set it to 16dp. An alternative approach is to specify the

padding in a dimension resource file instead. Doing so makes it

easier to maintain the padding dimensions for all the layouts in

your app.

To use a dimension resource file, you first need to add one to

your project. To do this, first select the app/src/main/res/values

folder in Android Studio, then go to File menu and choose

New→Values resource file. When prompted, enter a name

of “dimens” and click on the OK button. This creates a new

resource file called dimens.xml.

Once you’ve created the dimension resource file, you add

dimensions to it using the <dimen> element. As an example,

here’s how you would add dimensions for the horizontal and

vertical margins to dimens.xml:

<LinearLayout ...

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

android:paddingBottom="@dimen/activity_vertical_margin">

<?xml version="1.0" encoding="utf-8"?>

</resources>

With that kind of setup, at runtime, Android looks up the values

of the attributes in the dimension resource file and applies the

values it finds there.

The paddingLeft and

paddingRight attributes

are set to @dimen/activity_

horizontal_margin.

The paddingTop and

paddingBottom attributes

are set to @dimen/activity_

vertical_margin.

Android Studio may have already

added this file for you, but

it depends on which version of

Android Studio you’re using.

This creates

two dimension

resources.

LinearLayout

FrameLayout

<xml>

</xml>

app/src/main

dimens.xml

...

res

values

you are here 4 175

views and view groups

A linear layout displays views in the

order they appear in the layout XML

When you define a linear layout, you add views to the layout in the order

in which you want them to appear. So, if you want a text view to appear

above a button in a linear layout, you must define the text view first:

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/text_view1" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/click_me" />

</LinearLayout>

If you define the text view above the

button in the XML, the text view will

appear above the button when displayed.

You specify the width and height of any views using

android:layout_width and android:layout_

height. The code:

android:layout_width="wrap_content"

means that you want the view to be just wide enough for its

content to fit inside it—for example, the text displayed on a

button or in a text view. The code:

android:layout_width="match_parent"

means that you want the view to be as wide as the parent layout.

If you need to refer to a view elsewhere in your code, you need

to give it an ID. As an example, you’d give the text view an ID of

"text_view" using the code:

android:layout_width and

android:layout_height are

mandatory attributes for all

views, no matter which layout

you use.

They can take the values

wrap_content, match_parent,

or a specific dimension value

such as 16dp.

...

<TextView

android:id="@+id/text_view"

... />

...

LinearLayout

FrameLayout

dimens.xml

176 Chapter 5

margins

Use margins to add distance between views

When you position a view using a linear layout, the layout doesn’t leave much

of a gap between views. You can increase the size of the gap by adding one or

more margins to the view.

As an example, suppose you wanted to put one view below another, but add

48dp of extra space between the two. To do that, you’d add a margin of 48dp

to the top of the bottom view:

LinearLayout ... >

<Button

android:id="@+id/button_click_me"

... />

<Button

android:id="@+id/button_below"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginTop="48dp"

android:text="@string/button_below" />

</LinearLayout>

Adding a margin to

the top of the bottom

button adds extra space

between the two views.

Here’s a list of the margins you can use to give your views extra space. Add

the attribute to the view, and set its value to the size of margin you want:

48dp

Attribute What it does

layout_marginTop Adds extra space to the top of the view.

layout_marginBottom Adds extra space to the bottom of the view.

layout_marginLeft,

layout_marginStart

Adds extra space to the left (or start) of the view.

layout_marginRight,

layout_marginEnd

Adds extra space to the right (or end) of the view.

layout_margin Adds equal space to each side of the view.

android:attribute="8dp"

LinearLayout

FrameLayout

you are here 4 177

views and view groups

Let’s change up a basic linear layout

At first glance, a linear layout can seem basic and inflexible. After all,

all it does is arrange views in a particular order. To give you more

flexibility, you can tweak your layout’s appearance using some more

of its attributes. To show you how this works, we’re going to transform

a basic linear layout.

The layout is composed of two editable text fields and a button. To

start with, these text fields are simply displayed vertically on the screen

like this:

Each view takes up the

least possible amount of

vertical space.

The Message editable text field

has been given a lot more space.

The Send button

appears at the bottom-

right of the screen for

languages that are read

from left to right..

We’re going to change the layout so that the button is

displayed in the end corner of the layout, and one of the

editable text fields takes up any remaining space.

LinearLayout

FrameLayout

178 Chapter 5

get started

Here’s the starting point for the linear layout

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<EditText

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:hint="@string/to" />

<EditText

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:hint="@string/message" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/send" />

</LinearLayout>

android:hint displays a hint to the user as to

what they should type in the editable text field.

The editable text fields are as

wide as the parent layout.

The values of

these Strings

are defined

in strings.xml

as usual.

All of these views take up just as much vertical space in the

layout as they need for their contents. So how do we make the

Message text field taller?

The linear layout contains two editable text fields and a button.

The button is labeled “Send,” and the editable text fields contain

hint text values of “To” and “Message.”

Hint text in an editable text field is text that’s displayed when the

field is empty. It’s used to give users a hint as to what sort of text

they should enter. You define hint text using the android:hint

attribute:

LinearLayout

FrameLayout

The text values

displayed here come

from String resources

in strings.xml.

you are here 4 179

views and view groups

android:layout_weight="number"

All of the views in our basic layout take up just as much vertical space

as they need for their content. But what we actually want is to make

the Message text field stretch to take up any vertical space in the layout

that’s not being used by the other views.

Make a view streeeeetch by adding weight

We want to make the

Message text field stretch

vertically so that it fills any

spare space in the layout.

where number is some number greater than 0.

When you allocate weight to a view, the layout first makes sure that

each view has enough space for its content: each button has space for its

text, each editable text field has space for its hint, and so on. Once it’s

done that, the layout takes any extra space, and divides it proportionally

between the views with a weight of 1 or greater.

In order to do this, we need to allocate some weight to the Message text

field. Allocating weight to a view is a way of telling it to stretch to take

up extra space in the layout.

You assign weight to a view using:

LinearLayout

FrameLayout

180 Chapter 5

weight header

Giving the Message editable text field a weight of 1 means that it

takes up all of the extra space that’s not used by the other views

in the layout. This is because neither of the other two views has

been allocated any weight in the layout XML.

The Message view has a weight

of 1. As it’s the only view with

its weight attribute set, it

expands to take up any extra

vertical space in the layout.

By default, the Message

hint text appears in the

middle. We’ll deal with

that next.

Adding weight to one view

We need the Message editable text field to take up any extra

space in the layout. To do this, we’ll set its layout_weight

attribute to 1. As this is the only view in the layout with a weight

value, this will make the text field stretch vertically to fill the

remainder of the screen. Here’s the code:

<EditText

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:hint="@string/to" />

<EditText

android:layout_width="match_parent"

android:layout_height="0dp"

android:layout_weight="1"

android:hint="@string/message" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/send" />

</LinearLayout>

This <EditText> and the <Button>

have no layout_weight attribute set.

They’ll take up as much room as their

content needs, but no more.

This view is the only

one with any weight.

It will expand to

fill the space that’s

not needed by any

of the other views.

The height of the view will be determined by

the linear layout based on the layout_weight.

Setting the layout_height to “0dp” is more

efficient than setting it to “wrap_content”,

as this way Android doesn’t have to work out

the value of “wrap_content”.

LinearLayout

FrameLayout

you are here 4 181

views and view groups

Adding weight to multiple views

In this example, we only had one view with a weight attribute

set. But what if we had more than one?

Suppose we gave the To text field a weight of 1, and the

Message text field a weight of 2, like this:

...

<EditText

android:layout_width="match_parent"

android:layout_height="0dp"

android:layout_weight="1"

android:hint="@string/to" />

<EditText

android:layout_width="match_parent"

android:layout_height="0dp"

android:layout_weight="2"

android:hint="@string/message" />

...

</LinearLayout>

The To view has a weight

of 1, so it takes up 1/3

of the extra space.

The Message view has a

weight of 2, so it takes up

2/3 of the extra space.

To figure out how much extra space each view takes up, start

by adding together the layout_weight attributes for each

view. In our case, this is 1+2=3. The amount of extra space

taken up by each view will be the view’s weight divided by the

total weight. The To view has a weight of 1, so this means

it will take up 1/3 of the remaining space in the layout. The

Message view has a weight of 2, so it will take up 2/3 of the

remaining space.

This is just an example; we’re

not really going to change the

layout so that it looks like this.

LinearLayout

FrameLayout

182 Chapter 5

gravity

We’ll add an android:gravity attribute to the Message text

field so that the hint text moves to the top of the view:

Gravity controls the position

of a view’s contents

The next thing we need to do is move the hint text inside the

Message text field. At the moment, it’s centered vertically

inside the view. We need to change it so that the text appears

at the top of the text field. We can achieve this using the

android:gravity attribute.

The android:gravity attribute lets you specify how you

want to position the contents of a view inside the view—for

example, how you want to position text inside a text field. If you

want the text inside a view to appear at the top, the following

code will do the trick:

...

<EditText

android:layout_width="match_parent"

android:layout_height="0dp"

android:layout_weight="1"

android:gravity="top"

android:hint="@string/message" />

...

</LinearLayout>

android:gravity="top"

Displays the text inside the text field

at the top of the text field

Test drive

Adding the android:gravity attribute to the Message text field

moves the hint text to the top of the view, just like we want.

You’ll find a list of the other values you can use with the

android:gravity attribute on the next page.

We need to move the

Message hint text

from the center of

the view to the top.

The Message hint text

now appears at the top

of the view.

LinearLayout

FrameLayout

you are here 4 183

views and view groups

Value What it does

top Puts the view’s contents at the top of the view.

bottom Puts the view’s contents at the bottom of the view.

left Puts the view’s contents at the left of the view.

right Puts the view’s contents at the right of the view.

start Puts the view’s contents at the start of the view.

end Puts the view’s contents at the end of the view.

center_vertical Centers the view’s contents vertically.

center_horizontal Centers the view’s contents horizontally.

center Centers the view’s contents vertically and horizontally.

fill_vertical Makes the view’s contents fill the view vertically.

fill_horizontal Makes the view’s contents fill the view horizontally.

fill Makes the view’s contents fill the view vertically and horizontally.

Values you can use with the

android:gravity attribute

Here are some more of the values you can use with the

android:gravity attribute. Add the attribute to your view,

and set its value to one of the values below:

android:gravity="value"

android:gravity lets you

say where you want

the view’s contents to

appear inside the view.

start and end are

only available if

you’re using API 17

or above.

You can also apply multiple gravities to a view by separating

each value with a “|”. To sink a view’s contents to the

bottom-end corner, for example, use:

android:gravity="bottom|end"

LinearLayout

FrameLayout

184 Chapter 5

layout_gravity

android:layout_gravity="end"

Wait a sec. I thought

you said that gravity was used

to say where you wanted to

put the view’s contents, not

the view itself?

Linear layouts have two attributes that sound

similar to one another, gravity and layout_gravity.

A couple of pages ago, we used the android:gravity attribute

to position the Message text inside a text view. This is because the

android:gravity attribute lets you say where you want a view’s

contents to appear.

android:layout_gravity deals with the placement of

the view itself, and lets you control where views appear in their

available space. In our case, we want the view to move to the end of

its available space, so we’re using:

There’s a list of some of the other values you can use with the

android:layout_gravity attribute on the next page.

layout-gravity controls the

position of a view within a layout

There’s one final change we need to make to our layout. The Send

button currently appears in the bottom-left corner. We need to move

it over to the end instead (the bottom-right corner for left-to-right

languages). To do this, we’ll use the android:layout_gravity

attribute.

The android:layout_gravity attribute lets you specify where

you want a view in a linear layout to appear in its enclosing space. You

can use it to push a view to the right, for instance, or center the view

horizontally. To move our button to the end, we’d need to add the

following to the button’s code:

We’ll move the button to the

end so it appears on the right

for left-to-right languages,

and on the left for right-

to-left languages.

android:layout_gravity="end"

LinearLayout

FrameLayout

you are here 4 185

views and view groups

android:layout_gravity lets you say where you

want views to appear in their available space.

android:layout_gravity deals with the placement

of the view itself, whereas android:gravity

controls how the view’s contents are displayed.

More values you can use with the

android:layout-gravity attribute

Here are some of the values you can use with the

android:layout_gravity attribute. Add the attribute

to your view, and set its value to one of the values below:

android:layout_gravity="value"

Value What it does

top, bottom, left, right Puts the view at the top, bottom, left, or right of its

available space.

start, end Puts the view at the start or end of its available space.

center_vertical, center_horizontal Centers the view vertically or horizontally in its available

space.

center Centers the view vertically and horizontally in its

available space.

fill_vertical, fill_horizontal Grows the view so that it fills its available space vertically

or horizontally.

fill Grows the view so that it fills its available space vertically

and horizontally.

You can apply multiple layout_gravity values by

separating each one with a “|”. As an example,

use android:layout_gravity=“bottom|end” to

move a view to the bottom-end corner of its

available space.

LinearLayout

FrameLayout

186 Chapter 5

full code

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<EditText

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:hint="@string/to" />

<EditText

android:layout_width="match_parent"

android:layout_height="0dp"

android:layout_weight="1"

android:gravity="top"

android:hint="@string/message" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="end"

android:text="@string/send" />

</LinearLayout>

The contents of the

Message view get displayed

at the top of the view.

There’s plenty of space to

enter text.

The Send button

appears in the end

corner.

The full linear layout code

Here’s the full code for the linear layout:

android:gravity is different from

android:layout_gravity. android:gravity

relates to the contents of the view,

while android:layout_gravity relates to

the view itself.

LinearLayout

FrameLayout

you are here 4 187

views and view groups

LinearLayout: a summary

Here’s a summary of how you create linear layouts.

How you specify a linear layout

You specify a linear layout using <LinearLayout>. You must

specify the layout’s width, height, and orientation, but padding is

optional:

Views get displayed in the order they’re listed in the code

When you define a linear layout, you add views to the layout in the

order in which you want them to appear.

That’s everything we’ve covered on linear layouts. Next we’ll take a

look at the frame layout.

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

...>

...

</LinearLayout>

Stretch views using weight

By default, all views take up just as much space as necessary for their

content. If you want to make one or more of your views take up more

space, you can use the weight attribute to make it stretch:

android:layout_weight="1"

Use gravity to specify where a view’s contents appear within a view

The android:gravity attribute lets you specify how you want

to position the contents of a view—for example, how you want to

position text inside a text field.

Use layout-gravity to specify where a view appears in its available space

The android:layout_gravity attribute lets you specify where

you want a view in a linear layout to appear in its parent layout. You

can use it to push a view to the end, for instance, or center the view

horizontally.

LinearLayout

FrameLayout

188 Chapter 5

frame layouts

Frame layouts stack their views

As you’ve already seen, linear layouts arrange their views in a single

row or column. Each view is allocated its own space on the screen,

and they don’t overlap one another.

Sometimes, however, you want your views to overlap. As an example,

suppose you want to display an image with some text overlaid on top

of it. You wouldn’t be able to achieve this just using a linear layout.

If you want a layout whose views can overlap, a simple option is to

use a frame layout. Instead of displaying its views in a single row

or column, it stacks them on top of each other. This allows you to,

for example, display text on top of an image.

How you define a frame layout

You define a frame layout using the <FrameLayout> element like

this:

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

...>

...

</FrameLayout>

You use

to define a

frame layout.

These are the same attributes we

used for our linear layout.

Just like a linear layout, the android:layout_width and

android:layout_height attributes are mandatory and specify

the layout’s width and height.

This is where you add any views you

wish to stack in the frame layout.

Create a new project

To see how frame layouts work, we’re going to use one to overlay

text on an image. Create a new Android Studio project for an

application named “Duck” with a company name of “hfad.com”,

making the package name com.hfad.duck. The minimum SDK

should be API 19 so that it will work on most devices. You’ll need an

empty activity called “MainActivity” with a layout called “activity_

main” so that your code matches ours. Make sure you uncheck

the Backwards Compatibility (AppCompat) option when

you create the activity.

LinearLayout

FrameLayout

Frame layouts let your views overlap one

another. This is useful for displaying

text on top of images, for example.

you are here 4 189

views and view groups

<?xml version="1.0" encoding="utf-8"?>

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="wrap_content"

tools:context="com.hfad.duck.MainActivity">

<ImageView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:scaleType="centerCrop"

android:src="@drawable/duck"/>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:padding="16dp"

android:textSize="20sp"

android:text="It's a duck!" />

</FrameLayout>

Add an image to your project

We’re going to use an image called duck.jpg in our layout, so we need to

add it to our project.

To do this, you first need to create a drawable resource folder (if Android

Studio hasn’t already created it for you). This is the default folder for

storing image resources in your app. Switch to the Project view of

Android Studio’s explorer, select the app/src/main/res folder, go to the

File menu, choose the New... option, then click on the option to create

a new Android resource directory. When prompted, choose a resource

type of “drawable”, name the folder “drawable”, and click on OK.

Once you’ve created the drawable folder, download the file duck.jpg from

https://git.io/v9oet, then add it to the app/src/main/res/drawable folder.

We’re going to change activity_main.xml so that it uses a frame layout

containing an image view (a view that displays an image) and a text

view. To do this, replace the code in your version of activity_main.xml

with ours below:


<xml>

</xml>

app/src/main

activity_main.xml

Duck

res

layout

Then run your app, and we’ll look at what the code does

on the next page.

We’re using a

frame layout.

This adds an

image to the

frame layout.

You’ll find out

more about image

views later in the

chapter.

This crops the image’s edges so

it fits in the available space.

This line tells Android to use the image

named “duck” located in the drawable folder.

This adds a text view

to the frame layout.

We’ve increased the size of the text.

LinearLayout

FrameLayout

In a real-world duck app, you’d want

to add this text as a String resource.

190 Chapter 5

frame layouts stack views

A frame layout stacks views in the

order they appear in the layout XML

When you define a frame layout, you add views to the layout in

the order in which you want them to be stacked. The first view is

displayed first, the second is stacked on top of it, and so on. In our

case, we’ve added an image view followed by a text view, so the text

view appears on top of the image view:

<ImageView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:scaleType="centerCrop"

android:src="@drawable/duck"/>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:padding="16dp"

android:textSize="20sp"

android:text="It's a duck!" />

</FrameLayout>

Position views in the layout using layout_gravity

By default, any views you add to a frame layout appear in the top-

left corner. You can change the position of these views using the

android:layout_gravity attribute, just as you could with a

linear layout. As an example, here’s how you would move the text

view to the bottom-end corner of the image:

...

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:padding="16dp"

android:layout_gravity="bottom|end"

android:textSize="20sp"

android:text="It's a duck!" />

</FrameLayout>

This is the

image view.

This is the text view.

This sinks

the text to

the bottom-

end corner.

LinearLayout

FrameLayout

you are here 4 191

views and view groups

You can nest layouts

One of the disadvantages of using a frame layout is that it’s easy

for views to overlap one another when you don’t want them to.

As an example, you may want to display two text views in the

bottom-end corner, one above the other:

It’s possible to solve this problem by adding margins or padding

to the text views. A neater solution, however, is to add them

to a linear layout, which you then nest inside the frame layout.

Doing this allows you to arrange the two text views linearly,

then position them as a group inside the frame layout:

This is the

linear layout. It

contains two

text views neatly

arranged in a

single column.

Here, the frame

layout contains an

image view and a

linear layout.

We’ll show you the full code for how to do this on the next page.

If you’re not careful, views can

overlap one another like this.

LinearLayout

FrameLayout

192 Chapter 5

full code

<?xml version="1.0" encoding="utf-8"?>

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="wrap_content"

tools:context="com.hfad.duck.MainActivity">

<ImageView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:scaleType="centerCrop"

android:src="@drawable/duck"/>

<LinearLayout

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:orientation="vertical"

android:layout_gravity="bottom|end"

android:gravity="end"

android:padding="16dp" >

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textSize="20sp"

android:text="It's a duck!" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textSize="20sp"

android:text="(not a real one)" />

</LinearLayout>

</FrameLayout>

The full code to nest a layout

Here’s the full code to nest a linear layout in a frame layout.

Update your version of activity_main.xml to include our changes,

then run your app to see how it looks.

<xml>

</xml>

app/src/main

activity_

main.xml

Duck

res

layout

We’re adding a linear layout

that’s just big enough to

contain its text views.

This line sinks

the linear

layout to the

bottom-end

corner of the

frame layout.

Move each

text view

in the linear

layout to the

end of its

available space.

LinearLayout

FrameLayout

you are here 4 193

views and view groups

FrameLayout: a summary

Here’s a summary of how you create frame layouts.

How you specify a frame layout

You specify a frame layout using <FrameLayout>. You must specify

the layout’s width and height:

Views are stacked in the order they appear

When you define a frame layout, you add views to the layout in the

order in which you want them to be stacked. The first view you add is

displayed on the bottom of the stack, the next view is stacked on top

of it, and so on.

Now that you’ve seen how to use two simple Android layouts,

a linear layout and a frame layout, have a go at the following

exercise.

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

...>

...

</FrameLayout>

Use layout-gravity to specify where a view appears

The android:layout_gravity attribute lets you specify where

you want a view in a frame layout to appear. You can use it to push a

view to the end, for instance, or sink it to the bottom-end corner.

activity_

main.xml

LinearLayout

FrameLayout

194 Chapter 5

exercise

BE the Layout

Three of the five screens below were

made from layouts on the next page.

Your job is to match each of the three

layouts to the screen that

the layout would produce.

you are here 4 195

views and view groups

<LinearLayout xmlns:android=

"http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<Button

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="HELLO!" />

</LinearLayout>

<LinearLayout xmlns:android=

"http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<Button

android:layout_width="match_parent"

android:layout_height="0dp"

android:layout_weight="1"

android:text="HELLO!" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="HI!" />

</LinearLayout>

<LinearLayout xmlns:android=

"http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="HELLO!" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="HI!" />

</LinearLayout>

196 Chapter 5

solution

<LinearLayout xmlns:android=

"http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<Button

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="HELLO!" />

</LinearLayout>

<LinearLayout xmlns:android=

"http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<Button

android:layout_width="match_parent"

android:layout_height="0dp"

android:layout_weight="1"

android:text="HELLO!" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="HI!" />

</LinearLayout>

BE the Layout Solution

Three of the five screens below were

made from layouts on the next page.

Your job is to match each of the three

layouts to the screen that

the layout would produce.

None of the

layouts produce

these screens.

This has one

button that

fills the screen.

This button fills the screen,

leaving space for another

one underneath it.

you are here 4 197

views and view groups

<LinearLayout xmlns:android=

"http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.views.MainActivity" >

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="HELLO!" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="HI!" />

</LinearLayout>

You may have noticed that all layout types have attributes in

common. Whichever type of layout you use, you must specify

the layout’s width and height using the android:layout_

width and android:layout_height attributes.

And this requirement isn’t just limited to layouts—the

android:layout_width and android:layout_

height are mandatory for all GUI components too.

This is because all layouts and GUI components are

subclasses of the Android View class. Let’s look at this in

more detail.

Layouts and GUI components have a lot in common

Both buttons have their layout_width

and layout_height properties set to

“wrap_content”, so they take up just

enough space to display their contents.

198 Chapter 5

views

GUI components are a type of View

You’ve already seen that GUI components are all types of views—behind

the scenes, they are all subclasses of the android.view.View class.

This means that all of the GUI components in your user interface have

attributes and behavior in common. They can all be displayed on the

screen, for instance, and you get to say how tall or wide they should be.

Each of the GUI components you use in your user interface takes this

basic functionality and extends it.

Layouts are a type of View called a ViewGroup

It’s not just the GUI components that are a type of view. Under the hood,

a layout is a special type of view called a view group. All layouts are

subclasses of the android.view.ViewGroup class. A view group is a

type of view that can contain other views.

android.view.View

...

android.widget.TextView

...

android.widget.Spinner

...

android.widget.EditText

...

android.widget.Button

...

android.view.View is the base

class of all the GUI components

you use to develop your apps.

android.widget.TextView

is a direct subclass of

the View class.

A spinner is a type of View that you

saw in Chapter 2. We’ll revisit it

later in this chapter.

A GUI component is a

type of view, an object

that takes up space on

the screen.

A layout is a type of

view group, which is

a special type of view

that can contain other

views.

Layouts are a type of

ViewGroup. ViewGroup

is a subclass of View.

android.view.View

...

android.view.ViewGroup

...

android.widget.

LinearLayout

...

android.widget.

FrameLayout

...

you are here 4 199

views and view groups

A View object occupies rectangular space on the screen. It includes

the functionality all views need in order to lead a happy helpful life in

Androidville. Here are some of the qualities of views that we think are the

most important:

What being a view buys you

Size and position

You specify the width and height of views so that Android knows

how big they need to be. You can also say whether any padding is

needed around the view.

Once your view has been displayed, you can retrieve the position

of the view, and its actual size on the screen.

Event handling and listeners

Views can respond to events. You can also create listeners so

that your app can react to things happening in the view. As an

example, all views can react to getting or losing the focus, and a

button (and all of its subclasses) can react to being clicked.

Focus handling

Android handles how the focus moves depending on what the

user does. This includes responding to any views that are hidden,

removed, or made visible.

Getting and setting properties

Each view is a Java object behind the scenes, and that means you

can get and set its properties in your activity code. As an example,

you can retrieve the value selected in a spinner or change the text

in a text view. The exact properties and methods you can access

depend on the type of view.

To help you get and set view properties, each view can have an

ID associated with it so that you can refer to it in your code.

As a view group is also a type of view, this means that all layouts and GUI

components share this common functionality.

android.view.View

getId()

getHeight()

getWidth()

setVisibility(int)

findViewById(int)

isClickable()

isFocused()

requestFocus()

...

Here are some of the View

methods you can use in your

activity code. As these are in

the base View class, they’re

common to all views and view

groups.

200 Chapter 5

view hierarchy

The layout you define using XML gives you a hierarchical tree of views

and view groups. As an example, here’s a linear layout containing a

button and an editable text field. The linear layout is a view group, and

the button and text field are both views. The view group is the view’s

parent, and the views are the view group’s children:

A layout is really a hierarchy of Views

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

... >

<Button

android:id="@+id/send"

... />

<EditText

android:id="@+id/message"

... />

</LinearLayout>

ViewGroup

ViewView

The linear layout

The button

The editable

text field

We’ve left out a

lot of the XML.

The key thing is

the views that the

view group contains.

Behind the scenes, when you build your app, the layout XML is

converted to a ViewGroup object containing a tree of Views. In the

example above, the button gets translated to a Button object, and

the text view gets translated to a TextView object. Button and

TextView are both subclasses of View.

</Layout>

layout.xml ViewGroup

View View

This is the reason why you can manipulate the views in your layout

using Java code. Behind the scenes, all of the views are rendered to Java

View objects.

The linear layout

The button The editable

text field

you are here 4 201

views and view groups

Playing with views

Let’s look at the most common GUI components. You’ve already seen

some of these, but we’ll review them anyway. We won’t show you the

whole API for each of these—just selected highlights to get you started.

Text view

A text view is used for displaying text.

<TextView

android:id="@+id/text_view"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/text" />

TextView textView = (TextView) findViewById(R.id.text_view);

textView.setText("Some other String");

Defining it in XML

You define a text view in your layout using the <TextView> element.

You use android:text to say what text you want it to display,

usually by using a String resource:

Using it in your activity code

You can change the text displayed in your text view using code like this:

android.view.View

...

android.widget.TextView

...

The TextView API includes many attributes to control the text view’s

appearance, such as the text size. To change the text size, you use the

android:textSize attribute like this:

android:textSize="16sp"

You specify the text size using scale-independent pixels (sp). Scale-

independent pixels take into account whether users want to use large

fonts on their devices. A text size of 16sp will be physically larger on a

device configured to use large fonts than on a device configured to use

small fonts.

202 Chapter 5

editable text views

Editable text view

This is like a text view, but editable.

<EditText

android:id="@+id/edit_text"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:hint="@string/edit_text" />

Defining it in XML

You define an editable text view in XML using the <EditText> element.

You use the android:hint attribute to give a hint to the user as to how to

fill in the field.

You can use the android:inputType attribute to define what type of

data you’re expecting the user to enter so that Android can help them. As an

example, if you’re expecting the user to enter numbers, you can use:

android:inputType="number"

to provide them with a number keypad. Here are some more of our favorites:

EditText editText = (EditText) findViewById(R.id.edit_text);

String text = editText.getText().toString();

Using it in your activity code

You can retrieve the text entered in an editable text view like this:

android.view.View

...

android.widget.TextView

...

android.widget.EditText

...

Value What it does

phone Provides a phone number keypad.

textPassword Displays a text entry keypad, and your input is concealed.

textCapSentences Capitalizes the first word of a sentence.

textAutoCorrect Automatically corrects the text being input.

You can specify multiple input types using the | character. As an example,

to capitalize the first word of a sentence and automatically correct any

misspellings, you’d use:

android:inputType="textCapSentences|textAutoCorrect"

You can find the entire list in the

online Android developer documentation

at https://developer.android.com/

reference/android/widget/TextView.

html#attr_android:inputType.

you are here 4 203

views and view groups

Button

Buttons are usually used to make your app do something

when they’re clicked.

<Button

android:id="@+id/button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/button_text" />

Defining it in XML

You define a button in XML using the <Button> element. You use

the android:text attribute to say what text you want the button to

display:

Using it in your activity code

You get the button to respond to the user clicking it by using the

android:onClick attribute in the layout XML, and setting it to the

name of the method you want to call in your activity code:

android:onClick="onButtonClicked"

You then define the method in your activity like this:

/** Called when the button is clicked */

public void onButtonClicked(View view) {

// Do something in response to button click

}

android.view.View

...

android.widget.TextView

...

android.widget.Button

...

Layout

</Layout>

Activity

onButtonClicked()

204 Chapter 5

toggle buttons

Toggle button

A toggle button allows you to choose between two states by clicking a button.

<ToggleButton

android:id="@+id/toggle_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textOn="@string/on"

android:textOff="@string/off" />

Defining it in XML

You define a toggle button in XML using the <ToggleButton> element.

You use the android:textOn and android:textOff attributes to say

what text you want the button to display depending on the state of the button:

Using it in your activity code

You get the toggle button to respond to the user clicking it by using the

android:onClick attribute in the layout XML. You give it the name of the

method you want to call in your activity code:

android:onClick="onToggleButtonClicked"

You then define the method in your activity like this:

/** Called when the toggle button is clicked */

public void onToggleButtonClicked(View view) {

// Get the state of the toggle button.

boolean on = ((ToggleButton) view).isChecked();

if (on) {

// On

} else {

// Off

}

This is what the

toggle button looks

like when it’s off.

When you click

the toggle

button, it

changes to

being on.

This returns true if the toggle button is on,

and false if the toggle button is off.

android.view.View

...

android.widget.TextView

...

android.widget.Button

...

android.widget.

CompoundButton

...

android.widget.

ToggleButton

...

This is exactly the same

as calling a method when a

normal button gets clicked.

A compound button

is a button with

two states, checked

and unchecked. A

toggle button is an

implementation of a

compound button.

you are here 4 205

views and view groups

Switch

A switch is a slider control that acts in the same way as a toggle button.

<Switch

android:id="@+id/switch_view"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textOn="@string/on"

android:textOff="@string/off" />

Defining it in XML

You define a switch in XML using the <Switch> element. You use the

android:textOn and android:textOff attributes to say what text

you want the switch to display depending on the state of the switch:

Using it in your activity code

You get the switch to respond to the user clicking it by using the

android:onClick attribute in the layout XML, and setting it to the

name of the method you want to call in your activity code:

android:onClick="onSwitchClicked"

You then define the method in your activity like this:

/** Called when the switch is clicked */

public void onSwitchClicked(View view) {

// Is the switch on?

boolean on = ((Switch) view).isChecked();

if (on) {

// On

} else {

// Off

}

This code is very similar to that

used with the toggle button.

android.view.View

...

android.widget.TextView

...

android.widget.Button

...

android.widget.

CompoundButton

...

android.widget.Switch

...

This is the switch

when it's off.

This is the

switch when

it's on.

206 Chapter 5

checkboxes

Checkboxes

Checkboxes let you display multiple options to users. They can then select

whichever options they want. Each of the checkboxes can be checked or

unchecked independently of any others.

Defining them in XML

You define each checkbox in XML using the <CheckBox> element. You

use the android:text attribute to display text for each option:

<CheckBox android:id="@+id/checkbox_milk"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/milk" />

<CheckBox android:id="@+id/checkbox_sugar"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/sugar" />

Using them in your activity code

You can find whether a particular checkbox is checked using the

isChecked() method. It returns true if the checkbox is checked:

CheckBox checkbox = (CheckBox) findViewById(R.id.checkbox_milk);

boolean checked = checkbox.isChecked();

if (checked) {

//do something

}

android.view.View

...

android.widget.TextView

...

android.widget.Button

...

android.widget.

CompoundButton

...

android.widget.CheckBox

...

Here we have two checkboxes.

Users can choose milk, sugar,

both milk and sugar, or neither.

you are here 4 207

views and view groups

<CheckBox android:id="@+id/checkbox_milk"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/milk"

android:onClick="onCheckboxClicked"/>

<CheckBox android:id="@+id/checkbox_sugar"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/sugar"

android:onClick="onCheckboxClicked"/>

Just like buttons, you can respond to the user clicking a checkbox by using

the android:onClick attribute in the layout XML, and setting it to the

name of the method you want to call in your activity code:

You then define the method in your activity like this:

public void onCheckboxClicked(View view) {

// Has the checkbox that was clicked been checked?

boolean checked = ((CheckBox) view).isChecked();

// Retrieve which checkbox was clicked

switch(view.getId()) {

case R.id.checkbox_milk:

if (checked)

// Milky coffee

else

// Black as the midnight sky on a moonless night

break;

case R.id.checkbox_sugar:

if (checked)

// Sweet

else

// Keep it bitter

break;

}

Checkboxes (continued)

In this case, the onCheckboxClicked()

method will get called no matter

which checkbox gets clicked. We

could have specified a different

method for each checkbox if we’d

wanted to.

208 Chapter 5

radio buttons

Radio buttons

These let you display multiple options to the user. The user can select a single

option.

Defining them in XML

You start by defining a radio group, a special type of view group, using the

<RadioGroup> tag. Within this, you then define individual radio buttons

using the <RadioButton> tag:

<RadioGroup android:id="@+id/radio_group"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="vertical">

<RadioButton android:id="@+id/radio_cavemen"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/cavemen" />

<RadioButton android:id="@+id/radio_astronauts"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/astronauts" />

</RadioGroup>

Using them in your activity code

You can find which radio button is selected using the

getCheckedRadioButtonId() method:

RadioGroup radioGroup = (RadioGroup) findViewById(R.id.radioGroup);

int id = radioGroup.getCheckedRadioButtonId();

if (id == -1){

//no item selected

}

else{

RadioButton radioButton = findViewById(id);

}

android.view.View

...

android.widget.TextView

...

android.widget.Button

...

android.widget.

CompoundButton

...

android.widget.

RadioButton

...

You can choose to

display the radio

buttons in a horizontal

or vertical list.

Use radio buttons to

restrict the user’s

choice to just one

option.

you are here 4 209

views and view groups

You can respond to the user clicking a radio button by using the

android:onClick attribute in the layout XML, and setting it to the

name of the method you want to call in your activity code:

You then define the method in your activity like this:

public void onRadioButtonClicked(View view) {

RadioGroup radioGroup = (RadioGroup) findViewById(R.id.radioGroup);

int id = radioGroup.getCheckedRadioButtonId();

switch(id) {

case R.id.radio_cavemen:

// Cavemen win

break;

case R.id.radio_astronauts:

// Astronauts win

break;

}

<RadioGroup android:id="@+id/radio_group"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="vertical">

<RadioButton android:id="@+id/radio_cavemen"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/cavemen"

android:onClick="onRadioButtonClicked" />

<RadioButton android:id="@+id/radio_astronauts"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/astronauts"

android:onClick="onRadioButtonClicked" />

</RadioGroup>

Radio buttons (continued)

The radio group

containing the

radio buttons

is a subclass of

LinearLayout.

You can use the

same attributes

with a radio

group as you can

with a linear

layout.

210 Chapter 5

spinners

Spinner

As you’ve already seen, a spinner gives you a drop-down list of values

from which only one can be selected.

Defining it in XML

You define a spinner in XML using the <Spinner> element.

You add a static array of entries to the spinner by using the

android:entries attribute and setting it to an array of Strings.

<Spinner

android:id="@+id/spinner"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:entries="@array/spinner_values" />

Using it in your activity code

You can get the value of the currently selected item by using the

getSelectedItem() method and converting it to a String:

Spinner spinner = (Spinner) findViewById(R.id.spinner);

String string = String.valueOf(spinner.getSelectedItem());

<string-array name="spinner_values">

<item>light</item>

<item>amber</item>

<item>brown</item>

</string-array>

You can add an array of Strings to strings.xml like this:

android.view.View

...

android.view.ViewGroup

...

android.widget.

AdapterView

...

android.widget.

AbsSpinner

...

android.widget.Spinner

...

We saw spinners

back in Chapter 2.

There are other ways

of populating the

spinner, which you'll

see later in the book.

This is an

abstract

base class for

Spinner widgets.

An AdapterView is a view

that can use an adapter.

You’ll find out about

adapters later in the book.

you are here 4 211

views and view groups

Image view

You use an image view to display an image: android.view.View

...

android.widget.ImageView

...

The ImageView class is a

direct subclass of View.

An image view

contains an image.

Adding an image to your project

You first need to create a drawable resource folder, the default folder for storing

image resources in your app. To do this, select the app/src/main/res folder in your

project, go to the File menu, choose the New... option, then click on the option

to create a new Android resource directory. When prompted, choose a resource

type of “drawable”, name the folder “drawable”, and click on OK. You then

need to add your image to the app/src/main/res/drawable folder.

If you want, you can use different image files depending on the screen density

of the device. This means you can display higher-resolution images on higher-

density screens, and lower-resolution images on lower-density screens. To do this,

you create different drawable folders in app/src/main/res for the different screen

densities. The name of the folder relates to the screen density of the device:

drawable-ldpi Low-density screens, around 120 dpi.

drawable-mdpi Medium-density screens, around 160 dpi.

drawable-hdpi High-density screens, around 240 dpi.

drawable-xhdpi Extra-high-density screens, around 320 dpi.

drawable-xxhdpi Extra-extra-high-density screens, around 480 dpi.

drawable-xxxhdpi Extra-extra-extra high-density screens, around 640 dpi.

You then put different resolution images in each of the drawable* folders, making

sure that each of the image files has the same name. Android decides which

image to use at runtime, depending on the screen density of the device it’s

running on. As an example, if the device has an extra-high-density screen, it will

use the image located in the drawable-xhdpi folder.

If an image is added to just one of the folders, Android will use the same image

file for all devices. If you want your app to use the same image regardless of

screen density, you’d normally put it in the drawable folder.

Depending on what version of

Android Studio you're running, the

IDE may create some of these

folders for you automatically.

212 Chapter 5

image views

Image view: the layout XML

You define an image view in XML using the <ImageView> element.

You use the android:src attribute to specify what image you want to

display, and the android:contentDescription attribute to add a

String description of the image so that your app is more accessible:

<ImageView

android:layout_width="200dp"

android:layout_height="100dp"

android:src="@drawable/starbuzz_logo"

android:contentDescription="@string/starbuzz_logo" />

The android:src attribute takes a value of the form "@drawable/

image_name", where image_name is the name of the image

(without its extension). Image resources are prefixed with @drawable,

which tells Android that it’s an image resource located in one or more

of the drawable* folders.

ImageView photo = (ImageView)findViewById(R.id.photo);

int image = R.drawable.starbuzz_logo;

String description = "This is the logo";

photo.setImageResource(image);

photo.setContentDescription(description);

Using image views in your activity code

You can set the image source and description in your activity code using

the setImageResource() and setContentDescription()

methods:

This code looks for the image resource called starbuzz_logo in the

drawable* folders, and sets it as the source of an image view with an ID

of photo. When you need to refer to an image resource in your activity

code, you use R.drawable.image_name where

image_name is the name of the image (without its extension).

you are here 4 213

views and view groups

Adding images to buttons

In addition to displaying images in image views, you can also display

images on buttons.

Displaying text and an image on a button

To display text on a button with an image to the right of it, use the

android:drawableRight attribute and specify the image to be

used:

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:drawableRight="@drawable/android"

android:text="@string/click_me" />

Display the android image resource on

the right side of the button.

If you want to display the image on the left, use the

android:drawableLeft attribute:

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:drawableLeft="@drawable/android"

android:text="@string/click_me" />

Use the android:drawableBottom attribute to display the image

underneath the text:

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:drawableBottom="@drawable/android"

android:text="@string/click_me" />

The android:drawableTop attribute displays the image above the

text:

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:drawableTop="@drawable/android"

android:text="@string/click_me" />

You can also use drawableStart

and drawableEnd to support

right-to-left languages.

214 Chapter 5

image buttons

Image button

An image button is just like a button, except it contains an

image and no text.

<ImageButton

android:id="@+id/button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:src="@drawable/button_icon" />

Defining it in XML

You define an image button in XML using the <ImageButton>

element. You use the android:src attribute to say what image you

want the image button to display:

Using it in your activity code

You get the image button to respond to the user clicking it by using the

android:onClick attribute in the layout XML, and setting it to the

name of the method you want to call in your activity code:

android:onClick="onButtonClicked"

You then define the method in your activity like this:

/** Called when the image button is clicked */

public void onButtonClicked(View view) {

// Do something in response to button click

}

android.view.View

...

android.widget.ImageView

...

android.widget.

ImageButton

...

Layout

</Layout>

Activity

onButtonClicked()

The ImageButton class

extends the ImageView class,

not the Button class.

you are here 4 215

views and view groups

Scroll view

If you add lots of views to your layouts, you may have problems

on devices with smaller screens—most layouts don’t come with

scrollbars to allow you to scroll down the page. As an example, when

we added seven large buttons to a linear layout, we couldn’t see all of

them.

Linear layouts don't come

with scrollbars. When we

tried to display seven

buttons in a linear layout

on our device, we couldn't

see them all.

To add a vertical scrollbar to your layout, you surround your existing

layout with a <ScrollView> element like this:

<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="com.hfad.views.MainActivity" >

<LinearLayout

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="16dp"

android:paddingLeft="16dp"

android:paddingRight="16dp"

android:paddingTop="16dp"

android:orientation="vertical" >

...

</LinearLayout>

</ScrollView>

To add a horizontal scrollbar to your layout, wrap your existing

layout inside a <HorizontalScrollView> element instead.

Move these attributes from the original

layout to the <ScrollView>, as the

<ScrollView> is now the root element.

Wrapping our layout in a

<ScrollView> has added a neat

vertical scrollbar. The user can

now get to all of the views.

216 Chapter 5

toasts pop up

Toasts

There’s one final widget we want to show you in this chapter: a

toast. A toast is a simple pop-up message you can display on the

screen.

Toasts are purely informative, as the user can’t interact with them.

While a toast is displayed, the activity stays visible and interactive.

The toast automatically disappears when it times out.

Using it in your activity code

You create a toast using activity code only. You can’t define one in

your layout.

To create a toast, you call the Toast.makeText() method, and

pass it three parameters: a Context (usually this for the current

activity), a CharSequence that’s the message you want to display,

and an int duration. Once you’ve created the toast, you call its

show() method to display it.

Here’s the code you would use to create a toast that appears on

screen for a short duration:

CharSequence text = "Hello, I'm a Toast!";

int duration = Toast.LENGTH_SHORT;

Toast toast = Toast.makeText(this, text, duration);

toast.show();

java.lang.Object

...

android.widget.Toast

...

A toast isn't actually a

type of view. It’s a useful

way of displaying a short

message to the user, though,

so we're sneaking it into

this chapter.

By default, the toast appears at

the bottom of the screen.

A toast is a message

that pops up like

toast in a toaster.

you are here 4 217

views and view groups

It’s time for you to try out some of the views we’ve introduced you to this chapter. Create a

layout that will create this screen:

You probably won't want to write the

code here, but why not experiment in the

IDE?

218 Chapter 5

solution

Here’s one of the many ways in which you can create the layout. Don’t worry if your code looks

different, as there are many different solutions.

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.layoutexamples.MainActivity" >

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="How do you like your tea served?" />

<ToggleButton

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textOn="Hot"

android:textOff="Cold" />

We used a toggle button to display whether

the drink should be served hot or cold.

you are here 4 219

views and view groups

<CheckBox android:id="@+id/checkbox_milk"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Milk" />

<CheckBox android:id="@+id/checkbox_sugar"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Sugar" />

<CheckBox android:id="@+id/checkbox_lemon"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Lemon" />

</LinearLayout>

We used a

checkbox for

each of the

values (Milk,

Sugar, and

Lemon). We

put each one

on a separate

row.

Remember, your code may look different from

ours. This is just one way of building the layout.

220 Chapter 5

toolbox

Your Android Toolbox

You’ve got Chapter 5 under

your belt and now you’ve

added views and view groups

to your toolbox.

GUI components are all types of

view. They are all subclasses of the

android.view.View class.

All layouts are subclasses of the

android.view.ViewGroup class.

A view group is a type of view that can

contain multiple views.

The layout XML file gets converted to a

ViewGroup containing a hierarchical

tree of views.

A linear layout lists views either

horizontally or vertically. You

specify the direction using the

android:orientation attribute.

A frame layout stacks views.

Use android:padding* attributes

to specify how much padding you want

around a view.

In a linear layout, use

android:layout_weight if you

want a view to use up extra space in the

layout.

android:layout_gravity lets

you say where you want views to appear

in their available space.

android:gravity lets you say

where you want the contents to appear

inside a view.

<ToggleButton> defines a toggle

button that allows you to choose between

two states by clicking a button.

<Switch> defines a switch control that

behaves in the same way as a toggle

button. It requires API level 14 or above.

<CheckBox> defines a checkbox.

To define a group of radio buttons,

first use <RadioGroup> to define

the radio group. Then put individual

radio buttons in the radio group using

<RadioButton>.

Use <ImageView> to display an

image.

<ImageButton> defines a button with

no text, just an image.

Add scrollbars using <ScrollView>

or <HorizontalScrollView>.

A Toast is a pop-up message.

CHAPTER 5

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

this is a new chapter 221

constraint layouts

Put Things in Their Place

Let’s face it, you need to know how to create great layouts.

If you’re building apps you want people to use, you need to make sure they look exactly

the way you want. So far you’ve seen how to use linear and frame layouts, but what

if your design is more complex? To deal with this, we’ll introduce you to Android’s new

constraint layout, a type of layout you build visually using a blueprint. We’ll show you

how constraints let you position and size your views, irrespective of screen size and

orientation. Finally, you’ll find out how to save time by making Android Studio infer and

add constraints on your behalf.

Of course I’m sure, I have

the blueprint right in front

of me. It says the toe bone’s

connected to the foot bone,

and the foot bone’s connected

to the ankle bone.

222 Chapter 6

nesting inefficiencies

Nested layouts can be inefficient

You’ve seen how to build a simple user interface using linear layouts

and frame layouts, but what if you need to create something more

complex? While complex UIs are possible if you nest your linear and

frame layouts deep enough, they can slow down your app and make

your code hard to read and maintain.

As an example, suppose you wanted to create a layout containing two

rows, each containing two items. One possibility would be to create this

layout using three linear layouts: one linear layout at the root, and one

nested linear layout for each row:

LinearLayout

EditTextTextView

LinearLayout

EditTextTextView

While the above hierarchy is still relatively simple, imagine if you

needed more views, more nested layouts, and a deeper hierarchy. This

could lead to bottlenecks in your app’s performance, and leave you

with a mass of code that’s difficult to read and maintain.

If you have a more complex UI that requires you to nest multiple

layouts, it’s usually better to use a different type of layout.

When Android displays a layout on the device screen, it creates a

hierarchy of views based on the layout components which helps it

figure out where each view should be placed. If the layout contains

nested layouts, the hierarchy is more complex, and Android may need

to make more than one pass through the hierarchy:

Each view and layout needs

to be initialized, measured,

laid out, and drawn. This is

a lot of work if you have

deeply nested layouts, and

it can slow down your app.

This is the root linear layout.

This is for

the first

row.

This is

for the

second

row.

Linear layouts only allow you to

display views in a single column or row,

so you can’t use a single linear layout

to construct layouts like this. You

can, however, nest linear layouts to

produce the results you need.

For this layout, you

could use one linear

layout at the root,

and one nested linear

layout for each row.

you are here 4 223

constraint layouts

Introducing the constraint layout

In this chapter we’re going to focus on using a new type of layout called

a constraint layout. This type of layout is more complex than a

linear or frame layout, but it’s a lot more flexible. It’s also much more

efficient for complex UIs as it gives you a flatter view hierarchy, which

means that Android has less processing to do at runtime.

You design constraint layouts VISUALLY

Another advantage of using constraint layouts is that they’re specifically

designed to work with Android Studio’s design editor. Unlike linear

and frame layouts where you usually hack direct in XML, you build

constraint layouts visually. You drag and drop GUI components onto

the design editor’s blueprint tool, and give it instructions for how each

view should be displayed.

To see this in action, we’re going to take you on a tour of using a

constraint layout, then build the following UI:

To build constraint

layouts using the

visual tools, you need

Android Studio 2.3

or above. If you’re

using an older version,

check for updates.

Create a new project

We’ll start by creating a new Android Studio project for an application

named “My Constraint Layout” with a company domain of “hfad.com”,

making the package name com.hfad.myconstraintlayout. The

minimum SDK should be API 19 so that it will work on most devices.

You’ll need an empty activity called “MainActivity” with a layout

called “activity_main” so that your code matches ours. Make sure you

uncheck the Backwards Compatibility (AppCompat) option

when you create the activity.

This is a

TextView.

These are EditTexts that fill

the available horizontal space.

The Message EditText

fills its available space

horizontally and vertically.

The Send button appears

at the bottom of the

screen in the center.

224 Chapter 6

add library

Make sure your project includes

the Constraint Layout Library

Unlike the other layouts you’ve seen so far, constraint layouts come

in their own library, which you need to add to your project as a

dependency before you can use it. Adding a library as a dependency

means that the library gets included in your app, and downloaded to

the user’s device.

It’s likely that Android Studio added the Constraint Layout Library to

your project automatically, but let’s check. In Android Studio, choose

File→Project Structure. Then click on the app module and choose

Dependencies. You’ll be presented with the following screen:

This is the Constraint Layout Library.

If Android Studio has already added the Constraint Layout

Library for you, you will see it listed as “com.android.support.

constraint:constraint-layout,” as shown above.

If the library hasn’t been added for you, you will need to add it

yourself. To do this, click on the “+” button at the bottom or right

side of the Project Structure screen. Choose the Library Dependency

option, and select the Constraint Layout Library option from the list.

If you don’t see it listed, type the following text into the search box:

When you click on the OK button, the Constraint Layout Library

should be added to the list of dependencies. Click on OK again to

save your changes and close the Project Structure window.

Now that we know that our project contains the Constraint Layout

Library, let’s add the String resources we’ll need for our layout.

com.android.support.constraint:constraint-layout:1.0.2

You only need to type this in if

the Constraint Layout Library

hasn’t already been added to

your project as a dependency.

you are here 4 225

constraint layouts

<?xml version="1.0" encoding="utf-8"?>

<android.support.constraint.ConstraintLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="com.hfad.myconstraintlayout.MainActivity">

</android.support.constraint.ConstraintLayout>

Change activity_main.xml to use a constraint layout

If Android Studio added any

extra views for you, delete them.

Add the String resources to strings.xml

...

<string name="email_hint">Enter email address</string>

<string name="subject_hint">Subject</string>

<string name="message_hint">Message</string>

...

<xml>

</xml>

app/src/main

strings.xml

MyConstraintLayout

res

values

Now that we’ve added our String resources, we’ll update the

layout.

Each of the views in our layout will display text values or hints,

so we’ll add these as String resources. Add the String values

below to strings.xml:

We’re going to use a constraint layout. To do this (and to make

sure that your layout matches ours), update your code in activity_

main.xml to match the code below (our changes are in bold):

This defines a constraint layout to which we can add views.

We’ll do this using the design editor’s blueprint tool.

This is how

you define a

constraint

layout.

<xml>

</xml>

app/src/main

activity_

main.xml

MyConstraintLayout

res

layout

226 Chapter 6

use the blueprint

Use the blueprint tool

To use the blueprint tool, first switch to the design view

of your layout code by clicking on the Design tab. Then

click on the Show Blueprint button in the design editor’s

toolbar to display the blueprint. Finally, drag a Button

widget from the design editor’s palette to the blueprint.

This adds a button to your layout:

Click on the Show Blueprint button to display

the blueprint and make it nice and big.

Here’s the

Button

widget

in the

palette.

Drag a button to the blueprint

Here’s our

button.

This area

marks out

where any

bars at

the top

of your

app will be

displayed.

This marks

out an

area for

your main

device

buttons.

You can drag views

anywhere in the

blueprint’s main area.

You can

increase

the size

of the

palette

by clicking

on this

area and

dragging

downward.

you are here 4 227

constraint layouts

Position views using constraints

With a constraint layout, you don’t specify where views should be

positioned by dropping them on the blueprint in a particular place.

Instead, you specify placement by defining constraints. A constraint

is a connection or attachment that tells the layout where the view should

be positioned. For example, you can use a constraint to attach a view to

the start edge of the layout, or underneath another view.

To add a constraint, you click on one of the view’s constraint handles

and drag it to whatever you want to attach it to. In our case, we’re going

to attach the left edge of the button to the left edge of the layout, so click

on the left constraint handle and drag it to the left edge of the blueprint:

We’ll add a horizontal constraint to the button

To see how this works, let’s add a constraint to attach our button to the

left edge of the layout.

First, make sure the button’s selected by clicking it. When you select a

view, a bounding box is drawn around it, and handles are added to its

corners and sides. The square handles in the corners let you resize the

view, and the round handles on the sides let you add constraints:

This adds the constraint, and pulls the button over to the left:

That’s how you add a horizontal constraint. We’ll add a vertical

constraint to the button next.

When you select a

view, a bounding box

is drawn around it.

Use the square handles at the

corners to resize the view.

Use the round handles on the

sides to add constraints.

Click on the round handle on the

button’s left side, and drag it to

the left edge of the blueprint.

The button slides to the

edge of the blueprint when

you add the constraint.

228 Chapter 6

vertical constraints

Add a vertical constraint

Let’s add a second constraint to the button to attach it to the

top of the layout. To do this, click on the button’s top constraint

handle, and drag it to the top of the blueprint’s main area. This

adds the second constraint, and the button slides to the top of the

main area.

Each view in a constraint layout must have at least two

constraints—a horizontal constraint and a vertical one—in order

to specify where it should be positioned. If you omit the horizontal

constraint, the view is displayed next to the start edge of the

layout at runtime. If you omit the vertical constraint, the view

is displayed at the top of the layout. This is irrespective of

where the view is positioned in the blueprint.

Changing the view’s margins

When you add a constraint to a view, the design editor

automatically adds a margin on the same edge as the constraint.

You can set the size of the default margin in the design editor’s

toolbar by changing the number in the Default Margin box:

Change the number here (in dps) to change the default margin.

Changing the size of the default margin specifies the size

of any new margins that get added. The size of any existing

margins remain unchanged, but you can change these using the

property window.

The property window is displayed in a separate panel at the

side of the design editor. When you select a view, it displays

a diagram featuring the view’s constraints and the size of its

margins. To change the size of a margin, you change the

number next to the relevant side of the view.

You can also change the size of a view’s margins by clicking

and dragging the view in the blueprint. This technique has the

same effect as changing the size of the margin in the property

window, but it’s harder to be precise.

Try changing the size of both margins using each method

before looking at the next page.

Click on the round

handle on the

button’s top edge,

and drag it to the

top of the blueprint.

The button slides

to the top of

the blueprint’s

main area.

This is the property window.

This is the

constraint

on the view’s

left side.

This is the

size of the

margin on the

left side, in

this case 8.

This represents the view.

you are here 4 229

constraint layouts

<?xml version="1.0" encoding="utf-8"?>

<android.support.constraint.ConstraintLayout

...>

<Button

android:id="@+id/button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginLeft="8dp"

android:layout_marginTop="32dp"

android:text="Button"

app:layout_constraintLeft_toLeftOf="parent"

app:layout_constraintTop_toTopOf="parent" />

</android.support.constraint.ConstraintLayout>

Changes to the blueprint

are reflected in the XML

When you add views to the blueprint and specify constraints, these

changes are reflected in the layout’s underlying XML. To see

this, switch to the text view of your code. Your code should look

something like this (but don’t worry if it’s slightly different):

As you can see, our XML now includes a button. Most of the

code for the button should look familiar to you, as it’s material we

covered in Chapter 5. The button’s width, height, and margins are

specified in exactly the same way as before. The only unfamiliar

code is the two lines that specify the view’s constraints on its left and

top edges:

...

app:layout_constraintLeft_toLeftOf="parent"

app:layout_constraintTop_toTopOf="parent" />

Similar code is generated if you add constraints to the button’s

remaining edges.

Next, switch your code back to design view, and we’ll look at other

techniques for positioning your views in a constraint layout.

<xml>

</xml>

app/src/main

activity_

main.xml

MyConstraintLayout

res

layout

The design editor’s added a button.

These are all

attributes you’ve

seen before.

These lines only apply

to constraint layouts.

These lines describe the constraints

on the button’s left and top edges.

230 Chapter 6

being centered

How to center views

So far you’ve seen how you can use constraints to attach a view

to the edge of its layout. This works well if you want to position a

view in the top-left corner, for example, but what if you want to

position it in the center?

To position views in the center of its layout, you add constraints

to opposite sides of the view. Let’s see how this works by centering

our button horizontally.

Make sure the button is selected, then click on the constraint

handle on its right edge, and drag it to the right edge of the layout:

This adds a constraint to the view’s right edge. As the button

now has two horizontal constraints, one on each side, the button

is pulled to the center, and the two opposing constraints are

displayed in the blueprint as springs:

As the button is now attached to both sides of the layout, it’s

displayed in the center irrespective of screen size or orientation.

You can experiment with this by running the app, or changing

the size of the blueprint by dragging the blueprint’s bottom-right

corner:

Constraints on opposite

sides of a view are

displayed as springs.

Click on the constraint handle on the

button’s right edge, and drag it to

the right edge of the blueprint.

The button moves

to the center.

You can resize the blueprint

by clicking and dragging its

bottom-right corner.

you are here 4 231

constraint layouts

Adjust a view’s position by updating its bias

To change the value of the bias, simply move the slider. If you move

the slider to the left, for example, it moves the button in the blueprint

to the left too:

Once you’ve added constraints to opposite sides of your view, you can

control where it should be positioned relative to each side by changing

its bias. This tells Android what the proportionate length of the

constraint should be on either side of the view.

To see this in action, let’s change our button’s horizontal bias so that

it’s positioned off-center. First, make sure the button’s selected, then

look in the view’s property window. Underneath the diagram of the

view, you should see a slider with a number in it. This represents the

view’s horizontal bias as a percentage:

The view maintains this relative position irrespective of screen size

and orientation.

When you add a bias to a view in the design editor, this is reflected

in the underlying XML. If you change the horizontal bias of your

view to 25%, for example, the following code gets added to the

view’s XML:

app:layout_constraintHorizontal_bias="0.25"

Now that you know how bias works, let’s look at how you specify a

view’s size.

The view’s property window

shows we’ve added constraints

to its left and right edges.

This slider is for the view’s

horizontal bias. It currently displays

50 as the view is displayed halfway

between its horizontal constraints.

Moving

the

slider...

...moves

the

button.

You can also move the button

by clicking and dragging it, but

that technique is less accurate.

232 Chapter 6

change size

How to change a view’s size

With a constraint layout, you have several different options for

specifying a view’s size:

Make it a fixed size by specifying a specific width and height.

Use wrap_content to make the view just big enough to display its contents.

Specify a ratio for the width and height so that, for example, the view’s width is

twice the size of its height.

Tell it to match the size of its constraints (if you’ve added constraints to

opposite sides of the view).

We’ll go through these options one-by-one.

1. Make the view a fixed size

There are a couple of ways of using the design editor to make

the view a fixed size. One way is to simply resize the view in the

blueprint by clicking and dragging the square resizing handles on its

corners. The other way is to type values into the layout_width

and layout_height fields in the properties window:

2. Make it just big enough

To make the view just large enough to display its contents, change the

view’s layout_width and layout_height properties to wrap_

content. You do this in the view’s property window as shown here:

In general, making your view a fixed size is a bad idea, as it

means the view can’t grow or shrink to fit the size of its contents or

the size of the screen.

You can resize a view

using the square resizing

handles on its corners.

You can also

hardcode the

width and height

in the view’s

property window.

Setting the width and height to

“wrap_content” makes it just large

enough to display its contents, just

as it does in other layouts.

you are here 4 233

constraint layouts

3. Match the view’s constraints

If you’ve added constraints to opposite sides of your view, you can

make the view as wide as its constraints. You do this by setting its

width and/or height to 0dp: set its width to 0dp to get the view to

match the size of its horizontal constraints, and set its height to 0dp

to get it to match the size of its vertical constraints.

In our case, we’ve added constraints to the left and right sides of

our button, so we can get the button to match the size of these

constraints. To do this, go to the view’s property window, and

change the layout_width property to 0dp. In the blueprint, the

button should expand to fill the available horizontal space (allowing

for any margins):

4. Specify the width:height ratio

Finally, you can specify an aspect ratio for the view’s width

and height. To do this, change the view’s layout_width or

layout_height to 0dp as you did above, then click in the top-left

corner of the view diagram that’s displayed in the property window.

This should display a ratio field, which you can then update:

Now that you’ve seen how to resize a view, try experimenting with the

different techniques before having a go at the exercise on the next page.

Set the width

to 0dp, and the

button is sized

to match its

constraints.

Click here to

toggle the view’s

aspect ratio.

Here the ratio is set to

1:1, which makes the view’s

width and height equal.

234 Chapter 6

exercise

BE the Constraint

Your job is to play like you’re the

constraint layout and draw the constraints

that are needed to produce each layout.

You also need to specify the

layout_width, layout_height,

and bias (when needed) for

each view. We’ve completed

the first one for you.

This is

how we

want

the

screen

to look.

You need to add the views and

constraints to each blueprint.

layout_width: wrap_content

layout_height: wrap_content

A button appears in

the top-right corner.

A button’s centered at

the bottom of the screen.

you are here 4 235

constraint layouts

The button fills the available space.

Button 1 is displayed

in the top-left corner.

Button 2 fills the

remaining horizontal space.

236 Chapter 6

solution

BE the Constraint Solution

Your job is to play like you’re the

constraint layout and draw the constraints

that are needed to produce each layout.

You also need to specify the

layout_width, layout_height,

and bias (when needed) for

each view. We’ve completed

the first one for you.

This is

how we

want

the

screen

to look.

layout_width: wrap_content

layout_height: wrap_content

A button appears in

the top-right corner.

A button’s centered at

the bottom of the screen.

layout_width: wrap_content

layout_height: wrap_content

bias: 50%

Adding

constraints to

each vertical

edge and setting

the bias to

50% will center

the button

horizontally.

you are here 4 237

constraint layouts

The button fills the available space.

layout_width: 0dp

layout_height: 0dp

The button needs to stretch

in all directions, so it requires

constraints on all edges, and

its width and height need to

be set to 0dp.

Button 1 is displayed

in the top-left corner.

Button 2 fills the

remaining horizontal space.

Button 1:

layout_width: wrap_content

layout_height: wrap_content

Button 2:

layout_width: 0dp

layout_height: wrap_content

To make Button 2 fill the

remaining horizontal space,

we add constraints to each

vertical edge and set its

width to 0dp. Its left edge is

attached to Button 1’s right

edge.

238 Chapter 6

align views

How to align views

So far you’ve seen how to position and size a single view. Next,

let’s examine how you align it with another view.

First, click on the Show Constraints button in the design edit

toolbar to display all the constraints in the blueprint (not just the

ones for the selected view). Then drag a second button from the

palette to the blueprint, and place it underneath the first:

To display the second button underneath the first when the app

runs, we need to add a constraint to the second button’s top edge,

and attach it to the first button’s bottom edge. To do this, select

the second button, and draw a constraint from its top edge to the

bottom edge of the other button:

To align the left edges of both buttons, select both buttons by

holding down the Shift key when you select each one, then click

on the Align Left Edges button in the design editor toolbar:

This adds a constraint from the left edge of the second button to

the left edge of the first, and this constraint aligns the view’s edges.

This is the Show Constraints

button. Clicking on it shows

(or hides) all the constraints

in the layout.

Add a second button

to the blueprint,

underneath the first.

This adds a constraint attaching the top of

one button to the bottom edge of the other.

Clicking on this

button gives you

different options

for aligning views.

Aligning the

view’s left

edges adds

another

constraint.

you are here 4 239

constraint layouts

Let’s build a real layout

You now know enough about constraint layouts to start building a

real one. Here’s the layout we’re going to create:

We’ll build it from scratch in activity_main.xml, so before we get

started, delete any views that are already in the layout so that the

blueprint’s empty, and make sure your activity_main.xml code looks

like this:

<?xml version="1.0" encoding="utf-8"?>

<android.support.constraint.ConstraintLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="com.hfad.myconstraintlayout.MainActivity">

</android.support.constraint.ConstraintLayout>

<xml>

</xml>

app/src/main

activity_

main.xml

MyConstraintLayout

res

layout

This is a

TextView.

These are EditTexts

that fill the available

horizontal space.

The Message EditText

fills its available space

horizontally and vertically.

The Send Button appears

at the bottom of the

screen in the center.

240 Chapter 6

top line

First, add the top line of views

We’re going to start by adding the views we want to appear at

the top of the layout: a text view and an editable text field.

To do this, switch to the design editor if you haven’t already

done so, then drag a TextView from the palette to the top-left

corner of the blueprint. Next, drag an E-mail component to the

blueprint so it’s positioned to the right of the text view. This

is an editable text field that uses Android’s email keyboard for

data entry. Manually resize the E-mail component so that it

lines up with the text view and fills any remaining horizontal

space:

Notice that we haven’t added any constraints to either view yet,

and we’ve positioned them where we want them to appear when

the layout’s displayed on a device. There’s a good reason for this:

to save us some work, we’re going to get the design editor

to figure out the constraints.

Get the design editor to infer the constraints

As you already know, a constraint layout uses constraints to

determine where its views should be positioned. The great news

is that the design editor has an Infer Constraints button that’s

designed to work out what it thinks the constraints should be,

and add them. To use this feature, simply click on the Infer

Constraints button in the design editor’s toolbar:

The top line of the layout

features a TextView label and an

EditText for the email address.

Place the TextView and E-mail components

in the blueprint so they reflect how you

want them to appear in the layout.

This is the Infer Constraints

button. Click it now.

you are here 4 241

constraint layouts

If you don’t like what the Infer Constraints feature has done, you can

undo the changes it’s made by choosing Undo Infer Constraints from

the Edit menu, or adjust individual constraints.

We’re going to tweak our views before adding more items to the blueprint.

First, select the text view in the blueprint, then edit its properties in

the properties panel to give it an ID of to_label and a text value

of "@string/to_label". This does the same thing as adding the

following lines of code to the <TextView> element in the XML:

The Infer Constraints feature

guesses which constraints to add

When you click on the Infer Constraints button, the design editor tries

to figure out what the constraints should be and adds them for you. It’s

not completely foolproof, as it can’t read your mind (as far as we know)

to determine how you want the layout to behave on a real device. It

simply guesses based on each view’s position in the blueprint.

Here are the changes the design editor made for us when we clicked on

the Infer Constraints button (yours may look different if you positioned

your views differently):

android:id="@+id/to_label"

android:text="@string/to_label"

Next, select the E-mail component EditText, and change its ID to

email_address, its layout_height to "wrap_content", and

its hint to "@string/email_hint". This does the same thing as

adding these lines to the <EditText> element in the XML:

When you update the ID, don’t worry

if Android Studio displays a message

telling you it’s going to make changes to

the code. We want it to do this because

we’re changing the view’s ID.

android:id="@+id/email_address"

android:layout_height="wrap_content"

android:hint="@string/email_hint"

Now that we’ve added the first line of views to the blueprint, let’s add

some more.

Clicking on the

Infer Constraints

button added

constraints to

both views.

You can check the

details of each

constraint by

selecting each view

in turn and looking

at its values in the

property window.

Android Studio adds these lines

of code when you change the

view’s ID and text value.

Android Studio adds these lines of code when you

change the view’s layout_height and hint value.

Update this property to change

the TextView’s text value.

242 Chapter 6

more lines

Add the next line to the blueprint...

The next row of the layout contains an editable text field for the

message subject. Drag a Plain Text component from the palette to

the blueprint, and position it underneath the two items we’ve already

added. This adds an EditText to the blueprint. Then change the

component’s size and position so that it lines up with the other views

and fills the horizontal space:

Then click on the Infer Constraints button again. The design editor

adds more constraints, this time positioning the new component:

...and then add the button

Next, we’ll add a button to the bottom of the layout. Drag a Button

component to the bottom of the blueprint and center it horizontally.

When you click on the Infer Constraints button this time, the design

editor adds these constraints to it:

Select the new view in the blueprint, and then change its ID to

subject, its layout_height to "wrap_content", and its hint

to "@string/subject_hint", and delete any text in the text

property that the design editor may have added.

Change the button’s ID to send_button and its text to

"@string/send_button".

We’ll add an EditText

below the first two views.

The Plain Text component adds

an EditText to the layout.

The design editor adds

constraints to the new

EditText when we click on

the Infer Constraints button.

Remember, when you click on the Infer

Constraints button in your layout, it may

give you different results than shown here.

The button goes at the bottom of

the layout, centered horizontally.

you are here 4 243

constraint layouts

Finally, add a view for the message

We have one more view to add to our layout, an editable text

field that we want to be able to grow to fill any remaining space.

Drag a Plain Text component from the palette to the middle of

the blueprint, change its size so that it fills the entire area, and

then click on the Infer Constraints button:

Select the new component in the blueprint, then change its

ID to message, its hint to "@string/message_hint",

and its gravity to top, and delete any text in the text

property that the design editor may have added.

Let’s take the app for a test drive and see what the layout

looks like.

You may need to click on the

“View all properties” button

to see the gravity property.

Note that we could have added all

these views in one go, and clicked the

Infer Constraints button when we

reached the end. We’ve found, however,

that building it up step-by-step gives

the best results. Why not experiment

and try this out for yourself?

We want the Message EditText

to fill the remaining area.

This time, the Infer

Constraints button

added constraints to

our new EditText.

244 Chapter 6

test drive

Test drive the app

When we run the app, MainActivity’s layout looks almost

exactly how we want it to. When we rotate the device, the

button stays centered, the email and subject editable text fields

expand to fill the horizontal space, and the message view fills the

remaining area:

Remember that your layout may look and behave differently

than ours depending on what constraints the design editor added

when you clicked on the Infer Constraints button. The feature

isn’t perfect, but it usually takes you most of the way there, and

you can undo or update any changes it makes.

The button is centered

horizontally at the bottom of

the screen irrespective of the

screen size and orientation.

The editable text

fields stretch to fill

their available space.

Test your constraint layout on a variety

of device sizes and orientations to make

sure it behaves the way you want. If it

doesn’t, you may need to change the

properties of some of your views and

their constraints.

you are here 4 245

constraint layouts

CHAPTER 6

Your Android Toolbox

You’ve got Chapter 6 under

your belt and now you’ve

added constraint layouts to

your toolbox.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

Constraint layouts are designed to work

with Android Studio’s design editor. They

have their own library and can be used in

apps where the minimum SDK is API level

9 or above.

Position views by adding constraints. Each

view needs at least one horizontal and

one vertical constraint.

Center views by adding constraints to

opposite sides of the view. Change the

view’s bias to update its position between

the constraints.

You can change a view’s size to match its

constraints if the view has constraints on

opposing sides.

You can specify a width:height aspect ratio

for the view’s size.

Clicking on the Infer Constraints button

adds constraints to views based on their

position in the blueprint.

Q: Is a constraint layout my only

option if I want to create complex

layouts?

A: There are other types of layout as

well, such as relative and grid layouts, but

the constraint layout does everything that

these do. Also it’s designed to work with

Android Studio’s design editor, which makes

building constraint layouts much easier.

If you’re interested in finding out more

about relative and grid layouts, they're

covered in Appendix I at the back of the

book.

Q: Why do constraint layouts have a

separate library?

A: Constraint layouts are a fairly recent

addition to Android compared to other types

of layout. They’re in a separate library so

that they can be added to apps that support

older versions of Android. You’ll find out

more about backward compatibility in later

chapters.

Q: Can I still edit constraint layouts

using XML?

A: Yes, but as they’re designed to be

edited visually, we’ve concentrated on

building them using the design editor.

Q: I tried using the Infer Constraints

feature but it didn’t give me the results I

wanted. Why not?

A: The Infer Constraints feature can

only make guesses based on where you

position views in the blueprint, so it may not

always give you the results you want. You

can, however, edit the changes the Infer

Constraints feature makes to your app.

this is a new chapter 247

Sheesh! So many

ideas... However will I turn

all of these into the most

downloaded app of the year?

list views and adapters

Getting Organized

Want to know how best to structure your Android app?

You’ve learned about some of the basic building blocks that are used to create apps,

and now it’s time to get organized. In this chapter, we’ll show you how you can take a

bunch of ideas and structure them into an awesome app. You'll learn how lists of data

can form the core part of your app design, and how linking them together can create a

powerful and easy-to-use app. Along the way, you’ll get your first glimpse of using event

listeners and adapters to make your app more dynamic.

248 Chapter 7

ideas

Every app starts with ideas

When you first come up with an idea for an app, you’ll have

lots of thoughts about what the app should contain.

As an example, the guys at Starbuzz Coffee want a new app

to entice more customers to their stores. These are some of

the ideas they came up with for what the app should include:

These are all ideas that users of the app will find useful.

But how do you take all of these ideas and organize them

into an intuitive, well-structured app?

Show details of

each drink.

Display a menu

showing all the

food you can

buy.

Show a list of all

our stores.

Display the

address and

opening times of

each store.

Display a list of

the drinks we

sell.

Show details of

an item of food.

Display a start

screen with a

list of options.

you are here 4 249

list views and adapters

Organize your ideas:

top-level, category, and detail/edit activities

A useful way to bring order to these ideas is to organize

them into three different types of activity: top-level

activities, category activities, and detail/edit activities.

Display

a menu

showing all

the food you

can buy.

Show a list of

all our stores.

Category activities

Category activities show the data that belongs to a

particular category, often in a list. These type of activities

are often used to help the user navigate to detail/edit

activities. An example of a category activity is a list of all

the drinks available at Starbuzz.

Display a list

of the drinks

we sell.

Top-level activities

A top-level activity contains the things that are most

important to the user, and gives them an easy way of

navigating to those things. In most apps, the first activity

the user sees will be a top-level activity.

Display a

start screen

with a list of

options.

Detail/edit activities

Detail/edit activities display details for a particular

record, let the user edit the record, or allow the user to

enter new records. An example of a detail/edit activity

would be an activity that shows the user the details of a

particular drink.

Show details

of each

drink.

Show details

of an item of

food.

Display the

address

and opening

times of

each store.

Once you’ve organized your activities, you can use

them to construct a hierarchy showing how the user will

navigate between activities.

Think of an app you’d like to create. What activities should it include? Organize these activities

into top-level activities, category activities, and detail/edit activities.

250 Chapter 7

organize your ideas

Display a

menu showing

all the food

you can buy.

Show a list of

all our stores.

Category activities go

between top-level and

detail/edit activities

Your users will navigate from the

top-level activity to the category

activities. In complex apps, you

might have several layers of

categories and subcategories.

Display a list

of the drinks

we sell.

Top-level activities go at

the top

These are the activities your user

will encounter first, so they go at

the top.

Display a

start screen

with a list of

options.

Detail/edit activities

These form the bottom layer

of the activity hierarchy. Users

will navigate to these from the

category activities.

Show details

of each drink. Show details

of an item of

food.

Display the

address and

opening times

of each store.

Navigating through the activities

When you organize the ideas you have into top-level, category,

and detail/edit activities, you can use this organization scheme

to figure out how to navigate through your app. In general, you

want your users to navigate from top-level activities to detail/

edit activities via category activities.

As an example, suppose a user wanted to look at details of one

of the drinks that Starbuzz serves. To do this, she would launch

the app, and be presented with the top-level activity start screen

showing her a list of options. The user would click on the option

to display a list of drinks. To see details of a particular drink, she

would then click on her drink of choice in the list.

you are here 4 251

list views and adapters

Use list views to navigate to data

When you structure your app in this way, you need a way of navigating

between your activities. A common approach is to use list views. A

list view allows you to display a list of data that you can then use to

navigate through the app.

As an example, on the previous page, we said we’d have a category

activity that displays a list of the drinks sold by Starbuzz. Here’s what

the activity might look like:

The activity uses a list view to display all the drinks that are sold by

Starbuzz. To navigate to a particular drink, the user clicks on one of

the drinks, and the details of that drink are displayed.

We’re going to spend the rest of this chapter showing you how to use

list views to implement this approach, using the Starbuzz app as an

example.

This is a list view

containing a list

of drinks.

If you click on the Latte

option in the list view, you

get shown the details for

the latte.

252 Chapter 7

welcome to starbuzz

We’re going to build the Starbuzz app

Rather than build all the category and detail/edit activities required

for the entire Starbuzz app, we’ll focus on just the drinks.

We’re going to build a top-level activity that the user will see when

they launch the app, a category activity that will display a list of

drinks, and a detail/edit activity that will display details of a single

drink.

The top-level activity

When the user launches the app, she will

be presented with the top-level activity, the

main entry point of the app. This activity

includes an image of the Starbuzz logo, and a

navigational list containing entries for Drinks,

Food, and Stores.

When the user clicks on an item in the list, the

app uses her selection to navigate to a separate

activity. As an example, if the user clicks

on Drinks, the app starts a category activity

relating to drinks.

The drink category activity

This activity is launched when the user

chooses Drinks from the navigational list in the

top-level activity. The activity displays a list

of all the drinks that are available at Starbuzz.

The user can click on one of these drinks to see

more details of it.

The Starbuzz logo, and

a list of options. We’ll

implement the Drinks

option.

We’ll just use three drinks,

but we're sure Starbuzz

serves many more.

part of

you are here 4 253

list views and adapters

The drink detail activity

The drink detail activity is launched when the

user clicks on one of the drinks listed by the

drink category activity.

This activity displays details of the drink the

user has selected: its name, an image of it, and

a description.

How the user navigates through the app

The user navigates from the top-level activity to the drink category

activity by clicking on the Drinks item in the top-level activity. She

then navigates to the drink detail activity by clicking on a drink.

The drink detail

activity displays

details of the drink

selected by the user.

The user clicks on

the Drinks item

and this displays a

list of drinks.

When the user

clicks on a drink,

that drink is then

displayed.

254 Chapter 7

app structure

</Layout>

activity_top_level.xml

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

The Starbuzz app structure

The app contains three activities. TopLevelActivity is the app’s

top-level activity and allows the user to navigate through the app.

DrinkCategoryActivity is a category activity; it contains a

list of all the drinks. The third activity, DrinkActivity, displays

details of a given drink.

For now, we’re going to hold the drink data in a Java class. In a later

chapter, we’re going to move it into a database, but for now we want

to focus on building the rest of the app without teaching you about

databases too.

Here’s how the app will work:

When the app gets launched, it starts activity TopLevelActivity.

This activity uses layout activity_top_level.xml. The activity displays a list of

options for Drinks, Food, and Stores.

The user clicks on Drinks in TopLevelActivity, which launches

activity DrinkCategoryActivity.

This activity uses layout activity_drink_category.xml and displays a list of drinks. It

gets information about the drinks from the Drink.java class file.

DrinkCategoryActivity.java DrinkActivity.java

Drink.java

The user clicks on a drink in DrinkCategoryActivity, which

launches activity DrinkActivity.

The activity uses layout activity_drink.xml. This activity also gets details about the

drinks from the Drink.java class file.

</Layout>

activity_drink_category.xml

you are here 4 255

list views and adapters

Create TopLevelActivity and its layout.

This activity is the entry point for the app. It needs to

display the Starbuzz logo and include a navigational

list of options. TopLevelActivity needs to launch

DrinkCategoryActivity when the Drinks option is clicked.

Add the Drink class and image resources.

This class contains details of the available drinks,

and we’ll use images of the drinks and Starbuzz

logo in the app.

Create DrinkCategoryActivity and its layout.

This activity contains a list of all the drinks that are

available. When a drink is clicked, it needs to launch

DrinkCategory.

Here’s what we’re going to do

There are a number of steps we’ll go through to build the app:

Create the project

You create the project for the app in exactly the same way you did

in the previous chapters.

Create a new Android project for an application named “Starbuzz”

with a company domain of “hfad.com”, making the package name

com.hfad.starbuzz. The minimum SDK should be API 19.

You’ll need an empty activity called “TopLevelActivity” and a

layout called “activity_top_level”. Make sure you uncheck the

Backwards Compatibility (AppCompat) checkbox.

Create DrinkActivity and its layout.

This activity displays details of the drink the user

clicked on in DrinkCategoryActivity.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

activity_drink.xml

256 Chapter 7

Drink class

The Drink class

We’ll start by adding the Drink class to the app. Drink.java is a pure Java class file that

activities will get their drink data from. The class defines an array of three drinks, where

each drink is composed of a name, description, and image resource ID. Switch to the

Project view of Android Studio’s explorer, select the com.hfad.starbuzz package in the

app/src/main/java folder, then go to File→New...→Java Class. When prompted, name

the class “Drink”, and make sure the package name is com.hfad.starbuzz. Then

replace the code in Drink.java with the following, and save your changes.

package com.hfad.starbuzz;

public class Drink {

private String name;

private String description;

private int imageResourceId;

//drinks is an array of Drinks

public static final Drink[] drinks = {

new Drink("Latte", "A couple of espresso shots with steamed milk",

R.drawable.latte),

new Drink("Cappuccino", "Espresso, hot milk, and a steamed milk foam",

R.drawable.cappuccino),

new Drink("Filter", "Highest quality beans roasted and brewed fresh",

R.drawable.filter)

};

//Each Drink has a name, description, and an image resource

private Drink(String name, String description, int imageResourceId) {

this.name = name;

this.description = description;

this.imageResourceId = imageResourceId;

}

public String getDescription() {

return description;

}

public String getName() {

return name;

}

public int getImageResourceId() {

return imageResourceId;

}

public String toString() {

return this.name;

}

Each Drink has a name, description, and image

resource ID. The image resource ID refers to drink

images we'll add to the project on the next page.

drinks is an array of three Drinks.

The Drink

constructor

These are getters for

the private variables.

The String representation

of a Drink is its name.

These are

images of the

drinks. We’ll

add these next.

app/src/main

Drink.java

Starbuzz

java

com.hfad.starbuzz

you are here 4 257

list views and adapters

The image files

The Drink code includes three image resources for its drinks with

IDs of R.drawable.latte, R.drawable.cappuccino, and

R.drawable.filter. These are so we can show the user images

of the drinks. R.drawable.latte refers to an image file called latte,

R.drawable.cappuccino refers to an image file called cappuccino, and

R.drawable.filter refers to a file called filter.

We need to add these image files to the project, along with an image of the

Starbuzz logo so that we can use it in our top-level activity. First, create

the app/src/main/res/drawable folder in your Starbuzz project (if it doesn’t

already exist). To do this, make sure you’ve switched to the Project view of

Android Studio’s explorer, select the app/src/main/res folder, go to the File

menu, choose the New... option, then click on the option to create a new

Android resource directory. When prompted, choose a resource type of

“drawable”, name the folder “drawable”, and click on OK.

Once your project includes the drawable folder, download the files starbuzz-

logo.png, cappuccino.png, filter.png, and latte.png from https://git.io/v9oet. Finally,

add each file to the app/src/main/res/drawable folder.

When you add images to your apps, you need to decide whether to display

different images for different density screens. In our case, we’re going to

use the same resolution image irrespective of screen density, so we’ve put a

single copy of the images in one folder. If you decide to cater to different

screen densities in your own apps, put images for the different screen

densities in the appropriate drawable* folders as described in Chapter 5.

Here are the four image files. You

need to create the drawable folder,

then add the image files to it.

When you save images to your project, Android assigns each of them

an ID in the form R.drawable.image_name (where image_

name is the name of the image). As an example, the file latte.png is

given an ID of R.drawable.latte, which matches the value of

the latte’s image resource ID in the Drink class.

Now that we’ve added the Drink class and image

resources to the project, let’s work on the activities. We’ll

start with the top-level activity.

Drink

name: "Latte"

description: "A couple of expresso

shots with steamed milk"

imageResourceId: R.drawable.latte

R.drawable.latte

The image latte.png

is given an ID of

R.drawable.latte.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

Android Studio may have already

added this folder for you. If so,

you don’t need to recreate it.

258 Chapter 7

TopLevelActivity

...

<string name="starbuzz_logo">Starbuzz logo</string>

</resources>

That’s everything we need to add the image to the layout, so let’s

move on to the list.

The top-level layout contains

an image and a list

When we created our project, we called our default activity

TopLevelActivity.java, and its layout activity_top_level.xml. We need to

change the layout so it displays an image and a list.

<ImageView

android:layout_width="200dp"

android:layout_height="100dp"

android:src="@drawable/starbuzz_logo"

android:contentDescription="@string/starbuzz_logo" />

These are the dimensions we

want the image to have.

The source of the image is the starbuzz_

logo.png file we added to the app.

Adding a content

description makes your

app more accessible.

When you use an image view in your app, you use the

android:contentDescription attribute to add a description

of the image; this makes your app more accessible. In our case, we’re

using a String value of "@string/starbuzz_logo", so add this

to strings.xml:

You saw how to display images in Chapter 5 using an image view. In

this case, we need an image view that displays the Starbuzz logo, so

we’ll create one that uses starbuzz_logo.png as its source.

Here’s the code to define the image view in the layout:

This is the Starbuzz logo.

We added this image to the

project on the previous page.

We’ll add these items as

a static list of options;

then we’ll make each list

item clickable.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

<xml>

</xml>

app/src/main

strings.xml

Starbuzz

res

values

We're going to

add this to

activity_top_

level.xml. We'll

show you the

full code soon.

you are here 4 259

list views and adapters

Use a list view to display the list of options

<ListView

android:id="@+id/list_options"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:entries="@array/options" />

This defines the list view.

The values in

the list view

are defined

by the

options array.

You define the array in exactly the same way that you did earlier in the

book, by adding it to strings.xml like this:

android.view.View

...

android.view.ViewGroup

...

android.widget.

AdapterView

...

android.widget.ListView

...

...

<string-array name="options">

<item>Drinks</item>

<item>Stores</item>

</string-array>

</resources>

This populates the list view with three values: Drinks, Food, and Stores.

</resources>

strings.xml

ListView

@array/options

Drinks

Food

Stores

How to define a list view in XML

You add a list view to your layout using the <ListView> element.

You then add an array of entries to the list view by using the

android:entries attribute and setting it to an array of Strings. The

array of Strings then gets displayed in the list view as a list of text views.

Here’s how you add a list view to your layout that gets its values from an

array of Strings named options:

As we said earlier, a list view allows you to display a vertical list of data

that people can use to navigate through the app. We’re going to add a

list view to the layout that displays the list of options, and later on we’ll

use it to navigate to a different activity.

The entries attribute

populates the list view with

values from the options array.

Each item in the list view is a

text view.

<xml>

</xml>

app/src/main

strings.xml

Starbuzz

res

values

We're going

to add this

to activity_

top_level.xml

on the next

page.

260 Chapter 7

layout code

The full top-level layout code

Here’s the full layout code for our activity_top_level.xml; make

sure you update your code to match ours:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.starbuzz.TopLevelActivity" >

<ImageView

android:layout_width="200dp"

android:layout_height="100dp"

android:src="@drawable/starbuzz_logo"

android:contentDescription="@string/starbuzz_logo" />

<ListView

android:id="@+id/list_options"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:entries="@array/options" />

</LinearLayout>

Test drive

Make sure you’ve applied all the changes to activity_top_level.xml,

and also updated strings.xml. When you run the app, you should

see the Starbuzz logo displayed on the device screen with the

list view underneath it. The list view displays the three values

from the options array.

If you click on any of the options in the list, nothing happens,

as we haven’t told the list view to respond to clicks yet. The

next thing we’ll do is see how you get list views to respond to

clicks and launch a second activity.

We’re using a linear layout with a vertical

orientation. This will display our list view

directly underneath the Starbuzz logo.

These are the values

in the options array.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

<xml>

</xml>

app/src/main

activity_

top_level.xml

Starbuzz

res

layout

you are here 4 261

list views and adapters

AdapterView.OnItemClickListener itemClickListener = new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View itemView,

int position,

long id) {

if (position == 0) {

Intent intent = new Intent(TopLevelActivity.this, DrinkCategoryActivity.class);

startActivity(intent);

}

};

Get list views to respond to clicks with a listener

The ListView needs to know the

Activity cares what happens to it.

The ListView tells the Activity when an item

gets clicked so the Activity can react.

ListView

Activity

You make the items in a list view respond to clicks by

implementing an event listener.

An event listener allows you to listen for events that take

place in your app, such as when views get clicked, when

they receive or lose the focus, or when the user presses a

hardware key on their device. By implementing an event

listener, you can tell when your user performs a particular

action—such as clicking on an item in a list view—and

respond to it.

OnItemClickListener is a

nested class within the

AdapterView class. A ListView

is a subclass of AdapterView.

The view that was clicked (in this case,

the list view).

These parameters give you info about

which item was clicked in the list view,

such as the item’s view and its position.

Drinks is the first item in the

list view, so it’s at position 0.

The intent is coming from

TopLevelActivity.

It needs to launch

DrinkCategoryActivity.

Once you’ve created the listener, you need to add it to the list view.

OnItemClickListener listens for item clicks

When you want to get items in a list view to respond to clicks, you

need to create an OnItemClickListener and implement

its onItemClick() method. The OnItemClickListener

listens for when items are clicked, and the onItemClick()

method lets you say how your activity should respond to the click.

The onItemClick() method includes several parameters that

you can use to find out which item was clicked, such as a reference

to the view item that was clicked, the item’s position in the list view

(starting at 0), and the row ID of the underlying data.

We want to start DrinkCategoryActivity when the first

item in the list view is clicked—the item at position 0. If the

item at position 0 is clicked, we need to create an intent to start

DrinkCategoryActivity. Here’s the code to create the

listener; we’ll add it to TopLevelActivity.java on the next page:

262 Chapter 7

setOnItemClickListener()

The full TopLevelActivity.java code

Here’s the complete code for TopLevelActivity.java. Replace the

code the wizard created for you with the code below and on the

next page, then save your changes:

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.widget.AdapterView;

import android.widget.ListView;

import android.view.View;

public class TopLevelActivity extends Activity {

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

We're using all these classes,

so we need to import them.

Set the listener to the list view

Once you’ve created the OnClickItemListener, you need

to attach it to the list view. You do this using the ListView

setOnItemClickListener() method, which takes one argument,

the listener itself:

AdapterView.OnItemClickListener itemClickListener = new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

...

}

};

ListView listView = (ListView) findViewById(R.id.list_options);

listView.setOnItemClickListener(itemClickListener);

Adding the listener to the list view is crucial, as it’s this step that notifies

the listener when the user clicks on items in the list view. If you don’t do

this, the items in your list view won’t be able to respond to clicks.

You’ve now seen everything you need in order to get the

TopLevelActivity list view to respond to clicks.

This is the listener we just created.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

We’ll add this to TopLevelActivity. The full code is listed

on the next couple of pages so you can see it in context.

Make sure your activity

extends the Activity class.

you are here 4 263

list views and adapters

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_top_level);

//Create an OnItemClickListener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View itemView,

int position,

long id) {

if (position == 0) {

Intent intent = new Intent(TopLevelActivity.this,

DrinkCategoryActivity.class);

startActivity(intent);

}

};

//Add the listener to the list view

ListView listView = (ListView) findViewById(R.id.list_options);

listView.setOnItemClickListener(itemClickListener);

}

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

What the TopLevelActivity.java code does

The onCreate() method in TopLevelActivity creates an

onItemClickListener and links it to the activity’s ListView.

When the user clicks on an item in the list view, the

onItemClickListener’s onItemClick() method gets called.

If the Drinks item is clicked, the onItemClickListener creates an intent to start

DrinkCategoryActivity.

TopLevelActivity onItemClickListenerListView

onItemClickListenerListView

onItemClick()

DrinkCategoryActivity

Intent

Create the listener.

Implement its

onItemClick()

method.

Launch DrinkCategoryActivity if the

user clicks on the Drinks item. We’ll

create this activity next, so don't worry

if Android Studio says it doesn't exist.

Add the listener to the

list view.

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

TopLevelActivity.java (continued)

We need to create

this activity.

264 Chapter 7

you are here

Where we’ve got to

So far we’ve added Drink.java to our app and created

TopLevelActivity and its layout.

</Layout>

activity_top_level.xml

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

DrinkCategoryActivity.java DrinkActivity.java

Drink.java

The next thing we need to do is create

DrinkCategoryActivity and its layout so that it

gets launched when the user clicks on the Drinks option in

TopLevelActivity.

We added this first.

We’ve just created

TopLevelActivity

and its layout.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

We'll create this next.

Q: Why did we have to create an event listener to get items

in the list view to respond to clicks? Couldn’t we have just

used its android:onClick attribute in the layout code?

A: You can only use the android:onClick attribute

in activity layouts for buttons, or any views that are subclasses of

Button such as CheckBoxes and RadioButtons.

The ListView class isn’t a subclass of Button, so using

the android:onClick attribute won’t work. That’s why you

have to implement your own listener.

</Layout>

activity_drink_category.xml

you are here 4 265

list views and adapters

Here’s some activity code from a separate project. When the user clicks on an item in a list

view, the code is meant to display the text of that item in a text view (the text view has an ID of

text_view and the list view has an ID of list_view). Does the code do what it’s meant

to? If not, why not?

package com.hfad.ch06ex;

import android.app.Activity;

import android.os.Bundle;

import android.widget.AdapterView;

import android.widget.ListView;

import android.widget.TextView;

import android.view.View;

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

final TextView textView = (TextView) findViewById(R.id.text_view);

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View v,

int position,

long id) {

TextView item = (TextView) v;

textView.setText(item.getText());

}

};

ListView listView = (ListView) findViewById(R.id.list_view);

}

266 Chapter 7

exercise solution

Here’s some activity code from a separate project. When the user clicks on an item in a list

view, the code is meant to display the text of that item in a text view (the text view has an ID of

text_view and the list view has an ID of list_view). Does the code do what it’s meant

to? If not, why not?

package com.hfad.ch06ex;

import android.app.Activity;

import android.os.Bundle;

import android.widget.AdapterView;

import android.widget.ListView;

import android.widget.TextView;

import android.view.View;

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

final TextView textView = (TextView) findViewById(R.id.text_view);

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View v,

int position,

long id) {

TextView item = (TextView) v;

textView.setText(item.getText());

}

};

ListView listView = (ListView) findViewById(R.id.list_view);

}

}The code doesn't work as intended because the line of code

listView.setOnItemClickListener(itemClickListener);

is missing from the end of the code. Apart from that, the code's fine.

This is the item in the

ListView that was clicked.

It's a TextView, so we can

get its text using getText().

you are here 4 267

list views and adapters

A category activity displays the data

for a single category

As we said earlier, DrinkCategoryActivity is an example of

a category activity. A category activity is one that shows the data

that belongs to a particular category, often in a list. You use the

category activity to navigate to details of the data.

We’re going to use DrinkCategoryActivity to display a list

of drinks. When the user clicks on one of the drinks, we’ll show

them the details of that drink.

Create DrinkCategoryActivity

To work on the next step in our checklist, we’ll create an activity

with a single list view that displays a list of all the drinks. Select

the com.hfad.starbuzz package in the app/src/main/java folder, then

go to File→New...→Activity→Empty Activity. Name the activity

“DrinkCategoryActivity”, name the layout “activity_drink_category”, make

sure the package name is com.hfad.starbuzz and uncheck the

Backwards Compatibility (AppCompat) checkbox.

We’ll update the layout code on the next page.

When the user clicks on

the Drinks item, activity

DrinkCategoryActivity

is started.

DrinkCategoryActivity

displays a list of drinks.

When the user clicks on a

drink, that drink is then

displayed in DrinkActivity.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

Some versions of Android

Studio may ask you what

the source language of

your activity should be. If

prompted, select the option

for Java.

268 Chapter 7

layout code

Update activity_drink_category.xml

Here’s the code for activity_drink_category.xml. As you can see, it’s a

simple linear layout with a list view. Update your version of activity_

drink_category.xml to reflect ours below:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.starbuzz.DrinkCategoryActivity">

<ListView

android:id="@+id/list_drinks"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</LinearLayout>

<xml>

</xml>

app/src/main

activity_

drink_category.xml

Starbuzz

res

layout

There’s one key difference between the list view we’re creating

here, and the one we created in activity_top_activity.xml: there’s no

android:entries attribute here. But why?

In activity_top_activity.xml, we used the android:entries

attribute to bind data to the list view. This worked because the data

was held as a static String array resource. The array was described

in strings.xml, so we could easily refer to it using:

android:entries="@array/options"

where options is the name of the String array.

Using android:entries works fine if the data is a static array

in strings.xml. But what if it isn’t? What if the data is held in an

array you’ve programmatically created in Java code, or held in a

database? In that case, the android:entries attribute won’t

work.

If you need to bind your list view to data held in something other

than a String array resource, you need to take a different approach;

you need to write activity code to bind the data. In our case, we

need to bind our list view to the drinks array in the Drink class.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

This layout only needs

to contain a ListView.

you are here 4 269

list views and adapters

For nonstatic data, use an adapter

If you need to display data in a list view that comes from a source

other than strings.xml (such as a Java array or database), you need

to use an adapter. An adapter acts as a bridge between the data

source and the list view:

Data

Source

ListView

Adapter

We’ll use an array

for our data

source, but we

could have used

a database or

a web service

instead.

The adapter bridges the gap between the list

view and the data source. Adapters allow list

views to display data from a variety of sources.

There are several different types of adapter. For now, we’re

going to focus on array adapters.

An array adapter is a type of adapter that’s used to bind

arrays to views. You can use it with any subclass of the

AdapterView class, which means you can use it with both list

views and spinners.

In our case, we’re going to use an array adapter to display data

from the Drink.drinks array in the list view.

An adapter acts as a

bridge between a view

and a data source. An

ArrayAdapter is a

type of adapter that

specializes in working

with arrays.

Drink.

drinks

ListView

Array

Adapter

This is our array. This is our list view.

We’ll create an array adapter to

bind our list view to our array.

We’ll see how this works on the next page.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

270 Chapter 7

array adapter

ArrayAdapter<Drink> listAdapter = new ArrayAdapter<>(

this,

android.R.layout.simple_list_item_1,

Drink.drinks);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

listDrinks.setAdapter(listAdapter);

Behind the scenes, the array adapter takes each item in the array,

converts it to a String using its toString() method, and puts

each result into a text view. It then displays each text view as a

single row in the list view.

You then attach the array adapter to the list view using the

ListView setAdapter() method:

“this” refers to the current

activity. The Activity class

is a subclass of Context.

This is a built-in layout

resource. It tells the array

adapter to display each item in

the array in a single text view.

The array

Connect list views to arrays

with an array adapter

You use an array adapter by initializing it and then attaching it to

the list view.

To initialize the array adapter, you first specify what type of data is

contained in the array you want to bind to the list view. You then

pass the array adapter three parameters: a Context (usually the

current activity), a layout resource that specifies how to display

each item in the array, and the array itself.

Here’s the code to create an array adapter that displays drink

data from the Drink.drinks array (you’ll add this code to

DrinkCategoryActivity.java on the next page):

These are the drinks from

the drinks array. Each

row in the list view is a

single text view, each one

displaying a separate drink.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

you are here 4 271

list views and adapters

Add the array adapter to

DrinkCategoryActivity

We’ll change the DrinkCategoryActivity.java code so that the list

view uses an array adapter to get drinks data from the Drink

class. We’ll put the code in the onCreate() method so that

the list view gets populated when the activity gets created.

Here’s the full code for the activity (update your copy of

DrinkCategoryActivity.java to reflect ours, then save your changes):

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ArrayAdapter;

import android.widget.ListView;

public class DrinkCategoryActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink_category);

ArrayAdapter<Drink> listAdapter = new ArrayAdapter<>(

this,

android.R.layout.simple_list_item_1,

Drink.drinks);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

listDrinks.setAdapter(listAdapter);

}

These are all the changes needed to get your list view to display

a list of the drinks from the Drink class. Let’s go through what

happens when the code runs.

This populates

the list view

with data from

the drinks array.

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

We're using these classes so

we need to import them.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

Make sure your activity

extends the Activity class.

272 Chapter 7

what happens

When the user clicks on the Drinks option, DrinkCategoryActivity is launched.

Its layout has a LinearLayout that contains a ListView.

DrinkCategoryActivity creates an ArrayAdapter<Drink>, an array adapter

that deals with arrays of Drink objects.

DrinkCategoryActivity makes the ListView use the array adapter via the

setAdapter() method.

The list view uses the array adapter to display a list of the drink names.

The array adapter retrieves data from the drinks array in the Drink class.

It uses the Drink.toString() method to return the name of each drink.

DrinkCategoryActivity LinearLayout ListView

ArrayAdapter<Drink>

DrinkCategoryActivity

ArrayAdapter<Drink>

DrinkCategoryActivity Drink.drinks

Drink.toString()

ArrayAdapter<Drink>

DrinkCategoryActivity

Drink.drinks

Drink.toString()

ListView

What happens when you run the code

setAdapter()

you are here 4 273

list views and adapters

Test drive the app

When you run the app, TopLevelActivity gets

displayed as before. When you click on the Drinks item,

DrinkCategoryActivity is launched. It displays

the names of all the drinks from the Drink Java class.

Click on the Drinks item

to see a list of drinks.

On the next page we’ll review what we’ve done in the

app so far, and what’s left for us to do.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

274 Chapter 7

you are here

App review: where we are

So far we’ve added Drink.java to our app, and

created activities TopLevelActivity and

DrinkCategoryActivity along with their layouts.

The next thing we’ll do is get

DrinkCategoryActivity to launch

DrinkActivity, passing it details of whichever drink

was clicked.

</Layout>

activity_top_level.xml

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

DrinkCategoryActivity.java DrinkActivity.java

Drink.java

We haven't created

DrinkActivity yet.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

When the app gets launched, it starts activity

TopLevelActivity.

The activity displays a list of options for Drinks, Food, and

Stores.

The user clicks on Drinks in TopLevelActivity.

This launches activity DrinkCategoryActivity,

which displays a list of drinks.

DrinkCategoryActivity gets the values for its

list of drinks from the

Drink.java

class file.

</Layout>

activity_drink_category.xml

Here’s what our app currently does:

We’ve created these

activities and their layouts.

We’ve created Drink.java.

you are here 4 275

list views and adapters

Pool Puzzle

Your goal is to create an activity that binds

a Java array of colors to a spinner. Take

code snippets from the pool and place

them into the blank lines in the activity.

You may not use the same snippet

more than once, and you won’t need to

use all the snippets.

Note: each snippet

from the pool can only

be used once!

...

public class MainActivity extends Activity {

String[] colors = new String[] {"Red", "Orange", "Yellow", "Green", "Blue"};

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Spinner spinner = ( ) findViewById(R.id.spinner);

ArrayAdapter< > adapter = new ArrayAdapter<>(

android.R.layout.simple_spinner_item,

colors);

spinner. (adapter);

}

Spinner

String

this

setAdapter

colors

Answers on page 287.

This displays each value in the array

as a single row in the spinner.

Remember, we covered

spinners in Chapter 5.

We’re not using this

activity in our app.

276 Chapter 7

handling clicks

How we handled clicks in TopLevelActivity

Earlier in this chapter, we needed to get

TopLevelActivity to react to the user clicking on the

first item in the list view, the Drinks option, by starting

DrinkCategoryActivity. To do that, we had to

create an OnItemClickListener, implement its

onItemClick() method, and assign it to the list view.

Here’s a reminder of the code:

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View itemView,

int position,

long id) {

if (position == 0) {

Intent intent = new Intent(TopLevelActivity.this,

DrinkCategoryActivity.class);

startActivity(intent);

}

};

ListView listView = (ListView) findViewById(R.id.list_options);

listView.setOnItemClickListener(itemClickListener);

We had to set up an event listener in this way because list

views aren’t hardwired to respond to clicks in the way that

buttons are.

So how should we get DrinkCategoryActivity to

handle user clicks?

The list view

The item view that was clicked, its position in

the list, and the row ID of the underlying data.

Add the listener to the list view.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

Create the listener.

you are here 4 277

list views and adapters

Pass the ID of the item that was clicked

by adding it to an intent

When you use a category activity to display items in a list

view, you’ll usually use the onItemClick() method to

start another activity that displays details of the item the

user clicked. To do this, you create an intent that starts the

second activity. You then add the ID of the item that was

clicked as extra information so that the second activity can

use it when the activity starts.

In our case, we want to start DrinkActivity and pass it

the ID of the drink that was selected. DrinkActivity will

then be able to use this information to display details of the

right drink. Here’s the code for the intent:

It’s common practice to pass the ID of the item that was

clicked because it’s the ID of the underlying data. If the

underlying data is an array, the ID is the index of the item in

the array. If the underlying data comes from a database, the

ID is the ID of the record in the table. Passing the ID of the

item in this way means that it’s easier for the second activity

to get details of the data, and then display it.

That’s everything we need to make

DrinkCategoryActivity start DrinkActivity and

tell it which drink was selected. The full activity code is on

the next page.

Intent

DrinkCategoryActivity

drinkId

DrinkActivity

Intent intent = new Intent(DrinkCategoryActivity.this, DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int) id);

startActivity(intent);

DrinkCategoryActivity needs to start DrinkActivity.

Add the ID of the item that

was clicked to the intent.

This is the index of the drink

in the drinks array.

We’re using a constant for the name of the

extra information in the intent so that we know

DrinkCategoryActivity and DrinkActivity are

using the same String. We’ll add this constant to

DrinkActivity when we create the activity.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

278 Chapter 7

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ArrayAdapter;

import android.widget.ListView;

import android.view.View;

import android.content.Intent;

import android.widget.AdapterView;

public class DrinkCategoryActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink_category);

ArrayAdapter<Drink> listAdapter = new ArrayAdapter<>(

this,

android.R.layout.simple_list_item_1,

Drink.drinks);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

listDrinks.setAdapter(listAdapter);

//Create the listener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listDrinks,

View itemView,

int position,

long id) {

//Pass the drink the user clicks on to DrinkActivity

Intent intent = new Intent(DrinkCategoryActivity.this,

DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int) id);

startActivity(intent);

}

};

//Assign the listener to the list view

listDrinks.setOnItemClickListener(itemClickListener);

}

DrinkCategoryActivity code

The full DrinkCategoryActivity code

Here’s the full code for DrinkCategoryActivity.java (add the new

method to your code, then save your changes):

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

We’ll add DrinkActivity next, so

don't worry if Android Studio

says it doesn't exist.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

We're using these extra classes

so we need to import them.

Create a listener to listen for clicks.

This gets called when an item

in the list view is clicked.

When the user clicks

on a drink, pass its ID

to DrinkActivity and

start it.

you are here 4 279

list views and adapters

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ArrayAdapter;

import android.widget.ListView;

import android.view.View;

import android.content.Intent;

import android.widget.AdapterView;

public class DrinkCategoryActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink_category);

ArrayAdapter<Drink> listAdapter = new ArrayAdapter<>(

this,

android.R.layout.simple_list_item_1,

Drink.drinks);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

listDrinks.setAdapter(listAdapter);

//Create the listener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listDrinks,

View itemView,

int position,

long id) {

//Pass the drink the user clicks on to DrinkActivity

Intent intent = new Intent(DrinkCategoryActivity.this,

DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int) id);

startActivity(intent);

}

};

//Assign the listener to the list view

listDrinks.setOnItemClickListener(itemClickListener);

}

A detail activity displays data

for a single record

As we said earlier, DrinkActivity is an example of a detail activity. A detail

activity displays details for a particular record, and you generally navigate to it from

a category activity.

We’re going to use DrinkActivity to display details of the drink the user selects.

The Drink class includes the drink’s name, description, and image resource ID, so

we’ll display this data in our layout. We’ll include an image view for the drink image

resource, and text views for the drink name and description.

To create the activity, select the com.hfad.starbuzz package in the app/src/main/

java folder, then go to File→New...→Activity→Empty Activity. Name the activity

“DrinkActivity”, name the layout “activity_drink”, make sure the package name

is com.hfad.starbuzz, and uncheck the Backwards Compatibility

(AppCompat) checkbox. Then replace the contents of activity_drink.xml with this:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.starbuzz.DrinkActivity" >

<ImageView

android:id="@+id/photo"

android:layout_width="190dp"

android:layout_height="190dp" />

<TextView

android:id="@+id/name"

android:layout_width="wrap_content"

android:layout_height="wrap_content" />

<TextView

android:id="@+id/description"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</LinearLayout>

Now that you’ve created the layout of your detail activity, we can

populate its views.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

<xml>

</xml>

app/src/main

activity_drink.xml

Starbuzz

res

layout

Make sure you create

the new activity.

If prompted for the

activity’s source language,

select the option for Java.

280 Chapter 7

get a drink

Retrieve data from the intent

As you’ve seen, when you want a category activity to start a detail

activity, you have to make items in the category activity list view

respond to clicks. When an item is clicked, you create an intent to

start the detail activity. You pass the ID of the item the user clicked

as extra information in the intent.

When the detail activity is started, it can retrieve the extra

information from the intent and use it to populate its views. In

our case, we can use the information in the intent that started

DrinkActivity to retrieve details of the drink the user clicked.

When we created DrinkCategoryActivity, we added the ID

of the drink the user clicked as extra information in the intent. We

gave it the label DrinkActivity.EXTRA_DRINKID, which we

need to define as a constant in DrinkActivity.java:

public static final String EXTRA_DRINKID = "drinkId";

As you saw in Chapter 3, you can retrieve the intent that started an

activity using the getIntent() method. If this intent has extra

information, you can use the intent’s get*() methods to retrieve

it. Here’s the code to retrieve the value of EXTRA_DRINKID from

the intent that started DrinkActivity:

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

This gives us a Drink object containing all the information we

need to update the views attributes in the activity:

Drink drink = Drink.drinks[drinkId];

Once you’ve retrieved the information from the intent, you can use

it to get the data you need to display in your detail record.

In our case, we can use drinkId to get details of the drink the

user selected. drinkId is the ID of the drink, the index of the

drink in the drinks array. This means that you can get details

about the drink the user clicked on using:

drink

name=”Latte”

description=”A couple of espresso shots with steamed milk”

imageResourceId=R.drawable.latte

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

you are here 4 281

list views and adapters

Update the views with the data

When you update the views in your detail activity, you need to make sure

that the values they display reflect the data you’ve derived from the intent.

Our detail activity contains two text views and an image view. We need

to make sure that each of these is updated to reflect the details of the

drink. drink

name

description

imageResourceId

Drink Magnets

See if you can use the magnets below to populate the

DrinkActivity views with the correct data.

...

//Get the drink from the intent

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

Drink drink = Drink.drinks[drinkId];

//Populate the drink name

TextView name = (TextView)findViewById(R.id.name);

name. (drink.getName());

//Populate the drink description

TextView description = (TextView)findViewById(R.id.description);

description. (drink.getDescription());

//Populate the drink image

ImageView photo = (ImageView)findViewById(R.id.photo);

photo. (drink.getImageResourceId());

photo. (drink.getName());

...

setImageResourceId

setContent

setText

setContentDescription

setImageResource

setText

282 Chapter 7

...

//Get the drink from the intent

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

Drink drink = Drink.drinks[drinkId];

//Populate the drink name

TextView name = (TextView)findViewById(R.id.name);

name. (drink.getName());

//Populate the drink description

TextView description = (TextView)findViewById(R.id.description);

description. (drink.getDescription());

//Populate the drink image

ImageView photo = (ImageView)findViewById(R.id.photo);

photo. (drink.getImageResourceId());

photo. (drink.getName());

...

magnets solution

Drink Magnets Solution

See if you can use the magnets below to populate the

DrinkActivity views with the correct data.

setImageResourceId

setContent

Use setText()

to set the text

in a text view.

You didn't need to use these.

setText

setContentDescription

setImageResource

setText

You set the source

of the image using

setImageResource().

This is needed

to make the app

more accessible.

you are here 4 283

list views and adapters

The DrinkActivity code

Here’s the full code for DrinkActivity.java (replace the code the

wizard gave you with the code below, then save your changes):

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ImageView;

import android.widget.TextView;

public class DrinkActivity extends Activity {

public static final String EXTRA_DRINKID = "drinkId";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink);

//Get the drink from the intent

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

Drink drink = Drink.drinks[drinkId];

//Populate the drink name

TextView name = (TextView)findViewById(R.id.name);

name.setText(drink.getName());

//Populate the drink description

TextView description = (TextView)findViewById(R.id.description);

description.setText(drink.getDescription());

//Populate the drink image

ImageView photo = (ImageView)findViewById(R.id.photo);

photo.setImageResource(drink.getImageResourceId());

photo.setContentDescription(drink.getName());

}

Use the drinkId to get details of

the drink the user chose.

Populate

the views

with the

drink data.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

Add EXTRA_DRINKID as a constant.

We're using these

classes so we need

to import them.

Make sure your activity

extends the Activity class.

284 Chapter 7

what happens

What happens when you run the app

When the user starts the app, it launches TopLevelActivity.

Device

The onCreate() method in TopLevelActivity creates an

onItemClickListener and links it to the activity’s ListView.

When the user clicks on an item in the ListView, the

onItemClickListener’s onItemClick() method gets called.

If the Drinks item was clicked, the onItemClickListener creates an intent to start

DrinkCategoryActivity.

TopLevelActivity

TopLevelActivity onItemClickListenerListView

onItemClickListenerListView

onItemClick()

DrinkCategoryActivity

Intent

ArrayAdapter<Drink>

DrinkCategoryActivity

Drink.drinks

ListView

DrinkCategoryActivity displays a single ListView.

The DrinkCategoryActivity list view uses an ArrayAdapter<Drink> to

display a list of drink names.

Add resources

TopLevelActivity

DrinkCategoryActivity

DrinkActivity

you are here 4 285

list views and adapters

The story continues

When the user chooses a drink from DrinkCategoryActivity's ListView,

onItemClickListener’s onItemClick() method gets called.

ListView

onItemClick()

onItemClickListener

The onItemClick() method creates an intent to start DrinkActivity, passing

along the drink ID as extra information.

DrinkActivity

Intent

DrinkCategoryActivity

drinkId=0

DrinkActivity launches.

It retrieves the drink ID from the intent, and gets details for the correct drink from the Drink

class. It uses this information to update its views.

DrinkActivity Drink

drinks[0]

drinks[0]? That’s

a latte, a fine choice.

Here’s everything I

know about lattes.

Latte

DrinkCategoryActivity

286 Chapter 7

test drive

Test drive the app

When you run the app, TopLevelActivity gets

displayed.

When you click on the Drinks item,

DrinkCategoryActivity is launched. It

displays all the drinks from the Drink java class.

When you click on one of the drinks,

DrinkActivity is launched and details of the

selected drink are displayed.

We’ve implemented the Drinks part

of the app. The other items won’t

do anything if you click on them.

We clicked on the

Latte option...

Using these three activities, you can see how to structure

your app into top-level activities, category activities, and

detail/edit activities. In Chapter 15, we’ll revisit the

Starbuzz app to explain how you can retrieve the drinks

from a database.

...and here are

details of the

latte.

you are here 4 287

list views and adapters

Pool Puzzle Solution

Your goal is to create an activity that binds

a Java array of colors to a spinner. Take

code snippets from the pool and place

them into the blank lines in the activity.

You may not use the same snippet

more than once, and you won’t need to

use all the snippets.

...

public class MainActivity extends Activity {

String[] colors = new String[] {"Red", "Orange", "Yellow", "Green", "Blue"};

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Spinner spinner = ( ) findViewById(R.id.spinner);

ArrayAdapter< > adapter = new ArrayAdapter<>(

android.R.layout.simple_spinner_item,

colors);

spinner. (adapter);

}

Spinner

String

this

setAdapter

colors

We're using an array

of type String.

Use setAdapter() to get the

spinner to use the array adapter.

You didn’t need to use

these code snippets.

288 Chapter 7

toolbox

Your Android Toolbox

You’ve got Chapter 7 under

your belt and now you’ve

added list views and app design

to your toolbox.

Sort your ideas for activities into

top-level activities, category activities,

and detail/edit activities. Use the

category activities to navigate from

the top-level activities to the detail/

edit activities.

A list view displays items in a list.

Add it to your layout using the

<ListView> element.

Use android:entries in your

layout to populate the items in your

list views from an array defined in

strings.xml.

An adapter acts as a bridge

between an AdapterView

and a data source. ListViews

and Spinners are both types of

AdapterView.

An ArrayAdapter is an adapter

that works with arrays.

Handle click events on Buttons

using android:onClick in

the layout code. Handle click events

elsewhere by creating a listener and

implementing its click event.

CHAPTER 7

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

this is a new chapter 289

Everybody likes a shortcut.

And in this chapter you’ll see how to add shortcuts to your apps using app bars. We’ll

show you how to start activities by adding actions to your app bar, how to share content

with other apps using the share action provider, and how to navigate up your app’s

hierarchy by implementing the app bar’s Up button. Along the way we'll introduce you to

the powerful Android Support Libraries, which are key to making your apps look fresh

on older versions of Android.

See, Whiskey,

I said we’d get

home eventually.

support libraries and app bars

Taking Shortcuts

We’d have got

here hours ago if she’d

known about the Up

button. Harrumph!

290 Chapter 8

app structure

Great apps have a clear structure

In the previous chapter, we looked at ways of structuring an app

to create the best user experience. Remember that one way of

creating an app is to organize the screens into three types:

They also have great shortcuts

If a user’s going to use your app a lot, they’ll want quick ways to

get around. We’re going to look at navigational views that will give

your user shortcuts around your app, providing more space in your

app for actual content. Let’s begin by taking a closer look at the

top-level screen in the above Pizza app.

Bits and Pizzas

Pizzas Pasta Stores

Diavolo Spaghetti

Bolognese Cambridge Create Order

Pizzas

Pasta

Stores

Create Order

Category screens

Category screens show

the data that belongs to a

particular category, often in

a list. They allow the user

to navigate to detail/edit

screens.

Top-level screens

This is usually the first activity in your app that

your user sees.

Detail/edit screens

These display details for a

particular record, let the user

edit the record, or allow the

user to enter new records.

This is a rough sketch of a Pizza

app. It contains details of pizzas,

pasta dishes, and stores. It also

allows the user to order a meal.

you are here 4 291

support libraries and app bars

Different types of navigation

In the top-level screen of the Pizza app, there’s a list of options

for places in the app the user can go to.

The top three options link to category activities; the first presents

the user with a list of pizzas, the second a list of pasta, and the

third a list of stores. They allow the user to navigate around the

app.

The fourth option links to a detail/edit activity that allows the

user to create an order. This option enables the user to perform

an action.

In Android apps, you can add actions to the app bar. The app

bar is the bar you often see at the top of activities; it’s sometimes

known as the action bar. You generally put your app’s most

important actions in the app bar so that they’re prominent at the

top of the screen.

In the Pizza app, we can make it easy for the user to place an

order wherever they are in the app by making sure there’s an

app bar at the top of every activity that includes a Create Order

button. This way the user will have access to it wherever they are.

Let’s look at how you create app bars.

Bits and Pizzas

Pizzas

Pasta

Create Order

Stores

This is the Pizza app’s top-level activity.

These link to category screens.

This takes you to a detail/edit screen

where you can create a new order.

This is an app bar.

This is the Create Order button.

These are like the navigation

options we looked at in Chapter 7.

292 Chapter 8

steps

Here’s what we’re going to do

There are a few things we’re going to cover in this chapter.

Add a basic app bar.

We’ll create an activity called MainActivity

and add a basic app bar to it by applying a theme.

Replace the basic app bar with a toolbar.

To use the latest app bar features, you need to replace the basic app bar with

a toolbar. This looks the same as the basic app bar, but you can use it to do

more things.

Add a Create Order action.

We’ll create a new activity called OrderActivity, and add an action to

MainActivity’s app bar that opens it.

Implement the Up button.

We’ll implement the Up button on OrderActivity’s app bar so that

users have an easy way of navigating back to MainActivity.

Add a share action provider.

We’ll add a share action provider to MainActivity’s app bar so that users

can share text with other apps and invite their friends to join them for pizza.

Let’s start by looking at how you add a basic app bar.

AppActivity

OrderActivity

MainActivity

Intent

ACTION_SEND

type: “text/plain”

messageText: ”Hi!”

MainActivity app bar

OrderActivity app bar

MainActivity app bar

This is the app bar we’ll add.

The Up button features a

button that (confusingly)

points to the left.

You’ll find out what

action providers are

later in the chapter.

you are here 4 293

support libraries and app bars

Add an app bar by applying a theme

An app bar has a number of uses:

Displaying the app or activity name so that the user knows where in the

app they are. As an example, an email app might use the app bar to

indicate whether the user is in their inbox or junk folder.

Making key actions prominent in a way that’s predictable—for example,

sharing content or performing searches.

Navigating to other activities to perform an action.

To add a basic app bar, you need to use a theme that includes an app

bar. A theme is a style that’s applied to an activity or application so that

your app has a consistent look and feel. It controls such things as the

color of the activity background and app bar, and the style of the text.

Android comes with a number of built-in themes that you can use in

your apps. Some of these, such as the Holo themes, were introduced in

early releases of Android, and others, such as the Material themes, were

introduced much later to give apps a more modern appearance.

The Holo

themes have

been in

Android since

API level 11.

The Material

themes were

introduced in

API level 21.

But there’s a problem. You want your apps to look as modern and

up-to-date as possible, but you can only use themes from the version of

Android they were released in. As an example, you can’t use the native

Material themes on devices that are running a version of Android older

than Lollipop, as the Material themes were introduced with API level 21.

The problem isn’t just limited to themes. Every new release of Android

introduces new features that people want to see in their apps, such as

new GUI components. But not everyone upgrades to the latest version

of Android as soon as it comes out. In fact, most people are at least one

version of Android behind.

So how can you use the latest Android features and themes in your

apps if most people aren’t using the latest version? How can you give

your users a consistent user experience irrespective of what version of

Android they’re using without making your app look old-fashioned?

Basic app bar

Toolbar

Action

Up button

Share action

These themes look a bit different

from the one on the previous page,

as they haven’t had any extra

styling applied to them. You’ll find

out how to add styling later in the

chapter.

294 Chapter 8

support libraries

Support libraries allow you to use new

features in older versions of Android

The Android team solved this problem by coming up with the idea of

Support Libraries.

The Android Support Libraries provide backward compatibility with older

versions of Android. They sit outside the main release of Android, and contain

new Android features that developers can use in the apps they’re building.

The Support Libraries mean that you can give users on older devices the

same experience as users on newer devices even if they’re using different versions of

Android.

Here are some of the Support Libraries that are available for you to use:

Support libraries

v7 AppCompat Library

Includes support for app bars.

Constraint Layout Library

Allows you to create constraint

layouts. You used features from

this library in Chapter 6.

v4 Support Library

Includes the largest set of features, such

as support for application components

and user interface features.

v7 Cardview Library

Adds support for the CardView

widget, allowing you to show

information inside cards.

v7 RecyclerView Library

Adds support for the

RecyclerView widget.

Design Support Library

Adds support for extra

components such as tabs and

navigation drawers.

These are just some of

the Support Libraries.

Each library includes a specific set of features.

The v7 AppCompat Library contains a set of up-to-date themes that can be

used with older versions of Android: in practice, they can be used with nearly

all devices, as most people are using API level 19 or above. We’re going to

use the v7 AppCompat Library by applying one of the themes it contains

to our app. This will add an app bar that will look up-to-date and work the

same on all versions of Android that we’re targeting. Whenever you want to

use one of the Support Libraries, you first need to add it to your app. We’ll

look at how you do this after we’ve created the project.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 295

support libraries and app bars

Create the Pizza app

We’ll start by creating a prototype of the Pizza app. Create a new

Android project for an application named “Bits and Pizzas” with a

company domain of “hfad.com”, making the package name com.

hfad.bitsandpizzas. The minimum SDK should be API level

19 so that it works with most devices. You’ll need an empty activity

called “MainActivity” and a layout called “activity_main”. Make

sure you check the Backwards Compatibility (AppCompat)

checkbox (you’ll see why a few pages ahead).

Basic app bar

Toolbar

Action

Up button

Share action

Next, we’ll look at how you add a Support Library to the project.

Unlike in previous chapters, you

need to make sure the Backwards

Compatibility (AppCompat)

checkbox is ticked.

296 Chapter 8

AppCompat support library

Add the v7 AppCompat Support Library

We’re going to use one of the themes from the v7 AppCompat Library,

so we need to add the library to our project as a dependency. Doing so

means that the library gets included in your app, and downloaded to

the user’s device.

To manage the Support Library files that are included in your project,

choose File→Project Structure. Then click on the app module and

choose Dependencies. You’ll be presented with the following screen:

Android Studio may have already added the AppCompat Support

Library for you automatically. If so, you will see it listed as

appcompat-v7, as shown above.

If the AppCompat Library hasn’t been added for you, you will need to

add it yourself. Click on the “+” button at the bottom or right side of

the Project Structure screen. Choose the Library Dependency option,

select the appcompat-v7 library, then click on the OK button. Click on

OK again to save your changes and close the Project Structure window.

Once the AppCompat Support Library has been added to your project,

you can use its resources in your app. In our case, we want to apply one

of its themes in order to give MainActivity an app bar. Before we

do that, however, we need to look at the type of activity we’re using for

MainActivity.

The Dependencies option shows you the

Support Libraries that have been added to

your project. Android Studio will probably

have added some for you automatically.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 297

support libraries and app bars

AppCompatActivity lets you use AppCompat themes

So far, all of the activities we’ve created have extended the Activity class.

This is the base class for all activities, and it’s what makes your activity an

activity. If you want to use the AppCompat themes, however, you need to use a

special kind of activity, called an AppCompatActivity, instead.

The AppCompatActivity class is a subclass of Activity. It lives in the

AppCompat Support Library, and it’s designed to work with the AppCompat

themes. Your activity needs to extend the AppCompatActivity class

instead of the Activity class whenever you want an app bar that

provides backward compatibility with older versions of Android.

As AppCompatActivity is a subclass of the Activity class, everything

you’ve learned about activities so far still applies. AppCompatActivity

works with layouts in just the same way, and inherits all the lifecycle methods

from the Activity class. The main difference is that, compared to

Activity, AppCompatActivity contains extra smarts that allow it to

work with the themes from the AppCompat Support Library.

Here’s a diagram showing the AppCompatActivity class hierarchy:

YourActivity

onCreate(Bundle)

yourMethod()

Activity

onCreate(Bundle)

onStart()

onRestart()

onResume()

onPause()

onStop()

onDestroy()

onSaveInstanceState()

FragmentActivity

AppCompatActivity

Activity class

(android.app.Activity)

The Activity class implements

default versions of the lifecycle methods.

YourActivity class

(com.hfad.foo)

FragmentActivity class

(android.support.v4.app.FragmentActivity)

The base class for activities that need to use support fragments.

You’ll find out about fragments in the next chapter.

AppCompatActivity class

(android.support.v7.app.AppCompatActivity)

The base class for activities that use the Support Library app bar.

We’ll make sure MainActivity extends AppCompatActivity on the next page.

298 Chapter 8

MainActivity code

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

MainActivity needs to be an AppCompatActivity

We want to use one of the AppCompat themes, so we need to make

sure our activities extend the AppCompatActivity class instead of

the Activity class. Happily, this should already be the case if you

checked the Backwards Compatibility (AppCompat) checkbox when

you first created the activity. Open the file MainActivity.java, then make

sure your code matches ours below:

The AppCompatActivity class lives in

the v7 AppCompat Support Library.

Make sure your activity extends AppCompatActivity.

Now that we’ve confirmed that our activity extends

AppCompatActivity, we can add an app bar by applying a

theme from the AppCompat Support Library. You apply a theme

in the app’s AndroidManifest.xml file, so we’ll look at this file next.

Q: What versions of Android can the

Support Libraries be used with?

A: It depends on the version of the

Support Library. Prior to version 24.2.0,

Libraries prefixed with v4 could be used

with API level 4 and above, and those

prefixed with v7 could be used with API

level 7 and above. When version 24.2.0

of the Support Libraries was released, the

minimum API for all Support Libraries

became API level 9. The minimum API level

is likely to increase in the future.

Q: In earlier chapters, Android Studio

gave me activities that already extended

AppCompatActivity. Why’s that?

A: When you create an activity in

Android Studio, the wizard includes a

checkbox asking if you want to create

a Backwards Compatible (AppCompat)

activity. If you left this checked in

earlier chapters, Android Studio would

have generated activities that extend

AppCompatActivity.

Q: I’ve seen code that extends

ActionBarActivity. What’s

that?

A: In older versions of the

AppCompat Support Library, you used

the ActionBarActivity

class to add app bars. This was

deprecated in version 22.1 in favor of

AppCompatActivity.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 299

support libraries and app bars

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.bitsandpizzas">

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:roundIcon="@mipmap/ic_launcher_round"

android:label="@string/app_name"

android:supportsRtl="true"

android:theme="@style/AppTheme">

...

</activity>

</application>

</manifest>

AndroidManifest.xml can change your app bar’s appearance

<xml>

</xml>

app/src/main

AndroidManifest.xml

BitsAndPizzas

The android:icon attribute assigns an icon to the app. The icon is used

as the launcher icon for the app, and if the theme you’re using displays an

icon in the app bar, it will use this icon. android:roundIcon may be

used instead on devices running Android 7.1 or above.

The icon is a mipmap resource. A mipmap is an image that can be used

for application icons, and they’re held in mipmap* folders in app/src/main/

res. Just as with drawables, you can add different images for different screen

densities by adding them to an appropriately named mipmap folder. As an

example, an icon in the mipmap-hdpi folder will be used by devices with

high-density screens. You refer to mipmap resources in your layout using @

mipmap.

The android:label attribute describes a user-friendly label that

gets displayed in the app bar. In the code above, it’s used in the

<application> tag to apply a label to the entire app. You can also add it

to the <activity> tag to assign a label to a single activity.

The android:theme attribute specifies the theme. Using this attribute in

the <application> element applies the theme to the entire app. Using it

in the <activity> element applies the theme to a single activity.

We’ll look at how you apply the theme on the next page.

App icons. Android Studio

provides icons by default.

The user-friendly name of the app

The theme

Android Studio automatically added

icons to our mipmap* folders when

we created the project.

As you’ve seen earlier in the book, an app’s AndroidManifest.xml file provides

essential information about the app, such as what activities it contains. It also

includes a number of attributes that have a direct impact on your app bars.

Here’s the AndroidManifest.xml code Android Studio created for us (we’ve

highlighted the key areas):

300 Chapter 8

apply a theme

How to apply a theme

When you want to apply a theme to your app, you have two main options:

Hardcode the theme in AndroidManifest.xml.

Apply the theme using a style.

1. Hardcoding the theme

To hardcode the theme in AndroidManifest.xml, you update the

android:theme attribute in the file to specify the name of the

theme you want to use. As an example, to apply a theme with a

light background and a dark app bar, you’d use:

<application

...

android:theme="Theme.AppCompat.Light.DarkActionBar">

This approach works well if you want to apply a basic theme

without making any changes to it.

Let’s look at these two approaches.

2. Using a style to apply the theme

Most of the time, you’ll want to apply the theme using a style, as

this approach enables you to tweak the theme’s appearance. You

may want to override the theme’s main colors to reflect your app’s

brand, for example.

To apply a theme using a style, you update the android:theme

attribute in AndroidManifest.xml to the name of a style resource

(which you then need to create). In our case, we’re going

to use a style resource named AppTheme, so update the

android:theme attribute in your version of AndroidManifest.xml

to the following:

<application

...

android:theme="@style/AppTheme">

The @style prefix tells Android that the theme the app’s using is

a style that’s defined in a style resource file. We’ll look at this

next.

<xml>

</xml>

app/src/main

AndroidManifest.xml

BitsAndPizzas

This is a simple way of applying a

basic theme, but it means you can’t,

for example, change its colors.

Android Studio may have already added this

to your version of AndroidManifest.xml.

you are here 4 301

support libraries and app bars

Define styles in a style resource file

The style resource file holds details of any themes and styles you

want to use in your app. When you create a project in Android

Studio, the IDE will usually create a default style resource file for

you called styles.xml located in the app/src/main/res/values folder.

If Android Studio hasn’t created the file, you’ll need to add it

yourself. Switch to the Project view of Android Studio’s explorer,

highlight the app/src/main/res/values folder, go to the File menu,

and choose New. Then choose the option to create a new Values

resource file, and when prompted, name the file “styles”. When

you click on OK, Android Studio will create the file for you.

A basic style resource file looks like this:

</style>

</resources>

A style resource file can contain one or more styles. Each style is

defined through the <style> element.

Each style must have a name, which you define with the name

attribute; for example:

This is the theme used in the app.

<xml>

</xml>

app/src/main

styles.xml

BitsAndPizzas

res

values

name="AppTheme"

In the code above, the style has a name of "AppTheme", and

AndroidManifest.xml can refer to it using "@style/AppTheme".

The parent attribute specifies where the style should inherit its

properties from; for example:

This gives the app a theme of "Theme.AppCompat.Light.

DarkActionBar", which gives activities a light background, with

a dark app bar. We’ll look at some more of Android’s available

themes on the next page.

parent="Theme.AppCompat.Light.DarkActionBar"

The app bar has a dark

background with white text.

The main activity

background is light.

Basic app bar

Toolbar

Action

Up button

Share action

There may be extra code here to

customize the theme. We’ll look

at this a couple of pages ahead.

302 Chapter 8

themes

The theme determines the basic appearance of the app, such as the

color of the app bar and any views. But what if you want to modify

the app’s appearance?

Theme gallery

Android comes with a whole bunch of built-in themes that you

can use in your apps. Here are just a few of them:

Theme.AppCompat.Light.DarkActionBar

Theme.AppCompatTheme.AppCompat.Light

Theme.AppCompat.Light.NoActionBar Theme.AppCompat.NoActionBar

This has a light background

and app bar.

This has a light background

and no app bar.

This has a light background

and the app bar is dark.

This has a dark background

and a dark app bar.

This has a dark background

and no app bar.

There's also a DayNight theme,

which uses one set of colors in the

day, and another set at night.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 303

support libraries and app bars

Customize the look of your app

You can use customize the look of your app by overriding the properties

of an existing theme in the style resource file. For example, you can

change the color of the app bar, the status bar, and any UI controls.

You override the theme by adding <item> elements to the <style>

to describe each modification you want to make.

We’re going to override three of the colors used by our theme. To do

this, make sure that your version of styles.xml matches ours below:

<xml>

</xml>

app/src/main

styles.xml

BitsAndPizzas

res

values

<item name="colorPrimary">@color/colorPrimary</item>

<item name="colorPrimaryDark">@color/colorPrimaryDark</item>

<item name="colorAccent">@color/colorAccent</item>

</style>

</resources>

The above code includes three modifications, each one described by a

separate <item>. Each <item> has a name attribute that indicates

what part of the theme you want to change, and a value that specifies

what you want to change it to, like this:

There are a whole host of other theme properties

you can change, but we're not going to cover them

here. To find out more, visit https://developer.

android.com/guide/topics/ui/themes.html.

name="colorPrimary" refers to the main color you

want to use for your app. This color gets used for your app

bar, and to “brand” your app with a particular color.

name="colorPrimaryDark" is a darker variant of

your main color. It gets used as the color of the status bar.

name="colorAccent" refers to the color of any UI

controls such as editable text views or checkboxes.

You set a new color for each of these areas by giving each

<item> a value. The value can either be a hardcoded

hexadecimal color value, or a reference to a color resource.

We’ll look at color resources on the next page.

<item name="colorPrimary">@color/colorPrimary</item>

This will change the colorPrimary part of the

theme so it has a value of @color/colorPrimary.

These three lines of code

modify the theme by changing

three of the colors.

colorPrimary

is the color of

the app bar.

colorPrimaryDark is the

color of the status bar.

colorAccent is the color of any UI controls.

Basic app bar

Toolbar

Action

Up button

Share action

304 Chapter 8

color resources

The style resource file looks up colors from the color resource file

using @color/colorName. For example:

<?xml version="1.0" encoding="utf-8"?>

</resources>

Define colors in a color resource file

A color resource file is similar to a String resource file except that it

contains colors instead of Strings. Using a color resource file makes it

easy to make changes to the color scheme of your app, as all the colors

you want to use are held in one place.

The color resource file is usually called colors.xml, and it’s located in the

app/src/main/res/values folder. When you create a project in Android

Studio, the IDE will usually create this file for you.

If Android Studio hasn’t created the file, you’ll need to add it yourself.

Switch to the Project view of Android Studio’s explorer, highlight the

app/src/main/res/values folder, go to the File menu, and choose New.

Then choose the option to create a new Values resource file, and when

prompted, name the file “colors”. When you click on OK, Android

Studio will create the file for you.

Next, open colors.xml and make sure that your version of the file

matches ours below:

This says it's a color resource.

The color resource has a name of “colorPrimary”,

and a value of #3F51B5 (blue).

The code above defines three color resources. Each one has a name

and a value. The value is a hexadecimal color value:

<xml>

</xml>

app/src/main

colors.xml

BitsAndPizzas

res

values

<item name="colorPrimary">@color/colorPrimary</item>

overrides the primary color used in the theme with the value of

colorPrimary in the color resource file.

Now that we’ve seen how to add an app bar by applying a theme, let’s

update MainActivity’s layout and take the app for a test drive.

Each of these is

a color resource.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 305

support libraries and app bars

Basic app bar

Toolbar

Action

Up button

Share action

The code for activity_main.xml

For MainActivity’s layout, we’re going to display some

default text in a linear layout. Here’s the code to do that;

update your version of activity_main.xml to match ours below:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:padding="16dp"

tools:context="com.hfad.bitsandpizzas.MainActivity">

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!" />

</LinearLayout>

We’re just displaying some basic placeholder

text in MainActivity’s layout because right

now we want you to focus on app bars.

<xml>

</xml>

app/src/main

activity_

main.xml

BitsAndPizzas

res

layout

Test drive the app

When you run the app, MainActivity gets displayed. At the top

of the activity there’s an app bar.

That’s everything you need to apply a basic app bar in your activities.

Why not experiment with changing the theme and colors? Then

when you’re ready, turn the page and we’ll move on to the next step.

This is the app bar. The

default color's been

overridden so that it's blue.

The status

bar’s default

color has been

overridden so

it's a darker

shade of blue

than the app

bar.

The background is light, as we've used a theme

of Theme.AppCompat.Light.DarkActionBar. This

theme also gives us dark text in the main body of

the activity, and white text in the app bar.

306 Chapter 8

toolbars

ActionBar vs. Toolbar

So far, you’ve seen how to add a basic app bar to the activities in

your app by applying a theme that includes an app bar. Adding an

app bar in this way is easy, but it has one disadvantage: it doesn’t

necessarily include all the latest app bar features.

Behind the scenes, any activity that acquires an app bar via a

theme uses the ActionBar class for its app bar. The most recent

app bar features, however, have been added to the Toolbar class

in the AppCompat Support Library instead. This means that if

you want to use the most recent app bar features in your app, you

need to use the Toolbar class from the Support Library.

Using the Toolbar class also gives you more flexibility. A toolbar

is a type of view that you add to your layout just as you would any

other type of view, and this makes it much easier to position and

control than a basic app bar.

How to add a toolbar

We’re going to change our activity so that it uses a toolbar from

the Support Library for its app bar. Whenever you want to use the

Toolbar class from the Support Library, there are a number of

steps you need to perform:

Make sure your activity extends the AppCompatActivity class.

Your activity must extend AppCompatActivity (or one of its subclasses)

in order to use the Support Library toolbar.

Remove the existing app bar.

You do this by changing the theme to one that doesn’t include an app bar.

Add a toolbar to the layout.

The toolbar is a type of view, so you can position it where you want and

control its appearance.

Update the activity to set the toolbar as the activity’s app bar.

This allows the activity to respond to the toolbar.

We’ll go through these steps now.

Add the v7 AppCompat Support Library as a dependency.

This is necessary because the Toolbar class lives in this library.

A toolbar looks just like the app bar

you had previously, but it gives you more

flexibility and includes the most recent

app bar features.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 307

support libraries and app bars

1. Add the AppCompat Support Library

Before you can use the Toolbar class from the Support Library in

your activities, you need to make sure that the v7 AppCompat Support

Library has been added to your project as a dependency. In our

particular case, the library has already been added to our project, as we

needed it for the AppCompat themes.

To double-check that the Support Library is there, in Android Studio

choose File→Project Structure, click on the app module, and choose

Dependencies. You should see the v7 AppCompat Library listed as

shown below:

2. Extend the AppCompatActivity class

When you want to use a theme from the AppCompat

Library, you have to make sure that your activities extend the

AppCompatActivity class. This is also the case if you want to use a

toolbar from the Support Library as your app bar.

We’ve already completed this step because, earlier in this chapter, we

changed MainActivity.java to use AppCompatActivity:

...

import android.support.v7.app.AppCompatActivity;

public class MainActivity extends AppCompatActivity {

...

}

The next thing we need to do is remove the existing app bar.

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Our MainActivity already extends AppCompatActivity.

Here's the v7 AppCompat Support Library.

Basic app bar

Toolbar

Action

Up button

Share action

308 Chapter 8

NoActionBar theme

3. Remove the app bar

You remove the existing app bar in exactly the same way that you add

one—by applying a theme.

When we wanted to add an app bar to our app, we applied a theme

that displayed one. To do this, we used the theme attribute in

AndroidManifest.xml to apply a style called AppTheme:

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.bitsandpizzas">

<application

...

android:theme="@style/AppTheme">

...

</application>

</manifest>

<xml>

</xml>

app/src/main

AndroidManifest.xml

BitsAndPizzas

The theme was then defined in styles.xml like this:

...

</style>

</resources>

<xml>

</xml>

app/src/main

styles.xml

BitsAndPizzas

res

values

The theme Theme.AppCompat.Light.DarkActionBar gives

your activity a light background with a dark app bar. To remove the

app bar, we’re going to change the theme to Theme.AppCompat.

Light.NoActionBar instead. Your activity will look the same as it

did before except that no app bar will be displayed.

To change the theme, update styles.xml like this:

...

</style>

</resources>

This looks up the theme from styles.xml.

This is the theme we’re using. It displays a dark app bar.

Change the theme from DarkActionBar to

NoActionBar. This removes the app bar.

We customized the theme by

overriding some of the colors.

You can leave this code in place.

Now that we’ve removed the current app bar, we can add the toolbar.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 309

support libraries and app bars

4. Add a toolbar to the layout

As we said earlier, a toolbar is a view that you add to your layout.

Toolbar code looks like this:

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

android:background="?attr/colorPrimary"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" />

You start by defining the toolbar using:

<android.support.v7.widget.Toolbar

... />

where android.support.v7.widget.Toolbar is the fully

qualified path of the Toolbar class in the Support Library.

Once the toolbar has been defined, you then use other view attributes

to give it an ID, and specify its appearance. As an example, to make

the toolbar as wide as its parent and as tall as the default app bar size

from the underlying theme, you’d use:

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

The ?attr prefix means that you want to use an attribute from the

current theme. In this particular case, ?attr/actionBarSize is

the height of an app bar that’s specified in our theme.

You can also change your toolbar’s appearance so that it has a similar

appearance to the app bar that we had before. To do this, you can

change the background color, and apply a theme overlay like this:

android:background="?attr/colorPrimary"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"

A theme overlay is a special type of theme that alters the current theme

by overwriting some of its attributes. We want our toolbar to look

like our app bar did when we used a theme of Theme.AppCompat.

Light.DarkActionBar, so we’re using a theme overlay of

ThemeOverlay.AppCompat.Dark.ActionBar.

On the next page we’ll add the toolbar to the layout.

This defines the toolbar.

Give the toolbar an ID so you can refer to it in your activity code.

Set the toolbar's size.

These control the app bar's appearance.

The toolbar is as wide as its parent,

and as tall as the default app bar.

Make the toolbar's background the same

color as the app bar we had previously.

This gives the toolbar the same

appearance as the app bar we had

before. We have to use a theme overlay,

as the NoActionBar theme doesn't

style app bars in the same way as the

DarkActionBar theme did.

This is the full path of the Toolbar

class in the Support Library.

Basic app bar

Toolbar

Action

Up button

Share action

310 Chapter 8

we’re not doing this (in our app)

Add the toolbar to the layout...

If your app contains a single activity, you can add the toolbar to your

layout just as you would any other view. Here is an example of the

sort of code you would use in this situation (we’re using a different

approach, so don’t update your layout with the code below):

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.MainActivity">

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

android:background="?attr/colorPrimary"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!" />

</LinearLayout>

<xml>

</xml>

app/src/main

activity_

main.xml

BitsAndPizzas

res

layout

This code displays the toolbar at the top of the activity. We’ve

positioned the text view Android Studio gave us so that it’s displayed

underneath the toolbar. Remember that a toolbar is a view like

any other view, so you need to take this into account when you’re

positioning your other views.

Adding the toolbar code to your layout works well if your app contains

a single activity, as it means that all the code relating to your activity’s

appearance is in a single file. It works less well, however, if your app

contains multiple activities. If you wanted to display a toolbar in

multiple activities, you would need to define the toolbar in the layout of

each activity. This means that if you wanted to change the style of the

toolbar in some way, you’d need to edit every single layout file.

So what’s the alternative?

This code displays

the toolbar at the

top of the activity.

We’re using a linear layout, so the text

view will be positioned below the toolbar.

The code here

doesn't include

any padding.

This is so that

the toolbar

fills the screen

horizontally.

Basic app bar

Toolbar

Action

Up button

Share action

Later in the chapter we’ll add a second

activity to our app, so we’re not using this

approach. So you don’t need to change your

layout code to match this example.

you are here 4 311

support libraries and app bars

activity_

main.xml

...or define the toolbar as a separate layout

An alternative approach is to define the toolbar in a separate layout,

and then include the toolbar layout in each activity. This means

that you only need to define the toolbar once, and if you want to

change the style of your toolbar, you only need to edit one file.

We’re going to use this approach in our app. Start by creating a

new layout file. Switch to the Project view of Android Studio’s explorer,

highlight the app/src/res/main/layout folder in Android Studio, then

go to the File menu and choose New → Layout resource file. When

prompted, give the layout file a name of “toolbar_main” and then click

on OK. This creates a new layout file called toolbar_main.xml.

Next, open toolbar_main.xml, and replace any code Android Studio has

created for you with the following:

<android.support.v7.widget.Toolbar

xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

android:background="?attr/colorPrimary"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" />

This code is almost identical to the toolbar code you’ve already seen.

The main difference is that we’ve left out the toolbar’s id attribute,

as we’ll define this in the activity’s main layout file activity_main.xml

instead.

On the next page we’ll look at how you include the toolbar layout in

activity_main.xml.

<xml>

</xml>

app/src/main

toolbar_

main.xml

BitsAndPizzas

res

layout

activity_main

</Layout>

MainActivity toolbar_main

</Layout>

MainActivity has a

layout, activity_main.

activity_main doesn't

explicitly contain the

toolbar code. Instead, it

contains a reference to

the toolbar's layout.

The toolbar's layout is

contained in a separate file.

If your activity contains

multiple activities, each one can

reference the toolbar's layout.

This toolbar code goes in a

separate layout file so multiple

activities can reference it.

Basic app bar

Toolbar

Action

Up button

Share action

312 Chapter 8

include toolbar

Include the toolbar in the activity’s layout

You can display one layout inside another using the <include> tag.

This tag must contain a layout attribute that specifies the name of the

layout you want to include. As an example, here’s how you would use

the <include> tag to include the layout toolbar_main.xml:

<include

layout="@layout/toolbar_main" />

We want to include the toolbar_main layout in activity_main.xml.

Here’s our code; update your version of activity_main.xml to match ours:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:padding="16dp"

tools:context="com.hfad.bitsandpizzas.MainActivity">

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!" />

</LinearLayout>

<xml>

</xml>

app/src/main

activity_

main.xml

BitsAndPizzas

res

layout

Now that we’ve added the toolbar to the layout, there’s one more

change we need to make.

The @layout tells Android to look for

a layout called toolbar_main.

Include the toolbar_main layout.

We're giving the toolbar an ID so we

can refer to it in our activity code.

Basic app bar

Toolbar

Action

Up button

Share action

Remove the padding so that the

toolbar fills the screen horizontally.

you are here 4 313

support libraries and app bars

5. Set the toolbar as the activity's app bar

The final thing we need to do is tell MainActivity to use the

toolbar as its app bar.

So far we’ve only added the toolbar to the layout. While this

means that the toolbar gets displayed at the top of the screen,

the toolbar doesn’t yet have any app bar functionality. As an

example, if you were to run the app at this point, you’d find that

the title of the app isn’t displayed in the toolbar as it was in the

app bar we had previously.

To get the toolbar to behave like an app bar, we need to call

the AppCompatActivity’s setSupportActionBar()

method in the activity’s onCreate() method, which takes one

parameter: the toolbar you want to set as the activity’s app bar.

Here’s the code for MainActivity.java; update your code to match

ours:

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

That’s all the code that you need to replace the activity’s basic

app bar with a toolbar. Let’s see how it looks.

Get a reference to the toolbar, and

set it as the activity's app bar.

If you don't update your activity

code after adding a toolbar to your

layout, your toolbar will just appear

as a plain strip with nothing in it.

We're using the

Toolbar class, so we

need to import it.

Basic app bar

Toolbar

Action

Up button

Share action

We need to use setSupportActionBar(), as we’re

using the toolbar from the Support Library.

314 Chapter 8

test drive

Test drive the app

When you run the app, a new toolbar is displayed in place of the

basic app bar we had before. It looks similar to the app bar, but

as it’s based on the Support Library Toolbar class, it includes

all the latest Android app bar functionality.

You’ve seen how to add an app bar, and how to replace the basic

app bar with a toolbar. Over the next few pages we’ll look at how

to add extra functionaility to the app bar.

Q: You’ve mentioned app bars, action

bars, and toolbars. Is there a difference?

A: An app bar is the bar that usually

appears at the top of your activities. It’s

sometimes called an action bar because

in earlier versions of Android, the only way

of implementing an app bar was via the

ActionBar class.

The ActionBar class is used behind

the scenes when you add an app bar by

applying a theme. If your app doesn’t rely

on any new app bar features, this may be

sufficient for your app.

An alternative way of adding an app

bar is to implement a toolbar using the

Toolbar class. The result looks similar

to the default theme-based app bar, but it

includes newer features of Android.

Q: I’ve added a toolbar to my activity,

but when I run the app, it just looks like

a band across the top of the screen. It

doesn’t even include the app name.

Why’s that?

A: First, check AndroidManifest.xml and

make sure that your app has been given a

label. This is where the app bar gets the

app’s name from.

Also, check that your activity calls the

setSupportActionBar()

method in its onCreate() method, as

this sets the toolbar as the activity’s app bar.

Without it, the name of the app or activity

won’t get displayed in the toolbar.

Q: I’ve seen the <include> tag in

some of the code that Android Studio

has created for me. What does it do?

A: The <include> tag is used

to include one layout inside another.

Depending on what version of Android

Studio you’re using and what type of project

you create, Android Studio may split your

layout code into one or more separate

layouts.

Here's our new toolbar. It looks

like the app bar we had before,

but it gives you more flexibility.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 315

support libraries and app bars

Add actions to the app bar

In most of the apps you create, you’ll probably want to add actions

to the app bar. These are buttons or text in the app bar that you click

on to make something happen. We’re going to add a “Create Order”

button to the app bar. When you click on it, it will start a new activity

we’ll create called OrderActivity:

We’ll create a new

Create Order action

that will start

OrderActivity.

Create OrderActivity

We’ll start by creating OrderActivity. Select the com.hfad.

bitsandpizzas package in the app/src/main/java folder, then go

to File→New...→Activity→Empty Activity. Name the activity

“OrderActivity”, name the layout “activity_order”, make sure the

package name is com.hfad.bitsandpizzas, and check

the Backwards Compatibility (AppCompat) checkbox.

We want OrderActivity to display the same toolbar as

MainActivity. See if you can complete the code for activity_

order.xml below to display the toolbar.

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.OrderActivity">

</LinearLayout>

The code for adding the

toolbar needs to go here.

Basic app bar

Toolbar

Action

Up button

Share action

If prompted for the

activity’s source language,

select the option for

Java.

316 Chapter 8

solution

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

We want OrderActivity to display the same toolbar as

MainActivity. See if you can complete the code for activity_

order.xml below to display the toolbar.

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.OrderActivity">

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

</LinearLayout>

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.OrderActivity">

</LinearLayout>

Update activity_order.xml

We’ll start by updating activity_order.xml so that it displays a toolbar. The

toolbar will use the same layout we created earlier.

Here’s our code; update yours so that it matches ours:

<xml>

</xml>

app/src/main

activity_

order.xml

BitsAndPizzas

res

layout

This is the same code that we had in

MainActivity. It includes the toolbar_main

layout in activity_order.

Add the toolbar layout we created earlier.

you are here 4 317

support libraries and app bars

Update OrderActivity.java

Next we’ll update OrderActivity so that it uses the toolbar we

set up in the layout as its app bar. To do this, we need to call the

setSupportActionBar() method, passing in the toolbar as a

parameter, just as we did before.

Here’s the full code for OrderActivity.java; update your version of the

code so that it matches ours:

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

public class OrderActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_order);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

}

app/src/main

OrderActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Make sure the activity extends AppCompatActivity.

Set the toolbar as the activity's app bar.

Add a String resource for the activity’s title

Before we move on to creating an action to start OrderActivity,

there’s one more change we’re going to make. We want to make it

obvious to users when OrderActivity gets started, so we’re going to

change the text that’s displayed in OrderActivity’s app bar to make

it say “Create Order” rather than the name of the app.

To do this, we’ll start by adding a String resource for the activity’s title.

Open the file strings.xml in the app/src/main/res/values folder, then add the

following resource:

<string name="create_order">Create Order</string>

We’ll update the text that gets displayed in the app bar on the next page.

We'll use this to

display “Create

Order” in

OrderActivity’s

app bar.

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

Basic app bar

Toolbar

Action

Up button

Share action

318 Chapter 8

add a label

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.bitsandpizzas">

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:roundIcon="@mipmap/ic_launcher_round"

android:label="@string/app_name"

android:supportsRtl="true"

android:theme="@style/AppTheme">

...

</activity>

</activity>

</application>

</manifest>

Change the app bar text by adding a label

As you saw earlier in the chapter, you tell Android what text to display

in the app bar by using the label attribute in file AndroidManifest.xml.

Here’s our current code for AndroidManifest.xml. As you can see, the

code includes a label attribute of @string/app_name inside the

<application> element. This means that the name of the app gets

displayed in the app bar for the entire app.

<xml>

</xml>

app/src/main

AndroidManifest.xml

BitsAndPizzas

We want to override the label for OrderActivity so that the text

“Create Order” gets displayed in the app bar whenever OrderActivity

has the focus. To do this, we’ll add a new label attribute to

OrderActivity’s <activity> element to display the new text:

<activity

android:name=".OrderActivity"

android:label="@string/create_order">

</activity>

We’ll show you this code in context on the next page.

The label attribute tells

Android what text to

display in the app bar.

This is the entry for MainActivity

that we had before.

This is the entry for

OrderActivity. Android

added this for us when we

created the new activity.

Adding a label to an activity means

that for this activity,the activity’s

label gets displayed in its app bar

instead of the app’s label.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 319

support libraries and app bars

How to add an action to an app bar

To add an action to the app bar, you need to do four things:

Define the action in a menu resource file.

This tells Android what actions you want on the app bar.

Get the activity to add the menu resource to the app bar.

You do this by implementing the onCreateOptionsMenu() method.

Add code to say what the action should do when clicked.

You do this by implementing the onOptionsItemSelected() method.

We’ll start by adding the action’s icon and text resources.

Add resources for the action’s icon and text.

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.bitsandpizzas">

<application

...

android:label="@string/app_name"

...>

...

</activity>

<activity android:name=".OrderActivity"

android:label="@string/create_order">

</activity>

</application>

</manifest>

The code for AndroidManifest.xml

Here’s our code for AndroidManifest.xml. Update your code to reflect

our changes.

That’s everything we need for OrderActivity. Next we’ll look at

how you add an action to the app bar so that we can start it.

<xml>

</xml>

app/src/main

AndroidManifest.xml

BitsAndPizzas

The app's label is the

default label for the

entire app.

We don't need to change

the code for MainActivity.

MainActivity has no

label of its own, so it

will use the label in the

<application> element.

Adding a label to OrderActivity overrides the

app's label for this activity. It means that

different text gets displayed in the app bar.

Basic app bar

Toolbar

Action

Up button

Share action

320 Chapter 8

add resources

1. Add the action’s resources

When you add an action to an app bar, you generally assign it

an icon and a short text title. The icon usually gets displayed if

the action appears in the main area of the app bar. If the action

doesn’t fit in the main area, it’s automatically moved to the app

bar overflow, and the title appears instead.

We’ll start with the icon.

Add the icon

If you want to display your action as an icon, you can either

create your own icon from scratch or use one of the icons

provided by Google. You can find the Google icons here:

https://material.io/icons/.

We’re going to use the “add” icon ic_add_white_24dp,

and we’ll add a version of it to our project’s drawable* folders,

one for each screen density. Android will decide at runtime

which version of the icon to use depending on the screen

density of the device.

First, switch to the Project view of Android Studio’s explorer

if you haven’t done so already, highlight the app/src/main/res

folder, and then create folders called drawable-hdpi, drawable-mdpi,

drawable-xhdpi, drawable-xxhdpi, and drawable-xxxhdpi if they’re

not already there. Then go to https://git.io/v9oet, and download

the ic_add_white_24dp.png Bits and Pizzas images. Add the

image in the drawable-hdpi folder to the drawable-hdpi folder in

your project, then repeat this process for the other folders.

The icon for

the new action

Add the action’s title as a String resource

In addition to adding an icon for the action, we’ll also add a

title. This will get used if Android displays the action in the

overflow area of the app bar, for example if there’s no space for

the action in the main area of the app bar.

We’ll create the title as a String resource. Open the file strings.xml

in the app/src/main/res/values folder, then add the following

String resource:

<string name="create_order_title">Create Order</string>

We’ll use this as the

action item’s title.

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

Now that we’ve added resources for the action’s icon and title,

we can create the menu resource file.

Basic app bar

Toolbar

Action

Up button

Share action

This is the app bar’s

overflow. Android

moves actions into the

overflow that don’t

fit on the main area

of the app bar.

you are here 4 321

support libraries and app bars

2. Create the menu resource file

A menu resource file tells Android what actions you want to appear on

the app bar. Your app can contain multiple menu resource files. For

example, you can create a separate menu resource file for each set of

actions; this is useful if you want different activities to display different

actions on their app bars.

We’re going to create a new menu resource file called menu_main.xml in the

folder app/src/main/res/menu. All menu resource files go in this folder.

To create the menu resource file, select the app/src/main/res folder, go to

the File menu, and choose New. Then choose the option to create a new

Android resource file. You’ll be prompted for the name of the resource

file and the type of resource. Give it a name of “menu_main” and a

resource type of “Menu”, and make sure that the directory name is menu.

When you click on OK, Android Studio will create the file for you , and

add it to the app/src/main/res/menu folder.

Here’s the code to add the new action. Replace the contents of menu_

main.xml with the code below:

Android Studio may have already

created this file for you. If it

has, simply replace its contents

with the code below.

<?xml version="1.0" encoding="utf-8"?>

<menu xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto">

<item android:id="@+id/action_create_order"

android:title="@string/create_order_title"

android:icon="@drawable/ic_add_white_24dp"

android:orderInCategory="1"

app:showAsAction="ifRoom" />

</menu> <xml>

</xml>

app/src/main

menu_main.xml

BitsAndPizzas

res

The menu resource file has a <menu> element at its root. Inside the

<menu> element, you get a number of <item> elements, each one

describing a separate action. In this particular case, we have a single

action.

You use attributes of <item> to describe each action. The code creates

an action with an id of action_create_order. This is so that

we can refer to the action in our activity code, and respond to the user

clicking on it.

The action includes a number of other attributes that determine how

the action appears on the app bar, such as its icon and text. We’ll look at

these on the next page.

The <menu>

element

identifies

the file

as a menu

resource

file.

The <item> element

defines the action.

Basic app bar

Toolbar

Action

Up button

Share action

322 Chapter 8

how your action looks

"ifRoom" Place the item in the app bar if there’s space. If there’s not space, put it in the

overflow.

"withText" Include the item’s title text.

"never" Put the item in the overflow area, and never in the main app bar.

"always" Always place the item in the main area of the app bar. This value should be

used sparingly; if you apply this to many items, they may overlap each other.

Control the action’s appearance

Whenever you create an action to be displayed on the app bar, it’s likely

you’ll want to display it as an icon. The icon can be any drawable resource.

You set the icon using the icon attribute:

android:icon="@drawable/ic_add_white_24dp"

Sometimes Android can’t display the action’s icon. This may be because the

action has no icon, or because the action is displayed in the app bar overflow

instead of in the main area. For this reason, it’s a good idea to set an action’s

title so that the action can display a short piece of text instead of an icon. You

set the action’s title using the title attribute:

android:title="@string/create_order_title"

If your app bar contains multiple actions, you might want to specify the order

in which they appear. To do this, you use the orderInCategory attribute,

which takes an integer value that reflects the action’s order. Actions with a

lower number will appear before actions with a higher number.

android:orderInCategory="1"

Finally, the showAsAction attribute is used to say how you want the

item to appear in the app bar. As an example, you can use it to get an

item to appear in the overflow area rather than the main part of the app

bar, or to place an item on the main app bar only if there’s room. The

showAsAction attribute can take the following values:

In our example, we want the action to appear on the main area of the app

bar if there’s room, so we’re using:

app:showAsAction="ifRoom"

Our menu resource file is now complete. The next thing we need to do is

implement the onCreateOptionsMenu() method in our activity.

There are other attributes

for controlling an action's

appearance, but these are

the most common ones.

This is the name of the drawable

resource we want to use as the icon.

The title doesn't always get displayed,

but it's a good idea to include it in case

the action appears in the overflow.

An action with an orderInCategory of 1 will appear

before an action with an orderInCategory of 10.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 323

support libraries and app bars

package com.hfad.bitsandpizzas;

import android.view.Menu;

...

public class MainActivity extends AppCompatActivity {

...

@Override

public boolean onCreateOptionsMenu(Menu menu) {

// Inflate the menu; this adds items to the app bar.

getMenuInflater().inflate(R.menu.menu_main, menu);

return super.onCreateOptionsMenu(menu);

}

3. Add the menu to the app bar with

the onCreateOptionsMenu() method

Once you’ve created the menu resource file, you add the actions

it contains to an activity’s app bar by implementing the activity’s

onCreateOptionsMenu() method. This method runs when the

app bar’s menu gets created. It takes one parameter, a Menu object

that’s a Java representation of the menu resource file.

Here’s our onCreateOptionsMenu() method for MainActivity.java

(update your code to reflect our changes):

The line:

getMenuInflater().inflate(R.menu.menu_main, menu);

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Implementing this method adds any items in

the menu resource file to the app bar.

This is the menu resource file.

This is a Menu object that’s

a Java representation of the

menu resource file.

inflates your menu resource file. This means that it creates a Menu object

that’s a Java representation of your menu resource file, and any actions

the menu resource file contains are translated to MenuItems. These are

then added to the app bar.

There’s one more thing we need to do: get our action to start

OrderActivity when it’s clicked. We’ll do that on the next page.

The onCreateOptionsMenu()

method uses the Menu class.

All onCreateOptionsMenu()

methods generally look like this.

Basic app bar

Toolbar

Action

Up button

Share action

324 Chapter 8

onOptionsItemSelected()

@Override

public boolean onOptionsItemSelected(MenuItem item) {

switch (item.getItemId()) {

case R.id.action_create_order:

//Code to run when the Create Order item is clicked

Intent intent = new Intent(this, OrderActivity.class);

startActivity(intent);

return true;

default:

return super.onOptionsItemSelected(item);

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

switch (item.getItemId()) {

...

default:

return super.onOptionsItemSelected(item);

}

4. React to action item clicks with

the onOptionsItemSelected() method

To make your activity react when an action in the app bar is

clicked, you implement the onOptionsItemSelected()

method in your activity:

The MenuItem object is the action

on the app bar that was clicked.

The full code for MainActivity.java is on the next page.

Returning true tells Android you’ve dealt with the item being clicked.

This intent is

used to start

OrderActivity when

the Create Order

action is clicked.

The onOptionsItemSelected() method runs whenever an

action gets clicked. It takes one parameter, a MenuItem object

that represents the action on the app bar that was clicked. You

can use the MenuItem’s getItemId() method to get the ID

of the action so that you can perform an appropriate action, such

as starting a new activity.

We want to start OrderActivity when our action is clicked.

Here’s the code for the onOptionsItemSelected() method

that will do this:

Get the action’s ID.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 325

support libraries and app bars

The full MainActivity.java code

Here’s the full code for MainActivity.java. Update your code so that it

matches ours. We’ve highlighted our changes.

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.view.Menu;

import android.view.MenuItem;

import android.content.Intent;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

getMenuInflater().inflate(R.menu.menu_main, menu);

return super.onCreateOptionsMenu(menu);

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

switch (item.getItemId()) {

case R.id.action_create_order:

Intent intent = new Intent(this, OrderActivity.class);

startActivity(intent);

return true;

default:

return super.onOptionsItemSelected(item);

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

These classes are used by the

onOptionsItemSelected() method

so we need to import them.

This method gets called when an

action on the app bar is clicked.

Let’s see what happens when we run the app.

Basic app bar

Toolbar

Action

Up button

Share action

326 Chapter 8

test drive

Test drive the app

When you run the app, a new Create Order action is displayed

in the MainActivity app bar. When you click on the action

item, it starts OrderActivity.

Here’s the Create

Order action.

Clicking on the Create Order

action starts OrderActivity.

The text “Create Order” gets

displayed in the app bar.

But how do we get back to MainActivity?

To return to MainActivity from OrderActivity, we

currently need to click on the Back button on our device. But

what if we want to get back to it from the app bar?

One option would be to add an action to OrderActivity’s

app bar that starts MainActivity, but there’s a better way.

We can get OrderActivity to return to MainActivity

by enabling the Up button on OrderActivity’s app bar.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 327

support libraries and app bars

Enable Up navigation

If you have an app that contains a hierarchy of activities, you

can enable the Up button on the app bar to let users navigate

through the app using hierarchical relationships. As an example,

MainActivity in our app includes an action on its app bar that

starts a second activity, OrderActivity. If we enable the Up

button on OrderActivity’s app bar, the user will be able to

return to MainActivity by clicking on this button.

Up navigation may sound the same as using the Back button on the

device, but it’s different. The Back button allows users to work their

way back through the history of activities they’ve been to. The Up

button, on the other hand, is purely based on the app’s hierarchical

structure. If your app contains a lot of activities, implementing the

Up button gives your users a quick and easy way to return to an

activity’s parent without having to keep pressing the Back button.

We’re going to enable the Up button on OrderActivity’s app

bar. When you click on it, it will display MainActivity.

This is the

Up button.

Click on the Create Order

action to go to OrderActivity.

Then click on the

Up button...

...to go to MainActivity.

Use the Back button

to navigate back to

the previous activity.

Use the Up button to

navigate up the app’s

hierarchy.

Clicking on the child’s

Up button will take you

up the hierarchy to the

activity’s parent.

The parent activity

The child activity

Basic app bar

Toolbar

Action

Up button

Share action

328 Chapter 8

responsible parenting

Set an activity’s parent

The Up button enables the user to navigate up a hierarchy of activities

in the app. You declare this hierarchy in AndroidManifest.xml by

specifying the parent of each activity. As an example, we want the user

to be able to navigate from OrderActivity to MainActivity

when they press the Up button, so this means that MainActivity is

the parent of OrderActivity.

For API level 16 and above, you specify the parent activity using the

android:parentActivityName attribute. For older versions of

Android, you need to include a <meta-data> element that includes

the name of the parent activity. Here are both approaches in our

AndroidManifest.xml:

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.bitsandpizzas">

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:roundIcon="@mipmap/ic_launcher_round"

android:label="@string/app_name"

android:supportsRtl="true"

android:theme="@style/AppTheme">

<intent-filter>

</intent-filter>

</activity>

<activity

android:name=".OrderActivity"

android:label="@string/create_order"

android:parentActivityName=".MainActivity">

<meta-data

android:name="android.support.PARENT_ACTIVITY"

android:value=".MainActivity" />

</activity>

</application>

</manifest>

Finally, we need to enable the Up button in OrderActivity.

<xml>

</xml>

app/src/main

AndroidManifest.xml

BitsAndPizzas

Apps at API level 16 or above use this

line. It says that OrderActivity’s

parent is MainActivity.

You only need to add the <meta-data>

element if you’re supporting apps below API

level 16. We’ve only included it so you can see

what it looks like, but including it in your

code won’t do any harm.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 329

support libraries and app bars

Adding the Up button

You enable the Up button from within your activity code.

You first get a reference to the app bar using the activity’s

getSupportActionBar() method. This returns an

object of type ActionBar. You then call the ActionBar

setDisplayHomeAsUpEnabled() method, passing it a

value of true.

ActionBar actionBar = getSupportActionBar();

actionBar.setDisplayHomeAsUpEnabled(true);

We want to enable the Up button in OrderActivity, so we’ll

add the above code to the onCreate() method in OrderActivity.

java. Here’s our full activity code:

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.support.v7.app.ActionBar;

public class OrderActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_order);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

ActionBar actionBar = getSupportActionBar();

actionBar.setDisplayHomeAsUpEnabled(true);

}

That’s all the changes we need to make to enable the Up button.

Let’s see what happens when we run the app.

If you enable the

Up button for an

activity, you

MUST specify its

parent.

If you don’t, you’ll get a null pointer

exception when you call the

setDisplayHomeAsUpEnabled()

method.

app/src/main

OrderActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

We’re using the ActionBar class, so we need to import

it. It comes from the AppCompat Support Library.

This enables the Up button. Even though we're using a toolbar for

our app bar, we need to use the ActionBar class for this method.

Basic app bar

Toolbar

Action

Up button

Share action

You need to use

getSupportActionBar(),

as we’re using the toolbar

from the Support Library.

330 Chapter 8

another test drive

Test drive the app

When you run your app and click on the Create Order action

item, OrderActivity is displayed as before.

OrderActivity displays an Up button in its app bar. When

you click on the Up button, it displays its hierarchical parent

MainActivity.

Click on the Create

Order button to

start OrderActivity.

OrderActivity includes an

Up button. When you click

on it...

...OrderActivity’s parent

(MainActivity) is

displayed.

So far, we’ve looked at how you add an app bar to your app

and add basic actions to it. Next we’ll look at how you add

more sophisticated actions using action providers.

Basic app bar

Toolbar

Action

Up button

Share action

This is the

MainActivity

screen.

you are here 4 331

support libraries and app bars

Sharing content on the app bar

The next thing we’ll look at is how to add an action provider to

your app bar. An action provider is an action that defines its own

appearance and behavior.

We’re going to concentrate on using the share action provider,

which allows users to share content in your app with other apps

such as Gmail. As an example, you could use it to let users send

details of a particular pizza to one of their contacts.

The share action provider defines its own icon, so you don’t have

to add it yourself. When you click on it, it provides you with a list

of apps you can use to share content. It adds a separate icon for the

most commonly used app you choose to share content with.

You share the content with an intent

To get the share action provider to share content, you pass it an

intent that defines the content you want to share, and its type. As an

example, if you define an intent that passes text with an ACTION_

SEND action, the share action will offer you a list of apps on your

device that are capable of sharing text.

Here’s how the share action works (you’ll see this in action over the

next two pages):

AppActivity

Intent

ShareAction

Provider

ACTION_SEND

type: “text/plain”

messageText: ”Hi!”

Your activity creates an intent and passes it to the share action provider.

The intent describes the content that needs to be shared, its type, and an action.

This is what the share action looks

like on the app bar. When you click

on it, it gives you a list of apps

that you can use to share content.

YourActivity

Intent

ACTION_SEND

type: “text/plain”

messageText: ”Hi!” ShareAction

Provider

When the user clicks on the share action, the share action uses the intent

to present the user with a list of apps that can deal with the intent.

The user chooses an app, and the share action provider passes the intent to the app’s activity

that can handle it.

Basic app bar

Toolbar

Action

Up button

Share action

The share

action also

displays an

icon for the

app you most

commonly share

content with,

in this case

the Messenger

app. This may

not be visible

at first.

332 Chapter 8

add action provider

<?xml version="1.0" encoding="utf-8"?>

<menu xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto">

<item android:id="@+id/action_create_order"

android:title="@string/create_order_title"

android:icon="@drawable/ic_add_white_24dp"

android:orderInCategory="1"

app:showAsAction="ifRoom" />

<item android:id="@+id/action_share"

android:title="@string/action_share"

android:orderInCategory="2"

app:showAsAction="ifRoom"

app:actionProviderClass="android.support.v7.widget.ShareActionProvider" />

</menu>

Add a share action provider to menu_main.xml

<string name="action_share">Share</string>

As we mentioned earlier, when you add a share action to your menu

resource file, there’s no need to include an icon. The share action

provider already defines one.

Now that we’ve added the share action to the app bar, let’s specify

what content to share.

<xml>

</xml>

app/src/main

menu_main.xml

BitsAndPizzas

res

You add the share action to the menu resource file using the

<item> element as before. This time, however, you need to specify

that you’re using a share action provider. You do this by adding

an attribute of app:actionProviderClass and setting it to

android.support.v7.widget.ShareActionProvider.

Here’s the code to add the share action; update your copy of

menu_main.xml to match ours:

You add a share action to the app bar by including it in the menu

resource file.

To start, add a new action_share String to strings.xml. We’ll use

this String to add a title to the share action in case it appears in the

overflow:

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

Display the share action provider

in the app bar if there’s room.

This is the share action provider

class. It comes from the

AppCompat Support Library.

Basic app bar

Toolbar

Action

Up button

Share action

you are here 4 333

support libraries and app bars

Specify the content with an intent

To get the share action to share content when it’s clicked, you need

to tell it what to share in your activity code. You do this by passing

the share action provider an intent using its setShareIntent()

method. Here’s how you’d get the share action to share some default

text when it’s clicked:

package com.hfad.bitsandpizzas;

...

import android.support.v7.widget.ShareActionProvider;

import android.support.v4.view.MenuItemCompat;

public class MainActivity extends AppCompatActivity {

private ShareActionProvider shareActionProvider;

...

@Override

public boolean onCreateOptionsMenu(Menu menu) {

getMenuInflater().inflate(R.menu.menu_main, menu);

MenuItem menuItem = menu.findItem(R.id.action_share);

shareActionProvider =

(ShareActionProvider) MenuItemCompat.getActionProvider(menuItem);

setShareActionIntent("Want to join me for pizza?");

return super.onCreateOptionsMenu(menu);

}

private void setShareActionIntent(String text) {

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, text);

shareActionProvider.setShareIntent(intent);

}

You need to call the share action provider’s setShareIntent()

method whenever the content you wish to share has changed. As an

example, if you’re flicking through images in a photo app, you need to

make sure you share the current photo.

We’ll show you our full activity code on the next page, and then we’ll

see what happens when the app runs.

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Add a ShareActionProvider private variable.

Get a reference to the share

action provider and assign it

to the private variable. Then

call the setShareActionIntent()

method.

We created the setShareActionIntent()

method. It creates an intent, and

passes it to the share action provider

using its setShareIntent() method.

Basic app bar

Toolbar

Action

Up button

Share action

We’re using these extra

classes, so we need to

import them.

334 Chapter 8

MainActivity code

The full MainActivity.java code

Here’s the full activity code for MainActivity.java. Update your code to

reflect ours.

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.view.Menu;

import android.view.MenuItem;

import android.content.Intent;

import android.support.v7.widget.ShareActionProvider;

import android.support.v4.view.MenuItemCompat;

public class MainActivity extends AppCompatActivity {

private ShareActionProvider shareActionProvider;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

getMenuInflater().inflate(R.menu.menu_main, menu);

MenuItem menuItem = menu.findItem(R.id.action_share);

shareActionProvider =

(ShareActionProvider) MenuItemCompat.getActionProvider(menuItem);

setShareActionIntent("Want to join me for pizza?");

return super.onCreateOptionsMenu(menu);

}

We’re using these extra classes,

so we need to import them.

This is the default

text that the share

action should share.

Basic app bar

Toolbar

Action

Up button

Share action

The code continues on the next page.

you are here 4 335

support libraries and app bars

The MainActivity.java code (continued)

private void setShareActionIntent(String text) {

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, text);

shareActionProvider.setShareIntent(intent);

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

switch (item.getItemId()) {

case R.id.action_create_order:

//Code to run when the Create Order item is clicked

Intent intent = new Intent(this, OrderActivity.class);

startActivity(intent);

return true;

default:

return super.onOptionsItemSelected(item);

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

This sets the default text

in the share action provider.

On the next page we’ll check what happens when the

code runs by taking the app for a test drive.

336 Chapter 8

yet another test drive

Basic app bar

Toolbar

Action

Up button

Share action

Test drive the app

When you run the app, the share action is displayed in the app

bar:

The intent we

passed to the

share action

provider says

we want to

share text using

ACTION_SEND.

It displays a list

of apps that can

do this.

When you choose an app,

it shares the default text.

We chose the Messenger

app on our device, so it’s

used the text as the

body of a message.

This is the share

action icon.

The share action provider also

added the Messenger icon to our

app bar. We usually share this app’s

content with the Messenger app, so

the share action gave us a shortcut.

When you click on the share action, it gives you a list of apps

to choose from that can accept the intent you want to share:

When you choose an app to share content with, the app gets

launched and the default text is shared with it:

We decided to share content

using the Messenger app.

Click on the share action icon.

you are here 4 337

support libraries and app bars

Your Android Toolbox

You’ve got Chapter 8 under

your belt and now you’ve

added Android Support

Libraries and app bars to your

toolbox.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

You add a basic app bar by applying a theme

that contains one.

The Android Support Libraries provide

backward compatibility with older versions of

Android.

The AppCompatActivity class

is a type of activity that resides in the

v7 AppCompat Support Library. In

general, your activity needs to extend the

AppCompatActivity class whenever

you want an app bar that provides backward

compatibility with older versions of Android.

The android:theme attribute in

AndroidManifest.xml specifies which theme

to apply.

You define styles in a style resource file

using the <style> element. The name

attribute gives the style a name. The

parent attribute specifies where the style

should inherit its properties from.

The latest app bar features are in the

Toolbar class in the v7 AppCompat

Support Library. You can use a toolbar as

your app bar.

Add actions to your app bar by adding them

to a menu resource file.

Add the items in the menu resource file to

the app bar by implementing the activity’s

onCreateOptionsMenu() method.

You determine what items should do when

clicked by implementing the activity’s

onOptionsItemSelected()

method.

Add an Up button to your app bar to navigate

up the app’s hierarchy. Specify the hierarchy in

AndroidManifest.xml. Use the ActionBar

setDisplayHomeAsUpEnabled()

method to enable the Up button.

You can share content by adding the share

action provider to your app bar. Add it by

including it in your menu resource file. Call

its setShareIntent() method to pass

it an intent describing the content you wish

to share.

CHAPTER 8

this is a new chapter 339

Doing the same job in

different places... I guess

that makes me a fragment.

fragments

Make It Modular

You’ve seen how to create apps that work in the same way no

matter what device they’re running on.

But what if you want your app to look and behave differently depending on whether

it’s running on a phone or a tablet? In this case you need fragments, modular code

components that can be reused by different activities. We’ll show you how to create

basic fragments and list fragments, how to add them to your activities, and how to

get your fragments and activities to communicate with one another.

340 Chapter 9

different screen sizes

Your app needs to look great on ALL devices

To make the phone and tablet user interfaces look different from

each other, you can use separate layouts for large devices and

small devices.

On a phone:

Take a look at this image of an app on

a phone. It displays a list of workouts,

and when you click on one, you are

shown the details of that workout.

On a tablet:

On a larger device,

like a tablet, you

have a lot more

screen space

available, so it

would be good if

all the information

appeared on the

same screen. On

the tablet, the list of

workouts only goes

partway across the

screen, and when

you click on an item,

the details appear on

the right.

One of the great things about Android development is that you

can put the exact same app on devices with completely different

screen sizes and processors, and have them run in exactly the

same way. But that doesn’t mean that they always have to look

exactly the same.

Click on an item in a list, and

it launches a second activity.

There's a lot more space on

a tablet, so we can use the

space in a different way.

you are here 4 341

fragments

Your app may need to behave differently too

But that means you might duplicate code

The second activity that runs only on phones will need to insert the

details of a workout into the layout. But that code will also need to

be available in the main activity for when the app is running on a

tablet. The same code needs to be run by multiple activities.

Rather than duplicate the code in the two activities, we can use

fragments. So what’s a fragment?

It’s not enough to simply have different layouts for different devices.

You also need different Java code to run alongside the layouts so that

the app can behave differently depending on the device. In our

Workout app, for instance, we need to provide one activity for

tablets, and two activities for phones.

On a phone:

On a tablet:

Here we have two

activities: one for

the list and one for

the details.

This is a single activity, containing

both the list and the details.

342 Chapter 9

fragments

Fragments allow you to reuse code

Fragments are like reusable components or subactivities. A

fragment is used to control part of a screen, and can be reused

between screens. This means we can create a fragment for the

list of workouts, and a fragment to display the details of a single

workout. These fragments can then be shared between layouts.

A fragment has a layout

Just like an activity, a fragment has an associated layout. If you

design it carefully, the fragment’s Java code can be used to control

everything within the interface. If the fragment code contains all

that you need to control its layout, it greatly increases the chances

that you’ll be able to reuse it elsewhere in the app.

We’re going to show you how to create and use fragments by

building the Workout app.

If we use a

fragment for the

list of workouts,

we can reuse it in

multiple activities.

We can use

a separate

fragment for

the workout

details.

you are here 4 343

fragments

The phone version of the app

We’re going to build the phone version of the app in this

chapter, and reuse the fragments we create to build the tablet

version of the app in Chapter 10. Here’s how the phone version

of the app will work:

When the app gets launched, it starts MainActivity.

MainActivity uses activity_main.xml for its layout, and contains

a fragment called WorkoutListFragment.

WorkoutListFragment displays a list of workouts.

When the user clicks on one of the workouts, DetailActivity starts.

DetailActivity uses activity_detail.xml for its layout, and contains a fragment

called WorkoutDetailFragment.

WorkoutListFragment and WorkoutDetailFragment get their

workout data from

Workout.java

Workout.java contains an array of Workouts.

We’re not going to

use a layout for

WorkoutListFragment.

You’ll see why later on.

We’ll go through the steps for creating this app on the next page.

activity_main.xml

MainActivity.java

Phone

WorkoutDetail

Fragment.java

Workout.java

WorkoutList

Fragment.java

</Layout>

DetailActivity.java

activity_detail.xml

</Layout>

fragment_

workout_detail.xml

</Layout>

WorkoutDetailFragment uses fragment_workout_detail.xml for

its layout.

It displays the details of the workout the user has selected.

Don’t worry

if the app

structure

looks

complex.

We’ll work through it step by

step over the course of this

chapter.

344 Chapter 9

steps

Create WorkoutListFragment.

WorkoutListFragment displays a

list of workouts. We’ll add this fragment

to MainActivity.

Create WorkoutDetailFragment.

WorkoutDetailFragment displays the details

of a specific workout. We’ll start by creating two

activities, MainActivity and DetailActivity,

and then we’ll add WorkoutDetailFragment to

DetailActivity. We’ll also get MainActivity

to launch DetailActivity when a button is pressed.

We’ll also add a plain old Java class, Workout.java, that

will provide the data for WorkoutDetailFragment.

Coordinate the fragments to

display the correct workout.

When the user clicks on an item in

WorkoutListFragment, we’ll

start DetailActivity and get

WorkoutDetailFragment to

display details of the workout the user

selected.

Here’s what we’re going to do

There are three main steps we’ll go through to build the app:

Let’s get started.

you are here 4 345

fragments

Create the project and activities

We’re going to start by creating a project that contains two activities,

MainActivity and DetailActivity. MainActivity will be used for

the fragment that displays a list of workouts, and DetailActivity will be

used for the fragment that displays details of one particular workout.

To do this, first create a new Android project with an empty activity for an

application named “Workout” with a company domain of “hfad.com”,

making the package name com.hfad.workout. The minimum SDK

should be API 19 so that it works on most devices. Name the activity

“MainActivity” and name the layout “activity_main”. Make sure you check

the Backwards Compatibility (AppCompat) checkbox.

Next, create a second empty activity by highlighting the com.hfad.workout

package in the app/src/main/java folder, and going to File→New...→Activity→

Empty Activity. Name the activity “DetailActivity”, name the layout “activity_

detail”, make sure the package name is com.hfad.workout, and check

the Backwards Compatibility (AppCompat) checkbox.

Add the AppCompat Support Library

We’re going to be using activities and fragments from the v7 AppCompat Library,

which means you need to make sure the library has been added to your project as a

dependency. To do this, go to the File menu and choose Project Structure. Then click

on the app module and choose Dependencies.

If Android Studio has already added the v7 AppCompat Support Library to your

project, you’ll see it listed in the list of dependencies. If it’s not there, you’ll need to

add it yourself. To do this, click on the “+” button at the bottom or right side of the

screen. When prompted, choose the Library Dependency option, then select the

appcompat-v7 library from the list of options. Finally, use the OK buttons to save

your changes.

Once you’ve made sure the v7 AppCompat Support Library has been added, you can

close the Project Structure window. On the next page we’ll update MainActivity.

activity_main.xml

MainActivity.java

</Layout>

DetailActivity.java

activity_detail.xml

</Layout>

This is the v7 AppCompat

Support Library.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

If prompted for the

activity’s source language,

select the option for Java.

346 Chapter 9

layout code

Add a button to MainActivity’s layout

We’re going to add a button to MainActivity that will start

DetailActivity. This is because we’re going to work on the

fragment for DetailActivity first, and adding a button to

MainActivity will give us an easy way of navigating from

MainActivity to DetailActivity.

We’ll start by adding the button to the layout. Open file activity_main.

xml, then update your code so that it matches ours below:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.workout.MainActivity">

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:onClick="onShowDetails"

android:text="@string/details_button" />

</LinearLayout>

<xml>

</xml>

app/src/main

activity_main.xml

Workout

res

layout

The button uses a String resource for its text, so we need to add it to

the String resource file. Open file strings.xml, then add the following

String resource:

...

<string name="details_button">Show details</string>

</resources> <xml>

</xml>

app/src/main

strings.xml

Workout

res

values

When the button is clicked, we’ve specified that MainActivity’s

onShowDetails() method should be called. We’ll write the code

for this method next.

The button calls the

onShowDetails() method in

MainActivity when it’s clicked.

We need to write this method.

This is the button we’re adding.

This text will be

displayed on the button.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 347

fragments

package com.hfad.workout;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.content.Intent;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

public void onShowDetails(View view) {

Intent intent = new Intent(this, DetailActivity.class);

startActivity(intent);

}

app/src/main

MainActivity.java

Workout

java

com.hfad.workout

Make the button respond to clicks

We need to get MainActivity’s button to start

DetailActivity when it’s clicked. To do this, we’ll add

a method called onShowDetails() to MainActivity.

The method will start DetailActivity using an intent,

just as we’ve done in previous chapters.

Here’s the full code for MainActivity.java. Update your code so

that it matches ours. MainActivity DetailActivity

Intent

That’s everything we need to get MainActivity to start

DetailActivity. On the next page we’ll add a new

fragment to our project called WorkoutDetailFragment

that we’ll then add to DetailActivity.

The activity extends

AppCompatActivity.

This method is called when the button is

clicked. It starts DetailActivity.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

348 Chapter 9

add fragment

How to add a fragment to your project

We’re going to add a new fragment called WorkoutDetailFragment

to the project to display details of a single workout. You add a new

fragment in a similar way to how you add a new activity: by switching to

the Project view of Android Studio’s explorer, highlighting the com.hfad.

workout package in the app/src/main/java folder, going to the File menu,

and choosing New...→Fragment→Fragment (Blank).

You will be asked to choose options for your new fragment. Name the

fragment “WorkoutDetailFragment”, check the option to create layout

XML for it, and give the fragment layout a name of “fragment_workout_

detail”. Uncheck the options to include fragment factory methods and

interface callbacks; these options generate extra code that you don’t need

to use. When you’re done, click on the Finish button.

When you click on the Finish button, Android Studio creates your new

fragment and adds it to the project.

We suggest looking at the extra code

Android generates for you after

you’ve finished this book. You might

find some of it useful depending on

what you want to do.

We’re creating a

blank fragment.

This is the name

of the fragment.

This is the name of

the fragment layout.

We don’t want Android Studio

creating a load of extra code for

us, so we’re unchecking these options.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

Some versions of Android

Studio may ask you what

the source language of

your fragment should be.

If prompted, select the

option for Java.

you are here 4 349

fragments

What fragment code looks like

When you create a fragment, Android Studio creates two files for you: Java

code for the fragment itself, and XML code for the fragment’s layout. The Java

code describes the fragment’s behavior, and the layout describes the fragment’s

appearance.

We’ll look at the Java code first. Go to the com.hfad.workout package in the app/

src/main/java folder and open the file WorkoutDetailFragment.java that Android

Studio just created for us. Then replace the code that Android Studio generated

with the code below:

The above code creates a basic fragment. As you can see, the code for a

fragment looks very similar to activity code.

To create a fragment, you first need to extend the Fragment class or one of its

subclasses. We’re using fragments from the Support Library, so our fragment

needs to extend the android.support.v4.app.Fragment class. This is

because the Support Library fragments are backward compatible with earlier

versions of Android, and contain the latest fragment features.

The fragment implements the onCreateView() method, which gets called

each time Android needs the fragment’s layout, and it’s where you say which

layout the fragment uses. The onCreateView() method is optional, but as

you need to implement it whenever you’re creating a fragment with a layout,

you’ll need to implement it nearly every time you create a fragment. We’ll look

at this method in more detail on the next page.

package com.hfad.workout;

import android.support.v4.app.Fragment;

import android.os.Bundle;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class WorkoutDetailFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_workout_detail, container, false);

}

WorkoutDetailFragment

extends the Fragment class.

This is the onCreateView() method. It’s called

when Android needs the fragment’s layout.

This tells Android which layout the fragment uses

(in this case, it’s fragment_workout_detail).

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

We’re using the Fragment class from

the Android Support Library.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

350 Chapter 9

onCreateView()

This is the fragment equivalent of calling an activity’s

setContentView() method. You use it to say what layout

the fragment should use, in this case R.layout.fragment_

workout_detail.

The inflate() method’s container argument specifies the

ViewGroup in the activity that the fragment’s layout needs to be

inserted into. It gets passed to the fragment as the second parameter

in the fragment’s onCreateView() method.

Now that you’ve seen the fragment’s code, let’s have a look at its

layout.

All fragments

must have a

public no-

argument

constructor.

Android uses it to

reinstantiate the fragment

when needed, and if it’s not

there, you’ll get a runtime

exception.

In practice, you only need

to add a public no-argument

constructor to your fragment

code if you include another

constructor with one or more

arguments. This is because

if a Java class contains

no constructors, the Java

compiler automatically

adds a public no-argument

constructor for you.

The fragment’s onCreateView() method

public View onCreateView(LayoutInflater inflater,

ViewGroup container,

Bundle savedInstanceState) {

}

The first parameter is a LayoutInflator that you can use to

inflate the fragment’s layout. Inflating the layout turns your XML

views into Java objects.

The second parameter is a ViewGroup. This is the ViewGroup in

the activity’s layout that will contain the fragment.

The final parameter is a Bundle. This is used if you’ve previously

saved the fragment’s state, and want to reinstate it.

You specify the fragment’s layout using the LayoutInflator’s

inflate() method:

public View onCreateView(LayoutInflater inflater,

ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_workout_detail,

container,

false);

}

This inflates the

fragment’s layout from

XML to Java objects.

The onCreateView() method

gets called when Android

needs the fragment’s layout.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

The onCreateView() method returns a View object that

represents the fragment’s user interface. It gets called when

Android is ready to instantiate the user interface, and it takes three

parameters:

you are here 4 351

fragments

Fragment layout code looks just like activity layout code

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_height="match_parent"

android:layout_width="match_parent"

android:orientation="vertical">

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textAppearance="?android:attr/textAppearanceLarge"

android:text="@string/workout_title"

android:id="@+id/textTitle" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/workout_description"

android:id="@+id/textDescription" />

</LinearLayout>

For now we’re using static String resources for the title and description

of the workout so that we can see our fragment working. Open strings.xml,

and add the following String resources:

<xml>

</xml>

app/src/main

fragment_

workout_detail.xml

Workout

res

layout

Static String resources.

We’ll display

the workout

title and

description in

two separate

TextViews.

This makes the text large.

As we said earlier, fragments use layout files to describe their appearance.

Fragment layout code looks just like activity layout code, so when you

write your own fragment layout code, you can use any of the views and

layouts you’ve already been using to write activity layout code.

We’re going to update our layout code so that our fragment contains two

text views, one for the workout title and one for the workout description.

Open the file fragment_workout_detail.xml in the app/src/res/layout folder,

and replace its contents with the code below:

We’re using a LinearLayout for

our fragment, but we could have

used any of the other layout

types we’ve looked at instead.

...

<string name="workout_title">Title</string>

<string name="workout_description">Description</string>

</resources> <xml>

</xml>

app/src/main

strings.xml

Workout

res

values

That’s everything we need for our fragment. On the next page we’ll look

at how you add the fragment to an activity.

We’ll use these to display

default text in our fragment.

352 Chapter 9

add fragment to layout

Add a fragment to an activity’s layout

<fragment

android:name="com.hfad.workout.WorkoutDetailFragment"

android:layout_width="match_parent"

android:layout_height="match_parent" />

You specify the fragment using the android:name attribute and giving it

a value of the fully qualified name of the fragment. In our case, we want to

display a fragment called WorkoutDetailFragment that’s in the com.

hfad.workout package, so we use:

android:name="com.hfad.workout.WorkoutDetailFragment"

When Android creates the activity’s layout, it replaces the <fragment>

element with the View object returned by the fragment’s onCreateView()

method. This view is the fragment’s user interface, so the <fragment>

element is really a placeholder for where the fragment’s layout should be

inserted.

You add the <fragment> element to your layout in the same way that you

add any other element. As an example, here’s how you’d add the fragment to

a linear layout:

This is the full name

of the fragment class.

We’re going to add our WorkoutDetailFragment to DetailActivity

so that the fragment gets displayed in the activity’s layout. To do this, we’re

going to add a <fragment> element to DetailActivity’s layout.

The <fragment> element is a view that specifies the name of the fragment

you want to display. It looks like this:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="vertical"

android:layout_width="match_parent"

android:layout_height="match_parent">

<fragment

android:name="com.hfad.workout.WorkoutDetailFragment"

android:layout_width="match_parent"

android:layout_height="match_parent" />

</LinearLayout>

If your layout only contains a single fragment with no other views, however,

you can simplify your layout code.

<xml>

</xml>

app/src/main

activity_detail.xml

Workout

res

layout

This adds the fragment

to the activity’s layout.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 353

fragments

<?xml version="1.0" encoding="utf-8"?>

<fragment

xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutDetailFragment"

android:layout_width="match_parent"

android:layout_height="match_parent" />

Simplify the layout

If the layout code for your activity comprises a single fragment

contained within a layout element with no other views, you

can simplify your layout code by removing the root layout

element.

Each layout file you create must have a single root element

that’s either a view or view group. This means that if your

layout contains multiple items, these items must be contained

within a view group such as a linear layout.

If your layout contains a single fragment, the <fragment>

element can be the layout file’s root. This is because the

<fragment> element is a type of view, and Android replaces

it with the layout of the fragment at runtime.

In our code example on the previous page, we showed you

a fragment contained within a linear layout. As there are no

other views in the layout, we can remove the linear layout so

that our code looks like this:

<xml>

</xml>

app/src/main

activity_detail.xml

Workout

res

layout

This code does exactly the same thing as the code on the

previous page, but it’s much shorter.

That’s the only code we need for DetailActivity’s layout,

so replace the code you have in your version of activity_detail.xml,

with the code above and save your changes.

On the next page we’ll look at the code for the activity itself.

You can add your fragment

to your layout like this if

your layout ONLY contains

a single fragment.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

A layout file requires

a single view or view

group as its root

element. If your

activity only contains

a fragment, the

fragment itself can

be the root element.

354 Chapter 9

AppCompatActivity extends FragmentActivity

Support Library fragments need

activities that extend FragmentActivity

When you add a fragment to an activity, you usually need to write code

that controls any interactions between the fragment and the activity.

You’ll see examples of this later in the chapter.

Currently, WorkoutDetailFragment only contains static data.

DetailActivity only has to display the fragment, and doesn’t need

to interact with it, so this means that we don’t need to write any extra

activity code to control the interaction.

There’s one important point to be aware of, however. When you’re

using fragments from the Support Library, as we are here, you must

make sure that any activity you want to use them with extends

the FragmentActivity class, or one of its subclasses. The

FragmentActivity class is designed to work with Support Library

fragments, and if your activity doesn’t extend this class, your code will

break.

In practice, this isn’t a problem. This is because the

AppCompatActivity class is a subclass of FragmentActivity,

so as long as your activity extends the AppCompatActivity class,

your Support Library fragments will work.

Here’s the code for DetailActivity.java. Update your code so that it

matches ours below:

package com.hfad.workout;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

public class DetailActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_detail);

}

app/src/main

DetailActivity.java

Workout

java

com.hfad.workout

That’s everything we need to display the WorkoutDetailFragment

in our activity. Let’s see what happens when we run the app.

YourActivity

android.app.Activity

android.support.v7.app.

FragmentActivity

android.support.v7.app.

AppCompatActivity

As long as your activity extends

FragmentActivity, or one of its subclasses

such as AppCompatActivity, you can use

fragments from the Support Library.

DetailActivity extends AppCompatActivity.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 355

fragments

What the code does

Before we take the app for a test drive, let’s go through what

happens when the code runs.

When the app is launched, activity MainActivity gets created.

The user clicks on the button in MainActivity to start DetailActivity.

MainActivity

Device

WorkoutDetail

Fragment

DetailActivity

DetailActivity’s onCreate() method runs.

The onCreate() method specifies that activity_detail.xml should be used for

DetailActivity’s layout.

DetailActivity

</Layout>

activity_detail.xml

onCreate()

activity_detail.xml sees that it includes a <fragment> element that refers

to WorkoutDetailFragment.

</Layout>

activity_detail.xml

WorkoutDetailFragment’s onCreateView() method is called.

The onCreateView() method specifies that fragment_workout_detail.xml should be used for

WorkoutDetailFragment’s layout. It inflates the layout to a View object.

Hmmm, a

<fragment> element.

I need to know what

goes here.

</Layout>

fragment_

workout_detail.xml

onCreateView()

View

WorkoutDetailFragment’s View

object actually contains two

further views, the two text

views in the fragment’s layout.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

356 Chapter 9

what happens, continued

Test drive the app

When we run our app, MainActivity gets launched.

When we click on MainActivity’s button, it starts

DetailActivity. DetailActivity contains

WorkoutDetailFragment, and we see this on the device.

activity_detail.xml’s Views are inflated to View Java objects.

DetailActivity layout uses WorkoutDetailFragment’s View object in place of the

<fragment> element in its layout’s XML.

The story continues

</Layout>

activity_detail.xml

Finally, DetailActivity is displayed on the device.

Its layout contains the fragment WorkoutDetailFragment.

Emulator

Our WorkoutDetailFragment is

displayed in DetailActivity. You’ll see

this better in the test drive below.

...and placeholder text

for the workout title and

description is displayed.

Click on the

button...

View

activity_detail.xml only contains the

<fragment> element. This means that

when it’s inflated, it only contains

WorkoutDetailFragment’s View object.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 357

fragments

BE the Layout

Your job is to play like you’re the layout

and say whether each of these layouts is

valid or invalid and why. Assume that

any fragments or String

resources referred to in the

layout already exist.

<?xml version="1.0" encoding="utf-8"?>

<fragment

xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutDetailFragment"

android:layout_width="match_parent"

android:layout_height="match_parent" />

<?xml version="1.0" encoding="utf-8"?>

<fragment

xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutDetailFragment"

android:layout_width="match_parent"

android:layout_height="match_parent" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/details_button" />

<?xml version="1.0" encoding="utf-8"?>

<Button

xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/details_button" />

358 Chapter 9

solution

BE the Layout Solution

Your job is to play like you’re the layout

and say whether each of these layouts is

valid or invalid and why. Assume that

any fragments or String

resources referred to in the

layout already exist.

<?xml version="1.0" encoding="utf-8"?>

<fragment

xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutDetailFragment"

android:layout_width="match_parent"

android:layout_height="match_parent" />

<?xml version="1.0" encoding="utf-8"?>

<fragment

xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutDetailFragment"

android:layout_width="match_parent"

android:layout_height="match_parent" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/details_button" />

<?xml version="1.0" encoding="utf-8"?>

<Button

xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/details_button" />

This layout is valid, as it

consists of a single fragment.

This layout is invalid. A layout must

have a single View or ViewGroup as

its root element. To make this layout

valid, you would need to put the

fragment and Button in a ViewGroup.

This layout is valid as it has a single View,

in this case a Button, as its root element.

you are here 4 359

fragments

Get the fragment and activity to interact

The first thing we’ll do is update the fragment’s layout to remove the

static text that’s currently displayed. Open file fragment_workout_detail.xml,

then update the code to match our changes below:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

...

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textAppearance="?android:attr/textAppearanceLarge"

android:text="@string/workout_title"

android:id="@+id/textTitle" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/workout_description"

android:id="@+id/textDescription" />

</LinearLayout>

On the next page we’ll add a new class to our project to hold the

workout data.

So far we’ve looked at how you add a basic fragment to an activity.

The next thing we’ll look at is how you get the fragment and activity

to interact.

To do this, we’ll start by changing WorkoutDetailFragment so

that it displays details of a workout instead of the placeholder text we

have currently.

<xml>

</xml>

app/src/main

fragment_

workout_detail.xml

Workout

res

layout

Delete

both

these

lines.

These are the details of

one of the workouts.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

360 Chapter 9

add class

The Workout class

We’re going to hold our workout data in a file called Workout.java,

which is a pure Java class file that the app will get workout data from.

The class defines an array of four workouts, where each workout

is composed of a name and description. Select the com.hfad.workout

package in the app/src/main/java folder in your project, then go to

File→New...→Java Class. When prompted, name the class “Workout”,

and make sure the package name is com.hfad.workout. Then replace

the code in Workout.java with the following, and save your changes.

package com.hfad.workout;

public class Workout {

private String name;

private String description;

public static final Workout[] workouts = {

new Workout("The Limb Loosener",

"5 Handstand push-ups\n10 1-legged squats\n15 Pull-ups"),

new Workout("Core Agony",

"100 Pull-ups\n100 Push-ups\n100 Sit-ups\n100 Squats"),

new Workout("The Wimp Special",

"5 Pull-ups\n10 Push-ups\n15 Squats"),

new Workout("Strength and Length",

"500 meter run\n21 x 1.5 pood kettleball swing\n21 x pull-ups")

};

//Each Workout has a name and description

private Workout(String name, String description) {

this.name = name;

this.description = description;

}

public String getDescription() {

return description;

}

public String getName() {

return name;

}

public String toString() {

return this.name;

}

app/src/main

Workout.java

Workout

java

com.hfad.workout

The data will be used by the fragment to display details of a particular

workout. We’ll look at this next.

Each Workout has a name and description.

workouts is an array of four Workouts.

These are getters for the

private variables.

The String representation

of a Workout is its name.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 361

fragments

Pass the workout ID to the fragment

When you have an activity that uses a fragment, the activity will usually

need to talk to the fragment in some way. As an example, if you have

a fragment that displays detail records, you need the activity to tell the

fragment which record it needs to display details of.

In our case, we need WorkoutDetailFragment to display details of

a particular workout. To do this, we’ll add a simple setter method to the

fragment that sets the value of the workout ID. The activity will then

be able to use this method to set the workout ID. Later on, we’ll use the

workout ID to update the fragment’s views.

Here’s the revised code for WorkoutDetailFragment (update your

code with our changes):

package com.hfad.workout;

import android.support.v4.app.Fragment;

import android.os.Bundle;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class WorkoutDetailFragment extends Fragment {

private long workoutId;

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_workout_detail, container, false);

}

public void setWorkout(long id) {

this.workoutId = id;

}

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

We need to get the DetailActivity to call the fragment’s

setWorkout() method and pass it the ID of a particular workout. In

order to do this, the activity must get a reference to the fragment. But

how?

This is the ID of the workout the user chooses.

Later, we’ll use it to set the values of the

fragment’s views with the workout details.

This is a setter method for the workout

ID. The activity will use this method to

set the value of the workout ID.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

362 Chapter 9

getSupportFragmentManager()

Use the fragment manager

to manage fragments

getSupportFragmentManager().findFragmentById(R.id.fragment_id)

Before an activity can talk to its fragment, the activity first needs

to get a reference to the fragment. You get a reference to an

activity’s fragments using the activity’s fragment manager.

The fragment manager is used to keep track of and deal with any

fragments used by the activity.

There are two methods for getting a reference to the

fragment manager, getFragmentManager()

and getSupportFragmentManager(). The

getSupportFragmentManager() method gets a reference

to the fragment manager that deals with fragments from the

Support Library like ours, and the getFragmentManager()

method gets a reference to the fragment manager that deals with

fragments that use the native Android fragment class instead.

You then use the fragment manager’s findFragmentById()

method to get a reference to the fragment.

We’re using fragments from the Support Library, so we’re going

to use the getSupportFragmentManager() method like

this:

This is the ID of the fragment in

the activity's layout.

findFragmentById() is a bit like

findViewById() except you use it

to get a reference to a fragment.

We’re going to use DetailActivity’s fragment manager to

get a reference to its WorkoutDetailFragment. In order to

do this, we first need to assign an ID to the fragment.

You assign an ID to an activity’s fragment in the activity’s

layout. Open the file activity_detail.xml, then add an ID to the

activity’s fragment by adding the line of code highlighted below:

<?xml version="1.0" encoding="utf-8"?>

<fragment xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutDetailFragment"

android:id="@+id/detail_frag"

android:layout_width="match_parent"

android:layout_height="match_parent" />

<xml>

</xml>

app/src/main

activity_detail.xml

Workout

res

layout

The above code gives the fragment an ID of detail_frag.

On the next page we’ll use the ID to get a reference to the

fragment.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

Add an ID to the

fragment.

you are here 4 363

fragments

Get the activity to set the workout ID

To get a reference to the fragment, we need to add the

following code:

package com.hfad.workout;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

public class DetailActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_detail);

WorkoutDetailFragment frag = (WorkoutDetailFragment)

getSupportFragmentManager().findFragmentById(R.id.detail_frag);

frag.setWorkout(1);

}

As you can see, we’ve got a reference to the fragment after

calling setContentView(). Getting the reference here is

really important, because before this point, the fragment won’t

have been created.

The next thing we need to do is get the fragment to update its

views when the fragment is displayed to the user. Before we can

do this, we need to understand the fragment’s lifecycle so that

we add our code to the correct method in the fragment.

app/src/main

DetailActivity.java

Workout

java

com.hfad.workout

This gets us a reference to

WorkoutDetailFragment. Its id in

the activity’s layout is detail_frag.

We’re going to get WorkoutDetailFragment to display

details of a workout here to check that it’s working.

WorkoutDetailFragment frag = (WorkoutDetailFragment)

getSupportFragmentManager().findFragmentById(R.id.detail_frag);

We can then call the fragment’s setWorkout() method to

tell the fragment which workout we want it to display details for.

For now, we’ll hardcode which workout we want it to display so

that we can see it working. Later on, we’ll change the code so

that the user can select which workout she wants to see.

Here’s our revised code for DetailActivity.java. Update your code

to reflect our changes:

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

364 Chapter 9

activity revision

The activity is created when its

onCreate() method runs.

At this point, the activity is initialized,

but isn’t visible.

Activity states revisited

Just like an activity, a fragment has a number of key lifecycle methods that get

called at particular times. It’s important to know what these methods do and

when they get called so your fragment works in just the way you want.

Fragments are contained within and controlled by activities, so the fragment

lifecycle is closely linked to the activity lifecycle. Here’s a reminder of the

different states an activity goes through, and on the next page we’ll show you

how these relate to fragments.

Activity created

Activity resumed

Activity started

Activity stopped

Activity paused

Activity destroyed

The activity is started when its

onStart() method runs.

The activity is visible, but doesn’t have

the focus.

The activity is resumed when its

onResume() method runs.

The activity is visible, and has the focus.

The activity is paused when its

onPause() method runs.

The activity is still visible, but no longer

has the focus.

The activity is stopped when its

onStop() method runs.

The activity is no longer visible, but still

exists.

The activity is destroyed when

its onDestroy() method runs.

The activity no longer exists.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 365

fragments

The fragment lifecycle

A fragment’s lifecycle is very similar to an activity’s, but it has a few

extra steps. This is because it needs to interact with the lifecycle of

the activity that contains it. Here are the fragment lifecycle methods,

along with where they fit in with the different activity states.

onAttach()

onDetach()

onCreate()

onDestroy()

onCreateView()

onDestroyView()

Activity created

Activity resumed

Activity started

Activity stopped

Activity paused

Activity destroyed

onActivityCreated()

onStart()

onResume()

onPause()

onStop()

Activity states Fragment callbacks

onAttach(Context)

This happens when the fragment is associated with a

context, in this case an activity.

onCreate(Bundle)

This is very similar to the activity’s onCreate() method.

It can be used to do the initial setup of the fragment.

onCreateView(LayoutInflater, ViewGroup, Bundle)

Fragments use a layout inflater to create their view at this

stage.

onActivityCreated(Bundle)

Called when the onCreate() method of the activity

has completed.

onStart()

Called when the fragment is about to become visible.

onResume()

Called when the fragment is visible and actively running.

onPause()

Called when the fragment is no longer interacting with

the user.

onStop()

Called when the fragment is no longer visible to the user.

onDestroyView()

Gives the fragment the chance to clear away any

resources that were associated with its view.

onDestroy()

In this method, the fragment can clear away any other

resources it created.

onDetach()

Called when the fragment finally loses contact with the

activity.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

366 Chapter 9

Fragment class

Fragments inherit lifecycle methods

OurFragment

onCreateView(LayoutInflater,

ViewGroup, Bundle)

yourMethod()

Fragment

onAttach(Context)

onCreate(Bundle)

onCreateView(LayoutInflater,

ViewGroup, Bundle)

onActivityCreated(Bundle)

onStart()

onResume()

onPause()

onStop()

onDestroyView()

onDestroy()

onDetach()

getView()

Object

Fragment class

(android.support.v4.app.Fragment)

The Fragment class implements default

versions of the lifecycle methods. It also defines

other methods that fragments need, such as

getView().

OurFragment class

(com.hfad.foo)

Most of the behavior of our fragment is handled

by superclass methods our fragment inherits. All

you do is override the methods you need.

As you saw earlier, our fragment extends the Android fragment

class. This class gives our fragment access to the fragment lifecycle

methods. Here’s a diagram showing the class hierarchy.

Object class

(java.lang.Object)

Even though fragments have a lot in common with activities, the Fragment class

doesn’t extend the Activity class. This means that some methods that are

available to activities aren’t available to fragments.

Note that the Fragment class doesn’t implement the Context class. Unlike an

activity, a fragment isn’t a type of context and therefore doesn’t have direct access

to global information about the application environment. Instead, fragments must

access this information using the context of other objects such as its parent activity.

Now that you understand the fragment’s lifecycle better, let’s get back to getting

WorkoutDetailFragment to update its views.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 367

fragments

Set the view’s values in the fragment’s onStart() method

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

package com.hfad.workout;

import android.support.v4.app.Fragment;

import android.os.Bundle;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.TextView;

public class WorkoutDetailFragment extends Fragment {

private long workoutId;

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_workout_detail, container, false);

}

@Override

public void onStart() {

super.onStart();

View view = getView();

if (view != null) {

TextView title = (TextView) view.findViewById(R.id.textTitle);

Workout workout = Workout.workouts[(int) workoutId];

title.setText(workout.getName());

TextView description = (TextView) view.findViewById(R.id.textDescription);

description.setText(workout.getDescription());

}

public void setWorkout(long id) {

this.workoutId = id;

}

We need to get WorkoutDetailFragment to update its views with

details of the workout. We need to do this when the activity becomes

visible, so we’ll use the fragment’s onStart() method. Update your

code to match ours:

As we said on the previous page, fragments are distinct from activities, and

therefore don’t have all the methods that an activity does. Fragments don’t

include a findViewById() method, for instance. To get a reference to

a fragment’s views, we first have to get a reference to the fragment’s root

view using the getView() method, and use that to find its child views.

Now that we’ve got the fragment to update its views, let’s take the app for

a test drive.

You should always call

up to the superclass

when you implement

any fragment lifecycle

methods.

We're using this class in the

onStart() method.

The getView() method gets the fragment's root

View. We can then use this to get references to the

workout title and description text views.

368 Chapter 9

what happens

What happens when the code runs

Before we run the app, let’s go through what happens when the

code runs.

When the app is launched, MainActivity gets created.

The user clicks on the button in MainActivity to start DetailActivity.

MainActivity

Device DetailActivity

DetailActivity’s onCreate() method runs.

The onCreate() method specifies that activity_detail.xml should be used for

DetailActivity’s layout. activity_detail.xml includes a <fragment> element with an ID

of detail_frag that refers to the fragment WorkoutDetailFragment.

DetailActivity

</Layout>

activity_detail.xml

onCreate()

WorkoutDetail

Fragment

WorkoutDetailFragment’s onCreateView() method runs.

The onCreateView() method specifies that fragment_workout_detail.xml should be used for

WorkoutDetailFragment’s layout. It inflates the layout to a View object.

</Layout>

fragment_

workout_detail.xml

onCreateView()

View

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 369

fragments

activity_detail.xml’s Views are inflated to View Java objects.

DetailActivity uses WorkoutDetailFragment’s View object in place of the

<fragment> element in its layout’s XML, and gives it an ID of detail_frag.

</Layout>

activity_detail.xml View

id: detail_frag

DetailActivity’s onCreate() method continues to run.

DetailActivity gets a reference to WorkoutDetailFragment by asking the fragment

manager for the fragment with an ID of detail_frag.

The fragment uses the value of the workout ID in its onStart() method to

set the values of its views.

MainActivity

WorkoutDetail

Fragment

WorkoutDetail

Fragment

id: detail_frag

textTitle: Core Agony

textDescription: 100 Pull ups

100 Push-ups

100 Sit ups

100 Squats

The story continues

onCreate()

onStart()

View

DetailActivity calls WorkoutDetailFragment’s setWorkout() method.

DetailActivity passes WorkoutDetailFragment a workout ID of 1. The fragment

sets its workoutId variable to 1.

MainActivity

WorkoutDetail

Fragment

setWorkout(1)

onCreate()

Fragment Manager

workoutId: 1

Let’s take the app for a test drive.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

370 Chapter 9

test drive

Test drive the app

When we run the app, MainActivity is launched.

When we click on MainActivity’s button, it starts

DetailActivity. DetailActivity contains

WorkoutDetailFragment, and the fragment displays

details of the Core Agony workout.

...and details of the

workout are displayed.

Click on the

button...

Q: Why can’t an activity get a fragment by calling the

findViewById() method?

A: Because findViewById() always returns a View

object and, surprisingly, fragments aren’t views.

Q: Why isn’t findFragmentById() an activity

method like findViewById() is?

A: That’s a good question. Fragments weren’t available before

API 11, so it uses the fragment manager as a way to add a whole

bunch of useful code for managing fragments, without having to

pack lots of extra code into the activity base class.

Q: Why don’t fragments have a findViewById()

method?

A: Because fragments aren’t views or activities. Instead, you

need to use the fragment’s getView() method to get a

reference to the fragment’s root view, and then call the view’s

findViewById() method to get its child views.

Q: Activities need to be registered in AndroidManifest.xml so

that the app can use them. Do fragments?

A: No. Activities need to be registered in AndroidManifest.xml, but

fragments don’t.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 371

fragments

Where we’ve got to

Here’s a reminder of the structure of the app, and what we

want it to do:

activity_main.xml

MainActivity.java

Phone

WorkoutDetail

Fragment.java

Workout.java

WorkoutList

Fragment.java

</Layout>

DetailActivity.java

activity_detail.xml

</Layout>

fragment_

workout_detail.xml

</Layout>

So far we’ve created both activities and their

layouts, WorkoutDetailFragment.java and its layout,

and also Workout.java. The next thing we need to

look at is WorkoutListFragment.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

When the app gets launched, it starts MainActivity.

MainActivity uses activity_main.xml for its layout, and contains a fragment

called WorkoutListFragment.

WorkoutListFragment displays a list of workouts.

When the user clicks on one of the workouts, DetailActivity starts.

DetailActivity uses activity_detail.xml for its layout, and contains a fragment

called WorkoutDetailFragment.

WorkoutListFragment and WorkoutDetailFragment get their

workout data from

Workout.java

Workout.java contains an array of Workouts.

WorkoutDetailFragment uses fragment_workout_detail.xml for

its layout.

It displays the details of the workout the user has selected.

372 Chapter 9

list fragment

We need to create

a fragment with a list

You’ve already seen how to add a list view to an activity, so

we could do something similar for the fragment. But rather

than create a new fragment with a layout that contains a

single list view, we’re going to use a different approach that

involves a new type of fragment called a list fragment.

For now we’re building the

phone UI, but later on

we’ll be able to reuse the

fragments to create a

different UI for a tablet.

We need to create a second fragment,

WorkoutListFragment, that contains a list of the

different workouts that the user can choose from. Using a

fragment for this means that later on, we’ll be able to use it

to create different user interfaces for phones and tablets.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 373

fragments

A list fragment is a fragment

that contains only a list

A list fragment is a type of fragment that specializes in working with a

list. It’s automatically bound to a list view, so you don’t need to create

one yourself. Here’s what one looks like:

A list fragment comes

complete with its own list

view so you don’t need to

add it yourself. You just

need to provide the list

fragment with data.

android.support.v4.app.

Fragment

...

android.support.v4.app.

ListFragment

getListView()

getListAdapter()

setListAdapter()

onListItemClick()

...

ListFragment is a

subclass of Fragment.

There are a couple of major advantages in using a list fragment to

display categories of data:

You don’t need to create your own layout.

List fragments define their own layout programmatically, so

there’s no XML layout for you to create or maintain. The layout

the list fragment generates includes a single list view. You access

this list view in your fragment code using the list fragment’s

getListView() method. You need this in order to specify

what data should be displayed in the list view.

You don’t have to implement your own event listener.

The ListFragment class automatically implements an event

listener that listens for when items in the list view are clicked.

Instead of creating your own event listener and binding it to

the list view, you just need to implement the list fragment’s

onListItemClick() method. This makes it easier to get your

fragment to respond when the user clicks on items in the list view.

You’ll see this in action later on.

So what does the list fragment code look like?

A list fragment

is a type of

fragment that

specializes in

working with a

list view. It has

a default layout

that contains the

list view.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

374 Chapter 9

create a list fragment

How to create a list fragment

You add a list fragment to your project in the same way you add a

normal fragment. Highlight the com.hfad.workout package in the app/

src/main/java folder, then go to File→New...→Fragment→Fragment

(Blank). Name the fragment “WorkoutListFragment”, and then

uncheck the options to create layout XML, and also the options

to include fragment factory methods and interface callbacks (list

fragments define their own layouts programmatically, so you don’t

need Android Studio to create one for you). When you click on the

Finish button, Android Studio creates a new list fragment in a file

called WorkoutListFragment.java in the app/src/main/java folder.

Here’s what the basic code looks like to create a list fragment. As you

can see, it’s very similar to that of a normal fragment. Replace the

code in WorkoutListFragment.java with the code below:

package com.hfad.workout;

import android.os.Bundle;

import android.support.v4.app.ListFragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class WorkoutListFragment extends ListFragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return super.onCreateView(inflater, container, savedInstanceState);

}

The activity needs to extend

ListFragment, not Fragment.

The above code creates a basic list fragment called

WorkoutListFragment. As it’s a list fragment, it needs to

extend the ListFragment class rather than Fragment.

The onCreateView() method is optional. It gets called

when the fragment’s view gets created. We’re including it in

our code as we want to populate the fragment’s list view with

data as soon as it gets created. If you don’t need your code

to do anything at this point, you don’t need to include the

onCreateView() method.

The next thing we need to do is add data to the list view in

the onCreateView() method.

app/src/main

WorkoutList

Fragment.java

Workout

java

com.hfad.workout

Calling the superclass onCreateView() method gives

you the default layout for the ListFragment.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

Uncheck these options,

as we don’t need them.

If prompted for the

fragment’s source language,

select the option for Java.

Q: When we create a list fragment, why do we

choose the option for Fragment (Blank) instead of

Fragment (List)?

A: The Fragment (List) option produces code that’s

more complex, most of which we don’t need to use. The

code generated by the Fragment (Blank) is simpler.

you are here 4 375

fragments

Adapters revisited

As we said in Chapter 7, you can connect data to a list view

using an adapter. The adapter acts as a bridge between the

data and the list view. This is still the case when your list view

is in a fragment, or a list fragment:

Data

Source

ListView

Adapter

Our data’s in an

array, but we

could have used

a database or

a web service

instead.

The adapter bridges the gap between the list

view and the data source. Adapters allow list

views to display data from a variety of sources.

We want to supply the list view in WorkoutListFragment

with an array of workout names, so we’ll use an array adapter

to bind the array to the list view as before. As you may

recall, an array adapter is a type of adapter that’s used to

bind arrays to views. You can use it with any subclass of the

AdapterView class, which means you can use it with both list

views and spinners.

In our case, we’re going to use an array adapter to display an

array of data from the Workout class in the list view.

An adapter acts as a

bridge between a view

and a data source. An

array adapter is a

type of adapter that

specializes in working

with arrays.

Workout

names

ListView

Array

Adapter

This is the array. This is our list view.

We’ll create an array adapter to

bind our list view to an array.

We’ll see how this works on the next page.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

376 Chapter 9

array adapters revisited

setListAdapter(listAdapter);

We’ll show you the full code on the next page.

ArrayAdapter<Drink> listAdapter = new ArrayAdapter<>(

this,

android.R.layout.simple_list_item_1,

Drink.drinks);

The current context. In

our Chapter 7 scenario, it

was the current activity.

This is a built-in layout

resource. It tells the array

adapter to display each item in

the array in a single text view.

The array

Our previous array adapter

As we said in Chapter 7, you use an array adapter by initializing it

and attaching it to the list view.

To initialize the array adapter, you first specify what type of data is

contained in the array you want to bind to the list view. You then

pass it three parameters: a Context (usually the current activity), a

layout resource that specifies how to display each item in the array,

and the array itself.

Here’s the code we used in Chapter 7 to create an array adapter to

displays Drink data from the Drink.drinks array:

There’s a big difference between the situation we had back in

Chapter 7 and the situation we have now. Back in Chapter 7, we

used the array adapter to display data in an activity. But this time, we

want to display data in a fragment. What difference does this make?

A fragment isn’t a subclass of Context

As you saw earlier in the book, the Activity class is a subclass of

the Context class. This means that all of the activities you create

have access to global information about the app’s environment.

But the Fragment class isn’t a subclass of the Context class. It

has no access to global information, and you can’t use this to pass

the current context to the array adapter. Instead, you need to get the

current context in some other way.

One way is to use another object’s getContext() method

to get a reference to the current context. If you create the

adapter in the fragment’s onCreateView() method, you can

use the getContext() method of the onCreateView()

LayoutInflator parameter to get the context instead.

Once you’ve created the adapter, you bind it to the ListView using

the fragment’s setListAdapter() method:

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 377

fragments

The updated WorkoutListFragment code

package com.hfad.workout;

import android.os.Bundle;

import android.support.v4.app.ListFragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

public class WorkoutListFragment extends ListFragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

String[] names = new String[Workout.workouts.length];

for (int i = 0; i < names.length; i++) {

names[i] = Workout.workouts[i].getName();

}

ArrayAdapter<String> adapter = new ArrayAdapter<>(

inflater.getContext(), android.R.layout.simple_list_item_1,

names);

setListAdapter(adapter);

return super.onCreateView(inflater, container, savedInstanceState);

}

We’ve updated our WorkoutListFragment.java code so that it

populates the list view with the names of the workouts. Apply

these changes to your code, then save your changes:

app/src/main

WorkoutList

Fragment.java

Workout

java

com.hfad.workout

Now that the WorkoutListFragment contains a list of

workouts, let’s add it to MainActivity.

We're using this class in the

onCreateView() method.

Create a String array of the workout names.

Get the context from

the layout inflater.

Create an array adapter.

Bind the array adapter to the list view.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

378 Chapter 9

display WorkoutListFragment

Display WorkoutListFragment

in the MainActivity layout

We’re going to add our new WorkoutListFragment

to MainActivity’s layout activity_main.xml. The layout

currently displays a button that we’re using to navigate

from MainActivity to DetailActivity:

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

What will the code be like? Have a go at the exercise on

the next page.

We want to remove the button, and display

WorkoutListFragment in its place. Here’s what the

new version of the layout will look like:

MainActivity’s

layout currently

displays a button.

We’re going to change the

layout so that it displays

WorkoutListFragment

instead of the button.

you are here 4 379

fragments

LinearLayout

android:name

android:fragment

WorkoutListFragment

com.hfad.workout.

fragment

Fragment

<?xml version="1.0" encoding="utf-8"?>

< xmlns:android="http://schemas.android.com/apk/res/android"

=" "

android:layout_width="match_parent"

android:layout_height="match_parent"/>

Layout Magnets

Somebody put a new version of activity_main.xml on our fridge door.

Unfortunately some of the magnets fell off when we shut the door too

hard. Can you piece the layout back together again? (You won’t need to

use all of the magnets below.)

The layout needs to display WorkoutListFragment.

380 Chapter 9

solution

<?xml version="1.0" encoding="utf-8"?>

< xmlns:android="http://schemas.android.com/apk/res/android"

=" "

android:layout_width="match_parent"

android:layout_height="match_parent"/>

Layout Magnets Solution

Somebody put a new version of activity_main.xml on our fridge door.

Unfortunately some of the magnets fell off when we shut the door too

hard. Can you piece the layout back together again? (You won’t need to

use all of the magnets below.)

The layout needs to display WorkoutListFragment.

LinearLayout

android:name

android:fragment

WorkoutListFragment

com.hfad.workout.

You didn’t need to use these magnets.

fragment

Fragment

You declare a fragment with the <fragment> element.

You need to give the full

name of the fragment.

you are here 4 381

fragments

The code for activity_main.xml

As we want MainActivity’s layout to only contain a single

fragment, we can replace nearly all of the code we currently have.

Here’s the updated code for activity_main.xml. As you can see, it’s

much shorter than the original version. Update your version of

the code to reflect our changes.

<xml>

</xml>

app/src/main

activity_main.xml

Workout

res

layout

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:orientation="vertical"

tools:context="com.hfad.workout.MainActivity">

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:onClick="onShowDetails"

android:text="@string/details_button" />

</LinearLayout>

<fragment xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutListFragment"

android:layout_width="match_parent"

android:layout_height="match_parent"/>

We’ll go through what happens when this code runs over the next

couple of pages.

We no longer need this button.

Our layout only contains a

single fragment, so we can get

rid of the LinearLayout.

Here’s the fragment.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

382 Chapter 9

what happens

What happens when the code runs

Here’s a runthrough of what happens when we run the app.

When the app is launched, MainActivity gets created.

MainActivity’s onCreate() method runs. This specifies that activity_main.xml should

be used for MainActivity’s layout. activity_main.xml includes a <fragment> element that

refers to WorkoutListFragment.

MainActivity

Device

</Layout>

activity_main.xml

onCreate()

WorkoutList

Fragment

WorkoutListFragment is a ListFragment, so it uses a ListView as its layout.

ListView

WorkoutListFragment creates an ArrayAdapter<String>, an array adapter

that deals with arrays of String objects.

ArrayAdapter<String>

WorkoutListFragment

The ArrayAdapter<String> retrieves data from the names array.

ArrayAdapter<String>

WorkoutListFragment names

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

WorkoutList

Fragment

you are here 4 383

fragments

WorkoutListFragment attaches the array adapter to the ListView using the

setListAdapter() method.

The list view uses the array adapter to display a list of the workout names.

ArrayAdapter<String>

WorkoutListFragment

names

ListView

The story continues

Test drive the app

When we run the app, MainActivity gets launched.

MainActivity’s layout contains the fragment

WorkoutListFragment. The fragment contains a list

of the workout names, and this is displayed in the activity.

That looks great, but when we click on one of the workouts,

nothing happens. We need to update the code so that when

we click on one of the workouts, details of that workout are

displayed.

Here’s a list of all the

workout titles from

the Workout class.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

setListAdapter()

384 Chapter 9

show the correct workout

Connect the list to the detail

There are a few ways that we can start DetailActivity

and display the details of the workout that was clicked. We’ll

use this technique:

Add code to WorkoutListFragment that waits for a workout to be clicked.

When that code runs, call some code in MainActivity.java that will start

DetailActivity, passing it the ID of the workout.

We don’t want to write code in WorkoutListFragment

that talks directly to MainActivity. Can you think why?

The answer is reuse. We want our fragments to know as little

as possible about the environment that contains them so that

we can reuse them elsewhere. The more a fragment needs to

know about the activity using it, the less reusable it is.

Wait a minute! You’re saying you don’t

want the fragment to know about the

activity that contains it? But I thought

you said the fragment has to call code in

MainActivity. Won’t that mean we can’t

use it in another activity?

We need to use an interface to decouple

the fragment from the activity.

We have two objects that need to talk to each other—the

fragment and the activity —and we want them to talk

without one side knowing too much about the other.

The way we do that in Java is with an interface. When

we define an interface, we’re saying what the minimum

requirements are for one object to talk usefully to another. That

means that we’ll be able to get the fragment to talk to any

activity, so long as that activity implements the interface.

Get DetailActivity to pass the ID to WorkoutDetailFragment so that

the fragment can display details of the correct workout.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 385

fragments

1. Define the listener interface

We want any activities that implement the listener interface to

respond to item clicks, so we’ll define a method for the interface,

itemClicked(). The itemClicked() method has one

parameter, the ID of the item that’s clicked.

Here’s the interface:

We’re going to create an interface called Listener.

If MainActivity implements the interface,

WorkoutListFragment will be able to tell MainActivity

when one of its items has been clicked. To do this, we’ll need to make

changes to WorkoutListFragment and MainActivity.

We need to decouple the fragment

by using an interface

interface Listener {

void itemClicked(long id);

};

What WorkoutListFragment needs to do

We’ll start with the code for WorkoutListFragment. There are a

few changes we need to make, in this order.

Define the interface.

We’ll define the listener’s interface in WorkoutListFragment.

We’re defining the interface here, as its purpose is to allow

WorkoutListFragment to communicate with any activity.

WorkoutListFragment gets attached to it.

This will give WorkoutListFragment a reference to MainActivity.

Tell the listener when an item gets clicked.

MainActivity will then be able to respond to the click.

We’ll go through each change individually, then show you the full

code.

Next we’ll look at how you register the listener on the next page.

You need to go

through similar steps

to these whenever

you have a fragment

that needs to

communicate with

the activity it’s

attached to.

We’ll call the interface Listener.

Any activities that implement the Listener interface must

include this method. We’ll use it to get the activity to

respond to items in the fragment being clicked.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

386 Chapter 9

listen

2. Register the listener

We need to save a reference to the activity WorkoutListFragment

gets attached to. This activity will implement the Listener

interface, so we’ll add the following private variable to

WorkoutListFragment:

private Listener listener;

We need to set this variable when WorkoutListFragment gets

attached to an activity. If you look back at the fragment lifecycle, when

a fragment gets attached to an activity, the fragment’s onAttach()

method is called. We’ll use this method to set the value of the listener:

public void onAttach(Context context) {

super.onAttach(context);

this.listener = (Listener)context;

}

This is the context (in this case, the

activity) the fragment is attached to.

3. Respond to clicks

When an item in WorkoutListFragment gets clicked, we want to

call the listener’s itemClicked() method. This is the method we

defined in the interface on the previous page. But how can we tell when

an item’s been clicked?

Whenever an item gets clicked in a list fragment, the list fragment’s

onListItemClick() method gets called. Here’s what it looks like:

public void onListItemClick(ListView listView, View itemView, int position, long id) {

if (listener != null) {

listener.itemClicked(id);

}

public void onListItemClick(ListView listView,

View itemView,

int position,

long id) {

//Do something

}

The onListItemClick() method has four parameters: the list view,

the item in the list that was clicked, its position, and the row ID of the

underlying data. This means we can use the method to pass the listener

the ID of the workout the user clicked on:

The list view

The item in the list view that was

clicked, its position, and its ID

Call the itemClicked() method in the activity, passing

it the ID of the workout the user selected.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 387

fragments

The code for WorkoutListFragment.java

package com.hfad.workout;

import android.os.Bundle;

import android.support.v4.app.ListFragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

import android.content.Context;

import android.widget.ListView;

public class WorkoutListFragment extends ListFragment {

static interface Listener {

void itemClicked(long id);

};

private Listener listener;

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

String[] names = new String[Workout.workouts.length];

for (int i = 0; i < names.length; i++) {

names[i] = Workout.workouts[i].getName();

}

ArrayAdapter<String> adapter = new ArrayAdapter<>(

inflater.getContext(), android.R.layout.simple_list_item_1,

names);

setListAdapter(adapter);

return super.onCreateView(inflater, container, savedInstanceState);

}

@Override

public void onAttach(Context context) {

super.onAttach(context);

this.listener = (Listener)context;

}

@Override

public void onListItemClick(ListView listView, View itemView, int position, long id) {

if (listener != null) {

listener.itemClicked(id);

}

Here’s the full code for WorkoutListFragment.java code (apply these

changes to your code, then save your work):

app/src/main

WorkoutList

Fragment.java

Workout

java

com.hfad.workout

Import these classes.

Add the listener to the fragment.

This is called when the fragment gets

attached to the activity. Remember, the

Activity class is a subclass of Context.

Tell the listener when an item

in the ListView is clicked.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

388 Chapter 9

package com.hfad.workout;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.content.Intent;

public class MainActivity extends AppCompatActivity

implements WorkoutListFragment.Listener {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

public void onShowDetails(View view) {

Intent intent = new Intent(this, DetailActivity.class);

startActivity(intent);

}

@Override

public void itemClicked(long id) {

Intent intent = new Intent(this, DetailActivity.class);

intent.putExtra(DetailActivity.EXTRA_WORKOUT_ID, (int)id);

startActivity(intent);

}

implement Listener

MainActivity needs to implement the interface

Next we need to make MainActivity implement the Listener

interface we just created. The interface specifies an itemClicked()

method, so we’ll make the method start DetailActivity, passing

it the ID of the workout the user selected.

Here’s the full code for MainActivity.java. Update your code so that it

matches ours.

app/src/main

MainActivity.java

Workout

java

com.hfad.workout

Implement the listener interface defined in WorkoutListFragment.

This is the method called by MainActivity’s

button. We’ve removed the button, so we no

longer need this method.

This method is defined by the

interface, so we need to implement it.

Pass the ID of the workout to DetailActivity.

EXTRA_WORKOUT_ID is the name of a

constant we’ll define in DetailActivity.

Those are all the changes we need to make to MainActivity.

There’s just one more code change we need to make to our app.

you are here 4 389

fragments

DetailActivity needs to pass the ID

to WorkoutDetailFragment

So far, WorkoutListFragment passes the ID of the workout

that was clicked to MainActivity, and MainActivity

passes it to DetailActivity. We need to make one more

change, which is to pass the ID from DetailActivity to

WorkoutDetailActivity.

Here’s the updated code for DetailActivity that does this.

Update your version of DetailActivity.java to reflect our changes:

package com.hfad.workout;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

public class DetailActivity extends AppCompatActivity {

public static final String EXTRA_WORKOUT_ID = "id";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_detail);

WorkoutDetailFragment frag = (WorkoutDetailFragment)

getSupportFragmentManager().findFragmentById(R.id.detail_frag);

frag.setWorkout(1);

int workoutId = (int) getIntent().getExtras().get(EXTRA_WORKOUT_ID);

frag.setWorkout(workoutId);

}

app/src/main

DetailActivity.java

Workout

java

com.hfad.workout

Over the next couple of pages we’ll examine what happens when the

code runs.

We’re using a constant to pass the ID from MainActivity

to DetailActivity to avoid hardcoding this value.

We’re no

longer

hardcoding

an ID of 1,

so remove

this line.

Get the ID from the intent,

and pass it to the fragment

via its setWorkout() method.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

390 Chapter 9

what happens

What happens when the code runs

Here’s a runthrough of what happens when we run the app.

When the app is launched, MainActivity gets created.

WorkoutListFragment is attached to MainActivity, and

WorkoutListFragment’s onAttach() method runs.

MainActivity

Device

onAttach()

WorkoutList

Fragment

WorkoutListFragment registers MainActivity as a Listener.

When an item is clicked in WorkoutListFragment, the fragment’s

onListItemClick() method is called.

This calls MainActivity’s itemClicked() method, passing it the ID of the workout that

was clicked, in this example 1.

MainActivity’s itemClicked() method starts DetailActivity, passing it the

value of the workout ID in an intent.

WorkoutListFragment

MainActivity

Yep, I’m

listening...

WorkoutList

Fragment MainActivity

itemClicked(1)

MainActivity DetailActivity

Intent

id: 1

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

you are here 4 391

fragments

DetailActivity WorkoutDetailFragment

setWorkout(1)

The story continues...

DetailActivity calls WorkoutDetailFragment’s setWorkout() method, passing it

the value of the workout ID.

WorkoutDetailFragment uses the workout ID, in this case 1, to display the workout title

and description in its views.

textTitle: Core Agony

textDescription: 100 Pull ups

100 Push-ups

100 Sit ups

100 Squats

Test drive the app

When we run the app, MainActivity gets

launched. It displays a list of workouts in its fragment,

WorkoutListFragment.

When you click on one of the workouts, DetailActivity is

displayed. It shows details of the workout that we selected.

That’s everything we need to do to use the fragments we’ve

created in a user interface for a phone. In the next chapter,

you’ll see how to reuse the fragments, and create a different

user interface that will work better for tablets.

Here’s the

list of

workouts.

When you click on one

of the workouts, its

details are displayed.

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

WorkoutDetailFragment

WorkoutListFragment

Coordinate fragments

392 Chapter 9

toolbox

Your Android Toolbox

You’ve got Chapter 9 under

your belt and now you’ve

added fragments to your

toolbox.

onAttach()

onDetach()

onCreate()

onDestroy()

onCreateView()

onDestroyView()

onActivityCreated()

onStart()

onResume()

onPause()

onStop()

A fragment is used to control

part of a screen. It can be

reused across multiple

activities.

A fragment has an associated

layout.

The onCreateView()

method gets called each time

Android needs the fragment’s

layout.

Add a fragment to an

activity’s layout using the

<fragment> element and

adding a name attribute.

The fragment lifecycle

methods tie in with the states

of the activity that contains the

fragment.

The Fragment class doesn’t

extend the Activity class

or implement the Context

class.

Fragments don’t have a

findViewById() method.

Instead, use the getView()

method to get a reference to

the root view, then call the

view’s findViewById()

method.

A list fragment is a fragment

that comes complete

with a ListView. You

create one by subclassing

ListFragment.

Fragment lifecycle methods

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 9

this is a new chapter 393

fragments for larger interfaces

Different Size,

Different Interface

So far we've only run our apps on devices with a small screen.

But what if your users have tablets? In this chapter you’ll see how to create flexible user

interfaces by making your app look and behave differently depending on the device it’s

running on. We’ll show you how to control the behavior of your app when you press the

Back button by introducing you to the back stack and fragment transactions. Finally,

you’ll find out how to save and restore the state of your fragment.

They’re using a tablet?

Maybe we should

rethink the UI...

394 Chapter 10

we need a bigger screen

The Workout app looks the same on a phone and a tablet

When we run the app on a tablet, the app works in exactly

the same way. As the screen size is larger, however, there’s

lots of empty space in the user interface that we could

make better use of.

In the previous chapter, we created a version of the Workout app

designed to work on a phone.

As a reminder, when the app launches, it displays MainActivity.

This contains a fragment, WorkoutListFragment, that displays

a list of workouts. When the user clicks on one of the workouts,

DetailActivity starts, and displays details of the workout in its

fragment, WorkoutDetailFragment.

Click on an item in a list, and

it launches a second activity.

Look at all this empty space. Maybe

we could use it for something.

you are here 4 395

fragments for larger interfaces

Designing for larger interfaces

One way in which we could better use the empty space is to

display details of the workout to the right of the list of workouts.

When the user clicks on one of the workouts, details of that

workout could be displayed on the same screen without us

having to start a second activity:

There's a lot more space on

a tablet, so we can use the

space in a different way.

We don’t want to change our app completely though. We still

want our app to work as it does currently if it’s running on a

phone.

We’re going to get our app to adapt to the type of device it’s

running on. If the app’s running on a phone, we’ll display details

of the workout in a separate activity (this is the app’s current

behavior). If the app’s running on a tablet, we’ll display details

of the workout next to the list of workouts.

Before we get started, let’s remind ourselves how the app’s

currently structured.

396 Chapter 10

phone version

The phone version of the app

The phone version of the app we built in Chapter 9 works in

the following way:

So how does it need to work differently on a tablet?

activity_main.xml

MainActivity.java

Phone

WorkoutDetail

Fragment.java

Workout.java

WorkoutList

Fragment.java

</Layout>

DetailActivity.java

activity_detail.xml

</Layout>

fragment_

workout_detail.xml

</Layout>

When the app gets launched, it starts MainActivity.

MainActivity uses activity_main.xml for its layout, and contains a fragment

called WorkoutListFragment.

WorkoutListFragment displays a list of workouts.

When the user clicks on one of the workouts, DetailActivity starts.

DetailActivity uses activity_detail.xml for its layout, and contains a fragment

called WorkoutDetailFragment.

WorkoutListFragment and WorkoutDetailFragment get their

workout data from

Workout.java

Workout.java contains an array of Workouts.

WorkoutDetailFragment uses fragment_workout_detail.xml for

its layout.

It displays the details of the workout the user has selected.

you are here 4 397

fragments for larger interfaces

The tablet version of the app

Here’s how the app will work when it runs on a tablet:

WorkoutListFragment displays a list of workouts.

It’s a list fragment, so it has no extra layout file.

Both fragments get their workout data from

Workout.java

before.

There are two key differences.

The first is that MainActivity’s layout needs to display

both fragments, not just WorkoutListFragment.

The second difference is that we no longer need to

start DetailActivity when the user clicks on

one of the workouts. Instead, we need to display

WorkoutDetailFragment in MainActivity.

We’ll go through the steps for how to change the app on the

next page.

activity_main.xml

MainActivity.java

Tablet WorkoutDetail

Fragment.java

Workout.java

WorkoutList

Fragment.java

fragment_

workout_detail.xml

</Layout>

</Layout>

When the app gets launched, it starts MainActivity as before.

MainActivity uses activity_main.xml for its layout.

MainActivity’s layout displays two fragments,

WorkoutListFragment and WorkoutDetailFragment.

When the user clicks on one of the workouts, its details are

displayed in WorkoutDetailFragment.

WorkoutDetailFragment uses fragment_workout_detail.xml for its layout.

398 Chapter 10

steps

Here’s what we’re going to do

There are a number of steps we’ll go through to change the app:

Create a tablet AVD

(Android Virtual Device).

We’re going to create a new UI

for a tablet, so we’ll create a new

tablet AVD to run it on. This will

allow us to check how the app

looks and behaves on a device

with a larger screen.

Create a new tablet layout.

We’ll reuse the fragments we’ve

already created in a new layout

that’s designed to work on devices

with larger screens. We’ll display

details of the first workout in the

first instance so that we can see

the fragments side by side.

Display details of the

workout the user selects.

We’ll update the app so that

when the user clicks on one of

the workouts, we’ll display the

details of the workout the user

selected.

At first, we’ll hardcode

the app so it displays the

Limb Loosener workout.

Later in the chapter, we’ll

change the code so that

it displays details of the

workout the user clicks on.

Do this!

We’re going to update the Workout

app in this chapter, so open your

original Workout project from

Chapter 9 in Android Studio.

you are here 4 399

fragments for larger interfaces

Before we get into changing the app, we’re going to create a new Nexus

7 AVD running API level 25 so that you can see how the app looks and

behaves when it’s running on a tablet. The steps are nearly the same as

when you created a Nexus 5X AVD back in Chapter 1.

Open the Android Virtual Device Manager

You create AVDs using the AVD Manager. Open the

AVD Manager by selecting Android on the Tools menu

and choosing AVD Manager.

You’ll be presented with a screen showing you a list of the

AVDs you’ve already set up. Click on the Create Virtual

Device button at the bottom of the screen.

Click on the Create Virtual

Device button to create an AVD.

Create a tablet AVD

Select the

hardware

On the next screen,

you’ll be prompted

to choose a device

definition, the type

of device your AVD

will emulate.

We’re going to see

what our app looks

like running on

a Nexus 7 tablet.

Choose Tablet from

the Category menu

and Nexus 7 from

the list. Then click

the Next button.

Choose the Tablet and Nexus 7 options.

Create AVD

Create layout

Show workout

400 Chapter 10

create avd

Select a system image

Next, you need to select a system image. The system image gives

you an installed version of the Android operating system. You can

choose the version of Android you want to be on your AVD.

You need to choose a system image for an API level that’s

compatible with the app you’re building. As an example, if you want

your app to work on a minimum of API level 19, choose a system

image for at least API level 19. As in Chapter 1, we want our AVD

to run API level 25, so choose the system image with a release name

of Nougat and a target of Android 7.1.1, the version number of API

level 25. Then click on the Next button.

We’ll choose

the same

system image

as we did in

Chapter 1.

Creating a tablet AVD (continued)

Create AVD

Create layout

Show workout

you are here 4 401

fragments for larger interfaces

Verify the AVD configuration

On the next screen, you’ll be asked to verify the AVD

configuration. This screen summarizes the options you chose

over the last few screens, and gives you the option of changing

them. Change the screen startup orientation to Landscape,

then click on the Finish button.

These are the options you

chose over the past few pages.

The AVD Manager will create the Nexus 7 AVD for you, and

when it’s done, display it in its list of devices. You may now

close the AVD Manager.

Now that we’ve created our tablet AVD, we can get to work

on updating the Workout app. We want to change the app so

that MainActivity uses one layout when it’s running on a

phone, and another layout when it’s running on a tablet. But

how can we do this?

Creating a tablet AVD (continued)

Choose the Landscape option

so the AVD starts up with a

landscape orientation.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

402 Chapter 10

different resources for different screens

Put screen-specific resources in

screen-specific folders

Earlier in the book, you saw how you could get different

devices to use image resources appropriate to their screen

size by putting different-sized images in the different drawable*

folders. As an example, you put images intended for devices

with high-density screens in the drawable-hdpi folder.

You can do something similar with other resources such as

layouts, menus, and values. If you want to create multiple

versions of the same resource for different screen specs, you

need to create multiple resource folders with an appropriate

name, then add the resource to that folder. The device will

then load the resource at runtime from the folder that’s the

closest match to its screen spec.

If you want to have one layout for large screen devices such as

tablets, and another layout for smaller devices such as phones,

you put the layout for the tablet in the app/src/main/res/layout-

large folder, and the layout for the phone in the app/src/main/

res/layout folder. When the app runs on a phone, it will use the

layout in the layout folder. If it’s run on a tablet, it will use the

layout in the layout-large folder instead.

On the next page, we’ll show you all the different options you

can use for your resource folder names.

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

layout-large

activity_main.xml

Large devices like tablets

will load layout files from

the layout-large folder.

All devices with smaller screens will load

the layouts from the layout folder.

This layout will be used by

devices with smaller screens.

This layout will be used by

devices with a large screen.

Android uses the names

of your resource folders to

decide which resources it

should use at runtime.

Layouts in the layout

folder can be used by any

device, but layouts in the

layout-large folder will

only be used by devices

with a large screen.

Create AVD

Create layout

Show workout

you are here 4 403

fragments for larger interfaces

You can put all kinds of resources (drawables or images, layouts,

menus, and values) in different folders to specify which types of

device they should be used with. The screen-specific folder name can

include screen size, density, orientation and aspect ratio, with each

part separated by hyphens. As an example, if you want to create a

layout that will only be used by very large tablets in landscape mode,

you would create a folder called layout-xlarge-land and put the layout

file in that folder. Here are the different options you can use for the

folder names:

Screen density

-ldpi

-mdpi

-hdpi

-xhdpi

-xxhdpi

-xxxhdpi

-nodpi

-tvdpi

Resource type

drawable

layout

mipmap

values

Screen size

-small

-normal

-large

-xlarge

Orientation

-land

-port

Aspect ratio

-long

-notlong

Screen density is based

on dots per inch.

long is for screens

that have a very

high value for height.

Android decides at runtime which resources to use by checking the

spec of the device and looking for the best match. If there’s no exact

match, it will use resources designed for a smaller screen than the

current one. If resources are only available for screens larger than the

current one, Android won’t use them and the app will crash.

If you only want your app to work on devices with particular

screen sizes, you can specify this in AndroidManifest.xml using the

<supports-screens> attribute. As an example, if you don’t

want your app to run on devices with small screens, you’d use:

You must specify a resource type.

This is for density-independent

resources. Use -nodpi for any image

resources you don’t want to scale

(e.g., a folder called drawable-

nodpi).

The different folder options

For more information on

the settings on this page,

see:

https://developer.android.

com/guide/practices/

screens_support.html.

<supports-screens android:smallScreens="false"/>

Using the different folder names above, you can create layouts that

are tailored for phones and tablets.

A mipmap resource is

used for application

icons. Older versions

of Android Studio use

drawables instead.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

404 Chapter 10

exercise

import android.app.Activity;

import android.os.Bundle;

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

...

}

BE the Folder Structure

Below you’ll see the code for an

activity. You want to display one

layout when it runs on devices with

large-sized screens, and

another layout when

it runs on devices with

smaller-sized screens.

Which of these folder

structures will allow you to do that?

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-large-land

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-tablet

Here’s the activity.

you are here 4 405

fragments for larger interfaces

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-large

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main_tablet.xml

<xml>

</xml>

app/src/main

activity_main.xml

res

layout-large

<xml>

</xml>

activity_main.xml

layout-normal

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-large-land

<xml>

</xml>

activity_main.xml

layout-large-port

C D

E F

406 Chapter 10

solution

import android.app.Activity;

import android.os.Bundle;

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

...

}

BE the Folder Structure Solution

Below you’ll see the code for an

activity. You want to display one

layout when it runs on devices with

large-sized screens, and

another layout when

it runs on devices with

smaller-sized screens.

Which of these folder

structures will allow you to do that?

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-large-land

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-tablet

Android doesn't

recognize the folder

name layout-tablet.

activity_main.xml in

the layout folder will

be displayed on all

devices.

A device with a large

screen will use the layout

in the layout-large-land

folder when it's oriented

landscape. But when

the device is rotated

to portrait, it will use

the layout in the layout

folder—and that’s not

what you want.

you are here 4 407

fragments for larger interfaces

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-large

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main_tablet.xml

<xml>

</xml>

app/src/main

activity_main.xml

res

layout-large

<xml>

</xml>

activity_main.xml

layout-normal

<xml>

</xml>

app/src/main

activity_main.xml

res

layout

<xml>

</xml>

activity_main.xml

layout-large-land

<xml>

</xml>

activity_main.xml

layout-large-port

C D

E F

Devices with a large

screen will use the

layout in the layout-

large folder. Devices

with smaller screens

will use the layout in

the layout folder.

The activity uses a

layout file called

activity_main.xml.

The layout activity_

main_tablet.xml

won't be used

because it has the

wrong filename.

Devices with a large

screen will use the

layout in the layout-

large folder. Devices

with normal screens

will use the layout

in the layout-normal

folder. There's no

layout for devices

with a small screen, so

they won’t be able to

run the app.

Devices with a large

screen will use the

layout in the layout-

large-land folder when

the device is turned

landscape, and the

layout in the layout-

large-port folder when

the device is turned

portrait. Other devices

will use the layout in

the layout folder.

408 Chapter 10

<?xml version="1.0" encoding="utf-8"?>

<fragment xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.WorkoutListFragment"

android:layout_width="match_parent"

android:layout_height="match_parent"/>

layout-large

Tablets use layouts in the layout-large folder

<xml>

</xml>

app/src/main

activity_main.xml

Workout

res

layout-large

To get the tablet version of our app up and running, we need to

copy our existing activity layout file activity_main.xml into the app/

src/main/res/layout-large folder and then update that version of

the file. This layout will then only be used by devices with a large

screen.

If the app/src/main/res/layout-large folder doesn’t exist in your

Android Studio project, you’ll need to create it. To do this,

switch to the Project view of Android Studio’s explorer, highlight

the app/src/main/res folder, and choose File→New...→Directory.

When prompted, give the folder a name of “layout-large”. When

you click on the OK button, Android Studio will create the new

app/src/main/res/layout-large folder.

To copy the activity_main.xml layout file, highlight the file in the

explorer, and choose the Copy command from the Edit menu.

Then highlight the new layout-large folder, and choose the Paste

command from the Edit menu. Android Studio will copy the

activity_main.xml file into the app/src/main/res/layout-large folder.

If you open the file you just pasted, it should look like this:

This is exactly the same layout that we had before. It contains

a single fragment, WorkoutListFragment, that displays

a list of workouts. The next thing we need to do is update

the layout so that it displays two fragments side by side,

WorkoutListFragment and WorkoutDetailFragment.

We've not

changed the

layout, just

copied it to

the layout-

large folder.

Here's the folder

Android Studio created.

Create AVD

Create layout

Show workout

you are here 4 409

fragments for larger interfaces

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="horizontal"

android:layout_width="match_parent"

android:layout_height="match_parent">

<fragment

android:name="com.hfad.workout.WorkoutListFragment"

android:id="@+id/list_frag"

android:layout_width="0dp"

android:layout_weight="2"

android:layout_height="match_parent"/>

<fragment

android:name="com.hfad.workout.WorkoutDetailFragment"

android:id="@+id/detail_frag"

android:layout_width="0dp"

android:layout_weight="3"

android:layout_height="match_parent"/>

</LinearLayout>

The layout-large version of the layout

needs to display two fragments

We’re going to change the version of activity_main.xml in

the layout-large folder so that it contains the two fragments.

To do this, we’ll add the fragments to a linear layout with

the orientation set to horizontal. We’ll adjust the

width of the fragments so that WorkoutListFragment

takes up two-fifths of the available space, and

WorkoutDetailFragment takes up three-fifths.

Our version of activity_main.xml is below. Update your code

to reflect our changes. Make sure that you only edit the

tablet version of the layout that’s in the layout-large folder.

<xml>

</xml>

app/src/main

activity_main.xml

Workout

res

layout-large

We’ll run through what happens when the code runs on the

next page.

We're adding WorkoutDetailFragment

to MainActivity's layout.

Our layout already includes

WorkoutListFragment.

We're putting the fragments in a

LinearLayout with a horizontal

orientation so the two fragments will

be displayed alongside each other.

The

fragments

need IDs

so that

Android

doesn't

lose track

of where

to put

each

fragment.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

410 Chapter 10

what the code does

If the app’s running on a tablet, it uses the version of

activity_main.xml that’s in the layout-large folder.

The layout displays WorkoutListFragment and

WorkoutDetailFragment side by side.

If the app’s running on a device with a smaller screen, it uses

the version of activity_main.xml that’s in the layout folder.

The layout displays WorkoutListFragment on its own.

Android

<xml>

</xml>

activity_main.xml

layout-large

Android

<xml>

</xml>

activity_main.xml

layout

The device screen

isn’t large, so I’ll use

the version in the

layout folder.

What the updated code does

Before we take the app for a test drive, let’s go through what

happens when the code runs.

When the app is launched, MainActivity gets created.

MainActivity’s onCreate() method runs. This specifies that

activity_main.xml should be used for MainActivity’s layout.

MainActivity

Device

onCreate()

The device screen’s large,

so I’ll use the large version

of the layout.

Create AVD

Create layout

Show workout

you are here 4 411

fragments for larger interfaces

Test drive the app

When you run the app on a phone, the app looks just as it did

before. MainActivity displays a list of workout names, and

when you click on one of the workouts, DetailActivity

starts and displays its details.

On a phone, the app looks

the same as it did before.

When you run the app on a tablet, MainActivity

displays a list of workout names on the left, and details

of the first workout appear next to it.

Here are the two fragments,

one next to the other.

When you click on one of the workouts, DetailActivity

still gets displayed. We need to change our code so that if the

app’s running on a tablet, DetailActivity no longer starts.

Instead, we need to display details of the workout the user selects

in MainActivity, and not just the first workout.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

Details of this workout appear

because we’ve hardcoded it to.

412 Chapter 10

itemClicked() code

We need to change the itemClicked() code

We need to change the code that decides what to do when

items in WorkoutListFragment are clicked. This means

that we need to change the itemClicked() method in

MainActivity. Here’s the current code:

But how do we update the workout details?

The WorkoutDetailFragment updates its views when it

is started. But once the fragment is displayed onscreen, how

do we get the fragment to update the details?

You might be thinking that we could play with the fragment’s

lifecycle so that we get it to update. Instead, we’ll replace

the detail fragment with a brand-new detail

fragment, each time we want its text to change.

There’s a really good reason why...

...

public class MainActivity extends AppCompatActivity

implements WorkoutListFragment.Listener {

...

@Override

public void itemClicked(long id) {

Intent intent = new Intent(this, DetailActivity.class);

intent.putExtra(DetailActivity.EXTRA_WORKOUT_ID, (int)id);

startActivity(intent);

}

app/src/main

MainActivity.java

Workout

java

com.hfad.workout

The current code starts DetailActivity whenever

the user clicks on one of the workouts. We need to change

the code so that this only happens if the app’s running

on a device with a small screen such as a phone. If the

app’s running on a device with a large screen, when the

user picks a workout we need to display the details of

the workout shown to the right of the list of workouts in

WorkoutDetailFragment.

This is the itemClicked() method we

wrote in the previous chapter. It starts

DetailActivity, and passes it the ID of

the workout that was clicked.

Create AVD

Create layout

Show workout

you are here 4 413

fragments for larger interfaces

Suppose you have a user that runs the app on a phone. When they click

on a workout, details of that workout are displayed in a separate activity. If

the user clicks on the Back button, they’re returned to the list of workouts:

You want fragments to work with the Back button

In every app we’ve built so far, when we’ve clicked on the Back

button, we’ve been returned to the previous activity. This is standard

Android behavior, and something that Android has handled for

us automatically. If we’re running this particular app on a tablet,

however, we don’t want the Back button to return us to the previous

activity. We want it to return us to the previous fragment state.

The user clicks on the

Limb Loosener workout.

They then click on

the Wimp Special.

When the user clicks on the

device’s Back button, we

want the app to go back to

the Limb Loosener workout.

Then suppose the user runs the app on a tablet, and clicks

on one workout, followed by a second workout. If they click

on the Back button, they’re probably going to expect to be

returned to the first workout they chose:

The user

clicks on a

workout...

When the user

clicks on the Back

button, the app

goes back to the

list of workouts.

Create AVD

Create layout

Show workout

...and sees the details

in a separate activity.

414 Chapter 10

back stack

Welcome to the back stack

When you go from activity to activity in your app, Android keeps

track of each activity you’ve visited by adding it to the back

stack. The back stack is a log of the places you’ve visited on the

device, each place recorded as a separate transaction.

A back stack scenario

Activity1

Suppose you start by visiting a fictitious activity in

your app, Activity1. Android records your visit to

Activity1 on the back stack as a transaction.

Activity1

Activity2

You then go to Activity2. Your visit to Activity2

is added to the top of the back stack as a separate

transaction.

You then go to Activity3. Activity3 is added to the

top of the back stack.

Activity1

Activity2

Activity3

When you click on the Back button, Activity3 pops off

the top of the back stack. Android displays Activity2,

as this activity is now at the top of the back stack.

Activity1

Activity2

Activity1

If you click on the Back button again, Activity2 pops

off the top of the back stack, and Activity1 is displayed.

Create AVD

Create layout

Show workout

you are here 4 415

fragments for larger interfaces

This means that fragment changes can be reversed when you

click on the Back button, just like activity changes can.

Back stack transactions

don’t have to be activities

We’ve shown you how the back stack works with activities, but

the truth is, it doesn’t just apply to activities. It applies to any

sort of transaction, including changes to fragments.

These are two different

fragment transactions for

WorkoutDetailFragment. The top

one displays details of the Core

Agony workout, and the bottom one

displays details of the Wimp Special.

When you click on the Back button,

the transaction that contains details

of the Core Agony is popped off the

top of the back stack. Details of

the Wimp Special are displayed.

Don’t update—instead, replace

We’re going to replace the entire WorkoutDetailFragment

with a new instance of it each time the user selects a different

workout. Each new instance of WorkoutDetailFragment

will be set up to display details of the workout the user selects.

That way, we can add each fragment replacement to the back

stack as a separate transaction. Each time the user clicks on

the Back button, the most recent transaction will be popped off

the top of the stack, and the user will see details of the previous

workout they selected.

To do this, we first need to know how to replace one fragment

with another. We’ll look at this on the next page.

So how can we record changes to fragments as separate

transactions on the back stack?

Wimp Special

Core Agony

Wimp Special

Android builds the

back stack as you

navigate from one

activity to another.

Each activity is

recorded in a separate

transaction.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

416 Chapter 10

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:orientation="horizontal"

android:layout_width="match_parent"

android:layout_height="match_parent">

<fragment

android:name="com.hfad.workout.WorkoutListFragment"

android:id="@+id/list_frag"

android:layout_width="0dp"

android:layout_weight="2"

android:layout_height="match_parent"/>

<fragment

<FrameLayout

android:name="com.hfad.workout.WorkoutDetailFragment"

android:id="@+id/detail_frag"

android:id="@+id/fragment_container"

android:layout_width="0dp"

android:layout_weight="3"

android:layout_height="match_parent"/>

</LinearLayout>

frame layout

Use a frame layout to replace

fragments programmatically

To replace one fragment with another in MainActivity’s

tablet user interface, we need to begin by making a change to

the activity_main.xml layout file in the layout-large folder. Instead

of inserting WorkoutDetailFragment directly using the

<fragment> element, we’ll use a frame layout.

We’ll add the fragment to the frame layout programmatically.

Whenever an item in the WorkoutListFragment list view

gets clicked, we’ll replace the contents of the frame layout with

a new instance of WorkoutDetailFragment that displays

details of the correct workout.

Here’s our new version of the code for activity_main.xml in the

layout-large folder. Update your code to include our changes.

<xml>

</xml>

app/src/main

activity_main.xml

Workout

res

layout-large

We're going to display the

fragment inside a FrameLayout.

Add a fragment using

a <FrameLayout>

whenever you need

to replace fragments

programmatically, such

as when you need to

add fragment changes

to the back stack.

We'll add the fragment

to the frame layout

programmatically.

We'll give the FrameLayout an ID

of fragment_container so we can

refer to it in our activity code.

Create AVD

Create layout

Show workout

We covered

frame layouts

in Chapter 5.

you are here 4 417

fragments for larger interfaces

Use layout differences to tell

which layout the device is using

We want MainActivity to perform different actions when

the user clicks on a workout depending on whether the device is

running on a phone or a tablet. We can tell which version of the

layout’s being used by checking whether or not the layout includes

the frame layout we added on the previous page.

If the app is running on a tablet, the device will be using the version

of activity_main.xml that’s in the layout-large folder. This layout

includes a frame layout with an ID of fragment_container.

When the user clicks on a workout, we want to display a new

instance of WorkoutDetailFragment in the frame layout.

If the app’s running on a phone, the device will be using activity_

main.xml in the layout folder. This layout doesn’t include the frame

layout. If the user clicks on a workout, we want MainActivity

to start DetailActivity as it does currently.

WorkoutDetailFragment is

displayed in a frame layout with

an ID of fragment_container.

If we can get our MainActivity code to check for the

existence of a view with an ID of fragment_container,

we can get MainActivity to behave differently depending

on whether the app’s running on a phone or a tablet.

MainActivity doesn't

include the frame layout

if it's running on a phone.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

418 Chapter 10

MainActivity code

The revised MainActivity code

We’ve updated MainActivity so that the itemClicked()

method looks for a view with an ID of fragment_

container. We can then perform different actions depending

on whether or not the view is found.

Here’s our full code for MainActivity.java; update your version of

the code to match ours:

package com.hfad.workout;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.content.Intent;

public class MainActivity extends AppCompatActivity

implements WorkoutListFragment.Listener {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

@Override

public void itemClicked(long id) {

View fragmentContainer = findViewById(R.id.fragment_container);

if (fragmentContainer != null) {

//Add the fragment to the FrameLayout

} else {

Intent intent = new Intent(this, DetailActivity.class);

intent.putExtra(DetailActivity.EXTRA_WORKOUT_ID, (int) id);

startActivity(intent);

}

app/src/main

MainActivity.java

Workout

java

com.hfad.workout

Get a reference to the frame layout that will contain

WorkoutDetailFragment. This will only exist if the app

is being run on a device with a large screen.

We need to write code that will run

if the frame layout exists.

If the frame layout doesn’t exist, the app must be running

on a device with a smaller screen. In that case, start

DetailActivity and pass it the ID of the workout as before.

The next thing we need to do is see how we can add

WorkoutDetailFragment to the frame layout programmatically.

We've not changed this method.

Create AVD

Create layout

Show workout

you are here 4 419

fragments for larger interfaces

Using fragment transactions

You can programmatically add a fragment to an activity’s layout so

long as the activity’s running. All you need is a view group in which

to place the fragment, such as a frame layout.

You add, replace, or remove fragments at runtime using a fragment

transaction. A fragment transaction is a set of changes relating to

the fragment that you want to apply, all at the same time.

When you create a fragment transaction, you need to do three things:

The start of the

fragment transaction

Begin the transaction.

This tells Android that you’re starting a series of changes that you

want to record in the transaction.

Specify the changes.

These are all the actions you want to group together in the

transaction. This can include adding, replacing, or removing a

fragment, updating its data, and adding it to the back stack.

Commit the transaction.

This finishes the transaction and applies the changes.

1. Begin the transaction

You begin the transaction by first getting a reference to the activity’s

fragment manager. As you may remember from the previous chapter,

the fragment manager is used to manage any fragments used by

the activity. If you’re using fragments from the Support Library as

we are here, you get a reference to the fragment manager using the

following method:

getSupportFragmentManager();

Once you have a reference to the fragment manager, you call its

beginTransaction() method to begin the transaction:

FragmentTransaction transaction = getSupportFragmentManager().beginTransaction();

That’s all you need to do to begin the transaction. On the next

page we’ll look at how you specify the changes you want to make.

This returns the fragment manager that deals

with fragments from the Support Library.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

420 Chapter 10

transaction changes

transaction.addToBackStack(null);

You can optionally use the setTransition() method to say

what sort of transition animation you want for this transaction:

transaction.setTransition(transition);

transition is the type of animation. Options for this are

TRANSIT_FRAGMENT_CLOSE (a fragment is being removed

from the stack), TRANSIT_FRAGMENT_OPEN (a fragment is being

added), TRANSIT_FRAGMENT_FADE (the fragment should fade in

and out), and TRANSIT_NONE (no animation). By default, there are

no animations.

Once you’ve specified all the actions you want to take as part of

the transaction, you can use the addToBackStack() method

to add the transaction to the back stack. This method takes one

parameter, a String name you can use to label the transaction.

This parameter is needed if you need to programmatically retrieve

the transaction. Most of the time you won’t need to do this, so you

can pass in a null value like this:

You don't have to set a transition.

Most of the time you won't need to retrieve

the transaction, so it can be set to null.

2. Specify the changes

After beginning the transaction, you need to say what changes the

transaction should include.

If you want to add a fragment to your activity’s layout, you call the

fragment transaction’s add() method. This takes two parameters,

the resource ID of the view group you want to add the fragment to,

and the fragment you want to add. The code looks like this:

WorkoutDetailFragment fragment = new WorkoutDetailFragment();

transaction.add(R.id.fragment_container, fragment);

To replace the fragment, you use the replace() method:

transaction.replace(R.id.fragment_container, fragment);

To remove the fragment completely, you use the remove()

method:

transaction.remove(fragment);

Create the fragment.

Add the fragment to the ViewGroup.

Replace the fragment.

Remove the fragment.

Create AVD

Create layout

Show workout

you are here 4 421

fragments for larger interfaces

transaction.commit();

3. Commit the transaction

Finally, you need to commit the transaction. This finishes the

transaction, and applies the changes you specified. You commit the

transaction by calling the transaction’s commit() method like this:

That’s everything we need to know in order to create fragment

transactions, so let’s put it into practice by getting our MainActivity

code to display an updated version of WorkoutDetailFragment

every time the user clicks on a workout.

public void itemClicked(long id) {

View fragmentContainer = findViewById(R.id.fragment_container);

if (fragmentContainer != null) {

WorkoutDetailFragment details = new WorkoutDetailFragment();

FragmentTransaction ft = getSupportFragmentManager(). ;

details.setWorkout(id);

ft. (R.id.fragment_container, );

ft. (FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft. (null);

ft. ;

} else {

Intent intent = new Intent(this, DetailActivity.class);

intent.putExtra(DetailActivity.EXTRA_WORKOUT_ID, (int) id);

startActivity(intent);

}

Activity Magnets

We want to write a new version of the MainActivity's itemClicked() method. It

needs to change the workout details that are displayed in WorkoutDetailFragment

each time the user clicks on a new workout. See if you can finish the code below.

You won’t need to use

all of the magnets.

commit()

setTransition

beginTransaction()

replace

details

addToBackStack

startTransaction()

endTransaction()

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

422 Chapter 10

solution

public void itemClicked(long id) {

View fragmentContainer = findViewById(R.id.fragment_container);

if (fragmentContainer != null) {

WorkoutDetailFragment details = new WorkoutDetailFragment();

FragmentTransaction ft = getSupportFragmentManager(). ;

details.setWorkout(id);

ft. (R.id.fragment_container, );

ft. (FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft. (null);

ft. ;

} else {

Intent intent = new Intent(this, DetailActivity.class);

intent.putExtra(DetailActivity.EXTRA_WORKOUT_ID, (int) id);

startActivity(intent);

}

Activity Magnets Solution

We want to write a new version of the MainActivity’s itemClicked() method. It

needs to change the workout details that are displayed in WorkoutDetailFragment

each time the user clicks on a new workout. See if you can finish the code below.

commit()

setTransition

beginTransaction()

replace

details

addToBackStack

startTransaction()

endTransaction()

You didn't need to

use these magnets.

This begins the

transaction.

Each time

the user

clicks on

a workout,

we'll

replace

the

fragment

with

a new

instance

of it.

This is a new instance of

WorkoutDetailFragment.

It displays details of the

workout the user selected.

Set the fragment

to fade in and out.

Add the transaction

to the back stack.

Commit the transaction.

you are here 4 423

fragments for larger interfaces

package com.hfad.workout;

import android.support.v4.app.FragmentTransaction;

...

public class MainActivity extends AppCompatActivity

implements WorkoutListFragment.Listener {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

@Override

public void itemClicked(long id) {

View fragmentContainer = findViewById(R.id.fragment_container);

if (fragmentContainer != null) {

WorkoutDetailFragment details = new WorkoutDetailFragment();

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

details.setWorkout(id);

ft.replace(R.id.fragment_container, details);

ft.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft.addToBackStack(null);

ft.commit();

} else {

Intent intent = new Intent(this, DetailActivity.class);

intent.putExtra(DetailActivity.EXTRA_WORKOUT_ID, (int) id);

startActivity(intent);

}

The updated MainActivity code

We’re going to get a new instance of WorkoutDetailFragment

(one that displays the correct workout), display the fragment in the

activity, and then add the transaction to the back stack. Here’s the full

code. Update your version of MainActivity.java to reflect our changes:

app/src/main

MainActivity.java

Workout

java

com.hfad.workout

Start the

fragment

transaction.

Replace the fragment.

Get the new and old fragments

to fade in and out.

Commit the transaction.

We're using a FragmentTransaction

from the Support Library as we're

using Support Library Fragments.

We haven't changed this method.

Add the

transaction

to the back

stack.

On the next page we’ll see what happens when the code runs.

Create AVD

Create layout

Show workout

424 Chapter 10

what happens

MainActivity WorkoutDetailFragment

MainActivity’s itemClicked() method sees that the app is running on a tablet.

It creates a new instance of WorkoutDetailFragment, and begins a new fragment

transaction.

What happens when the code runs

Here’s a runthrough of what happens when we run the app.

The app is launched on a tablet and MainActivity starts.

WorkoutListFragment is attached to MainActivity, and MainActivity is

registered as a listener on WorkoutListFragment.

MainActivity

Tablet

When an item is clicked in WorkoutListFragment, the fragment’s

onListItemClick() method is called.

This calls MainActivity’s itemClicked() method, passing it the ID of the workout that

was clicked; in this example, the ID is 1.

WorkoutListFragment

WorkoutList

Fragment MainActivity

itemClicked(1)

FragmentTransaction

Create AVD

Create layout

Show workout

you are here 4 425

fragments for larger interfaces

WorkoutDetailFragment

textTitle: Core Agony

textDescription: 100 Pull ups

100 Push-ups

100 Sit ups

100 Squats

As part of the transaction, WorkoutDetailFragment’s views are updated with

details of the workout that was selected, in this case the one with ID 1.

The fragment is added to the FrameLayout fragment_container in

MainActivity’s layout, and the whole transaction is added to the back stack.

The story continues...

Core Agony

MainActivity commits the transaction.

All of the changes specified in the transaction take effect, and the

WorkoutDetailFragment is displayed next to WorkoutListFragment.

Let’s take the app for a test drive.

Create AVD

Create layout

Show workout

Create AVD

Create layout

Show workout

MainActivity

FragmentTransaction

MainActivity

FragmentTransaction

Tablet

I’m committed.

Make it so!

426 Chapter 10

test drive

Test drive the app

When we run the app, a list of the workouts appears on the left

side of the screen. When we click on one of the workouts, details of

that workout appear on the right. If we click on another workout

and then click on the Back button, details of the workout we chose

previously appear on the screen.

The right side of the screen

is empty when you start the

app, as the user hasn't chosen

a workout yet.

When the user clicks on the

Limb Loosener workout, its

details get displayed.

The user then

clicks on the Wimp

Special workout

and its details get

displayed.

When the user clicks on the

Back button, the app goes

back to the Limb Loosener

workout.

The app seems to be working fine as long as

we don’t rotate the screen. If we change the

screen orientation, there’s a problem. Let’s

see what happens.

Create AVD

Create layout

Show workout

you are here 4 427

fragments for larger interfaces

Rotating the tablet breaks the app

When you run the app on a phone and rotate the device, the

app works as you’d expect. Details of the workout the user

selected continue to be displayed on the screen:

Choose one of the

workouts, and its

details appear on

the right.

When you rotate

the device, details

of the first

workout are shown

instead. This is the

workout with an

index of 0 in the

workouts array.

But when you run the app on a tablet, there’s a problem.

Regardless of which workout you’ve chosen, when you rotate the

device, the app displays details of the first workout in the list:

Why does the app do this? Give this some thought before

turning the page. Hint: you saw behavior similar to this

back in Chapter 4 when we looked at the activity lifecycle.

When we run the app on a

phone and rotate it, the app

continues to display details of

the workout we selected.

Create AVD

Create layout

Show workout

428 Chapter 10

saving state

Saving an activity's state (revisited)

When we first looked at the activity lifecycle back in Chapter 4,

you saw how when you rotate the device, Android destroys and

recreates the activity. When this happens, local variables used

by the activity can get lost. To prevent this from happening,

we saved the state of our local variables in the activity’s

onSaveInstanceState() method:

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

}

We then restored the state of the variables in the activity’s

onCreate() method:

protected void onCreate(Bundle savedInstanceState) {

...

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

}

...

}

So what does this have to do with our current problem?

Fragments can lose state too

If the activity uses a fragment, the fragment

gets destroyed and recreated along with

the activity. This means that any local variables

used by the fragment can also lose their state.

In our WorkoutDetailFragment code, we

use a local variable called workoutId to store

the ID of the workout the user clicks on in the

WorkoutListFragment list view. When the

user rotates the device, workoutId loses its

current value and it’s set to 0 by default. The

fragment then displays details of the workout with

an ID of 0—the first workout in the list.

WorkoutDetailFragment

workoutId=1

WorkoutDetailFragment

workoutId=0

Before After

When you rotate the tablet,

WorkoutDetailFragment loses the

value of workoutId, and sets it

back to its default value of 0.

Earlier in the book, we used

the onSaveInstanceState()

method to save the state of

these two variables.

We restored the state

of the variables in the

onCreate() method.

you are here 4 429

fragments for larger interfaces

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putLong("workoutId", workoutId);

}

The onSaveInstanceState()

method gets called before

the fragment is destroyed.

We can use this Bundle to get the

previous state of the workoutId variable.

Save the fragment's state...

You deal with this problem in a fragment in a similar way to how you

deal with it in an activity.

You first override the fragment’s onSaveInstanceState()

method. This method works in a similar way to an activity’s

onSaveInstanceState() method. It gets called before the

fragment gets destroyed, and it has one parameter: a Bundle. You

use the Bundle to save the values of any variables whose state you

need to keep.

In our case, we want to save the state of our workoutId variable, so

we’d use code like this:

...then use onCreate() to restore the state

Just like an activity, a fragment has an onCreate() method

that has one parameter, a Bundle. This is the Bundle to

which you saved the state of your variables in the fragment’s

onSaveInstanceState() method, so you can use it to restore

the state of those variables in your fragment’s onCreate() method.

In our case, we want to restore the state of the workoutId variable,

so we can use code like this:

Once you’ve saved the state of any variables, you can restore it when

the fragment is recreated.

public void onCreate(Bundle savedInstanceState){

super.onCreate(savedInstanceState);

if (savedInstanceState != null) {

workoutId = savedInstanceState.getLong("workoutId");

}

We’ll show you the full code on the next page.

430 Chapter 10

WorkoutDetailFragment code

package com.hfad.workout;

import android.support.v4.app.Fragment;

import android.os.Bundle;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.TextView;

public class WorkoutDetailFragment extends Fragment {

private long workoutId;

@Override

public void onCreate(Bundle savedInstanceState){

super.onCreate(savedInstanceState);

if (savedInstanceState != null) {

workoutId = savedInstanceState.getLong("workoutId");

}

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_workout_detail, container, false);

}

The updated code for

WorkoutDetailFragment.java

We’ve updated our code for WorkoutDetailFragment.java to save

the state of the workoutId variable before the fragment is

destroyed, and restore it if the fragment is recreated. Here’s our

code; update your version of WorkoutDetailFragment.java to reflect

our changes.

Set the value of the workoutId.

Add the onCreate() method.

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

The code continues

on the next page.

you are here 4 431

fragments for larger interfaces

@Override

public void onStart() {

super.onStart();

View view = getView();

if (view != null) {

TextView title = (TextView) view.findViewById(R.id.textTitle);

Workout workout = Workout.workouts[(int) workoutId];

title.setText(workout.getName());

TextView description = (TextView) view.findViewById(R.id.textDescription);

description.setText(workout.getDescription());

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putLong("workoutId", workoutId);

}

public void setWorkout(long id) {

this.workoutId = id;

}

Save the value of the workoutId in the

savedInstanceState Bundle before the fragment gets

destroyed. We're retrieving it in the onCreate() method.

WorkoutDetailFragment.java (continued)

Test drive the app

Now, when you run the app on a tablet and rotate the device, details of

the workout the user selected continue to be displayed on the screen.

When you click on one of

the workouts, its details

continue to be displayed

when you rotate the device.

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

432 Chapter 10

toolbox

Make apps look different on different

devices by putting separate layouts in

device-appropriate folders.

Android keeps track of places you’ve

visited within an app by adding

them to the back stack as separate

transactions. Pressing the Back

button pops the last transaction off

the back stack.

Use a frame layout to add, replace, or

remove fragments programmatically

using fragment transactions.

Begin the transaction by calling

the FragmentManager

beginTransaction()

method. This creates a

FragmentTransaction

object.

Add, replace, and delete

fragments using the

FragmentTransaction

add(), replace(), and

remove() methods.

Add a transaction to the

back stack using the

FragmentTransaction

addToBackStack() method.

Commit a transaction using the

FragmentTransaction

commit() method. This applies all

the updates in the transaction.

Save the state of a fragment’s

variables in the Fragment

onSaveInstanceState()

method.

Restore the state of a fragment’s

variables in the Fragment

onCreate() method.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

Your Android Toolbox

You’ve got Chapter 10 under

your belt and now you’ve

added fragments for larger

interfaces to your toolbox.

CHAPTER 10

this is a new chapter 433

The Back button was

going crazy, transactions

everywhere. So I hit them with

the getChildFragmentManager()

method and BAM! Everything

went back to normal.

dynamic fragments

Nesting Fragments

So far you’ve seen how to create and use static fragments.

But what if you want your fragments to be more dynamic? Dynamic fragments have a lot

in common with dynamic activities, but there are crucial differences you need to be able

to deal with. In this chapter you’ll see how to convert dynamic activities into working

dynamic fragments. You’ll find out how to use fragment transactions to help maintain

your fragment state. Finally, you’ll discover how to nest one fragment inside another,

and how the child fragment manager helps you control unruly back stack behavior.

434 Chapter 11

dynamic fragments

Adding dynamic fragments

In Chapters 9 and 10, you saw how to create fragments, how to

include them in activities, and how to connect them together. To

do this, we created a list fragment displaying a list of workouts,

and a fragment displaying details of a single workout.

These fragments we’ve created so far have both been static.

Once the fragments are displayed, their contents don’t change.

We may completely replace the fragment that’s displayed with a

new instance, but we can’t update the contents of the fragment

itself.

In this chapter we’re going to look at how you deal with

a fragment that’s more dynamic. By this, we mean a

fragment whose views gets updated after the fragment is

displayed. To learn how to do, we’re going to change the

stopwatch activity we created in Chapter 4 into a stopwatch

fragment. We’re going to add our new stopwatch fragment to

WorkoutDetailFragment so that it’s displayed underneath

the details of the workout.

WorkoutListFragment

contains a list of

workouts.

WorkoutDetailFragment

displays details of the

workout the user clicks on.

We’re going to add a

stopwatch fragment to

WorkoutDetailFragment.

We’re only showing the tablet

version of the app here, but the

new stopwatch fragment will

appear in the phone version too.

These lines won’t appear in the actual

app. We’ve added them here to show

you each of the fragments.

you are here 4 435

dynamic fragments

Here’s what we’re going to do

There are a number of steps we’ll go through to change the

app to display the stopwatch:

Convert StopwatchActivity into StopwatchFragment.

We’ll take the StopwatchActivity code we created in

Chapter 4, and change it into fragment code. We’ll also display

it in a new temporary activity called TempActivity so that

we can check that it works. We’ll temporarily change the app

so that TempActivity starts when the app gets launched.

Test StopwatchFragment.

The StopwatchActivity included Start, Stop, and Reset

buttons.We need to check that these still work when the

stopwatch code is in a fragment.

We also need to test what happens to StopwatchFragment

when the user rotates the device.

Add StopwatchFragment to WorkoutDetailFragment.

Once we’re satisfied that StopwatchFragment works, we’ll

add it to WorkoutDetailFragment.

Let’s get started.

We’ll start by adding

StopwatchFragment

to a new activity

called TempActivity.

When we’re satisfied that

StopwatchFragment works OK

in TempActivity, we’ll add it

to WorkoutDetailFragment.

Do this!

We’re going to update the Workout

app in this chapter, so open your

original Workout project from

Chapter 9 in Android Studio.

436 Chapter 11

app structure

Device

Stopwatch

Fragment.java

fragment_

stopwatch.xml

</Layout>

The new version of the app

We’re going to change our app to get StopwatchFragment

working in a new temporary activity called TempActivity. This will

emable us to confirm that StopwatchFragment works before we

add it to WorkoutDetailFragment later in the chapter.

Here’s how the new version of the app will work:

When the app gets launched, it starts TempActivity.

TempActivity uses activity_temp.xml for its layout, and contains a

fragment, StopwatchFragment.

StopwatchFragment displays a stopwatch with Start, Stop,

and Reset buttons.

activity_temp.xml

TempActivity.java

</Layout>

Convert stopwatch

Test stopwatch

Add to fragment

All of the other activities and fragments we created in Chapters 9 and

10 will still exist in the project, but we’re not going to do anything with

them until later in the chapter.

you are here 4 437

dynamic fragments

Create TempActivity

We’ll start by creating TempActivity. Create a new

empty activity by switching to the Project view of Android

Studio’s explorer, highlighting the com.hfad.workout package

in the app/src/main/java folder, going to the File menu and

choosing New...→Activity→Empty Activity. Name the activity

“TempActivity”, name the layout “activity_temp”, make sure

the package name is com.hfad.workout, and check the

Backwards Compatibility (AppCompat) checkbox.

We’re going to change our app so that, when it’s launched, it

starts TempActivity instead of MainActivity. To do

this, we need to move MainActivity’s launcher intent filter

to TempActivity instead. Open the file AndroidManifest.xml

in the app/src/main folder, then make the following changes:

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.workout">

<application

...

<intent-filter>

</intent-filter>

</activity>

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

We’ll update TempActivity on the next page.

This bit specifies

that it’s the main

activity of the app.

This says the activity can

be used to launch the app.

<xml>

</xml>

app/src/main

AndroidManifest.xml

Workout

Convert stopwatch

Test stopwatch

Add to fragment

If prompted for the

activity’s source language,

select the option for Java.

438 Chapter 11

TempActivity code

We’ll add a new stopwatch fragment

We’re going to add a new stopwatch fragment called

StopwatchFragment.java that uses a layout called fragment_stopwatch.xml.

We’re going to base the fragment on the stopwatch activity we created

back in Chapter 4.

We already know that activities and fragments behave in similar

ways, but we also know that a fragment is a distinct type of object—a

fragment is not a subclass of activity. Is there some way we

could rewrite that stopwatch activity code so that it works

like a fragment?

TempActivity needs to extend

AppCompatActivity

All of the fragments we’re using in this app come from the

Support Library. As we said back in Chapter 9, all activities

that use Support Library fragments must extend the

FragmentActivity class or one of its subclasses such as

AppCompatActivity. If they don’t, the code will break.

All of the other activities we’ve created in this app extend

AppCompatActivity, so we’ll make TempActivity

extend this class too. Here’s our code for TempActivity.java.

Update your version of the code so that it matches ours below:

app/src/main

TempActivity.java

Workout

java

com.hfad.workout

package com.hfad.workout;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

public class TempActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_temp);

}

The activity extends AppCompatActivity.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 439

dynamic fragments

Fragments and activities have similar lifecycles...

To understand how to rewrite an activity as a fragment, we

need to think a little about the similarities and differences

between them. If we look at the lifecycles of fragments and

activities, we’ll see that they’re very similar:

...but the methods are slightly different

Fragment lifecycle methods are almost the same as activity lifecycle

methods, but there’s one major difference: activity lifecycle

methods are protected and fragment lifecycle methods are

public. And we’ve already seen that the ways that activities and

fragments create a layout from a layout resource file are different.

Also, in a fragment, we can’t call methods like findViewById()

directly. Instead, we need to find a reference to a View object, and

then call the view’s findViewById() method.

With these similarities and differences in mind, it’s time you started

to write some code...

Lifecycle method Activity Fragment

onAttach()

onCreate()

onCreateView()

onActivityCreated()

onStart()

onPause()

onResume()

onStop()

onDestroyView()

onRestart()

onDestroy()

onDetach()

440 Chapter 11

exercise

This is the code for StopwatchActivity we wrote earlier. You’re going

to convert this code into a fragment called StopwatchFragment. With

a pencil, make the changes you need. Keep the following things in mind:

- Instead of a layout file called activity_stopwatch.xml, it will use a layout

called fragment_stopwatch.xml.

- Make sure the access restrictions on the methods are correct.

- How will you specify the layout?

- The runTimer() method won’t be able to call findViewById(), so

you might want to pass a View object into runTimer().

public class StopwatchActivity extends Activity {

//Number of seconds displayed on the stopwatch.

private int seconds = 0;

//Is the stopwatch running?

private boolean running;

private boolean wasRunning;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

wasRunning = savedInstanceState.getBoolean("wasRunning");

}

runTimer();

}

@Override

protected void onPause() {

super.onPause();

wasRunning = running;

running = false;

}

The number of seconds that have passed

running says whether the stopwatch is running.

wasRunning says whether the stopwatch was running

before the stopwatch was paused.

If the activity was destroyed

and recreated, restore the

state of the variables from

the savedInstanceState Bundle.

Stop the stopwatch if the activity is paused.

Start the runTimer() method.

you are here 4 441

dynamic fragments

@Override

protected void onResume() {

super.onResume();

if (wasRunning) {

running = true;

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

savedInstanceState.putBoolean("wasRunning", wasRunning);

}

public void onClickStart(View view) {

running = true;

}

public void onClickStop(View view) {

running = false;

}

public void onClickReset(View view) {

running = false;

seconds = 0;

}

private void runTimer() {

final TextView timeView = (TextView)findViewById(R.id.time_view);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

handler.postDelayed(this, 1000);

}

});

}

Start the stopwatch if the activity is resumed.

Save the activity’s state before

the activity is destroyed.

Start, stop, or reset the stopwatch

depending on which button is clicked.

Use a Handler to post code to

increment the number of seconds and

update the text view every second.

442 Chapter 11

fragment

solution

This is the code for StopwatchActivity we wrote earlier. You’re going

to convert this code into a fragment called StopwatchFragment. With

a pencil, make the changes you need. Keep the following things in mind:

- Instead of a layout file called activity_stopwatch.xml, it will use a layout

called fragment_stopwatch.xml.

- Make sure the access restrictions on the methods are correct.

- How will you specify the layout?

- The runTimer() method won’t be able to call findViewById(), so

you might want to pass a View object into runTimer().

public class StopwatchActivity extends Activity {

//Number of seconds displayed on the stopwatch.

private int seconds = 0;

//Is the stopwatch running?

private boolean running;

private boolean wasRunning;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_stopwatch);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

wasRunning = savedInstanceState.getBoolean("wasRunning");

}

runTimer();

}

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

View layout = inflater.inflate(R.layout.fragment_stopwatch, container, false);

runTimer(layout);

return layout;

}

@Override

protected void onPause() {

super.onPause();

wasRunning = running;

running = false;

}

StopwatchFragment Fragment

public

This is the new name.

We’re extending

Fragment, not Activity.

This method needs to be public.

You don’t set a fragment’s layout

in its onCreate() method.

We’re not calling runTimer() yet because we’ve

not set the layout—we don’t have any views yet.

We set the fragment’s layout in

the onCreateView() method.

Pass the layout view to the runTimer() method.

We can leave this code in the

onCreate() method.

you are here 4 443

dynamic fragments

fragment @Override

protected void onResume() {

super.onResume();

if (wasRunning) {

running = true;

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

savedInstanceState.putBoolean("wasRunning", wasRunning);

}

public void onClickStart(View view) {

running = true;

}

public void onClickStop(View view) {

running = false;

}

public void onClickReset(View view) {

running = false;

seconds = 0;

}

private void runTimer( ) {

final TextView timeView = (TextView) findViewById(R.id.time_view);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

handler.postDelayed(this, 1000);

}

});

}

public

View view view.

This method needs to be public.

The runTimer() method now takes a View.

Use the view parameter to call findViewById().

Fragment

444 Chapter 11

StopwatchFragment code

The StopwatchFragment.java code

We’ll add StopwatchFragment to our Workout project so that we can use

it in our app. You do this in the same way you did in Chapter 9. Highlight

the com.hfad.workout package in the app/src/main/java folder, then go to

File→New...→Fragment→Fragment (Blank). Give the fragment a name of

“StopwatchFragment”, give it a layout name of “fragment_stopwatch”, and uncheck

the options for including fragment factory methods and interface callbacks.

When you click on the Finish button, Android Studio creates a new fragment for

you in a file called StopwatchFragment.java in the app/src/main/java folder. Replace

the fragment code Android Studio gives you with the following code (this is the code

you updated in the exercise on the previous page):

package com.hfad.workout;

import android.os.Bundle;

import android.os.Handler;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.TextView;

import java.util.Locale;

public class StopwatchFragment extends Fragment {

//Number of seconds displayed on the stopwatch.

private int seconds = 0;

//Is the stopwatch running?

private boolean running;

private boolean wasRunning;

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

wasRunning = savedInstanceState.getBoolean("wasRunning");

}

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

The number of seconds that have passed

running says whether the stopwatch is running.

wasRunning says whether the stopwatch was running

before the stopwatch was paused.

Restore the state of the variables

from the savedInstanceState Bundle.

Convert stopwatch

Test stopwatch

Add to fragment

The code continues

on the next page.

If prompted for the

fragment’s source language,

select the option for Java.

you are here 4 445

dynamic fragments

StopwatchFragment.java (continued)

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

View layout = inflater.inflate(R.layout.fragment_stopwatch, container, false);

runTimer(layout);

return layout;

}

@Override

public void onPause() {

super.onPause();

wasRunning = running;

running = false;

}

@Override

public void onResume() {

super.onResume();

if (wasRunning) {

running = true;

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

savedInstanceState.putBoolean("wasRunning", wasRunning);

}

public void onClickStart(View view) {

running = true;

}

The code continues

on the next page.

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

Set the fragment’s layout and start the

runTimer() method, passing in the layout.

If the fragment’s paused,

record whether the stopwatch

was running and stop it.

If the stopwatch was running before it

was paused, set it running again.

Put the values of the

variables in the Bundle

before the activity is

destroyed. These are

used when the user

turns the device.

This code needs to run when the user

clicks on the Start button.

Convert stopwatch

Test stopwatch

Add to fragment

446 Chapter 11

code, continued

public void onClickStop(View view) {

running = false;

}

public void onClickReset(View view) {

running = false;

seconds = 0;

}

private void runTimer(View view) {

final TextView timeView = (TextView) view.findViewById(R.id.time_view);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

handler.postDelayed(this, 1000);

}

});

}

StopwatchFragment.java (continued)

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

That’s all the Java code we need for our

StopwatchFragment. The next thing we need to do is say

what the fragment should look like by updating the layout code

Android Studio gave us.

This code needs to run when the user

clicks on the Stop button.

This code needs to run when the user

clicks on the Reset button.

Putting the code in a Handler means it

can run in the background thread.

Display the number of seconds that

have passed in the stopwatch.

If the stopwatch is running, increment the number of seconds.

Run the Handler code every second.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 447

dynamic fragments

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:padding="16dp">

<TextView

android:id="@+id/time_view"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:textAppearance="@android:style/TextAppearance.Large"

android:textSize="56sp" />

<Button

android:id="@+id/start_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="20dp"

android:onClick="onClickStart"

android:text="@string/start" />

<Button

android:id="@+id/stop_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickStop"

android:text="@string/stop" />

The StopwatchFragment layout

We’ll use the same layout for StopwatchFragment as we

used in our original Stopwatch app. To do so, replace the

contents of fragment_stopwatch.xml with the code below:

<xml>

</xml>

app/src/main

fragment_

stopwatch.xml

Workout

res

layout

The number of hours, minutes,

and seconds that have passed.

The Start

button

The Stop button

The Reset

button code

is on the

next page.

Convert stopwatch

Test stopwatch

Add to fragment

448 Chapter 11

layout, continued

<Button

android:id="@+id/reset_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickReset"

android:text="@string/reset" />

</LinearLayout>

The StopwatchFragment layout (continued)

The StopwatchFragment layout uses String values

The XML code in fragment_stopwatch.xml uses string values for the text on

the Start, Stop, and Reset buttons. We need to add these to strings.xml:

...

<string name="start">Start</string>

<string name="reset">Reset</string>

...

These are the

button labels.

<xml>

</xml>

app/src/main

strings.xml

Workout

res

values

The Stopwatch fragment looks just like it did when it was an activity.

The difference is that we can now use it in other activities and

fragments.

The next thing we need to do is display it in TempActivity’s layout.

The Reset button

The stopwatch looks

the same as it did

when it was an activity.

But because it’s now a

fragment, we can reuse

it in different places.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 449

dynamic fragments

Add StopwatchFragment to

TempActivity's layout

The simplest way of adding StopwatchFragment to

TempActivity’s layout is to use the <fragment> element.

Using the <fragment> element means that we can add the

fragment directly into the layout instead of writing fragment

transaction code.

Here’s our code for activity_temp.xml. Replace the code that’s

currently in that file with this updated code:

<?xml version="1.0" encoding="utf-8"?>

<fragment xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.StopwatchFragment"

android:layout_width="match_parent"

android:layout_height="match_parent"/>

<xml>

</xml>

app/src/main

activity_

temp.xml

Workout

res

layout

This adds the fragment

to the activity.

That’s everything we need to see StopwatchFragment

running. Let’s take it for a test drive.

Test drive the app

When we run the app, TempActivity is displayed. It contains

StopwatchFragment. The stopwatch is set to 0.

The next thing we’ll do is check that

StopwatchFragment’s buttons work OK.

When we run the app,

TempActivity starts,

not MainActivity.

TempActivity displays

StopwatchFragment as

expected.

Convert stopwatch

Test stopwatch

Add to fragment

450 Chapter 11

what happened?

04-13 11:56:43.623 10583-10583/com.hfad.workout E/AndroidRuntime: FATAL EXCEPTION: main

Process: com.hfad.workout, PID: 10583

java.lang.IllegalStateException: Could not find method onClickStart(View) in a

parent or ancestor Context for android:onClick attribute defined on view class

android.support.v7.widget.AppCompatButton with id 'start_button'

at android.support.v7.app.AppCompatViewInflater$DeclaredOnClickListener.

resolveMethod(AppCompatViewInflater.java:327)

at android.support.v7.app.AppCompatViewInflater$DeclaredOnClickListener.

onClick(AppCompatViewInflater.java:284)

at android.view.View.performClick(View.java:5609)

at android.view.View$PerformClick.run(View.java:22262)

at android.os.Handler.handleCallback(Handler.java:751)

at android.os.Handler.dispatchMessage(Handler.java:95)

at android.os.Looper.loop(Looper.java:154)

at android.app.ActivityThread.main(ActivityThread.java:6077)

at java.lang.reflect.Method.invoke(Native Method)

at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.

run(ZygoteInit.java:865)

at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:755)

The app crashes if you click on a button

When you click on any one of the buttons in the Workout app’s new

stopwatch, the app crashes:

When we converted the stopwatch activity into a fragment, we didn’t

change any of the code relating to the buttons. We know this code

worked great when the stopwatch was in an activity, so why should it

cause the app to crash in a fragment?

Here’s the error output from Android Studio. Can you see what may

have caused the problem?

Yikes.

This is what happened

when we clicked on

the Start button in

StopwatchFragment.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 451

dynamic fragments

Let’s look at the StopwatchFragment layout code

This worked OK when we were using an activity, so why should we

have a problem now that we’re using a fragment?

In the layout code for the StopwatchFragment, we’re binding the

buttons to methods in the same way that we did for an activity, by

using the android:onClick attribute to say which method should

be called when each button is clicked:

<xml>

</xml>

app/src/main

fragment_

stopwatch.xml

Workout

res

layout

We’re using the same layout for the

stopwatch now that it’s a fragment

as we did when it was an activity.

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

...

<Button

android:id="@+id/start_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="20dp"

android:onClick="onClickStart"

android:text="@string/start" />

<Button

android:id="@+id/stop_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickStop"

android:text="@string/stop" />

<Button

android:id="@+id/reset_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickReset"

android:text="@string/reset" />

</LinearLayout>

We’re using the android:onClick

attributes in the layout to say

which methods should be called

when each button is clicked.

452 Chapter 11

use onClick in activities only

The onClick attribute calls methods

in the activity, not the fragment

There’s a big problem with using the android:onClick

attribute to say which method should be called when a view is

clicked. The attribute specifies which method should be called

in the current activity. This is fine when the views are in an

activity’s layout. But when the views are in a fragment, this leads to

problems. Instead of calling methods in the fragment, Android

calls methods in the parent activity. If it can’t find the methods in

this activity, the app crashes. That’s what Android Studio’s error

message was trying to tell us.

It’s not just buttons that have this problem. The

android:onClick attribute can be used with any views that

are subclasses of the Button class. This includes checkboxes,

radio buttons, switches, and toggle buttons.

Now we could move the methods out of the fragment and into

the activity, but that approach has a major disadvantage. It

would mean that the fragment is no longer self-contained—if we

wanted to reuse the fragment in another activity, we’d need to

include the code in that activity too. Instead, we’ll deal with it in

the fragment.

Activity

Whenever I see

android:onClick, I

assume it’s all about

me. My methods run,

not the fragment’s.

How to make button clicks call methods in the fragment

There are three things you need to do in order to get buttons in a

fragment to call methods in the fragment instead of the activity:

Remove references to android:onClick in the fragment layout.

Buttons attempt to call methods in the activity when the onClick attribute is

used, so these need to be removed from the fragment layout.

Bind the buttons to methods in the fragment by implementing an

OnClickListener.

This will ensure that the right methods are called when the buttons are clicked.

Let’s do this now in our StopwatchFragment.

Optionally, change the onClick method signatures.

When we created our onClickStart(), onClickStop(), and

onClickReset() methods, we made them public and gave them a single

View parameter. This was so they’d get called when the user clicked on a

button. As we’re no longer using the android:onClick attribute in our

layout, we can set our methods to private and remove the View parameter.

This step's optional, but

it's a good opportunity

to tidy up our code.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 453

dynamic fragments

1. Remove the onClick attributes

from the fragment’s layout

The first thing we’ll do is remove the android:onClick lines

of code from the fragment’s layout. This will stop Android from

trying to call methods in the activity when the buttons are clicked:

The next thing we’ll do is tidy up our onClickStart(),

onClickStop(), and onClickReset() code.

Convert stopwatch

Test stopwatch

Add to fragment

<xml>

</xml>

app/src/main

fragment_

stopwatch.xml

Workout

res

layout

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

...

<Button

android:id="@+id/start_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="20dp"

android:onClick="onClickStart"

android:text="@string/start" />

<Button

android:id="@+id/stop_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickStop"

android:text="@string/stop" />

<Button

android:id="@+id/reset_button"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:layout_marginTop="8dp"

android:onClick="onClickReset"

android:text="@string/reset" />

</LinearLayout>

Remove the onClick

attributes for each of the

buttons in the stopwatch.

454 Chapter 11

make methods private

2. Change the onClick... method signatures

The methods

had to be

public.

The methods had to

have a void return value.

The methods had to have a single

parameter of type View.

Back in Chapter 4, when we created our onClickStart(),

onClickStop(), and onClickReset() methods in

StopwatchActivity, we had to give them a specific method

signature like this:

public void onClickStart(View view) {

}

The methods had to take this form so that they’d respond when

the user clicked on a button. Behind the scenes, when you use

the android:onClick attribute, Android looks for a public

method with a void return value, and with a name that matches

the method specified in the layout XML.

Now that our code is in a fragment and we’re no longer using the

android:onClick attribute in our layout code, we can change

our method signatures like this:

Our methods no

longer need to be

public, so we can

make them private.

We no longer need the View parameter.

private void onClickStart() {

}

So let’s update our fragment code. Change the

onClickStart(), onClickStop(), and

onClickReset() methods in StopwatchFragment.java to match

ours:

...

public private void onClickStart(View view) {

running = true;

}

public private void onClickStop(View view) {

running = false;

}

public private void onClickReset(View view) {

running = false;

seconds = 0;

}

...

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

Change the

methods to

private.

Remove the View

parameters.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 455

dynamic fragments

3. Make the fragment implement OnClickListener

To make the buttons call methods in StopwatchFragment when

they are clicked, we’ll make the fragment implement the View.

OnClickListener interface like this:

public class StopwatchFragment extends Fragment implements View.OnClickListener {

...

}

This turns StopwatchFragment into a type of View.

OnClickListener so that it can respond when views are clicked.

You tell the fragment how to respond to clicks by implementing the

View.OnClickListener onClick() method. This method gets

called whenever a view in the fragment is clicked.

This turns the fragment

into an OnClickListener.

@Override

public void onClick(View v) {

...

}

You must override the onClick()

method in your fragment code.

The onClick() method has a single View parameter. This is the

view that the user clicks on. You can use the view’s getId() method

to find out which view the user clicked on, and then decide how to react.

Code Magnets

See if you can complete the

StopwatchFragment onClick()

method. You need to call the

onClickStart() method when the Start

button is clicked, the onClickStop()

method when the Stop button is clicked, and

the onClickReset() method when the

Reset button is clicked.

getName()

getId()

onClickReset

onClickStop

true

View

@Override

public void onClick(View v) {

switch ( . ) {

case R.id.start_button:

onClickStart();

break;

case :

();

break;

case R.id.reset_button:

();

}

R.id.stop_button

456 Chapter 11

magnets solution

The StopwatchFragment onClick() method

We need to make a few changes to StopwatchFragment.java; we’ll show you the

changes one at a time, then the fully updated code a couple of pages ahead.

Here’s the code to implement the StopwatchFragment onClick()

method so that the correct method gets called when each button is clicked:

@Override

public void onClick(View v) {

switch (v.getId()) {

case R.id.start_button:

onClickStart();

break;

case R.id.stop_button:

onClickStop();

break;

case R.id.reset_button:

onClickReset();

break;

}

There’s just one more thing we need to do to get our buttons working:

attach the listener to the buttons in the fragment.

This is the View the user clicked on.

Check which View was clicked.

If the Start button was clicked,

call the onClickStart() method.

If the Stop button was clicked,

call the onClickStop() method.

If the Reset button was clicked,

call the onClickReset() method.

Code Magnets Solution

See if you can complete the

StopwatchFragment onClick()

method. You need to call the

onClickStart() method when the Start

button is clicked, the onClickStop()

method when the Stop button is clicked, and

the onClickReset() method when the

Reset button is clicked.

You didn’t need to

use these magnets.

@Override

public void onClick(View v) {

switch ( . ) {

case R.id.start_button:

onClickStart();

break;

case :

();

break;

case R.id.reset_button:

();

}

getName()

getId()

onClickReset

onClickStop

true

View

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

R.id.stop_button

you are here 4 457

dynamic fragments

To make views respond to clicks, you need to call

each view’s setOnClickListener() method.

The setOnClickListener() method takes an

OnClickListener object as a parameter. Because

StopwatchFragment implements the OnClickListener

interface, we can use the keyword this to pass the fragment as

the OnClickListener in the setOnClickListener()

method.

As an example, here’s how you attach the OnClickListener

to the Start button:

Button startButton = (Button) layout.findViewById(R.id.start_button);

startButton.setOnClickListener(this);

The call to each view’s setOnClickListener() method

needs to be made after the fragment’s views have been created.

This means they need to go in the StopwatchFragment

onCreateView() method like this:

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

View layout = inflater.inflate(R.layout.fragment_stopwatch, container, false);

runTimer(layout);

Button startButton = (Button)layout.findViewById(R.id.start_button);

startButton.setOnClickListener(this);

Button stopButton = (Button)layout.findViewById(R.id.stop_button);

stopButton.setOnClickListener(this);

Button resetButton = (Button)layout.findViewById(R.id.reset_button);

resetButton.setOnClickListener(this);

return layout;

}

We’ll show you the full StopwatchFragment code on the next

page.

Get a reference to the button.

Attach the listener to the button.

Attach the OnClickListener to the buttons

This attaches the listener to each of the buttons.

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

Convert stopwatch

Test stopwatch

Add to fragment

458 Chapter 11

StopwatchFragment code

The StopwatchFragment code

Here’s the revised code for StopwatchFragment.java; update your

version to match ours:

package com.hfad.workout;

import java.util.Locale;

import android.os.Bundle;

import android.os.Handler;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.TextView;

import android.widget.Button;

public class StopwatchFragment extends Fragment implements View.OnClickListener {

//Number of seconds displayed on the stopwatch.

private int seconds = 0;

//Is the stopwatch running?

private boolean running;

private boolean wasRunning;

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

if (savedInstanceState != null) {

seconds = savedInstanceState.getInt("seconds");

running = savedInstanceState.getBoolean("running");

wasRunning = savedInstanceState.getBoolean("wasRunning");

}

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

View layout = inflater.inflate(R.layout.fragment_stopwatch, container, false);

runTimer(layout);

Button startButton = (Button)layout.findViewById(R.id.start_button);

startButton.setOnClickListener(this);

Button stopButton = (Button)layout.findViewById(R.id.stop_button);

stopButton.setOnClickListener(this);

Button resetButton = (Button)layout.findViewById(R.id.reset_button);

resetButton.setOnClickListener(this);

return layout;

}

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

We’re using the Button class, so we’ll import it.

We’re not changing the onCreate() method.

Update the onCreateView() method to

attach the listener to the buttons.

The fragment needs to implement

the View.OnClickListener interface.

Convert stopwatch

Test stopwatch

Add to fragment

The code continues

on the next page.

you are here 4 459

dynamic fragments

@Override

public void onClick(View v) {

switch (v.getId()) {

case R.id.start_button:

onClickStart();

break;

case R.id.stop_button:

onClickStop();

break;

case R.id.reset_button:

onClickReset();

break;

}

@Override

public void onPause() {

super.onPause();

wasRunning = running;

running = false;

}

@Override

public void onResume() {

super.onResume();

if (wasRunning) {

running = true;

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putInt("seconds", seconds);

savedInstanceState.putBoolean("running", running);

savedInstanceState.putBoolean("wasRunning", wasRunning);

}

The StopwatchFragment code (continued)

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

As we’re implementing the

OnClickListener interface, we need

to override the onClick() method.

Call the appropriate method

in the fragment for the

button that was clicked.

We've not changed these methods.

Convert stopwatch

Test stopwatch

Add to fragment

The code continues

on the next page.

460 Chapter 11

code, continued

private void onClickStart() {

running = true;

}

private void onClickStop() {

running = false;

}

private void onClickReset() {

running = false;

seconds = 0;

}

private void runTimer(View view) {

final TextView timeView = (TextView) view.findViewById(R.id.time_view);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

int hours = seconds/3600;

int minutes = (seconds%3600)/60;

int secs = seconds%60;

String time = String.format(Locale.getDefault(),

"%d:%02d:%02d", hours, minutes, secs);

timeView.setText(time);

if (running) {

seconds++;

}

handler.postDelayed(this, 1000);

}

});

}

The StopwatchFragment code (continued)

We've changed these methods

so they're private. We've also

removed the View parameter,

as we no longer needed it.

We've not changed this method.

app/src/main

Stopwatch

Fragment.java

Workout

java

com.hfad.workout

Those are all the code changes needed for StopwatchFragment.java.

Let’s see what happens when we run the app.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 461

dynamic fragments

Test drive the app

When we run the app, the stopwatch is displayed as before.

This time, however, the Start, Stop, and Reset buttons work.

When we

start the

app, the

stopwatch

is set to 0.

When we

click on

the Start

and Stop

buttons,

the

stopwatch

starts and

stops.

When we

click on

the Reset

button, the

stopwatch

is reset

back to 0.

Now that we’ve got the buttons working, the next thing we

need to test is what happens when we rotate the device.

Convert stopwatch

Test stopwatch

Add to fragment

462 Chapter 11

rotate device

Rotating the device resets the stopwatch

There’s still one more problem we need to sort out. When we

rotate our device, the stopwatch gets reset back to 0.

We encountered a similar problem when we first

created StopwatchActivity back in Chapter 4.

StopwatchActivity lost the state of any instance variables

when it was rotated because activities are destroyed and

recreated when the device is rotated. We solved this problem by

saving and restoring the state of any instance variables used by

the stopwatch.

This time, the problem isn’t due to the code in

StopwatchFragment. Instead, it’s because of how we’re

adding StopwatchFragment to TempActivity.

When we rotate the

device, the stopwatch

is reset to 0. Does

this situation sound

familiar?

The

stopwatch

is running.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 463

dynamic fragments

<?xml version="1.0" encoding="utf-8"?>

<fragment xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.StopwatchFragment"

android:layout_width="match_parent"

android:layout_height="match_parent"/>

<xml>

</xml>

app/src/main

activity_

temp.xml

Workout

res

layout

We did this because it was the simplest way to display our

fragment in an activity and see it working.

As we said back in Chapter 9, the <fragment> element is a

placeholder for where the fragment’s layout should be inserted.

When Android creates the activity’s layout, it replaces the

<fragment> element with the fragment’s user interface.

When you rotate the device, Android recreates the activity. If

your activity contains a <fragment> element, it reinserts a

new version of the fragment each time the activity is recreated. The old

fragment is discarded, and any instance variables are set back

to their original values. In this particular example, this means

that the stopwatch is set back to 0.

Use <fragment> for static fragments...

...but dynamic fragments need a fragment transaction

When we added StopwatchFragment to TempActivity,

we did it by adding a <fragment> element to its layout like

this:

The <fragment> element works well for fragments that

display static data. If you have a fragment that’s dynamic, like

our stopwatch, you need to add the fragment using a fragment

transaction instead.

We’re going to change TempActivity so that we no longer

display StopwatchFragment using a <fragment>.

Instead, we’ll use a fragment transaction. To do this, we need

to make changes to activity_temp.xml and TempActivity.java.

Convert stopwatch

Test stopwatch

Add to fragment

464 Chapter 11

frame layout

<?xml version="1.0" encoding="utf-8"?>

<fragment FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:name="com.hfad.workout.StopwatchFragment"

android:id="@+id/stopwatch_container"

android:layout_width="match_parent"

android:layout_height="match_parent"/>

Change activity_temp.xml

to use a FrameLayout

As you learned back in Chapter 10, when you want to add a

fragment to an activity using a fragment transaction, you first

need to add a placeholder for the fragment in the activity’s layout.

We did this in Chapter 10 by adding a frame layout to the layout,

and giving it an ID so we could refer to it in our Java code.

We need to do the same thing with activity_temp.xml. We’ll replace

the <fragment> element with a frame layout, and give the

frame layout an ID of stopwatch_container. Update your

version of activity_temp.xml so that it reflects ours:

<xml>

</xml>

app/src/main

activity_

temp.xml

Workout

res

layout

Add a fragment transaction to TempActivity.java

Once you’ve added the frame layout to your activity’s layout,

you can create the fragment transaction that will add the

fragment to the frame layout.

We want to add StopwatchFragment to TempActivity

as soon as TempActivity gets created. We only want to add

a new fragment, however, if one hasn’t previously been added

to it. We don’t want to override any existing fragment.

To do this, we’ll add code to TempActivity’s onCreate()

method that checks whether the savedInstanceState

Bundle parameter is null.

If savedInstanceState is null, this means that

TempActivity is being created for the first time. In that case,

we need to add StopwatchFragment to the activity.

If savedInstanceState is not null, that means that

TempActivity is being recreated after having been

destroyed. In that situation, we don’t want to add a new

instance of StopwatchFragment to the activity, as it would

overwrite an existing fragment.

Convert stopwatch

Test stopwatch

Add to fragment

Replace the

fragment

with a

FrameLayout.

Delete this line.

you are here 4 465

dynamic fragments

Pool Puzzle

Your job is to take code snippets from

the pool and place them into the

blank lines in TempActivity.java.

You may not use the same code

snippet more than once, and you

won’t need to use all the code

snippets. Your goal is to create a

fragment transaction that will add

an instance of StopwatchFragment

to TempActivity.

Note: each snippet

from the pool can only

be used once!

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_temp);

if (savedInstanceState == null) {

StopwatchFragment stopwatch = new StopwatchFragment();

FragmentTransaction ft = . ;

ft.add(R.id.stopwatch_container, );

ft. (null);

ft.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft. ;

}

getSupportFragmentManager()

beginTransaction()

stopwatch

addToBackStack

commit()

endTransaction()

app/src/main

TempActivity.java

Workout

java

com.hfad.workout

getFragmentManager()

466 Chapter 11

solution

Pool Puzzle Solution

Your job is to take code snippets from

the pool and place them into the

blank lines in TempActivity.java.

You may not use the same code

snippet more than once, and you

won’t need to use all the code

snippets. Your goal is to create a

fragment transaction that will add

an instance of StopwatchFragment

to TempActivity.

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_temp);

if (savedInstanceState == null) {

StopwatchFragment stopwatch = new StopwatchFragment();

FragmentTransaction ft = . ;

ft.add(R.id.stopwatch_container, );

ft. (null);

ft.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft. ;

}

getSupportFragmentManager() beginTransaction()

stopwatch

addToBackStack

commit()

endTransaction()

app/src/main

TempActivity.java

Workout

java

com.hfad.workout

getFragmentManager()

You didn’t need

to use these

code snippets.

This begins the fragment

transaction. We need to use

getSupportFragmentManager(), not

getFragmentManager(), as we’re using

fragments from the Support Library.

Add an instance of StopwatchFragment

to TempActivity’s layout.

Add the

transaction

to the back

stack.

Commit the transaction.

you are here 4 467

dynamic fragments

The full code for TempActivity.java

We’ve added a fragment transaction to TempActivity.java that

adds StopwatchFragment to TempActivity. Our full

code is below. Update your version of TempActivity.java so that it

matches ours.

package com.hfad.workout;

import android.support.v4.app.FragmentTransaction;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

public class TempActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_temp);

if (savedInstanceState == null) {

StopwatchFragment stopwatch = new StopwatchFragment();

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

ft.add(R.id.stopwatch_container, stopwatch);

ft.addToBackStack(null);

ft.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft.commit();

}

app/src/main

TempActivity.java

Workout

java

com.hfad.workout

Those are all the code changes we need to add

StopwatchFragment to TempActivity using a fragment

transaction. Let’s see what happens when we run the code.

Convert stopwatch

Test stopwatch

Add to fragment

You need to import the

FragmentTransaction class

from the Support Library.

We only want

to add the

fragment if the

activity isn’t

being recreated

after having

been destroyed.

Begin the

fragment

transaction.

Add the stopwatch, and add the

transaction to the back stack.

Set the fragment transition

to fade in and out.

Commit the

transaction. This

applies the changes.

468 Chapter 11

test drive

Test drive the app

When we run the app, the stopwatch is displayed as before.

The Start, Stop, and Reset buttons all work, and when we

rotate the app, the stopwatch keeps running.

When we rotate the

device, the stopwatch

keeps on running.

The

stopwatch

starts.

At the beginning of the chapter, we said we’d first focus on

getting StopwatchFragment working in a new temporary

activity so that we could confirm it works OK. Now that we’ve

achieved that, we can reuse it in WorkoutDetailFragment.

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 469

dynamic fragments

Add the stopwatch to WorkoutDetailFragment

Device Stopwatch

Fragment.java

MainActivity.java WorkoutDetail

Fragment.java

WorkoutList

Fragment.java

When the app gets launched, it starts MainActivity.

MainActivity includes WorkoutListFragment, which

displays a list of workouts.

The user clicks on a workout and WorkoutDetailFragment is displayed.

WorkoutDetailFragment displays details of the workout, and contains

StopwatchFragment.

StopwatchFragment displays a stopwatch.

We’ve simplified the

app structure here, but

these are the key points.

We’ll go through the steps on the next page.

We’re going to add StopwatchFragment to

WorkoutDetailFragment so that a stopwatch is displayed

underneath details of the workout. The stopwatch will appear along

with the workout details whenever the user chooses one of the workouts.

WorkoutListFragment

contains a list of

workouts.

When the user

clicks on a workout,

WorkoutDetailFragment

is displayed. This shows

details of the workout.

We’re going to add

StopwatchFragment to

WorkoutDetailFragment

so a stopwatch is

displayed underneath

the workout details.

Here’s how the app will work:

470 Chapter 11

steps

What we’re going to do

There are just a couple of steps we need to go through in

order to get the new version of the app up and running.

Make the app start MainActivity when it launches.

Earlier in the chapter, we temporarily changed the app so that it would

start TempActivity. We need to change the app so that it starts

MainActivity again.

Add StopwatchFragment to WorkoutDetailFragment.

We’ll do this using a fragment transaction.

Let’s get started.

Start MainActivity when the app launches

Earlier in the chapter, we updated AndroidManifest.xml to make

the app start TempActivity. This was so that we could

get StopwatchFragment working before adding it to

WorkoutDetailFragment.

Now that StopwatchFragment is working, we need to

start MainActivity again when the app launches. To do

this, update AndroidManifest.xml with the following changes:

...

<application

...

<intent-filter>

</intent-filter>

</activity>

<intent-filter>

</intent-filter>

</activity>

</application>

...

Remove the intent filter

from TempActivity.

Add an intent filter to

start MainActivity when

the app is launched.

<xml>

</xml>

app/src/main

AndroidManifest.xml

Workout

Convert stopwatch

Test stopwatch

Add to fragment

you are here 4 471

dynamic fragments

Add a FrameLayout where the

fragment should appear

Next we need to add StopwatchFragment to

WorkoutDetailFragment. We’ll do this by adding

a frame layout to fragment_workout_detail.xml, just as

we did in activity_temp.xml. We’ll then be able to add

StopwatchFragment to WorkoutDetailFragment

using a fragment transaction.

Here’s our code for fragment_workout_detail.xml; update your

code so that it matches ours:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_height="match_parent"

android:layout_width="match_parent"

android:orientation="vertical">

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textAppearance="?android:attr/textAppearanceLarge"

android:id="@+id/textTitle" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:id="@+id/textDescription" />

<FrameLayout

android:id="@+id/stopwatch_container"

android:layout_width="match_parent"

android:layout_height="match_parent" />

</LinearLayout>

<xml>

</xml>

app/src/main

fragment_

workout_detail.xml

Workout

res

layout

All that’s left to do is to add the fragment transaction to

WorkoutDetailFragment.

This is the FrameLayout

we’ll put the fragment in.

Convert stopwatch

Test stopwatch

Add to fragment

The workout title

The workout

description

472 Chapter 11

fragment transactions

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_temp);

if (savedInstanceState == null) {

StopwatchFragment stopwatch = new StopwatchFragment();

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

ft.add(R.id.stopwatch_container, stopwatch);

ft.addToBackStack(null);

ft.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft.commit();

}

So far, we've only used fragment

transactions in activities

Earlier in the chapter, we added the following code to

TempActivity to add StopwatchFragment to its layout:

app/src/main

TempActivity.java

Workout

java

com.hfad.workout

The above code worked well when we wanted to add

StopwatchFragment to an activity. How will it need to

change now that we want to add StopwatchFragment to a

fragment?

Using fragment transactions in fragments

uses most of the same code

The good news is that you can use nearly all of the same code

when you want to use a fragment transaction inside a fragment.

There’s just one key difference: fragments don’t have a method

called getSupportFragmentManager(), so we need to

edit this line of code:

In order to create the fragment transaction, we need to get a

reference to a fragment manager. Fragments have two methods

you can use for this purpose: getFragmentManager() and

getChildFragmentManager(). So what’s the difference

between these two methods, and which one should we use in

our app?

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

Convert stopwatch

Test stopwatch

Add to fragment

This code adds

StopwatchFragment

to TempActivity when

TempActivity is created.

you are here 4 473

dynamic fragments

Using getFragmentManager() creates

extra transactions on the back stack

The getFragmentManager() method gets the fragment manager

associated with the fragment’s parent activity. Any fragment transaction

you create using this fragment manager is added to the back stack as a

separate transaction.

In our case, when someone clicks on a workout, we want the app to

display the details of the workout and the stopwatch. MainActivity

creates a transaction that displays WorkoutDetailFragment. If

we use getFragmentManager() to create a transaction to display

StopwatchFragment, this will be added to the back stack as a

separate transaction.

The problem with using two transactions to display the workout and

stopwatch is what happens when the user presses the Back button.

Suppose the user clicks on a workout. Details of the workout will be

displayed, along with the stopwatch. If the user then clicks on the Back

button, they will expect the screen to go back to how it looked before

they selected a workout. But the Back button simply pops the

last transaction on the back stack. That means if we create two

transactions to add the workout detail and the stopwatch, when the

user clicks the Back button, only the stopwatch will be removed. They

have to click the Back button again to remove the workout details.

The user clicks an item

in the list just once to

display the workout

details and stopwatch.

The user has to click the Back button

twice to get back to where they

started. Clicking the Back button

once only removes the stopwatch.

Workout Details

Stopwatch

Workout Details

Clearly this behavior is less than ideal. So what about

getChildFragmentManager()?

Convert stopwatch

Test stopwatch

Add to fragment

A transaction for

WorkoutDetailFragment is added to

the back stack, followed by a separate

transaction for StopwatchFragment.

When the user hits the Back button, the

StopwatchFragment transaction is popped

off the back stack. The transaction for

WorkoutDetailFragment stays on the back stack.

474 Chapter 11

getChildFragmentManager()

This time the user has to press

the Back button just once to

undo both the workout detail

and stopwatch transactions.

Using getChildFragmentManager()

creates nested transactions instead

The getChildFragmentManager() method gets the

fragment manager associated with the fragment’s parent fragment.

Any fragment transaction you create using this fragment

manager is added to the back stack inside the parent fragment

transaction, not as a separate transaction.

In our particular case, this means that the fragment transaction

that displays WorkoutDetailFragment contains a second

transaction that displays StopwatchFragment.

Workout Details Stopwatch

I display workout

details, and I also

display the stopwatch.

WorkoutDetailFragment and StopwatchFragment

are still displayed when the user clicks on a workout, but the

behavior is different when the user clicks on the Back button. As

the two transactions are nested, both transactions are popped

off the back stack when the user presses the Back button. The

workout details and the stopwatch are both removed if the user

presses the Back button once. That’s what we want, so we’ll use

this method in our app.

Convert stopwatch

Test stopwatch

Add to fragment

The transaction to add

StopwatchFragment is nested

inside the transaction to add

WorkoutDetailFragment.

you are here 4 475

dynamic fragments

Q: I can see that the child fragment manager handles the

case where I put one fragment inside another. But what if I put

one fragment inside another, inside another, inside another...?

A: The transactions will all be nested within each other, leaving

just a single transaction at the activity level. So the nested set of

child transactions will be undone by a single Back button click.

Q: Fragments seem more complicated than activities.

Should I use fragments in my apps?

A: That depends on your app and what you want to achieve. One

of the major benefits of using fragments is that you can use them

to support a wide range of different screen sizes. You can, say,

choose to display fragments side by side on tablets and on separate

screens on smaller devices. You’ll also see in the next chapter that

some UI designs require you to use fragments.

What getChildFragmentManager()

fragment transaction code looks like

We’ve written code that will add StopwatchFragment

to WorkoutDetailFragment. It creates a fragment

transaction using the fragment manager returned by

getChildFragmentManager(). Here’s the code:

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

if (savedInstanceState == null) {

StopwatchFragment stopwatch = new StopwatchFragment();

FragmentTransaction ft = getChildFragmentManager().beginTransaction();

ft.add(R.id.stopwatch_container, stopwatch);

ft.addToBackStack(null);

ft.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft.commit();

} else {

workoutId = savedInstanceState.getLong("workoutId");

}

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

We need to add this code to WorkoutDetailFragment.java. We’ll show

you the full code on the next page.

Convert stopwatch

Test stopwatch

Add to fragment

We’re using getChildFragmentManager()

instead of getSupportFragmentManager().

Apart from that, the

code is the same as we

had earlier.

476 Chapter 11

WorkoutDetailFragment code

package com.hfad.workout;

import android.support.v4.app.Fragment;

import android.support.v4.app.FragmentTransaction;

import android.os.Bundle;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.TextView;

public class WorkoutDetailFragment extends Fragment {

private long workoutId;

@Override

public void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

if (savedInstanceState != null) {

if (savedInstanceState == null) {

StopwatchFragment stopwatch = new StopwatchFragment();

FragmentTransaction ft = getChildFragmentManager().beginTransaction();

ft.add(R.id.stopwatch_container, stopwatch);

ft.addToBackStack(null);

ft.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

ft.commit();

} else {

workoutId = savedInstanceState.getLong("workoutId");

}

The full WorkoutDetailFragment.java code

Here’s the full code for WorkoutDetailFragment.java. Update

your version of the code to include our changes.

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

Convert stopwatch

Test stopwatch

Add to fragment

You need to import the

FragmentTransaction class

from the Support Library.

We only want

to add the

fragment if the

activity isn’t

being recreated

after having

been destroyed.

Begin the

fragment

transaction.

Add the stopwatch, and add the

transaction to the back stack.

Set the fragment

transition to fade

in and out.

Commit the transaction.

Delete this line.

The code continues

on the next page.

you are here 4 477

dynamic fragments

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_workout_detail, container, false);

}

@Override

public void onStart() {

super.onStart();

View view = getView();

if (view != null) {

TextView title = (TextView) view.findViewById(R.id.textTitle);

Workout workout = Workout.workouts[(int) workoutId];

title.setText(workout.getName());

TextView description = (TextView) view.findViewById(R.id.textDescription);

description.setText(workout.getDescription());

}

@Override

public void onSaveInstanceState(Bundle savedInstanceState) {

savedInstanceState.putLong("workoutId", workoutId);

}

public void setWorkout(long id) {

this.workoutId = id;

}

The full code (continued)

app/src/main

WorkoutDetail

Fragment.java

Workout

java

com.hfad.workout

That’s everything we need for our app. Let’s take it for a test

drive and check that it works OK.

Convert stopwatch

Test stopwatch

Add to fragment

We didn’t change any of

the methods on this page.

478 Chapter 11

test drive

Test drive the app

We’ll start by testing the app on a tablet.

When we start the app, MainActivity is displayed.

When we click on one of the workouts, details of that

workout are displayed along with a stopwatch. If we click on

a second workout and then click on the Back button, details

of the first workout are displayed.

Convert stopwatch

Test stopwatch

Add to fragment

MainActivity

starts when we

launch the app.

Choose the

Wimp Special...

...followed

by the Limb

Loosener.

Press the

Back button

once, and

details of the

Wimp Special

are displayed.

you are here 4 479

dynamic fragments

Test drive (continued)

When we click on the stopwatch buttons, they all work as expected.

When we rotate the app, the stopwatch maintains its state.

When we run the app on a phone, WorkoutDetailFragment

is displayed inside a separate activity, DetailActivity. The

stopwatch is still displayed underneath the workout details, and

functions as expected.

Convert stopwatch

Test stopwatch

Add to fragment

The stopwatch

starts running

when we click on

the Start button.

When you rotate the

device, the stopwatch

keeps running.

This is the app running on a

phone. StopwatchFragment

is still displayed in

WorkoutDetailFragment.

All the buttons work, and

the stopwatch maintains its

state when the device is

rotated.

When you click on the

Back button, the list of

workouts is displayed.

480 Chapter 11

toolbox

Your Android Toolbox

You’ve got Chapter 11 under

your belt and now you’ve

added dynamic fragments to

your toolbox.

CHAPTER 11

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

Fragments can contain other fragments.

If you use the android:onClick attribute in a fragment,

Android will look for a method of that name in the fragment’s

parent activity.

Instead of using the android:onClick attribute in

a fragment, make the fragment implement the View.

OnClickListener interface and implement its

onClick() method.

If you use the <fragment> element in your layout, the

fragment gets recreated when you rotate the device. If your

fragment is dynamic, use a fragment transaction instead.

Fragments contain two methods for getting a fragment

manager, getFragmentManager() and

getChildFragmentManager().

getFragmentManager() gets a reference to the fragment

manager associated with the fragment’s parent activity. Any

fragment transactions you create using this fragment manager

are added to the back stack as extra transactions.

getChildFragmentManager() gets a reference to

the fragment manager associated with the fragment’s parent

fragment. Any fragment transactions you create using this

fragment manager are nested inside the parent fragment

transaction.

this is a new chapter 481

design support library

Swipe Right

Ever wondered how to develop apps with a rich, slick UI?

With the release of the Android Design Support Library, it became much easier to

create apps with an intuitive UI. In this chapter, we’ll show you around some of the

highlights. You’ll see how to add tabs so that your users can navigate around your app

more easily. You’ll discover how to animate your toolbars so that they can collapse or

scroll on a whim. You’ll find out how to add floating action buttons for common user

actions. Finally, we’ll introduce you to snackbars, a way of displaying short, informative

messages to the user that they can interact with.

This new snackbar’s

awesome; it does so

much more than toast.

482 Chapter 12

more pizza

The Bits and Pizzas app revisited

In Chapter 8, we showed you a sketch of the top-level screen of the Bits and

Pizzas app. It contained a list of places in the app the user could go to. The

first three options linked to category screens for pizzas, pasta, and stores,

and the final option linked to a screen where the user could create an order.

So far you’ve seen how to add actions to the app bar. These are used for

simple commands, such as Create Order or Send Feedback. But what about

the category screens? As we want to use these for navigating through the

app rather than taking an action, we’ll take a different approach.

We’re going to change the Bits and Pizzas app so that it uses tab

navigation. We’ll display a set of tabs underneath the toolbar, with each

option on a different tab. When the user clicks on a tab, the screen for that

option will be displayed. We’ll also let the user swipe left and right between

the different tabs.

Bits and Pizzas

Pizzas

Pasta

Create Order

Stores

This is the Pizza app top-level activity.

These link to category screens.

This takes you to a screen where

you can create a new order. We

moved this to the app bar.

We’ll display a set

of tabs underneath

the toolbar for

Home, Pizzas, Pasta,

and Stores.

When you click on one of

the tabs, the content for

that option is displayed

here. The user will also be

able to swipe between the

different tabs.

...

Bits and Pizzas

Home Pizzas Pasta Stores

This is the toolbar.

you are here 4 483

design support library

The app structure

We’re going to change MainActivity so that it uses

tabs. The tabs will include options for Home, Pizzas,

Pasta, and Stores, so that the user can easily navigate to

the main sections of the app.

We’ll create fragments for these different options; when

the user clicks on one of the tabs, the fragment for that

option will be displayed:

The main sections of the app are all fragments,

so we can change which one is displayed

depending on which tab the user has selected.

Bits and Pizzas

Top Fragment

TopFragment

Pasta

Spaghetti Bolognese

Lasagne

PastaFragment

Pizzas

Diavolo

Funghi

PizzasFragment

Stores

Cambridge

Sebastopol

StoresFragment

MainActivity

...

Bits and Pizzas

Home Pizzas Pasta Stores

When the user clicks on

each tab, the appropriate

fragment will be displayed.

We’ll go through the steps for how to do this on the next page.

This is what

the new

version of

the app will

look like.

484 Chapter 12

steps

Do this!

We’re going to update the

Bits and Pizzas app in

this chapter, so open your

original Bits and Pizzas

project from Chapter 8 in

Android Studio.

Here’s what we’re going to do

There are three main steps we’ll go through to get tabs working:

Create the fragments.

We’ll create basic versions of TopFragment, PizzaFragment,

PastaFragment, and StoresFragment so that we can easily tell

which fragment is displayed on each of the tabs.

Enable swipe navigation between the fragments.

We’ll update MainActivity so that the user can swipe between the

different fragments.

Add the tab layout.

Finally, we’ll add a tab layout to MainActivity that will work in

conjunction with the swipe navigation. The user will be able to navigate

to each fragment by clicking on a tab, or swiping between them.

We’ll start by creating the fragments.

We’ll add a

tab layout to

MainActivity,

but the user will

still be able to

swipe between

the fragments if

they want to.

We’ll navigate

to the

different

fragments by

swiping.

We’ll create

these fragments.

you are here 4 485

design support library

Create TopFragment

We’ll use TopFragment to display content that will appear on the Home

tab. For now, we’ll display the text “Top fragment” so that we know which

fragment is displayed. Highlight the com.hfad.bitsandpizzas package in the

app/src/main/java folder, then go to File→New...→Fragment→Fragment

(Blank). Name the fragment “TopFragment” and name its layout

“fragment_top”. Then replace the code for TopFragment.java with the code

below: package com.hfad.bitsandpizzas;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class TopFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_top, container, false);

}

Then update the code for fragment_top.xml as follows:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.TopFragment">

<TextView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="@string/title_top" />

</LinearLayout>

Add the following string resource to strings.xml; we’ll use this in our

fragment layout:

<string name="title_top">Top fragment</string>

<xml>

</xml>

app/src/main

fragment_top.xml

BitsAndPizzas

res

layout

app/src/main

TopFragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

TopFragment.java is a fragment

from the Support Library.

Add this to strings.xml. We’ll use

it in the layout so we know when

TopFragment is being displayed.

Add fragments

Add swiping

Add tabs

TopFragment

486 Chapter 12

create PizzaFragment

Create PizzaFragment

We’ll use a ListFragment called PizzaFragment to

display the list of pizzas. Highlight the com.hfad.bitsandpizzas

package in the app/src/main/java folder, then go to

File→New...→Fragment→Fragment (Blank). Name the fragment

“PizzaFragment”, and uncheck the option to create a layout. Why?

Because list fragments don’t need a layout—they use their own.

Next, add a new string array resource called "pizzas" to strings.

xml (this contains the names of the pizzas):

package com.hfad.bitsandpizzas;

import android.os.Bundle;

import android.support.v4.app.ListFragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

public class PizzaFragment extends ListFragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

ArrayAdapter<String> adapter = new ArrayAdapter<>(

inflater.getContext(),

android.R.layout.simple_list_item_1,

getResources().getStringArray(R.array.pizzas));

setListAdapter(adapter);

return super.onCreateView(inflater, container, savedInstanceState);

}

<string-array name="pizzas">

<item>Diavolo</item>

<item>Funghi</item>

</string-array>

Then change the code for PizzaFragment.java so that it’s a

ListFragment. Its list view needs to be populated with the

pizza names. Here’s the updated code:

app/src/main

PizzaFragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Add the array of

pizzas to strings.xml.

We’ll use a ListFragment to

display the list of pizzas.

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

The ArrayAdapter populates

the ListFragment's ListView

with the pizza names.

Add fragments

Add swiping

Add tabs

PizzaFragment

Don’t choose the Fragment

(List) option, as this

generates more complex code.

you are here 4 487

design support library

Create PastaFragment

We’ll use a ListFragment called PastaFragment to display the list of

pasta. Highlight the com.hfad.bitsandpizzas package in the app/src/main/java

folder and create a new blank fragment named “PastaFragment”. You can

uncheck the option to create a layout, as list fragments use their own layouts.

Next, add a new string array resource called "pasta" to strings.xml (this

contains the names of the pasta):

package com.hfad.bitsandpizzas;

import android.os.Bundle;

import android.support.v4.app.ListFragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

public class PastaFragment extends ListFragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

ArrayAdapter<String> adapter = new ArrayAdapter<>(

inflater.getContext(),

android.R.layout.simple_list_item_1,

getResources().getStringArray(R.array.pasta));

setListAdapter(adapter);

return super.onCreateView(inflater, container, savedInstanceState);

}

<string-array name="pasta">

<item>Spaghetti Bolognese</item>

<item>Lasagne</item>

</string-array>

Then change the code for PastaFragment.java so that it’s a

ListFragment that displays a list of the pasta names. Here’s

the updated code:

app/src/main

PastaFragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Add the array of

pasta to strings.xml.

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

Add fragments

Add swiping

Add tabs

PastaFragment

488 Chapter 12

create StoresFragment

Create StoresFragment

We’ll use a ListFragment called StoresFragment to display

the list of stores. Highlight the com.hfad.bitsandpizzas package in the

app/src/main/java folder and create a new blank fragment named

“StoresFragment.” Uncheck the option to create a layout, as list

fragments define their own layouts.

Next, add a new string array resource called "stores" to strings.

xml (this contains the names of the stores):

package com.hfad.bitsandpizzas;

import android.os.Bundle;

import android.support.v4.app.ListFragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

public class StoresFragment extends ListFragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

ArrayAdapter<String> adapter = new ArrayAdapter<>(

inflater.getContext(),

android.R.layout.simple_list_item_1,

getResources().getStringArray(R.array.stores));

setListAdapter(adapter);

return super.onCreateView(inflater, container, savedInstanceState);

}

<string-array name="stores">

<item>Cambridge</item>

<item>Sebastopol</item>

</string-array>

Then change the code for StoresFragment.java so that it’s a

ListFragment. Its list view needs to be populated with the

store names. Here’s the updated code:

app/src/main

StoresFragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Add the array of

stores to strings.xml.

We’ll use a ListFragment to

display the list of stores.

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

We’ve now added all the fragments we need, so let’s move on to

the next step.

Add fragments

Add swiping

Add tabs

StoresFragment

you are here 4 489

design support library

Use a view pager to swipe through fragments

We want to be able to swipe through the different fragments

we’ve just created. To do this, we’ll use a view pager, which is

a view group that allows you to swipe through different pages in

a layout, each page containing a separate fragment.

<android.support.v4.view.ViewPager

android:id="@+id/pager"

android:layout_width="match_parent"

android:layout_height="match_parent" />

The above code defines the view pager, and gives it an ID of

pager. Every view pager you create must have an ID so that

you can get a reference to it in your activity code. Without this

ID, you can’t specify which fragments should appear on each

page of the view pager.

We’re going to add a view pager to MainActivity. We’ll

look at the full code for its layout on the next page.

What view pager layout code looks like

You add a view pager to your layout using code like this:

You use a view pager by adding it to your layout, then writing

activity code to control which fragments should be displayed. The

ViewPager class comes from the v4 Support Library, which

is included in the v7 AppCompat Support Library, so you also

need to make sure you add one of these libraries to your project

as a dependency. In our particular case, we already added the v7

AppCompat Support Library to our project in Chapter 8.

You can check which Support Libraries

are included in your project in Android

Studio by choosing Project Structure

from the File menu, clicking on the app

module, and then choosing Dependencies.

Bits and Pizzas

Top Fragment

TopFragment

Pasta

Spaghetti Bolognese

Lasagne

PastaFragment

Pizzas

Diavolo

Funghi

PizzasFragment

Stores

Cambridge

Sebastopol

StoresFragment

The view pager will let us swipe

between the different fragments.

The ViewPager class

is found in the v4

Support Library

(which is included in

the v7 AppCompat

Support Library).

You need to give the ViewPager an ID so

that you can control its behavior in your

activity code.

Add fragments

Add swiping

Add tabs

490 Chapter 12

view pager

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.MainActivity">

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

<android.support.v4.view.ViewPager

android:id="@+id/pager"

android:layout_width="match_parent"

android:layout_height="match_parent" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="Hello World!" />

</LinearLayout>

Add a view pager to MainActivity’s layout

We’re going to add a view pager to MainActivity’s layout,

and remove the text view that’s already there. Open the file

activity_main.xml, then update your code so that it matches ours

below (we’ve bolded our changes):

<xml>

</xml>

app/src/main

activity_

main.xml

BitsAndPizzas

res

layout

That’s everything we need to add a view pager to our layout.

To get our new view pager to display fragments, we need to

write some activity code. We’ll do that next.

Add the ViewPager

below the Toolbar.

We’re no longer displaying a

TextView in MainActivity, so

delete these lines of code.

Add fragments

Add swiping

Add tabs

you are here 4 491

design support library

Tell a view pager about its pages using

a fragment pager adapter

To get a view pager to display a fragment on each of its pages, there

are two key pieces of information you need to give it: the number

of pages it should have, and which fragment should appear on each

page. You do this be creating a fragment pager adapter, and

adding it to your activity code.

A fragment pager adapter is a type of adapter that specializes in

adding fragments to pages in a view pager. You generally use one

when you want to have a small number of pages that are fairly

static, as each fragment the user visits is kept in memory.

Fragment pager adapter code looks like this:

If you want your view pager to have a large

number of pages, you would use a fragment state

pager adapter instead. We’re not covering it

here, but the code is almost identical.

private class SectionsPagerAdapter extends FragmentPagerAdapter {

public SectionsPagerAdapter(FragmentManager fm) {

super(fm);

}

@Override

public int getCount() {

//The number of pages in the ViewPager

}

@Override

public Fragment getItem(int position) {

//The fragment to be displayed on each page

}

When you create a fragment pager adapter, there are two key

methods you must override: getCount() and getItem().

You use getCount() to specify how many pages there should

be in the view pager, and the getItem() to say which fragment

should be displayed on each page.

We’ll show you the code for the Bits and Pizzas fragment pager

adapter on the next page.

We’re setting

this to private,

as we’re going

to add it to

MainActivity as

an inner class.

You need to extend the

FragmentPagerAdapter

class.

You must have a constructor that

takes a FragmentManager parameter.

You need to override the getCount() method to

specify the number of pages in the view pager.

You need to say which fragment should appear on each

page. The position gives the page number, starting at 0.

Add fragments

Add swiping

Add tabs

492 Chapter 12

FragmentPagerAdapter

The code for our fragment pager adapter

We want our view pager to have four pages. We’ll display

TopFragment on the first page, PizzaFragment

on the second, PastaFragment on the third, and

StoresFragment on the fourth.

To accomplish this, we’re going to create a fragment pager

adapter called SectionsPagerAdapter. Here’s the code

(we’ll add it to MainActivity.java in a couple of pages):

private class SectionsPagerAdapter extends FragmentPagerAdapter {

public SectionsPagerAdapter(FragmentManager fm) {

super(fm);

}

@Override

public int getCount() {

return 4;

}

@Override

public Fragment getItem(int position) {

switch (position) {

case 0:

return new TopFragment();

case 1:

return new PizzaFragment();

case 2:

return new PastaFragment();

case 3:

return new StoresFragment();

}

return null;

}

That’s all the code we need for our

SectionsPagerAdapter. Next we need to get our view

pager to use it.

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

We’ll have four pages in our ViewPager,

one for each of the fragments we

want to be able to swipe through.

We want to display TopFragment

first, so we’ll return a new instance

of it for position 0 of the ViewPager.

The getCount()

method specifies

4 pages, so

the getItem()

method should

only request the

fragments for

these 4 page

positions.

Add fragments

Add swiping

Add tabs

you are here 4 493

design support library

Attach the fragment pager adapter

to the view pager

Finally, we need to attach our SectionsPagerAdapter

to the view pager so that the view pager can use it. You

attach a fragment pager adapter to a view pager by calling

the ViewPager setAdapter() method, and passing it a

reference to an instance of the fragment pager adapter.

Here’s the code to attach the fragment pager adapter we

created to the view pager:

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

...

//Attach the SectionsPagerAdapter to the ViewPager

SectionsPagerAdapter pagerAdapter =

new SectionsPagerAdapter(getSupportFragmentManager());

ViewPager pager = (ViewPager) findViewById(R.id.pager);

pager.setAdapter(pagerAdapter);

}

That’s everything we need to be able to swipe through our

fragments. We’ll show you the full code for MainActivity

on the next page.

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

We’re using support fragments,

so we need to pass our

adapter a reference to the

support fragment manager.

This attaches the

FragmentPagerAdapter we

created to the ViewPager.

Q: When should I use tabs in my

app?

A: Tabs work well when you want to give

the user a quick way of navigating between

a small number of sections or categories.

You would generally put each one on a

separate tab.

Q: What if I have a large number of

categories? Can I still use tabs?

A: You can, but you may want to

consider other forms of navigation such as

navigation drawers. These are panels that

slide out from the side of the screen. We’ll

show you how to create them in Chapter 14.

Q: You mentioned the fragment state

pager adapter. What’s that?

A: It’s very similar to a fragment pager

adapter, except that it also handles saving

and restoring a fragment’s state. It uses

less memory than a fragment pager

adapter, as when pages aren’t visible, the

fragment it displays may be destroyed.

It’s useful if your view pager has a large

number of pages.

Add fragments

Add swiping

Add tabs

494 Chapter 12

MainActivity code

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.view.Menu;

import android.view.MenuItem;

import android.content.Intent;

import android.support.v7.widget.ShareActionProvider;

import android.support.v4.view.MenuItemCompat;

import android.support.v4.view.ViewPager;

import android.support.v4.app.Fragment;

import android.support.v4.app.FragmentManager;

import android.support.v4.app.FragmentPagerAdapter;

public class MainActivity extends AppCompatActivity {

private ShareActionProvider shareActionProvider;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

//Attach the SectionsPagerAdapter to the ViewPager

SectionsPagerAdapter pagerAdapter =

new SectionsPagerAdapter(getSupportFragmentManager());

ViewPager pager = (ViewPager) findViewById(R.id.pager);

pager.setAdapter(pagerAdapter);

}

The full code for MainActivity.java

Here’s our full code for MainActivity.java. Update your version of

the code to match our changes (in bold):

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The code continues

on the next page.

We’re using these extra classes

so we need to import them.

Attach the FragmentPagerAdapter to the ViewPager.

Add fragments

Add swiping

Add tabs

you are here 4 495

design support library

@Override

public boolean onCreateOptionsMenu(Menu menu) {

getMenuInflater().inflate(R.menu.menu_main, menu);

MenuItem menuItem = menu.findItem(R.id.action_share);

shareActionProvider =

(ShareActionProvider) MenuItemCompat.getActionProvider(menuItem);

setShareActionIntent("Want to join me for pizza?");

return super.onCreateOptionsMenu(menu);

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

switch (item.getItemId()) {

case R.id.action_create_order:

Intent intent = new Intent(this, OrderActivity.class);

startActivity(intent);

return true;

default:

return super.onOptionsItemSelected(item);

}

private void setShareActionIntent(String text) {

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, text);

shareActionProvider.setShareIntent(intent);

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The MainActivity.java code (continued)

None of the code on

this page has changed.

The code continues

on the next page.

Add fragments

Add swiping

Add tabs

496 Chapter 12

code, continued

private class SectionsPagerAdapter extends FragmentPagerAdapter {

public SectionsPagerAdapter(FragmentManager fm) {

super(fm);

}

@Override

public int getCount() {

return 4;

}

@Override

public Fragment getItem(int position) {

switch (position) {

case 0:

return new TopFragment();

case 1:

return new PizzaFragment();

case 2:

return new PastaFragment();

case 3:

return new StoresFragment();

}

return null;

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The MainActivity.java code (continued)

Now that we’ve updated our MainActivity code,

let’s take our app for a test drive and see what happens.

The FragmentPagerAdapter passes

information to the ViewPager.

Say how many pages the

ViewPager should contain.

Specify which fragment

should appear on each page.

Add fragments

Add swiping

Add tabs

you are here 4 497

design support library

Test drive the app

When we run the app, TopFragment is displayed. When we

swipe the screen to the left, PizzaFragment is displayed,

followed by PastaFragment and StoresFragment. When

we swipe the screen in the opposite direction starting from

StoresFragment, PastaFragment is displayed, followed by

PizzaFragment and TopFragment.

The ViewPager displays the

fragments in this order as

we swipe through them.

Now that we can swipe through the fragments in

MainActivity, let’s add tabs.

This is TopFragment.

It’s displayed first.

PizzaFragment

is shown next...

...followed by

PastaFragment.

StoresFragment is

last. There are no

more pages in the

ViewPager after this.

Add fragments

Add swiping

Add tabs

498 Chapter 12

add design support library

Add tab navigation to MainActivity

We’re going to add tabs to MainActivity as an additional way of

navigating through our fragments. Each fragment will be displayed on

a separate tab, and clicking on each tab will show that fragment. We’ll

also be able to swipe through the tabs using the existing view pager.

You use tabs by adding them to your layout, then writing activity code

to link the tabs to the view pager. The classes we need to do this come

from the Android Design Support Library, so you need to add this

library to your project as a dependency. To do this, choose File→Project

Structure in Android Studio, click on the app module, then choose

Dependencies. When you’re presented with the project dependencies

screen, click on the “+” button at the bottom or right side of the screen.

When prompted, choose the Library Dependency option, then select

the Design Library from the list of possible libraries. Finally, use the OK

buttons to save your changes.

We’ve added the Android Design Support

Library to our project as a dependency.

We’ll look at the Design

Support Library in more

detail later in the chapter.

The tabs will be displayed

underneath the toolbar.

The Home tab is highlighted,

as that’s the current tab.

The user will

still be able to

swipe through

the fragments

as before.

Add fragments

Add swiping

Add tabs

you are here 4 499

design support library

How to add tabs to your layout

You add tabs to your layout using two components from

the Design Support Library: a TabLayout and an

AppBarLayout. You use a TabLayout to add the tabs, and

the AppBarLayout to group the tabs and your toolbar together.

The code to add tabs to your layout looks like this:

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize" />

<android.support.design.widget.TabLayout

android:id="@+id/tabs"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</android.support.design.widget.AppBarLayout>

The Toolbar and TabLayout elements both have IDs

because you need to be able to reference them in your activity

code in order to control their behavior.

The AppBarLayout contains both the Toolbar and the

TabLayout. It’s a type of vertical linear layout that’s designed

to work with app bars. The android:theme attribute is used

to style the Toolbar and TabLayout. We’ve given ours a

theme of ThemeOverlay.AppCompat.Dark.ActionBar.

On the next page we’ll show you the code to add tabs to

MainActivity’s layout.

The AppBarLayout comes from

the Design Support Library.

This line applies a

theme to the Toolbar

and TabLayout so

that they have a

consistant appearance.

You include the Toolbar

inside the AppBarLayout.

The TabLayout comes from the

DesignSupportLibrary. You add

it to the AppBarLayout.

Add fragments

Add swiping

Add tabs

500 Chapter 12

layout code

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.MainActivity">

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize" />

<android.support.design.widget.TabLayout

android:id="@+id/tabs"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</android.support.design.widget.AppBarLayout>

<android.support.v4.view.ViewPager

android:id="@+id/pager"

android:layout_width="match_parent"

android:layout_height="match_parent" />

</LinearLayout>

Add tabs to MainActivity's layout

Here’s our code for activity_main.xml. Update your version of

the code to match our changes (in bold):

<xml>

</xml>

app/src/main

activity_

main.xml

BitsAndPizzas

res

layout

We’ve decided to put our Toolbar code in

activity_main.xml instead of including it from

a separate file. This is so that we can show

you the full code in one place. In practice,

using the <include> still works.

Add an AppBarLayout.

The Toolbar

goes inside the

AppBarLayout.

Add a TabLayout inside the AppBarLayout.

Add fragments

Add swiping

Add tabs

you are here 4 501

design support library

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

Link the tab layout to the view pager

Once you’ve added the tab layout, you need to write some activity code to

control it. Most of the tab layout’s behavior (such as which fragment appears on

which tab) comes from the view pager you’ve already created. All you need to do

is implement a method in the view pager’s fragment pager adapter to specify the

text you want to appear on each tab, then link the view pager to the tab layout.

We’re going to add the text we want to appear on each of the tabs as String

resources. Open the file strings.xml, then add the following Strings:

<string name="pizza_tab">Pizzas</string>

<string name="pasta_tab">Pasta</string>

<string name="store_tab">Stores</string>

To add the text to each of the tabs, you need to implement the fragment pager

adapter’s getPageTitle() method. This takes one parameter, an int for the

tab’s position, and needs to return the text that should appear on that tab. Here’s

the code we need to add the above String resources to our four tabs (we’ll add it

to MainActivity.java on the next page):

@Override

public CharSequence getPageTitle(int position) {

switch (position) {

case 0:

return getResources().getText(R.string.home_tab);

case 1:

return getResources().getText(R.string.pizza_tab);

case 2:

return getResources().getText(R.string.pasta_tab);

case 3:

return getResources().getText(R.string.store_tab);

}

return null;

}

Finally, you need to attach the view pager to the tab layout. You do this by calling

the TabLayout object’s setupWithViewPager() method, and passing in a

reference to the ViewPager object as a parameter:

TabLayout tabLayout = (TabLayout) findViewById(R.id.tabs);

tabLayout.setupWithViewPager(pager);

That’s everything we need to get our tabs working. We’ll show

you the full code for MainActivity on the next page.

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

These Strings

will be displayed

on the tabs.

This is a new

method in the

fragment pager

adapter we

created earlier.

These lines of code add the

String resources to the tabs.

This line attaches the ViewPager to the

TabLayout. The TabLayout uses the ViewPager

to determine how many tabs there should be, and

what should be on each tab.

Add fragments

Add swiping

Add tabs

502 Chapter 12

MainActivity code

The full code for MainActivity.java

Here’s our full code for MainActivity.java. Update your version of

the code to match our changes (in bold):

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.view.Menu;

import android.view.MenuItem;

import android.content.Intent;

import android.support.v7.widget.ShareActionProvider;

import android.support.v4.view.MenuItemCompat;

import android.support.v4.view.ViewPager;

import android.support.v4.app.Fragment;

import android.support.v4.app.FragmentManager;

import android.support.v4.app.FragmentPagerAdapter;

import android.support.design.widget.TabLayout;

public class MainActivity extends AppCompatActivity {

private ShareActionProvider shareActionProvider;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

//Attach the SectionsPagerAdapter to the ViewPager

SectionsPagerAdapter pagerAdapter =

new SectionsPagerAdapter(getSupportFragmentManager());

ViewPager pager = (ViewPager) findViewById(R.id.pager);

pager.setAdapter(pagerAdapter);

//Attach the ViewPager to the TabLayout

TabLayout tabLayout = (TabLayout) findViewById(R.id.tabs);

tabLayout.setupWithViewPager(pager);

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The code continues

on the next page.

We’re using the TabLayout

class, so we need to import it.

This links the ViewPager to the TabLayout.

Add fragments

Add swiping

Add tabs

you are here 4 503

design support library

@Override

public boolean onCreateOptionsMenu(Menu menu) {

getMenuInflater().inflate(R.menu.menu_main, menu);

MenuItem menuItem = menu.findItem(R.id.action_share);

shareActionProvider =

(ShareActionProvider) MenuItemCompat.getActionProvider(menuItem);

setShareActionIntent("Want to join me for pizza?");

return super.onCreateOptionsMenu(menu);

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

switch (item.getItemId()) {

case R.id.action_create_order:

Intent intent = new Intent(this, OrderActivity.class);

startActivity(intent);

return true;

default:

return super.onOptionsItemSelected(item);

}

private void setShareActionIntent(String text) {

Intent intent = new Intent(Intent.ACTION_SEND);

intent.setType("text/plain");

intent.putExtra(Intent.EXTRA_TEXT, text);

shareActionProvider.setShareIntent(intent);

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The MainActivity.java code (continued)

The code continues

on the next page.

None of the code on

this page has changed.

Add fragments

Add swiping

Add tabs

504 Chapter 12

code, continued

private class SectionsPagerAdapter extends FragmentPagerAdapter {

public SectionsPagerAdapter(FragmentManager fm) {

super(fm);

}

@Override

public int getCount() {

return 4;

}

@Override

public Fragment getItem(int position) {

switch (position) {

case 0:

return new TopFragment();

case 1:

return new PizzaFragment();

case 2:

return new PastaFragment();

case 3:

return new StoresFragment();

}

return null;

}

@Override

public CharSequence getPageTitle(int position) {

switch (position) {

case 0:

return getResources().getText(R.string.home_tab);

case 1:

return getResources().getText(R.string.pizza_tab);

case 2:

return getResources().getText(R.string.pasta_tab);

case 3:

return getResources().getText(R.string.store_tab);

}

return null;

}

app/src/main

MainActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The MainActivity.java code (continued)

This method adds the text to the tabs.

Add fragments

Add swiping

Add tabs

you are here 4 505

design support library

Test drive the app

When we run the app, MainActivity includes a tab layout.

We can swipe through the fragments as before, and we can also

navigate to each fragment by clicking on the appropriate tab.

That’s all the code you need to implement

tab and swipe navigation. So what’s next?

Here’s the

TabLayout.

You can navigate to each fragment

by swiping through them as before,

or clicking on the appropriate tab.

Add fragments

Add swiping

Add tabs

506 Chapter 12

material design

The Design Support Library helps you

implement material design

So far, we’ve added tabs to our app to help the user navigate around the

app. To do this, we’ve used two components from the Design Support

Library: the TabLayout and AppBarLayout.

The Design Support Library was introduced as a way of making it

easier for developers to use material design components in their

apps. Material design was introduced with Lollipop as a way of giving a

consistent look and feel to all Android apps. The idea is that a user can

switch from a Google app like the Play Store to an app designed by a

third-party developer and instantly feel comfortable and know what to

do. It’s inspired by paper and ink, and uses print-based design principles

and movement to reflect how real-world objects (such as index cards

and pieces of paper) look and behave.

The Design Support Library lets you do more than add tabs to your

apps.

Material Design

You can find the full (and

evolving) specs for material

design here:

https://material.io/guidelines/

It lets you add floating action buttons (FABs).

These are special action buttons that float above the main screen.

For the rest of this chapter, we’re going to show you how to

implement some of these features in the Bits and Pizzas app.

You can use it to animate your toolbars.

You can make your toolbar scroll off the screen, or collapse, if the user

scrolls content in another view.

It includes a navigation drawer layout.

This is a slide-out drawer you can use as an alternative to using tabs.

We’ll look at this feature in Chapter 14.

It includes snackbars, a way of displaying interactive

short messages to the user as an alternative to toasts.

Unlike a toast (which you learned about in Chapter 5), you can add

actions to snackbars so that the user can interact with them.

This is

a FAB.

This is a snackbar. It’s like a

toast, but more interactive.

you are here 4 507

design support library

We’ll start by getting our toolbar to scroll in response to the

user scrolling the content in the view pager.

Here’s what we’ll do

We’re going to add more goodness from the Design Support Library

to the Bits and Pizzas app. Here are the steps we’ll go through:

Enable MainActivity’s toolbar to scroll.

We’ll change MainActivity so that the toolbar scrolls

up and down when the user scrolls the contents of the

view pager we added earlier. To see this working, we’ll

add content we can scroll to TopFragment.

Add a collapsing toolbar to OrderActivity.

We’ll start by adding a plain collapsing toolbar to

OrderActivity. The toolbar will collapse when

the user scrolls OrderActivity’s contents. After

we’ve got the plain collapsing toolbar working,

we’ll add an image to it.

Add a FAB to OrderActivity.

We’ll display a floating action button to the bottom-

right corner.

Make the FAB display a snackbar.

The snackbar will appear at the bottom of the screen

when the user clicks on the FAB. The FAB will move

up when the snackbar appears, and move back down

when the snackbar is no longer there.

When the user scrolls this content,

the toolbar will scroll up too.

This is a toolbar with an image.

When the user scrolls the main

content, we’ll get it to collapse.

This is the FAB we’ll

add to OrderActivity.

This is the snackbar.

508 Chapter 12

coordinator layout

Make the toolbar respond to scrolls

<android.support.design.widget.CoordinatorLayout

android:layout_width="match_parent"

android:layout_height="match_parent">

...

</android.support.design.widget.CoordinatorLayout>

Any views in your layout whose animations you want to coordinate

must be included in the <CoordinatorLayout> element. In

our case, we want to coordinate animations between the toolbar

and the contents of the view pager, so these views need to be

included in the coordinator layout.

Use a CoordinatorLayout to coordinate

animations between views

To get the toolbar to move when content in the fragment is

scrolled, we’ll add a coordinator layout to MainActivity. A

coordinator layout is like a souped-up frame layout that’s used to

coordinate animations and transitions between different views. In

this case, we’ll use the coordinator layout to coordinate scrollable

content in TopFragment and MainActivity’s toolbar.

You add a coordinator layout to an activity’s layout using code like

this:

We’re going to change our app so that MainActivity’s toolbar

scrolls whenever the user scrolls content in TopFragment. To

enable this, there are two things we need to do:

Change MainActivity’s layout to enable the

toolbar to scroll.

Change TopFragment to include scrollable

content.

We’ll start by changing MainActivity’s layout.

We’ll get the toolbar to scroll when the

user scrolls the content in TopFragment.

We’ll add this scrollable

content to TopFragment.

The CoordinatorLayout comes

from the Design Support Library.

You add any views whose behavior you want to

coordinate inside the CoordinatorLayout.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

A CoordinatorLayout

allows the behavior of

one view to affect the

behavior of another.

you are here 4 509

design support library

<?xml version="1.0" encoding="utf-8"?>

<android.support.design.widget.CoordinatorLayout

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.MainActivity">

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize" />

<android.support.design.widget.TabLayout

android:id="@+id/tabs"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</android.support.design.widget.AppBarLayout>

<android.support.v4.view.ViewPager

android:id="@+id/pager"

android:layout_width="match_parent"

android:layout_height="match_parent" />

</android.support.design.widget.CoordinatorLayout>

</LinearLayout>

Add a coordinator layout to MainActivity’s layout

We’re going to replace the linear layout in activity_main.xml with a

coordinator layout. Here’s our code; update your version to match

our changes (in bold):

<xml>

</xml>

app/src/main

activity_

main.xml

BitsAndPizzas

res

layout

We’re replacing the LinearLayout

with a CoordinatorLayout.

Add the app namespace, as we’ll

need to use attributes from it

over the next few pages.

We’re replacing the LinearLayout

with a CoordinatorLayout.

Delete this line, as we're no

longer using a LinearLayout.

510 Chapter 12

scroll behavior

How to coordinate scroll behavior

As well as adding views to the coordinator layout, you need to say how

you want them to behave. In our case, we want the toolbar to scroll

in response to another view’s scroll event. This means that we need

to mark the view the user will scroll, and tell the toolbar to

respond to it.

<android.support.v4.view.ViewPager

...

app:layout_behavior="@string/appbar_scrolling_view_behavior" />

<android.support.v7.widget.Toolbar

...

app:layout_scrollFlags="scroll|enterAlways" />

We’ll look at the full code for MainActivity’s layout on the next page.

The toolbar MUST

be contained within

an app bar layout in

order for it to scroll.

The app bar layout

and coordinator layout

work together to enable

the toolbar to scroll.

Mark the view the user will scroll

You mark the view the user will scroll by giving it an attribute of

app:layout_behavior and setting it to the built-in String "@

string/appbar_scrolling_view_behavior". This tells the

coordinator layout that you want views in the app bar layout to be

able to respond when the user scrolls this view. In our case, we want

the toolbar to scroll in response to the user scrolling the view pager’s

content, so we need to add the app:layout_behavior attribute to

the ViewPager element:

Tell the toolbar to respond to scroll events

You tell views in the app bar layout how to respond to scroll events

using the app:layout_scrollFlags attribute. In our case,

we’re going to set the toolbar to scroll upward off the screen when

the user scrolls the view pager content up, and quickly return to its

original position when the user scrolls down. To do this, we need

to set the Toolbar app:layout_scrollFlags attribute to

"scroll|enterAlways".

The scroll value allows the view to scroll off the top of screen.

Without this, the toolbar would stay pinned to the top of the screen.

The enterAlways value means that the toolbar quickly scrolls down

to its original position when the user scrolls the corresponding view. The

toolbar will still scroll down without this value, but it will be slower.

Here’s the code we need to add to the toolbar to enable it to scroll:

You add this line to the ViewPager to

tell the CoordinatorLayout you want to

react to the user scrolling its content.

This line tells the CoordinatorLayout

(and AppBarLayout) how you want

the Toolbar to react to the user

scrolling content.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 511

design support library

<?xml version="1.0" encoding="utf-8"?>

<android.support.design.widget.CoordinatorLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="com.hfad.bitsandpizzas.MainActivity">

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

app:layout_scrollFlags="scroll|enterAlways" />

<android.support.design.widget.TabLayout

android:id="@+id/tabs"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</android.support.design.widget.AppBarLayout>

<android.support.v4.view.ViewPager

android:id="@+id/pager"

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_behavior="@string/appbar_scrolling_view_behavior" />

</android.support.design.widget.CoordinatorLayout>

The code to enable to toolbar to scroll

Here’s our updated code for activity_main.xml. Update your

version of the code to match our changes (in bold):

<xml>

</xml>

app/src/main

activity_

main.xml

BitsAndPizzas

res

layout

Those are all the changes we need to make to MainActivity.

Next we’ll add scrollable content to TopFragment.

Add this line to enable the

Toolbar to scroll. If you

wanted the TabLayout to

scroll too, you’d add the

code to that element as well.

This line marks the view whose

content you expect the user to scroll.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

512 Chapter 12

add resources

Add scrollable content to TopFragment

We’re going to change TopFragment’s layout so that it contains

scrollable content. We’ll add an image of one of the Bits and Pizzas

restaurants, along with some text describing the company ethos.

Here’s what the new version of TopFragment will look like:

Add String and image resources

We’ll add the String resources first. Open strings.xml, then add the

following:

We’ll start by adding the String and image resources to our project.

<string name="company_name">Bits and Pizzas</string>

<string name="restaurant_image">Restaurant image</string>

<string name="home_text">Since we opened our doors in 2017, Bits and Pizzas

has built its reputation as one of America’s best Italian-Digital

restaurants. Some people believe eating out is about being with your

friends and family. We believe that good food is best enjoyed while

staring at your phone.</string>

<xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

Next we’ll add the restaurant image to the drawable-nodpi folder. First,

switch to the Project view of Android Studio’s explorer and check

whether the app/src/main/res/drawable-nodpi folder exists in your

project. If it’s not already there, highlight the app/src/main/res folder,

go to the File menu, choose the New... option, then click on the option

to create a new Android resource directory. When prompted, choose

a resource type of “drawable”, name it “drawable-nodpi” and click on

OK.

Once you have a drawable-nodpi folder, download the file restaurant.jpg

from https://git.io/v9oet, and add it to the drawable-nodpi folder.

You need

to add

this image

to the

drawable-

nodpi folder.

We’ll change TopFragment to include

an image and some text. We want

the user to be able to scroll the

entire contents of the fragment.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 513

design support library

Use a nested scroll view to make layout content scrollable

We’ll allow the user to scroll the contents of TopFragment using a

nested scroll view. This kind of view works just like a normal scroll

view, except that it enables nested scrolling. This is important because

the coordinator layout only listens for nested scroll events. If you use

a normal scroll view in your layout, the toolbar won’t scroll when the

user scrolls the content.

You add a nested scroll view to your layout using code like this:

Another view that enables nested

scrolling is the recycler view. You’ll find

out how to use this in the next chapter.

<android.support.v4.widget.NestedScrollView

android:layout_width="match_parent"

android:layout_height="match_parent" >

...

</android.support.v4.widget.NestedScrollView >

You add any views you want the user to be able to scroll to the nested

scroll view. If you just have one view, you can add this to the nested

scroll view directly. If you want to scroll multiple views, however,

these must be added to a separate layout inside the scroll view. This

is because a nested scroll view can only have one direct child. As an

example, here’s how you’d add two text views to a nested scroll view

with the help of a linear layout:

<android.support.v4.widget.NestedScrollView

android:layout_width="match_parent"

android:layout_height="match_parent" >

<LinearLayout

... >

<TextView

... />

<TextView

... />

</LinearLayout>

</android.support.v4.widget.NestedScrollView >

Next we’ll update TopFragment’s layout so it uses a nested scroll view.

The NestedScrollView comes from

the Design Support Library.

You add any views you want the user to be

able to scroll to the NestedScrollView.

We’re just using a LinearLayout as an example—it could be

some other sort of layout instead. The key point is that the

NestedScrollView can only have one direct child. If you want to

put more than one view in the NestedScrollView, in this case

two TextViews, you must put them in another layout first.

514 Chapter 12

layout structure

How we’ll structure TopFragment’s layout

We’re going to add a restaurant image and some text to

TopFragment’s layout. Before we write the code, here’s a

breakdown of how we’ll structure it.

On the next page we’ll show you the full code for fragment_top.xml.

Once you’ve updated your code, we’ll take the app for a test drive.

We want the entire fragment to be scrollable. This means we need to

put all the views in a nested scroll view.

We’ll use two text views for the Bits and Pizzas company name and text.

We’ll put these in a vertical linear layout with a white background.

We want to display the linear layout containing the two text views on

top of the image. We’ll do this by putting them both in a frame layout.

Putting this together, we’ll use a nested scroll view for our layout,

and this will contain a frame layout. The frame layout will include

two elements, an image view and a linear layout. The linear layout

will contain two text views to display the company name and ethos.

We’ll put everything

in a NestedScrollView.

This is an ImageView. We

want to display it behind

the text.

TopFragment

We’ll use two TextViews

in a LinearLayout to

display the text.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 515

design support library

<android.support.v4.widget.NestedScrollView

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="com.hfad.bitsandpizzas.TopFragment">

<FrameLayout

android:layout_width="match_parent"

android:layout_height="wrap_content" >

<ImageView android:id="@+id/info_image"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:scaleType="centerCrop"

android:src="@drawable/restaurant"

android:contentDescription="@string/restaurant_image" />

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_marginTop="40dp"

android:layout_marginLeft="16dp"

android:layout_marginRight="16dp"

android:padding="16dp"

android:background="#FFFFFF"

android:orientation="vertical">

<TextView

android:textSize="32sp"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:text="@string/company_name" />

<TextView

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:text="@string/home_text" />

</LinearLayout>

</FrameLayout>

</android.support.v4.widget.NestedScrollView>

The full code for fragment_top.xml

Here’s the full code for fragment_top.xml; update your code to match ours:

<xml>

</xml>

app/src/main

fragment_top.xml

BitsAndPizzas

res

layout

We want the whole fragment to be able to scroll.

We’re using a FrameLayout because we want to

position the text on top of the image.

We’re using a LinearLayout to

contain the text. We’re giving it a

white background, and the margins

will add space around the edges.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

516 Chapter 12

test drive

Test drive the app

When we run the app, TopFragment displays the new

layout. When we scroll the content, the toolbar scrolls too.

By allowing the toolbar to scroll, you free up more space for

content. An added bonus is that you don’t have to write any

activity or fragment code to control the toolbar’s behavior.

All of the functionality came from using widgets from the

Design Support Library.

This is TopFragment’s scrollable content.

When you scroll the content up,

the toolbar scrolls up too.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 517

design support library

Add a collapsing toolbar to OrderActivity

Over the next few pages, we’re going to change

OrderActivity to include a collapsing toolbar.

First add some String resources

Before we get started, we need to add some String resources to

strings.xml that we’ll use in OrderActivity’s layout. Open

strings.xml, then add the following resources:

<string name="order_name_hint">Please enter your name</string>

<string name="order_details_hint">Please enter your order</string> <xml>

</xml>

app/src/main

strings.xml

BitsAndPizzas

res

values

We’ll start updating the layout on the next page.

These are both collapsing

toolbars, one plain and

one with an image.

As you scroll the main

content, the collapsing

toolbar shrinks and grows.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

A variant of allowing your toolbar to scroll is the collapsing

toolbar. A collapsing toolbar is one that starts off large, shrinks

when the user scrolls the screen content up, and grows again

when the user scrolls the screen content back down. You can even

add an image to it, which disappears when the toolbar reaches

its minimum height, and becomes visible again as the toolbar

expands:

518 Chapter 12

collapsing toolbar

How to create a plain collapsing toolbar

You add a collapsing toolbar to your activity’s layout using the

collapsing toolbar layout from the Design Support Library. In order

for it to work, you need to add the collapsing toolbar layout to an app

bar layout that’s included within a coordinator layout. The collapsing

toolbar layout should contain the toolbar you want to collapse.

As the collapsing toolbar needs to respond to scroll events in a separate

view, you also need to add scrollable content to the coordinator layout,

for example using a nested scroll view.

Here’s an overview of how you need to structure your layout file in

order to use a collapsing toolbar:

<android.support.design.widget.CoordinatorLayout

... >

<android.support.design.widget.AppBarLayout

... >

<android.support.design.widget.CollapsingToolbarLayout

... >

<android.support.v7.widget.Toolbar

... />

</android.support.design.widget.CollapsingToolbarLayout>

</android.support.design.widget.AppBarLayout>

<android.support.v4.widget.NestedScrollView

...>

...

</android.support.v4.widget.NestedScrollView>

</android.support.design.widget.CoordinatorLayout>

In addition to structuring your layout in a particular way, there are

some key attributes you need to use to get your collapsing toolbar to

work properly. We’ll look at these next.

You add the CollapsingToolbarLayout

to an AppBarLayout, which sits

inside a CoordinatorLayout. The

CollapsingToolbarLayout contains the Toolbar.

The scrollable content goes here.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 519

design support library

App bar layout attributes

As before, you apply a theme to your app bar layout to control the appearance

of its contents. You also need to specify a height for the contents of the app

bar layout. This is the maximum height the collapsing toolbar will be able to

expand to. In our case, we’ll apply a theme of "@style/ThemeOverlay.

AppCompat.Dark.ActionBar" as before and set the height to 300dp:

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="300dp"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

Toolbar attributes

If you have items on your toolbar such as an Up button, these may scroll off the

screen as the toolbar collapses. You can prevent this from happening by setting

the layout_collapseMode attribute to "pin":

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

app:layout_collapseMode="pin" />

Collapsing toolbar layout attributes

You want the collapsing toolbar layout to collapse and expand in response

to scroll events, so you need to set its layout_scrollFlags attribute to

control this behavior. In our case, we want the collapsing toolbar layout to

collapse until it’s the size of a standard toolbar, so we’ll set the attribute to a

value of "scroll|exitUntilCollapsed":

<android.support.design.widget.CollapsingToolbarLayout

...

app:layout_scrollFlags="scroll|exitUntilCollapsed" >

Nested scroll view attributes

As before, you need to tell the coordinator layout which view you expect the user

to scroll. You do this by setting the nested scroll view’s layout_behavior

attribute to "@string/appbar_scrolling_view_behavior":

<android.support.v4.widget.NestedScrollView

...

app:layout_behavior="@string/appbar_scrolling_view_behavior" >

This is the same as when we

created a scrolling toolbar.

This means we want the

toolbar to collapse until

it’s done collapsing.

This is the maximum height of the collapsing toolbar.

This pins anything that’s on the

toolbar, such as the Up button,

to the top of the screen.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

520 Chapter 12

layout code

The full code to add a collapsing

toolbar to activity_order.xml

Here’s how to add a collapsing toolbar to OrderActivity’s layout.

Replace your existing code for activity_order.xml with the code below:

<?xml version="1.0" encoding="utf-8"?>

<android.support.design.widget.CoordinatorLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

android:id="@+id/coordinator"

android:layout_width="match_parent"

android:layout_height="match_parent" >

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="300dp"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

<android.support.design.widget.CollapsingToolbarLayout

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_scrollFlags="scroll|exitUntilCollapsed" >

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

app:layout_collapseMode="pin" />

</android.support.design.widget.CollapsingToolbarLayout>

</android.support.design.widget.AppBarLayout>

<xml>

</xml>

app/src/main

activity_order.xml

BitsAndPizzas

res

layout

We’ve added an ID to the

CoordinatorLayout, as we’ll

need it later in the chapter.

This is the

CollapsingToolbarLayout.

It needs to be within an

AppBarLayout.

The CollapsingToolbarLayout

contains a toolbar.

The code

continues

on the

next page.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 521

design support library

<android.support.v4.widget.NestedScrollView

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_behavior="@string/appbar_scrolling_view_behavior" >

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="vertical"

android:padding = "16dp" >

<EditText

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:hint="@string/order_name_hint" />

<EditText

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:hint="@string/order_details_hint" />

</LinearLayout>

</android.support.v4.widget.NestedScrollView>

</android.support.design.widget.CoordinatorLayout>

The activity_order.xml code (continued)

<xml>

</xml>

app/src/main

activity_order.xml

BitsAndPizzas

res

layout

The NestedScrollView contains

the content we want the user

to be able to scroll.

We’re using a

LinearLayout

to position

the scrollable

content.

We’re using EditTexts to add some

content we can scroll to the layout.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

Let’s see what happens when we run the app.

522 Chapter 12

test drive

Test drive the app

When we run the app, OrderActivity displays the new layout,

including the collapsing toolbar. The collapsing toolbar starts off

large, and collapses as we scroll the content.

You can add images to collapsing toolbars too

The collapsing toolbar we’ve created so far is quite plain. It has

a plain background, which grows and shrinks as we scroll the

content in the activity.

We can improve this by adding an image to the collapsing toolbar.

We’ll display the image when the collapsing toolbar is large, and

when it shrinks we’ll display a standard toolbar instead:

This is the

toolbar

when it’s

expanded.

This is the toolbar when it’s collapsed.

This is the

same collapsing

toolbar,

except we’re

going to add

an image to it.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 523

design support library

How to add an image to a collapsing toolbar

<android.support.design.widget.CollapsingToolbarLayout

... >

<ImageView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:scaleType="centerCrop"

android:src="@drawable/restaurant"

android:contentDescription="@string/restaurant_image"

app:layout_collapseMode="parallax" />

<Toolbar

... >

</android.support.design.widget.CollapsingToolbarLayout>

By default, when the toolbar is collapsed, it will continue to display

the image as its background. To get the toolbar to revert to a plain

background color when it’s collapsed, you add a contentScrim

attribute to the CollapsingToolbarLayout, setting it to the value

of the color. We want our toolbar to have the same background color as

before, so we’ll set it to "?attr/colorPrimary":

<android.support.design.widget.CollapsingToolbarLayout

...

app:layout_scrollFlags="scroll|exitUntilCollapsed"

app:contentScrim="?attr/colorPrimary" >

We’re going to update the collapsing toolbar we just created so that it

includes an image. For convenience, we’ll use the same image that we

added to TopFragment.

You add an image to a collapsing toolbar by adding an ImageView

to the CollapsingToolBarLayout, specifying the image you

want to use. As an optional extra, you can add a parallax effect to the

ImageView so that the image scrolls at a different rate than the rest

of the toolbar. You do this by adding a layout_collapseMode

attribute to the ImageView with a value of "parallax".

We want to use a drawable named “restaurant” for our image. Here’s

the code we need:

Those are all the changes we need, so we’ll update the code

on the next page, and then take it for a test drive.

We’re cropping the image to

fit inside the AppBarLayout.

This line is optional. It adds parallax

animation so the image moves at a

different rate than the scrollable content.

<xml>

</xml>

app/src/main

activity_order.xml

BitsAndPizzas

res

layout

This line changes the toolbar back to

its default color when it’s collapsed.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

524 Chapter 12

layout code

The updated code for activity_order.xml

Here’s the updated code for activity_order.xml to add an image to the

collapsing toolbar (update your version to match our changes in bold):

<?xml version="1.0" encoding="utf-8"?>

<android.support.design.widget.CoordinatorLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

android:id="@+id/coordinator"

android:layout_width="match_parent"

android:layout_height="match_parent" >

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="300dp"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

<android.support.design.widget.CollapsingToolbarLayout

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_scrollFlags="scroll|exitUntilCollapsed"

app:contentScrim="?attr/colorPrimary" >

<ImageView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:scaleType="centerCrop"

android:src="@drawable/restaurant"

android:contentDescription="@string/restaurant_image"

app:layout_collapseMode="parallax" />

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

app:layout_collapseMode="pin" />

</android.support.design.widget.CollapsingToolbarLayout>

</android.support.design.widget.AppBarLayout>

<xml>

</xml>

app/src/main

activity_order.xml

BitsAndPizzas

res

layout

This line changes the toolbar

background when it’s collapsed.

These lines add

an image to the

collapsing toolbar.

It uses snazzy

parallax animation.

The code continues

on the next page.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 525

design support library

<android.support.v4.widget.NestedScrollView

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_behavior="@string/appbar_scrolling_view_behavior" >

...

</android.support.v4.widget.NestedScrollView>

</android.support.design.widget.CoordinatorLayout>

The activity_order.xml code (continued)

<xml>

</xml>

app/src/main

activity_order.xml

BitsAndPizzas

res

layout

Test drive the app

When we run the app, OrderActivity’s collapsing toolbar

includes an image. As the toolbar collapses, the image fades,

and the toolbar’s background changes to its original color.

When the toolbar is expanded again, the image reappears.

Let’s see what the app looks like when we run it.

The image

appears on

the toolbar.

The toolbar changes

color when it’s collapsed.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

526 Chapter 12

fabs and snackbars

FABs and snackbars

There are two final additions we’re going to make to

OrderActivity from the Design Support Library: a FAB

and a snackbar.

A FAB is a floating action button. It’s a circled icon that

floats above the user interface, for example in the bottom-right

corner of the screen. It’s used to promote actions that are so

common or important that you want to make them obvious to

the user.

A snackbar is like a toast except that you can interact with

it. It’s a short message that appears at the bottom of the screen

that’s used to give the user information about an operation.

Unlike with a toast, you can add actions to a snackbar, such as

an action to undo an operation.

This is a FAB that

appears in the Google

Calendar app. It floats in

the bottom-right corner

of the screen, and you

use it to add events.

This is the snackbar that appears in the

Chrome app when you’ve just closed a web

page. You can reopen the page by clicking

on the Undo action in the snackbar.

We’ll add a FAB and snackbar to OrderActivity

We’re going to add a FAB to OrderActivity. When the user

clicks on the FAB, we’ll display a snackbar that shows a message

to the user. In the real world, you’d want to use the FAB to

perform an action such as saving the user’s pizza order, but

we’re just going to focus on showing you how to add the widgets

to your app.

Here’s what the new version of OrderActivity will look like:

Here’s the FAB

we’re going to add.

When we click on the FAB,

a snackbar gets displayed.

When it appears, the FAB

moves up out of the way.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 527

design support library

Add the icon for the FAB

We’ll start by adding an icon to our project to display on the FAB. You

can either create your own icon from scratch or use one of the icons

provided by Google: https://design.google.com/icons/.

We’re going to use the “done” icon ic_done_white_24dp, and we’ll

add a version of it to our project’s drawable* folders, one for each screen

density. Android will decide at runtime which version of the icon to use

depending on the screen density of the device.

First, switch to the Project view of Android Studio’s explorer, highlight

the app/src/main/res folder in your project, then create folders called

drawable-hdpi, drawable-mdpi, drawable-xhdpi, drawable-xxhdpi, and

drawable-xxxhdpi if they don’t already exist. Then go to http://tinyurl.com/

HeadFirstAndroidDoneIcons, and download ic_done_white_24dp.png Bits and

Pizzas images. Add the image in the drawable-hdpi folder to the drawable-

hdpi folder in your project, then repeat this process for the other folders.

How to add a FAB to your layout

You add a FAB to your layout using code like this:

<android.support.design.widget.CoordinatorLayout ...>

...

<android.support.design.widget.FloatingActionButton

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="end|bottom"

android:layout_margin="16dp"

android:src="@drawable/ic_done_white_24dp"

android:onClick="onClickDone" />

</android.support.design.widget.CoordinatorLayout>

The above code adds a FAB to the bottom-end corner of the screen, with

a margin of 16dp. It uses the src attribute to set the FAB’s icon to the

ic_done_white_24dp drawable. We’re also using the FAB’s onClick

attribute to specify that the onClickDone() method in the layout’s activity

will get called when the user clicks on the FAB. We’ll create this method later.

You usually use a FAB inside a CoordinatorLayout, as this means that

you can coordinate movement between the different views in your layout. In

our case, it means that the FAB will move up when the snackbar appears.

On the next page we’ll show you the code for OrderActivity’s layout.

The material design

guidelines recommend

using no more than

one FAB per screen.

We’re going

to use this

icon on our

FAB.

The code for adding a FAB is

similar to the code for adding

an ImageButton. That’s because

FloatingActionButton is a

subclass of ImageButton.

If you’re using the FAB in an

activity, you can use the onClick

attribute to specify which method

should be called when it’s clicked.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

528 Chapter 12

layout code

<?xml version="1.0" encoding="utf-8"?>

<android.support.design.widget.CoordinatorLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

android:id="@+id/coordinator"

android:layout_width="match_parent"

android:layout_height="match_parent" >

<android.support.design.widget.AppBarLayout

android:layout_width="match_parent"

android:layout_height="300dp"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" >

<android.support.design.widget.CollapsingToolbarLayout

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_scrollFlags="scroll|exitUntilCollapsed"

app:contentScrim="?attr/colorPrimary" >

<ImageView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:scaleType="centerCrop"

android:src="@drawable/restaurant"

android:contentDescription="@string/restaurant_image"

app:layout_collapseMode="parallax" />

<android.support.v7.widget.Toolbar

android:id="@+id/toolbar"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

app:layout_collapseMode="pin" />

</android.support.design.widget.CollapsingToolbarLayout>

</android.support.design.widget.AppBarLayout>

The updated code for activity_order.xml

Here’s the updated code for activity_order.xml (update your version to

match our changes in bold):

<xml>

</xml>

app/src/main

activity_order.xml

BitsAndPizzas

res

layout

We’ve not changed any of

the code on this page.

The code continues

on the next page.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 529

design support library

<android.support.v4.widget.NestedScrollView

android:layout_width="match_parent"

android:layout_height="match_parent"

app:layout_behavior="@string/appbar_scrolling_view_behavior" >

<LinearLayout

...

</LinearLayout>

</android.support.v4.widget.NestedScrollView>

<android.support.design.widget.FloatingActionButton

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="end|bottom"

android:layout_margin="16dp"

android:src="@drawable/ic_done_white_24dp"

android:onClick="onClickDone" />

</android.support.design.widget.CoordinatorLayout>

The activity_order.xml code (continued)

<xml>

</xml>

app/src/main

activity_order.xml

BitsAndPizzas

res

layout

Add the onClickDone() method to OrderActivity

Now that we’ve added a FAB to OrderActivity’s layout, we

need to write some activity code to make the FAB do something

when it’s clicked. You do this in the same way that you would

for a button, by adding the method described by the FAB’s

onClick attribute to your activity code.

In our case, we’ve given the onClick attribute a value

of "onClickDone", so this means we need to add an

onClickDone() method to OrderActivity.java:

public void onClickDone(View view) {

//Code that runs when the FAB is clicked

}

app/src/main

OrderActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Now we’re going to write some code to display a snackbar when

the user clicks on the FAB.

You don't have to

add this method

now; you can wait

until we show you

the full code a few

pages ahead.

We’re adding

the FAB to the

CoordinatorLayout

so that it will

move out the way

when a snackbar

gets displayed.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

530 Chapter 12

snackbar

How to create a snackbar

As we said earlier in the chapter, a snackbar is a bar that appears at

the bottom of the screen that displays a short message to the user. It’s

similar to a toast, except that you can interact with it.

To create a snackbar, you call the Snackbar.make() method.

This method takes three parameters: the View you want to hold the

snackbar, the text you want to display, and an int duration. As an

example, here’s the code for a snackbar that appears on the screen for

a short duration:

CharSequence text = "Hello, I'm a Snackbar!";

int duration = Snackbar.LENGTH_SHORT;

Snackbar snackbar = Snackbar.make(findViewById(R.id.coordinator, text, duration);

In the above code, we’ve used a view called coordinator to hold

the snackbar. This view will usually be your activity’s coordinator

layout so that it can coordinate the snackbar with other views.

We’ve set the snackbar’s duration to LENGTH_SHORT, which

shows the snackbar for a short period of time. Other options are

LENGTH_LONG (which shows it for a long duration) and LENGTH_

INDEFINITE (which shows it indefinitely). With any of these options,

the user is able to swipe away the snackbar so that it’s no longer

displayed.

You can add an action to the snackbar by calling its setAction()

method. This can be useful if, for example, you want the user

to be able to undo an operation they’ve just performed. The

setAction() method takes two parameters: the text that should

appear for the action, and a View.onClickListener(). Any

code you want to run when the user clicks on the action should

appear in the listener’s onClick() event:

Once you’ve finished creating the snackbar, you display it using its

show() method:

snackbar.show();

snackbar.setAction("Undo", new View.OnClickListener() {

@Override

public void onClick(View view) {

//Code to run when the user clicks on the Undo action

}

});

If you want to display a String

resource, you can pass in the

resource ID instead of the text.

You need to specify what should happen

if the user clicks on the Undo action.

You pass the setAction() method

the text that should appear for the

action, and a View.OnClickListener.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 531

design support library

public void onClickDone(View view) {

CharSequence text = "Your order has been updated";

int duration = ;

Snackbar snackbar = Snackbar. (findViewById(R.id.coordinator), , );

snackbar.setAction("Undo", new View.OnClickListener() {

@Override

public void onClick(View view) {

Toast toast = Toast. OrderActivity.this, "Undone!", );

toast. ;

}

});

snackbar. ;

}

Pool Puzzle

Your goal is to make OrderActivity’s

onClickDone() method display a

snackbar. The snackbar should include

an action, “Undo”, which shows a toast

when clicked. Take code snippets from

the pool and place them into the blank

lines in the code. You may not use the

same snippet more than once, and you

won’t need to use all the snippets.

LENGTH_SHORT

Snackbar

Toast

LENGTH_SHORT .

snackbar

toast

make makeText

makeText

make

show()

text

duration

show()

display()

Note: each thing from

the pool can only be

used once!

532 Chapter 12

solution

public void onClickDone(View view) {

CharSequence text = "Your order has been updated";

int duration = ;

Snackbar snackbar = Snackbar. (findViewById(R.id.coordinator), , );

snackbar.setAction("Undo", new View.OnClickListener() {

@Override

public void onClick(View view) {

Toast toast = Toast. OrderActivity.this, "Undone!", );

toast. ;

}

});

snackbar. ;

}

Pool Puzzle Solution

Your goal is to make OrderActivity’s

onClickDone() method display a

snackbar. The snackbar should include

an action, “Undo”, which shows a toast

when clicked. Take code snippets from

the pool and place them into the blank

lines in the code. You may not use the

same snippet more than once, and you

won’t need to use all the snippets.

LENGTH_SHORTSnackbar

Toast LENGTH_SHORT

You didn’t need to

use these snippets.

snackbar

toast

make

makeText

make

show()

text duration

show()

display()

you are here 4 533

design support library

package com.hfad.bitsandpizzas;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.support.v7.app.ActionBar;

import android.view.View;

import android.support.design.widget.Snackbar;

import android.widget.Toast;

public class OrderActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_order);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

ActionBar actionBar = getSupportActionBar();

actionBar.setDisplayHomeAsUpEnabled(true);

}

public void onClickDone(View view) {

CharSequence text = "Your order has been updated";

int duration = Snackbar.LENGTH_SHORT;

Snackbar snackbar = Snackbar.make(findViewById(R.id.coordinator), text, duration);

snackbar.setAction("Undo", new View.OnClickListener() {

@Override

public void onClick(View view) {

Toast toast = Toast.makeText(OrderActivity.this, "Undone!", Toast.LENGTH_SHORT);

toast.show();

}

});

snackbar.show();

}

app/src/main

OrderActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The full code for OrderActivity.java

Here’s our full code for OrderActivity.java, including the code to add a snackbar

with an action. Update your version of the code to match our changes (in bold):

We’re using these new classes,

so you need to import them.

This method gets called when

the user clicks on the FAB.

Create

the

snackbar.

Add an action to the snackbar.

If the user clicks on the

snackbar’s action, display a toast.

Display the snackbar.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

534 Chapter 12

test drive

Test drive the app

When we run the app, a FAB is displayed in OrderActivity.

When we click on the FAB, a snackbar is displayed and the

FAB moves up to accommodate it. When we click on the Undo

action on the snackbar, a toast is displayed.

Here’s the FAB

we created.

When you click on the

FAB, a snackbar is

displayed. The FAB

moves up out of the way.

When we click on the

snackbar’s Undo action,

a toast is displayed.

As you can see, snackbars have a lot in common with toasts, as

they’re both used to display messages to the user. But if you

want the user to be able to interact with the information you’re

showing them, choose a snackbar.

Scrolling toolbar

Collapsing toolbar

FAB

Snackbar

you are here 4 535

design support library

CHAPTER 12

Your Android Toolbox

You’ve got Chapter 12 under

your belt and now you’ve

added the Design Support

Library to your toolbox.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

Enable swipe navigation using a view

pager.

You tell a view pager about its pages by

implementing a fragment pager adapter.

Use the fragment pager adapter’s

getCount() method to tell the view

pager how many pages it should have. Use

its getItem() method to tell it which

fragment should appear on each page.

Add tab navigation by implementing a

tab layout. Put the toolbar and tab layout

inside an app bar layout in your layout

code, then attach the tab layout to the view

pager in your activity code.

The tab layout comes from the Android

Design Support Library. This library

helps you implement the material design

guidelines in your app.

Use a coordinator layout to coordinate

animations between views.

Add scrollable content the coordinator

layout can coordinate using a nested

scroll view.

Use a collapsing toolbar layout to add

a toolbar that collapses and grows in

response to user scroll actions.

Use a FAB (floating action button) to

promote common or important user

actions.

A snackbar lets you display short

messages that the user can interact with.

this is a new chapter 537

recycler views and card views

Get Recycling

You’ve already seen how the humble list view is a key part of

most apps. But compared to some of the material design components we’ve seen,

it’s somewhat plain. In this chapter, we’ll introduce you to the recycler view, a more

advanced type of list that gives you loads more flexibility and fits in with the material

design ethos. You’ll see how to create adapters tailored to your data, and how to

completely change the look of your list with just two lines of code. We’ll also show you

how to use card views to give your data a 3D material design appearance.

538 Chapter 13

fancier lists

In Chapter 12, we updated the Bits and Pizzas app to include

components from the Design Support Library, including a tab layout,

FAB, and collapsing toolbar. We added these to help users navigate to

places in the app more easily, and to implement a consistent material

design look and feel. If you recall, material design is inspired by paper

and ink, and uses print-based design principles and movement to

reflect how real-world objects (such as index cards and pieces of paper)

look and behave. But there’s one key area we didn’t look at: lists.

We’re currently using list views in PizzaFragment,

PastaFragment, and StoresFragment to display the available

pizzas, pasta, and stores. These lists are very plain compared with the

rest of the app, and could do with some work to give them the same

look and feel.

Another disadvantage of list views is that they don’t implement nested

scrolling. In Chapter 12, we made MainActivity’s toolbar scroll in

response to the user scrolling content in the activity’s fragments. This

currently works for TopFragment, as it uses a nested scroll view. As

none of the other fragments use nested scrolling, however, the toolbar

remains fixed when the user tries to scroll their content.

To address these issues, we’re going to change PizzaFragment to

use a recycler view. This is a more advanced and flexible version

of a list view that implements nested scrolling. Instead of displaying

just the names of each pizza in a list view, we’ll use a recycler view to

display its name and image:

There’s still work to do on the Bits and Pizzas app

This is the current

PizzaFragment. It includes a list

of pizzas, but it looks quite plain.

This is the

recycler view we’re

going to add to

PizzaFragment.

When you scroll the

recycler view, the

toolbar moves up. This

matches the behavior

of TopFragment.

you are here 4 539

recycler views and card views

Recycler views from 10,000 feet

Before we dive into the code, let’s take a look at how recycler views

work. As a recycler view is more flexible than a list view, it takes a

lot more setting up.

Like list views, recycler views efficiently manage a small number

of views to give the appearance of a large collection of views that

extend beyond the screen. They allow you greater flexibility about

how the data is displayed than list views do.

A recycler view accesses its data using an adapter. Unlike a list

view, however, it doesn’t use any of the built-in Android adapters

such as array adapters. Instead, you have to write an adapter

of your own that’s tailored to your data. This includes

specifying the type of data, creating views, and binding the data to

the views.

Items are positioned in a recycler view using a layout manager.

There are a number of built-in layout managers you can use that

allow you to position items in a linear list or grid.

Here’s a diagram of all those elements put together:

Data

Source

Recycler

View

Adapter

This is the

data that’s

used in the

recycler view.

You need to write your own

adapter. This is where most

of the work is.

The recycler view uses

the adapter to display

the data. It includes

a layout manager to

specify how the data

should be positioned.

In our particular case, we’re going to create a recycler view to

display pizza names and images. We’ll go through the steps for how

to do this on the next page.

540 Chapter 13

steps

Do this!

We’re going to update

the Bits and Pizzas app

in this chapter, so open

your Bits and Pizzas

project in Android Studio.

Here’s what we’re going to do

There are five main steps we’ll go through to get the recycler

view working:

Add the pizza data to the project.

We’ll add images of the pizzas to the app, along with a new

Pizza class. This class will be the recycler view’s data source.

The first thing we’ll do is add the pizza data.

Create a card view for the pizza data.

We’re going to make each pizza in the recycler view look as

though it’s displayed on a separate card. To do this, we’ll use a

new type of view called a card view.

Create a recycler view adapter.

As we said on the previous page, when you use a recycler view you

need to write your own adapter for it. Our adapter needs to take

the pizza data and bind each item to a card view. Each card will

then be able to be displayed in the recycler view.

Add a recycler view to PizzaFragment.

After we’ve created the adapter, we’ll add the recycler

view to PizzaFragment. We’ll make it use the

adapter, and use a layout manager to display pizza data

in a two-column grid.

Make the recycler view respond to clicks.

We’ll create a new activity, PizzaDetailActivity,

and get it to start when the user clicks on one of the

pizzas. We’ll display details of the pizza in the activity.

This is

PizzaDetailActivity.

This

is the

recycler

view.

These are card views

displaying pizza data.

you are here 4 541

recycler views and card views

Add the Pizza class

We’ll get our data from a Pizza class, which we need to add. The

class defines an array of two pizzas, where each pizza has a name and

image resource ID. Switch to the Project view of Android Studio’s

explorer, highlight the com.hfad.bitsandpizzas package in

the app/src/main/java folder, then go to File→New...→Java class.

When prompted, name the class “Pizza” and make sure the package

name is com.hfad.bitsandpizzas. Finally, replace the code in

Pizza.java with the following:

Add the pizza data

We’ll start by adding the pizza images to the Bits and Pizzas

project. Download the files diavolo.jpg and funghi.jpg from https://

git.io/v9oet, then add them to the folder app/src/main/res/

drawable-nodpi. This folder should already exist in your project, as

we added an image to it in Chapter 12.

package com.hfad.bitsandpizzas;

public class Pizza {

private String name;

private int imageResourceId;

public static final Pizza[] pizzas = {

new Pizza("Diavolo", R.drawable.diavolo),

new Pizza("Funghi", R.drawable.funghi)

};

private Pizza(String name, int imageResourceId) {

this.name = name;

this.imageResourceId = imageResourceId;

}

public String getName() {

return name;

}

public int getImageResourceId() {

return imageResourceId;

}

app/src/main

Pizza.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Each Pizza has a name and image resource

ID. The image resource ID refers to the

pizza images we added to the project above.

The Pizza constructor

These are getters for the

private variables.

In a real app,

we might use a

database for this.

We’re using a Java

class here for

simplicity.

These are the

pizza images.

Pizza data

Card view

Adapter

Recycler view

Clicks

542 Chapter 13

add libraries

Display the pizza data in a card

The next thing we need to do is define a layout for the pizza data. This layout

will be used by the recycler view’s adapter to determine how each item in the

recycler view should look. We’re going to use a card view for this layout.

A card view is a type of frame layout that lets you display information on

virtual cards. Card views can have rounded corners and shadows to make it

look as though they’re positioned above their background. If we use a card

view for our pizza data, each pizza will look as though it’s displayed on a

separate card in the recycler view.

Add the CardView and RecyclerView Support Libraries

Card views and recycler views come from the CardView and RecyclerView

v7 Support Libraries, respectively, so before we can go any further, you need

to add them to your project as dependencies.

In Android Studio go to File→Project Structure. In the Project Structure

window, click on the “app” option and switch to the Dependencies tab. Then

click on the “+” button at the bottom or right side of the screen, choose the

“Library dependency” option, and add the CardView Library. Repeat these

steps to add the RecyclerView-v7 Library, then click on the OK button to

save your changes.

Now that you’ve added the Support Libraries, we’ll create a card view

that we can use for our pizza data.

You need to add

the CardView and

RecyclerView libraries.

These are card views. We’ll use

cards to display the pizza

data in the recycler view.

Pizza data

Card view

Adapter

Recycler view

Clicks

Make sure you add both libraries.

you are here 4 543

recycler views and card views

How to create a card view

We’re going to create a card view that displays an image with a

caption. We’ll use it here for the name and image of individual pizzas,

but you could also use the same layout for different categories of data

such as pasta or stores.

You create a card view by adding a <CardView> element to a

layout. If you want to use the card view in a recycler view (as we

do here), you need to create a new layout file for the card view. Do

this by highlighting the app/src/main/res/layout folder, and choosing

File→New→Layout resource file. When prompted, name the layout

“card_captioned_image”.

You add a card view to your layout using code like this:

<android.support.v7.widget.CardView

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:card_view="http://schemas.android.com/apk/res-auto"

android:id="@+id/card_view"

android:layout_width="match_parent"

android:layout_height="200dp"

android:layout_margin="4dp"

card_view:cardElevation="2dp"

card_view:cardCornerRadius="4dp">

...

</android.support.v7.widget.CardView>

In the above code, we’ve added an extra namespace of:

xmlns:card_view="http://schemas.android.com/apk/res-auto"

so that we can give the card rounded corners and a drop shadow to

make it look higher than its background. You add rounded corners

using the card_view:cardCornerRadius attribute, and the

card_view:cardElevation attribute sets its elevation and adds

drop shadows.

Once you’ve defined the card view, you need to add any views you

want to display to it. In our case, we’ll add a text view and image view

to display the name and image of the pizza. We’ll show you the full

code for this on the next page.

<xml>

</xml>

app/src/main

card_captioned_

image.xml

BitsAndPizzas

res

layout

This defines the CardView.

This gives the CardView

rounded corners.

You add any views you want to

be displayed to the CardView.

Setting

the card's

elevation

gives it

a drop

shadow.

Pizza data

Card view

Adapter

Recycler view

Clicks

544 Chapter 13

layout code

The full card_captioned_image.xml code

<?xml version="1.0" encoding="utf-8"?>

<android.support.v7.widget.CardView

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:card_view="http://schemas.android.com/apk/res-auto"

android:id="@+id/card_view"

android:layout_width="match_parent"

android:layout_height="200dp"

android:layout_margin="5dp"

card_view:cardElevation="2dp"

card_view:cardCornerRadius="4dp">

<LinearLayout

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical">

<ImageView android:id="@+id/info_image"

android:layout_height="0dp"

android:layout_width="match_parent"

android:layout_weight="1.0"

android:scaleType="centerCrop"/>

<TextView

android:id="@+id/info_text"

android:layout_marginLeft="4dp"

android:layout_marginBottom="4dp"

android:layout_height="wrap_content"

android:layout_width="match_parent"/>

</LinearLayout>

</android.support.v7.widget.CardView>

Note that the above layout doesn’t explicitly mention pizza

data. This means we can use the same layout for any data

items that consist of a caption and an image, such as pasta.

Now that we’ve created a layout for the card views, we’ll

move on to creating the recycler view’s adapter.

<xml>

</xml>

app/src/main

card_

captioned_

image.xml

BitsAndPizzas

res

layout

The card view will be as wide as its

parent allows, and 200dp high.

The image will be as wide as the

CardView allows. We’re using centerCrop

to make sure the image scales uniformly.

We’ve put the ImageView and TextView

in a LinearLayout, as the CardView can

only have one direct child.

The CardView contains an

ImageView and a TextView.

Here’s the full code for card_captioned_image.xml (update your

version of the file to match ours):

This is what the CardView

will look like when data’s been

added to it. We’ll do this via

the recycler view’s adapter.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 545

recycler views and card views

How our recycler view adapter will work

As we said earlier, when you use a recycler view in your app, you need

to create a recycler view adapter. That’s because unlike a list view,

recycler views don’t use any of the built-in adapters that come with

Android. While writing your own adapter may seem like hard work,

on the plus side it gives you more flexibility than using a built-in one.

The adapter has two main jobs: to create each of the views that are

visible within the recycler view, and to bind each view to a piece of

data. In our case, the recycler view needs to display a set of cards, each

containing a pizza image and caption. This means that the adapter

needs to create each card and bind data to it.

We’ll create the recycler view adapter over the next few pages. Here

are the steps we’ll go through to create it:

We’ll start by adding a RecyclerView.Adapter class to our

project.

Specify what data the adapter should work with.

We want the adapter to work with the pizza data. Each pizza

has a name and image resource ID, so we’ll pass the adapter

an array of pizza names, and an array of image resource IDs.

Define the views the adapter should populate.

We want to use the data to populate a set of pizza cards

defined by card_captioned_image.xml. We then need to create

a set of these cards that will be displayed in the recycler view,

one card per pizza.

Bind the data to the cards.

Finally, we need to display the pizza data in the cards. To

make that happen, we need to populate the info_text text

view with the name of the pizza, and the info_image image

view with the pizza’s image.

Pizza data

Card view

Adapter

Recycler view

Clicks

Q: Why doesn’t Android provide ready-made adapters for

recycler views? A: Because recycler view adapters don’t just specify the data

that will appear. They also specify the views that will be used for

each item in the collection. That means that recycler view adapters

are both more powerful, and less general, than list view adapters.

546 Chapter 13

CaptionedImagesAdapter code

Add a recycler view adapter

package com.hfad.bitsandpizzas;

import android.support.v7.widget.RecyclerView;

class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

public static class ViewHolder extends RecyclerView.ViewHolder {

//Define the view to be used for each data item

}

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

We’re extending the

RecyclerView class, so

we need to import it.

You create a recycler view adapter by extending the

RecyclerView.Adapter class and overriding various

methods; we’ll cover these over the next few pages. You also

need to define a ViewHolder as an inner class, which tells

the adapter which views to use for the data items.

We’re going to create a recycler view adapter called

CaptionedImagesAdapter. In Android Studio,

highlight the com.hfad.bitsandpizzas

package in the app/src/main/java folder, then go to

File→New...→Java class. When prompted, name the class

“CaptionedImagesAdapter” and make sure the package

name is com.hfad.bitsandpizzas. Then replace the

code in CaptionedImagesAdapter.java with the following:

As you can see, the ViewHolder inner class you define is

a key part of the adapter. We’ve left the ViewHolder class

empty for now, but we’ll come back to it later in the chapter.

Before we look in more detail at view holders, we’ll tell

the adapter what sort of data it should use by adding a

constructor.

You define the ViewHolder as

an inner class. We’ll complete

this later in the chapter.

The ViewHolder is used to

specify which views should

be used for each data item.

Don’t worry if

Android Studio

gives you error

messages when you

add the above code

to your project.

It’s just warning you that the code isn’t

complete yet. We still need to override

various methods in our adapter code to

tell it how to behave, and we’ll do this

over the next few pages.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 547

recycler views and card views

class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

private String[] captions;

private int[] imageIds;

...

public CaptionedImagesAdapter(String[] captions, int[] imageIds){

this.captions = captions;

this.imageIds = imageIds;

}

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

We’ll use these variables

to hold the pizza data.

We’ll pass the data to the

adapter using its constructor.

The length of the captions array equals the

number of data items in the recycler view.

...and implement the getItemCount() method

We also need to tell the adapter how many data items there are. You do

this by overriding the RecyclerViewAdapter getItemCount()

method. This returns an int value, the number of data items. We can

derive this from the number of captions we pass the adapter. Here’s the

code: class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

...

@Override

public int getItemCount(){

return captions.length;

}

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Next we’ll define the adapter’s view holder.

Pizza data

Card view

Adapter

Recycler view

Clicks

Tell the adapter

what data it should work with...

When you define a recycler view adapter, you need to tell it what sort of

data it should use. You do this by defining a constructor that includes the

data types you want the adapter to use as parameters.

In our case, we want the adapter to take String captions and int image

IDs. We’ll therefore add String[] and int[] parameters to the

constructor, and save the arrays as private variables. Here’s the code that

does this; you can either update your version of CaptionedImagesAdapter.java

now, or wait until we show you the full adapter code later in the chapter.

548 Chapter 13

define view holder

Define the adapter’s view holder

The view holder is used to define what view or views the

recycler view should use for each data item it’s given. You

can think of it as a holder for the views you want the recycler

view to display. In addition to views, the view holder contains

extra information that’s useful to the recycler view, such as its

position in the layout.

In our case, we want to display each item of pizza data on a

card, which means we need to specify that the adapter’s view

holder uses a card view. Here’s the code to do this (we’ll show

you the full adapter code later in the chapter):

...

import android.support.v7.widget.CardView;

class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

...

public static class ViewHolder extends RecyclerView.ViewHolder {

private CardView cardView;

public ViewHolder(CardView v) {

super(v);

cardView = v;

}

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Our recycler view needs to display CardViews,

so we specify that our ViewHolder contains

CardViews. If you want to display another type

of data in the recycler view, you define it here.

When you create a view holder, you must call the ViewHolder

super constructor using:

This is because the ViewHolder superclass includes metadata

such as the item’s position in the recycler view, and you need this

information for the adapter to work properly.

Now that we’ve defined our view holders, we need to tell the

adapter how to construct one. We’ll do this by overriding the

adapter’s onCreateViewHolder() method.

super(v);

ViewHolder

CardView

Each of our ViewHolders will

contain a CardView. We created

the layout for this CardView

earlier in the chapter.

We’re using the

CardView class,

so we need to

import it.

you are here 4 549

recycler views and card views

@Override

public CaptionedImagesAdapter.ViewHolder onCreateViewHolder(

ViewGroup parent, int viewType){

CardView cv = (CardView) LayoutInflater.from(parent.getContext())

.inflate(R.layout.card_captioned_image, parent, false);

return new ViewHolder(cv);

}

Override the onCreateViewHolder() method

@Override

public CaptionedImagesAdapter.ViewHolder onCreateViewHolder(

ViewGroup parent, int viewType){

//Code to instantiate the ViewHolder

}

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The onCreateViewHolder() method gets called when

the recycler view requires a new view holder. The recycler

view calls the method repeatedly when the recycler view is

first constructed to build the set of view holders that will be

displayed on the screen.

The method takes two parameters: a ViewGroup parent

object (the recycler view itself) and an int parameter called

viewType, which is used if you want to display different

kinds of views for different items in the list. It returns a view

holder object. Here’s what the method looks like:

Now that the adapter can create view holders, we need to get

it to populate the card views they contain with data.

Specify what layout to use for the

contents of the ViewHolder.

This method gets

called when the

recycler view needs to

create a view holder.

We need to add code to the method to instantiate the view

holder. To do this, we need to call the ViewHolder’s

constructor, which we defined on the previous page. The

constructor takes one parameter, a CardView. We’ll create

the CardView from the card_captioned_image.xml layout we

created earlier in the chapter using this code:

CardView cv = (CardView) LayoutInflater.from(parent.getContext())

.inflate(R.layout.card_captioned_image, parent, false);

Here’s the full code for the onCreateViewHolder()

method (we’ll add this to the adapter later):

Get a LayoutInflater object.

Use the LayoutInflator to turn the

layout into a CardView. This is nearly

identical to code you've already seen

in the onCreateView() of fragments.

Pizza data

Card view

Adapter

Recycler view

Clicks

550 Chapter 13

add data

Add the data to the card views

You add data to the card views by implementing the adapter’s

onBindViewHolder() method. This gets called whenever the

recycler view needs to display data in a view holder. It takes two

parameters: the view holder the data needs to be bound to, and

the position in the data set of the data that needs to be bound.

Our card view contains two views, an image view with an ID of

info_image, and a text view with an ID of info_text. We’ll

populate these with data from the captions and imageIds

arrays. Here’s the code that will do that:

...

import android.widget.ImageView;

import android.widget.TextView;

import android.graphics.drawable.Drawable;

import android.support.v4.content.ContextCompat;

class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

private String[] captions;

private int[] imageIds;

...

@Override

public void onBindViewHolder(ViewHolder holder, int position){

CardView cardView = holder.cardView;

ImageView imageView = (ImageView)cardView.findViewById(R.id.info_image);

Drawable drawable =

ContextCompat.getDrawable(cardView.getContext(), imageIds[position]);

imageView.setImageDrawable(drawable);

imageView.setContentDescription(captions[position]);

TextView textView = (TextView)cardView.findViewById(R.id.info_text);

textView.setText(captions[position]);

}

That’s all the code we need for our adapter. We’ll show you the

full code over the next couple of pages.

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Display the image

in the ImageView.

Display the caption in the TextView.

We added these variables earlier.

They contain the captions and

image resource IDs of the pizzas.

CardView

TextView

ImageView

Each CardView contains a TextView and

ImageView. We need to populate these

with the caption and image of each pizza.

id: info_image

id: info_text

We’re using these

extra classes, so we

need to import them.

Pizza data

Card view

Adapter

Recycler view

Clicks

The recycler view calls this method when it wants to

use (or reuse) a view holder for a new piece of data.

you are here 4 551

recycler views and card views

package com.hfad.bitsandpizzas;

import android.support.v7.widget.RecyclerView;

import android.support.v7.widget.CardView;

import android.view.ViewGroup;

import android.view.LayoutInflater;

import android.widget.ImageView;

import android.widget.TextView;

import android.graphics.drawable.Drawable;

import android.support.v4.content.ContextCompat;

class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

private String[] captions;

private int[] imageIds;

public static class ViewHolder extends RecyclerView.ViewHolder {

private CardView cardView;

public ViewHolder(CardView v) {

super(v);

cardView = v;

}

public CaptionedImagesAdapter(String[] captions, int[] imageIds){

this.captions = captions;

this.imageIds = imageIds;

}

The full code for CaptionedImagesAdapter.java

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

These are the classes

we’re using, so we

need to import them.

Each ViewHolder will display a CardView.

Pass data to the adapter

in its constructor.

Here’s our complete code for the adapter. Update your

version of CaptionedImagesAdapter.java so that it matches

ours.

The code continues

on the next page.

We’re using these variables for the

captions and image resource IDs.

Pizza data

Card view

Adapter

Recycler view

Clicks

552 Chapter 13

code, continued

@Override

public int getItemCount(){

return captions.length;

}

@Override

public CaptionedImagesAdapter.ViewHolder onCreateViewHolder(

ViewGroup parent, int viewType){

CardView cv = (CardView) LayoutInflater.from(parent.getContext())

.inflate(R.layout.card_captioned_image, parent, false);

return new ViewHolder(cv);

}

@Override

public void onBindViewHolder(ViewHolder holder, int position){

CardView cardView = holder.cardView;

ImageView imageView = (ImageView)cardView.findViewById(R.id.info_image);

Drawable drawable =

ContextCompat.getDrawable(cardView.getContext(), imageIds[position]);

imageView.setImageDrawable(drawable);

imageView.setContentDescription(captions[position]);

TextView textView = (TextView)cardView.findViewById(R.id.info_text);

textView.setText(captions[position]);

}

Use the layout we created

earlier for the CardViews.

Populate the CardView’s ImageView

and TextView with data.

The number of data items

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

The full CaptionedImagesAdapter.java

code (continued)

That’s all the code we need for our adapter. So what’s

next?

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 553

recycler views and card views

Create the recycler view

So far we’ve created a card view layout that displays captioned

images, and an adapter that creates the cards and populates them

with data. The next thing we need to do is create the recycler view,

which will pass pizza data to the adapter so that it can populate the

cards with the pizza images and captions. The recycler view will

then display the cards.

We’re going to add the recycler view to our existing

PizzaFragment. Whenever the user clicks on the Pizzas tab in

MainActivity, the pizzas will be displayed:

Add a layout for PizzaFragment

Before we can add the recycler view, we need to add a new layout

file to our project for PizzaFragment to use. This is because

we intially created PizzaFragment as a ListFragment, and

these define their own layout.

To add the layout file, highlight the app/src/main/res/layout folder

in Android Studio, and choose File→New→Layout resource file.

When prompted, name the layout “fragment_pizza”.

This is what the recycler

view in PizzaFragment

will look like. It will

display the pizza cards

in a two-column grid.

Pizza data

Card view

Adapter

Recycler view

Clicks

554 Chapter 13

layout code

Add the RecyclerView to

PizzaFragment’s layout

You add a recycler view to a layout using the <RecyclerView>

element from the RecyclerView Support Library.

Our PizzaFragment layout only needs to display a single

recycler view, so here’s the full code for fragment_pizza.xml (update

your version of the code to match ours):

<android.support.v7.widget.RecyclerView

xmlns:android="http://schemas.android.com/apk/res/android"

android:id="@+id/pizza_recycler"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:scrollbars="vertical" />

You add scrollbars to the recycler view using the

android:scrollbars attribute. We’ve set this to

"vertical" because we want our recycler view to be able to

scroll vertically. We’ve also given the recycler view an ID so that

we can get a reference to it in our PizzaFragment code; we

need this in order to control its behavior.

Now that we’ve added a recycler view to PizzaFragment’s

layout, we need to update our fragment code to get the recycler

view to use the adapter we created.

Get the recycler view to use the adapter

To get the recycler view to use the adapter, there are two things

we need to do: tell the adapter what data to use, then attach

the adapter to the recycler view. We can tell the adapter what

data to use by passing it the pizza names and image resource

IDs via its constructor. We’ll then use the RecyclerView

setAdapter() method to assign the adapter to the recycler

view.

The code to do this is all code that you’ve seen before, so we’ll

show you the full PizzaFragment code on the next page.

<xml>

</xml>

app/src/main

fragment_

pizza.xml

BitsAndPizzas

res

layout

This adds a vertical scrollbar.

This defines the RecyclerView.

We’ve given the recycler view an ID so

that we can refer to it in our Java code.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 555

recycler views and card views

package com.hfad.bitsandpizzas;

import android.os.Bundle;

import android.support.v4.app.ListFragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

import android.support.v7.widget.RecyclerView;

public class PizzaFragment extends ListFragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

ArrayAdapter<String> adapter = new ArrayAdapter<>(

inflater.getContext(),

android.R.layout.simple_list_item_1,

getResources().getStringArray(R.array.pizzas));

setListAdapter(adapter);

return super.onCreateView(inflater, container, savedInstanceState);

RecyclerView pizzaRecycler = (RecyclerView)inflater.inflate(

R.layout.fragment_pizza, container, false);

String[] pizzaNames = new String[Pizza.pizzas.length];

for (int i = 0; i < pizzaNames.length; i++) {

pizzaNames[i] = Pizza.pizzas[i].getName();

}

int[] pizzaImages = new int[Pizza.pizzas.length];

for (int i = 0; i < pizzaImages.length; i++) {

pizzaImages[i] = Pizza.pizzas[i].getImageResourceId();

}

CaptionedImagesAdapter adapter = new CaptionedImagesAdapter(pizzaNames, pizzaImages);

pizzaRecycler.setAdapter(adapter);

return pizzaRecycler;

}

The full PizzaFragment.java code

Here’s our full code for PizzaFragment.java (update your

version of the code to match our changes):

There’s just one more thing we need to do: specify how the

views in the recycler view should be arranged.

app/src/main

Pizza

Fragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Use the layout we updated

on the previous page.

Add the pizza names to an array

of Strings, and the pizza images

to an array of ints.

Pass the arrays to the adapter.

We’re changing PizzaFragment to be

a Fragment, not a ListFragment.

We’re no longer using an

ArrayAdapter, so delete this line.

We need to import the

RecyclerView class.

Change this from ListFragment to Fragment.

Delete these lines,

as they’re no longer

necessary.

Pizza data

Card view

Adapter

Recycler view

Clicks

556 Chapter 13

layout managers

Linear layout manager

This arranges items in a

vertical or horizontal list.

Grid layout manager

This arranges items in a grid.

Staggered grid

layout manager

This arranges

unevenly sized items

in a staggered grid.

A recycler view uses a layout

manager to arrange its views

One of the ways in which a recycler view is more flexible than

a list view is in how it arranges its views. A list view displays its

views in a single vertical list, but a recycler view gives you more

options. You can choose to display views in a linear list, a grid, or

a staggered grid.

You specify how to arrange the views using a layout manager.

The layout manager positions views inside a recycler view:

the type of layout manager you use determines how items are

positioned. Here are some examples:

On the next page, we’ll show you how to specify which layout

manager to use in your recycler view.

Pizza data

Card view

Adapter

Recycler view

Clicks

We don’t cover how to do it, but you can also

write your own layout managers. If you search

for “android recyclerview layoutmanager” you’ll

find many third-party ones you can use in your

code, from carousels to circles.

you are here 4 557

recycler views and card views

LinearLayoutManager layoutManager = new LinearLayoutManager(getActivity());

pizzaRecycler.setLayoutManager(layoutManager);

Specify the layout manager

You tell the recycler view which layout manager it should use by

creating a new instance of the type of layout manager you want to

use, then attaching it to the recycler view.

The LinearLayoutManager constructor takes one parameter, a

Context. If you’re using the code in an activity, you’d normally use this to

pass it the current activity (a context). The above code uses getActivity()

instead, as our recycler view is in a fragment.

GridLayoutManager layoutManager = new GridLayoutManager(getActivity(), 2);

Let’s add a layout manager to our recycler view.

This needs to be a Context.

If you use this code in

an activity, you use “this”

instead of getActivity().

This says that the

GridLayoutManager should

be two columns wide.

Linear layout manager

To tell the recycler view that you want it to display its views in a linear list,

you’d use the following code:

Grid layout manager

You use similar code to specify a grid layout manager, except that you

need to create a new GridLayoutManager object instead. The

GridLayoutManager takes two parameters in its constructor: a Context,

and an int value specifying the number of columns the grid should have.

StaggeredGridLayoutManager layoutManager =

new StaggeredGridLayoutManager(2, StaggeredGridLayoutManager.VERTICAL);

This gives the

staggered grid layout a

vertical orientation.

Staggered grid layout manager

You tell the recycler view to use a staggered grid layout manager by creating

a new StaggeredGridLayoutManager object. Its constructor takes two

parameters: an int value for the number of columns or rows, and an int

value for its orientation. As an example, here’s how you’d specify a staggered

grid layout oriented vertically with two rows:

GridLayoutManager layoutManager =

new GridLayoutManager(getActivity(), 1, GridLayoutManager.HORIZONTAL, false);

You can also change the orientation of the grid. To do this, you add two more

parameters to the constructor: the orientation, and whether you want the

views to appear in reverse order.

Gives the GridLayoutManager

a horizontal orientation.

If you wanted to display

the list in reverse order,

you’d set this to true.

Pizza data

Card view

Adapter

Recycler view

Clicks

558 Chapter 13

PizzaFragment code

package com.hfad.bitsandpizzas;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.support.v7.widget.RecyclerView;

import android.support.v7.widget.GridLayoutManager;

public class PizzaFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

RecyclerView pizzaRecycler = (RecyclerView)inflater.inflate(

R.layout.fragment_pizza, container, false);

String[] pizzaNames = new String[Pizza.pizzas.length];

for (int i = 0; i < pizzaNames.length; i++) {

pizzaNames[i] = Pizza.pizzas[i].getName();

}

int[] pizzaImages = new int[Pizza.pizzas.length];

for (int i = 0; i < pizzaImages.length; i++) {

pizzaImages[i] = Pizza.pizzas[i].getImageResourceId();

}

CaptionedImagesAdapter adapter = new CaptionedImagesAdapter(pizzaNames, pizzaImages);

pizzaRecycler.setAdapter(adapter);

GridLayoutManager layoutManager = new GridLayoutManager(getActivity(), 2);

pizzaRecycler.setLayoutManager(layoutManager);

return pizzaRecycler;

}

The full PizzaFragment.java code

We’re going to use a GridLayoutManager to display the

pizza data in a grid. Here’s the full code for PizzaFragment.java,

update your version of the code to match our changes (in bold):

Next we’ll examine what happens when the code runs, then take

our app for a test drive.

We’re using

this class, so

we need to

import it.

We’re going to display the

CardViews in a grid with

two columns, so we’re using

a GridLayoutManager.

app/src/main

Pizza

Fragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 559

recycler views and card views

What happens when the code runs

The user clicks on the Pizzas tab in MainActivity.

PizzaFragment is displayed, and its onCreateView() method runs.

The PizzaFragment onCreateView() method creates a

GridLayoutManager and assigns it to the recycler view.

The GridLayoutManager means that the views will be displayed in a grid. As the

recycler view has a vertical scrollbar, the list will be displayed vertically.

The PizzaFragment onCreateView() method creates a new

CaptionedImagesAdapter.

The method passes the names and images of the pizzas to the adapter using the

adapter’s constructor, and sets the adapter to the recycler view.

MainActivity PizzaFragment

onCreateView()

PizzaFragment

RecyclerView

CaptionedImagesAdapter

Pizza data

PizzaFragment

RecyclerView

GridLayoutManager

CaptionedImagesAdapter

Pizza data

Card view

Adapter

Recycler view

Clicks

560 Chapter 13

what happens

The story continues

The adapter creates a view holder for each of the

CardViews the recycler view needs to display.

The adapter then binds the pizza names and images to the text view

and image view in each card view.

ViewHolder

CardView

CaptionedImagesAdapter

ViewHolder

CardView

CaptionedImagesAdapter

Diavolo data

Funghi data

Diavolo data

Funghi data

TextView

ImageView

“Diavolo”

R.drawable.Diavolo

TextView

ImageView

“Funghi”

R.drawable.Funghi

Let’s run the app and see how it looks.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 561

recycler views and card views

Test drive the app

When we run the app, MainActivity is displayed.

When we click on or swipe to the Pizzas tab, the pizzas

are displayed in a grid. When we scroll the pizza data,

MainActivity’s toolbar responds.

As you can see, adding a recycler view is more involved

than adding a list view, but it gives you a lot more flexibility.

Most of the work comes from having to write a bespoke

recycler view adapter, but you can reuse it elsewhere in

your app. As an example, suppose you wanted to display

pasta cards in a recycler view. You would use the same

adapter we created earlier, but pass it pasta data instead of

pizzas.

Before we move on, have a go at the following exercise.

When you click on the Pizzas

tab, PizzaFragment is displayed.

It contains this grid of card

views populated with pizza data.

When you scroll the recycler

view, the toolbar scrolls

too. This is because recycler

views allow nested scrolling,

and in Chapter 12 we told

the toolbar to respond to

nested scroll events.

Pizza data

Card view

Adapter

Recycler view

Clicks

562 Chapter 13

magnets

package com.hfad.bitsandpizzas;

public class Pasta {

private String name;

private int imageResourceId;

public static final [] pastas = {

new Pasta("Spaghetti Bolognese", R.drawable.spag_bol),

new Pasta("Lasagne", R.drawable.lasagne)

};

private Pasta(String name, int imageResourceId) {

this.name = name;

this.imageResourceId = imageResourceId;

}

public String {

return name;

}

public int {

return imageResourceId;

}

xmlns:android="http://schemas.android.com/apk/res/android"

android:id="@+id/pasta_recycler"

android:layout_width="match_parent"

android:layout_height="match_parent"/>

RecyclerView Magnets

Use the magnets on this page and the next to create a new recycler

view for the pasta dishes. The recycler view should contain a grid of card

views, each one displaying the name and image of a pasta dish.

app/src/main

Pasta.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

<xml>

</xml>

app/src/main

fragment_

pasta.xml

BitsAndPizzas

res

layout

RecyclerView

android.support.v7.widget.RecyclerView

getImageResourceId()

getName()

Pasta

android:scrollbars

"vertical"

This is the code for the Pasta class.

This is the code for the layout.

you are here 4 563

recycler views and card views

...

public class PastaFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

RecyclerView pastaRecycler = (RecyclerView)inflater.inflate(

, container, false);

String[] pastaNames = new String[Pasta.pastas.length];

for (int i = 0; i < pastaNames.length; i++) {

pastaNames[i] = Pasta.pastas[i].getName();

}

int[] pastaImages = new int[Pasta.pastas.length];

for (int i = 0; i < pastaImages.length; i++) {

pastaImages[i] = Pasta.pastas[i].getImageResourceId();

}

adapter =

new (pastaNames, );

pastaRecycler.setAdapter(adapter);

layoutManager = new (getActivity(), 2);

pastaRecycler.setLayoutManager(layoutManager);

return pastaRecycler;

}

app/src/main

Pasta

Fragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

ArrayAdapter

GridLayout

R.layout.fragment_pasta

CaptionedImagesAdapter

pastaImages

GridLayoutManager

This is the code for PastaFragment.java.

564 Chapter 13

magnets solution

package com.hfad.bitsandpizzas;

public class Pasta {

private String name;

private int imageResourceId;

public static final [] pastas = {

new Pasta("Spaghetti Bolognese", R.drawable.spag_bol),

new Pasta("Lasagne", R.drawable.lasagne)

};

private Pasta(String name, int imageResourceId) {

this.name = name;

this.imageResourceId = imageResourceId;

}

public String {

return name;

}

public int {

return imageResourceId;

}

xmlns:android="http://schemas.android.com/apk/res/android"

android:id="@+id/pasta_recycler"

android:layout_width="match_parent"

android:layout_height="match_parent"/>

RecyclerView Magnets Solution

Use the magnets on this page and the next to create a new recycler

view for the pasta dishes. The recycler view should contain a grid of card

views, each one displaying the name and image of a pasta dish.

app/src/main

Pasta.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

<xml>

</xml>

app/src/main

fragment_

pasta.xml

BitsAndPizzas

res

layout

RecyclerView

android.support.v7.widget.RecyclerView

getImageResourceId()

getName()

Pasta

android:scrollbars

"vertical"

It’s an array of Pasta objects.

These methods are used by

PastaFragment.java.

Add the recycler view to the layout.

Add vertical scrollbars.

This is a spare magnet.

you are here 4 565

recycler views and card views

...

public class PastaFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

RecyclerView pastaRecycler = (RecyclerView)inflater.inflate(

, container, false);

String[] pastaNames = new String[Pasta.pastas.length];

for (int i = 0; i < pastaNames.length; i++) {

pastaNames[i] = Pasta.pastas[i].getName();

}

int[] pastaImages = new int[Pasta.pastas.length];

for (int i = 0; i < pastaImages.length; i++) {

pastaImages[i] = Pasta.pastas[i].getImageResourceId();

}

adapter =

new (pastaNames, );

pastaRecycler.setAdapter(adapter);

layoutManager = new (getActivity(), 2);

pastaRecycler.setLayoutManager(layoutManager);

return pastaRecycler;

}

app/src/main

Pasta

Fragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

CaptionedImagesAdapter

pastaImages

GridLayoutManager

Use this layout.

We’re using the

CaptionedImagesAdapter

we wrote earlier.

Pass the pasta names and

images to the adapter.

Use the GridLayoutManager to

display the card views in a grid.

ArrayAdapter

GridLayout

You didn’t need to use

these magnets.

R.layout.fragment_pasta

566 Chapter 13

clicks

Make the recycler view respond to clicks

Before we can get the recycler view to respond to

clicks, we need to create PizzaDetailActivity.

When the user clicks

on one of the pizzas

in the recycler view,

we’ll display details

of that pizza in

PizzaDetailActivity.

Pizza data

Card view

Adapter

Recycler view

Clicks

So far, we’ve added a recycler view to PizzaFragment, and

created an adapter to populate it with pizza data.

The next thing we need to do is get the recycler

view to respond to clicks. We’ll create a new activity,

PizzaDetailActivity, which will start when the user

clicks on one of the pizzas. The name and image of the pizza

the user selects will be displayed in the activity:

you are here 4 567

recycler views and card views

Create PizzaDetailActivity

To create PizzaDetailActivity, click on the com.hfad.

bitsandpizzas package in the Bits and Pizzas folder structure,

then go to File→New...→Activity→Empty Activity. Name the activity

“PizzaDetailActivity”, name the layout “activity_pizza_detail”, make sure

the package name is com.hfad.bitsandpizzas, and check the

Backwards Compatibility (AppCompat) option.

Now let’s update PizzaDetailActivity’s layout. Open activity_

pizza_detail.xml, and update it with the code below, which adds a text view

and image view to the layout that we’ll use to display details of the pizza:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.bitsandpizzas.PizzaDetailActivity">

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

<TextView

android:id="@+id/pizza_text"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textAppearance="?android:attr/textAppearanceLarge" />

<ImageView

android:id="@+id/pizza_image"

android:layout_height="wrap_content"

android:layout_width="match_parent"

android:adjustViewBounds="true"/>

</LinearLayout>

We’ll look at what we need the code for PizzaDetailActivity.java to

do on the next page.

We’ll put the name of the

pizza in the TextView.

<xml>

</xml>

app/src/main

activity_pizza_

detail.xml

BitsAndPizzas

res

layout

We'll add a toolbar

to the activity.

We'll put the pizza

image in the ImageView.

Pizza data

Card view

Adapter

Recycler view

Clicks

If prompted for

the activity’s source

language, select the

option for Java.

568 Chapter 13

<application

...>

<activity

android:name=".MainActivity">

...

</activity>

<activity

android:name=".OrderActivity"

...

</activity>

<activity

android:name=".PizzaDetailActivity"

android:parentActivityName=".MainActivity">

</activity>

</application>

</manifest>

parental responsibilities

What PizzaDetailActivity needs to do

PizzaDetailActivity’s main purpose is to display the name

and image of the pizza the user has selected. To do this, we’ll get

the selected pizza’s ID from the intent that starts the activity. We’ll

pass this to PizzaDetailActivity from PizzaFragment

when the user clicks on one of the pizzas in the recycler view.

There are a couple of things that we need

PizzaDetailActivity to do:

We’ll enable the PizzaDetailActivity’s Up button so that

when the user clicks on it, they’ll get returned to MainActivity.

Next, we’ll update PizzaDetailActivity.java. You’ve already seen how to

do everything we need, so we’re just going to show you the full code.

<xml>

</xml>

app/src/main

AndroidManifest.xml

BitsAndPizzas

This sets MainActivity as

PizzaDetailActivity’s parent.

Update AndroidManifest.xml to give

PizzaDetailActivity a parent

We’ll start by updating AndroidManifest.xml to specify that

MainActivity is the parent of PizzaDetailActivity.

This means that when the user clicks on the Up button in

PizzaDetailActivity’s app bar, MainActivity will be

displayed. Here’s our version of AndroidManifest.xml (update your

version to match our changes in bold):

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 569

recycler views and card views

The code for PizzaDetailActivity.java

Here’s the full code for PizzaDetailActivity.java; update your version of

the code to match ours:

package com.hfad.bitsandpizzas;

import android.support.v7.app.ActionBar;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.widget.ImageView;

import android.widget.TextView;

import android.support.v4.content.ContextCompat;

public class PizzaDetailActivity extends AppCompatActivity {

public static final String EXTRA_PIZZA_ID = "pizzaId";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_pizza_detail);

//Set the toolbar as the activity's app bar

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

ActionBar actionBar = getSupportActionBar();

actionBar.setDisplayHomeAsUpEnabled(true);

//Display details of the pizza

int pizzaId = (Integer)getIntent().getExtras().get(EXTRA_PIZZA_ID);

String pizzaName = Pizza.pizzas[pizzaId].getName();

TextView textView = (TextView)findViewById(R.id.pizza_text);

textView.setText(pizzaName);

int pizzaImage = Pizza.pizzas[pizzaId].getImageResourceId();

ImageView imageView = (ImageView)findViewById(R.id.pizza_image);

imageView.setImageDrawable(ContextCompat.getDrawable(this, pizzaImage));

imageView.setContentDescription(pizzaName);

}

app/src/main

PizzaDetailActivity.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

We’re using these

classes, so we need

to import them.

Enable the Up button.

From the intent,

get the pizza the

user chose.

Use the

pizza ID to

populate the

TextView and

ImageView.

We’ll use this constant to pass

the ID of the pizza as extra

information in the intent.

Pizza data

Card view

Adapter

Recycler view

Clicks

570 Chapter 13

RecyclerView hierarchy

Get a recycler view to respond to clicks

While this gives recycler views more flexibility, it also means that with a

recycler view you have to do a lot more of the work yourself. So how do

we get our recycler view to respond to clicks?

android.support.v7.widget.

RecyclerView

...

android.widget.

AdapterView

...

android.widget.

AbsListView

...

android.widget.ListView

...

android.view.View

...

android.view.ViewGroup

...

Next, we need to get items in the recycler view to respond to clicks so

that we can start PizzaDetailActivity when the user clicks on a

particular pizza.

When you create a navigation list with a list view, you can respond to click

events within the list by giving the list view an OnItemClickListener.

The list view then listens to each of the views that it contains, and if any of

them are clicked, the list view calls its OnItemClickListener. That

means that you can respond to list item clicks with very little code.

List views are able to do this because they inherit a bunch of functionality

from a deep hierarchy of superclasses. Recycler views, however, don’t

have such a rich set of built-in methods, as they don’t inherit from the

same superclasses. Here’s a class hierarchy diagram for the ListView

and RecyclerView classes:

The ListView class

inherits from the

AdapterView and

AbsListView classes

too.

ListView and

RecyclerView both

inherit from the View

and ViewGroup classes.

The RecyclerView is

a direct subclass of

ViewGroup, so it doesn't

inherit the extra

functionality that a

ListView has.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 571

recycler views and card views

You can listen for view events from the adapter

To get your recycler view to respond to click events, you need access

to the views that appear inside it. These views are all created inside the

recycler view’s adapter. When a view appears onscreen, the recycler view

calls the CaptionedImagesAdapter’s onBindViewHolder()

method to make the card view match the details of the list item.

When the user clicks on one of the pizza cards in the recycler view, we

want to start PizzaDetailActivity, passing it the position of the

pizza that was clicked. That means you could put some code inside the

adapter to start an activity like this:

class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

...

@Override

public void onBindViewHolder(ViewHolder holder, final int position){

final CardView cardView = holder.cardView;

ImageView imageView = (ImageView)cardView.findViewById(R.id.info_image);

Drawable drawable =

ContextCompat.getDrawable(cardView.getContext(), imageIds[position]);

imageView.setImageDrawable(drawable);

imageView.setContentDescription(captions[position]);

TextView textView = (TextView)cardView.findViewById(R.id.info_text);

textView.setText(captions[position]);

cardView.setOnClickListener(new View.OnClickListener(){

@Override

public void onClick(View v) {

Intent intent = new Intent(cardView.getContext(), PizzaDetailActivity.class);

intent.putExtra(PizzaDetailActivity.EXTRA_PIZZA_ID, position);

cardView.getContext().startActivity(intent);

}

});

}

But just because you could write this code, it doesn’t necessarily

mean that you should.

You could respond to a click event by adding code to your adapter

class. But can you think of a reason why you wouldn’t want to do that?

Adding this code to the adapter

would start PizzaDetailActivity

when a CardView is clicked.

Don't update

the adapter

code just yet.

This is just

an example.

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Pizza data

Card view

Adapter

Recycler view

Clicks

572 Chapter 13

reusable adapters

Keep your adapters reusable

If you deal with click events in the CaptionedImagesAdapter

class, you’ll limit how that adapter can be used. Think about the app we’re

building. We want to display lists of pizzas, pasta, and stores. In each

case, we’ll probably want to display a list of captioned images. If we

modify the CaptionedImagesAdapter class so that clicks always

send the user to an activity that displays details of a single pizza, we

won’t be able to use the CaptionedImagesAdapter for the pasta

and stores lists. We’ll have to create a separate adapter for each one.

Decouple your adapter with an interface

Instead of that approach, we’ll keep the code that starts the activity

outside of the adapter. When someone clicks on an item in the list,

we want the adapter to call the fragment that contains the list, and

then the fragment code can fire off an intent to the next activity. That

way we can reuse CaptionedImagesAdapter for the pizzas,

pasta, and stores lists, and in each case leave it to the fragments to

decide what happens in response to a click.

We’re going to use a similar pattern to the one that allowed us to

decouple a fragment from an activity in Chapter 9. We’ll create a

Listener interface inside CaptionedImagesAdapter like this:

Let’s start by adding code to CaptionedImagesAdapter.java.

interface Listener {

void onClick(int position);

}

We’ll call the listener’s onClick() method whenever one of the

card views in the recycler view is clicked. We’ll then add code to

PizzaFragment so that it implements the interface; this will allow

the fragment to respond to clicks and start an activity.

This is what will happen at runtime:

A user will click on a card view in the recycler view.

The Listener’s onClick() method will be called.

The onClick() method will be implemented in PizzaFragment. Code

in this fragment will start PizzaDetailActivity.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 573

recycler views and card views

Add the interface to the adapter

We’ve updated our CaptionedImagesAdapter.java code to add the Listener

interface and call its onClick() method whenever one of the card views is

clicked. Apply the changes below (in bold) to your code, then save your work:

package com.hfad.bitsandpizzas;

import android.support.v7.widget.RecyclerView;

import android.support.v7.widget.CardView;

import android.view.ViewGroup;

import android.view.LayoutInflater;

import android.widget.ImageView;

import android.widget.TextView;

import android.graphics.drawable.Drawable;

import android.support.v4.content.ContextCompat;

import android.view.View;

class CaptionedImagesAdapter extends

RecyclerView.Adapter<CaptionedImagesAdapter.ViewHolder>{

private String[] captions;

private int[] imageIds;

private Listener listener;

interface Listener {

void onClick(int position);

}

public static class ViewHolder extends RecyclerView.ViewHolder {

private CardView cardView;

public ViewHolder(CardView v) {

super(v);

cardView = v;

}

public CaptionedImagesAdapter(String[] captions, int[] imageIds){

this.captions = captions;

this.imageIds = imageIds;

}

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Add the interface.

Add the Listener as a private variable.

We’re using this extra class, so we need to import it.

The code continues

on the next page.

Pizza data

Card view

Adapter

Recycler view

Clicks

574 Chapter 13

code, continued

@Override

public int getItemCount(){

return captions.length;

}

public void setListener(Listener listener){

this.listener = listener;

}

@Override

public CaptionedImagesAdapter.ViewHolder onCreateViewHolder(

ViewGroup parent, int viewType){

CardView cv = (CardView) LayoutInflater.from(parent.getContext())

.inflate(R.layout.card_captioned_image, parent, false);

return new ViewHolder(cv);

}

@Override

public void onBindViewHolder(ViewHolder holder, final int position){

CardView cardView = holder.cardView;

ImageView imageView = (ImageView)cardView.findViewById(R.id.info_image);

Drawable drawable =

ContextCompat.getDrawable(cardView.getContext(), imageIds[position]);

imageView.setImageDrawable(drawable);

imageView.setContentDescription(captions[position]);

TextView textView = (TextView)cardView.findViewById(R.id.info_text);

textView.setText(captions[position]);

cardView.setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View v) {

if (listener != null) {

listener.onClick(position);

}

});

}

The CaptionedImagesAdapter.java code (continued)

Now that we’ve added a listener to the adapter, we need to

implement it in PizzaFragment.

app/src/main

CaptionedImages

Adapter.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

Activityies and fragments will use this

method to register as a listener.

When the CardView is clicked, call

the Listener onClick() method.

You need to change the position variable

to final, as it's used in an inner class.

Add the

listener

to the

CardView.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 575

recycler views and card views

Implement the listener in PizzaFragment.java

We’ll implement CaptionedImagesAdapter’s Listener

interface in PizzaFragment so that when a card view in the

recycler view is clicked, PizzaDetailActivity will be started.

Here’s the updated code; update your version of the code to match

ours (our changes are in bold):

package com.hfad.bitsandpizzas;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.support.v7.widget.RecyclerView;

import android.support.v7.widget.GridLayoutManager;

import android.content.Intent;

public class PizzaFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

RecyclerView pizzaRecycler = (RecyclerView)inflater.inflate(

R.layout.fragment_pizza, container, false);

String[] pizzaNames = new String[Pizza.pizzas.length];

for (int i = 0; i < pizzaNames.length; i++) {

pizzaNames[i] = Pizza.pizzas[i].getName();

}

int[] pizzaImages = new int[Pizza.pizzas.length];

for (int i = 0; i < pizzaImages.length; i++) {

pizzaImages[i] = Pizza.pizzas[i].getImageResourceId();

}

app/src/main

Pizza

Fragment.java

BitsAndPizzas

java

com.hfad.bitsandpizzas

We’re using an Intent to start

the activity, so import this class.

The code continues

on the next page.

Pizza data

Card view

Adapter

Recycler view

Clicks

576 Chapter 13

code, continued

CaptionedImagesAdapter adapter =

new CaptionedImagesAdapter(pizzaNames, pizzaImages);

pizzaRecycler.setAdapter(adapter);

GridLayoutManager layoutManager = new GridLayoutManager(getActivity(), 2);

pizzaRecycler.setLayoutManager(layoutManager);

adapter.setListener(new CaptionedImagesAdapter.Listener() {

public void onClick(int position) {

Intent intent = new Intent(getActivity(), PizzaDetailActivity.class);

intent.putExtra(PizzaDetailActivity.EXTRA_PIZZA_ID, position);

getActivity().startActivity(intent);

}

});

return pizzaRecycler;

}

This implements the Listener

onClick() method. It starts

PizzaDetailActivity, passing it the

ID of the pizza the user chose.

The PizzaFragment.java code (continued)

That’s all the code we need to make views in the recycler view

respond to clicks. By taking this approach, we can use the same

adapter and card view for different types of data that is composed

of an image view and text view.

Let’s see what happens when we run the code.

card_captioned_

image.xml

PizzaFragment

CaptionedImages

Adapter

</Layout>

PastaFragment

StoresFragment

All of these

fragments can

use the same

adapter and

card view.

Pizza data

Card view

Adapter

Recycler view

Clicks

you are here 4 577

recycler views and card views

Test drive the app

When we run the app and click on the Pizzas tab,

PizzaFragment is displayed. When we click on one of

the pizzas, PizzaDetailActivity starts, and details

of that pizza are displayed.

The card view responds to clicks, and displays

PizzaDetailActivity.

When you

click on the

Pizzas tab,

PizzaFragment

is displayed.

When you click on

a pizza, its details

are displayed in

PizzaDetailActivity.

PizzaDetailActivity

displays the pizza’s

name and image.

Pizza data

Card view

Adapter

Recycler view

Clicks

578 Chapter 13

toolbox

Your Android Toolbox

You’ve got Chapter 13 under

your belt and now you’ve

added recycler views and card

views to your toolbox.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 13

Card views and recycler views have their

own Support Libraries.

Add a card view to a layout using

the <android.support.

v7.widget.CardView> element.

Give the card view rounded corners using

the cardCornerRadius attribute.

This requires a namespace of "http://

schemas.android.com/apk/

res-auto".

Give the card view a drop shadow using

the cardElevation attribute. This

requires a namespace of "http://

schemas.android.com/apk/

res-auto".

Recycler views work with adapters that

are subclasses of RecyclerView.

Adapter.

When you create your own

RecyclerView.Adapter, you must

define the view holder and implement

the onCreateViewHolder(),

onBindViewHolder(), and

getItemCount() methods.

You add a recycler view to a layout

using the <android.support.

v7.widget.RecyclerView>

element. You give it a scrollbar using the

android:scrollbars attribute.

Use a layout manager to specify how

items in a recycler view should be

arranged. A LinearLayoutManager

arranges items in a linear list,

a GridLayoutManager

arranges items in a grid, and a

StaggeredGridLayoutManager

arranges items in a staggered grid.

this is a new chapter 579

navigation drawers

Going Places

You’ve already seen how tabs help users navigate your apps.

But if you need a large number of them, or want to split them into sections, the

navigation drawer is your new BFF. In this chapter, we’ll show you how to create a

navigation drawer that slides out from the side of your activity at a single touch. You’ll

learn how to give it a header using a navigation view, and provide it with a structured

set of menu items to take the user to all the major hubs of your app. Finally, you’ll

discover how to set up a navigation view listener so that the drawer responds to the

slightest touch and swipe.

I know I’ll never get lost

so long as I have my lucky

navigation drawers.

580 Chapter 14

need more options

Tab layouts allow easy navigation...

In Chapter 12, we introduced you to the tab layout as a way of making

it easy for users to navigate around your app. In that chapter we added

a Home screen tab to the Bits and Pizzas app, along with tabs for the

Pizzas, Pasta, and Stores categories:

Tab layouts work well if you have a small number of category screens

that are all at the same level in the app hierarchy. But what if you want

to use a large number of tabs, or group the tabs into sections?

...but navigation drawers let you show more options

If you want users to be able to navigate through a large number of options, or group

them into sections, you might prefer to use a navigation drawer. This is a slide-out

panel that contains links to other parts of the app that you can group into different

sections. As an example, the Gmail app uses a navigation drawer that contains sections

such as email categories, recent labels, and all labels:

These are the tabs we

created in Chapter 12.

This is the Gmail app. It

contains a navigation

drawer that slides over

the app’s main content.

The drawer gives you lots

of options you can use

to navigate to different

parts of the app.

The main email

categories are at the

top of the drawer.

Labels that have

recently been clicked

on are displayed in a

separate section.

Finally, here’s a long list

of all the email labels.

When you click on an item in the

navigation drawer, the drawer

closes and the content for that

option is displayed here.

you are here 4 581

navigation drawers

We’re going to create a navigation

drawer for a new email app

We’re going to create a navigation drawer for a new email app called

CatChat. The navigation drawer will contain a header (including an

image and some text) and a set of options. The main options will be

for the user’s inbox, draft messages, sent items, and trash. We’ll also

include a separate support section for help and feedback options:

The navigation drawer is composed of several different components.

We’ll go through these on the next page.

This is the CatChat app.

This is the navigation

drawer’s header.

These are the drawer’s

main options.

The Help and

Feedback options

are in a separate

support section.

The app’s main content

is displayed here.

582 Chapter 14

drawer anatomy

Navigation drawers deconstructed

You implement a navigation drawer by adding a drawer layout to

your activity’s layout. This defines a drawer you can open and close,

and it needs to contain two views:

When the drawer’s closed, the drawer layout looks just like a normal

activity. It displays the layout for its main content:

When you open the navigation drawer, it slides over the activity’s

main content to display the drawer’s contents. This is usually a

navigation view, which displays a drawer header image and a list of

options. When you click on one of these options, it either starts a new

activity or displays a fragment in the activity’s frame layout:

Here the drawer’s

closed, so it looks like

a plain old activity.

The main content of the activity

usually is composed of a toolbar

and a frame layout that’s used

to display fragments.

The drawer slides

over the main

content when it opens.

A view for the main content.

This is usually a layout containing a toolbar and a frame layout, which you use

to display fragments.

A view for the drawer contents.

This is usually a navigation view, which controls most of the drawer’s behavior.

The drawer’s

contents are

defined by a

navigation view.

you are here 4 583

navigation drawers

Here’s what we’re going to do

We’re going to create a navigation drawer for the CatChat app.

There are four main steps we’ll go through to do this:

Create basic fragments and activities for the app’s contents.

When the user clicks on one of the options in the navigation drawer, we want

to display the fragment or activity for that option. We’ll create the fragments

InboxFragment, DraftsFragment, SentItemsFragment, and

TrashFragment, and activities HelpActivity and FeedbackActivity.

Create the drawer’s header.

We’ll build a layout, nav_header.xml, for the drawer’s header. It will

contain an image and text.

Create the drawer’s options.

We’ll build a menu, menu_nav.xml, for the options the

drawer will display.

Create the navigation drawer.

We’ll add the navigation drawer to the app’s main activity,

and get it to display the header and options. We’ll then

write activity code to control the drawer’s behavior.

Let’s get started.

These

are the

fragments.

These are

the activities.

The drawer’s

header and

options

We’ll create this

navigation drawer.

584 Chapter 14

add libraries

Create the CatChat project

Before we begin, we need a new project for the CatChat app.

Create a new Android project with an empty activity for an

application named “CatChat” with a company domain of “hfad.

com”, making the package name com.hfad.catchat. The

minimum SDK should be API level 19 so that it works with most

devices. Specify an activity called “MainActivity” and a layout

called “activity_main”, and make sure that you check the

Backwards Compatibility (AppCompat) option.

Add the v7 AppCompat and Design Support Libraries

We’ve added the v7 AppCompat and Design

Support Libraries to our project as dependencies.

We’re going to use components and themes from the v7

AppCompat and Design Support Libraries in this chapter, so

we need to add them to our project as dependencies. To do this,

choose File→Project Structure in Android Studio, click on the

app module, then choose Dependencies. When you’re presented

with the project dependencies screen, click on the “+” button at

the bottom or right side of the screen. When prompted, choose

the Library Dependency option, then select the Design Library

from the list of possible libraries. Repeat these steps for the v7

AppCompat Support Library if Android Studio hasn’t already

added it for you. Finally, use the OK buttons to save your changes.

Next, we’ll create four basic fragments for the app’s inbox,

drafts, sent messages, and trash. We’ll use these fragments later

in the chapter when we write the code for the navigation drawer.

Fragments/activities

Header

Options

Drawer

you are here 4 585

navigation drawers

Create InboxFragment

We’ll display InboxFragment when the user clicks on the

inbox option in the navigation drawer. Highlight the com.hfad.

catchat package in the app/src/main/java folder, then go to

File→New...→Fragment→Fragment (Blank). Name the fragment

“InboxFragment” and name its layout “fragment_inbox”. Then

update the code for InboxFragment.java to match our code below:

package com.hfad.catchat;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class InboxFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_inbox, container, false);

}

And here’s the code for fragment_inbox.xml (update your version of this

code too):

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.catchat.InboxFragment">

<TextView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="Inbox" />

</LinearLayout>

<xml>

</xml>

app/src/main

fragment_inbox.xml

CatChat

res

layout

app/src/main

InboxFragment.java

CatChat

java

com.hfad.catchat

All the fragments

use the Fragment

class from the

Support Library.

Fragments/activities

Header

Options

Drawer

This is what

InboxFragment

looks like.

InboxFragment’s layout just contains

a TextView. We’re adding this text so

we can easily tell when it’s displayed.

586 Chapter 14

DraftsFragment code

Create DraftsFragment

When the user clicks on the drafts option in the navigation drawer,

we’ll show DraftsFragment. Select the com.hfad.catchat

package in the app/src/main/java folder, and create a new blank

fragment named “DraftsFragment” with a layout called of “fragment_

drafts”. Then replace the code for DraftsFragment.java with ours below:

package com.hfad.catchat;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class DraftsFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_drafts, container, false);

}

Next replace the code for fragment_drafts.xml too:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.catchat.DraftsFragment">

<TextView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="Drafts" />

</LinearLayout>

<xml>

</xml>

app/src/main

fragment_drafts.xml

CatChat

res

layout

app/src/main

DraftsFragment.java

CatChat

java

com.hfad.catchat

Fragments/activities

Header

Options

Drawer

DraftsFragment

you are here 4 587

navigation drawers

Create SentItemsFragment

We’ll show SentItemsFragment when the user clicks on the

sent items option in the navigation drawer. Highlight the com.

hfad.catchat package in the app/src/main/java folder, and

create a new blank fragment named “SentItemsFragment” with

a layout called “fragment_sent_items”. Then update the code for

SentItemsFragment.java to match our code below:

package com.hfad.catchat;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class SentItemsFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_sent_items, container, false);

}

And here’s the code for fragment_sent_items.xml (update your version):

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.catchat.SentItemsFragment">

<TextView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="Sent items" />

</LinearLayout>

<xml>

</xml>

app/src/main

fragment_sent_items.xml

CatChat

res

layout

app/src/main

SentItemsFragment.java

CatChat

java

com.hfad.catchat

Fragments/activities

Header

Options

Drawer

SentItemsFragment

588 Chapter 14

TrashFragment code

Create TrashFragment

When the user clicks on the trash option in the navigation drawer,

we’ll show TrashFragment. Highlight the com.hfad.catchat

package in the app/src/main/java folder, and create a new blank

fragment named “TrashFragment” with a layout called of “fragment_

trash”. Then replace the code for TrashFragment.java with ours below:

package com.hfad.catchat;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

public class TrashFragment extends Fragment {

@Override

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

return inflater.inflate(R.layout.fragment_trash, container, false);

}

Next replace the code for fragment_trash.xml too:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.catchat.TrashFragment">

<TextView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="Trash" />

</LinearLayout>

<xml>

</xml>

app/src/main

fragment_trash.xml

CatChat

res

layout

app/src/main

TrashFragment.java

CatChat

java

com.hfad.catchat

We’ve now created all the fragments we need. Next, we’ll create a

toolbar we can include in our activities.

Fragments/activities

Header

Options

Drawer

TrashFragment

you are here 4 589

navigation drawers

Create a toolbar layout

We’re going to add a toolbar in a separate layout so that we can include

it in each activity’s layout (we’ll create our activities soon). Switch to the

Project view of Android Studio’s explorer, select the app/src/res/main/layout

folder, then go to the File menu and choose New → Layout resource file.

When prompted, name the layout file “toolbar_main”, then click on OK.

Next, open toolbar_main.xml, and replace the code Android Studio has

created for you with the following:

<android.support.v7.widget.Toolbar

xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="?attr/actionBarSize"

android:background="?attr/colorPrimary"

android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" />

<xml>

</xml>

app/src/main

toolbar_

main.xml

CatChat

res

layout

Before we can use the toolbar in any of our activities, we need to

change the theme used by your activity. We’ll do this in app’s style

resource.

First, open AndroidManifest.xml, and make sure that the value of the

theme attribute is set to "@style/AppTheme". Android Studio may

have set this value for you; if not, you’ll need to update it to match ours

below:

<?xml version="1.0" encoding="utf-8"?>

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/AppTheme">

...

</activity>

</application>

</manifest>

<xml>

</xml>

app/src/main

AndroidManifest.xml

CatChat

We’ll update the AppTheme style on the next page.

Fragments/activities

Header

Options

Drawer

This is the same toolbar code

we’ve used in previous chapters.

Android Studio may have already

added this value for you.

590 Chapter 14

use the right theme

<item name="colorPrimary">@color/colorPrimary</item>

<item name="colorPrimaryDark">@color/colorPrimaryDark</item>

<item name="colorAccent">@color/colorAccent</item>

</style>

</resources>

The AppTheme style uses color resources, and these need to be

included in colors.xml. First, make sure that Android Studio has

created this file for you in the app/src/main/res/values folder (if it

hasn’t, you’ll need to create it yourself). Then update colors.xml so

that it matches our code below:

<xml>

</xml>

app/src/main

styles.xml

CatChat

res

values

<xml>

</xml>

app/src/main

colors.xml

CatChat

res

values

Update the app’s theme

Next, we’ll update the AppTheme style so that it uses a theme

of "Theme.AppCompat.Light.NoActionBar". We’ll also

override some of the colors that are used in the original theme.

First, open the app/src/main/res/values folder and check that Android

Studio has created a file for you called styles.xml. If this file doesn’t

exist, you’ll need to create it. To do this, select the values folder, then

go to the File menu and choose New → “Values resource file”. When

prompted, name the file “styles”, then click on OK.

Next, update styles.xml so that it matches ours:

<?xml version="1.0" encoding="utf-8"?>

</resources>

Now that we’ve set up a style so that we can use a toolbar, we’ll

create two activities for the help and feedback options in the

navigation drawer. We’ll display these activities when the user

selects the appropriate option.

Fragments/activities

Header

Options

Drawer

This theme removes the

default app bar (we’re

replacing it with a toolbar).

Android Studio may have

added these colors for you.

Add these colors if

Android Studio hasn’t

already done it for you.

you are here 4 591

navigation drawers

styles.xml

Create HelpActivity

We’ll start by creating HelpActivity. Select the com.hfad.catchat

package in Android Studio, then go to the File menu and choose New. Select the

option to create a new empty activity, and give it a name of “HelpActivity”, with

a layout name of “activity_help”. Make sure the package name is com.hfad.

catchat, and check the Backwards Compatibility (AppCompat)

checkbox. Then update activity_help.xml so that it matches ours below:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.catchat.HelpActivity">

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

<TextView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="Help" />

</LinearLayout>

package com.hfad.catchat;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

public class HelpActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_help);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

}

Next update HelpActivity.java to match our version:

<xml>

</xml>

app/src/main

activity_help.xml

CatChat

res

layout

app/src/main

HelpActivity.java

CatChat

java

com.hfad.catchat

Fragments/activities

Header

Options

Drawer

We’re adding a toolbar and

“Help” text to HelpActivity.

The activity needs to extend AppCompatActivity

because we’re using an AppCompat theme.

HelpActivity

592 Chapter 14

FeedbackActivity code

Create FeedbackActivity

Finally, select the com.hfad.catchat package again and create an

empty activity called “FeedbackActivity”, with a layout name of “activity_

feedback”. Make sure the package name is com.hfad.catchat, and

check the Backwards Compatibility (AppCompat) checkbox.

Then update activity_feedback.xml so that it matches ours below:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

tools:context="com.hfad.catchat.FeedbackActivity">

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

<TextView

android:layout_width="match_parent"

android:layout_height="match_parent"

android:text="Feedback" />

</LinearLayout>

package com.hfad.catchat;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

public class FeedbackActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_feedback);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

}

Then update FeedbackActivity.java to match this version:

<xml>

</xml>

app/src/main

activity_feedback.xml

CatChat

res

layout

app/src/main

FeedbackActivity.java

CatChat

java

com.hfad.catchat

Fragments/activities

Header

Options

Drawer

This activity needs to extend

AppCompatActivity as well.

FeedbackActivity

you are here 4 593

navigation drawers

We need to build a navigation drawer

We’ve now added all the fragments and activities to our project

that the options in the navigation drawer will link to. Next, we’ll

create the navigation drawer itself.

The navigation drawer comprises two separate components:

A navigation drawer header.

This is a layout that appears at the top of the navigation drawer. It

usually consists of an image with some text, for example a photo of the

user and their email account.

A set of options.

You define a set of options to be displayed in the navigation drawer

underneath the header. When the user clicks on one of these options,

the screen for that option is displayed as a fragment within the

navigation drawer’s activity, or as a new activity.

We’re going to build these components, then use them in

MainActivity to build a navigation drawer. We’ll start with the

navigation drawer header.

Fragments/activities

Header

Options

Drawer

This is the header we’ll create.

It consists of an image and

two pieces of text.

The navigation

drawer will contain

these options.

594 Chapter 14

create header

Create the navigation drawer’s header

The navigation drawer’s header comprises a simple layout that

you add to a new layout file. We’re going to use a new file called

nav_header.xml. Create this file by selecting the app/src/main/res/

layout folder in Android Studio, and choosing File→New→Layout

resource file. When prompted, name the layout “nav_header”.

Our layout is composed of an image and two text views. This means

we need to add an image file to our project as a drawable, and two

String resources. We’ll start with the image file.

Add the image file

To add the image file, first switch to the Project view of Android

Studio’s explorer if you haven’t already done so, and check whether

the app/src/main/res/drawable folder exists in your project. If it’s not

already there, select the app/src/main/res folder in your project, go to

the File menu, choose the New... option, and then click on the option

to create a new Android resource directory. When prompted, choose a

resource type of drawable, name it “drawable”, and click on OK.

Once you’ve created the drawable folder, download the file kitten_small.jpg

from https://git.io/v9oet, and add it to the drawable folder.

Add the String resources

Next, we’ll add two String resources, which we’ll use for the text

views. Open the file app/src/main/res/values/strings.xml, then add the

following resource:

...

<string name="app_name">CatChat</string>

<string name="user_name">spot@catchat.com</string>

</resources>

Android Studio may

have already added

this String by default.

<xml>

</xml>

app/src/main

strings.xml

CatChat

res

values

Now that you’ve added the resources, we can write the layout code.

You’re already familiar with the code we need to do this, so we’re

going to give you the full code on the next page.

Fragments/activities

Header

Options

Drawer

The header

contains an

ImageView...

...and two TextViews.

you are here 4 595

navigation drawers

The full nav_header.xml code

Here’s our full code for nav_header.xml; update your version of the

file to match ours:

<?xml version="1.0" encoding="utf-8"?>

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="180dp"

android:theme="@style/ThemeOverlay.AppCompat.Dark" >

<ImageView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:scaleType="centerCrop"

android:src="@drawable/kitten_small" />

<LinearLayout

android:layout_width="wrap_content"

android:layout_height="match_parent"

android:orientation="vertical"

android:gravity="bottom|start"

android:layout_margin="16dp" >

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/app_name"

android:textAppearance="@style/TextAppearance.AppCompat.Body1" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/user_name" />

</LinearLayout>

</FrameLayout>

<xml>

</xml>

app/src/main

nav_header.xml

CatChat

res

layout

We’re explicitly setting the height of the layout to 180dp

so that it doesn’t take up too much space in the drawer.

The image background is quite dark, so

we’re using this line to make the text light.

This is a built-in style that

makes the text look slightly

bolder. It comes from the

AppCompat Support Library.

Now that we’ve created the drawer’s header, we’ll create its list of

options.

Fragments/activities

Header

Options

Drawer

This LinearLayout will appear

on top of the ImageView.

We're using it to display text

at the bottom of the image.

596 Chapter 14

add strings

The drawer gets its options from a menu

The navigation drawer gets its list of options from a menu

resource file. The code to do this is similar to that needed to add a

set of options to an app bar.

Before we look at the code to add the options to the navigation

drawer, we need to add a menu resource file to our project. To

do this, select the app/src/main/res folder in Android Studio, go

to the File menu, and choose New. Then select the option to

create a new Android resource file. You’ll be prompted for the

name of the resource file and the type of resource. Give it a name

of “menu_nav”, give it a resource type of “Menu”, and make

sure that the Directory name is “menu”. When you click on OK,

Android Studio will create the file for you.

Next we’ll add String resources for the titles of our menu items

so that we can use them later in the chapter. Open strings.xml and

add the following resources:

...

<string name="nav_inbox">Mesagez</string>

<string name="nav_drafts">Draftz</string>

<string name="nav_sent">Sent mesagez</string>

<string name="nav_trash">In da trash</string>

<string name="nav_support">Support</string>

<string name="nav_feedback">Giv us feedback</string>

</resources>

<xml>

</xml>

app/src/main

strings.xml

CatChat

res

values

Next we can start constructing our menu code.

We need to create a menu with two sections

As we said earlier, we want to split the items in our navigation

drawer into two sections. The first section will contain options for

the main places in the app the user will want to visit: her inbox,

draft messages, sent items, and trash. We’ll then add a separate

support section for help and feedback options.

Let’s start by adding the main options.

Fragments/activities

Header

Options

Drawer

These are

the app’s

main options.

This

is the

support

section.

you are here 4 597

navigation drawers

Add items in the order you want them

to appear in the drawer

When you design a set of options for a navigation drawer, you

generally put the items the user is most likely to want to click on at

the top of the list. In our case, these options are for the inbox, draft

messages, sent items, and trash.

You add items to the menu resource file in the order in which you want

them to appear in the drawer. For each item, you specify an ID so

you can refer to it in your Java code, and a title for the text you want

to appear. You can also specify an icon that will appear alongside the

item’s text. As an example, here’s the code to add an “inbox” item:

<?xml version="1.0" encoding="utf-8"?>

<item

android:id="@+id/nav_inbox"

android:icon="@android:drawable/sym_action_email"

android:title="@string/nav_inbox" />

...

</menu>

In the above code, we’re using one of Android’s built-in icons:

"@android:drawable/sym_action_email". Android

comes with a set of built-in icons that you can use in your apps. The

"@android:drawable" part tells Android you want to use one of

these icons. You can see the full list of available icons when you start

typing the icon name in Android Studio:

<xml>

</xml>

app/src/main

menu_nav.xml

CatChat

res

Fragments/activities

Header

Options

Drawer

These are

some of the

Android

built-in

drawables.

This is a built-in drawable you

can use to display an email icon.

You need to give the item an ID

so that your activity code can

respond to it being clicked.

This is the text

that appears in the

navigation drawer.

598 Chapter 14

group items

How to group items together

As well as adding menu items individually, you can add them as part

of a group. You define a group using the <group> element like this:

<group>

...

</group>

</menu>

This is useful if you want to apply an attribute to an entire

group of items. As an example, you can highlight which item

in the drawer the user has selected by setting the group’s

android:checkableBehavior attribute to "single". This

behavior is helpful when you intend to display screens for the items

as fragments inside the navigation drawer’s activity (in our case

MainActivity), as it makes it easy to tell which option is currently

selected:

...

</group>

</menu>

You can highlight an item in the navigation drawer by default by

setting its android:checked attribute to "true". As an example,

here’s how you highlight the inbox item:

<item

android:id="@+id/nav_inbox"

android:icon="@android:drawable/sym_action_email"

android:title="@string/nav_inbox"

android:checked="true" />

...

</group>

</menu>

We’ll show you the full code for the first four menu items on the next page.

Fragments/activities

Header

Options

Drawer

Any items you want to

include in the group go here.

This means that a single item in the group will

be highlighted (the option the user selects).

This highlights the item in the

navigation drawer by default.

you are here 4 599

navigation drawers

<?xml version="1.0" encoding="utf-8"?>

<item

android:id="@+id/nav_inbox"

android:icon="@android:drawable/sym_action_email"

android:title="@string/nav_inbox"

android:checked="true" />

<item

android:id="@+id/nav_drafts"

android:icon="@android:drawable/ic_menu_edit"

android:title="@string/nav_drafts" />

<item

android:id="@+id/nav_sent"

android:icon="@android:drawable/ic_menu_send"

android:title="@string/nav_sent" />

<item

android:id="@+id/nav_trash"

android:icon="@android:drawable/ic_menu_delete"

android:title="@string/nav_trash" />

</group>

</menu>

<xml>

</xml>

app/src/main

menu_nav.xml

CatChat

res

That’s the first group of items sorted. We’ll deal with the

remaining items next.

We’ll use a group for the first section

Fragments/activities

Header

Options

Drawer

Add this group and the four items it

contains to your menu resource file so

they'll appear in the navigation drawer.

We’re going to add the inbox, drafts, sent messages, and

trash options to our menu resource file as a group, and

highlight the first item by default. We’re using a group for

these items because the screen for each option is a fragment,

which we’ll display in MainActivity.

Here’s our code; update your version of menu_nav.xml to

match ours.

The code on this

page adds these

four items.

600 Chapter 14

submenus

The second set of items in the navigation drawer forms a

separate section. There’s a heading of “Support,” along with

help and feedback options for the user to click on.

To create this section, we’ll start by adding the Support heading

as a separate item. As it’s a heading, we only need to give it a

title; it doesn’t need an icon, and we’re not assigning it an ID as

we don’t need it to respond to clicks:

...

</item>

...

We want the help and feedback options to appear within

the Support section, so we’ll add them as separate items in a

submenu inside the support item:

...

<menu>

<item

android:id="@+id/nav_help"

android:icon="@android:drawable/ic_menu_help"

android:title="@string/nav_help"/>

<item

android:id="@+id/nav_feedback"

android:icon="@android:drawable/sym_action_email"

android:title="@string/nav_feedback" />

</menu>

</item>

...

Add the support section as a submenu

Note that we haven’t put these items inside a group, so if the

user clicks one of them, it won’t be highlighted in the navigation

drawer. This is because the help and feedback options will be

displayed in new activities, not as fragments in the navigation

drawer’s activity.

We’ll show you the full menu code on the next page.

<xml>

</xml>

app/src/main

menu_nav.xml

CatChat

res

Fragments/activities

Header

Options

Drawer

This adds a Support heading

to the navigation drawer.

This

defines a

submenu

inside the

Support

item.

The above

code adds

these two

items.

you are here 4 601

navigation drawers

The full menu_nav.xml code

Here’s the full code for menu_nav.xml; update your version of the

code to match ours:

<?xml version="1.0" encoding="utf-8"?>

<item

android:id="@+id/nav_inbox"

android:icon="@android:drawable/sym_action_email"

android:title="@string/nav_inbox" />

<item

android:id="@+id/nav_drafts"

android:icon="@android:drawable/ic_menu_edit"

android:title="@string/nav_drafts" />

<item

android:id="@+id/nav_sent"

android:icon="@android:drawable/ic_menu_send"

android:title="@string/nav_sent" />

<item

android:id="@+id/nav_trash"

android:icon="@android:drawable/ic_menu_delete"

android:title="@string/nav_trash" />

</group>

<menu>

<item

android:id="@+id/nav_help"

android:icon="@android:drawable/ic_menu_help"

android:title="@string/nav_help"/>

<item

android:id="@+id/nav_feedback"

android:icon="@android:drawable/sym_action_email"

android:title="@string/nav_feedback" />

</menu>

</item>

</menu>

<xml>

</xml>

app/src/main

menu_nav.xml

CatChat

res

Now that we’ve added a menu and navigation drawer header

layout, we can create the actual drawer.

Fragments/activities

Header

Options

Drawer

These are

the main

options.

This

is the

support

section.

The code on this page

creates the full menu.

602 Chapter 14

create drawer

How to create a navigation drawer

You create a navigation drawer by adding a drawer layout to your activity’s

layout as its root element. The drawer layout needs to contain two things:

a view or view group for the activity’s content as its first element, and a

navigation view that defines the drawer as its second:

<?xml version="1.0" encoding="utf-8"?>

<android.support.v4.widget.DrawerLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

android:id="@+id/drawer_layout"

android:layout_width="match_parent"

android:layout_height="match_parent" >

<LinearLayout

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical" >

...

</LinearLayout>

<android.support.design.widget.NavigationView

android:id="@+id/nav_view"

android:layout_width="wrap_content"

android:layout_height="match_parent"

android:layout_gravity="start"

app:headerLayout="@layout/nav_header"

app:menu="@menu/menu_nav" />

</android.support.v4.widget.DrawerLayout>

There are two key <NavigationView> attributes that you use to control

the drawer’s appearance: headerLayout and menu.

The app:headerLayout attribute specifies the layout that should be

used for the navigation drawer’s header (in this case nav_header.xml). This

attribute is optional.

You use the app:menu attribute to say which menu resource file contains

the drawer’s options (in this case menu_drawer.xml). If you don’t include this

attribute, your navigation drawer won’t include any items.

Fragments/activities

Header

Options

Drawer

The DrawerLayout defines the drawer.

You give it an ID so you can

refer to it in your activity code.

The DrawerLayout's

first view is a layout

for the activity's

main content. You

see it when the

drawer is closed. The NavigationView defines

the drawer's contents.

This attaches the

drawer to the start

edge of the activity

(the left for left-

to-right languages).

This is the layout for

the drawer's header.

This is the menu resource file

containing the drawer's options.

you are here 4 603

navigation drawers

<?xml version="1.0" encoding="utf-8"?>

<android.support.v4.widget.DrawerLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

android:id="@+id/drawer_layout"

android:layout_width="match_parent"

android:layout_height="match_parent" >

<LinearLayout

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical" >

<include

layout="@layout/toolbar_main"

android:id="@+id/toolbar" />

<FrameLayout

android:id="@+id/content_frame"

android:layout_width="match_parent"

android:layout_height="match_parent" />

</LinearLayout>

<android.support.design.widget.NavigationView

android:id="@+id/nav_view"

android:layout_width="wrap_content"

android:layout_height="match_parent"

android:layout_gravity="start"

app:headerLayout="@layout/nav_header"

app:menu="@menu/menu_nav" />

</android.support.v4.widget.DrawerLayout>

The full code for activity_main.xml

We’re going to add a navigation drawer to MainActivity’s layout that

uses the header layout and menu we created earlier in the chapter. The

layout’s main content will comprise a toolbar and frame layout. We’ll use

the frame layout later in the chapter to display fragments.

Here’s our full code for activity_main.xml; update your code to match ours:

<xml>

</xml>

app/src/main

activity_main.xml

CatChat

res

layout

Before we run the app to see how the navigation drawer’s looking, we’ll

update MainActivity to display InboxFragment in the frame

layout when the activity gets created.

Fragments/activities

Header

Options

Drawer

The layout's root element is a DrawerLayout.

It has an ID so we can refer to

it in our activity code later.

This is for the drawer’s main content.

The activity’s

main content is

composed of a

Toolbar, and a

FrameLayout

in which

we’ll display

fragments.

The NavigationView defines the

drawer’s appearance and much of its

behavior. We’re giving it an ID, as we’ll

need to refer to it in our activity code.

We’re using the layout we created earlier

as the drawer’s header, and the menu

resource file for the list of options.

604 Chapter 14

add InboxFragment

Add InboxFragment to

MainActivity’s frame layout

When we created our menu resource file, we set the inbox option to

be highlighted by default. We’ll therefore display InboxFragment

in MainActivity’s frame layout when the activity is created so

that it matches the drawer’s contents. We’ll also set the toolbar as

the activity’s app bar so that it displays the app’s title.

Here’s our code for MainActivity.java; replace your version of the

code to match ours:

package com.hfad.catchat;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.support.v4.app.Fragment;

import android.support.v4.app.FragmentTransaction;

public class MainActivity extends AppCompatActivity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

Fragment fragment = new InboxFragment();

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

ft.add(R.id.content_frame, fragment);

ft.commit();

}

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

Let’s see what happens when we run the app.

Fragments/activities

Header

Options

Drawer

Make sure the activity extends

the AppCompatActivity class,

as we’re using an AppCompat

theme and support fragments.

Set the Toolbar as the activity’s app bar.

Use a fragment

transaction to

display an instance

of InboxFragment.

you are here 4 605

navigation drawers

Test drive the app

When we run the app, InboxFragment is displayed in MainActivity.

When you swipe the app from the left side of the screen (in left-to-right

languages like English) the navigation drawer is displayed. The navigation

drawer contains a header layout, and the list of options we defined in our

menu resource file. The first option is automatically highlighted:

Clicking on the drawer options doesn’t do anything yet,

as we haven’t written any code in MainActivity to

control how the drawer operates. We’ll do that next.

Fragments/activities

Header

Options

Drawer

This is MainActivity’s

main content. It consists

of a toolbar and a frame

layout, which contains

InboxFragment by default.

The navigation drawer

includes the layout we

created and a set of

options. The first option

is highlighted by default,

and there’s a separate

Support section.

In right-to-left languages, the

drawer will appear on the right

side of the screen instead.

606 Chapter 14

steps

What the activity code needs to do

There are three things we need our activity code to do:

Add a drawer toggle.

This provides a visual sign to the user that the activity contains a navigation

drawer. It adds a “burger” icon to the toolbar, and you can click on this icon

to open the drawer.

Close the drawer when the user presses the Back button.

If the drawer’s open, we’ll close it when the user clicks on the Back button. If

the drawer’s already closed, we’ll get the Back button to function as normal.

We’ll start by adding the drawer toggle.

Make the drawer respond to clicks.

When the user clicks on one of the options in the navigation drawer, we’ll

display the appropriate fragment or activity and close the drawer.

Fragments/activities

Header

Options

Drawer

This is the “burger” icon. Clicking

on it opens the navigation drawer.

When the user clicks on one of

the main options, we’ll display the

fragment for that option and

close the drawer. The option will

be highlighted in the navigation

drawer the next time we open it.

When the user clicks on one

of these options, we’ll start

the appropriate activity.

you are here 4 607

navigation drawers

<string name="nav_open_drawer">Open navigation drawer</string>

<string name="nav_close_drawer">Close navigation drawer</string>

Add a drawer toggle

The first thing we’ll do is add a drawer toggle so that we can open

the navigation drawer by clicking on an icon in the toolbar.

We’ll start by creating two String resources to describe the “open

drawer” and “close drawer” actions; these are required for

accessibility purposes. Add the two Strings below to strings.xml:

<xml>

</xml>

app/src/main

strings.xml

CatChat

res

values

You create the drawer toggle in the activity’s onCreate() method

by creating a new instance of the ActionBarDrawerToggle

class and adding it to the drawer layout. We’ll show you the code for

this first, then add it to MainActivity later in the chapter.

The ActionBarDrawerToggle constructor takes five

parameters: the current activity, the drawer layout, the toolbar, and

the IDs of two String resources for opening and closing the drawer

(the String resources we added above):

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

...

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(this,

drawer,

toolbar,

R.string.nav_open_drawer,

R.string.nav_close_drawer);

Once you’ve created the drawer toggle, you add it to the drawer

layout by calling the DrawerLayout addDrawerListener()

method, passing the toggle as a parameter:

drawer.addDrawerListener(toggle);

Finally, you call the toggle’s syncState() method to synchronize

the icon on the toolbar with the state of the drawer. This is because

the icon changes when you click on it to open the drawer:

toggle.syncState();

We’ll add the drawer toggle to MainActivity’s onCreate()

method in a few pages.

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

Fragments/activities

Header

Options

Drawer

The current activity

This adds the

burger icon to

your toolbar.

The activity’s DrawerLayout

The activity’s toolbar

These Strings are needed for accessibility.

608 Chapter 14

respond to clicks

Respond to the user

clicking items in the drawer

Next, we’ll get MainActivity to respond to items in the

navigation drawer being clicked by getting the activity to implement a

NavigationView.OnNavigationItemSelectedListener

interface. Doing this means that whenever an item is

clicked, a new method we’ll create in MainActivity,

onNavigationItemSelected(), will get called. We’ll use this

method to display the screen for the appropriate option.

First, we’ll get MainActivity to implement the interface using the

code below. This code turns MainActivity into a listener for the

navigation view:

...

import android.support.design.widget.NavigationView;

public class MainActivity extends AppCompatActivity

implements NavigationView.OnNavigationItemSelectedListener {

...

}

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

Next we need to register the listener, MainActivity, with the

navigation view so that it will be notified when the user clicks on one

of the options in the drawer. We’ll do this by getting a reference to the

navigation view in the activity’s onCreate() method, and calling its

setNavigationItemSelectedListener() method:

@Override

protected void onCreate(Bundle savedInstanceState) {

...

NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);

navigationView.setNavigationItemSelectedListener(this);

}

Finally, we need to implement the

onNavigationItemSelected() method.

Fragments/activities

Header

Options

Drawer

Implementing this interface means that your activity can

respond to the user clicking options in the navigation drawer.

This registers the activity as a listener

on the navigation view so it will be

notified if the user clicks on an item.

you are here 4 609

navigation drawers

Implement the

onNavigationItemSelected() method

The onNavigationItemSelected() method gets called

when the user clicks on one of the items in the navigation

drawer. It takes one parameter, the MenuItem that was clicked,

and returns a boolean to indicate whether the item in the

drawer should be highlighted:

@Override

public boolean onNavigationItemSelected(MenuItem item) {

//Code to handle navigation clicks

}

The code in this method needs to display the appropriate screen

for the clicked item. If the item is an activity, the code needs to

start it with an intent. If the item is a fragment, it needs to be

displayed in MainActivity’s frame layout using a fragment

transaction.

When you display fragments by clicking on an item in a

navigation drawer, you don’t generally add the transaction to

the back stack as we did previously. This is because when the

user clicks on the Back button, they don’t expect to revisit every

option they clicked on in the drawer. Instead, you use code like

this:

Finally, you need to close the drawer. To do this, you get a

reference to the drawer layout, and call its closeDrawer()

method:

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

ft.replace(R.id.content_frame, fragment);

ft.commit();

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

drawer.closeDrawer(GravityCompat.START);

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

This closes the drawer so that it slides back to the activity’s

start edge.

You now know everything you need in order to write the code

for the onNavigationItemSelected() method, so

have a go at the following exercise.

Fragments/activities

Header

Options

Drawer

This method gets called whenever an item in the

drawer is clicked. Its parameter is the clicked item.

We’re using GravityCompat.START because

we’ve attached the drawer to the activity’s

start edge. If we’d attached it to the end

edge, we’d use GravityCompat.END instead.

This is the same fragment transaction code you’ve

seen before except that we’re not adding the

transaction to the activity’s back stack.

610 Chapter 14

magnets

@Override

public boolean onNavigationItemSelected(MenuItem item) {

int id = item. ;

Fragment fragment = null;

Intent intent = null;

switch( ){

case R.id.nav_drafts:

fragment = ;

;

case R.id.nav_sent:

fragment = ;

;

case R.id.nav_trash:

fragment = ;

;

case R.id.nav_help:

intent = new Intent( , );

;

Code Magnets

When the user clicks on an item in the navigation drawer, we need to

display the appropriate screen for that item. If it’s a fragment, we need

to display it in the content_frame frame layout. If it’s an activity,

we need to start it. Finally, we need to close the navigation drawer.

See if you can complete the code below and on the next page. You

won’t need to use all of the magnets.

you are here 4 611

navigation drawers

case R.id.nav_feedback:

intent = new Intent( , );

;

default:

fragment = ;

}

if ( != null) {

FragmentTransaction ft = getSupportFragmentManager(). ;

ft.replace(R.id.content_frame, );

ft. ;

} else {

startActivity( );

}

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

drawer. ( );

return true;

}

getItemId()

new

DraftsFragment()

SentItemsFragment()

new

TrashFragment()

break

HelpActivity

this

HelpActivity.class

break

FeedbackActivity

this

break

FeedbackActivity.class

new

InboxFragment()

fragment

beginTransaction()

fragment

commit()

intent

closeDrawer

START

GravityCompat.START

612 Chapter 14

magnets solution

@Override

public boolean onNavigationItemSelected(MenuItem item) {

int id = item. ;

Fragment fragment = null;

Intent intent = null;

switch( ){

case R.id.nav_drafts:

fragment = ;

;

case R.id.nav_sent:

fragment = ;

;

case R.id.nav_trash:

fragment = ;

;

case R.id.nav_help:

intent = new Intent( , );

;

Code Magnets Solution

When the user clicks on an item in the navigation drawer, we need to

display the appropriate screen for that item. If it’s a fragment, we need

to display it in the content_frame frame layout. If it’s an activity,

we need to start it. Finally, we need to close the navigation drawer.

See if you can complete the code below and on the next page. You

won’t need to use all of the magnets.

getItemId()

new

DraftsFragment()

SentItemsFragment()

new

TrashFragment()

break

this

HelpActivity.class

break

Get the ID of the item that was selected.

Save an instance of the

fragment we want to display

in the fragment variable.

Construct an intent to start

HelpActivity if the Help option’s clicked.

you are here 4 613

navigation drawers

case R.id.nav_feedback:

intent = new Intent( , );

;

default:

fragment = ;

}

if ( != null) {

FragmentTransaction ft = getSupportFragmentManager(). ;

ft.replace(R.id.content_frame, );

ft. ;

} else {

startActivity( );

}

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

drawer. ( );

return true;

}

HelpActivity

FeedbackActivity

this

break

FeedbackActivity.class

new

InboxFragment()

fragment

beginTransaction()

fragment

commit()

intent

closeDrawer

START

GravityCompat.START

You didn’t need to use these magnets.

If the feedback option is clicked,

we need to start FeedbackActivity.

Display InboxFragment by default, as

it’s the first option in the drawer.

If we need to display a fragment,

use a fragment transaction.

If we need to display an activity, use

the intent we constructed to start it.

Finally, close the drawer.

We’ll add this code

to MainActivity.java

in a couple of pages.

614 Chapter 14

shut that drawer

Close the drawer when the user

presses the Back button

Finally, we’ll override what happens when the Back button’s

pressed. If the user presses the Back button when the navigation

drawer’s open, we’ll close the drawer. If the drawer’s already

closed we’ll get the Back button to function as normal.

To do this, we’ll implement the activity’s onBackPressed()

method, which gets called whenever the user clicks on the Back

button. Here’s the code:

@Override

public void onBackPressed() {

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

if (drawer.isDrawerOpen(GravityCompat.START)) {

drawer.closeDrawer(GravityCompat.START);

} else {

super.onBackPressed();

}

That’s everything we need for MainActivity. We’ll show

you the full code over the next couple of pages, and then take it

for a test drive.

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

Q: Do you have to use a navigation view for your drawer

contents?

A: No, but it’s much easier if you do. Before the Android Design

Library came out, it was common practice to use a list view instead.

This approach is still possible, but it requires a lot more code.

Q: Can your activity contain more than one navigation

drawer?

A: Your activity can have one navigation drawer per vertical

edge of its layout. To add a second navigation drawer, add an extra

navigation view to your drawer layout underneath the first.

Fragments/activities

Header

Options

Drawer

If the drawer is

currently open, close it.

Otherwise, call up to the superclass

onBackPressed() method.

This gets called when the

Back button gets pressed.

you are here 4 615

navigation drawers

The full MainActivity.java code

Here’s the full code for MainActivity.java; update your version of

the code to match ours:

package com.hfad.catchat;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.Toolbar;

import android.support.v4.app.Fragment;

import android.support.v4.app.FragmentTransaction;

import android.support.v4.widget.DrawerLayout;

import android.support.v7.app.ActionBarDrawerToggle;

import android.support.design.widget.NavigationView;

import android.view.MenuItem;

import android.content.Intent;

import android.support.v4.view.GravityCompat;

public class MainActivity extends AppCompatActivity

implements NavigationView.OnNavigationItemSelectedListener {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);

setSupportActionBar(toolbar);

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(this,

drawer,

toolbar,

R.string.nav_open_drawer,

R.string.nav_close_drawer);

drawer.addDrawerListener(toggle);

toggle.syncState();

The code continues

on the next page.

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

Fragments/activities

Header

Options

Drawer

We’re using these extra classes

so we need to import them.

Implementing this interface means

the activity can listen for clicks.

Add a drawer toggle.

616 Chapter 14

code, continued

NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);

navigationView.setNavigationItemSelectedListener(this);

Fragment fragment = new InboxFragment();

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

ft.add(R.id.content_frame, fragment);

ft.commit();

}

@Override

public boolean onNavigationItemSelected(MenuItem item) {

int id = item.getItemId();

Fragment fragment = null;

Intent intent = null;

switch(id){

case R.id.nav_drafts:

fragment = new DraftsFragment();

break;

case R.id.nav_sent:

fragment = new SentItemsFragment();

break;

case R.id.nav_trash:

fragment = new TrashFragment();

break;

case R.id.nav_help:

intent = new Intent(this, HelpActivity.class);

break;

case R.id.nav_feedback:

intent = new Intent(this, FeedbackActivity.class);

break;

default:

fragment = new InboxFragment();

}

MainActivity.java (continued)

The code continues

on the next page.

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

Fragments/activities

Header

Options

Drawer

navigation view as a listener.

This method gets called when the user

clicks on one of the items in the drawer.

you are here 4 617

navigation drawers

if (fragment != null) {

FragmentTransaction ft = getSupportFragmentManager().beginTransaction();

ft.replace(R.id.content_frame, fragment);

ft.commit();

} else {

startActivity(intent);

}

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

drawer.closeDrawer(GravityCompat.START);

return true;

}

@Override

public void onBackPressed() {

DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);

if (drawer.isDrawerOpen(GravityCompat.START)) {

drawer.closeDrawer(GravityCompat.START);

} else {

super.onBackPressed();

}

MainActivity.java (continued)

app/src/main

MainActivity.java

CatChat

java

com.hfad.catchat

Let’s see what happens when we run the code.

Fragments/activities

Header

Options

Drawer

Display the appropriate fragment or activity, depending

on which option in the drawer the user selects.

Close the drawer when the user selects one of the options.

When the user presses the Back

button, close the drawer if it’s open.

618 Chapter 14

test drive

Test drive the app

When we run the app, a drawer toggle icon is displayed in the toolbar.

Clicking on this icon opens the navigation drawer. When we click on

one of the first four options, the fragment for that option is displayed

in MainActivity and the drawer closes; the option for that item is

highlighted the next time we open the drawer. When we click on one

of the last two options, the activity for that option is started.

Fragments/activities

Header

Options

Drawer

MainActivity includes a drawer toggle. Clicking on it opens the drawer.

When we click on the Sent mesagez

option, SentItemsFragment gets

displayed and the drawer closes.

The option is highlighted in the

drawer the next time we open it.

When we click on the Halp option,

HelpActivity gets displayed and

the drawer closes.

We’ve created a fully operational

navigation drawer.

you are here 4 619

navigation drawers

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 14

Your Android Toolbox

You’ve got Chapter 14 under

your belt and now you’ve

added navigation drawers to

your toolbox.

Use a navigation drawer if you want to provide the

user with a large number of shortcuts, or group them

into sections.

Create a navigation drawer by adding a drawer

layout to your activity’s layout. The drawer layout’s

first element needs to be a view that defines the

activity’s main content, usually a layout containing

a Toolbar and FrameLayout. Its second

element defines the contents of the drawer, usually a

NavigationView.

The NavigationView comes from the Design

Support Library. It controls most of the drawer’s

behavior.

You add a header to your drawer by creating a layout

for it, and adding the header’s resource ID to the

navigation view’s headerLayout attribute.

You add items to the drawer by creating a menu

resource, and adding the menu’s resource ID to the

navigation view’s menu attribute.

Add items to the menu resource in the order in which

you want them to appear in the drawer.

If you want to highlight which item in the drawer the

user selects, add the menu items to a group and set

the group’s checkableBehavior attribute to

"single".

Use an ActionBarDrawerToggle to display

a “burger” icon in the activity’s toolbar. This provides

a visual sign that the activity has a navigation drawer.

Clicking on it opens the drawer.

Respond to the user clicking on items in the drawer

by making your activity implement the

NavigationView.OnNavigation

ItemSelectedListener interface.

view as a listener, then implement the

onNavigationItemSelected() method.

Close the navigation drawer using the

DrawerLayout closeDrawer() method.

this is a new chapter 621

When I said I

wanted persistence,

I was talking about

the database.

SQLite databases

Fire Up the Database

If you’re recording high scores or saving tweets, your app will

need to store data. And on Android you usually keep your data safe inside a

SQLite database. In this chapter, we’ll show you how to create a database, add tables

to it, and prepopulate it with data, all with the help of the friendly SQLite helper. You’ll

then see how you can cleanly roll out upgrades to your database structure, and how to

downgrade it if you need to undo any changes.

622 Chapter 15

Starbuzz again

Back to Starbuzz

Back in Chapter 7, we created an app for Starbuzz Coffee.

The app allows the user to navigate through a series of

screens so that she can see the drinks available at Starbuzz.

The Starbuzz database gets its drink data from a Drink class

containing a selection of drinks available at Starbuzz. While

this made building the first version of the app easier, there’s a

better way of storing and persisting data.

Over the next two chapters, we’re going to change the

Starbuzz app so that it gets its data from a SQLite database.

In this chapter, we’ll see how to create the database, and in

the next chapter, we’ll show you how to connect activities to it.

The top-level

activity displays a

list of options.

Clicking on the

Drinks option shows

you a list of the

available drinks.

When you click on

a drink, its details

are displayed.

you are here 4 623

SQLite databases

All apps need to store data, and the main way you do that in Androidville

is with a SQLite database. Why SQLite?

It’s lightweight.

Most database systems need a special database server process

in order to work. SQLite doesn’t; a SQLite database is just

a file. When you’re not using the database, it doesn’t use up

any processor time. That’s important on a mobile device,

because we don’t want to drain the battery.

It’s optimized for a single user.

Our app is the only thing that will talk to the database, so

we shouldn’t have to identify ourselves with a username and

password.

It’s stable and fast.

SQLite databases are amazingly stable. They can handle

database transactions, which means if you’re updating several

pieces of data and mess up, SQLite can roll the data back.

Also, the code that reads and writes the data is written in

optimized C code. Not only is it fast, but it also reduces the

amount of processor power it needs.

Where’s the database stored?

Android automatically creates a folder for each app where the app’s

database can be stored. When we create a database for the Starbuzz app,

it will be stored in the following folder on the device:

/data/data/com.hfad.starbuzz/databases

com.hfad.starbuzz is the app's unique identifier.

An app can store several databases in this folder. Each database

consists of two files.

The first file is the database file and has the same name

as your database—for example, “starbuzz”. This is the main

SQLite database file. All of your data is stored in this file.

The second file is the journal file. It has the same name

as your database, with a suffix of “-journal”—for example,

“starbuzz-journal”. The journal file contains all of the changes

made to your database. If there’s a problem, Android will use

the journal to undo your latest changes. starbuzz

data

com.hfad.starbuzz

data

databases

starbuzz-journal

This is the database file.

This is the journal file.

Android uses SQLite databases to persist data

We’re going to go

through the basics of

SQLite in this chapter.

If you plan on doing a

lot of database heavy

lifting in your apps, we

suggest you do more

background reading on

SQLite and SQL.

624 Chapter 15

your new best friends

Q: If there’s no username and

password on the database, how is it

kept secure?

A: The directory where an app’s

databases are stored is only readable by

the app itself. The database is secured

down at the operating system level.

Q: Can I write an Android app that

talks to some other kind of external

database, such as Oracle?

A: There’s no reason why you can’t

access other databases over a network

connection, but be careful to conserve

the resources used by Android. For

example, you might use less battery power

if you access your database via a web

service. That way, if you’re not talking to

the database, you’re not using up any

resources.

Q: Why doesn’t Android use JDBC to

access SQLite databases?

A: We know we’re going to be using a

SQLite database, so using JDBC would be

overkill. Those layers of database drivers

that make JDBC so flexible would just drain

the battery on an Android device.

Q: Is the database directory inside

the app’s directory?

A: No. It’s kept in a separate directory

from the app’s code. That way, the app can

be overwritten with a newer version, but

the data in the database will be kept safe.

Android comes with SQLite classes

Android uses a set of classes that allows you to manage a

SQLite database. There are three types of object that do the

bulk of this work:

We’re going to use these objects to show you how to create a

SQLite database your app can use to persist data by replacing

the Drink class with a SQLite database.

The SQLite Helper

A SQLite helper enables

you to create and manage

databases. You create

one by extending the

SQLiteOpenHelper class.

The SQLite Database

The SQLiteDatabase

class gives you access to

the database. It’s like a

SQLConnection in JDBC.

Cursors

A Cursor lets you

read from and write to

the database. It’s like a

ResultSet in JDBC.

you are here 4 625

SQLite databases

The current Starbuzz app structure

Here’s a reminder of the current structure of the Starbuzz app:

TopLevelActivity displays a list of options:

Drinks, Food, and Stores.

When the user clicks on the Drinks option, it

launches DrinkCategoryActivity.

This activity displays a list of drinks that it gets from the

Java Drink class.

When the user clicks on a drink, its details get

displayed in DrinkActivity.

DrinkActivity gets details of the drink from the Java

Drink class.

</Layout>

activity_top_level.xml

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

DrinkCategoryActivity.java DrinkActivity.java

Drink.java

How does the app structure need to change if we’re to use a

SQLite database?

The app currently gets its

data from the Drink class.

Do this!

We’re going to update the

Starbuzz app in this chapter,

so open your original Starbuzz

project in Android Studio.

</Layout>

activity_drink_

category.xml

626 Chapter 15

change app

Let’s change the app to use a database

We’ll use a SQLite helper to create a SQLite database we can use with

our Starbuzz app. We’re going to replace our Drink Java class with a

database, so we need our SQLite helper to do the following:

Create the database.

Before we can do anything else, we need to get the SQLite helper to create

version 1 (the first version) of our Starbuzz database.

Create the Drink table and populate it with drinks.

Once we have a database, we can create a table in it. The table’s structure

needs to reflect the attributes in the current Drink class, so it needs to be

able to store the name, description, and image resource ID of each drink.

We’ll then add three drinks to it.

Let’s start by looking at the SQLite helper.

</Layout>

activity_top_level.xml

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

DrinkCategoryActivity.java DrinkActivity.java

Starbuzz

database

The app has the same structure as before except that we’re replacing

the file Drink.java with a SQLite helper and a SQLite Starbuzz

database. The SQLite helper will maintain the Starbuzz database, and

provide access to it for the other activities. We’ll change the activities

to use the database in the next chapter.

SQLite Helper

We’ll store drinks in a

database rather than

the Drink class.

In the next chapter, we’ll change

the activities that access the Drink

class so that they use the database.

</Layout>

activity_drink_

category.xml

you are here 4 627

SQLite databases

The SQLite helper manages your database

The SQLiteOpenHelper class is there to help you create

and maintain your SQLite databases. Think of it as a personal

assistant who takes care of the general database housekeeping.

Let’s look at some typical tasks that the SQLite helper can assist

you with:

Creating the

database

When you first install

an app, the database file

won’t exist. The SQLite

helper will make sure the

database file is created

with the correct name

and with the correct table

structures installed.

Getting access to

the database

Our app shouldn’t

need to know all of the

details about where

the database file is, so

the SQLite helper can

serve us with an easy-

to-use database object

whenever we need it. At

all hours, day or night.

The SQLite helper

Keeping the database shipshape

The structure of the database will probably

change over time, and the SQLite helper can

be relied upon to convert an old version of a

database into a shiny, spiffy new version, with

all the latest database structures it needs.

Create database

Create table

activity_drink.xml

628 Chapter 15

create helper

Create the SQLite helper

You create a SQLite helper by writing a class that extends the

SQLiteOpenHelper class. When you do this, you must override

the onCreate() and onUpgrade() methods. These methods are

mandatory.

The onCreate() method gets called when the database first gets

created on the device. The method should include all the code needed

to create the tables you need for your app.

The onUpgrade() method gets called when the database needs to

be upgraded. As an example, if you need to modify the structure of the

database after it’s been released, this is the method to do it in.

In our app, we’re going to use a SQLite helper called

StarbuzzDatabaseHelper. Create this class in your Starbuzz

project by switching to the Project view of Android Studio’s explorer,

selecting the com.hfad.starbuzz package in the app/src/main/

java folder, and navigating to File→New...→Java Class. Name the

class “StarbuzzDatabaseHelper”, make sure the package name is com.

hfad.starbuzz and then replace its contents with the code below:

package com.hfad.starbuzz;

import android.database.sqlite.SQLiteOpenHelper;

import android.content.Context;

import android.database.sqlite.SQLiteDatabase;

class StarbuzzDatabaseHelper extends SQLiteOpenHelper {

StarbuzzDatabaseHelper(Context context) {

}

@Override

public void onCreate(SQLiteDatabase db) {

}

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

}

To get the SQLite helper to do something, we need to add code to its

methods. The first thing to do is tell the SQLite helper what database

it needs to create.

SQLite helpers must extend

the SQLiteOpenHelper class.

The onCreate() and onUpgrade() methods are

mandatory. We’ve left them empty for now, and we’ll

look at them in more detail throughout the chapter.

Create database

Create table

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

We’ll write the code for the

constructor on the next page.

This is the full path of the

SQLiteOpenHelper class.

you are here 4 629

SQLite databases

Specify the database

There are two pieces of information the SQLite helper needs

in order to create the database.

First, we need to give the database a name. By giving the

database a name, we make sure that the database remains on

the device when it’s closed. If we don’t, the database will only

be created in memory, so once the database is closed, it will

disappear.

The second piece of information we need to provide is the

version of the database. The database version needs to be

an integer value, starting at 1. The SQLite helper uses this

version number to determine whether the database needs to

be upgraded.

You specify the database name and version by passing them

to the constructor of the SQLiteOpenHelper superclass.

We’re going to give our database a name of “starbuzz”, and

as it’s the first version of the database, we’ll give it a version

number of 1. Here’s the code we need (update your version of

StarbuzzDatabaseHelper.java to match the code below):

...

class StarbuzzDatabaseHelper extends SQLiteOpenHelper {

private static final String DB_NAME = "starbuzz"; // the name of our database

private static final int DB_VERSION = 1; // the version of the database

StarbuzzDatabaseHelper(Context context) {

super(context, DB_NAME, null, DB_VERSION);

}

...

}

The constructor specifies details of the database, but the

database doesn’t get created at that point. The SQLite helper

waits until the app needs to access the database, and then

creates the database.

We’ve now done everything we need to tell the SQLite helper

what database to create. The next step is to tell it what tables

to create.

Creating databases that are only

held in memory can be useful when

you’re testing your app.

This parameter is an advanced feature relating to

cursors. We’ll cover cursors in the next chapter.

We’re calling the constructor of the

SQLiteOpenHelper superclass, and passing

it the database name and version.

SQLite database

Name: “starbuzz”

Version: 1

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

Create database

Create table

630 Chapter 15

tables

Inside a SQLite database

The data inside a SQLite database is stored in tables. A table contains

several rows, and each row is split into columns. A column contains a

single piece of data, like a number or a piece of text.

You need to create a table for each distinct piece of data that you want to

record. In the Starbuzz app, for example, we’ll need to create a table for

the drink data. It will look something like this:

Some columns can be specified as primary keys. A primary key

uniquely identifies a single row. If you say that a column is a primary key,

then the database won’t allow you to store rows with duplicate keys.

We recommend that your tables have a single column called _id to hold

the primary key that contains integer values. This is because Android

code is hardwired to expect a numeric _id column, so not having one can

cause you problems later on.

Storage classes and data types

Each column in a table is designed to store a particular type of data. For

example, in our DRINK table, the DESCRIPTION column will only

ever store text data. Here are the main data types you can use in SQLite,

and what they can store:

Unlike most database systems, you don’t need to specify the column size in

SQLite. Under the hood, the data type is translated into a much broader

storage class. This means you can say very generally what kind of data you’re

going to store, but you’re not forced to be specific about the size of data.

INTEGER Any integer type

TEXT Any character type

REAL Any floating-point number

NUMERIC Booleans, dates, and date-times

BLOB Binary Large Object

_id NAME DESCRIPTION IMAGE_RESOURCE_ID

1“Latte” "Espresso and steamed milk" 54543543

2“Cappuccino” "Espresso, hot milk and

steamed-milk foam"

654334453

3“Filter” "Our best drip coffee" 44324234

It’s an Android

convention to call

your primary key

columns _id. Android

code expects there to

be an _id column on

your data. Ignoring

this convention will

make it harder to get

the data out of your

database and into

your user interface.

The columns in the table are

_id, NAME, DESCRIPTION, and

IMAGE_RESOURCE_ID. The

Drink class contained similarly

named attributes.

Create database

Create table

you are here 4 631

SQLite databases

You create tables using Structured Query Language (SQL)

Every application that talks to SQLite needs to use a standard database

language called Structured Query Language (SQL). SQL is used by almost

every type of database. If you want to create the DRINK table, you will

need to do it in SQL.

This is the SQL command to create the table:

CREATE TABLE DRINK (_id INTEGER PRIMARY KEY AUTOINCREMENT,

NAME TEXT,

DESCRIPTION TEXT,

IMAGE_RESOURCE_ID INTEGER)

The _id column is the primary key.

The SQLite helper is in charge of creating the SQLite database. An empty

database is created on the device the first time it needs to be used, and then

the SQLite helper’s onCreate() method is called. The onCreate()

method has one parameter, a SQLiteDatabase object that represents

the database that’s been created.

You can use the SQLiteDatabase execSQL() method to execute

SQL on the database. This method has one parameter, the SQL you want

to execute.

execSQL(String sql);

We’ll use the onCreate() method to create the DRINK table. Here’s the

code (we’ll add the code in a few pages):

public void onCreate(SQLiteDatabase db){

db.execSQL("CREATE TABLE DRINK ("

+ "_id INTEGER PRIMARY KEY AUTOINCREMENT, "

+ "NAME TEXT, "

+ "DESCRIPTION TEXT, "

+ "IMAGE_RESOURCE_ID INTEGER);");

}

The CREATE TABLE command says what columns you want in the table,

and what the data type is of each column. The _id column is the primary

key of the table, and the special keyword AUTOINCREMENT means that

when we store a new row in the table, SQLite will automatically generate a

unique integer for it.

This gives us an empty DRINK table. We want to prepopulate it with drink

data, so let’s look at how you do that.

These are table columns.

The table name

Execute the SQL in the String on the database.

The onCreate() method is called when the database is created

The

SQLiteDatabase

class gives you

access to the

database.

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

632 Chapter 15

insert()

Insert data using the insert() method

To insert data into a table in a SQLite database, you start by specifying

what values you want to insert into the table. To do this, you first create

a ContentValues object:

ContentValues drinkValues = new ContentValues();

drinkValues.put("NAME", "Latte");

drinkValues.put("DESCRIPTION", "Espresso and steamed milk");

drinkValues.put("IMAGE_RESOURCE_ID", R.drawable.latte);

A ContentValues object describes a set of data. You usually create a

new ContentValues object for each row of data you want to create.

You add data to the ContentValues object using its put() method.

This method adds name/value pairs of data: NAME is the column you

want to add data to, and value is the data:

db.insert("DRINK", null, drinkValues);

Once you’ve added a row of data to the ContentValues object, you

insert it into the table using the SQLiteDatabase insert() method.

This method inserts data into a table, and returns the ID of the record

once it’s been inserted. If the method is unable to insert the record, it

returns a value of -1. As an example, here’s how you’d insert the data

from drinkValues into the DRINK table:

The middle parameter is usually set to null, as in the above code. It’s

there in case the ContentValues object is empty, and you want to

insert an empty row into your table. It’s unlikely you’d want to do this,

but if you did you’d replace the null value with the name of one of the

columns in your table.

Running the lines of code above will insert a Latte row into the DRINK

table:

_id NAME DESCRIPTION IMAGE_RESOURCE_ID

1“Latte” "Espresso and steamed milk" 54543543

A shiny new

record gets

inserted into

the table.

Create database

Create table

You need a

separate call

to the put()

method for

each value you

want to enter.

This inserts a single row into the table.

As an example, here’s how you’d use the put() method to add

the name, description, and image resource ID of a latte to a

ContentValues object called drinkValues:

contentValues.put("NAME", "value");

The insert() methods inserts one row of data at a time. But what if

you want to insert multiple records?

NAME is the column you want to add data

to. value is the value you want it to have.

Put “Espresso and

steamed milk” in

the DESCRIPTION

column.

Put the value “Latte” in the NAME column.

This is a

single row

of data.

you are here 4 633

SQLite databases

Create table

Create database

private static void insertDrink(SQLiteDatabase db,

String name,

String description,

int resourceId) {

ContentValues drinkValues = new ContentValues();

drinkValues.put("NAME", name);

drinkValues.put("DESCRIPTION", description);

drinkValues.put("IMAGE_RESOURCE_ID", resourceId);

db.insert("DRINK", null, drinkValues);

}

Insert multiple records

To insert multiple rows into a table, you need to make repeat calls

to the insert() method. Each call to the method inserts a

separate row.

To insert multiple rows, you usually create a new method that

inserts a single row of data, and call it each time you want to add

a new row. As an example, here’s an insertDrink() method

we wrote to insert drinks into the DRINK table:

To add three drinks to the DRINK table, each one a separate row

of data, you’d call the method three times:

insertDrink(db, "Latte", "Espresso and steamed milk", R.drawable.latte);

insertDrink(db, "Cappuccino", "Espresso, hot milk and steamed-milk foam",

R.drawable.cappuccino);

insertDrink(db, "Filter", "Our best drip coffee", R.drawable.filter);

We’re passing the data to the

method as parameters.

This is the database we

want to add records to.

Construct a ContentValues

object with the data.

Then insert the data.

That’s everything you need to know to insert data into

tables. On the next page we’ll show you the revised code for

StarbuzzDatabaseHelper.java.

634 Chapter 15

helper code

The StarbuzzDatabaseHelper code

Here’s the complete code for StarbuzzDatabaseHelper.java (update your

code to reflect our changes):

package com.hfad.starbuzz;

import android.content.ContentValues;

import android.content.Context;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteOpenHelper;

class StarbuzzDatabaseHelper extends SQLiteOpenHelper{

private static final String DB_NAME = "starbuzz"; // the name of our database

private static final int DB_VERSION = 1; // the version of the database

StarbuzzDatabaseHelper(Context context){

super(context, DB_NAME, null, DB_VERSION);

}

@Override

public void onCreate(SQLiteDatabase db){

db.execSQL("CREATE TABLE DRINK (_id INTEGER PRIMARY KEY AUTOINCREMENT, "

+ "NAME TEXT, "

+ "DESCRIPTION TEXT, "

+ "IMAGE_RESOURCE_ID INTEGER);");

insertDrink(db, "Latte", "Espresso and steamed milk", R.drawable.latte);

insertDrink(db, "Cappuccino", "Espresso, hot milk and steamed-milk foam",

R.drawable.cappuccino);

insertDrink(db, "Filter", "Our best drip coffee", R.drawable.filter);

}

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

}

private static void insertDrink(SQLiteDatabase db, String name,

String description, int resourceId) {

ContentValues drinkValues = new ContentValues();

drinkValues.put("NAME", name);

drinkValues.put("DESCRIPTION", description);

drinkValues.put("IMAGE_RESOURCE_ID", resourceId);

db.insert("DRINK", null, drinkValues);

}

Say what the database name and

version is. It’s the first version of the

database, so the version should be 1.

onCreate() gets called when the database first gets created,

so we’re using it to create the table and insert data.

Create the DRINK table.

Insert each

drink in a

separate row.

onUpgrade() gets called when the database

needs to be upgraded. We’ll look at this next.

We need to insert several

drinks, so we created a

separate method to do this.

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

You need to add this

extra import statement.

Create database

Create table

you are here 4 635

SQLite databases

Create database

Create table

What the SQLite helper code does

The user installs the app and launches it.

When the app needs to access the database, the SQLite helper checks to see if

the database already exists.

If the database doesn’t exist, it gets created.

It’s given the name and version number specified in the SQLite helper.

When the database is created, the onCreate() method in the

SQLite helper is called.

It adds a DRINK table to the database, and populates it with records.

SQLite helper

You need a database,

sir? Let me see if it’s

already there for you.

SQLite helper

SQLite database

Name: “starbuzz”

Version: 1

SQLite helper

SQLite database

Name: “starbuzz”

Version: 1

DRINK

Your database,

sir. Will that

be all?

onCreate()

636 Chapter 15

change database

What if you need to make changes to the

database?

So far, you’ve seen how to create a SQLite database that your app will

be able to use to persist data. But what if you need to make changes to

the database at some future stage?

As an example, suppose lots of users have already installed your

Starbuzz app on their devices, and you want to a add a new

FAVORITE column to the DRINK table. How would you distribute

this change to new and existing users?

Well, we could change the CREATE TABLE

statement in the onCreate() method, but

that doesn’t feel entirely right to me. I

mean, what if a device already has the old

version of the database installed?

When you need to change an app’s database,

there are two key scenarios you have to deal with.

The first scenario is that the user has never installed your app before,

and doesn’t have the database installed on their device. In this case,

the SQLite helper creates the database the first time the database

needs to be accessed, and runs its onCreate() method.

The second scenario is where the user installs a new version of your

app that includes a different version of the database. If the SQLite

helper spots that the database that’s installed is out of date, it will call

either the onUpgrade() or onDowngrade() method.

So how can the SQLite helper tell if the database is out of date?

you are here 4 637

SQLite databases

Upgrade database

SQLite databases have a version number

The SQLite helper can tell whether the SQLite database needs updating

by looking at its version number. You specify the version of the database

in the SQLite helper by passing it to the SQLiteOpenHelper

superclass in its constructor.

Earlier on, we specified the version number of the database like this:

...

private static final String DB_NAME = "starbuzz";

private static final int DB_VERSION = 1;

StarbuzzDatabaseHelper(Context context) {

super(context, DB_NAME, null, DB_VERSION);

}

...

When the database gets created, its version number gets set to the version

number in the SQLite helper, and the SQLite helper onCreate()

method gets called.

When you want to update the database, you change the version number

in the SQLite helper code. To upgrade the database, specify a number

that’s larger than you had before, and to downgrade your database, specify

a number that’s lower:

...

private static final int DB_VERSION = 2;

...

Most of the time, you’ll want to upgrade the database, so specify a

number that’s larger. You usually only downgrade your database when

you want to undo changes you made in a previous upgrade.

When the user installs the latest version of the app on their device, the

first time the app needs to use the database, the SQLite helper checks its

version number against that of the database on the device.

If the version number in the SQLite helper code is higher than that of

the database, it calls the SQLite helper onUpgrade() method. If the

version number in the SQLite helper code is lower than that of the

database, it calls the onDowngrade() method instead.

Once it’s called either of these methods, it changes the version number of

the database to match the version number in the SQLite helper.

Geek Bits

SQLite databases support

a version number that’s

used by the SQLite helper,

and an internal schema

version. Whenever a

change is made to the

database schema, such

as the table structure,

the database increments

the schema version by 1.

You have no control over

this value, it’s just used

internally by SQLite.

Here we’re increasing the version number,

so the database will get upgraded.

638 Chapter 15

what happens

What happens when you change the version number

The first time the user runs the app, the database doesn’t exist, so

the SQLite helper creates it.

The SQLite helper gives the database the name and version number specified in the

SQLite helper code.

When the database is created, the onCreate() method in the SQLite

helper is called.

The onCreate() method includes code to populate the database.

SQLite helper

SQLite database

SQLite helper

SQLite database

DRINK

Name: “starbuzz”

Version: 2

Name: “starbuzz”

Version: 2

onCreate()

The SQLite helper gives the

database a version number

of 2 if this is the version

number specified in the

SQLite helper code.

Upgrade database

Scenario 1: A first-time user installs the app

Let’s look at what happens when you release a new version of the

app where you’ve changed the SQLite helper version number from 1

to 2. We’ll consider two scenarios: where a first-time user installs the

app, and when an existing user installs it.

That’s what happens when a first-time user installs the app. What

about when an existing user installs the new version?

you are here 4 639

SQLite databases

Upgrade database

Scenario 2: an existing user installs the new version

When the user runs the new version of the app, the database helper

checks whether the database exists.

If the database already exists, the SQLite helper doesn’t recreate it.

SQLite helper

SQLite database

DRINK

SQLite helper

SQLite database

DRINK

Name: “starbuzz”

Version: 1

Very good, sir, I see

you already have version

1 of the database.

The SQLite helper checks the version number of the existing database

against the version number in the SQLite helper code.

If the SQLite helper version number is higher than the database version, it calls the

onUpgrade() method. If the SQLite helper version number is lower than the database

version, it calls the onDowngrade() method. It then changes the database version

number to reflect the version number in the SQLite helper code.

Name: “starbuzz”

Version: 1 2

The SQLite helper runs the

onUpgrade() method (if the

new version number is higher)

and updates the database

version number.

Now that you’ve seen under what circumstances the

onUpgrade() and onDowngrade() methods get called,

let’s find out more about how you use them.

640 Chapter 15

onUpgrade()

The onUpgrade() method has three parameters—the

SQLite database, the user’s version number of the database,

and the new version of the database that’s passed to the

SQLiteOpenHelper superclass:

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

//Your code goes here

}

The version numbers are important, as you can use them to say

what database changes should be made depending on which

version of the database the user already has. As an example,

suppose you needed to run code if the user has version 1 of the

database, and the SQLite helper version number is higher. Your

code would look like this:

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

if (oldVersion == 1) {

//Code to run if the database version is 1

}

You can also use the version numbers to apply successive updates

like this:

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

if (oldVersion == 1) {

//Code to run if the database version is 1

}

if (oldVersion < 3) {

//Code to run if the database version is 1 or 2

}

Using this approach means that you can make sure that the user

gets all the database changes applied that they need, irrespective

of which version they have installed.

The onDowngrade() method works in a similar way to the

onUpgrade() method. Let’s take a look on the next page.

Upgrade your database with onUpgrade()

Remember, to upgrade the database,

the new version must be higher than

the user’s existing version.

The user’s version of the

database, which is out of date

The new version

described in the

SQlite helper code

This code will only run if the

user has version 1 of the

database, and the SQLite

helper version number is higher.

This code will only run if the

user’s database is at version 1.

This code will run if the user’s

database is at version 1 or 2.

Upgrade database

you are here 4 641

SQLite databases

The onDowngrade() method isn’t used as often as the

onUpgrade() method, as it’s used to revert your database to

a previous version. This can be useful if you release a version of

your app that includes database changes, but you then discover

that there are bugs. The onDowngrade() method allows you

to undo the changes and set the database back to its previous

version.

Just like the onUpgrade() method, the onDowngrade()

method has three parameters—the SQLite database you

want to downgrade, the version number of the database

itself, and the new version of the database that’s passed to the

SQLiteOpenHelper superclass:

@Override

public void onDowngrade(SQLiteDatabase db, int oldVersion, int newVersion) {

//Your code goes here

}

Just as with the onUpgrade() method, you can use the version

numbers to revert changes specific to a particular version. As an

example, if you needed to make changes to the database when

the user’s database version number is 3, you’d use code like

following:

@Override

public void onDowngrade(SQLiteDatabase db, int oldVersion, int newVersion) {

if (oldVersion == 3) {

//Code to run if the database version is 3

}

Downgrade your database with onDowngrade()

Now that you know how to upgrade and downgrade a database,

let’s walk through the more common scenario: upgrading.

To downgrade the database, the

new version must be lower than

the user’s exisiting version.

This code will run if the user

has version 3 of the database,

but you want to downgrade it

to a lower version.

Upgrade database

642 Chapter 15

upgrade database

package com.hfad.starbuzz;

import android.content.ContentValues;

import android.content.Context;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteOpenHelper;

class StarbuzzDatabaseHelper extends SQLiteOpenHelper{

private static final String DB_NAME = "starbuzz"; // the name of our database

private static final int DB_VERSION = 12; // the version of the database

StarbuzzDatabaseHelper(Context context){

super(context, DB_NAME, null, DB_VERSION);

}

@Override

public void onCreate(SQLiteDatabase db){

updateMyDatabase(db, 0, DB_VERSION);

}

Let’s upgrade the database

Suppose we need to upgrade our database to add a new column to the

DRINK table. As we want all new and existing users to get this change,

we need to make sure that it’s included in both the onCreate() and

onUpgrade() methods. The onCreate() method will make sure that all

new users get the new column, and the onUpgrade() method will make

sure that all existing users get it too.

Rather than put similar code in both the onCreate() and onUpgrade()

methods, we’re going to create a separate updateMyDatabase()

method, called by both the onCreate() and onUpgrade() methods.

We’ll move the code that’s currently in the onCreate() method to this

new updateMyDatabase() method, and we’ll add extra code to create

the extra column. Using this approach means that you can put all of your

database code in one place, and more easily keep track of what changes

you’ve made each time you’ve updated the database.

Here’s the full code for StarbuzzDatabaseHelper.java (update your code to reflect

our changes):

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

Replace the existing

onCreate() code with this

call to updateMyDatabase().

Upgrade database

Changing the version number to a larger

integer means the SQLite helper will know

that you want to upgrade the database.

The code

continues

on the

next page.

you are here 4 643

SQLite databases

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

updateMyDatabase(db, oldVersion, newVersion);

}

private static void insertDrink(SQLiteDatabase db, String name,

String description, int resourceId) {

ContentValues drinkValues = new ContentValues();

drinkValues.put("NAME", name);

drinkValues.put("DESCRIPTION", description);

drinkValues.put("IMAGE_RESOURCE_ID", resourceId);

db.insert("DRINK", null, drinkValues);

}

private void updateMyDatabase(SQLiteDatabase db, int oldVersion, int newVersion) {

if (oldVersion < 1) {

db.execSQL("CREATE TABLE DRINK (_id INTEGER PRIMARY KEY AUTOINCREMENT, "

+ "NAME TEXT, "

+ "DESCRIPTION TEXT, "

+ "IMAGE_RESOURCE_ID INTEGER);");

insertDrink(db, "Latte", "Espresso and steamed milk", R.drawable.latte);

insertDrink(db, "Cappuccino", "Espresso, hot milk and steamed-milk foam",

R.drawable.cappuccino);

insertDrink(db, "Filter", "Our best drip coffee", R.drawable.filter);

}

if (oldVersion < 2) {

//Code to add the extra column

}

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

This is the

code we

previously

had in our

onCreate()

method.

Call the updateMyDatabase()

method from onUpgrade(),

passing along the parameters.

This code will run if the user already

has version 1 of the database. We

need to write this code next.

The SQLite helper code (continued)

Upgrade database

The next thing we need to do is write the code to upgrade the

database. Before we do that, try the exercise on the next page.

644 Chapter 15

exercise

...

class MyHelper extends SQLiteOpenHelper{

StarbuzzDatabaseHelper(Context context){

super(context, "fred", null, 4);

}

@Override

public void onCreate(SQLiteDatabase db){

//Run code A

...

}

@Override

public void onUpgrade(SQLiteDatabase db,

int oldVersion,

int newVersion){

if (oldVersion < 2) {

//Run code B

...

}

if (oldVersion == 3) {

//Run code C

...

}

//Run code D

...

}

@Override

public void onDowngrade(SQLiteDatabase db,

int oldVersion,

int newVersion){

if (oldVersion == 3) {

//Run code E

...

}

if (oldVersion < 6) {

//Run code F

...

}

BE the SQLite Helper

On the right, you’ll see some SQLite

helper code. Your job is to play like

you’re the SQLite helper and

say which code will run

for each of the users

below. We’ve labeled

the code we want you to

consider. We’ve done the

first one to start you off. A

User 1 runs the app for the first time.

User 2 has database version 1.

User 3 has database version 2.

User 4 has database version 3.

User 5 has database version 4.

User 6 has database version 5.

Code segment A. The user doesn’t have the

database, so the onCreate() method runs.

Answers on page 654.

you are here 4 645

SQLite databases

Upgrade an existing database

When you need to upgrade your database, there are two types of

actions you might want to perform:

Change the database structure.

You’ve already seen how you can create tables in the database. You may

also want to add columns to existing tables, rename tables, or remove tables

completely.

Change the database records.

Earlier in the chapter, you saw how to insert records in your database using

the SQLiteDatabase insert() method. You may want to add more

records when you upgrade the database, or update or delete the records

that are already there.

We’ll start by looking at how you change database records.

Upgrade database

How to update records

You update records in a table in a similar way to how you insert

them.

You start by creating a new ContentValues object that

specifies what you want to update values to. As an example,

suppose you wanted to update the Latte data in the DRINK table

so that the value of the DESCRIPTION field is “Tasty”:

ContentValues drinkValues = new ContentValues();

drinkValues.put("DESCRIPTION", "Tasty");

Notice that when you’re updating records, you only need to

specify the data you want to change in the ContentValues

object, not the entire row of data.

Once you’ve added the data you want to change to the

ContentValues object, you use the SQLiteDatabase

update() method to update the data. We’ll look at this on the

next page.

To do this, you’d create a new ContentValues object that

describes the data that needs to be updated:

_id NAME DESCRIPTION IMAGE_RESOURCE_ID

1“Latte” "Espresso and steamed milk"

"Tasty"

54543543

We want to change the value of the

DESCRIPTION column to Tasty, so we give the

name “DESCRIPTION” a value of “Tasty”.

646 Chapter 15

update()

Update records with the update() method

The first parameter of the update() method is the name of the

table you want to update (in this case, the DRINK table).

The second parameter is the ContentValues object that

describes the values you want to update. In the example

above, we’ve added "DESCRIPTION" and "Tasty" to

the ContentValues object, so it updates the value of the

DESCRIPTION column to “Tasty”.

The last two parameters specify which records you want to update

by describing conditions for the update. Together, they form the

WHERE clause of a SQL statement.

The third parameter specifies the name of the column in the

condition. In the above example, we want to update records where

the value of the NAME column is “Latte”, so we use "NAME =

?"; it means that we want the value in the NAME column to be

equal to some value. The ? symbol is a placeholder for this value.

The last parameter is an array of Strings that says what the value

of the condition should be. In our particular case we want to

update records where the value of the NAME column is “Latte”,

so we use:

ContentValues drinkValues = new ContentValues();

drinkValues.put("DESCRIPTION", "Tasty");

db.update("DRINK",

drinkValues,

"NAME = ?",

new String[] {"Latte"});

The conditions for

updating the data,

in this case where

NAME = “Latte”.

If you set the

last two

parameters of

the update()

method to null,

ALL records in the table

will be updated.

As an example, the code:

db.update("DRINK",

drinkValues,

null, null);

will update all records in the

DRINK table.

This is the name of the table whose records you want to update.

This is the ContentValues object that contains the new values.

new String[] {"Latte"});

The update() method lets you update records in the database,

and returns the number of records it’s updated. To use the

update() method, you specify the table you want to update

records in, the ContentValues object that contains the values

you want to update, and the conditions for updating them.

As an example, here’s how you’d change the value of the

DESCRIPTION column to “Tasty” where the name of the drink

is “Latte”:

We’ll look at more complex conditions on the next page.

Upgrade database

The value “Latte” is substituted for the

? in the “NAME = ?” statement above.

you are here 4 647

SQLite databases

db.update("DRINK",

drinkValues,

"_id = ?",

new String[] {Integer.toString(1)});

Delete records with the delete() method

You delete records using the SQLiteDatabase delete() method. It

works in a similar way to the update() method you’ve just seen. You specify

the table you want to delete records from, and conditions for deleting the data.

As an example, here’s how you’d delete all records from the DRINK table

where the name of the drink is “Latte”:

db.delete("DRINK",

"NAME = ?",

new String[] {"Latte"});

The first parameter is the name of the table you want to delete records from

(in this case, DRINK). The second and third arguments allow you to describe

conditions to specify exactly which records you wish to delete (in this case,

where NAME = “Latte”).

See how similar this is to the update() method.

_id NAME DESCRIPTION IMAGE_RESOURCE_ID

1“Latte” "Espresso and steamed milk" 54543543

The entire row is deleted.

Convert the int 1

to a String value.

Apply conditions to multiple columns

You can also specify conditions that apply to multiple columns. As an

example, here’s how you’d update all records where the name of the

drink is “Latte”, or the drink description is “Our best drip coffee”:

db.update("DRINK",

drinkValues,

"NAME = ? OR DESCRIPTION = ?",

new String[] {"Latte", "Our best drip coffee"});

This means: Where NAME = “Latte” or

DESCRIPTION = “Our best drip coffee”.

If you want to apply conditions that cover multiple columns, you

specify the column names in the update() method’s third

parameter. As before, you add a placeholder ? for each value you

want to add as part of each condition. You then specify the condition

values in the update() method’s fourth parameter.

The condition values must be Strings, even if the column you’re

applying the condition to contains some other type of data. As an

example, here’s how you’d update DRINK records where the _id

(numeric) is 1:

Upgrade database

Each ? placeholder is replaced

with a value from this array. The

number of values in the array

must match the number of ?’s.

648 Chapter 15

exercise

Here’s the onCreate() method of a SQLiteOpenHelper

class. Your job is to say what values have been inserted into the

NAME and DESCRIPTION columns of the DRINK table when the

onCreate() method has finished running.

@Override

public void onCreate(SQLiteDatabase db) {

ContentValues espresso = new ContentValues();

espresso.put("NAME", "Espresso");

ContentValues americano = new ContentValues();

americano.put("NAME", "Americano");

ContentValues latte = new ContentValues();

latte.put("NAME", "Latte");

ContentValues filter = new ContentValues();

filter.put("DESCRIPTION", "Filter");

ContentValues mochachino = new ContentValues();

mochachino.put("NAME", "Mochachino");

db.execSQL("CREATE TABLE DRINK ("

+ "_id INTEGER PRIMARY KEY AUTOINCREMENT, "

+ "NAME TEXT, "

+ "DESCRIPTION TEXT);");

db.insert("DRINK", null, espresso);

db.insert("DRINK", null, americano);

db.delete("DRINK", null, null);

db.insert("DRINK", null, latte);

db.update("DRINK", mochachino, "NAME = ?", new String[] {"Espresso"});

db.insert("DRINK", null, filter);

}

_id NAME DESCRIPTION

You don’t

need to

enter the

value of the

_id column.

Answers on page 655.

you are here 4 649

SQLite databases

Add new columns to tables using SQL

Earlier in the chapter, you saw how you could create tables using the

SQL CREATE TABLE command like this:

CREATE TABLE DRINK (_id INTEGER PRIMARY KEY AUTOINCREMENT,

NAME TEXT,

DESCRIPTION TEXT,

IMAGE_RESOURCE_ID INTEGER)

The _id column is the primary key.

You can also use SQL to change an existing table using the ALTER

TABLE command. As an example, here’s what the command looks

like to add a column to a table:

The table columns

The table name

ALTER TABLE DRINK

ADD COLUMN FAVORITE NUMERIC

In the example above, we’re adding a column to the DRINK table

called FAVORITE that holds numeric values.

The table name

The column you want to add

Change the database structure

In addition to creating, updating, or deleting database records, you

may want to make changes to the database structure. As an example,

in our particular case we want to add a new FAVORITE column to

the DRINK table.

Renaming tables

You can also use the ALTER TABLE command to rename a table.

As an example, here’s how you’d rename the DRINK table to FOO:

ALTER TABLE DRINK

RENAME TO FOO

The current table name

The new name of the table

On the next page, we’ll show you how to remove a table from the

database.

Upgrade database

650 Chapter 15

altering tables

Delete tables by dropping them

If you want to delete a table from the database, you use the DROP

TABLE command. As an example, here’s how you’d delete the

DRINK table:

DROP TABLE DRINK

This command is useful if you have a table in your database schema

that you know you don’t need anymore, and want to remove it in

order to save space. Make sure you only use the DROP TABLE

command if you’re absolutely sure you want to get rid of the table and

all of its data.

SQLiteDatabase.execSQL(String sql);

db.execSQL("ALTER TABLE DRINK ADD COLUMN FAVORITE NUMERIC;");

Execute the SQL using execSQL()

As you saw earlier in the chapter, you execute SQL commands using

the SQLiteDatabase execSQL() method:

You use the execSQL() method any time you need to execute SQL

on the database. As an example, here’s how you’d execute SQL to

add a new FAVORITE column to the DRINK table:

Now that you’ve seen the sorts of actions you might want to

perform when upgrading your database, let’s apply this to

StarbuzzDatabaseHelper.java.

The name of the table you want to remove

Upgrade database

you are here 4 651

SQLite databases

The full SQLite helper code

Here’s the full code for StarbuzzDatabaseHelper.java that will add a

new FAVORITE column to the DRINK table. Update your code

to match ours (the changes are in bold):

package com.hfad.starbuzz;

import android.content.ContentValues;

import android.content.Context;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteOpenHelper;

class StarbuzzDatabaseHelper extends SQLiteOpenHelper{

private static final String DB_NAME = "starbuzz"; // the name of our database

private static final int DB_VERSION = 2; // the version of the database

StarbuzzDatabaseHelper(Context context){

super(context, DB_NAME, null, DB_VERSION);

}

@Override

public void onCreate(SQLiteDatabase db){

updateMyDatabase(db, 0, DB_VERSION);

}

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

updateMyDatabase(db, oldVersion, newVersion);

}

Changing the version number to

a larger integer enables the

SQLite helper to spot that you

want to upgrade the database.

The code to create any database tables is in

the updateMyDatabase() method.

The code to upgrade the database is

in our updateMyDatabase() method.

The code continues over the page.

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

Upgrade database

652 Chapter 15

more code

The SQLite helper code (continued)

private static void insertDrink(SQLiteDatabase db, String name,

String description, int resourceId) {

ContentValues drinkValues = new ContentValues();

drinkValues.put("NAME", name);

drinkValues.put("DESCRIPTION", description);

drinkValues.put("IMAGE_RESOURCE_ID", resourceId);

db.insert("DRINK", null, drinkValues);

}

private void updateMyDatabase(SQLiteDatabase db, int oldVersion, int newVersion) {

if (oldVersion < 1) {

db.execSQL("CREATE TABLE DRINK (_id INTEGER PRIMARY KEY AUTOINCREMENT, "

+ "NAME TEXT, "

+ "DESCRIPTION TEXT, "

+ "IMAGE_RESOURCE_ID INTEGER);");

insertDrink(db, "Latte", "Espresso and steamed milk", R.drawable.latte);

insertDrink(db, "Cappuccino", "Espresso, hot milk and steamed-milk foam",

R.drawable.cappuccino);

insertDrink(db, "Filter", "Our best drip coffee", R.drawable.filter);

}

if (oldVersion < 2) {

db.execSQL("ALTER TABLE DRINK ADD COLUMN FAVORITE NUMERIC;");

}

The new code in the SQLite helper means that existing users will

get the new FAVORITE column added to the DRINK table the

next time they access the database. It also means that any new

users will get the complete database created for them, including

the new column.

We’ll go through what happens when the code runs on the next

page. Then in the next chapter, you’ll see how to use the database

data in your activities.

Upgrade database

Add a numeric FAVORITE

column to the DRINK table.

app/src/main

StarbuzzDatabase

Helper.java

Starbuzz

java

com.hfad.starbuzz

you are here 4 653

SQLite databases

What happens when the code runs

When the database first needs to be accessed, the SQLite helper checks

whether the database already exists.

If the database doesn’t exist, the SQLite helper creates it and runs its

onCreate() method.

Our onCreate() method code calls the updateMyDatabase() method. This creates the

DRINK table (including the new FAVORITE column) and populates the table with records.

If the database already exists, the SQLite helper checks the version number

of the database against the version number in the SQLite helper code.

If the SQLite helper version number is higher than the database version, it calls the

onUpgrade() method. If the SQLite helper version number is lower than the database

version, it calls the onDowngrade() method. Our SQLite helper version number is

higher than that of the existing database, so the onUpgrade() method is called. It calls the

updateMyDatabase() method, and this adds the new FAVORITE column to the DRINK

table.

SQLite helper

You need a database,

sir? Let me see if it’s

already there for you.

SQLite database

Name: “starbuzz”

Version: 2

DRINK

SQLite helper

onCreate()

SQLite database

Name: “starbuzz”

Version: 1 2

DRINK

SQLite helper

onUpgrade()

654 Chapter 15

solution

...

class MyHelper extends SQLiteOpenHelper{

StarbuzzDatabaseHelper(Context context){

super(context, "fred", null, 4);

}

@Override

public void onCreate(SQLiteDatabase db){

//Run code A

...

}

@Override

public void onUpgrade(SQLiteDatabase db,

int oldVersion,

int newVersion){

if (oldVersion < 2) {

//Run code B

...

}

if (oldVersion == 3) {

//Run code C

...

}

//Run code D

...

}

@Override

public void onDowngrade(SQLiteDatabase db,

int oldVersion,

int newVersion){

if (oldVersion == 3) {

//Run code E

...

}

if (oldVersion < 6) {

//Run code F

...

}

BE the SQLite Helper Solution

On the right you’ll see some SQLite

helper code. Your job is to play like

you’re the SQLite helper and

say which code will run

for each of the users

below. We’ve labeled

the code we want you to

consider. We’ve done the

first one to start you off. A

User 1 runs the app for the first time.

User 2 has database version 1.

User 3 has database version 2.

User 4 has database version 3.

User 5 has database version 4.

User 6 has database version 5.

Code segment A. The user doesn’t have the

database, so the onCreate() method runs.

Code segment B, then D. The database needs to be

upgraded with oldVersion == 1.

Code segment D. The database needs to be

upgraded with oldVersion == 2.

Code segment C then D. The database needs to be

upgraded with oldVersion == 3.

None. The user has the correct version of the

database.

Code segment F. The database needs to be

downgraded with oldVersion == 5.

The new version of

the database is 4.

The onCreate() method will

only run if the user doesn’t

have the database.

This will run if the

user has version 1.

This will run if the

user has version 3.

This will run if the user

has version 1, 2, or 3.

This will run if the user has version 5. For

onDowngrade() to run, the user must have

a version greater than 4, as that’s the

current version number of the helper.

This will never run.

If the user has

version 3, their

database needs to

be upgraded, not

downgraded.

you are here 4 655

SQLite databases

Here’s the onCreate() method of a SQLiteOpenHelper

class. Your job is to say what values have been inserted into the

NAME and DESCRIPTION columns of the DRINK table when the

onCreate() method has finished running.

@Override

public void onCreate(SQLiteDatabase db) {

ContentValues espresso = new ContentValues();

espresso.put("NAME", "Espresso");

ContentValues americano = new ContentValues();

americano.put("NAME", "Americano");

ContentValues latte = new ContentValues();

latte.put("NAME", "Latte");

ContentValues filter = new ContentValues();

filter.put("DESCRIPTION", "Filter");

ContentValues mochachino = new ContentValues();

mochachino.put("NAME", "Mochachino");

db.execSQL("CREATE TABLE DRINK ("

+ "_id INTEGER PRIMARY KEY AUTOINCREMENT, "

+ "NAME TEXT, "

+ "DESCRIPTION TEXT);");

db.insert("DRINK", null, espresso);

db.insert("DRINK", null, americano);

db.delete("DRINK", null, null);

db.insert("DRINK", null, latte);

db.update("DRINK", mochachino, "NAME = ?", new String[] {"Espresso"});

db.insert("DRINK", null, filter);

}

_id NAME DESCRIPTION

Latte

Filter

Create the table, adding _id, NAME,

and DESCRIPTION columns.

Insert Espresso in the NAME column.

Insert Americano in the NAME column.

Delete all the drinks.

Insert Latte in the NAME column.

Set NAME to Mochachino where NAME

is Espresso. No records get updated.

Insert Filter in the DESCRIPTION column.

Here’s

the final

result of

running

the above

code.

656 Chapter 15

toolbox

Your Android Toolbox

You’ve got Chapter 15 under

your belt and now you’ve

added creating, updating,

and upgrading databases to your

toolbox.

Android uses SQLite as its backend

database to persist data.

The SQLiteDatabase class gives

you access to the SQLite database.

A SQLite helper lets you create and

manage SQLite databases. You create

a SQLite helper by extending the

SQLiteOpenHelper class.

You must implement the

SQLiteOpenHelper onCreate()

and onUpgrade() methods.

The database gets created the first time it

needs to be accessed. You need to give

the database a name and version number,

starting at 1. If you don’t give the database

a name, it will just get created in memory.

The onCreate() method gets called

when the database first gets created.

The onUpgrade() method gets called

when the database needs to be upgraded.

Execute SQL using the

SQLiteDatabase

execSQL(String) method.

Use the SQL ALTER TABLE command

to change an existing table. Use RENAME

TO to rename the table, and ADD

COLUMN to add a column.

Use the SQL DROP TABLE command

to delete a table.

Add records to tables using the

insert() method.

Update records using the update()

method.

Remove records from tables using the

delete() method.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 15

this is a new chapter 657

Charles gave me

a cursor that returned

everything from the

EXPENSIVE_GIFT table.

basic cursors

Getting Data Out

So how do you connect your app to a SQLite database?

So far you’ve seen how to create a SQLite database using a SQLite helper. The next step

is to get your activities to access it. In this chapter, we’ll focus on how you read data from

a database. You’ll find out how to use cursors to get data from the database. You’ll see

how to navigate cursors, and how to get access to their data. Finally, you’ll discover

how to use cursor adapters to bind cursors to list views.

658 Chapter 16

where we are

The story so far...

In Chapter 15, you created a SQLite helper for Starbuzz

Coffee. The SQLite helper creates a Starbuzz database,

adds a DRINK table to it, and populates the table with

drinks.

The activities in the Starbuzz app currently get their data

from the Java Drink class. We’re going to change the app

so the activities get data from the SQLite database instead.

Here’s a reminder of how the app currently works:

</Layout>

activity_top_level.xml

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

DrinkCategoryActivity.java DrinkActivity.java

Drink.java

Starbuzz

database

SQLite Helper

The Drink class is still being used.

We’ve created the

SQLite helper and

added code so it

can create the

Starbuzz database.

It’s not being used

by any activities yet.

DrinkActivity and

DrinkCategoryActivity are

still accessing Drink.java.

</Layout>

activity_drink_

category.xml

TopLevelActivity displays a list of options for Drinks,

Food, and Stores.

When the user clicks on the Drinks option, it

launches DrinkCategoryActivity.

This activity displays a list of drinks that it gets from the Java

Drink class.

When the user clicks on a drink, its details get

displayed in DrinkActivity.

DrinkActivity gets details of the drink from the Java Drink

class.

123

you are here 4 659

basic cursors

activity_drink.xml

The new Starbuzz app structure

There are two activities that use the Drink class:

DrinkActivity and DrinkCategoryActivity.

We need to change these activities so that they read data

from the SQLite database with assistance from the SQLite

helper.

Here’s what the new structure of the Starbuzz app will look

like:

</Layout>

activity_top_level.xml

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

DrinkCategoryActivity.java DrinkActivity.java

Starbuzz

database

SQLite Helper

We’ll change the activities that

access the Drink class so that they

use the database instead.

</Layout>

activity_drink_

category.xml

Drink.java

We will no longer be

using the Drink class.

We’ll start by updating DrinkActivity, and we’ll

change DrinkCategoryActivity later on in the

chapter.

Do this!

We’re going to update the

Starbuzz app in this chapter,

so open your Starbuzz

project in Android Studio.

660 Chapter 16

steps

What we’ll do to change DrinkActivity

to use the Starbuzz database

There are a number of steps we need to go through to change

DrinkActivity so that it uses the Starbuzz database:

Get a reference to the Starbuzz database.

We’ll do this using the Starbuzz SQLite helper we created in Chapter 15.

Create a cursor to read drink data from the database.

We need to read the data held in the Starbuzz database for the drink the

user selects in DrinkCategoryActivity. The cursor will give us

access to this data. (We’ll explain cursors soon.)

Before we begin, let’s remind ourselves of the

DrinkActivity.java code we created in Chapter 7.

Navigate to the drink record.

Before we can use the data retrieved by the cursor, we need to explicitly

navigate to it.

Display details of the drink in DrinkActivity.

Once we’ve navigated to the drink record in the cursor, we need to read

the data and display it in DrinkActivity.

Starbuzz

database

SQLite Helper

DrinkActivity.java

DrinkActivity

displays details

of the drink

the user

selected.

you are here 4 661

basic cursors

The current DrinkActivity code

Below is a reminder of the current DrinkActivity.java code. The

onCreate() method gets the drink ID selected by the user, gets

the details of that drink from the Drink class, and then populates

the activity’s views using the drink attributes. We need to change

the code in the onCreate() method to get the data from the

Starbuzz database.

package com.hfad.starbuzz;

...

public class DrinkActivity extends Activity {

public static final String EXTRA_DRINKID = "drinkId";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink);

//Get the drink from the intent

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

Drink drink = Drink.drinks[drinkId];

//Populate the drink name

TextView name = (TextView)findViewById(R.id.name);

name.setText(drink.getName());

//Populate the drink description

TextView description = (TextView)findViewById(R.id.description);

description.setText(drink.getDescription());

//Populate the drink image

ImageView photo = (ImageView)findViewById(R.id.photo);

photo.setImageResource(drink.getImageResourceId());

photo.setContentDescription(drink.getName());

}

Use the drink ID from the intent to get the

drink details from the Drink class. We’ll need to

change this so the drink comes from the database.

We need to

populate the

views in the

layout with

values from

the database,

not from the

Drink class.

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

This is the drink the user selected.

We're not showing you

the import statements.

Database reference

Create cursor

Navigate to record

Display drink

662 Chapter 16

get a database reference

Get a reference to the database

The first thing we need is to get a reference to the Starbuzz database

using the SQLite helper we created in the last chapter. To do that,

you start by getting a reference to the SQLite helper:

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

You then call the SQLite helper’s getReadableDatabase() or

getWritableDatabase() to get a reference to the database. You

use the getReadableDatabase() method if you need read-

only access to the database, and the getWritableDatabase()

method if you need to perform any updates. Both methods return a

SQLiteDatabase object that you can use to access the database:

If Android fails to get a reference to the database, a

SQLiteException is thrown. This can happen if, for example, you

call the getWritableDatabase() to get read/write access to the

database, but you can’t write to the database because the disk is full.

In our particular case, we only need to read data from the database, so

we’ll use the getReadableDatabase() method. If Android can’t

get a reference to the database and a SQLiteException is thrown,

we’ll use a Toast (a pop-up message) to tell the user that the database

is unavailable:

or:

SQLiteDatabase db = starbuzzDatabaseHelper.getWritableDatabase();

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

//Code to read data from the database

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this,

"Database unavailable",

Toast.LENGTH_SHORT);

toast.show();

}

Once you have a reference to the database, you can get data from it

using a cursor. We’ll look at cursors next.

This is a Context, in this

case the current activity.

These lines create a Toast that

will display the message “Database

unavailable” for a few seconds.

This line displays the toast.

Database reference

Create cursor

Navigate to record

Display drink

you are here 4 663

basic cursors

As we said in Chapter 15, a cursor lets you read from and write

to the database. You specify what data you want access to, and the

cursor brings back the relevant records from the database. You can

then navigate through the records supplied by the cursor.

You create a cursor using a database query. A database query lets

you specify which records you want access to from the database. As

an example, you can say you want to access all the records from the

DRINK table, or just one particular record. These records are then

returned in the cursor.

You create a cursor using the SQLiteDatabase query() method:

_id NAME DESCRIPTION IMAGE_RESOURCE_ID

1“Latte” "Espresso and steamed milk" 54543543

2“Cappuccino” "Espresso, hot milk and

steamed-milk foam"

654334453

3“Filter” "Our best drip coffee" 44324234

This is the database.

This is the data in the database you want

to be able to read.

The cursor reads

the data you want

in the database.

Get data from the database with a cursor

You navigate through

each record supplied

by the cursor and

read its values.

Cursor cursor = db.query(...);

There are many overloaded versions of this method with different

parameters, so rather than go into each variation, we’re only going to

show you the most common ways of using it.

The query() method

returns a Cursor object.

The query() method parameters go here.

We'll look at them over the next few pages.

Database reference

Create cursor

Navigate to record

Display drink

664 Chapter 16

query()

Return all the records from a table

Cursor cursor = db.query("DRINK",

new String[] {"_id","NAME", "DESCRIPTION"},

null, null, null, null, null);

We want to return the

values in these columns.

Set these parameters to null

when you want to return all

records from a table.

The query returns all the data from

the _id, NAME, and DESCRIPTION

columns in the DRINK table.

This is the name of the table.

_id NAME DESCRIPTION

1“Latte” "Espresso and steamed milk"

2“Cappuccino” "Espresso, hot milk and

steamed-milk foam"

3“Filter” "Our best drip coffee"

To return all the records from a particular table, you pass the

name of the table as the query() method’s first parameter, and

a String array of the column names as the second. You set all of

the other parameters to null, as you don’t need them for this

type of query.

The simplest type of database query is one that returns all the

records from a particular table in the database. This is useful

if, for instance, you want to display all the records in a list in an

activity. As an example, here’s how you’d return the values in

the _id, NAME, and DESCRIPTION columns for every record

in the DRINK table:

Cursor cursor = db.query("TABLE_NAME",

new String[] {"COLUMN1","COLUMN2"},

null, null, null, null, null);

You specify each column whose value you

want to return in an array of Strings.

There are five extra parameters

you need to set to null.

Next we’ll look at how you can return the records in a particular

order. Behind the scenes,

Android uses the

query() method to

construct an SQL

SELECT statement.

Database reference

Create cursor

Navigate to record

Display drink

you are here 4 665

basic cursors

Return records in a particular order

If you want to display data in your app in a particular order, you

use the query to sort the data by a particular column. This can

be useful if, for example, you want to display drink names in

alphabetical order.

By default, the data in the table appears in _id order, as this was

the order in which data was entered:

_id NAME DESCRIPTION IMAGE_RESOURCE_ID FAVORITE

1“Latte” "Espresso and steamed milk" 54543543 0

2“Cappuccino” "Espresso, hot milk and

steamed-milk foam"

654334453 0

3“Filter” "Our best drip coffee" 44324234 1

If you wanted to retrieve data from the _id, NAME, and

FAVORITE column in ascending NAME order, you would use

the following:

Cursor cursor = db.query("DRINK",

new String[] {"_id", "NAME", "FAVORITE"},

null, null, null, null,

"NAME ASC");

_id NAME FAVORITE

2“Cappuccino” 0

3“Filter” 1

1“Latte” 0

The ASC keyword means that you want to order that column

in ascending order. Columns are ordered in ascending order by

default, so if you want you can omit the ASC. To order the data

in descending order instead, you’d use DESC.

You can sort by multiple columns too. As an example, here’s how

you’d order by FAVORITE in descending order, followed by

NAME in ascending order:

Cursor cursor = db.query("DRINK",

new String[] {"_id", "NAME", "FAVORITE"},

null, null, null, null,

"FAVORITE DESC, NAME");

_id NAME FAVORITE

3“Filter” 1

2“Cappuccino” 0

1“Latte” 0

Order by NAME in ascending order.

Order by FAVORITE in

descending order, then

NAME in ascending order.

Next we’ll look at how you return selected records from the

database.

Database reference

Create cursor

Navigate to record

Display drink

666 Chapter 16

specify conditions

Return selected records

You can filter your data by declaring conditions the data must meet,

just as you did in Chapter 15. As an example, here’s how you’d

return records from the DRINK table where the name of the drink

is “Latte”:

Cursor cursor = db.query("DRINK",

new String[] {"_id", "NAME", "DESCRIPTION"},

"NAME = ?",

new String[] {"Latte"},

null, null, null);

We want to return records where the

value of the NAME column is “Latte”.

_id NAME DESCRIPTION

1“Latte” "Espresso and

steamed milk"

The query returns all the data from

the NAME and DESCRIPTION

columns in the DRINK table where the

value of the NAME column is “Latte".

You’ve now seen the most common ways of using the query()

method to create a cursor, so try the following exercise to

construct the cursor we need for DrinkActivity.java.

These are the columns we want to return.

The third and fourth parameters in the query describe the

conditions the data must meet.

The third parameter specifies the column in the condition. In the

above example we want to return records where the value of the

NAME column is “Latte”, so we use "NAME = ?". We want the

value in the NAME column to be equal to some value, and the ?

symbol is a placeholder for this value.

The fourth parameter is an array of Strings that specifies what the

value of the condition should be. In the above example we want to

update records where the value of the NAME column is “Latte”, so

we use:

new String[] {"Latte"};

Convert the int 1 to a String value.

The value of the condition must be an array of Strings, even if the

column you’re applying the condition to contains some other type

of data. As an example, here’s how you’d return records from the

DRINK table where the drink _id is 1:

Cursor cursor = db.query("DRINK",

new String[] {"_id", "NAME", "DESCRIPTION"},

"_id = ?",

new String[] {Integer.toString(1)},

null, null, null);

To find out more ways of

using the query() method,

visit the SQLiteDatabase

documentation:

https://developer.android.com/

reference/android/database/

sqlite/SQLiteDatabase.html

Database reference

Create cursor

Navigate to record

Display drink

you are here 4 667

basic cursors

Code Magnets

In our code for DrinkActivity, we want to get the name,

description, and image resource ID for the drink ID passed to it in an

intent. Can you create a cursor that will do that?

...

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

//Create a cursor

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

Cursor cursor = db.query( ,

new String[] { , , },

" ",

new String[] { },

null, null, null);

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

...

"IMAGE_RESOURCE_ID"

"DESCRIPTION"

"DRINK"

_id

"NAME"

Integer

toString

(

)

drinkId

You won't need to use

all of the magnets.

668 Chapter 16

magnets solution

...

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

//Create a cursor

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

Cursor cursor = db.query( ,

new String[] { , , },

" ",

new String[] { },

null, null, null);

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

...

Code Magnets Solution

In our code for DrinkActivity we want to get the name,

description, and image resource ID for the drink passed to it in an

intent. Can you create a cursor that will do that?

"IMAGE_RESOURCE_ID"

"DESCRIPTION"

"DRINK"

_id

"NAME"

Integer

.toString

()

drinkId

We want to access the DRINK table.

Get the NAME, DESCRIPTION, and IMAGE_RESOURCE_ID.

Where _id matches the drinkId

drinkId is an int, so needed to

be converted to a String.

You didn’t need to

use this magnet.

you are here 4 669

basic cursors

The DrinkActivity code so far

We want to change DrinkActivity.java’s onCreate() method so

that DrinkActivity gets its drink data from the Starbuzz

database instead of from the Drink Java class. Here’s the code

so far (we suggest you wait until we show you the full code—a few

pages ahead—before you update your version of DrinkActivity.java):

package com.hfad.starbuzz;

...

public class DrinkActivity extends Activity {

public static final String EXTRA_DRINKID = "drinkId";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink);

//Get the drink from the intent

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

Drink drink = Drink.drinks[drinkId];

//Create a cursor

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

Cursor cursor = db.query ("DRINK",

new String[] {"NAME", "DESCRIPTION", "IMAGE_RESOURCE_ID"},

"_id = ?",

new String[] {Integer.toString(drinkId)},

null, null, null);

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

...

}

Now that we’ve created our cursor, the next thing we need to do

is get the drink name, description, and image resource ID from

the cursor so that we can update DrinkActivity’s views.

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

Get a

reference

to the

database.

Create a cursor to get

the name, description,

and image resource ID

of the drink the user

selected.

We’ll add the code to the onCreate() method.

Display a pop-up message if a

SQLiteException is thrown.

There’s more code we

haven’t changed yet,

but you don’t need to

see it right now.

Our Starbuzz code uses the Activity class,

but we could have changed the code to

use AppCompatActivity if we'd wanted to.

Database reference

Create cursor

Navigate to record

Display drink

We’re no longer getting

the drinks from Drink.java.

670 Chapter 16

navigate records

To read a record from a cursor,

you first need to navigate to it

You’ve now seen how to create a cursor; you get a reference

to a SQLiteDatabase, and then use its query() method

to say what data you want the cursor to return. But that’s not

the end of the story—once you have a cursor, you need to

read values from it.

Whenever you need to retrieve values from a particular record

in a cursor, you first need to navigate to that record.

In our particular case, we have a cursor that’s composed of a

single record that contains details of the drink the user selected.

We need to navigate to that record in order to read details of the

drink.

_id NAME DESCRIPTION IMAGE_RESOURCE_ID

1“Latte” "Espresso and steamed milk" 54543543

2“Cappuccino” "Espresso, hot milk and

steamed-milk foam"

654334453

3“Filter” "Our best drip coffee" 44324234

You specify what records you want by

creating a query on the database.

The cursor contains

the records described

by the query.

You need to move

to a record in the

cursor to read values

from it.

Database reference

Create cursor

Navigate to record

Display drink

you are here 4 671

basic cursors

Navigate cursors

There are four main methods you use to navigate through the records in

a cursor: moveToFirst(), moveToLast(), moveToPrevious(),

and moveToNext().

To go to the first record in a cursor, you use its moveToFirst() method.

This method returns a value of true if it finds a record, and false if the

cursor hasn’t returned any records):

if (cursor.moveToFirst()) {

//Do something

};

To go to the last record, you use the moveToLast() method. Just like the

moveToFirst() method, it returns a value of true if it finds a record,

and false if it doesn’t:

if (cursor.moveToLast()) {

//Do something

};

To move through the records in the cursor, you use the

moveToPrevious() and moveToNext() methods.

The moveToPrevious() method moves you to the previous record in

the cursor. It returns true if it succeeds in moving to the previous record,

and false if it fails (for example, if it’s already at the first record):

if (cursor.moveToPrevious()) {

//Do something

};

The moveToNext() method works in a similar way to the

moveToPrevious() method, except that it moves you to the next

record in the cursor instead:

if (cursor.moveToNext()) {

//Do something

};

In our case, we want to read values from the first (and only) record in

the cursor, so we’ll use the moveToFirst() method to navigate to this

record.

Once you’ve navigated to a record in your cursor, you can access its values.

We’ll look at how to do that next.

NAME DESCRIPTION

“Latte” "Espresso and steamed

milk"

Cappuccino "Espresso, hot milk and

steamed-milk foam"

Filter "Our best drip coffee"

NAME DESCRIPTION

“Latte” "Espresso and steamed

milk"

Cappuccino "Espresso, hot milk and

steamed-milk foam"

Filter "Our best drip coffee"

NAME DESCRIPTION

“Latte” "Espresso and steamed

milk"

Cappuccino "Espresso, hot milk and

steamed-milk foam"

Filter "Our best drip coffee"

NAME DESCRIPTION

“Latte” "Espresso and steamed

milk"

Cappuccino "Espresso, hot milk and

steamed-milk foam"

Filter "Our best drip coffee"

Move to the first row.

Move to the last row.

Move to the previous row.

Move to the next row.

Database reference

Create cursor

Navigate to record

Display drink

672 Chapter 16

get values

Get cursor values

You retrieve values from a cursor’s current record using the

cursor’s get*() methods: getString(), getInt(), and so

on. The exact method you use depends on the type of value you

want to retrieve. To get a String value, for example, you’d use

the getString() method, and to get an int value you’d use

getInt(). Each of the methods takes a single parameter: the

index of the column whose value you want to retrieve, starting at 0.

As an example, we’re using the following query to create our cursor:

The cursor has three columns: NAME, DESCRIPTION, and

IMAGE_RESOURCE_ID. The first two columns, NAME and

DESCRIPTION, contain Strings, and the third column,

IMAGE_RESOURCE_ID, contains int values.

Suppose you wanted to get the value of the NAME column for

the current record. NAME is the first column in the cursor, and

contains String values. You’d therefore use the getString()

method, passing it a parameter of 0 for the column index:

Cursor cursor = db.query ("DRINK",

new String[] {"NAME", "DESCRIPTION", "IMAGE_RESOURCE_ID"},

"_id = ?",

new String[] {Integer.toString(1)},

null, null, null);

String name = cursor.getString(0);

Similarly, suppose you wanted to get the contents of the

IMAGE_RESOURCE_ID column. This has a column index of 2 and

contains int values, so you’d use the code:

int imageResource = cursor.getInt(2);

Finally, close the cursor and the database

Once you’ve finished retrieving values from the cursor, you need to close

the cursor and the database in order to release their resources. You do this

by calling the cursor and database close() methods:

cursor.close();

db.close();

We’ve now covered all the code you need to replace the code in

DrinkActivity so that it gets its data from the Starbuzz database.

Let’s look at the revised code in full.

NAME is column 0 and contains Strings.

NAME DESCRIPTION IMAGE_

RESOURCE_ID

“Latte” "Espresso and

steamed milk"

54543543

Column 0

Column 1

Column 2

You can find details

of all the cursor get

methods in http://

developer.android.com/

reference/android/

database/Cursor.html.

These are the cursor’s columns.

IMAGE_RESOURCE_ID is column 2 and contains ints.

These lines close the cursor and the database.

Database reference

Create cursor

Navigate to record

Display drink

you are here 4 673

basic cursors

The DrinkActivity code

Here’s the full code for DrinkActivity.java (apply the changes in bold to

your code, then save your work):

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ImageView;

import android.widget.TextView;

import android.widget.Toast;

import android.database.Cursor;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteException;

import android.database.sqlite.SQLiteOpenHelper;

public class DrinkActivity extends Activity {

public static final String EXTRA_DRINKID = "drinkId";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink);

//Get the drink from the intent

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

Drink drink = Drink.drinks[drinkId];

//Create a cursor

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

Cursor cursor = db.query ("DRINK",

new String[] {"NAME", "DESCRIPTION", "IMAGE_RESOURCE_ID"},

"_id = ?",

new String[] {Integer.toString(drinkId)},

null, null, null);

The code continues

on the next page.

Create a cursor that gets the

NAME, DESCRIPTION, and IMAGE_

RESOURCE_ID data from the DRINK

table where _id matches drinkId.

This is the ID of the

drink the user chose.

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

We’re using these extra

classes in the code.

Database reference

Create cursor

Navigate to record

Display drink

We’re no longer getting our data from the

drinks array, so we need to delete this line.

674 Chapter 16

code, continued

//Move to the first record in the Cursor

if (cursor.moveToFirst()) {

//Get the drink details from the cursor

String nameText = cursor.getString(0);

String descriptionText = cursor.getString(1);

int photoId = cursor.getInt(2);

//Populate the drink name

TextView name = (TextView)findViewById(R.id.name);

name.setText(drink.getName());

name.setText(nameText);

//Populate the drink description

TextView description = (TextView)findViewById(R.id.description);

description.setText(drink.getDescription());

description.setText(descriptionText);

//Populate the drink image

ImageView photo = (ImageView)findViewById(R.id.photo);

photo.setImageResource(drink.getImageResourceId());

photo.setContentDescription(drink.getName());

photo.setImageResource(photoId);

photo.setContentDescription(nameText);

}

cursor.close();

db.close();

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this,

"Database unavailable",

Toast.LENGTH_SHORT);

toast.show();

}

The DrinkActivity code (continued)

There’s only one record in the cursor,

but we still need to move to it.

Close the cursor and database.

So that’s the complete DrinkActivity code. Let’s

review where we’ve got to, and what we need to do next.

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

Connecting your

activities to a database

takes more code than

using a Java class.

But if you take your time working through

the code in this chapter, you’ll be fine.

The name of the

drink is the first

item in the cursor,

the description

is the second

column, and the

image resource

ID is the third.

That’s because we

told the cursor

to use the NAME,

DESCRIPTION,

and IMAGE_

RESOURCE_ID

columns from the

database in that

order.

If a SQLiteException is thrown, this means

there’s a problem with the database. In this case,

we’ll use a toast to display a message to the user.

Database reference

Create cursor

Navigate to record

Display drink

Set the drink name to the

value from the database.

Use the drink description

from the database.

Set the image resource ID

and description to the values

from the database.

you are here 4 675

basic cursors

DrinkActivity now gets all of its drink data from the

Starbuzz database. Next, we need to update the code in

DrinkCategoryActivity so that it uses data from

the database rather than from the Java Drink class. We’ll

look at the steps to do this on the next page.

TopLevelActivity.java

Device

</Layout>

activity_drink.xml

DrinkCategoryActivity.java DrinkActivity.java

Drink.java

Starbuzz

database SQLite Helper

DrinkActivity has

been changed so

it gets its data

from the Starbuzz

database via the

SQLite helper.

DrinkCategoryActivity still gets its

drink data from the Drink class.

What we’ve done so far

Now that we’ve finished updating the DrinkActivity.java code, let’s

look at the app structure diagram to see what we’ve done, and

what we need to do next.

Q: How much SQL do I need to know to create cursors?

A: It’s useful to have an understanding of SQL SELECT

statements, as behind the scenes the query() method

translates to one. In general, your queries probably won’t be too

complex, but SQL knowledge is a useful skill.

If you want to learn more about SQL, we suggest getting a copy of

Head First SQL by Lynn Beighley.

Q: You said that if the database can’t be accessed, a

SQLiteException is thrown. How should I deal with it?

A: First, check the exception details. The exception might be

caused by an error in SQL syntax, which you can then rectify.

How you handle the exception depends on the impact it has

on your app. As an example, if you can get read access to the

database but can’t write to it, you can still give the user read-only

access to the database, but you might want to tell the user that you

can’t save their changes. Ultimately, it all depends on your app.

</Layout>

activity_top_level.xml

</Layout>

activity_drink_

category.xml

676 Chapter 16

more steps

What we’ll do to change DrinkCategoryActivity

to use the Starbuzz database

Before we get started on these tasks, let’s remind

ourselves of the DrinkCategoryActivity.java code we

created in Chapter 7.

When we updated DrinkActivity to get it to read data

from the Starbuzz database, we created a cursor to read data

for the drink the user selected, and then we used the values

from the cursor to update DrinkActivity’s views.

The steps we need to go through to update

DrinkCategoryActivity are slightly different. This is

because DrinkCategoryActivity displays a list view

that uses the drink data as its source. We need to switch the

source of this data to be the Starbuzz database.

Here are the steps we need to go through to change

DrinkCategoryActivity so that it uses the Starbuzz

database:

Create a cursor to read drink data from the database.

As before, we need to get a reference to the Starbuzz database. Then we’ll

create a cursor to retrieve the drink names from the DRINK table.

Replace the list view’s array adapter with a cursor adapter.

The list view currently uses an array adapter to get its drink names. This is

because the data’s held in an array in the Drink class. Because we’re now

accessing the data using a cursor, we’ll use a cursor adapter instead.

ListView CursorAdapter

Cursor

Cursor Database

you are here 4 677

basic cursors

The current DrinkCategoryActivity code

Here’s a reminder of what the current DrinkCategoryActivity.java code looks

like. The onCreate() method populates a list view with drinks using an

array adapter. The onListItemClick() method adds the drink the

user selects to an intent, and then starts DrinkActivity:

package com.hfad.starbuzz;

...

public class DrinkCategoryActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink_category);

ArrayAdapter<Drink> listAdapter = new ArrayAdapter<>(

this,

android.R.layout.simple_list_item_1,

Drink.drinks);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

listDrinks.setAdapter(listAdapter);

//Create a listener to listen for clicks in the list view

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listDrinks,

View itemView,

int position,

long id) {

//Pass the drink the user clicks on to DrinkActivity

Intent intent = new Intent(DrinkCategoryActivity.this,

DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int) id);

startActivity(intent);

}

};

//Assign the listener to the list view

listDrinks.setOnItemClickListener(itemClickListener);

}

At the

moment, we’re

using an

ArrayAdapter

to bind an

array to the

ListView.

We need to

replace this

code so that

the data

comes from

a database

instead.

DrinkCategoryActivity

displays a list of drinks.

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

Create cursor

Cursor adapter

678 Chapter 16

get a database reference

...then create a cursor that returns the drinks

To create the cursor, we need to specify what data we want it to contain. We

want to use the cursor to display a list of drink names, so the cursor needs

to include the NAME column. We’ll also include the _id column to get

the ID of the drink: we need to pass the ID of the drink the user chooses to

DrinkActivity so that DrinkActivity can display its details. Here’s

the cursor:

cursor = db.query("DRINK",

new String[]{"_id", "NAME"},

null, null, null, null, null);

We need to change DrinkCategoryActivity so that it gets its

data from the Starbuzz database. Just as before, this means that we

need to create a cursor to return the data we need.

We start by getting a reference to the database. We only need

to read the drink data and not update it, so we’ll use the

getReadableDatabase() method as we did before:

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

cursor = db.query("DRINK",

new String[]{"_id", "NAME"},

null, null, null, null, null);

//Code to use data from the database

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this,

"Database unavailable",

Toast.LENGTH_SHORT);

toast.show();

}

Get a reference to the Starbuzz database...

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

Putting this together, here’s the code to get a reference to the database

and create the cursor (you’ll add this code to DrinkCategoryActivity.java

later when we show you the full code listing):

Next we’ll use the cursor’s data to populate

DrinkCategoryActivity’s list view.

We get a reference to the

database in exactly the same way

that we did earlier in this chapter.

This cursor returns the _id and NAME

of every record in the DRINK table.

If the database is unavailable, a SQLiteException

gets thrown. If this happens, we’ll use a toast to

display a pop-up message as before.

Create cursor

Cursor adapter

you are here 4 679

basic cursors

How do we replace the array data

in the list view?

When we wanted DrinkCategoryActivity’s list view

to display data from the Drink.drinks array, we used

an array adapter. As you saw back in Chapter 7, an array

adapter is a type of adapter that works with arrays. It acts as

a bridge between the data in an array and a list view:

Now that we’re getting our data from a cursor, we’ll use a

cursor adapter to bind the data to our list view. A cursor

adapter is just like an array adapter, except that instead

of getting its data from an array, it reads the data from a

cursor:

Cursor Cursor

Adapter

ListViewDatabase

data

Our data comes from a cursor,

so we’ll use a cursor adapter

to bind it to the ListView.

Drink.

drinks

ListView

Array

Adapter

This is the array. This is the list view.

We created an array adapter to

bind the list view to the array.

We’ll look at this in more detail on the next page.

ListViews and Spinners can use any subclass

of the Adapter class for their data. This

includes ArrayAdapter, CursorAdapter, and

SimpleCursorAdapter (a subclass of CursorAdapter).

This is the database.

The cursor reads data

from the database.

Create cursor

Cursor adapter

680 Chapter 16

how simple cursor adapters work

A simple cursor adapter maps

cursor data to views

We’re going to create a simple cursor adapter, a type of cursor

adapter that can be used in most cases where you need to display

cursor data in a list view. It takes columns from a cursor, and maps

them to text views or image views, for example in a list view.

In our case, we want to display a list of drink names. We’ll use a

simple cursor adapter to map the name of each drink returned by

our cursor to DrinkCategoryActivity’s list view.

Here’s how it will work:

Latte

The adapter asks the cursor for data from the database.

Simple

CursorAdapter

Cursor Database

The list view asks the adapter for data.

ListView Simple

CursorAdapter

The adapter returns the data to the list view.

The name of each drink is displayed in the list view as a separate text view.

ListView Simple

CursorAdapter

Cappuccino

Filter

Let’s construct the simple cursor adapter.

Each of the

drinks is displayed

in the list view as

a separate text

view.

Create cursor

Cursor adapter

you are here 4 681

basic cursors

You use a simple cursor adapter in a similar way to how you use an

array adapter: you initialize the adapter, then attach it to the list view.

We’re going to create a simple cursor adapter to display a list of drink

names from the DRINK table. To do this, we’ll create a new instance

of the SimpleCursorAdapter class, passing in parameters to tell

the adapter what data to use and how it should be displayed. Finally,

we’ll assign the adapter to the list view.

Here’s the code (you’ll add it to DrinkCategoryActivity.java later in the

chapter):

SimpleCursorAdapter listAdapter = new SimpleCursorAdapter(this,

android.R.layout.simple_list_item_1,

cursor,

new String[]{"NAME"},

new int[]{android.R.id.text1},

0);

listDrinks.setAdapter(listAdapter);

“this” is the current activity.

The general form of the SimpleCursorAdapter constructor

looks like this:

This is the same layout we used with

the array adapter. It displays a single

value for each row in the list view.

This is the cursor.

Display the contents of the NAME

column in the ListView text views.

Use setAdapter() to connect the adapter to the list view.

How to use a simple cursor adapter

The context and layout parameters are exactly the same ones

you used when you created an array adapter: context is the

current context, and layout says how you want to display the

data. Instead of saying which array we need to get our data from,

we need to specify which cursor contains the data. You then use

fromColumns to specify which columns in the cursor you want to

use, and toViews to say which views you want to display them in.

The flags parameter is usually set to 0, which is the default. The

alternative is to set it to FLAG_REGISTER_CONTENT_OBSERVER

to register a content observer that will be notified when the content

changes. We’re not covering this alternative here, as it can lead to

memory leaks (you’ll see how to deal with changing content in the

next chapter).

SimpleCursorAdapter adapter = new SimpleCursorAdapter(Context context,

int layout,

Cursor cursor,

String[] fromColumns,

int[] toViews,

int flags)

The cursor you create.

The cursor should include

the _id column, and the

data you want to appear.

Which columns

in the cursor to

match to which

views

Used to determine the

behavior of the cursor

How to display

the data

This is usually the current activity.

Any cursor you use

with a cursor adapter

MUST include the _id

column or it won't work.

Create cursor

Cursor adapter

682 Chapter 16

close the things that you open

Close the cursor and database

When we introduced you to cursors earlier in the chapter, we said

that you needed to close the cursor and database after you’d finished

with it in order to release their resources. In our DrinkActivity

code, we used a cursor to retrieve drink details from the database, and

once we’d used these values with our views, we immediately closed the

cursor and database.

When you use a cursor adapter, (including a simple cursor adapter) it

works slightly differently; the cursor adapter needs the cursor to stay

open in case it needs to retrieve more data from it. Let’s look in more

detail at how cursor adapters work to see why this might happen.

The list view gets displayed on the screen.

When the list is first displayed, it will be sized to fit the screen. Let’s say it has space to show

five items.

The list view asks its adapter for the first five items.

ListView

These are the items

the list view has

space to display.

We’re using five to

keep things simple,

but in practice it’s

likely to be more.

ListView CursorAdapter

Hey, Adapter,

can I have the first

five data items?

Yep, I’ll go

and get them.

The cursor adapter asks its cursor to read five rows from the database.

No matter how many rows the database table contains, the cursor only needs to read the

first five rows.

CursorAdapter

Cursor Database

Create cursor

Cursor adapter

you are here 4 683

basic cursors

public void onDestroy(){

super.onDestroy();

cursor.close();

db.close();

}

That’s everything you need to know in order to update the code for

DrinkCategoryActivity, so have a go at the exercise on the

next page.

Close the cursor and database

when the activity is destroyed.

This means that you can’t immediately close the cursor and

database once you’ve used the setAdapter() method to connect

the cursor adapter to your list view. Instead, we’ll close the cursor

and database in the activity’s onDestroy() method, which gets

called just before the activity is destroyed. Because the activity’s

being destroyed, there’s no further need for the cursor or database

connection to stay open, so they can be closed:

ListView CursorAdapter

Cursor

Hey Adapter, I

need more data.

Hey, Cursor, I need

more... Cursor? Hey,

buddy, are you there?

If you close the cursor

too soon, the cursor

adapter won’t be able

to get more data from

the cursor.

The user scrolls the list.

As the user scrolls the list, the adapter asks the cursor to read more rows from the

database. This works fine if the cursor’s still open. But if the cursor’s already been

closed, the cursor adapter can’t get any more data from the database.

As the user scrolls

through the list view,

more items get uncovered

so more data is required.

The story continues

Create cursor

Cursor adapter

684 Chapter 16

exercise

Pool Puzzle

Your job is to take code segments from the

pool and place them into the blank lines

in DrinkCategoryActivity.java. You may

not use the same code segment more

than once, and you won’t need to use

all the code segments. Your goal is

to populate the list view with a list of

drinks from the database.

Note: each segment in

the pool can only be

used once!

getReadableDatabase()

SQLiteOpenHelper

getWritableDatabase()

"DESCRIPTION" "_id"

"NAME"

cursor

SimpleCursorAdapter

cursor "NAME"

SQLiteException DatabaseException

The code continues

on the next page

public class DrinkCategoryActivity extends Activity {

private SQLiteDatabase db;

private Cursor cursor;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink_category);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

db = starbuzzDatabaseHelper. ;

cursor = db.query("DRINK",

new String[]{ },

null, null, null, null, null);

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

you are here 4 685

basic cursors

SimpleCursorAdapter listAdapter = new (this,

android.R.layout.simple_list_item_1,

new String[]{ },

new int[]{android.R.id.text1},

0);

listDrinks.setAdapter(listAdapter);

} catch( e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

//Create the listener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listDrinks,

View itemView,

int position,

long id) {

//Pass the drink the user clicks on to DrinkActivity

Intent intent = new Intent(DrinkCategoryActivity.this,

DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int) id);

startActivity(intent);

}

};

//Assign the listener to the list view

listDrinks.setOnItemClickListener(itemClickListener);

}

@Override

public void onDestroy(){

super.onDestroy();

.close();

}

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

686 Chapter 16

public class DrinkCategoryActivity extends Activity {

private SQLiteDatabase db;

private Cursor cursor;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink_category);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

db = starbuzzDatabaseHelper. ;

cursor = db.query("DRINK",

new String[]{ },

null, null, null, null, null);

solution

Pool Puzzle Solution

Your job is to take code segments from the

pool and place them into the blank lines

in DrinkCategoryActivity.java. You may

not use the same code segment more

than once, and you won’t need to use

all the code segments. Your goal is

to populate the list view with a list of

drinks from the database.

getReadableDatabase()

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

SQLiteOpenHelper

getWritableDatabase()

You get a reference to the database using a SQLiteOpenHelper.

We’re reading from the

database, so we just

need read-only access.

"DESCRIPTION"

DatabaseException

These code snippets

were not needed.

"_id" "NAME",

The cursor must include the _id and NAME

columns. We want to pass the drink ID to

DrinkActivity, and we need to display the

drink names.

you are here 4 687

basic cursors

SimpleCursorAdapter listAdapter = new (this,

android.R.layout.simple_list_item_1,

new String[]{ },

new int[]{android.R.id.text1},

0);

listDrinks.setAdapter(listAdapter);

} catch( e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

//Create the listener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listDrinks,

View itemView,

int position,

long id) {

//Pass the drink the user clicks on to DrinkActivity

Intent intent = new Intent(DrinkCategoryActivity.this,

DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int) id);

startActivity(intent);

}

};

//Assign the listener to the list view

listDrinks.setOnItemClickListener(itemClickListener);

}

@Override

public void onDestroy(){

super.onDestroy();

.close();

}

cursor

SimpleCursorAdapter

cursor

"NAME"

SQLiteException

We’re using a SimpleCursorAdapter.

Use the cursor

we just created. Display the contents

of the NAME column.

If the database is unavailable, we’ll catch the SQLiteException.

Close the cursor before you

close the database.

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

688 Chapter 16

DrinkCategoryActivity code

The revised code for DrinkCategoryActivity

Here’s the full code for DrinkCategoryActivity.java, with the array

adapter replaced by a cursor adapter (the changes are in bold);

update your code to match ours:

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ListView;

import android.view.View;

import android.content.Intent;

import android.widget.AdapterView;

import android.database.Cursor;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteException;

import android.database.sqlite.SQLiteOpenHelper;

import android.widget.SimpleCursorAdapter;

import android.widget.Toast;

public class DrinkCategoryActivity extends Activity {

private SQLiteDatabase db;

private Cursor cursor;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink_category);

ArrayAdapter<Drink> listAdapter = new ArrayAdapter<>(

this,

android.R.layout.simple_list_item_1,

Drink.drinks);

ListView listDrinks = (ListView) findViewById(R.id.list_drinks);

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

db = starbuzzDatabaseHelper.getReadableDatabase();

cursor = db.query("DRINK",

new String[]{"_id", "NAME"},

null, null, null, null, null);

Get a reference

to the database.

The code continues on the next page.

We’re adding these as private variables so we can close

the database and cursor in our onDestroy() method.

We’re using these extra classes,

so you need to import them.

Create the cursor.

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

Create cursor

Cursor adapter

We’re no longer

using an array

adapter, so

delete these

lines of code.

you are here 4 689

basic cursors

Let’s try running our freshly updated app.

SimpleCursorAdapter listAdapter = new SimpleCursorAdapter(this,

android.R.layout.simple_list_item_1,

cursor,

new String[]{"NAME"},

new int[]{android.R.id.text1},

0);

listDrinks.setAdapter(listAdapter);

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

//Create a listener to listen for clicks in the list view

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listDrinks,

View itemView,

int position,

long id) {

//Pass the drink the user clicks on to DrinkActivity

Intent intent = new Intent(DrinkCategoryActivity.this,

DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int) id);

startActivity(intent);

}

};

//Assign the listener to the list view

listDrinks.setOnItemClickListener(itemClickListener);

}

@Override

public void onDestroy(){

super.onDestroy();

cursor.close();

db.close();

}

The DrinkCategoryActivity code (continued)

We didn’t need to

change any of the

listener code.

We’re closing the database and cursor in the

activity’s onDestroy() method. The cursor

will stay open until the cursor adapter no

longer needs it.

Map the contents

of the NAME

column to the text

in the ListView.

Set the adapter to the ListView.

app/src/main

DrinkCategory

Activity.java

Starbuzz

java

com.hfad.starbuzz

Create the cursor adapter.

Display a message to the user if a

SQLiteException gets thrown.

Create cursor

Cursor adapter

690 Chapter 16

test drive

The app looks exactly the same as before, but now the

data is being read from the database. In fact, you can

now delete the Drink.java code, because we no longer

need the array of drinks. Every piece of data we need

is now coming from the database.

Test drive the app

When you run the app, TopLevelActivity gets

displayed.

When you click on the Drinks item,

DrinkCategoryActivity is launched. It

displays all the drinks from the Starbuzz database.

When you click on one of the drinks,

DrinkActivity is launched and details of the

selected drink are displayed.

We clicked on the

Latte option...

...and here are

details of the

Latte.

Create cursor

Cursor adapter

you are here 4 691

basic cursors

Your Android Toolbox

You’ve got Chapter 16 under

your belt and now you’ve

added basic cursors to your

toolbox.

A cursor lets you read from and write to

the database.

You create a cursor by calling the

SQLiteDatabase query()

method. Behind the scenes, this builds a

SQL SELECT statement.

The getWritableDatabase()

method returns a SQLiteDatabase

object that allows you to read from and

write to the database.

The getReadableDatabase()

returns a SQLiteDatabase object.

This gives you read-only access to

the database. It may also allow you

to write to the database, but this isn’t

guaranteed.

Navigate through a cursor using the

moveTo*() methods.

Get values from a cursor using the

get*() methods. Close cursors and

database connections after you’ve

finished with them.

A cursor adapter is an adapter

that works with cursors. Use

SimpleCursorAdapter to

populate a list view with the values

returned by a cursor.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 16

this is a new chapter 693

My doInBackground()

method’s awesome. If

I left it all to Mr. Main

Event, can you imagine

how slow he’d be?

cursors and asynctasks

Staying in the Background

In most apps, you’ll need your app to update its data.

So far you’ve seen how to create apps that read data from a SQLite database. But what

if you want to update the app’s data? In this chapter you’ll see how to get your app to

respond to user input and update values in the database. You’ll also find out how to

refresh the data that’s displayed once it’s been updated. Finally, you’ll see how writing

efficient multithreaded code with AsyncTasks will keep your app speedy.

694 Chapter 17

update data

We want our Starbuzz app to update database data

In Chapter 16, you learned how to change your app to

read its data from a SQLite database. You saw how to read

an individual record (a drink from the Starbuzz data) and

display that record’s data in an activity. You also learned

how to populate a list view with database data (in this case

drink names) using a cursor adapter.

In both of these scenarios, you only needed to read data

from the database. But what if you want users to be able to

update the data?

We’re going to change the Starbuzz app so that users can

record which drinks are their favorites. We’ll do this by

adding a checkbox to DrinkActivity; if it’s checked, it

means the current drink is one of the user’s favorites:

Users can say which drinks are

their favorites by checking a

checkbox. We need to add this

checkbox to DrinkActivity and

get it to update the database.

We’ll add a ListView

to TopLevelActivity,

which contains the

user’s favorite drinks.

When the user clicks on

a drink, it takes them

to that drink’s details

in DrinkActivity.

In the real world, you’d

probably want to use tab

navigation for these items.

We’re deliberately keeping

the app pretty basic

because we want you to

focus on databases.

We’ll also add a new list view to TopLevelActivity,

which contains the user’s favorite drinks:

you are here 4 695

cursors and asynctasks

We’ll update DrinkActivity first

In Chapter 15, we added a FAVORITE column to the DRINK

table in the Starbuzz database. We’ll use this column to let users

indicate whether a particular drink is one of their favorites. We’ll

display its value in the new checkbox we’re going to add to

DrinkActivity, and when the user clicks on the checkbox,

we’ll update the FAVORITE column with the new value.

Here are the steps we’ll go through to update DrinkActivity:

We’ll add this checkbox and

label to activity_drink.xml.

Do this!

We’re going to update the

Starbuzz app in this chapter,

so open your Starbuzz

project in Android Studio.

Update DrinkActivity’s layout to add a checkbox and text label.

Display the value of the FAVORITE column in the checkbox.

To do this, we’ll need to retrieve the value of the FAVORITE column

from the Starbuzz database.

Update the FAVORITE column when the checkbox is clicked.

We’ll update the FAVORITE column with the value of the checkbox so

that the data in the database stays up to date.

Let’s get started.

696 Chapter 17

<ImageView

android:id="@+id/photo"

android:layout_width="190dp"

android:layout_height="190dp" />

<TextView

android:id="@+id/name"

android:layout_width="wrap_content"

android:layout_height="wrap_content" />

<TextView

android:id="@+id/description"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

<CheckBox android:id="@+id/favorite"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/favorite"

android:onClick="onFavoriteClicked" />

</LinearLayout>

add favorites

Add a checkbox to DrinkActivity’s layout

We’ll start by adding a new checkbox to DrinkActivity’s layout to

indicate whether the current drink is one of the user’s favorites. We’re

using a checkbox, as it’s an easy way to display true/false values.

First, add a String resource called "favorite" to strings.xml (we’ll

use this as a label for the checkbox):

<string name="favorite">Favorite</string>

<xml>

</xml>

app/src/main

activity_drink.xml

Starbuzz

res

layout

The checkbox has an ID of favorite.

We're giving the checkbox a label.

When the checkbox is clicked,

the onFavoriteClicked() method

in DrinkActivity will get called.

We need to write this method.

These are

the photo,

name, and

description

views we

added when

we first

created the

activity.

Then add the checkbox to activity_drink.xml. We’ll give the checkbox an

ID of favorite so that we can refer to it in our activity code. We’ll also

set its android:onClick attribute to "onFavoriteClicked"

so that it calls the onFavoriteClicked() method in

DrinkActivity when the user clicks on the checkbox. Here’s the

layout code; update your code to reflect our changes (they’re in bold):

<xml>

</xml>

app/src/main

strings.xml

Starbuzz

res

values

Next we’ll change the DrinkActivity code to get the checkbox

to reflect the value of the FAVORITE column from the database.

Update layout

Show favorite

Update favorite

you are here 4 697

cursors and asynctasks

Display the value of the FAVORITE column

In order to update the checkbox, we first need to retrieve the

value of the FAVORITE column from the database. We can do

this by updating the cursor we’re using in DrinkActivity’s

onCreate() method to read drink values from the database.

Here’s the cursor we’re currently using to return data for the drink

the user has selected:

That’s all the code we need to reflect the value of the FAVORITE

column in the favorite checkbox. Next, we need to get the

checkbox to respond to clicks so that it updates the database when

its value changes.

Add the FAVORITE

column to the cursor.

Get the value of the FAVORITE

column. It’s stored in the database

as 1 for true, 0 for false.

Set the value of the

favorite checkbox.

Once we have the value of the FAVORITE column, we can update

the favorite checkbox accordingly. To get this value, we first

navigate to the first (and only) record in the cursor using:

boolean isFavorite = (cursor.getInt(3) == 1);

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

favorite.setChecked(isFavorite);

Cursor cursor = db.query("DRINK",

new String[]{"NAME", "DESCRIPTION", "IMAGE_RESOURCE_ID"},

"_id = ?",

new String[]{Integer.toString(drinkId)},

null, null, null);

To include the FAVORITE column in the data that’s returned, we

simply add it to the array of column names returned by the cursor:

Cursor cursor = db.query("DRINK",

new String[]{"NAME", "DESCRIPTION", "IMAGE_RESOURCE_ID", "FAVORITE"},

"_id = ?",

new String[]{Integer.toString(drinkId)},

null, null, null);

cursor.moveToFirst();

We can then get the value of the column for the current drink. The

FAVORITE column contains numeric values, where 0 is false

and 1 is true. We want the favorite checkbox to be ticked if the

value is 1 (true), and unticked if the value is 0 (false), so we’ll use the

following code to update the checkbox:

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

You don’t need to update your

version of the code yet. We’ll show

you the full set of changes for

DrinkActivity.java soon.

Update layout

Show favorite

Update favorite

698 Chapter 17

respond to clicks

Respond to clicks to update the database

db.update(String table,

ContentValues values,

String conditionClause,

String[] conditionArguments);

where table is the name of the table you want to update, and

values is a ContentValues object containing name/value pairs

of the columns you want to update and the values you want to set

them to. The conditionClause and conditionArguments

parameters lets you specify which records you want to update.

You already know everything you need to get DrinkActivity

to update the FAVORITE column for the current drink when the

checkbox is clicked, so have a go at the following exercise.

When we added the favorite checkbox to activity_drink.xml, we

set its android:onClick attribute to onFavoriteClicked().

This means that whenever the user clicks on the checkbox, the

onFavoriteClicked() method in the activity will get called.

We’ll use this method to update the database with the current value

of the checkbox. If the user checks or unchecks the checkbox, the

onFavoriteClicked() method will save the user’s change to

the database.

In Chapter 15, you saw how to use SQLiteDatabase methods to

change the data held in a SQLite database: the insert() method

to insert data, the delete() method to delete data, and the

update() method to update existing records.

You can use these methods to change data from within your activity.

As an example, you could use the insert() method to add new

drink records to the DRINK table, or the delete() method to

delete them. In our case, we want to update the DRINK table’s

FAVORITE column with the value of the checkbox using the

update() method.

As a reminder, the update() method looks like this:

DrinkActivity Starbuzz

database

update()

The table whose data you want to update

The new values

The criteria for updating the data

Update layout

Show favorite

Update favorite

you are here 4 699

cursors and asynctasks

public class DrinkActivity extends Activity {

...

//Update the database when the checkbox is clicked

public void onFavoriteClicked( ){

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

drinkValues = new ;

drinkValues.put( , favorite.isChecked());

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper. ;

db.update( , ,

, new String[] {Integer.toString(drinkId)});

db.close();

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

Code Magnets

In our code for DrinkActivity we want to update the FAVORITE

column in the database with the value of the favorite checkbox.

Can you construct the onFavoriteClicked() method so that it

will do that?

View view

ContentValues

ContentValues()

"FAVORITE"

getWritableDatabase()

"DRINK"

drinkValues

"_id = ?"

favorite

getReadableDatabase()

You won’t need to

use all the magnets.

700 Chapter 17

magnets solution

public class DrinkActivity extends Activity {

...

//Update the database when the checkbox is clicked

public void onFavoriteClicked( ){

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

drinkValues = new ;

drinkValues.put( , favorite.isChecked());

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper. ;

db.update( , ,

, new String[] {Integer.toString(drinkId)});

db.close();

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

Code Magnets Solution

In our code for DrinkActivity we want to update the FAVORITE

column in the database with the value of the favorite checkbox.

Can you construct the onFavoriteClicked() method so that it

will do that?

View view

ContentValues

ContentValues()

favorite

"FAVORITE"

getReadableDatabase()

getWritableDatabase()

"DRINK"

drinkValues

"_id = ?"

We need read/write access to

the database to update it.

You didn’t need to use these magnets.

you are here 4 701

cursors and asynctasks

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ImageView;

import android.widget.TextView;

import android.widget.Toast;

import android.database.Cursor;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteException;

import android.database.sqlite.SQLiteOpenHelper;

import android.view.View;

import android.widget.CheckBox;

import android.content.ContentValues;

public class DrinkActivity extends Activity {

public static final String EXTRA_DRINKID = "drinkId";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink);

//Get the drink from the intent

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

The full DrinkActivity.java code

We’ve now done everything we need to change DrinkActivity

so that it reflects the contents of the FAVORITE column in the

favorite checkbox. It then updates the value of the column in

the database if the user changes the value of the checkbox.

Here’s the full code for DrinkActivity.java, so update your version of

the code so that it reflects ours (our changes are in bold):

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

We’re using these extra classes,

so you need to import them.

The code continues

on the next page.

Update layout

Show favorite

Update favorite

702 Chapter 17

code, continued

//Create a cursor

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

Cursor cursor = db.query("DRINK",

new String[]{"NAME", "DESCRIPTION", "IMAGE_RESOURCE_ID", "FAVORITE"},

"_id = ?",

new String[]{Integer.toString(drinkId)},

null, null, null);

//Move to the first record in the Cursor

if (cursor.moveToFirst()) {

//Get the drink details from the cursor

String nameText = cursor.getString(0);

String descriptionText = cursor.getString(1);

int photoId = cursor.getInt(2);

boolean isFavorite = (cursor.getInt(3) == 1);

//Populate the drink name

TextView name = (TextView) findViewById(R.id.name);

name.setText(nameText);

//Populate the drink description

TextView description = (TextView) findViewById(R.id.description);

description.setText(descriptionText);

//Populate the drink image

ImageView photo = (ImageView) findViewById(R.id.photo);

photo.setImageResource(photoId);

photo.setContentDescription(nameText);

//Populate the favorite checkbox

CheckBox favorite = (CheckBox)findViewById(R.id.favorite);

favorite.setChecked(isFavorite);

}

DrinkActivity.java (continued)

Add the FAVORITE

column to the cursor.

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

If the drink is a favorite, put a

checkmark in the favorite checkbox.

If the FAVORITE column has a value

of 1, this indicates a true value.

The code continues

on the next page.

Update layout

Show favorite

Update favorite

you are here 4 703

cursors and asynctasks

cursor.close();

db.close();

} catch (SQLiteException e) {

Toast toast = Toast.makeText(this,

"Database unavailable",

Toast.LENGTH_SHORT);

toast.show();

}

//Update the database when the checkbox is clicked

public void onFavoriteClicked(View view){

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

//Get the value of the checkbox

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

ContentValues drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

//Get a reference to the database and update the FAVORITE column

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getWritableDatabase();

db.update("DRINK",

drinkValues,

"_id = ?",

new String[] {Integer.toString(drinkId)});

db.close();

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

DrinkActivity.java (continued)

Let’s check what happens when we run the app.

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

Update the drink’s FAVORITE

column in the database to the

value of the checkbox.

Add the value of the favorite

checkbox to the drinkValues

ContentValues object.

Display a message if there’s a

problem with the database.

Update layout

Show favorite

Update favorite

704 Chapter 17

test drive

Test drive the app

When we run the app and navigate to a drink, the new

favorite checkbox is displayed (unchecked):

When we click on the checkbox, a checkmark appears to

indicate that the drink is one of our favorites:

When we close the app and navigate back to the drink, the checkmark

remains. The value of the checkbox has been written to the database.

That’s everything we need to display the value of the FAVORITE column

from the database, and update the database with any changes to it.

Update layout

Show favorite

Update favorite

Here’s the new checkbox

we added with its label.

When we click on the checkbox, a

checkmark appears, and the value

gets written to the database.

you are here 4 705

cursors and asynctasks

Display favorites in TopLevelActivity

The next thing we need to do is display the user’s favorite drinks in

TopLevelActivity. Here are the steps we’ll go through to do

this:

Applying all of these changes will enable us to display

the user’s favorite drinks in TopLevelActivity.

We’ll go through these steps over the next few pages.

Starbuzz

database

Cursor

The favorites list view will

get its data from the

database using a cursor.

Add a list view and text view to TopLevelActivity’s layout.

Populate the list view and get it to respond to clicks.

We’ll create a new cursor that retrieves the user’s favorite drinks from

the database, and attach it to the list view using a cursor adapter.

We’ll then create an onItemClickListener so that we can get

TopLevelActivity to start DrinkActivity when the user clicks

on one of the drinks.

Refresh the list view data when we choose a new favorite

drink.

If we choose a new favorite drink in DrinkActivity, we want it to

be displayed in TopLevelActivity’s list view when we navigate

back to it.

When you click

on a drink in the

favorites list view,

DrinkActivity will

start, displaying

details of the

drink.

706 Chapter 17

<ImageView

android:layout_width="200dp"

android:layout_height="100dp"

android:src="@drawable/starbuzz_logo"

android:contentDescription="@string/starbuzz_logo" />

<ListView

android:id="@+id/list_options"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:entries="@array/options" />

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textAppearance="?android:attr/textAppearanceLarge"

android:text="@string/favorites" />

<ListView

android:id="@+id/list_favorites"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</LinearLayout>

display favorites

The list_favorites

ListView will display the

user’s favorite drinks.

We’ll add a text view to display the

text “Your favorite drinks.” We’ll put

this in a String called favorites.

<xml>

</xml>

app/src/main

activity_

top_level.xml

Starbuzz

res

layout

The layout already

contains the Starbuzz

logo and list view.

Display the favorite drinks in activity_top_level.xml

<string name="favorites">Your favorite drinks:</string>

Next, we’ll add the new text view and list view to the layout.

Here’s our code for activity_top_level.xml; update your version of

the code to match our changes:

Those are all the changes we need to make to activity_top_level.xml.

Next, we’ll update TopLevelActivity.java.

As we said on the previous page, we’re going to add a list view

to activity_top_level.xml, which we’ll use to display a list of the

user’s favorite drinks. We’ll also add a text view to display a

heading for the list.

First, add the following String resource to strings.xml (we’ll use

this for the text view’s text):

<xml>

</xml>

app/src/main

strings.xml

Starbuzz

res

values

you are here 4 707

cursors and asynctasks

package com.hfad.starbuzz;

...

public class TopLevelActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_top_level);

setupOptionsListView();

}

private void setupOptionsListView() {

//Create an OnItemClickListener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View itemView,

int position,

long id) {

if (position == 0) {

Intent intent = new Intent(TopLevelActivity.this,

DrinkCategoryActivity.class);

startActivity(intent);

}

};

//Add the listener to the list view

ListView listView = (ListView) findViewById(R.id.list_options);

listView.setOnItemClickListener(itemClickListener);

}

Before we write any code for our new list view, we’re going to refactor

our existing TopLevelActivity code. This will make the code a

lot easier to read later on. We’ll move the code relating to the options

list view into a new method called setupOptionsListView().

We’ll then call this method from the onCreate() method.

Here’s our code for TopLevelActivity.java (update your version of the

code to reflect our changes).

Refactor TopLevelActivity.java

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

All of this

code was

in the

onCreate()

method.

We're putting

it in a new

method to

make the

code tidier.

Call the new setupOptionsListView() method.

If the Drink option

in the list_options list

view is clicked, start

DrinkCategoryActivity.

Update layout

Populate list view

Refresh data

708 Chapter 17

TopLevelActivity changes

What changes are needed for

TopLevelActivity.java

We need to display the user’s favorite drinks in the list_

favorites list view we added to the layout, and get it to

respond to clicks. To do this, we need to do the following:

Populate the list_favorites list view using a cursor.

The cursor will return all drinks where the FAVORITE column has

been set to 1—all drinks that the user has flagged as being a favorite.

Just as we did in our code for DrinkCategoryActivity, we can

connect the cursor to the list view using a cursor adapter.

ListView CursorAdapter Database

Cursor

Create an onItemClickListener so that the list_favorites

list view can respond to clicks.

If the user clicks on one of their favorite drinks, we can create an

intent that starts DrinkActivity, passing it the ID of the drink

that was clicked. This will show the user details of the drink they’ve

just chosen.

TopLevelActivity DrinkActivity

Intent

drinkId

You’ve already seen all the code that’s needed to do this. In fact,

it’s almost identical to the code we wrote in earlier chapters to

control the list of drinks in DrinkCategoryActivity. The

only difference is that this time, we only want to display drinks

with a value of 1 in the FAVORITE column.

We’ve decided to put the code that controls a list view in a

new method called setupFavoritesListView(). We’ll

show you this method on the next page before adding it to

TopLevelActivity.java.

Latte

Cappuccino

Filter

Update layout

Populate list view

Refresh data

you are here 4 709

cursors and asynctasks

private void setupFavoritesListView() {

//Populate the list_favorites ListView from a cursor

ListView listFavorites = (ListView) findViewById(R.id.list_favorites);

try{

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

db = starbuzzDatabaseHelper.getReadableDatabase();

favoritesCursor = db.query("DRINK",

new String[] { "_id", "NAME"},

"FAVORITE = 1",

null, null, null, null);

CursorAdapter favoriteAdapter =

new SimpleCursorAdapter(TopLevelActivity.this,

android.R.layout.simple_list_item_1,

favoritesCursor,

new String[]{"NAME"},

new int[]{android.R.id.text1}, 0);

listFavorites.setAdapter(favoriteAdapter);

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

//Navigate to DrinkActivity if a drink is clicked

listFavorites.setOnItemClickListener(new AdapterView.OnItemClickListener() {

@Override

public void onItemClick(AdapterView<?> listView, View v, int position, long id) {

Intent intent = new Intent(TopLevelActivity.this, DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int)id);

startActivity(intent);

}

});

}

Ready Bake

Code

The setupFavoritesListView()

method populates the list_favorites

list view with the names of the user’s

favorite drinks. Make sure you understand

the code below before turning the page.

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

Get the names of the

user’s favorite drinks.

Get the list_favorites

list view.

Create a cursor that

gets the values of the

_id and NAME columns

where FAVORITE=1.

If the user clicks on one of the items

in the list_favorites list view, create an

intent to start DrinkActivity, including

the ID of the drink as extra information.

Display a message if there’s a problem with the database.

This will get

called if an

item in the

list view is

clicked.

Display the names of the

drinks in the list view.

Use the

cursor in

the cursor

adapter.

Create a new

cursor adapter.

Update layout

Populate list view

Refresh data

710 Chapter 17

TopLevelActivity code

The new TopLevelActivity.java code

We’ve updated TopLevelActivity to populate the

list_favorites list view and make it respond to clicks.

Update your version of TopLevelActivity.java to match ours

(there’s a lot of new code, so go through it carefully and

take your time):

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.widget.AdapterView;

import android.widget.ListView;

import android.view.View;

import android.database.Cursor;

import android.database.sqlite.SQLiteOpenHelper;

import android.database.sqlite.SQLiteException;

import android.database.sqlite.SQLiteDatabase;

import android.widget.SimpleCursorAdapter;

import android.widget.CursorAdapter;

import android.widget.Toast;

public class TopLevelActivity extends Activity {

private SQLiteDatabase db;

private Cursor favoritesCursor;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_top_level);

setupOptionsListView();

setupFavoritesListView();

}

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

We’re using all these

extra classes, so we

need to import them.

We're adding the database and cursor as private

variables so that we can access them in the

setUpFavoritesListView() and onDestroy() methods.

Call the setupFavoritesListView()

method from the onCreate() method.

The code continues

on the next page.

Update layout

Populate list view

Refresh data

you are here 4 711

cursors and asynctasks

private void setupOptionsListView() {

//Create an OnItemClickListener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View itemView,

int position,

long id) {

if (position == 0) {

Intent intent = new Intent(TopLevelActivity.this,

DrinkCategoryActivity.class);

startActivity(intent);

}

};

//Add the listener to the list view

ListView listView = (ListView) findViewById(R.id.list_options);

listView.setOnItemClickListener(itemClickListener);

}

private void setupFavoritesListView() {

//Populate the list_favorites ListView from a cursor

ListView listFavorites = (ListView) findViewById(R.id.list_favorites);

try{

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

db = starbuzzDatabaseHelper.getReadableDatabase();

favoritesCursor = db.query("DRINK",

new String[] { "_id", "NAME"},

"FAVORITE = 1",

null, null, null, null);

The TopLevelActivity.java code (continued)

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

We don't need to change this method.

This is the method we created to

populate the list_favorites list

view and make it respond to clicks.

Get a reference to the database.

The list_favorites

list view will use this

cursor for its data.

The code continues

on the next page.

Update layout

Populate list view

Refresh data

712 Chapter 17

code, continued

CursorAdapter favoriteAdapter =

new SimpleCursorAdapter(TopLevelActivity.this,

android.R.layout.simple_list_item_1,

favoritesCursor,

new String[]{"NAME"},

new int[]{android.R.id.text1}, 0);

listFavorites.setAdapter(favoriteAdapter);

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

//Navigate to DrinkActivity if a drink is clicked

listFavorites.setOnItemClickListener(new AdapterView.OnItemClickListener() {

@Override

public void onItemClick(AdapterView<?> listView, View v, int position, long id) {

Intent intent = new Intent(TopLevelActivity.this, DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int)id);

startActivity(intent);

}

});

}

//Close the cursor and database in the onDestroy() method

@Override

public void onDestroy(){

super.onDestroy();

favoritesCursor.close();

db.close();

}

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

The TopLevelActivity.java code (continued)

Use the cursor in

a cursor adapter.

Set the curser adapter to the list view.

Get the list_favorites list

view to respond to clicks.

Start DrinkActivity,

passing it the ID of the

drink that was clicked on.

The onDestroy() method gets called

just before the activity is destroyed.

We'll close the cursor and database in

this method, as we no longer need them

if the activity's being destroyed.

The above code populates the list_favorites list view with

the user’s favorite drinks. When the user clicks on one of these

drinks, an intent starts DrinkActivity and passes it the ID of

the drink. Let’s take the app for a test drive and see what happens.

Update layout

Populate list view

Refresh data

you are here 4 713

cursors and asynctasks

Test drive the app

When you run the app, the new text view and list_favorites list

view are displayed in TopLevelActivity. If you’ve marked a drink

as being a favorite, it appears in the list view.

If you click on that drink, DrinkActivity starts and details of the

drink are displayed.

But there’s a problem. If you select a new drink as being a

favorite, when you go back to TopLevelActivity the list_

favorites list view doesn’t include the new drink. The new drink

is only included in the list view if you rotate the device.

Update layout

Populate list view

Refresh data

Why do you think the new drink we chose as a favorite doesn’t

appear in the list view until we rotate the device? Give this

some thought before turning the page.

Here’s the new

list_favorites list view

we created. It displays

a latte, as we marked

this as a favorite

drink earlier in the

chapter.

When we click

on the drink,

its details are

displayed.

We’ve marked a cappuccino

as a favorite, but it’s not

appearing in the list view.

When we rotate the

device, the cappuccino

appears in the list view.

Why’s that?

714 Chapter 17

out-of-date data

Cursors don’t automatically refresh

If the user chooses a new favorite drink by navigating through

the app to DrinkActivity, the new favorite drink isn’t

automatically displayed in the list_favorites list view in

TopLevelActivity. This is because cursors retrieve data

when the cursor gets created.

In our case, the cursor is created in the activity onCreate()

method, so it gets its data when the activity is created. When the

user navigates through the other activities, TopLevelActivity is

stopped. It’s not destroyed and recreated, so neither is the cursor.

Cursors don’t automatically keep track of whether the underlying

data in the database has changed. So if the underlying data changes

after the cursor’s been created, the cursor doesn’t get updated: it still

contains the original records, and none of the changes. That means

that if the user marks a new drink as being a favorite after the cursor

is created, the cursor will be out of date.

So how do we get around this?

_id NAME DESCRIPTION IMAGE_RESOURCE_ID FAVORITE

1“Latte” "Espresso and steamed milk" 54543543 1

2“Cappuccino” "Espresso, hot milk and

steamed-milk foam"

654334453 0

3“Filter” "Our best drip coffee" 44324234 0

_id NAME DESCRIPTION IMAGE_RESOURCE_ID FAVORITE

1“Latte” "Espresso and steamed milk" 54543543 0

2“Cappuccino” "Espresso, hot milk and

steamed-milk foam"

654334453 0

3“Filter” "Our best drip coffee" 44324234 0

If you update the data

in the database...

...the cursor won’t

see the new data if

the cursor’s already

been created.

When you start a second activity,

the second activity is stacked

on top of the first. The first

activity isn’t destroyed. Instead,

it’s paused and then stopped, as

it loses the focus and stops being

visible to the user.

Update layout

Populate list view

Refresh data

you are here 4 715

cursors and asynctasks

Change the cursor with changeCursor()

The solution is to change the underlying cursor used by the list_

favorites list view to an updated version. To do this, you define a new

version of the cursor, get a reference to the list view’s cursor adapter, and

then call the cursor adapter’s changeCursor() method to change the

cursor. Here are the details:

Change the cursor used by the cursor adapter to the new one.

You get the ListView’s adapter

using the getAdapter() method.

1. Define the cursor

You define the cursor in exactly the same way as you did before. In our case,

we want the query to return the user’s favorite drinks, so we use:

Cursor newCursor = db.query("DRINK",

new String[] { "_id", "NAME"},

"FAVORITE = 1",

null, null, null, null);

2. Get a reference to the cursor adapter

You get a reference to the list view’s cursor adapter by calling the list view’s

getAdapter() method. This method returns an object of type Adapter.

As our list view is using a cursor adapter, we can cast the adapter to a

CursorAdapter:

ListView listFavorites = (ListView) findViewById(R.id.list_favorites);

CursorAdapter adapter = (CursorAdapter) listFavorites.getAdapter();

3. Change the cursor using changeCursor()

You change the cursor used by the cursor adapter by calling its

changeCursor() method. This method takes one parameter, the new

cursor:

adapter.changeCursor(newCursor);

The changeCursor() method replaces the cursor adapter’s current cursor

with the new one. It then closes the old cursor, so you don’t need to do this

yourself.

We’re going to change the cursor used by the list_favorites list view in

TopLevelActivity’s onRestart() method. This means that the data in

the list view will get refreshed when the user returns to TopLevelActivity.

Any new favorite drinks the user has chosen will be displayed, and any drinks

that are no longer flagged as favorites will be removed from the list.

We’ll show you the full code for TopLevelActivity.java over the next few pages.

Update layout

Populate list view

Refresh data

This is the same query

that we had before.

716 Chapter 17

code, continued

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.content.Intent;

import android.widget.AdapterView;

import android.widget.ListView;

import android.view.View;

import android.database.Cursor;

import android.database.sqlite.SQLiteOpenHelper;

import android.database.sqlite.SQLiteException;

import android.database.sqlite.SQLiteDatabase;

import android.widget.SimpleCursorAdapter;

import android.widget.CursorAdapter;

import android.widget.Toast;

public class TopLevelActivity extends Activity {

private SQLiteDatabase db;

private Cursor favoritesCursor;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_top_level);

setupOptionsListView();

setupFavoritesListView();

}

The revised TopLevelActivity.java code

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

You don’t need to change any

of the code on this page.

Here’s the full TopLevelActivity.java code; update your code to

reflect our changes (in bold).

The code continues

on the next page.

Update layout

Populate list view

Refresh data

you are here 4 717

cursors and asynctasks

private void setupOptionsListView() {

//Create an OnItemClickListener

AdapterView.OnItemClickListener itemClickListener =

new AdapterView.OnItemClickListener(){

public void onItemClick(AdapterView<?> listView,

View itemView,

int position,

long id) {

if (position == 0) {

Intent intent = new Intent(TopLevelActivity.this,

DrinkCategoryActivity.class);

startActivity(intent);

}

};

//Add the listener to the list view

ListView listView = (ListView) findViewById(R.id.list_options);

listView.setOnItemClickListener(itemClickListener);

}

private void setupFavoritesListView() {

//Populate the list_favorites ListView from a cursor

ListView listFavorites = (ListView) findViewById(R.id.list_favorites);

try{

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

db = starbuzzDatabaseHelper.getReadableDatabase();

favoritesCursor = db.query("DRINK",

new String[] { "_id", "NAME"},

"FAVORITE = 1",

null, null, null, null);

CursorAdapter favoriteAdapter =

new SimpleCursorAdapter(TopLevelActivity.this,

android.R.layout.simple_list_item_1,

favoritesCursor,

new String[]{"NAME"},

new int[]{android.R.id.text1}, 0);

listFavorites.setAdapter(favoriteAdapter);

The TopLevelActivity.java code (continued)

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

You don’t need to

change any of the

code on this page.

The code continues

on the next page.

Update layout

Populate list view

Refresh data

718 Chapter 17

more code

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

//Navigate to DrinkActivity if a drink is clicked

listFavorites.setOnItemClickListener(new AdapterView.OnItemClickListener() {

@Override

public void onItemClick(AdapterView<?> listView, View v, int position, long id) {

Intent intent = new Intent(TopLevelActivity.this, DrinkActivity.class);

intent.putExtra(DrinkActivity.EXTRA_DRINKID, (int)id);

startActivity(intent);

}

});

}

@Override

public void onRestart() {

super.onRestart();

Cursor newCursor = db.query("DRINK",

new String[] { "_id", "NAME"},

"FAVORITE = 1",

null, null, null, null);

ListView listFavorites = (ListView) findViewById(R.id.list_favorites);

CursorAdapter adapter = (CursorAdapter) listFavorites.getAdapter();

adapter.changeCursor(newCursor);

favoritesCursor = newCursor;

}

//Close the cursor and database in the onDestroy() method

@Override

public void onDestroy(){

super.onDestroy();

favoritesCursor.close();

db.close();

}

The TopLevelActivity.java code (continued)

app/src/main

TopLevel

Activity.java

Starbuzz

java

com.hfad.starbuzz

Add the onRestart() method. This will get called

when the user navigates back to TopLevelActivity.

Create a new version of the cursor.

Switch the cursor being used by the list_favorites

list view to the new cursor.

Let’s see what happens when we run the app now.

Change the value of favoritesCursor to the new cursor so

we can close it in the activity’s onDestroy() method.

Update layout

Populate list view

Refresh data

you are here 4 719

cursors and asynctasks

Test drive the app

When we run the app, our favorite drinks are displayed in

TopLevelActivity as before. When we click on one of the

drinks, its details are displayed in DrinkActivity. If we

uncheck the favorite checkbox for that drink and return to

TopLevelActivity, the data in the list_favorites list view

is refreshed and the drink is no longer displayed.

Update layout

Populate list view

Refresh data

The list_favorites

ListView initially

contains a latte and

a cappuccino.

When we click on

a latte, its details

are displayed.

We then uncheck the

checkbox to indicate

the drink is no longer

a favorite.

When we return to

TopLevelActivity, the latte

is no longerlisted in the

list_favorites list view.

I’ve been thinking... Using

databases in my app clearly has

a lot of advantages, but doesn’t

opening and reading from the

database slow the app down?

Databases are powerful, but they can be slow.

That means that even though our app works, we need to keep

an eye on performance...

720 Chapter 17

meanwhile...

Databases can make your app go in sloooow-moooo....

Think about what your app has to do when it opens a database. It first

needs to go searching for the database file. If the database file isn’t there,

it needs to create a blank database. Then it needs to run all of the SQL

commands to create tables inside the database and any initial data it needs.

Finally, it needs to fire off some queries to get the data out of there.

That all takes time. For a tiny database like the one used in the Starbuzz

app, it’s not a lot of time. But as a database gets bigger and bigger, that

time will increase and increase. Before you know it, your app will lose its

mojo and will be slower than YouTube on Thanksgiving.

There’s not a lot you can do about the speed of creating and reading from

a database, but you can prevent it from slowing down your interface.

Life is better when threads work together

The big problem with accessing a slow database is that can make your

app feel unresponsive. To understand why, you need to think about how

threads work in Android. Since Lollipop, there are three kinds of threads

you need to think about:

The main event thread

This is the real workhorse in Android. It listens for intents, it receives touch messages from

the screen, and it calls all of the methods inside your activities.

The render thread

You don’t normally interact with this thread, but it reads a list of requests for screen

updates and then calls the device’s low-level graphics hardware to repaint the screen and

make your app look pretty.

Any other threads that you create

If you’re not careful, your app will do almost all of its work on the main

event thread because this thread runs your event methods. If you just

drop your database code into the onCreate() method (as we did in

the Starbuzz app), then the main event thread will be busy talking to the

database, instead of rushing off to look for any events from the screen

or other apps. If your database code takes a long time, users will feel like

they’re being ignored or wonder if the app has crashed.

So the trick is to move your database code off the main event

thread and run it in a custom thread in the background. We’ll

go through how you do this using the DrinkActivity code we wrote

earlier in the chapter. As a reminder, the code updates the FAVORITE

column in the Starbuzz database when the user clicks on the favorite

checkbox, and displays a message if the database is unavailable.

you are here 4 721

cursors and asynctasks

We’re going to run the DrinkActivity code to update the

database in a background thread, but before we rush off and

start hacking code, let’s think about what we need to do.

The code that we have at the moment does three different things.

Choose the type of thread you think each should run on. We’ve

completed the first one to start you off.

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

SQLiteDatabase db = starbuzzDatabaseHelper.getWriteableDatabase();

db.update("DRINK",...);

Talk to the database.

Main event thread A background thread

Toast toast = Toast.makeText(...);

toast.show();

Update what’s displayed on the screen.

Main event thread A background thread

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

ContentValues drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

Set up the interface.

Main event thread A background thread

This code must run on the main

event thread, as it needs to

access the activity's views.

722 Chapter 17

sharpen solution

We’re going to run the DrinkActivity code to update the

database in a background thread, but before we rush off and

start hacking code, let’s think about what we need to do.

The code that we have at the moment does three different things.

Choose the type of thread you think each should run on. We’ve

completed the first one to start you off.

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

SQLiteDatabase db = starbuzzDatabaseHelper.getWriteableDatabase();

db.update("DRINK",...);

Talk to the database.

Main event thread A background thread

We want to run

the database code

in the background.

Toast toast = Toast.makeText(...);

toast.show();

Update what’s displayed on the screen.

Main event thread A background thread

We must run the code to display a

message on the screen on the main event

thread; otherwise, we’ll get an exception.

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

ContentValues drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

Set up the interface.

Main event thread A background thread

you are here 4 723

cursors and asynctasks

//Update the database when the checkbox is clicked

public void onFavoriteClicked(View view){

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

ContentValues drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getWritableDatabase();

db.update("DRINK", drinkValues,

"_id = ?", new String[] {Integer.toString(drinkId)});

db.close();

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

What code goes on which thread?

When you use databases in your app, it’s a good idea to run database

code in a background thread, and update views with the database

data in the main event thread. We’re going to work through the

onFavoritesClicked() method in the DrinkActivity code so

that you can see how to approach this sort of problem.

Here’s the code for the method (we’ve split it into sections, which we’ll

describe below):

Code that needs to be run before the database code

The first few lines of code get the value of the favorite checkbox, and put it in the

drinkValues ContentValues object. This code must be run before the database code.

Database code that needs to be run on a background thread

This updates the DRINK table.

Code that needs to be run after the database code

If the database is unavailable, we want to display a message to the user. This must run

on the main event thread.

We’re going to implement the code using an AsyncTask. What’s that,

you ask?

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

724 Chapter 17

AsyncTask

AsyncTask performs asynchronous tasks

AsyncTask is defined by three generic parameters: Params,

Progress, and Results. Params is the type of object used to pass any

task parameters to the doInBackground() method, Progress is the

type of object used to indicate task progress, and Result is the type of

the task result. You can set any of these to Void if you’re not going to use

them.

We’ll go through this over the next few pages by creating a new

AsyncTask called UpdateDrinkTask we can use to update drinks in

the background. Later on, we’ll add this to our DrinkActivity code

as an inner class.

private class MyAsyncTask extends AsyncTask<Params, Progress, Result>

protected void onPreExecute() {

//Code to run before executing the task

}

protected Result doInBackground(Params... params) {

//Code that you want to run in a background thread

}

protected void onProgressUpdate(Progress... values) {

//Code that you want to run to publish the progress of your task

}

protected void onPostExecute(Result result) {

//Code that you want to run when the task is complete

}

An AsyncTask lets you perform operations in the background. When

they’ve finished running, it then allows you to update views in the main

event thread. If the task is repetitive, you can even use it to publish the

progress of the task while it’s running.

You create an AsyncTask by extending the AsyncTask class,

and implementing its doInBackground() method. The code in

this method runs in a background thread, so it’s the perfect place

for you to put database code. The AsyncTask class also has an

onPreExecute() method that runs before doInBackground(),

and an onPostExecute() method that runs afterward. There’s an

onProgressUpdate() method if you need to publish task progress.

Here’s what an AsyncTask looks like:

You add your AsyncTask

class as an inner class to the

activity that needs to use it.

This method is optional. It runs before the

code you want to run in the background.

You must implement this method.

It contains the code you want

to run in the background.

This method is optional. It lets

you publish progress of the

code running in the background.

This method is also optional. It runs after the

code has finished running in the background.

you are here 4 725

cursors and asynctasks

private class UpdateDrinkTask extends AsyncTask<Params, Progress, Result> {

private ContentValues drinkValues;

protected void onPreExecute() {

CheckBox favorite = (CheckBox)findViewById(R.id.favorite);

drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

}

...

}

The onPreExecute() method

We’ll start with the onPreExecute() method. This gets called

before the background task begins, and it’s used to set up the

task. It’s called on the main event thread, so it has access to views

in the user interface. The onPreExecute() method takes no

parameters, and has a void return type.

In our case, we’re going to use the onPreExecute() method

to get the value of the favorite checkbox, and put it in the

drinkValues ContentValues object. This is because we

need access to the checkbox view in order to do this, and it must

be done before any of our database code can be run. We’re using

a separate attribute outside the method for the drinkValues

ContentValues object so that other methods in the class can

access the ContentValues object (we’ll look at these methods

over the next few pages).

Here’s the code:

onPreExecute()

Before we run the database code, we need

to get the value of the favorite checkbox.

Next, we’ll look at the doInBackground() method.

726 Chapter 17

doInBackground()

private class UpdateDrinkTask extends AsyncTask<Integer, Progress, Boolean> {

private ContentValues drinkValues;

...

protected Boolean doInBackground(Integer... drinks) {

int drinkId = drinks[0];

SQLiteOpenHelper starbuzzDatabaseHelper =

new StarbuzzDatabaseHelper(DrinkActivity.this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getWritableDatabase();

db.update("DRINK", drinkValues,

"_id = ?", new String[] {Integer.toString(drinkId)});

db.close();

return true;

} catch(SQLiteException e) {

return false;

}

...

}

The doInBackground() method

The doInBackground() method runs in the background

immediately after onPreExecute(). You define what type of

parameters the task should receive, and what the return type should

be.

We’re going to use the doInBackground() method for our

database code so that it runs in a background thread. We’ll pass

it the ID of the drink we need to update; because the drink ID is

an int value, we need to specify that the doInBackground()

method receives Integer objects. We’ll use a Boolean return

value so we can tell whether the code ran successfully:

Next, we’ll look at the onProgressUpdate() method.

onPreExecute()

doInBackground()

This code runs in a background thread.

You change this to Integer to

match the parameter of the

doInBackground() method.

You change this to

Boolean to match the

return type of the

doInBackground() method.

This is an array of Integers,

but we’ll just include one item,

the drink ID.

The update() method uses the

drinkValues object that the

onPreExecute() method created.

you are here 4 727

cursors and asynctasks

The onProgressUpdate() method

The onProgressUpdate() method is called on the main event

thread, so it has access to views in the user interface. You can use

this method to display progress to the user by updating views on the

screen. You define what type of parameters the method should have.

The onProgressUpdate() method runs if a call to

publishProgress() is made by the doInBackground()

method like this:

onPreExecute()

doInBackground()

onProgressUpdate()

protected Boolean doInBackground(Integer... count) {

for (int i = 0; i < count; i++) {

publishProgress(i);

}

protected void onProgressUpdate(Integer... progress) {

setProgress(progress[0]);

}

In our app, we’re not publishing the progress of our task, so we

don’t need to implement this method. We’ll indicate that we’re not

using any objects for task progress by changing the signature of

UpdateDrinkTask:

This calls the onProgressUpdate()

method, passing in a value of i.

private class UpdateDrinkTask extends AsyncTask<Integer, Void, Boolean> {

...

}

We’re not using the

onProgressUpdate()

method, so this is Void.

Finally, we’ll look at the onPostExecute() method.

728 Chapter 17

onPostExecute()

private class UpdateDrinkTask extends AsyncTask<Integer, Void, Boolean> {

...

protected void onPostExecute(Boolean success) {

if (!success) {

Toast toast = Toast.makeText(DrinkActivity.this,

"Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

The onPostExecute() method

The onPostExecute() method is called after the

background task has finished. It’s called on the main event

thread, so it has access to views in the user interface. You can

use this method to present the results of the task to the user.

The onPostExecute() method gets passed the results of the

doInBackground() method, so it must take parameters that

match the doInBackground() return type.

We’re going to use the onPostExecute() method to check

whether the database code in the doInBackground()

method ran successfully. If it didn’t, we’ll display a message

to the user. We’re doing this in the onPostExecute()

method, as this method can update the user interface; the

doInBackground() method runs in a background thread, so

it can’t update views.

Here’s the code:

This is set to Boolean, as our

doInBackground() method returns a Boolean.

Pass the toast the

DrinkActivity context.

onPreExecute()

doInBackground()

onPostExecute()

onProgressUpdate()

Now that we’ve written the code for our AsyncTask methods,

let’s revisit the AsyncTask class parameters.

you are here 4 729

cursors and asynctasks

The AsyncTask class parameters

When we first introduced the AsyncTask class, we said it was defined

by three generic parameters: Params, Progress, and Results.

You specify what these are by looking at the type of parameters

used by your doInBackground(), onProgressUpdate(),

and onPostExecute() methods. Params is the type of the

doInBackground() parameters, Progress is the type of the

onProgressUpdate() parameters, and Result is the type of the

onPostExecute() parameters:

We’ll show you the full UpdateDrinkTask class on the next page.

private class MyAsyncTask extends AsyncTask<Params, Progress, Result>

protected void onPreExecute() {

//Code to run before executing the task

}

protected Result doInBackground(Params... params) {

//Code that you want to run in a background thread

}

protected void onProgressUpdate(Progress... values) {

//Code that you want to run to publish the progress of your task

}

protected void onPostExecute(Result result) {

//Code that you want to run when the task is complete

}

In our example, doInBackground() takes Integer parameters,

onPostExecute() takes a Boolean parameter, and we’re not using

the onProgressUpdate() method. This means that in our example,

Params is Integer, Progress is Void, and Result is Boolean:

private class UpdateDrinkTask extends AsyncTask<Integer, Void, Boolean> {

...

protected Boolean doInBackground(Integer... drinks) {

...

}

protected void onPostExecute(Boolean... success) {

...

}

This is Void because we

didn’t implement the

onProgressUpdate() method.

730 Chapter 17

inner class code

private class UpdateDrinkTask extends AsyncTask<Integer, Void, Boolean> {

private ContentValues drinkValues;

protected void onPreExecute() {

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

}

protected Boolean doInBackground(Integer... drinks) {

int drinkId = drinks[0];

SQLiteOpenHelper starbuzzDatabaseHelper =

new StarbuzzDatabaseHelper(DrinkActivity.this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getWritableDatabase();

db.update("DRINK", drinkValues,

"_id = ?", new String[] {Integer.toString(drinkId)});

db.close();

return true;

} catch(SQLiteException e) {

return false;

}

protected void onPostExecute(Boolean success) {

if (!success) {

Toast toast = Toast.makeText(DrinkActivity.this,

"Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

The full UpdateDrinkTask class

Here’s the full code for the UpdateDrinkTask class. It needs

to be added to DrinkActivity as an inner class, but we

suggest you wait to do that until we show you how to execute it

and show you the full DrinkActivity.java code listing.

We’ve defined drinkValues as a private

variable, as it’s used by the onExecute()

and doInBackground() methods.

Before we run the database

code, we need to put

the value of the favorite

checkbox in the drinkValues

ContentValues object.

Our database code goes in the

doInBackground() method.

After the database code has run in the background, check

whether it ran successfully. If it didn’t, display a message.

We have to put the code to display a message in

the onPostExecute() method, as it needs to be run

on the main event thread to update the screen.

you are here 4 731

cursors and asynctasks

Execute the AsyncTask...

You run the AsyncTask by calling the AsyncTask execute()

method and passing it any parameters required by the

doInBackground() method. As an example, we want to pass the

drink the user chose to our AsyncTask’s doInBackground()

method, so we call it using:

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

new UpdateDrinkTask().execute(drinkId);

The type of parameter you pass with the execute() method

must match the type of parameter expected by the AsyncTask

doInBackground() method. We’re passing an integer value (the

drink ID), which matches the type of parameter expected by our

doInBackground() method:

protected Boolean doInBackground(Integer... drinks) {

...

}

We’ll show you the new DrinkActivity.java code over the next few pages.

//Update the database when the checkbox is clicked

public void onFavoriteClicked(View view){

int drinkId = (Integer)getIntent().getExtras().get(EXTRA_DRINKID);

new UpdateDrinkTask().execute(drinkId);

}

Execute the AsyncTask and pass it the drink ID.

...in DrinkActivity’s onFavoritesClicked()

method

Our UpdateDrinkTask class (the AsyncTask we created) needs to

update the FAVORITE column in the Starbuzz database whenever the

favorite checkbox in DrinkActivity is clicked. We therefore need

to execute it in DrinkActivity’s onFavoritesClicked() method.

Here’s what the new version of the method looks like:

The new version of the

onFavoritesClicked() method no

longer contains code to update the

FAVORITE column. Instead, it calls

the AsyncTask, which performs the

update in the background.

732 Chapter 17

DrinkActivity code

package com.hfad.starbuzz;

import android.app.Activity;

import android.os.Bundle;

import android.widget.ImageView;

import android.widget.TextView;

import android.widget.Toast;

import android.database.Cursor;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteException;

import android.database.sqlite.SQLiteOpenHelper;

import android.view.View;

import android.widget.CheckBox;

import android.content.ContentValues;

import android.os.AsyncTask;

public class DrinkActivity extends Activity {

public static final String EXTRA_DRINKID = "drinkId";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_drink);

//Get the drink from the intent

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

//Create a cursor

SQLiteOpenHelper starbuzzDatabaseHelper = new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getReadableDatabase();

Cursor cursor = db.query("DRINK",

new String[]{"NAME", "DESCRIPTION", "IMAGE_RESOURCE_ID", "FAVORITE"},

"_id = ?",

new String[]{Integer.toString(drinkId)},

null, null, null);

The full DrinkActivity.java code

Here’s the complete code for DrinkActivity.java; update your

version of the code to reflect our changes:

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

We’re using the AsyncTask class, so we need to import it.

We don’t need to change the onCreate() method,

we’re just showing it for completeness.

The code continues

on the next page.

you are here 4 733

cursors and asynctasks

//Move to the first record in the Cursor

if (cursor.moveToFirst()) {

//Get the drink details from the cursor

String nameText = cursor.getString(0);

String descriptionText = cursor.getString(1);

int photoId = cursor.getInt(2);

boolean isFavorite = (cursor.getInt(3) == 1);

//Populate the drink name

TextView name = (TextView) findViewById(R.id.name);

name.setText(nameText);

//Populate the drink description

TextView description = (TextView) findViewById(R.id.description);

description.setText(descriptionText);

//Populate the drink image

ImageView photo = (ImageView) findViewById(R.id.photo);

photo.setImageResource(photoId);

photo.setContentDescription(nameText);

//Populate the favorite checkbox

CheckBox favorite = (CheckBox)findViewById(R.id.favorite);

favorite.setChecked(isFavorite);

}

cursor.close();

db.close();

} catch (SQLiteException e) {

Toast toast = Toast.makeText(this,

"Database unavailable",

Toast.LENGTH_SHORT);

toast.show();

}

The full DrinkActivity.java code (continued)

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

None of the code on this

page needs to change.

The code continues

on the next page.

734 Chapter 17

code, continued

//Update the database when the checkbox is clicked

public void onFavoriteClicked(View view){

int drinkId = (Integer) getIntent().getExtras().get(EXTRA_DRINKID);

//Get the value of the checkbox

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

ContentValues drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

//Get a reference to the database and update the FAVORITE column

SQLiteOpenHelper starbuzzDatabaseHelper =

new StarbuzzDatabaseHelper(this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getWritableDatabase();

db.update("DRINK",

drinkValues,

"_id = ?",

new String[] {Integer.toString(drinkId)});

db.close();

} catch(SQLiteException e) {

Toast toast = Toast.makeText(this, "Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

new UpdateDrinkTask().execute(drinkId);

}

The full DrinkActivity.java code (continued)

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

The code continues

on the next page.

Execute the task.

Delete all these lines of

code, as we’re now using an

AsyncTask for these actions.

you are here 4 735

cursors and asynctasks

//Inner class to update the drink.

private class UpdateDrinkTask extends AsyncTask<Integer, Void, Boolean> {

private ContentValues drinkValues;

protected void onPreExecute() {

CheckBox favorite = (CheckBox) findViewById(R.id.favorite);

drinkValues = new ContentValues();

drinkValues.put("FAVORITE", favorite.isChecked());

}

protected Boolean doInBackground(Integer... drinks) {

int drinkId = drinks[0];

SQLiteOpenHelper starbuzzDatabaseHelper =

new StarbuzzDatabaseHelper(DrinkActivity.this);

try {

SQLiteDatabase db = starbuzzDatabaseHelper.getWritableDatabase();

db.update("DRINK", drinkValues,

"_id = ?", new String[] {Integer.toString(drinkId)});

db.close();

return true;

} catch(SQLiteException e) {

return false;

}

protected void onPostExecute(Boolean success) {

if (!success) {

Toast toast = Toast.makeText(DrinkActivity.this,

"Database unavailable", Toast.LENGTH_SHORT);

toast.show();

}

That’s everything you need in order to create an AsyncTask.

Let’s check what happens when we run the app.

The full DrinkActivity.java code (continued)

app/src/main

DrinkActivity.java

Starbuzz

java

com.hfad.starbuzz

Add the AsyncTask to the activity as an inner class.

Before the database code runs, put the value of the

checkbox in the drinkValues ContentValues object.

Run the database code in a

background thread.

Update the value of

the FAVORITE column.

If the database code didn’t run

correctly, display a message to the user.

736 Chapter 17

test drive

Q: I’ve written code before that

just ran the database code and it was

fine. Do I really need to run it in the

background?

A: For really small databases, like the

one in the Starbuzz app, you probably

won’t notice the time it takes to access

the database. But that’s just because

the database is small. If you use a larger

database, or if you run an app on a slower

device, the time it takes to access the

database will be significant. So yes, you

should always run database code in the

background.

Q: Remind me—why is it bad to

update a view from the background

thread?

A: The short answer is that it will throw

an exception if you try. The longer answer

is that multithreaded user interfaces are

hugely buggy. Android avoided the problem

by simply banning them.

Q: Which part of the database code

is slowest: opening the database, or

reading data from it?

A: There’s no general way of knowing.

If your database has a complex data

structure, opening the database for the

first time will take a long time because it

will need to create all the tables. If you’re

running a complex query, that might take a

very long time. In general, play it safe and

run everything in the background.

Q: If it take a few seconds to read

data from the database, what will the

user see?

A: The user will see blank views until

the database code sets the values.

Q: Why have we put the database

code for just one activity in an

AsyncTask?

A: We wanted to show you how to

use AsyncTasks in one activity as

an example. In the real world, you should

do this for the database code in all your

activities.

Test drive the app

When we run the app and navigate to a drink, we can

indicate that the drink is a favorite drink by checking the

“favorite” checkbox. Clicking on the checkbox still updates the

FAVORITE column in the database with its value, but this

time the code is running on a background thread.

In an ideal world, all of your database

code should run in the background.

We’re not going to change our other

Starbuzz activities to do this, but why

not make this change yourself?

Our app still writes data to

the database, but this time it

does it on a background thread.

you are here 4 737

cursors and asynctasks

onPreExecute()

doInBackground()

onProgressUpdate()

onPostExecute()

A summary of the AsyncTask steps

onPreExecute() is used to set up the task.

It’s called before the background task begins, and runs on the

main event thread.

doInBackground() runs in the background thread.

It runs immediately after onPreExecute(). You can specify

what type of parameters it has, and what its return type is.

onProgressUpdate() is used to display progress.

It runs in the main event thread when the

doInBackground() method calls publishProgress().

onPostExecute() is used to display the task outcome

to the user when doInBackground has finished.

It runs in the main event thread and takes the return value of

doInBackground() as a parameter.

Your Android Toolbox

You’ve got Chapter 17 under

your belt and now you’ve

added writing to SQLite

databases to your toolbox.

The CursorAdapter

changeCursor() method replaces

the cursor currently used by a cursor

adapter with a new cursor that you

provide. It then closes the old cursor.

Run your database code in a

background thread using AsyncTask.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 17

this is a new chapter 739

Did I mention I’ve started a

ProtectionRacketService?

started services

At Your Service

There are some operations you want to keep on running,

irrespective of which app has the focus. If you start downloading a file,

for instance, you don’t want the download to stop when you switch to another app. In this

chapter we’ll introduce you to started services, components that run operations in the

background. You’ll see how to create a started service using the IntentService class,

and find out how its lifecycle fits in with that of an activity. Along the way, you’ll discover

how to log messages, and keep users informed using Android’s built-in notification

service.

740 Chapter 18

services

Services work in the background

An Android app is a collection of activities and other

components. The bulk of your app’s code is there to interact

with the user, but sometimes you need to do things in the

background, such as download a large file, stream a piece of

music, or listen for a message from the server.

These kinds of tasks aren’t what activities are designed to

do. In simple cases, you can create a thread, but if you’re

not careful your activity code will start to get complex and

unreadable.

That’s why services were invented. A service is an

application component like an activity but without a user

interface. They have a simpler lifecycle than activities, and

they come with a bunch of features that make it easy to write

code that will run in the background while the user is doing

something else.

There are three types of service

Services come in three main flavors:

Started services

A started service can run in the background indefinitely, even when the

activity that started it is destroyed. If you wanted to download a large file

from the Internet, you would probably create it as a started service. Once

the operation is done, the service stops.

Bound services

A bound service is bound to another application component such as an

activity. The activity can interact with it, send requests, and get results.

A bound service runs as long as components are bound to it. When the

components are no longer bound, the service is destroyed. If you wanted

to create an odometer to measure the distance traveled by a vehicle, for

example, you’d probably use a bound service. This way, any activities

bound to the service could keep asking the service for updates on the

distance traveled.

In this chapter, we’re going to look at how you create a started

service.

Scheduled services

A scheduled service is one that’s scheduled to run at a particular time. As an

example, from API 21, you can schedule jobs to run at an appropriate time.

In addition to writing your

own services, you can use

Android’s built-in ones.

Built-in services include the

notification service, location

service, alarm service, and

download service.

you are here 4 741

started services

MainActivity.java DelayedMessageService.java

1...2..3...4...5...6...7

...8...9...10... Here’s

the text.

We’ll create a STARTED service

We’re going to create a new project that contains an activity

called MainActivity, and a started service called

DelayedMessageService. Whenever MainActivity

calls DelayedMessageService, it will wait for 10 seconds

and then display a piece of text.

</Layout>

activity_main.xml

Display the message in Android’s log.

We’ll start by displaying the message in Android’s log so that we can check

that the service works OK. We can look at the log in Android Studio.

Display the message in a notification.

We’ll get DelayedMessageService to use Android’s built-in

notification service to display the message in a notification.

The activity will pass

text to the service.

The service will

display the text

after 10 seconds.

We’re going to do this in two stages:

Create the project

We’ll start by creating the project. Create a new Android project for an

application named “Joke” with a company domain of “hfad.com”, making

the package name com.hfad.joke. The minimum SDK should be API

19 so that it will work with most devices. You’ll need an empty activity

named “MainActivity” and a layout named “activity_main” so that your

code matches ours. Make sure that you uncheck the Backwards

Compatibility (AppCompat) option when you create the activity.

The next thing we need to do is create the service.

MainActivity will use this layout.

Text

We’ll create this

notification.

742 Chapter 18

IntentService

package com.hfad.joke;

import android.app.IntentService;

import android.content.Intent;

public class DelayedMessageService extends IntentService {

public DelayedMessageService() {

super("DelayedMessageService");

}

@Override

protected void onHandleIntent(Intent intent) {

//Code to do something

}

The above code is all you need to create a basic intent service. You

extend the IntentService class, add a public constructor, and

implement the onHandleIntent() method.

The onHandleIntent() method should contain the code you want

to run each time the service is passed an intent. It runs in a separate

thread. If it’s passed multiple intents, it deals with them one at a time.

We want DelayedMessageService to display a message in

Android’s log, so let’s look at how you log messages.

app/src/main

DelayedMessage

Service.java

Joke

java

com.hfad.joke

Extend the IntentService class.

Put the code you want the service to

run in the onHandleIntent() method.

Use the IntentService class to create

a basic started service

The simplest way of creating a started service is to extend the

IntentService class, as it provides you with most of the

functionality you need. You start it with an intent, and it runs the

code that you specify in a separate thread.

We’re going to add a new intent service to our project. To do this,

switch to the Project view of Android Studio’s explorer, click on

the com.hfad.joke package in the app/src/main/java folder, go

to File→New..., and select the Service option. When prompted,

choose the option to create a new Intent Service. Name the service

“DelayedMessageService” and uncheck the option to include

helper start methods to minimize the amount of code that Android

Studio generates for you. Click on the Finish button, then replace

the code in DelayedMessageService.java with the code here:

Log

Display notification

Name the

service.

Uncheck this option.

Some versions of Android Studio

may ask you what the source

language should be. If prompted,

select the option for Java.

you are here 4 743

started services

How to log messages

Adding messages to a log can be a useful way of checking that your

code works the way you want. You tell Android what to log in your

Java code, and when the app’s running, you check the output in

Android’s log (a.k.a. logcat).

You log messages using one of the following methods in the

Android.util.Log class:

Log.v("DelayedMessageService", "This is a message");

Log.v(String tag, String message) Logs a verbose message.

Log.d(String tag, String message) Logs a debug message.

Log.i(String tag, String message) Logs an information message.

Log.w(String tag, String message) Logs a warning message.

Log.e(String tag, String message) Logs an error message.

Each message is composed of a String tag you use to identify the

source of the message, and the message itself. As an example, to log

a verbose message that’s come from DelayedMessageService,

you use the Log.v() method like this:

You can view the logcat in Android Studio and filter by the

different types of message. To see the logcat, select the Android

Monitor option at the bottom of your project screen in Android

Studio and then select the logcat tab:

Select the Android Monitor option.

Select the logcat tab.

You can filter on the

type of message here.

This is the logcat area. Any messages you log will appear here.

Log

Display notification

There’s also a Log.wtf()

method you can use to report

exceptions that should never

happen. According to the Android

documentation, wtf means

“What a Terrible Failure.” We

know it really means “Welcome

to Fiskidagurinn,” which refers

to the Great Fish Day festival

held annually in Dalvik, Iceland.

Android developers can often be

heard to say, “My AVD just took

8 minutes to boot up. WTF??" as

a tribute to the small town that

gave its name to the standard

Android executable bytecode

format.

744 Chapter 18

DelayedMessageService code

The full DelayedMessageService code

We want our service to get a piece of text from an intent, wait for 10

seconds, then display the piece of text in the log. To do this, we’ll

add a showText() method to log the text, and then call it from the

onHandleIntent() method after a delay of 10 seconds.

Here’s the full code for DelayedMessageService.java (update your version of

the code to reflect our changes):

package com.hfad.joke;

import android.app.IntentService;

import android.content.Intent;

import android.util.Log;

public class DelayedMessageService extends IntentService {

public static final String EXTRA_MESSAGE = "message";

public DelayedMessageService() {

super("DelayedMessageService");

}

@Override

protected void onHandleIntent(Intent intent) {

synchronized (this) {

try {

wait(10000);

} catch (InterruptedException e) {

e.printStackTrace();

}

String text = intent.getStringExtra(EXTRA_MESSAGE);

showText(text);

}

private void showText(final String text) {

Log.v("DelayedMessageService", "The message is: " + text);

}

app/src/main

DelayedMessage

Service.java

Joke

java

com.hfad.joke

Call the super constructor.

Get the text from the intent

Wait 10 seconds.

This method contains the code you want to

run when the service receives an intent.

Call the showText() method.

This logs a piece of text so we can see it in

the logcat through Android Studio.

Use a constant to pass

a message from the

activity to the service.

We’re using the Log class, so we need to import it.

Log

Display notification

you are here 4 745

started services

You declare services in AndroidManifest.xml

Just like activities, each service needs to be declared in AndroidManifest.xml

so that Android can call it; if a service isn’t declared in this file, Android

won’t know it’s there and won’t be able to call it.

Android Studio should update AndroidManifest.xml for you automatically

whenever you create a new service by adding a new <service>

element. Here’s what our AndroidManifest.xml code looks like:

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.joke">

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/AppTheme">

<intent-filter>

</intent-filter>

</activity>

<service

android:name=".DelayedMessageService"

android:exported="false">

</service>

</application>

</manifest>

The <service> element contains two attributes: name and

exported. The name attribute tells Android what the name of

the service is—in our case, DelayedMessageService. The

exported attribute tells Android whether the service can be used by

other apps. Setting it to false means that the service will only be used

within the current app.

Now that we have a service, let’s get MainActivity to start it.

You declare a service in AndroidManifest.xml like this.

Android Studio should do this for you automatically.

<xml>

</xml>

app/src/main

AndroidManifest.xml

Joke

The service name has a “.” in front of it so

that Android can combine it with the package

name to derive the fully qualified class name.

Log

Display notification

Don’t worry if

this code looks

different than

yours.

746 Chapter 18

add button

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:padding="16dp"

tools:context="com.hfad.joke.MainActivity">

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal"

android:text="@string/question"

android:id="@+id/button"

android:onClick="onClick"/>

</LinearLayout>

Add a button to activity_main.xml

We’re going to get MainActivity to start

DelayedMessageService whenever a button is clicked, so

we’ll add the button to MainActivity’s layout.

First, add the following values to strings.xml:

<string name="question">What is the secret of comedy?</string>

<string name="response">Timing!</string>

Then, replace your activity_main.xml code with ours below so

that MainActivity displays a button:

The button will call an onClick() method whenever the

user clicks it, so we’ll add this method to MainActivity.

<xml>

</xml>

app/src/main

activity_main.xml

Joke

res

layout

This creates a button. When it’s

clicked, the onClick() method in

the activity will get called.

<xml>

</xml>

app/src/main

strings.xml

Joke

res

values

Log

Display notification

you are here 4 747

started services

Here’s our code for MainActivity.java; update your version to match

ours:

package com.hfad.joke;

import android.app.Activity;

import android.content.Intent;

import android.os.Bundle;

import android.view.View;

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

public void onClick(View view) {

Intent intent = new Intent(this, DelayedMessageService.class);

intent.putExtra(DelayedMessageService.EXTRA_MESSAGE,

getResources().getString(R.string.response));

startService(intent);

}

That’s all the code we need to get our activity to start the service.

Before we take it for a test drive, let’s go through what happens

when the code runs.

app/src/main

MainActivity.java

Joke

java

com.hfad.joke

Create the intent.

Add text to the intent.

Start the service.

This will run when the

button gets clicked.

We’re using these classes, so

we need to import them.

You start a service using startService()

Intent intent = new Intent(this, DelayedMessageService.class);

startService(intent);

We’ll use MainActivity’s onClick() method to start

DelayedMessageService whenever the user clicks on

the button. You start a service from an activity in a similar

way to how you start an activity. You create an explicit intent

that’s directed at the service you want to start, then use the

startService() method in your activity to start it:

Starting a service is just like starting an activity,

except you use startService() instead of startActivity().

We're using Activity here, but you

could use AppCompatActivity instead.

Log

Display notification

748 Chapter 18

what happens

What happens when you run the app

Here’s what the code does when we run the app:

Let’s take the app for a test drive so we can see it working.

DelayedMessageService

Some text. I know

how to handle that.

1...2...3...4...5...

MainActivity starts DelayedMessageService by calling startService()

and passing it an intent.

The intent contains the message MainActivity wants

DelayedMessageService to display, in this case “Timing!”.

DelayedMessageService logs the message.

MainActivity DelayedMessageService

Intent

”Timing!”

DelayedMessageService

When DelayedMessageService receives the intent, its onHandleIntent()

method runs.

DelayedMessageService waits for 10 seconds.

onHandleIntent()

The message is:

Timing!

Log

Log.v()

When DelayedMessageService has finished running, it’s destroyed.

DelayedMessageService

Log

Display notification

you are here 4 749

started services

Log

Display notification

Test drive the app

When you run the app, MainActivity is displayed. It contains a

single button:

Press the button, switch back to Android Studio, and watch the

logcat output in the bottom part of the IDE. After 10 seconds, the

message “Timing!” should appear in the logcat.

Now that you’ve seen DelayedMessageService running, let’s

look in more detail at how started services work.

This is the logcat window.

Here’s the button.

After a 10-second delay, the

message is displayed in the log.

03-22 12:39:26.294 12381-18456/com.hfad.joke V/DelayedMessageService: The message is: Timing!

750 Chapter 18

started service states

The states of a started service

Service created

Service destroyed

Service running

A started service runs

after it’s been started.

onCreate() gets called

when the service is first

created, and it’s where

you do any service setup.

onDestroy() gets called

just before the service

gets destroyed.

The service has started and

spends most of its life here.

Just like an activity, when a service moves from being created to being

destroyed, it triggers key service lifecycle methods, which it inherits.

When the service is created, its onCreate() method gets called.

You override this method if you want to perform any tasks needed to

set up the service.

When the service is ready to start, its onStartCommand()

method is called. If you’re using an IntentService (which is

usually the case for a started service), you don’t generally override

this method. Instead, you add any code you want the service to

run to its onHandleIntent() method, which is called after

onStartCommand().

The onDestroy() method is called when the started service is

no longer running and it’s about to be destroyed. You override

this method to perform any final cleanup tasks, such as freeing up

resources.

We’ll take a closer look at how these methods fit into the service states

on the next page.

When an application component (such as an activity) starts a service,

the service moves from being created to running to being destroyed.

A started service spends most of its life in a running state; it’s been

started by another component such as an activity, and it runs code

in the background. It continues to run even if the component that

started it is destroyed. When the service has finished running code,

it’s destroyed.

The service object

has been created.

At this point,

the service no

longer exists.

you are here 4 751

started services

The started service lifecycle: from create to destroy

onCreate()

onDestroy()

The component calls startService() and

the service gets created.

The onCreate() method runs immediately

after the service is created.

The onCreate() method is where any service

initialization code should go, as this method

always gets called after the service has launched

but before it starts running.

The service spends most of its life

running.

The onDestroy() method runs when the

service has finished running, immediately

before it’s destroyed.

The onDestroy() method enables you to

perform any final cleanup tasks such as freeing up

resources.

After the onDestroy() method has run,

the service is destroyed.

The service ceases to exist.

Here’s an overview of the started service lifecycle from birth to death.

The onCreate(), onStartCommand(), and onDestroy()

methods are three of the main service lifecycle methods. So where do

these methods come from?

Service created

Service destroyed

onStartCommand()

Service running

The onStartCommand() method runs when

the service is about to start.

If your started service extends the

IntentService class (which is usually the

case), the onStartCommand() method creates

a separate thread and onHandleIntent() is

called. You add any code you want the service to

run in the background to onHandleIntent().

onHandleIntent()

752 Chapter 18

lifecycle methods

Your service inherits the lifecycle methods

YourStartedService

onHandleIntent(Intent)

yourMethod()

Service

onCreate()

onStartCommand()

onDestroy()

ContextWrapper

Context Context abstract class

(android.content.Context)

An interface to global information about the application

environment. Allows access to application resources, classes, and

operations.

ContextWrapper class

(android.content.ContextWrapper)

A proxy implementation for the Context.

Service class

(android.app.Service)

The Service class implements default versions of the lifecycle

methods. You’ll find out more about it in the next chapter.

YourStartedService class

(com.hfad.foo)

Most of the behavior of your started service is handled by

superclass methods your service inherits. All you do is override the

methods you need and add a public constructor.

As you saw earlier in the chapter, the started service you

created extends the android.app.IntentService class.

This class gives your service access to the Android lifecycle

methods. Here’s a diagram showing the class hierarchy:

Now that you understand more about how started services work

behind the scenes, have a go at the following exercise. After that,

we’ll look at how we can make DelayedMessageService

display its message in a notification.

IntentService

onHandleIntent(Intent)

IntentService class

(android.app.IntentService)

The IntentService class gives you an easy way of creating

started services. It includes a method, onHandleIntent(),

which handles any intents it’s given on a background thread.

you are here 4 753

started services

public class WombleService extends {

public WombleService() {

super("WombleService");

}

@Override

protected void (Intent intent) {

MediaPlayer mediaPlayer =

MediaPlayer.create(getApplicationContext(), R.raw.wombling_song);

mediaPlayer.start();

}

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

public void onClick(View view) {

Intent intent = new Intent(this, );

(intent);

}

Service Magnets

Below is most of the code needed to create a started service called

WombleService that plays a .mp3 file in the background, and an

activity that uses it. See if you can finish off the code.

onHandleIntent

IntentService

WombleService.class

startService

This is the service.

This is the activity.

This uses the Android MediaPlayer class to play a file called

wombling_song.mp3. The file is located in the res/raw folder.

WombleService

startActivity

Underground

Overground

You won’t need to use

all of these magnets.

754 Chapter 18

magnets solution

public class WombleService extends {

public WombleService() {

super("WombleService");

}

@Override

protected void (Intent intent) {

MediaPlayer mediaPlayer =

MediaPlayer.create(getApplicationContext(), R.raw.wombling_song);

mediaPlayer.start();

}

public class MainActivity extends Activity {

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

public void onClick(View view) {

Intent intent = new Intent(this, );

(intent);

}

Service Magnets Solution

Below is most of the code needed to create a started service called

WombleService that plays a .mp3 file in the background, and an

activity that uses it. See if you can finish off the code.

onHandleIntent

IntentService

WombleService.class

WombleService

startActivity

startService

This is the service. It extends

the IntentService class.

This is the activity.

The code needs to run in the

onHandleIntent() method.

Create an explicit intent

directed at WombleService.class.

Start the service.

You didn’t need to

use these magnets.

Underground

Overground

you are here 4 755

started services

Android has a built-in notification service

Unlike a toast or snackbar, notifications are available

outside the app that issues them, so the user can access

them no matter what app they’re currently using (if any).

They’re much more configurable than toasts and snackbars,

too.

To display the notification, we’re going to use one of

Android’s built-in services, the notification service. You’ll

see how to do this over the next few pages.

We’re going to change our Joke app so that our message

gets displayed in a notification. Notifications are

messages that are displayed outside the app’s user interface.

When a notification gets issued, it’s displayed as an icon in

the notification area of the status bar. You can see details of

the notification in the notification drawer, which you access

by swiping down from the top of the screen:

Heads-up notifications are temporarily displayed

in a floating window at the top of the screen.

This is the

notification drawer.

These are notification icons.

Log

Display notification

756 Chapter 18

add support library

We’ll use notifications from the

AppCompat Support Library

We’re going to create notifications using classes from the

AppCompat Support Library so that our notifications will work

consistently across a wide range of Android versions. While

it’s possible to create notifications using classes from the main

release of Android, recent changes to these classes mean that

the newest features won’t be available on older versions.

Before we can use the notification classes from the Support

Library, we need to add it to our project as a dependency.

To do this, choose File→Project Structure, then click on the

app module and choose Dependencies. Android Studio may

have already added the AppCompat Support Library for you

automatically. If so, you will see it listed as appcompat-v7. If it

hasn’t been added, you will need to add it yourself. Click on the

“+” button at the bottom or right side of the screen, choose the

Library Dependency option, select the appcompat-v7 library,

and then click on the OK button. Click on OK again to save

your changes and close the Project Structure window.

Here's the v7 AppCompat Support Library.

To get DelayedMessageService to display a notification,

there are three things we need to do: create a notification

builder, tell the notification to start MainActivity when it’s

clicked, and issue the notification. We’ll build up the code over

the next few pages, then show you the full code at the end.

Use notifications from

the AppCompat Support

Library to allow apps

running on older versions

of Android to include the

newest features.

Log

Display notification

you are here 4 757

started services

First create a notification builder

The first thing we need to do is create a notification builder.

This enables you to build a notification with specific content

and features.

Each notification you create must include a small icon, a title,

and some text as a bare minimum. Here’s the code to do that:

These are just some of the properties that you can set. You can

also set properties such as the notification’s visibility to control

whether it appears on the device lock screen, a number to

display in case you want to send many notifications from the

same app, and whether it should play a sound. You can find

out more about these properties (and many others) here:

https://developer.android.com/reference/android/support/v4/app/

NotificationCompat.Builder.html

Next, we’ll add an action to the notification to tell it which

activity to start when it’s clicked.

Set the title and text.

NotificationCompat.Builder builder = new NotificationCompat.Builder(this)

.setSmallIcon(android.R.drawable.sym_def_app_icon)

.setContentTitle(getString(R.string.question))

.setContentText(text);

This displays a small

icon, in this case a

built-in Android icon.

To add more features to the notification, you simply add the

appropriate method call to the builder. As an example, here’s

how you additionally specify that the notification should have a

high priority, vibrate the device when it appears, and disappear

when the user clicks on it:

NotificationCompat.Builder builder = new NotificationCompat.Builder(this)

.setSmallIcon(android.R.drawable.sym_def_app_icon)

.setContentTitle(getString(R.string.question))

.setContentText(text)

.setPriority(NotificationCompat.PRIORITY_HIGH)

.setVibrate(new long[] {0, 1000})

.setAutoCancel(true);

This makes the notification

disappear when the user clicks on it.

Simply chain the method

calls together to add more

features to the notification.

You create a heads-up

notification (one that

appears in a small

floating window) by

setting its priority to high,

and making it vibrate the

device or play a sound.

Make it a high

priority and

vibrate the device.

Wait for 0 milliseconds

before vibrating the device

for 1,000 milliseconds.

Log

Display notification

The NotificationCompat class

comes from the AppCompat

Support Library.

758 Chapter 18

add an action to the notification

Add an action to tell the notification

which activity to start when clicked

When you create a notification, it’s a good idea to add an action to

it, specifying which activity in your app should be displayed when the

user clicks on the notification. As an example, an email app might

issue a notification when the user receives a new email, and display

the contents of that email when the user clicks on it. In our particular

case, we’re going to start MainActivity.

You add an action by creating a pending intent to start an activity,

which you then add to the notification. A pending intent is an intent

that your app can pass to other applications. The application can then

submit the intent on your app’s behalf at a later time.

To create a pending intent, you first create an explicit intent directed

to the activity you want to start when the notification is clicked. In our

case, we want to start MainActivity, so we use:

Intent actionIintent = new Intent(this, MainActivity.class);

This is a normal intent

that starts MainActivity.

We then use that intent to create a pending intent using the

PendingIntent.getActivity() method.

The getActivity() method takes four parameters: a context

(usually this), an int request code, the explicit intent we defined

above, and a flag that specifies the pending intent’s behavior. In the

above code, we’ve used a flag of FLAG_UPDATE_CURRENT. This

means that if a matching pending intent already exists, its extra data

will be updated with the contents of the new intent. Other options are

FLAG_CANCEL_CURRENT (cancel any existing matching pending

intents before generating a new one), FLAG_NO_CREATE (don’t

create the pending intent if there’s no matching existing one), and

FLAG_ONE_SHOT (you can only use the pending intent once).

Once you’ve created the pending intent, you add it to the notification

using the notification builder setContentIntent() method:

PendingIntent actionPendingIntent = PendingIntent.getActivity(

this,

actionIntent,

PendingIntent.FLAG_UPDATE_CURRENT);

builder.setContentIntent(actionPendingIntent);

This tells the notification to start the activity specified in the intent

when the user clicks on the notification.

This means that if there’s

a matching pending intent,

it will be updated.

This is the intent we created above.

This is a flag that’s used if you ever

need to retrieve the pending intent. We

don’t need to, so we’re setting it to 0.

A context, in this case the current service.

This adds the pending

intent to the notification.

Log

Display notification

you are here 4 759

started services

Issue the notification using the

built-in notification service

Finally, you issue the notification using Android’s notification

service.

To do this, you first need to get a NotificationManager.

You do this by calling the getSystemService() method,

passing it a parameter of NOTIFICATION_SERVICE:

public static final int NOTIFICATION_ID = 5453;

...

NotificationManager notificationManager =

(NotificationManager) getSystemService(NOTIFICATION_SERVICE);

notificationManager.notify(NOTIFICATION_ID, builder.build());

This gives you access to

Android’s notification service.

Use the notification service to

display the notification we created.

This is an ID we’ll use for the notification.

It’s a random number we made up.

NotificationManager notificationManager =

(NotificationManager) getSystemService(NOTIFICATION_SERVICE);

You then use the notification manager to issue the notification

by calling its notify() method. This takes two parameters: a

notification ID and a Notification object.

The notification ID is used to identify the notification. If you

send another notification with the same ID, it will replace the

current notification. This is useful if you want to update an

existing notification with new information.

You create the Notification object by calling the

notification builder’s build() method. The notification it

builds includes all the content and features you’ve specified via

the notification builder.

Here’s the code to issue the notification:

That’s everything we need to create and issue notifications. We’ll

show you the full code for DelayedMessageService on the

next page.

Log

Display notification

760 Chapter 18

DelayedMessageService code

The full code for DelayedMessageService.java

Here’s the full code for DelayedMessageService.java. It

now uses a notification to display a message to the user.

Update your code to match ours:

This is used to identify the

notification. It could be any number;

we just decided on 5453.

package com.hfad.joke;

import android.app.IntentService;

import android.content.Intent;

import android.util.Log;

import android.support.v4.app.NotificationCompat;

import android.app.PendingIntent;

import android.app.NotificationManager;

public class DelayedMessageService extends IntentService {

public static final String EXTRA_MESSAGE = "message";

public static final int NOTIFICATION_ID = 5453;

public DelayedMessageService() {

super("DelayedMessageService");

}

@Override

protected void onHandleIntent(Intent intent) {

synchronized (this) {

try {

wait(10000);

} catch (InterruptedException e) {

e.printStackTrace();

}

String text = intent.getStringExtra(EXTRA_MESSAGE);

showText(text);

}

app/src/main

DelayedMessage

Service.java

Joke

java

com.hfad.joke

Delete this line.

We’re using these extra classes,

so we need to import them.

The code continues

on the next page.

you are here 4 761

started services

private void showText(final String text) {

Log.v("DelayedMessageService", "The message is: " + text);

//Create a notification builder

NotificationCompat.Builder builder =

new NotificationCompat.Builder(this)

.setSmallIcon(android.R.drawable.sym_def_app_icon)

.setContentTitle(getString(R.string.question))

.setContentText(text)

.setPriority(NotificationCompat.PRIORITY_HIGH)

.setVibrate(new long[] {0, 1000})

.setAutoCancel(true);

//Create an action

Intent actionIntent = new Intent(this, MainActivity.class);

PendingIntent actionPendingIntent = PendingIntent.getActivity(

this,

actionIntent,

PendingIntent.FLAG_UPDATE_CURRENT);

builder.setContentIntent(actionPendingIntent);

//Issue the notification

NotificationManager notificationManager =

(NotificationManager) getSystemService(NOTIFICATION_SERVICE);

notificationManager.notify(NOTIFICATION_ID, builder.build());

}

The DelayedMessageService.java code (continued)

That’s all the code we need for our started service. Let’s go

through what happens when the code runs.

Display the notification using

a notification manager.

Use a notification builder

to specify the content and

features of the notification.

Create an intent.

Use the intent to

create a pending intent.

Add the pending intent

to the notification.

app/src/main

DelayedMessage

Service.java

Joke

java

com.hfad.joke

762 Chapter 18

what happens

What happens when you run the code

Before you try running the updated app, let’s go through what

happens when the code runs:

MainActivity starts DelayedMessageService by calling startService()

and passing it an intent.

The intent contains the message MainActivity wants

DelayedMessageService to display.

DelayedMessageService waits for 10 seconds.

DelayedMessageService creates an intent for MainActivity, which it

uses to create a pending intent.

MainActivity DelayedMessageService

Intent

”Timing!”

DelayedMessageService

1...2...3...4...

DelayedMessageService creates a notification builder and sets

details of how the notification should be configured.

DelayedMessageService NotificationCompat.Builder

icon=sym_def_app_icon

title=”What is the secret of comedy?”

text=”Timing!”

PendingIntent

To: MainActivity

DelayedMessageService

Log

Display notification

you are here 4 763

started services

DelayedMessageService creates a NotificationManager object and

calls its notify() method.

The notification service displays the notification built by the notification builder.

When the user clicks on the notification, the notification uses its

pending intent to start MainActivity.

The story continues

NotificationDelayedMessageService NotificationManager

PendingIntent

To: MainActivity

Notification MainActivity

Intent

Now that we’ve gone through what the code does, let’s take the

app for a test drive.

DelayedMessageService adds the pending intent to the notification builder.

DelayedMessageService NotificationCompat.Builder

icon=sym_def_app_icon

title=”What is the secret of comedy?”

text=”Timing!”

PendingIntent

To: MainActivity

notify()

icon=sym_def_app_icon

title=”What is the secret of comedy?”

text=”Timing!”

Log

Display notification

764 Chapter 18

test drive

Log

Display notification

Test drive the app

When you click on the button in MainActivity, a

notification is displayed after 10 seconds. You’ll receive the

notification irrespective of which app you’re in.

When you open the notification drawer and click on the

notification, Android returns you to MainActivity.

You now know how to create a started service that displays a

notification using the Android notification service. In the next

chapter, we’ll look at how you create a bound service.

Click on the button, and

after a delay, a heads-up

notification appears.

Clicking on the notification

starts MainActivity.

When the head-up

notification disappears,

its icon remains in the

status bar.

you are here 4 765

started services

Your Android Toolbox

You’ve got Chapter 18 under

your belt and now you’ve

added started services to your

toolbox.

CHAPTER 18

A service is an application component that

can perform tasks in the background. It doesn’t

have a user interface.

A started service can run in the background

indefinitely, even when the activity that started

it is destroyed. Once the operation is done, it

stops itself.

A bound service is bound to another

component such as an activity. The activity can

interact with it and get results.

A scheduled service is one that’s scheduled to

run at a particular time.

You can create a simple started service by

extending the IntentService class,

overriding its onHandleIntent() method

and adding a public constructor.

You declare services in AndroidManifest.xml

using the <service> element.

You start a started service using the

startService() method.

When a started service is created, its

onCreate() method gets called,

followed by onStartCommand(). If

the service is an IntentService,

onHandleIntent() is then called in a

separate thread. When the service has finished

running, onDestroy() gets called before

the service is destroyed.

The IntentService class inherits

lifecycle methods from the Service class.

You log messages using the Android.

util.Log class. You can view these

messages in the logcat in Android Studio.

You create a notification using a notification

builder. Each notification must include a small

icon, a title, and some text as a bare minimum.

A heads-up notification has its priority set to

high, and vibrates the device or plays a sound

when it’s issued.

You tell the notification which activity to start

when it’s clicked by creating a pending intent

and adding it to the notification as an action.

You issue the notification using a notification

manager. You create a notification manager

using Android’s notification service.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

this is a new chapter 767

bound services and permissions

Bound Together

Started services are great for background operations, but

what if you need a service that’s more interactive? In this chapter

you’ll discover how to create a bound service, a type of service your activity can interact

with. You’ll see how to bind to the service when you need it, and how to unbind from

it when you’re done to save resources. You’ll find out how to use Android’s Location

Services to get location updates from your device GPS. Finally, you’ll discover how to

use Android’s permission model, including handling runtime permission requests.

Today, CALL_PHONE

permission. Tomorrow,

complete world

domination. Bwahaha...

768 Chapter 19

bound services

Bound services are bound to other components

As you saw in Chapter 18, a started service is one that starts

when it’s passed an intent. It runs code in the background, and

stops when the operation is complete. It continues running even

if the component that starts it gets destroyed.

A bound service is one that’s bound to another application

component, such as an activity. Unlike a started service, the

component can interact with the bound service and call its

methods.

To see this in action, we’re going to create a new odometer app

that uses a bound service. We’ll use Android’s location service

to track the distance traveled:

On the next page we’ll look at the steps we’ll go through

to create the app.

We’ll ask for regular updates

on the device’s current location,

calculate the distance traveled,

and display the result.

you are here 4 769

bound services and permissions

Here’s what we’re going to do

We’re going to build the app in three main steps:

Create a new Odometer project

We’ll start by creating the project. Create a new Android project for an

application named “Odometer” with a company domain of “hfad.com”,

making the package name com.hfad.odometer. The minimum

SDK should be API 19 so that it will work with most devices. You’ll need

an empty activity named “MainActivity” and a layout named “activity_

main” so that your code matches ours. Make sure that you uncheck

the Backwards Compatibility (AppCompat) option when you

create the activity.

Create a basic version of a bound service called OdometerService.

We’ll add a method to it, getDistance(), which will return a random number.

OdometerService

Get an activity, MainActivity, to bind to OdometerService and call

its getDistance() method.

We’ll call the method every second, and update a text view in MainActivity

with the results.

MainActivity

getDistance()

0.23

OdometerService

Update OdometerService to use Android’s Location Services.

The service will get updates on the user’s current location, and use these to

calculate the distance traveled.

OdometerService

Are we nearly

there yet?

770 Chapter 19

create service

package com.hfad.odometer;

import android.app.Service;

import android.content.Intent;

import android.os.IBinder;

public class OdometerService extends Service {

@Override

public IBinder onBind(Intent intent) {

//Code to bind the service

}

The above code implements one method, onBind(), which

gets called when a component, such as an activity, wants to bind

to the service. It has one parameter, an Intent, and returns an

IBinder object.

IBinder is an interface that’s used to bind your service to the

activity, and you need to provide an implementation of it in your

service code. We’ll look at how you do this next.

The class extends

the Service class.

The onBind() method is called when a

component wants to bind to the service.

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

Create a new service

You create a bound service by extending the Service class.

This class is more general than the IntentService class

we used in Chapter 18, which is used for started services.

Extending Service gives you more flexibility, but requires

more code.

We’re going to add a new bound service to our project, so

switch to the Project view of Android Studio’s explorer, click

on the com.hfad.odometer package in the app/src/main/

java folder, go to File→New..., and select the Service option.

When prompted, choose the option to create a new Service (not

an Intent Service), and name the service “OdometerService”.

Uncheck the “Exported” option, as this only needs to be true if

you want services outside this app to access the service. Make

sure that the “checkednabled” option is checked; if it isn’t, the

activity won’t be able to run the app. Then replace the code in

OdometerService.java with this (shown here in bold):

OdometerService

MainActivity

Location Services

Uncheck the

exported

option.

Check the

enabled option.

Some versions of Android

Studio may ask you what

the source language should

be. If prompted, select

the option for Java.

you are here 4 771

bound services and permissions

Implement a binder

You implement the IBinder by adding a new inner class to your

service code that extends the Binder class (which implements the

IBinder interface). This inner class needs to include a method

that activities can use to get a reference to the bound service.

We’re going to define a binder called OdometerBinder

that MainActivity can use to get a reference to

OdometerService. Here’s the code we’ll use to define it:

public class OdometerBinder extends Binder {

OdometerService getOdometer() {

return OdometerService.this;

}

We need to return an instance of the OdometerBinder in

OdometerService’s onBind() method. To do this, we’ll create

a new private variable for the binder, instantiate it, and return it in

the onBind() method. Update your OdometerService.java code to

include our changes below:

...

import android.os.Binder;

public class OdometerService extends Service {

private final IBinder binder = new OdometerBinder();

public class OdometerBinder extends Binder {

OdometerService getOdometer() {

return OdometerService.this;

}

@Override

public IBinder onBind(Intent intent) {

return binder;

}

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

When you create a bound service, you

need to provide a Binder implementation.

The activity will use this method to get

a reference to the OdometerService.

We’re using this extra class,

so we need to import it.

This is our IBinder implementation.

We’re using a private final variable for our IBinder.object

Return the IBinder.

We’ve now written all the service code we need to allow

MainActivity to bind to OdometerService. Next, we’ll add

a new method to the service to make it return a random number.

OdometerService

MainActivity

Location Services

772 Chapter 19

getDistance()

Add a getDistance() method to the service

We’re going to add a method to OdometerService called

getDistance(), which our activity will call. We’ll get it to

return a random number for now, and later on we’ll update it to

use Android’s location services.

Here’s the full code for OdometerService.java including this change;

update your version to match ours:

package com.hfad.odometer;

import android.app.Service;

import android.content.Intent;

import android.os.IBinder;

import android.os.Binder;

import java.util.Random;

public class OdometerService extends Service {

private final IBinder binder = new OdometerBinder();

private final Random random = new Random();

public class OdometerBinder extends Binder {

OdometerService getOdometer() {

return OdometerService.this;

}

@Override

public IBinder onBind(Intent intent) {

return binder;

}

public double getDistance() {

return random.nextDouble();

}

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

Next we’ll update MainActivity so that it uses OdometerService.

OdometerService

MainActivity

Location Services

We’re using this extra class,

so we need to import it.

We’ll use a Random() object

to generate random numbers.

Add the getDistance() method.

Return a random double.

you are here 4 773

bound services and permissions

Update MainActivity’s layout

The next step in creating our app is to get MainActivity to

bind to OdometerService and call its getDistance()

method. We’re going to start by adding a text view to

MainActivity’s layout. This will display the number

returned by OdometerService’s getDistance() method.

Update your version of activity_main.xml to reflect our changes:

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout

xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="com.hfad.odometer.MainActivity"

android:orientation="vertical"

android:padding="16dp">

<TextView

android:id="@+id/distance"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textSize="48sp"

android:layout_gravity="center_horizontal"

android:textAppearance="?android:attr/textAppearanceLarge" />

</LinearLayout>

Now that we’ve added a text view to MainActivity’s layout,

we’ll update its activity code. Let’s go through the changes we

need to make.

<xml>

</xml>

app/src/main

activity_

main.xml

Odometer

res

layout

We’ll use the TextView to display

the number returned by the

OdometerService getDistance() method.

OdometerService

MainActivity

Location Services

774 Chapter 19

steps

What MainActivity needs to do

To get an activity to connect to a bound service and call its methods,

there are a few steps you need to perform:

Create a ServiceConnection.

This uses the service’s IBinder object to form a connection with the service.

Bind the activity to the service.

Once you’ve bound it to the service, you can call the service’s methods directly.

Interact with the service.

In our case, we’ll use the service’s getDistance() method to

update the activity’s text view.

Unbind from the service when you’ve finished with it.

When the service is no longer used, Android destroys the service to free up resources.

Activity ServiceServiceConnection

Activity Service

When your activity is bound

to the service, you can use it

to update your activity.

We’ll go through these steps with MainActivity, starting with

creating the ServiceConnection.

OdometerService

MainActivity

Location Services

you are here 4 775

bound services and permissions

Create a ServiceConnection

A ServiceConnection is an interface that enables your activity

to bind to a service. It has two methods that you need to define:

onServiceConnected() and onServiceDisconnected().

The onServiceConnected() method is called when a connection

to the service is established, and onServiceDisconnected() is

called when it disconnects.

We need to add a ServiceConnection to MainActivity.

Here’s what the basic code looks like; update your version of

MainActivity.java to matches ours:

package com.hfad.odometer;

import android.app.Activity;

import android.os.Bundle;

import android.content.ServiceConnection;

import android.os.IBinder;

import android.content.ComponentName;

public class MainActivity extends Activity {

private ServiceConnection connection = new ServiceConnection() {

@Override

public void onServiceConnected(ComponentName componentName, IBinder binder) {

//Code that runs when the service is connected

}

@Override

public void onServiceDisconnected(ComponentName componentName) {

//Code that runs when the service is disconnected

}

};

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

}

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

We’ll update the onServiceConnected() and

onServiceDisconnected() methods on the next page.

OdometerService

MainActivity

Location Services

We’re using these classes,

so we need to import them.

We’re using an Activity

here, but you could use

AppCompatActivity instead.

Create a

Service

Connection

object.

You need to define these methods.

Add MainActivity’s onCreate() method.

776 Chapter 19

onServiceConnected()

The onServiceConnected() method

As we said on the previous page, the onServiceConnected()

method is called when a connection is established between

the activity and the service. It takes two parameters: a

ComponentName object that describes the service that’s been

connected to, and an IBinder object that’s defined by the service:

@Override

public void onServiceConnected(ComponentName componentName, IBinder binder) {

//Code that runs when the service is connected

}

There are two things we need the onServiceConnected()

method to do:

Use its IBinder parameter to get a reference to the service we’re connected to,

in this case OdometerService. We can do this by casting the IBinder to an

OdometerService.OdometerBinder (as this is the type of IBinder we

defined in OdometerService) and calling its getOdometer() method.

Record that the activity is bound to the service.

public class MainActivity extends Activity {

private OdometerService odometer;

private boolean bound = false;

private ServiceConnection connection = new ServiceConnection() {

@Override

public void onServiceConnected(ComponentName componentName, IBinder binder) {

OdometerService.OdometerBinder odometerBinder =

(OdometerService.OdometerBinder) binder;

odometer = odometerBinder.getOdometer();

bound = true;

}

...

};

...

}

Here’s the code to do these things (update your version of

MainActivity.java to include our changes):

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

The ComponentName identifies

the service. It includes the

service package and class names.

This is an IBinder defined by

the service. We added one to

OdometerService earlier.

Add these variables to record

a reference to the service, and

whether the activity is bound to it.

Use the IBinder to get a

reference to the service.

The activity is bound to the service,

so set the bound variable to true.

OdometerService

MainActivity

Location Services

you are here 4 777

bound services and permissions

The onServiceDisconnected() method

The onServiceDisconnected() method is called when the

service and the activity are disconnected. It takes one parameter, a

ComponentName object that describes the service:

@Override

public void onServiceDisconnected(ComponentName componentName) {

//Code that runs when the service is disconnected

}

There’s only one thing we need the

onServiceDisconnected() method to do when it’s called:

record that the activity is no longer bound to the service. Here’s

the code to do that; update your version of MainActivity.java to

match ours:

public class MainActivity extends Activity {

private OdometerService odometer;

private boolean bound = false;

private ServiceConnection connection = new ServiceConnection() {

@Override

public void onServiceConnected(ComponentName componentName, IBinder binder) {

OdometerService.OdometerBinder odometerBinder =

(OdometerService.OdometerBinder) binder;

odometer = odometerBinder.getOdometer();

bound = true;

}

@Override

public void onServiceDisconnected(ComponentName componentName) {

bound = false;

}

};

...

}

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

Next we’ll look at how you bind to and unbind from the service.

Set bound to false, as MainActivity is

no longer bound to OdometerService.

OdometerService

MainActivity

Location Services

778 Chapter 19

bindService()

Use bindService() to bind the service

When you bind your activity to a service, you usually do it in

one of two places:

In the activity’s onStart() method when the activity becomes

visible. This is appropriate if you only need to interact with the

service when it’s visible.

In our case, we only need to display updates from

OdometerService when MainActivity is visible, so we’ll

bind to the service in its onStart() method.

To bind to the service, you first create an explicit intent that’s

directed at the service you want to bind to. You then use the

activity’s bindService() method to bind to the service,

passing it the intent, the ServiceConnection object

defined by the service, and a flag to describe how you want to

bind.

To see how you do this, here’s the code you’d use to bind

MainActivity to OdometerService (we’ll add this code

to MainActivity.java a few pages ahead):

In the activity’s onCreate() method when the activity gets

created. Do this if you need to receive updates from the service

even when the activity’s stopped.

MainActivity OdometerService

@Override

protected void onStart() {

super.onStart();

Intent intent = new Intent(this, OdometerService.class);

bindService(intent, connection, Context.BIND_AUTO_CREATE);

}

In the above code, we’ve used the flag Context.BIND_

AUTO_CREATE to tell Android to create the service if it doesn’t

already exist. There are other flags you can use instead; you can

see all the available ones in the Android documentation here:

https://developer.android.com/reference/android/content/Context.html

Next, we’ll look at how you unbind the activity from the service.

This is an intent directed

to the OdometerService.

The bindService() method

uses the intent and service

connection to bind the

activity to the service.

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

You don’t usually bind to a service

in the activity’s onResume()

method in order to keep the

processing done in this method to

a minimum.

This is the ServiceConnection object.

OdometerService

MainActivity

Location Services

you are here 4 779

bound services and permissions

Use unbindService()

to unbind from the service

When you unbind your activity from a service, you usually

add the code to do so to your activity’s onStop() or

onDestroy() method. The method you use depends on

where you put your bindService() code:

In our case, we used MainActivity’s onStart() method

to bind to OdometerService, so we’ll unbind from it in the

activity’s onStop() method.

You unbind from a service using the unbindService()

method. The method takes one parameter, the

ServiceConnection object. Here’s the code that we need to

add to MainActivity (we’ll add this code to MainActivity.java

a few pages ahead):

@Override

protected void onStop() {

super.onStop();

if (bound) {

unbindService(connection);

bound = false;

}

In the above code we’re using the value of the bound variable

to test whether or not we need to unbind from the service. If

bound is true, this means MainActivity is bound to

OdometerService. We need to unbind the service, and set

the value of bound to false.

So far we have an activity that binds to the service when the

activity starts, and unbinds from it when the activity stops.

The final thing we need to do is get MainActivity to call

OdometerService’s getDistance() method, and

display its value.

MainActivity OdometerService

This uses the ServiceConnection

object to unbind from the service.

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

If you bound to the service in your activity’s onStart() method,

unbind from it in the onStop() method.

If you bound to the service in your activity’s onCreate()

method, unbind from it in the onDestroy() method.

When we unbind, we’ll set bound to false.

OdometerService

MainActivity

Location Services

780 Chapter 19

get distance

We’ll call the displayDistance() method in

MainActivity’s onCreate() method so that it starts

running when the activity gets created (we’ll add this code to

MainActivity.java on the next page):

private void displayDistance() {

final TextView distanceView = (TextView) findViewById(R.id.distance);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

double distance = 0.0;

if (bound && odometer != null) {

distance = odometer.getDistance();

}

String distanceStr = String.format(Locale.getDefault(),

"%1$,.2f miles", distance);

distanceView.setText(distanceStr);

handler.postDelayed(this, 1000);

}

});

}

Call OdometerService’s getDistance() method

@Override

protected void onCreate(Bundle savedInstanceState) {

...

displayDistance();

}

We’ll show you the full code for MainActivity on the next page.

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

Get the

TextView.

MainActivity will use the results of

the OdometerService getDistance()

method to update the TextView.

If we’ve got a reference to the OdometerService

and we’re bound to it, call getDistance().

You could use a String resource for “miles”,

but we’ve hardcoded it here for simplicity.

Create a new Handler.

Call the Handler’s post() method, passing in a new Runnable.

Post the code in the Runnable to be run again after a delay

of 1 second. As this line of code is included in the Runnable

run() method, it will run every second (with a slight lag).

Once your activity is bound to the service, you can call its

methods. We’re going to call the OdometerService’s

getDistance() method every second, and update

MainActivity’s text view with its value.

To do this, we’re going to write a new method called

displayDistance(). This will work in a similar way to the

runTimer() code we used in Chapters 4 and 11.

Here’s our displayDistance() method. We’ll add it to

MainActivity.java a couple of pages ahead:

Call displayDistance() in MainActivity’s

onCreate() method to kick it off.

OdometerService

MainActivity

Location Services

you are here 4 781

bound services and permissions

The full MainActivity.java code

Here’s the complete code for MainActivity.java; make sure your

version of the code matches ours:

package com.hfad.odometer;

import android.app.Activity;

import android.os.Bundle;

import android.content.ServiceConnection;

import android.os.IBinder;

import android.content.ComponentName;

import android.content.Context;

import android.content.Intent;

import android.os.Handler;

import android.widget.TextView;

import java.util.Locale;

public class MainActivity extends Activity {

private OdometerService odometer;

private boolean bound = false;

private ServiceConnection connection = new ServiceConnection() {

@Override

public void onServiceConnected(ComponentName componentName, IBinder binder) {

OdometerService.OdometerBinder odometerBinder =

(OdometerService.OdometerBinder) binder;

odometer = odometerBinder.getOdometer();

bound = true;

}

@Override

public void onServiceDisconnected(ComponentName componentName) {

bound = false;

}

};

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

displayDistance();

}

The code continues

on the next page.

Call the displayDistance() method

when the activity is created.

Get a reference to the

OdometerService when the

service is connected.

Use this for the OdometerService.

Use this to store whether or not the

activity’s bound to the service.

We need to

define a

ServiceConnection.

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

We're using these extra classes,

so we need to import them.

private void displayDistance() {

final TextView distanceView = (TextView) findViewById(R.id.distance);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

double distance = 0.0;

if (bound && odometer != null) {

distance = odometer.getDistance();

}

String distanceStr = String.format(Locale.getDefault(),

"%1$,.2f miles", distance);

distanceView.setText(distanceStr);

handler.postDelayed(this, 1000);

}

});

}

OdometerService

MainActivity

Location Services

782 Chapter 19

code, continued

@Override

protected void onStart() {

super.onStart();

Intent intent = new Intent(this, OdometerService.class);

bindService(intent, connection, Context.BIND_AUTO_CREATE);

}

@Override

protected void onStop() {

super.onStop();

if (bound) {

unbindService(connection);

bound = false;

}

private void displayDistance() {

final TextView distanceView = (TextView)findViewById(R.id.distance);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

double distance = 0.0;

if (bound && odometer != null) {

distance = odometer.getDistance();

}

String distanceStr = String.format(Locale.getDefault(),

"%1$,.2f miles", distance);

distanceView.setText(distanceStr);

handler.postDelayed(this, 1000);

}

});

}

The MainActivity.java code (continued)

Call OdometerService’s

getDistance() method.

Bind the service when the activity starts.

Unbind the service when the activity stops.

Display the value returned by the

service's getDistance() method.

Update the TextView’s value every second.

That’s all the code you need to get MainActivity to use

OdometerService. Let’s go through what happens when

you run the code.

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

OdometerService

MainActivity

Location Services

you are here 4 783

bound services and permissions

What happens when you run the code

Before you see the app up and running, let’s walk through what the

code does.

When MainActivity is created, it creates a ServiceConnection object and

calls the displayDistance() method.

MainActivity ServiceConnection

MainActivity calls bindService() in its onStart() method.

The bindService() method includes an intent meant for OdometerService, and a

reference to the ServiceConnection.

displayDistance()

MainActivity

Intent

Odometer

Service

bindService()

Android creates an instance of the OdometerService, and passes it the

intent by calling its onBind() method.

Android

Intent

Odometer

Service

OdometerService

MainActivity

Location Services

onBind()

ServiceConnection

784 Chapter 19

what happens, continued

The ServiceConnection uses the Binder to give MainActivity a

reference to OdometerService.

The story continues

OdometerService

MainActivity

Location Services

MainActivity’s displayDistance() method calls OdometerService’s

getDistance() method every second.

OdometerService returns a random number to MainActivity, in this case

0.56.

MainActivity

getDistance()

0.56

OdometerService

OdometerService’s onBind() method returns a Binder.

The Binder is passed to MainActivity’s ServiceConnection.

MainActivity ServiceConnection OdometerService

onBind()

Binder

MainActivity ServiceConnection

you are here 4 785

bound services and permissions

When MainActivity stops, it disconnects from OdometerService by

calling unbindService().

MainActivity OdometerService

Now that you understand what happens when the code

runs, let’s take the app for a test drive.

OdometerService

OdometerService is destroyed when MainActivity is no longer bound

to it.

unbindService()

The story continues

MainActivity

I’m no longer

visible, so I don’t

need you anymore.

OK. Just call if you

change your mind.

786 Chapter 19

test drive

Test drive the app

When we run the app, a random number is displayed in

MainActivity. This number changes every second.

We now have a working service that MainActivity

can bind to. We still need to change the service so that

the getDistance() method returns the distance

traveled instead of a random number. Before we do that,

however, we’re going to take a closer look at how bound

services work behind the scenes.

OdometerService

MainActivity

Location Services

This is a random number

generated by OdometerService.

Q: What’s the difference between

a started service and a bound service

again?

A: A started service is created when an

activity (or some other component) calls

startService(). It runs code in the

background, and when it finishes running,

the service is destroyed.

A bound service is created when the activity

calls bindService(). The activity

can interact with the service by calling its

methods. The service is destroyed when no

components are bound to it.

Q: Can a service be both started and

bound?

A: Yes. In such cases, the service is

created when startService() or

bindService() is called. It’s only

destroyed when the code it was asked to

run in the background has stopped running,

and there are no components bound to it.

Creating this kind of started-and-bound

service is more complicated than creating

a service that’s only started or bound. You

can find out how to do it in the Android

documentation: https://developer.android.

com/guide/components/services.html.

Q: What’s the difference between a

Binder and an IBinder?

A: An IBinder is an interface. A

Binder is a class that implements the

IBinder interface.

Q: Can other apps use a service I

create?

A: Yes, but only if you set its

exported attribute to true in

AndroidManifest.xml.

you are here 4 787

bound services and permissions

The states of a bound service

Service created

Service destroyed

Service bound

A bound service is

destroyed when

no components are

bound to it.

An application component such as an

activity has bound to the service. The

service spends most of its lifecycle here.

At this point, the

service no longer exists.

Just like a started service, when a bound service is created, its

onCreate() method gets called. As before, you override this

method if you want to perform any tasks needed to set up the

service.

The onBind() method runs when a component binds to

the service. You override this method to return an IBinder

object to the component, which it uses to get a reference to the

service.

When all components have unbound from the service, its

onUnbind() method is called.

Finally, the onDestroy() method is called when no

components are bound to the service and it’s about to be

destroyed. As before, you override this method to perform any

final cleanup tasks and free up resources.

We’ll take a closer look at how these methods fit into the service

states on the next page.

When an application component (such as an activity) binds to

a service, the service moves between three states: being created,

being bound, and being destroyed. A bound service spends

most of its time in a bound state.

The service object

has been created.

788 Chapter 19

lifecycle methods

The bound service lifecycle: from create to destroy

onCreate()

onDestroy()

The component calls bindService() and

the service gets created.

The onCreate() method runs immediately

after the service is created.

The onCreate() method is where any service

initialization code should go, as this method

always gets called after the service has launched

but before any components have bound to it.

The service is bound for most of its life.

The onDestroy() method is called when

no components are bound to the service

and it’s about to be destroyed.

You override this method if you want to perform

any final cleanup tasks such as freeing up

resources.

After the onDestroy() method has run,

the service is destroyed.

The service ceases to exist.

Here’s a more detailed overview of the bound service lifecycle from

birth to death.

Now that you have a better understanding of how bound services

work, let’s change our Odometer app so that it displays the actual

distance traveled by the user.

Service created

Service destroyed

onBind()

Service bound

The onBind() method runs when the

component binds to the service.

You override this method to return an IBinder

object, which the component can use to get a

reference to the service and call its methods.

onUnbind()

The onUnbind() method runs when all

components have unbound from the

service.

you are here 4 789

bound services and permissions

We’ll use Android’s Location Services

to return the distance traveled

We need to get our OdometerService to return the distance

traveled in its getDistance() method. To do this, we’ll use

Android’s Location Services. These allow you to get the user’s

current location, request periodic updates, and ask for an intent to

be fired when the user comes within a certain radius of a particular

location.

In our case, we’re going to use the Location Services to get periodic

updates on the user’s current location. We’ll use these to calculate

the distance the user has traveled.

To do this, we’ll perform the following steps:

Set up a location listener when the service is created.

This will be used to listen for updates from the Location Services.

Request location updates.

We’ll create a location manager, and use it to request updates on the user’s

current location.

Calculate the distance traveled.

We’ll keep a running total of the distance traveled by the user, and return

this distance in the OdometerService’s getDistance() method.

Remove location updates just before the service is destroyed.

This will free up system resources.

Before we start, we’ll add the AppCompat Support Library to our

project, as we’ll need to use it in our code.

Declare we need permission to use the Location Services.

Our app can only use the Location Services if the user grants our app

permission to do so.

OdometerService

MainActivity

Location Services

790 Chapter 19

add support library

Add the AppCompat Support Library

To get our location code working properly, there are a couple

of classes we need to use from the AppCompat Support

Library, so we’ll add it to our project as a dependency. You do

this in the same way that you did in earlier chapters. Choose

File→Project Structure, then click on the app module and choose

Dependencies. You’ll be presented with the following screen:

Android Studio may have already added the AppCompat Support

Library automatically. If so, you will see it listed as appcompat-v7,

as shown above.

If the AppCompat Library isn’t listed, you will need to add it

yourself. To do this, click on the “+” button at the bottom or right

side of the screen, choose the Library Dependency option, select

the appcompat-v7 library, then click on the OK button. Click on

OK again to save your changes and close the Project Structure

window.

Next, we’ll look at how to declare we need permission to use

Android’s Location Services.

Here’s the AppCompat Support Library.

OdometerService

MainActivity

Location Services

you are here 4 791

bound services and permissions

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="com.hfad.odometer">

<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />

<application

...

</application>

</manifest>

Declare the permissions you need

Android allows you to perform many actions by default, but there

are some that the user needs to give permission for in order for them

to work. This can be because they use the user’s private information,

or could affect stored data or the way in which other apps function.

Location Services is one of those things that the user needs to grant

your app permission to use.

You declare the permissions your app requires in AndroidManifest.xml

using the <uses-permission> element, which you add to the

root <manifest> element. In our case, we need to access the user’s

precise location in order to display the distance traveled, so we need

to declare the ACCESS_FINE_LOCATION permission. To do this,

you add the following declaration to AndroidManifest.xml (update your

version of the file to reflect this change):

<xml>

</xml>

app/src/main

AndroidManifest.xml

Odometer

How the app uses the above declaration depends on your app’s target

SDK (usually the most recent version of Android) and the API level of

the user’s device:

Now that we’ve declared that our app needs to know the user’s

location, let’s get to work on OdometerService.

We need to know the user's precise location.

Declare we need a permission.

If your target SDK is API level 23 or above, and the user’s device is running 23

or above, the app requests permission at runtime. The user can deny or

revoke permission, so whenever your code wants to use the thing that requires

permission, it needs to check that permission is still granted. You’ll find out how

to do this later in the chapter.

If your target SDK is API level 22 or below, or the user’s device is running 22

or below, the app requests permission when it’s installed. If the user

denies permission, the app isn’t installed. Once granted, permission can’t be

revoked except by uninstalling the app.

OdometerService

MainActivity

Location Services

792 Chapter 19

location listener

Add a location listener to OdometerService

...

import android.os.Bundle;

import android.location.LocationListener;

import android.location.Location;

public class OdometerService extends Service {

...

private LocationListener listener;

@Override

public void onCreate() {

super.onCreate();

listener = new LocationListener() {

@Override

public void onLocationChanged(Location location) {

//Code to keep track of the distance

}

@Override

public void onProviderDisabled(String arg0) {}

@Override

public void onProviderEnabled(String arg0) {}

@Override

public void onStatusChanged(String arg0, int arg1, Bundle bundle) {}

};

}

...

}

app/src/main

Odometer

Service.java

java

com.hfad.odometer

Set up the LocationListener.

The Location parameter describes the

current location. We’ll use this later.

We won't use any of

these methods in our

OdometerService code,

but we still need to

declare them.

We’ll complete this code

later in the chapter.

You create a location listener by implementing the

LocationListener interface. It has four methods that you need

to define: onLocationChanged(), onProviderEnabled(),

onProviderDisabled(), and onStatusChanged().

onLocationChanged() gets called when the user’s location has changed.

We’ll use this method later in the chapter to track the distance the user has

traveled. The onProviderEnabled(), onProviderDisabled(), and

onStatusChanged() methods are called when the location provider is

enabled, when it is disabled, or when its status has changed, respectively.

We need to set up a location listener when OdometerService is first created,

so we’ll implement the interface in OdometerService’s onCreate()

method. Update your version of OdometerService.java to include our changes below:

We’re using a private variable

for the LocationListener so

other methods can access it.

We’ll look at location

providers on the next page.

We’re using these

extra classes, so we

need to import them.

OdometerService

MainActivity

Location Services

you are here 4 793

bound services and permissions

LocationManager locManager = (LocationManager)getSystemService(Context.LOCATION_SERVICE);

This is how you access the

Android location service.

We used the getSystemService()

method in Chapter 18 to get access

to Android’s notification service.

Specify the location provider

Next, we need to specify the location provider, which is used to

determine the user’s location. There are two main options: GPS

or network. The GPS option uses the device’s GPS sensor to

establish the user’s location, whereas the network option looks at

Wi-Fi, Bluetooth, or mobile networks.

Not all devices have both types of location provider, so you can

use the location manager’s getBestProvider() method

to get the most accurate location provider on the device. This

method takes two parameters: a Criteria object you can

use to specify criteria such as power requirements, and a flag to

indicate whether it should currently be enabled on the device.

We want to use the location provider on the device with the

greatest accuracy, so we’ll use the following (we’ll add it to

OdometerService later):

We need a location manager

and location provider

To get location updates, we need to do three things: create a

location manager to get access to Android’s Location Services,

specify a location provider, and request that the location provider

sends regular updates on the user’s current location to the

location listener we added on the previous page. We’ll start by

getting a location manager.

Create a location manager

You create a location manager in a similar way to how you

created a notification manager in Chapter 18: using the

getSystemService() method. Here’s the code to create

a location manager that you can use to access Android’s

Location Services (we’ll add the code to OdometerService’s

onCreate() method later on):

String provider = locManager.getBestProvider(new Criteria(), true);

Next we’ll get the location provider to send location updates to

the location listener.

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

This gets the most accurate location

provider that’s available on the device.

OdometerService

MainActivity

Location Services

794 Chapter 19

request updates

locManager.requestLocationUpdates(provider, 1000, 1, listener);

You get the location provider to send updates to the location listener

using the location manager’s requestLocationUpdates()

method. It takes takes four parameters: the location provider, the

minimum time interval between updates in milliseconds, the

minimum distance between location updates in meters, and the

location listener you want to receive the updates. As an example,

here’s how you’d request location updates from the location provider

every second when the device has moved more than a meter:

The location provider

The time in milliseconds

The distance in meters

The LocationListener you

want to receive updates

Request location updates...

...but first check that your app has

permission

If your app’s target SDK is API level 23 or above, you need to check at

runtime whether the user has granted you permission to get their current

location. (As we said earlier in the chapter, if your target SDK is API level

23 or above, and the user’s device is running one of these versions, the user

may have installed the app without granting Location Services permission. You

therefore have to check whether permission’s been granted before running any

code that requires Location Services, or your code won’t compile.)

You check whether permission’s been granted using the ContextCompat.

checkSelfPermission() method. ContextCompat is a class from the

AppCompat Support Library that provides backward compatibility with older

versions of Android. Its checkSelfPermission() method takes two

parameters: the current Context (usually this) and the permission you

want to check. It returns a value of PackageManager.PERMISSION_

GRANTED if permission has been granted.

In our case, we want to check whether the app’s been granted ACCESS_

FINE_LOCATION permission. Here’s the code to do that:

if (ContextCompat.checkSelfPermission(this,

android.Manifest.permission.ACCESS_FINE_LOCATION)

== PackageManager.PERMISSION_GRANTED) {

locManager.requestLocationUpdates(provider, 1000, 1, listener);

}

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

On the next page we’ll show you all the code you need to add to

OdometerService.java to request location updates.

Check if the ACCESS_FINE_LOCATION

permission has been granted...

...before requesting location updates.

You can check your app’s target SDK

version by choosing File -> Project

Structure, clicking on the app option,

and then choosing Flavors.

OdometerService

MainActivity

Location Services

you are here 4 795

bound services and permissions

Here’s the full code to request location updates (update

your version of OdometerService.java to include our changes):

...

import android.content.Context;

import android.location.LocationManager;

import android.location.Criteria;

import android.support.v4.content.ContextCompat;

import android.content.pm.PackageManager;

public class OdometerService extends Service {

...

private LocationManager locManager;

public static final String PERMISSION_STRING

= android.Manifest.permission.ACCESS_FINE_LOCATION;

...

@Override

public void onCreate() {

super.onCreate();

listener = new LocationListener() {

...

};

locManager = (LocationManager) getSystemService (Context.LOCATION_SERVICE);

if (ContextCompat.checkSelfPermission(this, PERMISSION_STRING)

== PackageManager.PERMISSION_GRANTED) {

String provider = locManager.getBestProvider(new Criteria(), true);

if (provider != null) {

locManager.requestLocationUpdates(provider, 1000, 1, listener);

}

...

}

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

Next we’ll get our location listener to deal with the location updates.

We’re using

these extra

classes, so

import them.

We’re using a private variable for

the LocationManager so we can

access it from other methods.

We’re adding the permission String as a constant.

Get the LocationManager.

Check

whether

we have

permission.

Get the most

accurate location

provider.

Request updates from the location provider.

OdometerService

MainActivity

Location Services

Here’s the updated OdometerService code

locManager.requestLocationUpdates(provider, 1000, 1, listener);

if (ContextCompat.checkSelfPermission(this,

android.Manifest.permission.ACCESS_FINE_LOCATION)

== PackageManager.PERMISSION_GRANTED) {

locManager.requestLocationUpdates(provider, 1000, 1, listener);

}

Odometer

Service.java

796 Chapter 19

distance traveled

double distanceInMeters = location.distanceTo(lastLocation);

Calculate the distance traveled

So far, we’ve requested that the location listener be notified when the user’s current

location changes. When this happens, the listener’s onLocationChanged()

method gets called.

This method has one parameter, a Location object representing the user’s

current location. We can use this object to calculate the distance traveled by keeping

a running total of the distance between the user’s current location and their last.

You find the distance in meters between two locations using the Location

object’s distanceTo() method. As an example, here’s how you’d find the

distance between two locations called location and lastLocation:

public class OdometerService extends Service {

private static double distanceInMeters;

private static Location lastLocation = null;

...

@Override

public void onCreate() {

super.onCreate();

listener = new LocationListener() {

@Override

public void onLocationChanged(Location location) {

if (lastLocation == null) {

lastLocation = location;

}

distanceInMeters += location.distanceTo(lastLocation);

lastLocation = location;

}

...

}

...

}

...

}

Here’s the code we need to add to OdometerService to record the distance

traveled by the user (update your version of OdometerService.java to match ours):

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

We’ll use this code to return the distance traveled to MainActivity.

This gets the distance

between location and

lastLocation.

We’re using static variables to store

the distance traveled and the user’s

last location so that their values are

retained when the service is destroyed.

Set the user’s starting location.

Update the distance traveled and the user’s last location.

OdometerService

MainActivity

Location Services

you are here 4 797

bound services and permissions

Return the miles traveled

To tell MainActivity how far the user has traveled, we need

to update OdometerService’s getDistance() method. It

currently returns a random number, so we’ll change it to convert

the value of the distanceInMeters variable to miles and

return that value. Here’s the new version of the getDistance()

method; update your version of it to match ours:

public double getDistance() {

return random.nextDouble();

return this.distanceInMeters / 1609.344;

}

This converts the distance traveled in meters into miles. We could make this

calculation more precise if we wanted to, but it’s accurate enough for our purposes.

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

if (ContextCompat.checkSelfPermission(this, PERMISSION_STRING)

== PackageManager.PERMISSION_GRANTED) {

locManager.removeUpdates(listener);

}

Stop the listener getting location updates

We’re going to stop the location listener getting updates using the

OdometerService’s onDestroy() method, as this gets called just before

the service is destroyed.

You stop the updates by calling the location manager’s removeUpdates()

method. It takes one parameter, the listener you wish to stop receiving the updates:

Finally, we’ll stop the listener getting location updates when the service

is about to be destroyed.

locManager.removeUpdates(listener);

If your app’s target SDK is API level 23 or above, you need to

check whether the user has granted ACCESS_FINE_LOCATION

permission before calling the removeUpdates() method. This

is because you can only use this method if the user’s granted

this permission, and Android Studio will complain if you don’t

check first. You check whether permission’s been granted in the

same way we did earlier, by checking the return value of the

ContextCompat.checkSelfPermission() method:

Over the next few pages we’ll show you the full code for

OdometerService, including the new onDestroy() method.

This stops the location listener getting updates.

We can only remove the

updates if we have permission.

OdometerService

MainActivity

Location Services

Delete this line.

798 Chapter 19

OdometerService code

The full OdometerService.java code

We’ve now done everything we need to get OdometerService

to return the distance traveled. Update your version of

OdometerService.java to match ours.

package com.hfad.odometer;

import android.app.Service;

import android.content.Context;

import android.content.Intent;

import android.os.Bundle;

import android.os.IBinder;

import android.os.Binder;

import java.util.Random;

import android.location.LocationListener;

import android.location.Location;

import android.location.LocationManager;

import android.location.Criteria;

import android.support.v4.content.ContextCompat;

import android.content.pm.PackageManager;

public class OdometerService extends Service {

private final IBinder binder = new OdometerBinder();

private final Random random = new Random();

private LocationListener listener;

private LocationManager locManager;

private static double distanceInMeters;

private static Location lastLocation = null;

public static final String PERMISSION_STRING

= android.Manifest.permission.ACCESS_FINE_LOCATION;

public class OdometerBinder extends Binder {

OdometerService getOdometer() {

return OdometerService.this;

}

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

The code continues

on the next page.

We’re no longer returning a random

number, so you can delete this import.

Delete the Random() object, as we’re

no longer using it.

OdometerService

MainActivity

Location Services

you are here 4 799

bound services and permissions

@Override

public void onCreate() {

super.onCreate();

listener = new LocationListener() {

@Override

public void onLocationChanged(Location location) {

if (lastLocation == null) {

lastLocation = location;

}

distanceInMeters += location.distanceTo(lastLocation);

lastLocation = location;

}

@Override

public void onProviderDisabled(String arg0) {

}

@Override

public void onProviderEnabled(String arg0) {

}

@Override

public void onStatusChanged(String arg0, int arg1, Bundle bundle) {

}

};

locManager = (LocationManager) getSystemService (Context.LOCATION_SERVICE);

if (ContextCompat.checkSelfPermission(this, PERMISSION_STRING)

== PackageManager.PERMISSION_GRANTED) {

String provider = locManager.getBestProvider(new Criteria(), true);

if (provider != null) {

locManager.requestLocationUpdates(provider, 1000, 1, listener);

}

The OdometerService.java code (continued)

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

The code continues

on the next page.

None of the code on

this page has changed.

OdometerService

MainActivity

Location Services

800 Chapter 19

code, continued

@Override

public IBinder onBind(Intent intent) {

return binder;

}

@Override

public void onDestroy() {

super.onDestroy();

if (locManager != null && listener != null) {

if (ContextCompat.checkSelfPermission(this, PERMISSION_STRING)

== PackageManager.PERMISSION_GRANTED) {

locManager.removeUpdates(listener);

}

locManager = null;

listener = null;

}

public double getDistance() {

return this.distanceInMeters / 1609.344;

}

The OdometerService.java code (continued)

app/src/main

Odometer

Service.java

Odometer

java

com.hfad.odometer

Let’s take the app for a test drive.

Q: I noticed I can call checkSelfPermission()

directly in my service without using ContextCompat. Why

do I have to use the ContextCompat version?

A: Because it’s simpler to use. A

checkSelfPermission() method was added to the

Context class in API level 23, but this means it’s not available

on devices running an older version of Android.

Add the onDestroy() method.

Stop getting locations updates (if

we have permission to remove them).

Set the LocationManager and

LocationListener variables to null.

OdometerService

MainActivity

Location Services

you are here 4 801

bound services and permissions

Test drive the app

When we launch the app, 0.0 miles is initially displayed. When we

check the app permissions, permission hasn’t been granted to use

Location Services. You can check this on your device by opening

the device settings, choosing Apps, selecting the Odometer app, and

opening the Permissions section:

When we grant Location permission for the Odometer app and

return to the app, the location icon is displayed in the status bar,

and the number of miles traveled increases when we take the device

for a walk. The location icon disappears when we leave the app:

The odometer works when we grant the app Location permission,

but doesn’t when permission’s been denied.

OdometerService

MainActivity

Location Services

The location icon indicates

our device GPS is being used.

The miles traveled

The app hasn’t been

granted permission to

use Location Services.

We’ve switched on

Location permissions.

The number of miles

increases when we take

the device for a walk.

The icon

disappears when

we leave the app.

Location Services permission

for the app may be granted on

your device by default. If this

is the case, see what happens

when you switch it off.

802 Chapter 19

request permission

Get the app to request permission

So far, we’ve made OdometerService check whether it has

permission to get the user’s precise location. If permission’s been

granted, it uses the Android Location Services to track the distance

the user travels. But what if permission hasn’t been granted?

If the app doesn’t have permission to get the user’s precise location,

OdometerService can’t use the Location Services we require.

Rather than just accepting this, the app would work better if it were

to ask the user to grant the permission.

We’re going to change MainActivity so that if the user hasn’t

granted the permission we need, we’ll request it. To achieve this,

we’ll get MainActivity to do three things:

Let’s start by looking at how you make an activity request permissions

at runtime.

Before MainActivity binds to the service, request ACCESS_FINE_

LOCATION permission if it’s not already been granted.

This will present the user with a permission request dialog.

Check the response, and bind to the service if permission is granted.

If permission is denied, issue a notification.

This dialog appears when you request

ACCESS_FINE_LOCATION

permission at runtime.

We’ll issue this notification

if the user doesn’t grant

the permission we need.

you are here 4 803

bound services and permissions

Check permissions at runtime

Earlier in the chapter, you saw how to check whether

the user has granted a particular permission using the

ContextCompat.checkSelfPermission() method:

if (ContextCompat.checkSelfPermission(this, PERMISSION_STRING)

== PackageManager.PERMISSION_GRANTED) {

//Run code that needs the user's permission

}

If the user has granted permission, the method returns a value

of PackageManager.PERMISSION_GRANTED, and the

code requiring the permission will run successfully. But what if

permission has been denied?

Ask for permissions you don’t have

If the user hasn’t granted one or more permissions needed

by your code, you can use the ActivityCompat.

requestPermissions() method to request permission at

runtime. ActivityCompat is a class from the AppCompat

Support Library that provides backward compatibility with

older versions of Android. Its requestPermissions()

method takes three parameters: a Context (usually this),

a String array of permissions you want to check, and an int

request code for the permission request. As an example, here’s

how you’d use the method to request the ACCESS_FINE_

LOCATION permission:

ActivityCompat.requestPermissions(this,

new String[]{android.Manifest.permission.ACCESS_FINE_LOCATION}, 6854);

When the requestPermissions() method is called, it

displays one or more dialogs asking the user for each permission.

The dialog gives the user a choice between denying or allowing

the permission, and there’s also a checkbox they can check if they

don’t want to be asked about the permission again. If they check

the checkbox and deny the permission, subsequent calls to the

requestPermissions() method won’t display the dialog.

Note that the requestPermissions() method can only be

called from an activity. You can’t request permissions from a service.

We’re going to update MainActivity so that it requests

permission to get the device’s location if it hasn’t already been

granted.

The requestPermissions()

method can only be called

by an activity. It can’t be

called from a service.

Request

Granted

Denied

This code checks whether the

user has granted a permission.

Use this method to

request permissions

at runtime.

This is the request code for

the permissions request. It can

be any int. You’ll see where this

gets used in a couple of pages.

This is the permissions request dialog.

The user can deny or allow

permissions using these options.

804 Chapter 19

onStart()

Check for Location Services permissions

in MainActivity’s onStart() method

We’re currently using MainActivity’s onStart() method to

bind the activity to OdometerService. We’re going to change the

code so that MainActivity only binds to the service if the user

has granted the permission specified by the PERMISSION_STRING

constant we defined in OdometerService. If permission’s not been

granted, we’ll ask for it.

Here’s the updated code for MainActivity.java; update your version of

the code with our changes:

...

import android.content.pm.PackageManager;

import android.support.v4.app.ActivityCompat;

import android.support.v4.content.ContextCompat;

public class MainActivity extends Activity {

...

private final int PERMISSION_REQUEST_CODE = 698;

...

@Override

protected void onStart() {

super.onStart();

if (ContextCompat.checkSelfPermission(this, OdometerService.PERMISSION_STRING)

!= PackageManager.PERMISSION_GRANTED) {

ActivityCompat.requestPermissions(this,

new String[]{OdometerService.PERMISSION_STRING},

PERMISSION_REQUEST_CODE);

} else {

Intent intent = new Intent(this, OdometerService.class);

bindService(intent, connection, Context.BIND_AUTO_CREATE);

}

Once you’ve requested permission from the user, you need to

check the user’s response. We’ll do that next.

Request

Granted

Denied

We’re using these extra classes,

so we need to import them.

We’ll use this int for the

permission request code.

If permission hasn’t already been granted...

...request it at runtime.

If permission has already been

granted, bind to the service.

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

you are here 4 805

bound services and permissions

Check the user’s response to the permission request

@Override

public void onRequestPermissionsResult(int requestCode,

String permissions[], int[] grantResults) {

switch (requestCode) {

case PERMISSION_REQUEST_CODE: {

if (grantResults.length > 0

&& grantResults[0] == PackageManager.PERMISSION_GRANTED) {

Intent intent = new Intent(this, OdometerService.class);

bindService(intent, connection, Context.BIND_AUTO_CREATE);

} else {

//Code to run if permission was denied

}

Finally, if the user doesn’t give us permission to use their current

location, we need to inform them that the odometer won’t work.

Request

Granted

Denied

When you ask the user to grant a permission using the

requestPermissions() method, you can’t determine whether

permission was granted by checking its return value. That’s because

the permission request happens asynchronously so that the current

thread isn’t blocked while you wait for the user to respond.

Instead, you check the user’s response by overriding the activity’s

onRequestPermissionsResult() method. This has three

parameters: an int request code to identify the permissions request,

a String array of permissions, and an int array for the results of the

requests.

To use this method, you first check whether the int request code

matches the one you used in the requestPermissions()

method. If it does, you then check whether the permission has been

granted.

The code below checks whether the user granted the permission

we requested using the requestPermissions() method

on the previous page. If permission’s been granted, it binds

to OdometerService. Add this method to your version of

MainActivity.java:

app/src/main

MainActivity.java

Odometer

java

com.hfad.odometer

The onRequestPermissionsResult() method

returns the results of your permissions requests.

Check whether the code matches the one

we used in our requestPermissions() method.

If the request was

cancelled, no results

will be returned.

If permission was

granted, bind to

the service.

We still need to write this code.

806 Chapter 19

we want a notification

Issue a notification if we’re denied permission

Q: I tried turning off Location permissions for the Odometer

app when I was in the middle of using it, and the number of

miles displayed went back to 0. Why?

A: When you switch off the Location permissions for the app,

Android may kill the process the app is running in. This resets all of

the variables.

Q: That sounds drastic. Are there any other times when

Android might kill a process?

A: Yes, when it’s low on memory, but it will always try to keep

alive any processes that are actively being used.

Q: Why aren’t we calling the

requestPermissions() method from

OdometerService?

A: Because the requestPermissions() method is

only available for activities, not services.

Q: Can I change the text that’s displayed in the

requestPermissions() dialog?

A: No. The text and options it displays are fixed, so Android

won’t let you change them.

Q: But I want to give the user more information about why I

need a particular permission. Can I do that?

A: One option is to call the ActivityCompat.

shouldShowRequestPermissionRationale()

method before calling requestPermissions(). This

returns a true value if the user has previously denied the

permission request, and hasn’t checked the checkbox to say they

don’t want to be asked again. If this is the case, you can give

the user more information outside the permission request before

requesting the permission again.

Q: What other permissions do I have to declare and ask

permission for?

A: Generally, you need the user’s permission for any actions that

use private data or may affect the way in which other apps function.

The online documentation for each class should indicate whether a

permission is needed, and Android Studio should highlight this too.

You can find a full list of actions requiring permissions here:

https://developer.android.com/guide/topics/permissions/requesting.

html#normal-dangerous

Q: What if I design an app that performs these kinds of

actions and don’t ask for permission?

A: If your target SDK is API level 23 or above and you don’t

request permission, your code won’t compile.

Request

Granted

Denied

We’ll issue this notification

if the user denies permission.

If the user decides not to grant permission to use their current

location, the OdometerService won’t be able to tell how

far they’ve traveled. If this happens, we’ll issue a notification to

inform the user. We’re going to use a notification because it will

remain in the notification area until the user has decided what to

do. Another advantage of using a notification is that we can get

it to start MainActivity when it’s clicked. Doing this means

that MainActivity’s onStart() method will run, which will

again prompt the user to grant the permission (unless the user has

previously selected the option not to be asked again).

See if you can build the notification we require by having a go at the

exercise on the next page.

you are here 4 807

bound services and permissions

NotificationCompat.Builder builder = new NotificationCompat.Builder(this)

.setSmallIcon(android.R.drawable.ic_menu_compass)

.setContentTitle("Odometer")

.setContentText("Location permission required")

.setPriority(NotificationCompat. )

.setVibrate(new long[] {0, 1000})

. (true);

Intent actionIntent = new Intent(this, MainActivity.class);

PendingIntent actionPendingIntent = PendingIntent. (this, 0,

actionIntent, PendingIntent.FLAG_UPDATE_CURRENT);

builder.setContentIntent( );

NotificationManager notificationManager =

(NotificationManager) getSystemService( );

notificationManager.notify(43, );

Pool Puzzle

Your goal is to build and issue a heads-

up notification. The notification

should start MainActivity

when it’s clicked, then disappear.

Take code snippets from the pool,

and place them in the blank lines

in the code. You may not use the

same snippet more than once, and

you won’t need to use all the snippets.

builder

NOTIFICATION

NOTIFICATION_SERVICE

getAction

getService

actionIntent

PRIORITY_LOW

LOW

HIGH

setVanishWhenClicked

Note: each thing from

the pool can only be

used once!

actionPendingIntent builder.build()

PRIORITY_HIGH

setAutoCancel

getActivity

Write the code to

create this notification.

A built-in drawable to

display a compass icon.

808 Chapter 19

solution

NotificationCompat.Builder builder = new NotificationCompat.Builder(this)

.setSmallIcon(android.R.drawable.ic_menu_compass)

.setContentTitle("Odometer")

.setContentText("Location permission required")

.setPriority(NotificationCompat. )

.setVibrate(new long[] {0, 1000})

. (true);

Intent actionIntent = new Intent(this, MainActivity.class);

PendingIntent actionPendingIntent = PendingIntent. (this, 0,

actionIntent, PendingIntent.FLAG_UPDATE_CURRENT);

builder.setContentIntent( );

NotificationManager notificationManager =

(NotificationManager) getSystemService( );

notificationManager.notify(43, );

You didn’t need to

use these snippets.

actionPendingIntent

Pool Puzzle Solution

Your goal is to build and issue a heads-

up notification. The notification

should start MainActivity

when it’s clicked, then disappear.

Take code snippets from the pool,

and place them in the blank lines

in the code. You may not use the

same snippet more than once, and

you won’t need to use all the snippets.

builder.build()

NOTIFICATION_SERVICE

getActivity

PRIORITY_HIGH

setAutoCancel

builder

NOTIFICATION

getAction

getService

actionIntent

PRIORITY_LOW

LOW

HIGH

setVanishWhenClicked

Heads-up notifications

need to have a high priority.

This makes the

notification disappear

when it’s clicked.

Create a PendingIntent using

the getActivity() method.

Add the PendingIntent to the notification so

that it starts MainActivity when it’s clicked.

Build the notification.

Use the notification service.

you are here 4 809

bound services and permissions

Add notification code to

onRequestPermissionsResults()

We’ll update our MainActivity code so that if the user denies

our permission request, it issues a heads-up notification.

First, add the following Strings to Strings.xml; we’ll use these for the

notification’s title and text:

<string name="app_name">Odometer</string>

<string name="permission_denied">Location permission required</string>

<xml>

</xml>

app/src/main

strings.xml

Odometer

res

values

Android Studio may have

already added this String.

Then update your version of MainActivity.java with the following

code:

...

import android.support.v4.app.NotificationCompat;

import android.app.NotificationManager;

import android.app.PendingIntent;

public class MainActivity extends Activity {

...

private final int NOTIFICATION_ID = 423;

...

@Override

public void onRequestPermissionsResult(int requestCode,

String permissions[], int[] grantResults) {

switch (requestCode) {

case PERMISSION_REQUEST_CODE: {

if (grantResults.length > 0

&& grantResults[0] == PackageManager.PERMISSION_GRANTED) {

...

} else {

//Create a notification builder

NotificationCompat.Builder builder = new NotificationCompat.Builder(this)

.setSmallIcon(android.R.drawable.ic_menu_compass)

.setContentTitle(getResources().getString(R.string.app_name))

.setContentText(getResources().getString(R.string.permission_denied))

.setPriority(NotificationCompat.PRIORITY_HIGH)

.setVibrate(new long[] {1000, 1000})

.setAutoCancel(true);

Request

Granted

Denied

The code continues

on the next page.

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

We’re using these extra classes,

so we need to import them.

We’ll use this constant

for the notification ID.

These settings are needed

for all notifications.

Add these to make it a

heads-up notification.

This line makes the notification

disappear when it’s clicked.

810 Chapter 19

code, continued

The notification code (continued)

//Create an action

Intent actionIntent = new Intent(this, MainActivity.class);

PendingIntent actionPendingIntent = PendingIntent.getActivity(

this,

actionIntent,

PendingIntent.FLAG_UPDATE_CURRENT);

builder.setContentIntent(actionPendingIntent);

//Issue the notification

NotificationManager notificationManager =

(NotificationManager) getSystemService(NOTIFICATION_SERVICE);

notificationManager.notify(NOTIFICATION_ID, builder.build());

}

...

}

That’s all the code we need to display a notification if the user

decides to deny us ACCESS_FINE_LOCATION permission.

We’ll show you the full MainActivity code over the next

few pages, then take the app for a final test drive.

Request

Granted

Denied

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

Adding a PendingIntent to

the notification means that

it will start MainActivity

when it’s clicked.

Build the

notification

and issue it.

you are here 4 811

bound services and permissions

The full code for MainActivity.java

Here’s our complete code for MainActivity.java; make sure your version

of the code matches ours:

package com.hfad.odometer;

import android.app.Activity;

import android.os.Bundle;

import android.content.ServiceConnection;

import android.os.IBinder;

import android.content.ComponentName;

import android.content.Context;

import android.content.Intent;

import android.os.Handler;

import android.widget.TextView;

import java.util.Locale;

import android.content.pm.PackageManager;

import android.support.v4.app.ActivityCompat;

import android.support.v4.content.ContextCompat;

import android.support.v4.app.NotificationCompat;

import android.app.NotificationManager;

import android.app.PendingIntent;

public class MainActivity extends Activity {

private OdometerService odometer;

private boolean bound = false;

private final int PERMISSION_REQUEST_CODE = 698;

private final int NOTIFICATION_ID = 423;

private ServiceConnection connection = new ServiceConnection() {

@Override

public void onServiceConnected(ComponentName componentName, IBinder binder) {

OdometerService.OdometerBinder odometerBinder =

(OdometerService.OdometerBinder) binder;

odometer = odometerBinder.getOdometer();

bound = true;

}

@Override

public void onServiceDisconnected(ComponentName componentName) {

bound = false;

}

};

The code

continues

on the

next page.

Request

Granted

Denied

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

We need a ServiceConnection

in order to bind MainActivity

to OdometerService.

These are all classes from the

AppCompat Support Library.

We’ve been using the Activity

class, but you can use

AppCompatActivity if you prefer.

812 Chapter 19

MainActivity, continued

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

displayDistance();

}

@Override

public void onRequestPermissionsResult(int requestCode,

String permissions[], int[] grantResults) {

switch (requestCode) {

case PERMISSION_REQUEST_CODE: {

if (grantResults.length > 0

&& grantResults[0] == PackageManager.PERMISSION_GRANTED) {

Intent intent = new Intent(this, OdometerService.class);

bindService(intent, connection, Context.BIND_AUTO_CREATE);

} else {

//Create a notification builder

NotificationCompat.Builder builder = new NotificationCompat.Builder(this)

.setSmallIcon(android.R.drawable.ic_menu_compass)

.setContentTitle(getResources().getString(R.string.app_name))

.setContentText(getResources().getString(R.string.permission_denied))

.setPriority(NotificationCompat.PRIORITY_HIGH)

.setVibrate(new long[] { 1000, 1000})

.setAutoCancel(true);

//Create an action

Intent actionIntent = new Intent(this, MainActivity.class);

PendingIntent actionPendingIntent = PendingIntent.getActivity(this, 0,

actionIntent, PendingIntent.FLAG_UPDATE_CURRENT);

builder.setContentIntent(actionPendingIntent);

//Issue the notification

NotificationManager notificationManager =

(NotificationManager) getSystemService(NOTIFICATION_SERVICE);

notificationManager.notify(NOTIFICATION_ID, builder.build());

}

The MainActivity.java code (continued)

The code continues

on the next page.

Request

Granted

Denied

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

If we’ve asked the user for permissions

at runtime, check the result.

Bind to

the service

if the user

has granted

permission.

Issue a

notification

if permission’s

been denied.

you are here 4 813

bound services and permissions

@Override

protected void onStart() {

super.onStart();

if (ContextCompat.checkSelfPermission(this,

OdometerService.PERMISSION_STRING)

!= PackageManager.PERMISSION_GRANTED) {

ActivityCompat.requestPermissions(this,

new String[]{OdometerService.PERMISSION_STRING},

PERMISSION_REQUEST_CODE);

} else {

Intent intent = new Intent(this, OdometerService.class);

bindService(intent, connection, Context.BIND_AUTO_CREATE);

}

@Override

protected void onStop() {

super.onStop();

if (bound) {

unbindService(connection);

bound = false;

}

private void displayDistance() {

final TextView distanceView = (TextView)findViewById(R.id.distance);

final Handler handler = new Handler();

handler.post(new Runnable() {

@Override

public void run() {

double distance = 0.0;

if (bound && odometer != null) {

distance = odometer.getDistance();

}

String distanceStr = String.format(Locale.getDefault(),

"%1$,.2f miles", distance);

distanceView.setText(distanceStr);

handler.postDelayed(this, 1000);

}

});

}

The MainActivity.java code (continued)

Request

Granted

Denied

app/src/main

Main

Activity.java

Odometer

java

com.hfad.odometer

Request ACCESS_

FINE_LOCATION

permission if we

don’t have it

already.

Bind to OdometerService

if we’ve been granted

the permission it requires.

We’re binding to

OdometerService

in two different

places, so you could

put this code in a

separate method.

Unbind from

OdometerService

when MainActivity

stops.

Display the distance traveled.

814 Chapter 19

test drive

Test drive the app

When we run the app with its Location permission switched off,

a permission request dialog is displayed. If we click on the Deny

option, a notification is issued:

We know you’re full of great ideas for improving

the Odometer app, so why not try them out? As an

example, try adding Start, Stop, and Reset buttons

to start, stop, and reset the distance traveled.

Location

Services

are running.

When we click on the notification, the permission request dialog is

displayed again. If we click on the option to allow permission, the

Location icon appears in the status bar and the number of miles

increases when we take the device on a road trip:

Request

Granted

Denied

If we’ve not granted

permission, a dialog is

displayed requesting it.

If we deny permission, a

notification is issued.

The dialog is displayed

again when we click on

the notification.

The number of miles

increases if we go on a walk.

you are here 4 815

bound services and permissions

Your Android Toolbox

You’ve got Chapter 19 under

your belt and now you’ve

added bound services to your

toolbox.

You create a bound service by extending

the Service class. You define your

own Binder object, and override the

onBind() method.

Bind a component to a service using the

bindService() method.

Use a ServiceConnection so that

your activity can get a reference to the service

when it’s bound.

Unbind a component from a service using the

unbindService() method.

When a bound service is created, its

onCreate() method is called.

onBind() gets called when a component

binds to the service.

When all components have unbound from the

service, its onUnbind() method is called.

A bound service is destroyed when

no components are bound to it. Its

onDestroy() method is called just before

the service is destroyed.

Use the Android Location Services to

determine the current location of the device.

To get the current location of the device,

you need to declare that the app requires

ACCESS_FINE_LOCATION permission

in AndroidManifest.xml.

Get location updates using a

LocationListener.

A LocationManager gives you access

to Android’s Location Services. Get the best

location provider available on the device

using its getBestProvider() method.

Request location updates from the provider

using requestLocationUpdates().

Use removeUpdates() to stop getting

location updates.

If your target SDK is API level 23 or

above, check at runtime whether your

app has been granted a permission

using the ContextCompat.

checkSelfPermission() method.

Request permissions at runtime

using ActivityCompat.

requestPermissions().

Check the user’s response to a permission

request by implementing the activity’s

onRequestPermissionsResult()

method.

You can download

the full code for

the chapter from

https://tinyurl.com/

HeadFirstAndroid.

CHAPTER 19

We’re sad to see you leave, but there’s nothing like taking what you’ve learned

and putting it to use. There are still a few more gems for you in the back of the book and a

handy index, and then it’s time to take all these new ideas and put them into practice. Bon

voyage!

Leaving town...

It’s been great having you here in Androidville

this is an appendix 817

appendix i: relative and grid layouts

Meet the Relatives

There are two more layouts you will often meet in Androidville.

In this book we’ve concentrated on using simple linear and frame layouts, and introduced

you to Android’s new constraint layout. But there are two more layouts we’d like you to

know about: relative layouts and grid layouts. They’ve largely been superseded by the

constraint layout, but we have a soft spot for them, and we think they’ll stay around for a

few more years.

Now remember,

it’s layout_row=”18”,

layout_column=”56”.

Not “behind the

white one.”

818 Appendix i

relative layout

A relative layout displays views

in relative positions

A relative layout allows you to position views relative to their parent

layout, or relative to other views in the layout.

You define a relative layout using the <RelativeLayout> element

like this:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

...>

...

</RelativeLayout>

The layout_width and layout_height specify

what size you want the layout to be.

There may be other attributes too.

mean that the top edge of the button is aligned to the top edge of the

layout, and the button is centered horizontally in the parent layout. This

will be the case no matter what the screen size, language, or orientation

of your device:

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/click_me"

android:layout_alignParentTop="true"

android:layout_centerHorizontal="true" />

</RelativeLayout>

The lines of code:

android:layout_alignParentTop="true"

android:layout_centerHorizontal="true"

The

parent

layout

The child view.

layout_alignParentTop

layout_centerHorizontal

The layout

contains the

button, so the

layout is the

button’s parent.

Positioning views relative to the parent layout

If you want a view to always appear in a particular position on the screen,

irrespective of the screen size or orientation, you need to position the

view relative to its parent. As an example, here’s how you’d make sure a

button always appears in the top-center of the layout:

This is where you add any views.

you are here 4 819

relative and grid layouts

You can also position a view to the left or right of the parent

layout. There are two ways of doing this.

The first way is to explicitly position the view on the left or right

using:

Positioning views to the left or right

android:layout_alignParentLeft="true"

android:layout_alignParentRight="true"

These lines of code mean that the left (or right) edge of the view is

aligned to the left (or right) edge of the parent layout, regardless of

the screen size, orientation, or language being used on the device.

android:layout_alignParentStart="true"

android:layout_alignParentEnd="true"

android:layout_alignParentStart="true" aligns the

start edge of the view with that of its parent. The start edge is on

the left for languages that are read from left to right, and the right

edge for languages that are read from right to left.

android:layout_alignParentEnd="true" aligns the

end edge of the view with that of its parent. The end edge is on

the right for languages that are read from left to right, and the left

edge for languages that are read from right to left.

Use start and end to take language direction into account

For apps where the minimum SDK is at least API 17, you can

position views on the left or right depending on the language

setting on the device. As an example, you might want views to

appear on the left for languages that are read from left to right

such as English. For languages that are read from right to left,

you might want them to appear on the right instead so that their

position is mirrored.

To do this, you use:

The child view.

layout_alignParentLeft=“true”

android:layout_alignParentRight=“true”

android:layout_alignParentStart=“true”

android:layout_alignParentEnd=“true”

For left-to-

right languages. For left-to-

right languages.

For right-to-

left languages. For right-to-

left languages.

The view appears

on the left or the

right depending on

the direction of

the language used

on the device.

or:

820 Appendix i

relative to parent

Attributes for positioning views

relative to the parent layout

Here are some of the most common attributes for positioning

views relative to their parent layout. Add the attribute you want

to the view you’re positioning, then set its value to "true":

android:attribute="true"

Attribute What it does

layout_alignParentBottom Aligns the bottom edge of the view

to the bottom edge of the parent.

layout_alignParentLeft Aligns the left edge of the view to

the left edge of the parent.

layout_alignParentRight Aligns the right edge of the view to

the right edge of the parent.

layout_alignParentTop Aligns the top edge of the view to

the top edge of the parent.

layout_alignParentStart Aligns the start edge of the view to

the start edge of the parent.

layout_alignParentEnd Aligns the end edge of the view to

the end edge of the parent.

layout_centerInParent Centers the view horizontally and

vertically in the parent.

layout_centerHorizontal Centers the view horizontally in the

parent.

layout_centerVertical Centers the view vertically in the

parent.

The view is aligned to

the parent's left and

bottom edges.

The view is aligned

to the parent's right

and top edges.

The start

is on the

left and

the end is

on the right

for left-

to-right

languages.

This is

reversed

for right-

to-left

languages.

you are here 4 821

relative and grid layouts

Positioning views relative to other views

In addition to positioning views relative to the parent layout, you can also

position views relative to other views. You do this when you want views to stay

aligned in some way, irrespective of the screen size or orientation.

In order to position a view relative to another view, the view you’re using as an

anchor must be given an ID using the android:id attribute:

<Button

android:id="@+id/button_click_me"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_centerInParent="true"

android:text="Click Me" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_alignStart="@id/button_click_me"

android:layout_below="@id/button_click_me"

android:text="New Button" />

</RelativeLayout>

We’re using this button as an anchor

for the second one, so it needs an ID.

We’re putting a second button

underneath the first so that

the start edges of both

buttons are aligned.

android:id="@+id/button_click_me"

The syntax “@+id” tells Android to include the ID as a resource in its resource

file R.java. You must include the “+” whenever you define a new view in the

layout. If you don’t, Android won’t add the ID as a resource and you’ll get errors

in your code. You can omit the “+” when the ID has already been added as a

resource.

Here’s how you create a layout with two buttons, with one button centered in the

middle of the layout, and the second button positioned underneath the first:

The lines:

android:layout_alignStart="@id/button_click_me"

android:layout_below="@id/button_click_me"

ensure that the second button has its start edge aligned to the start edge of the

first button, and is always positioned beneath it.

When you’re referring to

views that have already been

defined in the layout, you can

use @id instead of @+id.

822 Appendix i

relative to views

Attributes for positioning views

relative to other views

Here are attributes you can use when positioning views relative to

another view. Add the attribute to the view you’re positioning, and set

its value to the view you’re positioning relative to:

Attribute What it does

layout_above Puts the view above the view you’re anchoring it to.

layout_below Puts the view below the view you’re anchoring it to.

layout_alignTop Aligns the top edge of the view to the top edge of the

view you’re anchoring it to.

layout_alignBottom Aligns the bottom edge of the view to the bottom

edge of the view you’re anchoring it to.

layout_alignLeft,

layout_alignStart

Aligns the left (or start) edge of the view to the left (or

start) edge of the view you’re anchoring it to.

layout_alignRight,

layout_alignEnd

Aligns the right (or end) edge of the view to the right

(or end) edge of the view you’re anchoring it to.

layout_toLeftOf,

layout_toStartOf

Puts the right (or end) edge of the view to the left (or

start) of the view you’re anchoring it to.

layout_toRightOf,

layout_toEndOf

Puts the left (or start) edge of the view to the right (or

end) of the view you’re anchoring it to.

Your view goes above.

The view you’re

anchoring it to

android:attribute="@+id/view_id"

Your view

goes below.

Align the view’s top edges.

Align the view’s bottom edges.

Align the view’s

left or start

edges.

Align the

view’s right or

end edges.

Your view goes to the left

or start.

Your view goes to the right

or end.

Remember, you can leave out the

“+” if you’ve already defined the

view ID in your layout.

you are here 4 823

relative and grid layouts

A grid layout displays views in a grid

A grid layout splits the screen up into a grid of rows and columns,

and allocates views to cells:

How you define a grid layout

You define a grid layout in a similar way to how you define the

other types of layout, this time using the <GridLayout> element:

<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:columnCount="2"

... >

...

</GridLayout>

These are the same attributes we

used for our other layouts.

How many columns you want your

layout to have (in this case, 2)

You specify how many columns you want the grid layout to have

using:

android:columnCount="number"

where number is the number of columns. You can also specify a

maximum number of rows using:

but in practice you can usually let Android figure this out based on

the number of views in the layout. Android will include as many

rows as is necessary to display the views.

android:rowCount="number"

Each of

these

areas is

a cell.

This is where you add any views.

824 Appendix i

grid layout

Adding views to the grid layout

You add views to a grid layout in a similar way to

how you add views to a linear layout:

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/textview" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/click_me" />

<EditText

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:hint="@string/edit" />

</GridLayout>

Just as with a linear layout, there’s no need to give

your views IDs unless you’re explicitly going to refer

to them in your activity code. The views don’t need

to refer to each other within the layout, so they don’t

need to have IDs for this purpose.

By default, the grid layout positions your views in the

order in which they appear in the XML. So if you

have a grid layout with two columns, the grid layout

will put the first view in the first position, the second

view in the second position, and so on.

The downside of this approach is that if you remove

one of your views from the layout, it can drastically

change the appearance of the layout. To get around

this, you can specify where you want each view to

appear, and how many columns you want it to span.

you are here 4 825

relative and grid layouts

Build up the layout row by row.

Let’s create a new grid layout

To see this in action, we’ll create a grid layout that specifies which

cells we want views to appear in, and how many columns they

should span. The layout is composed of a text view containing the

text “To”, an editable text field that contains hint text of “Enter

email address”, an editable text field that contains hint text of

“Message”, and a button labeled “Send”:

Here’s what we’re going to do

Sketch the user interface, and split it into rows and columns.

This will make it easier for us to see how we should construct our layout.

826 Appendix i

sketch it

We’ll start with a sketch

The first thing we’ll do to create our new layout is sketch it out. That way

we can see how many rows and columns we need, where each view should

be positioned, and how many columns each view should span.

To Enter email address

Send

Message

1st

column

2nd

column

1st row

2nd row

3rd row

The first row has a text view in the

first column with text of “To,” and an

editable text field in the second column

with a hint of “Enter email address.”

The second row has an editable text

field with text of “Message.” It starts

in the first column and spans across the

second. It needs to fill the available

space.

The third row has a button with text of

“Send.” It’s centered horizontally across

both columns, which means it needs to

span the two columns.

<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:columnCount="2"

tools:context="com.hfad.gridlayout.MainActivity" >

</GridLayout>

The grid layout needs two columns

We can position our views how we want if we use a grid layout with two columns:

Now that we have the basic grid layout defined, we can start adding views.

you are here 4 827

relative and grid layouts

Row 0: add views to specific rows and columns

To Enter email address

The first row of the grid layout is composed of a text view in the

first column, and an editable text field in the second column. You

start by adding the views to the layout:

<GridLayout...>

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:text="@string/to" />

<EditText

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="fill_horizontal"

android:hint="@string/to_hint" />

</GridLayout>

<GridLayout...>

<TextView

...

android:layout_row="0"

android:layout_column="0"

android:text="@string/to" />

<EditText

...

android:layout_row="0"

android:layout_column="1"

android:hint="@string/to_hint" />

</GridLayout>

Then you use the android:layout_row and android:layout_column

attributes to say which row and column you want each view to appear in. The

row and column indices start from 0, so if you want a view to appear in the first

column and first row, you use:

You can use layout_gravity in grid layouts too.

We’re using fill_horizontal because we want

the editable text field to fill the remaining

horizontal space.

android:layout_row="0"

android:layout_column="0"

Let’s apply this to our layout code by putting the text view in column 0, and the

editable text field in column 1.

Columns and rows start at 0,

so this refers to the first row

and first column.

To Enter email address

Column

Row 0

Row and column

indices start at 0.

layout_column="n”

refers to column

n+1 in the display.

You can use android:gravity

and android:layout_gravity

attributes with grid layouts.

828 Appendix i

row 1

Row 1: make a view span multiple columns

The second row of the grid layout is composed of an editable text

field that starts in the first column and spans across the second.

The view takes up all the available space.

To get a view to span multiple columns, you start by specifying

which row and column you want the view to start in. We want the

view to start in the first column of the second row, so we need to

use:

Message

We want our view to go across two columns, and we can do this

using the android:layout_columnSpan attribute like this:

android:layout_row="1"

android:layout_column="0"

android:layout_columnSpan="number"

<GridLayout...>

<TextView... />

<EditText.../>

<EditText

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="fill"

android:gravity="top"

android:layout_row="1"

android:layout_column="0"

android:layout_columnSpan="2"

android:hint="@string/message" />

</GridLayout>

where number is the number of columns we want the view to

span across. In our case, this is:

Column

Row 1

Column span = 2

Column

Putting it all together, here’s the code for the message view:

android:layout_columnSpan="2"

We want the view to fill the available space,

and for the text to appear at the top.

These are the views we added on the last page for row 0.

The view starts in column 0, and spans two columns.

Now that we’ve added the views for the first two rows, all we

need to do is add the button.

you are here 4 829

relative and grid layouts

Row 2: make a view span multiple columns

We need the button to be centered horizontally across the

two columns like this:

<GridLayout...>

<TextView... />

<EditText.../>

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row=

android:layout_column=

android:layout_gravity=

android:layout_columnSpan=

android:text="@string/send" />

</GridLayout>

Send

Column

Row 2

Column span = 2

Column

Layout Magnets

We wrote some code to center the Send button in the third row of the grid layout, but a sudden

breeze blew some of it away. See if you can reconstruct the code using the magnets below.

"2"

center_horizontal

"2"

"1"

"0"

fill_horizontal

These are the views we’ve already added.

You won’t need to use

all of these magnets.

830 Appendix i

magnets solved

<GridLayout...>

<TextView... />

<EditText.../>

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row=

android:layout_column=

android:layout_gravity=

android:layout_columnSpan=

android:text="@string/send" />

</GridLayout>

Layout Magnets Solution

We wrote some code to center the Send button in the third row of

the grid layout, but a sudden breeze blew some of it away. See if you

can reconstruct the code using the magnets below.

"2"

center_horizontal

"2"

"1"

"0"

fill_horizontal

Send

Column

Row 2

Column span = 2

Column

The button starts at row 2, column 0.

We want to center it horizontally.

It spans two columns.

You didn’t need to

use these magnets.

you are here 4 831

relative and grid layouts

<?xml version="1.0" encoding="utf-8"?>

<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:padding="16dp"

android:columnCount="2"

tools:context="com.hfad.gridlayout.MainActivity">

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="0"

android:layout_column="0"

android:text="@string/to" />

<EditText

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="fill_horizontal"

android:layout_row="0"

android:layout_column="1"

android:hint="@string/to_hint" />

The full code for the grid layout

Here’s the full code for the grid layout.

The To

text view.

The email address

text field.

The code for the

Message text field

and the Send button

is on the next page.

832 Appendix i

code, continued

<EditText

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="fill"

android:gravity="top"

android:layout_row="1"

android:layout_column="0"

android:layout_columnSpan="2"

android:hint="@string/message" />

<Button

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_row="2"

android:layout_column="0"

android:layout_gravity="center_horizontal"

android:layout_columnSpan="2"

android:text="@string/send" />

</GridLayout>

The button spans two

columns, starting from

row 2 column 0. It’s

centered horizontally.

The grid layout code (continued)

The Message

text field

this is an appendix 833

appendix ii: gradle

The Gradle Build Tool

Most Android apps are created using a build tool called Gradle.

Gradle works behind the scenes to find and download libraries, compile and deploy your

code, run tests, clean the grouting, and so on. Most of the time you might not even realize

it’s there because Android Studio provides a graphical interface to it. Sometimes, however,

it’s helpful to dive into Gradle and hack it manually. In this appendix we’ll introduce you

to some of Gradle’s many talents.

Take one SDK, add

a sprinkling of libraries,

mix well, then bake for

two minutes.

834 Appendix ii

introducing gradle

What have the Romans ever done for us?

has Gradle

When you click the run button in Android Studio, most of the actual work

is done by an external build tool called Gradle. Here are some of the

things that Gradle does:

Locates and downloads the correct versions of any third-party libraries you need.

Calls the correct build tools in the correct sequence to turn all of your source code and

resources into a deployable app.

Installs and runs your app on an Android device.

A whole bunch of other stuff, like running tests and checking the quality of your code.

It’s hard to list all of the things that Gradle does because it’s designed to

be easily extensible. Unlike other XML-based build tools like Maven or

Ant, Gradle is written in a procedural language (Groovy), which is used

for both configuring a build and adding extra functionality.

Your project’s Gradle files

Every time you create a new project, Android Studio creates two files

called build.gradle. One of these files is in your project folder, and contains

a small amount of information that specifies the basic settings of your app,

such as what version of Gradle to use, and which online repository:

buildscript {

repositories {

jcenter()

}

dependencies {

classpath 'com.android.tools.build:gradle:2.3.0'

}

allprojects {

repositories {

jcenter()

}

task clean(type: Delete) {

delete rootProject.buildDir

}

You will normally only need to change the code in this file if you want to

install a third-party plug-in, or need to specify another place that contains

downloadable libraries.

build.gradle

MyProject

you are here 4 835

gradle

apply plugin: 'com.android.application'

android {

compileSdkVersion 25

buildToolsVersion "25.0.1"

defaultConfig {

applicationId "com.hfad.example"

minSdkVersion 19

targetSdkVersion 25

versionCode 1

versionName "1.0"

testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"

}

buildTypes {

release {

minifyEnabled false

proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'

}

dependencies {

compile fileTree(dir: 'libs', include: ['*.jar'])

androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {

exclude group: 'com.android.support', module: 'support-annotations'

})

compile 'com.android.support:appcompat-v7:25.1.1'

compile 'com.android.support.constraint:constraint-layout:1.0.2'

testCompile 'junit:junit:4.12'

}

The second build.gradle file lives inside the app folder within your

project. This file tells Gradle how to build all of the code in your

main Android module. It’s where the majority of your application’s

properties are set, such as the level of the API that you’re targeting,

and the specifics of which external libraries your app will need:

app

build.gradle

MyProject

Your app’s main Gradle file

836 Appendix ii

gradle’s built in

Gradle comes built in to your project

Every time you create a new application, Android Studio includes an

install of the Gradle build tool. If you look in the project directory, you

will see two files called gradlew and gradlew.bat. These files contains scripts

that allow you to build and deploy your app from the command line.

To get more familiar with Gradle, open a command prompt or terminal

on your development machine and change into the top-level directory

of your project. Then run one of the gradlew scripts with the parameter

tasks. Gradle will tell you some of the tasks that it can perform for you:

$ ./gradlew tasks

Build tasks

-----------

assemble - Assembles all variants of all applications and

secondary packages.

build - Assembles and tests this project.

clean - Deletes the build directory.

compileDebugSources

mockableAndroidJar - Creates a version of android.jar that's

suitable for unit tests.

Install tasks

-------------

installDebug - Installs the Debug build.

uninstallAll - Uninstall all applications.

uninstallDebug - Uninstalls the Debug build.

Verification tasks

------------------

check - Runs all checks.

connectedAndroidTest - Installs and runs instrumentation tests

for all flavors on connected devices.

lint - Runs lint on all variants.

test - Run unit tests for all variants.

To see all tasks and more detail, run gradlew tasks --all

BUILD SUCCESSFUL

Total time: 6.209 secs

File Edit Window Help EmacsFTW

Let’s take a quick tour of some of the most useful ones.

We've cut down the actual output,

because there are many, many

tasks that you can run by default.

you are here 4 837

gradle

The check task

The check task performs static analysis on the source code in your

application. Think of it as your coding buddy, who at a moment’s notice can

scoot through your files looking for coding errors. By default, the check

task uses the lint tool to look for common Android programming errors. It

will generate a report in app/build/reports/lint-results.html:

app

lint-results.html

MyProject

build

reports

The clean installDebug task

This task will do a complete compile and install of your application on

your connected device. You can obviously do this from the IDE, but it can

be useful to do this from the command line if, for example, you want to

automatically build your application on an Integration Server.

838 Appendix ii

show dependencies

The androidDependencies task

For this task, Gradle will automatically pull down any libraries your

application requires, and some of those libraries will automatically

pull down other libraries, which might pull down other libraries and…

well, you get the idea.

Even though your app/build.gradle file might only mention a

couple of libraries, your application might need to install many

dependent libraries for your app. So it’s sometimes useful to see

which libraries your application requires, and why. That’s what the

androidDependencies task is for: it displays a tree of all of the

libraries in your app:

$ ./gradlew androidDependencies

Incremental java compilation is an incubating feature.

:app:androidDependencies

debug

+--- com.android.support:appcompat-v7:25.1.1@aar

| +--- com.android.support:support-annotations:25.1.1@jar

| +--- com.android.support:support-v4:25.1.1@aar

| | +--- com.android.support:support-compat:25.1.1@aar

| | | \--- com.android.support:support-annotations:25.1.1@jar

| | +--- com.android.support:support-media-compat:25.1.1@aar

| | | +--- com.android.support:support-annotations:25.1.1@jar

| | | \--- com.android.support:support-compat:25.1.1@aar

| | | \--- com.android.support:support-annotations:25.1.1@jar

| | +--- com.android.support:support-core-utils:25.1.1@aar

| | | +--- com.android.support:support-annotations:25.1.1@jar

| | | \--- com.android.support:support-compat:25.1.1@aar

...

File Edit Window Help EmacsFTW

you are here 4 839

gradle

gradlew <your-task-goes-here>

The real reason that Android apps are commonly built with Gradle

is because it’s easily extended. All Gradle files are written in Groovy,

which is a general-purpose language designed to be run by Java. That

means you can easily add your own custom tasks.

As an example, add the following code to the end of your app/build.gradle

file:

task javadoc(type: Javadoc) {

source = android.sourceSets.main.java.srcDirs

classpath += project.files(android.getBootClasspath().join(File.pathSeparator))

destinationDir = file("$project.buildDir/javadoc/")

failOnError false

}

app

build.gradle

MyProject

This code creates a new task called javadoc, which generates javadoc

for your source code. You can run the task with:

./gradlew javadoc

The generated files will be published in app/build/javadoc:

app

index.html

MyProject

build

javadoc

840 Appendix ii

plug-ins

Gradle plug-ins

As well as writing your own tasks, you can also install Gradle plug-

ins. A plug-in can greatly extend your build environment. Want to

write Android code in Clojure? Want your build to automatically

interact with source control systems like Git? How about spinning

up entire servers in Docker and then testing your application on

them?

You can do these things, and many, many more by using Gradle

plug-ins. For details on what plug-ins are available, see https://

plugins.gradle.org.

this is an appendix 841

So that’s what’s

going on under the

hood...

appendix iii: art

The Android Runtime

Ever wonder how Android apps can run on so many kinds of

devices? Android apps run in a virtual machine called the Android runtime (ART),

not the Oracle Java Virtual Machine (JVM). This means that your apps are quicker to start

on small, low-powered devices and run more efficiently. In this appendix, we’ll look at how

ART works.

842 Appendix iii

what’s art?

What is the Android runtime?

The Android Runtime (ART) is the system that runs your compiled

code on an Android device. It first appeared on Android with the

release of KitKat and became the standard way of running code in

Lollipop.

ART is designed to run your compiled Android apps quickly and

efficiently on small, low-powered devices. Android Studio uses the

Gradle build system to do all the work of creating and installing

apps for you, but it can be useful to understand what happens

behind the scenes when you click the Run button. Let’s see what

really goes on.

Previously, Java code ran on the Oracle JVM

Java has been around for a very long time, and compiled Java

applications have almost always been run on the Oracle Java

Virtual Machine (JVM). In that scenario, Java source code gets

compiled down to .class files. One .class file gets created for every

Java class, interface, or enum in your source code:

The .class files contain Java bytecodes, which can be read and

executed by the JVM. The JVM is a software emulation of a

Central Processing Unit (CPU), like the chip at the heart of your

development machine. But because it’s emulated, it can be made to

work on almost any device. That’s why Java code is designed to be

written once, run anywhere.

So is that what happens on Android devices? Well…not quite. The

Android Runtime performs the same kind of job as the JVM, but it

does it in a very different way.

.java

javac

.class

You don’t need to understand the info

in this appendix in order to create cool

Android apps. So if you’re not into the

nitty-gritty of what’s going on behind

the scenes when an Android device runs

an app, feel free to skip this appendix.

you are here 4 843

ART

ART compiles code into DEX files

When you do Android development, your Java source code is

compiled down into .dex files. A .dex file serves a similar purpose

to a .class file, because it contains executable bytecodes. But

instead of being JVM bytecodes, they are in a different format

called Dalvik. DEX stands for Dalvik EXecutable.

Rather than creating a .dex file for each and every class file, your

app will normally be compiled down into a single file called

classes.dex. That single .dex file will contain bytecodes for all of

your source code, and for every library in your app.

classes.dex

.class

The DEX format can only cope with 65,535 methods, so if your

app contains a lot of code or some large libraries, your file might

need to be converted into multiple .dex files:

You can find out more about creating multi-DEX apps here:

https://developer.android.com/studio/build/multidex.html.

.dex

.class

844 Appendix iii

.class to .dex

How DEX files get created

When Android builds your app, it uses a tool called dx, which

stitches .class files into a DEX file:

It may seem a bit weird that the compilation process involves two

stages of compilation: first to .class files, and then from .class files

to the DEX format. Why doesn’t Google just create a single tool

that goes straight from .java source code to DEX bytecodes?

For a while Google was developing a compiler called JACK and

an associated linker called JILL that could create DEX code

straight from Java code, but there was a problem. Some Java

tools don’t just work at the source code level; they work directly

with .class files, and modify the code that those files contain.

For example, if you use a code coverage tool to see which code

your tests are actually running, the coverage tool will likely want

to modify the contents of the generated .class files to add in

additional bytecodes to keep track of the code as it’s executed. If

you used the JACK compiler, no .class files were generated.

So back in March 2017, Google announced that it was shelving

JACK, and was putting all of its efforts into making the dx

tool work really well with the latest Java .class formats. This

has the additional advantage that any new Java language

features—so long as they don’t require new Java byte codes—will

automatically be supported by Android.

.dex

.class

Libraries

you are here 4 845

ART

DEX files are zipped into APK files

But Android apps aren’t shipped around as .dex files. There’s a whole bunch

of other files that make up your app: images, sounds, metadata, and so on.

All of these resources and your DEX bytecode is wrapped up into a single

zip file called an Android Package or .apk file. The .apk file is created by

another tool called the Android Asset Packing Tool, or aapt.

classes.dex

Resources

aapt

.apk

When you download an app from the Google Play Store, what actually gets

downloaded is an APK file. In fact, when you run your app from Android

Studio, the build system will first build an .apk file and then install it onto

your Android device.

You may need to sign the .apk file

If you’re going to distribute your app through the Google Play Store,

you will need to sign it. Signing an app package means that you store an

additional file in the .apk that is based on a checksum of the contents of the

.apk and a separately generated private key. The .apk file uses the standard

jarsigner tool that comes as part of Oracle’s Java Development Kit. The

jarsigner tool was created to sign .jar files, but it will also work with .apk files.

If you sign the .apk file, you will then also need to run it through a tool

called zipalign, which will make sure that the compressed parts of the file

are lined up on byte boundaries. Android wants them byte-aligned so it can

read them easily without needing to uncompress the file.

zipalign

signed .apk

.apk

jarsigner

Android Studio will do all of this for you if you choose Generate Signed

APK from the Build menu.

So that’s how your app gets converted from Java source code into an

installable file. But how does it get installed and run on your device?

846 Appendix iii

hello adb

Say hello to the Android Debug Bridge (adb)

All communication between your development machine and your

Android device takes place over the Android Debug Bridge. There

are two sides to the bridge: a command-line tool on your dev

machine called adb, and a daemon process on your Android device

called adbd (the Android Debug Bridge Daemon).

The adb command on your development machine will run a

copy of itself in the background, called the ADB server. The server

receives commands over network port 5037, and sends them to the

adbd process on the device. If you want to copy or read a file, install

an app, or look at the logcat information for an app, then all of this

information passes back and forth across the debug bridge.

So when the build system wants to install your APK file, it does so

by sending a command like this to the debug bridge:

adb install bitsandpizzas.apk

The file will then be transferred to a virtual device, or over a USB

cable to a real device, and be installed into the /data/app/ directory,

where it will sit waiting for the app to be run.

How apps come alive: running your APK file

When your app is run, whether it’s been started by a user pressing

its launch icon or because the IDE has started it, the Android

device needs to turn that .apk file into a process running in memory.

It does this using a process called Zygote. Zygote is like a half-

started process. It’s allocated some memory and already contains

the main Android libraries. It has everything it needs, in fact, except

for the code that’s specific to your app.

When Android runs your app, it first creates a copy (a.k.a. fork)

of the Zygote process, and then tells the copied process to load

your application code. So why does Android leave this half-started

process hanging around? Why not just start a fresh process from

scratch for each app? It’s because of performance. It can take

Android a long time to create a new process from scratch, but it can

fork a copy of an existing process in a split second.

Zygote

process App

process

fork()

The Zygote process

is a mostly started

Android app.

The new app process will

be a complete copy of

the Zygote process.

you are here 4 847

ART

Android converts the .dex code to OAT format

The new app process now needs to load the code that’s

specific to your app. Remember, your app code is stored in

the classes.dex file inside your .apk package. So the classes.dex file

is extracted from the .apk and placed into a separate directory.

But rather than simply use the classes.dex file, Android will

convert the Dalvik byte codes in classes.dex into native machine

code. Technically, the classes.dex will be converted into an ELF

shared object. Android calls this library format OAT, and calls

the tool that converts the classes.dex file dex2oat.

classes.dex

(OAT version)

classes.dex

dex2oat

The converted file is stored into a directory named something

like this:

/data/dalvik-cache/data@app@com.hfad.bitsandpizzas@base.apk@classes.dex

This file can then be loaded as a native library by the

application process, and the app appears on the screen.

this is an appendix 849

appendix iv: adb

The Android Debug Bridge

In this book, we’ve focused on using an IDE for all your

Android needs. But there are times when using a command-line tool can be plain

useful, like those times when Android Studio can’t see your Android device but you just

know it’s there. In this chapter, we’ll introduce you to the Android Debug Bridge (or adb),

a command-line tool you can use to communicate with the emulator or Android devices.

What better gift

for the girl who has

everything than a new

command-line tool? Why, darling,

that’s so

thoughtful.

850 Appendix iv

adb

adb: your command-line pal

Every time your development machine needs to talk to an Android device,

whether it’s a real device connected with a USB cable, or a virtual device

running in an emulator, it does so by using the Android Debug Bridge

(adb). The adb is a process that’s controlled by a command that’s also called

adb.

The adb command is stored in the platform-tools directory of the Android

System Developer’s Kit on your computer. If you add the platform-tools

directory to your PATH, you will be able to run adb from the command line.

In a terminal or at a command prompt, you can use it like this:

$ adb devices

List of devices attached

emulator-5554 device

Interactive Session

The adb devices command means “Tell me which Android devices you

are connected to.” The adb command works by talking to an adb server

process, which runs in the background. The adb server is sometimes called

the adb dæmon or adbd. When you enter an adb command in a terminal, a

request is sent to network port 5037 on your machine. The adbd listens for

commands to come in on this port. When Android Studio wants to run an

app, or check the log output, or do anything else that involves talking to an

Android device, it will do it via port 5037.

When the adbd receives a command, it will forward it to a separate adbd

process that’s running in the relevant Android device. This process will then

be able to make changes to the Android device or return the requested

information.

Device

adb adbd

adb command adb daemon

process

you are here 4 851

adb

Sometimes, if the adb server isn’t running, the adb command will

need to start it:

$ adb devices

* daemon not running. starting it now on port 5037 *

* daemon started successfully *

List of devices attached

emulator-5554 device

Interactive Session

Likewise, if ever you plug in an Android device and Android

Studio can’t see it, you can manually kill the adb server and restart

it:

$ adb devices

List of devices attached

$ adb kill-server

$ adb start-server

* daemon not running. starting it now on port 5037 *

* daemon started successfully *

$ adb devices

List of devices attached

emulator-5554 device

Interactive Session

By killing and restarting the server, you force adb to get back in

touch with any connected Android devices.

852 Appendix iv

shell

Running a shell

Most of the time you won’t use adb directly; you’ll let an IDE like

Android Studio do the work for you. But there are times when it can be

useful to go to the command line and interact with your devices directly.

One example is if you want to run a shell on your device:

$ adb shell

root@generic_x86:/ #

Interactive Session

$ adb shell

root@generic_x86:/ # ls

acct

cache

charger

config

data

default.prop

dev

etc

file_contexts

....

1|root@generic_x86:/ # df

Filesystem Size Used Free Blksize

/dev 439.8M 60.0K 439.8M 4096

/mnt/asec 439.8M 0.0K 439.8M 4096

/mnt/obb 439.8M 0.0K 439.8M 4096

/system 738.2M 533.0M 205.2M 4096

/data 541.3M 237.8M 303.5M 4096

/cache 65.0M 4.3M 60.6M 4096

/mnt/media_rw/sdcard 196.9M 4.5K 196.9M 512

/storage/sdcard 196.9M 4.5K 196.9M 512

root@generic_x86:/ #

Interactive Session

The adb shell command will open up an interactive shell directly

on the Android device. If you have more than one device attached, you

can indicate which device you mean with the -s option, followed by the

name given by the adb devices command. For example, adb -s

emulator-5554 shell will open a shell on the emulator.

Once you open a shell to your device, you can run a lot of the standard

Linux commands:

you are here 4 853

adb

Useful shell commands

If you open a shell to Android, you have access to a whole bunch

of command line tools. Here are just a few:

Command Description Example (and what it does)

pm Package management tool. pm list packages (this lists all installed apps)

pm path com.hfad.bitzandpizzas (find where

an app is installed)

pm –help (show other options)

ps Process status. ps (lists all processes and their IDs)

dexdump Display details of an APK. dexdump -d /data/app/com.hfad.

bitzandpizzas-2/base.apk

(disassemble an app)

lsof List a process’s open files

and other connections.

lsof -p 1234 (show what process with id 1234 is doing)

screencap Take a screenshot. screencap -p /sdcard/screenshot.png (save

current screenshot to /sdcard/screenshot.png, and get it off

the device with

adb pull /sdcard/screenshot.png)

top Show busiest processes. top -m 5 (show the top five processes)

Each of these examples works from an interactive shell prompt,

but you can also pass them direct to the shell command from

your development machine. For example, this command will

show the apps installed on your device:

$ adb shell pm list packages

Interactive Session

854 Appendix iv

get output

Get the output from logcat

All of the apps running on your Android device send their output

to a central stream called the logcat. You can see the live output

from the logcat by running the adb logcat command:

$ adb logcat

--------- beginning of system

I/Vold ( 936): Vold 2.1 (the revenge) firing up

D/Vold ( 936): Volume sdcard state changing -1

(Initializing) -> 0 (No-Media)

W/DirectVolume( 936): Deprecated implied prefix pattern

detected, please use ‘/devices/platform/goldfish_mmc.0*’

instead

...

Interactive Session

The logcat output will keep streaming until you stop it. It can be

useful to run adb logcat if you want to store the output in a

file. The adb logcat command is used by Android Studio to

produce the output you see in the Devices/logcat panel.

Kill the adb server

Sometimes the connection can fail between your development

machine and your device. If this happens, you can reset the

connection by killing the adb server:

$ adb kill-server

Interactive Session

The next time you run an adb command, the server will restart and

a fresh connection will be made.

you are here 4 855

adb

And much, much more...

There are many, many commands that you can run using adb: you

can back up and restore databases (very useful if you need to debug

a problem with a database app), start the adb server on a different

port, reboot machines, or just find out a lot of information about

the running devices. To find out all the options available, just type

adb on the command line:

$ adb

Android Debug Bridge version 1.0.32

-a - directs adb to listen on all

interfaces for a connection

-d - directs command to the only

connected USB device

returns an error if more than

one USB device is present.

-e - directs command to the only

running emulator.

returns an error if more than one emulator is ....

Interactive Session

Copying files to/from your device

The adb pull and adb push commands can be used to

transfer files back and forth. For example, here we are copying the

/default.prop/ properties file into a local file called 1.txt:

$ adb pull /default.prop 1.txt

28 KB/s (281 bytes in 0.009s)

$ cat 1.txt

# ADDITIONAL_DEFAULT_PROPERTIES

ro.secure=0

ro.allow.mock.location=1

ro.debuggable=1

ro.zygote=zygote32

dalvik.vm.dex2oat-Xms=64m

dalvik.vm.dex2oat-Xmx=512m

dalvik.vm.image-dex2oat-Xms=64m

dalvik.vm.image-dex2oat-Xmx=64m

ro.dalvik.vm.native.bridge=0

persist.sys.usb.config=adb

Interactive Session

this is an appendix 857

appendix v: the android emulator

Speeding Things Up

Ever felt like you were spending all your time waiting for the

emulator? There’s no doubt that using the Android emulator is useful. It allows you

to see how your app will run on devices other than the physical ones you have access to.

But at times it can feel a little...sluggish. In this appendix, we’ll explain why the emulator

can seem slow. Even better, we’ll give you a few tips we’ve learned for speeding it up.

Make it go

faster!

858 Appendix v

speed

Why the emulator is so slow

When you’re writing Android apps, you’ll spend a lot of

time waiting for the Android emulator to start up or deploy

your code. Why is that? Why is the Android emulator so

sloooooow? If you’ve ever written iPhone code, you know

how fast the iPhone simulator is. If it’s possible for the

iPhone, then why not for Android?

There’s a clue in the names: the iPhone simulator and the

Android emulator.

The iPhone simulator simulates a device running the iOS

operating system. All of the code for iOS is compiled to run

natively on the Mac and the iPhone simulator runs at Mac-

native speed. That means it can simulate an iPhone boot-up

in just a few seconds.

The Android emulator works in a completely different way.

It uses an open source application called QEMU (or Quick

Emulator) to emulate the entire Android hardware device.

It runs code that interprets machine code that’s intended to

be run by the device’s processor. It has code that emulates

the storage system, the screen, and pretty much every other

piece of physical equipment on an Android device.

An emulator like QEMU creates a much more realistic

representation of a virtual device than something like the

iPhone simulator does, but the downside is that it has to do

far more work for even simple operations like reading from

disk or displaying something on a screen. That’s why the

emulator takes so long to boot up a device. It has to pretend

to be every little hardware component inside the device, and

it has to interpret every single instruction.

QEMU Emulator

AVD

All the Android Virtual Devices run

on an emulator called QEMU.

AVD AVD AVD AVD

you are here 4 859

android emulator

How to speed up your Android development

1. Use a real device

The simplest way to speed up your development process is by using a real

device. A real device will boot up much faster than an emulated one, and

it will probably deploy and run apps a lot more quickly. If you want to

develop on a real device, you may want to go into “Developer options”

and check the Stay Awake option. This will prevent your device from

locking the screen, which is useful if you are repeatedly deploying to it.

2. Use an emulator snapshot

Booting up is one of the slowest things the emulator does. If you save a

snapshot of the device while it’s running, the emulator will be able to

reset itself to this state without having to go through the boot-up process.

To use a snapshot with your device, open the AVD manager from the

Android Studio menu by selecting Tools→Android→AVD Manager, edit

the AVD by clicking on the Edit symbol, and then check the “Store a

snapshot for faster startup” option.

This will save a snapshot of what the memory looks like when the device

is running. The emulator will be able to restore the memory in this state

without booting the device.

3. Use hardware acceleration

By default, the QEMU emulator will have to interpret each machine

code instruction on the virtual device. That means it’s very flexible

because it can pretend to be lots of different CPUs, but it’s one of the

main reasons why the emulator is slow. Fortunately, there’s a way to get

your development machine to run the machine code instructions directly.

There are two main types of Android Virtual Device: ARM machines and

x86 machines. If you create an x86 Android device and your development

machine is using a particular type of Intel x86 CPU, then you can

configure your emulator to run the Android machine code instructions

directly on your Intel CPU.

You will need to install Intel’s Hardware Accelerated Execution Manager

(HAXM). At the time of writing , you can find HAXM here:

https://software.intel.com/en-us/android/articles/intel-hardware-accelerated-

execution-manager

HAXM is a hypervisor. That means it can switch your CPU into a special

mode to run virtual machine instructions directly. However, HAXM will

only run on Intel processors that support Intel Virtualization Technology.

But if your development machine is compatible, then HAXM will make

your AVD run much faster.

If it’s moved, a quick

web search should

track it down.

860 Appendix v

instant run

4. Use Instant Run

Since Android Studio 2.3, it’s been possible to redeploy apps

much more quickly using the Instant Run utility. This utility

allows Android Studio to recompile just the files that have

changed, and then patch the application currently running on

the device. This means that instead of waiting for a minute or so

while the application is recompiled and deployed, you can see

your changes running in just a few seconds.

To use Instant Run, click on the Apply Changes option in the

Run menu, or click on the lightning bolt icon in the toolbar:

There are a couple of conditions on using Instant Run. First,

your app’s target needs to be at least API 15. Second, you need

to deploy to a device that runs API 21 or above. So long as you

satisfy both these conditions, you’ll find that Instant Run is by far

the fastest way of getting your code up and running.

Click on this button in the

toolbar to apply changes

using Instant Run.

this is an appendix 861

Oh my, look at

the tasty treats

we have left...

appendix vi: leftovers

The Top Ten Things

(we didn’t cover)

Even after all that, there’s still a little more.

There are just a few more things we think you need to know. We wouldn’t feel right about

ignoring them, and we really wanted to give you a book you’d be able to lift without

extensive training at the local gym. Before you put down the book, read through these

tidbits.

862 appendix vi

distribution

1. Distributing your app

Once you’ve developed your app, you’ll probably want to make it

available to other users. You’ll likely want to do this by releasing your

app through an app marketplace such as Google Play.

There are two stages to this process: preparing your app for release,

and then releasing it.

Preparing your app for release

Before you can release your app, you need to configure, build, and

test a release version of it. This includes tasks such as deciding on

an icon for your app and modifying AndroidManifest.xml so that only

devices that are able to run your app are able to download it.

Before you release your app, make sure that you test it on at least one

tablet and one phone to check that it looks the way you expect and its

performance is acceptable.

You can find further details of how to prepare your app for release

here:

http://developer.android.com/tools/publishing/preparing.html

Releasing your app

This stage includes publicizing your app, selling it, and distributing it.

To release your app on the Play Store, you need to register for a

publisher account and use the Developer Console to publish your

app. You can find further details here:

http://developer.android.com/distribute/googleplay/start.html

For ideas on how to best target your app to your users and build a

buzz about it, we suggest you explore the documents here:

http://developer.android.com/distribute/index.html

you are here 4 863

leftovers

2. Content providers

You’ve seen how to use intents to start activities in other apps. As

an example, you can start the Messaging app to send the text you

pass to it. But what if you want to use another app’s data in your

own app? For example, what if you want to use Contacts data in

your app to perform some task, or insert a new Calendar event?

You can’t access another app’s data by interrogating its database,

Instead, you use a content provider, which is an interface that

allows apps to share data in a controlled way. It allows you to

perform queries to read the data, insert new records, and update

or delete existing records.

If you want other apps to use your data, you can create your own

content provider.

YourActivity Database

Content

Provider

If you want to

access another app’s

database, you have to

go through me.

You can find out more about the concept of content providers here:

http://developer.android.com/guide/topics/providers/content-providers.html

Here’s a guide on using Contacts data in your app:

http://developer.android.com/guide/topics/providers/contacts-provider.html

And here’s a guide on using Calendar data:

http://developer.android.com/guide/topics/providers/calendar-provider.html

864 appendix vi

loaders and sync adapters

3. Loaders

If you do a lot of work with databases or content providers, sooner or

later you’ll encounter loaders. A loader helps you load data so that

it can be displayed in an activity or fragment.

Loaders run on separate threads in the background, and make it

easier to manage threads by providing callback methods. They persist

and cache data across configuration changes so that if, for example,

the user rotates their device, the app doesn’t create duplicate queries.

You can also get them to notify your app when the underlying data

changes so that you can deal with the change in your views.

The Loader API includes a generic Loader class, which is the

base class for all loaders. You can create your own loader by

extending this class, or you can use one of the built-in subclasses:

AsyncTaskLoader or CursorLoader. AsyncTaskLoader

uses an AsyncTask, and CursorLoader loads data from a

content provider.

You can find out more about loaders here:

https://developer.android.com/guide/components/loaders.html

4. Sync adapters

Sync adapters allow you to synchronize data between an Android

device and a web server. This allows you to do things like back up the

user’s data to a web server, for instance, or transfer data to a device

so that it can be used offline.

Sync adapters have a number of advantages over designing your own

data transfer mechanism.

They allow you to automate data transfer based on specific criteria—for

example, time of day or data changes.

They automatically check for network connectivity, and only run when

the device has a network connection.

Sync adapter–based data transfers run in batches, which helps improve

battery performance.

They let you add user credentials or a server login to the data transfer.

You can find out how to use sync adapters here:

https://developer.android.com/training/sync-adapters/index.html

you are here 4 865

leftovers

5. Broadcasts

Suppose you want your app to react in some way when a system event

occurs. You may, for example, have built a music app, and you want

it to stop playing music if the headphones are removed. How can your

app tell when these events occur?

Android broadcasts system events when they occur, including things

like the device running low on power, a new incoming phone call, or

the system getting booted. You can listen for these events by creating

a broadcast receiver. Broadcast receivers allow you to subscribe

to particular broadcast messages so that your app can respond to

particular system events.

YourActivity

Broadcast

Receiver

The battery’s

running low, in case

anyone’s interested.

Your app can also send custom broadcast messages to notify other apps

of events.

You can find out more about broadcasts here:

https://developer.android.com/guide/components/broadcasts.html

Hey, Activity, Android

says the battery’s

running low on power. OK, I’ll hold off

on expensive

tasks for now.

Android

866 appendix vi

WebView

6. The WebView class

If you want to provide your users with access to web content, you

have two options. The first option is to open the web content with

an external app like Chrome or Firefox. The second option is to

display the content inside your app using the WebView class.

The WebView class allows you to display the contents of a web

page inside your activity’s layout. You can use it to deliver an

entire web app as a client application, or to deliver individual web

pages. This approach is useful if there’s content in your app you

might need to update, such as an end-user agreement or user guide.

You add a WebView to your app by including it in your layout:

You can find out more about using web content in your apps here:

http://developer.android.com/guide/webapps/index.html

<WebView xmlns:android="http://schemas.android.com/apk/res/android"

android:id="@+id/webview"

android:layout_width="match_parent"

android:layout_height="match_parent" />

You then tell it which web page it should load by calling its

loadUrl() method:

WebView webView = (WebView) findViewById(R.id.webview);

webView.loadUrl("http://www.oreilly.com/");

You also need to specify that the app must have Internet access by

adding the INTERNET permission to AndroidManifest.xml:

<uses-permission android:name="android.permission.INTERNET" />

...

</manifest>

you are here 4 867

leftovers

7. Settings

Many apps include a settings screen so that the user can record

their preferences. As an example, an email app may allow the user

to specify whether they want to see a confirmation dialog before

sending an email:

You build a settings screen for your app using the Preferences

API. This allows you to add individual preferences, and record a

value for each preference. These values are recorded in a shared

preferences file for your app.

You can find out more about creating settings screens here:

https://developer.android.com/guide/topics/ui/settings.html

This is the settings

screen for the Gmail

app.

868 appendix vi

animation

8. Animation

As Android devices increasingly take advantage of the power of their

built-in graphics hardware, animation is being used more and more to

improve the user’s app experience.

There are several types of animation that you can perform in Android:

Property animation

Property animation relies on the fact that the visual components

in an Android app use a lot of numeric properties to describe their

appearance. If you change the value of a property like the height or

the width of a view, you can make it animate. That's what property

animation is: smoothly animating the properties of visual components

over time.

View animations

A lot of animations can be created declaratively as XML resources.

So you can have XML files that use a standard set of animations (like

scaling, translation, and rotation) to create effects that you can call from

your code. The wonderful thing about declarative view animations is

that they are decoupled from your Java code, so they are very easy to

port from one app project to another.

Activity transitions

Let’s say you write an app that displays a list of items with names and

images. You click on an item and you’re taken to a detail view of it.

The activity that shows you more detail will probably use the same

image that appeared in the previous list activity.

Activity transitions allow you to animate a view from one activity that

will also appear in the next activity. So you can make an image from

a list smoothly animate across the screen to the position it takes in the

next activity. This will give your app a more seamless feel.

To learn more about Android animations see:

https://developer.android.com/guide/topics/graphics/index.html

To learn about activity transitions and material design, see:

https://developer.android.com/training/material/animations.html

you are here 4 869

leftovers

9. App widgets

An app widget is a small application view that you can add to other

apps or your home screen. It gives you direct access to an app’s core

content or functionality from your home screen without you having to

launch the app.

Here’s an example of an app widget:

This is an app widget. It gives you

direct access to the app’s core

functionality without you having

to launch the app.

To find out how you create your own app widgets, look here:

http://developer.android.com/guide/topics/appwidgets/index.html

870 appendix vi

testing

10. Automated testing

All modern development relies heavily on automated testing. If

you create an app that’s intended to be used by thousands or

even millions of people, you will quickly lose users if it’s flaky or

keeps crashing.

There are many ways to automatically test your app, but they

generally fall into two categories: unit testing and on-device

testing (sometimes called instrumentation testing).

Unit tests

Unit tests run on your development machine, and they check

the individual pieces—or units—of your code. The most

popular unit testing framework is JUnit, and Android Studio

will probably bundle JUnit into your project. Unit tests live in

the app/src/test folder of your project, and a typical test method

looks something like this:

@Test

public void returnsTheCorrectAmberBeers() {

BeerExpert beerExpert = new BeerExpert();

assertArrayEquals(new String[]{"Jack Amber", "Red Moose"},

beerExpert.getBrands("amber").toArray());

}

You can find more out about JUnit here:

http://junit.org

you are here 4 871

leftovers

On-device tests

On-device tests run inside an emulator or physical device and check

the fully assembled app. They work by installing a separate package

alongside your app that uses a software layer called instrumentation

to interact with your app in the same way as a user. An increasingly

popular framework for on-device testing is called Espresso, and

Android Studio will probably bundle it in to your project. On-device

tests live in the app/src/androidTest folder, and Espresso tests look

something like this:

@Test

public void ifYouDoNotChangeTheColorThenYouGetAmber() {

onView(withId(R.id.find_beer)).perform(click());

onView(withId(R.id.brands)).check(matches(withText(

"Jail Pale Ale\nGout Stout\n")));

}

When you run an on-device test, you will see the app running on your

phone or tablet and responding to keypresses and gestures just as if a

person were using it.

You can find out more about Espresso testing here:

https://developer.android.com/training/testing/ui-testing/espresso-testing.html

this is the index 873

action bar, 314. See also app bar

ActionBarActivity class, 298

ActionBar class, 306, 314

ActionBarDrawerToggle class, 607

actions

about, 100

in app bar

adding, 315–317, 319–325

icons for, 320, 322

menu for, 321, 323

method for, 324–325

title for, 320, 322

category speciﬁed with, 106, 117

determining activities for, 105–106

share actions, 332–335

specifying in an intent, 100–104

types of, 101

activities

about, 2, 12, 31, 38, 120–121

backward compatibility for, 295, 298

calling custom Java classes from, 71–74

calling methods from, 59–62

class hierarchy for, 139, 297

class name for, 85

converting to fragments, 438–449

creating, 13–14, 61, 67–68

declaring in manifest ﬁle, 85

default, 41

editing. See code editor; design editor

location in project, 17

main, specifying, 84, 120

multiple

chaining, 78

creating, 78–83

passing text to, 90–95

retrieving text from, 96–97

starting with intents, 86–89

navigating. See navigation

organizing, 249–255, 290–291

category activities, 249–250, 252–255, 267–268,

277–278

detail/edit activities, 249–250, 253–255, 279–283

top-level activities, 249–250, 252–255

in other apps

determining from actions, 105–106

none available, 117

starting with intents, 99–104

users always choosing, 112–117

users choosing default, 111

users choosing if multiple, 100, 104, 111

parent activity, 328

states of. See activity lifecycle

Activity class, 61, 139, 297

activity lifecycle

about, 137–138, 146–147

class hierarchy for, 139

compared to fragment lifecycle, 439

methods associated with, 137–139, 147, 167, 439

states in

based on app’s focus, 154–157

based on app’s visibility, 146–147

list of, 137–138, 146–147

saving and restoring, 140–141, 145

ActivityNotFoundException, 103, 117

activity transitions, 868

adapters

array. See ArrayAdapter class

decoupling, with interface, 572–574

recycler view. See recycler view adapter

sync adapters, 864

AdapterView class, 261, 269

adb (Android Debug Bridge)

about, 846, 850–851

copying ﬁles, 855

killing adb server, 854

logcat output, 854

running a shell, 852–853

Index

the index

874 index

ADD COLUMN command, 650

addDrawerListener() method, DrawerLayout, 607

ALTER TABLE command, 649

Android application package. See APK ﬁles

Android apps. See also projects

about, 120–121

activities in. See activities

adapting for different device sizes, 340–341, 394–398,

402–412

app bar for. See app bar

back button functionality for, 413–415

building, 7–10, 13–15, 39

conﬁguration of, affected by rotation, 134–136, 145,

156

designing, 248–250

devices supported by, 10, 340–341. See also fragments

distributing, 862

examples of. See examples

focus/visibility of, 146–147, 154–157

icons for, 84, 299

Java for. See Java

languages used in, 4

layouts for. See layouts

manifest ﬁle for. See AndroidManifest.xml ﬁle

minimum SDK for, 10–11

navigating. See navigation

package name for, 9, 84

processes used by, 120–121, 133

resource ﬁles for. See resource ﬁles

running activities in other apps, 100–108

running in emulator, 23–30, 49, 117

running on physical devices, 109–111, 117

settings screen for, 867

structuring, 249–250, 252–255, 290–291

theme for. See themes

Android debug bridge. See ADB

Android devices

about, 2

adapting apps for different sizes of, 340–341, 394–398,

402–412. See also fragments

API level on. See Android SDK (API level)

rotation of

conﬁguration affected by, 134–136, 145, 156

saving activity state for, 140–141

saving fragment state for, 427–431

running apps on, 109–111, 117

virtual, for testing. See AVD (Android virtual device)

Android emulator

about, 23

performance of, 858–860

running apps in, 23–30, 49, 117

AndroidManifest.xml ﬁle

about, 17, 84–85

activity hierarchy in, 328

app bar attributes in, 299–301, 318–319

intent ﬁlters in, 105–106

language settings in, 172

main activity in, 120, 132

permissions needed in, 791

screen size settings in, 403

started services in, 745

themes in, 589

Android platform

about, 2–3

versions of. See Android SDK (API level)

Android Runtime (ART), 3, 30, 842–843

Android SDK (API level)

about, 5

features speciﬁc to, 171, 173, 293, 297, 298, 314, 328

libraries for, 16, 294

list of, 11

permissions affected by, 791, 794

specifying for AVD, 25, 400

specifying minimum for apps, 10

Android Studio

about, 5, 7

alternatives to, 7

console in, 28

editors. See code editor; design editor

installing, 6

projects, creating, 8–10

system requirements, 6

Android virtual device. See AVD

animated toolbar. See collapsing toolbar; scrolling toolbar

animation, 868

API level. See Android SDK (API level)

APK ﬁles, 27, 30, 845–846

app bar

about, 291–293

activity titles in, 317

adding actions to, 315–317, 319–325

attributes in manifest ﬁle for, 299–301, 318–319

icon in, 299

label for, 299, 318–319

the index

you are here �875

removing, 308

replacing with toolbar, 292, 306–313

sharing content on, 331–335

tabs in, 499–500

themes required for, 293, 296–298, 299–300

Up button for, 327–330

AppBarLayout element, 499–500, 518–519

AppCompatActivity class, 297–298, 307

AppCompat Library. See v7 AppCompat Library

app folder, 17

application framework, 3. See also APIs

application name, 9

applications, core. See core applications

app_name string resource, 51

apps. See Android apps

AppTheme attribute, 589–590

app widgets, 869

ArrayAdapter class, 269–271, 275, 287, 375–377

@array reference, 57

array resources, 56–57, 210, 259

ART (Android Runtime), 3, 30, 842–843

AsyncTask class, 724, 729, 731, 737

?attr reference, 309

automated testing, 870

AVD (Android virtual device)

about, 23

compared to design editor, 49

creating for smartphone, 24–26

creating for tablet, 399–401

AWT, 4

Back button

compared to Up button, 327

enabling, 413–415

background, services running in. See services

background thread, 720–731, 736

back stack, 414–415

backward compatibility, for activities, 295, 298

Bates, Bert (Head First Java), 4

Beer Adviser app, 38–76

activities, 61–69

button, 59–60

Java class, 70–74

layout, 41–48

project, 40

spinner, 56–58

String resources, 50–54

Beighley, Lynn (Head First SQL), 675

biases for views, 231

Binder class, 786

bindService() method, activity, 778

blueprint tool

about, 226

aligning views, 238

biases, setting, 231

centering views, 230

horizontal constraints, 227

inferring contraints, 240–241, 245

margins, setting, 228

size of views, changing, 232–233

vertical constraints, 228

view properties, editing, 241

widgets, adding, 226, 240, 242–243

books and publications

Head First Java (Sierra; Bates), 4

Head First SQL (Beighley), 675

bound services

about, 740, 768

binding to an activity, 771, 774–778

calling methods from, 780–785

in combination with started services, 786

compared to started services, 786

creating, 770, 772

displaying results of, 773

lifecycle of, 787–788

other apps using, 786

broadcasts, 865

build folder, 17

build.gradle ﬁles, 834–835

built-in services

about, 740

location. See Location Services

notiﬁcation. See notiﬁcation service

Bundle class

about, 145

restoring state data from, 141, 144

saving state data in, 140, 143

Button element. See also FAB (ﬂoating action button)

about, 203

adding, 43

the index

876 index

calling methods

in activity, 60–62

in fragment, 452–460

code for, 44–47, 80

images added to, 213

widget for, in blueprint tool, 226

CalledFromWrongThreadException, 127

cardCornerRadius attribute, card view, 543

cardElevation attribute, card view, 543

CardView element, 543

CardView Library, 294, 542

card views

about, 542

adding data to, 545, 550

creating, 543–544

displaying in recycler view, 558, 560

CatChat app, 581–620

about, 581–584

Drafts option, 586

Feedback option, 592

header for, 594–595

Help option, 591

Inbox option, 585

menu for, 596–601

SentItems option, 587

Trash option, 588

category activities, 249–250, 252–255, 267–268, 277–

278, 290

centering views, 230

chaining activities, 78

changeCursor() method, cursor adapter, 715–717

checkableBehavior attribute, 598

CheckBox element, 206–207, 696–700

checkSelfPermission() method, ContextCompat, 794,

800

check task, Gradle, 837

choosers, 112–117

classes. See Java classes

clean task, Gradle, 837

closeDrawer() method, DrawerLayout, 614

close() method, cursor, 672, 683

close() method, SQLiteDatabase, 672, 683

code editor

about, 18, 32

activity ﬁle in, 21–22

layout ﬁle in, 19–20, 41, 44–46

collapsing toolbar, 507, 517–525

CollapsingToolbarLayout element, 518–521

color resources, 304

colors, for themes, 303

columnCount attribute, GridLayout, 823

company domain, 9

constraint layout

about, 223

aligning views, 238

alternatives to, 245

biases, setting, 231

centering views, 230

horizontal constraints, adding, 227

inferring contraints, 240–241, 245

library for, 224

margins, setting, 228–229

size of views, changing, 232–233

specifying in main activity, 225

vertical constraints, adding, 228

widgets, adding, 226, 240, 242–243

XML code for, 229

Constraint Layout Library, 224, 294

contentDescription attribute, ImageView, 212

content providers, 863

contentScrim attribute, CollapsingToolbarLayout, 523

ContentValues object, 632, 645

Context class, 139, 752

ContextThemeWrapper class, 139

ContextWrapper class, 139, 752

CoordinatorLayout element, 508–511, 518, 527

core applications, 3

core libraries, 3. See also libraries

createChooser() method, Intent, 112–117

CREATE TABLE command, 631

Cursor class, 624

cursors, SQLite

about, 624, 663

adapter for, 679–681, 688–689, 715

closing, 672, 682–683

creating, 663–666, 678

navigating to records in, 670–671

the index

you are here �877

refreshing, 714–718

retrieving values from, 672–674

custom Java classes. See Java classes

data

adapters for. See adapters

from other apps, content providers for, 863

loaders for, 864

sharing with other apps. See share action provider

storing as string resources, 259

storing in classes, 256, 268–271, 360

web content, 866

database. See SQLite database

delete() method, SQLiteDatabase, 647

density-independent pixels (dp), 171

design editor. See also blueprint tool

about, 18, 32, 42

adding GUI components, 43

compared to AVD, 49

XML changes reﬂected in, 48

Design Support Library

about, 294, 506

AppBarLayout element, 499–500

collapsing toolbar, 517–525

FAB (ﬂoating action button), 507, 526–529

navigation drawers, 584

scrolling toolbar, 508–515

snackbar, 507, 526, 530–533

TabLayout element, 499, 501

detail/edit activities, 249–250, 253–255, 279–283, 290

development environment. See Android SDK; Android

Studio

devices. See Android devices

DEX ﬁles, 843–845, 847

dimension resources, 174

dimens.xml ﬁle, 174

distributing apps, 862

doInBackground() method, AsyncTask, 724, 726, 731

dp (density-independent pixels), 171

drawable attributes, Button, 213

@drawable reference, 212

drawable resource folders. See image resources

DrawerLayout element, 602–603. See also navigation

drawers

drop-down list. See Spinner element

DROP TABLE command, 650

dynamic fragments. See fragments: dynamic

editors. See blueprint tool; code editor; design editor

EditText element

about, 80, 178, 202

code for, 80

hint, 178

email app example. See CatChat app

email grid layout example, 825–832

emulator. See Android emulator

entries attribute, ListView, 259

entries attribute, Spinner, 57, 210

Espresso tests, 871

event listeners

about, 199

for card views, 572–576

compared to onClick attribute, 264

for ListView element, 261–263

for fragments, 455–460

for list fragments, 385–387

for ListView element, 708, 710–712

location listeners, 792

for navigation drawers, 608

for snackbar actions, 530

examples

Beer Adviser app. See Beer Adviser app

CatChat app. See CatChat app

email grid layout, 825–832

Joke app. See Joke app

My Constraint Layout app. See My Constraint Layout

app

My First App. See My First App

My Messenger app. See My Messenger app

Odometer app. See Odometer app

Pizza app. See Pizza app

source code for, xxxvi

Starbuzz Coffee app. See Starbuzz Coffee app

Stopwatch app. See Stopwatch app

Workout app. See Workout app

execSQL() method, SQLiteDatabase, 631, 650

execute() method, AsyncTask, 731

the index

878 index

FAB (ﬂoating action button), 507, 526–529

ﬁndViewById() method, view, 63–64, 68

FloatingActionButton element, 527

focus

activities having, 154–157

views handling, 199

FragmentActivity class, 354

fragment element, 352, 463

fragment lifecycle, 365–366, 439

fragment manager, 362, 419

FragmentPagerAdapter class, 491–493

fragments

about, 342

activities using

adding fragment to, 352–353

button linking main to detail activity, 346–347

creating, 345

interactions with, 359–369

referencing fragment from, 363, 367

setting values for, 367–369

adding to project, 348–349

app structure for, 343–344

back button functionality with, 413–415

code for, 349–350

converting activities to, 438–449

data for, 360

dynamic

about, 434

adding, 435–449, 469–477

calling methods from, 450–460

code for, 440–446, 458–460

layout for, 447–449

ID for, 361–362

layouts for, 349–351, 408–410

list fragments

connecting data to, 375–377

connecting to detail activity, 384–389

creating, 372–374

displaying in main activity, 378–381

listener for, in main activity, 385–387

methods associated with, 365–366, 439

nested, 474–477

replacing programmatically, 416–425

state of, saving, 427–431, 464–467

swiping through, 489–493

for tab navigation, 483–488

v7 AppCompat Library for, 345, 354

view for, creating, 350

FragmentStatePagerAdapter class, 491, 493

fragment transactions, 419–423, 463–467, 472–475

FrameLayout element

about, 188–190, 193

gravity for view placement, 190

height, 188

nesting, 191–192

order of views in, 190

replacing fragments programmatically using, 416–425,

464–467, 471

width, 188

getActivity() method, PendingIntent, 758

getBestProvider() method, LocationManager, 793

getCheckedRadioButtonId() method, RadioGroup, 208

getChildFragmentManager() method, fragment, 474–

475

getContext() method, LayoutInﬂator, 376

getCount() method, FragmentPagerAdapter, 491–492

getFragmentManager() method

activity, 362

fragment, 472–473

getIntent() method, activity, 92, 96, 280

getIntExtra() method, Intent, 92

getItemCount() method, RecyclerView.Adapter, 547

getItem() method, FragmentPagerAdapter, 491–492

get*() methods, cursor, 672

getReadableDatabase() method, SQLiteOpenHelper,

662, 678

getSelectedItem() method, view, 67, 69, 210

getStringExtra() method, Intent, 92, 96

getString() method, string resource, 115

getSupportActionBar() method, activity, 329

getSupportFragmentManager() method, activity, 362

getText() method, EditText, 202

getView() method, fragment, 367, 370

getWritableDatabase() method, SQLiteOpenHelper, 662

GPS location provider, 793

Gradle build tool

about, 7, 834

build.gradle ﬁles, 834–835

the index

you are here �879

check task, 837

custom tasks, 839

dependencies used by, 838

gradlew and gradlew.bat ﬁles, 836

plugins, 840

gradlew and gradlew.bat ﬁles, 836

gravity attribute, view, 182–183

GridLayout element

about, 823

adding views to, 824, 827–829

creating, 825–832

dimensions, deﬁning, 823, 826

GridLayoutManager class, 556–557

group element, 598–599

GUI components. See also views; speciﬁc GUI compo-

nents

adding, 43

inherited from View class, 44, 197–198

referencing, 63–64

Handler class, 128–129

HAXM (Hardware Accelerated Execution Manager),

859

headerLayout attribute, 602

Head First Java (Sierra; Bates), 4

Head First SQL (Beighley), 675

heads-up notiﬁcation, 755, 757

hint attribute, EditText, 178, 202

horizontal constraints, 227

HorizontalScrollView element, 215

IBinder interface, 786

IBinder object, 770–771, 776

icon attribute, 299, 322

icons

for actions in app bar, 320

for app, default, 84, 299

built-in icons, 597

id attribute, view, 44, 175

IDE

Android Studio as. See Android Studio

not using, 7

ImageButton element, 214

image resources. See also icons; mipmap resource folders

adding, 189, 211, 257, 512

for Button elements, 213

for ImageButton elements, 214

for ImageView element, 212, 258

for navigation drawer header, 594

R.drawable references for, 212, 257

resolution options, folders for, 211

ImageView element, 211–212, 258, 523

include tag, 312, 314

inﬂate() method, LayoutInﬂator, 350

inﬂators, layout, 350, 365

inputType attribute, EditText, 202

insert() method, SQLiteDatabase, 632–633

installDebug task, Gradle, 837

Instant Run, 860

IntelliJ IDEA, 5

intent ﬁlter, 105–106

intents

about, 86

alternatives to, 91

category for, 106, 117

creating, 86–87, 277

implicit and explicit, 101, 105, 117

passing text using, 90–95

resolving activities and actions, 105–106

retrieving data from, 280–282

retrieving text from, 96–97

sharing content using, 331

starting activities, 86–89

starting activities in other apps, 99–104

IntentService class, 742, 744, 752

internationalization. See localization

isChecked() method, CheckBox, 206

Java

about, 2

activities. See activities

required knowledge of, xxxvi, 4

source ﬁle location, 16–17

Java classes

about, 38

calling from activities, 71–74

custom, creating, 70, 256

data stored in, 256, 268–271

the index

880 index

java folder, 17

Java Virtual Machine (JVM), 842

JDBC, 624

Joke app

logging messages, 743–746

notiﬁcations, 755–766

started services, 741–766

JUnit, 870

JVM (Java Virtual Machine), 842

label attribute, application, 299, 314, 318

layout_above attribute, RelativeLayout, 822

layout_align* attributes, RelativeLayout, 820, 822

layout_behavior attribute, ViewPager, 510, 519

layout_below attribute, RelativeLayout, 822

layout_center* attributes, RelativeLayout, 820

layout_collapseMode attribute, Toolbar, 519, 523

layout_column attribute, GridLayout, 827

layout_columnSpan attribute, GridLayout, 828

layout_gravity attribute, view, 47, 184–185, 190

layout_height attribute

FrameLayout, 188

LinearLayout, 171

view, 44, 46, 47, 175, 180, 232–233

LayoutInﬂator class, 350, 365, 376

layout manager, for recycler view, 556–557

layout_margin attributes, view, 47, 176, 228–229

layout resource folders, 402–408

layout_row attribute, GridLayout, 827

layouts

about, 2, 12, 31, 38, 170

code for, 19–20, 33, 41, 44–46, 80

constraint. See constraint layout

creating, 13–14

default, 41

editing, 41–48

for fragments. See fragments

frame. See FrameLayout element

grid. See GridLayout element

inherited from ViewGroup class, 198, 200

linear. See LinearLayout element

nesting, 191–192, 222

relative. See RelativeLayout element

toolbars as, 311–313, 316

layout_scrollFlags attribute, Toolbar, 510, 519

layout_to* attributes, RelativeLayout, 822

layout_weight attribute, view, 179–181

layout_width attribute

FrameLayout, 188

LinearLayout, 171

view, 44, 46, 47, 175, 232–233

libraries. See also speciﬁc libraries

about, 3

adding to project, 224

location in project, 16

Support Libraries, list of, 294

LinearLayout element

about, 41, 45, 171, 187

dimension resources, 174

gravity for view contents, 182–183

gravity for view placement, 184–185

height, 171

nesting, 191–192, 222

order of views in, 175

orientation, 172

padding, 173

weight of views in, 179–181

width, 171

xmlns:android attribute, 171

LinearLayoutManager class, 556–557

Linux kernel, 3

Listener interface, 385–387, 572–576

listeners. See event listeners

ListFragment class

connecting data to, 375–377

connecting to detail activity, 384–389

creating, 372–374

displaying in main activity, 378–381

listener for, in main activity, 385–387

ListView element

about, 251

class hierarchy for, 570

creating, 259–260, 705–709

event listeners for, 261–263, 708, 710–712

loaders, 864

localization

right-to-left languages, 172

String resources, 50, 55

LocationListener class, 792

LocationManager class, 793

the index

you are here �881

Location Services

about, 789

distance traveled, calculating, 796–797

library for, 790

listener for, 792

manager for, 793

permissions needed

checking for, 794, 800

declaring, 791

notiﬁcation if denied, 806, 809–810

requesting from user, 802–804, 806

provider for, 793

requesting location updates, 794–795

stopping location updates, 797

logcat, viewing, 743, 854

Log class, 743

logging messages, 743–746

main activity, 84, 120

manifest ﬁle. See AndroidManifest.xml ﬁle

material design, 506. See also Design Support Library

menu attribute, NavigationView, 602

menu element, 321

menu resource folders, 321

messages. See also notiﬁcation service

logging, 743–746

pop-up messages (toasts), 216

methods. See also speciﬁc methods

calling from activities, 59–62, 81

creating, 62–63, 65–66, 81

name of, 69

mipmap resource folders, 299

moveToFirst() method, cursor, 671

moveToLast() method, cursor, 671

moveToNext() method, cursor, 671

moveToPrevious() method, cursor, 671

My Constraint Layout app, 223–246

activities, 225

layout, 226–243

library, 224

String resources, 225

My First App, 7–36

activities, 12–15, 31

editors, 18–22

emulator, 23–30

folder structure, 16–17

layout, 31–34

project, 8–11

My Messenger app, 79–118

activities, 82–83, 90

choosers, 112–117

intents, 86–89, 92–108

layout, 80, 82–83, 91

manifest ﬁle, 84–85

running on device, 109–111

String resources, 81

navigation. See also app bar; ListView element; navigation

drawers; tab navigation; toolbar

about, 250–251, 253–255, 291

Back button, 327, 413–415

Up button, 292, 327–330

navigation drawers

about, 580–583

adding to main activity, 583, 602–604

closing the drawer, 606, 614

compared to tab navigation, 580

drawer toggle for, 606–607

fragments for, 583, 585–592

header for, 583, 593–595

libraries for, 584

menu click behavior, 606, 608–613

menu options for, 583, 593, 596–601

multiple, 614

submenu in, 600

theme for, 589–590

toolbar for, 589

NavigationView element, 602–603, 608

NestedScrollView element, 513, 518–519

network location provider, 793

NotiﬁcationManager class, 759

Notiﬁcation object, 759

notiﬁcation service

about, 755, 762–763

action for, adding, 758

heads-up notiﬁcation, 755, 757

issuing a notiﬁcation, 759, 806, 809–810

library for, 756

the index

882 index

notiﬁcation builder for, 757

notiﬁcation manager for, 759

notify() method, NotiﬁcationManager, 759

OAT format, 847

Odometer app, 769–816

bound services, 769–788

library, 790

Location Services, 789–800

permissions, 791, 802–816

onActivityCreated() method, fragment, 365

onAttach() method, fragment, 365

onBind() method, Service, 770, 787–788

onBindViewHolder() method, RecyclerView.Adapter,

550, 571

onButtonClicked() method, activity, 203, 214

onCheckboxClicked() method, CheckBox, 207

onClick attribute

Button, 60, 125, 203, 264

CheckBox, 207, 698–700

ImageButton, 214

RadioButton, 209

Switch, 205

ToggleButton, 204

onClickDone() method, activity, 529

OnClickListener interface, 455–460

onClickListener() method, view, 530

onClick() method

fragment, 456

Listener, 572

OnClickListener, 455

onCreate() method

activity, 61, 81, 96, 121, 133, 137, 138, 147, 167,

787–788

fragment, 365, 429, 430

service, 751

SQLiteOpenHelper, 628, 634–635

onCreateOptionsMenu() method, activity, 323

onCreateViewHolder() method, ViewHolder, 549

onCreateView() method, fragment, 349–350, 365, 374,

376

onDestroy() method

activity, 137, 138, 147, 167, 683, 787–788

fragment, 365

service, 751

onDestroyView() method, fragment, 365

onDetach() method, fragment, 365

on-device tests, 871

onDowngrade() method, SQLiteOpenHelper, 637, 641

onHandleEvent() method, IntentService, 742

onHandleIntent() method, IntentService, 744

OnItemClickListener class, 261–262

onItemClick() method, OnItemClickListener, 261–262

onListItemClick() method, list fragment, 373, 386

onLocationChanged() method, LocationListener, 792

onNavigationItemSelected() method, activity, 608–609

onOptionsItemSelected() method, activity, 324

onPause() method

activity, 154–157, 159, 167

fragment, 365

onPostExecute() method, AsyncTask, 724, 728

onPreExecute() method, AsyncTask, 724–725

onProgressUpdate() method, AsyncTask, 727

onProviderDisabled() method, LocationListener, 792

onProviderEnabled() method, LocationListener, 792

onRadioButtonClicked() method, RadioGroup, 209

onRequestPermissionResult() method, activity, 805

onRestart() method, activity, 146, 147, 153, 167

onResume() method

activity, 154–157, 159, 167

fragment, 365

onSaveInstanceState() method

activity, 140, 142, 143, 146

fragment, 429, 431

onServiceConnected() method, ServiceConnection,

775–776

onServiceDisconnected() method, ServiceConnection,

775, 777

onStartCommand() method, Service, 751

onStart() method

activity, 146, 147, 153, 167

fragment, 365, 367

onStatusChanged() method, LocationListener, 792

onStop() method

activity, 146, 147, 148–150, 167

fragment, 365

onSwitchClicked() method, Switch, 205

onToggleClicked() method, ToggleButton, 204

the index

you are here �883

onUnbind() method, Service, 787–788

onUpgrade() method, SQLiteOpenHelper, 628, 637,

640, 642–650

Oracle JVM (Java Virtual Machine), 842

orderInCategory attribute, 322

organizing ideas. See also Starbuzz Coffee app

orientation attribute, LinearLayout, 45, 172

package name, 84

padding attributes, LinearLayout, 173

parent activity, 328

PendingIntent class, 758

performance

of Android emulator, 858–860

SQLite database affecting, 720

permissions

API levels affecting, 791, 794

checking for permissions granted, 794, 800

declaring permissions needed, 791

denied, issuing notiﬁcation of, 806, 809–810

requesting from user, 802–804, 806

Pizza app, 290–338, 482–536, 538–578

actions, 315–326

activities, 297–298

adapters, 571–574

app bar, 291–293, 299

card views, 543–546, 550, 560

collapsing toolbar, 517–525

color resources, 304

FABs, 526–529

fragments, 485–488

layout, 305

libraries, 294–296, 307, 506

recycler views, 538–539, 545–570, 575–576

scrollbars, 508–515

share action provider, 331–336

snackbar, 526, 530–534

tab navigation, 498–504

themes and styles, 300–303

toolbar, 306–314

Up button, 327–329

ViewPager, 489–493

Play Store, releasing apps to, 862

pop-up messages (toasts), 216

postDelayed() method, Handler, 128–129

post() method, Handler, 128–129

Preferences API, 867

processes, apps using, 120–121, 133. See also services;

threads

projects. See also Android apps

application name, 9

company domain, 9

creating, 8–10, 40–41

ﬁles in, 15–17, 34

libraries for, adding, 224

location, 9

property animation, 868

publishProgress() method, AsyncTask, 727

putExtra() method, Intent, 92, 101

put() method, ContentValues, 632

QEMU (Quick Emulator), 858

query() method, SQLiteDatabase, 663–666

RadioButton element, 208

RadioGroup element, 208–209

Random class, 772

R.drawable reference, 212, 257

recycler view adapter, 545–550, 554, 571–574

RecyclerView.Adapter class, 545–546

RecyclerView element, 554

RecyclerView Library, 294

recycler views

about, 538–539

class hierarchy for, 570

creating, 553–555, 562–565

data for, 547, 550

layout manager for, 556–557

responding to clicks, 566–576

scrollbars for, 554

views for, 548–549

RecyclerView-v7 Library, 542

RelativeLayout element

about, 818

positioning relative to other views, 821–822

positioning relative to parent, 818–820

the index

884 index

releasing apps, 862

removeUpdates() method, LocationManager, 797

RENAME TO command, 649

render thread, 720

requestLocationUpdates() method, LocationManager,

794

requestPermissions() method, ActivityCompat, 803–804,

806

res-auto namespace, 543

res folder, 17

resolution of images, 211

resource ﬁles. See also array resources; image resources;

String resources

about, 2

color resources, 304

dimension resources, 174

layout resources, 402–408

menu resources, 321

mipmap resources, 299

style resources, 300–301

types of, folders for, 16–17, 403

resources. See books and publications; website resources

resources element, 54

R.java ﬁle, 17, 63, 69

rotation of device

conﬁguration changed by, 134–136, 145, 156

saving activity state for, 140–141

saving fragment state for, 427–431

roundIcon attribute, 299

rowCount attribute, GridLayout, 823

Runnable class, 128

Safari Books Online, xl

scale-independent pixels (sp), 201

scheduled services, 740

screens

activities in. See activities

density of, images based on, 211

layouts for. See layouts

size of, adapting apps for, 340–341, 394–398, 402–412

scrollbars attribute, recycler view, 554

scrolling toolbar, 507, 508–515

ScrollView element, 215

SDK. See Android SDK (API level)

Service class, 752, 770

ServiceConnection interface, 775–777

service element, 745

services

about, 740

bound. See bound services

built-in, 740

location. See Location Services

notiﬁcation. See notiﬁcation service

scheduled, 740

started. See started services

setAction() method, Snackbar, 530

setAdapter() method

ListView, 270

RecyclerView, 554

ViewPager, 493

setContentDescription() method, ImageView, 212, 282

setContentIntent() method, notiﬁcation builder, 758

setContentView() method, activity, 61, 133, 137, 363

setDisplayHomeAsUpEnabled() method, ActionBar, 329

setImageResource() method, ImageView, 212, 282

setListAdapter() method, fragment, 376

setNavigationItemSelectedListener() method, Navigation-

View, 608

setShareIntent() method, ShareActionProvider, 333

setSupportActionBar() method, AppCompatActivity,

313, 314, 317

setText() method, TextView, 64, 201, 282

settings screen, 867

setType() method, Intent, 101

setupWithViewPager() method, TabLayout, 501

share action provider, 292, 331–335

shell, running with adb, 852–853

shortcuts. See app bar

showAsAction attribute, 322

Sierra, Kathy (Head First Java), 4

signing APK ﬁles, 845

SimpleCursorAdapter class, 681

slider. See Switch element

snackbar, 507, 526, 530–533

SnackBar class, 530

Spinner element

about, 47, 48, 210

setting values in, 64

values for, 56–57

sp (scale-independent pixels), 201

the index

you are here �885

SQLite database

about, 623–624

accessing in background thread, 720–731, 736

adding columns, 649, 650

alternatives to, 624

closing, 672, 682–683

conditions for columns, 647

conditions for queries, 666

creating, 629, 634–635

cursors

about, 624, 663

adapter for, 679–681, 688–689, 715

closing, 672, 682–683

creating, 663–666, 678

navigating to records in, 670–671

refreshing, 714–718

retrieving values from, 672–674

data types in, 630

deleting records, 647

deleting tables, 650

downgrading, 641

DrinkActivity. See DrinkActivity

ﬁles for, 623

getting a reference to, 662, 678

helper, 624, 626–628, 634–635

inserting data in, 632–633

location of, 623, 624

ordering records from query, 665

performance of, 720, 736

querying records, 663–666

renaming tables, 649

security for, 624

tables in, 630–631

updating records

programmatically, 645–647

from user input, 695–703, 705–706, 708–712

upgrading, 637–640, 642–650

version number of, 637–639

SQLiteDatabase class, 624

SQLiteException, 662, 675

SQLiteOpenHelper class, 624, 627–628

SQL (Structured Query Language), 631, 675

src attribute, ImageButton, 214

src attribute, ImageView, 212

src folder, 17

StaggeredGridLayoutManager class, 556–557

Starbuzz Coffee app, 248–288, 622–656, 658–692,

694–738

activities, 248–249, 252–255, 262–264, 267–272

adapters, 269–271

database, 626–656, 659–692, 694–718

DrinkActivity. See DrinkActivity

image resources, 257

intents, 277–285

Java classes, 256

layout, 258–260

listeners, 261–262, 276

navigation, 250–251

threads, 720–738

top level activity

adding favorites to. See top level activity

startActivity() method, activity, 86, 112, 117, 121

started services

about, 740–741, 748

class hierarchy for, 752

in combination with bound services, 786

compared to bound services, 786

creating, 741–742, 744

declaring in AndroidManifest.xml, 745

lifecycle of, 750–751

methods associated with, 750–752

starting, 746–747

startService() method, Intent, 747, 751

states, of activities. See activity lifecycle

Stopwatch app, 122–168, 434–480

activities, 125–127, 130–133

activity lifecycle, 138–139, 146–163

activity states, 134–144

dynamic fragments, 434–436, 444–460

fragment lifecycle, 439

fragment transactions, 463–469, 472–475

handlers, 128–129

layout, 123–124, 471

project, 122

String resources, 123

string-array element, 56

string element, 54

@string reference, 52, 81

String resources

about, 38, 50, 54, 55

action titles in, 320

adding, 512, 517

the index

886 index

arrays of, 56–57, 210, 259

creating, 51, 81

getting value of, 115

location of, 54, 55

referencing strings in, 52, 81

updated in R.java ﬁle, 69

strings.xml ﬁle. See Array resources; String resources

Structured Query Language. See SQL

style element, 301

@style reference, 300

style resources, 300–301

styles

applying themes using, 300–301

customizing themes using, 303

Support Libraries. See also v7 AppCompat Library

adding to project, 296

list of, 294

supportsRtl attribute, application, 172

Swing, 4

swiping through fragments, 489–493

Switch element, 205

sync adapters, 864

syncState() method, ActionBarDrawerToggle, 607

system image. See Android SDK (API level)

TabLayout element, 499, 501

tab navigation

about, 482–484, 493

adding tabs to layout, 498–504

compared to navigation drawers, 580

fragments for, 483–488

swiping between tabs, 489–493

tasks, 78

testing

automated testing, 870

emulator compared to device, 117

on-device tests, 871

unit tests, 870

text attribute

Button, 44, 203

CheckBox, 206

TextView, 33, 34, 50, 201

text ﬁeld. See EditText element

textOff attribute

Switch, 205

ToggleButton, 204

textOn attribute

Switch, 205

ToggleButton, 204

textSize attribute, TextView, 201

TextView element

about, 33, 44, 201

code for, 33–34, 44–47, 91

setting text in, 64

theme attribute

AppBarLayout, 519

application, 299, 300

themes

about, 84

app bar requiring, 293

applying to project, 299–300

built-in, list of, 302

customizing, 303

for navigation drawers, 589–590

removing app bar using, 308

v7 AppCompat Library for, 294, 296–298

threads

about, 720

background thread, 720–731, 736

main thread, 127, 720

render thread, 720

title attribute, 322

toasts, 216

ToggleButton element, 204

toolbar

adding as layout, 311–313, 316

collapsing, 507, 517–525

for navigation drawers, 589

replacing app bar with, 292, 306–313

scrolling, 507, 508–515

Toolbar class, 306, 309, 314

top-level activities, 249–250, 252–255, 290

transactions, for fragments. See fragment transactions

unbindService() method, ServiceConnection, 779

unit tests, 870

the index

you are here �887

Up button, 292, 327–330

update() method, SQLiteDatabase, 646, 698

USB debugging, 109

USB driver, installing, 109

uses-permission element, 791

v4 Support Library, 294. See also Design Support Library

v7 AppCompat Library

about, 294

adding to project, 296, 307

AppCompatActivity class in, 297–298

fragments using, 345

Location Services using, 790

navigation drawers using, 584

notiﬁcations in, 756

v7 CardView Library, 294, 542

v7 RecyclerView Library, 294

values resource folders. See string resources; dimension

resources

variables, setting, 126, 127

vertical constraints, 228

view animations, 868

ViewGroup class, 198, 200

ViewHolder class, 546, 548

ViewPager class, 489–493, 501

views. See also speciﬁc GUI components

about, 44, 198–199

aligning, 238

biases for, 231

centering, 230

getting and setting properties, 199

gravity for view contents, 182–183

gravity for view placement, 184–185, 190

height, 175, 180, 232–233

ID, 44, 175, 199

margins, 176, 228–229

methods associated with, 199

weight, 179–181

width, 175, 232–233

website resources

activity actions, types of, 101

source code for examples, xxxvi

USB drivers, 109

WebView class, 866

widgets. See also GUI components

about, 869

adding, in blueprint tool, 226

constraints for. See constraint layout

Workout app, 340–392, 394–432, 434–480

activities, 346–347, 359–363, 381, 389, 421–423, 470

adapters, 375–376

back button, 413–415

device sizes, supporting, 340–341, 394–398

dynamic fragments, 434–436, 444–460

fragment lifecycle, 439

fragments, 342–344, 348–356, 359–363, 365–369,

416–421

fragment state, 427–431

fragment transactions, 463–469, 472–475

Java classes, 360

layout, 471

libraries, 345

listener interface, 384–388

list fragments, 372–374, 377–378

screen-speciﬁc resources, 402–409

tablet AVD, 399–401

wrap_content setting, width and height, 232

xmlns:android attribute, LinearLayout, 171

zipalign tool, 845

Zygote process, 846
