HITACHI INVERTER

SERVICE MANUAL

(ADJUSTMENT AND MAINTENANCE)

Model:

European Version

L100-002NFE to L100-022NFE

L100-004HFE to L100-075HFE

US Version

L100-002NFU to L100-022NFU

L100-004HFU to L100-075HFU

L100-037LFU

L100-002MFU to L100-007MFU

Japanese Version

L100-002LFR to L100-037LFR

L100-004HFR to L100-075HFR

L100-002MFR to L100-007MFR

After reading this manual, keep it at hand for future reference

NBS541X

Hitachi, Ltd.

Tokyo Japan

L100 SERIES

INDEX

1. Pre-operation Check

1-1. Check inverter model and Manufacturing number

1-2. Check inverter parameter and motor specification

2. Measurement of The Internal Voltage Supply

3. Trouble Shoot

3-1. Error messages - Possible Cause and Remedy

3-2. Analysis of Various Operating Problems That Do Not Trigger an Trip Message

3-3. How to Initialize the Data (FACTORY SETTING)

3-4. Error Message Comparison

3-5. Other Displays

4. Ambient Condition of the Frequency Inverter (Temperature, Altitude)

4-1. Required Derating in case of 50deg., 55 deg. of Ambient Temperature

4-2. Required derating toward altitude

5. Level of Each Detection

5-1. DC Bus Voltage Detection Characteristics

5.2. Output Current Detection Characteristics

5.3. Motor Temperature Detection (PTC)

5.4. Over Temperature Detection of the Frequency Inverter

6. Measurement & Replacement of Subassemblies

6-1. Insulation Measurement

6-2. Power Components Measurements

7. Maintenance and Inspection Procedure

7-1. Precautions

7-2. Measurement of Mains Voltage, Current and Power

7-3. Maintenance of Parts

7-4. If you install replacement INV at site

8. Daily Inspection and Periodical Inspection

9. Image block diagram

10. Spare parts list

10-1.

parts list

10-2. I/O board compatibility

10-3. O,OI terminal adjustment procedure

10-4. kW setup procedure

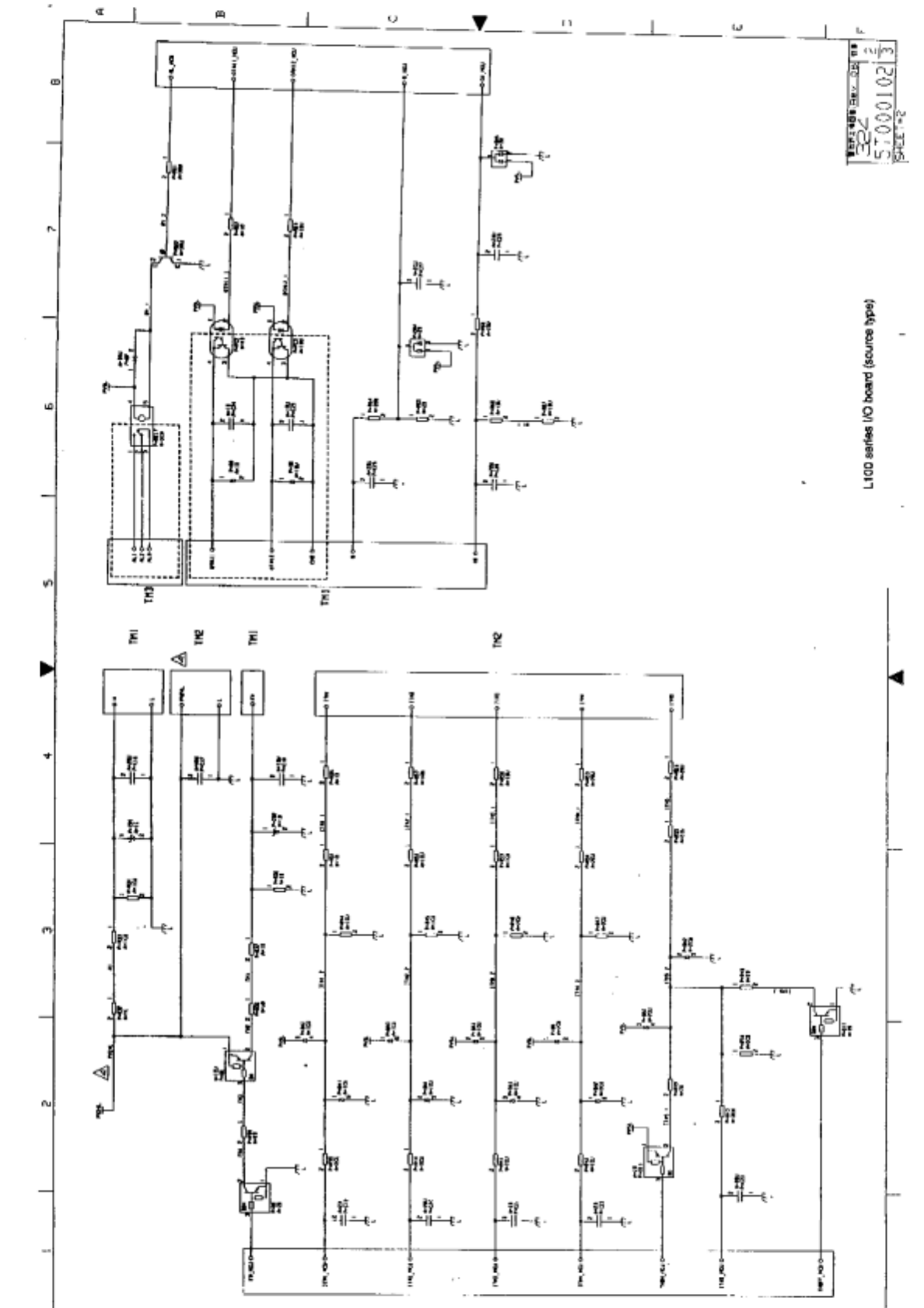

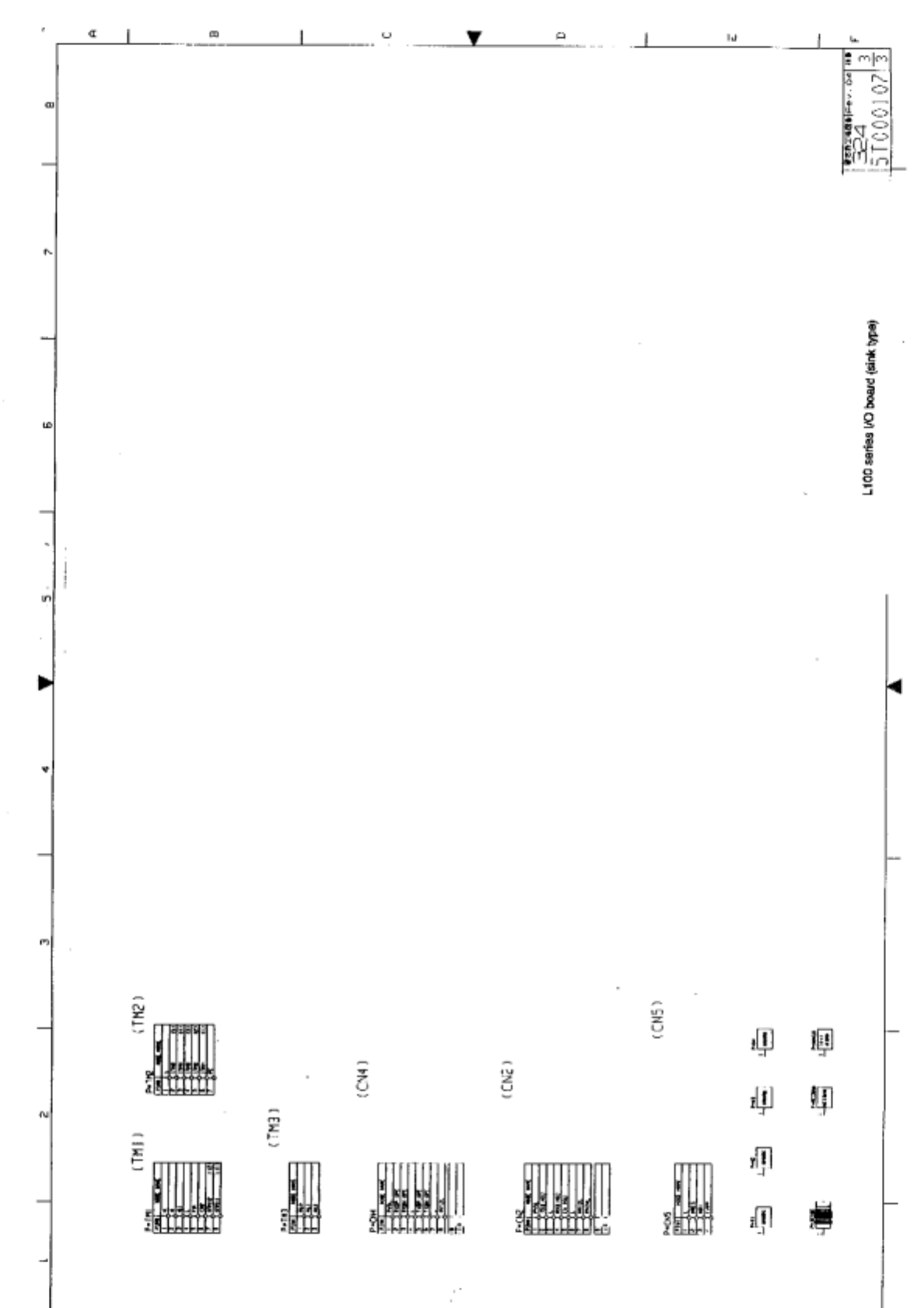

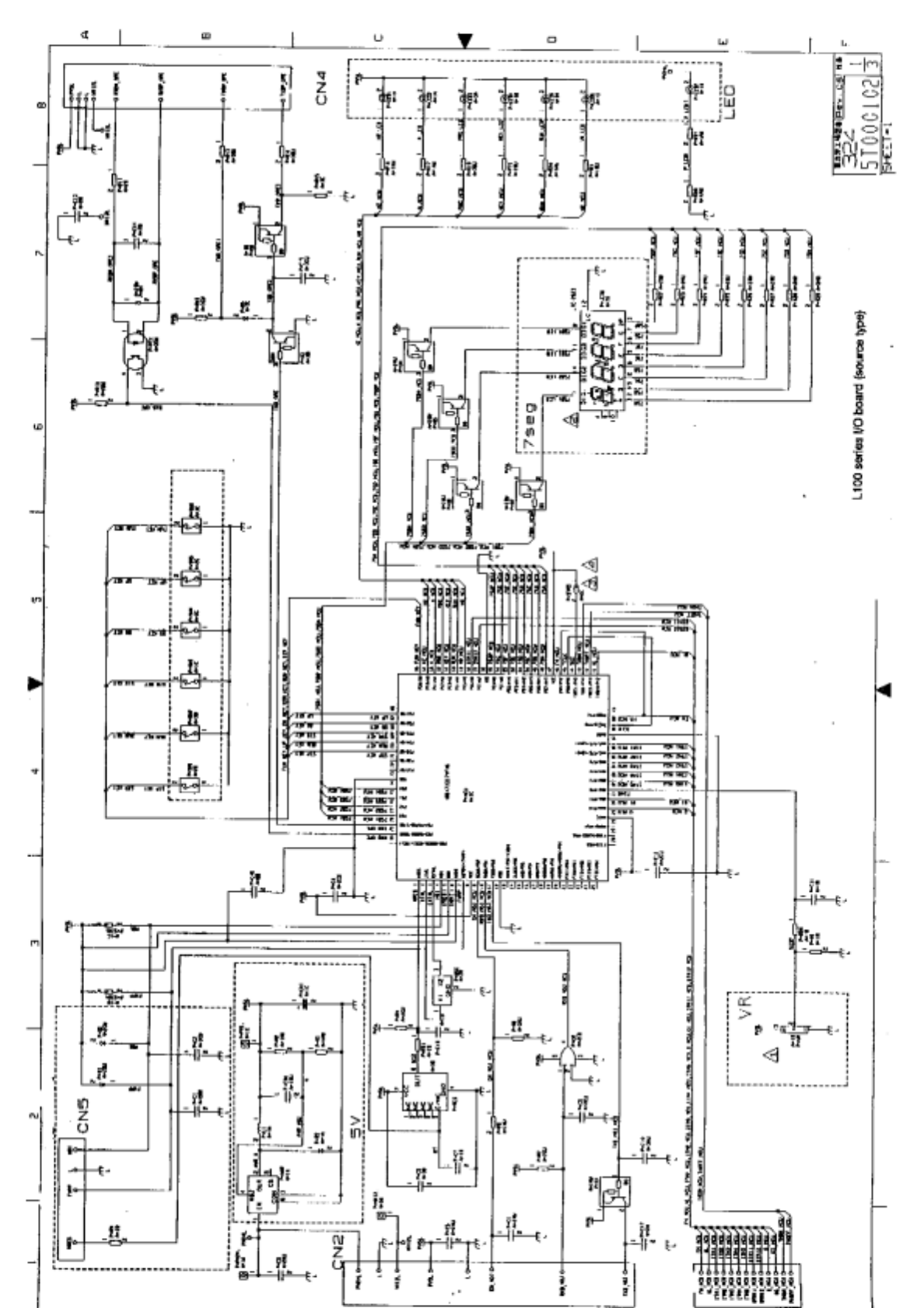

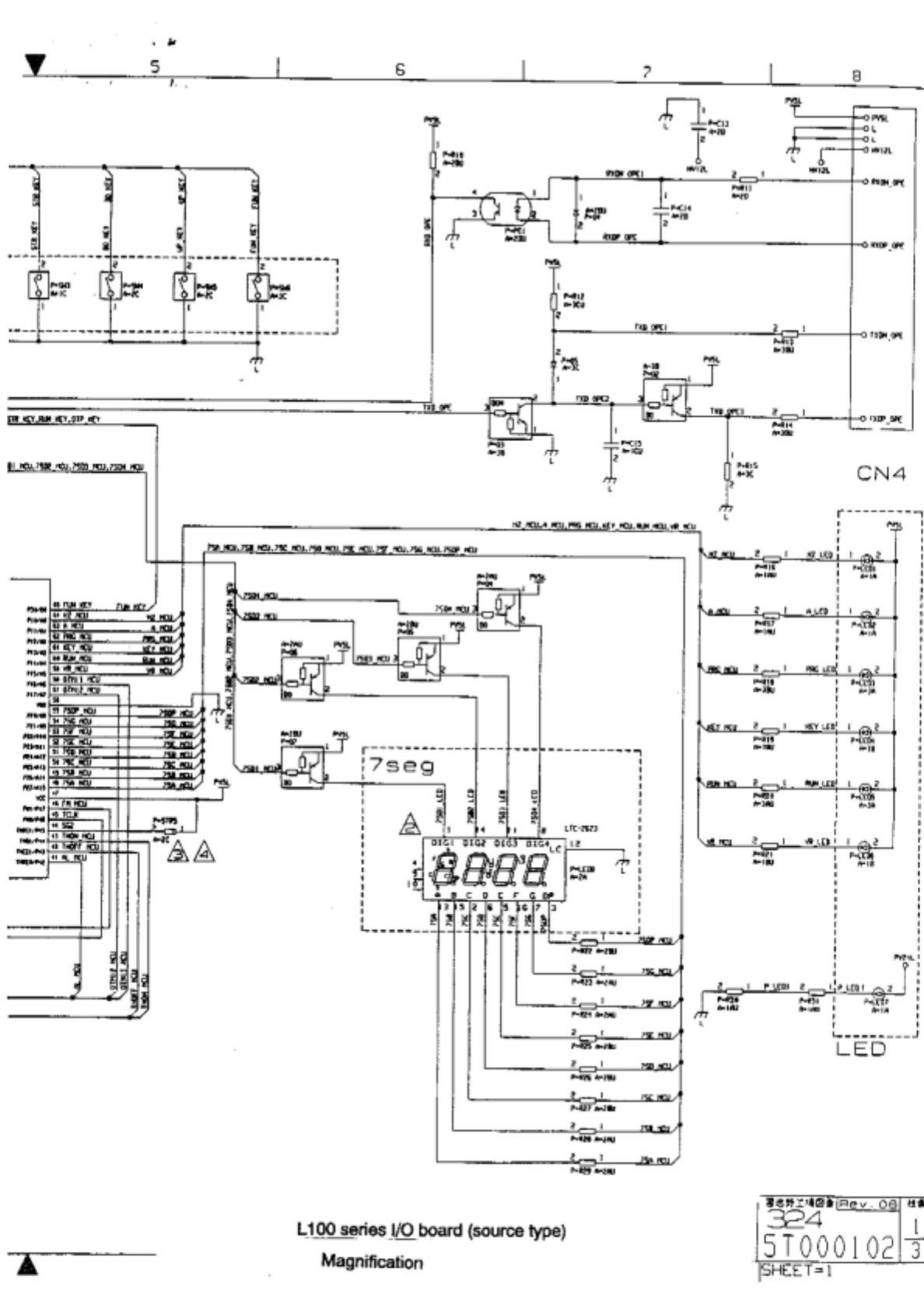

10-5. I/O board schematic(circuit diagram)

1-1

1-2

2-1

3-1

3-6

3-7

3-8

3-9

4-1

4-4

5-1

5-3

5-4

6-1

7-1

7-4

8-1

9-1

10-1

10-16

10-17

10-18

10-19

-ⅰ-

Revisions

Revision history table

No. Revision contents Date of issue Manual No.

-ⅰⅰ-

1. Pre-Operation Check

Before starting adjustment and maintenance, be sure to check the following specifications of the inverter

and the motor.

1.1 Check Inverter model and Manufacturing number (MFG No).

NE16452-6

MADE IN JAPAN

Hitachi, Ltd.

HITACHI

Model : L100-015NFE

HP/kW : 2 / 1.5

ut/Entree: 16.0 A1Ph200-240V50

60Hz

9.3 A3Ph200-240V50

60Hz

Out

ut/Sortie: 1-360Hz 7.1 A3Ph200-240V

MFG No. 78H T1129670060 Date: 9708

You can find these information from the specification label which attached at the side cover of the unit.

(1) Description of the model name.

(2) Description of MFG No.

Inverter model

MFG No.

T112967 0060H87

Unique number

Production code

Revision of the inverter

Production Month

(1 - 9, 0:October, J:November, K:December)

Production year

(The unit digit of the year of grace. 7:1997, 8:1998, 9:1999, 0:2000)

1-1

EF015 HL100

Version number

E: European version

U: US version

R: Japanese versionSeries name Structure type

F: With operator

Input voltage class

005

004

: 7.5kW

: 5.5kW

: 4.0kW

: 3.7kW

: 3.0kW

: 2.2kW

: 1.5kW

: 1.1kW

: 0.75kW

: 0.55kW

: 0.4kW

: 0.2kW002

Applicable motor kW

L: 3 phase 200V class

N: Single/3 phase 200V class

H: 3 phase 400V class

075

055

040

037

030

022

015

011

007

M: Single phase 100V class

1.2 Check Inverter parameter and motor specification.

[1] Inverter specifications.

(1) Inverter specifications (Monitor mode)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Output frequency monitor Monitor d01 - - -

2 Output current monitor Monitor d02 - - -

3 Running direction monitor Monitor d03 - - -

4 Feedback data of PID

control monitor Monitor d04 - - -

5 Intelligent input terminal

condition monitor Monitor d05 - - -

6 Intelligent output terminal

condition monitor Monitor d06 - - -

7 Output frequency

converted value monitor Monitor d07 - - -

8 Trip monitor Monitor d08 - - -

9 Trip history monitor Monitor d09 - - -

(2) Inverter specifications (Basic function mode)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Output frequency setting set F01 0.0 0.0 0.0

2 Acceleration time 1 set F02 10 10 10

3 Deceleration time 1 set F03 10 10 10

4 Running direction setting set F04 00 00 00

5 Extended function

A group setting set A--

6 Extended function

B group setting set B--

7 Extended function

C group setting set C--

1-2

(3) Inverter specifications (Extended function mode : A group)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Frequency destination set A01 01 01 00

2 Running command

destination set A02 01 01 02

3 Base frequency set A03 50 60 60

4 Maximum frequency set A04 50 60 60

5 External frequency setting

start set A11 000

6 External frequency setting

end set A12 000

7 External frequency setting

start rate set A13 000

8 External frequency setting

end rate set A14 100 100 100

9 External frequency start

pattern set A15 01 01 01

10 Time constant of the filter

of analog input set A16 888

11 Multi-speed 1 to 16 set A20 - A35 0 0 Note 1

12 Jogging frequency set A38 1.0 1.0 1.0

13 Stop mode of jogging set A39 00 00 00

14 Torque boost mode set A41 00 00 00

15 Level of

manual torque boost set A42 11 11 11

16 Manual torque boost

frequency set A43 10.0 10.0 10.0

17 V/f characteristics set A44 00 00 00

18 V-gain set A45 100 100 100

19 Selection of DC braking set A51 00 00 00

20 DC braking frequency set A52 0.5 0.5 0.5

21 DC braking waiting time set A53 0.0 0.0 0.0

22 DC braking force set A54 000

23 DC braking time set A55 0.0 0.0 0.0

24 Frequency upper limiter set A61 0.0 0.0 0.0

25 Frequency lower limiter set A62 0.0 0.0 0.0

26 Jump frequency 1-3 set A63, A65, A67 0.0 0.0 0.0

27 Jump frequency width 1-3 set A64, A66, A68 0.5 0.5 0.5

28 Selection of PID control set A71 00 00 00

29 P gain set A72 1.0 1.0 1.0

30 I gain set A73 1.0 1.0 1.0

31 D gain set A74 0.0 0.0 0.0

32 Scale conversion of

PID control set A75 1.0 1.0 1.0

33 Feedback destination set A76 00 00 00

34 Selection of AVR function set A81 02 02 02

35 AVR voltage set A82 230/400 230/460 200/400

36 Second acceleration time set A92 15.0 15.0 15.0

37 Second deceleration time set A93 15.0 15.0 15.0

38 Method to use 2nd

acceleration / deceleration

(Acc2 / Dec2)

set A94 00 00 00

39 Acc1 to Acc2 changing

frequency set A95 0.0 0.0 0.0

40 Dec1 to Dec2 changing

frequency set A96 0.0 0.0 0.0

41 Acceleration characteristic set A97 00 00 00

42 Deceleration characteristic set A98 00 00 00

Note 1 A20;0, A21;5, A22;10, A23;15,A24;20, A25;30, A26;40, A27;50, A28; 60,A29--A35;0

1-3

(4) Inverter specifications (Extended function mode : B group)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Selection of restart mode set b01 00 00 00

2 Allowable UV time set b02 1.0 1.0 1.0

3 Retry waiting time set b03 1.0 1.0 1.0

5 Electronic thermal level set b12 note note note Rated current of

each inverter

6 Electronic thermal

characteristics set b13 01 01 00

7 Overload restriction

operation mode set b21 01 01 01

8 Overload restriction level set b22 note note note Rated current

* 1.25 for each

inverter

9 Deceleration rate while

overload restriction set b23 1.0 1.0 1.0

10 Selection of software lock set b31 01 01 01

11 Reactive current setting set B32 note note Note Rated current

*0.58 for each

inverter

13 Analog meter adjustment set b81 80 80 80

14 Start frequency adjustment set b82 0.5 0.5 0.5

15 Carrier frequency set b83 5 5 12

16 Data initialization or

Trip history clear set b84 00 00 00

17 Initialization mode set b85 01 02 00

18 Frequency converting

value set b86 1.0 1.0 1.0

19 STOP key condition set b87 00 00 00

20 Restart mode after FRS

invalid set b88 00 00 00

21 Monitor contents

for OPE-J set b89 01 01 01

1-4

(5) Inverter specifications (Extended function mode : C group)

Display Function name Category Screen display Initial Remarks

order Code display EU US JPN

1 Input terminal 1 assign set C01 00 00 00

2 Input terminal 2 assign set C02 01 01 01

3 Input terminal 3 assign set C03 02 16 02

4 Input terminal 4 assign set C04 03 13 03

5 Input terminal 5 assign set C05 18 18 18

6 Input terminal 1 condition set C11 00 00 00

7 Input terminal 2 condition set C12 00 00 00

8 Input terminal 3 condition set C13 00 00 00

9 Input terminal 4 condition set C14 00 01 00

10 Input terminal 5 condition set C15 00 00 00

11 Output terminal 11 assign set C21 01 01 01

12 Output terminal 12 assign set C22 00 00 00

13 FM terminal condition set C23 00 00 00

14 Output terminal 11

condition set C31 00 00 00

15 Output terminal 12

condition set C32 00 00 00

16 AL output terminal

condition set C33 01 01 01

17 Level of overload signal set C41 note note note Rated current of

each inverter

18 Arrival frequency

while acceleration set C42 0.0 0.0 0.0

19 Arrival frequency

while deceleration set C43 0.0 0.0 0.0

20 Level of deviation signal

under PID control set C44 3.0 3.0 3.0

1-5

[2] Motor specifications.

[3] Load conditions

Output voltage

Output

frequency

0Hz Hz

Motor MFG number

kWMotor output

pMotor poles

rpmMotor rated rpm

AmpsRated current

VRated voltage

HzRated frequency

AmpsStarting current

Equipment name

Torque characteristics

NmRequired torque

kgm2

Load inertia (J)

secAcceleration time

secDeceleration time

Hz to

Variable speed range

1-6/E

2. Measurement of the Internal Voltage Supply

There are PV5L, PV24L and NV12L internal DC voltage supplies. These supplies are isolated from the

main high voltage portion. And it is not possible to measure DC voltages at the non isolated portion.

Please make measurements for above mentioned voltages for the isolated portion.

PV5L supply voltage

Supplies 5V for I/O board.

Nominal voltage : min. 4.90Vdc to max. 5.20Vdc

Check PV5(address 1C) <- L

PV24L supply voltage

Supplies 24V to interface voltage supply, which is supplied to input terminals.

Nominal voltage : min. 21.60Vdc to max. 26.40Vdc

Check PV24(address 1A) <- L

NV12L supply voltage

Supplies -12Vdc to remote operator (DOP/DRW’s yellow backlight).

Nominal voltage : max. -10.80Vdc to min. -17.5Vdc

Check NV12(address 3A) <- L

“H” terminal voltage

Suppiles 10V to “H” terminal

Nominal voltage : min 9.5Vdc to max 11.5Vdc

Check “H”

<-> “L” with VR (1kohm)

“Potentiometer function on the front case

Set “A01” :”00”

Monitor “F01” display 0 <-> 50(60) with clockwise and anti clockwise.

Cooling FAN voltage (PV24N)

Supplies 24V to cooling FAN .

Nominal voltage min 19.9Vdc to max 27.2Vdc.

Check Red wire <- Black wire with the FAN.

Check the FAN working, check the air direction (from down to top)

Check pad of NV12 Check pad of PV24

Check pad of PV5

1 pin of TM2 is “L”common

2-1/E

3. Trouble Shoot

3-1. Error Messages - Possible Cause and Remedy:

(1) Overcurrent 1 (E 01, E 02, E 03, E 04)

Phenomena: Overcurrent for each condition.

E 01 : Overcurrent during constant speed operation.

E 02 : Overcurrent during deceleration.

E 03 : Overcurrent during acceleration.

E 04 : Overcurrent at other condition than above mentioned.

(such as injection brake)

Cause: Load changed rapidly.

Remedy: Eliminate rapid changed in load.

Cause: Sort circuit or earth contact (ground fault) in the motor or the motor cable.

Remedy: Check with Megger. If the motor cable is disconnected from the inverter, the

overcurrent should not be detected anymore.

Cause: A single-phase power failure (fuse, wire, ...) can cause a shutdown in certain

underload situations..

Remedy: Check all these mains phases and the mains fuses, preferably by comparison of

the three (two in case of single phase inverter) mains currents in a steady

operating state.

Cause: The motor is switched with a motor contactor during frequency inverter operation.

Remedy: Switching over the motor is inhibited.

Cause: Defect in the power component.

Remedy: Check the IGBT portion of ISPM.

Cause: Rapid acceleration or deceleration.

Remedy: Set suitable acceleration or deceleration time.

Cause: Starting frequency is too high.

Remedy: Set starting frequency as low as possible.

Way to Reset: A

3-1

(2) Overload (E 05)

Phenomena: Overload of the inverter.

This error can be reset 10 seconds after the E05 came out.

Cause: Motor load is heavy.

Remedy: Reduce the load and/or increase thermal level and/or use bigger capacity of

frequency inverter.

Cause: V-Boost value is high.

Remedy: Reduce V-Boost value or increase thermal level and/or use bigger capacity of

frequency inverter.

Cause: Set wrong value for electronic thermal level [b12] and/or electronic thermal

characteristic [b13].

Remedy: Set suitable value.

Cause: Set wrong value for the reactive current of the motor.

Remedy: Set suitable value. Reactive current value which should be input by function mode

is a value measured at 50Hz (60Hz) without load.

Way to Reset: A

(3) Overvoltage (E 07)

Phenomena: Overvoltage at DC bus line of the frequency inverter.

Cause: Mains voltage too high, mains voltage fluctuation or rapid mains voltage return

(choke energy leads to voltage increase).

Remedy: Make sure that mains voltage is within tolerance limits.

Cause: In case L100 is used in combination with a regenerative braking unit but the

regenerative braking unit does not function.

Remedy: Replace regenerative braking unit.

Cause: In case L100 is used in combination with a raking resistor but the braking resistor

cannot absorb the regenerative energy.

Remedy: Re-calculate and use suitable braking resistor.

Cause: Deceleration time is too short.

Remedy: Make deceleration time longer, use braking unit (resistor), use bigger capacity of

frequency inverter.

Way to Reset: A

(4) Undervoltage (E 09)

Phenomena: Undervoltage at DC bus line of the frequency inverter.

Cause: The mains voltage is not available or not within the tolerance limits.

Remedy: Check all 3 (or 2) mains power supply voltage that it is within its specification.

Cause: Thyristor for smooth charging is defect and DC bus voltage drops while operation

due to current flows through smooth charging resistor.

Remedy: Change ISPM. 3-2

Cause: Period of instantaneous power failure is longer than the set value [b02], or DC bus

voltage go down to its detecting level while instantaneous power failure.

Remedy: Get rid of the instantaneous power failure, evaluate the power supply system, set

bigger value for [b02].

Cause: One of the AC voltage is missing (applied only for 3 phase INV)

Remedy: Check AC line voltage , check the fuses.

Way to Reset: A

(5) EEPROM error (E 08)

Phenomena: Abnormal situation occurs at the memory portion of the frequency inverter due to

incoming noise etc..

Cause: Influenced by Electrical Magnetic Interference.

Remedy: Keep such noise source away from the frequency inverter.

Cause: Ambient temperature is too high.

Remedy: Take countermeasure against high ambient temperature.

Cause: Re-power up the frequency inverter short time after power off. It is necessary to

keep several seconds after power off to memorize the current data at EEPROM. If

this time is too short, this storage performance cannot be done and leads to

EEPROM error.

Remedy: Keep certain time between power off and re-power up.

Cause: You didn’t wait 6 seconds or more at FACTORY SETTING.

Remedy: Please try FACTORY SETTING again.

Cause: RS terminal was keeping “ON” at power off. (If RS is on, INV can not write the

correct data to EPROM at power off, next power on E08 will come out.)

Remedy: Please don’t use “RS” terminal “ON” at power off.

Cause: EEPROM is defect.

Remedy: Change unit.

After you reset the INV, please make sure the parameters especially maximum freq. / Acc /Dec

time / Low limit freq. to prevent any damage.

Way to Reset: A or Power off

(6) CPU error (E 11, E 22)

Phenomena: Abnormal situation or malfunction of micro processor inside frequency inverter.

E 11 : CPU error from MCU inside core.

E 22 : CPU error from MCU on I/O board.

E22 is produced by MCU on I/O board and the causes is communication error between ISPM & MCU

on I/O board.

Cause: Cable (between ISPM and I/O board)was cut. (E22)

Remedy: Replace the cable.

Cause: Dusts on the pins of CN2 on I/O board. (E22)

Remedy: Remove the dusts.

3-3

Cause: Influenced by Electrical Magnetic Interference.

Remedy: Keep such noise source away from the frequency inverter.

Cause: Ambient temperature is too high.

Remedy: Take countermeasure against high ambient temperature.

Cause: Component itself is defect.

Remedy: Replace ISPM (in case of E 11) or I/O board board (in case of E 12).

(7) External Trip (E 12)

Phenomena: Trip due to have inputted an external signal to “EXT” input terminal of the

frequency inverter.

Cause: Faulty external device or equipment gives frequency inverter a trip requirement

when external trip function (EXT) is selected.

Remedy: Evaluate external device or equipment which is connected to frequency inverter.

Way to Reset: A

(8) USP error (E 13)

Phenomena: Unexpected Start Protection. This error can occur when “USP” function is

selected.

Cause: Frequency inverter trips when it is powered up with RUN command is given.

Remedy: Disable RUN command when power up the frequency inverter. Or disable USP

function if possible to the system.

Way to Reset: A or set RUN command off (stop)

(9) Ground fault error (E 14)

Phenomena: Earth contact in the motor or the motor cable or in the IGBT. Frequency inverter

detects this earth contact only at power up.

To resolve the causes , please power off and disconnect the motor wire at INV (UVW)terminal.

Cause: Earth contact in the motor or the motor cable.

Remedy: Check the impedance between output portion(wire and motor) and earth.

Cause: Detection circuit/IGBT of the inverter is defect. If the motor and the motor cable is

disconnected from the frequency inverter, the ground fault should not be detected

anymore.

Remedy: Please disconnect the motor and the motor cable.

If E14 comes out at power on,please replace the unit.

Way to Reset: Don’t reset.

3-4

(10) Over voltage at source (E 15)

Phenomena: High voltage at power source line. Frequency inverter cannot protect source

overvoltage. If it is too high, frequency inverter will be damaged.

Cause: Source voltage is too high.

Remedy: Check the source voltage continously.

Insert AC reactor at source lines.

Way to Reset: A

(11) Over temperature (E 21)

Phenomena: Temperature sensor which located close to IGBT inside ISPM shows a too high

temperature.

Cause: Ventilator blocked. (for models which has ventilator.)

Remedy: Check ventilator

Cause: The frequency inverter does not get enough cooling air.

Remedy: Check cabinet ventilation, air filters, and ventilation openings in the cabinet.

Way to Reset: A

(12) PTC error (E 35)

Phenomena: Resistance of motor thermistor is high. This error can occur when you select

“PTC” function.

Cause: Too much load of the motor.

Remedy: Reduce the load, use bigger motor.

Cause: Motor thermistor is not connected while PTC function is selected.

Remedy: Disable PTC function when it is not used.

Cause: Characteristics of the motor thermistor is not suitable. Frequency inverter gives

PTC error when the resistance value becomes more than 3k ohm +-10%.

Remedy: Use motor which has suitable thermistor for the inverter.

Or change thermistor characteristics of the thermistor by debug mode.

Way to Reset: A

Explanation of the way to reset.

A : Make close the terminals between RS and P24 (CM1 only for Japanese version) on the I/O board, or

press “STOP/RESET” key of the operator.

3-5

3-2. Analysis of Various Operating Problems That Do Not Trigger an Trip

message.

Problem Possible cause Remedy

The motor does not start Mode of frequency command [A01]

and/or Run command [A02] is not

proper

Check each mode again

Incorrect power supply condition Check that the power supply is

within its specification

Inverter is in trip mode Get rid of the trip cause

0 Hz of Multi-stage speed is given

FRS and/or RS is remaining Make FRS and RS invalid

0 Hz command is given

Each phase to phase voltage does

not balance. (out of +-3%) Replace the unit

Load is too heavy Decrease the load or use bigger

capacity of inverter and motor

If you use DOP or DRW, DIP

switch selection of the operator is

incorrect.

Set as follows

Same as J300, J100,SJ100

Inverter Failure Replace the unit

Rotation direction is

opposite Wiring of the motor cable is

incorrect (U, V, W) Check the wiring of the motor

cable

Setting of [F04] is incorrect Check the setting

Motor does not increase

speed Motor load is too heavy

(Overload limitation) Remove or decrease the motor

load

External frequency set (VR) is out

of order replace VR

Frequency limiter [A61] is set Eliminate frequency limiter

Acceleration time is too short Set longer acceleration time

The inverter cannot be

programmed Software lock is selected [b31] Make software lock invalid

RS or FRS command is given Make them invalid

Multi stage speed command is

given Make inverter in stop mode

Loose connection of DOP/DRW Connect DOP/DRW properly

Inverter is in trip mode Reset the inverter

Unstable rotation of the

motor Motor load is changing heavily Reduce the motor load changing

or use bigger capacity of inverter

and motor

Source voltage is changing Reduce the changing

Mechanical resonance Change output frequency

Data is not changed Forgot to press [STR] key Press [STR] key after changing

data

Turn main power off within 6

seconds after pressing [STR] key Make sure to wait at least 6

seconds after [STR] key is pressed

Cannot change data by

Copy Unit Turn power off within 6 seconds

after started copying Make sure to wait at least 6

seconds

OFF

3-6

3-3. How to Initialize the Data (FACTORY SETTING)

1. Select the mode of initialization data to which you want to initialize by [b85].

Japanese version data -----> Set “00” and store

EU version data -----> Set “01” and store

US version data -----> Set “02” and store

2. Set [b84] to “01” to initialize and store.

3. Keep pressing keys at the same time.

(If front case is not closed by the screw, dittcult to press 3keys.)

4. Additionally press key and release key approximately after one second.

5. Keep pressing keys until “d 00” will blink. (Approximately 2 seconds.)

6. Release all the keys after starts blinking.

[c95] ; INV kW code

01;0.2kW , 02;0.4kW , 03;0.75kW (0.5 kW) , 04;1.5kW , 05;2.2kW ,

06;3.7kW(4.0kW) , 07;5.5kW, 08;7.5kW

Initialization end

Release after “d 00”

started blinking

FUNC. 12

STOP

RESET STOP

RESET

FUNC.

ON (press)

1s or more

STOP

RESET

3-7

3-4. Error Message comparison

Digital Panel DOP / DRW Contents

OC. Drive Over current while constant speed

driving

OC. Decel Over current while deceleration

OC. Accel Over current while acceleration

Over. C Over current at other condition than

above(such as 0Hz,injection brake)

Over. L Over load

(Possible to reset after 10 seconds

has passed)

Over. V Over voltage (DC bus)

EEPROM EEPROM error

(Check the parameters again if this

error occurred)

Under. V Under voltage (DC bus)

CPU 1 CPU error

CPU 2

External External error

USP USP error

GND Flt Ground fault at power-on

OV. SRC Over voltage at source (DC bus)

OH FIN Over temperature

PTC PTC error

3-8

3-5. Other Displays

Digital Panel Contents

- Reset terminal is ON

- During initialization (such as at power-on)

- Voltage is within UV level

- Power OFF

- During retry mode

- During initialization as EU settings

- During initialization as US settings

- During initialization as Japanese settings

- Erasing trip histories

- Copying with DRW,DRW-2

- When there is no data

(i.g. feedback data of PID, etc.)

3-9/E

4. Ambient Condition of the Frequency Inverter

4-1. Required Derating in case of 50deg, 55deg of Ambient Temperature

Inverter ratings can be influenced by many factors. You can find in this section, the relation between

ambient temperature and output current (%) and carrier frequency.

Standard ratings in 40 degree C

Top cover removed condition in 50 degree C max.

Top cover removed condition in 55 degree C max.

% rate of output

current L100-002NFE(U)

100%

90%

80%

70%

1614121086420.5

Carrier frequency [kHz]

% rate of output

current L100-004NFE(U)

100%

90%

80%

70%

1614121086420.5

Carrier frequency [kHz]

L100-015NFE(U)

100%

90%

80%

70%

1614121086420.5

Carrier frequency [kHz]

L100-007NFE(U)

100%

90%

80%

70%

14121086420.5

Carrier frequency [kHz]

4-1

Carrier frequency [kHz]

100%

80%

90%

60%

70%

40%

50%

L100-037LF(U)

1614121086420.5

Carrier frequency [kHz]

L100-022NFE(U)

100%

90%

80%

70% 1614121086420.5

Carrier frequency [kHz]

L100-007HFE(U)

100%

80%

90%

60%

70%

40%

50%

1614121086420.5

L100-022HFE(U)

100%

80%

90%

60%

70%

40%

50%

1614121086420.5

Carrier frequency [kHz]

L100-004HFE(U)

100%

80%

90%

60%

70%

40%

50%

1614121086420.5

L100-015HFE(U)

100%

80%

60%

40% 14121086420.5

Carrier frequency [kHz]

90%

70%

50%

4-2

4-3

Carrier frequency [kHz]

L100-055LFU

100%

90%

80%

70% 1614121086420.5

Carrier frequency [kHz]

L100-075LFU

100%

90%

80%

70% 1614121086420.5

Carrier frequency [kHz]

L100-055HFE(U)

100%

90%

80%

70% 1614121086420.5

Carrier frequency [kHz]

L100-075HFE(U)

100%

90%

80%

70%

1614121086420.5

Carrier frequency [kHz]

L100-002MFU

L100-004MFU

100%

90%

80%

70% 1614121086420.5

Carrier frequency [kHz]

L100-007MFU

100%

90%

80%

70% 1614121086420.5

4-2. Required derating toward altitude

Example of calculation

L100-007NFE (4 Amps) is installed at 2000m of altitude and 16kHz of carrier frequency.

Required derating of output frequency of this case will be as follows.

4 [Amps] * 90% * 95% = 3.4 [Amps]

<Note 1> When the top cover is removed for the high ambient temperature, inverter should be installed

in an enclosure of IP 4* (see EN60529) to comply with LVD directive.

<Note 2> If class B of EMC directive is required, carrier frequency must be set to 5kHz.

100%

90%

80%

70% 1000 2000 3000 4000

Altitude [m]

Carrier frequency derating

Altitude frequency derating

4-4/E

5. Level of Each Detection

5-1. DC Bus Voltage Detection Characteristics

Frequency inverter has several detection characteristics for DC bus voltage as followings.

[1] 200V class

5-1

Over voltage level

395V +- 20V

400

DC bus

voltage [Vdc]

Actual DC bus

voltage

Trip

Display

example of

monitoring output

frequency

Under

voltage

trip or

During

Under

voltage

Over

voltage

trip

Waiting

for Retry

350

300

250

200

150

100

Trip

Reset

Under voltage

recovering level

220V +- 10V

Under voltage

level

190V +- 10V

Trip

[2] 400V class

5-2

Over voltage level

790V +- 40V

800

DC bus

voltage [Vdc]

Actual DC bus

voltage

Trip

Display

example of

monitoring output

frequency

Under

voltage

trip or

During

Under

voltage

Over

voltage

trip

Waiting

for Retry

Under voltage

recovering level

440V +- 20V

Under voltage

level

380V +- 20V

700

600

500

400

300

200

100

Trip

Reset on on

5-2. Output Current Detection Characteristics

Frequency inverter has several detection characteristics for output current to protect IGBT from break

down, or to protect motor from over heat.

[1] Over current

Frequency inverter shuts off the output instantaneously when output current exceeds to 200% of its

rated current.

e.g. Over current protection level of L100-015NFE (7.1 Amps of rated current) is

7.1 [Arms] * 200% = 14.2 [Arms] = 20.1 [A peak]

[2] Over load (Electronic thermal protection)

Frequency inverter shuts off the output when integration value of output current and time exceeds

specific value.

This Electronic thermal level can be changed from 50% to 120%. (Initial setting is 100%.)

200%150%

180s

120s

time

150%, 60s

E-Thermal Level = [100]

No over load trip with

115% load

60s

180%, 10s

% output current of the rated current of the frequency inverter

0100%

200%150%

180s

120s

time

150%, 60s

60s

180%, 10s

% output current of the rated current of the frequency inverter

0100%50%

E-Thermal Level = [50]

5-3

5-3. Motor Temperature Detection (PTC)

Frequency inverter has a motor temperature sensor input (PTC input : PTC resistor).

When the resistance value is more than 3k ohm +-10%, the frequency inverter trips with “E35”.

5-4. Over Temperature Detection of the Frequency Inverter

Frequency inverter has a temperature detection against power devices of the main circuit. Frequency

inverter shuts down the output when temperature around IGBT comes up to 120 degree C.

L100 inverter

L5(PTC)

Motor

PTC thermistor

5-4/E

Except Japanese version

6. Measurement & Replacement of Subassemblies

6-1. Insulation Measurement

For L100 inverter, do not perform insulation measurements , otherwise MOV will be damaged.

(MOV; between R(L1)-G, S(L2)-G, T(L3)-G)

6.2. Power Components Measurements.

When checking the power components, the following procedure is recommended:

z Clear voltage

z Wait for capacitors discharge

z Check capacitors for neutrality

z Disconnect mains and motor wires

z Test the diodes and IGBTs using a universal tester with a diode function.

Visual check is important for the ISPM, check the outlooking such as smoke trace.

Note: In this test, the absolute values are not so important, since they depend strongly on the test

device used. The uniformity of the measured value is more important.

[1] DC BUS Measurement

Check “+” <- “ - ” voltage Zero.

Resistance Measurement

Allowable Value

From

50kohm or more

P1, PD are located on the CB board / snubber board.

Check “+1” and “+” terminal are shorten by (copper) bar.

[2] Softcharge Resistor (RS) , Thyristor (THY) Measurement

Resistance Measurement

Allowable Value

From

15 to 25 ohm

(From P1 To PD From PD To P1 ;if RS was opened)

6-1

[3] Rectifier Measurement

This is to measure 3 rectifiers located lower arm of the input side.

Resistance Measurement

Allowable Value

From

R(Ll)

S(L2)

50kohm or more

S(L2)

R(Ll)

S(L2)

T(L3)

S(L2)

T(L3)

R(Ll)

T(L3)

R(Ll)

S(L2)

T(L3)

Each R(Ll), S(L2) and

T(L3)

50kohm or more

Each R(Ll), S(L2) and

T(L3)

50 ohm or less

Each R(Ll), S(L2) and

T(L3)

50 ohm or less

Each R(Ll), S(L2) and

T(L3)

50kohm or more

To make sure MOV, visual check of MOV is necessary on the ISPM.

If the result is out of its spec, replace the unit. ( relative check is important )

R(L1)

T(L3)

S(L2)

6-2

R(Ll)

T(L3)

S(L2)

Main circuit of L100

P1 PD

THY

RSH

[4] IGBT Measurement

Resistance Measurement

Allowable Value

From

50kohm or more

50 ohm or less

50kohm or more

If the result is out of its spec, replace the unit.

Please note that this cannot cover 100% to find IGBT failure because if the power devices in failure,

sometimes you can find the failure in components while they are activated. (You cannot find the failure

while they are not activated.)

[5] Cooling FAN voltage circuit in the ISPM (PV 24N)

Measurement on the ISPM

Disconnect the cooling FAN

Resistance Measurement

Allowable Value

From

Pin (Red)

Pin (Black)

20kohm or more

Pin (Black)

Pin (Red)

50ohm or less

( relative check is important )

[6] Cooling FAN

Disconnect the cooling FAN and measure impeadance of FAN circuit.

Resistance Measurement

Allowable Value

From

Red wire

Black wire

50kohm or less

Black wire

Red wire

100kohm or more

( relative check is important )

6-3/E

DC current detecting

resistor (shunt resistor)

(Order of mili ohm)

7. Maintenance and Inspection Procedure

7-1. Precautions

(1) Maintenance and Inspection Precautions

Be sure to check the followings before starting maintenance and inspection because there is a

danger of electrical shock.

z Display on the digital operation panel and POWER indication has been turned OFF.

z The voltage between + and - is 15Vdc or lower.

z Discharging resistor (500 ohm 30W for 200V class, 1k ohm 60W for 400V class) has been

connected between + and - terminals for 15 seconds or more after main power had turned off,

(2) General Precautions

z Always keep the unit clean so that no dust nor other foreign materials come inside of the

frequency inverter.

z Pay attention to broken lines and faulty connections. Firmly connect terminals and connectors.

z Keep frequency inverter away from moisture and oil.

z Dusts, steel filings , swarf , and other foreign materials can damage insulation and causing

unexpected accidents/failure. Please pay attention to them.

7-2. Measurement of Mains Voltage, Current and Power

General measuring instruments for mains voltage, current and power are shown in Table 7-1.

The voltage to be measured is the effective value of fundamental wave, and the power to be measured

is the total effective value.

(1) Measurement of output voltage

Moving iron type instrument does not show accurate values for measurement of the output voltage.

Make measurements according to the method shown in Fig. 7-3 (table 7-1) or using the circuit

indicated in Fig. 7-1 and 7-2.

Fig. 7-1. Output voltage measurement circuit (with load)

Frequency

Inverter Load

Motor

220kohm

VDC

Fundamental wave

effective value : VAC = VDC * 1.1

Moving coil type DC Volt meter

300V (200V class)

600V (400V class)

Diode

600V 0.1A or above (200V class)

1000V 0.1A or above (400V class)

7-1

When there is no motor connected to the inverter, please use additional resistor like Fig. 7-2. There

will be a voltage at output terminal even the frequency command is naught due to the leakage current

of the semiconductor devices.

(2) Measurement of Input voltage and Input / output current

Use moving iron type ampere meter. (Refer to Fig. 7-3 and Table 7-1.)

(3) Measurement of Input and output power

Use electrodynamics type watt meter for single phase use. Make measurements for all 3 phases is

case there is an unbalance in voltages and currents.

Fig. 7-2. Output voltage measurement circuit (without motor)

Frequency

Inverter

220kohm

Additional resistor

5kohm 30W (200V class)

100W (400V class)

VDC

Fundamental wave

effective value : VAC = VDC * 1.1

Moving coil type DC Volt meter

300V (200V class)

600V (400V class)

Diode

600V 0.1A or above (200V class)

1000V 0.1A or above (400V class)

Fig. 7-3. Measurement Instruments

W11

W12

Frequency Inverter

L3 / N

EU-V

EV-W

EU-W

WO1

WO2

Motor

L3 / N

U/T1

V/T2

W/T3

7-2

Table 7-1 Measuring Instruments

Item

Instruments

Type of Instrument

Remarks

Supply voltage

EL1-L2, EL2-L3 and EL3-L1 Moving iron type voltmeter or

Rectifier type voltmeter

Fundamental wave

effective value

Supply current

IL1, IL2 and IL3 Moving iron type ammeter Total effective value

Supply power

W11 and W12 Electrodynamics wattmeter Total effective value

Supply power

Factor Pf1

Calculate from above measured values E1, I1 and W1

Pf W

13100

=⋅⋅×(%)

Output voltage

EU-V, EV-W and EW-U According to Fig.7-1 and Fig.7-2 Total effective value

Output current

IU, IV and IW Moving iron type ammeter Total effective value

Output power

WO1 and WO2 Electrodynamics wattmeter Total effective value

Output power

factor Pf2 Calculate from above measured values Eo, Io and Wo

Pf W

13100

=⋅⋅×(%)

NOTE : Use a meter indicating a fundamental wave effective value for voltage, and meters indicating

total effective values for current and power.

7-3

7-3. Maintenance of Parts

(1) Maintenance of printed circuit board (I/O board)

Printed circuit boards are maintenance free under normal applications except ALARAM relay

(hardware). However, in case which maintenance and inspection are necessary, pay attention to

the prevention of damage caused by static electricity as shown below.

* Prevent damage caused by static electricity

MCU and LSI on the printed circuit board can be destroyed by static electricity. Therefore be

sure to ground work benches, soldering irons and yourself before start working on a printed

circuit board.

(2) Maintenance of DC bus capacitor and cooling fan

We recommend that DC bus capacitors and cooling fans to be regularly replaced every three years

taking their lives into account. Please note that their life span shorten when they are used in high

temperatures and heavy loads.

7-4. If you install replacement INV at site

If you install replacement units at site, please preset the parameter by the panel or copy unit.

If you used the previous I/O board to replacement unit, the parameters are not changed.

Because parameters are memorized in the EEPROM on the control board on J100 /J300 series, and if

we used the previous control board to replacement unit at site to minimize the time. In case of

L100,SJ100 series, EEPROM is on the ISPM, even we replaced I/O board, the parameter is still the

same.

Capacitor Life Curve

210

-10

Ambient

temperature (deg)

40 12 hours a day

operation

Capacitor life time (year)

436587109

When the inverter is installed in a cabinet,

ambient temperature is the temperature in

the cabinet.

7-4/E

8. Daily Inspection and Periodical Inspection

Inspection

point

Item

Contents

Cycle

Method

Criteria

Standard

replacement

Instruments

daily periodic

period

Overall Ambient

Environment Check ambient temperature,

humidity, dust, corrosive gas, oil mist,

etc.

9 Ambient temperature

: -10deg to 40deg,

no icing

Thermometer

Devices overall Check for abnormal vibrations and

noise.

9 Visual and aural

inspection Hygrometer

Power supply

voltage Check voltage between input lines. 9 Measure the

voltage

between input

terminals

No abnormalities.

Within its specification Tester

Main

circuit

Overall Check installation for looseness. 9 Tighten

Tightening torque

(except for terminal block)

M3: 0.5 - 0.6 N-m

M4: 0.98 - 1.3 N-m

Check for evidence of over heating in

the various components 9 Visual

inspection

Clean 9

Terminal block No damage 9 Visual

inspection No abnormalities

DC bus

capacitor Check for leaking liquid 9 Visual No abnormalities

Check for swelling

inspection

Relay Check for stuttering noise when

operation 9 Aural

inspection No abnormalities

Resistors Check for cracks or changes in color 9 Visual

inspection No abnormalities Tester

Cooling fan Check for abnormal vibration and

noise

9 -Rotate

manually while

power off

-Increase

tightening

- Smooth rotation

- No abnormalities

2 - 3 years

Check for dust

9 Visual

inspection

8-1

Inspection

point

Item

Contents

Cycle

Method

Criteria

Standard

replacement

Instruments

daily periodic

period

Control circuit Operation check Check the balance of the output

voltage of each phase to phase

without motor.

9 Measure the

output voltage

between U, V

and W

Within 2% of voltage

difference between each

phases.

See next

page

Perform a sequence protection

operation test and make sure that

there are no errors in the protection

and display circuits.

9 Simulate

operation of the

protection

circuit

Operate without any

trouble

Component

check including

PCB

No abnormal odor nor changes in

color. 9 Visual

inspection No abnormalities

No significant corrosion. 9

Capacitors on

I/O board No liquid leakage nor deformation. 9 Visual

inspection No abnormalities

Display Digital operation

panel - No illegible display

- No lack of character

- Segment failure of LEDs

9 Visual

inspection Normal operation.

Display is readable.

NOTE : 1. Life time of capacitor is affected by the ambient temperature. See Capacitor Life Curve in the following.

2. The frequency inverter must be cleaned periodically. If dust accumulates on the fan and heat sink, it can cause overheating.

3. See page 30 for the life time of the capacitor.

8-2/E

9. Image block diagram

(1). IMAGE BLOCK DIAGRAM OF L100-LFU,NFE INVERTER

MCU

REMORT OPERATOR

ISORATION

DC REACTOR

(OPTION)

N(-)

PD(+1)

(

)

T(L3)

S(L2)

R(L1) INVERTER

CONVERTER

＊１

W(T3)

V(T2)

U(T1)

DRIVE CIRCUIT

DETECT V,I

POWER SUPPLY

MCU

EEPROM

COMMUNICATION

PORT

CORE INVERTER

(ISPM)

SERIAL

COMMUNICATION

HITACHI

USER INTERFACE

I/O BLOCK

(I/O board)

TERMINALS

OPERATION PANEL WITH

POTENTIOMETER

SUB CONDENCER BOARD

EMC DIRECTIVE COMPLIANT WITH DEDICATED NOISE FILTER(OPTION)

9-1

(2). IMAGE BLOCK DIAGRAM OF L100-HFE,HFU INVERTER

MCU

REMORT OPERATOR

ISORATION

DC REACTOR

(OPTION)

(

)

PD(+1)

P(+)

T(L3)

S(L2)

R(L1) INVERTER

CONVERTER

＊１

W(T3)

V(T2)

U(T1)

DRIVE CIRCUIT

DETECT V,I

POWER SUPPLY

MCU

EEPROM

COMMUNICATION

PORT

CORE INVERTER

(ISPM)

SERIAL

COMMUNICATION

HITACHI

USER INTERFACE

I/O BLOCK

(I/O board)

TERMINALS

OPERATION PANEL WITH

POTENTIOMETER

SUB CONDENCER BOARD

EMC DIRECTIVE COMPLIANT WITH DEDICATED NOISE FILTER(OPTION)

9-2

(3). IMAGE BLOCK DIAGRAM OF L100-MFU INVERTER

MCU

REMORT OPERATOR

N(-)

P(+)

T(L3)

R(L1)

INVERTER

CONVERTER

＊１

W(T3)

V(T2)

U(T1)

DRIVE CIRCUIT

DETECT V,I

MCU

EEPROM

CORE INVERTER

(ISPM)

SERIAL

COMMUNICATION

RUN

FUNC. 12STR

PRG

RUN

STOP

RESET

MAXMIN

POWER

HITACHI

ISORATION

POWER SUPPLY

COMMUNICATION

PORT

USER INTERFACE

I/O BLOCK

(I/O board)

SUB CONDENCER BOARD

TERMINALS

OPERATION PANEL WITH

POTENTIOMETER

EMC DIRECTIVE COMPLIANT WITH DEDICATED NOISE FILTER(OPTION)

9-3/E

10-1. Spare Parts list

No.Class Parts Code DWG.No. Parts Name Remarks Quantity Lot

1 D 254819 2T004353 2 Key PAD (HITACHI) For all models 110

2 D 254821 2T004372 1 Front case (S) L100-002,004NFE;NFU 110

2 D 254818 1T001784 1 Front case (L) L100-005--022NFE;NFU

L100-037--075LFU

L100-004--075HFE;HFU

L100-002--007MFU

110

3 D 254869 3T015677 1 Key cover For all models 110

4 D 254831 4T013420 1 Volume KNOB For all models 110

5 D 254830 4T013419 1 Top cover (S) L100-002,004NFE;NFU 110

5 D 254832 4T013459 1 Top cover (L) L100-005--022NFE

L100-007--022NFU;037LFU

L100-004--040HFE;HFU

Except Japanese version and

L100-MFU

110

5 D 254872 3T016369 1 Top cover (LL) L100-055,075LFU;HFE;HFU 110

6 D 254820 2T004371 1 Case (S) L100-002,004NFE;NFU 110

6 D 254817 1T001783 1 Case (M) L100-005,007NFE

L100-007NFU

L100-004--015HFE;HFU

L100-002

004MFU

110

6 D 254816 1T001782 1 Case (L) L100-011--022NFE

L100-015,022NFU;037LFU

L100-022--040HFE;HFU

L100-007MFU

110

6 D 254866 1T001858 1 Case (LL) L100-055,075LFU;HFE;HFU 110

7 D 254829 4T013417 1 Rear cover (S) L100-002,004NFE;NFU 110

7 D 254825 3T015700 1 Rear cover (L) L100-005--022NFE

L100-007--022NFU;037LFU

L100-004--040HFE;HFU

L100-002--007MFU

110

7 D 254871 3T016368 1 Rear cover (LL) L100-055,075LFU;HFE;HFU 110

8 D 254826 3T015710 1 Condensor cover (L) L100-011--022NFE

L100-015,022NFU;037LFU

L100-022--040HFE;HFU

L100-007MFU

110

8 D 254868 2T004495 1 Condensor cover (LL) L100-055,075LFU;HFE;HFU 110

10-1

No.Class Parts Code DWG.No. Parts Name Remarks Quantity Lot

9 C 254270 3T012518 2 Cooling fan L100-015,055,075HFE;HFU

L100-015,055LFU 13

9 C 254270 3T012518 2 Cooling fan L100-075LFU 23

9 D 254822 3T011924 4 Cooling fan L100-022NFE;NFU

L100-037LFU

L100-022--040HFE;HFU

10 D 254827 4T013337 1 ISPM-IO Cable (S) L100-002--022NFE;NFU

L100-004--040HFE;HFU

L100-037LFU

110

10 254828 4T013337 4 ISPM-IO Cable (L) L100-055,075LFU;HFE;HFU 110

11 --- 3T015514 3 ISPM (without PCB2) L100-002NFE;NFU 11

11 -- 3T015516 3 ISPM (without PCB2) L100-004NFE;NFU 11

11 -- 3T015523 3 ISPM (without PCB2) L100-005,007NFE

L100-007NFU 11

11 -- 3T015520 3 ISPM (without PCB2) L100-011,015NFE

L100-015NFU 11

11 -- 3T015522 3 ISPM (without PCB2) L100-022NFE;NFU 11

11 -- 3T015524 3 ISPM (without PCB2) L100-037LFU 11

11 -- 3T016566 2 ISPM (without PCB2) L100-055LFU 11

11 -- 3T016567 2 ISPM (without PCB2) L100-075LFU 11

11 -- 3T015526 1 ISPM (without PCB2) L100-004HFE;HFU 11

11 -- 3T015527 1 ISPM (without PCB2) L100-007HFE;HFU 11

11 -- 3T015528 1 ISPM (without PCB2) L100-015HFE;HFU 11

11 -- 3T015529 1 ISPM

(

without PCB2

)

L100-022HFE;HFU 1 1

11 -- 3T015530 1 ISPM (without PCB2) L100-030,040HFE

L100-040HFU 11

11 -- 3T016568 3 ISPM (without PCB2) L100-055HFE;HFU 11

11 -- 3T016569 3 ISPM (without PCB2) L100-075HFE;HFU 11

12 254890 4T013548 1 RS(soft charge resistor) L100-002--022NFE;NFU

L100-037,055LFU

L100-004--055HFE;HFU

L100-002--007MFU

110

12 254890 4T013548 1 RS(soft charge resistor) L100-075HFE;HFU;LFU 210

10-2

No.Class Parts Code DWG.No. Parts Name Remarks Quantity Lot

13 -- 4T013438 1 Copper bar L100-002,004NFE;NFU 110

13 -- 4T013439 1 Copper bar L100-005--022NFE

L100-007--022NFU

L100-037LFU

L100-004--040HFE;HFU

L100-002--007MFU

110

14 -- L100EUL I/O board L100-002--022NFE;NFU

L100-037LFU

L100-004--040HFE;HFU

L100-002--007MFU

14 --- L100 075EUL I/O board L100-055,075LFU

L100-055,075HFE;HFU 11

15 -- CB470 Capacitor board L100-011,015NFE

L100-015NFU

L100-037LFU

15 -- CB680 Capacitor board L100-022NFE;NFU 11

15 -- CB470H Capacitor board L100-030,040HFE

L100-040HFU 11

15 -- CB680M Capacitor board L100-007MFU 11

15 -- CB68X4L Capacitor board L100-055LFU 11

15 -- CB68X6L Capacitor board L100-075LFU 11

15 -- CB68X4H Capacitor board L100-055HFE;HFU 11

15 -- CB68X6H Capacitor board L100-075HFE;HFU 11

16 --- CB330A PCB2 L100-002NFE;NFU 11

16 --- CB680A PCB2 L100-004NFE;NFU 11

16 --- CB560B2 PCB2 L100-005,007NFE;

L100-007NFU 11

10-3

No.Class Parts Code DWG.No. Parts Name Remark Quantity Lot

16 --- CB470B2T PCB2 L100-011,015NFE

L100-015NFU

L100-037LFU

16 --- CB680B2T PCB2 L100-022NFE;NFU 11

16 --- L100SB055L PCB2 L100-055LFU 11

16 --- L100SB075L PCB2 L100-075LFU 11

16 --- CB180B4 PCB2 L100-004HFE;HFU 11

16 --- CB270B4 PCB2 L100-007HFE;HFU 11

16 --- CB470B4 PCB2 L100-015HFE;HFU 11

16 --- CB680B4 PCB2 L100-022HFE;HFU 11

16 --- CB470B4 PCB2 L100-030,040HFE

L100-040HFU 11

16 --- L100SB055H PCB2 L100-055HFE;HFU 11

16 --- L100SB075H PCB2 L100-075HFE;HFU 11

16 --- CB1000B2 PCB2 L100-002MFU 11

16 --- CB1800B2 PCB2 L100-004MFU 11

16 --- CB1800B2T PCB2 L100-007MFU 11

Note No.10 4T013337 3 is usable for 4T01337 4. The difference is the length.

No.13 The copper bar is used between ISPM and heatsink.

C/H version is applied US version except key pad/knob/cover/case etc.

(S) ; 002NFE,004NFE,002NFU,004NFU

(M) ; 005NFE,007NFE,004HFE,007HFE,015HFE,007NFU,004HFU,007HFU,015HFU

(L) ; 011NFE,015NFE,022NFE,015NFU,022NFU,022HFE,030HFE,040HFE,022HFU,040HFU,037LFU

(LL) ; 055HFE,075HFE,055LFU,075LFU,055HFU,075HFU

This spare parts list will be changed without notice. To get latest spare parts list, please contact to sales office.

This service manual may not be revised if the spare parts list was revised.

10-4

10-5

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (S) 1

6 Case (S) 1

7 Rear cover (S) 1

10 ISPM – IO cable (S) 1

11 ISPM 1

12 RS 1

14 I/O board 1

16 PCB2 1

L100-002NFE

002NFU

004NFE

004NFU

10-6

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (L) 1

6 Case (M) 1

7 Rear cover (L) 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

16 PCB2 1

L100-004HFE

004HFU

005NFE

007NFE

007NFU

10-7

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (L) 1

6 Case (M) 1

7 Rear cover (L) 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

16 PCB2 1

L100-007HFE

007HFU

10-8

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (L) 1

6 Case (M) 1

7 Rear cover (L) 1

8 Cooling fan (L) 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

16 PCB2 1

L100-015HFE

015HFU

10-9

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (L) 1

6 Case (L) 1

7 Rear cover (L) 1

8 Condensor cover 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

15 Capacitor board 1

16 PCB2 1

L100-011NFE

015NFE

015NFU

10-10

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (L) 1

6 Case (L) 1

7 Rear cover (L) 1

8 Condensor cover 1

9 Cooling fan (L) 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

15 Capacitor board 1

16 PCB2 1

L100-022NFE

022NFU

030HFE

037LFU

040HFE

040HFU

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (L) 1

6 Case (L) 1

7 Rear cover (L) 1

8 Condensor cover 1

9 Cooling fan (L) 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

16 PCB2 1

L100-022HFE

022HFU

10-11

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (LL) 1

6 Case (LL) 1

7 Rear cover (LL) 1

8 Condensor cover (LL) 1

9 Cooling fan (S) 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

15 Capacitor board 1

16 PCB2 1

L100-055LFU

055HFU

075HFU

055HFE

075HFE

10-12

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

5 Top cover (LL) 1

6 Case (LL) 1

7 Rear cover (LL) 1

8 Condensor cover (LL) 1

9 Cooling fan (S) 2

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

15 Capacitor board 1

16 PCB2 1

L100-075LFU

10-13

10-14

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

6 Case (M) 1

7 Rear cover (L) 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

16 PCB2 1

L100-002MFU

004MFU

10-15

No. Parts name Quantity

1 Keypad 1

2 Front case (L) 1

3Key cover 1

4 Volume knob 1

6 Case (L) 1

7 Rear cover (L) 1

8 Condensor cover 1

10 ISPM – IO cable (L) 1

11 ISPM 1

12 RS 1

14 I/O board 1

15 Capacitor board 1

16 PCB2 1

L100-007MFU

10-2. I/O board compatibility

L100 series V: available - : not available

NOTE:B32 function is available from “L” or after .

NOTE: The “A” is not available from the others revision.

NOTE: L100EULH ”F” is available from L100EUL "G","J","K","M","P" .

I/O board Name “Revision”

002NFE-022NFE

002NFU-022NFU

037LFU

004HFE-040HFE

004HFU-040HFU

002LFR-037LFR

004HFR-037HFR

055HFE,075HFE

055LFU,075LFU

055HFU,075HFU

055LFR075LFR

055HFR,075HFR

L100EUL "A" V - - - - -

L100EUL "B","C","G","H","K","M","P" V - - - - -

L100EULH "F" - V - - - -

L100EUL "G","J","K","M","P" - V - - - -

L100L "D","E" ,"G","J","K","M","P" - - V - - -

L100L "G","J","K","M","P" - - - V - -

L100075EUL "L","N","P" - - - - V -

L100075L "L","N","P" - - - - - V

10-16

10-3. O,OI terminal adjustment procedure

If you need fine adjustment with out F31 IN EX%S, IN EX%E function(DOP/DRW), or A group A13,A14

function (on standard panel), please refer to following procedure.

Meaning

set C91 "01" ; Debug on

set C94 "F947" ; O terminal adjustment constant

set C95 "xx" ; adjust this data

power off and wait Power lamp off and power on and check the freq. setting.

(set C91 "01" ; Debug on)

set C94 "F948" ; OI terminal adjustment constant

set C95 "xx" ; adjust this data

power off and wait Power lamp off and power on and check the freq. setting.

set C91 "00" ; Debug off

If the data was added, the freq. setting will be increased. (concept is as same as J100,J300)

10-17

10-4. kW setup procedure

To set up kW, we advise you not to use DOP/DRW !

Meaning

set C91 "01" ; Debug on

set C94 "FAB0" ; kW adress

set C95 "xx" ; kW code

set B84 "01" ; to excecute FACTORY SETTING

Try FACTORY SETTING

Check B12' display (F-23 E-THM LVL)

B12's display table

kW | 200V | 400V

002 | 1.40 | ----

004 | 2.60 | 1.50

005,007 | 4.00 | 2.50

011,015 | 7.10 | 3.80

022 | 10.00 | 5.50

030,040 | 15.90 | 8.60

055 | 24.0 | 13.0

075 | 32.0 | 16.0

kW code table (common L100/SJ100)

xx | kW

01 | 002

02 | 004

03 | 005,007

04 | 011,015

05 | 022

06 | 030,040

07 | 055

08 | 075

In case of L100, SJ100, it automatically detects it's voltage class with hardware in the ISPM, voltage class

setup is not necessary.

10-18

End of page

Hitachi L100 Series VFD Manual

L100 Hitachi-L100-Series-VFD-Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
